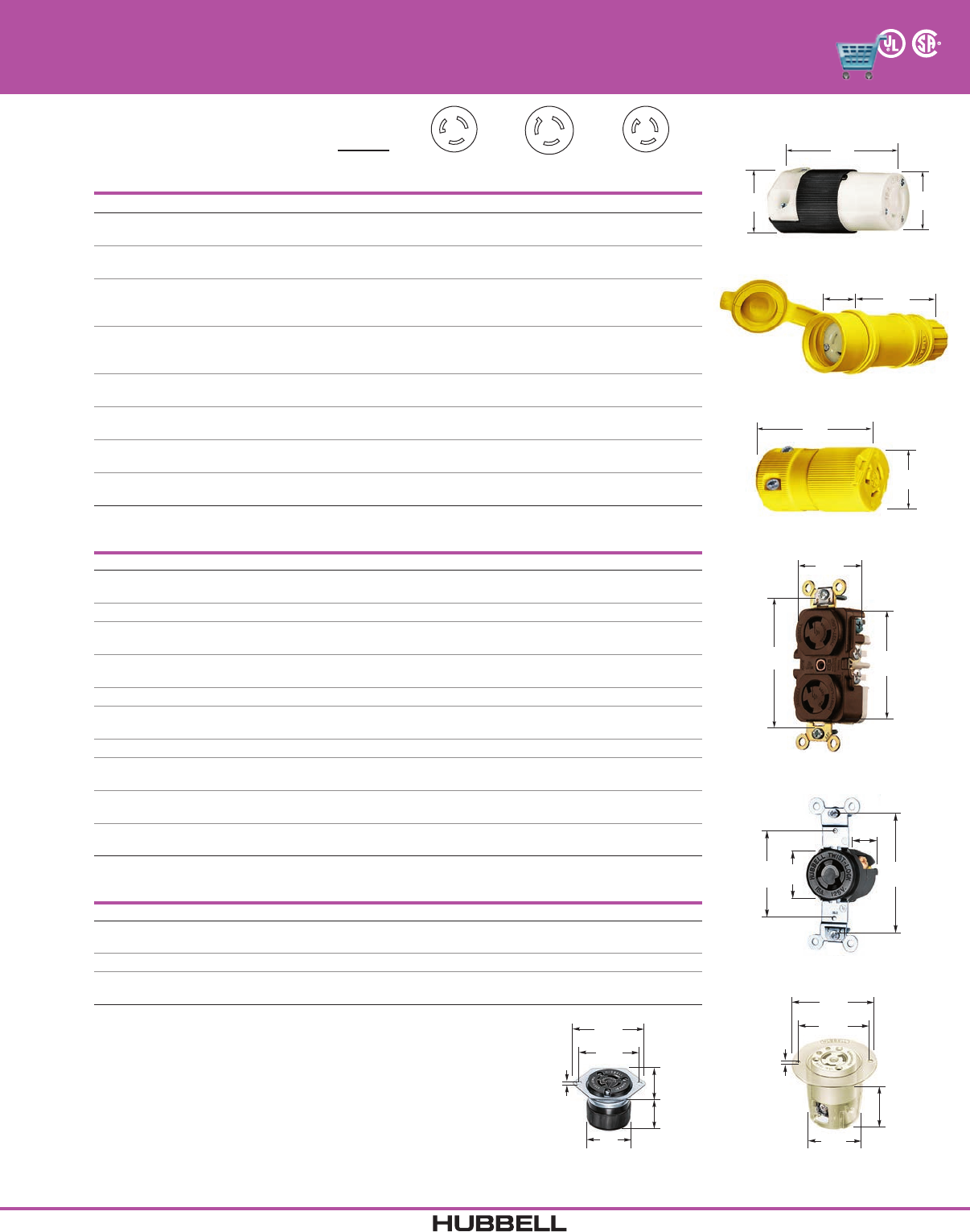

B-11

Dimensions in Inches (mm)

www.hubbell-wiring.com Wiring Device-Kellems

®

HBL4729C

2.78"

(70.6)

1.41"

(35.8)

1.53"

(38.9)

HBL4729VY

2.59"

(65.8)

1.50"

(38.1)

HBL25W47

1.75"

(44.5) 4.00"

(101.6)

HBL4715

2.31"

(58.7)

1.36"

(34.5)

1.94"

(49.3)

1.50"

(38.1)

.16"

(4.1)

DIA.

1.75"

(44.5)

HBL4715C

2.56"

(65.0)

1.72"

(43.7)

2.19"

(55.6)

1.69"

(42.9)

.16"

(4.1)

DIA.

2.38"

(60.5) 1.38"

(35.1)

3.28"

(83.3)

1.27"

(32.3)

HBL4710

HBL4700

1.70"

(43.2)

3.28"

(83.3) 2.735"

(69.5)

15A 125V

NEMA L5-15R

UL/CSA

GW

15A 250V

NEMA L6-15R

UL/CSA

GX

Y

15A 277V AC

NEMA L7-15R

UL/CSA

GW

Twist-Lock® Devices

15 Ampere, 125, 250 Volts and 277 Volts AC

2 Pole, 3 Wire Grounding

Connector Bodies

Description Cord Dia. Catalog Number

Insulgrip connector body, black and

white nylon. Multiple drive screws.

.230"-.720"

(5.8-18.3)

HBL4729C HBL4579C HBL4779C

All black nylon. .230"-.720"

(5.8-18.3)

HBL4729CBK – –

Insulgrip connector body, 8 position

angle, black and white nylon.

Multiple drive screws.

.325"-.655"

(8.3-16.6)

HBL4729CA – –

Insulgrip connector body, corrosion

resistant, yellow and white nylon.

Multiple drive screws.

.230"-.720"

(5.8-18.3)

HBL47CM29C HBL45CM79C HBL47CM79C

Elastogrip connector body, yellow

elastomer, dust tight.

.300"-.655"

(7.6-16.6)

HBL2547 – –

Elastogrip® connector body, yellow

elastomer, water/dust tight.

.300"-.655"

(7.6-16.6)

HBL25W47** – –

Valise® connector body, yellow nylon. .220"-.660"

(5.6-16.8)

HBL4729VY HBL4579VY HBL4779VY

Valise® connector body, black nylon. .220"-.660"

(5.6-16.8)

HBL4729VBK HBL4579VBK HBL4779VBK

Note: See page B-49 for accessories.

Receptacles

Description Catalog Number

Duplex, flush, brown RTP face, back and side wired.

Duplex, flush, ivory RTP face, back and side wired.

HBL4700*

HBL4700I*

HBL4550*

–

HBL4750*

–

Duplex, ring terminal connection. HBL4700RT* HBL4550RT* –

Duplex, isolated ground, flush, orange RTP face,

back and side wired.

IG4700A* IG4550A* –

Duplex, corrosion resistant, yellow RTP face,

back and side wired.

HBL47CM00* – –

Single, flush, black nylon face, back and side wired. HBL4710 HBL4560 HBL4760

Same as HBL4760 without mounting screws, ears.

Terminal screws backed out, back and side wired.

– – HBL4760C

Single, ring terminal connection. HBL4710RT HBL4560RT –

Single, isolated ground, flush, orange nylon face,

back and side wired.

IG4710 IG4560 –

Single, black nylon face mounted on a

4" (101.6) round box cover, back and side wired.

HBL4711 – HBL4761

Single, panel mount, black nylon face, side wired

only, 1.75" or 1.937" (44.5 or 49.2) mounting centers.

HBL4713 HBL4563 HBL4763

Note: See pages B-48 and B-49 for accessories.

Flanged Receptacles

Description Catalog Number

Insulgrip flanged receptacle, nylon casing,

back wired.

HBL4715C HBL4585C HBL4785C

Stainless steel casing, brown phenolic. HBL4715 HBL4585 HBL4785

Corrosion resistant, stainless steel casing,

yellow melamine.

HBL47CM15 – –

Note: See pages B-48 and B-49 for accessories.

HP ratings are AC only.

RTP is an abbreviation for reinforced thermoplastic polyester.

See section M for additional information on isolated ground devices.

*Supplied with break-off tabs for split circuit wiring.

**Watertight connector body IP55 suitability when closure plug is

inserted or when installed and used properly with watertight plug.

IP20

SUITABILITY
