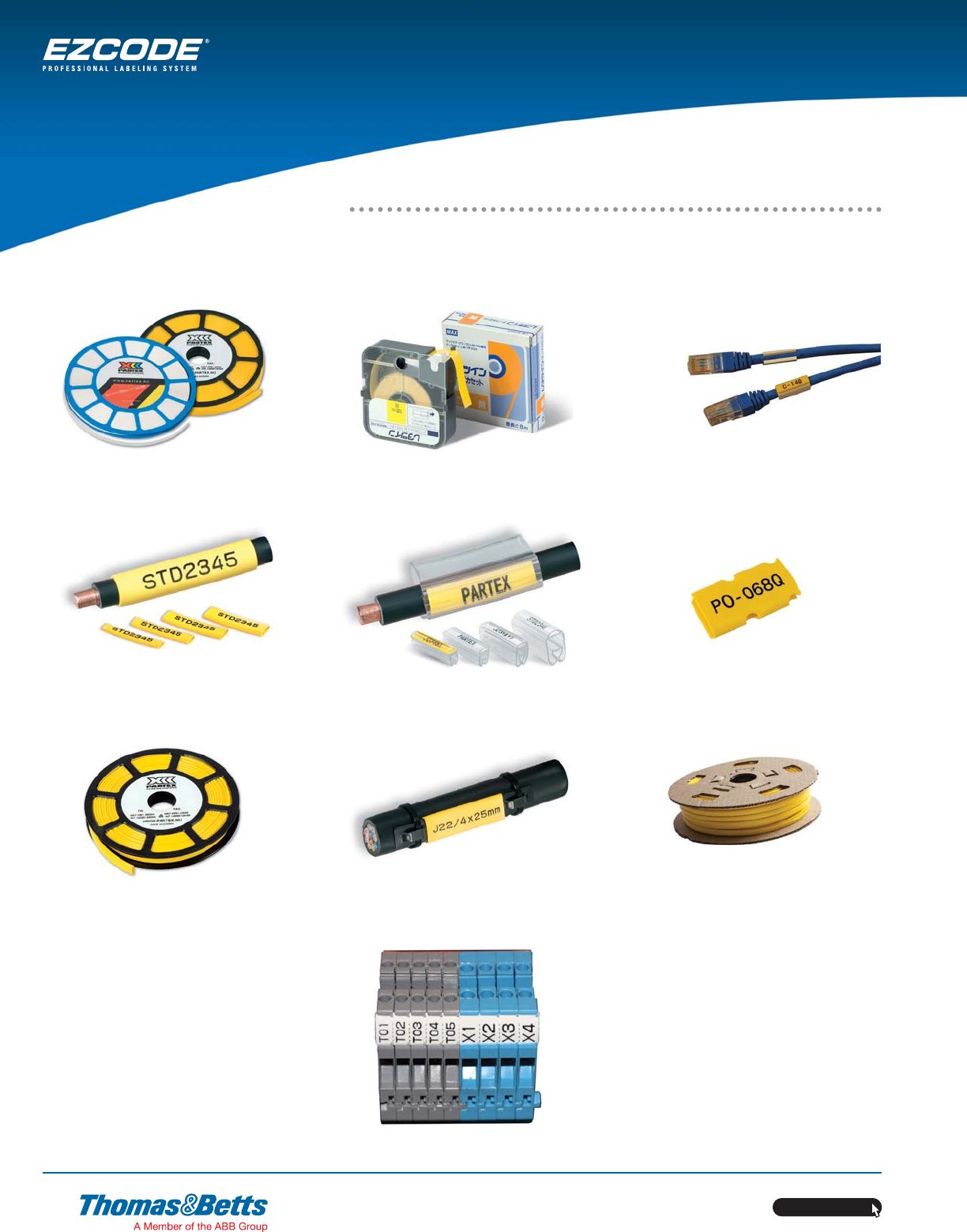

www.tnb.ca E1

Identification Products

Table of Contents

Colour Codes .....................................................................................................................E2

Printable Markers ..............................................................................................................E3

Wire Marker Books ...................................................................................................... E4-E5

Wire Marker Cards – Vinyl Cloth ................................................................................ E6-E13

Wire Marker Cards – Vinyl Self-Laminating ......................................................................E14

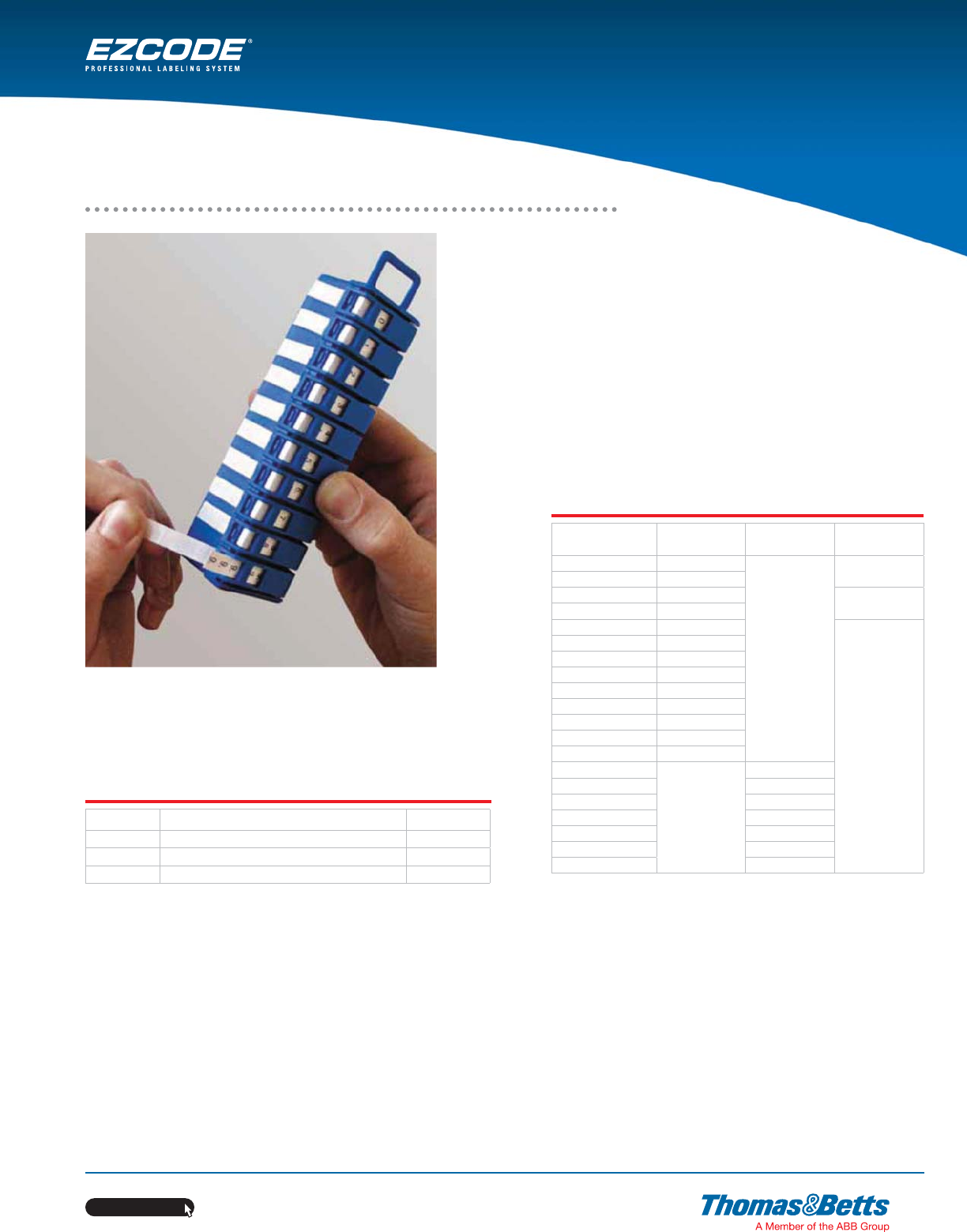

Wire Marker Dispenser .................................................................................................... E15

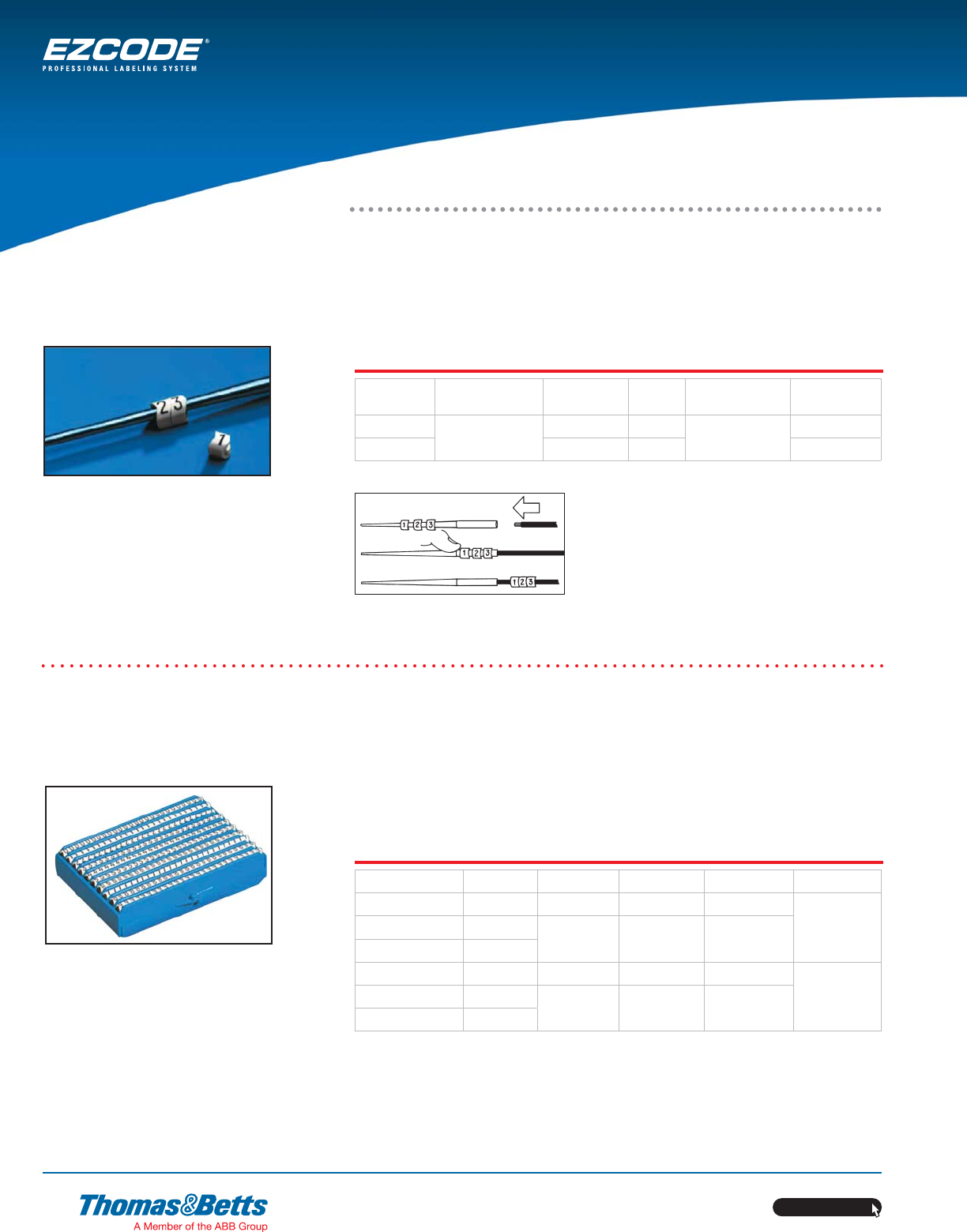

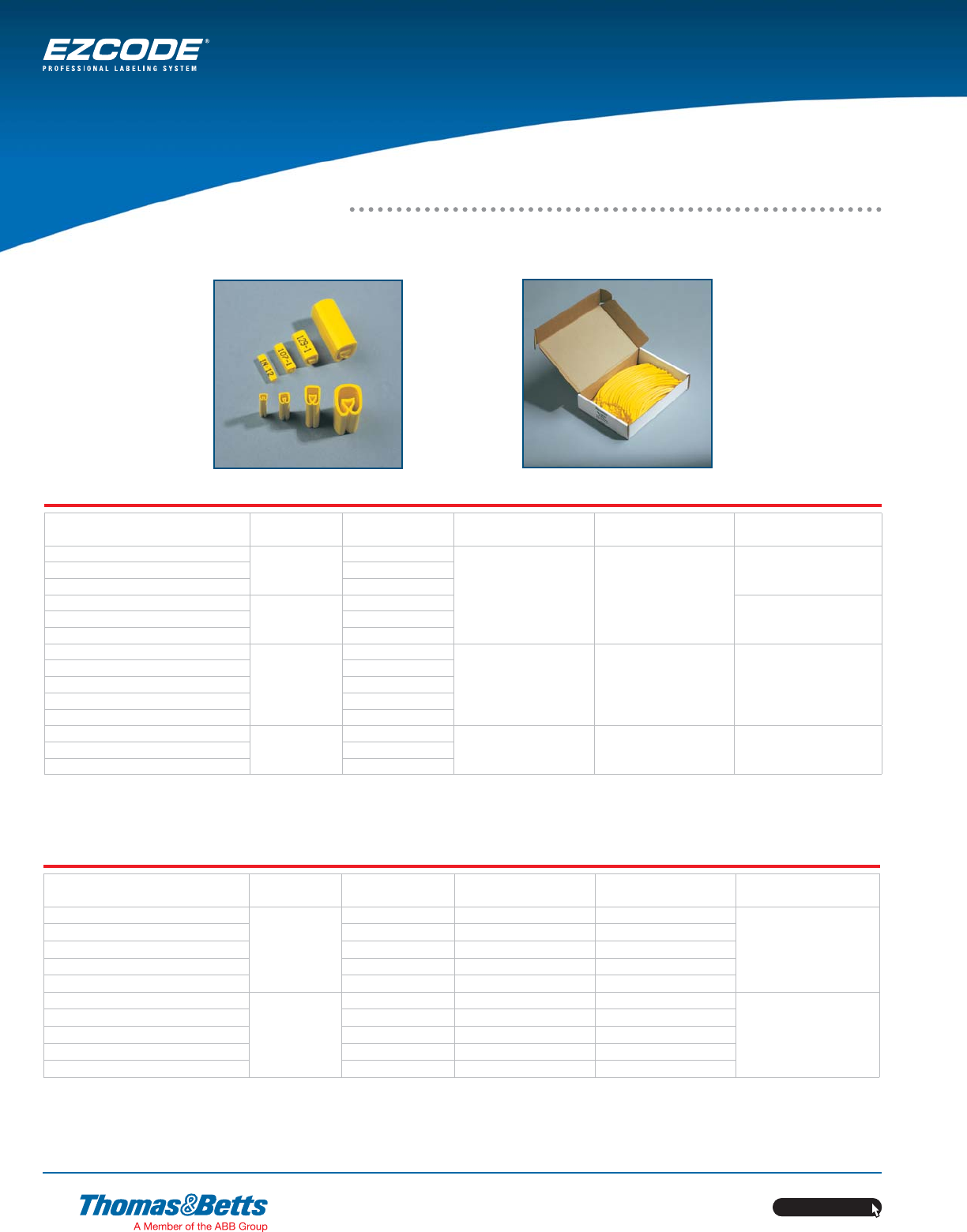

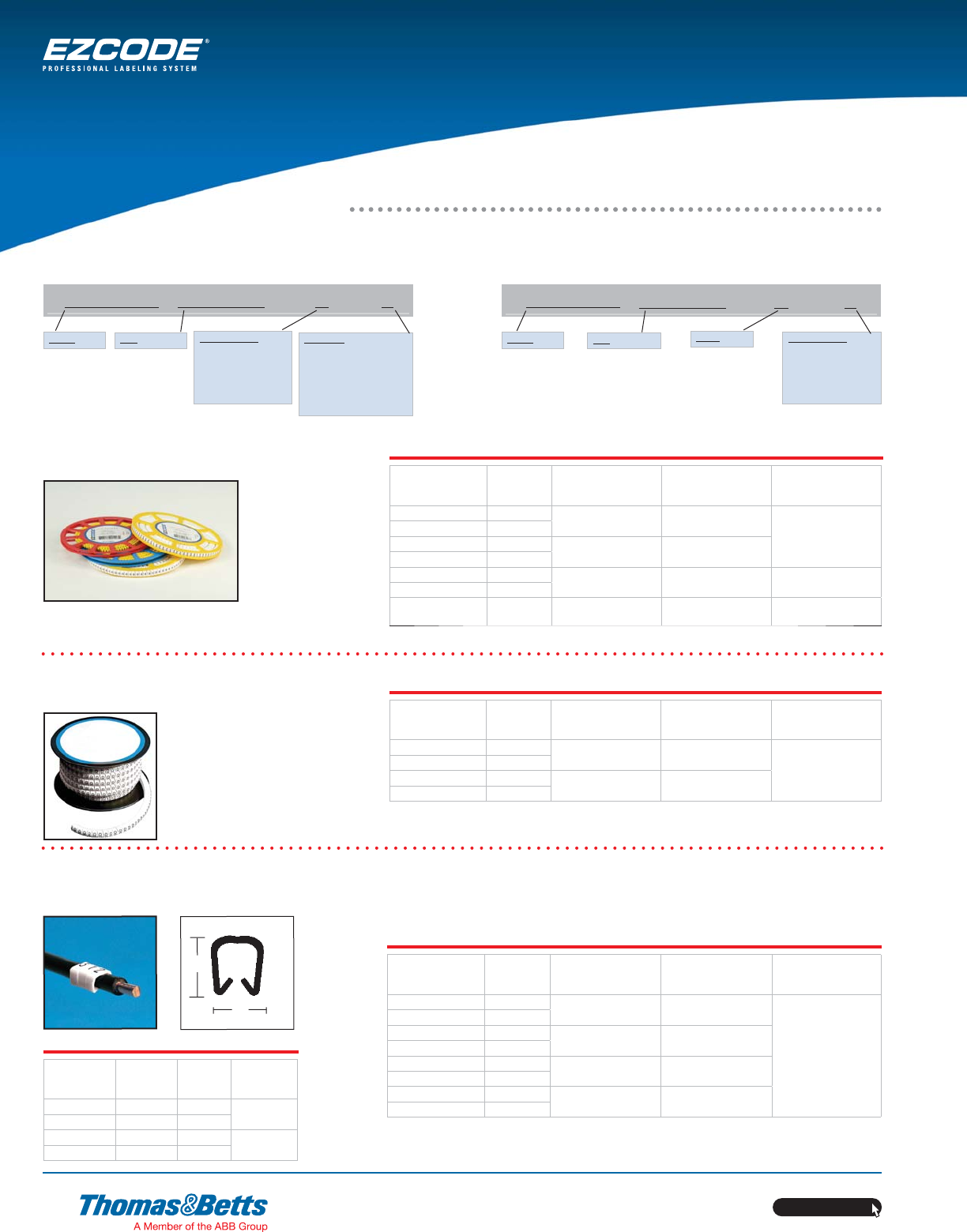

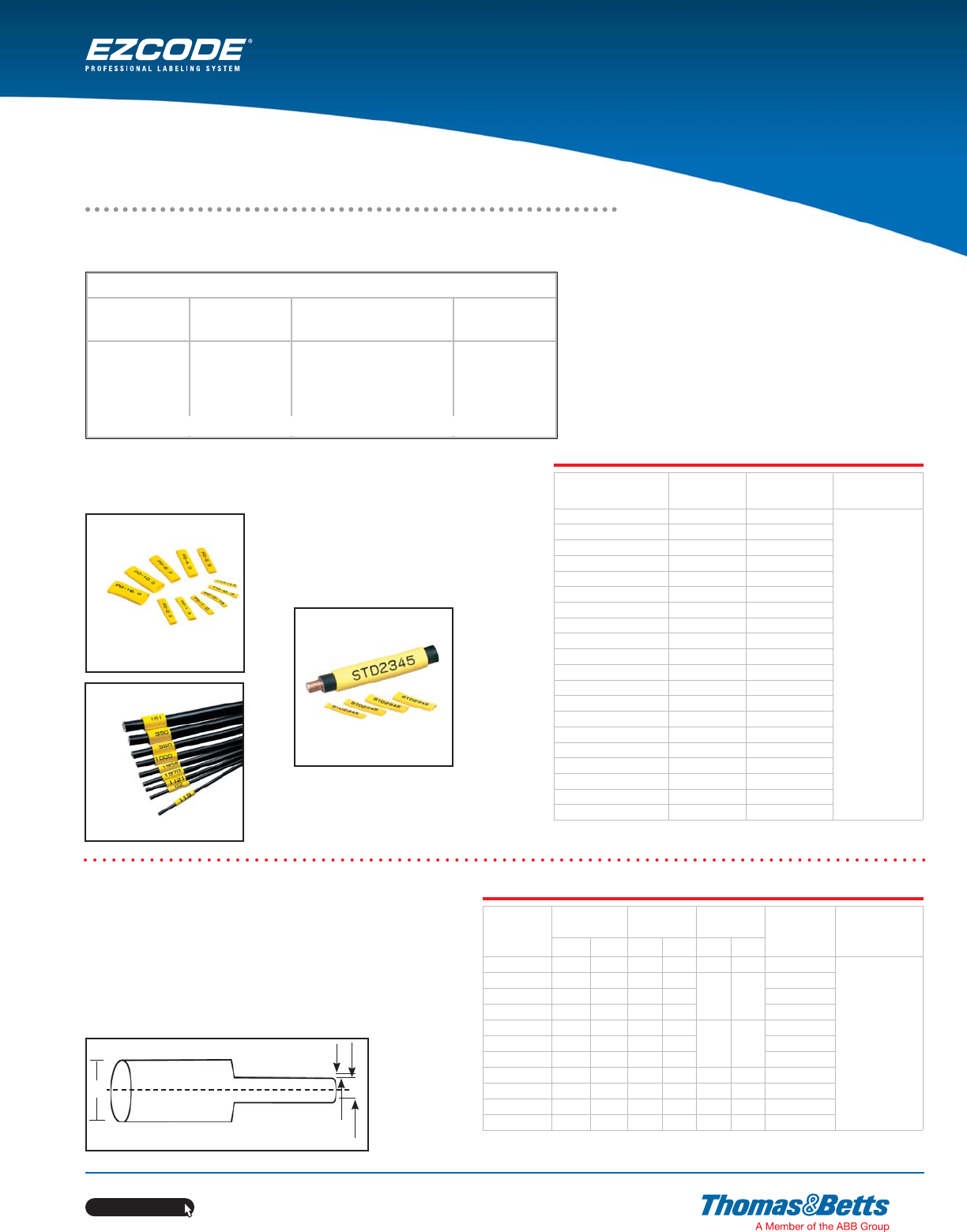

Vinyl Sleeve Markers ................................................................................................E16-E19

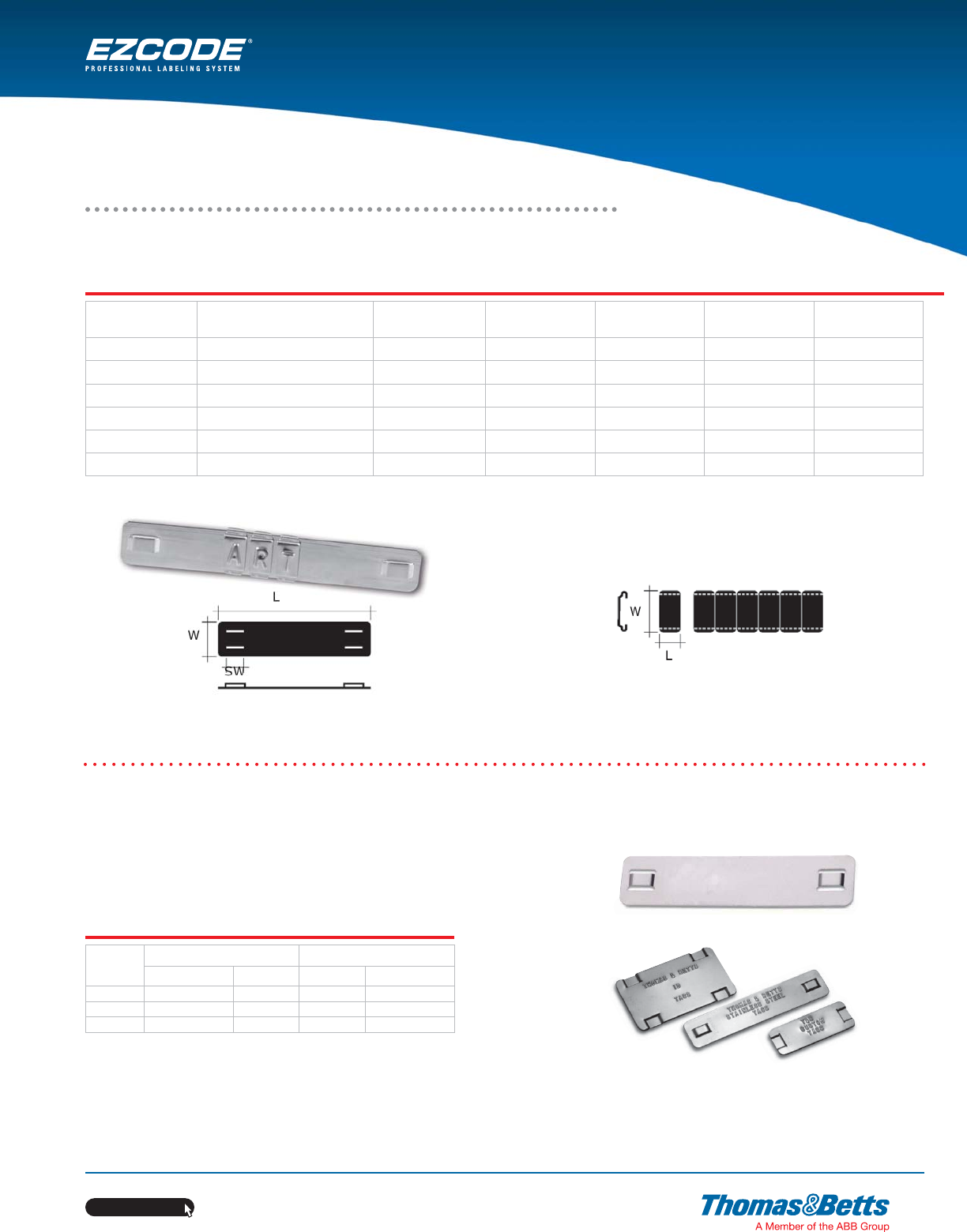

Stainless Steel Sleeve Markers ........................................................................................E20

I.D. Tagging System ................................................................................................. E21-E22

Accessories ............................................................................................................. E23-E24

T&B Express ............................................................................................................E25-E27

E-Z-CODER ......................................................................................................................E28

Packaging Options ...........................................................................................................E29

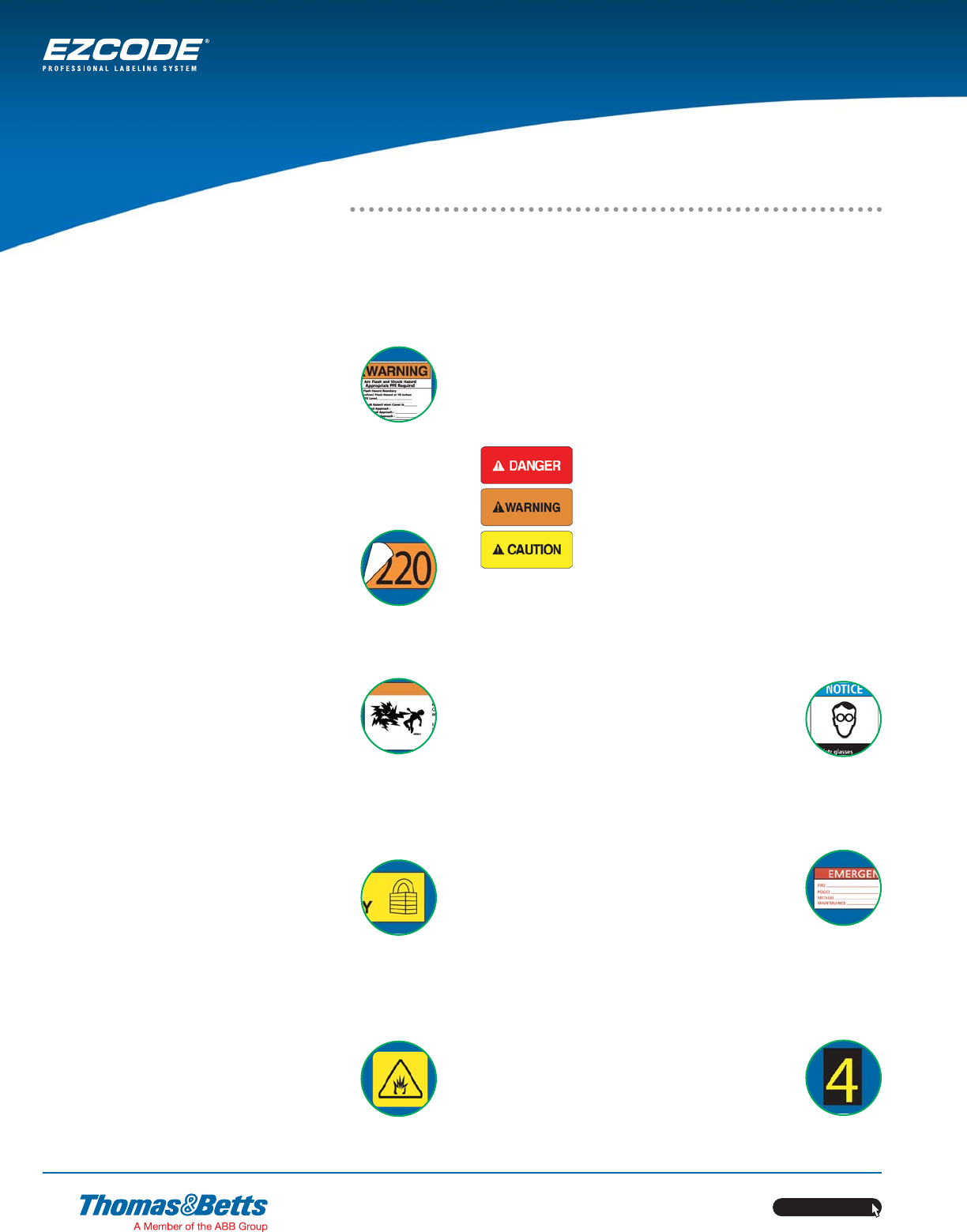

Labels Overview ..............................................................................................................E30

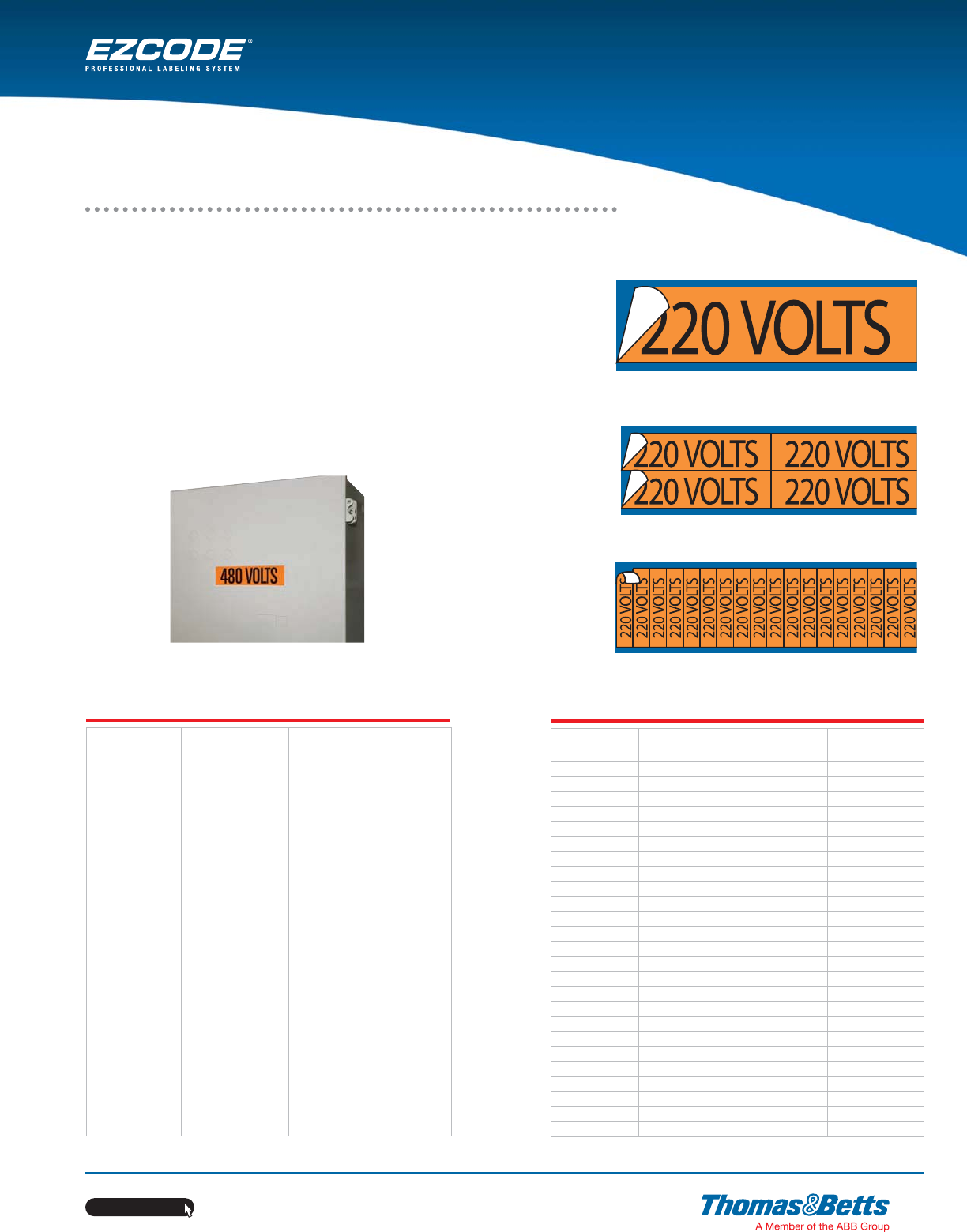

Conduit & Voltage Marker Cards ......................................................................................E31

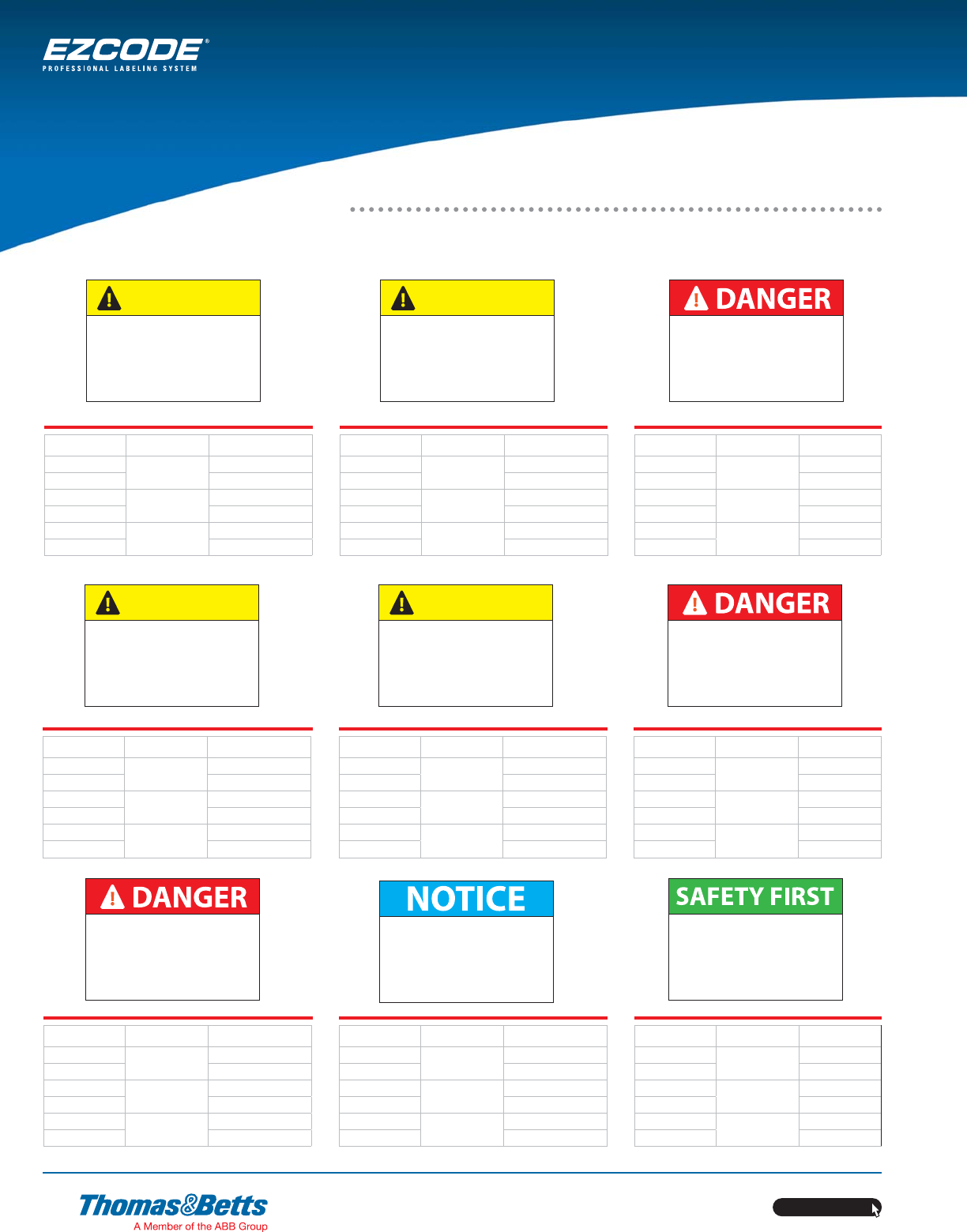

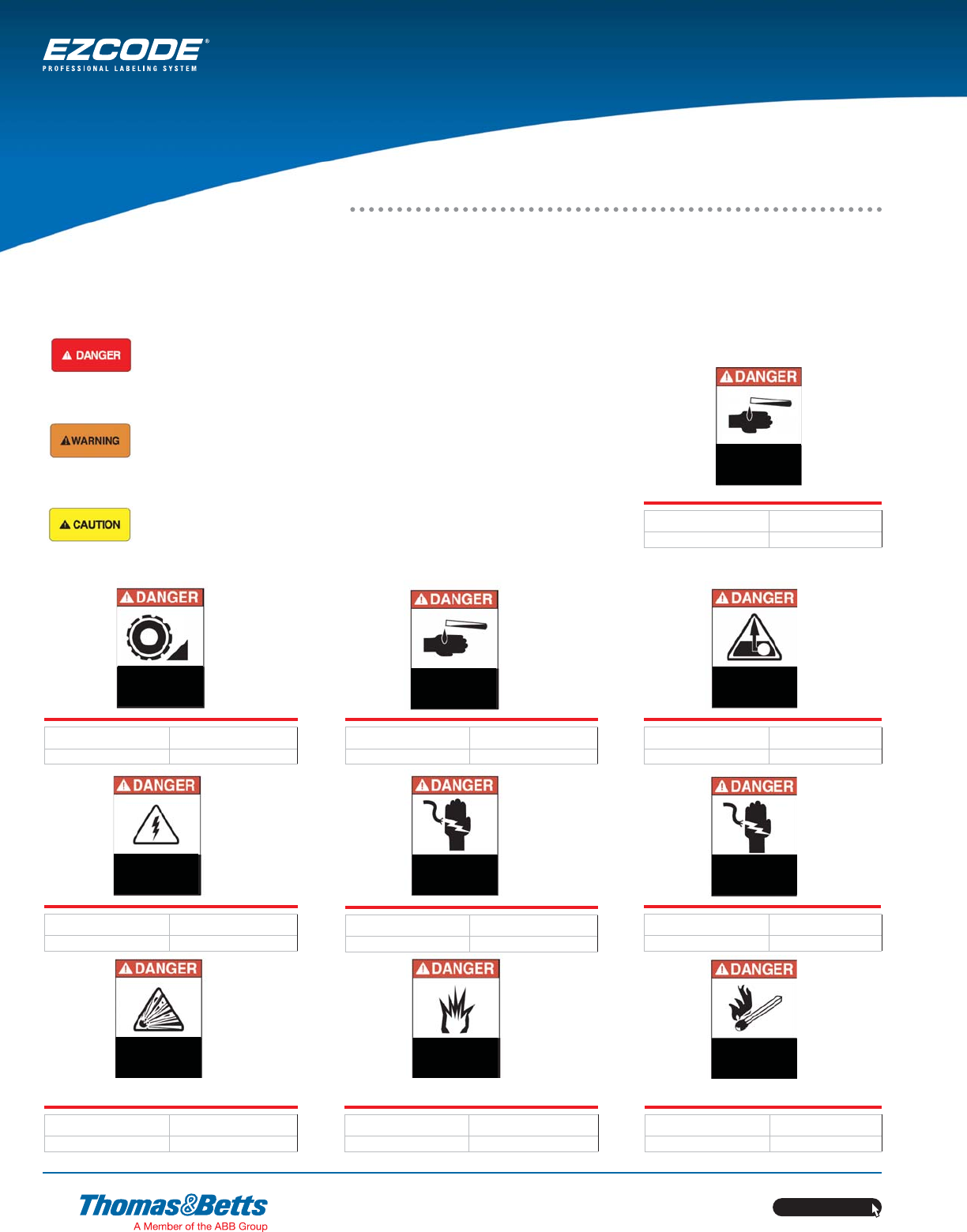

Electrical Safety Labels ...................................................................................................E32

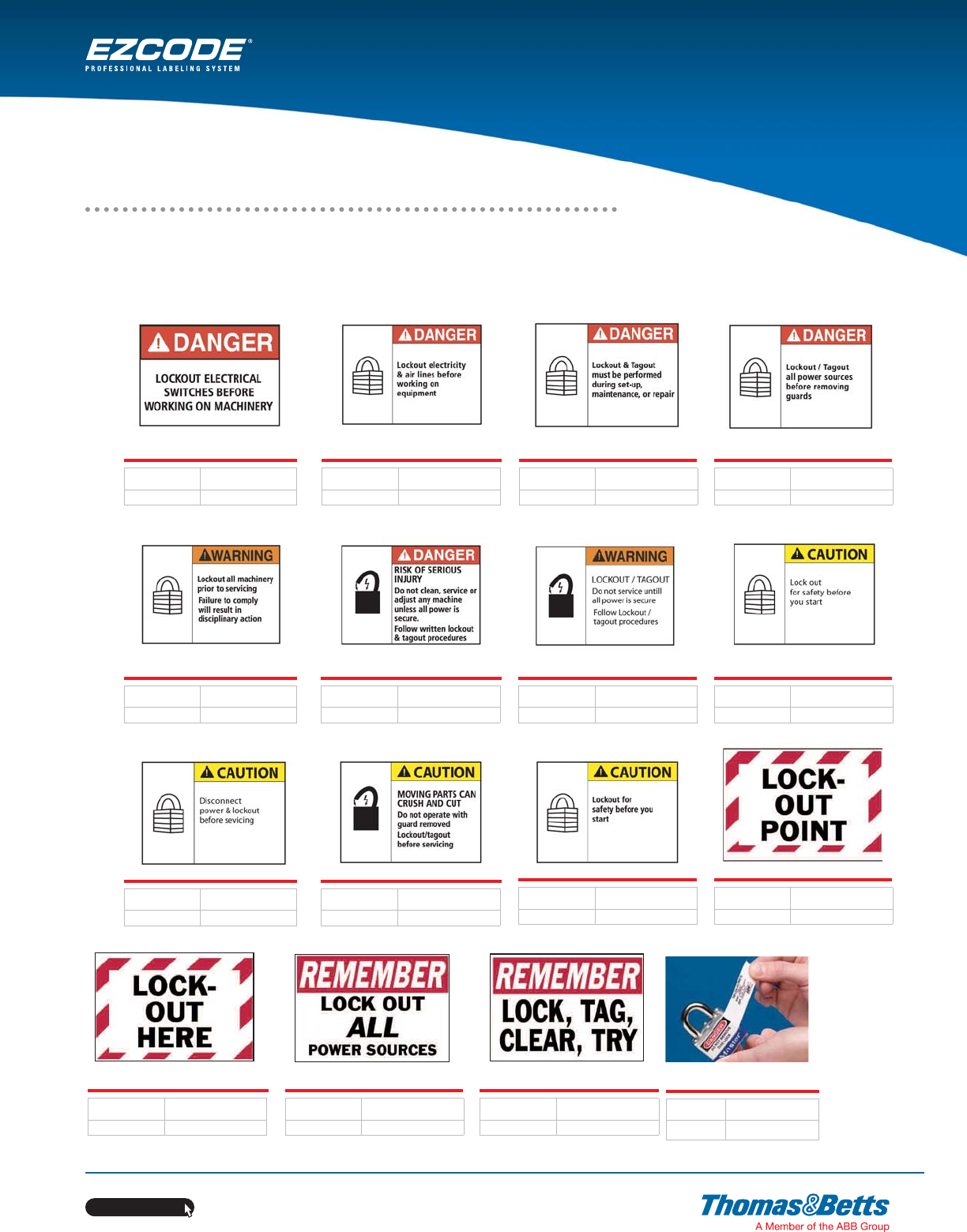

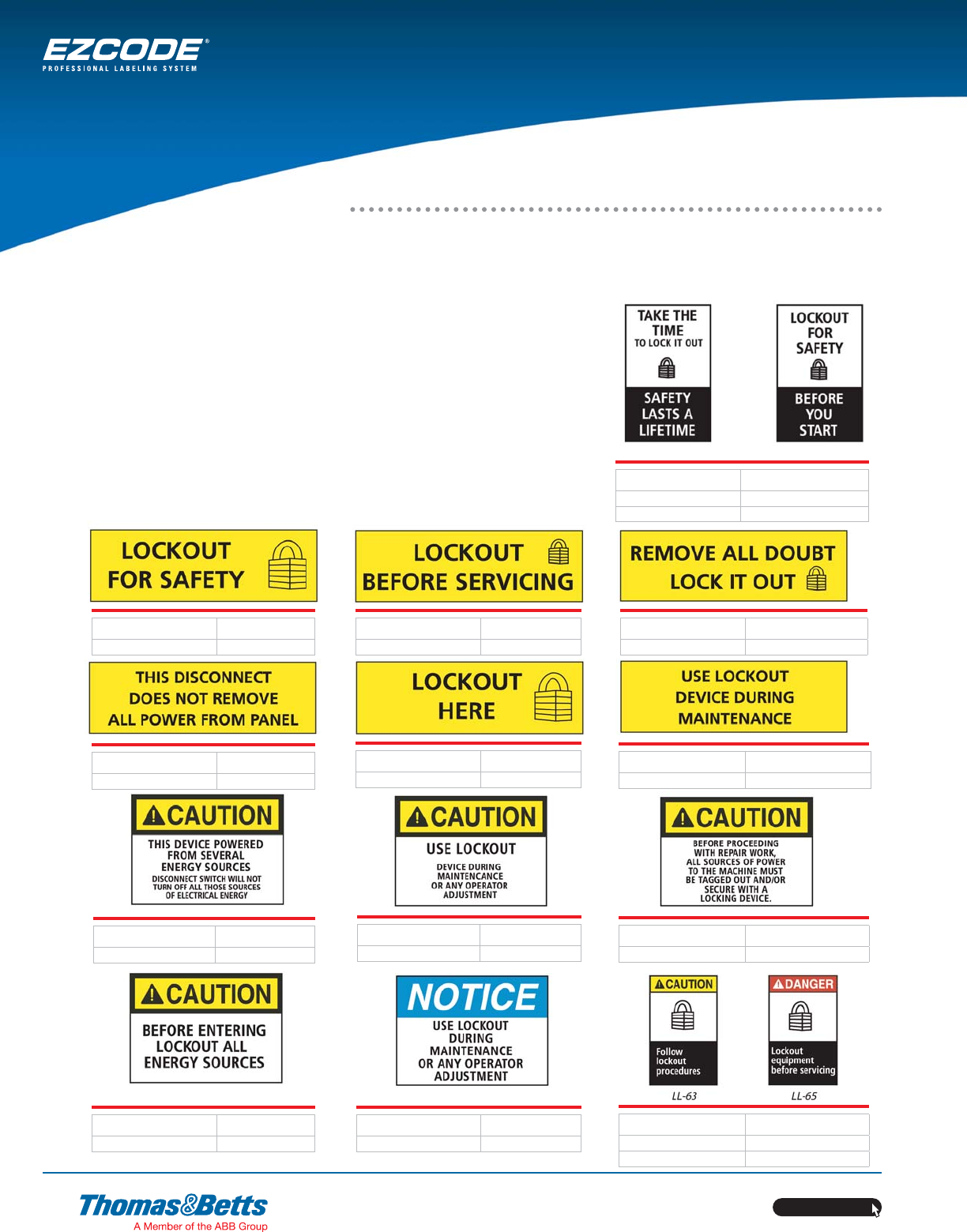

Lockout Labels ........................................................................................................E33-E35

Machine Warning Labels ..........................................................................................E36-E40

Write-On Control Markers .........................................................................................E41-E43

Industrial Markers ...........................................................................................................E44

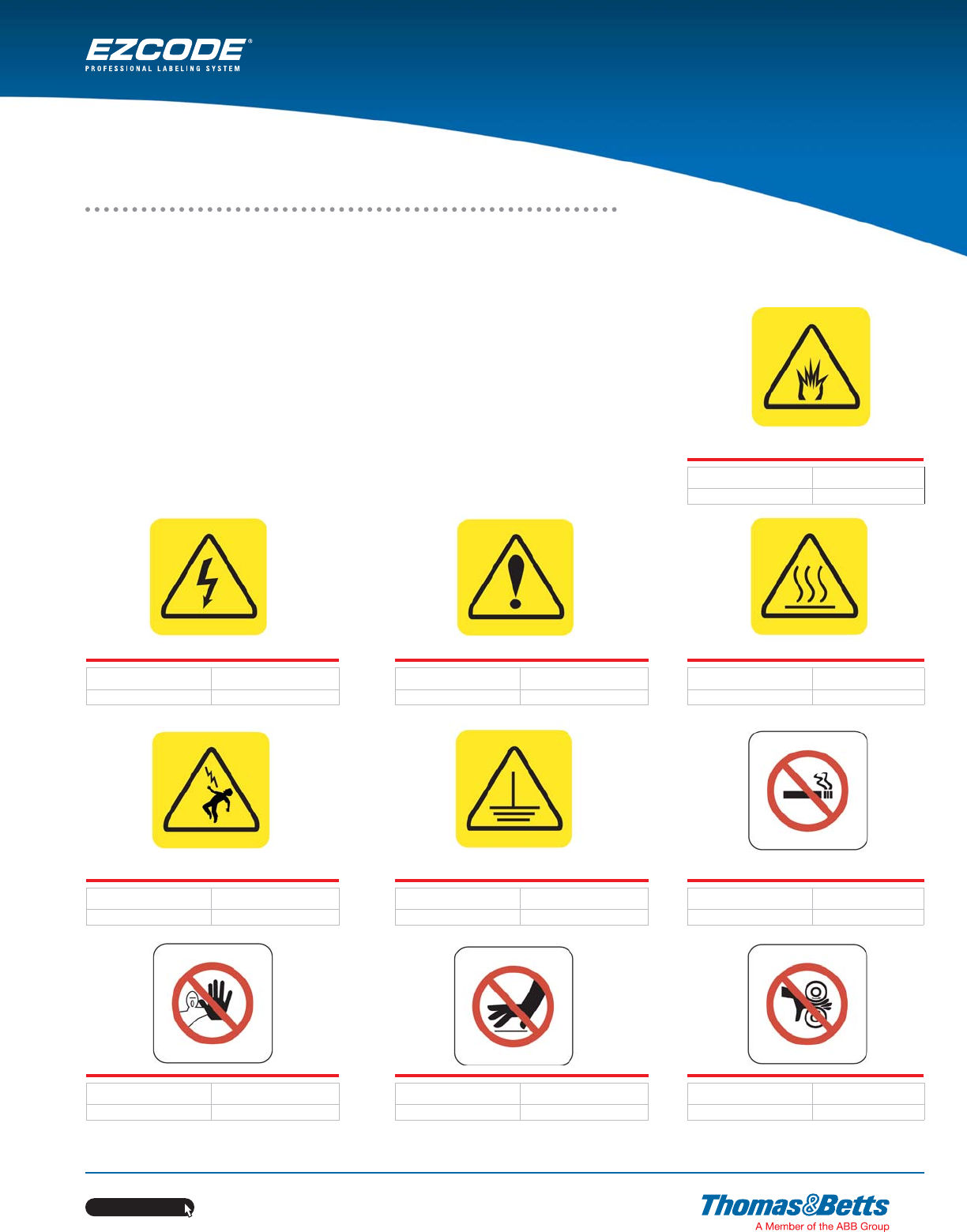

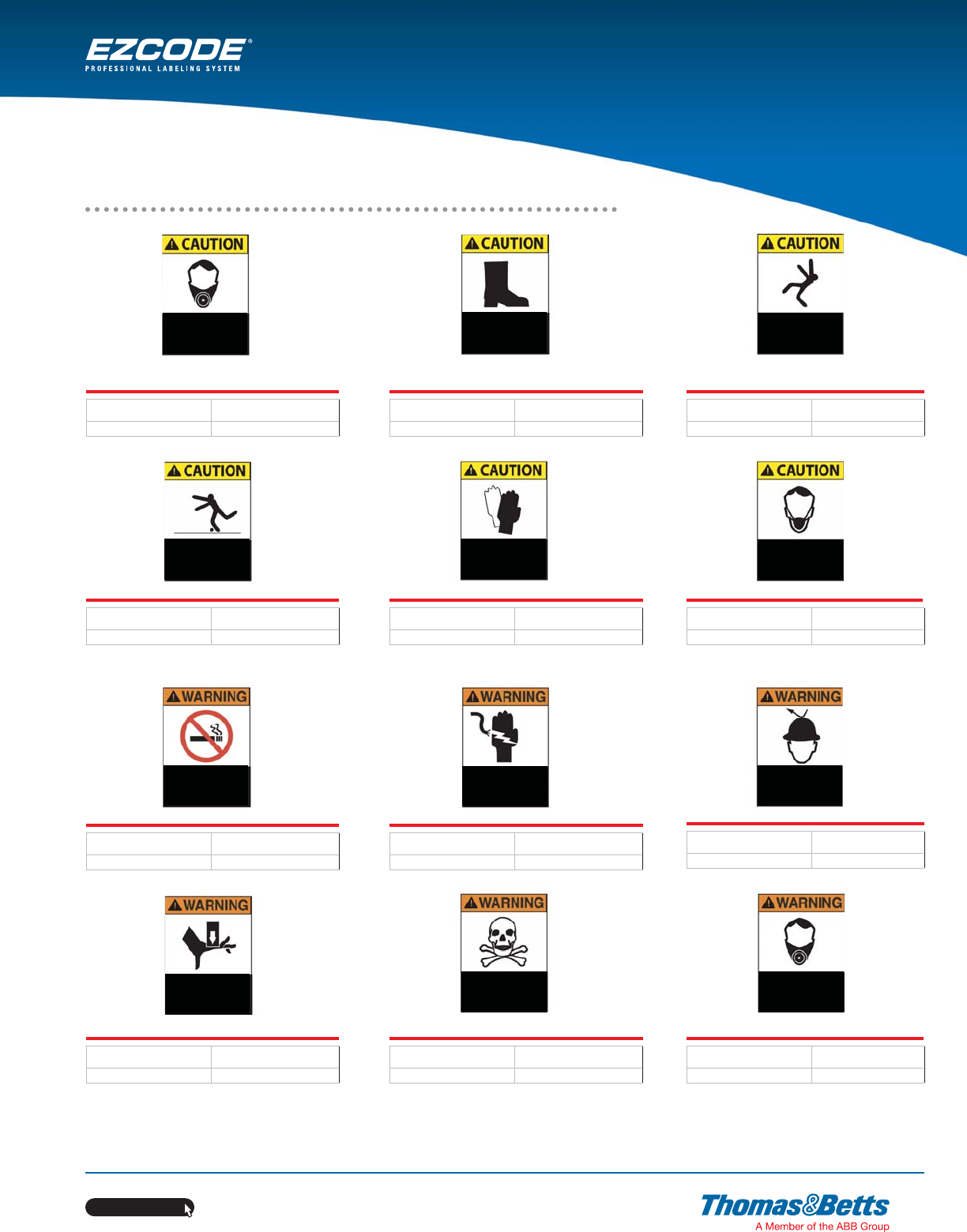

Pictogram Labels .............................................................................................................E45

Custom Label Express .....................................................................................................E46

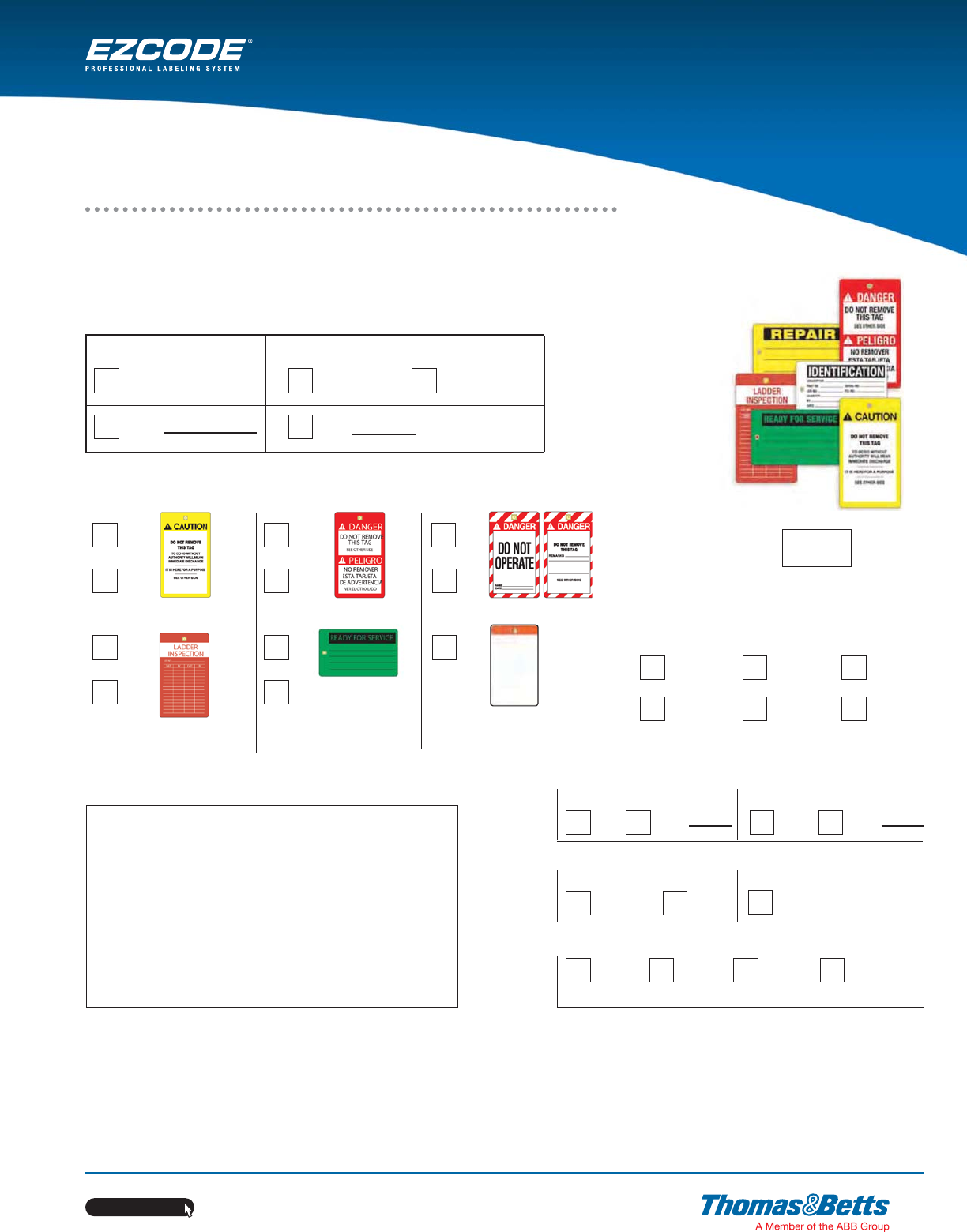

Custom Tag Express ........................................................................................................E47

Signs Overview ................................................................................................................E48

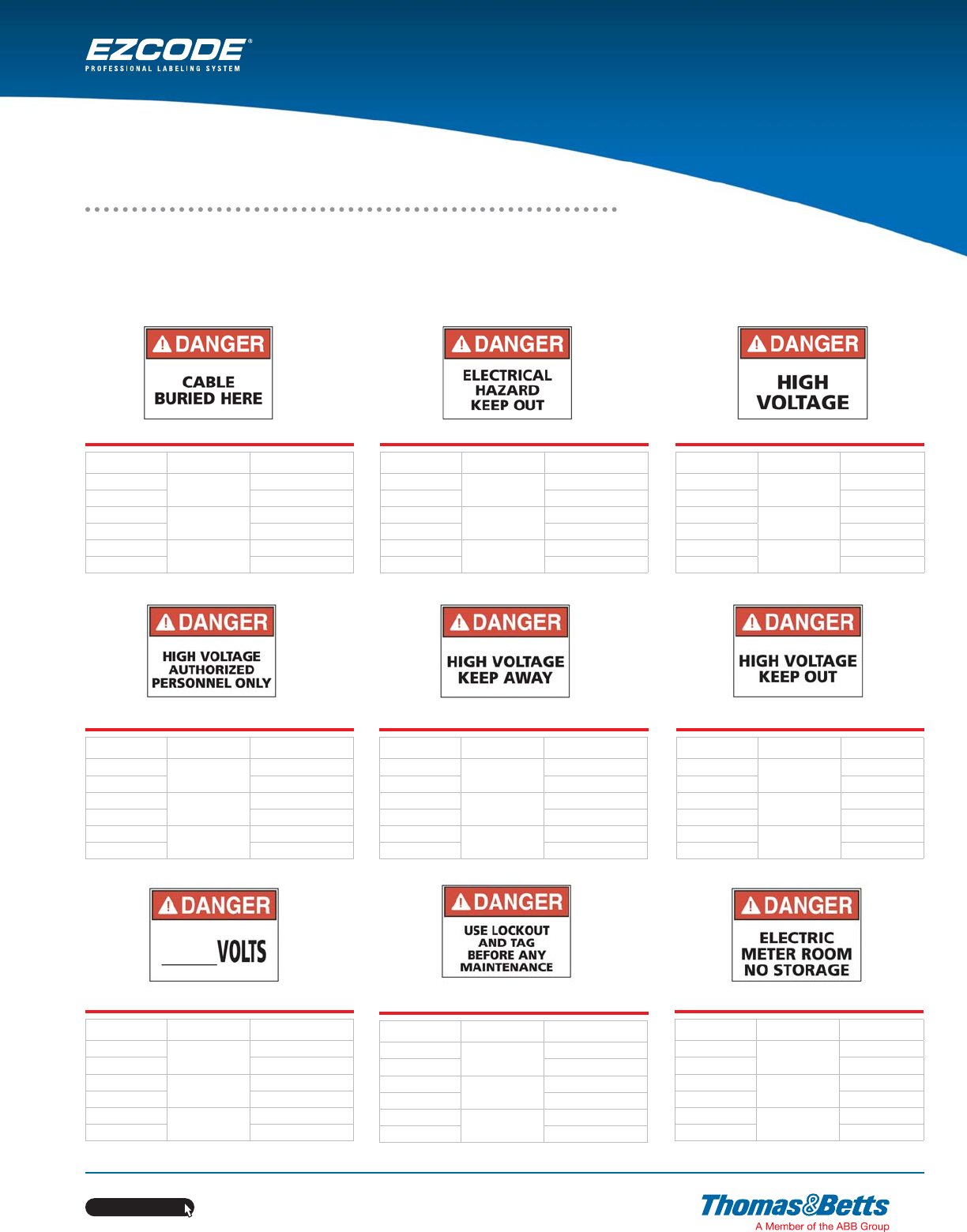

Electrical Protection Signs .......................................................................................E49-E50

Operational Machine and Safety Signs ..................................................................... E51-E52

Personal Protection Signs ................................................................................................E53

Maintenance and Safety Signs .................................................................................E54-E55

Visual Warning Tapes Overview .......................................................................................E56

Colour-Coded I.D. Tapes, Floor Tapes ...................................................................... E57-E58

Barricade and Burial Tapes ......................................................................................E59-E60

Identification Tape ...........................................................................................................E61

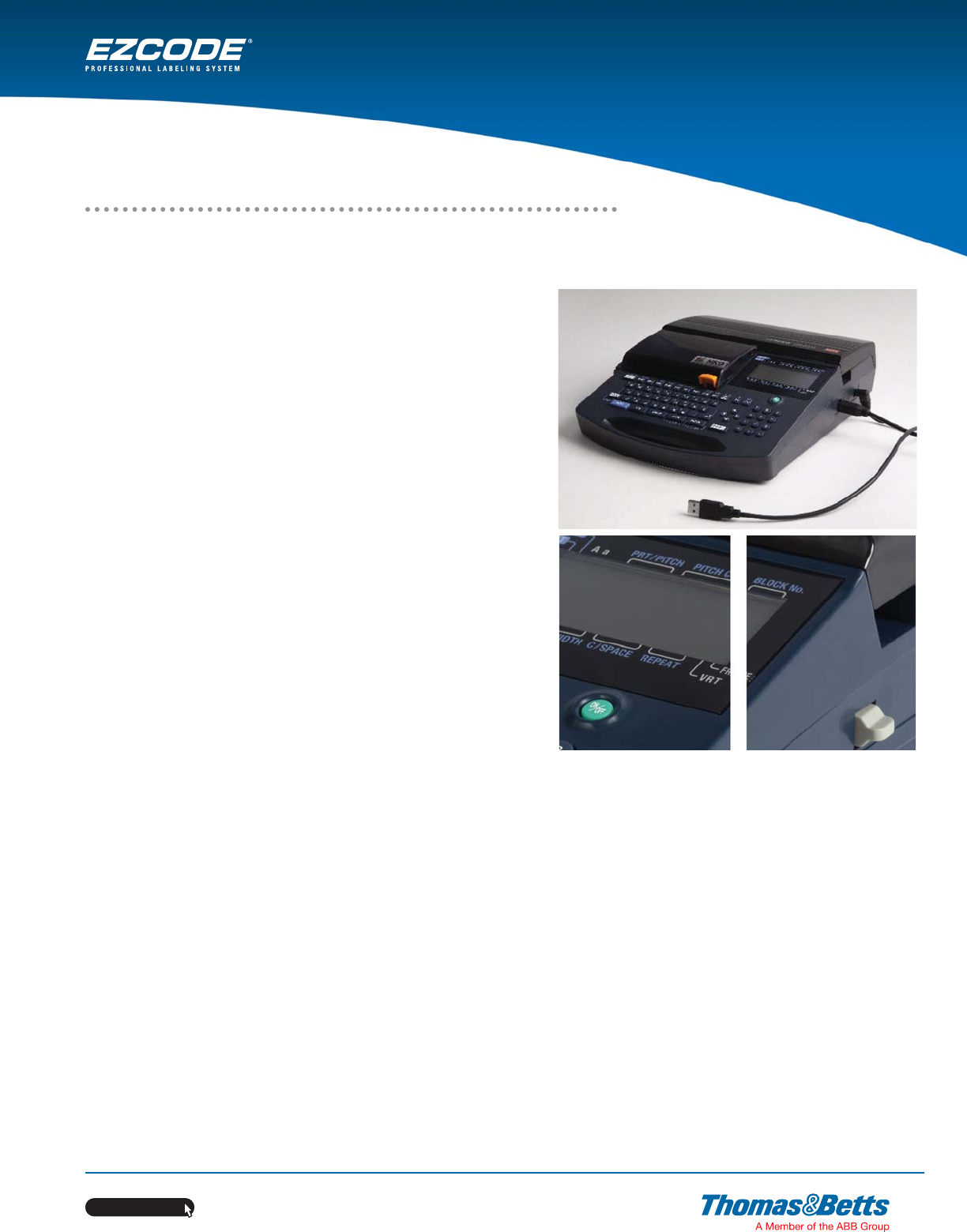

MTX-M K 9 - USB ........................................................................................................ E62-E 6 8

MTX-MK10-KIT1 .....................................................................................................E69-E72

MTX-MK1 Miniplotter ..............................................................................................E73-E82

MT X-MK3 ................................................................................................................ E83-E86

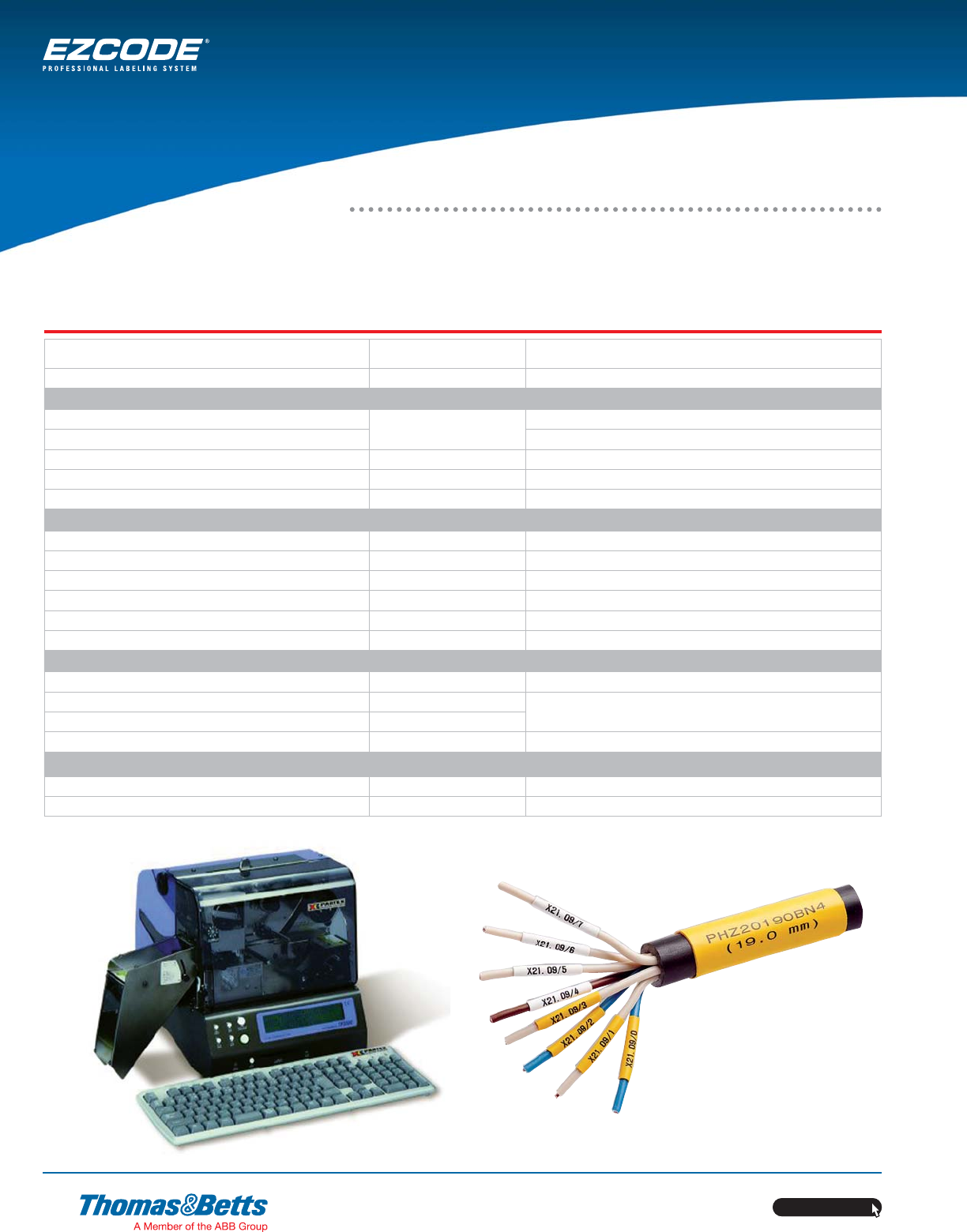

MTX-MK20-SP2000................................................................................................ E87-E92

Printers Comparative Table ..............................................................................................E93

WinSign ................................................................................................................... E94-E96

PF/PFA .................................................................................................................... E97-E99

PM........................................................................................................................E100-E101

PTPLUS ................................................................................................................E102-E103

www.tnb.ca

E2

Identification Products

1

0

2

3

4

5

6

7

8

Colour of Sleeve Black (Ral No. 9011), White Print

Colour of Sleeve Brown (Ral No. 8015), White Print

Colour of Sleeve Red (Ral No. 3018), White Print

Colour of Sleeve Orange (Ral No. 2004), Black Print

Colour of Sleeve Yellow (Ral No. 1021), Black Print

Colour of Sleeve Green (Ral No. 6001), White Print

Colour of Sleeve Bleu (Ral No. 5010), White Print

Colour of Sleeve Violet (Ral No. 4006), White Print

Colour of Sleeve Grey (Ral No. 7005), Black Print

9

A–Z

+

–

N

MP

TRIP

Colour of Sleeve White (Ral No. 9010), Black Print

Colour of Sleeve Pink (Ral No. 3014), Black Print

Colour of Sleeve Yellow/Green, Black Print

Colour of Sleeve Red, White Print

Colour of Sleeve Blue, White Print

Colour of Sleeve Blue, White Print

Colour of Sleeve Blue, White Print

Colour of Sleeve Red, White Print

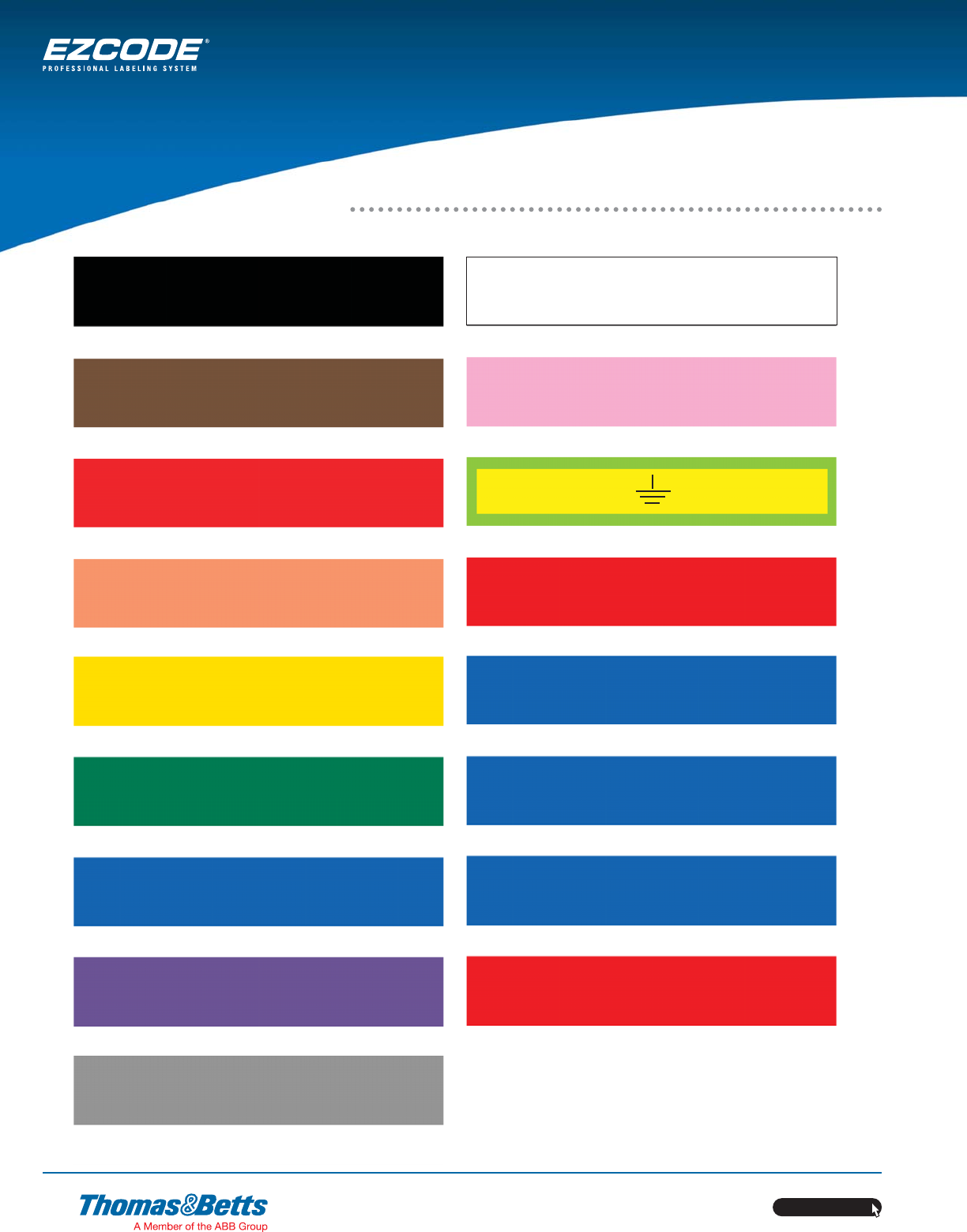

Colour Codes

www.tnb.ca E3

Identification Products

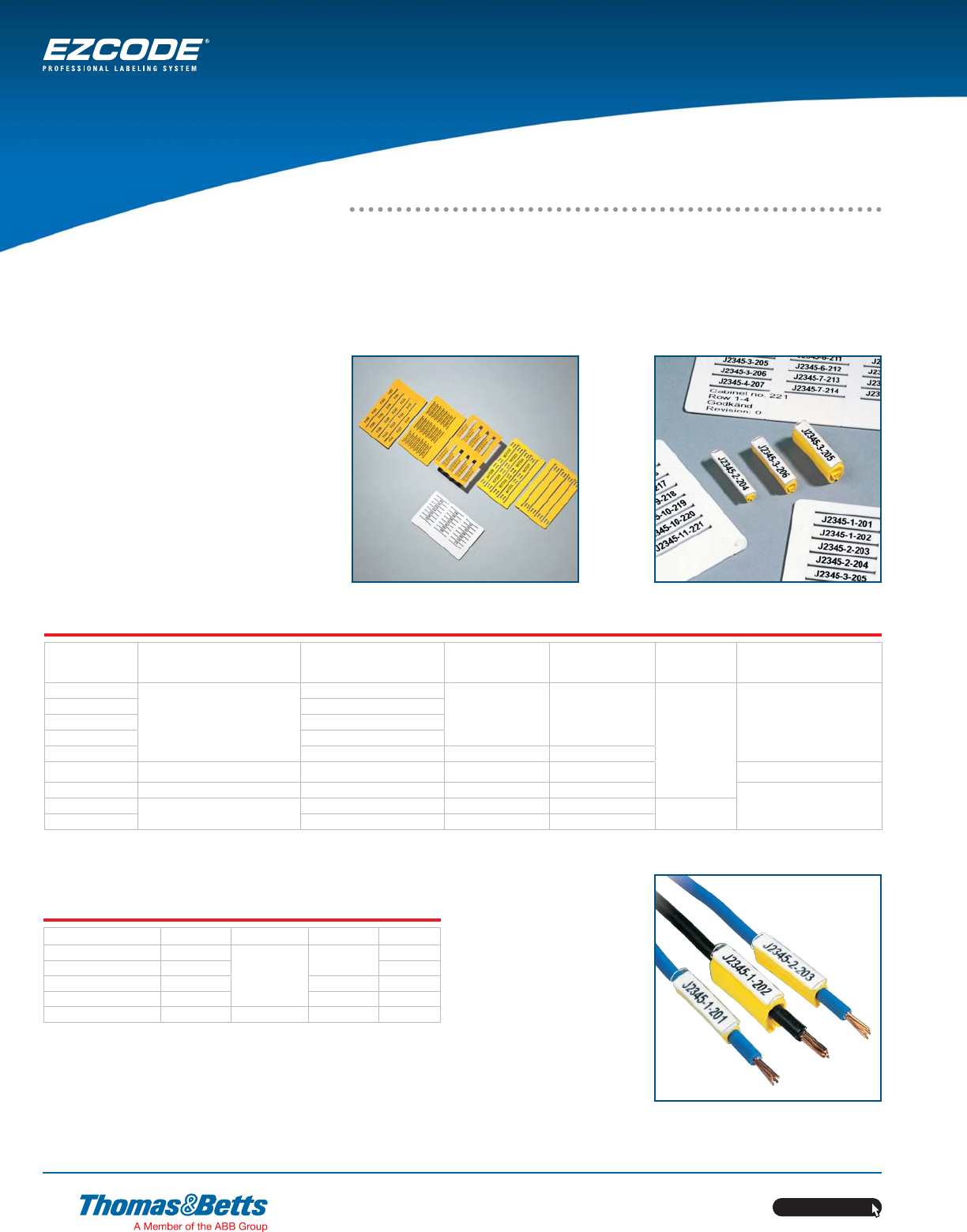

Laser Printable

•

Self-laminating markers have a clear overlay of polyester that protects

the legend against oils, grease, water, chemicals, and foreign matter

•

Markers feature a strong adhesive for maximum adhesion to the wire and

are available in a variery of sizes, both as standard and specials

•

1 Mil Polyester (same material as WPR rolls)

•

Test template included with each 25 pack

•

Sizes to suit most applications

Cat. No.

Sheet

Size

(in.)

Markers

per Sheet

Marker

Size

(in.)

Print Area

W x L

(in.)

Max.

Wire Dia.

(in.)

WLP-1112

8-1/2 x 11

48 1 x 1-1/2 1/2 x 1 5/16

WLP-1214

32 1 x 2-1/4 1 x 3/4 15/32

WLP-12112

96 1/2 x 1-1/2 1/2 x 1/2 5/16

WLP-12114

64 1/2 x 2-1/4 1/2 x 3/4 15/32

WLP-12300

48 1/2 x 3 1/2 x 1 7/8

WLP-1300

24 1 x 3 1 x 1

WLP-1500

16 1 x 5 1-1/4

WLP-2112

24 2 x 1-1/2 2-1/2 x 2 5/16

WLP-2214

16 2 x 2-1/4 2 x 3/4 15/32

WLP-2300

12 2 x 3 2 x 1 7/8

WLP-2500

8 2 x 5 1-1/4

Order in multiples of 25 sheets.

Add suffix A for 500 sheets, B for 1,000 sheets.

WLP labels may be used on any standard laser printer.

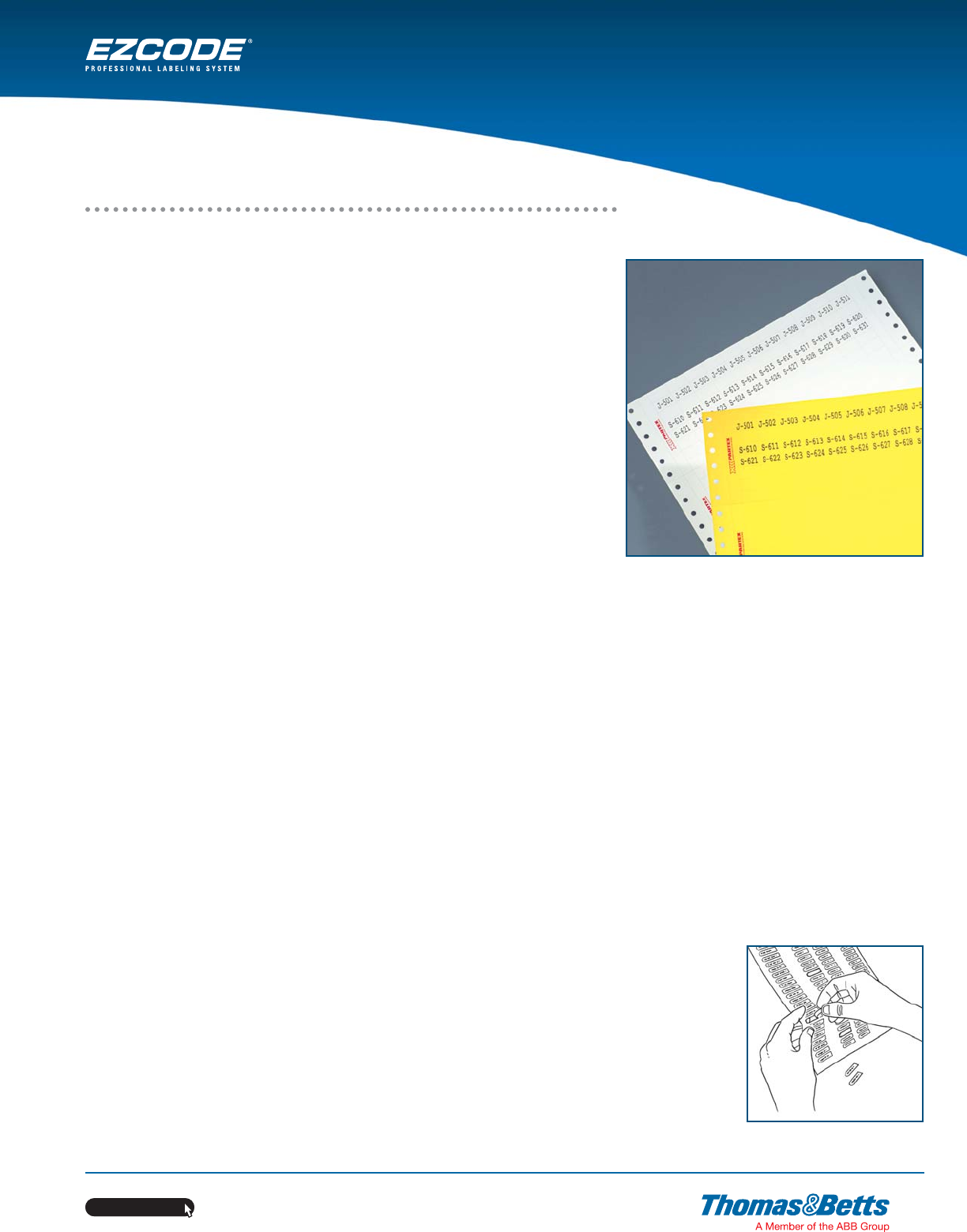

Dot-Matrix Printer Labels

Cat. No.

Sheet

Size

(in.)

Markers

per Sheet

Marker Size

W x L

(in.)

Print Area

W x L

(in.)

Max.

Wire Dia.

(in.)

WES-12112

9-1/2 x 8

64 1/2 x 1-1/2 1/2 x 1/2

5/16

WES-1112

32 1 x 1-1/2 1 x 1/2

WES-2112

16 2 x 1-1/2 2 x 1/2

WES-12214

9-1/2 x 9

48 1/2 x 2-1/4 1/2 x 3/4

15/32

WES-1214

24 1 x 2-1/4 1 x 3/4

WES-2214

12 2 x 2-1/4 2 x 3/4

WES-12334

32 1/2 x 3-3/4 1/2 x 1

7/8

WES-1334

16 1 x 3-3/4 1 x 1

WES-2334

82 x 3-3/4 2 x 1

WES-2512

9-1/2 x 12 2 x 5-1/2 1-1/2

WES-2128

9-1/2 x 9 3 2-1/2 x 8-1/2 2-1/2 x 2 2

Order in multiples of 25 sheets.

WES labels may be used on any standard dot matrix printer.

Laser Printable

Cat. No.

Sheet

Size

(in.)

Markers

per Sheet

Marker Size

W x L

(in.)

Print Area

W x L

(in.)

Max.

Wire Dia.

(in.)

WES-12112

9 x 8

64 1/2 x 1-1/2 1/2 x 1/2

5/16

WES-1112

32 1 x 1-1/2 1 x 1/2

WES-2112

16 2 x 1-1/2 2 x 1/2

WES-1214

9 x 9

24 1 x 2-1/4 1 x 3/4 15/32

WES-2214

12 2 x 2-1/4 2 x 3/4

WES-1334

16 1 x 3-3/4 1 x 1 7/8

WES-2334

8 2 x 3-3/4 2 x 1

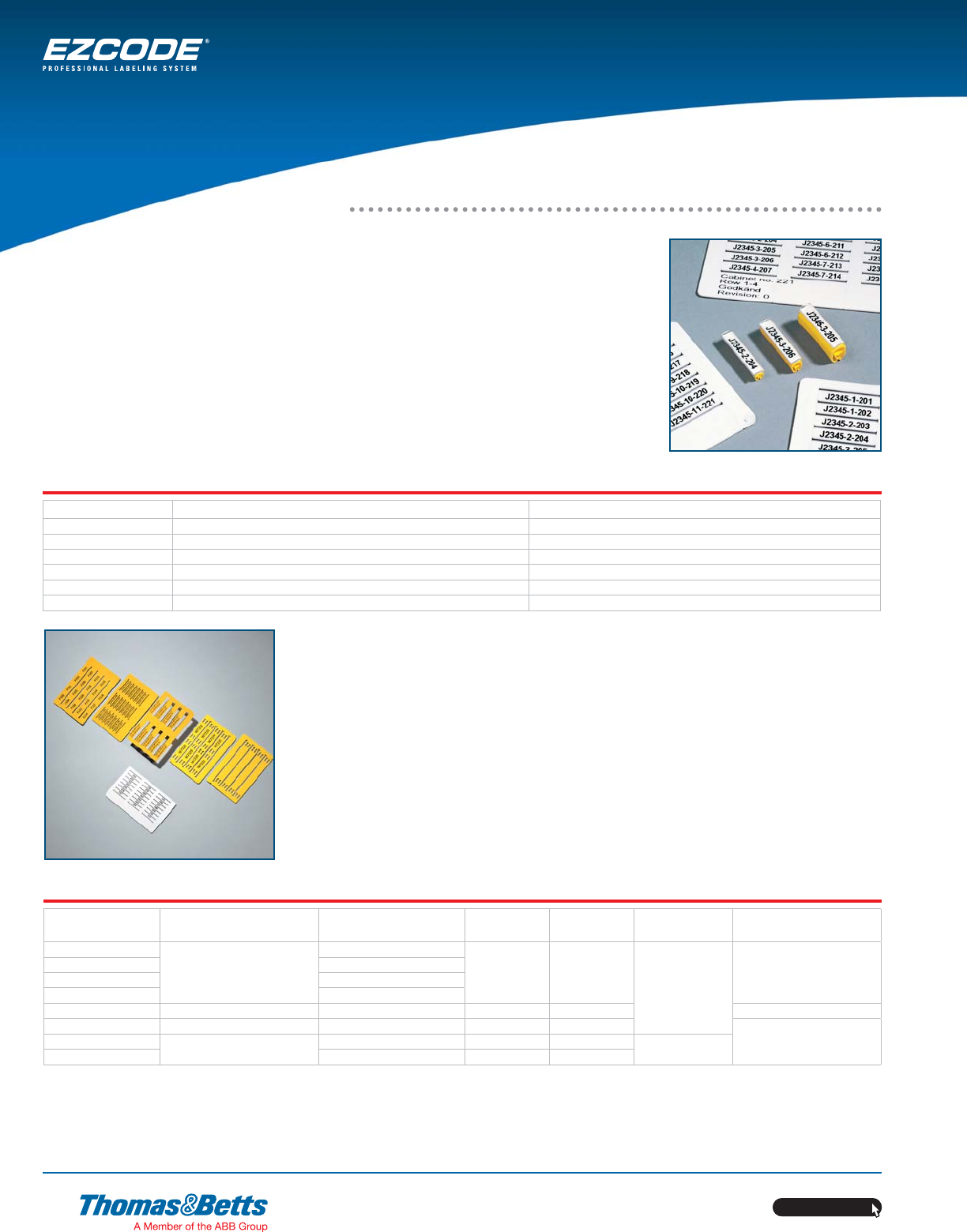

Printable Markers

Print your own markers to your requirements!

www.tnb.ca

E4

Identification Products

Vinyl Cloth, Standard Books

•

Choose the numbers or letters you need

•

Wide selection of sizes and legends

•

Size 3 in. x 5 in. (76 mm x 146 mm)

•

Material: vinyl cloth

•

Cover keeps markers clean

•

Books are 3 in. x 5-1/2 in. pocket size

•

10 pages per book

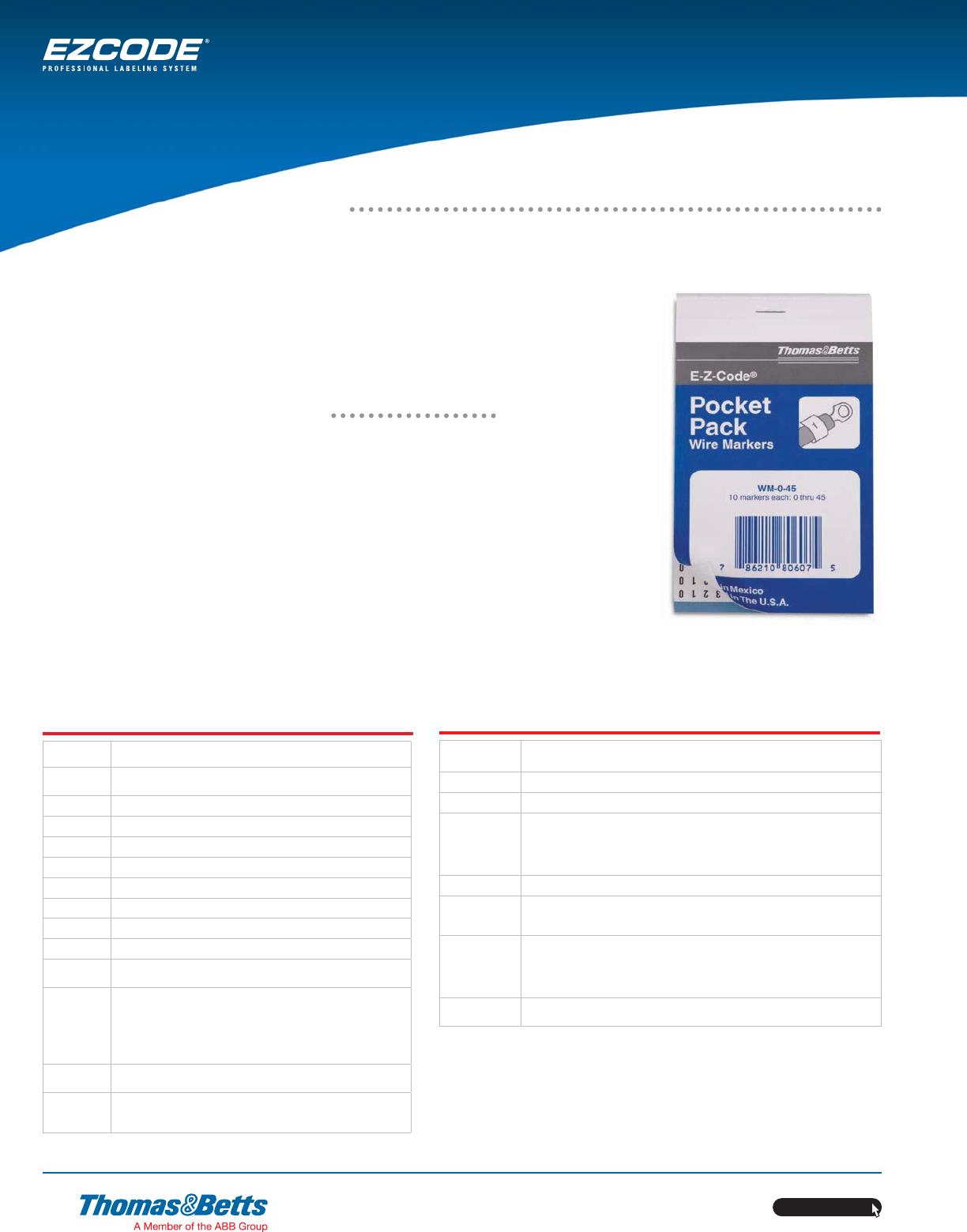

Pocket pack wire marker books are easy to carry and easy to use.

The material is an all-purpose vinyl coated cloth tape exclusively

designed to resist abrasion, oil, water and dirt.

From Thomas & Betts you get the one-piece wire marker and terminal

marker. A slight die-cut enables you to easily remove the terminal.

Easy to Use!

Cat. No. Number of Markers and Legends

WM-0 thru 9

40 markers each: 0 thru 9;

10 markers each: T1, T2, T3, L1, L2, L3, WM-0 thru -9

WM-0-9M

46 markers each page; full page of 1, full page of 2, etc.

WM-0-45

10 markers each: 0 thru 45

WM-46-90

10 markers each: 46 thru 90

WM-A-Z

10 markers each: A thru Z, +, -, and 0 thru 15

WM-123

150 markers each: 1, 2, 3

WM-ABC

150 markers each: A, B, C

WM-A-33

10 markers each: 1 thru 33, A, B, C, +, -, T1, T2, T3, L1, L2, L3

WM-A-90

6 markers each: 0 thru 15; 4 markers each: 1

WM-O thru

WM-9

2 markers each; 6 thru 90, A thru Z

460 markers each of any number 0 thru 9

WM-A, -B,

-C, -D, -E,

-F, -G, -L,

-N, -P, -R,

-S, -T, or X

460 markers each of any letter:

-A, -B, -C, -D, -E, -F, -G, -L, -N, -P, -R ,-S, -T or -X

WM-GRD

120 markers 7/16 in. X 2-1/2 in. or

240 markers 7/16 in. x 1-1/4 in. “GRD” legend

WMLC-1

24 legends, 2 legends each per page,

480 markers per book for house wiring

and circuit breakers; 5/8 in. x 13/32 in. (16 mm x 10 mm)

Cat. No. Number of Markers and Legends

WM-T3

10 pages T1, T2, T3; 140 markers ea.; Total 420

WM-L3

10 pages L1, L2, L3; 140 markers ea.; Total 420

WM-9T

3 pages 1, 2, 3; 42 markers ea.;

3 pages A, B, C; 42 markers ea.;

2 pages T1, T2, T3; 28 markers ea.;

2 pages L1, L2, L3; 28 markers ea.; Total 140

WM-1-30

10 Pages 1-30; 14 markers ea.; Total 140

WM-12

8-2/3 Pages A-Z, 14 markers ea.;

Blank Write-Ons 1 Page, 22 markers;

Plus & Minus 1/3 Page, 7 markers ea.;Total 393

WM-13

Plus & Minus, AC, DC, 1 Page ea., 46 markers ea.;

Pos. Neg. Gnd. 1 Page ea., 28 markers ea.;

Spare, Neut. 1 Page ea., 22 markers ea.;

Blank Write-Ons 1 Page ea., 22 markers ea.; Total 256

WM-0-90

5 pages, 0–45; 5 markers ea.;

5 pages, 46–90; 5 markers ea.; Total 455

Wire Marker Books

Markers that withstand oil, water and humidity!

www.tnb.ca E5

Identification Products

A handy solution for your identification needs!

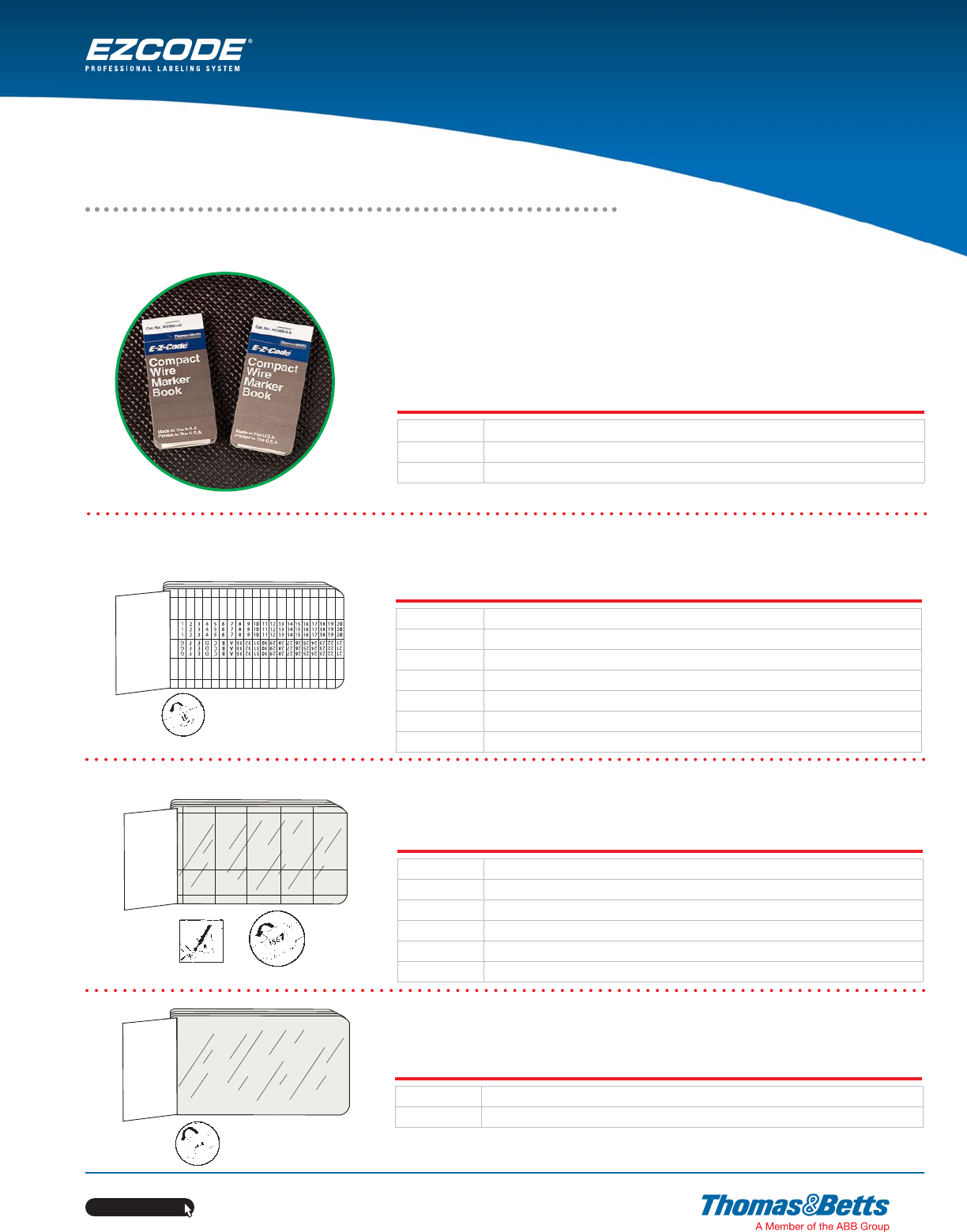

Compact Wire Marker Books

•

Compact books are easier to carry

•

Bold letters/numbers, easy to apply and read

•

Convenient alphanumeric and load center legends

•

E-Z-Snap feature removes the entire sheet more easily from the booklet

•

Vinyl coated cloth

Cat. No. Number of Markers and Legends

WCMB-0-9

128 markers 0-9, ABC, +-/; marker size 1/4 in. x 1-1/2 in.

WCMB-LC

176 markers Load-center Labels; marker size 1-1/32 in. x 3/4 in.

Cat. No. Number of Markers and Legends

WMSL 1-33, A-G

400 markers: 1/4 in. x 1-1/4 in.– printed area 5/8 in.; 10 markers each: 1 thru 33 and A thru G

WMSL-0-9

40 markers each 0 thru 9; 10 markers each:T1, T2, T3, L1, L2, L3

WMSL-0-45

10 markers each 0 thru 45

WMSL-46-90

10 markers each 46 thru 90

WMSL-A-Z

10 markers each: A thru Z; +, -, and 0 thru 15

WMSL-A-90

6 markers each: 0 thru 15; 4 markers each 16 thru 90; 2 markers each A thru Z

Cat. No. Number of Markers and Legends

WM-BW3

30 markers 1 in. x 4-7/8 in. blank write-on, self-laminating markers; marking area: 1 in. x 1 in.

WM-BW5

60 markers 1 in. x 2-3/4 in. blank write-on, self-laminating markers; marking area: 1 in. x 3/4 in.

WM-BW12

200 markers 1/2 in. x 1-1/4 in. blank write-on, self-laminating markers; marking area: 1/2 in. x 5/8 in.

WM-BW14

400 markers 1/4 in. x 1-1/4 in. blank write-on, self-laminating markers; marking area: 1/4 in. x 5/8 in.

WM-BW34

140 markers 3/4 in. x 1-1/4 in. blank write-on, self-laminating markers; marking area: 3/4 in. x 5/8 in.

Cat. No. Number of Markers and Legends

WM-LAM

50, 3-1/2 in. x 5 in. clear cable laminators

Vinyl Self-Laminating Books

•

Convenient alphanumeric legends

•

Lamination keeps markers protected

Vinyl Self-Laminating, Blank Write-on Books

•

Choose from a variety of marking area sizes

•

Clear area covers print legend for extra protection

•

Lamination keeps markers protected

Vinyl Self-Laminating, Standard Laminator Book

•

Protect labels or apply over non-sticking markers

•

50, 3-1/2 in. x 5 in. clear cable laminators

Identify and protect all in one!

Wire Marker Books

www.tnb.ca

E6

Identification Products

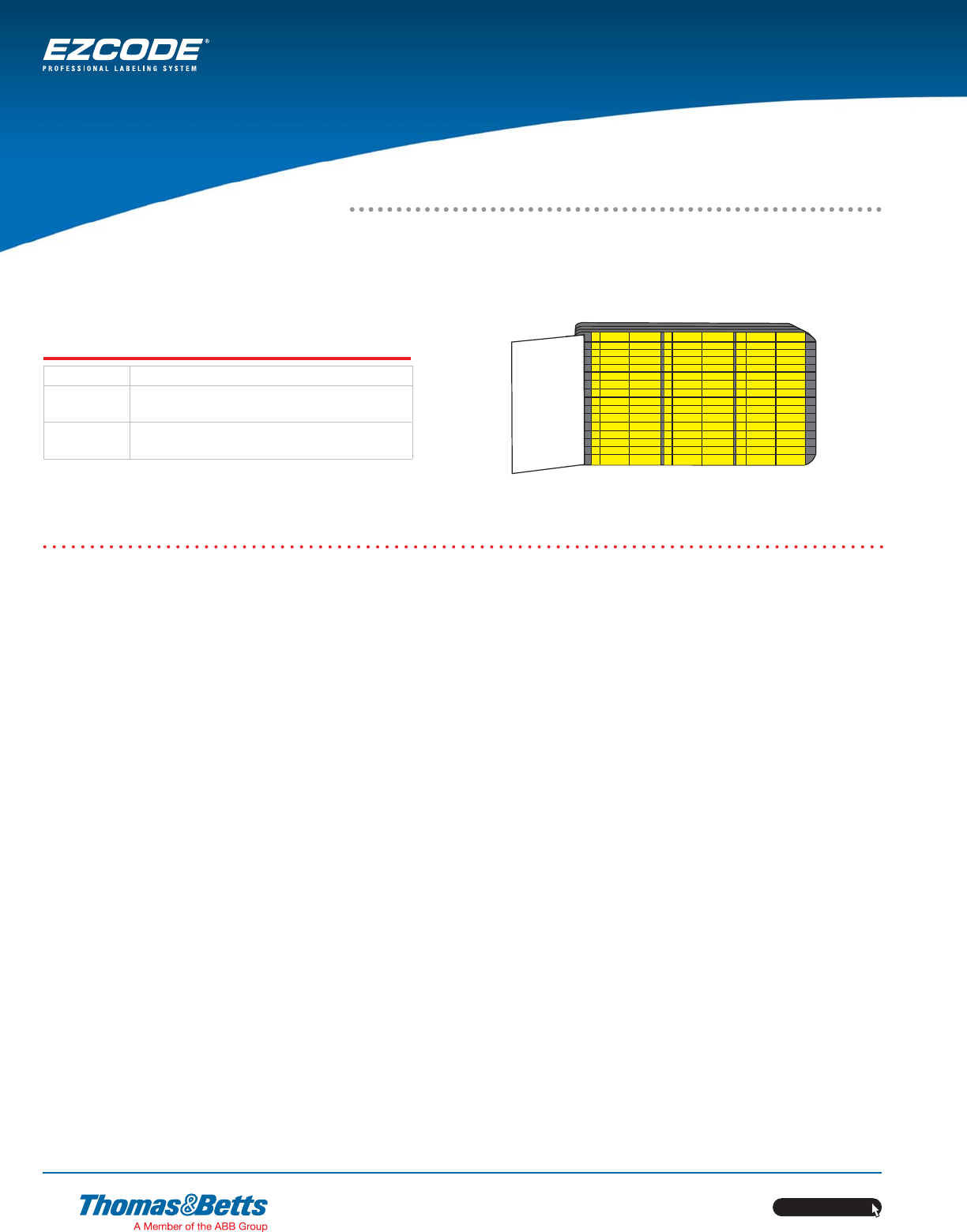

Vinyl, Colour Coding Standard Books

•

Available in two sizes

•

Colour your wires for coding and other applications

Cat. No. Nombre de marqueurs et légendes

WM-COL14

460 Markers each: 1/4 in. x 1-1/4 in. 1 page Jaune and blue;

2 pages red, Blanc, green, and black

WM-COL1

50 Markers each: 1 in. x 2-1/4 in. 1 page Jaune and blue;

2 pages red, Blanc, green and black

Wire Marker Cards – Vinyl Cloth

www.tnb.ca E7

Identification Products

•

Select from a variety of number and letter combinations and sizes

•

Material — vinyl cloth

•

Standard length 1-1/2 in.

•

Available in 3/4 in. length

Cat. No.

Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WCZEROS

0

36 72

WC1S, WC2S

thru WC99S

1, 2, ...99

WC101S, WC102S

thru WC600S

101, 102, ...600 25 50

Order in multiples of 25 cards.

* When 3/4 in. length markers are required, substitute the last S in the

catalogue number with a D, i.e. WC1S would become WC1D.

Cat. No.

Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WC1 thru 3S

1–3 36 72

WC1 thru 4S

1–4

WC1 thru 5S

1–5 35 70

WC0 thru 10S

0–10 33 66

WC1 thru 12S

1–12

36 72

WC1 thru 18S

1–18

WC19 thru 36S

19–36

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue number with

a D, i.e. WC1 thru 3S would become WC1 thru 3D.

Replace Y with length

S = 1-1/2 in.

D = 3/4 in.

Wire Marker Card

Legend 100

1-1/2 in. Size

Replace X with legend

Single character = 1, 2, 3, etc.

Sequence = 1 thru 33

Replace (_ ) with legend

C = Wire Marker Card

S = Vinyl Self-laminated

Cat. No.

Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WC1 thru 33S

1–33

33 66

WC34 thru 66S

34–66

WC67 thru 99S

67–99

WC100 thru 124S

100–125 25 50

WC125 thru 149S

125–149

WC974 thru 999S

974–999

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue number

with a D, i.e. WC1 thru 33S would become WC1 thru 33D.

Wire Marker Cards – Vinyl Cloth

Marker Cards repel oil, water, and humidity!

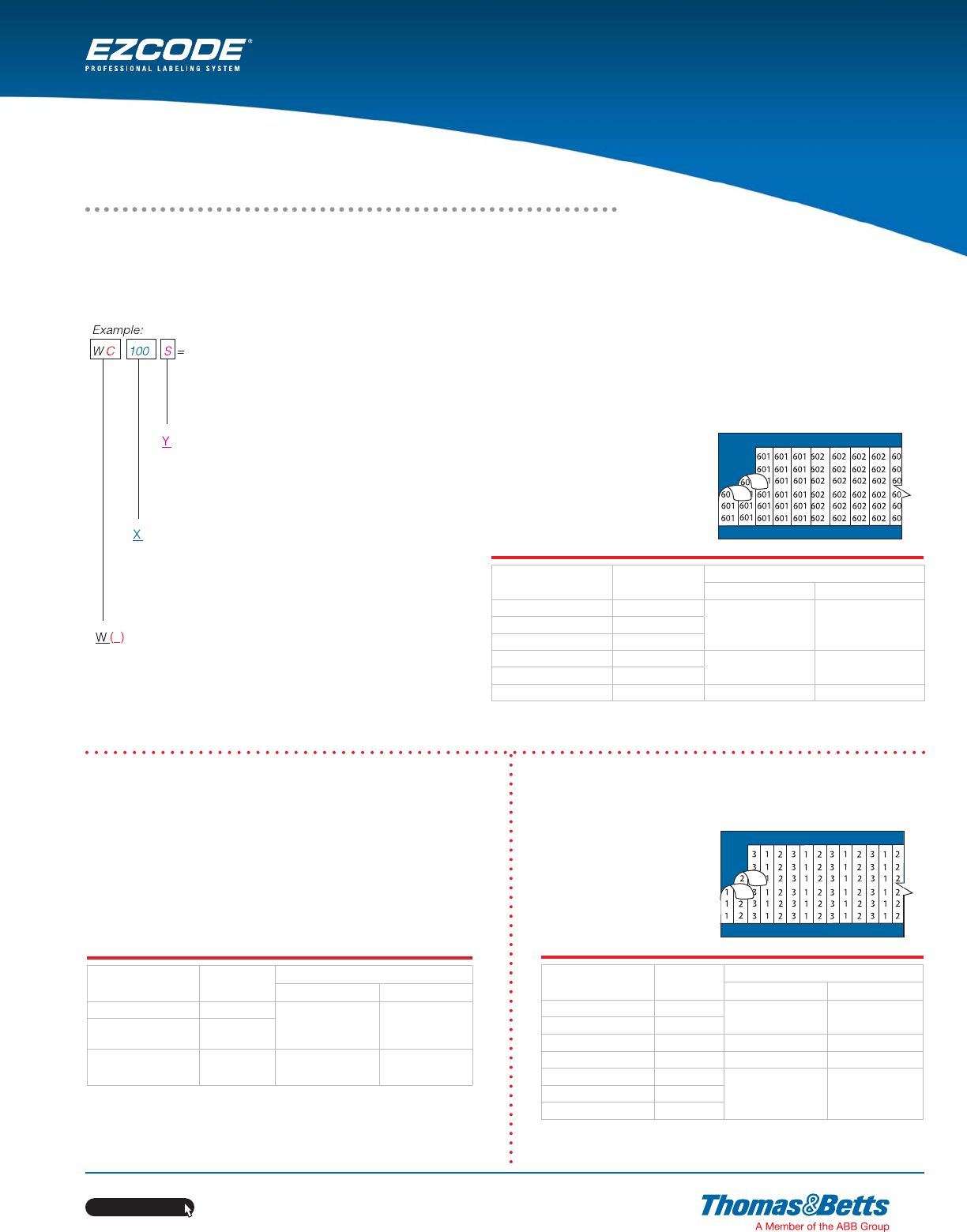

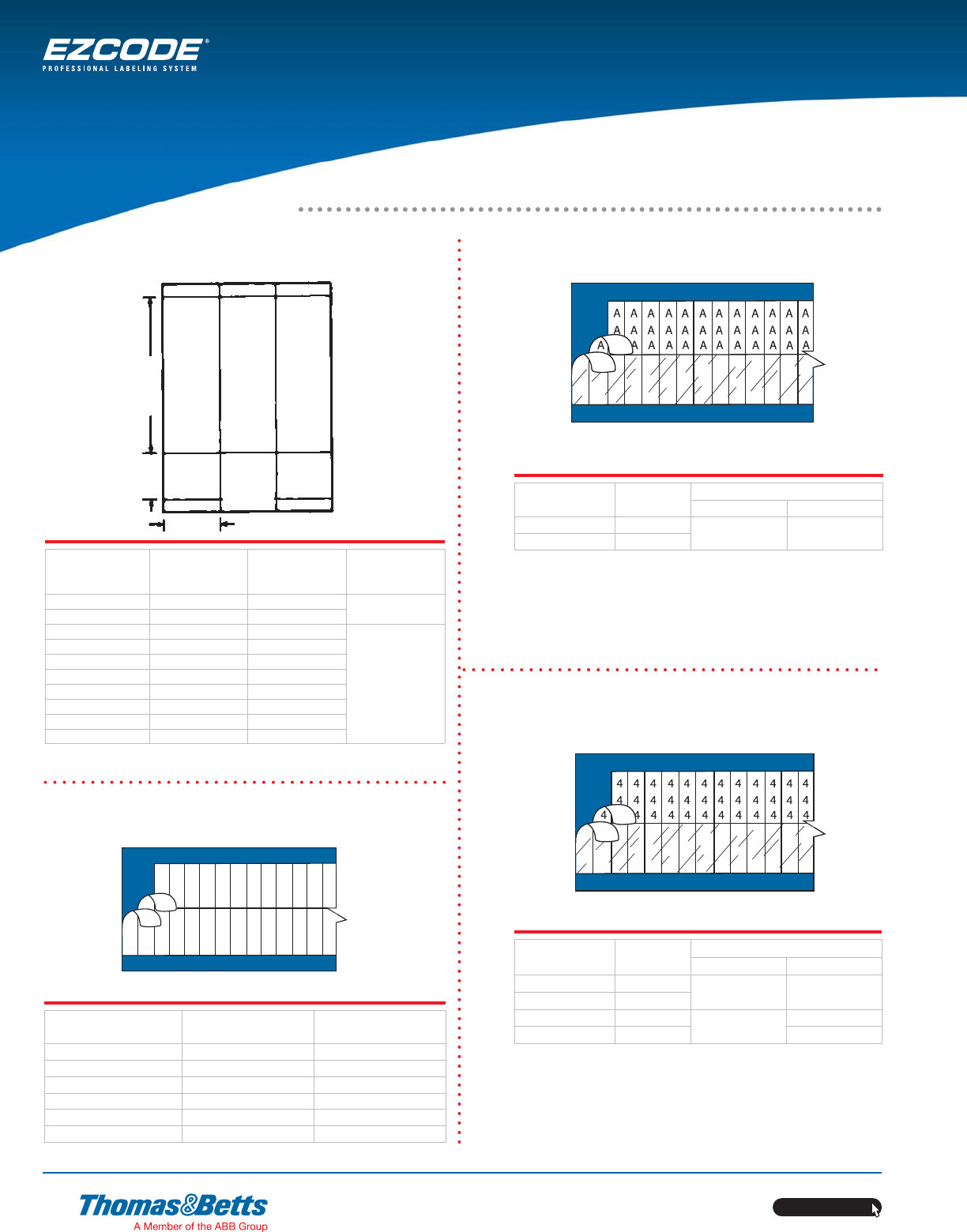

Catalogue Numbering System

Solid Numbers Numbers in

Sequence

Repeated

Numbers in

Sequence

www.tnb.ca

E8

Identification Products

Suffix Numbers

•

Use to extend numbers or

to make alphanumeric codes

(i.e. adding suffix 05

to ABC = ABC05)

Numbers in

Sequence on

a Coloured

Background

Cat. No.

Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

On Black, Blanc Characters

WCBK1 thru 33S

1–33

33 66

WCBK34 thru 66S

34–66

WCBK67 thru 99S

67–99

WCBK100 thru 124S

100–124 25 50

On Blue, Blanc Characters

WCBL1 thru 33S

1–33

33 66

WCBL34 thru 66S

34–66

WCBL67 thru 99S

67–99

WCBL100 thru 124S

100–124 25 50

On Brown, Blanc Characters

WCBR1 thru 33S

1–33

33 66

WCBR34 thru 66S

34–66

WCBR67 thru 99S

67–99

WCBR100 thru 124S

100–124 25 50

On Green, Blanc Characters

WCGR1 thru 33S

1–33

33 66

WCGR34 thru 66S

34–66

WCGR67 thru 99S

67–99

WCGR100 thru 124S

100–124 25 50

On Red, Blanc Characters

WCRD1 thru 33S

1–33

33 66

WCRD34 thru 66S

34–66

WCRD67 thru 99S

67–99

WCRD100 thru 124S

100–124 25 50

On Orange, Black Characters

WCOR1 thru 33S

1–33

33 66

WCOR34 thru 66S

34–66

WCOR67 thru 99S

67–99

WCOR100 thru 124S

100–124 25 50

On Jaune, Black Characters

WCYL1 thru 33S

1–33

33 66

WCYL34 thru 66S

34–66

WCYL67 thru 99S

67–99

WCYL100 thru 124S

100–124 25 50

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue

number with a D, i.e. WCBK1 thru 33S would become WCBK1 thru 33D.

Paired

Numbers

in Sequence

Cat. No.

Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WC1 thru 16PS

1–16

16 32

WC17 thru 32PS

17–32

WC33 thru 48PS

33–48

Order in multiples of 25 cards. *When 3/4 in. length markers are required, substitute the

last S in the Cat. No. with a D, i.e. WC1 thru 16PS would become WC1 thru 16PD.

Cat. No.

Legend Background

Couleur

Marker/Card

1-1/2 in.

(38 mm)

3/4 in.

(19 mm)*

WCBLZEROS

0Blue

36 72

WCBL1S...WCBL50S

1...50

WCGRZEROS

0Green

WCGR1S...WCGR50S

1...50

WCORZEROS

0Orange

WCOR1S...WCOR50S

1...50

WCRDZEROS

0Red

WCRD1S...WCRD50S

1...50

WCYLZEROS

0Jaune

WCYL1S...WCYL50S

1...50

Order in multiples of 25 cards. *When 3/4 in. length markers are required, substitute the

last S in the Cat. No. with a D, i.e. WCBLZER0S would become WCBLZER0D.

Cat. No.

Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WC00S

00 36 72

WC01S, WC02S thru WC09S

0, 02–09

WC0009S

00–09 30 60

Cat. No. WC0009S has three sequences of 00...09 on a card. WC0009D has six

sequences of 00...09 on a card. Order in multiples of 25 cards. *When 3/4 in. length

markers are required, substitute the last S in the Cat. No. with a D, i.e. WC00S would

become WC00D.

• Blue, green and red markers

have white legends; orange

and yellow markers have

black legends

Suffix Numbers

Wire Marker Cards – Vinyl Cloth

www.tnb.ca E9

Identification Products

Solid Letters

Cat. No.

Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WCAS

A

36 72

WCBS...WCZS

B...Z

WCLAS

a

WCLBS...WCLZS

b...z

Order in multiples of 25 cards. *When 3/4 in. length markers are required, substitute the

last S in the catalogue number with a D, i.e. WCAS would become WCAD.

Letters in Sequence

Cat. No. Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WCAZAJS A thru Z plus A thru J

36 72

WCAZ09S A thru Z plus 0 thru 9

WCLAZAJS a thru z plus a thru j 2

Order in multiples of 25 cards. *When 3/4 in. length markers are required, substitute the

last S in the catalogue number with a D, i.e. WCAS would become WCAD.

Letters in

Sequence

on a Coloured

Background

Cat. No.

Legend

A–Z and A–J

Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WCBKA-ZS

Black (Blanc Legend)

36 72

WCBLA-ZS

Dark Blue (Blanc Legend)

WCBRA-ZS

Brown (Blanc Legend)

WCGRA-ZS

Dark Green (Blanc Legend)

WCRDA-ZS

Red (Blanc Legend)

WCORA-ZS

Orange (Black Legend)

WCYLA-ZS

Jaune (Black Legend)

Order in multiples of 25 cards. *When 3/4 in. length markers are required, substitute the

last S in the catalogue number with a D, i.e. WCAS would become WCAD.

Cat. No.

Legend Markers per Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WC3VS

3V 36 72

WC6VS

6V

WC12VS

12V 25 50

WC24VS

24V

WC110VS

110V

22 44

WC115VS

115V

WC120VS

120V

WC125VS

125V

WC180VS

180V

WC220VS

220V

WC230VS

230V

WC240VS

240V

WC270VS

270V

WC280VS

280V

WC440VS

440V

WC460VS

460V

WC480VS

480V

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue number

with a D, i.e. WC3VS would become WC3VD.

Cat. No.

Legend Markers per Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WCA1S...WCA5S

A...A5

36 72

WCB1S...WCB5S

B1...B5

WCC1S...WCC5S

C1...C5

WCD1S...WCD5S

D1...D5

WCE1S...WCE5S

E1...E5

WCF1S...WCF4S

F1...F4

WCG1S...WCG4S

G1...G4

WCH1S...WCH5S

H1...H5

WCJ1S...WCJ4S

J1...J4

WCK1S...WCK4S

K1...K4

WCL1S...WCL5S

L1...L5

WCM1S...WCM5S

M1...M5

WCP1S...WCP4S

P1...P4

WCR1S...WCR5S

R1...R5

WCS1S...WCS5S

S1...S5

WCT0S...WCT9S

T0...T9

WCT10S...WCT15S

T10...T15

WCU1S...WCU2S

U1...U2

WCV1S...WCV2S

V1...V2

WCW1S...WCW2S

W1...W2

WCX1S...WCX4S

X1...X4

WCY1S...WCY4S

Y1...Y4

WCZ1S...WCZ4S

Z1...Z4

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue number

with a D, i.e. WC3VS would become WC3VD.

Solid Letters

and Numbers

Voltage Markers

Wire Marker Cards – Vinyl Cloth

www.tnb.ca

E10

Identification Products

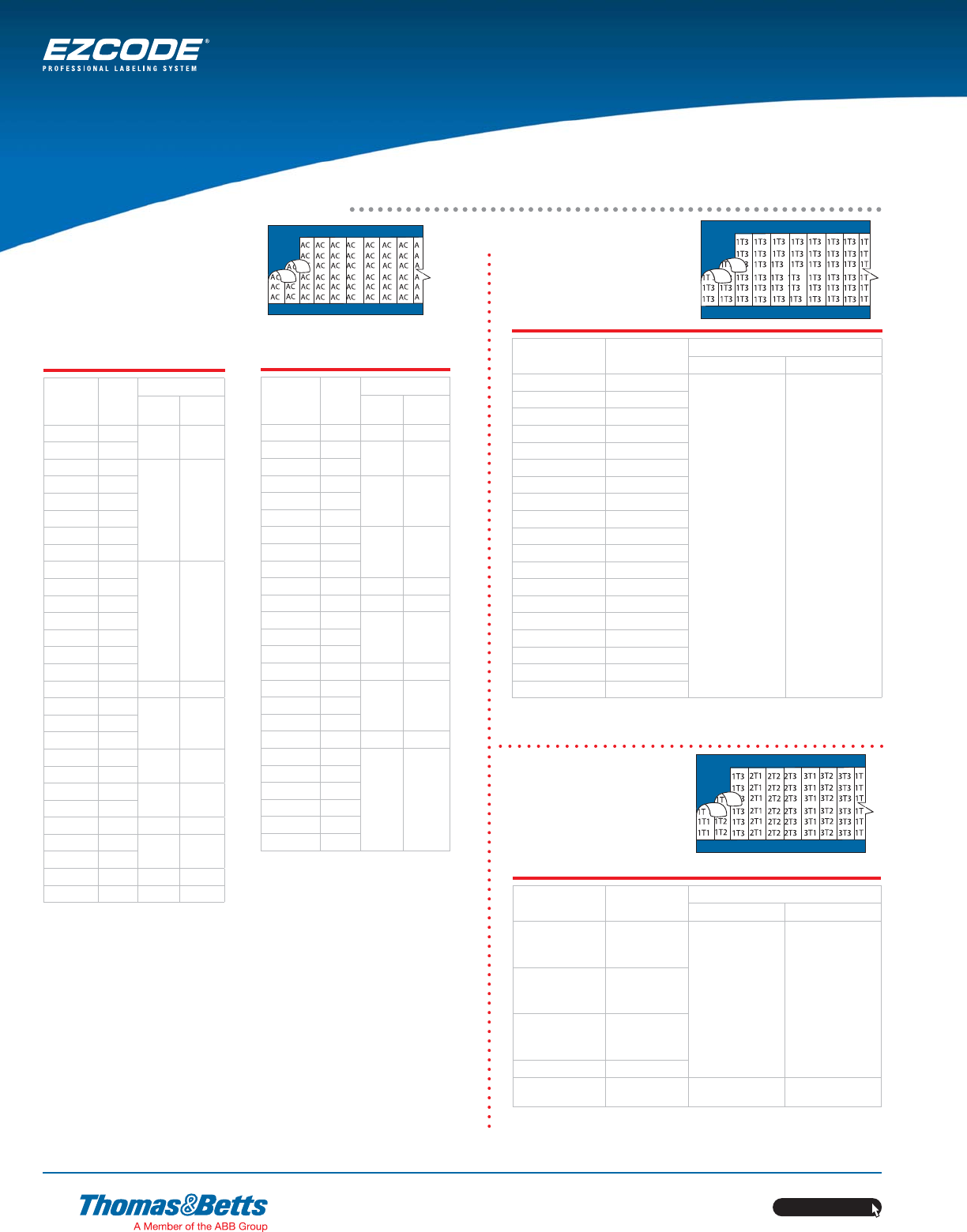

Solid Machine

Tool Markers

Solid —

Miscellaneous

Electrical Symbols

Machine Tool

Markers

in Sequence

Cat. No. Legend

Marker/Card

1-1/2 in.

(38 mm)

3/4 in.

(19 mm)*

WCPLSS

+36 72

WCMINS

-

WCAPLSS

A±

25 50

WCAMINS

A-

WCBPLSS

B+

WCBMINS

B-

WCPOSS

POS

WCNEGS

NEG

WCPHS

Phase

18 36

WCPHAS

Phase A

WCPHBS

Phase B

WCPHCS

Phase C

WC1PHS

1 Phase

WC2PHS

2 Phase

WC3PHS

3 Phase

WCINS

IN 36 72

WCOUTS

OUT

25 50

WCHOTS

HOT

WCGRDS

GRD

WCNEUTS

NEUT 22 44

WCLINES

LINE

WCLPLS

L+ 25 50

WCLMIS

L-

WCLOADS

LOAD 22 44

WCPUS

PU 36 72

WCGRCS

GRC

WCGENS

GEN 25 50

WCACS

AC 36 72

Cat. No.

Legend

Marker/Card

1-1/2 in.

(38 mm)

3/4 in.

(19 mm)*

WCDCS

DC 36 72

WCCOMS

COMM 25 50

WCBATS

BAT

WCBBS

BB

36 72

WCCBS

CB

WCCTS

CT

WCIGNS

IGN

25 50

WCSIGS

SIG

WCSECS

SEC

WCPSS

PS 36 72

WCPRIS

PRI 25 50

WCPLS

PL

36 72

WCTBS

TB

WCSSS

SS

WCSPARES

SPARE 18 36

WCCYSS

~

36 72

WCGRSS

GRS

WCPES

PE

WCPENS

PEN 25 50

WC1US

1U

36 72

WC2US

2U

WC1VS

1V

WC2VS

2V

WC1WS

1W

WC2WS

2W

Cat. No. Legend Marker/Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WC1L1S 1L1

25 50

WC1L2S 1L2

WC1L3S 1L3

WC2L1S 2L1

WC2L2S 2L2

WC2L3S...WC6L1S 2L3...6L1

WC6L2S 6L2

WC6L3S 6L3

WC1T1S 1T1

WC1T2S 1T2

WC1T3S 1T3

WC2T1S 2T1

WC2T2S 2T2

WC2T3S...WC7T1S 2T3...7T1

WC7T2S 7T2

WC7T3S 7T3

WCLL1S LL1

WCLL2S LL2

WCLL3S LL3

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue

number with a D, i.e. WC1L1S would become WC1L1D.

Cat. No.

Legend Markers per Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WC1T1-3T3S

1T1, 1T2, 1T3

2T1, 2T2, 2T3

3T1, 3T2, 3T3

27 54

WC4T1-6T3S

4T1, 4T2, 4T3

5T1, 5T2, 5T3

6T1, 6T2, 6T3

WC7T1-9T3S

7T1, 7T2, 7T3

8T1, 8T2, 8T3

9T1, 9T2, 9T3

WCLL1-LL3S

LL1, LL2, LL3

WCA1-S2S

A1, A2, F1

F2, S1, S2 36 72

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue

number with a D, i.e. WC1T1-3T3S would become WC1T1-3T3D.

Wire Marker Cards – Vinyl Cloth

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue number

with a D, i.e. WCPLSS would become WCPLSD.

www.tnb.ca E11

Identification Products

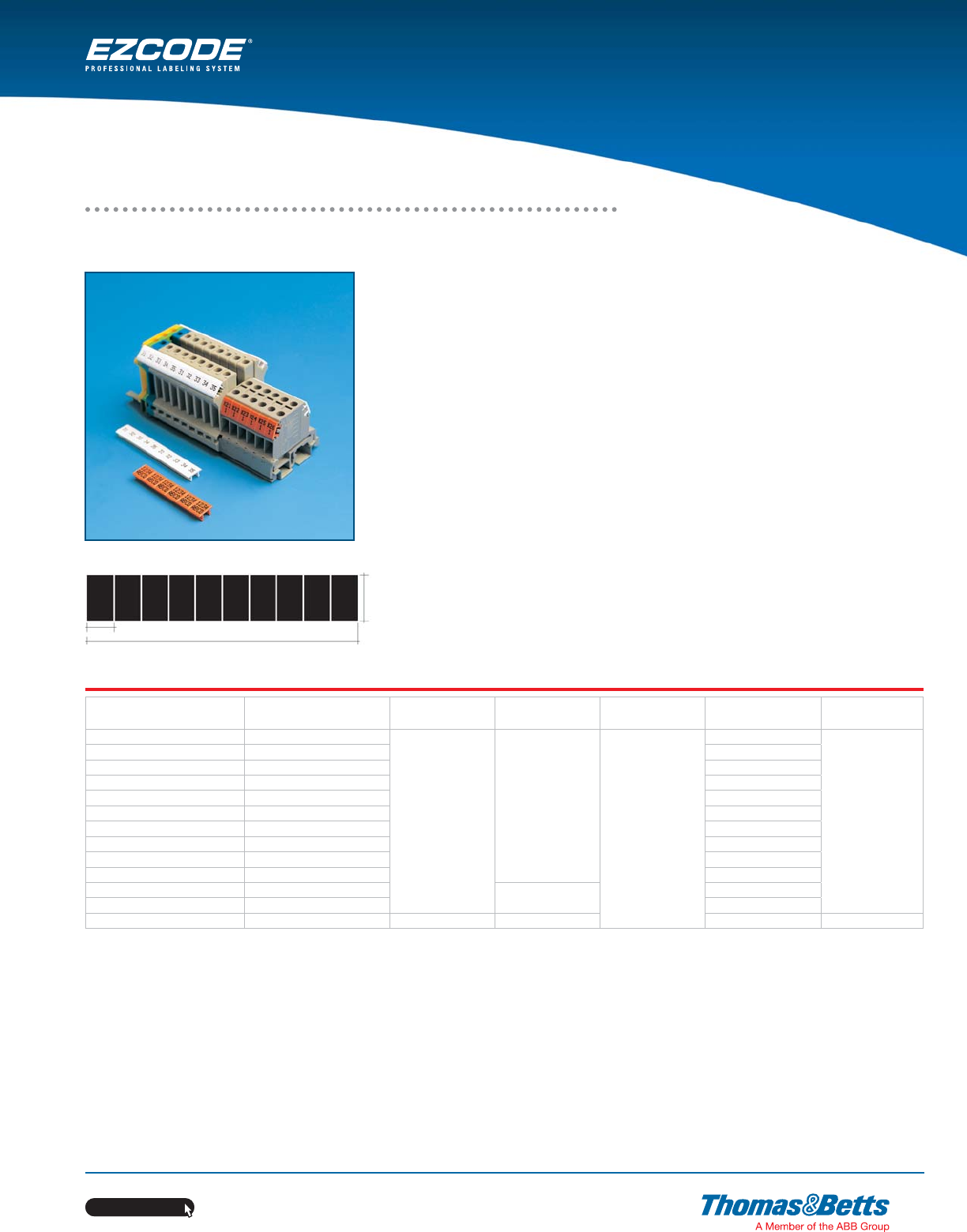

Terminal Block — Mini Markers

Cat. No.

Legend Marker/Card

Marker Size 5/16 in. x 3/16 in.

WC1 thru 48TM

1, 2 thru 48

144

WC49 thru 96TM

49, 50 thru 96

WCA thru ZTM

A, B thru Z

Order in multiples of 25 cards.

A thru Z Legend does not include “I” or “O”.

Cat. No.

Legend Marker/Card

1/2 in. (13 mm)

WC0 thru 49MIN

0, 1...49 150

WC50 thru 99MIN

50, 51...99

WC100 thru 132MIN

100, 101...132

99

WC133 thru 165MIN

WC463 thru 495MIN

133, 134...495

Order in multiples of 25 cards.

Quantity of each number per card: 3.

Cat. No.

Legend Marker/Card

1/2 in. (13 mm)

WCAZMIN

A, B...Z 156

Order in multiples of 25 cards.

Cat. No.

Legend Marker/Card

1/2 in. (13 mm)

Solid Numbers

WCZEROMIN...WC99MIN

0, 1, ...99 150

WC100MIN...WC250MIN

100, 101...250 99

Solid Letters

WCAMIN

A150

WCBMIN...WCZMIN

B, C...Z

Order in multiples of 25 cards.

Solid Numbers and Solid Letters —

Mini Markers

Numbers in Sequence —

Mini Markers

Letters in Sequence —

Mini Markers

Wire Marker Cards – Vinyl Cloth

Mini Markers are used to identify smaller items such as

terminal blocks and small wires

www.tnb.ca

E12

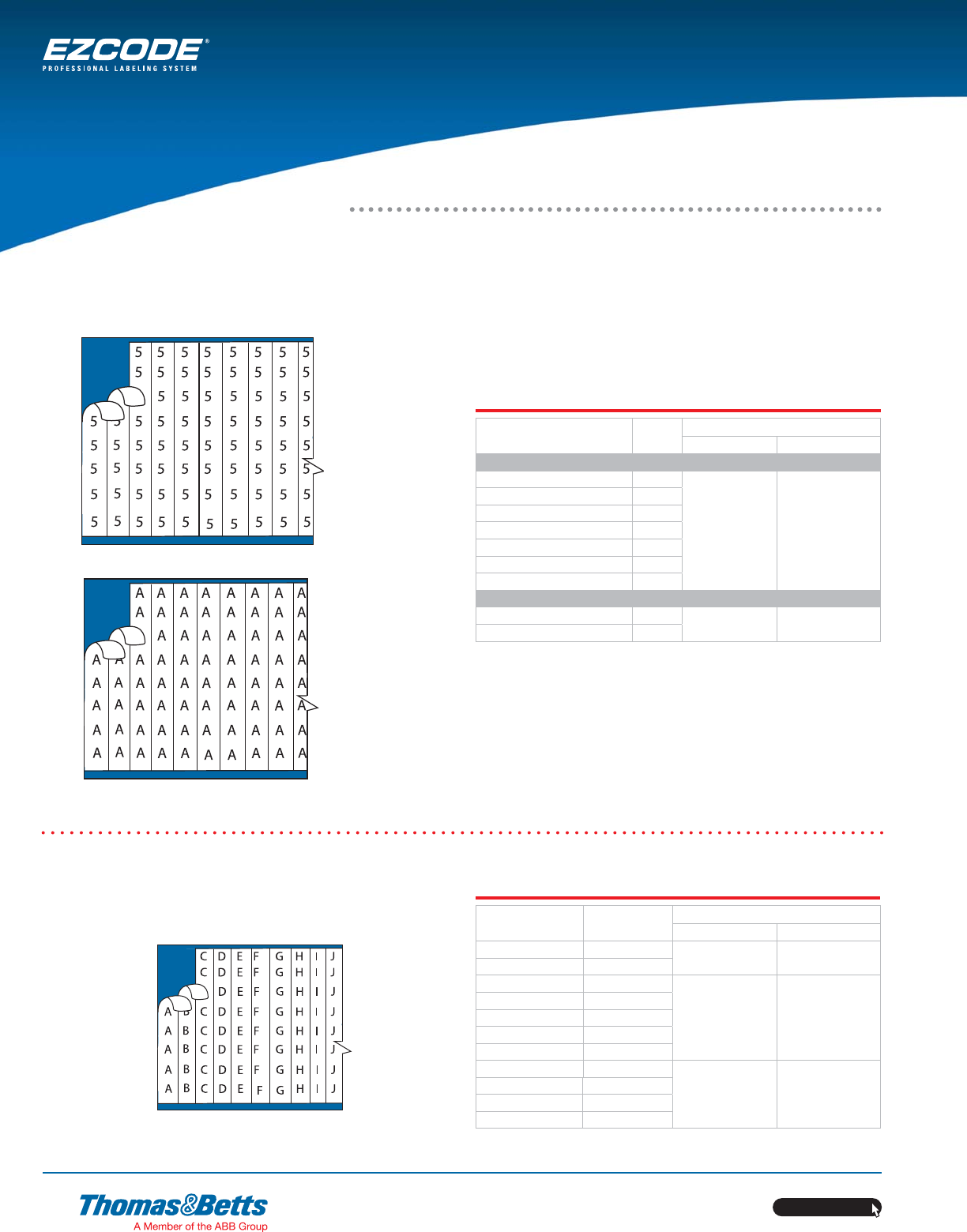

Identification Products

Solid Numbers and Solid

Letters — Cable Markers

Numbers or Letters in Sequence —

Cable Markers

Cat. No.

Legend Marker/Card

3-1/2 in. (89 mm) 1-3/4 in. (45 mm)*

Solid Letters

WCCMAS

A

18 36

WCCMBS

B

WCCMCS

C

WCCMDS

D

WCCMES

E

WCCMFS

F

WCCMNS

N

Solid Numbers

WCCM0S

018 36

WCCM1S, WCCM2S...WCCM9S

1, 2...9

Order in multiples of 25 cards.

*When 1-3/4 in. length markers are required, substitute the last S in the catalogue number with a

D, i.e. WCCMAS would become WCCMAD.

Cat. No. Legend Marker/Card

3-1/2 in. (89 mm) 1-3/4 in. (45 mm)*

WCCM01-09S

01 thru 09 24

WCCM1-9S

1 thru 9

WCCM1-18S

1 thru 18

12

WCCM19-36S

19 thru 36

WCCM37-54S

37 thru 54

WCCM55-72S

55 thru 72

WCCM73-90S

73 thru 90

WCCM91-99S

91 thru 99

24

WCCMA-IS

A thru I

WCCMJ-RS

J thru R

WCCMS-ZS

S thru Z

Order in multiples of 25 cards.

*When 1-3/4 in. length markers are required, substitute the last S in the catalogue number with a

D, i.e. WCCM01-09S would become WCCM01-09D.

Wire Marker Cards – Vinyl Cloth

Cable markers are used to identify large conductors,

electrical cables and tubing for hydraulic systems!

www.tnb.ca E13

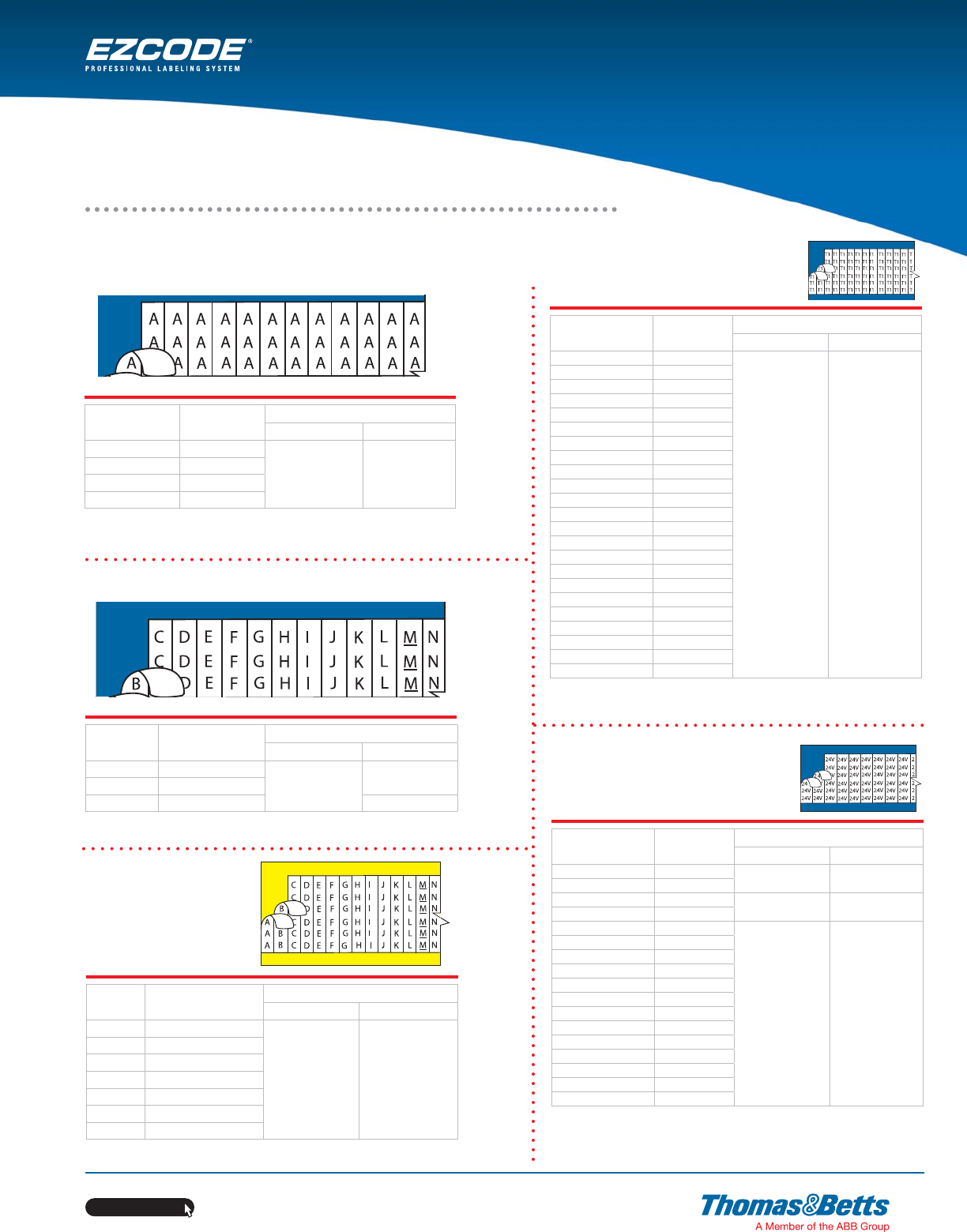

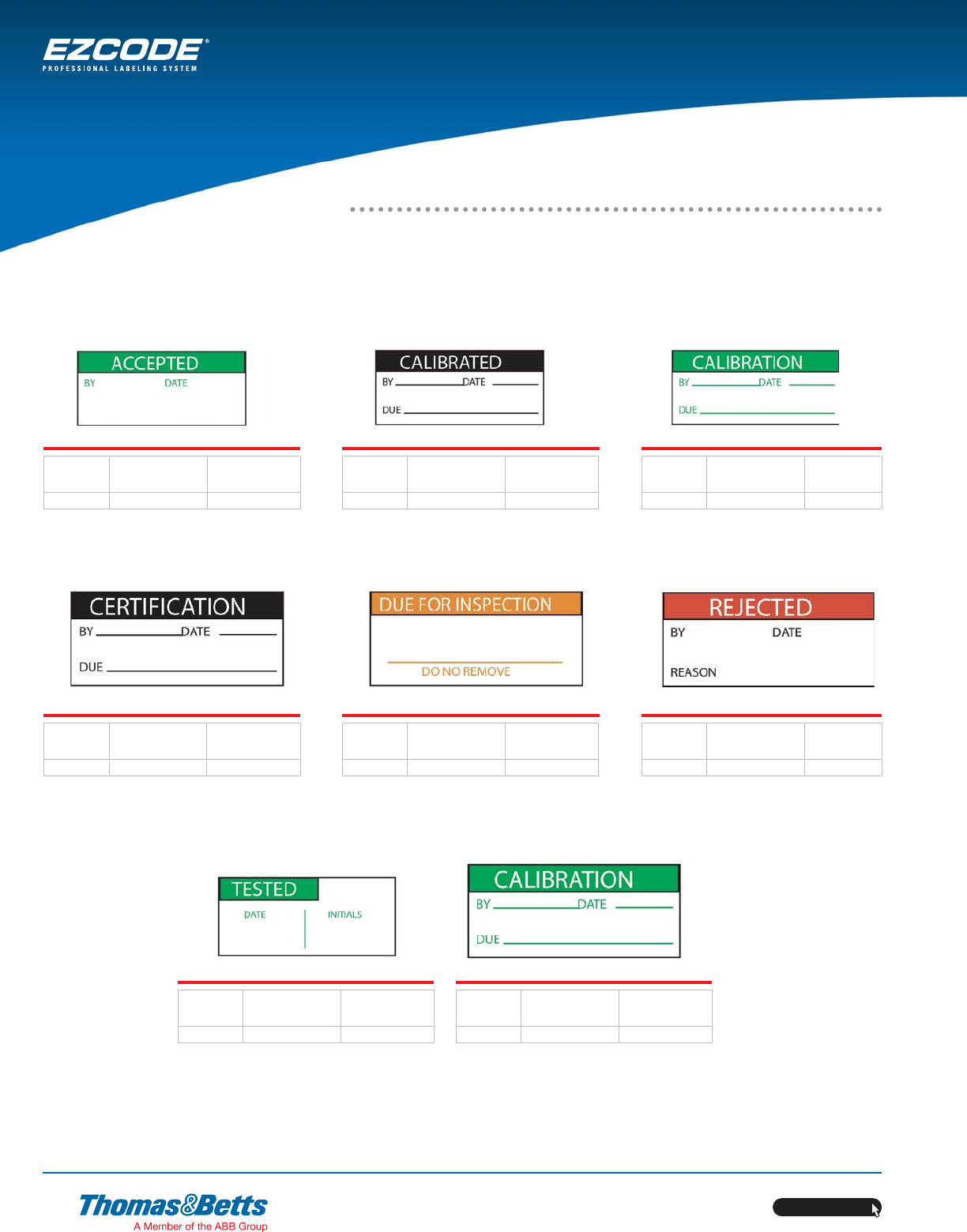

Identification Products

Cat. No.

Wording

Blanc on

Coloured

Background

Labels

per

Card

Label

Grandeur

W x L (in.)

WCMP5

Accepted

Green

14 1-1/2 x 5/8

WCMP1

Calibrated

Black

WCMP26

Calibration

Green

WCMP2

Certification

Black

WCMP18

Due For

Inspection

Orange

WCMP4

Rejected

Red

WCMP25

Tested

Green

WCMP75

Calibration 9 2-3/4 x 1

Order in multiples of 25 cards.

Cat. No.

Couleur Markers per Legend

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WCBLKS

Black

36 72

WCBLDS

Blue — Dark

WCBLLS

Blue — Light

WCBRNS

Brown

WCGRYS

Grey

WCDGRS

Green — Dark

WCGRLS

Green — Light

WCMARS

Maroon

WCOLIS

Olive

WCORAS

Orange

WCPINS

Pink

WCPURS

Purple

WCREDS

Red

WCTANS

Tan

WCWHIS

Blanc

WCYELS

Jaune

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue number

with a D, i.e. WCBLKS would become WCBLKD.

Cat. No.

Marker

Grandeur (in.)

Markers

per Card

WCBW14X34D

1/4 x 3/4 72

WCBW14X112S

1/4 x 1-1/2 36

WCBW1132X112S

1-1/32 x 1-1/2 26

WCBW12X12D

1/2 x 1/2 54

WCBW12X112S

1/2 x 1-1/2 18

WCBW58X112S

5/8 x 1-1/2 14

WCBW34X12D

3/4 x 1/2 36

WCBW34X214S

3/4 x 2-1/2 12

WCBW1X112S

1 x 1-1/2 9

WCBW112X112S

1-1/2 x 1-1/2 6

Order in multiples of 25 cards.

Blank Write-On Markers

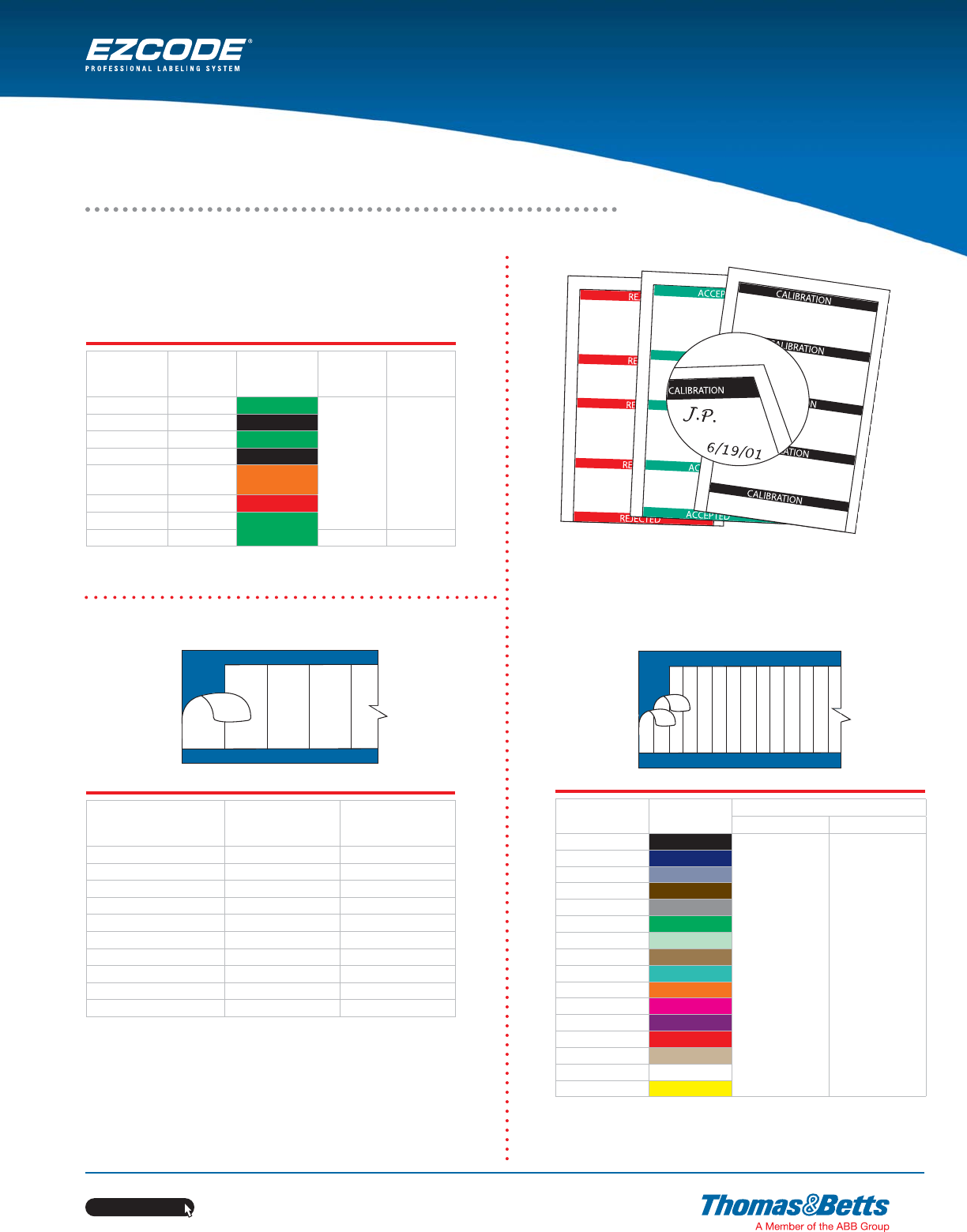

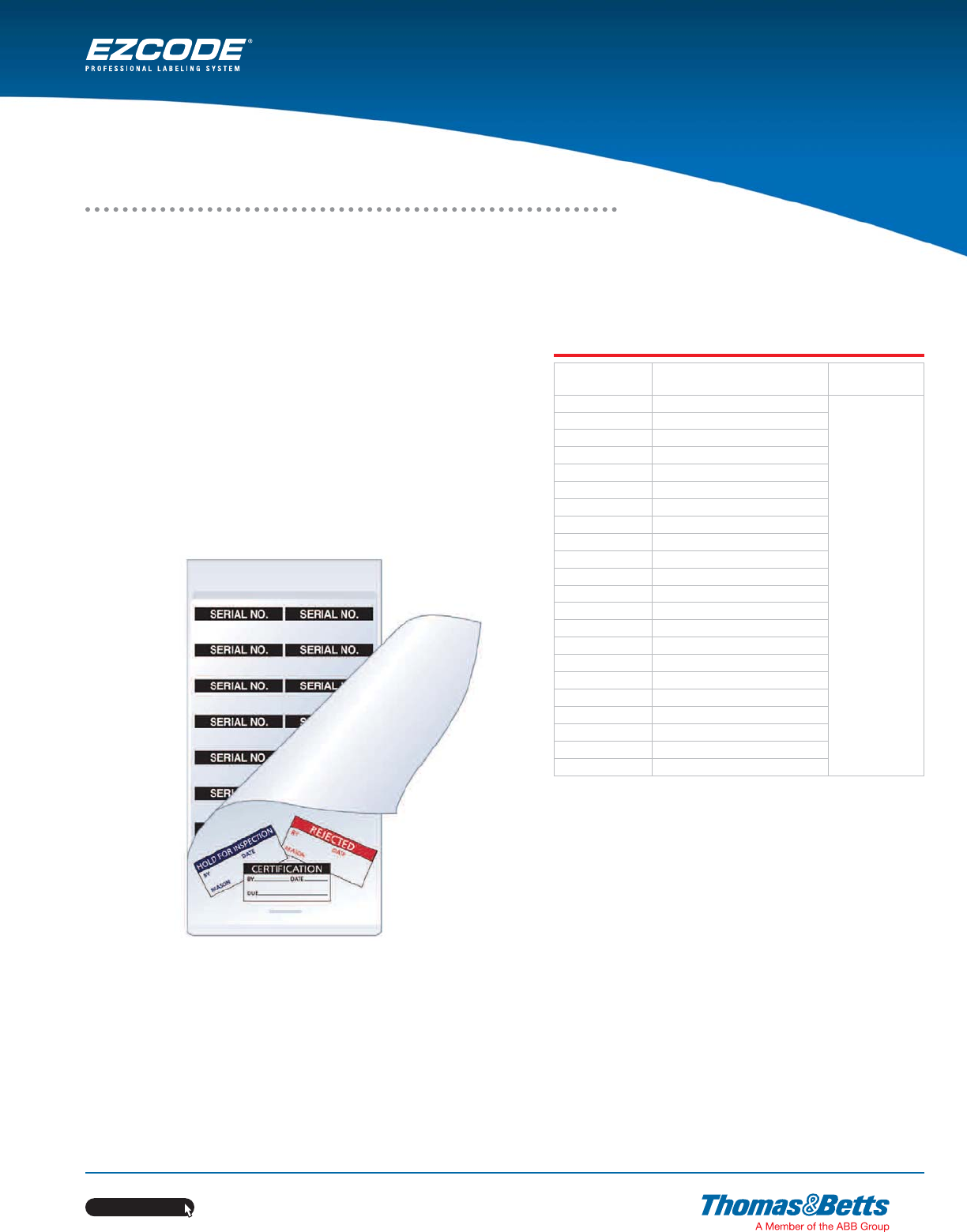

Maintenance and

Production Label Cards

Solid NEMA Colour Markers

Wire Marker Cards – Vinyl Cloth

www.tnb.ca

E14

Identification Products

Cat. No.

Legend Markers per Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WSAS

A36 72

WSBS...WSZS

B, C...Z

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue

number with a D, i.e. WSAS would become WSAD.

Cat. No.

Overall

Marker Size

(in.)

Width Height

Write-On Area

(in.)

Markers

per Card

WSLM33

1 x 2-3/4 1 x 3/4 3

WSLM35

1 x 5 1 x 1

WSLM123

1-1/2 x 3 1-1/2 x 3/4

2

WSLM23

2 x 3 2 x 3/4

WSLM125

1-1/2 x 5 1-1/2 x 1

WSLM25

2 x 5 2 x 1

WSLM48

2 x 8 2 x 3-3/4

WSLM95

2-1/4 x 5 2-1/2 x 2-1/4

WSLM410

2 x 10 2 x 4-1/2

WSLM415

2 x 15 2 x 7

Cat. No.

Legend Markers per Card

1-1/2 in. (38 mm) 3/4 in. (19 mm)*

WSZEROS

036 72

WS1S...WS99S

1, 2...99

WS100S

100 25 50

WS101S...WS600S

101, 102...600 –

Order in multiples of 25 cards.

*When 3/4 in. length markers are required, substitute the last S in the catalogue

number with a D, i.e. WSZEROS would become WSZEROD.

Cat. No.

Write on Area

(WxD) (in.)

Markers per Card

1-1/2 in. (38 mm)

WSBW14x112S

1/4 x 1-1/2 36

WSBW38x112S

3/8 x 1-1/2 26

WSBW12x112S

1/2 x 1-1/2 18

WSBW34x112S

3/4 x 1-1/2 12

WSBW1x112S

1 x 1-1/2 9

WSBW112x112S

1-1/2 x 1-1/2 6

Solid LettersWrite-On Cable Markers

Blank Write-On Markers

Solid Numbers

Wire Marker Cards – Vinyl Self-Laminating

Transparent

extension

« A »

Height Write-on

area

Write-on

area

Write-on

area

Width

www.tnb.ca E15

Identification Products

•

Compact size fits in your pocket or hangs from work belt

•

Unique design enables easy access to all legends during

use or when refilling

•

Holds 760 markers - 10 rolls of 76 markers each

•

Markers are pre-cut, 1-1/4 in.- long, oil-and water resistant

polyester with acrylic adhesive

•

Lifetime guarantee on dispenser

Polyester Tape Refills for Dispenser

Cat. No.

Legend Label Colour Rolls Per Legend

WDFPR-0

0

White

10

WDFPR-1...WDFPR-9

1, 2...9

WDFPR-0-9

0...9 1

WDFPR-10-19

10...19

WDFPR-A...WDFPR-Z

A, B,...Z

10

WDFPR-L1

L1

WDFPR-L2

L2

WDFPR-L3

L3

WDFPR-T1

T1

WDFPR-T2

T2

WDFPR-T3

T3

WDFPR-MIN

-

WDFPR-PLS

+

WDFPR-YEL

BLANK

Yellow

WDFPR-WHT

White

WDFPR-BLK

Black

WDFPR-BRN

Brown

WDFPR-BLU

Blue

WDFPR-GRN

Green

WDFPR-RED

Red

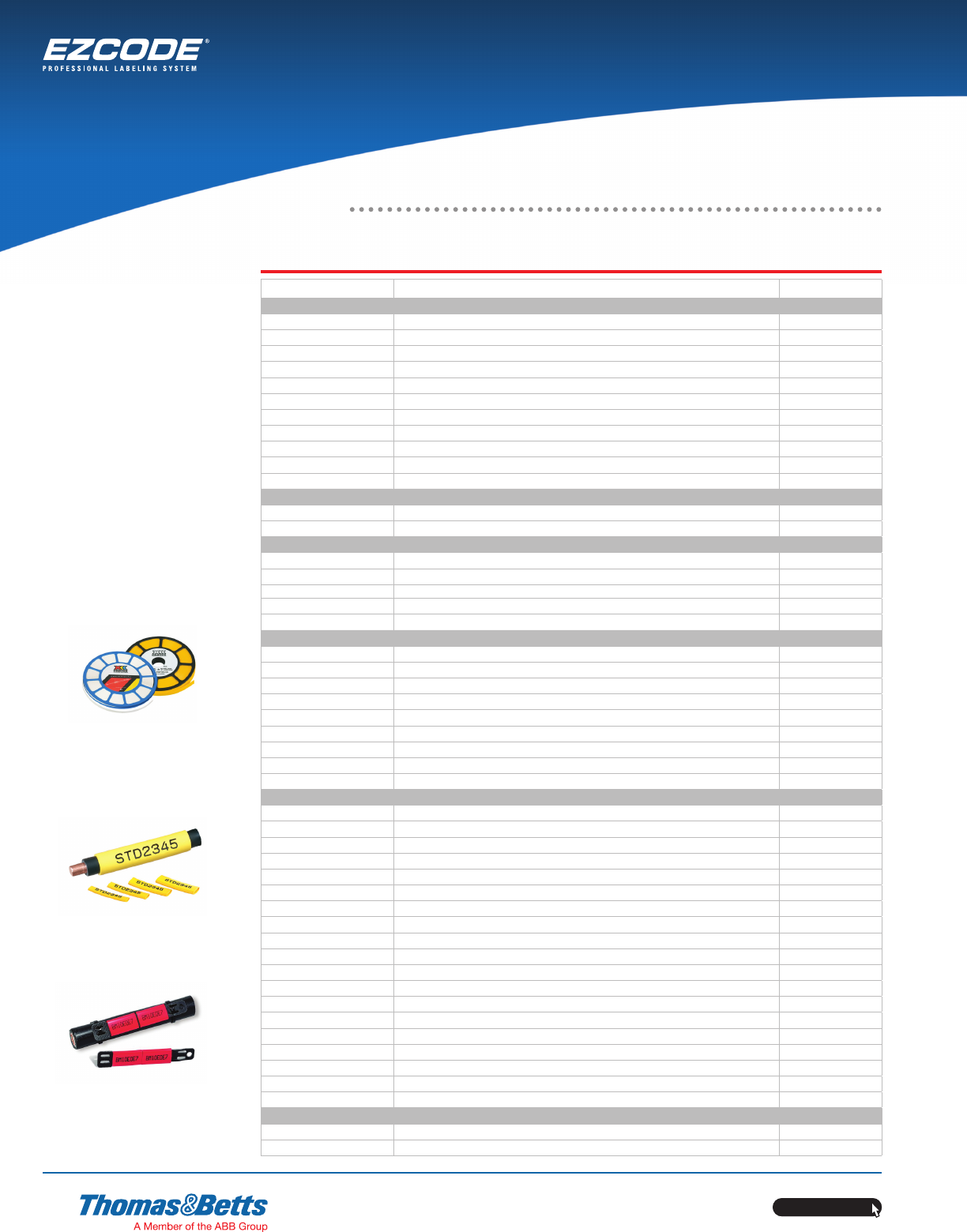

Dispenser

Cat. No. Description

Std. Pkg. Qty.

WDFP-0-9

Loaded Dispenser with Legends 0 through 9 1

WDFP-NEMA

Loaded Dispenser with 10 NEMA Colours 1

WDFP

Empty Dispenser 1

Wire Marker Dispenser

www.tnb.ca

E16

Identification Products

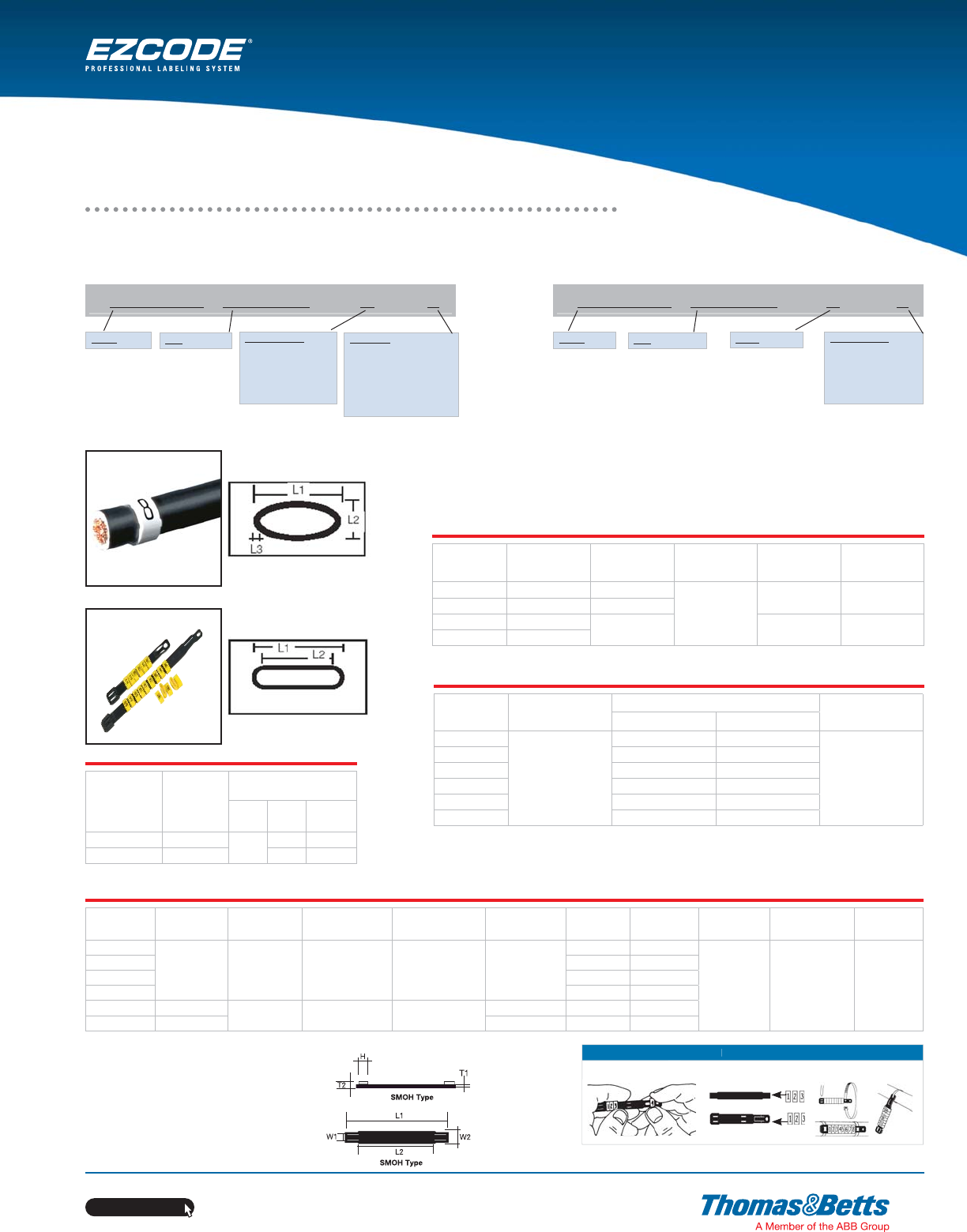

P. E17 P. E17 P. E17, E18 P. E19 P. E19

Closed Y-shape Open clip-on Closed spring-action Closed oval Closed slotted

Install on wires

before connection

Install on wires before

or after connection

Install on wires

before connection

Install on wires before

connection or on holders Install on holders*

23-20 AWG 18-6 AWG 22-5 AWG

10-6 AWG for direct

install: any size with

holder*

Any size with holder*

0.130 in. H x 0.138 in. W 0.142 in. H x 0.146 in. W to

0.264 in. H x 0.272 in. W

0.142 in. H x 0.138 in. W to

0.650 in. H x 0.433 in. W

L1 = 11.3 mm

L2 = 4.3 mm

L3 = 0.75 mm

L1 = 11.3 mm

L2 = 10 mm

Reel Strips Strips, disc or reel

Loose bag Discs Bags

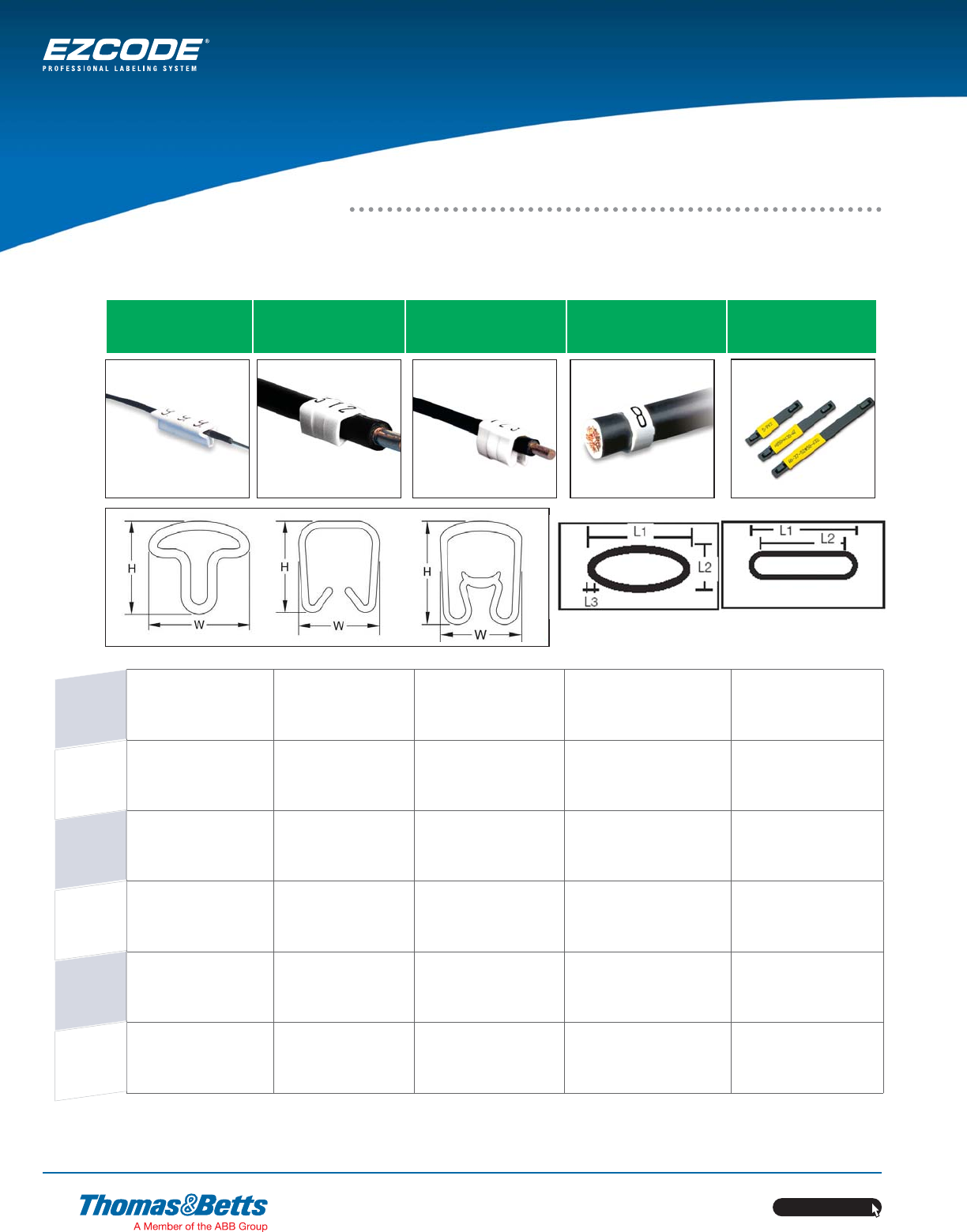

Sleeve Markers Features at a Glance

SMY Series SMC Series SMS/SMD/SMR

and SML Series SMO Series SMK Series

Shape

For more

information,

see

Style

Application

Wire Size

Range

Marker

Size

Packaging

* Holder fastens with cable ties around cable or pipe.

Vinyl Sleeve Markers

www.tnb.ca E17

Identification Products

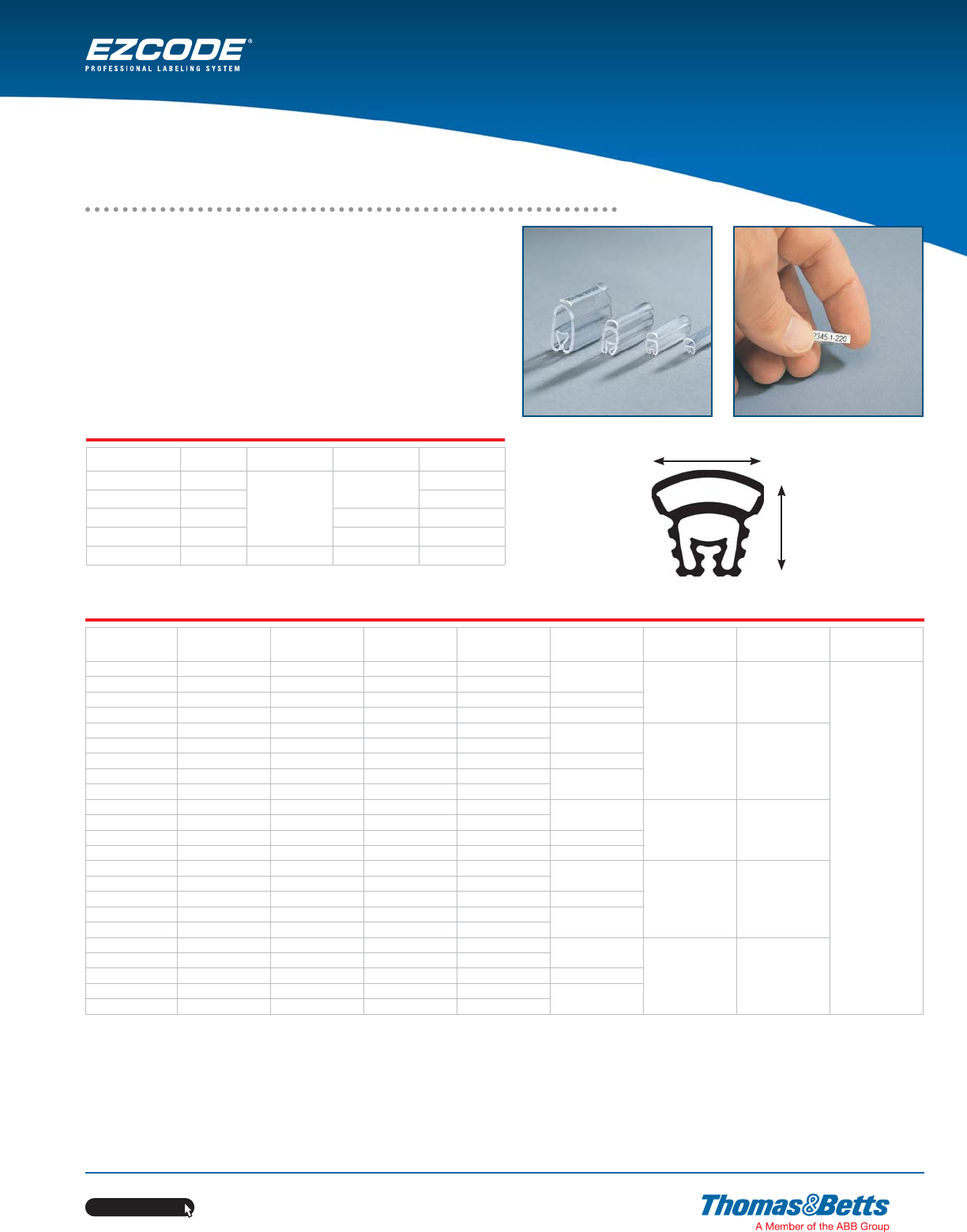

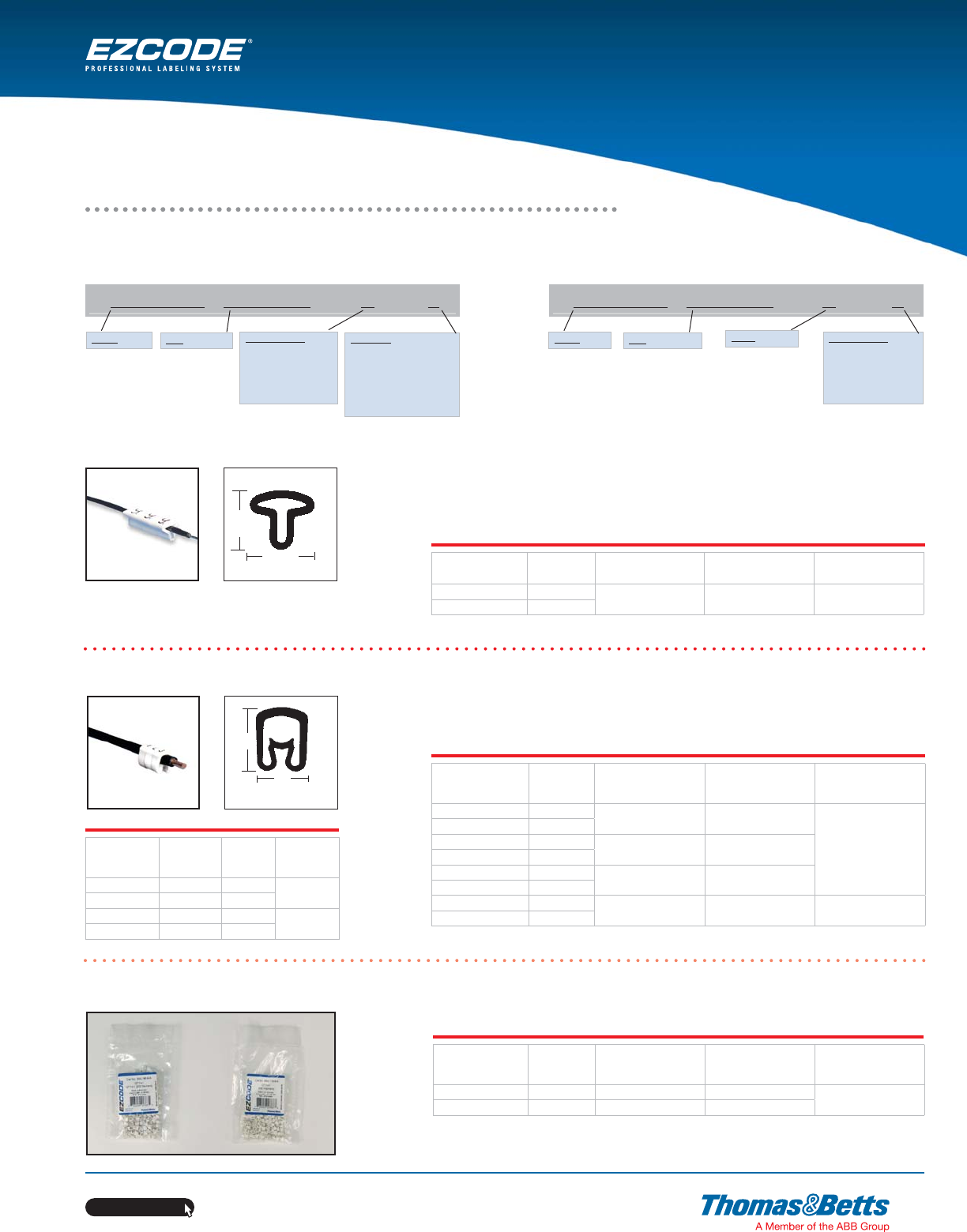

SMS Sleeve Markers

Closed combination marker. A special Y-shaped profile covers a wide diameter

range of small wires. The large print surface of the marker enables excellent

readability at normal reading distances.

SMS118-4-1

Series

Size

Marker Colour

Yellow = Code 4

White = Code 9

Character

A–Z, 0–9

Symbols:

– = EQ, + = PL, - = DH,

. = DT, / = SH, : = CO

Ground sign = GRD

, = CM

SMS118-N-4

Series

Size

Marker Colour

Yellow = Code 4

White = Code 9

Blank

3.5 mm

3.3

mm

B

H

Cat. No.

Colour Recommended wire

diameter (in.) AWG Std. Pkg.

SMY079-4-*

Yellow 0.039 – 0.079 23–20 1001 = Reel/1000

SMY079-9-*

White

*Replace with character required.

Cat. No.

Colour Recommended wire

diameter (in.) AWG Std. Pkg.

SML118-4-*

Yellow 0.051 - 0.118 22-16 Loose Bag 1200

SML196-4-*

Yellow 0.059 - 0.197 16-10

Cat. No.

Colour Recommended wire

diameter (in.) AWG Std. Pkg.

SMS118-4-*

Yellow 0.051 – 0.118 22-16

1 = BAG/250

10 Strips of 25 Markers

SMS118-9-*

White

SMS196-4-*

Yellow 0.059 – 0.197 16-10

SMS196-9-*

White

SMS394-4-*

Yellow 0.157 – 0.394 13-4

SMS394-9-*

White

SMS630-4-*

Yellow 0.315 – 0.630 5 1 = BAG/20

SMS630-9-*

White

*Replace with character required.

Type

Designation

Height (H)

(in.)

Width (B)

(in.)

Text Height

(in.)

SMS118

3.6 3.5 2.6

SMS196

5.5 4.2

SMS394

9.5 6.6 4.0

SMS630

16.5 11.0

Closed combination marker, permanent grip and adjustable marking sleeve for as

yet unconnected wires. Unique profile with spring-action bellows covers a wide

diameter range. Twist-protection for secure combination marking.

SML Sleeve Markers - 200 in a Bag

Vinyl Sleeve Markers

SMY Sleeve Markers

www.tnb.ca

E18

H

B

Identification Products

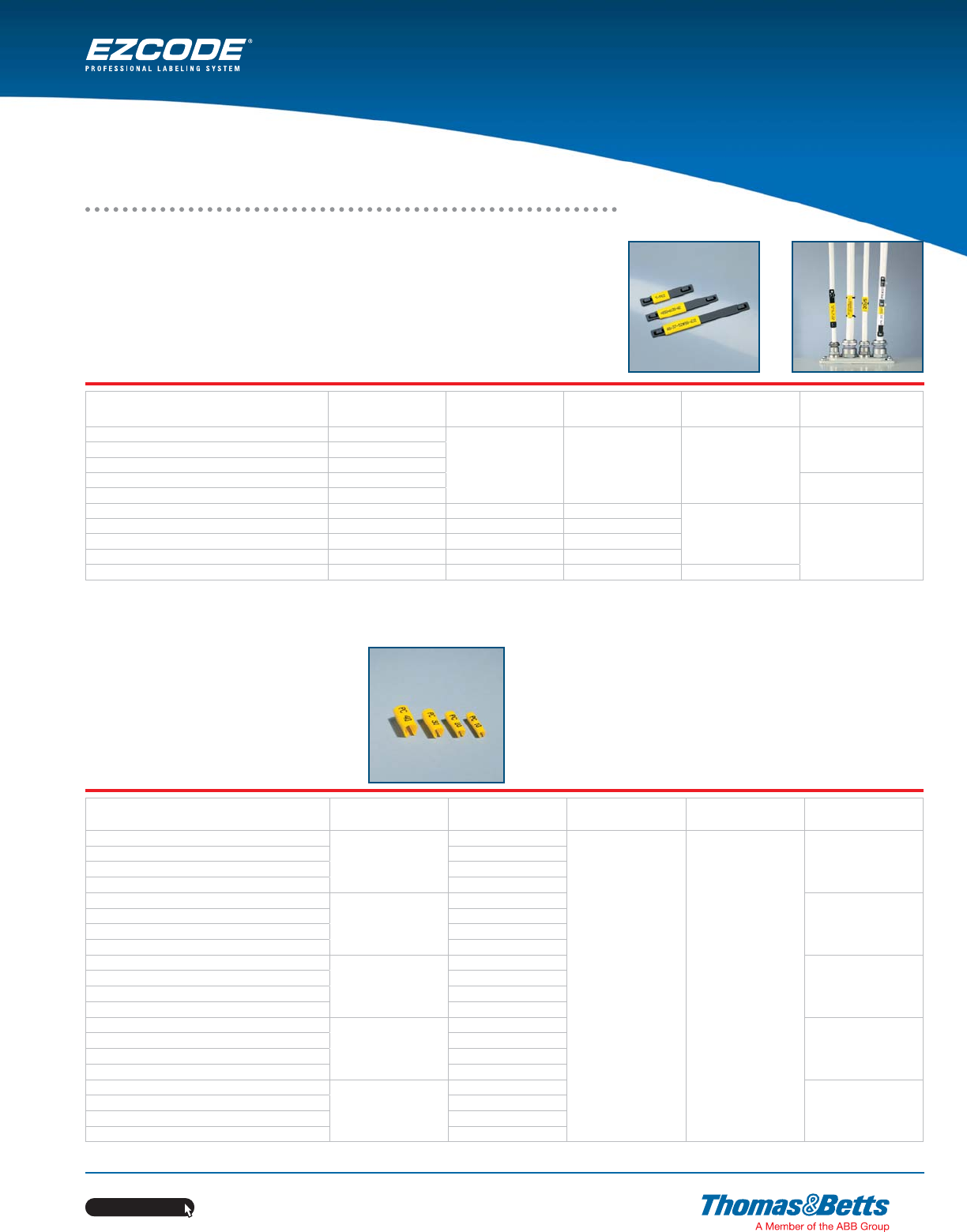

SMC Sleeve Markers –

Clip-On Markers

SMS118-4-1

Series

Size

Marker Colour

Yellow = Code 4

White = Code 9

Character

A–Z, 0–9

Symbols:

– = EQ, + = PL, - = DH,

. = DT, / = SH, : = CO

Ground sign = GRD

, = CM

SMS118-N-4

Series

Size

Marker Colour

Yellow = Code 4

White = Code 9

Blank

Cat. No.

Colour Recommended wire

diameter (in.) AWG Std. Pkg.

SMD118-4-*

Yellow 0.051 – 0.118 22–16

1 = Compact Disc/500

SMD118-9-*

White

SMD196-4-*

Yellow 0.059 – 0.197 16–10

SMD196-9-*

White

SMD394-4-*

Yellow 0.157 – 0.394 13-4 1 = Compact Disc/250

SMD394-9-*

White

SMDP394-9-*

White Recommended for use with

RG6 & RG59 coaxial cable 12–4 1 = Compact Disc/250

*Replace with character required.

Cat. No.

Colour Recommended wire

diameter (in.) AWG Std. Pkg.

SMR118-4-*

Yellow 0.051 – 0.118 22–16

1 = Reel / 1000

SMR118-9-*

White

SMR196-4-*

Yellow 0.059 – 0.197 16–10

SMR196-9-*

White

*Replace with character required.

Type

Designation

Height

(H) mm

Width

(B) mm

Text Height

mm

SMC118

3.6 3.7 2.6

SMC157

4.2 4.5

SMC197

5.5 5.7 4.0

SMC244

6.7 6.9

Cat. No.

Colour Recommended wire

diameter (in.) AWG Std. Pkg.

SMC118-4-*

Yellow 0.094 – 0.118 18–16

1 = BAG/200

(10 strips x 20 pcs)

SMC118-9-*

White

SMC157-4-*

Yellow 0.118 – 0.157 16–14

SMC157-9-*

White

SMC197-4-*

Yellow 0.157 – 0.197 12–10

SMC197-9-*

White

SMC244-4-*

Yellow 0.197 – 0.244 8–6

SMC244-9-*

White

*Replace with character required.

SMR Sleeve Markers – 1000

Continuous Markers on a Reel

SMD Sleeve Markers –

Markers on a Compact Disc

Open marker sleeve for already connected wires. Securely positioned with help of

barbs. Fast snap installation.

Vinyl Sleeve Markers

www.tnb.ca E19

Identification Products

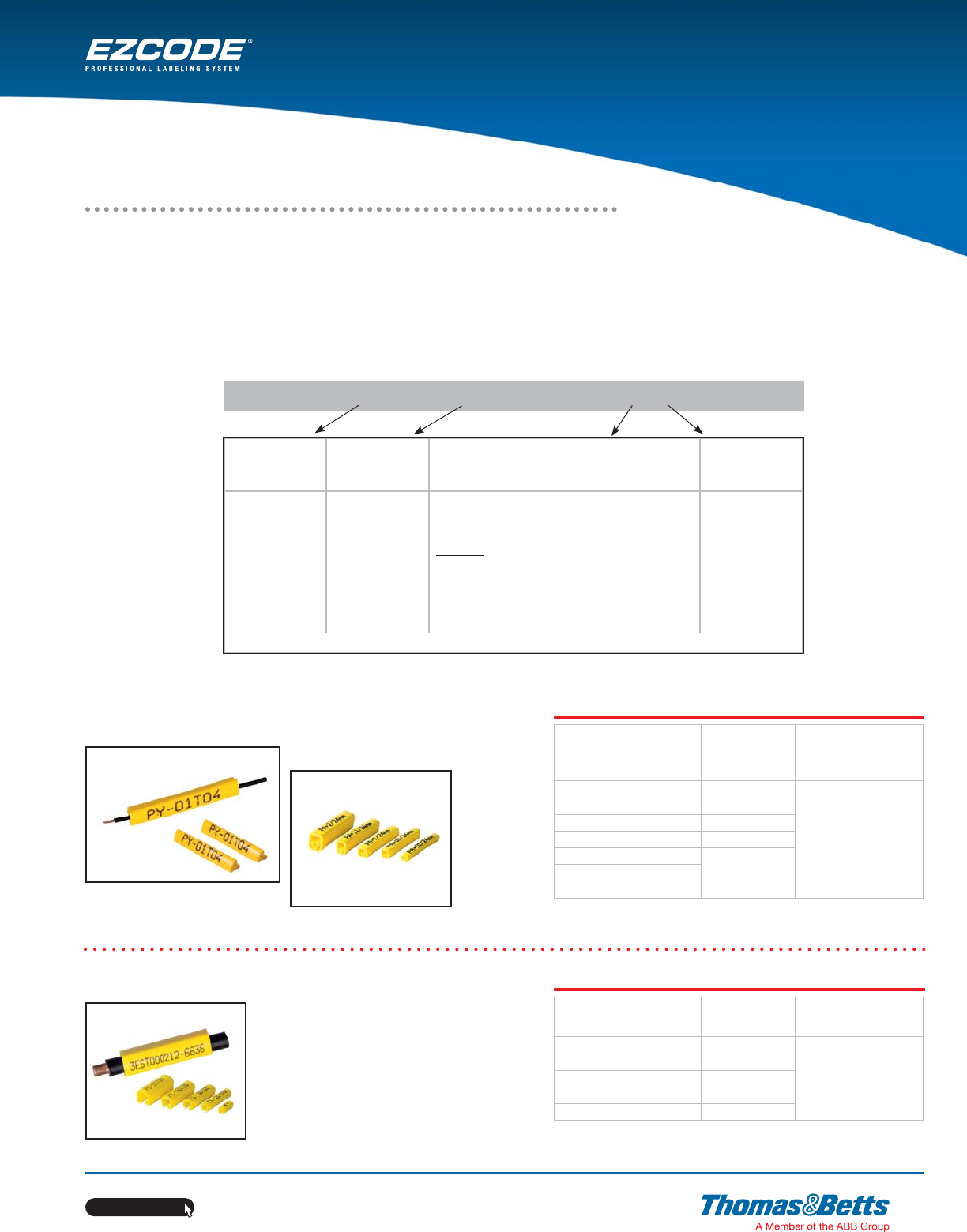

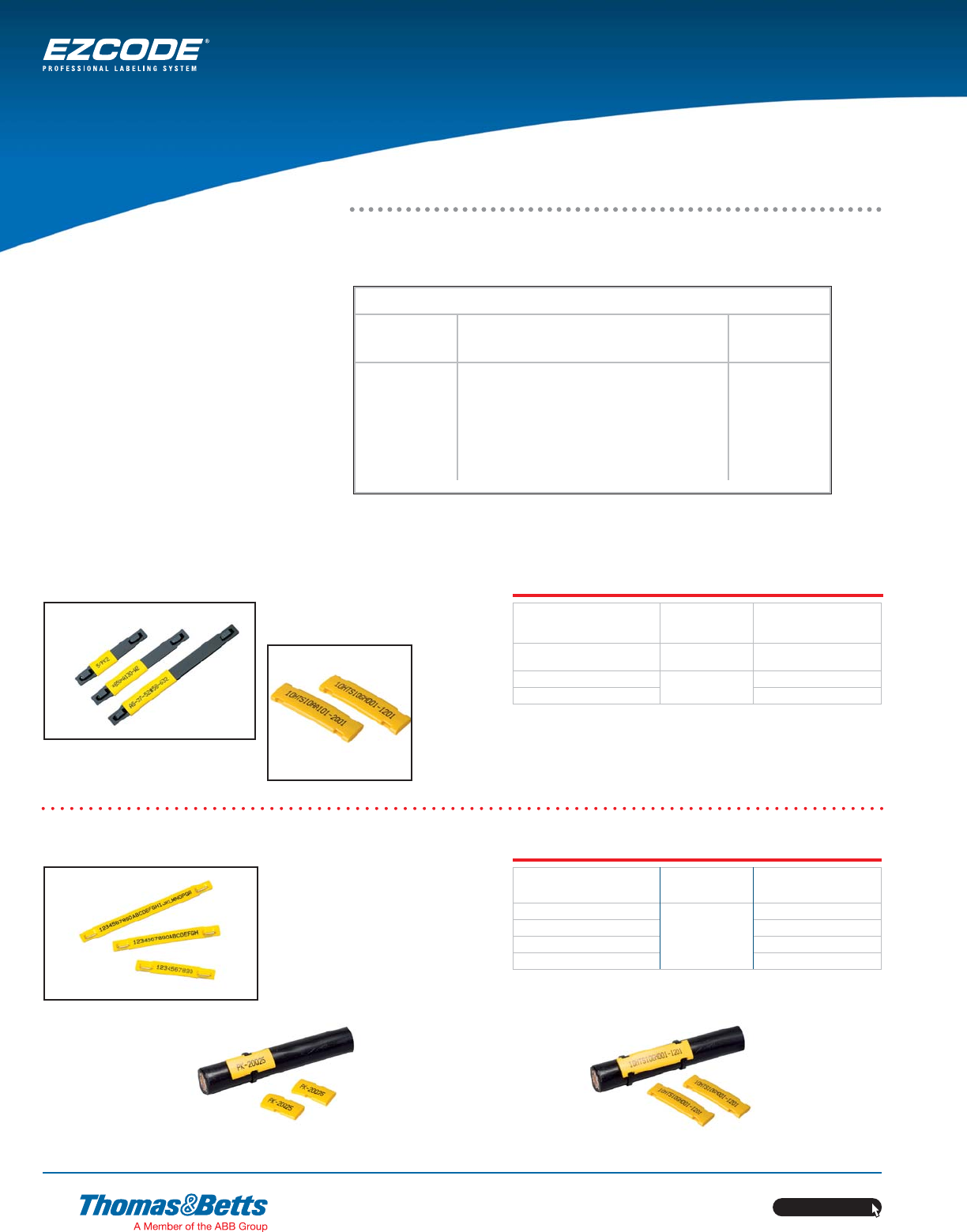

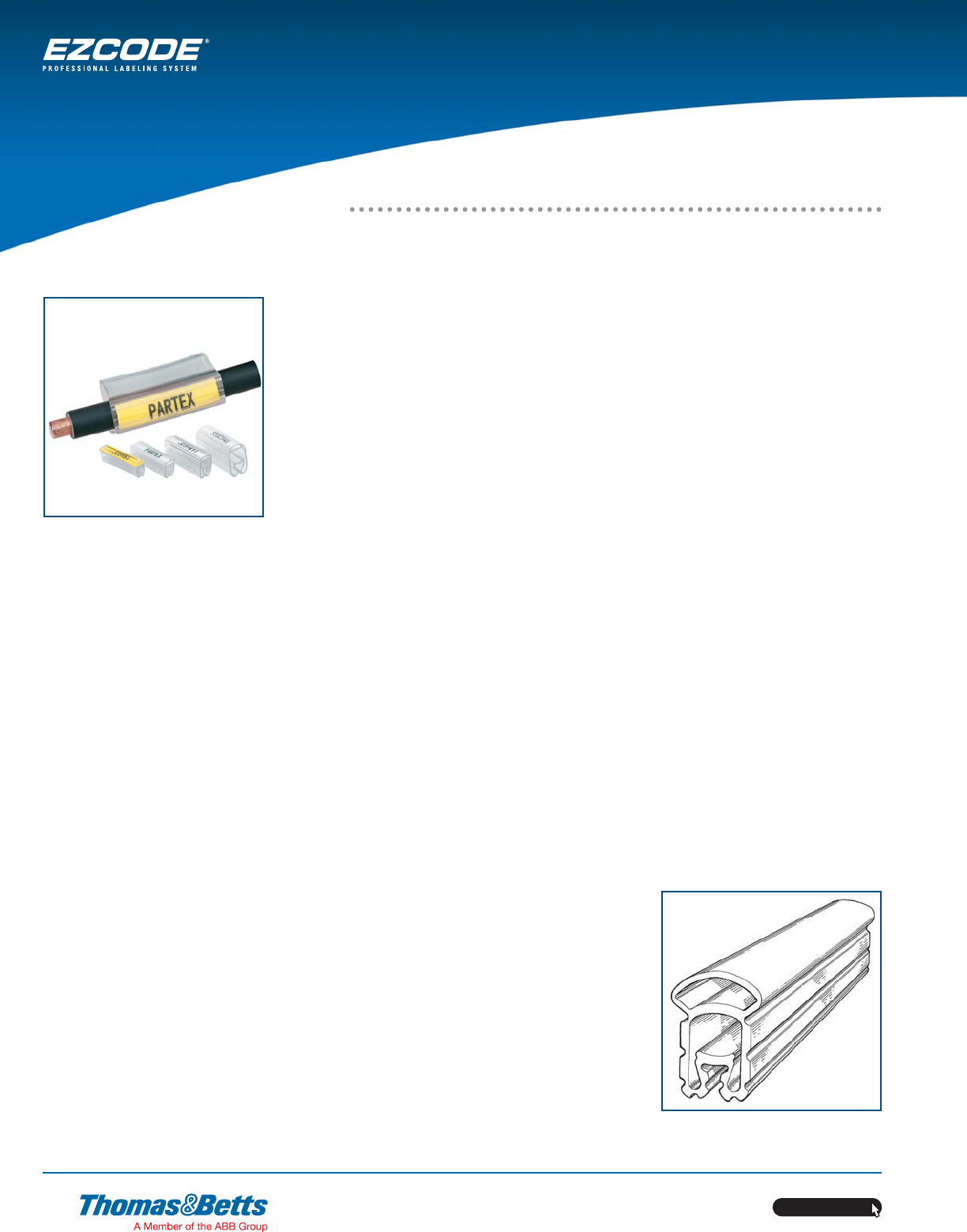

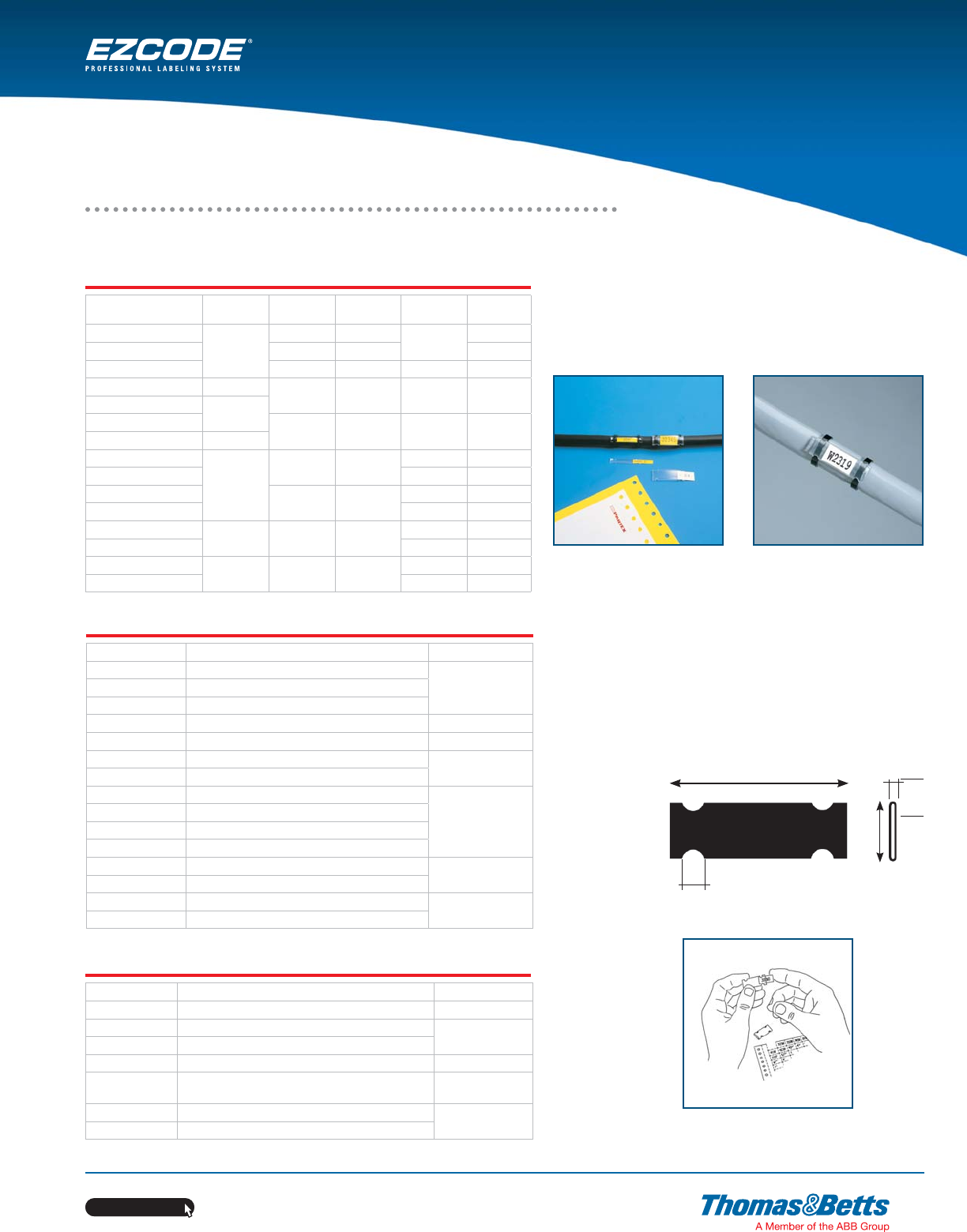

SMO and SMK Sleeve Markers – 500 Markers on a Compact Disc and Bag of 100

The SMK type is a combination marker for cable and pipe marking. Installed quickly

onto SMKH or SMOH holder which is fastened with cable ties around the cable.

Made of cadmium and silicone free rigid PVC. SMO type can also be used with

SMKH or SMOH holders or directly on cable.

SMS118-4-1

Series

Size

Marker Colour

Yellow = Code 4

White = Code 9

Character

A–Z, 0–9

Symbols:

– = EQ, + = PL, - = DH,

. = DT, / = SH, : = CO

Ground sign = GRD

, = CM

SMS118-N-4

Series

Size

Marker Colour

Yellow = Code 4

White = Code 9

Blank

Cat. No.

Colour Recommended

wire dia. (in.) Holders AWG Std. Pkg.

SMO256-4-*

Yellow 0.147 – 0.256

Use with

holders

SMKH or SMOH

10–6 1 = Compact

Disc/500

SMO256-9-*

White 0.197 – 0.256

SMK244-4*

Yellow – – 1 = BAG/100

SMK244-9-*

White

*Replace with character required.

Cat. No.

Colour Holds a max. of Std. Pkg.

SMO SMK

SMOH07-0

Black

78

1 = Bag/100 Holders

SMOH12-0

12 13

SMOH18-0

18 19

SMOH30-0

30 31

SMKH10-0

10 10

SMKH20-0*

20 20

*Made of Polyamide 6/6 resistant to organic solvents with limited resistance against acids and alkalis.

Recommended Ty-Rap® cable tie is TY524MX. Other colours available. Consult your Regional Sales Office.

* Halogen free

Type

Designation

Dia. Range

in.

Dimensions in mm

(nominal)

L1

mm

L2

mm

L3

mm

SMO

0.197–0.256 11.3 4.3 0.75

SMK

– 10.0 –

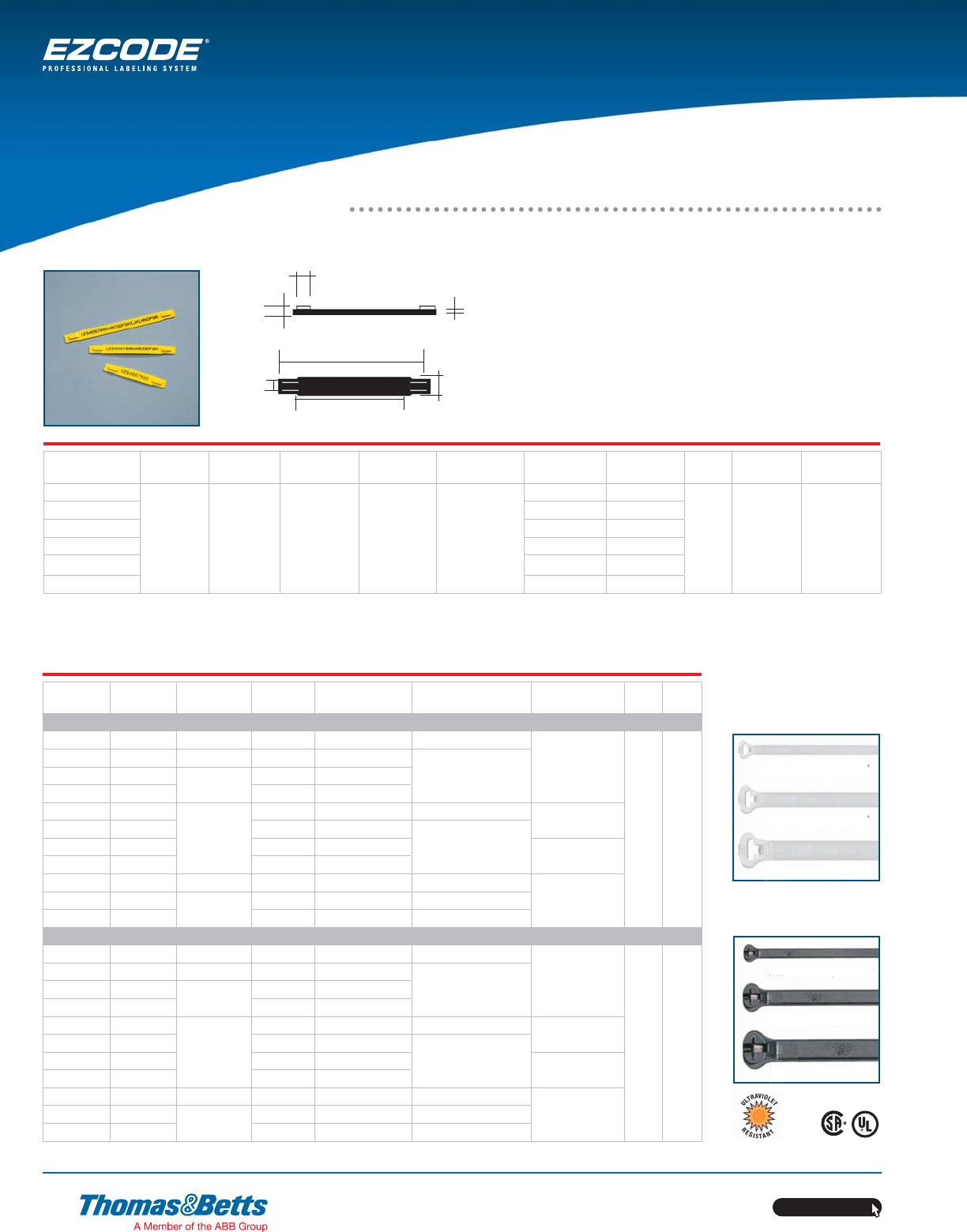

Vinyl Sleeve Markers

SMOH

SMKH

Cat. No.

Width (W1)

mm (in)

Width (W2)

mm (in)

Thickness (T1)

mm (in)

Thickness (T2)

mm (in)

Raised Bridge

(H) mm (in)

Length (L1)

mm (in) Writeable

(L2) mm (in) Packaging Cat. No.

Fixture

Capacity

No./Fixture

SMOH-07Ø

8.2 (0.323) 9.5 (0.374) 1.0 (0.04) 3.2 (0.125) 6.0 (0.236)

60.0 (2.36) 27.0 (1.06)

100 MTX-MK1–POH7 3x2

SMOH-12Ø

82.0 (3.24) 50.0 (1.97)

SMOH-18Ø

110.0 (4.33) 75.0 (2.95)

SMOH-30Ø

152.0 (5.98) 124.0 (4.88)

SMKH110-0

9.8 (0.385) 12.0 (0.472) 1.2 (0.05) 3.3 (0.130) – 70.0 (2.76) 60.0 (2.36)

SMKH20-0Ø

9.0 (0.354) – 100.0 (3.94) 90.0 (3.54)

Ø 0 = Black, 4 = Yellow, 9 = White. Material: Hard PVC.

Example: SMOH07-4 = Yellow, 60 mm

SMOH

S

MKH

A

PPLI

C

ATI

ON

SMOH

SMK TYPE

SMO TYPE

www.tnb.ca

E20

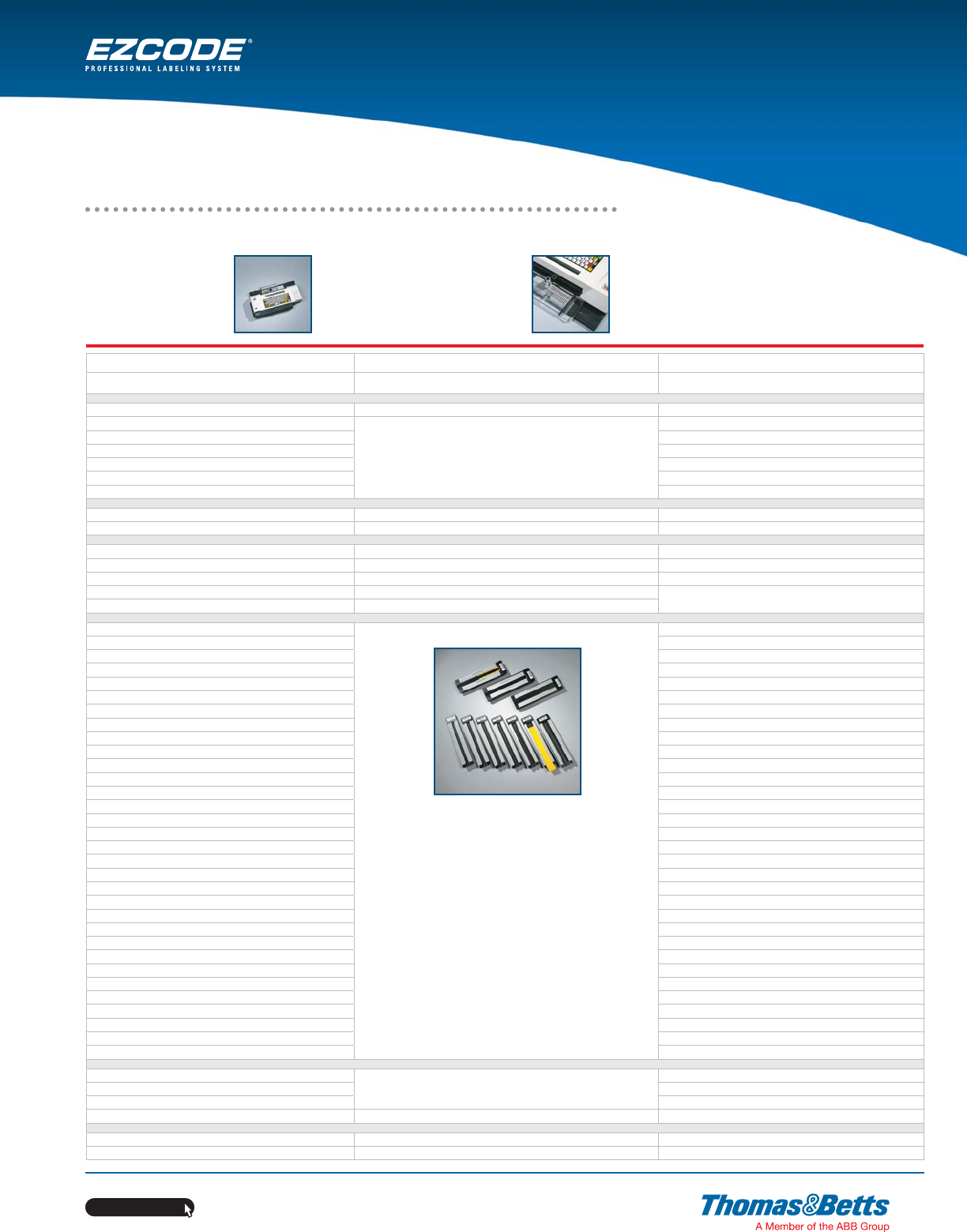

Identification Products

Letters, numbers, and symbols —

create easy-to-use custom identifications!

•

Slip tags over carriers or strips (below) and attach to your cable

or hose with a variety of Thomas & Betts Stainless Steel Cable Ties

Cat. No.

Description Length

(in./mm)

Width

(in./mm)

Wt.

Per

100

Pkg.

Stainless Steel I.D. Tag

ER010

A

0.45/2.00 0.38/9.65 0.31 100

ER011

B

ER012

C

ER013

D

ER014

E

ER015

F

ER016

G

ER017

H

ER018

I / 1

ER019

J

ER020

K

ER021

L / 7

ER022

M / W

ER023

N

ER024

O / 0

ER025

P

ER026

Q

ER027

R

ER028

S

ER029

T

ER030

U

ER031

V

ER032

W

ER033

Y

ER034

Z

ER018

1 / I

ER037

2

ER038

3

ER039

4

ER040

5

ER041

6

ER021

7 / L

ER042

8

ER041

9

ER024

O / 0

ER035

Minus/Hyphen (-)

ER036

Blank ( )

ER046

Plus (+)

ER047

Earth ( )

ER048

Sine (~)

ER049

Slash (/)

Character size: .218” Material: .025” 316 stainless steel.

•

I.D. Tag Kit contains 50 of each letter, number, symbol, carrier,

and strip in a handy carrying case

Cat. No.

Description Length

(in./mm)

Width

(in./mm)

Wt. Per

100 Pkg.

S.S. I.D. Tag Strips/Carriers

ER043

6-Character Carrier 3.64/92.46

0.38/9.65

0.73

100

ER044

10-Character Carrier 5.14/130.56 1.25

ER045

16-Character Carrier 7.39/187.71 1.47

ER050

Short Strip 4.25/107.95 0.98

ER051

Medium Strip 5.75/146.05 1.33

ER052

Long Strip 8.00/203.20 1.85

ER060-100

I.D. Tag Kit – – – 1

EASY

“A”

ER010

EASY

“B”

ER011

EASY

“C”

ER012

EASY

“D”

ER013

EASY

“E”

ER014

EASY

“F”

ER015

EASY

“G”

ER016

EASY

“H”

ER017

EASY

“I”

ER018

EASY

“J”

ER019

EASY

“K”

ER020

EASY

“L”

ER021

EASY

“M”

ER022

EASY

“N”

ER023

EASY

“O”

ER024

EASY

“P”

ER025

EASY

“Q”

ER026

EASY

“R”

ER027

EASY

“S”

ER028

EASY

“T”

ER029

EASY

“U”

ER030

EASY

“V”

ER031

EASY

“W”

ER022

EASY

“X”

ER032

EASY

“Y”

ER033

EASY

“Z”

ER034

EASY

“-”

ER035

EASY

“BLANK”

ER036

EASY

“+”

ER046

EASY

“-”

ER035

EASY

“ ”

ER047

EASY

“~”

ER048

EASY

“/”

ER049

EASY

“1”

ER018

EASY

“2”

ER037

EASY

“3”

ER038

EASY

“4”

ER039

EASY

“5”

ER040

EASY

“6”

ER041

EASY

“7”

ER021

EASY

“8”

ER042

EASY

“9”

ER041

EASY

“0”

ER024

EASY CARRIER 16

ER045

EASY CARRIER 10

ER044

EASY CARRIER 16

ER043

EASY STRIP LONG

ER052

EASY STRIP MEDIUM

ER051

EASY STRIP SHORT

ER050

I.D. Tag Kit contains 100 of each letter, number, symbol, carrier, and strip in a handy carrying case.

Easy Read Kit ER060-100

Stainless Steel Sleeve Markers

www.tnb.ca E21

Identification Products

Identify your cable bundles with permanent,

Type 304 stainless steel imprinted tags

applied with stainless steel cable ties

•

After imprinting tags, simply slip a tie through slots in

the tag and fasten with a cable tie installation tool

•

Tie down with 1⁄4 in. wide ties

•

Type 304 Stainless Steel

Cat. No.

Designation Max. No. of Single

Character Markers

Quantity

Per Pack Length (L) Width (W) Slot Width (SW)

SSM*

SINGLE-CHARCTER MARKER – 50 (5x10) PCS 5.5 10.9 4.8

PKS10040FQ ◊

47 MM CARRIER STRIP 6 5.5 47.0 10.3 4.8

PKS10060FQ ◊

65 MM CARRIER STRIP 9 5.5 65.0 10.3 4.8

PKS10080FQ ◊

87 MM CARRIER STRIP 13 5.5 87.0 10.3 4.8

PKS10100FQ ◊

107 MM CARRIER STRIP 17 5.5 109.0 10.3 4.8

PKS10120FQ ◊

128 MM CARRIER STRIP 20 5.5 128.0 10.3 4.8

◊ = (S= RAISED BRIDGES), (H= HOLES) * = CHARACTERS

Cat. No.

Width Length

In. mm In. mm

SSID100

0.75 19.05 2.0 51

SSID101

1.50 38.10 2.5 63

SSID102

0.75 19.05 3.5 89

Packaging Quantity: 100/box .015 in. (.254mm) Thickness.

NOTE: Customized pre-embossed tags are available. Please consult Regional Sales Office

for details. Add suffix (316) for 316 Stainless Steel.

CARRIER STRIP FOR SINGLE-CHARACTER MARKERS

OR READY-MARKED MULTI-CHARACTER MARKING.

PKS10040-PKS10120 not stamped with text can be used as carrier

strips for single-character markers. The carrier strips can also be

pre-stamped and combined with single character markers.

Customized markers are mounted on tape.

NOTE:

I.D. Tagging System

SINGLE-CHARACTER MARKERS.

www.tnb.ca

E22

Identification Products

After making your tag, apply with stainless steel cable ties.

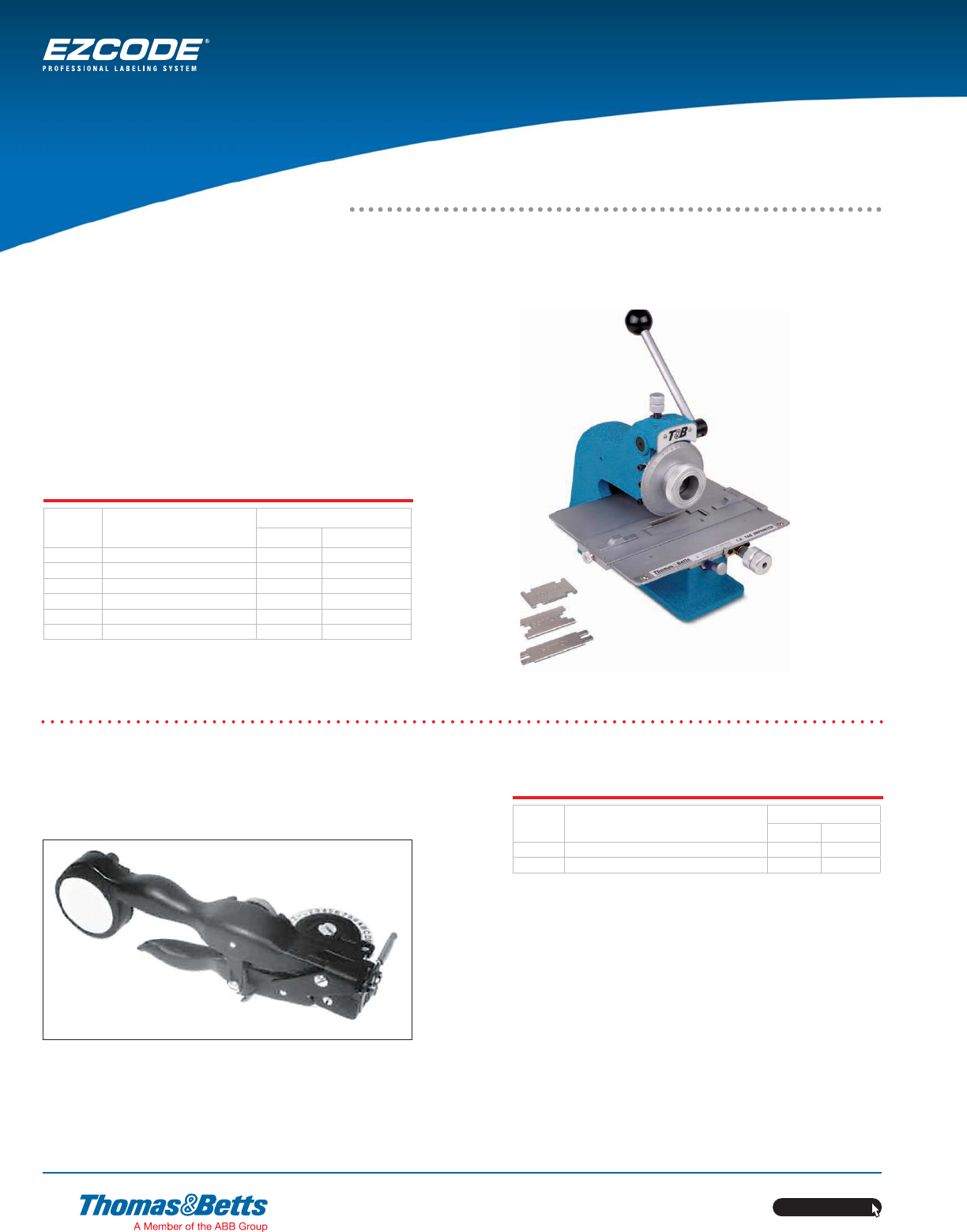

Customized Stainless Steel

Tape Embossing System

Cat. No.

Description Weight

lb. kg

WTID400

Hand-held tool for embossing S.S. I.D. Tape 2.57 1.17

WTID405

Replacement S.S. tape (21 ft. long, 1/2 in. wide) 0.18 0.01

304 Stainless Steel

Packaging Quantity: 1/box

Note: The embossing tool comes complete with two rolls of stainless steel tape.

Cat. No.

Description Weight

lb. kg

WTID200

I.D. Tag Imprinter 29.5 13.41

WTID290

3/32 in. Caractères imprinting wheel - -

WTID281

1/8 in. Caractères imprinting wheel - -

WTID283

3/16 in. Caractères imprinting wheel - -

WTID300

I.D. Marking Kit - -

WTID204

(Kit) WTID200 and WTID283 - -

I.D. Tag Imprinter

•

Includes special tag holder that provides quick, accurate positioning of tag

•

Comes with a 3⁄32 in. character imprinting wheel

I.D. Tagging System

Imprints Thomas & Betts stainless steel I.D. tags

www.tnb.ca E23

SMMK118 (196)

Identification Products

Cat. No.

Colour Recommended wire

diameter (in.) AWG Std. Pkg.

SMMK118-4

Yellow 0.051 – 0.118 22-16 1 = Bags of 20 Wands

20 Wands of 25 Markers

0–9, L, R, S, T, Neutral, Ground, Blue

-, Red +, Grey Neutral

SMMK118-9

White

SMMK196-4

Yellow 0.098–0.196 16–10

SMMK196-9

White

Consult your Regional Sales Office for other kit combinations.

Refill markers order SMS118 or SML096 Series, see page E17.

Cat. No.

Contents Marker Qty./

Compartment

Std. Marker

Pkg. per Case

SMCB12-E

– 0/12 Empty case

SMCB12-118-4

SMS118 Series

22–16 AWG 1000 pcs/12

Yellow/Black = 0-9

Red/White = +

Blue/White = -

SMCB12-118-9

White/Black = 0-9

Red/White = +

Blue/White = -

SMCB18-E

– 0/18 Empty case

SMCB18-196-4

SMS196 Series

16–11 AWG 200 pcs/18

Yellow/Black = 0-9

Red/White = +

Blue/White = -

SMCB18-196-9

White/Black = 0-9

Red/White = +

Blue/White = -

Yellow/Green =

White = neutral

Grey = neutral

White/Black = R,S,T

SMCB12 is a 12 compartment transparent case in Polystyrene.

SMCB18 is a 18 compartment with a transparent lid.

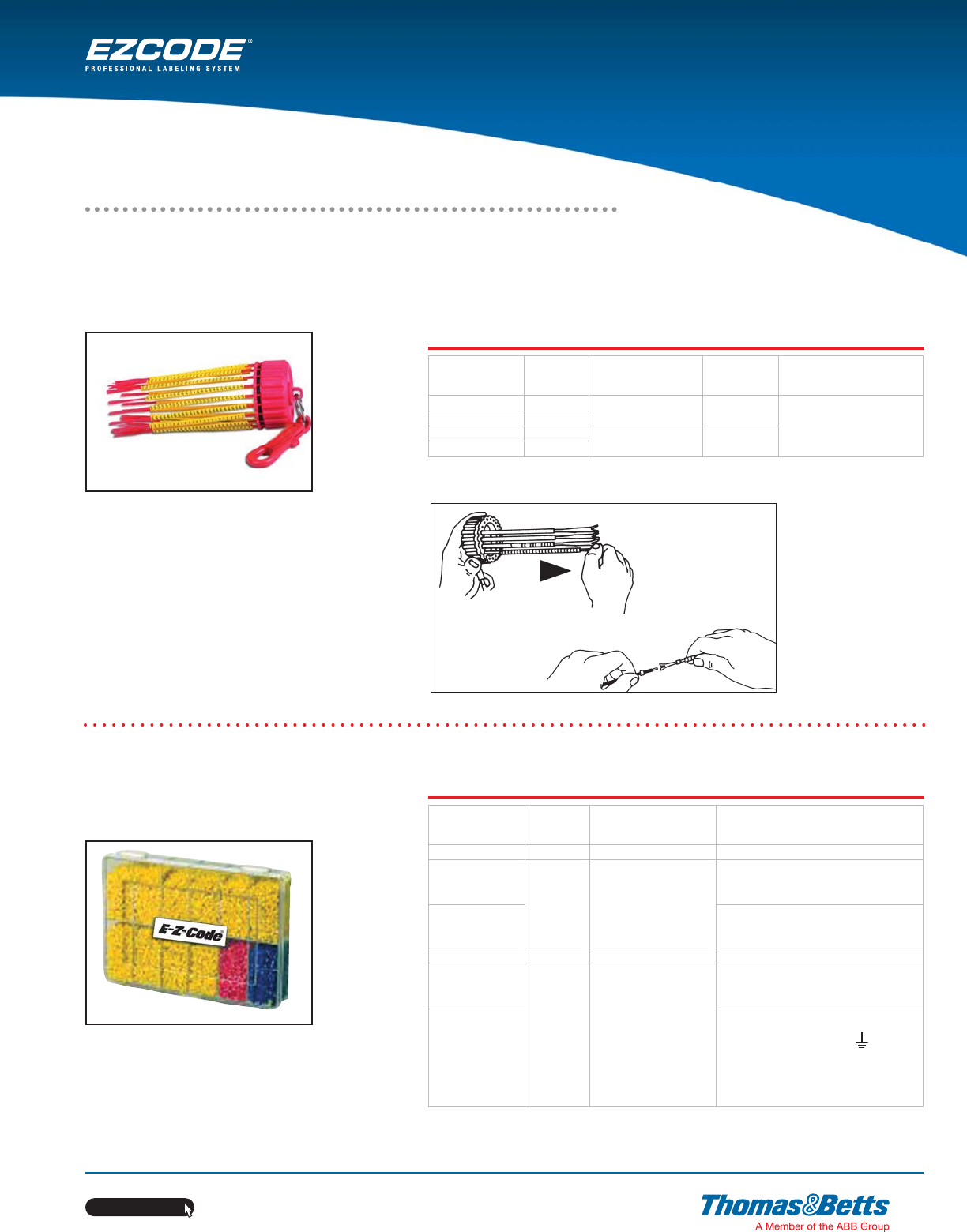

SMCB Sleeve Marker

Compartment Case

SMMK Installation Magazine for SMS Sleeves

Complete marking kit for marking on site

Accessories

www.tnb.ca

E24

Identification Products

SMS Sleeve Markers –

Application Tool

Magazine Dispenser –

Feeds Left or Right

The magazine dispenses SMS sleeves, it has two identical lids, linked by a hinge on one

side. The outer sides of the lids have grooves for storing SMS Series markers strips.

Material: Polystyrene

Cat. No.

Material Recom. wire

dia. (in.) AWG Std. Pack. Use With

SMAT118

Teflon

Coated

Stainless Steel

0.051 – 0.118 22–16

1 Tool

SMS118

SMAT196

0.098 – 0.196 16–10 SMS196

Cat. No.

Colour AWG Marker Type Std. Pack. Includes Tool

SMMDT118-E

–– – –

SMAT118

SMMDT118-9-0-9

White

22–16 SMS118

1 = 20 strips of 25

Markers/dispenser

0–9

SMMDT118-4-0-9

Yellow

SMMDT196-E

–– – –

SMAT196

SMMDT196-9-0-9

White

16–10 SMS196

1 = 20 strips of 25

Markers/dispenser

0–9

SMMDT196-4-0-9

Yellow

Refill markers order SMS118 or SML196 Series, see page E17.

Accessories

www.tnb.ca E25

Identification Products

SMC Série

SMY Série

SMS Série

Cat. No.

AWG Max. Number

of Characters

SMY24-19T*

24-19 4, 9, 17

SMS22-16T*

22-16

4, 9, 17, 30

SMS18-14T*

18-14

SMS16-11T*

16-11

SMS13-5T*

13-5

SMS5-T*

5

SMS5-T*

SMS5-T*

* Replace asterisk by the number of characters desired.

SMS5 can be delivered with 1 or 2 line text.

Cat. No.

AWG Max. Number

of Characters

SMC22-16T*

22-16

4, 9, 17

SMC16-12T*

16-12

SMC12-11T*

12-11

SMC11-10T*

11-10

SMC7-5T*

7-5

* Replace asterisk by the number of characters desired.

Series

Type

AWG Range

(Size) Package Option Characters

per Marker*

SMS

SMY

SMC

i.e. 22–16 T = Unsorted

U = Sorted (requires specifications)

Others

D = Text on two lines

S = Large text

Q = Punched

4

9

17

30

SMS22-16T4

Standard colour for customized markers are yellow unless otherwise stated in customer’s excel file.

*To complete catalogue number, add maximum number of characters required.

SMY and SMS Series

SMC Series

Multi-character markings allows you to order markers already printed with the combinations of characters required, in accordance with

customers specifications, direct from T&B with a 5 to 10 day delivery for orders under 10,000 markers. The information is transferred via

e-mail in an Excel format. Purchase order is matched with the Excel file and is sent to Customer Service. We even offer heat shrink markers.

Value of customized marking order must be equal to or greater than $100.

Please consult your Regional Sales Offices for a Quote (Min. order required)

With unique patented grooves for easier

mounting and flat top for excellent readability.

T&B Express

Multi-Character Marking (Customized Orders)

www.tnb.ca

E26

Identification Products

Catalogue No. Construction

Type Package Option Characters

per Marker*

SMK2 T = Unsorted

QT = Punched unsorted

4

7

9

10

17

30

Standard colour for customized markers are yellow unless otherwise stated in customer’s excel file.

*To complete catalogue number, add maximum number of characters required.

Cat. No.

AWG Max. Number

of Characters

SMK2T*

Use with SMKH and

SMOH holders 4, 9, 17, 30

SMK2QT10

Use with

TY524MX

10

SMK2QT07

7

*Replace asterisk by the number of characters desired.

SMK can be delivered with 1 or 2 line text.

Consult your Regional Sales Office for more information.

Cat. No.

AWG Max. Number

of Characters

SMOHT7

Unlimited

10

SMOHT12

18

SMOHT18

28

SMOHT30

28+

SMK2T and SMK2Q Series

SMOH Series Holders

T&B Express

Multi-Character Marking (Customized Orders)

SMK2T Serie

with SMOH holder

SMK2Q Punched Série

SMOH Série Holders

www.tnb.ca E27

D

W

d

Identification Products

SMO Oval Série

Cat. No.

Dia. (in.)

min/max AWG Max. Number

of Characters

SMO071T*

0.051/0.071 23–20

4, 9, 17, 30

SMO087T*

0.067/0.087 20–18

SMO098T*

0.079/0.098 18–17

SMO110T*

0.087/0.110 17–15

SMO138T*

0.106/0.138 15–13

SMO157T*

0.126/0.157 13–11

SMO185T*

0.150/0.185 12–9

SMO217T*

0.181/0.217 9–7

SMO276T*

0.220/0.276 7–5

SMO315T*

0.256/0.315 5–3

SMO374T*

0.276/0.374 4–3

SMO384T*

0.295/0.394 4–2

SMO472T*

0.374/0.472 1/0

SMO551T*

0.453/0.551 1/0–2/0

SMO630T*

0.531/0.630 2/0–3/0

SMO709T*

0.610/0.709 3/0–4/0

SMO787T*

0.689/0.787 4/0

SMO866T*

0.788/0.866 4/0–5/0

SMO945T*

0.846/0.945 5/0–6/0

SMO1104T*

0.947/1.104 6/0–7/0

* Replace asterisk by the number of characters desired.

Cat. No.

Internal Dia.

(max.) D

Internal Dia.

(max.) d

Wall Thick.

(nom.) W AWG Max. Number

of Characters

mm in. mm in. mm in.

HSZ063T*

1.6 1/16 0.8 1/32 0.45 0.015 –

4, 9, 17, 30

HSZ093T*

2.4 3/32 1.2 3/64

0.51 0.020

–

HSZ125T*

3.2 1/8 1.6 1/16 24–30

HSZ187T*

4.8 3/16 2.4 3/32 14–22

HSZ250T*

6.4 1/4 3.2 1/8

0.64 0.025

10–16

HSZ375T*

9.5 3/8 4.8 3/16 6–12

HSZ500T*

12.7 1/2 6.4 1/4 1–6

HSZ750T*

19 3/4 9.5 3/8 0.79 0.030 4/0–2

HSZ1000T*

25.4 1 12.7 1/2 0.89 0.035 350–2/0

HSZ1500T*

38.1 1-1/2 19 3/4 1.02 0.040 750–3/0 kcmil

HSZ2000T*

50.8 2 25.4 1 1.14 0.045 250–600 kcmil

* Replace asterisk by the number of characters desired.

Catalogue No. Construction

Type Max. Dia.

(in.) Package Option Characters

per Marker*

SMO

HSZ

i.e. 0.063 T = Unsorted

U = Sorted

(requires specifications)

4

9

17

30

Standard colour for customized markers are yellow unless otherwise stated in customer’s excel file.

*To complete catalogue number, add maximum number of characters required.

SMO Oval Series: Oval marking profile

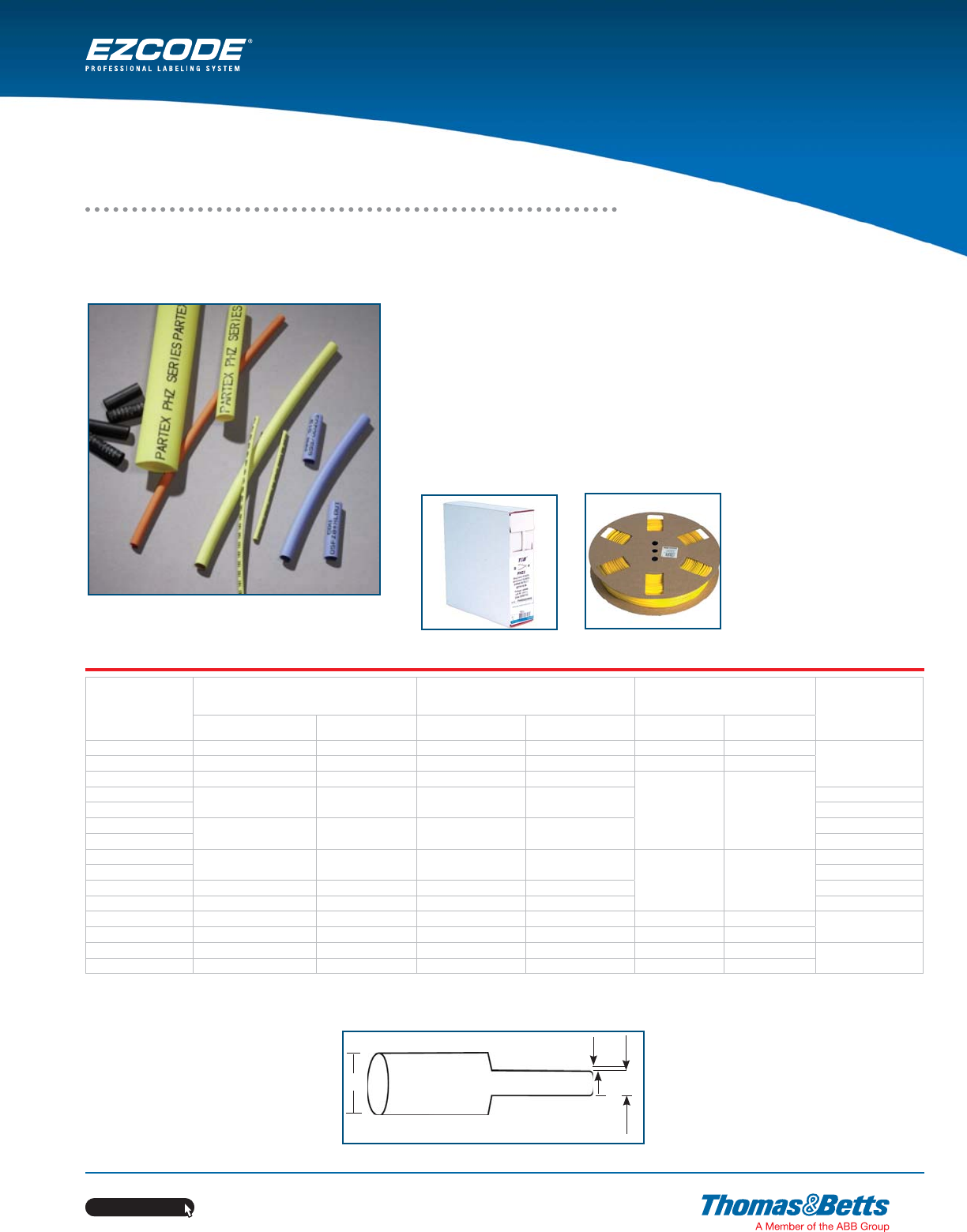

HSZ Series

Flexible zero halogen thin wall polyolefin

heat shrink tubing for marking on site.

•

Excellent properties of fire safety

•

Low smoke generation and evolution of acid gases

•

Flexible and easy mounted on cables and wires

•

2 : 1 shrink ratio

T&B Express

Multi-Character Marking (Customized Orders)

SMO Oval Série

SMO Oval Série

HSZ Série

Expanded as supplied

Fully recovered after heating

www.tnb.ca

E28

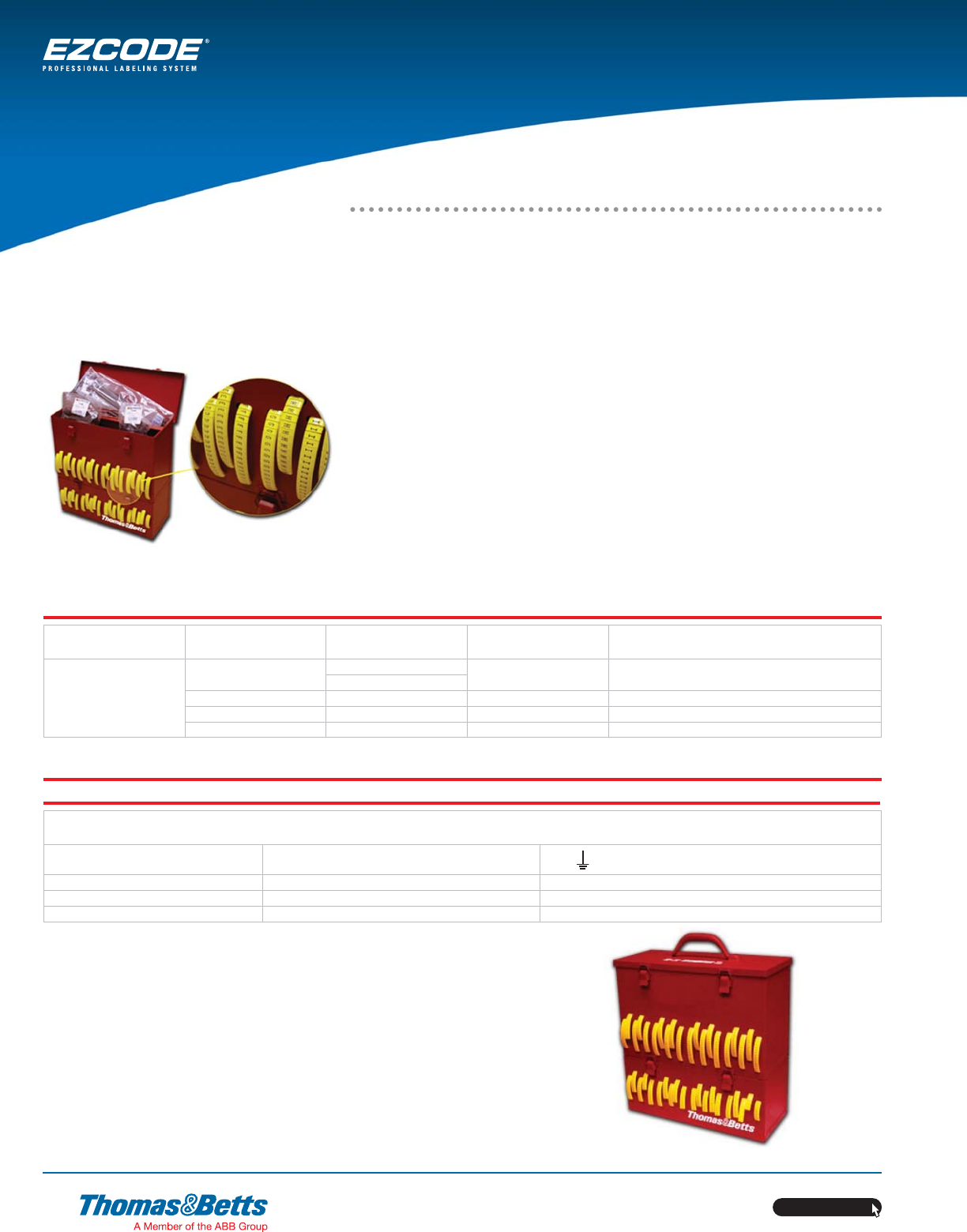

Identification Products

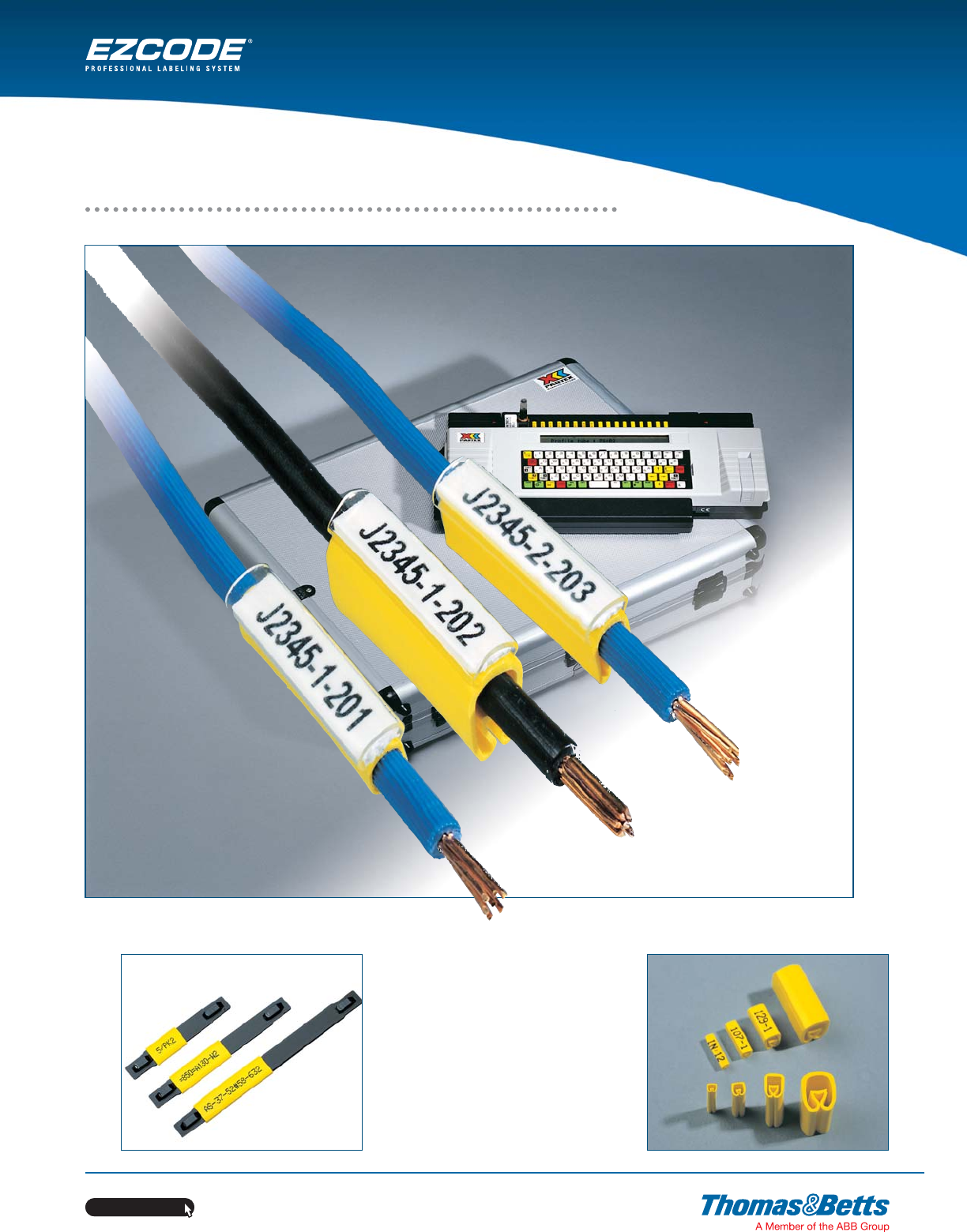

Cat. No.

Contents Legend Reels/Bags Items per reel/bag

Partex-EZCoder

SMO Markers 1 to 9 36 500

A to Z

SMKH10-0 Short holder 1 100

SMKH20-0 Long holder 1 100

TY5253MX Ty-Rap® cable ties 1 100

Example: How to order replenishment component parts

1 x SMO256-4-GRD Ground symbol

2 x SMO256-4-0 Letter O or number zero

1 x SMKH10-0 Short cable marker holder

100 x TY5253MX Ty-Rap® cable ties

E-Z-CODER

Items included in the E-Z-CODER

36 reels of 500 x SMO markers from 1 to 9, A thru Z including the “-” symbol (order suffix

DH). To replenish your reels of markers, order a reel of catalogue no. SMO256-4* and

to select your legend, just replace the asterisk with your choice of characters

i.e.: A, 3, . (for dot symbol, order suffix DT). For other legends or symbols, contact your

Thomas & Betts Regional Sales Office.

The carrying case also includes one bag (100 pieces) of SMKH10-0 “short” cable tag

holders for up to 10 characters and one bag (100 pieces) of SMKH20-0 “long” cable tag

holders for up to 20 characters. To complete this kit, 100 x TY5253MX Ty-Rap® cable ties

are supplied to install and secure your cable tag holders.

www.tnb.ca E29

Identification Products

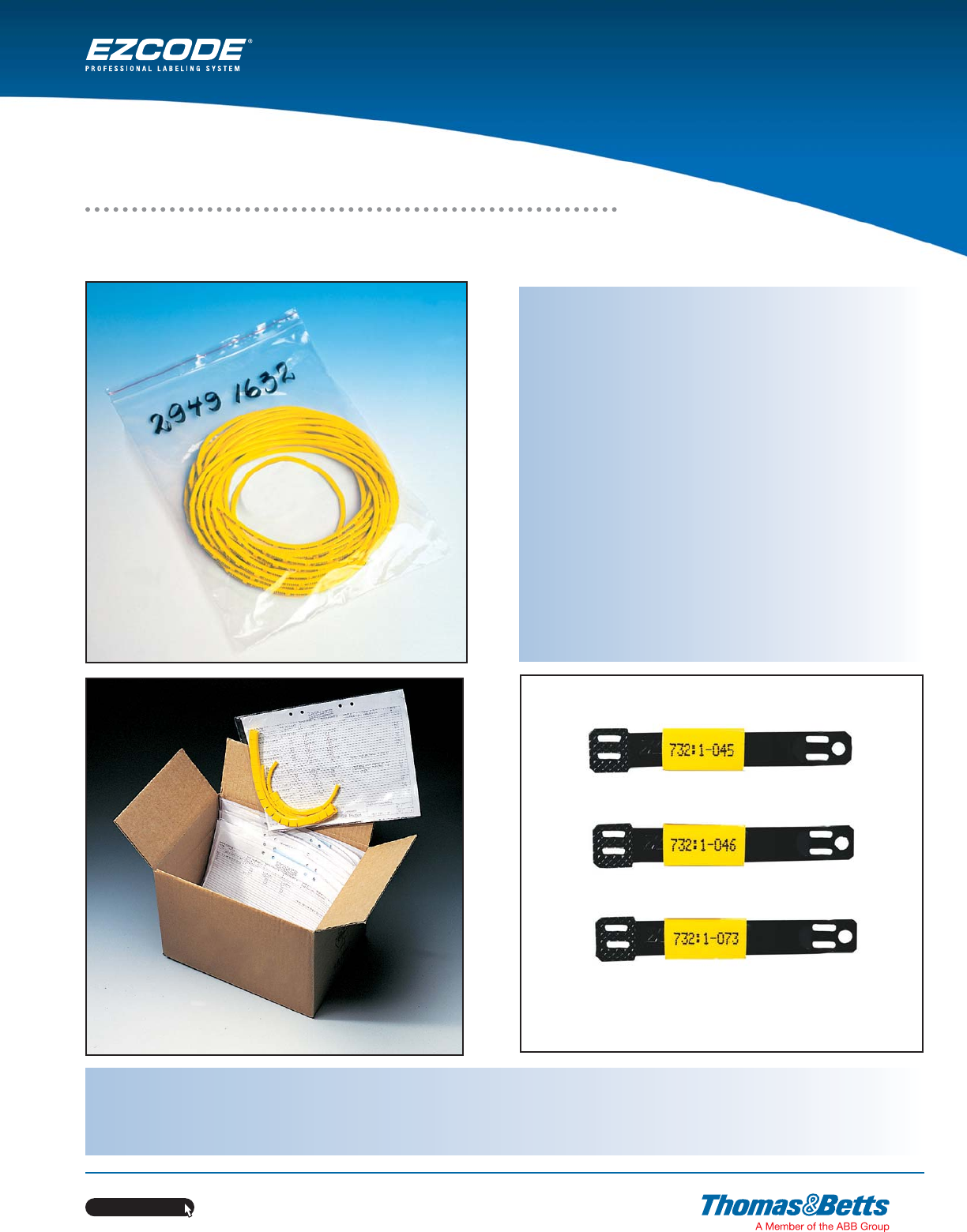

Unsorted Package

Cat. No.: MUA Cat. No.: MUH

Sorted marking sleeves packed entirely according to

customer requirements, in packs with sorting designations.

Packaging Options

Packaging options for customized order

Unsorted in a loop in

sequential manner

based on how markers are

on customer Excel file.

www.tnb.ca

E30

Identification Products

All kinds of dangers exist with high-voltage equipment and industrial machinery. Warn your employees of hazards and keep them safe with

E-Z-Code® Labels. Place the self-adhesive labels where they need to be seen for on-the-spot identification and instruction and to help you

comply with workplace health and safety regulations.

Avoid accidents and OSHA fines by clearly marking

electrical equipment with potential for arc flash hazards

with E-Z-Code® Arc Flash Labels. They’re designed to

meet the latest ANSI standards for safety labels

and help you comply with both Canadian Electrical Code

and National Electrical Code® standards.

• Made of pressure-sensitive vinyl with aggressive acrylic adhesive

• For more information, see p. E33

Arc Flash Labels

Positively identify voltage on conduit, load centers, circuit

breakers, switches and other electrical equipment to

allow faster, safer repair.

• Made from rugged, self-sticking vinyl — adheres to most surfaces

• High-contrast black type on safety-orange background for visibility

• For more information, see p. E31

Conduit and Voltage Markers

Positively identify voltage on conduit, load centers, circuit

breakers, switches and other electrical equipment to

allow faster, safer repair.

• Made from rugged, self-sticking vinyl —

adheres to most surfaces

• High-contrast black type on safety-orange

background for visibility

• For more information, see p. E32

Electrical Safety Labels

Compliant with both Canadian and US lockout/tagout

requirements, E-Z-Code® Lockout Labels are designed to

help you develop, implement and update a lockout/tagout

program for your facility.

• Made from pressure-sensitive vinyl with polyester overlaminate

• Adhere to almost any clean, dry surface — rough or smooth

• Use in indoor or outdoor applications

• For more information, see p. E33 to E35

Lockout Labels

Use these labels featuring universal symbols to

communicate hazards to anyone, regardless of literacy

or language.

• Made from self-adhesive vinyl

• For more information, see p. E45

Pictogram Labels

Machine Warning Labels help you prevent injuries and reduce downtime.

They also comply with ASME (ANSI Z535), CSA standard Z462 and OSHA

1910.145 requirements to use safety and compliance signs to indicate

hazards that may lead to accidents, injury and property damage.

DANGER indicates an immediate hazard with

a strong potential for death or severe injury

WARNING indicates hazardous situations

that may result in death or severe injury

CAUTION warns against potential hazards

or unsafe practices

• Made from pressure-sensitive vinyl with polyester overlaminate and

permanent acrylic adhesive

• Use indoors or outdoors — temperature range of -40°C to 180°C

• 5-year durability

• For more information, see p. E36 to E40

Machine Warning Labels

A quick and simple way to keep on-the-spot records,

write-on control markers are easy to carry and dispense as

needed.

• Made from pressure-sensitive, imprintable matte vinyl

• Adhere to clean, flat, dry, smooth surfaces

• Resists grease, oil and moisture

• Accepts pen, pencil, felt-tip marker, typewriter or rubber stamp

• For more information, see p. E41, E42

Write-On Control Markers

Individual letters and numbers are ideal for fast, general-

purpose marking of bins, shelves, poles, panels, switches

and equipment.

• Made from plastic-coated vinyl cloth with high-tack adhesive

• Rated for indoor use

• Available in 4 sizes with character height ranging from 5⁄16 in. to 2 in.

• Reflective letters and numbers also available for high visibility in dark or

dimly lit areas

• For more information, see p. E44

Industrial Markers

Need labels you don’t see in this catalogue? No problem —

we welcome custom orders. Please refer to the form on p.

E46, E47 for guidance, and don’t hesitate to contact your

Regional Sales Office for ordering assistance.

Custom Labels

Labels Overview

Stick to safety with E-Z-Code® Labels

www.tnb.ca E31

Identification Products

Style A

2-1/4 in. x 9 in.

Style B

1-1/8 in. x 4-1/2 in.

Style C

2-1/4 in. x 1/2 in. Legend

WJT-5030 WDT-5030 WAT-5030

7,200 volts

WJT-5059 WDT-5059 WAT-5059

12,000 volts

WJT-5060 WDT-5060 WAT-5060

13,000 volts

WJT-5047 WDT-5047 WAT-5047

13,200 volts

WJT-5031 WDT-5031 WAT-5031

13,800 volts

WJT-5032 WDT-5032 WAT-5032

AC

WJT-5043 WDT-5043 WAT-5043

Air Conditioning

WJT-5052 WDT-5052 WAT-5052

Circuit Breaker

WJT-5051 WDT-5051 WAT-5051

Circuit #

WJT-5038 WDT-5038 WAT-5038

DC

WJT-5050 WDT-5050 WAT-5050

Electric Out of Service

WJT-5033 WDT-5033 WAT-5033

Emergency Service

WJT-5039 WDT-5039 WAT-5039

Exit Lights

WJT-5040 WDT-5040 WAT-5040

Fire Alarm

WJT-5053 WDT-5053 WAT-5053

Fuse Box

WJT-5041 WDT-5041 WAT-5041

Heating Circuit

WJT-5037 WDT-5037 WAT-5037

Lights

WJT-5042 WDT-5042 WAT-5042

Light & Power

WJT-5048 WDT-5048 WAT-5048

On/Off

WJT-5036 WDT-5036 WAT-5036

Power

WJT-5034 WDT-5034 WAT-5034

Single Phase

WJT-5055 WDT-5055 WAT-5055

Spare

WJT-5056 WDT-5056 WAT-5056

Telephone

WJT-5035 WDT-5035 WAT-5035

Three Phase

WJT-5054 WDT-5054 WAT-5054

volts

Conduit & Voltage Marker Cards

Identify electrical systems, including load centers, circuit

breakers, switches or any other vital electrical equipment!

•

Helps prevent mistakes and trial and error searching during electrical service work

•

Manufactured of rugged Self-Sticking Vinyl with high-contrast black printing

on safety orange background

•

OSHA compliant

Style A: 2-1/4 in. x 9 in.

(1 marker per card) Character Height 1-7/8 in.

Style B: 1-1/8 in. x 4-1/2 in.

(4 markers per card) Character Height 7/8 in.

Style C: 2-1/4 in. x 1/2 in.

(18 markers per card) Character Height 5/16 in.

Style A

2-1/4 in. x 9 in.

Style B

1-1/8 in. x 4-1/2 in.

Style C

2-1/4 in. x 1/2 in. Legend

WJT-5010 WDT-5010 WAT-5010

110 volts

WJT-5011 WDT-5011 WAT-5011

115 volts

WJT-5012 WDT-5012 WAT-5012

120 volts

WJT-5045 WDT-5045 WAT-5045

120/208 volts

WJT-5013 WDT-5013 WAT-5013

208 volts

WJT-5014 WDT-5014 WAT-5014

220 volts

WJT-5015 WDT-5015 WAT-5015

230 volts

WJT-5016 WDT-5016 WAT-5016

240 volts

WJT-5017 WDT-5017 WAT-5017

250 volts

WJT-5018 WDT-5018 WAT-5018

277 volts

WJT-5046 WDT-5046 WAT-5046

277/480 volts

WJT-5057 WDT-5057 WAT-5057

380 volts

WJT-5044 WDT-5044 WAT-5044

415 volts

WJT-5019 WDT-5019 WAT-5019

440 volts

WJT-5020 WDT-5020 WAT-5020

460 volts

WJT-5021 WDT-5021 WAT-5021

480 volts

WJT-5022 WDT-5022 WAT-5022

550 volts

WJT-5023 WDT-5023 WAT-5023

600 volts

WJT-5024 WDT-5024 WAT-5024

2,200 volts

WJT-5025 WDT-5025 WAT-5025

2,300 volts

WJT-5026 WDT-5026 WAT-5026

2,400 volts

WJT-5027 WDT-5027 WAT-5027

4,160 volts

WJT-5028 WDT-5028 WAT-5028

4,800 volts

WJT-5058 WDT-5058 WAT-5058

5,000 volts

WJT-5029 WDT-5029 WAT-5029

6,900 volts

Order in multiples of 25 cards.

www.tnb.ca

E32

Identification Products

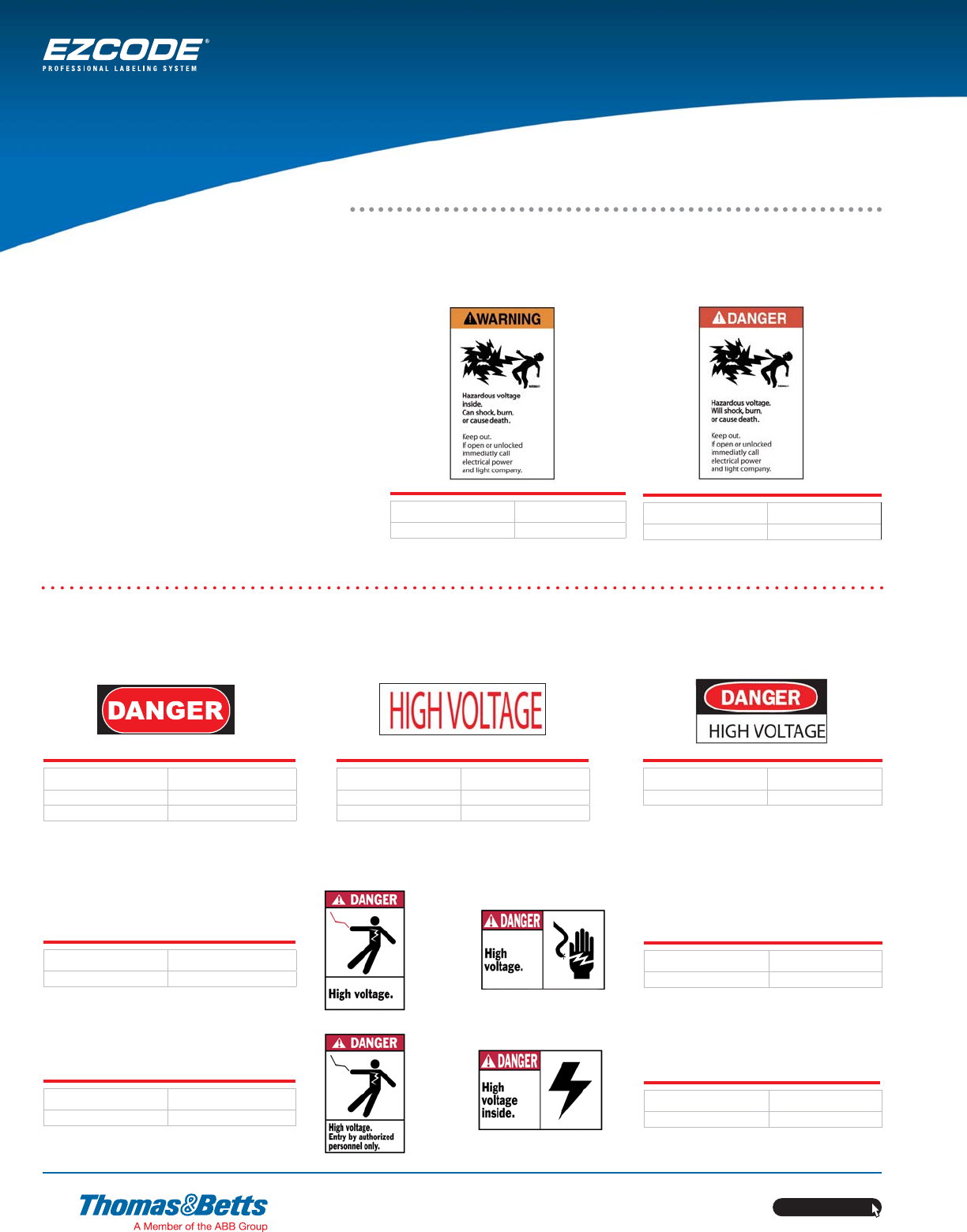

Self-Sticking Polyester Safety Labels

Cat. No.

Label Size

WUT-0366

4-1/2 in. x 8 in.

Cat. No.

Label Size

WUT-0367

4-1/2 in. x 8 in.

Cat. No.

Label Size

WJA-1100

2-1/4 in. x 9 in.

WQA-1100

5 in. x 14 in.

Cat. No.

Label Size

WJA-0076

2-1/4 in. x 9 in

WQA-0076

5 in. x 14 in.

Cat. No.

Label Size

WHF-0076

2-1/4 in. x 4-1/2 in.

2 per card.

Cat. No.

Label Size

LB86871

3-1/2 in. x 5 in.

Cat. No.

Label Size

LB86860

3-1/2 in. x 5 in.

Cat. No.

Label Size

LB86861

3-1/2 in. x 5 in.

Cat. No.

Label Size

LB86877

3-1/2 in. x 5 in.

Electrical Safety Labels

“Mr. Ouch” — NEMA Safety Labels

•

Use on pad-mounted transformers located in public areas

•

Meets NEMA, UL and CSA standards

•

Made of tamper-resistant film to prevent defacing

and vandalism

•

Permanent pressure-sensitive adhesive makes removal

virtually impossible

•

Orange WARNING label goes on outside of enclosure

•

Red DANGER label goes on inside of enclosure

www.tnb.ca E33

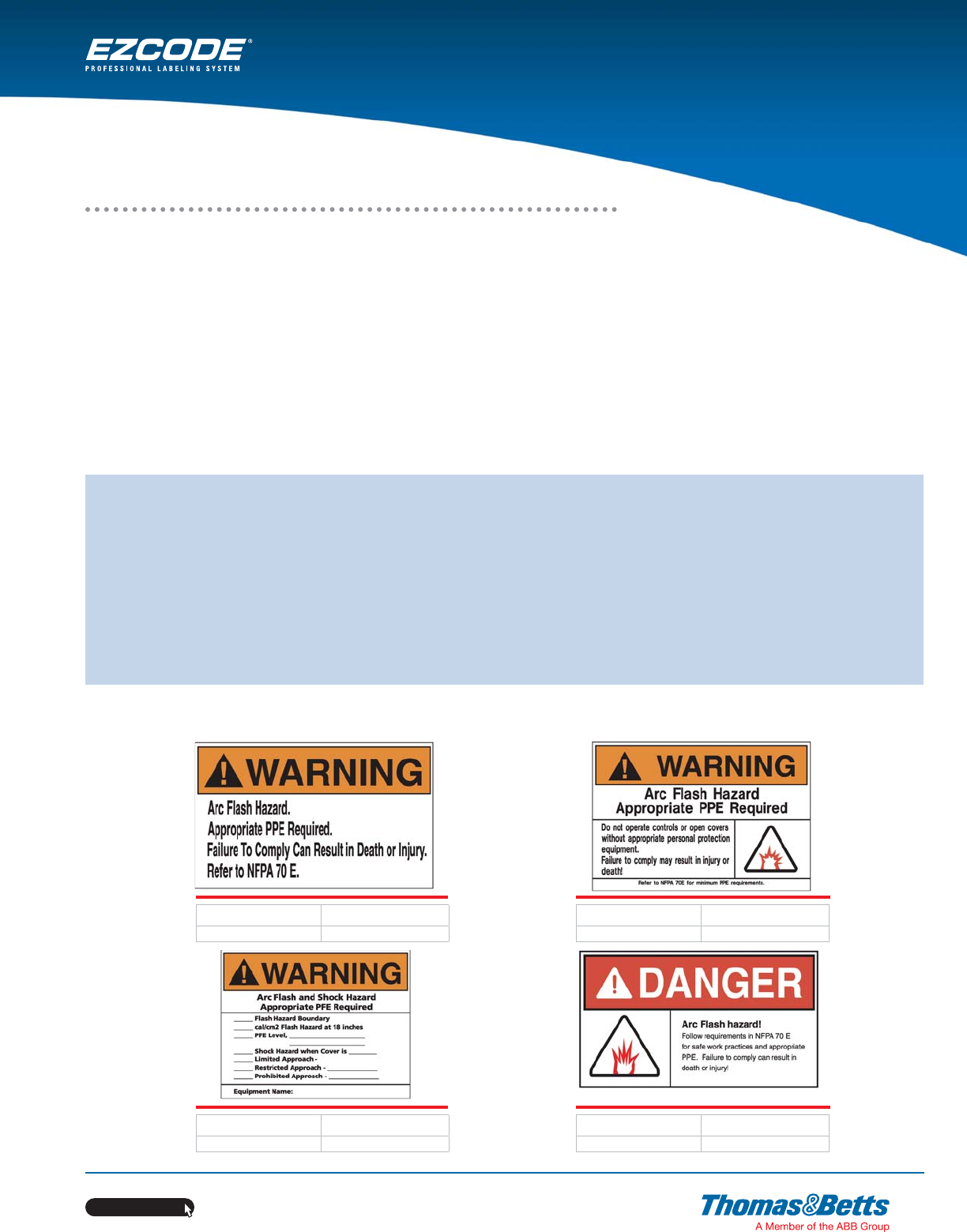

Identification Products

CEC, Rule 2-306, NEC Article 110.16 — Flash Protection.

Electrical equipment, such as switchboards, panelboards, industrial

control panels, meter socket enclosures and motor control centers,

that are in other than dwelling occupancies, and are likely to require

examination, adjustment, servicing or maintenance while energized

shall be field marked to warn qualified persons of potential electric

arc flash hazards.

The marking shall be located so as to be clearly visible to qualified

persons before examination, adjustment, servicing or maintenance of

the equipment.

NEC Informational Note No. 1 : NFPA 70E-2004, Standard for

Electrical Safety in the Workplace, provides assistance in determin-

ing severity of potential exposure, planning safe work practices, and

selecting personal protective equipment.

NEC Informational Note No. 2 : ZNSI A535.4-1998, Product

Safety Signs and Labels, provides guidelines for the design of safety

signs and labels for application to products.

Cat. No.

Label Size

AFL-FW35

3-1/2 in. x 5 in.

Cat. No.

Label Size

AFL-FWC35

3-1/2 in. x 5 in.

Cat. No.

Label Size

AFL-FW35A

3-1/2 in. x 5 in.

Cat. No.

Label Size

AFL-FW3

3-1/2 in. x 5 in.

Arc Flash Labels

•

Use on switchboards, panelboards, industrial control panels, motor control centers

and other electrical equipment and components to identify potential arc flash hazards

•

Post where clearly visible to qualified persons before they service, adjust or perform

maintenance on equipment

•

Designed to meet the latest ANSI standards for safety labels

•

Made of durable, pressure-sensitive vinyl with aggressive acrylic adhesive

Lockout Labels

Nothing’s shocking when you warn service personnel of

potential arc flash hazards

www.tnb.ca

E34

Identification Products

Lockout Labels

•

Prevent accidents and protect employees

•

Comply with Canadian and US lockout/tagout requirements

•

Made from pressure-sensitive vinyl with polyester overlaminate to protect graphics

•

Adhere to almost any clean, dry surface — rough or smooth

•

Use in indoor or outdoor applications

Cat. No.

Label Size

LL-40

3-1/2 in. x 5 in.

LL-44

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-20

2-1/4 in. x 4-1/2 in.

Cat. No.

Label Size

LL-24

2-1/4 in. x 4-1/2 in.

Cat. No.

Label Size

LL-52

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-62

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-53

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-22

2-1/4 in. x 4-1/2 in.

Cat. No.

Label Size

LB86871LL-21

2-1/4 in. x 4-1/2 in.

Cat. No.

Label Size

LL-23

2-1/4 in. x 4-1/2 in.

Cat. No. Label Size

LL-31A 2-1/4 in. x 4-1/2 in.

Cat. No.

Label Size

LL-54

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-63

3-1/2 in. x 5 in.

LL-65

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-55

3-1/2 in. x 5 in.

Lockout Labels

Stick’em up for greater workplace safety

Order in multiples of 25 labels.

www.tnb.ca E35

Identification Products

Cat. No.

Label Size

LL-35

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-36

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-38

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-64

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-39

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-51

3-1/2 in. x 5 in.

Cat. No.

Label Size

LB86245

3-1/2 in. x 5 in.

Cat. No.

Label Size

LB86248

3-1/2 in. x 5 in.

Cat. No.

Label Size

LB86250

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-45

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-46

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-42

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-66

3-1/2 in. x 5 in.

Cat. No.

Label Size

LL-50

3-1/2 in. x 5 in.

Cat. No.

Label Size

LB86204

3-1/2 in. x 5 in.

Order in multiples of 25 labels.

Padlock Labels

Identifying locks

just became

easier. Simply

sign the label,

attach one to your

lock and cover

the label with the

polyester

overlaminate.

Cat. No.

Label Size

LL-34

3/4 in. x 5 in.

Order in multiples of 25 labels.

Lockout Labels

www.tnb.ca

E36

All drivers must

chock wheels Caustic Confined space

Enter by permit

only

Electrical Hazard

Authorized

personnel only.

Electrical Hazard

Do not touch

Electrical Hazard

Turn off power

before servicing

Explosive gas

No smoking

Flammable

materials

Flammable

No matches or

open lights

Acid

Identification Products

Guide to Label Headers

•

Help prevent accidents and reduce downtime

•

Comply with ASME (ANSI Z535),

CSA Standard Z462 and OSHA 1910.145 requirements

•

Made from pressure-sensitive vinyl with polyester

overlaminate and permanent acrylic adhesive

•

Use in indoor or outdoor applications

•

Temperature range of -40°C to 180°C

•

5-year durability

DANGER indicates an immediate

hazard with a strong potential for

death or severe injury

WARNING indicates hazardous

situations that may result in death

or severe injury

CAUTION warns against potential

hazards or unsafe practices

Cat. No.

Label Size

MWL-1522

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1525

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1528

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1524

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1527

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1523

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1526

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1529

3-1/2 in. x 5 in.

Order in multiples of 5 labels.

Cat. No.

Label Size

MWL-1530

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1531

3-1/2 in. x 5 in.

Machine Warning Labels

Prevent injuries at your industrial location

www.tnb.ca E37

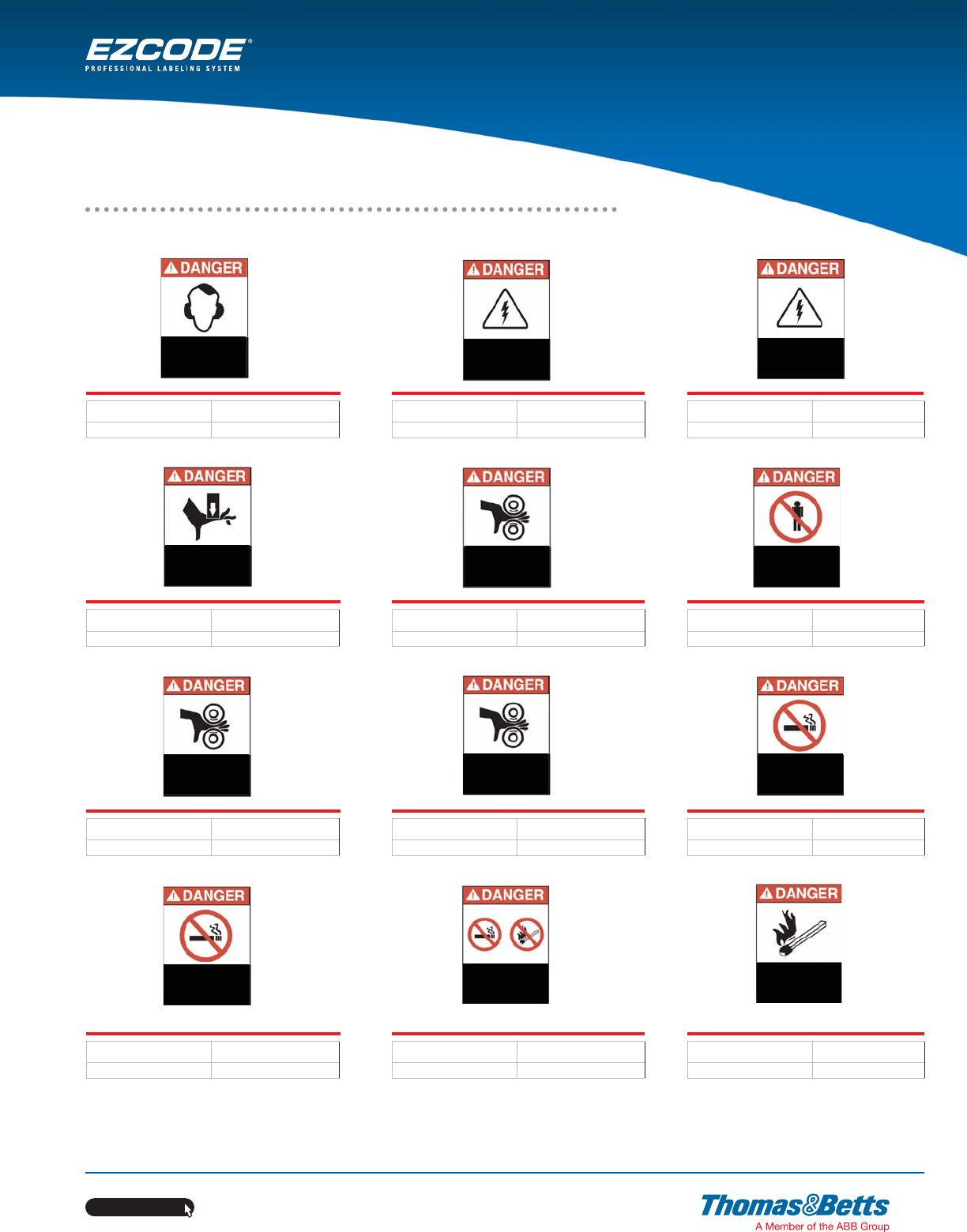

Hight noise area.

Wear ear protection. High voltage. High voltage.

Keep out.

Keep guards

in place.

Keep hands clear of

moving machinery.

Keep out.

Keep hands and

fingers away.

Moving Machinery. No smoking.

No Smoking

in this area.

No Smoking

No open flames

No Smoking

No open flames

No sparks

Identification Products

Cat. No.

Label Size

MWL-1532

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1533

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1534

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1535

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1536

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1537

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1538

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1539

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1540

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1541

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1542

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1543

3-1/2 in. x 5 in.

Machine Warning Labels

www.tnb.ca

E38

Pinch Point.

Keep back.

Pinch Point.

Watch your hands.

Corrosive material.

Avoid contact with

eyes and skin.

Do not operate

without guards.

Ear protection

area. Eye and ear

protection required

in this area.

Eye protection

area.

Eye protection

required.

Hard hat requied.

Hearing protection

required in this

area.

Hot Radiation area.

Identification Products

Cat. No.

Label Size

MWL-1544

3-1/2 in. x 5 in.

Cat. No. Label Size

MWL-1545

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1546

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1547

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1548

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1549

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1550

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1551

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1552

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1553

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1554

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1555

3-1/2 in. x 5 in.

Machine Warning Labels

Order in multiples of 5 labels.

www.tnb.ca E39

Respirators must

be worn in this

area.

Safety shoes

required in this area.

Sliperry floor.

Watch your step. Wear gloves in

this area.

Wear mask.

Respiratory irritants

in this area.

Do not smoke

in this area.

Electrical hazard

Keep out

Hard hat required.

Keep guards

in place.

Poison. See MSDS

and follow safe

handling procedures.

Respirator area.

See MSDS for

correct filter type.

Identification Products

Cat. No.

Label Size

MWL-1556

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1557

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1558

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1559

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1560

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1561

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1562

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1563

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1564

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1565

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1566

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1567

3-1/2 in. x 5 in.

Machine Warning Labels

Order in multiples of 5 labels.

www.tnb.ca

E40

This machine

starts automatically.

Wear Respirator

in this area.

Safety glasses

required beyond

this point.

Pick up and return

safety glasses here.

Hot surface.

Do not touch.

High voltage.

Disconnect power

before servicing.

High Voltage.

Do not touch.

Do not operate

without guards

in place.

Electrical hazard.

Authorized

personnel only.

Identification Products

Cat. No.

Label Size

MWL-1568

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1569

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1570

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1571

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1572

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1573

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1574

3-1/2 in. x 5 in.

Order in multiples of 5 labels.

Cat. No.

Label Size

MWL-1575

3-1/2 in. x 5 in.

Cat. No.

Label Size

MWL-1576

3-1/2 in. x 5 in.

Cat. No.

Label Size

MG66002

3-1/2 in. x 5 in.

MG66003

5 in. x 7 in.

Cat. No.

Label Size

MG66004

3-1/2 in. x 5 in.

MG66005

5 in. x 7 in.

Cat. No.

Label Size

MG66006

3-1/2 in. x 5 in.

MG66005

5 in. x 7 in.

Cat. No.

Label Size

MG66008

3-1/2 in. x 5 in.

MG66009

5 in. x 7 in.

Magnetic Signs

Machine Warning Labels

www.tnb.ca E41

Identification Products

•

A quick and easy way to keep on-the-spot

records

•

Easy to carry and dispense as needed

•

Made from pressure-sensitive, imprintable matte vinyl

•

Adheres to clean, flat, dry, smooth surfaces

•

Resists grease, oil and moisture

•

Accepts marking by pen, pencil, felt-tip

marker, typewriter or rubber stamp

•

Standard marker size is 1-1/2 in. W x

5/8 in. H with 14 markers per card

•

Some markers available in extra-large

2-1/2 in. W x 1 in. H size with 9 markers per card

Cat. No.

Marker Size Marker/

card

WCMP16

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Marker/

card

WCMP9

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Marker/

card

WCMP6

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Marker/

card

WCMP29

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Marker/

card

WCMP22

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Marker/

card

WCMP3

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Marker/

card

WCMP20

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Marker/

card

WCMP21

2-1/2 in. x 1 in. 9

Cat. No.

Marker Size Marker/

card

WCMP24

2-1/2 in. x 1 in. 9

Cat. No.

Marker Size Marker/

card

WCMP7

2-1/2 in. x 1 in. 9

Write-On Control Markers

The handy markers for frequent identification jobs

Order in multiples of 25 signs.

www.tnb.ca

E42

Identification Products

Cat. No.

Marker Size Markers

Per Card

WCMP2

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Markers

Per Card

WCMP18

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Markers

Per Card

WCMP25

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Markers

Per Card

WCMP75

2-1/4 in. x 1 in 9

Cat. No.

Marker Size Markers

Per Card

WCMP4

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Markers

Per Card

WCMP26

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Markers

Per Card

WCMP1

1-1/2 in. x 5/8 in. 14

Cat. No.

Marker Size Markers

Per Card

WCMP5

1-1/2 in. x 5/8 in. 14

Write-On Control Markers

The handy markers for frequent identification jobs (cont’d)

Order in multiples of 25 signs.

www.tnb.ca E43

Identification Products

Stay ready for quality control!

•

Easy to carry — marker books fit in shirt pocket

•

Easy to use — just peel the marker from the page

•

Clean and convenient — markers are tabbed

so fingers never touch the adhesive

Cat. No. Legend

Labels Per Book

WTMP-1B

CALIBRATED (black)

240

WTMP-2B

CERTIFICATION (black)

WTMP-3B

MAINTENANCE (blue)

WTMP-4B

REJECTED (red)

WTMP-5B

ACCEPTED (green)

WTMP-6B

HOLD (red)

WTMP-7B

RETURN TO VENDOR (orange)

WTMP-8B

REWORK (black)

WTMP-9B

HOLD FOR INSPECTION (blue)

WTMP-11B

CAUTION (black)

WTMP-16B

DATE INSTALLED (black)

WTMP-18B

DUE FOR INSPECTION (orange)

WTMP-19B

DO NOT USE AFTER (red)

WTMP-20B

INSPECTED (black)

WTMP-21B

BLANK HEADING

WTMP-22B

REPAIRED BY (orange)

WTMP-24B

SCRAPPED (orange)

WTMP-25B

TESTED (green)

WTMP-26B

CALIBRATION (green)

WTMP-52B

PROPERTY TAG (black)

WTMP-53B

SERIAL NO. (black)

WTMP-55B

TOOL NO. (blue)

15 pages per book, 16 markers per page. Each label is 1-1/2 in. x 5/8 in.

Each book contains 240 identical labels.

Write-On Control Markers

Polyolefin Pocket Pack Markers

www.tnb.ca

E44

Identification Products

Numbers and Letters

•

High-contrast, self-sticking, vinyl cloth markers make numbering and coding quick and easy

•

Rated for indoor use

•

Select character heights ranging from 5/16 in. to 3-3/4 in.

Description

Legend Series 003 Series 063 Series 100 Series 200

LETTERS

A-Z WCNL003A...WCNL003Z WCNL063A...WCNL063Z WCNL100A...WCNL100Z WCNL200A...WCNL200Z

NUMBERS

0WCNL003ZERO WCNL063ZERO WCNL100ZERO WCNL200ZERO

NUMBERS

1-9 WCNL0031...WCNL0039 WCNL0631...WCNL0639 WCNL1001...WCNL1009 WCNL2001...WCNL2009

LETTERS IN SEQUENCE

A-Z WCNL003AZ WCNL063AZ N/A N/A

LETTERS IN SEQUENCE

A-J N/A N/A WCNL100AJ WCNL200AJ

LETTERS IN SEQUENCE

K-T N/A N/A WCNL100KT WCNL200KT

LETTERS IN SEQUENCE

U-Z N/A N/A WCNL100UZ WCNL200UZ

NUMBERS IN SEQUENCE

0-9 WCNL00309 WCNL00369 WCNL10009 WCNL20009

Order in multiples of 5 cards.

Series 100

10 markers per card.

Marker size: 7/8 in. x 1-1/2 in. Character Height: 1 in.

Series 200

10 markers per card.

Marker size: 7/8 in. x 2-1/4 in. Character Height: 2 in.

Series 063

32 markers per card.

Marker size: 9/16 in. x 3/4 in. Character Height: 5/8 in.

Series 003

78 markers per card.

Marker size: 3/8 in. x 1/2 in. Character Height: 5/16 in.

Industrial Markers

Easy to read and available in a variety of configurations!

www.tnb.ca E45

Identification Products

Pictogram labels

•

Universal symbols communicate hazards to anyone,

regardless of literacy or language

•

Made from self-adhesive vinyl

•

Label size is 2 in. x 2 in.

Order in multiples of 100 labels.

Cat. No.

Label Size

PTG-100

2 in. x 2 in.

Cat. No.

Label Size

PTG-103

2 in. x 2 in.

Cat. No.

Label Size

PTG-101

2 in. x 2 in.

Cat. No.

Label Size

PTG-102

2 in. x 2 in.

Cat. No.

Label Size

PTG-106

2 in. x 2 in.

Cat. No.

Label Size

PTG-104

2 in. x 2 in.

Cat. No.

Label Size

PTG-105

2 in. x 2 in.

Cat. No.

Label Size

PTG-109

2 in. x 2 in.

Cat. No.

Label Size

PTG-107

2 in. x 2 in.

Cat. No.

Label Size

PTG-108

2 in. x 2 in.

Pictogram Labels

Don’t let words get in the way of hazard information

www.tnb.ca

E46

Identification Products

This Custom Label Order Form is for the convenience of you and your authorized Thomas & Betts

Distributor. To help expedite your order, please copy this form and fax a completed copy to us.

For questions about ordering Custom Labels, call your Regional Sales Office. Fax your order to

450-357-3556, Attn.: Product Line Coordinator.

Label Types and Available Sizes

Please check the appropriate boxes to choose English or French and the size.

Distributor Billing Location:

Distributor Name: ____________________________________________

Distributor Address: __________________________________________

________________________________________

P.O. Number: _______________________________________________

Contact Name: ______________________________________________

Phone Number: _____________________________________________

Fax Number: _______________________________________________

Shipping Location:

Your Name/Title: ____________________________________________

Company Name: ____________________________________________

Attn: _____________________________________________________

Address: __________________________________________________

City: _______________ Province: ______ Postal Code: ______________

Phone/Fax Number: __________________________________________

P.O. Number: _______________________________________________

Arc Flash

Padlock

3-1/2 in. x 6 in.

3-1/2 in. x 10 in. 5 in. x 7 in.

F

E

F

4-1/2 in. x 8 in.

2-1/4 in. x 9 in. 3-1/2 in. x 5 in.

5 in. x 14 in.

3-1/2 in. x 5 in.

E

F

E

F

E3/4 in. x 5 in.

Machine Warning

F

E3-1/2 in. x 5 in.

Electrical Safety

No minimum order. Orders for 50+

tags are welcome. Call for delivery and

additional volume discounts.

No minimum order. Orders for 50+

tags are welcome. Call for delivery and

additional volume discounts.

• Use fractional inches, not decimals.

• For labels on a cassette, check

the C box to indicate continuous

measurement in feet and indicate

length next to the box.

2-1/2 in. x 4-1/2 in.

4-1/2 in. x 10-3/4 in.

3-1/2 in. x 5 in.

2-1/4 in. x 4-1/2 in.

Legend:

Please print your message clearly in the box below.

High-Volume Blank Printer Labels:

Please complete all portions.

Your Printer technology Label Size Colour Label Material

Vinyl

Other

Materials:

Please check one box.

Thermal

Laser

Dot Matrix

SL

VC

P

Self-Laminating Vinyl

Vinyl Cloth

Polyester

N

HS

PM

Nylon

Heat Shrink

Polyamide

Ink Jet

Portable CLength ft.

Width Height

White

Yellow

Lockout

Quantity:

Quantity:

Custom Label Express Order Form

www.tnb.ca E47

Identification Products

Materials and Available Sizes

Please check the appropriate boxes for material and size

This Custom Tag Order Form is for the convenience of you and your authorized Thomas & Betts Distributor. To help ex-

pedite your order, please copy this form and fax a completed copy to us. For questions about ordering Custom Tags, call

your Regional Sales Office. Fax your order to 450-357-3556, Attn.: Product Line Coordinator.

Material

Vinyl

Other Other

3-1/4 in. x 5-1/2 in.

3-1/4 in. x 6 in.

Available Sizes

Tag Type:

Caution

Inspection and

Material Control

Other

1/4 in.

Available Sizes

Please check one of the options below for English or French language.

Please check the appropriate boxes for number and size

E

F

E

Distributor Billing Location:

F

Danger

Production Status

E

F

E

F

Blank (No Message)

E

F

Self-Laminating Covers UV Protection

Back

Front

Bar

Codes

Protective Options:

To discuss these options, call your Regional Sales office.

Carbon

set

Perfor-

mance

Sequential

Numbering

Additional Options:

Lockout

Blank Tag color:

Dark Green

Red

Light Blue

White

Orange

Yellow

No minimum order. Orders for 50+

tags are welcome. Call for delivery

and additional volume discounts.

Distributor Name: ____________________________________________

Distributor Address: __________________________________________

________________________________________

P.O. Number: _______________________________________________

Contact Name: ______________________________________________

Phone Number: _____________________________________________

Fax Number: _______________________________________________

Shipping Location:

Your Name/Title: ____________________________________________

Company Name: ____________________________________________

Attn: _____________________________________________________

Address: __________________________________________________

City: _______________ Province: ______ Postal Code: ______________

Phone/Fax Number: __________________________________________

P.O. Number: _______________________________________________

Message, Tag Front:

Please print your message clearly in the box below. Numbers

Other

1

Brass Grommets/Eyelets:

Quantity:

Custom Tag Express Order Form

www.tnb.ca

E48

Identification Products

Industry Standards

ASME (ANSI Z535) and OSHA 1910.145 require the use of safety and compliance signs to indicate hazards that may lead to accidents, injury and property

damage. E-Z-Code® signs comply with all current OSHA and ANSI standards and will help you create a safer workplace for both employees and visitors.

Guide to Label Headers

DANGER indicates an immediate hazard with

a strong potential for death or severe injury

CAUTION warns against potential hazards

or unsafe practices

NOTICE provides general information

to prevent confusion

SAFETY FIRST offers information about

health, housekeeping and general safety

• Made from aluminum with baked

finish and screen-printed graphics

• Indoor and outdoor applications

• 8- to 10-year durability

Aluminum (AL)

• Most signs available in your choice of

7 in. x 10 in. or 10 in. x 14 in. sizes

• Bilingual English/Spanish signs available in larger

10 in. x 14 in. size only

Sizes

• Made from pressure-sensitive vinyl

with permanent acrylic adhesive

• Indoor and outdoor applications

• Temperature range of -40°C to 82°C

(-40°F to 180°F)

• 2- to 3-year durability

Materials

Self-Sticking (SS)

• Made from durable linear polyethylene

• Fade- and crack-resistant

• Indoor and outdoor applications

• Temperature range of -23°C to 80°C

(-10°F to 176°F)

• 5- to 8-year durability

Plastic (PL)

Signs Overview

Prevent injuries and reduce downtime with E-Z-Code®

safety and compliance signs

Scored Liner

Paper

Square

Corners

Simple Peel-and-Press

Acrylic Adhesive

1/8 in. Drilled

Mounting Holes

0.055 in. Thick Plastic

1/2 in. Radius

Rounded Corners

1/8 in. Drilled

Mounting Holes

0.032 in. Thick Plastic

1/2 in. Radius

Rounded Corners

www.tnb.ca E49

Identification Products

Order in multiples of 1 sign.

Cat. No.

Description Sign Size

SS-1181-710

Self-Sticking 7 in. x 10 in.

SS-1181-1014

10 in. x 14 in.

PL-1181-710

Plastic 7 in. x 10 in.

PL-1181-1014

10 in. x 14 in.

AL-1181-710

Aluminum 7 in. x 10 in.

AL-1181-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1186-710

Self-Sticking 7 in. x 10 in.

SS-1186-1014

10 in. x 14 in.

PL-1186-710

Plastic 7 in. x 10 in.

PL-1186-1014

10 in. x 14 in.

AL-1186-710

Aluminum 7 in. x 10 in.

AL-1186-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1189-710

Self-Sticking 7 in. x 10 in.

SS-1189-1014

10 in. x 14 in.

PL-1189-710

Plastic 7 in. x 10 in.

PL-1189-1014

10 in. x 14 in.

AL-1189-710

Aluminum 7 in. x 10 in.

AL-1189-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1190-710

Self-Sticking 7 in. x 10 in.

SS-1190-1014

10 in. x 14 in.

PL-1190-710

Plastic 7 in. x 10 in.

PL-1190-1014

10 in. x 14 in.

AL-1190-710

Aluminum 7 in. x 10 in.

AL-1190-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1191-710

Self-Sticking 7 in. x 10 in.

SS-1191-1014

10 in. x 14 in.

PL-1191-710

Plastic 7 in. x 10 in.

PL-1191-1014

10 in. x 14 in.

AL-1191-710

Aluminum 7 in. x 10 in.

AL-1191-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1187-710

Self-Sticking 7 in. x 10 in.

SS-1187-1014

10 in. x 14 in.

PL-1187-710

Plastic 7 in. x 10 in.

PL-1187-1014

10 in. x 14 in.

AL-1187-710

Aluminum 7 in. x 10 in.

AL-1187-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1188-710

Self-Sticking 7 in. x 10 in.

SS-1188-1014

10 in. x 14 in.

PL-1188-710

Plastic 7 in. x 10 in.

PL-1188-1014

10 in. x 14 in.

AL-1188-710

Aluminum 7 in. x 10 in.

AL-1188-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1182-710

Self-Sticking 7 in. x 10 in.

SS-1182-1014

10 in. x 14 in.

PL-1182-710

Plastic 7 in. x 10 in.

PL-1182-1014

10 in. x 14 in.

AL-1182-710

Aluminum 7 in. x 10 in.

AL-1182-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1184-710

Self-Sticking 7 in. x 10 in.

SS-1184-1014

10 in. x 14 in.

PL-1184-710

Plastic 7 in. x 10 in.

PL-1184-1014

10 in. x 14 in.

AL-1184-710

Aluminum 7 in. x 10 in.

AL-1184-1014

10 in. x 14 in.

Electrical Protection Signs

Avoid potential catastrophes by clearly marking hazard areas

www.tnb.ca

E50

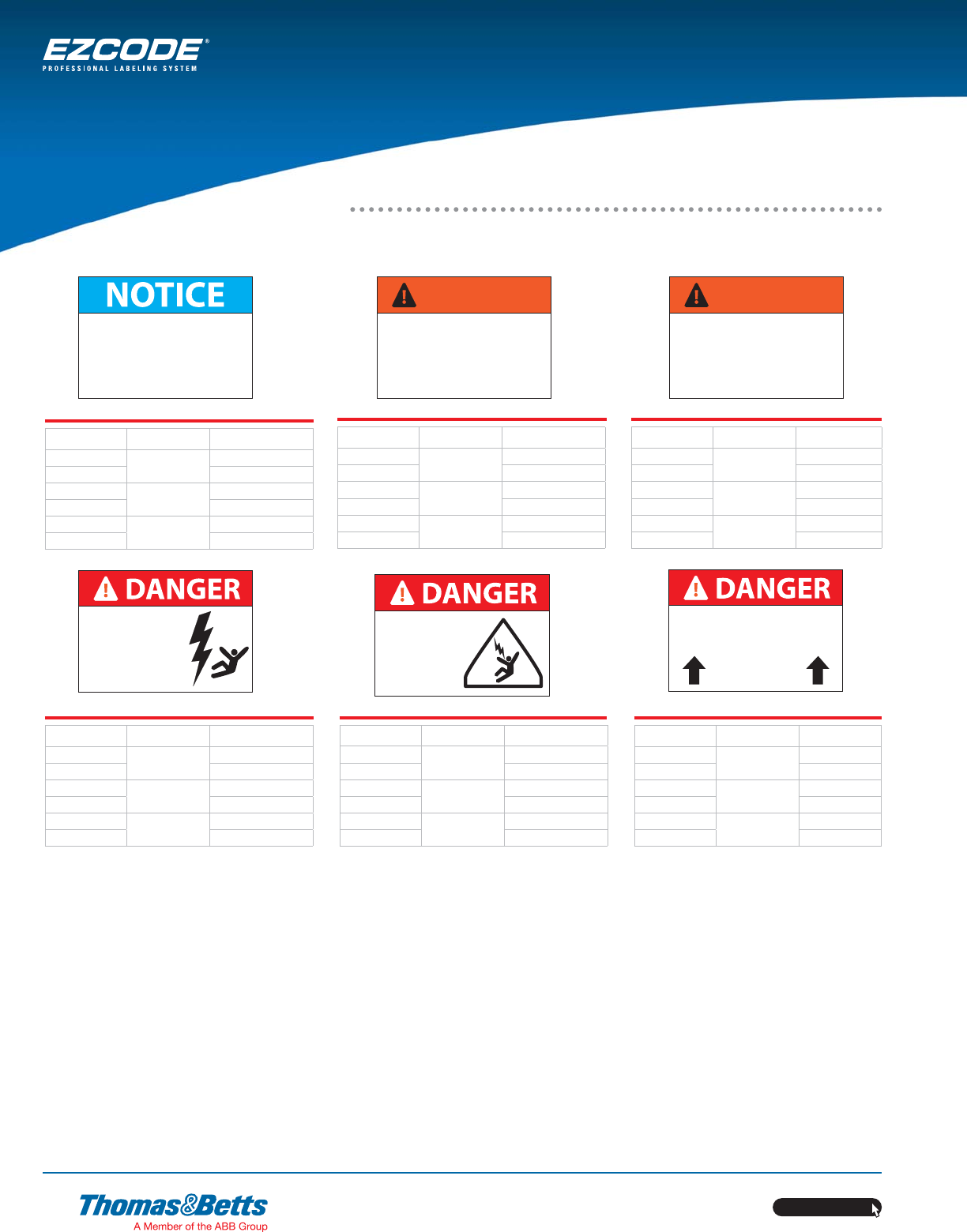

NO STORAGE PERMITTED

ELECTRICAL CLOSET

HIGH VOLTAGE

DO NOT ENTER THIS ENCLOSURE

CAUTION

AREA IN FRONT OF THIS ELECTRICAL

PANEL MUST BE KEPT CLEAR FOR

36 INCHES OSHA-NEC REGULATIONS

CAUTION

HIGH VOLTAGE

WITHIN

KEEP OUT

ELECTRICAL

EQUIPMENT

AUTHORIZED

PERSONNEL

ONLY

HIGH VOLTAGE

ABOVE

Identification Products

Cat. No.

Description Sign Size

SS-1198-710

Self-Sticking 7 in. x 10 in.

SS-1198-1014

10 in. x 14 in.

PL-1198-710

Plastic 7 in. x 10 in.

PL-1198-1014

10 in. x 14 in.

AL-1198-710

Aluminum 7 in. x 10 in.

AL-1198-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1200-710

Self-Sticking 7 in. x 10 in.

SS-1200-1014

10 in. x 14 in.

PL-1200-710

Plastic 7 in. x 10 in.

PL-1200-1014

10 in. x 14 in.

AL-1200-710

Aluminum 7 in. x 10 in.

AL-1200-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6096-710

Self-Sticking 7 in. x 10 in.

SS-6096-1014

10 in. x 14 in.

PL-6096-710

Plastic 7 in. x 10 in.

PL-6096-1014

10 in. x 14 in.

AL-6096-710

Aluminum 7 in. x 10 in.

AL-6096-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6097-710

Self-Sticking 7 in. x 10 in.

SS-6097-1014

10 in. x 14 in.

PL-6097-710

Plastic 7 in. x 10 in.

PL-6097-1014

10 in. x 14 in.

AL-6097-710

Aluminum 7 in. x 10 in.

AL-6097-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1201-710

Self-Sticking 7 in. x 10 in.

SS-1201-1014

10 in. x 14 in.

PL-1201-710

Plastic 7 in. x 10 in.

PL-1201-1014

10 in. x 14 in.

AL-1201-710

Aluminum 7 in. x 10 in.

AL-1201-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6095-710

Self-Sticking 7 in. x 10 in.

SS-6095-1014

10 in. x 14 in.

PL-6095-710

Plastic 7 in. x 10 in.

PL-6095-1014

10 in. x 14 in.

AL-6095-710

Aluminum 7 in. x 10 in.

AL-6095-1014

10 in. x 14 in.

Electrical Protection Signs

Order in multiples of 1 sign.

www.tnb.ca E51

KEEP HANDS AWAY

FROM MOVING

EQUIPMENT

KEEP HANDS

CLEAR

MOVING

MACHINERY

PROTECTIVE

CLOTHING

REQUIRED

THIS UNIT

STARTS

AUTOMATICALLY

DO NOT OPERATE

WITHOUT GUARDS

CAUTION

EYE PROTECTION

REQUIRED

SAFETY GLASSES

CAUTION

KEEP HANDS

OFF

CAUTION

LOW OVERHEAD

CLEARANCE

CAUTION

Identification Products

Cat. No.

Description Sign Size

SS-1353-710

Self-Sticking 7 in. x 10 in.

SS-1353-1014

10 in. x 14 in.

PL-1353-710

Plastic 7 in. x 10 in.

PL-1353-1014

10 in. x 14 in.

AL-1353-710

Aluminum 7 in. x 10 in.

AL-1353-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1357-710

Self-Sticking 7 in. x 10 in.

SS-1357-1014

10 in. x 14 in.

PL-1357-710

Plastic 7 in. x 10 in.

PL-1357-1014

10 in. x 14 in.

AL-1357-710

Aluminum 7 in. x 10 in.

AL-1357-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6022-710

Self-Sticking 7 in. x 10 in.

SS-6022-1014

10 in. x 14 in.

PL-6022-710

Plastic 7 in. x 10 in.

PL-6022-1014

10 in. x 14 in.

AL-6022-710

Aluminum 7 in. x 10 in.

AL-6022-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6623-710

Self-Sticking 7 in. x 10 in.

SS-6623-1014

10 in. x 14 in.

PL-6623-710

Plastic 7 in. x 10 in.

PL-6623-1014

10 in. x 14 in.

AL-6623-710

Aluminum 7 in. x 10 in.

AL-6623-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6624-710

Self-Sticking 7 in. x 10 in.

SS-6624-1014

10 in. x 14 in.

PL-6624-710

Plastic 7 in. x 10 in.

PL-6624-1014

10 in. x 14 in.

AL-6624-710

Aluminum 7 in. x 10 in.

AL-6624-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1358-710

Self-Sticking 7 in. x 10 in.

SS-1358-1014

10 in. x 14 in.

PL-1358-710

Plastic 7 in. x 10 in.

PL-1358-1014

10 in. x 14 in.

AL-1358-710

Aluminum 7 in. x 10 in.

AL-1358-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6020-710

Self-Sticking 7 in. x 10 in.

SS-6020-1014

10 in. x 14 in.

PL-6020-710

Plastic 7 in. x 10 in.

PL-6020-1014

10 in. x 14 in.

AL-6020-710

Aluminum 7 in. x 10 in.

AL-6020-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1354-710

Self-Sticking 7 in. x 10 in.

SS-1354-1014

10 in. x 14 in.

PL-1354-710

Plastic 7 in. x 10 in.

PL-1354-1014

10 in. x 14 in.

AL-1354-710

Aluminum 7 in. x 10 in.

AL-1354-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1355-710

Self-Sticking 7 in. x 10 in.

SS-1355-1014

10 in. x 14 in.

PL-1355-710

Plastic 7 in. x 10 in.

PL-1355-1014

10 in. x 14 in.

AL-1355-710

Aluminum 7 in. x 10 in.

AL-1355-1014

10 in. x 14 in.

Operational Machine and Safety Signs

Keep your machine shop, factory floor or construction

site safe by posting these signs

Order in multiples of 1 sign.

www.tnb.ca

E52

HOT

KEEP AWAY

CAUTION

OVERHEAD

WORK

CAUTION

DO NOT START

THIS MACHINE

TURN MACHINE

OFF

WHEN NOT IN USE

CAUTION

WEAR GOGGLES

OR FACE SHIELD

WHILE OPERATING THIS MACHINE

CAUTION

OPERATION BY

AUTHORIZED

PERSONNEL ONLY

MAIN POWER

CUT OFF

KEEP HANDS

OUT OF MOVING

MACHINERY

EYE AND EAR PROTECTION

REQUIRED

WHILE OPERATING

THIS EQUIPMENT

Identification Products

Cat. No.

Description Sign Size

SS-6032-710

Self-Sticking 7 in. x 10 in.

SS-6032-1014

10 in. x 14 in.

PL-6032-710

Plastic 7 in. x 10 in.

PL-6032-1014

10 in. x 14 in.

AL-6032-710

Aluminum 7 in. x 10 in.

AL-6032-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6042-710

Self-Sticking 7 in. x 10 in.

SS-6042-1014

10 in. x 14 in.

PL-6042-710

Plastic 7 in. x 10 in.

PL-6042-1014

10 in. x 14 in.

AL-6042-710

Aluminum 7 in. x 10 in.

AL-6042-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6038-710

Self-Sticking 7 in. x 10 in.

SS-6038-1014

10 in. x 14 in.

PL-6038-710

Plastic 7 in. x 10 in.

PL-6038-1014

10 in. x 14 in.

AL-6038-710

Aluminum 7 in. x 10 in.

AL-6038-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6045-710

Self-Sticking 7 in. x 10 in.

SS-6045-1014

10 in. x 14 in.

PL-6045-710

Plastic 7 in. x 10 in.

PL-6045-1014

10 in. x 14 in.

AL-6045-710

Aluminum 7 in. x 10 in.

AL-6045-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6052-710

Self-Sticking 7 in. x 10 in.

SS-6052-1014

10 in. x 14 in.

PL-6052-710

Plastic 7 in. x 10 in.

PL-6052-1014

10 in. x 14 in.

AL-6052-710

Aluminum 7 in. x 10 in.

AL-6052-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6061-710

Self-Sticking 7 in. x 10 in.

SS-6061-1014

10 in. x 14 in.

PL-6061-710

Plastic 7 in. x 10 in.

PL-6061-1014

10 in. x 14 in.

AL-6061-710

Aluminum 7 in. x 10 in.

AL-6061-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6072-710

Self-Sticking 7 in. x 10 in.

SS-6072-1014

10 in. x 14 in.

PL-6072-710

Plastic 7 in. x 10 in.

PL-6072-1014

10 in. x 14 in.

AL-6072-710

Aluminum 7 in. x 10 in.

AL-6072-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6073-710

Self-Sticking 7 in. x 10 in.

SS-6073-1014

10 in. x 14 in.

PL-6073-710

Plastic 7 in. x 10 in.

PL-6073-1014

10 in. x 14 in.

AL-6073-710

Aluminum 7 in. x 10 in.

AL-6073-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-6041-710

Self-Sticking 7 in. x 10 in.

SS-6041-1014

10 in. x 14 in.

PL-6041-710

Plastic 7 in. x 10 in.

PL-6041-1014

10 in. x 14 in.

AL-6041-710

Aluminum 7 in. x 10 in.

AL-6041-1014

10 in. x 14 in.

Operational Machine and Safety Signs

Order in multiples of 1 sign.

www.tnb.ca E53

HARD HAT

AREA

HAZARDOUS

AREA

HARD HATS

REQUIRED BEYOND

THIS POINT

HARD HATS

REQUIRED IN THIS

AREA

EAR PROTECTION

REQUIRED

CAUTION

EAR PROTECTION

REQUIRED

BEYOND

THIS POINT

EAR PROTECTION

REQUIRED

BEYOND

THIS POINT

EYE PROTECTION

REQUIRED

CAUTION

SAFETY

GLASSES

REQUIRED

EYE PROTECTION

REQUIRED

BEYOND

THIS POINT

SAFETY GLASSES

REQUIRED

Identification Products

Cat. No.

Description Sign Size

SS-1143-710

Self-Sticking 7 in. x 10 in.

SS-1143-1014

10 in. x 14 in.

PL-1143-710

Plastic 7 in. x 10 in.

PL-1143-1014

10 in. x 14 in.

AL-1143-710

Aluminum 7 in. x 10 in.

AL-1143-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1142-710

Self-Sticking 7 in. x 10 in.

SS-1142-1014

10 in. x 14 in.

PL-1142-710

Plastic 7 in. x 10 in.

PL-1142-1014

10 in. x 14 in.

AL-1142-710

Aluminum 7 in. x 10 in.

AL-1142-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1141-710

Self-Sticking 7 in. x 10 in.

SS-1141-1014

10 in. x 14 in.

PL-1141-710

Plastic 7 in. x 10 in.

PL-1141-1014

10 in. x 14 in.

AL-1141-710

Aluminum 7 in. x 10 in.

AL-1141-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1155-710

Self-Sticking 7 in. x 10 in.

SS-1155-1014

10 in. x 14 in.

PL-1155-710

Plastic 7 in. x 10 in.

PL-1155-1014

10 in. x 14 in.

AL-1155-710

Aluminum 7 in. x 10 in.

AL-1155-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1151-710

Self-Sticking 7 in. x 10 in.

SS-1151-1014

10 in. x 14 in.

PL-1151-710

Plastic 7 in. x 10 in.

PL-1151-1014

10 in. x 14 in.

AL-1151-710

Aluminum 7 in. x 10 in.

AL-1151-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1147-710

Self-Sticking 7 in. x 10 in.

SS-1147-1014

10 in. x 14 in.

PL-1147-710

Plastic 7 in. x 10 in.

PL-1147-1014

10 in. x 14 in.

AL-1147-710

Aluminum 7 in. x 10 in.

AL-1147-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1174-710

Self-Sticking 7 in. x 10 in.

SS-1174-1014

10 in. x 14 in.

PL-1174-710

Plastic 7 in. x 10 in.

PL-1174-1014

10 in. x 14 in.

AL-1174-710

Aluminum 7 in. x 10 in.

AL-1174-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1173-710

Self-Sticking 7 in. x 10 in.

SS-1173-1014

10 in. x 14 in.

PL-1173-710

Plastic 7 in. x 10 in.

PL-1173-1014

10 in. x 14 in.

AL-1173-710

Aluminum 7 in. x 10 in.

AL-1173-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1157-710

Self-Sticking 7 in. x 10 in.

SS-1157-1014

10 in. x 14 in.

PL-1157-710

Plastic 7 in. x 10 in.

PL-1157-1014

10 in. x 14 in.

AL-1157-710

Aluminum 7 in. x 10 in.

AL-1157-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1164-710

Self-Sticking 7 in. x 10 in.

SS-1164-1014

10 in. x 14 in.

PL-1164-710

Plastic 7 in. x 10 in.

PL-1164-1014

10 in. x 14 in.

AL-1164-710

Aluminum 7 in. x 10 in.

AL-1164-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1171-710

Self-Sticking 7 in. x 10 in.

SS-1171-1014

10 in. x 14 in.

PL-1171-710

Plastic 7 in. x 10 in.

PL-1171-1014

10 in. x 14 in.

AL-1171-710

Aluminum 7 in. x 10 in.

AL-1171-1014

10 in. x 14 in.

Personal Protection Signs

Cover up for protection — these signs warn people to

safeguard their head, eyes and ears

Order in multiples of 1 sign.

www.tnb.ca

E54

KEEP

AREA

CLEAR

CAUTION

SLIPPERY WHEN

WET

CAUTION

WATCH

YOUR STEP

CAUTION

Identification Products

Cat. No.

Description Sign Size

SS-1293-710

Self-Sticking 7 in. x 10 in.

SS-1293-1014

10 in. x 14 in.

PL-1293-710

Plastic 7 in. x 10 in.

PL-1293-1014

10 in. x 14 in.

AL-1293-710

Aluminum 7 in. x 10 in.

AL-1293-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1294-710

Self-Sticking 7 in. x 10 in.

SS-1294-1014

10 in. x 14 in.

PL-1294-710

Plastic 7 in. x 10 in.

PL-1294-1014

10 in. x 14 in.

AL-1294-710

Aluminum 7 in. x 10 in.

AL-1294-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1298-710

Self-Sticking 7 in. x 10 in.

SS-1298-1014

10 in. x 14 in.

PL-1298-710

Plastic 7 in. x 10 in.

PL-1298-1014

10 in. x 14 in.

AL-1298-710

Aluminum 7 in. x 10 in.

AL-1298-1014

10 in. x 14 in.

Maintenance and Safety Signs

Standard safety signs that will help keep people on

their feet

Order in multiples of 1 sign.

www.tnb.ca E55

KEEP THIS

AREA CLEAR

PROTECTIVE

CLOTHING

REQUIRED

IN THIS AREA

KEEP AISLES

CLEAR

NO FOOD OR

DRINK BEYOND

THIS POINT

Identification Products

Cat. No.

Description Sign Size

SS-1304-710

Self-Sticking 7 in. x 10 in.

SS-1304-1014

10 in. x 14 in.

PL-1304-710

Plastic 7 in. x 10 in.

PL-1304-1014

10 in. x 14 in.

AL-1304-710

Aluminum 7 in. x 10 in.

AL-1304-1014

10 in. x 14 in.

Maintenance and Safety Signs

Cat. No.

Description Sign Size

SS-6199-710

Self-Sticking 7 in. x 10 in.

SS-6199-1014

10 in. x 14 in.

PL-6199-710

Plastic 7 in. x 10 in.

PL-6199-1014

10 in. x 14 in.

AL-6199-710

Aluminum 7 in. x 10 in.

AL-6199-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1307-710

Self-Sticking 7 in. x 10 in.

SS-1307-1014

10 in. x 14 in.

PL-1307-710

Plastic 7 in. x 10 in.

PL-1307-1014

10 in. x 14 in.

AL-1307-710

Aluminum 7 in. x 10 in.

AL-1307-1014

10 in. x 14 in.

Cat. No.

Description Sign Size

SS-1312-710

Self-Sticking 7 in. x 10 in.

SS-1312-1014

10 in. x 14 in.

PL-1312-710

Plastic 7 in. x 10 in.

PL-1312-1014

10 in. x 14 in.

AL-1312-710

Aluminum 7 in. x 10 in.

AL-1312-1014

10 in. x 14 in.

Standard safety signs that will help keep people on

their feet

Order in multiples of 1 sign.

www.tnb.ca

E56 www.tnb.ca

E56

Identification Products

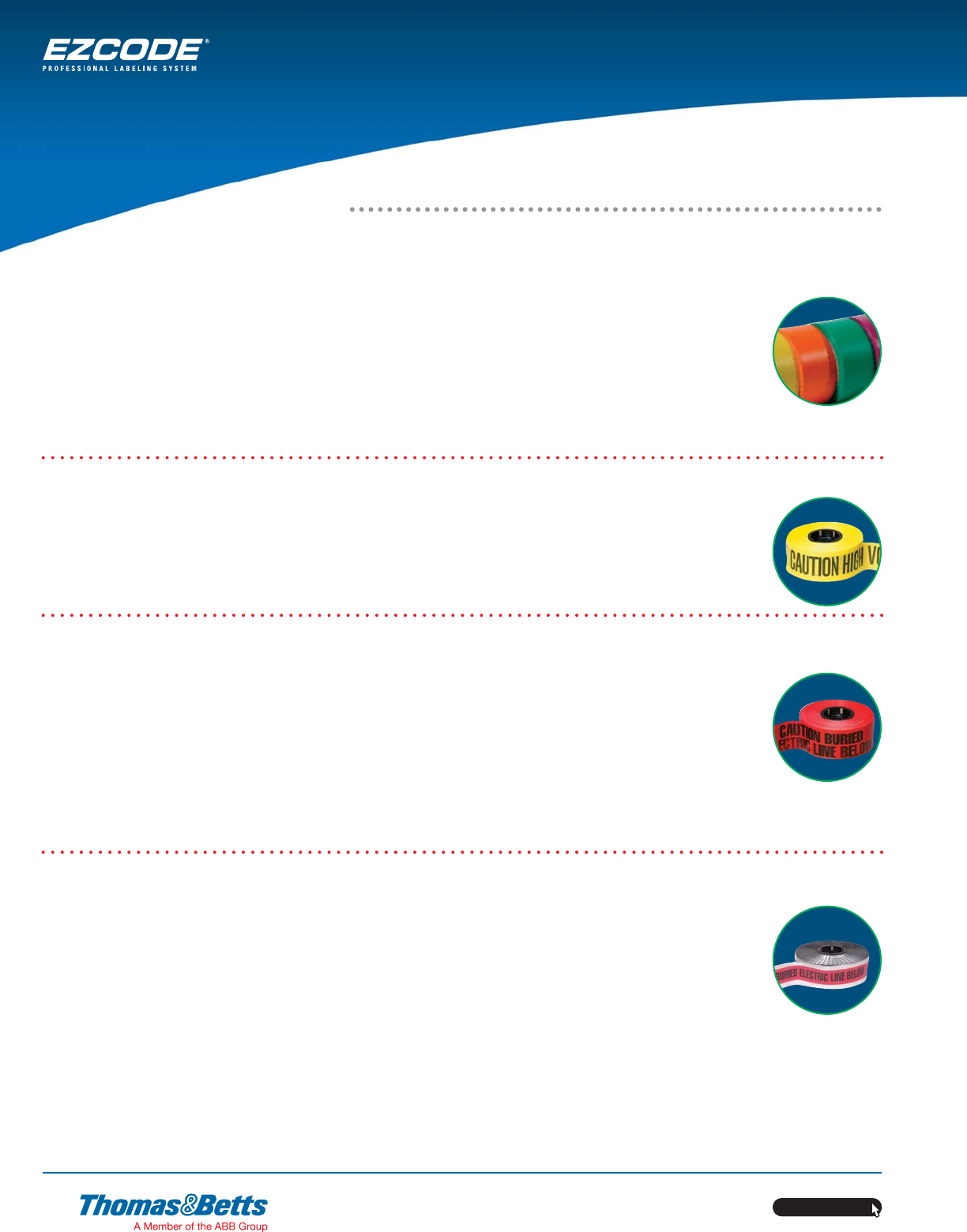

Colour-Coded Vinyl I.D. Tapes

•

Use to indicate traffic patterns or identify equipment

•

Made from self-sticking vinyl

•

Available in 4 widths and 11 colours

•

For more information, see p. E57

Barricade Tapes

•

Suitable for indoor or outdoor use

•

Available with a variety of CAUTION legends

on yellow tape or DANGER on red and white

striped tape

•

For more information, see p. E59, E60

Buried Utility Tapes

•

Warn equipment operators that a utility cable or

pipe is buried below — before damage occurs

•

Designed for direct burial 12 in. to 18 in. below

ground surface, directly above cable or pipe

•

Legends for electric, water, telephone, gas, sewer,

high voltage and fiber optic lines

•

Black printing on bright, fade-resistant

coloured backgrounds

•

Available in 3 in. and 6 in. widths

•

For more information, see p. E59, E60

Detectable Buried Utility Tapes

•

Use to identify buried lines so that you can easily

find them in the future

•

Metallic-backed tape, when buried up to 18 in.

below ground, can be detected by common metal

detectors

•

Legends for electric, water, telephone, gas, oil,

sewer, high voltage, cable TV and fiber optic lines

•

Black printing on bright coloured background

•

Available in 3 in. and 6 in. widths

•

For more information, see p. E60

Visual Warning Tapes Overview

E-Z-Code® Visual Warning Tapes make identification and

warning easier

www.tnb.ca E57

www.tnb.ca E57

Identification Products

Colour-Coded Vinyl I.D. Tape

•

Effectively warns or identifies equipment, traffic and housekeeping items

•

Choose from different widths

•

Many colours available

1 in. Wide

Cat. No.

2 in. Wide

Cat. No.

3 in. Wide

Cat. No.

4 in. Wide

Cat. No.

Colour

AA-1121 BA-1121 CA-1121 NA-1121

Silver

AA-1122 BA-1122 CA-1122 NA-1122

Black

AA-1123 BA-1123 CA-1123 NA-1123

Blue

AA-1124 BA-1124 CA-1124 NA-1124

Brown

AA-1125 BA-1125 CA-1125 NA-1125

Green

AA-1126 BA-1126 CA-1126 NA-1126

Orange

AA-1127 BA-1127 CA-1127 NA-1127

Purple

AA-1128 BA-1128 CA-1128 NA-1128

Red

AA-1129 BA-1129 CA-1129 NA-1129

White

AA-1130 BA-1130 CA-1130 NA-1130

Yellow

AA-1131 BA-1131 CA-1131 NA-1131

Clear

60 yards per roll. Reflective Roll Tape

2 in. Wide

Cat. No.

3 in. Wide

Cat. No.

4 in. Wide

Cat. No.

Colour

AZ-3108 BZ-3108 CZ-3108

Black & Yellow Stripe

AZ-3110 BZ-3110 CZ-3110

Red & White Stripe

5 yards per roll.

Colour-Coded I.D. Tapes, Floor Tapes

Save time and money over painting!

www.tnb.ca

E58 www.tnb.ca

E58

Identification Products

Self-Sticking Vinyl Cloth Tape

Laminated Vinyl Tape

2 in. Wide

Cat. No.

3 in. Wide

Cat. No.

4 in. Wide

Cat. No.

Colour

AZ-1100 BZ-1100 CZ-1100

Black & Yellow Stripe

AZ-1102 BZ-1102 CZ-1102

Red & White Stripe

AZ-1303 BZ-1303 CZ-1303

Magenta & Yellow Stripe

& Radiation Symbol

30 yards per roll.

2-Sided Foam Mounting Tape

2 in. Wide

Cat. No.

3 in. Wide

Cat. No.

4 in. Wide

Cat. No.

Colour

AZ-2104 BZ-2104 CZ-2104

Black & Yellow Stripe

AZ-2106 BZ-2106 CZ-2106

Red & White Stripe

18 yards per roll.

Cat. No. Description

NA-0365

2-Sided Foam Mounting Tape

9 yards per roll.

Colour-Coded I.D. Tapes, Floor Tapes

Save time and money over painting!

www.tnb.ca E59

www.tnb.ca E59

Identification Products

NOTE: All barricade and utility tapes are 4 MIL polyethylene and are not self

sticking. All legends are printed in black. Standard package is 1 roll.

Barricade and Burial Tapes

Mark off hazardous or off-limit areas quickly and easily!

Protect-A-Line™ Barricade and Burial Tapes

Cat. No.

Description Colour

Surveyors Tape 1-1/2 in. x 1,000 ft.

NA-0200

No Legend, No Printing

Yellow

NA-0201

Red

NA-0202

Green

NA-0203

Blue

NA-0204

Orange

Barricade Tape 3 in. x 1,000 ft.

NA-0250

Caution

Yellow

NA-0253

Caution Construction Area

NA-0254

Caution Do Not Enter

NA-0256

Caution Hard Hat Area

NA-0257

Caution High Voltage

NA-0258

Caution Men Working

NA-0261

Caution Open Trench

NA-0267

Danger, on Stripes Red & White

Barricade Tape

•

Inexpensive and easy to handle

•

Convenient and reusable

•

For indoor and outdoor use

Cat. No.

Description Colour

Buried Utility Tape 3 in. x 1,000 ft.

NA-0600

Electric Line Red

NA-0608

Yellow

NA-0601

Water Line Blue

NA-0602

Telephone Line Orange

NA-0603

Gas Line Yellow

NA-0605

Sewer Line Green

NA-0606

High Voltage Line Red

NA-0609

Fiber Optic Cable Orange

Buried Utility Tape 6 in. x 1,000 ft.

NA-0700

Electric Line Red

NA-0708

Yellow

NA-0701

Water Line Blue

NA-0702

Telephone Line Orange

NA-0703

Gas Line Yellow

NA-0706

High Voltage Line Red

NA-0709

Fiber Optic Cable Orange

Buried Utility Tape

•

Protect against costly utility dig-ins

•

Place 1 to 1-1/2 feet below the ground surface

directly above pipeline or cable below

•

Bright, fade-resistant colours warn equipment

operators that a vital pipeline or cable is buried

below, before damage occurs

•

Black text on a bright background

www.tnb.ca

E60 www.tnb.ca

E60

Identification Products

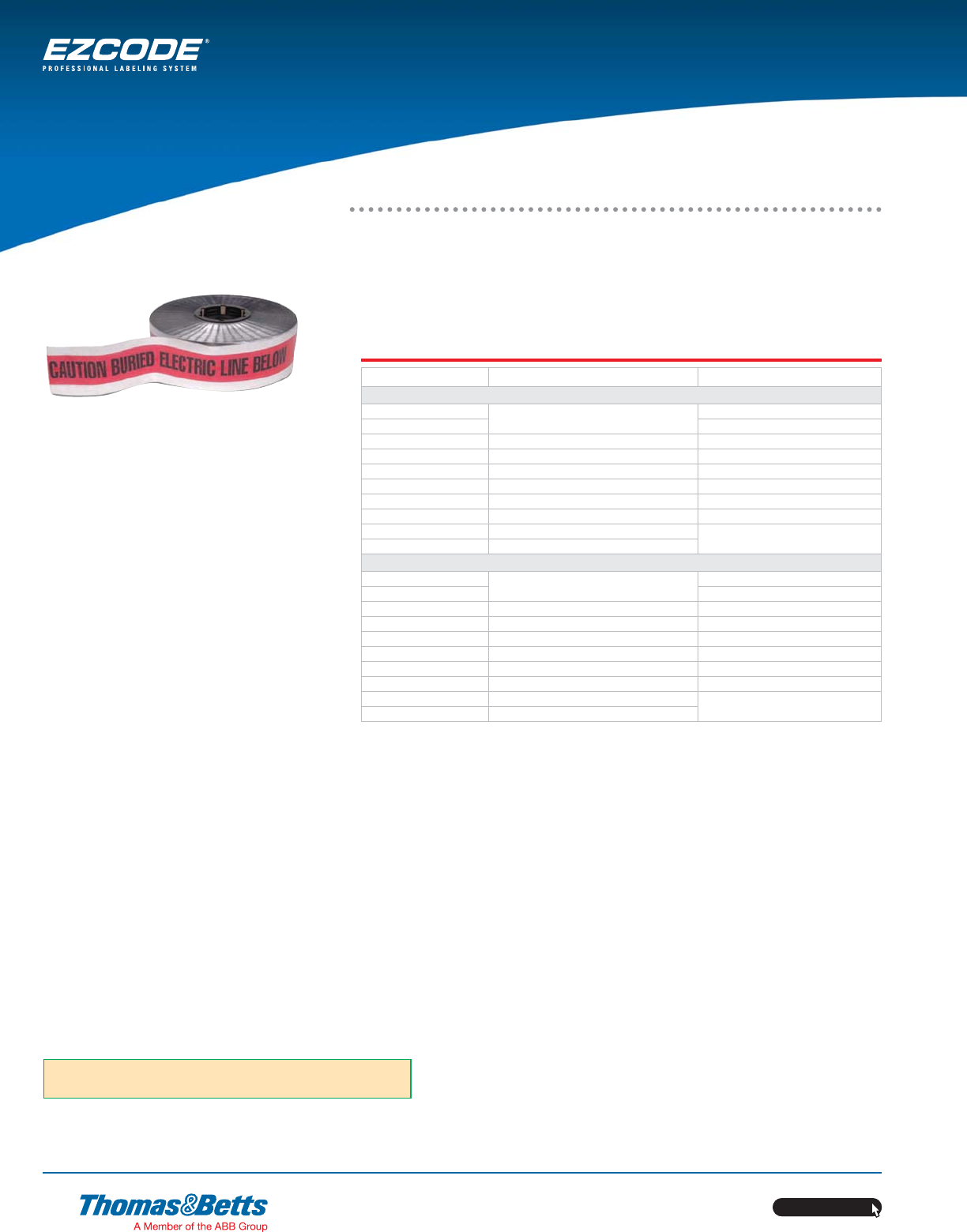

Protect-A-Line™ Barricade and Burial Tapes (cont’d)

Cat. No.

Description Colour

Foil-Backed Detectable Buried Utility Tape 3 in. x 1,000 ft.

NAF-0600

Electric Line Red

NAF-0608

Yellow

NAF-0601

Water Line Blue

NAF-0602

Telephone Line Orange

NAF-0603

Gas Line Yellow

NAF-0604

Oil Line Yellow

NAF-0605

Sewer Line Green

NAF-0606

High Voltage Line Red

NAF-0607

Cable TV Line Orange

NAF-0609

Fiber Optic Cable

Foil-Backed Detectable Buried Utility Tape 6 in. x 1,000 ft.

NAF-0700

Electric Line Red

NAF-0708

Yellow

NAF-0701

Water Line Blue

NAF-0702

Telephone Line Orange

NAF-0703

Gas Line Yellow

NAF-0704

Oil Line Yellow

NAF-0705

Sewer Line Green

NAF-0706

High Voltage Line Red

NAF-0707

Cable TV Line Orange

NAF-0709

Fiber Optic Cable

Foil-Backed Detectable

Buried Utility Tape

•

Features a metallic backing designed to

be detectable under normal earthen

surfaces up to 18 in. with common metal

detectors

•

Simple and fast method for relocating

lines, cables and conduit for future

renovation

•

Black text on a bright background

Barricade and Burial Tapes

NOTE: All barricade and utility tapes are 4 MIL polyethylene and are not self

sticking. All legends are printed in black. Standard package is 1 roll.

www.tnb.ca E61

www.tnb.ca E61

Identification Products

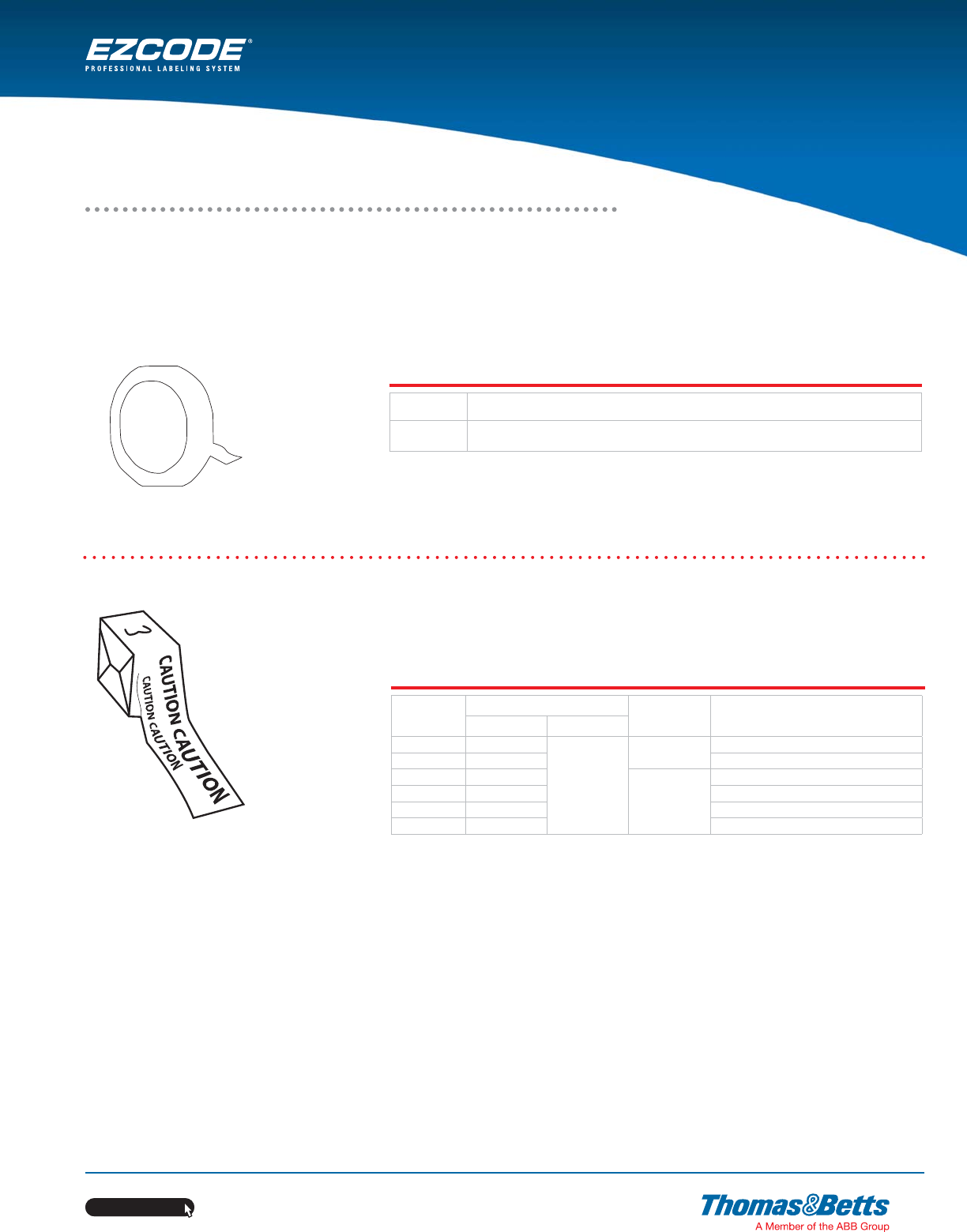

Foam mounting tape — 2-sided

Cat. No. Description

NA-0365

2-sided foam mounting tape

Length per roll: 9 yards.

Warning tape for direct buried lines

Cat. No.

Description Colour Weight per 100

Width (in.) Length (ft.)

RT3

3

1000

Red 500

RT6

6 1000

YT3

3

Yellow

500

YT6

6 1000

YT3BL

3 500

YT6BL

6 1000

Identification Tape

www.tnb.ca

E62 www.tnb.ca

E62

Identification Products

•

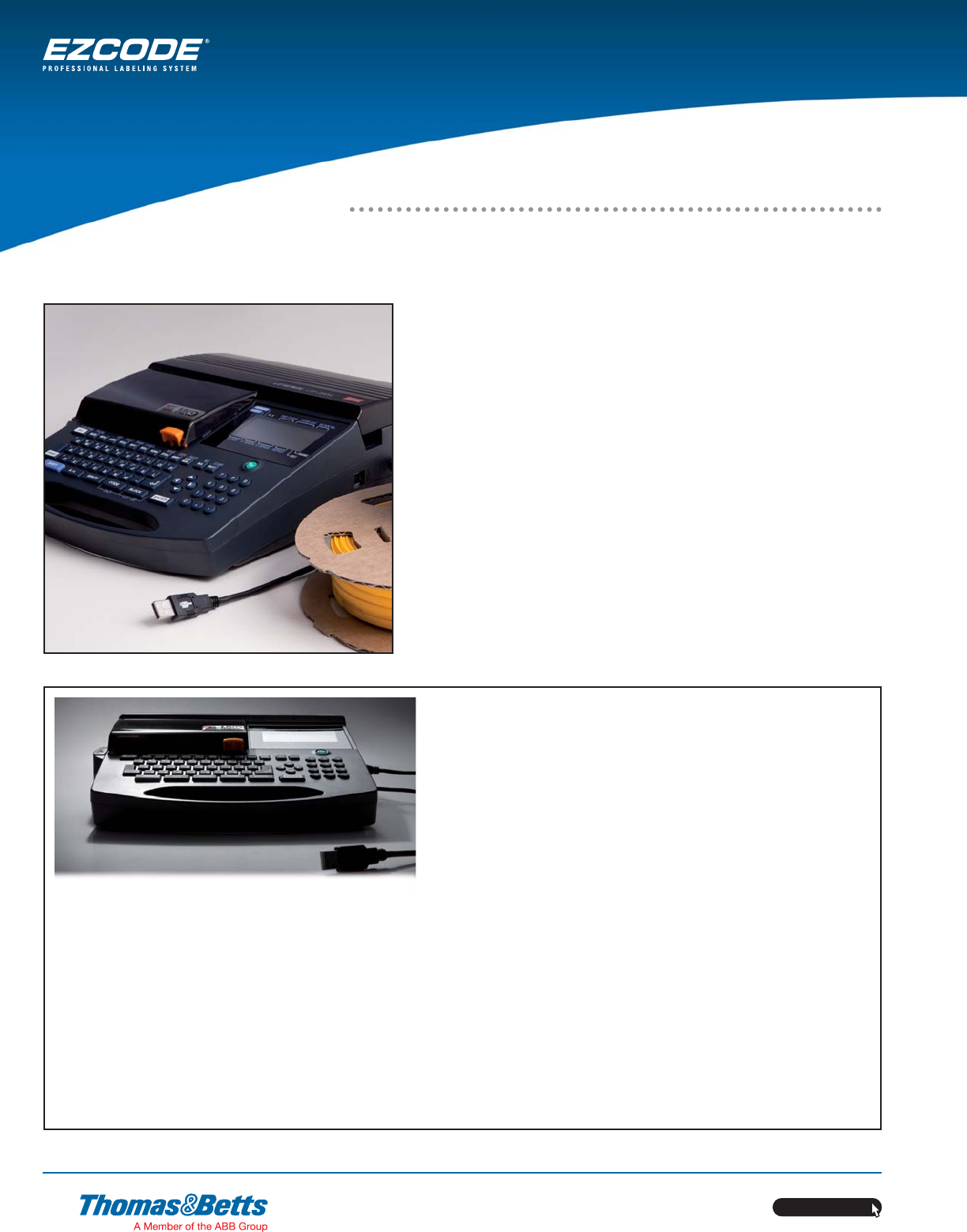

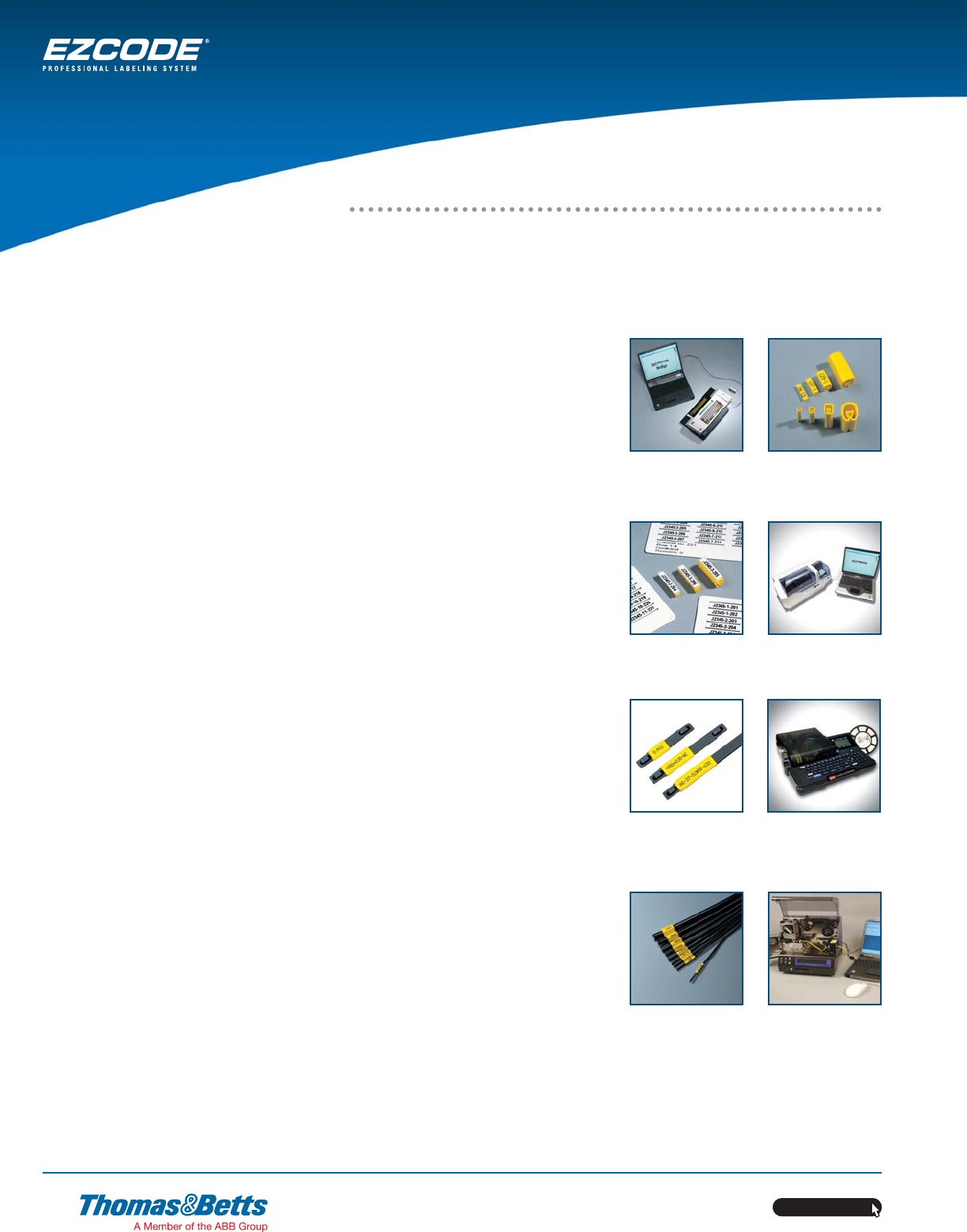

USB 2.0 connection

•

Backlit screen

•

Produces up to one marker a second

The Partex ProMark concept consists of small, portable marking

machines that solve most smaller marking needs.

ProMark should be seen as your own small marker factory that enables

fast and cost effective complementary marking.

MTX-MK9-USB

WinSign Software

•

Lets you control the whole printing process i.e. boldness of print,

length of the marker, printing speed, text size, etc.

•

Pre-programmed default values get you ready in no time

•

Easy to import files from Excel. Just copy and paste

•

Database function for easy saves and loadings of files and projects

•

Number generator function

•

Portable printer for complementary marking and production of

smaller series of markers

•

“A small marker factory” that writes cable, wire, component and

terminal block markers

•

Uses ink ribbons for printing and is close to maintenance free

•

High wear resistance on print

•

Printer is controlled by a computer or by its own keyboard

(excellent when producing single markers or short numerical

series)

MTX-MK9-USB

What is ProMark?

www.tnb.ca E63

www.tnb.ca E63

Identification Products

MTX-MK9-USB PRINTER

•

Compact, portable printer for cable, wire and component marking on site

•

Feeds, prints and cuts bulk Partex profiles and self adhesive labels

•

Stores and imports marker files with a USB-PC connection, or by USB memory

•

Choose between English, German or French language for printer display

•

A cost effective identification system for use in panel building and electrical

installations

Facts

Thermotransfer printing

300 dpi print resolution

Printing speed

35.0 mm/s in standard mode

20.0 mm/s in low temperature mode

Text heights

2, 3, 4 or 6 mm

Maximum rows that can be printed

1 or 2 row in tube mode and 1 to 3 rows in tape mode

PC connection

USB 2.0 connection and WinSign software or

USB memory and WinSign software

Power

AC adapter 100 ~ 240V (50-60Hz)

Power consumption: 20W

CE Certified

Measurements

(L x W x H) 290 x 300 x 95

Weight

2 kg

Temperature range

Operating temperature: +10ºC to 35ºC

Storage temperature: 0ºC to +40ºC

To obtain the best printing results, the

temperature of the profile should not be lower then +25ºC

General information

Design

A third generation printer the ProMark MTX-MK9-USB is a

flexible thermal transfer printer, ideal for fast, on site

complementary work. The marking machine is equipped with

a USB 2.0 connection to a PC for fast transfer of marking

files. It is also possible to save/load marker files on a USB

memory.

The MTX-MK9-USB has several librairies of symbols that

can be imported onto the markers. It is equipped with an

international keyboard; therefore you have to import unique

European letters from a library of European letters.

Features

High production speed

Backlit display

Extended memory

USB 2.0 connection

Partex WinSign 5.5 software is included

MTX-MK9-USB

ProMark

www.tnb.ca

E64 www.tnb.ca

E64

Identification Products

•

USB 2.0 direct PC connection

•

Flash drive is replaced with USB memory

•

The screen has higher resolution and is backlit

•

Higher production speed, both in low temperature and standard mode

•

Extended internal memory

•

Smoother more quiet feed of profiles

•

No guiding cassette needed to print on PO-068 profile

•

Writes on PO-068Q - a profile with pre-punched holes for fast and reliable

cable marking

•

Use together with a DN reel when producing smaller series for cost

effective marker production

•

Compatible with a new, updated version of Partex WinSign software

PO profile

Shrink tubing

PP profile

PO-068Q

PO profiles on

compactadisc

PO profiles on

DN-reel

MTX-MK9-USB

Improvements to the MTX-MK9-USB!

www.tnb.ca E65

www.tnb.ca E65

Identification Products

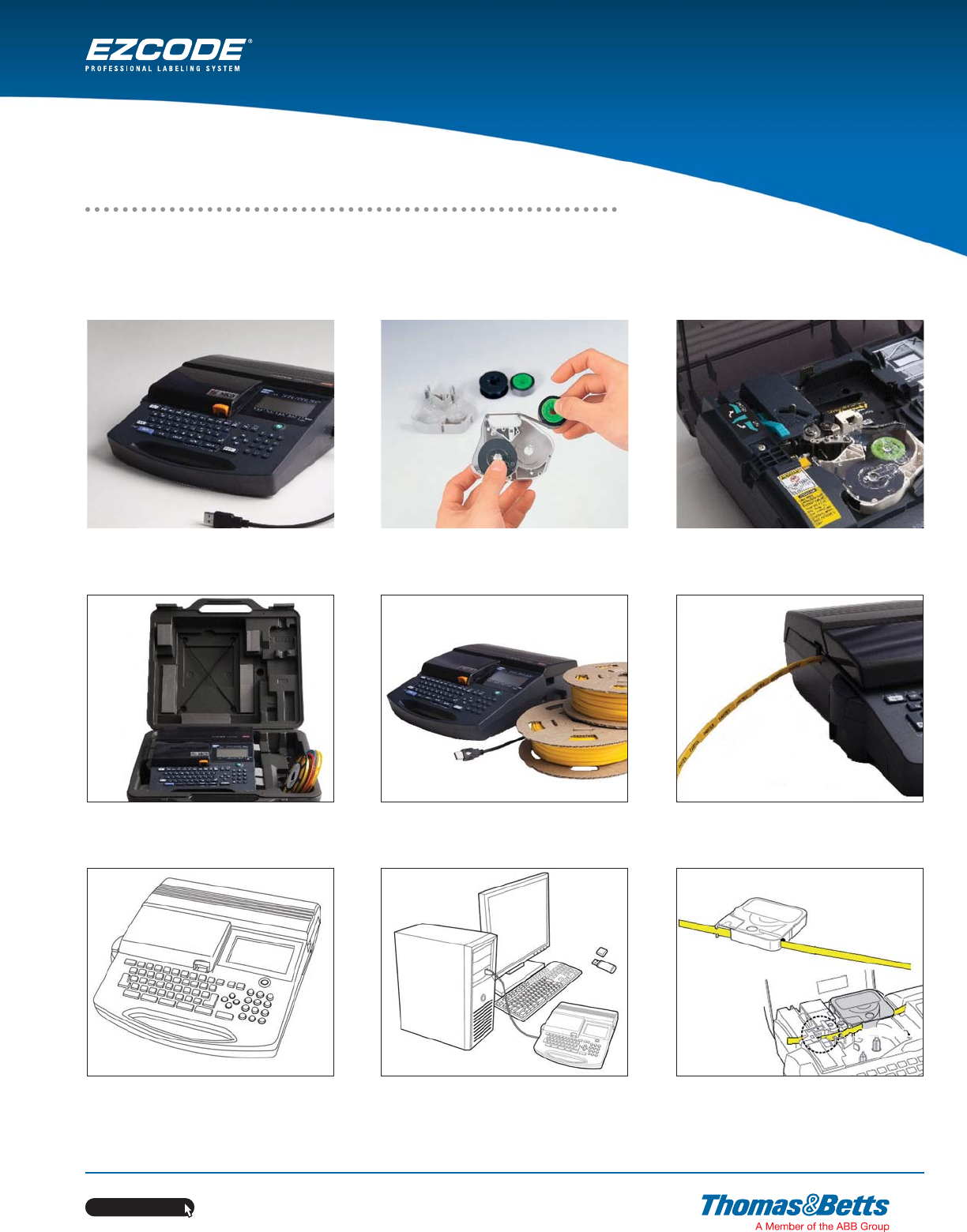

MTX-MK9-USB Easy loading of ribbon into ribbon holder.

50 meter black ribbon and 30 meter white

ribbon.

Cutting and printing unit.

MTX-MK9-USB Transfer data files with marking information

between the PC and the printer by using the

USB 2.0 PC/printer connection or a USB

memory.

Profile guide cassette for profiles such as

PP-046.

The MTX-MK9-USB is delivered in a case with

room for manuals, AC adapter and other

accessories.

MTX-MK9-USB prints profiles on DN reels. Printing on PO profiles.

MTX-MK9-USB

The ProMark MK9 System Concept

www.tnb.ca

E66 www.tnb.ca

E66

Identification Products

PP profile on compactadisc Tape cassette PP profile inside PTC sleeve

PP profile PP profile inside PT+ sleeves PO-068Q profile for cable marking

Compactadisc with PO profiles

PP profiles mounted on terminal block

PO-068TW for cable marking on SMOH PO profiles on DN reel

MTX-MK9-USB

Applications

www.tnb.ca E67

www.tnb.ca E67

Identification Products

Standard USB cables available at most electronic retail stores.

Notes:

Following Partex products can be combined with ProMark consumables:

1. PM-10/20/24 transparent sleeves with ProMark PP-046/090 insert tags and

MK9-PL090/120 self adhesive labels.

2. PT+02/10/20/30 transparent sleeves combined with PP-046 insert tag profile.

3. PTC10/20/30/50 transparent sleeves are combined with PP-046 insert tag profile

4. PKH and SMOH carrier strips are combined with PO-068TW / PRZ071 cable

marking profiles.

For detailed information, please contact your Regional Sales Office.

Ø = 4 Yellow profile, 9 White profile, other colours on request

Zerex sleeves and carrier strips are halogen free

MTX-MK9-USB

Product and Ordering Information

Cat. No.

Description Pack unit (MOQ)

Printer and accessories

MTX-MK9-USB

MTX-MK9-USB includes: Carrying case, power cord, MTX-MK9-RC software and quick start guide 1 pce

MTX-MK9-CU-YW

Cutting unit (yellow) for MK9-USB 2 pcs

MTX-MK9-RB

Black ribbon 50 m 5 pcs (250 m)

MTX-MK9-RW

White ribbon 30 m 5 pcs (250 m)

MTX-MK9-RC

Ribbon cassette holder 1 pce

MTX-MK9-CAS46

Profile guide cassette for PP-046 1 pce

MTX-MK9-CAS63

Profile guide cassette for PP-063 1 pce

MTX-MK9-CAS90

Profile guide cassette for PP-090 and PPA-090 1 pce

MTX-MK9-RS

Reel stand 1 pce

Tape cassettes

MK9-PL050CN4

Tape cassette 5 mm x 8 m, yellow 1 pce

MK9-PL050CN9

Tape cassette 5 mm x 8 m, White 1 pce

MK9-PL050CNT

Tape cassette 5 mm x 8 m, transparent 1 pce

MK9-PL090CN4

Tape cassette 9 mm x 8 m, yellow 1 pce

MK9-PL090CN9

Tape cassette 9 mm x 8 m, white 1 pce

MK9-PL090CNT

Tape cassette 9 mm x 8 m, transparent 1 pce

MK9-PL120CN4

Tape cassette 12 mm x 8 m, yellow 1 pce

MK9-PL120CN9

Tape cassette 12 mm x 8 m, white 1 pce

PO Profile

PO-02000SNØ

PO-profile 0,5 mm2. Diam 1,7-2,2 mm 5,0 m / Compactadisc

PO-02000DNØ

PO-profile 0,5 mm2. Diam 1,7-2,2 mm 60,0 m / DN-reel

PO-03000SNØ

PO-profile 0,75 mm2 Diam 2,0-2,5 mm 4,5 m / Compactadisc

PO-03000DNØ

PO-profile 0,75 mm2 Diam 2,0-2,5 mm 50,0 m / DN-reel

PO-04000SNØ

PO-profile 1,0 mm2 Diam 2,2-2,8 mm 4,5 m / Compactadisc

PO-04000DNØ

PO-profile 1,0 mm2 Diam 2,2-2,8 mm 50,0 m / DN-reel

PO-05000SNØ

PO-profile 1,5 mm2 Diam 2,7-3,5 mm 4,0 m / Compactadisc

PO-05000DNØ

PO-profile 1,5 mm2 Diam 2,7-3,5 mm 40,0 m / DN-reel

PO-06000SNØ

PO-profile 2,5 mm2 Diam 3,2-4,0 mm 3,5 m / Compactadisc

PO-06000DNØ

PO-profile 2,5 mm2 Diam 3,2-4,0 mm 40,0 m / DN-reel

PO-068TWBNØ

PO-068TW profile with thin wall Diam 6,8-7,0 mm 50,0 m / Big Reel

PO-068TWSNØ

PO-068TW profile with thin wall Diam 6,8-7,0 mm 4,5 m / Compactadisc

PO-068Q10BNØ

PO-068Q profile punched, 10 mm between the punched holes 50,0 m / Big Reel

PO-06Q10SNØ

PO-profile punched, 10 mm between the punched holes 3,5 m / Compactadisc

PO-07000SNØ

PO-profile 4,0 mm2 Diam 3,8-4,7 mm 3,5 m / Compactadisc

PO-07000DNØ

PO-profile 4,0 mm2 Diam 3,8-4,7 mm 30,0 m / DN-reel

POZ02000SNØ

POZ-profile Zerex 0,5 mm2 Diam. 1,7-2,2 mm 5,0 m / Compactadisc

POZ03000SNØ

POZ-profile Zerex 0,75 mm2 Diam 2,0-2,5 mm 4,5 m / Compactadisc

POZ04000SNØ

POZ-profile Zerex 1,0 mm2 Diam 2,2-2,8 mm 4,5 m / Compactadisc

POZ05000SNØ

POZ-profile Zerex 1,5 mm2 Diam 2,7-3,5 mm 4,0 m / Compactadisc

POZ06000SNØ

POZ-profile Zerex 2,5 mm2 Diam 3,2-4,0 mm 3.5 m / Compactadisc

POZ07000SNØ

POZ-profile Zerex 4,0 mm2 Diam 3,8-4,7 mm 3.5 m / Compactadisc

PRZ07100SNØ

PRZ-profile Zerex, can be mounted on PKH/SMOH holders 9,0 m / Cardboard disc

www.tnb.ca

E68 www.tnb.ca

E68

Identification Products

Notes:

Following Partex products can be combined with ProMark consumables:

1. PM-10/20/24 transparent sleeves with ProMark PP-046/090 insert tags and

MK9-PL090/120 self adhesive labels.

2. PT+02/10/20/30 transparent sleeves combined with PP-046 insert tag profile.

3. PTC10/20/30/50 transparent sleeves are combined with PP-046 insert tag profile

4. PKH and SMOH carrier strips are combined with PO-068TW / PRZ071 cable

marking profiles.

For detailed information, please contact your Regional Sales Office.

Ø = 4 Yellow profile, 9 White profile, other colours on request

Zerex sleeves and carrier strips are halogen free

MTX-MK9-USB

Product and Ordering Information (Cont’d)

Cat. No.

Description Pack unit (MOQ)

Marker tag profile

PP-04600SNØ

PP marker tag profile H = 4.6 mm, for PT+, PTC and PM-10

15,0 m / Compactadisc

PP-09000SNØ

PP marker tag profile H = 9.0 mm, for PM-20 18,0 m / Compactadisc

Cabinet and Component markers

PPA09000SNØ

PP-profile with adhesive for component markers etc. 10,0 m / Compactadisc

PP-06300SN9

PP-profile H = 6.3 mm, for Phoenix terminal blocks (UT2.5, UTTB2.5, ST4, DT2.5, QTC, DTI2.5) 15,0 m / Compactadisc

PP-10000SN9

PP-profile H = 10.2 mm, for Entrelecs terminal blocks 15,0 m / Compactadisc

PP-11000SN9

PP-profile H = 11.0 mm, for Wagos TopJobs terminal blocks 12,0 m / Compactadisc

Heat shrink tubing

PHZ20032MNØ

Heat Shrink , Diam 3.2 mm, shrink ratio 2:1, Zerex 15,0 m / Minibox

PHZ20048MNØ

Heat Shrink , Diam 4.8 mm, shrink ratio 2:1, Zerex 12,0 m / Minibox

PHZ20064MNØ

Heat Shrink , Diam 6.4 mm, shrink ratio 2:1, Zerex 12,0 m / Minibox

www.tnb.ca E69

www.tnb.ca E69

Identification Products

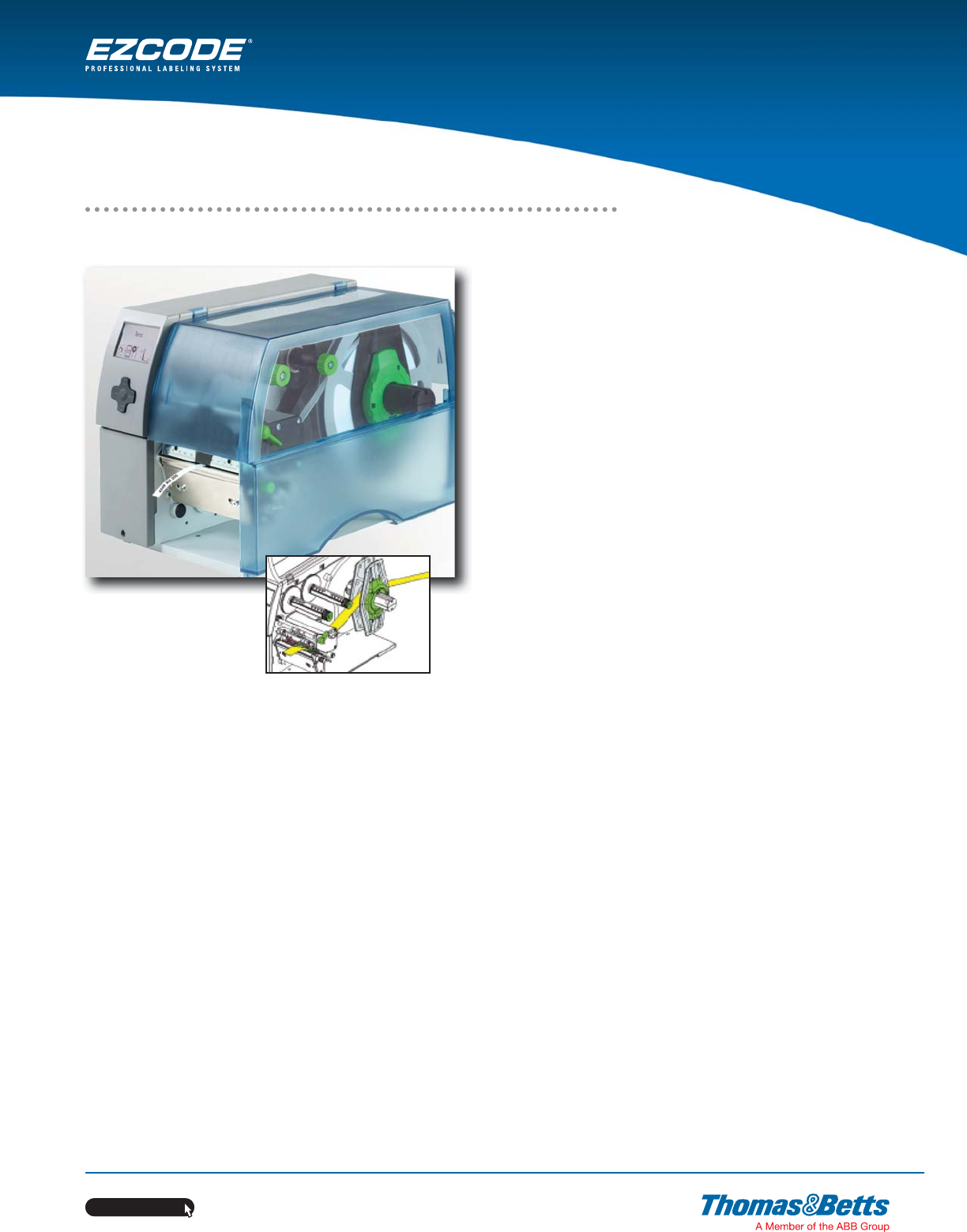

Production on site

•

Compact heavy duty printer for high demand production for wire, cable and

component marking

•

Feeds, prints and cuts bulk cable markers (PO), heat shrink (PHZ) profiles and

self adhesive profiles

•

MTX-MK10-KIT1 is a very cost effective identification system for use in panel

building and electrical installations

•

USB connection, controlled by Partex software WinSign

Specification – General

Thermal transfer printing

300 dpi print resolution

Printing speed

125 mm/sec.

Printer head width

105 mm

PC connection

USB 2.0 connection and PARTEX software WinSign

Power supply

100 - 240 V (50-60Hz)

Power consumption: max. 300 W

CE Certified

Measurements

(L x W x H): 446 x 242 x 275 mm

Weight

9 kg

Cutter

Perforation cutter

Operation data

Operating temperature: +10ºC to +35ºC

Humidity: 30 - 85% not condensing

To obtain the best printing result, the temperature of

the profile should not be lower then +25ºC

Specification - Printer Data

MTX-MK10-K1T1 is a modern thermal transfer printer for

PARTEX PO profiles for all needs of wire and cable marking

with high production speed (up to 125 mm/sec).

MTX-MK10-KIT1 has a direct connection to any computer by

means of a USB cable and is controlled by Partex WinSign

software.

It prints on profiles directly from a reel and semi detaches the

marker at desired lengths with the built-in cutting unit.

In addition to PO profile, the MTX-KM10-KIT1 prints on heat

shrink tubing and PARTEX component marker PPA profile.

MTX-MK10-KIT1

Thermal Transfer Printer

www.tnb.ca

E70 www.tnb.ca

E70

Identification Products

•

Includes a complete system with a

wide range of products and is user

friendly

•

Features a printer with high

production speed, a perforation

cutter and solid construction

•

Uses software that allows the

printer to be directly connected to

a PC via USB and is controlled by

the Partex WinSign software which

supports different font sizes

PP/PPA

Inlay tags /

Component markers

PO/POZ

Wire / Cable markers

SMOZ

Cable markers

MTX-MK10-KIT1

Product and Ordering Information

Cat. No.

Description Pack unit (MOQ)

Printer and accessories

MTX-MK10-KIT1

Printer MK10, Cutting unit, Software WinSign, Ribbon (MK10-RBR7125) and USB cable 1 pce

MTX-MK10-RBBK2020-40

MK10, ink ribbon, 40 mm for: POZ, PP+, PKZ, and PHZ (F), 300 m 1 pce

MTX-MK10-RBBK2020-80

MK10, ink ribbon, 80 mm for: POZ, PP+, PKZ, and PHZ (F), 300 m 1 pce

MTX-MK10-RB-BK510-40

Black ink ribbon, Type 510 (for PO) 40 mm wide, 300 m 1 pce

MTX-MK10-RB-BK510-55

Black ink ribbon, Type 510 (for PO) 55 mm wide, 300 m 1 pce

MTX-MK10-RB-BK510-83

Black ink ribbon, Type 510 (for PO) 83 mm wide, 300 m 1 pce

MTX-MK10-CU

Cutting unit (Included in MK10-KIT1) 1 pce

MTX-MK-RS

Reel stand 1 pce

PLA77020WSNT

Software: LabelSoft (English) 1 pce

PLA77070WSNT

Software: LabelSoft (French) 1 pce

PLA77120WSNT

Software: LabelSoft (German) 1 pce

Marker tag profile

PP-04600SN*

PP-marker tag profile H = 4.6 mm, for PTPLUS, PTC, PTM10 and PM-10 15.0 m / Compactadisc

PP-09000SN*

PP-marker tag profile H = 9.0 mm, for PTM20 and PM-20 18.0 m / Compactadisc

Cabinet and Component markers

PPA09000SN*

PP-profile with adhesive for component markers, etc. 10.0 m / Compactadisc

PP-0600SN*

PP-profile H = 4.6 mm, for Wagos TopJobs terminal blocks 15.0 m / Compactadisc

PP-06300SN9

PP-profile H = 6.3 mm, for Phoenix terminal blocks (UT2.5, UTTB2.5, ST4, DT2.5, QTC, DT12.5) 15.0 m / Compactadisc

PP-10000SN9

PP-profile H = 10.2 mm, for Entrelecs terminal blocks 15.0 m / Compactadisc

PP-11000SN9

PP-profile H = 11.0 mm, for Wagos TopJobs terminal blocks 12.0 m / Compactadisc

Heat Shrink Tubing

PHZ20032BN*

Heat Shrink , Diam 3.2 mm, shrink ratio 2:1, Zerex 100 m / Reel

PHZ20048BN*

Heat Shrink , Diam 4.8 mm, shrink ratio 2:1, Zerex 100 m / Reel

PHZ20064BN*

Heat Shrink , Diam 6.4 mm, shrink ratio 2:1, Zerex 75 m / Reel

PHZ20095BN*

Heat Shrink , Diam 9.5 mm, shrink ratio 2:1, Zerex 75 m / Reel

PHZ20127BN*

Heat Shrink , Diam 12.7 mm, shrink ratio 2:1, Zerex 100 m / Reel

PHZF20191BN*

Flat Heat Shrink , Diam 19.1 mm, shrink ratio 2:1, Zerex 50 m / Reel

PHZF20254BN*

Flat Heat Shrink , Diam 25.4 mm, shrink ratio 2:1, Zerex 50 m / Reel

PHZF20381BN*

Flat Heat Shrink , Diam 38.1 mm, shrink ratio 2:1, Zerex 25 m / Reel

PHZF20504BN*

Flat Heat Shrink , Diam 50.4 mm, shrink ratio 2:1, Zerex 25 m / Reel

PO-profile

PO-01000BN*

PO-profile 0.25 mm2. Diam 1.3-1.8 mm 250 m / Reel

PO-02000BN*

PO-profile 0.5 mm2. Diam 1.7-2.2 mm 250 m / Reel

PO-03000BN*

PO-profile 0.75 mm2 Diam 2.0-2.5 mm 250 m / Reel

PO-04000BN*

PO-profile 1.0 mm2 Diam 2.2-2.8 mm 200 m / Reel

PO-05000BN*

PO-profile 1.5 mm2 Diam 2.7-3.5 mm 200 m / Reel

PO-06000BN*

PO-profile 2.5 mm2 Diam 3.2-4.0 mm 200 m / Reel

PO-068TWBN*

PO-068TW profile with thin wall Diam 6.8-7.0 mm 50 m / Reel

PO-07000BN*

PO-profile 4.0 mm2 Diam 3.8-4.7 mm 100 m / Reel

PO-08000BN*

PO-profile 6.0 mm2. Diam. 4.6-5.5 mm 100 m / Reel

PO-09000BN*

PO-profile 10.0 mm2 Diam 5.6-7.0 mm 50 m / Reel

POZ01000KN*

POZ-profile Zerex 0.25 mm2. Diam 1.3-1.8 mm 250 m / Carton

POZ02000KN*

POZ-profile Zerex 0.5 mm2. Diam. 1.7-2.2 mm 250 m / Carton

POZ03000KN*

POZ-profile Zerex 0.75 mm2 Diam 2.0-2.5 mm 250 m / Carton

POZ04000KN*

POZ-profile Zerex 1.0 mm2 Diam 2.2-2.8 mm 200 m / Carton

POZ05000KN*

POZ-profile Zerex 1.5 mm2 Diam 2.7-3.5 mm 200 m / Carton

POZ06000KN*

POZ-profile Zerex 2.5 mm2 Diam 3.2-4.0 mm 200 m / Carton

POZ07000KN*

POZ-profile Zerex 4.0 mm2 Diam 3.8-4.7 mm 100 m / Carton

POZ08000KN*

POZ-profile Zerex 6.0 mm2. Diam. 4.6-5.5 mm 100 m / Carton

POZ09000KN*

POZ-profile Zerex 10.0 mm2 Diam 5.6-7.0 mm 50 m / Carton

Cable Markers

PKZ20KN

PKZ20 profile Zerex 100 m / Carton

PKZ20QKN

PKZ20 profile punched, 10mm between the punched holes, Zerex 100 m / Carton

www.tnb.ca E71

www.tnb.ca E71

Identification Products

Thermal Transfer Labels, Polyester

Printing with thermal transfer printer, waste removed, rounded corners

Material: SO-5 and S7 Series polyester, matte yellow SO, white S3, silver S1 and security film S5,

S2 polyester silver gloss, S4 white gloss

Package: 1 roll. Core 38 or 76 mm (1.496 or 2.992 in.)

Polyester labels, 1-track or 3-track, core diameter 38 mm (1.496 in.), perforated, 5 rolls/box

Cat. No.

S2 Silver Glossy

Cat. No.

S4 White Glossy

Cat. No.

S5 Security

Size Track

Row of labels Quantity / Roll

mm in.

PLT8K101S28-4/3 PLT8K101S49-5/3 PLT8K101S58-6/3

15 x 6 0.591 x 0.236 3 10000

PLT8K102S28-4/3 PLT8K102S49-5/3 PLT8K102S58-6/3

18 x 6.5 0.709 x 0.256 3 10000

PLT8K103S28-4/3 PLT8K103S49-5/3 PLT8K103S58-6/3

18 x 9 0.709 x 0.354 3 10000

PLT8K106S28-4/3 PLT8K106S49-5/3 PLT8K106S58-6/3

20 x 8 0.787 x 0.315 3 10000

PLT8K105S28-4 PLT8K105S49-5 PLT8K105S58-6

25.4 x 12.7 1 x 0.5 1 2000

PLT8K105S28-4/3 PLT8K105S49-5/3 PLT8K105S58-6/3

25.4 x 12.7 1 x 0.5 3 10000

PLT8K108S28-4 PLT8K108S49-5 PLT8K108S58-6

26 x 10 1.024 x 0.394 1 2000

PLT8K108S28-4/3 PLT8K108S49-5/3 PLT8K108S58-6/3

26 x 10 1.024 x 0.394 3 10000

PLT8K109S28-4/3 PLT8K109S49-5/3 PLT8K109S58-6/3

26.5 x 17.5 1.043 x 0.689 1 5000

PLT8K104S28-4 PLT8K104S49-5 PLT8K104S58-6

30 x 20 1.181 x 0.787 3 2000

PLT8K104S28-4/3 PLT8K104S49-5/3 PLT8K104S58-6/3

30 x 20 1.181 x 0.787 1 6000

PLT8K111S28-4 PLT8K111S49-5 PLT8K111S58-6

32 x 9.5 1.260 x 0.374 3 2000

PLT8K111S28-4/3 PLT8K111S49-5/3 PLT8K111S58-6/3

32 x 9.5 1.260 x 0.374 1 10000

PLT8K115S028-4 PLT8K115S49-5 PLT8K115S58-6

38 x 19 1.496 x 0.748 1 2000

PLT8K121S28-4 PLT8K121S49-5 PLT8K121S58-6

45 x 23 1.772 x 0.906 1 2000

PLT8K130S28-4 PLT8K130S49-5 PLT8K130S58-6

50 x 23 1.969 x 0.906 1 2000

PLT8K134S28-4 PLT8K134S49-5 PLT8K134S58-6

60 x 36 2.362 x 1.417 1 1000

PLT8K135S28-4 PLT8K135S49-5 PLT8K135S58-6

65 x 35 2.559 x 1.378 1 1000

PLT8K133S28-4 PLT8K133S49-5 PLT8K133S58-6

65 x 53 2.559 x 2.087 1 750

PLT8K136S28-4 PLT8K136S49-5 PLT8K136S58-6

70 x 48 2.756 x 1.890 1 1000

PLT8K139S28-4 PLT8K139S49-5 PLT8K139S58-6

89 x 82 3.504 x 3.228 1 500

PLT8K140S28-4 PLT8K140S49-5 PLT8K140S58-6

101.6 x 23 4 x 0.906 1 2000

PLT8K137S28-4 PLT8K137S49-5 PLT8K137S58-6

101.6 x 48 4 x 1.890 1 1000

PLT8K138S28-4 PLT8K138S49-5 PLT8K138S58-6

101.6 x 74 4 x 2.913 1 500

PLT8K141S28-4 PLT8K141S49-5 PLT8K141S58-6

101.6 x 150 4 x 5.906 1 300

Cat. No. Size Row Track Write-on Field Labels/Roll

Yellow White mm in. mm in.

PLT81400S74 PLT81410S79

17.8 x 34 0.701 x 1.339 5 16 x 13 0.629 x 0.511 3000

PLT81440S74 PLT81430S79

22.8 x 55 0.898 x 2.165 3 21 x 16 0.629 x 0.511 2400

PLT81390S74 -

25.0 x 35.0 0.984 x 1.378 3 25 x 14 0.984 x 0.551 4500

PLT81450S74 PLT81460S79

25.0 x 76.0 0.984 x 2.992 3 23 x 19 0.905 x 0.748 1800

PLT81420S74 -

25.0 x 140.0 0.984 x 5.512 3 25 x 25 0.944 x 0.984 1050

PLT81470S74 PLT81480S79

35.6 x 93.0 1.402 x 3.661 3 34 x 25 1.388 x 0.984 1500

Self-laminating write-on cable markers with write-on-field

Material: S7 transparent polyester film

Package: Rolls with 3 and 5 rows depending on label size

MTX-MK10-KIT1

Product and Ordering Information

www.tnb.ca

E72 www.tnb.ca

E72

Identification Products

Order in multiples of 25 tags.

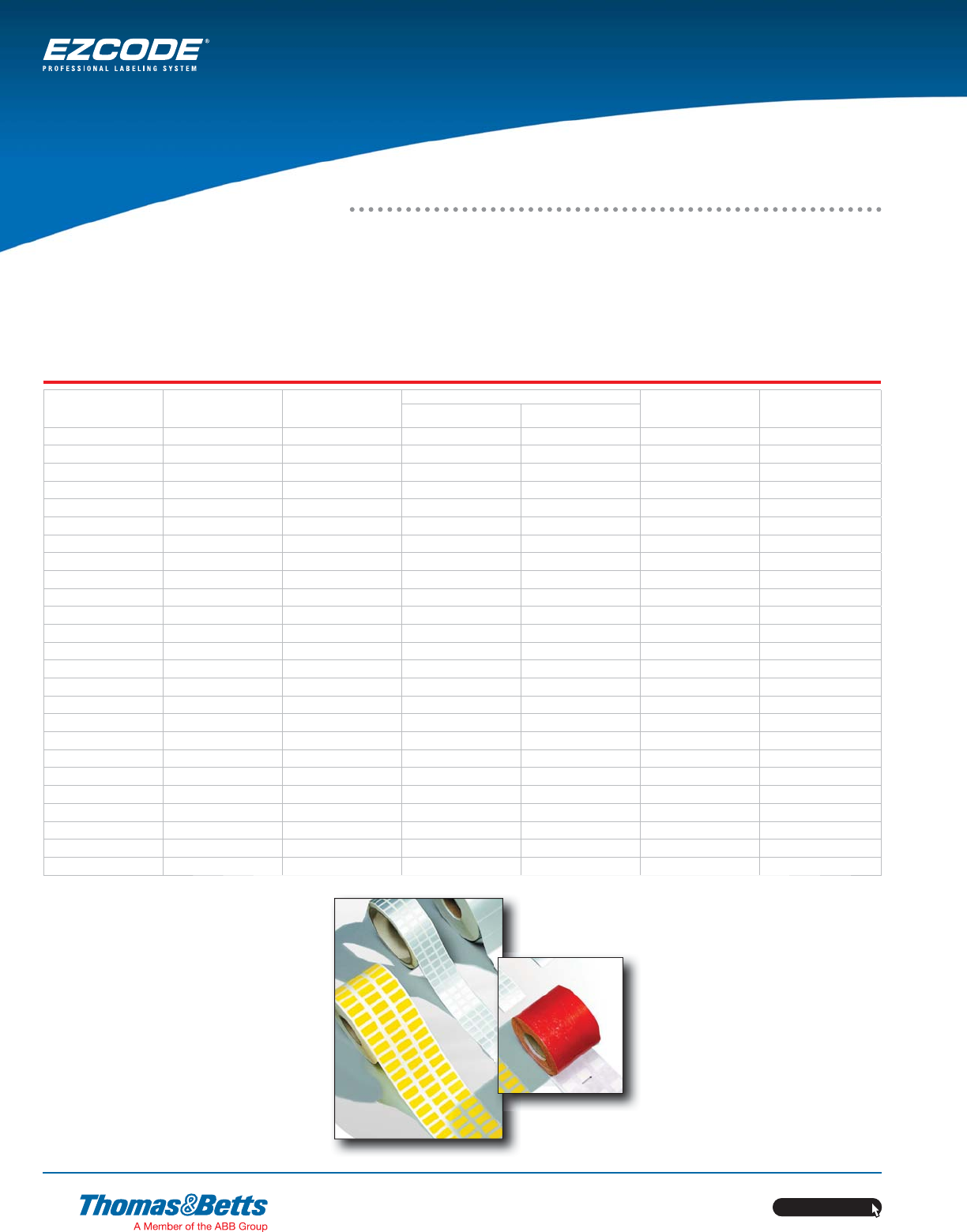

Thermal Transfer Labels, Polyester (cont’d)

Printing with thermal transfer printer, waste removed, rounded corners

Material: SO-5 and S7 Series polyester, matte yellow SO, white S3, silver S1 and security film S5, S2 polyester silver gloss, S4 white gloss

Package: 1 roll. Core 38 or 76 mm (1.496 or 2.992 in.)

Polyester labels, 1-track or 3-track, core diameter 38 mm (1.496 in.), perforated, 5 rolls/box

Cat. No.

S0 Yellow Matte

Cat. No.

S1 Silver Matte

Cat. No.

S3 White Matte

Size Track

Row of labels Quantity / Roll

mm in.

PLT8K101S04-1/3 PLT8K101S18-3/3 PLT8K101S39-2/3

15 x 6 0.591 x 0.236 3 10000

PLT8K102S04-1/3 PLT8K102S18-3/3 PLT8K102S39-2/3

18 x 6.5 0.709 x 0.256 3 10000

PLT8K103S04-1/3 PLT8K103S18-3/3 PLT8K103S39-2/3

18 x 9 0.709 x 0.354 3 10000

PLT8K106S04-1/3 PLT8K106S18-3/3 PLT8K106S39-2/3

20 x 8 0.787 x 0.315 3 10000

PLT8K105S04-1 PLT8K105S18-3 PLT8K105S39-2

25.4 x 12.7 1 x 0.5 1 2000

PLT8K105S04-1/3 PLT8K105S18-3/3 PLT8K105S39-2/3

25.4 x 12.7 1 x 0.5 3 10000

PLT8K108S04-1 PLT8K108S18-3 PLT8K108S39-2

26 x 10 1.024 x 0.394 1 2000

PLT8K108S04-1/3 PLT8K108S18-3/3 PLT8K108S39-2/3

26 x 10 1.024 x 0.394 3 10000

PLT8K109S04-1/3 PLT8K109S18-3/3 PLT8K109S39-2/3

26.5 x 17.5 1.043 x 0.689 1 5000

PLT8K104S04-1 PLT8K104S18-3 PLT8K104S39-2

30 x 20 1.181 x 0.787 3 2000

PLT8K104S04-1/3 PLT8K104S18-3/3 PLT8K104S39-2/3

30 x 20 1.181 x 0.787 1 6000

PLT8K111S04-1 PLT8K111S18-3 PLT8K111S39-2

32 x 9.5 1.260 x 0.374 3 2000

PLT8K111S04-1/3 PLT8K111S18-3/3 PLT8K111S39-2/3

32 x 9.5 1.260 x 0.374 1 10000

PLT8K115S04-1 PLT8K115S18-3 PLT8K115S39-2

38 x 19 1.496 x 0.748 1 2000

PLT8K121S04-1 PLT8K121S18-3 PLT8K121S39-2

45 x 23 1.772 x 0.906 1 2000

PLT8K130S04-1 PLT8K130S18-3 PLT8K130S39-2

50 x 23 1.969 x 0.906 1 2000

PLT8K134S04-1 PLT8K134S18-3 PLT8K134S39-2

60 x 36 2.362 x 1.417 1 1000

PLT8K135S04-1 PLT8K135S18-3 PLT8K135S39-2

65 x 35 2.559 x 1.378 1 1000

PLT8K133S04-1 PLT8K133S18-3 PLT8K133S39-2

65 x 53 2.559 x 2.087 1 750

PLT8K136S04-1 PLT8K136S18-3 PLT8K136S39-2

70 x 48 2.756 x 1.890 1 1000

PLT8K139S04-1 PLT8K139S18-3 PLT8K139S39-2

89 x 82 3.504 x 3.228 1 500

PLT8K140S04-1 PLT8K140S18-3 PLT8K140S39-2

101.6 x 23 4 x 0.906 1 2000

PLT8K137S04-1 PLT8K137S18-3 PLT8K137S39-2

101.6 x 48 4 x 1.890 1 1000

PLT8K138S04-1 PLT8K138S18-3 PLT8K138S39-2

101.6 x 74 4 x 2.913 1 500

PLT8K141S04-1 PLT8K141S18-3 PLT8K141S39-2

101.6 x 150 4 x 5.906 1 300

MTX-MK10-KIT1

Product and Ordering Information

www.tnb.ca E73

www.tnb.ca E73

Identification Products

MTX-MK1 Miniplotter

www.tnb.ca

E74 www.tnb.ca

E74

Identification Products

•

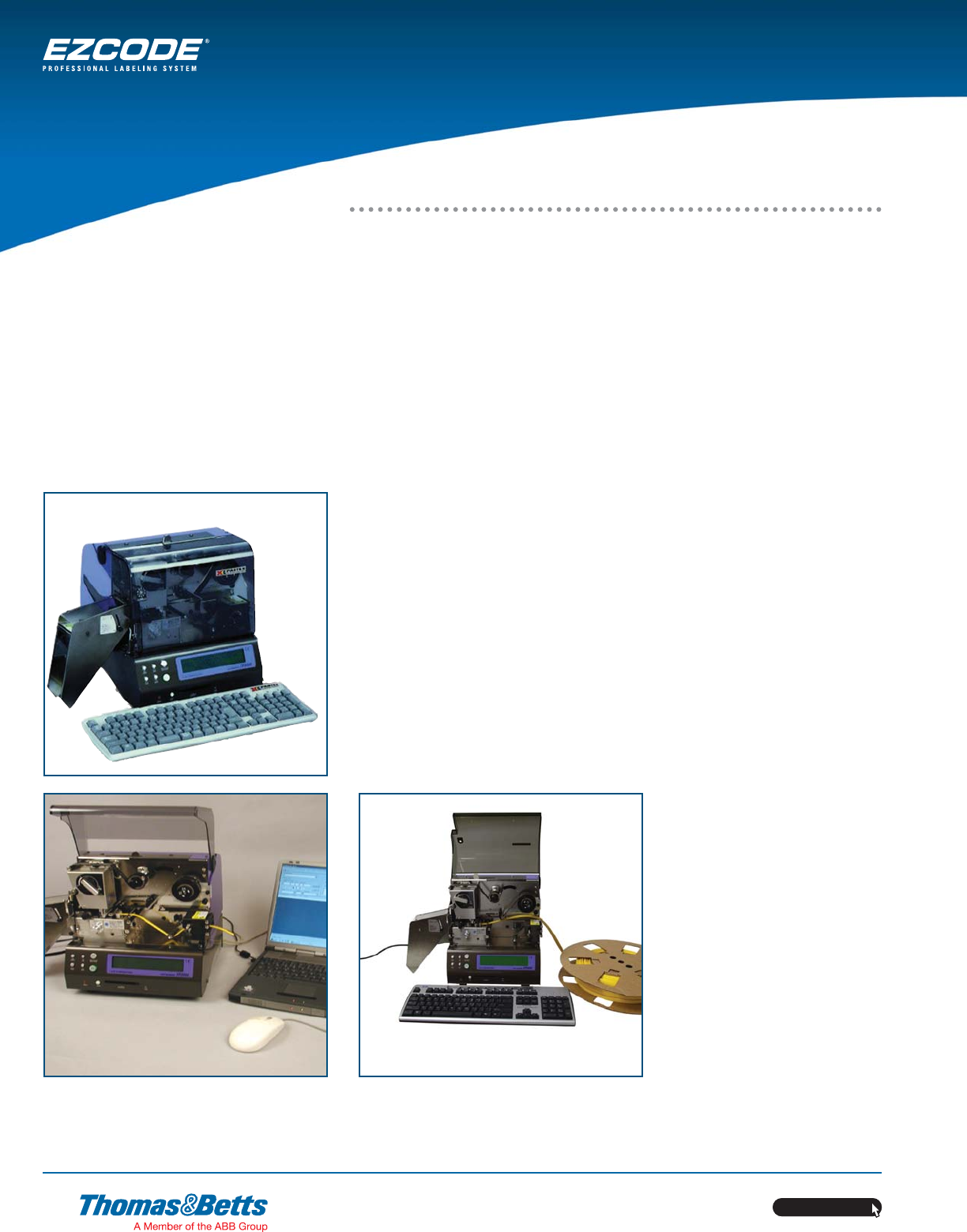

Provides complete customized marking on site for

cables, wires, terminal blocks and components

•

Easy to use keyboard, display unit and pre-programmed

product modules

•

Saves time and money when small production and additional

markings are carried out, combined with rapid, customized

deliveries from PARTEX

•

Designed for on site marking of small and medium

marking volumes

MTX-MK1 Miniplotter

www.tnb.ca E75

www.tnb.ca E75

Identification Products

Design

The MTX-MK1 marking system contains a plotter and inlays intended for Partex neutral wire, cable, component and terminal block markings.

The marking information is transferred to the plotter through a MTX-MK1-Cable (RS232) input from the keyboard. The marker inlays are

quickly loaded either with individual cut markers or strips of markers. Flexible on site operation with battery pack. MTX-MK1 is controlled from

a program cassette through an RS232 (MTX-MK1-Cable) interface to a PC computer.

Power

120 / 240 V

Keyboard

North American Industrial Stardard

Text Height and Width

Three text heights small, medium and large and three text widths narrow, standard and wide. The height of text is automatically adapted to

match type of profile and number of lines chosen. The number of characters possible on a line is shown in the display. The program makes it

possible to decrease or increase the size of the text.

Plotter Pens

Refill pens (etching ink), for marking on Partex products. Fibre-tip pen, for testing. On Zerex sleeve please use only drawing tip

0.25 mm with Partex Zerex ink.

Resistance

The products intended for MK1 are tested by the Swedish National Test and Research Institute according to the Partex Product Test Program.

MTX-MK1 Miniplotter

Miniplotter Marking System Specifications

www.tnb.ca

E76 www.tnb.ca

E76

Identification Products

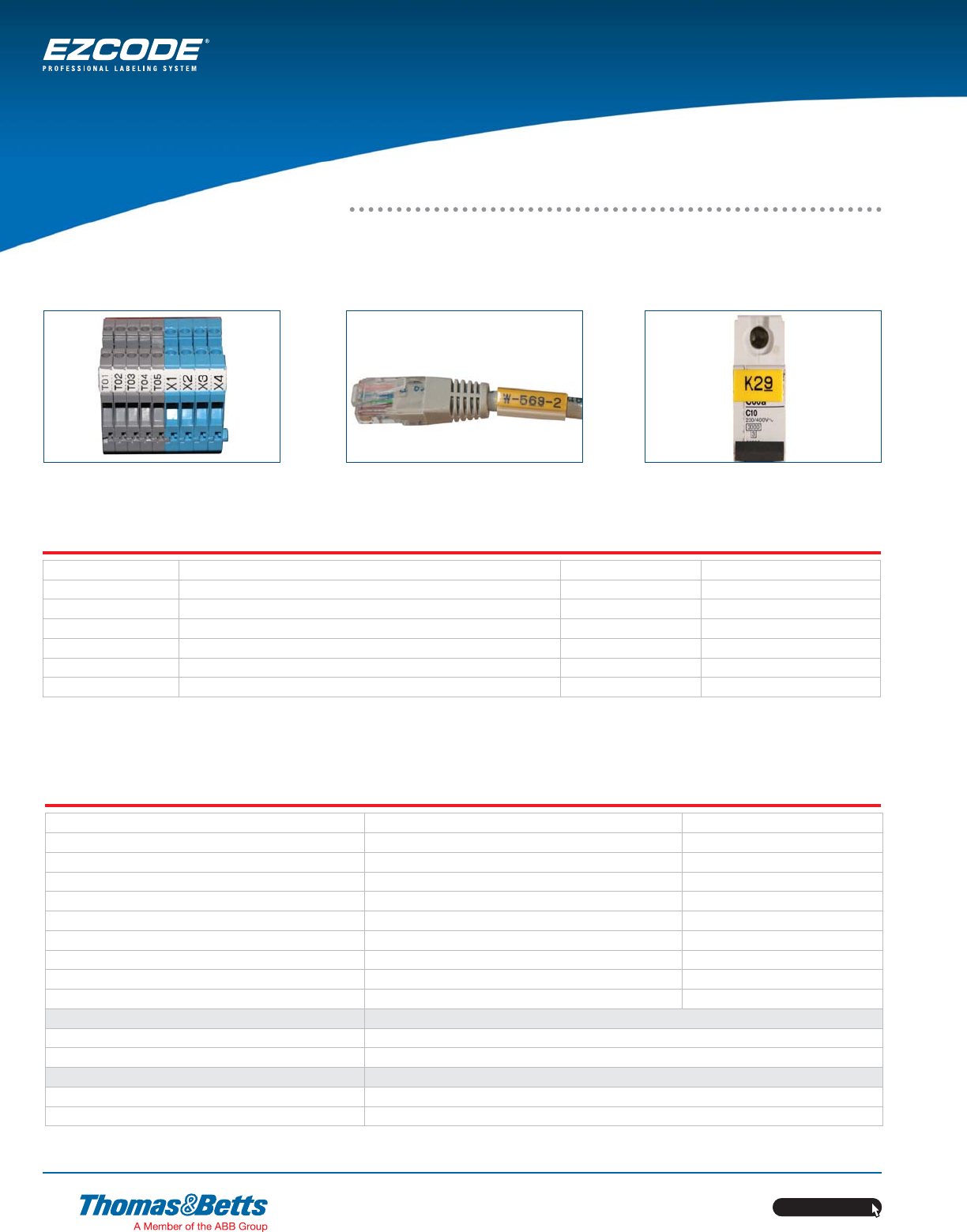

Terminal blocks with PP profiles PP profile in a PTC sleeve mounted on a

CAT 5 cable

PPA profile mounted on a component

Product and Ordering Information

Cat. No. Profile

Profile Width Compactadisc Pack Unit

PP-04600SN

Flat profile, fits PT+, PTC and PTM sleeves 4.6 mm 15 m

PP-09000SN

Flat profile, fits PM sleeves 9.0 mm 18 m

PP-06300SN9

Flat profile, fits Phoenix terminal blocks UT2.5, UTTB2.5, ST4, DT2.5, QTC, DT12.5 6.3 mm 15 m

PP-10000SN9

Flat profile, fits Entrelecs terminal blocks. 10.2 mm 15 m

PP-11000SN9

Flat profile, fits Wagos Topjobs terminal blocks 11.0 mm 12 m

PPA09000SN

Flat profile with adhesive 9.0 mm 10 m

Technical Data - Adhesive Tape (PPA)

Peel Adhesion on Different Surfaces

Material Immediately N/cm After 14 Days N/cm

Steel 13.5 14.8

Aluminum 9.4 12.4

ABS 10.9 13.7

PC 13.5 13.8

PS 10.5 12.2

PET 9.4 10.7

PVC 9.3 13.5

PP 6.9 8.7

PE 5.5 5.8

Temperature Resistance

Value

Short term use 70ºC

Long term use 60ºC

Mechanical Properties

Value

Tensile strength 57.5 N/15 mm

Elongation 20 - 55%

MTX-MK1 Miniplotter

Applications

www.tnb.ca E77

www.tnb.ca E77

Identification Products

Portable Printer

Operates on battery for up to

2 hours on one charge

Recharging time: 2 hours

Weight and Dimensions

Printer: 2.2 kg (378 x 190 x 65 mm)

Cable: 3.5 m

Total weight (bag & kit): 6 kg

(540 x 440 x 120 mm)

Cat. No.

Description Size / Product

MTX-MK1

Plotter The MTX-MK1 basic kit includes plotter, case, MTX-MK1-Refill,

MTX-Pen-035, power unit and manual on CD

MTX-MK1-PEN-FIBER

Fiber tip pen for testing 0.30 mm

MTX-MK1-PEN-018

Plotter Pen

0.18 mm

MTX-MK1-PEN-025

0.25 mm

MTX-MK1-PEN-035

0.35 mm

MTX-MK1-PEN-050

0.50 mm

MTX-MK1-PEN-070

0.70 mm

MTX-MK1-PEN-100

1.00 mm

MTX-MK1-INK

Etching ink 30 ml

MTX-MK1-REFILL

Ink refill cartridge 5 x 1 ml

MTX-MK1-CF

Cleaning solvent 10 ml

MTX-MK1-CK

Cleaning kit (MTX-MK1-CF + MTX-MK1-CU) –

MTX-MK1-CF

Cleaning cartridge 2 x 10 ml

MTX-MK1-CUP

Cleaning cup –

MTX-MK1-CP

Calibration plate zero-point

MTX-MK1-PAPLUS02

Product Inlay (Fixture)

PAPLUS02/PAZPLUS02

MTX-MK1-PAPLUS02ST

PAPLUS02 STRIPS

MTX-MK1-PAZPLUS02ST

PAZPLUS02 STRIPS

MTX-MK1-PAPLUS10

PAPLUS1/PAZPLUS1

MTX-MK1-PAPLUS1ST

PAPLUS1 STRIPS

MTX-MK1-PAZPLUS1ST

PAZPLUS1 STRIPS

MTX-MK1-PA20L

PAPLUS2/PAZPLUS2

MTX-MK1-PA30

PA3/PAZ3

MTX-MK1-PK2

PK2

MTX-MK1-PK2ST

PK2 STRIPS

MTX-MK1-PKZ2

PKZ

MTX-MK1-PC10

PC10

MTX-MK1-PC20

PC20

MTX-MK1-PC30

PC30

MTX-MK1-PC40

PC40

MTX-MK1-PC50

PC50

MTX-MK1-PFC

PFC

MTX-MK1-PN

PN

MTX-MK1-POH

POH

MTX-MK1-PS

PS

MTX-MK1-TX

TX-96XXX

MTX-MK1-TX61

TX-61051

MTX-MK1-PO01-04ST

PO01/02/03/04 STRIPS

MTX-MK1-PO05-07ST

PO05/06/07 STRIPS

MTX-MK1-PO08-10ST

PO08/09/10 STRIPS

MTX-MK1-PO12ST

PO12 STRIPS

MTX-MK1-PO14ST

PO14 STRIPS

MTX-MK1-PO16ST

PO16 STRIPS

MTX-MK1-PO18ST

PO18 STRIPS

MTX-MK1-PO20ST

PO20 STRIPS

MTX-MK1-PO22-24ST

PO22/24 STRIPS

MTX-MK1-PO26-28ST

PO26/28 STRIPS

MTX-MK1-PGM-USB

Program cassette

–

MTX-MK1-PGM-PFC.V1

PFC

MTX-MK1-PGM-PO.USB

PO

MTX-MK1-PGM-FU

Data file upgrade –

MTX-MK1-ACCU

Battery PP60

MTX-MK1-CABLE

Data cable RS232

MTX-MK1 Miniplotter

Accessories

www.tnb.ca

E78 www.tnb.ca

E78

Identification Products

Cat. No. Neutral (blank)

Marking Sleeves

AWG Length (mm) Capacity of Markers

per Fixture Packaging Fixture

PAPLUS02015ANØ

22-16

15

18 200/bag

MTXMK102

PAPLUS02021ANØ

21

PAPLUS02027ANØ

27

PAPLUS10015ANØ

16-11

15

MTXMK110

PAPLUS10021ANØ

21

PAPLUS10027ANØ

27

PAPLUS20015ANØ

13-5

15

11 100/bag MTXMK120

PAPLUS20021ANØ

21

PAPLUS20027ANØ

27

PAPLUS20036ANØ

36

PAPLUS20042ANØ

42

PAPLUS30015ANØ

5-

15

9 20/bag MTXMK130

PAPLUS30021ANØ

21

PAPLUS30027ANØ

27

Ø = Sleeve colour according to the international colour code

A = Cut markers.

N = Neutral

Halogen free available by changing PAPLUS prefix to PAZPLUS

Example: PAPLUS02015AN4 = 15 mm length yellow, neutral (blank) cut markers

Cat. No. Neutral (blank)

Marking Sleeves

AWG Length per Strip Strips x Markers =

Qty per Fixture

Strips x Markers =

Qty per carton Fixture

PAPLUS02015PNØ

22-16

12 x 15 = 180 4 x 12 = 48 CT/84 X 12 = 1008

MTX-MK1-PAPLUS02ST*

PAPLUS02021PNØ

9 x 21 = 189 4 x 9 = 36 CT/1 12 X 9 = 1008

PAPLUS02027PNØ

7 x 27 = 189 4 x 7 = 28 CT/143 X 7 = 1001

PAPLUS02036PNØ

5 x 36 = 180 4 x 5 = 20 CT/150 X 5 = 750

PAPLUS02042PNØ

4 x 42 = 168 4 x 4= 16 CT/150 X 4 = 600

PAPLUS10015PNØ

16-11

12 x 15 = 180 4 x 12 = 48 CT/84 X 12 = 1008

MTX-MK1-PAPLUS1ST*

PAPLUS10021PNØ

9 x 21 = 189 4 x 9 = 36 CT/112 X 9 = 1008

PAPLUS10027PNØ

7 x 27 = 189 4 x 7 = 28 CT/130 X 7 = 910

PAPLUS10036PNØ

5 x 36 = 180 4 x 5 = 20 CT/130 X 5 = 650

PAPLUS10042PNØ

4 x 42 = 168 4 x 4= 16 CT/130 X 4= 520

* We recommend drawing tip 0.25 mm on Zerex

K = Carton, P = Strip, N = Neutral, A = Cut markers in bags

PA international colour code. PAZ halogen free in yellow and white. Other colours, please contact your Regional Sales Office.

Material: PAPLUS = Soft PVC, PAZPLUS = Soft Zerex

Halogen free available by changing PAPLUS prefix to PAZPLUS

Example: PAPLUS02015PN4 = A strip of 12 x 15 mm markers, yellow, neutral (blank) markers

“AN” Cut Markers Strip Carton Pack “PN”

MTX-MK1 Miniplotter

MTX-MK1 – Wire Marking: PAPLUS, PAZPLUS

www.tnb.ca E79

www.tnb.ca E79

Identification Products

Cat. No.

Sleeve length

mm

Capacity

Qty/Fixture Packaging Cat. No.

Fixture

Suitable Partex

Holder System

PK-20015ANØ

15

10 20 MTX-MK1-PK2

Use with SMOH Holders

(see page E19)

PK-20021ANØ

21

PK-20027ANØ

27

PK-20Q25ANØ

25 Use with cable tie

(see page E19)

PK-20Q40ANØ

40

PK-20021PNØ

21 3 x 9 = 27 9 x 50

MTX-MK1-PK2ST Use with SMOH Holders

(see page E19)

PK-20027PNØ

27 3 x 7 = 21 7 x 50

PK-20036PNØ

36 3 x 5 = 15 5 x 50

PK-20057PNØ*

57 3 x 3 = 9 3 x 50

PK-20084PNØ**

84 3 x 2 = 6 2 x 50 MTX-MK1-PKZ2

Ø Profile colour, 4 = Yellow, 9 = White. Other colours, please contact your Regional Sales Office

* Strips = 3 PCS semi cut sleeves ** Strips = 2 PCS semi cut. Material: PK = soft PVC (PKZ = soft Zerex)

For halogen free, change prefix PK to PKZ

Example: PK20021AN4 = 21 mm length, yellow

Cat. No.

AWG Sleeve length

mm

Capacity

Qty/Fixture Packaging Cat. No.

Fixture

PC10015ANØ

22–16

15

18 100/bag

MTX-MK1-PC10

PC10021ANØ

21

PC10027ANØ

27

PC10036ANØ

36

PC20015ANØ

16–12

15

MTX-MK1-PC20

PC20021ANØ

21

PC20027ANØ

27

PC20036ANØ

36

PC30015ANØ

12–11

15

MTX-MK1-PC30

PC30021ANØ

21

PC30027ANØ

27

PC30036ANØ

36

PC40015ANØ

11–10

15

MTX-MK1-PC40

PC40021ANØ

21

PC40027ANØ

27

PC40036ANØ

36

PC50015ANØ

10–7

15

MTX-MK1-PC50

PC50021ANØ

21

PC50027ANØ

27

PC50036ANØ

36

Ø Profile colour, 4 = Yellow, 9 = White

Example: PK20021AN4 = 21 mm length, yellow

•

Open marker sleeve for already connected wires

•

Securely positioned with help of strong barbs

•

Fast snap on installation

•

Tools available for non-easy access installation

MTX-MK1 Miniplotter

MTX-MK1 – Cable Marking: PK, PKZ

MTX-MK1 – Wire Marking: PC

www.tnb.ca

E80 www.tnb.ca

E80

Identification Products

Recommended Ty-Rap® Cable Ties

Cat. No. Bulk

Cat. No.

Body Width

(in.)

Length

(in.)

Max Wire Bundle

Dia. (in.)

Millitary

Standard Part No.

Tensile

Strength (lb.)

Std.

Pkg.

Bulk

Pkg.

Standard Nylon 6/6 Cable Ties

TY523M TY23M

0.093 3.62 0.625 MS3367-4

18

100 1000

TY52315M TYB2315M

0.092 7.00 1.500

–

TY5232M TY232M

0.086 8.00 2.000

TY5234M TY234M

14.00 4.000

TY524M TY24M

0.140

5.50 1.125 MS3367-5 40

TY5242M TY242M

8.19 2.000

–

TY526M TY26M

11.10 3.000 30

TY5244M TY244M

14.50 4.000

TY525M TY25M

0.185 7.31 1.750 MS3367-1

50

TY5253M TY253M

0.187 11.6 3.000 MS3367-7

TY528M TY28M

14.20 4.000 MS3367-2

Nylon 6/6 Weather Resistant

TY523MX TY23MX

0.093 3.62 0.625 MS3367-4

18

100 1000

TY52315MX TYB2315MX

0.092 7.00 1.500

–

TY5232MX TY232MX

0.086 8.00 2.000

TY5234MX TY234MX

14.00 4.000

TY524MX TY24MX

0.140

5.50 1.125 MS3367-5 40

TY5242MX TY242MX

8.19 2.000

–

TY526MX TY26MX

11.10 3.000 30

TY5244MX TY244MX

14.50 4.000

TY525MX TY25MX

0.185 7.31 1.750 MS3367-1

50

TY5253MX TY253MX

0.187 11.6 3.000 MS3367-7

TY528MX TY28MX

14.20 4.000 MS3367-2

•

Holder for PO/POZ/PK/PKZ markers

•

No tools needed for installation

•

Easy to install with Ty-Rap® cable ties

•

SMOH holders can be used as on site cable markers using Ty-Rap®

marking pen WT163M-1 (black)

T1

T2

H

Cat. No.

Width (W1)

mm (in.)

Width (W2)

mm (in.)

Thickness (T1)

mm (in.)

Thickness (T2)

mm (in.)

Raised Bridge

(H) mm (in.)

Length (L1)

mm (in.)

Writeable

(L2) mm (in.) Std. Pkg. Cat. No.

Fixture

Capacity

No./Fixture

SMOH-07Ø

8.2 (0.323) 9.5 (0.374) 1.0 (0.04) 3.2 (0.125) 6.0 (0.236)

60.0 (2.36) 27.0 (1.06)

100 MTX-MK1–POH 3 x 2

SMOH-12Ø

82.0 (3.24) 50.0 (1.97)

SMOH-18Ø

110.0 (4.33) 75.0 (2.95)

SMOH-30Ø

152.0 (5.98) 124.0 (4.88)

SMKH-10-0

SMKH-20-0Ø

Ø 0 = Black, 4 = Yellow, 9 = White. Material: Hard PVC

Example: SMOH07-4 = Yellow, 60 mm

L1

W1 W2

L2

SMOH Type

SMOH Type

MTX-MK1 Miniplotter

MTX-MK1 – Cable Marker or Holder: SMOH

www.tnb.ca E81

www.tnb.ca E81

Identification Products

Design

Terminal block marking with strong hooks for safe snap mounting. (TX-96 matches

Phoenix, Entrelecs, Wagos and TX-61051 matches Weidmüller, Conta-Clip and others

with similar design)

Material

Cadmium free, stiff PVC material of Partex formula

Colours

White or orange

Temperature Range

Shape permanence between -30ºC and +60ºC (-22ºF to +140ºF) (PVC)

H

B2 = ~

B1

Cat. No.

Intended for

Terminal Block (B1)

Height

(H) Markers / Strip Strips / Inlay Length (B2)

10 markers

Cat. No.

Fixture

TX-96050PNØ

5.0

9.6

6

1 x 10

50.0

MTX-MK1-TX

TX-96052PNØ

5.2 52.0

TX-96060PNØ

6.0 60.0

TX-96062PNØ

6.2 62.0

TX-96073PNØ

7.3 73.0

TX-96080PNØ

8.0 80.0

TX-96082PNØ

8.2 82.0

TX-96100PNØ

10.0 100.0

TX-96102PNØ

10.2 102.0

TX-96120PNØ

12.0 72.0 (6 markers)

TX-96141PNØ

14.1 384.5 (6 markers)

TX-96151PNØ

15.1 90.6 (6 markers)

TX-61051PNØ

5.1 6.1 15 51.0 MTX-MK1-TX61

Material: TX = hard PVC

P = Strip of 10 markers, N = Neutral (blank)

Ø Colours: 3 = Orange, 9 = White

Example: TX-96050P9 = 5.0 mm, White

TX-96 Series matches Phoenix, Entrelecs and Wagos terminal blocks.

TX-61051 Series matches Weidmüller, Conta-Clip and others with similar design.

MTX-MK1 Miniplotter

MTX-MK1 – Terminal Block Marking: TX

www.tnb.ca

E82 www.tnb.ca

E82

Identification Products

•

Fast mounting, easy breakoff cards with precut or moulded marker tags

•

Easily detachable tags are put directly into various tag holder systems

•

The hard tags can be rapidly mounted, before or after connecting the wires and cables

Cat. No.

Description Marker Tag

Length x Height mm

Marker Tags

per Card

Marker Tags

per Box Material Suitable

Holder System

PFC04212KAØ

Marker Tag – Wire

12 x 4.2

21 525

ABS

PTPLUS

(refer to page E103)

PFC04215KAØ

15 x 4.2

PFC04218KAØ

18 x 4.2

PFC04221KAØ

21 x 4.2

PFC04230KAØ

30 x 4.2 14 350

PFC07533KAØ

Marker Tag – Cable 33 x 7.5 9 225 PM24 (refer to page E101)

PFC09518KAØ

Marker Tag – Component / Cable 18 x 9.5 20 500 Ty-Rap® Cable Tie Mounting

(refer to page E80)

PFC09540KAØ

Marker Tag – Cable Marking 40 x 9.5 8 200 Polyamid / PA11

PFC09580KAØ

80 x 9.5 4 100

Ø Colours: 4 yellow, 9 white.

Dimensions in mm (nominal)

Cat. No.

AWG Length Width Height

PTPLUS02

22–16

12/15/18/21/30

55

PTPLUS10

16–11 7

PTPLUS20

13–5 6 10

PTPLUS30

5– 10 19

PTPLUS40

0 15/21/30 N/A N/A

MTX-MK1 Miniplotter

MTX-MK1 – X-Card Marking System: PFC

www.tnb.ca E83

www.tnb.ca E83

Identification Products

MTX-MK3

www.tnb.ca

E84 www.tnb.ca

E84

Identification Products

•

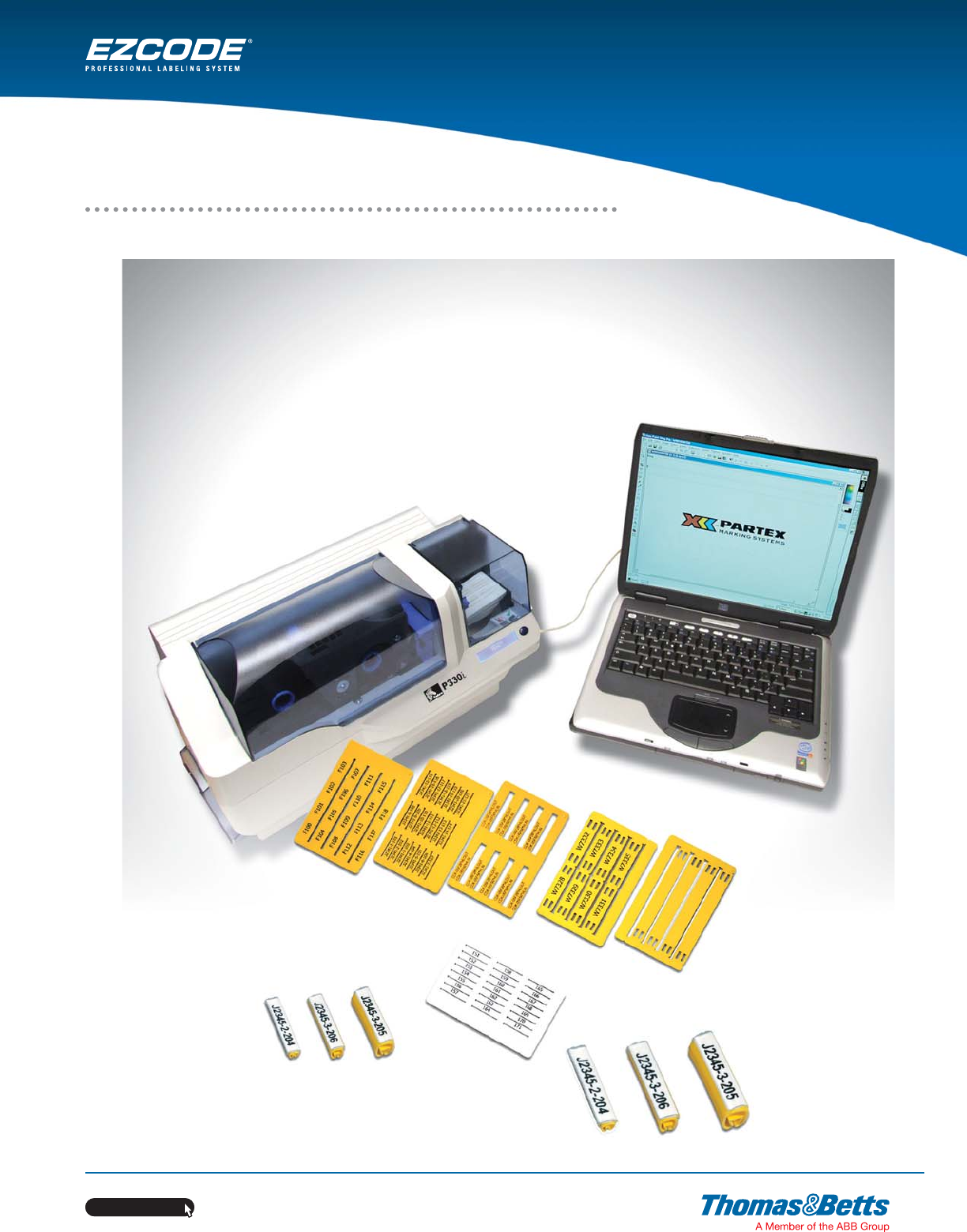

Prints various marker tags on credit card type format

(Type PFC) that also accommodates project and mounting

information directly on the card

•

Cable, wire and component X-Card marking system for

more efficient and versatile marking on site

•

Printing on site with PC controlled thermotransfer printer

in monochrome or colour

•

A user friendly compact system with high production capacity

MTX-MK3

X-Card Marking System

www.tnb.ca E85

www.tnb.ca E85

Identification Products

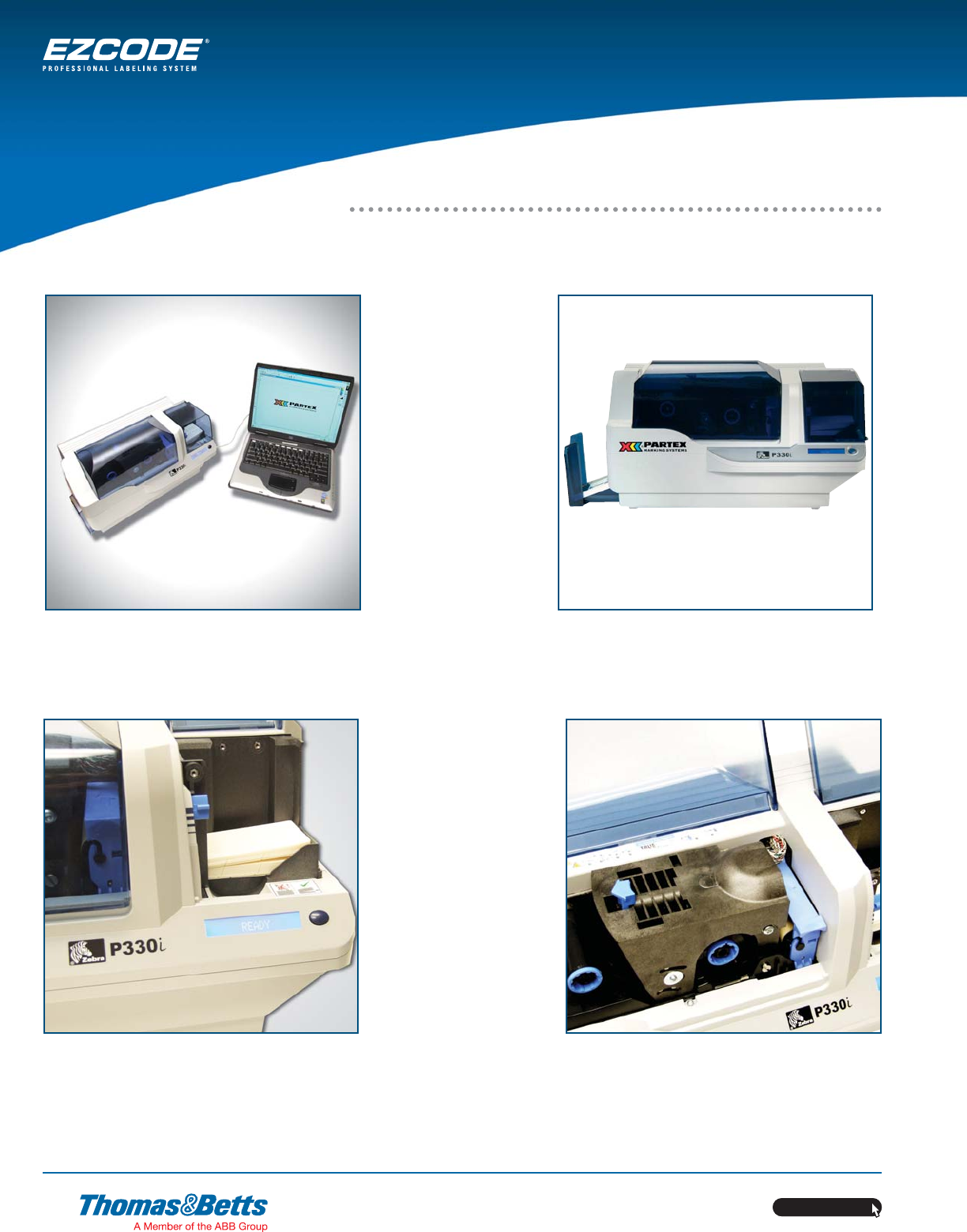

General

The MTX-MK3 printer is a high resolution, high speed production thermotransfer printer for both monochrome and colour printout. Loaded with

a number of cards in a feeder magazine, the printer feeds the cards one by one through the printer, where all the individual tags are printed

row by row. The printed cards are automatically fed to an output magazine. Different marking file formats can be imported.

System Layout

The X-Card system is comprised of the MTX-MK3 printer, winSign software and marker tag cards type PFC for cable, wire and component

marking. Some PFC cards are used together with Partex holder systems PTPLUS, PTZPLUS, PTC, PM10, PM20, PM24 and PS20T. Other cards

are used for direct marking and are attached with Ty-Rap

®

cable ties.

Thermotransfer

300 dpi Resolution

Printing Speed

4 seconds per card for resin black ink

25 seconds per card four full colour single sided (YMCKO)

Communication Interface

USB 1.1 cable included

Power Connection

110 VAC-240 VAC, 50 – 60 Hz

FCC Class B, CE, UL and cUL approved

Measurements

(L x W x H): 462 x 239 x 256 mm

Weight

7 kg

Temperature Range

Operating temperature range: +15ºC to +70ºC (60ºF to 86ºF)

Operating humidity: 20% to 65% non-condensing

Storage temperature: -5ºC to 70ºC (23ºF to 158ºF)

MTX-MK3

Specifications – Production on Site

www.tnb.ca

E86 www.tnb.ca

E86

Identification Products

•

The MTX-MK3-P330 system contains several

different card types that cover the need for

cable, wire and component markers

•

With the MTX-MK3-P330, it is now possible to print in colour.

This can only be done if you have the latest version of WinSign

Product and ordering information

Cat. No.

Description Contents

MTX-MK3

MTX-MK3 Thermal Printer type P330 Printer + WinSign + USB Cable

MTX-MK3-USB

MTX-MK3 Interface Printer Cable

MTX-MK3-CLEANKIT

Cleaning Kit for MTX-MK3-P330 Swab + Cleaning Cards + Rollers

MTX-MK3-CR

Cleaning Roller for MTX-MK3 To Remove Dust from the Card Before Printing

MTX-MK3-F301E

Printer Ribbon F301 Black

MTX-MK3-RC330

Printer Ribbon RC330 Colour

Product and ordering information

Cat. No.

Description Marker Tag

Length x Height mm (in)

Marker Tags

per Card

Marker Tags

per Box Material Suitable Partex

Holder System

PFC04212KAØ

Marker Tag – Wire

12 x 4.2

21 525

ABS

PTPLUS type

(refer to page E103)

PFC04215KAØ

15 x 4.2

PFC04218KAØ

18 x 4.2

PFC04221KAØ

21 x 4.2

PFC07533KAØ

Marker Tag – Cable 33 x 7.5 9 225 PM type (refer to page E101)

PFC09518KAØ

Marker Tag – Component / Cable 18 x 9.5 20 500

Cable ties (refer to page E80)

PFC09540KAØ

Marker Tag – Cable Marking 40 x 9.5 8 200 Polyamid / PA11

PFC09580KAØ

80 x 9.5 4 100

Ø = Card Colours, 4 = Yellow, 9 = White

MTX-MK3

Applications

www.tnb.ca E87

www.tnb.ca E87

Identification Products

MTX-MK20-SP2000

www.tnb.ca

E88 www.tnb.ca

E88

Identification Products

•

Compact heavy duty machine for high demand production of wire, cable and component marking

•

PC link connection or stand alone mode with an optional standard keyboard

•

Printing of large diameter sleeves and tubes ranging up to 28 mm OD or 45 mm flattened

•

Improved mechanism for quality printing on hardened tubes in low temperature environment

•

Sleeves can be completely or partly cut off

•

MTX-MK20-SP2000 as a stand alone unit with a PC

Keyboard connected

•

MTX-MK20-SP2000 connected to a PC

MTX-MK20-SP2000

Automatic Marking System

www.tnb.ca E89

www.tnb.ca E89

Identification Products

Design

MTX-MK20-SP2000 is a complete marking production machine

unit with automatic feeding of marker profiles, printing and

partial or complete cutting function. Output magazine for ease

of random pick of printed markers when mounting onto wires

and cables. The machine is controlled by either a connected PC

with Partex WinSign software or an optional standard computer

keyboard working as a stand alone unit.

Sleeve Length

0 mm to 999.9 mm

Diameter Range

O.D. 2.0 to 28 mm (or flat folded width to 45 mm)

0.2 mm to 0.7 mm in thick

Cutting

Three choices are available:

1) No cut

2) Partly cut off

3) Completely cut off

Thermotransfer Printing

300 dpi print resolution

Production Capacity

About 4,500 pcs per hour

(5 digits, 1-line marker on 20 mm long sleeve)

Character Sizes and Orientation

Height x width 2.4 x 2.4 horizontal and vertical

2.0 x 1.2 horizontal and vertical

3.0 x 2.4 horizontal and vertical

5.0 x 3.0 horizontal

1.8 x 1.8 horizontal and vertical

1.8 x 0.9 horizontal and vertical

2.7 x 2.1 horizontal

2.4 x 1.2 horizontal and vertical

Kind of Characters

96: 0–9, A–Z, +, -, /, *, signs, etc.

Data Storage

Max. 1000 lines can be stored in the memory of the machine,

backed up by an internal rechargeable battery.

Marking Data from WinSign

Marker data files created directly in WinSign can be transferred

to the MTX-MK20-SP200. Data from other software can only be

transferred as text files to WinSign and then to the machine.

Power Supply

110 – 220 VAC, 50/60 Hz

Dimensions

(L x W x H): 435 x 290 x 290 mm

Weight

15 kg

MTX-MK20-SP2000

Specifications

www.tnb.ca

E90 www.tnb.ca

E90

Identification Products

•

Oval marking profile with sizes for big cable diameter range

•

Very fast one hand mounting onto the cable or wire

•

Built-in spring action retains sleeve shape with

excellent grip

•

Permanent marking but still adjustable on cable or wire

•

Efficient on site marking with Partex marking

machines and WinSign software

•

Also delivered halogen free with a UL94-V0 rating

Oval Marking Profile

Cat. No.

Description

MTX-MK20-SP2000

Marking machine incl. manual, service tool kit and data cable for

connection to PC (MTX-MK20-SP2000-CABLE)

MTX-MK20-SP2000-CKN

Cutter knife kit

MTX-MK20-SP2000-CBP

Cushion for knife

MTX-MK20-SP2000-CABLE

Data cable for connection to PC (COM-PORT)

SP1W-STV

Optional unwinding reel stand

MTX-SP1W-S611-20

Black ribbon 200M for PO products

MTX-SP1W-S619-20

Black ribbon 200M for POZ OCH PH products

MTX-SP1W-S625-20

White ribbon 200M for PO products

MTX-SP1W-S629-20

White ribbon 100M for POZ OCH PH products

MTX-SP1W-S631-20

Red ribbon 200M for PO products

Cat. No.

Dia. mm

min. / max.

Area

mm2

Dia. / inch

min. / max. AWG Pkg.

Meter

PO-01000BNØ

~1.3/1.8 ~0.25 0.051/0.071 23–20

250

PO-02000BNØ

~1.7/2.2 ~0.5 0.067/0.087 20–18

PO-03000BNØ

~2.0/2.5 ~0.75 0.079/0.098 18–17

PO-04000BNØ

~2.2/2.8 ~1.0 0.087/0.110 17–15

200

PO-05000BNØ

~2.7/3.5 ~1.5 0.106/0.138 15–13

PO-06000BNØ

~3.2/4.0 ~2.5 0.126/0.157 13–11

PO-07000BNØ

~3.8/4.7 ~4.0 0.150/0.185 11–9 100

PO-08000BNØ

~4.6/5.5 ~6.0 0.181/0.217 9–7

PO-08000BNØ

~5.6/7.0 ~10.0 0.220/0.276 7–5 50

PO-10000BNØ

~6.5/8.0 ~16.0 0.256/0.315 5–3

PO-11000BNØ

~7.0/9.5 ~18.0 0.276/0.374 4–3

5x10

PO-12000BNØ

~7.5/10.0 ~20.0 0.295/0.394 4–2

PO-14000BNØ

~9.5/12.0 ~25.0 0.374/0.472 1/0

PO-16000BNØ

~11.5/14.0 ~35.0 0.453/0.551 1/0–2/0

2x5

PO-18000BNØ

~13.5/16.0 ~50.0 0.531/0.630 2/0–3/0

PO-20000BNØ

~15.5/18.0 ~70.0 0.610/0.709 3/0–4/0

PO-22000BNØ

~17.5/20.0 ~95.0 0.689/0.787 4/0

PO-24000BNØ

~19.5/22.0 ~120.0 0.768/0.866 4/0–5/0

PO-26000BNØ

~21.5/24.0 ~150.0 0.846/0.945 5/0–6/0

PO-28000BNØ

~24.0/28.0 ~185.0 0.947/1.104 6/0–7/0

BN=Packing on reels for PO-01 to PO-10 and loop layers in cartons for PO-11 to PO-28.

~ Values for area in mm2 and AWG are approximate and for guidance only.

Ø 4 = Yellow, 9 = White

MTX-MK20-SP2000

Automatic Marking System

www.tnb.ca E91

www.tnb.ca E91

Identification Products

•

PHZ2 is a flexible zero halogen thin wall polyolefin tubing with ideal printability

•

Low smoke generation and evolution of acid gases

•

Flame redardant

•

2: 1 shrink ratio

•

Reduced overall assembly and marking costs on site when using Partex marking machines

•

JIT ready marked customized PHZ2 tubes can also be delivered

Cat. No.

Min. Expanded

Diameter (D)

Max. Recovered

Diameter (W)

After Shrinking

Wall Thickness (D1) Qty. per

Reel/Minibox

(mm) (in.) (mm) (in.) (mm) (in.)

PHZ20012BNØ

1.20 0.047 0.060 0.024 0.41 0.016

100

PHZ20016BNØ

1.60 0.063 0.80 0.031 0.43 0.017

PHZ20024BNØ

2.40 0.094 1.20 0.047

0.51 0.020

PHZ20032BNØ

3.20 0.125 1.60 0.063 100

PHZ20032MNØ

15

PHZ20048BNØ

4.80 0.189 2.40 0.095 100

PHZ20048MNØ

12

PHZ20064BNØ

6.40 0.252 3.20 0.126

0.65 0.026

75

PHZ20064MNØ

12

PHZ20095BNØ

9.50 0.374 4.70 0.185 75

PHZ20127BNØ

12.70 0.500 6.40 0.251 50

PHZ20190BNØ

19.10 0.752 9.50 0.375 0.77 0.030 50

PHZ20254BNØ

25.40 1.000 12.70 0.500 0.89 0.035

PHZ20380BNØ

38.10 1.500 19.10 0.750 1.00 0.039 35

PHZ20510BNØ

50.80 2.000 25.40 1.000 1.10 0.040

Ordering example: 2 PCS PHZ20016BN* = 2 PCS reels 150 M each. BN = Reel

Ø 0 = Black 4 = Yellow, 9 = White

D

W

D1

Carton Reel

Mini Box

MTX-MK20-SP2000

PHZ2 Halogen Free Heat Shrinkable Tubing

www.tnb.ca

E92 www.tnb.ca

E92

Identification Products

Tests on PHZ2 Halogen Free Heat Shrink Tubing

Specifications

Standard Colours Non Standard Colours

British Standards 6853: 1999

Black, Yellow, White

Physical Properties

Values

Tensile strength

Test Method

ASTM D 638

13 N/mm2

Elongation at break

400%

Longitudinal change

ASTM D 2671 +5%, -10% maximum

Water absorption

ASTM D 570 max. 0.15%

Specific gravity

ASTM D792 1.35 gr/cm3

Thermal Properties

Values

Continuous operating temperature

-4OºC to 105ºC

Minimum shrink temperature

> 110ºC

Heat shock 4 hours at 225ºC

ASTM D 2671 No dripping, craking or flowing

Heat ageing 168 hours at 150ºC

ASTM D 638 Elongation 250%

Low temperature flexibility -40ºC

ASTM D 2671 C No cracking

Flammability

ASTM D 2671 Pass

Chemical Properties

Values

Fungus resistance

AMS-DTL-7444 Inert

Chemical resistance

AMS-DTL-23053/5 Good

Copper corrosion

ASTM D 2671 B

Oxygen index

ASTM D 2863 34%

Electrical Properties

Values

Dielectric strength

ASTM D 2671 20 kV/mm2

Volume resistivity

ASTM D 257 1014 ohm cm

The Heat-Shrink tubing meets the requirements of the European directives: 2002/96/EG and 2003/11/E

MTX-MK20-SP2000

www.tnb.ca E93

www.tnb.ca E93

Identification Products

MARKERS

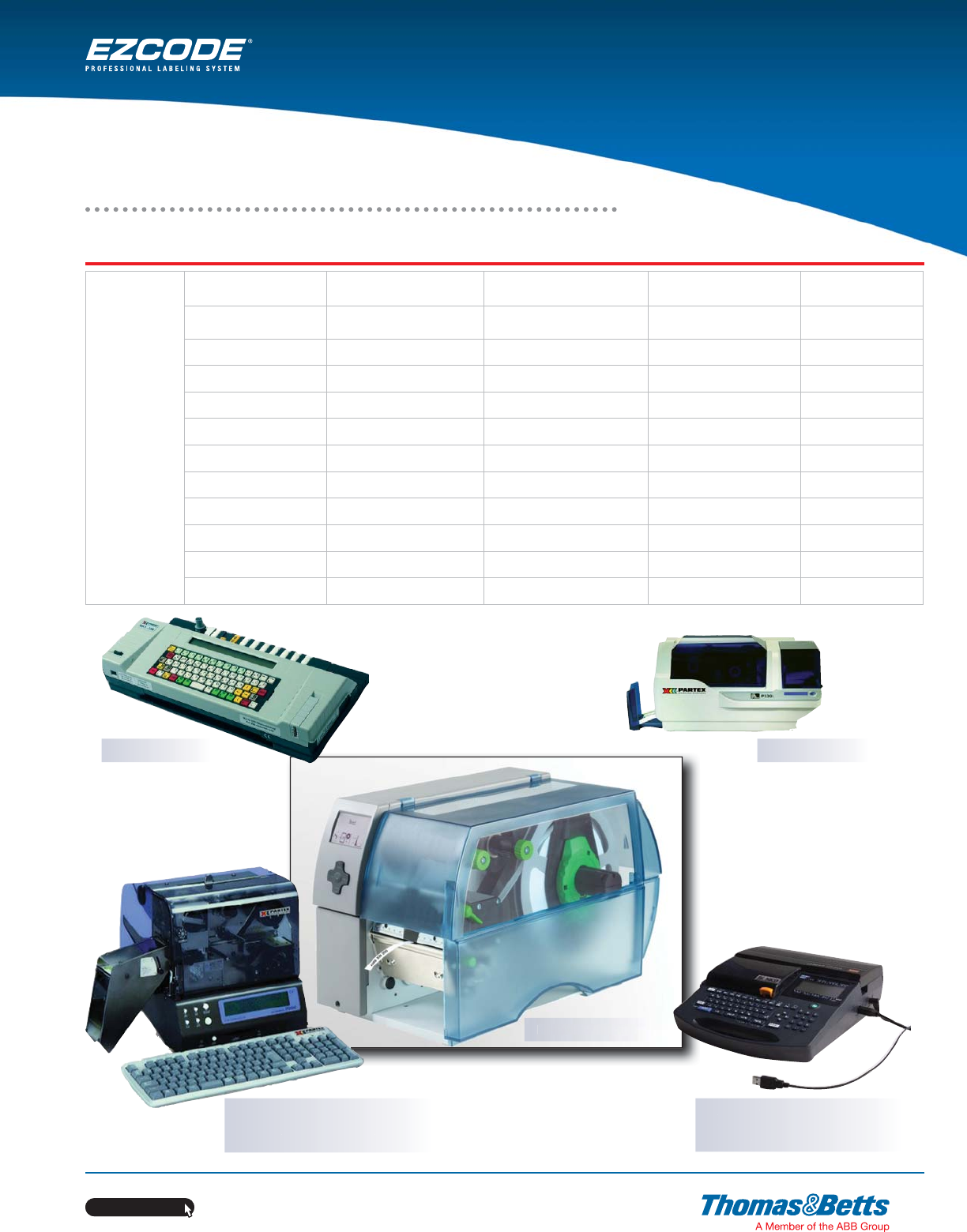

MTX-MK10 MTX-MK9 MTX-MK20-SP2000 MTX-MK3-P330 MTX-MK1

Compact Heavy

Duty Printer

Thermotransfer

Printer

Automatic

Marking System

Thermotransfer

Printer Miniplotter

PFC PAPLUS

PAZPLUS

PO

PO PHZ POZ

POZ PO PO PK

PHZ POZ PHZ2 PKZ

PP PP PC

SMOZ MK9-PL PFC

PLT PA

TX

MT

TX

-MK

K

1

MTX

-

-MK

1

0

-

K

KIT

1

MT

TX

-MK

K

3

MTX

X

-MK

20-

SP2

0

000

M

arkin

g m

m

achine

f

or h

igh

h

volum

e

ma

ar

ki

n

g p

ro

d

uct

io

on

M

MTX

-MK9-U

SB

B

M

TX-MK

9

9 b

ench-t

op

ma

ac

hine fo

r

l

o

w

or

m

ed

i

u

m v

o

l

u

m

me

o

n

ma

ar

king product

io

on

Printers Comparative Table

www.tnb.ca

E94 www.tnb.ca

E94

Identification Products

•

Winsign software is ideal for project handling,

production and printout of customized marking products on site

•

Software in Windows environment with database

handling adapted to import/export on text files

Medium-Wall Heat Shrinkable Tubing

System demands

Processor type: Min. Pentium II

RAM memory: 64 MB

Hard drive: At least 10 MB free space

CD-reader: Yes

Can run under these environments

• Windows 98 SE (Second Edition)

• Windows NT with at least Explorer 4.0x

• Windows ME

• Windows 2000

• Windows XP

Cat. No.

Information

WSG-NG-UPGRADE

Ugrade your older version to the latest one

We recommend a more powerful computer because it will execute the processes quicker.

WinSign

WinSign Software

www.tnb.ca E95

www.tnb.ca E95

Identification Products

What can WinSign do?

WinSign software is ideal for project handling, production and printout of Partex customized marking products on site. The software operates

under a Windows platform and can import files from Excel-, CAD or pure text files. The information that is created in WinSign is saved in a

database format. All this is controlled by the software’s database engine.

WinSign makes it possible to print only the markers you need right away when you are installing a cabinet, etc. This means the information

will be accessible quickly for production which reduces the lead time.

WinSign controls almost all marking machines.

Structure

You can work in two ways with WinSign. You can create a whole project with traceability so that you can search for information etc. or you can

easily type information in the “Direct Marking” mode to print markers right away.

When creating a project, a Project Manager using WinSign can type in all the marking information for all the different cabinets and machines

when he still is at his office. If the electrician has access to this WinSign file he can print out the information on site only for the cabinet he

is working on. If he has any questions he can call the Project Manager, because you can see in WinSign who has created the file and his/her

phone number.

The “Direct Marking” mode is similar to the Project mode. In “Direct Marking” you don’t need to type in any information that can be traced

later on. You can print the information right away on any of the Partex marking machines.

Some WinSign functions:

•

Imports both marking information and number of markers required from Excel

•

Imports information from EPLAN and ELPRO CAD (contact your Regional Sales Office for more information)

•

Number generator: ordinary and alphanumeric

•

Unique production windows for each printer/machine

•

The marker information is typed in a grid that looks like Excel

•

Updates and downloads are available on www.tnb-id.ca

MTX-MK9-USB

ProMark

MTX-MK3

X-Card

MTX-MK1

Mini plotter

Laser

Printer

WinSign

SP2000

MTX-MK20-2000

WinSign

Specifications – Marking Methods

www.tnb.ca

E96 www.tnb.ca

E96

Identification Products

MTX-MK1 Mini Plotter

A marking system suited for smaller production. It is excellent to use when you have a

revision and used multi character Partex markers for the earlier installation. It’s easy to

use, portable and can be operated from its own keyboard or from a computer.

Inlay fixtures for MTX-MK1 for marking of:

•

Wires

•

Positions and components

•

Cables

•

Terminal blocks

MTX-MK3 X-Card Printer

Card printer for thermal transfer printout of marking tags out of a card in a credit card

format. The tags are easily mounted into various holder systems.

Production of:

•

Wire markers

•

Cable markers

•

Components markers

The systems also have cards with various labels sizes. The printer must be used with

Partex WinSign software included when you buy an MTX-MK3-P330.

ProMark MTX-MK9-USB

A marking system suited for smaller production. It is excellent to use when you have a

revision and used multi character Partex markers for the earlier installation. It’s easy to

use, portable and can be operated from its own keyboard or from a computer.

Inlay fixtures for MTX-MK1 for marking of:

•

Wires

•

Positions and components

•

Cables

•

Terminal blocks

MTX-MK20-SP2000 Marking System

A marking machine for profiles MTX-MK20-SP2000 feeds, prints and automatically cuts

sleeves to the desired length. Controlled from own keyboard or from a PC with WinSign.

High production capacity.

Production of:

•

Wire markers

•

Cable markers

•

Heat shrink markers

WinSign

Printers/Machines that can be controlled by WinSign

www.tnb.ca E97

www.tnb.ca E97

Identification Products

•

Label material for cables, wires, cabinets and components

•

For holder systems PTPLUS, PTZPLUS, PM

•

Easy to separate in rigid polyester foil, specially pre-processed for printing

•

Halogen free

•

Print-out by matrix or laser printer (HP2100/2200)

•

A low cost 2-component solution for marking before and after connection of wires and cables

Specifications

Design

The PF labels come on a perforated sheet with tractor feed.

Individual labels are detachable or picked in any order to

facilitate mounting and overview. This enables simplified sheet

feeding through a laser printer. Special top coating allows

multiple laser printer feedings of same sheet. The PF marking

labels are intended to be mounted in PTPLUS, PTZPLUS, PTC

or PM holders to enable wire, cable and component marking.

Material

Polyester foil, specially pre-processed for printing.

Colours

Sheet is white on one side, yellow on the other side.

Print / Text

WinSign for your own choice of readability, number of

characters and lines required.

Printing Equipment

Industrial matrix printer for PF labels. Laser printer with straight

feed of sheets for PF marker labels. Printout with Partex

WinSign software.

Temperature Range

From -30ºC to +120ºC (-22ºF to +248ºF)

N.B.: Withstands laser printing.

Durability

Withstands most solvents.

For application in hostile enviroments, please contact your

Regional Sales Office for informaton.

For label holder systems see separate product data sheets!

PF/PFA

PF Label Material

www.tnb.ca

E98 www.tnb.ca

E98

Identification Products

H

L

Size and Packaging

Cat. No.

Number of labels

per sheet

Number of

sheets per pack

Number of

labels per pack Colour Sheet format

PF-10015KT49

66 x 12

10

7920

Yellow / White A4 width, 12 in. length

PF-10021KT49

66 x 9 5940

PF-20018KT49

32 x 11 3520

PF-07533KT49

25 x 4 1000 White

PF-Tractor feed sheets for matrix printer are coloured yellow on one side and white on the other and printable on both sides and only applicable for PF10 OCH PF-20.

One order = 10 sheets

Dimensions in mm (nominal)

Cat. No.

Height (H) Length (L)

PF-10015KT49

4.6 15.0

PF-10021KT49

21.0

PF-20018KT49

9.5 17.5

PF-07533KT49

7.6 – 7.8 33.0

PF/PFA

Applications

www.tnb.ca E99

www.tnb.ca E99

Identification Products

•

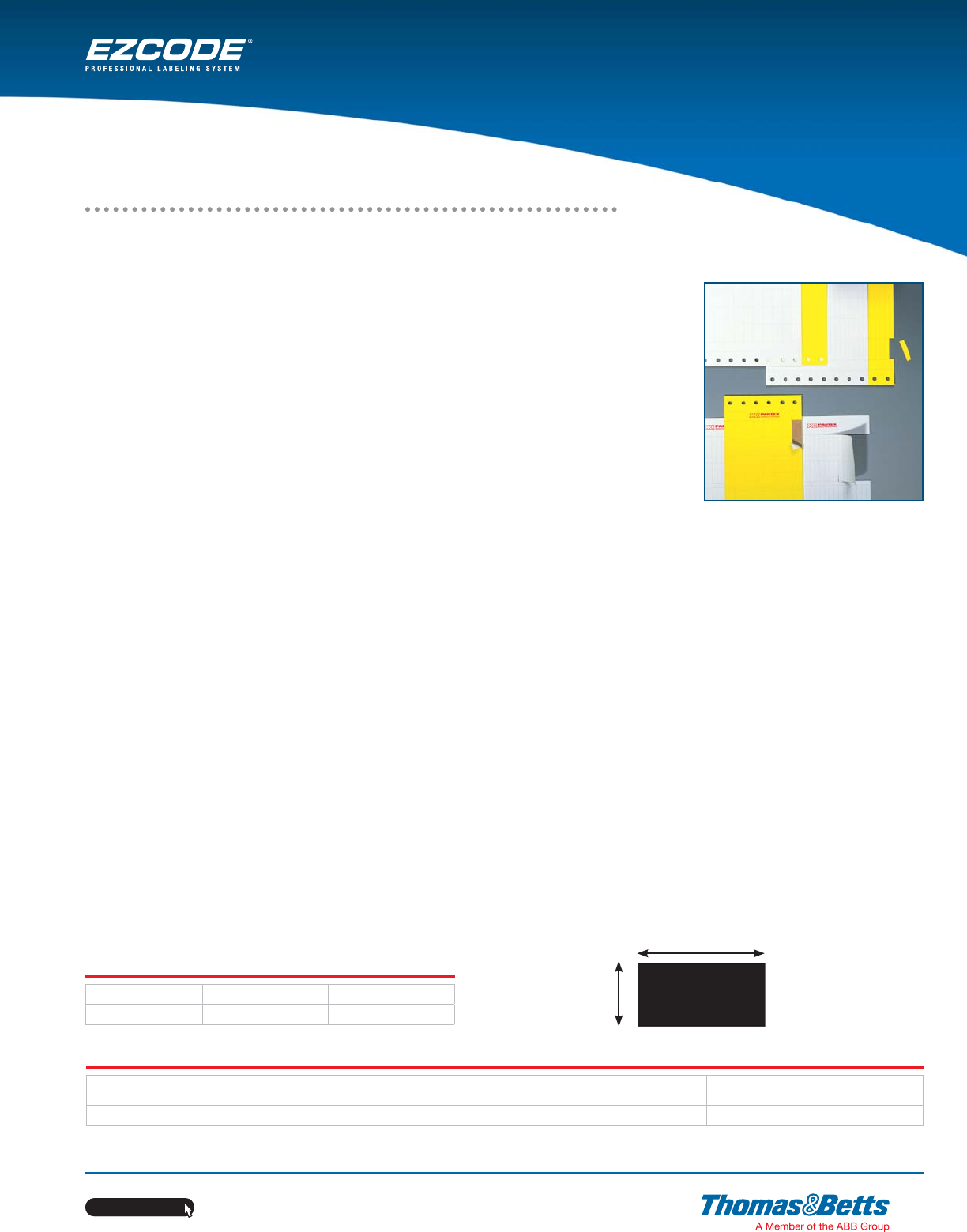

Halogen-free self-adhesive label on sheet for direct marking of components in control cabinets

•

Label modules pre-perforated in standardized 17.5 mm units

•

Print-out by laser printer

•

Installation time can be 4 times faster than label combination systems

L

H

Cat. No.

Height Length

PFA20018KT

9.5 17.5

Cat. No.

Number of labels

(lines x columns)

Number of

12 in. Sheets/Pack

Total number of

Labels/Pack

PFA20018KTØ

32 x 11 10 3520

Ø = 4 Yellow; 9 White

One order = 10 sheets

Design

Perforated self-adhesive display material with adhesive on

paper base. Folded sheets A4 width and tractor feed. 12 in.

sheet length with tear initiation. The PFA label is intended for

component marking with the standardized width of 17.5 mm.

Material

Self-adhesive polyester foil, specially pre-processed for printing.

Colours

White or yellow.

Temperature Range

From -30ºC to +120ºC (-22ºF to +248ºF)

N.B.: Withstands laser printing.

Durability

Withstands most solvents.

For application in hostile environments, please contact Regional

Sales Office for informaton.

PF/PFA

Specifications – PF Label Material

www.tnb.ca

E100 www.tnb.ca

E100

Identification Products

•

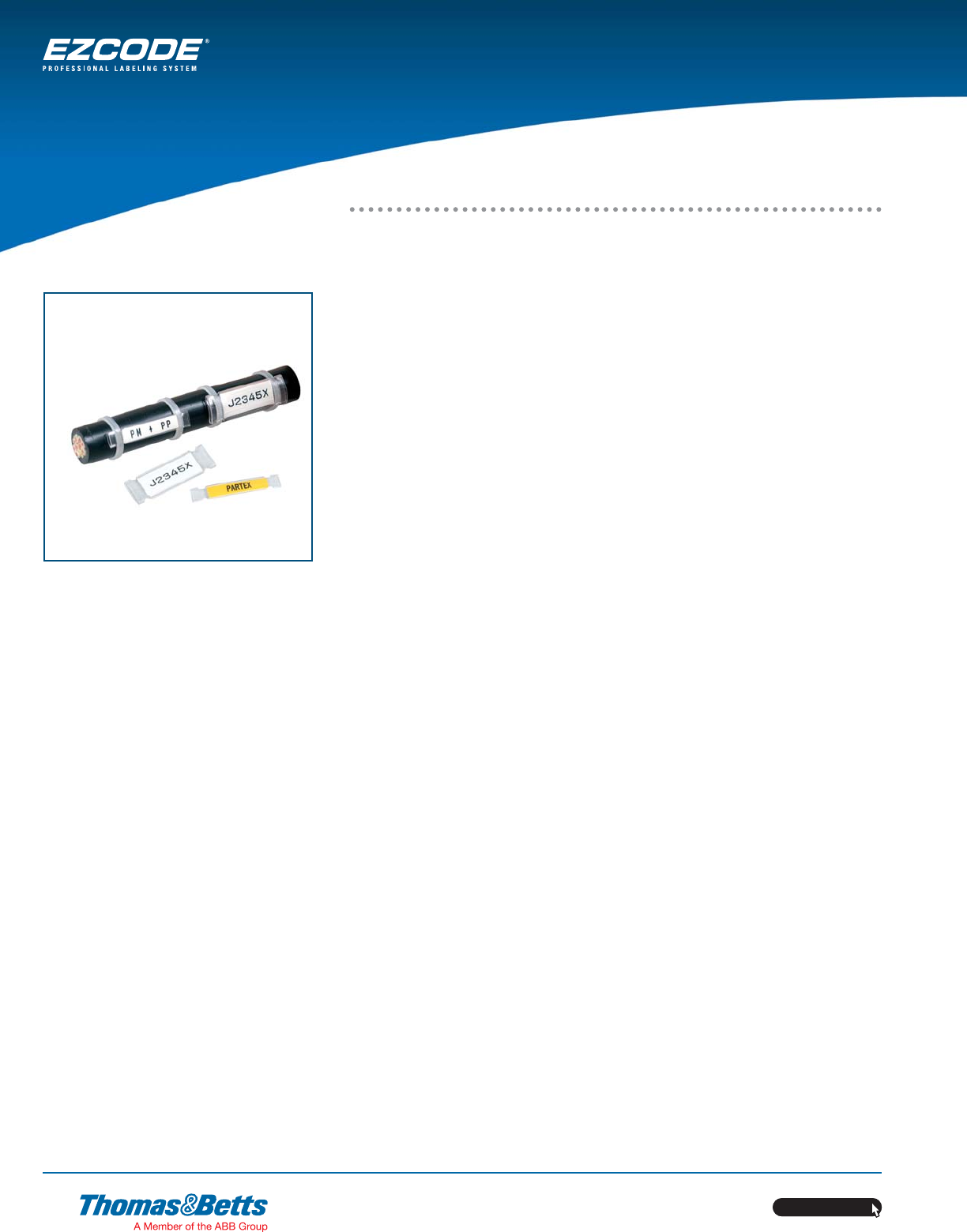

Transparent holder for cable marking with Partex marking labels, tapes and tags for series PF, PL, PP or PFC

•

Four lengths, three widths cover most cable marking demands

•

Fitting and fastening with Ty-Rap® cable ties (recommend TY524MX)

•

The label is easily inserted into the holder providing fast installation and protection of the marking

Specifications

Design

Holder for marker tags with punched holes for mounting with

cable ties. Two standard lenghts in two sizes 9 mm and 12 mm

widths.

Suitable marker labels and tags are PF on a A4 size sheet and

tags on PFC X-cards in credit card formats. ProMark PP profile

tags and PL tapes can also be used. The labels or tags are

easily pushed into the holder and will be protected from dust,

oil etc.

Material

Cadmium and silicon free soft PVC according to special formula.

Colours

Transparent

Temperature Range

Shape permanence from -30ºC to + 60ºC

(-22ºF to +140ºF)

Resistance

The product is tested by the Swedish National Test and

Research Institute according to the Partex Product Test program

and has the following test properties:

– Flammability resistance: UL94-V0

– Resistance to UV radiation: corresponds to 1 year outdoors

in the south of Sweden

– Chemical resistance: meets Partex Product test and aging

Program criteria

– Thermal resistance: meets norms of Partex Product

Test Program standards.

For application in hostile environments, please contact your

Regional Sales Office for information.

PM

PM Cable Marking For PF Labels

www.tnb.ca E101

www.tnb.ca E101

Identification Products

Dimensions in mm (nominal)

Cat. No.

Length (L) Width (B1) Thickness (T) Size of Holes

(S) Width (B2)

PM-10033AN

33

6 1.5 35

PM-20033AN

11.3 2.2 10

PM-24033AN

13.9 2.5 3.9 12.5

PM-20045AN

45 11.3 2.2 3 10

PM-20066AN

66

PM-24066AN

13.9 2.5 3.9 12.5

PM-24094

94

PM-20KNT

20M

11.3 2.2 ––

PM-20QKNT

310

PM-24KNT

13.9 2.5 ––

PM-24QKNT

3.9 12.5

PM-20SNT

5M 11.3 2.2 ––

PM-20QSNT

310

PM-24SNT

4M 13.9 13.9 ––

PM-24QSNT

3.9 10

QKNT = Profiles ready-punched at 10 mm’s intervals, 20 meters per carton.

KNT = Unpunched profiles, 20 meters per carton.

AN = Cut marker holders in standard lengths.

QSNT = Profiles ready-punched at 100 mm intervals, mounted on compactadisc.

SNT = Unpunched profile on compactadisc.

L

s

B1

B2

T

Size and Packaging

Cat. No. Description

Number/Pack

PM-10033AN

PM10/33 transparent holder 33 mm cut loose in bag

100 PCS

PM-20033AN

PM20/33 transparent holder 33 mm cut loose in bag

PM-24033AN

PM20/45 transparent holder 45 mm cut loose in bag

PM-20066AN

PM20/66 transparent holder 66 mm cut loose in bag 50 PCS

PM-24033AN

PM24/33 transparent holder 33 mm cut loose in bag 100 PCS

PM-24066AN

PM24/66 transparent holder 66 mm cut loose in bag 50 PCS

PM-240094AN

PM24/94 transparent holder 94 mm cut loose in bag

PM-20KNT

PM20 profile transparent

20 M

PM-20QKNT

PM20 profile punched transparent in carton

PM-24KNT

PM24 profile transparent in carton

PM-24QKNT

PM24 profile punched transparent in carton

PM-20SNT

PM20 profile transparent 5 M

PM-20QSNT

PM20 profile punched transparent on compactadisc

PM-24SNT

PM24 profile transparent on compactadisc 4 M

PM-24QSNT

PM24 profile punched transparent on compactadisc

Accessories

Cat. No. Suitable Marking Label

Label Height mm

PM-10033AN

PF10021, PP-04200SN 4.2

PM-20033AN

PF20018, ProMark PP-09000SN 9.0

PM-20045AN

MTX-MK9-PL090CN, MK8-PL090CN, ProMark PP-09000SN

PM-24033AN

PF20018 1 pce, PFC09518KA 12.0

PM-20066AN

PF20018; 1, 2 or 3 modules, PFC09518KA,

ProMark PP-09000SN, MK9-PL090CN, MK8-PL090CN 9.0

PM-24066AN

MK9-PL012CN PF20018; 1, 2 or 3 modules, PFC09518KA 12.0

PM-24094AN

MK9-PL090CN

PM

Marking methods

www.tnb.ca

E102 www.tnb.ca

E102

Identification Products

•

Improved holder similar to PA profile with oval shaped pocket for marker labels and tags

•

The marker pocket’s resilient design protects and fastens marker tag

•

Fast and easy assembly of marker by applying pressure once on marker pocket

•

The flexible bellows design of the holder allows rapid and adaptable mounting on wires and cables

Specifications

Design

PTPLUS is a closed marker holder of improved bellows design

with a pocket to hold marker tags of types PF, PFC or PP. The

new bellows design with grooves decreases the friction up

to 50% when the sleeve is pushed on the wire. The holder

is transparent and is mounted directly on the cable or wire

before assembly. The marker tag can be affixed before or after

assembly. The holder does not require much space, PTPLUS02

and PTPLUS10 fit wires to 5 mm terminal block widths.

Material

Cadmium and silicon free soft PVC according to Partex formula.

Colours

Transparent.

Temperature Range

Shape permanence from -30ºC to + 60ºC

(-22ºF to + 140ºF)

N.B.: Only the sleeve.

Resistance

The product is tested by the Swedish Test and Research

institute according to the Partex Product Test Program and has

the following test properties:

•

Flammability resistance: UL94-VO

•

Resistance to UV radiation: corresponds to

1 year outdoors in the south of Sweden

•

Chemical resistance: meets Partex Product

Test Program criteria (except for battery acid)

•

Thermal and aging resistance: meets Partex

Product Test Program standards

PTPLUS

PTPLUS Wire Marker Holder For PF Labels

www.tnb.ca E103

www.tnb.ca E103

Identification Products

Size and Packaging

Cat. No.

Diameter

mm

Intended for

Marker size (in.)

Area

mm2AWG Qty.

Pack

Suitable

PF Labels

Suitable

PFC Tags

Suitable

PP Profile

PTPLUS02012A

~1.3 – 3.0 0.051 – 0.118 ~0.25 – 1.5 ~ 22 – 16 200 PCS

- PFC04212

PP-04600SN

PTPLUS10012A

~2.5 – 5.0 0.098 – 0.196 ~1.5 - 4.0 ~ 16 – 11

PTPLUS20012A

~4.0 – 10.0 0.157 – 0.393 ~2.5 - 15.0 ~ 13 – 5 100 PCS

PTPLUS30012A

~8.0 – 16.0 0.314 – 0.629 ~16.0 – 70.0 ~ 5 – 3/0 50 PCS

PTPLUS02015A

~1.3 – 3.0 0.051 – 0.118 ~0.25 – 1.5 ~ 22 – 16 200 PCS

PF-10015 PFC04215

PTPLUS10015A

~2.5 – 5.0 0.098 – 0.196 ~1.5 – 4.0 ~ 16 – 11

PTPLUS20015A

~4.0 – 10.0 0.157 – 0.393 ~2.5 – 15.0 ~ 13 – 5 100 PCS

PTPLUS30015A

~8.0 – 16.0 0.314 – 0.629 ~16.0 – 70.0 ~ 5 – 3/0 50 PCS

PTPLUS40015A

~16.0 – 22.0 – ~ 50.0 – 150.0 ~ 0

PTPLUS02018A

~1.3 – 3.0 0.051 – 0.118 ~0.25 – 1.5 ~ 22 – 16 200 PCS

- PFC04218

PTPLUS10018A

~2.5 – 5.0 0.098 – 0.196 ~1.5 – 4.0 ~ 16 – 11

PTPLUS20018A

~4.0 – 10.0 0.157 – 0.393 ~2.5 – 15.0 ~ 13 – 5 100 PCS

PTPLUS30018A

~8.0 – 16.0 0.314 – 0.629 ~16.0 – 70.0 ~ 5 – 3/0 50 PCS

PTPLUS02021A

~1.3 – 3.0 0.051 – 0.118 ~0.25 – 1.5 ~ 22 – 16 200 PCS

PF-10021 PFC04221

PTPLUS10021A

~2.5 – 5.0 0.098 – 0.196 ~1.5 – 4.0 ~ 16 – 11

PTPLUS20021A

~4.0 – 10.0 0.157 – 0.393 ~2.5 – 15.0 ~ 13 – 5 100 PCS

PTPLUS30021A

~8.0 – 16.0 0.314 – 0.629 ~16.0 – 70.0 ~ 5 – 3/0 50 PCS

PTPLUS40021A

~16.0 – 22.0 – ~ 50.0 – 150.0 ~ 0

PTPLUS02030A

~1.3 – 3.0 0.051 – 0.118 ~0.25 – 1.5 ~ 22 – 16 200 PCS

- PFC04230

PTPLUS10030A

~2.5 – 5.0 0.098 – 0.196 ~1.5 – 4.0 ~ 16 – 11

PTPLUS20030A

~4.0 – 10.0 0.157 – 0.393 ~2.5 – 15.0 ~ 13 – 5 100 PCS

PTPLUS30030A

~8.0 – 16.0 0.314 – 0.629 ~16.0 – 70.0 ~ 5 – 3/0 50 PCS

PTPLUS40030A

~16.0 – 22.0 0.629 – 0.866 ~ 50.0 – 150.0 ~ 0

H

W

Dimensions in mm (nominal)

Cat. No.

AWG Length Width Height

PTPLUS02

22-16

12/15/18/21/30

55

PTPLUS10

16-11 7

PTPLUS20

13-5 6 10

PTPLUS30

5- 10 19

PTPLUS40

0 15/21/30 N/A N/A

PTPLUS

Application
