High performance sealed F-connector
Exceeds SCTE and Telcordia™
specifications
Conical, 360° compression sleeve
provides
a superior environmental seal
Connectors fit Series 59, 6, 7 and 11
cables
Unique compression tools for all
Digicon connector types
Digiseal™ sleeves provide added
environmental protection
Description
Digicon is a unique, trouble-free F-connector system that enhances your ability to
deliver flawless analog and digital RF communications. Using a 360° conical “swedge”
compression, Digicon delivers a high performance termination in your network.
For installation versatility, there are two versions of the Digicon connector — the Type
II and the “S” series. Both versions feature identical specifications and performance
capabilities and both connectors terminate utilizing the same conical “swedge”
technology.
In the Type II, the die that creates the “swedge” is located in the tool, while the “S”
series die is resident in the connector itself. Additionally, the “S” series connectors are
color coded for quick identification. Both connectors provide the ultimate weather-
tight termination with unbeatable performance and reliability.
Connectors
Technetix Inc I 8490 Upland Drive, Suite 200, Englewood CO 80112, USA
Tel: +1 866 956 5608 I info-usa@technetix.com I www.technetix.com
Jan/2016 - Version 1.1
© Copyright 2016 Technetix Group Limited. All rights reserved.
This document is for information only. Features and specifications are subject to change without notice. Technetix, the Technetix logo, Ingress Safe, Modem
Safe and certain other marks and logos are trade marks or registered trade marks of Technetix Group Limited in the UK and certain other countries. Other
brand and company names are trade marks of their respective owners. Technetix protects its technology and designs by registering patents, trade marks
and designs in Europe and certain other countries.
RG59 RG59U RG59Q RG59Q Mini Headend 59Q RG6
RG6U RG6Q RG6 Plenum RG6 Right Angle RG11 Right Angle RG11
MDU 320 RG7 Quad Shield RG7P
Digicon® Cable Numbers
Specifications
Series Braid Coverage Jacket Types Application
59, 59Q, 59BNC, 6, 6Q, 7, 11,11Q 60% Through Quad PVC, PE, Ad Plenum Indoor/Outdoor
Mechanical Requirements Specifications Limits Test Results
Corrosion Resistant Telcordia™ GR-1503 3.2.1 Conforming Materials Exceeds
Cable Application Telcordia™ GR-1503 3.2.2 <20 lbs. Max Insertion Exceeds
Cable Interface Telcordia™ GR-1503 3.2.3 >40 lbs. Pull Force Exceeds
Equipment Interface Telcordia™ GR-1503 3.2.4 >10 Matings without Damage >60 in./lbs. without Damage Exceeds
Temperature Cycling with Humidity Telcordia™ GR-1503 4.1 70 °F to 140 °F to -40 °F Must Pass 3.2.3 Specifications After
7 Days
Exceeds
Loosening Torque Telcordia™ GR-1503 4.2 >30 in./lbs. After 3 Days of 4.1 Exceeds
Moisture Migration SCTE IPS-TP-013 No Dye Penetration Exceeds
Salt Fog Telcordia™ GR-1503 4.4 Return Loss >30dB @ 1 GHz Exceeds
Environmental Pollutants Telcordia™ GR-1503 4.5 Return Loss >30dB @ 1 GHz Exceeds
Vibration Telcordia™ GR-1503 4.6 Loosening Torque >32 in./lbs Exceeds
Chemical Resistance Outdoor1 Telcordia™ GR-1503 4.7 7 Days Exposure Exceeds
UV Degradation1 Telcordia™ GR-1503 4.8 7 Days Exposure Exceeds
Ozone Degradation1 Telcordia™ GR-1503 4.10 70 Hours Exposure Exceeds
Electrical Requirements Specifications Limits Test Results
Insulation Resistance Telcordia™ GR-1503 3.5.1 >5,000 megohms @ 100 V dc Exceeds
Dielectric Strength Telcordia™ GR-1503 3.5.2 <0.2dB to 700 MHz Exceeds
Insertion Loss Telcordia™ GR-1503 3.5.3 <0.1dB to 350 MHz <0.2dB to 700 MHz <0.3dB to 1 GHz Exceeds
Return Loss Telcordia™ GR-1503 3.5.4 >30dB to 1 GHz Exceeds
Shielding Eectiveness Telcordia™ GR-1503 3.5.5 >95dB to 300 MHz >70dB to 1 GHz Exceeds
“S” Series F-Connectors
Cable types
Note: Samples will not exhibit cracking, swelling or brittleness. Digicon connectors were tested to meet SCTE-IPS and TelecordiaTM specifications.
Where both organizations have specifications for the same requirement, Digicon connectors were tested to the more rigorous requirement.
Specifications are subject to change without notice.
Technetix Inc I 8490 Upland Drive, Suite 200, Englewood CO 80112, USA
Tel: +1 866 956 5608 I info-usa@technetix.com I www.technetix.com
Jan/2016 - Version 1.1
© Copyright 2016 Technetix Group Limited. All rights reserved.
This document is for information only. Features and specifications are subject to change without notice. Technetix, the Technetix logo, Ingress Safe, Modem
Safe and certain other marks and logos are trade marks or registered trade marks of Technetix Group Limited in the UK and certain other countries. Other
brand and company names are trade marks of their respective owners. Technetix protects its technology and designs by registering patents, trade marks
and designs in Europe and certain other countries.
Digicon® Cable Numbers
Ordering information
F-Connectors Mfg # Description Std Pkg
708858 DS-59 RG591 100/bag
708859 DS-59Q RG59Q2 100/bag
712684 DS-59U RG59 Universal 100/bag
708860 DS-6 RG61 100/bag
708861 DS-6Q RG6Q2 100/bag
712685 DS-6U RG6 Universal 100/bag
709856 DSRA-6 RG6 Right Angle1 50/bag
710233 DS-6PL RG6 Plenum 100/bag
703752 DS-7P RG7P (pin)1 50/bag
705122 DS-7QP RG7 Quad Shield (pin)2 50/bag
702252 DS-11 RG11 (pin)1 50/bag
709007 DS59Q-HEC2 Headend 59Q3 100/bag
702450 DS-59Q-MINI Mini 59Q4 100/bag
713571 DS-320T MDU 320 25/bag
BNC Connectors Mfg # Description Std Pkg
214338 DS-BNC-59Q BNC 59Q3 50/bag
702024 DS-BNC-9167 BNC 59Q5 50/bag
702251 DS-BNC59Q-MINI BNC Mini 59Q4 50/bag
707226 DS-BNC59-MINI BNC Mini 59 50/bag
720018 DS-59BNCU BNC 59U 50/bag
720019 DS-6BNCU BNC 6U 50/bag
RCA Connectors Mfg # Description Std Pkg
716269 DS-59URCA RCA RG592 50/bag
716270 DS-6URCA RCA RG62 50/bag
716304 DSRCA-BAND-BLUE RCA Connector Identification Band, Blue 50/bag
716305 DSRCA-BAND-GREEN RCA Connector Identification Band, Green 50/bag
716306 DSRCA-BAND-RED RCA Connector Identification Band, Red 50/bag
716307 DSRCA-BAND-WHITE RCA Connector Identification Band, White 50/bag
716308 DSRCA-BAND-YELLOW RCA Connector Identification Band, Yellow 50/bag
716309 DSRCA-BAND-BLACK RCA Connector Identification Band, Black 50/bag
Digicon Connectors - “S” Series
Note 1: Fits cable with braid percentage up to 90% and tri-shield Note 2: Fits quad-shield cable
Note 3: Fits CommScope F59HEC-2 cable Note 4: Fits TFC MI21G9V or CommScope 0446 cable
Note 5: Fits Belden 9167 cable

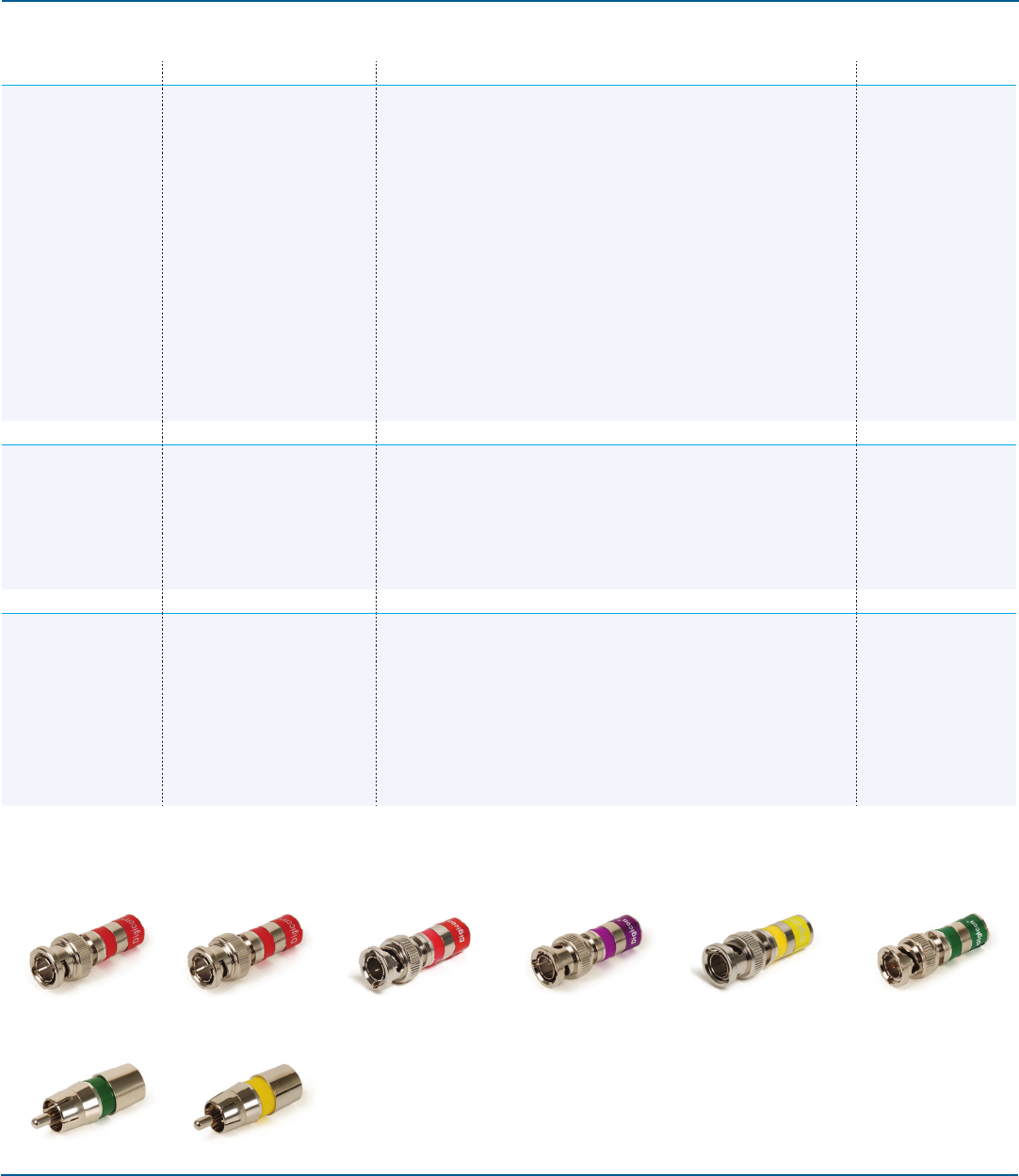

BNC Mini 59 BNC Mini 59Q BNC 59Q BNC 59Q BNC 59U BNC 6U
