Technical Data 6002 Effective March 2016
Supersedes December 2015
BUSSMANN
SERIES
Description:
• Bussmann® series Indicating and non-
indicating E-Rated, current-limiting, medium
voltage fuses for potential, small power and
control transformers.
Contents
Description Page
Introduction .............................2
2.475kV fuses .......................... 3-6
3.6kV fuses ............................ 7-9
5.5kV fuses .......................... 10-26
7.2kV fuses .......................... 27-29
8.3kV fuses .......................... 30-39
12kV fuses .......................... 40-42
15.5kV fuses .........................43-52
17.5kV fuses ......................... 53-54
24kV fuses .......................... 55-56
25.5kV fuses ......................... 57-60
36kV fuses .......................... 61-62
38kV fuses .......................... 63-69
Fuse mountings ......................70-71
Features and benefits
• Low amp, current-limiting E-Rated PT
medium voltage fuses are general purpose
fuses defined by their melting time-current
characteristic that permit their electrical
interchangeability with other fuses of the
same E Rating.
• E-Rated general purpose fuses must have
a current responsive element that will melt
in 300 seconds at an RMS current within
the range of 200% to 240% of the fuse’s
nameplate current rating, fuse refill, or link
per ANSI C37.46 for fuses rated 100E or less.
• PT fuses are physically dimensioned for easy
installation in existing hardware.
• Space saving size eases design
considerations for new installations.
• Current-limiting fuses provide positive
interruption even on low fault currents.
The fuse limits the magnitude of
electromechanical stresses in the protected
apparatus.
• These fuses are in a self-contained, non-
venting package for installation indoors or
outdoors in an enclosure.
• Available in indicating and non-indicating
versions.
• Open fuse indicator speeds troubleshooting
by providing a positive visual indication of
fuse operation.
Typical applications:
• Primary protection of:
• Medium voltage potential transformers
• Small medium voltage service
transformers
• Small medium voltage control
transformers.
PT Medium voltage fuses for potential and
small power transformers
2
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
E-Rated PT medium voltage fuses
Catalog symbols (by maximum voltage rating):
• 2.475kV
• 2NCLPT-_
• 3.6kV
• 3.6ABCNA_
• 3.6ABWNA_
• 3.6CAV_
• 5.5kV
• JCW-_
• 5CLPT-_E
• 5NCLPT-_E
• 5NCLPT-_E-A
• 5.5ABWNA_E
• 5.5AMWNA_E
• 5.5CAV_E
• 5.5CAVH_E
• 7.2kV
• 7.2ABWNA_
• 7.2ABCNA_
• 7.2AMWNA_E
• 7.2CAV_
• 8.3kV
• 8CLPT-_E-A
• 8CLPT-_E-B
• 8NCLPT-_E
• 8NCLPT-_E-A
• 8NCLPT-_E-B
• 12kV
• 12ABCNA_
• 12CAV_
• 15.5kV
• 15CLPT-_E
• 15NCLPT-_E-A
• 15NCLPT-_E-B
• 15.5CAV_E
• 15.5CAVH_E
• 17.5kV
• 17.5ABGNA_
• 17.5CAV_
• 24kV
• 24ABGNA_
• 24CAV_
• 25.5kV
• 25CLPT-_E
• 36kV
• 36ABGNA_
• 36CAV_
• 38kV
• 38CAV_E
• 38CAVH_E
• 38CLPT-_E
Ratings*:
• Volts
• 2.4kV to 38kV
• Amps
• 0.25 to 15A
• Interrupting ratings
• 25 to 80kA RMS Sym
* See catalog number tables for voltages, ampacities and interrupting ratings
by catalog number.
Agency information:
• Those PT fuses conforming to the requirements for E-Rating
meet the performance characteristics of ANSI C37.46
3
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
2.475kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
0.25
4.5 (114) 0.8 (20) 3.9 (99)
—2NCLPT-.25E (63)
1A1837
0.5 — 2NCLPT-.5E (63)
1 — 2NCLPT-1E (40)
2 — 2NCLPT-2E (40)
5 — 2NCLPT-5E (25)

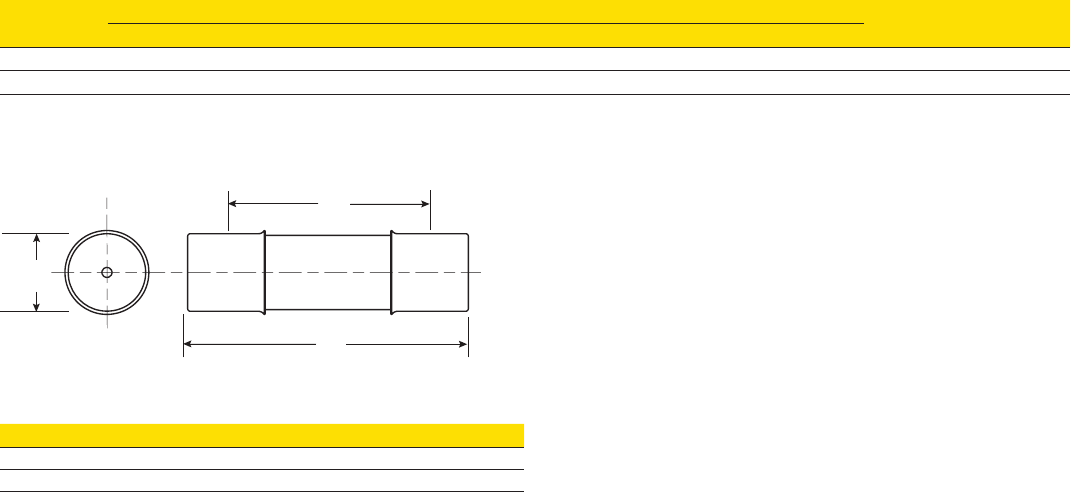

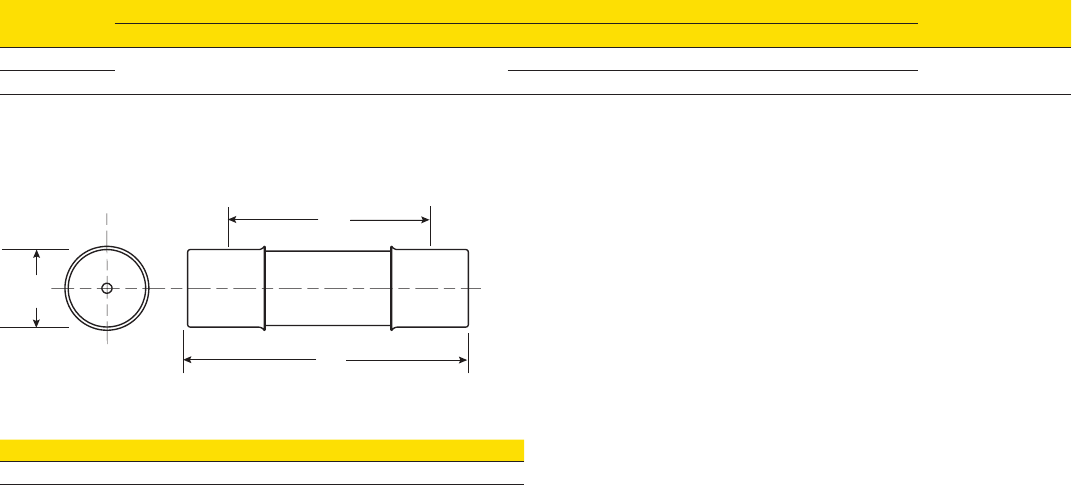

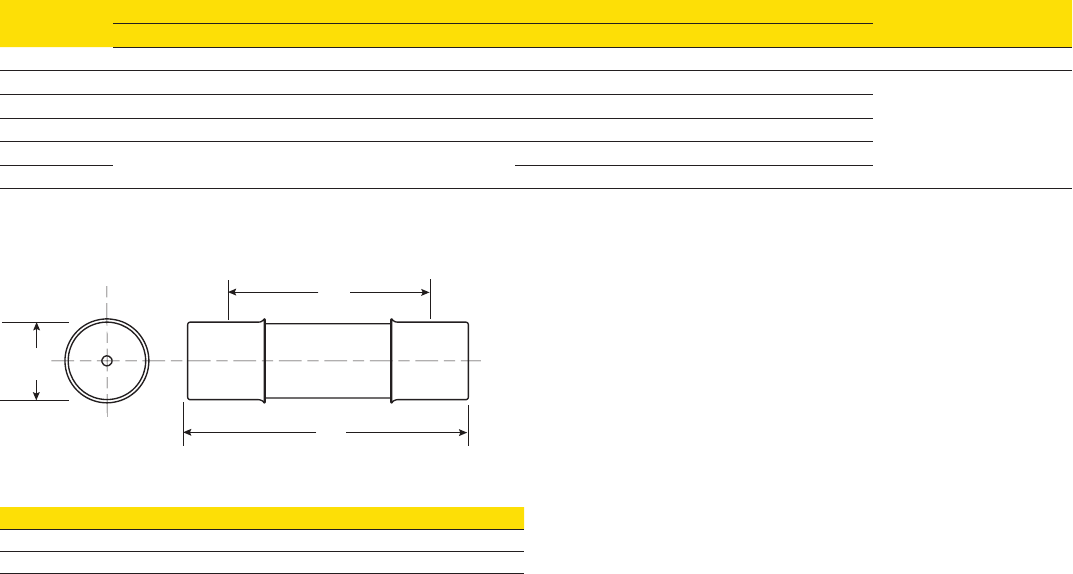

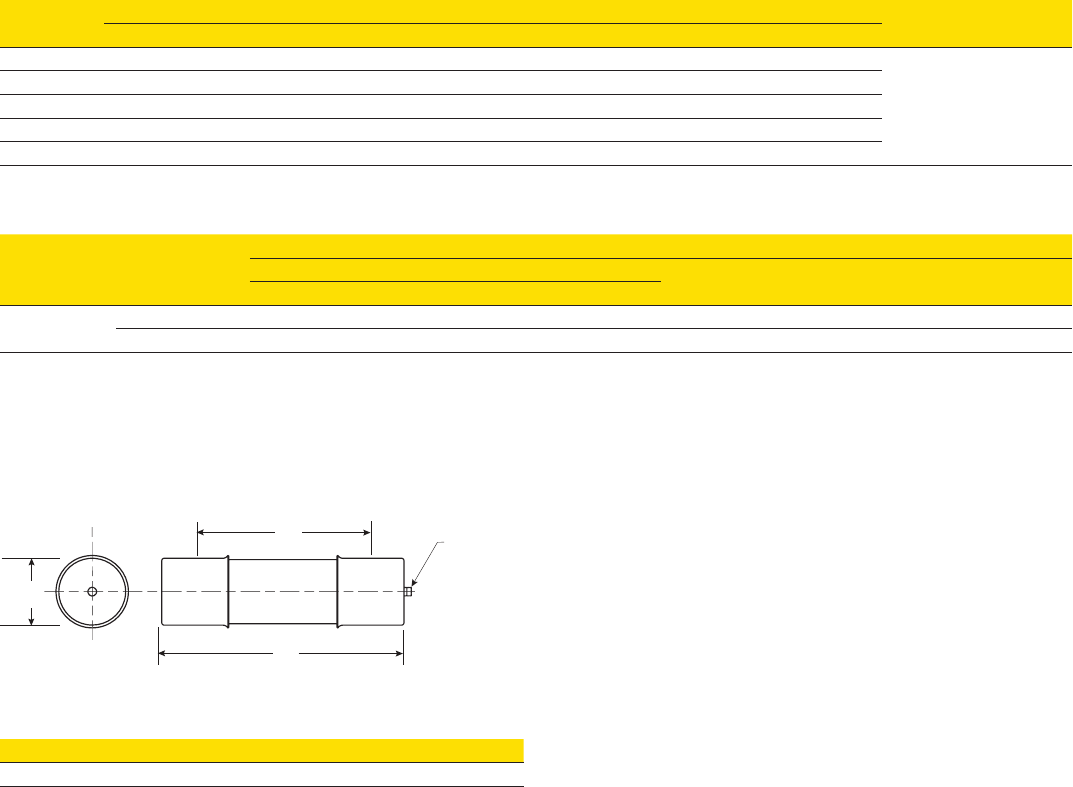

Dimensions (see catalog number tables for values)
A
B
C
Recommended fuseclip and fuse block:
Description Cat. No.
Open fuseclip for 0.8 (20mm) dia. fuses 1A1837
Single-pole open fuse block with #10-32 phil-slot screw
terminals rated 2500V, 5A maximum and 63kA withstand
rating
PTFB-2500-JCD
4
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

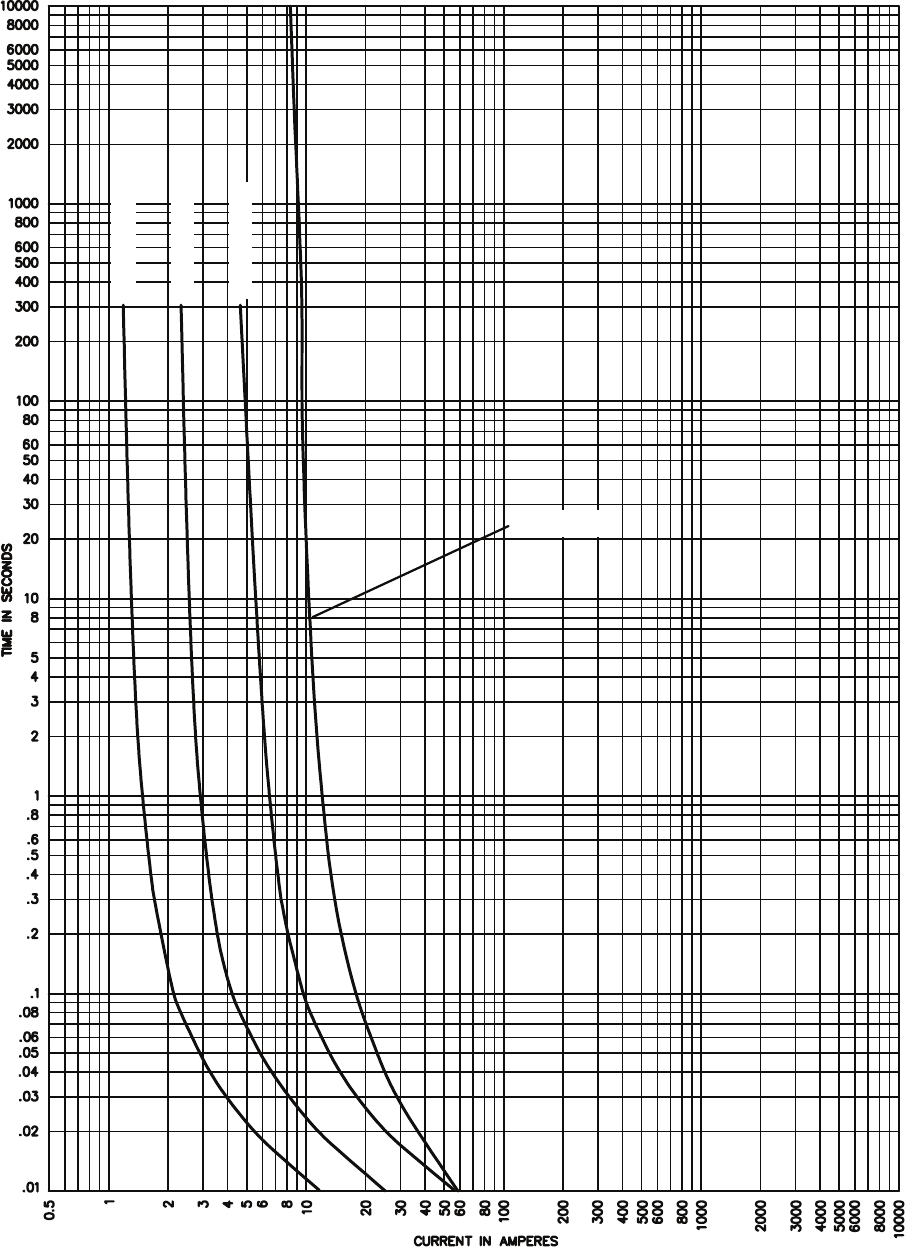

2.47kV time-current curves — minimum melting for 2NCLPT-_E
Time in seconds
Current in apps
2NCLPT-_E
1/4A
2A
1A
1/2A
5A
5
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
2.47kV time-current curves — total clearing for 2NCLPT-_E
1/4A
2A
1A
1/2A
5A
Time in seconds
Current in apps
2NCLPT-_E
6
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

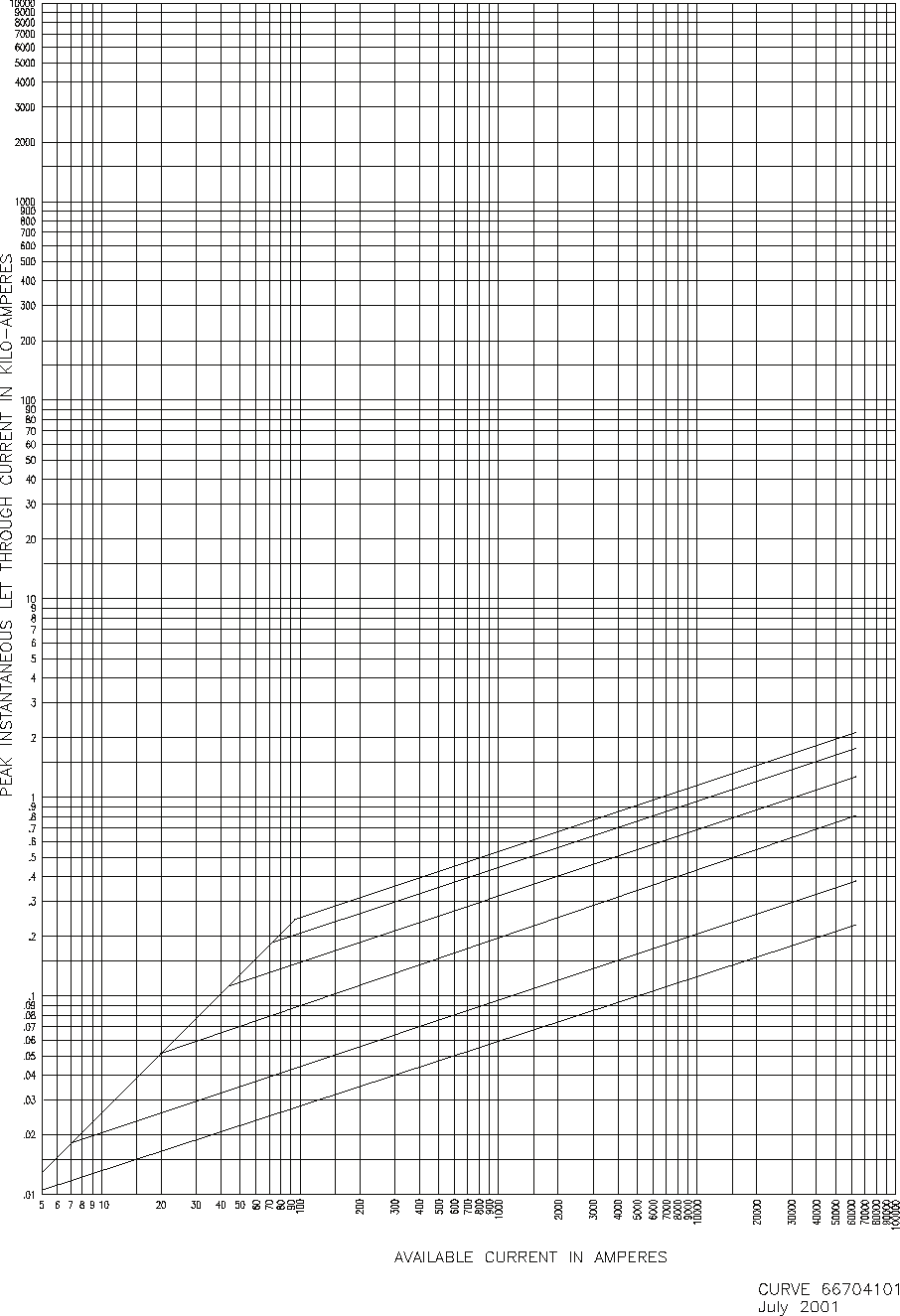

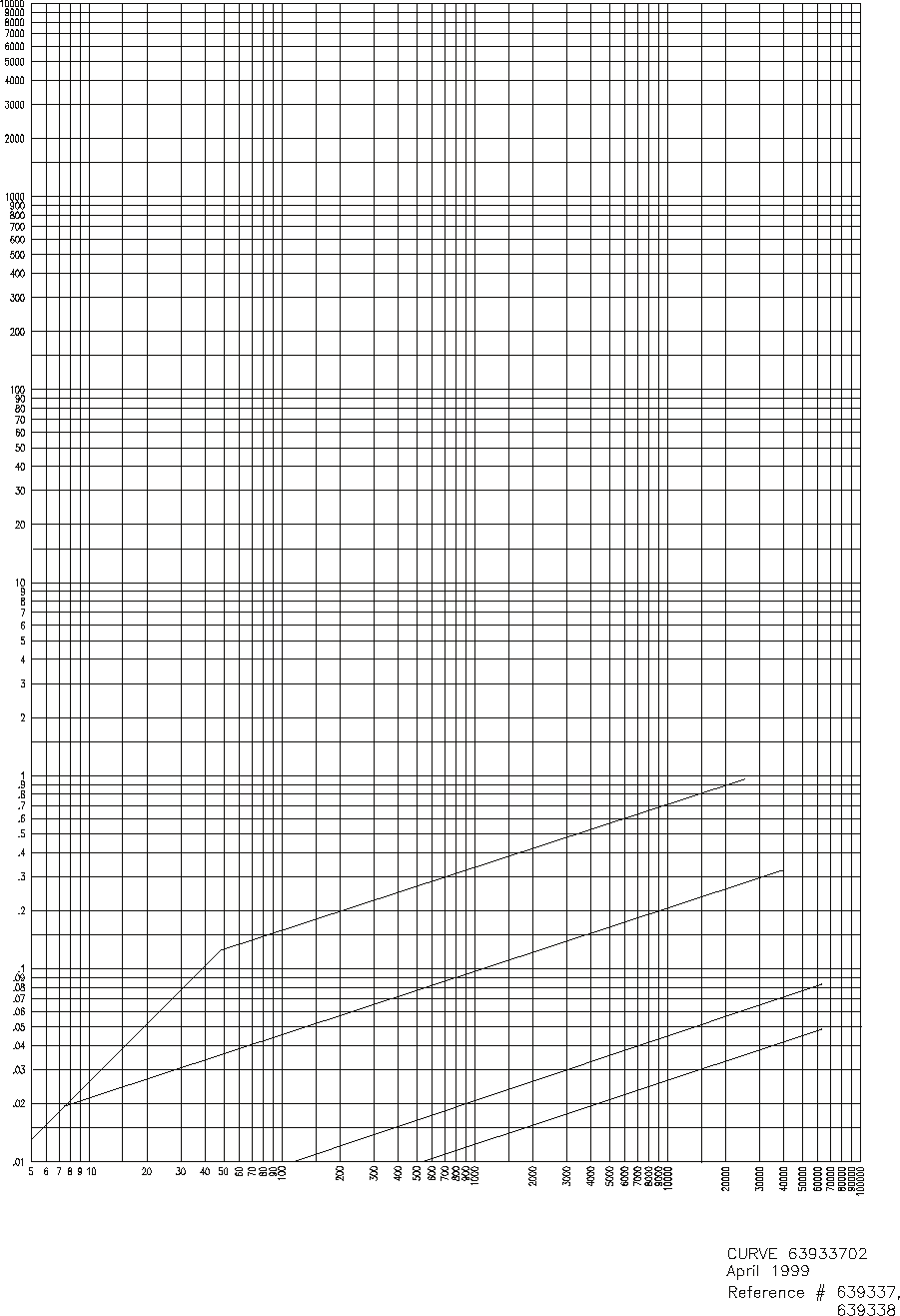

2.47kV peak let-through curves for 2NCLPT-_E
Peak instantaneous let-through current in kilo-amperes
Available current in apps
2NCLPT-_E
1/4A
1A & 2A
1/2A
5A
7
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
3.6kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
28.7 (221) 1.6 (41) 7.6 (193) —3.6CAV2 (50) 1A1837
3.15 5.6 (142) 1 (25) 4.4 (112) —3.6ABWNA3.15 (50)
A3354705
3.15 7.7 (195) 1 (25) 6.5 (165) —3.6ABCNA3.15 (50)
6.3 5.6 (142) 1 (25) 4.4 (112) —3.6ABWNA6.3 (50)
6.3 7.7 (195) 1 (25) 6.5 (165) —3.6ABCNA6.3 (50)
10 —3.6ABCNA10 (50)

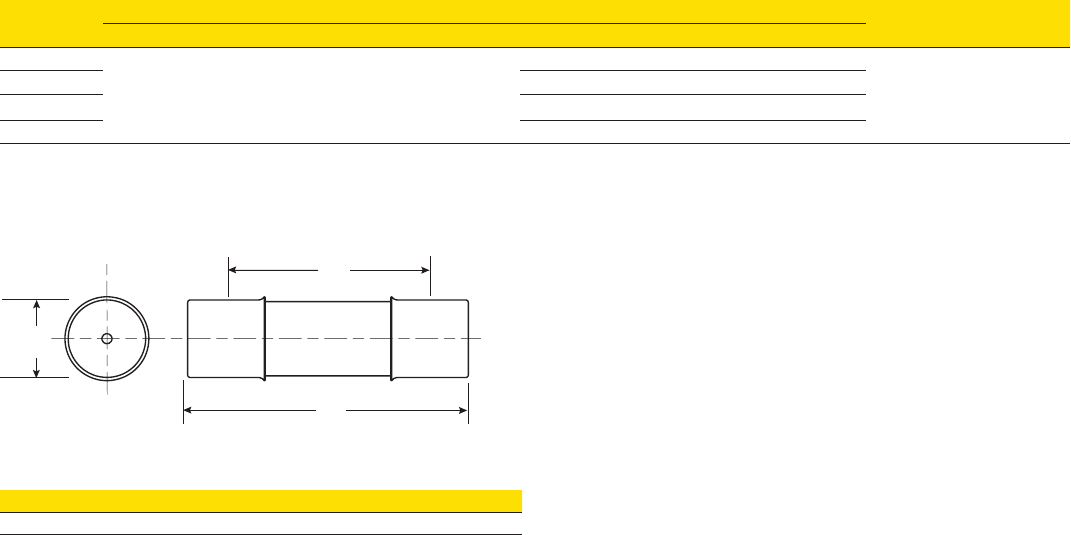

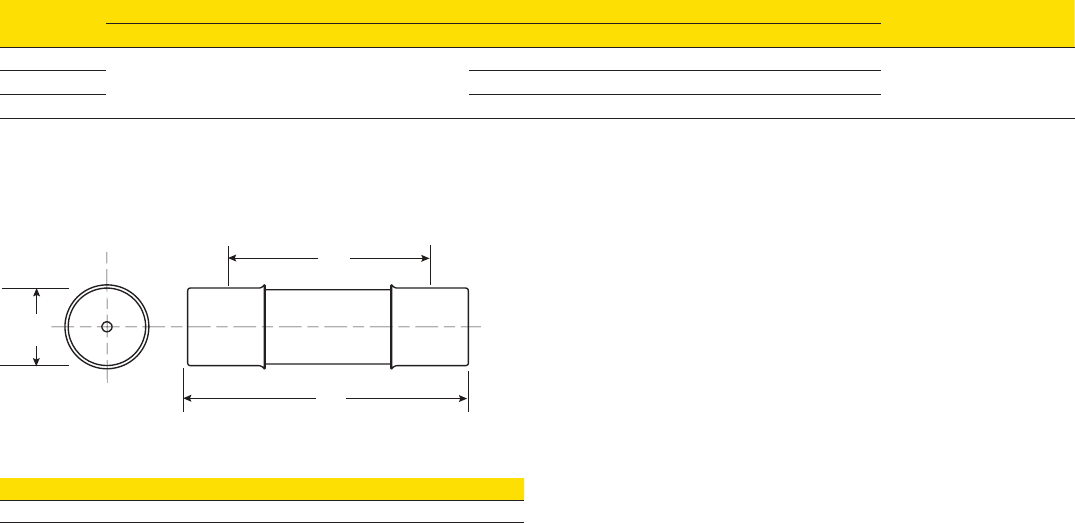

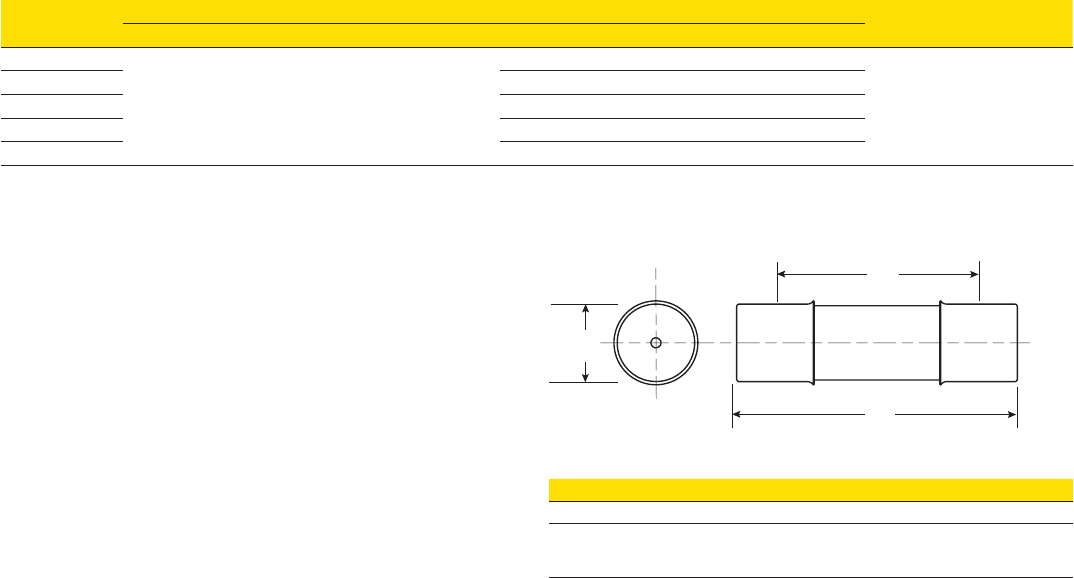

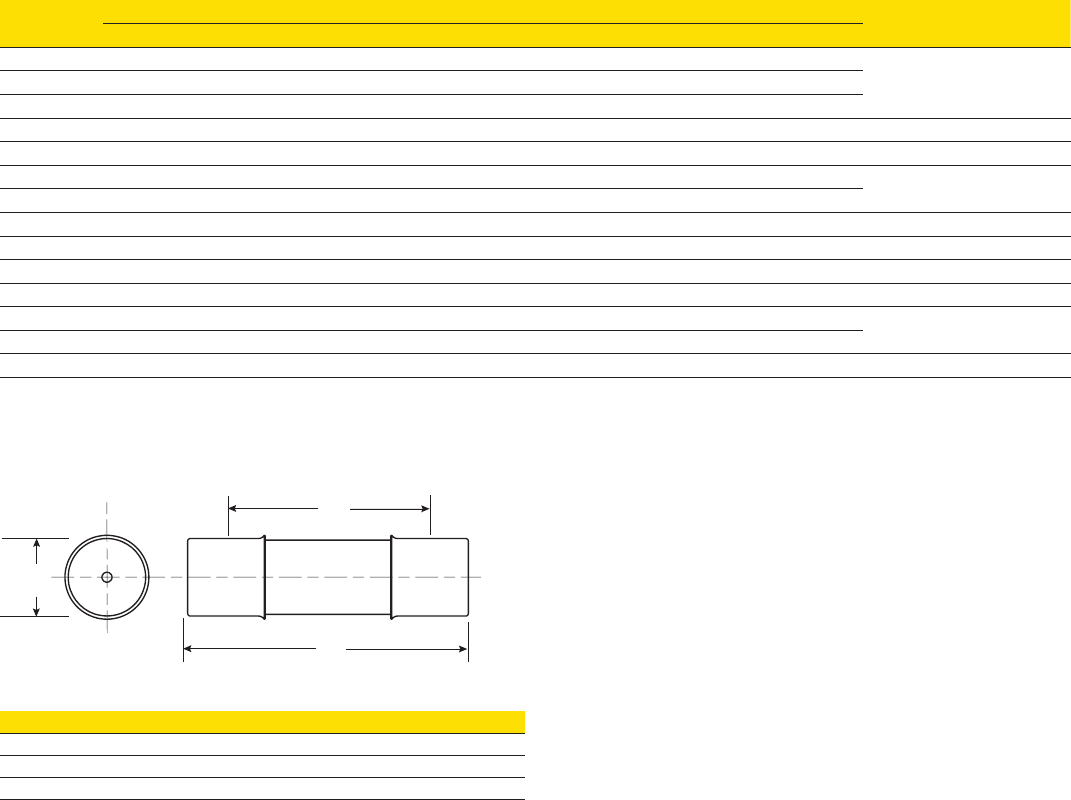

Dimensions (see catalog number tables for values)
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 1.0 (25.4mm) dia. fuses A3354705
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
A
B
C
8
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

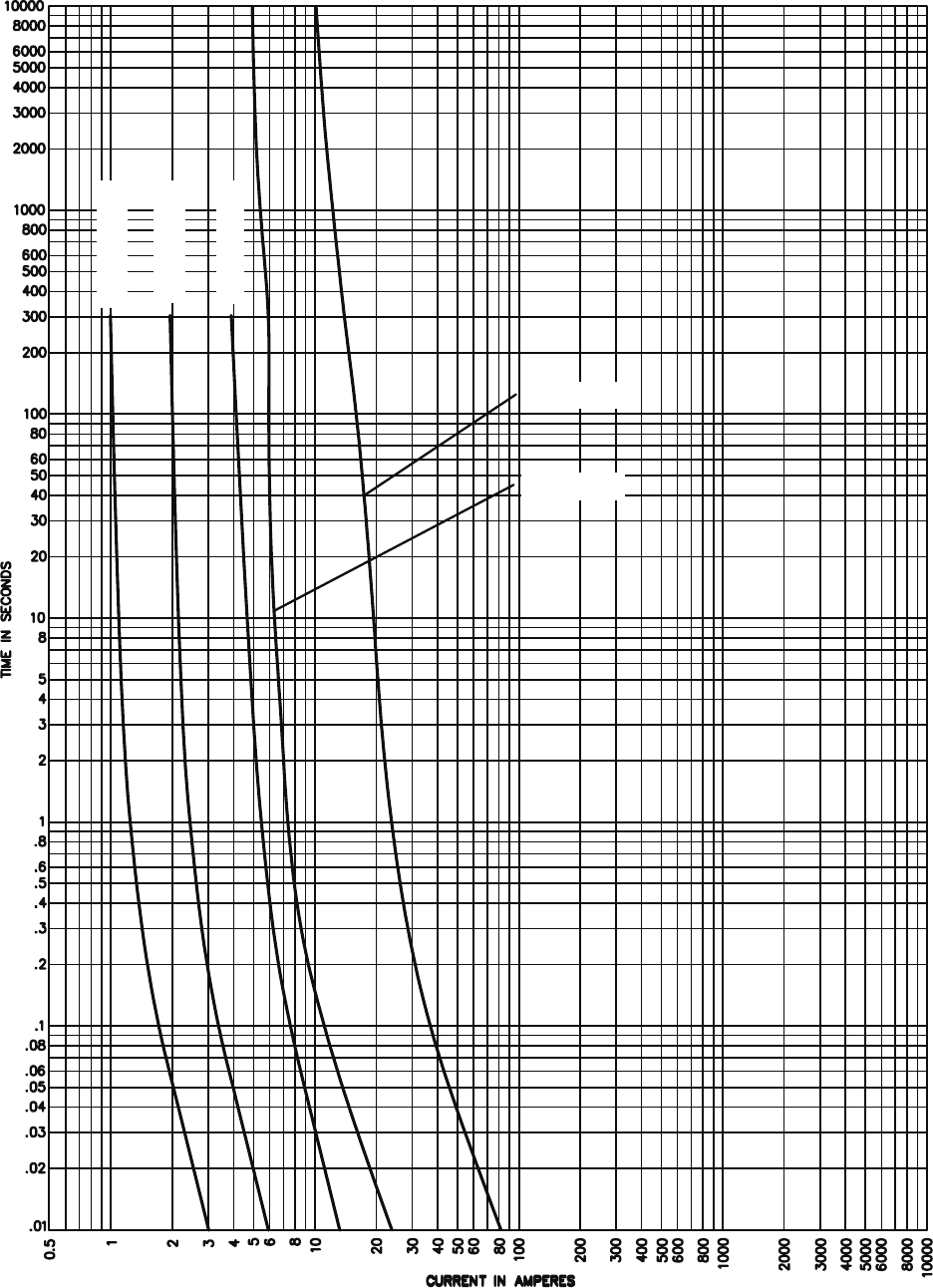

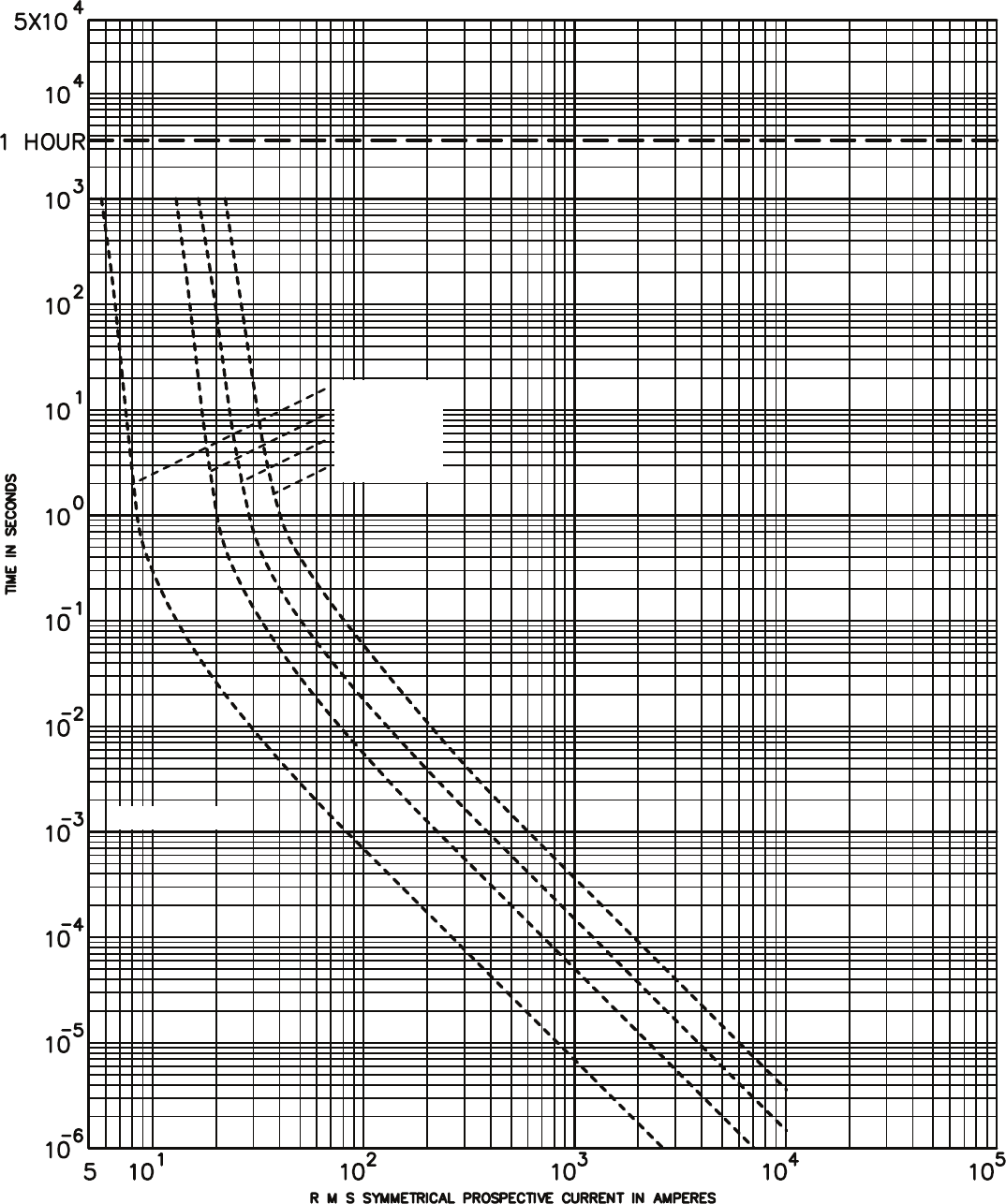

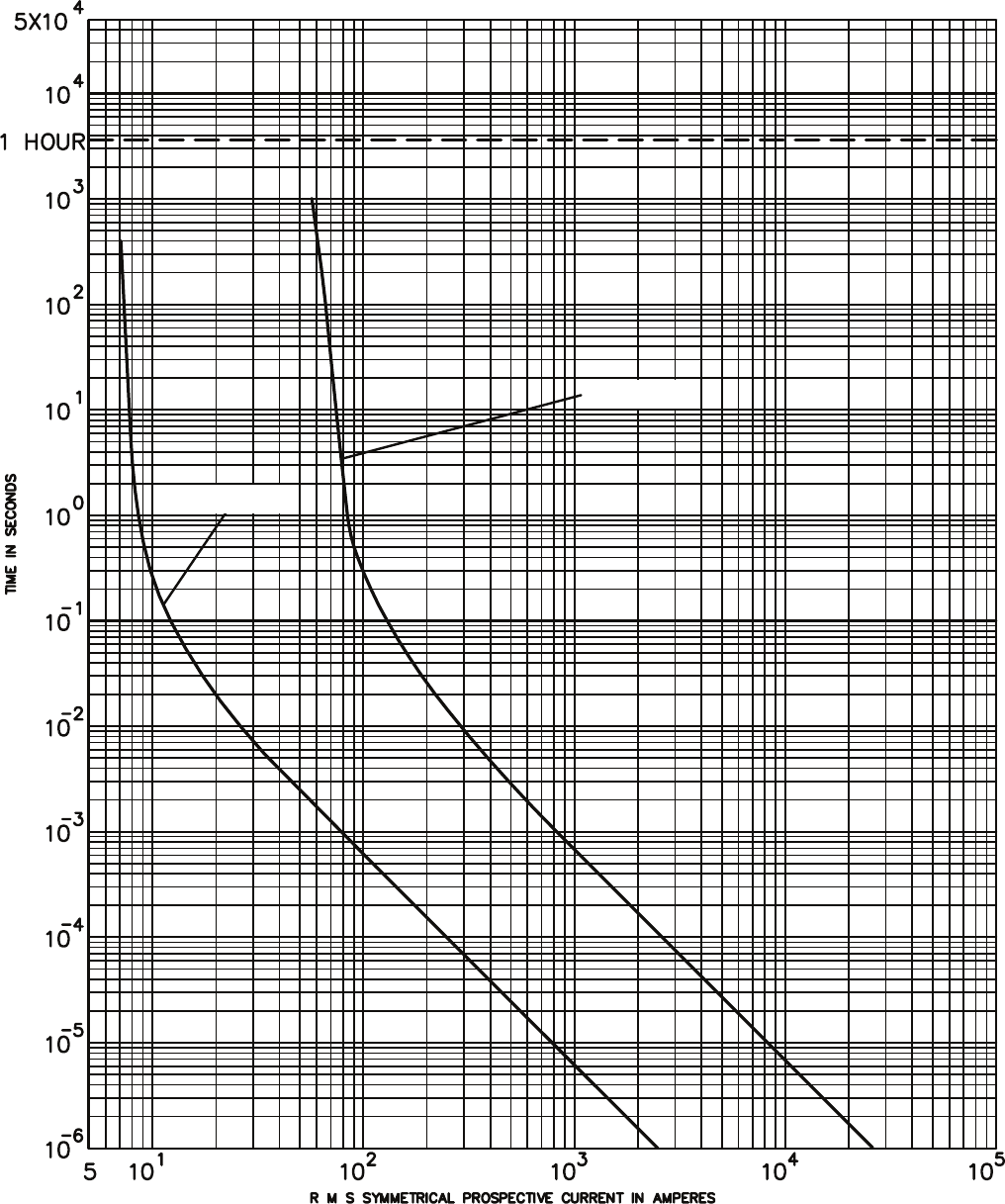

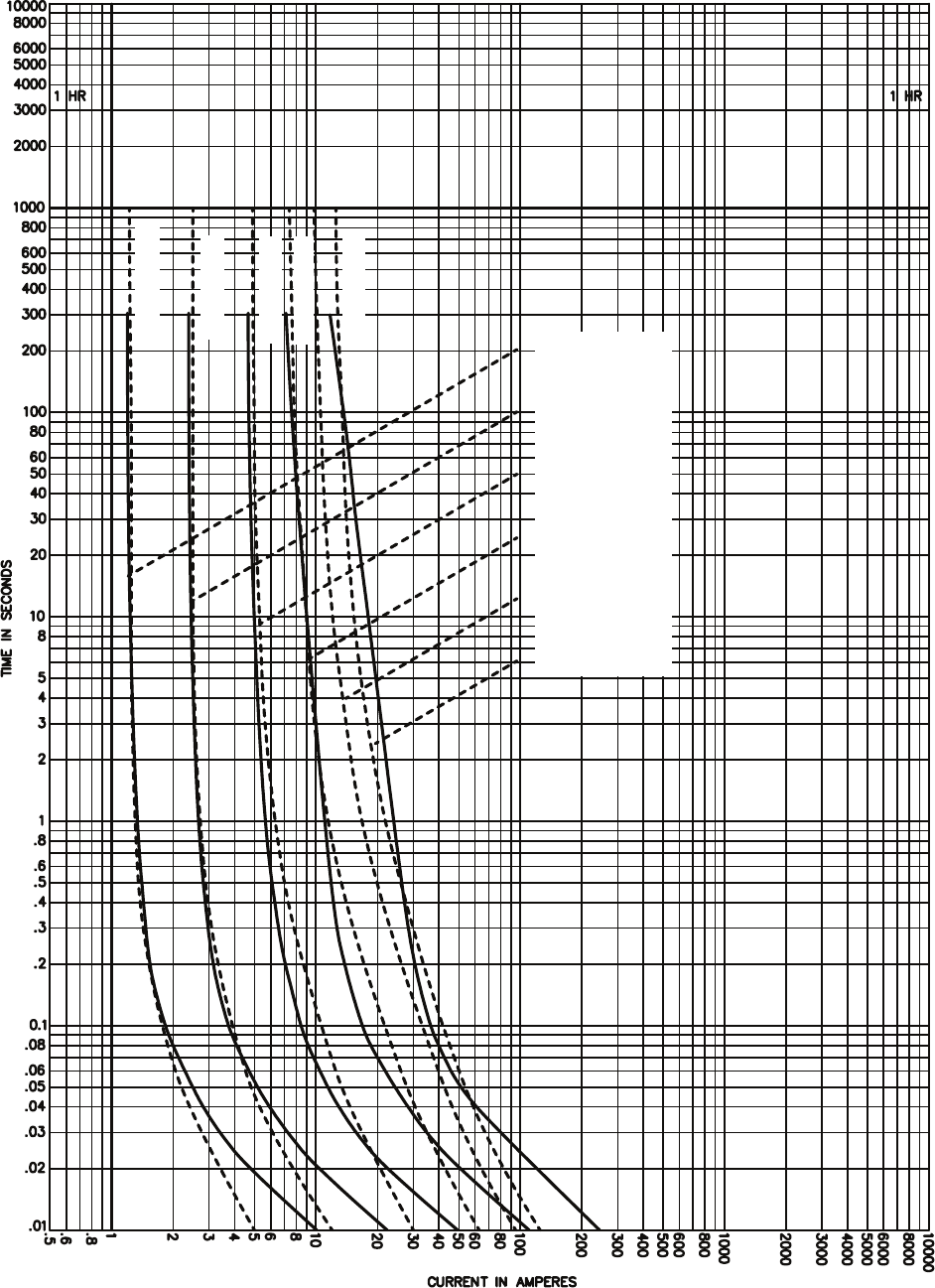

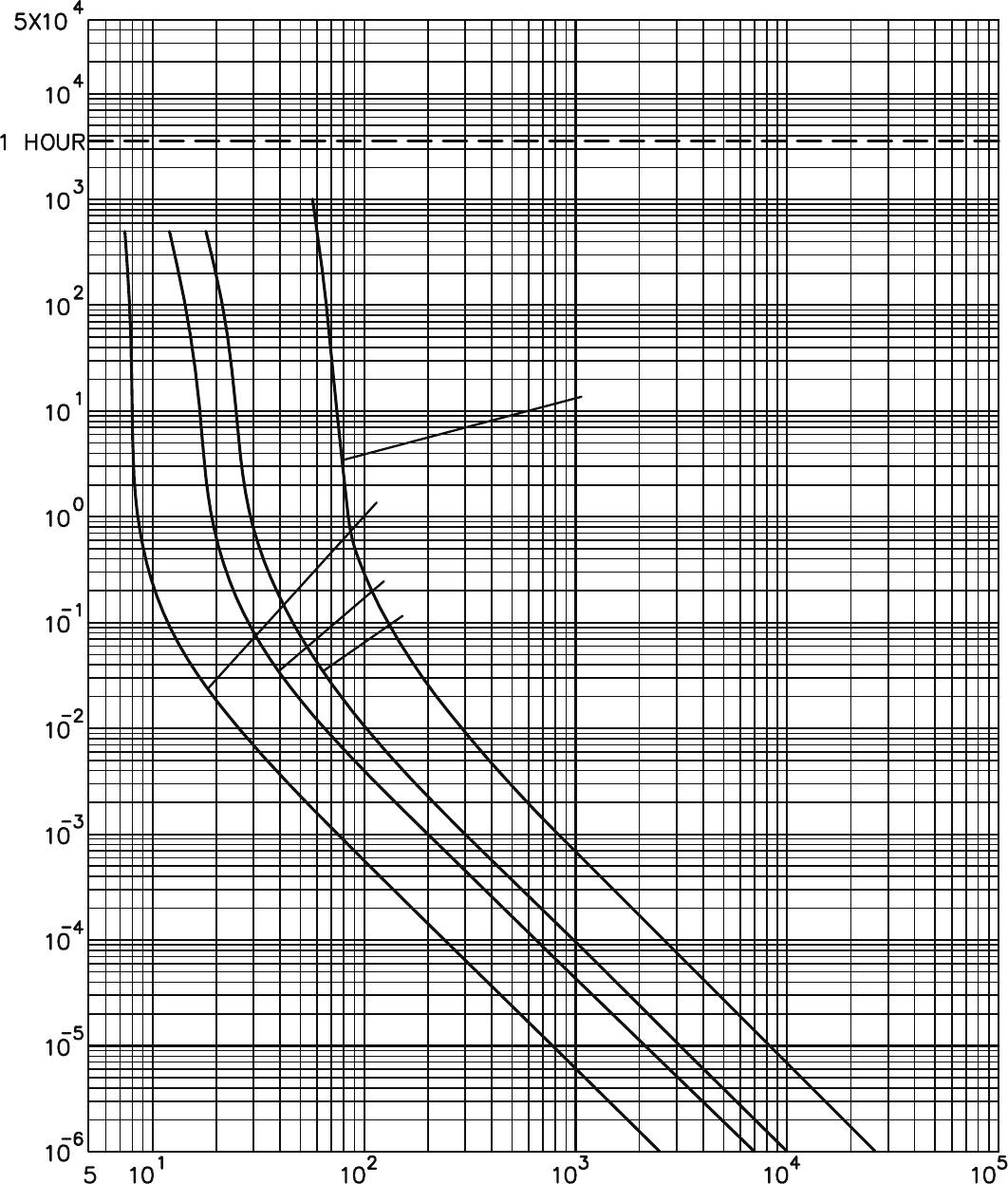

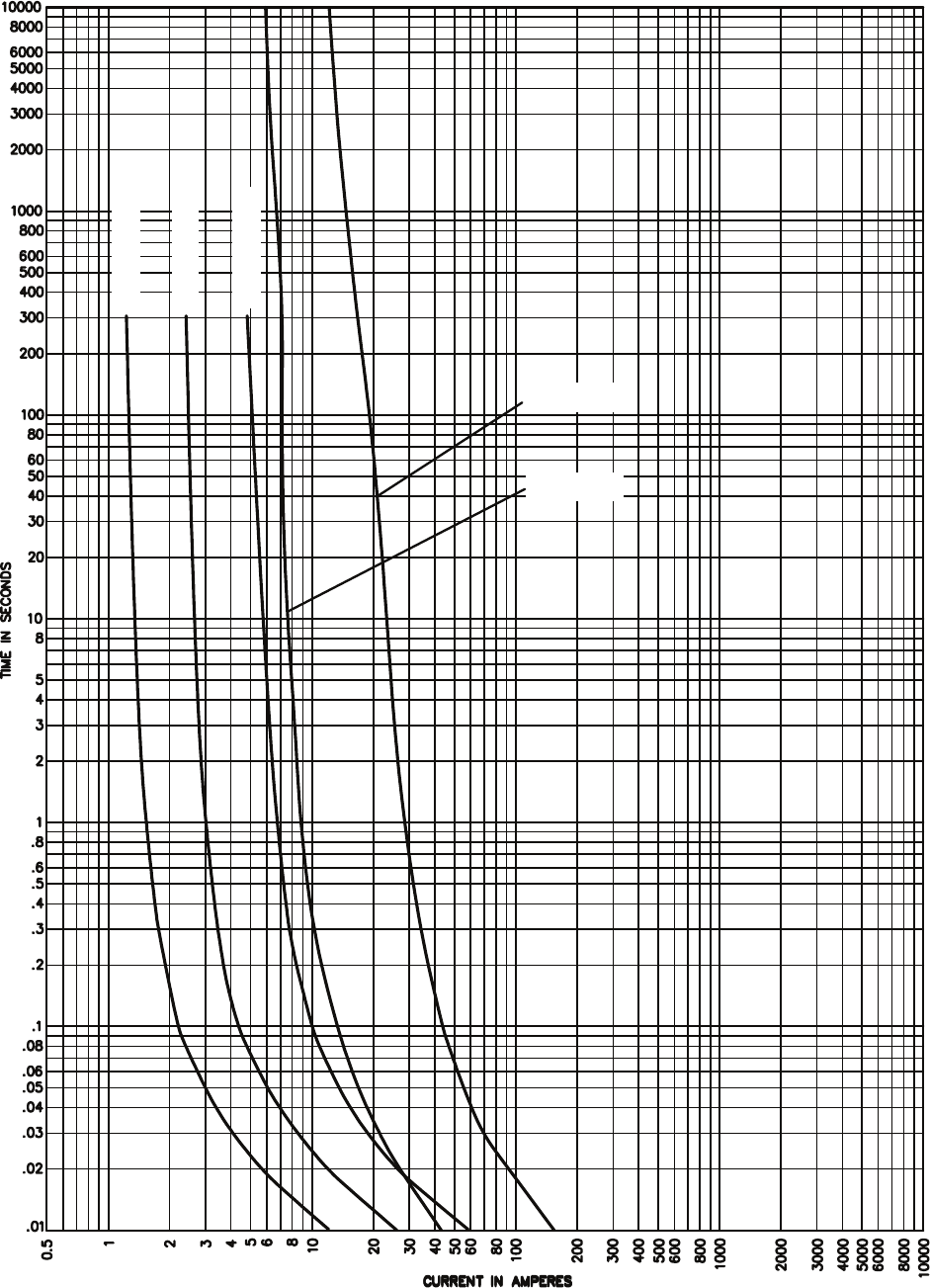

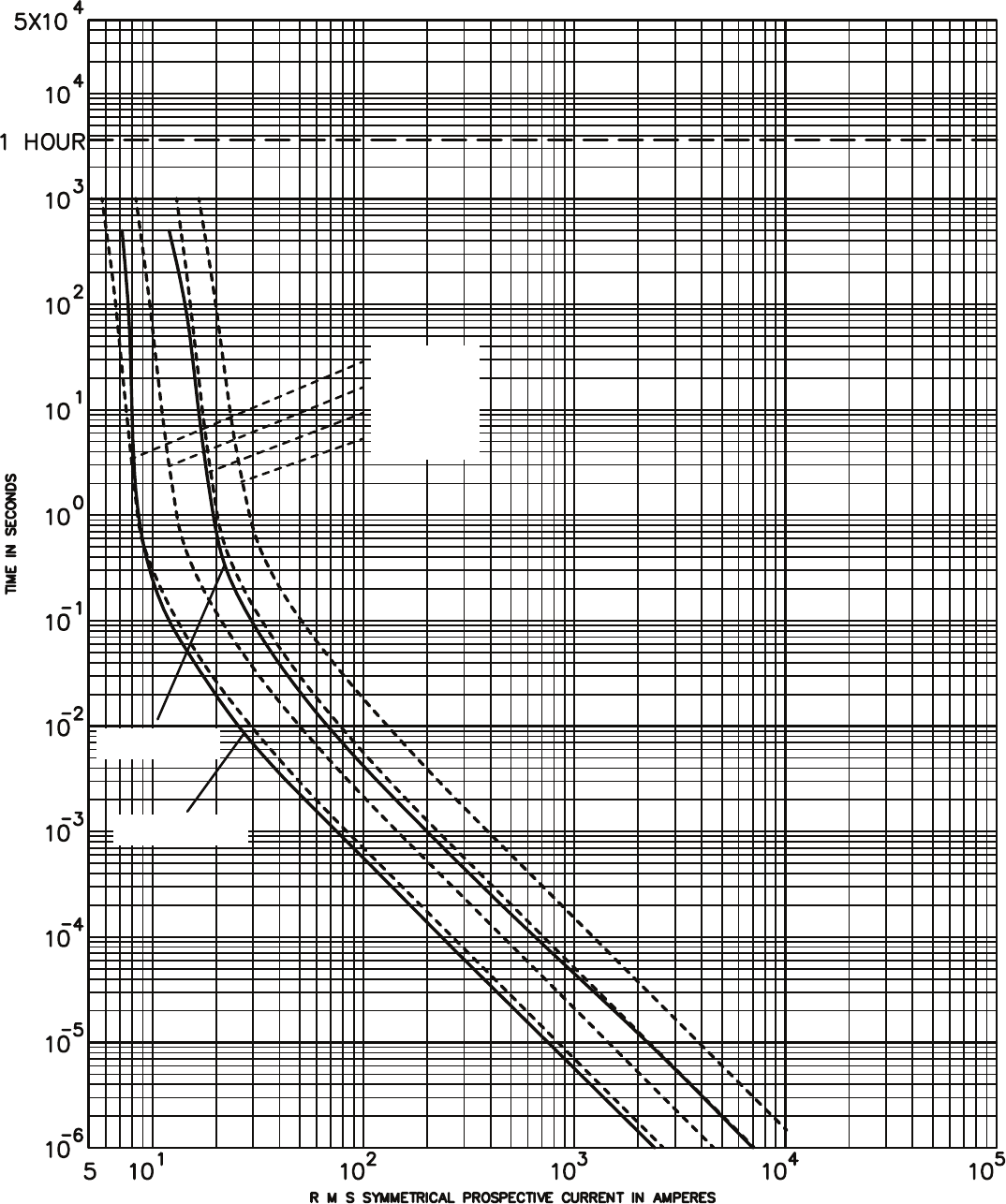

3.6kV Time-current curves — minimum melting for 3.6CAV_, 3.6ABC_ and 3.6ABW_
3.6ABC_, 3.6ABW_, 3.6CAV_
6.3A (ABC/ABW)
10A (ABC/ABW)
3.15A (ABC/ABW)
2A (CAV )
Time in seconds
RMS symmetrical prospective current in amperes
9
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

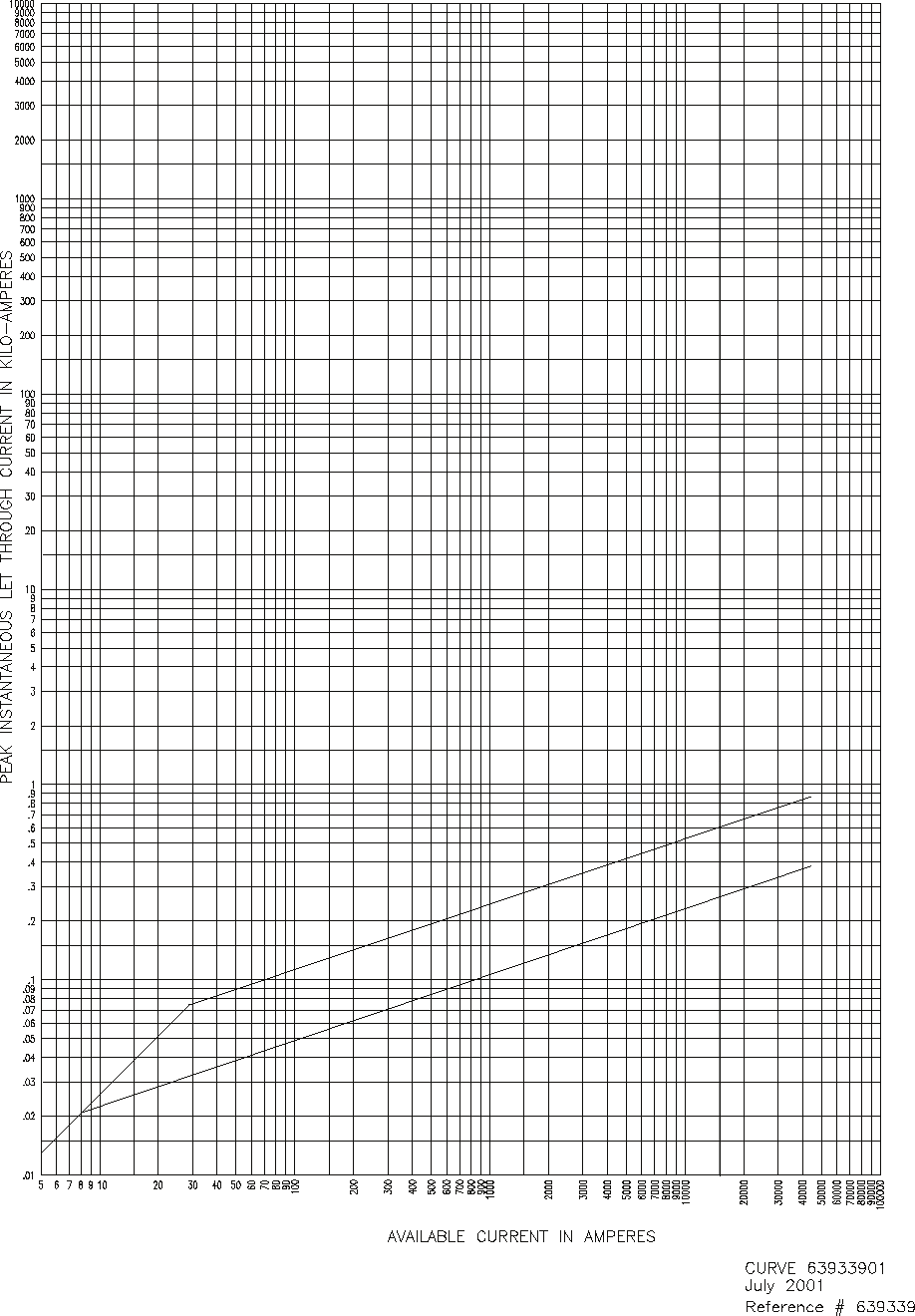

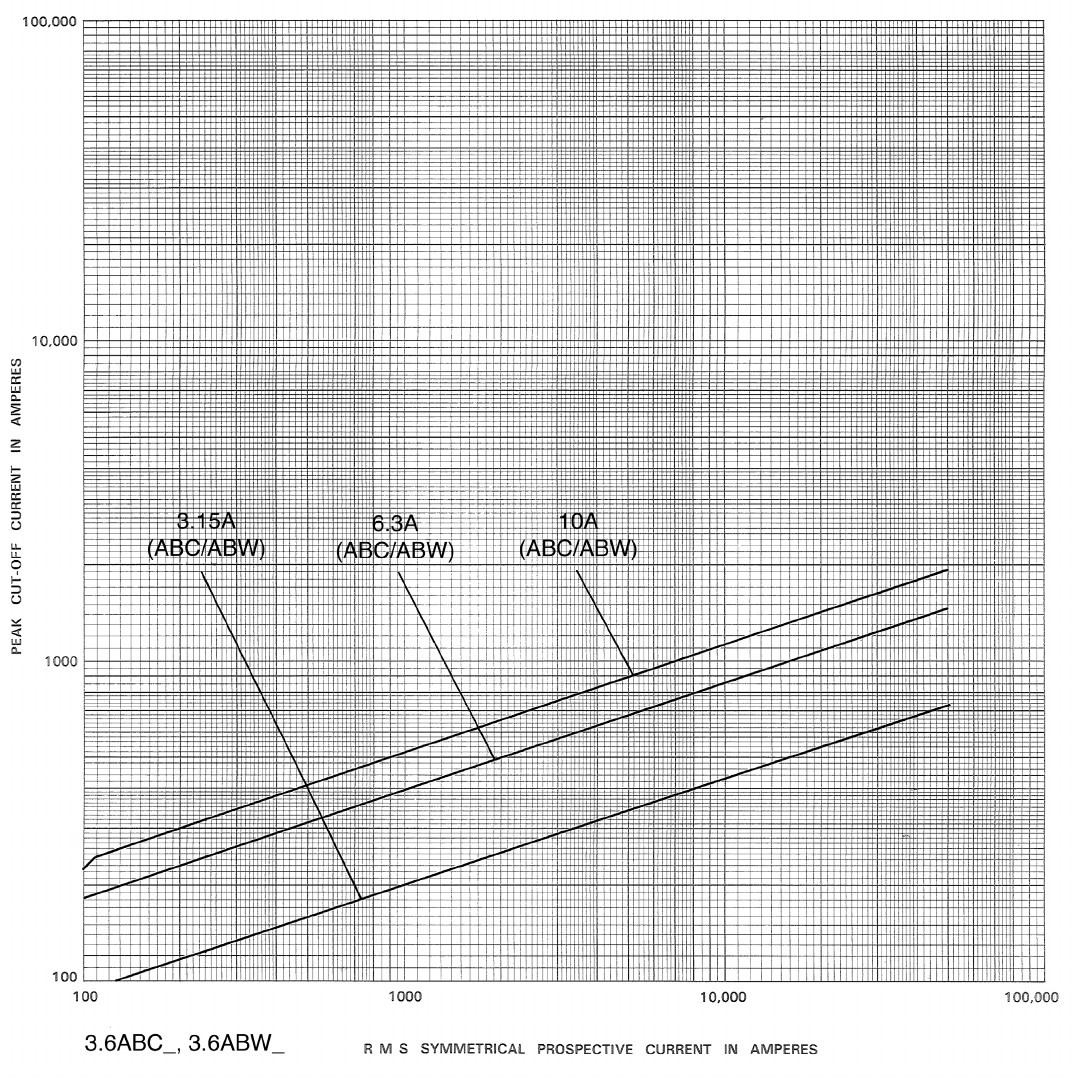

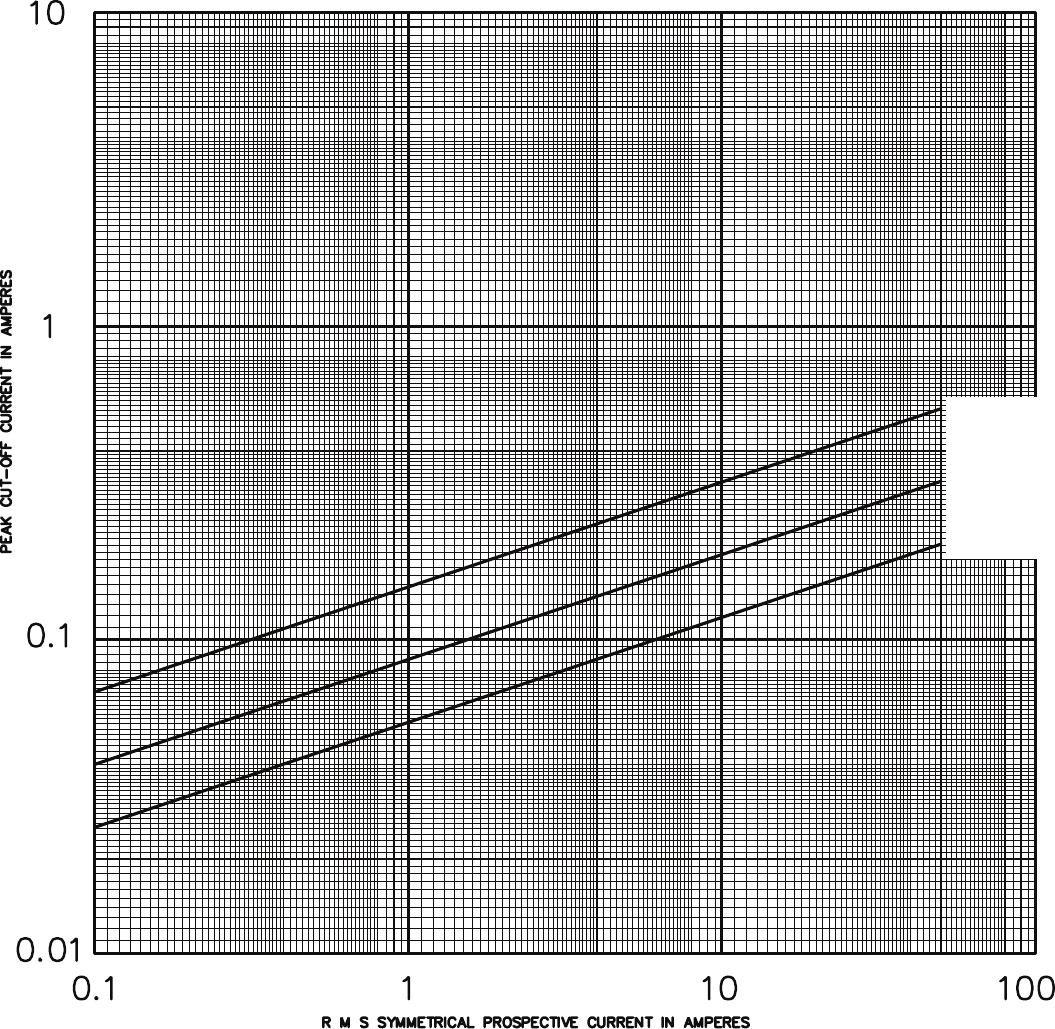

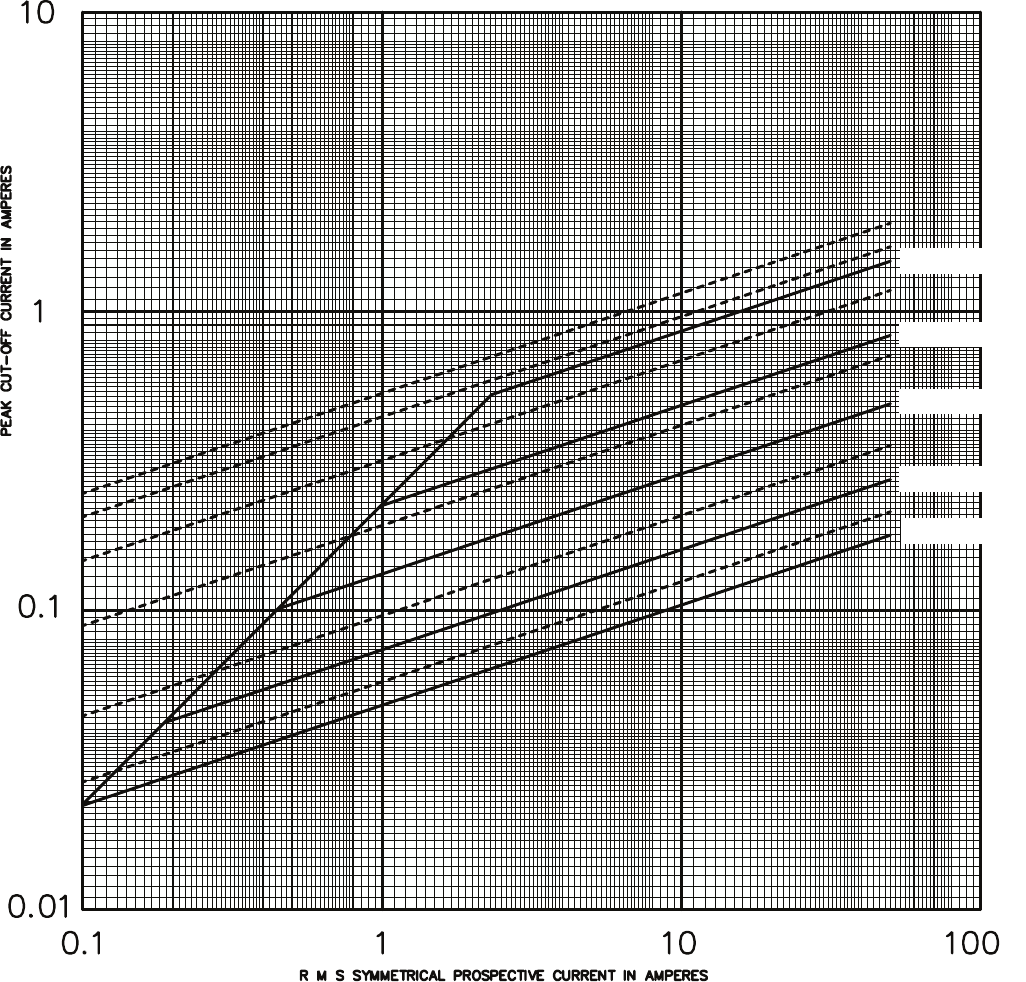

3.6kV Peak let-through curves for 3.6ABC_ and 3.6ABW_
10
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
0.5 5.6 (142) 0.8 (20) 4.8 (122) —5.5AMWNA0.5E (50) 1A1837
0.5 5.6 (142) 1 (25) 4.4 (112) —5.5ABWNA0.5E (50) A3354705
0.5 7.4 (188) 1.6 (41) 6.2 (157) 5.5CAVH0.5E (63) JCW-1/2E (40) 1A0835
0.5 9.5 (241) 1.6 (41) 8.1 (206) 5CLPT-.5E (80)†5NCLPT-.5E-A (63)
15.6 (142) 1 (25) 4.4 (112) —5.5ABWNA1E (50) A3354705
15.6 (142) 0.8 (20) 4.8 (122) —5.5AMWNA1.0E (50) 1A1837
17.4 (188) 1.6 (41) 6.2 (157) 5.5CAVH1E (63) JCW-1E (40) 1A0835
19.5 (241) 1.6 (41) 8.1 (206) 5CLPT-1E (80)†5NCLPT-1E-A (63)
1.5 9.5 (241) 1.6 (41) 8.1 (206) 5CLPT-1.5E (80)†— 1A0835
25.6 (142) 1 (25) 4.4 (112) —5.5ABWNA2E (50) A3354705
25.6 (142) 0.8 (20) 4.8 (122) —5.5AMWNA2.0E (50) 1A1837
27.4 (188) 1.6 (41) 6.2 (157) 5.5CAVH2E (63) JCW-2E (40) 1A0835
35.6 (142) 1 (25) 4.4 (112) —5.5ABWNA3E (50) A3354705
35.6 (142) 0.8 (20) 4.8 (122) —5.5AMWNA3.0E (50) 1A1837
39.5 (241) 1.6 (41) 8.1 (206) 5CLPT-3E (80) — 1A0835
37.4 (188) 1.6 (41) 6.2 (157) JCW-3E (40) 1A0835
45.6 (142) 0.8 (20) 4.8 (122) —5.5AMWNA4.0E (50) 1A1837
47.3 (185) 1.6 (41) 5.9 (150) —JCW-4E (40) 1A0835
59.5 (241) 1.6 (41) 8.1 (206) 5CLPT-5E (80) — 1A0835
55.6 (142) 1 (25) 4.4 (112) —5.5ABWNA5E (50) A3354705
55.6 (142) 0.8 (20) 4.8 (122) —5.5AMWNA5.0E (50) 1A1837
57.3 (185) 1.6 (41) 5.9 (150) —JCW-5E (40) 1A0835
10 9.5 (241) 1.6 (41) 8.1 (206) 5CLPT-10E (80) —1A0835
15 7.4 (188) 1.6 (41) 6.2 (157) —5.5CAV15E (63)
† Does not comply with ANSI C37.46 for “E” rating.
CLPT Type mountings and hardware 5.5kV maximum (4.8kV nominal)*
Amp rating
Fuse mounting
type**
BIL
(kV)
Catalog number
Mounting (including live parts, end fittings)*** Live parts (including
end fittings)***
End fittings
(disconnect only)Porcelain insulator Glass-polyester insulator
CLPT and NCLPT-A Mounting
0.5–10 Non-disconnect 60 5CLPT-PNM-A 5CLPT-GNM-A CLPT-NL —
Disconnect†60 5CLPT-PDM-A 5CLPT-GDM-A CLPT-DL CLPT-DF
* Refers to 5CLPT and 5NCLPT-A fuses only.
** See page 70 for dimensions and diagrams of typical mounting.
*** End fittings supplied only when required.
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
11
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

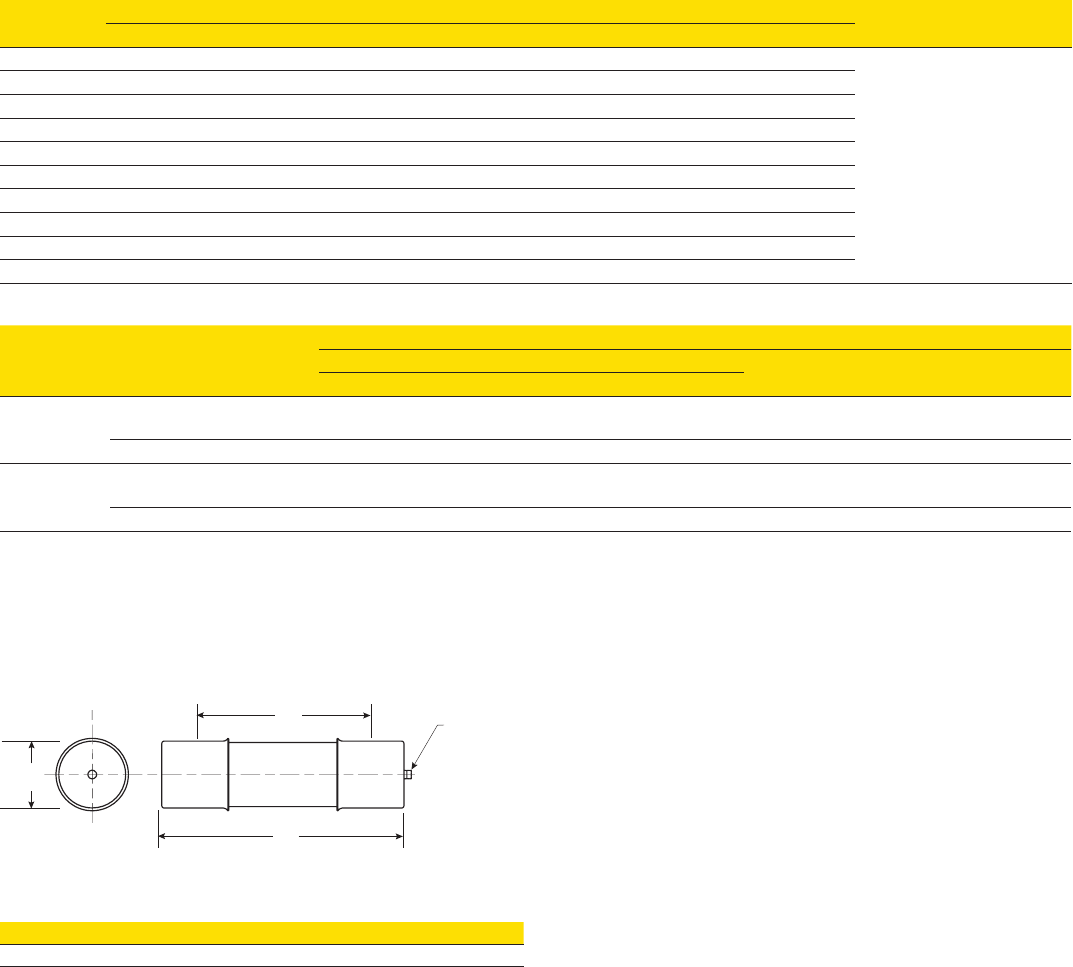

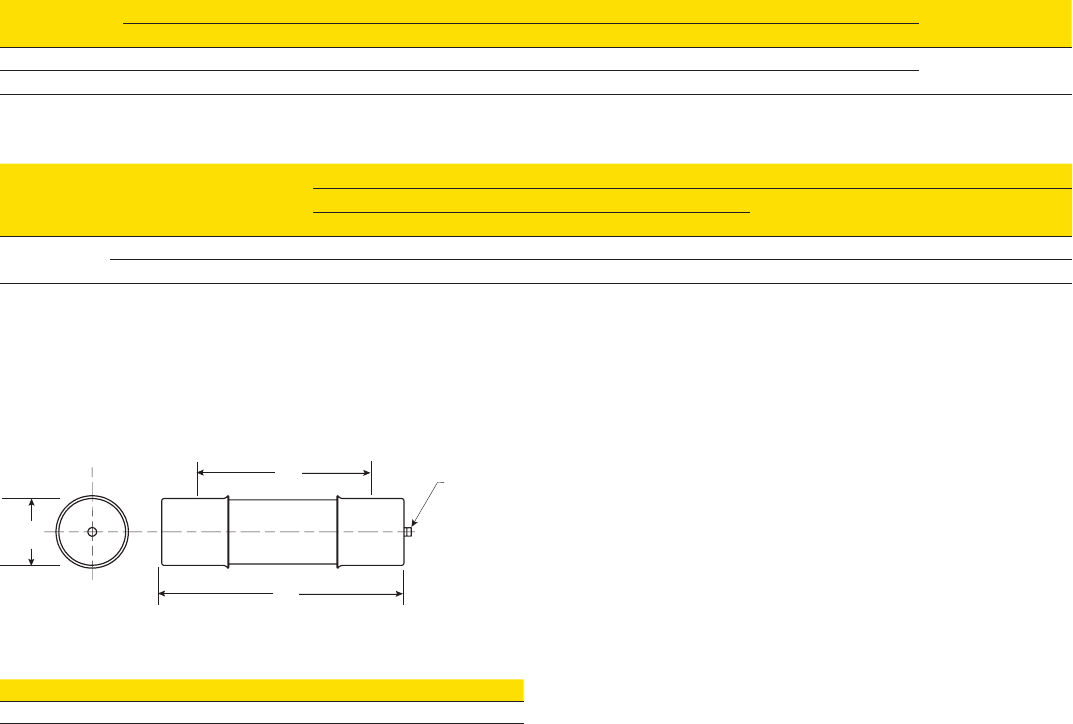

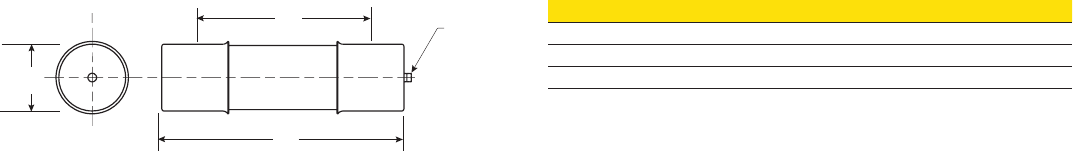

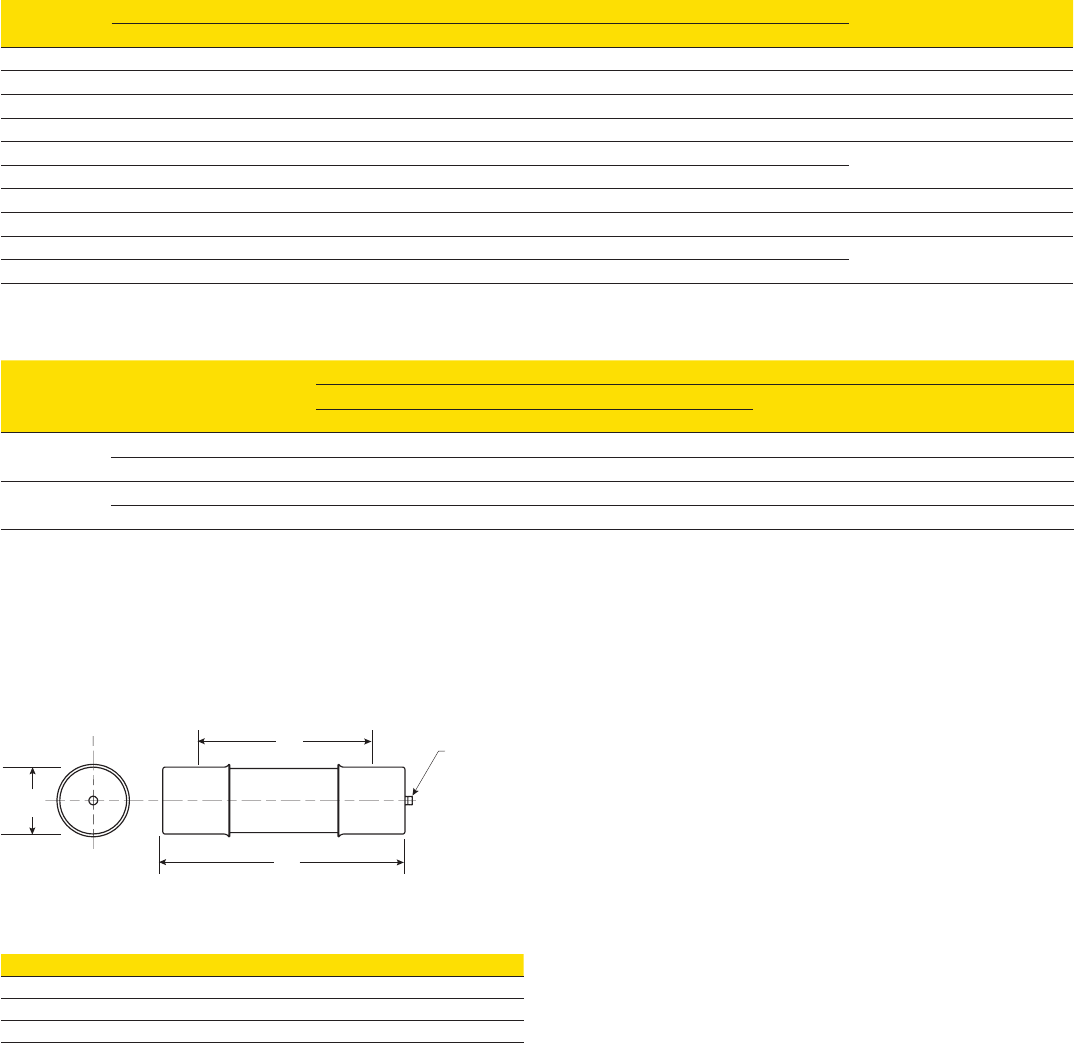

Dimensions (see catalog number tables for values)
Indicator
A
B
C
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 0.8 (20mm) dia. fuses 1A1837
Open fuseclip for 1.0 (25.4mm) dia. fuses A3354705
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
12
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

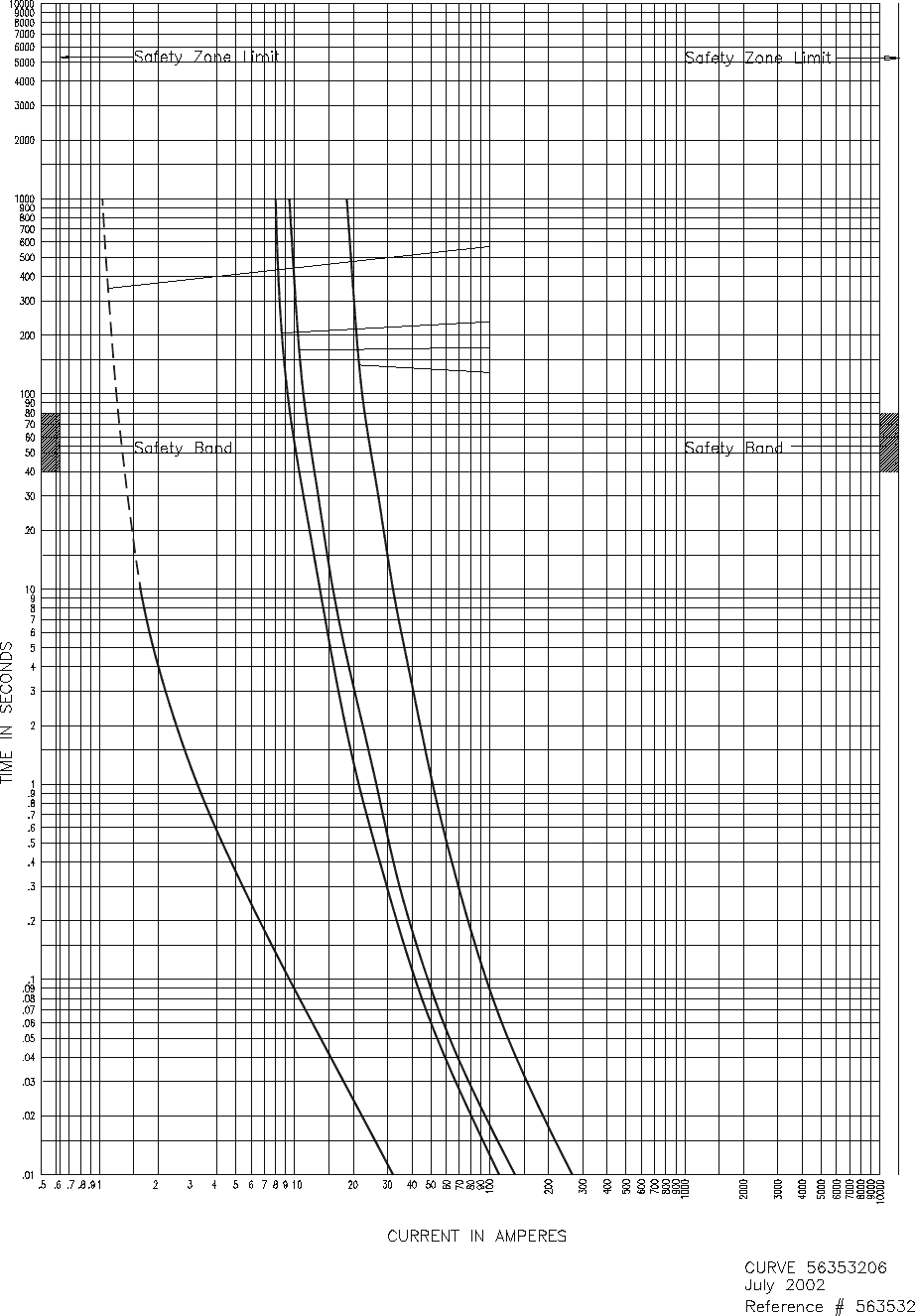

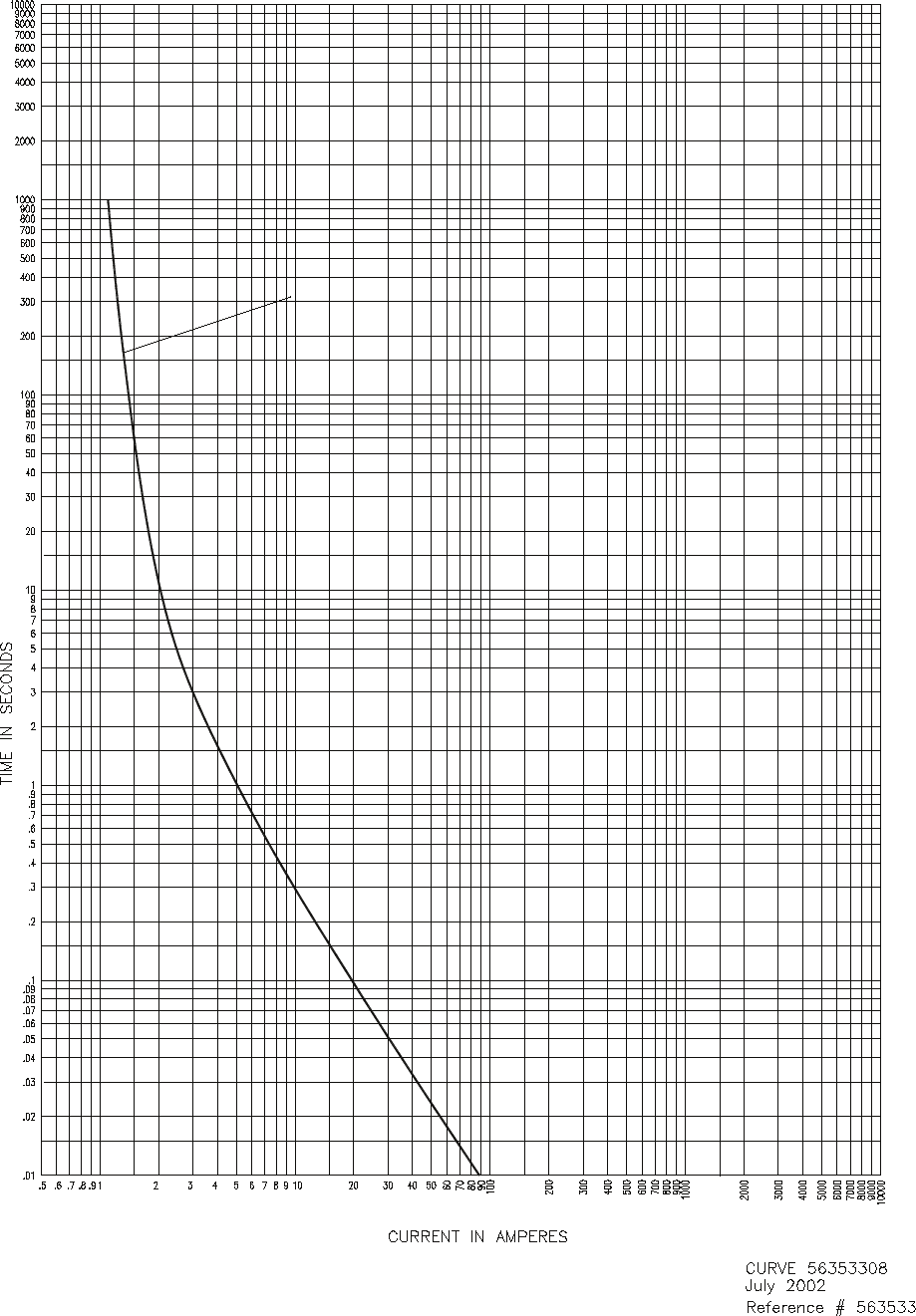

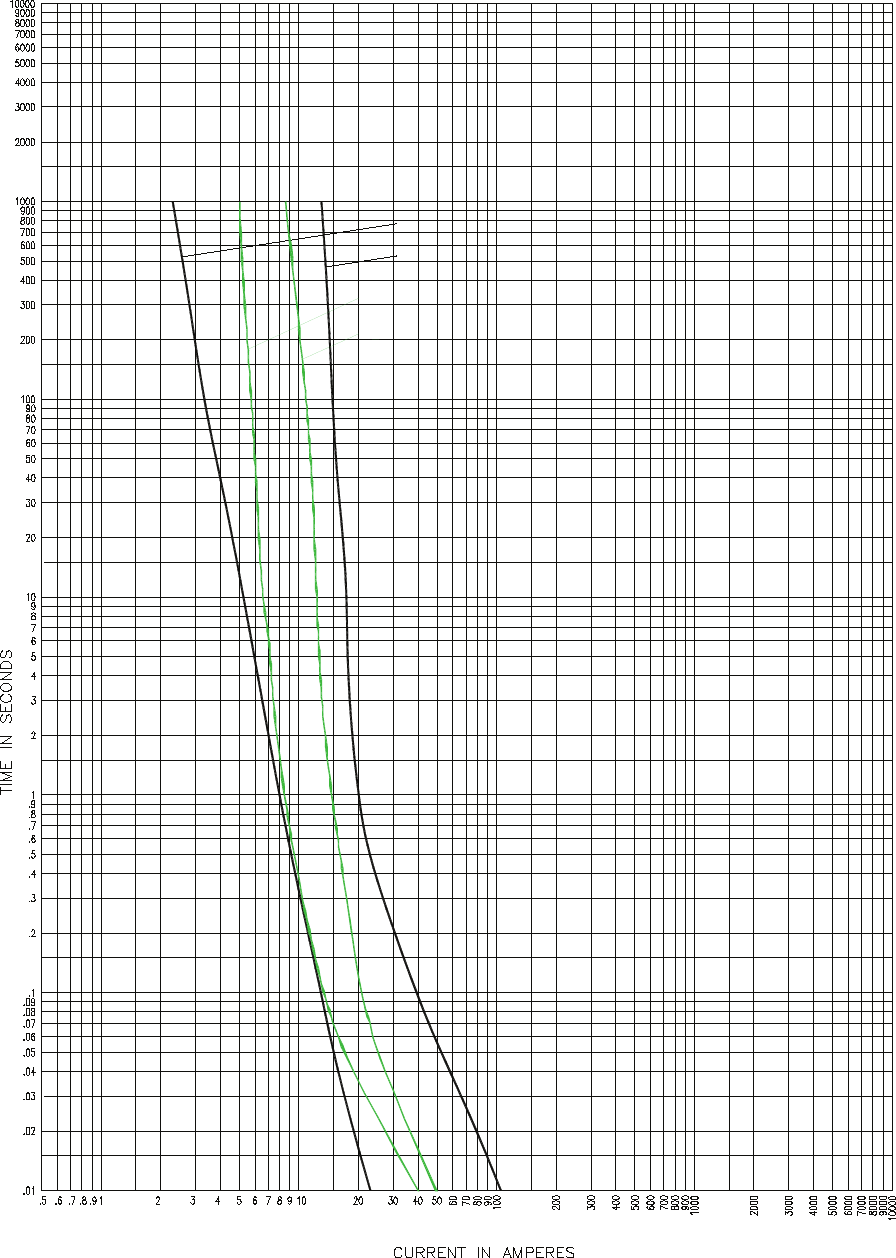

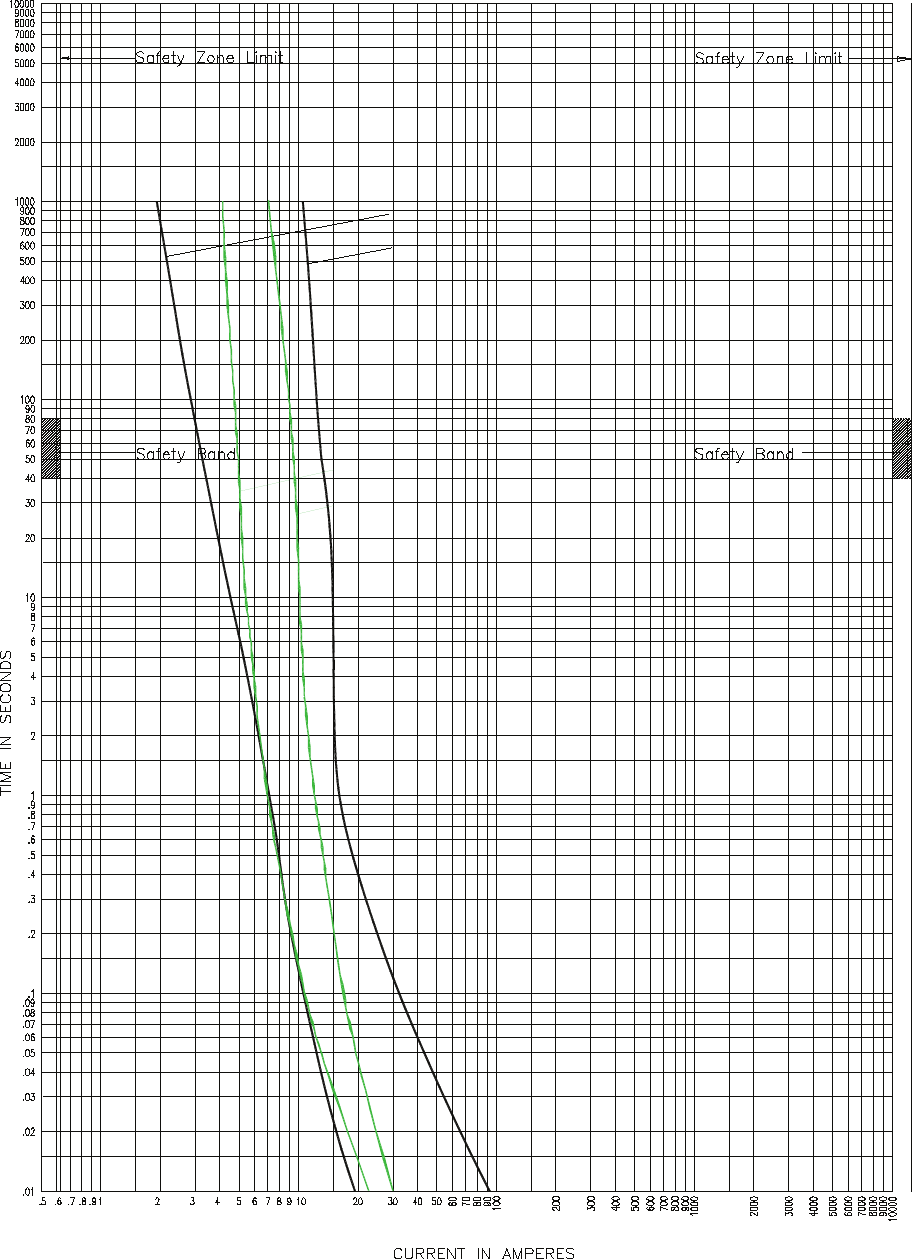

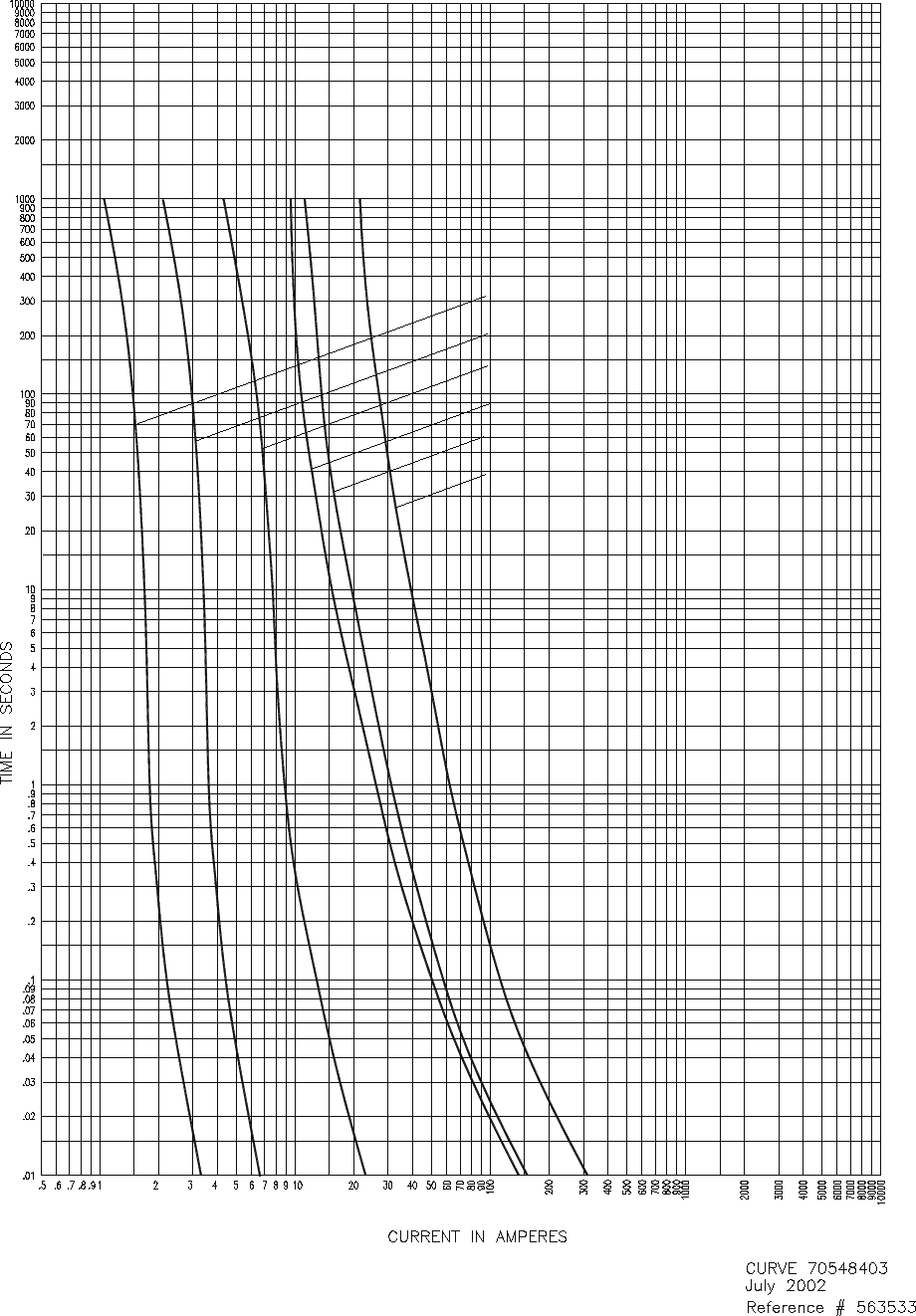

5.5kV time-current curves — minimum melting for 5NCLPT-_-A
5NCLPT-_E-A
13
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV time-current curves — total clearing for 5NCLPT-_-A
5NCLPT-_E-A
14
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

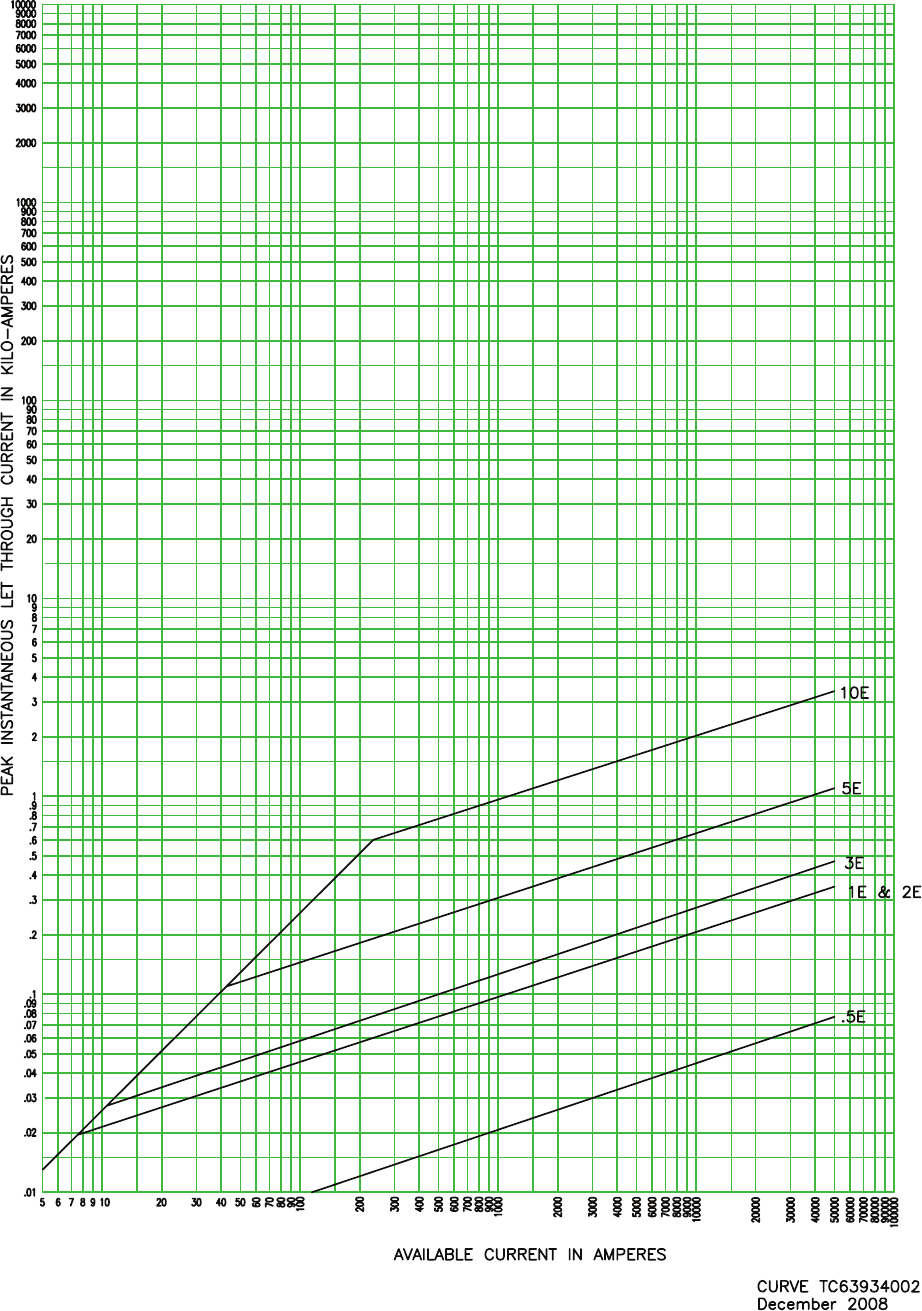

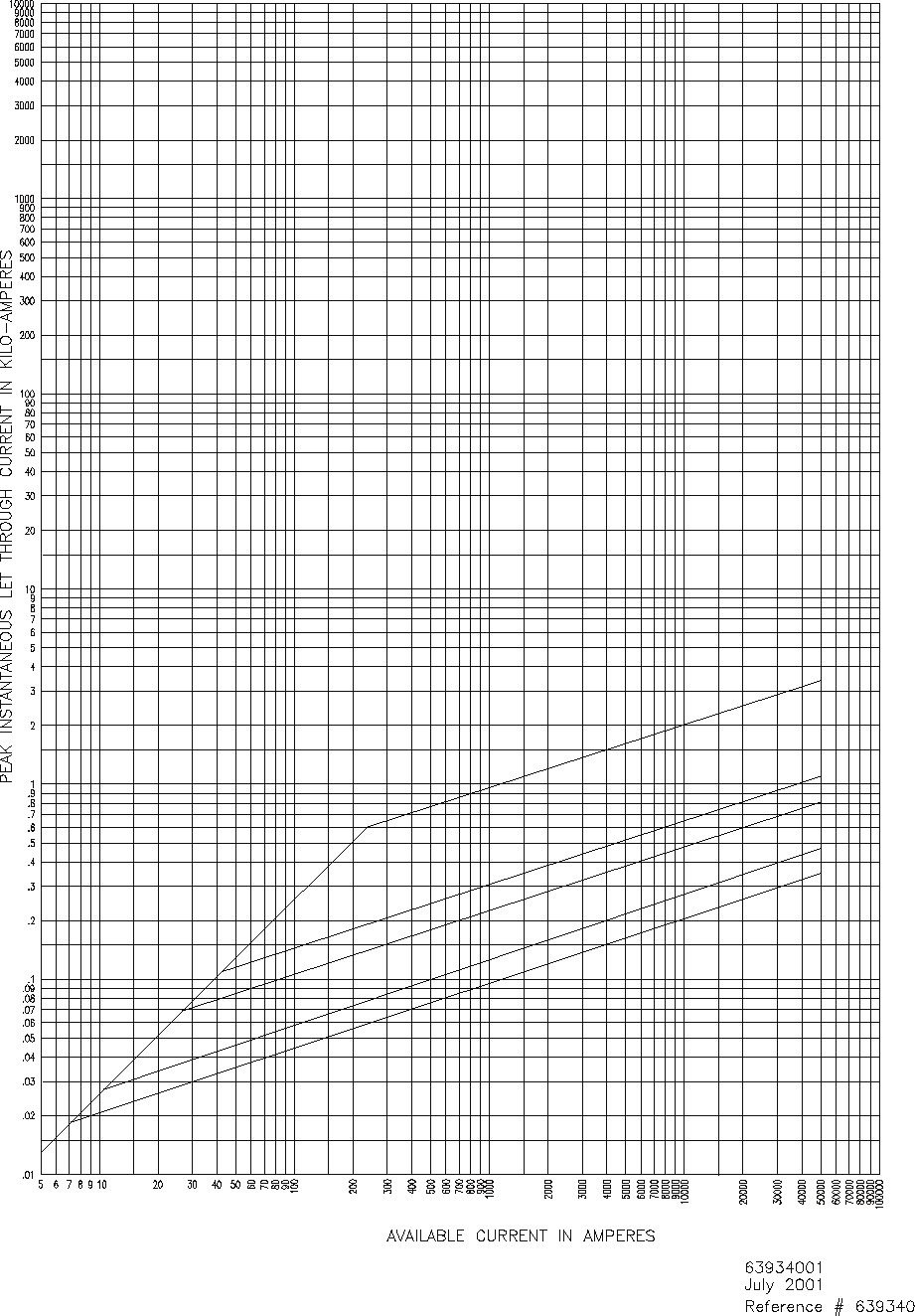

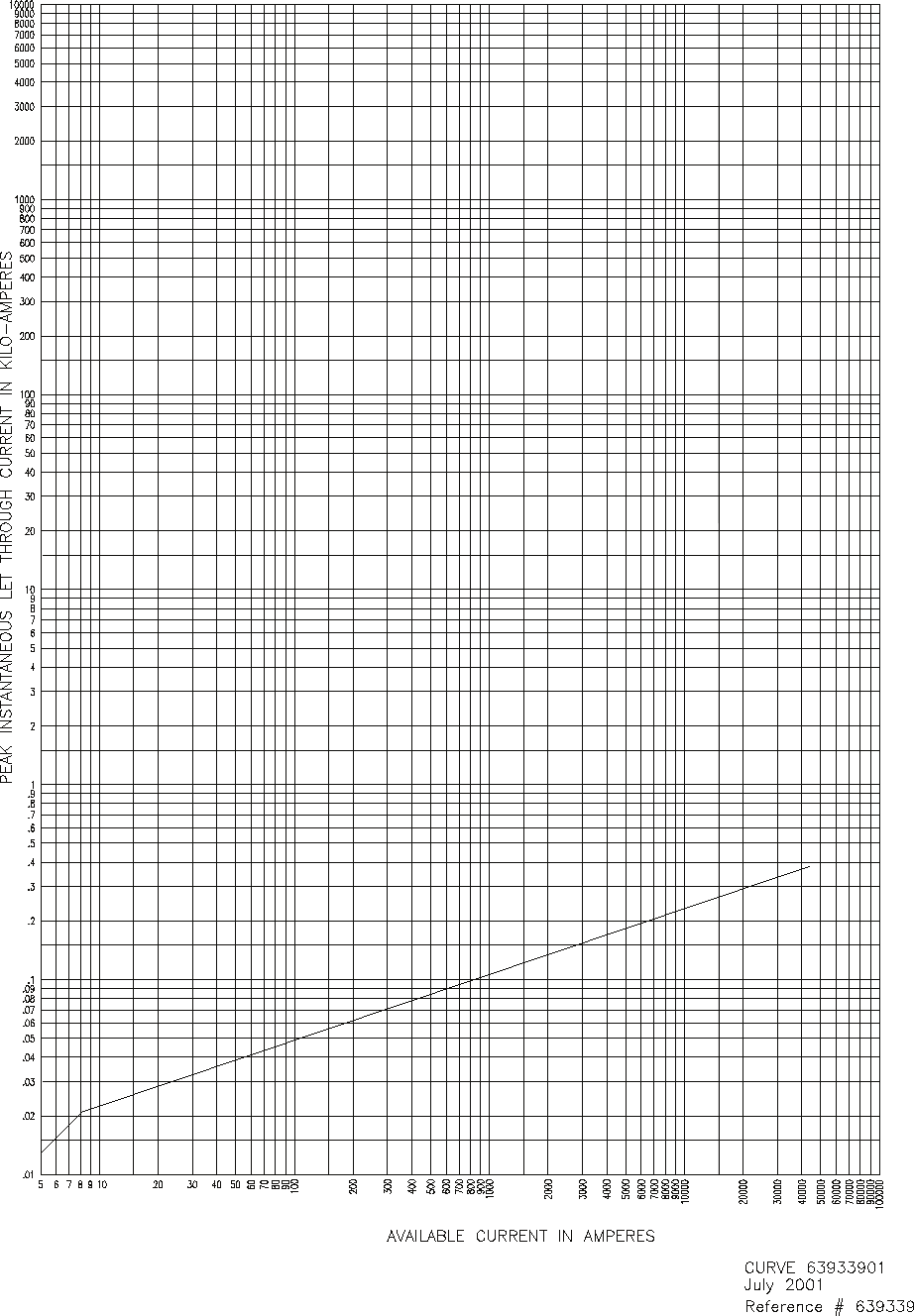

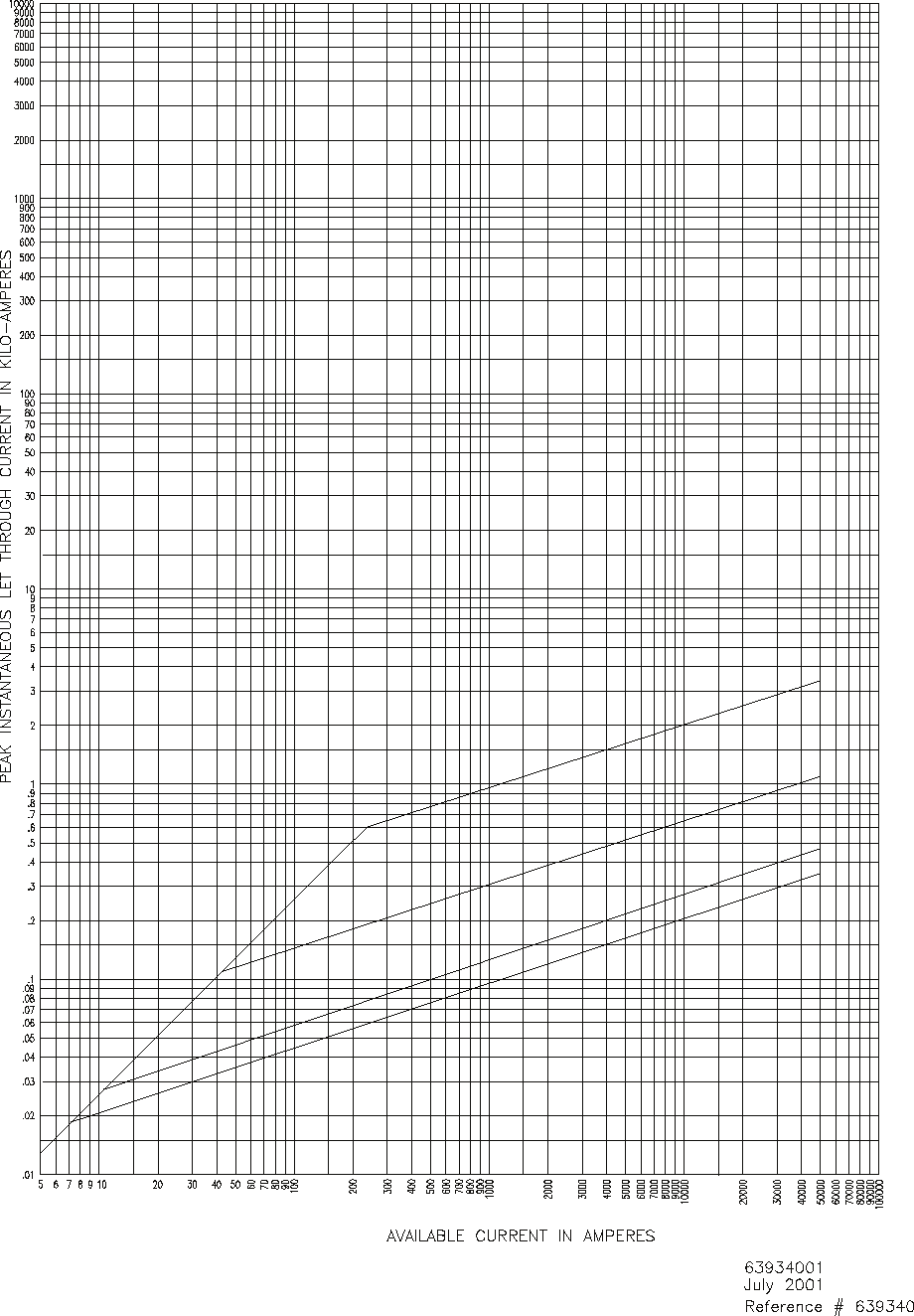

5.5kV peak let-through curves for 5NCLPT-_-A
15
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

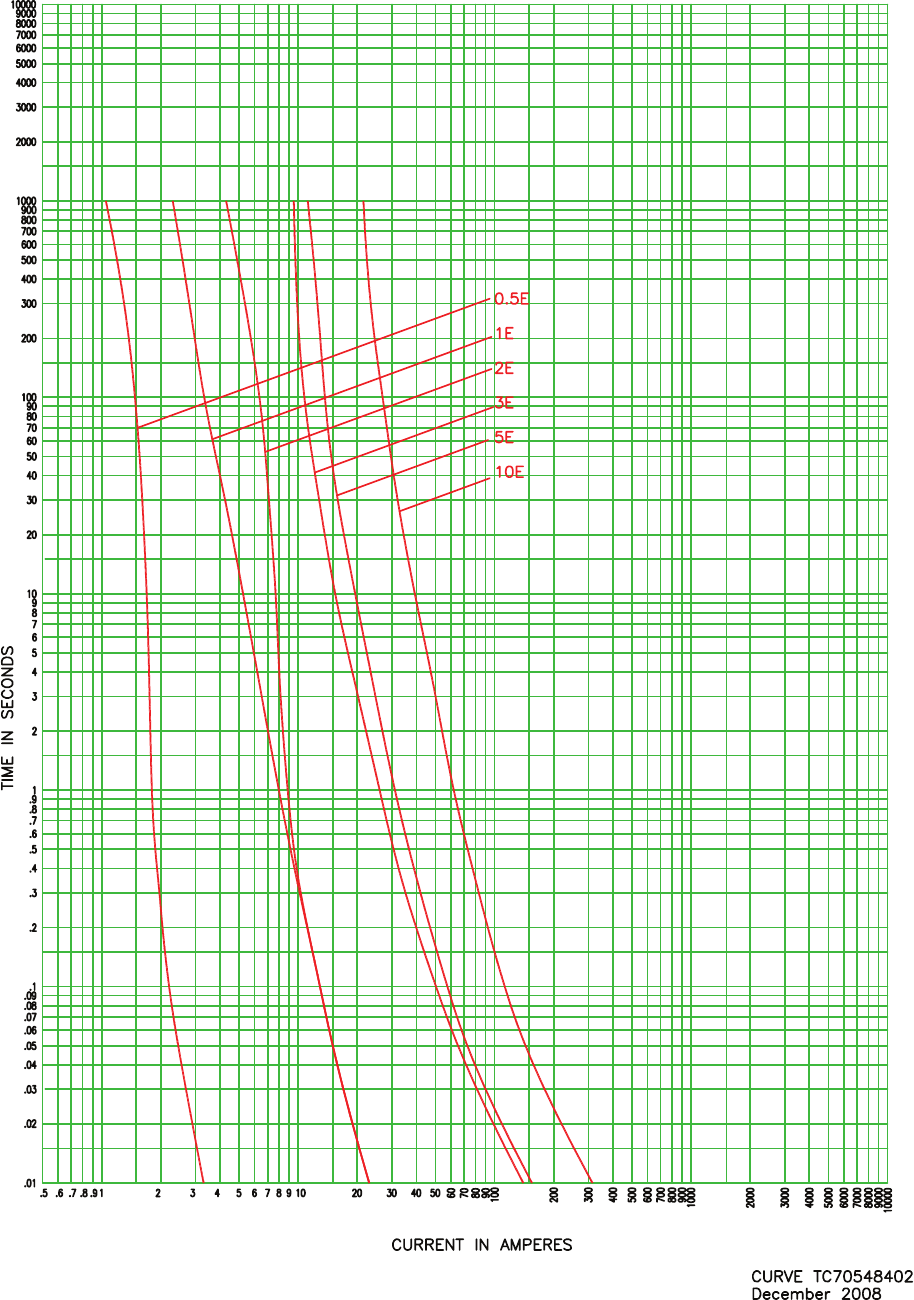

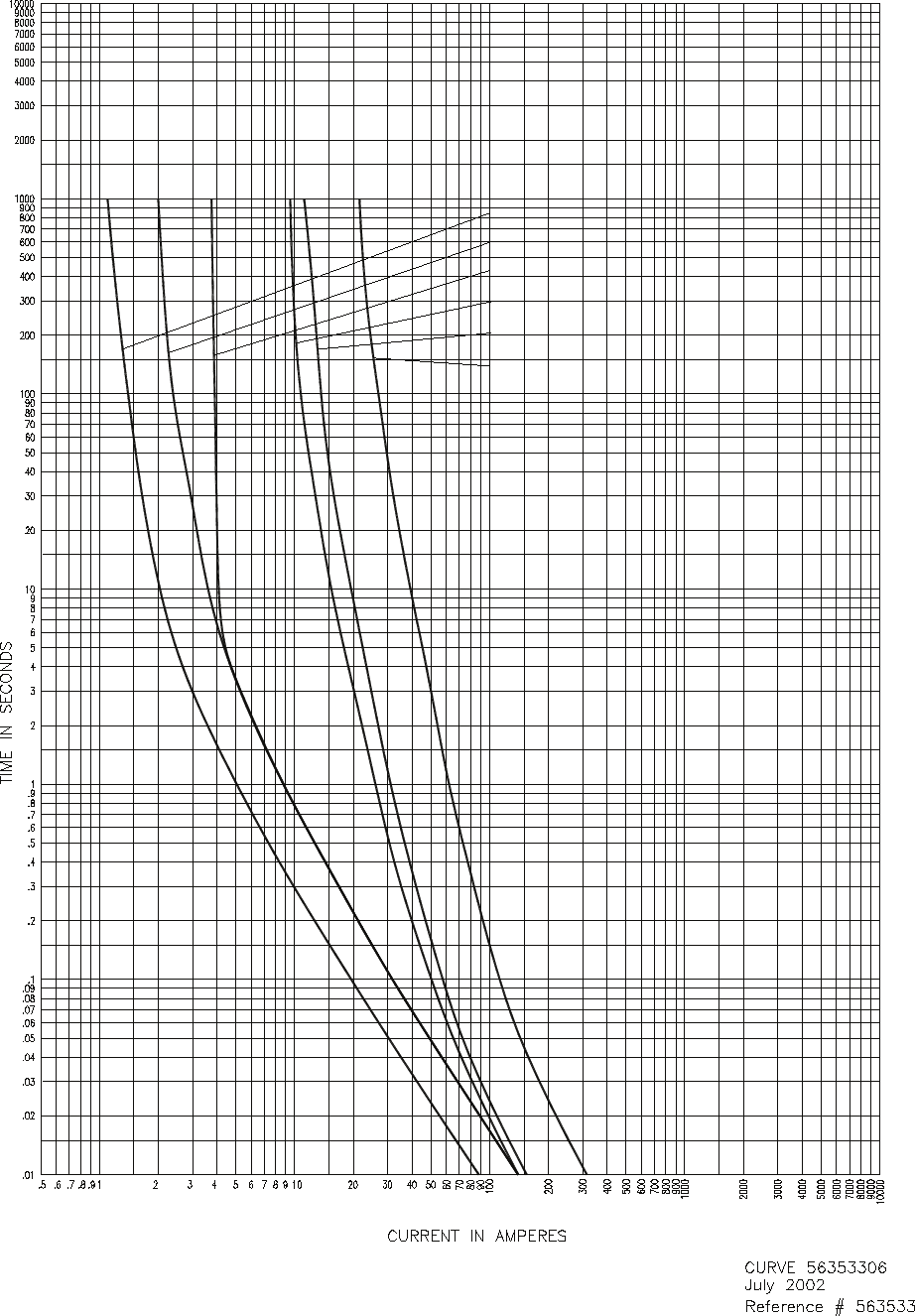

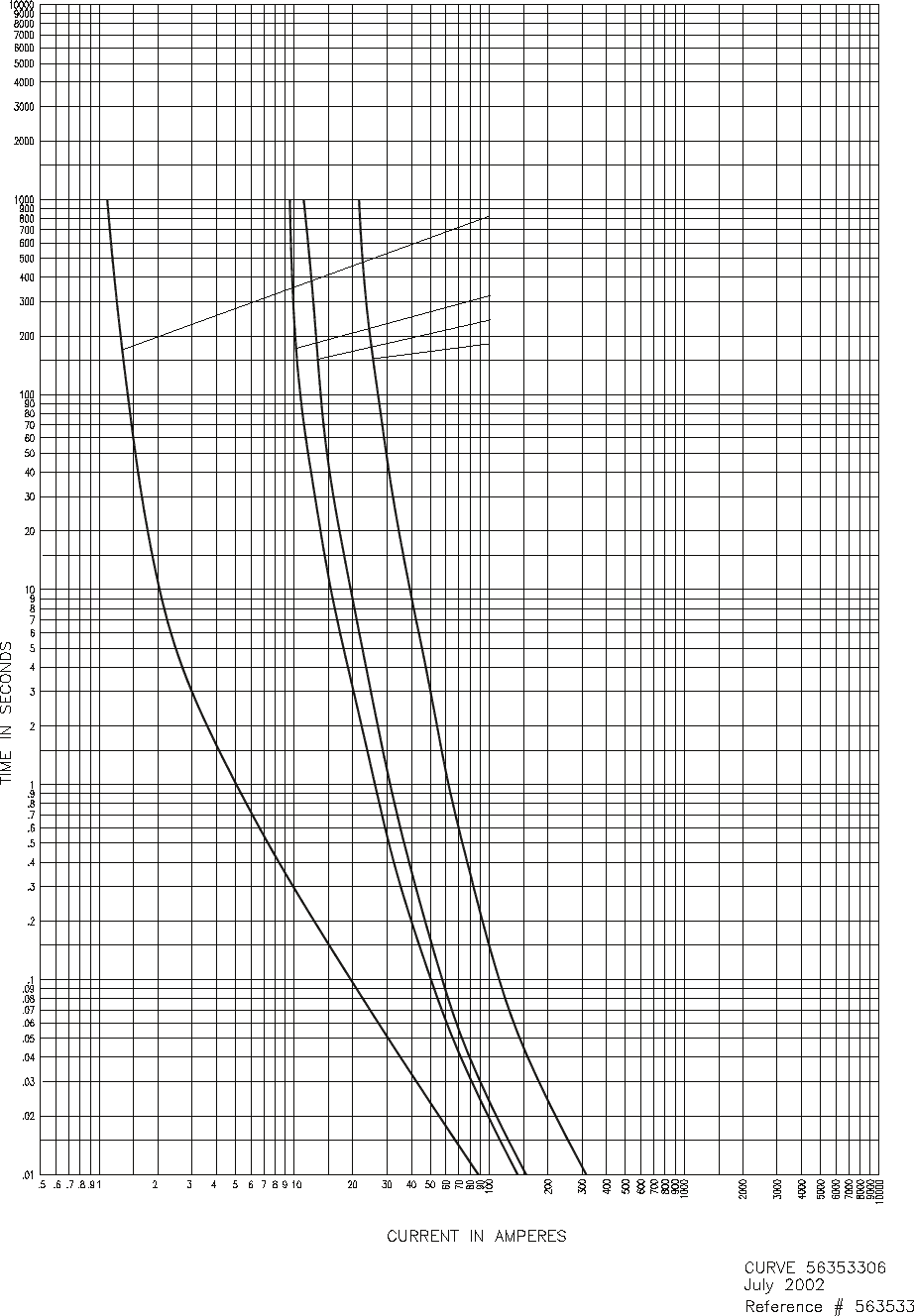

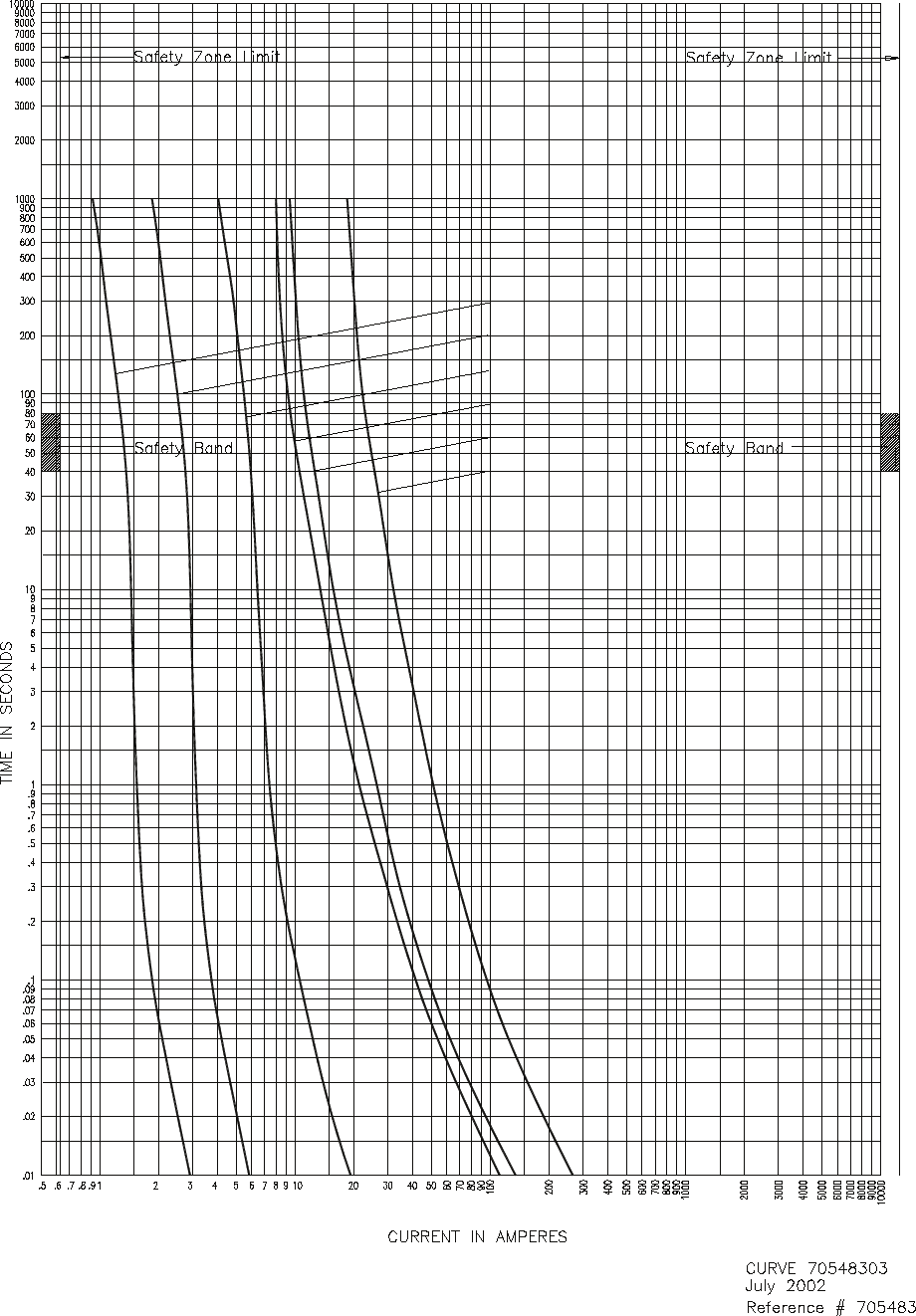

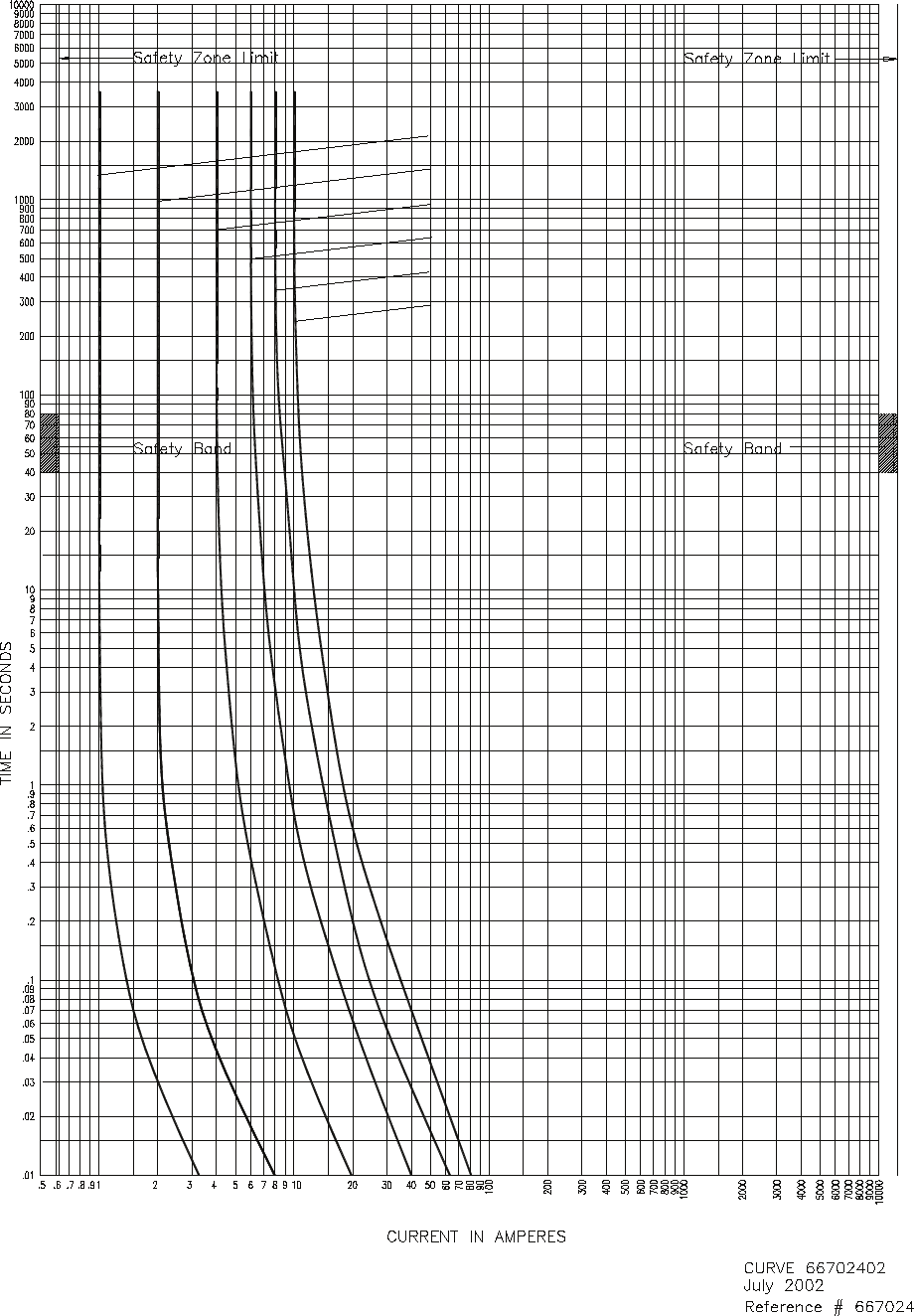

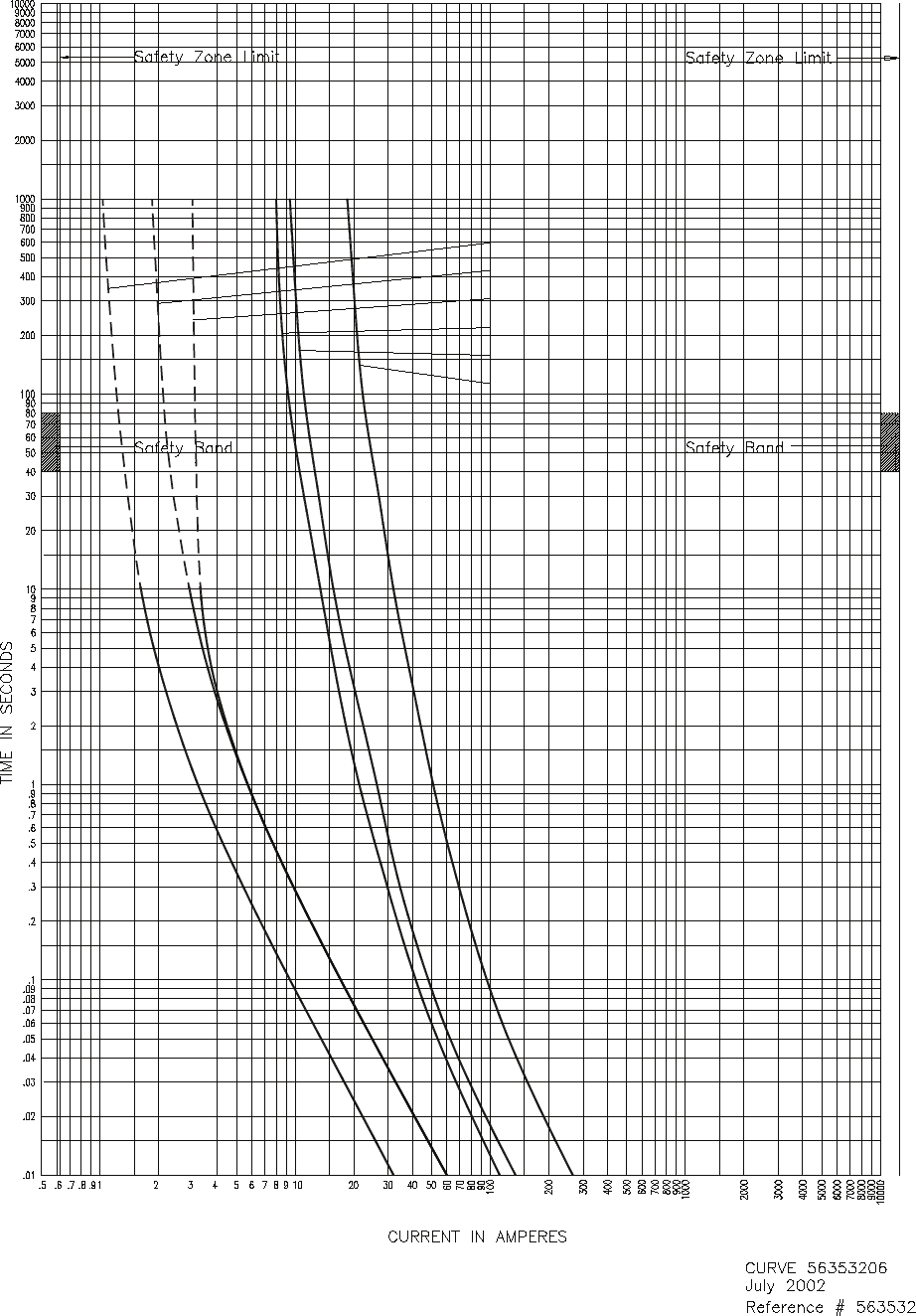

5.5kV time-current curves — minimum melting for 5NCLPT_
0.5A
3A
5A
4A
2A
1A
16
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

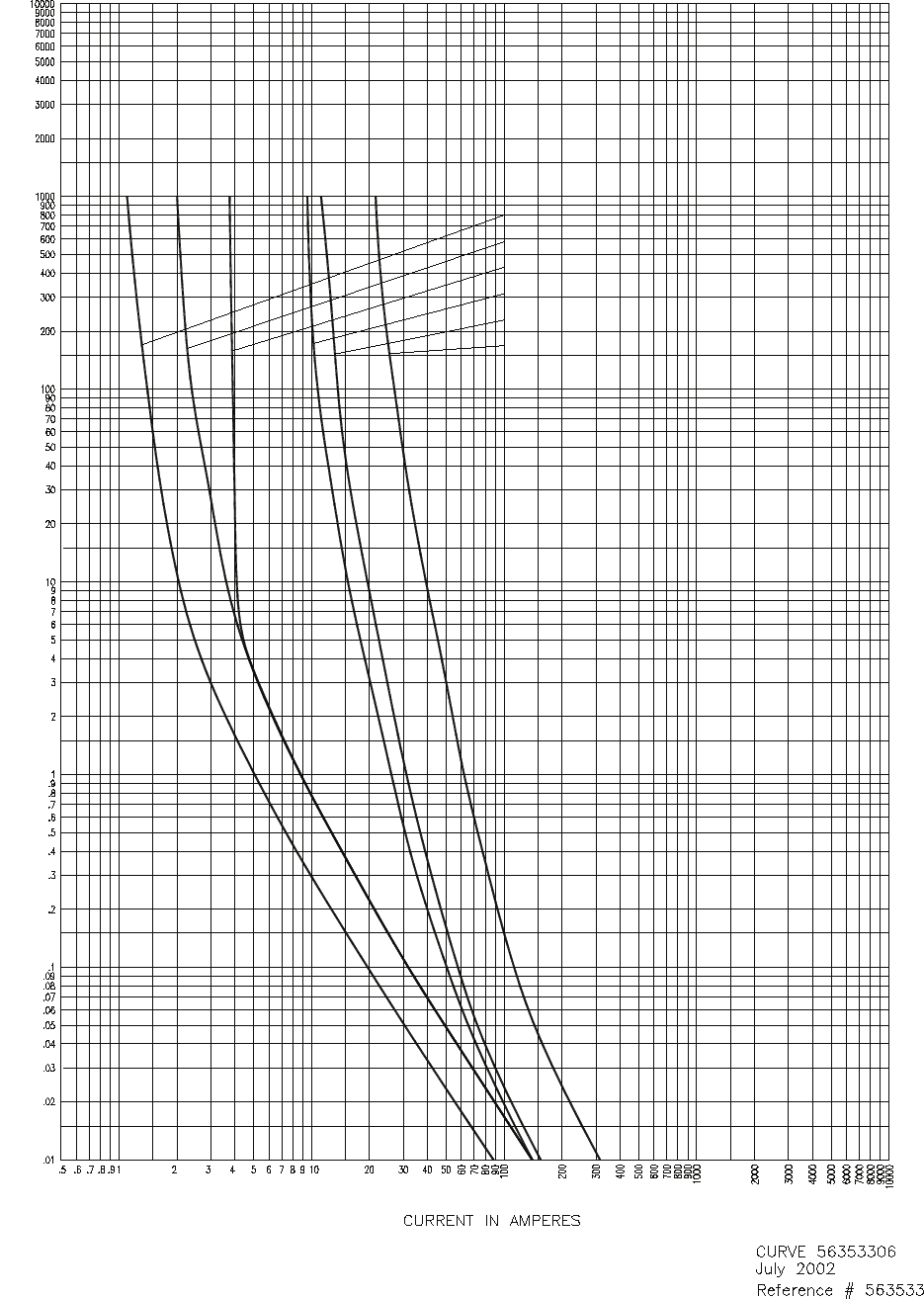

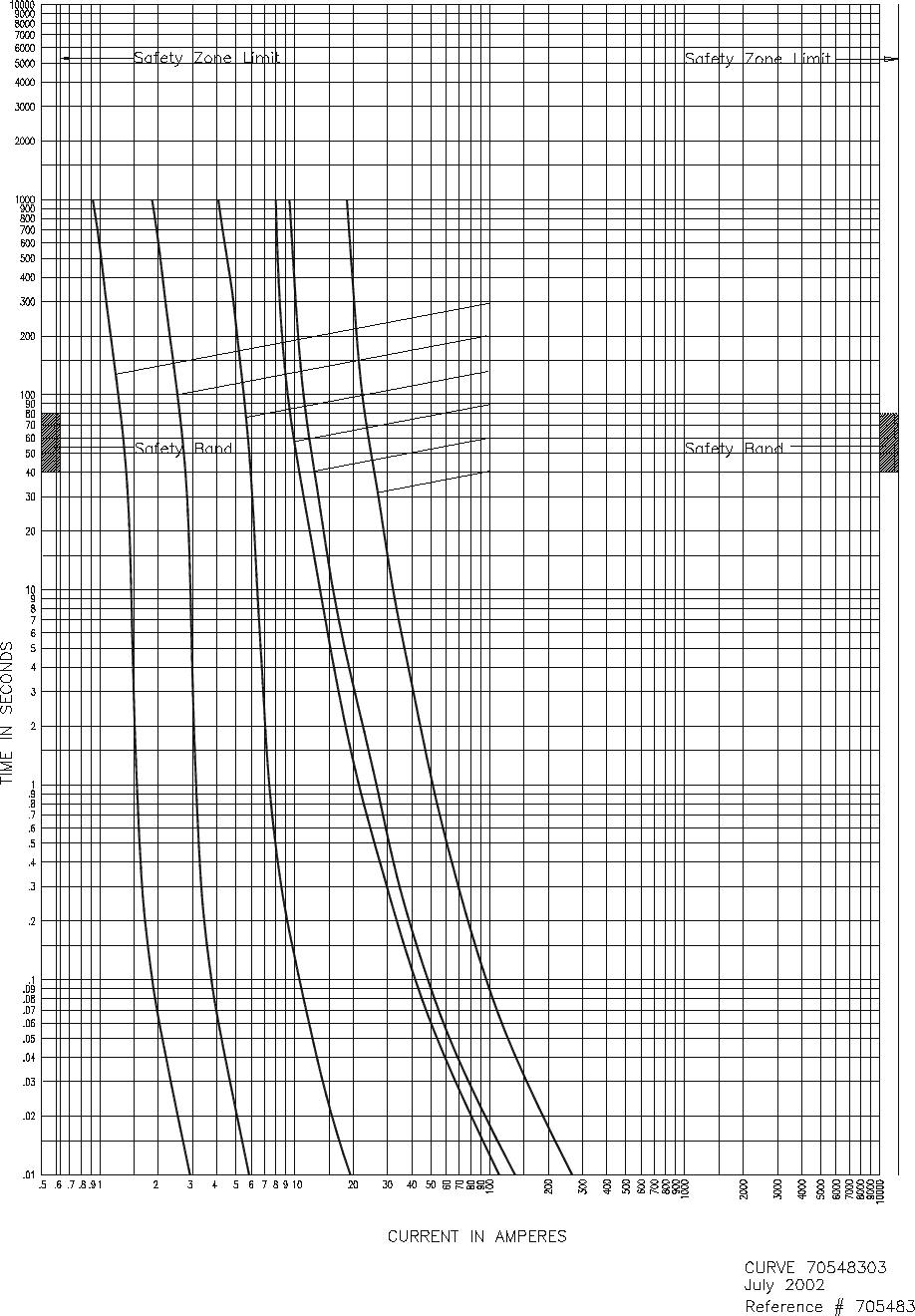

5.5kV time-current curves — total clearing for 5NCLPT_
0.5A
3A
5A
4A
2A
1A
17
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

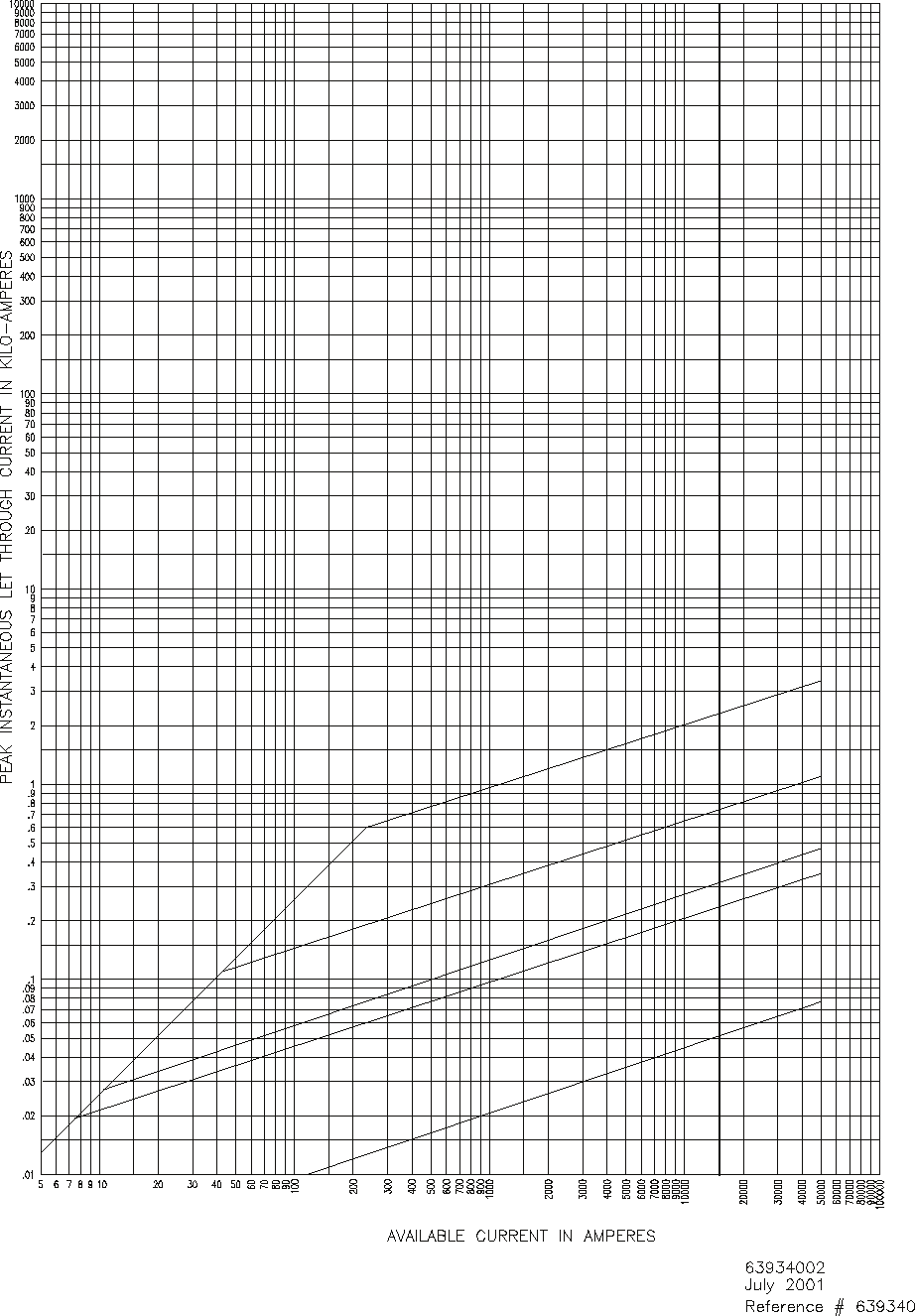

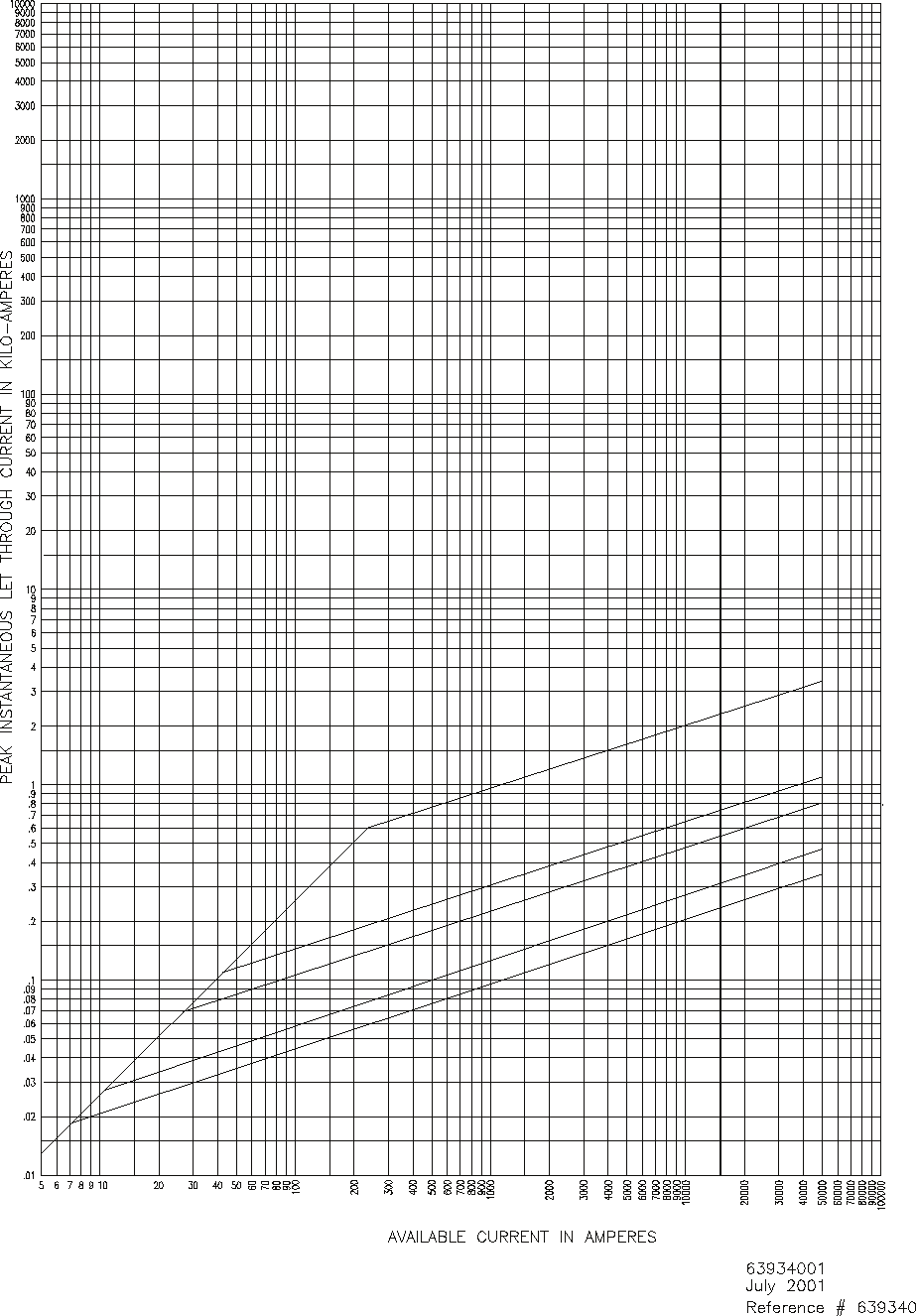

5.5kV peak let-through curves for 5NCLPT_
5NCLPT-_E
0.5A
3A
5A
4A
2A
1A
18
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV time-current curves — minimum melting for 5CLPT_
0.5A
3A
1.5A
1A
5A
10A
5CLPT-_E
0.5, 1 and 1.5 A fuse melt times in the dotted line region
may not be assured due to manufacturing variations.
The dotted lines show nominal operation. Some individual
fuses may not open until current at 10-second mark is applied.
19
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV Time-current curves — total clearing for 5CLPT_
5CLPT-_E
0.5A
3A
1.5A
1A
5A
10A
Times in seconds
20
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV peak let-through curves for 5CLPT_
5CLPT-_E
10A
0.5A
1A & 1.5A
3A
5A
21
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV time-current curves — minimum melting for 5.5CAV_ and 5.5CAVH_
5.5CAV_, 5.5CAVH_
15A (CAV )
0.5A (CAVH)
1A (CAVH)
2A (CAVH)
22
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

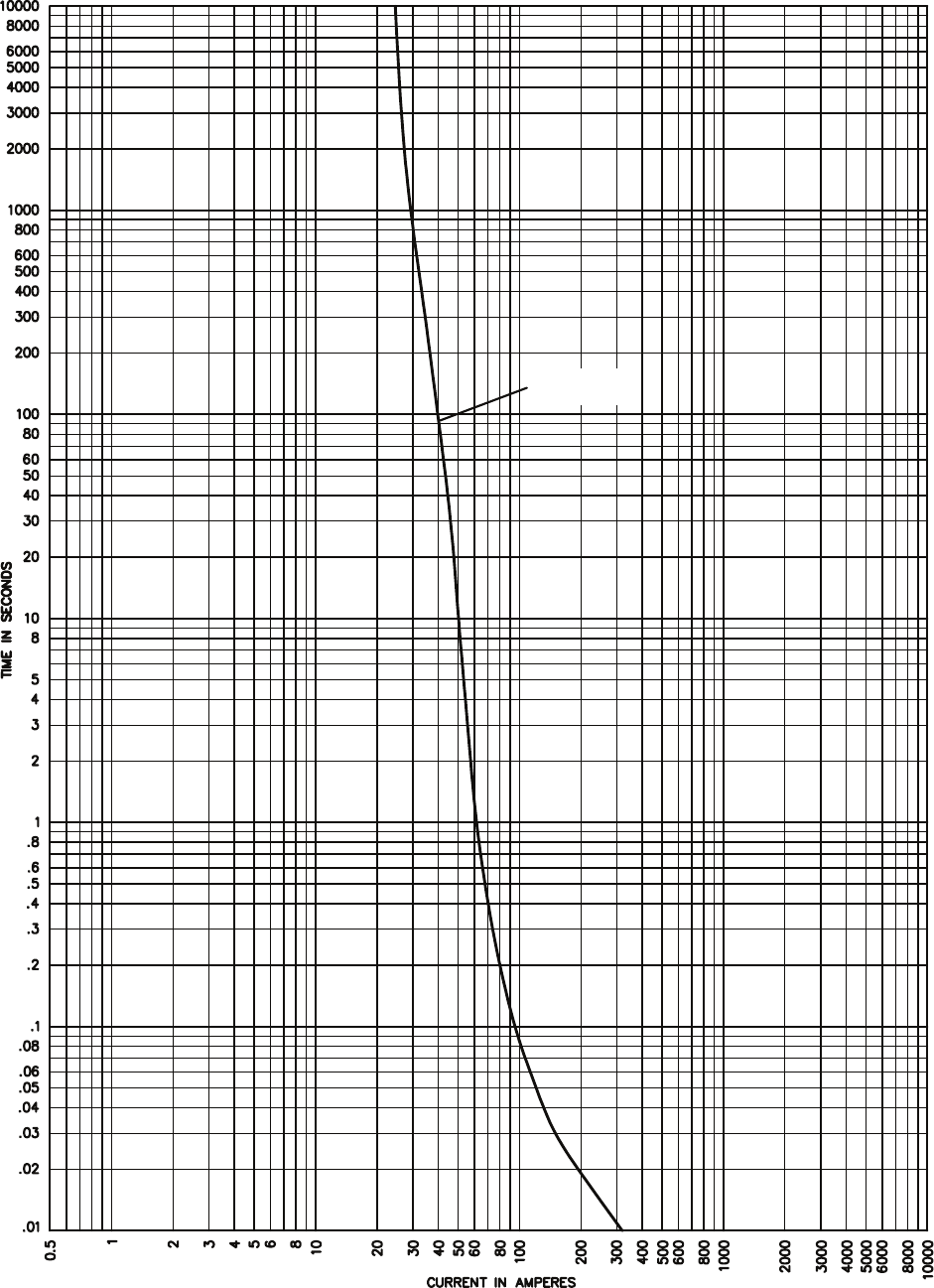

5.5kV time-current curves — total clearing for 5.5CAV_
15A (CAV )
23
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV peak let-through curves for 5.5CAVH_
5.5CAVH_
2A (CAVH)
1A (CAVH)
0.5A (CAVH)
24
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV time-current curves — minimum melting for 5.5ABW_ and 5.5AMW_
5.5ABW_, 5.5AMW_
0.5A (AMW)
5A (AMW)
4A (AMW)
3A (AMW)
2A (AMW)
1A (AMW)
0.5A (ABW)
3A (ABW)
2A (ABW)
1A (ABW)
5A (ABW)
25
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV time-current curves — total clearing for 5.5ABW_ and 5.5AMW_
0.5A (AMW)
4A (AMW)
3A (AMW)
2A (AMW)
1A (AMW)
5A (AMW)
0.5A (ABW)
3A (ABW)
2A (ABW)
1A (ABW)
5A (ABW)
26
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
5.5kV peak let-through curves for 5.5ABW_ and 5.5AMW_
5.5ABW_, 5.5AMW_
5A (AMW)
3A (AMW)
2A (AMW)
1A (AMW)
0.5A
(AMW)
4A (AMW)
5A (ABW)
3A (ABW)
2A (ABW)
1A (ABW)
0.5A (ABW)
27
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
7.2kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
0.5 5.6 (142) 0.8 (20) 4.8 (122) —7.2AMWNA0.5E (50)
1A18371 5.6 (142) 0.8 (20) 4.8 (122) —7.2AMWNA1.0E (50)
25.6 (142) 0.8 (20) 4.8 (122) —7.2AMWNA2.0E (50)
28.7 (221) 1.6 (41) 7.5 (190) —7.2CAV2 (63) 1A0835
35.6 (142) 0.8 (20) 4.8 (122) —7.2AMWNA3.0E (50) 1A1837
3.15 5.6 (142) 1 (25.4) 4.4 (112) —7.2ABWNA3.15 (45) A3354705
3.15 7.7 (195) 1 (25.4) 6.5 (165) —7.2ABCNA3.15 (45)
45.6 (142) 0.8 (20) 4.8 (122) —7.2AMWNA4.0E (50) 1A1837
48.7 (221) 1.6 (41) 7.5 (190) —7.2CAV4 (63) 1A0835
55.6 (142) 0.8 (20) 4.8 (122) —7.2AMWNA5E (50) 1A1837
68.7 (221) 1.6 (41) 7.5 (190) —7.2CAV6 (63) 1A0835
6.3 5.6 (142) 1 (25.4) 4.4 (112) —7.2ABWNA6.3 (45) A3354705
6.3 7.7 (195) 1 (25.4) 6.5 (165) —7.2ABCNA6.3 (45)
10 8.7 (221) 1.6 (41) 7.5 (190) —7.2CAV10 (63) 1A0835
Dimensions (see catalog number tables for values)
Recommended fuseclips
Description Cat. No.
Open fuseclip for 0.8 (20mm) dia. fuses 1A1837
Open fuseclip for 1.0 (25.4mm) dia. fuses A3354705
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
A
B
C
28
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

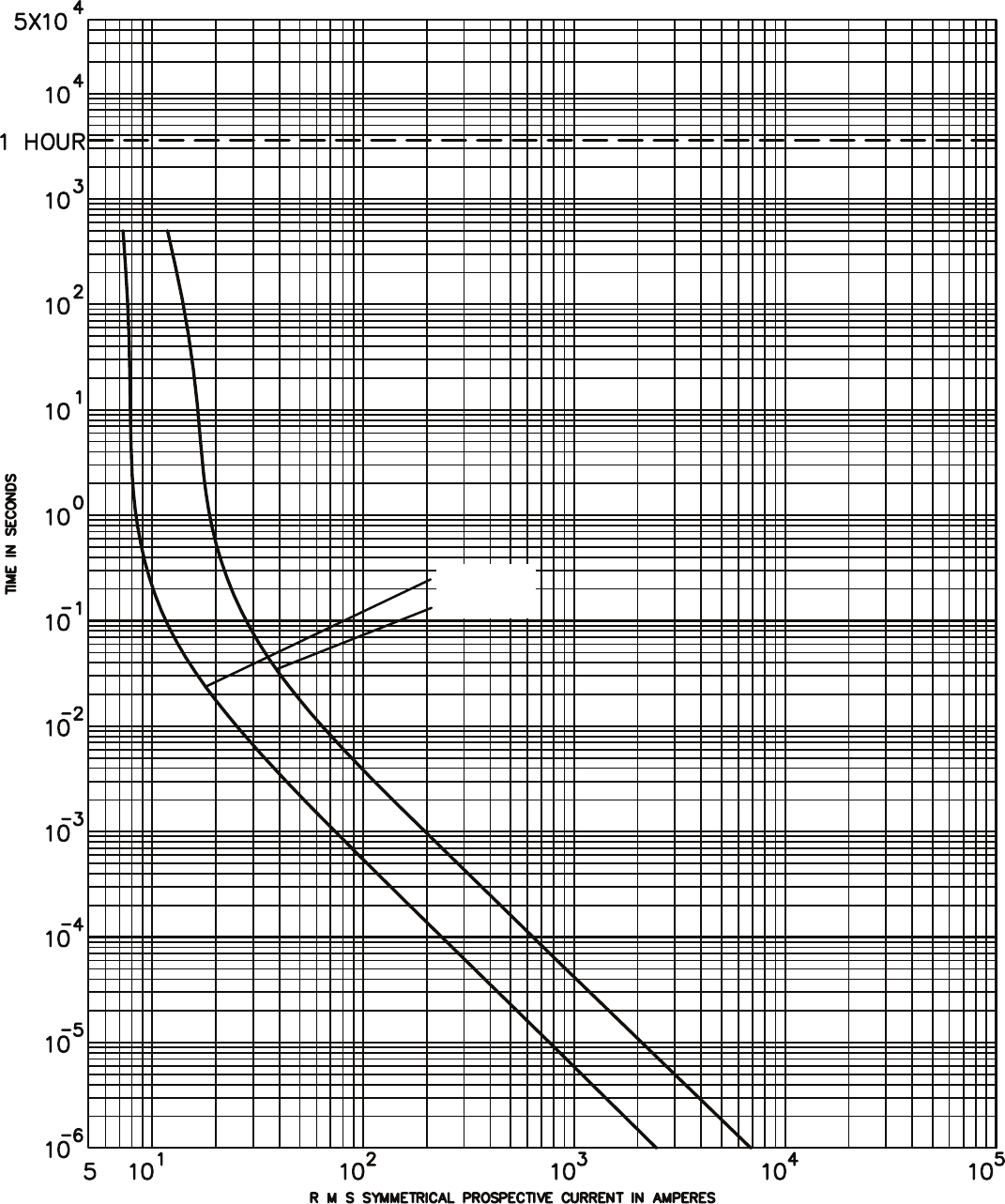

7.2kV time-current curves — minimum melting for 7.2ABW_ and 7.2CAV_
7.2ABW_, 7.2CAV_
10A (CAV)
2A (CAV)
6A (CAV)
4A (CAV)
3.15A (ABW)
6.3A (ABW)
29
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
7.2kV peak let-through curves for 7.2ABW_
30
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
0.5 9.5 (241) 1.6 (41) 8.1 (206) 8CLPT-.5E-A (80)†8NCLPT-.5E-A (50) 1A0835
15 (127) 1.1 (28) 4 (102) —8NCLPT-1E (50) A3354705
19.5 (241) 1.6 (41) 8.1 (206) —8NCLPT-1E-A (50) 1A0835
28 (203) 0.8 (20) 7.2 (183) —8NCLPT-2E (25) 1A1837
29.5 (241) 1.6 (41) 8.1 (206) —8NCLPT-2E-A (50) 1A0835
312.9 (328) 1.6 (41) 11.5 (292) 8CLPT-3E-B (80) 8NCLPT-3E-B (50)
48 (203) 0.8 (20) 7.2 (183) —8NCLPT-4E (25) 1A1837
55 (127) 1.1 (28) 4 (102) —8NCLPT-5E (50) A3354705
512.9 (328) 1.6 (41) 11.5 (292) 8CLPT-5E-B (50) 8NCLPT-5E-B (50) 1A0835
10 12.9 (328) 1.6 (41) 11.5 (292) 8CLPT-10E-B (50) 8NCLPT-10E-B (50)
† Does not comply with ANSI C37.46 for “E” rating.
CLPT type mountings and hardware 8.3kV maximum (7.2kV nominal)*
Amp rating
Fuse mounting
type**
BIL
(kV)
Catalog number
Mounting (including live parts, end fittings)*** Live parts (including
end fittings)***
End fittings
(disconnect only)Porcelain insulator Glass-polyester insulator
0.5–2 Non-disconnect 75 8CLPT-PNM-A 8CLPT-GNM-A CLPT-NL —
Disconnect†75 8CLPT-PDM-A 8CLPT-GDM-A CLPT-DL CLPT-DF
3–10 Non-disconnect 75 8CLPT-PNM-B 8CLPT-GNM-B CLPT-NL —
Disconnect†75 8CLPT-PDM-B 8CLPT-GDM-B CLPT-DL CLPT-DF
* Refers to 8CLPT and 8NCLPT-A or -B fuses only.
** See page 70 for dimensions and diagrams of typical mounting.
*** End fittings supplied only when required.
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
Dimensions (see catalog number tables for values)
Indicator
A
B
C
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 0.8 (20mm) dia. fuses 1A1837
Open fuseclip for 1.0 (25.4mm) dia. fuses A3354705
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
31
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

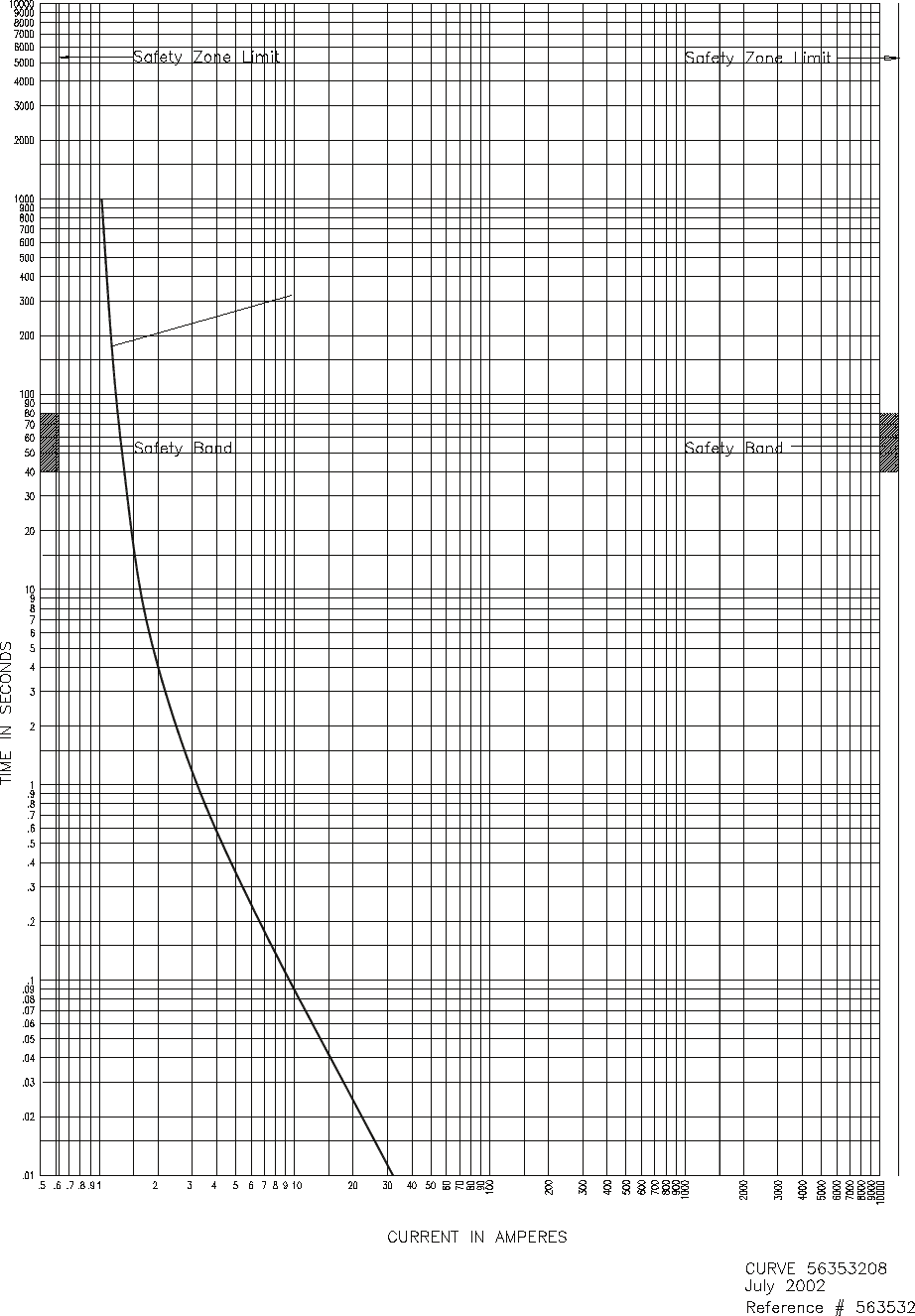

8.3kV time-current curves — minimum melting for 8NCLPT_
8NCLPT-_E
Curve 59887102
July 2002
Reference # 628852, 598871
Curve 56357206
July 2002
1A
5A
2A
4A
32
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV time-current curves — total clearing for 8NCLPT_
8NCLPT-_E Curve 59887104
July 2002
Reference # 598871
Curve 59883706
July 2002
1A
5A
2A
4A
33
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV peak let-through curves for 8NCLPT_
8NCLPT-_E
Curve 63933703
July 2001
Reference # 639337
Curve 63933704
July 2001
Reference # 639337
1A
5A
2A
4A
34
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV time-current curves — minimum melting for 8CLPT_
3A
10A
0.5A
5A
0.5 A fuse melt time in the dotted line region may not be
assured due to manufacturing variations. The dotted lines
show nominal operation. Some individual fuses may not
35
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV time-current curves — total clearing for 8CLPT_
8CLPT-_E
3A
10A
0.5A
5A
36
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV peak let-through curves for 8CLPT_
8CLPT-_E
3A
10A
0.5A
5A
37
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV time-current curves — minimum melting for 8NCLPT-_E-A/B
8NCLPT-_E-A/B
3A
10A
0.5A
5A
1A
2A
38
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV time-current curves — total clearing for 8NCLPT-_E--A/B
3A
10A
0.5A
5A
1A
2A
39
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
8.3kV peak let-through curves for 8NCLPT-_E-A/B
1A & 2A
3A
10A
0.5A
5A
40
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
12kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
28.7 (221) 1.6 (41) 7.5 (190) —12CAV2 (40) 1A0835
3.15 7.7 (195) 1 (25) 6.5 (165) —12ABCNA3.15 (45) A3354705
Dimensions (see catalog number tables for values)
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 1.0 (25.4mm) dia. fuses A3354705
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
A
B
C
41
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
12kV time-current curves — minimum melting for 12ABC_ and 12CAV_
2A (CAV)
3.15A (ABC)
42
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries

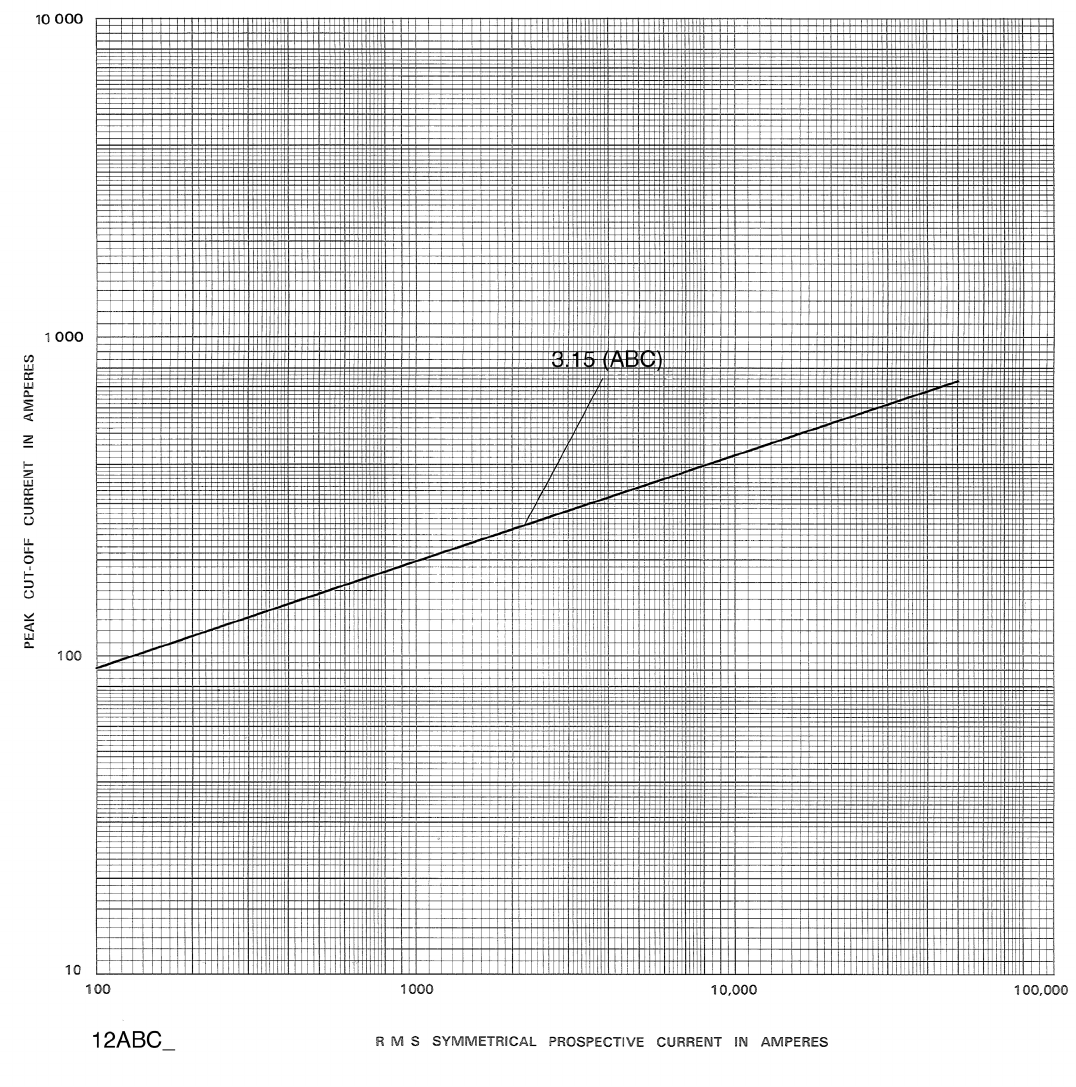

12kV peak let-through curves for 12ABC_
43
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
0.5 12.9 (328) 1.6 (41) 11.5 (292) 15.5CAVH0.5E (80) 15NCLPT-.5E-A (63)
1A0835
112.9 (328) 1.6 (41) 11.5 (292) 15.5CAVH1E (80) 15NCLPT-1E-A (63)
212.9 (328) 1.6 (41) 11.5 (292) 15.5CAVH2E (80) 15NCLPT-2E-A (63)
312.9 (328) 1.6 (41) 11.5 (292) —15.5CAV3E (80)
317.6 (447) 1.6 (41) 16.1 (409) —15NCLPT-3E-B (63)
317.6 (447) 1.6 (41) 16.1 (409) 15CLPT-3E-B (63) —
512.9 (328) 1.6 (41) 11.5 (292) —15.5CAV5E (80)
517.6 (447) 1.6 (41) 16.1 (409) 15CLPT-5E-B (80) 15NCLPT-5E-B (63)
712.9 (328) 1.6 (41) 11.5 (292) —15.5CAV7E (80)
10 17.6 (447) 1.6 (41) 16.1 (409) 15CLPT-10E-B (50) 15NCLPT-10E-B (63)
CLPT Type mountings and hardware 15.5kV maximum (14.4kV nominal)
Amp rating
Fuse mounting
type*
BIL
(kV)
Catalog number
Mounting (Including live parts, end fittings)** Live parts (including
end fittings)**
End fittings
(disconnect only)Porcelain insulator Glass-polyester insulator
0.5–2
Non-
disconnect 95 15CLPT-PNM-A 15CLPT-GNM-A CLPT-NL —
Disconnect†95 15CLPT-PDM-A 15CLPT-GDM-A CLPT-DL CLPT-DF
3–10
Non-
disconnect 95 15CLPT-PNM-B 15CLPT-GNM-B CLPT-NL CLPT-DF
Disconnect†95 15CLPT-PDM-B 15CLPT-GDM-B CLPT-DL —
* See page 70 for dimensions and diagrams of typical mounting.
** End fittings supplied only when required.
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
Dimensions (see catalog number tables for values)
Indicator
A
B
C
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
44
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV time-current curves — minimum melting for 15CLPT_
15CLPT-_E
10A
3A
1A
0.5A
5A
1.5A
45
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV time-current curves — total clearing for 15CLPT_
15CLPT-_E
10A
3A
1A
0.5A
5A
1.5A
46
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV peak let-through curves for 15CLPT_
15CLPT-_E
10A
3A
1A & 1.5A
0.5A
5A
47
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV time-current curves — minimum melting for 15NCLPT_
15NCLPT-_E
10A
3A
1A
0.5A
5A
2A
48
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV Time-current curves — total clearing for 15NCLPT_
0.5A
3A
1A
2A
10A
5A
49
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV Peak let-through curves for 15NCLPT_
15NCLPT-_E
10A
3A
1A & 2A
0.5A
5A
50
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV time-current curves — minimum melting for 15.5CAV_ and 15.5CAVH_
7A (CAV)
0.5A (CAVH)
2A (CAVH)
1A (CAVH)
3A (CAV)
51
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV time-current curves — total clearing for 15.5CAVH_
7A (CAV)
0.5A (CAVH)
2A (CAVH)
1A (CAVH)
3A (CAV)
52
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
15.5kV peak let-through curves for 15.5CAVH_
15.5CAVH_
0.5A (CAV
H)
2A (CAVH)
1A (CAVH)
53
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
17.5kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
2
8.7 (221) 1.6 (41) 7.5 (190)
—17.5CAV2 (40)
1A0835
4 — 17.5CAV4 (40)
6 — 17.5CAV6 (40)
10 —17.5CAV10 (40)
Dimensions (see catalog number tables for values)
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
A
B
C
54
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
17.5kV time-current curves — minimum melting for 17.5CAV_
7.5CAV_
2A (CAV)
6A (CAV)
4A (CAV)
10A (CAV)
55
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
24kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
2
13.49 (340) 1.6 (41) 12.2 (310)
—24CAV2 (40)
1A08353 — 24CAV3 (40)
4 — 24CAV4 (40)
Dimensions (see catalog number tables for values)
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
A
B
C
56
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
24kV time-current curves — minimum melting for 24CAV_
24CAV_
2A (CAV)
3A (CAV)
4A (CAV)
57
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
25.5kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (interrupting rating - kA) Recommended
fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
0.5 17.6 (447) 1.6 (41) 16.1 (410) 25CLPT-.5E (44)†—1A0835
117.6 (447) 1.6 (41) 16.1 (410) 25CLPT-1E (44)†—
† Does not comply with ANSI C37.46 for “E” rating.
CLPT Type Mountings and Hardware 25.5kV Maximum (23kV Nominal)
Amp rating
Fuse mounting
type*
BIL
(kV)
Catalog number
Mounting (including live parts, end fittings)** Live parts (including
end fittings)**
End fittings
(disconnect only)Porcelain insulator Glass-polyester insulator
0.5–1 Non-disconnect 150 25CLPT-PNM-A — 25CLPT-NL —
Disconnect 150 25CLPT-PDM-A — 25CLPT-DL CLPT-DF
* See page 70 for dimensions and diagrams of typical mounting.
** End fittings supplied only when required.
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
Dimensions (see catalog number tables for values)
Indicator
A
B
C
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
58
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
25.5kV time-current curves — minimum melting for 25CLPT_
1A
0.5A
59
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
25.5kV time-current curves — total clearing for 25CLPT_
25CLPT-_E
1A
0.5A
60
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
25.5kV Peak let-through curves for 25CLPT_
25CLPT-_E
1A
0.5A
61
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
36kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (Interrupting rating - kA) Recommended
fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
217.3 (439) 1.6 (41) 16.1 (410) —36CAV2 (40) 1A0835
4 — 36CAV4 (40)
Dimensions (see catalog number tables for values)
Recommended fuseclips:
Description Cat. No.
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
A
B
C
62
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
36kV Time-current curves — minimum melting for 36CAV_
36CAV_
4A (CAV)
2A (CAV)
63
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
38kV maximum system voltage
Amp rating
Dimensions - in (mm) Catalog No. (interrupting rating - kA)
Recommended fuseclipLength A Diameter B Clip centers C Indicating Non-indicating
0.5 17.3 (439) 1.6 (41) 16.1 (409) 38CAVH0.5E (38) —
1A0835
0.5 18.6 (472) 1.6 (41) 17.1 (434) 38CLPT-0.5E (44)†—
117.3 (439) 1.6 (41) 16.1 (409) 38CAVH1E (38) —
217.3 (439) 1.6 (41) 16.1 (409) 38CAVH2E (38) —
417.3 (439) 1.6 (41) 16.1 (409) —38CAV4E (38)
† Does not comply with ANSI C37.46 for “E” rating.
CLPT Type Mountings and Hardware 38kV Maximum (34.5kV Nominal)
Amp rating
Fuse mounting
type
Catalog number
Mounting (including Live Parts, End Fittings)* Live Parts
(including end fittings)*
End fittings
(disconnect only)Porcelain insulator Glass-polyester insulator
0.5 Disconnect†Not applicable Not applicable 25CLPT-NL CLPT-DF
Non-disconnect Not applicable Not applicable 25CLPT-DL —
* End fittings supplied only when required.
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
Dimensions (see catalog number tables for values)
Indicator
A
B
C
Recommended fuseclip:
Description Cat. No.
Open fuseclip for 1.56 (39.7mm) / 1.6 (40.6mm) dia. fuses 1A0835
64
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
38kV time-current curves — minimum melting for 38CAV_ and 38CAVH
38CAV_, 38CAVH_
1A (CAVH)
0.5A (CAVH)
2A (CAVH)
4A (CAV)
65
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
38kV time-current curves — total clearing for 38CAV_ and 38CAVH
V_, 38CAVH_
1A (CAVH)
0.5A (CAVH)
2A (CAVH)
4A (CAV)
66
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
38kV peak let-through curves for 38CAVH
38CAVH_
1A (CAVH)
0.5A (CA
VH)
2A (CAVH)
67
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
38kV time-current curves — minimum melting for 38CLPT_
38CLPT_
0.5A
68
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
38kV time-current curves — total clearing for 38CLPT_
38CLPT_
0.5A
69
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
38kV peak let-through curves for 38CLPT_
38CLPT_
0.5A
70
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
PT fuse mountings - in (mm)
Catalog number Hole centers A Hole centers B Overall length C Hole Inset D Hole centers E Contact height F Overall height G
BIL
kV
5.5kV Disconnect†
5CLPT-GDM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 4.5 (114.3) 9.56 (242.8) 60
5CLPT-PDM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 4.5 (114.3) 9.56 (242.8) 60
5.5kV Non-disconnect
5CLPT-GNM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 4.5 (114.3) 6.94 (176.2) 60
5CLPT-PNM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 4.5 (114.3) 6.94 (176.2) 60
8.3kV Disconnect†
8CLPT-GDM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 75
8CLPT-GDM-B 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 75
8CLPT-PDM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 75
8CLPT-PDM-B 12.74 (323.6) 6 (152.4) 22 (558.8) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 75
8.3kV Non-disconnect
8CLPT-GNM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 75
8CLPT-PNM-A 9.37 (238) 6 (152.4) 18.63 (473.2) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 75
8CLPT-GNM-B 12.75 (323.8) 6 (152.4) 22 (558.8) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 75
8CLPT-PNM-B 12.75 (323.8) 6 (152.4) 22 (558.8) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 75
15.5kV Disconnect†
15CLPT-GDM-A 12.74 (323.6) 6 (152.4) 22 (558.8) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 95
15CLPT-PDM-A 12.74 (323.6) 6 (152.4) 22 (558.8) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 95
15CLPT-GDM-B 17.46 (443.5) 6 (152.4) 26.63 (676.4) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 95
15CLPT-PDM-B 17.46 (443.5) 6 (152.4) 26.63 (676.4) 0.75 (19) 1.75 (44.4) 7 (177.8) 12.06 (306.3) 95
15.5kV Non-disconnect
15CLPT-GNM-A 12.74 (323.6) 6 (152.4) 22 (558.8) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 95
15CLPT-PNM-A 12.74 (323.6) 6 (152.4) 22 (558.8) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 95
15CLPT-GNM-B 17.46 (443.5) 6 (152.4) 26.63 (676.4) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 95
15CLPT-PNM-B 17.46 (443.5) 6 (152.4) 26.63 (676.4) 0.75 (19) 1.75 (44.4) 7 (177.8) 9.44 (239.8) 95
25.5kV Disconnect†
25CLPT-PDM-A 19.12 (485.6) 7 (177.8) 26.63 (676.4) 0.75 (19) 1.75 (44.4) 12 (304.8) 17.06 (433.3) 150
25.5kV Non-disconnect
25CLPT-PNM-A 26.63 (676.4) 7 (177.8) 26.63 (676.4) 0.75 (19) 1.75 (44.4) 12 (304.8) 14.75 (374.6) 150
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
71
Technical Data 6002
Effective March 2016
PT medium voltage fuses for potential and
small power transformers
Eaton.com/bussmannseries
D
D
E
E
A
C
B
G
FD
D
E
E
A
B
C
G
F
Disconnect mountings†Non-disconnect mountings
† Disconnect mountings provide a means for fuse extraction only. Do not use
a disconnect mounting for load switching or fuse removal while energized.
PT medium voltage fuses for potential and
small power transformers
Technical Data 6002
Effective March 2016
72
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this
document are by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical
information that will help the end user with design applications. Eaton reserves the right, without notice, to change design or construction
of any products and to discontinue or limit distribution of any products. Eaton also reserves the right to change or update, without notice,
any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible
applications.
Eaton and Bussmann are valuable
trademarks of Eaton in the US and other
countries. You are not permitted to use the
Eaton trademarks without prior written
consent of Eaton.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
United States
Eaton.com
Bussmann Division
114 Old State Road
Ellisville, MO 63021
United States
Eaton.com/bussmannseries
© 2016 Eaton
All Rights Reserved
Printed in USA
Publication No. 6002 – BU-SB15149
March 2016
For Eaton’s Bussmann series
product information,
call 1-855-287-7626 or visit:
Eaton.com/bussmannseries
Follow us on social media to get the
latest product and support information.

Navigation menu
