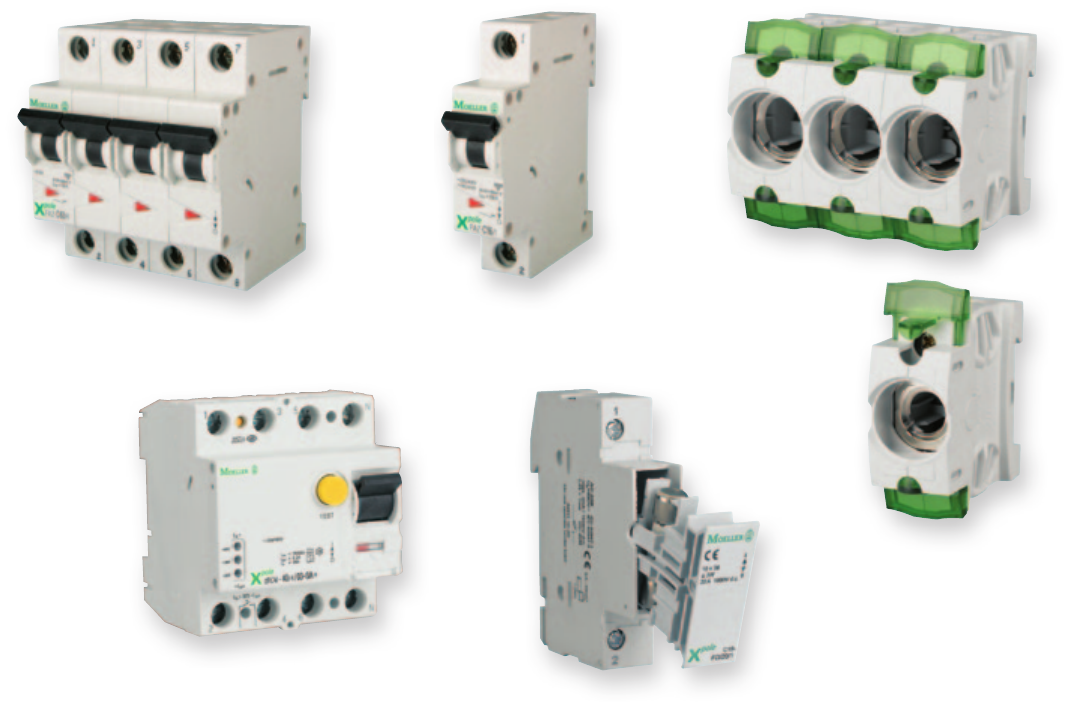

FAZ miniature circuit-breakers

Height 80 mm only +++ Installation and removal without disassembly of the rails +++ Double

comfort terminal lift/claw +++ Terminal with rear plug protection ￫ Page 19/4

Digital residual current device

Preventive information +++ Warning before tripping +++ Integrated auxiliary contact +++

Display for earth-fault release ￫ Page 19/21

Fuse base

Integrated terminal covers +++ Double terminals ￫ Page 19/42

Cylindrical fuse switch-disconnectors

With flash function on tripped fuse +++ can be sealed ￫ Page 19/45

Fuse switch-disconnectors (empty) C10-FD

Cord protection for photovoltaic generator +++ Trip indicator signals tripped fuse link:

50 – 400 V: blinking, 400 – 1000 V: continuous light +++ Nominal current voltage 1000 V DC

+++ For cylindrical fuse inserts in photovoltaic applications +++Sealable ￫ Page 19/48

Tested quality, approvals and shipping classifications represent the functionality and

safety suitable for world markets with industrial miniature circuit-breakers. Besides a

comprehensive range of residual current devices, LV h.b.c. fuse bases and fuse

switch-disconnectors is provided.

Circuit-breakers, fuses

Circuit-breaker

System overview

Miniature circuit-breakers, residual current devices 19/2

Ordering

Miniature circuit-breakers 19/4

FAZ 19/4

FAZT 19/10

FAZ-PN 19/12

FAZ for DC applications 19/13

AZ 19/14

Residual current device, leakage current meter 19/16

PKNM combination switches, power meters 19/17

mRB6, mRB4 combination switches 19/18

Residual current device

FI 19/19

dRCM 19/21

Remote monitoring unit 19/22

Remote switching modules, remote test modules 19/22

FI residual current devices only for export 19/23

Auxiliary contacts and shunt releases 19/24

LS auxiliary contacts 19/24

Trip-indicating auxiliary contacts/auxiliary 19/24

contacts

FI auxiliary contacts, shunt releases 19/24

Undervoltage releases, MCB lock 19/24

Mounting accessories 19/25

EVG busbar 19/25

Phase busbars accessory, extension terminals 19/27

Busbar tag shroud 19/27

ZV-SS busbars, shroud section 19/27

Miniature circuit-breakers for North America 19/28

FAZ-…-NA 19/28

FAZ-…-RT 19/34

Accessories for miniature circuit-breakers 19/40

North America

Engineering

FAZ... miniature circuit-breakers 19/54

Tripping characteristic 19/56

Let-through characteristics 19/59

Technical data

Miniature circuit-breakers 19/65

Residual current device 19/66

Auxiliary contacts, shunt releases 19/70

Dimensions

Miniature circuit-breakers 19/82

Residual current device 19/82

Auxiliary contacts 19/84

Fuses

Ordering

Fuse bases 19/42

Fuse bases 1 and 3 pole 19/42

Accessories for fuse bases 19/43

Covers 19/43

Transparent shroud 19/43

Busbar connector, end cap 19/43

Notched phase busbars, can be cut to 19/43

desired length

K35-AB connection terminal 19/43

Fuse inserts Z-DII(III)/SE 19/43

Gauge screw Z-DII(III)/PS 19/44

Ring inserts Z-DII(III)/PE 19/44

Screw cap Z-DII(III)/SK 19/44

Fuse switch-disconnector Z-SLS, empty 19/45

Fuse sets 19/45

Switch-on inhibits 19/46

Incoming double terminal 19/46

Fuse inserts Z-D01(02)/SE 19/47

Gauge rings Z-D01(02)/PE 19/47

Screw cap Z-D01(02)/SK 19/47

Spring Z-D02/SIKA-HF 19/47

Fuse switch-disconnectors, empty, photovoltaics 19/48

Fuse links, photovoltaics 19/48

Fuse switch-disconnector VLC, empty 19/49

Cylindrical fuse inserts Z-C19/50

LV h.b.c. fuse bases 19/51

LV h.b.c. fuse switch-disconnectors 19/51

Set of connecting links 19/51

Cover with fuse monitoring 19/51

Busbar tag shroud 19/52

Clip set 19/52

Sets of clamp‐type terminals 19/52

Insulating surround 19/52

LV h.b.c.-Fuse-links Z-NH… 19/53

Engineering

Let-through characteristics 19/64

Technical data

Fuse material 19/75

Fuse switch-disconnector 19/78

LV h.b.c. fuse switch-disconnectors 19/80

LV h.b.c. fuse base 19/81

Dimensions

Fuse base 19/86

Fuse switch-disconnector 19/86

Fuse Bases 19/87

Circuit-breakers, fuses

19/2 Circuit-breakers, fuses

Miniature circuit-breakers, residual-current circuit-breakers

2010 CA08103002Z-EN www.eaton.com

System overview

FAZ

pole

FAZ

XUA

XHI11

AZ-3N

AZ-3

XFSM

FAZ-3

FAZ-2

AZ-2

AZ XAA

XPM0

FIP-4

FAZ-4

FAZ-2

FILS

AZFIM-4-125-0,3

FAZ

pole

FAZ

pole

FAZ

pole

FAZ

pole

FAZ

pole

FIM

PKNM

pole

FI-40

pole

FI-40

pole

2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers, residual-current circuit-breakers

19/3

Basic devices

FAZ miniature circuit-breakers 1

Characteristic/rated operational current

ranges

B/4 – 63 A; C/0.5 – 63 A; D/6 – 40 A;

K/0.5 - 63 A; S/1 - 40 A; Z/0.5 - 63 A

Switching capacity:

15 kA to IEC/EN 60947-2

B, C, D, K, S, Z characteristic

1-, 1N-, 2-, 3-, 3N-, 4 pole

Special miniature circuit-breaker for

control circuits (1, 2 pole)

Special miniature circuit-breaker for DC

applications up to 500 V DC

 Page 19/4

FAZT miniature circuit-breakers 1

Characteristic/rated operational current

ranges

B/1 - 25 A; C/1 - 25 A; D/1 - 16 A

Switching capacity:

25 kA to IEC/EN 60947-2

 Page 19/10

FAZ-PN miniature circuit-breaker 2

Characteristic/rated operational current

ranges

B/6 – 40 A; C/2 – 40 A

Switching capacity:

6 kA to IEC/EN 60898

B, C characteristic

1 N pole

 Page 19/12

Residual-current protective modules

for fitting to FAZ

Protection in the event of fault current

Rated current ranges 40 – 63 A

Rated fault current 30 mA, 300 mA

 Page 19/16

Residual-current protective modules

for fitting to AZ

Protection in the event of fault current

Rated current ranges 80 – 125 A

Rated fault current 30 mA, 300 mA

 Page 19/16

PKNM combined device 4

Overload and short-circuit protection,

and protection in the event of fault

currents

Characteristic/rated operational current

ranges

B/6-40 A; C/6-40 A; 1N pole

Switching capacity:

10 kA to IEC/EN 60898

Rated fault current 30 mA, 300 mA

 Page 19/17

Residual-current circuit-breaker

(RCCB)

AC current sensitive

2 pole, 16 – 80 A

4 pole, 25 – 80 A

Pulsed current sensitive

2 pole, 16 – 40 A

4 pole, 25 – 125 A

AC/DC sensitive

4 pole, 40 – 125 A

Rated fault current

30 mA, 100 mA, 300 mA, 500 mA

4 pole, selective, 63 – 80 A

Rated fault current

100 mA, 300 mA

4 pole suitable for frequency inverters

40, 63 A, 100 mA, 300 mA

 Page 19/13

AZ miniature circuit-breakers 6

Characteristic/rated operational current

ranges C/20-125 A; D/50-100 A

Switching capacity: 15 – 25 kA to

IEC/EN 60947-2, 1-, 2-, 3-, 3N-, 4 pole

 Page 19/14

Add-on functions

FAZ auxiliary contact 7

Standard auxiliary contact

Trip-indicating auxiliary contacts

Auxiliary contacts

 Page 19/24

AZ auxiliary contact 8

Standard auxiliary contacts

 Page 19/24

FAZ shunt releases 9

Undervoltage release

Shunt releases

Can be fitted to FAZ or FAZFIM

 Page 19/24

AZ shunt releases 10

Shunt releases

 Page 19/24

FI auxiliary contact 13

Auxiliary contacts

 Page 19/24

Remote switching module 11

Suitable for remote switching and

automatic restart of a miniature circuit-

breaker or RCCB, for remote trip testing

of an RCCB in conjunction with a remote

test module

 Page 19/22

19/4 Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

Miniat ure circuit- breakers (MC B)

Ordering

1 pole 2 pole 3 pole 4 pole 2 pole 4 pole

With 2 protected poles With 3 protected poles With 4 protected poles With 1 protected pole, N

switching with pole

With 3 protected poles, N

switching with poles

Notes

Rated

operational

current

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

FAZ miniature circuit-breakers

Characteristic B

Instantaneous release

response current 3 - 5 x In

Switching capacity 15 kA

(IEC/EN 60947-2)

4FAZ-B4/1-HS

279274

12 off FAZ-B4/2-HS

279275

1 off

5FAZ-B5/1

278528

12 off

Information relevant for export to North America

Product Standards IEC/EN 60947-2; IEC/EN

60898; UL 1077; CSA-C22.2

No. 235; CE marking

UL File No. E177451

UL CCN QVNU2, QVNU8

CSA File No. 204453

CSA Class No. 3215-30

NA Certification UL Recognized,

CSA certified

Conditions of Acceptability

Supplementary Protector

only

Suitable for Branch Circuits;

not as BCPD

Max. Voltage Rating 1 pole: 277 V AC; 48 V DC

2 pole: 480 Y/277 V AC;

96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20; UL/CSA Type: -

Short Circuit Current Rating

≦ 40 A 10 kA

≧ 50 A 5 kA

6FAZ-B6/1

278529

FAZ-B6/2

278728

1 off FAZ-B6/3

278841

1 off FAZ-B6/4

279029

1 off FAZ-B6/1N

278642

1 off FAZ-B6/3N

278943

1 off

8FAZ-B8/1

278530

FAZ-B8/2

278729

FAZ-B8/3

278842

FAZ-B8/4

279030

FAZ-B8/1N

278643

FAZ-B8/3N

278944

10 FAZ-B10/1

278531

FAZ-B10/2

278730

FAZ-B10/3

278843

FAZ-B10/4

279031

FAZ-B10/1N

278644

FAZ-B10/3N

278945

12 FAZ-B12/1

278532

FAZ-B12/2

278731

FAZ-B12/3

278844

FAZ-B12/4

279032

FAZ-B12/1N

278645

FAZ-B12/3N

278946

13 FAZ-B13/1

278533

FAZ-B13/2

278732

FAZ-B13/3

278845

FAZ-B13/4

279033

FAZ-B13/1N

278646

FAZ-B13/3N

278947

15 FAZ-B15/1

278534

FAZ-B15/2

278733

FAZ-B15/3

278846

FAZ-B15/4

279034

FAZ-B15/1N

278647

FAZ-B15/3N

278948

16 FAZ-B16/1

278535

FAZ-B16/2

278734

FAZ-B16/3

278847

FAZ-B16/4

279035

FAZ-B16/1N

278648

FAZ-B16/3N

278949

20 FAZ-B20/1

278536

FAZ-B20/2

278735

FAZ-B20/3

278848

FAZ-B20/4

279036

FAZ-B20/1N

278649

FAZ-B20/3N

278950

25 FAZ-B25/1

278537

FAZ-B25/2

278736

FAZ-B25/3

278849

FAZ-B25/4

279037

FAZ-B25/1N

278650

FAZ-B25/3N

278951

32 FAZ-B32/1

278538

FAZ-B32/2

278737

FAZ-B32/3

278850

FAZ-B32/4

279038

FAZ-B32/1N

278651

FAZ-B32/3N

278952

40 FAZ-B40/1

278539

FAZ-B40/2

278738

FAZ-B40/3

278851

FAZ-B40/4

279039

FAZ-B40/1N

278652

FAZ-B40/3N

278953

50 FAZ-B50/1

278540

FAZ-B50/2

278739

FAZ-B50/3

278852

FAZ-B50/4

279040

FAZ-B50/1N

278653

FAZ-B50/3N

278954

63 FAZ-B63/1

278541

FAZ-B63/2

278740

FAZ-B63/3

278853

FAZ-B63/4

279041

FAZ-B63/1N

278654

FAZ-B63/3N

278955

Characteristic C

Instantaneous release

response current 5 - 10 x In

Switching capacity 15 kA

(IEC/EN 60947-2)

0.5 FAZ-C0,5/1

278544

12 off FAZ-C0.5/2

278743

1 off FAZ-C0.5/3

278856

1 off FAZ-C0.5/4

279044

1 off FAZ-C0.5/1N

278657

1 off FAZ-C0.5/3N

278958

1 off

1FAZ-C1/1

278546

FAZ-C1/2

278745

FAZ-C1/3

278858

FAZ-C1/4

279046

FAZ-C1/1N

278659

FAZ-C1/3N

278960

1.6 FAZ-C0,5/1

278548

FAZ-C1.6/2

278747

FAZ-C1.6/3

278860

FAZ-C1.6/4

279048

FAZ-C1.6/1N

278661

FAZ-C1.6/3N

278962

2FAZ-C2/1

278549

FAZ-C2/2

278748

FAZ-C2/3

278861

FAZ-C2/4

279049

FAZ-C2/1N

278662

FAZ-C2/3N

278963

3FAZ-C3/1

278551

FAZ-C3/2

278750

FAZ-C3/3

278863

FAZ-C3/4

279051

FAZ-C3/1N

278664

FAZ-C3/3N

278965

4FAZ-C4/1

278553

FAZ-C4/2

278752

FAZ-C4/3

278865

FAZ-C4/4

279053

FAZ-C4/1N

278666

FAZ-C4/3N

278967

6FAZ-C6/1

278555

FAZ-C6/2

278754

FAZ-C6/3

278867

FAZ-C6/4

279055

FAZ-C6/1N

278668

FAZ-C6/3N

278969

8FAZ-C8/1

278556

FAZ-C8/2

278755

FAZ-C8/3

278868

FAZ-C8/4

279056

FAZ-C8/1N

278669

FAZ-C8/3N

278970

10 FAZ-C10/1

278557

FAZ-C10/2

278756

FAZ-C10/3

278869

FAZ-C10/4

279057

FAZ-C10/1N

278670

FAZ-C10/3N

278971

13 FAZ-C13/1

278559

FAZ-C13/2

278758

FAZ-C13/3

278871

FAZ-C13/4

279059

FAZ-C13/1N

278672

FAZ-C13/3N

278973

16 FAZ-C16/1

278561

FAZ-C16/2

278760

FAZ-C16/3

278873

FAZ-C16/4

279061

FAZ-C16/1N

278674

FAZ-C16/3N

278975

20 FAZ-C20/1

278562

FAZ-C20/2

278761

FAZ-C20/3

278874

FAZ-C20/4

279062

FAZ-C20/1N

278675

FAZ-C20/3N

278976

25 FAZ-C25/1

278563

FAZ-C25/2

278762

FAZ-C25/3

278875

FAZ-C25/4

279063

FAZ-C25/1N

278676

FAZ-C25/3N

278977

32 FAZ-C32/1

278564

FAZ-C32/2

278763

FAZ-C32/3

278876

FAZ-C32/4

279064

FAZ-C32/1N

278677

FAZ-C32/3N

278978

40 FAZ-C40/1

278565

FAZ-C40/2

278764

FAZ-C40/3

278877

FAZ-C40/4

279065

FAZ-C40/1N

278678

FAZ-C40/3N

278979

50 FAZ-C50/1

278566

FAZ-C50/2

278765

FAZ-C50/3

278878

FAZ-C50/4

279066

FAZ-C50/1N

278679

FAZ-C50/3N

278980

63 FAZ-C63/1

278567

FAZ-C63/2

278766

FAZ-C63/3

278879

FAZ-C63/4

279067

FAZ-C63/1N

278680

FAZ-C63/3N

278981

246

135

246

N31

Switching capacity

(IEC/EN 60898)

10 kA

Switching capacity

(IEC/EN 60947-2)

15 kA

Accessories Page

Auxiliary contacts ￫19/24

Shunt releases

Mounting accessories ￫19/25

FAZ-B4/1-HS, FAZ-B4/2-HS

Special miniature circuit-breakers with much

reduced let-through energy to prevent contact

weld of auxiliary contacts

1 pole

Depth 71 mm

Width 17.5 mm

2 pole; 1 pole + N

Depth 71 mm

Width 35 mm

3 pole

Depth 71 mm

Width 52.5 mm

4 pole; 3 pole + N

Depth 71 mm

Width 70 mm

19/5

FAZ-B, FAZ-C HPL19004EN FAZ-B, FAZ-C

HPL19005EN

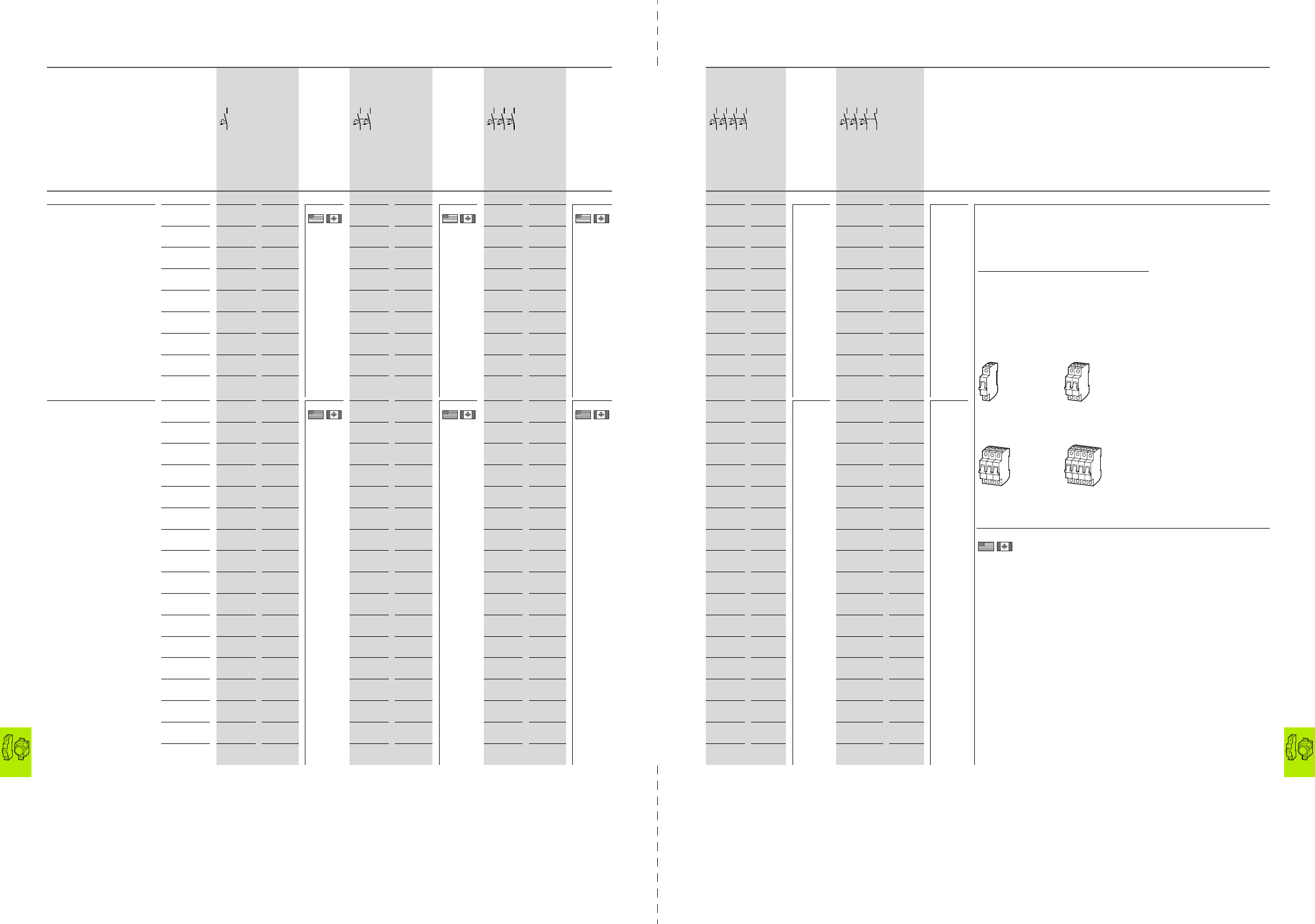

19/6 Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

Miniat ure circuit- breakers (MC B)

1 pole 2 pole 3 pole 4 pole 4 pole

With 2 protected poles With 3 protected poles With 4 protected poles With 3 protected poles, N

switching with poles

Notes

Rated

operational

current

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack

FAZ miniature circuit-breakers

Characteristic D

Instantaneous release

response current 10 - 20 x In

Switching capacity 15 kA

(IEC/EN 60947-2)

6FAZ-D6/1

278578

12 off FAZ-D6/2

278777

1 off FAZ-D6/3

278890

1 off FAZ-D6/4

279078

1 off FAZ-D6/3N

278992

1 off

Information relevant for export to North America

Product Standards IEC/EN 60947-2; IEC/EN 60898; UL 1077;

CSA-C22.2 No. 235; CE marking

UL File No. E177451

UL CCN QVNU2, QVNU8

CSA File No. 204453

CSA Class No. 3215-30

NA Certification UL Recognized,

CSA certified

Conditions of Acceptability

Supplementary Protector only

Suitable for Branch Circuits;

not as BCPD

Max. Voltage Rating 1 pole: 277 V AC; 48 V DC

2 pole: 480 Y/277 V AC;

96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20; UL/CSA Type: -

Short Circuit Current Rating

≦ 40 A 10 kA

≧ 50 A 5 kA

8FAZ-D8/1

278579

FAZ-D8/2

278778

FAZ-D8/3

278891

FAZ-D8/4

279079

FAZ-D8/3N

278993

10 FAZ-D10/1

278580

FAZ-D10/2

278779

FAZ-D10/3

278892

FAZ-D10/4

279080

FAZ-D10/3N

278994

13 FAZ-D13/1

278582

FAZ-D13/2

278781

FAZ-D13/3

278894

FAZ-D13/4

279082

FAZ-D13/3N

278996

16 FAZ-D16/1

278584

FAZ-D16/2

278783

FAZ-D16/3

278896

FAZ-D16/4

279084

FAZ-D16/3N

278998

20 FAZ-D20/1

278585

FAZ-D20/2

278784

FAZ-D20/3

278897

FAZ-D20/4

279085

FAZ-D20/3N

278999

25 FAZ-D25/1

278586

FAZ-D25/2

278785

FAZ-D25/3

278898

FAZ-D25/4

279086

FAZ-D25/3N

279000

32 FAZ-D32/1

278587

FAZ-D32/2

278786

FAZ-D32/3

278899

FAZ-D32/4

279087

FAZ-D32/3N

279001

40 FAZ-D40/1

278588

FAZ-D40/2

278787

FAZ-D40/3

278900

FAZ-D40/4

279088

FAZ-D40/3N

279002

Characteristic K

Instantaneous release

response current 8 - 12 x In

Switching capacity 15 kA

(IEC/EN 60947-2)

0.5 FAZ-K0,5/1

278589

12 off FAZ-K0.5/2

278788

1 off FAZ-K0.5/3

278901

1 off FAZ-K0.5/4

279089

1 off FAZ-K0.5/3N

279003

1 off

1FAZ-K1/1

278590

FAZ-K1/2

278789

FAZ-K1/3

278902

FAZ-K1/4

279090

FAZ-K1/3N

279004

1.6 FAZ-K0,5/1

278591

FAZ-K1.6/2

278790

FAZ-K1.6/3

278903

FAZ-K1.6/4

279091

FAZ-K1.6/3N

279005

2FAZ-K2/1

278592

FAZ-K2/2

278791

FAZ-K2/3

278904

FAZ-K2/4

279092

FAZ-K2/3N

279006

3FAZ-K3/1

278593

FAZ-K3/2

278792

FAZ-K3/3

278905

FAZ-K3/4

279093

FAZ-K3/3N

279007

4FAZ-K4/1

278594

FAZ-K4/2

278793

FAZ-K4/3

278906

FAZ-K4/4

279094

FAZ-K4/3N

279008

6FAZ-K6/1

278595

FAZ-K6/2

278794

FAZ-K6/3

278907

FAZ-K6/4

279095

FAZ-K6/3N

279009

8FAZ-K8/1

278596

FAZ-K8/2

278795

FAZ-K8/3

278908

FAZ-K8/4

279096

FAZ-K8/3N

279010

10 FAZ-K10/1

278597

FAZ-K10/2

278796

FAZ-K10/3

278909

FAZ-K10/4

279097

FAZ-K10/3N

279011

13 FAZ-K13/1

278598

FAZ-K13/2

278797

FAZ-K13/3

278910

FAZ-K13/4

279098

FAZ-K13/3N

279012

16 FAZ-K16/1

278599

FAZ-K16/2

278798

FAZ-K16/3

278911

FAZ-K16/4

279099

FAZ-K16/3N

279013

20 FAZ-K20/1

278600

FAZ-K20/2

278799

FAZ-K20/3

278912

FAZ-K20/4

279100

FAZ-K20/3N

279014

25 FAZ-K25/1

278601

FAZ-K25/2

278800

FAZ-K25/3

278913

FAZ-K25/4

279101

FAZ-K25/3N

279015

32 FAZ-K32/1

278602

FAZ-K32/2

278801

FAZ-K32/3

278914

FAZ-K32/4

279102

FAZ-K32/3N

279016

40 FAZ-K40/1

278603

FAZ-K40/2

278802

FAZ-K40/3

278915

FAZ-K40/4

279103

FAZ-K40/3N

279017

50 FAZ-K50/1

278604

FAZ-K50/2

278803

FAZ-K50/3

278916

FAZ-K50/4

279104

FAZ-K50/3N

279018

63 FAZ-K63/1

278605

FAZ-K63/2

278804

FAZ-K63/3

278917

FAZ-K63/4

279105

FAZ-K63/3N

279019

246

135

246

N31

Switching capacity

(IEC/EN 60898)

10 kA

Switching capacity

(IEC/EN 60947-2)

15 kA

Accessories Page

Auxiliary contacts ￫19/24

Shunt releases

Mounting accessories ￫19/25

1 pole

Depth 71 mm

Width 17.5 mm

2 pole; 1 pole + N

Depth 71 mm

Width 35 mm

3 pole

Depth 71 mm

Width 52.5 mm

4 pole; 3 pole + N

Depth 71 mm

Width 70 mm

19/7

FAZ-D, FAZ-K HPL19006EN FAZ-D, FAZ-K

HPL19007EN

19/8 Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

Miniat ure circuit- breakers (MC B)

1 pole 2 pole 3 pole 4 pole

With 2 protected poles With 3 protected poles With 4 protected poles Notes

Rated current Part no.

Article no.

Price

See price list

Std. pack Part no.

Article no.

Price

See price list

Std. pack Part no.

Article no.

Price

See price list

Std. pack Part no.

Article no.

Price

See price list

Std. pack

FAZ miniature circuit-breakers

Characteristic S

Instantaneous release

response current 13 - 17 x In

Switching capacity 10 kA

(IEC/EN 60947-2)

1FAZ-S1/1

278606

12 off FAZ-S1/2

278805

1 off

Information relevant for export to North America

Product Standards IEC/EN 60947-2; IEC/EN 60898; UL 1077;

CSA-C22.2 No. 235; CE marking

UL File No. E177451

UL CCN QVNU2, QVNU8

CSA File No. 204453

CSA Class No. 3215-30

NA Certification UL Recognized,

CSA certified

Conditions of Acceptability

Supplementary Protector only

Suitable for Branch Circuits;

not as BCPD

Max. Voltage Rating 1 pole: 277 V AC; 48 V DC

2 pole: 480 Y/277 V AC;

96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20; UL/CSA Type: -

Short Circuit Current Rating

≦ 40 A 10 kA

≧ 50 A 5 kA

2FAZ-S2/1

278607

FAZ-S2/2

278806

3FAZ-S3/1

278608

FAZ-S3/2

278807

4FAZ-S4/1

278609

FAZ-S4/2

278808

6FAZ-S6/1

278610

FAZ-S6/2

278809

10 FAZ-S10/1

278611

FAZ-S10/2

278810

16 FAZ-S16/1

278612

FAZ-S16/2

278811

20 FAZ-S20/1

278613

FAZ-S20/2

278812

25 FAZ-S25/1

278614

FAZ-S25/2

278813

32 FAZ-S32/1

278615

FAZ-S32/2

278814

40 FAZ-S40/1

278616

FAZ-S40/2

278815

Characteristic Z

Instantaneous release

response current 2 - 3 x In

Switching capacity 10 kA

(IEC/EN 60947-2)

0.5 FAZ-Z0,5/1

278617

12 off FAZ-Z0.5/2

278816

1 off FAZ-Z0.5/3

278918

1 off FAZ-Z0.5/4

279106

1 off

1FAZ-Z1/1

278618

FAZ-Z1/2

278817

FAZ-Z1/3

278919

FAZ-Z1/4

279107

1.6 FAZ-Z1,6/1

278619

FAZ-Z1.6/2

278818

FAZ-Z1.6/3

278920

FAZ-Z1.6/4

279108

2FAZ-Z2/1

278620

FAZ-Z2/2

278819

FAZ-Z2/3

278921

FAZ-Z2/4

279109

3FAZ-Z3/1

278621

FAZ-Z3/2

278820

FAZ-Z3/3

278922

FAZ-Z3/4

279110

4FAZ-Z4/1

278622

FAZ-Z4/2

278821

FAZ-Z4/3

278923

FAZ-Z4/4

279111

6FAZ-Z6/1

278623

FAZ-Z6/2

278822

FAZ-Z6/3

278924

FAZ-Z6/4

279112

8FAZ-Z8/1

278624

FAZ-Z8/2

278823

FAZ-Z8/3

278925

FAZ-Z8/4

279113

10 FAZ-Z10/1

278625

FAZ-Z10/2

278824

FAZ-Z10/3

278926

FAZ-Z10/4

279114

16 FAZ-Z16/1

278626

FAZ-Z16/2

278825

FAZ-Z16/3

278927

FAZ-Z16/4

279115

20 FAZ-Z20/1

278627

FAZ-Z20/2

278826

FAZ-Z20/3

278928

FAZ-Z20/4

279116

25 FAZ-Z25/1

278628

FAZ-Z25/2

278827

FAZ-Z25/3

278929

FAZ-Z25/4

279117

32 FAZ-Z32/1

278629

FAZ-Z32/2

278828

FAZ-Z32/3

278930

FAZ-Z32/4

279118

40 FAZ-Z40/1

278630

FAZ-Z40/2

278829

FAZ-Z40/3

278931

FAZ-Z40/4

279119

50 FAZ-Z50/1

278631

FAZ-Z50/2

278830

FAZ-Z50/3

278932

FAZ-Z50/4

279120

63 FAZ-Z63/1

278632

FAZ-Z63/2

278831

FAZ-Z63/3

278933

FAZ-Z63/4

279121

246

135

Switching capacity

(IEC/EN 60898)

10 kA

Switching capacity

(IEC/EN 60947-2)

15 kA

Accessories Page

Auxiliary contacts ￫19/24

Shunt releases

Mounting accessories ￫19/25

1 pole

Depth 71 mm

Width 17.5 mm

2 pole; 1 pole + N

Depth 71 mm

Width 35 mm

3 pole

Depth 71 mm

Width 52.5 mm

4 pole; 3 pole + N

Depth 71 mm

Width 70 mm

19/9

FAZ-S, FAZ-Z HPL19008EN FAZ-S, FAZ-Z

HPL19009EN

19/10 Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

Miniat ure circuit- breakers (MC B)

1 pole 1 pole+N 2 pole 3 pole 3 pole+N 4 pole

Notes

Rated

operational

current

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

FAZT miniature circuit-breakers

Characteristic B

Switching capacity 25 kA

(IEC/EN 60947-2)

1FAZT-B1/1

240770

12 off FAZT-B1/1N

240994

1 off FAZT-B1/2

240820

1 off FAZT-B1/3

240874

1 off FAZT-B1/3N

241060

1 off FAZT-B1/4

240922

1 off

1) For additional Technical Data and

Characteristic Curves see "Installation

Products for Industrial Application FAZ-T":

www.moeller.net/cn/support/pdf_Katalog.jsp

2FAZT-B2/1

240771

FAZT-B2/1N

240995

FAZT-B2/2

240821

FAZT-B2/3

240875

FAZT-B2/3N

241065

FAZT-B2/4

240927

3FAZT-B3/1

240772

FAZT-B3/1N

240996

FAZT-B3/2

240822

FAZT-B3/3

240876

FAZT-B3/3N

241070

FAZT-B3/4

240930

4FAZT-B4/1

240777

FAZT-B4/1N

240997

FAZT-B4/2

240823

FAZT-B4/3

240877

FAZT-B4/3N

241075

FAZT-B4/4

240931

6FAZT-B6/1

240782

FAZT-B6/1N

240998

FAZT-B6/2

240824

FAZT-B6/3

240878

FAZT-B6/3N

241080

FAZT-B6/4

240932

10 FAZT-B10/1

240787

FAZT-B10/1N

240999

FAZT-B10/2

240825

FAZT-B10/3

240879

FAZT-B10/3N

241085

FAZT-B10/4

240933

12 FAZT-B12/1

240792

FAZT-B12/1N

241000

FAZT-B12/2

240826

FAZT-B12/3

240880

FAZT-B12/3N

241090

FAZT-B12/4

240934

13 FAZT-B13/1

240793

FAZT-B13/1N

241001

FAZT-B13/2

240827

FAZT-B13/3

240881

FAZT-B13/3N

241095

FAZT-B13/4

240935

15 FAZT-B15/1

240794

FAZT-B15/1N

241005

FAZT-B15/2

240828

FAZT-B15/3

240882

FAZT-B15/3N

241100

FAZT-B15/4

240936

16 FAZT-B16/1

240795

FAZT-B16/1N

241009

FAZT-B16/2

240829

FAZT-B16/3

240883

FAZT-B16/3N

241105

FAZT-B16/4

240937

20 FAZT-B20/1

240796

FAZT-B20/1N

241015

FAZT-B20/2

240830

FAZT-B20/3

240884

FAZT-B20/3N

241110

FAZT-B20/4

240938

25 FAZT-B25/1

240797

FAZT-B25/1N

241019

FAZT-B25/2

240831

FAZT-B25/3

240885

FAZT-B25/3N

241115

FAZT-B25/4

240939

321) FAZT-B32/1

141907

FAZT-B32/1N

142509

FAZT-B32/2

142485

FAZT-B32/3

142493

FAZT-B32/3N

142517

FAZT-B32/4

142501

401) FAZT-B40/1

141908

FAZT-B40/1N

142510

FAZT-B40/2

142486

FAZT-B40/3

142494

FAZT-B40/3N

142518

FAZT-B40/4

142502

Characteristic C

Switching capacity 25 kA

(IEC/EN 60947-2)

1FAZT-C1/1

240798

12 off FAZT-C1/1N

241022

1 off FAZT-C1/2

240832

1 off FAZT-C1/3

240886

1 off FAZT-C1/3N

241120

1 off FAZT-C1/4

240940

1 off

2FAZT-C2/1

240799

FAZT-C2/1N

241023

FAZT-C2/2

240833

FAZT-C2/3

240887

FAZT-C2/3N

241125

FAZT-C2/4

240941

3FAZT-C3/1

240800

FAZT-C3/1N

241024

FAZT-C3/2

240838

FAZT-C3/3

240888

FAZT-C3/3N

241130

FAZT-C3/4

240945

4FAZT-C4/1

240801

FAZT-C4/1N

241025

FAZT-C4/2

240843

FAZT-C4/3

240889

FAZT-C4/3N

241135

FAZT-C4/4

240949

6FAZT-C6/1

240802

FAZT-C6/1N

241026

FAZT-C6/2

240850

FAZT-C6/3

240890

FAZT-C6/3N

241140

FAZT-C6/4

240955

10 FAZT-C10/1

240803

FAZT-C10/1N

241027

FAZT-C10/2

240855

FAZT-C10/3

240891

FAZT-C10/3N

241145

FAZT-C10/4

240959

12 FAZT-C12/1

240804

FAZT-C12/1N

241028

FAZT-C12/2

240858

FAZT-C12/3

240892

FAZT-C12/3N

241150

FAZT-C12/4

240962

13 FAZT-C13/1

240805

FAZT-C13/1N

241029

FAZT-C13/2

240859

FAZT-C13/3

240893

FAZT-C13/3N

241155

FAZT-C13/4

240963

15 FAZT-C15/1

240806

FAZT-C15/1N

241030

FAZT-C15/2

240860

FAZT-C15/3

240894

FAZT-C15/3N

241160

FAZT-C15/4

240964

16 FAZT-C16/1

240807

FAZT-C16/1N

241034

FAZT-C16/2

240861

FAZT-C16/3

240895

FAZT-C16/3N

241165

FAZT-C16/4

240965

20 FAZT-C20/1

240808

FAZT-C20/1N

241038

FAZT-C20/2

240862

FAZT-C20/3

240896

FAZT-C20/3N

241170

FAZT-C20/4

240966

25 FAZT-C25/1

240809

FAZT-C25/1N

241044

FAZT-C25/2

240863

FAZT-C25/3

240897

FAZT-C25/3N

241175

FAZT-C25/4

240967

321) FAZT-C32/1

141909

FAZT-C32/1N

142511

FAZT-C32/2

142487

FAZT-C32/3

142495

FAZT-B32/3N

142519

FAZT-C32/4

142503

401) FAZT-C40/1

142480

FAZT-C40/1N

142512

FAZT-C40/2

142488

FAZT-C40/3

142496

FAZT-B40/3N

142520

FAZT-C40/4

142504

Characteristic D

Switching capacity 25 kA

(IEC/EN 60947-2)

1FAZT-D1/1

240810

12 off FAZT-D1/1N

241048

1 off FAZT-D1/2

240864

1 off FAZT-D1/3

240898

1 off FAZT-D1/3N

241180

1 off FAZT-D1/4

240968

1 off

2FAZT-D2/1

240811

FAZT-D2/1N

241051

FAZT-D2/2

240865

FAZT-D2/3

240899

FAZT-D2/3N

241181

FAZT-D2/4

240969

3FAZT-D3/1

240812

FAZT-D3/1N

241052

FAZT-D3/2

240866

FAZT-D3/3

240900

FAZT-D3/3N

241182

FAZT-D3/4

240970

4FAZT-D4/1

240813

FAZT-D4/1N

241053

FAZT-D4/2

240867

FAZT-D4/3

240901

FAZT-D4/3N

241183

FAZT-D4/4

240971

6FAZT-D6/1

240814

FAZT-D6/1N

241054

FAZT-D6/2

240868

FAZT-D6/3

240902

FAZT-D6/3N

241184

FAZT-D6/4

240975

246

135

246

N31

Switching capacity

(IEC/EN 60947-2)

25 kA

Accessories Page

Auxiliary contacts ￫19/24

Shunt releases

Mounting accessories ￫19/25

1 pole

Depth 71 mm

Width 17.5 mm

2 pole; 1 pole + N

Depth 71 mm

Width 35 mm

3 pole

Depth 71 mm

Width 52.5 mm

4 pole; 3 pole + N

Depth 71 mm

Width 70 mm

19/11

FAZT HPL19010EN FAZT

HPL19011EN

19/12 Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

1 pole 1 pole+N 2 pole 3 pole 3 pole+N 4 pole

Notes

Rated opera-

tional current

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

FAZT miniature circuit-breakers

Characteristic D

Switching capacity 25 kA

(IEC/EN 60947-2)

10 FAZT-D10/1

240815

12 off FAZT-D10/1N

241055

1 off FAZT-D10/2

240869

1 off FAZT-D10/3

240903

1 off FAZT-D10/3N

241185

1 off FAZT-D10/4

240979

1 off

1) For additional Technical Data and

Characteristic Curves see "Installation

Products for Industrial Application FAZ-T":

www.moeller.net/cn/support/pdf_Katalog.jsp

12 FAZT-D12/1

240816

FAZT-D12/1N

241056

FAZT-D12/2

240870

FAZT-D12/3

240904

FAZT-D12/3N

241186

FAZT-D12/4

240985

13 FAZT-D13/1

240817

FAZT-D13/1N

241057

FAZT-D13/2

240871

FAZT-D13/3

240905

FAZT-D13/3N

241187

FAZT-D13/4

240989

15 FAZT-D15/1

240818

FAZT-D15/1N

241058

FAZT-D15/2

240872

FAZT-D15/3

240910

FAZT-D15/3N

241188

FAZT-D15/4

240992

16 FAZT-D16/1

240819

FAZT-D16/1N

241059

FAZT-D16/2

240873

FAZT-D16/3

240915

FAZT-D16/3N

241189

FAZT-D16/4

240993

201) FAZT-D20/1

142481

FAZT-D20/1N

142513

FAZT-D20/2

142489

FAZT-D20/3

142497

FAZT-D20/3N

142521

FAZT-D20/4

142505

251) FAZT-D25/1

142482

FAZT-D25/1N

142514

FAZT-D25/2

142490

FAZT-D25/3

142498

FAZT-D25/3N

142522

FAZT-D25/4

142506

321) FAZT-D32/1

142483

FAZT-D32/1N

142515

FAZT-D32/2

142491

FAZT-D32/3

142499

FAZT-D32/3N

142523

FAZT-D32/4

142507

401) FAZT-D40/1

142484

FAZT-D40/1N

142516

FAZT-D40/2

142492

FAZT-D40/3

142500

FAZT-D40/3N

142524

FAZT-D40/4

142508

246

135

246

N31

Switching capacity

(IEC/EN 60947-2)

25 kA

Accessories Page

Auxiliary contacts ￫19/24

Shunt releases

Mounting accessories ￫19/25

1 pole

Depth 71 mm

Width 17.5 mm

2 pole; 1 pole + N

Depth 71 mm

Width 35 mm

3 pole

Depth 71 mm

Width 52.5 mm

4 pole; 3 pole + N

Depth 71 mm

Width 70 mm

￫ Graphics, Page 19/11

19/13

FAZT, FAZ-PN HPL19012EN FAZT, FAZ-DC

HPL19013EN

1 pole 2 pole

With 2 protected poles

Rated

operational

current

Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

Notes

FAZ miniature circuit-

breakers for DC

applications

Characteristic C

Instantaneous release response

current 5 - 10 x In

Switching capacity 10 kA

(IEC/EN 60947-2)

(L/R = 4 ms)

Rated operating voltage

250 V DC per pole

2FAZ-C2/1-DC

279122

12 off FAZ-C2/2-DC

279134

1 off

3FAZ-C3/1-DC

279123

FAZ-C3/2-DC

279135

4FAZ-C4/1-DC

279124

FAZ-C4/2-DC

279136

6FAZ-C6/1-DC

279125

FAZ-C6/2-DC

279137

10 FAZ-C10/1-DC

279126

FAZ-C10/2-DC

279138

13 FAZ-C13/1-DC

279127

FAZ-C13/2-DC

279139

16 FAZ-C16/1-DC

279128

FAZ-C16/2-DC

279140

20 FAZ-C20/1-DC

279129

FAZ-C20/2-DC

279141

25 FAZ-C25/1-DC

279130

FAZ-C25/2-DC

279142

32 FAZ-C32/1-DC

279131

FAZ-C32/2-DC

279143

40 FAZ-C40/1-DC

279132

FAZ-C40/2-DC

279144

50 FAZ-C50/1-DC

279133

FAZ-C50/2-DC

279145

Notes Circuit design notes

Note polarity!

1 pole 2 pole

–

–+

Accessories Page

Auxiliary contacts ￫19/24

Shunt releases

Mounting

accessories

￫19/25

1 pole

Depth 71 mm

Width 17.5 mm

2 pole;

1N pole

Depth 71 mm

Width 35 mm

–

0 V/L–

+250 V/L+

–

+250 V/L+

0 V/L–

–

–+

–

0 V/L–

+500 V/L+

0 V/L– +

Miniat ure circuit- breakers (MC B)

2 pole

With 1 protected pole,

N switching with pole

Rated opera-

tional current

Part no.

Article no.

Price

See price

list

Std. pack Notes

FAZ-PN miniature circuit-breaker

Characteristic B

Instantaneous release response current 3 - 5 x In

Switching capacity 6 kA (IEC/EN 60898)

6FAZ-PN-B6/1N

279146

12 off

10 FAZ-PN-B10/1N

279147

13 FAZ-PN-B13/1N

279148

16 FAZ-PN-B16/1N

279149

20 FAZ-PN-B20/1N

279150

25 FAZ-PN-B25/1N

279151

32 FAZ-PN-B32/1N

279152

40 FAZ-PN-B40/1N

279153

Characteristic C

Instantaneous release response current 5 - 10 x In

Switching capacity 6 kA (IEC/EN 60898)

2FAZ-PN-C2/1N

279154

12 off

4FAZ-PN-C4/1N

279155

6FAZ-PN-C6/1N

279156

10 FAZ-PN-C10/1N

279157

13 FAZ-PN-C13/1N

279158

16 FAZ-PN-C16/1N

279159

20 FAZ-PN-C20/1N

279160

25 FAZ-PN-C25/1N

279161

32 FAZ-PN-C32/1N

279162

40 FAZ-PN-C40/1N

279163

Accessories Page

Auxiliary contacts ￫19/24

Shunt releases

1 N pole

Depth 71 mm

Width 17.5 mm

19/14 Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

Miniat ure circuit- breakers (MC B)

1 pole 2 pole 3 pole 4 pole 4 pole

With 2 protected poles With 3 protected poles With 4 protected poles With 3 protected poles,

N switching with poles

Rated

operational

current

Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std.

pack

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Notes

AZ miniature circuit-breakers

Characteristic C

Response current of short-circuit

release

5 - 10 x In

Switching capacity 15 - 25 kA

(IEC/EN 60947-2)

20 AZ-C20

211769

12 off AZ-2-C20

211770

2 off AZ-3-C20

211771

1 off AZ-4-C20

211772

1 off AZ-3N-C20

211773

1 off

25 AZ-C25

211774

12 off AZ-2-C25

211775

2 off AZ-3-C25

211776

1 off AZ-4-C25

211777

1 off AZ-3N-C25

211778

1 off

32 AZ-C32

211779

12 off AZ-2-C32

211780

2 off AZ-3-C32

211781

1 off AZ-4-C32

211782

1 off AZ-3N-C32

211783

1 off

40 AZ-C40

211784

12 off AZ-2-C40

211785

2 off AZ-3-C40

211786

1 off AZ-4-C40

211787

1 off AZ-3N-C40

211788

1 off

50 AZ-C50

211789

12 off AZ-2-C50

211790

2 off AZ-3-C50

211791

1 off AZ-4-C50

211792

1 off AZ-3N-C50

211793

1 off

63 AZ-C63

211794

12 off AZ-2-C63

211795

2 off AZ-3-C63

211796

1 off AZ-4-C63

211797

1 off AZ-3N-C63

211798

1 off

80 AZ-C80

211799

12 off AZ-2-C80

211800

2 off AZ-3-C80

211801

1 off AZ-4-C80

211802

1 off AZ-3N-C80

211803

1 off

100 AZ-C100

211804

12 off AZ-2-C100

211805

2 off AZ-3-C100

211806

1 off AZ-4-C100

211807

1 off AZ-3N-C100

211808

1 off

125 AZ-C125

211809

12 off AZ-2-C125

211810

2 off AZ-3-C125

211811

1 off AZ-4-C125

211812

1 off AZ-3N-C125

211813

1 off

Characteristic D

Instantaneous release

response current 10 - 20 x In

Switching capacity 15 - 25 kA

(IEC/EN 60947-2)

50 AZ-D50

211814

12 off AZ-2-D50

211815

2 off AZ-3-D50

211816

1 off AZ-3N-D50

211817

1 off

63 AZ-D63

211818

12 off AZ-2-D63

211819

2 off AZ-3-D63

211820

1 off AZ-3N-D63

211821

1 off

80 AZ-D80

211822

12 off AZ-2-D80

211823

2 off AZ-3-D80

211824

1 off AZ-3N-D80

211825

1 off

100 AZ-D100

211826

12 off AZ-2-D100

211827

2 off AZ-3-D100

211828

1 off AZ-3N-D100

211829

1 off

246

135

246

N31

For switching capacity refer to Technical Data

Accessories Page

Auxiliary contacts, shunt releases ￫19/24

Mounting accessories ￫19/25

1 pole

Depth 75 mm

Width 27 mm

2 pole

Depth 75 mm

Width 54 mm

3 pole

Depth 75 mm

Width 81 mm

4 pole; 3 pole + N

Depth 75 mm

Width 108 mm

19/15

AZ HPL19014EN AZ

HPL19015EN

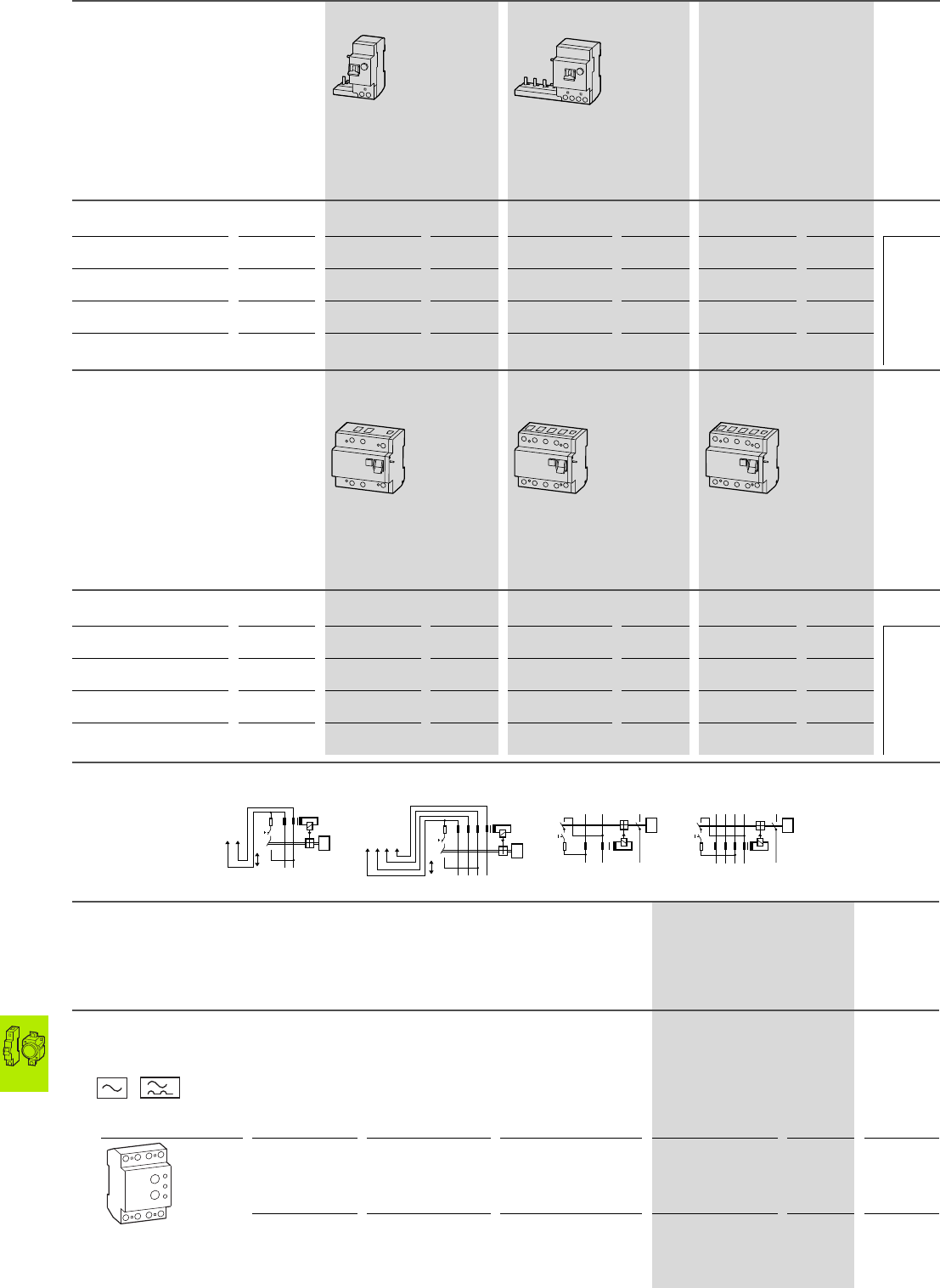

19/16 Circuit-breakers, fuses

Residual-current protective modules for FAZ and AZ, leakage current meter

2010 CA08103002Z-EN www.eaton.com

Residual-current protective modules for FAZ and AZ, leakage current meter

2 pole 4 pole

Rated

uninterrupted

current

Part no.

Article no. Price

See price

list

Part no.

Article no. Price

See price

list

Std. pack

Residual-current protective modules for

FAZ

Rated fault current

IN = 30 mA

40 FIM-40/2/0.03-A

278510 FIM-40/4/0.03-A

278514

1 off

Rated fault current

IN = 30 mA

63 FIM-63/2/0.03-A

278512 FIM-63/4/0.03-A

278516

Rated fault current

IN = 300 mA

40 FIM-40/2/0.3-A

278511 FIM-40/4/0.3-A

278515

Rated fault current

IN = 300 mA

63 FIM-63/2/0.3-A

278513 FIM-63/4/0.3-A

278517

2 pole 4 pole 4 pole

Selective

Rated

uninterrupted

current

Part no.

Article no. Price

See price

list

Part no.

Article no. Price

See price

list

Part no.

Article no. Price

See price

list

Std. pack

Residual-current protective modules for

Rated fault current

IN = 30 mA

80 AZFIMP-4-80-0,03

255484

1 off

Rated fault current

IN = 30 mA

125 AZFIMP-4-125-0,03

255488

Rated fault current

IN = 300 mA

80 AZFIMP-2-80-0,3

255477 AZFIMP-4-80-0,3

255485 AZFIMS-4-80-0,3

255492

Rated fault current

IN = 300 mA

125 AZFIMP-2-125-0,3

255481 AZFIMP-4-125-0,3

255489 AZFIMS-4-125-0,3

255495

Notes FIM-…/2/… FIM-…/4/… AZFIMP-2-…

AZFIMP-4-…

AZFIMS-4-…

Pole Rated operational

current

Response value

Earth-fault release Part no.

Article no. Price

See price

list

Std. pack

InIn

Leakage current meter

• 4 pole, can also be used as 2 and 3 pole

• Electronic operation (independent of mains voltage)

• , non-delayed

• Type G or part no. S can be set

•19/55

4 pole 40 0.03

0.1

0.3

0.5

1.0

PDIM-40/4

111760

1 off

4 pole 100 0.03

0.1

0.3

0.5

1.0

PDIM-100/4

111761

1 off

2' 4'

2' 4' 6' 8'N

2468N

1' 3'/N 13

2' 4'/N 14

1' 7'/N 13

6' 8'/N 14

FIM, AZFIM, PDIM HPL19016EN

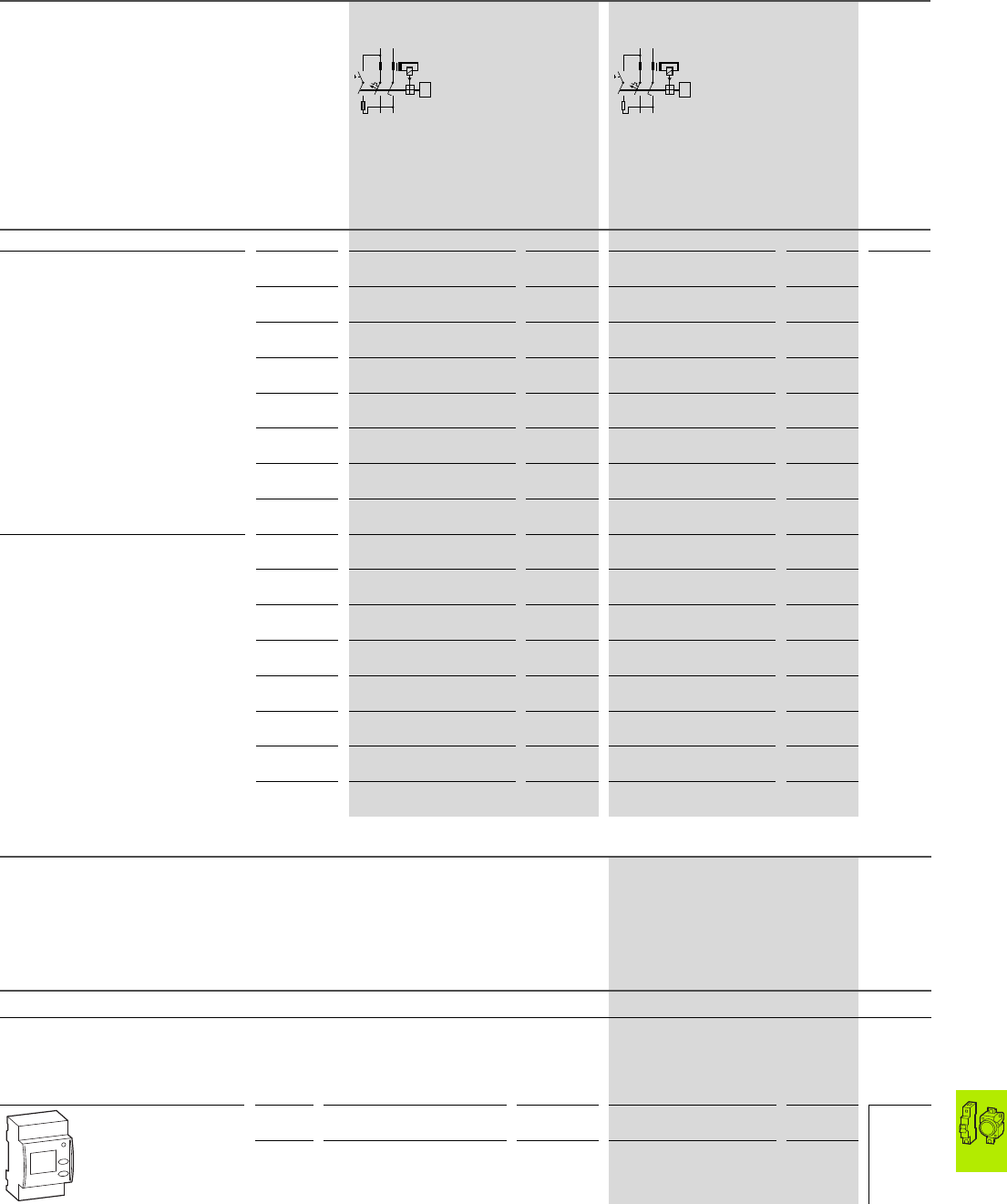

Circuit-breakers, fuses

Combination switches, power meters

2010 CA08103002Z-EN www.eaton.com

19/17

Combination switches, power meters

Power meter

2 pole 2 pole

Rated

operational

current

Part no.

Article no.

Rated fault current

IN = 30 mA

Price

See price

list

Part no.

Article no.

Rated fault current

IN = 300 mA

Price

See price

list

Std. pack

PKNM combination switches, type A

Characteristic B

Switching capacity 10 kA

6PKNM-6/1N/B/003-A-DW

238580 PKNM-6/1N/B/03-A-DW

238582

1 off

10 PKNM-10/1N/B/003-A-DW

238640 PKNM-10/1N/B/03-A-DW

238642

13 PKNM-13/1N/B/003-A-DW

238701 PKNM-13/1N/B/03-A-DW

238703

16 PKNM-16/1N/B/003-A-DW

238773 PKNM-16/1N/B/03-A-DW

238775

20 PKNM-20/1N/B/003-A-DW

238807 PKNM-20/1N/B/03-A-DW

238809

25 PKNM-25/1N/B/003-A-DW

238837 PKNM-25/1N/B/03-A-DW

238839

32 PKNM-32/1N/B/003-A-DW

238867 PKNM-32/1N/B/03-A-DW

238869

40 PKNM-40/1N/B/003-A-DW

238896 PKNM-40/1N/B/03-A-DW

238898

Characteristic C

Switching capacity 10 kA

6PKNM-6/1N/C/003-A-DW

238590 PKNM-6/1N/C/03-A-DW

238592

10 PKNM-10/1N/C/003-A-DW

238650 PKNM-10/1N/C/03-A-DW

238652

13 PKNM-13/1N/C/003-A-DW

238713 PKNM-13/1N/C/03-A-DW

238715

16 PKNM-16/1N/C/003-A-DW

238785 PKNM-16/1N/C/03-A-DW

238787

20 PKNM-20/1N/C/003-A-DW

238817 PKNM-20/1N/C/03-A-DW

238819

25 PKNM-25/1N/C/003-A-DW

238847 PKNM-25/1N/C/03-A-DW

238849

32 PKNM-32/1N/C/003-A-DW

238877 PKNM-32/1N/C/03-A-DW

238879

40 PKNM-40/1N/C/003-A-DW

238906 PKNM-40/1N/C/03-A-DW

238908

Pole Description Rated

operational

current

Part no.

Article no. Price

See price

list

Std. pack

Power meter

Power meter to IEC/EN 62053 for sub measurements

• For active/reactive energy

• Three-phase models also suitable for unbalanced load

• Programmable through 2 keys on device front

• Front plate and terminal area can be sealed

3 + N Connection through current

transformer

5KWZ-3PH

110825

1 off

3 + N Connection through current

transformer

63 KWZ-3PH-63

110826

PKNM, KWZ

HPL19017EN

19/18 Circuit-breakers, fuses

Combination switches

2010 CA08103002Z-EN www.eaton.com

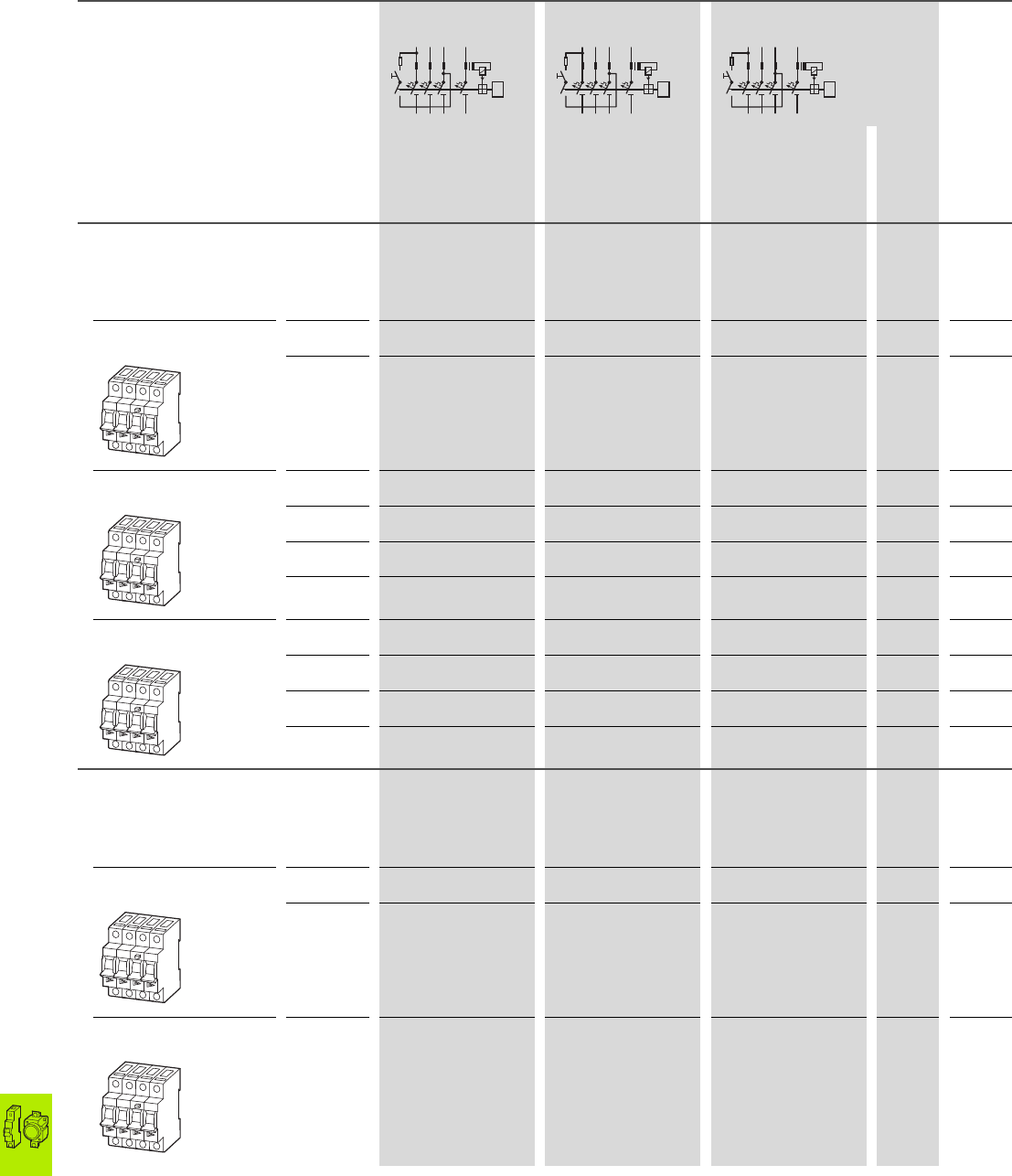

Combination switches

3 pole + N 3 pole + N 3 pole + N

Rated

operational

current

Part no.

Article no. Part no.

Article no. Price

See price

list

Std. pack

Rated fault current

IN = 30 mA

Rated fault current

IN = 100 mA

Rated fault current

IN = 300 mA

FI/LS combination switches mRB6

• Conditionally surge-proof 250 A

• Pulse-current sensitive, Type A

• Depth 75 mm

• Width 70 mm

Characteristic B

Switching capacity 6 kA

13 mRB6-13/3N/B/003-A

120651 mRB6-13/3N/B/01-A

120653 mRB6-13/3N/B/03-A

120655

1 off

16 mRB6-16/3N/B/003-A

120652 mRB6-16/3N/B/01-A

120654 mRB6-16/3N/B/03-A

120656

1 off

Characteristic C

Switching capacity 6 kA

6mRB6-6/3N/C/003-A

120657 mRB6-6/3N/C/01-A

120661 mRB6-6/3N/C/03-A

120665

1 off

10 mRB6-10/3N/C/003-A

120658 mRB6-10/3N/C/01-A

120662 mRB6-10/3N/C/03-A

120666

1 off

13 mRB6-13/3N/C/003-A

120659 mRB6-13/3N/C/01-A

120663 mRB6-13/3N/C/03-A

120667

1 off

16 mRB6-16/3N/C/003-A

120660 mRB6-16/3N/C/01-A

120664 mRB6-16/3N/C/03-A

120668

1 off

Characteristic D

Switching capacity 6 kA

6mRB6-6/3N/D/003-A

120669 mRB6-6/3N/D/01-A

120673

1 off

10 mRB6-10/3N/D/003-A

120670 mRB6-10/3N/D/01-A

120674

1 off

13 mRB6-13/3N/D/003-A

120671 mRB6-13/3N/D/01-A

120675

1 off

16 mRB6-16/3N/D/003-A

120672 mRB6-16/3N/D/01-A

120676

1 off

FI-LS combination switches mRB4

• Conditionally surge-proof 250 A

• Pulse-current sensitive, Type A

• Depth 75 mm

• Width 70 mm

Characteristic C

Switching capacity 4.5 kA

20 mRB4-20/3N/C/003-A

120677 mRB4-20/3N/C/01-A

120679 mRB4-20/3N/C/03-A

120681

1 off

25 mRB4-25/3N/C/003-A

120678 mRB4-25/3N/C/01-A

120680 mRB4-25/3N/C/03-A

120682

1 off

Characteristic D

Switching capacity 4.5 kA

20 mRB4-20/3N/D/003-A

120683 mRB4-20/3N/D/01-A

120684

1 off

mRB6, mRB4 HPL19018EN

Circuit-breakers, fuses

Residual-current devices

2010 CA08103002Z-EN www.eaton.com

19/19

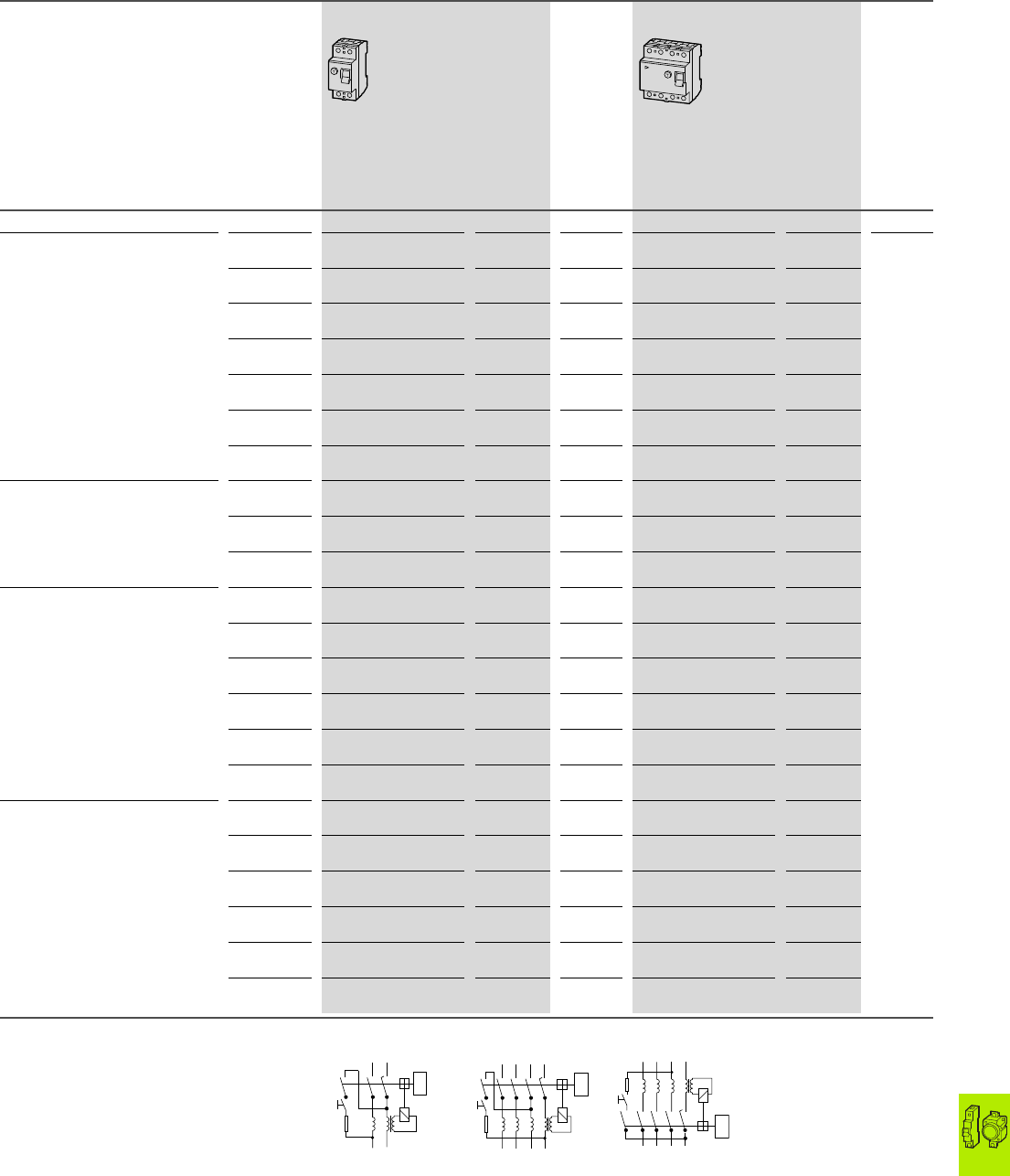

Residual-current devices

2 pole 4 pole

Rated

uninterrupted

current

Part no.

Article no. Price

See price list

Std. pack Part no.

Article no. Price

See price list

Std. pack

Residual-current devices FI, type A

Rated fault current

IN = 30 mA

16 FI-16/2/003-A

279183

1 off 1 off

25 FI-25/2/003-A

279184

1 off FI-25/4/003-A

279213

40 FI-40/2/003-A

279187

1 off FI-40/4/003-A

279217

63 FI-63/4/003-A

279221

80 FI-80/4/003-A

279225

100 FI-100/4/003-A/-

102936

125 FI-125/4/003-A

279165

Rated fault current

IN = 100 mA

25 FI-25/2/01-A

279185

1 off FI-25/4/01-A

279214

40 FI-40/2/01-A

279188

1 off FI-40/4/01-A

279218

63 FI-63/4/01-A

279222

Rated fault current

IN = 300 mA

25 FI-25/2/03-A

279186

1 off FI-25/4/03-A

279215

40 FI-40/2/03-A

279189

1 off FI-40/4/03-A

279219

63 FI-63/4/03-A

279223

80 FI-80/4/03-A

279226

100 FI-100/4/03-A/-

102937

125 FI-125/4/03-A

279167

Rated fault current

IN = 500 mA

25 FI-25/4/05-A

279216

40 FI-40/4/05-A

279220

63 FI-63/4/05-A

279224

80 FI-80/4/05-A

279227

100 FI-100/4/05-A/-

102938

125 FI-125/4/05-A

279169

Notes

 100 A 125 A

462

135

351

246

HPL19019EN

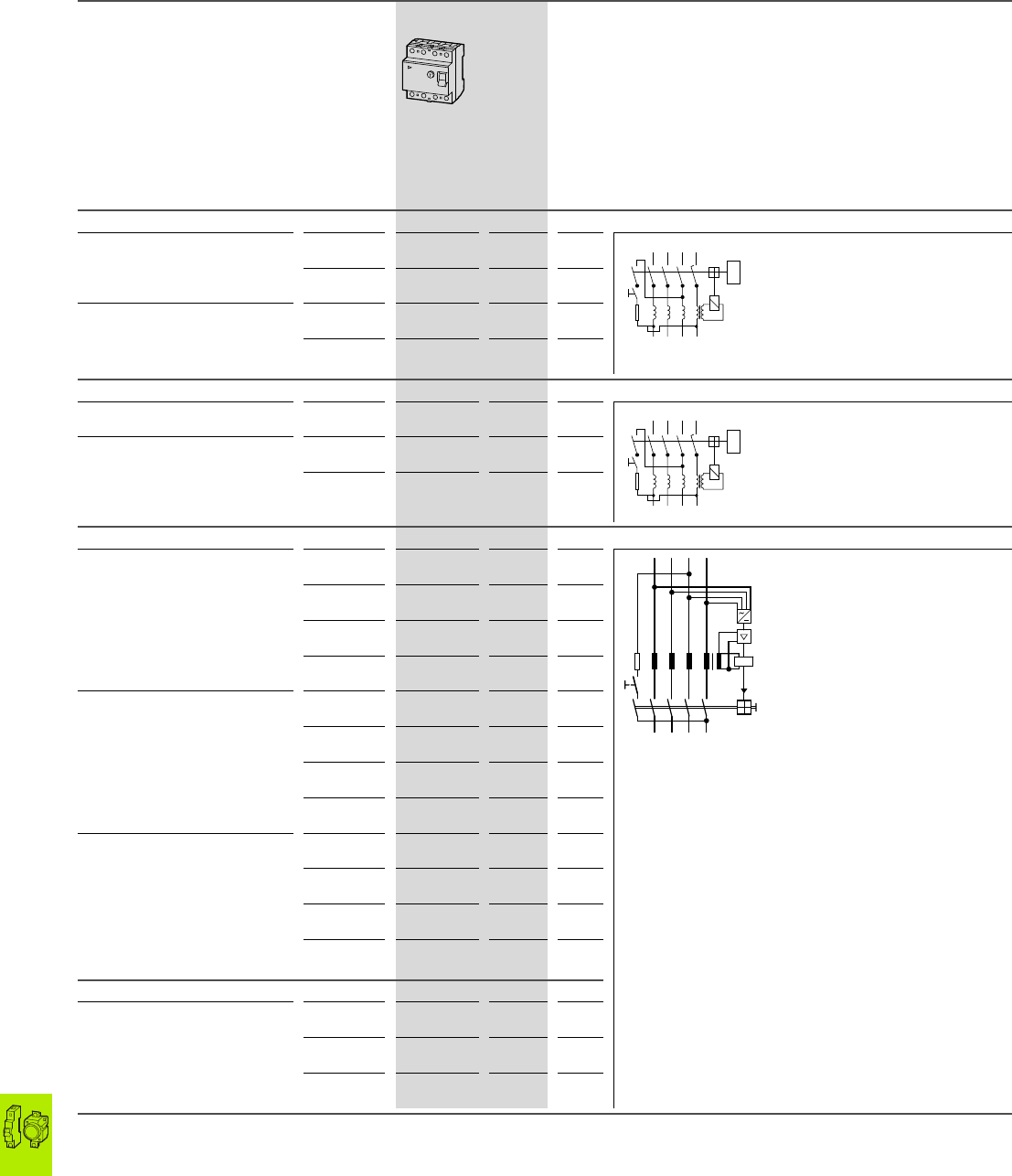

19/20 Circuit-breakers, fuses

Residual-current devices

2010 CA08103002Z-EN www.eaton.com

Residual-current devices

4 pole

Rated

uninterrupted

current

Part no.

Article no. Price

See price

list

Std.

pack Notes

Suitable for frequency inverters, type U

Rated fault current

IN = 100 mA

40 FI-40/4/01-U

279234

1 off

63 FI-63/4/01-U

279236

1 off

Rated fault current

IN = 300 mA

40 FI-40/4/03-U

279235

1 off

63 FI-63/4/03-U

279237

1 off

Selective and surge-proof 5 kA, type S/A

Rated fault current

IN = 100 mA

63 FI-63/4/01-S/A

279228

1 off

Rated fault current

IN = 300 mA

63 FI-63/4/03-S/A

279229

1 off

80 FI-80/4/03-S/A

279230

1 off

AC/DC sensitive, Type B

Rated fault current

IN = 30 mA

40 FI-40/4/003-B

240710

1 off

For use in 50 Hz AC current systems with electrical equipment such as

frequency inverters, UPS systems or switched-mode power supply units.

During a malfunction electrical equipment can cause AC fault currents

and pulsed DC fault currents as well as smoothed d.c. fault currents,

where residual-current devices of type C will not trip. The residual-

current devices FIB detect all fault current types in accordance with

the trip characteristic of IEC 60755, i.e. even pulsating d.c. fault current.

• Caution: In some countries the insurance companies place special

demands on residual-current devices.

• Contact position display red-green

• Position independent function

• Trip occurs independent of the mains voltage (currents type AC and A)

• 30 V AC necessary for detection of type B current

• Mains connection side at top

• Type S/B 40 ms delay and selective switch off

• Auxiliary contacts on request

63 FI-63/4/003-B

240711

1 off

80 FI-80/4/003-B

240712

1 off

1251) FI-125/4/003-B

240717

1 off

Rated fault current

IN = 100 mA

40 FI-40/4/01-B

279170

1 off

63 FI-63/4/01-B

279171

1 off

80 FI-80/4/01-B

279172

1 off

1251) FI-125/4/01-B

240722

1 off

Rated fault current

IN = 300 mA

40 FI-40/4/03-B

279173

1 off

63 FI-63/4/03-B

279174

1 off

80 FI-80/4/03-B

279175

1 off

1251) FI-125/4/03-B

240727

1 off

AC/DC sensitive, selective, S/B type

Rated fault current

IN = 300 mA

40 FI-40/4/03-S/B

281022

1 off

63 FI-63/4/03-S/B

281023

1 off

80 FI-80/4/03-S/B

281024

1 off

Notes 1) Neutral conductor right, with 125 A neutral conductor on left

462

135

462

135

I >

FI HPL19020EN

Circuit-breakers, fuses

Residual-current devices

2010 CA08103002Z-EN www.eaton.com

19/21

Residual-current devices

Rated operational current Part no.

Article no. Price

See price

list

Std. pack

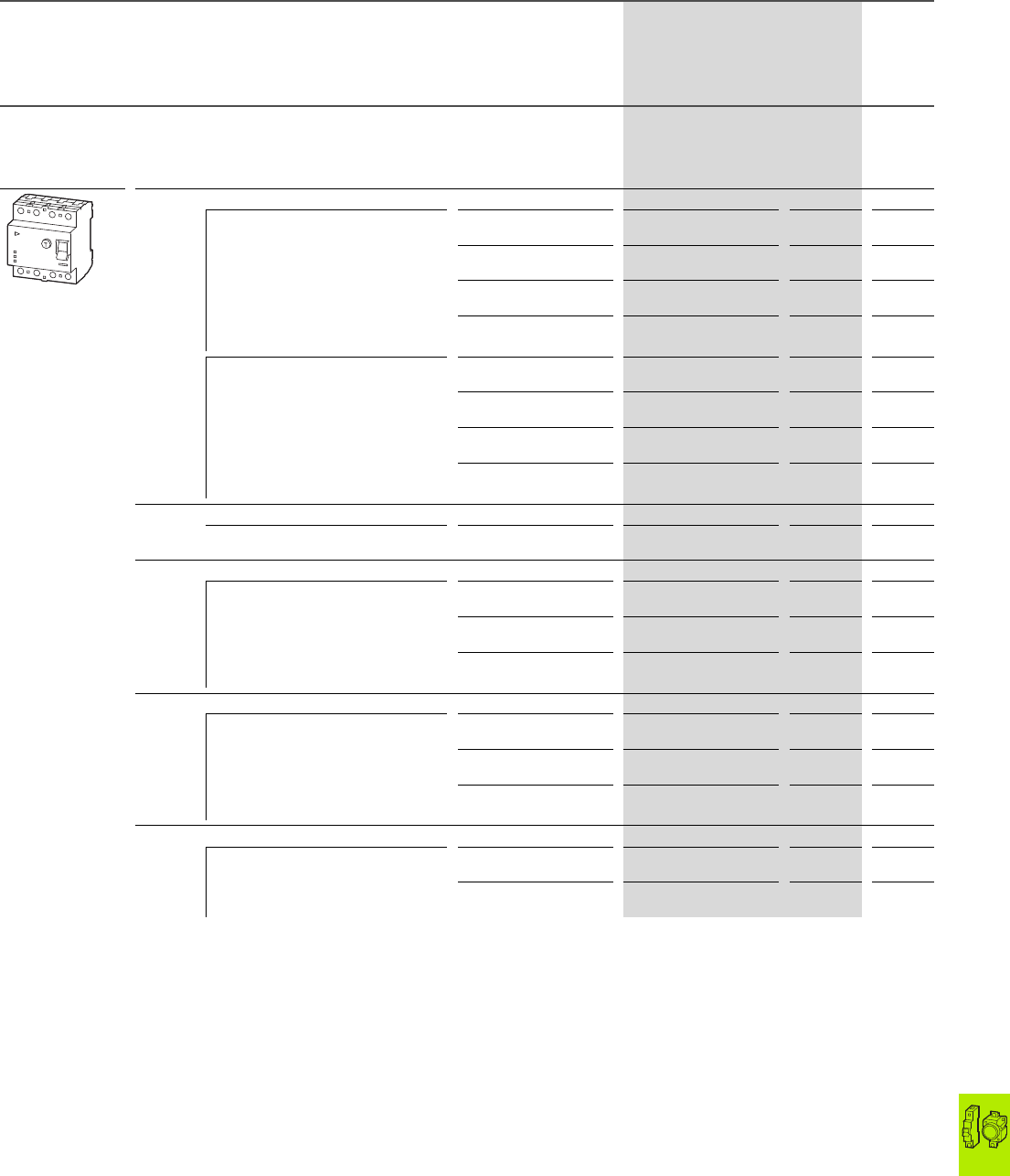

Residual-current devices dRCM, digital

• 4 pole

• Contact position display red-green

• Trip indication white/blue

Surge-proof 3 kA, pulse-current sensitive, Type G/A

Rated fault current IN = 30 mA 25 dRCM-25/4/003-G/A+

120834

1 off

40 dRCM-40/4/003-G/A+

120836

1 off

63 dRCM-63/4/003-G/A+

120838

1 off

80 dRCM-80/4/003-G/A+

120840

1 off

Rated fault current IN = 300 mA 25 dRCM-25/4/03-G/A+

120835

1 off

40 dRCM-40/4/03-G/A+

120837

1 off

63 dRCM-63/4/03-G/A+

120839

1 off

80 dRCM-80/4/03-G/A+

120841

1 off

Surge-proof 3 kA, X-ray applications, Type R

Rated fault current IN = 30 mA 63 dRCM-63/4/003-R+

120842

1 off

Selective and surge-proof typ. 5 kA, pulse-current sensitive, Type S/A

Rated fault current IN = 300 mA 40 dRCM-40/4/03-S/A+

120843

1 off

63 dRCM-63/4/03-S/A+

120844

1 off

80 dRCM-80/4/03-S/A+

120845

1 off

Selective and surge-proof typ. 5 kA, suitable for frequency inverters, Type U

Rated fault current IN = 300 mA 40 dRCM-40/4/03-U+

120851

1 off

63 dRCM-63/4/03-U+

120847

1 off

80 dRCM-80/4/03-U+

120848

1 off

Short-time delayed and surge-proof 3 kA, suitable for frequency inverters, Type U

Rated fault current IN = 30 mA 40 dRCM-40/4/003-U+

120850

1 off

63 dRCM-63/4/003-U+

120846

1 off

dRCM

HPL19021EN

19/22 Circuit-breakers, fuses

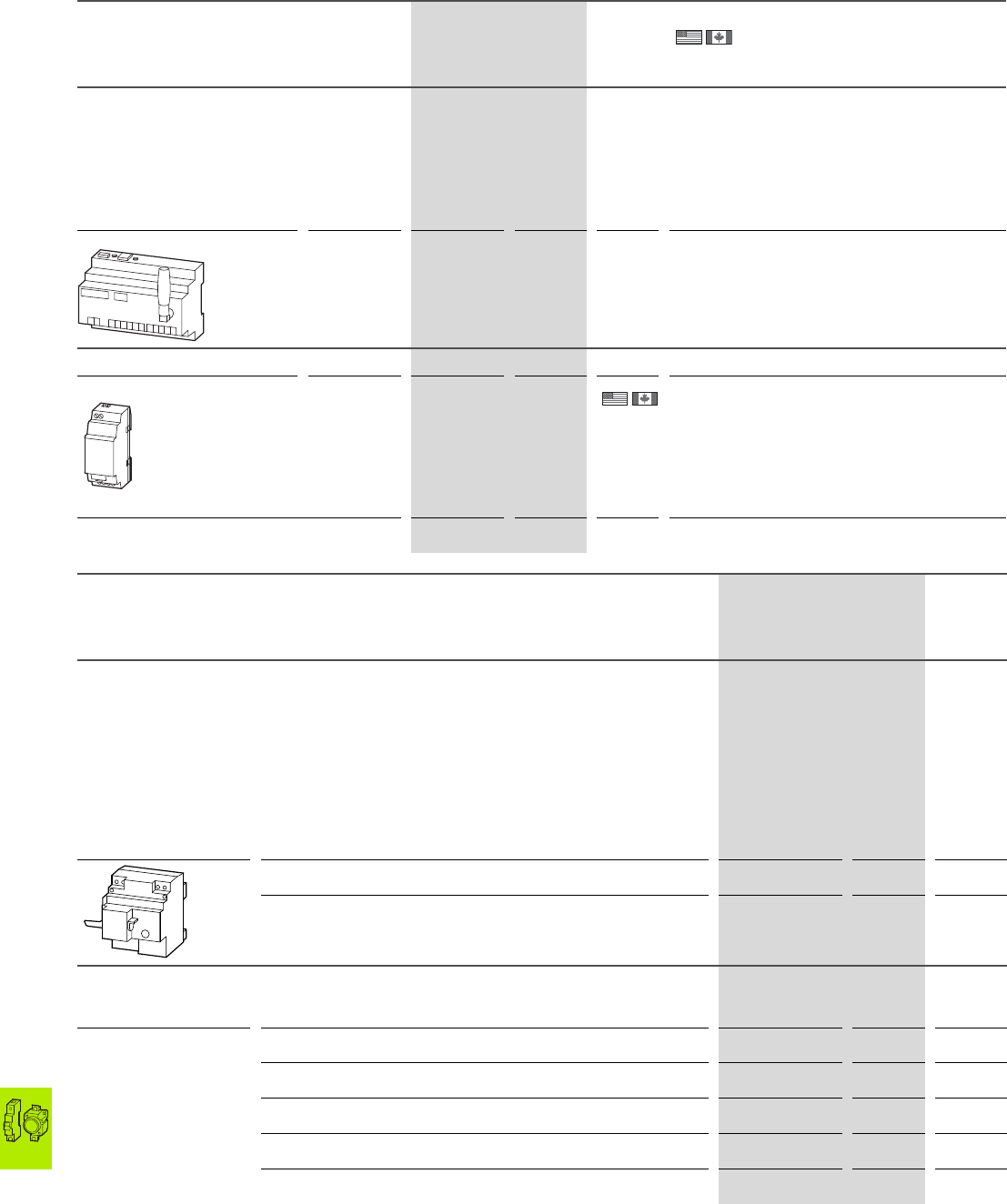

Remote monitoring unit, remote switching modules

2010 CA08103002Z-EN www.eaton.com

Remote m onitoring unit, re mote switching modules

Part no.

Article no. Price

See price

list

Std. pack Information relevant for export to North America

Remote monitoring unit

• GSM-based universal remote monitoring and control

through SMS

• Configuration and status monitoring through SMS

• Built-in modem monitoring and associated status

indication through front-mounted LEDs

• 2 changeover contacts

• 4 digital inputs, 2 relay outputs

–Z-CC/2CO

119383

1 off

Accessories for remote monitoring unit

Power adaptor 24 V, 0.2 A EASY200-POW

229424

1 off Product Standards IEC/EN see Technical Data; UL 508;

CSA C22.2 No. 142-M1987; CSA C22.2

No. 213-M1987; CE marking

UL File No. E135462

UL CCN NRAQ

CSA File No. 012528

CSA Class No. 2252-01 + 2258-02

NA Certification UL Listed, CSA certified

Degree of Protection IEC: IP20, UL/CSA Type: -

Temperature sensor Z-CC/2CO-SE

119430

1 off

Part no.

Article no. Price

See price

list

Std. pack

Remote switching modules

• IEC/EN 60669-2-2

• For remote switching and automatic restart of FAZ miniature circuit-breakers and FI residual-current devices up

to 80 A, except Type B

• Mechanically lockable and sealable

• LED indication of operational status and alarm status

• Mechanical switching capacity up to FAZ-...63 and up to FI-80..., except Type B (-XFSM)

• -25 °C/+40 °C

• Rated operating voltage 24 - 240 V AC, 24 - 48 V DC

• Terminal capacity 2 x 1.5 mm², 1 x 2.5 mm²; 0.4 Nm

• Mechanical/electrical lifespan 10 000 switching operations

• Power consumption 5 W

220 - 240 V AC FAZ/FIP-XAWM

262514

1 off

48 V DC FAZ/FIP-XDWM

274404

1 off

Remote test module

• External test module with test resistor for RCCB devices

• Version adapted for rated fault currents with stipulated “external” test button function

–0.01 A Z-FW/001

248297

4 off

0.03 A Z-FW/003

248298

4 off

0.1 A Z-FW/010

248299

4 off

0.3 A Z-FW/030

248300

4 off

0.5 A Z-FW/050

248301

4 off

Z-CC, FAZ/FIP-X, Z-FW HPL19022EN

Circuit-breakers, fuses

Residual-current devices only for export

2010 CA08103002Z-EN www.eaton.com

19/23

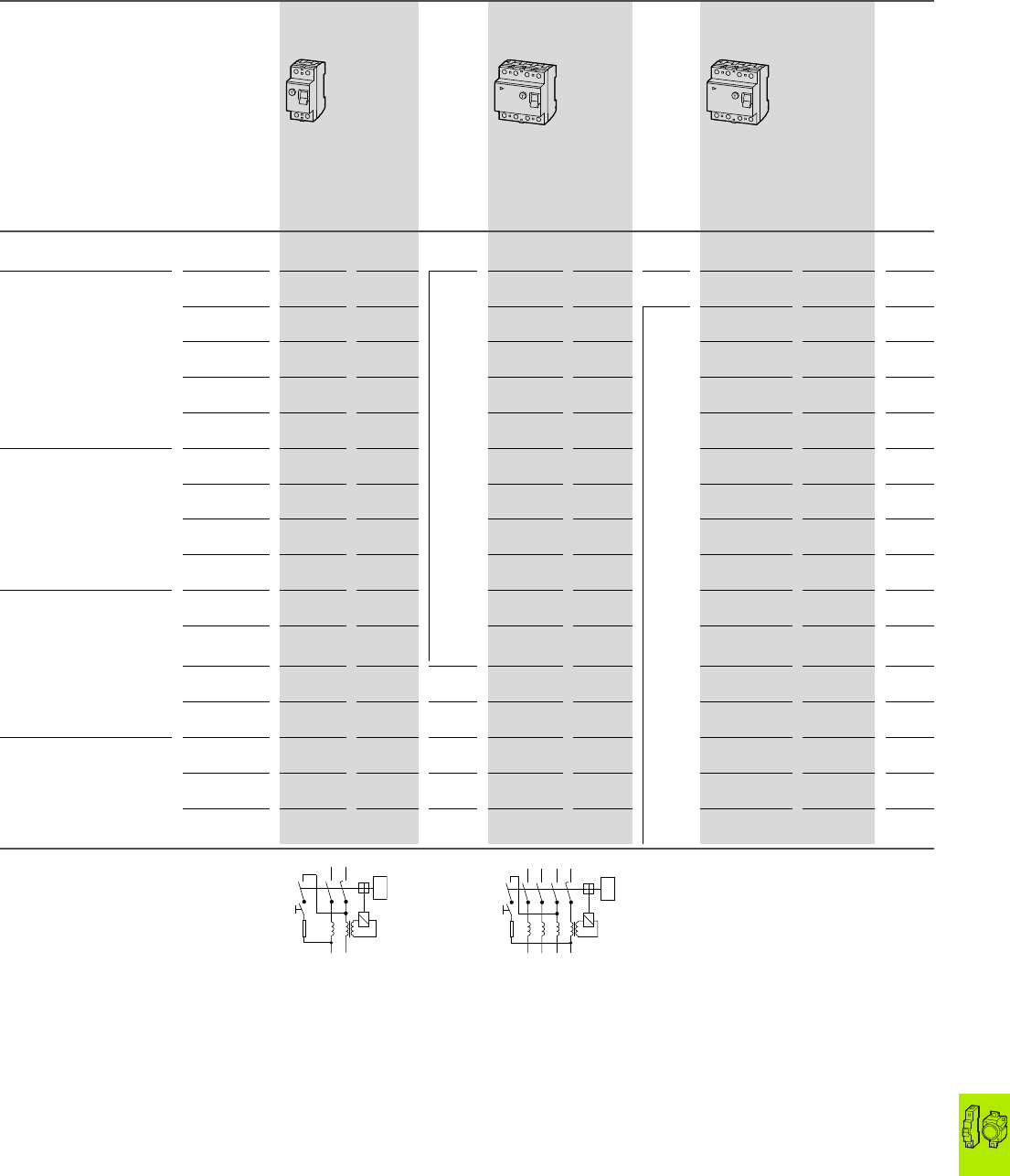

Residu al-current dev ices only for ex port

2 pole 4 pole 4 pole

Selective and surge-proof 5 kA

Rated

uninterrupted

current

Part no.

Article no. Price

See price

list

Std.

pack Part no.

Article no. Price

See price

list

Std.

pack Part no.

Article no. Price

See price

list

Std.

pack

FI residual-current devices, only for export

(AC type)

Rated fault current

IN = 30 mA

16 FI-16/2/003

279176

1 off

25 FI-25/2/003

279177 FI-25/4/003

279196

1 off

40 FI-40/2/003

279180 FI-40/4/003

279200

63 FI-63/2/003

279190 FI-63/4/003

279204

80 FI-80/2/003

279192 FI-80/4/003

279208

Rated fault current

IN = 100 mA

25 FI-25/2/01

279178 FI-25/4/01

279197

40 FI-40/2/01

279181 FI-40/4/01

279201

63 FI-63/2/01

279191 FI-63/4/01

279205 FI-63/4/01-S

279210

1 off

80 FI-80/2/01

279193 FI-80/4/01

279231

Rated fault current

IN = 300 mA

25 FI-25/2/03

279179 FI-25/4/03

279198

40 FI-40/2/03

279182 FI-40/4/03

279202

80 FI-63/4/03

279206 FI-63/4/03-S

279211

1 off

25 FI-80/4/03

279209 FI-80/4/03-S

279212

1 off

Rated fault current

IN = 500 mA

40 FI-25/4/05

279199

63 FI-40/4/05

279203

16 FI-63/4/05

279207

Notes

462

135

HPL19023EN

19/24 Circuit-breakers, fuses

Auxiliary contacts, shunt releases, MCB lock

2010 CA08103002Z-EN www.eaton.com

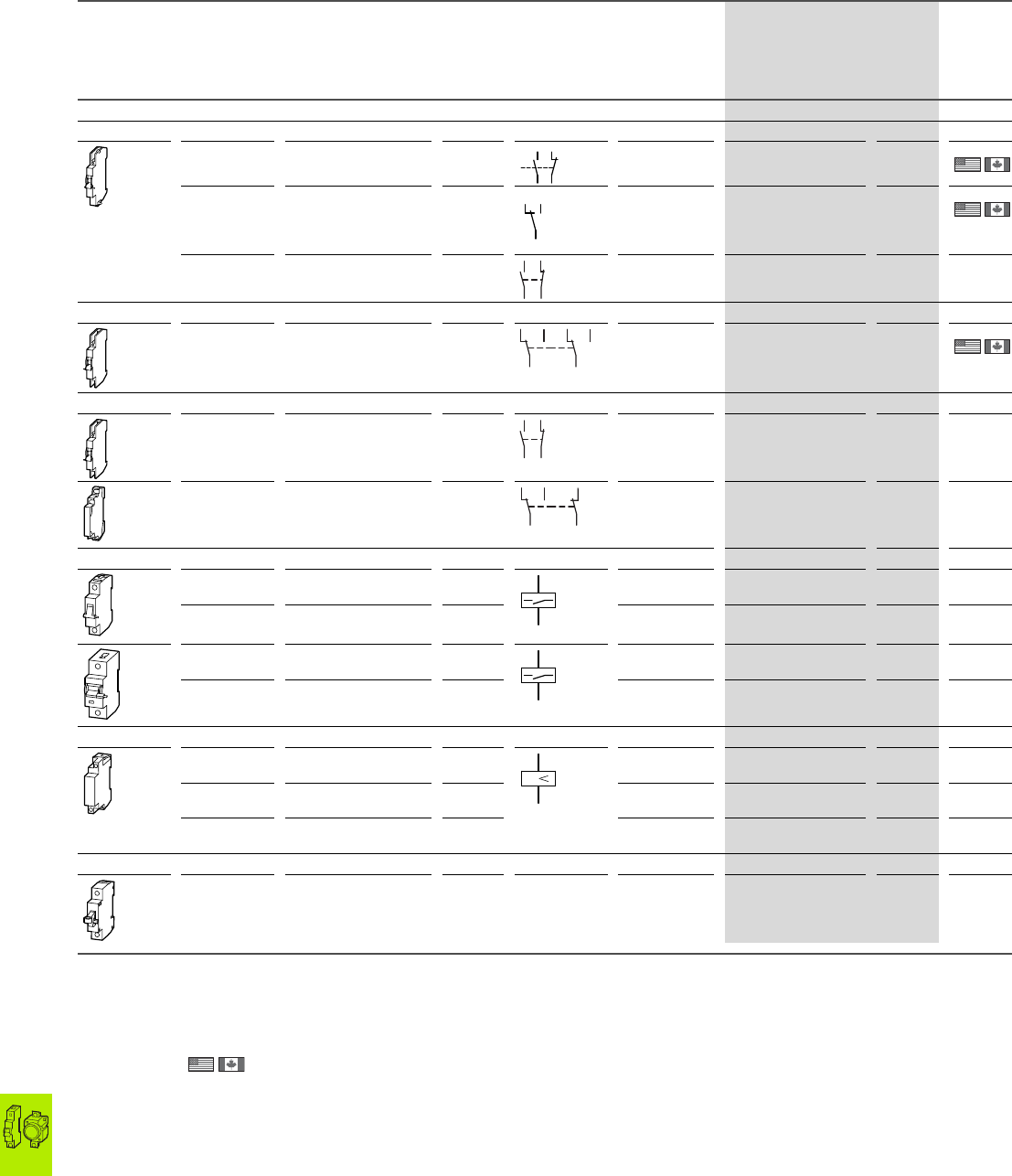

Auxiliary contacts, shu nt releases, MCB lock

For use with Contacts Contact

sequences

Space units,

1 space unit = 18 mm

Part no.

Article no. Price

See price

list

Std. pack

Number Space unit

Auxiliary contacts and shunt releases

Auxiliary contacts for FAZ, AZ, PKNM

FAZ...

PKNM...

to 63 A 1 N/O/

1 NC

0.5 FAZ-XHIN113)

286054

10 off

FAZ...

PKNM...

to 63 A 1 C 0.5 FAZ-XHINW14)

286055

10 off

AZ... to 125 A 1 N/O/

1 NC

0.5 AZ-XHI11

212067

8 off

Trip-indicating auxiliary contact/auxiliary contact for FAZ, PKNM1)

FAZ...

PKNM...

to 63 A 2 C 0.5 FAZ-XAM0025)

262414

10 off

Auxiliary contacts for FI

FI... 16 - 100 A, except type B 1 N/O/

1 NC

0.5 FIP-XHI11

225121

10 off

FI...2) 125 A and all type B 1 NC /

1 N/O

0.5 FIPA-XAM011

262578

1 off

Shunt releases for FAZ, PKNM, AZ

FAZ...

PKNM...

to 63 A – 1 FAZ-XAA-C-12-110VAC

278518

1 off

FAZ...

PKNM...

to 63 A – 1 FAZ-XAA-C-110-415VAC

278519

1 off

AZ... to 125 A – 1.5 AZ-XAA(110-415VAC)

212059

8 off

AZ... to 125 A – 1.5 AZ-XAA(12-60VAC)

212061

8 off

Undervoltage releases for FAZ

FAZ... – – 1 FAZ-XUA(115VAC)

212049

7 off

FAZ... – – 1 FAZ-XUA(230VAC)

212051

7 off

FAZ... – – 1 FAZ-XUA(400VAC)

212053

7 off

MCB lock for FAZ/FIP

FAZ...

FIP...

––––IS/SPE-1TE

101911

5 off

Notes 1) The device is supplied with the groove in the yellow selector button in the horizontal: Changeover contact 4.11 – 4.12/4.14 switches when

tripped manually or electrically. Turning the yellow selector button by 90° results in contact 4.11 – 4.12/4.14 responding only to electrical

tripping: the contact 4.11 – 4.12/4.14 remains closed when tripped by hand.

2) The device is supplied with the “Auxiliary contacts” function set such that both contacts switch on manual and electrical tripping. A change

of function to “Signalling switch” means that both contacts switch only under fault conditions.

Information relevant for export to North America

3) Product Standards IEC/EN 60947-2; IEC/EN 60898; UL 1077; CSA-C22.2 No. 235; CE marking

UL File No. E177451

UL CCN QVNU2, QVNU9

CSA File No. –

CSA Class No. 3215-30

NA Certification UL Recognized, certified by UL for use in Canada

Degree of Protection IEC: IP20; UL/CSA Type: -

4) Product Standards IEC/EN 60947-2; IEC/EN 60898; UL 1077; CSA-C22.2 No. 235; CE marking

UL File No. E177451

UL CCN QVNU2

NA Certification UL Recognized, request filed for CSA

Degree of Protection IEC: IP20; UL/CSA Type: -

5) Product Standards IEC/EN 60947-2; IEC/EN 60898; UL 1077; CSA-C22.2 No. 235; CE marking

UL File No. E177451

UL CCN QVNU2, QVNU8

CSA File No. –

CSA Class No. 3215-30

NA Certification UL Recognized, certified by UL for use in Canada

Degree of Protection IEC: IP20; UL/CSA Type: -

14 22

2113

12 14

1.13 1.21

1.14 1.22

1.14 4.141.12

1.11

4.12

4.11

1.13 1.21

1.14 1.22

1.141.12

1.11

1.21

1.22

FAZ-X, AZ-X, FIP-X HPL19024EN

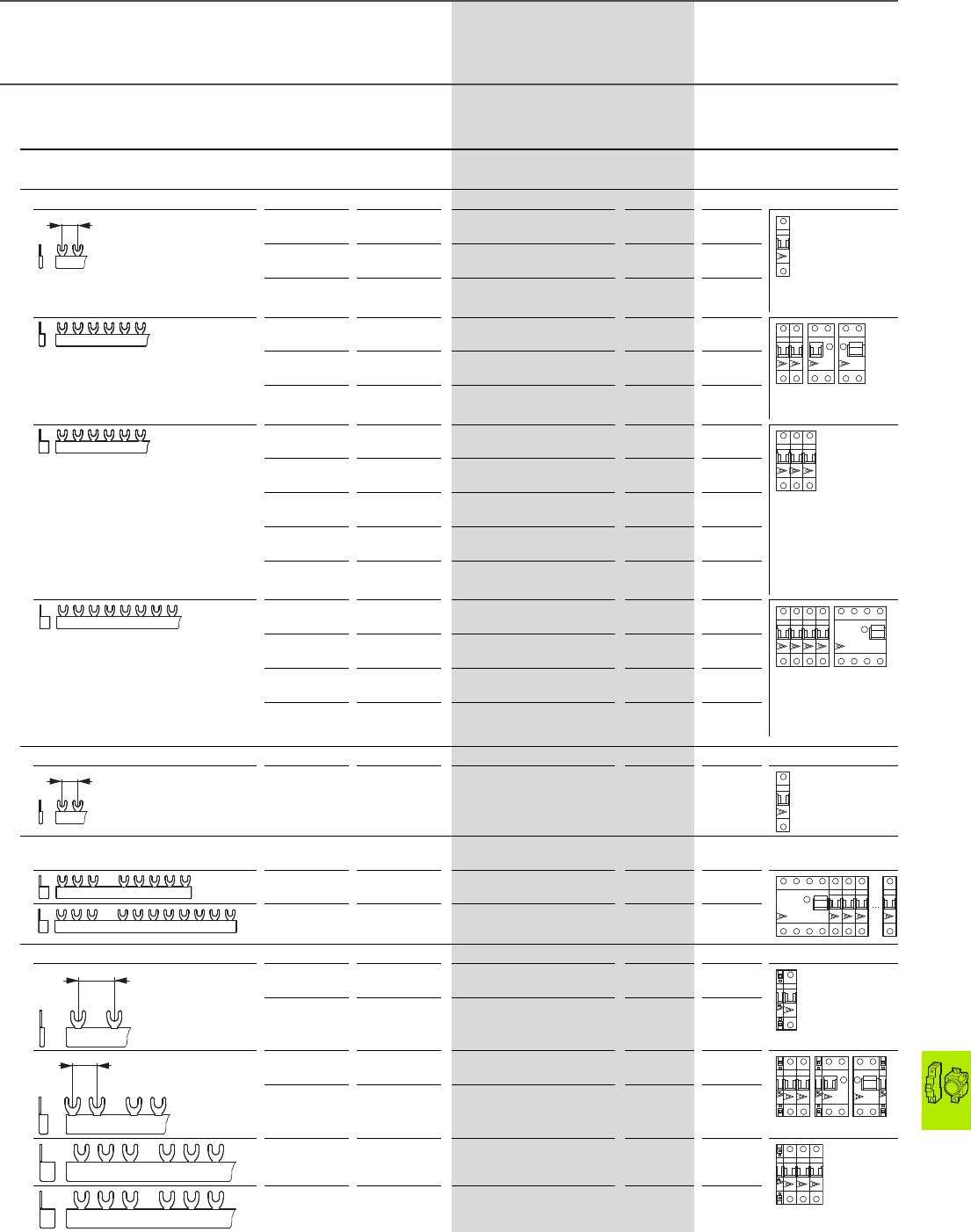

Circuit-breakers, fuses

Busbars

2010 CA08103002Z-EN www.eaton.com

19/25

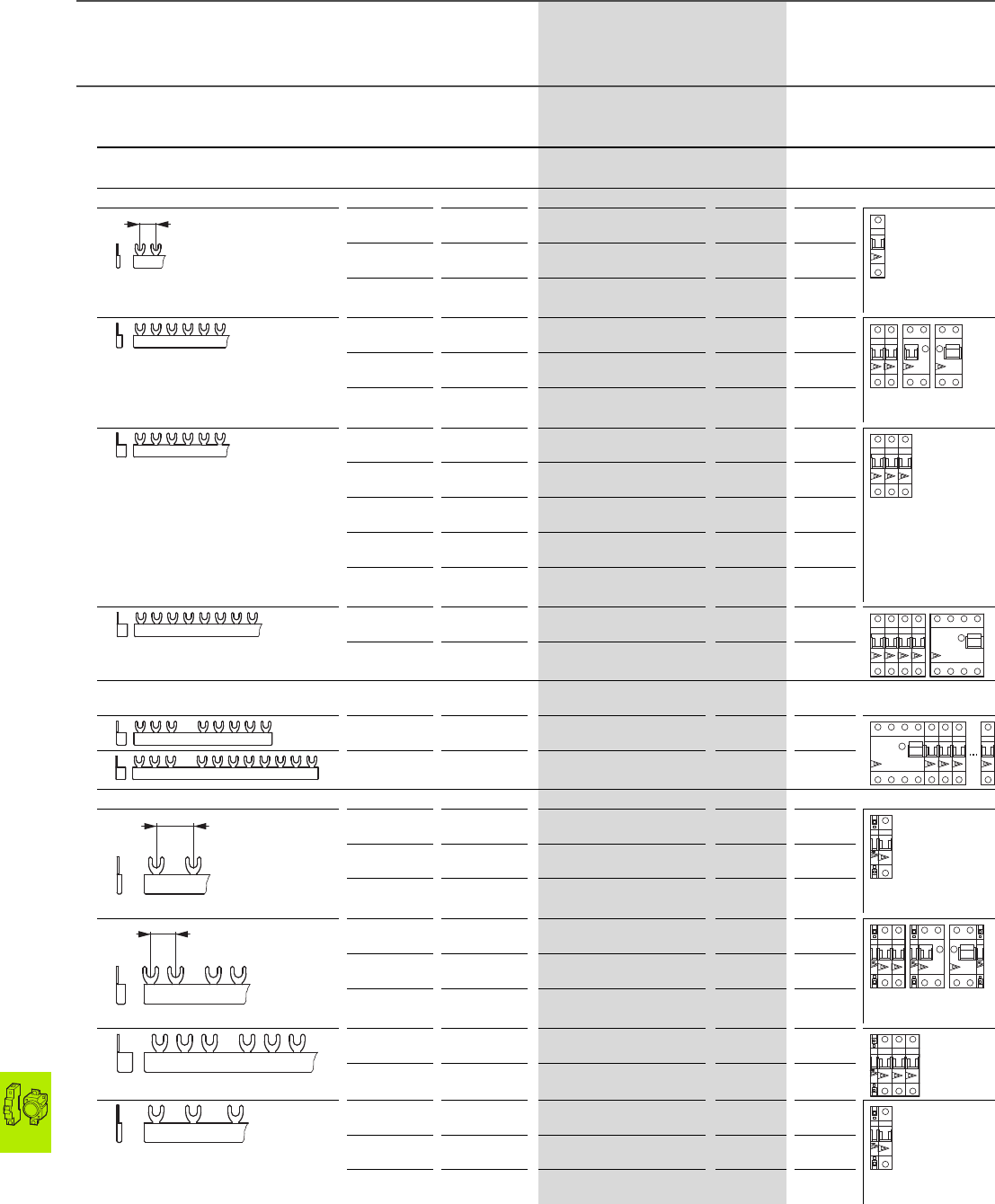

Busbars

Phases Devices Part no.

Article no. Price

See price

list

Std. pack Notes

Number Number

Euro-Vario busbars (fork connector)

• No end caps required

• Do not shorten

10 mm2

• Rated operational current 63 A

For PXL, PXF, PXK, PFIM-U, PFNM

12 EVG-1PHAS/2MODUL

215646

40 off

16 EVG-1PHAS/6MODUL

215638

40 off

112

EVG-1PHAS/12MODUL

215637

40 off

24 EVG-2PHAS/4MODUL

268220

20 off

26 EVG-2PHAS/6MODUL

215642

20 off

212EVG-2PHAS/12MODUL

215641

20 off

36 EVG-3PHAS/6MODUL

215640

20 off

39 EVG-3PHAS/9MODUL

215645

20 off

312EVG-3PHAS/12MODUL

215639

20 off

316EVG-3PHAS/16MODUL

285381

20 off

320EVG-3PHAS/20MODUL

285383

10 off

48 EVG-4PHAS/8MODUL

215644

10 off

412EVG-4PHAS/12MODUL

215643

10 off

416EVG-3P+3N/16MODUL

105215

20 off

418EVG-3P+3N/18MODUL

274161

20 off

For 2 pole combination RCCB/circuit-breaker with a width of 3 space units

12 - 5EVG-1PHAS/2-5MODUL/FILS

285384

40 off

For combined use of 4 pole residual-current devices with miniature circuit-

breakers

34 + 5EVG-3PHAS/N/5MODUL/LS

215659

20 off

34 + 8

EVG-3PHAS/N/8MODUL/LS

215660

20 off

For use with auxiliary contacts

12.5EVG-1PHAS/2MODUL/HI

215655

40 off

113EVG-1PHAS/9MODUL/HI

215656

40 off

24.5EVG-2PHAS/4MODUL/HI

219573

20 off

212EVG-2PHAS/10MODUL/HI

215657

20 off

36.5EVG-3PHAS/6MODUL/HI

216411

20 off

313.5EVG-3PHAS/12MODUL/HI

215658

20 off

17.8

LNLNLNLNLNLN

L1 L2 L3 L1 L2 L3L1 L2 L3 L1 L2 L3

L1 L2 L3 N L1 L2 L3 N

17.8

L1 L2 L3 L1 L2 L1 L2L3

L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2

26.8

LN LN

L1 L2 L3 L1 L2 L3

EVG

HPL19025EN

19/26 Circuit-breakers, fuses

Busbars

2010 CA08103002Z-EN www.eaton.com

Phases Devices Part no.

Article no. Price

See price

list

Std. pack Notes

Number Number

Euro-Vario busbars (fork connector)

• No end caps required

• Do not shorten

16 mm2

• Rated operational current 100 A

For FAZ…, FI…

12 EVG-16/1PHAS/2MODUL

291464

40 off

16 EVG-16/1PHAS/6MODUL

291465

40 off

112EVG-16/1PHAS/12MODUL

291466

40 off

24 EVG-16/2PHAS/4MODUL

291467

20 off

26 EVG-16/2PHAS/6MODUL

291468

20 off

212EVG-16/2PHAS/12MODUL

291469

20 off

36 EVG-16/3PHAS/6MODUL

291470

20 off

39 EVG-16/3PHAS/9MODUL

291471

20 off

312EVG-16/3PHAS/12MODUL

291472

20 off

316EVG-16/3PHAS/16MODUL

291473

20 off

320EVG-16/3PHAS/20MODUL

291474

10 off

48 EVG-16/4PHAS/8MODUL

291475

10 off

412EVG-16/4PHAS/12MODUL

291476

10 off

For combined use of 4 pole residual-current devices with miniature circuit-

breakers

34 + 5EVG-16/3PHAS/N/5MODUL/LS

291477

20 off

34 + 8EVG-16/3PHAS/N/8MODUL/LS

291478

20 off

For use with auxiliary contacts

12 EVG-16/1PHAS/2MODUL/HI

291479

20 off

16 EVG-16/1PHAS/6MODUL/HI

291480

40 off

19 EVG-16/1PHAS/9MODUL/HI

291481

40 off

22 EVG-16/2PHAS/4MODUL/HI

291482

20 off

23 EVG-16/2PHAS/6MODUL/HI

291483

20 off

25 EVG-16/2PHAS/10MODUL/HI

291484

20 off

32 EVG-16/3PHAS/6MODUL/HI

291485

20 off

34 EVG-16/3PHAS/12MODUL/HI

291486

20 off

3 x 1 6 EVG-16/3X1PHAS/6MODUL/HI

291487

20 off

3 x 1 8 EVG-16/3X1PHAS/8MODUL/HI

291488

20 off

3 x 1 9 EVG-16/3X1PHAS/9MODUL/HI

291489

20 off

17.8

LNLNLN

L1 L2 L3 L1 L2 L3

L1 L2 L3 N L1 L2 L3 N

L1 L2 L3 L1 L2 L1 L2L3

L1 L2 L3 L1 L2 L3 L1 L2 L3 L1 L2

26.8

LN LN

L1 L2 L3 L1 L2 L3

L1 L2 L3

EVG HPL19026EN

Circuit-breakers, fuses

Mounting accessories

2010 CA08103002Z-EN www.eaton.com

19/27

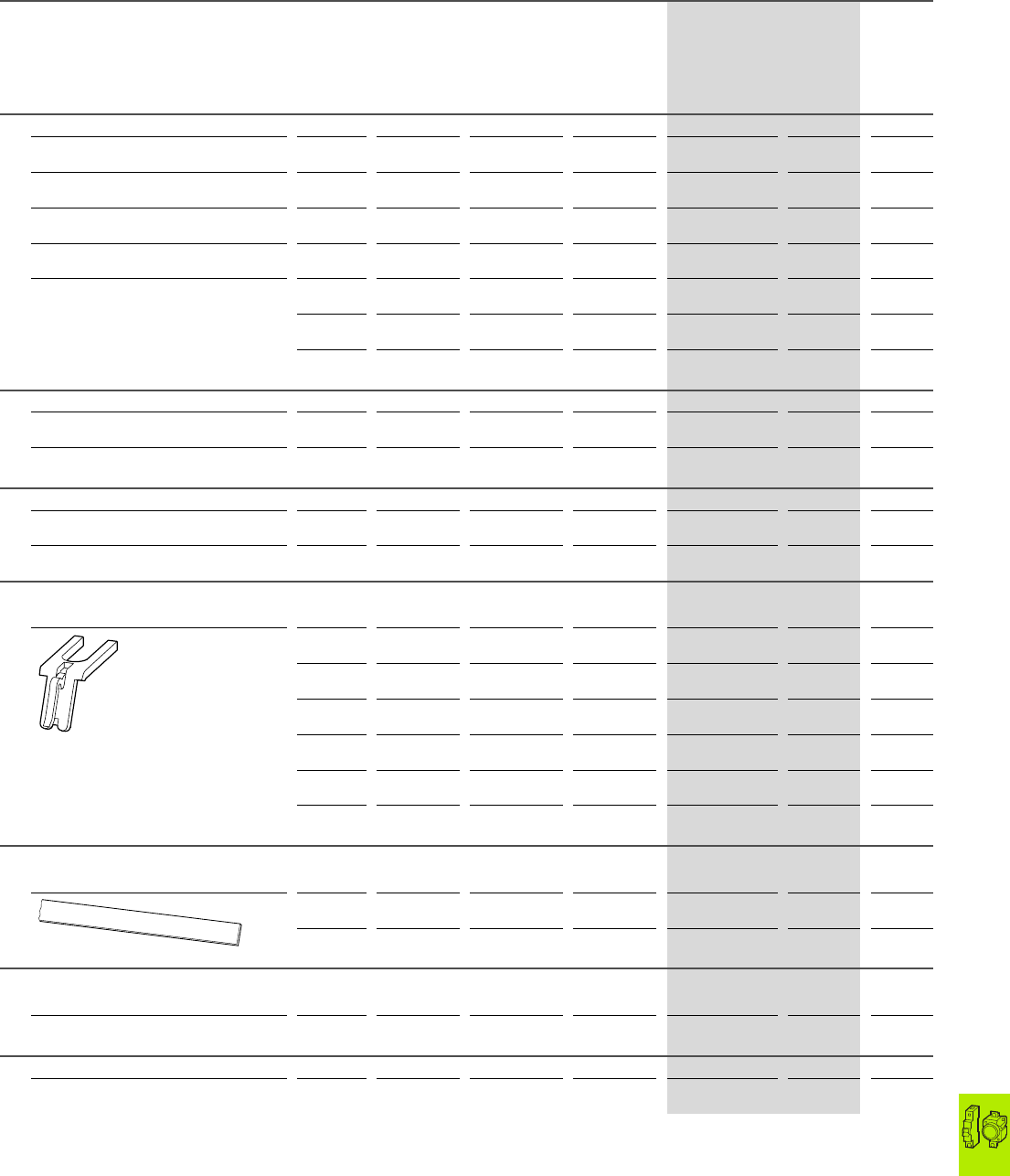

Mounting accessories

Pole Rated

operational

current

Cross section Length Part no.

Article no. Price

See price

list

Std. pack

Amm

Comb-shaped phase busbar

1-phase, 80 A 1 80 16 1 Z-GV-16/1P-1TE

271061

50 off

3-phase, 63 A 3 63 10 1 Z-GV-10/3P-3TE

271060

20 off

3-phase, 80 A 3 80 16 1 Z-GV-16/3P-3TE

271064

20 off

4-phase, 80 A 4 80 16 1 Z-GV-16/3P+N-4TE

271066

15 off

End caps 3 – 10 – Z-AK-10/2+3P

271069

10 off

3– 16 – Z-AK-16/2+3P

271070

10 off

4– 16 – Z-AK-16/4P

271071

10 off

Incoming terminals

4.3 Nm, touch-proof busbar connection to

miniature circuit-breaker

–– 25 – FAZ-XK25

212116

50 off

M5: 3.0 Nm, M8: 4.3 Nm touch-proof

connection to FAZ-XIS... busbar

–– 35 – FAZ-XK35

212119

10 off

Busbar tag shroud

For masking of unused connections on the

busbar

–– – – ZV-BS-G

104903

10 off

Bracket for securing of covers

2 required per row of MCBs

–– – – REG-BB

212106

20 off

Terminal bracket, 80 A

Same extension terminal, turned by 180°

L1, N 80 – – ZV-L1/N-80A-10

263950

10 off

L1, N 80 – – ZV-L1/N-80A-36

263951

36 off

L1, N 80 – – ZV-L1/N-80A-100

263952

100 off

L2, L3 80 – – ZV-L2/L3-80A-10

263953

10 off

L2, L3 80 – – ZV-L2/L3-80A-36

263954

36 off

L2, L3 80 – – ZV-L2/L3-80A-100

263955

100 off

Busbars

1 m long.

–50 – 1 ZV-SS

263956

10 off

–80 – 1 ZV-SS-80A

263957

10 off

Shroud section

1 m long, for 50 and 80 A.

–– – – ZV-ADP

263958

1 off

End cap for shroud section

–– – – ZV-AEK

263959

10 off

HPL19027EN

19/28 Circuit-breakers, fuses

Miniature circuit-breakers for North America

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers for North America

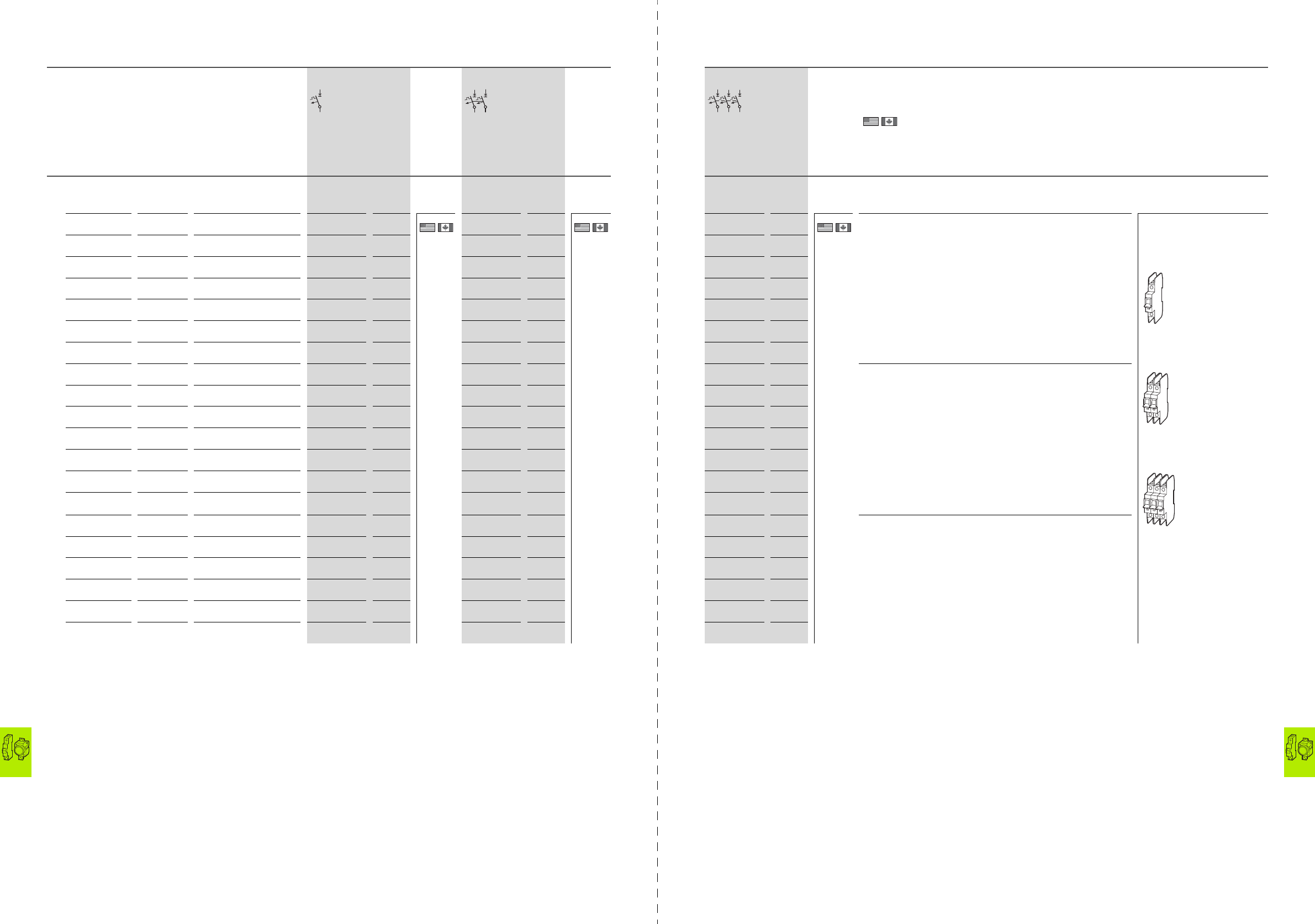

Miniat ure circuit- breakers for North Amer ica

1 pole 2 pole 3 pole

Rated operational

current

Interrupting

capacity

(SCCR)

Special approval for protection

of AWG 18 or AWG 16 to

NFPA70 (NEC) and NFPA 79

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Information relevant for export to North America Notes

AkA

Miniature circuit-breakers FAZ-NA

• Characteristic B

• Switching capacity 15 kA IEC

110AWG 18 FAZ-B1/1-NA1)

132414

2 off FAZ-B1/2-NA1)

132693

1 off FAZ-B1/3-NA1)

132712

1 off 1)

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating ≦ 32 A

1 pole: 277 V AC, 48 V DC

2 pole: 480 Y/277 V AC, 96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

Accessories ￫ 19/40

1 pole

Depth 75 mm

Width 17.7 mm

2 pole

Depth 75 mm

Width 35.4 mm

3 pole

Depth 75 mm

Width 53.1 mm

1.5 10 AWG 18 FAZ-B1,5/1-NA1)

132415

FAZ-B1,5/2-NA1)

132694

FAZ-B1.5/3-NA1)

132713

210AWG 18 FAZ-B2/1-NA1)

132416

FAZ-B2/2-NA1)

132695

FAZ-B2/3-NA1)

132714

310AWG 18 FAZ-B3/1-NA1)

132417

FAZ-B3/2-NA1)

132696

FAZ-B3/3-NA1)

132715

410AWG 18 FAZ-B4/1-NA1)

132418

FAZ-B4/2-NA1)

132697

FAZ-B4/3-NA1)

132716

510AWG 18 FAZ-B5/1-NA1)

132419

FAZ-B5/2-NA1)

132698

FAZ-B5/3-NA1)

132717

610AWG 18 FAZ-B6/1-NA1)

132680

FAZ-B6/2-NA1)

132699

FAZ-B6/3-NA1)

132718

710AWG 18 FAZ-B7/1-NA1)

132681

FAZ-B7/2-NA1)

132700

FAZ-B7/3-NA1)

132719

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating > 32 A

1 pole: 240 V AC, 48 V DC

2 pole: 240 V AC, 96 V DC

3 pole: 240 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

810AWG 16 FAZ-B8/1-NA1)

132682

FAZ-B8/2-NA1)

132701

FAZ-B8/3-NA1)

132720

10 10 AWG 16 FAZ-B10/1-NA1)

132683

FAZ-B10/2-NA1)

132702

FAZ-B10/3-NA1)

132721

13 10 – FAZ-B13/1-NA1)

132684

FAZ-B13/2-NA1)

132703

FAZ-B13/3-NA1)

132722

15 14 – FAZ-B15/1-NA1)

132685

FAZ-B15/2-NA1)

132704

FAZ-B15/3-NA1)

132723

16 14 – FAZ-B16/1-NA1)

132686

FAZ-B16/2-NA1)

132705

FAZ-B16/3-NA1)

132724

20 14 – FAZ-B20/1-NA1)

132687

FAZ-B20/2-NA1)

132706

FAZ-B20/3-NA1)

132725

25 14 – FAZ-B25/1-NA1)

132688

FAZ-B25/2-NA1)

132707

FAZ-B25/3-NA1)

132726

FAZ-NA can also be used where FAZ Supplementary Protectors to UL 1077 are suf-

ficient.

30 10 – FAZ-B30/1-NA1)

132689

FAZ-B30/2-NA1)

132708

FAZ-B30/3-NA1)

132727

32 10 – FAZ-B32/1-NA1)

132690

FAZ-B32/2-NA1)

132709

FAZ-B32/3-NA1)

132728

35 10 – FAZ-B35/1-NA2)

132691

FAZ-B35/2-NA2)

132710

FAZ-B35/3-NA2)

132729

40 10 – FAZ-B40/1-NA2)

132692

FAZ-B40/2-NA2)

132711

FAZ-B40/3-NA2)

132730

135

246

19/29

FAZ-B...NA HPL19028EN FAZ-B...NA

HPL19029EN

19/30 Circuit-breakers, fuses

Miniature circuit-breakers for North America

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers for North America

Miniat ure circuit- breakers for North Amer ica

1 pole 2 pole 3 pole

Rated operational

current

Interrupting

capacity

(SCCR)

Special approval for protection

of AWG 18 or AWG 16 to

NFPA70 (NEC) and NFPA 79

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Information relevant for export to North America Notes

AkA

Miniature circuit-breakers FAZ-NA

• Characteristic C

• Switching capacity 15 kA IEC

0.5 10 AWG 18 FAZ-C0,5/1-NA1)

102077

2 off FAZ-C0.5/2-NA1)

102157

1 off FAZ-C0.5/3-NA1)

102237

1 off 1)

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating ≦ 32 A

1 pole: 277 V AC, 48 V DC

2 pole: 480 Y/277 V AC, 96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

Accessories ￫ 19/40

1 pole

Depth 75 mm

Width 17.7 mm

2 pole

Depth 75 mm

Width 35.4 mm

3 pole

Depth 75 mm

Width 53.1 mm

110AWG 18 FAZ-C1/1-NA1)

102078

FAZ-C1/2-NA1)

102158

FAZ-C1/3-NA1)

102238

1.5 10 AWG 18 FAZ-C0,5/1-NA1)

102079

FAZ-C1.5/2-NA1)

102159

FAZ-C1.5/3-NA1)

102239

210AWG 18 FAZ-C2/1-NA1)

102080

FAZ-C2/2-NA1)

102160

FAZ-C2/3-NA1)

102240

310AWG 18 FAZ-C3/1-NA1)

102081

FAZ-C3/2-NA1)

102161

FAZ-C3/3-NA1)

102241

410AWG 18 FAZ-C4/1-NA1)

102082

FAZ-C4/2-NA1)

102162

FAZ-C4/3-NA1)

102242

510AWG 18 FAZ-C5/1-NA1)

102083

FAZ-C5/2-NA1)

102163

FAZ-C5/3-NA1)

102243

610AWG 18 FAZ-C6/1-NA1)

102084

FAZ-C6/2-NA1)

102164

FAZ-C6/3-NA1)

102244

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating > 32 A

1 pole: 240 V AC, 48 V DC

2 pole: 240 V AC, 96 V DC

3 pole: 240 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

710AWG 18 FAZ-C7/1-NA1)

102085

FAZ-C7/2-NA1)

102165

FAZ-C7/3-NA1)

102245

810AWG 16 FAZ-C8/1-NA1)

102086

FAZ-C8/2-NA1)

102166

FAZ-C8/3-NA1)

102246

10 10 AWG 16 FAZ-C10/1-NA1)

102087

FAZ-C10/2-NA1)

102167

FAZ-C10/3-NA1)

102247

13 10 – FAZ-C13/1-NA1)

102088

FAZ-C13/2-NA1)

102168

FAZ-C13/3-NA1)

102248

15 14 – FAZ-C15/1-NA1)

102089

FAZ-C15/2-NA1)

102169

FAZ-C15/3-NA1)

102249

16 14 – FAZ-C16/1-NA1)

102090

FAZ-C16/2-NA1)

102170

FAZ-C16/3-NA1)

102250

20 14 – FAZ-C20/1-NA1)

102091

FAZ-C20/2-NA1)

102171

FAZ-C20/3-NA1)

102251

FAZ-NA can also be used where FAZ Supplementary Protectors to UL 1077 are

sufficient.

25 14 – FAZ-C25/1-NA1)

102092

FAZ-C25/2-NA1)

102172

FAZ-C25/3-NA1)

102252

30 10 – FAZ-C30/1-NA1)

102093

FAZ-C30/2-NA1)

102173

FAZ-C30/3-NA1)

102253

32 10 – FAZ-C32/1-NA1)

102094

FAZ-C32/2-NA1)

102174

FAZ-C32/3-NA1)

102254

35 10 – FAZ-C35/1-NA2)

102095

FAZ-C35/2-NA2)

102175

FAZ-C35/3-NA2)

102255

40 10 – FAZ-C40/1-NA2)

102096

FAZ-C40/2-NA2)

102176

FAZ-C40/3-NA2)

102256

135

246

19/31

FAZ-C...NA HPL19030EN FAZ-C...NA

HPL19031EN

19/32 Circuit-breakers, fuses

Miniature circuit-breakers for North America

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers for North America

Miniat ure circuit- breakers for North Amer ica

1 pole 2 pole 3 pole

Rated operational

current

Interrupting

capacity

(SCCR)

Special approval for protection

of AWG 18 or AWG 16 to

NFPA70 (NEC) and NFPA 79

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Information relevant for export to North America Notes

AkA

Miniature circuit-breakers FAZ-NA

• Characteristic D

• Switching capacity 15 kA IEC

0.5 10 AWG 18 FAZ-D0,5/1-NA1)

102097

2 off FAZ-D0.5/2-NA1)

102177

1 off FAZ-D0.5/3-NA1)

102257

1 off 1)

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating ≦ 32 A

1 pole: 277 V AC, 48 V DC

2 pole: 480 Y/277 V AC, 96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

Accessories ￫ 19/40

1 pole

Depth 75 mm

Width 17.7 mm

2 pole

Depth 75 mm

Width 35.4 mm

3 pole

Depth 75 mm

Width 53.1 mm

110AWG 18 FAZ-D1/1-NA1)

102098

FAZ-D1/2-NA1)

102178

FAZ-D1/3-NA1)

102258

1.5 10 AWG 18 FAZ-D0,5/1-NA1)

102099

FAZ-D1.5/2-NA1)

102179

FAZ-D1.5/3-NA1)

102259

210AWG 18 FAZ-D2/1-NA1)

102100

FAZ-D2/2-NA1)

102180

FAZ-D2/3-NA1)

102260

310AWG 18 FAZ-D3/1-NA1)

102101

FAZ-D3/2-NA1)

102181

FAZ-D3/3-NA1)

102261

410AWG 18 FAZ-D4/1-NA1)

102102

FAZ-D4/2-NA1)

102182

FAZ-D4/3-NA1)

102262

510AWG 18 FAZ-D5/1-NA1)

102103

FAZ-D5/2-NA1)

102183

FAZ-D5/3-NA1)

102263

610AWG 18 FAZ-D6/1-NA1)

102104

FAZ-D6/2-NA1)

102184

FAZ-D6/3-NA1)

102264

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating > 32 A

1 pole: 240 V AC, 48 V DC

2 pole: 240 V AC, 96 V DC

3 pole: 240 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

710AWG 18 FAZ-D7/1-NA1)

102105

FAZ-D7/2-NA1)

102185

FAZ-D7/3-NA1)

102265

810AWG 16 FAZ-D8/1-NA1)

102106

FAZ-D8/2-NA1)

102186

FAZ-D8/3-NA1)

102266

10 10 AWG 16 FAZ-D10/1-NA1)

102107

FAZ-D10/2-NA1)

102187

FAZ-D10/3-NA1)

102267

13 10 – FAZ-D13/1-NA1)

102108

FAZ-D13/2-NA1)

102188

FAZ-D13/3-NA1)

102268

15 14 – FAZ-D15/1-NA1)

102109

FAZ-D15/2-NA1)

102189

FAZ-D15/3-NA1)

102269

16 14 – FAZ-D16/1-NA1)

102110

FAZ-D16/2-NA1)

102190

FAZ-D16/3-NA1)

102270

20 14 – FAZ-D20/1-NA1)

102111

FAZ-D20/2-NA1)

102191

FAZ-D20/3-NA1)

102271

FAZ-NA can also be used where FAZ Supplementary Protectors to UL 1077 are

sufficient.

25 14 – FAZ-D25/1-NA1)

102112

FAZ-D25/2-NA1)

102192

FAZ-D25/3-NA1)

102272

30 10 – FAZ-D30/1-NA1)

102113

FAZ-D30/2-NA1)

102193

FAZ-D30/3-NA1)

102273

32 10 – FAZ-D32/1-NA1)

102114

FAZ-D32/2-NA1)

102194

FAZ-D32/3-NA1)

102274

35 10 – FAZ-D35/1-NA2)

102115

FAZ-D35/2-NA2)

102195

FAZ-D35/3-NA2)

102275

40 10 – FAZ-D40/1-NA2)

102116

FAZ-D40/2-NA2)

102196

FAZ-D40/3-NA2)

102276

135

246

19/33

FAZ-D...NA HPL19032EN FAZ-D...NA

HPL19033EN

19/34 Circuit-breakers, fuses

Miniature circuit-breakers for North America

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers for North America

Miniat ure circuit- breakers for North Amer ica

1 pole 2 pole 3 pole

Rated operational

current

Interrupting

capacity

(SCCR)

Special approval for protection

of AWG 18 or AWG 16 to

NFPA70 (NEC) and NFPA 79

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Information relevant for export to North America Notes

AkA

Miniature circuit-breakers FAZ-RT

• With ring cable lug connection

• Characteristic B

• Switching capacity 15 kA IEC

110AWG 18 FAZ-B1/1-RT1)

132731

2 off FAZ-B1/2-RT1)

132750

1 off FAZ-B1/3-RT1)

132769

1 off 1)

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating ≦ 32 A

1 pole: 277 V AC, 48 V DC

2 pole: 480 Y/277 V AC, 96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

Accessories ￫ 19/40

1 pole

Depth 75 mm

Width 17.7 mm

2 pole

Depth 75 mm

Width 35.4 mm

3 pole

Depth 75 mm

Width 53.1 mm

1.5 10 AWG 18 FAZ-B1,5/1-RT1)

132732

FAZ-B1,5/2-RT1)

132751

FAZ-B1.5/3-RT1)

132770

210AWG 18 FAZ-B2/1-RT1)

132733

FAZ-B2/2-RT1)

132752

FAZ-B2/3-RT1)

132771

310AWG 18 FAZ-B3/1-RT1)

132734

FAZ-B3/2-RT1)

132753

FAZ-B3/3-RT1)

132772

410AWG 18 FAZ-B4/1-RT1)

132735

FAZ-B4/2-RT1)

132754

FAZ-B4/3-RT1)

132773

510AWG 18 FAZ-B5/1-RT1)

132736

FAZ-B5/2-RT1)

132755

FAZ-B5/3-RT1)

132774

610AWG 18 FAZ-B6/1-RT1)

132737

FAZ-B6/2-RT1)

132756

FAZ-B6/3-RT1)

132775

710AWG 18 FAZ-B7/1-RT1)

132738

FAZ-B7/2-RT1)

132757

FAZ-B7/3-RT1)

132776

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating > 32 A

1 pole: 240 V AC, 48 V DC

2 pole: 240 V AC, 96 V DC

3 pole: 240 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

810AWG 16 FAZ-B8/1-RT1)

132739

FAZ-B8/2-RT1)

132758

FAZ-B8/3-RT1)

132777

10 10 AWG 16 FAZ-B10/1-RT1)

132740

FAZ-B10/2-RT1)

132759

FAZ-B10/3-RT1)

132778

13 10 – FAZ-B13/1-RT1)

132741

FAZ-B13/2-RT1)

132760

FAZ-B13/3-RT1)

132779

15 14 – FAZ-B15/1-RT1)

132742

FAZ-B15/2-RT1)

132761

FAZ-B15/3-RT1)

132780

16 14 – FAZ-B16/1-RT1)

132743

FAZ-B16/2-RT1)

132762

FAZ-B16/3-RT1)

132781

20 14 – FAZ-B20/1-RT1)

132744

FAZ-B20/2-RT1)

132763

FAZ-B20/3-RT1)

132782

25 14 – FAZ-B25/1-RT1)

132745

FAZ-B25/2-RT1)

132764

FAZ-B25/3-RT1)

132783

FAZ-RT can also be used where FAZ Supplementary Protectors to UL 1077 are

sufficient.

30 10 – FAZ-B30/1-RT1)

132746

FAZ-B30/2-RT1)

132765

FAZ-B30/3-RT1)

132784

32 10 – FAZ-B32/1-RT1)

132747

FAZ-B32/2-RT1)

132766

FAZ-B32/3-RT1)

132785

35 10 – FAZ-B35/1-RT2)

132748

FAZ-B35/2-RT2)

132767

FAZ-B35/3-RT2)

132786

40 10 – FAZ-B40/1-RT2)

132749

FAZ-B40/2-RT2)

132768

FAZ-B40/3-RT2)

132787

135

246

19/35

FAZ-B...RT HPL19034EN FAZ-B...RT

HPL19035EN

19/36 Circuit-breakers, fuses

Miniature circuit-breakers for North America

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers for North America

Miniat ure circuit- breakers for North Amer ica

1 pole 2 pole 3 pole

Rated operational

current

Interrupting

capacity

(SCCR)

Special approval for protection

of AWG 18 or AWG 16 to

NFPA70 (NEC) and NFPA 79

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Information relevant for export to North America Notes

AkA

Miniature circuit-breakers FAZ-RT

• With ring cable lug connection

• Characteristic C

• Switching capacity 15 kA IEC

0.5 10 AWG 18 FAZ-C0,5/1-RT1)

102117

2 off FAZ-C0.5/2-RT1)

102197

1 off FAZ-C0.5/3-RT1)

102277

1 off 1)

Product Standards IEC/EN 60947-2; UL 489;

CSA-C22.2 No. 5-09; CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating ≦ 32 A

1 pole: 277 V AC, 48 V DC

2 pole: 480 Y/277 V AC, 96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

Accessories ￫ 19/40

1 pole

Depth 75 mm

Width 17.7 mm

2 pole

Depth 75 mm

Width 35.4 mm

3 pole

Depth 75 mm

Width 53.1 mm

110AWG 18 FAZ-C1/1-RT1)

102118

FAZ-C1/2-RT1)

102198

FAZ-C1/3-RT1)

102278

1.5 10 AWG 18 FAZ-C0,5/1-RT1)

102119

FAZ-C1.5/2-RT1)

102199

FAZ-C1.5/3-RT1)

102279

210AWG 18 FAZ-C2/1-RT1)

102120

FAZ-C2/2-RT1)

102200

FAZ-C2/3-RT1)

102280

310AWG 18 FAZ-C3/1-RT1)

102121

FAZ-C3/2-RT1)

102201

FAZ-C3/3-RT1)

102281

410AWG 18 FAZ-C4/1-RT1)

102122

FAZ-C4/2-RT1)

102202

FAZ-C4/3-RT1)

102282

510AWG 18 FAZ-C5/1-RT1)

102123

FAZ-C5/2-RT1)

102203

FAZ-C5/3-RT1)

102283

610AWG 18 FAZ-C6/1-RT1)

102124

FAZ-C6/2-RT1)

102204

FAZ-C6/3-RT1)

102284

Product Standards IEC/EN 60947-2; UL 489;

CSA-C22.2 No. 5-09; CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating > 32 A

1 pole: 240 V AC, 48 V DC

2 pole: 240 V AC, 96 V DC

3 pole: 240 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

710AWG 18 FAZ-C7/1-RT1)

102125

FAZ-C7/2-RT1)

102205

FAZ-C7/3-RT1)

102285

810AWG 16 FAZ-C8/1-RT1)

102126

FAZ-C8/2-RT1)

102206

FAZ-C8/3-RT1)

102286

10 10 AWG 16 FAZ-C10/1-RT1)

102127

FAZ-C10/2-RT1)

102207

FAZ-C10/3-RT1)

102287

13 10 – FAZ-C13/1-RT1)

102128

FAZ-C13/2-RT1)

102208

FAZ-C13/3-RT1)

102288

15 14 – FAZ-C15/1-RT1)

102129

FAZ-C15/2-RT1)

102209

FAZ-C15/3-RT1)

102289

16 14 – FAZ-C16/1-RT1)

102130

FAZ-C16/2-RT1)

102210

FAZ-C16/3-RT1)

102290

20 14 – FAZ-C20/1-RT1)

102131

FAZ-C20/2-RT1)

102211

FAZ-C20/3-RT1)

102291

FAZ-RT can also be used where FAZ Supplementary Protectors to UL 1077 are

sufficient.

25 14 – FAZ-C25/1-RT1)

102132

FAZ-C25/2-RT1)

102212

FAZ-C25/3-RT1)

102292

30 10 – FAZ-C30/1-RT1)

102133

FAZ-C30/2-RT1)

102213

FAZ-C30/3-RT1)

102293

32 10 – FAZ-C32/1-RT1)

102134

FAZ-C32/2-RT1)

102214

FAZ-C32/3-RT1)

102294

35 10 – FAZ-C35/1-RT2)

102135

FAZ-C35/2-RT2)

102215

FAZ-C35/3-RT2)

102295

40 10 – FAZ-C40/1-RT2)

102136

kFAZ-C40/2-RT2)

102216

FAZ-C40/3-RT2)

102296

135

246

19/37

FAZ-C...RT HPL19036EN FAZ-C...RT

HPL19037EN

19/38 Circuit-breakers, fuses

Miniature circuit-breakers for North America

2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com

Circuit-breakers, fuses

Miniature circuit-breakers for North America

Miniat ure circuit- breakers for North Amer ica

1 pole 2 pole 3 pole

Rated operational

current

Interrupting

capacity

(SCCR)

Special approval for protection

of AWG 18 or AWG 16 to

NFPA70 (NEC) and NFPA 79

Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Part no.

Article no.

Price

See price

list

Std. pack Information relevant for export to North America Notes

AkA

Miniature circuit-breakers FAZ-RT

• With ring cable lug connection

• Characteristic D

• Switching capacity 15 kA IEC

0.5 10 AWG 18 FAZ-D0,5/1-RT1)

102137

2 off FAZ-D0.5/2-RT1)

102217

1 off FAZ-D0.5/3-RT1)

102297

1 off 1)

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating ≦ 32 A

1 pole: 277 V AC, 48 V DC

2 pole: 480 Y/277 V AC, 96 V DC

3 pole: 480 Y/277 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

Accessories ￫ 19/40

1 pole

Depth 75 mm

Width 17.7 mm

2 pole

Depth 75 mm

Width 35.4 mm

3 pole

Depth 75 mm

Width 53.1 mm

110AWG 18 FAZ-D1/1-RT1)

102138

FAZ-D1/2-RT1)

102218

FAZ-D1/3-RT1)

102298

1.5 10 AWG 18 FAZ-D0,5/1-RT1)

102139

FAZ-D1.5/2-RT1)

102219

FAZ-D1.5/3-RT1)

102299

210AWG 18 FAZ-D2/1-RT1)

102140

FAZ-D2/2-RT1)

102220

FAZ-D2/3-RT1)

102300

310AWG 18 FAZ-D3/1-RT1)

102141

FAZ-D3/2-RT1)

102221

FAZ-D3/3-RT1)

102301

410AWG 18 FAZ-D4/1-RT1)

102142

FAZ-D4/2-RT1)

102222

FAZ-D4/3-RT1)

102302

510AWG 18 FAZ-D5/1-RT1)

102143

FAZ-D5/2-RT1)

102223

FAZ-D5/3-RT1)

102303

610AWG 18 FAZ-D6/1-RT1)

102144

FAZ-D6/2-RT1)

102224

FAZ-D6/3-RT1)

102304

Product Standards IEC/EN 60947-2; UL 489; CSA-C22.2 No. 5-09;

CE marking

UL File No. E235139

UL CCN DIVQ

CSA File No. 204453

CSA Class No. 1432-01

NA Certification UL Listed, CSA certified

Suitable for Feeder circuits, branch circuits

Current Limiting CB ✓

Max. Voltage Rating > 32 A

1 pole: 240 V AC, 48 V DC

2 pole: 240 V AC, 96 V DC

3 pole: 240 V AC

Degree of Protection IEC: IP20, UL/CSA Type: -

710AWG 18 FAZ-D7/1-RT1)

102145

FAZ-D7/2-RT1)

102225

FAZ-D7/3-RT1)

102305

810AWG 16 FAZ-D8/1-RT1)

102146

FAZ-D8/2-RT1)

102226

FAZ-D8/3-RT1)

102306

10 10 AWG 16 FAZ-D10/1-RT1)

102147

FAZ-D10/2-RT1)

102227

FAZ-D10/3-RT1)

102307

13 10 – FAZ-D13/1-RT1)

102148

FAZ-D13/2-RT1)

102228

FAZ-D13/3-RT1)

102308

15 14 – FAZ-D15/1-RT1)

102149

FAZ-D15/2-RT1)

102229

FAZ-D15/3-RT1)

102309

16 14 – FAZ-D16/1-RT1)

102150

FAZ-D16/2-RT1)

102230

FAZ-D16/3-RT1)

102310

20 14 – FAZ-D20/1-RT1)

102151

FAZ-D20/2-RT1)

102231

FAZ-D20/3-RT1)

102311

FAZ-RT can also be used where FAZ Supplementary Protectors to UL 1077 are

sufficient.

25 14 – FAZ-D25/1-RT1)

102152

FAZ-D25/2-RT1)

102232

FAZ-D25/3-RT1)

102312

30 10 – FAZ-D30/1-RT1)

102153

FAZ-D30/2-RT1)

102233

FAZ-D30/3-RT1)

102313

32 10 – FAZ-D32/1-RT1)

102154

FAZ-D32/2-RT1)

102234

FAZ-D32/3-RT1)

102314

35 10 – FAZ-D35/1-RT2)

102155

FAZ-D35/2-RT2)

102235

FAZ-D35/3-RT2)

102315

40 10 – FAZ-D40/1-RT2)

102156

FAZ-D40/2-RT2)

102236

kFAZ-D40/3-RT2)

102316

135

246

19/39

FAZ-D...RT HPL19038EN FAZ-D...RT

HPL19039EN

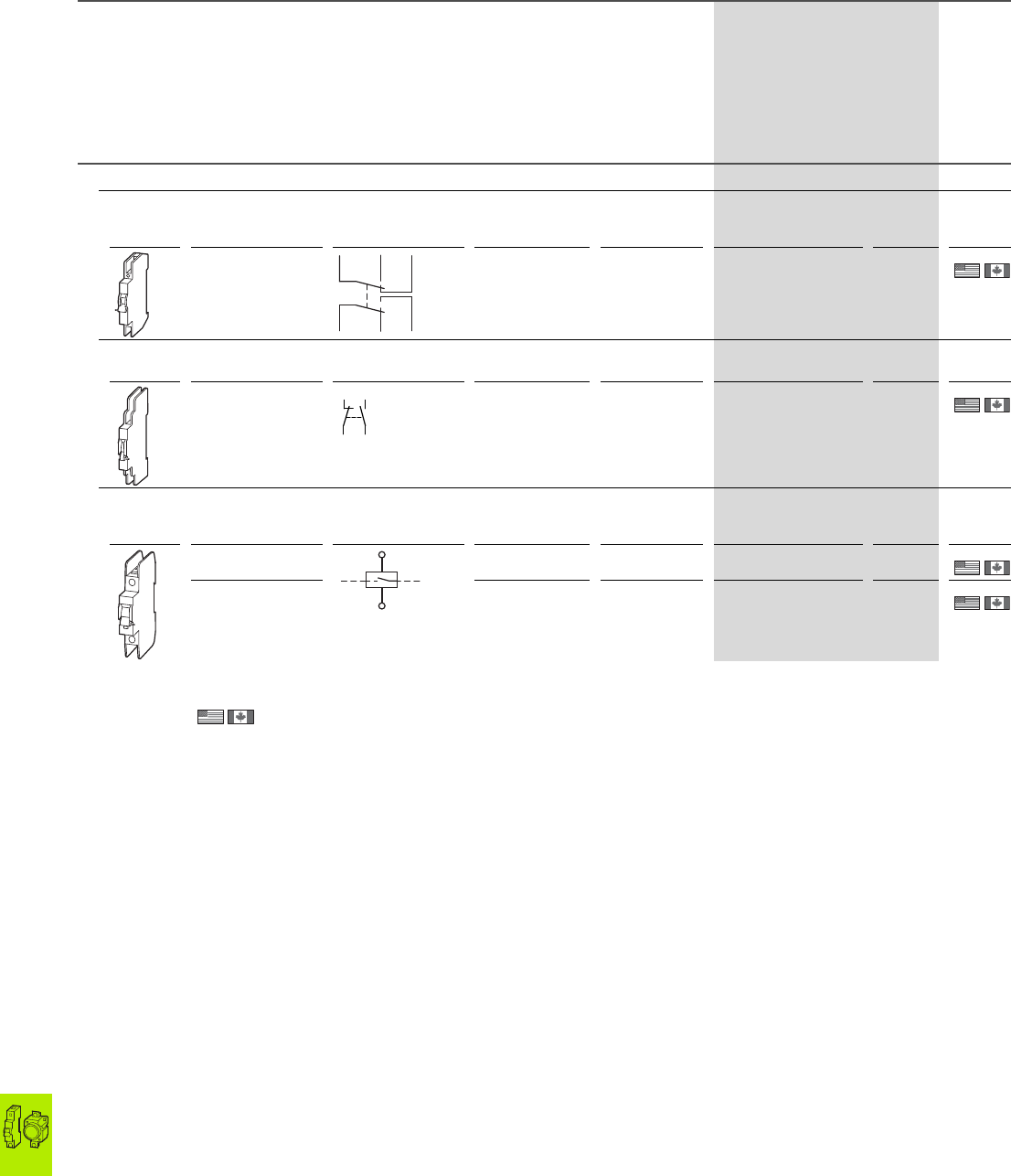

19/40 Circuit-breakers, fuses

Accessories for miniature circuit-breaker North America

2010 CA08103002Z-EN www.eaton.com

Accessories for miniature circuit-breaker North America

Contacts Contact sequences Space units

1 PLE = 18 mm

For use with Part no.

Article no. Price

See price

list

Std. pack

C = Changeover

contact

N/O = normally open

contact

NC = normally closed

contact

Accessories for FAZ-NA, FAZ-RT

Tripping signal contact

• The function of one of the two changeover contacts can be changed from “auxiliary

contact” to “tripping signal contact”.

2 C 0.5 FAZ-NA

FAZ-RT Z-NHK

248434

4 off

Auxiliary contacts

• Suitable for FAZ-NA > 480Y/277 V AC

1 N/O

1 NC

0.5 FAZ-NA

FAZ-RT Z-IHK-NA

113895

1 off

Shunt releases

• Standard auxiliary contacts can be fitted in addition

• Position indicator red/green

–1FAZ-NA

FAZ-RT FAZ-XAA-NA110-415VAC

102036

1 off

–1FAZ-NA

FAZ-RT FAZ-XAA-NA12-110VAC

102037

1 off

Information relevant for export to North America

Product Standards IEC/EN 60898; UL 489; CSA-C22.2 No. 5-09; CE marking

UL File No. E257181

UL CCN DIHS, DIHS7

CSA File No. 204453

CSA Class No. 1437-01

NA Certification UL Listed, CSA certified

Degree of Protection IEC: IP20, UL/CSA Type: -

4.11

1.11 1.14 1.12

4.12/

4.14

4.14/

4.12

21 13

22 14

Z...HK..., FAZ-XAA-NA HPL19040EN

Circuit-breakers, fuses

Accessories for miniature circuit-breaker North America

2010 CA08103002Z-EN www.eaton.com

19/41

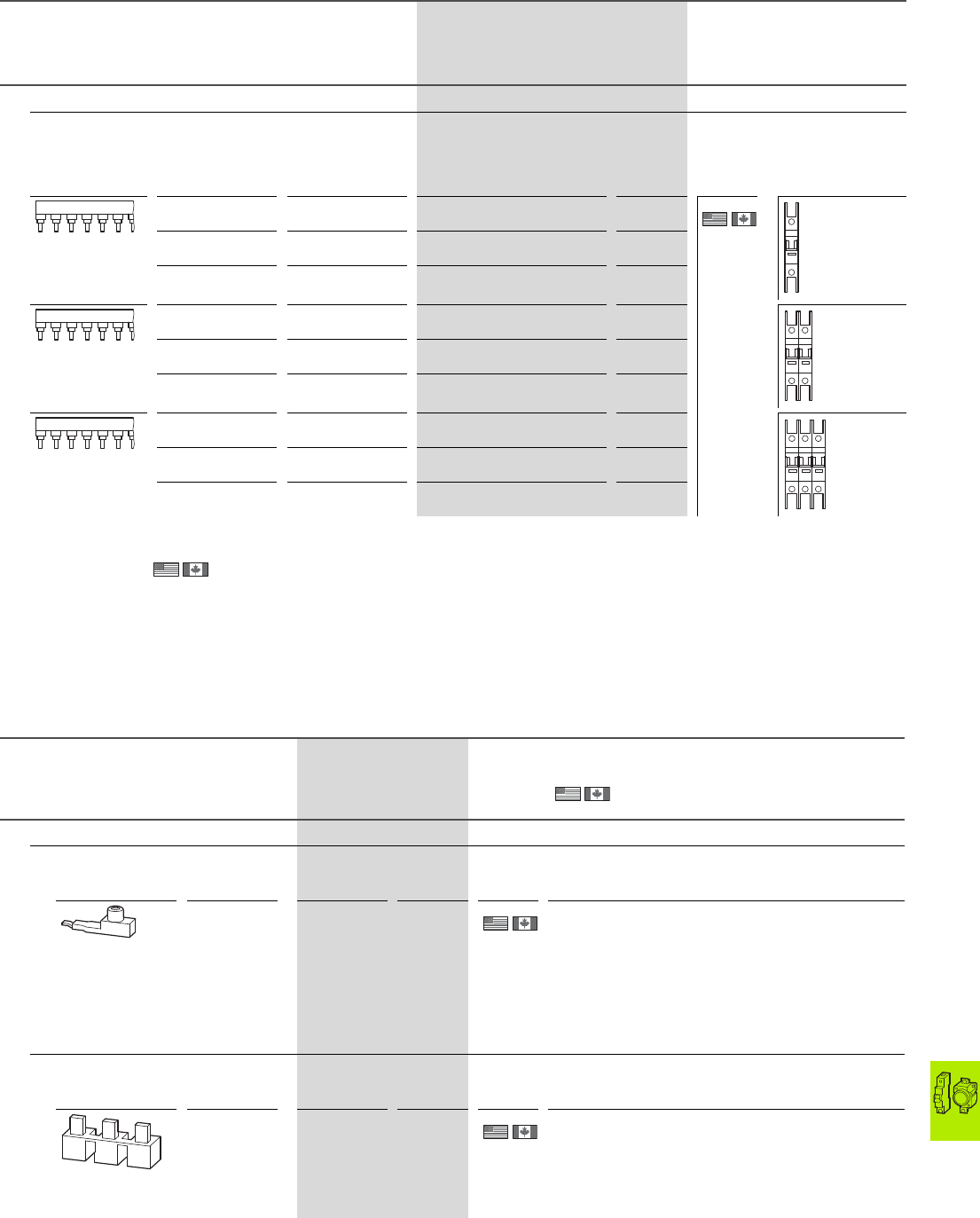

Accessories for miniature circuit-breaker North America

Phases Devices Part no.

Article no. Price

See price

list

Std. pack Notes

Number Number

Accessories for FAZ-NA, FAZ-RT

Busbars (pin), UL 489

•16 mm

• Rated operational current 80 A

• For FAZ-NA, FAZ-RT

• Do not shorten

16Z-SV/UL-16/1P-1TE/6

104892

10 off

112Z-SV/UL-16/1P-1TE/12

104893

118Z-SV/UL-16/1P-1TE/18

104894

26Z-SV/UL-16/2P-2TE/6

104895

212Z-SV/UL-16/2P-2TE/12

104896

218Z-SV/UL-16/2P-2TE/18

104897

36Z-SV/UL-16/3P-3TE/6

104898

312Z-SV/UL-16/3P-3TE/12

104899

318Z-SV/UL-16/3P-3TE/18

104900

Information relevant for export to North America

Product Standards IEC/EN 60898; UL 489; CE marking

UL File No. E257181

UL CCN NMTR2, DIHS2

CSA File No. –

CSA Class No. –

NA Certification UL Recognized

Suitable for Feeder Circuit, Branch Circuit

Max. Voltage Rating Refer to main components FAZ, FAZ-NA, FAZ-RT

Degree of Protection IEC: IP20, UL/CSA Type: -

For use with Part no.

Article no. Price

See price

list

Std. pack Information relevant for export to North America

Accessories for FAZ-NA, FAZ-RT

Connecting bracket

•2.5 - 35 mm

2, AWG 14-2

• UL 489

FAZ-NA

FAZ-RT Z-EK/35/UL

104901

3 off Product Standards IEC/EN 60898; UL 489; CE marking

UL File No. E257181

UL CCN NMTR2, DIHS2

CSA File No. –

CSA Class No. –

NA Certification UL Recognized

Suitable for Feeder circuits, branch circuits

Max. Voltage Rating Refer to main components FAZ,

FAZ-NA, FAZ-RT

Degree of Protection IEC: IP20, UL/CSA Type: -

Busbar cover

• for 3 pins

• UL 489

FAZ-NA

FAZ-RT ZV-BS-UL

104904

10 off Product Standards IEC/EN 60898; UL 489; CE marking

UL File No. E257181

UL CCN NMTR2, DIHS2

CSA File No. –

CSA Class No. –

NA Certification UL Recognized

Degree of Protection IEC: IP20, UL/CSA Type: -

LLL LLL

L1 L1L2 L2 L2L1

L1 L3L2 L1 L3L2

Z-SV/UL, Z-..., Z-EK, ZV-BS

HPL19041EN

19/42 Circuit-breakers, fuses

Fuse bases

2010 CA08103002Z-EN www.eaton.com

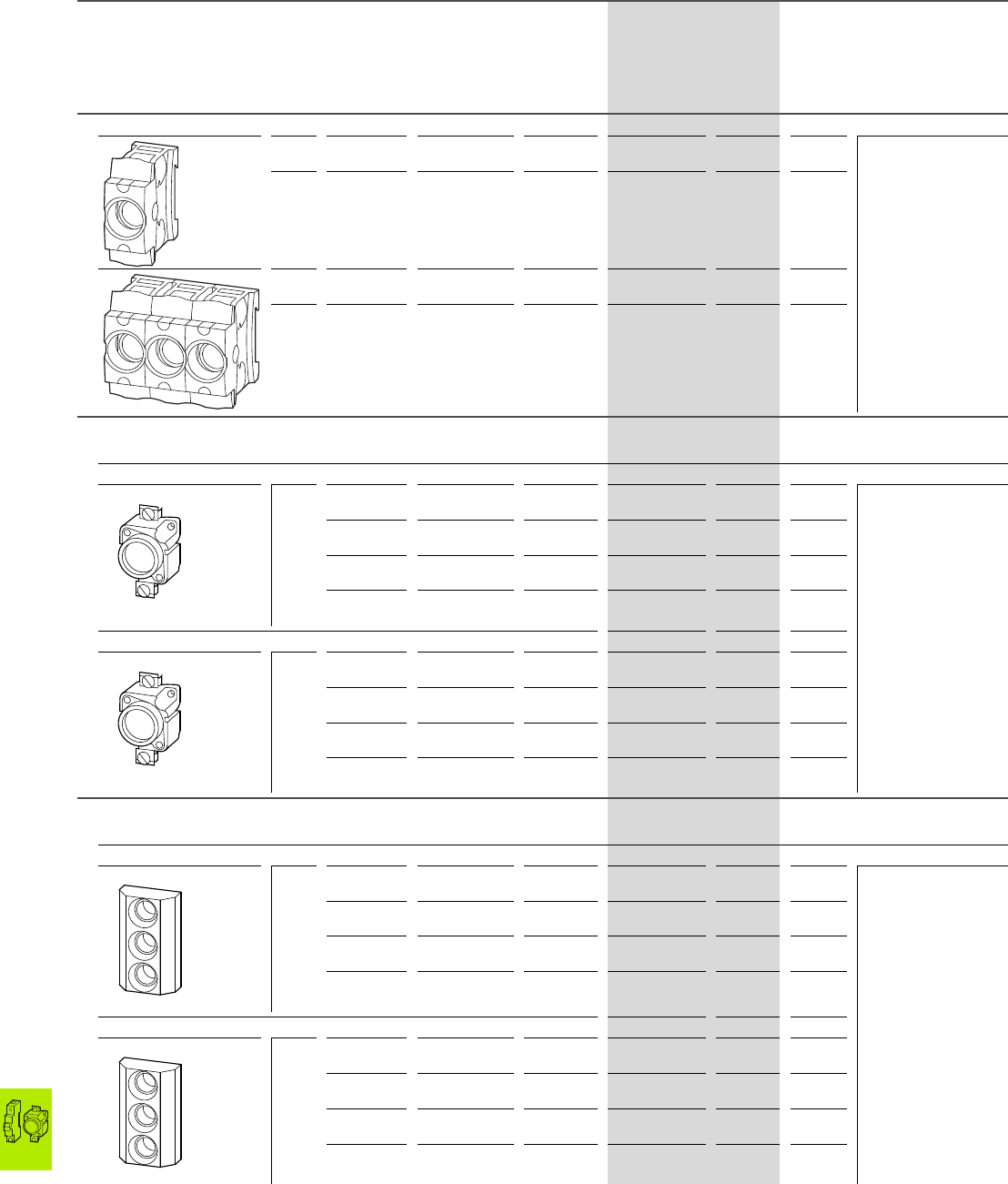

Fuse bases

Pole Rated

operational

current

Rated

operational

voltage

Fuse-

link Part no.

Article no. Price

See price

list

Std. pack Notes

IeUe

AV ACSize

Fuse bases

1 pole 16 – D01 D01-SO/16/1

102752

9 off Equipment supplied:

Empty, without screw on

cover

1 pole 63 – D02 D02-SO/63/1

102675

9 off

3 pole 16 – D01 D01-SO/16/3

102674

3 off

3 pole 63 – D02 D02-SO/63/3

102676

3 off

Fuse bases, 1 pole

For gauge ring system (gauge screw: /FORMP)

Screw fixing (holes for M4 screws)

1 pole 25 500 E27, DII S27-1

045865

10 off Gauge rings/gauge

screws, fuse links and fuse

caps are not included.

25 500 E27, DII S27-1/FORMP

020327

10 off

63 660

690

E33, DIII S33-1

069595

2 off

63 660

690

E33, DIII S33-1/FORMP

022700

2 off

Can be snap fitted on top-hat rail to IEC/EN 60715 (35 mm)

1 pole 25 500 E27, DII S27-1/C

048238

20 off

25 500 E27, DII S27-1/C/FORMP

025073

20 off

63 660

690

E33, DIII S33-1/C

071968

2 off

63 660

690

E33, DIII S33-1/C/FORMP

027446

2 off

Fuse bases, 3 pole

For gauge ring system (gauge screw: /FORMP)

Screw fixing (holes for M4 screws)

3 pole 25 500 E27, DII S27

043492

4 off Gauge rings/gauge

screws, fuse links and fuse

caps are not included.

25 500 E27, DII S27/FORMP

034565

4 off

63 660

690

E33, DIII S33

067222

2 off

63 660

690

E33, DIII S33/FORMP

036938

2 off

Can be snap fitted on top-hat rail to IEC/EN 60715 (35 mm)

3 pole 25 500 E27, DII S27/C

050611

4 off

25 500 E27, DII S27/C/FORMP

032192

4 off

63 660

690

E33, DIII S33/C

081460

2 off

63 660

690

E33, DIII S33/C/FORMP

029819

2 off

D0, S27, S33 HPL19042EN

Circuit-breakers, fuses

Mounting accessories, fuse links

2010 CA08103002Z-EN www.eaton.com

19/43

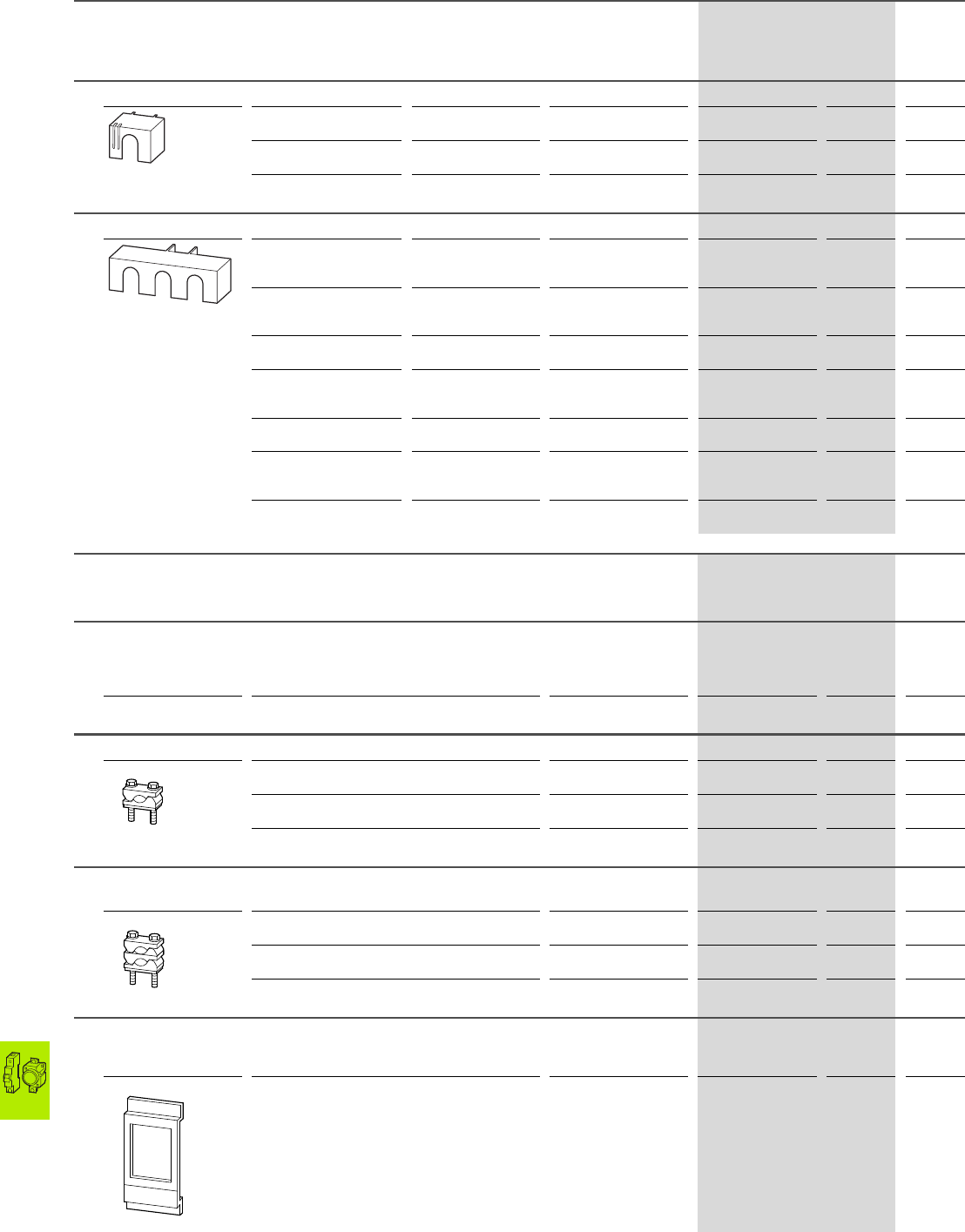

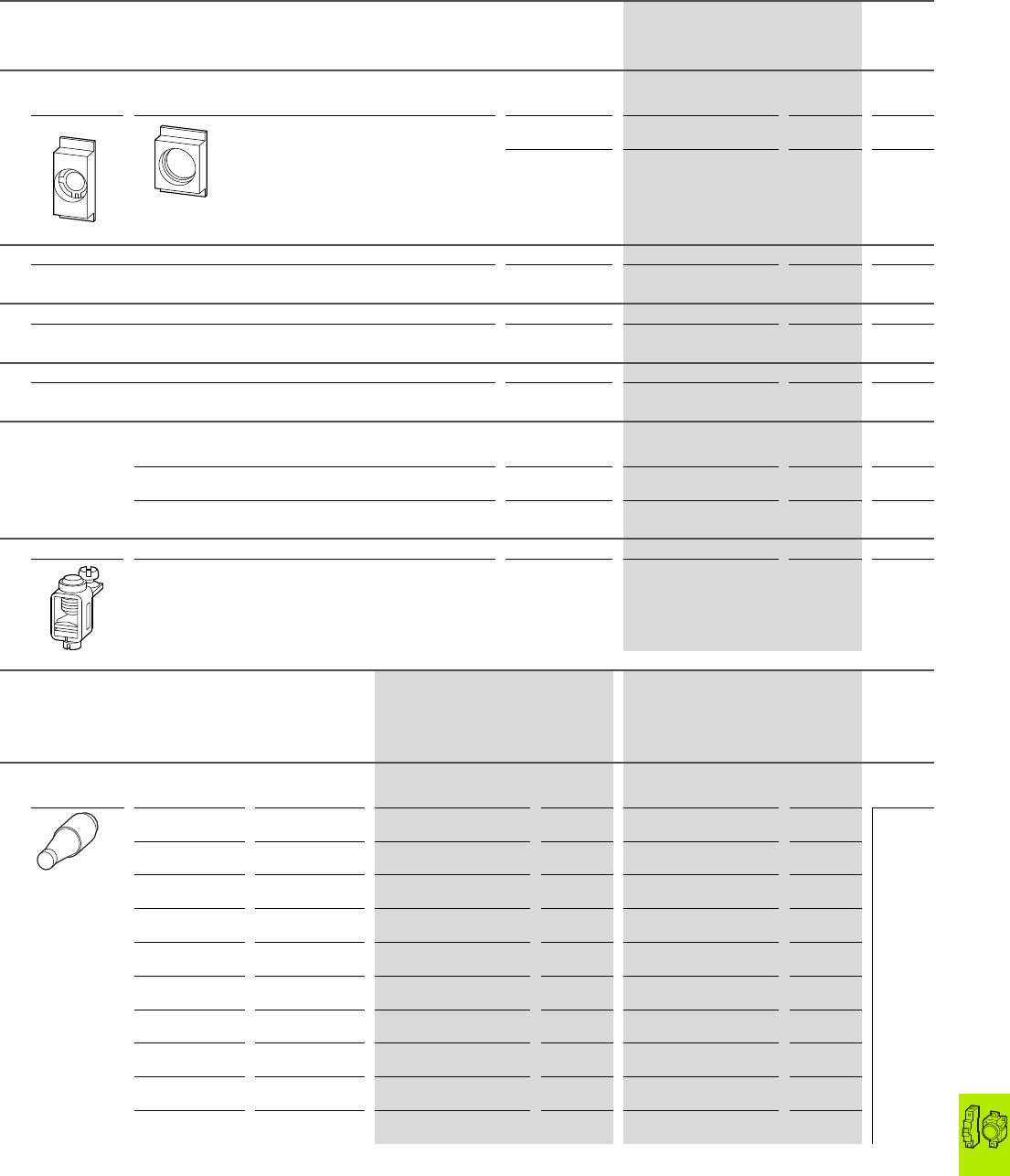

Mounting accessories, fuse linksMounting accessories

For use with Part no.

Article no. Price

See price

list

Std. pack

Covers for 1 pole fuse bases

Standard front dimension 45 mm

S…-1/… P-E27

090928

10 off

S…-1/… P-E33

093301

10 off

Transparent shroud

With cable entry knockouts top and bottom – H-S27-1

029118

10 off

Busbar connector 63 A

For fuse bases, 3 pole D0…/3 Z-SV-16/3P

271072

20 off

End cap

For busbar block Z-SV-16/3P Z-AK-16/2+3P

271070

10 off

Notched phase busbars, can be cut to desired length

For gauge ring system (gauge screw: /FORMP)

980 mm long, for max. 22 fuse bases,

Rated operational current 100 A

S27-1/C KS27

055248

5 off

960 mm long, for max. 18 fuse bases,

rated operational current 160 A

S33-1/C KS33

059994

5 off

Terminal

For gauge ring system (gauge screw: /FORMP)

For round conductor up to 35 mm2 or flat cable conductor 6 x 9 x 0.8

KS14 - KS33 K35-AB

064339

20 off

Rated operational

current

Fuse-

link Part no.

Article no.

Utilization category gG (gL)

Price

See price

list

Part no.

Article no.

Utilization category DZ

Price

See price

list

Std. pack

ASize

Fuse links Z-D…/SE

Rated operating voltage 500 V AC/400 V DC

2DII E27Z-DII/SE-2A/GG

112125 Z-DII/SE-2A/DZ

112028

5 off

4DII E27

Z-DII/SE-4A/GG

112126 Z-DII/SE-4A/DZ

112029

6DII E27Z-DII/SE-6A/GG

112127 Z-DII/SE-6A/DZ

112120

10 DII E27 Z-DII/SE-10A/GG

112128 Z-DII/SE-10A/DZ

112121

16 DII E27 Z-DII/SE-16A/GG

112129 Z-DII/SE-16A/DZ

112122

20 DII E27 Z-DII/SE-20A/GG

112130 Z-DII/SE-20A/DZ

112123

25 DII E27 Z-DII/SE-25A/GG

112131 Z-DII/SE-25A/DZ

112124

35 DIII E33 Z-DIII/SE-35A/GG

112135 Z-DIII/SE-35A/DZ

112132

50 DIII E33 Z-DIII/SE-50A/GG

112136 Z-DIII/SE-50A/DZ

112133

63 DIII E33 Z-DIII/SE-63A/GG

112137 Z-DIII/SE-63A/DZ

112134

Z-DII, Z-DIII

HPL19043EN

19/44 Circuit-breakers, fuses

Gauge screws, gauge pieces, screw caps

2010 CA08103002Z-EN www.eaton.com

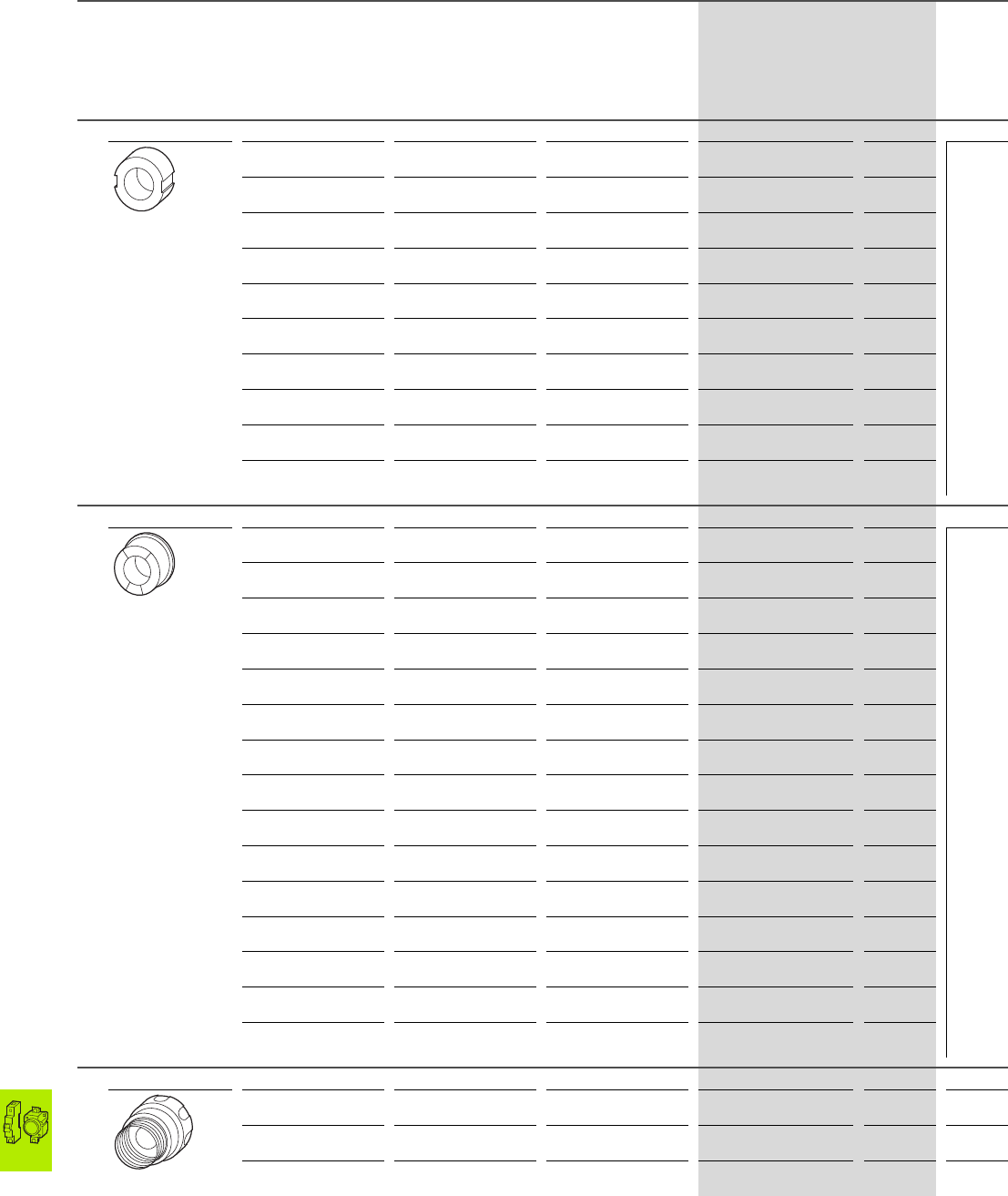

Gauge s crews, gauge piec es, screw caps

Rated operational

current

Rated operational

voltage

Fuse link Part no.

Article no. Price

See price

list

Std. pack

IeUe

AV ACSize

Gauge screws Z-DII…/PS

2–DII E27Z-DII/PS-2A

112138

25 off

4–DII E27Z-DII/PS-4A

112139

6–DII E27Z-DII/PS-6A

112140

10 – DII E27 Z-DII/PS-10A

112141

16 – DII E27 Z-DII/PS-16A

112142

20 – DII E27 Z-DII/PS-20A

112143

25 – DII E27 Z-DII/PS-25A

112144

35 – DIII E33 Z-DIII/PS-35A

112145

50 – DIII E33 Z-DIII/PS-50A

112146

63 – DIII E33 Z-DIII/PS-63A

112147

Z-DII…/PE push-in gauge rings

2–DII E27Z-DII/PE-2A

110396

50 off

4–DII E27Z-DII/PE-4A

110397

6–DII E27Z-DII/PE-6A

110398

10 – DII E27 Z-DII/PE-10A

110399

16 – DII E27 Z-DII/PE-16A

110790

20 – DII E27 Z-DII/PE-20A

110791

2–DIII E33Z-DIII/PE-2A

110792

4–DIII E33Z-DIII/PE-4A

110793

6–DIII E33Z-DIII/PE-6A

110794

10 – DIII E33 Z-DIII/PE-10A

110795

16 – DIII E33 Z-DIII/PE-16A

110796

20 – DIII E33 Z-DIII/PE-20A

110797

25 – DIII E33 Z-DIII/PE-25A

110798

35 – DIII E33 Z-DIII/PE-35A

110799

50 – DIII E33 Z-DIII/PE-50A

110800

Z-DII…/SK screw caps

– 500 DII E27 Z-DII/SK

112148

50 off

–500DIII E33Z-DIII/SK

112149

30 off

–690DIII E33Z-DIII/SK-690

118904

3 off

Z-D.../PS, Z-D.../PE, Z-D.../SK HPL19044EN

Circuit-breakers, fuses

Fuse switch-disconnectors, fuse sets

2010 CA08103002Z-EN www.eaton.com

19/45

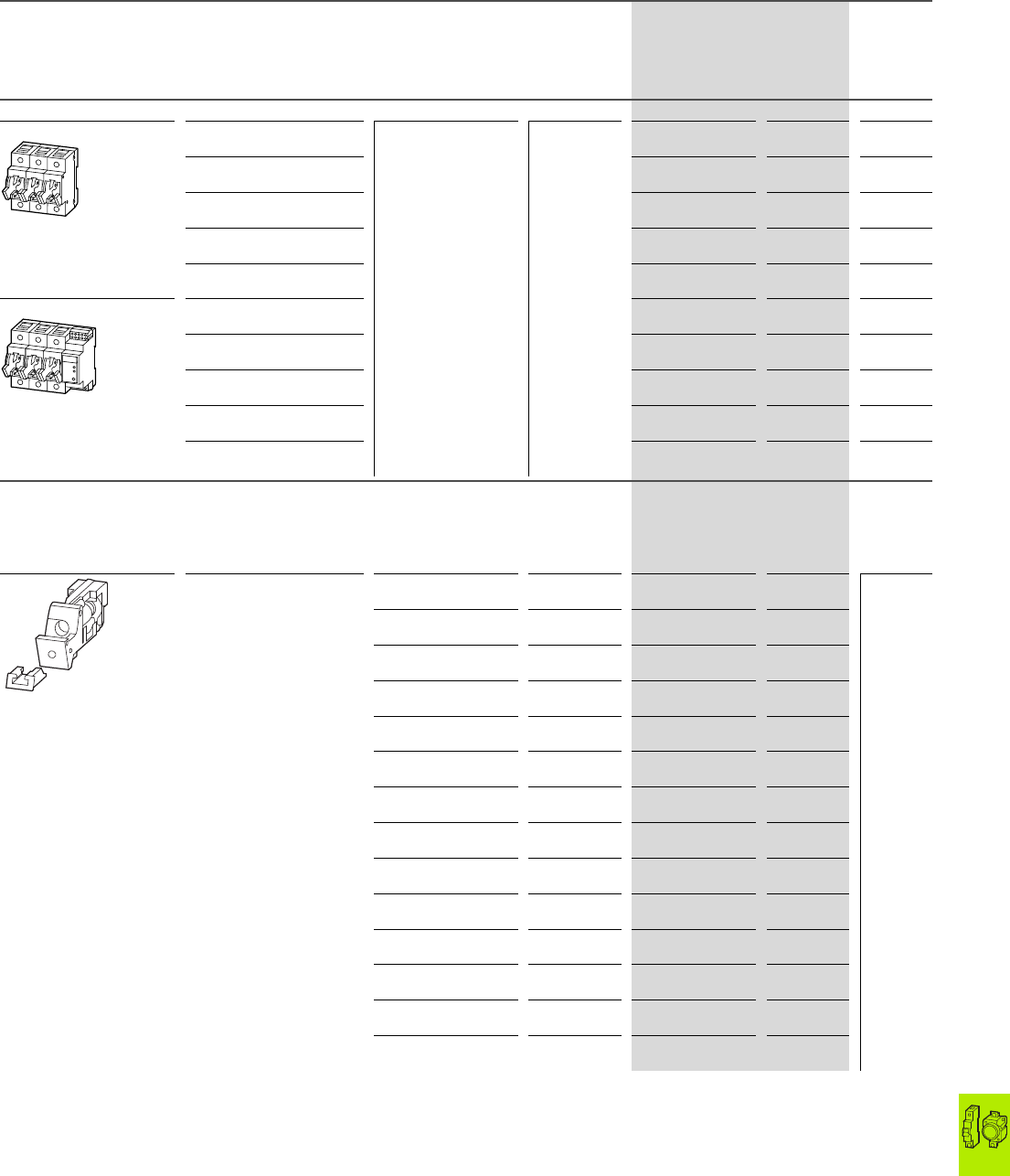

Fuse switch-disconnectors, fuse sets

Pole Rated uninterrupted

current

Fuse link Part no.

Article no. Price

See price list

Std. pack

ASize

Fuse switch-disconnectors

Standard, empty 1 63 D02, D01 Z-SLS/NEOZ/1

248235

12 off

1 + N Z-SLS/NEOZ/1+N

248237

6 off

2Z-SLS/NEOZ/2

248233

6 off

3Z-SLS/NEOZ/3

248234

4 off

3 + N Z-SLS/NEOZ/3+N

248236

3 off

With fuse monitoring, empty 1 + HS Z-SLK/NEOZ/1

248238

6 off

1 + N + HS Z-SLK/NEOZ/1+N

248242

4 off

2 + HS Z-SLK/NEOZ/2

248239

4 off

3 + HS Z-SLK/NEOZ/3

248240

3 off

3 + N + HS Z-SLK/NEOZ/3+N

248241

2 off

Fuse sets

• For Z-SLS/NEOZ, Z-SLK/NEOZ, Z-SLS/CEK

• With flashing function

• Snap-fit on DIN rail

• 1 set consists of: 3 fuse links, 3 current codings, 1 plastic box in the color of the indicator

Rated operational voltage

24 V AC/DC

1–Z-SLS/B-24-1A

268994

12 off

2–Z-SLS/B-24-2A

268995

4–Z-SLS/B-24-4A

268996

6–Z-SLS/B/24-6A

268997

10 – Z-SLS/B/24-10A

268998

13 – Z-SLS/B/24-13A

289975

16 – Z-SLS/B/24-16A

268999

20 – Z-SLS/B/24-20A

269000

25 – Z-SLS/B/24-25A

269001

32 – Z-SLS/B/24-32A

289976

35 – Z-SLS/B/24-35A

269002

40 – Z-SLS/B/24-40A

289977

50 – Z-SLS/B/24-50A

269003

63 – Z-SLS/B/24-63A

269004

Z-SLS

HPL19045EN

19/46 Circuit-breakers, fuses

Fuse sets and accessories

2010 CA08103002Z-EN www.eaton.com

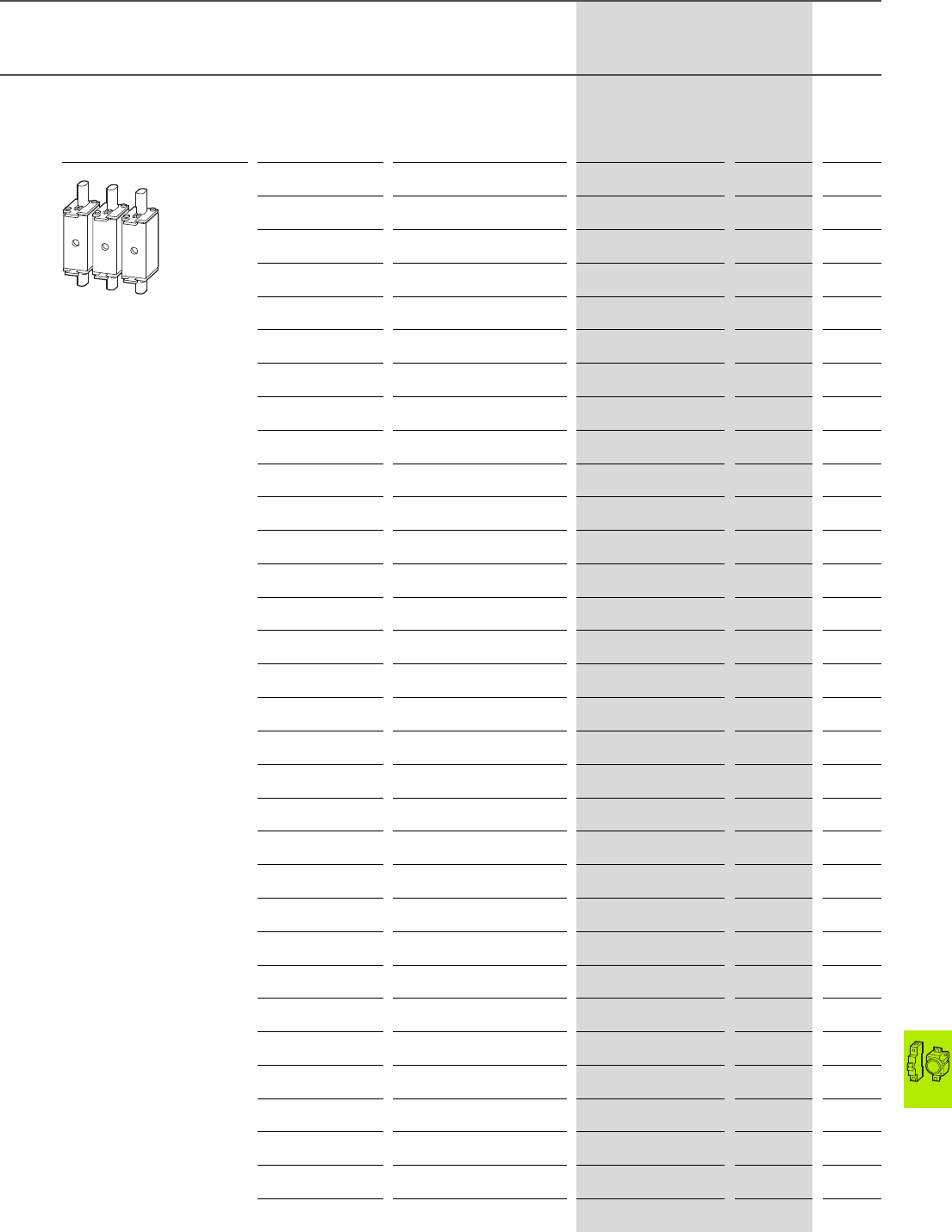

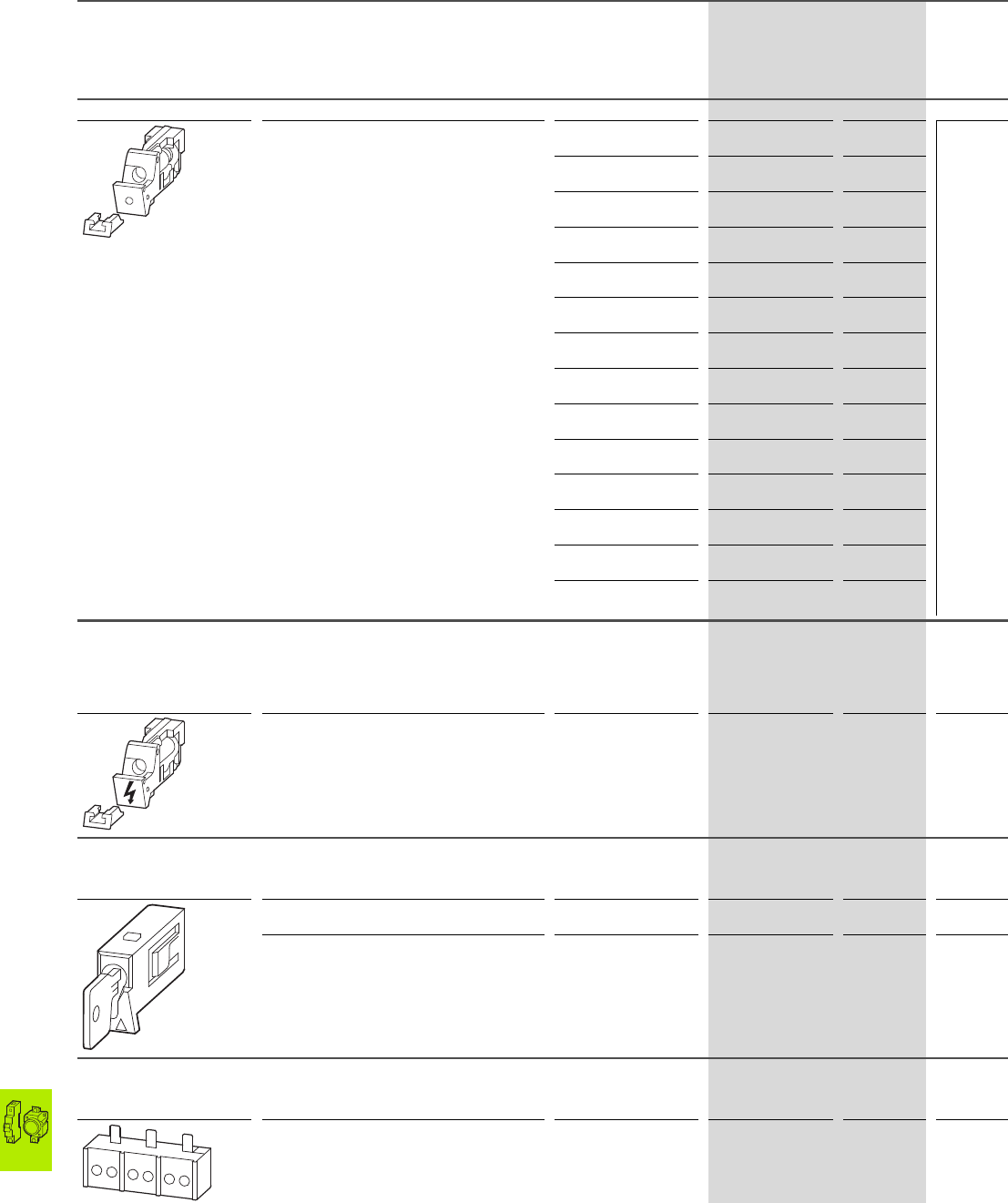

Fuse sets and accessories

Rated uninterrupted

current Part no.

Article no. Price

See price list

Std. pack

Fuse sets

Rated operational voltage 60 - 400 V AC 1 Z-SLS/B-1A

268983

12 off

2Z-SLS/B-2A

268984

4Z-SLS/B-4A

268985

6Z-SLS/B-6A

268986

10 Z-SLS/B-10A

268987

13 Z-SLS/B-13A

289972

16 Z-SLS/B-16A

268988

20 Z-SLS/B-20A

268989

25 Z-SLS/B-25A

268990

32 Z-SLS/B-32A

289973

35 Z-SLS/B-35A

268991

40 Z-SLS/B-40A

289974

60 Z-SLS/B-50A

268992

63 Z-SLS/B-63A

268993

Disconnector kit

• For Z-SLS/NEOZ, Z-SLK/NEOZ, Z-SLS/CEK

• Snap-fit on DIN rail

• 1 set consists of: 3 switch conversion sets, 3 current codings, 1 plastic box

• The fuse switch-disconnector is thus converted to a switch-disconnector.

–63Z-SLS/TR-SET

100660

12 off

Switch-on inhibits

• For Z-SLS/NEOZ, Z-SLK/NEOZ, Z-SLS/CEK, Z-SLK/D0

• Only 1 inhibit required per device

Stop with metal lock – Z-SLZ/SC

268980

12 off

Stop with plastic lock – Z-SLZ/SP

268981

12 off

Incoming double terminal

• For Z-SLS/NEOZ, Z-SLK/NEOZ, Z-SLS/CEK, Z-SLK/D0

• 2 x 3 x 35 mm2

––Z-SLZ/KL

268982

15 off

Z-SLS, Z-SLZ HPL19046EN

Circuit-breakers, fuses

Fuses, fuse adapters and screw-on caps

2010 CA08103002Z-EN www.eaton.com

19/47

Fuses, fuse adapters and screw-on caps

Rated uninterrupted

current

Fuse link Part no.

Article no. Price

See price

list

Std. pack

ASize

Fuse links utilization category gG (gL)

• Snap-fit on DIN rail

• In a plastic box in the color of the

indicator

2D01Z-D01/SE-2

288934

12 off

4Z-D01/SE-4

288935

6Z-D01/SE-6

288936

10 Z-D01/SE-10

288937

13 Z-D01/SE-13

288938

16 Z-D01/SE-16

288939

20 Z-D02/SE-20

288940

25 Z-D02/SE-25

288941

32 Z-D02/SE-32

288942

35 Z-D02/SE-35

288943

40 Z-D02/SE-40

288944

50 Z-D02/SE-50

288945

63 Z-D02/SE-63

288946

Adapter sleeves

• Snap-fit on DIN rail

• In a plastic box in the color of the

indicator

2D01Z-D01/PE-2

288909

12 off

4Z-D01/PE-4

288910

6Z-D01/PE-6

288911

10, 13 Z-D01/PE-10

288912

20 Z-D02/PE-20

288913

25 Z-D02/PE-25

288914

35, 32 Z-D02/PE-35

288915

40 Z-D02/PE-40

288916

50 Z-D02/PE-50

288917

• D01 for fuse base D02 and fuse switch-

disconnector D02

2 D02-D01 Z-D02-D01/PE-2

263112

4Z-D02-D01/PE-4

263113

6Z-D02-D01/PE-6

263150

10, 13 Z-D02-D01/PE-10

263151

16 Z-D02-D01/PE-16

263152

Screw caps

–Max. 16D01Z-D01/SK

100650

20 off

Max. 63 D02 Z-D02/SK

100651

20 off

Retaining spring

• For inserting D01 fuses links in the

screw cap ZD02/SK

D02-D01 Z-D02/SIKA-HF

263149

50 off

Z-DO.../SE, Z-DO.../PE, Z-DO.../SK

HPL19047EN

19/48 Circuit-breakers, fuses

Fuse switch-disconnectors, fuse links for photovoltaic applications

2010 CA08103002Z-EN www.eaton.com

Fuse switch-disconnectors, fuse links for photovoltaic applications

Pole Part no.

Article no. Price

See price

list

Std. pack

Fuse switch-disconnectors (empty)

• Line protection of photovoltaic generator

• The trip indication signals that a fuse link has tripped:

– 50 - 400 V flashing

– 400 - 1000 V continuous light

• Rated operational voltage 1000 V DC

• Size 10 x 38, rated operational current 20 A DC

• For cylindrical fuse links for photovoltaic applications

• Sealable

Without flashing function 1 C10-FD/20/1

119024

12 off

Without flashing function 2 C10-FD/20/2

119025

6 off

With flashing function 1 C10-FD/20/1-L

119026

12 off

With flashing function 2 C10-FD/20/2-L

119027

6 off

Size Rated operational

current

Rated operating voltage Part no.

Article no. Price

See price

list

Std. pack

IeUe

AV DC

Cylindrical fuse links Z-C…/SE for photovoltaic applications

• Maximum DC rated operating voltage of fuse link 1.2 × Vcc of

line (Vcc … open circuit voltage of line)

• Rated operational current In of Fuse link must be greater than or equal to 1.5 × Isc (Isc …

short circuit current of PV module)

10 x 38 2 1000 Z-C10/SE-2A/PV

131700

10 off

10 x 38 4 1000 Z-C10/SE-4A/PV

131701

10 x 38 6 1000 Z-C10/SE-6A/PV

122009

10 x 38 8 1000 Z-C10/SE-8A/PV

122070

10 x 38 10 1000 Z-C10/SE-10A/PV

122071

10 x 38 12 1000 Z-C10/SE-12A/PV

131702

10 x 38 16 1000 Z-C10/SE-16A/PV

122072

10 x 38 20 1000 Z-C10/SE-20A/PV

122073

10 x 38 25 900 Z-C10/SE-25A/PV

131703

C10-FD/20..., Z-C10/SE...PV HPL19048EN

Circuit-breakers, fuses

Fuse switch-disconnectors

2010 CA08103002Z-EN www.eaton.com

19/49

Fuse switch-disconnectors

Pole Part no.

Article no. Price

See price list

Std. pack

Fuse switch-disconnectors, empty

• For cylindrical fuses

Size 14 x 51, to 50 A

Without flashing function 1 VLC14-1P

285361

12 off

1 + N VLC14-1P+N

285362

6 off

2VLC14-2P

285363

6 off

3VLC14-3P

285364

4 off

3 + N VLC14-3P+N

285365

3 off

With flashing function 1 VLC14-1P/L

285371

12 off

1 + N VLC14-1P+N/L

285372

6 off

2VLC14-2P/L

285373

6 off

3VLC14-3P/L

285374

4 off

3 + N VLC14-3P+N/L

285375

3 off

Size 22 x 58, to 100 A

Without flashing function 1 VLC22-1P

285366

3 off

1 + N VLC22-1P+N

285367

2 off

2VLC22-2P

285368

2 off

3VLC22-3P

285369

1 off

3 + N VLC22-3P+N

285370

1 off

With flashing function 1 VLC22-1P/L

285376

3 off

1 + N VLC22-1P+N/L

285377

2 off

2VLC22-2P/L

285378

2 off

3VLC22-3P/L

285379

1 off

3 + N VLC22-3P+N/L

285380

1 off

VLC

HPL19049EN

19/50 Circuit-breakers, fuses

Cylindrical fuse inserts

2010 CA08103002Z-EN www.eaton.com

Cylindric al fuse inserts

Size Rated

operational

current

Rated operational

voltage Part no.

Article no.

Utilization

category

Price

See price

list

Std. pack

IeUeUe

AV AC V AC

Cylindrical fuse inserts Z-C…/SE

10 x 38 1 500 Z-C10/SE-1A/GG

112156

500 Z-C10/SE-1A/AM

112188

10 off

2500 Z-C10/SE-2A/GG

112157

500 Z-C10/SE-2A/AM

112189

4500 Z-C10/SE-4A/GG

112158

500 Z-C10/SE-4A/AM

112190

6500 Z-C10/SE-6A/GG

112159

500 Z-C10/SE-6A/AM

112191

8500 Z-C10/SE-8A/GG

112160

500 Z-C10/SE-8A/AM

112192

10 500 Z-C10/SE-10A/GG

112161

500 Z-C10/SE-10A/AM

112193

12 500 Z-C10/SE-12A/GG

112162

500 Z-C10/SE-12A/AM

112194

16 500 Z-C10/SE-16A/GG

112163

500 Z-C10/SE-16A/AM

112195

20 500 Z-C10/SE-20A/GG

112164

400 Z-C10/SE-20A/AM

112196

25 500 Z-C10/SE-25A/GG

112165

400 Z-C10/SE-25A/AM

112197

32 400 Z-C10/SE-32A/GG

112166

400 Z-C10/SE-32A/AM

112198

14 x 51 2 690 Z-C14/SE-2A/GG

112167

690 Z-C14/SE-2A/AM

112199

4690 Z-C14/SE-4A/GG

112168

690 Z-C14/SE-4A/AM

112200

6690 Z-C14/SE-6A/GG

112169

690 Z-C14/SE-6A/AM

112201

8690 Z-C14/SE-8A/GG

112170

690 Z-C14/SE-8A/AM

112202

10 690 Z-C14/SE-10A/GG

112171

690 Z-C14/SE-10A/AM

112203

12 690 Z-C14/SE-12A/GG

112172

690 Z-C14/SE-12A/AM

112204

16 690 Z-C14/SE-16A/GG

112173

690 Z-C14/SE-16A/AM

112205

20 690 Z-C14/SE-20A/GG

112174

690 Z-C14/SE-20A/AM

112206

25 690 Z-C14/SE-25A/GG

112175

690 Z-C14/SE-25A/AM

112207

32 690 Z-C14/SE-32A/GG

112176

500 Z-C14/SE-32A/AM

112208

40 500 Z-C14/SE-40A/GG

112177

500 Z-C14/SE-40A/AM

112209

50 500 Z-C14/SE-50A/GG

112178

500 Z-C14/SE-50A/AM

112210

22 x 58 16 690 Z-C22/SE-16A/GG

112179

690 Z-C22/SE-16A/AM

112211

20 690 Z-C22/SE-20A/GG

112180

690 Z-C22/SE-20A/AM

112212

25 690 Z-C22/SE-25A/GG

112181

690 Z-C22/SE-25A/AM

112213

32 690 Z-C22/SE-32A/GG

112182

690 Z-C22/SE-32A/AM

112214

40 690 Z-C22/SE-40A/GG

112183

690 Z-C22/SE-40A/AM

112215

50 500 Z-C22/SE-50A/GG

112184

690 Z-C22/SE-50A/AM

112216

63 500 Z-C22/SE-63A/GG

112185

500 Z-C22/SE-63A/AM

112217

80 500 Z-C22/SE-80A/GG

112186

500 Z-C22/SE-80A/AM

112218

100 500 Z-C22/SE-100A/GG

112187

500 Z-C22/SE-100A/AM

112219

Z-C.../SE-...GG, Z-C.../SE...AM HPL19050EN

Circuit-breakers, fuses

LV h.b.c. fuse bases, LV h.b.c. fuse switch-disconnectors

2010 CA08103002Z-EN www.eaton.com

19/51

LV h.b.c. fuse bases, LV h.b.c. fuse switch-disconnectors

Rated

operating

current

Max. fuse link Part no.

Article no. Price

See price

list

Std.

pack Notes

Ie 500 V 690 V Size

AAA

LV h.b.c. fuse bases

3 pole

160 160 100 NH00 GS00-160

026741

1 off –

250 250 200 NH1 GSU1

289016

1 off –

400 400 315 NH2 GSU2

289017

1 off –

630 630 500 NH3 GSU3

289018

1 off –

LV h.b.c. fuse switch-disconnectors

For fitting on mounting plate

1 pole with-

out hand

guard

160 160 100 NH00 GSTA00-160-1P

225000

1 off For fitting to GSTA00-160 for four

pole LV h.b.c. fuse switch-

disconnector,

two devices can be combined to

two pole LV h.b.c. fuse switch-

disconnector

3 pole with-

out hand

guard

160 160 100 NH00 GSTA00-160

095558

1 off –

250 250 200 NH1 GSTA1

017250

1 off –

400 400 315 NH2 GSTA2

021996

1 off –

m630 630 500 NH3 GSTA3

026742

1 off –

Rated operational voltage Fuse link For use with Part no.

Article no. Price

See price

list

Std. pack

VSize

Set of connecting links

– 00 GSTA00-160-1P V-GSTA00-1P

228173

1 off

Cover with fuse monitoring

• One green operation indicator LED, three red error indication LEDs (F1, F2, F3)

• Error message through relay contacts (floating) 1 N/O + 1 NC

AC15: 24 V/4 A, 230 V/3 A

AC13: 24 V/1 A, 220 V/0.5 A, terminal capacity 0.25 – 1.5 mm2

400 - 690 V AC / 50 - 60 Hz 00 GSTA00… GST00-DSI

107956

1 off

400 - 690 V AC / 50 - 60 Hz 1 GSTA1… GST1-DSI

107957

1 off

400 - 690 V AC / 50 - 60 Hz 2 GSTA2… GST2-DSI

107958

1 off

400 - 690 V AC / 50 - 60 Hz 3 GSTA3… GST3-DSI

107959

1 off

GS00, GSU, GST

HPL19051EN

19/52 Circuit-breakers, fuses

LV h.b.c. accessories

2010 CA08103002Z-EN www.eaton.com

LV h.b.c. accessories

Fuse link For use with Connection Part no.

Article no. Price

See price

list

Std. pack

Size

Busbar tag shroud 1 pole

00 GSTA00-160-1P Connection top or bottom ZBS-GSTA00-1P

119006

2 off

1 GSTA1-1P Connection top or bottom ZBS-GSTA1-1P

119007

2 off

3 GSTA3-1P Connection top or bottom ZBS-GSTA3-1P

119008

2 off

Busbar tag shroud 3 pole

00 GSTA00-160 Connection top or bottom

ZBS-GSTA00

014411

10 off

1 GSTA1 Connection at the top

ZBS-GSTA1

082800

10 off

1 GSTA1 Connection at the bottom ZBSU-GSTA1

082804

10 off

2 GSTA2 Connection at the top

ZBS-GSTA2

082801

5 off

2 GSTA2 Connection at the bottom ZBSU-GSTA2

082805

10 off

3 GSTA3 Connection at the top

ZBS-GSTA3

082802

1 off

3 GSTA3 Connection at the bottom ZBSU-GSTA3

082806

10 off

For use with Part no.

Article no. Price

See price

list

Std. pack

Clip set

able to be fitted later, adjustable

snap fitting to two top hat rails to IEC/EN 60715 (35 mm)

For intervals between busbar centres of 100 - 125 mm

– GSTA00-160 C-GSTA00

040922

5 off

One set comprises 3 clamp-type terminals.

Terminal range 1 x (70 - 150) mm² Cu/Al GSU1, GST…1 PSK1

038734

1 off

Terminal range 1 x (120 - 240) mm² Cu/Al GSU2, GST…2 PSK2

043480

1 off

Terminal range 1 x (120 - 300) mm² Cu/Al GSU3, GST…3 PSK3

048226

1 off

Sets of double clamp-type terminals

One set comprises 3 double clamp-type terminals

Terminal range 2 x (70 - 95) mm² Cu/Al GSU1, GST…1 PSK12

041107

1 off

Terminal range 2 x (120 - 150) mm² Cu/Al GSU2, GST…2 PSK22

045853

1 off

Terminal range 2 x (120-240) mm² Cu/Al GSU3, GST…3 PSK32

050599

1 off

Insulating surround for fuse switch-disconnectors

For compensation between the GA... protective cover and the device (for use in the CI insulated distribution board

system)

– GST00 B-GST00-40-60/CI/1

224553

5 off

ZBS...-GSTA..., PSK... HPL19052EN

Circuit-breakers, fuses

LV h.b.c. fuse links

2010 CA08103002Z-EN www.eaton.com

19/53

LV h.b.c. fuse links

Size Rated operational current Part no.

Article no. Price

See price list

Std. pack

LV h.b.c. fuse links

• Insulation body made from Steatite/Corderite

• Copper contact blade with silver coating, corrosion proof

• Pivoting and central indicator, live grip tabs

• Selectivity from 1:1.6

00 10 Z-NH-00/10

289998

3 off

00 16 Z-NH-00/16

289999

3 off

00 20 Z-NH-00/20

290000

3 off

00 25 Z-NH-00/25

290001

3 off

00 35 Z-NH-00/35

290002

3 off

00 40 Z-NH-00/40

290003

3 off

00 50 Z-NH-00/50

290004

3 off

00 63 Z-NH-00/63

290005

3 off

00 80 Z-NH-00/80

290006

3 off

00 100 Z-NH-00/100

290007

3 off

00 125 Z-NH-00/125

290008

3 off

00 160 Z-NH-00/160

290009

3 off

150 Z-NH-1/50

290010

3 off

163 Z-NH-1/63

290011

3 off

180 Z-NH-1/80

290012

3 off

1100 Z-NH-1/100

290013

3 off

1125 Z-NH-1/125

290014

3 off

1160 Z-NH-1/160

290015

3 off

1200 Z-NH-1/200

290016

3 off

1250 Z-NH-1/250

290017

3 off

2100 Z-NH-2/100

290018

3 off

2125 Z-NH-2/125

290019

3 off

2160 Z-NH-2/160

290020

3 off

2200 Z-NH-2/200

290021

3 off

2250 Z-NH-2/250

290022

3 off

2315 Z-NH-2/315

290023

3 off

2400 Z-NH-2/400

290024

3 off

3250 Z-NH-3/250

290025

3 off

3315 Z-NH-3/315

290026

3 off

3400 Z-NH-3/400

290027

3 off

3500 Z-NH-3/500

290028

3 off

3630 Z-NH-3/630

290029

3 off

Z-NH...

HPL19053EN

19/54 Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com

Miniature circuit-breakers (MCB)

Engineering

Influence of the ambient temperature on the thermal trip behavior

Corrected values of the rated operational current dependent on the ambient temperature

FAZ..., FAZT... FAZ-...-NA, FAZ-...-RT

Ambient temperature T [°C] Ambient temperature T [°C]

In [A] –40 –30 –20 –10 0 10 20 30 35 40 45 50 55 60 65 70 75 In [A]1520253040 50 55 60

0.16 0.20 0.20 0.19 0.19 0.18 0.17 0.17 0.16 0.16 0.15 0.15 0.15 0.14 0.14 0.14 0.14 0.13 0.5 0.6 0.5 0.5 0.5 0.5 0.5 0.5 0.5

0.25 0.32 0.31 0.30 0.29 0.28 0.27 0.26 0.25 0.25 0.24 0.24 0.23 0.23 0.22 0.22 0.21 0.21 1.0 1.1 1.1 1.1 1.0 1.0 1.0 0.9 0.9

0.5 0.64 0.62 0.60 0.58 0.56 0.54 0.52 0.50 0.49 0.48 0.47 0.46 0.45 0.44 0.43 0.42 0.41 1.5 1.7 1.6 1.6 1.6 1.5 1.4 1.4 1.4

0.75 0.96 0.93 0.90 0.87 0.84 0.81 0.78 0.75 0.74 0.73 0.71 0.69 0.68 0.66 0.65 0.64 0.62 2.0 2.2 2.2 2.1 2.1 2.0 1.9 1.9 1.8

11.3 1.2 1.2 1.2 1.1 1.1 1.0 1.0 0.99 0.97 0.95 0.93 0.90 0.89 0.87 0.85 0.83 3.0 3.3 3.2 3.2 3.1 3.0 2.9 2.9 2.8

1.5 1.9 1.9 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.3 1.3 1.3 1.2 4.0 4.4 4.3 4.2 4.2 4.0 3.8 3.8 3.7

1.6 2.0 2.0 1.9 1.9 1.8 1.7 1.7 1.6 1.6 1.5 1.5 1.5 1.4 1.4 1.4 1.4 1.3 5.0 5.5 5.4 5.3 5.2 5.0 4.8 4.7 4.6

22.6 2.5 2.4 2.3 2.2 2.2 2.1 2.0 2.0 1.9 1.9 1.9 1.8 1.8 1.7 1.7 1.7 6.0 6.6 6.5 6.4 6.2 6.0 5.8 5.6 5.5

2.5 3.2 3.1 3.0 2.9 2.8 2.7 2.6 2.5 2.5 2.4 2.4 2.3 2.3 2.2 2.2 2.1 2.1 7.0 7.7 7.6 7.4 7.3 7.0 6.7 6.6 6.4

33.8 3.7 3.6 3.5 3.4 3.3 3.1 3.0 3.0 2.9 2.8 2.8 2.7 2.7 2.6 2.5 2.5 8.0 8.8 8.6 8.5 8.3 8.0 7.7 7.5 7.4

3.5 4.5 4.4 4.2 4.1 3.9 3.8 3.7 3.5 3.4 3.4 3.3 3.2 3.2 3.1 3.0 3.0 2.9 10.0 11.0 10.8 10.6 10.4 10.0 9.6 9.4 9.2

45.1 5.0 4.8 4.7 4.5 4.3 4.2 4.0 3.9 3.9 3.8 3.7 3.6 3.5 3.5 3.4 3.3 13.0 14.3 14.0 13.8 13.5 13.0 12.5 12.5 12.0

56.4 6.0 6.0 5.8 5.6 5.4 5.2 5.0 4.9 4.8 4.7 4.6 4.5 4.4 4.3 4.2 4.1 15.0 16.5 16.2 15.9 15.6 15.0 14.4 14.1 13.8

67.7 7.5 7.2 7.0 6.7 6.5 6.3 6.0 5.9 5.8 5.7 5.6 5.4 5.3 5.2 5.1 5.0 16.0 17.6 17.3 17.0 16.6 16.0 15.4 15.0 14.7

810.2 9.9 9.6 9.3 9.0 8.7 8.4 8.0 7.9 7.7 7.6 7.4 7.2 7.1 6.9 6.8 6.6 20.0 22.0 21.6 21.2 20.8 20.0 19.2 18.8 18.4

10 13 12 12 12 11 11 10 10 9.9 9.7 9.5 9.3 9.0 8.9 8.7 8.5 8.3 25.0 27.5 27.0 26.5 26.0 25.0 24.0 23.3 23.0

12 15 15 14 14 13 13 13 12 12 12 11 11 11 11 10 10 10 30.0 33.0 32.4 31.8 31.2 30.0 28.8 28.2 27.6

13 17 16 16 15 15 14 14 13 13 13 12 12 12 12 11 11 11 32.0 35.2 34.6 33.9 33.3 32.0 30.7 30.1 29.4

15 19 19 18 17 17 16 16 15 15 15 14 14 14 13 13 13 12 40.0 44.0 43.2 42.4 41.6 40.0 38.4 37.6 36.8

16 20 20 19 19 18 17 17 16 16 15 15 15 14 14 14 14 13

20 26 25 24 23 22 22 21 20 20 19 19 19 18 18 17 17 17

25 32 31 30 29 28 27 26 25 25 24 24 23 23 22 22 21 21

32 41 40 38 37 36 35 33 32 32 31 30 30 29 28 28 27 26

40 51 50 48 47 45 43 42 40 39 39 38 37 36 35 35 34 33

50 64 62 60 58 56 54 52 50 49 48 47 46 45 44 43 42 41

63 81 78 76 73 71 68 66 63 62 61 60 58 57 56 55 53 52

Heat dissipation FAZT Heat dissipation FAZ-...-NA, FAZ-...-RT

Depending on rated operational current IuDepending on rated operational current Iu

Characteristic C Characteristic D Characteristic C Characteristic D

Pole Pole Pole Pole

123123 123123

In [A] P [W] P [W] P [W] P [W] P [W] P [W] In [A] P [W] P [W] P [W] P [W] P [W] P [W]

0.5 1.6 3.2 4.7 1.6 3.2 4.8 0.5 1.6 3.2 4.7 1.6 3.2 4.8

1 1.1 2.2 3.4 0.8 1.5 2.3 1 1.1 2.2 3.4 0.8 1.5 2.3

1.5 1.3 2.6 3.9 1.0 2.1 3.1 1.5 1.3 2.6 3.9 1.0 2.1 3.1

2 1.4 2.8 4.3 1.0 2.1 3.1 2 1.4 2.8 4.3 1.0 2.1 3.1

3 1.2 2.4 3.6 1.2 2.4 3.6 3 1.2 2.4 3.6 1.2 2.4 3.6

4 1.4 2.9 4.3 1.4 2.9 4.3 4 1.4 2.9 4.3 1.4 2.9 4.3

5 1.9 3.7 5.6 1.5 2.9 4.4 5 1.9 3.7 5.6 1.5 2.9 4.4

6 1.2 2.3 3.5 1.2 2.3 3.5 6 1.2 2.3 3.5 1.2 2.3 3.5

7 1.4 2.8 4.3 1.4 2.8 4.3 7 1.4 2.8 4.3 1.4 2.8 4.3

8 1.4 2.8 4.2 1.2 2.4 3.7 8 1.4 2.8 4.2 1.2 2.4 3.7

10 1.9 3.6 5.3 1.5 3.0 4.5 10 1.8 3.6 5.3 1.5 3.0 4.5

13 2.4 4.7 7.1 2.0 4.1 6.1 13 2.4 4.7 7.1 2.0 4.1 6.1

15 1.9 3.8 5.6 1.5 3.1 4.6 15 1.9 3.8 5.6 1.5 3.1 4.6

16 2.1 4.3 6.4 1.7 3.5 5.2 16 2.1 4.3 6.4 1.7 3.5 5.2

20 2.9 5.8 8.7 1.8 3.7 5.5 20 2.9 5.8 8.7 1.8 3.7 5.5

25 3.1 6.2 9.3 2.6 5.1 7.7 25 3.1 6.2 9.3 2.6 5.1 7.7

30 3.0 6.0 9.0 2.7 5.4 8.1 30 3.0 6.0 9.0 2.7 5.4 8.1

32 3.4 6.8 10.2 3.1 6.2 9.3 32 3.4 6.8 10.2 3.1 6.2 9.3

35 3.7 7.4 11.0 3.8 7.6 11.3 35 3.7 7.4 11.0 3.8 7.6 11.3

40 4.0 8.1 12.1 3.9 7.8 11.6 40 4.0 8.1 12.1 3.9 7.8 11.6

FAZ, FAZT, FAZ-NA, FAZ-RT

Circuit-breakers, fuses

Miniature circuit-breakers (MCB)

2010 CA08103002Z-EN www.eaton.com

19/55

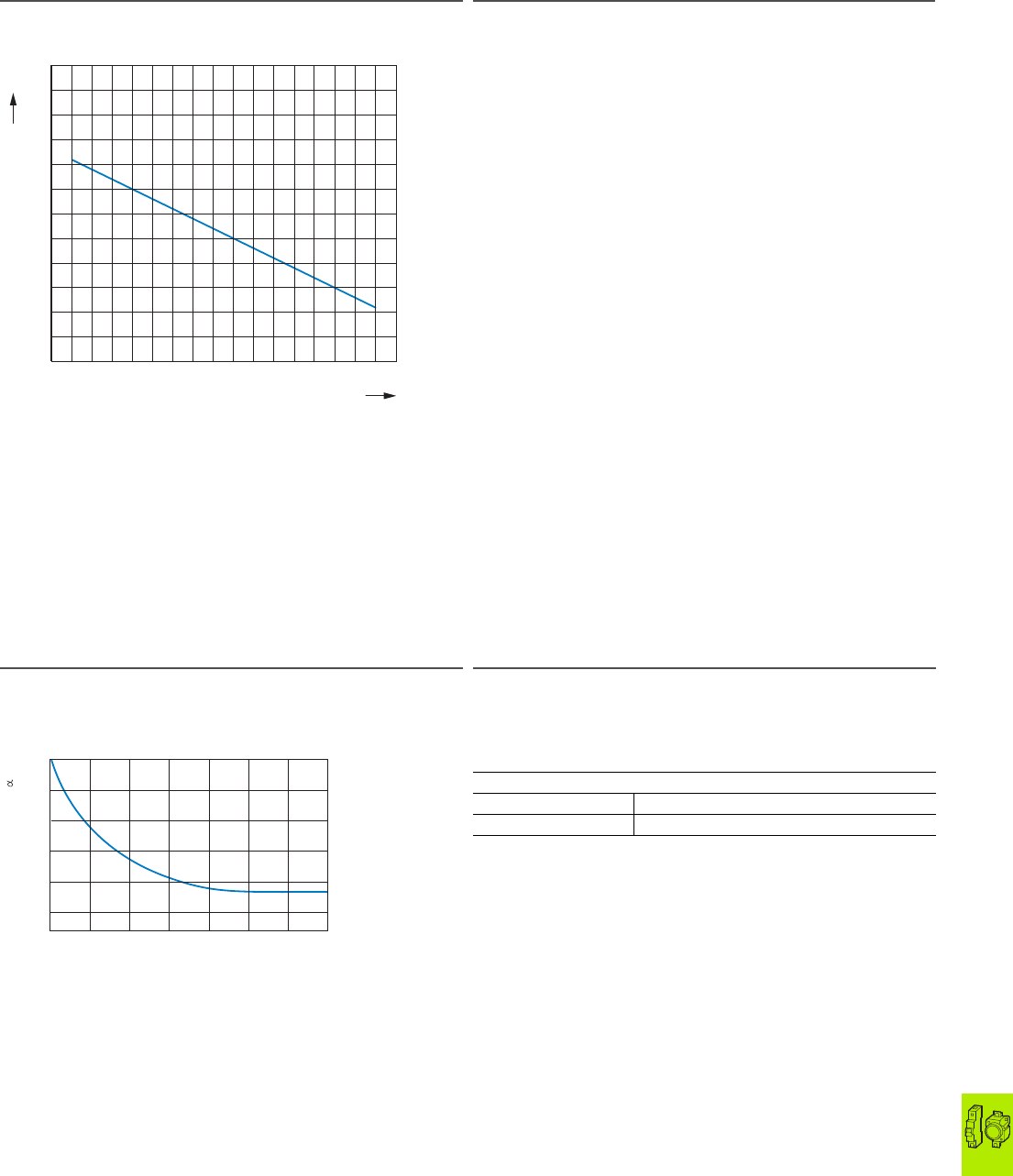

Influence of the ambient temperature on the tripping behavior PDIM leakage current meters

FAZ-...-NA, FAZ-...-RT, Contour and rail mounting compatible with other devices of the P series

Freely selectable rail arrangement top and bottom

Free terminal compartment despite fitted busbar

Power supply through ordering of the four conductors

Electronic operation (independent of mains voltage)

Mains connection on either side.

The 4 pole switch can also be used as 3 pole switch.

To do this, use terminals 1-2, 3-4 and 5-6.

The 4 pole switch can also be used as 2 pole switch.

To do this, use terminals 5-6 and N-N.

2 relays (N/O, parallel to yellow and red LED), floating

(up to 10 A/230 V)

Function

Green LED lit on 0 – 30 % of set In.

Yellow LED lit on 30 – 50 % of set In.

Red LED lit on > 50 % of set In.

The yellow LED goes out when tripped if the measured fault current < 30 % of

the set In.

The red LED goes remains lit when tripped, even if when the measured fault

current < 50 % of the set In.

The red LED goes out only when the Reset button is pressed.

Only one LED lights up at any one time.

An output relay is always connected parallel to the yellow or red LED.

Depending on the set RCCB (non-delayed, G, or S) the fault current must flow

for a specific time before an action takes place.

Test function

Rotary coding switch for RCCB function set to “TEST”.

A fault current of 30 % and 50 % In is simulated in alternation.

The yellow and red LED flash alternately (1 Hz); both output relays are

continually picked up.

KT = rated diversity factor

Load carrying capacity with side-by-side miniature circuit-breakers

FAZ...

Influence of the mains frequency

Influence of the mains frequency on the tripping behavior IMA of the

instantaneous release

Mains frequency f [Hz]

16 50 60 100 200 300 400

IMA(f)/IMA (50 Hz) [%] 91 100 101 106 115 134 141

504030

20100-10

-20

0.90

1.40

1.30

1.20

1.10

1.00

[I/I

]

°C

12 34

0.70 0.80 0.90 1.00

5678

Number of circuit-breakers

Rated diversity factor

FAZ, FAZ-NA, FAZ-RT, PDIM

19/56 Circuit-breakers, fuses

Tripping characteristics for miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

Tripping characteristics for miniature circuit-breakers

Residual-current devices

FI-…-B

Frequency response of the tripping current

30 mA

100 mA 300 mA

Miniature circuit-breakers (MCB)

FAZ...

Tripping characteristics at 30 °C: Tripping characteristics at 30 °C:

B, C, D to IEC/EN 60898 K according to IEC/EN 60947

10 1 1

100

1000

10000

100 1000 10000 100000 1000000

30 mA

[mA]

[Hz]

Fault current

Frequency

10 1 1

100

1000

10000

100 1000 10000 100000 1000000

100 mA

[mA]

[Hz]

Fault current

Frequency

1011

100

1000

10000

100 1000 10000 100000 1000000

300 mA

[mA]

[Hz]

Fault current

Frequency

0.0005

12 34 56 78 91 01 52 03 04 05 0

0.001

0.002

0.005

0.01

0.02

0.05

0. 1

0. 2

0. 5

t [s]

120

300

600

1200

3600

7200

1.13

1.45

BC D

X rated current

Specified non-tripping current

= 1.13 X I

for t > 1 h

Specified tripping current

= 1.45 X I

for t < 1 h

a 2.55 X I

: t = 1 – 60 s (I

< 32 A)

t = 1 – 120 s (I

> 32 A)

b Type B: 3 X I

: t > 0.1 s

c Type B: 5 X I

: t < 0.1 s

d Type C: 5 X I

: t > 0.1 s

e Type C: 10 X I

: t < 0.1 s

f Type D: 10 X I

: t > 0.1 s

g Type D: 20 X I

: t < 0.1 s

0.0005

123456789101520304050

0.001

0.002

0.005

0.01

0.02

0.05

0.1

0.2

0.5

[s]

120

300

600

1200

3600

7200

1.05

1.30

Specified

non-tripping current

nt = 1.05 x n

for t > 1 h

Specified

tripping current

t = 1.30 x n

for t < 1 h

x rated current

FAZ, FI

Circuit-breakers, fuses

Tripping characteristics for miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

19/57

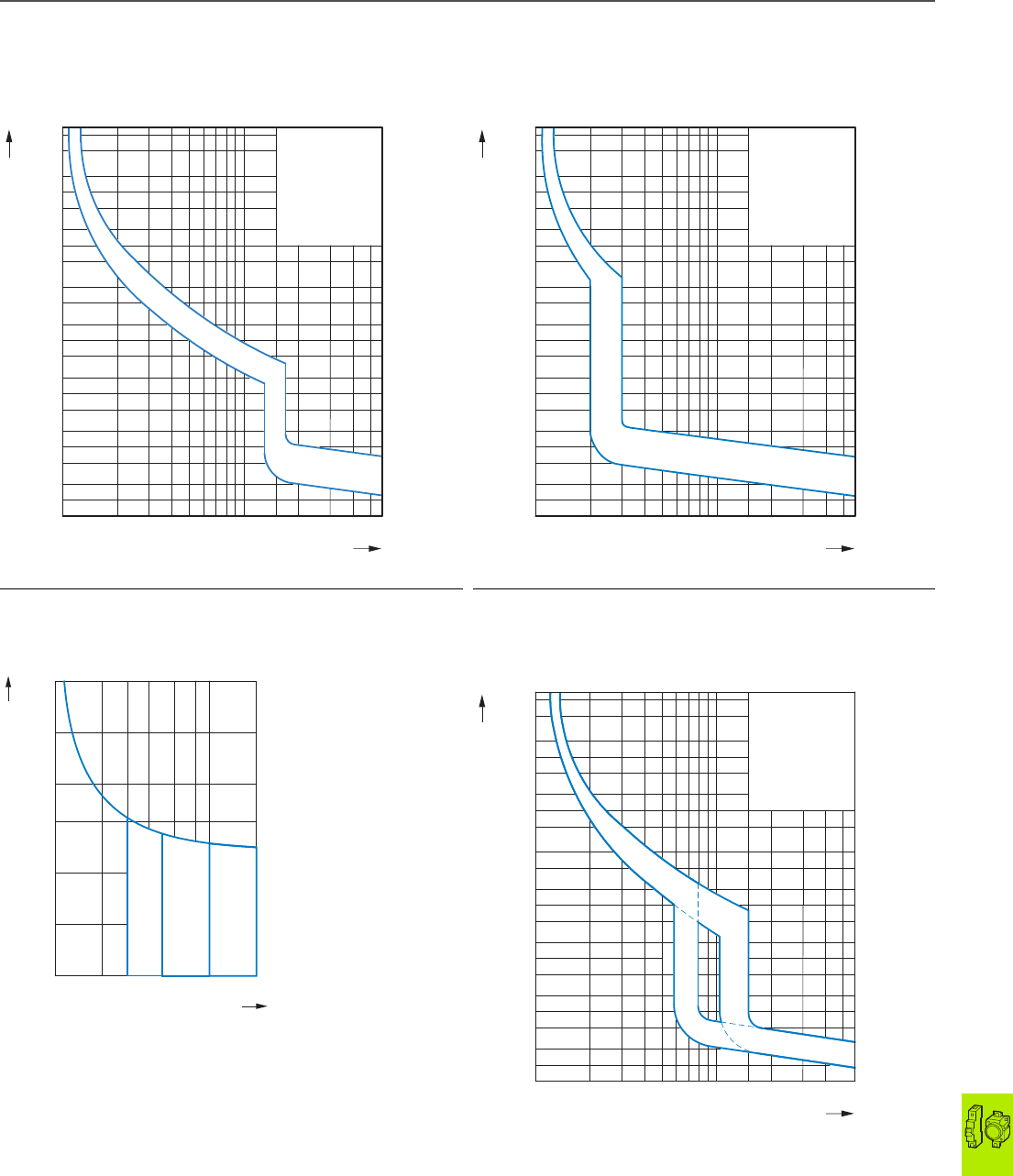

Miniature circuit-breakers (MCB)

FAZ...

Tripping characteristics at 30 °C: Tripping characteristics at 30 °C:

S according to IEC/EN 60947 Z according to IEC/EN 60947

FAZT AZ...

Tripping characteristics FAZ at 30 °C Tripping characteristics at 30 °C:

B, C, D to IEC/EN 60898 C, D according to IEC/EN 60898

0.0005

123456789101520304050

0.001

0.002

0.005

0.01

0.02

0.05

0.1

0.2

0.5

[s]

120

300

600

1200

3600

7200

1.05

1.30

Specified

non-tripping current

nt = 1.05 x n

for t > 1 h

Specified

tripping current

t = 1.30 x n

for t < 1 h

x rated current

0.0005

123456789101520304050

0.001

0.002

0.005

0.01

0.02

0.05

0.1

0.2

0.5

[s]

120

300

600

1200

3600

7200

1.05

1.30

Specified

non-tripping current

nt = 1.05 x n

for t > 1 h

Specified

tripping current

t = 1.30 x n

for t < 1 h

x rated current

0.01

0.1

100

2134681020

[s]

x I

0.0005

123456789101520304050

0.001

0.002

0.005

0.01

0.02

0.05

0.1

0.2

0.5

[s]

120

300

600

1200

3600

1.13

1.45

7200 Specified

non-tripping current

= 1.13 X

for t > 1 h

Specified

tripping current

= 1.45 X

for t < 1 h

X rated current

FAZ, FAZT

19/58 Circuit-breakers, fuses

Tripping characteristics for miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

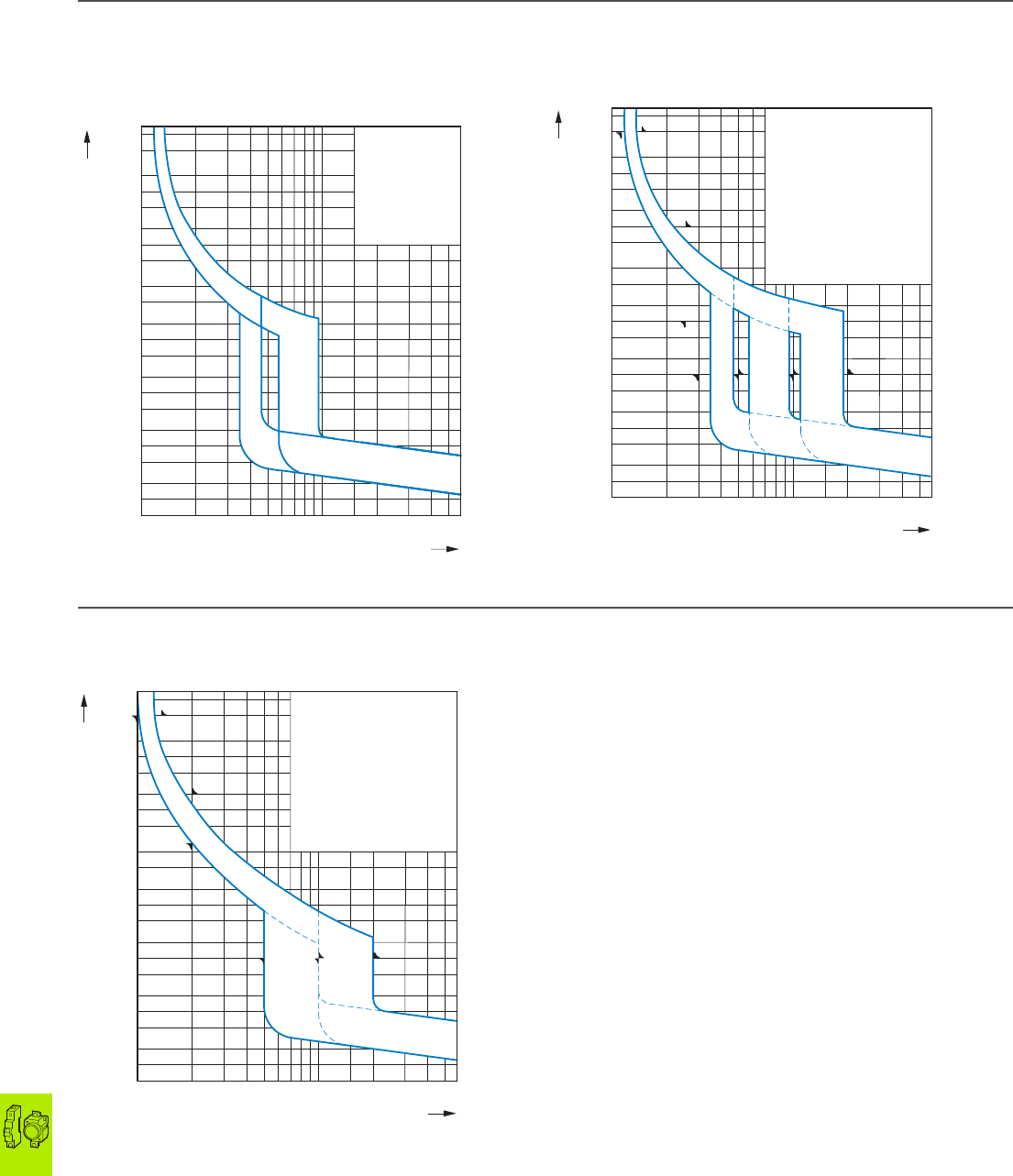

Tripping characteristics for miniature circuit-breakers

Combination switches

PKNM... mRB6..., mRB4...

Tripping characteristics at 30 °C: Tripping characteristics

B, C according to IEC/EN 61009 B, C, D according to IEC/EN 61009

Miniature circuit-breakers (MCB)

FAZ-...-NA, FAZ-...-RT

Tripping characteristics according to UL 489

0.0005123456789101520304050

0.001

0.002

0.005

0.01

0.02

0.05

0.1

0.2

0.5

120

300

600

1200

3600

7200

1.13

1.45

t [s]

Specified

non-tripping current

= 1.13 x I

for t > 1 h

Specified

tripping current

= 1.45 x I

for t x 1 h

x Rated operational current

0.0005123456789101520304050

0.001

0.002

0.005

0.01

0.02

0.05

0.1

0.2

0.5

t [s]

120

300

600

1200

3600

7200

I/In

a Specified non-tripping current

= 1.13 x I

: t > 1 h

b Specified tripping current

= 1.45 x I

: t < 1 h

c 2.55 x I

: t = 1 – 60 s (I

< 32 A)

t = 1 – 120 s (I

> 32 A)

d Part No B: 3 x I

: t > 0.1 s

e 5 x I

: t < 0.1 s

f Part No C: 5 x I

: t > 0.1 s

g 10 x I

: t < 0.1 s

h Part No D: 10 x I

: t > 0.1 s

i 20 x I

: t < 0.1 s

0.0005123456789101520304050

0.001

0.002

0.005

0.01

0.02

0.05

0.1

0.2

0.5

t [s]

120

300

600

1200

3600

7200

a Specified non-tripping current

= 1.0 x I

(T = 40 °C)

b Specified tripping current

= 1.35 x I

: t < 1 h (T = 25 °C)

c 2.0 x I

: t = 12 – 120 s

(T = 25 °C)

Fast tripping to IEC 60898-1

d Part No C: 5 x I

: t > 0.1 s

10 x I

: t < 0.1 s

e Part No D: 10 x I

: t > 0.1 s

20 x I

: t < 0.1 s

I/In

PKNM, mRB, FAZ-NA, FAZ-RT

Circuit-breakers, fuses

Let-through characteristics miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

19/59

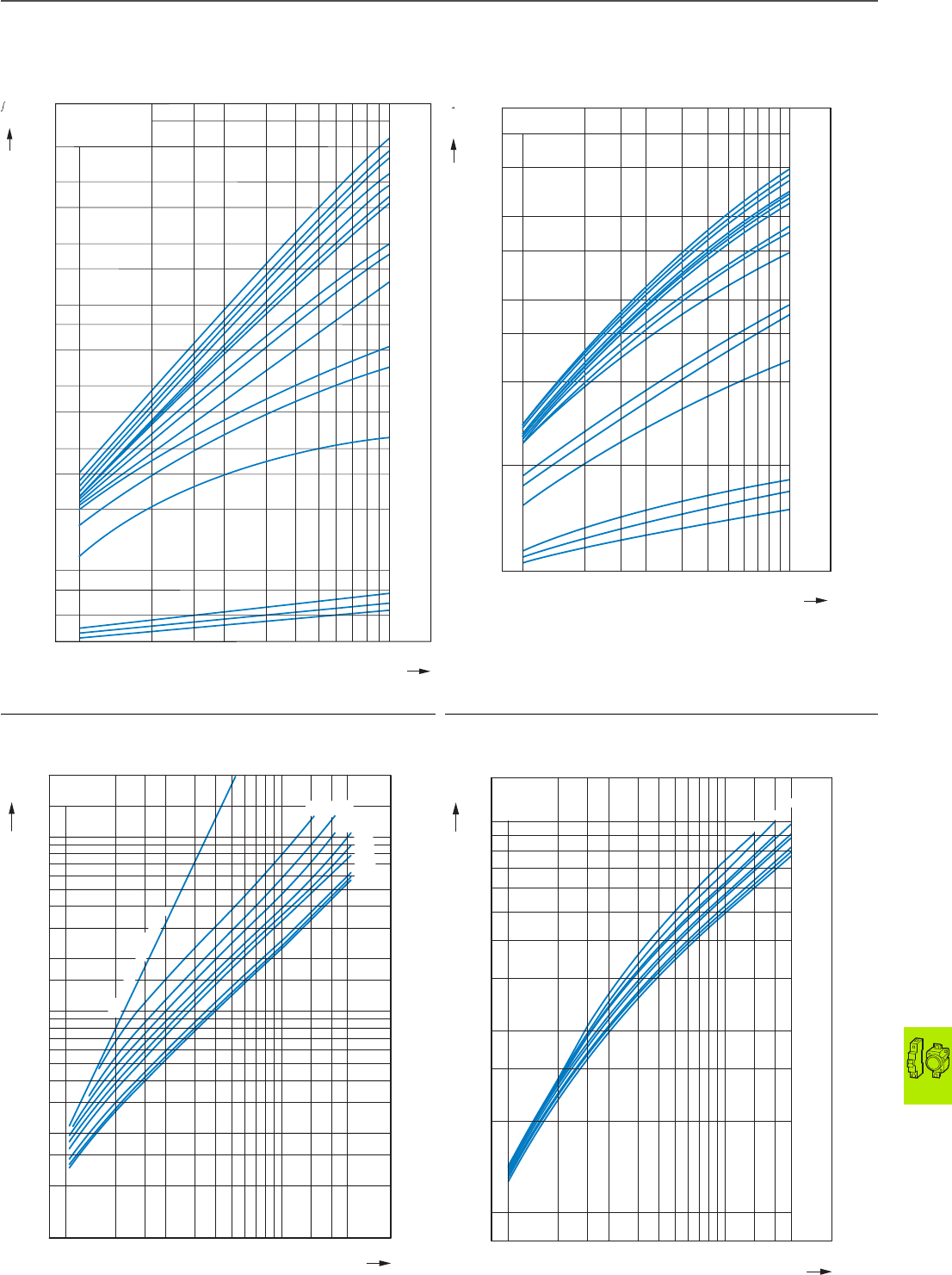

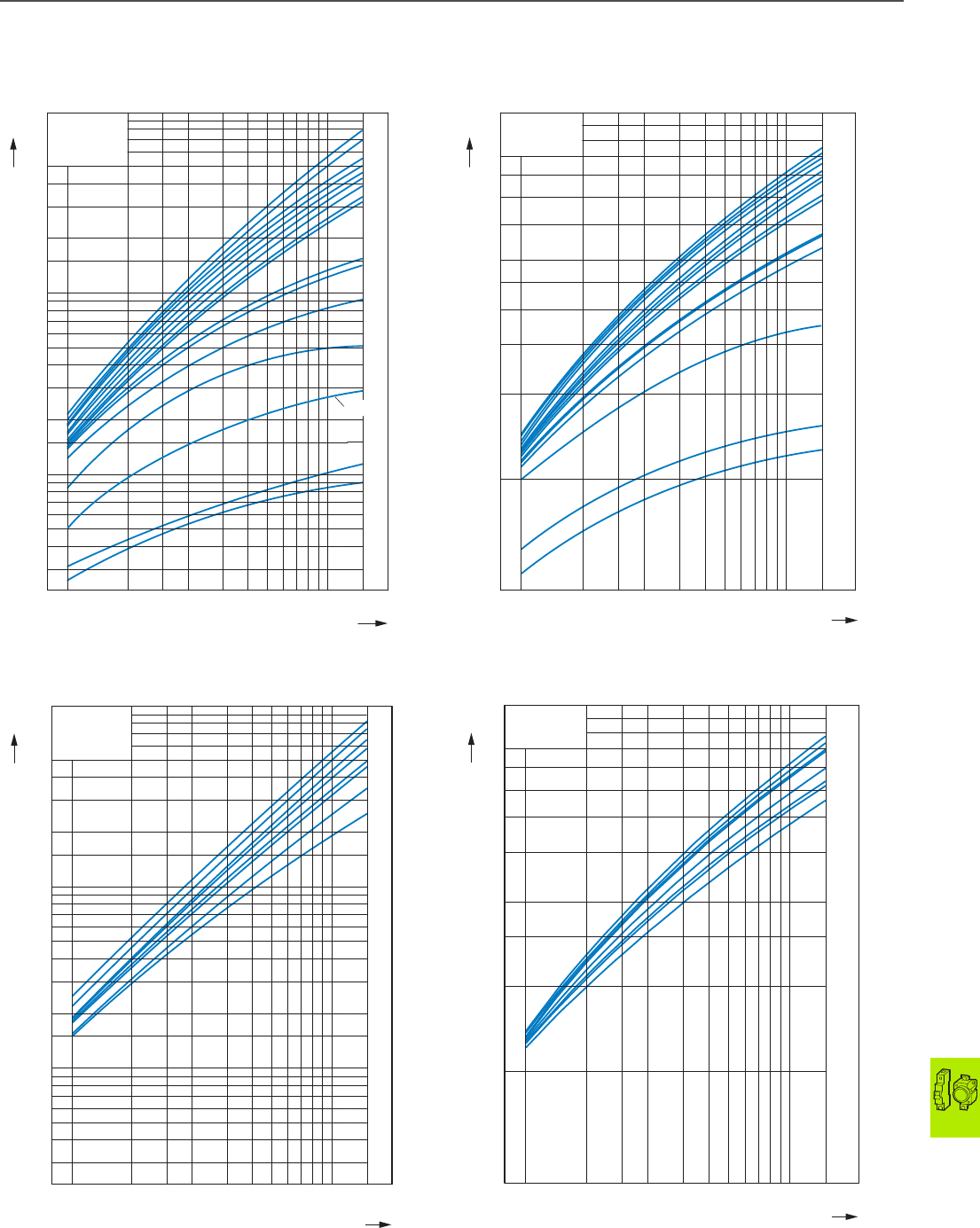

Let-through characteristics miniature circuit-breakers

Miniature circuit-breakers (MCB)

FAZ...

Let-through energy I2t Let-through current ID

According to IEC/EN 60898 According to IEC/EN 60898

2 A

1 A

0.5 A

10 A

13 A

16 A

20 A

25 A

32 A

40 A

50 A

63 A

4 A

3 A

6 A

0.5

1.5

1 2 3 4 5 6 7 8 9 10

1.5

FAZ-B

FAZ-C

FAZ-...-B4HI

cc rms

[kA]

1 A

2 A

3 A

10 A

13 A

16 A

20 A

25 A32 A

40 A50 A

63 A

4 A

6 A

0.5 1.5 1512345678910

103

104

[A]

1.5

FAZ-B

FAZ-C

0.5 A

Icc rms [kA]

10 A

13 A

16 A

20 A

25 A

32 A

40 A

6 A

0.5 1.5 1512345678910

1.5

FAZ-D

cc rms

[kA]

10 A

13 A

16 A

20 A

25 A

32 A

40 A

6 A

1.5

[A]

FAZ-D

0.5 1.5 1512345678910

Icc rms [kA]

FAZ

19/60 Circuit-breakers, fuses

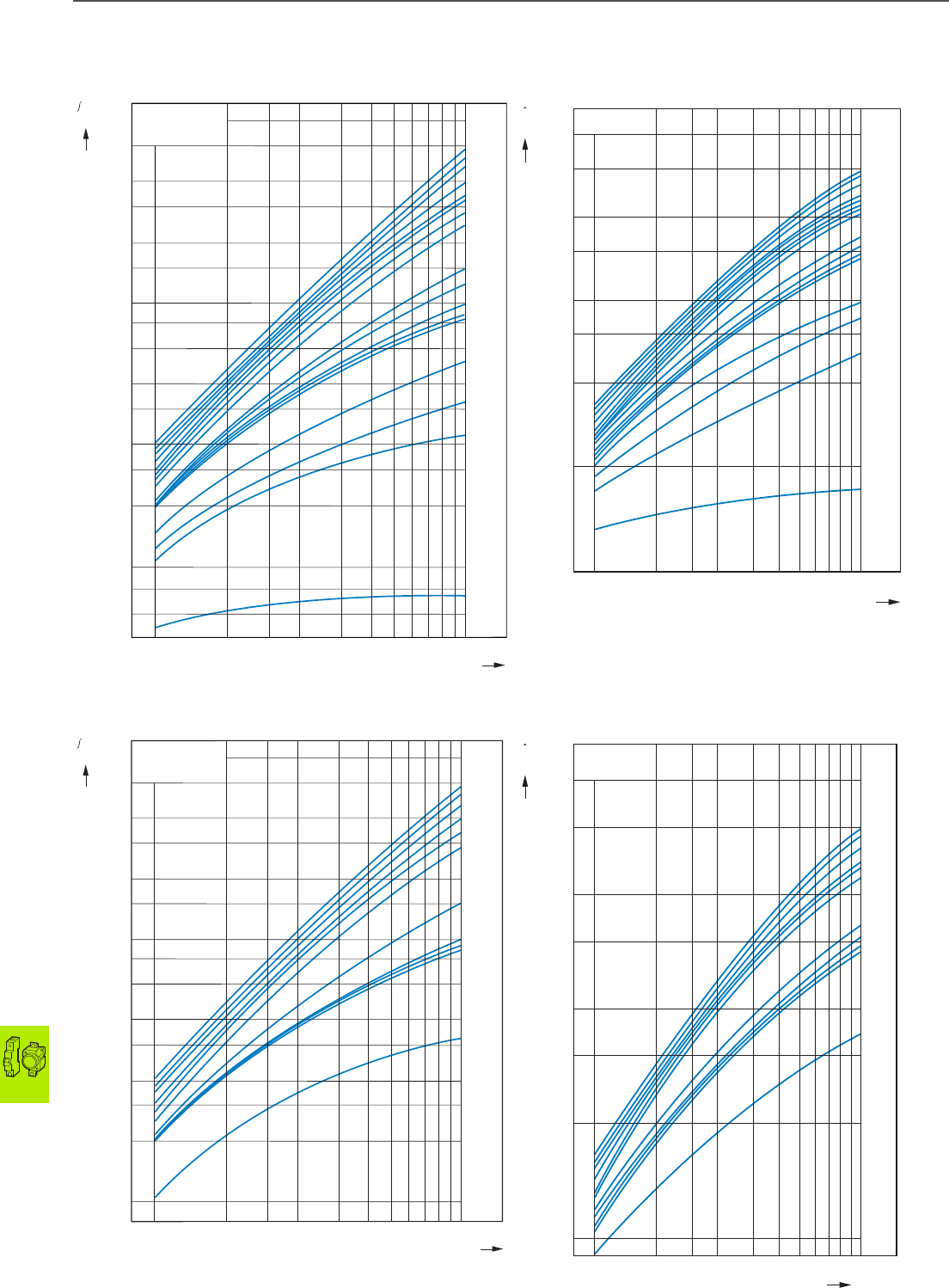

Let-through characteristics miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

Miniature circuit-breakers (MCB)

FAZ...

Let-through energy I2t Let-through current ID

According to IEC/EN 60898 According to IEC/EN 60898

i2dt

[A2s]

103

1.5

0.5 11.5 2345

104

1.5

50 A

63 A

FAZ-K

40 A

32 A

25 A

20 A

16 A

13 A

10 A

6 A

8 A

4 A

3 A

1.6 A

0.5 A

1 A

2 A

6 7 8 9 10

I cc rms [kA]

103

63 A50 A

40 A

32 A25 A

20 A16 A

13 A

3 A

6 A 4 A

10 A

1 A

2 A

1.6 A

0.5 A

1.5

104

0.5 1 1.5 2 3 4 56

[A] FAZ-K

7 8 9 10

I cc rms [kA]

103

1.5

0.5 11.5 2345

104

1.5

i2dt

[A2s]

40 A

FAZ-S

32 A

25 A

20 A

16 A

10 A

4 A

6 A

3 A

2 A

1 A

6 7 8 9 10

I cc rms [kA]

103

40 A

32 A

25 A

20 A

16 A

10 A

4 A

6 A

3 A

2 A

1 A

1.5

104

0.5 1 1.5 2 3 4 56

[A] FAZ-S

7 8 9 10

I cc rms [kA]

FAZ

Circuit-breakers, fuses

Let-through characteristics miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

19/61

Miniature circuit-breakers (MCB)

FAZ...

Let-through energy I2t Let-through current ID

According to IEC/EN 60898 According to IEC/EN 60898

AZ...

Let-through energy I2t Let-through current ID

i2dt

[A2s]

103

0.5 11.5 2345

104

1.5

40 A

50 A

63 A

FAZ-Z

32 A

25 A

20 A

16 A

8 A

10 A

4 A

6 A

3 A

2 A

1.6 A

1 A

0.5 A

6 7 8 9 10

1.5

I cc rms [kA]

103

63 A50 A

40 A

32 A 25 A

20 A 16 A

8 A

10 A

6 A

2 A

3 A

4 A

1.6 A

1 A

0.5 A

1.5

104

0.5 1 1.5 2 3 4 56

[A] FAZ-Z

7 8 9 10

I cc rms [kA]

AZ-C

1.5

5 0.5 1 1.5 2 3 4 6 7 8 9 10 15 25 20 5

125 A 100 A

80 A 63 A

40 A

50 A

32 A

20 A 25 A

Zi2dt

[A2s]

half-wave t = 10 ms

Icc rms [kA]

125 A 100 A 50 A

63 A

80 A

40 A

32 A

25 A

20 A

0.5

1.5

1 2 20 25 3 4 5 6 7 8 9 10

103

104

[A]

1.5

AZ-C

Icc rms [kA]

FAZ, AZ

19/62 Circuit-breakers, fuses

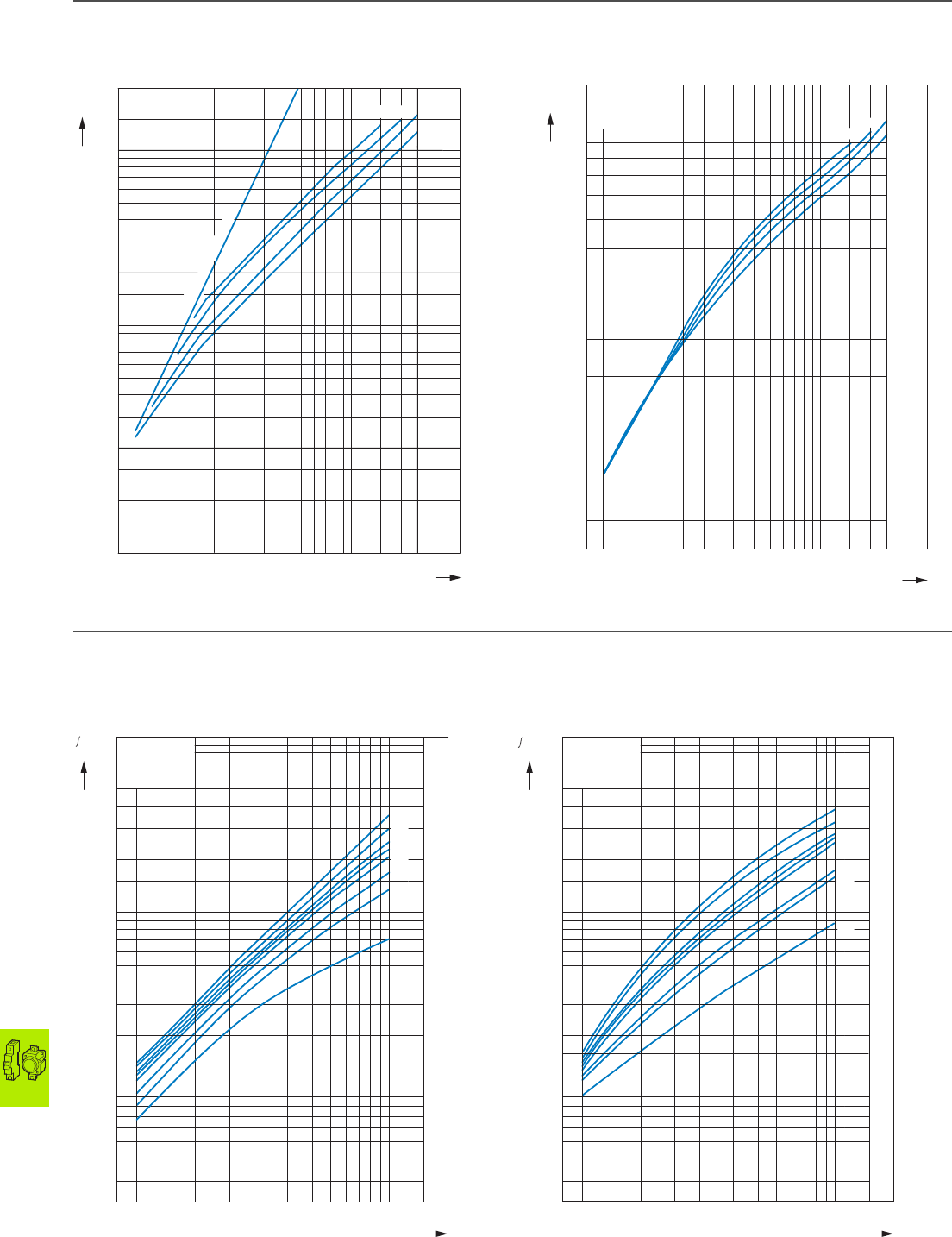

Let-through characteristics miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

Miniature circuit-breakers

AZ...

Let-through energy I2t Let-through current ID

Combination switches

PKNM-...

Let-through energy I2t Let-through current ID

According to IEC/EN 60898 According to IEC/EN 60898

1.5

5 0.5 1 1.5 2 3 4 6 7 8 9 10 15 25 20 5

100 A 80 A 63 A

50 A

1.5

AZ-D

Zi2dt

[A2s]

Icc rms [kA]

half-wave t = 10 ms

0.5

1.5

1 2 20 25

100 A

80 A 50 A

63 A

3 4 5 6 7 8 9 10

1.5

AZ-D

[A]

Icc rms [kA]

10 A

13 A

16 A

20 A

25 A

32 A

40 A

0.5

1.5 1512345678910

1.5

PKNM.../B...

6 A

i2dt

[A2s]

cc rms [kA]

10 A

13 A

16 A 20 A

25 A

32 A

40 A

6 A

0.5

1.5 1512345678910

1.5

i dt

[A s]

PKNM.../C...

cc rms [kA]

AZ, PKNM

Circuit-breakers, fuses

Let-through characteristics miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

19/63

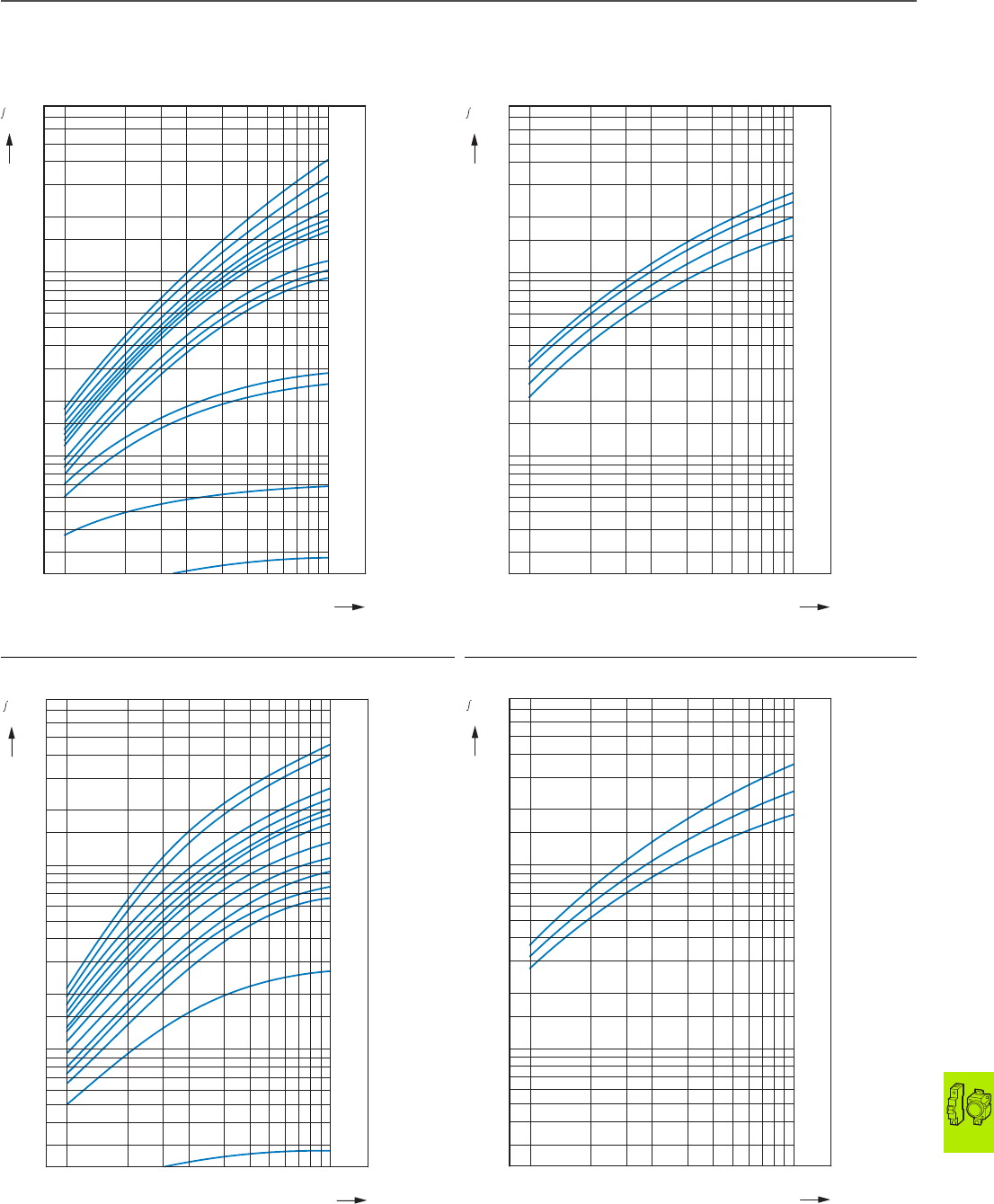

Miniature circuit-breakers (MCB)

FAZ-...NA, FAZ-...RT

Let-through energy I2t

Characteristic C (0.5 - 20 A), 277 V Characteristic C (25 - 40 A), 240 V

Characteristic D (0.5 - 20 A), 277 V Characteristic D (25 - 40 A), 240 V

C 25

C 20

C 15 , C 16

C 13

C 10

C 8

C 6 , C 7

C 5

C 4

C 3

C 2

C 1.5

C 1

C 0.5

0.5

1.5

1 2 3 4 5 6 7 8 9 10

1.5

cc rms

[kA]

C 40

C 35

C 32

C 30

C 25

0.5

1.5

1 2 3 4 5 6 7 8 9 10

1.5

cc rms

[kA]

D 25

D 20

D 8

D 6 , D7

D 10

D 15 , D16

D 13

D 2

D 1.5

D 1

D 0.5

D 3

D 5

D 4

0.5

1.5

1 2 3 4 5 6 7 8 9 10

1.5

cc rms

[kA]

D 40

D 35

D 32

D 30

D 25

0.5

1.5

1 2 3 4 5 6 7 8 9 10

1.5

Icc rms [kA]

FAZ-NA, FAZ-RT

19/64 Circuit-breakers, fuses

Let-through characteristics miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

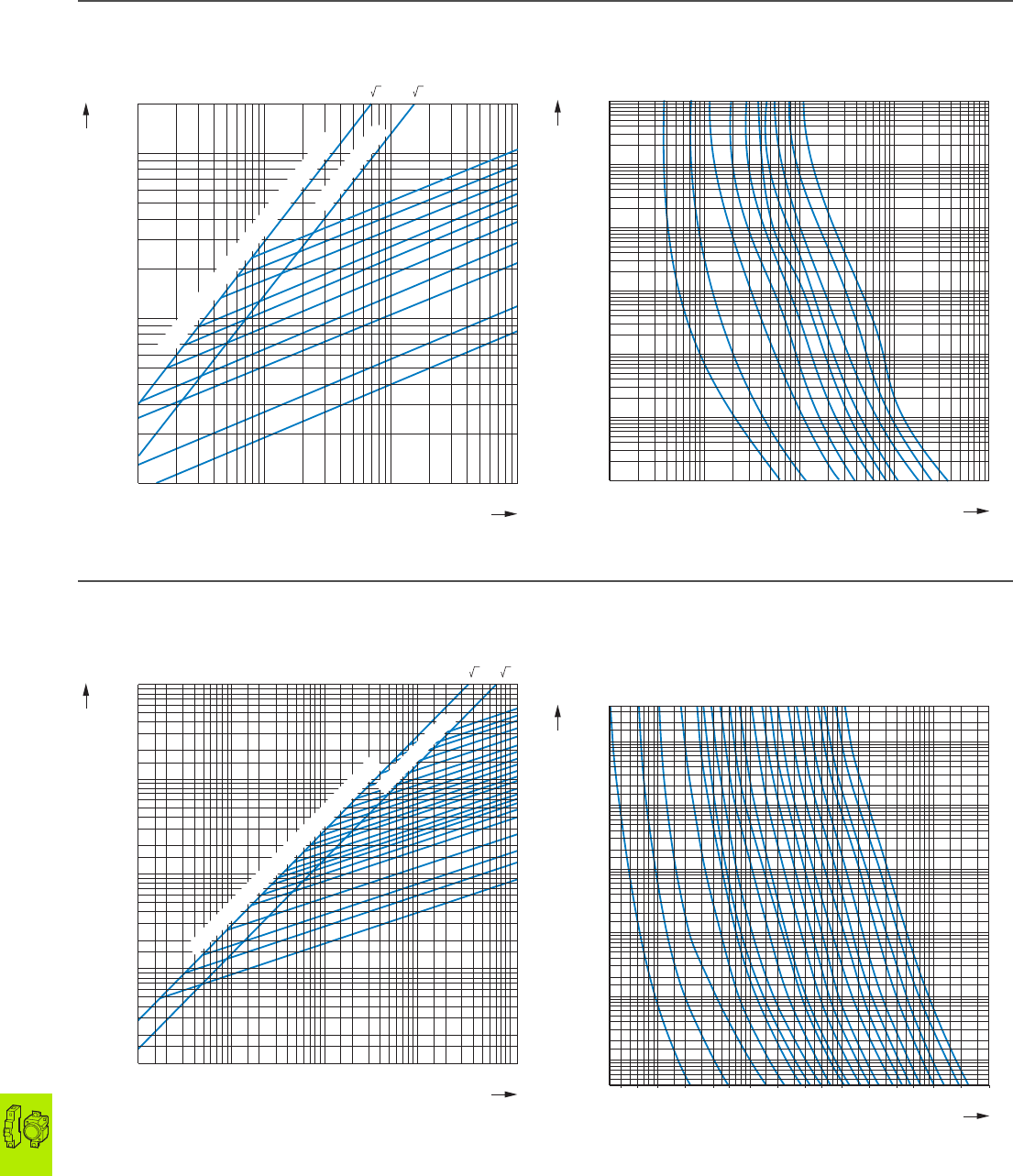

Let-through characteristics fuse links

Fuse links

Z-DO.../S...

Let-through current Time/current characteristics

LV h.b.c. fuse links

Z-NH-...

Let-through current Time/current characteristics

2 I

0.4

0.2

0.1

0.1 0.2 0.4 1 2 4 10 20 100

Possible peak short-circuit currents With large DC element

Without DC element

Let-through current I

in kA

Short-circuit current I

in kA

Rated current I

in A

-1

-2

10-

2 4 10

2 4 6 10 16 20 25 35 50 63

Fusing time in s

Unconditional current I

in A

Rated current I

in A

125

200

315

500

246 10

24610

246

Possible peak short-circuit currents With large DC element

Without DC element

Let-through current I

in kA

Short-circuit current I

in kA

Rated current I

in A

-1

-2

410

246 10

24246

2466 10 16 25 40 63 100 160

20 32 50 80 125 200

250

315

400

500

630

Fusing time in s

Unconditional current I

in A

Rated current I

in A

Z-DO, Z-NH

Circuit-breakers, fuses

Miniature circuit-breaker

2010 CA08103002Z-EN www.eaton.com

19/65

Miniature circuit-breaker

Technical data

FAZ FAZ-…-DC FAZ-PN AZ

Electrical

Standards IEC/EN 60947-2

IEC/EN 60898

IEC/EN 60947-2 IEC/EN 60898 IEC/EN 60947-2

Rated operating voltage

V AC 230/400 -230 230/400

V DC 48 (per pole) 250 (per pole) 48 (per pole) 60 (per pole)

Rated switching capacity kA 15 10 625

Operational switching capacity kA 7.5 - - 20

Characteristic B, C, D, K, S, Z CB, C Similar: D, C

Max. back-up fuse A gL/gG 125 100 100 200

Selectivity class 3 3 3 Compliant with Class 3

Lifespan Operations > 10000 > 10000 > 4000 > 10000

Direction of incoming supply Any Polarized Any Any

Mechanical

Standard front dimension mm 45

Device height mm 80 80 80 90

Terminal protection Finger and back-of-hand proof to BGV A2

Mounting width per pole mm 17.5 17.5 17.5 27

Mounting Top-hat rail to IEC/EN 60715

Protection type IP20, IP40 (enclosed)

Terminals top and bottom Twin-purpose terminals Lift terminals

Terminal capacity

Solid mm21 x 25 1 x 25 1 x 16 2.5 - 50

Flexible mm22 x 10 2 x 10 - -

Thickness of busbar material mm 0.8 - 2 0.8 - 2 - -

Mounting position Any - -

FAZT

Electrical

Standards IEC/EN 60947-2

Rated voltage V AC 240/415

V DC 60 V per pole; up to two poles in series

Rated frequency fHz 50/60

Rated switching capacity

B, C (to 13 kA); D (to 10 kA) kA 25

B, C (16-25 kA); D (12-16 kA) kA 20

Characteristic B, C, D

Lifespan Operations 20000

Direction of incoming supply Any

Mechanical

Standard front dimension mm 45

Device height mm 80

Mounting width per pole mm 17.5

Mounting Quick attachment with three engagement positions for top-hat rail to IEC/EN 60715

Protection type IP20

Terminals top and bottom Twin-purpose terminals

Terminal protection Finger and back-of-hand proof to BGV A3, ÖVE-EN 6

Terminal capacity mm21 - 25

Tightening torque Nm 2 - 2.4

Thickness of busbar material mm 0.8 - 2 (except N 0.5 space unit)

Mounting position Any

FAZ, FAZT, AZ

Errata

19/66 Circuit-breakers, fuses

Residual-current devices

2010 CA08103002Z-EN www.eaton.com

Residual-current devices

PKNM FIM AZFIMP FI

≦ 100 A

125 A and Type B

Electrical

Standards and regulations IEC/EN 61009 IEC/EN 61009 IEC/EN 60947-2 IEC/EN 61008 IEC/EN 61008

Tripping A 250 (8/20 m) non-delayed surge resistant Non-delayed, S

Rated operational voltage UeV AC 230 230/400 230/400 230/400 230/400

Operating limit values V AC 196 - 253 196 - 440 196 - 440 184 - 440 184 - 440

Rated frequency fHz 50

Rated fault currents I dnmA 30, 300 30, 300 30, 300 30, 100, 300, 500 30, 100, 300, 500

Rated non-tripping current 0.5 x I dn0.5 x I dn0.5 x I dn0.5 x I dn0.5 x I dn

Rated fault switching

capacity

I dnA - - - In = 16-40 A: 500

In = 63 A: 630

In = 80 A: 800

In = 100A: 1000

In = 125 A: 1250

for type B:

60, 80 A: 800

40 A: 500

125 A: 1250

230 V kA 6 - - - -

400 V kA 3 - - - -

Sensitivity DC and pulsed current Pulsed current and

AC/DC

Rated switching capacity Icn kA 10 As fitted FAZ As fitted AZ 10 10

Operational switching

capacity

Ics kA -As fitted FAZ - - -

Rated ultimate breaking

capacity

Icu -As fitted AZ As fitted AZ - -

Rated short-circuit switching

capacity

--= Icu - -

Rated operational current IeA6 - 40 40, 63 80, 125 16 - 100 40 - 125

Rated impulse withstand

voltage

Uimp kV 6 (1.2/50 ms) -4 (1.2/50 ms) 6 6

Characteristic B, C - - - -

Maximum back-up fuse as

short-circuit protective device

A gL 100 - - In = 16 - 63 A: 63

In= 80 A: 80

In= 100 A: 100

In = 125 A: 125

for type B:

In  80: 100

In = 125: 125

Selectivity class 3 - - - -

Lifespan

Electrical Operations > 4000 -> 1500 > 4000 > 2000

Mechanical Operations --> 10000 > 20000 > 5000

Mechanical

Standard front dimension mm 45 45 45 45 45

Device height mm 80 90 90 80 85

Terminal protection Busbar tag shroud to BGV A2

Mounting width mm 35 (2 SU) 70 (2 pole),

125 (4 pole)

95 (5.5 SU) 35 (2 space unit),

70 (4 space units)

70 (4 SU)

Mounting -Permanently

screw-connected

to FAZ

Screwed on to AZ

(2 to 4 pole)

IEC/EN 60715

top-hat rail

IEC/EN 60715

top-hat rail

Protection type

Circuit-breaker IP20 - - - -

Enclosed IP40 IP40 IP40 IP40 IP40

Terminals top and bottom Twin-purpose

terminals

Lift terminals Lift terminals Twin-purpose

terminals

Twin-purpose

terminals

Terminal capacity

Solid mm21 x 25 1 x (1 - 25) 2.5 - 50 1.5 - 35 1.5 - 50

Flexible mm2-1 x (0.75 - 16) -2 x 16 2 x (1.5 - 16)

Thickness of busbar material mm 0.8 - 2 0.8 - 2 -0.8 - 2 0.8 - 2

Admissible ambient

temperature range

°C -25 - +40 -25 - +40 -25 - +40 -25 - +40 -25 - +40

Climatic proofing IEC/EN 61009 IEC/EN 61009 IEC/EN 60068-2 IEC/EN 61008 IEC/EN 61008

PKNM, FIM, AZFIMP, FI

Circuit-breakers, fuses

Residual current device, remote monitoring unit

2010 CA08103002Z-EN www.eaton.com

19/67

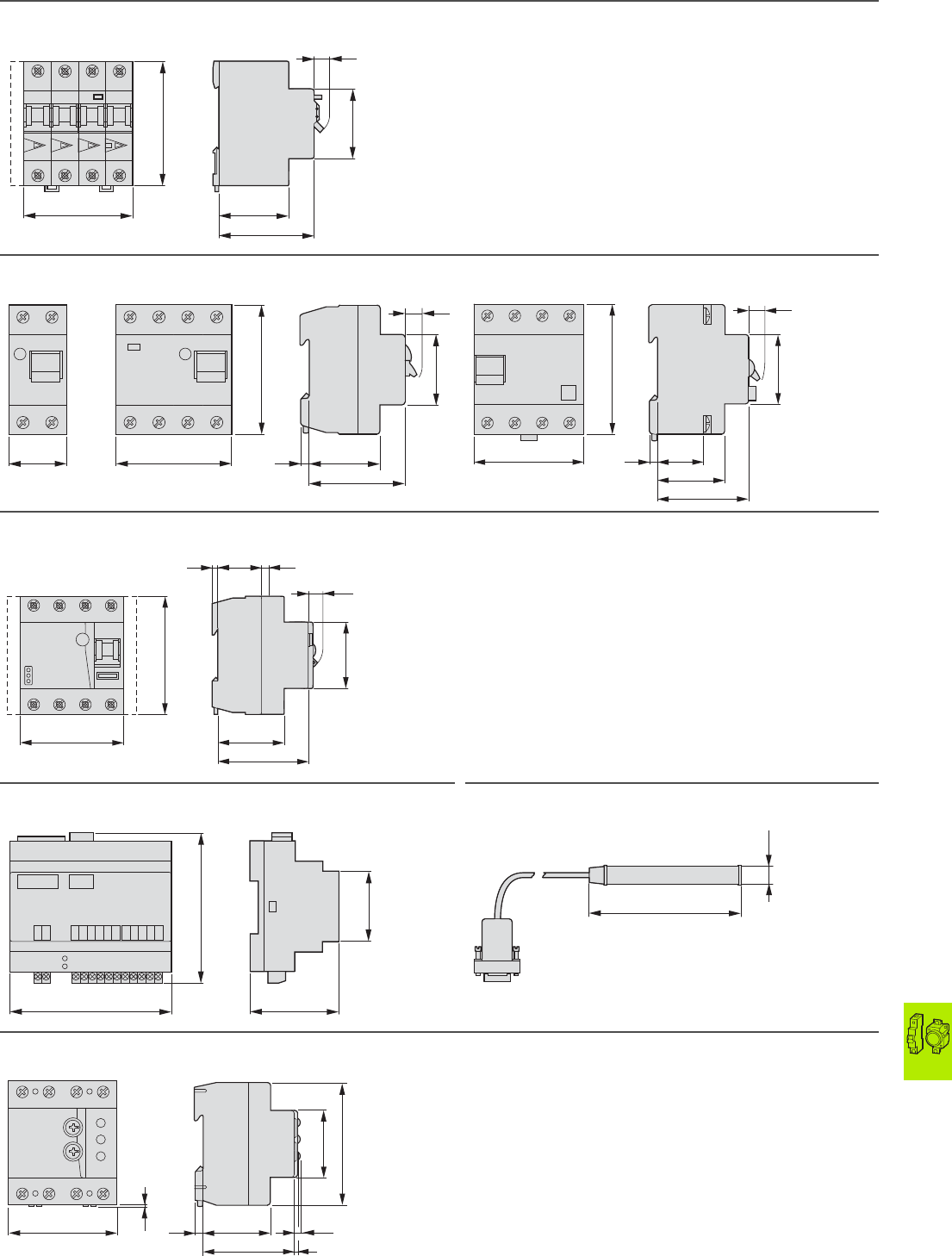

Residu al current d evice, remo te monitori ng unit

mRB6... mRB4...

Electrical

Standards IEC/EN 61009 IEC/EN 61009

Tripping A 250 (8/20m) non-delayed surge resistant

Rated operating voltage UeV AC 230/400 230/400

Rated frequency fHz 50 50

Rated fault currents IDnmA 30, 100, 300 30, 100, 300

Rated fault non-tripping current 0.5 x I dn0.5 x I dn

Sensitivity DC and pulsed current

Rated switching capacity Icn kA 64.5

Rated operational current IeA6 - 25 6 - 25

Rated impulse withstand voltage Uimp kV 4 (1.2/50 ms) 4 (1.2/50 ms)

Characteristic B, C, D C, D

Maximum back-up fuse as short-circuit protective

device

A gL 100 100

Selectivity class 3 3

Lifespan

Electrical Operations > 4000 > 4000

Mechanical Operations > 20000 > 20000

Mechanical

Standard front dimension mm 45 45

Device height mm 80 80

Terminal protection Busbar tag shroud to VBG4

Mounting width mm 70 (4 SU) 70 (4 SU)

Mounting Tristable slide catch allows removal from an existing assembly.

Protection type

Circuit-breaker IP20 IP20

Enclosed IP40 IP40

Terminals top and bottom Twin-purpose terminals Twin-purpose terminals

Terminal capacity

Solid mm21 - 25 1 - 25

Thickness of busbar material mm 0.8 - 2 0.8 - 2

Admissible ambient temperature range °C -25 - +40 -25 - +40

Climatic proofing According to IEC 68-2 (25 – 55 °C, 90 – 95 % rel. humidity)

Z-CC/2CO

Electrical

Power supply VDC 12 - 24 (  10 -  30)

Power consumption W 1.5 - 6

Temperature sensor Incl. 9 pole Sub-D plug (for RS232 interface)

Measurement range -10 °C – +50 °C, accuracy: ± 2 °C

Outputs 2 floating relay outputs

AC: 5 A at 250 AC

DC: 5 A at 30 V DC, 0.3 A at 110 V DC and 0.12 A at 220 V DC

Max. switching duty AC15 at 230 V DC: 500 VA

Inputs 4; max. 12 – 24 V DC (2 – 4 mA)

isolated (optocoupler)

Ethernet interface Required for parameterization with a PC (web browser).

For connecting PC and Z-CC/2CO a crossover network cable is required

(DNW-PX/0200/RJ45/RJ45).

RS232 interface 9 pole Sub-D plug for connecting an external temperature sensor

Green LED ON Modem status LED (on registration in the GSM network the LED flashes every

3 seconds)

Red LED ON Modem activity LED (flashes when SMS is being sent or received)

Mechanical

Standard front dimension mm 45

Device height mm 97

Mounting width mm 105

Mounting Quick attachment for top-hat rail EN 50022

Protection type

Enclosed IP40

mRB4..., mRB6..., Z-CC/2CO

19/68 Circuit-breakers, fuses

Residual-current devices

2010 CA08103002Z-EN www.eaton.com

Residual-current devices

dRCM...

Electrical

Standards and regulations IEC/EN 61008, Type G and G/A to ÖVE E 8601

Current approvals as labeled

Tripping Non-delayed

Type G, R 10 ms delayed

Type S 40 ms delay - selective switch off

Type U (only 30 mA) 10 ms delayed

Type U (except 30 mA) 40 ms delay - selective switch off

Rated voltage UnV AC 230/400, 240/415

Rated frequency fHz 50/60

Operational voltage electronic V AC 50 - 254

Operational voltage test circuit V AC 184 - 440

Rated fault currents IDnmA 30, 300

Sensitivity DC and pulsed current

Rated insulation voltage UiV440

Rated impulse withstand voltage Uimp kV 4 (1.2/50 ms)

Rated short-circuit strength Inc kA 10

Surge current capacity

Type G, G/A, R, U (30 mA) kA 3 (8/20 ms) surge-proof

Type S/A, U (except 30 mA) kA Part no. 5 (8/20 ms) selective and surge-proof

Electrical isolation > 4 mm contact spacing

Max. admissible back-up fuse Short-circuit and overload

In = 16 - 63 A A gG/gL 63

In = 80 A A gG/gL 80

In = 100 A A gG/gL 100

Lifespan

Electrical Operations  4000

Mechanical Operations  20000

Mechanical

Standard front dimension mm 45

Device height mm 80

Mounting width mm 70 (4 SU)

Mounting Quick attachment with two engagement positions for top-hat rail to IEC/EN 60715

Protection type

Enclosed IP40

In moisture-proof enclosure IP54

Terminals top and bottom Twin-purpose terminals

Terminal protection Busbar tag shroud to BGV A3

Terminal capacity

Solid mm21 - 35

Stranded mm22 x 16

Terminal screws M5 (Pozidriv PZ2)

Tightening torque terminal screws Nm 2 - 2.4

Thickness of busbar material mm 0.8 - 2

Admissible ambient temperature range °C -25 - +40

Climatic proofing According to IEC/EN 61008

dRCM...

Circuit-breakers, fuses

Leakage current meter

2010 CA08103002Z-EN www.eaton.com

19/69

Leakage current meter

PDIM

Electrical

Standards Conforming with DIN/EN 62020

Rated operational current IeA40, 100

Response behavior (adjustable) Non-delayed

Type G 10 ms delayed

Type S 40 ms delayed - selective

Rated operating voltage UeV AC 230/400 50/60 Hz

240/415 50/60 Hz

Rated fault currents InmA 30, 100, 300, 500, 1000

Sensitivity Alternating and pulsed current

Rated insulation voltage UiV440

Rated short-circuit strength Inc kA 10

Max. admissible back-up fuse

In = 40 A A gG/gL Short-circuit: 63

overload: 40

In = 100 A A gG/gL Short-circuit: 100 A

Overload: 63 A

Switching contacts Potential-free 10 A / 230 

Response behavior of contacts 1: 30 - 50 % In

2: > 50 % In

Lifespan

Electrical Operations  4000

Mechanical Operations  20000

Mechanical

Standard front dimension mm 45

Device height mm 80

Mounting width mm 70 (4 SU)

Mounting position Any

Mounting Quick attachment with two engagement positions for top-hat rail to

IEC/EN 60715

Protection type

Enclosed IP40

Protection type In moisture-proof enclosure IP54

Terminals top and bottom Twin-purpose terminals

Terminal protection Busbar tag shroud to BGV A3, ÖVE-EN 6

Terminal capacity (1, 2, 3, 4, 5, 6, N, N)

Solid mm21.5 - 35

Stranded mm22 x 16

Terminal cross-section of switching contacts mm20.25 - 1.5

Thickness of busbar material mm 0.8 - 2

Admissible ambient temperature range °C -25 to +40

Climatic proofing According to IEC/EN 61008

PDIM

19/70 Circuit-breakers, fuses

Auxiliary contacts, shunt releases

2010 CA08103002Z-EN www.eaton.com

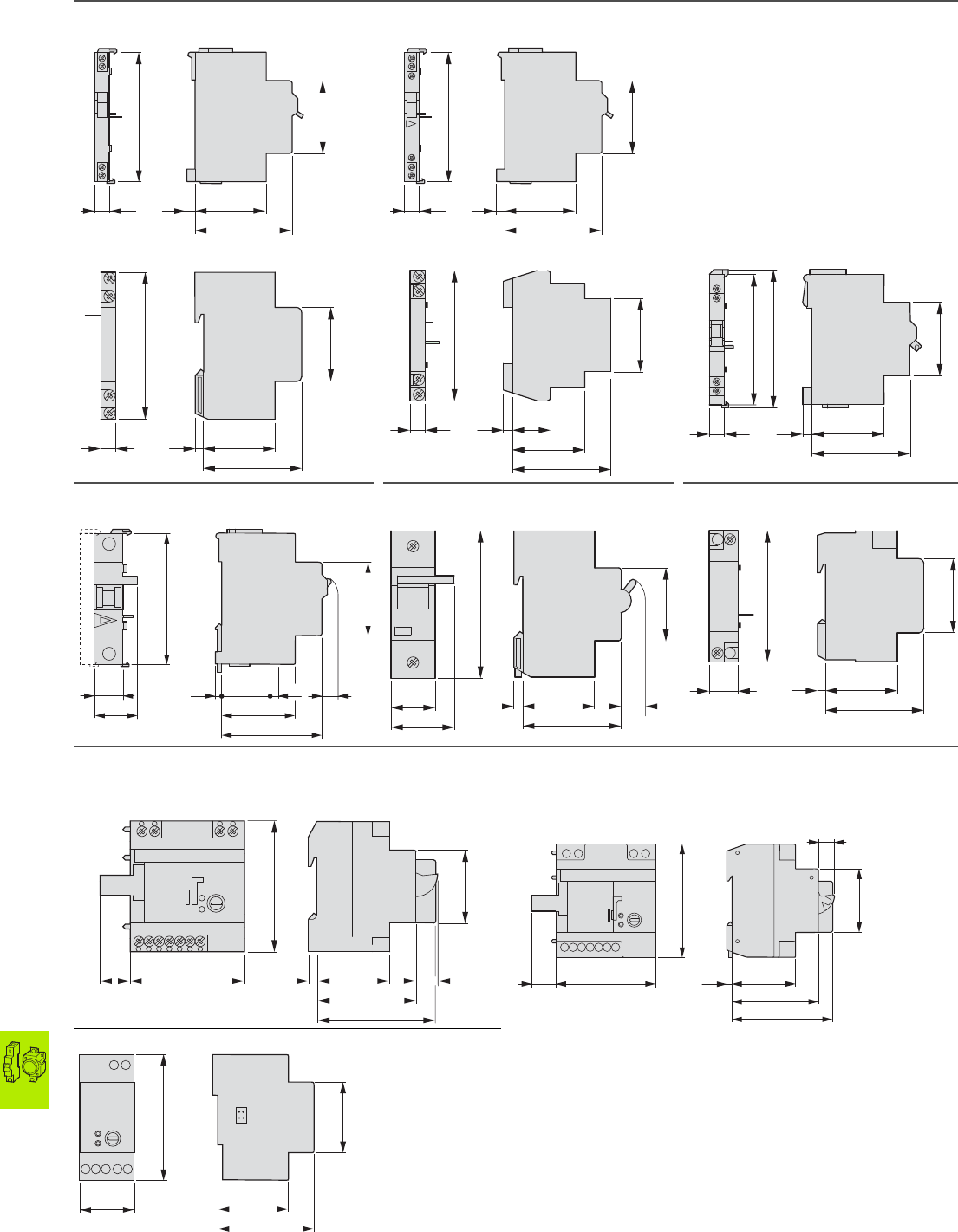

Auxiliary c ontacts, shunt re leases

FAZ-XHIN11 FAZ-XHINW1 FAZ-XAM002 FAZ-XAA-C FAZ-XUA

Electrical

Rated operating voltage UeV AC 250 250 250 -115, 230, 400

Contact function 1 N/O + 1 NC 1 C 2 C - -

Voltage range V AC ---12 - 110

110 - 415

Closing threshold x Un- - - - 0.8

Tripping threshold x Un- - - - 0.5

Rated frequency f Hz 50/60 50/60 50/60 50/60 50/60

Rated operational current IeA 6 6 4 - -

Thermal rated operational current Ith A 6 6 4 - -

Rated operational current

AC-12 IeA3 (250 V AC) 3 (250 V AC) 3 (250 V AC) - -

AC-15 IeA2 (250 V AC) 2 (250 V AC) 2 (250 V AC) - -

DC-13 IeA0.5 (110 V DC) 0.5 (110 V DC) 0.5 (110 V DC) - -

Rated insulation voltage UiV AC 250 250 250 - -

Minimum operating voltage per contact Umin V DC 5 5 5 - -

Rated impulse withstand voltage

(1.2/ 50 m)

Uimp kV 2.5 2.5 2.5 - -

Rated conditional short-circuit current

with 6 A back-up fuse

IkkA 1 1 1 - -

Max. admissible back-up fuse A gL 664

Mechanical

Standard front dimension mm 45 45 45 45 45

Device height mm 80 80 80 80 80

Mounting width mm 8.8 (0.5 SU) 8.8 (0.5 SU) 8.8 (0.5 SU) 17.5 (1 SU) 17.5 (1 SU)

Mounting Max. 2 × on

switching

device

Max. 2 × on

switching

device

On switching

device

IEC/EN 60715

top-hat rail

IEC/EN 60715

top-hat rail

Protection type

Enclosed IP40

Terminal protection Busbar tag shroud to BGV A2

Terminals Lift terminals Lift terminals Lift terminals Twin-purpose

terminals

Twin-purpose

terminals

Terminal capacity

Solid mm20.5 - 2.5 0.5 - 2.5 0.5 - 2.5 1 - 2.5 2 x (1 - 2.5)

Flexible mm20.5 - 2.5 0.5 - 2.5 0.5 - 2.5 1 - 2.5 2 x (1 - 2.5)

Tightening torque of

terminal screws

Nm F 1.2 F 1.2 0.8 - 1.0 2.4 0.8

FAZ-XHIN, FAZ-X...

Circuit-breakers, fuses

Auxiliary contacts, shunt releases

2010 CA08103002Z-EN www.eaton.com

19/71

Auxiliary c ontacts, shunt re leases

AZ-XHI11 AZ-XAA FI-XHI11

F 100 A

FIPA-XAM011

125 A FI and Type B

Electrical

Contact function 1 N/O + 1 NC -1 N/O + 1 NC 1 C/O + 1 NC

Voltage range V AC -12 - 110

110 - 415

- -

Voltage range V DC -12 - 60

110 - 220

- -

Min. operating voltage UeV/mA 24/50 -24/50 12/100

Rated operational current

AC-11

230 V IeA 6 - 6 6

AC-13

250 V IeA 6 - 6 -

400 V IeA 2 - 2 -

DC-11

230 V IeA 4 - - 1

DC-13

60 V IeA 4 - 4 -

110 V IeA 2 - 2 -

230 V IeA0.5 -0.5 -

Rated insulation voltage UiV AC 440 440 440 440

Minimum operating voltage per contact Umin V DC - - - -

Rated impulse withstand voltage Uimp kV - - - -

Rated conditional short-circuit current

with 6 A back-up fuse

IkkA - - - -

Max. admissible back-up fuse A gL 6Inherently

short-circuit-proof

6 6

Lifespan

Mechanical Operations > 6000 > 4000 > 6000 -

Inrush current

AC A -38 - -

Duty factor AC ms -2.1 - -

DC A -34 - -

Duty factor DC ms - 2 - -

Mechanical

Standard front dimension mm 45 45 45 45

Device height mm 90 90 90 90

Mounting width mm 8.8 (0.5 SU) 17.5 (1 SU) 8.8 (0.5 SU) 8.8 (0.5 SU)

Mounting Top-hat rail to IEC/EN 60715

Protection type

Enclosed IP40

Circuit-breaker IP20

Terminal capacity

Solid mm21 x (1 - 25)

2 x (1 - 4)

1 x (1 - 25)

2 x (1 - 4)

2 x (0.5 - 2.5)

1 x (0.5 - 2.5)

1 x 2.5

2 x 1.5

Flexible mm21 x (1 - 25)

2 x (1 - 4)

1 x (1 - 25)

2 x (1 - 4)

2 x (0.5 - 2.5)

1 x (0.5 - 2.5)

1 x 2.5

2 x 1.5

Tightening torque of the terminal screws Nm 0.8 30.8 0.8

AZ-X..., FI-X...

19/72 Circuit-breakers, fuses

Power meter

2010 CA08103002Z-EN www.eaton.com

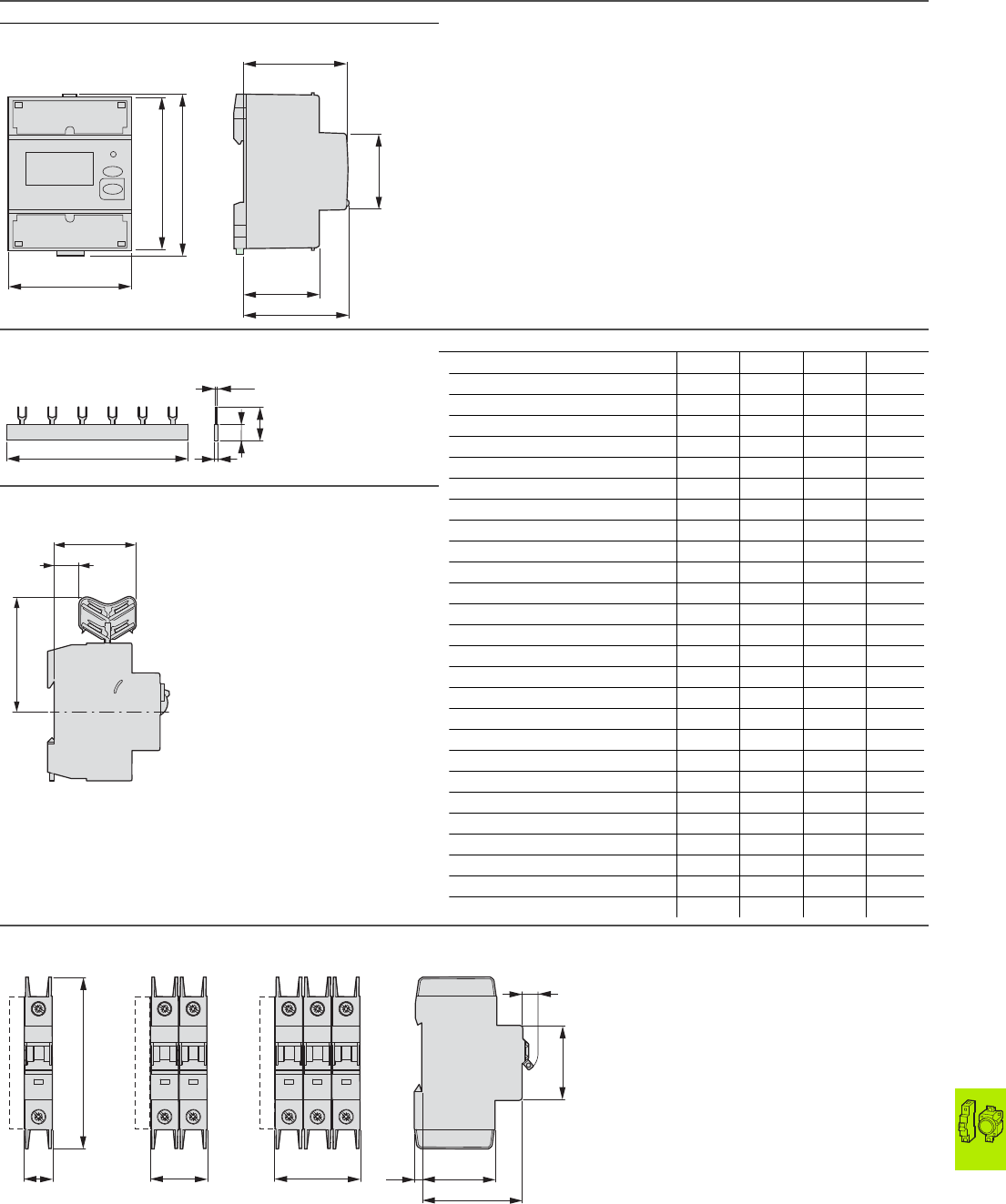

Power meter

KWZ-3PH KWZ-3PH-65

Electrical

Rated operating voltage UeV AC 230 - 240/400-415

Voltage range V AC 110 - 254/190-440

Rated operational current IeA1, 5 10

Max. current Imax A 6 63

Rated frequency fHz 50, 60

Limiting frequency Hz 47 - 63

Own consumption per phase (current path) VA  0.5 (each phase)  4 (each phase)

Overload, short-term 20 x Imax. / 0.5 s 30 x Imax. / 10 ms

Auxilliary voltage From measurement

Input signal Sine-shaped

Accuracy class 1

LED signal 1 pulse / 0.1 Wh 1 pulse / Wh

Pulse output

Rated value Max. 110 V AC/DC, 50 mA

Switching contact (potential-free) Optocoupler

Pulse value (selectable) 1 pulse / 10 Wh, 100 Wh,

1 kWh, 10 kWh

optional 1Imp. / 10 VArh, 100 VArh,

1 kVArh, 10 kVArh

1 pulse / 1 Wh, 10 - 100 Wh,

1 kWh, 10 kWh

optional 1Imp. / 10 VArh, 100 VArh,

1 kVArh, 10 kVArh

Pulse duration (selectable) ms 50, 100, 150, 200, 300, 400, 500

Programmable parameters Network types (single-phase,

3-phase, 3- or 4-conductor),

External current and voltage transformers,

mean performance, pulse output

Network types (3-phase,

3- or 4-conductor),

Partial energy and double tariff, mean perfor-

mance, pulse output

Overvoltage category III

Insulation voltage (phase - phase) V 450 300

Rated impulse withstand voltage

(1.2/50) ms

kV 5

Test voltage

Input/pulse output kV 2.75

All circuits and ground kV 4

Protection class II

Mechanical

Standard front dimension mm 45

Device height mm 89

Mounting width mm 71.2

Weight g 260

Display LCD 8 digit

Digit height mm 6

Maximum display Adjustable 999999.99 kWh

Resolution Adjustable 10 W

Measurement display arranged into 6 pages arranged into 7 pages

Mounting Quick attachment for top-hat rail IEC/EN 60715

Protection type device front/

terminals

IP52/IP20

Terminals top and bottom Screw terminals

Terminal capacities

Current connections

Solid mm20.05 - 4 1 - 10

Stranded mm20.05 - 2.5 1 - 13

Voltage connections

Solid mm20.05 - 4 1 - 4

Stranded mm20.05 - 2.5 1 - 3

Admissible relative humidity Also suitable for tropical conditions

Reference temperature °C 23 ± 2

Temperature range °C -5 - +55

Storage and transportation temperature range °C -25 - +70

Pollution degree 2

KWZ-3PH

Circuit-breakers, fuses

Remote switching modules, miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

19/73

Remote switching modules, miniature circuit-breakers

FAZ/FIP-XAWM FAZ/FIP-XDWM

Electrical

Operating voltage range

V AC 220 - 240 -

V DC -48

Rated frequency f Hz 50/60 -

Relay output for alarm, 250 V AC, floating A 5 5

Function Automatic control

Function selector Automatic 5 x, OFF/RESET

Mechanical

Standard front dimension mm 45 45

Device height mm 80 80

Mounting width mm 70 70

Mounting Top-hat rail to IEC/EN 60715

Protection type

Enclosed IP40

Terminal protection Busbar tag shroud to BGV A2

Terminals Lift terminals

Terminal capacity

Solid mm22 x 1.5

1 x 2.5

2 x 1.5

1 x 2.5

Flexible mm22 x 1.5

1 x 2.5

2 x 1.5

1 x 2.5

FAZ-...-NA

FAZ-...-RT

Electrical

Standards UL 489, CSA C22.2 No.5, IEC 60947-2

Rated operating voltage

UL/CSA 0.5 - 25 A V AC 277/480 Y

UL/CSA 32 - 40 A V AC 240

UL/CSA (per pole) V DC 48

IEC V AC 240/415

Rated frequency fHz 50/60

Rated breaking capacity

IEC kA 15

Characteristic B, C, D

Lifespan Operations > 20000

Mains voltage connection Any (top/bottom)

Mechanical

Standard front dimension mm 45

Device height mm 105

Mounting width per pole mm 17.7

Mounting Quick attachment with two engagement positions for top-hat rail to IEC/EN 60715

Terminals top and bottom Twin-purpose terminals

Terminal capacity

Solid AWG 18 - 6

Flexible AWG 18 - 10

Mounting position Any

Calibration temperature

UL 489, CSA C22.2 No. 5 °C 40

IEC 60947-2 °C 30

FAZ-FIP, FAZ-...-NA, FAZ-...-RT

19/74 Circuit-breakers, fuses

Auxiliary contacts for FAZ-NA, FAZ-RT

2010 CA08103002Z-EN www.eaton.com

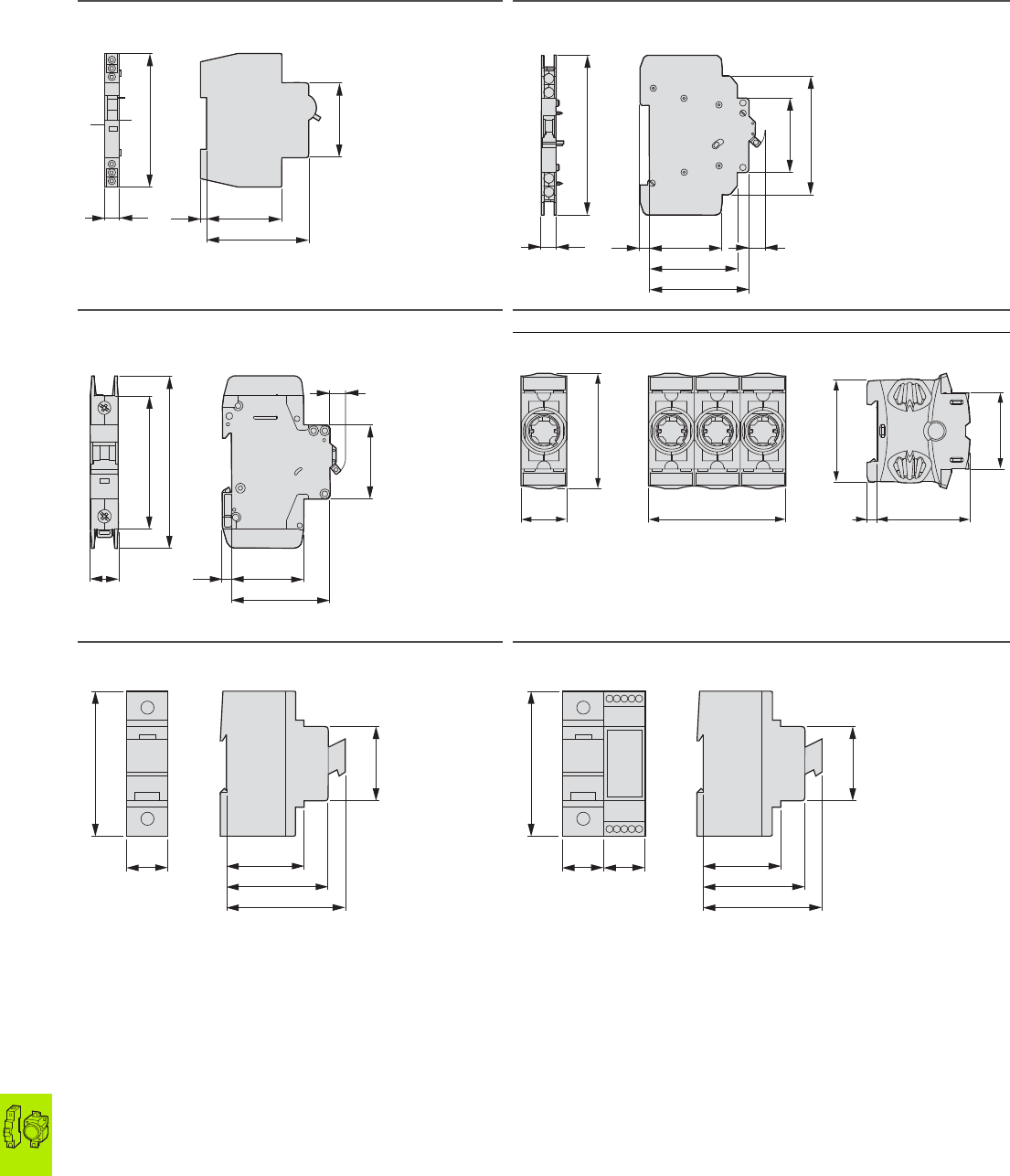

Auxiliary contacts for FAZ -NA, FAZ-RT

Z-NHK Z-IHK-NA

Electrical

Standards IEC/EN 60947-5-1,

IEC/EN 62019

IEC/EN 60947-5-1,

IEC/EN 62019

Rated voltage V AC 230 250

Contact function 2 C 1 N/O + 1 NC

Rated frequency f Hz 50/60 50/60

Rated operational current IeA 2 6

Thermal rated operational current Ith A 2 6

Rated operational current

AC-13 IeA3 (250 V AC) 3 (250 V AC)

AC-15 IeA2 (250 V AC) 2 (250 V AC)

DC-12 IeA0.5 (110 V DC) 0.5 (110 V DC)

Rated insulation voltage UiV AC 250 250

Minimum operating voltage per contact Umin V DC 5 5

Minimum operating current Imin mA 10 (DC) 10 (AC/DC)

Rated impulse withstand voltage

(1.2/ 50 m)

Uimp kV 2.5 4

Rated conditional short-circuit current

with 6 A back-up fuse

IkkA 1 1

Max. admissible back-up fuse A gL 6

Mechanical

Standard front dimension mm 45 45

Device height mm 80 80

Mounting width mm 8.8 (0.5 SU) 8.8 (0.5 SU)

Mounting For fitting to to left side of

FAZ-...-NA, FAZ-...-RT, FAZ-XAA-NA...

Protection type

Enclosed IP40 IP40

Terminal protection Busbar tag shroud to BGV A3 Busbar tag shroud to BGV A3

Terminals Lift terminals Lift terminals

Terminal capacity

AWG 20 - 14 -

mm20.5 - 2.5

Terminal screws M3 (Pozidriv Z0) M3 (Pozidriv Z0)

Tightening torque of the terminal screws Nm - 1.2

FAZ-XAA-NA12-110VAC FAZ-XAA-NA110-415VAC

Electrical

Voltage range V AC 12 - 110 110 - 415

V DC 12 - 60 110 - 230

Rated frequency f Hz 50/60 50/60

Mechanical

Standard front dimension mm 45 45

Device height mm 105 105

Mounting width mm 17.5 17.5

Mounting Quick attachment with two

engagement positions for top-hat rail

to EN 50022

Quick attachment with two

engagement positions for top-hat rail

to EN 50022

Protection type

Enclosed IP40 IP40

Terminal protection Busbar tag shroud to BGV A3 Busbar tag shroud to BGV A3

Terminals top and bottom Twin-purpose terminals Twin-purpose terminals

Terminal capacity

Solid AWG 18 - 10 18 - 10

Two-wire AWG 18 - 10 18 - 10

Z-NHK, Z-IHK-NA, FAZ-XAA-NA...

Circuit-breakers, fuses

Fuse material

2010 CA08103002Z-EN www.eaton.com

19/75

Fuse material

Z-NH-... Z-NH-1/ Z-NH-2/ Z-NH-2/

Electrical

Standards IEC 60269, VDE 0636, SEV 1086

Nominal voltage

AC V AC 500 500 500 500

DC V DC 230 440 440 440

Rated operational current A 10 - 160 50 - 250 100 - 400 250 - 630

Rated frequency f Hz 45 - 62 45 - 62 45 - 62 45 - 62

Rated breaking capacity

AC kA 120 120 120 120

DC kA 25 25 25 25

Max. heat dissipation

In = 10 A W 1.1 - - -

In = 16 A W 1.6 - - -

In = 20 A W 1.7 - - -

In = 25 A W 1.9 - - -

In = 35 A W 3.0 - - -

In = 40 A W 3.5 - - -

In = 50 A W 4.6 5.4 - -

In = 63 A W 5.4 6.3 - -

In = 80 A W 5.1 7.2 - -

In = 100 A W 6.9 8.6 8.8 -

In = 125 A W 10.3 11.9 12.1 -

In = 160 A W 11.0 13.9 14.0 -

In = 200 A W -15.2 15.2 -

In = 250 A W -21.8 21.8 19.4

In = 315 A W - - 23.7 23.7

In = 400 A W - - 30.5 30.5

In = 500 A W ---42.0

In = 630 A W ---47.0

Z-SLS/B Z-SLS/B24

Electrical

Rated operating voltage

Rated operating voltage UeV AC 60 - 400 24 - 60

V DC 60 - 220 24 - 60

Utilization category gG (gL) gG (gL)

Test voltage kV 5 5

Mechanical

Size D01: 1, 2, 4, 6, 10, 13, 16 A

D02: 20, 25, 32, 35, 40, 50, 63 A

Z-D0./SE

Electrical

Standards DIN VDE 0636, DIN 49522

Utilization category gG (gL)

Rated voltage

AC UnV 400

DC UnV 220

Rated frequency f Hz 45 - 65

Rated insulation voltage UiV2500

Rated short-circuit switching capacity

AC kA 50

DC kA 8

Z-NH-..., Z-SLS/B, Z-DO

19/76 Circuit-breakers, fuses

Fuse material

2010 CA08103002Z-EN www.eaton.com

Fuse material

D01-S0/ D02-S0/

Electrical

Number of poles 1P

Rated operating voltage V AC 400 400

V DC 250 250

Rated conditional short-circuit current tested with links IekA 50 (AC) / 8 (DC) 50 (AC) / 8 (DC)

Rated frequency f Hz - -

Rated operational current IeA16 63

Conventional thermal current

with fuse links

Ith A - -

Rated operating mode - -

Overvoltage category - -

Utilization category - -

Rated impulse withstand voltage Uimp kV - -

Current heat loss per contact at IeW - -

Heat dissipation

Heat dissipation per contact with fuse link at IeW - -

Max. permissible heat dissipation of the

fuse links

W - -

Utilization category gG (gL) gG (gL)

Mechanical

Standard front dimension mm 45 45

Device height mm 68 68

Mounting width mm 27 (per pole) 27 (per pole)

Weight g 1P 76

3P 230

1P 76

3P 230

Electrical thread E14 E18

Mounting Quick attachment for top-hat rail

IEC/EN 60715

Protection type

Enclosed - -

Terminals Double function terminals

Terminal capacity

Solid mm21.5 - 35 1.5 - 35

Temperature range °C - -

Terminal screw tightening torque Nm 2.5 - 3 2.5 - 3

Pollution degree - -

Track resistance CTI 200 CTI 200

Z-DII./SE

Electrical

Standards DIN EN 60269-1 (VDE 0636 part 10), DIN EN 60269-3 (VDE 0636 part 30),

DIN VDE 0636-301, CEE 16, IEC/EN 60269-1, IEC/EN 60269-3

Utilization category gG (gL), DZ

Rated voltage

AC UnV 500

DC UnV 400

Rated frequency f Hz 45 - 65

Insulation class C-VDE0110

Rated short-circuit breaking capacity at 1.1 x Un

AC kA 50/cos = 0.2

DC kA 8/ = 15 ms

D01-S, D02-S..., Z-DII-/SE

Circuit-breakers, fuses

Fuse material

2010 CA08103002Z-EN www.eaton.com

19/77

Fuse material

Z-SLS/NE0Z Z-SLK/NE0Z

Electrical

Number of poles 1P

1P+N

3P+N

1P+N

3P+N

Rated operating voltage V DC 1P up to 110V / 2P up to 220V

Rated operating voltage V AC 400 400

Rated operational current IeA63 63

Rated uninterrupted current IuA63 63

Rated short-circuit making capacity 50 kArms 50 kArms

Normally open contact -5A/250V

Switching category AC 22 B, DC 21 B AC 22 B, DC 21 B

Overvoltage category IV IV

Rated impulse withstand voltage Uimp kV 6 6

Current heat loss per current path at IeW0.5 0.5

Heat dissipation

Heat dissipation per contact with fuse link at IeW7.5 7.5

Relay section electrical

Operating voltage range V AC -24 - 240

Operational voltage tolerance -g10%

Power consumption VA - 5

Frequency Hz -50-60

Function display -Mains: 1 LED

Fault: 1 LED

Duty factor % -100

Response delay ms -Approx. 100

Recovery time tWms -Approx.100

Relay contacts -2 changeover contacts, 5A/250V

Overvoltage category -III

Auxiliary contacts

Rated impulse withstand voltage Uimp kV - 4

Mechanical

Standard front dimension mm 45 45

Device height mm 86 86

Mounting width mm 27/per pole (1.5 SU) 27/per pole (1.5SU) + 27

Weight g 1P 113

1P+N 225

2P 224

3P 450

3P+N 472

1P 224

2P 345

3P 450

3P+N 472

Mounting Quick attachment for top-hat rail IEC/EN 60715

Protection type in fitted state IP20 IP20

Terminals Lift terminals Lift terminals

Terminal capacity

Solid mm21.5 - 35 1.5 - 35

Temperature range °C -25 ... +60 -25 ... +60

Flammability classification to EN 60730 V0, glow-wire test 960°C

Terminal screw tightening torque Nm Max. 4.5 Max. 4.5

Pollution degree 3 3

Track resistance CTI 600 CTI 600

Relay section mechanical

Terminals Lift terminals Lift terminals

Terminal capacity

Solid mm2-0.14 - 4

Flexible mm2-0.14 - 2.5

Terminal screw tightening torque Nm 0.5 - 0.7

Z-SLS, Z-SLK

19/78 Circuit-breakers, fuses

Fuse switch-disconnectors, fuse material

2010 CA08103002Z-EN www.eaton.com

Fuse switch-disconnectors, fuse material

VLC14 VLC22

Electrical

Number of poles 1P

1P+N

3P+N

1P+N

3P+N

Rated operating voltage V AC 690 690

Rated operational current IeA50 100

Rated conditional short-circuit current IekA 100 100

Rated frequency f Hz 50 50

Utilization category AC 22 B AC 21 B

Rated impulse withstand voltage Uimp kV 8 8

Max. permissible heat dissipation of the fuse W gG: 5, aM: 3 gG: 9.5, aM: 7

Mechanical

Standard front dimension mm 45 45

Device height mm 94 121

Mounting width mm 27/per pole 36/per pole

Weight g 1P 100

1P+N 222

2P 201

3P 308

3P+N 437

1P 160

1P+N 355

2P 310

3P 480

3P+N 680

Mounting Quick attachment for top-hat rail

IEC/EN 60715

Protection type

Enclosed IP20

Terminals Lift terminals

Terminal capacity

Solid mm21.5-10 2.5-35

Temperature range °C -25 ... +60 -25 ... +60

Terminal screw tightening torque

Tightening torque Nm Max. 2 Max. 2.5

Pollution degree 1 1

Track resistance CTI 400 CTI 400

Z-D01/SE Z-D02/SE

Electrical

Rated operating voltage V AC 400 400

V DC 220 220

Utilization category gG (gL) gG (gL)

Rated frequency f Hz 45-65 45-65

Rated insulation voltage UiV2500 2500

Rated short-circuit switching capacity 50 kA (AC)

8 kA (DC)

50 kA (AC)

8 kA (DC)

Z-SLS/B Z-SLS/B24 Z-SLS/TR-SET

Electrical

Rated operating voltage V DC -24 -

Rated operating voltage V AC 60 - 400 24 400

Utilization category gG (gL) gG (gL) -

Test voltage kV 555

Rated uninterrupted current IuA--63

VLC, Z-DO..., Z-DO1, Z-DO2, Z-SLS...

Circuit-breakers, fuses

Fuse switch-disconnectors, fuse material

2010 CA08103002Z-EN www.eaton.com

19/79

Fuse switch-disconnectors, fuse material

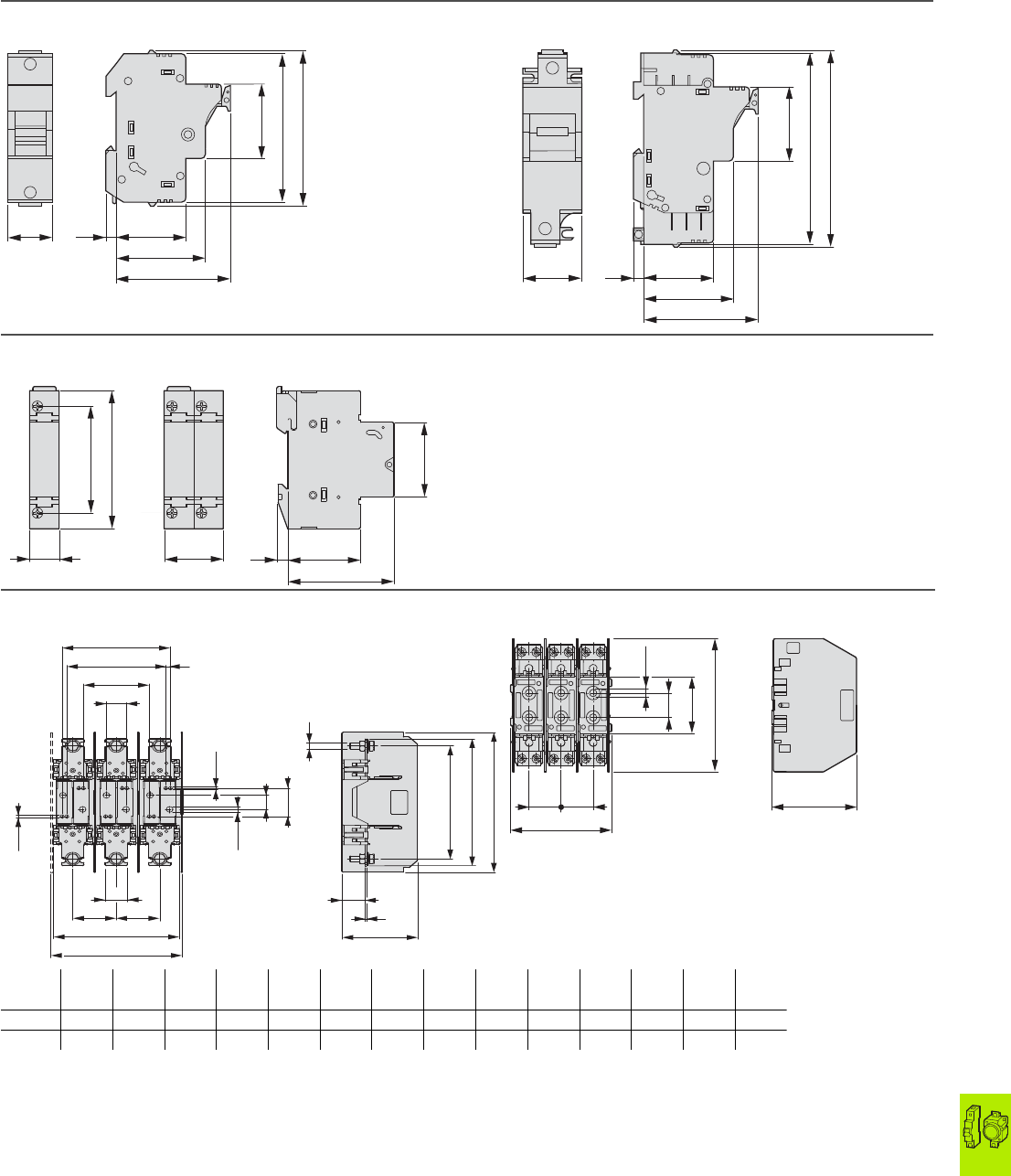

C10-FD/...

Electrical

Standards IEC/EN 60947-1 Ed. 4.0, EN 60947-1:1999+A1:2000+A2:2001

IEC/EN 60947-3 Ed. 2.1, EN 60947-3:1999+A1:2001

No. of poles 1, 2

Rated voltage UeV DC 1000

Rated operational current IeA20

Rated conditional short-circuit current kA 10

Utilization category DC 20 B

Rated insulation voltage UiV DC 1000

Overvoltage category ll

Rated impulse withstand voltage Uimp kV 4

Current heat loss per contact without fuse W 0.9

Max. heat dissipation of fuse W 3

Mechanical

Standard front dimension mm 45

Device height mm 83.3

Mounting width mm 17.5/pole

Weight

1P g 58

2P g 70

Mounting Quick attachment for top-hat rail IEC/EN 60715

Protection type IP20

Terminals top and bottom Lift terminals

Terminal cross-section 0.5 - 10 mm2

AWG 20 - 8

Tightening torque of the terminal screws Nm 1.5

Ambient temperature range °C -25 - +40

Flammability classification Glow wire 960 °C

Pollution degree 2

Track resistance CTI 450

Z-C10/SE

10 x 38

Z-C12/SE

14 x 51

Z-C22/SE

22 x 58

Electrical

Standards IEC 60269-1 and IEC 60269-2-1

Utilization category gG (gL) gG (gL) gG (gL)

Rated voltage UnV AC 1 - 25 A/500

32 A/400

2 - 32 A/690

40 - 50 A/500

16 - 40 A/690

50 - 100 A/500

Utilization category aM aM aM

Rated voltage UnV AC 1 - 16 A/500

20 - 32 A/400

2 - 25 A/690

32 - 50 A/500

16 - 50 A/690

80 - 100 A/500

Rated frequency f Hz 50 50 50

Rated short-circuit breaking capacity kA 100 100 100

Z-C10/SE-.../PV

10 x 38

Electrical

Standards IEC 60269-1 and IEC 60269-4

Rated voltage UnV DC 6 - 20 A/1000

25 A/900

Rated short-circuit breaking capacity kA 30

 = L/R ms 2

C10-FD/..., Z-C.../SE

19/80 Circuit-breakers, fuses

LV h.b.c. fuse switch-disconnectors

2010 CA08103002Z-EN www.eaton.com

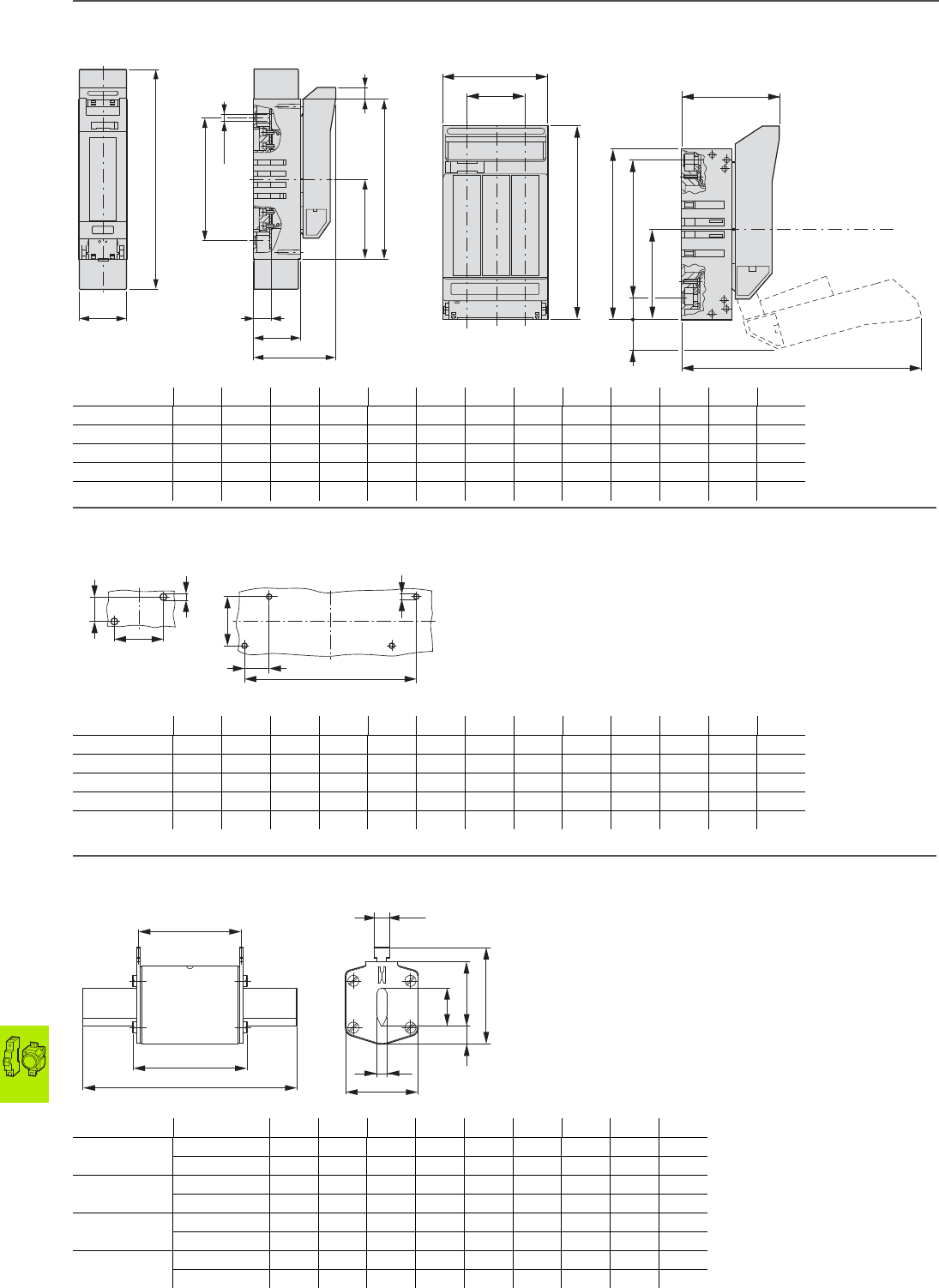

LV h.b.c. fuse switch-disconnectors

GST...00-160 GST…1 GST…2 GST…3

General

Standards IEC/EN 60947-3

Climatic proofing Damp heat, constant, to IEC 60068-2-78

Damp heat, cyclic, to IEC 60068-2-30

Ambient temperature °C -25 ... +55 -25 ... +55 -25 ... +55 -25 ... +55

Installation altitude m max. 2000 max. 2000 max. 2000 max. 2000

Mounting position Vertical, horizontal

Overvoltage category/pollution degree III/3 III/3 III/3 III/3

Busbar tag shroud at the front

Operational status IP20 IP20 IP20 IP20

Front cover open IP10 IP10 IP10 IP10

Direction of incoming supply Any

Weight kg 0.72 GSTA

0.93 GST

2.5 GSTA

4.4 GST

3.3 GSTA

5.3 GST

4.6 GSTA

6.6 GST

Contacts

Rated operating voltage UeV AC 500

690

500

690

500

690

500

690

Rated operating voltage UeV DC 220

440

220

440

220

440

220

440

Rated operational current IeA160

100

250

200

400

315

630

500

Rated frequency Hz 40 - 60 40 - 60 40 - 60 40 - 60

Rated conditional short-circuit current AC kArms 50 50 50 50

Rated conditional short-circuit current, DC kArms 25 25 25 25

Utilization category AC-22B

Rated making capacity A 480

300

750

600

1200

945

1890

1500

Rated breaking capacity A 480

300

750

600

1200

945

1890

1500

Utilization category DC-21B

Rated making capacity A 150 300 475 750

Rated breaking capacity A 150 300 475 750

Lifespan, electrical Operations 300 200 200 200

Lifespan, mechanical Operations 1700 1400 800 800

Heat dissipation at Ith AC, without NH-SE W 6.9

2.7

12.9

8.3

16.7

32.8

Heat dissipation at Ith DC, without NH-SE W 4.6

1.8

8.6

5.5

11.2

34.7

21.8

Rated insulation voltage UiV AC 750 750 750 750

Max. fuse link

Size NH00 NH1 NH2 NH3

Max. rated operational current, gL/gG A 160 250 400 630

Max. admissible heat dissipation, NH-SE PvW12 23 34 48

Terminal capacity

Box terminal

Stranded mm21.5 - 70 - - -

Copper strip Number of layers x width x thickness mm 6 x 9 x 0.8 - - -

Tightening torque Nm 2.6 - - -

Flange connection

Bolt diameter -M10 M10 M10

Cable lug mm -1 x 25 - 150 1 x 25 - 240 1 x 25 - 300

Flat rail mm -30 x 10 30 x 10 40 x 10

Tightening torque Nm -30 - 35 30 - 35 30 - 35

Box terminal

Stranded copper mm21.5 - 70 25 - 150 25 - 240 25 - 300

Copper strip Number of layers x width x thickness mm -6 x 16 x 0.8 10 x 16 x 0.8 11 x 21 x 1

Tightening torque Nm -9.5 23 23

Clamp-type cable terminal

Stranded aluminum/copper mm2-70 - 150 120 - 240 120 - 300

Tightening torque Nm -4.5 11 11

Double clamp-type terminal

Stranded aluminum/copper mm2-2 x (70 - 95) 2 x (120 - 150) 2 x (120 - 240)

Tightening torque Nm -4.5 11 11

GST

Circuit-breakers, fuses

LV h.b.c. fuse bases

2010 CA08103002Z-EN www.eaton.com

19/81

LV h.b.c. fuse bases

GS00-160 GSU1 GSU2 GSU3

General

Standards IEC/EN 60 269-2-1;

VDE0636-201

Climatic proofing Damp heat, constant, to IEC 60068-2-78

Damp heat, cyclic, to IEC 60068-2-30

Ambient temperature °C -25 ... +55 -25 ... +55 -25 ... +55 -25 ... +55

Installation altitude m max. 2000 max. 2000 max. 2000 max. 2000

Mounting position Vertical,

horizontal

Vertical,

horizontal

Vertical,

horizontal

Vertical,

horizontal

Overvoltage category/degree of

pollution

III/3 III/3 III/3 III/3

Busbar tag shroud at the front

Operational status IP00 IP00 IP00 IP00

Direction of incoming supply Any Any Any Any

Weight kg 0.4 1.7 2.1 2.7

Contacts

Rated operating voltage UeV AC 690 690 690 690

Rated operating voltage UeV DC 440 440 440 440

Rated operational current IeA160 250 400 630

Rated frequency Hz 40 - 60 40 - 60 40 - 60 40 - 60

Heat dissipation at Ith AC,

without NH-SE

W6.9 12.9 27 52

Heat dissipation at Ith DC,

without NH-SE

W4.6 8.6 18 34.7

Rated insulation voltage UiV AC 750 750 750 750

Max. fuse link

Size NH00 NH1 NH2 NH3

Max. rated operational current, gL/gG A 160 250 400 630

Max. admissible heat dissipation

NH-SE

PvW12 23 34 48

Terminal capacity

Box terminal

Stranded mm2- - - -

Copper strip Number of layers x width x

thickness

mm - - - -

Tightening torque Nm - - - -

Flange connection

Bolt diameter -M10 M10 M10

Cable lug mm -1 x 25 - 150 1 x 25 - 240 1 x 25 - 300

Flat rail mm -30 x 10 30 x 10 40 x 10

Tightening torque Nm -30 - 35 30 - 35 30 - 35

Box terminal

Stranded copper mm21.5 - 70 25 - 150 25 - 240 25 - 300

Copper strip Number of layers x width x

thickness

mm 6 x 9 x 0.8 6 x 16 x 0.8 10 x 16 x 0.8 11 x 21 x 1

Tightening torque Nm 2.6 9.5 23 23

Clamp-type cable terminal

Stranded aluminum/copper mm2-70 - 150 120 - 240 120 - 300

Tightening torque Nm -4.5 11 11

Double clamp-type terminal

Stranded aluminum/copper mm2-2 x 70 - 95 2 x 120 - 150 2 x 120 - 240

Tightening torque Nm -4.5 11 11

GS..., GSU

19/82 Circuit-breakers, fuses

Miniature circuit-breakers, residual-current circuit-breakers

2010 CA08103002Z-EN www.eaton.com

Miniature circuit-breakers, residual-current circuit-breakers

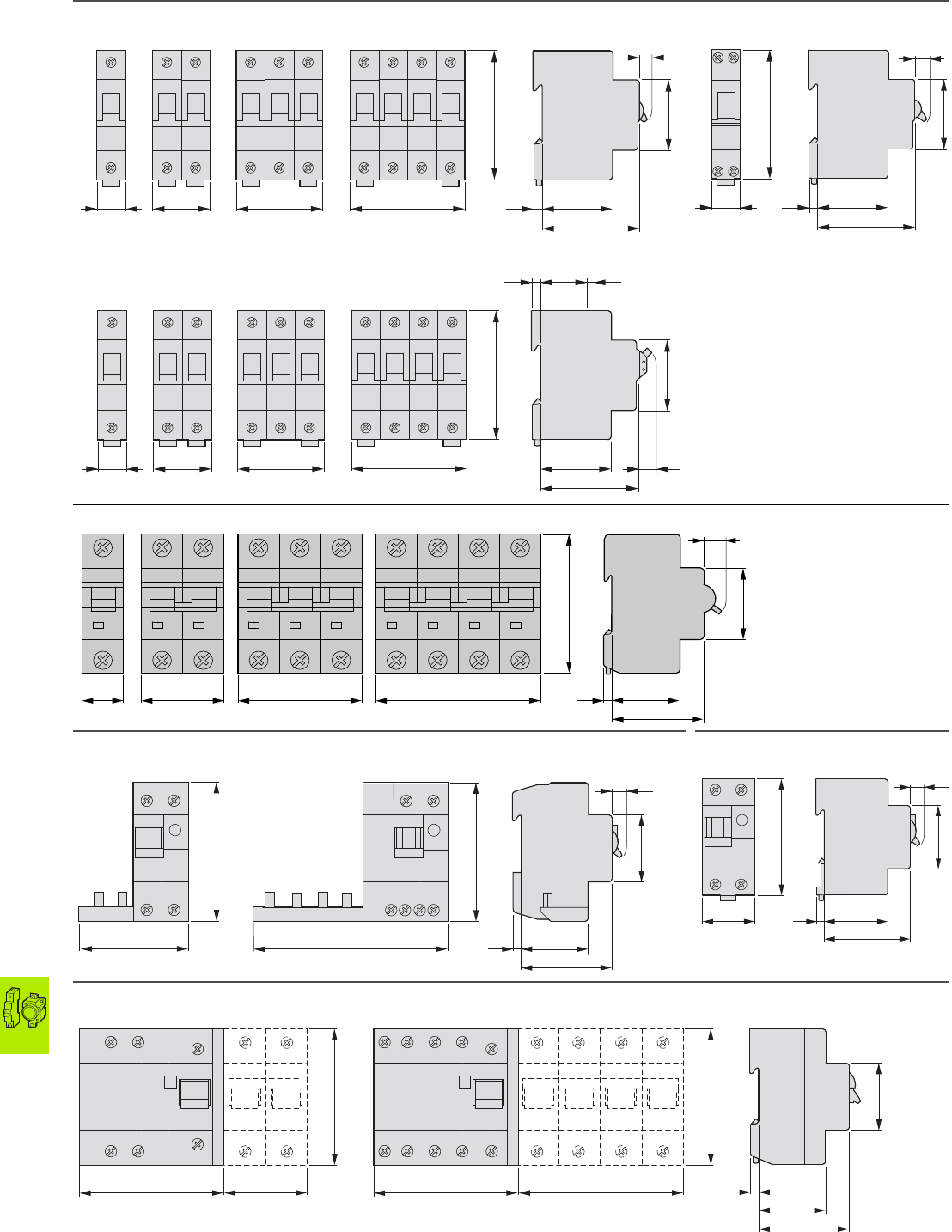

Dimensions

Miniature circuit-breakers, residual-current circuit-breakers

Miniature circuit-breakers (MCB)

FAZ... FAZ-PN-...

FAZT

AZ...

Residual-current protective modules Combination switches

FIM-... PKNM-...

Residual-current protective modules

AZFIM...

5.5

52.535

17.5

9.5

5.5

17.5

9.5

5.5 4.5 30.5

52.5 35

17.5

108

5.5

8154

9.5

5.5

125

9.5

5.5

94.5

5.5

108

94.5

FAZ, AZ, FIM, PKNM, AZFIM

Circuit-breakers, fuses

Miniature circuit-breakers, residual-current circuit-breakers

2010 CA08103002Z-EN www.eaton.com

19/83

Miniature circuit-breakers, residual-current circuit-breakers

Combination FI/LS switches

mRB6..., mRB4...

Residual-current devices

FI-...

Residual-current devices

dRCM...

Remote monitoring unit Temperature sensor

Z-CC/2CO Z-CC/2CO-SE

Leakage current meter

PDIM

70 44

10.5

5.5

9.5

10.5

70 44

4.530.55.5

105 58

107

Sub-D

l = 1400 mm

o 16

3.15

5.5

mRB, FI, dRCM, Z-CC/2CO, PDIM

19/84 Circuit-breakers, fuses

Auxiliary contacts, remote switching modules

2010 CA08103002Z-EN www.eaton.com

Auxiliary contacts, re mote switching modules

Auxiliary contacts

FAZ-XHIN11 FAZ-XAM002

AZ-XHI11 FIP-XHI11 FIPA-XAM011

Shunt release Shunt release Under voltage release

FAZ-XAA-C... AZ-XAA... FAZ-XUA...

Remote switching modules

FAZ/FIP-... Z-FW-LP

Z-FW-LPD

Z-FW-MO

5.5

8.8

5.5

8.8

445.5

8.8

235.5

8.8

5.5 44

17.5

26.2 44

5.5 30.5 4.5 9.6

39.1

44 155.5

17.5

445.5

7018.4

44 11.85.5

18.4

5.5

11.8

FAZ-X, AZ-X, FAZ/FIP, FIP(A), Z-FW

Circuit-breakers, fuses

Power meters, busbars, miniature circuit-breakers

2010 CA08103002Z-EN www.eaton.com

19/85

Power meters, busbars, miniature circuit-breakers

Power meter

KWZ-3PH...

Euro-Vario busbars

EVG-10(16)/...

Connecting bracket

ZV-...-80A-...

Miniature circuit-breakers (MCB)

FAZ-...-NA, FAZ-...-RT

71.2

60.6

Part no. a b b1 c

EVG-(16)/1PHAS/2MODUL 33 25.9 14 3.4

EVG-(16)/1PHAS/6MODUL 105 25.9 14 3.4

EVG-(16)/1PHAS/12MODUL 210 25.9 14 3.4

EVG-(16)/2PHAS/4MODUL 75.5 30.9 19 7.3

EVG-(16)/2PHAS/6MODUL 105 30.9 19 7.3

EVG-(16)/2PHAS/12MODUL 209.5 30.9 19 7.3

EVG-(16)/3PHAS/6MODUL 102.5 30.9 19 10.3

EVG-(16)/3PHAS/9MODUL 156 30.9 19 10.3

EVG-(16)/3PHAS/12MODUL 209.5 30.9 19 10.3

EVG-(16)/3PHAS/16MODUL 285 30.9 19 10.3

EVG-(16)/3PHAS/20MODUL 353 30.9 19 10.3

EVG-(16)/4PHAS/8MODUL 138 30.9 19 13.3

EVG-(16)/4PHAS/12MODUL 209.5 30.9 19 13.3

EVG-(16)/3PHAS/N/5MODUL/LS 156 30.9 19 10.3

EVG-(16)/3PHAS/N/8MODUL/LS 209.5 30.9 19 10.3

EVG-(16)/1PHAS/2MODUL/HI 60 25.9 14 3.4

EVG-(16)/1PHAS/6MODUL/HI 156.5 25.9 14 3.4

EVG-(16)/1PHAS/9MODUL/HI 237 25.9 14 3.4

EVG-(16)/2PHAS/4MODUL/HI 75.5 30.9 19 7.3

EVG-(16)/2PHAS/6MODUL/HI 120 30.9 19 7.3

EVG-(16)/2PHAS/10MODUL/HI 209.5 30.9 19 7.3

EVG-(16)/3PHAS/6MODUL/HI 115 30.9 19 10.3

EVG-(16)/3PHAS/12MODUL/HI 237 30.9 19 10.3

EVG-(16)/3x 1PHAS/6MODUL/HI 152 30.9 19 10.3

EVG-(16)/3x 1PHAS/8MODUL/HI 209.5 30.9 19 10.3

EVG-(16)/3x 1PHAS/9MODUL/HI 229 30.9 19 10.3

1.5

35.4 44

5.5

17.7

105

53.1

KWZ, EVG, FAZ-NA, FAZ-RT

19/86 Circuit-breakers, fuses

Auxiliary contacts, fuse bases, fuse switch-disconnectors

2010 CA08103002Z-EN www.eaton.com

Auxiliary contacts, fuse bases, fuse switch-disconnectors

Tripping signal contact Auxiliary contacts

Z-NHK Z-IHK-NA

Shunt release Fuse bases

FAZ-XAA-NA... D01-SO/...

D02-SO/...

Fuse switch-disconnectors With fuse monitoring, empty

Z-SLS/NEOZ/... Z-SLK/NEOZ/...

5.5

8.8

71.6

8.8 10

5.5

17.7 44

81.5

105

5.5

55627 81

27 46

27 27 46

Z-NHK, Z-IHK-NA, DO...-S, Z-SL...NEOZ

Circuit-breakers, fuses

H.b.c. fuse bases, h.b.c. fuse switch-disconnectors

2010 CA08103002Z-EN www.eaton.com

19/87

H.b.c. fuse bases, h.b.c. fuse switch-disconnectors

Fuse switch-disconnectors, empty

VLC14... VLC22...

Fuse switch-disconnectors

C10-FD/20/...

LV h.b.c. fuse bases

GSU1 GSU2 GSU3 GS00-160

27 42.55.2

54.6

36 42.56.2

54.6

117

121

83.3

64.4

45.1

43.8

17.5 35.6 6.7

o 5.5

o 10.5

32.5 32.5

104

o 7.5

136

Part no.abcdef ghI oqr st

GSU1 175 200 248 M10 35 2 66 200 34 107 191 164 150 100

GSU2 200 225 248 M10 35 2 66 200 34 115 191 164 150 100

GSU3 210 250 273 M10 35 3 84 254 40 132.5 245 200 186 136

VLC, C10-FD/20, GS..., GST...

19/88 Circuit-breakers, fuses

Fuse switch-disconnectors, fuse links

2010 CA08103002Z-EN www.eaton.com

Fuse switch-disconnectors, fuse links

LV h.b.c. fuse switch-disconnectors

1 pole 3 pole

GSTA00-160-1P GSTA00-160 GSTA1 GSTA2 GSTA3

LV h.b.c. fuse switch-disconnectors, drilling dimensions

GSTA00-160 GSTA2

GSTA1 GSTA3

LV h.b.c. fuse links

Z-NH-...

135

o 10.5

220.5

270

430

147

30.5

b3 b5 b4

Part no. a a1 b b1 b2 b3 b4 b5 c c3 d e f

GSTA00-160-1P 49 - 169 79 149 120 - - 86.5 - 7 - -

GSTA00-160 106 66 169 79 149 120 25 26 86.5 197 7 50 -

GSTA1 182 116 250 115 230 184 30 23 111 294 5.5 150 -

GSTA2 208 132 275 128 256 217 30 19.5 125 330.5 5.5 175 25

GSTA3 254 164 283 135 270 238 30 16 142 348 5.5 200 50

Part no. a a1 b b1 b2 b3 b4 b5 c c3 d e f

GSTA00-160-1P 49 - 169 79 149 120 25 - 86.5 197 7 - -

GSTA00-160 106 66 169 79 149 120 25 26 86.5 197 7 50 -

GSTA1 182 116 250 115 230 184 30 23 111 294 5.5 150 -

GSTA2 208 132 275 128 256 217 30 19.5 125 330.5 5.5 175 25

GSTA3 254 164 283 135 270 238 30 16 142 348 5.5 200 50

9.8

Part no. abcdef ghk

Z-NH-00/ Up to 100 A 79 53 47 35 15 21 52 7.5 6

125-160 A 79534735152856126

Z-NH-1/ Up to 160 A 135 68 65 40 15 28 61 12 6

200-250 A 135 72 65 40 20 46 65 14 6

Z-NH-2/ to 250 A 150 72 65 48 20 46 73 14 6

315-400 A 150 72 65 48 26 54 73 14 6

Z-NH-3/ to 400 A 150 72 65 60 26 54 84 14 6

500-630 A 150 72 65 60 33 65 84 14 6

GST..., Z-NH

Circuit-breakers, fuses

Notes

2010 CA08103002Z-EN www.eaton.com

19/89

Notes

2010 CA08103002Z EN 1000358919 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
