BUSBAR DISTRIBUTION SYSTEM 60mm BusBar systems
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS1
SPEC-00507
BUSBAR SYSTEM OVERVIEW
INDUSTRY STANDARDS
Fuseholders:
UL 4248 Listed; File No. E230163 and E342576
cUL Listed per CSA C22.2 No. 39; File No. E230163
CSA Certified
Busbar Components:
UL 508 Listed; File No. E123577
cUL Listed per CSA C22.2 No. 14; File No. E123577
CE
APPLICATION
Busbar systems distribute power throughout a panel by enabling
components to be mounted onto adapters that snap onto three
copper bars attached to end supports connected to the back panel.
Establishing an electrical connection and mechanically fastening
in one step, this design reduces wiring time by up to 40 percent and
allows power to be easily distributed to multiple components while
being touch-safe rated to IP20. In addition, busbar systems utilize
pre-wired adapters and sliding DIN rails, enabling components to
be placed closer together while reducing the raceway and bending
radius space required. With this arrangement, the 60-mm Busbar
System consumes up to 25 percent less panel space than traditional
wiring.
•
Distributes 3-phase power, up to 690 V, coming from a main
breaker or fuse block; can also be used for single-phase or DC
power applications
•
Convenient solution for delivering power throughout panels
containing smaller devices and fed by a 100 A or higher main
breaker
•
Provides direct mounting solutions for major component
manufacturers (ABB, Allen-Bradley, Eaton, General Electric,
Siemens, Schneider Electric)
Drawings can be found on
www.pentairprotect.com
Technical information and support can be found on Wöhner’s
website at
www.woehner.de/en
Remove the “HB” prefix from Hoffman’s catalog numbers to find the
comparable Wöhner part numbers.
AMBUS, CRITO, EQUES, J-CARRIER and QUADRON are trademarks of
Wöhner GmbH & Co. KG.
FEATURES
• The 60-mm on-center distance of the busbars minimizes the
overall footprint, allowing large ampacities to be distributed in a
small space
• Ampacity range of 0–2000 A covers most key applications
• Reduces panel wiring time by up to 40 percent versus
conventional wiring
•
Electrical and mechanical connections are completed in one step
• The design and layout are efficient and can be changed at any
time; innovative terminal solutions connect wires directly to the
busbar system; no drilling or tapping is required
• Requires up to 25 percent less panel space than conventional
wiring by eliminating some raceway and reducing bending radius
space
• Provides the highest standard of safety; designed to be touch-
safe to IP20
• Snap-together design makes planning, project design and
installation easy; fuse bases and fuse switch disconnectors are
simply “clicked” onto the busbars
• Application versatility reduces inventory requirements
• Adapts to most cabinets and enclosures; position busbars
vertically or horizontally anywhere within grid dimensions for
optimum use of space
• Add components easily to extend the panel; number of
connections is minimized
• Shielded connections reduce arc flash danger
SPECIFICATIONS
• Busbar is constructed of tinned copper for superior corrosion
resistance
ORDERING
For assistance with layouts, drawings and specifying a busbar
system, contact Hoffman Customer Service at 763 422 2211.
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 2

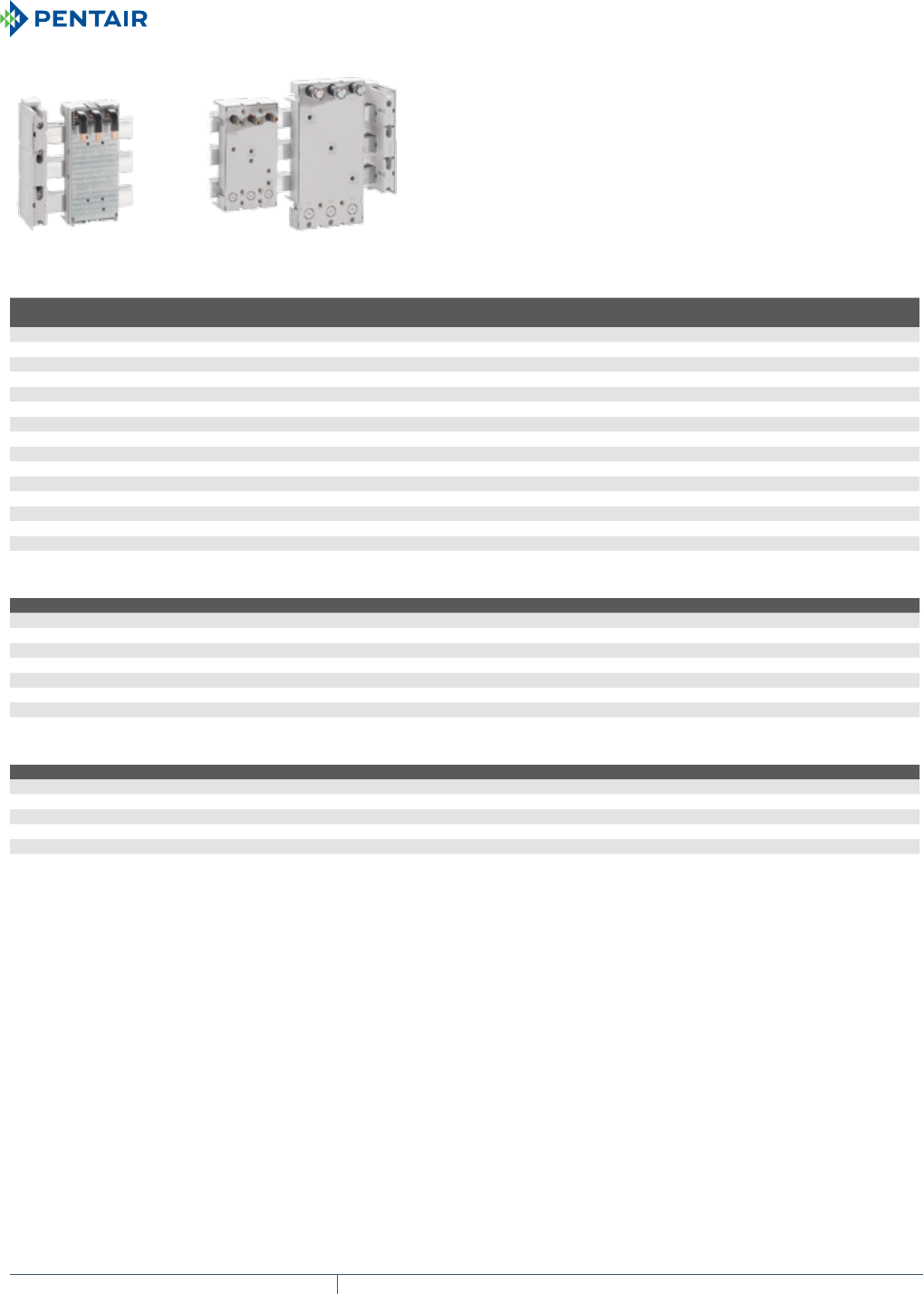

MCCB MOUNTING REFERENCE
MCCB Mounting Reference All major manufacturers
Manufacturer Model Connection Dimensions Rated Current Adapter UL508 cUL CSA
ABB MS49x Top 200 x 72 100A HB32981 • •
T-max 1 Top 200 x 90 160A HB32575 • • •
T-max 2 Top 200 x 90 160A HB32575 • • •
xT1 Top 200 x 90 160A HB32018 • •
xT1 Bottom 200 x 90 160A HB32020 • •
xT2 Top 200 x 90 160A HB32018 • •
xT2 Bottom 200 x 90 160A HB32020 • •
xT4 Top/Bottom 192 x 105 250A HB32023 • •
T-max 4 Top/Bottom 240 x 105 290A HB32601 • •
T-max 5 Top/Bottom 300 x 140 580A HB32593 • •
Allen-Bradley 140-CMN Top 200 x 90 580A HB32549 • • •
140G-G Top 200 x 90 580A HB32018 • •
140G-G Bottom 200 x 90 580A HB32020 • •
140G-H Top 200 x 90 580A HB32018 • •
140G-H Bottom 200 x 90 580A HB32020 • •
140G-J Top/Bottom 192 x 105 250A HB32023 • •
140G-K Top/Bottom 300 x 140 400A HB32593 • •
Eaton EG-Frame Top 200 x 90 160A HB32577 • • •
EG-Frame Bottom 200 x 90 160A HB32571
NZM1 Top 200 x 90 160A HB32570 • • •
JG-Frame Top/Bottom 192 x 106 250A HB32137 • • •
NZM2-XKR4 Top/Bottom 200 x 106 250A HB32140 • • •
K-Frame Top/Bottom 272 x 140 600A HB32138 • • •
LG-Frame Top 272 x 140 600A HB32138 • • •
NZM3-XKR130 Top 300 x 140 630A HB32978 • •
GE FD160 Top 200 x 90 160A HB32978 • • •
FE250 Top/Bottom 192 x 106 250A HB32156 • • •
Mitsubishi NF250 Top 240 x 105 250A HB32592 • •
Schneider NS80, NSX80 Top 200 x 90 160A HB32575 • • •
H-Frame Top/Bottom 192 x 106 250A HB32600
J-Frame Top/Bottom 192 x 106 250A HB32156 • • •
NS100 Top/Bottom 192 x 106 250A HB32156 • • •
NS250 Top/Bottom 192 x 106 250A HB32156 • • •
D-Frame Top/Bottom 272 x 140 570A HB32157 • • •
L-Frame Top/Bottom 272 x 140 570A HB32157 • • •
NS400 Top/Bottom 272 x 140 570A HB32157 • • •
NS630 Top/Bottom 272 x 140 570A HB32157 • • •
Siemens 3RV104 Top 200 x 72 100A HB32981 • •
S3 Top 200 x 72 100A HB32981 • •
3VL1/CG Top/Bottom 192 x 106 160A HB32976 • • •
3VL2/DG Top/Bottom 192 x 106 250A HB32977 • • •
3VL3/FG Top/Bottom 192 x 106 250A HB32977 • • •
3VL4/JG Top/Bottom 192 x 106 400A HB32975 • • •
Terasaki XS250 Top 240 x 105 250A HB32592 • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS3
SUPPORT SPACING AND SHORT CIRCUIT CURRENT
RATING (SCCR) VALUES HB80508, HB01508
Consult Hoffman for HB01231 and HB01232 support spacing and
SCCR values.
Circuit Breaker Protected System (Any DIVQ/7)
Busbar, cross section Max. CB Rating SCCR Max. support spacinga
480VAC
HB01618 (12x5 mm) 250 A 65 kA 800 mma
HB01620 (20x5 mm) 400 A 65 kA 800 mma
HB01622 (30x5 mm) 400 A 65 kA 800 mm
HB01625 (30x10 mm) 400 A 65 kA 800 mm
HB01625 (30x10 mm) 600 A 50 kA 800 mm
HB01623 (12x10mm) 250 A 65 kA 800 mm
HB01624 (20x10 mm) 400 A 65 kA 800 mm
600VAC
HB01618 (12x5 mm) 250 A 25 kA 800 mma
HB01620 (20x5 mm) 400 A 35 kA 800 mma
HB01622 (30x5 mm) 600 A 32 kA 800 mm
HB01625 (30x10 mm) 400 A 35 kA 800 mm
HB01625 (30x10 mm) 600 A 25 kA 800 mm
HB01623 (12x10 mm) 250 A - RKI 25 kA 800 mm
HB01624 (20x10 mm) 400A - RKI 35 kA 800 mm
aConsideration should be made for mechanical support of the devices mounted to the busbar system.
Fuse Protected System
Busbar, cross section Max. Fuse Rating SCCR Max. support spacinga
480VAC
HB01618 (12x5 mm) 400 A - J, T, RK1 100 kA 800 mma
HB01620 (20x5 mm) 400 A - RK1 100 kA 800 mma
HB01620 (20x5 mm) 500 A - J, T 100 kA 800 mma
HB01622 (30x5 mm) 400 A - RK1 100 kA 800 mm
HB01622 (30x5 mm) 500 A - J, T 100 kA 800 mm
HB01625 (30x10 mm) 400 A - RK1 100 kA 800 mm
HB01625 (30x10 mm) 600 A - J, T 100 kA 800 mm
HB01623 (12x10mm) 400 A - J, T, RK1 100 kA 800 mm
HB01624 (20x10 mm) 400 A - RK1 100 kA 800 mm
HB01624 (20x10 mm) 500 A - J, T 100 kA 800 mm
600VAC
HB01618 (12x5 mm) 100 A - RK1 100 kA 800 mma
HB01618 (12x5 mm) 175 A - J, T 100 kA 800 mma
HB01620 (20x5 mm) 200 A - RK1 100 kA 800 mma
HB01620 (20x5 mm) 400 A - J, T 100 kA 800 mma
HB01622 (30x5 mm) 400 A - RK1 100 kA 800 mm
HB01622 (30x5 mm) 500 A - J, T 100 kA 800 mm
HB01625 (30x10 mm) 400 A - RK1 100 kA 800 mm
HB01625 (30x10 mm) 450 A - J, T 100 kA 800 mm
HB01623 (12x10mm) 100 A - RK1 100 kA 800 mm
HB01623 (12x10mm) 175 A - J, T 100 kA 800 mm
HB01624 (20x10 mm) 200 A - RK1 100 kA 800 mm
HB01624 (20x10 mm) 450 A - J, T 100 kA 800 mm
aConsideration should be made for mechanical support of the devices mounted to the busbar system.
Unprotected System
Busbar, cross section Max. Rating SCCR Max. support spacinga
HB01618 (12x5 mm) 150 A, 600 VAC 18 kA 400 mma
HB01620 (20x5 mm) 362 A, 600 VAC 18 kA 400 mma
HB01622 (30x5 mm) 500 A, 600 VAC 22 kA 400 mm
HB01622 (30x5 mm) 500 A, 600 VAC 25 kA 250 mm
HB01623 (12x10 mm) 150 A, 600 VAC 18 kA 400 mm
HB01624 (20x10 mm) 300 A, 600 VAC 18 kA 400 mm
HB01625 (30x10 mm) 756 A, 600 VAC 22 kA 400 mm
HB01625 (30x10 mm) 756 A, 600 VAC 25 kA 250 mm
aConsideration should be made for mechanical support of the devices mounted to the busbar system.

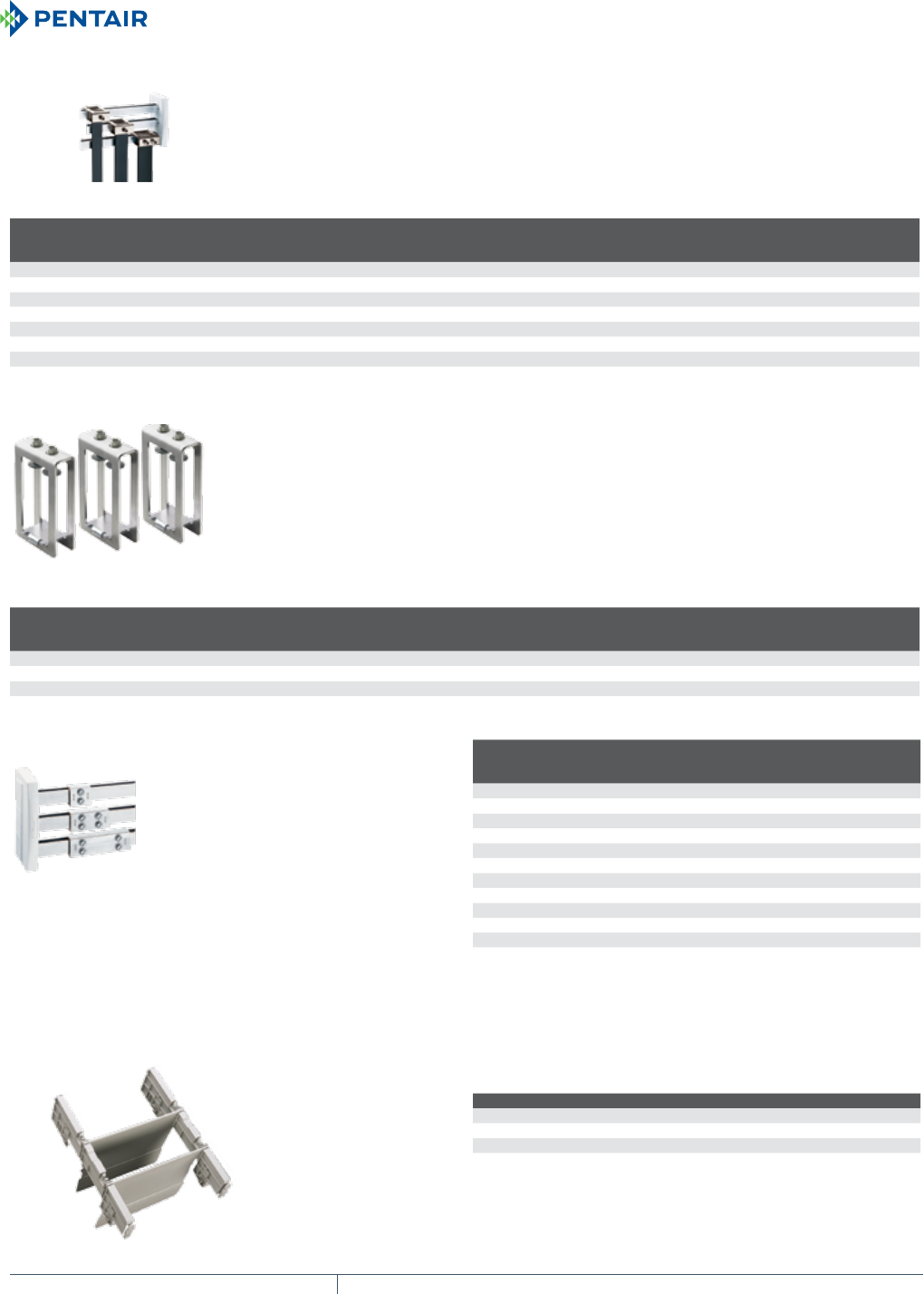

END SUPPORT KIT This will be the first part of any system bill of material utilizing
rectangular busbar between 12 x 5 - 30 x 10.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB80508 Contains 2 busbar supports (HB01508)
and 2 end covers (HB01573)
1 kit • •

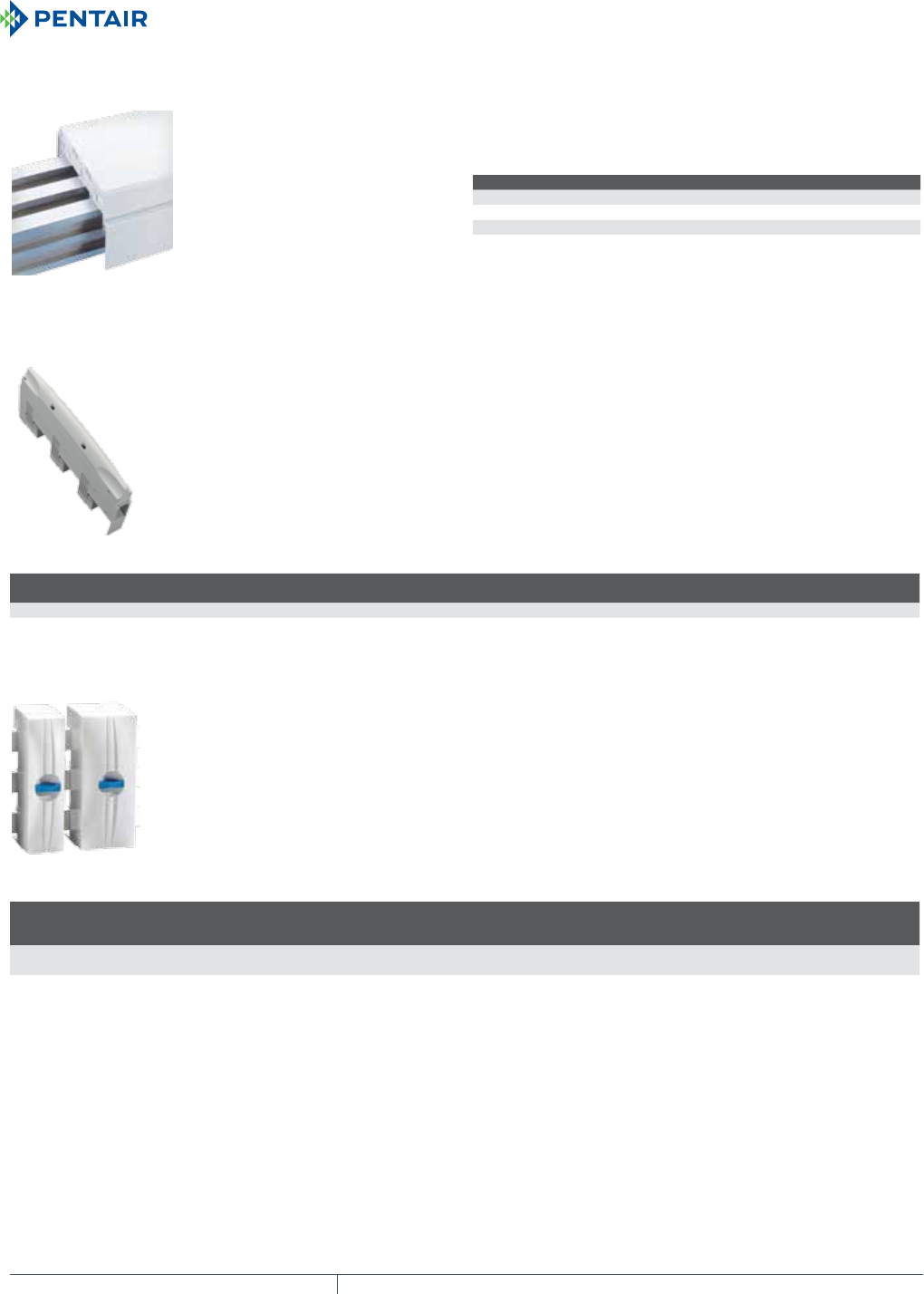

UL BUSBAR SUPPORT AND END COVER
UL Busbar Support and End Cover holds the rigid copper busbars
that span the enclosure width or height in place. Systems can be
mounted either horizontally or vertically. These supports provide
critical bracing against the forces exerted upon the busbar
structure in the event of a short circuit condition. While typically
mounted to the backpanel of the enclosure, these supports can
also be mounted on the frame or support structure of a modular
PROLINE enclosure system. Each support can be adjusted to
accommodate all six rectangular standard sizes of rigid copper
busbar.
End Cover insulates the ends of the three rigid copper busbars
installed in the busbar support.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA cURus
HB01508 For busbars 12, 20, 30 x 5, 10,
3-pole with internal screw holes
1 • • •
HB01358 Spacer fits under HB01058 1 • •
HB01357 For busbars 12, 20, 30 x 5, 10,
4-pole with internal screw holes
1 • •
HB01359 Spacer fits under HB01357 1 • •
HB01573 End cover for busbar supports
HB01508, HB01484
2 • • •
HB01131 End cover for busbar supports
HB01357
2 • • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 4
BASE PLATE Serves as an insulator between the current-carrying parts of
the busbar structure and adaptor components and the metallic
backpanel of the enclosure. This component is required to satisfy
UL508 requirements for 2-in. over surface and 1-in. through-the-air
arcing distances defined under the UL standard.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01518 For UL Busbar Support
HB01508, HB01231, HB01232, 240 x 1100
1 • • •
HB01515 For UL Busbar Support
HB01508, HB01231, HB01232, 240 x 700
1 • • •
HB01231 and HB01232 do not require base plate for UL approval.

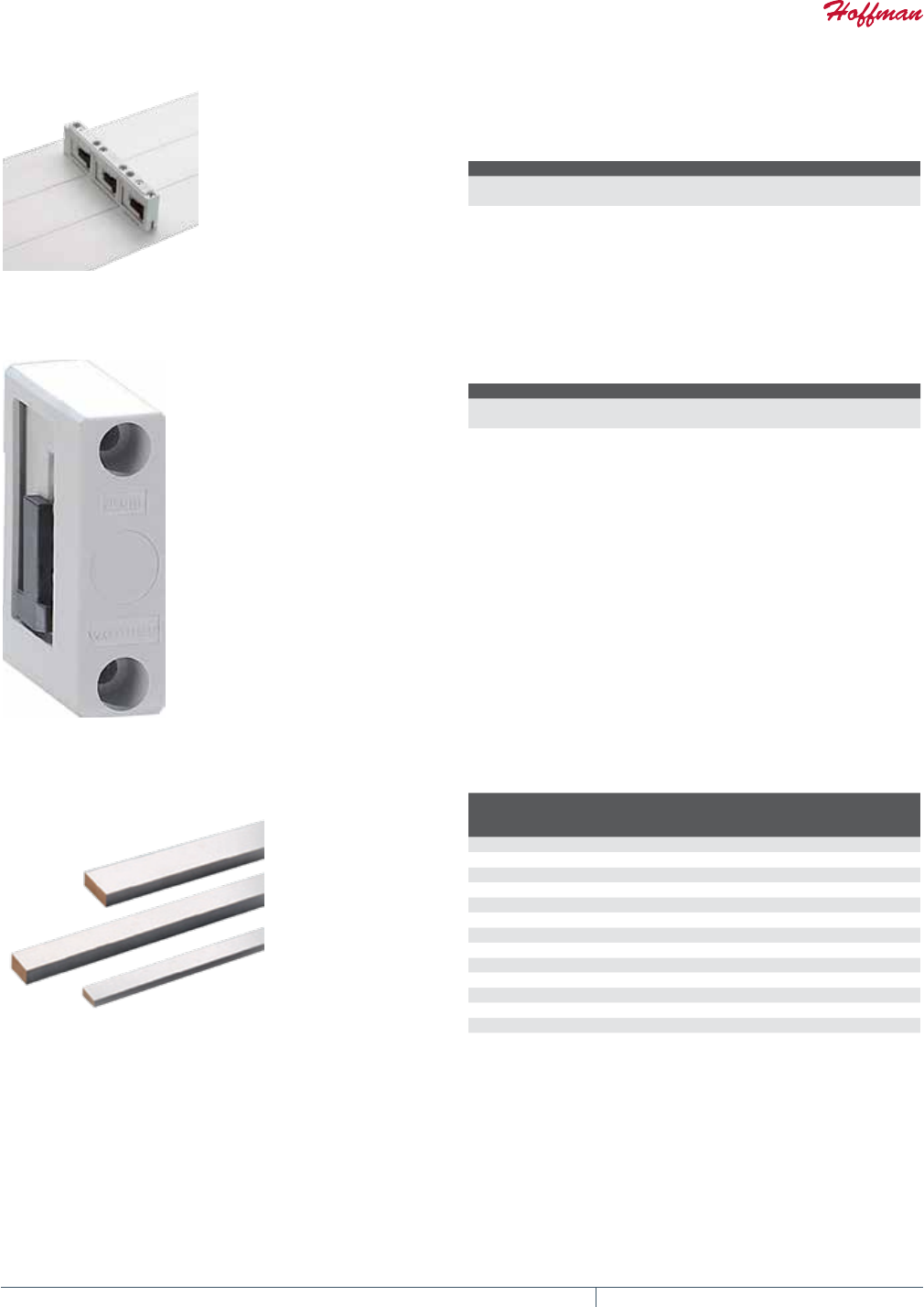

EARTH/NEUTRAL BUSBAR SUPPORTS These busbar supports can be used for grounding purposes.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01601 For busbars 12, 20, 30 x 5/10 1-pole for mounting individually.
Includes earth and neutral labels.
1 • •
HB01356 For busbars 12, 15, 20, 25, 30 x 5, 10, 2-pole individually
mountable, includes earth and neutral labels
1 • •
STANDARD COPPER BUSBAR
Manufactured to strict engineering tolerances for the 60-mm
busbar system, all busbars are tin-plated copper for superior
corrosion resistance in harsh environments.
BULLETIN: HB1
Catalog Number Description (mm)
Length
(m)
UL Current
Capacity
(max.)
IEC Current
Capacity (max.) Qty.aUL508 cUL CSA
HB0161812 12 x 5 1.2 150 A 250 A 3 bar • • •
HB01618 12 x 5 2.4 150 A 250 A 3 bar • • •
HB0162012 20 x 5 1.2 362 A 400 A 3 bar • • •
HB01620 20 x 5 2.4 362 A 400 A 3 bar • • •
HB0162212 30 x 5 1.2 500 A 550 A 3 bar • • •
HB01622 30 x 5 2.4 500 A 550 A 3 bar • • •
HB0162312 12 x 10 1.2 300A 450A 3 bar • • •
HB01623 12 x 10 2.4 300A 450A 3 bar • • •
HB0162412 20 x 10 1.2 564A 630A 3 bar • • •
HB01624 20 x 10 2.4 564A 630A 3 bar • • •
HB0162512 30 x 10 1.2 756 A 800 A 3 bar • • •
HB01625 30 x 10 2.4 756 A 800 A 3 bar • • •
HBCUCUT --- Custom --- --- 3 bar
aTo order models in qty. 1, use catalog number with HBB prefix and omit the 0 at front (i.e. HBB161812,
HBB1623)
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS5

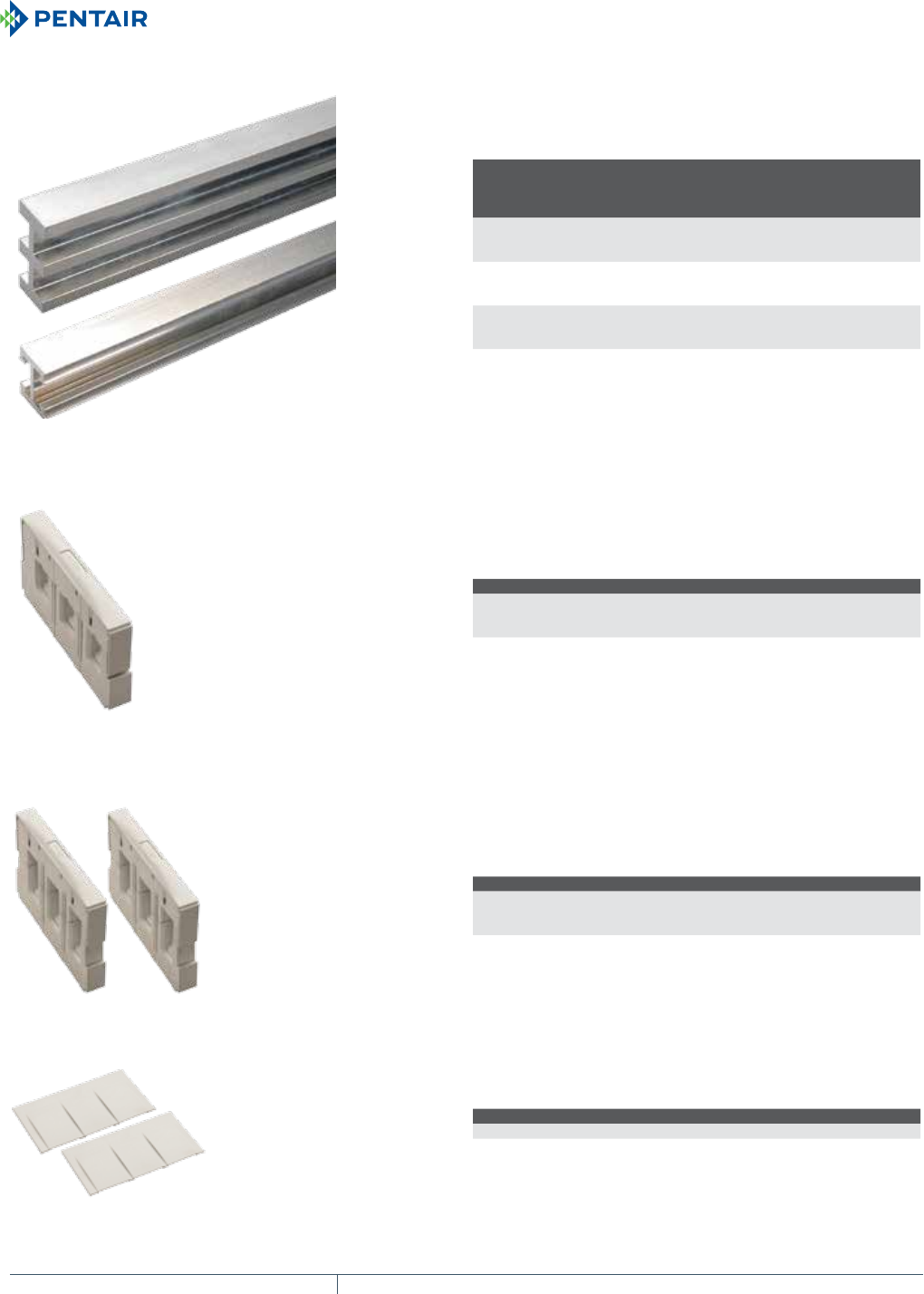

STANDARD COPPER BUSBAR, FOR DOUBLET AND
TRIPLET SECTIONS
Use in higher-current applications between 756 A and 2,000 A
(please contact Hoffman regarding how to achieve 4,000 A). The
outer-most section of these symmetrical profile busbars are 30 x
10 mm. All 60-mm system components can be mounted on systems
using this busbar structure.
BULLETIN: HB1
Catalog Number Description
Length
(mm)a
Cross
section
(mm2)
UL
Current
Capacity
(max.)
IEC
Current
Capacity
(max.) Qty. UL508 cUL CSA
HB01609 Double-T busbar
section,
tin plated
2400 500 1200 A 1250 A 1 • • •
HB01608 Double-T busbar
section,
tin plated
2400 720 1400 A 1600 A 1 • • •
HB01187 Triple-T busbar
section,
tin plated
2400 1140 1800 Ab2500 A 1 • • •
aShorter lengths available on request.
bUp to 2000 A within 800 mm of the power connection for HB01187
BUSBAR SUPPORT, FOR DOUBLET SECTIONS This busbar support is suitable for both the 500-mm2 and 720-mm2
Double-T profiles. Use to fasten the busbars to a backpanel or
modular enclosure system structure. The supports also serve as
bracing against the forces present during short circuit conditions.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01116 1-pole without end cover,
for connection to HB01231 and
individually mountable
1 • •
HB01231 3-pole without end cover,
with internal screw holes
2 • • •
BUSBAR SUPPORT, FOR TRIPLET SECTIONS Suitable for the 1140-mm2 Triple-T profile. Use to fasten the
busbars to a backpanel or modular enclosure system structure.
The supports also serve as bracing against the forces present
during short circuit conditions.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01132 1-pole without end cover,
for connection to HB01232 and
individually mountable
1 • •
HB01232 3-pole without end cover,
with internal screw holes
2 • • •
END COVER, FOR DOUBLET AND TRIPLET SECTIONS Insulates the ends of three rigid copper busbars installed in the
HB01231 and HB01232.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01234 End cover for busbar supports HB01231 and HB01232 2 • • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 6

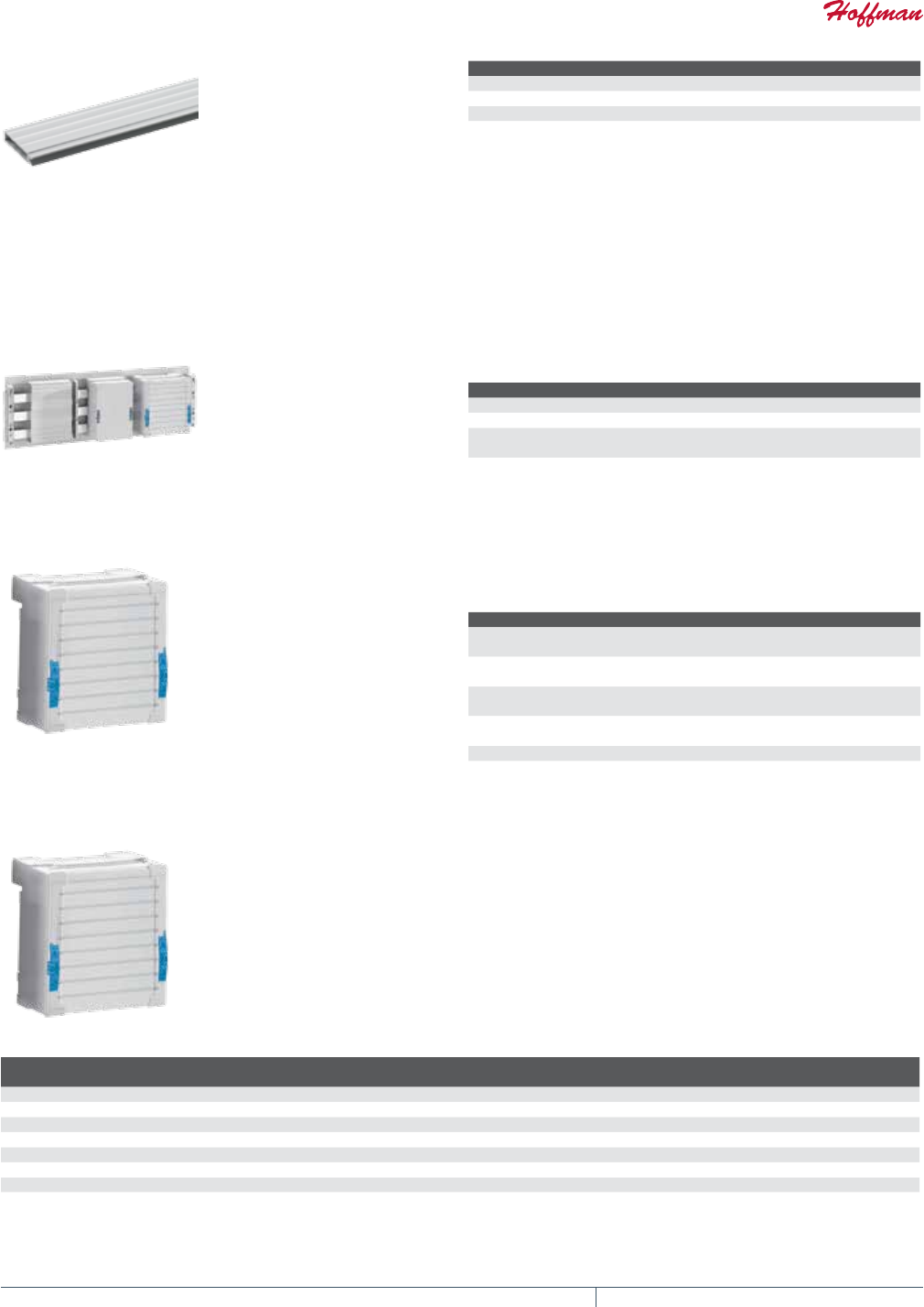

BUSBAR COVER, FOR INDIVIDUAL BUSBARS
Plastic cover for standard busbar, 12 - 30 x 5 - 10, as well as
double-T and triple-T profile busbars. Provides touchsafe security
while covering unused sections of busbar that can be uncovered
during future system expansion.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01244 For 12 - 30 x 5 mm busbar 2 • • •
HB01245 For 12 - 30 x 10 busbar 2 • • •
HB01252 1M long, for double-T and triple-T section 1 • • •
RESERVE SECTION COVER, 3POLE, FOR SYSTEMS
WITH 1230 X 5, 10MM BUSBARS, DOUBLET AND
TRIPLET SECTION
Use to provide touchsafe protection of all three bars of a 60-mm
system. Mounts on a set of plastic brackets that clip directly to the
busbar of your system.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01025 Section cover 700 x 195 1 • • •
HB01026 Mount, for cover section HB01025, 9 x 196 x 32 2 • • •
HB01320 Mount, for cover section HB01025, HB0123612,
HB0123712, HB0123812, 9 x 196 x107
2 • •
SYSTEM COVER, 3POLE OR 4POLE, FOR SYSTEMS
WITH 1230 X 5, 10MM BUSBARS, DOUBLET AND
TRIPLET SECTION
The combination of these components provides touchsafe
protection over connection sets and terminals that mount on the
face of the busbar system. System cover provides space underneath
to accommodate these mounted components. Components need to
be cut to appropriate length.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB01136 Holder set (left + right) for cover sections,
3-pole, for HB01554 and HB01555
1 • • •
HB01554 Compartment section, front,
3-pole, 3 x 190 x 1100
1 • • •
HB01137 Holder set (left + right) for cover sections,
4-pole, for HB01599 and HB01555
1 • • •
HB01599 Compartment section, front,
4-pole, 3 x 250 x 1100
1 • • •
HB01555 Cover section, top/bottom, 3 x 118 x 1100 1 • • •
COVER CAP, 3POLE OR 4POLE Can also be used as reserve section cover. Use to cover most
connection sets.
BULLETIN: HB2
Catalog Number Description
W x H x D
(mm) Qty. UL508 cUL CSA cURus
HB01590 3-pole, for 12-30 x 5,10 busbars, double-T and triple-T sections 54 x 200 x 55 1 • • •
HB01413 3-pole, for 12-30 x 5,10 busbars, double-T and triple-T sections 84 x 200 x 55 1 • • •
HB01756 3-pole, for 20-30 x 10 busbars, double-T and triple-T sections 135 x 200 x 90 1 • • •
HB01540 3-pole, for 12-30 x 5,10 busbars, double-T and triple-T sections 180 x 200 x 90 1 • • •
HB01539 3-pole, for 12-30 x 5,10 busbars, double-T and triple-T sections 228 x 200 x 90 1 • • •
HB01596 3-pole, for 12-30 x 5,10 busbars, double-T and triple-T sections 250 x 200 x 90 1 • • •
HB01757 3-pole, for 20-30 x 5,10 busbars, double-T and triple-T section 270 x 200 x 90 1 • • •
HB01597 4-pole, for 12-30 x 5,10 busbars, double-T and triple-T section 228 x 260 x 90 1 • • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS7
COMPARTMENT SECTION, FOR ADJUSTING
INSTALLATION DEPTH IN DOUBLET AND TRIPLET
BUSBAR SYSTEMS
Provides additional depth to system covers and reserve section
covers that are mounted on Double-T and Triple-T profile busbars.
Sold in 1200-mm sections, they can be cut to length and mounted to
the support structure. Provide additional touchsafe protection and
prevent personnel from reaching behind the 3-pole covers where
they might come in contact with a live component.
BULLETIN: HB2
Catalog Number Description Length (mm) Depth (mm) Qty.
HB0123612 Compartment section, 1200 x 48 1200 48 1
HB0123712 Compartment section, 1200 x 76 1200 76 1
HB0123812 Compartment section, 1200 x 106 1200 106 1

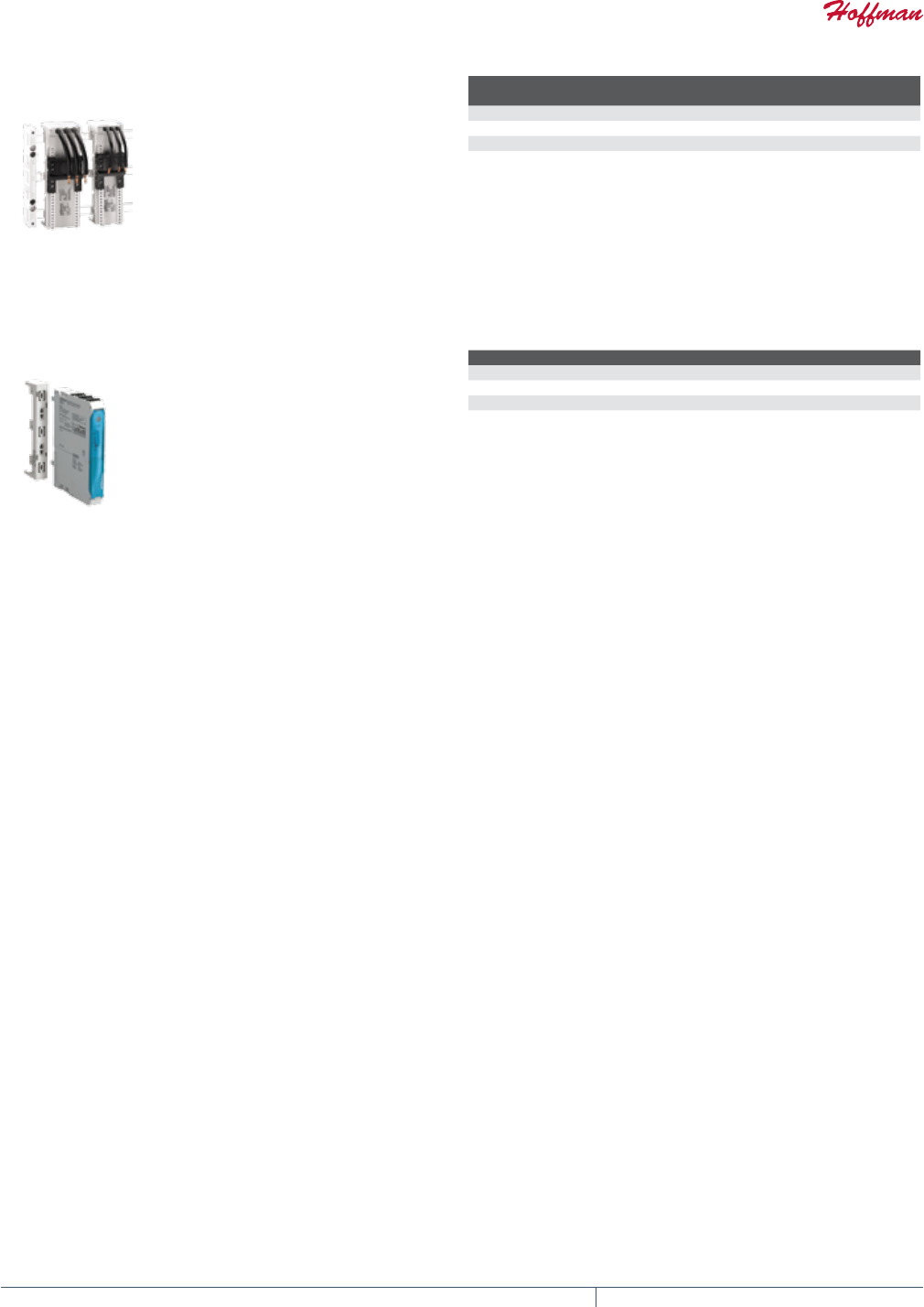

CRITO® PROFILINER CONNECTION MODULE At 20-mm wide, this cage-clamp device is the narrowest connection
method available. Use to feed or draw up to 48 A (UL) or 80 A (IEC)
of power.
CRITO ProfiLiner is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description W x H x D
UL Current
Capacity (max.)
IEC Current
Capacity (max.) Qty. UL508 cUL
HB01563 3-pole with spring terminals AWG 14 - 6, for 12-30 x 5,10 busbars, double-T and triple-T section 20 x 200 x 91 mm 48 A 80 A 1 • •
CONNECTING TERMINAL PLATE, 3POLE Use to connect round conductors or flat flexible conductors to
the busbar system and to feed or draw power to, from or between
lengths of busbar. Each terminal plate comes with a cover cap
providing finger-safe protection.
BULLETIN: HB2
Catalog Number Description W x H x D (mm)
UL Current
Capacity
(max.)
Current
Capacity
(max.) Qty. UL508 cUL CSA
HB01240 AWG 10 - AWG 2/0, flexible cables, directly or with wire-end ferrule, stranded round
cables la. Cu 7x4 - 9x6, for 12 x 5 - 30 x 10 busbars and double-T and triple-T connections
54 x 200 x 84 175A 300 A 1 • • •
HB01243 AWG 6 - MCM 250, flexible cables, directly or with wire-end ferrule, stranded round
cables, la. Cu 12x4 - 15,5x10, for 12 x 5 - 30 x 10 busbars and double-T and triple-T connections
81 x 200 x 84 255A 440 A 1 • • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 8

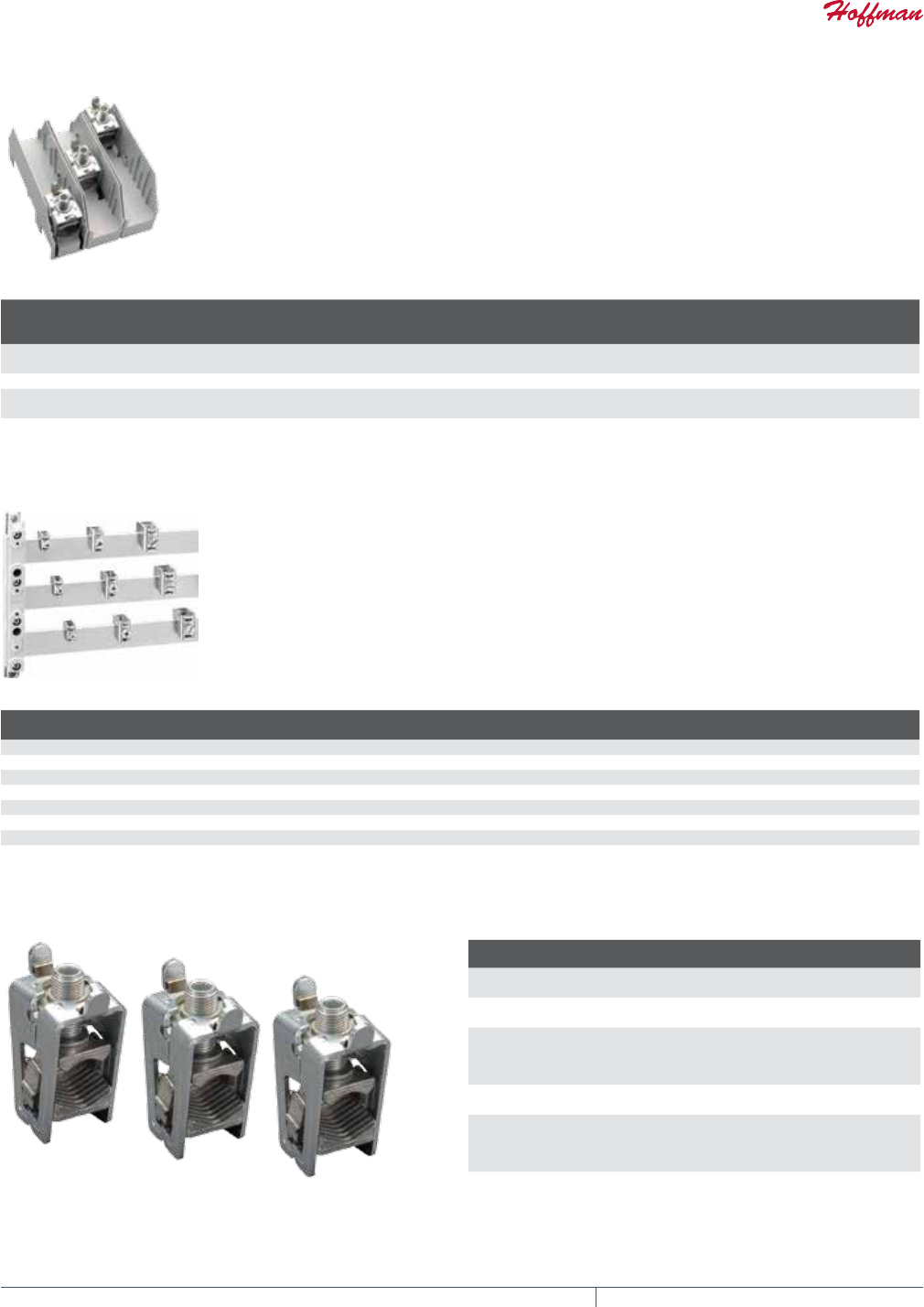

CONNECTION SET, 3POLE OR 4POLE, WITHOUT
COVER
Modular design allows phase connections to be spread out along
the busbar structure. Each phase conductor can be run parallel
from the upstream or downstream device. These connection sets do
not come with a cover cap – use Cover Cap or System Cover to gain
finger-safe protection.
BULLETIN: HB2
Catalog Number Description
W x H x D
(mm)
UL Current
Capacity
(max.)
Current
Capacity
(max.) Qty. UL508 cUL CSA
HB01537 3-pole, Cu cables Class B acc. to UL 486E, 95 - 300 mm² / AWG 3/0 - MCM
600, for 20 x 5 - 30 x 10 and double-T and triple-T section*
153 x 184 x 115 560A 560 A 1 • • •
HB01538 3-pole, for flat busbars up to 32 x 20mm 153 x 184 x 115 800 A 1 • • •
HB01147 4-pole, Cu cables Class B acc. to UL 486E, 95 - 300 mm² / AWG 3/0 - MCM
600, for 20 x 5 - 30 x 10 and double-T and triple-T section*
204 x 224 x 115 420A 560 A 1 • • •
HB01162 4-pole, for flat busbars up to 32 x 20mm 204 x 224 x 115 800 A 1 • • •
* Not maintenance-free when aluminum conductors are used.
UNIVERSAL CONDUCTOR TERMINAL Terminals for round American Wire Gauge (AWG) conductor are
used to either supply power to or draw power from the busbar
system. These parts must match the thickness of the busbar being
applied in your system. Cover caps are sold separately. Sold in sets
of three terminals.
BULLETIN: HB2
Catalog Number Description
Connection
AWG (min.-max.)
Terminal Space
H x W (mm)
Current
Capacity (max.) Qty. UL508 cURus CSA
HB01284 5-mm flat busbars 16-6 7.5 x 7.5 180 A 3 • • •
HB01285 5-mm flat busbars 12-2 10.5 x 11 270 A 3 • • •
HB01287 5-mm flat busbars 6-2/0 14 x 14 400 A 3 • • •
HB01068 5-mm flat busbars 6-250 MCM 17 x 15 440 A 3 • • •
HB01289 10-mm flat busbars 16-6 7.5 x 7.5 180 A 3 • • •
HB01290 10-mm flat busbars 12-2 10.5 x 11 270 A 3 • • •
HB01292 10-mm Double-T and Triple-T busbar sections 6-2/0 14 x 14 400 A 3 • • •
HB01203 10-mm Double-T and Triple-T busbar sections 6-250 MCM 17 x 15 440 A 3 • • •
Meets UL508 when properly installed.
CRITO® PROFICLIP, BRACE TERMINALS
CRITO ProfiClip is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog
Number Description Current
HB01135 For busbars 12-20 x 5-10, Cu cables Class B acc.
to UL 486E, 35 - 150 mm² / AWG 2 - MCM 300*
480 A 1 • • •
HB01319 For busbars 20 x 5 - 30 x 10, double-T and
triple-T sections, flat busbar up to 30 x 20 mm
750 A 3 • • •
HB01318 For busbars 20 x 5 - 30 x 10, double-T and
triple-T sections, Cu cables Class B acc. to UL
486E,
95 - 185 mm² / AWG 3/0 - MCM 350*
500 A 3 • • •
HB01759 For busbars 20 x 5 - 30 x 10, double-T and
triple-T sections, flat busbar up to 30 x 20 mm
800 A 3 • • •
HB01760 For busbars 20 x 5 - 30 x 10, double-T and
triple-T sections, Cu cables Class B acc. to UL
486E,
95 - 300 mm² / AWG 3/0 - MCM 600*
600 A 3 • • •
*Not maintenance-free if aluminum conductors are used
Meets UL508 when properly installed.
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS9
PROFILE TERMINAL, FOR DOUBLET BUSBAR
SECTIONS

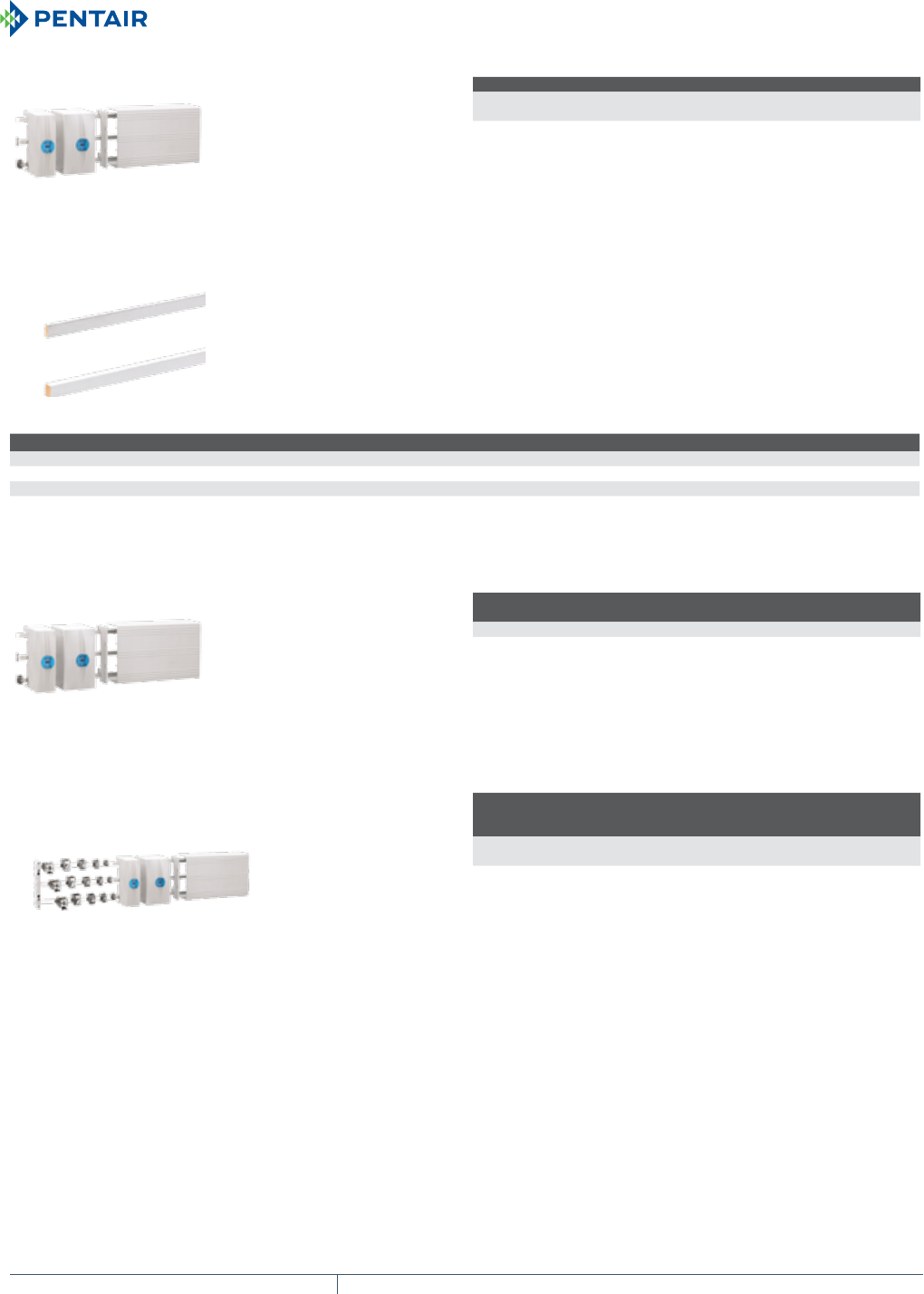

Terminals for flat busbars and flexible copper busbars used to
either supply power to or draw power from the busbar system.
Cover caps are sold separately. Sold in sets of three terminals.
BULLETIN: HB2
Catalog Number Description
Connection
Cross Section
(sq. mm)
Terminal
Space
W x H (mm) Side Supply (max.) Center Supply (max.) Qty. UL508 cURus CSA
HB01185 For connecting flat busbars and flexible copper busbars 320–800 41 x 20 – 42 1600 A 1600 A 3 • • •
HB01906 For connecting flat busbars and flexible copper busbars 500–750 51 x 5 – 28 1600 A 1600 A 3 • • •
HB01907 For connecting flat busbars and flexible copper busbars 600–900 64 x 5 – 28 1600 A 1600 A 3 • • •
HB01936 For connecting flat busbars and flexible copper busbars 500–1000 51 x 20 – 42 1600 A 2000A 3 • • •
HB01911 For connecting flat busbars and flexible copper busbars 600–1200 64 x 20 – 42 1600 A 2000A 3 • • •
HB01934 For connecting flat busbars and flexible copper busbars 800–1600 81 x 20 – 42 1600 A 2500A 3 • • •
HB01935 For connecting flat busbars and flexible copper busbars 1000–2000 101 x 20 – 42 1600 A 2500A 3 • • •
PROFILE TERMINAL, FOR TRIPLET BUSBAR SECTIONS Terminals for flat busbars and flexible copper busbars used to
either supply power to or draw power from the busbar system.
Cover caps are sold separately. Sold in sets of three terminals.
BULLETIN: HB2
Catalog Number Description
Connection
Cross
Section (mm)
Terminal
Space
W x H (mm)
Side
Supply (max)
Center
Supply (max) Qty. UL508 cURus CSA
HB01513 For connecting flat busbars and flexible copper busbars 320–860 41 x 23 – 45 1600 A 1600 A 3 • • •
HB01008 For connecting flat busbars and flexible copper busbars 500–1260 64 x 23 – 45 2000 A 2500 A 3 • • •
HB01186 For connecting flat busbars and flexible copper busbars 1200–3600 101 x 23 – 45 3200 A 3200 A 3 • • •
BUSBAR CONNECTOR, FOR SAMESIZE BUSBARS
Use to extend busbar lengths or to install a shipping split in a
modular enclosure assembly. Three units required for a 3-pole
section. Use HB01026 or HB01320 and HB01025 as a cover.
BULLETIN: HB2
Catalog Number Description
Length
(mm)
System
Spacing
(mm)
Current
Capacity
(max.) Qty. UL508* cULus
HB01166 12 – 20 X 5 / 10 55 5 – 10 630 A 3 •
HB01193 12 – 20 X 5 / 10 150 100 – 110 630 A 3 •
HB01990 20 – 30 X 5 / 10 40 9 – 20 630 A 3 • •
HB01823 20 – 30 X 5 / 10 40 13 – 20 630 A 3 • •
HB01141 20 – 30 X 5 / 10 95 50 – 60 630 A 3 • •
HB01886 20 – 30 X 5 / 10 150 100 – 110 630 A 3 • •
HB01827 Double-T Section 50 9 – 20 1600 A 3 • •
HB01145 Double-T Section 95 50 – 60 1600 A 3 • •
HB01829 Double-T Section 150 100 – 110 1600 A 3 • •
HB01274 Triple-T Section 95 50 – 60 2500 A 3 • •
HB01275 Triple-T Section 150 100 – 110 2500 A 3 • •
* Meets UL508 requirements when phase separators are installed.
PHASE SEPARATORS, FOR UL INSTALLATION OF END
TOEND BUSBAR CONNECTION, 3POLE
Satisfy the through-air arcing distances of the UL508 standard
when using end-to-end bubsar connectors, for the same-size
busbars.
BULLETIN: HB2
Catalog Number Width (mm) For Use With Qty. UL508 cULus
HB01360 105 HB01166, HB01990, HB01823, HB01827 1 • •
HB01361 145 HB01141, HB01145, HB01274 1 • •
HB01362 200 HB01193, HB01886, HB01829, HB01275 1 • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 10

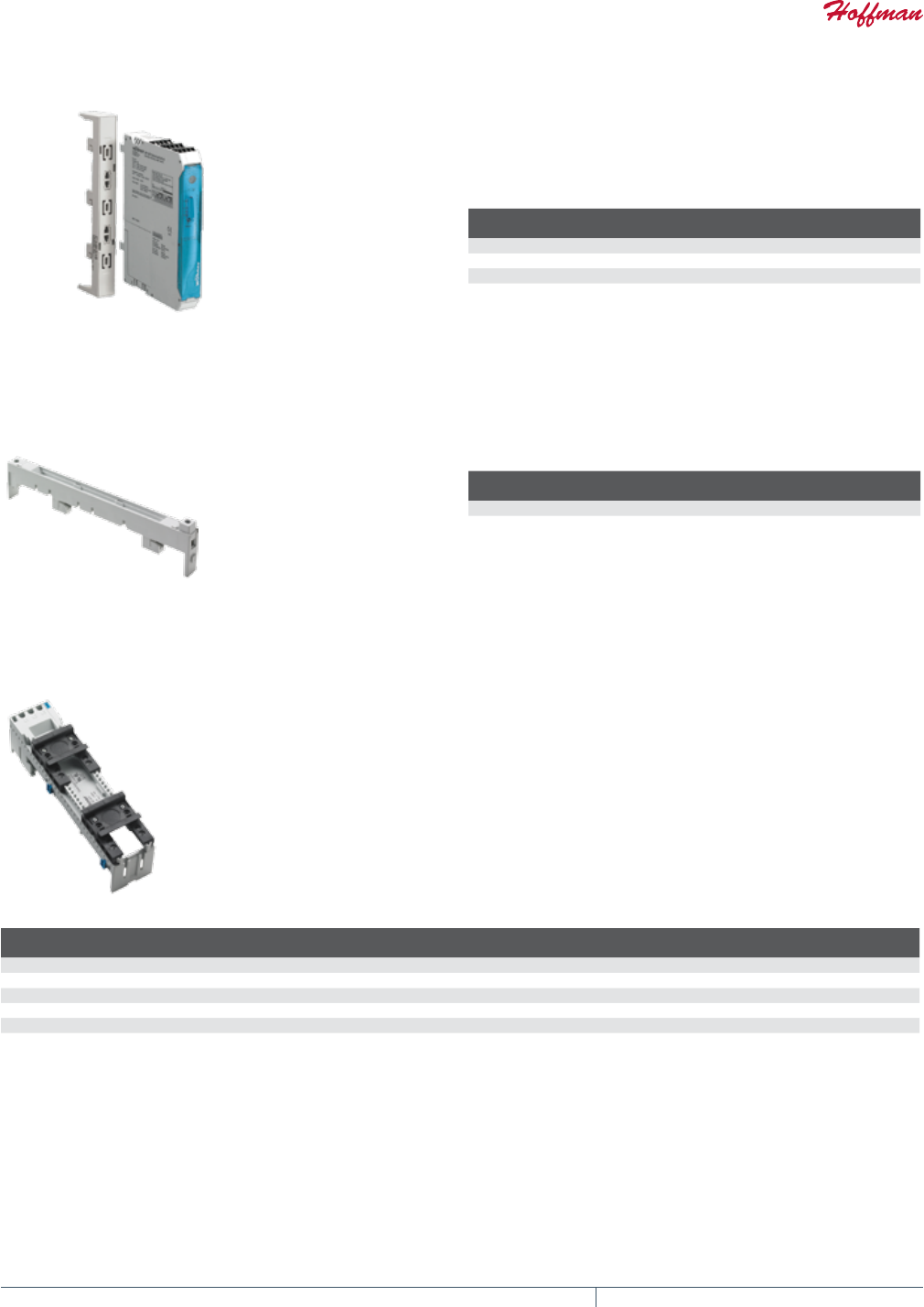

MOTUS® CONTACTRONCONTROL, HYBRID MOTOR
STARTER FOR 60MM SYSTEM CLASSIC
MOTUS® ContactronControl hybrid motor starter with reversing
function and CrossLink Technology offers system designers space
and labor savings by making up to 75% more space available on a
busbar system compared to conventional starter combinations. It
delivers versatile, reliable and long-lasting motor control with a
product lifespan 10 times longer than conventional contactors.
MOTUS® ContactronControl is a trademark of Wöhner GmbH & Co. KG
BULLETIN: HB2
Catalog Number Description Width (mm)
Rated Current/
Rated Voltage Qty. UL508 cULus
HB36102 Version 0.075 - 0.6A 22.5 0.6A/500V 1 • •
HB36105 Version 0.18 – 2.4A 22.5 2.4A/500V 1 • •
HB36108 Version 1.5 – 9.0A 22.5 9A/500V 1 • •
EARTH/NEUTRAL ADAPTER MODULE, WITH 6 AWG
TERMINALS, TOP AND BOTTOM
Earth or neutral terminal connection for the busbar system. Only
use with EQUES adapter, can be connected on both sides.
BULLETIN: HB2
Catalog Number Mounting Rail
Adapter
W x L (mm) Current Leads Qty. UL508 cULus
HB32146 --- 18 x 242 --- --- 1 • •
EQUES® EASYCONNECTOR EMPTY, BUSBAR ADAPTOR
WITHOUT ELECTRICAL CONTACTS
DIN rail adapters for components that have a 35-mm symmetrical
DIN rail mounting provision. Available in 45-mm or 54-mm widths
and 200-mm or 260-mm heights with one or two DIN rails. Most
commonly used to add width to a powered EQUES EasyConnector
for reversing contactor applications or to mount other components
that are wider than 81 mm. The side-mounted module adds width to
any adapter in 9-mm increments and maintains the IP20 fingersafe
design of the busbar system.
EQUES EasyConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description Mounting Rail Qty.
Adapter
W x L (mm) Current Leads Qty. UL508 cUL CSA
HB32477 2 mounting rails, empty 2 45 x 200 — — 1 • • •
HB32478 2 mounting rails, empty 2 54 x 200 — — 1 • • •
HB32484 2 mounting rails, empty 2 45 x 260 — — 1 • • •
HB32485 2 mounting rails, empty 2 54 x 260 — — 1 • • •
HB32963 Side module, connectable on both sides — 9 x 200 — — 1
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS11
AMBUS® JCARRIER Busbar mounted 3-pole fuse holder for UL Listed Class J 30 and 60
A ferrule size fuses.
AMBUS J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number
Description
(mm)
Width
(mm)
Rated Current/
Rated Voltage Qty. UL508 cURus CSA
HB31968 Class J, 21 x 57, with LED 108 30 A / 600 V 1 • • •
HB31970 Class J, 27 x 60, with LED 126 60 A / 600 V 1 • • •
EQUES® TECHNOLOGY ACCESSORIES Additional DIN mounting rails and accessories for EQUES
EasyConnectors. Connecting elements are used to fasten adjacent
EQUES EasyConnectors, 9-mm extenders and mounting rails.
EQUES EasyConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL CSA
HB32947 Mounting rail 45mm 1 • • •
HB32948 Mounting rail 54mm 1 • • •
HB32949 Mounting rail 63mm 1 • • •
HB32950 Mounting rail 72mm 1 • • •
HB32951 Mounting rail 81mm 1 • • •
HB32954 Connecting element, universal 1 • • •
HB32956 Micro switch for EMC 1
HB32969 Mounting rail end stop 1
HB32511 8-pole connector w/ support, 250V 1
HB32513 10-pole connector w/ support, 250V 1

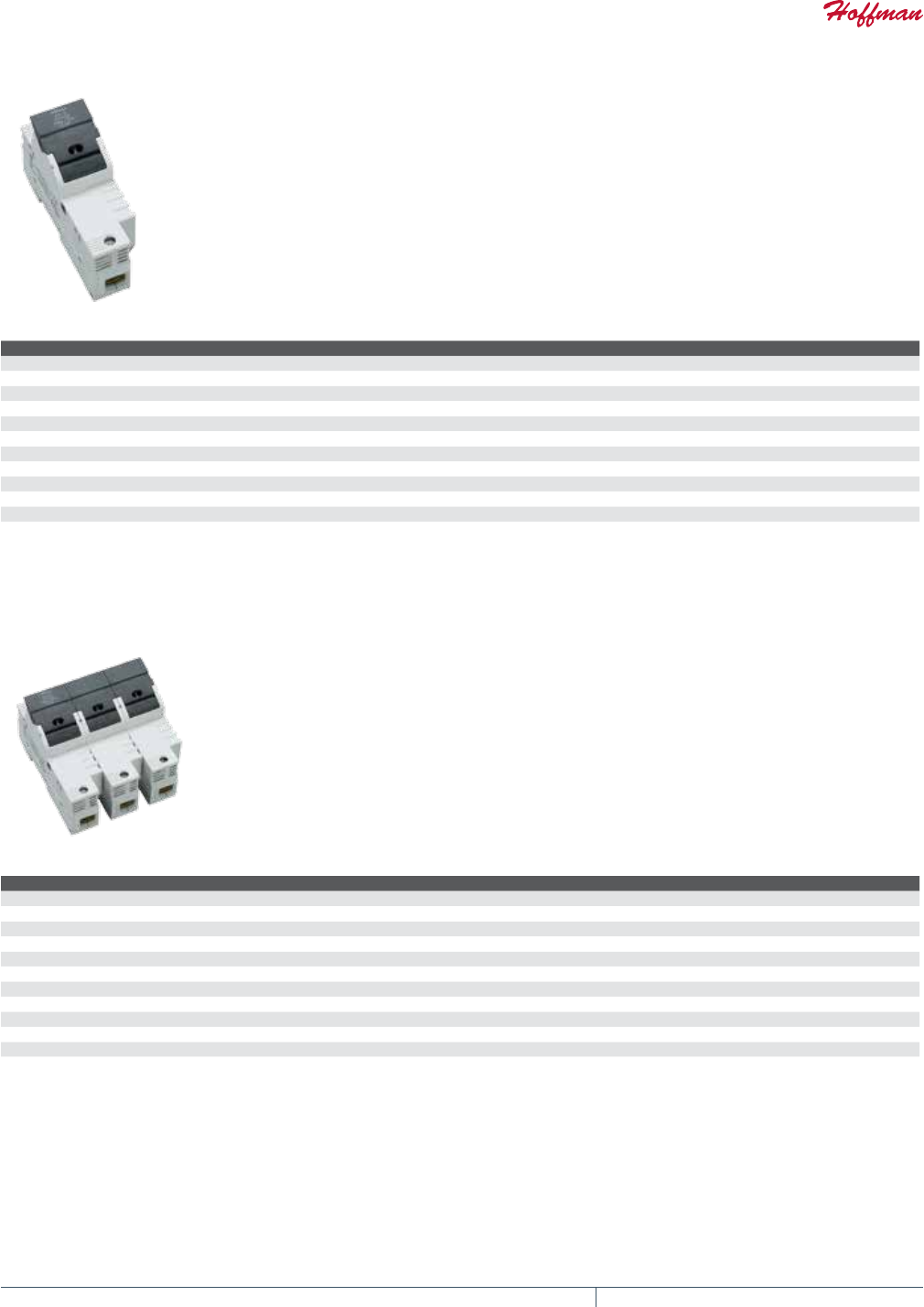

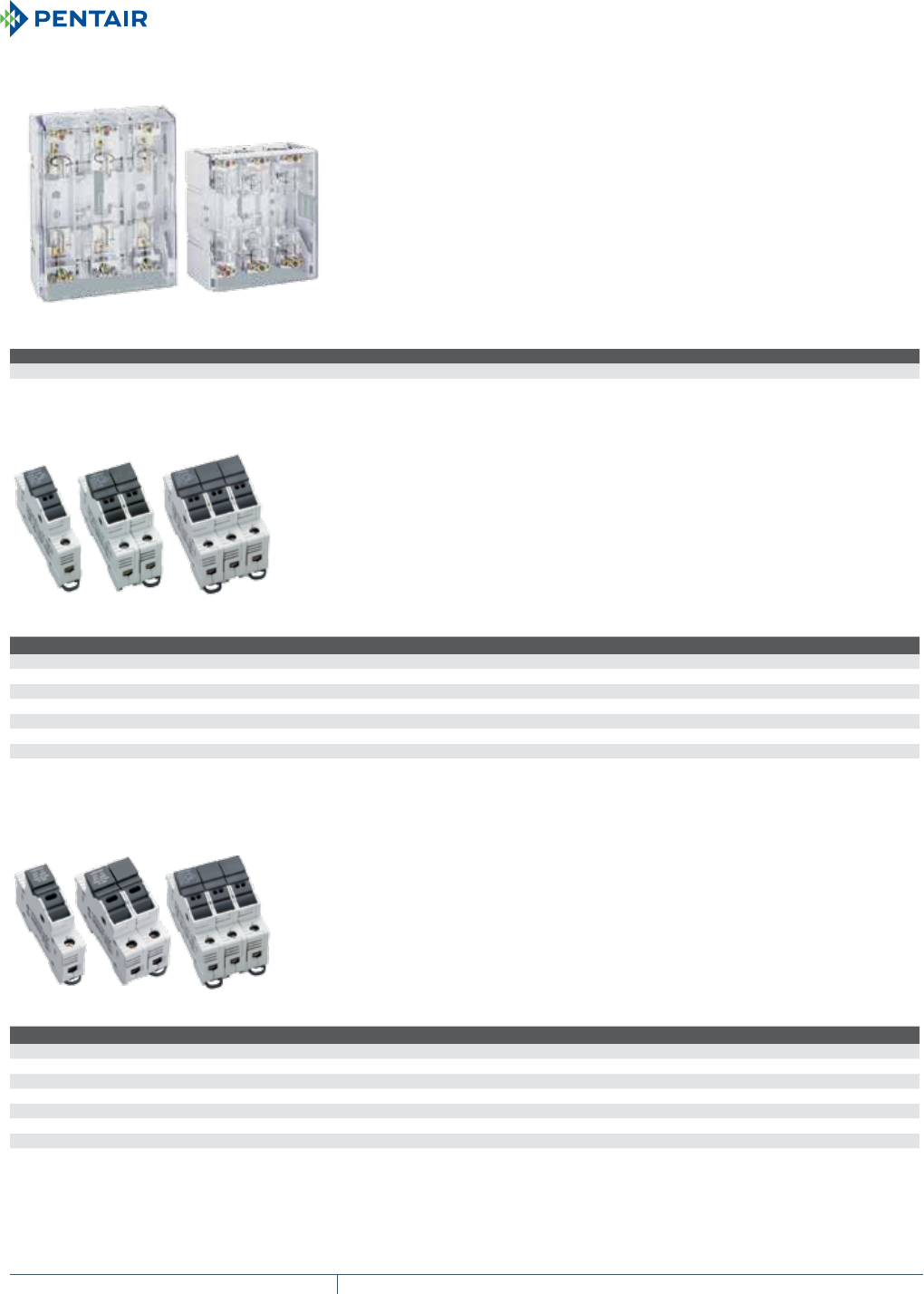

AMBUS® EASYLINER, BUSMOUNTING FUSE HOLDER Busbar-mounted 1-pole and 3-pole fuse holder for UL recognized
midget (10 x 38 mm) and UL Listed Class CC fuses. Holders are
offered with or without open fuse indication. In indication units, the
LED indicator lamp will glow when the fuse is open.
AMBUS EasyLiner is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description Use with busbars
Rated Current/
Rated Voltage Width (mm) Qty. UL4248 cULus cURus CSA UR
HB31570 1-pole, for fuses
10 x 38 IEC 60269-6
30 x 5/10 30A/1000V DC 22.5 1 • •
HB31954 3-pole, for fuses
10 x 38 IEC 60269-3
12, 15, 20, 25 and 30 x 5or 10 32A/690V/600A(UL) 27.0 1 • • •
HB31955 3-pole, for fuses
10 x 38 IEC 60269-3,
with LED
12, 15, 20, 25 and 30 x 5or 10 32A/690V/600A(UL) 27.0 1 • • •
HB31958 3-pole, for fuses
Class CC
12, 20, 30 x 5, 10; double-T and triple-T section 30A/600V 27.0 1 • • •
HB31959 3-pole, for fuses
Class CC, with LED
12, 20, 30 x 5, 10; double-T and triple-T section 30A/600V 27.0 1 • • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 12

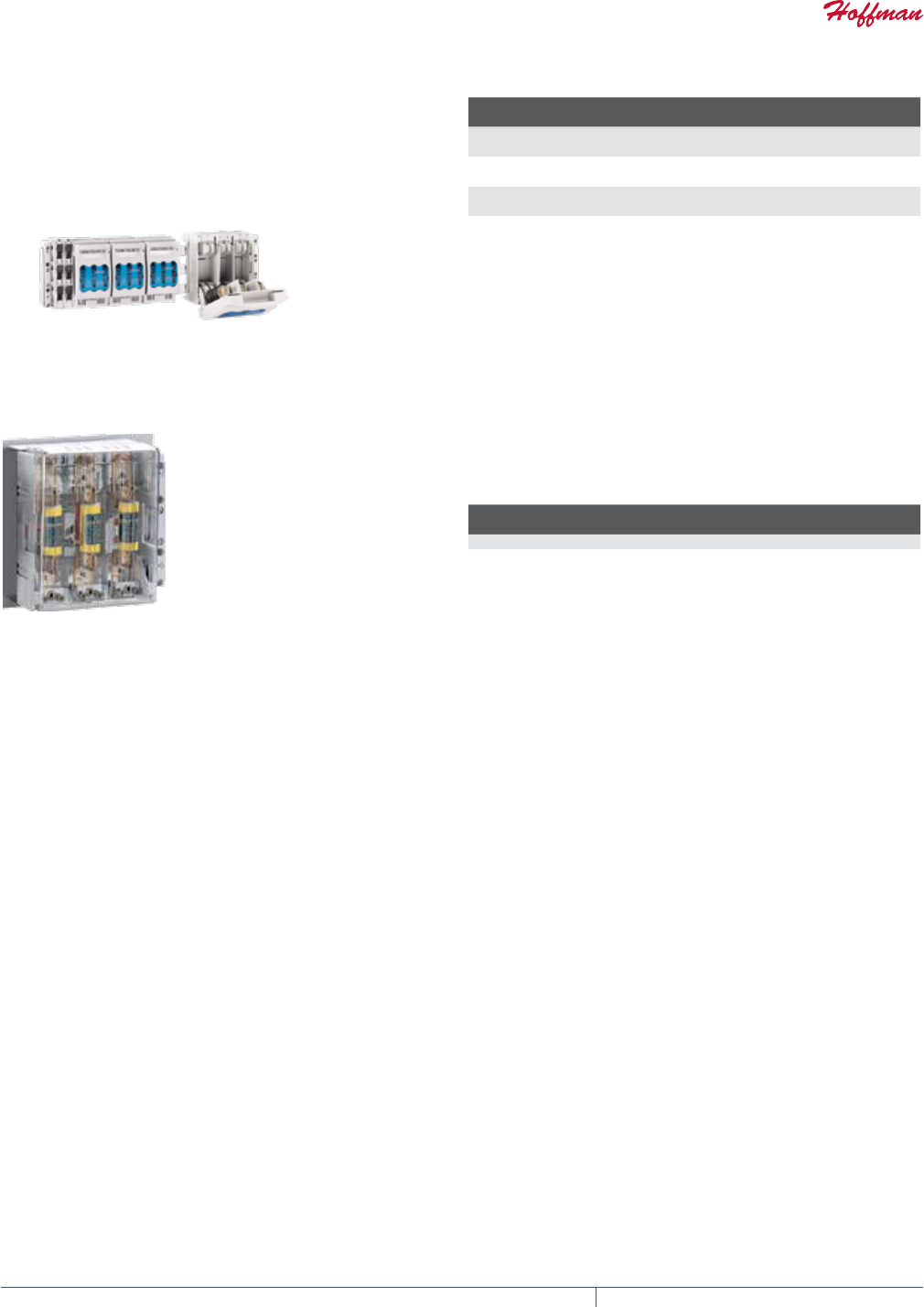

QUADRON® CROSSLINK CARRIER CLASS J, CONNECTION BOTTOM OR TOP
The QUADRON® CrossLink Carrier Class J fuse holder allows 30,
60, 100 and 200 amp 3-phase fuse holders to be mounted directly
to the 60mm classic busbar structure. The cover design provides
touch-safety and allows for quick fuse change-out with its integral
puller. Easily reversible connection on bottom, top or 3-pole busbar
sections.
QUADRON
® CrossLink Carrier is a trademark of Wöhner GmbH & Co.
KG
BULLETIN: HB2
Catalog Number Description Width (mm)
Rated Current/
Rated Voltage Qty. U4248 cURus
HB33421 For Class J,
30A frame size
106 30A/600V 1 • •
HB33422 For Class J,
60A frame size
106 60A/600V 1 • •
HB33402 For Class J,
100A frame size
106 100A/600V 1 • •
HB33403 For Class J,
200A frame size
184 200A/600V 1 • •
For HB33402 and HB33403, do not use any fuse links with sharp-edged contact blades.
QUADRON® JCARRIER, CONNECTION BOTTOM OR TOP Blade size Class J bus-mounting fuse holders in 400 A frame size.
Connection on bottom or top, 3-pole, for 12, 20, 30 x 10 busbars,
double-T and triple-T section.
QUADRON J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number
Description
(mm)
Width
(mm)
Rated Current/
Rated Voltage Qty.
UL4248/
UL508 cURus CSA
HB33311 Class J, 54 x 181 256 400 A / 600 V 1 • • •
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS13

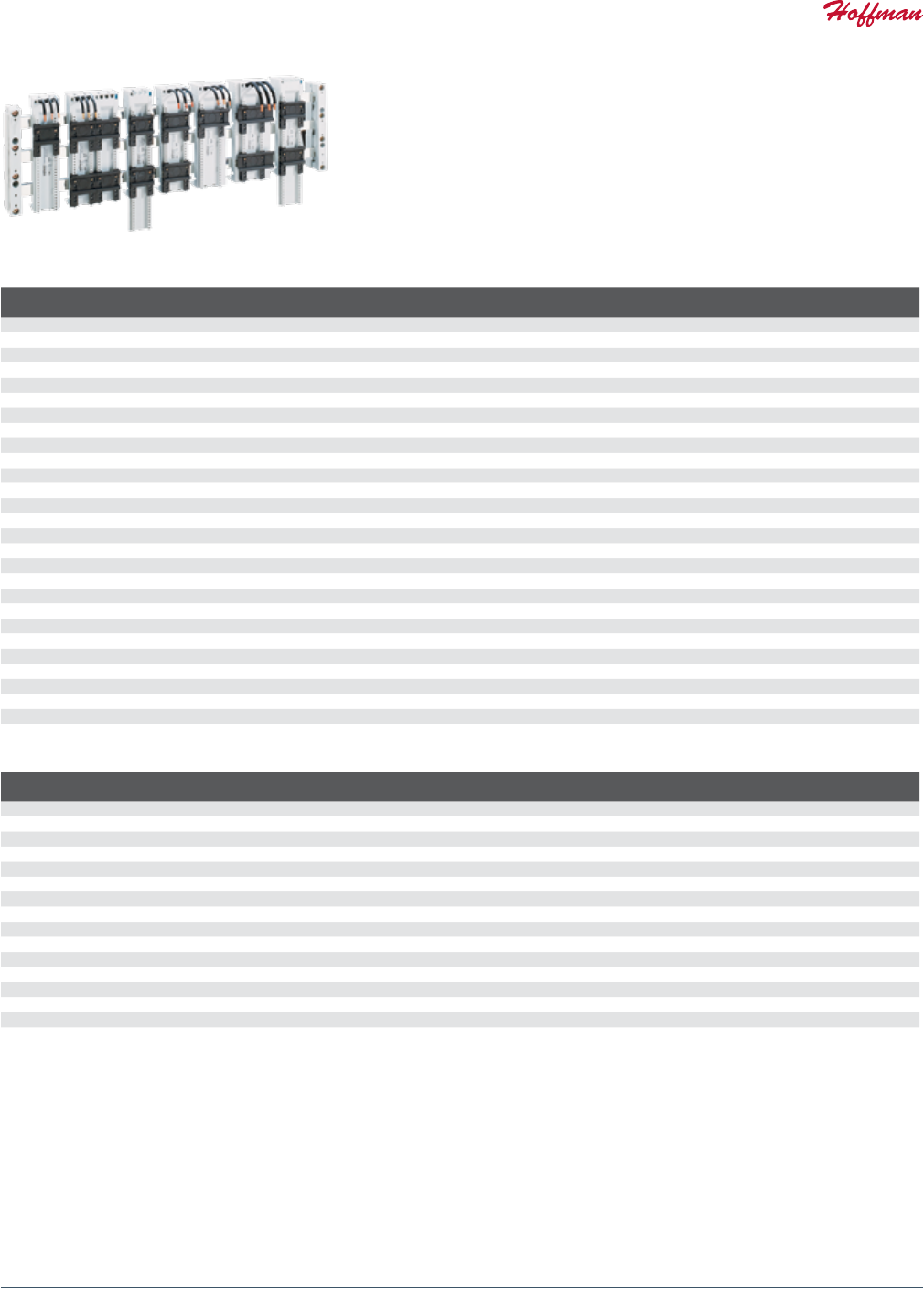

EQUES® POWERCONNECTOR, BUSBAR ADAPTER
Adapters configured specifically for many of the industry’s leading
molded-case circuit breakers. The hole pattern for the mounting
screws, pitch and length of the terminal connections are specific to
the breaker they are designed to mount. Can be directly mounted on
12, 15, 20, 25, 30 x 5 and 10 busbars, and section busbars.
EQUES PowerConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Standard Product: 3-Pole
Catalog Number Description Rated Current (A)
Adapter
W x L (mm) Qty. UL508 cUL CSA
HB32575 For ABB T-max T1 / XT1, T-max T2 / XT2, GE FD160, Schneider El. NS80, NSX80, top connection 160 90 x 200 1 • • •
HB32577 For Eaton EG-Frame, top connection 160 90 x 200 1 • • •
HB32549 For Allen-Bradley 140-CMN, top connection 160 90 x 200 1 • • •
HB32570 For Eaton NZM1, top/bottom connection with CrossLink Technology 160 92 x 200 1 • • •
HB32976 For Siemens 3VL1 UL 160 106 x 192 1 • • •
HB32601 For ABB T-max T4, Siemens 3RV1, top connection 290 105 x 240 1 • •
HB32137 For Eaton JG-Frame, top/bottom connection 250 106 x 192 1 • • •
HB32140 For Eaton NZM2-XKR4O and NZM2-XKR4U 250 106 x 192 1 • • •
HB32156 For Schneider Electric NSX100-NSX250, GV7 250 106 x 192 1 • • •
HB32977 For Siemens 3VL2, 3VL3 UL 250 108 x 192 1 • • •
HB32592 For Terasaki S250-NJ, top connection 250 105 x 240 1 • •
HB32593 For ABB T-max T5 and Allen-Bradley 140G-K 580 140 x 300 1 • •
HB32138 For Eaton K and LG-Frame 600 140 x 272 1 • • •
HB32157 For Schneider Electric NS400/630, NSX 400/630 570 140 x 272 1 • • •
HB32975 For Siemens 3VL4 400A/540 140 x 295 1 • • •
HB32980 For Siemens 3VL5 580 184 x 325 1
Standard Product : 4-Pole Adapters for busbars 12, 15, 20, 25, 30 x 5, 10, double-T and triple-T section
Catalog Number Description Rated Current (A) Adapter W x L (mm) Qty. UL508 cULus
HB32584 For ABB Tmax T4 250 140 x 270 1 • •
HB32582 For Schneider Electric NSX100-NSX250 250 140 x 270 1 • •
HB32580 For Eaton NZM2-XKR4O 250 140 x 270 1 • •
HB32578 For Siemens 3VL2, 3VL3 250 140 x 270 1 • •
HB32585 For ABB Tmax T5 500A/630 185 x 300 1 • •
HB32583 For Schneider Electric NS400/630, NSX 400/630 500A/630 185 x 300 1 • •
HB32581 For Eaton NZM3-XKR13O 500A/630 185 x 300 1 • •
HB32579 For Siemens 3VL400 400A/630 185 x 300 1 • •
Standard Product : Universal Adapters for 12 - 30 x 5 - 10 busbars and section busbars
Catalog Number Description Rated Current (A) Adapter W x L (mm) Qty. UL508 cURus CSA
HB32214 Terminals 70 mm² at top, 3-pole* 200 108 x 222 1 • • •
HB32215 Terminals 70 mm² at bottom, 3-pole* 200 108 x 222 1 • • •
HB32168 Terminals 95 mm² at top, 3-pole* 250 110 x 320 1 • • •
HB32216 Terminals 95 mm² at bottom, 3-pole* 250 110 x 320 1 • • •
HB32004 Connection screws M12, top and bottom connection, 3-pole 630 184 x 320 1
HB32937 Slide nut M5 for HB32168, HB32214, HB32215, and HB32216 --- --- 1
*For all commercially available switchgear with M4 fixing screw
BUSBAR DISTRIBUTION SYSTEM 60mm system ClassiC
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 14
EQUES® EASYCONNECTOR, BUSBAR ADAPTER, UNIVERSAL
DIN rail adapters for components that have symmetrical DIN
rail mounting provision. Additional DIN rails can be added to the
adapter. Can be directly mounted on 12, 15, 20, 25, 30 x 5 and 10
busbars, and section busbars.
EQUES EasyConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Standard Product Universal
Catalog Number Description Mounting Rail qty.
Adapter
W x L (mm) Current (A) Leads Qty. UL508 cUL CSA cURus
HB32429 2 mounting rails, for switchgear with spring terminals 2 45 x 200 16 14 AWG 1 • • •
HB32400 2 mounting rails, for switchgear with spring terminals 2 90 x 200 16 14 AWG 1 • • •
HB32430 1 mounting rail, universal 1 45 x 200 25 12 AWG 1 • • •
HB32431 2 mounting rails, universal 2 45 x 200 25 12 AWG 1 • • •
HB32432 2 mounting rails, universal 2 90 x 200 25 12 AWG 1 • • •
HB32433 2 mounting rails, universal 2 45 x 260 25 12 AWG 1 • • •
HB32436 2 mounting rails, universal, with screw terminal 6mm2 from rear 2 45 x 200 25 --- 1 • • •
HB32439 2 mounting rails, universal, with screw terminal 6mm2 from rear 2 45 x 260 25 --- 1 • • •
HB32441 1 mounting rail, universal 1 54 x 200 32 10 AWG 1 • • •
HB32442 2 mounting rails, universal 2 54 x 200 32 10 AWG 1 • • •
HB32443 1 mounting rail, universal 1 63 x 200 32 10 AWG 1 • • •
HB32444 1 mounting rail, universal 1 72 x 200 32 10 AWG 1 • • •
HB32446 2 mounting rails, universal 2 81 x 200 32 10 AWG 1 • • •
HB32449 2 mounting rails, universal 2 54 x 260 32 10 AWG 1 • • •
HB32486 1 mounting rail, with 6mm2 spring terminal from front 1 45 x 200 32 --- 1
HB32487 2 mounting rails, with 6mm2 spring terminal from front 2 45 x 200 32 --- 1
HB32454 1 mounting rail, universal 1 54 x 200 63 8 AWG 1 • • •
HB32455 2 mounting rails, universal 2 54 x 200 63 8 AWG 1 • • •
HB32456 1 mounting rail, universal 1 63 x 200 63 8 AWG 1 • • •
HB32457 1 mounting rail, universal 1 72 x 200 63 8 AWG 1 • • •
HB32459 2 mounting rails, universal 2 81 x 200 63 8 AWG 1 • • •
HB32461 2 mounting rails, universal 2 54 x 260 63 8 AWG 1 • • •
HB32466 1 mounting rail, universal, with screw terminal from rear 1 54 x 200 80 --- 1 • • •
HB32467 2 mounting rails, universal, with screw terminal from rear 2 54 x 200 80 --- 1 • • •
HB32469 1 mounting rail, universal, with screw terminal from rear 1 72 x 200 80 --- 1 • • •
HB32472 2 mounting rails, universal, with screw terminal from rear 2 54 x 260 80 --- 1 • • •
HB32464 1 mounting rail, universal, with screw terminal from rear 1 54 x 200 80 --- 1 • • •
HB32465 2 mounting rails, universal, with screw terminal from rear 2 54 x 260 80 --- 1 • • •
Standard Product Special
Catalog Number Description
Mounting
Rail Qty.
Adapter
WxL (mm) Current (A) Leads Qty. UL508 cULus CSA
HB32533 For director starter Allen-Bradley 140MC/D 2 45 x 200 25 12 AWG 1 • • •
HB32534 For reversing starter Allen-Bradley 140MC/D 2 54 x 200 25 12 AWG 1 • • •
HB32445 For direct starter Siemens S00 with screw connection 1 45 x 200 25 12 AWG 1 • • •
HB32448 For reversing starter Siemens S00 with screw connection 1 90 x 200 25 12 AWG 1 • • •
HB32450 For direct starter Eaton PKZ0/BG1 1 45 x 200 25 12 AWG 1 • • •
HB32452 For reversing starter Eaton PKZ0/BG1 1 90 x 200 25 12 AWG 1 • • •
HB32451 For direct starter Eaton PKZ0/BG2 2 45 x 200 32 10 AWG 1 • • •
HB32453 For reversing starter Eaton PKZ0/BG2 2 90 x 200 32 10 AWG 1 • • •
HB32427 For direct starter Schneider Electric LUB12/32 1 45 x 200 32 10 AWG 1 • • •
HB32428 For direct starter Schneider Electric GV2-M/P 1 45 x 260 32 10 AWG 1 • • •
HB32434 For direct starter Schneider Electric GV2-M/P 2 45 x 200 32 10 AWG 1 • • •
HB32438 For direct starter Schneider Electric GV2-M/P 2 45 x 260 32 10 AWG 1 • • •
HB32460 For director starter ABB MS45x, Eaton PKZM4, Siemens S2 2 55 x 260 63 8 AWG 1 • • •
HB32535 For direct starter Allen-Bradley 140M-F 2 54 x 200 63 8 AWG 1 • • •
HB32463 For direct starter ABB MS45x and Eaton PKZ5 2 72 x 260 63 8 AWG 1 • • •
BUSBAR DISTRIBUTION SYSTEM 60mm system CompaCt
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS15
BUSBAR SUPPORT AND BASE PLATE BULLETIN: HB2
Catalog Number Description W x H (mm) Qty. UL508 cULus
HB01272 Compact Busbar Support, 3-pole, for 12 x 5, 10
flat busbars, with end cover
12.5 x 156 1 • •
HB01371 Compact Base Plate 160 x 700 1
STANDARD COPPER BUSBAR BULLETIN: HB1
Catalog Number Description (mm) Length UL Current Rating Capacity (max) IEC Current Capacity (max.) QtyaUL508 cULus CSA
HB01618 12x5 2.4 150A 250A 3 • • •
HB0161812 12x5 1.2 150A 250A 3 • • •
HB01623 12x10 2.4 300A 450A 3 • • •
HB0162312 12x10 1.2 300A 450A 3 • • •
aTo order models in qty. 1 use catalog number with HBB prefix and omit 0 at front (i.e. HBB161812, HBB1623)
RESERVE SECTION COVER, 3POLE BULLETIN: HB2
Catalog Number Description
Width x
Height (mm) Qty. UL508 cULus
HB01314 Cover Section 700 x 160 1 • •
HB01317 Mount for Cover Section 5 x 156 2 • •
CONNECTING TERMINAL PLATE, 3POLE, WITH COVER
CAP
BULLETIN: HB2
Catalog Number Description
Width x
Height
(mm)
Current
Capacity
(max.) Qty. UL508 cULus
HB01401 6 - 50 (70) mm² / AWG 10 - AWG 2/0
round conductors, la. Cu 7x4 - 9x6
54 x 160 300A/600V 1 • •
HB01165 Cu cables Class B acc.
to UL 486E, 35 - 150 mm² / AWG 2
MCM 300, la. Cu up to 20x10
90 x 160 480A/600V 1 • •
BUSBAR DISTRIBUTION SYSTEM 60mm system CompaCt
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 16
EQUES® EASYCONNECTORS, SYSTEM COMPACT,
3POLE
BULLETIN: HB2
Catalog Number Description
Width x
Height (mm)
Rated Current/
Rated Voltage (UL) Qty UL508 cULus
HB32590 32A, 1 mounting rail 54x160 32A/60V 1 • •
HB32591 63A, 1 mounting rail 54x160 65A/600V 1 • •
HB32912 9mm side-mount module 9x160 --- 5 • •
MOTUS® CONTACTRONCONTROL, HYBRID MOTOR
STARTER FOR 60MM SYSTEM COMPACT
BULLETIN: HB2
Catalog Number Description Width (mm) Rated Voltage Qty UL508 cULus
HB36101 Version 0.075 - 0.6A 22.5 500V 1 • •
HB36104 Version 0.18 - 2.4A 22.5 500V 1 • •
HB36107 Version 1.5 - 9.0A 22.5 500V 1 • •
BUSBAR DISTRIBUTION SYSTEM insulated FlexiBle BusBar
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS17
HOLDERS, FOR LAMINATED BUSBARS (UP TO 10MM
LAMINATION PACKS)
Holders fasten to 35-mm symmetrical DIN rail. A set of 4 can be
used to hold 3 lengths of flexible busbars in a typical application.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01303 Holder 4 — —
BUSBAR DISTRIBUTION SYSTEM panel mount Fuse Holders
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 18
AMBUS® JCARRIER, CLASS J FUSE HOLDER, CLIPON
MOUNTING, STANDARD MODEL
DIN Rail mountable fuse holders for 30 and 60 A ferrule size
UL Class J fuses. Offered in single pole, 2-pole or 3-pole
configurations. Holders meet IP20 touchsafe design standards.
AMBUS J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 cULus CSA
HB31284 21 x 57 1-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 36 6 • • •
HBF31284 21 x 57 1-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 36 1 • • •
HB31285 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 72 3 • • •
HBF31285 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 72 1 • • •
HB31287 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 108 2 • • •
HBF31287 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 108 1 • • •
HB31920 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 40 6 • • •
HBF31920 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 40 1 • • •
HB31921 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 80 3 • • •
HBF31921 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 80 1 • • •
HB31922 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 120 2 • • •
HBF31922 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 120 1 • • •
AMBUS® JCARRIER, CLASS J FUSE HOLDER, CLIPON
MOUNTING, MODEL WITH LIGHT INDICATOR 110600
VAC/DC
DIN Rail mountable fuse holders for 30 and 60 A ferrule size UL
Class J fuses. Offered in single pole, 2-pole or 3-pole configurations
with LED open fuse indication. Indicator operates on systems
between 110 and 600 V. The LED lamp will glow when the fuse is
open (blown). Holders meet IP20 touchsafe design standards.
AMBUS J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 cULus CSA
HB31932 21 x 57 1-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 36 6 • • •
HBF31932 21 x 57 1-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 36 1 • • •
HB31933 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 72 3 • • •
HBF31933 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 72 1 • • •
HB31934 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 108 2 • • •
HBF31934 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 108 1 • • •
HB31923 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 40 6 • • •
HBF31923 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 40 1 • • •
HB31924 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 80 3 • • •
HBF31924 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 80 1 • • •
HB31925 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 120 2 • • •
HBF31925 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 120 1 • • •
BUSBAR DISTRIBUTION SYSTEM panel mount Fuse Holders
Spec-00507 L
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS19
QUADRON® JCARRIER, CLASS J FUSE HOLDER,
SCREWON
UL Class J, 400 A panel-mount fuse holders. Clear plastic cover
satisfies IP20 touchsafe design standards. The only 3-pole blade
size Class J fuse holder in the industry with integral touchsafe
cover.
QUADRON J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 cULus CSA
HB33308 54 x 181 3-pole 400 A/600 VAC 16 - 300 sq. mm AWG 4-600 MCM 256 1 • • •
AMBUS® EASYSWITCH DIN Rail mountable fuse holders for UL recognized Midget (10 x
38 mm) dimension cylindrical fuses. Offered in single pole, 2-pole
or 3-pole configurations with or without LED open fuse indication.
Indicator operates on systems between 110 and 690 V. The LED
lamp will glow when the fuse is open (blown). Holders meet IP20
touchsafe design standards.
AMBUS EasySwitch is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage (UL) Connection Width (mm) Qty.aUL4248 cULus CSA
HB31110 10 x 38 standard model 1-pole 30A/600VAC/600 VDC 0.75 - 25 sq. mm AWG 18-4 18 12 • • •
HB31971 photovoltaic version 1-pole 30A/1000 VDC 0.75 - 25 sq. mm AWG 18-4 18 10 • • •
HB31112 10 x 38 standard model 2-pole 30A/600VAC/600 VDC 0.75 - 25 sq. mm AWG 18-4 36 6 • • •
HB31113 10 x 38 standard model 3-pole 30A/600VAC/600 VDC 0.75 - 25 sq. mm AWG 18-4 54 4 • • •
HB31130 10 x 38 w/LED 1-pole 30A/600VAC/600 VDC 0.75 - 25 sq. mm AWG 18-4 18 12 • • •
HB31132 10 x 38 w/LED 2-pole 30A/600VAC/600 VDC 0.75 - 25 sq. mm AWG 18-4 36 6 • • •
HB31133 10 x 38 w/LED 3-pole 30A/600VAC/600 VDC 0.75 - 25 sq. mm AWG 18-4 54 4 • • •
aTo order models in qty. 1, use catalog number with HBF prefix (i.e. HBF31110, HBF31971).
AMBUS® EASYSWITCH CLASS CC DIN Rail mountable fuse holders for UL Listed Class CC fuses.
Offered in single pole, 2-pole or 3-pole configurations with LED
open fuse indication. The LED lamp will glow when the fuse is open
(blown). Holders meet IP20 touchsafe design standards.
AMBUS EasySwitch is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description Type Rated Current/Rated Voltage Connection Width (mm) Qty.aUL4248 cULus CSA
HB31295 Standard Model 1-pole 30 A/600 VAC/DC 0.75 - 25 sq. mm AWG 18-4 18 12 • • •
HB31296 Standard Model 2-pole 30 A/600 VAC/DC 0.75 - 25 sq. mm AWG 18-4 36 6 • • •
HB31297 Standard Model 3-pole 30 A/600 VAC/DC 0.75 - 25 sq. mm AWG 18-4 54 4 • • •
HB31298 Model with light indicator 110-600 VAC/DC 1-pole 30 A/600 VAC/DC 0.75 - 25 sq. mm AWG 18-4 18 12 • • •
HB31299 Model with light indicator 110-600 VAC/DC 2-pole 30 A/600 VAC/DC 0.75 - 25 sq. mm AWG 18-4 36 6 • • •
HB31300 Model with light indicator 110-600 VAC/DC 3-pole 30 A/600 VAC/DC 0.75 - 25 sq. mm AWG 18-4 54 4 • • •
HB31929 Model with light indicator 12-72 VAC/DC 1-pole 30 A/600 VAC/DC 0.75 - 25 sq. mm AWG 18-4 18 12 • • •
aTo order models in qty. 1, use catalog number with HBF prefix (i.e. HBF31295, HBF31296).
BUSBAR DISTRIBUTION SYSTEM panel mount Fuse Holders
Spec-00507 L
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 20

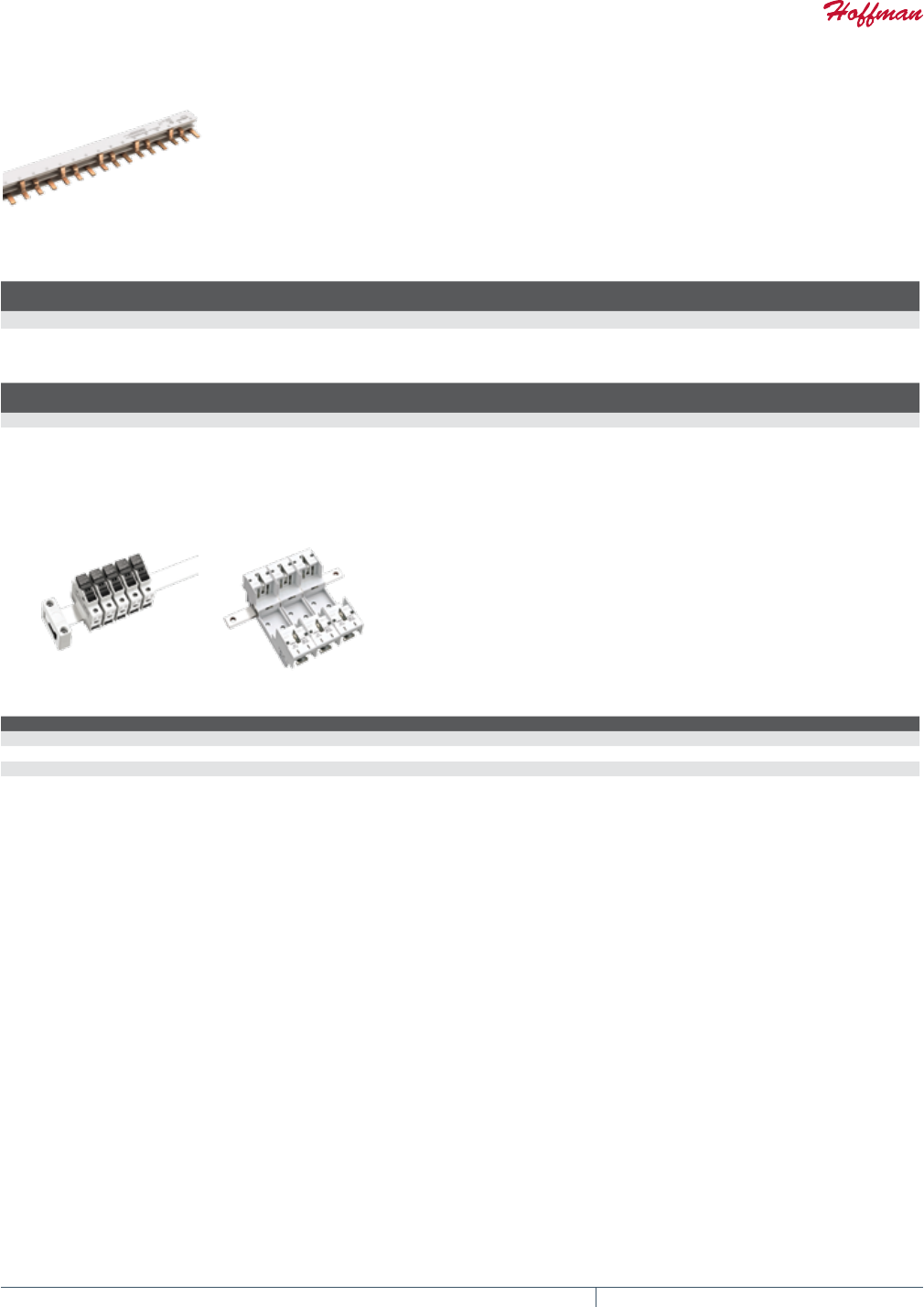

ACCESSORIES FOR AMBUS® EASYSWITCH, CONNECTION BOTTOM OR TOP
Comb-type busbar is an alternative to point-to-point wiring on the
primary side of the 10x38 and Class CC fuse holders that have an
18mm pitch. It eliminates the need for a power distribution block
and wiring duct to contain the AWG wires feeding multiple fuse
blocks. Available for both 1-pole and 3-phase configurations.
AMBUS® EasySwitch is a trademark of Wöhner GmbH & Co. KG
BULLETIN: HB2
Catalog Number Description Length (m) Cross Section (mm)
Rated Current/
Rated Voltage (UL) Qty. UL508
HB31548 1-pole, insulated, 18mm pitch 1 25 100Aa/600V 1 •
HB31549 3-pole, insulated, 18mm pitch 1 25 100Aa/600V 1 •
a 100 ampere rated if connected from one end, 200 ampere rated if connected in the center.
Catalog Number Description
Rated Current/
Rated Voltage (UL) Qty. UL508 cULus
HB31550 Connecting terminal AWG 10-1/0, for HB31549 115A/600V 1 • •
HB31552 End cap for 3-pole comb-type busbars HB31549 --- 2 • •
PV FUSE HOLDERS, BUSBAR COMBINED DC CURRENT
Fuse holders for mounting circuit protection devices for the wires
and cables associated with photovoltaic installations. These
devices allow the combining of current on metric dimension
busbars. The design eliminates the bending radius space
associated with large cables.
BULLETIN: HB2
Catalog Number Width (mm) For Use With Qty. UL4248 UR
HBF31570 22.5 30A, 1000Vdc, 10x38 PV fuses, 30x5 or 30x10 busbar 1 • •
HB31570 22.5 30A, 1000Vdc, 10x38 PV fuses, 30x5 or 30x10 busbar 12 • •
HB03289 60 250A, 1500V, NH1XL PV fuses, 2x 30x10 busbar 1 • •
HB03293 81 600A, 1500V, NH2XL/NH3L PV fuses, 2x 40x10 busbar 1 • •
