Technical Data 10121 Effective December 2015

Supersedes June 2015

BUSSMANN

SERIES

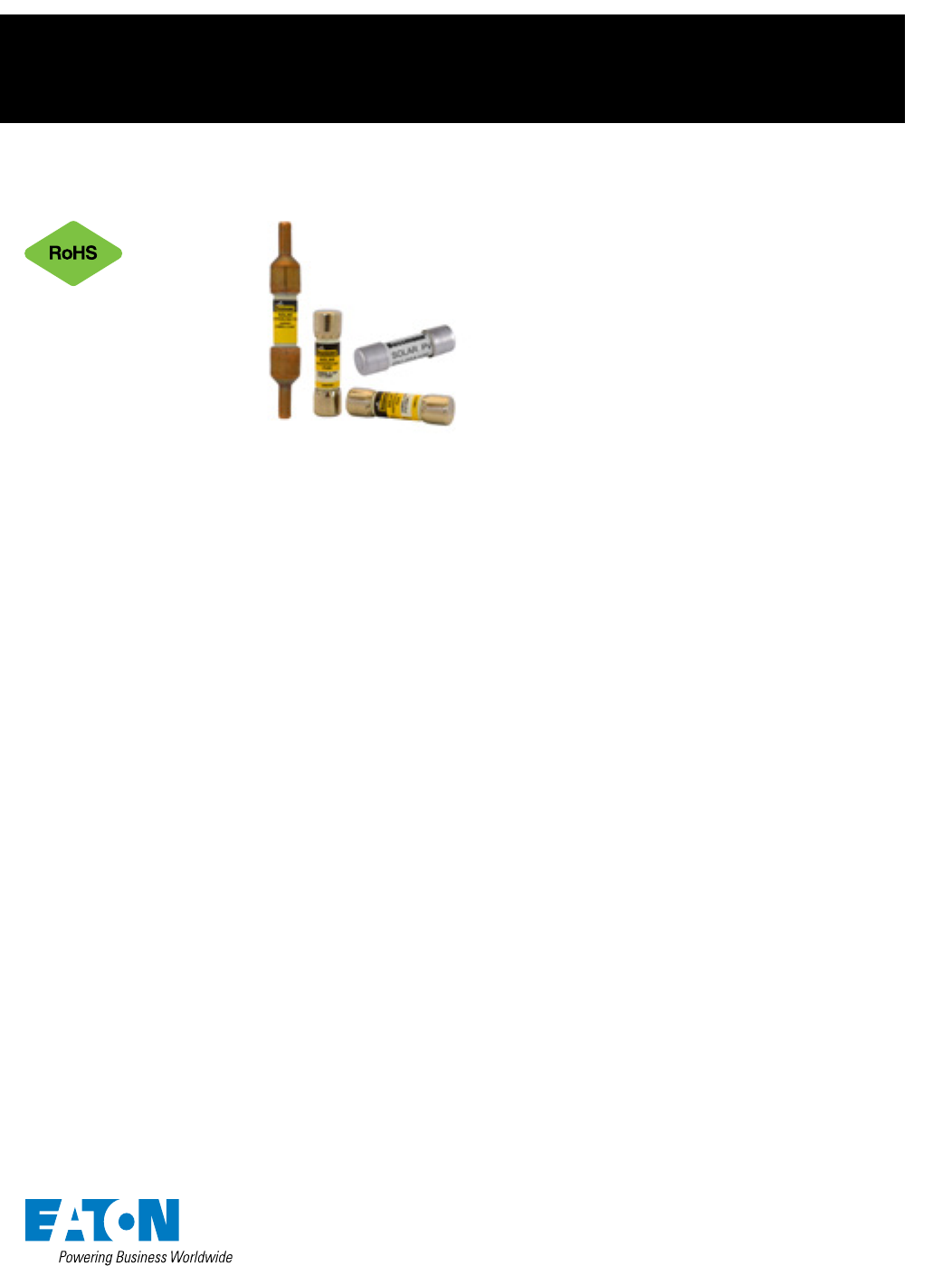

10x38mm photovoltaic fuses 1000Vdc, 1-30A

Catalog symbols / mounting style:

• 1-20A*

• PV-(amp)A10F (cylindrical)

• PV-(amp)A10-T (bolt mounting)

• PV-(amp)A10-1P (single PCB tab)

• PV-(amp)A10-2P (dual PCB tab)

• PV-(amp)10F-CT (in-line with crimp

terminals)

• 25-30A** PV10M-(amp) (cylindrical)

* Ceramic tube construction.

** Melamine tube construction.

Description:

Eaton’s Bussmann® series of 10x38mm,

1000Vdc PV fuses are for protecting and

isolating photovoltaic strings. The fuses are

specifically designed for use in PV systems with

extreme ambient temperature, high cycling and

low fault current conditions (reverse current,

multi-array fault) string arrays.

Four styles available for application flexibility.

Specications:

Basic fuse size

• 10x38mm

Ratings

• Volts 1000Vdc

• Amps 1-30A

• Interrupting Rating

• 50kA (1-20A)

• 20kA (25-30A)

• Time Constant: - 1-3ms

Operating class

• gPV and UL PV fuse links

PV fuse coordination

• With thin film cells and 4”, 5” and 6” crystal-

line silicon cells

Agency information

• UL® Listed to 2579*, Guide JFGA, File

E335324

• IEC® 60269-6 (gPV)

• CSA® File 53787, Class 1422-30 (1-15A),

20-30A pending

• CCC® (1-20A) (25-30A pending)

• RoHS compliant

* Except crimp terminal version that is UL Recognized to

UL 2579, Guide JFGA2, File E335324.

Packaging (carton quantity)

• PV-(amp)A10F, PV-(amp)A10T,

PV-(amp)A10-_P

and PV10M-(amp): 10

• PV-(amp)10F-CT & PV10M-(amp)-CT in-line:

180

Features:

• Meets UL and IEC photovoltaic standards for

global acceptance

• Low watts loss performance for energy

efficiency

• Low temperature rise performance for more

precise sizing

• In-line crimp terminal version is easy to

apply in wire harness construction

Typical applications:

• Combiner boxes

• PV wire harnesses

2

Technical Data 10121

Effective December 2015

10x38mm photovoltaic fuses — 1000Vdc, 1-30A

Eaton.com/bussmannseries

Specications:

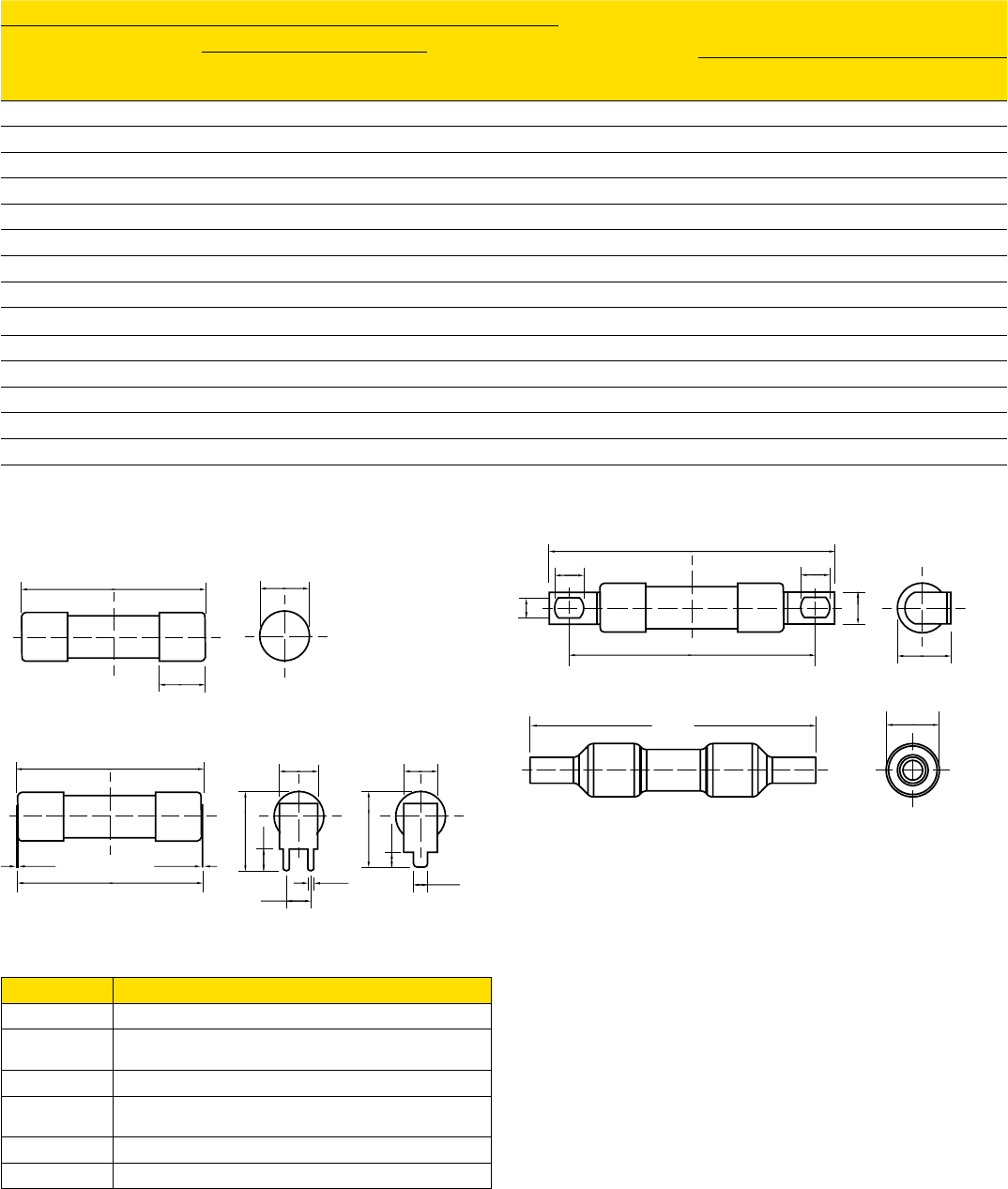

Dimensions/congurations - mm:

Cylindrical PV-(amp)A10F, PV10M-(amp)

Cylindrical with PCB tabs PV-(amp)A10-1P (single pin),

PV-(amp)A10-2P (double pin)

Cylindrical with bolt fixings PV-(amp)A10-T

In-line with crimp terminals PV-(amp)A10F-CT (1-20A)

The in-line crimp terminal version can be electrically insulated

with customer supplied overmolding or approved heat-shrink.

Operating temperature range

• -40°C to 90°C

Wire range and type

• Single conductor, 12-10AWG 75°C/90°C Cu stranded PV

Overmolding temperature parameters

• 233°C for 180 sec Max

Terminals

• Crimp terminal for 12-10AWG PV copper conductors

Recommended tools

• Sta-Kon® terminal crimping tool, catalog # ERG4002

Catalog numbers / configurations

Current

rating

(amps)

Voltage

rating

(Vdc)

Energy integrals I2t (A2s)

Watts loss (W)

Cylindrical

ferrule Bolt fixing

PCB fixing

In-line with

crimp terminalSingle pin Double pin Pre-arcing

Total @

1000V 0.8InIn

PV-1A10F PV-1A10-T PV-1A10-1P PV-1A10-2P PV-1A10F-CT 1 1000 0.15 0.4 0.8 1. 5

PV-2A10F PV-2A10-T PV-2A10-1P PV-2A10-2P PV-2A10F-CT 2 1000 1. 2 3.4 0.6 1.0

PV-3A10F PV-3A10-T PV-3A10-1P PV-3A10-2P PV-3A10F-CT 3 1000 411 0.8 1. 3

PV-3-5A10F PV-3-5A10-T PV-3-5A10-1P PV-3-5A10-2P PV-3-5A10F-CT 3.5 1000 6.6 18 0.9 1. 4

PV-4A10F PV-4A10-T PV-4A10-1P PV-4A10-2P PV-4A10F-CT 4 1000 9.5 26 1.0 1.5

PV-5A10F PV-5A10-T PV-5A10-1P PV-5A10-2P PV-5A10F-CT 5 1000 19 50 1. 0 1.6

PV-6A10F PV-6A10-T PV-6A10-1P PV-6A10-2P PV-6A10F-CT 6 1000 30 90 1.1 1.8

PV-8A10F PV-8A10-T PV-8A10-1P PV-8A10-2P PV-8A10F-CT 8 1000 3 32 1.2 2.1

PV-10A10F PV-10A10-T PV-10A10-1P PV-10A10-2P PV-10A10F-CT 10 1000 7 70 1.2 2.3

PV-12A10F PV-12A10-T PV-12A10-1P PV-12A10-2P PV-12A10F-CT 12 1000 12 120 1.5 2.7

PV-15A10F PV-15A10-T PV-15A10-1P PV-15A10-2P PV-15A10F-CT 15 1000 22 220 1.7 2.9

PV-20A10F PV-20A10-T PV-20A10-1P PV-20A10-2P PV-20A10F-CT 20 1000 34 350 2.1 3.6

PV10M-25 — — — — 25 1000 325 1860* 1.65 2.91

PV10M-30 — — — — 30 1000 536 3360* 1.65 3.31

* Total I2t @ 20kA IR.

Ø11.35

76.00

51.1±1.4

58.9±0.9

66

6.6

4.1

11

38.0±0.6

9.5

10.3±0.1

39.2±0.9 Type 2P

38.0 Type 1P

0.8

Type 2P

0.4

Type 1P

87

1.2

5.1

4.4

16.38

12.7

3

3

2P 1P

Recommended fuse holders and fuseclips:

Part number Description and date sheet/brochure No.

CHPV1IU 1-Pole modular fuse holder with indication 3185

CHPV1U 1-Pole modular fuse holder without indication

3185

CHPV2IU 2-Pole modular fuse holder with indication 3185

CHPV2U 2-Pole modular fuse holder without indication

3185

1A3400-_ PCB Fuseclips 2131

HPV-DV-_A In-line fuse holder assembly 2157

3

Technical Data 10121

Effective December 2015

10x38mm photovoltaic fuses — 1000Vdc, 1-30A

Eaton.com/bussmannseries

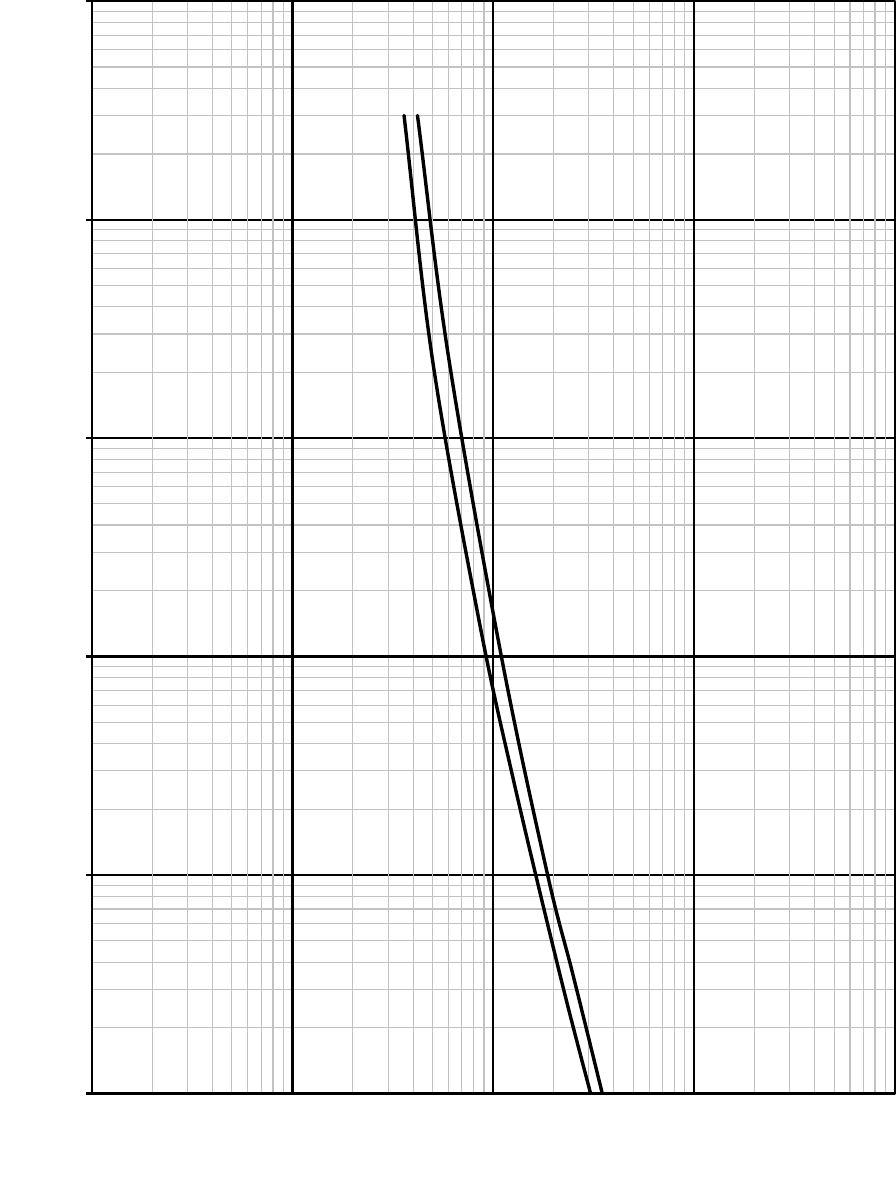

Time-current characteristics — 1-20A:

123

3.5

4

5

68

10

12

15

20

10

1000

2

4

6

10,000

1

0.1

2

4

6

2

4

6

2

4

6

2

4

6

100

110

8

6

42 100

8

6

42 1000

8

6

42

Available Current, DC - Time Constant < 1ms (Amps)

Time in Seconds

Available current DC, - Time constant, <1m (amps)

Time in seconds

4

Technical Data 10121

Effective December 2015

10x38mm photovoltaic fuses — 1000Vdc, 1-30A

Eaton.com/bussmannseries

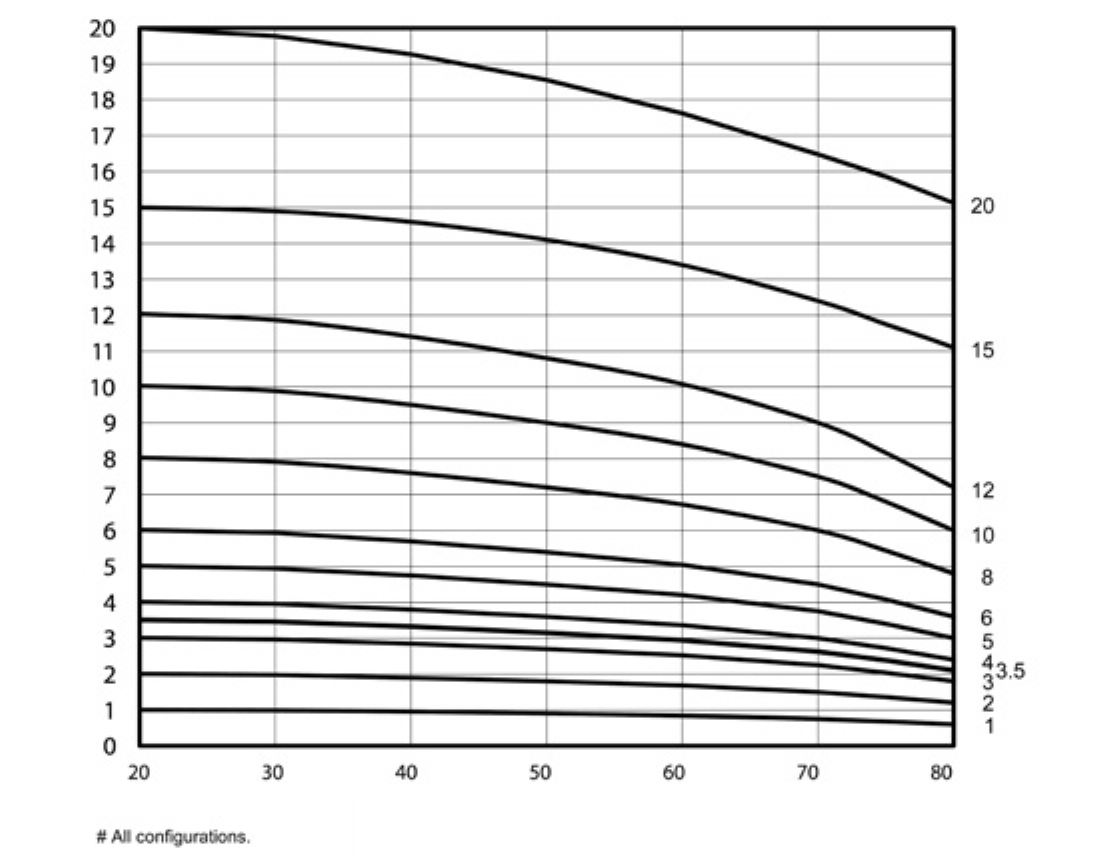

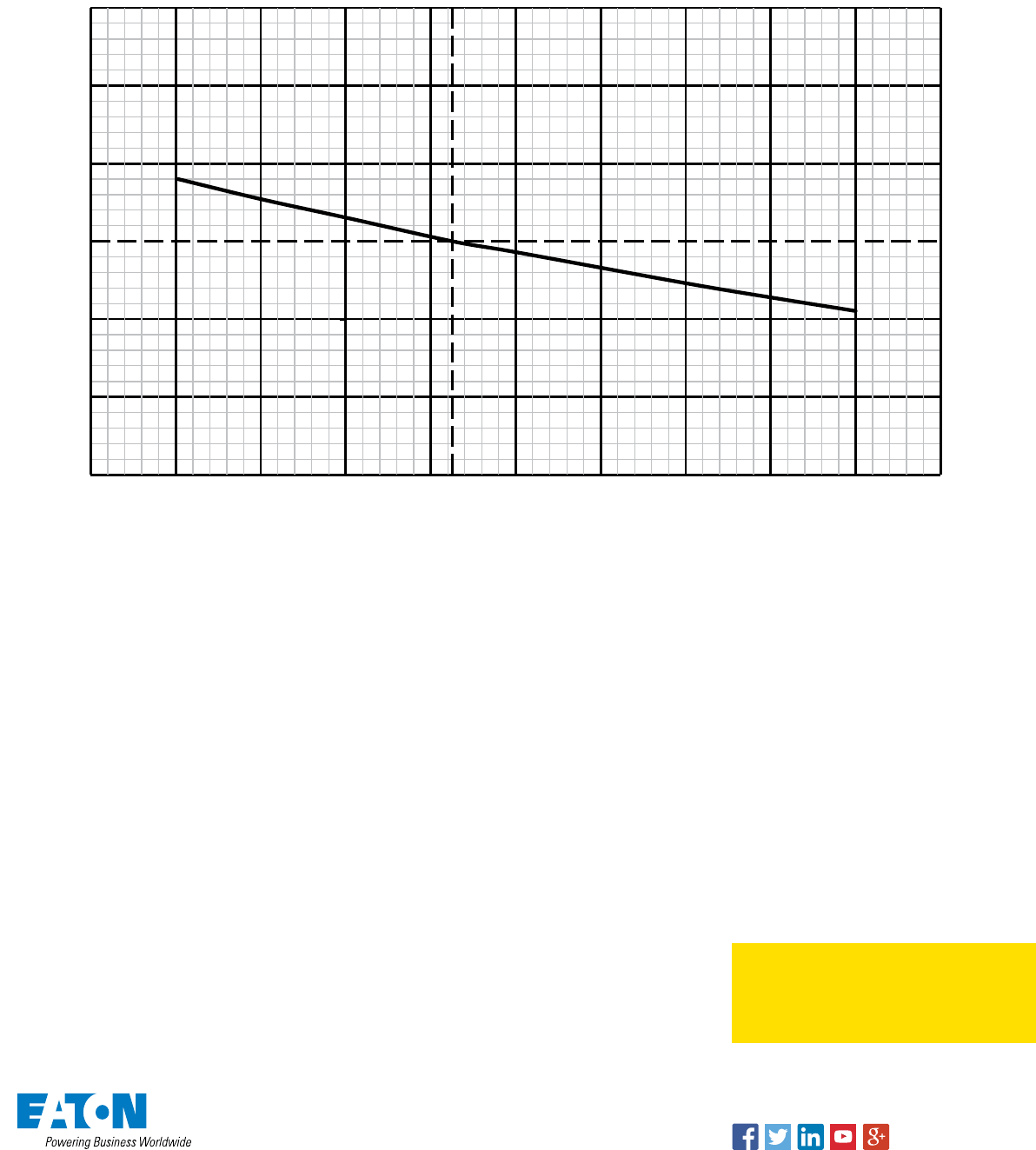

Temperature derating curves — 1-20A:

No additional derating is required for PV fuse links installed in ganged modular fuse holders without spacing between units,

provided that the rating used is >1.56 x Isc.

Ambient tempature °C

Current carrying capability (amps)

5

Technical Data 10121

Effective December 2015

10x38mm photovoltaic fuses — 1000Vdc, 1-30A

Eaton.com/bussmannseries

Time-current characteristics — 25-30A:

25

30

0.01

0.1

1

10

100

1000

1

10

100

1000

10,000

Time in Seconds

Available Current, DC - Time Constant , < 1ms (Amps)

Available currnet, DC - time constant, <1ms (amps)

Time in seconds

10x38mm photovoltaic fuses — 1000Vdc, 1-30ATechnical Data 10121
