GE

Lighting

command

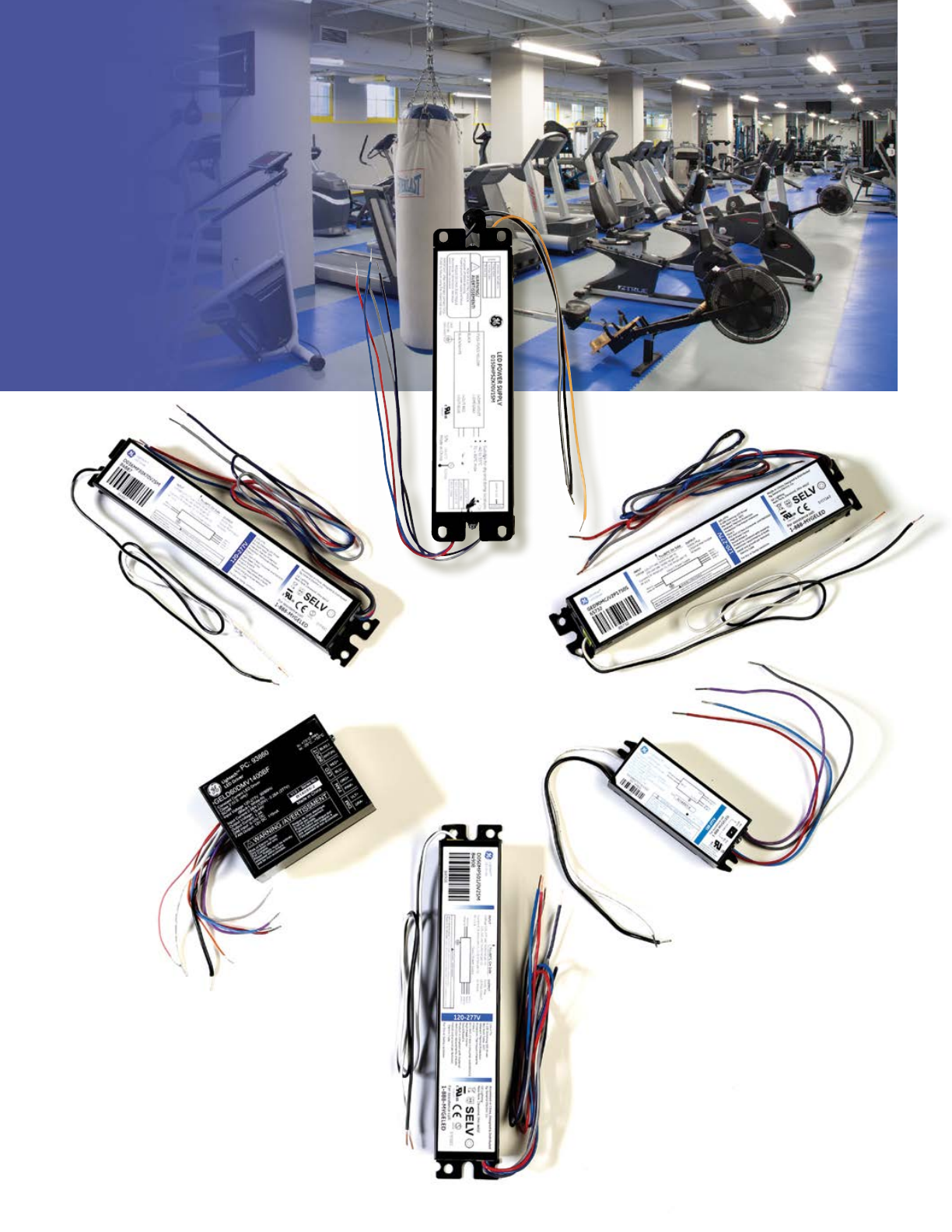

GE LED Drivers for all your lighting demands.

1

energize

GE LED drivers are a comprehensive line of products designed to work seamlessly with a

breadth of LED systems. Engineered for excellent performance and reliability, the diverse range

of applications they support include indoor, recessed, track, industrial, roadway, parking lots and

T8 LED tubes. Designed with Six Sigma

rigor, GE LED drivers provide outstanding efficiency, case

temperature ratings of 80°C or greater, have

a power factor greater than .9. and < 20% THD.

Most GE Drivers are dimmable: 0-10v, leading and

trailing edge or dimmable by Dali. All are

backed by a 5-year limited warranty.

2

3

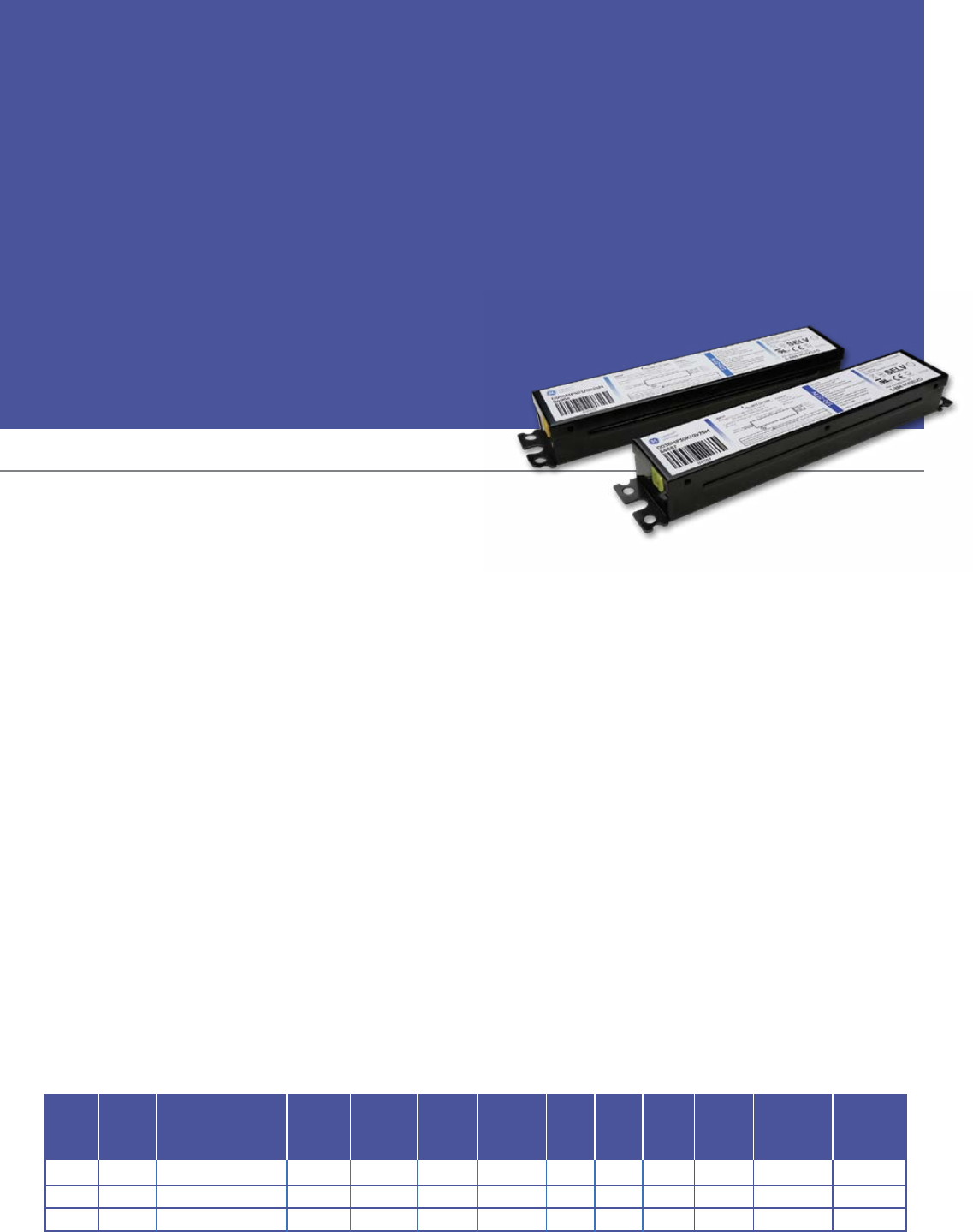

programmable

GE Programmable LED Drivers provide flexibility that can save on

installation and supply chain management costs. Since these drivers easily adjust for different applications

and can be quickly programmed for different LED board efficiencies, they simplify the number of SKUs you

need on hand, reducing hassle and expense. These high efficiency drivers can be programmed for constant

light output (CLO) or dimmed as your situation requires. Range of adjustable light output current is 160-1750mA.

As LED technology changes, they can efficiently be re-programmed for the latest fixtures, reducing

replacement costs. Available in 36, 37, 50 and 100 watt designs with multiple output current ranges.

•

Product meets the material restrictions of RoHs

•

The unit is classified as Class 2 as stipulated in UL1310.

• Dimming circuit is classified as Class 2 as

stipulated in UL1310.

• Minimum ambient operating temperature: -30°C.

• Maximum allowable case temperature: 80°C.

• 5 year limited warranty

• 50,000 hour life

Indoor Constant Current Class 2

Programmable Drivers:

Max Input Output Output THD@ PF@

Output Input Current

Voltage

Current Full Full

CE/UL/

Max

PC (W) Description Volts 120/277 (VDC) mA Load Load cUL (T) case Dimming Enclosure

84887 36

DO36MP30X70V2SM

120/277 .39-.20 21-51 300-700 <20% >.90% YES 80C 0-10V A

84908 50

DO50MP501/0V2SM

120/277 .51-.28 10-52 500-1000 <20% >.90% YES 80C 0-10V A

65732 90 GED90MC/V21750S 120/277 .87-.45 21-51 900-1750 <20% >.90% YES 80C 0-10V A

A Enclosure = 9.5L x 1.7W x 1.20H

• Product meets the material restrictions of RoHs

• UL, cUL Recognized Class 1. FCC Part 15, Class A.

• Minimum ambient operating temperature: -30°C.

• Maximum allowable case temperature: 80°C.

• 5 year limited warranty

• 50,000 hour life

• Compliant to FCC Title 47 Part 15 Class A

• 50,000 hour life

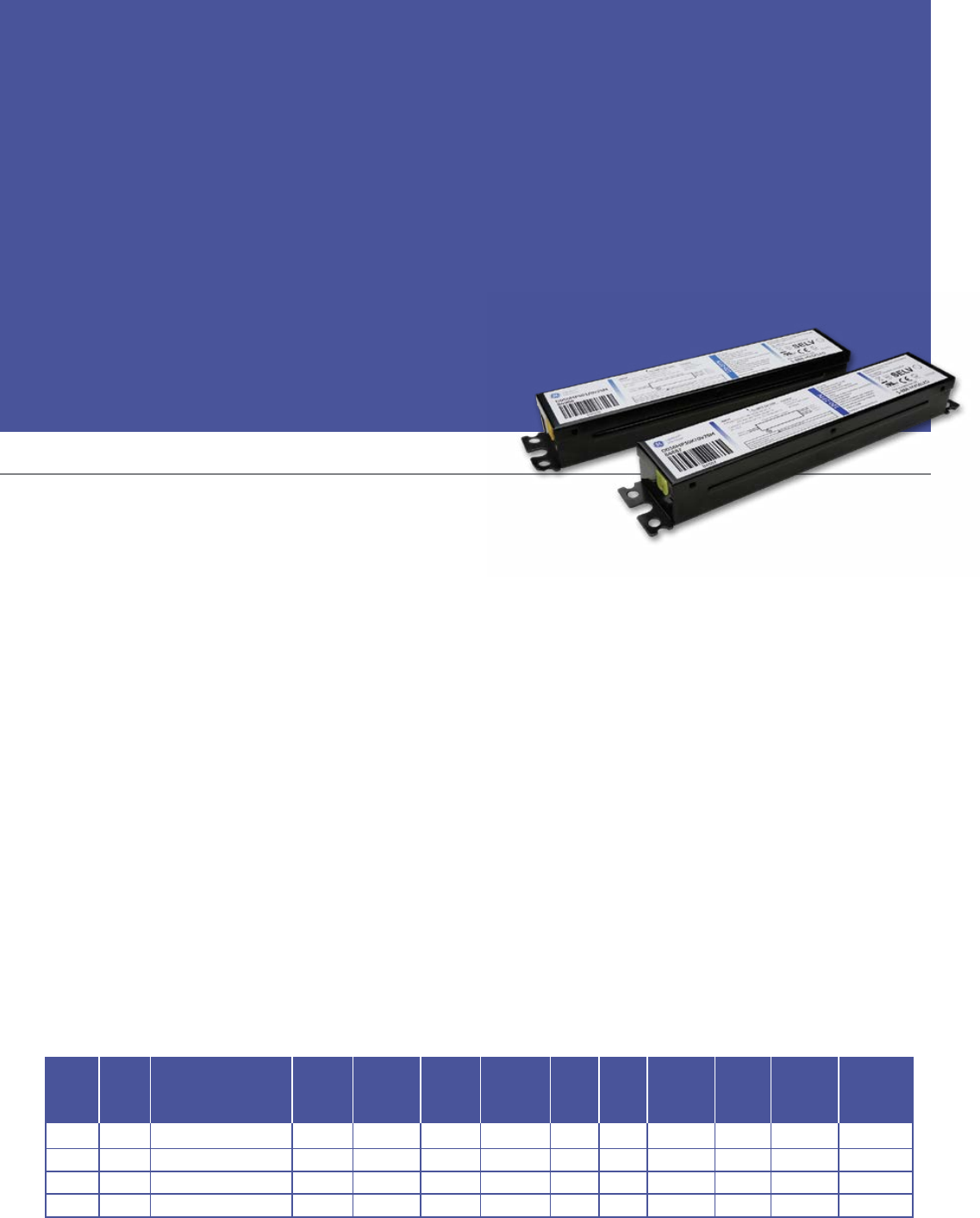

Indoor Constant Current Class 1

Programmable Drivers:

Outdoor Class 1

347-480v Programmable Drivers:

4

Max Input Output Output THD@ PF@

Output Input Current

Voltage

Current Full Full

CE/UL/

Max

PC (W) Description Volts 120/277 (VDC) mA Load Load cUL (T) case Dimming Enclosure

18797 37

DO37MP16X53V1SMC

120/277 .38/.16 60-152 160-530 <20% >.90% UL/cUL 80C 0-10V A

83453 50

GELD50MV700PVNA2

120/277 .5/.22 60-155 160-700 <20% >.90% UL/cUL 80C 0-10V A

83455 100

GELD100MV480PVNA2

120/277 .99/.43 60-155 350-480 <20% >.90% UL/cUL 85C 0-10V A

Max Input Output Output THD@ PF@

Output Input Current Voltage Current Full Full CE/UL/ Max

PC (W) Description Volts 347/480 (VDC) mA Load Load cUL (T) case Dimming Enclosure

42273 75

D075HP521/0V1SM

347/480 .26/.20 40-142

525-1050

<20% >.90% UL/cUL 90C 0-10V F

37036 100

D100HP35X70V1SM

347/480 .36/.26 130-290

300-700

<20% >.90% UL/cUL 90C 0-10V F

37040 100

D100HP701/0V1SM

347/480 .36/.26 90-142

700-1050

<20% >.90% UL/cUL 90C 0-10V F

42272 150

D150HP751/0V1SM

347/480 .50/.40 75-190

525-1050

<20% >.90% UL/cUL 80C 0-10V F

42271 150

D150HP52X70V1SM

347/480 .50/.40 110-280 525-700 <20% >.90% UL/cUL 80C 0-10V F

A Enclosure = 9.5L x 1.7W x 1.20H

5 year limited warranty

• Eliminate the cost of Step down transformers

• Product meets the material restrictions of RoHs

• IP 65 rated

• Units are resistant to surges: IEE/ANSI C62.412-2002 location, C-low (6kv/3ka)

F Enclosure = 9.5L x 2.39W x 1.5H

• Units are resistant to surges IEE/ANSI

C62.412-2002 location C-low (6kv/3ka)

• FCC Title 47 Part 15 Class B/CISPR15

Outdoor Constant Current Class 1

Programmable Drivers:

Max Input Output Output THD@ PF@

Output Input Current Voltage Current Full Full CE/UL/ Max

PC (W) Description Volts 120/277 (VDC) mA Load Load cUL (T) case Dimming Enclosure

85237 50

DO50MP25X47V1SM

120/277 .65 110-140 350-480 <203-2 >.90% UL/cUL 80C 0-10V H

37592 50

DO50MP25X47V1SMU

120/277 .65 110-140 350-480 <20% >.90% UL/cUL 80C 0-10V H

75682 50

GED50MC/D1P470S

120/277 .65 110-140 350-480 <20% >.90% UL/cUL 80C DALI F

5 year limited warranty

• IP 66 rated

• 63286 Manufactured in USA with galvanized cans that

are rust resistant

H Enclosure = 4.12L x 3.5W x 1.54H

F Enclosure = 9.5L x 2.39W x 1.5H

9-201%

5

dimming

• Compliant with material restrictions of ROHS

• IP 54

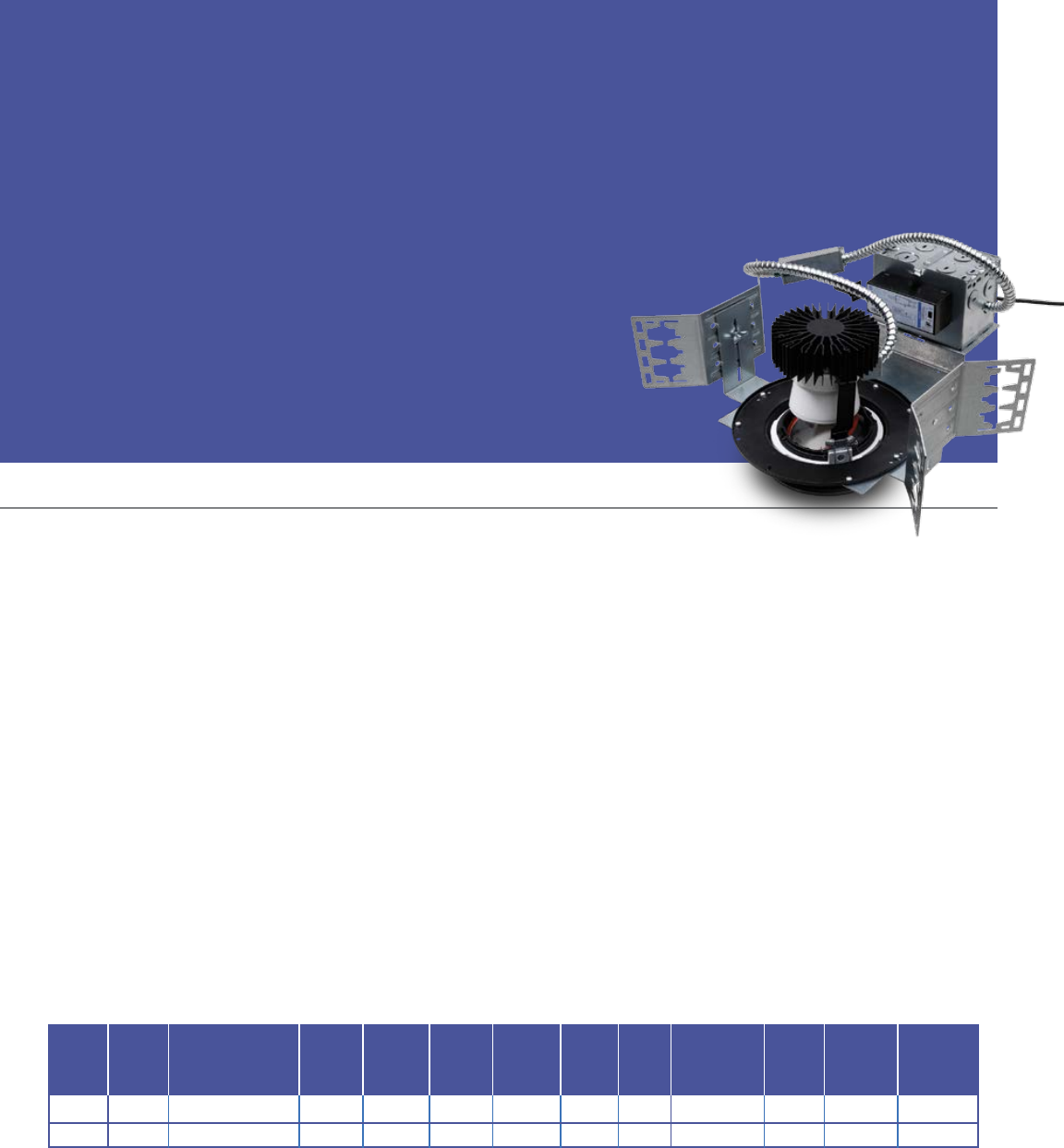

• Recessed Can Applications

• Significant opportunities for retrofit of older commercial, hospitality, and retail buildings with

existing phase dimming.

• Convert plug-in and Metal Halide downlights

S Enclosure = 4.17L x 2.95W x 1.3H

New Programmable 20 and 50 Watt

Phase Dimming LED Drivers:

Max Input Output Output THD@ PF@

Output Input Current Voltage Current Full Full CE/UL/ Max

PC (W) Description Volts

mA 120/277

(VDC) mA Load Load cUL (T) case Dimming Enclosure

36534 20

GED20DCP2P550S

120 210 25-40 300-550 <20% >.90% Recognized 80C Phase S

36535 50

GED50DCP2P1300S

120 520 30-50

850-1300

<20% >.90% Recognized 80C Phase S

Indoor Phase dimming LED Drivers are ideal for retrofits of old compact fluorescent, incandescent or metal

halide to LED downlights with line voltage dimming systems.

6

selectable

GE Selectable LED Drivers provide three output options in one affordable device. Save time and money

juggling multiple SKUs, simply choose the built-in tap that’s right for your system (525mA, 700mA,1050mA)

and you’re good to go.

• IP 66 rated

• Units are resistant to surges IEE/ANSI C136.2-2015 location C-low (6kv/3ka)

• Compliant to FCC Title 47 Part 15 Class A

A Enclosure = 9.5L x 1.7W x 1.20H

Outdoor Class 1

Selectable Current Drivers:

• Orange 525mA

• Yellow 700mA

• Blue 1050mA

Selectable drivers have 3-taps:

Max Input Output Output THD@ PF@

Output Input Current Voltage Current Full Full CE/UL/ Max

PC (W) Description Volts 120/277 (VDC) mA Load Load cUL (T) case Dimming Enclosure

12164 40

GEO40/1050/GL

120/277 .42-.18 40-80 525 <20% >.90% YES 80C 0-10V A

30-60 700

20-40 1050

12162 75

GE075/1050/GL

120/277 .74-.34 75-140 525 <20% >.90% YES 80C 0-10V A

55-110 700

40-70 1050

12161 150

GE150/1050/GL

120/277 1.68/.68 140-280 525 <20% >.90% YES 80C 0-10V A

105-210 700

70-140 1050

5 year limited warranty

•

Output Current

•

Dimming levels

•

Constant light output

•

Clock dimming

Programmable Features:

7

programmable

GE Lighting’s new Programmable 100 and 150 Watt Drivers are ideal

for demanding outdoor environments. The new GE drivers have inherent 10kV/5kA surge protection which

eliminates the need and cost of an external surge protection device. The new GE drivers can withstand

multiple strikes of up to 10kV OCV. The new high efficient drivers have combined Dali and 0-10v dimming and

Dali for data commands. The new GE Drivers can be programmed for output current, constant light output,

(CLO), clock dimming, and dimming levels.

• Combined DALI and 0-10v dimming.

• Certified for US, Europe and Canada

• Inherent 10kV/5kA Surge protection. Avoid cost

of Surge Protection Devices

• 100,000 hour life @ 80C for 100W and 70c 150W case temperature

• IP 65

New Programmable 100/150W Class 1

Outdoor LED Drivers:

Max Input Output Output THD@ PF@

Output

Input Current

Voltage

Current Full Full

CE/UL/

Max

PC (W) Description Volts 120/277 (VDC) mA Load Load cUL (T) case Dimming Enclosure

37317 100

GED100MC/VD1P700S

120/277 1.0-.4 100-290 300-700 <20% >.90%

CE/UL/cUL

90C

0-10V DALI

F

37321 100

GED100MC/VD1P1050S

120/277 1.0-.4 70-142 700-1050 <20% >.90%

CE/UL/cUL

90C

0-10V DALI

F

37323 150

GED150MC/VD1P700S

120/277 1.5-.6 100-290 300-700 <20% >.90%

CE/UL/cUL

85C

0-10V DALI

F

37324 150

GED150MC/VD1P1050S

120/277 1.5-.6 70-215 700-1050 <20% >.90%

CE/UL/cUL

85C

0-10V DALI

F

F Enclosure = 9.5L x 2.39W x 1.5H

S4 Enclosure = 5.7L x 1.6W x 1.18H

fixed output

GE Fixed Output LED Drivers are an affordable choice for dependability and performance. Every driver is

engineered and manufactured to GE Six Sigma standards, for quality and reliability you can count on.

• Backed by GE 5 year limited Warranty

• 50,000 hour life

• Fixed Output value

• Meets ANSI Z534

• Meets FCC Title 47 Part 15 class B, IEEE/ANSI C136.2-2015 for EMI/EMC

• Minimum Ambient Temperature: -13°F, -25°C

• Maximum Ambient Temperature:131°F, 55°C

• IP65 typical, for potted construction, dry and damp locations

• UL 8750

• UL 1310

• CSA C22.2 NO. 107.1-01

•

Meets REACH(EC) 1907/2006

• Meets WEEE 2002/96/EC

• Product meets the material

restrictions of RoHs

Indoor Constant Current Class 2

Fixed Output:

Performance:

Application:

Safety:

Toxicity:

Max Input Output Output THD@ PF@

Output Input Current Voltage Current Full Full CE/UL/ Max

PC (W) Description Volts 120/277 (VDC) mA Load Load cUL (T) case Enclosure

83422 18 GELD18MV350BF-2 120/277 .17-0.9 10-52 350 <15% >.90% YES 90C S4

83423 18 GELD18MV350PU-2 120/277 .17-0.9 10-52 350 <15% >.90% YES 90C S4

83424 18 GELD18MV700BF-2 120/277 .17-0.9 10-26 700 <15% >.90% YES 90C S4

83425 18 GELD18MV700PU-2 120/277 .17-0.9 10-26 700 <15% >.90% YES 90C S4

83426 26 GELD26MV500BF-2 120/277 .24-.11 10-52 500 <15% >.90% YES 90C S4

83430 26 GELD26MV500PU-2 120/277 .24-.11 10-52 500 <15% >.90% YES 90C S4

83431 36 GELD36MV700BF-2 120/277 .24-.11 10-52 700 <15% >.90% YES 90C S4

83432 36 GELD36MV700PU-2 120/277 .24-.11 10-52 700 <15% >.90% YES 90C S4

8

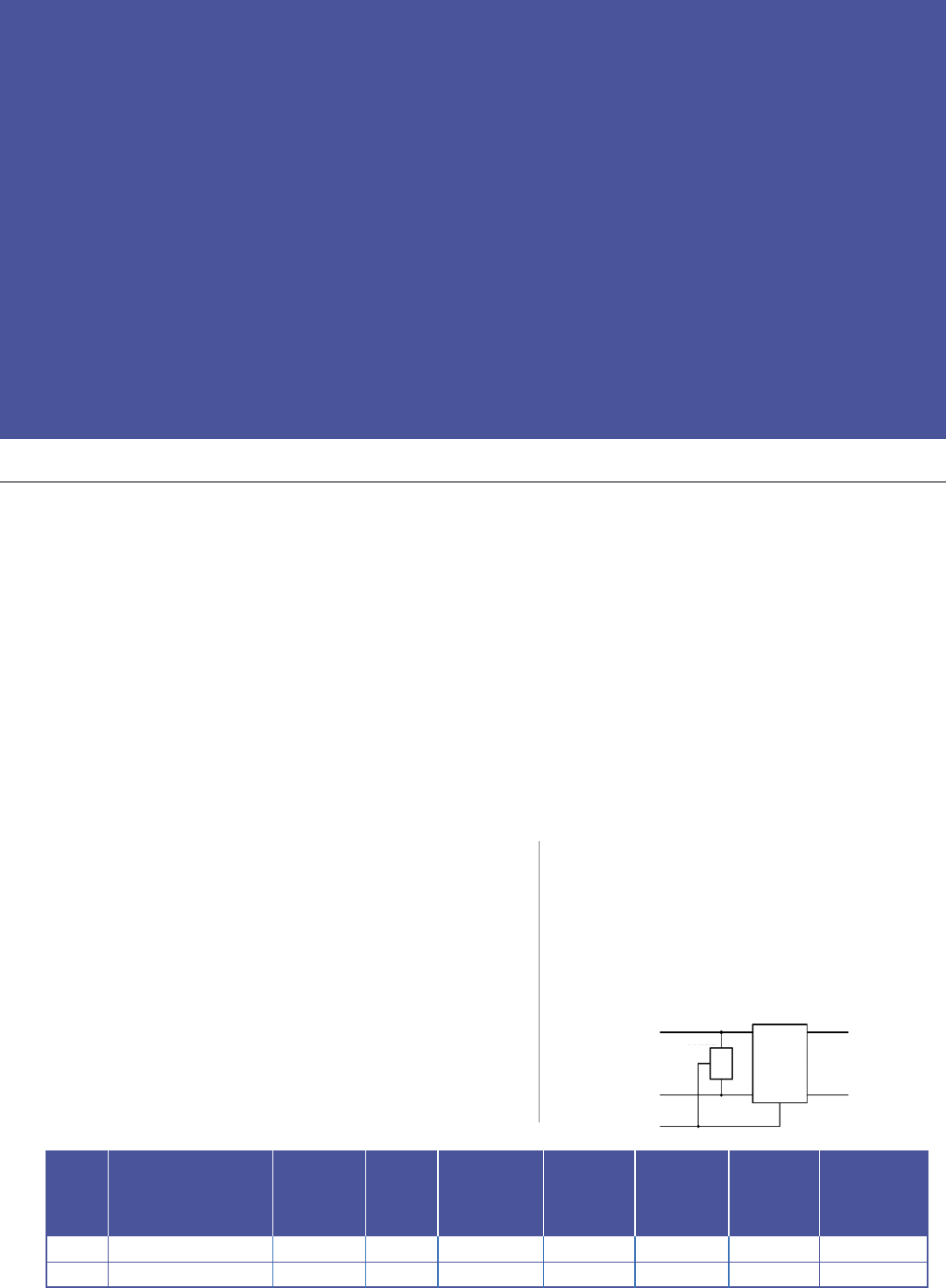

surge protection

GE Surge Protection Devices for 120-277v and 347-480v are designed to protect LED or any lighting

system from multiple surges up to 10kV /5 kA. Outdoor pole mounted lighting is particularly vulnerable

to surges as well as other applications. Surge protection devices are not designed to withstand a direct

lightening strike, but can protect the lighting system if lightening strikes nearby and causes sudden power

line surge with energy levels within the repetitive surge handling capacity of the device.

• UL1449 (4th Edition)

• ANSI/IEEE C136.2 – 2015

• UL File number E477502

• Operating Ambient Temp: -40 to +85°C

• Storage Temperature: -40 to +100°C

• IP Rating: IP66

• UL/cUL Recognized

• Product is compliant with material restrictions of RoHs

• Classified as SPD Type 5

• May be installed inside the fixture with

upstream over-current protection.

• Single insulated XLPE,14AWG, 7 STRAND,

125°C, 600V UL-758 WITH STYLE 3173

GE Surge Protection Devices

10kV/5kA for 120-277v and 347-480v:

Standards:

Temperature/Environmental Ratings:

Wiring Diagram:

Maximum Measured

Max Continuous Nominal Limiting Number Lifetime

Line Surge Operating Discharge Voltage of Strikes 70c Case

PC Description Voltage (kA) Voltage Current In (MLV) @In Temp

32489 SPD120-277_10kV-5kA 120-277v 10 (kA) 320Vac 5 1250 40 100,000 hrs

32491 SPD347-480_10kV-5kA 347-480v 10 (kA) 320Vac 5 1970 40 100,000 hrs

Ballast/LED Driver

To Lamp

SPDxxx1005

Line

Line

Line

9

constant voltage

GE Constant Voltage LED Drivers are a great value when you need a 24V solution. Designed for long-term

performance and reliability, every driver is backed by the quality assurance of the GE brand.

• IP 66 rated

• -40°F starting temperature

• Units are resistant to surges IEE/ANSI C62.412-2002 location C-low (6kv/3ka)

5 year limited warranty

5 year limited warranty

A Enclosure = 9.5L x 1.7W x 1.20H

A1 Enclosure = 9.5L x 1.3W x 1.0H

Indoor 24V Constant Voltage Class 2 LED Drivers:

Indoor Constant Current T8 LED Tube Class 2 Drivers:

Max Input Output Output THD@ PF@

Output Input Current Voltage Current Full Full CE/UL/ Max

PC (W) Description Volts 120/277 (VDC) mA Load Load cUL (T) case Enclosure

70283 96

GELD24MV100U-A

120/277 1.1 24 4000 <10% >.90% UL/cUL 85C A

Max Input Output Output THD@ PF@

Output Input Current Voltage Current Full Full Max

PC (W) Description Volts 120/277 (VDC) mA Load Load UL/cUL (T) case Dimming

94384 21 LED21T8/DR/1L 1 lamp 120-277V .18/.08 27-33V 0.62 <20% >.9 YES 70C NO

94385 42 LED21T8/DR/2L 2 lamp 120-277V .36/.17 27-33V 0.62x2 <20% >.9 YES 70C NO

60041 42 LED21T8/DR/D2L 2 lamp 120-277V .36/.17 27-33V 0.62x2 <20% >.9 YES 70C 0-10v

62030 84 LED21T8/DR/D4L 4 lamp 120-277V .77/.33 27-33V 0.62x4 <20% >.9 YES 70C 0-10v

93000 7 LED7T8/DR/1L 1 lamp 120-277V .07/.03 27-33V 0.22 <20% >.9 YES 70C NO

93025 10 LED10T8/DR/1L 1 lamp 120-277V .1/.05 27-33V 0.315 <20% >.9 YES 70C NO

93082 50 LED25T8/DR/5/2L 2 lamp 120-277V .5/.2 27-33V 0.72x2 <20% >.9 YES 70C NO

93100 18 LED9T8/DR/UN/2L 2 lamp 120-277V .17/.01 27-33V 0.27x2 <20% >.9 YES 70C NO

82347 36 LED18T8/DR/UN/2L 2 lamp 120-277V .34/.15 27-33V 0.53x2 <20% >.9 YES 70C NO

88141 36 LED18T8/DR/D2L 2 lamp 120-277V .34/.15 27-33V 0.53x2 <20% >.9 YES 70C 0-10v

88139 72 LED18T8/DR/D4L 4 lamp 120-277V .7/.3 27-33V 0.53x4 <20% >.9 YES 70C 0-10v

10

©2016 General Electric Company

Printed in the USA

LED Driver 2016 Brochure • CORE001 • 042216

Information provided is subject to change without notice. Please verify all details with GE. All values are

design or typical values when measured under laboratory conditions, and GE makes no warranty or guarantee,

express or implied, that such performance will be obtained under end-use conditions.

11
