WATTSTOPPER® DIMMERS

Install a new level of simplicity

From saving energy to

setting the mood, Legrand’s

extensive line of easy-to-use

dimming solutions delivers

an unmatched level of

control wherever we live,

work and play.

STYLISHLY SIMPLE DIMMING SOLUTIONS FOR EVERY SETTING.

LED

CFL

MLV

LED

STYLISHLY SIMPLE DIMMING SOLUTIONS FOR EVERY SETTING.

Dimmers to handle virtually every type of lamp and load, including:

INCANDESCENT

FAN SPEED

CONTROL

5

What makes Legrand’s dimmers

so special? They simply work. And

we have a solution for every lamp,

every load, in every setting imaginable.

Easy to look at and even easier to

install, they’re a great way to enhance

a room’s ambiance while reducing

power consumption.

6

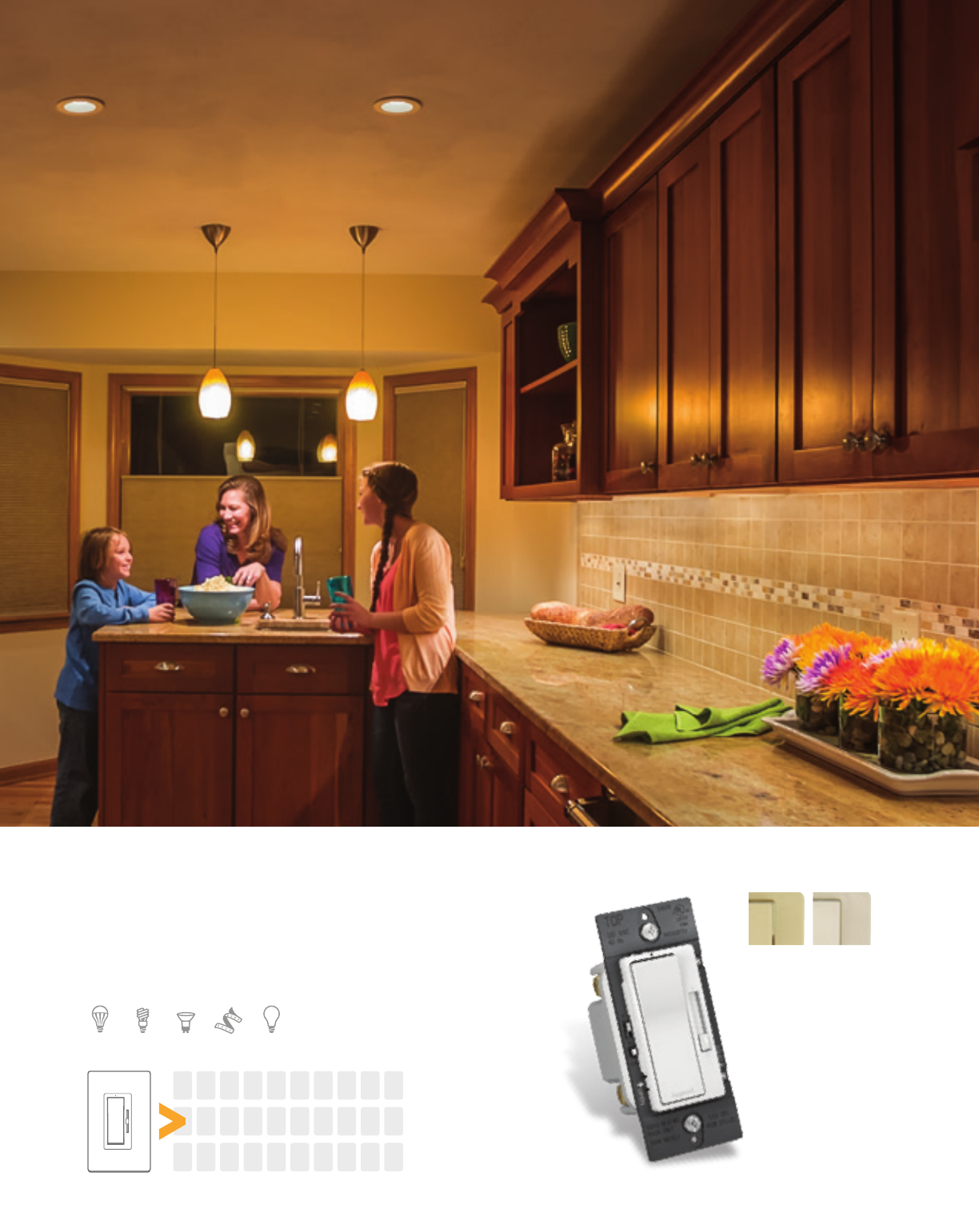

Our new radiant dimmers are all about style. But thanks

to our innovative Tru-Universal technology, they radiate

simplicity as well. In fact, the radiant Tru-Universal

Dimmer is the only dimmer that works with virtually every

lamp and load. But it’s not just the technology that makes

radiant the simple choice, it also features:

 Wider slide controller for easier dimming operation

 Ergonomic slider grip for more intuitive finger control

 Larger paddle switch that’s easier to see and use

 Sleek, modern design that matches today’s styles

 A locator LED glows when OFF to make dimmer

easier to find in the dark

THE UNIVERSAL DIMMER THAT SIMPLY WORKS.

radiant™ DIMMERS

7

POTENTIALLY

REPLACES

30

SKUs

With interchangeable

faces in popular colors

like White, Ivory and

Light Almond, you no

longer need to stock all

colors — they are easily

changed on site.

TRU-UNIVERSAL DIMMERS

 Work with virtually every lamp and load

 Self-calibrate to match lamp type

 Allow you to dial in the performance of

the lamp you choose

Because you need

just one dimmer for

virtually every lamp

and load, you reduce

the number of SKUs

you must stock or

haul around.

8

radiant™ DIMMERS

CFL/LED DIMMERS

The smart choice for these popular

lamps.

INCANDESCENT DIMMERS

A stylish solution for standard lamps.

FAN SPEED CONTROLS

A cool way to control airflow in

any room.

MULTI-LOCATION DIMMERS

More dimming control meets

more style.

When you’re looking for energy savings, style, simplicity—

or all three—radiant dimmers deliver. With a solution

for controlling everything from light levels to airflow,

it’s the only name you need to know.

MORE FUNCTIONALITY. MORE STYLE.

DIMMERS THAT WORK IN

HARMONY WITH YOUR NEEDS

9

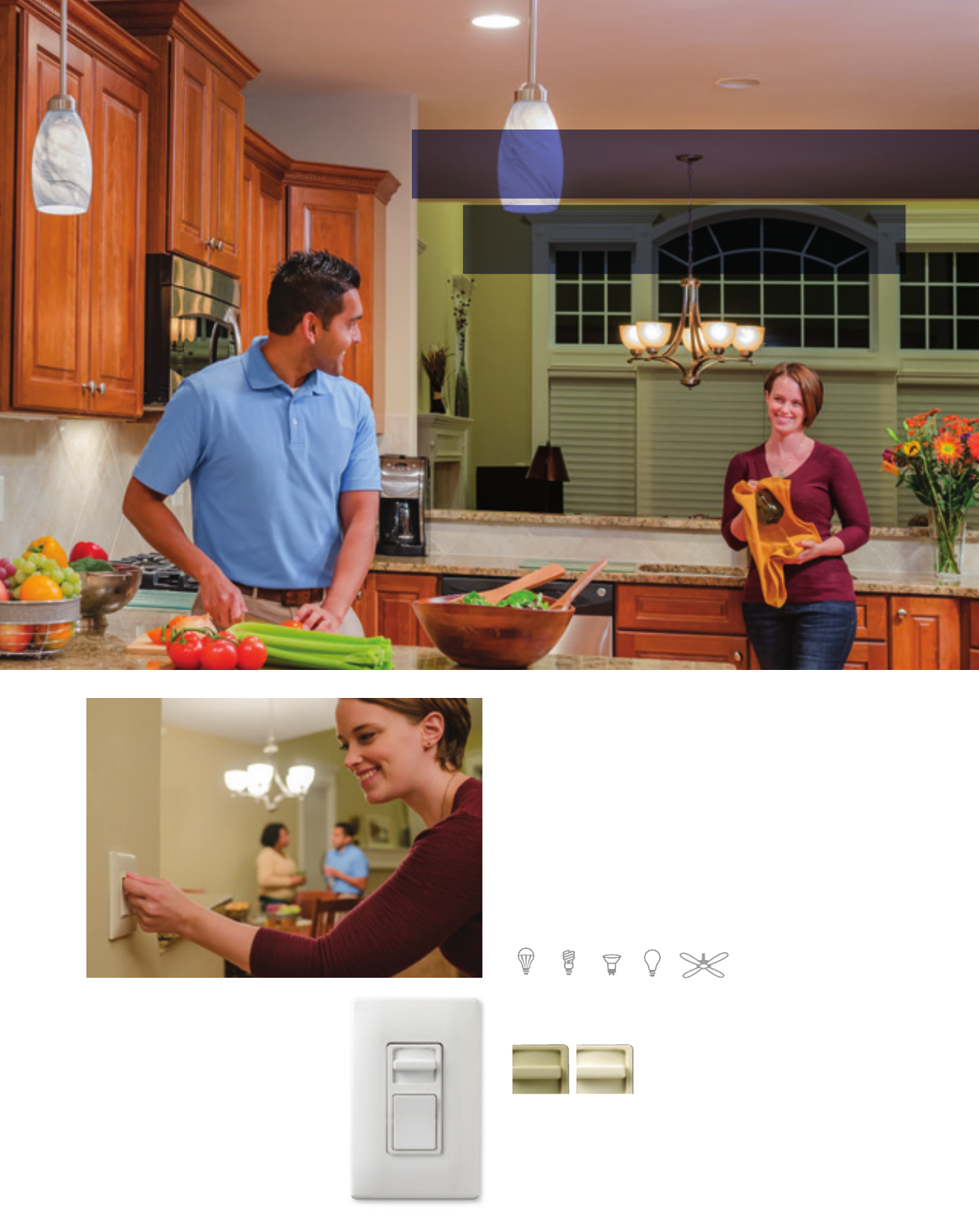

WIDE SLIDE DIMMERS

With its convenient paddle switch, automatic lighting

preset capabilities, and interchangeable face plates that

match any décor, it’s no surprise the Wattstopper Wide

Slide Dimmer Series is one of our most popular.

 3 interchangeable face plates in one package

 Faces snap easily into place and match any décor

 Operational in single-pole and 3-way applications

 Available in preset and slide-to-OFF models

THE DIMMER WITH THE WIDEST

RANGE OF POSSIBILITIES

Available with interchangeable

faces in the most popular colors —

White, Ivory and Light Almond.

WIDE SLIDE DIMMERS

www.legrand.us

10

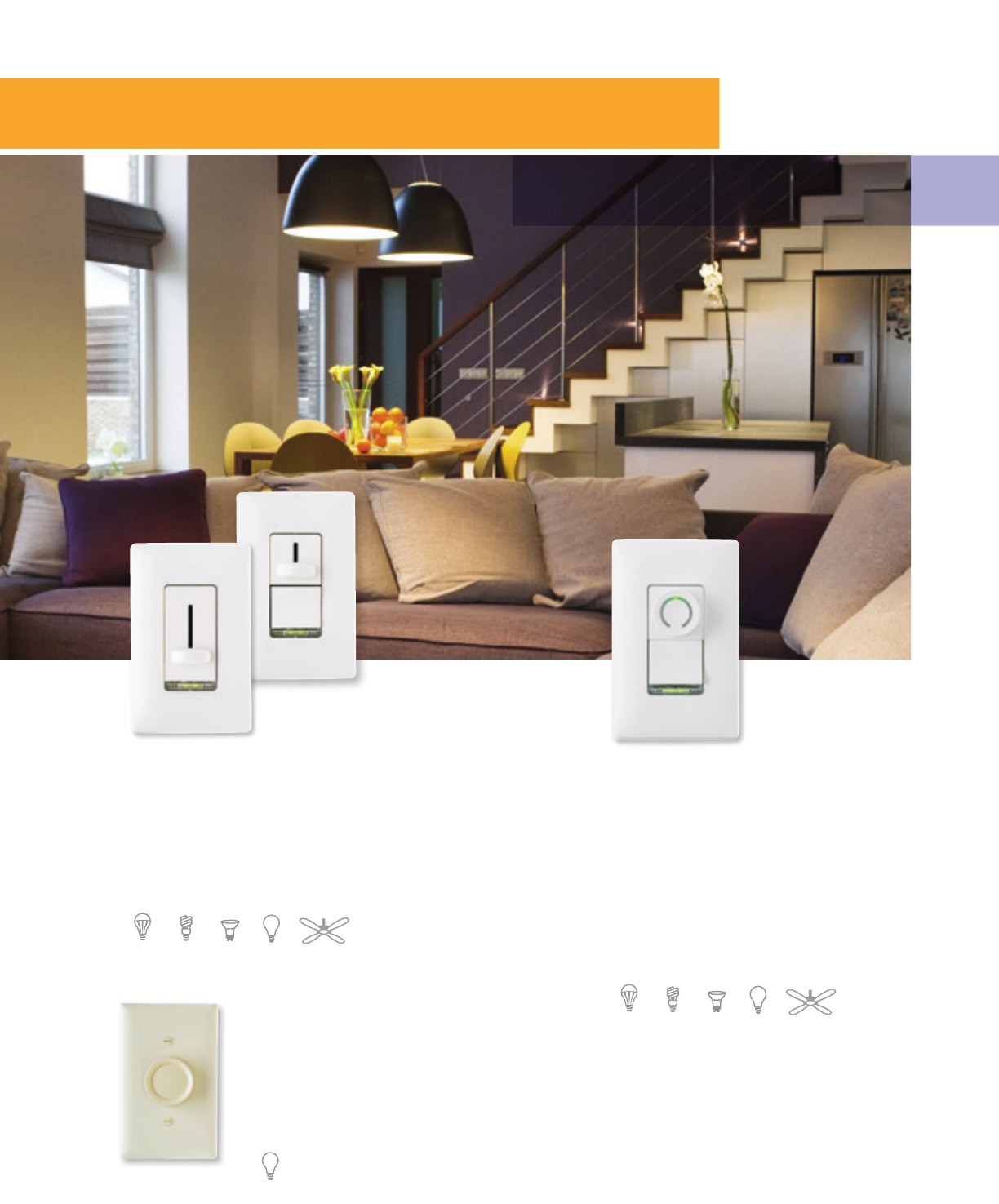

ROTARY DIMMERS

 Full-range rotary dimming

 Ground lead included on all models

 All models fit standard toggle wall plate

www.legrand.us

DR SERIES DIMMERS

 Contemporary style

 Illuminated knob indicates light level

 Snap-in LED modules make dimmers

easy to find at night (sold separately)

 Available for incandescent and low-

voltage lighting

LS SERIES DIMMERS

 Ergonomic design and solid, quality feel

 Sleek, sculpted contemporary design

 Patented Snap-In Light Module for easy

nighttime location (sold separately)

DIMMING SOLUTIONS FOR EVERY NEED

AND BUDGET.

MORE DIMMING SOLUTIONS

11

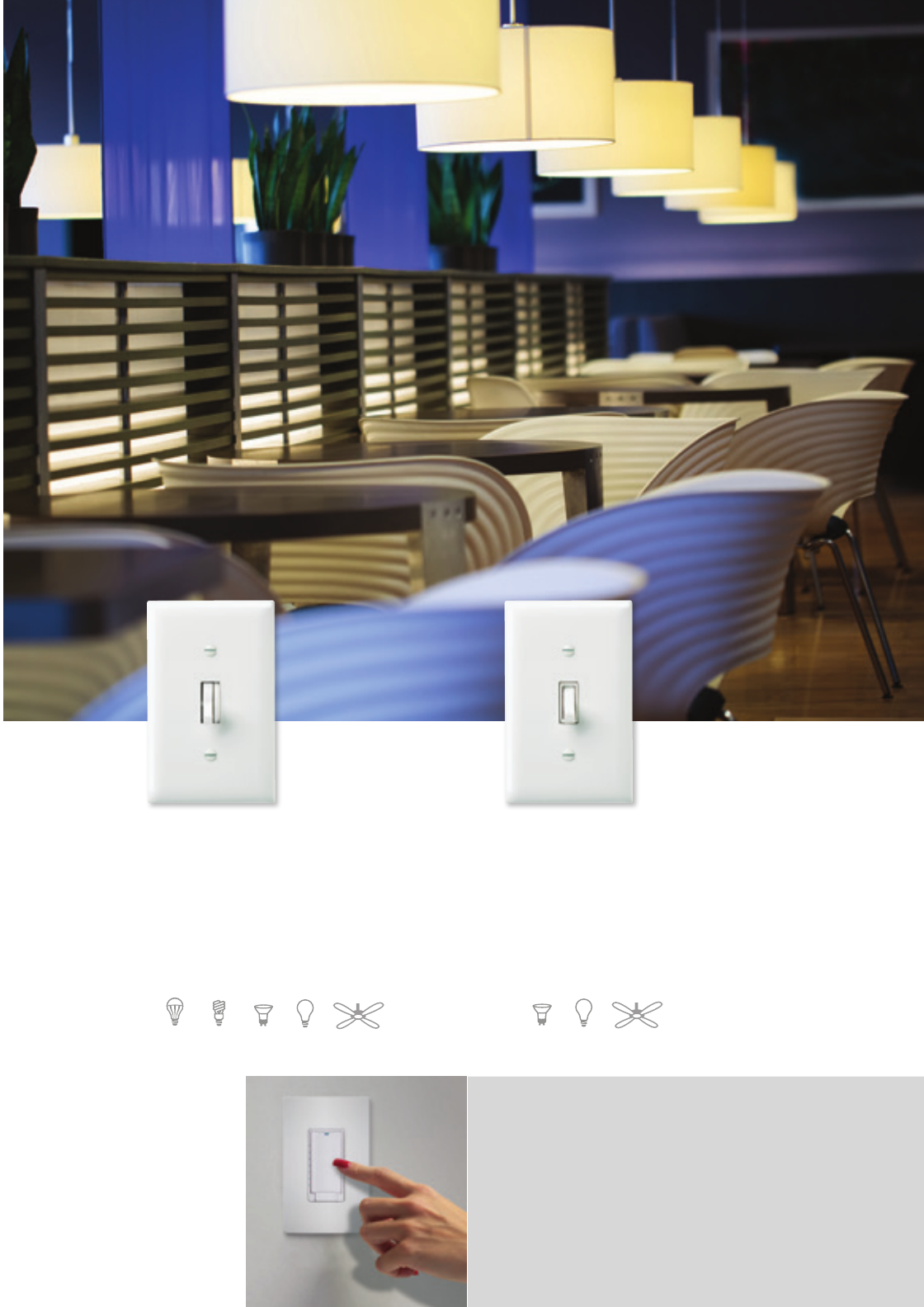

MULTI-LOCATION TOUCH DIMMERS

 Easily dim from multiple locations

 Change 3-way and 4-way switches to dimming

 Fan Speed Control also available

www.legrand.us

TOGGLE PRESET DIMMERS

 Convenient preset dimming control

 Combines ON/OFF toggle with separate

dimming wheel for light-level control

 Matches appearance of standard

toggle switches

TOGGLE DIMMERS

 Positive ON/OFF action with smooth

brightness control

 Easily replaces standard toggle switches

 No loss of setting during power outages

12

PART NO. DESCRIPTION COLOR RATING

RH703PTUTC Tru-Universal™

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V Incandescent,

Halogen & ELV: 700W,

MLV: 500VA, CFL/LED:

450W, EFL: 5.5A

RH703PTUW White

RHCL453PTC CFL/LED

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 450W

CFL/LED; 700W

Incandescent

RHCL453PW White

RHFB83PTC Fluorescent

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 8A

RHFB83PW White

RH4FBL3PTC LED/Fluorescent

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 0–10V

RH4FBL3PW White

RHLV703PTC Magnetic Low Voltage

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 700VA

RHLV703PW White

RHLV1103PTC Magnetic Low Voltage

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 1100VA

RHLV1103PW White

RH703PTC

Incandescent

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 700W

RH703P*CCV4 White, Antique Brass, Dark Bronze,

Nickel

RH1103PTC Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 1100W

RH1103PW White

RHDH163PTC Fan Speed Control

De-hummer, Single Pole/3-Way

Uses HKIT Covers

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 1.6A

RHDH163PW White

HCL453PMMTC CFL/LED

Multi-location Master Dimmer

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 450W

CFL/LED; 700W

Incandescent

HCL453PMMW White

HDH163PMMTC Fan Speed Control

Multi-location Master

De-hummer, Single Pole/3-Way

Available Spring 2016

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 1.6A

HDH163PMMW White

HMRTC Multi-location Remote

Single Pole/3-Way

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V

HMRW White

PART NO. DESCRIPTION COLOR

RHKIT* Interchangeable Face Plate Ivory, White, Light

Almond, Black, Brown,

Gray, Nickel, Antique

Brass, Dark Bronze

HMKIT*Multi-location Dimmer Interchangeable Face Plate

HDHKIT*Multi-location De-hummer Fan Speed Control Interchangeable Face Plate

HMRKIT*Multi-location Remote Dimmer Interchangeable Face Plate

*COLOR DESIGNATION

WWhite

LA Light Almond

IIvory

BK Black

–Brown

GRY Gray

NI Nickel

AB Antique Brass

DB Dark Bronze

radiant™ Dimmers

www.legrand.us

All devices are .

13

Wide Slide Dimmers

PART NO. DESCRIPTION COLOR RATING

WS1000TC Incandescent

Single Pole, Non-Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond 120V, 1000W

WS1100TC Incandescent

Single Pole, Non-Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

120V, 1100W

WS1103PTC Incandescent

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

WS700TC Incandescent

Single Pole, Non-Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

120V, 700WWS703PTC

Incandescent

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

WS703PW White

WSCL450TC

CFL/LED/Incandescent

Single Pole, Non-Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

120VAC, 450W

WSCL450W White

WSCL453PTC

CFL/LED/Incandescent

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

WSCL453PW White

WS4FBL3PTC

LED/Fluorescent

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

0–10V

WS4FBL3PW White

WSSC53PW Fan Speed Control

Variable Speed, Preset White 120V, 5A

WSDH16TC Fan Speed Control

De-hummer, Single Pole

Available Spring 2016

Three Interchangeable Face Colors:

Ivory, White, Light Almond

120V, 1.6A

WSDH16W White

WSLV700TC Magnetic Low Voltage

Single Pole, Non-Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

120V, 700VA

WSLV703PTC Magnetic Low Voltage

Single Pole/3-Way, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

PART NO. DESCRIPTION COLOR

WSKIT* Interchangeable Face Plate, Non-Preset

Black, Brown, Ivory,

Light Almond, White

WSKITP* Interchangeable Face Plate, Preset

*COLOR DESIGNATION

WWhite

LA Light Almond

IIvory

BK Black

–Brown

All devices are .

www.legrand.us

14

All devices are .

LS Series Dimmers

PART NO. DESCRIPTION COLOR RATING

LS1000* Incandescent

Single Pole, Non-Preset

Black, Brown, Ivory, Light Almond,

White 120V, 1000WLS1000P* Incandescent

Single Pole, Preset

LS1003P* Incandescent

3-Way, Preset

LS600* Incandescent

Single Pole, Non-Preset

Black, Brown, Ivory, Light Almond,

White

120V, 600W

LS600LWV Incandescent

Lighted, Single Pole, Non-Preset White

LS600P* Incandescent

Single Pole, Preset Black, Brown, Ivory, Light Almond,

White

LS603P* Incandescent

3-Way, Preset

LS603PLWV Incandescent

Lighted, 3-Way, Preset White

LSCL450* CFL/LED/Incandescent

Single Pole, Non-Preset Black, Brown, Ivory, Light Almond,

White

120VAC, 450W, CFL/LED;

700W Incandescent

LSCL453P* CFL/LED/Incandescent

3-Way, Preset

LSCLDC163P*

CFL/LED/Incandescent

Single Pole/3-Way, Preset, Dimmer

with Single Pole/3-Way, 3-Speed

De-hummer Fan Control

Black, Brown, Ivory, Light Almond,

White

1.6A, (Fan Control);

120VAC, 150W CFL/LED;

300W Incandescent

(Dimmer)

LSLV600* Magnetic Low Voltage

Single Pole, Non-Preset

Black, Brown, Ivory, Light Almond,

White 120V, 600VALSLV600P* Magnetic Low Voltage

Single Pole, Preset

LSLV603P* Magnetic Low Voltage

3-Way, Preset

LSDC16V*

Fan Speed Control

3-Speed De-hummer Fan Speed

Control, Non-Preset with Single

Pole Incandescent Dimmer

Brown, Ivory, Light Almond, White

1.6A, (Fan Control);

120V; 300W Incandescent

(Dimmer)

LSDC16PV*

Fan Speed Control

3-Speed De-hummer Fan Speed

Control, Preset with Single Pole

Incandescent Dimmer

Brown, Black

LSDH16V* Fan Speed Control

4-Speed De-hummer, Non-Preset

Black, Brown, Ivory, Light Almond,

White

1.6A

LSSC5*

Fan Speed Control

Single Pole with Adjustable Trim,

Non-Preset

5A

LSSC5P*

Fan Speed Control

Single Pole with Adjustable Trim,

Preset

*COLOR DESIGNATION

WWhite

LA Light Almond

IIvory

BK Black

–Brown

www.legrand.us

15

All devices are .

All devices are .

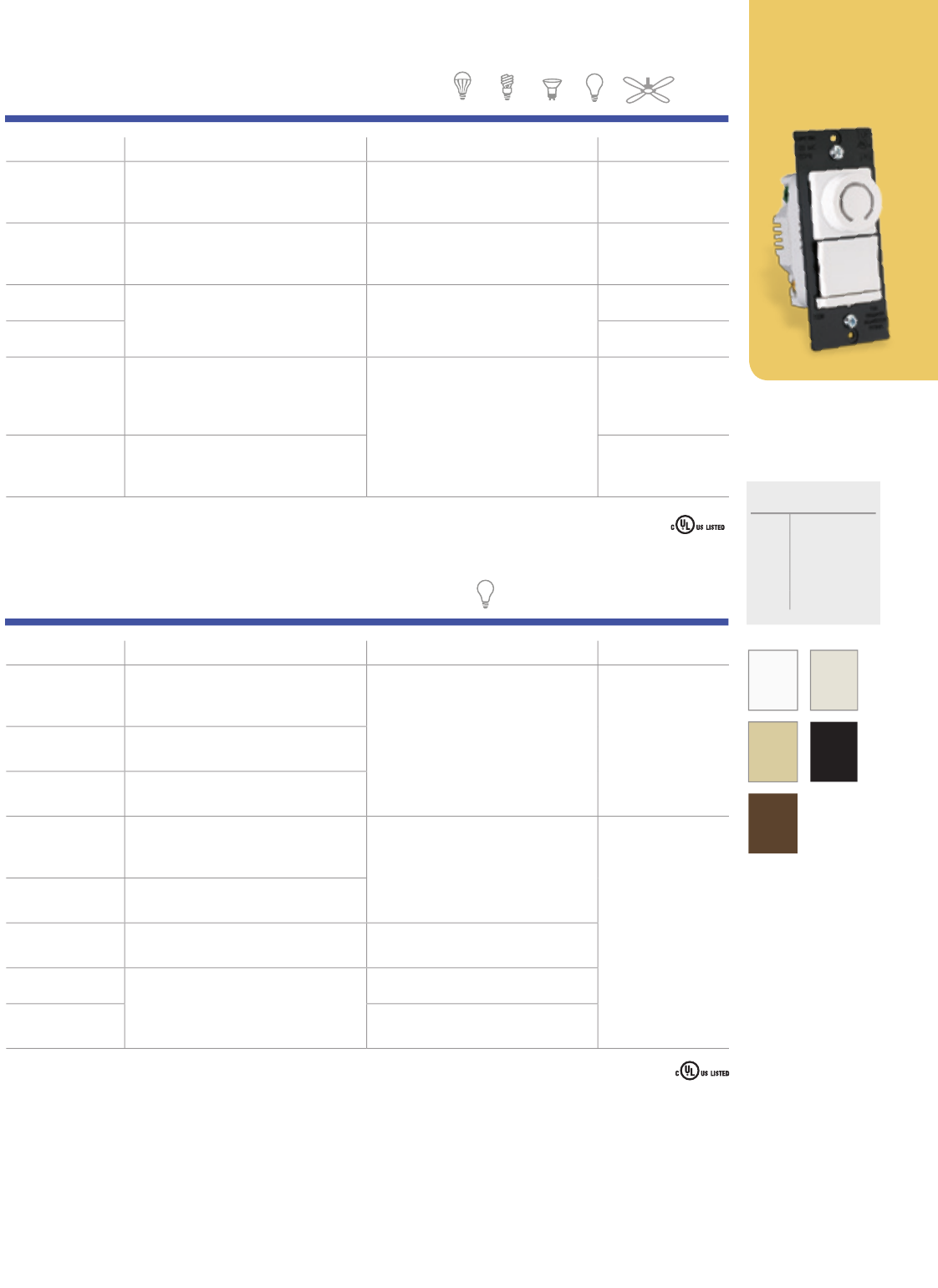

DR Series Dimmers

PART NO. DESCRIPTION COLOR RATING

DRCL453P*

CFL/LED

Single Pole/3-Way, Preset

Available Spring 2016

Black, Brown, Ivory, Light Almond,

White

120V, 450W,

CFL/LED; 700W,

Incandescent

DR703P*V

Incandescent

Single Pole/3-Way with Pilot Light,

Preset

Black, Brown, Ivory, Light Almond,

White 120V, 700W

DRLV1103P* Magnetic Low Voltage

Single Pole/3-Way with Pilot Light,

Preset

Black, Brown, Ivory, Light Almond,

White

120V, 1100VA

DRLV703P* 120V, 700VA

DRDH163P*V

Fan Speed Control

3-Speed De-hummer Fan Speed

Control with Single Pole/3-Way,

Backlit Speed Indication, Preset Black, Brown, Ivory, Light Almond,

White

120V, 1.6A

DRSC53P*V

Fan Speed Control

Continuously Variable,

Single Pole/3-Way, Preset

120V, 5A

Rotary Series Dimmers

PART NO. DESCRIPTION COLOR RATING

R1000*V

Incandescent

Single Pole with RFI Filtering,

Non-Preset

Ivory, Light Almond, White 120V, 1000W

R1000P*V Incandescent

Single Pole with RFI Filtering, Preset

R1003P*V Incandescent

3-Way with RFI Filtering, Preset

R600*V

Incandescent

Single Pole with RFI Filtering,

Non-Preset Ivory, Light Almond, White

120V, 600W

R600P*V Incandescent

Single Pole with RFI Filtering, Preset

R600PLTKV Incandescent

Single Pole with RFI Filtering, Preset

Three Interchangeable Face Colors:

Ivory, White, Light Almond

R603P*V

Incandescent

3-Way with RFI Filtering, Preset

Ivory, Light Almond, White

R603PLTKV Three Interchangeable Face Colors:

Ivory, White, Light Almond

*COLOR DESIGNATION

WWhite

LA Light Almond

IIvory

BK Black

–Brown

www.legrand.us

16

A SMOOTH, SEAMLESS ACCENT FOR ANY DÉCOR

All devices are .

Toggle Dimmers

PART NO. DESCRIPTION COLOR RATING

T1000* Incandescent

Single Pole, Non-Preset

Brown, Ivory, Light Almond, White 120V, 1000W

T1003* Incandescent

3-Way, Non-Preset

T600* Incandescent

Single Pole, Non-Preset Brown, Ivory, Light Almond, White 120V, 600W

TLV603* Magnetic Low Voltage

3-Way, Non-Preset Ivory, Light Almond, White 120V, 600VA

TD1103P*

Incandescent

Single Pole/3-Way, Preset

Black, Brown, Ivory, Light Almond,

White

120V, 1100W

TD703P* 120V, 700W

TDFB83P* Fluorescent

Single Pole/3-Way, Two Wire, Preset

Black, Brown, Ivory, Light Almond,

White 120V, 8A

TSC5* Fan Speed Control

Adjustable Trim, Non-Preset Ivory, Light Almond, White 120V, 5A

TDDH163P* Fan Speed Control

De-hummer

Black, Brown, Ivory, Light Almond,

White 120V, 1.6A

TDCL453P*

CFL/LED

Single Pole/3-Way, Preset

Available Spring 2016

Black, Brown, Ivory, Light Almond,

White

120V, 450W,

CFL/LED; 700W,

Incandescent

*COLOR DESIGNATION

WWhite

LA Light Almond

IIvory

BK Black

–Brown

SCREWLESS

WALL PLATES

■ Premium finishes that

stand up to constant use

■ Hidden screws create a

sleek, seamless accent

■ Available in single- and

multiple-gang

www.legrand.us

17

All devices are .

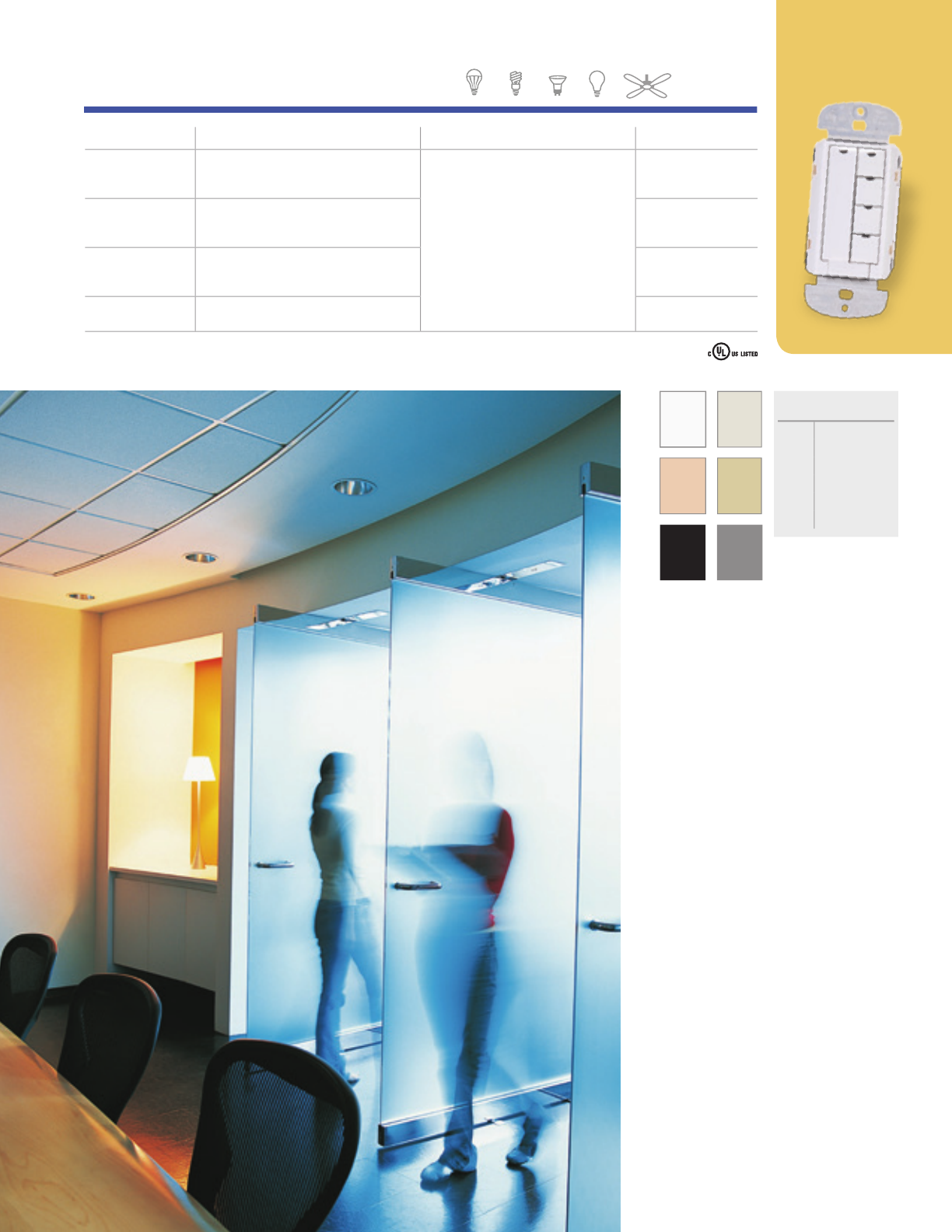

Multi-location Touch Dimmers

PART NO. DESCRIPTION COLOR RATING

TDA603* Master Dimmer w/ Neutral

Single Pole/3-Way

White, Ivory, Almond,

Light Almond, Gray, Black

120V, 25-600W

TD603* Incandescent Master Dimmer

Single Pole/3-Way 120V, 40-600W

TDFC1A* Fan Speed Control Master

Single Pole/3-Way 120V, 1.5A

TDR* Remote 120V

*COLOR DESIGNATION

WWhite

LA Light Almond

AAlmond

IIvory

BK Black

GGray

FOLLOW US

For additional technical or application-specific information,

call 800-223-4185 or visit our website at www.legrand.us.

We’re eager to put our expertise to work for you.

©2016 Legrand BR1860 All Rights Reserved 6|16 EMA/CGXTP
