1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

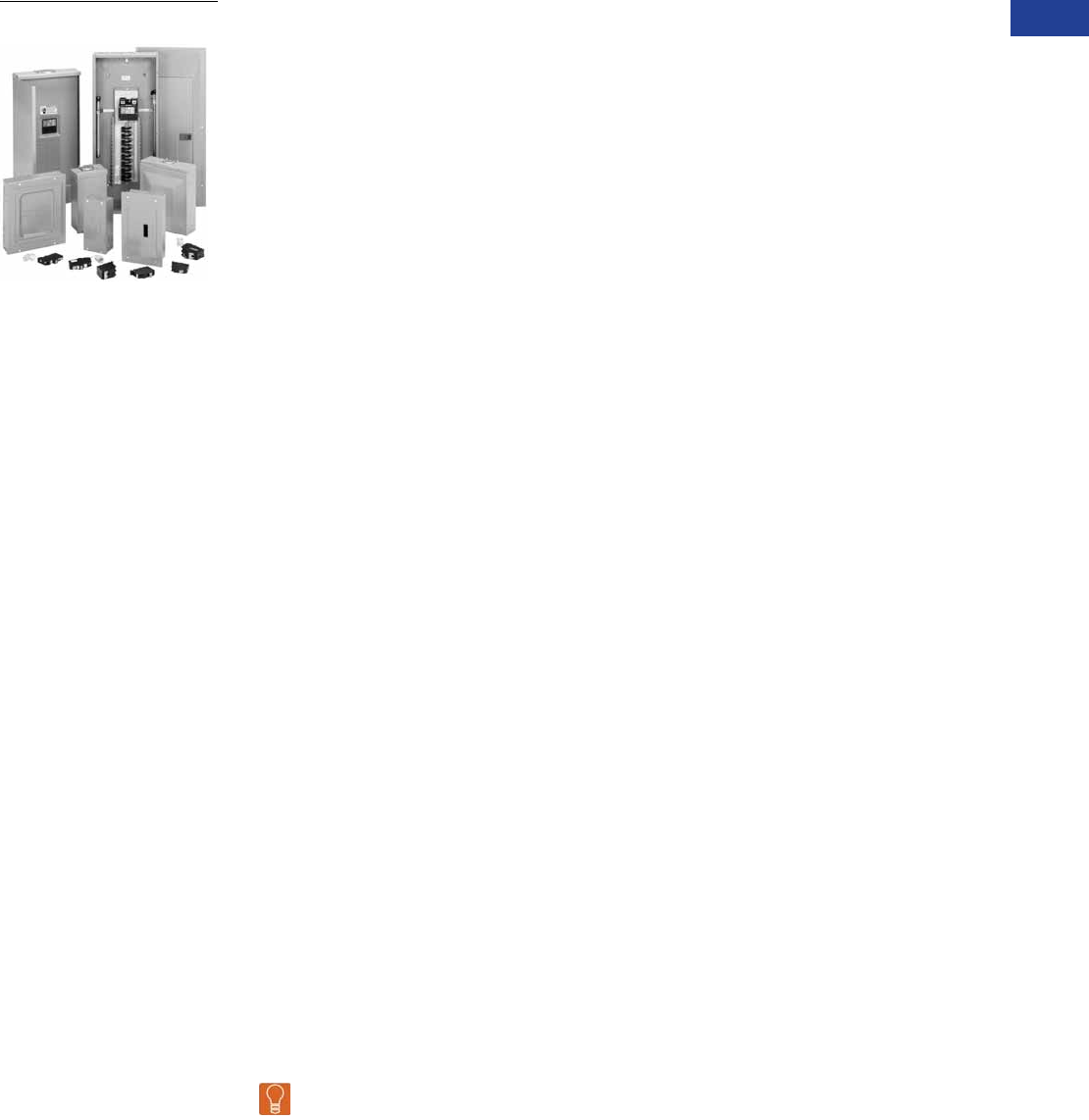

Eaton Type CH Convertible Family
Contents
Description Page
Overview
Product Description . . . . . . . . . . . . . . . . . . . . . V1-T1-3
Features, Benefits and Functions . . . . . . . . . . V1-T1-3
Standards and Certifications . . . . . . . . . . . . . . V1-T1-4
Catalog Number Selection . . . . . . . . . . . . . . . . V1-T1-6
Product Selection. . . . . . . . . . . . . . . . . . . . . . . V1-T1-7
Technical Data and Specifications . . . . . . . . . . V1-T1-29
CH Specialty Products . . . . . . . . . . . . . . . . . . . . . V1-T1-14
CH Loadcenter Options and Accessories . . . . . . . V1-T1-22
CH Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-31
Overview
Product Selection Guide
CH Loadcenters
Description
Service
Single-phase, three-wire, 120/240 Vac
Three-phase, three-wire, 240 V corner grounded delta
Three-phase, four-wire, 208Y/120 Vac
Three-phase, three-wire, 240 Vac delta
Short-Circuit Current Rating
10 kAIC: All single- and three-phase loadcenters 40–400 A, 2–42 circuits except when
series ratings are applied
25 kAIC: All factory-installed main breakers single-phase loadcenters rated 150–225 A
using Type CSR main breakers
35 kAIC available on convertible units using CSH main breaker
42 and 100 kAIC are available on some styles: single-phase and three-phase
Main Breaker/Main Lug Loadcenters
Single-phase
Main breaker: 100, 125, 150, 200, 225, 400 A
Main lugs: 40, 70, 125, 150, 200, 225, 400 A
Three-phase
Main breaker: 150, 200, 225, 300, 400 A
Main lugs: 125, 150, 200, 225, 400 A
Convertible Loadcenters
Main breaker or main lugs: single-phase up to 225 A
Branch Breakers
Type CH: 10–150 A. Single-, two- and three-pole. Selected amperages available in shunt
trip, HACR and switching duty
Ground fault circuit interruptors: 15–60 A
Type CH-HID: 15–30 A. Single-, two- and three-pole
CH-HM high magnetic
CH-M50 high ambient
Type CH-AFCI arc fault circuit interrupter
Type CHP: 10–125 A. Single-, two- and three-pole. three-position commercial trip
Selected amperages available in HACR switching duty
Type CHP-HID: 15–30 A. Single-, two- and three-pole
Type CHP-GFCI: 15–30 A. Single-pole ground fault breakers
Enclosures
NEMA® Type 1 indoor NEMA Type 3R outdoor
Loadcenter and Breaker Accessories
Branch circuit breaker:
Auxiliary components
Hold-down kits
Handle ties
Lockoffs
Lockdogs
Complete line of ground bar kits 5, 10, 14 and 21 circuits, some with additional #2/0 lugs
Each terminal will accommodate: (3) #14–#10 Cu/Al or (1) #14–#4 Cu/Al
Sub-feed lugs 125, 150 A—two- and three-pole
Shunt trips
Universal rainproof conduit hubs Group One: 3/4, 1, 1-1/4, 1-1/2, 2 inches (19.1, 25.4, 31.8, 38.1, 50.8 mm)
Group Two: 2, 2-1/2, 3 inches (50.8, 63.5, 76.2 mm)
Adapter plate
Bussing
Silver flash plated copper bus is a standard feature
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-3
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Product Description
Loadcenters are enclosures
specifically designed to
house the branch circuit
breakers and wiring required
to distribute power to
individual circuits. They
contain either a main breaker
when used at the service
entrance point or a main lug
when used as a sub-panel
to add circuits to existing
service. The main breaker
protects the main entire
panel and can be used as
a service disconnect. The
branch breakers protect the
wires leading to individual
electrical loads such as
fixtures and outlets.
Features, Benefits and Functions
Loadcenter Construction
Eaton’s Type CH loadcenters
feature silver flash plated
copper bus in all interiors. Stabs
are rated 200 A throughout
the CH line. Therefore, the
sum of the handle ratings
connected to any one stab is
limited to 200 A maximum.
NEMA 1 boxes are
manufactured from
cold rolled 16 gauge sheet
steel. Raintight boxes are
manufactured from galvanized
steel. All boxes and trims are
finished using an electrostatic
powder coat, baked urethane
paint process.
Neutrals
Eaton Type CH loadcenters
feature two types of neutrals:
Insulated/Bondable Split
Neutral
Panels are supplied with split
insulated neutrals with an
insulated cross strap. For
service entrance applications,
the neutral must be bonded
by using the bonding strap
supplied with the panel. For
non-service entrance (sub-
panel) applications, the panel
may be installed with the
bonding strap not connected
to the neutral. Separate
ground bars must be used on
non-service entrance panels.
Insulated/Bondable Single
Neutral
Panels are supplied with a
single insulated neutral. For
service entrance applications,
all that is required to bond the
neutral is to loosen the
bonding screw and the
neutral screw directly beside
it, insert the bonding strap
into the neutral bar, and re-
tighten both connections. The
single neutral can be moved
by the contractor to the other
side of the panel, if desired.
When used as a service
entrance panel, unused
neutral connections may be
used for the termination of
equipment grounds. For non-
service entrance (sub-panel)
applications, the panel may
be installed with the bonding
strap not connected to the
neutral. Separate ground bars
must be used on non-service
entrance panels.
Inboard Plug-On Neutral
Code changes and higher
safety standards are
leading to more arc fault
circuit interrupter (AFCI)
installations. With the
electrical contractor in mind,
Eaton has revolutionized the
way Combination AFCIs are
installed with the Plug-on
Neutral line of loadcenters
and breakers. This unique
product solution enables the
contractor to connect the
breaker directly to the neutral
bar, eliminating the need for
wiring a pigtail.
Grounds
In service entrance
applications where the
neutral is bonded, unused
neutral holes may be used
for terminating ground
conductors. In sub-feed
panels, the neutral must be
isolated (non-bonded), and
ground wires must be
terminated on a separate
ground bar.
The insulated/bondable
single/split neutral panels
have sufficient terminations
for both ground and neutral
conductors. The insulated/
bondable single split neutral
panels are supplied with a
separate factory-installed
ground bar if the catalog
number contains a “G.” If
not, a separate ground bar
should be installed. Insulated/
Bondable Single Neutral
panels are supplied without a
ground bar (unless otherwise
noted), and ground bar kits, if
needed, must be purchased
separately.
V1-T1-4 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Standards and Certifications
UL® Listings
All Eaton Type CH loadcenters
are listed under UL File E8741.
Neutral and Ground Terminals
The standard terminals on
grounds and neutrals are rated
to accept (3)—#14–#10 Cu/Al
or (1)—#14–4 wires. For larger
cables, add-on neutral lugs
may be ordered from the
Accessories.
Note: NEC® allows only one
current carrying conductor
per hole on neutrals unless
otherwise noted.
Bottom-Fed Loadcenters
When the power cable is
brought into the loadcenter
from below the panel; then
the main lug panels, and
single-phase, 225 A and
below, loadcenters can be
rotated 180 degrees to allow
straight-in wiring of power
cables to the main terminals.
Because the CSR main circuit
breaker handle operates
horizontally, the orientation
of the main circuit breaker
handle is consistent with
the requirements of NEC
Article 240.81.
Gutter Splicing
Loadcenters are not UL listed
as wiring troughs. Therefore,
gutter splicing of riser cables
to tap off to the main device
is not permitted. Refer to
NEC Article 373.8.
Fire Rating
Due to the numerous
openings in both loadcenter
boxes and trims, they should
not be mounted in firewalls.
There is no approval method
for sealing the enclosures for
this application.
Date Code
The date of manufacture of
each loadcenter is printed on
the outside of the carton as
well as inside the loadcenter.
On the carton, the date code
is printed on the end carton
label. In the loadcenter, the
date code is located on the
small white label located on
the right side wall (with the
main device on top).
The date code is in the
following format: F # # # &.
The “F” is the numeric code
for the Lincoln, IL plant,
and the three numbers
are the year and week of
manufacture, e.g., 023. The
“&” sign at the end signifies
the decade of the 2000s.
The “!” at the end signifies
the decade of the 2010s.
Therefore, the date code
F023& would indicate
that the product was
manufactured in the 23rd
week of 2000. The 1980s
are represented by a
“+” sign and the 1990s
are represented by a “=”
at the end of the code.

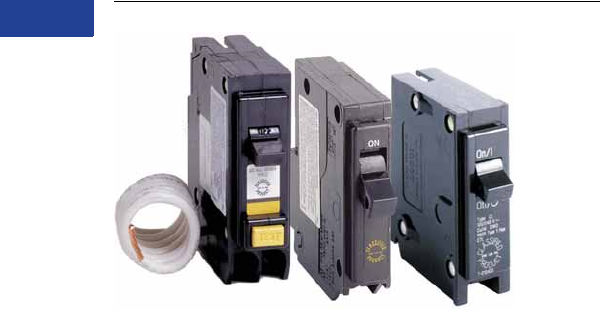

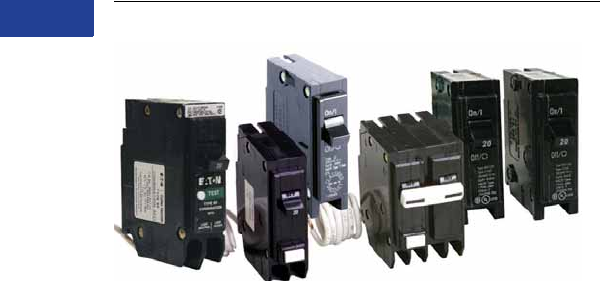

Plug-On Type CH Breakers
Quick-make, quick-break
switch mechanism combined
with inverse time element
tripping operation and trip-
free handle design. Type CH
circuit breakers trip to the
OFF position eliminating
nuisance callbacks. The
thermal-magnetic trip curve
avoids nuisance tripping on
mild overloads while reacting
almost instantaneously
to severe short-circuit
conditions. CHF breakers
include a ‘trip flag’ to
differentiate between a
tripped breaker and one that
has been turned off.
Multipole breakers have
internal common trip
connection to operate all
poles simultaneously.
Handles are marked with
ON-OFF indication and
ampere rating of the breaker.
Type CH breakers meet
UL Standard 489, NEMA
standards, and Federal Spec
Classification W-C 375 b/Gen.
They are UL listed under File
Number E11713, E8741,
E3624 and E51287: and
CSA® certified file number
LR87196, except Type
CHT breakers.
Type CH Circuit Breaker Ratings
Single- and double-pole CH
breakers rated 15 and 20 A
have low instantaneous
magnetic trip levels. The 15
and 20 A breakers with “HM”
suffix have high magnetic trip
settings recommended for
circuits with inherently high
inrush currents. All Type CH
breakers are marked for
heating, air conditioning
and refrigeration (HACR)
equipment application.
Single-pole 15–20 A breakers
are also suitable for switching
duty (SWD). Shunt trip coils
operate on 120 Vac and
require one additional pole
space per breaker.
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

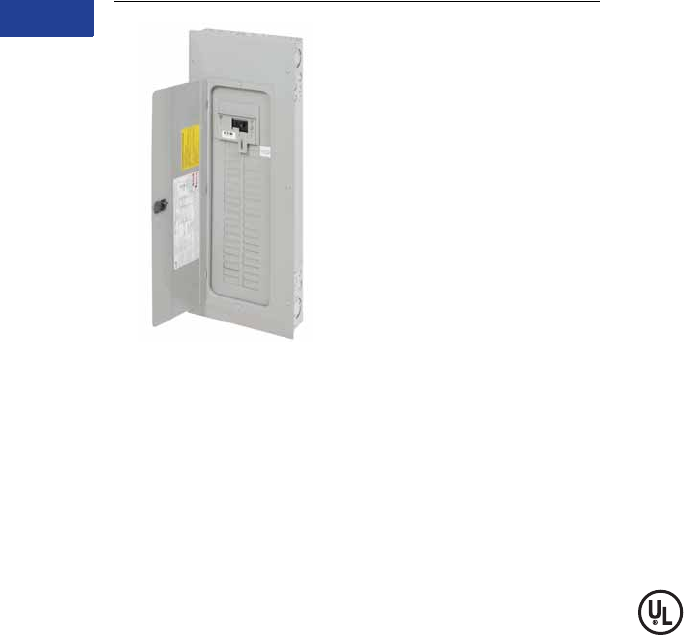

Type CH Loadcenter
Warranty
The minimum warranty
for residential loadcenters,
breakers and surge protection
devices shall be as follows:
●Lifetime loadcenter
warranty
●Lifetime warranty on
CH circuit breakers
●Lifetime warranty on
CHSPT2ULTRA including
$75,000 connected
equipment warranty
●1-year warranty on plug-in
surge protective device
(CHSA)

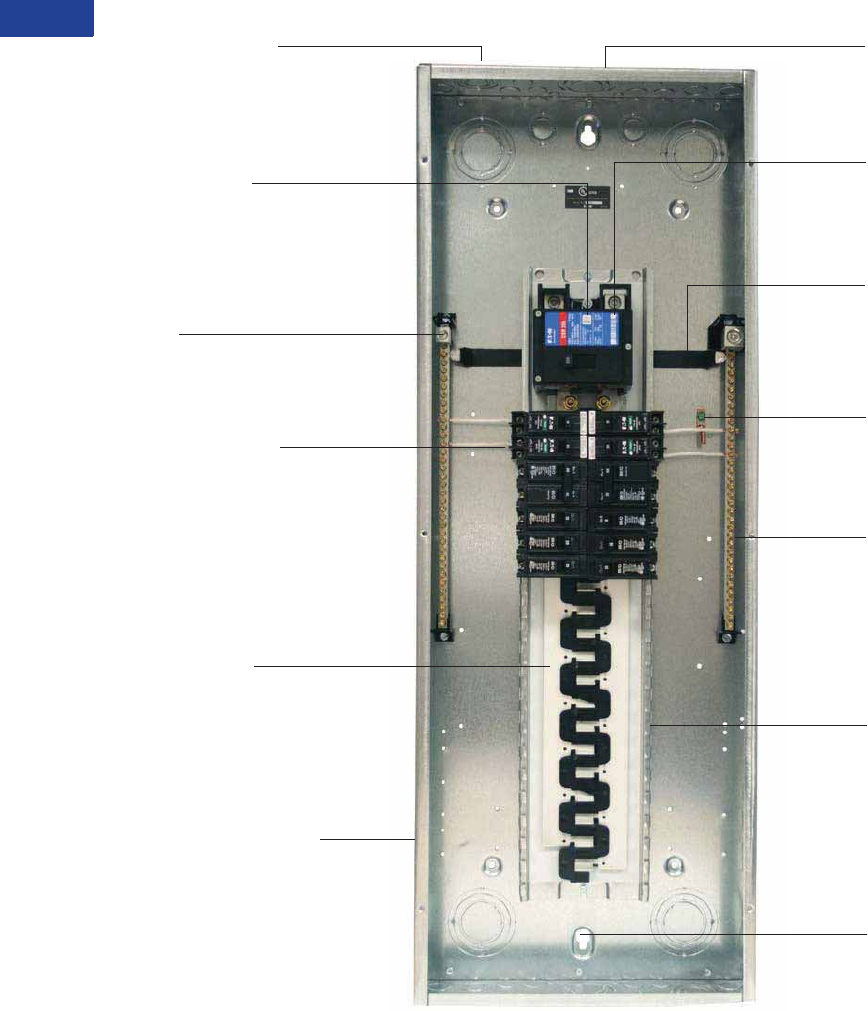

Single Keyhole Mounting
One keyhole at the top
and bottom provides easier
mounting and leveling
Neutral Bus (Strap)
Easily removable for
sub-panel applications
Bonding Z-Strap
Provides easy field
conversion for service
entrance applications
Twin Neutral Bars
Minimum 150% neutral
capacity
Extra 1.5 inch Knockout
(38.1 mm)
Larger knockout provides
easier installation and time
savings for renovation
installations
“Tangential” Center Knockout
Easier installation for conduit
applications
Commercial Grade Main
Breaker
25 kAIC series rated main
breaker in 150 A–225 A load-
centers. 35, 42 and 100 kAIC
series ratings are available
Optional convertible design—
reduces inventory
requirements
2/0 Lug
Easily removable and can be
installed in any location
on the neutral bar
Drywall Marking on Enclosure
Indicates proper mounting
depth for flush applications
One Piece Silver-Flashed
Copper Bus
Provides superior conductivity,
corrosion resistance and durability
Steel Backpan
Provides solid and reliable
breaker mounting—single
piece design for stability
and durability
Top or Bottom Feed
Straight-in wiring saves labor
and material
One panel for either top or
bottom applications
Type CHF AFCI/GFCI/Thermal -
Magnetic Breakers
Advanced electronics
effectively reduce nuisance
tripping
CHF AFCI breakers have a
standard diagnostic LED
indicating 1 of 7 trip codes
Mechanical flag for trip
indication (on thermal-magnetic
AFCI and GFCI)
All CH breakers provide
industry exclusive 2-position
handle with simple
1 step reset
Unique Sandalwood Finish
Aesthetically appealing,
scratch-resistant powder
coating
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
V1-T1-6 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Catalog Number Selection
Loadcenters 100–225 A and 12–42 Circuits
Indoor Covers Ordered Separately
Note: All combinations are not valid, refer to the catalog section.
LC Type
Type CH 3/4-inch (19.1 mm)
branch circuit breakers
Number of Circuits
Selection circuits
2
4
8
12
14
16
18
20
22
24
28
30
32
42
Main Device
L= Main lug only
B= Main breaker
N= Convertible
H= High AIC
main breaker
CH 42 B200 K
Construction
Blank = Standard
PN = Plug-on neutral
Phases
Blank = Single-phase
3= Three-phase Accessories
Blank = Standard
EC = Surge ready
SUR = Surge factory
installed
Bus Amperes
40
70
100
125
150
200
225
Box Sizes
B
C
D
E
G
J
K
L
R = Outdoor (no cover)
CH 8 K F
Type CH
Loadcenter
Cover Series
Factory Options
Blank = Standard
SUR = Surge/surge ready
Accessories
Blank = Standard
M= Mechanical interlock
Mounting
F= Combination
flush/surface
S= Surface
Box Size
Indicated in loadcenter
catalog number
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-7
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

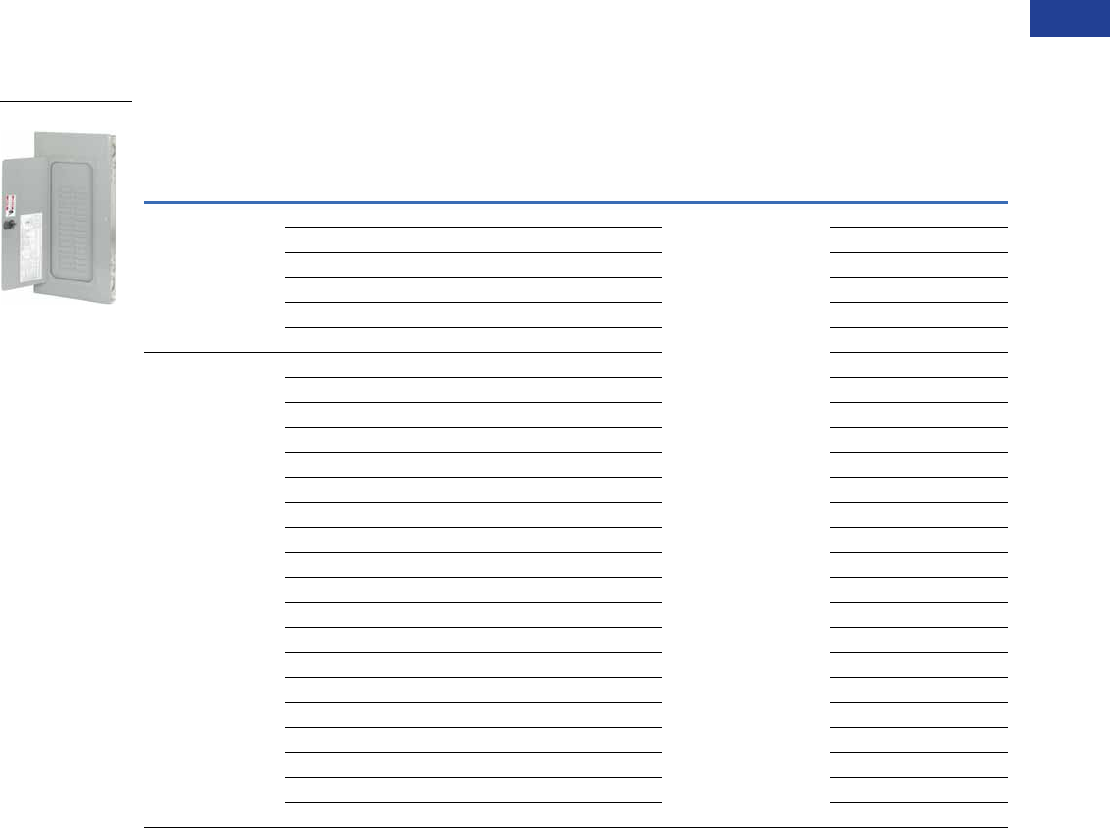

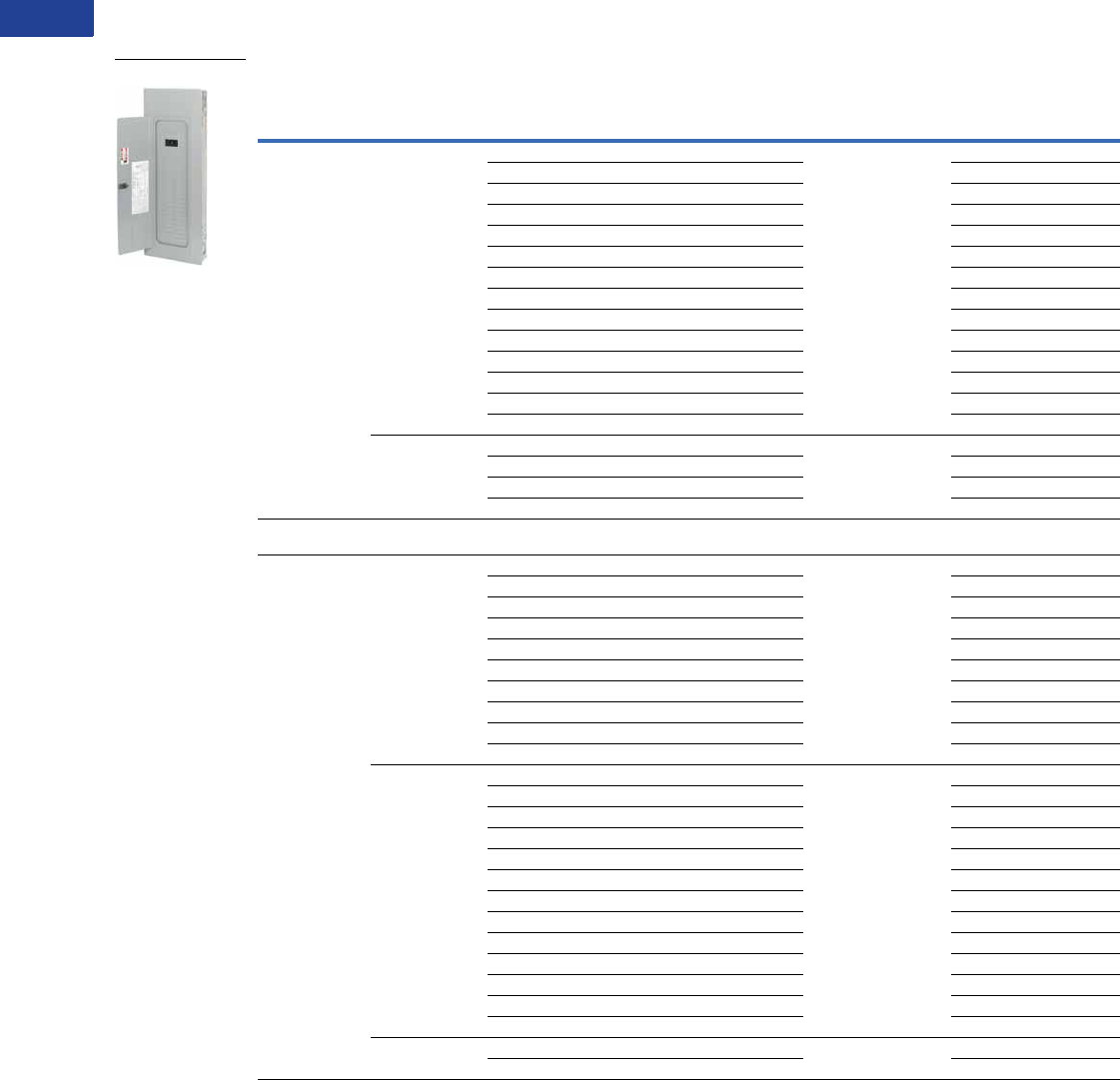

Product Selection

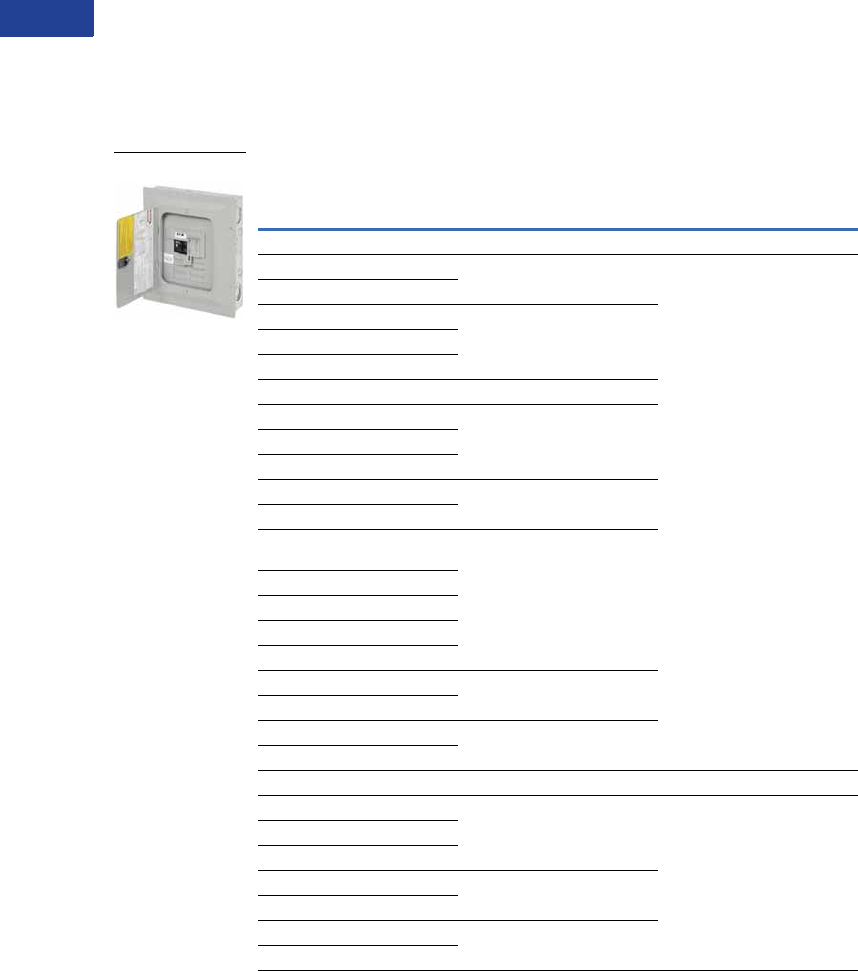

Single-Phase—Main Circuit Breaker Loadcenters—10/25 kAIC
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral (Unless Otherwise Noted)
Notes
1 All main circuit breaker loadcenters are listed for use as service entrance equipment.
2 Ground bar kits priced separately. See Page V1-T1-25.
3 Combination style covers may be used in surface or flush applications.
4 Can be top or bottom fed by rotating the enclosure and trim 180 degrees.
5 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-25.
6 Panel includes #4–300 kcmil feed-through lugs.
7 This cover is for flush applications only (not combination).
Box sizes Pages V1-T1-27 and V1-T1-28.
Main
Breaker
Type

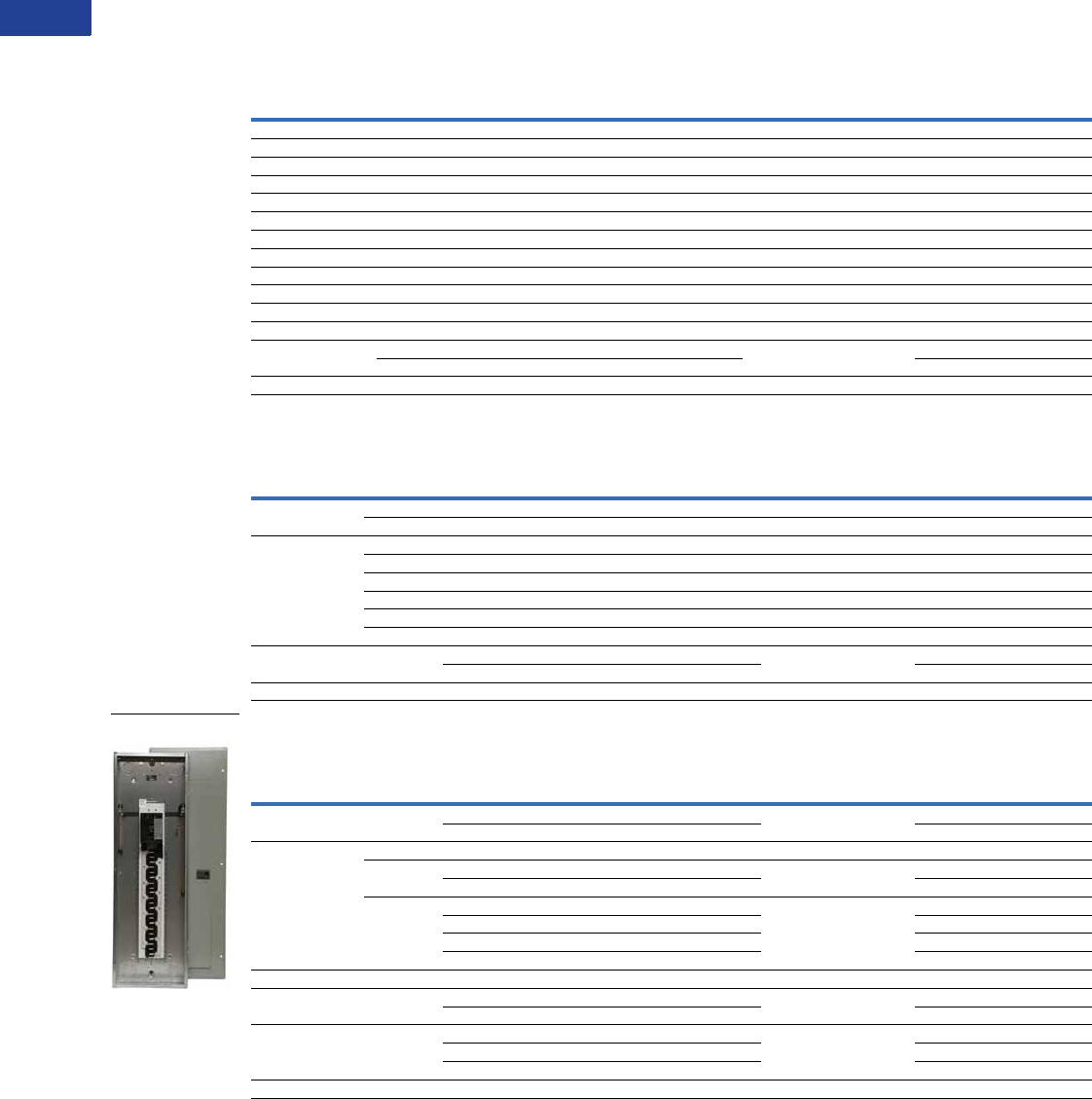

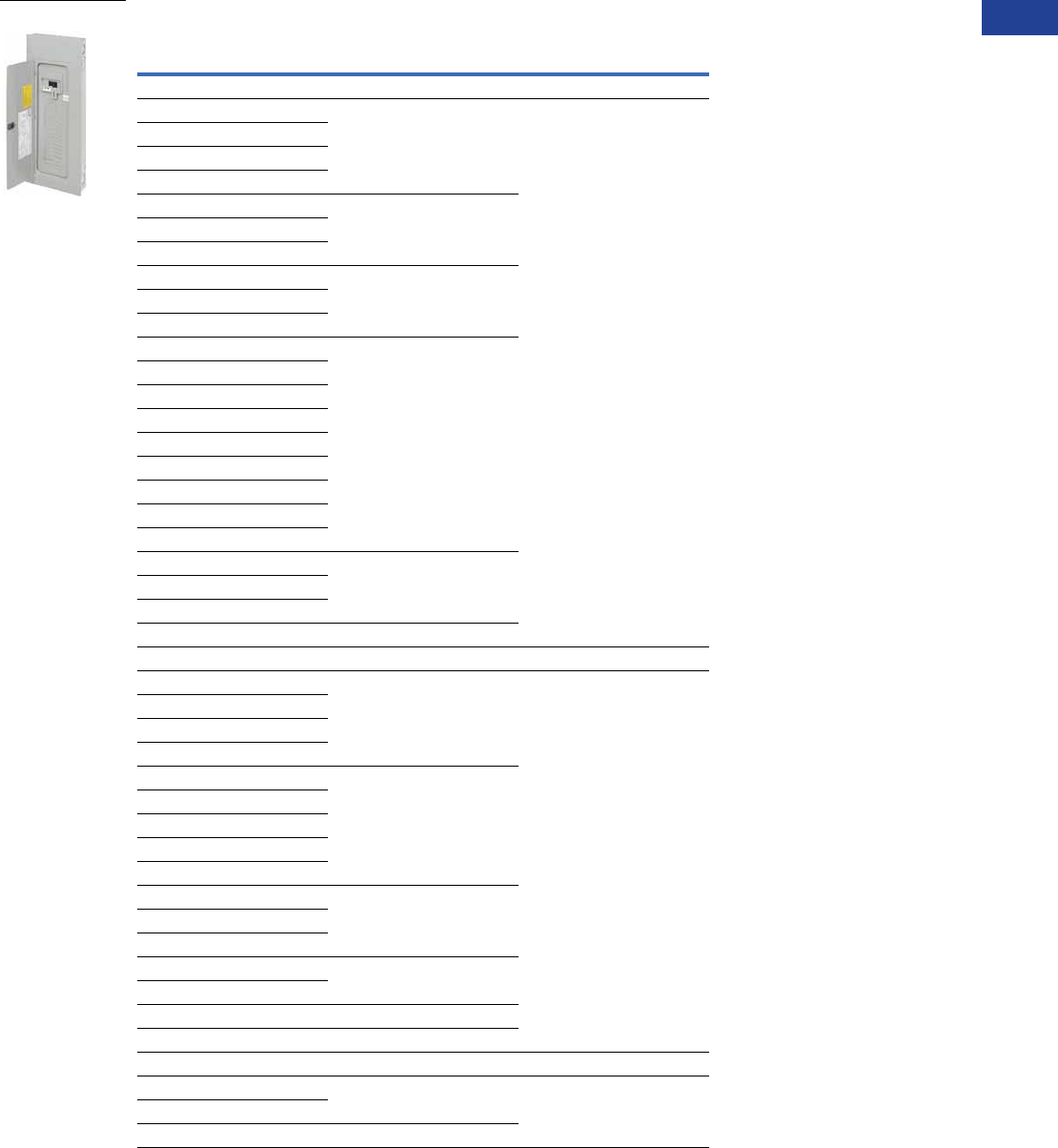

Main
Ampere
Rating
Maximum Number
3/4-Inch (19.1 mm)
of Poles
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter 12
Catalog Number
Loadcenter Cover
Catalog Number
Combination 3Surface
CH
10 kAIC
100 14 Indoor B #6–1/0 CH14B100B 4CH8BF CH8BS
14 Outdoor B #6–1/0 CH14B100R 5——
18 Indoor C #6–1/0 CH18B100C 4CH8CF CH8CS
18 Outdoor C #6–1/0 CH18B100R 5——
22 Indoor C #6–1/0 CH22B100C 4CH8CF CH8CS
22 Outdoor C #6–1/0 CH22B100R 5——
30 Indoor D #6–1/0 CH30B100D 4CH8DF CH8DS
30 Outdoor D #6–1/0 CH30B100R 5——
125 22 Indoor C #6–1/0 CH22B125C 4CH8CF CH8CS
22 Outdoor C #6–1/0 CH22B125R 5——
30 Indoor D #6–1/0 CH30B125D 4CH8DF CH8DS
30 Outdoor D #6–1/0 CH30B125R 5——
CSR
25 kAIC
150 8 Outdoor E #2–300 kcmil CH8B150RF 6——
24 Indoor E #2–300 kcmil CH24B150E 4CH8EF CH8ES
24 Outdoor E #2–300 kcmil CH24B150R 5——
32 Indoor J #2–300 kcmil CH32B150J 4CH8JF CH8JS
32 Outdoor J #2–300 kcmil CH32B150R 5——
200 8 Outdoor E #2–300 kcmil CH8B200RF 6——
24 Indoor E #2–300 kcmil CH24B200E 4CH8EF CH8ES
24 Outdoor E #2–300 kcmil CH24B200R 5——
32 Indoor J #2–300 kcmil CH32B200J 4CH8JF CH8JS
32 Outdoor J #2–300 kcmil CH32B200R 5——
42 Indoor K #2–300 kcmil CH42B200K 4CH8KF CH8KS
42 Outdoor K #2–300 kcmil CH42B200R 5——
225 32 Indoor J #2–300 kcmil CH32B225J 4CH8JF CH8JS
32 Outdoor J #2–300 kcmil CH32B225R 5——
42 Indoor K #2–300 kcmil CH42B225K 4CH8KF CH8KS
42 Outdoor K #2–300 kcmil CH42B225R 5——
DK
10 kAIC
300 42 Indoor PM (2) 3/0–250 kcmil CH42PM300 CH7PMF 7CH7PMS
400 42 Indoor PM (2) 3/0–250 kcmil CH42PM400 CH7PMF 7CH7PMS
CH42B200K
V1-T1-8 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

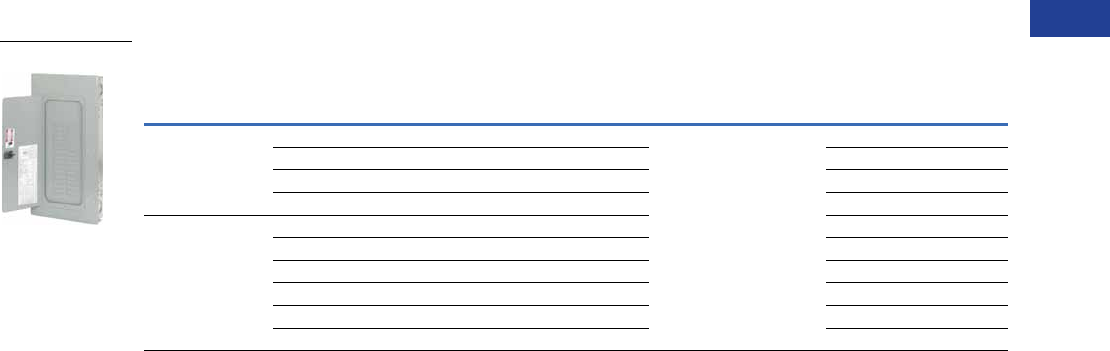

Single-Phase—High Interrupting Rated Main Circuit Breaker Loadcenters—100 kAIC
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral
Notes
1All main circuit breaker loadcenters are listed for use as service entrance equipment.
2Combination style covers may be used in surface or flush applications.
3Loadcenter can be top or bottom fed by rotating the enclosure and trim 180 degrees.
4Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-25.
5Series rated for 100 kAIC with all Types CH, CHT and CHP breakers.
Main
Breaker
Type
Main
Ampere
Rating
Maximum Number
3/4-Inch (19.1 mm)
Poles
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter 1
Catalog Number
Loadcenter Cover
Catalog Number
Combination 2Surface
CHB4
100 kAIC 5
100 32 Indoor L #6–1/0 CH32H100L 3CH8LF CH8LS
32 Outdoor L #6–1/0 CH32H100R 4——
CHH
100 kAIC 5
150 32 Indoor L #2/0–300 kcmil CH32H150L CH8LF CH8LS
32 Outdoor L #2/0–300 kcmil CH32H150R 4——
200 32 Indoor L #2/0–300 kcmil CH32H200L CH8LF CH8LS
32 Outdoor L #2/0–300 kcmil CH32H200R 4——
42 Indoor L #2/0–300 kcmil CH42H200L CH8LF CH8LS
42 Outdoor L #2/0–300 kcmil CH42H200R 4——
225 42 Indoor L #2/0–300 kcmil CH42H225L CH8LF CH8LS
42 Outdoor L #2/0–300 kcmil CH42H225R 4——
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-9
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

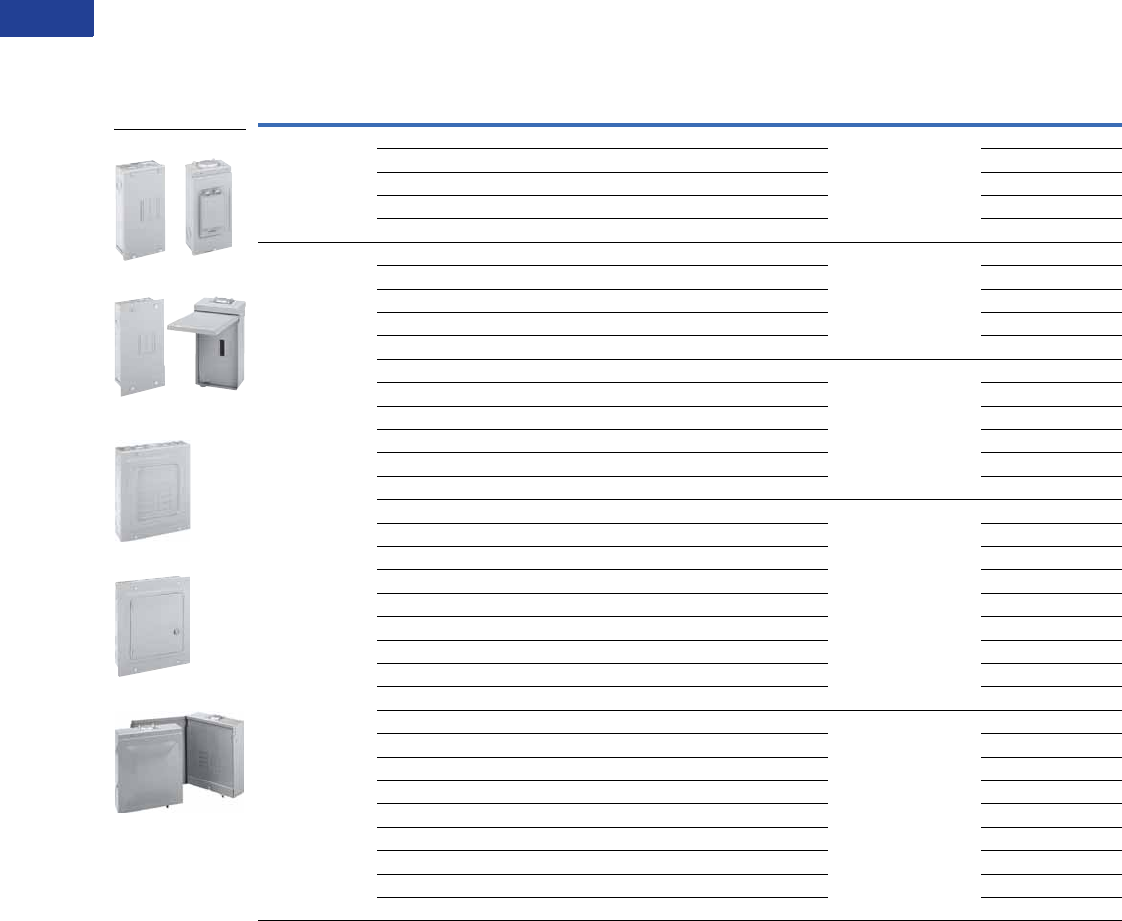

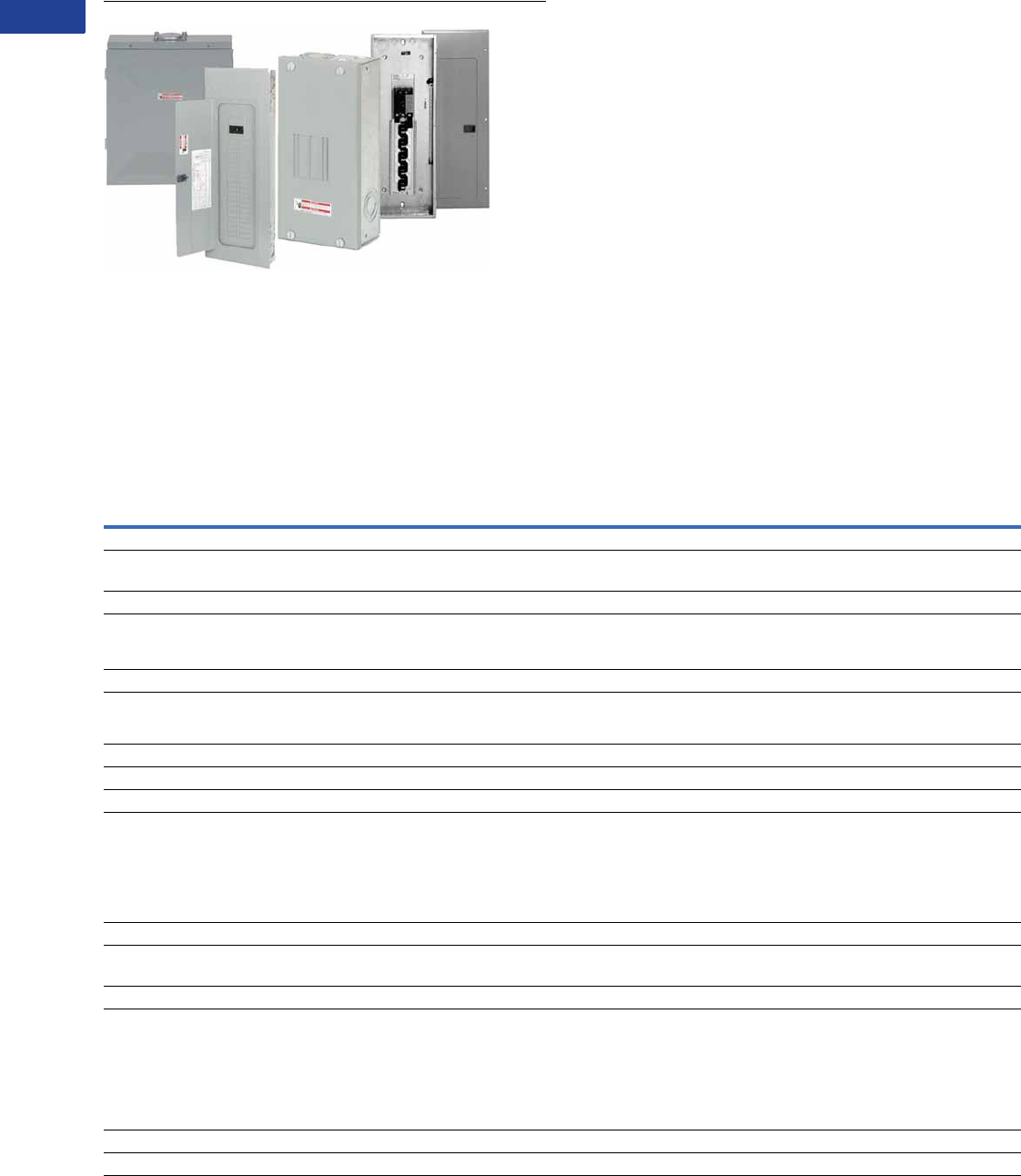

Single-Phase—Main Lug Loadcenters
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Single Neutral
Notes
1 Requires the use of Type CHT breakers.
2 Ground bar kits priced separately, see Page V1-T1-25.
– For 2/4 and 6/12 circuit loadcenters, use Type GBK5 or GBK520 ground bar
– For 4/8 and 8/16 circuit loadcenters, use Type GBK10 ground bar
– Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
3 Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard
(see Article 408.34 of the NEC).
4 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-25.
5 For use as service entrance applications only.
6 Neutral/ground holes (6) #14–6 and (3) #14–2/0 AWG Cu/AI.
7 Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not more than six service disconnecting mains are
provided and when not used as a lighting and appliance panelboard (see Article 408.34 of the NEC).
8 Suitable for use as service equipment when a main breaker is used or when not more than six service disconnecting mains are provided and when not used as a lighting
and appliance panelboard (see Article 408.34 of the NEC).
Box sizes Pages V1-T1-27 and V1-T1-28.
Main
Ampere
Rating
Maximum Number
3/4-Inch (19.1 mm) Enclosure
Type
Type of Trim
(Included)
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter
Catalog NumberSpace Poles
40 2 4 1Indoor Surface (no door) 5 #14–6 CH2L40SP 23
24
1Outdoor — 5R #14–6 CH2L40RP 234
24
1Indoor Flush (no door) 5 #14–6 CH2L40FP 23
70 2 4 1Indoor Surface (no door) 5 #14–2 CH2L70SP 23
24
1Outdoor — 5R #14–2 CH2L70RP 234
24
1Indoor Flush (no door) 5 #14–2 CH2L70FP 23
125 2 4 1Indoor Surface (no door) 6 #14–1/0 CH2L125SP 23
24
1Outdoor — 6R #14–1/0 CH2L125RP 234
2 2 Outdoor — — #14–1/0 CH2L125RSE2P 456
24
1Indoor Flush (no door) 6 #14–1/0 CH2L125FP 23
48
1Indoor Surface (no door) 7 #14–1/0 CH4L125SP 27
48
1Outdoor — 7R #14–1/0 CH4L125RP 247
48
1Indoor Flush (no door) 7 #14–1/0 CH4L125FP 27
612
1Outdoor — 6R #14–1/0 CH6L125R 267
816
1Indoor Surface (no door) 7 #6–1/0 CH8L125SP 28
816
1Outdoor — 7R #6–1/0 CH8L125RP 267
816
1Indoor Flush (no door) 7 #6–1/0 CH8L125FP 28
Surface Outdoor
Flush Outdoor
Surface (No Door)
Flush (No Door)
Outdoor
V1-T1-10 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral—Factory-Installed Ground Bar
Notes
1 Suitable for use as service equipment when not more than six disconnecting means are provided and when not used as a lighting and appliance panelboard
(see Article 408.34 of the NEC).
2 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-25.
3 Suitable for use as service equipment when a circuit breaker is used as a main breaker. The main breaker is backfed and requires hold-down bracket kit
catalog number CH125RB.
4 Suitable for use as service equipment when a circuit breaker is used as a main breaker. The main breaker is backfed and must be a Type CHB.
The breaker cannot be a Type CH.
5 This cover is for flush application only (not combination).
Box sizes Pages V1-T1-27 and V1-T1-28.
Main
Ampere
Rating
Maximum Number
3/4-Inch (19.1 mm)
Poles
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter
Catalog Number
Loadcenter Cover
Catalog Number
Combination Surface
125 12 Indoor B #6–2/0 CH12L125B 1CH8BF CH8BS
12 Outdoor B #6–2/0 CH12L125R 12 ——
16 Indoor B #6–2/0 CH16L125B 1CH8BF CH8BS
16 Outdoor B #6–2/0 CH16L125R 12 ——
20 Indoor C #6–2/0 CH20L125C 1CH8CF CH8CS
20 Outdoor C #6–2/0 CH20L125R 12 ——
24 Indoor C #6–2/0 CH24L125C 1CH8CF CH8CS
24 Outdoor C #6–2/0 CH24L125R 12 ——
150 24 Indoor D #4–300 kcmil CH24L150D 1CH8DF CH8DS
24 Outdoor D #4–300 kcmil CH24L150R 23 ——
32 Indoor D #4–300 kcmil CH32L150D 1CH8DF CH8DS
32 Outdoor D #4–300 kcmil CH32L150R 23 ——
200 12 Indoor D #4–300 kcmil CH12L200D 1CH8DF CH8DS
12 Outdoor D #4–300 kcmil CH12L200R 23 ——
16 Indoor D #4–300 kcmil CH16L200D 1CH8DF CH8DS
16 Outdoor D #4–300 kcmil CH16L200R 23 ——
225 24 Indoor D #4–300 kcmil CH24L225D 1CH8DF CH8DS
24 Outdoor D #4–300 kcmil CH24L225R 23 ——
32 Indoor D #4–300 kcmil CH32L225D 1CH8DF CH8DS
32 Outdoor D #4–300 kcmil CH32L225R 23 ——
42 Indoor G #4–300 kcmil CH42L225G 3CH8GF CH8GS
42 Outdoor G #4–300 kcmil CH42L225R 23 ——
400 42 Indoor P (2) 1/0–300 kcmil
(1) 750 kcmil
CH42PL400 4CH7PF 5CH7PS
CH42L225G
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-11
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

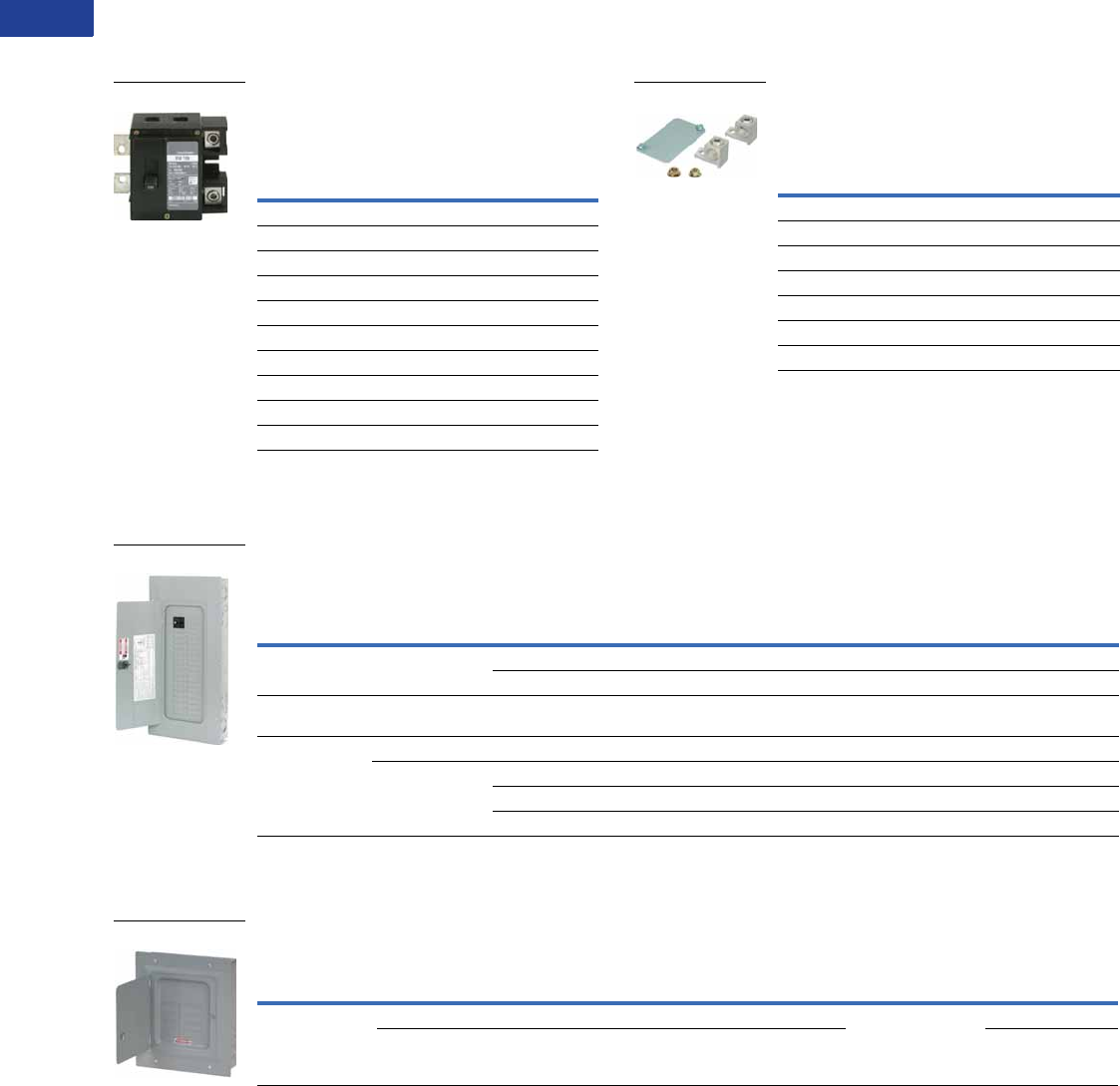

1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

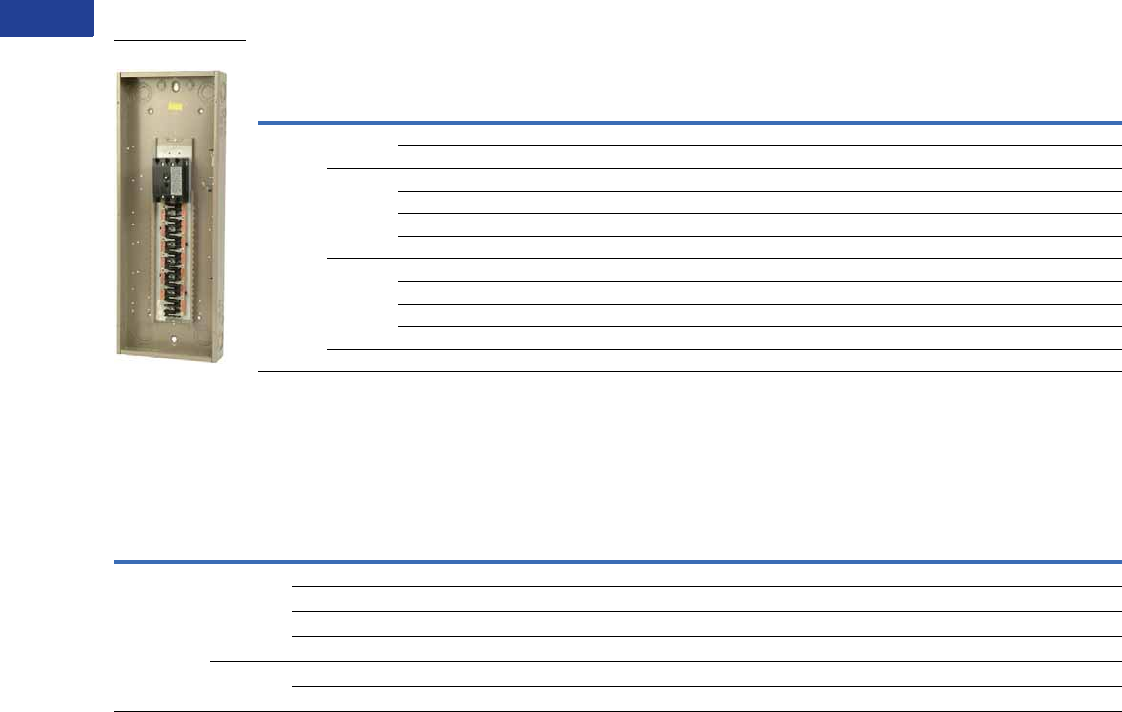

Convertible Loadcenters MCB or MLO—Base Units and Main Devices—10/25/35 kAIC
Complete assembly consists of: loadcenter, cover, and either main breaker kit or main lug kit.
Indoor—Single-Phase—Three-Wire—120/240 V—Insulated/Bondable Split Neutral—Top or Bottom Feed
Outdoor—Single-Phase—Three-Wire—120/240 V—Insulated/Bondable Split Neutral (Unless Otherwise Noted)
Notes
1Panel does not include main. Order main breaker or main lug kit separately.
2If 35 kAIC is required, use CSH breaker.
3Hold-down kit included.
435 kAIC series combination rating is obtained when Types CH, CHT and CHP branch breakers are used with CSH main.
5Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-25.
6Includes feed-through lugs for both phase and neutral conductors.
7Insulated/bondable single neutral.
Interrupting rating depends on main circuit breaker selected.
Maximum
Main Ampere
Rating
Maximum
Number of
Single Poles
Box
Size
Loadcenter Box
and Panel
Catalog Number 1
Loadcenter Cover
Catalog Number Main Lug Kit Main Breaker Kit
Catalog NumberCombination Surface
Wire
Size
Catalog
Number
kAIC
Rating
Wire
Size
125 22 C CH22N125C CH8CF CH8CS #10–1/0 CHL125N 10 #10–1/0 CH2100N 3—
CH2125N 3—
200 32 J CH32N200J CH8JF CH8JS #4–300
kcmil
CHL225N 25/35 2#2–300
kcmil
CSR2125N CSH2125N
4
CSR2150N CSH2150N
4
CSR2175N CSH2175N
4
CSR2200N CSH2200N
4
225 42 K CH42N225K CH8KF CH8KS #4–300
kcmil
CHL225N 25/35 2#2–300
kcmil
CSR2125N CSH2125N
4
CSR2150N CSH2150N
4
CSR2175N CSH2175N
4
CSR2200N CSH2200N
4
CSR2225N CSH2225N
4
Maximum
Main Ampere
Rating
Maximum
Number of
Single Poles
Box
Size
Loadcenter Box
and Panel
Catalog Number 1
Main Lug Kit
Catalog
Number
Main Breaker Kit
Catalog Number
Wire
Size
kAIC
Rating
Wire
Size
125 22 C CH22N125R 5#10–1/0 CHL125N 10 #10–1/0 CH2100N 3—
CH2125N 3—
200 8 E CH8N200RF 567 #4–300 kcmil CHL225N 25/35 2#2–300 kcmil CSR2125N CSH2125N
CSR2150N CSH2150N
CSR2175N CSH2175N
CSR2200N CSH2200N
200 32 J CH32N200R 5#4–300 kcmil CHL225N 25/35 2#2–300 kcmil CSR2125N CSH2125N
4
CSR2150N CSH2150N
4
CSR2175N CSH2175N
4
CSR2200N CSH2200N
4
225 42 K CH42N225R 5#4–300 kcmil CHL225N 25/35 2#2–300 kcmil CSR2125N CSH2125N
4
CSR2150N CSH2150N
4
CSR2175N CSH2175N
4
CSR2200N CSH2200N
4
CSR2225N CSH2225N
4
V1-T1-12 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

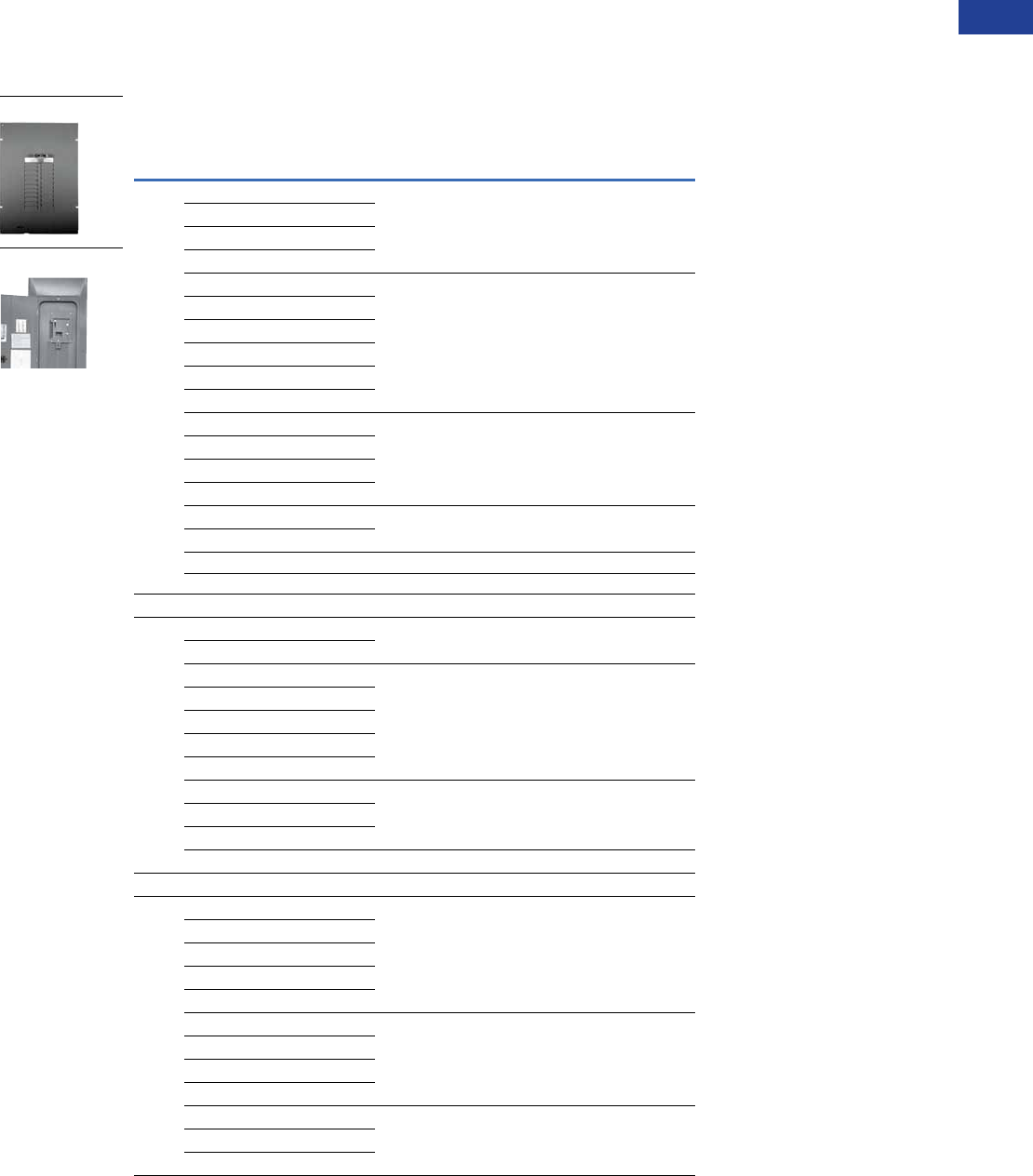

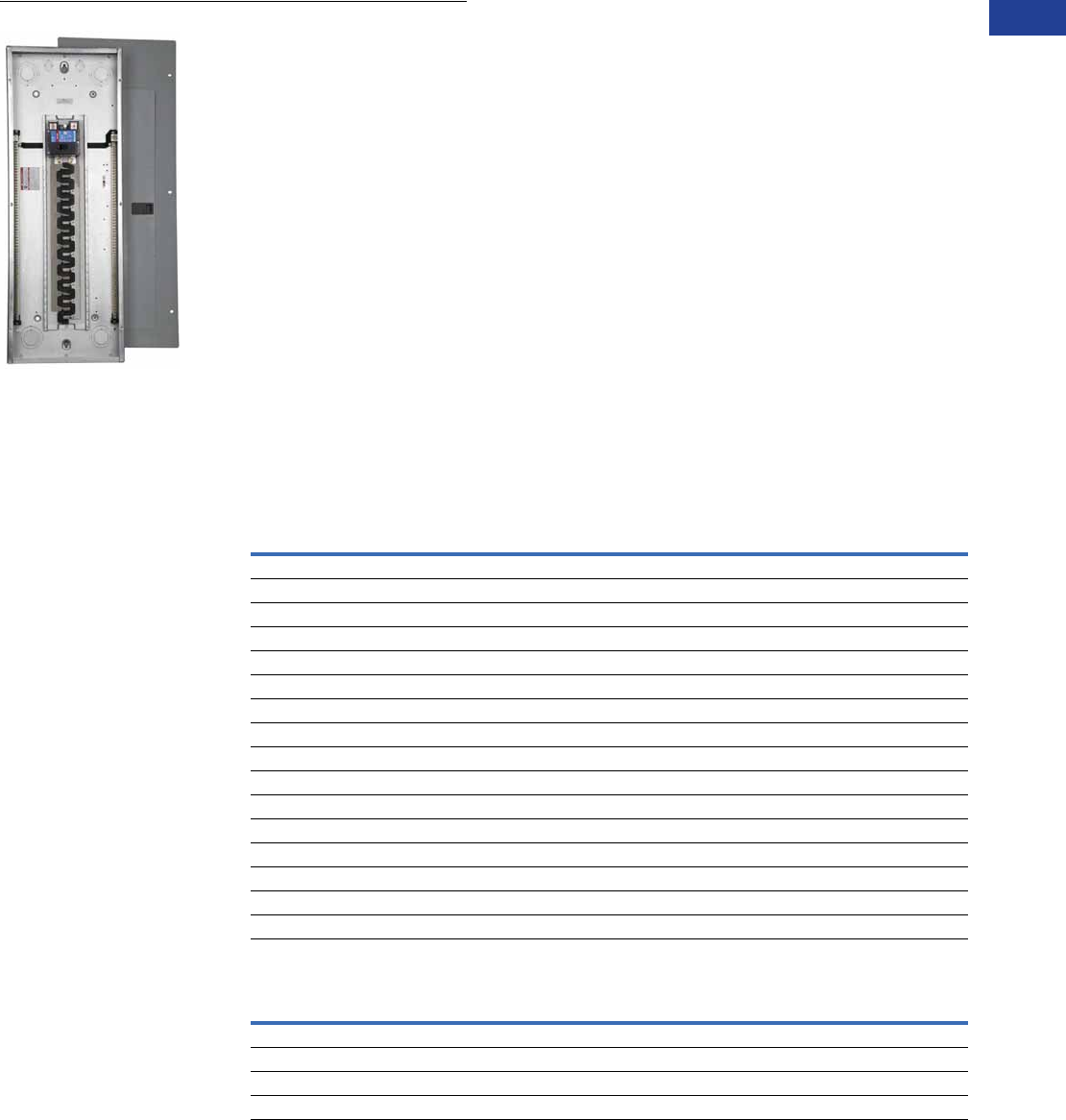

Three-Phase—Main Circuit Breaker Loadcenters—10 kAIC
Three-Phase Four-Wire—208Y/120 Vac or 240 Vac Insulated/Bondable Split Neutral
Three-Phase—High Interrupting Rated Main Circuit Breaker Loadcenters—100 kAIC
Three-Phase Four-Wire—208Y/120 Vac or 240 Vac Insulated/Bondable Split Neutral
Notes
1All main circuit breaker loadcenters are listed for use as service entrance equipment.
2Ground bar kits priced separately. For ground bar kits, see Page V1-T1-25.
3Rainproof loadcenters are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-25.
4This cover for flush application only (not combination).
5100 kAIC series combination rating is obtained when Types CH and CHP branch breakers are used with CHH main.
Main
Breaker
Type
Main
Ampere
Rating
Maximum Number
3/4-Inch (19.1 mm)
Poles
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter 12
Catalog Number
Loadcenter Cover
Catalog Number
Combination Surface
CC
10 kAIC
150 30 Indoor L #1–4/0 CH30B3150L CH8LF CH8LS
30 Outdoor L #1–4/0 CH30B3150R 3——
200 30 Indoor L #2/0–300 kcmil CH30B3200L CH8LF CH8LS
30 Outdoor L #2/0–300 kcmil CH30B3200R 3——
42 Indoor L #2/0–300 kcmil CH42B3200L CH8LF CH8LS
42 Outdoor L #2/0–300 kcmil CH42B3200R 3——
225 30 Indoor L #2/0–300 kcmil CH30B3225L CH8LF CH8LS
30 Outdoor L #2/0–300 kcmil CH30B3225R 3——
42 Indoor L #2/0–300 kcmil CH42B3225L CH8LF CH8LS
42 Outdoor L #2/0–300 kcmil CH42B3225R 3——
400 42 Indoor PM (2) 3/0–350 kcmil CH424PM400 CH7PMF 4CH7PMS
Main
Breaker
Type
Main
Ampere
Rating
Maximum Number
3/4-Inch (19.1 mm)
of Poles
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter
Catalog Number 12
Loadcenter Cover
Catalog Number
Combination Surface
CHH
100 kAIC 5
200 30 Indoor L #2/0–300 kcmil CH30H3200L CH8LF CH8LS
30 Outdoor L #2/0–300 kcmil CH30H3200R 3——
42 Indoor L #2/0–300 kcmil CH42H3200L CH8LF CH8LS
42 Outdoor L #2/0–300 kcmil CH42H3200R 3——
225 42 Indoor L #2/0–300 kcmil CH42H3225L CH8LF CH8LS
42 Outdoor L #2/0–300 kcmil CH42H3225R 3——
CH42B3200L
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-13
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Three-Phase—Main Lug Loadcenters
Three-Phase Four-Wire—208Y/120 Vac or 240 Vac Insulated/Bondable Split Neutral (Unless Otherwise Noted)
Notes
1Requires the use of Type CHT breakers.
2Suitable for use as service equipment when not more than two service disconnecting means are provided or when not more than six service disconnecting means are provided and when not used as
a lighting and appliance panelboard (see Article 408.34 of the NEC).
3Ground bar kits priced separately, see Page V1-T1-25.
– Use GBK10 ground bar
– Ground bars mount to the left side wall of the enclosure.
4Insulated/bondable single neutral.
5Rainproof loadcenters are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-25.
6Ground bar Type GBK14 is installed.
7Suitable for use as service equipment when a circuit breaker is used as a main breaker. The main breaker is backfed and requires hold-down bracket kit catalog number Type CH125RB. Suitable for
use as service equipment when not more than six service disconnecting means are provided and when not used as a lighting and appliance panelboard (see Article 408.34 of the NEC).
8Ground bar Type GBK21 is installed.
9Suitable for use as service equipment when a circuit breaker is used as a main breaker. The main breaker is backfed and requires hold-down kit catalog number Type CH125RB.
jFor ground bar kits, see Page V1-T1-25.
kSuitable for use as service equipment when a circuit breaker is used as a main breaker. The main breaker is backfed and must be a Type CHB. The breaker cannot be a Type CH.
lThis cover for flush application only (not combination).
Box sizes Pages V1-T1-27 and V1-T1-28.
Main
Ampere
Rating
Maximum Number
3/4-Inch (19.1 mm) Enclosure
Type
Type of Trim
Included
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter
Catalog Number
Loadcenter
Cover Catalog Number
Spaces Poles Combination Single
125 6 12 1Indoor Surface, no door 7 #14–1/0 CH6L3125SP 234 ——
612
1Outdoor — 7R #14–1/0 CH6L3125RP 2345 ——
612
1Indoor Flush, no door 7 #14–1/0 CH6L3125FP 234 ——
12 12 Indoor — B #6–2/0 CH12L3125B 67 CH8BF CH8BS
12 12 Outdoor — B #6–2/0 CH12L3125R 567 ——
18 18 Indoor — C #6–2/0 CH18L3125C 67 CH8CF CH8CS
18 18 Outdoor — C #6–2/0 CH18L3125R 678 ——
24 24 Indoor — C #6–2/0 CH24L3125C 67 CH8CF CH8CS
24 24 Outdoor — C #6–2/0 CH24L3125R 678 ——
150 30 30 Indoor — D #4–300 kcmil CH30L3150D 67 CH8DF CH8DS
30 30 Outdoor — D #4–300 kcmil CH30L3150R 569 ——
225 24 24 Indoor — D #4–300 kcmil CH24L3225D 67 CH8DF CH8DS
24 24 Outdoor — D #4–300 kcmil CH24L3225R 569 ——
30 30 Indoor — D #4–300 kcmil CH30L3225D 67 CH8DF CH8DS
30 30 Outdoor — D #4–300 kcmil CH30L3225R 569 ——
42 42 Indoor — G #4–300 kcmil CH42L3225G 89 CH8GF CH8GS
42 42 Outdoor — G #4–300 kcmil CH42L3225R 589 ——
400 42 42 Indoor — P (2) 1/0–300 kcmil
(1) 750 kcmil
CH424PL400 jk CH7PF lCH7PS
V1-T1-14 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Spa Panels
Contents—CH Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-2
CH Specialty Products
Spa Panels
Surge Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-15
Plug-On Neutral Loadcenter . . . . . . . . . . . . . . . V1-T1-17
Type CH Renovation Loadcenter . . . . . . . . . . . . V1-T1-18
Type CH Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-19
CH Loadcenter Options and Accessories. . . . . . . . V1-T1-22
CH Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-31
CH Specialty Products
Spa Panels

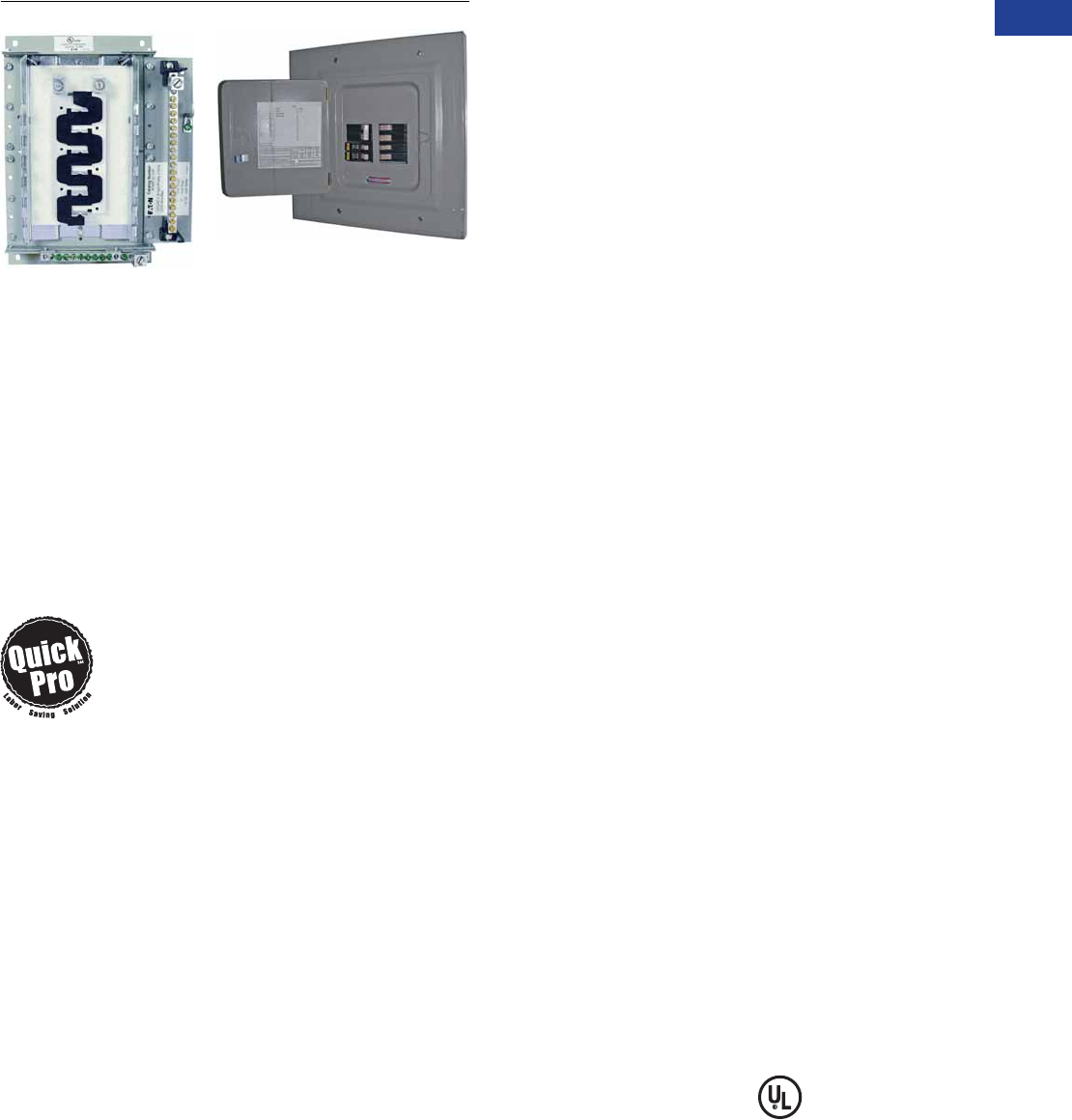

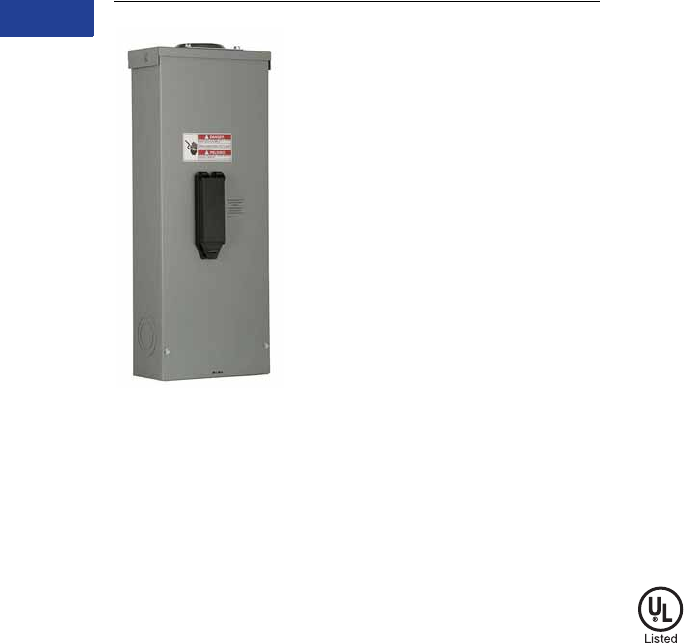

Product Description:

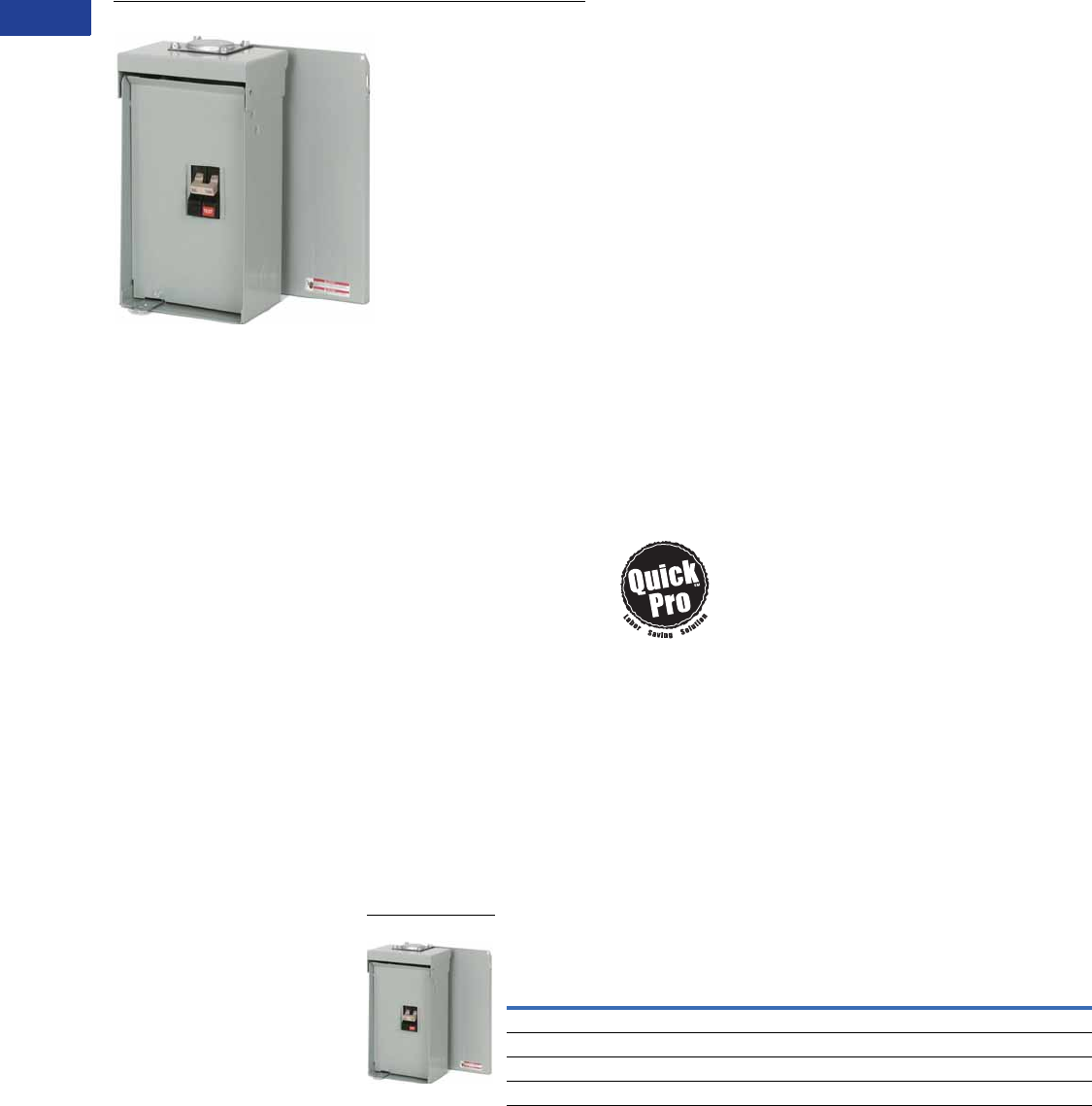

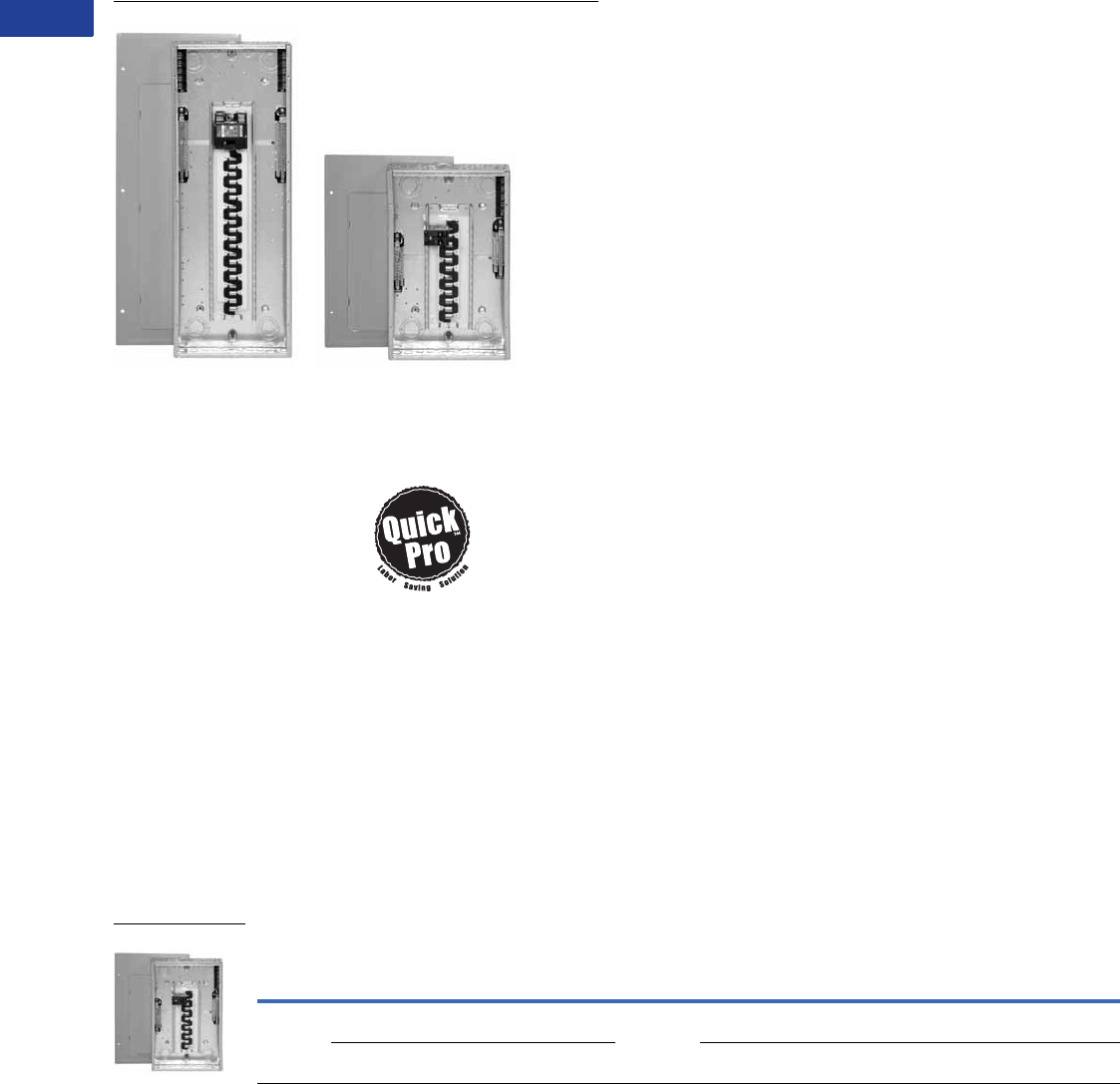

Eaton’s CH Spa Panels are
premium factory-assembled
“combination” units that
provide ground fault
protection, as well as a
convenient way to turn spa
pumps on and off. The NEC
requires that all pool and spa
pumps be protected by a
ground fault interrupter and
a disconnect switch mounted
within 10 feet of the tub
or the spa.
Features
●Two extra circuits for
additional loads
●Limited lifetime warranty
●UL Listed
●Tough powder-coated
galvanized steel enclosure
●Factory-installed
two-pole ground fault
circuit interrupter (GFCI)
Quick-ProSM
All you need to
know to save
time and make
more money.
Specified on
certain Eaton products, the
Quick-Pro symbol allows for
immediate recognition of
products that
are designed for
straightforward
installation.
When you see Quick-Pro, you
know you can install quickly—
sometimes up to 50% less
than the usual installation
time—and move on to your
next job.
Product Selection
Single-Phase Three-Wire—120/240 Vac Insulated/Bondable Neutral—
Factory-Installed Ground Bar
Notes
1 Includes a CH230GFT breaker, factory installed, and two extra circuits for convenience.
2 Includes a CH240GFT breaker, factory installed, and two extra circuits for convenience.
3 Includes a CH250GFT breaker, factory installed, and two extra circuits for convenience.
4 Includes a CH260GFT breaker, factory installed, and two extra circuits for convenience.
Main
Ampere
Rating
Circuit
Breaker
Included
Enclosure
Type
Type
of Trim
Included
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Catalog
Number
30 CH230GFT Outdoor — 5R #14–1/0 CH30SPA 1
40 CH240GFT Outdoor — 5R #14–1/0 CH40SPA 2
50 CH250GFT Outdoor — 5R #14–1/0 CH50SPA 3
60 CH260GFT Outdoor — 5R #14–1/0 CH60SPA 4

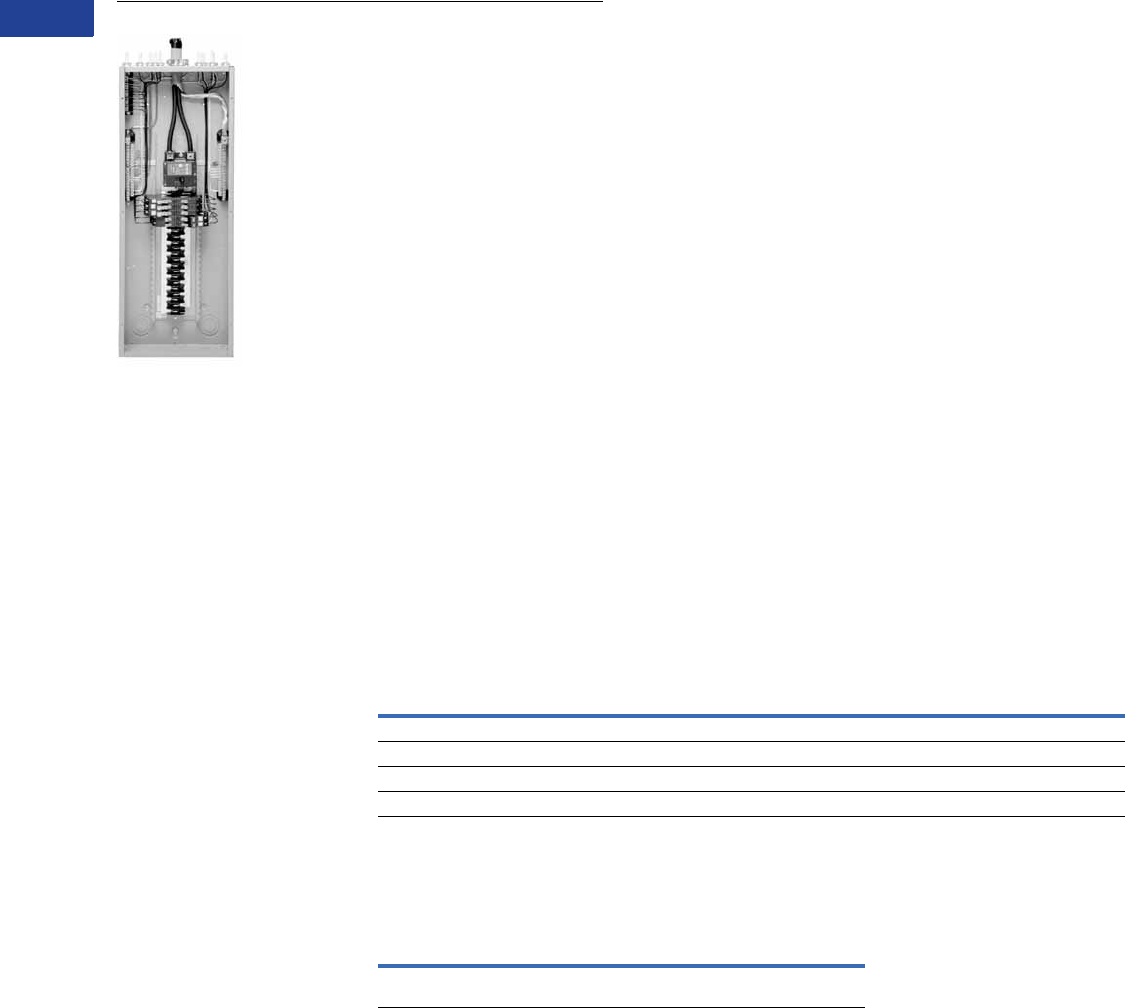

CH Spa Panel
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-15
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Surge Panel
Contents—CH Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-2
CH Specialty Products
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-14
Surge Panel
Plug-On Neutral Loadcenter . . . . . . . . . . . . . . V1-T1-17
Type CH Renovation Loadcenter . . . . . . . . . . . V1-T1-18
Type CH Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-19
CH Loadcenter Options and Accessories . . . . . . . V1-T1-22
CH Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-31
Surge Panel
Product Description

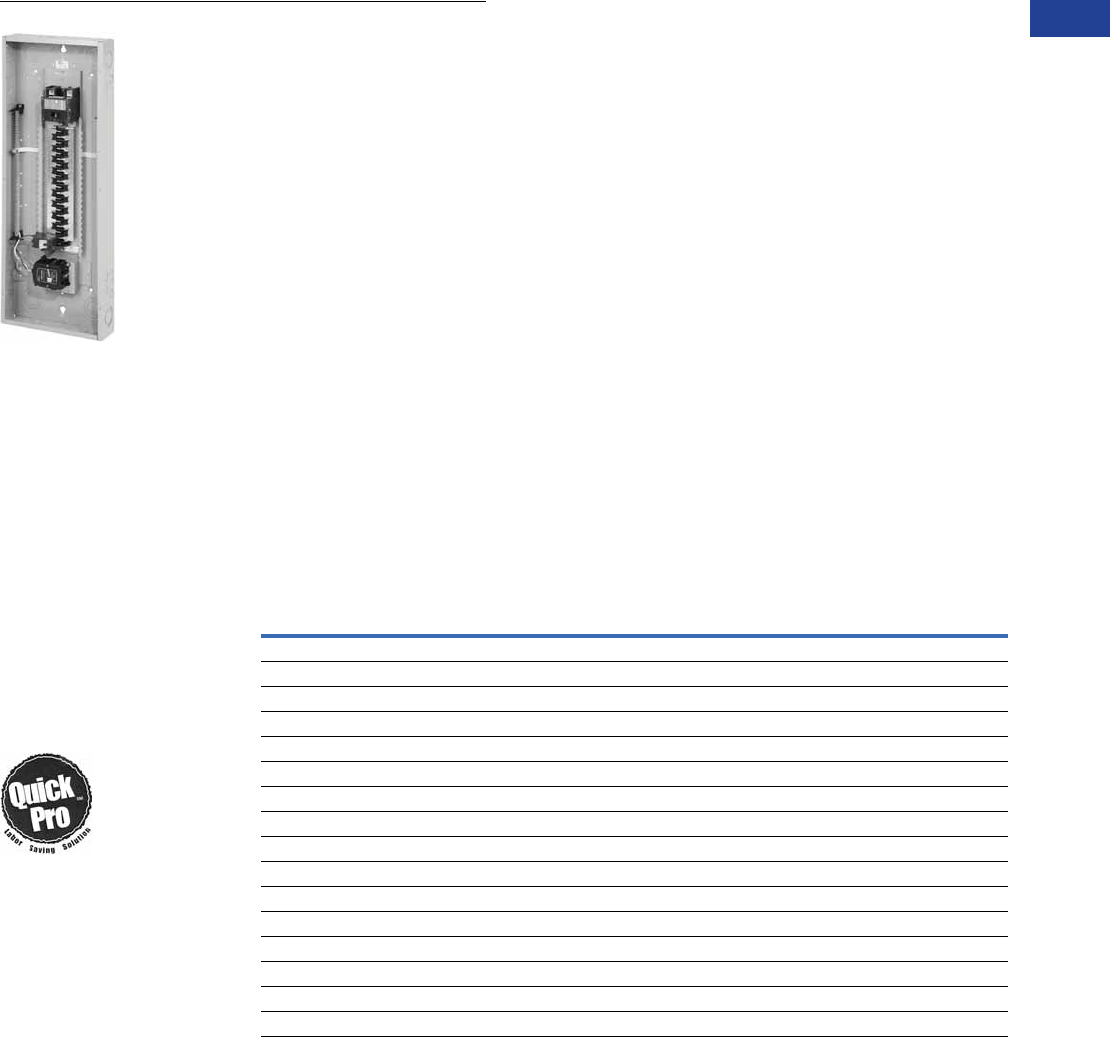

Eaton’s Type CH Surge
Loadcenter includes a factory-
mounted and wired surge
suppressor device. There is
a knockout in the cover that
allows the user to view the
status indication lights on
the surge suppressor. The
CH Surge Loadcenter reduces
the surge current, helping
protect sensitive home
electronic equipment.
Save labor
by installing
a factory-
mounted surge
protective
device.
Factory-Installed
Surge Protection
●Includes a CHSPT2ULTRA
and a two-pole 50 A
circuit breaker
●Increases the
effectiveness of
surge protection due
to reduced lead length
●A modified deadfront
allows for easy viewing
of indicating lights
Surge Ready
●Provides a mounting
provision for
CHSPT2ULTRA
●A modified deadfront
allows for easy viewing
of indicating lights

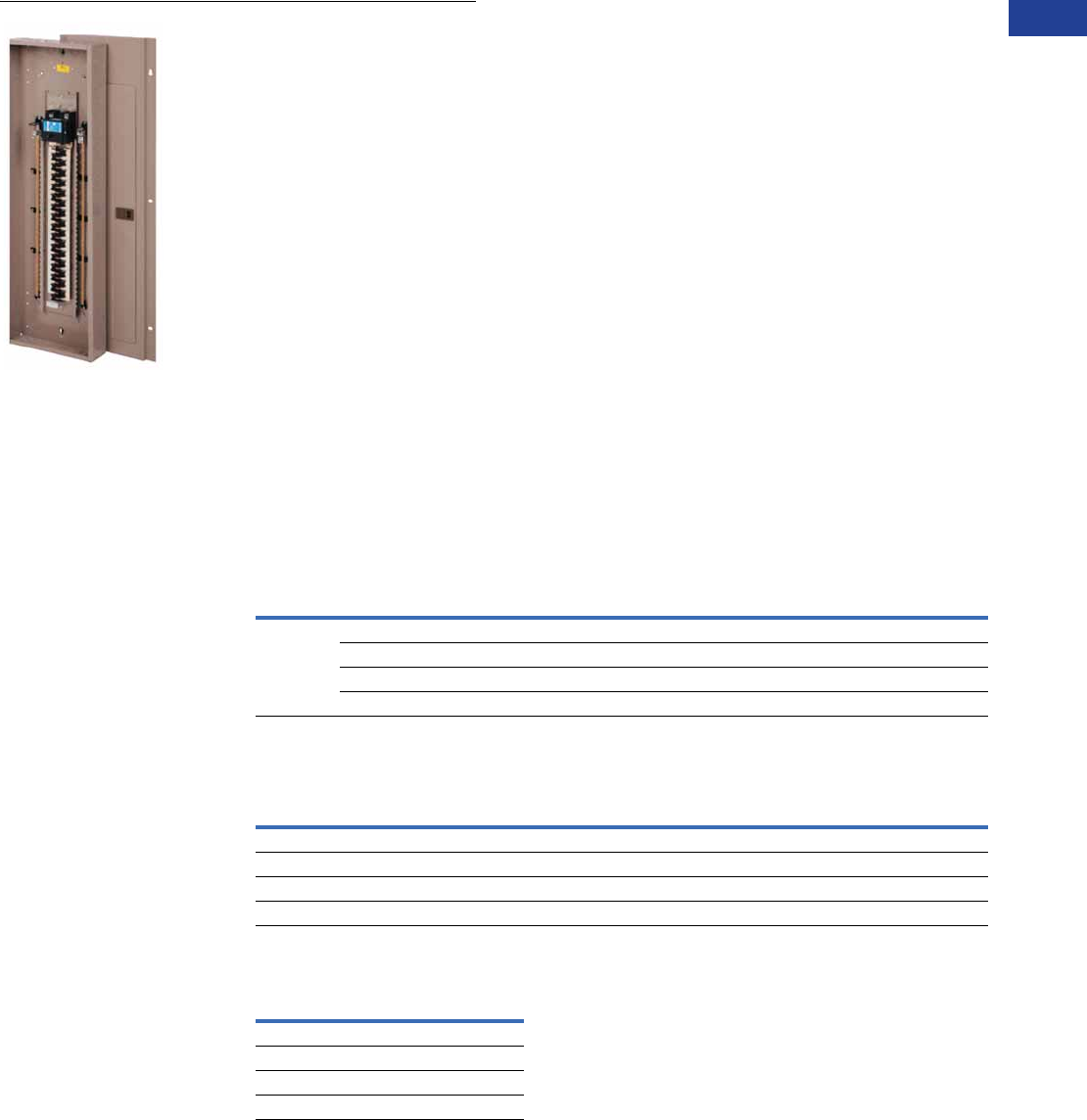

Product Selection
Surge Installed Loadcenters
Notes
1Order cover separately.
2With main lugs installed.
Ampere
Rating Type
Number
of Circuits
Loadcenter
Catalog Number
Loadcenter Cover
Catalog Number
Combination Surface
225 Convertible 42 CHSUR42N225L 1CHSUR8LF CHSUR8LS
225 Convertible 242 CHSUR42L225L2 1CHSUR8LF CHSUR8LS
200 Main breaker 42 CHSUR42B200L2 1CHSUR8LF CHSUR8LS
225 Convertible 32 CHSUR32N225K 1CHSUR8KF CHSUR8KS
225 Convertible 232 CHSUR32L225K 1CHSUR8KF CHSUR8KS
200 Main breaker 32 CHSUR32B200K 1CHSUR8KF CHSUR8KS
150 Main breaker 32 CHSUR32B150K 1CHSUR8KF CHSUR8KS
100 Main breaker 32 CHSUR32B100K 1CHSUR8KF CHSUR8KS
125 Convertible 224 CHSUR24L125E 1CHSUR8EF CHSUR8ES
100 Main breaker 24 CHSUR24B100E 1CHSUR8EF CHSUR8ES
200 Convertible 40/40 BRSUR4040N200 Cover included
200 Main lug 40/40 BRSUR4040L200 Cover included
200 Main breaker 40/40 BRSUR4040B200 Cover included
200 Convertible 30/40 BRSUR3040N200 Cover included
200 Main lug 30/40 BRSUR3040L200 Cover included
200 Main breaker 30/40 BRSUR3040B200 Cover included
V1-T1-16 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

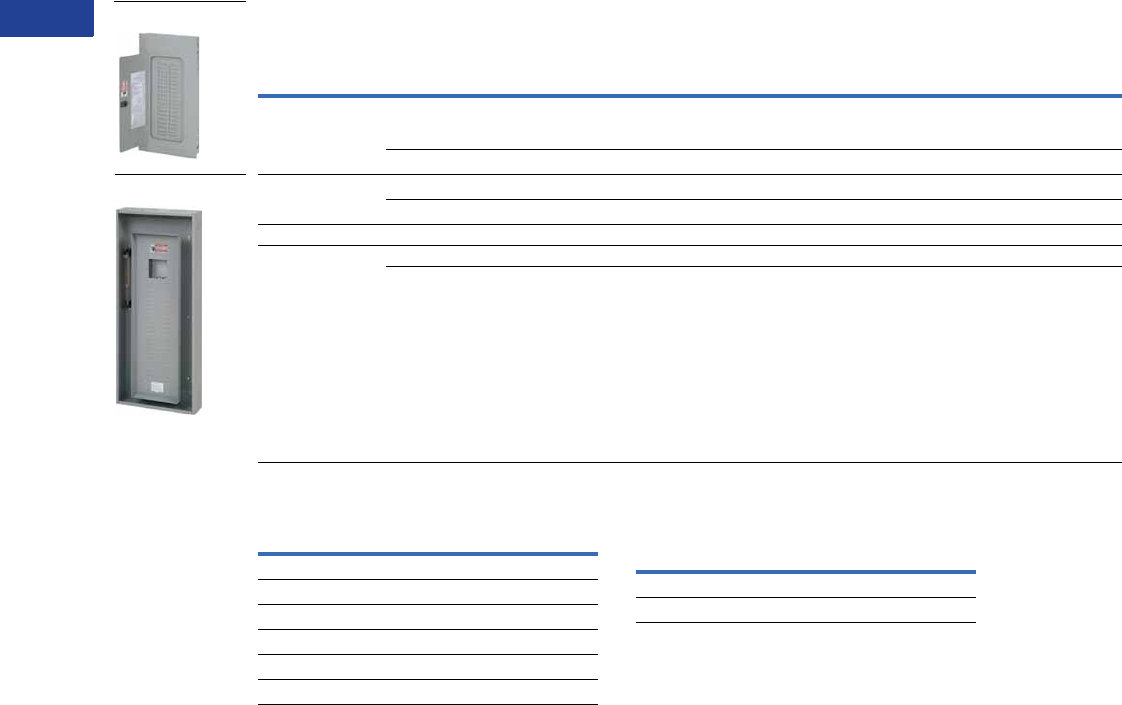

Surge Ready Loadcenters (provision only, CHSPT2ULTRA and breaker not included)
Main Breaker Kits Main Lug Kits
Technical Data and Specifications
Ratings
●Loadcenter
●25 kAIC main breaker, main lug only, and convertible
main breaker/main lug
●Factory installed or provision for field-installed
surge suppressor
●Top or bottom feed
●Surge protective device (CHSPT2ULTRA)
●Nominal discharge current: 20 kA (In)
●Surge current capacity per phase: 108 kA
●Warranty: $75,000 connected equipment 4
●For further product ratings, see Volume 1, Tab 2.1
Surge Protection
Notes
1Order cover separately.
2With main lugs installed.
3Rainproof loadcenters are furnished with hub closure plates. For rainproof hubs,
refer to Page V1-T1-25.
4For warranty details, visit www.eaton.com/surgetrap.
Ampere
Rating Type
Number
of Circuits
Loadcenter
Catalog Number 1
Loadcenter Cover Catalog Number
Combination Surface
225 Convertible 42 CHEC42N225L CHSUR8LF CHSUR8LS
225 Convertible 242 CHEC42L225L CHSUR8LF CHSUR8LS
200 Main breaker 42 CHEC42B200L CHSUR8LF CHSUR8LS
225 Convertible 232 CHEC32L225K CHSUR8KF CHSUR8KS
225 Convertible 32 CHEC32N225K CHSUR8KF CHSUR8KS
225 Convertible 32 CHEC32N225R 3——
200 Main breaker 32 CHEC32B200K CHSUR8KF CHSUR8KS
150 Main breaker 32 CHEC32B150K CHSUR8KF CHSUR8KS
100 Main breaker 32 CHEC32B100K CHSUR8KF CHSUR8KS
125 Convertible 224 CHEC24L125E CHSUR8EF CHSUR8ES
100 Main breaker 24 CHEC24B100E CHSUR8EF CHSUR8ES
Maximum Main Ampere Rating
Catalog Number
25 kAIC 35 kAIC
100 CSR2100N CSH2100N
150 CSR2150N CSH2150N
200 CSR2200N CSH2200N
225 CSR2225N CSH2225N
Maximum Main Ampere Rating Catalog Number
125 CHL125N
225 CHL225N
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-17
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
60-Circuit Plug-On Neutral Loadcenter
Contents—CH Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-2
CH Specialty Products
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-14
Surge Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-15
Plug-On Neutral Loadcenter
Type CH Renovation Loadcenter . . . . . . . . . . . V1-T1-18
Type CH Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-19
CH Loadcenter Options and Accessories . . . . . . . V1-T1-22
CH Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-31

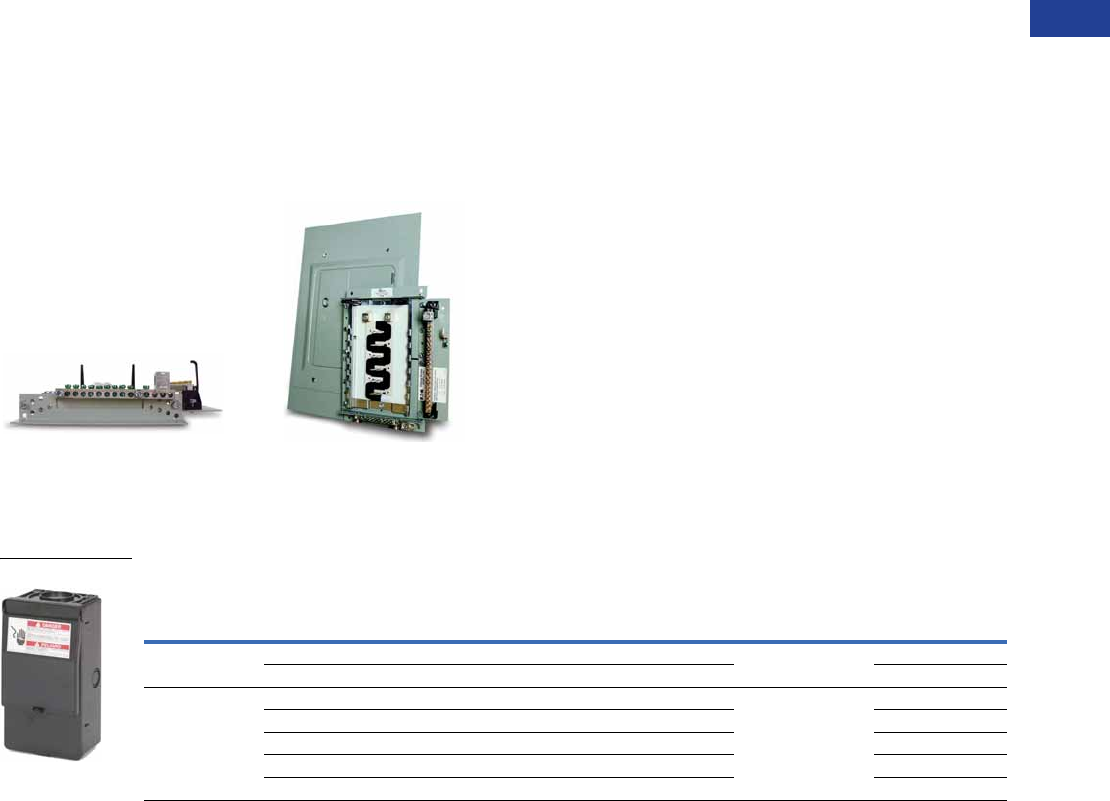

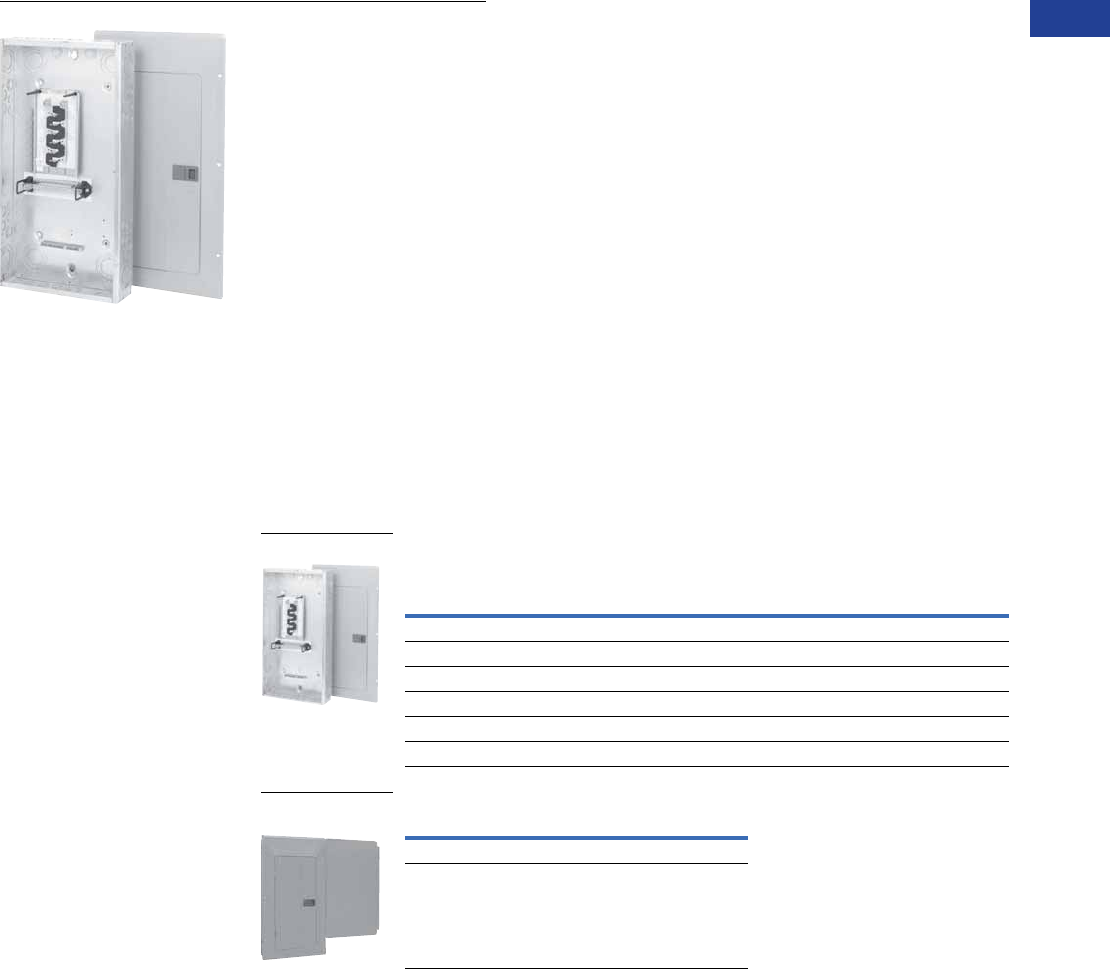

Plug-On Neutral
Loadcenter
Product Description
Code changes and higher
safety standards are leading
to more arc fault and ground
fault circuit interrupter
installations. Eaton offers a
unique product solution that
enables a direct connection of
the breaker to the neutral bar,
eliminating the need for
wiring a pigtail.
Features and Benefits
●Time savings up to 25%
per AFCI/GFCI installation
●Eliminates nuisance
tripping due to loose pigtail
connections
●Clean gutter space
●Easier troubleshooting
due to less wiring
●Backed by a limited
lifetime warranty
Product Selection
Main Breaker Plug-On Neutral Loadcenters
Main Lug Only/Convertible Plug-On Neutral Loadcenters—With Factory Installed Main Lugs
Main Breaker Kits
Note
1Maximum 125 A main device.
Main
Breaker
Type
Main
Ampere
Rating
Max.
Number
3/4-Inch
Poles
Enclosure
Type
Wire Size
Range for
Main Breaker
Catalog
Number
Cover Catalog
Number
Combination Surface
CSR
25 kAIC
100 24 Indoor #2–300 kcmil CH24BPN100E CH8EF CH8ES
200 32 Indoor #2–300 kcmil CH32BPN200J CH8JF CH8JS
200 42 Indoor #2–300 kcmil CH42BPN200K CH8KF CH8KS
200 60 Indoor #2–300 kcmil CH60BPN200N CH8NF CH8NS
Max.
Ampere
Rating
Max.
Number
3/4-Inch
Poles
Enclosure
Type
Catalog
Number
Wire Size
Range for
Main Breaker
Cover Catalog
Number
Combination Surface
125 24 Indoor CH24NLPN125E 1#6–300 kcmil CH8NLEF CH8NLES
225 32 Indoor CH32NLPN225J #6–300 kcmil CH8NLJF CH8NLJS
225 42 Indoor CH42NLPN225K #6–300 kcmil CH8NLKF CH8NLKS
225 60 Indoor CH60NLPN225N #6–300 kcmil CH8NLNF —
Breaker
Ampere
Rating Lug Size
Catalog
Number
100 #2–300 kcmil CSR2100
150 #2–300 kcmil CSR2150N
200 #2–300 kcmil CSR2200N
225 #2–300 kcmil CSR2225N
V1-T1-18 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Renovation Panel
Contents—CH Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-2
CH Specialty Products
Spa Panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-14
Surge Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-15
Plug-On Neutral Loadcenter . . . . . . . . . . . . . . . V1-T1-17
Type CH Renovation Loadcenter
Type CH Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-19
CH Loadcenter Options and Accessories. . . . . . . . V1-T1-22
CH Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-31

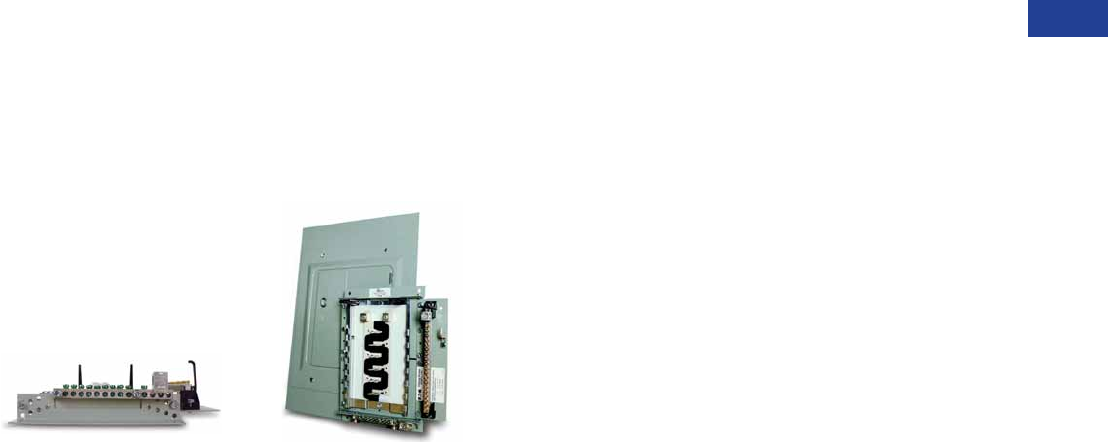

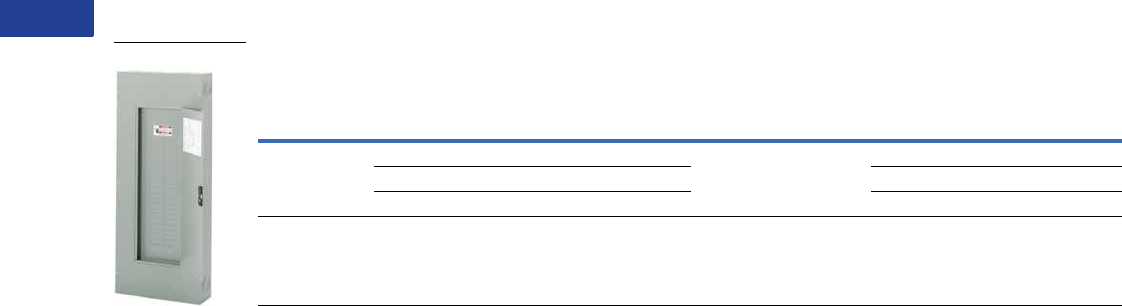

Type CH Renovation
Loadcenter
Product Description
Eaton’s Renovation
Loadcenter is designed
for the service contractor.
With the addition of a five-
circuit terminal block factory
mounted in the top left corner
of the loadcenter, the service
contractor can terminate
short-circuit wires instead of
having to use expensive wire
nuts. Also, the Renovation
Loadcenter incorporates a
twin-stacked neutral design
that places the neutral and
ground terminations higher in
the loadcenter. Both of these
features were added without
increasing any size from a
standard loadcenter. These
features will eliminate the
need for wire nuts and make
for a much neater installation.
There is a provision to field
mount a second five-circuit
terminal block (RN5TB) in
the top right corner of the
loadcenter. Choose amongst
Eaton’s Type CH breaker
family for use in the
Renovation Panel.
Product Selection
Single-Phase—Main Circuit Breaker Loadcenters 25 kAIC 1
Single-Phase, Three-Wire—120/240 Vac—Stacked Split Neutral
Branch Circuit Breakers (CH)
See Pages V1-T1-2–V1-T1-13.
Renovation Loadcenter
Notes
1100 A main breaker is rated 10 kAIC.
2Combination style covers may be used in surface or flush applications.
All main circuit breaker loadcenters are listed for use as service entrance equipment. Loadcenters
are factory-bonded for service entrance applications. Remove bonding strap for separate neutral
and ground bars for sub-feed applications.
Main
Breaker
Type
Main
Ampere
Rating
Max.
Number
3/4-Inch
(19.1 mm)
of Poles
Enclosure
Type
Box
Size
Wire Size
Range
Cu/Al
60 °C or 70 °C
for Main
Breakers
Loadcenter
Catalog
Number
Cover Catalog
Number 2
Combination Surface
CH 100 20 Indoor C #6–1/0 CH22B100CRN CH8CFF CH8CS
CSR 150 32 Indoor J #2–300 kcmil CH32B150JRN CH8JF CH8JS
CSR 200 32 Indoor J #2–300 kcmil CH32B200JRN CH8J CH8JS
CSR 200 42 Indoor K #2–300 kcmil CH42B200KRN CH8KF CH8KS
Description Catalog Number
Five-circuit terminal block kit
Ground bar kits (two maximum per panel)
RN5TB
(See Page V1-T1-25)
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-19
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

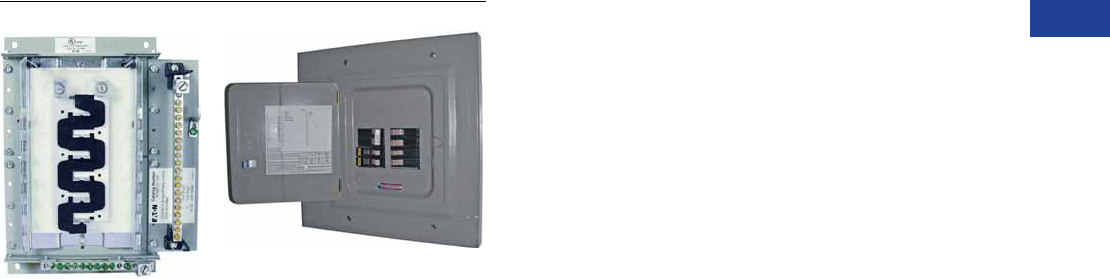

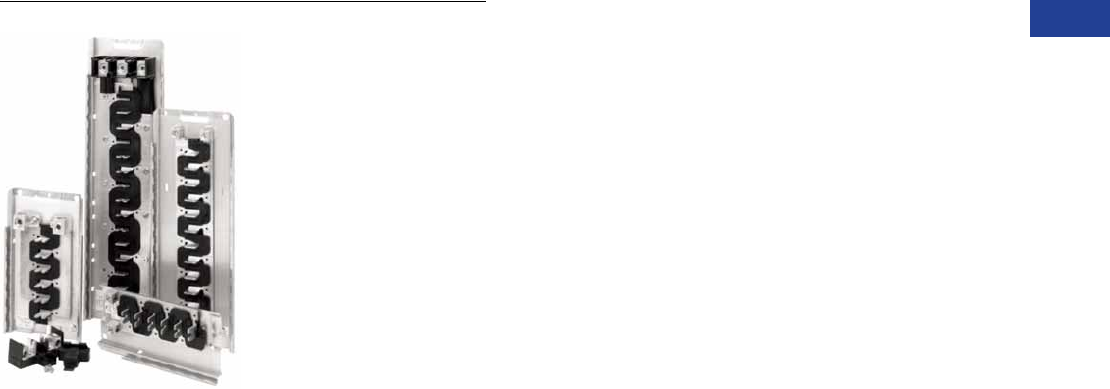

Type CH Retrofit Type CH Retrofit Interior Collar
Adjustable Interior and Assembly with Trim
Type CH Retrofit Interior
Contents—CH Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-2
CH Specialty Products
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-14
Surge Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-15
Plug-On Neutral Loadcenter . . . . . . . . . . . . . . V1-T1-17
Type CH Renovation Loadcenter . . . . . . . . . . . V1-T1-18
Type CH Retrofit Interior Kits
CH Loadcenter Options and Accessories . . . . . . . V1-T1-22
CH Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-31
Type CH Retrofit Interior Kits
Product Description
Eaton’s unique Retrofit
Interior allows the customer
to cost-effectively and safely
upgrade an electrical service
without removing the existing
enclosure from the wall.
Application Description
The Retrofit Interior is
designed and tested
specifically for renovating
an outdated electrical panel in
an apartment, a condominium
or a single family home.
These outdated panels are
being recognized by local
inspectors and other
authorities as a possible
hazard.
Opportunities to Retrofit
●Single- or three-phase
●Main lug only or main
breaker
●Up to 42 circuits
●Up to 225 A interiors,
400 A available upon
request
●Available with CH breakers
(3/4-inch) with copper bus
or BR breakers (1-inch) with
aluminum bus
●The minimum lifetime
warranty for residential
breakers shall be as
follows:
●Limited lifetime
warranty on all CH
branch breakers and
loadcenters
●Refer to Eaton for
complete warranty
details
Features and Benefits
Upgrading Existing Electrical
Infrastructure Is Simple
●Replaces vintage brands
that have hard to find,
expensive replacement
breakers
●Safely upgrade to arc fault
and ground fault breakers
to meet current electrical
codes
●Maximizes number of
circuits available with
compact design
●Eco-friendly in asbestos-
filled environments
●Exclusive design
Save Time and Money
Throughout the Installation
●Uses existing panel
box and wires
●Eliminates expensive and
time-consuming drywall/
paint repair
●Saves 2–3 hours of
installation time compared
to a complete panel
changeout
●Eliminates precise
measurements with field-
adjustable kit
Detailed Product Guide
For questions about retrofit
solutions, contact the Lincoln
Flex Center at 800-330-6479 or
flexcenterlincoln@eaton.com.
Be sure to provide width,
height and depth of panel.
Standards and Certifications
Meets 2008/2011/2014 NEC
wire bending requirements.
V1-T1-20 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
CH Specialty Product Selection
To select the retrofit kit:
1. From the existing box
size determine which
retrofit groups are
suitable (may be more
than one).
2. Use type of interior,
number of phases, and
type of main to find the
selection chart.
3. Select part number from
chart (if main breaker,
replace XXX with specific
amp rating).
4. Note that the overlap
of the existing wall is
the retro cover size
minus the existing
box size. If specific
measurements are
needed, communicate
that you need a custom
trim size.
5. Contact the Lincoln Flex
Center at 800-330-6479
for pricing, lead-times,
and order entry
instructions.
How to Order:
1. Measure the existing
panel enclosure to
determine appropriate
kits for your project.
2. Match the existing
dimensions with the
table below to obtain the
correct catalog number.
3. Order your retrofit kit
from a local Eaton
authorized distributor.
Need assistance or can’t find
retrofit to fit existing
enclosure?
Email or call Eaton’s
Residential Flex Center at
1-800-330-6479 for all your
retrofit needs. Go to
www.eaton.com/eccn to
locate an Eaton Certified
Contractor.
Retrofit Interior Kit Specifications
Five recommended groups: existing box height determines retro group size. Approximate Dimensions in Inches (mm).
Notes
1Catalog numbers shown with "_" at the end need one of the following suffixes to denote depth:
J = 3.75–4.25
K = 4.25–5.00
L = 5.00–6.00
Example: RBCH24B200J would signify an interior set with a depth range of 3.75 to 4.25 inches.
2****Denotes characters in the catalog number that relate to overall cover size.
Example: CRWCH6ML2620 would signify a cover 26.00 inches H x 20.00 inches W, or CRBCH24CS3324 would be 33.00 inches H x 24.00 inches W.
3Amperes for MB panels is maximum; catalog number will reflect actual amperage of breaker included.
For UL applications, maximum cover sizes may apply.
Existing Enclosure Parameters—Inches (mm)
Catalog
Number 1Cover 2
Minimum
Depth
Maximum
Depth
Minimum
Width
Minimum
Height Phase Main Bus Amperes
3
Spaces /
Circuits
UL 67
Listed
CH Retrofit Interiors and Covers
RWCH6L125N CRWCH6ML**** 3.13 (79.5) 4.13 (104.9) 7.00 (177.8) 8.50 (215.9) Single MLO CH 125 6 No
RSCH10B125N CRWCH12ML**** 3.50 (88.9) 4.50 (114.3) 8.50 (215.9) 16.50 (419.1) Single MCB CH 125 10 No
RSCH12L125N CRWCH12ML**** 3.50 (88.9) 4.50 (114.3) 8.50 (215.9) 16.50 (419.1) Single MLO CH 125 12 No
RACH22B125J CRACH24ML**** 3.75 (95.3) 4.25 (108.0) 13.00 (330.2) 21.00 (533.4) Single MCB CH 125 22 No
RACH24L125J CRACH24ML**** 3.75 (95.3) 4.25 (108.0) 13.00 (330.2) 21.00 (533.4) Single MLO CH 125 24 No
RBCH24B200_ CRBCH24CS**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 29.00 (736.6) Single MCB CH 200 24 No
RBCH32L200_ CRBCH32ML**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 29.00 (736.6) Single MLO CH 200 32 No
RCCH32B200_ CRBCH32CS**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 34.00 (863.6) Single MCB CH 200 32 No
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-21
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Complete Assembly
Note: For complete assembly,
interior and cover need to be
ordered separately.
Adjustable Interior
●Factory installed ground
and neutral bars positioned
to accept existing wires
●Field adjustable depth
matches existing panel box
●Adjustable height enables
optional placement of the
interior
●Field bondable for service
entrance options
Adjustable Interior
Standard Trim and Collar
●Standard trim matches
new interior
●New circuit directory for
updated labeling
●Oversized collar eliminates
expensive wall/paint repair
Collar and Assembly with Trim
Single-Phase—Main Lug Loadcenters, Non-Metallic
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Neutral
Notes
1 Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard
(see Article 408.34 of the NEC).
2 This device has no main lugs. A Type BR or BD breaker is required to be backfed to supply power to branch breakers. This device is single-phase 120 Vac only.
With the use of three Type BR breakers, there are two branch circuits available. With the use of three Type BD breakers, there are five branch circuits available.
3 Includes GB4NM ground bar.
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type Trim Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter
Catalog NumberSpaces Circuits
40 12 4 Indoor Flush (no door) 2 2TT120FLGNM 23
2 4 Indoor Surface (no door) 2 TT120SLGNM 23
60 2 4 Indoor Flush (no door) 2 #14–2 2460FNM
2 4 Indoor Surface (no door) 2 2460SNM
2 4 Indoor Flush (no door) 2 2460FGNM 3
2 4 Indoor Surface (no door) 2 2460SGNM 3
2 4 Outdoor — — 2460RNM-A2
2460SNM
V1-T1-22 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

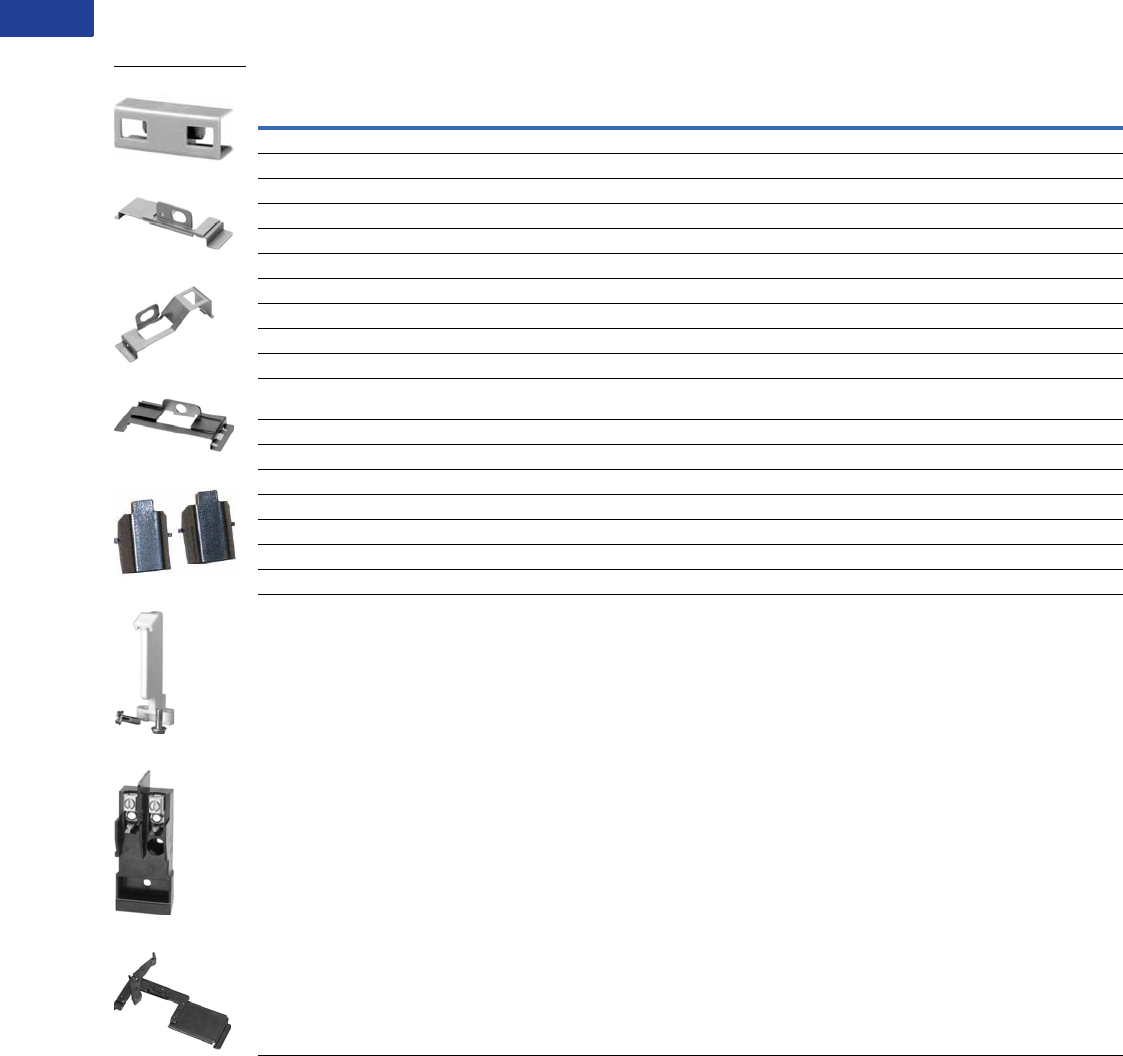

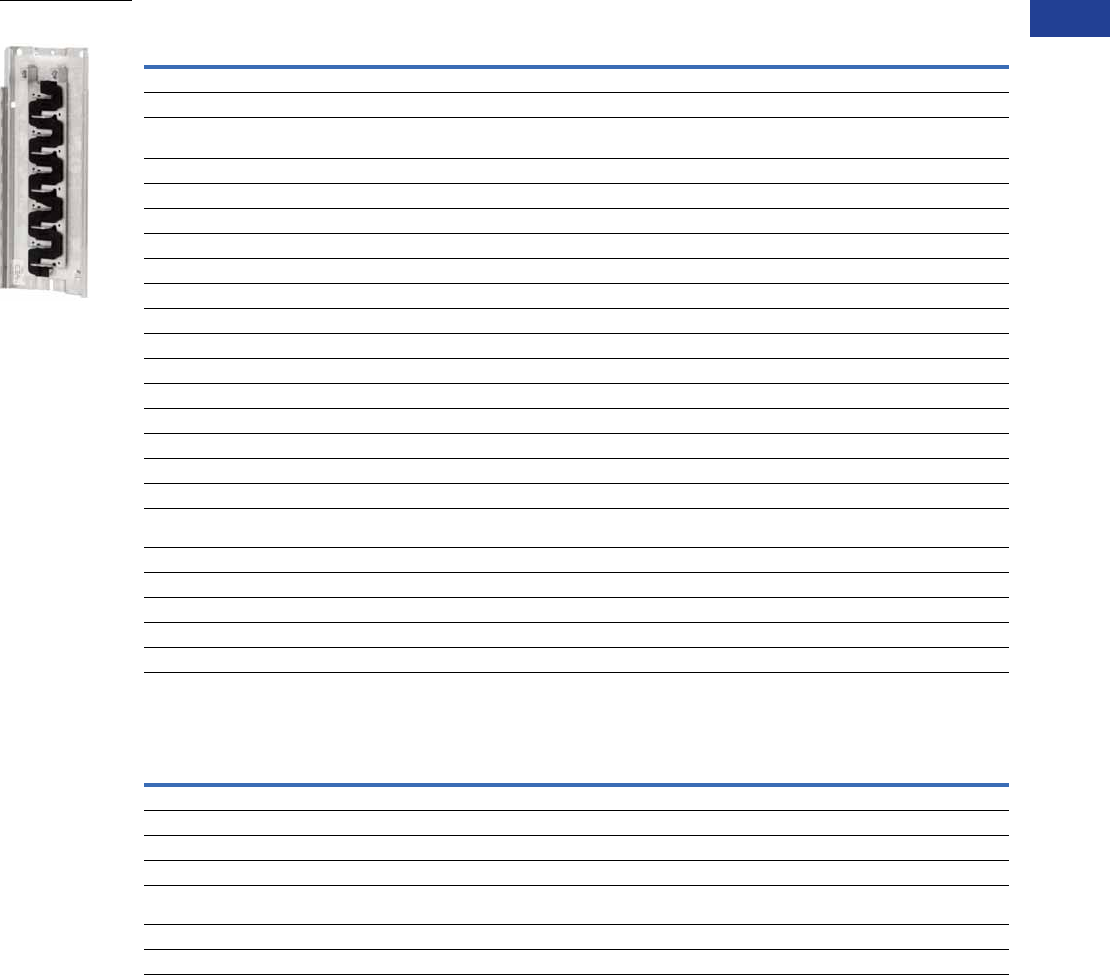

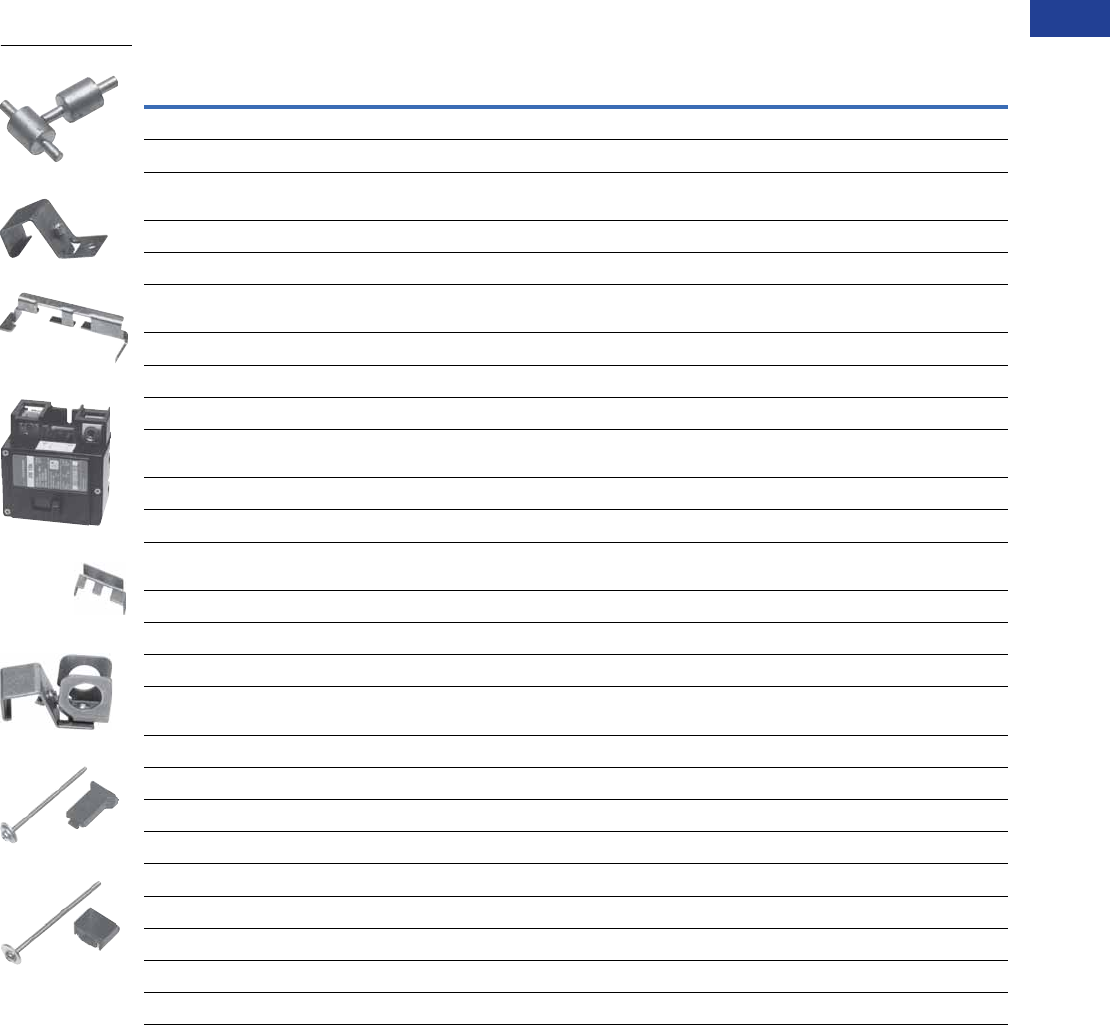

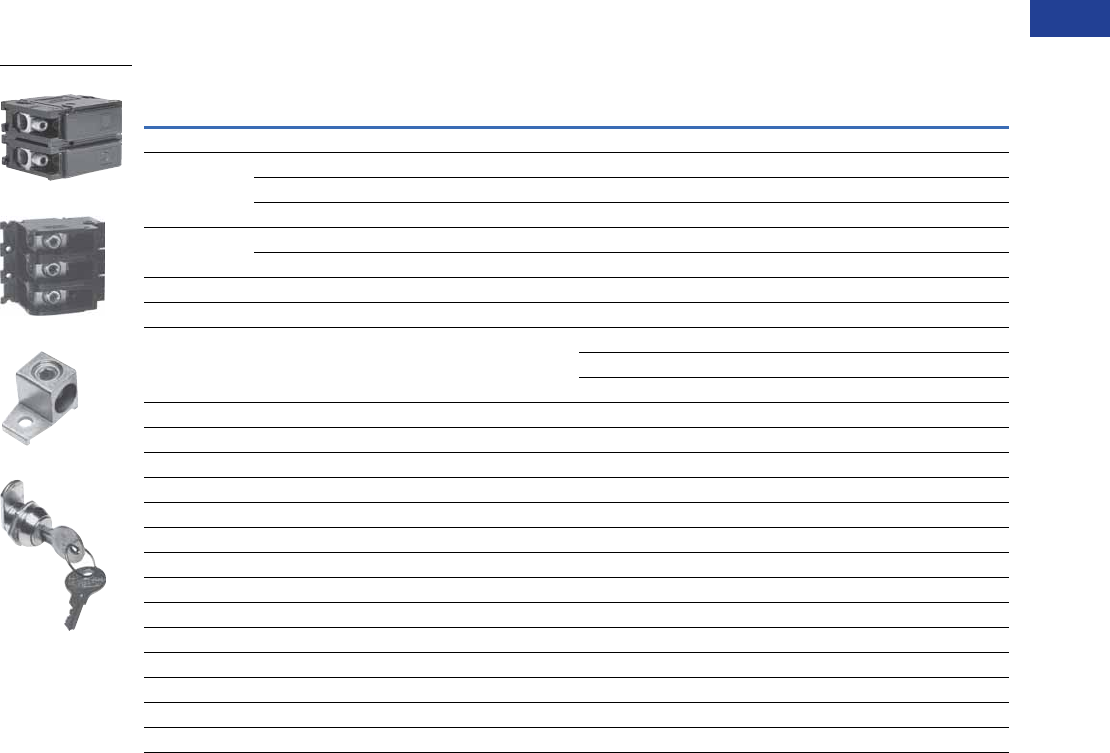

CH Loadcenter Options and Accessories

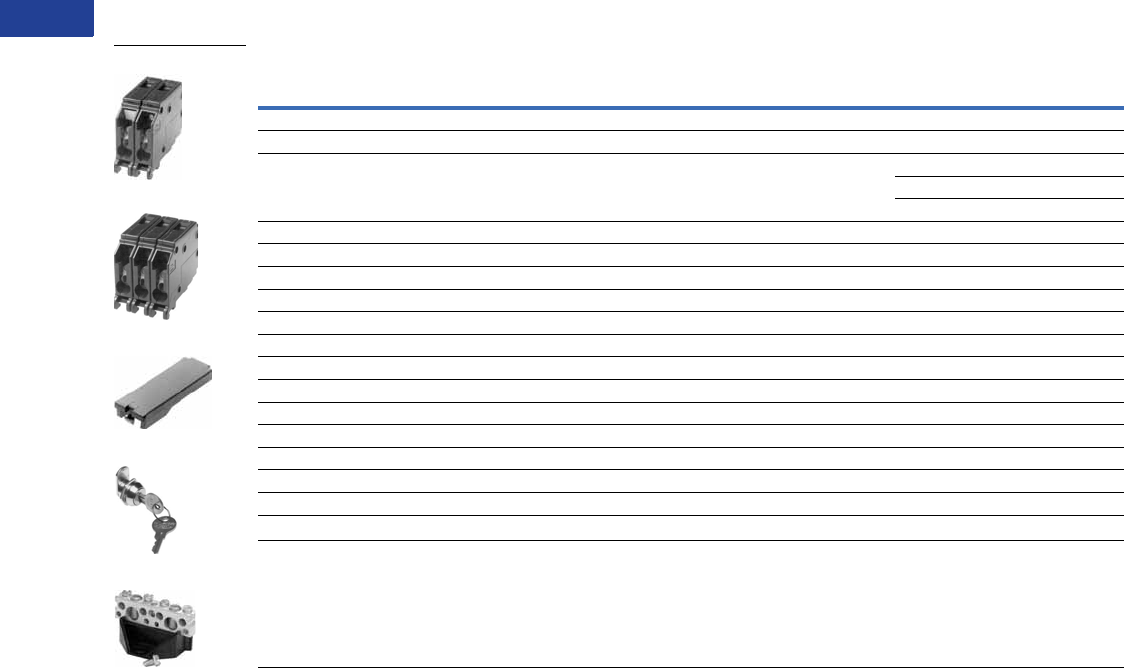

Field Installation and Parts
Note
1 Must be purchased in multiples of ordering quantities indicated.
Description
Ordering
Quantity 1
Catalog
Number
Sub-feed lug blocks—two-pole, 125 A, 3/4-inch (19.1 mm) spaces needed 1 CHSF2125
Sub-feed lug blocks—three-pole, 125 A, 3/4-inch (19.1 mm) spaces needed 1 CHSF3125
Neutral/ground lug—add-on neutral or ground lug 1 NL20
1NL30
1NL300
Filler plates—3/4-inch (19.1 mm) space circuit breaker space 25 CHFP
CSR main circuit breaker filler plate (with hardware) 1 CSRFP
Door lock—12–42 circuits, and 100–225 A 1 TDL
Sandlewood spray paint 1SPCSW
ANSI-61 light gray touchup paint for outdoor loadcenters 1 SPC61
Isolated neutral assembly (computer circuits) 1 BINA
Circuit directory—adhesive backed 10 TCD
Cover screws 25 LCCS
Cover replacement latch 14-5/16 inch (363.55 mm) wide loadcenters only 1 CHRLS
Circuit marking strip (next to breakers) 10 CHMS
Circuit identification label (preprinted breaker labels next to breakers) 25 CHBL
Series rated caution label 25 SRL
Branch circuit numbering strip 20 CHNS
Bonding strap with screw 1BSSUSE
CH plug-on neutral ground bonding strap 1BSCHPON
CHSF2125
CHSF3125
CHFP
TDL
BINA
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-23
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

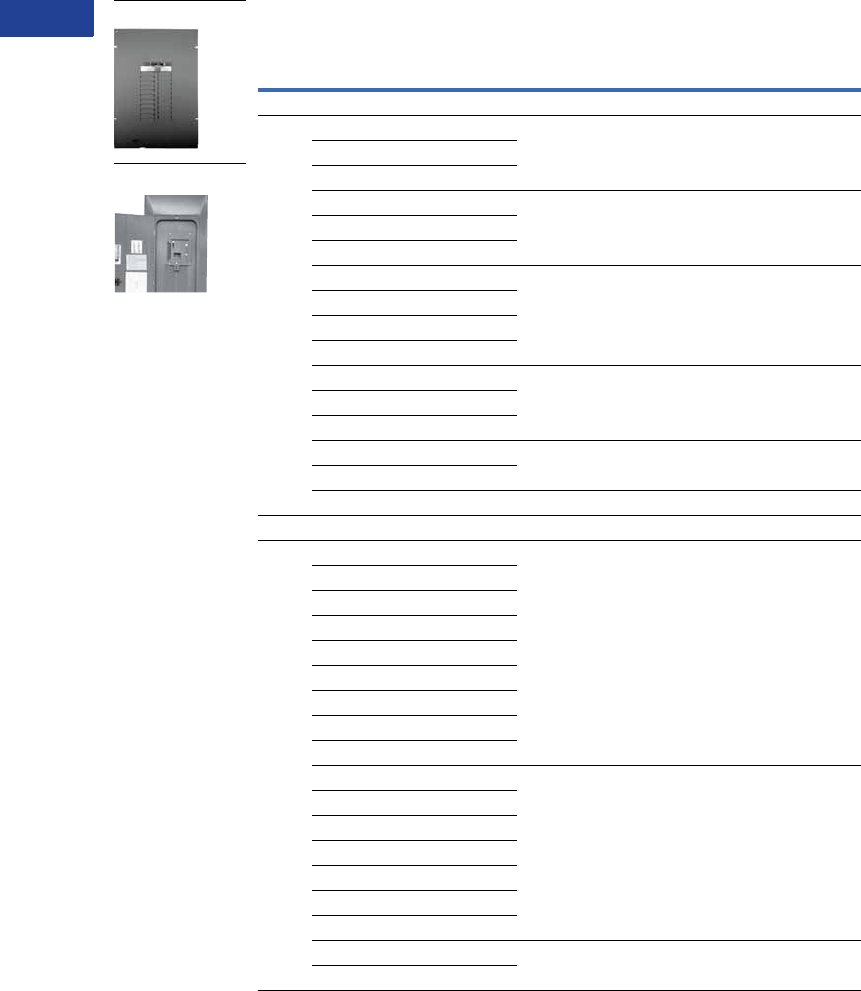

Mechanical Interlock Covers
Covers mechanically interlock two breakers. Type A covers
interlock two CH breakers mounted across from one another.
Type B covers interlock a main Type CSR breaker with a Type CH.
Mechanical Interlocks
Mechanical Interlock Trim/Deadfront Catalog Numbers
Type
Fits Loadcenter
Catalog Numbers Flush Surface
ACH12L125B CH8BFM CH8BSM
CH16L125B
CH12L3125B
CH14B100B
CH20L125C CH8CFM CH8CSM
CH24L125C
CH18L3125C
CH24L3125C
CH22B100C
CH22N100C
CH24L150D CH8DFM CH8DSM
CH32L150D
CH24L3225D
CH30L3150D
CH42L225G CH8GFM CH8GSM
CH42L3225G
Inner cover of Box B raintight — CH8BRM
Inner cover of Box C raintight — CH8CRM
Indoor
BCH24B150E CH8EFM CH8ESM
CH24B200E
CH32B150J CH8JFM CH8JSM
CH32B200J
CH3242B200J
CH32N200J
CH32B225J
CH42B200K CH8KFM CH8KSM
CH42N200K
CH42B225K
CH60BPN200N CH8NFM —
Outdoor
BCH8B150RF CH3RDF7M —
CH8B200RF
CH8N200RF
CH24B150R
CH24B200R
CH32B150R CH3RDF9M —
CH32B200R
CH32N200R
CH32B225R
CH42B200R CH3RDF10M —
CH42N200R
CH42B225R
CH8BRM Type A
CH8EFM Type B
V1-T1-24 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Mechanical Interlocks, continued
Note
1 If vintage part number does not match exactly, the cover may not fit. Simple variations such as an “N” at the end of
the part number contain minor design variations that will prevent our cover from working with that particular loadcenter.
Mechanical Interlock Trim/Deadfront Catalog Numbers
Type
Fits Loadcenter
Catalog Numbers Flush Surface
Next Generation Power Center
BCHPC32B150L CHPC8B32LFM —
CHPC32B200L
CHPC32N200L
CHPC42B150L CHPC8B42LFM —
CHPC42B200L
CHPC42N200L
CHPC32B125TR CH3RDF15M —
CHPC32B150TR
CHPC32B200TR
CHPC32N200TR
CHPC42B150TR CH3RDF16M —
CHPC42B200TR
CHPC42N200TR
CHPC32B150TR CH3RDF17M —
CHPC32B200TR
CHPC42B200BR CH3RDF18M —
Vintage 1
CH20JJM200 CH7JJFREPLM —
CH24JJM150
CH30JJM150
CH30JJM200
CH30JJM150H
CH3040JJMM200
CH304JJM150
CH304JJM200
CH304JJM200H
CH30KKM225 CH7KKFREPLM —
CH40KKM200H
CH40KKM225
CH40KKM200H
CH40KKM225H
CH304KKM200
CH304KKM200H
CH304LLM225 CH7LLFREPLM —
CH424LLM225H
CH8BRM Type A
CH8EFM Type B
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-25
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

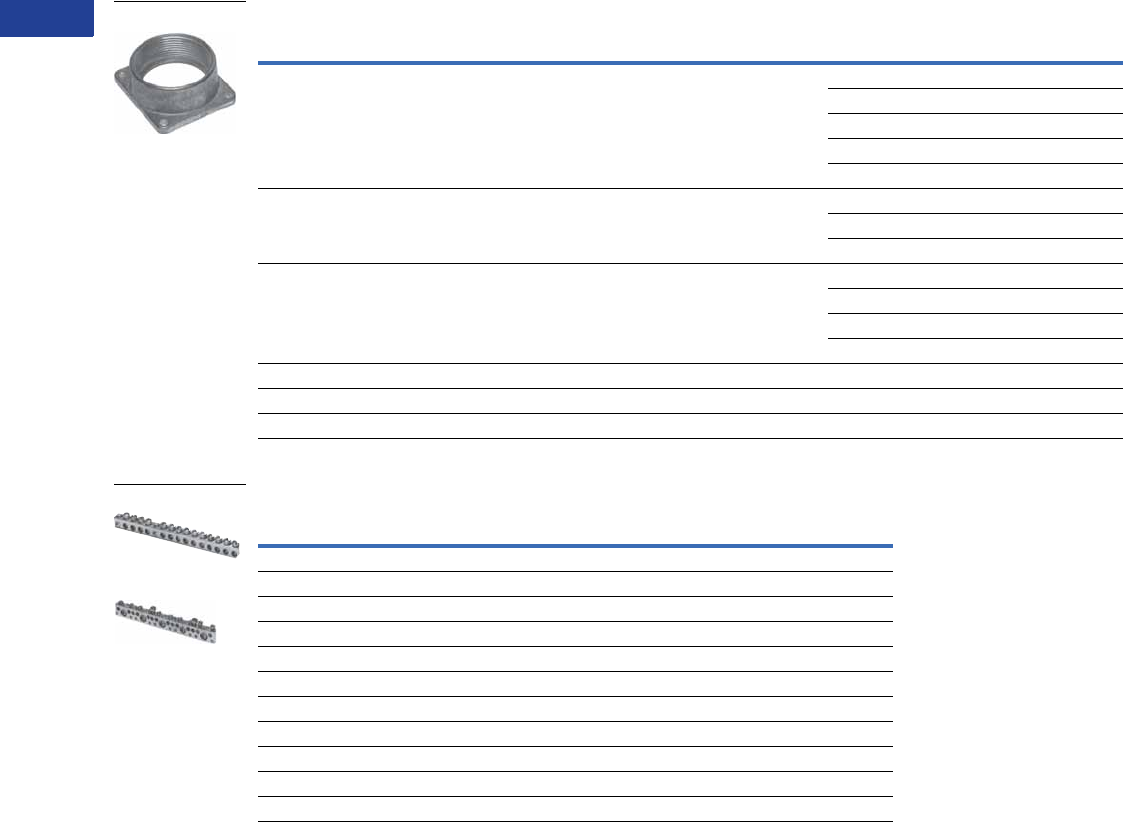

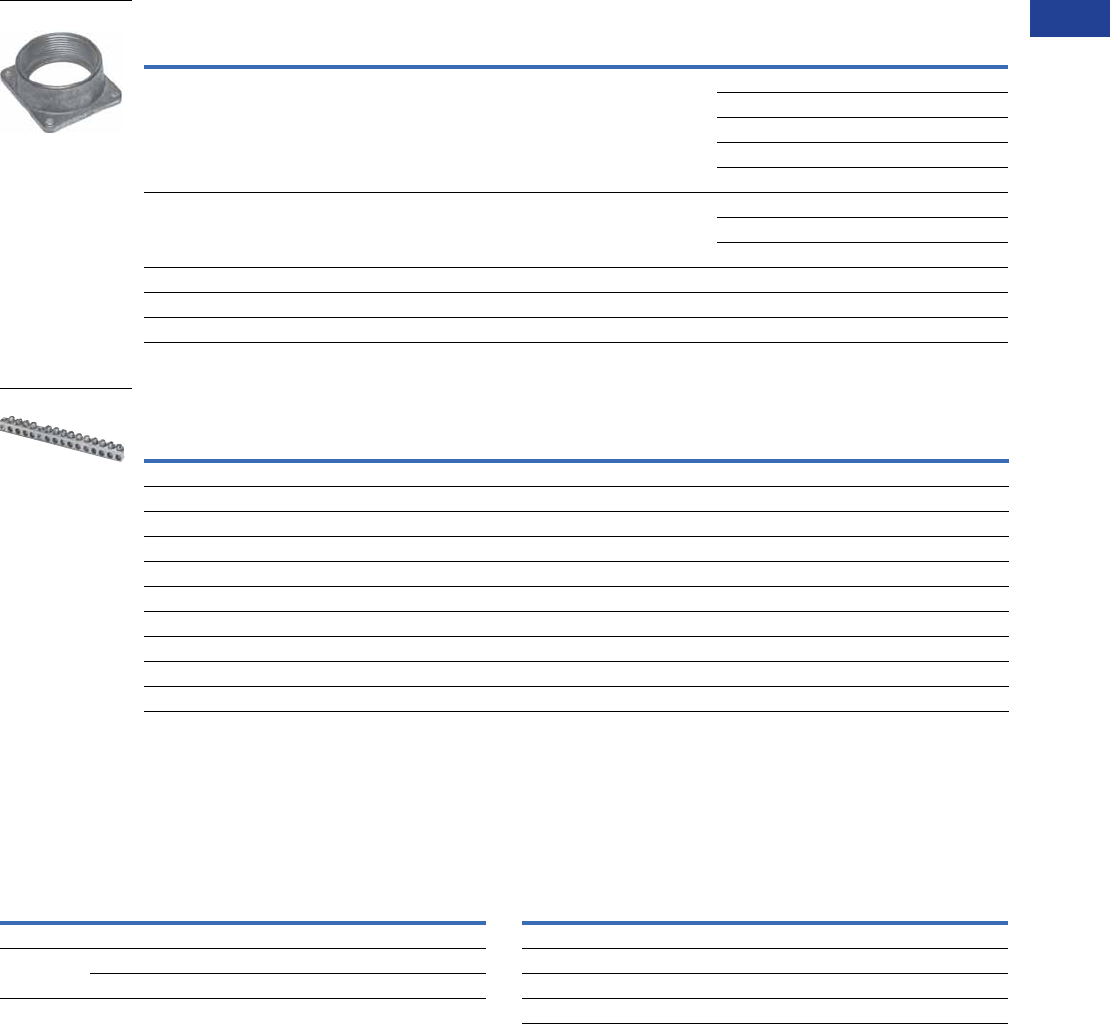

Field Installation Rainproof Conduit Hubs

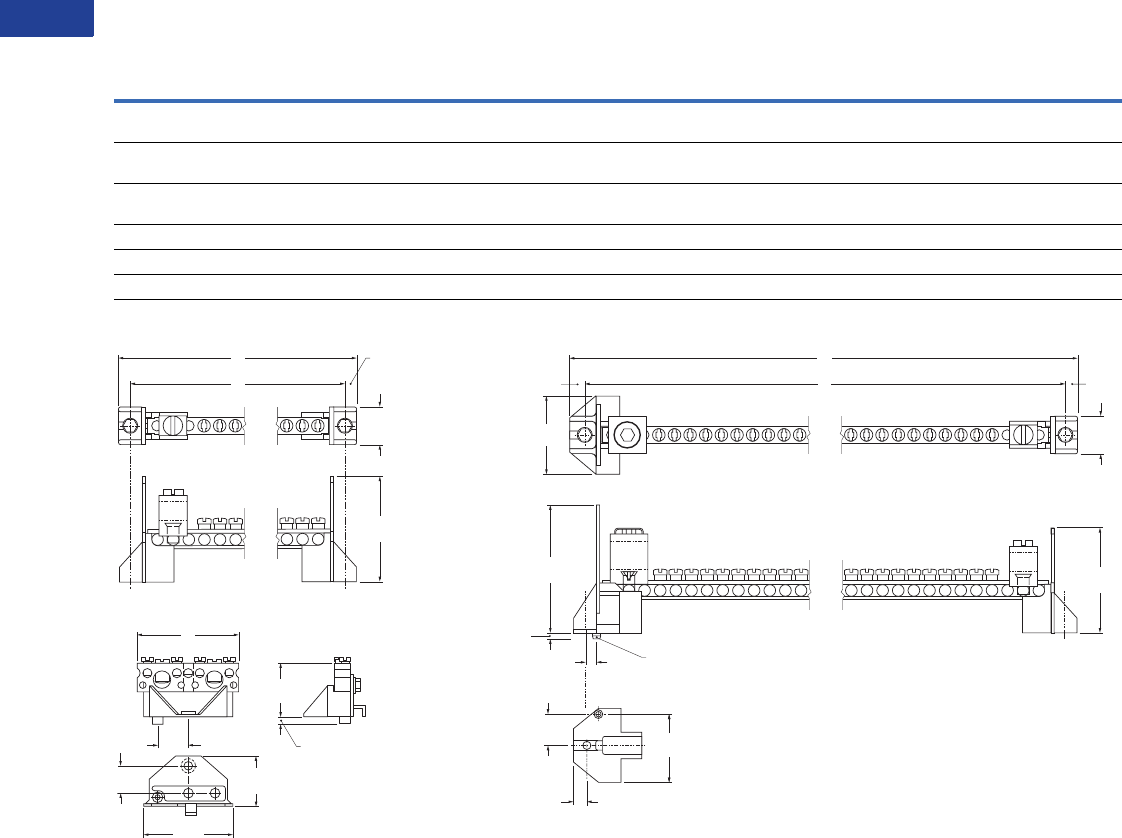

Ground Bar Kits
Ground Bar Legend
Grounded “B” Phase Adapters Neutral Bar Accessories
Notes
1Must be purchased in multiples of ordering quantities indicated.
2Distance between mounting holes is 1-3/4 inches (44.5 mm).
3For single- and three-phase 400 A loadcenters.
4Distance between mounting holes is 2-13/32 inches.
5Cannot be used in Safety Breaker Panels. Classic Plus Panels only.
Description
Conduit Size Ordering
Quantity 1
Catalog
NumberInches (mm)
Group 1—for use with 70, 100 and 125 A MLO and MCB loadcenters and circuit breaker enclosures 0.75 (19.1) 1 DS075H1
1.00 (25.4) 1 DS100H1
1.25 (31.8) 1 DS125H1
1.50 (38.1) 1 DS150H1
2.00 (50.8) 1 DS200H1
Group 2—for use with 150, 200 and 225 A MLO and MCB loadcenters and circuit breaker enclosures 2.00 (50.8) 1 DS200H2
2.50 (63.5) 1 DS250H2
3.00 (76.2) 1 DS300H2
Adapter kit—allows installing a Group 1 hub on devices arranged for Group 2 hubs — 1 DS900AP
Group 1—small blank hub closure plate — 1 DS900CP1
Group 2 —large blank hub closure plate — 1 DS900CP2
Description (See Legend)
Length Ordering
Quantity 2
Catalog
NumberInches (mm)
dssssds 2.54 (64.5) 1 GBK5 2
dssssdsj 3.59 (91.2) 1 GBK520 2
dssssdssssss 4.29 (109.0) 1 GBK10 2
dssssdssssssj 5.34 (135.6) 1 GBK1020 2
4.61 (117.1) 1 GBK13 2
dssssdssssssssss 5.69 (144.5) 1 GBK14 2
dssssdssssssssssj 6.74 (171.2) 1 GBK1420 2
dssssdsssssssssssssssss 8.14 (206.8) 1 GBK21 2
dssssdsssssssssssssssssj 9.19 (233.4) 1 GBK2120 2
ssssssssdssssssdsssssss 7.94 (201.7) 1 CH9GP21 34
DS100H1
GBK14
f
d
f
f
f
k
f
d
f
k
f
f
f
s
j
d
= (3) #14–#10 Cu/Al or (1) #14–#4 Cu/Al
= (1) #6–2/0 Cu/Al
= (1) 1/0–14 or (3) #10–12 Cu/Al
= (1) #14–1/0 Cu/Al or (3) #14–#10 Cu/Al
= Mounting hole
f k
Maximum
Amperes
Three-Phase Loadcenter
Types of Panels
Kit Catalog
Number 5
125 12–32 circuit main lug CHGRD1
225 Main lug and CHH main breaker panels CHGRD2
CC main CB panels CHGRD3
Description
Catalog
Number 5
Replacement neutral for all B and C type boxes CHN125C
Replacement neutral for all D type boxes CHN125D
Replacement neutral for all E, G, J, K and L type boxes CHN225L
Isolated Neutral Assembly (computer circuits) BINA
V1-T1-26 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

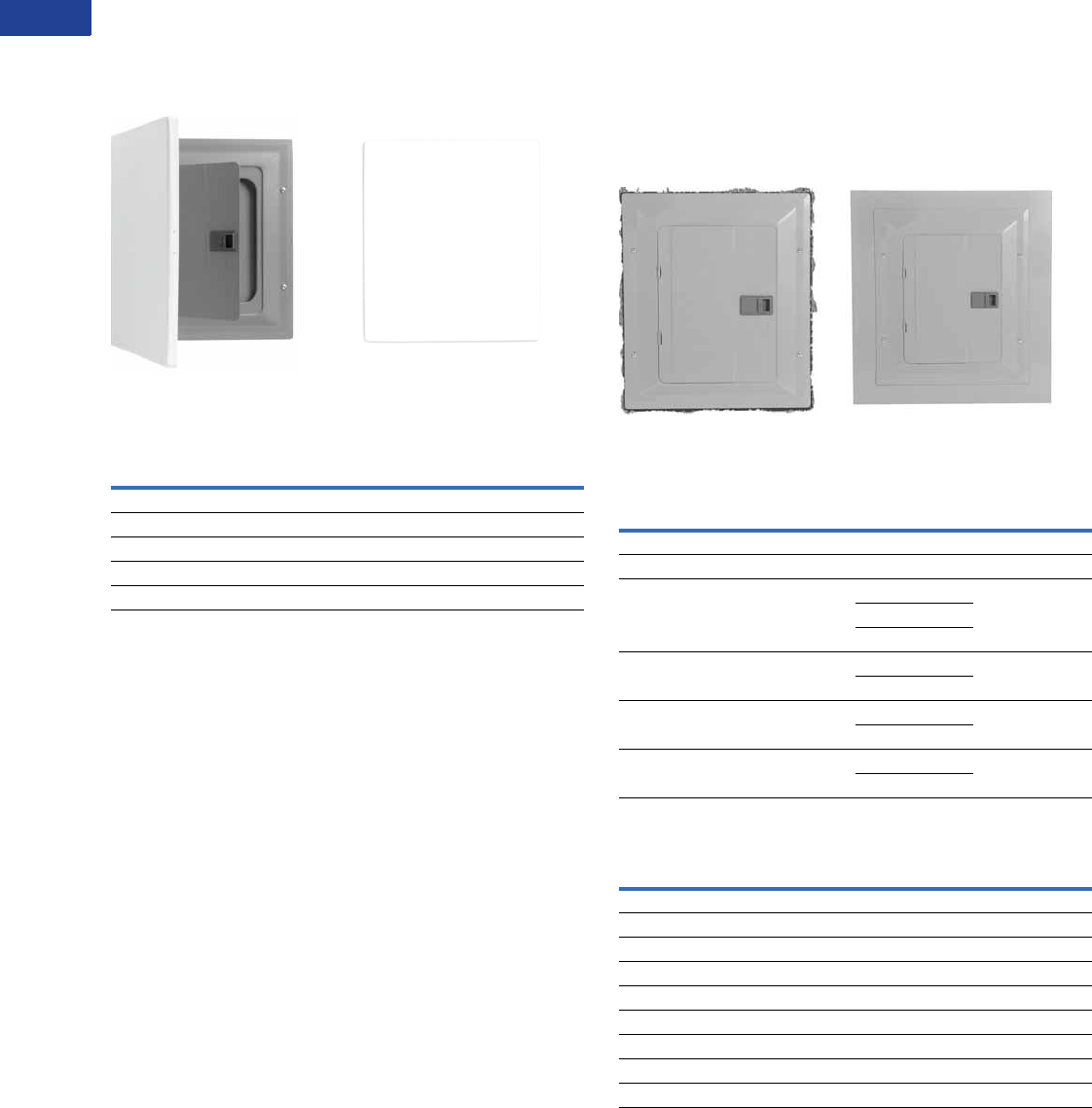

Decorator Cover Accessory
●For easy use with CH loadcenters mounted in living space
●Easily wallpapered or painted to match any decor
●Loadcenter accessory—exclusively from Eaton
Now you see it … … Now you don’t.
Decorator Cover Accessory 1
Loadcenter Goof Collars
Don’t let an ugly drywall problem ruin a beautiful
electrical installation.
Eaton’s Goof Collar is designed to cover gaps between the
finished drywall and loadcenter enclosure. This is often
necessary when upgrading the electrical service and the drywall
surrounding the panel is damaged. The collar allows 2 inches of
overhang beyond the standard flush trim.
Before After
CH Goof Collars
BR Goof Collars
Note
1For goof collars not listed in the table, please contact the Lincoln Flex Center at
1-800-330-6479.
Catalog Number
Corresponding Cover Existing CH Loadcenter Cover
CH8BF CH8KDNB
CH8CF CH8KDNC
CH8DF/EF CH8KDND
CH8GF/JF CH8KDNJ
CH8KF CH8KDNK
Inches (mm) Catalog Number
Height Width Loadcenter Cover Goof Collar
21.00 (533.4) 19.00 (482.6) CH8BF CH8BFC1921
26.00 (660.4) 19.00 (482.6) CH8CF CH8CFC1926
34.00 (863.6) 19.00 (482.6) CH8DF CH8DFC1934
CH8EF
CHSUR8EF
39.00 (990.6) 19.00 (482.6) CH8GF CH8JFC1939
CH8JF
42.00 (1066.8) 19.00 (482.6) CH8KF CH8KFC1942
CHSUR8KF
44.00 (1117.6) 19.00 (482.6) CH8LF CH8LFC1944
CHSUR8LF
Inches (mm) Catalog Number
Height Width BR Box Size Goof Collar
21.00 (533.4) 19.00 (482.6) B1 BRB2GC2319
23.00 (584.2) 19.00 (482.6) B2 BRB1GC2119
25.00 (635.0) 19.00 (482.6) C1 BRC1GC2519
27.00 (685.8) 19.00 (482.6) C2 BRC2GC2719
31.00 (787.4) 19.00 (482.6) C4 BRC4GC3119
34.00 (863.6) 19.00 (482.6) D1 BRD1GC3419
38.00 (965.2) 19.00 (482.6) G1 BRG1GC3819
43.00 (1092.2) 19.00 (482.6) L1 BRL1G4319
48.00 (1219.2) 19.00 (482.6) L2 BRL2GC4819
SCOTT
HAS
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-27
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

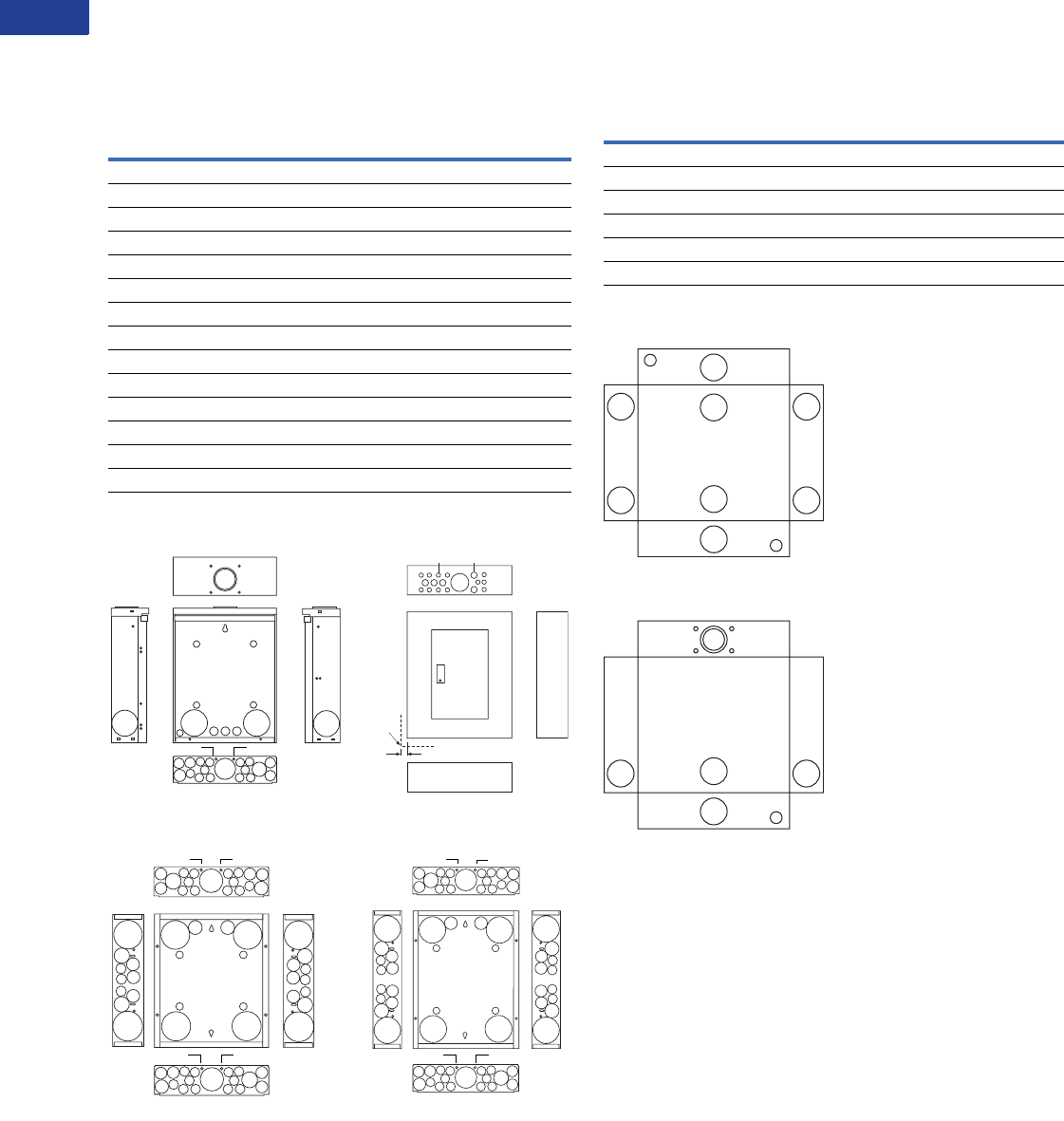

Dimensions
Approximate Dimensions in Inches (mm)
Residential/Commercial/Unit Enclosure—Box Sizes
Note: Box sizes do not include covers/fronts.
Residential Loadcenters
Commercial Loadcenters
Types ECB and ECC Unit Enclosures

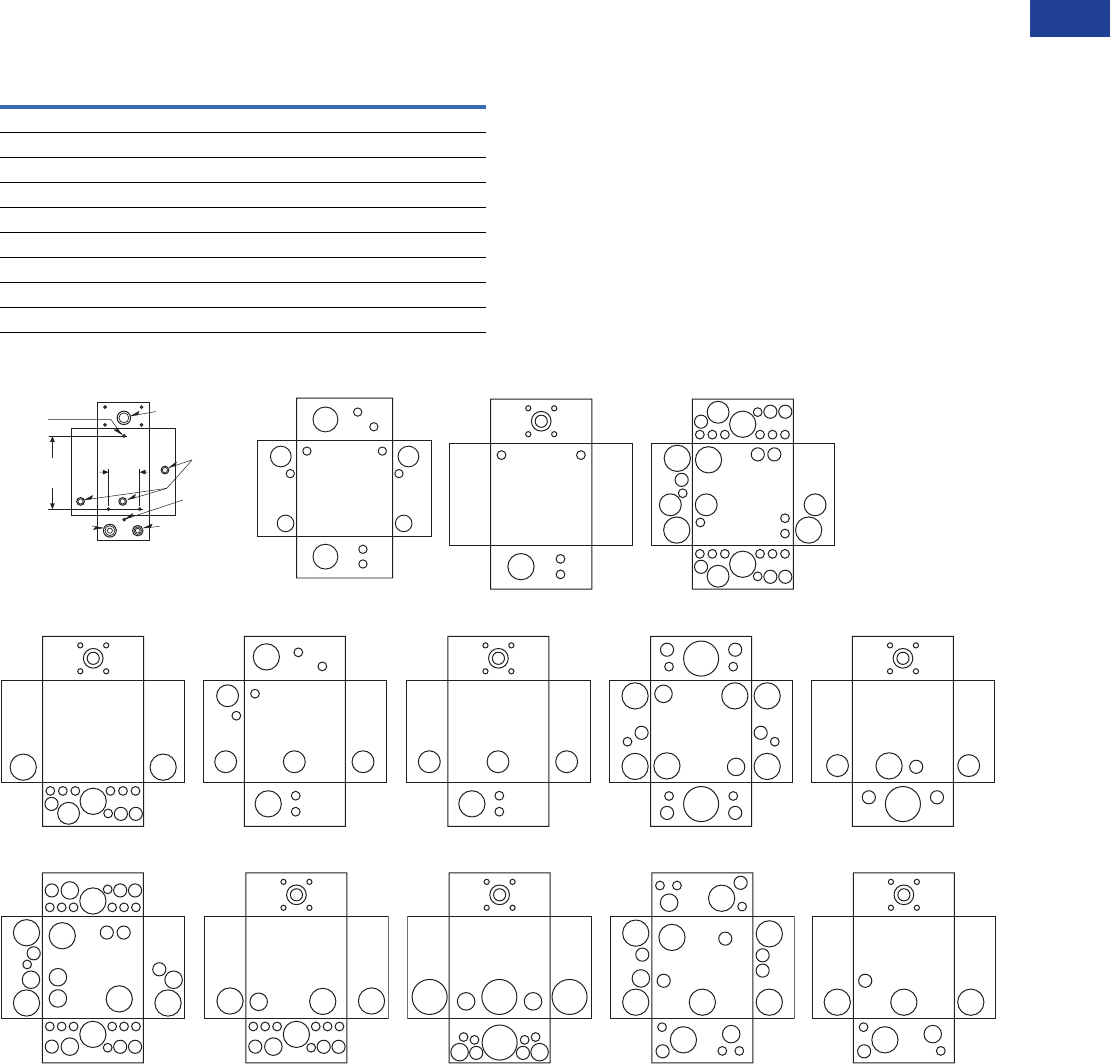

Residential Loadcenter Knockout
Residential NEMA Type 1 Indoor and NEMA Type 3R
Outdoor Enclosures.
Knockouts for Box Sizes 5, 6, 7, 5R, 6R, 7R
Knockout Positions
Box Size Height Width Depth
NEMA Type 1 Indoor
5 9.50 (241.3) 4.50 (114.3) 3.13 (79.4)
6 11.38 (288.9) 6.88 (174.6) 3.39 (86.1)
7 13.00 (330.2) 11.00 (279.4) 3.69 (93.7)
B 16.75 (425.5) 14.31 (363.5) 3.88 (98.4)
C 21.00 (533.4) 14.31 (363.5) 3.88 (98.4)
D 29.13 (739.8) 14.31 (363.5) 3.88 (98.4)
E 29.13 (739.8) 14.31 (363.5) 3.88 (98.4)
G 34.13 (866.8) 14.31 (363.5) 3.88 (98.4)
J 34.13 (866.8) 14.31 (363.5) 3.88 (98.4)
K 37.00 (939.8) 14.31 (363.5) 3.88 (98.4)
L 39.00 (990.6) 14.31 (363.5) 3.88 (98.4)
N 45.00 (1143.0) 14.31 (363.5) 3.88 (98.4)
NEMA Type 3R Outdoor
5R 9.50 (241.3) 4.50 (114.3) 3.13 (79.4)
6R 11.75 (298.5) 6.50 (165.1) 4.50 (114.3)
7R 13.00 (330.2) 11.00 (279.4) 3.69 (93.7)
B 16.75 (425.5) 14.31 (363.5) 5.19 (131.8)
C 21.00 (533.4) 14.31 (363.5) 5.19 (131.8)
D 29.13 (739.8) 14.31 (363.5) 5.19 (131.8)
E 29.13 (739.8) 14.31 (363.5) 5.19 (131.8)
G 34.13 (866.8) 14.31 (363.5) 5.19 (131.8)
J 34.13 (866.8) 14.31 (363.5) 5.19 (131.8)
K 37.00 (939.8) 14.31 (363.5) 5.19 (131.8)
L 39.00 (990.6) 14.31 (363.5) 5.19 (131.8)
Box Size Height Width Depth
NEMA Type 1 Indoor
P 54.38 (1381.1) 21.00 (533.4) 6.00 (152.4)
PM 62.63 (1590.7) 21.00 (533.4) 6.00 (152.4)
Height Width Depth
NEMA Type 1 Indoor
23.25 (590.6) 8.88 (225.4) 4.50 (114.3)
NEMA Type 3R Outdoor
23.69 (601.7) 9.31 (236.5) 5.44 (138.1)
Code Diameter
A 0.50 (12.7) — — —
B 0.50 (12.7) 0.75 (19.1) — —
C 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) —
D 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) 1.25 (31.8)
E 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) —
F 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) 1.50 (38.1)
G 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) —
H 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) 2.00 (50.8)
I 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) —
Box 6R
Box 7 Box 7R
Box 5 Box 5R
Box 6
A
A
D D D
F
Hub
A
A
B
A
B
B
C
C
FF
F
F
A
B
F
F
H
A
B
A
B
H
F
B B
B
H
Hub
D D
A
A
AA
A
AAA
AAA AAA
B B B
AB B
B
B
B
B
C C
C
C
C
BC
G
G
G
G
G G
F
AAA AAA
AB B
BC
C
G
G G
F
Hub
A
A
A
A
A
A
D D D
D
F
F
V1-T1-28 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Approximate Dimensions in Inches (mm)

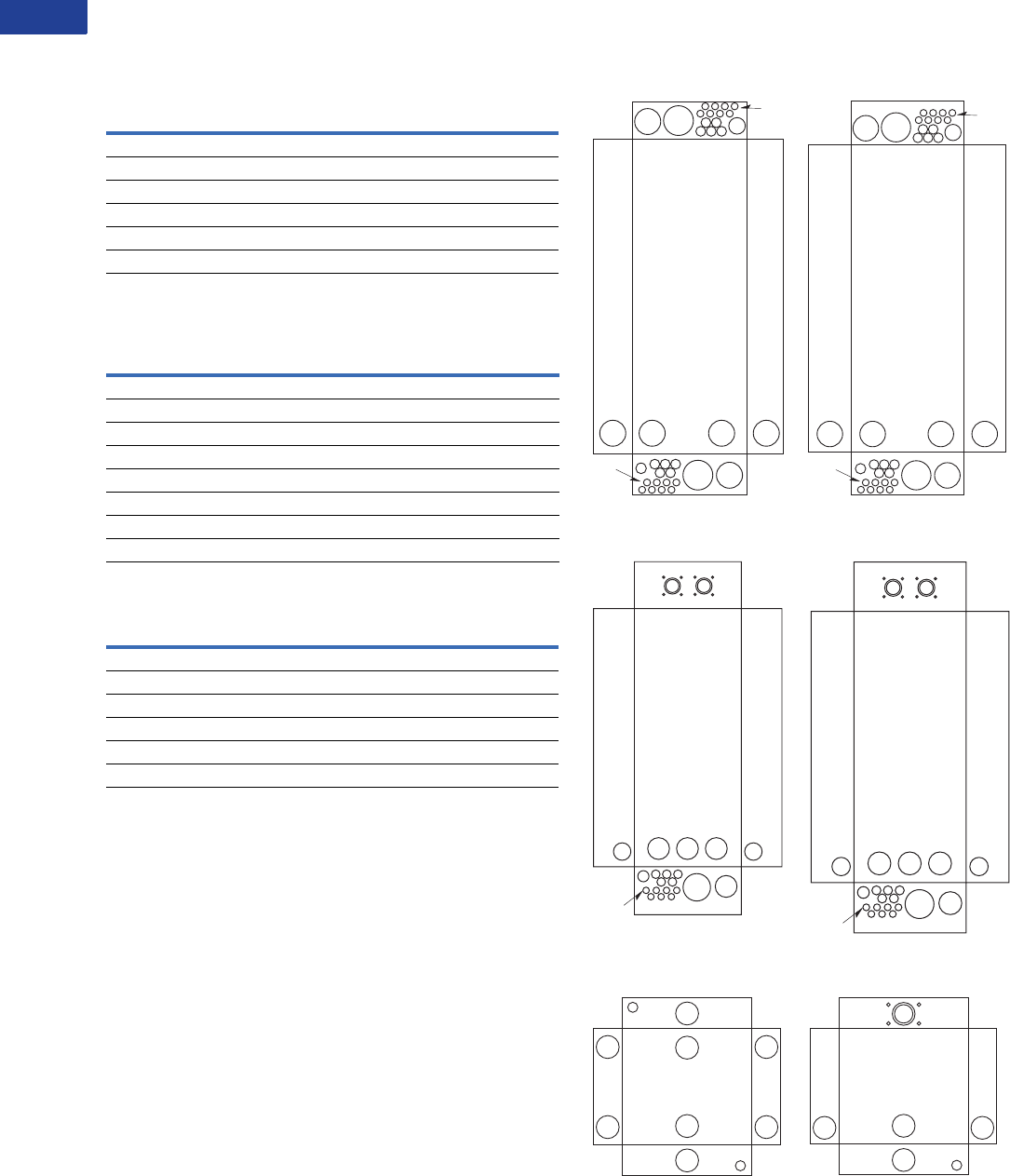

Residential and Commercial Loadcenter Knockout
Residential NEMA Type 1 indoor and NEMA Type 3R outdoor enclosures.
Knockouts for Box Sizes 8, 8R, P, PM, B, C, D, E, G, J, K, L, N
and Outdoor Boxes 12–60 Circuits
Knockout Diagram
Type ECB and ECC Unit Enclosure Knockout
NEMA Type 1—Indoor
NEMA Type 3R—Outdoor
Code Diameter
a 0.75 (19.1) — — — —
b 0.50 (12.7) 0.75 (19.1) — — —
c 0.50 (12.7) — — — —
d 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) 2.50 (63.5)
e 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) 2.50 (63.5) —
f 0.75 (19.1) 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) —
g 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) — —
h 1.50 (38.1) 2.00 (50.8) 2.50 (63.5) — —
i 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) 1.50 (38.1)
j 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) — —
k 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) — —
m 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) 2.00 (50.8)
n 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) —
p 2.00 (50.8) 2.50 (63.5) — — —
eeee
d
c
c
c
cc
b
b
i
c
c
c
cc
b
g
b
c
c c c
a
Flush
Trim
3/4
c
h
b
b
e
g
b
b
c
c
c
g
e
b
e
g
b
b
c
c
c
g
e
ee
e
e
gg
d
cc
c
c
c
b
b
i
cc
c
c
c
b
g
b
c
d
c
c
c
c c
b
b
i
c
c
c
cc
b
g
b
c
0.45 Dia.0.45 Dia.
0.45 Dia.0.45 Dia.
b
e
g
b
b
c
c
g
e
ee
e
e
gg
b
c
c
b
e
g
b
b
c
c
c
g
e
bc
d
cc
c
c
c
b
b
i
cc
c
c
c
b
g
b
c
d
c
c
c
c c
b
b
i
c
c
c
cc
b
g
b
c
0.45 Dia.0.45 Dia.
Box P, PM
Outdoor Boxes
12–42 Circuits 225 A Maximum
Box B Box C, D, E, G, J, K, L, N
0.45 Dia.0.45 Dia.
0.45 Dia.0.45 Dia.
Code Diameter
NEMA Type 1 Indoor (Flush and Surface Trims)
A 0.50 (12.7) — — — —
B 1.25 (31.8) 1.50 (38.1) 1.75 (44.5) 2.00 (50.8) 2.50 (63.5)
NEMA Type 3R Outdoor
A 0.50 (12.7) — — — —
B 1.25 (31.8) 1.50 (38.1) 1.75 (44.5) 2.00 (50.8) 2.50 (63.5)
B
B
B
B
A
A
B
B
B
B
B
B
A
B B
HUB
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-29
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Technical Data and Specifications
General
A. The Contractor shall
furnish and install
loadcenters incorporating
circuit breakers of the
number, rating and type
as specified herein and
as shown on the
contract drawings.
B. The loadcenter and all
components shall be
designed, manufactured
and tested in accordance
with the latest applicable
standards of UL and
NEMA including:
1. UL 67—standards for
panelboards
2. UL 50—standards for
cabinets and boxes
3. UL 489—standards for
molded case circuit
breakers
4. Federal Spec
Classification W-C 375
5. UL 1699—all fault
interrupting
Qualifications
A. The manufacturer of the
loadcenter shall be the
manufacturer of the
circuit breaker within the
load center. All breakers
shall be full size.
B. For the equipment
specified herein, the
manufacturer shall be
ISO® 9000 certified.
C. The manufacturer of
this equipment shall have
produced similar
electrical equipment
for a minimum period
of seven (7) years.
Manufacturers
A. Eaton
Ratings
A. Loadcenters shall be
rated for 240 Vac and
shall have short-circuit
ratings as shown on the
drawings or as herein
scheduled, but not less
than 10,000 amperes
rms symmetrical.
B. Breakers shall be full
size and a minimum of
125 A frame. Breakers
10 –125 A trip size shall
take up the same pole
spacing.
C. Loadcenters shall be
labeled with a UL short-
circuit rating. When
series ratings are applied
with integral or remote
devices, a label shall be
provided. Series ratings
shall cover all trip ratings
of installed frames. It
shall state the conditions
of the UL series ratings
including:
1. Size and type of
upstream device.
2. Branch devices that
can be used.
3. UL series short-circuit
rating.
Construction
A. All interiors, with the
exception of the branch
circuit breakers shall be
completely factory
assembled with main
breakers, main lugs or
no main device.
B. Interiors shall be so
designed that circuit
breakers can be replaced
without disturbing
adjacent units and
without removing the
main bus connectors and
shall be so designed that
circuits may be changed
without machining,
drilling or tapping.
C. Physical means must
be provided to prevent
the installation of more
overcurrent devices than
that number for which
the enclosure was
designed. Full size
breakers are required.
Bus
A. Busbars for the main and
cross connectors shall be
of silver flash plated
copper construction in
accordance with UL
standards. Bussing shall
be braced to 65 kAIC.
B. Neutral bussing shall
have a suitable lug for
each outgoing feeder
requiring a neutral
connection of same
ampacity as branch.
Wiring/Termination
A. All wire connectors and
terminals shall be of the
anti-turn solderless type
and suitable for copper
or aluminum wire of the
sizes indicated. All
connectors shall meet
the “Requirements
for Wire Connectors
and Soldering Lugs”
UL 486B.
B. All loadcenters where
marked shall be suitable
for use with 60/75 °C
rated wire.
Circuit Breakers
A. Circuit breakers shall
be molded case type,
3/4-inch (19.1 mm) wide
per pole. Multipole circuit
breakers shall be of a
stack pole design to
provide electrical phase
isolation and have an
internal common trip.
B. Each pole of the circuit
breaker will have inverse
time delay overload and
instantaneous short-
circuit protection by
means of both thermal
and magnetic sensors.
Circuit breakers shall be
quick-make/quick-break.
C. The circuit breaker
calibration shall not be
affected by environmental
changes in relative
humidity. Breakers
shall be calibrated
after assembly.
D. All circuit breakers shall
be operated by a toggle-
type handle and multipole
circuit breakers shall have
an internal common trip
mechanism. The circuit
breakers shall incorporate
trip mechanisms that are
mechanically trip-free
from the handle. The
handle position shall
provide good visual
trip indication.
E. Contacts shall be of non-
welding silver alloy.
F. All branch breaker
handles shall be of a
different color than the
case of the breaker.
G. All terminals shall be
listed for use with copper
or aluminum conductors.
Terminals shall be of the
box lug design. The
terminals shall meet
UL 486B requirements
and shall be suitable for
use with either 60 °C or
75 °C wire.
H. Breakers shall be SWD
rated and/or HACR rated
as required.
I. Arc fault interrupting
circuit breakers, (AFC),
shall be provided on all
15 and 20 A single-phase
120/240 Vac circuits
except those indicated as
remote controlled
breakers. AFI breakers
shall be “Classified for
mitigating the effects of
arcing faults,” or
conforming to UL
Standard 1699 and as
defined by per Article
210.12 Section A of the
NEC Code.
V1-T1-30 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Enclosures
A. Loadcenters shall have
NEMA 1 general purpose
or NEMA 3R rainproof
enclosures as indicated
on the drawings and
shall be surface or flush
mounted except where
noted.
B. For indoor applications,
enclosures shall be rated
NEMA 1. Enclosures
shall be manufactured
from cold-rolled code-
gauge sheet steel having
multiple knockouts
and painted per paint
specification. For outdoor
applications, enclosures
shall be rated NEMA 3R.
Enclosures shall be
manufactured from
galvanized steel which
shall be painted per the
painted as specified.
Enclosures shall be of
sufficient size to meet
or exceed NEC wire
bending space.
C. The cover shall have an
easy adjustment feature
for flush applications.
D. Boxes shall be factory
assembled into a single
rigid structure.
E. Provide circuit breaker
marking labels and
directories.
Finish
A. Boxes and trims shall
be finished with a
high scratch-resistant
aesthetically pleasing
finish. The finish shall
be polyurethane coating
electrostatically applied
to a thickness of 1.8 to
2 mils.
All loadcenters shall be
provided with provisions for
accepting a paintable or wall
paperable decorator accessory
cover. Where loadcenters are
installed in living areas, provide
manufacturer designed and
tested decorator cover kits.
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-31
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Plug-On Circuit Breakers
Contents
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-2
CH Specialty Products . . . . . . . . . . . . . . . . . . . . . V1-T1-14
CH Loadcenter Options and Accessories . . . . . . . V1-T1-22
CH Circuit Breakers
Product Selection. . . . . . . . . . . . . . . . . . . . . . . V1-T1-32
Options and Accessories . . . . . . . . . . . . . . . . . V1-T1-38
Technical Data and Specifications . . . . . . . . . . V1-T1-40
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . V1-T1-40
CH Circuit Breakers
Product Description
Quick-make, quick-break
switch mechanism combined
with inverse time element
tripping operation and trip-
free handle design. Type CH
circuit breakers trip to the
OFF position, eliminating
nuisance callbacks. The CHF
family also includes a trip flag
to differentiate between a trip
and the breaker being turned
off. The thermal-magnetic trip
curve avoids nuisance tripping
on mild overloads while
reacting almost instantaneously
to severe short-circuit
conditions. Multipole breakers
have internal common trip
connection to operate all
poles simultaneously. Handles
are marked with ON-OFF
indication and ampere rating
of the breaker.
Special Application Plug-On
Circuit Breakers—Type CH
10 kAIC 120 Vac and 120/240 Vac
Branch Feeder Type Arc
Fault Circuit Breakers
A branch feeder type arc fault
circuit interrupter is a device
intended to mitigate high
current arcing faults in the
complete circuit, including
connected cords. High
current arcing faults can
occur from line to neutral or
line to ground. These arcing
faults are in parallel with the
load and produce the most
energy of all arcing faults.
The branch feeder type AFCI
is required in the 1999 and
2002 National Electrical Code.
The Combination Type AFCI
is required in all subsequent
editions of the National
Electrical Code.
Combination Type Arc
Fault Circuit Breakers
A combination type arc fault
circuit interrupter is a device
that offers mitigation of high
current arcing faults in the
complete circuit, including
connected cords. In addition it
provides direct detection of
persistent low current arcing
faults down to 5 amps with
associated mitigation of
fire hazards in the cords
connected to the outlets. High
current arcing faults can occur
from line to neutral or line to
ground. These arcing faults
are in parallel with the load
and produce the most energy
of all arcing faults. The current
level of low current arcing
faults is limited by the load.
Ground Fault Circuit
Breakers—Ground Fault
Application Notes
Single-pole Type CHGFIs are
designed for use in two-wire,
120 Vac circuits. The diagram
on Page V1-T1-40 shows a
typical wiring configuration.
Two-pole Type CHGFIs are
designed for use in three-
wire, 120/240 Vac circuits,
120 Vac multiwire circuits
employing common, neutral
and two-wire, 240 Vac
circuits obtained from a
120/240 Vac source.
Diagrams on Page V1-T1-40
illustrate typical wiring
configurations for 120/240 Vac
multiwire circuits.
The diagram on Page
V1-T1-40 depicts a 240 Vac,
two-wire circuit. Note the
“panel neutral” conductor
connects to the neutral bar,
even though the neutral is not
included in the load circuit.
This connection is necessary
to supply a 120 Vac power
source to the ground fault
sensing circuit.
The figures are shown with
a 120/240 Vac, single-phase,
three-wire power source,
but are also applicable to a
120/208 Vac, three-phase,
four-wire power supply.
For all figures, the electrical
operation of the Type CHGFI
is not affected by the
equipment ground.
Features
Latch
Spring
Over-Center
Tog gl e S pr i n g
Latch
Lever
Magnetic
Armature
Current
Bi-Metal
Lug
Screw
Load
Te r m i n a l
Magnetic
Pole Piece
Contact
Line
Contact
Clip
V1-T1-32 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

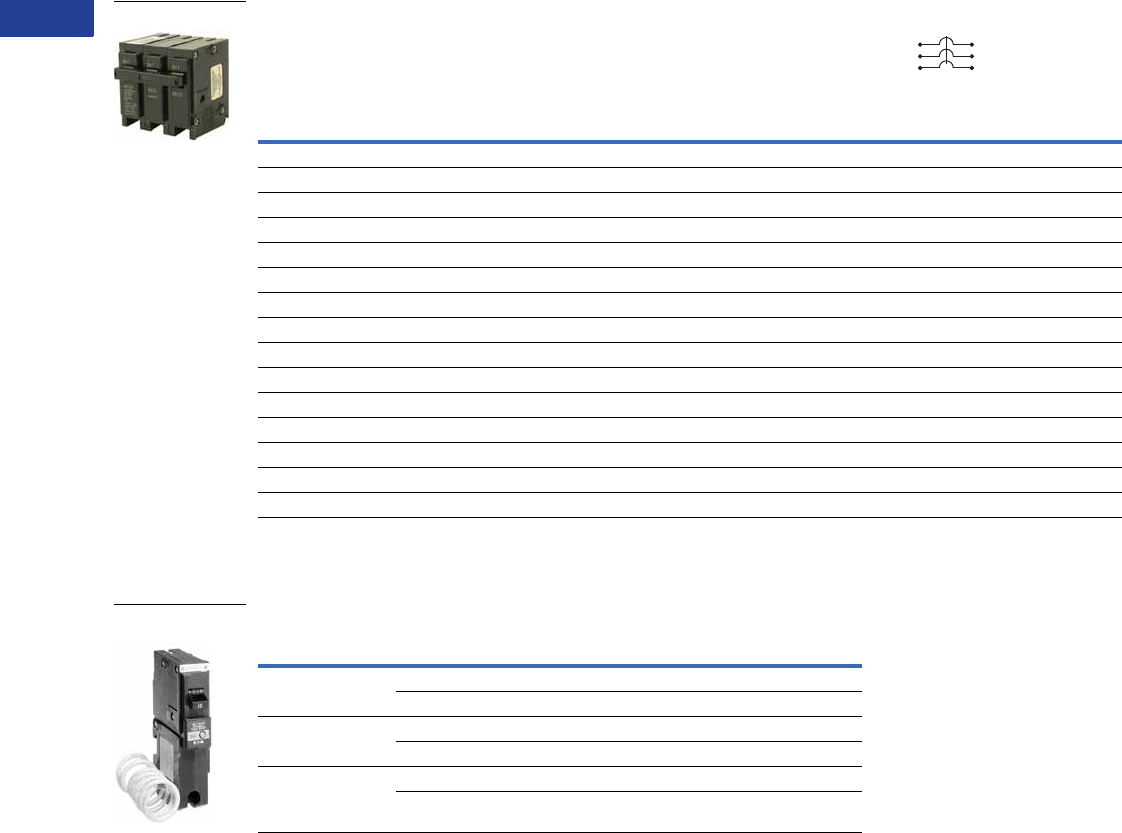

Product Selection
10 kAIC, 120 Vac, 120/240 Vac and 240 Vac

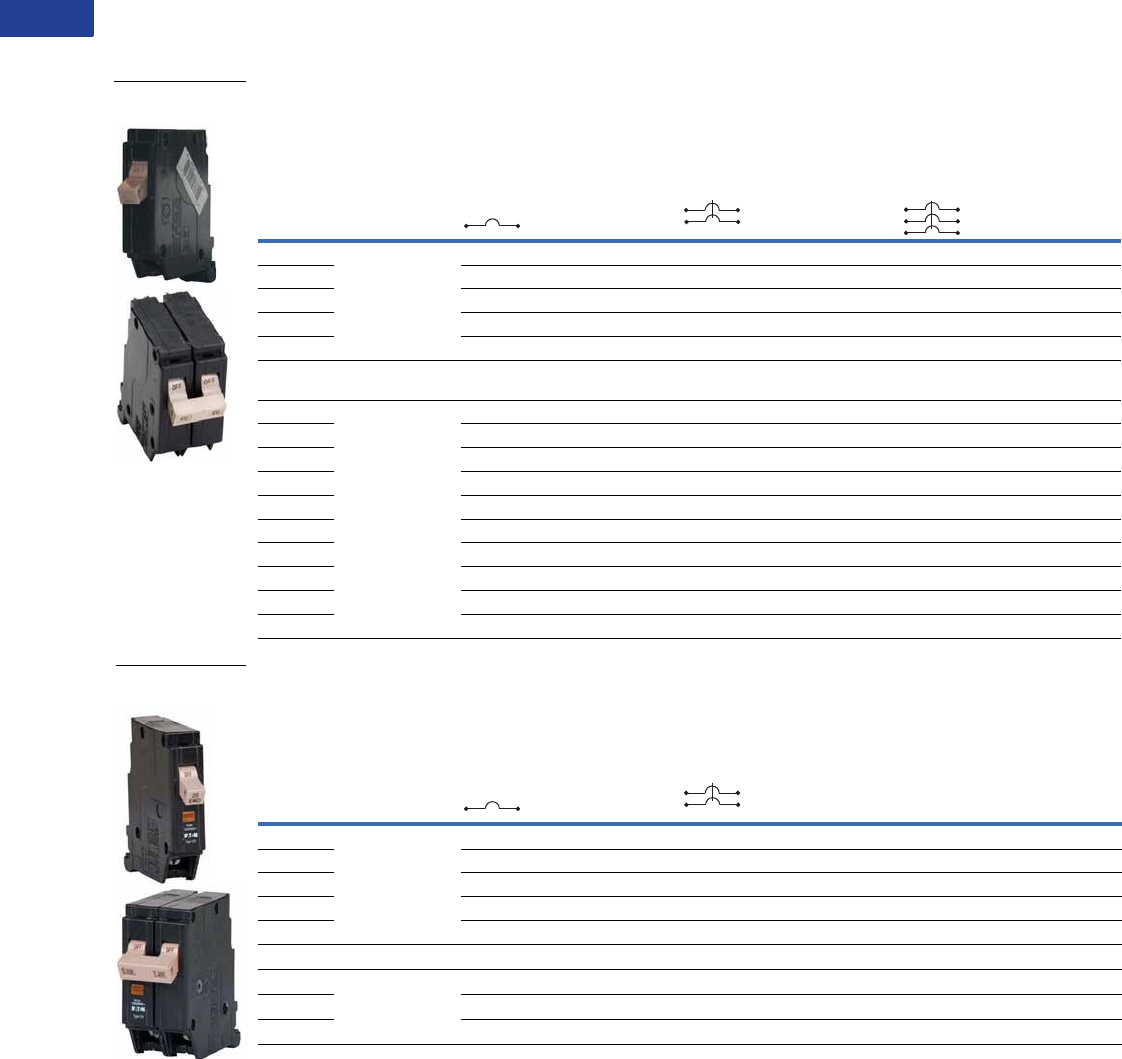

Type CH Breakers, 3/4-Inch (19.1 mm) per Pole 120, 120/240 or 240 Vac, 10 kAIC
CHF Breakers with Mechanical Trip Flag
Notes
1 For single- and two-pole breakers.
2 Solid and stranded wire can be used together.
3 For three-pole breakers.
4 Single-pole 60–70 A, two-pole 80–125 A, three-pole 40–100 A.
5 Single-pole 40–50 A, two-pole 40–70 A.
6 Two-pole 150 A.
7 Switching duty rated.
8 HACR rated.
For factory-installed options, refer to Page V1-T1-39.
Ampere
Rating
Wire Size
Range Cu/Al
60 °C or 75 °C
Catalog Number
Single-Pole 120/240 Vac
Requires One
3/4-Inch (19.1 mm) Space
10 per Shelf Carton
Two-Pole 120/240 Vac
Common Trip Requires Two
3/4-Inch (19.1 mm) Spaces
5 per Shelf Carton
Three-Pole 240 Vac
Common Trip Requires Three
3/4-Inch (19.1 mm) Spaces
5 per Shelf Carton
10 (1) #14–8 1
(2) #14–10 12
(1) #14–6 3
CH110 CH210 CH310
15 CH115 78 CH215 8CH315 8
20 CH120 78 CH220 8CH320 8
25 CH125 8CH225 8CH325 8
30 CH130 8CH230 8CH330 8
35 #14–2 1
#14–6 3
CH135 8CH235 8CH335 8
40 #10–1/0 4
#14–2 5
#3/0 6
CH140 8CH240 8CH340 8
45 CH145 8CH245 8CH345 8
50 CH150 8CH250 8CH350 8
60 CH160 CH260 CH360
70 CH170 CH270 CH370
80 — CH280 CH3080
90 — CH290 CH3090
100 — CH2100 CH3100
110 — CH2110 —
125 — CH2125 —
Ampere
Rating
Wire Size
Range Cu/Al
60 °C or 75 °C
Catalog Number
Single-Pole 120/240 Vac
Requires One
3/4-Inch (19.1 mm) Space
10 per Shelf Carton
Two-Pole 120/240 Vac
Common Trip Requires Two
3/4-Inch (19.1 mm) Spaces
5 per Shelf Carton
10 (1) #14–8 1
(2) #14–10 12
CHF110 CHF210
15 CHF115 78 CHF215 8
20 CHF120 78 CHF220 8
25 CHF125 8CHF225 8
30 CHF130 8CHF230 8
35 #14–2 1CHF135 8CHF235 8
40 #10–1/0 4
#14–2 5
CHF140 8CHF240 8
45 CHF145 8CHF245 8
50 CHF150 8CHF250 8
Type CH Plug-On
Circuit Breakers
Type CH Plug-On
Circuit Breakers
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-33
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

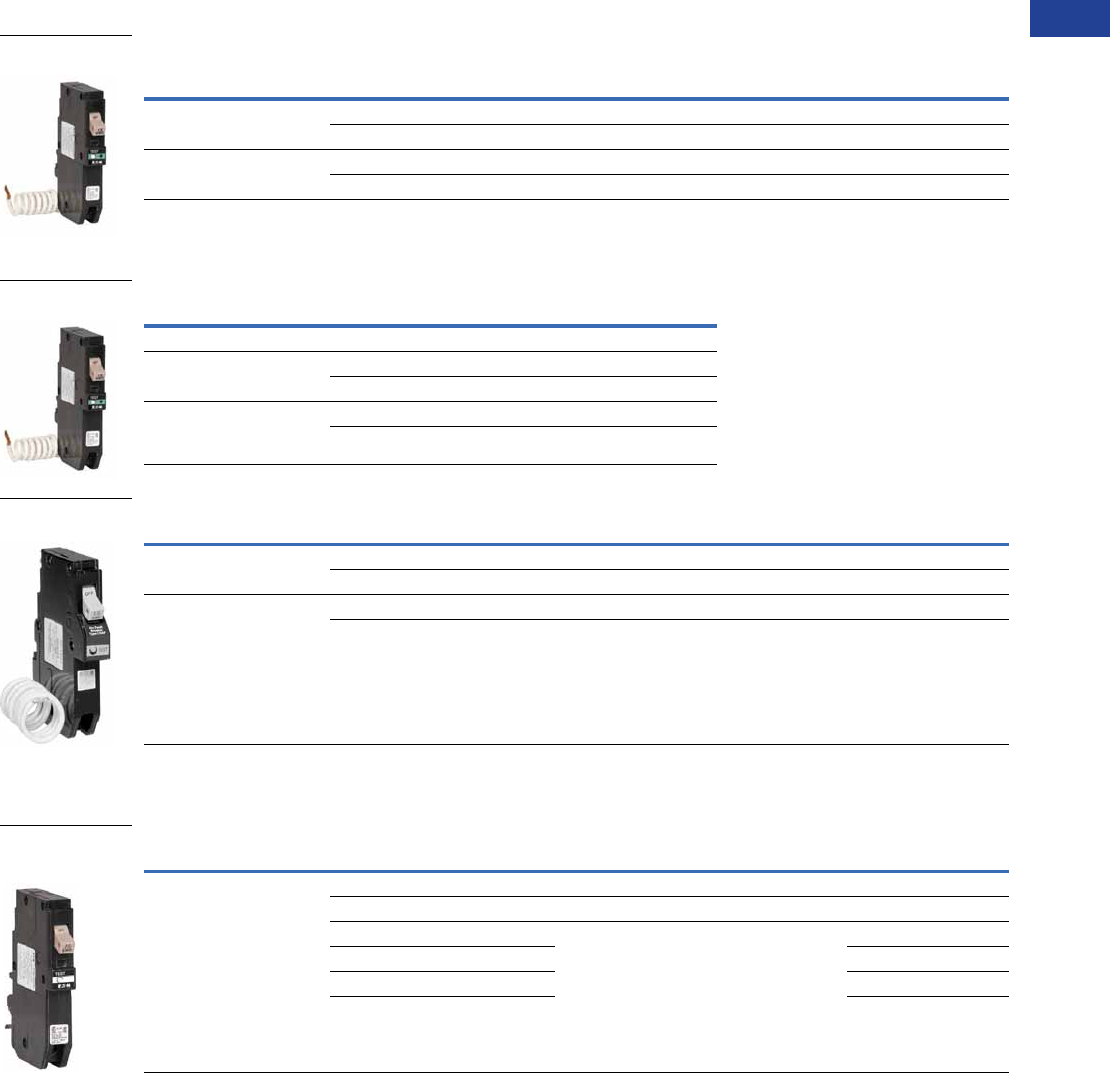

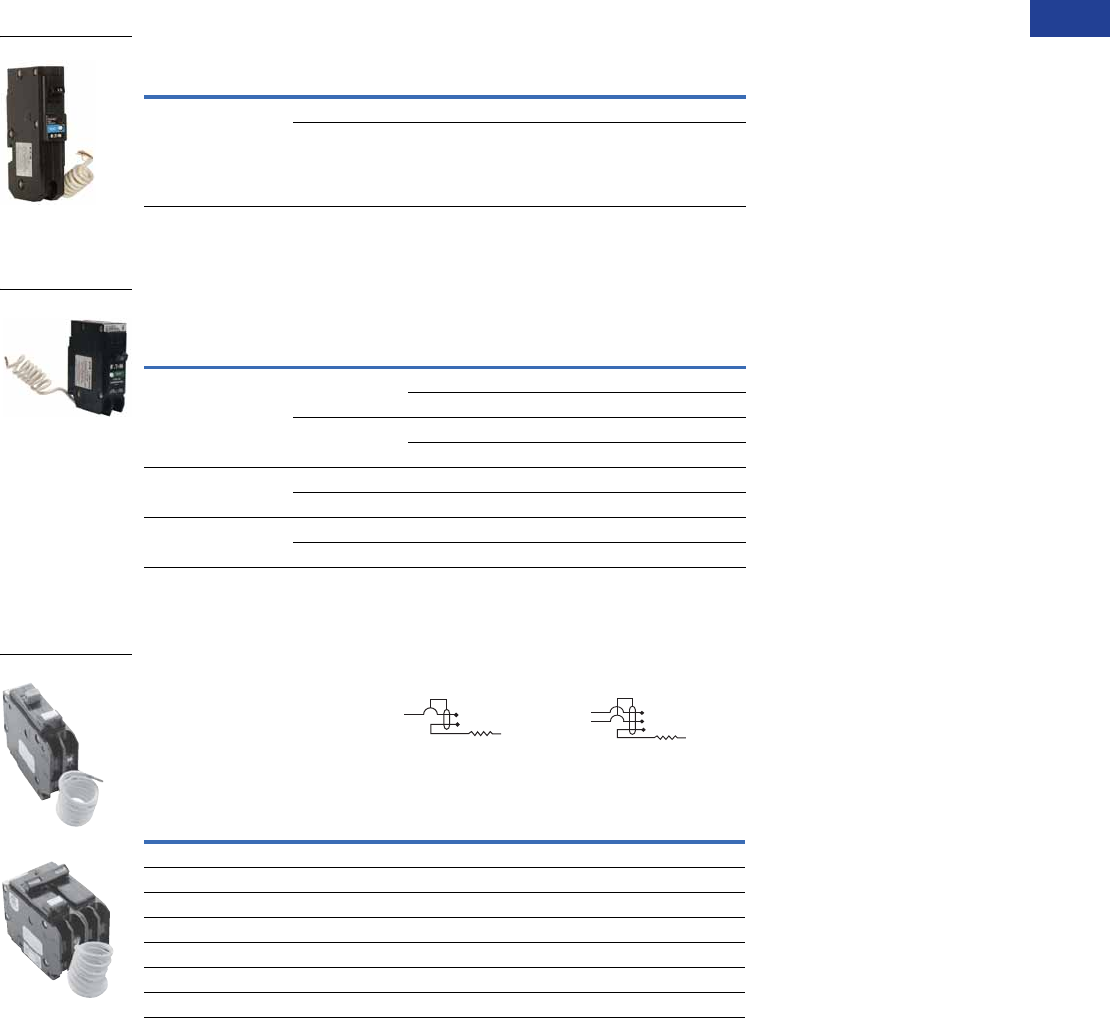

Type CH AF/GF Single-Pole Circuit Breaker
Dual Purpose Arc Fault/Ground Fault 3/4-Inch (19.1 mm) Wide Circuit Breakers,
Type CH, 120 Vac—10 kAIC 12

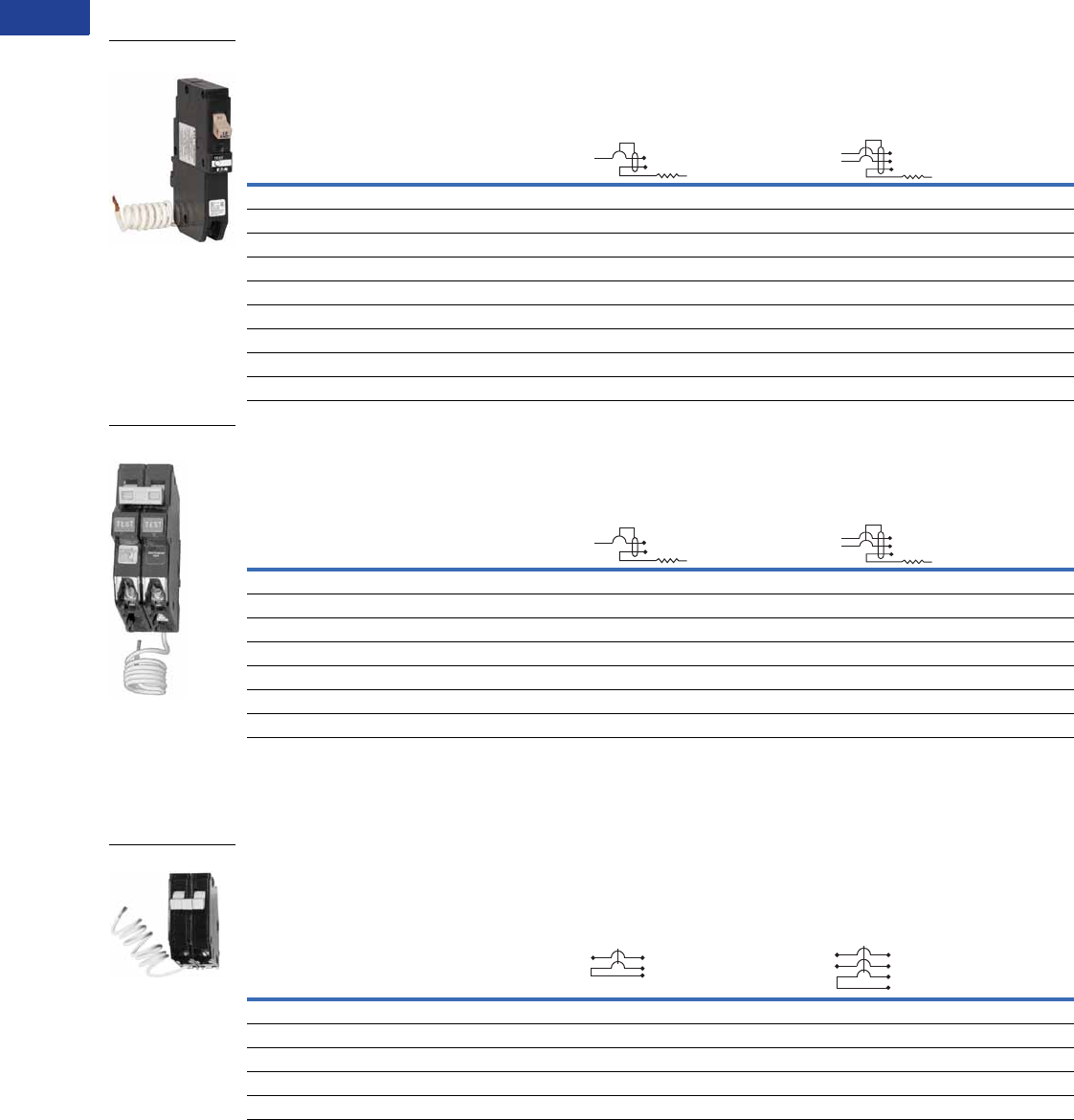

Plug-On Branch Feeder Type Arc Fault Circuit Breakers, Type CH 10 kAIC, 120 Vac and 120/240 Vac
Combination Type CH AFCI 3/4-Inch (19.1 mm) Wide Circuit Breakers
Branch Type CH AFCI 3/4-Inch (19.1 mm) Wide FIRE-GUARD® Circuit Breakers
Plug-On Combination Type Arc Fault Circuit Breakers and Ground Fault, Type CH 10 kAIC, 120 Vac and 120/240 Vac 6
Combination Type CH AFCI 3/4-Inch (19.1 mm) and CHGFCI Circuit Breakers
Notes
1 Breaker qualifies as combination arc fault, per UL 1699.
2 Breaker qualifies as personnel protection ground fault, (5 mA) per UL 943.
3 Clamshell packaging available with CS modification code on the end of catalog number.
4 Common trip refers to two-pole 240 V load application sourced by 120/240 Vac (see diagram on Page V1-T1-40).
5 Independent trip refers to two-pole multi-wire, home run or shared neutral circuits (see diagrams on Page V1-T1-40).
6 Requires plug-on neutral loadcenter.
Poles Ampere Rating Configuration Catalog Number
Single-pole
10 kAIC
15 Combination AFCI GFCI CHFAFGF115 3
20 Combination AFCI GFCI CHFAFGF120 3
Single-pole, plug-on neutral
10 kAIC
15 Combination AFCI GFCI CHFAFGF115PN
20 Combination AFCI GFCI CHFAFGF120PN
Poles Ampere Rating Catalog Number
Standard Pigtail
Single-pole
10 kAIC
15 CHFCAF115
20 CHFCAF120
Two-pole
10 kAIC
15 CH215CAF
20 CH220CAF
Poles Ampere Rating Configuration Catalog Number
Single-pole
10 kAIC
15 AFCI CH115AF 3
20 AFCI CH120AF 3
Two-pole
10 kAIC 45
15 AFCI common trip CH215AF
20 AFCI common trip CH220AF
Poles Ampere Rating Configuration Catalog Number
Single-pole
10 kAIC
15 AFCI plug-on neutral CHFCAF115PN
20 AFCI plug-on neutral CHFCAFT120PN
15 GFCI plug-on neutral CHFGFT115PN
20 CHFGFT120PN
25 CHFGFT125PN
30 CHFGFT130PN
Type CH AFCI Single-
Pole Circuit Breaker
Type CH AFCI Single-
Pole Circuit Breaker
Type CH AFCI Single-
Pole Circuit Breaker
Type CH AFCI Single-
Pole PON Combo
Circuit Breaker
V1-T1-34 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

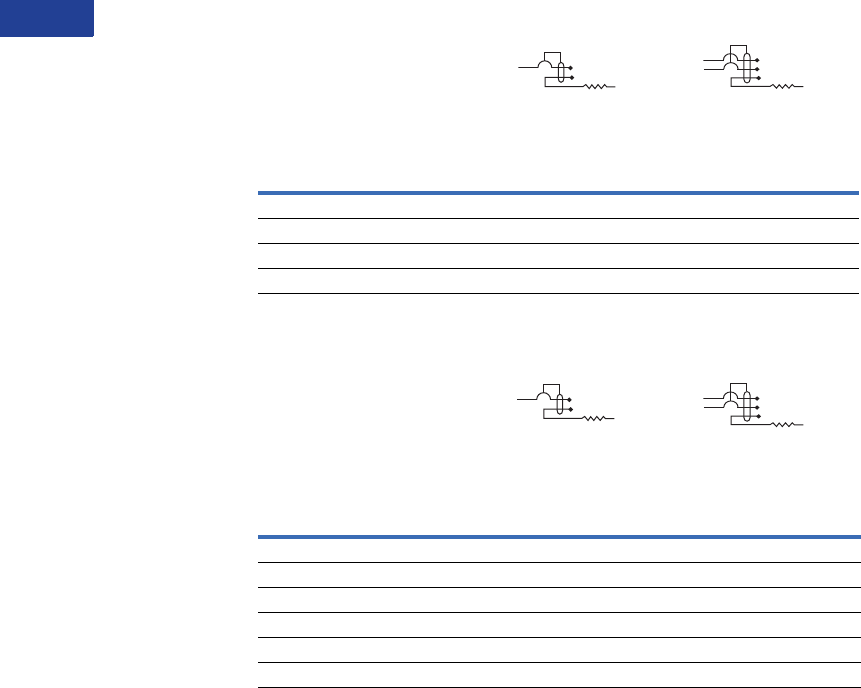

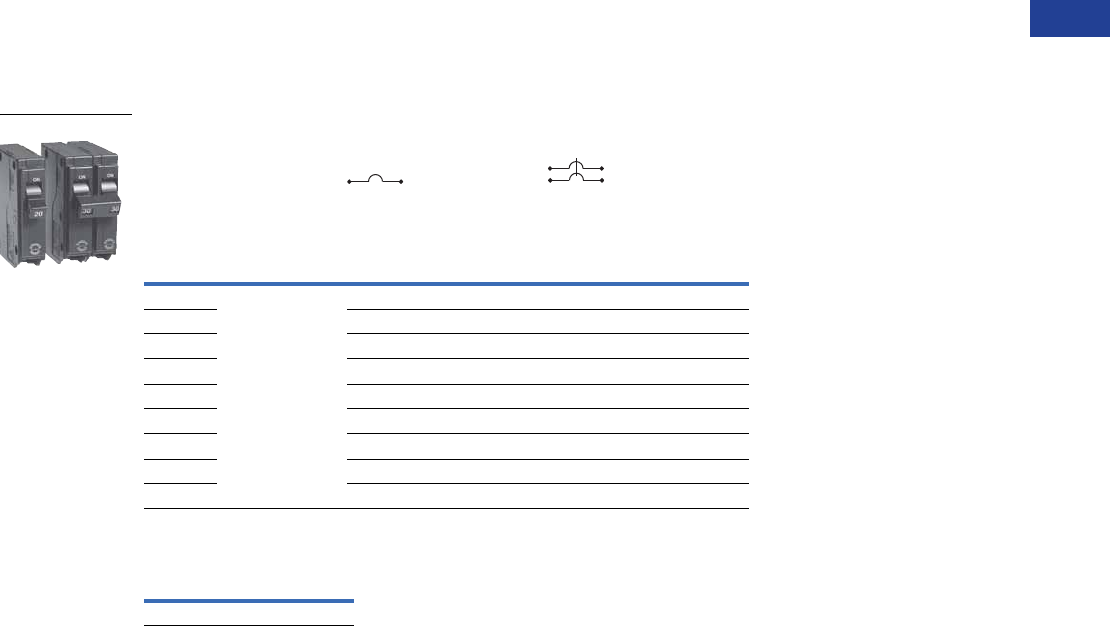

Plug-On Ground Fault Circuit Breakers, Type CH 10 kAIC, 120 Vac and 120/240 Vac
Type CH Ground Fault Circuit Breakers (5 Milliampere) 3/4-Inch (19.1 mm) per Pole 120 Vac or
120/240 Vac,10 kAIC
Type CH Ground Fault Equipment Protectors (30 Milliampere) 3/4-Inch (19.1 mm) per Pole 120 Vac or
120/240 Vac, 10 kAIC
Type CH Switching Neutral Breakers—10 kAIC, 120 Vac and 120/240 Vac
Used to open the neutral along power line(s) for applications of gas pumps.
3/4-Inch (19.1 mm) per Pole 120/240 or 240 Vac, 10 kAIC
Notes
1 60 A breaker listed for 75 °C Cu wire only.
2 For circuit breakers with shunt trip, add ST suffix. Shunt trip requires one additional pole space.
3 Switching duty rated.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C 1
Catalog Number—1 per Shelf Carton
Single-Pole 120 Vac Requires
One 3/4-Inch (19.1 mm) Space
Two-Pole 120/240 Vac Common Trip
Requires Two 3/4-Inch (19.1 mm) Spaces
15 #14–6 CHFGFT115 CH215GFT
20 #14–6 CHFGFT120 CH220GFT
25 #14–6 CHFGFT125 CH225GFT
30 #14–6 CHFGFT130 CH230GFT
35 #14–6 — CH235GFT
40 #14–6 — CH240GFT
45 #14–6 — CH245GFT
50 #14–6 — CH250GFT
60 #14–6 1— CH260GFT
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C 1
Catalog Number—1 per Shelf Carton
Single-Pole 120 Vac Requires
One 3/4-Inch (19.1 mm) Space
Two-Pole 120/240 Vac Common Trip
Requires Two 3/4-Inch (19.1 mm) Spaces
15 #14–6 CHFEP115 CH215EPD
20 #14–6 CHFEP120 CH220EPD
25 #14–6 CHFEP125 —
30 #14–6 CHFEP130 CH230EPD
40 #14–6 — CH240EPD
50 #14–6 — CH250EPD
60 #14–6 1— CH260EPD
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Catalog Number—1 per Shelf Carton
Two-Pole 120 Vac
Common Trip Requires
Two 3/4-Inch (19.1 mm) Spaces
Three-Pole 120/240 Vac
Common Trip Requires
Three 3/4-Inch (19.1 mm) Spaces
15 #14–8 CH215SW 2CH315SW 3
20 #14–8 CH220SW 2CH320SW 3
30 #14–8 CH230SW 2CH330SW 3
40 #14–8 CH240SW 2CH340SW 3
50 #14–8 CH250SW 2CH350SW 3
Type CH Single-Pole
Type CH Two-Pole
CH220SW
Neutral In
Neutral Out
(Hot leg)
Neutral In
Neutral Out
Phase
Phase
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-35
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

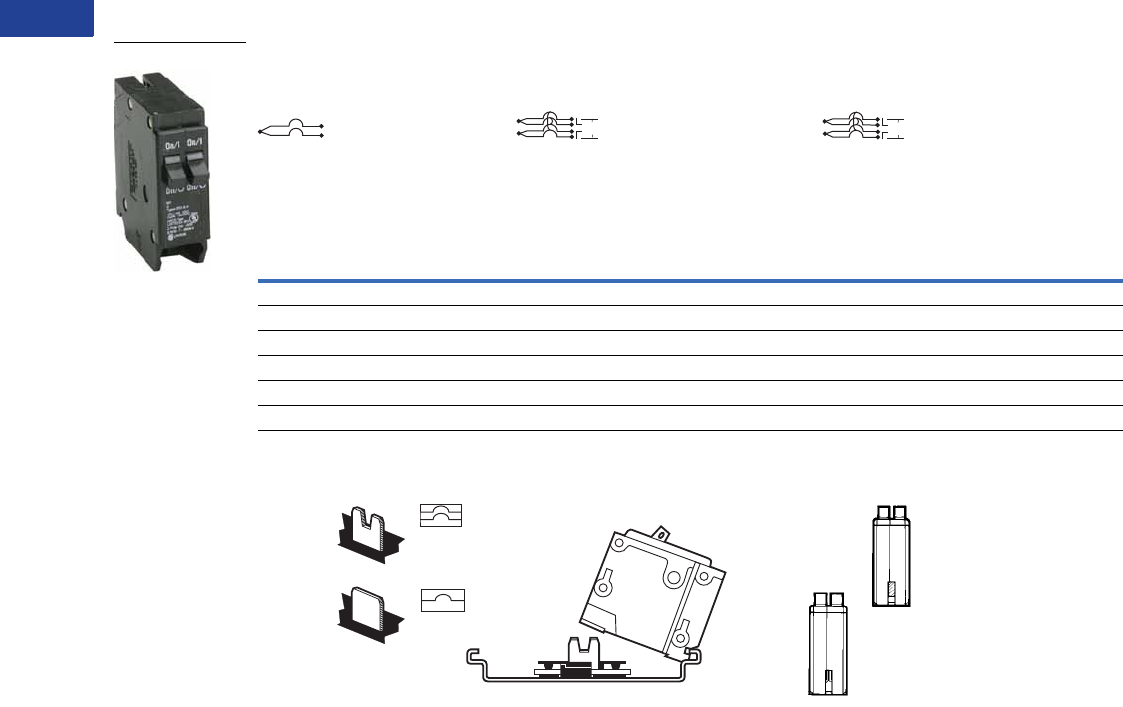

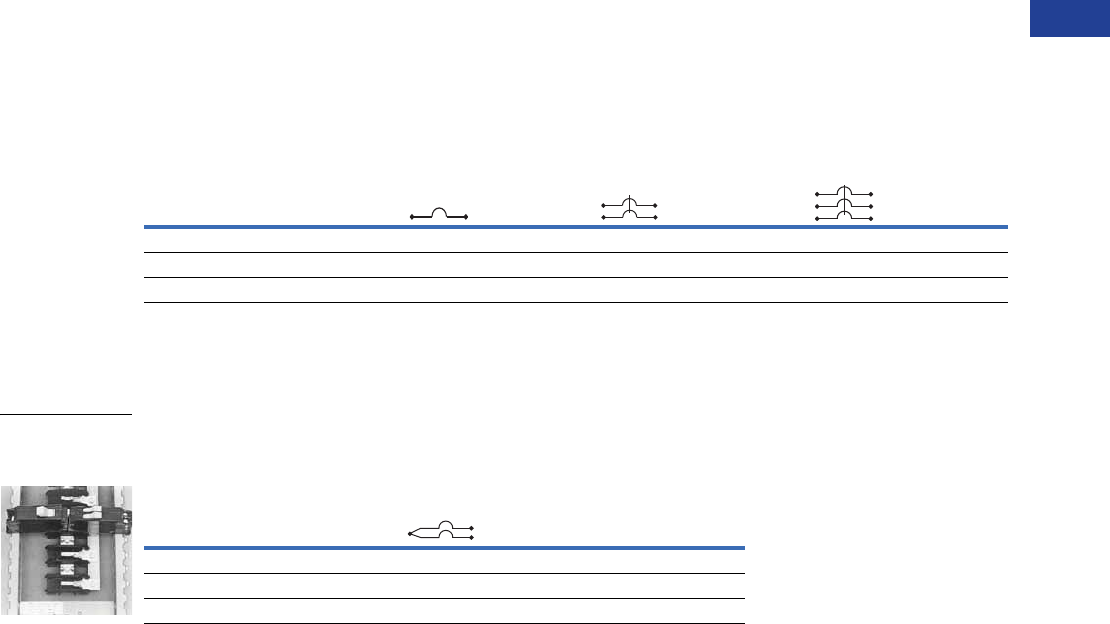

Type CH-HID Circuit Breakers—10 kAIC, 120 Vac, 120/240 and 240 Vac
Suitable for use in circuits for fluorescent and high intensity discharge lighting. Also suitable for HACR applications.
3/4-Inch (19.1 mm) per Pole 120 Vac, 120/240 and 240 Vac, 10 kAIC
Type CHT Twin 10 kAIC, 120/240 Vac, Universal CTL and Non-CTL Plug-On Circuit Breakers
Suitable for CTL and Non-CTL CH loadcenters.
Twin (CTL) 3/4-Inch (19.1 mm) per Pole 120 Vac Class CTL 10 kAIC
Notes
1 CH215HID is rated for 120/240 V.
2 Switching duty rated.
3 HACR rated.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120/240 Vac
Requires One
3/4-Inch (19.1 mm) Space
Two-Pole 240 Vac
Common Trip Requires
Two 3/4-Inch (19.1 mm) Spaces
Three-Pole 240 Vac
Common Trip Requires
Three 3/4-Inch (19.1 mm) Spaces
10 per Shelf Carton
Catalog Number
5 per Shelf Carton
Catalog Number
5 per Shelf Carton
Catalog Number
15 #14–8 CH115HID CH215HID 1CH315HID
20 #14–8 CH120HID CH220HID CH320HID
30 #14–8 CH130HID CH230HID CH330HID
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole Requires
One 3/4-Inch (19.1 mm) Space
10 per Shelf Carton
Catalog Number
15–15 #14–8 CHT1515 23
15–20 #14–8 CHT1520 23
20–20 #14–8 CHT2020 23
Type CH and CHT
Circuit Breakers
Mounted in Twin
Breaker Panel
120/240 Vac
120/240 Vac
V1-T1-36 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

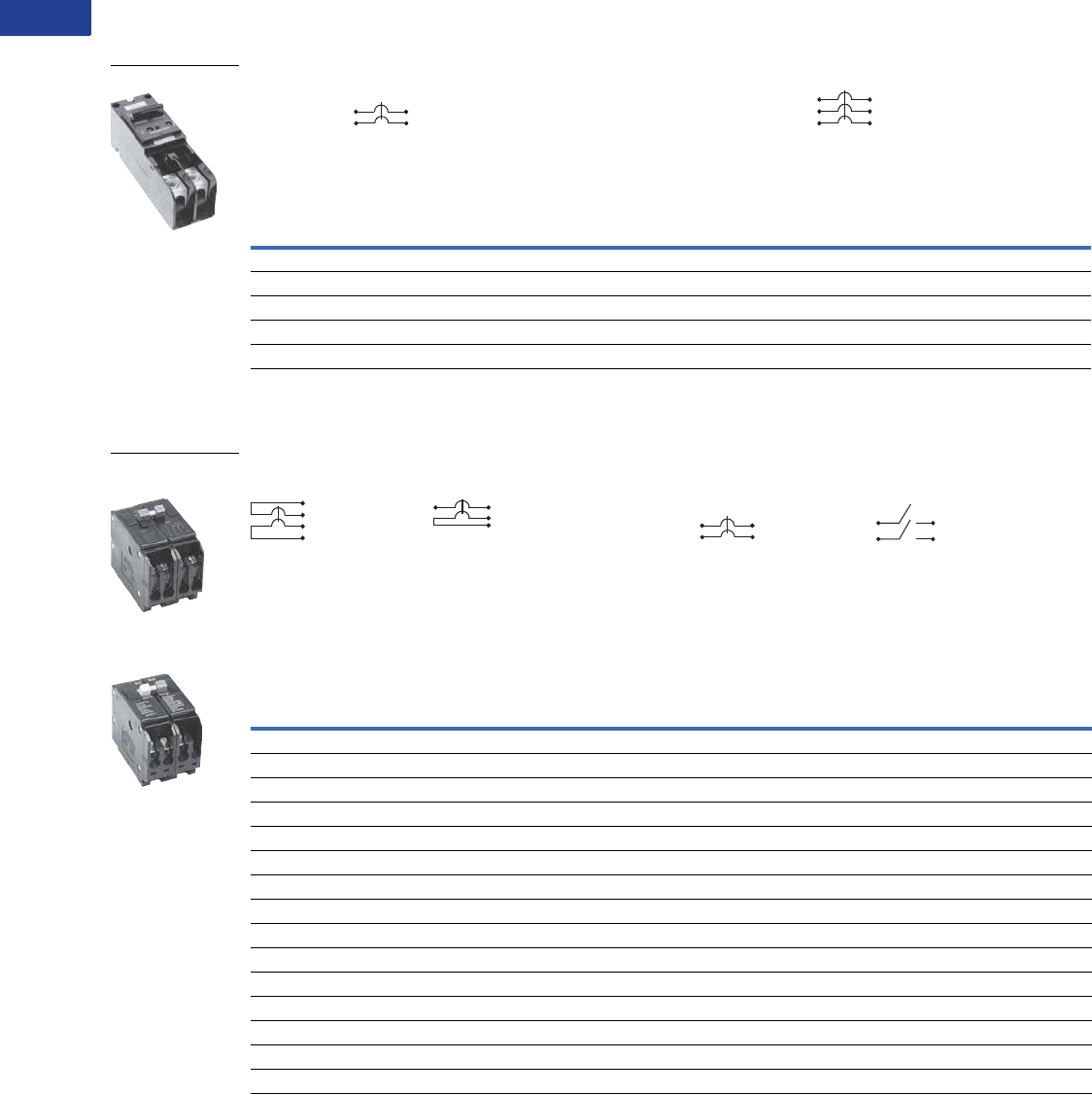

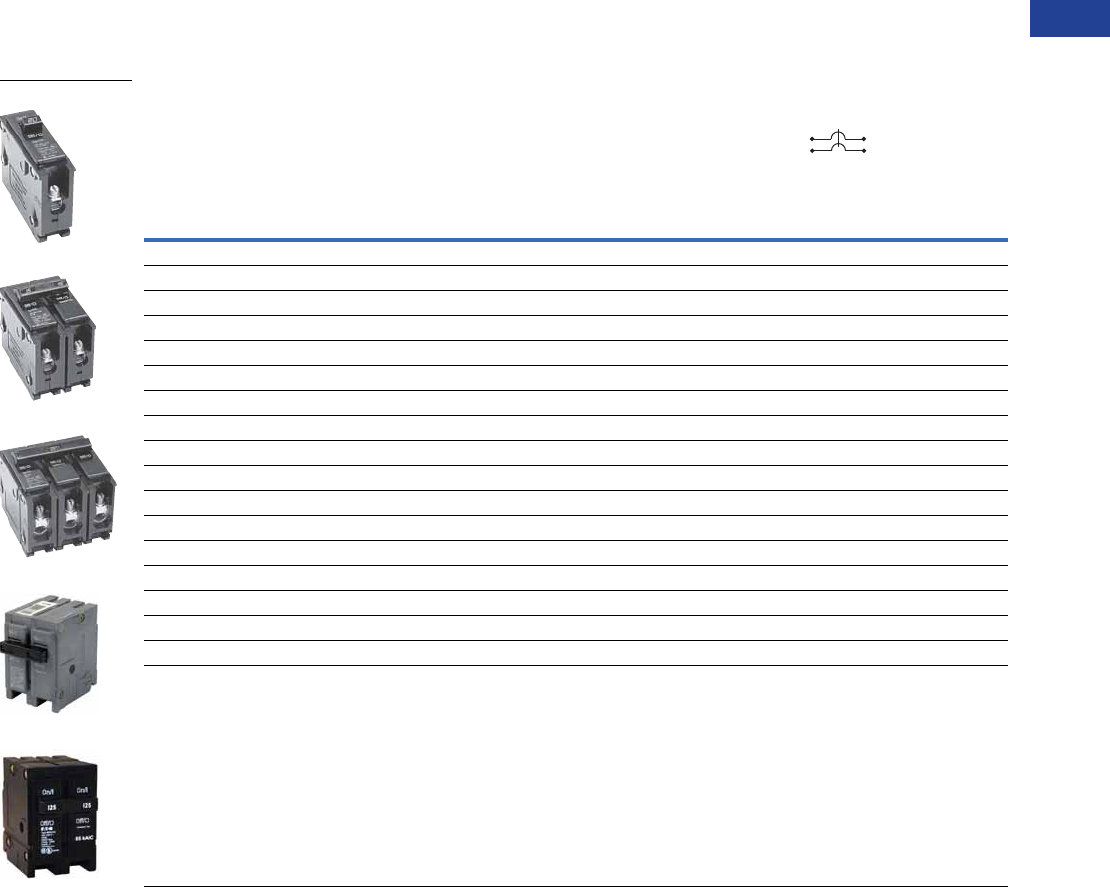

Type CHP Commercial Breakers—10 kAIC, 120 Vac, 120/240 Vac and 240 Vac
Note: CHP breakers feature on-off and trip positions for commercial applications.
3/4-Inch (19.1 mm) per Pole 120, 120/240 or 240 Vac, 10 kAIC
Notes
1For single- and two-pole breakers.
2Solid and stranded wire can be used together.
3For three-pole breakers.
4Single-pole 60–70 A, two-pole 80–125 A, three-pole 40–100 A.
5Single-pole 40–50 A, two-pole 40–70 A.
6Switching duty rated.
7HACR rated.
CHP breakers offer on-off and trip positions for commercial applications.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120/240 Vac
Requires One 3/4-Inch
(19.1 mm) Space
Two-Pole 120/240 Vac
Common Trip
Requires Two 3/4-Inch
(19.1 mm) Spaces
Three-Pole 240 Vac
Common Trip
Requires Three 3/4-Inch
(19.1 mm) Spaces
10 per Shelf Carton
Catalog Number
5 per Shelf Carton
Catalog Number
5 per Shelf Carton
Catalog Number
10 (1) #14–8 1
(2) #14–10 12
(1) #14–6 3
CHP110 CHP210 CHP310
15 CHP115 67 CHP215 7CHP315 7
20 CHP120 67 CHP220 7CHP320 7
25 CHP125 7CHP225 7CHP325 7
30 CHP130 7CHP230 7CHP330 7
35 #14–2 1
#14–6 3
CHP135 7CHP235 7CHP335 7
40 #10–1/0 4
#14–2 5
CHP140 7CHP240 7CHP340 7
45 CHP145 7CHP245 7CHP345 7
50 CHP150 7CHP250 7CHP350 7
60 CHP160 7CHP260 7CHP360 7
70 CHP170 CHP270 CHP370
80 — CHP280 —
90 — CHP290 —
100 — CHP2100 CHP3100
110 — CHP2110 —
125 — CHP2125 —
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-37
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Type CHP Neutral Switching Breakers—10 kAIC, 120 Vac and 120/240 Vac
Used to open the neutral along power line(s) for applications of gas pumps.
3/4-Inch (19.1 mm) per Pole 120 or 120/240 Vac, 10 kAIC
Type CH-M50 High Ambient Breaker
3/4-Inch (19.1 mm) per Pole 120 or 120/240 Vac, 10 kAIC
Type CH-HM and CHP-HM High Magnetic Breakers
3/4-Inch (19.1 mm) per Pole 120 or 120/240 Vac, 10 kAIC
Note
1For circuit breakers with shunt trip, add ST suffix. Shunt trip requires one additional pole space, obtain pricing from Page V1-T1-39.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Two-Pole 120 Vac Common Trip
Requires Two 3/4-Inch (19.1 mm) Spaces
Three-Pole 120/240 Vac Common Trip
Requires Three 3/4-Inch (19.1 mm) Spaces
1 per Shelf Carton
Catalog Number
1 per Shelf Carton
Catalog Number
15 #14–8 CHP215SW 1CHP315SW 1
20 #14–8 CHP220SW 1CHP320SW 1
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120/240 Vac
Requires One 3/4-Inch (19.1 mm) Space
Two-Pole 120/240 Vac Common Trip
Requires Two 3/4-Inch (19.1 mm) Spaces
10 per Shelf Carton
Catalog Number
5 per Shelf Carton
Catalog Number
15 (1) #14–8
(2) #14–10
CH115M50 CH215M50
20 CH120M50 CH220M50
25 CH125M50 CH225M50
30 CH130M50 CH230M50
35 CH135M50 CH235M50
40 CH140M50 CH240M50
45 CH145M50 CH245M50
50 CH150M50 CH250M50
60 —CH260M50
70 —CH270M50
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120/240 Vac
Requires One 3/4-Inch (19.1 mm) Space
Two-Pole 120/240 Vac Common Trip
Requires Two 3/4-Inch (19.1 mm) Spaces
10 per Shelf Carton
Catalog Number
5 per Shelf Carton
Catalog Number
15 (1) #14–8
(2) #14–10
CH115HM CH215HM
20 CH120HM CH220HM
15 (1) #14–8
(2) #14–10
CHP115HM CHP215HM
20 CHP120HM CHP220HM
Neutral In
Neutral Out
(Hot leg)
Neutral In
Neutral Out
Phase
Phase
V1-T1-38 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Options and Accessories
Field Installation Kits and Parts
Notes
1 Must be purchased in multiples of ordering quantities indicated.
2 Handle ties: typically used to join two similar independent single-pole breakers to form a two-pole noncommon trip breaker.
3 Handle lockoffs: devices that use a padlock to lock the circuit breaker’s handle in the ON or OFF position.
4 Requires one additional pole space.
5 Escutcheon mounted: device mounted semipermanently to the face of the circuit breaker and secured by the loadcenter deadfront.
6 Screw mounted: device permanently mounted to the face of the circuit breaker by the use of a non-removable screw.
7 Handle lockdogs: devices that are used to secure a circuit breaker’s handle in the ON or OFF position. Handle lockdogs are not padlockable devices.
8 Handle mounted: device mounted above or below handle using spring pressure.
9 Hold-down kits: devices used to secure the circuit breaker to the loadcenter for back-feed main application. See NEC Article 384.16(g).
jCHML not suitable to transfer emergency power.
Description
Ordering
Quantity 1
Catalog
Number
Handle Ties 2
Handle tie bar for physically joining the handles of two adjacent single-pole Type CH circuit breakers (molded plastic handle cover) 25 CHHT
Handle Lockoffs 34
Padlockable device for locking the handle of single-, two- or three-pole Type CH circuit breakers (escutcheon mounted) 5 1 CHPL
Padlockable device for locking the handle of a single-, two- or three-pole Type CHGFI circuit breaker (escutcheon mounted) 51CHPLGF
Padlockable device for locking the handle of main circuit breaker Types CC and CCH into the ON or OFF position.(screw mounted) 61CCPL
Padlockable device for locking the handle of main breaker Types BW and CSR into the ON or OFF position (escutcheon mounted) 51MCBPL
Handle Lockdogs 47
Device used to secure handle in ON or OFF position for single-pole Type CH circuit breakers (handle mounted) 810 CHLO
Hold-Down Kits 9
Hold-down retainer kit for single-, two-, three-pole Type CH circuit breakers. For 6–24 circuit 125 A single- and three-phase,
12–42 circuit single-phase 225 A and 24–42 circuit three-phase 225 A MLO Type CH loadcenters
1CH125RB
Hold-down retainer kit for single-, two-, three-pole Type CH circuit breakers for 2–4 circuit MLO CH loadcenters. 1 CH125RB24
Mounting Bases
Mounting base for two-pole Type CH circuit breaker—70 A maximum 1 CH9MB270

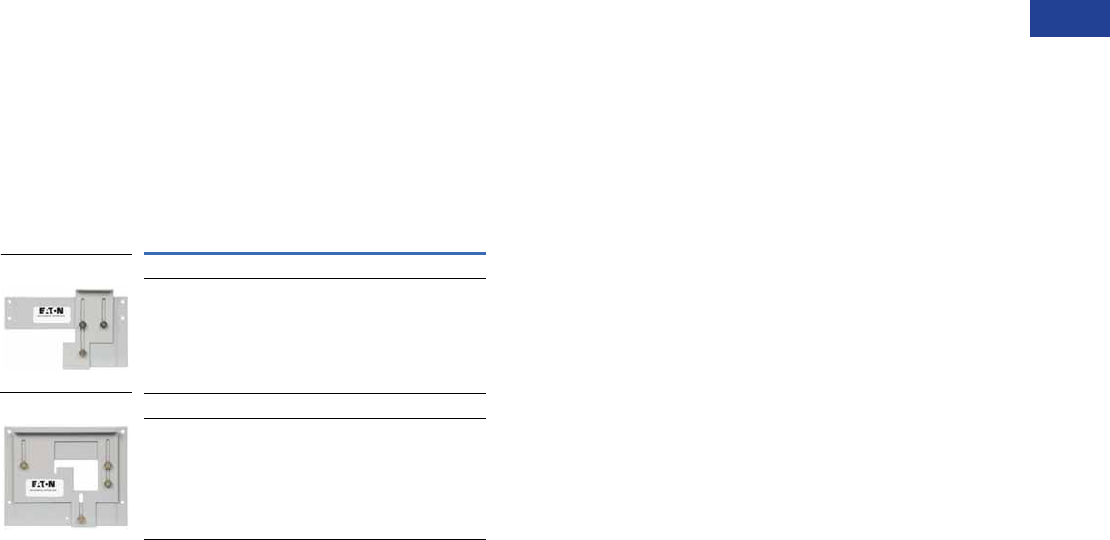

Main Breaker Lug Kits
Types CC and CCH main breaker lug kit (2) 300 kcmil 1 CCL300
Type CSR main breaker lug kit (2) 300 kcmil 1MCBL300
Mechanical Interlock
Type CH for two-, three- and four-pole breakers 10 CHML j
CHHT
CHPL
CHPLGF
MCBPL
CHLO
CH125RB
CH9MB270
CHML
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-39
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

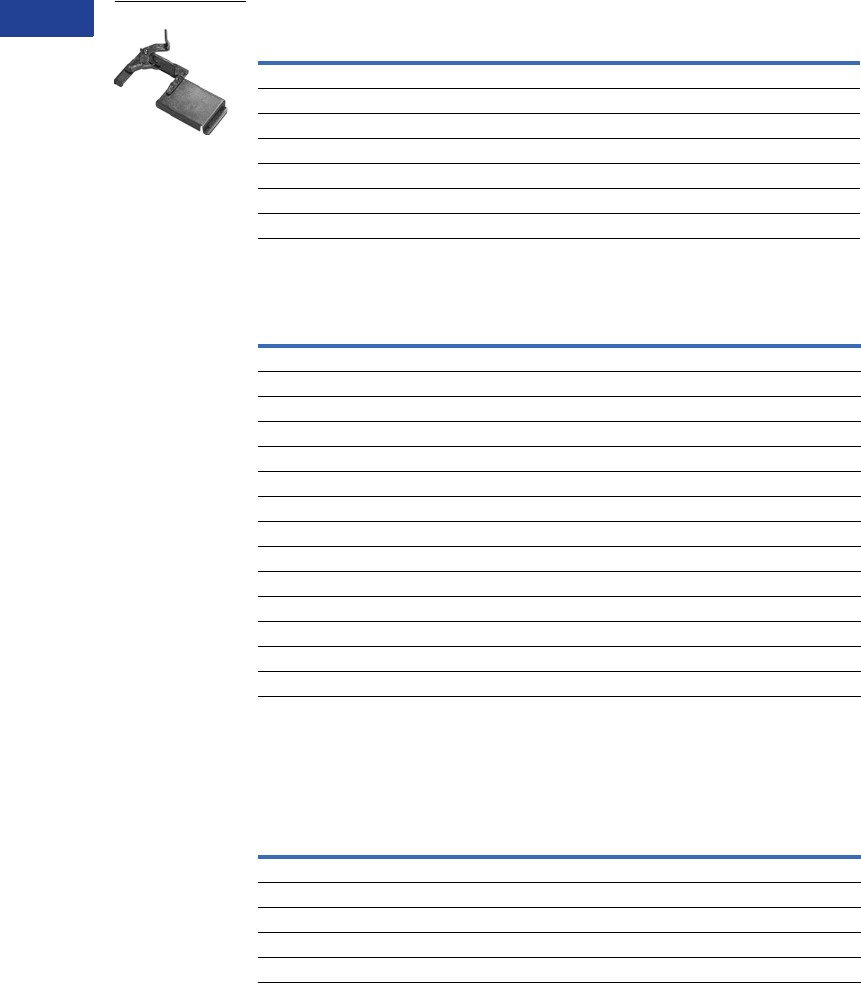

Shunt Trip Options
Handle Position Changeability Chart
Notes
1Add suffix indicated to end of breaker catalog number.
2Requires one additional pole space.
Description Catalog Number
Suffix Adder 1
Type Volts
CSR 12 DC SR12
CSR 24 DC SR24
CSR 120 AC SR01
CH 120 AC ST 2
CC 12 DC SR12
CC 24 DC SR24
CC 120 AC SR01
CC 208 AC SR08
CC 240 AC SR02
Handle Lockoff and
Lockdog Types
To Change Handle Position from
ON to OFF or OFF to ON You Must...
Remove
Padlock
Remove
Device
Remove Loadcenter
Deadfront
Lockoff escutcheon mounted Remove — —
Lockoff screw mounted Remove — —
Lockdog handle mounted N/A Remove —
V1-T1-40 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers
Technical Data and Specifications
Ratings
Single- and two-pole CH breakers rated 15 and 20 A have
low instantaneous magnetic trip levels. The 15 and 20 A
breakers with “HM” suffix have high magnetic trip settings
recommended for circuits with inherently high inrush currents.
All Type CH breakers are marked for heating, air conditioning
and refrigeration (HACR) equipment application. Single-pole
15–20 A breakers are also suitable for switching duty (SWD).
Shunt trip coils operate on 120 Vac and require one additional
pole space per breaker.

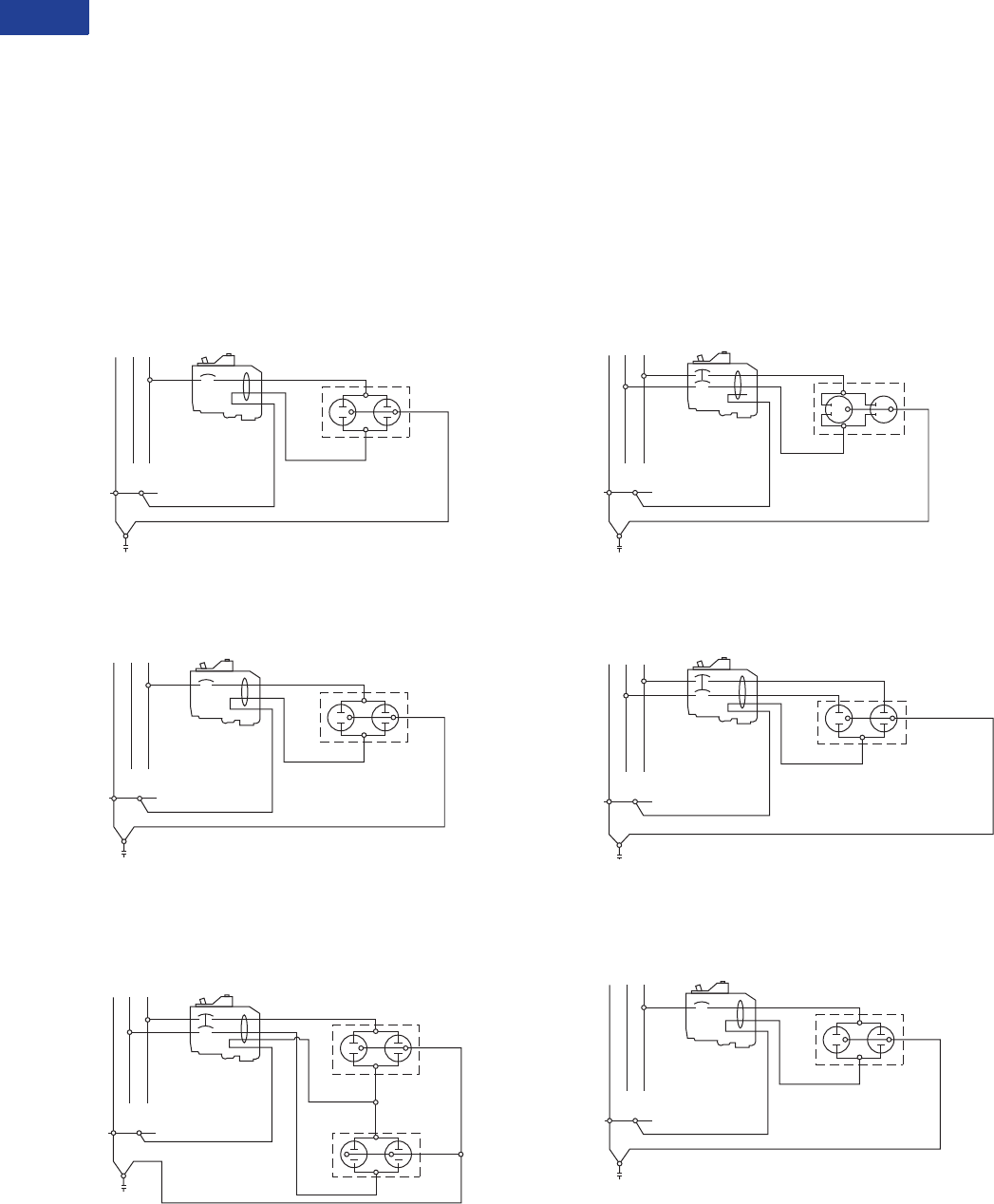

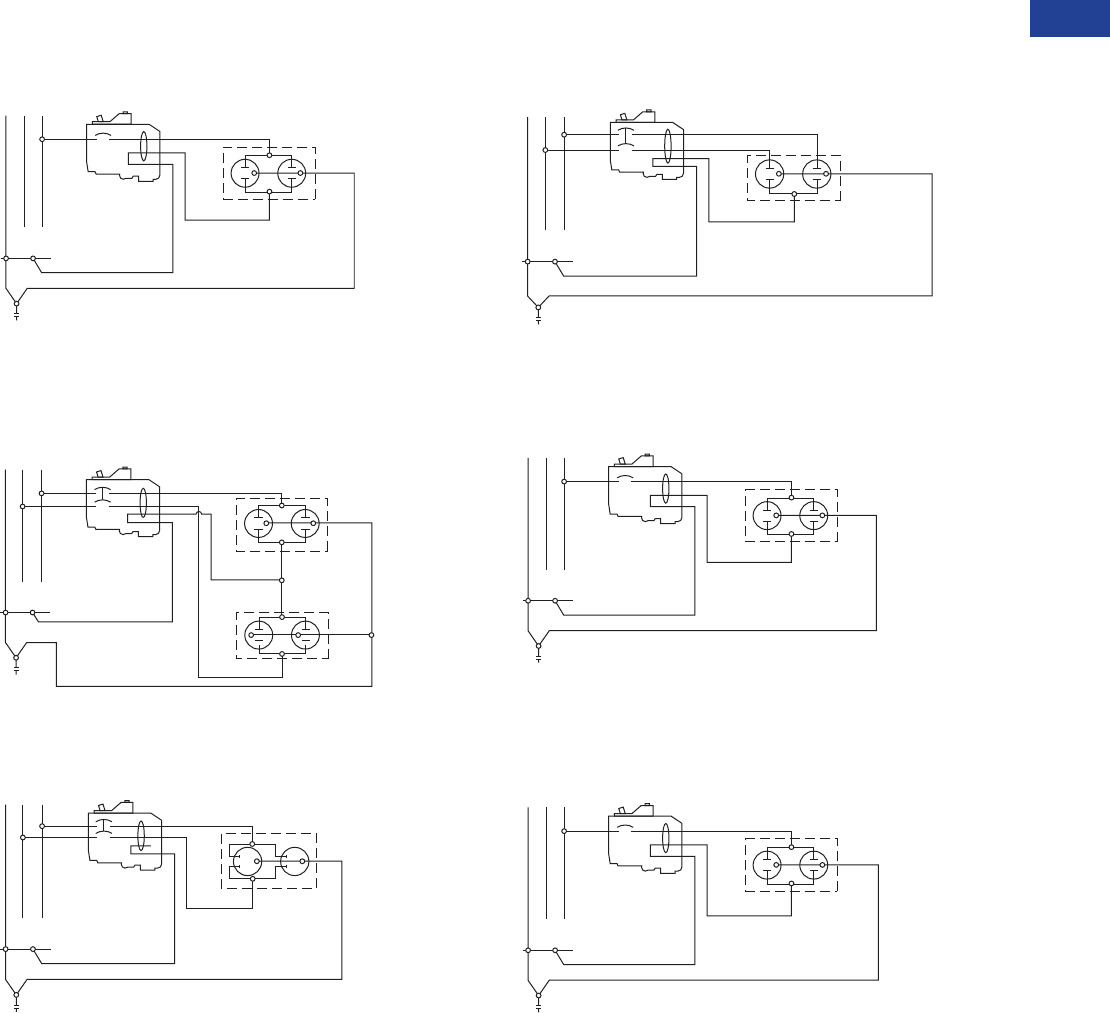

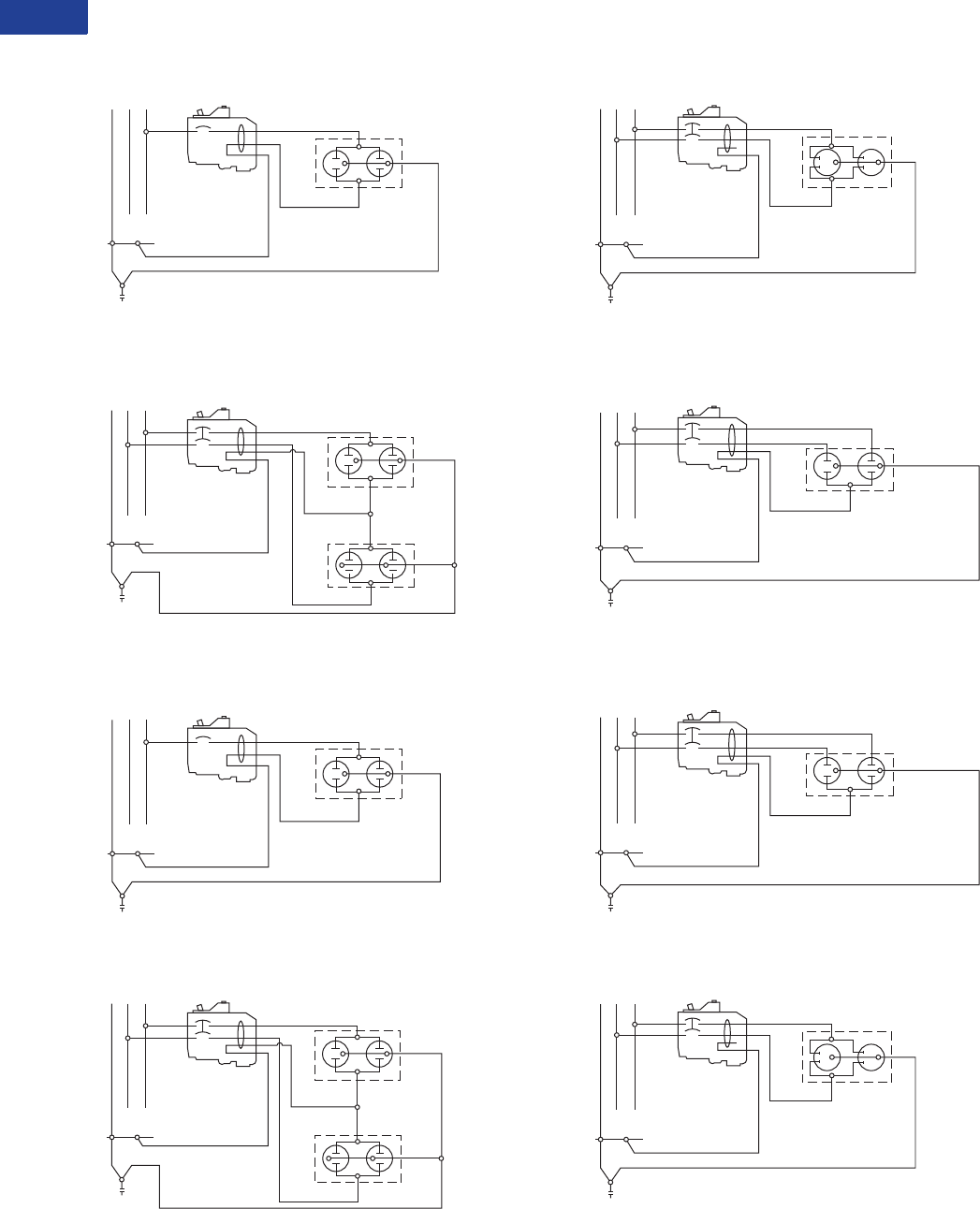

Wiring Diagrams
Typical Single-Pole
Single-Pole 120 V Load Application Sourced by 120/240 Vac
Two-Pole Shared Neutral with Multi-Duplex
Receptacle Application
Two-Pole 240 V Load Application Sourced by 120/240 Vac
Two-Pole Shared Neutral with Duplex Receptacle Application
Single-Pole 120 V Duplex
Receptacle Application
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
Equipment Ground
NA B
120/240 Vac
Source
Two 120V
Duplex
Receptacles
Two-Pole
Line B
Line A
Neutral
Neutral
Equipment Ground
Line B
NA B
120/240 Vac
Source
Line A 240V
Duplex
Receptacle
Two-Pole
Neutral
Equipment Ground
NAB
120/240 Vac
Source
Line A
120V Duplex
Receptacle
(With Line Side
Jumper Removed)
Two-Pole
Line B
Neutral
Neutral
Equipment Ground
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
Equipment Ground
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-41
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.1
Loadcenters and Circuit Breakers
Type CH Loadcenters and Circuit Breakers

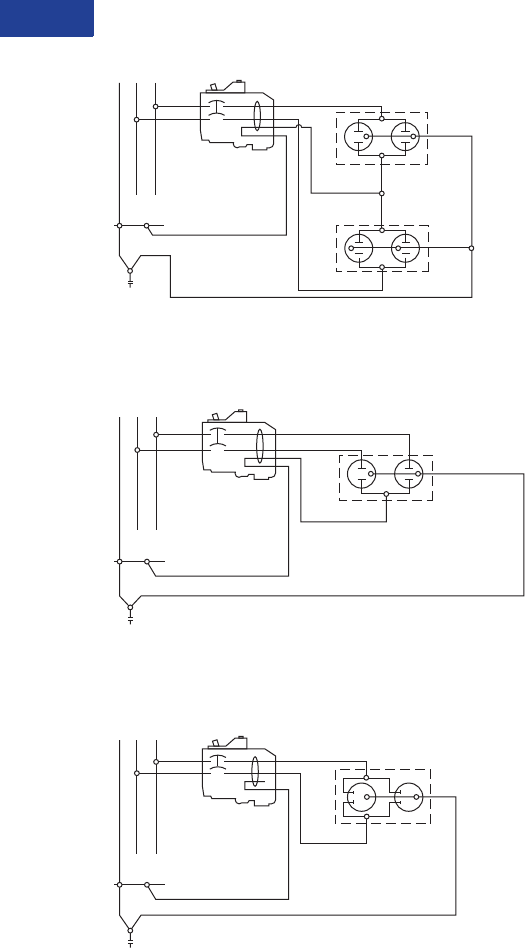

Two-Pole 120 V Multi-Duplex Receptacle Application
Two-Pole 120 V Duplex Receptacle Application
Two-Pole 240 V Duplex Receptacle Application
NA B
120/240 Vac
Source
Two 120V
Duplex
Receptacles
Two-Pole
Line B
Line A
Neutral
Neutral
NAB
120/240 Vac
Source
Line A
120V Duplex
Receptacle
(With Line Side
Jumper Removed)
Two-Pole
Line B
Neutral
Neutral
Line B
NA B
120/240 Vac
Source
Line A 240V
Duplex
Receptacle
Two-Pole
Neutral
V1-T1-42 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Contents
Description Page
Overview
Product Description . . . . . . . . . . . . . . . . . . . . . V1-T1-43
Features, Benefits and Functions . . . . . . . . . . V1-T1-43
Standards and Certifications . . . . . . . . . . . . . . V1-T1-45
Catalog Number Selection . . . . . . . . . . . . . . . . V1-T1-45
Product Selection. . . . . . . . . . . . . . . . . . . . . . . V1-T1-46
BR Specialty Products
BR Quick Connect Neutral Loadcenters . . . . . V1-T1-57
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-58
Riser Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-59
Type BR Renovation Loadcenter . . . . . . . . . . . V1-T1-60
Type BR Mechanical Interlock Kits. . . . . . . . . . V1-T1-62
Type BR Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-73
BR Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-76

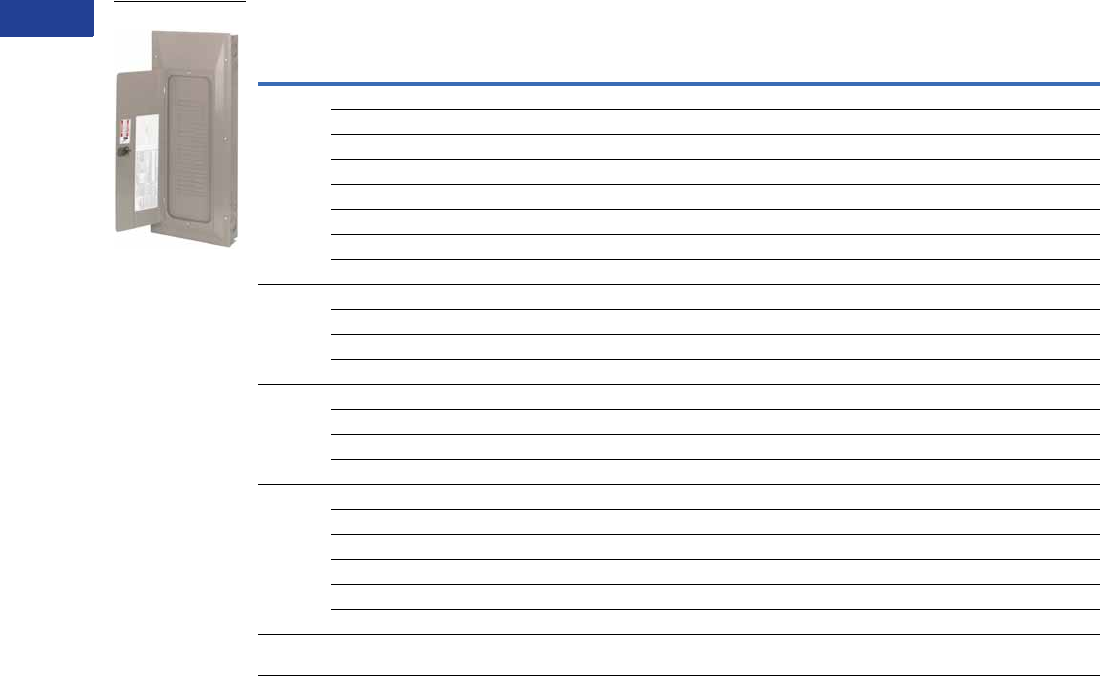

Overview
Product Selection Guide
BR Loadcenters
Description
Service
Single-phase, three-wire, 120/240 Vac Three-phase, four-wire, 208Y/120 Vac
Three-phase, three-wire, 240 Vac delta
Short-Circuit Current Rating
10 kAIC: All single- and three-phase loadcenters 70–225 A, 8 to 42 circuits
22 kAIC: All convertible loadcenters using 125 A rated Type BRH main breakers or
selected factory installed 125 A rated Type BRH main breaker
25 kAIC: All convertible and factory-installed single-phase loadcenters rated
150 and 200 A using Type CSR main breakers
Main Breaker/Main Lug Loadcenters
Single-phase
Main breaker: 100, 125, 150, 200, 225, 400, 600 A
Main lugs: 70, 125, 150, 200, 225, 400, 600 A
Three-phase
Main breaker: 100, 125, 150, 200, 225, 400, 600 A
Main lugs: 100, 125, 150, 200, 225, 400, 600 A
Convertible Loadcenters
Main breaker: single-phase up to 200 A and three-phase up to 225 A Main lugs: single-phase up to 200 A and three-phase up to 150 A
Branch Breakers
Types BR, BRH and BRHH: 10–150 A. single-, two- and three-pole; selected amperage
available in switching duty, HACR, shunt trip and high magnetic setting
Type GFTCB: 15–60 A
Types BJ and BJH: 125–225 A; two- and three-pole
Type BD Twin: 10–50 A; two of one-pole; take one 1-inch (25.4 mm) space
Type BQ and BQC Multibreaker: 15–30 A. Two of two-pole or one two-pole and
two one-pole; takes two 1-inch (25.4 mm) spaces
Type BRW: 15–30 A; two-pole water heater breakers
Type BRSN: 15–30 A; two-pole switching neutral breakers
Type BR 15–100 A; two-pole, 240 Vac delta breakers
BR-AFCI arc fault circuit interrupter
Enclosures
NEMA Type 1 indoor
NEMA Type 3R outdoor
NEMA 4X
Meets or exceeds UL requirements for indoor or outdoor applications
Loadcenter and Breaker Accessories
Branch circuit breaker:
Auxiliary components Hold-down kits Handle ties
Lockoffs Lockdogs
Complete line of ground bar kits 5, 10, 14 and 21 circuit, some with additional #2/0 lugs;
each terminal will accommodate: (3) #14–#10 Cu/Al or (1) #14–#4 Cu/Al
Main and sub-feed lugs 125, 150, 225 A—two- and three-pole
Shunt trips
Surge protection:
Single-phase plug-on surge protector Single-phase bottle type surge protector
Three-phase bottle type surge protector Single-phase whole home surge protector
Universal rainproof conduit hubs
Group One: 3/4, 1, 1-1/4, 1-1/2, 2 inches (19.1, 25.4, 31.8, 38.1, 50.8 mm)
Group Two: 2, 2-1/2, 3 inches (50.8, 63.5, 76.2 mm)
Adapter plate
Bussing
Tin-plated aluminum as standard Limited copper bus panels available
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-43
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Product Description
Loadcenters are enclosures
specifically designed to house
the branch circuit breakers
and wiring required to
distribute power to individual
circuits. They contain either a
main breaker when used at
the service entrance point or
a main lug when used as a
sub-panel to add circuits to
existing service. The main
breaker protects the main
entire panel and can be used
as a service disconnect. The
branch breakers protect the
wires leading to individual
electrical loads such as
fixtures and outlets.
Features, Benefits and
Functions
Loadcenter Construction
Eaton’s Type BR loadcenters
have standard tin-plated
aluminum bus with a limited
availability of copper bus.
The sum of the handle
ratings connected to any stab
is limited to 150 A maximum
on the 100 and 125 A
loadcenters, and 200 A on
loadcenters with 150 A or
higher main bus. NEMA
Type 1 boxes or enclosures
are manufactured from
galvanized steel. Raintight
boxes are manufactured
from galvanized steel, then
finished using an electrostatic
powder coat, baked urethane
paint process.
Neutrals
Eaton Type CH loadcenters
feature two types of neutrals:
Insulated/Bondable Split
Neutral
Panels are supplied with split
insulated neutrals with an
insulated cross strap. For
service entrance applications,
the neutral must be bonded
by using the bonding strap
supplied with the panel. For
non-service entrance (sub-
panel) applications, the panel
may be installed with the
bonding strap not connected
to the neutral. Separate
ground bars must be used on
non-service entrance panels.
Insulated/Bondable Single
Neutral
Panels are supplied with a
single insulated neutral. For
service entrance applications,
all that is required to bond the
neutral is to loosen the
bonding screw and the
neutral screw directly beside
it, insert the bonding strap
into the neutral bar, and re-
tighten both connections. The
single neutral can be moved
by the contractor to the other
side of the panel, if desired.
When used as a service
entrance panel, unused
neutral connections may be
used for the termination of
equipment grounds. For non-
service entrance (sub-panel)
applications, the panel may
be installed with the bonding
strap not connected to the
neutral. Separate ground bars
must be used on non-service
entrance panels.
Grounds
In service entrance
applications where the
neutral is bonded, unused
neutral holes may be used
for terminating ground
conductors. In sub-feed
panels, the neutral must be
isolated (non-bonded), and
ground wires must be
terminated on a separate
ground bar.
The insulated/bondable
single/split neutral panels
have sufficient terminations
for both ground and neutral
conductors. The insulated/
bondable single split neutral
panels are supplied with a
separate factory-installed
ground bar if the catalog
number contains a “G.” If
not, a separate ground bar
should be installed. Insulated/
Bondable Single Neutral
panels are supplied without
a ground bar (unless
otherwise noted), and ground
bar kits if needed must be
purchased separately.
Neutral and Ground Terminals
The standard terminals on
grounds and neutrals are
rated to accept (3) #14–#10
Cu/Al or (1) #14–4, provided
the cables terminated are of
the same material. For larger
cables, add-on neutral lugs
may be ordered from the
accessories on Page
V1-T1-66.
Note: NEC allows only one
current-carrying conductor
per hole on neutrals unless
otherwise noted.
Bottom Fed Loadcenters
For single-phase 225 A and
below loadcenters that are
bottom fed, a standard panel
can be rotated 180 degrees
to allow straight-in wiring of
power cables to the main
terminals. Because the main
circuit breaker handle
operates horizontally, the
orientation of the main circuit
breaker handle is consistent
with the requirements of NEC
2008 Article 240.81.
Gutter Splicing
Loadcenters are not UL listed
as wiring troughs. Therefore,
gutter splicing of riser cables
to tap off to the main device
is not permitted. Refer to
NEC 2008 Article 312.8.
Fire Rating
Due to the numerous
openings in both loadcenter
boxes and trims, they should
not be mounted in firewalls.
There is no approved method
for sealing the enclosures for
this application.
Date Code
The date of manufacture of
each loadcenter is printed on
the outside of the carton as
well as inside the loadcenter.
On the carton, the date code
is printed on the end carton
label. In the loadcenter, the
date code is located on the
small white label located on
the right side wall (with the
main device on top).
The date code is in the
following format: F # # # &.
The “F” is the numeric
code for the Lincoln, IL
plant, and the three numbers
are the year and week of
manufacturing, e.g., 023. The
“!” sign at the end signifies
the decade of the 2010.
Therefore, the date code
F023& would indicate
that the product was
manufactured in the 23rd
week of 2010. The 1980s
are represented by the “+”
sign and the 1990s are
represented by a “=”
at the end of the code.
Surge Protectors
Complete home surge
protection is available in
multiple options, including
a factory-installed option that
provides the highest level of
surge protection in a
residential design. See Tab 3
for more details.
Circuit Breaker Case
Interrupting Capacity
●10 kAIC
●22 kAIC
●25 kAIC
Warranty Information
●10-year limited
loadcenter warranty
●10-year limited branch
breaker warranty
V1-T1-44 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Type BR Loadcenter
Warranty
10-year warranty on all
Type BR loadcenters and
circuit breakers.
Single Keyhole Mounting
One keyhole at the top
and bottom provides easier
mounting and leveling
Neutral Bus (Strap)
Is easily removable for
sub-panel applications
Bonding Z-Strap
Provides easy field
conversion for service
entrance applications
Twin Neutral Bars
Minimum 150% neutral
capacity
Steel Backpan
Provides solid and reliable
breaker mounting—single
piece design for stability and
durability
Extra 1.5 inch Knockout
(38.1 mm)
Larger knockout provides
easier installation and time
savings
“Tangential” Center Knockout
Easier installation for conduit
applications
Commercial Grade Main
Breaker
25 kAIC series rated main
breaker for superior protection
2/0 Lug
Easily removable and can be
installed in any location
on the neutral bar
Drywall Marking on Enclosure
Indicates proper mounting
depth for flush applications
Standard Tin-Plated
Aluminum Bus
Excellent conductivity and
corrosion resistance
Copper bus options
available for select
catalog numbers
Type BR AFCI Breakers
Compact design for easier
wiring and improved
wireway access
Optional LED indicates
one of six trip codes for
circuit diagnostics
Provides a clean gutter space
Top or Bottom Feed
Straight-in wiring saves labor
and material
One panel for either top or
bottom applications
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-45
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Standards and Certifications
UL Listings
All Eaton Type BR loadcenters
are listed under UL File
E52977 except the
2–8 circuit loadcenters,
up through and including
125 A, which are listed under
UL File E8741.
Catalog Number Selection
Single- and Three-Phase Through 600 A
Note
1No character space used.
3BR 30 42 B C 200
Phase
Blank = Single-phase 1
3= Three-phase
Construction
Blank = No feed thru lugs 1
F= Feed-through lugs
G= Ground bar
P= Current design
NY = NY City gutter space
Number of 1-Inch
(25.4 mm) Spaces
Factory Options
SUR = Factory integrated surge
Eaton’s Type BR
Loadcenter
Maximum Number
of Circuits
Bus
Blank = Aluminum bus 1
C= Copper bus
Main Device
B= Main breaker
L= Main lug
N= Convertible main
H= Main breaker high AIC
Enclosure
R= NEMA Type 3R rainproof
S= NEMA Type 1 indoor with
surface trim
F= NEMA Type 1 indoor with
flush trim
Blank = NEMA Type 1 indoor with
combination trim 1
RIS = Riser panel
Amperes
50 = 50 A
70 = 70 A
100 = 100 A
125 = 125 A
150 = 150 A
200 = 200 A
225 = 225 A
300 = 300 A
400 = 400 A
600 = 600 A
V1-T1-46 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Product Selection
Single-Phase—Main Circuit Breaker Loadcenters—10/25 kAIC
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral
Notes
1 Combination style covers may be used in surface or flush applications.
2 Wire range size for BR1020B100SP is #6–#1 Cu/Al.
3 Includes through-feed lugs for both phase and neutral conductors.
4 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
5 22 kAIC series combination rating is obtained when Types BD, BR, BQ, BQC and GFTCB 10 kAIC branch breakers are used in series with Type BRH main breaker.
6 25 kAIC series combination rating is obtained when Types BD, BR, BQ, BQC and GFTCB 10 kAIC branch circuit breakers are used in series with Type CSR main breaker.
7 Supplied with adapter plate to use DS Group1 hubs on Page V1-T1-66. If 2.50-inch (63.5 mm) hub is needed, remove adapter and use ARP00007CH25 hub.
8 Neutral is bonded—suitable for service entrance only—cannot be converted for sub-feed application.
9 Add G to the end of the catalog number for factory-installed GBK2120 ground bar.
All main circuit breaker loadcenters are listed for use as service entrance equipment and are shipped with neutral bonding strap preattached. The maximum rating of the
panel is the main circuit breaker rating when used as service entrance equipment. Ground bar kits priced separately. See Page V1-T1-66.
Main
Breaker Type
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter Catalog Number
with Combination 1 or
NEMA Type 3R CoverSpaces Circuits
BR
10 kAIC
100 8 16 Indoor B1 #4–1/0 2BR816B100
10 20 Indoor A1 BR1020B100S11
10 20 Indoor A1 BR1020B100F11
10 20 Outdoor B2R BR1020B100RF 34
12 12 Indoor B2 BR1212B100
12 20 Indoor B2 BR1220B100
12 24 Outdoor B2R BR1224B100R 4
16 16 Indoor C1 BR1616B100
16 20 Indoor C1 BR1620B100
16 24 Outdoor C1R BR1624B100R 4
20 24 Outdoor C3R BR2024B100R 4
20 20 Indoor C2 BR2020B100
16 24 Indoor C1 BR1624B100
30 30 Indoor D1 BR3030B100
125 16 24 Indoor C1 #4–2/0 BR1624B125
20 24 Indoor C1 BR2024B125
20 24 Outdoor C3R BR2024B125R 4
30 30 Indoor D1 BR3030B125
BRH 5
22 kAIC
100 20 24 Indoor C2 #4–1/0 BR2024H100 5
CSR 6
25 kAIC
150 8 16 Outdoor C3R #2–300 kcmil BR816B150RF 34
16 30 Indoor C4 BR1630B150
20 30 Indoor C4 BR2030B150
20 30 Outdoor D1R BR2030B150R 4
20 40 Indoor D1 BR2040B150
20 40 Outdoor D1R BR2040B150R 4
24 30 Indoor G1 BR2430B150
30 30 Outdoor G1R BR3030B150R 4
30 30 Indoor G1 BR3030B150
30 40 Indoor G1 BR3040B150
200 4 8 Outdoor 8R #2–300 kcmil BR48B200RF 378
8 16 Outdoor C3R BR816B200RF 34
16 32 Indoor C4 BR1632B200
20 40 Outdoor D1R BR2040B200R 4
20 40 Indoor D1 BR2040B200
24 40 Indoor G1 BR2440B200
30 40 Outdoor G1R BR3040B200R 4
30 40 Indoor G1 BR3040B200 9
40 40 Outdoor L1R BR4040B200R 4
40 40 Indoor L1 BR4040B200
40 50 Indoor L1 BR4050B200
60 120 Indoor L3 BR60120B200
60 120 Outdoor L3R BR60120B200R
225 42 42 Indoor L2 #1–250 kcmil BR4242B225
42 42 Outdoor L2R BR4242B225R 4
BR4040B200
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-47
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Main Circuit Breaker Loadcenters—10/22 kAIC
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral
Notes
1 Ground bar kits priced separately. See Page V1-T1-66.
2 The maximum rating of the panel is the main circuit breaker rating when used as service entrance equipment.
3 Door lock and key included with loadcenter.
4 Type DK main circuit breaker is rated 65 kAIC at 240 Vac and allows a 22 kAIC series rating on the panel when Types BR, BD and BJ branch circuit breakers are used.
5 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
6 Type HLD main circuit breaker is rated 65 kAIC at 240 Vac. Type HLD circuit breaker is not series rated with Types BR, BD and BJ branch circuit breakers.
Box sizes Pages V1-T1-67 through V1-T1-70.
Please contact the Lincoln Flex Center for any configurations not listed.
Main
Breaker
Type
Main
Ampere
Rating
Maximum Number
1-Inch (25.4 mm)
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Commercial Loadcenter
Catalog Number 123
Spaces Circuits
With Flush or
NEMA Type 3R Cover
With
Surface Cover
DK 4300 42 42 Indoor 24 (2) #3/0–250 kcmil BR4242B300F BR4242B300S
400 42 42 Indoor 24 (2) #3/0–250 kcmil BR4242B400F BR4242B400S
42 42 Outdoor 47 (2) #3/0–250 kcmil BR4242B400R 5—
HLD 6600 42 42 Indoor 24 (2) #3/0–500 kcmil — BR4242B600S
B4242DFN
V1-T1-48 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Single-Phase—Main Lug Loadcenters
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral
Notes
1 Ground bar kits priced separately. See Page V1-T1-66.
– For 2/4 circuit loadcenters, use GBK5 or GBK520 ground bar.
– For 4/8, 6/12 and 8/16 circuit loadcenters, use GBK10 ground bar.
– Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters.
2 Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard
(see Article 408.34 of the NEC).
3 Ground bar GBK5 is installed.
4 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
5 CSA and UL approved.
6 Neutral/ground holes (6) #14–6 and (3) #14–2/0 AWG Cu/Al.
7 For use as service entrance applications only.
8 Neutral/ground holes (6) #14–6 and (3) #14–1/0 AWG Cu/Al.
9
Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not more than six service disconnecting mains are provided and
when not used as a lighting and appliance panelboard (see Article 408.34 of the NEC).
jSuitable for use as service equipment when a main breaker is used or when not more than six service disconnecting mains are provided and when not used
as a lighting and appliance panelboard (see Article 408.34 of the NEC).
kGround bar GBK10 is installed.
lGround bar GBK14 is installed.
Box sizes Pages V1-T1-67 through V1-T1-70.
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type Trim Typ e
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter
Catalog NumberSpaces Circuits
70 2 4 Indoor Surface (no door) 5 #8–#2 BR24L70SP 12
2 4 Indoor Surface (no door) 5 BR24L70SGP 23
2 4 Outdoor — 5R BR24L70RP 124
2 4 Indoor Flush (no door) 5 BR24L70FP 12
2 4 Indoor Flush (no door) 5 BR24L70FGP 25
125 2 4 Indoor Surface (no door) 6 #14–1/0 BR24L125SP 12
2 4 Outdoor — 6R BR24L125RP 124
2 4 Outdoor — 6R BR24L125RSEP 278
2 4 Outdoor — 6R BR24L125RSE2P 267
2 4 Indoor Flush (no door) 6 BR24L125FP 12
4 8 Indoor Surface (no door) 7 #14–1/0 BR48L125SP 19
4 8 Indoor Surface (no door) 7 BR48L125SGP 39
4 8 Outdoor — 7R BR48L125RP 149
4 8 Indoor Flush (no door) 7 BR48L125FP 19
4 8 Indoor Flush (with door) 7 BR48L125FDP 19
4 8 Indoor Flush (no door) 7 BR48L125FGP 39
6 12 Indoor Surface (no door) 7 #14–#1 BR612L125SP 1j
6 12 Indoor Surface (no door) 7 BR612L125SGP jk
6 12 Indoor Surface (with door) 7 BR612L125SDP 1j
6 12 Indoor Surface (with door) 7 BR612L125SDGP jk
6 12 Outdoor — 7R BR612L125RP 14j
6 12 Indoor Flush (no door) 7 BR612L125FP 1j
6 12 Indoor Flush (no door) 7 BR612L125FGP 5jk
6 12 Indoor Flush (with door) 7 BR612L125FDP j
6 12 Indoor Flush (with door) 7 BR612L125FDGP 5jk
8 16 Indoor Surface (no door) 7 #14–#1 BR816L125SP 1j
8 16 Indoor Surface (no door) 7 BR816L125SGP jl
8 16 Indoor Surface (with door) 7 BR816L125SDP 1j
8 16 Indoor Surface (with door) 7 BR816L125SDGP jl
8 16 Outdoor — 7R BR816L125RP 14j
8 16 Indoor Flush (no door) 7 BR816L125FP 1j
8 16 Indoor Flush (no door) 7 BR816L125FGP 5jl
8 16 Indoor Flush (with door) 7 BR816L125FDP 1j
8 16 Indoor Flush (with door) 7 BR816L125FDGP 5jl
Surface Outdoor
Flush Outdoor
Surface (No Door)
Flush (No Door)
Outdoor
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-49
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Single-Phase—Main Lug Loadcenters
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral, continued
Notes
1 Ground bar kits priced separately unless otherwise noted. See Page V1-T1-66.
2 Has notch for BREQS125 hold-down kit.
3 Single, movable neutral is provided.
4 Combination cover style.
5 Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard
(see Article 408.34 of the NEC).
6 Ground bars GBK5 and GBK520 installed.
7 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
8 Ground bar GBK1220 installed.
9 Has notch for BRHDK125 hold-down kit.
jIncludes through-feed lugs for both phase and neutral conductors.
kIncludes main lugs. Loadcenters can convert to main breaker using kit.
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter Catalog Number
with Combination or
NEMA Type 3R Cover 1
Spaces Circuits
125 12 12 Indoor B1 #6–2/0 BR1212L125 2345
12 24 Indoor B1 BR1224L125 245
12 24 Indoor B1 BR1224L125G 245
12 24 Indoor B1 BR1224L125DG 2456
12 24 Outdoor B1R BR1224L125R 257
16 16 Indoor B2 BR1616L125 245
16 24 Indoor B2 BR1624L125 24
16 24 Indoor B2 BR1624L125G 24
16 24 Outdoor B2R BR1624L125R 27
20 20 Indoor C1 BR2020L125 245
20 24 Indoor C1 BR2024L125 24
20 24 Indoor C1 BR2024L125G 248
20 24 Outdoor C1R BR2024L125R 27
24 24 Indoor C2 BR2424L125 24
24 24 Indoor C2 BR2424L125G 248
30 42 Indoor D1 BR3042L125 24
150 16 30 Indoor C2 #1–300 kcmil BR1630L150 49
20 30 Indoor C2 BR2030L150 49
200 8 16 Outdoor B2R #1–300 kcmil BR816L200RF 57j
12 24 Indoor B2 BR1224L200 459
12 24 Outdoor B2R BR1224L200R 579
20 40 Indoor C2 BR2040L200 49
20 40 Indoor C2 BR2040L200G 489
20 40 Outdoor C3R BR2040L200R 79
24 40 Indoor C4 BR2440L200 49
30 40 Indoor D1 BR3040L200 49
30 40 Indoor D1 BR3040L200G 489
30 40 Outdoor D1R BR3040L200R 79
40 40 Indoor G1 BR4040L200 49
40 40 Indoor G1 BR4040L200G 49
40 40 Outdoor G1R BR4040L200R 79
60 120 Indoor L3 BR60120L200 k
225 42 42 Indoor L1 #1–300 kcmil BR4242L225 4
42 42 Outdoor L1R BR4242L225R 7
BR1224L125
BR1224L200
V1-T1-50 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Single-Phase—Main Lug Loadcenters—400 and 600 A
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral
Notes
1 Ground bar kits priced separately unless otherwise noted. See Page V1-T1-66.
2 Has notch for BRHDK125 hold-down kit.
3 Ground bar GBK8 installed.
4 Rainproof panels are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
5 Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard
(see Article 408.34 of the NEC).
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm)
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Commercial Loadcenter
Catalog Number 123
Spaces Circuits
With Flush or NEMA
Type 3R Cover
With Surface
Cover
400 12 24 Outdoor 42 (2) #3/0–400 kcmil BR1224L400R 45 —
42 42 Indoor 22 BR4242L400F BR4242L400S
42 42 Outdoor 46 BR4242L400R 4—
600 42 42 Indoor 22 (2) #2–500 kcmil — BR4242L600S
4242DFN
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-51
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Convertible Loadcenters MCB or MLO—Base Units and Main Devices 10/22/25 kAIC,
Complete Assembly Consists of: Loadcenter and Either Main Breaker Kit or Main Lug Kit
Note: Interrupting rating depends on main circuit breaker selected.
Base Units—Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral
(Unless Otherwise Noted)
Notes
1 The maximum rating of the loadcenter is the main circuit breaker rating when used as service entrance equipment.
2 100, 125 and 200 A convertible base unit catalog numbers include interior, box and cover only. Main devices and accessories must be ordered separately for field
installation. All convertible base units are listed as suitable for use as service entrance equipment when used per Article 384 of the NEC.
3 Ground bar kits priced separately except as noted, refer to Page V1-T1-66.
4 For main breaker, use Type BR. For main lug use Type BRSF.
5 BREQS125 hold-down screw comes with loadcenter for back-fed Types BR and BRH main circuit breakers.
6 Convertible to maximum of 100 A main circuit breaker and 125 A main lug.
7 Rainproof loadcenters are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
8 For main breaker, use Type BW or CSR. For main lug, use Type BRL.
9 Includes through-feed lugs for both phase and neutral conductors.
jNo hold-down provisions for back-fed Types BR and BRH main circuit breakers.
kInsulated/bondable single neutral.
lIncludes GBK2120 ground bar.
Main
Ampere Rating 1
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main
Loadcenter Catalog Number
With Combination or NEMA
Type 3R Cover 23
Spaces Circuits
125 412 24 Indoor B2 See main breaker and
main lug kit tables
Page V1-T1-54.
BR1224N125 56
12 24 Outdoor B2R BR1224N125R 567
16 24 Indoor C1 BR1624N125 5
16 24 Outdoor C1R BR1624N125R 57
20 24 Indoor C2 BR2024N125 5
20 24 Outdoor C3R BR2024N125R 57
200 8 8 16 Outdoor C3R BR816N200RF 79jk
12 24 Indoor C4 BR1224N200 j
12 24 Outdoor C3R BR1224N200R 7j
16 32 Indoor C4 BR1632N200 j
20 40 Indoor D1 BR2040N200 j
20 40 Indoor D1 BR2040N200G l
20 40 Outdoor D1R BR2040N200R 7j
20 40 Outdoor D1R BR2040N200RG l
24 40 Indoor G1 BR2440N200 7j
30 40 Indoor G1 BR3040N200 j
30 40 Indoor G1 BR3040N200G l
30 40 Outdoor G1R BR3040N200R 7j
30 40 Outdoor G1R BR3040N200RG l
40 40 Indoor L1 BR4040N200 j
40 40 Indoor L1 BR4040N200G l
40 40 Outdoor L1R BR4040N200R 7j
40 40 Outdoor L1R BR4040N200RG l
40 50 Indoor L1 BR4050N200
40 50 Outdoor L1R BR4050N200R
BR3040N200
V1-T1-52 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Convertible Loadcenters MCB or MLO—Base Units and Main Devices 10/22/25 kAIC,
Complete Assembly Consists of: Loadcenter and Either Main Breaker Kit or Main Lug Kit
Note: Interrupting rating depends on main circuit breaker selected.
Main Devices—Two- and Three-Pole
Main Circuit Breakers—120/240 Vac or
208Y/120 Vac or 240 Vac
Main Devices—Two- and Three-Pole
Main Lug Kits—120/240 Vac or
208Y/120 Vac or 240 Vac
Main Circuit Breaker with Accessory
Example: BW22005R01 (Put description with catalog number on
order. See Page V1-T1-87.)
Main Circuit Breaker Loadcenters—Copper Bus 10/22/25 kAIC
Main Circuit Breaker Loadcenters—With Copper Bus—Single-Phase Three-Wire—120/240 Vac—
Insulated/Bondable Split Neutral
Main Lug Only Loadcenters—Copper Bus
Single-Phase Three-Wire—120/240 Vac—Insulated/Bondable Single Neutral with Copper Bus
Notes
1 Series combination rating with Types BD, BR, BQ, BQC and GFTCB is 22 kAIC with BRH main and 25 kAIC with CSR main.
2 All main circuit breaker loadcenters are listed for use as service entrance equipment and are shipped with neutral bonding strap preattached. The maximum rating of the
panel is the main circuit breaker rating when used as service entrance equipment.
3 Ground bar kits priced separately. See Page V1-T1-66.
4 22 kAIC series combination rating is obtained when Types BD, BR, BQ, BQC and GFTCB 10 kAIC branch breakers are used in series with Type BRH main breaker.
Box sizes Pages V1-T1-67 through V1-T1-70.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
10 kAIC 22/25 kAIC
Catalog
Number
Catalog
Number 1
Tw o - Po l e
100 #4–1/0 BR2100 BRH2100
110 #4–1/0 BR2110 BRH2110
125 #4–2/0 BR2125 BRH2125
125 #2–300 kcmil BW2125 CSR2125N
150 #2–300 kcmil BW2150 CSR2150N
175 #2–300 kcmil BW2175 CSR2175N
200 #2–300 kcmil BW2200 CSR2200N
Three-Pole
100 #1 BR3100 BRH3100
BW2200
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Catalog
Number
Tw o - P o l e
125 #6–2/0 BRSF125
150 #1–300 kcmil BRL200
175 #1–300 kcmil BRL200
200 #1–300 kcmil BRL200
Three-Pole
150 #6–3/0 3BRSF150
BRL200
Main
Breaker Type
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter Catalog Number
with Combination Cover 23
Spaces Circuits
BR
10 kAIC
100 20 20 Indoor C2 #4–1/0 BR2020BC100
30 30 Indoor D1 #4–1/0 BR3030BC100
BRH
22 kAIC 4
100 30 30 Indoor D1 #4–1/0 BR3030HC100
CSR
25 kAIC
150 30 30 Indoor G1 #2–300 kcmil BR3030BC150
200 20 40 Indoor D1 #2–300 kcmil BR2040BC200
30 40 Indoor G1 #2–300 kcmil BR3040BC200
40 40 Indoor L1 #2–300 kcmil BR4040BC200
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type Trim Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter
Catalog NumberSpaces Circuits
125 8 16 Indoor Surface (with door) 7 #14–1 BR816LC125SDP
8 16 Indoor Flush (with door) 7 BR816LC125FDP
BR3030BC100
BR816LC125FDP
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-53
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Convertible Loadcenters—Copper Bus 10/22/25 kAIC
Convertible—Single-Phase, Three-Wire—120/240 Vac—Insulated/Bondable Split Neutral
Notes
1 100, 125 and 200 A convertible base unit catalog numbers include interior, box and cover only. Main devices and accessories must be ordered separately for field
installation. All convertible base units are listed as suitable for use as service entrance equipment when used per Article 384 of the NEC.
2 Ground bar kits priced separately, refer to Page V1-T1-66.
3 All main circuit breaker loadcenters are listed for use as service entrance equipment and are shipped with a neutral bonding strap preattached. The maximum main
rating of the loadcenter is the main breaker rating when used as service entrance equipment.
4 Interrupting rating depends on main circuit breaker selected. See Page V1-T1-66 for mains.
5 For main breaker, use Type BW or CSR. For main lug, use Type BRL.
6 Rainproof loadcenters are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
7 Hold-down screw BREQS125 comes with loadcenter for back-fed Types BR and BRH main circuit breakers.
8 For main breaker, use Type BR. For main lug, use Type BRSF.
9 Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard.
(see Article 408.34 of the NEC).
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main
Loadcenter Catalog Number
(With Combination or
NEMA Type 3R Cover) 123
Spaces Circuits
125
10/22 kAIC 45
12 24 Indoor B2 See main breaker
and main lug kit tables
on Page V1-T1-54.
BR1224NC125 67
12 24 Outdoor B2R BR1224NC125R 678
20 24 Indoor C2 BR2024NC125 7
20 24 Outdoor C3R BR2024NC125R 78
200
10/25 kAIC 49
20 40 Indoor D1 BR2040NC200
20 40 Outdoor D1R BR2040NC200R 8
30 40 Indoor G1 BR3040NC200
30 40 Outdoor G1R BR3040NC200R 8
40 40 Indoor L1 BR4040NC200
40 40 Outdoor L1R BR4040NC200R 8
BR3040NC200
V1-T1-54 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Three-Phase—Type BR Main Circuit Breaker Loadcenters
Three-Phase, Four-Wire—Main Lug Loadcenters—Copper Bus—208Y/120 Vac or 240 Vac,
Insulated/Bondable Split Neutral
Three-Phase, Four-Wire—Main Circuit Breaker Loadcenters—Copper Bus—208Y/120 Vac or 240 Vac,
Insulated/Bondable Split Neutral
Three-Phase, Four-Wire—Main Circuit Breaker Loadcenters—Aluminum Bus—208Y/120 Vac or 240 Vac
Insulated/Bondable Split Neutral
Notes
1 All main circuit breaker loadcenters are listed for use as service entrance equipment and are shipped with a neutral bonding strap pre-attached (commercial loadcenters
do not have a pre-attached bonding strip). The maximum main rating of the panel is the main circuit breaker rating when used as service entrance equipment.
2 Ground bar kits priced separately. See Page V1-T1-66.
3 Rainproof loadcenters are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
4 Type DK main circuit breaker is rated 65 kAIC at 240 Vac and allows a 22 kAIC series rating on the loadcenter when Types BR, BD and BJ branch circuit breakers are used.
5 The LD main circuit breaker is rated 65 kAIC at 240 Vac. Type LD circuit breaker is not series rated with Types BR, BD and BJ branch circuit breakers.
6 Includes CHH 100 kAIC rated MCB. 100 kAIC series rating combination is obtained when types BD, BR, BQ, BQC and GFGB branch breakers are used with CHH main.
7 With surface cover.
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main
Loadcenter Catalog Number
(With Combination or
NEMA Type 3R Cover)Spaces Circuits
125 12 24 Indoor C1 #6–3/0 3BR1224LC125
125 12 24 Outdoor C1R #6–3/0 3BR1224LC125R
150 24 42 Indoor D1 #4–300 kcmil 3BR2442LC150
150 24 42 Outdoor D1R #4–300 kcmil 3BR2442LC150R
200 12 24 Indoor C4 #4–300 kcmil 3BR1224LC200
200 12 24 Outdoor C3R #4–300 kcmil 3BR1224LC200R
200 30 42 Indoor G1 #4–300 kcmil 3BR3042LC200
200 30 42 Outdoor G1R #4–300 kcmil 3BR3042LC200R
200 42 42 Indoor L1 #4–300 kcmil 3BR4242LC200
200 42 42 Outdoor L1R #4–300 kcmil 3BR4242LC200R
225 30 42 Indoor L1 #4–300 kcmil 3BR3042LC225
225 30 42 Outdoor L1R #4–300 kcmil 3BR3042LC225R
400 42 42 Indoor 24 (2) 3/0–250 kcmil 3BR4242LC400S
42 42 Outdoor 47 3BR4242BC400R
600 42 42 Indoor 24 (2) 3/0–500 kcmil 3BR4242LC600S
Main
Breaker Type
Main
Ampere
Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter Catalog Number
(With Combination or
NEMA Type 3R Cover)Spaces Circuits
BR 10 kAIC 100 12 24 Indoor C1 #14–1/0 3BR1224BC100
100 12 24 Outdoor C1R #14–1/0 3BR1224BC100R
CC 10 kAIC 150 30 42 Indoor L1 #6–4/0 3BR3042BC150
150 30 42 Outdoor L1R #6–4/0 3BR3042BC150R
200 42 42 Indoor L2 2/0–300 kcmil 3BR4242BC200
200 42 42 Outdoor L2R 2/0–300 kcmil 3BR4242BC200R
225 42 42 Indoor L2 2/0–300 kcmil 3BR4242BC225
225 42 42 Outdoor L2R 2/0–300 kcmil 3BR4242BC225R
DK 22 kAIC 400 42 42 Indoor 24 (2) 3/0–250 kcmil 3BR4242BC400S
42 42 Outdoor 47 3BR4242BC400R
HLD 10 kAIC 600 42 42 Indoor 24 (2) 3/0–500 kcmil 3BR4242BC600S
Main
Breaker Type
Main
Ampere
Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Breaker
Loadcenter Catalog Number 12
(With Combination or
NEMA Type 3R Cover)Spaces Circuits
BR 10 kAIC 100 12 24 Indoor C1 #14–1/0 3BR1224B100
12 24 Outdoor C1R 3BR1224B100R 3
CC 10 kAIC 125 30 42 Indoor L1 #6–4/0 3BR3042B125
150 30 42 Indoor L1 #6–4/0 3BR3042B150
30 42 Outdoor L1R 3BR3042B150R 3
200 30 42 Indoor L1 #1–250 kcmil 3BR3042B200
30 42 Outdoor L1R 3BR3042B200R 3
42 42 Indoor L2 3BR4242B200
42 42 Outdoor L2R 3BR4242B200R 3
CHH 100 kAIC 200 42 42 Indoor L2 2/0–300 kcmil 3BR4242H200 6
CC 10 kAIC 225 42 42 Indoor L2 2/0–300 kcmil 3BR4242B225
42 42 Outdoor L2R 3BR4242B225R 3
DK 4 22 kAIC 400 42 42 Indoor 24 (2) #3/0–250 kcmil 3BR4242B400S 7
42 42 Indoor 24 3BR4242B400F
42 42 Outdoor 47 3BR4242B400R 3
LD 5600 42 42 Indoor 24 (2) #3/0–500 kcmil 3BR4242B600F
3BR4242B200
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-55
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Three-Phase, Four-Wire—Main Lug Loadcenters—Aluminum Bus—208Y/120 Vac or 240 Vac,
Insulated/Bondable (Unless Otherwise Noted)
Three-Phase, Four-Wire—Main Lug Loadcenters—Aluminum Bus—208Y/120 Vac or 240 Vac,
Insulated/Bondable Split Neutral
Notes
1 Ground bar kits priced separately. See Page V1-T1-66.
2 Surface cover only.
3 Insulated/bondable single neutral.
4 Rainproof loadcenters are furnished with hub closure plates. For rainproof hubs, refer to Page V1-T1-66.
5 Has notch for BREQS125 hold-down kit.
6 Suitable for use as service equipment when not more than six main disconnecting means are provided and when not used as a lighting and appliance panelboard
(see Article 408.34 of the NEC).
gDoor lock and key included with loadcenter.
Box sizes Pages V1-T1-67 through V1-T1-70.
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Loadcenter Catalog Number 1
(With Combination or
NEMA Type 3R Cover)Spaces Circuits
100 3 3 Indoor 9 #6–1/0 3BR3L100S 23
3 3 Outdoor 9R 3BR3L100R 34
125 12 24 Indoor C1 #6–3/0 3BR1224L125 56
12 24 Outdoor C1R 3BR1224L125R 456
150 18 36 Indoor C2 #6–4/0 3BR1836L150
18 36 Outdoor C3R 3BR1836L150R
24 42 Indoor D1 #4–300 kcmil 3BR2442L150
24 42 Outdoor D1R 3BR2442L150R 4
200 12 24 Indoor C4 #4–300 kcmil 3BR1224L200 6
12 24 Outdoor C3R 3BR1224L200R 46
18 36 Indoor C4 #4–300 kcmil 3BR1836L200
18 36 Outdoor C3R 3BR1836L200R
30 42 Indoor G1 #4–300 kcmil 3BR3042L200
30 42 Outdoor G1R 3BR3042L200R 4
42 42 Indoor L1 #4–300 kcmil 3BR4242L200
42 42 Outdoor L1R 3BR4242L200R 4
225 42 42 Indoor L1 #4–300 kcmil 3BR4242L225
42 42 Outdoor L1R 3BR4242L225R 4
Main
Ampere Rating
Maximum Number
1-Inch (25.4 mm)
Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Commercial Loadcenter
Catalog Number g
Spaces Circuits
With Flush or
NEMA Type 3R Cover
With
Surface Cover
400 42 42 Indoor 22 (1) 250–750 kcmil
or
(2) #3/0–250 kcmil
3BR4242L400F 3BR4242L400S
42 42 Outdoor 46 3BR4242L400R 4—
600 42 42 Indoor 22 (2) #2–500 kcmil — 3BR4242L600S
3BR1224L125
3BR4242L400F
V1-T1-56 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Three-Phase, Four-Wire—Convertible Loadcenters—Aluminum Bus—208Y/120 Vac or 240 Vac,
Insulated/Bondable Split Neutral
Three-Phase Main Breaker Kits—10 kAIC
Notes
1 The maximum rating of the loadcenter is the main circuit breaker
rating when used as service entrance equipment.
2 100, 125 and 200 A convertible base unit catalog numbers include
interior, box and cover only. Main devices and accessories must be
ordered separately for field installation.
All convertible base units are listed as suitable for use as service
entrance equipment when used per Article 384 of the NEC.
3 Ground bar kits priced separately. See Page V1-T1-66.
4 For main breaker, use Type BR. For main lug, use Type BRSF.
5 BREQS125 hold-down screw comes with loadcenter for back-fed
Types BR and BRH main circuit breakers.
6 Rainproof loadcenters are furnished with hub closure plates. For
rainproof hubs, refer to Page V1-T1-66.
7 Convertible to maximum of 100 A main circuit breaker and 125 A
main lug.
8 Suitable for use as service equipment when not more than six
main disconnecting means are provided and when not used as a
lighting and appliance panelboard
(see Article 408.34 of the NEC).
9 Order 3BR42FTNY or 3BR42STNY cover separately.
jFor subfeed.
Box sizes Pages V1-T1-67 through V1-T1-70.
Three-Phase Main Lugs Kit for
Convertible Loadcenters
Main
Ampere Rating 1
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main
Loadcenter Catalog Number 23
(With Combination or
NEMA Type 3R Cover)Spaces Circuits
100 430 30 Indoor D1 See main breaker
and main lug kit tables
below.
3BR3030N100 5
30 30 Outdoor D1R 3BR3030N100R 56
125 412 24 Indoor C1 3BR1224N125 567
12 24 Outdoor C1R 3BR1224N125R 5678
200 30 42 Indoor L1 3BR3042N200
225 42 42 Indoor L2 3BR4242N225
42 42 Indoor B 3BR4242B225NY 9
3BR3030N100
3BR4242N225NY
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Catalog
Number
100 #6–4/0 CC3100N
125 #6–4/0 CC3125N
150 #6–4/0 CC3150N
175 #2/0–300 kcmil CC3175N
200 #2/0–300 kcmil CC3200N
225 #2/0–300 kcmil CC3225N
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Catalog
Number
225 #1–300 kcmil 3BRL225
225 #1–300 kcmil 3BRS225 j
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-57
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
BR Quick Connect Neutral Loadcenters
Contents—BR Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-42
BR Specialty Products
BR Quick Connect Neutral Loadcenters
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-58
Riser Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-59
Type BR Renovation Loadcenter . . . . . . . . . . . V1-T1-60
Type BR Mechanical Interlock Kits. . . . . . . . . . V1-T1-62
Type BR Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-73
BR Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-76
BR Specialty Products
BR Quick Connect
Neutral Loadcenters
Product Description
The Type BR Quick Connect
Neutral loadcenters coupled
with Type BR Quick Connect
Neutral electronic breakers
provide a clean, quick
connection for an installer
looking to save time while
providing a professional look.
Features and Benefits
●Full-length neutral bars
provide over 300% neutral
capacity while enhancing
installation flexibility for the
installer
●Backed-out neutral screws
allow an installer to make a
quick connection when
terminating neutral and
ground wires
●Extended circuits (30/60,
40/80) provide maximum
flexibility to a contractor on
every space possible
●Standard LED diagnostics
on AFCI and AF/GF
breakers provides installers
best-in-class
troubleshooting technology
●Cut-to-length neutral wires
provides a clean,
professional look versus
traditional pigtail circuit
breakers
●Solid-tip, stranded neutral
wires provide a quick
connection to the full
length neutral bar
Product Selection
BR Quick Connect Neutral Loadcenters 1
BR Quick Connect Neutral Electronic Breakers
Notes
1BR Quick Connect Neutral loadcenters accept both standard and Quick Connect Neutral breakers.
2Loadcenters accept Type BR twin breakers.
3Combination cover included with every indoor loadcenter.
4Ground bar kit not included. Purchase separately.
Main
Device
Ampere
Rating Spaces Circuits 2
Incoming
Lug Size
Enclosure
Type 3
Box
Size
Ground
Bar
Number of
Neutral
Terminations
Catalog
Number
BR 10 kAIC 100 30 60 #4–1/0 Indoor D1 496 BR3060BQN100
CSR 25 kAIC 150 30 60 #2–300 kcmil Indoor G1 4102 BR3060BQN150
CSR 25 kAIC 200 30 60 #2–300 kcmil Indoor G1 4102 BR3060BQN200
CSR 25 kAIC 200 40 80 #2–300 kcmil Indoor L1 4128 BR4080BQN200
CSR 25 kAIC 200 30 60 #2–300 kcmil Outdoor L1R 494 BR3060BQN200R
CSR 25 kAIC 200 40 80 #2–300 kcmil Outdoor G1R 4128 BR4080BQN200R
Main lug only 125 24 48 #6–2/0 Indoor C2 GBK14 80 BR2448LQN125G
Main lug only 125 30 60 #6–2/0 Indoor D1 GBK10 96 BR3060LQN125G
Main lug only 200 30 60 #1–300 kcmil Indoor D1
GBK1020 + GBK10
96 BR3060LQN200G
Main lug only 200 40 80 #1–300 kcmil Indoor G1
GBK1020 + GBK10
122 BR4080LQN200G
Main lug only 125 20 40 #6–2/0 Outdoor C1R GBK14 68 BR2040LQN125RG
Main lug only 200 30 60 #1–300 kcmil Outdoor D1R GBK1420 94 BR3060LQN200RG
Convertible 200 30 60 — Indoor G1 4102 BR3060NQN200
Convertible 200 40 80 — Indoor L1 4128 BR4080NQN200
Convertible 200 30 60 — Outdoor G1R 494 BR3060NQN200R
Convertible 200 40 80 — Outdoor L1R 4128 BR4080NQN200R
Ampere
Rating Poles Wire Size Breaker Type
LED Diagnostics
Included
Catalog
Number
15 Single-pole 10 kAIC #14–4 Combination AFCI Yes BRCAF115QN
20 Single-pole 10 kAIC #14–4 Combination AFCI Yes BRCAF120QN
15 Single-pole 10 kAIC #14–4 Arc fault/ground fault Yes BRLAFGF115QN
20 Single-pole 10 kAIC #14–4 Arc fault/ground fault Yes BRLAFGF120QN
V1-T1-58 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Spa Panels
Contents—BR Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-42
BR Specialty Products
BR Quick Connect Neutral Loadcenters . . . . . . V1-T1-57
Spa Panels
Riser Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-59
Type BR Renovation Loadcenter . . . . . . . . . . . . V1-T1-60
Type BR Mechanical Interlock Kits . . . . . . . . . . V1-T1-62
Type BR Retrofit Interior Kits. . . . . . . . . . . . . . . V1-T1-73
BR Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-76
Spa Panels
Product Description
Eaton’s BR Spa Panels
distribute power to outdoor
loads and provide protection
for people from electric
shock. Save time and money
with streamlined installation
procedures and easy-access
features. Spa panels meet
NEC requirements by
providing a ground fault
circuit interruption device and
a disconnect switch in a
single simple device. Ships
assembled prewired, factory
tested and ready to install.
Features
●10-year warranty
●UL Listed
●Factory-installed
two-pole ground fault
circuit interrupter (GFCI)
Product Selection
Spa Panel—Meets NEC Article 680.40 Through 680.43—
Requirements for GFCI Protection
Notes
1 Includes a GFTCB240 breaker, factory installed.
2 Includes a GFTCB250 breaker, factory installed.
Main
Ampere
Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range Cu/Al 60 °C
or 75 °C for Main Lugs
Catalog
NumberSpace Poles
40 — — Outdoor 5R #8–#2 BR40SPA 1
50 — — Outdoor 5R #8–#2 BR50SPA 2
BR Spa Panel
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-59
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Riser Panel
Contents—BR Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-42
BR Specialty Products
BR Quick Connect Neutral Loadcenters . . . . . V1-T1-57
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-58
Riser Panel
Type BR Renovation Loadcenter . . . . . . . . . . . V1-T1-60
Type BR Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-73
BR Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-76
Riser Panel
Product Description
Eaton’s Riser Panel is a
loadcenter with an offset
interior to allow riser cables
to pass through the enlarged
gutter. By using lay-in tap
lugs, the contractor is able to
simply strip off a length of the
riser cable’s insulation, and
tap off to the riser panel’s
main lugs. These panels are
used in the construction of
assisted living homes,
dormitories, public housing
complexes and apartments.
Product Selection
Riser Panel
Riser Panel Accessories
Notes
1 Bulk-packaged loadcenter without carton. Must be ordered in
multiples of 16.
2 Refer to Page V1-T1-68 for dimensions. BRGUTTER is box
size C2.
Accessories
For riser panels not shown, contact the Flex Center at
1-800-330-6479 for both CH and BR riser panels.
Main Ampere
Rating
Maximum Number
1-Inch (25.4 mm) Enclosure
Type
Box
Size
Wire Size Range
Cu/Al 60 °C or 75 °C
for Main Lugs
Catalog
NumberSpace Circuits
125 12 24 Indoor C4 #6–2/0 BR1224L125RIS
125 12 24 Indoor C4 #6–2/0 BR1224L125RISBP 1
125 20 24 Indoor C4 #6–2/0 BR2024L125RIS
125 20 24 Indoor C4 #6–2/0 BR2024L125RISBP 1
125 20 30 Indoor C2 #6–2/0 BR2030L125RIS
200 30 40 Indoor D1 #1–300 BR3040L200RIS
Catalog Number
BRGUTTER 2
GTAP250
BR1224L125RIS
BRGUTTER (Shown
with Loadcenter)
V1-T1-60 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
BR Renovation Loadcenters
Contents—BR Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-42
BR Specialty Products
BR Quick Connect Neutral Loadcenters . . . . . V1-T1-57
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-58
Riser Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-59
Type BR Renovation Loadcenter
Options and Accessories . . . . . . . . . . . . . . V1-T1-61
Type BR Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-73
BR Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-76
Type BR Renovation Loadcenter
Product Description
●Available in 10, 20, 30
and 40 circuit main
breaker styles
●Designed to replace
existing loadcenters
and fuse boxes
●Type BR loadcenter
packaged with circuit
breakers
●Factory-installed 5-circuit
terminal block(s)
●Twin-stacked neutral
design
Quick-ProSM
All you need to
know to save
time and make
more money.
Specified on certain Eaton
products, the Quick-Pro
symbol allows for immediate
recognition of products
that are designed for
straightforward installation.
When you see Quick-Pro,
you know you can install
quickly—sometimes up to
50% less than the usual
installation time—and move
on to your next job.
Product Selection
BR Value Packs 1
Note
1 Indoor enclosure type.
Main
Breaker
Type Description
Wire Size
Range
Number of
5-Circuit
Terminal Blocks
Single-Pole
Breakers
Two-Pole
Breakers
Catalog
Number
BR
10 kAIC
Single-phase 100 A 10k main breaker 10/20
circuit surface-mount box is 11.75" wide x 13" tall
#6–1/0 0 (2) BR115 (1) BR230 BR1020B100SRNV
Single-phase 100 A 10k main breaker 10/20
circuit flush-mount box is 11.75" wide x 13" tall
0 (2) BR115 (1) BR230 BR1020B100FRNV
BR2020B100RN
Features, Benefits and Functions
●Factory-installed terminal
block(s) allows installer to
terminate existing short
wires without using wire
nuts or junction boxes
●Twin-stacked neutrals are
mounted up high in the
loadcenter, which allows
for all neutral and ground
wires to be terminated in
the top half of the
loadcenter
●Specifically designed for
the service contractor—
this is the ONLY renovation
line in the industry
●Single-pole and two-pole
breakers included
●10-year warranty on
loadcenter and breakers
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-61
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Options and Accessories
Field Installation Kits and Parts
Notes
1 Must be purchased in multiples of ordering quantities indicated.
2 #8–2/0 wire size range is 75 °C rated only.
Number
of Poles
Ampere
Rating
Number of 1-Inch (25.4 mm)
Spaces Needed
Wire Size Range
Cu/Al 60 °C or 75 °C
Ordering
Quantity 1
Catalog
Number
Main and Sub-Feed Lug Blocks
2 125 2 #8–2/0 1 BRSF125
150 2 #8–2/0 1 BRSF150 2
225 4 #2–300 kcmil 1 BRS225
3 150 3 #8–2/0 1 3BRSF150 2
225 6 #2–300 kcmil 1 3BRS225
Main Lugs
Two-pole, 200 A stud mounted (includes deadfront filler plate) #1–300 kcmil 1 BRL200
Neutral/ground lug
Add-on neutral or ground lug
#2/0 maximum 1 NL20
#3/0 maximum 1 NL30
300 kcmil maximum 1 NL300
Filler Plates
1-inch (25.4 mm) circuit breaker space 25 BRFP
BW main circuit breaker space (with hardware) 1 BWFP
Door lock —12–42 circuits, and 100–225 A 1 TDL
Door lock—4–8 circuits, 125 A 1CH9FL
ANSI-61 light gray touchup paint for current loadcenters 1 SPC61
Isolated neutral assembly (computer circuits) 1 BINA
Circuit directory—adhesive backed 10 TCD
Cover screws 25 LCCS
Cover replacement latch (gray) 14-5/16 (363.5 mm) wide loadcenters only 1 BRRL
Circuit marking strip (next to breaker) 10 BRMS
Circuit identification label (preprinted breaker labels) 25 CHBL
Series rated caution label 25 SRL
Bonding strip with screw 1BSSUSE
BRSF125
3BRS225
BRL200
TDL
V1-T1-62 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Type BR Loadcenter with
Mechanical Interlock Kit
Type BR Mechanical Interlock Kits
Contents
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-42
BR Specialty Products
BR Quick Connect Neutral Loadcenters . . . . . V1-T1-57
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-58
Riser Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-59
Type BR Renovation Loadcenter . . . . . . . . . . . V1-T1-60
Type BR Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-73
Type BR Mechanical Interlock Kits
BR Circuit Breakers
Product Selection. . . . . . . . . . . . . . . . . . . . . . . V1-T1-77
Circuit Breaker Accessories. . . . . . . . . . . . . . . V1-T1-85
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . V1-T1-87
Type BR Mechanical Interlock Kits
Product Description
With the aging electrical
infrastructure and frequent
severe storms, power
outages are becoming more
and more frequent, affecting
thousands of people
nationwide. Eaton mechanical
interlock kit provides an easy
and cost-effective solution
when using backup
emergency power.
This solution expands the
robust line of emergency
power products and
accessories.
Features and Benefits
●Prevents utility and
generator supplies from
being on at the same time
●Protects utility linemen
from dangerous generator
backfeed
●Robust interlock design
●Offered in two unique
styles for almost any BR
loadcenter, which can
reduce inventory levels
●Quick and easy
installation—drill points or
fixtures for pilot holes are
provided on all applicable
BR loadcenters; no
additional assembly is
required
Standards and Certifications
●UL 67 Listed—For use with
BR loadcenters
●Meets NEC® Article 702
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-63
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Product Selection
Each mechanical interlock kit
includes:
●Interlock assembly
●Hold down kit 1
●New labels
●Necessary screws
Warranty information:
●10-year warranty on all
Type BR circuit breakers
and loadcenters
●Refer to Eaton for
complete warranty details
Mechanical Interlock Kits 2
Notes
1For breakers under 70 A used in backfed applications, add “B” to the end of the catalog string
to get the appropriate “hold-down” version.
2Clamshell packaged.
3Bulk pack contains 10 units, individually packaged.
Description Catalog Number
Single BRMIKBR
Bulk pack 3BRMIKBRBP
Single BRMIKCSR
Bulk pack 3BRMIKCSRBP
BRMIKCSR
BRMIKBR
V1-T1-64 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Mechanical Interlock Cover
Covers mechanically interlock
two breakers—Type BW
or CSR main breaker with a
Type BR branch breaker.
Mechanical Interlock Cover
Fits Loadcenter
Catalog Numbers
Mechanical Interlock
Trim/Deadfront
Catalog Numbers
Mechanical Interlock Kit
Catalog Numbers
Indoor
BR816B100 BRCOVC10M BRMIKBR
BR816N100
BR1212B100 BRCOVC12M
BR1220B100
BR1220H100
BR1224N125 BRCOVC13M
BR1616B100 BRCOVC16M
BR1620B100
BR1624B100
BR1624B125 BRCOVC17M
BR1624N125
BR2020B100, BR2020BC100
BR2020H100, BR2020HC100
BRCOVC22M
BR2024H100
BR2020HC100
BR2030B100
BR2040B100
BR2024B125 BRCOVC23M
BR2024N125, BR2024NC125
BR3030B100, BR3030BC100 BRCOVC59M
BR3030H100, BR3030HC100
Raintight
BR1020B100R BR3RDF1M Field-installed interlock kits not
available for these catalog numbers.
BR1224B100R
BR1224N125R, BR1224NC125R
BR1624B100R BR3RDF2M
BR1624N125R
BR2024B100R, BR2024B125R BR3RDF4M
BR2024N125R, BR2024NC125R
BR816B100
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-65
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Mechanical Interlock Cover, continued
Notes
1 Deadfront only.
2 Can only be provided as replacement covers for factory-installed mechanically interlock loadcenters.
Fits Loadcenter
Catalog Numbers
Mechanical Interlock
Trim/Deadfront
Catalog Numbers
Mechanical Interlock Kit
Catalog Numbers
Indoor
BR1630B150 BRCOV16C4FM BRMIKCSR
BR1224N200
BR1632B200
BR1632N200
BR2030B150 BRCOV20C4FM
BR2030H150
BR2040B150
BR2040B200, BR2040BC200 BRCOV20D1FM
BR2040H200
BR2040N200, BR2040NC200
BR2430B150, BR2430BC150 BRCOV30G1FM
BR3030B150
BR3030H150
BR3040B150
BR2440B200
BR2440N200
BR3040B200, BR3040BC200
BR3040N200, BR3040NC200
BR3040H200
BR4040B200, BR4040BC200 BRCOV40L1FM
BR4040H200
BR4040N200, BR4040NC200
BR4242B225 BRCOV42L2FM
Raintight
BR816B150RF BR3RDF5M 1
BR816B200RF
BR816N200RF
BR1224N200R
BR2030B150R BR3RDF11M 1
BR2040B150R
BR2040B200R
BR2040B225R
BR2040N200R
BR3030B150R BR3RDF12M 1
BR3040B200R
BR3040N200R
BR4040B200R BR3RDF13M 1
BR4040N200R
BR48B200RF BR3RDF14M
BR4242B225R BR3RDF15M 1
Mechanical Interlock Loadcenter Replacement Covers 2
BR2020B100M, BR2020BC100M BRCOV20C2FM Field-installed interlock kits not
available for these catalog numbers.
BR2024H100M
BR3030BC100M BRCOV30D1FM
BR4040B200
V1-T1-66 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Field Installation Rainproof Conduit Hubs

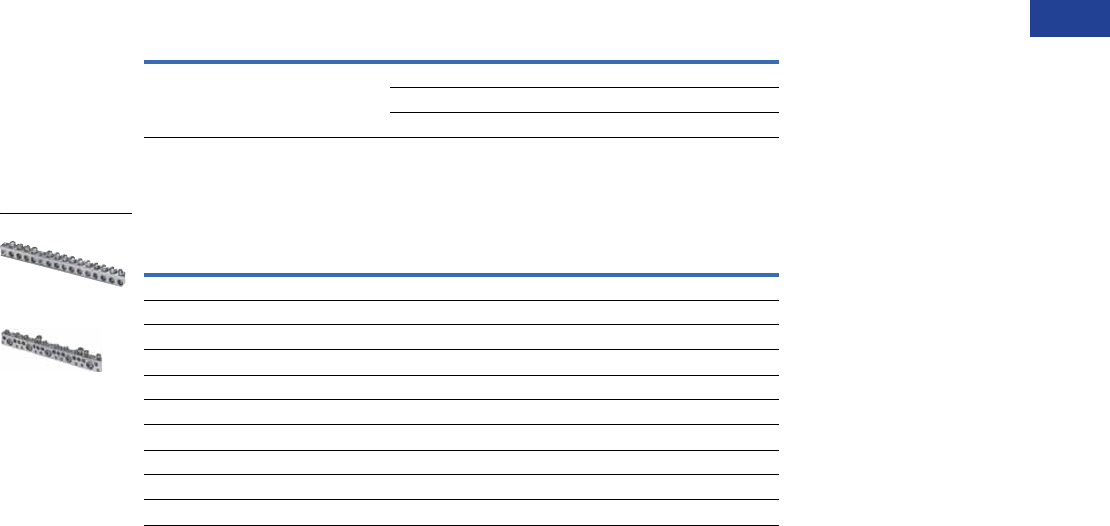

Ground Bar Kits
Ground Bar Legend
Notes
1 Must be purchased in multiples of ordering quantities indicated.
2 Distance between mounting holes is 1.75 inches (44.5 mm).
3 For single- and three-phase 400 and 600 A applications.
4 Distance between mounting holes is 2.34 inches (59.5 mm).
5 For non-metallic enclosures. Snaps into molded base.
Description
Conduit Size
Inches (mm)
Ordering
Quantity 1
Catalog
Number
Group 1—for use with 70, 100 and 125 A MLO and MCB loadcenters and circuit breaker enclosures and the
following 150 and 200 A panels: BR48B200RF
0.75 (19.1) 1 DS075H1
1.00 (25.4) 1 DS100H1
1.25 (31.8) 1 DS125H1
1.50 (38.1) 1 DS150H1
2.00 (50.8) 1 DS200H1
Group 2—for use with 150, 200 and 225 A MLO and MCB loadcenters and circuit breaker enclosures except for
the following 200 A loadcenters: BR48B200RF. Also for use with 400 and 600 A loadcenters and New York City
loadcenters manufactured after November 1, 2005
2.00 (50.8) 1 DS200H2
2.50 (63.5) 1 DS250H2
3.00 (76.2) 1 DS300H2
Type H conduit hubs for loadcenters PL0724R and S3100RN 0.75 (19.1) 1 RH75P
1.00 (25.4) 1 RH100P
1.25 (31.8) 1 RH125P
1.50 (38.1) 1 RH150P
Adapter kit—Allows Installing a Group 1 hub on devices arranged for Group 2 hubs — 1 DS900AP
Group 1 small blank hub plate with bump — 1 DS900CP1
Group 2 Large blank hub plate with bump — 1 DS900CP2
Description
(See Legend)
Length
Inches (mm)
Ordering
Quantity 1
Catalog
Number
dssssds 2.54 (64.5) 1 GBK5 2
dssssdsj 3.59 (91.2) 1 GBK520 2
dssssdssssss 4.29 (109.0) 1 GBK10 2
dssssdssssssj 5.34 (135.6) 1 GBK1020 2
4.61 (117.1) 1 GBK13 2
dssssdssssssssss 5.69 (144.5) 1 GBK14 2
dssssdssssssssssj 6.74 (171.2) 1 GBK1420 2
dssssdsssssssssssssssss 8.14 (206.8) 1 GBK21 2
dssssdsssssssssssssssssj 9.19 (233.4) 1 GBK2120 2
5.78 (146.8) 1 BRGBK39512 34
sssss 1.84 (46.7) 1 GB4NM 5
s
j
d
(3) #14–10 Cu/Al or (1) #14–4 Cu/Al
(1) #6–2/0 Cu/Al
(1) #14–1/0 Cu/Al or (3) #14–10 Cu/Al
(1) #14–6 Cu/Al or (2) #14–12 Cu/Al
Mounting Hole
DS300H2
GBK14
BRGBK39512
f
d
f
f
f
k
f
d
f
k
f
f
f
f
k
f
d
f
k
f
f
f
k
f
d
f
k
f
f
f
k
f
k
f
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-67
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Dimensions
Approximate Dimensions in Inches (mm)
Residential/Commercial/New York City Loadcenters, Unit Enclosures—Box Sizes
Note: Box sizes do not include covers/fronts.
Residential Loadcenters—NEMA Type 1 Indoor
Residential Loadcenters—NEMA Type 3R Outdoor
Commercial Loadcenters—NEMA Type 1 Indoor
Commercial Loadcenters—NEMA Type 3R Outdoor
New York City Loadcenters—NEMA Type 1 Indoor
ECC Unit Enclosures—NEMA Type 1 Indoor
ECC Unit Enclosures—NEMA Type 3R Outdoor
Box Size Height Width Depth
A1 15.00 (381.0) 11.25 (285.8) 3.75 (95.3)
B1 16.75 (425.5) 14.31 (363.5) 3.88 (98.4)
B2 18.75 (476.3) 14.31 (363.5) 3.88 (98.4)
C1 21.00 (533.4) 14.31 (363.5) 3.88 (98.4)
C2 23.00 (584.2) 14.31 (363.5) 3.88 (98.4)
C4 27.00 (685.8) 14.31 (363.5) 3.88 (98.4)
D1 29.13 (739.8) 14.31 (363.5) 3.88 (98.4)
G1 34.13 (866.8) 14.31 (363.5) 3.88 (98.4)
L1 39.00 (990.6) 14.31 (363.5) 3.88 (98.4)
L2 45.00 (1143.0) 14.31 (363.5) 3.88 (98.4)
L3 48.38 (1228.3) 14.31 (363.5) 3.88 (98.4)
2 8.63 (219.1) 5.00 (127.0) 3.50 (88.9)
3 9.44 (239.7) 4.50 (114.3) 3.00 (76.2)
4 13.00 (330.2) 11.00 (279.4) 3.56 (90.5)
5 9.44 (239.7) 4.50 (114.3) 3.00 (76.2)
6 12.00 (304.8) 6.88 (174.6) 4.50 (114.3)
7 13.00 (330.2) 11.00 (279.4) 3.56 (90.5)
9 14.50 (368.3) 6.50 (165.1) 3.50 (88.9)
Box Size Height Width Depth
B1R 16.75 (425.5) 14.31 (363.5) 5.19 (131.8)
B2R 18.75 (476.3) 14.31 (363.5) 5.19 (131.8)
C3R 25.00 (635.0) 14.31 (363.5) 5.19 (131.8)
D1R 29.13 (739.8) 14.31 (363.5) 5.19 (131.8)
G1R 34.13 (866.8) 14.31 (363.5) 5.19 (131.8)
L1R 39.00 (990.6) 14.31 (363.5) 5.19 (131.8)
L2R 45.00 (1143.0) 14.31 (363.5) 5.19 (131.8)
L3R 48.75 (1238.2) 14.31 (363.5) 5.19 (131.8)
2R 8.63 (219.1) 5.00 (127.0) 3.50 (88.9)
3R 9.44 (239.7) 4.50 (114.3) 3.00 (76.2)
4R 13.00 (330.2) 11.00 (279.4) 3.56 (90.5)
5R 9.44 (239.7) 4.50 (114.3) 3.00 (76.2)
6R 11.75 (298.5) 6.50 (165.1) 4.50 (114.3)
7R 13.00 (330.2) 11.00 (279.4) 3.56 (90.5)
8R 27.00 (685.8) 10.50 (266.7) 4.75 (120.7)
9R 14.25 (362.0) 6.50 (165.1) 4.00 (101.6)
C1R 21.00 (533.4) 14.31 (363.5) 5.19 (131.8)
Box Size Height Width Depth
19 44.00 (1117.6) 16.16 (410.4) 6.25 (158.8)
20 44.00 (1117.6) 16.16 (410.4) 6.25 (158.8)
22 54.00 (1371.6) 16.22 (412.0) 6.31 (160.3)
24 66.50 (1689.1) 16.22 (412.0) 6.31 (160.3)
Box Size Height Width Depth
42 38.00 (965.2) 16.31 (414.3) 6.38 (161.9)
43 44.00 (1117.6) 16.31 (414.3) 6.38 (161.9)
46 54.00 (1371.6) 16.31 (414.3) 6.38 (161.9)
47 66.56 (1690.7) 16.31 (414.3) 6.38 (161.9)
Box Size Height Width Depth
A 38.00 (965.2) 18.13 (460.4) 5.00 (127.0)
B 44.00 (1117.6) 18.13 (460.4) 5.00 (127.0)
C 66.50 (1689.1) 18.13 (460.4) 6.25 (158.8)
Height Width Depth
23.25 (590.6) 8.88 (225.4) 4.50 (114.3)
Height Width Depth
23.68 (601.7) 9.31 (236.5) 5.44 (138.1)
V1-T1-68 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Approximate Dimensions in Inches (mm)
Residential Loadcenter Knockouts
Knockouts for Box Sizes A1, B1, B2, C1, C2, C4, D1, G1, L1,
L2, B1R, B2R, C1R, C3R, D1R, G1R, L1R, L2R
Residential NEMA Type 1 Indoor and
NEMA Type 3R Outdoor Enclosures
Code Diameter
A 0.50 (12.7) 0.75 (19.1) — — —
B0.50 (12.7)————
C 0.50 (12.7) 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) 2.50 (63.5)
D 1.25 (31.8) 1.25 (31.8) 2.00 (50.8) 2.50 (63.5) —
E 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) — —
F 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) 1.50 (38.1) 2.00 (50.8)
G 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) — —
H 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) 1.50 (38.1)
I 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) 2.50 (63.5)
J 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) — —
J
E
B B B
A
B
B B B
B
E
J
B B B
A
B
B B B
B
E
J
J
A
B
A
B
J
J
J
A
B
B
B
B
J
B
B
Outdoor Boxes
B1R, B2R, C1R, C3R, D1R,
G1R, L1R, L2R
Indoor Boxes
B1, B2
Indoor Boxes
C1, C2, C4, D1, G1, L1, L2
.45 (11.4) Dia. KO.45 (11.4) Dia. KO
.45 (11.4) Dia. KO
.45 (11.4) Dia. KO
A
D
E
A
A
B
B
B
E
D
A
D
E
A
A
B
B
B
E
D
DD
D
D
EE
I
B
B
B
BB
A
A
H
B
B
B
BB
A
E
A
B
I
BB
B
B
B
A
AH
BB
B
B
B
A
E
A
B
.45 (11.4) Dia. KO
.45 (11.4) Dia. KO
.45 (11.4) Dia. KO.45 (11.4) Dia. KO
A
D
E
A
A
B
B
E
D
DD
D
D
EE
A
B
B
A
D
E
A
A
B
B
B
E
D
AB
I
B
B
B
BB
A
A
H
B
B
B
BB
A
E
A
B
I
BB
B
B
B
A
AH
BB
B
B
B
A
E
A
B
2.06 (52.3) Dia.
(125A Max.)
3.06 (77.7) Dia.
(225A Max.)
Hub
I
B
B
B
BB
A
A
H
B
B
B
BB
A
E
A
B
DDDD
.45 (11.4) Dia. KO
.45 (11.4) Dia. KO
EE E
B
Indoor Boxes
A1
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-69
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Approximate Dimensions in Inches (mm)
Knockouts for Box Sizes 3, 4, 5, 6, 7, 9, 2R, 3R, 4R, 5R, 6R,
7R, 8R, 9R
Residential NEMA Type 1 Indoor and NEMA Type 3R Outdoor Enclosures
Code Diameter
A 0.50 (12.7) — — —
B 0.50 (12.7) 0.75 (19.1) — —
C 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) —
D 0.50 (12.7) 0.75 (19.1) 1.00 (25.4) 1.25 (31.8)
E 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) —
F 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) 1.50 (38.1)
G 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) —
H 1.00 (25.4) 1.25 (31.8) 1.50 (38.1) 2.00 (50.8)
I 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) —
Box 2, 2R
R1.00–1.25 KO
(25.4–31.8) KO
Mounting
Hole for
5/16 (7.9)
Screw .50–.75
(12.7–19.1)
2.38
(60.3)
.31 (7.9)
.50–.75–1.00
(12.7–19.1–25.4)
.50–1.00–1.25
(12.7–25.4–31.8)
6.38
(161.9)
A
A
A
A
C
E
A
A
C
E
F
A
A
F
Box 3
A
A
A
A
F
Hub
AAA A
A
A A
BB
B
D
G
G G
Hub
A
A
AA
A
A A A
A
A A
BBB
B
B
B
D
G
AAA A
A
A A
BB
B
D
D D
G
G
G
D
G
G
Box 3R Box 4
Box 4R Box 5 Box 5R Box 6
A
A
A
A
A
A
D D D
D
F
F
A
A
D D D
F
Hub
A
A
B
A
B
B
C
C
FF
F
F
A
B
F
F
H
A
B
A
B
H
Box 6R
F
B B
B
H
Hub
D D
Box 7 Box 7R
A
A
AA
A
AAA
AAA AAA
B B B
AB B
B
B
B
B
C C
C
C
C
BC
G
G
G
G
G G
F
AAA AAA
AB B
BC
C
G
G G
F
Hub
AA
B
C
C
Hub
I
AA
BC
C
I
I
A A
A
A
A A
B
B
B
B
BB
B
C
C
C
G
GG
G
G
GG
G
A
A
B
B
C
G
G
G
G
Hub
Box 8R Box 9 Box 9R
V1-T1-70 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Approximate Dimensions in Inches (mm)
Commercial Loadcenter Knockouts
NEMA Type 1 Indoor Commercial Enclosures
Knockouts for Box Sizes 19, 20, 22, 24
NEMA Type 3R Outdoor Commercial Enclosures
Knockouts for Box Sizes 42, 43, 46, 47
Unit Enclosure Knockouts, Types ECB and ECC Knockouts
Indoor Commercial Enclosures
Outdoor Commercial Enclosures
Unit Enclosure Knockouts
Code Diameter
A 0.50 (12.7) — — —
B 0.50 (12.7) 0.75 (19.1) — —
C 0.75 (19.1) 1.00 (25.4) 1.50 (38.1) —
D 1.50 (38.1) 2.00 (50.8) 2.50 (63.5) 3.00 (76.2)
E 2.00 (50.8) 2.50 (63.5) 3.00 (76.2) —
F 2.50 (63.5) 3.00 (76.2) 3.50 (88.9) —
Code Diameter
A 0.50 (12.7) — — —
B 0.50 (12.7) 0.75 (19.1) — —
C 0.75 (19.1) 1.00 (25.4) 1.25 (31.8) —
D 1.50 (38.1) 2.00 (50.8) 2.50 (63.5) —
E 2.00 (50.8) 2.50 (63.5) 3.00 (76.2) —
F 2.50 (63.5) 3.00 (76.2) 3.50 (88.9) —
G 1.25 (31.8) 1.50 (38.1) 2.00 (50.8) 2.50 (63.5)
H 3.25 (82.6) Sq. — — —
Code Diameter
NEMA Type 1 Indoor (Flush and Surface Trims)
A 0.50 (12.7) — — — —
B 1.25 (31.8) 1.50 (38.1) 1.75 (44.5) 2.00 (50.8) 2.50 (63.5)
NEMA Type 3R Outdoor
A 0.50 (12.7) — — — —
B 1.25 (31.8) 1.50 (38.1) 1.75 (44.5) 2.00 (50.8) 2.50 (63.5)
A
H
E
F
A
B B B
B B
C
D D D D
E
C
B
B
B
B
B
A
H
B B B
B B
C
E E E E
E
E
F
A
C
B
B
B
B
B
Box 19, 20 Box 22, 24
GF
E E E
D D
C
B
B
B
B
B
A
HUB HUB
FE
E E E
D D
CB
B
B
B
B
A
HUB HUB
Box 42
Box 43, 46, 47
B
B
B
B
A
A
B
B
B
B
B
B
A
B B
HUB
NEMA Type 1—Indoor NEMA Type 3R—Outdoor
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-71
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Technical Data and Specifications
General
A. The Contractor shall
furnish and install
deadfront loadcenters
incorporating circuit
breakers of the number,
rating and type as
specified herein and
as shown on the
contract drawings.
B. The loadcenter and all
components shall be
designed, manufactured
and tested in accordance
with the latest applicable
standards of UL, NEMA
and NEC including:
1. UL 67—Standards
for Panelboards.
C. UL 50—Standards for
Cabinets and Boxes.
D. UL 489—Standards for
Molded Case Circuit
Breakers.
E. UL 869—Standards for
Service Equipment.
F. Federal Specification
W-C 375B—Circuit
Breakers.
G. Federal Specification
W-C P115b—Panel
Power Distribution
Type 1, Class 2.
Qualifications
A. The manufacturer of the
loadcenter shall be the
manufacturer of the
circuit breaker within
the loadcenter.
B. For the equipment
specified herein, the
manufacturer shall be
ISO 9000 certified.
C. The manufacturer of
this equipment shall have
produced similar
electrical equipment
for a minimum period
of seven (7) years.
Manufacturers
A. Eaton.
Ratings
A. Loadcenters shall be
rated for 120/240 Vac and
shall have short-circuit
ratings as shown on the
drawings or
as herein scheduled,
but not less than
10,000 amperes rms
symmetrical.
B. Circuit breakers shall be a
minimum of 125 A
frame. Circuit breakers
15 through 125 A trip size
shall take up the same
pole spacing.
C. Loadcenters shall be
labeled with a UL short-
circuit rating. When
series combination
ratings are applied
with integral or remote
upstream devices, a label
shall be provided. Series
combination ratings shall
cover all trip ratings of
installed frames. It shall
state the conditions of
the UL series ratings
including:
1. Size and type of
upstream device.
2. Branch devices that can
be used.
3. UL series short
circuit rating.
Construction
A. All interiors, with the
exception of the branch
circuit breakers, shall
be completely factory
assembled with main
breakers, main lugs,
or no main device.
B. Interiors shall be
designed so that circuit
breakers can be replaced
without disturbing
adjacent units and
without removing the
main bus connectors and
shall be designed so that
circuits may be changed
without machining,
drilling, or tapping.
C. Physical means shall be
provided to prevent the
installation of more
overcurrent devices than
that number for which
the enclosure was
designed, rated and
approved. Half-size
breakers shall have a
UL listed rejection tab
over the line terminals.
Loadcenter interiors
must have notched stabs
to accept these rejection
tab class CTL breakers, if
required and approved.
Bus
A. Busbars for the main and
cross connectors shall be
[tin-plated aluminum]
[copper] in accordance
with Underwriters
Laboratories standards.
Busing shall be braced
throughout to conform to
industry standard practice
governing short-circuit
stresses in loadcenters.
Note: Note to spec writer—
select one (copper available
in limited ratings).
B. Neutral busing shall
have a suitable lug for
each outgoing feeder
requiring a neutral
connection of same
ampacity as branch.
Wiring/Termination
A. All wire connectors and
terminals shall be of the
anti-turn solderless type
and shall be suitable for
copper or aluminum wire
of the sizes indicated. All
connectors must meet
the “Requirements for
Wire Connectors and
Soldering Lugs” as
stated in UL 486B.
B. All loadcenters where
marked shall be suitable
for use with 60 °C or
75 °C rated wire.
Circuit Breakers
A. Circuit breakers shall
be molded case type.
Circuit breakers shall
have four-rivet
construction (GFI Type—
5 rivets). Multipole circuit
breakers shall be of a
stack pole design to
provide electrical
phase isolation.
B. Each pole of the
circuit breaker will
provide inverse time
delay overload and
instantaneous short-
circuit protection by
means of both thermal
and magnetic sensors.
C. The circuit breaker
calibration shall
not be affected by
environmental changes
in relative humidity.
The thermal bimetal
element shall be welded
to the steel frame and
calibration shall be set
independent of the
molded case by computer
controlled equipment.
D. All circuit breakers
shall be operated by
a toggle-type handle
and multipole circuit
breakers shall have an
internal common trip
mechanism. The
circuit breakers shall
incorporate trip
mechanisms that are
mechanically trip-free
from the handle. The
handle position shall
provide visual trip
indication.
E. Contacts shall be of
non-welding silver alloy.
F. All circuit breakers shall
have the trip rating
inscribed on the handle
on each circuit breaker
pole. Also, unique color-
coded cases that indicate
the UL listed 10 kA or
22 kA interrupting
ratings. Breakers shall
be able to be used
as main or branch
disconnect devices.
V1-T1-72 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
G. Branch circuit breakers
may also be used in
the 1/2-inch (12.7 mm)
per pole ratings that
include two-pole 1-inch
(25.4 mm) wide modules
and four-pole 2-inch
(50.8 mm) wide
modules. Two-pole circuit
breakers must
incorporate a common
trip mechanism. The
exclusive CTL rejection
tab feature shall be
provided to limit the
number of branch
devices for a loadcenter
to 42, in compliance with
NEC Article 384.15.
H. Circuit breakers shall
be completely enclosed
in a molded case of
thermoset material.
No internal aluminum
parts shall be used. All
internal ferrous parts
shall be plated to
prevent corrosion.
I. All terminals shall be
listed for use with copper
or aluminum conductors.
Terminals shall be of the
box lug or clamp type
design. The terminals
shall meet UL 486B
requirements and shall
be suitable for use with
either 60 °C or
75 °C wire.
J. The calibrated bimetal
assembly shall be
mechanically isolated
from the load terminal
using a flexible braided
copper shunt wire, such
that movement of the
terminals due to twisting
and overtorquing does
not affect breaker
calibration.
K. Breakers shall be SWD
rated and/or HACR rated
as required.
L. Arc Fault Interrupting
circuit breakers, (AFI),
shall be provided on all
15 and 20 A single-phase
120/240 Vac circuits
except those indicated as
remote controlled
breakers. AFI breakers
shall be “Classified for
mitigating the effects of
arcing faults,” or
conforming to UL
Standard 1699 and as
defined by Article 210.12
Section A of the 1999
NEC Code.
Surge Protection Devices
See Volume 1, Tab 2 for
complete details on
surge protection.
Enclosures
A. Loadcenter shall have
NEMA Type 1 general
purpose or NEMA Type
3R rainproof enclosures
as indicated on the
drawings and shall be
surface or combination
flush/surface mounted
except where noted.
B. Boxes shall be made
from galvanized sheet
steel having multiple
knockouts. Rainproof
boxes shall use
galvanized steel or
an approved coating
system which meets or
exceeds standards for
outdoor NEMA Type 3R
enclosures. Boxes shall
be of sufficient size to
provide at least a
minimum code gutter
space on all sides.
C. The deadfront shall
have an easy adjustment
feature for flush
applications.
D. Boxes shall be factory
assembled into a single
rigid structure.
E. Unless otherwise noted
on drawings, hinged
doors covering all circuit
breaker handles shall
be included in all trims.
T
rim doors shall not
uncover any live parts
in making the circuit
breaker handles
accessible. If key locks
are required, all locks
shall be keyed alike.
F. Combination trims for
flush and surface panels
shall be flat and shall
overlap the box by at
least 5/8-inch (15.9 mm)
all around. Trims shall
be mounted by a
screwdriver without the
need for special tools.
Finish
A. Trims shall be bonderized
and finished with a light
gray ANSI-61 enamel.
The paint finish shall be
of a type to which field
applied paint will adhere.
Factory Testing
A. The standard factory
tests shall be performed
on the equipment
provided under this
section. All tests shall
be in accordance with
the latest version of UL
and NEMA.
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-73
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Type BR Retrofit Type BR Retrofit Interior Collar
Adjustable Interior and Assembly with Trim
Type BR Retrofit Interior
Contents—BR Specialty Products
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-42
BR Specialty Products
BR Quick Connect Neutral Loadcenters . . . . . V1-T1-57
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-58
Riser Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-59
Type BR Renovation Loadcenter . . . . . . . . . . . V1-T1-60
Type BR Mechanical Interlock Kits. . . . . . . . . . V1-T1-62
Type BR Retrofit Interior Kits
BR Circuit Breakers. . . . . . . . . . . . . . . . . . . . . . . . V1-T1-76
Type BR Retrofit Interior Kits
Product Description
Eaton’s unique Retrofit
Interior allows the customer
to cost-effectively and safely
upgrade an electrical service
without removing the existing
enclosure from the wall.
Quick-ProSM
All you need to
know to save
time and make
more money.
Specified on certain Eaton
products, the Quick-Pro
symbol allows for immediate
recognition of products
that are designed for
straightforward installation.
When you see Quick-Pro,
you know you can install
quickly—sometimes up to
50% less than the usual
installation time—and move
on to your next job.
Application Description
The Retrofit Interior is
designed and tested
specifically for renovating
an outdated electrical panel in
an apartment, a condominium
or a single family home.
These outdated panels are
being recognized by local
inspectors and other
authorities as a possible
hazard.
Opportunities to Retrofit
●Single- or three-phase
●Main lug only or main
breaker
●Up to 42 circuits
●Up to 225 A interiors,
400 A available upon
request
●Available with CH breakers
(3/4-inch) with copper bus
or BR breakers (1-inch) with
aluminum bus
●The minimum lifetime
warranty for residential
breakers shall be as
follows:
●10-year warranty on all
BR branch breakers and
loadcenters
●Refer to Eaton for
complete warranty
details
Features and Benefits
Upgrading Existing Electrical
Infrastructure Is Simple
●Replaces vintage brands
that have hard to find,
expensive replacement
breakers
●Safety upgrade to arc fault
and ground fault breakers
to meet current electrical
codes
●Maximizes number of
circuits available with
compact design
●Eco-friendly in asbestos-
filled environments
●Exclusive design
Save Time and Money
Throughout the Installation
●Uses existing panel
box and wires
●Eliminates expensive and
time-consuming drywall/
paint repair
●Saves 2–3 hours of
installation time compared
to a complete panel
changeout
●Eliminates precise
measurements with field-
adjustable kit
Detailed Product Guide
All standard retrofit kits are
suitable for a range of
existing box sizes:
●Box width ranging from
14.50 to 22.00 inches
(368.3 to 558.8 mm)
●Box depth ranging from
4.00 inches (101.6 mm)
for BR
●Box height ranging from
21.00 to 45.00 inches
(533.4 to 1143.0 mm)
For box dimensions outside
of these ranges, contact
the Lincoln Flex Center at
800-330-6479. Be sure to
provide the existing incoming
line wire size.
Standards and Certifications
●Meets 2008/2011/2014
NEC wire bending
requirements
●UL 67 Listed (for UL
listings for specific part
numbers, see the table on
the following page.
V1-T1-74 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
BR Specialty Product Selection
To select the retrofit kit:
1. From the existing box
size determine which
retrofit groups are
suitable (may be more
than one).
2. Use type of interior,
number of phases, and
type of main to find the
selection chart.
3. Select part number from
chart (if main breaker,
replace XXX with specific
amp rating).
4. Note that the overlap
of the existing wall is
the retro cover size
minus the existing
box size. If specific
measurements are
needed, communicate
that you need a custom
trim size.
5. Contact the Lincoln Flex
Center at 800-330-6479
for pricing, lead-times,
and order entry
instructions.
How to Order:
1. Measure the existing
panel enclosure to
determine appropriate
kits for your project.
2. Match the existing
dimensions with the
table below to obtain the
correct catalog number.
3. Order your retrofit kit
from a local Eaton
authorized distributor.
Need assistance or can’t find
retrofit to fit existing
enclosure?
Call Eaton’s Residential Flex
Center at 1-800-330-6479
or email for all your retrofit
needs. Go to
www.eaton.com/eccn to
locate an Eaton Certified
Contractor.
Retrofit Interior Kit Specifications
Five recommended groups: existing box height determines retro group size. Approximate Dimensions in Inches (mm).
Notes
1Catalog numbers shown with "_" at the end need one of the following suffixes to denote depth:
J = 3.75–4.25
K = 4.25–5.00
L = 5.00–6.00
Example: RTBR12L125J would signify an interior set with a depth range of 3.75 to 4.25 inches.
2****Denotes characters in the catalog number that relate to overall cover size.
Example: CRTBR12ML2620 would signify a cover 26.00 inches H x 20.00 inches W.
3Amperes for MB panels is maximum; catalog number will reflect actual amperage of breaker included.
For UL applications, maximum cover sizes may apply.
Existing Enclosure Parameters—Inches (mm)
Catalog
Number 1Cover 2
Minimum
Depth
Maximum
Depth
Minimum
Width
Minimum
Height Phase Main Bus Amperes
3
Spaces /
Circuits
UL 67
Listed
BR Retrofit Interiors and Covers
RTBR8L100P CRTBR8ML**** 3.13 (79.5) 3.63 (92.2) 10.50 (266.7) 13.00 (330.2) Single MLO BR 100 16 Yes
RUBR8L100_ CRUBR8ML**** 3.75 (95.3) 6.00 (152.4) 10.50 (266.7) 13.00 (330.2) Single MLO BR 100 16 Yes
RTBR12L100P CRTBR12ML**** 3.13 (79.5) 3.63 (92.2) 10.50 (266.7) 14.50 (368.3) Single MLO BR 100 24 Yes
RTBR10B100P CRTBR12ML**** 3.13 (79.5) 3.63 (92.2) 10.50 (266.7) 14.50 (368.3) Single MLO BR 100 20 Yes
RUBR12L100_ CRUBR12ML**** 3.75 (95.3) 6.00 (152.4) 10.50 (266.7) 14.50 (368.3) Single MLO BR 100 24 Yes
RUBR10B100_ CRUBR12ML**** 3.75 (95.3) 6.00 (152.4) 10.50 (266.7) 14.50 (368.3) Single MB BR 100 20 Yes
RTBR12L125P CRTBR12ML**** 3.13 (79.5) 3.63 (92.2) 11.00 (279.4) 17.00 (431.8) Single MLO BR 125 24 Yes
RTBR10B125P CRTBR12ML**** 3.13 (79.5) 3.63 (92.2) 11.00 (279.4) 17.00 (431.8) Single MB BR 125 20 Yes
RUBR12L125_ CRUBR12ML**** 3.75 (95.3) 6.00 (152.4) 11.00 (279.4) 17.00 (431.8) Single MLO BR 125 24 Yes
RUBR10B125_ CRUBR12ML**** 3.75 (95.3) 6.00 (152.4) 11.00 (279.4) 17.00 (431.8) Single MB BR 125 20 Yes
RABR20B125_ CRABR20ML**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 21.00 (533.4) Single MCB BR 125 24 No
RABR20L125_ CRABR20ML**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 21.00 (533.4) Single MLO BR 125 24 No
RBBR20B200_ CRBBR20BW**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 29.00 (736.6) Single MLO BR 200 40 No
RCBR40L200_ CRCBR40ML**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 34.00 (863.6) Single MLO BR 200 40 No
RDBR40B200_ CRDBR40BW**** 3.75 (95.3) 6.00 (152.4) 13.00 (330.2) 37.00 (939.8) Single MLO BR 200 40 No
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-75
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Complete Assembly
Note: For complete assembly,
interior and cover need to be
ordered separately.
Adjustable Interior
●Factory installed ground
and neutral bars positioned
to accept existing wires
●Field adjustable depth
matches existing panel box
●Adjustable height enables
optional placement of the
interior
●Field bondable for service
entrance options
Adjustable Interior
Standard Trim and Collar
●Standard trim matches
new interior
●New circuit directory for
updated labeling
●Oversized collar eliminates
expensive wall/paint repair
Collar and Assembly with Trim
V1-T1-76 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
BR Circuit Breakers
Contents
Description Page
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-42
BR Specialty Products
BR Quick Connect Neutral Loadcenters . . . . . V1-T1-57
Spa Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-58
Riser Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-59
Type BR Renovation Loadcenter . . . . . . . . . . . V1-T1-60
Type BR Mechanical Interlock Kits. . . . . . . . . . V1-T1-62
Type BR Retrofit Interior Kits . . . . . . . . . . . . . . V1-T1-73
BR Circuit Breakers
Product Selection. . . . . . . . . . . . . . . . . . . . . . . V1-T1-77
Circuit Breaker Accessories. . . . . . . . . . . . . . . V1-T1-85
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . V1-T1-87
BR Circuit Breakers
Product Description
Plug-On Branch Feeder Type
Arc Fault Circuit Breakers,
Type BR—10 kAIC, 120 Vac
and 120/240 Vac
A branch feeder type arc fault
circuit interrupter is a device
intended to mitigate high
current arcing faults in the
complete circuit, including
connected cords. High
current arcing faults can
occur from line to neutral or
line to ground. These arcing
faults are in parallel with the
load and produce the most
energy of all arcing faults.
The branch feeder type AFCI
is required in the 1999 and
2002
National Electrical Code.
The
Combination Type AFCI is
required in the 2005, 2008, and
2011 National Electrical Code.
Plug-On Combination Type
Arc Fault Circuit Breakers,
Type BR—10 kAIC, 120 Vac
and 120/240 Vac
A combination type arc
fault circuit interrupter is a
device that includes all of
the protection offered by the
branch feeder AFCI (mitigation
of high current arcing faults in
the complete circuit, including
connected cords). In addition
it provides direct detection of
persistent low current arcing
faults down to 5 amps with
associated mitigation of
fire hazards in the cords
connected to the outlets. High
current arcing faults can occur
from line to neutral or line to
ground. These arcing faults
are in parallel with the load
and produce the most energy
of all arcing faults. The current
level of low current arcing
faults is limited by the load.
Plug-On Ground Fault Circuit
Breakers, Type GFTCB and
GFEP—10/22 kAIC, 120 Vac
and 120/240 Vac
Ground Fault
Application Notes
Single-pole GFTCBs are
designed for use in two-
wire, 120 Vac circuits. See
Page V1-T1-87 for a typical
wiring configuration.
Two-pole GFTCBs are
designed for use in three-
wire, 120/240 Vac circuits,
120 Vac multiwire circuits
employing common, neutral
and two-wire, 240 Vac
circuits obtained from a
120/240 Vac source.
Page V1-T1-87 shows typical
wiring configurations for a
120/240 Vac multiwire
circuits, and a 240 Vac, two-
wire circuit. Note the “panel
neutral” conductor connects
to the neutral bar, even
though the neutral is not
included in the load circuit.
This connection is necessary
to supply a 120 Vac power
source to the ground fault
sensing circuit.
The figures are shown with
a 120/240 Vac, single-phase,
three-wire power source,
but are also applicable to a
120/208 Vac, three-phase,
four-wire power supply.
For all figures, the electrical
operation of the GFTCB is
not affected by the
equipment ground.
Non-CTL Plug-On Replacement
—Circuit Breakers, Type BRD—
10 kAIC, 120/240 Vac
Non-CTL 10 kAIC
for Replacement
Purposes Only
For replacement in
enclosures manufactured
prior to 1968 with unnotched
stabs. Circuit breakers do
not have rejection tab.
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-77
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers

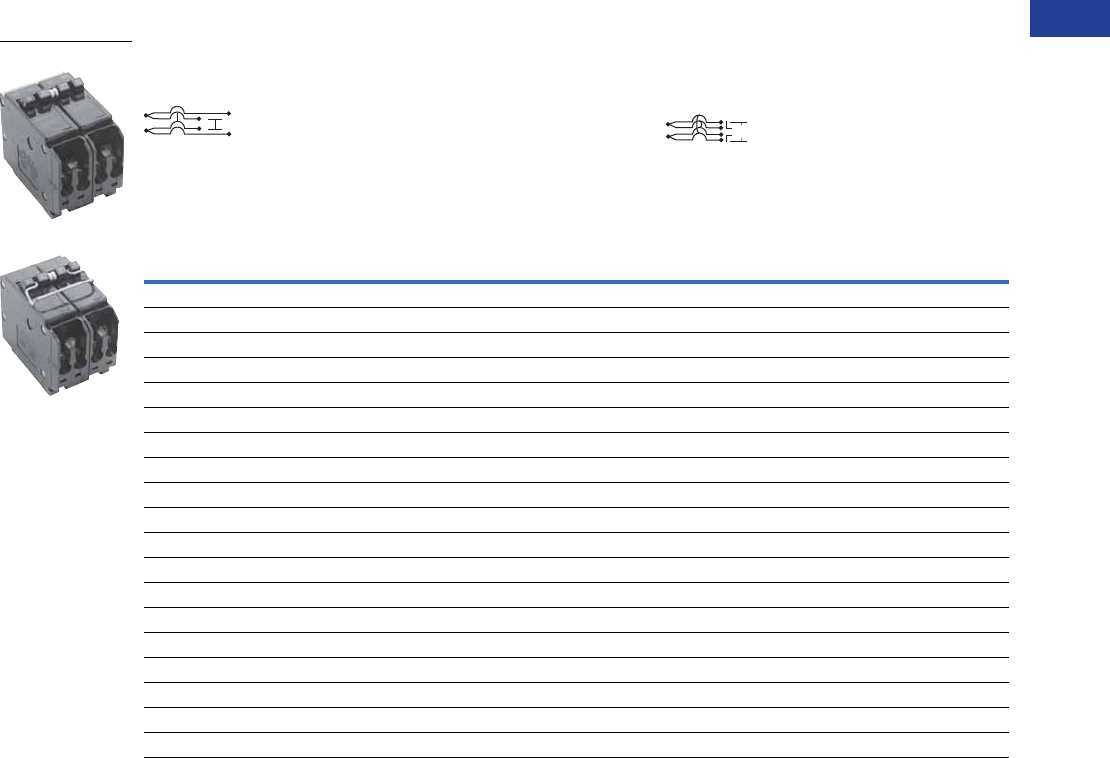

Product Selection
Plug-On Circuit Breakers, Types BR—10/22/42 kAIC, 120 Vac, 120/240 Vac and 240 Vac
Type BR Breakers, 1-Inch (25.4 mm) per Pole 120/240, 10, 22 and 42 kAIC
Notes
1 One pole, 1-inch (25.4 mm) per pole circuit breakers are available with high magnetic setting for switching large tungsten lamp loads. Add suffix H to catalog number.
2 Switching duty rated.
3 On the black handle breaker, add suffix “B” to the catalog number to obtain a tapped molded opening for proper use with hold-down kits.
4 For use as a branch circuit breaker in 400 and 600 ampere panels only.
All Type BR single-, two- and three-pole circuit breakers carry listing for HACR application. For circuit breakers with a shunt trip, add ST suffix.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120/240 Vac
Requires One 1-Inch (25.4 mm) Space
Two-Pole 120/240 Vac
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
10 per Shelf Carton 5 per Shelf Carton
10 kAIC 22 kAIC 10 kAIC 22 kAIC 42 kAIC 65 kAIC
Catalog
Number
Catalog
Number
Catalog
Number
Catalog
Number
Catalog
Number
Catalog
Number
10 #14–4 BR110 — BR210 — — —
15 #14–4 BR115 12 BRH115 BR215 3BRH215 — —
20 #14–4 BR120 12 BRH120 BR220 3BRH220 — —
25 #14–4 BR125 BRH125 BR225 3BRH225 — —
30 #14–4 BR130 BRH130 BR230 3BRH230 — —
35 #14–4 BR135 BRH135 BR235 3BRH235 — —
40 #14–4 BR140 BRH140 BR240 3BRH240 3——
45 #14–4 — BRH145 BR245 3BRH245 — —
50 #14–4 BR150 BRH150 BR250 3BRH250 3——
55 #14–3 BR150 BRH155 BR255 BRH255 — —
60 #8–1/0 BR160 BRH160 BR260 BRH260 BRHH260 BRX260
70 #8–1/0 BR170 BRH170 BR270 BRH270 BRHH270 BRX270
80 #8–1/0 — — BR280 BRH280 BRHH280 BRX280
90 #8–1/0 — — BR290 BRH290 BRHH290 BRX290
100 #8–1/0 — — BR2100 BRH2100 BRHH2100 BRX2100
110 #8–1/0 — — BR2110 BRH2110 BRHH2110 BRX2110
125 #4–2/0 — — BR2125 BRH2125 BRHH2125 BRX2125
150 #4–2/0 — — BR2150 4———
BR120
BR215
BR320
BRH2100
BRX2125
V1-T1-78 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Type BR Breakers, 1-Inch (25.4 mm) per Pole 240 Vac, 10, 22 and 42 kAIC
Plug-On Branch Feeder Type Arc Fault Circuit Breakers, Type BR—10 kAIC, 120 Vac and 120/240 Vac
Type BR, 1-Inch (25.4 mm) Wide FIRE-GUARD AFCI Circuit Breakers
Notes
1 One pole, 1-inch (25.4 mm) per pole circuit breakers are available with high magnetic setting for switching large tungsten lamp loads. Add suffix H to catalog number.
2 Clamshell packaging available with CS modification code on the end of catalog number.
3 Common trip refers to two-pole 240 V load application sourced by 120/240 Vac (see Page V1-T1-87).
4 Independent trip refers to two-pole multi-wire, home run or shared neutral circuits (see Pages V1-T1-87 and V1-T1-88).
All Type BR single-, two- and three-pole circuit breakers carry listing for HACR application. For circuit breakers with a shunt trip, add ST suffix.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Three-Pole 240 Vac
Common Trip Requires Three
1-Inch (25.4 mm) Spaces
5 per Shelf Carton
10 kAIC 22 kAIC
Catalog Number Catalog Number
10 #14–4 BR310 —
15 #14–4 BR315 1BRH315
20 #14–4 BR320 1BRH320
25 #14–4 BR325 BRH325
30 #14–4 BR330 BRH330
35 #14–4 BR335 BRH335
40 #14–4 BR340 BRH340
45 #14–4 BR345 BRH345
50 #14–4 BR350 BRH350
55 #14–3 BR355 BRH355
60 #4–1/0 BR360 BRH360
70 #4–1/0 BR370 BRH370
80 #4–1/0 BR380 BRH380
90 #4–1/0 BR390 BRH390
100 #4–1/0 BR3100 BRH3100
Poles
Ampere
Rating Configuration
Catalog
Number
Single-pole
10 kAIC
15 AFCI BR115AF 2
20 AFCI BR120AF 2
Single-pole
22 kAIC
15 AFCI BRH115AF
20 AFCI BRH120AF
Two-pole
10 kAIC 34
15 AFCI Common Trip BRL215AF
20 AFCI Common Trip BRL220AF
BR Breakers
Type BR AFCI
Circuit Breaker
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-79
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Plug-On, Dual Purpose Arc Fault/ Ground Fault Circuit Breakers, Type BR—10 kAIC, 120 Vac
Type BR, 1-Inch (25.4 mm) wide Dual Purpose AF/GF Circuit Breakers 12
Plug-On Combination Type Arc Fault Circuit Breakers, Type BR—10 kAIC, 120 Vac and 120/240 Vac
Type BR, 1-Inch (25.4 mm) wide FIRE-GUARD Combination Type AFCI
Circuit Breakers
Plug-On Ground Fault Circuit Breakers, Type GFTCB and GFEP—10/22 kAIC, 120 Vac and 120/240 Vac
Type GFTCB Ground Fault Circuit Breakers—5 Milliampere—
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10 kAIC
Notes
1 Breaker qualifies as combination arc fault, per UL 1699.
2 Breaker qualifies as personnel protection ground fault, (5 mA) per UL 943.
3 Clamshell packaging available with CS modification code on the end of catalog number.
4 Available with bell alarm or auxiliary switch. See circuit breaker accessories on Page V1-T1-85.
5 For use with copper wire only.
Poles
Ampere
Rating Configuration
Catalog
Number
Single-pole
10 kAIC
15 Combination AFCI GFCI BRLAFGF115
20 Combination AFCI GFCI BRLAFGF120
Poles
Ampere
Rating Configuration
Catalog
Number
Single-pole
10 kAIC
15 AFCI BRCAF115 3
Diagnostic AFCI BRACAF115
20 AFCI BRCAF120 3
Diagnostic AFCI BRACAF120
Single-pole
22 kAIC
15 AFCI BRHCAF115 3
20 AFCI BRHCAF120 3
Two-pole
10 kAIC
15 AFCI BRL215CAF
20 AFCI BRL220CAF
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120 Vac
Requires One
1-Inch (25.4 mm) Space
Two-Pole 120/240 Vac
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
1 per Shelf Carton 1 per Shelf Carton
Catalog Number 4Catalog Number
15 #14–4 GFTCB115 GFTCB215
20 #14–4 GFTCB120 GFTCB220
25 #14–4 GFTCB125 GFTCB225
30 #14–4 GFTCB130 GFTCB230
40 #14–4 GFTCB140 GFTCB240
50 #14–4 — GFTCB250 5
60 #14–6 — GFTCB260
BRLAFGF115
BRCAF115
Type GFTCB Single-Pole
Type GFTCB Two-Pole
V1-T1-80 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Type GFTCBH Ground Fault Breakers—5 Milliampere—
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 22 kAIC
Type GFEP Ground Fault Equipment Protectors—30 Milliampere—
1-Inch (25.4 mm) per Pole 120 Vac or 120/240 Vac, 10 kAIC
Note
1 For use with copper wire only.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120 Vac
Requires One
1-Inch (25.4 mm) Space
Two-Pole 120/240 Vac
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
1 per Shelf Carton 1 per Shelf Carton
Catalog Number Catalog Number
15 #14–4 GFTCBH115 GFTCBH215
20 #14–4 GFTCBH120 GFTCBH220
25 #14–4 GFTCBH125 GFTCBH225
30 #14–4 GFTCBH130 GFTCBH230
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120 Vac
Requires One
1-Inch (25.4 mm) Space
Two-Pole 120/240 Vac
Common Trip Requires Two
1-Inch (25.4 mm) Space
1 per Shelf Carton 1 per Shelf Carton
Catalog Number Catalog Number
15 #14–4 GFEP115 GFEP215
20 #14–4 GFEP120 GFEP220
25 #14–4 GFEP125 GFEP225
30 #14–4 GFEP130 GFEP230
40 #14–4 — GFEP240
50 #14–4 — GFEP250 1
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-81
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
CTL Plug-On Circuit Breakers, Type BD Duplex, BQ and BQC Quadplex—10 kAIC, 120/240 Vac
Class CTL, 1-Inch (25.4 mm) per Pole 10 kAIC—All Circuit Breakers Have Rejection Tab Feature
Notes
1 All 15 and 20 A single poles are switch-duty rated.
2 All Type BD duplex and BQ quadplex circuit breakers carry listing for HACR applications.
Type BD Duplex
(UL Type BRD)
Wire Size
Range
Cu/Al
65 °C or 75 °C
Type BQ Quadplex Independent Trip
(UL Type BRD)
Type BQ Quadplex Independent Trip
(UL Type BRD)
Single-Pole 1
Requires One 1-Inch
(25.4 mm) Space
10 per Shelf Carton
Two-Pole 2 and Single-Pole 1
Requires Two 1-Inch
(25.4 mm) Spaces
5 per Shelf Carton
Two-Pole
Requires Two 1-Inch
(25.4 mm) Spaces
5 per Shelf Carton
Ampere
Rating
120 Vac 120 Vac 120/240 Vac 120 Vac
Catalog
Number
120/240 Vac
Catalog
Number
Catalog
Number
Ampere Rating Ampere Rating
Outer Left
Single-Pole
Center Two-Pole
Independent Trip
Outer Right
Single-Pole
Outer Two-Pole
Independent Trip
Center Two-Pole
Independent Trip
10–10 BD1010 #14–4 15 20 15 BQ2202115 15 15 BQ215215
15–15 BD1515 #14–4 20 20 20 BQ2202120 15 20 BQ215220
15–20 BD1520 #14–4 15 30 15 BQ2302115 15 30 BQ215230
15–30 BD1530 #14–4 20 30 20 BQ2302120 15 40 BQ215240
20–15 BD2015 #14–4 15 40 15 BQ2402115 15 50 BQ215250
20–20 BD2020 #14–4 20 40 20 BQ2402120 20 20 BQ220220
20–30 BD2030 #14–4 15 50 15 BQ2502115 20 30 BQ220230
25–25 BD2525 #14–4 20 50 20 BQ2502120 20 40 BQ220240
30–15 BD3015 #14–4 — — — —20 50 BQ220250
30–20 BD3020 #14–4 — — — —25 25 BQ225225
30–30 BD3030 #14–4 — — — —30 30 BQ230230
30–40 BD3040 #14–4 — — — —30 40 BQ230240
30–50 BD3050 #14–4 — — — —30 50 BQ230250
50–30 BD5030 #14–4 — — — —40 40 BQ240240
50–50 BD5050 #14–4 — — — —40 50 BQ240250
————— ——50 50 BQ250250
BD2020
BQ2302115
BQ230230
120/240 Vac
120/240 Vac
120 Vac
120 Vac
120/240 Vac 120/240 Vac
120/240 Vac
V1-T1-82 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Non-CTL Plug-On Replacement—Circuit Breakers, Type BRD—10 kAIC, 120/240 Vac
Class Non-CTL, 1-Inch (25.4 mm) per Pole 10 kAIC—Breakers Do Not Have Rejection Tab Feature
CTL and Non-CTL Breakers
Note
Type BD Duplex, BQ and BQC Quadplex circuit breakers can be installed in Circuit Limiting (CTL) listed BR loadcenters. Type BR twin breakers can be installed in
Non-CTL BR loadcenters.
Type BR Duplex
Wire Size
Range
Cu/Al
65 °C or 75 °C
Type Brand BRD Quadplex Independent Trip
Type BRD Quadplex Common Trip
Center and Outer Poles
Single-Pole Requires One
1-Inch (25.4 mm) Space
10 per Shelf Carton
Two-Pole Requires Two
1-Inch (25.4 mm) Spaces
5 per Shelf Carton
Two-Pole Requires Two
1-Inch (25.4 mm) Spaces
5 per Shelf Carton
Ampere
Rating
120 Vac 120/240 Vac 120/240 Vac
Catalog
Number
120/240 Vac
Catalog
Number
Catalog
Number
Ampere Rating Ampere Rating
Outer Two-Pole
Independent Trip
Center Two-Pole
Independent Trip
Outer Two-Pole
Common Trip
Center Two-Pole
Common Trip
15–15 BR1515 #14–4 15 15 BR415 15 15 BRDC215215
15–20 BR1520 #14–4 20 20 BR420 30 30 BRDC230230
20–15 BR2015 #14–4 30 30 BR430 30 40 BRDC230240
20–20 BR2020 #14–4 20 30 BRD220230 30 50 BRDC230250
30–30 BR3030 #14–4 30 40 BRD230240 —— —
30–50 BR3050 #14–4 30 50 BRD230250 —— —
BR2020
120/240 Vac
120/240 Vac
120/240 Vac
120/240 Vac
120/240 Vac
120/240 Vac
Notched
Bus Stab
Unnotched
Bus Stab
Type BR or Type BD Duplex, (CTL),
Type BQ and
BQC Quadplex
Type BR Notched
Stab Non-CTL
Non-Circuit
Limiting
Type BR
Type BD
Duplex
Rejection
Tab
CTL Circuit
Limiting
Feature
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-83
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Common Trip Quadplex Breakers
Class CTL, 1-Inch (25.4 mm) per Pole 10 kAIC—All Circuit Breakers Have Rejection Tab Feature
Notes
1 All Type BQC quadplex circuit breakers carry listing for HACR applications.
2 All 15 and 20 ampere single poles are switch-duty rated.
Type BQC Quadplex Common Trip Center Poles
(UL Type BRD)
Wire Size Range
Cu/Al 65 °C
or 75 °C
Type BQC Quadplex Common Trip Center and Outer Poles
(UL Type BRD)
Two-Pole 1 and Single-Pole 2
Requires Two 1-Inch (25.4 mm) Spaces
5 per Shelf Carton
Two-Pole 1
Requires Two 1-Inch (25.4 mm) Spaces
5 per Shelf Carton
120 Vac 120/240 Vac 120 Vac
Catalog
Number
120/240 Vac
Catalog
Number
Ampere Rating Ampere Rating
Outer Left
Single-Pole
Center Two-Pole
Common Trip
Outer Right
Single-Pole
Outer Two-Pole
Common Trip
Center Two-Pole
Common Trip
15 20 15 BQC2202115 #14–4 15 15 BQC215215
15 25 15 BQC2252115 #14–4 15 20 BQC215220
15 30 15 BQC2302115 #14–4 15 30 BQC215230
15 40 15 BQC2402115 #14–4 20 15 BQC220215
15 50 15 BQC2502115 #14–4 20 20 BQC220220
—— ——#14–4 20 30 BQC220230
—— ——#14–4 20 40 BQC220240
—— ——#14–4 20 50 BQC220250
20 15 20 BQC2152120 #14–4 25 25 BQC225225
20 20 20 BQC2202120 #14–4 25 30 BQC225230
20 25 20 BQC2252120 #14–4 30 15 BQC230215
20 30 20 BQC2302120 #14–4 30 30 BQC230230
20 40 20 BQC2402120 #14–4 30 40 BQC230240
20 50 20 BQC2502120 #14–4 30 50 BQC230250
30 50 20 BQC2502030 #14–4 40 30 BQC240230
—— ——#14–4 40 40 BQC240240
—— ——#14–4 40 50 BQC240250
—— ——#14–4 50 20 BQC250220
—— ——#14–4 50 50 BQC250250
BQC2302115
BQC2302115
120 Vac
120 Vac
120/240 Vac
120/240 Vac
120/240 Vac
V1-T1-84 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Plug-On Circuit Breakers, Types BJ and BJH—10/22 kAIC, 120/240 Vac and 240 Vac
For Use in Single-Phase and Three-Phase Loadcenters—150 Amperes and Above
Types BJ and BJH Breakers, 1-Inch (25.4 mm) per Pole, 120/240 or 240 Vac, 10, 22 kAIC
Plug-On Special Application Circuit Breakers—10 kAIC, 120 Vac, 120/240 Vac and 240 Vac
Special Application Circuit Breakers, 1-Inch (25.4 mm) per Pole
Notes
1 Breaker uses two 1-inch (25.4 mm) pole spaces on left side and two 1-inch (25.4 mm) pole spaces on right side of loadcenter.
2 Breaker uses three 1-inch (25.4 mm) pole spaces on left side and three 1-inch (25.4 mm) pole spaces on right side of loadcenter.
If BJ or BJH breakers are used as a main or a back feed device, a hold-down kit is required. See Page V1-T1-85.
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Two-Pole 120/240 Vac
Common Trip Requires Four
1-Inch (25.4 mm) Spaces 1
10 per Shelf Carton
Three-Pole 240 Vac
Common Trip Requires Six
1-Inch (25.4 mm) Spaces 2
5 per Shelf Carton
10 kAIC 22 kAIC 10 kAIC 22 kAIC
Catalog Number Catalog Number Catalog Number Catalog Number
125 BJ2125 BJH2125 #2–300 kcmil BJ3125 BJH3125
150 BJ2150 BJH2150 #2–300 kcmil BJ3150 BJH3150
175 BJ2175 BJH2175 #2–300 kcmil BJ3175 BJH3175
200 BJ2200 BJH2200 #2–300 kcmil BJ3200 BJH3200
225 BJ2225 BJH2225 #2–300 kcmil BJ3225 BJH3225
Water Heater Breakers Switching Neutral Breakers
Wire
Size
Range
Cu/Al
60 °C or
75 °C
240 V Breakers Non-Automatic Molded Case Switches
Two-Pole 120/240 Vac
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
Two-Pole 120 Vac
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
Two-Pole 240 Vac
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
Two-Pole 240 Vac
Requires Two
1-Inch (25.4 mm) Spaces
With Isolated Line Terminals
for Separately Metered
Water Heaters
With Switching Neutral Pole
for Gasoline Pump Applications
Where Voltage to
Ground is 240 Vac
For Use as Disconnect Contains No
Magnetic or Thermal Trip Properties
5 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton 5 per Shelf Carton
10 kAIC 10 kAIC 10 kAIC 5 kAIC
Ampere
Rating
Catalog
Number
Ampere
Rating
Catalog
Number
Ampere
Rating
Catalog
Number
Ampere
Rating
Catalog
Number
15 BRWH215 15 BRSN215 #14–4 10 BR210H ——
20 BRWH220 20 BRSN220 #14–4 15 BR215H ——
30 BRWH230 25 BRSN225 #14–4 20 BR220H ——
——30 BRSN230 #14–4 25 BR225H ——
————#14–4 30 BR230H ——
————#14–4 35 BR235H ——
————#14–4 40 BR240H ——
————#14–4 45 BR245H ——
————#14–4 50 BR250H 50 BR250NA
————#14–4 55 BR255H ——
————#4–1/0 60 BR260H 60 BR260NA
————#4–1/0 70 BR270H ——
————#4–1/0 80 BR280H ——
————#4–1/0 90 BR290H ——
————#4–1/0 100 BR2100H 100 BR2100NA
Type BJ
BRWH215
Water Heater Breaker
BRSN220
Switching Neutral
Breaker
LINE
LOAD
OUT
IN
NEUTRAL
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-85
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Circuit Breaker Accessories
Field Installation Kits and Parts
Notes
1 Must be purchased in multiples of ordering quantities indicated.
2 Handle ties: typically used to join two similar independent single-pole breakers to form a two-pole noncommon trip breaker.
3 Handle lockoffs: devices that use a padlock to lock the circuit breaker’s handle in the ON or OFF position.
4 See table on Page V1-T1-86 for handle position changeability chart.
5 Escutcheon mounted: device mounted semipermanently to the face of the circuit breaker and secured by the loadcenter deadfront.
6 Handle mounted: device mounted directly to the handle by the use of a set screw.
7 Screw mounted: device permanently mounted to the face of the circuit breaker by the use of a non-removable screw.
8 Hold-down kits: devices used to secure the circuit breaker to the loadcenter for back-feed main application. See NEC Article 384.16(g).
Add “B” suffix to two-pole breaker for tapped hole for hold-down kit (ex. BR230B) for BR breakers below 60 A.
Description
Ordering
Quantity
1
Catalog
Number
Handle Ties 2
Handle tie bar for physically joining the handles of two adjacent single-pole Type BR circuit breakers (metal cylinder pin type)10BHT
Handle tie bar for joining two independent outside poles of Types BQ and BQC Quadplex and outside poles of two Type BD
duplex circuit breakers
10 THOW
Handle tie bar for joining two adjacent outside poles of Types BQ and BQC Quadplex and outside poles of two Type BD duplex circuit breakers 10 THS1
Handle Lockoffs 34
Padlockable device for locking the handle of single-, two- or three-pole Type BR Circuit Breakers and single-pole of a Type BD Duplex
or one independent outside pole of a Type BQ or BQC Quadplex circuit breakers (escutcheon mounted) 5
10 BRLW
Padlockable device for locking the handle of a single-pole Type BR circuit breaker (handle mounted) 610 BRLW1
Padlockable device for locking the handle of a two- and three-pole Type BR circuit breaker (handle mounted) 610 BRLW2
Padlockable device for locking the handle of a single-pole Type BD Duplex, BQ or BQC Quadplex breaker (handle mounted) 610 BRDL1
Padlockable device for locking the handle of the two center poles and the two outer poles of a two-pole Types BQ and BQC quadplex
circuit breakers (escutcheon mounted) 5
10 BRQLW
Padlockable device for locking the handle of main circuit breaker Types CC and CHH into the ON or OFF position (screw mounted) 7 1 CCPL
Padlockable device for locking the handle of main breaker Types BW and CSR into the ON or OFF position (escutcheon mounted) 51MCBPL
Device used to secure handle in ON or OFF position for single-, two- or three-pole Type BR circuit breakers and single-pole of Type BD
duplex and one independent outside pole of Type BQ or BQC Quadplex circuit breakers (escutcheon mounted) 5
10 BHLW
Device used to secure handle in ON or OFF position for single-pole Type BR circuit breakers (handle mounted) 610 BHLW1
Device used to secure handle in ON or OFF position for two- and three-pole Type BR circuit breakers (handle mounted) 610 BHLW2
Device used to secure handle in ON or OFF position for single-pole Type GFTCB ground fault circuit breakers (handle mounted) 610 BHGW
Device used to secure handle in ON or OFF position for one independent outside pole of Types BQ and BQC Quadplex or single-pole
Type BD duplex circuit breakers (handle mounted) 6
10 HLW1
Hold-Down Kits 8
Hold-down retainer kit for three-pole Type BR circuit breakers in S3100 and 3100R loadcenters only 1 BRHDB
Hold-down screw kit for two- and three-pole Type BR circuit breakers in single-phase MLO loadcenters through 100–125 A 1 BREQS125
Hold-down screw kit for two- and three-pole Type BR circuit breakers in MLO loadcenters 150–225 A 1 BRHDK125
Hold-down screw kit for two-pole Types BJ and BJH circuit breakers in MLO loadcenters 125–225 A 1 BJHDS
Hold-down screw kit for three-pole Types BJ and BJH circuit breakers in MLO loadcenters 125–225 A 1 BJHDS3P
Main Breaker Lug Kits
Types CC and CHH main breaker lug kit (2) 300 kcmil 1CCL300
Types BW/CSR main breaker lug kit (2) 300 kcmil 1MCBL300
THS1
BHLW2
BRQLW
MCBPL (Installed)
BHLW
BRLW2
BREQS125
BRHDK125
V1-T1-86 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Field Installation Kits and Parts, continued
Shunt Trips, Auxiliary and Alarm Contacts
Handle Position Changeability Chart
Notes
1 Must be purchased in multiples of ordering quantities indicated.
2 Add suffix indicated to end of breaker catalog number.
Description
Ordering
Quantity
1
Catalog
Number
Mechanical Interlocks
Types BR for two-, three- and four-pole breakers 10 BRML
Padlock Brackets
BR padlock mounting bracket 10 BRPLOFF
BR three-pole lock-off bracket 10 BRPLOFF3P
BJ two-pole lock-off bracket 10 BJL2P
BJ three-pole lock-off bracket 10 BJL3P
Description
Catalog Number 2
Suffix Adder
Shunt Trip for Types BW/CSR
12 Volts SR12
24 Volts SR24
120 Volts SR01
Shunt Trip for Types BR
120 Volts ST
Auxiliary Contact for Types BW/CSR
1NO and 1NC AL1
2NO and 2NC AL2
Alarm Contacts for Types BW/CSR
Types BW/CSR CR1
Alarm Contacts for Type GFTCB (Single-Pole)
Alarm contact for GFTCB (single-pole) W1
1NO and 1NC W2
Handle Lockoff and
Lockdog Types
To Change Handle Position from ON to OFF, or OFF to ON
You Must...
Remove
Padlock
Remove
Device
Remove
Loadcenter
Deadfront
Lockoff escutcheon mounted Remove — —
Lockoff handle mounted Remove Remove —
Lockoff screw mounted Remove — —
Lockdog escutcheon mounted N/A Remove Remove
Lockdog handle mounted N/A Remove —
BRML
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-87
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Wiring Diagrams
Single-Pole 120 V Load Application Sourced by 120/240 Vac
Two-Pole Shared Neutral with
Multi-Duplex Receptacle Application
Two-Pole 240 V Load Application Sourced by 120/240 Vac
Two-Pole Shared Neutral with Duplex Receptacle Application
Single-Pole 120 V Load Application Sourced by 120/240 Vac
Single-Pole 120 V Duplex Receptacle Application
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
Equipment Ground
NA B
120/240 Vac
Source
Two 120V
Duplex
Receptacles
Two-Pole
Line B
Line A
Neutral
Neutral
Equipment Ground
Line B
NA B
120/240 Vac
Source
Line A 240V
Duplex
Receptacle
Two-Pole
Neutral
Equipment Ground
NAB
120/240 Vac
Source
Line A
120V Duplex
Receptacle
(With Line Side
Jumper Removed)
Two-Pole
Line B
Neutral
Neutral
Equipment Ground
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
Equipment Ground
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
V1-T1-88 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.2
Loadcenters and Circuit Breakers
Type BR Loadcenters and Circuit Breakers
Two-Pole 120 V Multi-Duplex Receptacle Application
Two-Pole 120 V Duplex Receptacle Application
Two-Pole 240 V Duplex Receptacle Application
NA B
120/240 Vac
Source
Two 120V
Duplex
Receptacles
Two-Pole
Line B
Line A
Neutral
Neutral
NAB
120/240 Vac
Source
Line A
120V Duplex
Receptacle
(With Line Side
Jumper Removed)
Two-Pole
Line B
Neutral
Neutral
Line B
NA B
120/240 Vac
Source
Line A 240V
Duplex
Receptacle
Two-Pole
Neutral
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-89
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.3
Loadcenters and Circuit Breakers
Loadcenter Interiors/OEM Loadcenters
OEM Loadcenters
Contents
Description Page
Standards and Certifications . . . . . . . . . . . . . . . . . V1-T1-90
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-90
Product Description
As a leader in the electrical
distribution equipment
business, Eaton has a
unique product offering for
equipment manufacturers,
panel builders and virtually
any OEM that has a need
for power distribution within
their equipment. The OEM
interior offering consists
of a wide variety of power
distribution options utilizing
components from Eaton’s CH
and BR loadcenter product
lines. With high-volume,
standardized products,
OEMs can expect to
receive high-quality products
covering configurations
meeting virtually any power
distribution need.
Coupled with Eaton’s
expertise in circuit breaker
design and manufacturing,
OEM interiors provide solid
power distribution and circuit
protection in a compact,
easy-to-install package.
Interiors are offered from
2 to 42 circuits and from
70 to 225 A.
Quality
Built in ISO 9002 certified
manufacturing facilities,
customers can be assured
of the process quality in place
for the manufacture of these
products. Utilizing the latest
in computer-controlled
plating, painting, molding,
stamping and welding
processes, Eaton’s
customers have come to
expect consistent high-quality
from shipment to shipment.
Two Products Offer
Design Flexibility
As a manufacturer of two
lines of loadcenters, Eaton
is in a unique position to
offer the broadest range of
interiors in the market. Each
line has its own unique
characteristics that appeal
to various segments of the
market. OEM interiors are
UL recognized components
and are listed in either of
the following UL files: E8741
or E52977.
The CH interiors feature
100% copper bus and use
the CH 3/4-inch (19.1 mm)
wide circuit breaker, which
minimizes panel space.
Recognized by contractors
for its sturdy design, the
CH interior will appeal to
those customers seeking
an industrial quality bolted
busbar and the space saving
of 3/4-inch (19.1 mm) per
bus stab. With a typical
12 circuit CH interior, this
space savings amounts
to an inch and a half savings
over its 1-inch (25.4 mm)
counterparts. The stab
rating of the CH interiors
is 140 A maximum meaning
that the handle rating of
breakers mounted across
from one another may not
exceed 140 A.
The BR interiors are
manufactured of formed,
plated aluminum or copper,
and use Eaton’s Type BR
1-inch (25.4 mm) wide circuit
breaker. This design affords
customers the most circuit
flexibility as many of these
interiors allow the installation
of standard single- and
two-pole breakers as well as
duplex (two poles in a 1-inch
(25.4 mm) space) or quadplex
(four poles in a 2-inch
(50.8 mm) space) breakers.
The stab rating of the BR
interiors is 200 A maximum,
meaning that the handle
rating of the breakers that
are mounted across from
one another may not
exceed 200 A.
The interiors are designed
for either horizontal (single-
row breaker mounting), or
vertical (double-row breaker
mounting). To comply with
National Electrical Code
(NEC) requirements, if
mounted horizontally, when
the breaker is ON, the handle
should be in the UP position.
When mounted vertically, the
handle toggles from left to
right, so this is not a concern.
V1-T1-90 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.3
Loadcenters and Circuit Breakers
Loadcenter Interiors/OEM Loadcenters
Standards and Certifications
Class CTL
National Electrical Code
Paragraph 384.15 requires
branch circuit panelboards
to be provided with physical
means to prevent the
installation of more
overcurrent devices than
that number of which the
enclosure was designed,
rated and approved. Class
CTL Duplex, Quadplex and
twin breakers (identified
by a catalog number prefix
BD, BQ, BQC and CHT)
are equipped with a
UL listed rejection tab
over the line terminal.
All OEM interiors have
appropriately notched stabs
to accept these rejection
tab Class CTL breakers.
Duplex, Quadplex and twin
breakers manufactured
without the rejection tab
(identified by a catalog
number prefix BR, BRD
and CHT) are available
for replacement purposes
in older interiors.
Federal Specifications
All loadcenter enclosures
meet Federal Specifications
W-P-115b, Type 1, Class 2
requirements.
All 120/240 V breakers, both
1-inch (25.4 mm), 1/2-inch
(12.7 mm) and 3/4-inch
(19.1 mm) per pole meet
the requirement of Federal
Specifications W-C 375B/
Gen Type 1.
Canadian Standards
Association Listing
All single-pole and two-pole,
120/240 V breakers, both
1-inch (25.4 mm), 1/2-inch
(12.7 mm) and 3/4-inch
(19.1 mm) per pole, 225 A
maximum, are listed as
Certified by the Canadian
Standards Association, Guide
No. 69-11.19, Class 1432,
File 18328.
Underwriters
Laboratories Listing
All grounding bars
manufactured comply
with Underwriters
Laboratories standards
and are listed under
Guide No. DHJR, File
E31424, Volume W,
Section 17.
All circuit breakers 10 A
and larger comply with the
Underwriters Laboratories
“Standard for Branch
Circuit and Service Circuit-
Breakers” UL 489; Guide
No. 60 10.2 File E31424, and
“Requirements for Wire
Connectors and Soldering
Lugs,” UL 486B, Guide
No. 461 10-C File E7830.
All Eaton breakers where
marked, are suitable for use
with 60/75 °C rated wire,
unless otherwise specified.
All devices comply with the
22 kAIC–10 kAIC UL series
connected components File
DKSY2 of the Recognized
Components Index.
Lighting and
Appliance Panelboards
Lighting and appliance
branch circuit panelboards are
defined in NEC (Article 384)
as “One having more than
10 percent of its overcurrent
devices rated 30 A or less for
which neutral connections
are provided.” Article 384
also limits the number of
overcurrent devices (branch
circuit poles) to a maximum
of 42 in any one cabinet.
When the 42 poles are
exceeded, two or more
separate panels are required.
For more details and
engineering drawings,
see BR.31.02.S.E.
Product Selection
Type CH Loadcenter Interior Assemblies—Copper Bus
Ampere
Rating
Maximum Number 1-Inch (24.5 mm) UL File
Reference
Main Terminal Size
(Per Phase)
Standard
Package Quantity
Catalog
NumberSpaces Single Poles
Single-Phase Single Row Breaker Mounting—120/240 Vac, Three-Wire
70 2 2 E8741 (1) #8–#2 AWG Cu/Al 1 CH9MB270
125 2 2 E8741 (1) 2/0–#6 AWG Cu/Al 20 CH2L125INT
Single-Phase Double Row Breaker Mounting—120/240 Vac, Three-Wire
125 4 4 E8741 (1) 2/0–#14 AWG Cu/Al 20 CH4L125INT
125 8 8 E8741 (1) 2/0–#6 AWG Cu/Al 20 CH8L125INT
125 12 12 E8741 (1) 2/0–#6 AWG Cu/Al 20 CH12L125INT
125 16 16 E8741 (1) 2/0–#6 AWG Cu/Al 20 CH16L125INT
200 12 12 E8741 (1) 300 kcmil–#4 AWG Cu/Al 20 CH12L200INT
200 16 16 E8741 (1) 300 kcmil–#4 AWG Cu/Al 10 CH16L200INT
225 24 24 E8741 (1) 300 kcmil–#4 AWG Cu/Al 10 CH24L225INT
225 32 32 E8741 (1) 300 kcmil–#4 AWG Cu/Al 10 CH32L225INT
225 42 42 E8741 (1) 300 kcmil–#4 AWG Cu/Al 10 CH42L225INT
Three-Phase Double Row Breaker Mounting—208Y/120 Vac, Four-Wire—240 Vac, Three-Wire—120/240 Vac, Four-Wire Delta
125 12 12 E8741 (1) 2/0–#6 AWG Cu/Al 10 CH12L3125INT
125 18 18 E8741 (1) 2/0–#6 AWG Cu/Al 10 CH18L3125INT
125 24 24 E8741 (1) 2/0–#6 AWG Cu/Al 10 CH24L3125INT
225 24 24 E8741 (1) 300 kcmil–#4 AWG Cu/Al 10 CH24L3225INT
225 30 30 E8741 (1) 300 kcmil–#4 AWG Cu/Al 10 CH30L3225INT
225 42 42 E8741 (1) 300 kcmil–#4 AWG Cu/Al 10 CH42L3225INT
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-91
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.3
Loadcenters and Circuit Breakers
Loadcenter Interiors/OEM Loadcenters
Type BR Loadcenter Interior Assemblies—Aluminum Bus
Type BR Loadcenter Interior Assemblies—Copper Bus
Ampere
Rating
Maximum Number 1-Inch (24.5 mm) UL File
Reference
Main Terminal Size
(Per Phase)
Standard
Package Quantity
Catalog
NumberSpaces Single Poles
Single-Phase Single Row Breaker Mounting—120/240 Vac, Three-Wire
70 2 4 E8741 (1) #8–#2 AWG Cu/Al 20 24INT70B
125 2 4 E8741 (1) 1/0–#14 AWG Cu
2/0–12 AWG All
20 24INT125B
125 6 12 E52977 (1) 2/0–#14 AWG Cu/Al 20 612INT125SRB
Single-Phase Double Row Breaker Mounting—120/240 Vac, Three-Wire
125 4 8 E8741 (1) 2/0–#14 AWG Cu/Al 20 48INT125B
125 6 12 E8741 (1) 2/0–#14 AWG Cu/Al 20 612INT125B
125 8 16 E8741 (1) 2/0–#14 AWG Cu/Al 20 816INT125B
125 12 12 E52977 (1) 2/0–#14 AWG Cu/Al 20 1212INT125B
125 12 24 E52977 (1) 2/0–#14 AWG Cu/Al 20 1224INT125B
125 16 24 E52977 (1) 2/0–#14 AWG Cu/Al 20 1624INT125B
125 20 24 E52977 (1) 2/0–#14 AWG Cu/Al 10 2024INT125B
125 24 24 E52977 (1) 2/0–#14 AWG Cu/Al 10 2424INT125B
200 8 16 E52977 (1) 300 kcmil–#1 AWG Cu/Al 20 816INT200B
200 12 24 E52977 (1) 300 kcmil–#1 AWG Cu/Al 20 1224INT200B
200 30 40 E52977 (1) 300 kcmil–#1 AWG Cu/Al 10 3040INT200B
225 42 42 E52977 (1) 300 kcmil–#1 AWG Cu/Al 10 4242INT225B
Three-Phase Double Row Breaker Mounting—208Y/120 Vac, Four-Wire—240 Vac, Three-Wire—
120/240 Vac, Four-Wire Delta
125 12 24 E52977 (1) 2/0–#8 AWG Cu/Al 10 1224INT3125B
150 18 36 E52977 (1) 300 kcmil–#2 AWG Cu/Al 10 1836INT3150B
150 24 42 E52977 (1) 300 kcmil–#2 AWG Cu/Al 10 2442INT3150B
200 30 42 E52977 (1) 300 kcmil–#2 AWG Cu/Al 10 3042INT3200B
225 42 42 E52977 (1) 300 kcmil–#2 AWG Cu/Al 10 4242INT3225B
Ampere
Rating
Maximum Number 1-Inch (24.5 mm) UL File
Reference
Main Terminal Size
(Per Phase)
Standard
Package Quantity
Catalog
NumberSpaces Single Poles
Single-Phase Double Row Breaker Mounting—120/240 Vac, Three-Wire
125 8 16 E5297 (1) 2/0–#14 AWG Cu/Al 20 816INT125BC
125 12 12 E5297 (1) 2/0–#14 AWG Cu/Al 20 1212INT125BC
200 12 24 E5297 (1) 300 kcmil–#1 AWG Cu/Al 20 1224INT200BC
Three-Phase Double Row Breaker Mounting—208Y/120 Vac, Four-Wire—240 Vac, Three-Wire—
120/240 Vac, Four-Wire Delta
125 12 24 E52977 (1) 2/0–#8 AWG Cu/Al 10 1224INT3125BC
200 12 24 E52977 (1) 300 kcmil–#2 AWG Cu/Al 10 1224INT3200BC
BR Loadcenter
Interior Assembly
V1-T1-92 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.3
Loadcenters and Circuit Breakers
Loadcenter Interiors/OEM Loadcenters
Neutral Assemblies
Ampere
Rating
UL
File
Rating
Main Incoming Terminal
Wire Size Range
60 °C or 75 °C
Number of Terminals
Standard
Package
Quantity Figure
Dimensions–Inches (mm)
Catalog
Number
#14–4 AWG
Cu/Al
#6–1/0 AWG Cu
#6–2/0 AWG Al
Overall
Length
A
Mounting
B
125 E52977 #6–1/0 AWG Cu
#6–2/0 AWG Al
10 — 20 1 5.938 (150.83) 5.400 (137.16) 10NEU125B
125 E52977 #6–1/0 AWG Cu
#6–2/0 AWG Al
17 — 20 1 8.388 (213.06) 7.850 (199.40) 17NEU125B
125 E52977 #6–1/0 AWG Cu
#6–2/0 AWG Al
20 — 20 1 9.438 (239.73) 8.900 (226.06) 20NEU125B
225 E52977 #1–300 kcmil Cu/Al 24 1 20 2 10.913 (277.19) 10.300 (261.62) 24NEU225B
225 E52977 #1–300 kcmil Cu/Al 35 1 20 2 15.813 (401.65) 15.200 (386.08) 35NEU225B
125 — — 4 2 1 3 2.266 (57.56) 0.594 (15.09) BINA
B
A.269
(6.83)
.844
(21.44)
2.360
(59.94)
C
Lof Mounting Hole C
Lof Mounting Hole
1.187
(30.15)
1.182
(30.02)
B
A
2.000
(50.80)
.156
(3.96)
.688
(17.47)
C
L
of
Mounting
Hole
.269
(6.83)
.344
(8.74)
.844
(21.44)
2.360
(59.94)
1.750
(44.45)
2.860
(72.64)
.250
(6.35) .182 Diameter
(4.62)
.120
(3.05)
1.750
(44.45)
.750
(19.05)
.344
(8.74)
C
Lof Mounting Hole
B
A
Figure 1
Figure 3
Figure 2
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-93
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.3
Loadcenters and Circuit Breakers
Loadcenter Interiors/OEM Loadcenters
Add-on Lugs for Neutral Assemblies
Ground Bar Kits
Ground Bar Legend
Notes
1 Must be purchased in multiples of ordering quantities indicated.
2 Distance between mounting holes is 1.75 inches (44.5 mm).
3 For single- and three-phase 400 and 600 A applications.
4 Distance between mounting holes is 2.34 inches (59.5 mm).
Description
Wire Size Range
Cu/Al 60 °C or 75 °C
Ordering
Quantity 1
Catalog
Number
Neutral/ground lug
Add-on neutral or ground lug
#2/0 maximum 1 NL20
#3/0 maximum 1 NL30
300 kcmil maximum 1 NL300
Description
(See Legend)
Length
Inches (mm)
Ordering
Quantity 1
Catalog
Number
dssssds 2.54 (64.5) 1 GBK5 2
dssssdsj 3.59 (91.2) 1 GBK520 2
dssssdssssss 4.29 (109.0) 1 GBK10 2
dssssdssssssj 5.34 (135.6) 1 GBK1020 2
4.61 (117.1) 1 GBK13 2
dssssdssssssssss 5.69 (144.5) 1 GBK14 2
dssssdssssssssssj 6.74 (171.2) 1 GBK1420 2
dssssdsssssssssssssssss 8.14 (206.8) 1 GBK21 2
dssssdsssssssssssssssssj 9.19 (233.4) 1 GBK2120 2
5.78 (146.8) 1 BRGBK39512 34
s
j
d
(3) #14–10 Cu/Al or (1) #14–4 Cu/Al
(1) #6–2/0 Cu/Al
(1) #14–1/0 Cu/Al or (3) #14–10 Cu/Al
(1) #14–6 Cu/Al or (2) #14–12 Cu/Al
Mounting Hole
GBK14
BRGBK39512
f
d
f
f
f
k
f
d
f
k
f
f
f
f
k
f
d
f
k
f
f
f
k
f
d
f
k
f
f
f
k
f
k
f
V1-T1-94 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.4
Loadcenters and Circuit Breakers
Enclosed Breakers
Enclosed Breakers
Contents
Description Page
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-95
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-95
Product Overview
Eaton enclosed breakers
offer all the advantages of
circuit breakers packed in an
enclosure for 240 Vac
applications and include a
wide range of accessories.
Product Description
●100–225 A, 240 Vac
maximum
●
NEMA 1 general purpose—
surface or flush mounting
●NEMA 3R rainproof
surface mounting
Standards and
Certifications
●UL 489
●CSA 22.2
●NEMA 250
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-95
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.4
Loadcenters and Circuit Breakers
Enclosed Breakers
Product Selection
Single-Phase and Three-Phase Circuit Breaker Enclosures—10/25 kAIC
Type ECC Circuit Breaker Enclosure—Order Type CC Circuit Breaker Separately
Circuit Breaker 240 Vac for Use in
Type ECC Enclosures
Shunt Trips and Auxiliary Contacts
Dimensions
Approximate Dimensions in Inches (mm)
ECC Unit Enclosures—NEMA Type 1 Indoor
ECC Unit Enclosures—NEMA Type 3R Outdoor
Notes
1Factory installed CCVH breaker.
2Approved for service entrance.
3One ground lug accepting (1) #14–#2 is factory installed. Also, there are pre-drilled holes to
accept a GBK5 ground bar.
4Rainproof panels are furnished with hub closures plates. For rainproof hubs, refer to
Page V1-T1-66.
5Order circuit breaker separately.
6Wire size is determined by the circuit breaker installed in enclosure.
7Add suffix indicated to end of breaker catalog number.
Main Ampere
Rating
Unit Enclosure
Type
Mounting
Type
Circuit
Breaker Type
Wire Size Range
Cu/Al 60 °C or 75 °C
Catalog
Number
Single- and Three-Phase—240 Vac Maximum
100 Indoor Surface CCVH factory installed (25 kAIC) #4–4/0 ECCVH100S 123
150 Indoor Surface CCVH factory installed (25 kAIC) #4–4/0 ECCVH150S 123
200 Indoor Surface CCVH factory installed (25 kAIC) #2/0–300 kcmil ECCVH200S 123
100 Outdoor — CCVH factory installed (25 kAIC) #4–4/0 ECCVH100R 124
150 Outdoor — CCVH factory installed (25 kAIC) #4–4/0 ECCVH150R 124
200 Outdoor — CCVH factory installed (25 kAIC) #2/0–300 kcmil ECCVH200R 124
225 Indoor Flush CC/CCV/CCH 6ECC225F 235
225 Indoor Surface CC/CCV/CCH 6ECC225S 235
225 Outdoor — CC/CCV/CCH 6ECC225R 2345
ECC225R
Ampere
Rating
Wire Size
Range
Cu/Al 60 °C
or 75 °C
for Line
Terminals
Type CCV and
CC 10 kAIC
Catalog
Number
Type
CCVH/CCH
25 kAIC
Catalog
Number
Tw o - Po l e
60 #4–4/0 CCV2060 CCVH2060
70 CCV2070 CCVH2070
80 CCV2080 CCVH2080
90 CCV2090 CCVH2090
100 CCV2100 CCVH2100
125 CCV2125 CCVH2125
150 CCV2150 CCVH2150
175 #2/0–300 kcmil CCV2175 CCVH2175
200 CCV2200 CCVH2200
225 CCV2225 CCVH2225
Three-Pole
100 #4–4/0 CC3100 CCH3100
125 CC3125 CCH3125
150 CC3150 CCH3150
175 #2/0–300 kcmil CC3175 CCH3175
200 CC3200 CCH3200
225 CC3225 CCH3225
CCV2200
Description Catalog Number
Suffix Adder 7
Type Volt s
Shunt Trip
CC 12 DC SR12
CC 24 DC SR24
CC 120 AC SR01
CC 208 AC SR08
CC 240 AC SR02
CCV 48–127 AC/48–60 DC SR01
CCV 9–24 AC/12–24 DC SR02
CCV 208–380 AC/100–127 DC SR04
Auxiliary Contact
CC 1NO and 1NC — AL1
Height Width Depth
23.25 (590.6) 8.88 (225.4) 4.50 (114.3)
Height Width Depth
23.68 (601.7) 9.31 (236.5) 5.44 (138.1)
V1-T1-96 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.5
Loadcenters and Circuit Breakers
Classified Circuit Breakers
Classified Breakers
Contents
Description Page
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-97
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-99
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-99
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . V1-T1-100
Product Description
Eaton UL classified
Replacement Circuit Breakers
are available in both 3/4-inch
Type CHQ and 1-inch Type
CL, single- and two-pole
configurations. These
breakers are classified as
direct replacements by
Underwriters Laboratories.
In addition to a UL listing,
they also come with a
15-year warranty.
Specified vs. UL Classified
Specified breakers are listed
by the manufacturer of the
panelboard for use in a
particular panel. This doesn’t
mean that the panelboard
manufacturer produced the
specified breaker; it merely
means that the panelboard
manufacturer has tested the
breaker in the panel. In fact,
through the years, Eaton has
manufactured thousands of
breakers for other panelboard
manufacturers.
UL classified breakers
are produced by one
manufacturer for use in
place of the breakers
specified on the panelboard.
Like specified breakers,
UL classified breakers have
been tested in the panels for
which they are approved.
Testing
Classified breakers are
tested exten
sively in
numerous General Electric
®
,
Siemens
®
, Murray
®
,
Thomas & Betts®, Square D®,
and Crouse-Hinds® panels.
The tests are con
ducted with
witnesses from Underwriters
Laboratories Inc. and involve
short-circuit,
temperature,
and insertion/withdrawal
applications. This level of
testing ensures
that the
breakers meet identified
standards and have been
found suitable by UL for
the specified purpose.
Understanding Classified
Breaker Terminology
Definitions
Specified circuit breaker—
each manufacturer lists
the brands of circuit
breakers that can be used
in their panelboards. Often,
manufacturers will not list
competitors as specified,
even though they are
suitable replacements.
Classified circuit breaker—
a breaker that is considered
suitable, by a qualified third-
party organization, for use
in another manufacturer’s
panelboard.
Listed breaker—the listing
of a circuit breaker is by an
independent third party. Eaton
classified breakers are listed
by UL.
Labeled breaker—a breaker
with a label affixed by an
independent third party.
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-97
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.5
Loadcenters and Circuit Breakers
Classified Circuit Breakers
Product Selection
Type CHQ Replacement Breakers for Square D Type QO Loadcenters
10 kAIC, 120 and 120/240 Vac
Type CHQ Classified Breakers 3/4-Inch (19.1 mm) per Pole
120 or 120/240 Vac, 10 kAIC
Type CHQ Surge Arrester
Ampere
Rating
Wire Size Range
Cu/Al 60 °C or 75 °C
Single-Pole 120/240 Vac
Requires One
3/4-Inch (19.1 mm) Space
10 per Shelf Carton
Two-Pole 120/240 Vac
Common Trip Requires Two
3/4-Inch (19.1 mm) Spaces
5 per Shelf Carton
Catalog Number Catalog Number
15 (1) #14–8
(2) #14–10
CHQ115 CHQ215
20 CHQ120 CHQ220
25 CHQ125 CHQ225
30 CHQ130 CHQ230
35 CHQ135 CHQ235
40 CHQ140 CHQ240
45 CHQ145 CHQ245
50 CHQ150 CHQ250
60 —CHQ260
Catalog Number
CHQSA
CHQ120 CHQ230
V1-T1-98 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.5
Loadcenters and Circuit Breakers
Classified Circuit Breakers
Type CL Replacement Breakers for Square D HOMELINE, General Electric, Crouse-Hinds,
Thomas & Betts, Murray and ITE®/Siemens Loadcenters
Type CL Breakers, 1-Inch (25.4 mm) per Pole, 10 kAIC
Type CL Classified Arc and Ground Fault Breakers (5 Milliampere),
1-Inch (25.4 mm) per Pole, 10 kAIC
Type CL Classified Latching Remote Control Smart Breakers™,
1-Inch (25.4 mm) per Pole, 10 kAIC
Ampere
Rating
Wire Size
Range Cu/Al
60 °C or 75 °C
Single-Pole 120/240 V
Requires One
1-Inch (25.4 mm) Space
10 per Shelf Carton
Catalog Number
Two-Pole 120/240 V
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
5 per Shelf Carton
Catalog Number
15 #14–4 CL115 CL215
20 #14–4 CL120 CL220
25 #14–4 CL125 CL225
30 #14–4 CL130 CL230
35 #14–4 CL135 CL235
40 #14–4 CL140 CL240
45 #14–4 CL145 CL245
50 #14–4 CL150 CL250
Ampere
Rating
Wire Size
Range Cu/Al
60 °C or 75 °C
Single-Pole 120/240 V
Requires One 1-Inch (25.4 mm) Space
1 per Shelf Carton
Catalog Number
Arc Fault Breakers
15 #14–4 CL115AF
20 #14–4 CL115CAF
20 #14–4 CL120AF
20 #14–4 CL120CAF
Ground Fault Breakers
15 #14–4 CL115GFT
20 #14–4 CL120GFT
30 #14–4 CL130GFT
Ampere
Rating
Wire Size
Range Cu/Al
60 °C or 75 °C
Single-Pole 120 V
Requires One
1-Inch (25.4 mm) Space
10 per Shelf Carton
Catalog Number
Two-Pole 120/240 V
Common Trip Requires Two
1-Inch (25.4 mm) Spaces
5 per Shelf Carton
Catalog Number
15 (2) #14–10 CLRP115 CLRP215
20 (2) #14–10 CLRP120 CLRP220
25 (1) #8–6 CLRP125 CLRP225
30 (1) #8–6 CLRP130 CLRP230
CL_
CL_AF
CLR_
Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com V1-T1-99
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.5
Loadcenters and Circuit Breakers
Classified Circuit Breakers
Accessories
CHQ Breaker Accessories
Description
Catalog
Number
Breaker handle lock CHLO
Technical Data
Arc Fault Application Notes
An arc fault circuit interrupter
is a device intended to
provide protection from
the effects of arc faults by
recognizing characteristics
unique to arcing and by
functioning to de-energize
the circuit when the arc
fault is detected. As of
January 1, 2002, the
National Electrical Code
(NEC) requires all branch
circuits that supply 125 V,
single-phase, 15 and 20 A
receptacle outlets installed
in dwelling unit bedrooms
shall be protected by an arc
fault circuit interrupter(s).
This includes ceiling lighting
(recessed, ceiling fans, etc.)
as well as smoke detectors
and all other bedroom outlets.
The 2005 NEC introduced the
application of the
Combination Type AFCI for
bedroom circuits required as
of January 1, 2008. The 2008
NEC expands this application
to other living areas.
Ground Fault
Application Notes
Single-pole GFTCBs are
designed for use in two-wire,
120 Vac circuits. Drawing
on Page V1-T1-100 shows a
typical wiring configuration.
Two-pole GFTCBs are
designed for use in three-
wire, 120/240 Vac circuits,
120 Vac multiwire circuits
employing common, neutral
and two-wire, 240 Vac
circuits obtained from a
120/240 Vac source.
Drawings on Page V1-T1-100
illustrate typical wiring
configurations for
120/240 Vac multiwire
circuits.
Drawing on Page V1-T1-100
depicts a 240 Vac, two-wire
circuit. Note the “panel
neutral” conductor connects
to the neutral bar, even
though the neutral is not
included in the load circuit.
This connection is necessary
to supply a 120 Vac power
source to the ground fault
sensing circuit.
The figures are shown with
a 120/240 Vac, single-phase,
three-wire power source,
ut are also applicable to a
120/208 Vac, three-phase,
four-wire power supply.
For all figures, the electrical
operation of the GFTCB
is not affected by the
equipment ground.
V1-T1-100 Volume 1—Residential and Light Commercial CA08100002E—March 2016 www.eaton.com
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.5
Loadcenters and Circuit Breakers
Classified Circuit Breakers
Wiring Diagrams
Single-Pole 120 V Load Application Sourced by 120/240 Vac
Two-Pole Shared Neutral with
Multi-Duplex Receptacle Application
Single-Pole 120 V Duplex Receptacle Application
Two-Pole 120 V Multi-Duplex Receptacle Application
Two-Pole 240 V Load Application Sourced by 120/240 Vac
Two-Pole Shared Neutral with
Duplex Receptacle Application
Two-Pole 120 V Duplex Receptacle Application
Two-Pole 240 V Duplex Receptacle Application
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
Equipment Ground
NA B
120/240 Vac
Source
Two 120V
Duplex
Receptacles
Two-Pole
Line B
Line A
Neutral
Neutral
Equipment Ground
NAB
120/240 Vac
Source
120V
Duplex
Receptacle
Single-Pole
Line B
Neutral
Neutral
NA B
120/240 Vac
Source
Two 120V
Duplex
Receptacles
Two-Pole
Line B
Line A
Neutral
Neutral
Line B
NA B
120/240 Vac
Source
Line A 240V
Duplex
Receptacle
Two-Pole
Neutral
Equipment Ground
NAB
120/240 Vac
Source
Line A
120V Duplex
Receptacle
(With Line Side
Jumper Removed)
Two-Pole
Line B
Neutral
Neutral
Equipment Ground
NAB
120/240 Vac
Source
Line A
120V Duplex
Receptacle
(With Line Side
Jumper Removed)
Two-Pole
Line B
Neutral
Neutral
Line B
NA B
120/240 Vac
Source
Line A 240V
Duplex
Receptacle
Two-Pole
Neutral

Navigation menu
