RP01301002E For more information visit: www.cutler-hammer.eaton.com

Magnum Air Circuit Breakers (IEC)

Renewal Parts and Accessories

Renewal Parts

Supersedes RP.22F.01.T.E,

Pages 1 – 25, dated October 2001.

Description Page

Magnum Air Circuit Breakers Renewal Parts and Accessories

Procedure for Identifying Breaker Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Ordering Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Non-Warranty Repair. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

Magnum Breaker Catalog Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

Magnum Fixed Mounted Breaker (800 – 3200 A) . . . . . . . . . . . . . . . . . . . . . . .

4

Magnum Drawout Breaker (800 – 3200 A) . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

Magnum Drawout Breaker (4000 – 6300 A) . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Magnum Drawout Cassette (800 – 3200 A). . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

Breaker Mechanism and Related Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

Current Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

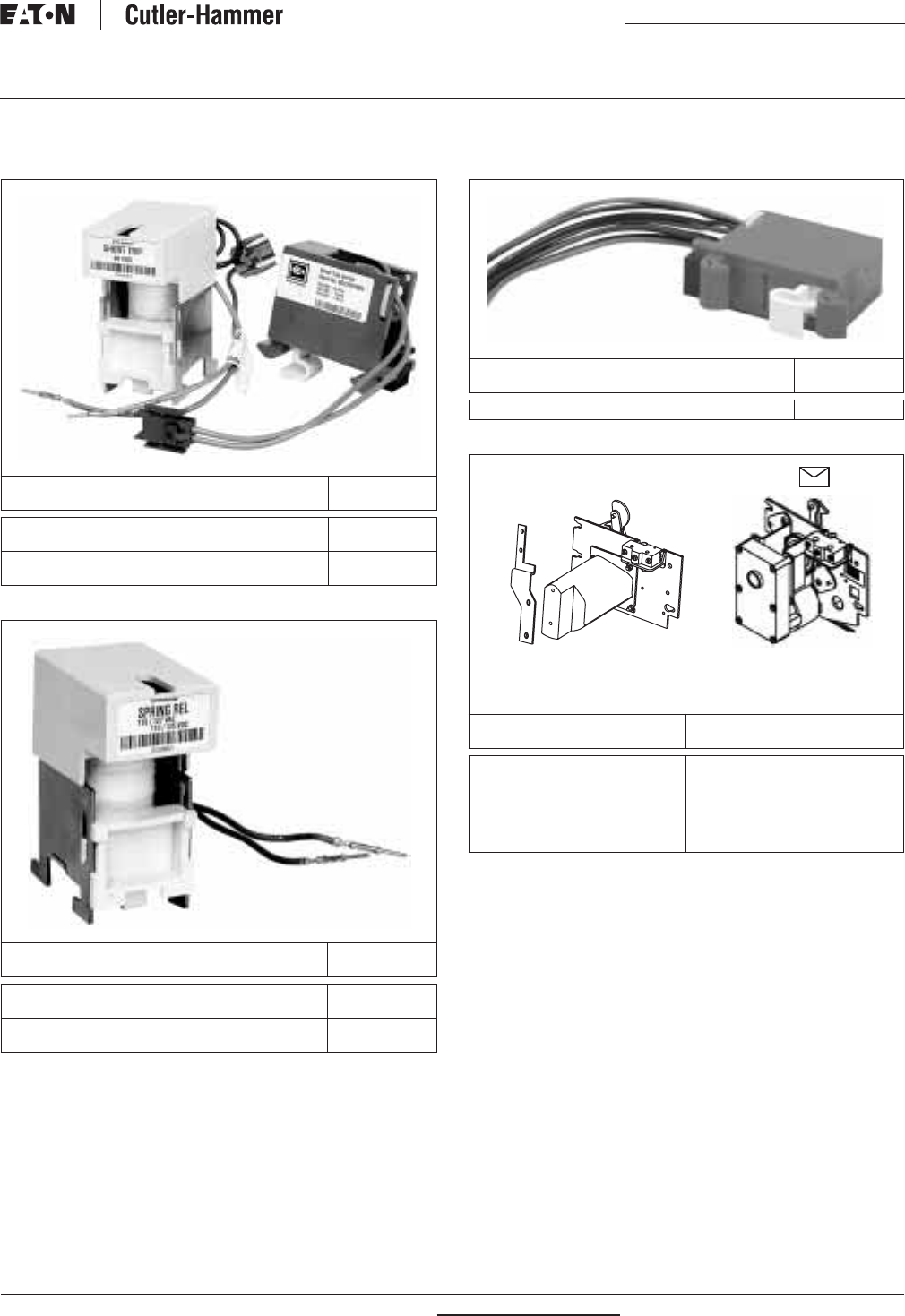

Electrical Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

Cassette (Cell) Attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Breaker Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

External Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17

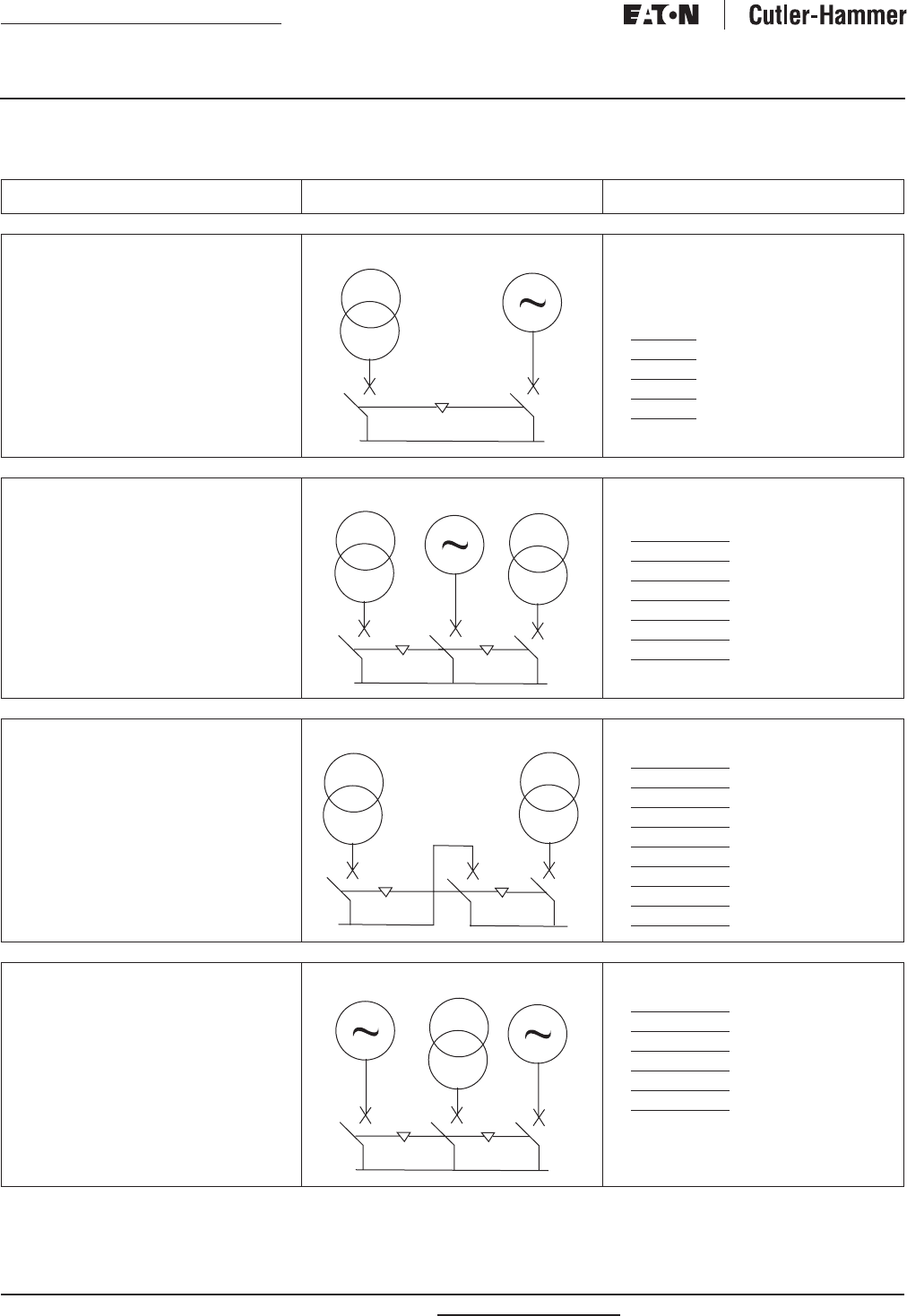

Mechanical Interlock Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18

Mechanical Interlock — External Accessories . . . . . . . . . . . . . . . . . . . . . . . . .

19

Basic Breaker Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

20

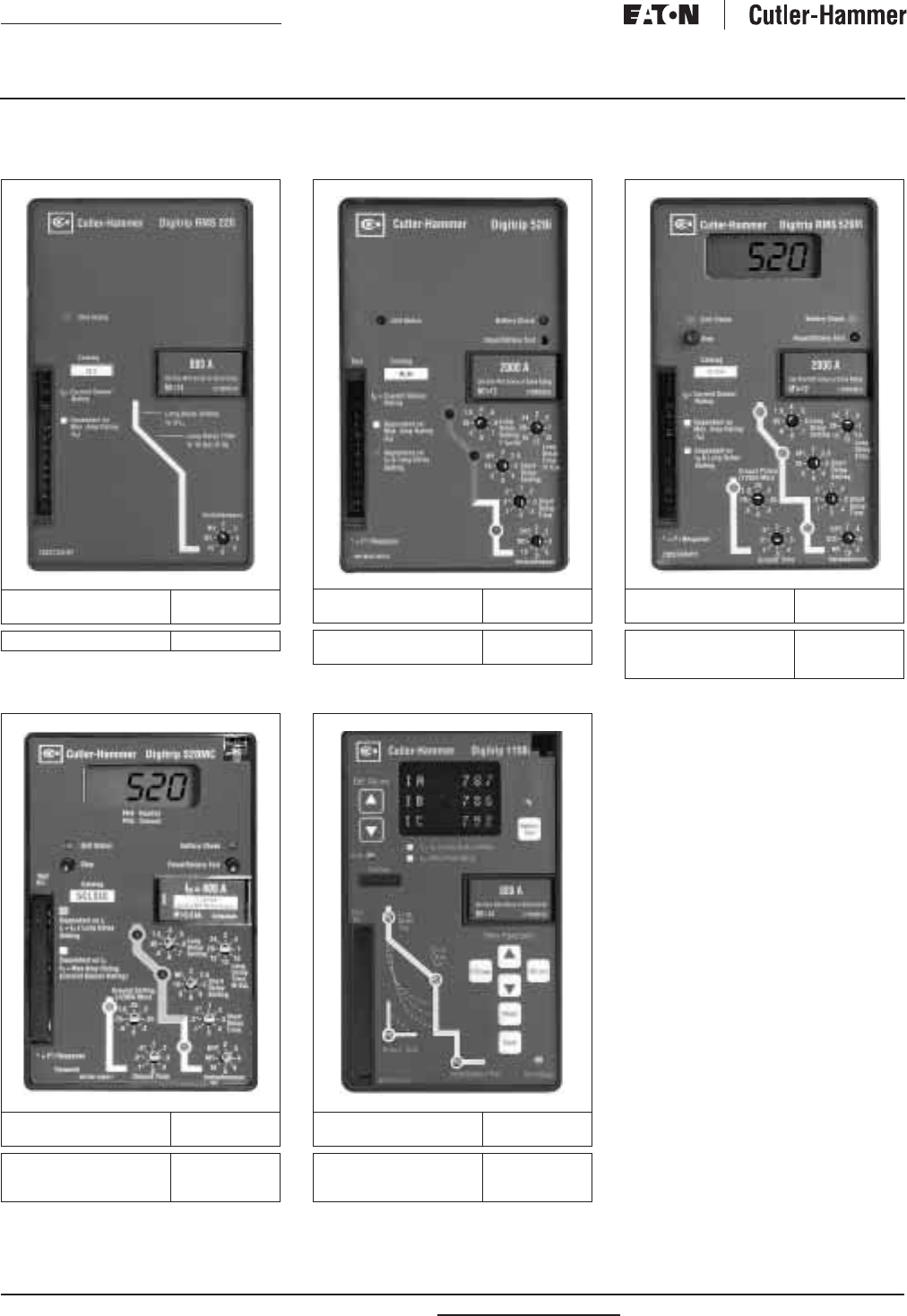

Trip Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

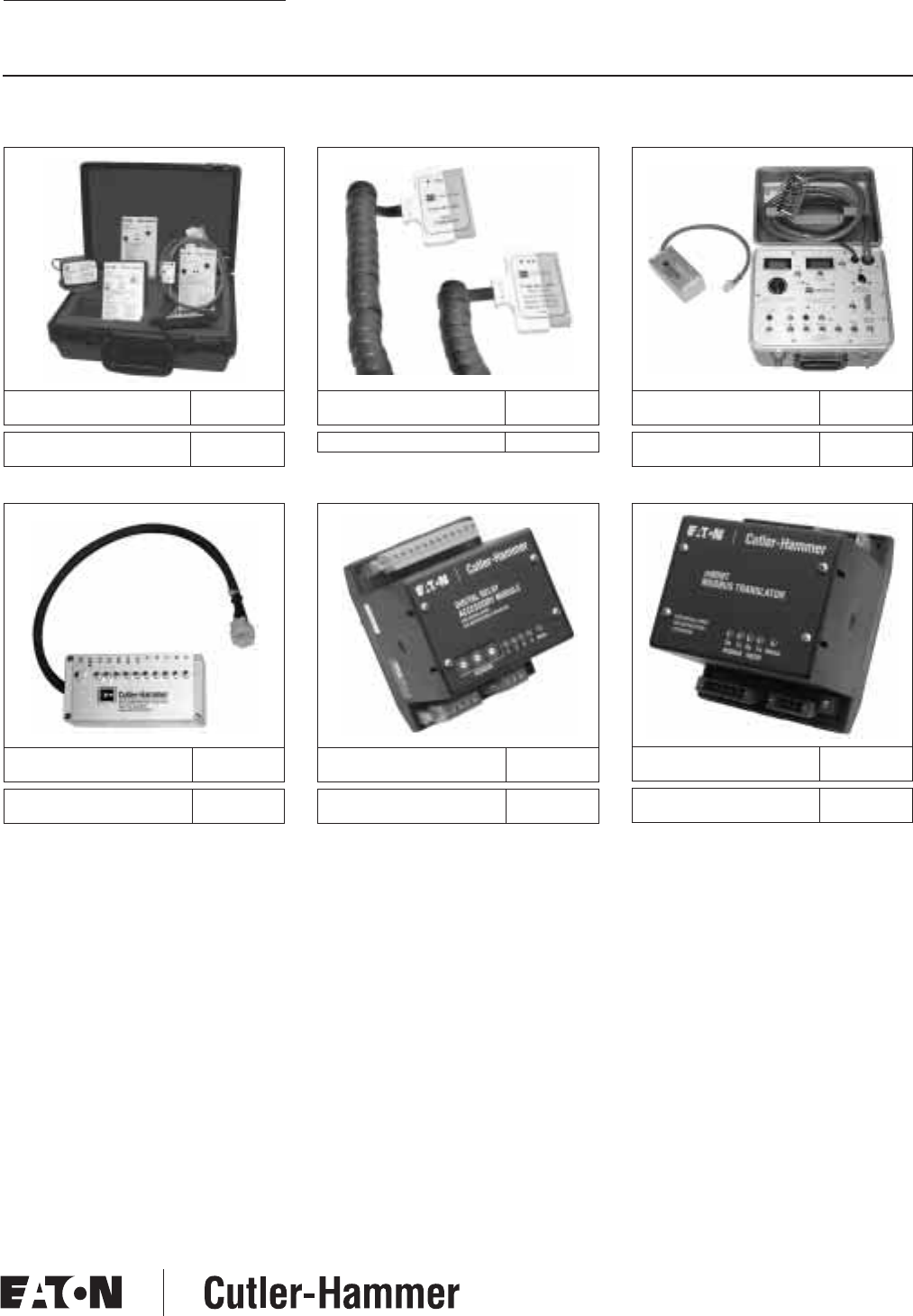

Magnum Test Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

24

NOTE:

Items in this Renewal Parts Data book

are designed for field installation by

qualified personnel.

Contact Eaton’s Cutler-Hammer busi-

ness if assistance for field installation

is required, or for information about

any parts not referenced or identified.

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page

2

Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Procedure for Identifying Breaker Type

MWI Type Breaker

A

Low voltage air circuit breaker family name

B

Breaker family designation number

C

Breaker frame size in amperes

D

Interrupting capacity rating

E

Accessories

F

Catalog number

The Catalog Number is a 25-digit number located on the

breaker's nameplate.

An example of this number is:

■

MWI8323LEA32MAAMNA2YNNNAX

Eaten’s Cutler-Hammer Magnum

E

circuit breakers can be

identified using either the Cat# or the G.O. (General Order

Number) which is located on the breaker’s nameplate.

An example of this number is:

■

G.O. #1234567 It: 001

Ordering Instructions

1. Check the nameplate to identify the type of breaker

you have. (If adding accessories or options to existing

breakers, you must also provide the information for

those accessories.)

2. Identify the part(s) from the photos shown.

3. Determine the Style or Catalog Number for the

required parts.

4. Specify the quantity required.

5. Order the parts from your local Cutler-Hammer

distributor.

6. State the method of shipment.

Non-Warranty Repair

The Cutler-Hammer business offers non-warranty factory

repair service for Magnum breakers. A non-warranty breaker

is one that has exceeded its original factory warranty.

The non-warranty repair service features:

■

Quality Magnum breakers repair specified and audited by

factory engineers according to procedures.

■

Only genuine new Cutler-Hammer replacement parts.

■

Original factory specifications and design drawings used

by factory trained technicians.

■

One-year factory warranty issued from date of shipment

from repair center.

■

Repair lead time of four to six weeks.

B

C

D

E

F

A

IMPORTANT NOTE:

Cutler-Hammer Engineering Services and Systems

offers parts installation and authorized repair.

Call 1-800-498-2678 for the CHESS District Operating

Center nearest you.

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page

3

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Magnum Breaker Catalog Identification

Table 1. Catalog Numbering System

3. Type

I = Standard IEC Frame

K = (1100 V)

N = Narrow Frame

MWAX-

12345678910 11 1213141516171819202122 232425

13 and 14. Trip Unit

NN = Unprotected

22 = 220 LI

52 = 520 LSI

5W = 520i LSIG

M2 = 520M LSI

MT = 520M LSI 24/48 Vdc

MU = 520M LSI 120 Vac

MV = 520M LSI 240 Vac

MW = 520Mi LSIG

MJ = 520Mi LSIG 24/48 Vdc

MK = 520Mi LSIG 120 Vac

ML = 520Mi LSIG 240 Vac

ME = 520M LSIA 24/48 Vdc

MC = 520M LSIA 120 Vac

MF = 520M LSIA 240 Vac

1W = 1150i LSI 24/48 Vdc

1N = 1150i LSI 120 Vac

1P = 1150i LSI 240 Vac

1R = 1150i LSIG/A 24/48 Vdc

1S = 1150i LSIG/A 120 Vac

1T = 1150i LSIG/A 240 Vac

CU = 520MC LSI 120 Vac

CV = 520MC LSI 240 Vac

CT = 520MC LSI 24/48 Vdc

CK = 520MCi LSIG 120 Vac

CL = 520MCi LSIG 240 Vac

CJ = 520MCi LSIG 24/48 Vdc

CC = 520MC LSIA 120 Vac

CF = 520MC LSIA 240 Vac

CE = 520MC LSIA 24/48 Vdc

18. UVR/Second ST

N = None

A = 110 - 127 Vac (Instant.)

R = 208 - 240 Vac (Instant.)

C = 24 Vdc (Instant.)

H = 48 Vdc (Instant.)

E = 110 - 125 Vdc (Instant.)

F = 220 - 250 Vdc (Instant.)

G = 32 Vdc (Instant.)

X = 380 - 415 Vac (Instant.)

J = 480 Vac (Instant.)

K = 600 Vac (Instant.)

1 = 110 - 127 Vac/Vdc (2nd ST)

2 = 208 - 240 Vac/Vdc (2nd ST)

3 = 24 Vdc (2nd ST)

4 = 48 Vdc (2nd ST)

23. Latch Check Switch/Load Side Voltmeter

LCS Metering TU Volt Configuration

Connection (520M, 520MC, or 1150)

N = None Standard

M = None Load Side Voltage Metering

L = SR Standard

Y = SR Load Side Voltage Metering

C = Cust. Standard

D = Cust. Load Side Voltage Metering

19. Auxiliary Switch

N = None

2 = 2A/2B

4 = 4A/4B

6 = 6A/6B

20. OTS/Bell Alarm

N = None with Trip Indicator

E = None without Trip Indicator

Y = 2 Form C

21. Padlocks

N = None

M = Metal

P = Plastic

C = Close PB Metal

H = Close PB Plastic

22. Operations Counter / Keylock

X Counter Keylock

N None None

K None Kirk

C None Castell

R None Ronis

A Counter None

Y Counter Kirk

L Counter Castell

H Counter Ronis

15. Shunt Trip

N = None

A = 110 - 127 Vac/Vdc

R = 208 - 240 Vac/Vdc

C = 24 Vdc

H = 48 Vdc

16. Motor Operator

M = Manual Operated

N = 110 - 125 Vac

W = 110 - 125 Vdc

T = 220 - 250 Vdc

P = 220 - 250 Vac

L = 24 Vdc

K = 48 Vdc

17. Spring Release

N = None

A = 110 - 127 Vac/Vdc

R = 208 - 240 Vac/Vdc

C = 24 Vdc

H = 48 Vdc

4. Interrupt/Withstand

5 and 6. Continuous Amperes

7. Poles

8. Mounting Configuration

9. Nameplate Language

11 and 12. Sensor/Plugs

4 = 40/40 (MWI only)

6 = 65/65

8 = 85/85

C = 100/85 - 100/100

E = 150/100

3 = Three

4 = Four

08 = 800

12 = 1250

16 = 1600

20 = 2000

25 = 2500

32 = 3200

40 = 4000 ABCABC

50 = 5000 ABCABC

63 = 6300 ABCABC

4N = 4000 AABBCC

5N = 5000 AABBCC

6N = 6300 AABBCC

F = Fixed Front

H = Fixed Horizontal

V = Fixed Vertical

L = Drawout Horizontal

E = English

A = Spanish

NN = None

02 = 200

05 = 250

03 = 300

04 = 400

06 = 600

07 = 630

08 = 800

10 = 1000

12 = 1200

13 = 1250

16 = 1600

20 = 2000

25 = 2500

30 = 3000

32 = 3200

40 = 4000

50 = 5000

63 = 6300

24. Shipping Instuctions

A = Breaker Alone

C = Breaker and Cassette

P = Breaker in Prewired Cassette

S = Breaker in Cassette with Shutters

W = Breaker in Prewired Cassette with Shutters

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page

4

Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

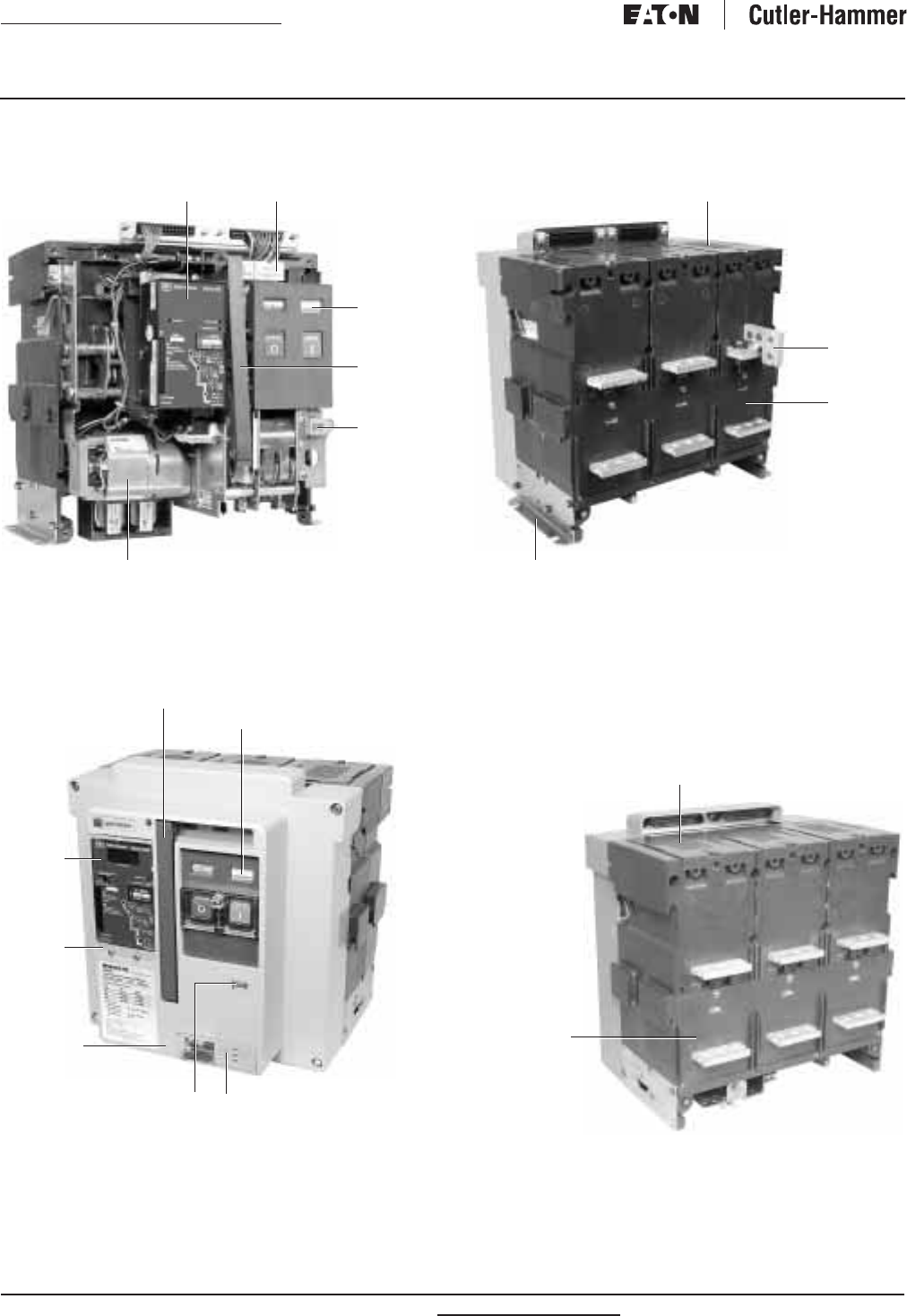

Magnum Fixed Mounted Breaker (800 – 3200 A) — Standard Frame Shown

Front View — Without Cover Rear View

Magnum Drawout Breaker (800 – 3200 A) — Standard Frame Shown

Front View

Note:

Optional Breaker Key Interlock (not shown).

Rear View

Note:

Optional Breaker Key Interlock (not shown).

Optional Accessories

(Pages 9 & 16)

Trip Unit

(Page 22)

Motor Operator

(Page 9)

Faceplate

Buttons

& Flags

(Page 7)

Charging

Handle

Optional

Operations

Counter

(Page 6)

Mounting Feet

(Page 21)

Arc Chutes

(Page 21)

Optional

Vertical

Adapters

(Page 8)

Current

Sensor

(Page 11)

Charging Handle

Trip Unit

(Page 22)

Trip Unit

Cover

(Page 23)

Levering-In

(Page 7)

Front Cover

(Page 20)

Faceplate Buttons & Flags

(Page 7)

Optional Operations

Counter (Page 6)

Arc Chutes

(Page 21)

Current Sensor

Door (Page 21)

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page

5

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

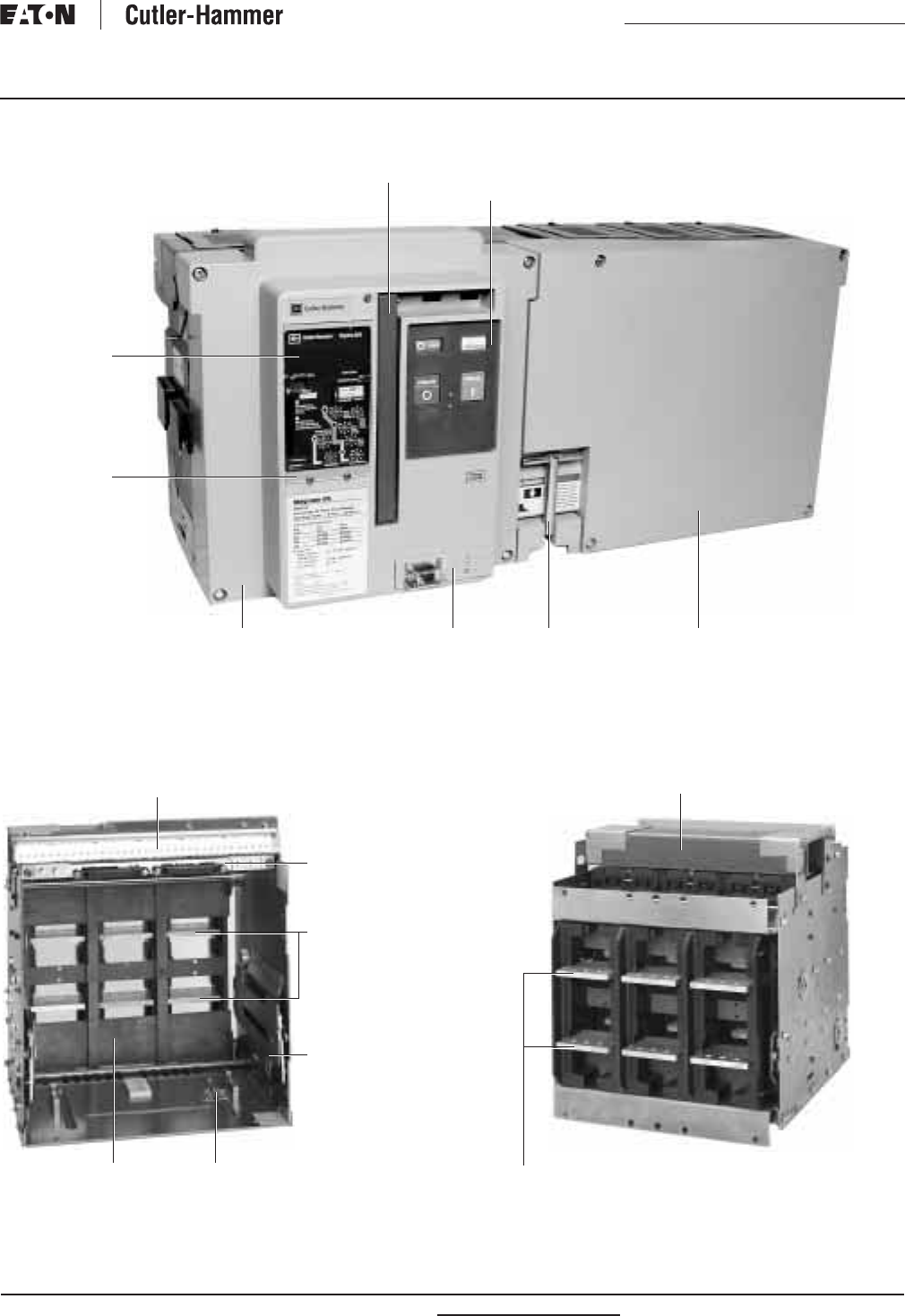

Magnum Drawout Breaker (4000 – 6300 A)

Front View

Magnum Drawout Cassette (800 – 3200 A) — Standard Frame Cassette Shown

1

Rear View Front View

1

(4000 – 6300 A) not shown.

Charging Handle

Trip Unit

(Page 22)

Trip Unit

Cover

(Page 23)

Levering-in

(Page 7)Front Cover

(Page 20)

Handle

(Page 20)

Faceplate Buttons & Flags

(Page 7)

Front Cover

(Page 20)

Secondary Terminal Block

(Page 13)

Cassette Secondary

Disconnect Block

(Page 10)

MWI Copper Line

& Load Stabs

(Page 15)

Back Plane

Cassette

Extension Rails

Rejection Pins

(Page 13)

MWI Copper Line & Load Stabs

(Page 15)

Cassette Arc Chute Cover (Page 14)

Optional Arc Chute Cover (Page 15)

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page

6

Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

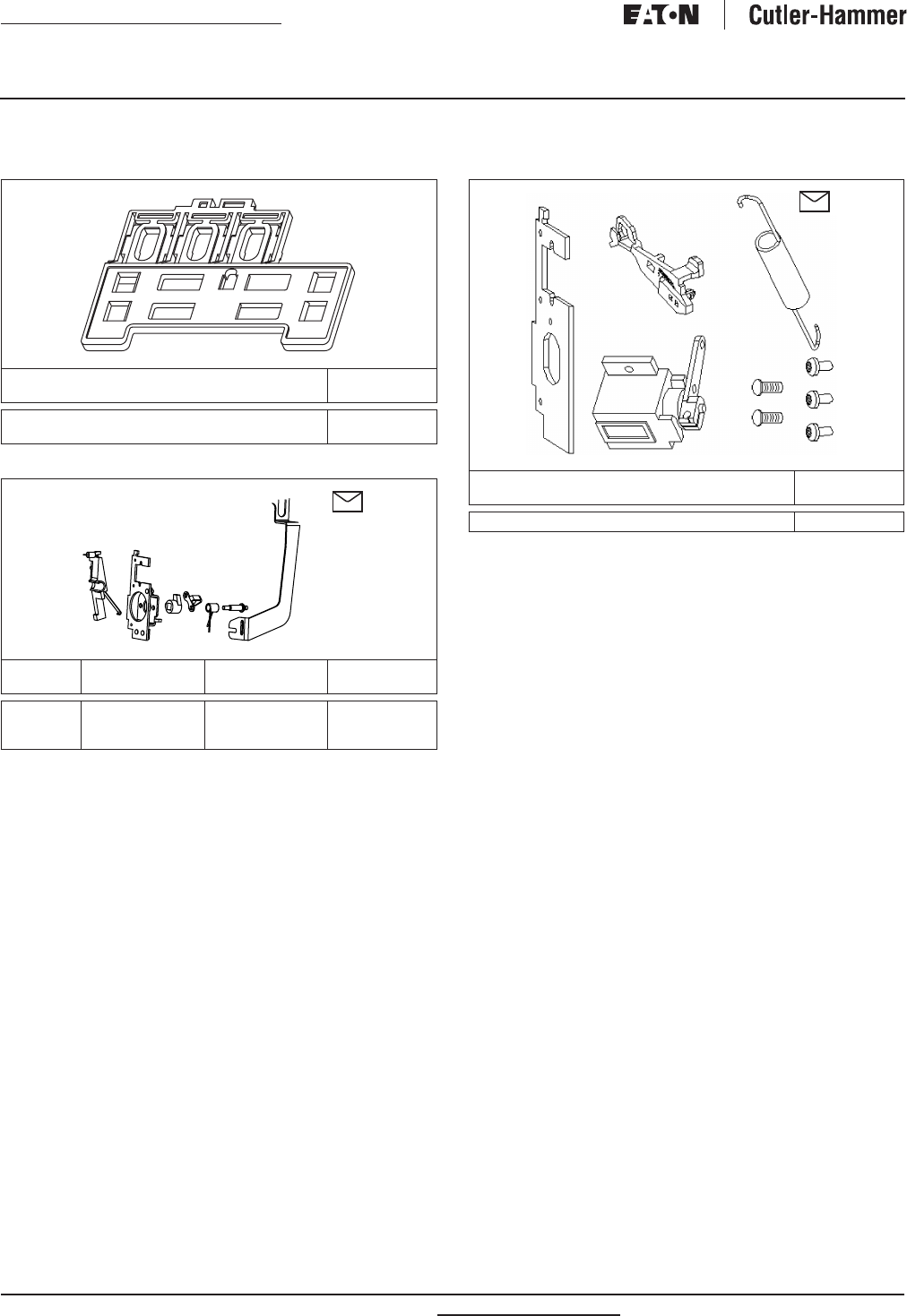

Breaker Mechanism and Related Parts

Table 2. Accessories Tray

Table 3. Breaker Key Interlock Provision

1

The Cutler-Hammer business does not supply lock or key,

only the provision.

Note:

Castell shown.

Table 4. Operations Counter

Description Catalog

Number

Tray where UVR Shunt, Spring Releases

and Auxiliary Switch Mount

2A10891G01

Lock

Type Lock

Required

1

Key

Required

1

Catalog

Number

Ronis

Castell

Kirk

1104A

CL1019

KC40 – – – 10

Protec

CL1062

KC40

MBRLCKR

MBRLCKC

MBRLCKK

Hardwar

e

Included

Description Catalog

Number

Mechanical Counter

MCOUNT

Hardwar

e

Included

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page

7

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

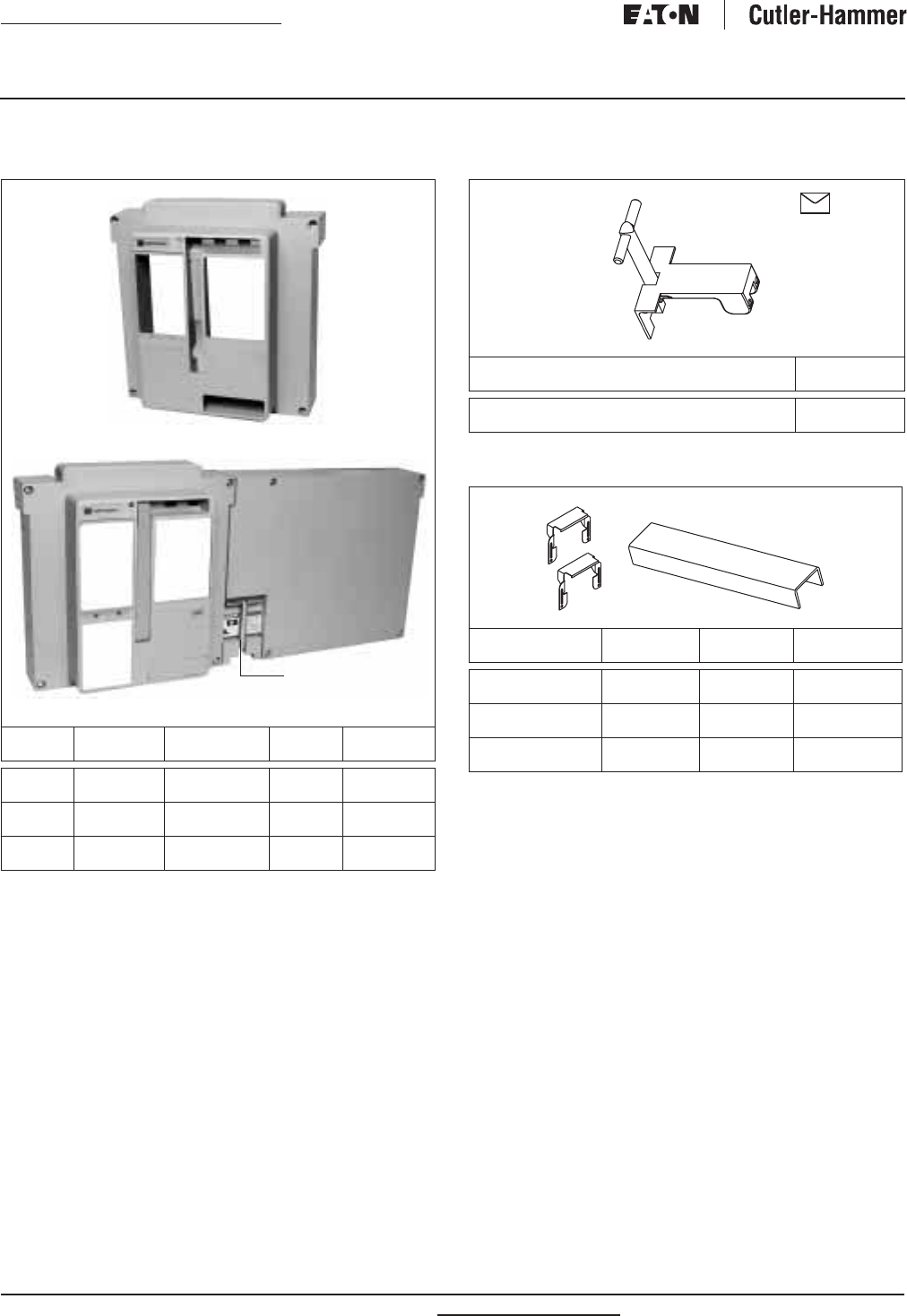

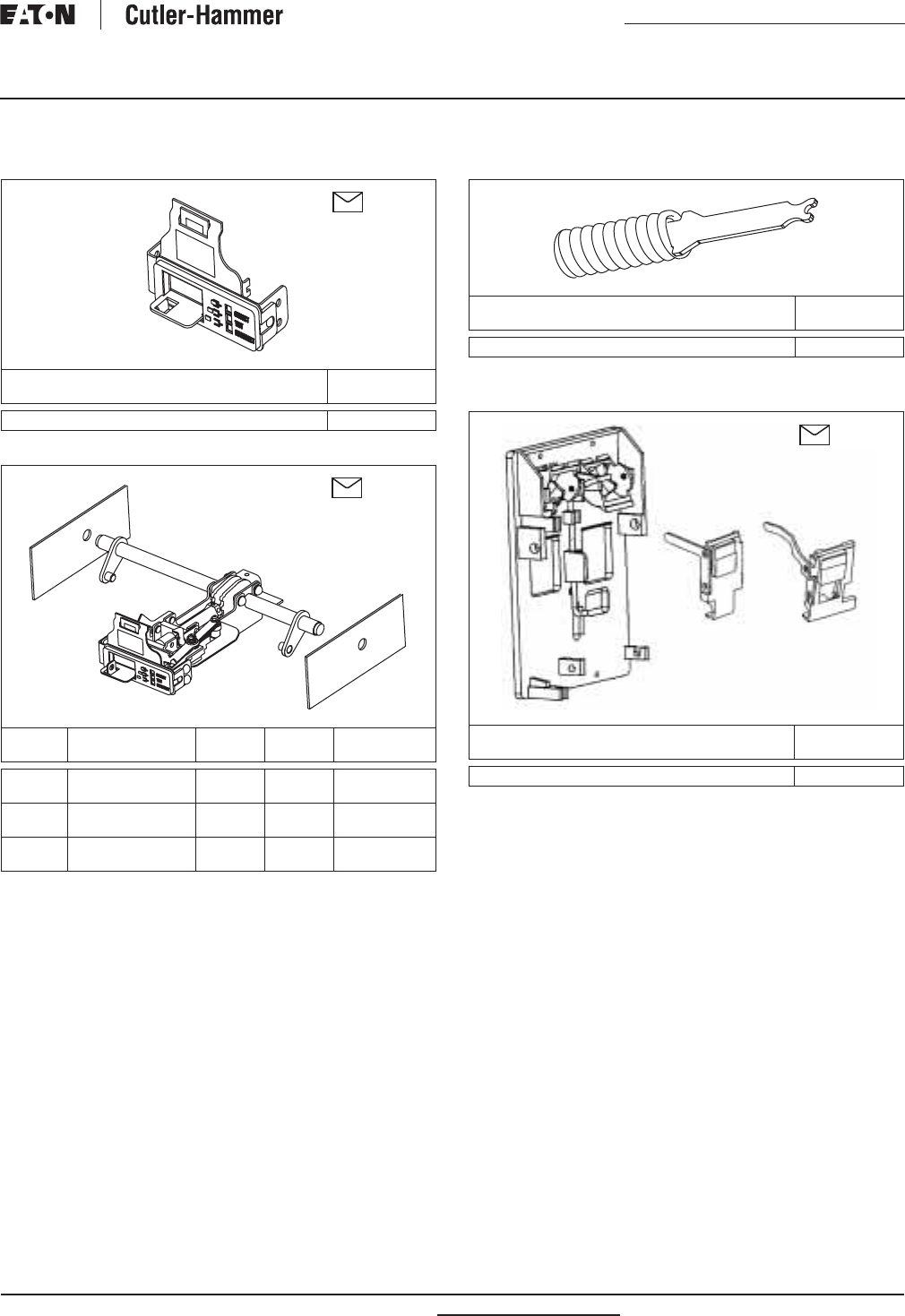

Breaker Mechanism and Related Parts (Continued)

Table 5. Levering Door and Door Mechanism

Table 6. Levering Mechanism Assembly

Table 7. Opening Spring and Guide

1

Need two sets for 4000 amperes and above breakers.

Table 8. Faceplate, Buttons and Flags

Breaker

Type Catalog

Number

MWI

2A10894G01

Breaker

Type Continuous

Ampere Rating Number

of Poles Frame

Size Catalog

Number

MWI

MWI Up to 3200

Up to 3200 3

4STD

STD

2A10855G01

2A10855G02

MWI

MWI 4000 and Above

4000 and Above 3

4DBL

DBL

2A10855G03

2A10855G04

MWN

MWN Up to 2000

Up to 2000 3

4NAR

NAR

2A10855G11

2A10855G12

Hardwar

e

Included

Hardwar

e

Included

Description

1

Catalog

Number

Returns Pole Shaft to Open Position

2A10893G01

Description Catalog

Number

Faceplate, Buttons and Flags

2A10895G01

Hardwar

e

Included

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page

8

Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

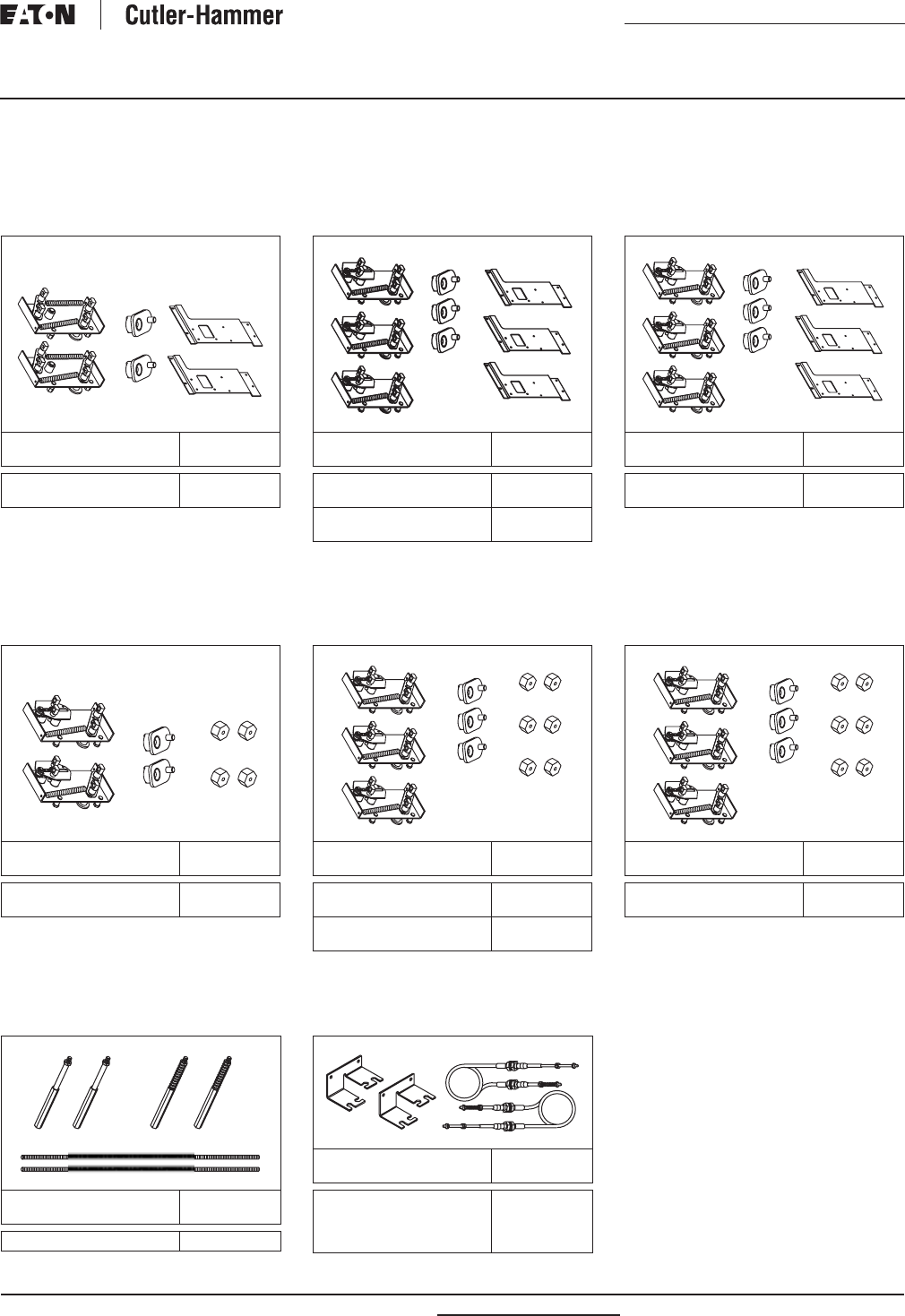

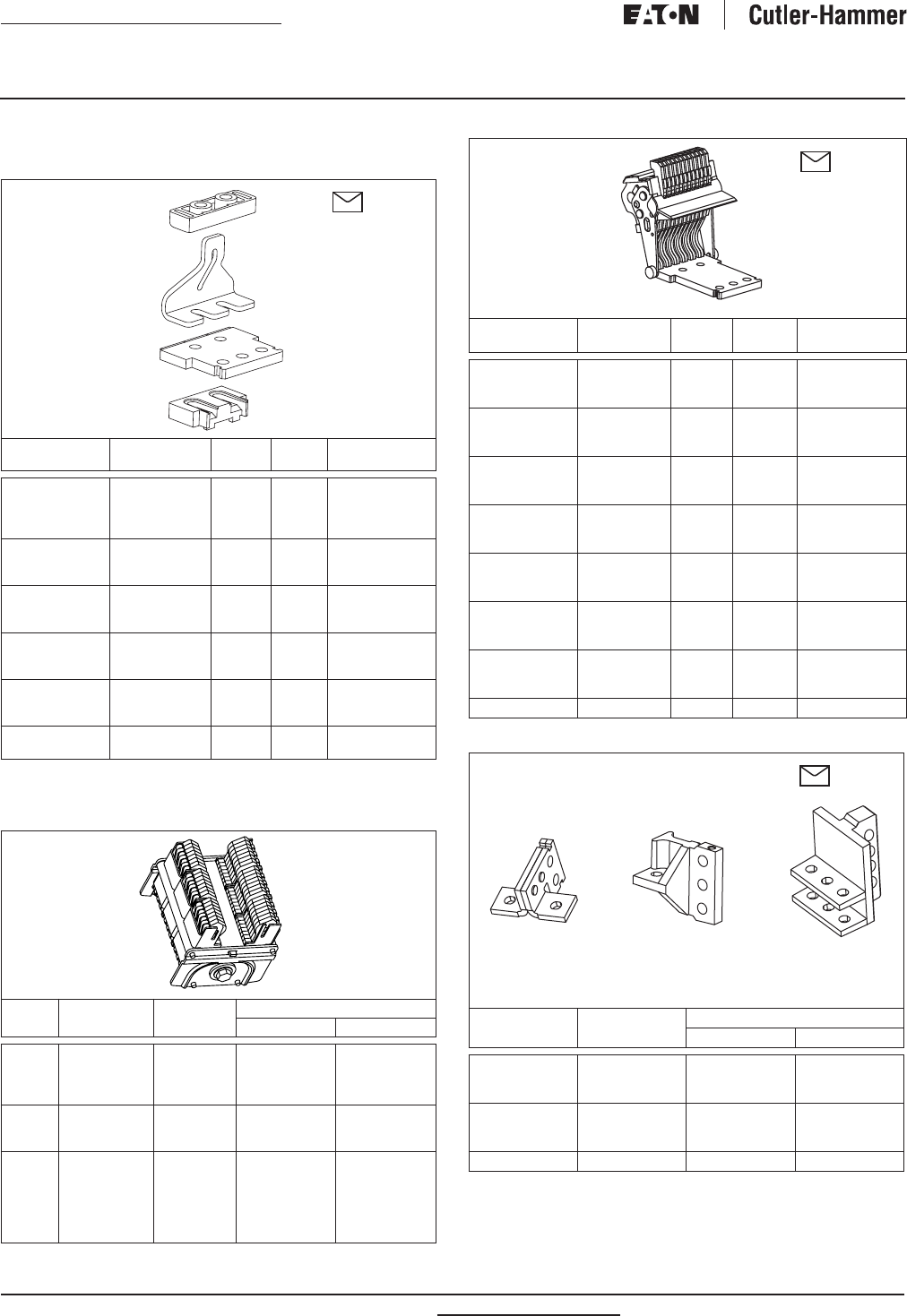

Current Path

Table 9. Breaker Stationary Contact Kit

1

Not required for narrow frame.

Note:

4000 – 6300 amperes require two kits.

Table 10. Primary Disconnects (Finger Clusters)

2

Order two kits.

Table 11. Breaker Moving Contact Kit

Table 12. Vertical Adapters for Fixed Breakers and Drawout Cassettes

3

Quantity will be 12 for 3-pole or 16 for 4-pole.

Note:

For Front Fixed Mounted Connections see

Table 32

.

Continuous

Ampere Rating Interrupting

Capacity (kA) Number

of Poles Frame

Size Catalog

Number

800

800/1600

800/2000

2000

42

65

65/85/100

65

3

3

3

3

STD

STD

STD

STD

2A10896G01

2A10896G02

2A10896G03

2A10896G03

2500/3200

800

800/1600

65/85/100

42

65

3

4

4

STD

STD

STD

2A10896G04

2A10896G05

2A10896G06

800/2000

2000

2500/3200

85/100

65

65/85/100

4

4

4

STD

STD

STD

2A10896G07

2A10896G07

2A10896G08

4000

5000

6300

85/100

85/100

85/100

3

3

3

DBL

DBL

DBL

2A10896G03

2A10896G04

2A10896G04

4000

5000

6300

85/100

85/100

85/100

4

4

4

DBL

DBL

DBL

2A10896G07

2A10896G08

2A10896G08

800/1600

800/1600 Up to 65 kA

Up to 65 kA 3

4NAR

NAR 2A10896G12

2A10896G15

Breaker

Type

Continuous

Ampere Rating

Interrupting

Capacity (kA)

Catalog Number

3-Poles (Qty. 6) 4-Poles (Qty. 8)

MWI

MWI

MWI

MWI

800/1250

800/1250/1600

800/1250/1600

2000A

40

65

85/100

65/85/100

2A10898G01

2A10898G02

2A10898G03

2A10898G03

2A10898G05

2A10898G06

2A10898G13

2A10898G14

MWI

MWI

MWI

2500/3200

4000

5000/6300

65/85/100

65

85/100

2A10898G04

2A10898G03 2

2A10898G04 2

2A10898G08

2A10898G07 2

2A10898G08 2

MWN

MWN

MWN

MWN

800/1250

800/1250/

1600/2000

800/1250

800/1250/

1600/2000

40

50/65

40

50/65

2A10898G11

2A10898G12

—

—

—

—

2A10898G13

2A10898G14

Hardwar

e

Included

1

1

Standard Frame Shown

Continuous

Ampere Rating Interrupting

Capacity (kA) Number

of Poles Breaker

Type Catalog

Number

800

1250

800/1250/1600

40

40

65

3

3

3

STD

STD

STD

2A10897G01

2A10897G02

2A10897G02

800/2000

2000

2500/3200

85/100

65

65/85/100

3

3

3

STD

STD

STD

2A10897G03

2A10897G03

2A10897G04

800

1250

800/1250/1600

40

40

65

4

4

4

STD

STD

STD

2A10897G05

2A10897G06

2A10897G06

80/2000

2000

2500/3200

85/100

65

65/85/100

4

4

4

STD

STD

STD

2A10897G07

2A10897G07

2A10897G08

800/1600

800/2000

2000

40/50

65

50/65

3

3

3

NAR

NAR

NAR

2A10897G21

2A10897G22

2A10897G22

800/1600

800/2000

2000

40/50

65

50/65

4

4

4

NAR

NAR

NAR

2A10897G23

2A10897G24

2A10897G24

4000

5000/6300

4000

65/85/100

65/85/100

65/85/100

3

3

4

DBL

DBL

DBL

2A10897G09

2A10897G10

2A10897G11

5000/6300 65/85/100 4 DBL 2A10897G12

Continuous

Ampere Rating Interrupting

Capacity (kA) Catalog Number

3-Poles (Qty. 6) 4-Poles (Qty. 8)

800 – 1600

800 – 1600

2000

40/65

85/100

65/85/100

MVADP16

MVADP20

MVADP20

MVADP416

MVADP420

MVADP420

3200

4000

5000/6300

65/85/100

65/85/100

65/85/100

MVADP25

MVADP40 3

MVADP50 3

MVADP425

MVADP440 3

MVADP450 3

Narrow All Ratings 2A11795G61 2A11795G62

Hardwar

e

Included

2000 A Contacts Shown

Hardwar

e

Included

800 – 1600 A

40/65 kA Only 800 – 1600 A,

2000 A, 4000 A

85/100 kA Only

2500 – 3200 A

5000 – 6300 A

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 9

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Electrical Attachments

Table 13. Shunt Trip (Opening Coil)

Table 14. Spring Release (Closing Coil)

Table 15. Auxiliary Switch

Table 16. Motor Operator

Note: Applicable for all Magnum frames.

Note: Manufacturing change 2nd quarter 2003. The New Motor Oper-

ator is a direct replacement and will include all the required materials

to mount in the location once housing the Old Motor Operator.

Control

Voltage Catalog

Number

110 – 127 Vac/Vdc

208 – 240 Vac/Vdc MST1

MST2

24 Vdc

48 Vdc MST3

MST4

Control

Voltage Catalog

Number

110 – 127 Vac/Vdc

208 – 240 Vac/Vdc MSRA

MSRR

24 Vdc

48 Vdc MSRC

MSRH

Description Catalog

Number

2a/2b Contacts MAUX2

Control

Voltage Catalog

Number

110 – 125 Vac

208 – 240 Vac

24 Vdc

MMOTN

MMOTP

MMOTL

48 Vdc

110 – 125 Vdc

208 – 240 Vdc

MMOTK

MMOTW

MMOTT

Hardwar

e

Included

Old Motor Operator

(Standard and Double

Frame Only)

New Motor Operator

(All Frames)

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page 10 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

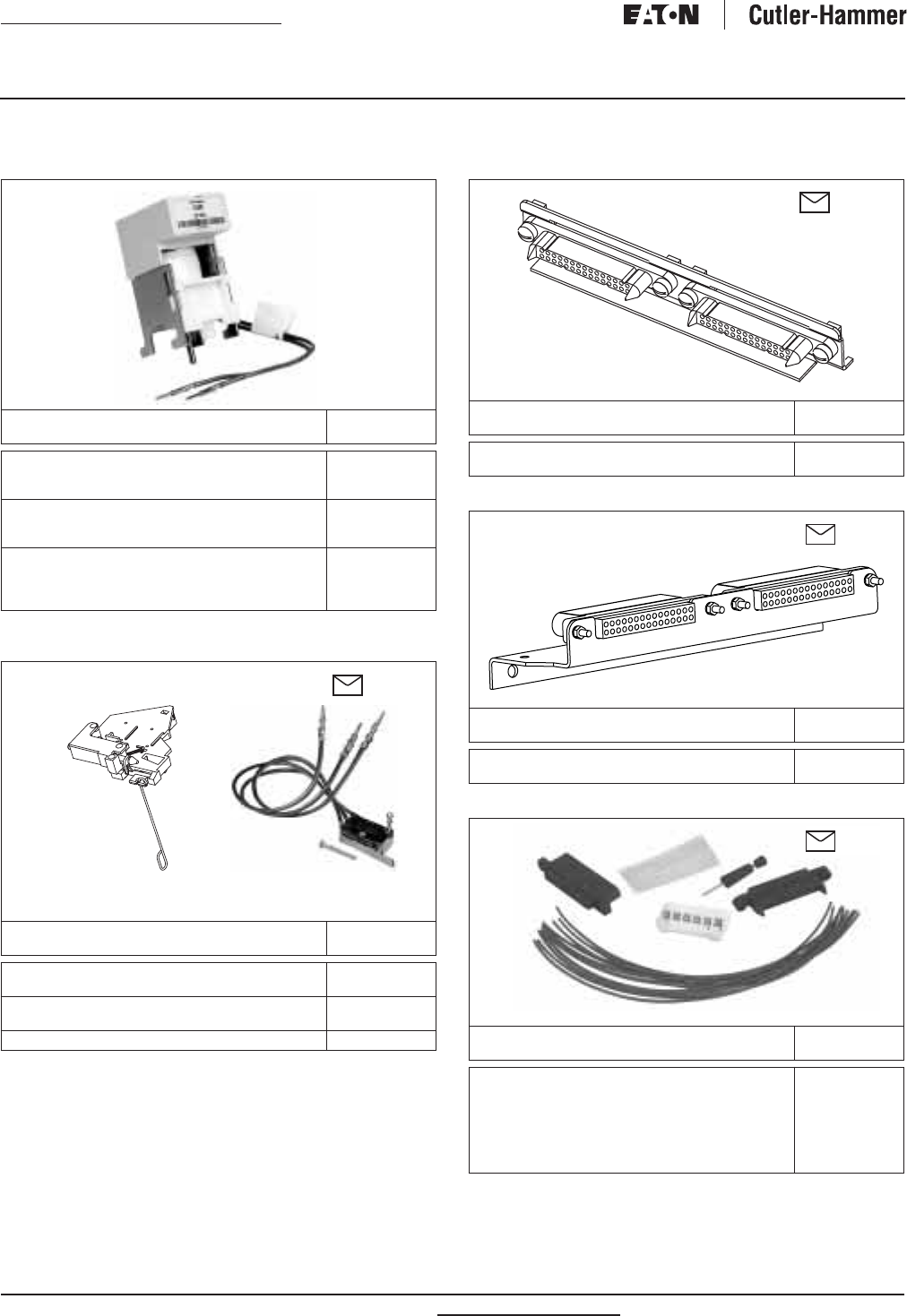

Electrical Attachments (Continued)

Table 17. Undervoltage Release

Table 18. Breaker Pop-Out Trip Indicator With Switches and Bell Alarm

— Overcurrent Trip Switch (OTS)

1Requires breaker to be equipped with pop-out visual trip indicator

assembly.

Table 19. Fixed Breaker Secondary Disconnect Block

Table 20. Breaker Terminal Block Bracket

Table 21. Secondary Repair Kit

Control

Voltage Catalog

Number

110 – 125 Vac

208 – 240 Vac

24 Vdc

MUVRA

MUVRR

MUVRC

32 Vdc

48 Vdc

110 – 125 Vdc

MUVRG

MUVRH

MUVRE

208 – 240 Vdc

380 – 415 Vac

480 Vac

600 Vac

MUVRF

MUVRX

MUVRJ

MUVRK

Description Catalog

Number

Breaker Pop-Out Visual Indicator for Overcurrent Trip

(No Switches) MDTRIND

Breaker Pop-Out Visual Indicator for Overcurrent Trip

(With Switches) MDTRINDBA

Bell Alarm Only (2 Form C Alarm Switches) MOTS 1

Hardwar

e

Included

Breaker Pop-Out

Trip Indicator Bell Alarm (OTS)

Description Catalog

Number

2 – 30 Position Connectors Labeled

and Assembled to Mounting Tray MFXSECTB

Description Catalog

Number

2 – 30 Position Connectors Labeled

for External Wiring MD0ACBSECTB

Description Catalog

Number

Kit Contains:

(1) Amp Pin Removal Tool

(1) 6 Point Terminal Block

(1) 6 Point Blank Label

(1) Female 30 Point Amp Connector

(1) Male 30 Point Amp Connector

(10) Wire Assembly

MSECTOOL

Hardwar

e

Included

Hardwar

e

Included

Hardwar

e

Included

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 11

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

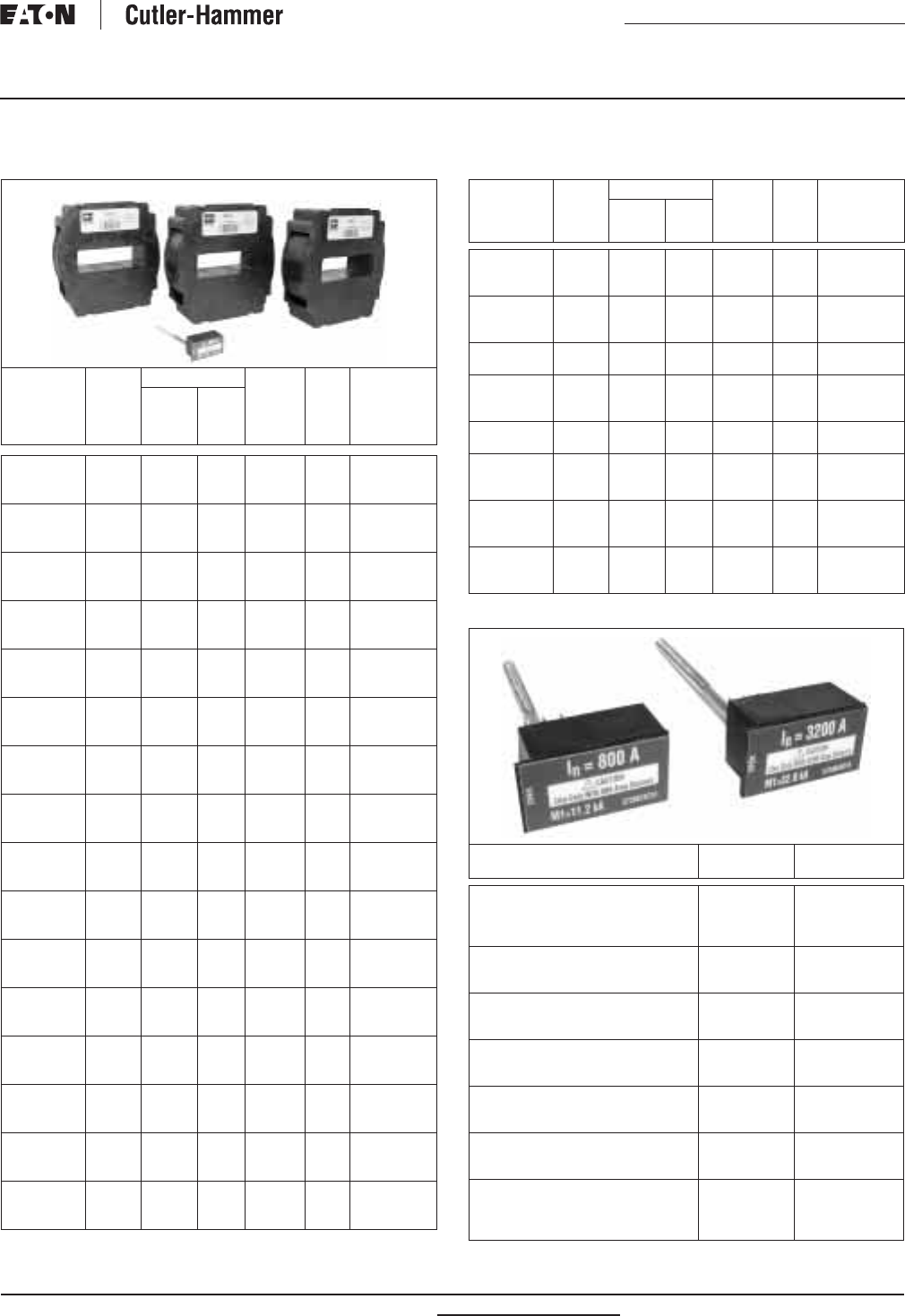

Electrical Attachments (Continued)

Table 22. Current Sensors (CTs) and Rating Plugs Table 22. Current Sensors (CTs) and Rating Plugs Only

Table 23. Rating Plugs Only

Frame

Size

Amperes

Sensor

and

RP

Ampere

Rating

Contents of Kit Number

of

Poles

Frame

Type Catalog

Number

Sensors Rating

Plugs

Up to 1600

Up to 1600

Up to 1600

100

200

250

3

3

3

1

1

1

3

3

3

NAR

NAR

NAR

M3NRG0100

M3NRG0200

M3NRG0250

Up to 1600

Up to 1600

Up to 1600

300

400

600

3

3

3

1

1

1

3

3

3

NAR

NAR

NAR

M3NRG0300

M3NRG0400

M3NRG0600

Up to 1600

Up to 1600

Up to 1600

630

800

1000

3

3

3

1

1

1

3

3

3

NAR

NAR

NAR

M3NRG0630

M3NRG0800

M3NRG1000

Up to 1600

Up to 1600

Up to 1600

1200

1250

1600

3

3

3

1

1

1

3

3

3

NAR

NAR

NAR

M3NRG1200

M3NRG1250

M3NRG1600

Up to 1600

Up to 1600

Up to 1600

100

200

250

4

4

4

1

1

1

4

4

4

NAR

NAR

NAR

M4NRG0100

M4NRG0200

M4NRG0250

Up to 1600

Up to 1600

Up to 1600

300

400

600

4

4

4

1

1

1

4

4

4

NAR

NAR

NAR

M4NRG0300

M4NRG0400

M4NRG0600

Up to 1600

Up to 1600

Up to 1600

630

800

1000

4

4

4

1

1

1

4

4

4

NAR

NAR

NAR

M4NRG0630

M4NRG0800

M4NRG1000

Up to 1600

Up to 1600

Up to 1600

1200

1250

1600

4

4

4

1

1

1

4

4

4

NAR

NAR

NAR

M4NRG1200

M4NRG1250

M4NRG1600

Up to 3200

Up to 3200

Up to 3200

100

200

250

3

3

3

1

1

1

3

3

3

STD

STD

STD

M3SRG0100

M3SRG0200

M3SRG0250

Up to 3200

Up to 3200

Up to 3200

300

400

600

3

3

3

1

1

1

3

3

3

STD

STD

STD

M3SRG0300

M3SRG0400

M3SRG0600

Up to 3200

Up to 3200

Up to 3200

630

800

1000

3

3

3

1

1

1

3

3

3

STD

STD

STD

M3SRG0630

M3SRG0800

M3SRG1000

Up to 3200

Up to 3200

Up to 3200

1200

1250

1600

3

3

3

1

1

1

3

3

3

STD

STD

STD

M3SRG1200

M3SRG1250

M3SRG1600

Up to 3200

Up to 3200

Up to 3200

2000

2500

3000

3

3

3

1

1

1

3

3

3

STD

STD

STD

M3SRG2000

M3SRG2500

M3SRG3000

Up to 3200

Up to 3200

Up to 3200

3200

100

200

3

4

4

1

1

1

3

4

4

STD

STD

STD

M3SRG3200

M4SRG0100

M4SRG0200

Up to 3200

Up to 3200

Up to 3200

250

300

400

4

4

4

1

1

1

4

4

4

STD

STD

STD

M4SRG0250

M4SRG0300

M4SRG0400

Up to 3200

Up to 3200

Up to 3200

600

630

800

4

4

4

1

1

1

4

4

4

STD

STD

STD

M4SRG0600

M4SRG0630

M4SRG0800

Frame

Size

Amperes

Sensor

and RP

Ampere

Rating

Contents of Kit Number

of

Poles

Frame

Type Catalog

Number

Sensors Rating

Plugs

Up to 3200

Up to 3200

Up to 3200

1000

1200

1250

4

4

4

1

1

1

4

4

4

STD

STD

STD

M4SRG1000

M4SRG1200

M4SRG1250

Up to 3200

Up to 3200

Up to 3200

1000

2000

2500

4

4

4

1

1

1

4

4

4

STD

STD

STD

M4SRG1600

M4SRG2000

M4SRG2500

Up to 3200

Up to 3200 3000

3200 4

41

14

4STD

STD M4SRG3000

M4SRG3200

4000 – 5000

4000 – 5000

4000 – 5000

2000

2500

3200

6

6

6

1

1

1

3

3

3

DBL

DBL

DBL

M3RRG2000

M3RRG2500

M3RRG3200

4000 – 5000

4000 – 5000 4000

5000 6

61

13

3DBL

DBL M3RRG4000

M3RRG5000

6000

6300

4000 – 5000

6000

6300

2000

6

6

6

1

1

1

4

4

4

DBL

DBL

DBL

M3RRG6000

M3RRG6300

M4RRG2000

4000 – 5000

4000 – 5000

4000 – 5000

2500

3200

4000

8

8

8

1

1

1

4

4

4

DBL

DBL

DBL

M4RRG2500

M4RRG3200

M4RRG4000

4000 – 5000

6000

6300

5000

6000

6300

8

8

8

1

1

1

4

4

4

DBL

DBL

DBL

M4RRG5000

M4RRG6000

M4RRG6300

RP Ampere

Rating Frame

Type Catalog

Number

100

200

250

300

NAR/STD

NAR/STD

NAR/STD

NAR/STD

2A11891G22

2A11891G01

2A11891G02

2A11891G03

400

600

630

NAR/STD

NAR/STD

NAR/STD

2A11891G04

2A11891G05

2A11891G06

800

1000

1200

NAR/STD

NAR/STD

NAR/STD

2A11891G07

2A11891G08

2A11891G09

1250

1600

2000

NAR/STD

NAR/STD

NAR/STD

2A11891G10

2A11891G11

2A11891G12

2500

3000

3200

STD

STD

STD

2A11891G13

2A11891G14

2A11891G15

2000

2500

3200

DBL

DBL

DBL

2A11891G16

2A11891G17

2A11891G18

4000

5000

6000

6300

DBL

DBL

DBL

DBL

2A11891G19

2A11891G20

2A11891G23

2A11891G24

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page 12 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

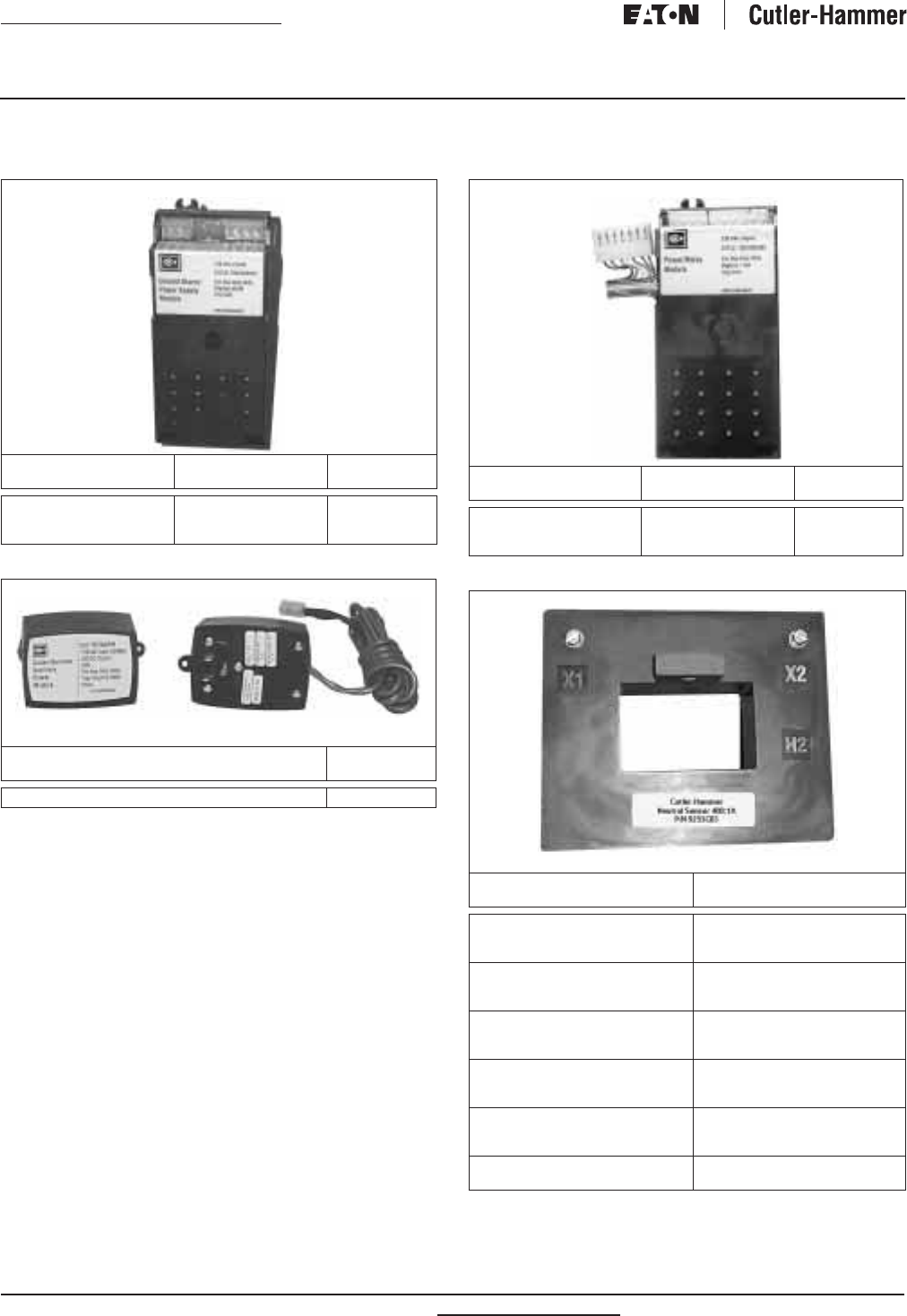

Electrical Attachments (Continued)

Table 24. Earth Fault Alarm/Power Supply Module (ATR)

Table 25. Auxiliary Power Module

Table 26. Power Relay Module (ATR) — Standard Frame Only

Table 27. Neutral Current Sensors (Required for Ground Fault)

1Quantity of two required.

Description Voltage Catalog

Number

520M Trip Unit

520M/520MC Trip Unit

520M Trip Unit

24/48 Vdc

120 Vac

230 Vac

MPRMH

MPRMA

MPRMR

Description Catalog

Number

120 Vac Input — 32 Vdc Output PRTAAPM

Front View Rear View

Description Voltage Catalog

Number

1150/1150+ Trip Unit

1150/1150+ Trip Unit

1150/1150+ Trip Unit

24/48 Vdc

120 Vac

230 Vac

70C1005G01

70C1002G01

70C1002G02

Ampere

Rating Catalog

Number

200

250

300

9253C03H01

9253C03H02

9253C03H03

400

600

630

9253C03H04

9253C03H05

9253C03H14

800

1000

1200

9253C03H06

9253C03H07

9253C03H08

1250

1600

2000

9253C03H15

9253C03H09

9253C03H10

2500

3000

3200

9253C03H11

9253C03H12

9253C03H13

4000 1

5000 19253C03H10

9253C03H11

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 13

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

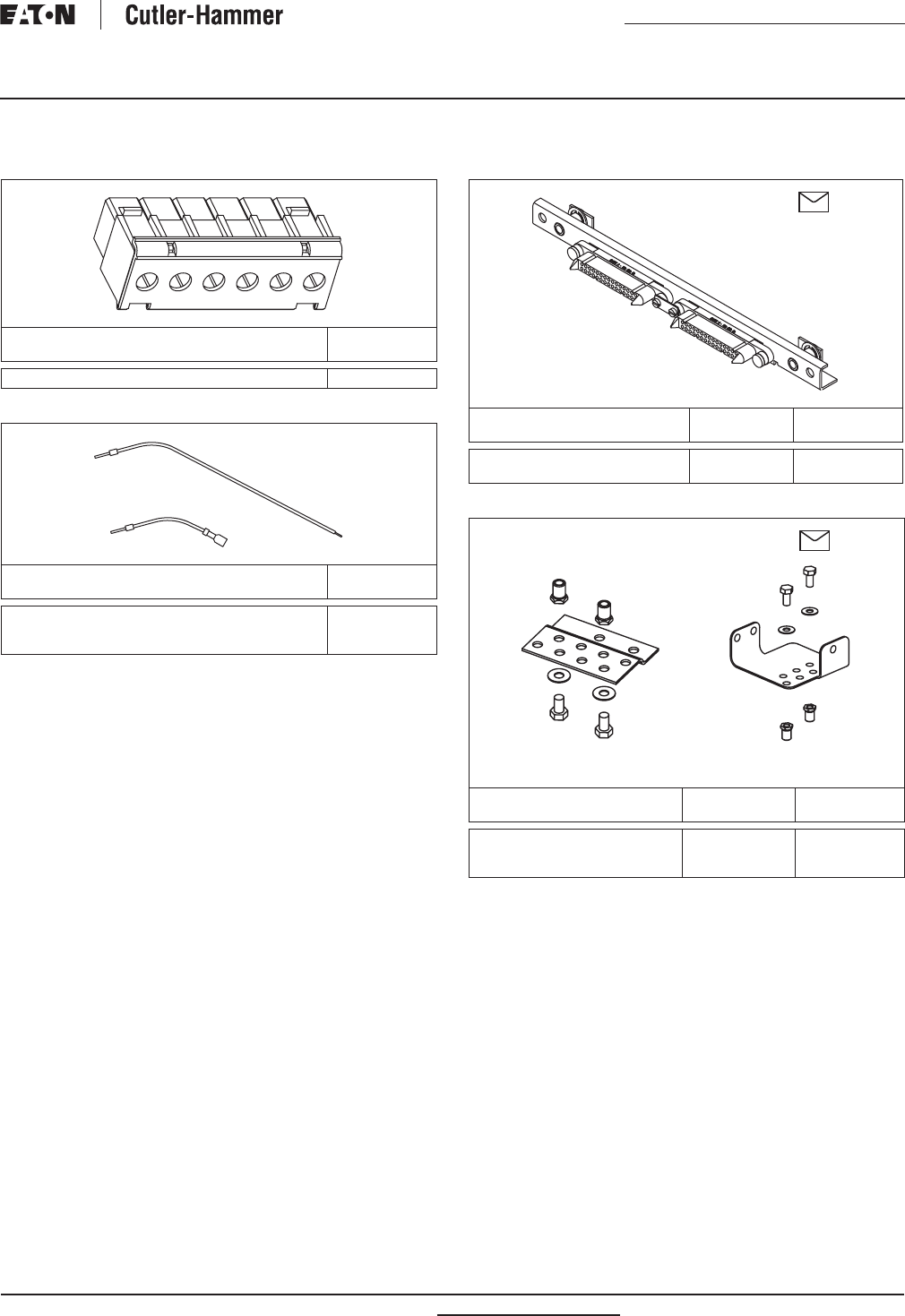

Cassette (Cell) Attachments

Table 28. Secondary Terminal Block Kit

Table 29. Secondary Terminal Wire Kit

Table 30. Cassette Secondary Disconnect Block

Table 31. Cell Rejection Pins

Description Catalog

Number

15 (6 Point) Terminal Blocks and Labels MSECBK

Description Catalog

Number

90 Wires with Terminal Connectors

(Amp and Fasten on Opposite Ends)

30 Wires – 40-Inch Long (Amp Pin — One End Only)

MSECWR

MWK40

Description Frame

Type Catalog

Number

2 – 30 Position Connectors to Wire

to Customer Secondary Terminals STD

NAR MDOCASSECTB

MDNCASSECTB

Description Frame

Type Catalog

Number

Cassette Pins

Breaker Pins

Breaker Pins

STD

STD

NAR

MCELLREJBK

2A11893G01

2A11893G92

Hardwar

e

Included

Hardwar

e

Included

Cassette Pins Breaker Pins

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page 14 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

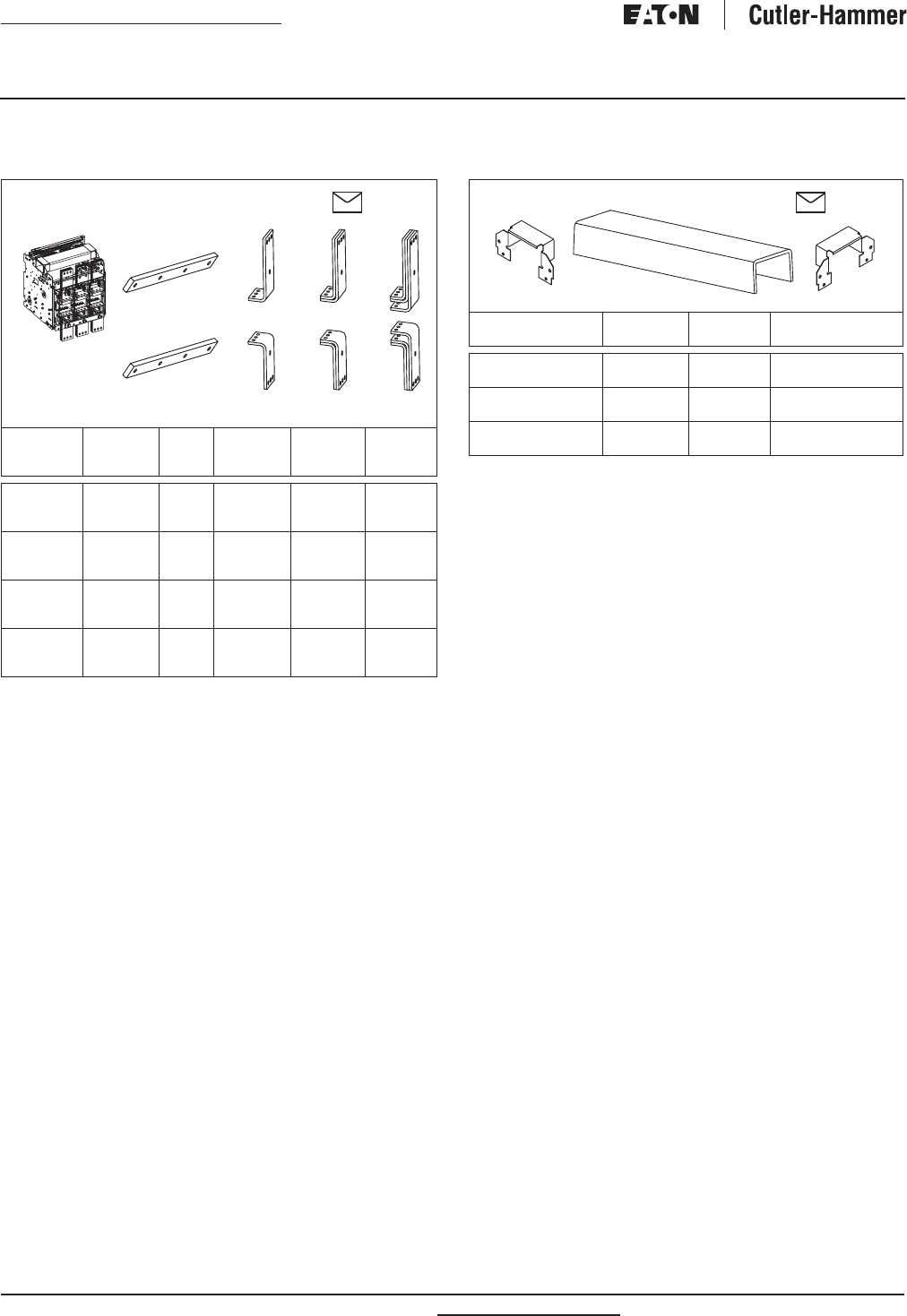

Cassette (Cell) Attachments (Continued)

Table 32. Front Mounted Terminals

1800 – 1250 amperes.

21600 – 2500 amperes, 4000 – 5000 amperes.

33000 – 3200 amperes, 6300 amperes.

4Contact the Cutler-Hammer business.

Table 33. Cassette Arc Hood Kit

Terminal

Adapter

Kit Type

Fixed

Magnum

Frame Type

Breaker

Poles Continuous

Current (A) Short

Circuit

Rating (kA)

Catalog

Number

Front Mount

Front

Front

NAR

NAR

STD

3

3

3

800 – 1200

1600 – 1200

800 – 2500

Up to 65

Up to 65

65

NFC312KT

NFC320KT

SFNTC325

Front

Front

Front

STD

DBL

DBL

3

3

3

800 – 3200

4000

5000

85 – 100

85 – 100

All

SFNTC332

4

4

Front

Front

Front Mount

NAR

NAR

STD

4

4

4

800 – 1200

1600 – 2000

800 – 2500

Up to 65

Up to 65

65

NFC412KT

NFC420KT

SFNTC425

Front Mount

Front Mount

Front Mount

DBL

DBL

DBL

4

4

3

800 – 3200

4000

5000

85 – 100

All

All

SFNTC432

4

4

Hardwar

e

Included

Cassette Shown

for Reference

Only

12 3

Ampere

Rating Breaker

Type Number

of Poles Catalog

Number

Up to 3200

Up to 3200 STD

STD 3

42A11853G05

2A11853G06

4000 and Above

4000 and Above DBL

DBL 3

42A11853G07

2A11853G08

Up to 2000

Up to 2000 NAR

NAR 3

42A11853G15

2A11853G05

Hardwar

e

Included

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 15

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

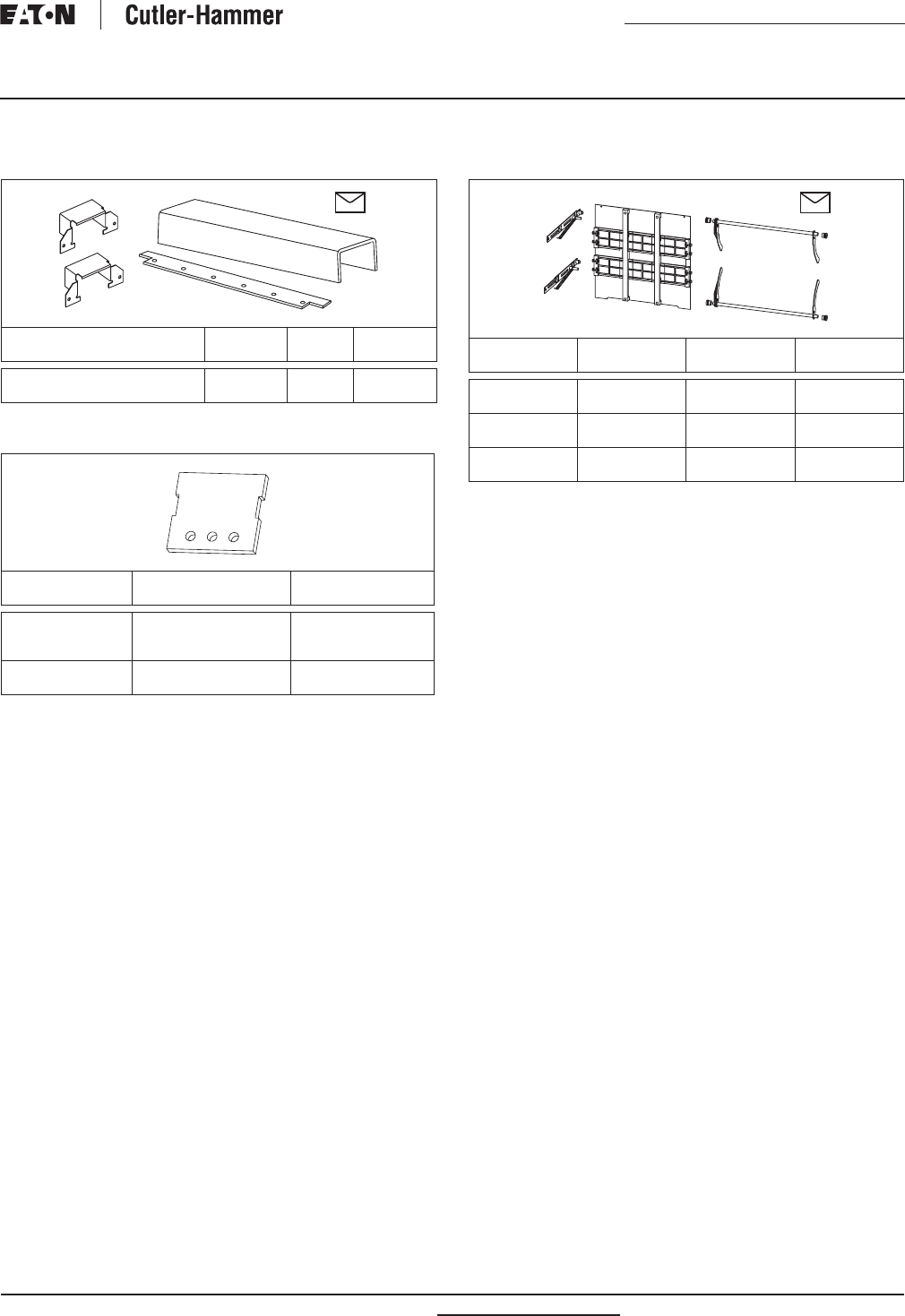

Cassette (Cell) Attachments (Continued)

Table 34. 1100 Volt Arc Hood Barrier Kit

Table 35. MWI Type Copper Line and Load Stabs Kit (2 per Kit) —

Standard Frame Shown

12 kits required on double frame design.

Table 36. MWI Type Cassette Shutters

Description Number

of Poles Frame

Type Catalog

Number

1100 Volt Arc Hood Kit

1100 Volt Arc Hood Kit 3

4STD

STD MKBK3

MKBK4

Stab Thickness

Inches (mm) Frame

Type Catalog

Number

3/8 (9.5)

1 (25.4)

3/8 (9.5)

STD

STD

NAR

2A10857G01

2A10857G02

2A10857G03

3/8 (9.5)

1 (25.4) DBL 4000 A

DBL 5000 – 6300 A 2A10857G01 1

2A10857G02 1

Hardwar

e

Included

Ampere

Rating Frame

Type Number

of Poles Catalog

Number

Up to 3200

Up to 3200 STD

STD 3

4MISHTR332

MISHTR432

4000 – 6300

4000 – 6300 DBL

DBL 3

4MISHTR363

MISHTR463

Up to 2000

Up to 2000 NAR

NAR 3

4MDNSHTR3P

MDNSHTR4P

Hardwar

e

Included

3-Pole,

3200 A

Shown

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page 16 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

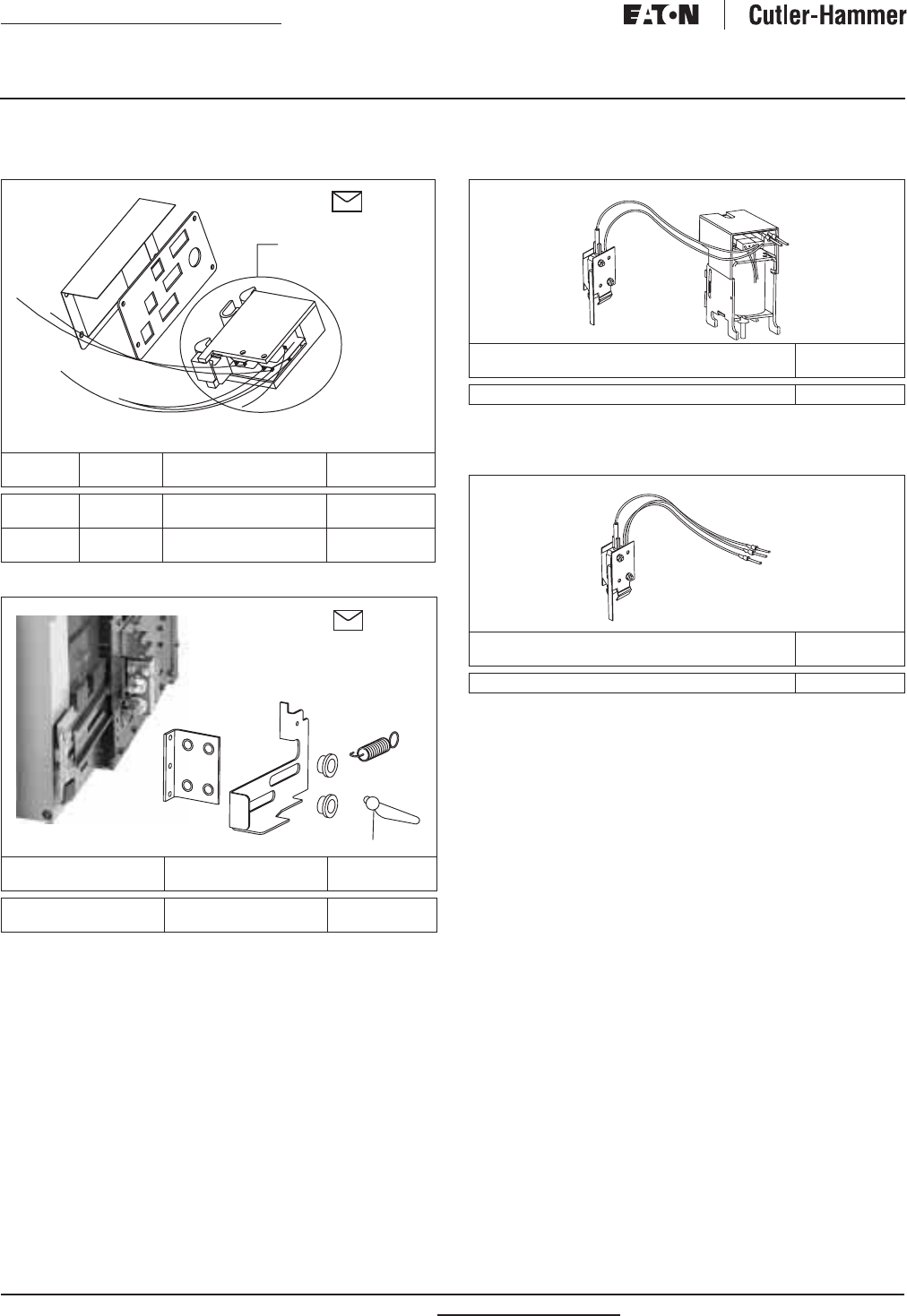

Breaker Accessories

Table 37. Cell Switch Kit

Table 38. Cassette Lock Provision 1

1The Cutler-Hammer business does not supply lock or key, only

the provision. For Kirk, use lock Catalog Number KFL000021 for 2

cylinder and KFL000010H for 1 cylinder. For Castell, use lock Catalog

Number F08000.

Table 39. Latch Check Switch for Use with Spring Release 2

2Spring release sold separately.

Table 40. Latch Check Switch With One Form C Contact

for Remote Indication

Breaker

Type Frame

Type Description Catalog

Number

MWI

MWI STD/NAR

STD 4 Pt. Switch + Hardware

8 Pt. Switch + Hardware M4CS

M8CS

MWI

MWI STD

STD 12 Pt. Switch + Hardware

4 Pt. Switch Only M12CS

MICELLSW

Lock

Type Mounting

Position Catalog

Number

Kirk or Castell

Kirk or Castell Right Side

Left Side MCASSPRR

MCASSPRL

Hardwar

e

Included

4 Pts + Hardware Shown

Switch Only Without

Hardware (4 Pts Only)

Hardwar

e

Included

Breaker

Type Catalog

Number

MWI MLSC1

Breaker

Type Catalog

Number

MWI MLSC2

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 17

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

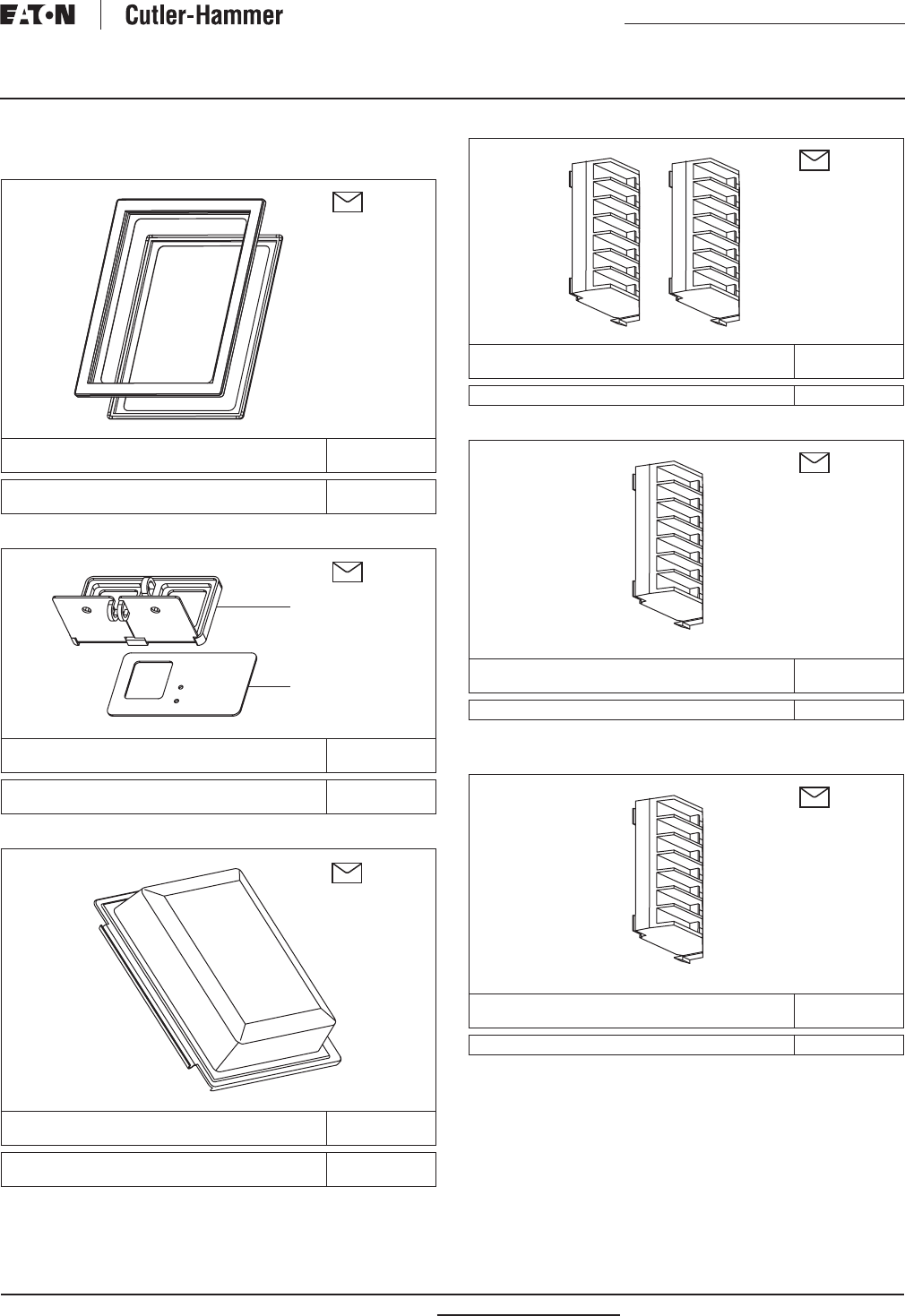

External Accessories

Table 41. Door Escutcheon With Gasket

Table 42. Padlockable Pushbutton Cover

Table 43. IP54 Cover Kit (Translucent)

Table 44. CT Shorting and Jumper Block Kit

Table 45. CT Jumper Block Kit 1

1Included in CT Shorting and Jumper Block Kit.

Table 46. CT Shorting Block 2

2Included in CT Shorting and Jumper Block Kit.

Description Catalog

Number

Provides Protection Against Dust

and Dripping Water (IP42) MDES

Description Catalog

Number

Metal Frame with Blocked Close Button Cover

Plastic Frame with Blocked Close Button Cover MCOVC

MCOVH

Description Catalog

Number

Provides Protection Against Dust

and Dripping Water (IP54) MDESC

Hardwar

e

Included

Hardwar

e

Included

Frame

“CLOSED”

Button Cover

Hardwar

e

Included

Description Catalog

Number

Interstructure Wiring Terminations MSJB

Description Catalog

Number

Cell to Cell Wiring Terminations MJB

Description Catalog

Number

Metering CT Wire Termination MSB

Hardwar

e

Included

Hardwar

e

Included

Hardwar

e

Included

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page 18 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Mechanical Interlock Configurations

Table 47. Mechanical Interlock Configurations — Some Assembly Required

Type of

Interlock Typical

Circuit Interlocks

Possible

Type 2

Across Two Circuit Breakers

One normal power supply and

one emergency power supply.

Circuit breaker A can only be closed

if B is open and vice versa.

A = Normal power supply.

B = Emergency power supply.

Type 31

Across Three Circuit Breakers

Two normal power supplies and

one emergency power supply.

Circuit breaker A and C can only be closed

if B is open. B can only be closed when A

and C are open.

Type 32

Across Three Circuit Breakers

The two half-bus bars can be powered by

a single transformer (bus-tie closed) or

by both at the same time (bus-tie open).

One or two circuit breakers out of three

can be closed at the same time.

Type 33

Across Three Circuit Breakers

Three power supplies (generators or

transformers) on the same bus bar,

making operation in parallel impossible.

Only one of three circuit breakers

can be closed.

AB

TR

AB

00

10

01

AB

TR1 TR2

C

ABC

000

100

010

001

101

AC

TR1 TR2

B

ABC

000

100

010

001

110

011

101

AB

TR1

C

ABC

000

100

010

001

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 19

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Mechanical Interlock — External Accessories

Mechanical Interlock Assembly Kits — For Fixed Breakers

Note: Will also require rod or cable kits.

Table 48. 2-Way Fixed Breakers Table 49. 3-Way Fixed Breakers Table 50. 3-Way Fixed Breakers

Mechanical Interlock Assembly Kits — For Drawout Breakers

Note: Will also require rod or cable kits.

Table 51. 2-Way Drawout Breakers Table 52. 3-Way Drawout Breakers Table 53. 3-Way Drawout Breakers

Rod or Cable Kits — Required for Mechanical Interlock Assembly Kits Above

Table 54. Rod Kit Table 55. Cable Kits

Type Catalog

Number

Rod (Requires 1 Rod Kit)

Cable (Requires 1 Cable Kit) MI2FR

MI2FC

Type Catalog

Number

Cable Type 31

(Requires 2 Cable Kits) MI31FC

Cable Type 33

(Requires 3 Cable Kits) MI33FC

Type Catalog

Number

Cable Type 32

(Requires 3 Cable Kits) MI32FC

Type Catalog

Number

Rod (Requires 1 Rod Kit)

Cable (Requires 1 Cable Kit) MI2DR

MI2DC

Type Catalog

Number

Cable Type 31

(Requires 2 Cable Kits) MI31DC

Cable Type 33

(Requires 3 Cable Kits) MI33DC

Type Catalog

Number

Cable Type 32

(Requires 3 Cable Kits) MI32DC

Rod Type

in Feet (m) Catalog

Number

2 Rods — 3 (0.9) Each MIR

Cable Type

in Feet (m) Catalog

Number

2 Cables — 5 (1.5) Each

2 Cables — 6 (1.8) Each

2 Cables — 8 (2.4) Each

2 Cables — 10 (3.0) Each

MIC5

MIC6

MIC8

MIC10

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page 20 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Basic Breaker Parts

Table 56. Breaker Front Cover

Note: G.O.#, item and sequence # must be supplied in order for the

proper nameplate to be applied.

Note: Includes mounting screws.

Table 57. Center Pull Handle

1Double wide only.

Table 58. Fixed Breaker Arc Hood

Breaker

Type Ampere

Rating Frame

Type Number

of Poles Catalog

Number

MWI

MWI Up to 3200

Up to 3200 STD

STD 4

32A11894G05

2A11894G06

MWI

MWI 4000 – 6300

4000 – 6300 DBL

DBL 4

32A11894G07

2A11894G08

MWN

MWN Up to 2000

Up to 2000 NAR

NAR 4

32A11894G11

2A11894G12

Up to 3200 A (Standard Shown)

4000 – 6300 A (Double Wide Shown)

Handle Not Included

Description Catalog

Number

Pull-Out Breaker Handle

4000 A and Above 2A11851G02

Frame

Ampere Rating Breaker

Type Number

of Poles Catalog

Number

Up to 3200

Up to 3200 STD

STD 3

4MKBKF3

MKBKF4

4000 – 6300

4000 – 6300 DBL

DBL 3

4MKBKF6

MKBKF8

Up to 2000

Up to 2000 NAR

NAR 3

42C12898G05

2C12898G01

Hardwar

e

Included

1

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 21

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

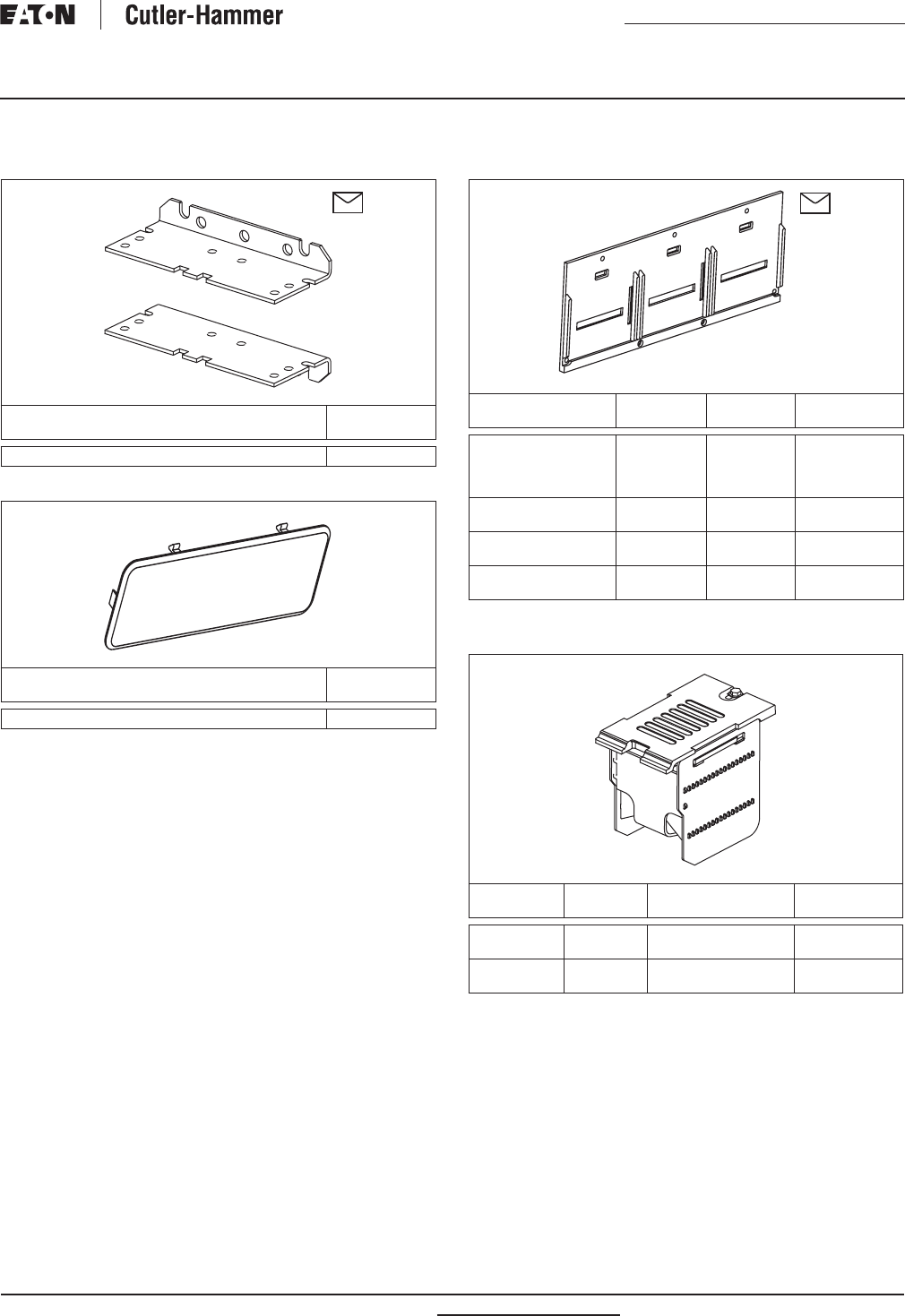

Basic Breaker Parts (Continued)

Table 59. Fixed Breaker Mounting Feet

Table 60. Levering-In Blank Cover for Fixed Breakers

Table 61. Breaker Current Sensor Door

1Order two kits.

Table 62. Arc Chutes 2

2Includes mounting screws.

3For 4000 amperes and above, order two kits.

Description Catalog

Number

Mounts Fixed Breaker to Floor 2A10851G01

Breaker

Type Catalog

Number

MWI 2C12815H01

Hardwar

e

Included

Breaker Continuous

Ampere Rating Number

of Poles Breaker

Type Catalog

Number

800 – 2000

800 – 2000

2500 – 3200

2500 – 3200

3

4

3

4

STD

STD

STD

STD

2A10853G04

2A10853G03

2A10853G02

2A10853G01

4000

4000 3

4DBL

DBL 2A10853G04 1

2A10853G03 1

6300

6300 3

4DBL

DBL 2A10853G02 1

2A10853G01 1

800 – 1600

800 – 1600 3

4NAR

NAR 2A10853G05

2A10853G06

Number

of Poles Quantity Breaker

Type Catalog

Number 3

3

43

4STD

STD 2A11895G01

2A11895G02

3

43

4NAR

NAR 2A11895G03

2A11895G04

Hardwar

e

Included

For more information visit: www.cutler-hammer.eaton.com RP01301002E

Renewal Parts

Page 22 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Trip Units

Table 63. DigitripE 220+ Table 64. Digitrip 520i Table 65. Digitrip 520M

Table 66. Digitrip 520MC Table 67. Digitrip 1150i

Description Catalog

Number

220 LI 2A11799G01

Description Catalog

Number

520 LSI

520i LSIG 2A11799G10

2A11799G12

Description Catalog

Number

520M LSI

520M LSIA

520Mi LSIG

2A11799G20

2A11799G23

2A11799G22

Description Catalog

Number

520MC LSI

520MC LSIA

520MCi LSIG

2A11799G30

2A11799G33

2A11799G32

Description Catalog

Number

1150 LSI

1150i LSI

1150i LSIG/LSIA

2A11799G40

2A11799G43

2A11799G44

RP01301002E For more information visit: www.cutler-hammer.eaton.com

Renewal Parts

Effective: June 2003 Page 23

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

Trip Units (Continued)

Table 68. Non-Automatic Trip Unit Covers Table 69. Trip Unit Covers

1STD/DBL frame only.

Note: Clear cover includes mounting screws.

Breaker

Type Catalog

Number

MWI MTUNACI

Hardwar

e

Included

Trip Unit

Type Catalog

Number

220+/520/520M/520MC

1150+ 1M220520CVR

M1150CVR

Hardwar

e

Included

Renewal Parts

Page 24 Effective: June 2003

Magnum Air Circuit

Breakers (IEC) Renewal

Parts and Accessories

© 2003 Eaton Corporation

All Rights Reserved

Printed in USA

Publication No. RP01301002E

June 2003

Magnum Test Accessories

Table 70. Hand-Held Tester Table 71. Trip Link Cable Table 72. DSII Portable Tester Kit

Table 73. Tester Adapter Cable Table 74. Digital Relay Module Table 75. ModbusT Translator Module

Kirk is a registered trademark of the

Kirk Key Interlock Company LLC.

Modbus is a registered trademark

of Modicon, a division of Schneider

Electric Industries SA.

Description Catalog

Number

Magnum Functional

Test Kit MTST1

Description Catalog

Number

Trip Link Cable TRIPLINK

Description Catalog

Number

Can be Used on Magnum —

Includes Tester Adapter Cable 8779C02G05

Description Catalog

Number

Includes Secondary

Receptacle 8779C02G04

Description Catalog

Number

Digital Relay Module

(Used with DT 1150) 70C1142G51

Description Catalog

Number

Modbus mMINT

(Translates to MODBUS) MMINT

Eaton Corporation

Cutler-Hammer business unit

1000 Cherrington Parkway

Moon Township, PA 15108-4312

USA

tel: 1-800-525-2000

www.cutler-hammer.eaton.com
