SACE Tmax XT UL/CSA
New low voltage molded case
circuit breakers up to 250A for UL 489
and CSA C22.2 Standards
Technical catalog - Preliminary
ABB catalog | 1SXP210002C0201
11
5
3
7
2
6
4
8
Index
Construction characteristics
The SACE Tmax XT ranges

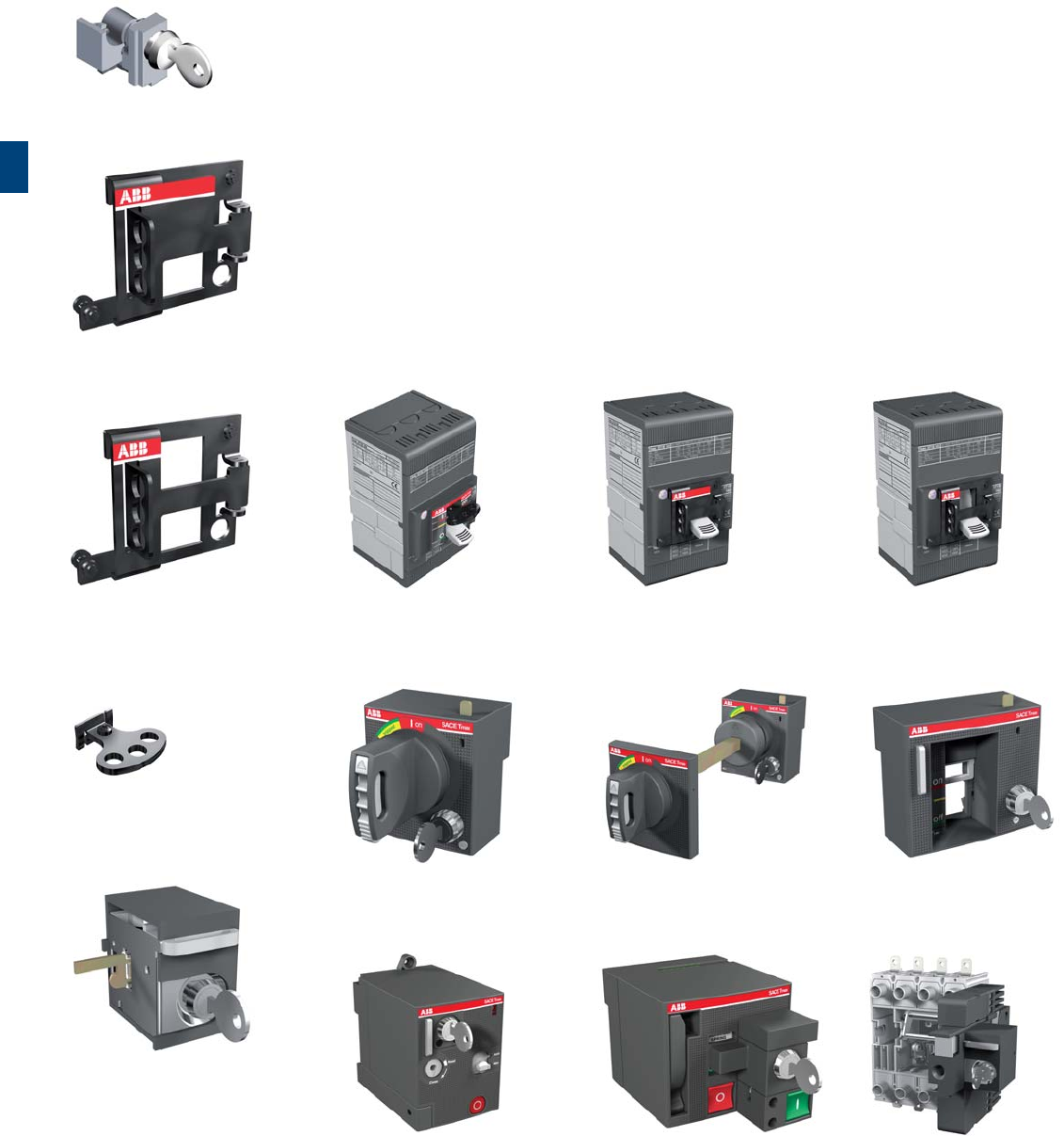

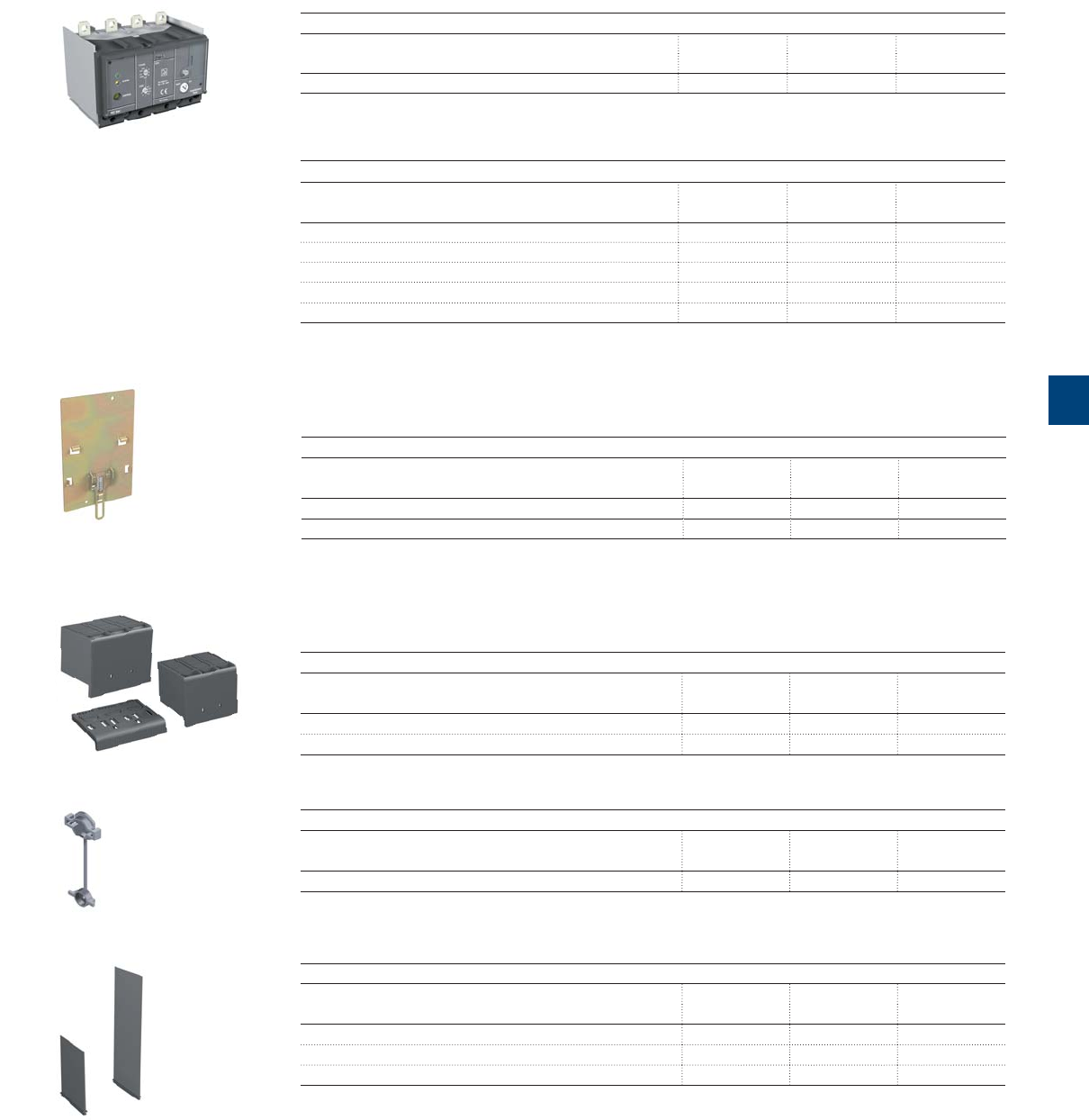

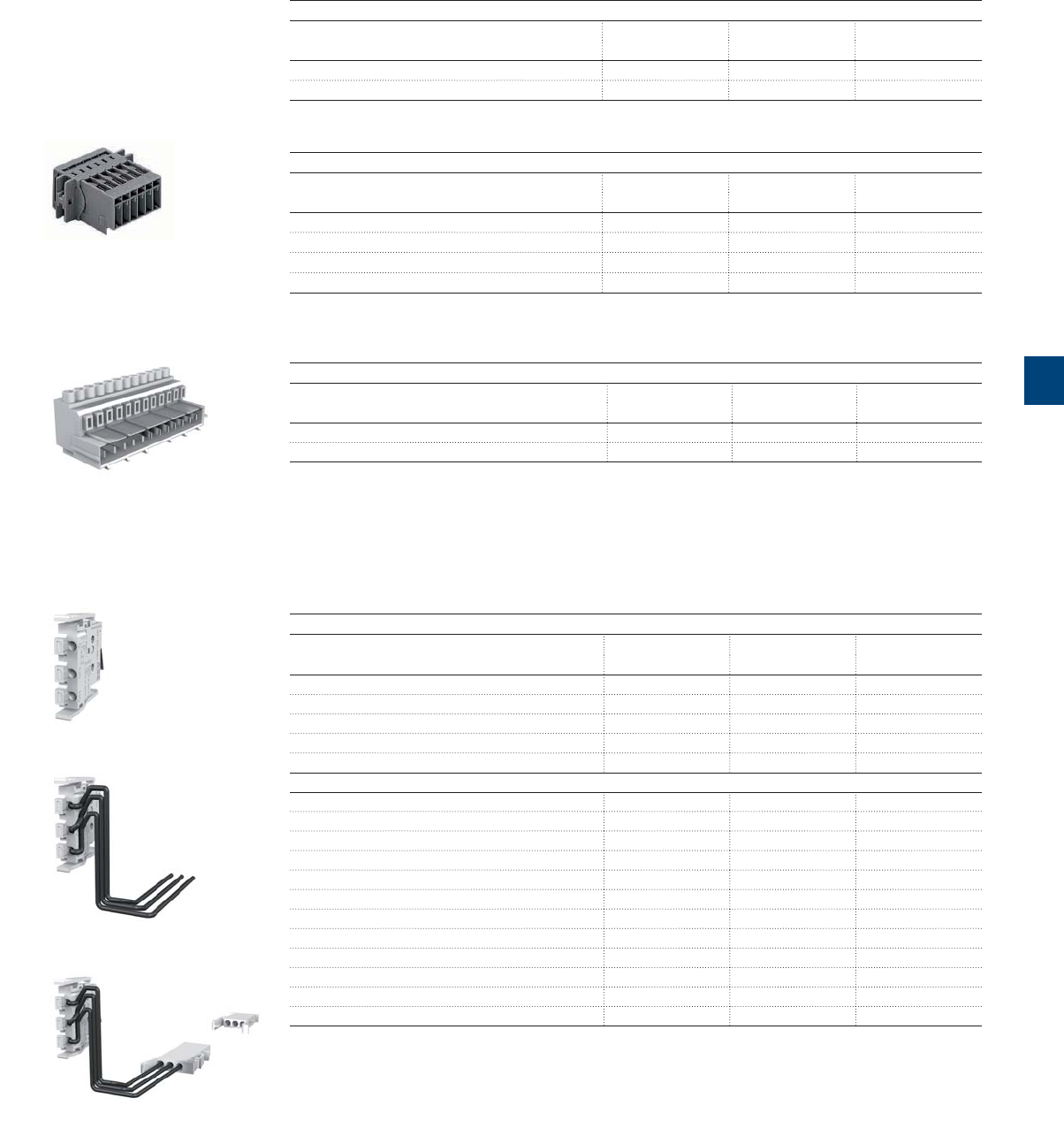

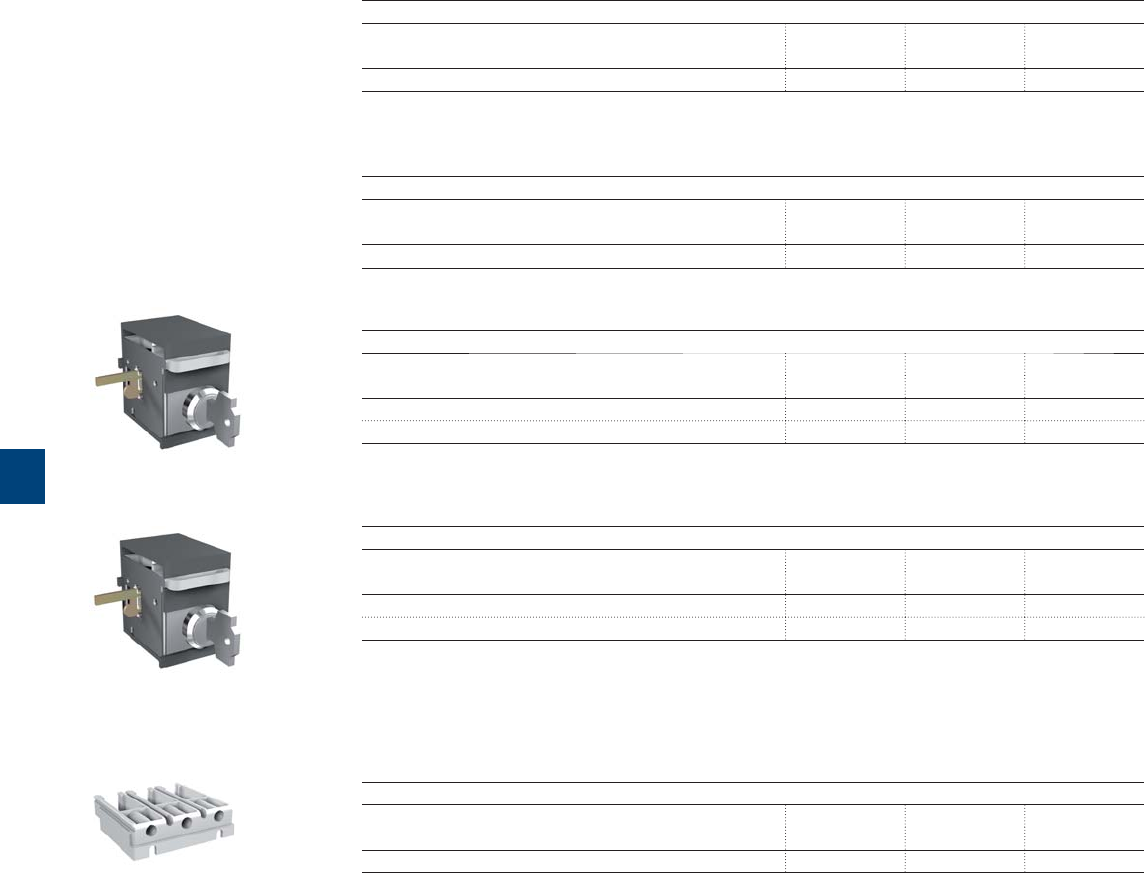

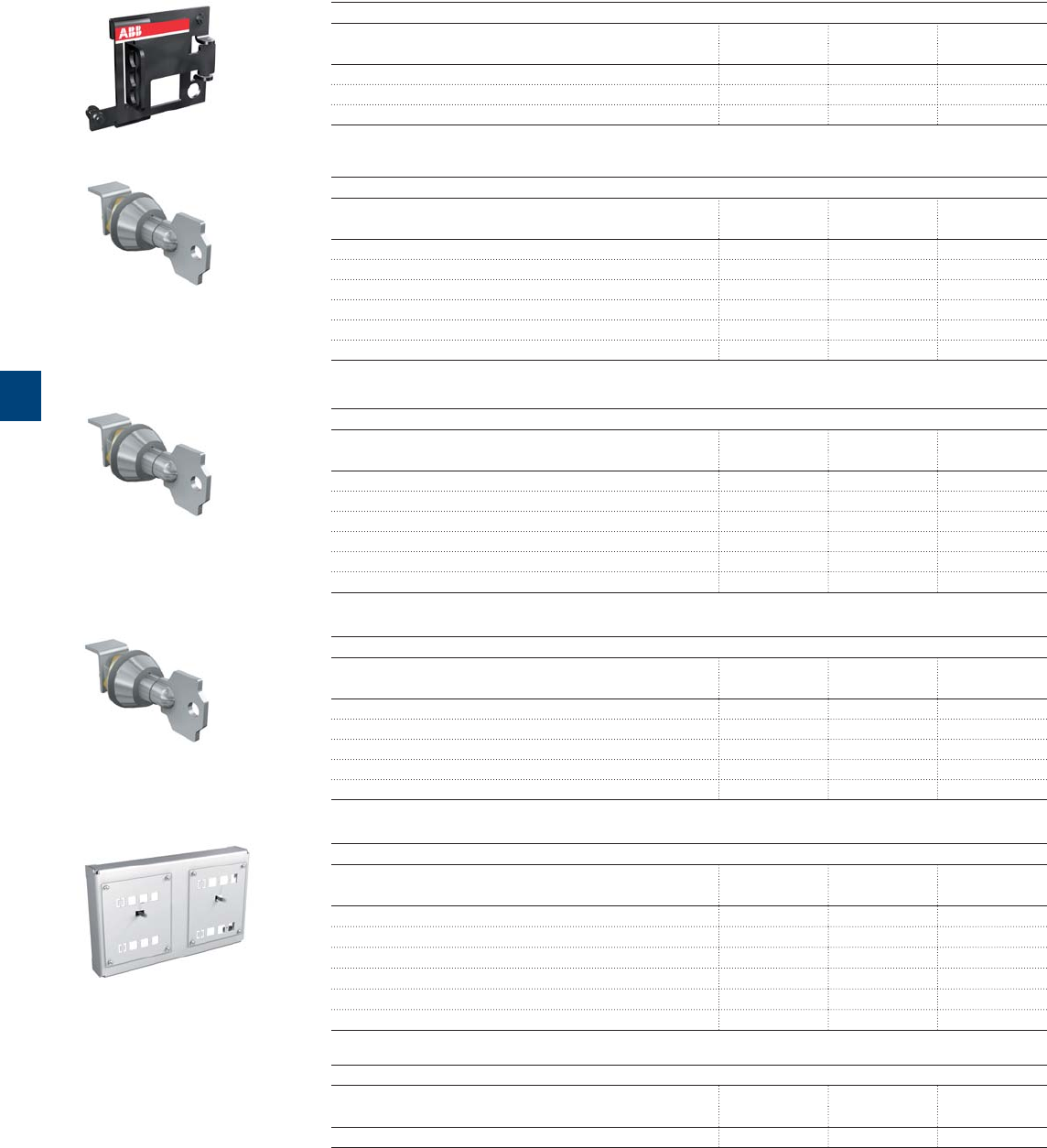

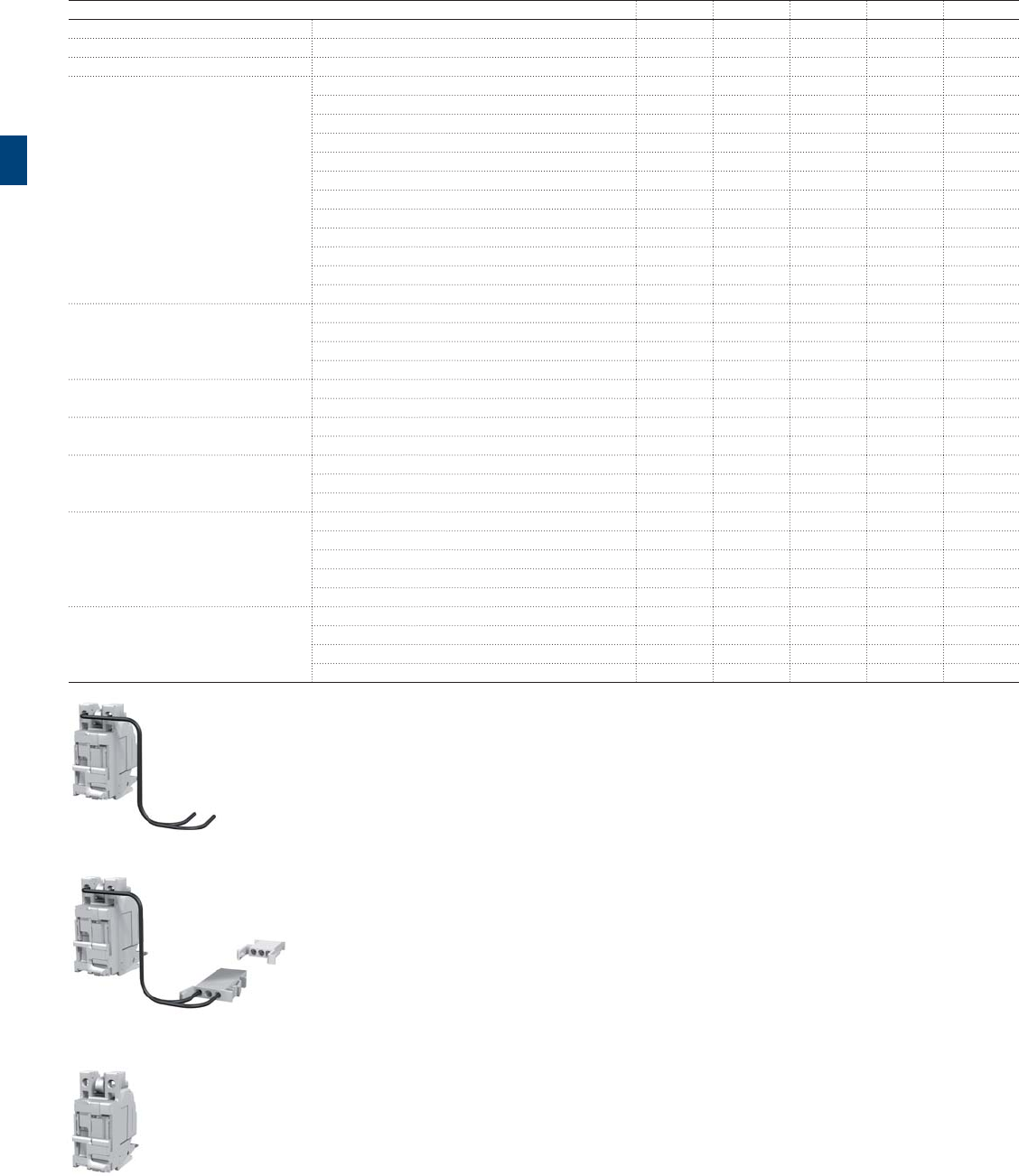

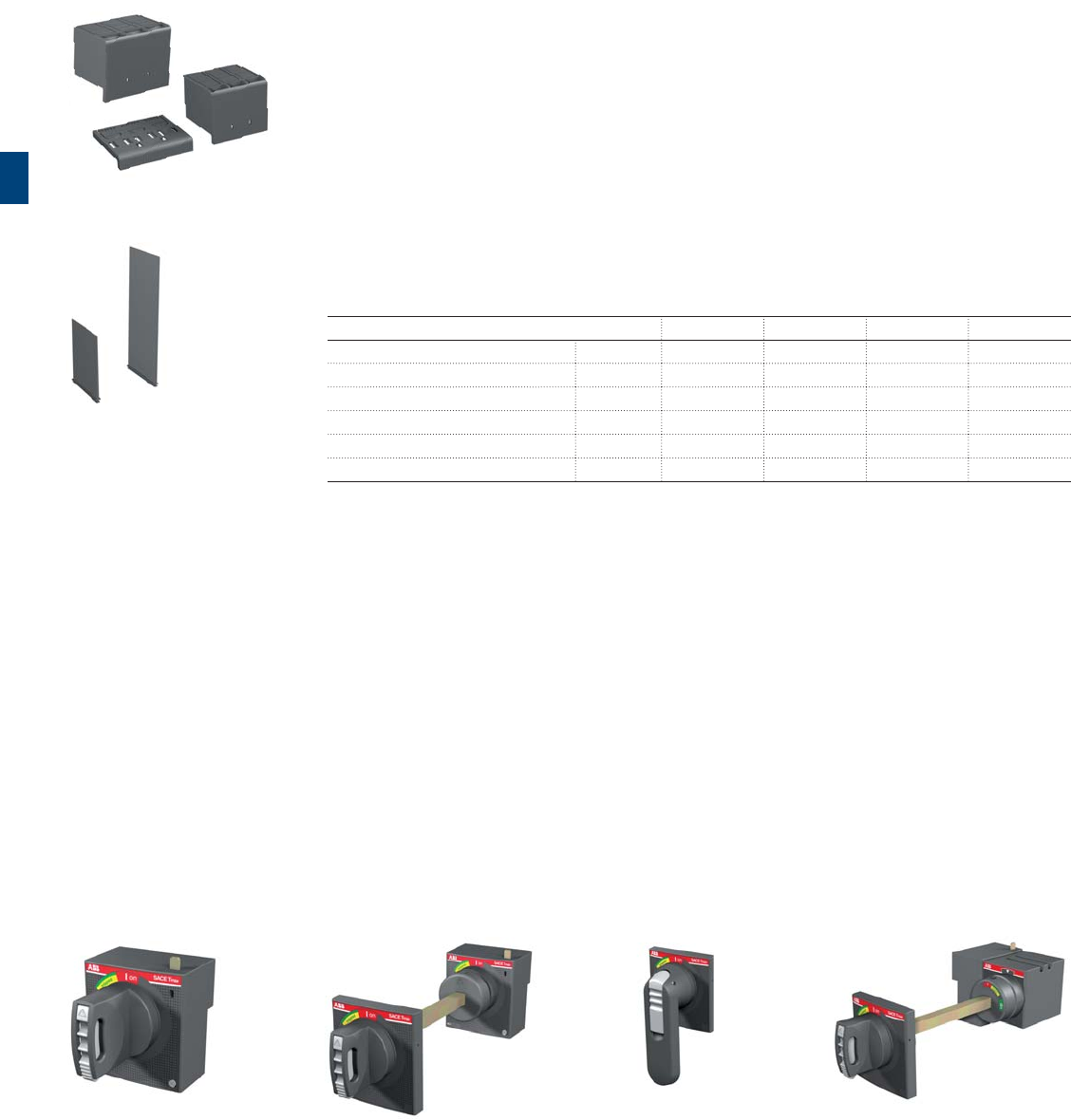

Accessories

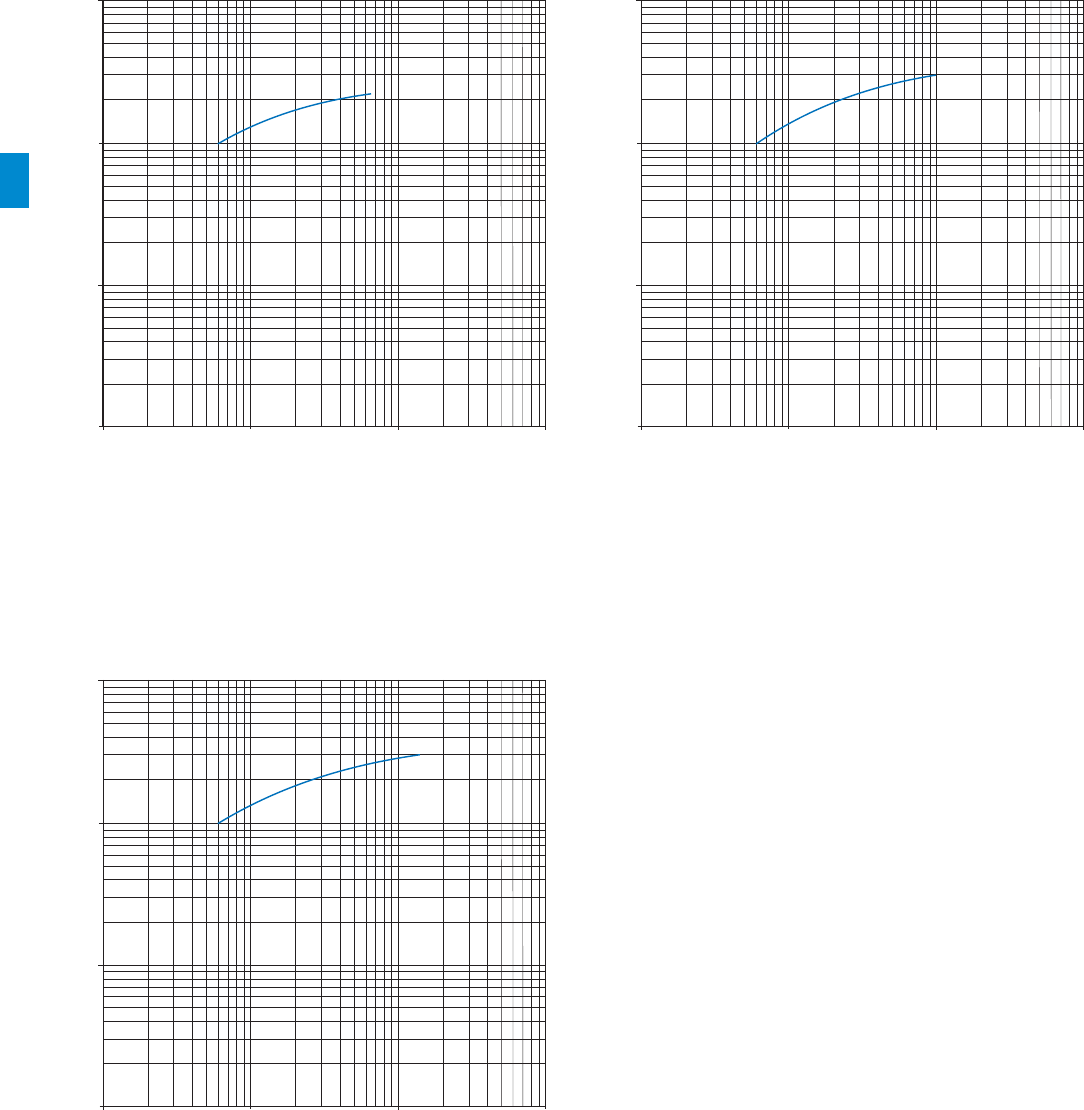

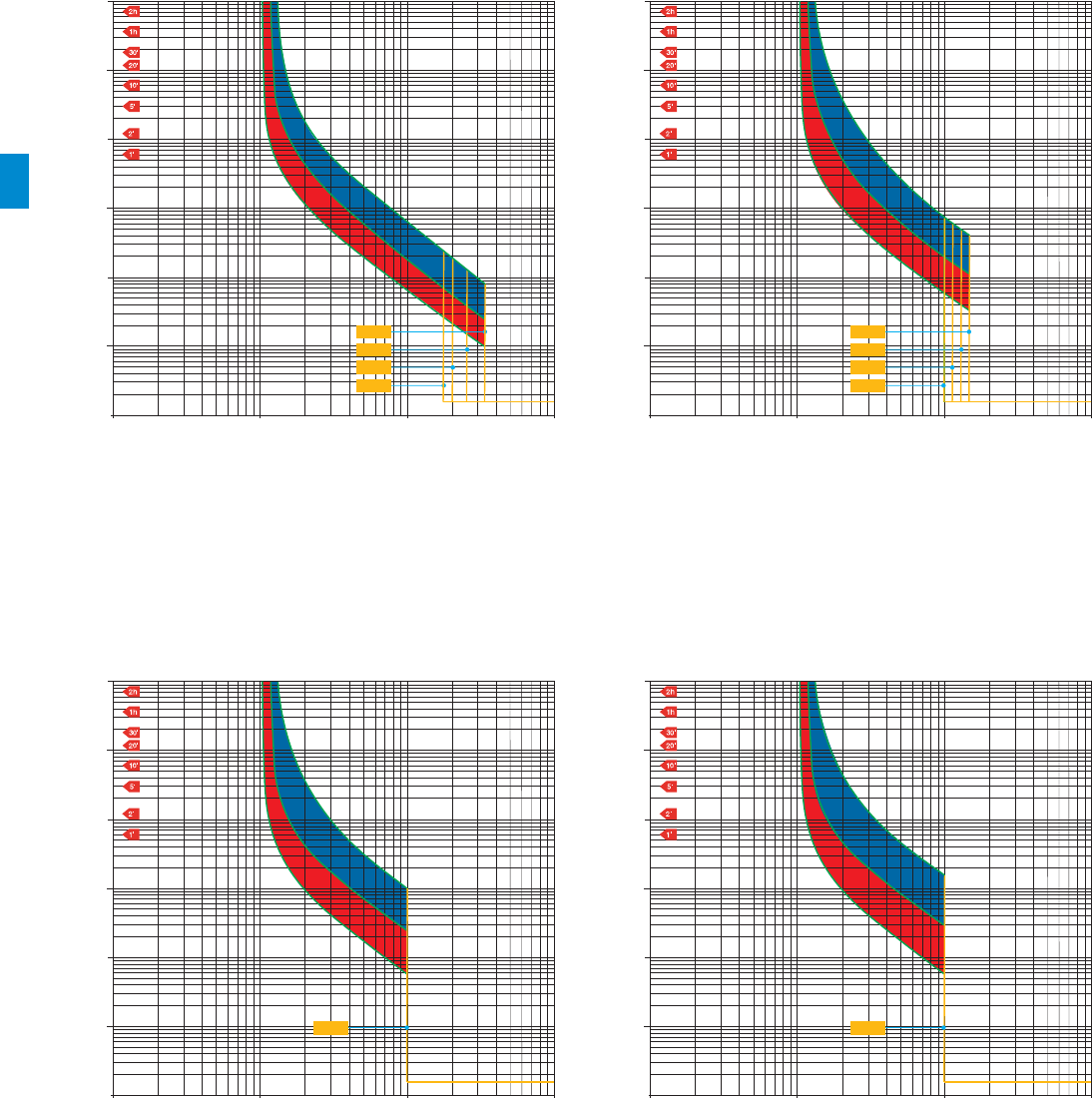

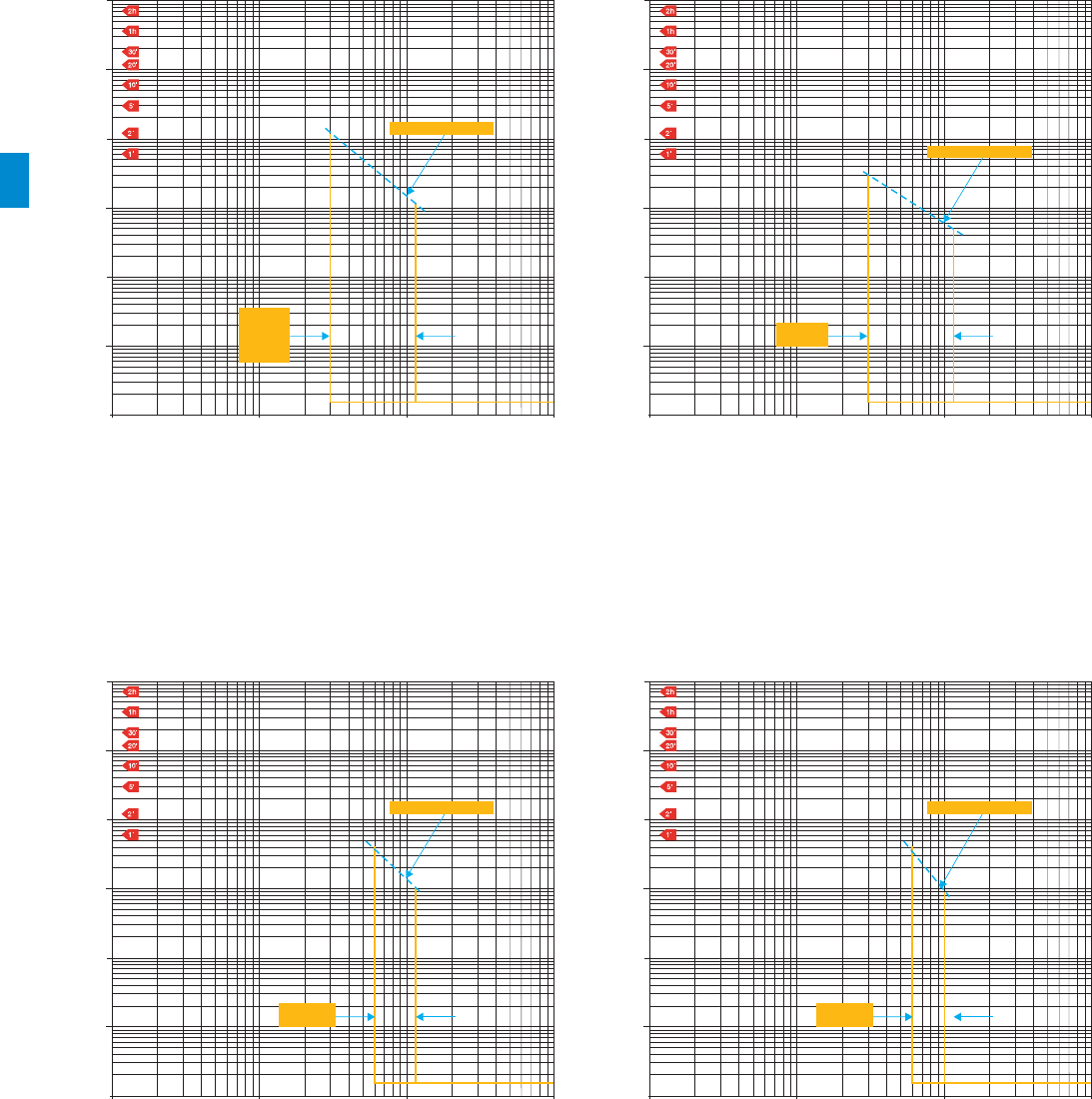

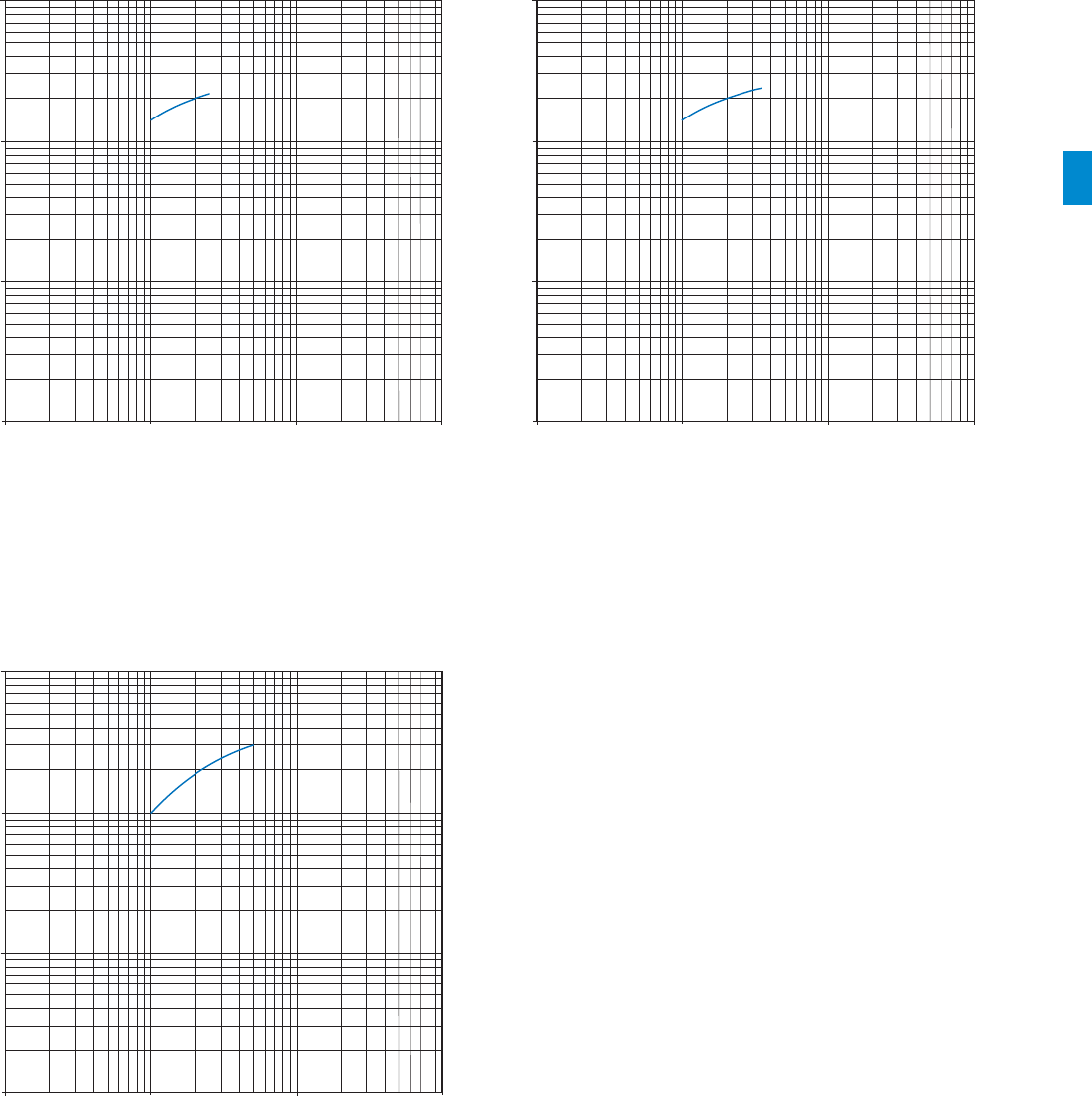

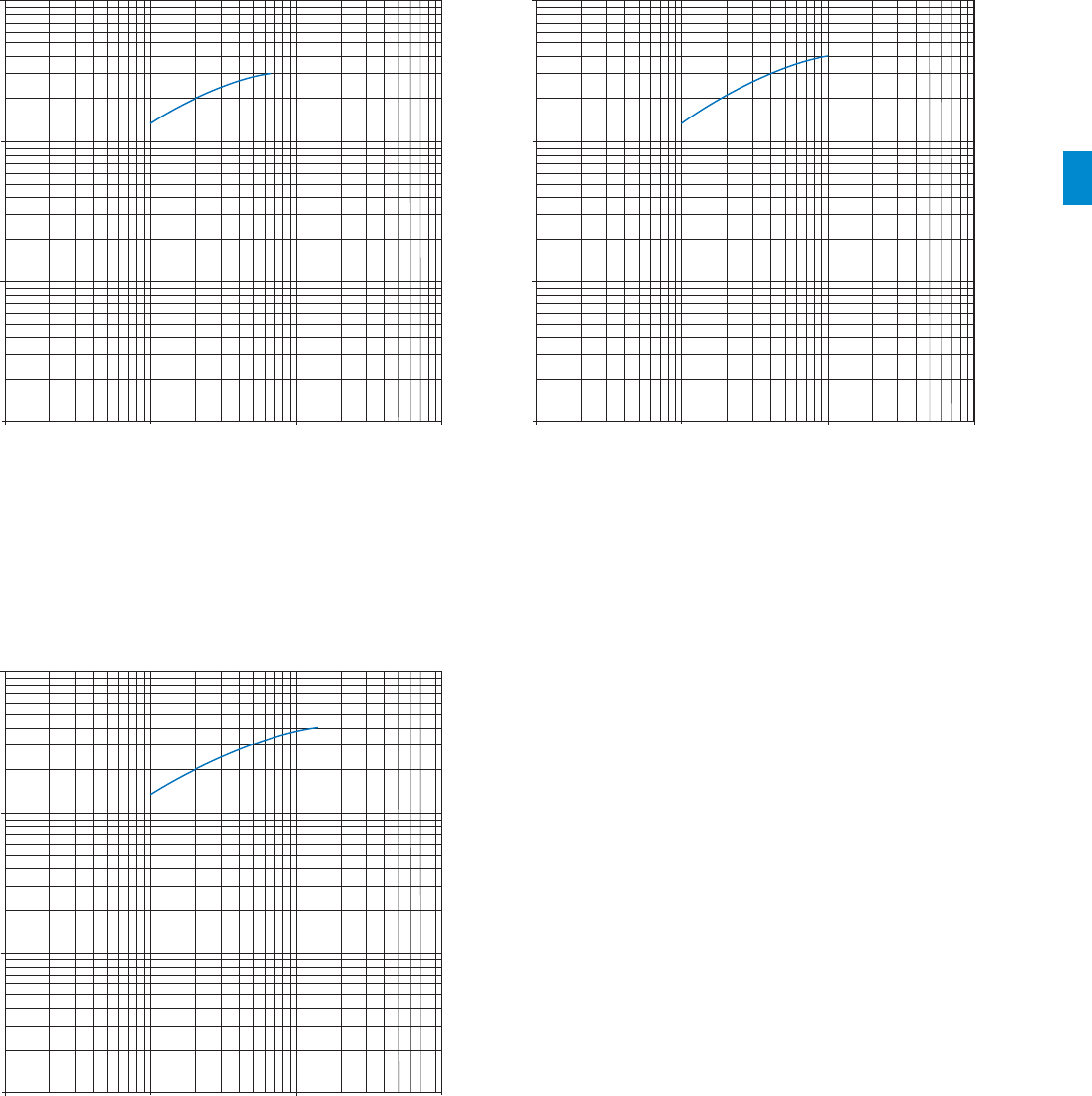

Characteristic curves and technical information

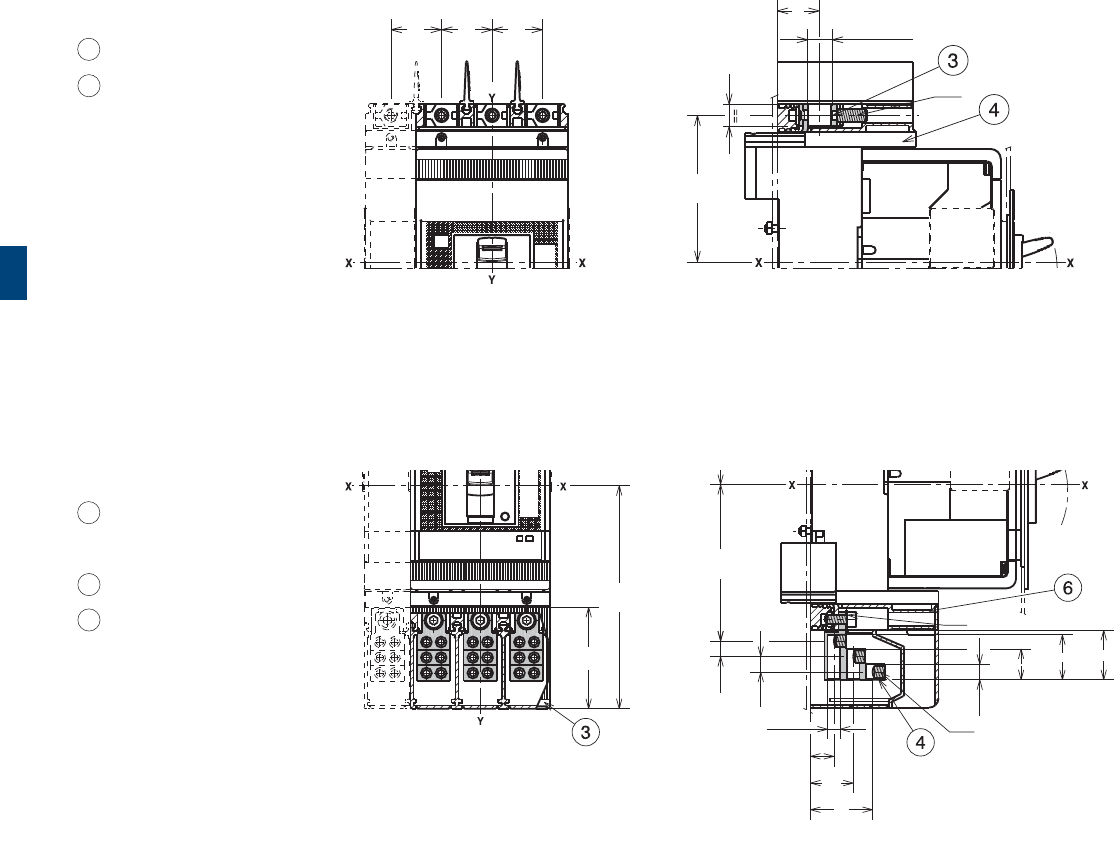

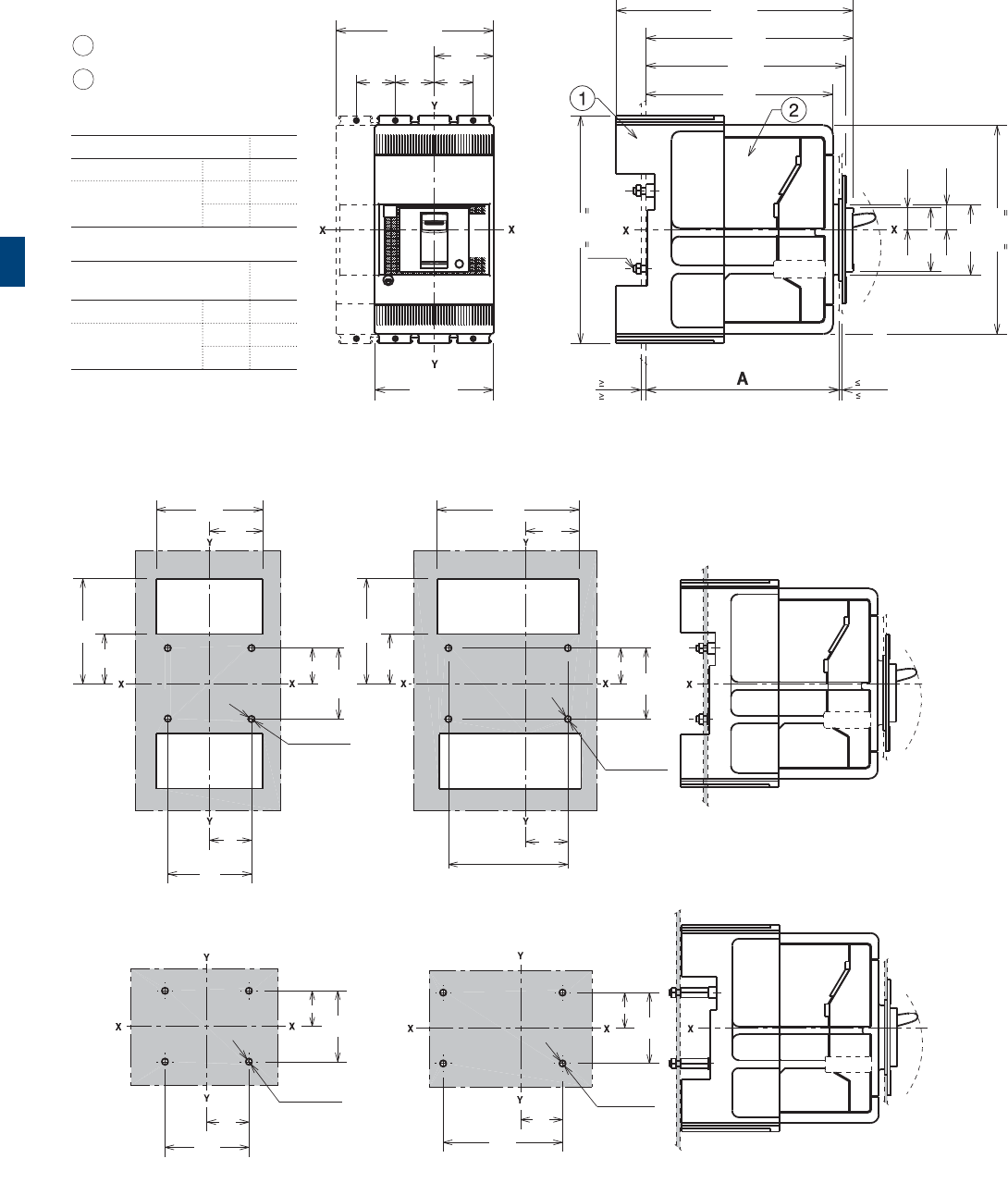

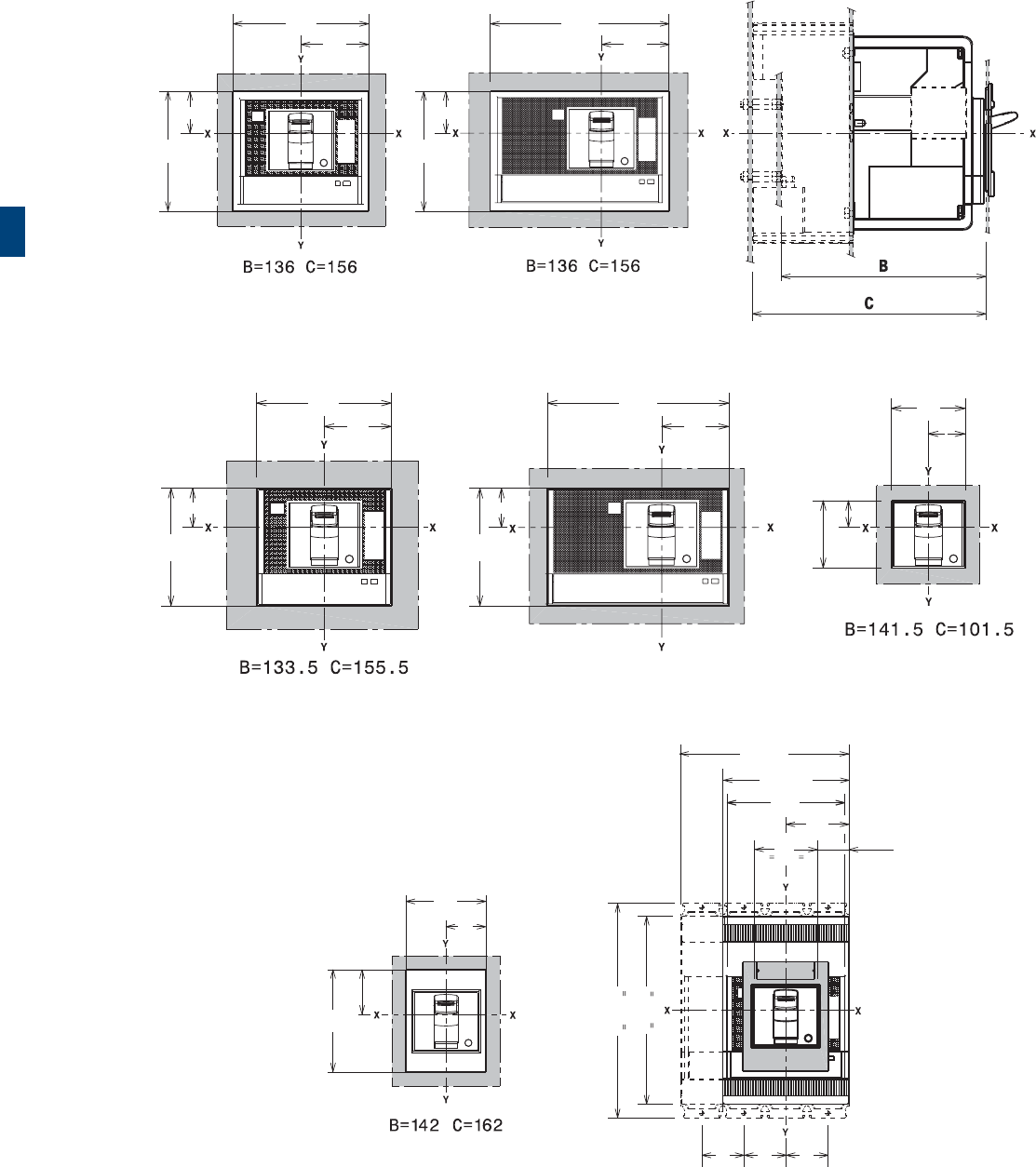

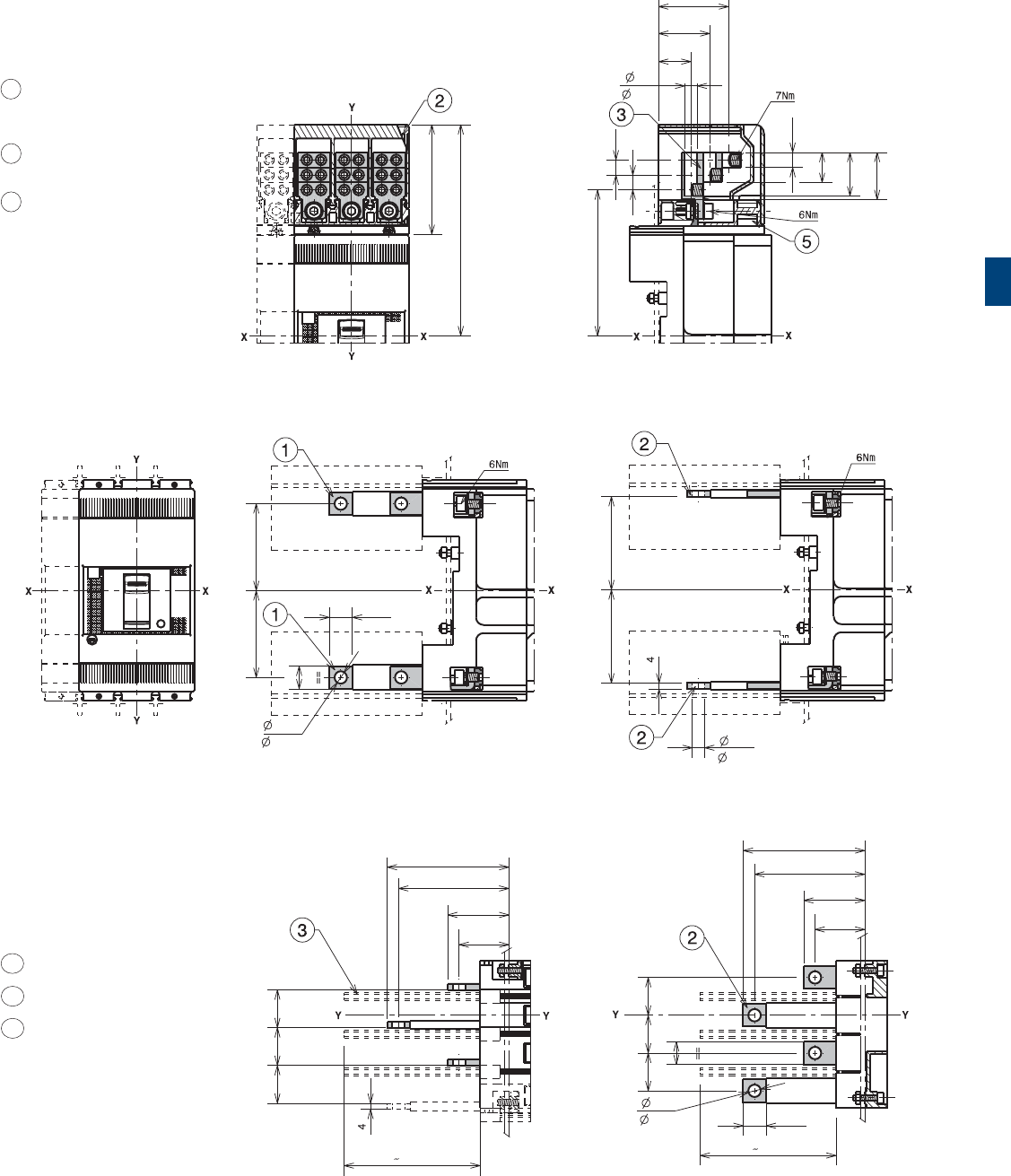

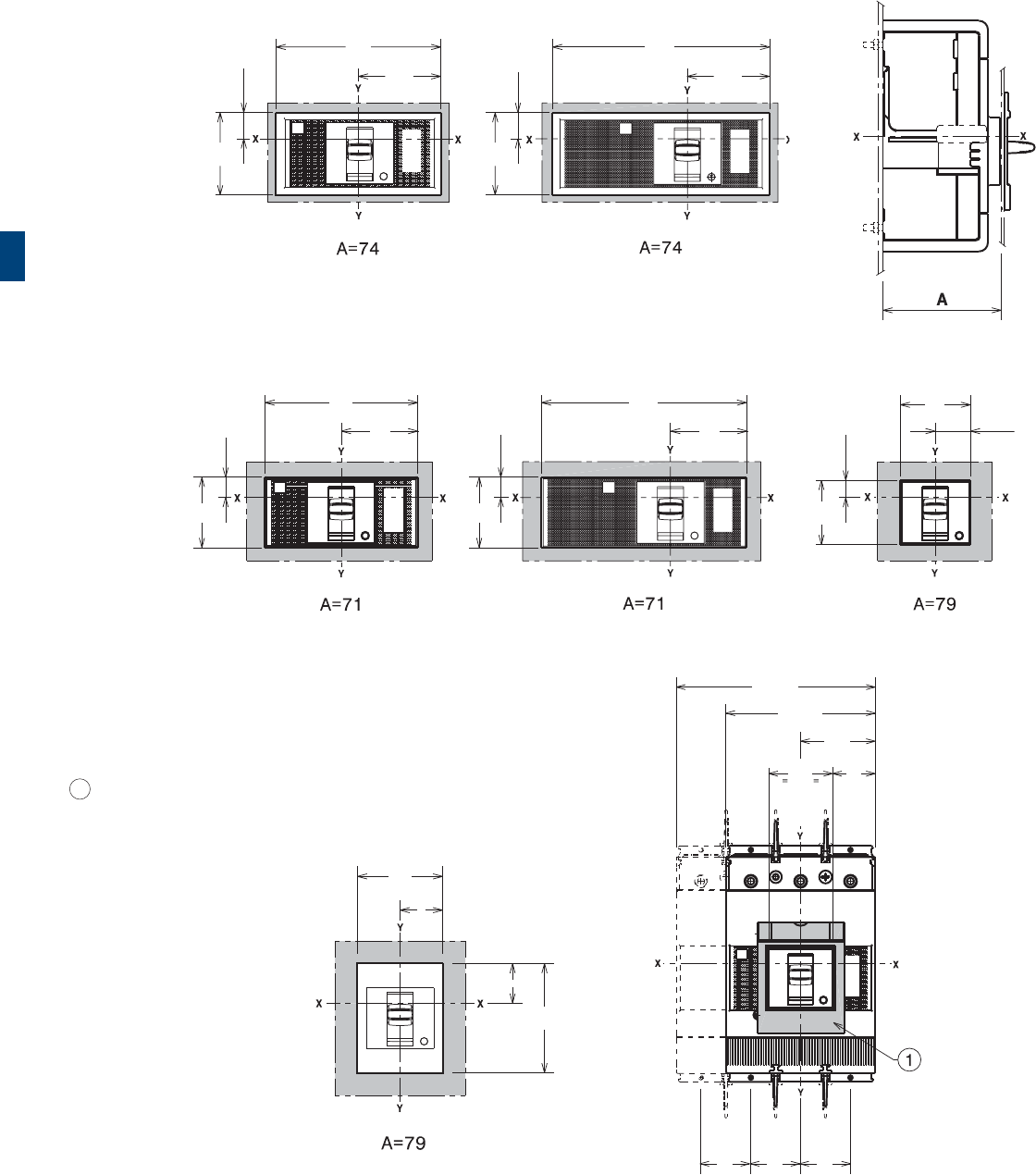

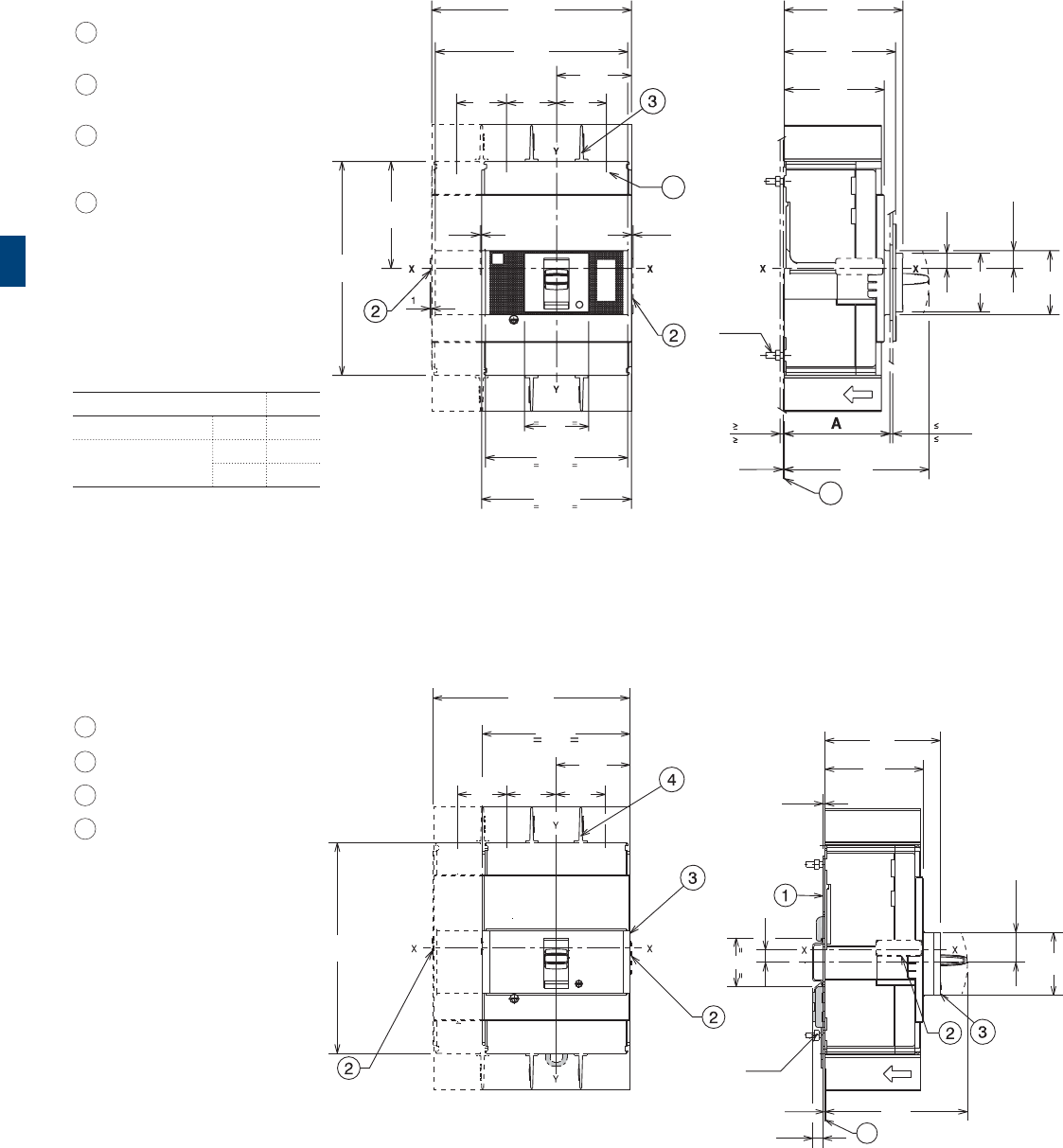

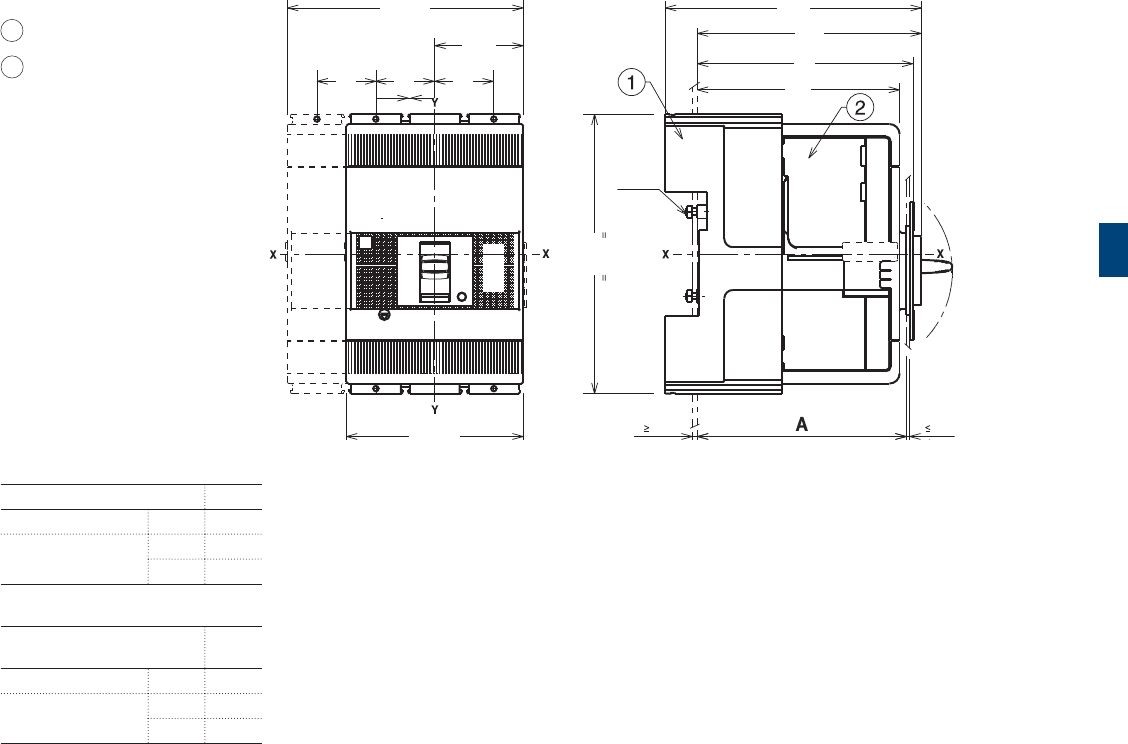

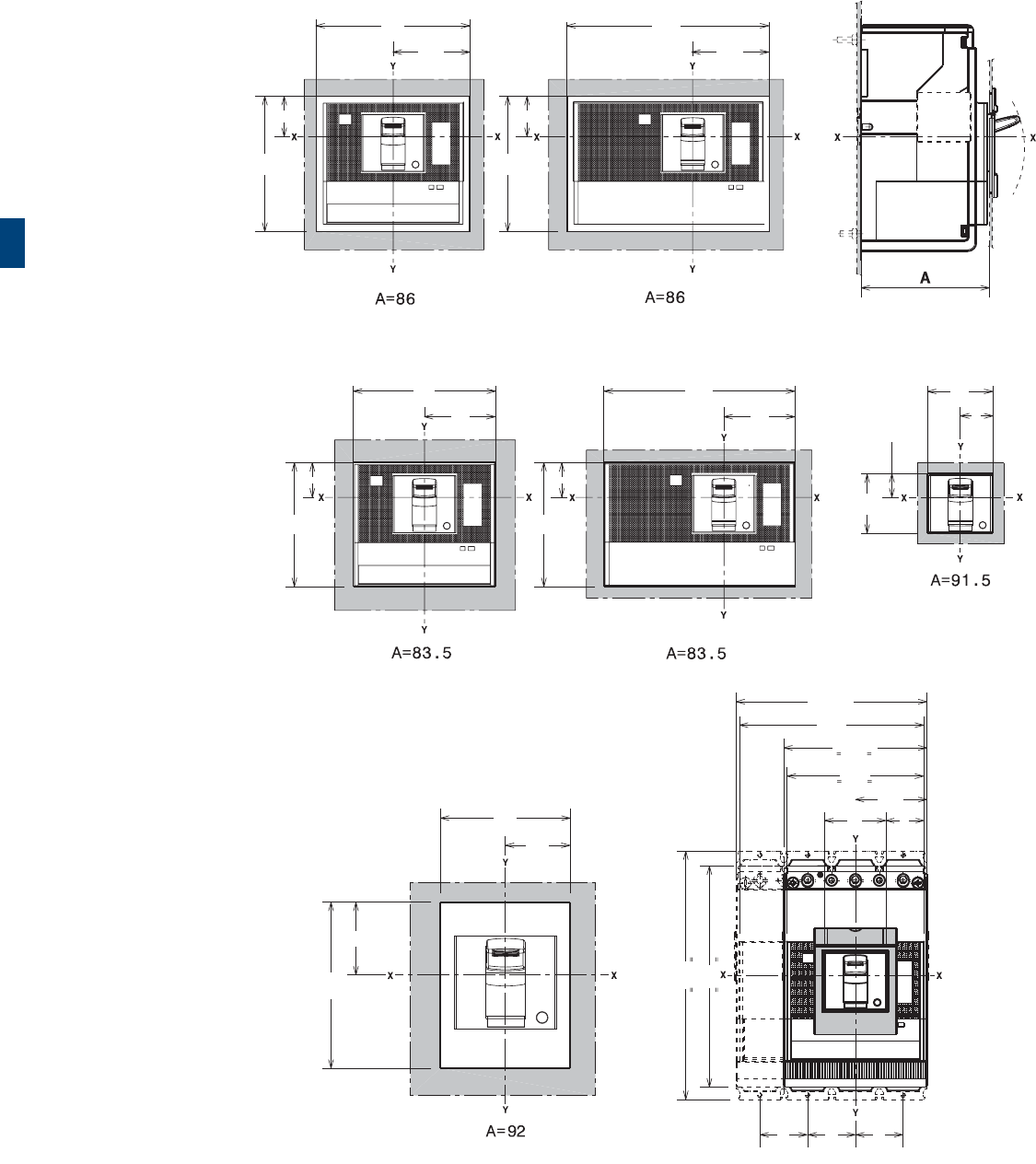

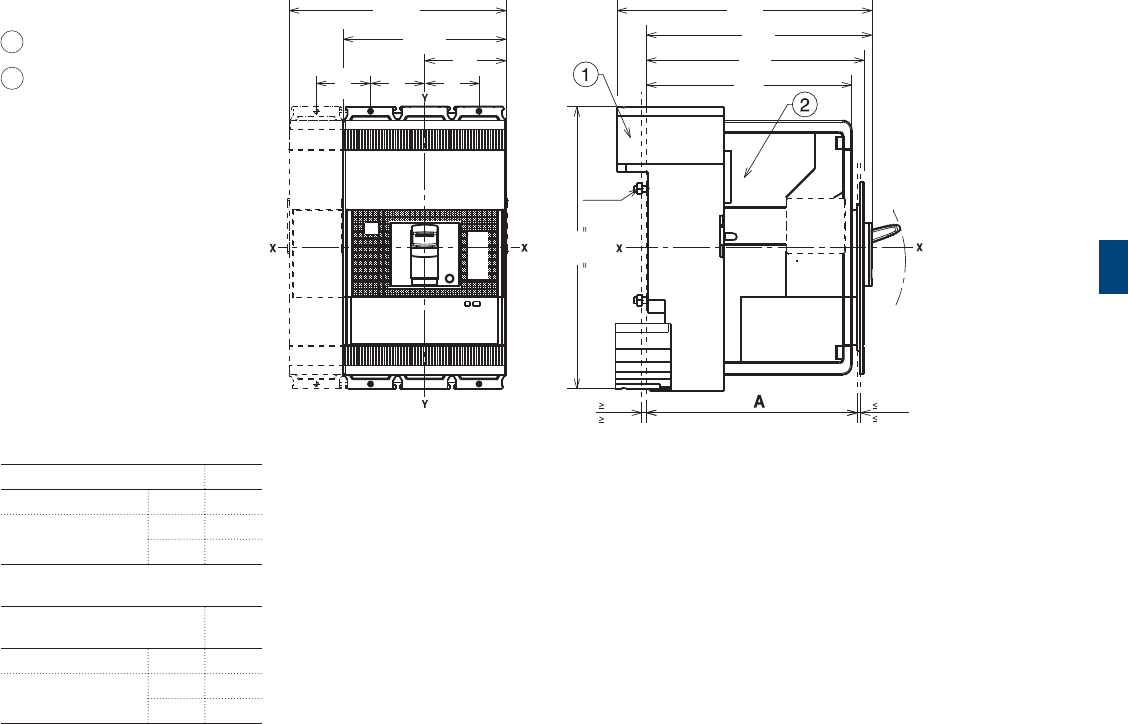

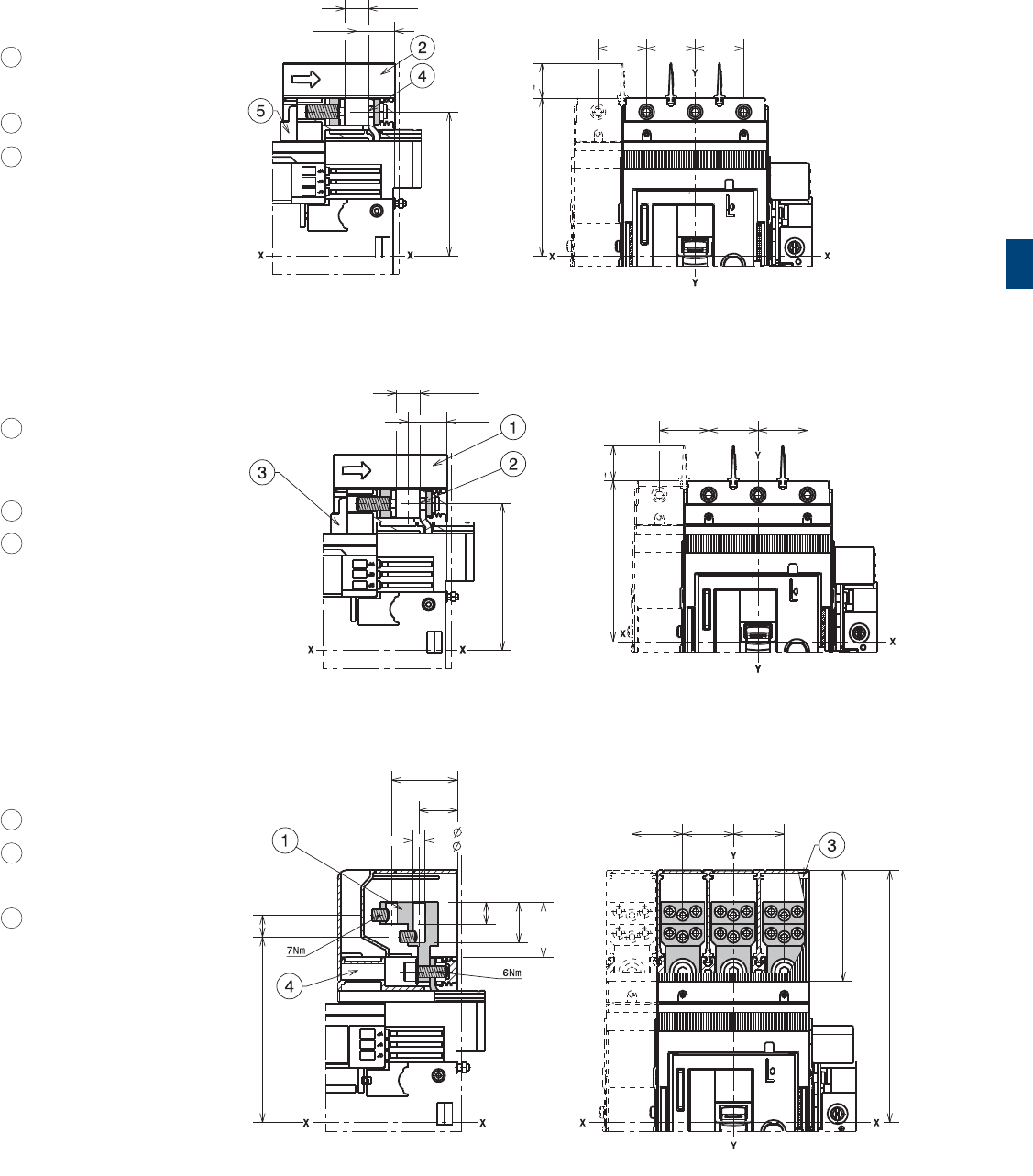

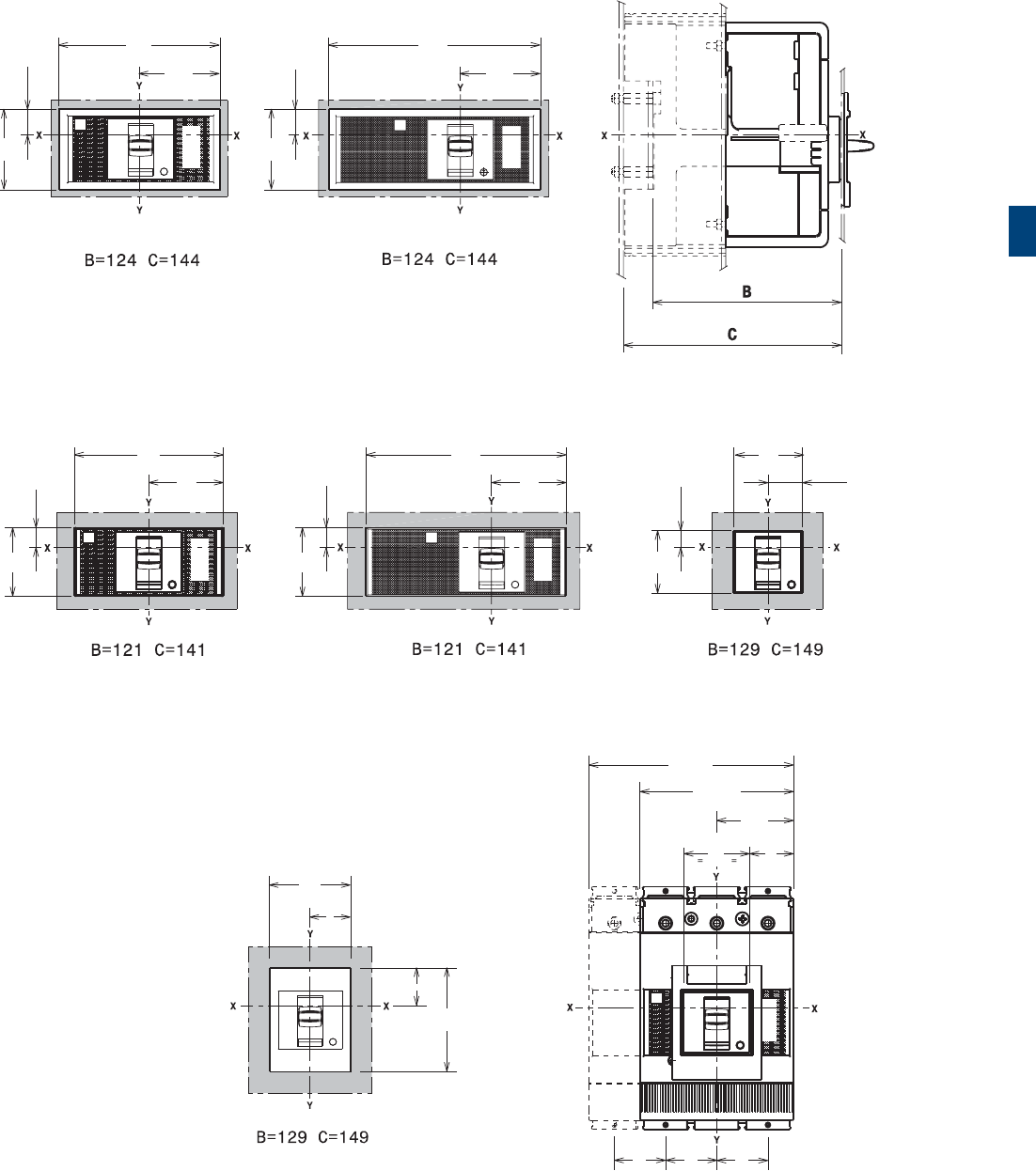

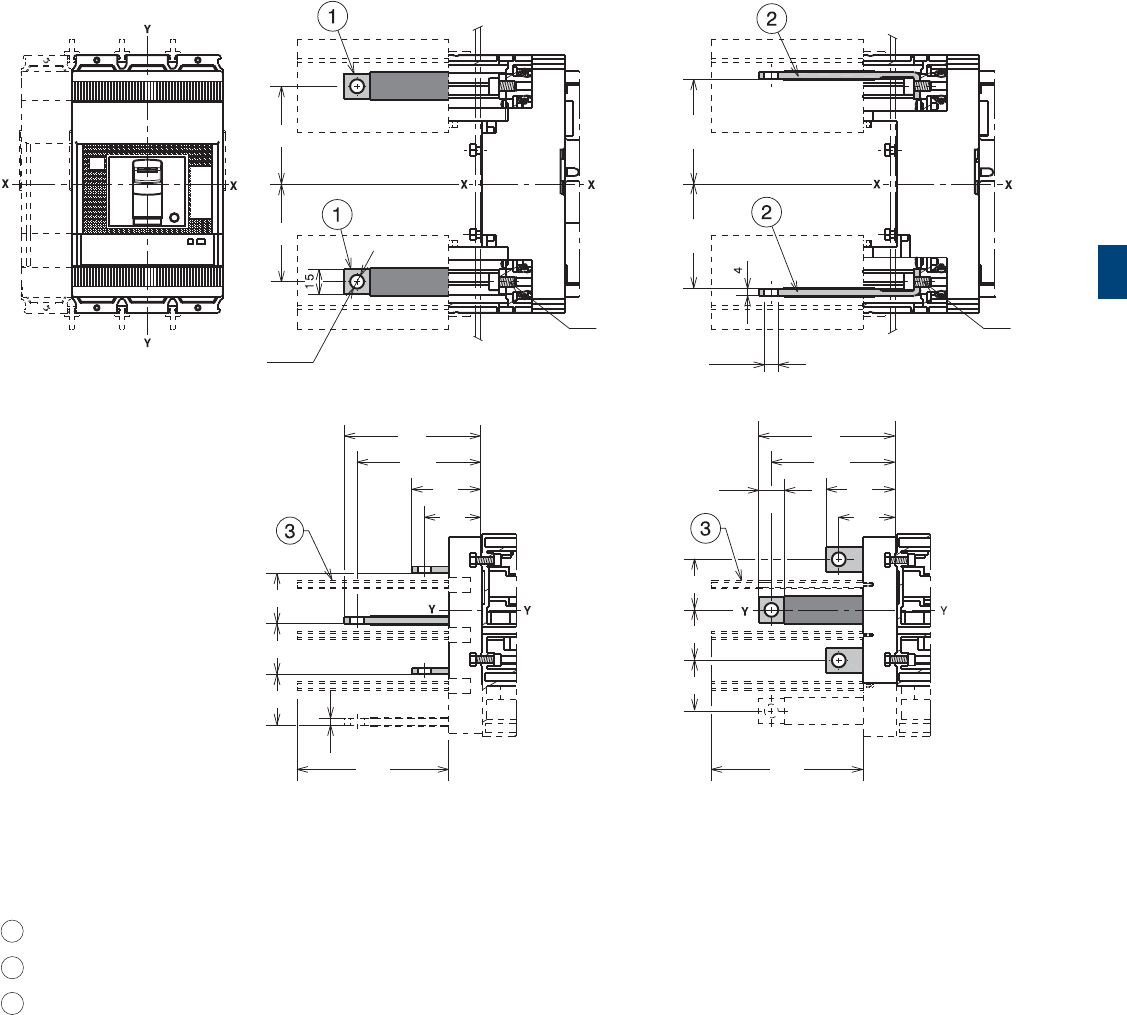

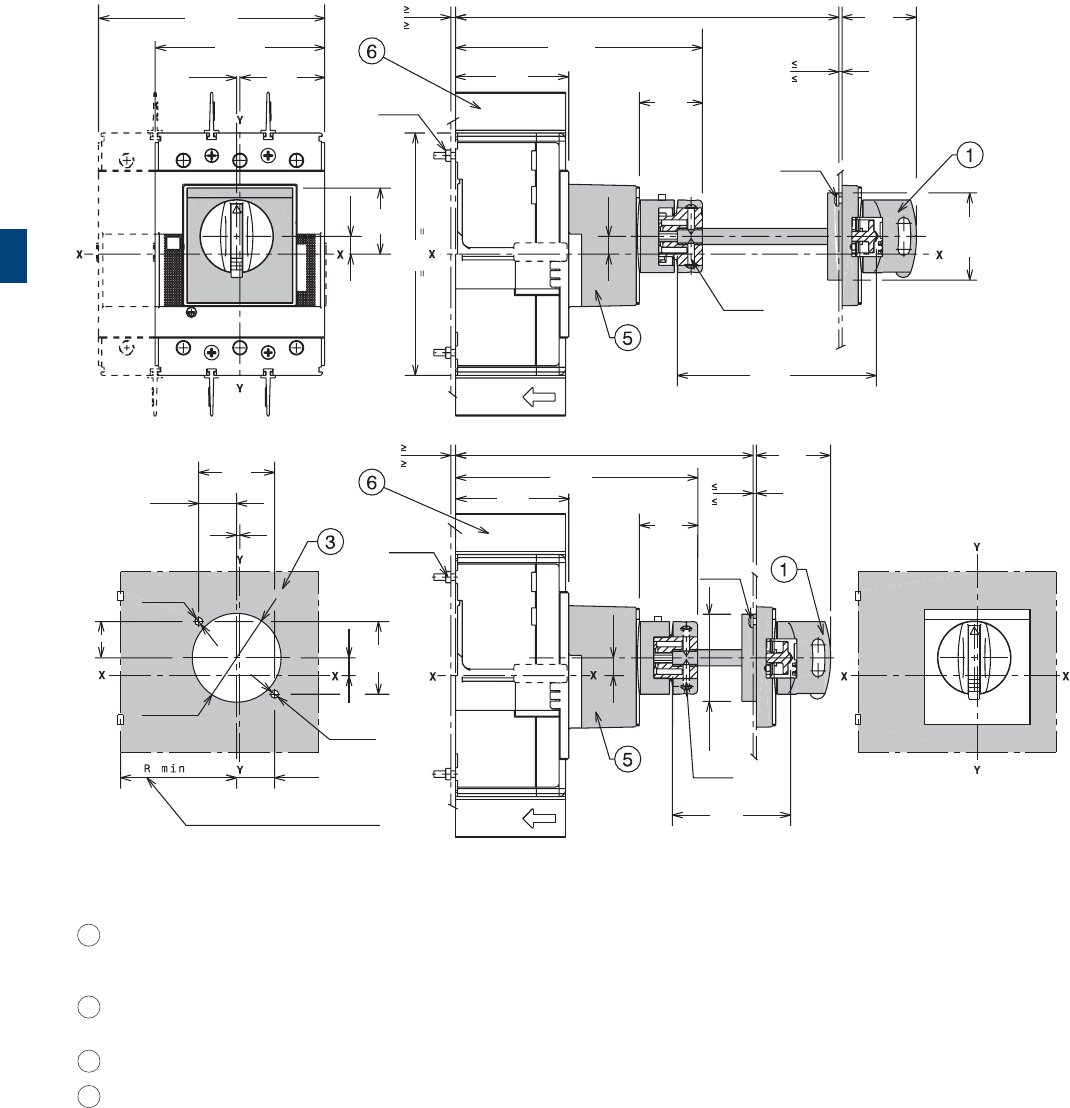

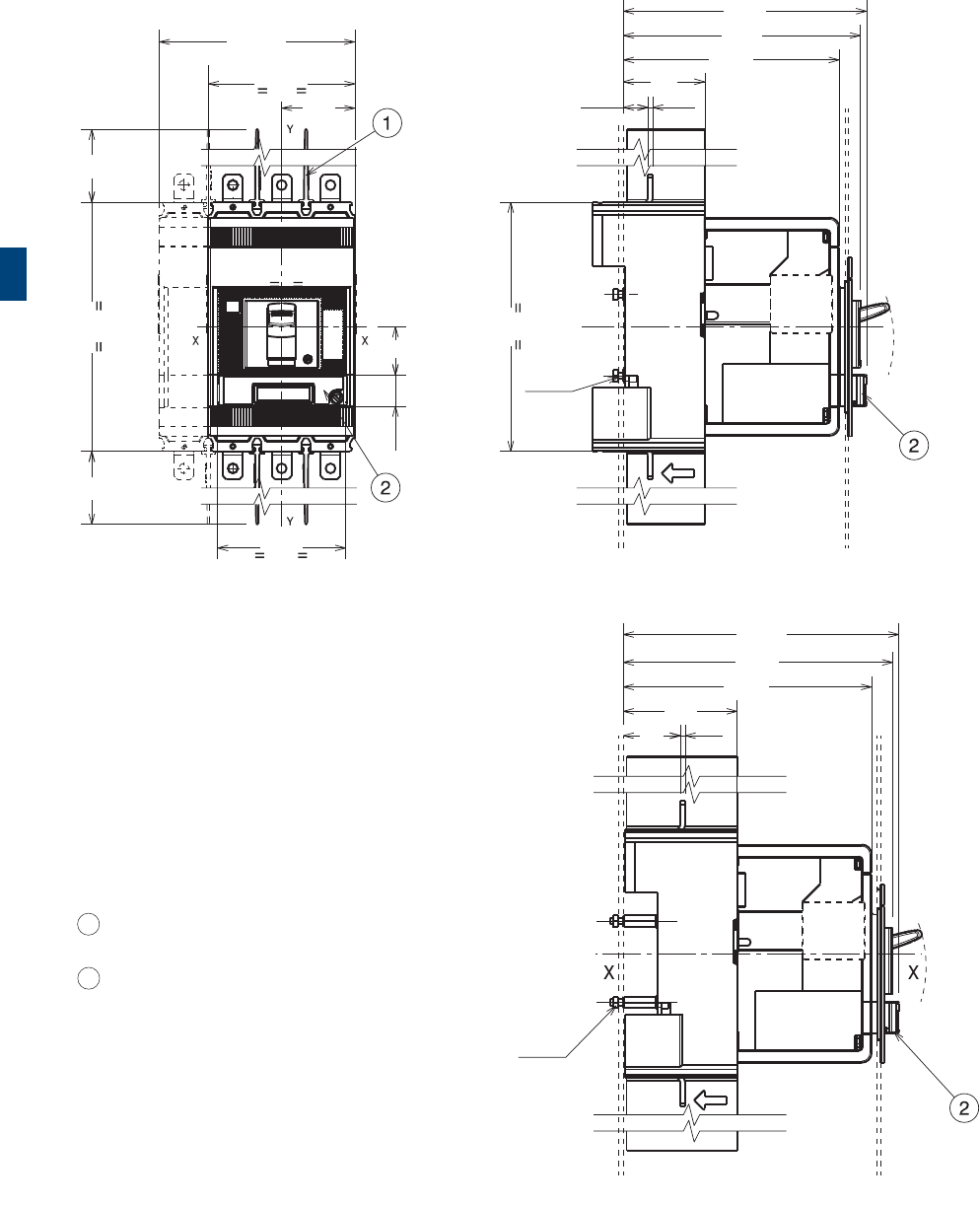

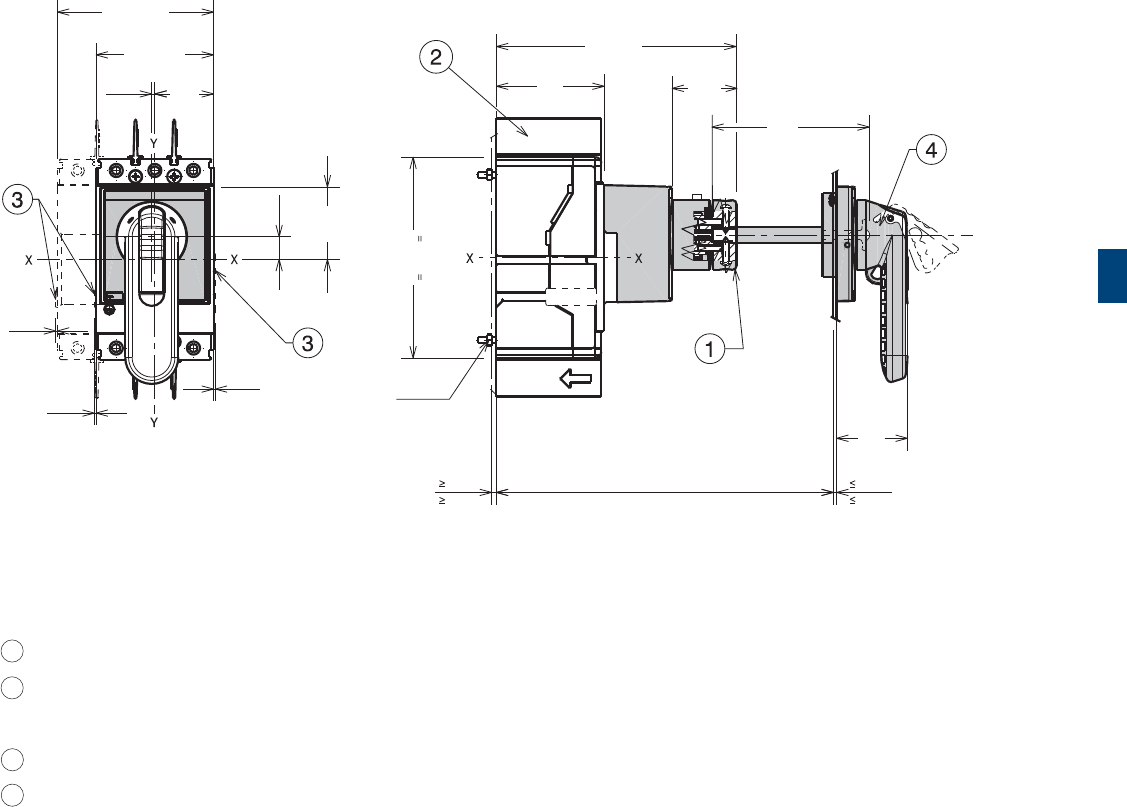

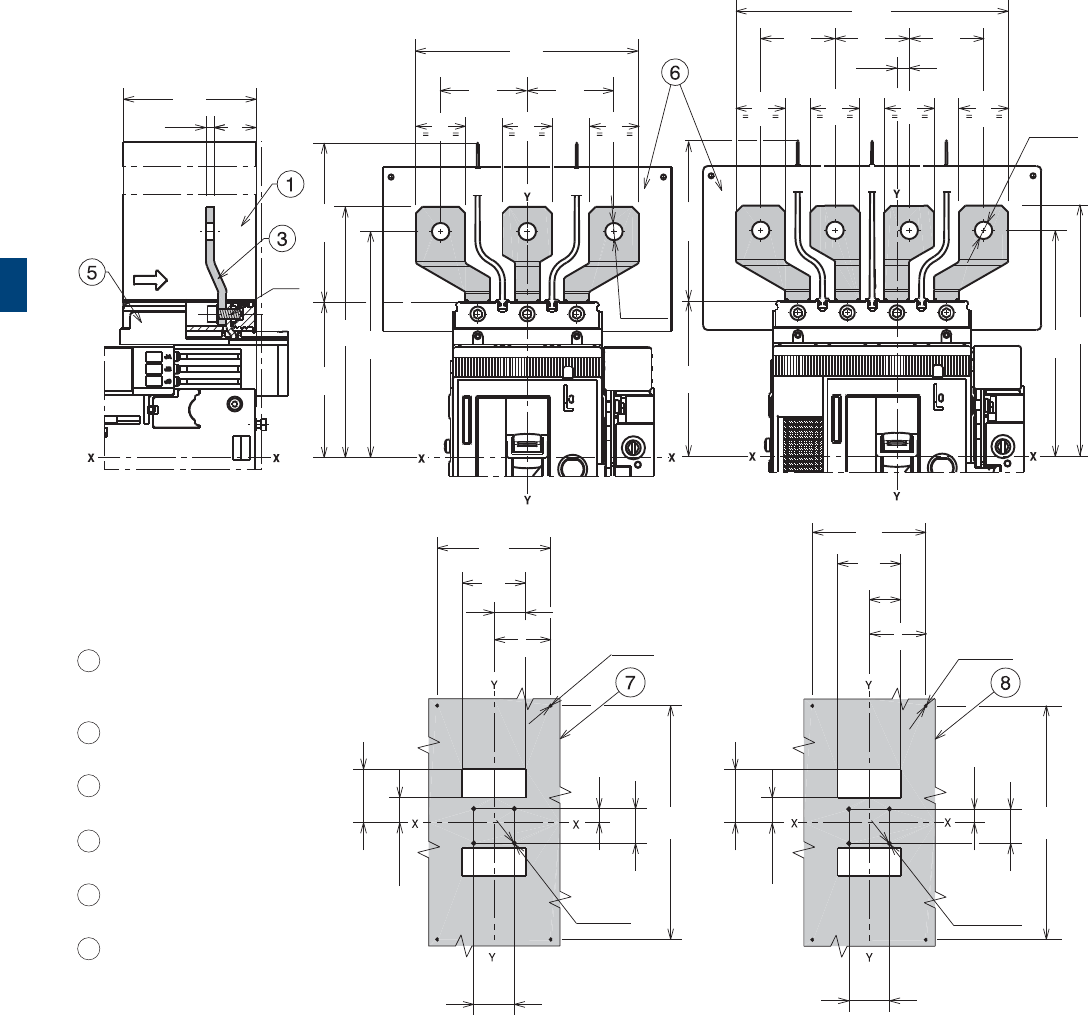

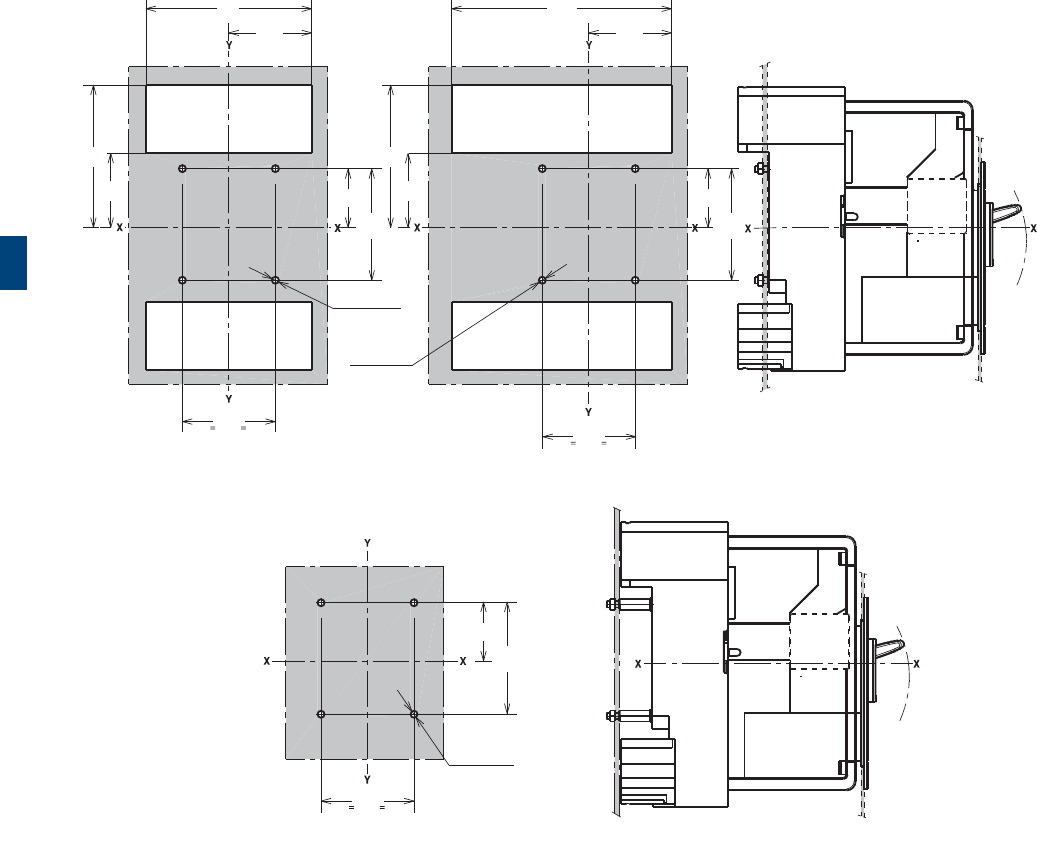

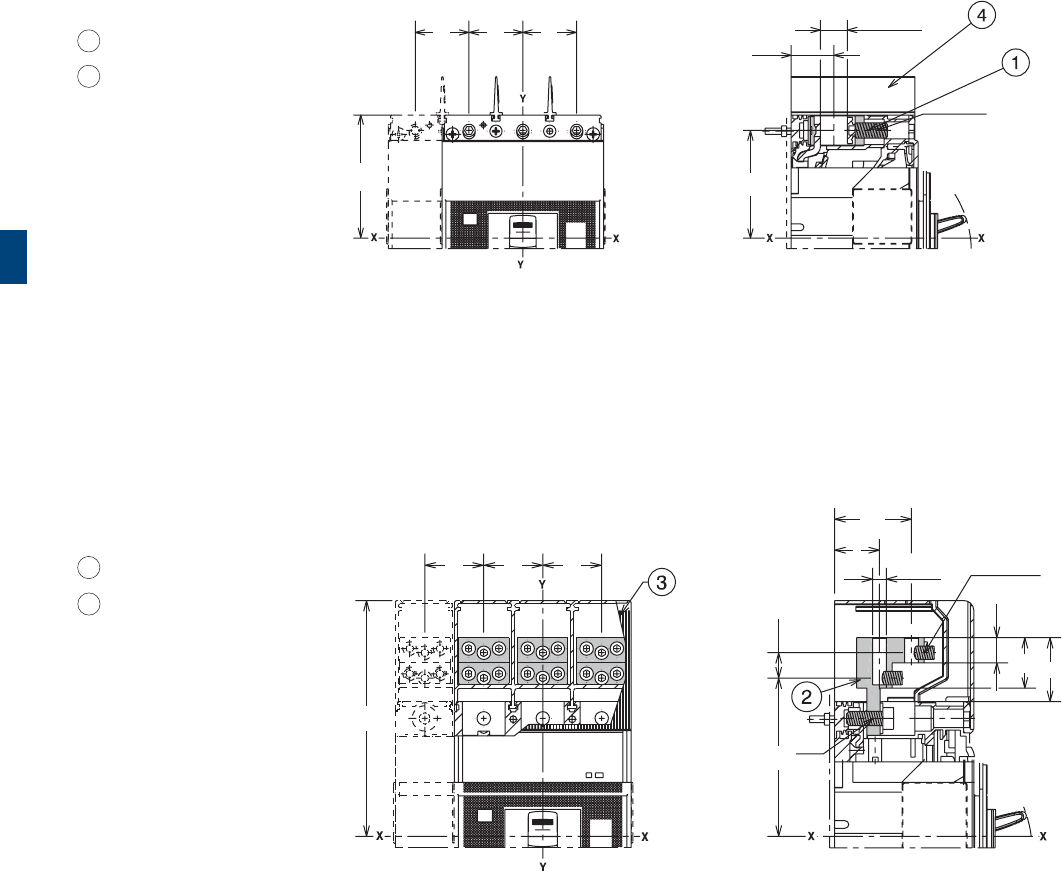

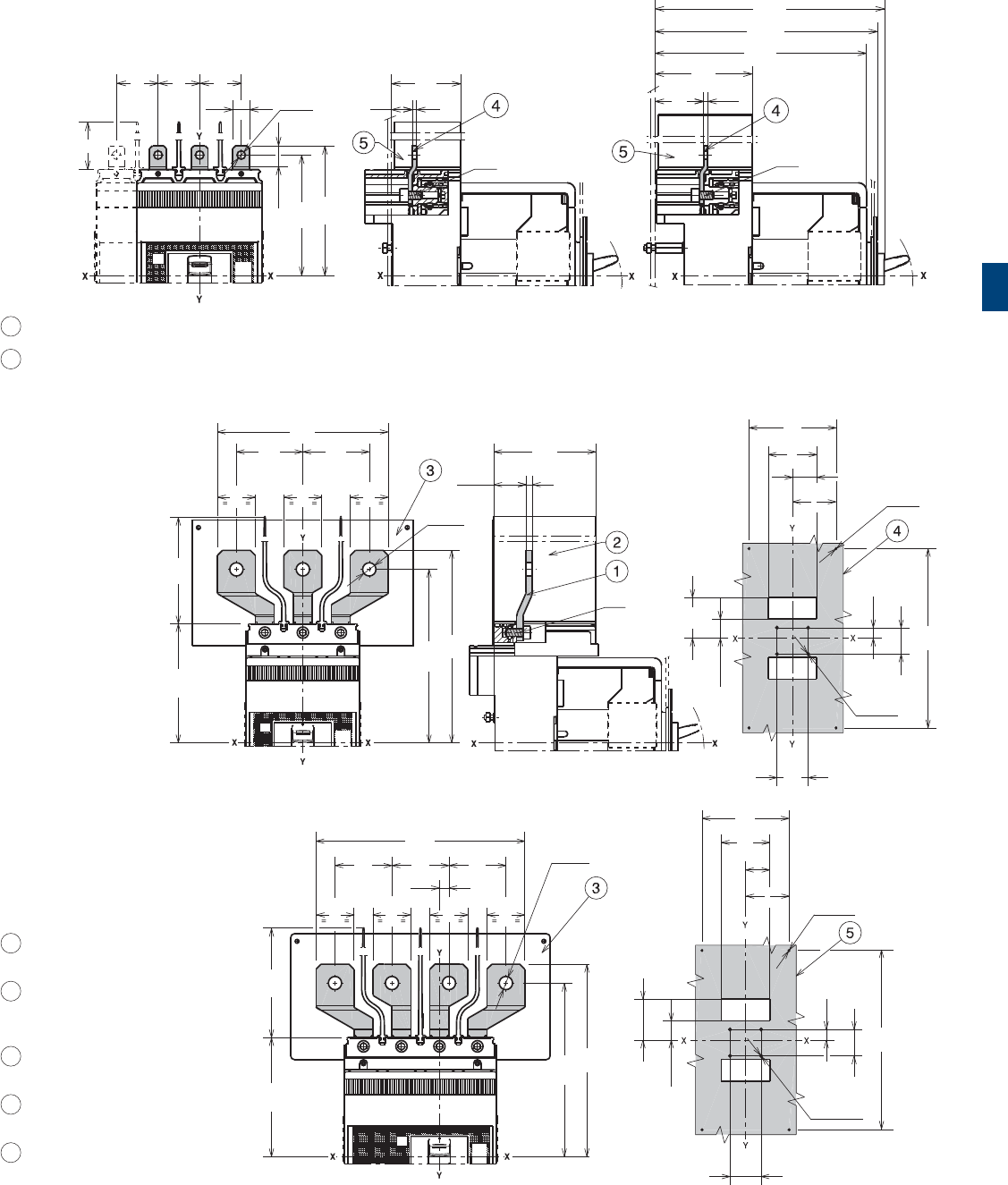

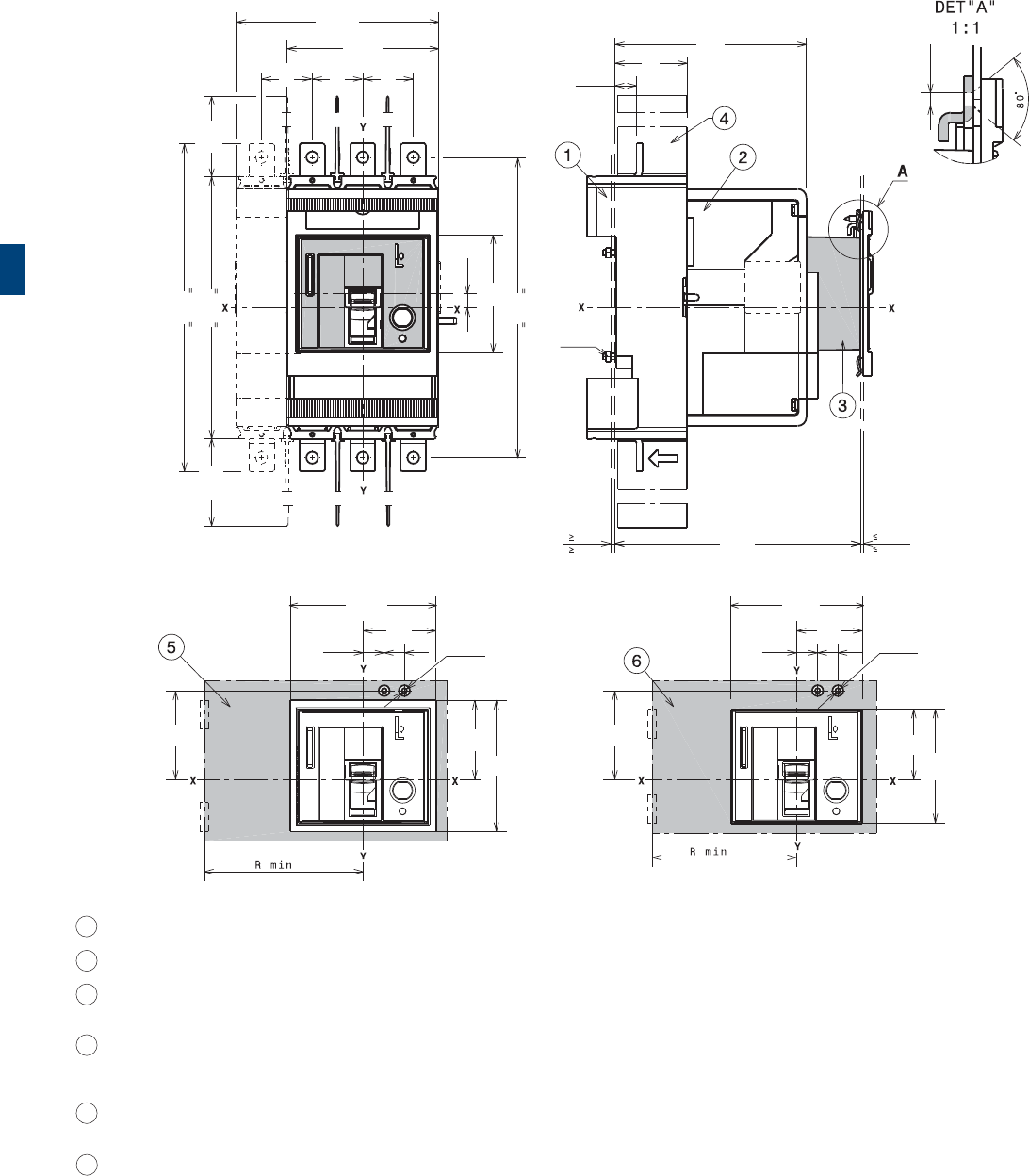

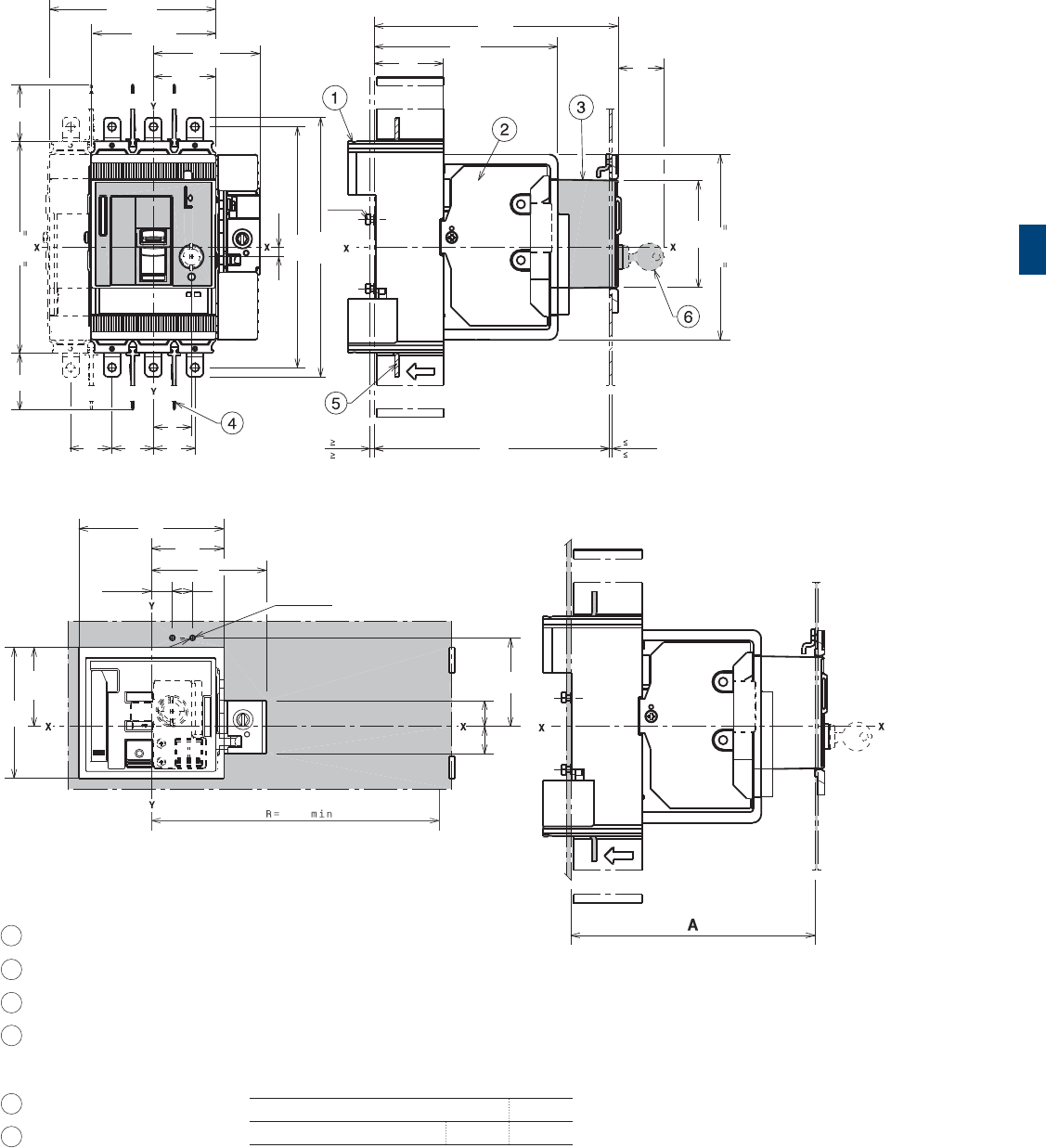

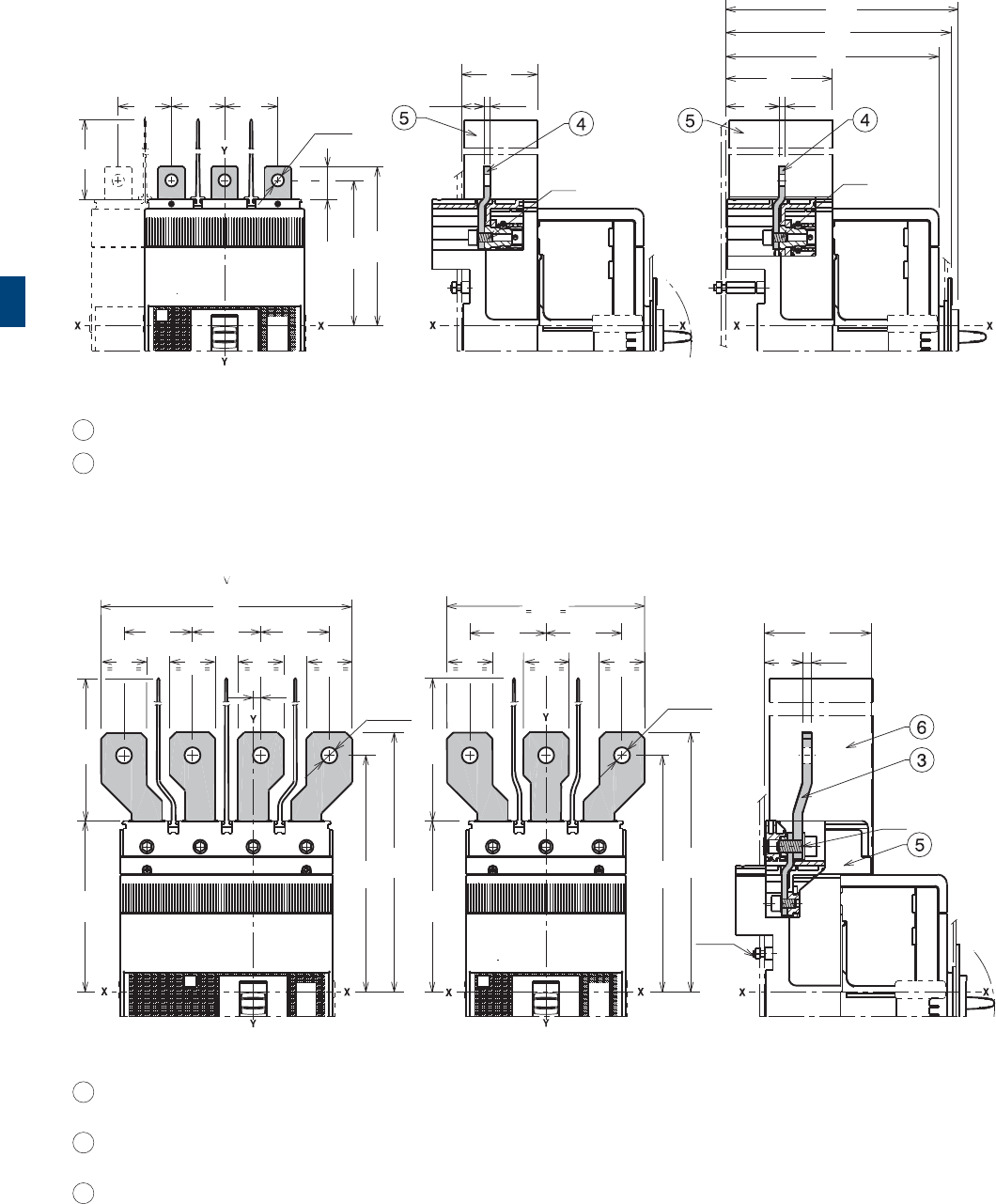

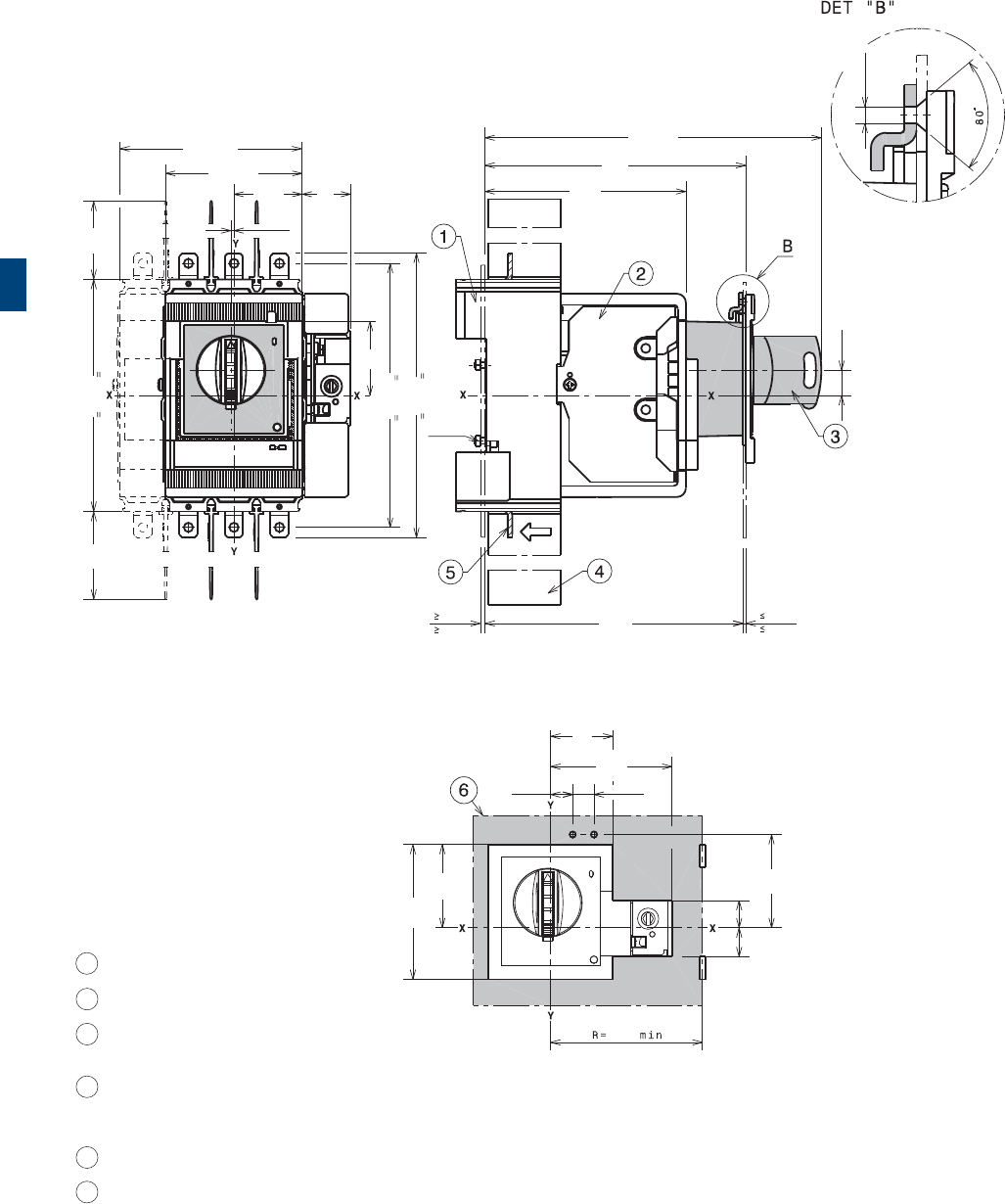

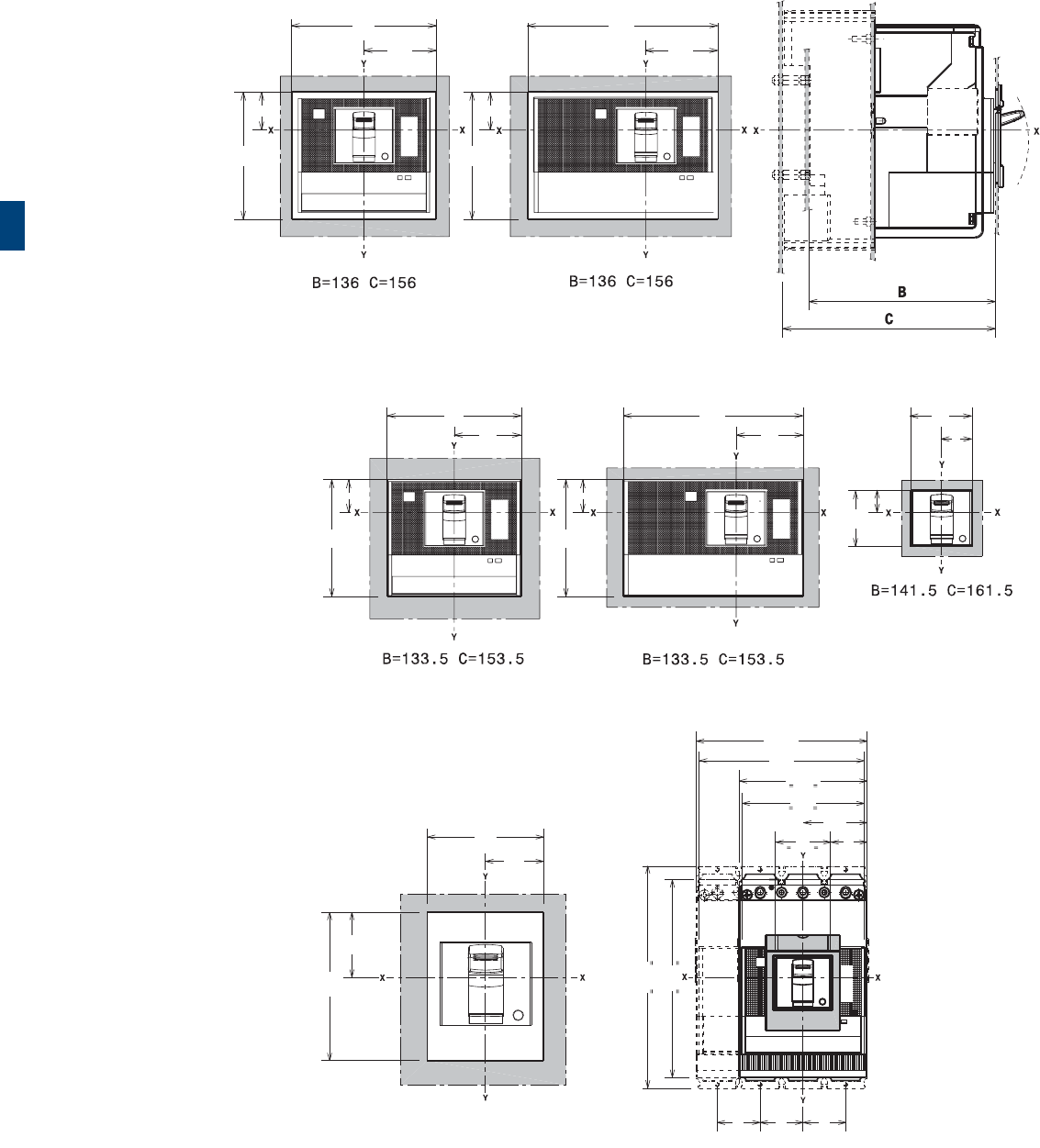

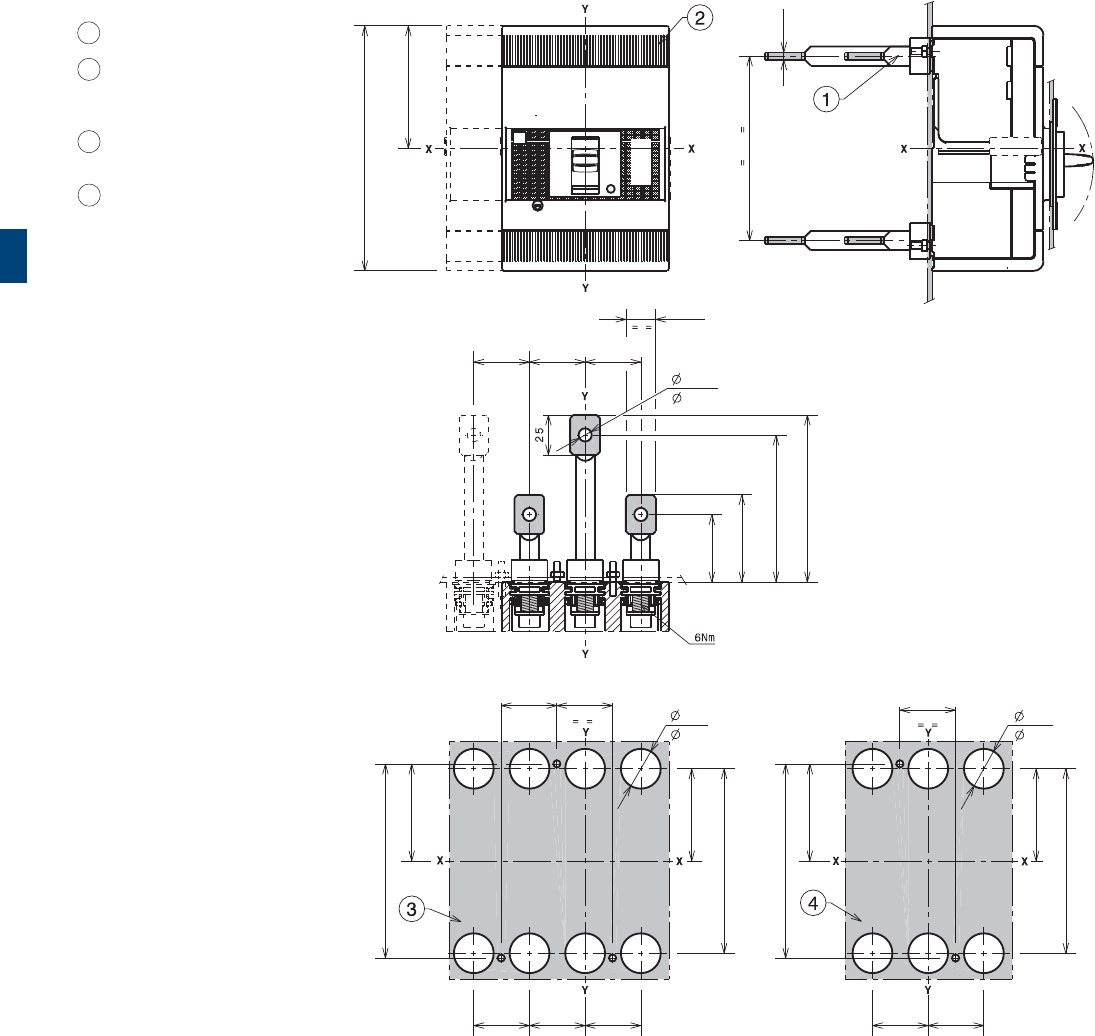

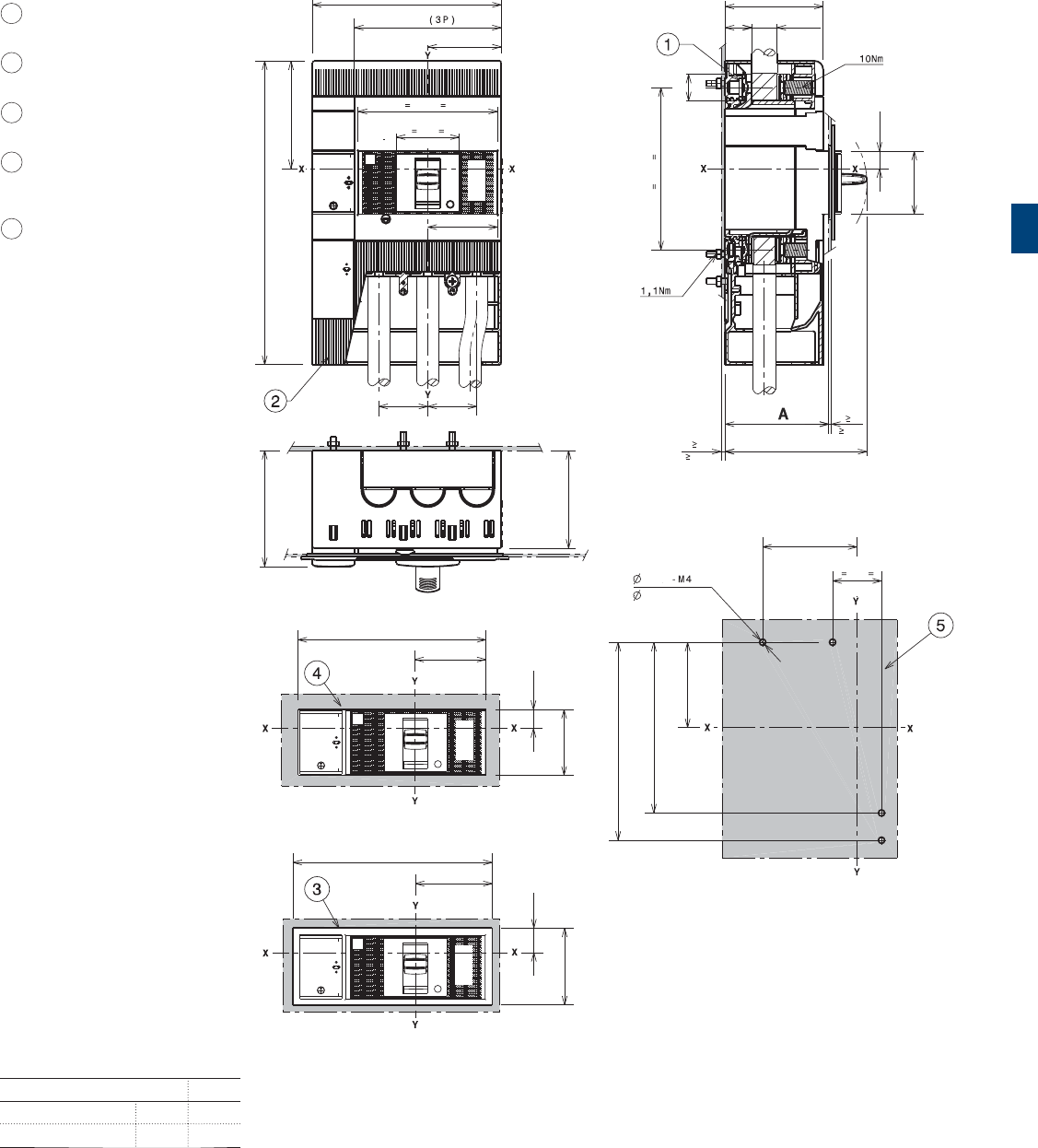

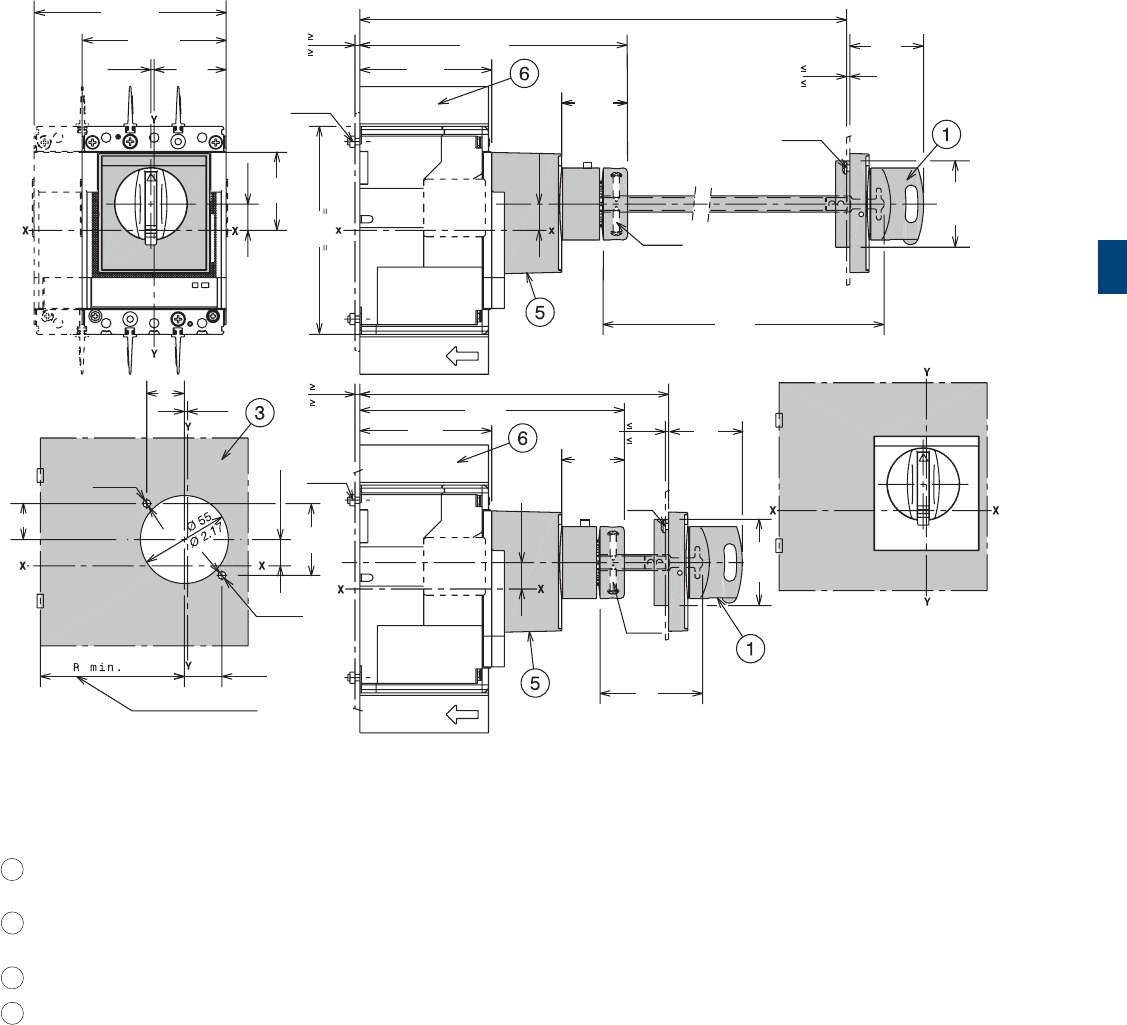

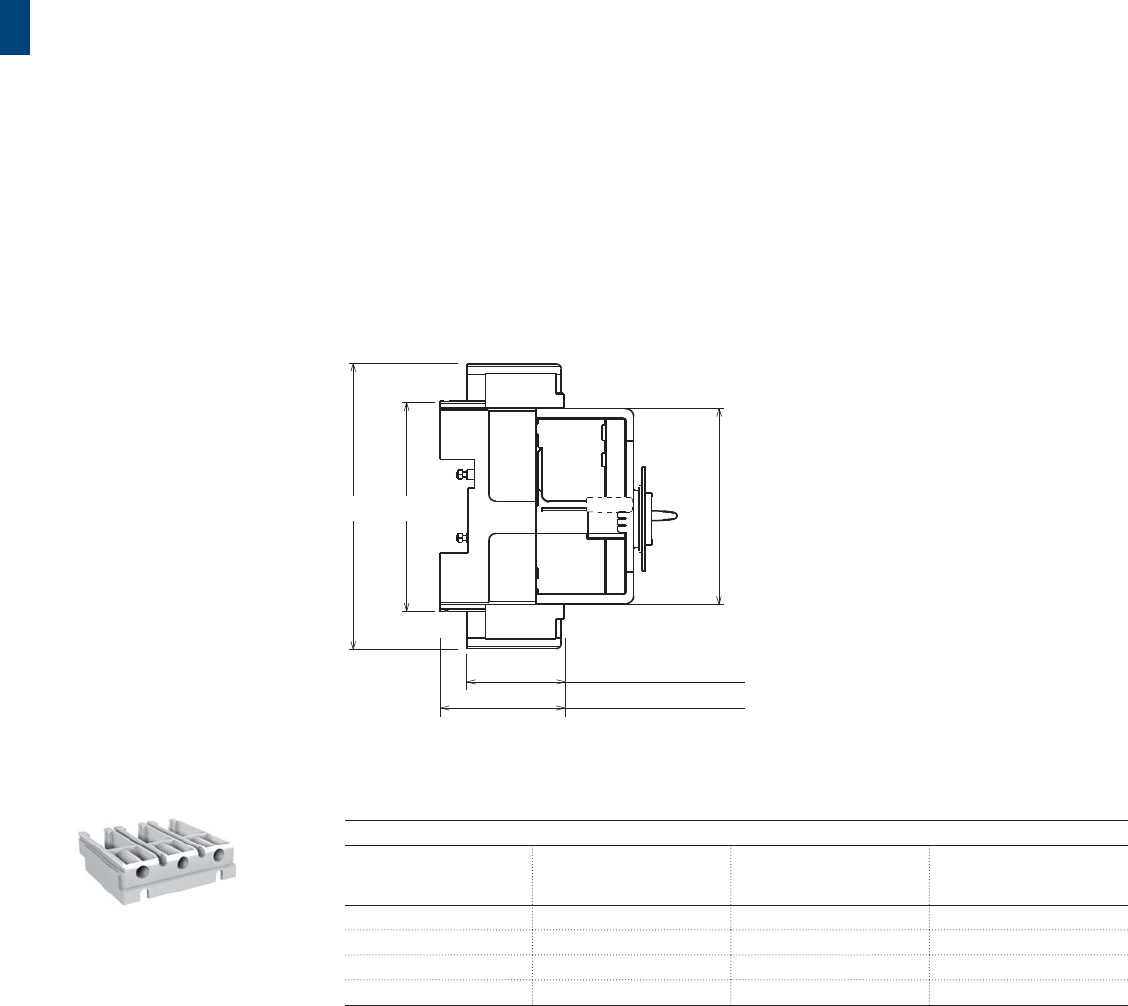

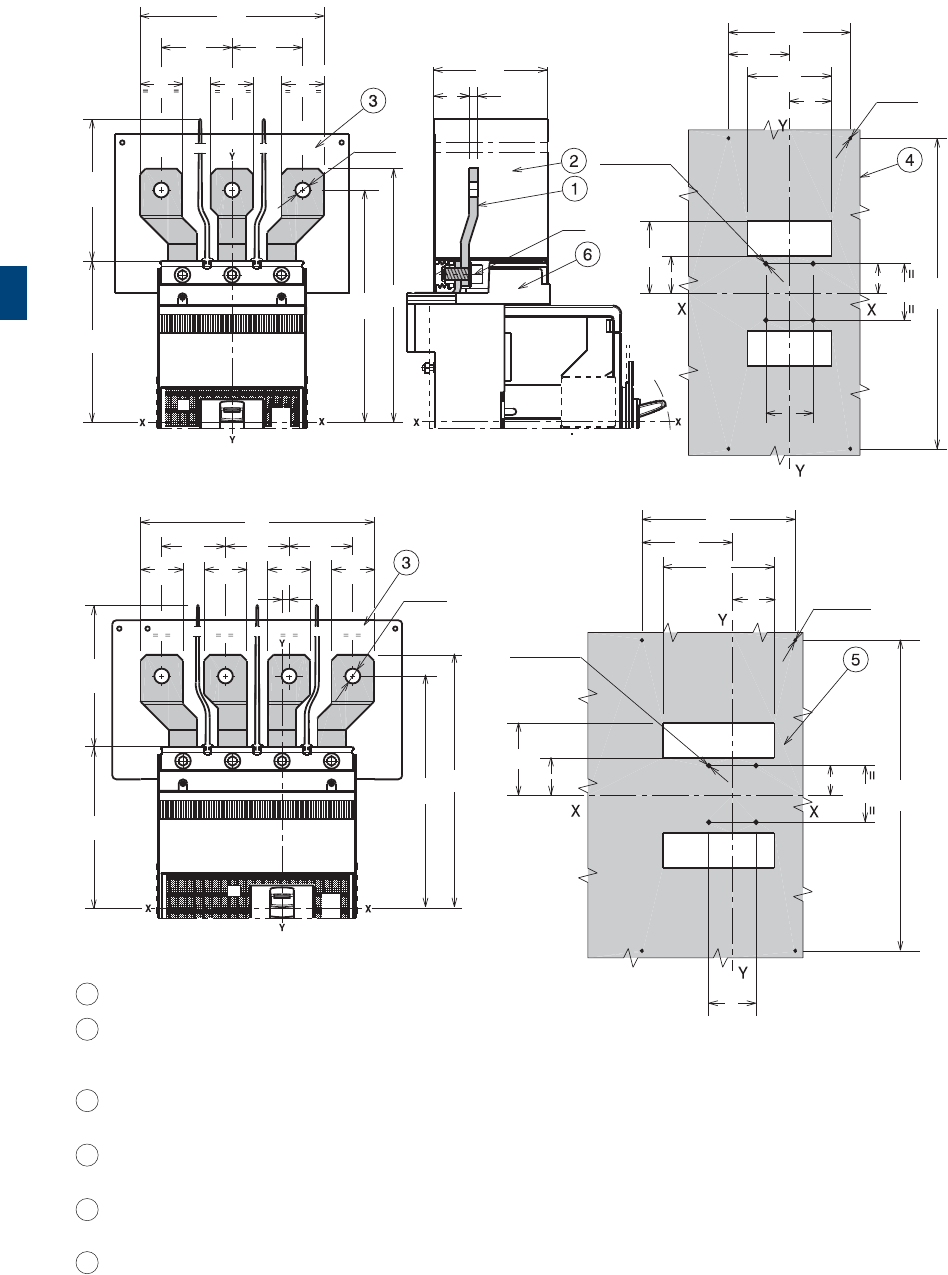

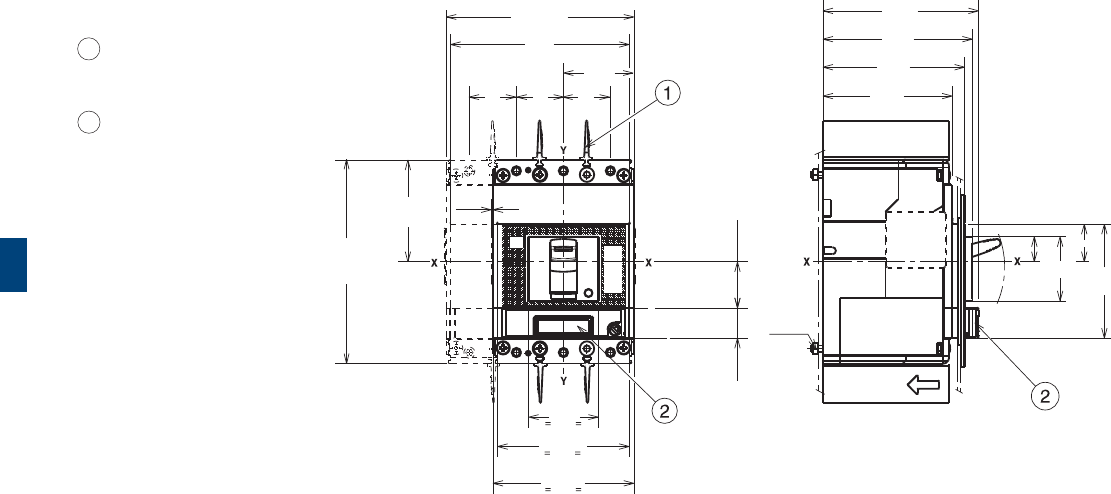

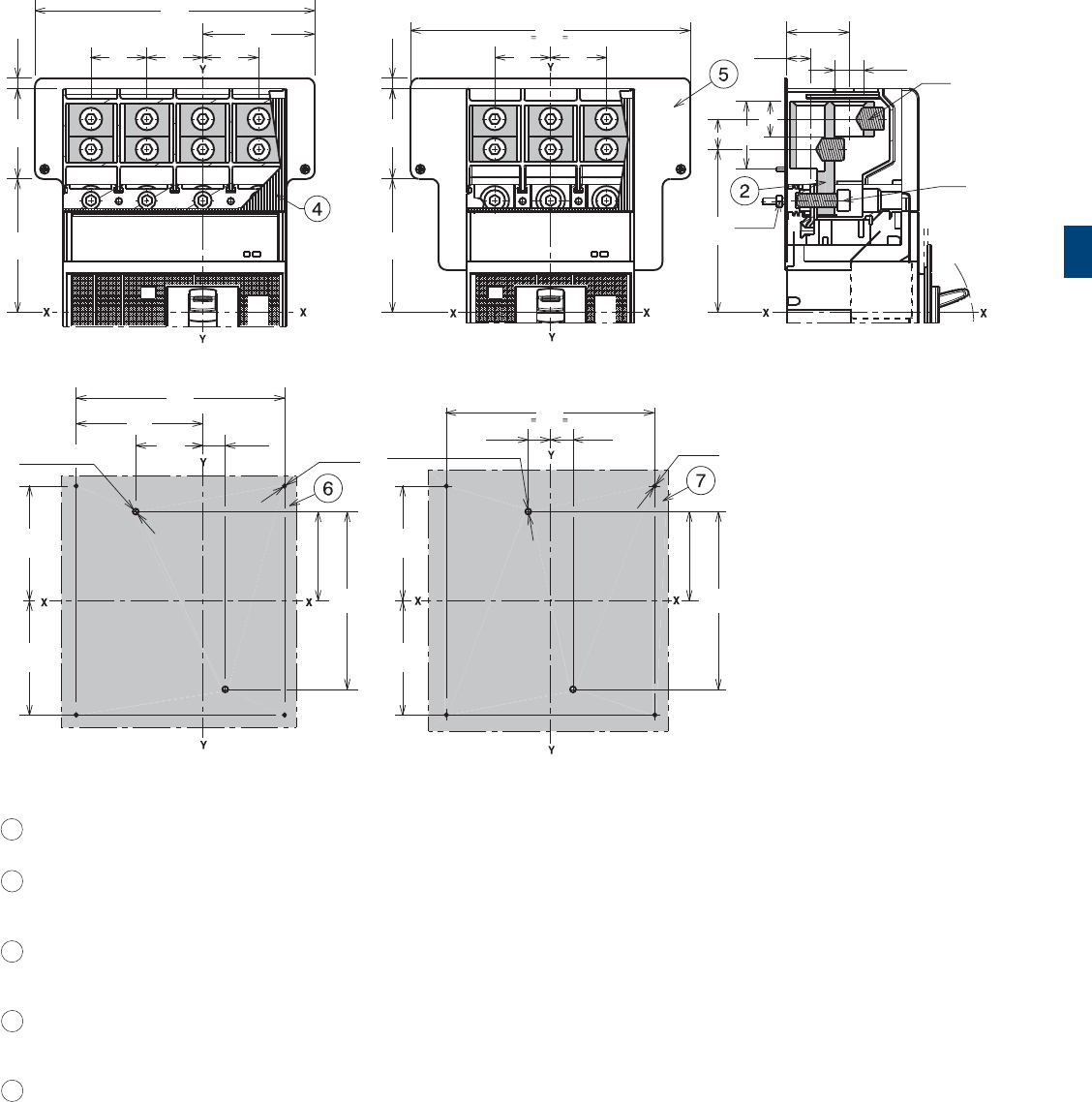

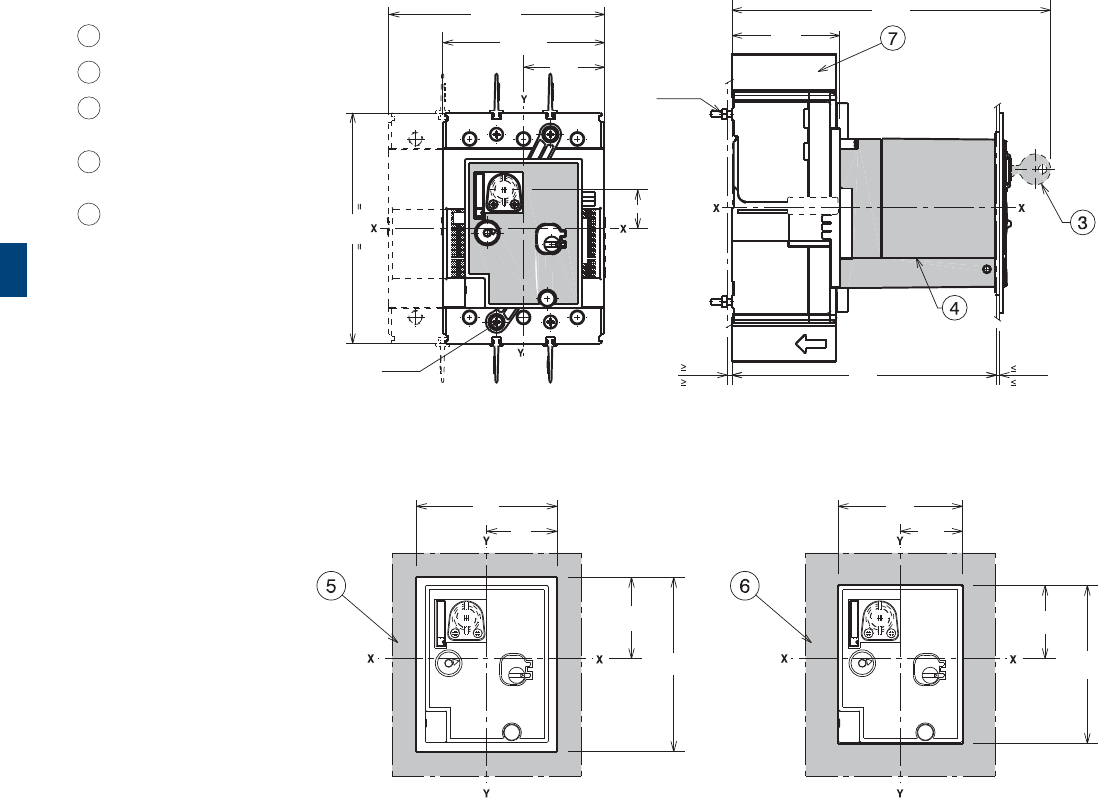

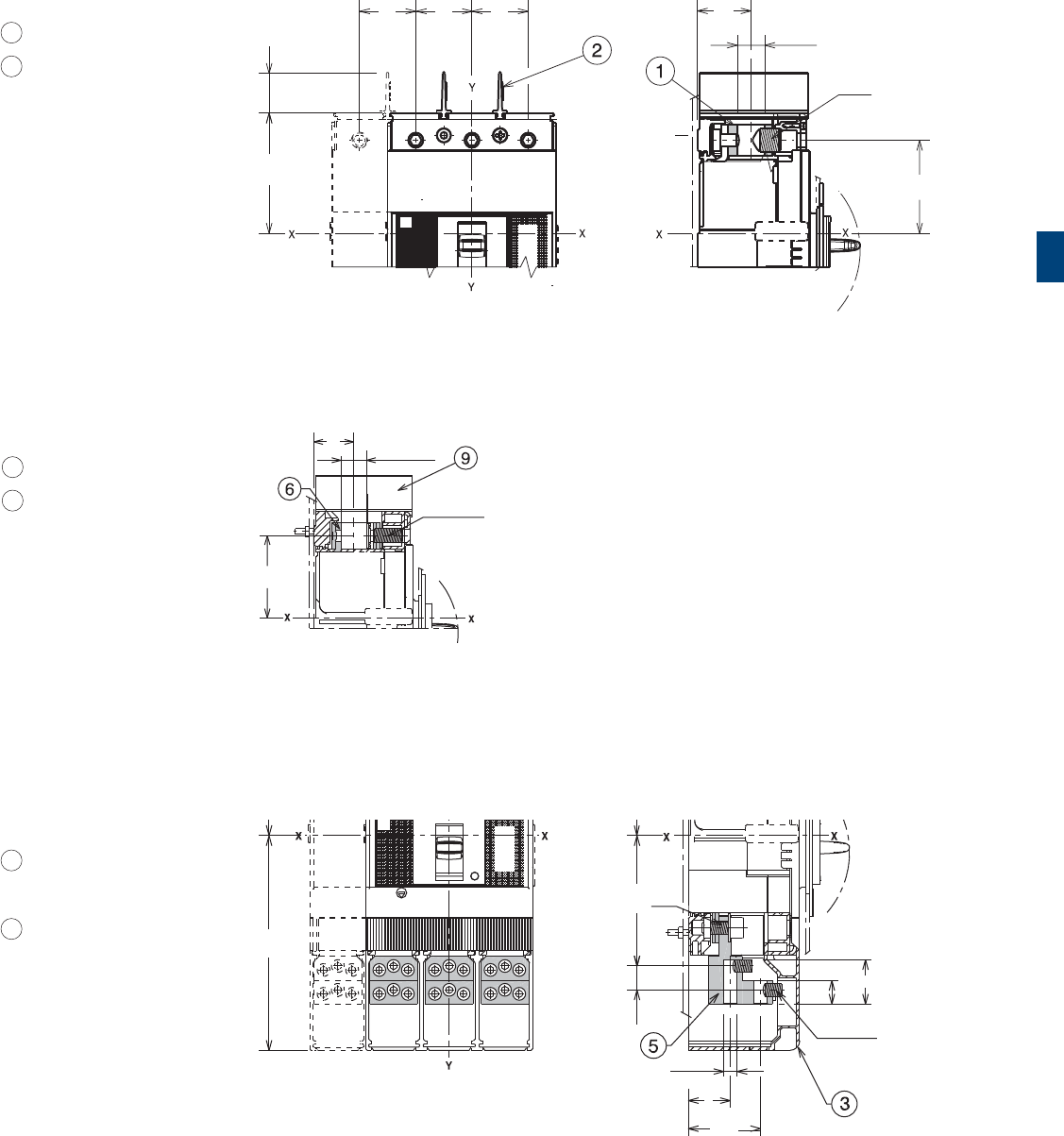

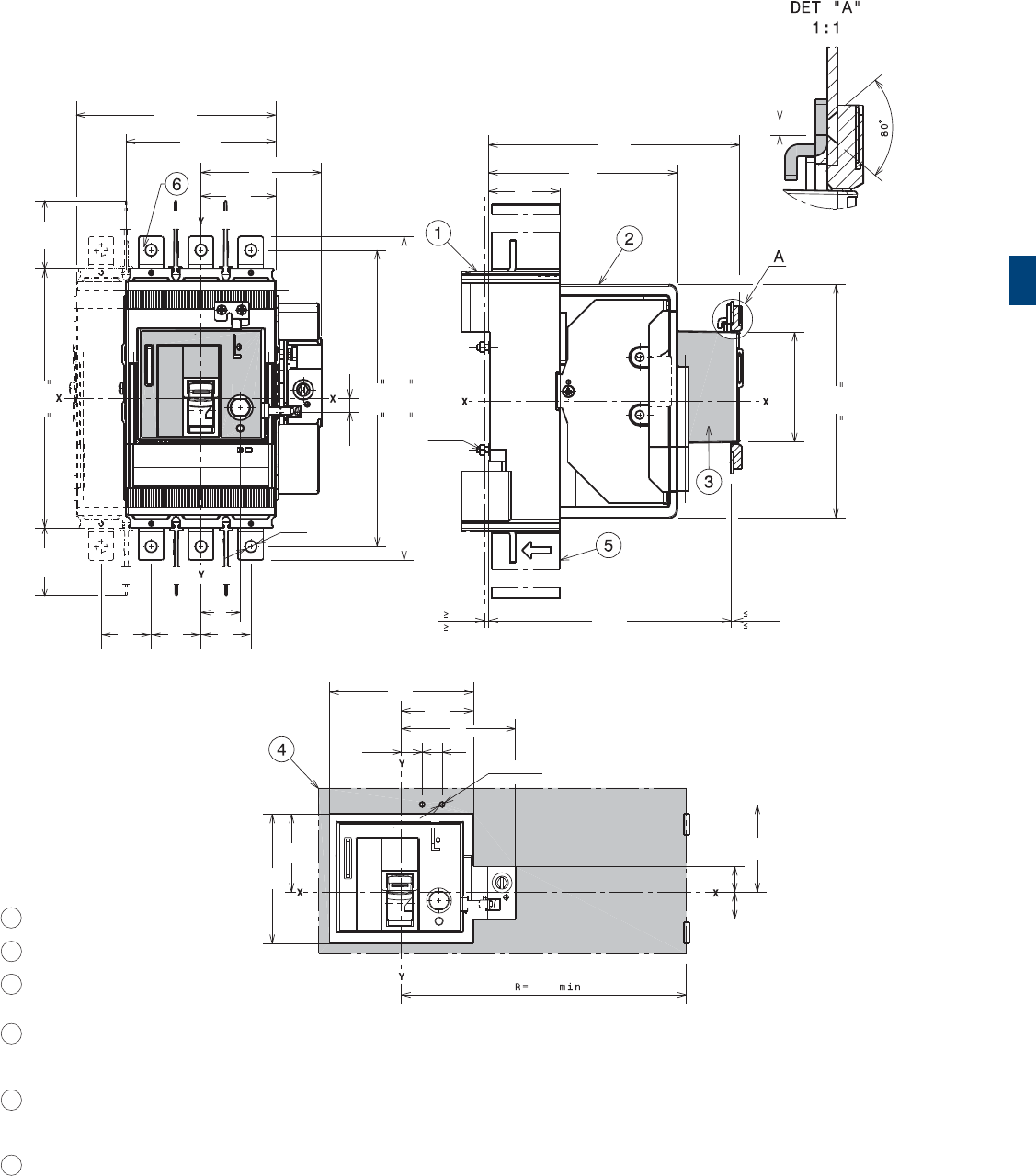

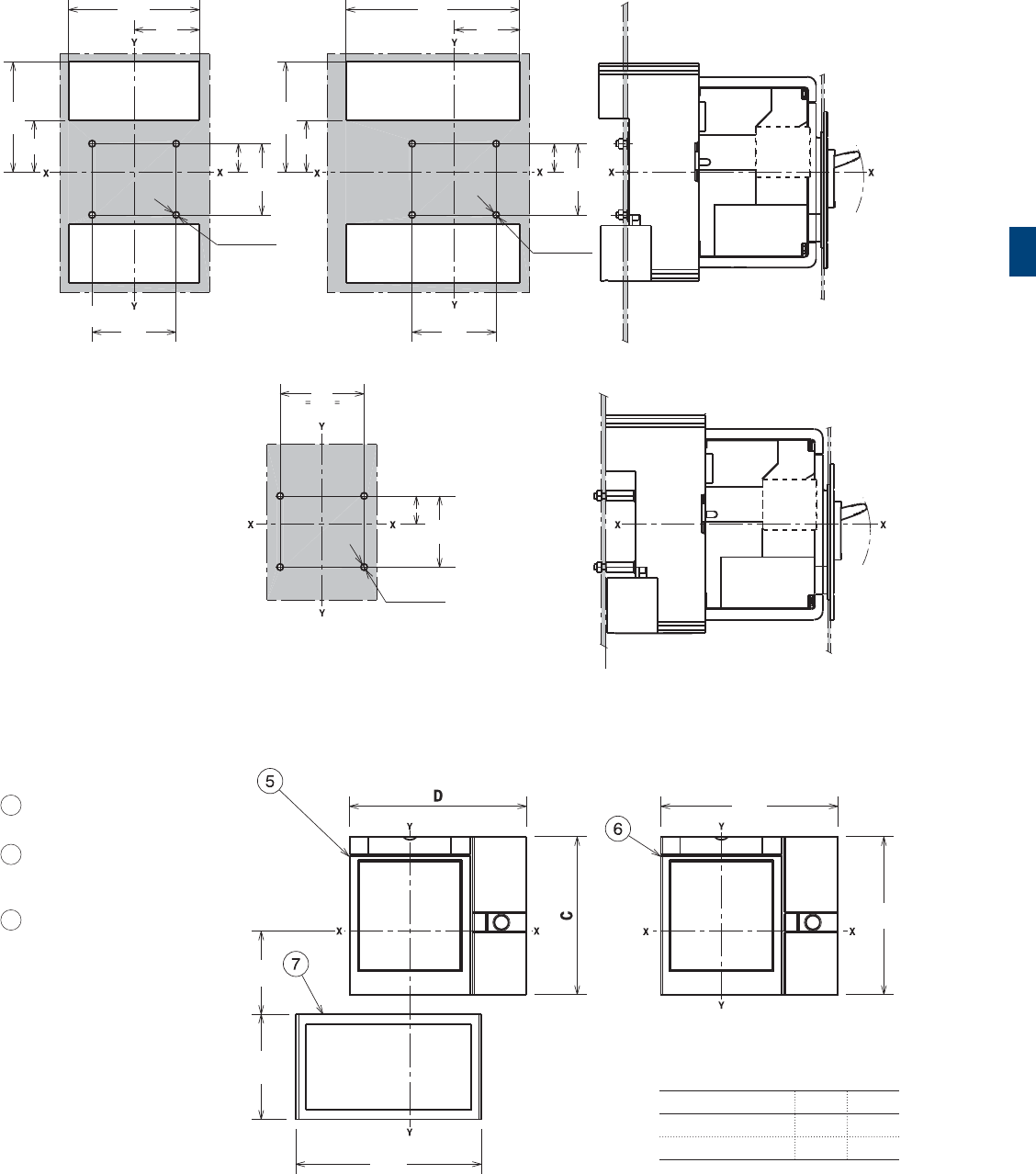

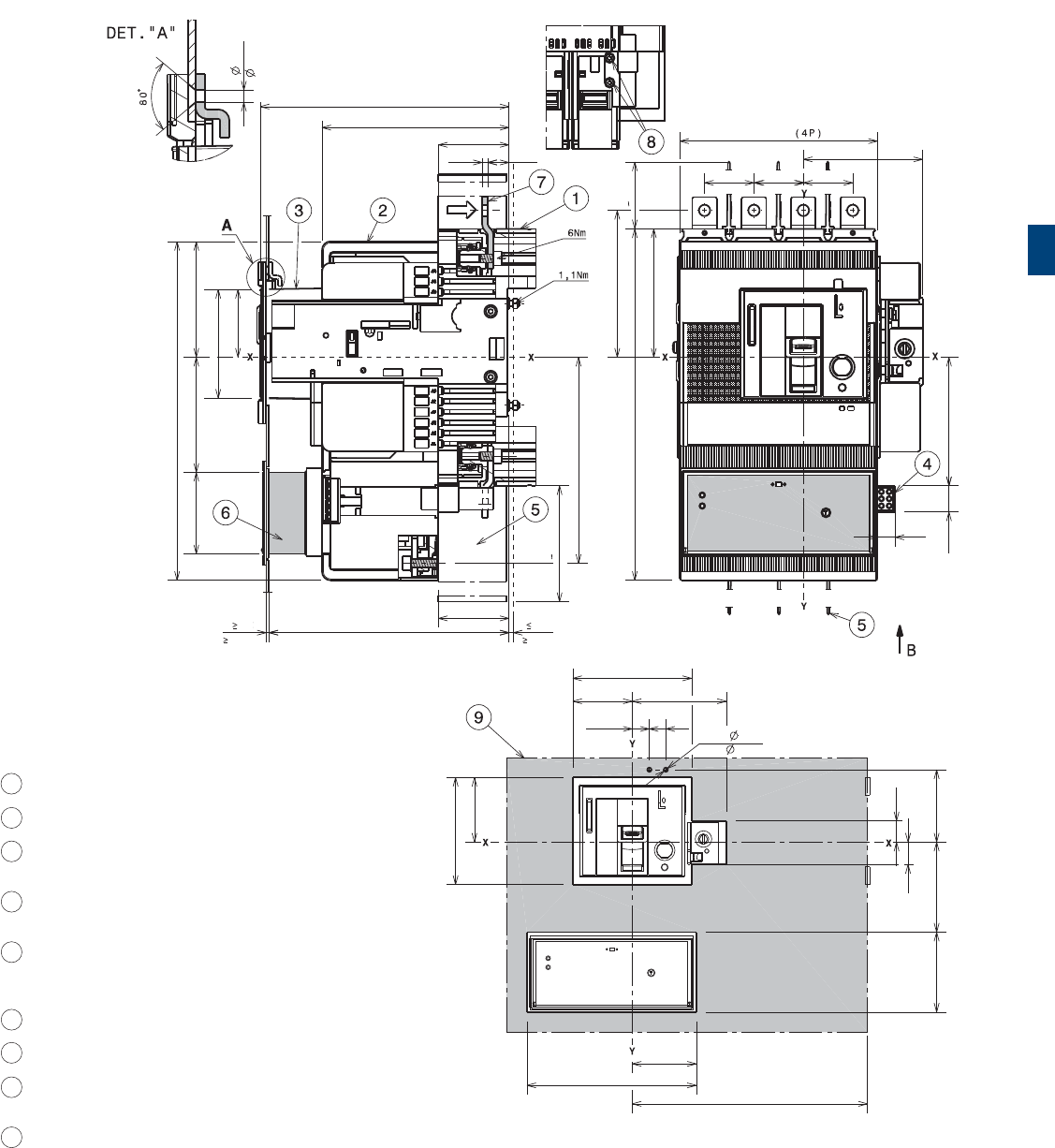

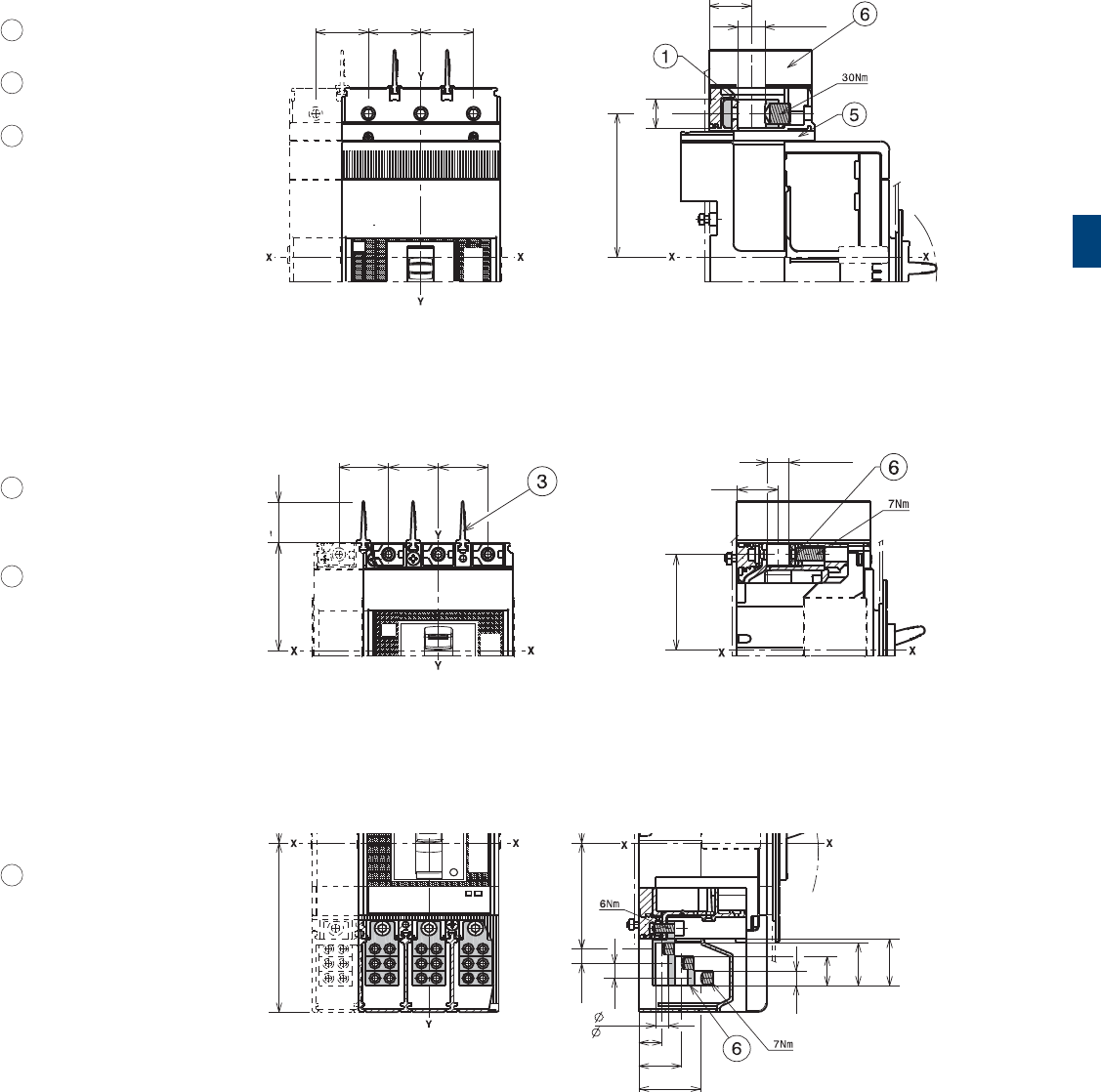

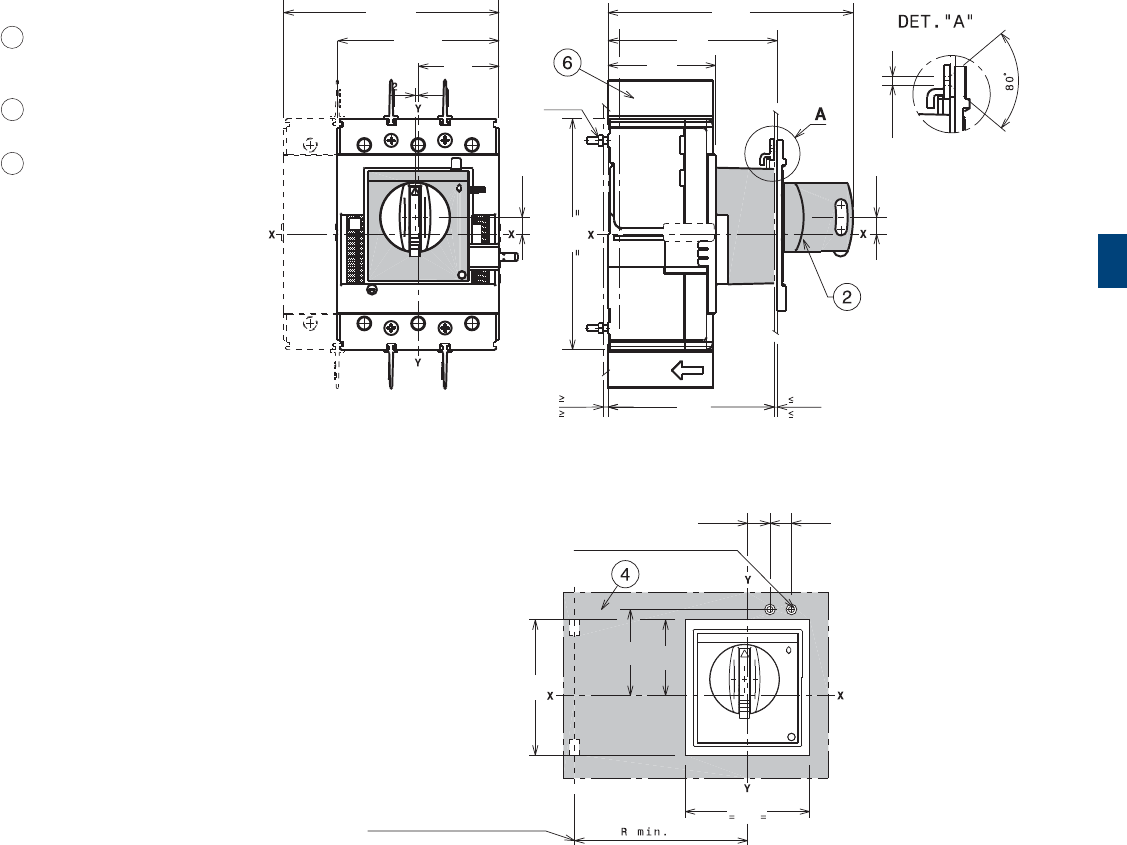

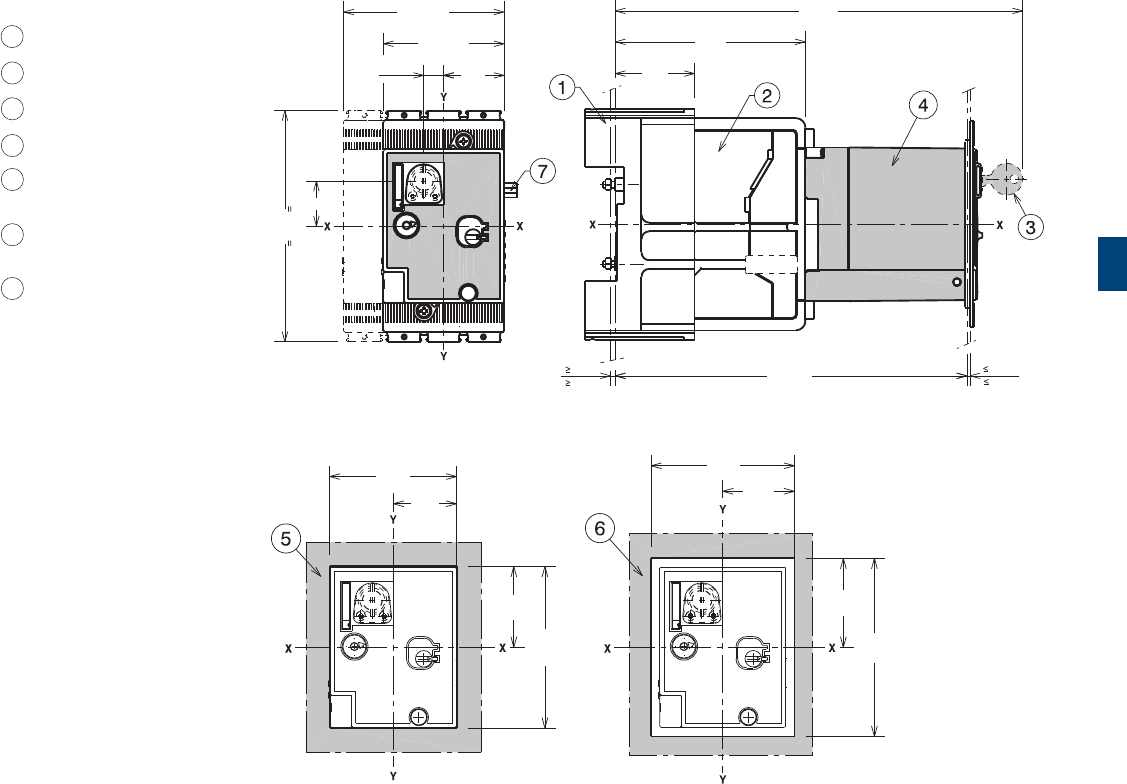

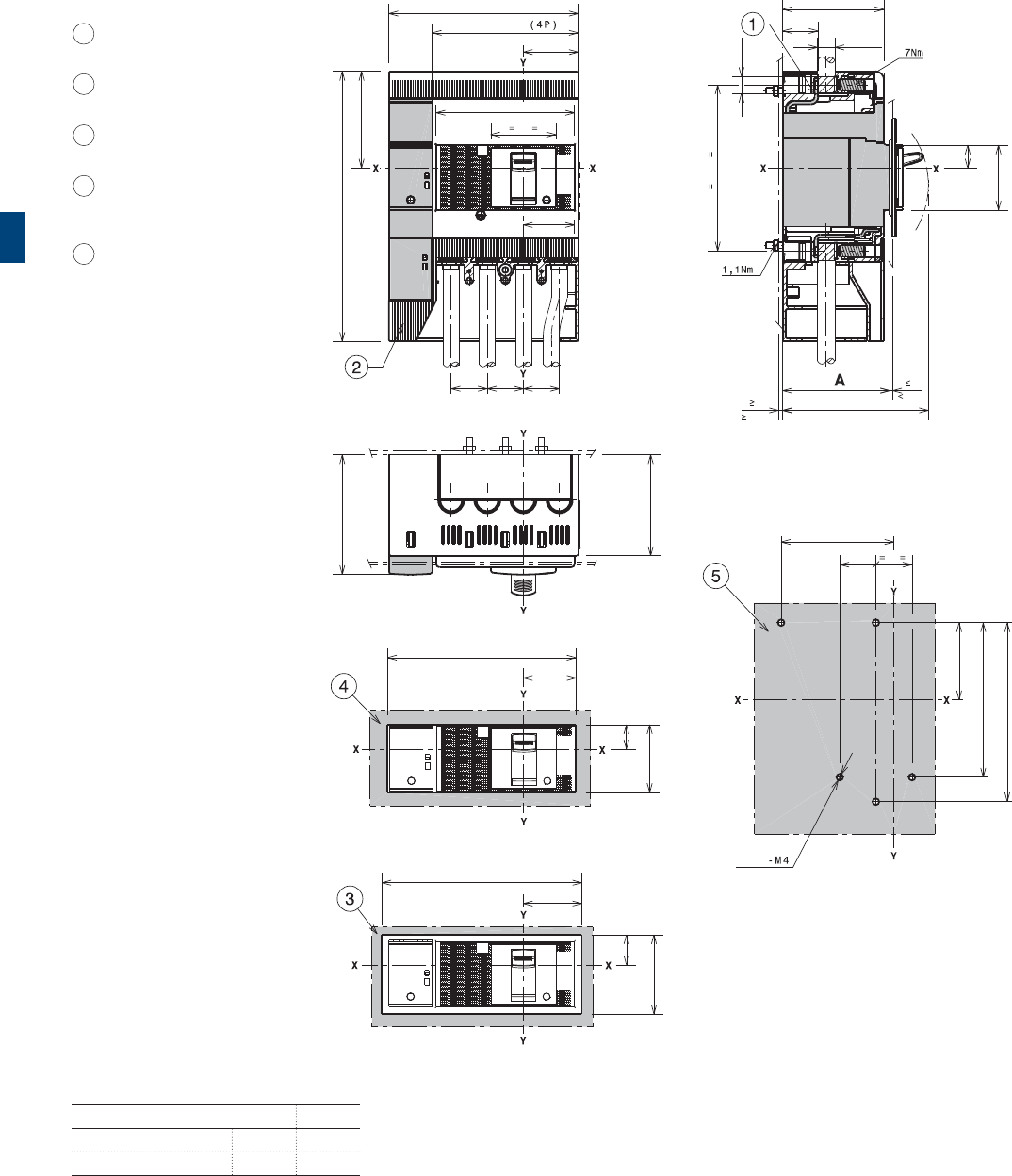

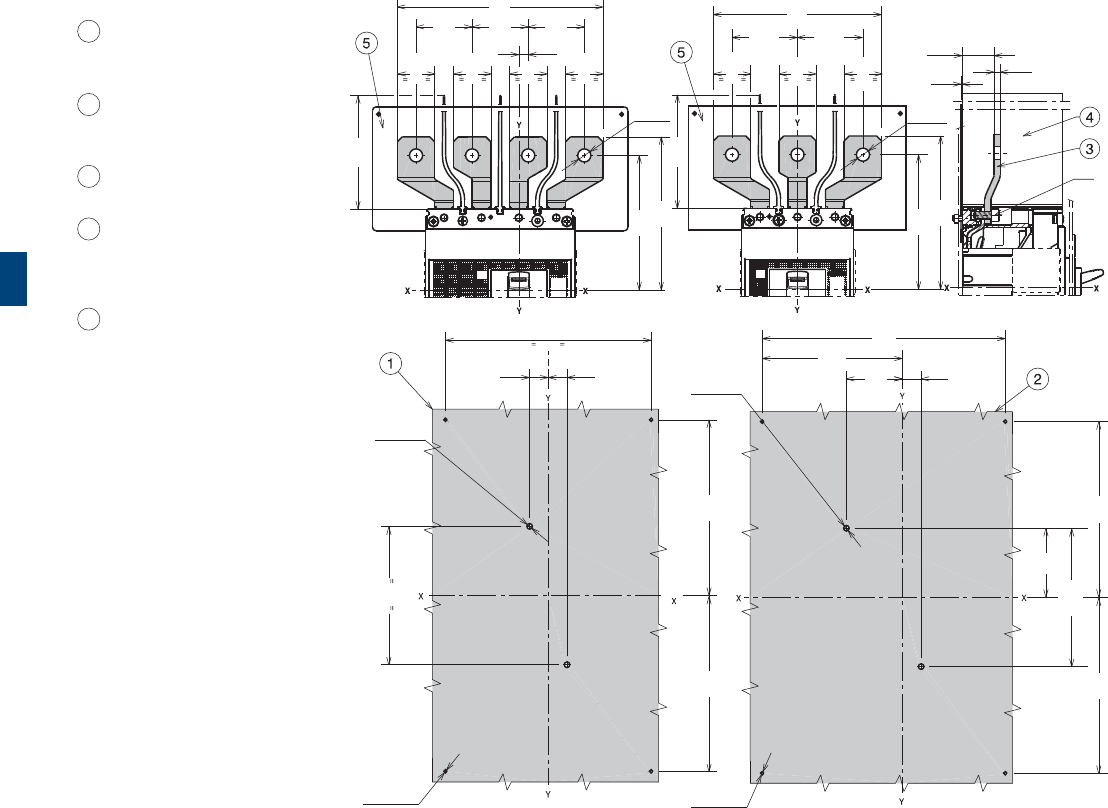

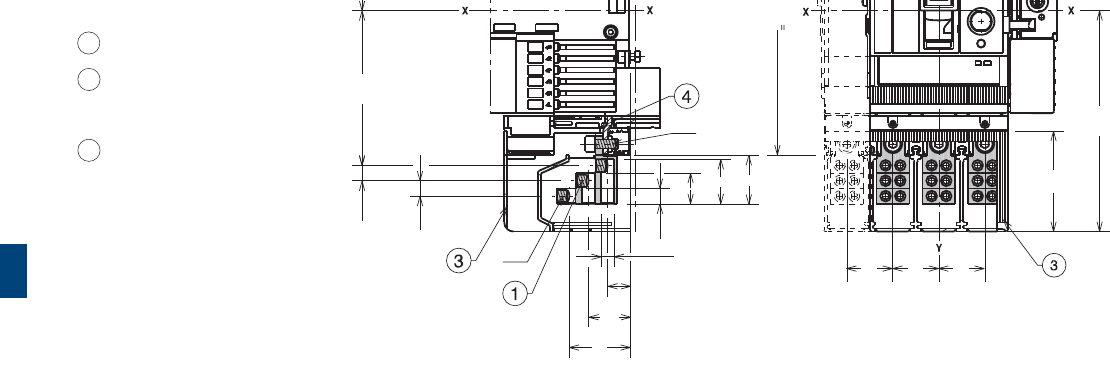

Overall dimensions

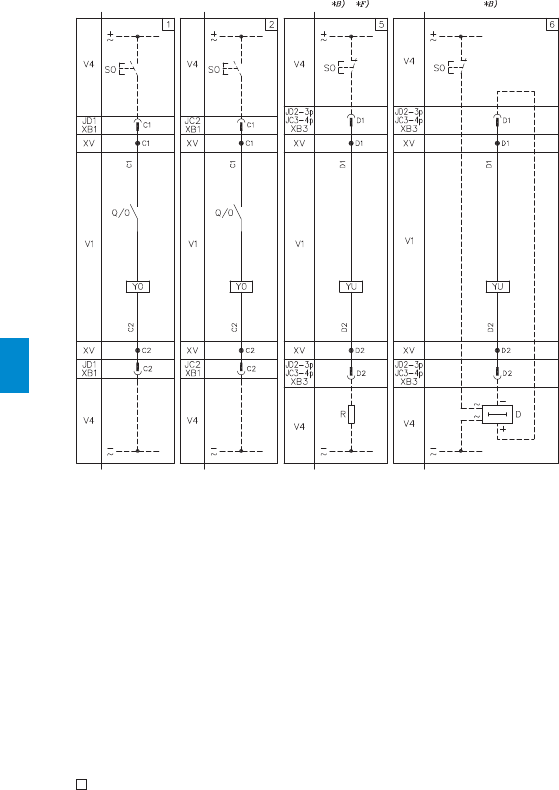

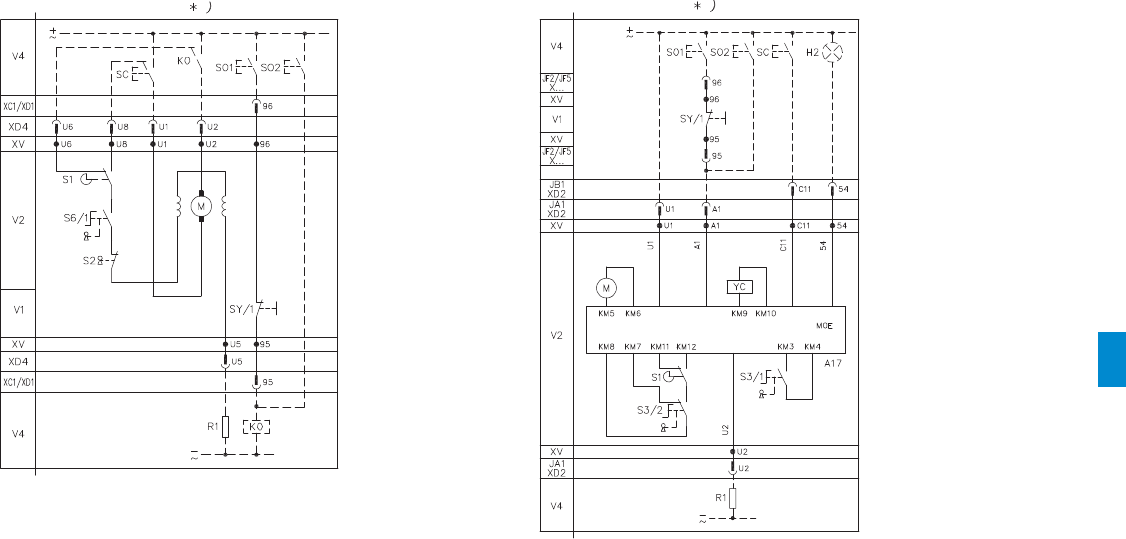

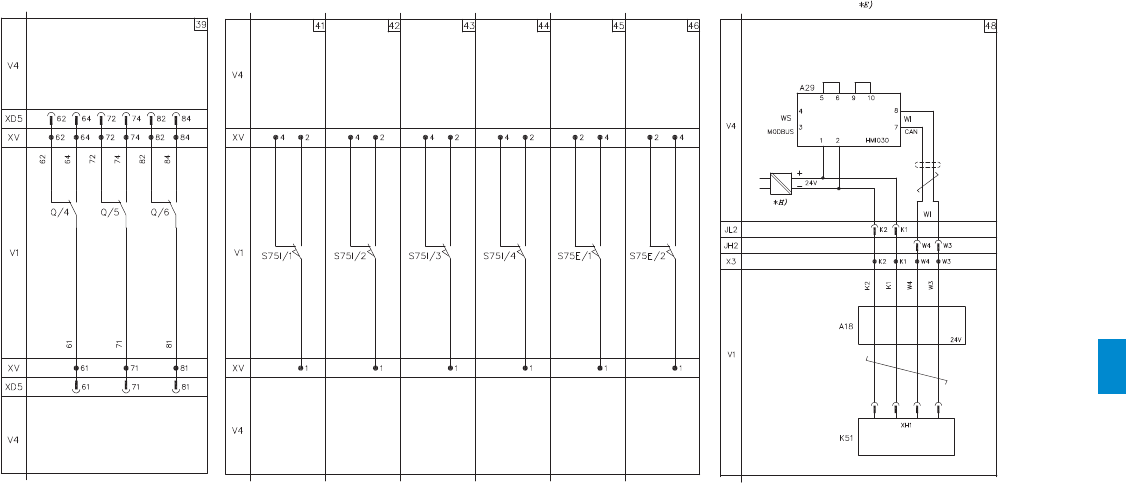

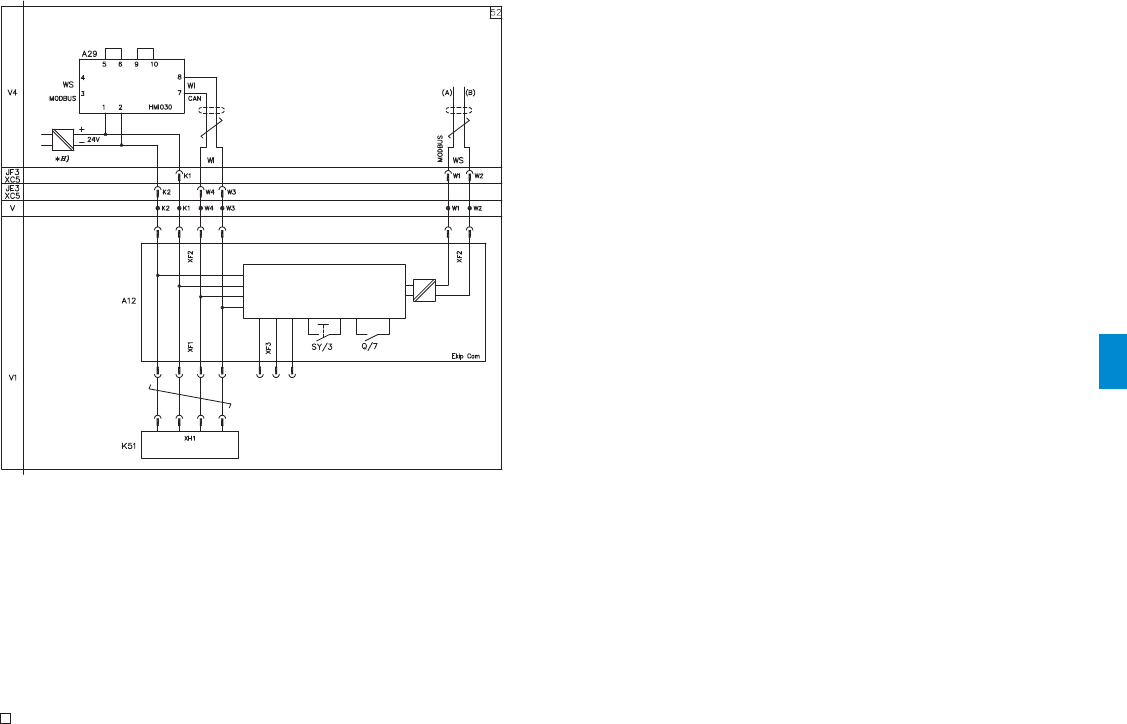

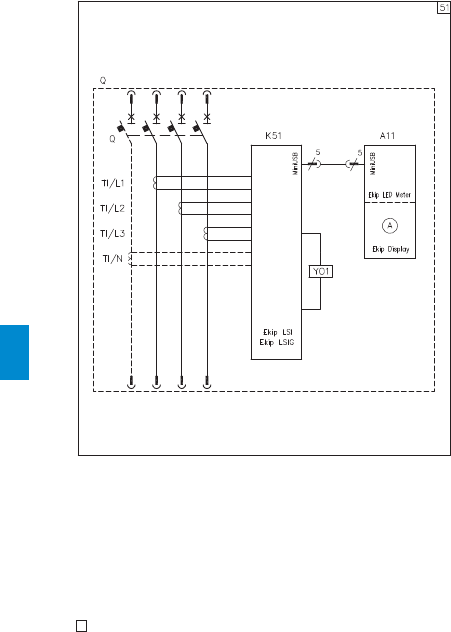

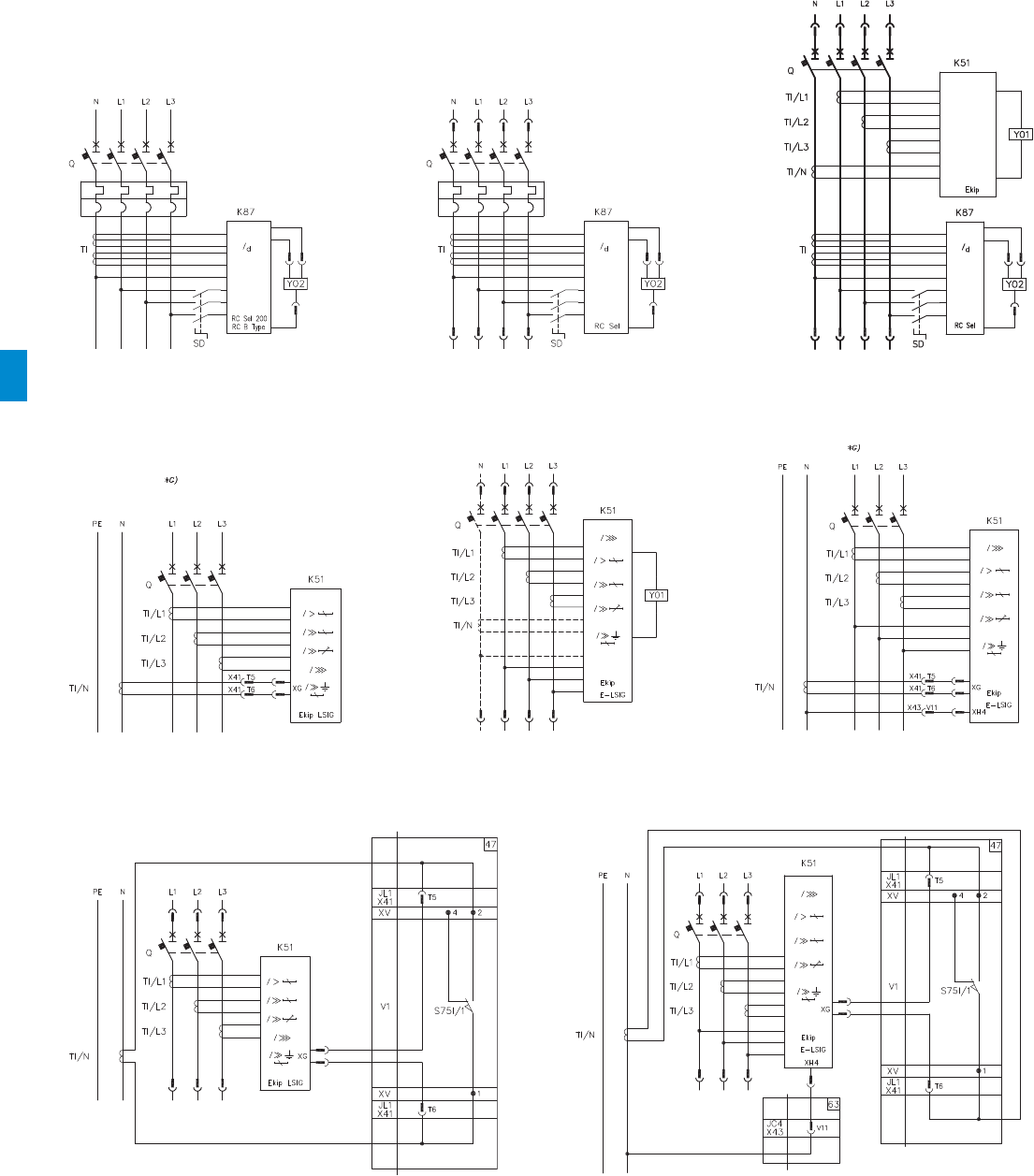

Wiring diagrams

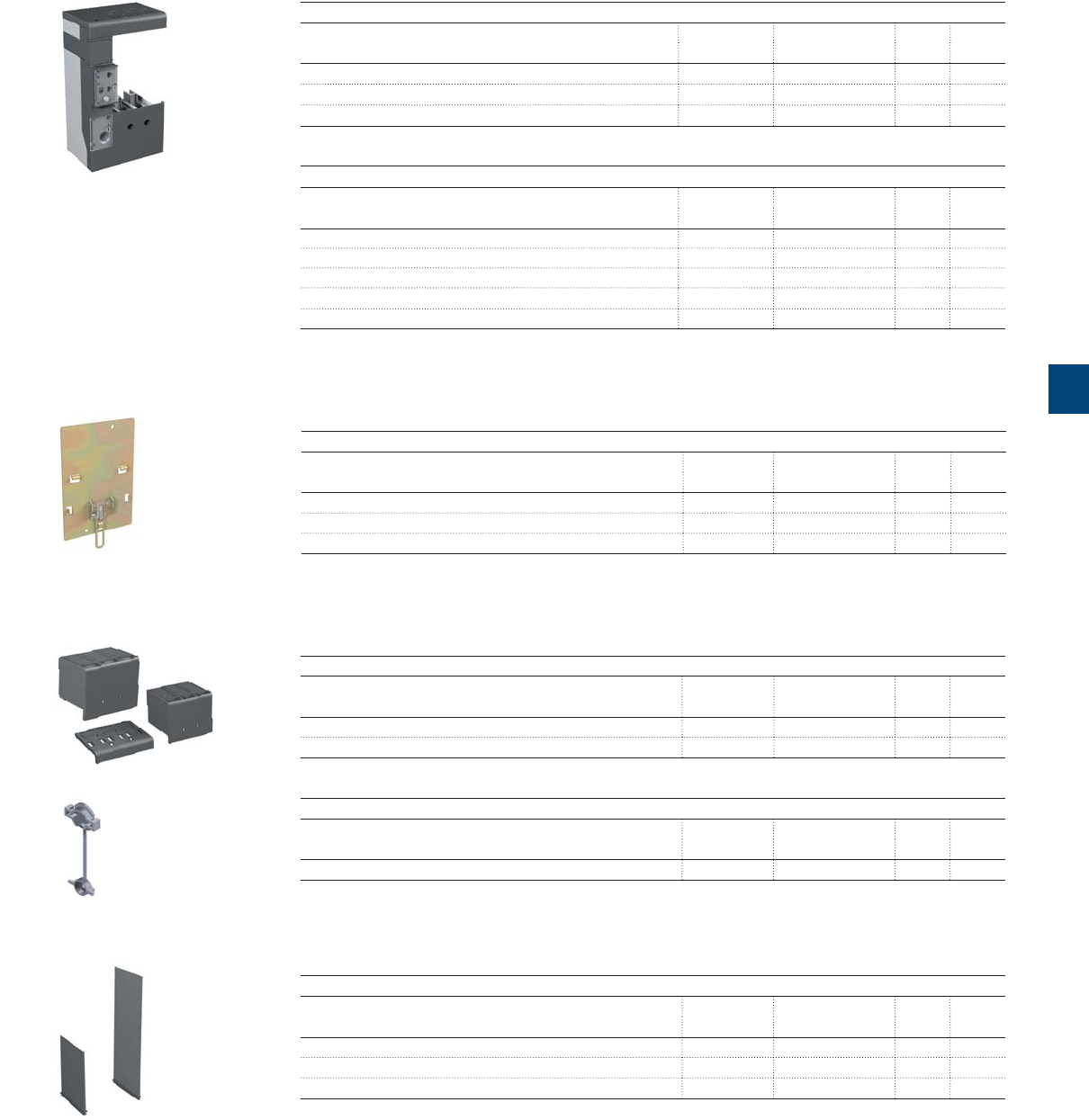

Ordering codes
Glossary
2
New SACE Tmax XT.
Simply XTraordinary.
ABB SACE is proud to present the result of a long and intense
research and development project: the new SACE Tmax XT up to
250A - ABB SACE’s new family of molded case circuit breakers.
3
Today a highly advanced range of circuit breakers has been
introduced, with unparalleled versatility of use and the ability
to solve all installation problems brilliantly.
You can find the new SACE Tmax XT in three-pole and four-
pole, fixed, plug-in and withdrawable versions. They are fitted
with the very latest generation thermomagnetic and electronic
trip units, with the possibility of interchangeability. The new
SACE Tmax XT sets a new technological standard and
provides the freedom to build installations with extraordinary
performances. An extraordinary demonstration of ABB SACE’s
innovation capability.
Extraordinary latest generation electronics. Extraordinary
coverage of all plant requirements. Extraordinary
performances in compact dimensions.
Extraordinary simplicity of installation and putting into service.
Extraordinary range of accessories available.
New SACE Tmax XT. Simply XTraordinary.
4
New SACE Tmax XT.
XTraordinary completeness of range.

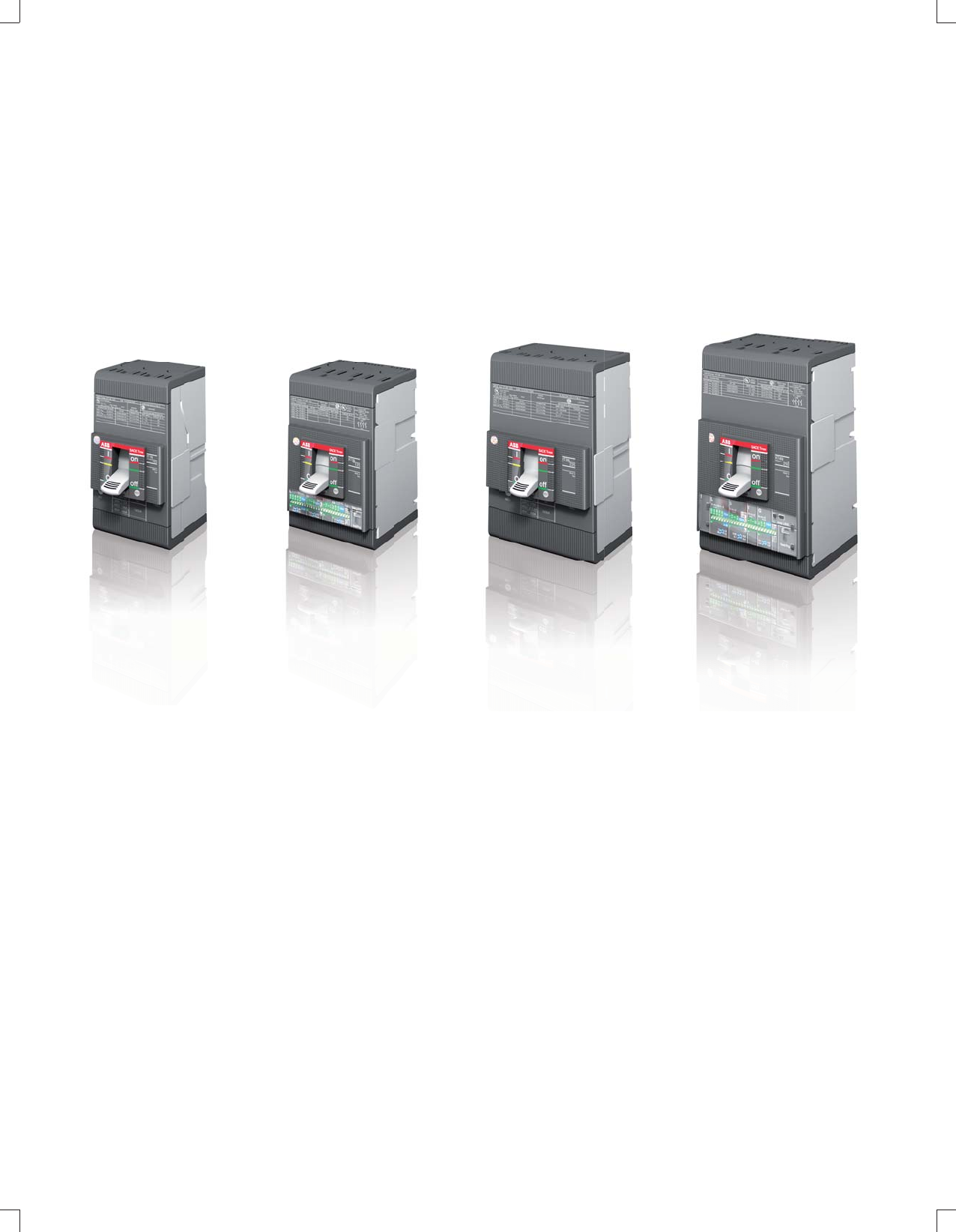

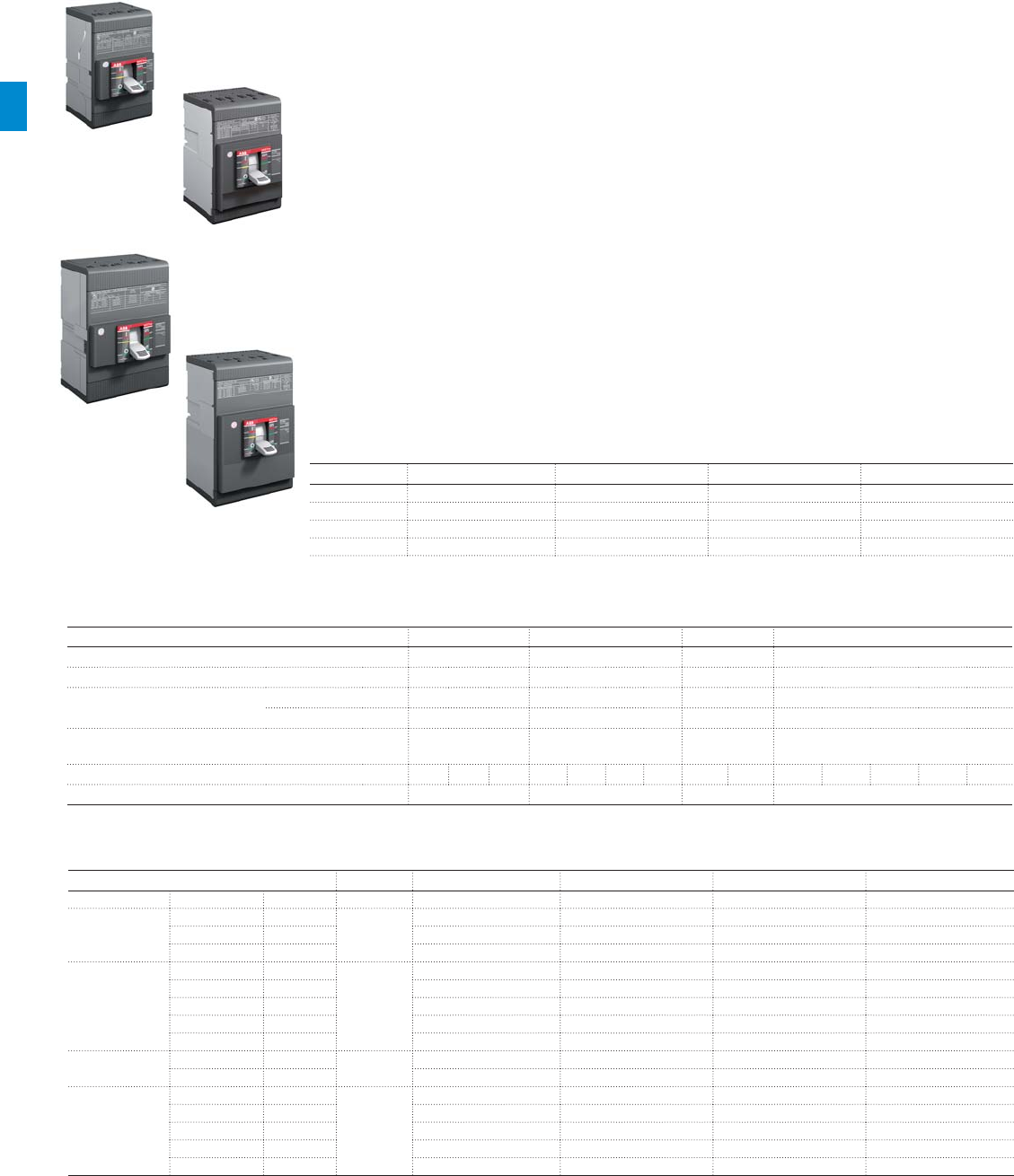

There are the 4 new SACE Tmax XT UL/CSA frames:
– small XT1 up to 125A
– high-performing XT2 up to 125A
– reliable XT3 up to 225A
– powerful XT4 up to 250A
5
The new SACE Tmax XT go everywhere and fear no tests
because they are made to respond successfully to all plant
engineering requirements, from the standard to the most
technologically advanced, thanks to the extraordinary fullness
of their range. They provide a complete offering up to 250A
for distribution, for energy metering, for motor protection, for
generator protection, as switch-disconnectors and for any
other needs. In addition, a new range of both thermomagnetic
and electronic protection trip units, interchangeable right from
the smallest frames, has been created. This is to say nothing
of the new and vast line of dedicated accessories available,
even for special applications.
All that remains is making a simple selection: XT1 and XT3,
with ABB SACE’s unquestioned reliability and safety, for
standard installations, or XT2 and XT4, with top of the market
performance, for technologically advanced installations. The
new SACE Tmax XT: simply extraordinary, for any choice.
New SACE Tmax XT. XTreme protection.
6
New SACE Tmax XT.
XTraordinary advanced electronics.
Welcome a totally renewed, high-performing and versatile range
of electronic trip units.

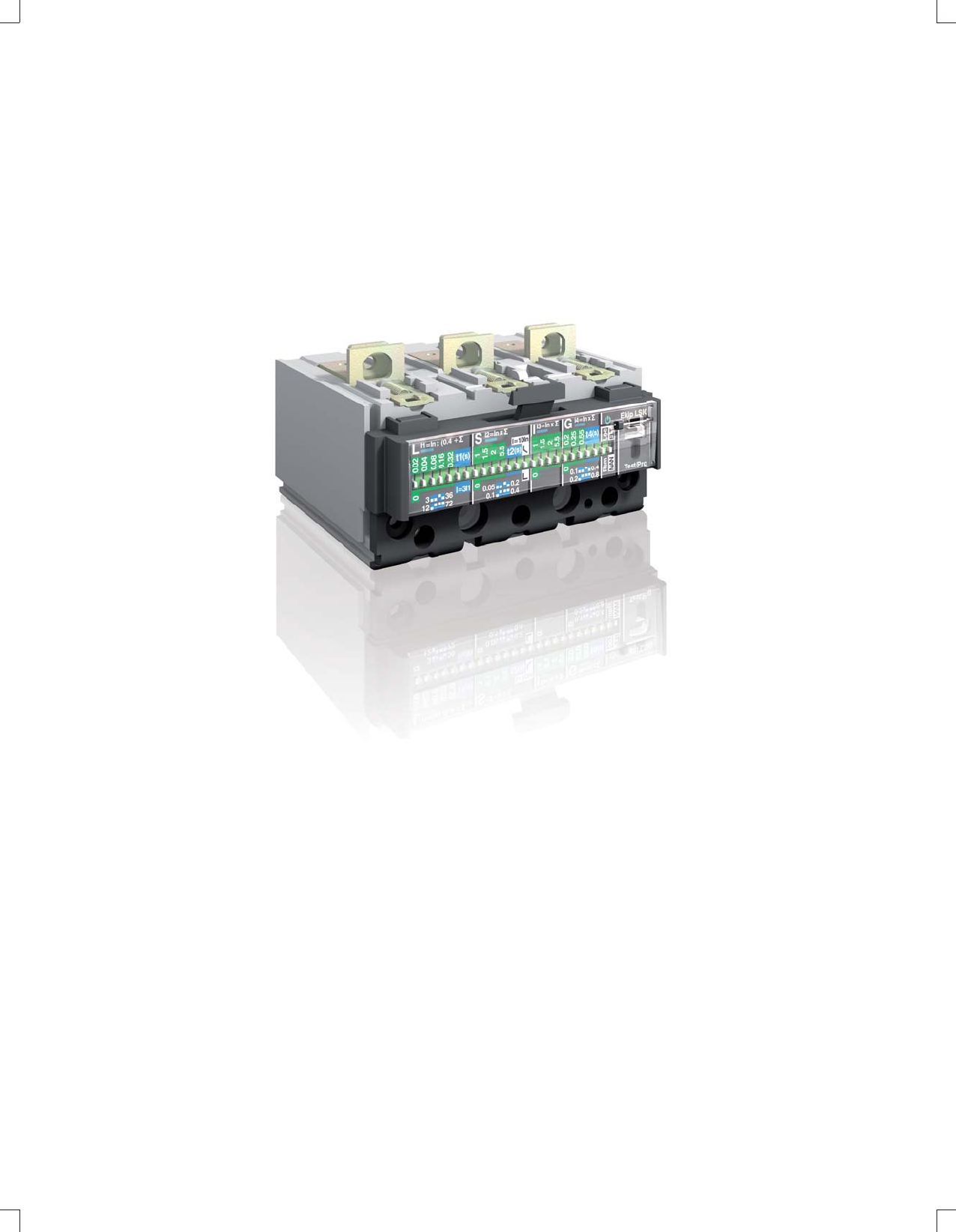

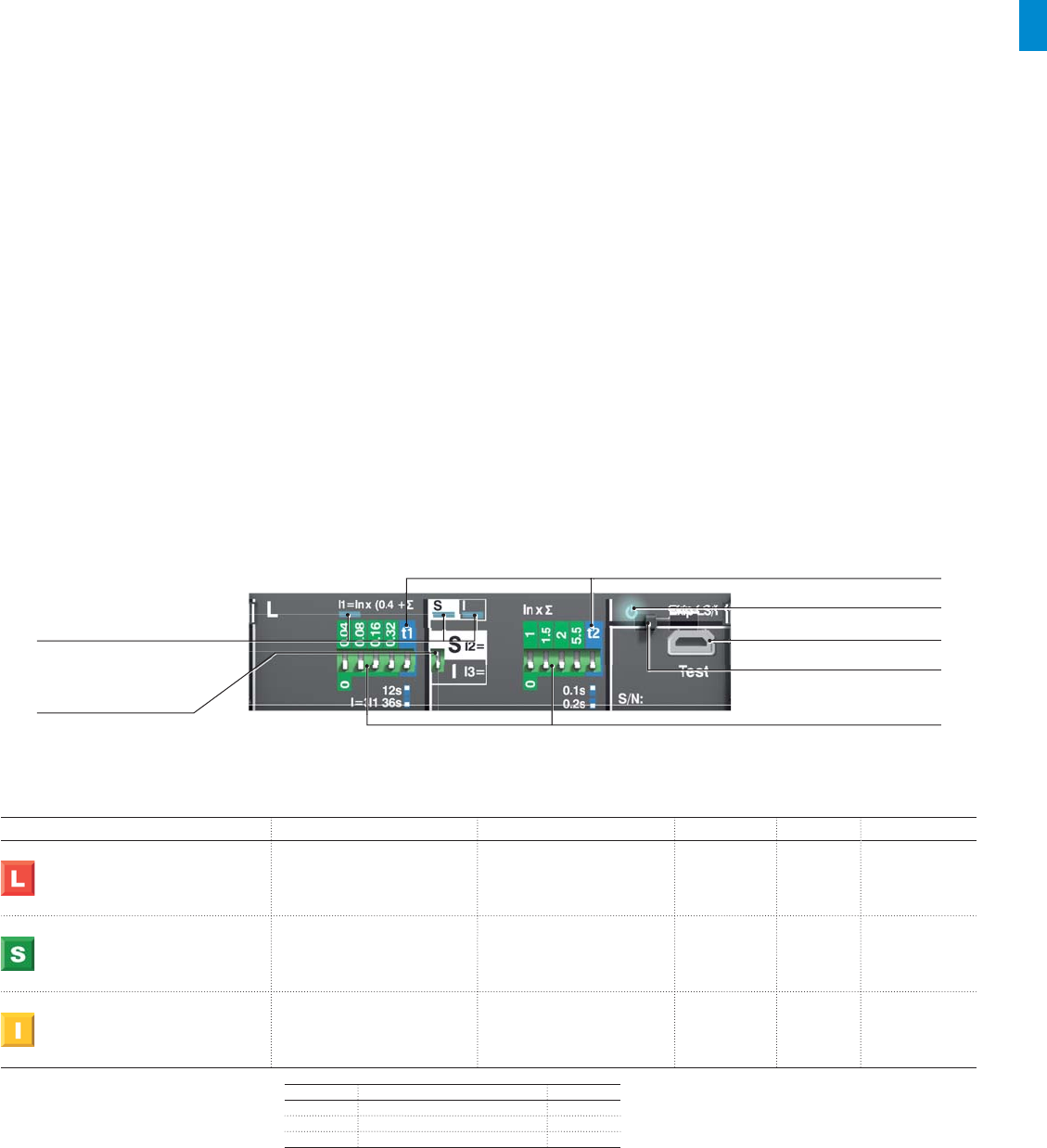

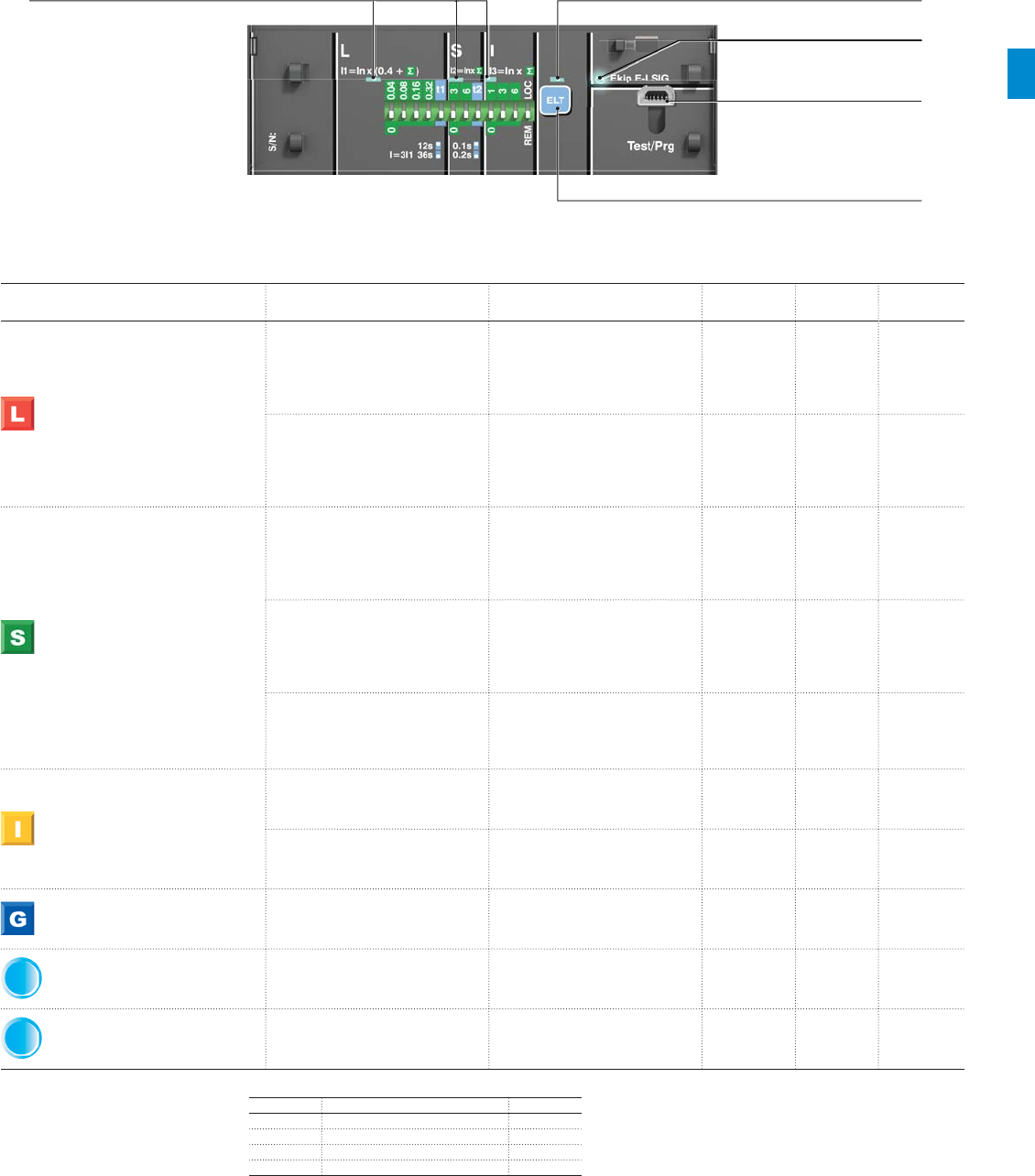

Ekip: the new, very latest generation electronic trip units which
equip the new frames of SACE Tmax XT2 and SACE Tmax XT4
circuit breakers.
7
Ekip trip units are interchangeable and guarantee absolute
tripping reliability and precision. Apart from the continuous
green LED, which indicates correct operation of the protection
trip unit, all the Ekip trip units also have an LED to signal
intervention of all the protection functions.

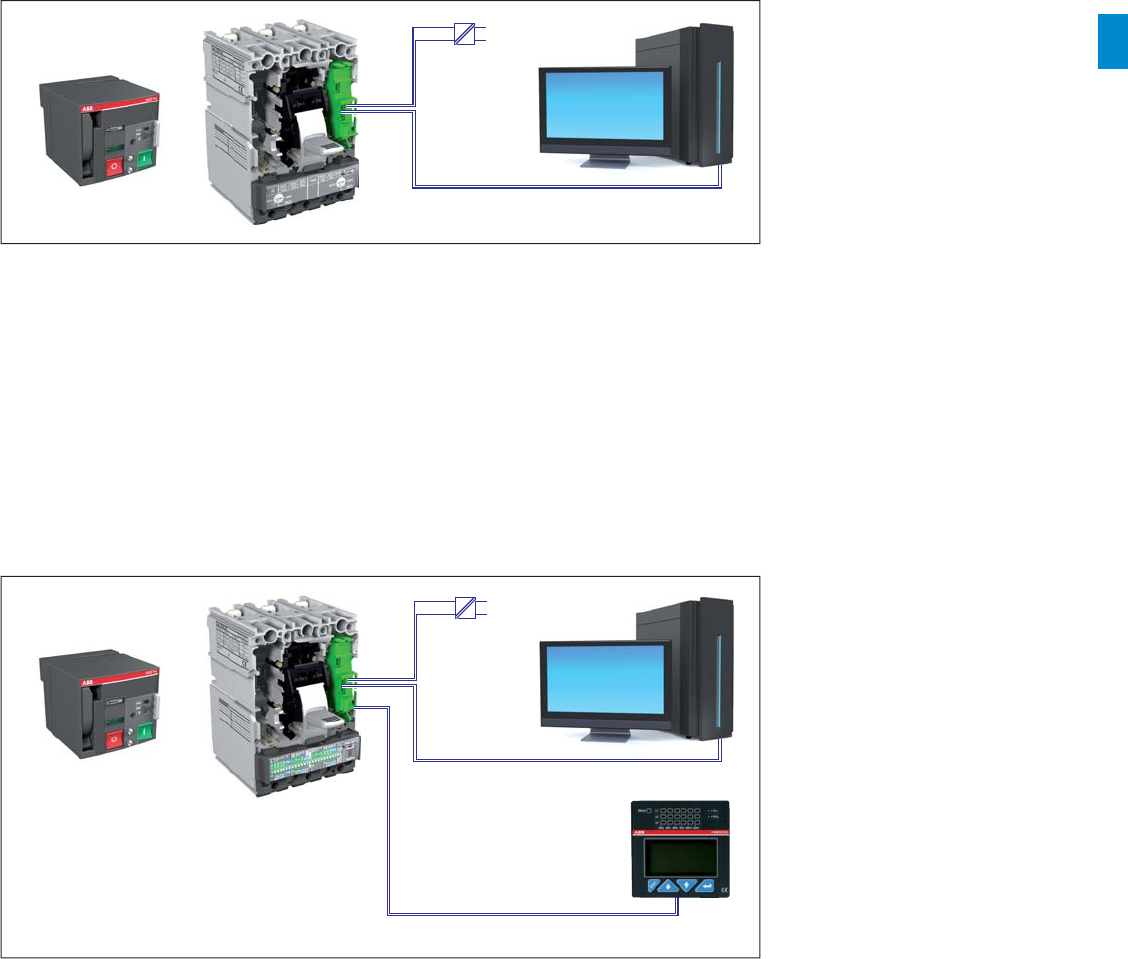

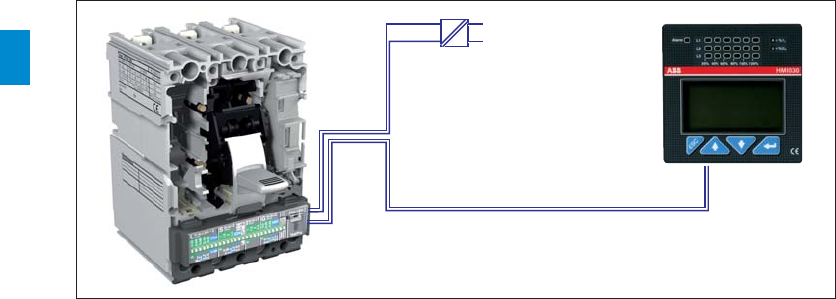

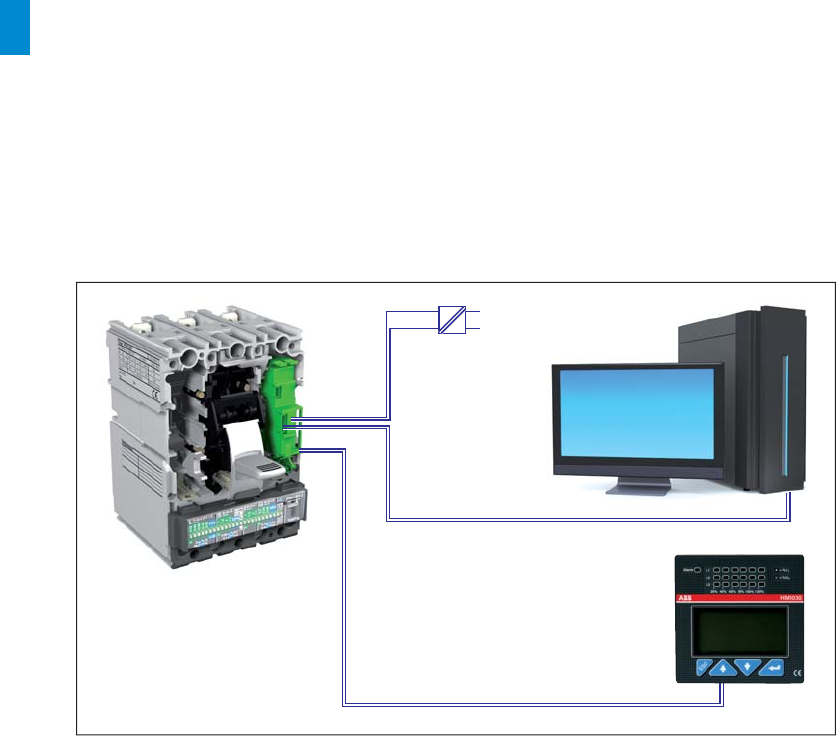

To allow the Ekip units to communicate and exchange
information with the other devices, the Ekip Com module can
be inserted inside the circuit breaker, freeing space inside the
electric panel.

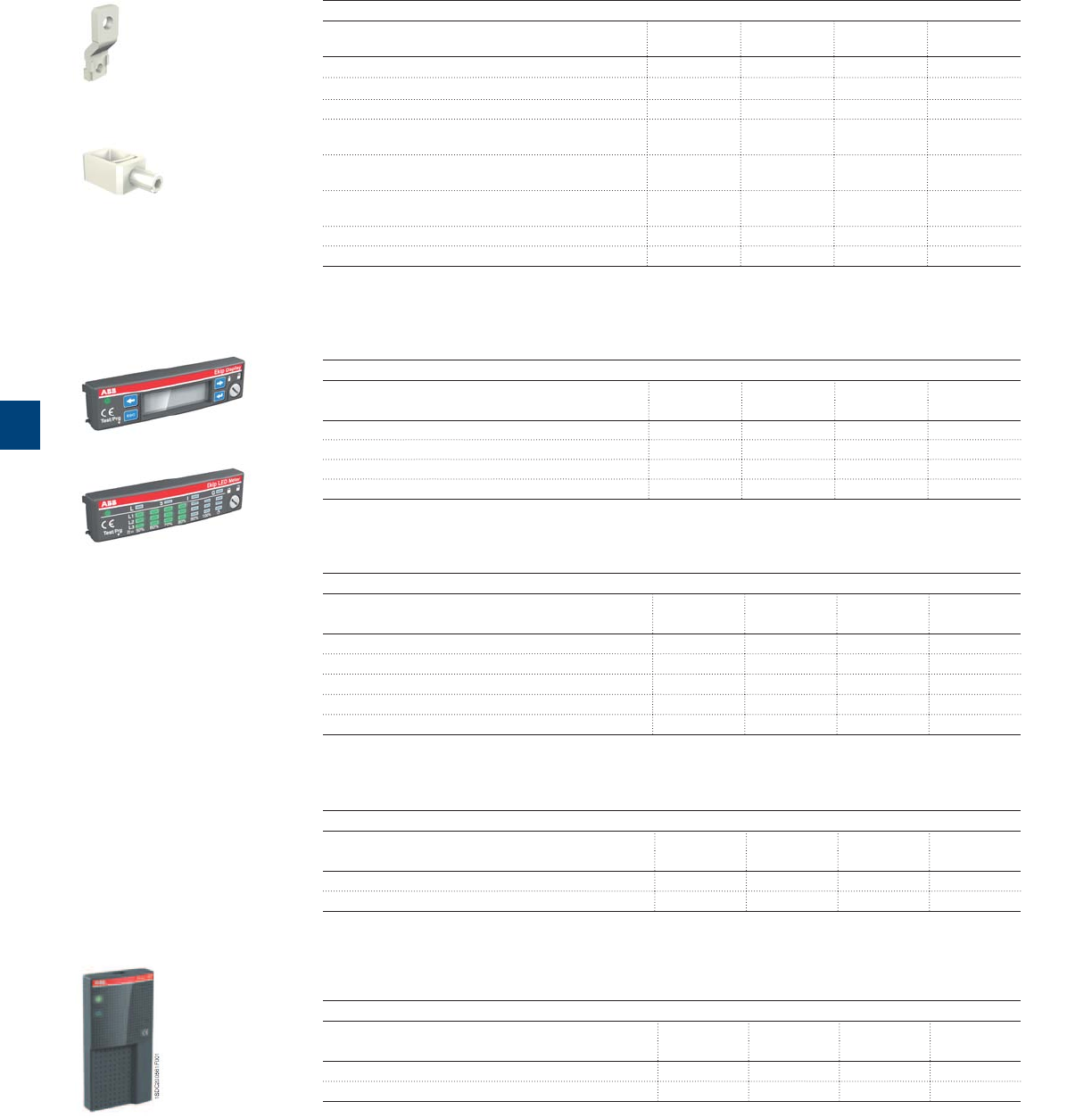

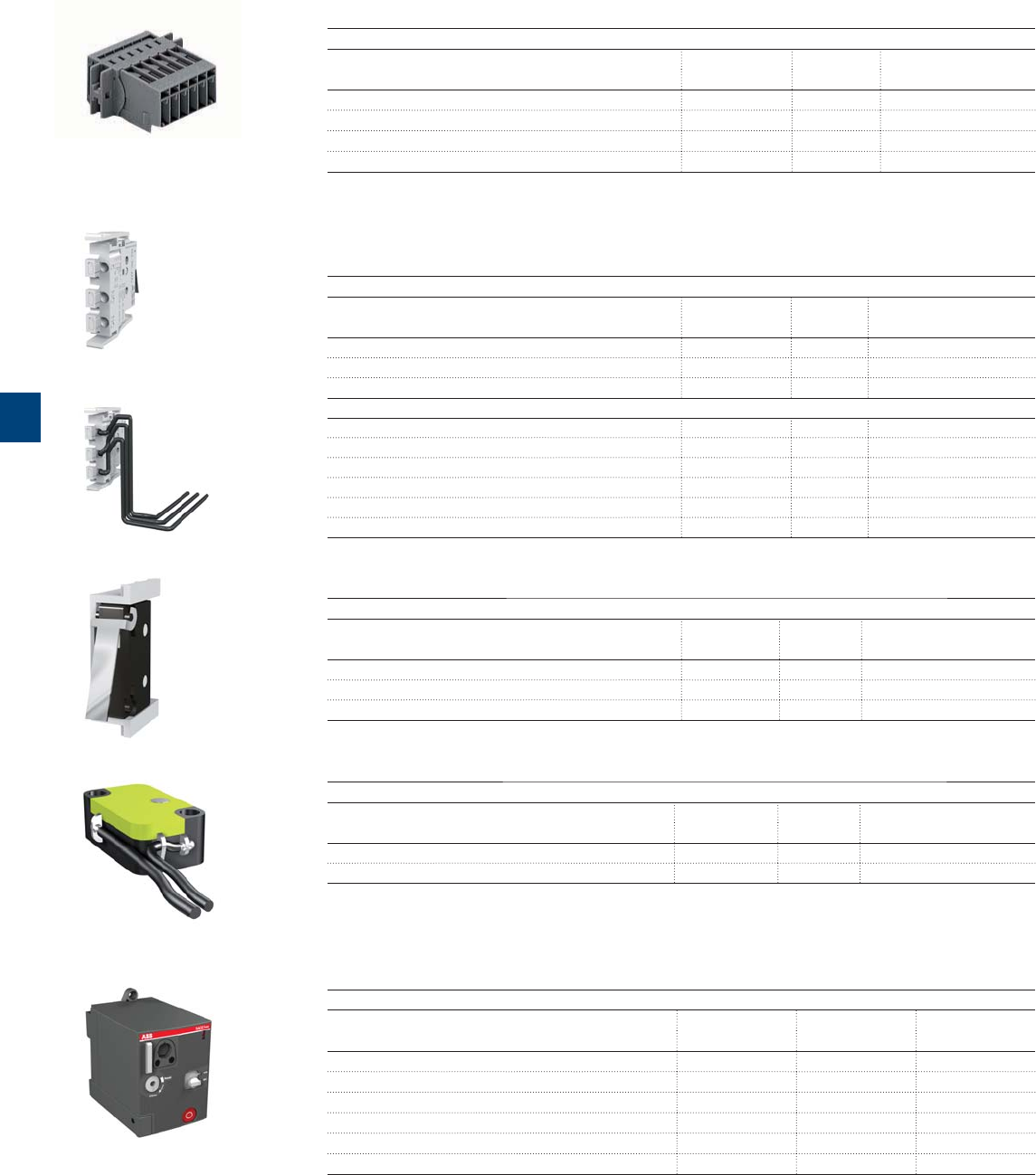

All the Ekip trip units can be fitted with a vast range of
dedicated accessories. The main accessories include:

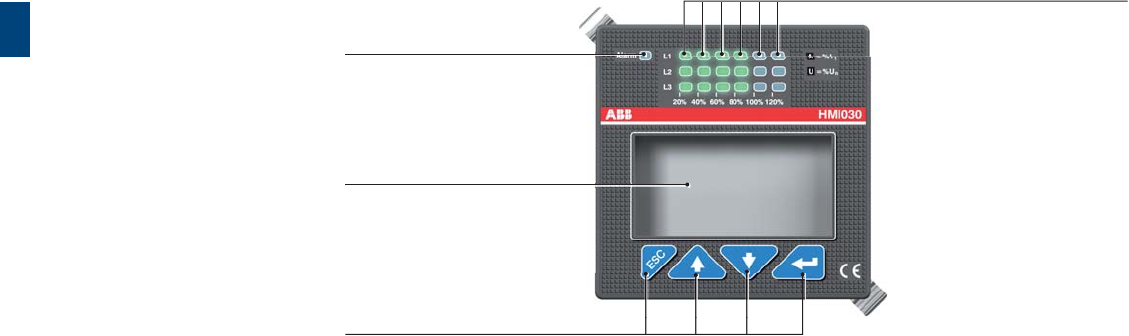

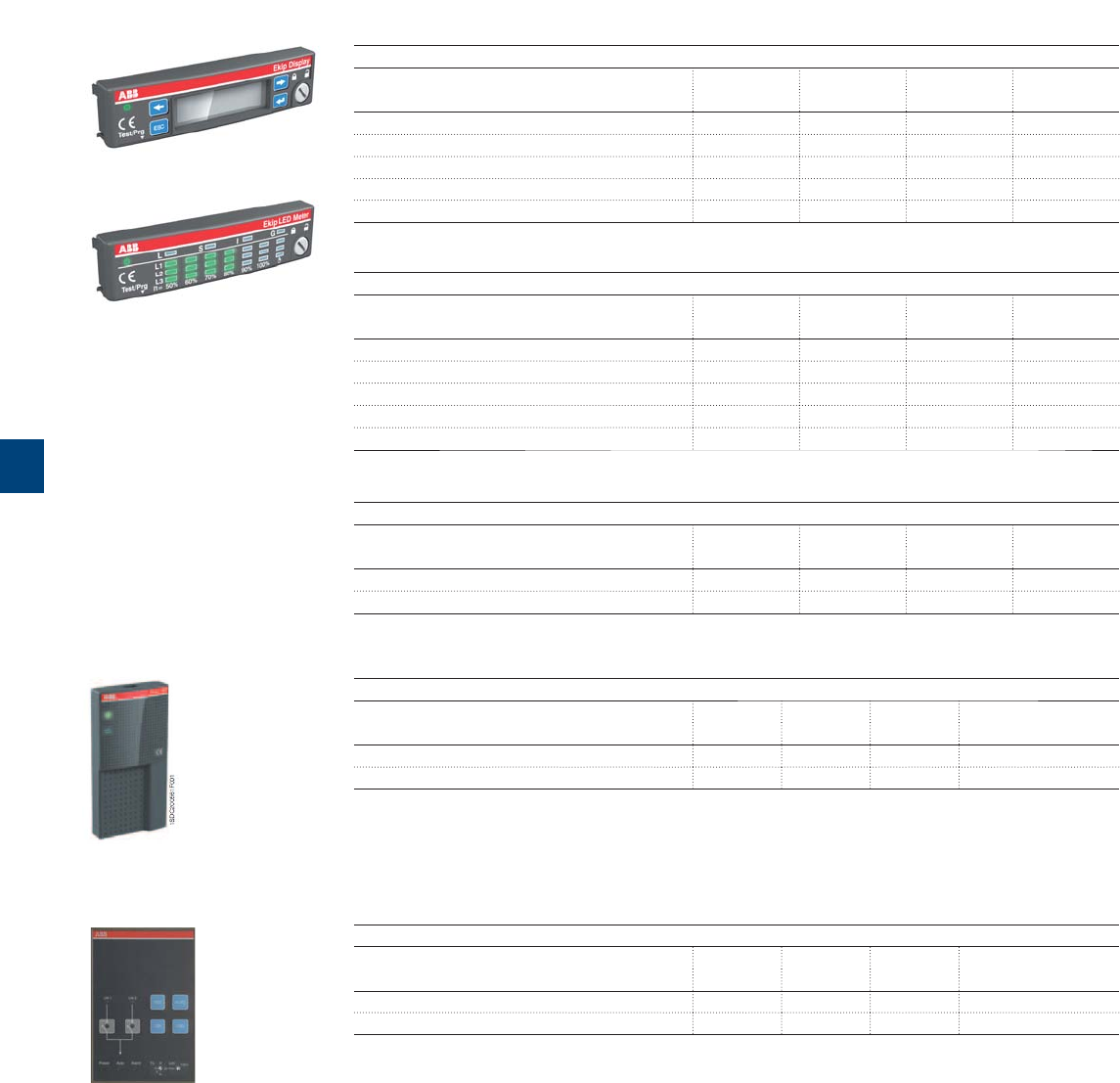

the Ekip Display, to be applied onto the front of the
electronic trip unit for simpler setting and for better reading
of information;

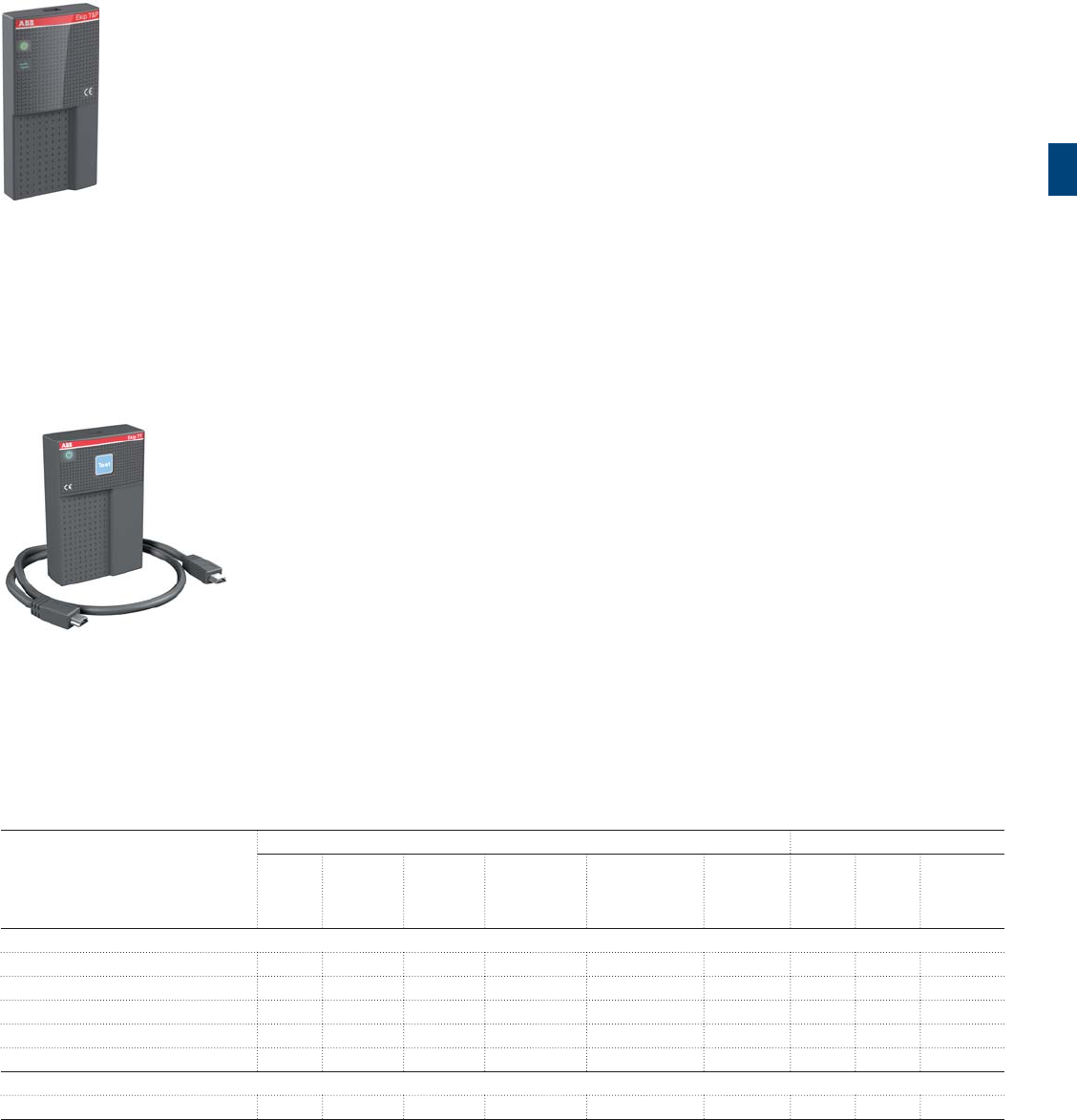

the Ekip LED Meter, a device to be installed on the front of
the trip unit to simplify current readings;
the Ekip TT, the new trip test unit;

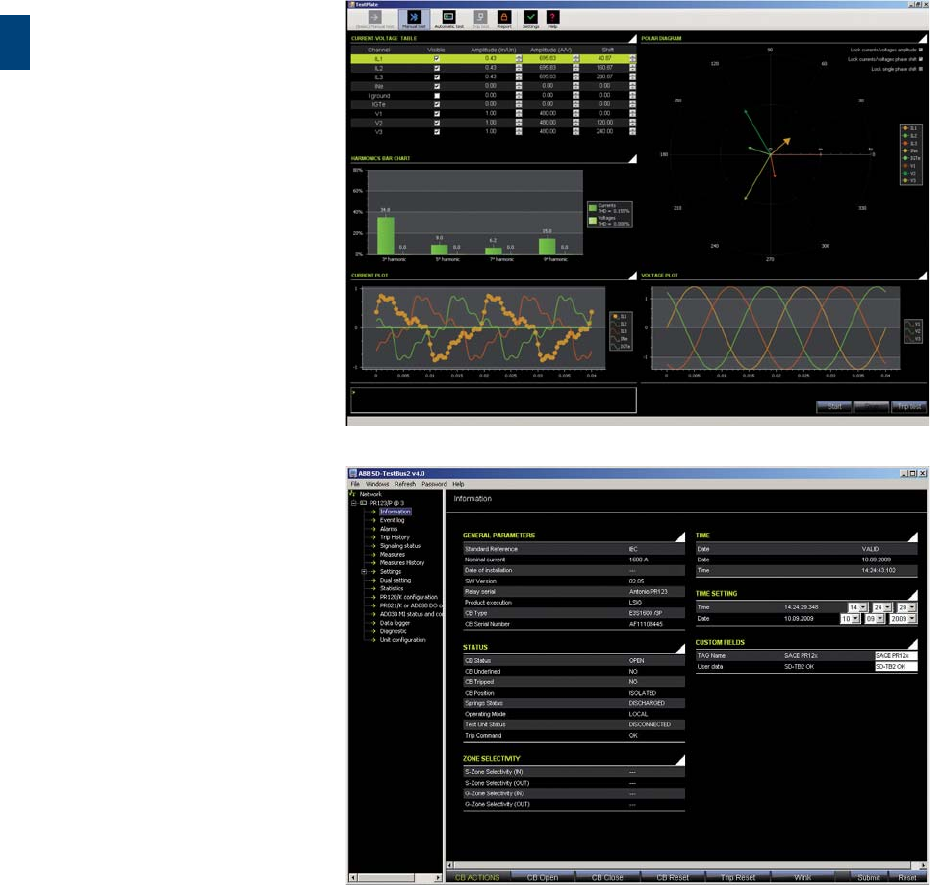

the Ekip T&P, the extraordinary testing and programming unit.
Finally, for the first time an integrated energy metering
function is available on the 250A frame Ekip: isn’t all this
simply XTraordinary?
New SACE Tmax XT. XTended technology.
11
ABB catalog | 1SXP210002C0201 1/1
Construction characteristics 1/2
Regulations and reference standards 1/5
Identification of the SACE Tmax XT circuit breakers 1/6
Nomenclature of the trip units 1/7
Construction characteristics
1
1/2 1SXP210002C0201 | ABB catalog
Construction characteristics
Molded case circuit breakers (MCCB) XT1
Frame Size [A] 125
Rated 80% rated
100% rated TM up to 100A
100% rated Ekip -
Poles [No.] 3, 4
Rated voltage (AC) 50-60Hz [V] 600Y/347
(DC) [V] 500
Versions Fixed, Plug-in
Interrupting ratings NSH
240 V (AC) [kA] 50 65 100
480 V (AC) [kA] 25 35 65
600Y/347 V (AC) [kA] 18 22 25
600 V (AC) [kA]
250 V (DC) 2 poles in series [kA] 35 42 50
500 V (DC) 3 poles in series [kA]
500 V (DC) 4 poles in series [kA] 35 50 50
600 V (DC) 3 poles in series [kA]
Mechanical life [No. Operations] 25000
[No. Hourly operations] 240

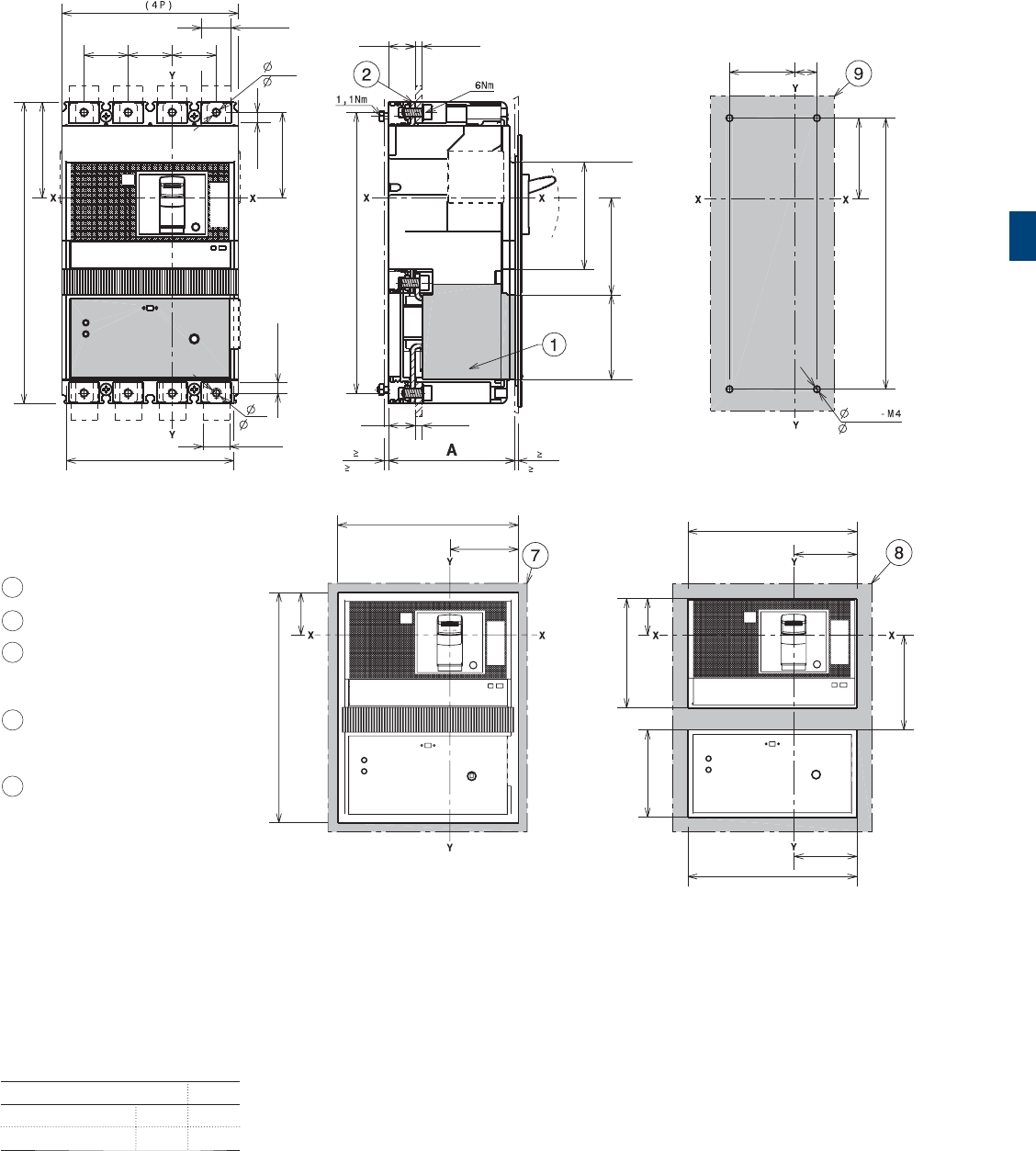

Dimensions - Fixed
(Width x Depth x Height)
3 poles [mm]/[in] [76,2 x 70 x 130] / [3 x 2.75 x 5.12]
4 poles [mm]/[in] [101,6 x 70 x 130] / [4 x 2.75 x 5.12]
Weight Fixed 3/4 poles [kg]/[lbs] [1,1 - 2.43] / [1,4 - 3.07]
Plug-in (EF) 3/4 poles [kg]/[lbs] [2,21 - 4.87] / [2,82 - 6.22]
Withdrawable (EF) 3/4 poles [kg]/[lbs]
Total opening time CB with SOR [ms] 15
CB with UVR [ms] 15
Trip units for power distribution
TMF
TMA
Ekip LS/I
Ekip I
Ekip LSI
Ekip LSIG

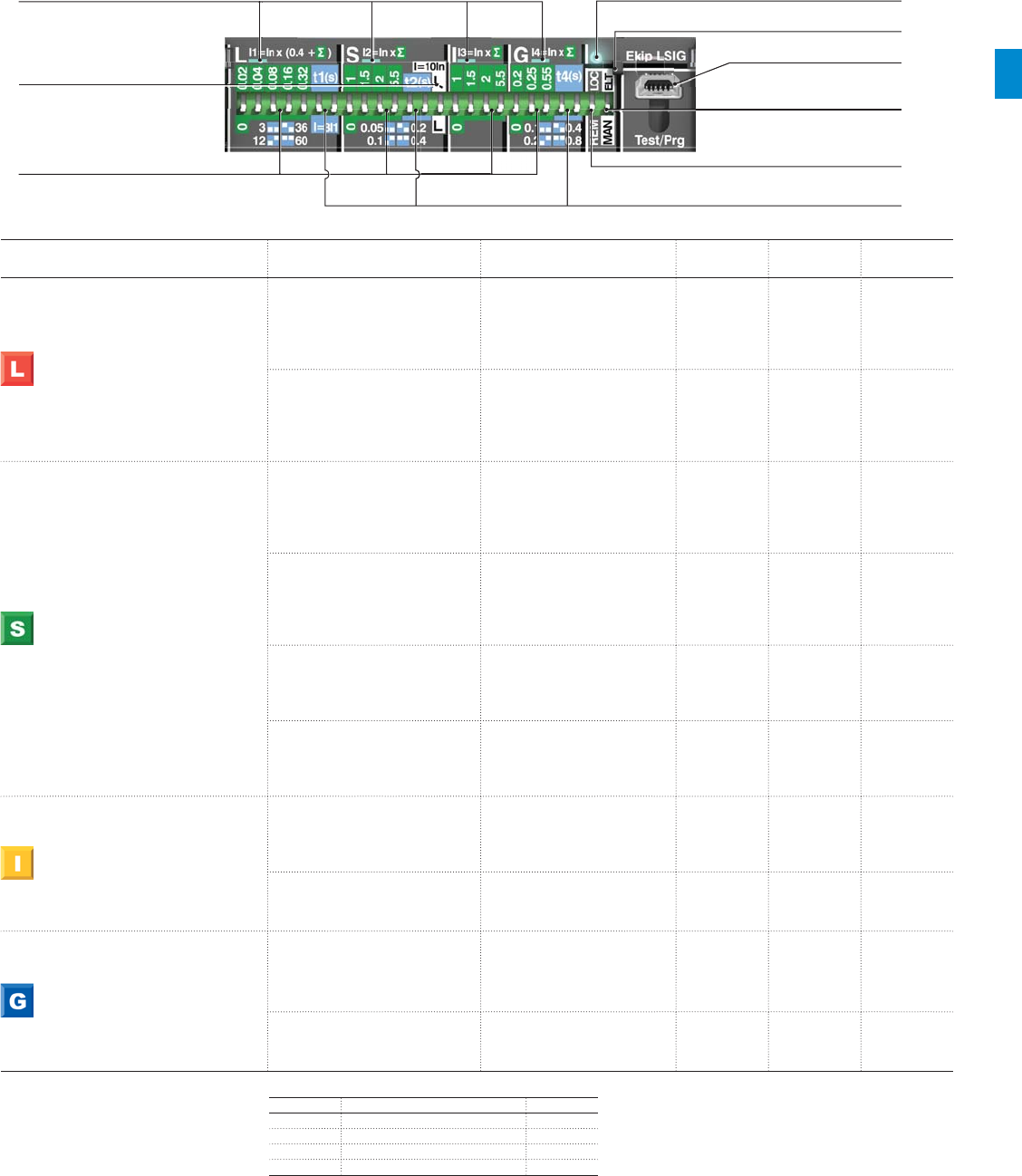

Ekip E-LSIG
Interchangeable protection trip units
(1) Current Limiting circuit breaker in 480V AC and 600V AC
(2) 2-poles version available only as complete circuit breaker with TMF, trip units interchangeable; 4-poles version available only as complete circuit breaker from In=80 to In=250 with TMF, trip units interchangeable
(3) With F, EF, ES, FCCuAl installation
(4) 100kA up to 150A, 65kA from 175A up to 250A
Motor protection (1) XT1
Frame Size [A] 125
Poles [No.] 3
Rated service voltage (AC) 50-60Hz [V] 600Y/347
(DC) [V] 500
Versions Fixed, Plug-in
Rating level H
Trip units for motor protection

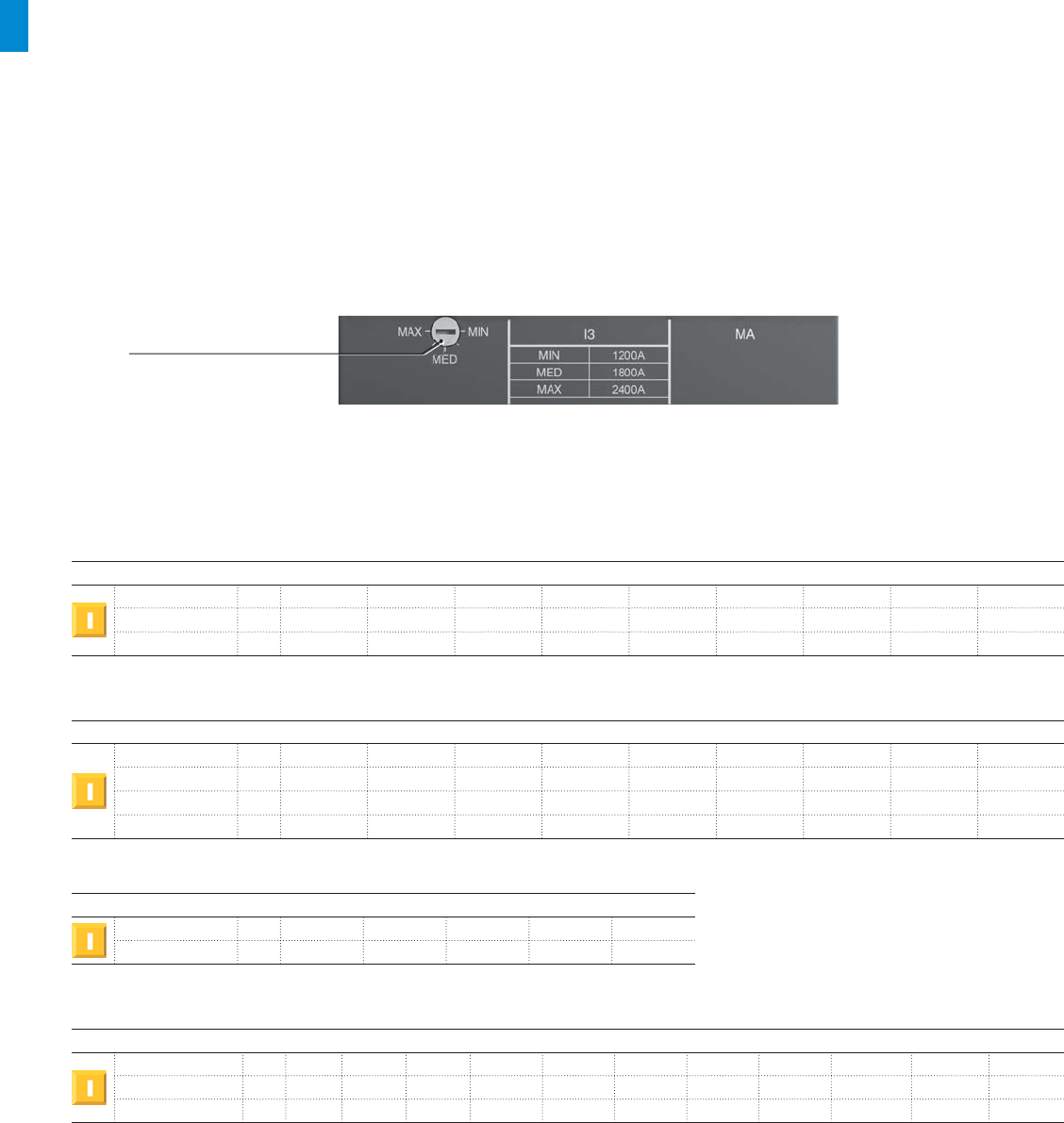

MA (MCP)
Ekip M-LIU (MPCB)
(1) Available only as complete circuit breaker
Molded case disconnect switches (MCS) XT1
Frame Size [A] 125
Poles [No.] 3, 4
Rated voltage (AC) 50-60Hz [V] 600Y/347
(DC) [V] 500 4p series / 3p CB up to 250V DC 2p series
Versions Fixed, Plug-in
Rating level NSH
Magnetic Override [A] 1250
11
ABB catalog | 1SXP210002C0201 1/3
XT2 XT3 XT4
125 225 250
■■
up to 100A fixed version only up to 250A (3)
-up to 250A (3)
3, 4 3, 4 2 (for N version) 3, 4
600 600Y/347 600
500 500 600
Fixed, Plug-in, Withdrawable Fixed, Plug-in Fixed, Plug-in, Withdrawable
NSH
(1) L(1) V(1) XN S NSH
(1) L(1) V(1) X
65 100 150 200 200 200 50 65 65 100 150 200 200 200
25 35 65 100 150 200 25 35 25 35 65 100 150 200
– – – – – – 10 10 ––––––
18 22 25 35 42 45 18 22 25 50 65 100/65 (4)
35 50 65 75 85 85 25 35 35 42 50 85 100
35506575858525 35 ––––––
– – – – – – – ––––––
– – – – – – – 3550657585–
25000 25000 25000
240 240 240
[90 x 82,5 x 130] / [3.54 x 3.25 x 5.12] [105 x 70 x 150] / [4.13 x 2.75 x 5.90] [105 x 82,5 x 160] - [4.13 x 3.25 x 6.3]
[120 x 82,5 x 130] / [4.72 x 3.25 x 5.12] [140 x 70 x 150] / [5.51 x 2.75 x 5.90] [140 x 82,5 x 160] - [5.51 x 3.25 x 6.3]
[1,2 - 2.65] / [1,6 - 3.53] [1,7 - 3.37] / [2,1 - 4.63] [2,5 - 5.51] / [3,5 - 7.72]
[2,54 - 5.60] / [3,27 - 7.21] [3,24 - 7.14] / [4,1 - 9.04] [4,19 - 9.24] / [5,52 - 12.17]
[3,32 - 7.32] / [4,04 - 8.91] [5 - 11.02] / [6,76 - 14.90]
15 15 15
15 15 15
■■
■ ■
■ ■
■ ■
■ ■
■ ■
■ ■
XT2 XT3 XT4
125 225 250
333
600 600Y/347 600
500 500 600
Fixed, Plug-in, Withdrawable Fixed, Plug-in Fixed, Plug-in, Withdrawable
HSH
■■
■ ■
XT2 XT3 XT4
125 225 250
3, 4 3, 4 3, 4
600 600Y/347 600
500 3p series 500 3p series 600 3p series
Fixed, Plug-in, Withdrawable Fixed, Plug-in Fixed, Plug-in, Withdrawable
N H L V N S NSHL V
1250 2250 2500
1
1SDC210A20F0001
1/4 1SXP210002C0201 | ABB catalog

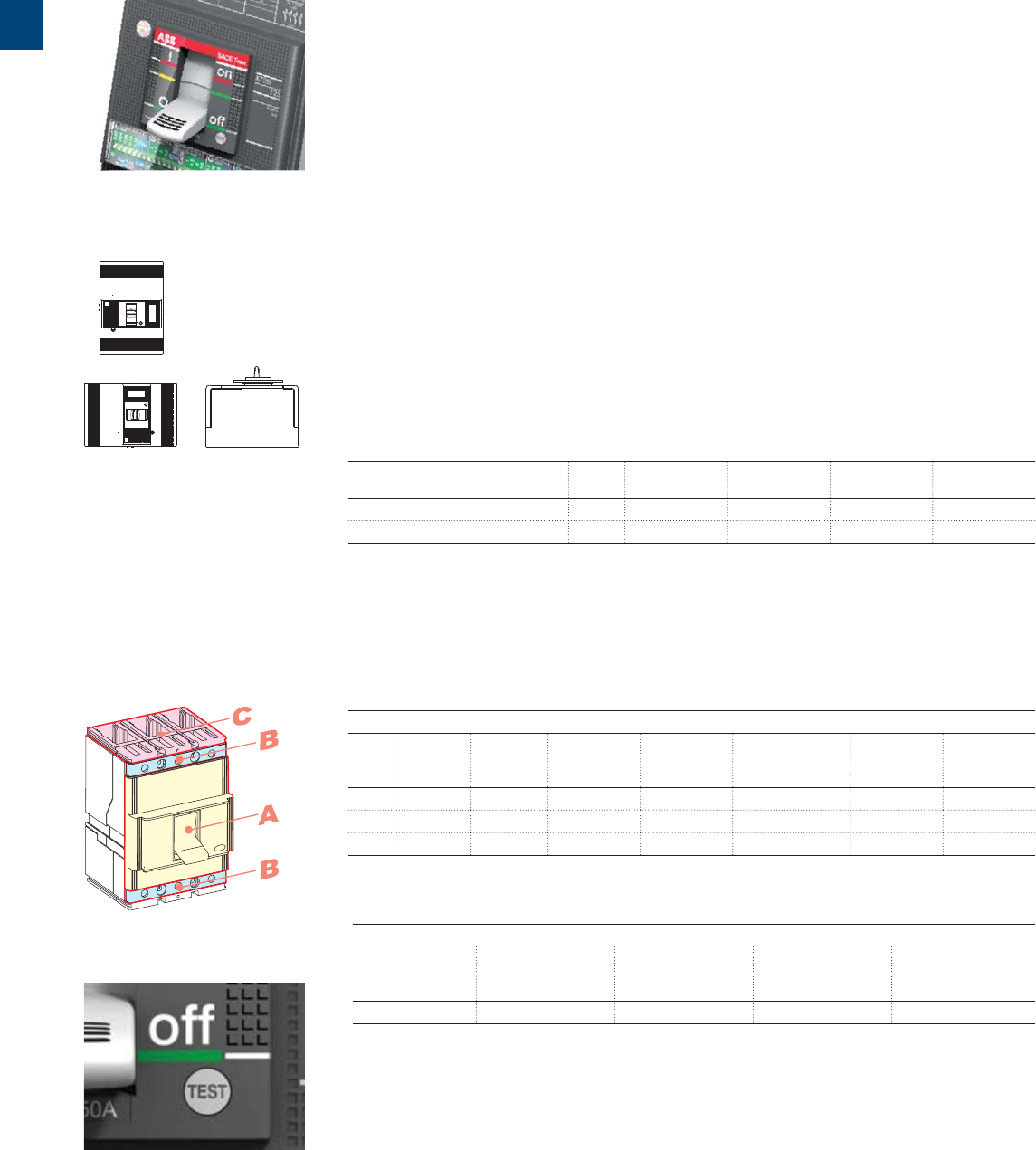

Positive operation
Installation positions
Protection degrees
Test pushbutton
Construction characteristics
The references in round brackets (Gx.x) refer to the Glossary in the final chapter of the technical catalog.
All circuit breakers in the SACE Tmax XT family are made with the following construction
characteristics:
double insulation(G1.5);
positive operation(G1.6);
isolation behavior(G1.7);
electromagnetic compatibility(G1.8);
tropicalization(G1.9);
impact and vibration resistance(G1.10);
power supply from the top towards the bottom or vice versa, except for over 480V on XT2
and over 600V on XT4;
installation versatility. Circuit breaker can be mounted in a horizontal or vertical position or
laid flat without any derating of rated characteristics;
no nominal performance derating for use up to an altitude of 2000m/6561ft. Above
2000m/6561ft, atmospheric properties (air composition, dielectric strength, cooling power
and pressure) change, affecting the main parameters that define the circuit breaker.
The table below shows changes to the main performance parameters:
Altitude 2000m/
6561ft
3000m/
9842ft
4000m/
13123ft
5000m/
16404ft
Rated employ voltage, Ue [V AC] 600 528 468 408
Rated uninterrupted current % 100 98 93 90
SACE Tmax XT circuit breakers can be used in ambient temperatures between -25°C/-13°F
and +70°C/158°F and stored in ambient temperatures between -40°C/-40°F and +70°C/158°F.

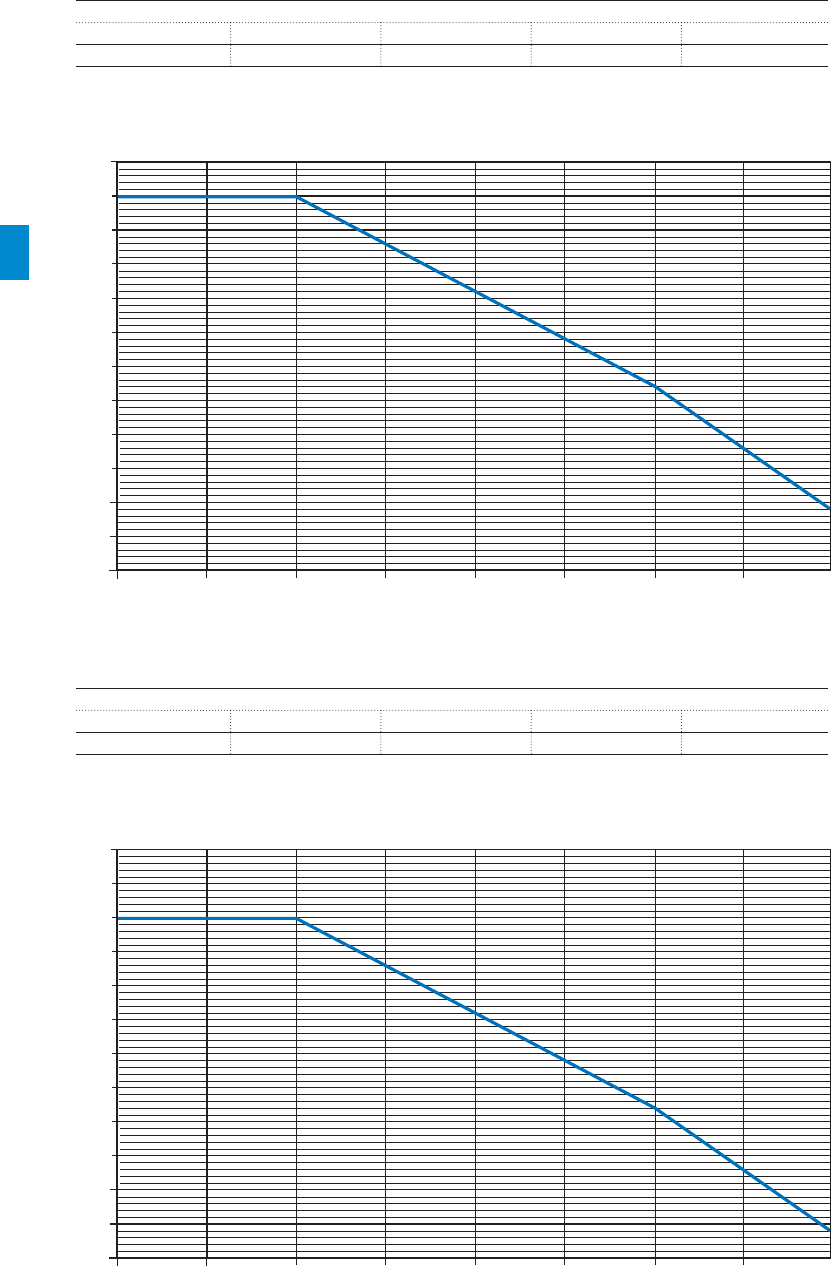

For temperatures outside these ranges, see the “Temperature performance” paragraph of the
“Typical curves and technical information” chapter;
different degrees of IP (International Protection)(G 1.11);
Circuit-breaker
With
front
Without
front(1)
With front
for lever
-FLD-
With

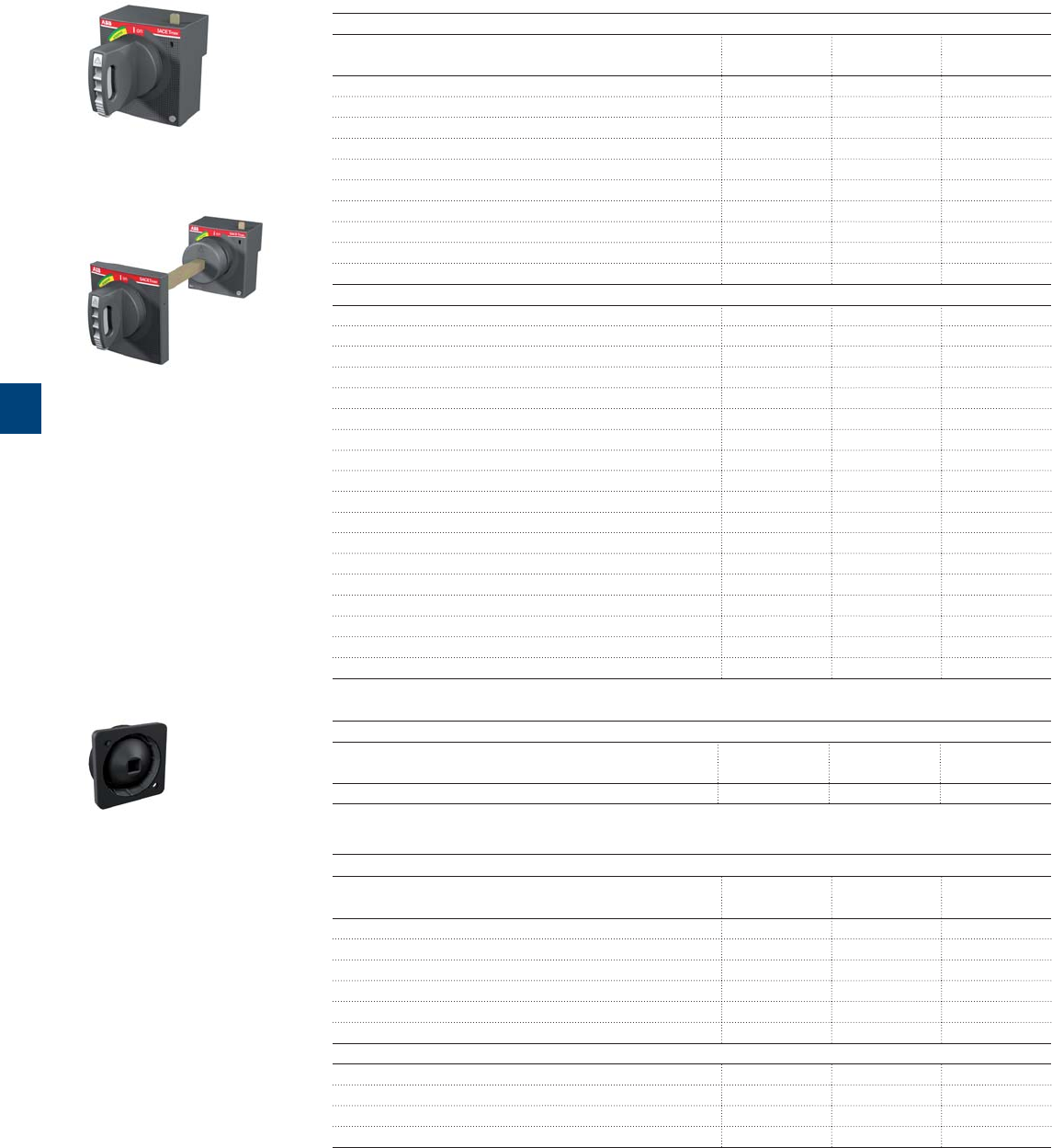

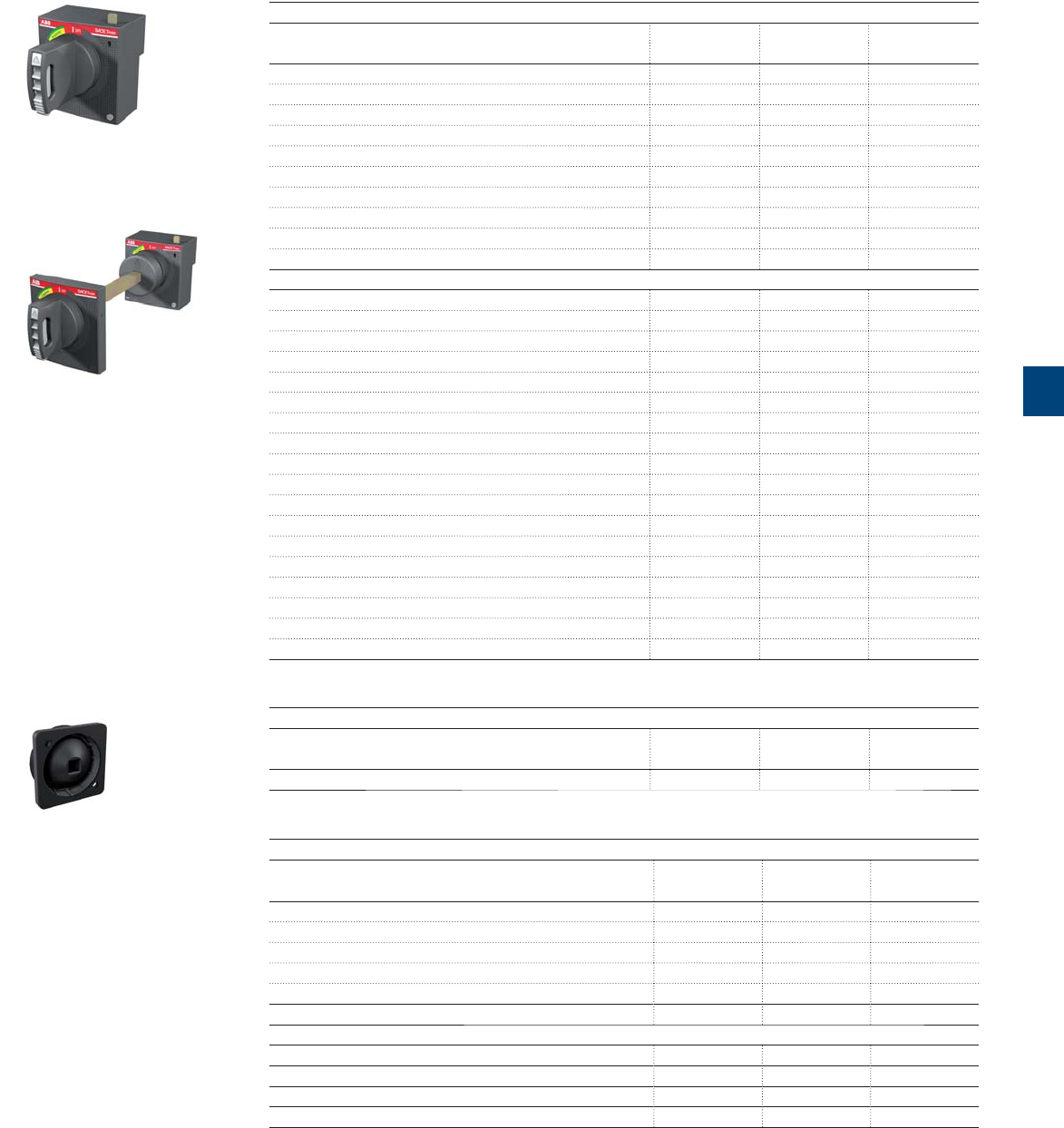

rotary
handles
With extended
rotary handle and
accessory IP54
With high
terminal
covers HTC
With low
terminal
covers LTC
AIP40 IP20 IP40 IP40 IP54 IP40 IP40
BIP20 IP20 IP20 IP20 IP20 IP40 IP40
CNC NC NC NC NC IP40 IP30
(1) During the installation of electrical accessories
NC Not classifi able
Accessories

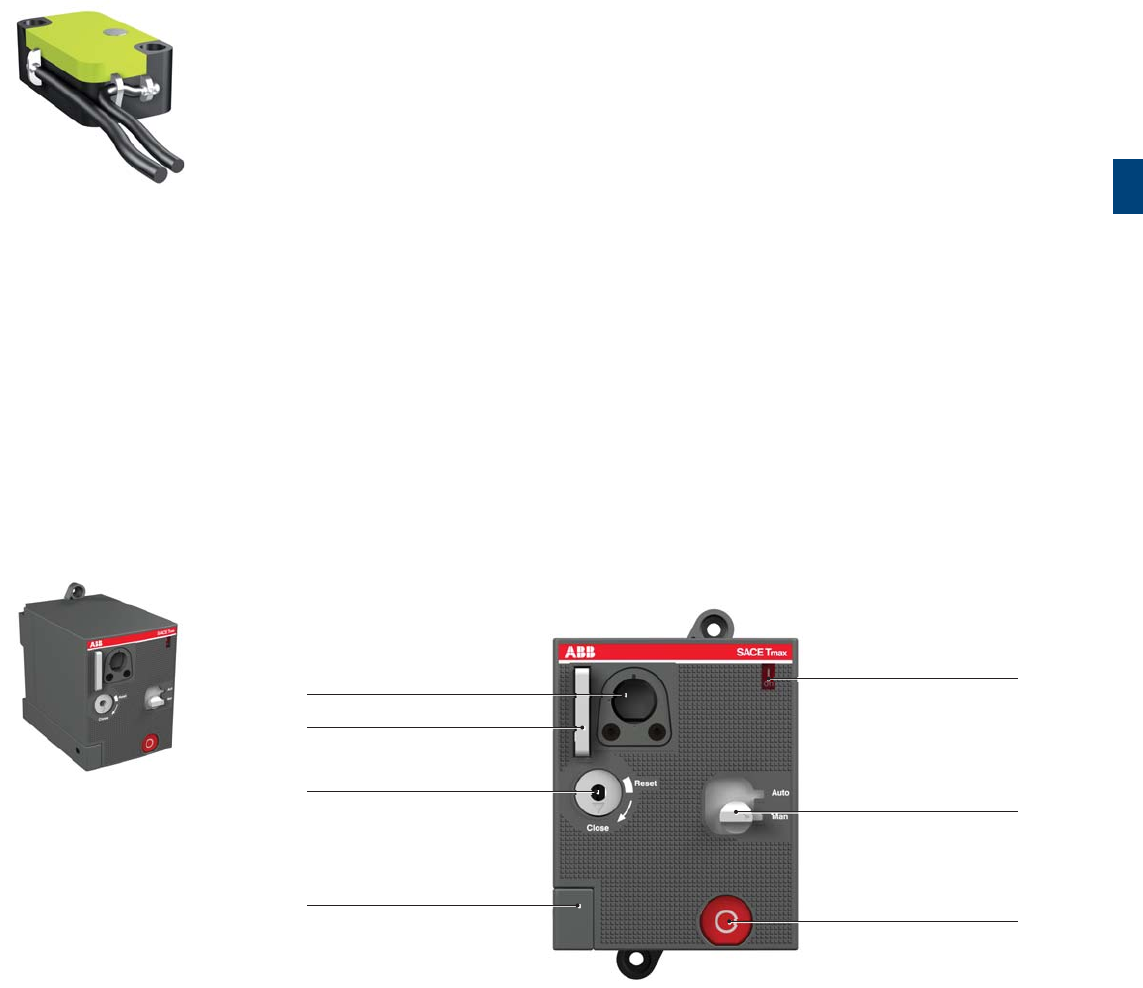

Motor operator
MOD, MOE
or MOE-E
Residual current
devices
Residual current
from switchboard
RCQ020
Automatic transfer
switch ATS021 and
ATS022
On Front IP30 IP40 IP41 IP40
all circuit breakers in the XT family have a pushbutton for performing the release test. The
circuit breaker must be closed, with no current, while the test is being performed.
11
ABB catalog | 1SXP210002C0201 1/5
Regulations and reference standards
Conformity with Standards
SACE Tmax XT circuit breakers and their accessories are constructed in conformity with:
Standard(G6.1):
– UL 489;
CSA C22.2 No. 5;
– IEC 60947-2;
Directives(G6.2):
EC “Low Voltage Directive” (LVD) N° 2006/95/EC (replacing 73/23/EEC and subsequent
amendments);
EC “Electromagnetic Compatibility Directive” (EMC) 2004/108/CE;
Naval Registers(G6.3) (ask ABB SACE for the versions available):
ABS.
Certification of conformity with the product Standards is carried out in the ABB SACE test
laboratory (accredited by SINAL) in respect of the EN 45011 European Standard, by the
Italian certification body ACAE (Association for Certification of Electrical Apparatus), member
of the European LOVAG organization (Low Voltage Agreement Group) and by the Swedish
certification body SEMKO belonging to the International IECEE organization.

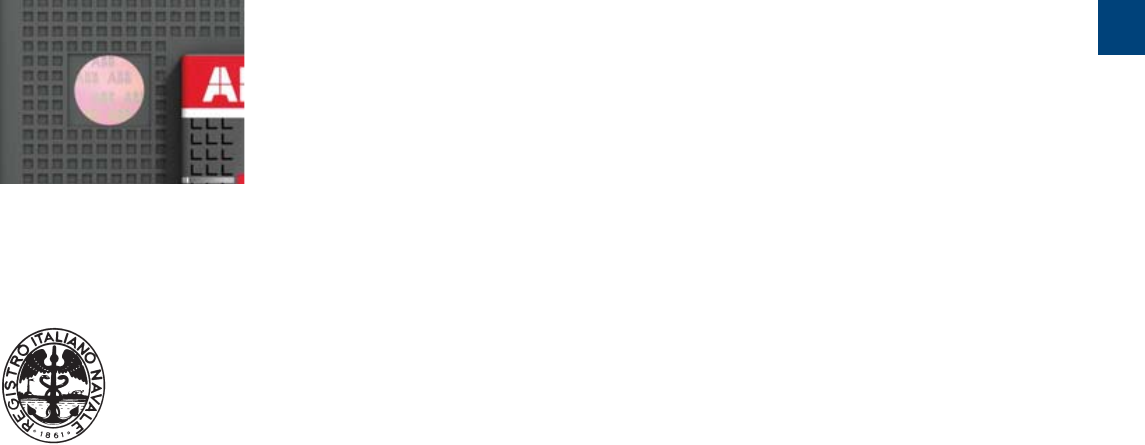

The SACE Tmax XT series has a hologram on the front, obtained using special anti-forgery
techniques. This ensures the quality and authenticity of the circuit breaker as a genuine ABB
SACE product.
Company Quality System
The ABB SACE Quality System conforms to the following Standards:
ISO 9001 International Standard;
EN ISO 9001 (equivalent) European Standards;
UNI EN ISO 9001 (equivalent) Italian Standards;
IRIS International Railway Industry Standard.
The ABB SACE Quality System attained its first certification with the RINA certification body in
1990.
Environmental management system, social responsibility and
ethics
For ABB SACE, environmental protection is a top priority, as evidenced when ours was the
first industry in Italy’s electromechanical sector to have obtained the RINAs Environmental
Management System certification in recognition of the company’s commitment in conformity
with the International ISO 14001 Standard.
In 1999, the Environmental Management System and the Occupational Health and Safety
Management System were integrated according to the OHSAS 18001 Standard. In 2005, the
SA 8000 (Social Accountability 8000) Standard was integrated, committing itself to respect
business ethics and working conditions.
Our commitment to environmental protection is solidified through:
selection of materials, processes and packaging which mitigate the true environmental
impact of the product;
use of recyclable materials;
voluntary adherence to the RoHS directive(G6.4).
ISO 14001, 18001 and SA8000 recognitions together with ISO 9001 made it possible for ABB
SACE to obtain RINA BEST FOUR CERTIFICATION.
Naval Registers
Hologram
1
Ue=690V AC
415
440
690
Uimp=8kV
Ui=800V
IEC60947-2
220 100
70
70
70
65
10
75
50
75
75
50
50
250
500
Ue (V) Icu (kA) Ics (%Icu)
f= 50-60 Hz
S/NXT1H 125
DC WIRING DIAGRAMS
2 POLES 250VDC 4 POLES 251
TO 500VDC
CAUTION: THE INSTALLATION OF
THE INSULATING BARRIER
BETWEEN THE C.B AND THE BACK
PLATE SHOULD BE PROVIDED
WHEN THE C.B IS MOUNTED ON A
FLAT NON-INSULATED METAL
SURFACE
CAUTION:
29X68X2.5 mm SPACING BARRIERS
PROVIDED WITH THE CIRCUIT
BREAKER MUST BE PLACED
BETWEEN UPPER AND LOWER
POLES OF THE CIRCUIT BREAKER
AND BETWEEN ADJACENT CIRCUIT
BREAKERS OF THE SAME TYPE
13
1
10
6
3
41
5
9
7
8
2
14
9
44
12
15 16
11
10
1/6 1SXP210002C0201 | ABB catalog
Identification of the SACE Tmax XT circuit breakers
The specifications of each circuit breaker appear on the rating name plate on both the front
and side of the unit.
Front label
1 Name and performance level
2In: rated current
3Reference standard UL489/CSA22.2
4Serial number
5UL marking
6CSA marking
7Anti-forgery logo
8Symbol of isolation behavior
Side label
9Interrupting ratings
10 Rated service voltage
11 Rated insulation voltage
12 Rated impulse withstand voltage
13 CE marking
14 Test pushbutton
15 Rated ultimate short-circuit breaking capacity
16 Rated short-circuit duty breaking capacity
11
ABB catalog | 1SXP210002C0201 1/7
The tables below outline the logic behind the naming of each thermomagnetic and electronic
trip unit.
Magnetic trip units
Family name Protection
M: magnetic +A: with adjustable threshold
Thermomagnetic trip units
Family name Protection
TM: thermomagnetic +F: with fixed threshold
A: with adjustable thermal and magnetic threshold
Example:
MA: magnetic only trip unit, with adjustable protection threshold (MCP);
TMF: thermomagnetic trip unit, with fixed thermal and fixed magnetic protection threshold;
Electronic trip units
Family name Application Protection
Ekip +
….: Distribution
M: Motor protection
E: Energy measurements
+
I
LS/I
LSI
LSIG
LIU
Example:
Ekip LS/I: electronic trip unit for distribution networks protection, with “L” against overload
and either “S” protection function against delay short circuit or “I” protection function
against instantaneous short circuit;
Ekip M-LIU: electronic trip unit for motor protection, with LIU protection functions.

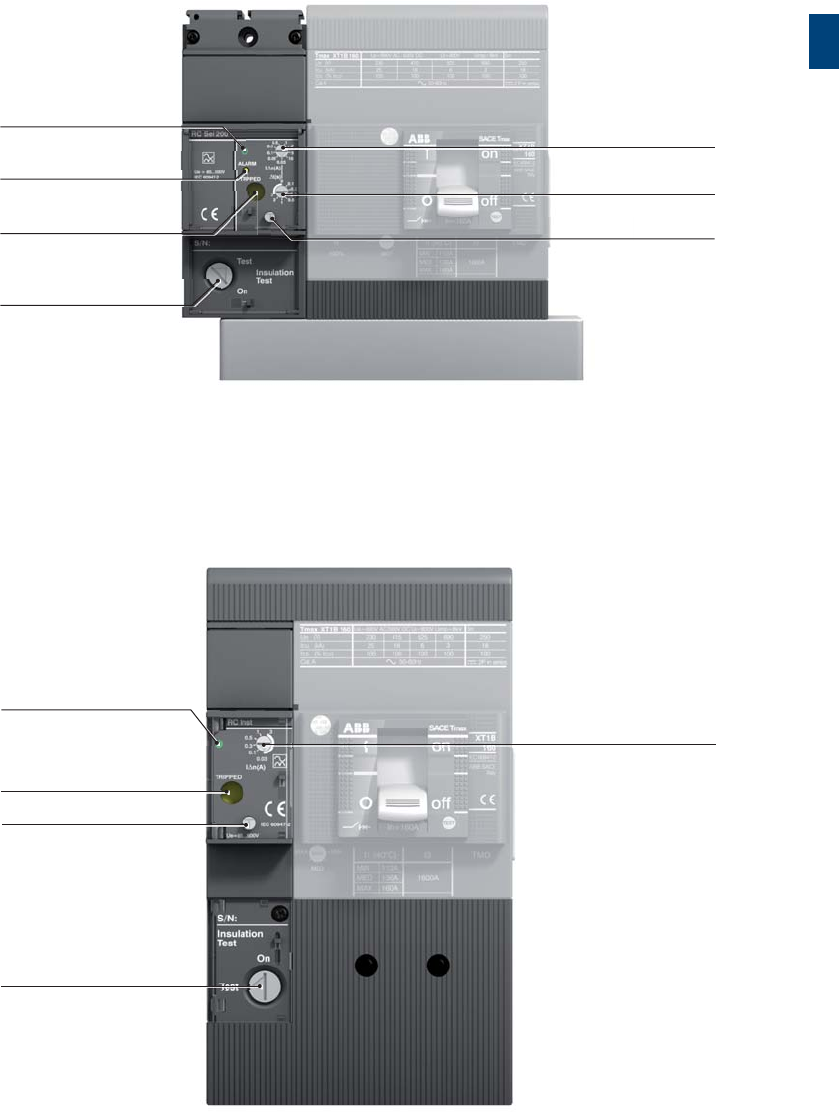

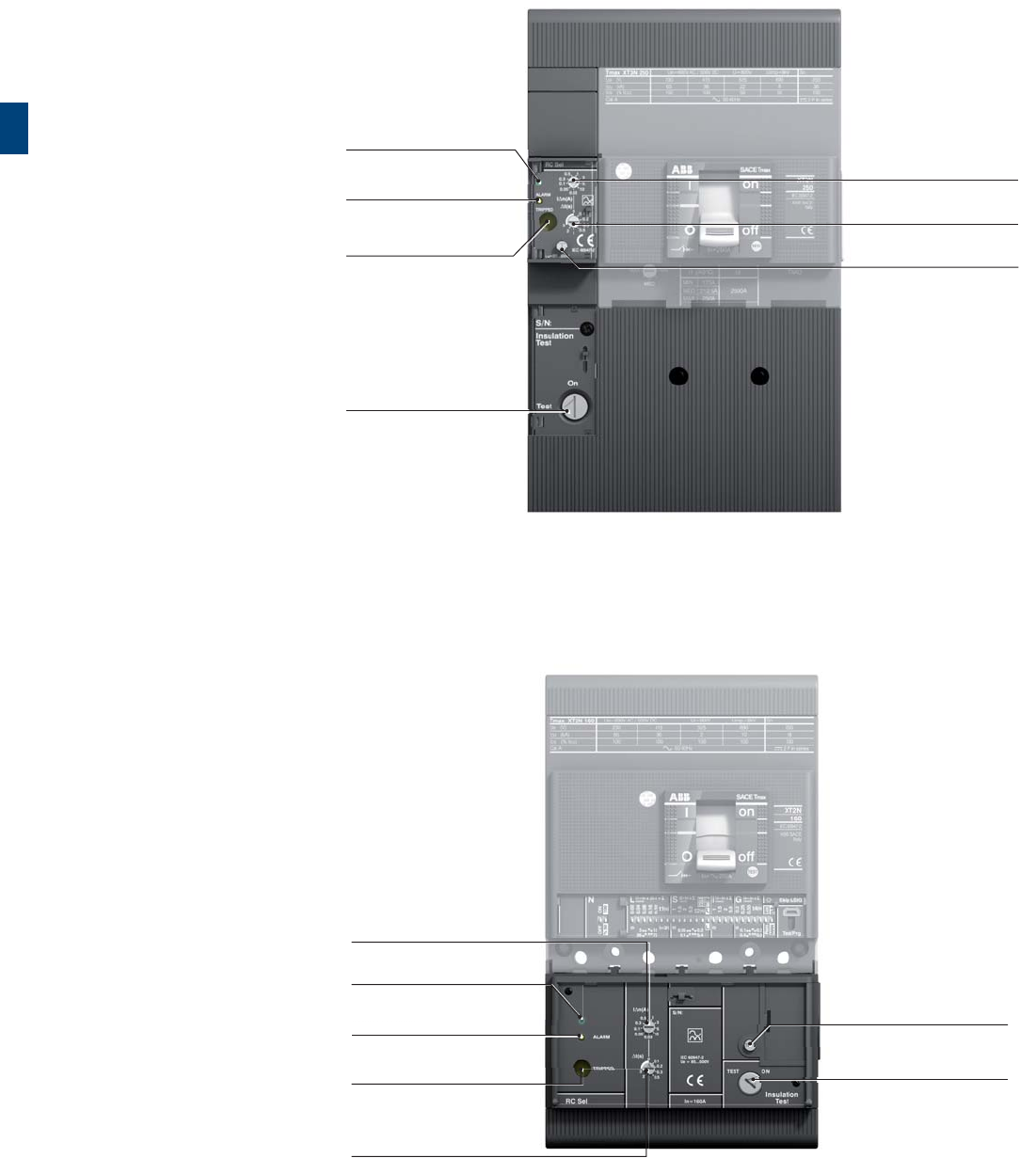

Residual current protection devices
Family name Typology
RC +
Inst: instantaneous type ‘A
Sel: selective type ‘A
Sel 200: selective type ‘A’ reduced to 200mm
B Type: selective type ‘B’
Nomenclature of the trip units
1
1/8 1SXP210002C0201 | ABB catalog
7
ABB catalog | 1SXP210002C0201 7/1
Ordering codes
Tmax XT part number explanation 7/2
Part numbers for XT1
Circuit breakers 7/8
Accessories 7/10
Part numbers for XT2
Circuit breakers 7/17
Accessories 7/20
Part numbers for XT3
Circuit breakers 7/30
Accessories 7/32
Part numbers for XT4
Circuit breakers 7/39
Accessories 7/45
7
7/2 1SXP210002C0201 | ABB catalog
Instructions for ordering
6 - Number of poles
22 Poles (XT4 N UL version only)
33 Poles
44 Poles, 100% Neutral
N4 Poles 50% Neutral (IEC, TMD/TMA over 100A only)
4 - Breaking capacity
BCNSHLVX
UL kA @ 480V - - 25 35 65 100 150 200
UL kA @ 600Y/347V - - 18/10(1) 22/10(1) 25 - - -
UL kA @ 600V - - 18 22 25 35/50(2) 42/65(2) 42/100/65(2)
IEC kA @ 415V 18 25 36 50 70 120 150 -
(1)Breaking capacities are 18(N) and 22(S) for XT1 and 10 (N&S) for XT3.
(2)Breaking capacities are 35 (L) and 42 (V&X) for XT2 and 50 (L), 65 (V) for XT4 with X at 100 to 150A and 65 to 250A.
Note: H, L and V breaking capacities for XT2 and XT4 UL are Current Limiting.
7-9 - Nominal current
UL Circuit Breakers 10A 15A 20A 25A 30A 35A 40A 45A 50A 60A 70A
XT1 TMF - 015 020 025 030 035 040 045 050 060 070
XT2 TMF/TMA(1) -015 020 025 030 035 040 - 050 060 070
Ele 010 --025 -----060 -
XT3TMF---------060 070
XT4 TMF/TMA(2) ---025 030 035 040 -050 060 070
Ele ------040 --060 -
80A 90A 100A 110A 125A 150A 175A 200A 225A 250A
XT1 TMF 080 090 100 110 125 -----
XT2 TMF/TMA(1) 080 090 100 110 125 -----
Ele - - 100 -125 -----
XT3 TMF 080 090 100 110 125 150 175 200 225 -
XT4 TMF/TMA(2) 080 090 100 110 125 150 175 200 225 250
Ele - - 100 --150 --225 250
(1)Tmax XT2 are thermal magnetic fi xed through 70A and thermal magnetic adjustable for 80A and higher.
(2)Tmax XT4 are thermal magnetic fi xed through 70A for all pole versions. 80A and higher 2-pole versions have thermal magnetic fi xed. 3-pole versions have both thermal magnetic fi xed and
adjustable options and 4-pole versions have thermal magnetic adjustable.
3 - Frame size
1XT1 - to 125A, 600Y/347V (UL) / 160A, 690V (IEC) - Thermal magnetic protection
2XT2 - to 125A, 600V (UL) / 160A (IEC), 690V - Thermal magnetic and electronic protection
3XT3 - to 225A, 600Y/347V (UL) / 250A, 690V (IEC) - Thermal magnetic protection
4XT4 - to 250A, 600V (UL) / 250A, 690V (IEC) - Thermal magnetic and electronic protection
5 - Standard
+ CCC Mark
UL 80% rated / IEC dual rated UC
UL 100% rated / IEC dual rated QL
IEC only / use only for IEC specific needs ER
IEC for 50°C 5-
1 & 2 - Tmax XT prefix, XT
Tmax XT order code explanation
Tmax XT Part number explanation
Configurator tool can be found at www.abb.us/lowvoltage-configurator
XT
1&2
D
15
U
5
F
12
X
18
2
3
G
10
X
16
3
6
E
13
L
4
F
11
X
17
125
7,8&9
E
14
7
ABB catalog | 1SXP210002C0201 7/3
UL Motor Protection 3A 7A 15A 25A 30A 40A 50A 60A 70A
XT1 MCP (MA) 003 007 015 -030 -050 -070
XT2 MCP (MA) 003 007 015 -030 -050 -070
M-LIU - - - 025 ---060 -
XT3MCP (MA)---------
XT4 MCP (MA) - - - 025 --050 --
M-LIU-----040 -060 -
80A 100A 110A 125A 150A 175A 200A 225A 250A
XT1 MCP (MA) 080 100 -125 -----
XT2 MCP (MA) 080 100 -125 -----
M-LIU - 100 -------
XT3 MCP (MA) - 100 110 125 150 -200 --
XT4 MCP (MA) 080 100 110 125 150 175 200 225 250
M-LIU - 100 --150 ----
UL Switches 125A 225A 250A
XT1 MCS 125 --
XT2 MCS 125 --
XT3 MCS - 225 -
XT4 MCS - - 250
IEC Circuit Breakers 4A 5A 8A 10A 16A 20A 25A 32A 40A
XT1TMD----016 020 025 032 040
XT2 TMD/TMA(1) 004 005 008 010 016 020 025 032 040
Ele - - - 010 --025 --
XT3TMD---------
XT4 TMD/TMA(1) ----016 020 025 032 040
Ele--------040
IEC Motor Protection 1A 2A 4A 10A 20A 32A 52A 80A 100A
XT2 MF/MA 001 002 004 020 032 052 080 100
MI----020 032 052 -100
XT3MA--------100
XT4 MA - - - 010 020 032 052 080 100
125A 160A 200A
XT2 MF/MA - 160 -
MI - - -
XT3 MA 125 160 200
XT4 MA 125 160 200
50A 63A 80A 100A 125A 160A 200A 225A 250A
XT1 TMD 050 063 080 100 125 160 ---
XT2 TMD/TMA(1) 050 063 080 100 125 160 ---
Ele - 063 -100 -160 ---
XT3 TMD - 063 080 100 125 160 200 -250
XT4 TMD/TMA(1) 050 063 080 100 125 160 200 225 250
Ele - 063 -100 -160 --250
(1)Tmax XT2 and XT4 IEC are thermal magnetic with adjustable overlaod and fi xed instantaneous through 32A and thermal magnetic adjustable for 40A and higher.
7
7/4 1SXP210002C0201 | ABB catalog
Part number explanation
10 - Trip unit
AThermal magnetic fi xed (TMF)
BThermal magnetic adjustable (TMD/TMA)
DMolded case switch disconnector
EEkip LS/I (Electronic, LS/I protection)
FEkip LSI (Electronic, LSI protection)
GEkip LSIG (Electronic, LSIG protection)
HEkip E-LSIG (Electronic, LSIG plus measurements)
JEkip I (Electronic, Instantaneous trip only)
KEkip M-I (Electronic Motor Protector, I protection) (IEC only)
LEkip M-LIU (Electronic Motor Protector with integrated overload and phase loss detection) (UL only)
MMotor circuit protector (MCP - magnetic only (MA/MF)
NThermal magnetic generator protection (TMG) (IEC only)
11 - Line side termination (top)
FF Front terminals, no lugs installed
AFC Cu Terminals for Cu cables (Saddle Clamps)
BFC CuAl Terminals for CuAl cables, 14-1/0 AWG, 110A (UL XT2)(1)
GFC CuAl Terminals for CuAl cables, 14-1/0 AWG, 100A (UL XT3, UL XT4)(2)
HFC CuAl Terminals for CuAl cables, 14-1/0 AWG, 100A, Control Tap Included (UL XT3, UL XT4)(1)(2)
JFC CuAl Terminals for CuAl cables, 4 AWG-300 kcmil, 225A (UL XT3, UL XT4)(2)
KFC CuAl Terminals for CuAl cables, 4 AWG-300 kcmil, 225A, Control Tap Included (UL XT3, UL XT4)(1)(2)
LFC CuAL Terminals for CuAl Cables, 250-350 kcmil, 250A (UL XT4)(1)(2)
ZMC Multi-cable terminals for Cu (6 wire)
1EF Extended front terminals
2ES Extended spread terminals
3FB Terminals for fl exible busbar (IEC only)
4R Rear terminals (IEC only)
5Panel board Adapter(1)
6Plug-in kit (Must also use 6 for load side)
7Withdrawable kit - XT2 & XT4 only (Must also use 7 for the load side)
(1)Product is in development. Contact ABB for availability.
(2)Not available for XT4 X version to 150A.
Note: Additional terminal options are available as loose accessories for IEC versions. Please see the IEC catalog for more details.
IEC Switches 160A 250A
XT1 MCS 160 -
XT3 MCS - 250
XT4 MCS - 250
IEC Generator Protection 16A 20A 25A 32A 40A 50A 63A 80A 100A 125A
XT2 TMG 016 020 025 032 040 050 063 080 100 125
XT3TMG------063 080 100 125
160A 200A 250A
XT2 TMG 160 --
XT3 TMG 160 200 250
7
ABB catalog | 1SXP210002C0201 7/5
12 - Load side termination (bottom)
FF Front terminals, no lugs installed
AFC Cu Terminals for Cu cables (Saddle Clamps)
BFC CuAl Terminals for CuAl cables, 14-1/0 AWG, 110A (UL XT2)(1)
GFC CuAl Terminals for CuAl cables, 14-1/0 AWG, 100A (UL XT3, UL XT4)(2)
HFC CuAl Terminals for CuAl cables, 14-1/0 AWG, 100A, Control Tap Included (UL XT3, UL XT4)(1)(2)
JFC CuAl Terminals for CuAl cables, 4 AWG-300 kcmil, 225A (UL XT3, UL XT4)(2)
KFC CuAl Terminals for CuAl cables, 4 AWG-300 kcmil, 225A, Control Tap Included (UL XT3, UL XT4)(1)(2)
LFC CuAL Terminals for CuAl Cables, 250-350 kcmil, 250A (UL XT4)(1)(2)
ZMC Multi-cable terminals for Cu (6 wire)
1EF Extended front terminals
2ES Extended spread terminals
3FB Terminals for fl exible busbar (IEC only)
4R Rear terminals (IEC only)
6Plug-in kit (Must also use 6 for line side)
7Withdrawable kit - XT2 & XT4 only (Must also use 7 for the line side)
(1)Product is in development. Contact ABB for availability.
(2)Not available for XT4 X version to 150A.
Note: Additional terminal options are available as loose accessories for IEC versions. Please see the IEC catalog for more details.

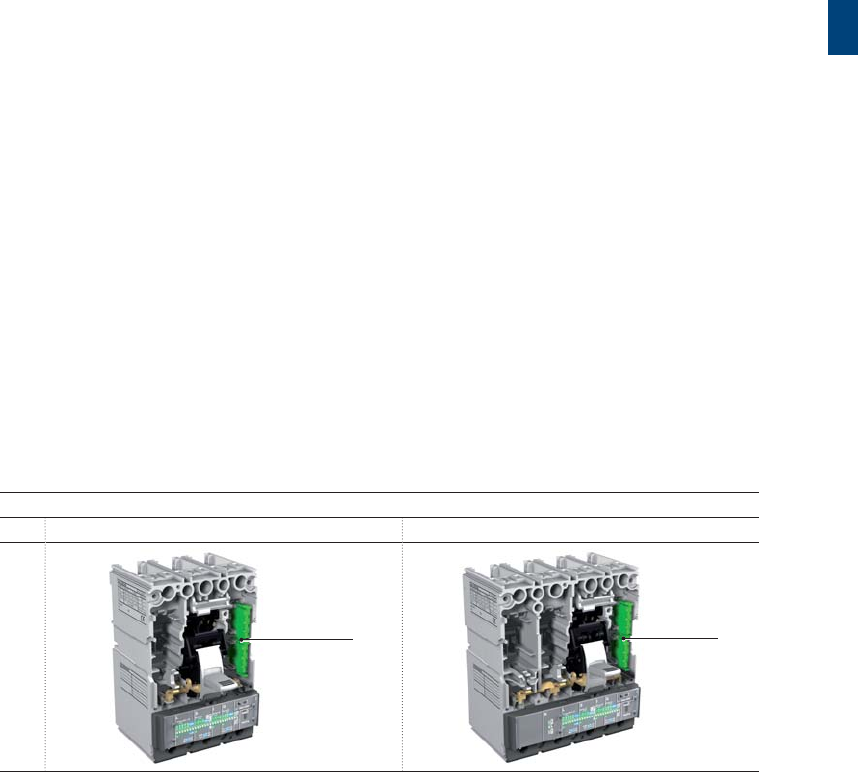

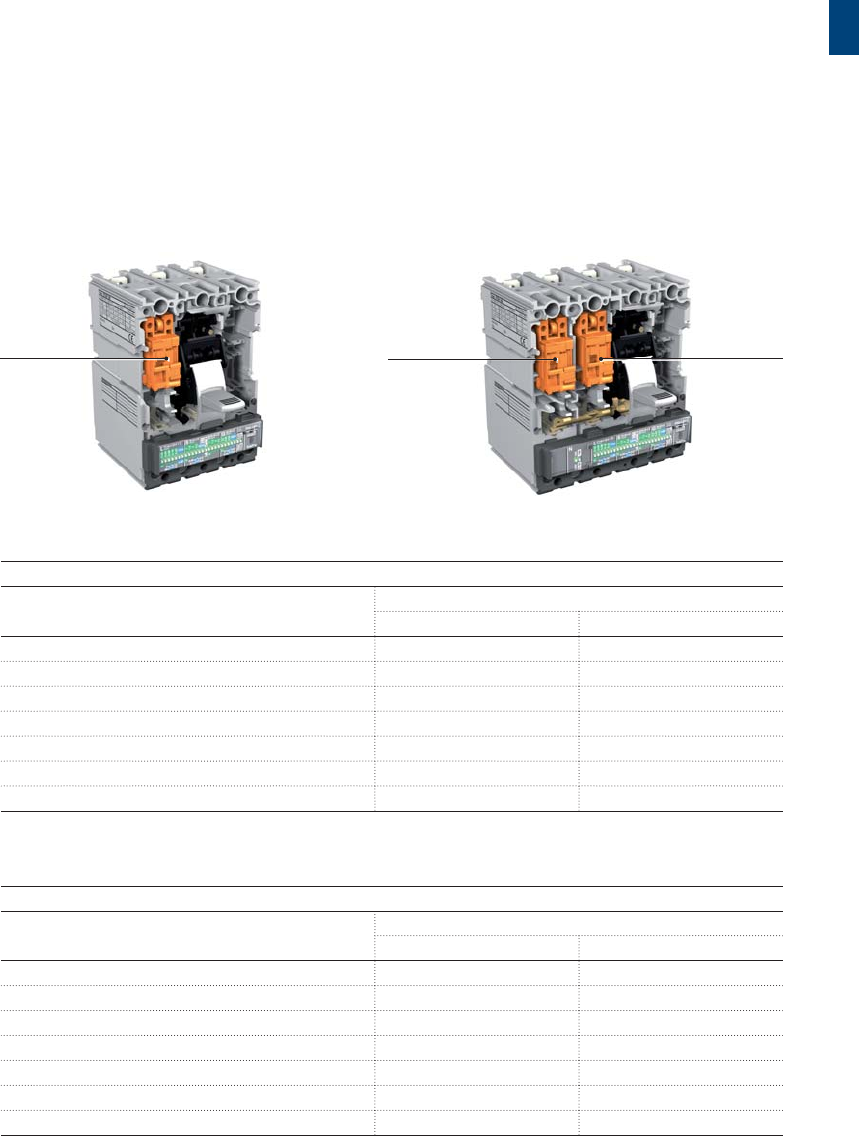

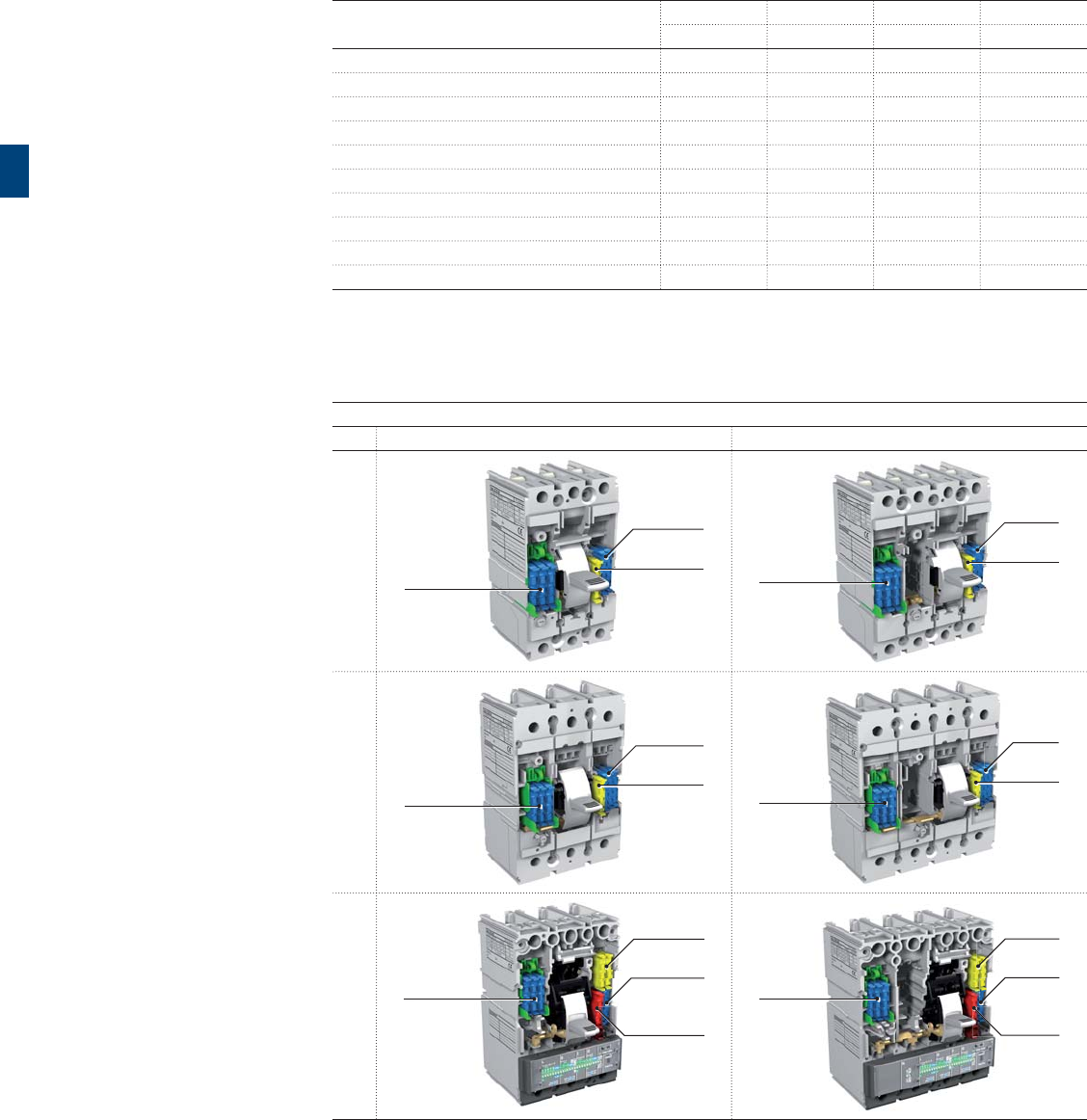

13 - Internal accessories - left of mechanism
0None
ASOR Shunt trip 12V DC
BSOR Shunt trip 24-30V AC/DC
CSOR Shunt trip 48-60V AC/DC
DSOR Shunt trip 110-127V AC / 110-125V DC
ESOR Shunt trip 220-240V AC / 220-250V DC
FSOR Shunt trip 380-440V AC
GSOR Shunt trip 480-525V AC
ZAUX 3Q 250V AC/DC (not available for withdrawable)
1UVR Undervoltage release 24-30V AC/DC
2UVR Undervoltage release 48V AC/DC
3UVR Undervoltage release 60V AC/DC
4UVR Undervoltage release 110-127V AC 110-125V DC
5UVR Undervoltage release 220-240V AC 220-250V DC
6UVR Undervoltage release 380-440V AC
7UVR Undervoltage release 480-525V AC
Note: A second option for the left side of the mechanism is available on a 4-pole circuit breaker as a loose accessory.
7
7/6 1SXP210002C0201 | ABB catalog
Part number explanation
15 - Front accessories
0None
AMotor operator 24V DC
BMotor operator 48-60V DC
CMotor operator 110-125V AC/DC
DMotor operator 220-250V AC/DC
EMotor operator 380-440V AC
FMotor operator 480 - 525V AC
GPLL Fixed padlock device in open/closed position
HPLL Fixed padlock device in open position
JPLL Removable padlock device in open position (XT1, XT3)
KFLD Front for locking operating lever mechanism (XT2, XT4)
LRHD Normal direct handle
MRHD Emergency direct handle
NRHE Variable depth mechanism, standard
PRHE Variable depth mechanism, with padlock
QRHD Normal direct handle + Early Aux contact, opening
RRHD Emergency direct handle + Early Aux contact, opening
SRHE Variable depth mechanism, standard + Early Aux contact, opening
TRHE Variable depth mechanism, with padlock + Early Aux Contact, opening
URHD Normal direct handle + Early Aux contact, closing
VRHD Emergency direct handle + Early Aux contact, closing
WRHE Variable depth mechanism, standard + Early Aux contact, closing
XRHE Variable depth mechanism, with padlock + Early Aux Contact, closing
1Motor operator for use with Modbus 24V DC (IEC only)
2Motor operator for use with Modbus 48-60V DC (IEC only)
3Motor operator for use with Modbus 110-125V AC/DC (IEC only)
4Motor operator for use with Modbus 220-250V AC/DC (IEC only)
5Motor operator for use with Modbus 380-440V AC (IEC only)
6Motor operator for use with Modbus 480 - 525V AC (IEC only)
14 - Internal accessories - right of mechanism
0None
AAUX 1Q, 1SY 250V AC/DC
BAUX 2Q, 1SY 250V AC/DC (not available for withdrawable)
CAUX 3Q, 1SY 250V AC/DC (not available for XT1)
DAUX 3Q, 2SY 250V AC/DC (XT2, XT4)
EAUX 2Q, 2SY, 1 S51 250V AC/DC (XT2, XT4)
FAUX 1 S51 250V AC/DC (XT2, XT4)
GAUX 1Q, 1SY 24V DC
HAUX 3Q, 1SY 24V DC (not available for XT1)
JAUX 1 S51 24V DC (XT2, XT4)
KAUX 1Q, 1SY 400V AC (XT2, XT4 not compatible with other right side AUX)
LAUX 2Q 400V AC (XT2, XT4 not compatible with other right side AUX)
1Ekip Com (XT2, XT4, not compatible with other right side AUX)
2Ekip Com + Aux 1S51 24V DC (XT2, XT4, not compatible with other right side AUX)
3Ekip Com + Aux 1S51 250V AC/DC (XT2, XT4, not compatible with other right side AUX)
7
ABB catalog | 1SXP210002C0201 7/7

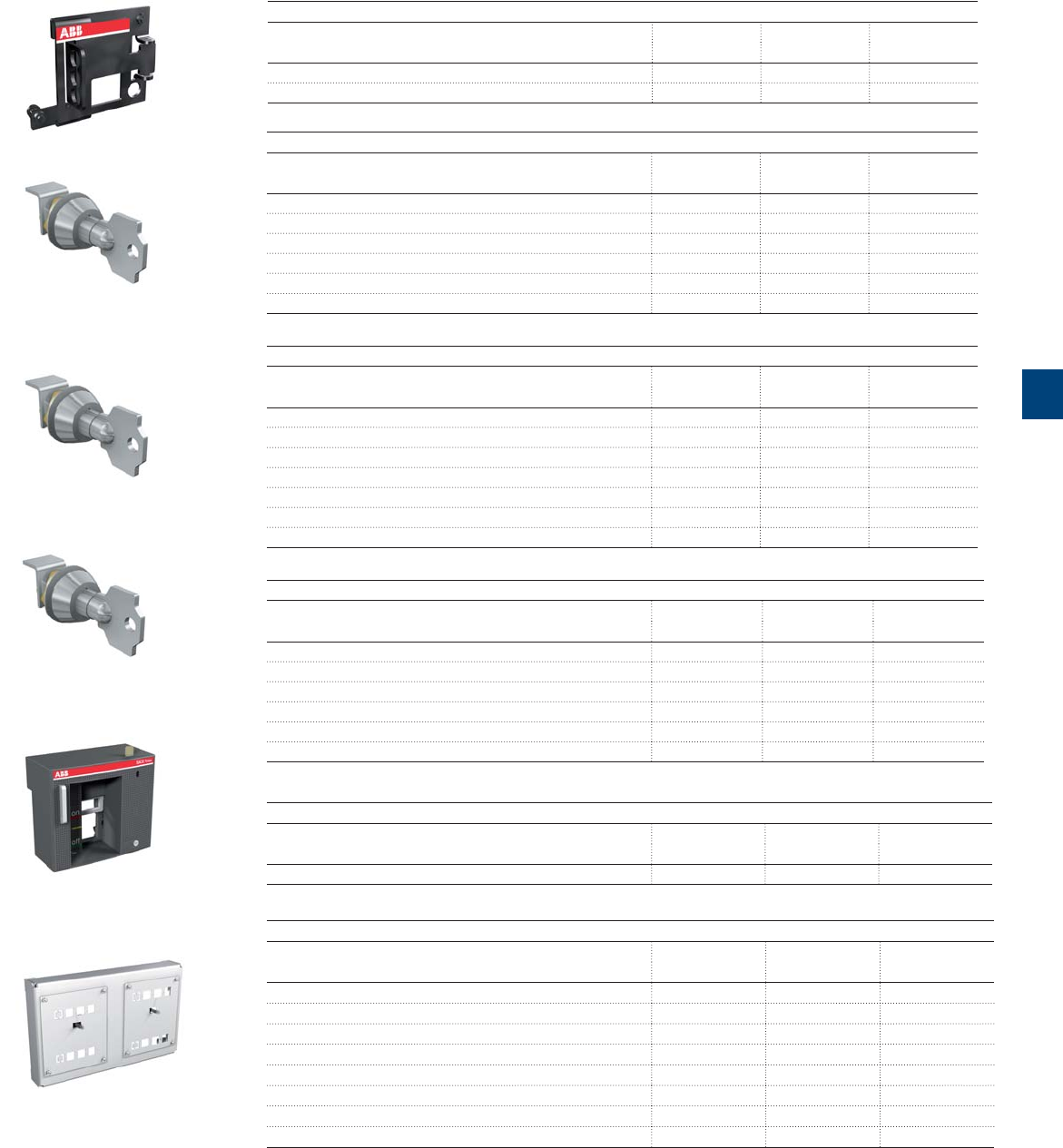

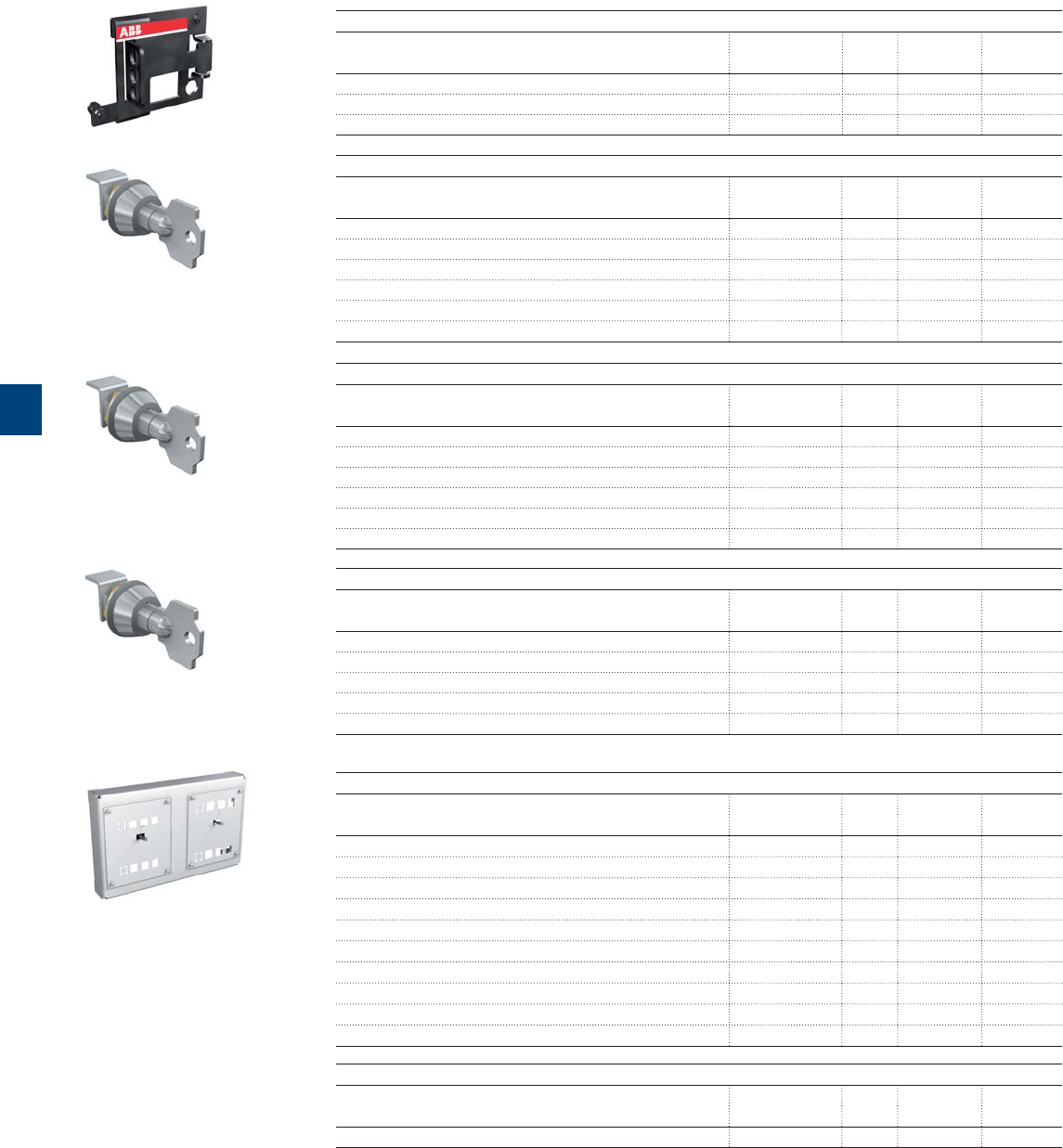

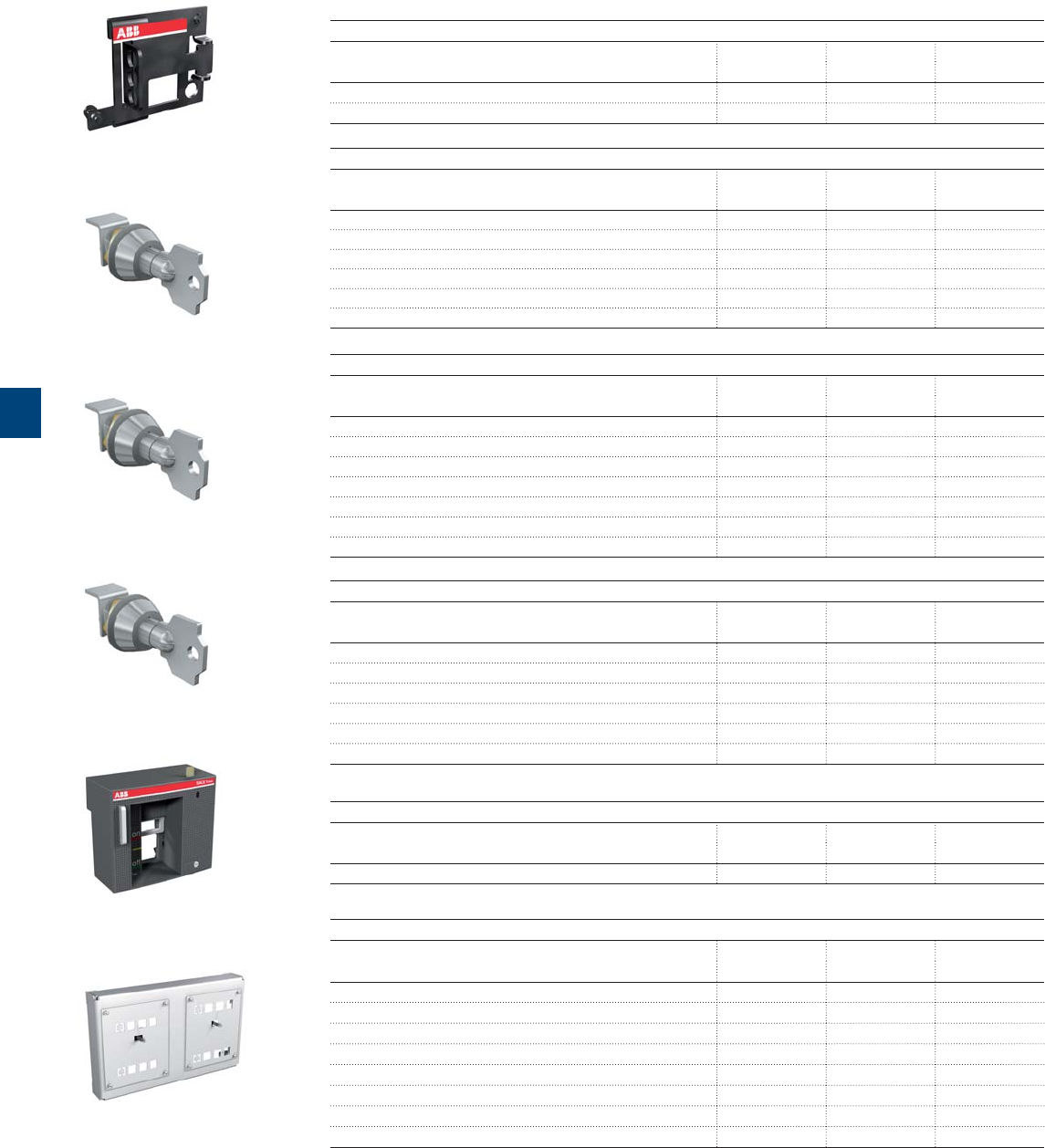

16 - Key locks
XNone
ARonis key lock, open position- A type
BRonis key lock, open position - B type
CRonis key lock, open position - C type
DRonis key lock, open position - D type
ERonis key lock, open position - different keys
FRonis key lock, open/closed - different keys (not available for motors)
Note: Key locks are available for placement on the circuit breaker, on rotary handle mechanisms or on motors. Key locks for motors are IEC only.
17 - For future use
XNone
18 - Additional certifications
XNone
3yr warranty 4yr warranty 5yr warranty
345
Test certifi cate provided (in English) EABC
Test certifi cate provided (in French) FGHJ
Test certifi cate provided (in Spanish) SKLM
Note: Extended warranty options require additional paperwork to be completed per order.
7
7/8 1SXP210002C0201 | ABB catalog
XT1 125A TMF - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Thermal magnetic trip unit Int Rtng
(480V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
Type In I3
TMF 15 500 XT1NU3015AFF000XXX XT1SU3015AFF000XXX XT1HU3015AFF000XXX
20 500 XT1NU3020AFF000XXX XT1SU3020AFF000XXX XT1HU3020AFF000XXX
25 500 XT1NU3025AFF000XXX XT1SU3025AFF000XXX XT1HU3025AFF000XXX
30 500 XT1NU3030AFF000XXX XT1SU3030AFF000XXX XT1HU3030AFF000XXX
35 500 XT1NU3035AFF000XXX XT1SU3035AFF000XXX XT1HU3035AFF000XXX
40 500 XT1NU3040AFF000XXX XT1SU3040AFF000XXX XT1HU3040AFF000XXX
45 500 XT1NU3045AFF000XXX XT1SU3045AFF000XXX XT1HU3045AFF000XXX
50 500 XT1NU3050AFF000XXX XT1SU3050AFF000XXX XT1HU3050AFF000XXX
60 600 XT1NU3060AFF000XXX XT1SU3060AFF000XXX XT1HU3060AFF000XXX
70 700 XT1NU3070AFF000XXX XT1SU3070AFF000XXX XT1HU3070AFF000XXX
80 800 XT1NU3080AFF000XXX XT1SU3080AFF000XXX XT1HU3080AFF000XXX
90 900 XT1NU3090AFF000XXX XT1SU3090AFF000XXX XT1HU3090AFF000XXX
100 1000 XT1NU3100AFF000XXX XT1SU3100AFF000XXX XT1HU3100AFF000XXX
110 1100 XT1NU3110AFF000XXX XT1SU3110AFF000XXX XT1HU3110AFF000XXX
125 1250 XT1NU3125AFF000XXX XT1SU3125AFF000XXX XT1HU3125AFF000XXX
Ordering codes for XT1 UL/CSA
Circuit breakers
XT1 125A TMF - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
Thermal magnetic trip unit Int Rtng
(480V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
Type In I3
TMF 15 500 XT1NU4015AFF000XXX XT1SU4015AFF000XXX XT1HU4015AFF000XXX
20 500 XT1NU4020AFF000XXX XT1SU4020AFF000XXX XT1HU4020AFF000XXX
25 500 XT1NU4025AFF000XXX XT1SU4025AFF000XXX XT1HU4025AFF000XXX
30 500 XT1NU4030AFF000XXX XT1SU4030AFF000XXX XT1HU4030AFF000XXX
35 500 XT1NU4035AFF000XXX XT1SU4035AFF000XXX XT1HU4035AFF000XXX
40 500 XT1NU4040AFF000XXX XT1SU4040AFF000XXX XT1HU4040AFF000XXX
45 500 XT1NU4045AFF000XXX XT1SU4045AFF000XXX XT1HU4045AFF000XXX
50 500 XT1NU4050AFF000XXX XT1SU4050AFF000XXX XT1HU4050AFF000XXX
60 600 XT1NU4060AFF000XXX XT1SU4060AFF000XXX XT1HU4060AFF000XXX
70 700 XT1NU4070AFF000XXX XT1SU4070AFF000XXX XT1HU4070AFF000XXX
80 800 XT1NU4080AFF000XXX XT1SU4080AFF000XXX XT1HU4080AFF000XXX
90 900 XT1NU4090AFF000XXX XT1SU4090AFF000XXX XT1HU4090AFF000XXX
100 1000 XT1NU4100AFF000XXX XT1SU4100AFF000XXX XT1HU4100AFF000XXX
110 1100 XT1NU4110AFF000XXX XT1SU4110AFF000XXX XT1HU4110AFF000XXX
125 1250 XT1NU4125AFF000XXX XT1SU4125AFF000XXX XT1HU4125AFF000XXX
XT1 125A MCP (MA) Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Magnetic trip unit Int Rtng
(480V)
H
65kA
Part number
Type In I3
MCP 3 9…33 XT1HU3003MFF000XXX
7 2177 XT1HU3007MFF000XXX
15 45…165 XT1HU3015MFF000XXX
30 90…330 XT1HU3030MFF000XXX
50 150…550 XT1HU3050MFF000XXX
70 210770 XT1HU3070MFF000XXX
80 240…880 XT1HU3080MFF000XXX
100 300…1100 XT1HU3100MFF000XXX
125 375…1375 XT1HU3125MFF000XXX
7
ABB catalog | 1SXP210002C0201 7/9
XT1 125A Switch - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
No Trip Unit Int Rtng
(480V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
Type In Mag. Override
D 125 1000 XT1NU3125DFF000XXX XT1SU3125DFF000XXX XT1HU3125DFF000XXX
XT1 125A Switch - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
No Trip Unit Int Rtng
(480V)
N
25kA
Part number
S
35 kA
Part number
H
65k
Part number
Type In Mag. Override
D 125 1000 XT1NU4125DFF000XXX XT1SU4125DFF000XXX XT1HU4125DFF000XXX
7
7/10 1SXP210002C0201 | ABB catalog
Ordering codes for XT1 UL/CSA
Accessories

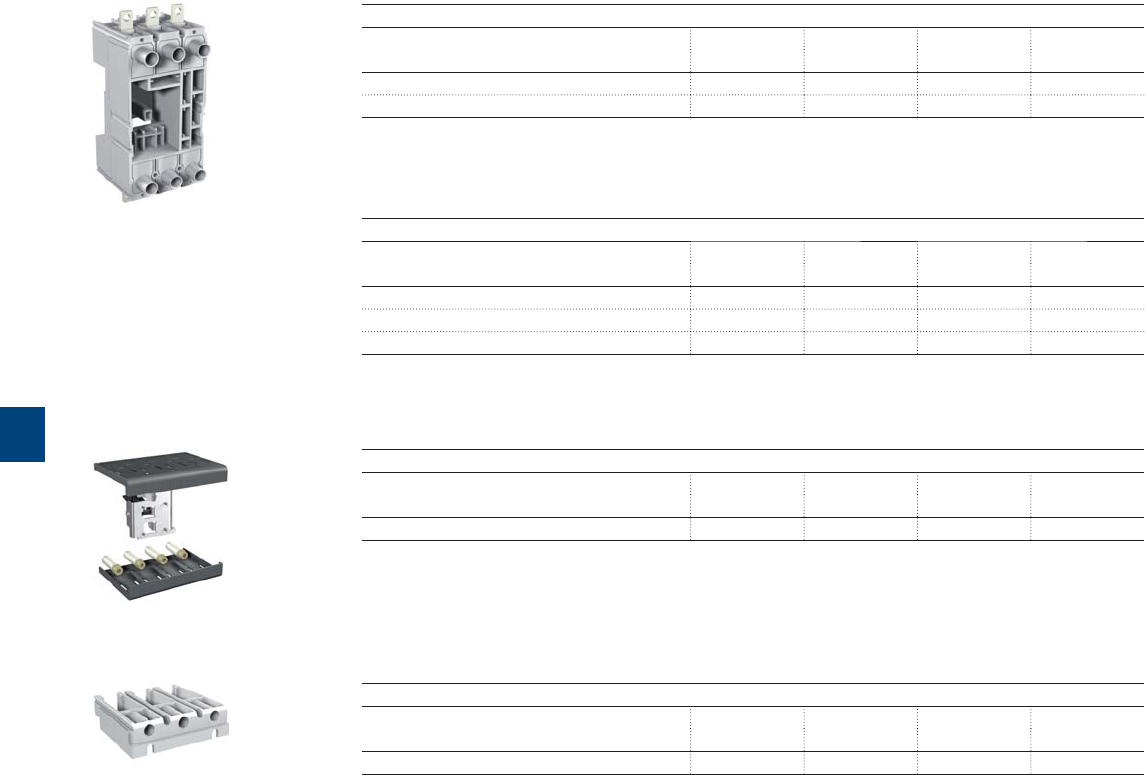

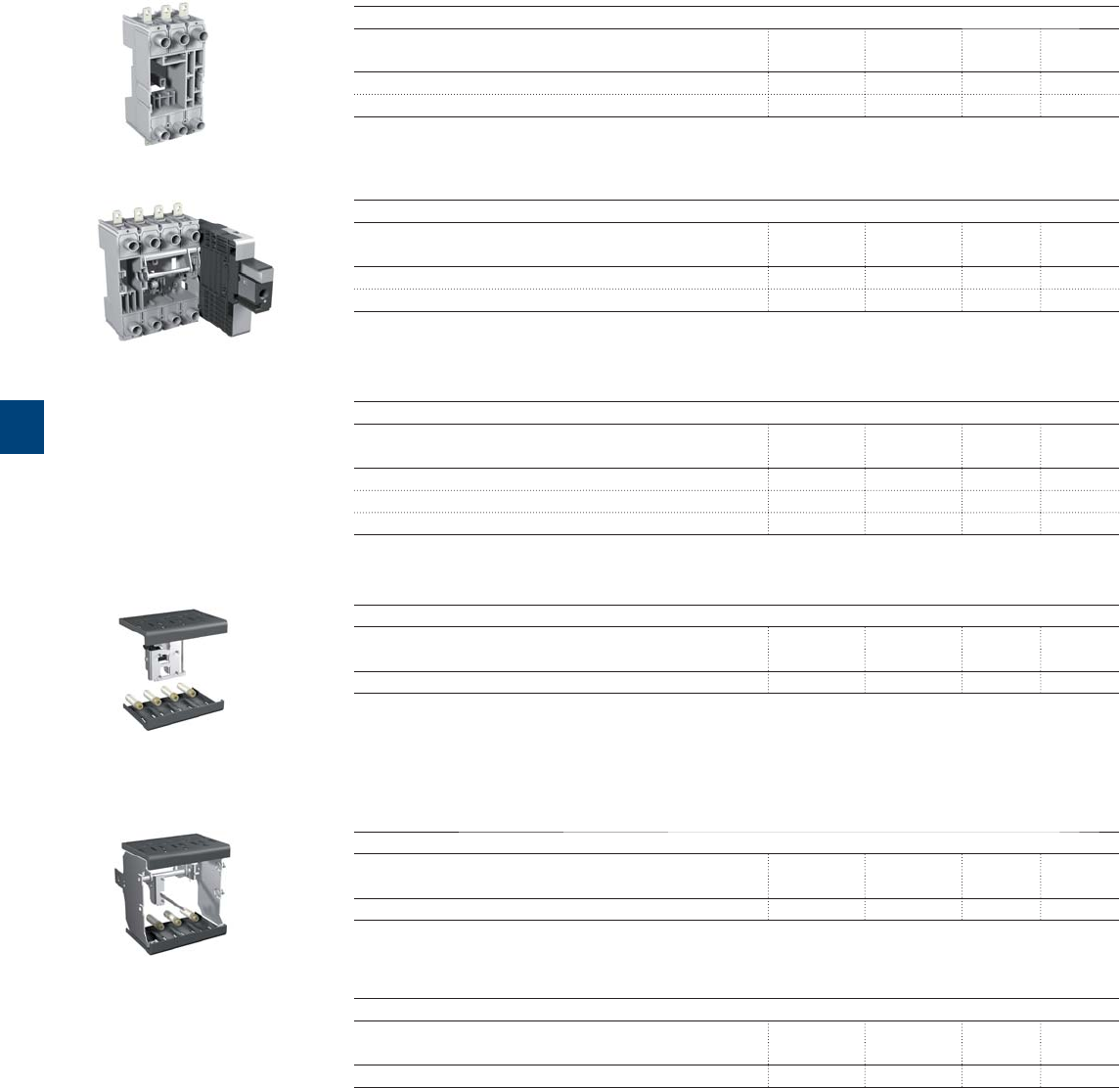

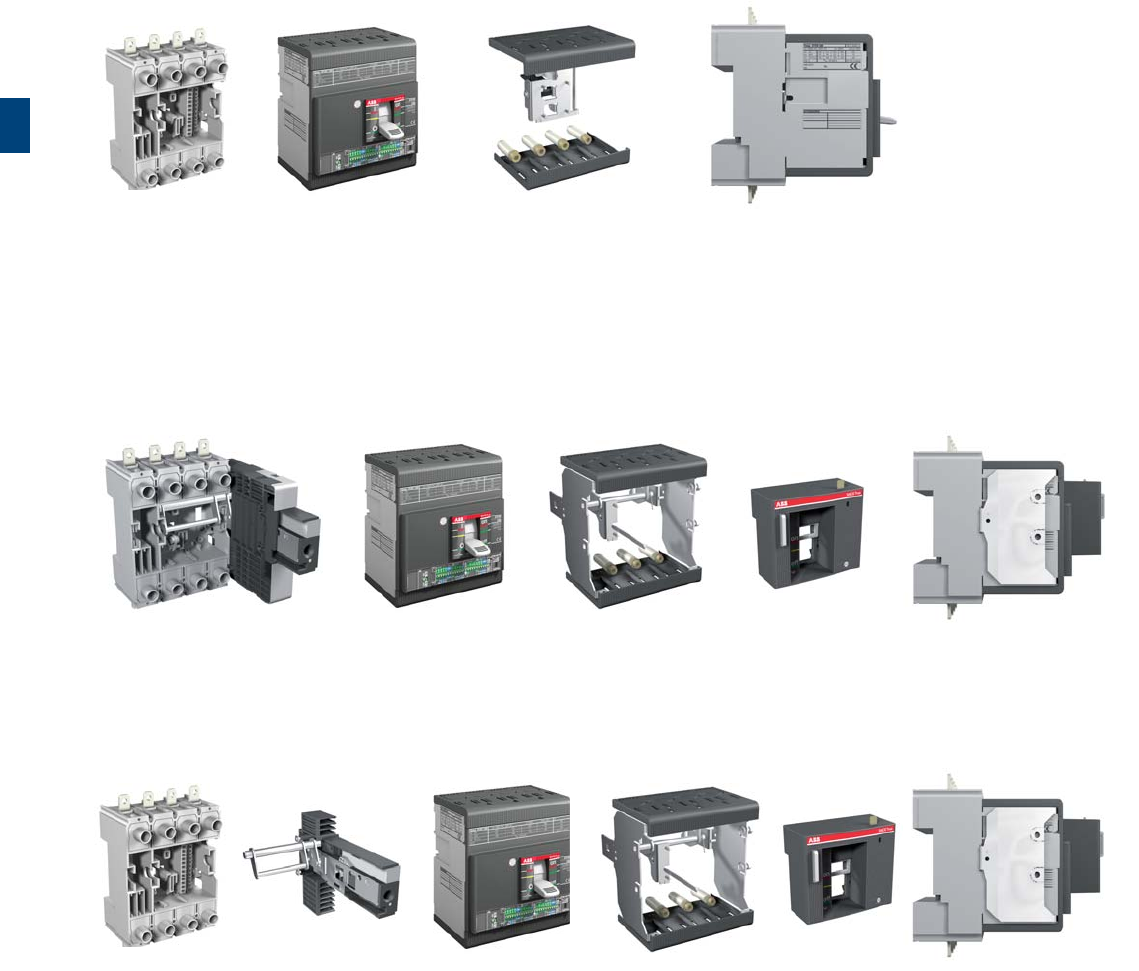

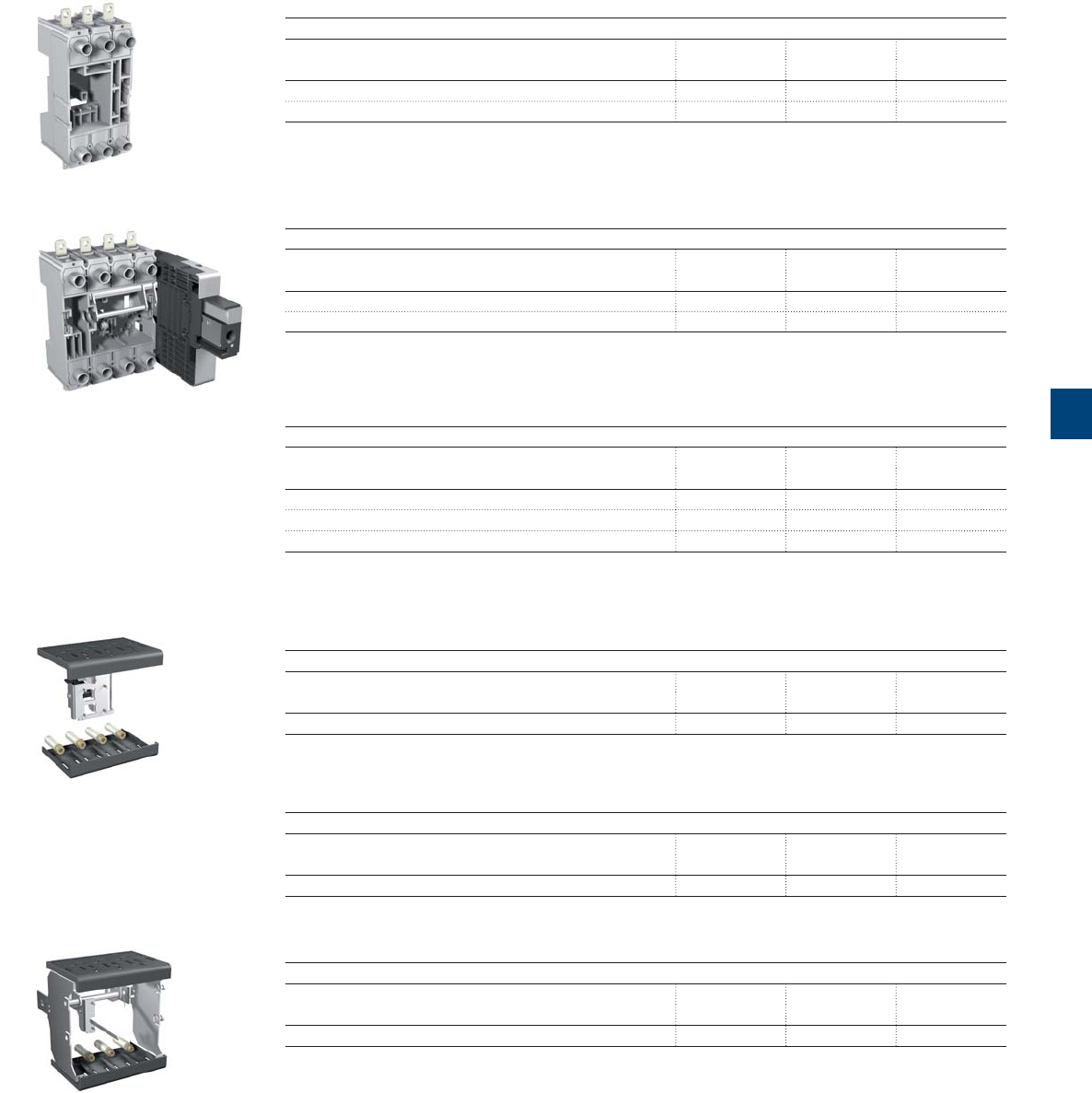

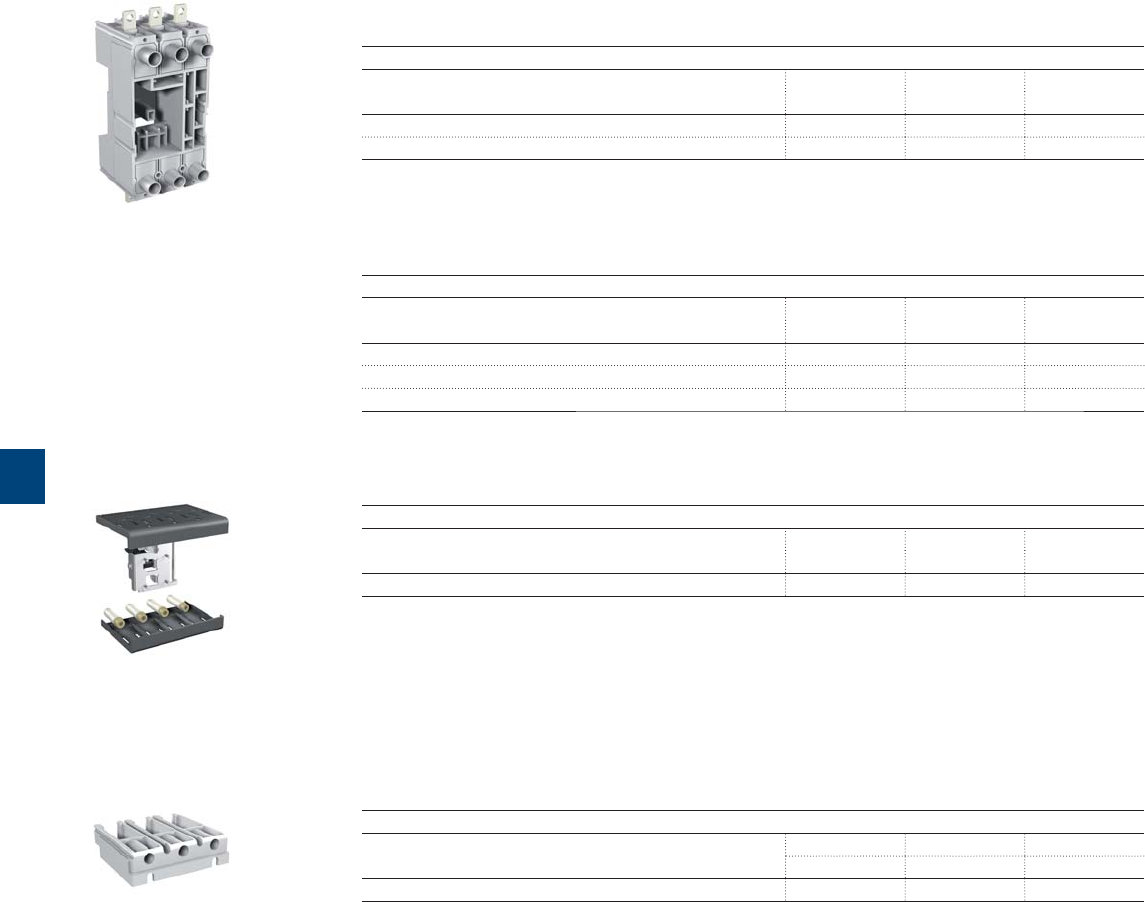

Fixed parts, conversion kits and accessories for fixed parts
Fixed part of plug-in (P)
Type 3p 4p
Part number Part number
Kit P FP EF KXT1PFPEF-3 KXT1PFPEF-4
Kit P FP HR/VR(1) KXT1EPFPHR-3 KXT1EPFPHR-4
(1)IEC rated only. The terminals are factory-mounted in the horizontal position (HR).

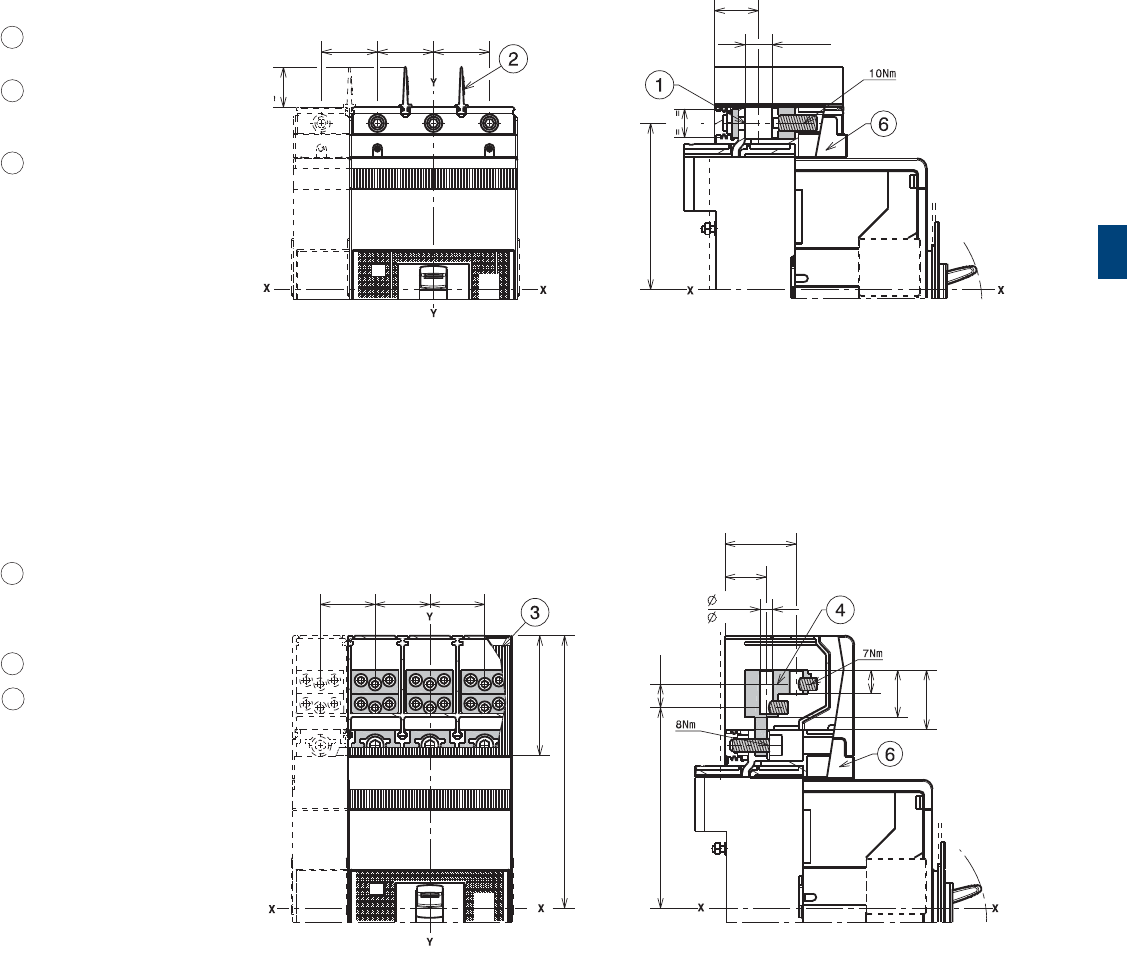

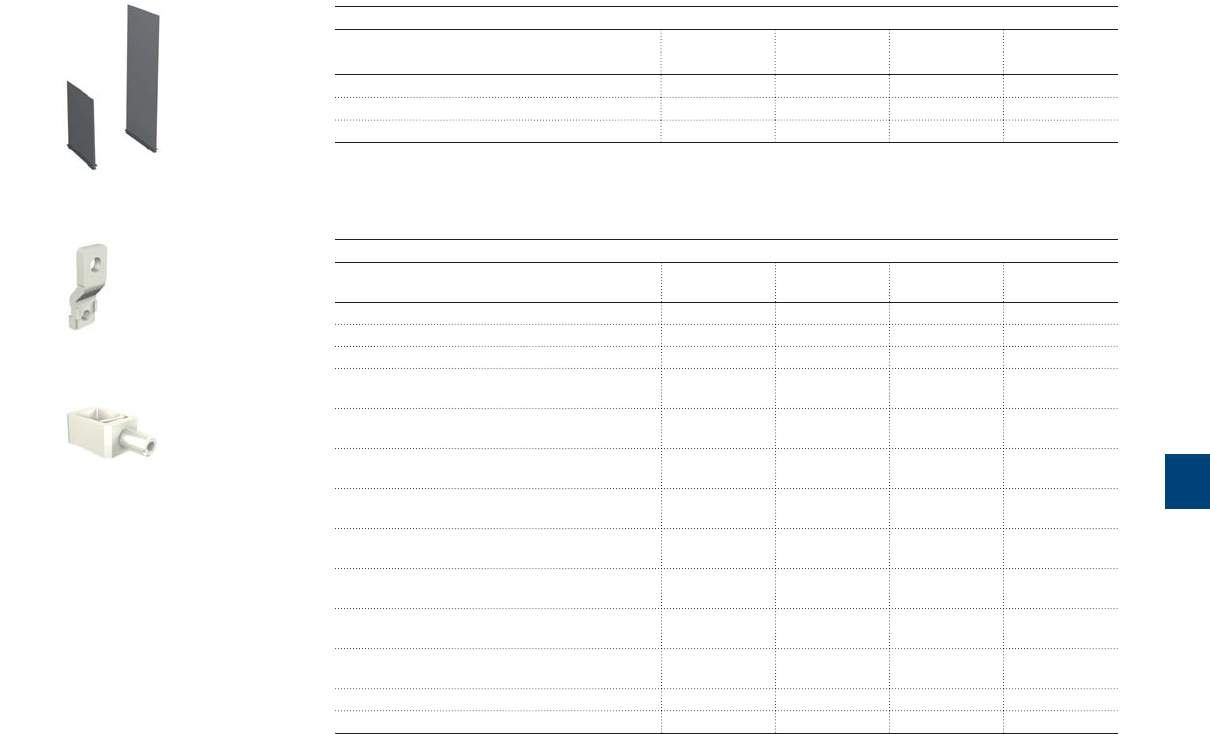

Terminals for the fixed parts(1)
Type 3p 4p
Part number Part number
EF - Front extended terminals KXT1EEFFP-3 KXT1EEFFP-4
R - Rear terminals HR/VR KXT1ERFP-3 KXT1ERFP-4
PS - Rear phase separators 90mm/3.54in KXTAEPB90-3 KXTAEPB90-4
(1)IEC rated only.
Conversion kit of the circuit breaker from fixed into moving part of plug-in
Type 3p 4p
Part number Part number
P MP kit KXT1PMP-3 KXT1PMP-4
Adapter for mounting the terminals of the fixed circuit breaker on the fixed part
Type 3p 4p
Part number Part number
ADP adapter for fixed part (2 pieces) KXT1ADP-3 KXT1ADP-4
Note: When using ADP with ES/MC terminals, also order “Kit F Front Terminals”.

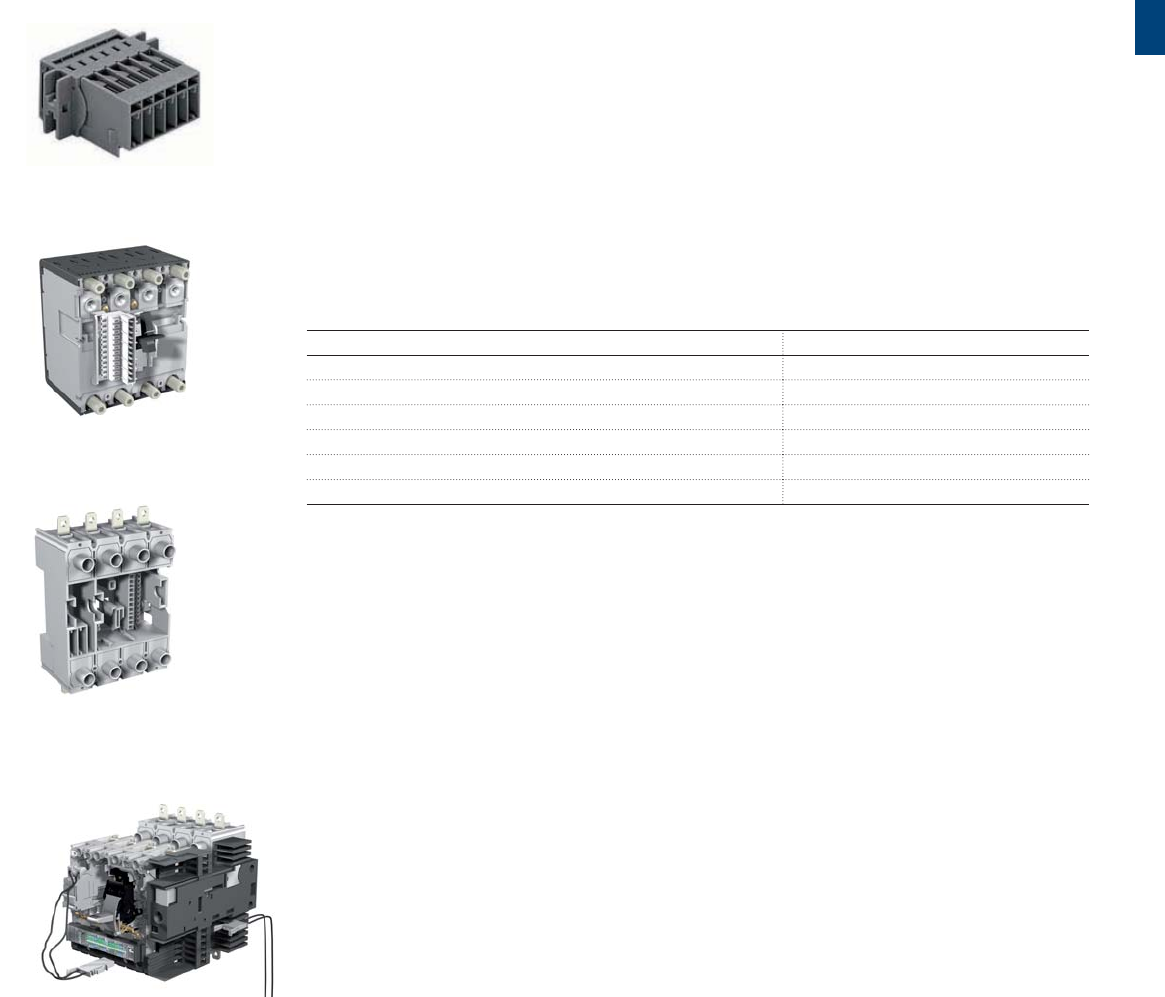

Fixed part of plug-in
Conversion kit
Fixed part adapter
7
ABB catalog | 1SXP210002C0201 7/11

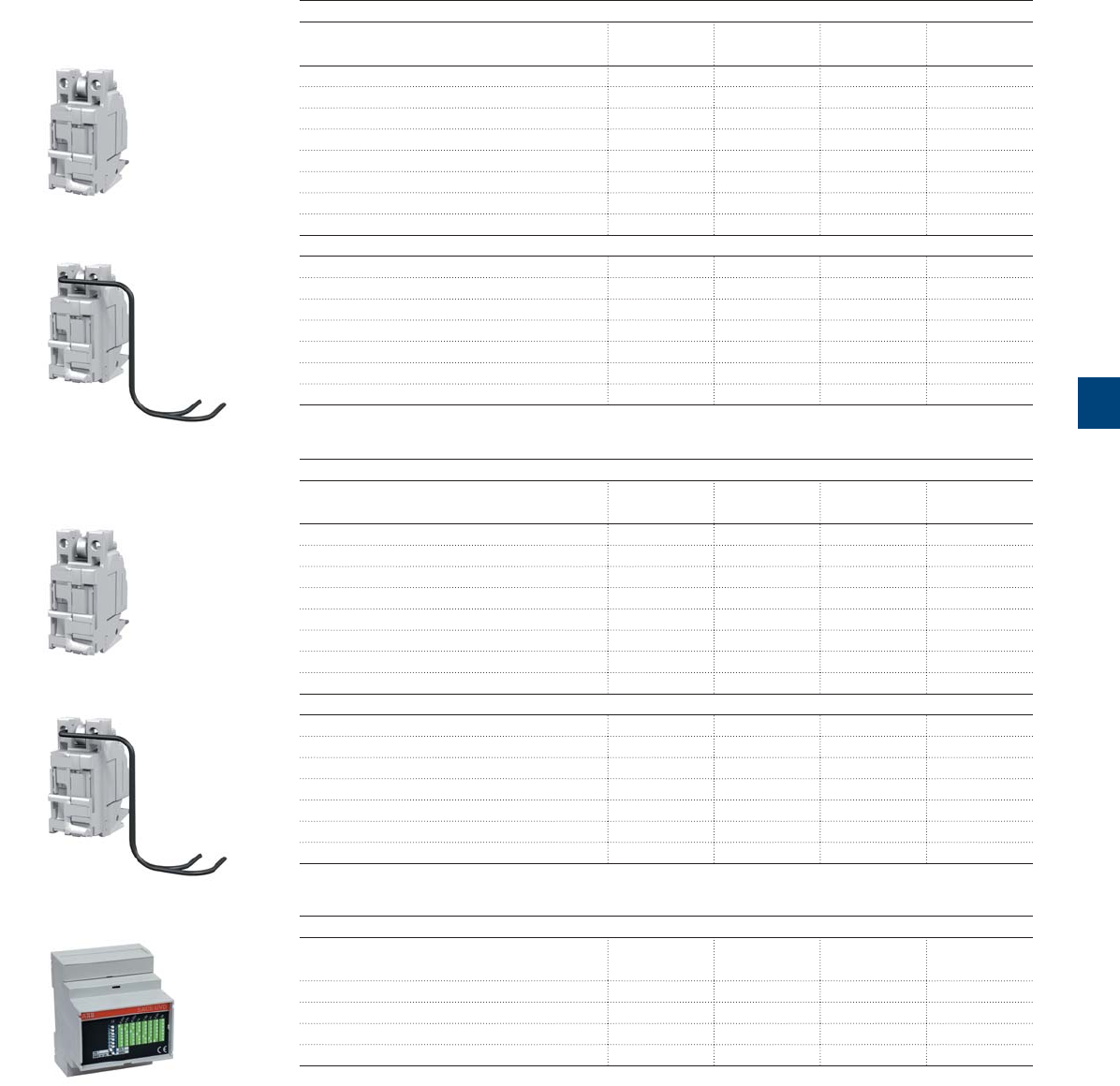

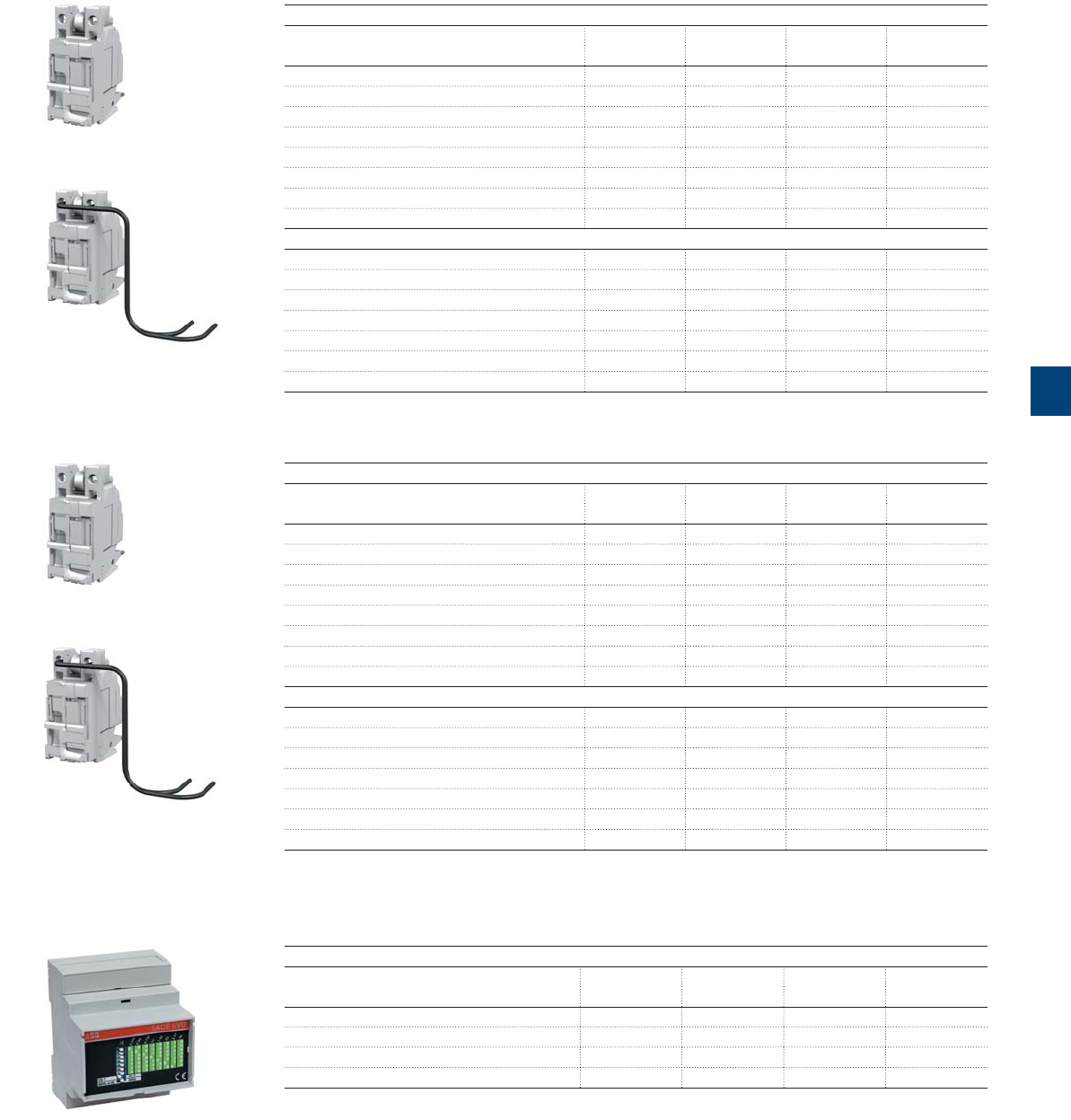

Service releases
Shunt Trip - SOR
Type
Part number
Uncabled version
SOR 12V DC KXTASORA
SOR 24-30V AC/DC KXTASORB
SOR 48-60V AC/DC KXTASORC
SOR 110...127V AC / 110...125V DC KXTASORD
SOR 220...240V AC / 220...250V DC KXTASORE
SOR 380-440V AC KXTASORF
SOR 480-525V AC KXTASORG
Cabled version
SOR-C 12V DC KXTASORCFPA
SOR 24-30V AC/DC KXTASORCFPB
SOR-C 48-60V AC/DC KXTASORCFPC
SOR-C 110...127V AC / 110...125V DC
KXTASORCFPD
SOR-C 220...240V AC / 220...250V DC
KXTASORCFPE
SOR-C 380-440V AC KXTASORCFPF
SOR-C 480-525V AC KXTASORCFPG
SOR uncabled
SOR cabled
Undervoltage release - UVR
Type
Part number
Uncabled version
UVR 24-30V AC/DC KXTAUVR1
UVR 48V AC/DC KXTAUVR2
UVR 60V AC/DC KXTAUVR3
UVR 110...127V AC / 110...125V DC KXTAUVR4
UVR 220...240V AC / 220...250V DC KXTAUVR5
UVR 380-440V AC KXTAUVR6
UVR 480-525V AC KXTAUVR7
Cabled version
UVR-C 24-30V AC/DC KXTAUVRCFP1
UVR-C 48V AC/DC KXTAUVRCFP2
UVR-C 60V AC/DC KXTAUVRCFP3
UVR-C 110...127V AC / 110...125V DC
KXTAUVRCFP4
UVR-C 220...240V AC / 220...250V DC
KXTAUVRCFP5
UVR-C 380-440V AC KXTAUVRCFP6
UVR-C 480-525V AC KXTAUVRCFP7
UVR uncabled
UVR cabled
Time delay device for
undervoltage release
Delay device for undervoltage release - UVD(1)
Type
Part number
UVD 24...30V AC/DC KT3UVD8
UVD 48...60V AC/DC KT3UVD7
UVD 110...125V AC/DC KT3UVD4
UVD 220...250V AC/DC KT3UVD2
(1)IEC rated only.
7
7/12 1SXP210002C0201 | ABB catalog

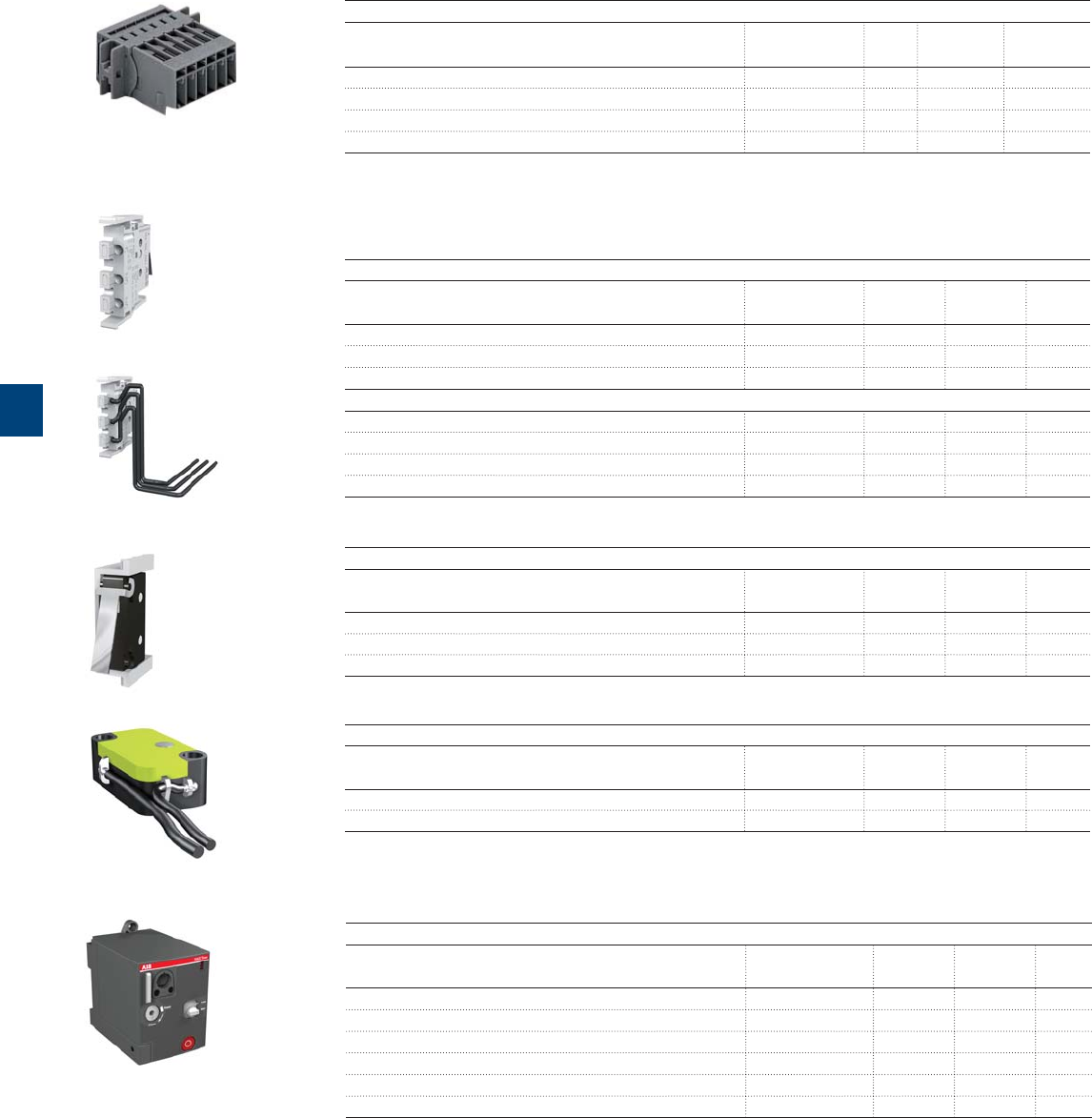

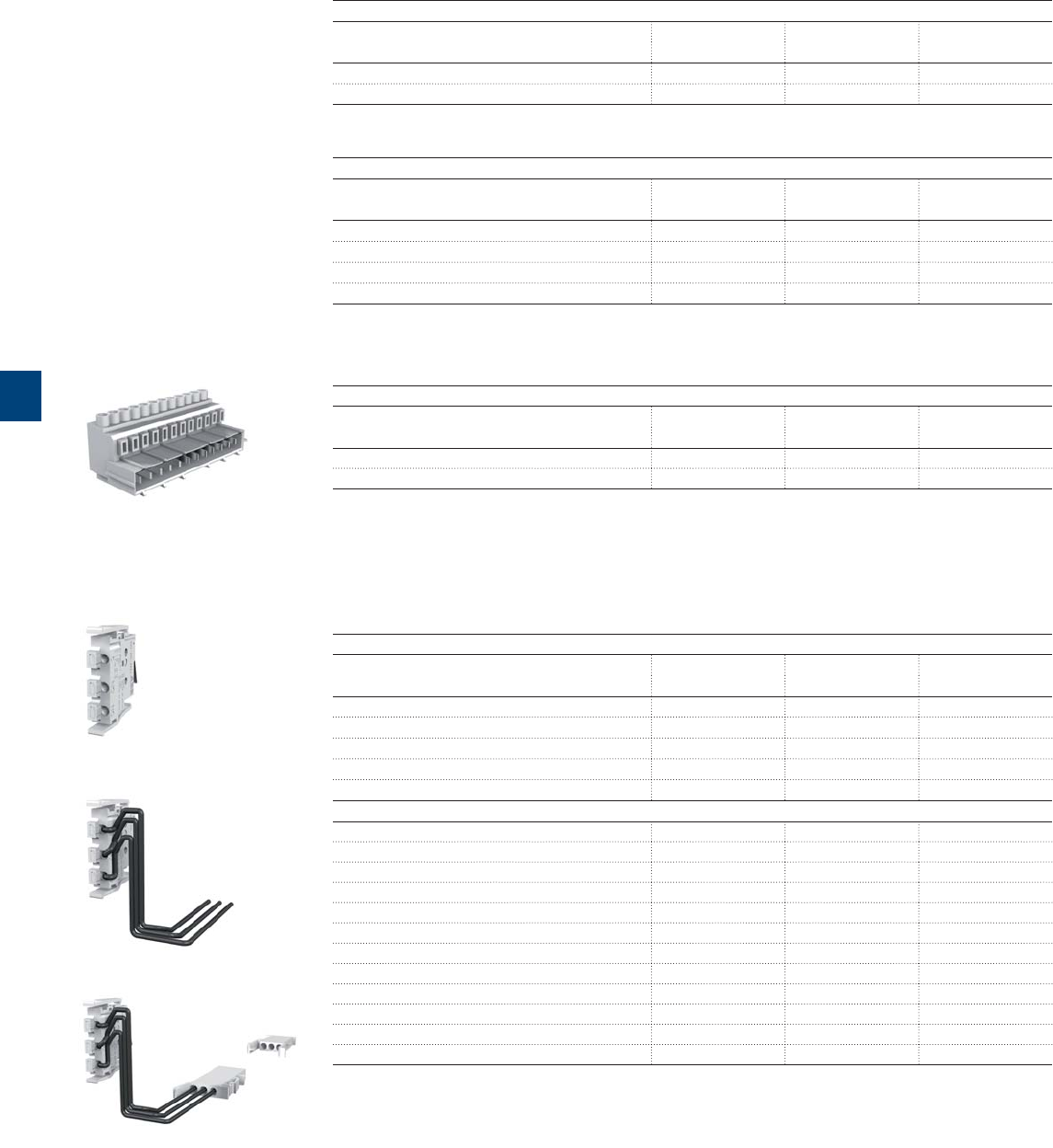

Connectors
Socket plug connector on the panel(1)
Type
Part number
Socket-plug connector with 3 PINS KXTAE3PINCON
Socket-plug connector with 6 PINS KXTAE6PINCON
Socket-plug connector with 9 PINS KXTAE9PINCON
Socket-plug connector with 15 PINS KXTAE15PINCON
(1)IEC rated only.
Ordering codes for XT1 UL/CSA
Accessories
Socket plug connector
Electrical signals

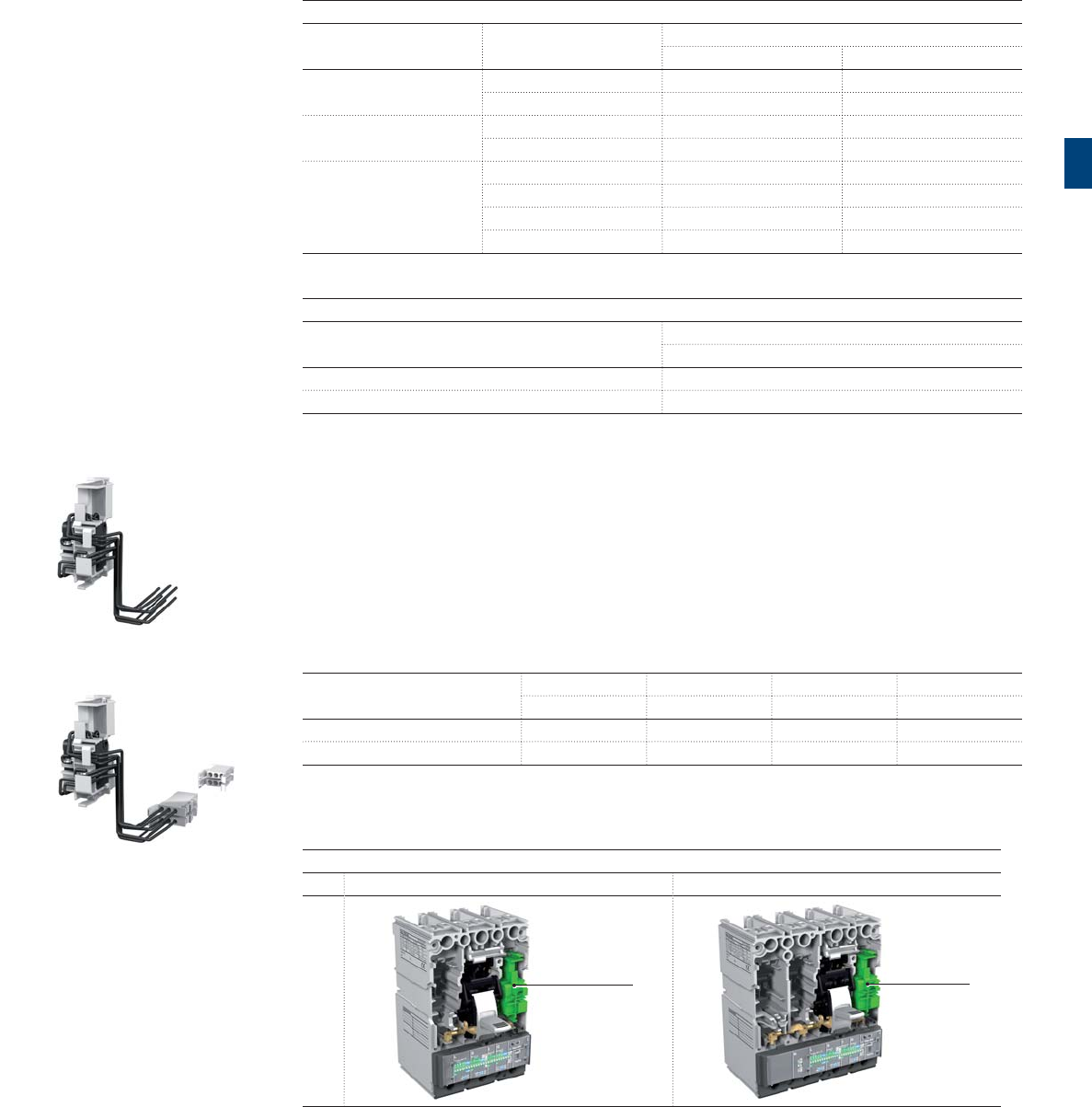

Auxiliary contacts - AUX
Type
Part number
Uncabled version
AUX 250V KXTAAUX
AUX 24V DC KXTAAUXD
Cabled version
AUX-C 3 Q 250V Left KXT1AXC3QL
AUX-C 1 Q +1 SY 250V KXTAAXCQSYFP
AUX-C 2 Q +1 SY 250V KXTAAXC2QSYFP
AUX-C 1 Q +1 SY 24V DC
KXTAAXCDQSYFP
AUX uncabled
AUX cabled

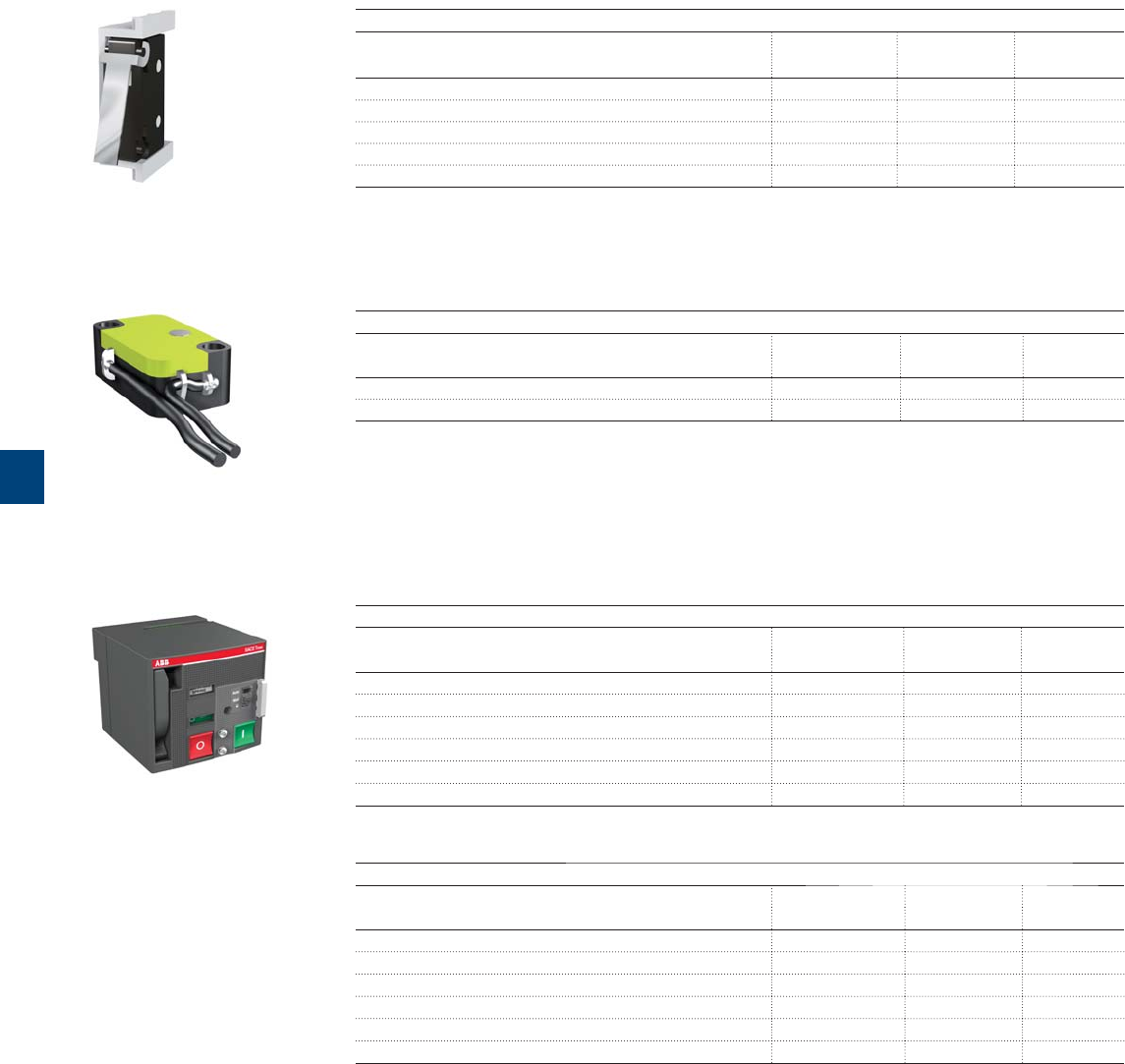

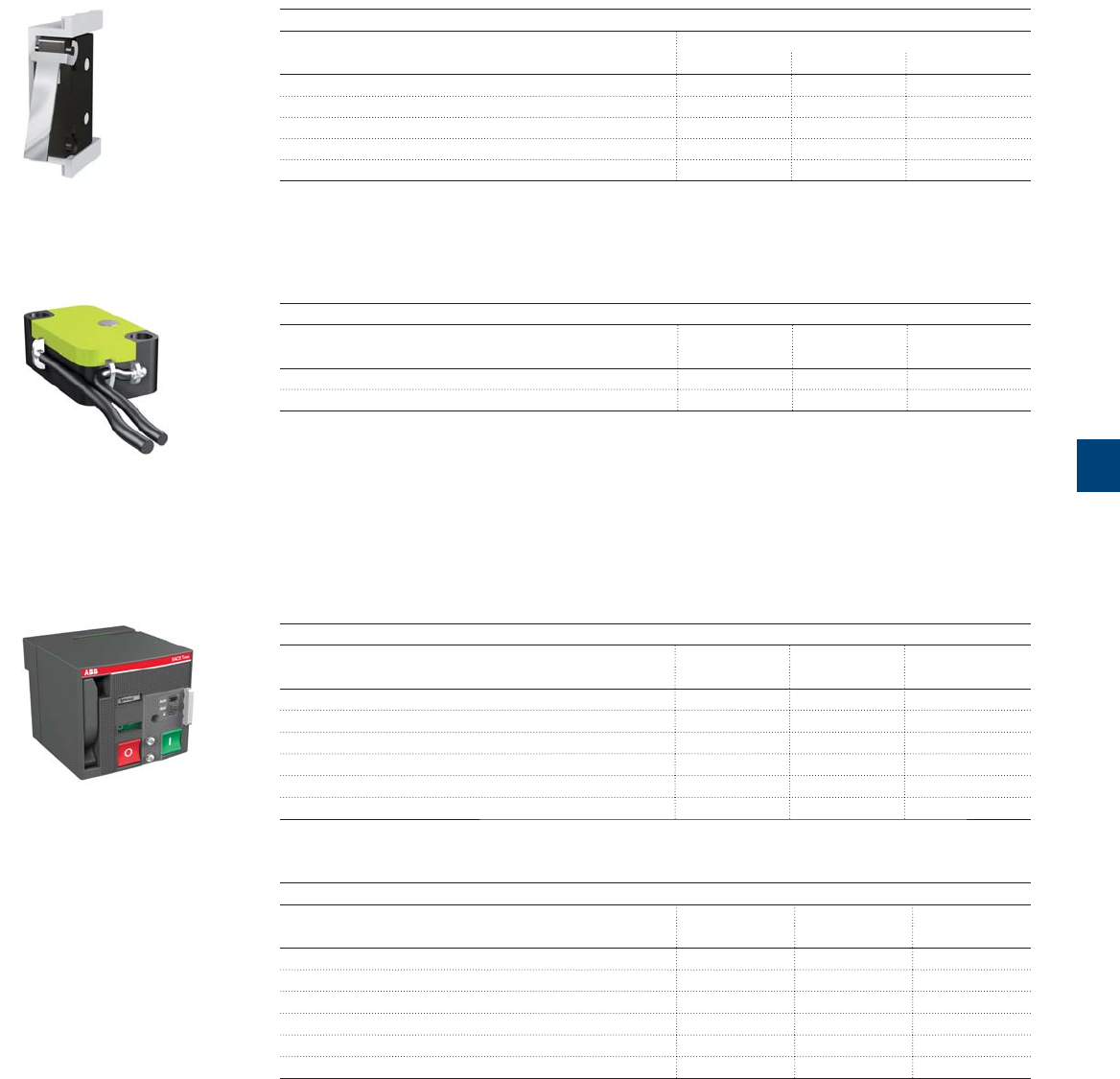

Auxiliary position contacts - AUP
Type
Part number
Cabled version
AUP-I – Four racked-in contacts 250V for plug-in circuit breaker KXTAAUP250IN
AUP-I – Four racked-in contacts 24V DC for plug-in circuit breaker KXTAAUP24IN
Early auxiliary contacts - AUE
Type
Part number
AUE – Two contacts in the rotary handle RHx (Closed) KXTAAUECLFP
AUE – Two contacts in the rotary handle RHx (Open) KXTDAUEOPFP
AUP - Auxiliary position contacts
AUE - Early auxiliary contacts

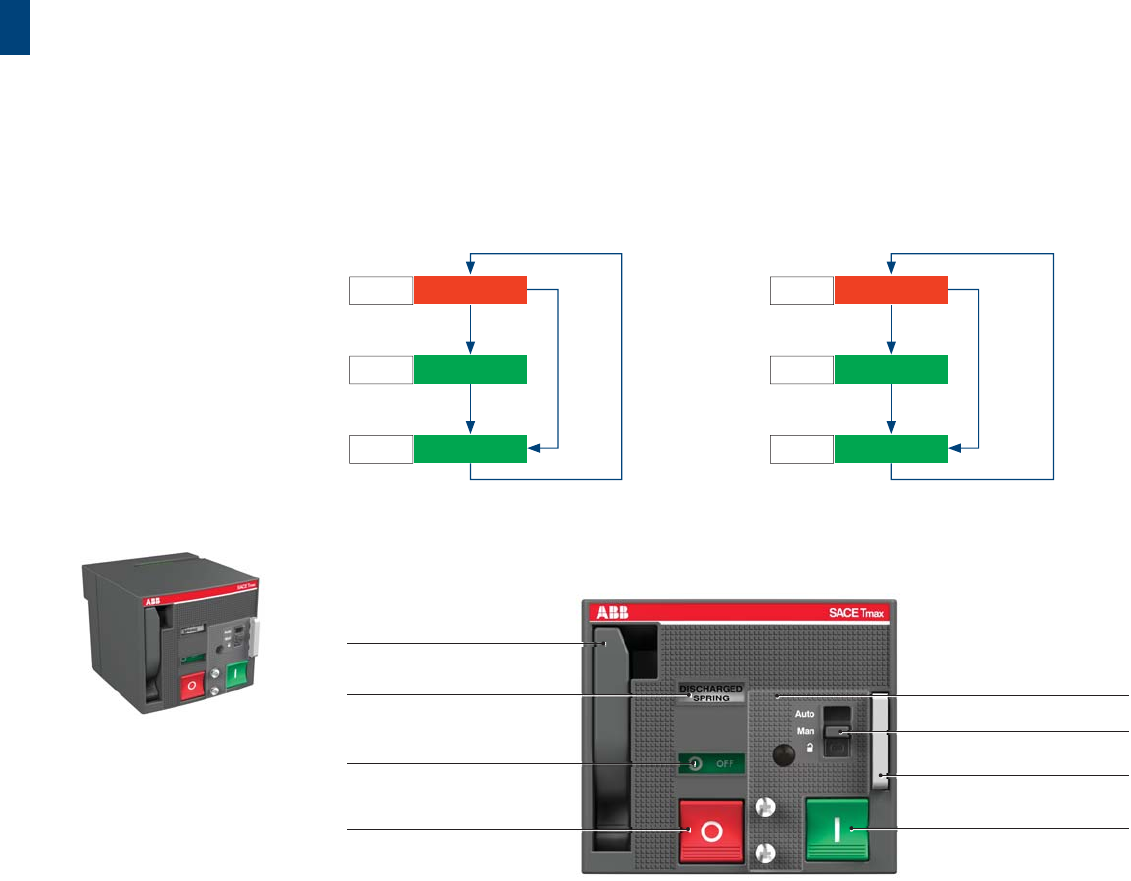

Motor operators
Motor operator with direct action - MOD
Type
Part number
MOD 24V DC KXTBMOD24
MOD 48...60V DC KXTBMOD48-60
MOD 110...125V AC/ DC K XTBMOD110-125
MOD 220...250V AC/DC KXTBMOD220-250
MOD 380...440V AC KXTBMOD280-240
MOD 480...525V AC KXTBMOD480-525
Motor operator
7
ABB catalog | 1SXP210002C0201 7/13

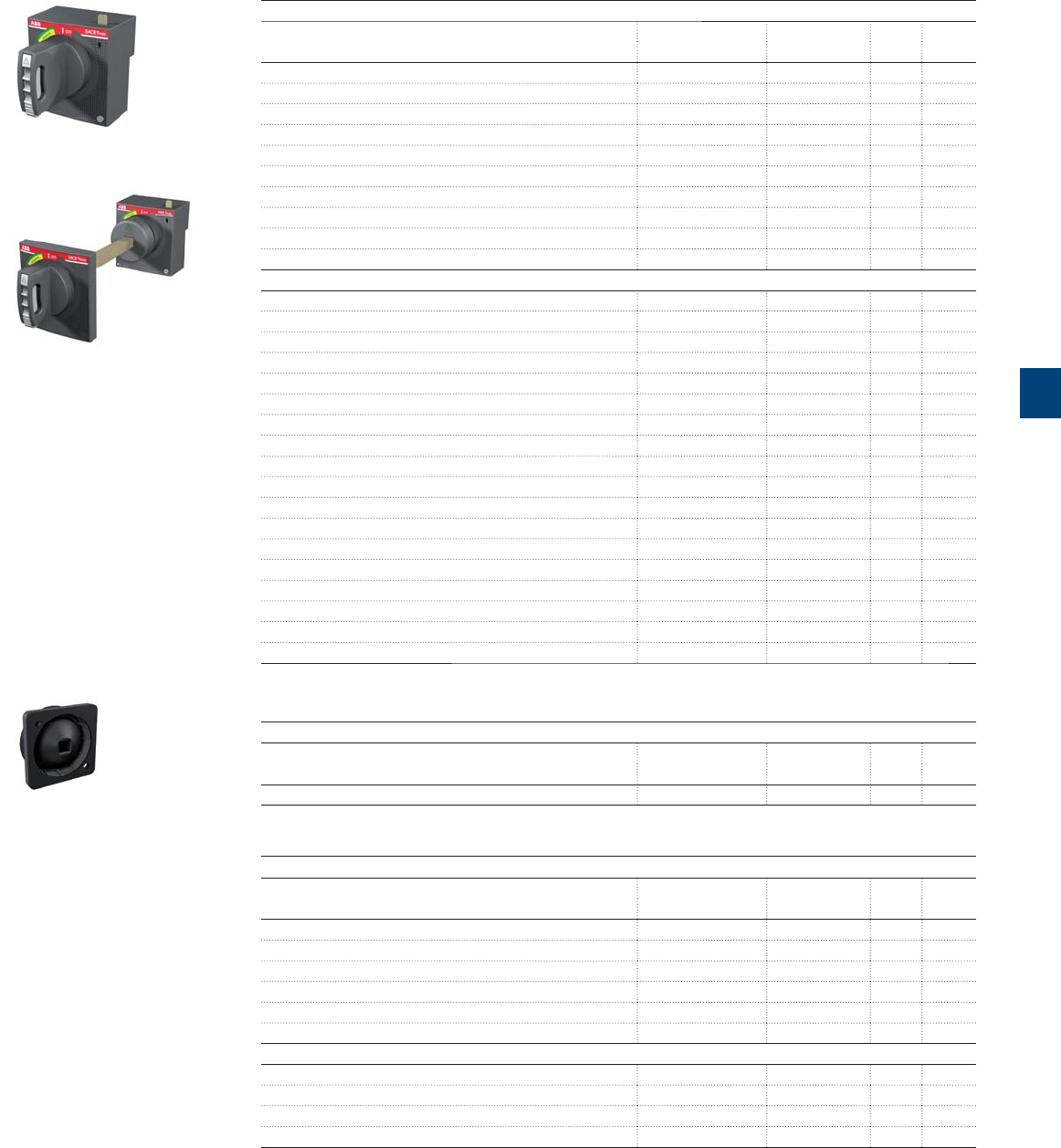

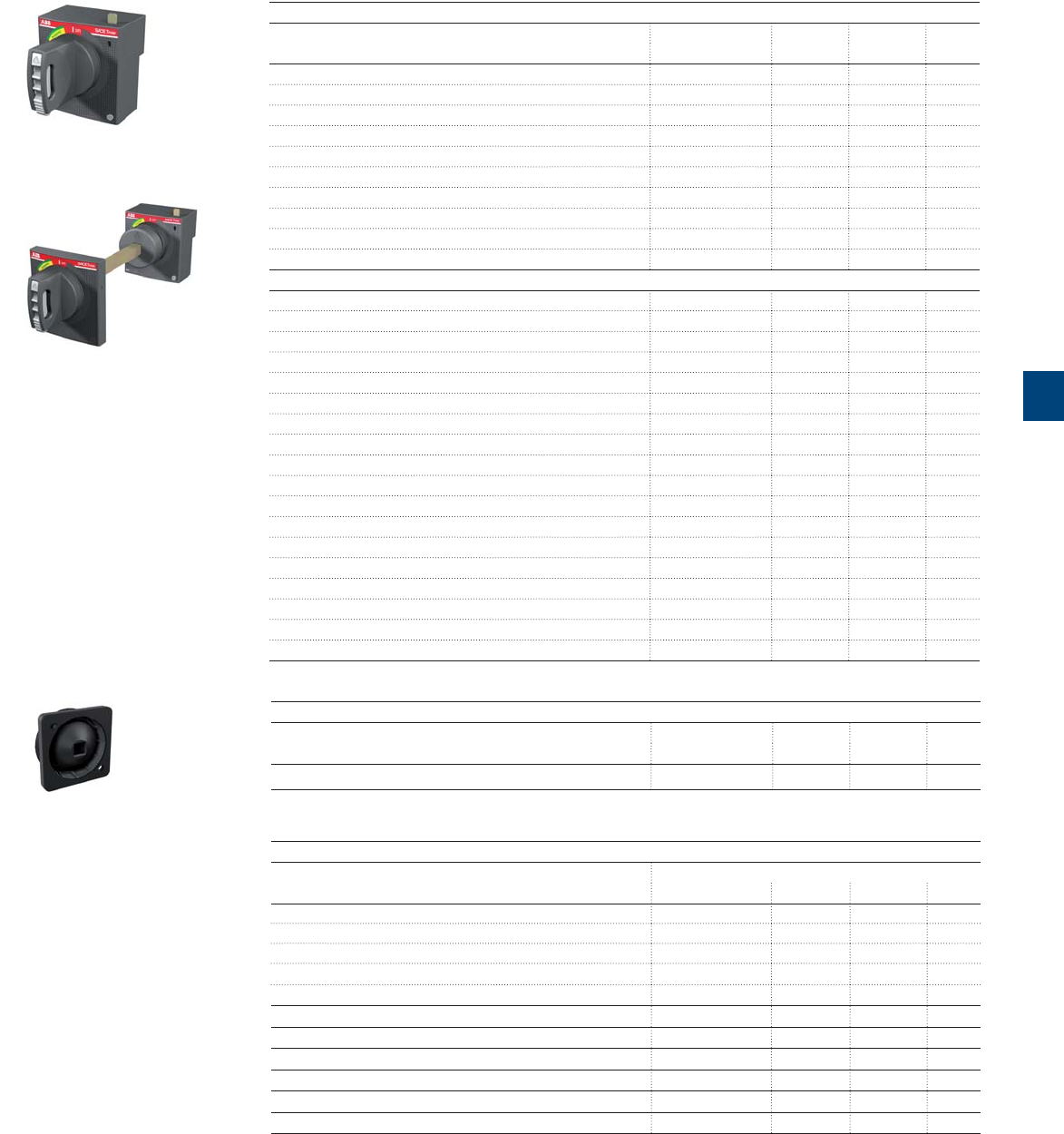

Rotary handle operating mechanisms
Rotary handle operating mechanism
Type
Part number
RHD Standard Direct Handle KXTBRHDSTFP
RHD Emergency Direct Handle KXTBRHDEMFP
RHE Standard Extended Handle KXTBRHESTFP
RHE Emergency Extended Handle KXTBRHEEMFP
RHE Standard Extended Handle with Padlock(1) KXTBRHESTFPPLK
RHE Emergency Extended Handle with Padlock(1) KXTBRHEEMFPPLK
RHS-L Standard Left Side Handle KXTBRHSLSTFP
RHS-L Emergency Left Side Handle KXTBRHSLEMFP
RHS-R Standard Right Side Handle KXTBRHSRSTFP
RHS-R Emergency Right Side Handle KXTBRHSREMFP
Extended handle spare parts
RHE_B Base for Extended Handle KXTBRHEBFP
RHE_B Base for Extended Handle with Padlock(1) KXTBRHEBFPPLK
RHE_S 500mm Shaft KXTARHES500
RHE_H Standard Extended Handle KXTARHEHST
RHE_H Emergency Extended Handle KXTARHEHEM
LH Standard Large Handle, NEMA 1 KXTALHNDLST
LH Emergency Large Handle, NEMA 1 KXTALHNDLEM
Standard Pistol Handle with reset function, 65mm, NEMA 3R,12 OHB65J10B
Emergency Pistol Handle with reset function, 65mm, NEMA 3R,12(1) OHY65J10B
Standard Pistol Handle with reset function, 65mm, NEMA 4,4X(1) OHB65L10B
Emergency Pistol Handle with reset function, 65mm, NEMA 4, 4X(1) OHY65L10B
Standard Pistol Handle with reset function, 125mm, NEMA 3R,12 OHB125J10B
Emergency Pistol Handle with reset function, 125mm, NEMA 3R,12(1) OHY125J10B
Standard Pistol Handle with reset function, 125mm, NEMA 4,4X(1) OHB125L10B
Emergency Pistol Handle with reset function, 125mm, NEMA 4, 4X(1) OHY125L10B
148mm Pistol Handle Shaft OXP10X148
225mm Pistol Handle Shaft OXP10X225
500mm Pistol Handle Shaft OXP10X500
(1)Consult ABB for availability.

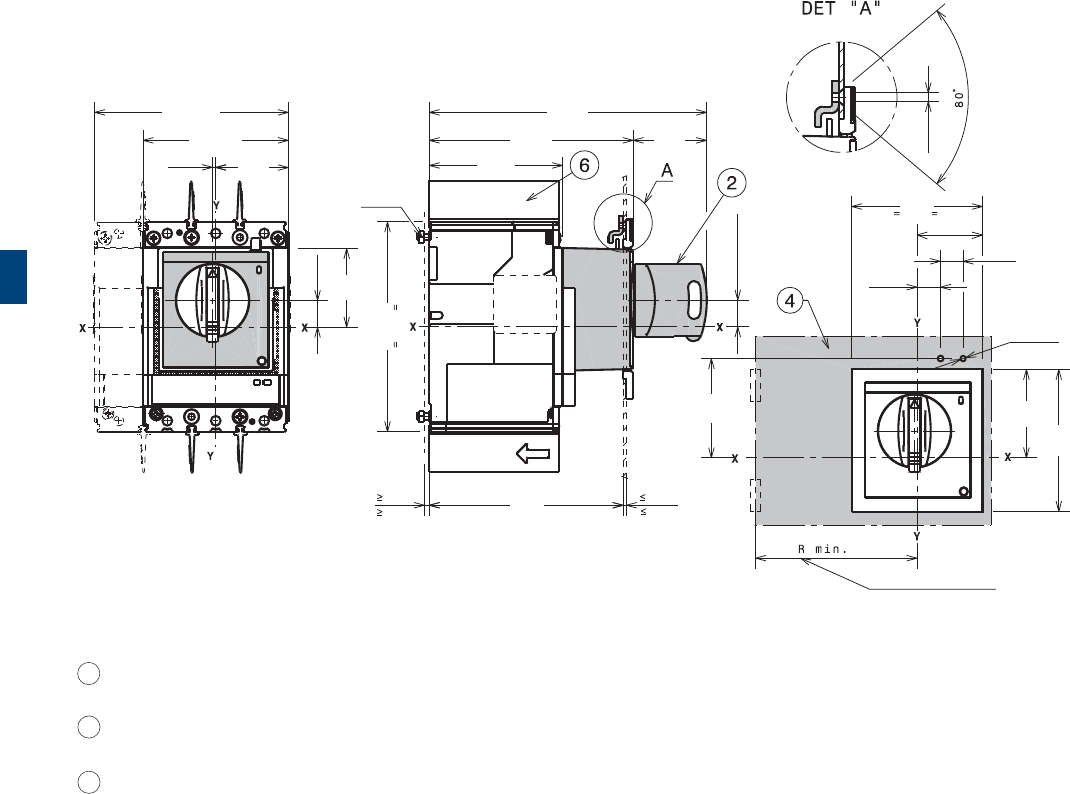

Direct rotary handle

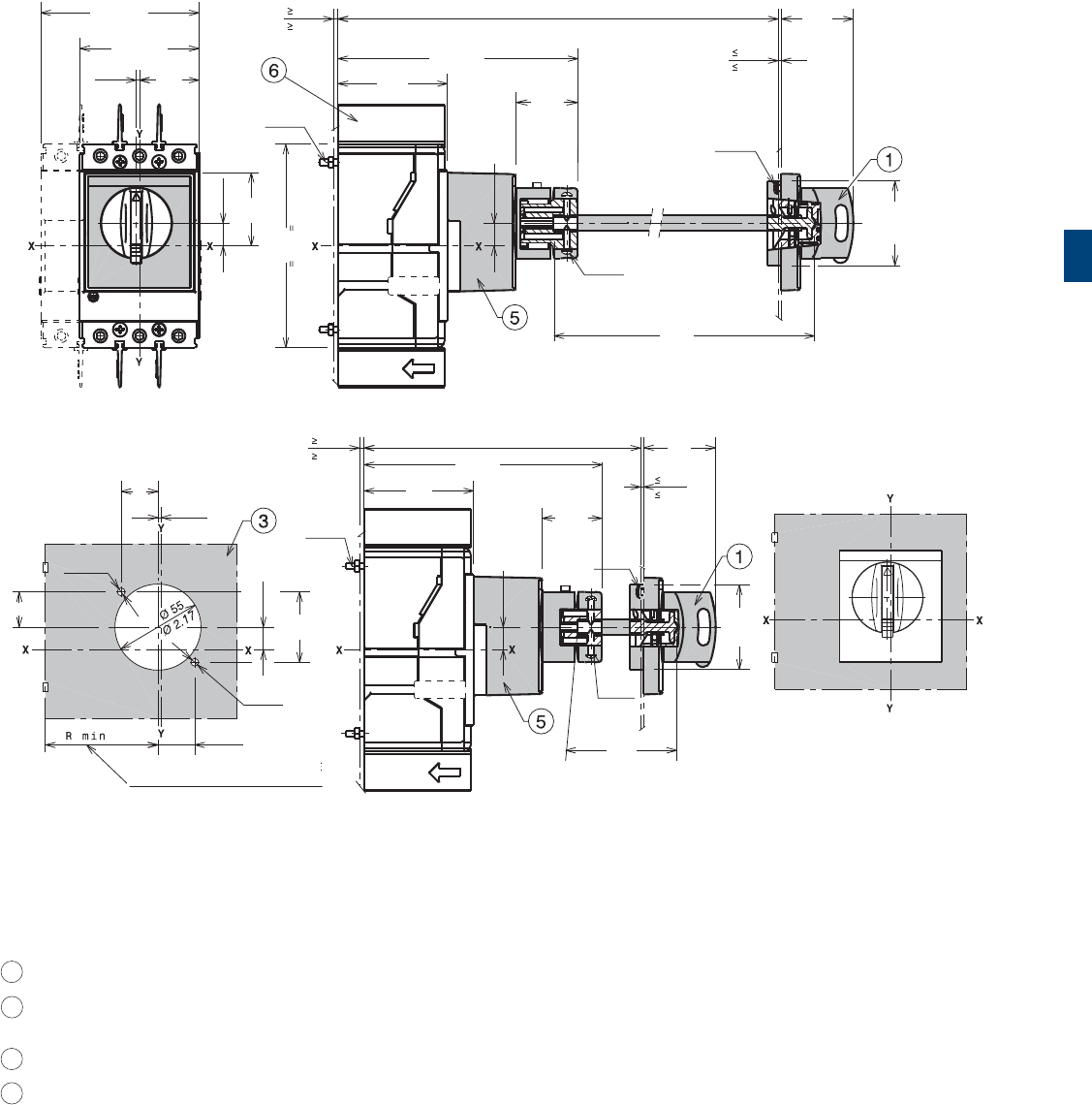

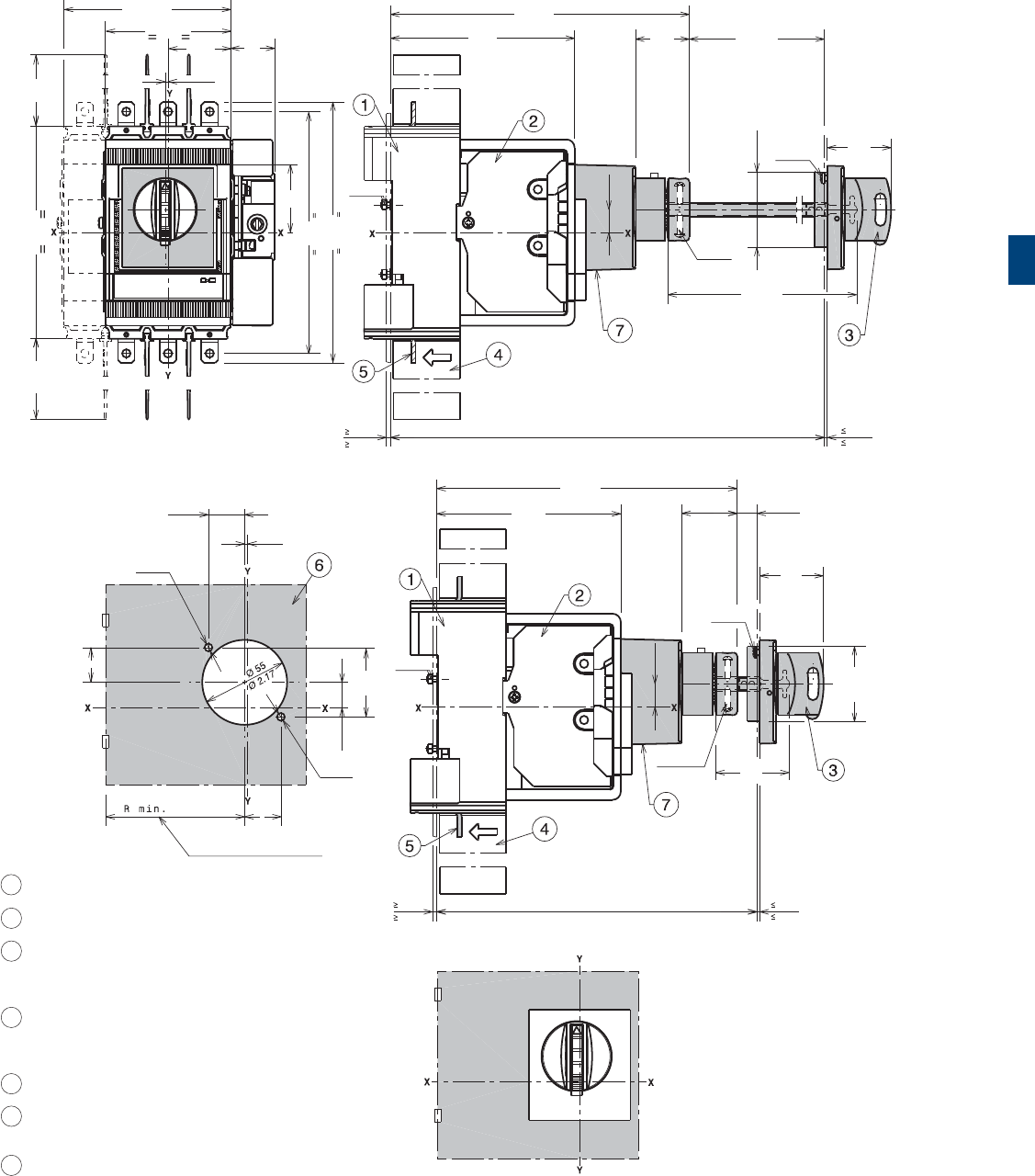

Extended rotary handle
IP54 protection for transmitted rotary handle(1)
Type
Part number
IP54 protection for transmitted handle -RHE KXTAERHEIP54
(1)IEC rated only.
Flange handle(1)
Type
Part number
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4) KXT1N12FLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4) KXT1N12FLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4) KXT1N12FLHDL10
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT1N4FLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT1N4FLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT1N4FLHDL10
Flange Handle Spare Parts
Flange Handle only (NEMA 1, 3R, 12, 4) KXTAN12FLHDL
Flange Handle only (NEMA 1, 3R, 12, 4, 4X) KXTAN4XFLHDL
Flange Handle Hardware KXTAFLHDLHW
Flange Mounting Hardware KXTBFLMTHW
(1)Consult ABB for availability.
IP54
7
7/14 1SXP210002C0201 | ABB catalog
Key lock on the circuit breaker
Type
Part number
KLC Ronis key lock open, different keys, removable in open position KXT1KLCCBDIF
KLC Ronis key lock open, same Type A keys, removable in open position KXT1KLCCBA
KLC Ronis key lock open, same Type B keys, removable in open position KXT1KLCCBB
KLC Ronis key lock open, same Type C keys, removable in open position KXT1KLCCBC
KLC Ronis key lock open, same Type D keys, removable in open position KXT1KLCCBD
KLC Ronis key lock open/closed, different keys, removable in both positions KXT1KLCCBOPCL
Locks
Padlock on the circuit breaker
Type
Part number
PLL removable lock with padlocks in open position KXTBPLLREM
PLL fixed lock with padlocks in open position KXTBPLLOP
PLL fixed lock with padlocks in open/closed position KXTBPLLOPCL
Fixed padlock
Ordering codes for XT1 UL/CSA
Accessories
Key lock on the circuit breaker
Key lock on the rotary handle
Type
Part number
RHL Ronis key lock open, different keys, RHx KXTARHLDIF
RHL Ronis key lock open, same Type A keys, RHx KXTARHLA
RHL Ronis key lock open, same Type B keys, RHx KXTARHLB
RHL Ronis key lock open, same Type C keys, RHx KXTARHLC
RHL Ronis key lock open, same Type D keys, RHx KXTARHLD
RHL Ronis key lock open/closed, different keys, RHx KXTARHLOPCL
Key lock on the handle

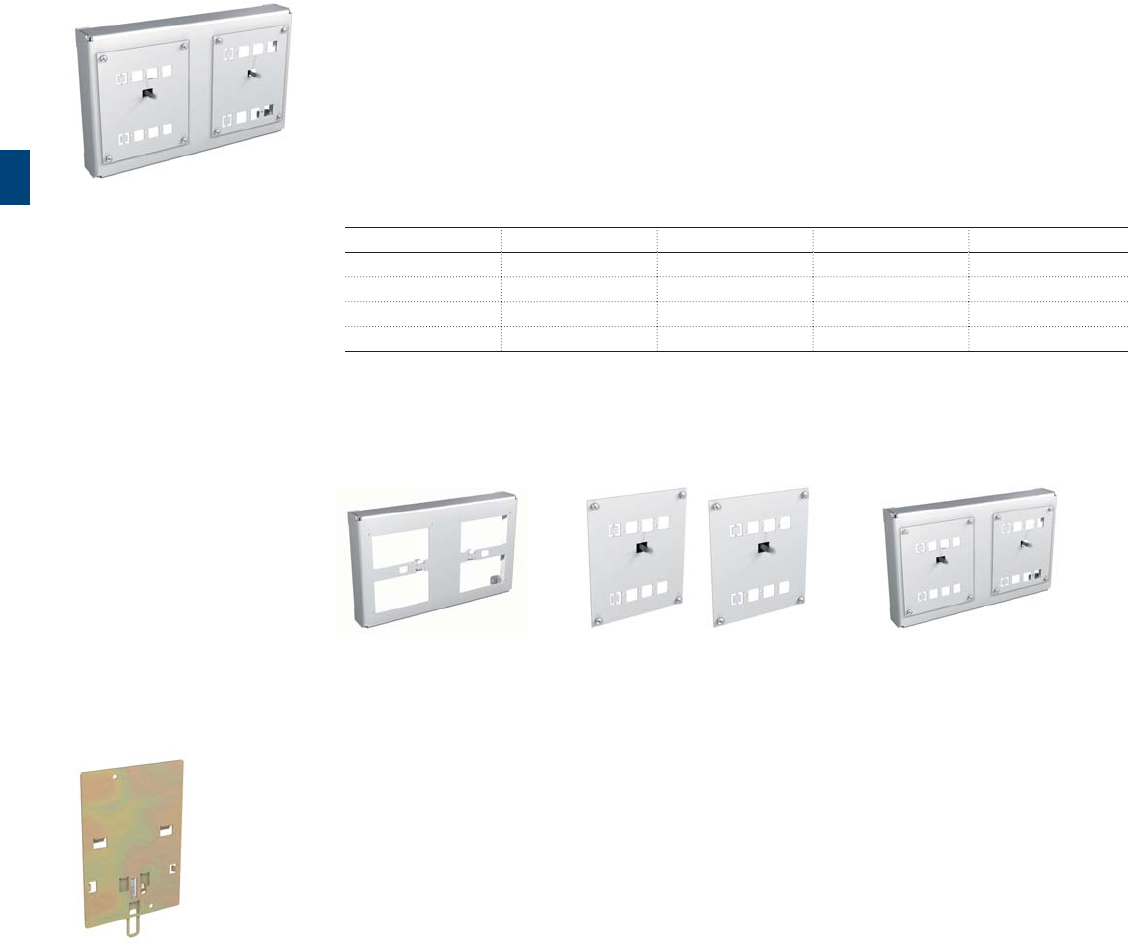

Mechanical interlock
Type
Part number
Chassis MIR-H KXTAMIRHR
Chassis MIR-V KXTAMIRVR
Plate XT1 F KXT1MIRPLF
Plate XT1 P KXT1MIRPLP
Plate XT2 F KXT2MIRPLF
Plate XT2 P/W KXT2MIRPLPW
Plate XT3 F KXT3MIRPLF
Plate XT3 P KXT3MIRPLP
Plate XT4 F KXT4MIRPLF
Plate XT4 P/W KXT4MIRPLPW
Interlock
Key lock on the motor(1)
Type
Part number
MOL-D Ronis key lock open, different keys KXTBEMOLDIF
MOL-S Ronis key lock open, same Type A keys KXTBEMOLA
MOL-S Ronis key lock open, same Type B keys KXTBEMOLB
MOL-S Ronis key lock open, same Type C keys KXTBEMOLC
MOL-S Ronis key lock open, same Type D keys KXTBEMOLD
(1)IEC rated only.
Sealable lock of thermal setting(1)
Type
Part number
Lock on thermal setting for TMA trip unit KXTAEAASEALREL
(1)IEC rated only.
Key lock on the motor
7
ABB catalog | 1SXP210002C0201 7/15

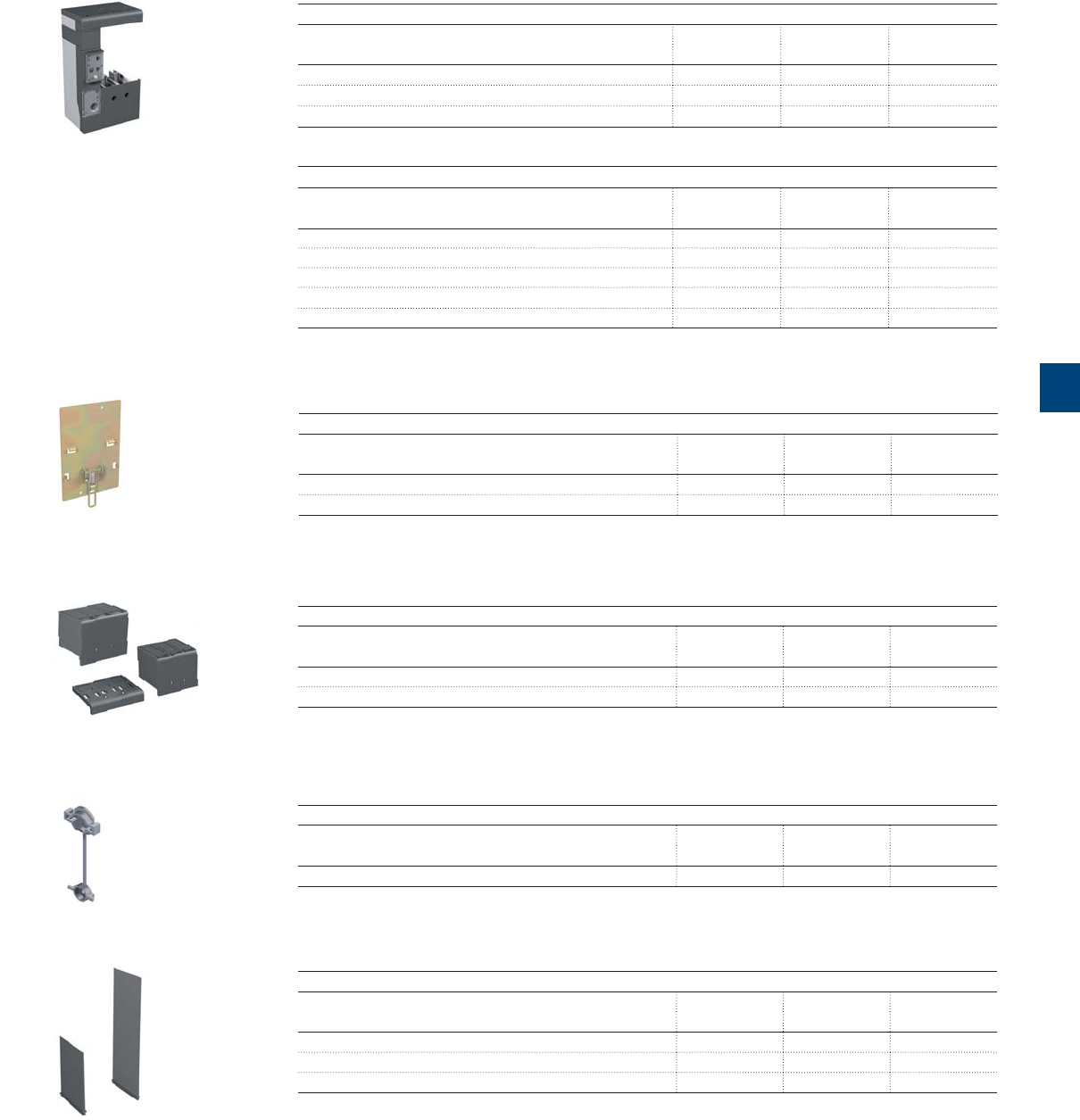

Residual current devices
Residual current devices(1)
Type 3p
Part number
4p
Part number
RC Sel Low 200mm - KXT1ERCSEL200-4
RC Inst KXT1ERCINST-3 KXT1ERCINST-4
RC Sel KXT1ERCSEL-3 KXT1ERCSEL-4
(1)IEC rated only.

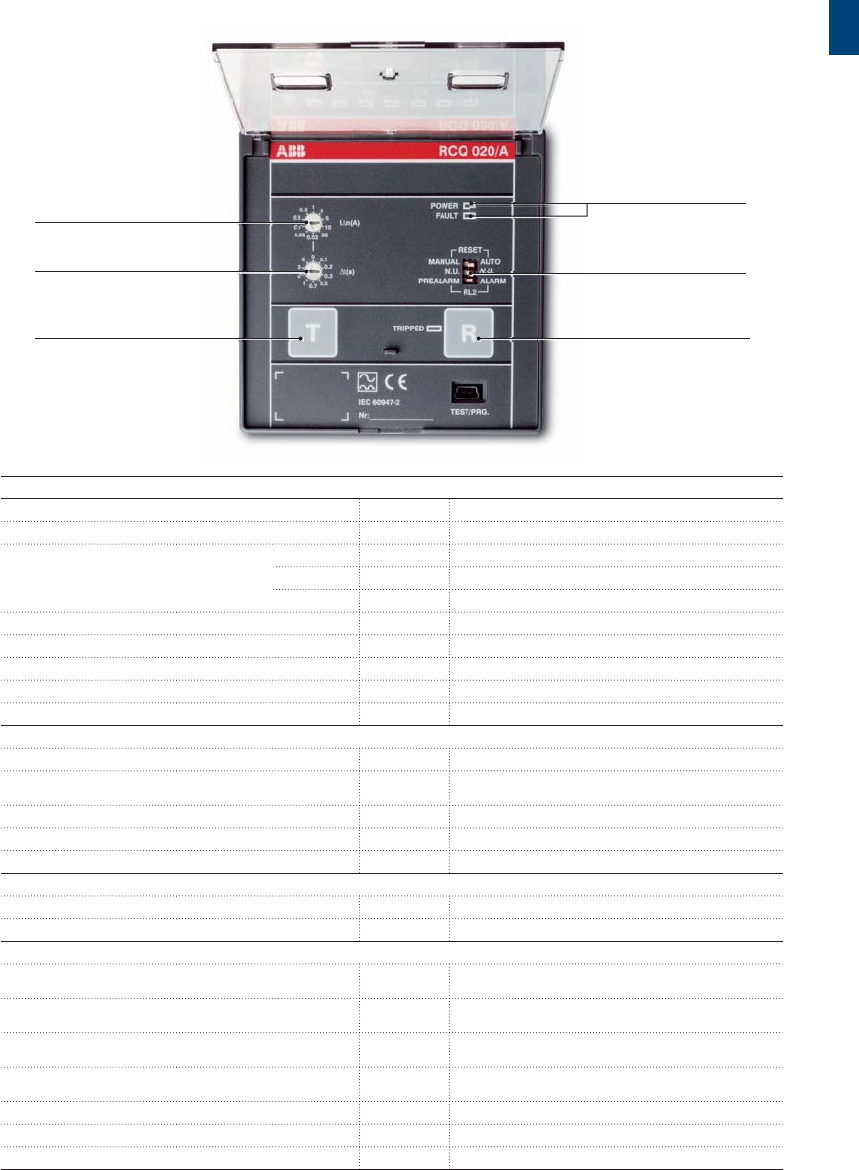

Panel type residual current relay(1)
Type
Part number
RCQ020/A 115-230V AC KXTAERCQ230
RCQ020/A 415V AC KXTAERCQ415

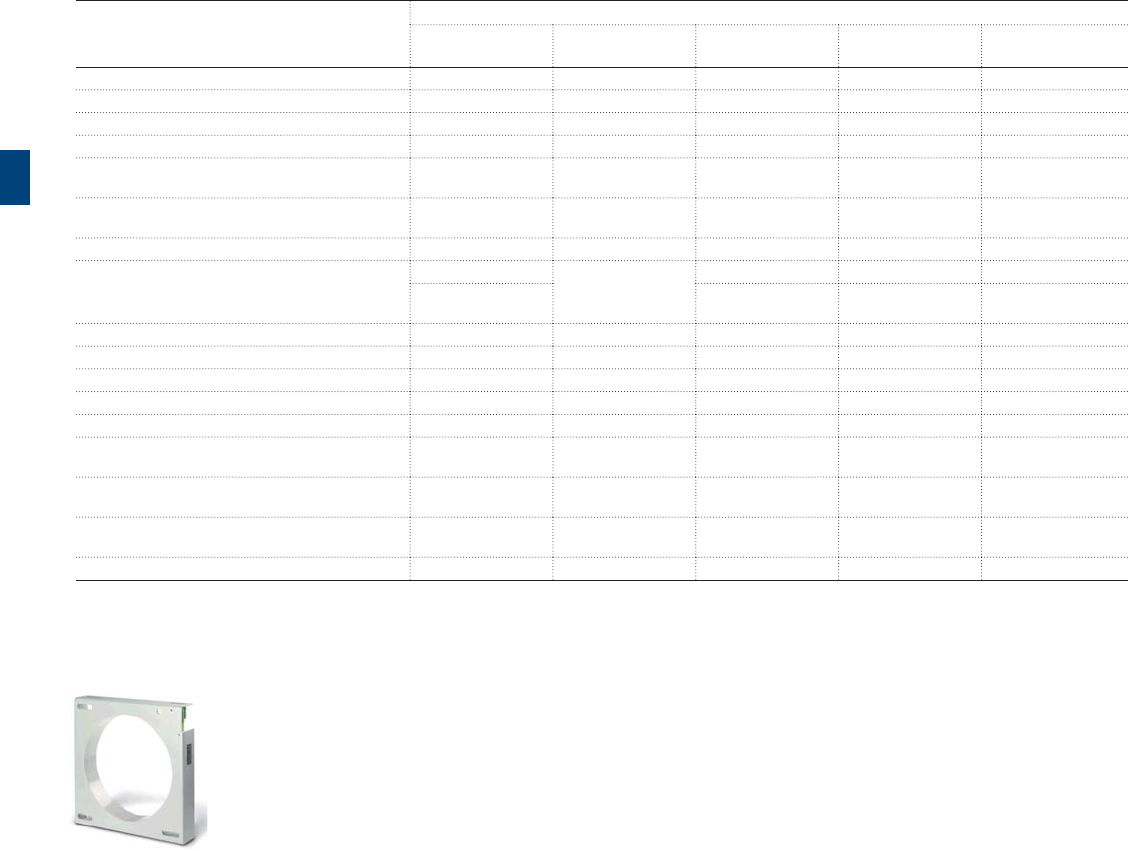

Toroid closed Ø 60mm KXTTETOR60
Toroid closed Ø 110mm KXTTETOR110
Toroid closed Ø 185mm KXTTETOR185
(1)IEC rated only.
Installation
Bracket for mounting onto DIN rail(1)
Type 3p
Part number
4p
Part number
KIT DIN50022 KXT1EDIN-3 KXT1EDIN-4
KIT DIN50022 XT1 + RC Low 200mm - KXT1EDINRCSELPL
KIT DIN50022 XT1 + RC Sel/RC INst KXT1EDINRCPL KXT1EDINRCPL
(1)IEC rated only.

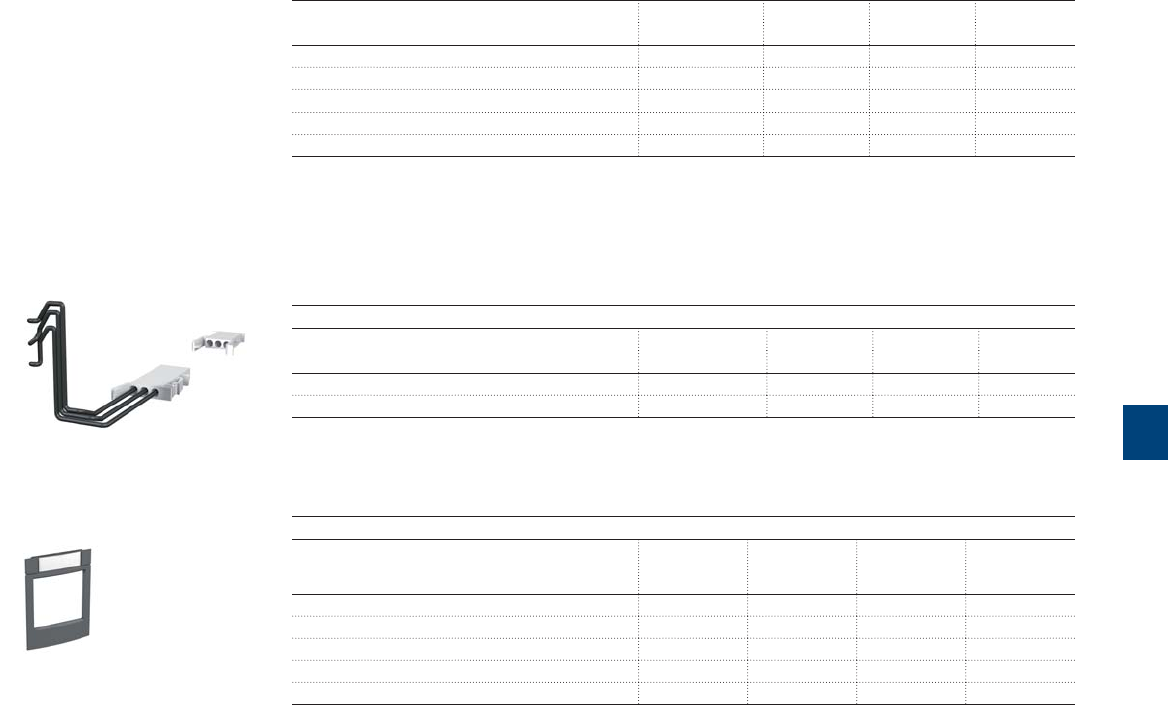

Terminals, terminal covers and phase barriers
Insulating terminal covers
Type 3p
Part number
4p
Part number
LTC low terminal covers KXT1LTC-3 KXT1LTC-4
HTC high terminal covers KXT1HTC-3 KXT1HTC-4
Terminal covers
Sealable screws for terminal covers(1)
Type
Part number
Kit with two sealable screws KXTAESSEAL
(1)IEC rated only.
Phase barriers
Type 4pcs
Part number
6pcs
Part number
PB height 25mm/0.98in KXTBPB25-3 KXTBPB25-4
PB height 100mm/3.94in KXTBPB100-3 KXTBPB100-4
PB height 200mm/7.87in KXTBPB200-3 KXTBPB200-4
Phase barriers
DIN guide
Sealable screw
RC Inst / RC Sel
7
ATS021
7/16 1SXP210002C0201 | ABB catalog

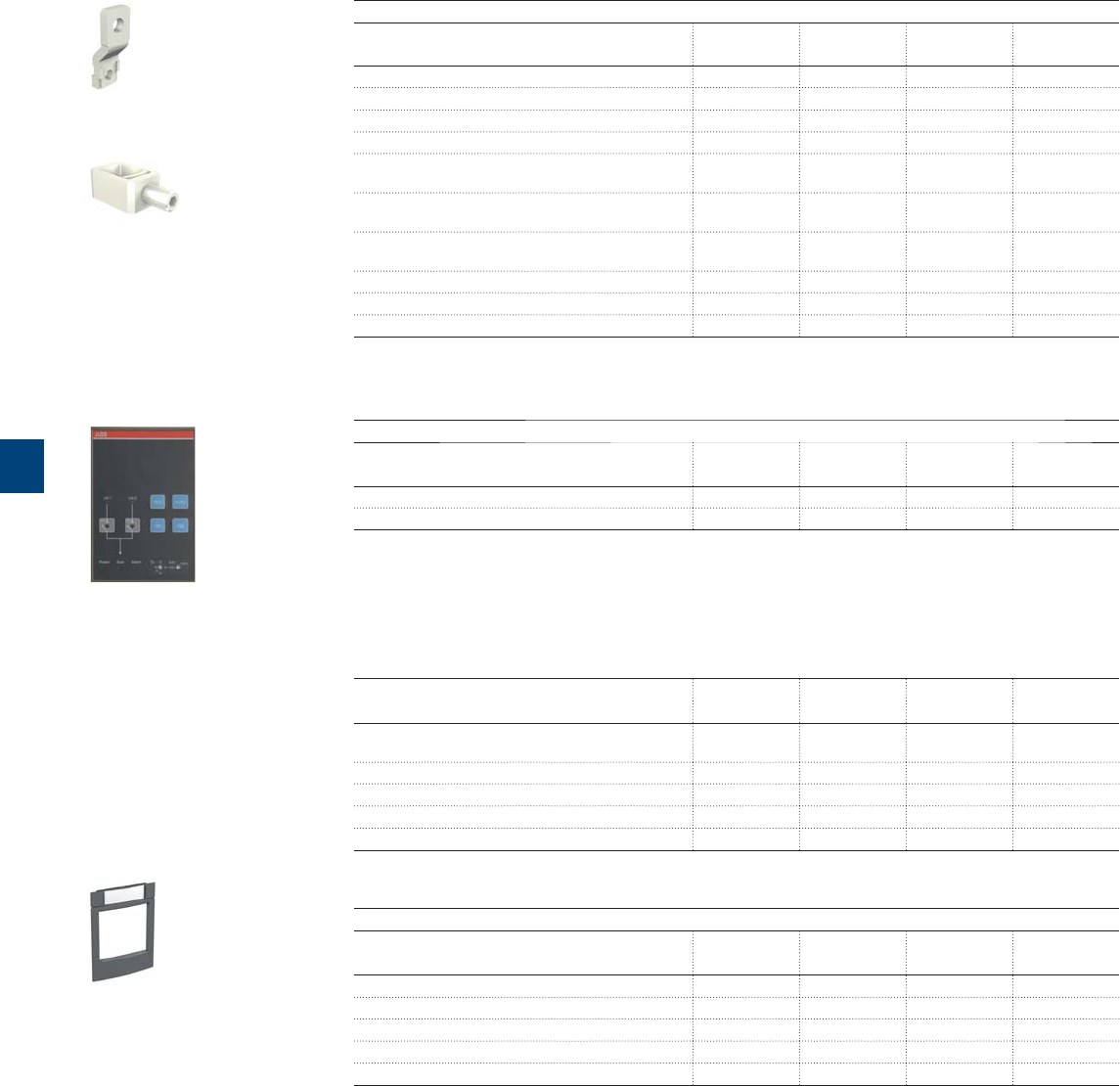

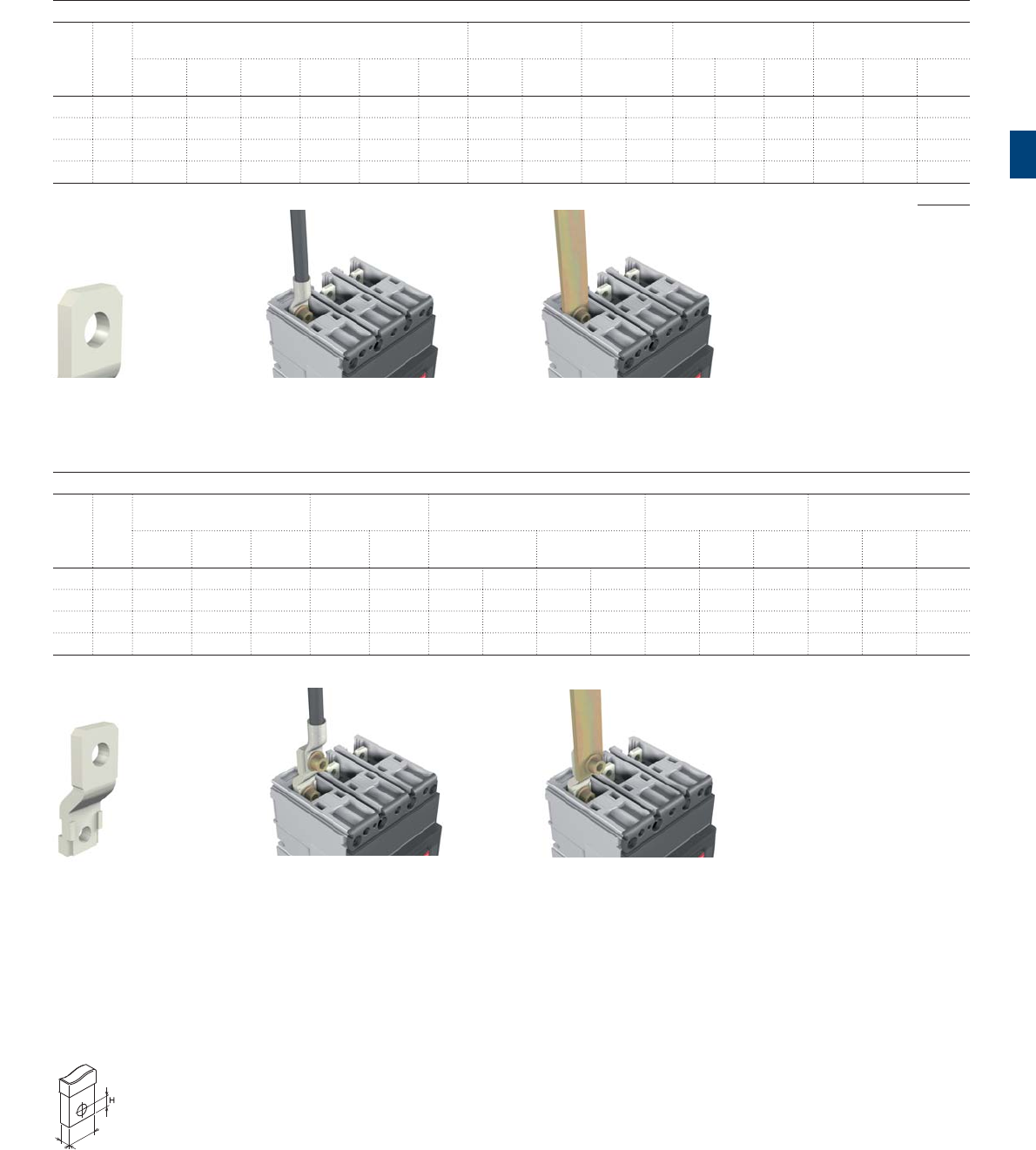

Terminals
Type 3 pcs 4 pcs 6 pcs 8 pcs
Part number Part number Part number Part number
F Front terminals KXT1F-3PC KXT1F-4PC KXT1F-6PC KXT1F-8PC
F Front terminals for MCP KXT1F3PCMCP -KXT1F6PCMCP-
EF Extended front terminals KXT1EF-3PC KXT1EF-4PC KXT1EF-6PC KXT1EF-8PC
ES Extended spread terminals KXT1ES-3PC KXT1ES-4PC KXT1ES-6PC KXT1ES-8PC
FC Cu Terminals for Cu cables 125A,
14-1/0 AWG, 1x2.5…50mm2KXT1CU-3PC KXT1CU-4PC KXT1CU-6PC KXT1CU-8PC
FC Cu Terminals for Cu cables MCP,
14-1/0 AWG, 1x1.550mm2KXT1CUMCP-3PC KXT1CUMCP-4PC KXT1CUMCP-6PC KXT1CUMCP-8PC
MC Multi cable terminals for Cu cables,
6x14-2 AWG, 6x2.5…35mm2KXT1MC-3PC KXT1MC-4PC KXT1MC-6PC KXT1MC-8PC
R Rear adjustable terminals(1) KXT1ER-3PC KXT1ER-4PC KXT1ER-6PC KXT1ER-8PC
R -RC Rear terminals for residual current(1) -KXT1ERRC-4PC - -
FB Flexibar Terminals(1) KXT1EFB-3PC KXT1EFB-4PC KXT1EFB-6PC KXT1EFB-8PC
(1)IEC rated only.
EF terminal
FCCu terminal
Spare parts
Type
Part number
SA RC Sel / RC Inst -
Opening solenoid for the residual current device(1) KXT1ESARCFP
AUX-C - Loose cabled auxiliary contact 250V AC(2) KXTAAUXCFP
AUX-C - Loose cabled auxiliary contact 24V DC(2) KXTAAUXCDFP
AUX-C - Loose cabled auxiliary contact 250V AC 600V(2) KXTAAUXCFPHD
AUX-C - Loose cabled auxiliary contact 24V DC 600V(2) KXTAAUXCDFPHD
(1)IEC rated only.
(2)Un-numbered cables.

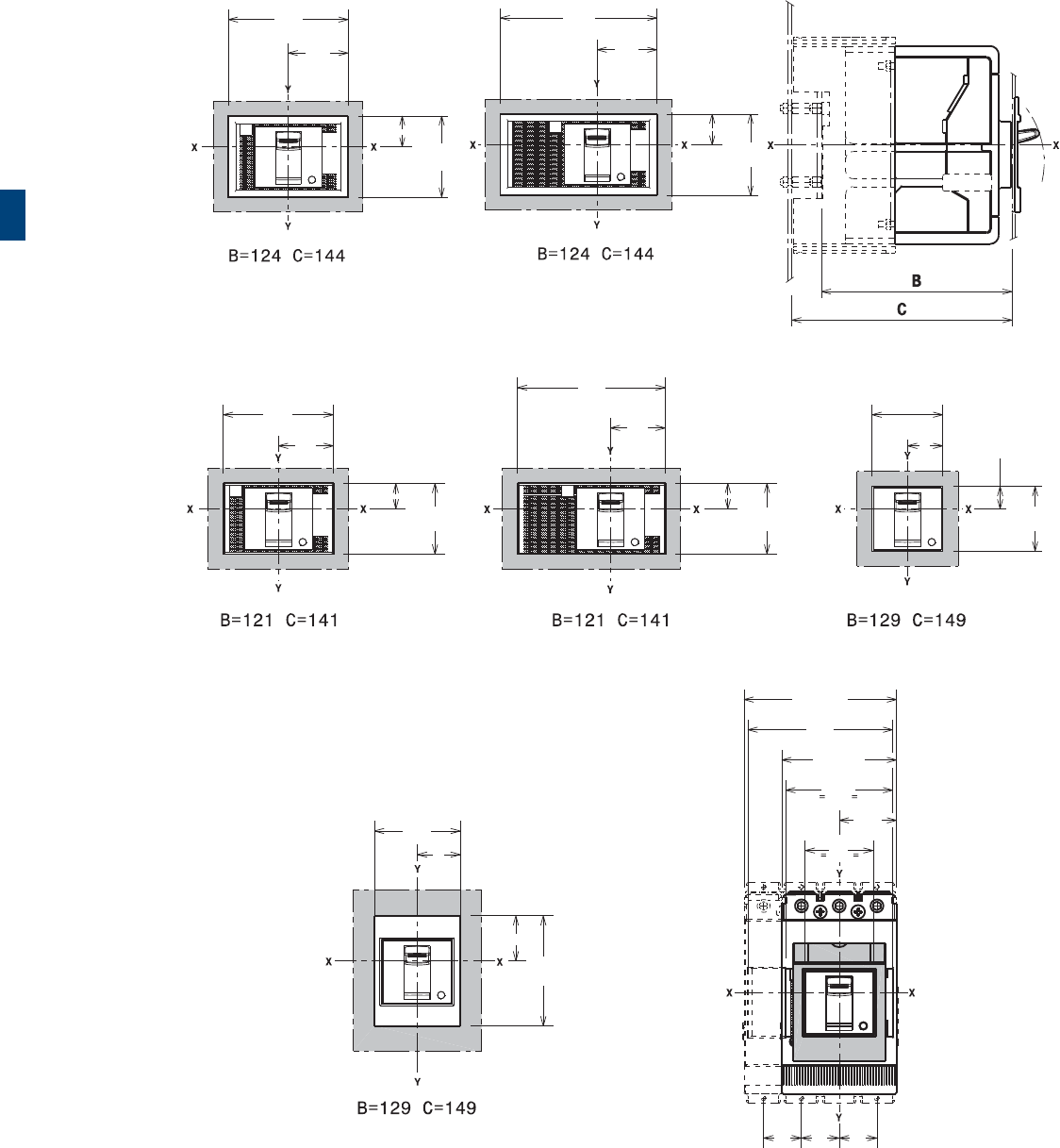

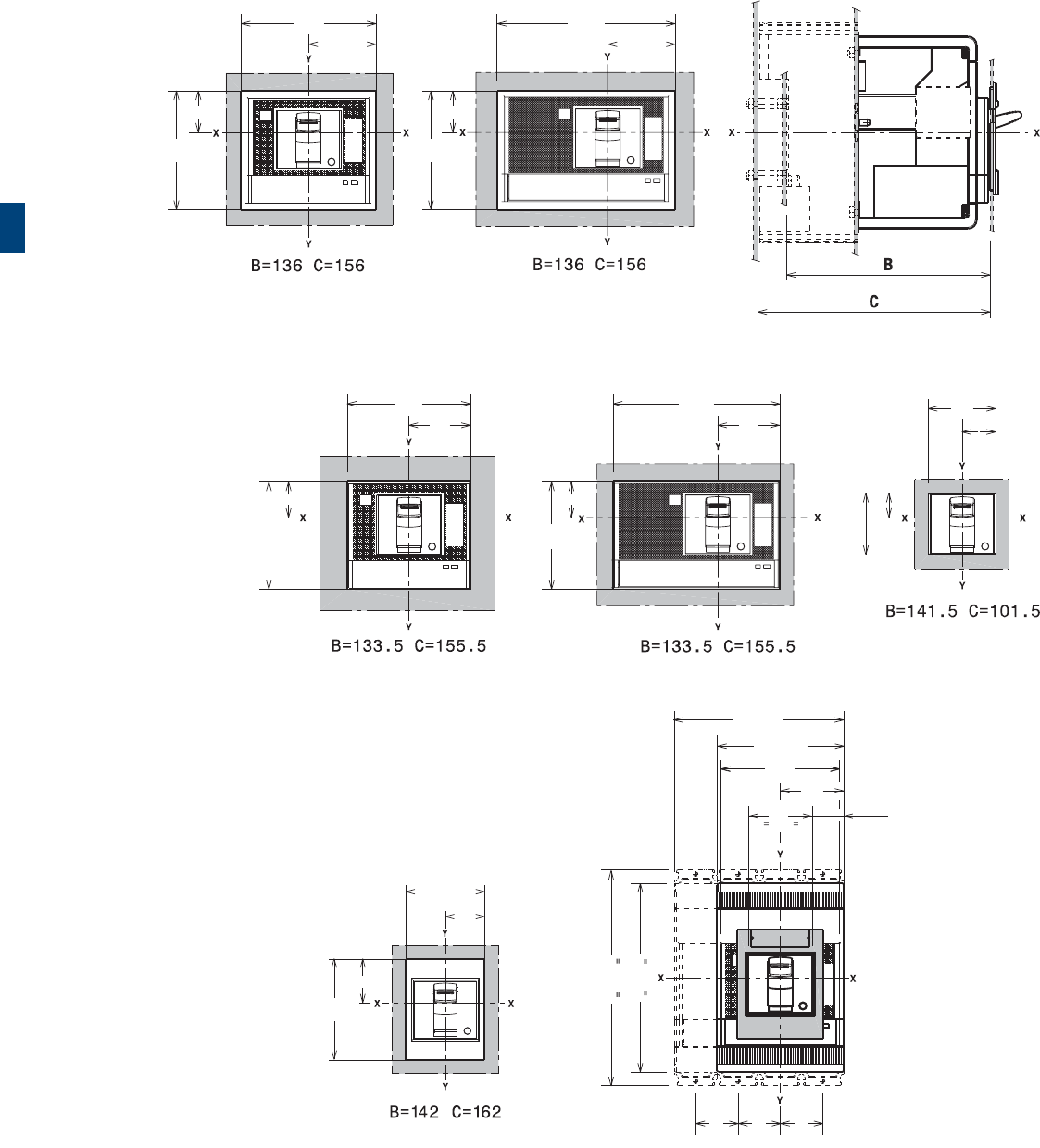

Flanges for the compartment door(1)
Type 3p 4p
Part number Part number
Small "optional" flange for circuit breaker KXTAEFLASMFP KXTAEFLASMFP
Large "standard" flange for circuit breaker KXT1EFLAFP-3 KXT1EFLAFP-4
Flange for MOD KXTBEFLAMOD KXTBEFLAMOD
Flange for direct handle RHD KXTAEFLARHDFP KXTAEFLARHDFP
Flange for residual current RC Sel/RC Sel KXT1EFLARCFP-3 KXT1EFLARCFP-4
(1)IEC rated only.
Flange
Ordering codes for XT1 UL/CSA
Accessories

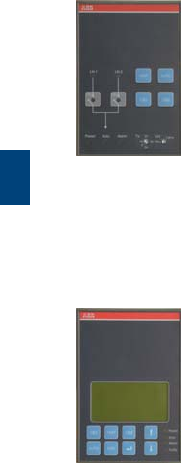

Automatic transfer devices
ATS021 - ATS022 Automatic transfer devices(1)
Type
Part number
ATS021 ATS021
ATS022 ATS022
(1)IEC rated only.
Spare parts
7
ABB catalog | 1SXP210002C0201 7/17
XT2 125A TMF/TMA - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Thermomagnetic trip unit Int Rtng
(480 V)
Type In I3
N
25 kA
Part number
S
35 kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 kA
Part number
X
200 kA
Part number
TMF 15 400 XT2NU3015AFF000XXX XT2SU3015AFF000XXX XT2HU3015AFF000XXX XT2LU3015AFF000XXX XT2VU3015AFF000XXX XT2XU3015AFF000XXX
20 400 XT2NU3020AFF000XXX XT2SU3020AFF000XXX XT2HU3020AFF000XXX XT2LU3020AFF000XXX XT2VU3020AFF000XXX XT2XU3020AFF000XXX
25 400 XT2NU3025AFF000XXX XT2SU3025AFF000XXX XT2HU3025AFF000XXX XT2LU3025AFF000XXX XT2VU3025AFF000XXX XT2XU3025AFF000XXX
30 400 XT2NU3030AFF000XXX XT2SU3030AFF000XXX XT2HU3030AFF000XXX XT2LU3030AFF000XXX XT2VU3030AFF000XXX XT2XU3030AFF000XXX
35 400 XT2NU3035AFF000XXX XT2SU3035AFF000XXX XT2HU3035AFF000XXX XT2LU3035AFF000XXX XT2VU3035AFF000XXX XT2XU3035AFF000XXX
40 400 XT2NU3040AFF000XXX XT2SU3040AFF000XXX XT2HU3040AFF000XXX XT2LU3040AFF000XXX XT2VU3040AFF000XXX XT2XU3040AFF000XXX
50 500 XT2NU3050AFF000XXX XT2SU3050AFF000XXX XT2HU3050AFF000XXX XT2LU3050AFF000XXX XT2VU3050AFF000XXX XT2XU3050AFF000XXX
60 600 XT2NU3060AFF000XXX XT2SU3060AFF000XXX XT2HU3060AFF000XXX XT2LU3060AFF000XXX XT2VU3060AFF000XXX XT2XU3060AFF000XXX
70 700 XT2NU3070AFF000XXX XT2SU3070AFF000XXX XT2HU3070AFF000XXX XT2LU3070AFF000XXX XT2VU3070AFF000XXX XT2XU3070AFF000XXX
TMA 56…80 400…800 XT2NU3080BFF000XXX XT2SU3080BFF000XXX XT2HU3080BFF000XXX XT2LU3080BFF000XXX XT2VU3080BFF000XXX XT2XU3080BFF000XXX
63…90 450…900 XT2NU3090BFF000XXX XT2SU3090BFF000XXX XT2HU3090BFF000XXX XT2LU3090BFF000XXX XT2VU3090BFF000XXX XT2XU3090BFF000XXX
70100 500…1000 XT2NU3100BFF000XXX XT2SU3100BFF000XXX XT2HU3100BFF000XXX XT2LU3100BFF000XXX XT2VU3100BFF000XXX XT2XU3100BFF000XXX
77…110 55 0…110 0 XT2NU3110BFF000XXX XT2SU3110BFF000XXX XT2HU3110BFF000XXX XT2LU3110BFF000XXX XT2VU3110BFF000XXX XT2XU3110BFF000XXX
87.5…125 625…1250 XT2NU3125BFF000XXX XT2SU3125BFF000XXX XT2HU3125BFF000XXX XT2LU3125BFF000XXX XT2VU3125BFF000XXX XT2XU3125BFF000XXX
Ordering codes for XT2 UL/CSA
Circuit breakers
XT2 125A TMF/TMA - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
Thermomagnetic trip unit Int Rtng
(480 V)
Type In I3
N
25 kA
Part number
S
35 kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 kA
Part number
X
200 kA
Part number
TMF 15 400 XT2NU4015AFF000XXX XT2SU4015AFF000XXX XT2HU4015AFF000XXX XT2LU4015AFF000XXX XT2VU4015AFF000XXX XT2XU4015AFF000XXX
20 400 XT2NU4020AFF000XXX XT2SU4020AFF000XXX XT2HU4020AFF000XXX XT2LU4020AFF000XXX XT2VU4020AFF000XXX XT2XU4020AFF000XXX
25 400 XT2NU4025AFF000XXX XT2SU4025AFF000XXX XT2HU4025AFF000XXX XT2LU4025AFF000XXX XT2VU4025AFF000XXX XT2XU4025AFF000XXX
30 400 XT2NU4030AFF000XXX XT2SU4030AFF000XXX XT2HU4030AFF000XXX XT2LU4030AFF000XXX XT2VU4030AFF000XXX XT2XU4030AFF000XXX
35 400 XT2NU4035AFF000XXX XT2SU4035AFF000XXX XT2HU4035AFF000XXX XT2LU4035AFF000XXX XT2VU4035AFF000XXX XT2XU4035AFF000XXX
40 400 XT2NU4040AFF000XXX XT2SU4040AFF000XXX XT2HU4040AFF000XXX XT2LU4040AFF000XXX XT2VU4040AFF000XXX XT2XU4040AFF000XXX
50 500 XT2NU4050AFF000XXX XT2SU4050AFF000XXX XT2HU4050AFF000XXX XT2LU4050AFF000XXX XT2VU4050AFF000XXX XT2XU4050AFF000XXX
60 600 XT2NU4060AFF000XXX XT2SU4060AFF000XXX XT2HU4060AFF000XXX XT2LU4060AFF000XXX XT2VU4060AFF000XXX XT2XU4060AFF000XXX
70 700 XT2NU4070AFF000XXX XT2SU4070AFF000XXX XT2HU4070AFF000XXX XT2LU4070AFF000XXX XT2VU4070AFF000XXX XT2XU4070AFF000XXX
TMA 56…80 400…800 XT2NU4080BFF000XXX XT2SU4080BFF000XXX XT2HU4080BFF000XXX XT2LU4080BFF000XXX XT2VU4080BFF000XXX XT2XU4080BFF000XXX
63…90 450…900 XT2NU4090BFF000XXX XT2SU4090BFF000XXX XT2HU4090BFF000XXX XT2LU4090BFF000XXX XT2VU4090BFF000XXX XT2XU4090BFF000XXX
70100 500…1000 XT2NU4100BFF000XXX XT2SU4100BFF000XXX XT2HU4100BFF000XXX XT2LU4100BFF000XXX XT2VU4100BFF000XXX XT2XU4100BFF000XXX
77…110 55 0…110 0 XT2NU4110BFF000XXX XT2SU4110BFF000XXX XT2HU4110BFF000XXX XT2LU4110BFF000XXX XT2VU4110BFF000XXX XT2XU4110BFF000XXX
87.5…125 625…1250 XT2NU4125BFF000XXX XT2SU4125BFF000XXX XT2HU4125BFF000XXX XT2LU4125BFF000XXX XT2VU4125BFF000XXX XT2XU4125BFF000XXX
XT2 125A MCP (MA) - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Magnetic trip unit Int Rtng
(480 V)
Type In I3
H
65 kA
Part number
MCP 31233 XT2HU3003MFF000XXX
72877 XT2HU3007MFF000XXX
15 45…165 XT2HU3015MFF000XXX
30 90…330 XT2HU3030MFF000XXX
50 150…550 XT2HU3050MFF000XXX
70 210…770 XT2HU3070MFF000XXX
80 240…880 XT2HU3080MFF000XXX
100 300…1100 XT2HU3100MFF000XXX
125 375…1375 XT2HU3125MFF000XXX
7
7/18 1SXP210002C0201 | ABB catalog
XT2 125A Ekip - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Ekip electronic
trip units
Int Rtng
(480 V)
Type In
N
25 kA
Part number
S
35 kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 kA
Part number
X(1)
200 kA
Part number
Ekip LS/I 10 XT2NU3010EFF000XXX XT2SU3010EFF000XXX XT2HU3010EFF000XXX XT2LU3010EFF000XXX XT2VU3010EFF000XXX XT2XU3010EFF000XXX
25 XT2NU3025EFF000XXX XT2SU3025EFF000XXX XT2HU3025EFF000XXX XT2LU3025EFF000XXX XT2VU3025EFF000XXX XT2XU3025EFF000XXX
60 XT2NU3060EFF000XXX XT2SU3060EFF000XXX XT2HU3060EFF000XXX XT2LU3060EFF000XXX XT2VU3060EFF000XXX XT2XU3060EFF000XXX
100 XT2NU3100EFF000XXX XT2SU3100EFF000XXX XT2HU3100EFF000XXX XT2LU3100EFF000XXX XT2VU3100EFF000XXX XT2XU3100EFF000XXX
125 XT2NU3125EFF000XXX XT2SU3125EFF000XXX XT2HU3125EFF000XXX XT2LU3125EFF000XXX XT2VU3125EFF000XXX XT2XU3125EFF000XXX
Ekip LSI 10 XT2NU3010FFF000XXX XT2SU3010FFF000XXX XT2HU3010FFF000XXX XT2LU3010FFF000XXX XT2VU3010FFF000XXX XT2XU3010FFF000XXX
25 XT2NU3025FFF000XXX XT2SU3025FFF000XXX XT2HU3025FFF000XXX XT2LU3025FFF000XXX XT2VU3025FFF000XXX XT2XU3025FFF000XXX
60 XT2NU3060FFF000XXX XT2SU3060FFF000XXX XT2HU3060FFF000XXX XT2LU3060FFF000XXX XT2VU3060FFF000XXX XT2XU3060FFF000XXX
100 XT2NU3100FFF000XXX XT2SU3100FFF000XXX XT2HU3100FFF000XXX XT2LU3100FFF000XXX XT2VU3100FFF000XXX XT2XU3100FFF000XXX
125 XT2NU3125FFF000XXX XT2SU3125FFF000XXX XT2HU3125FFF000XXX XT2LU3125FFF000XXX XT2VU3125FFF000XXX XT2XU3125FFF000XXX
Ekip LSIG 10 XT2NU3010GFF000XXX XT2SU3010GFF000XXX XT2HU3010GFF000XXX XT2LU3010GFF000XXX XT2VU3010GFF000XXX XT2XU3010GFF000XXX
25 XT2NU3025GFF000XXX XT2SU3025GFF000XXX XT2HU3025GFF000XXX XT2LU3025GFF000XXX XT2VU3025GFF000XXX XT2XU3025GFF000XXX
60 XT2NU3060GFF000XXX XT2SU3060GFF000XXX XT2HU3060GFF000XXX XT2LU3060GFF000XXX XT2VU3060GFF000XXX XT2XU3060GFF000XXX
100 XT2NU3100GFF000XXX XT2SU3100GFF000XXX XT2HU3100GFF000XXX XT2LU3100GFF000XXX XT2VU3100GFF000XXX XT2XU3100GFF000XXX
125 XT2NU3125GFF000XXX XT2SU3125GFF000XXX XT2HU3125GFF000XXX XT2LU3125GFF000XXX XT2VU3125GFF000XXX XT2XU3125GFF000XXX
Ekip I 10 XT2NU3010JFF000XXX XT2SU3010JFF000XXX XT2HU3010JFF000XXX XT2LU3010JFF000XXX XT2VU3010JFF000XXX XT2XU3010JFF000XXX
25 XT2NU3025JFF000XXX XT2SU3025JFF000XXX XT2HU3025JFF000XXX XT2LU3025JFF000XXX XT2VU3025JFF000XXX XT2XU3025JFF000XXX
60 XT2NU3060JFF000XXX XT2SU3060JFF000XXX XT2HU3060JFF000XXX XT2LU3060JFF000XXX XT2VU3060JFF000XXX XT2XU3060JFF000XXX
100 XT2NU3100JFF000XXX XT2SU3100JFF000XXX XT2HU3100JFF000XXX XT2LU3100JFF000XXX XT2VU3100JFF000XXX XT2XU3100JFF000XXX
125 XT2NU3125JFF000XXX XT2SU3125JFF000XXX XT2HU3125JFF000XXX XT2LU3125JFF000XXX XT2VU3125JFF000XXX XT2XU3125JFF000XXX
M-LIU 25 --XT2HU3025LFF000XXX---
60 --XT2HU3060LFF000XXX---
100 --XT2HU3100LFF000XXX---
(1)Consult ABB for availability.
Ordering codes for XT2 UL/CSA
Circuit breakers
XT2 125A Ekip - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
Ekip electronic
trip units
Int Rtng
(480 V)
Type In
N
25 kA
Part number
S
35 kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 kA
Part number
X(1)
200 kA
Part number
Ekip LS/I 10 XT2NU4010EFF000XXX XT2SU4010EFF000XXX XT2HU4010EFF000XXX XT2LU4010EFF000XXX XT2VU4010EFF000XXX XT2XU4010EFF000XXX
25 XT2NU4025EFF000XXX XT2SU4025EFF000XXX XT2HU4025EFF000XXX XT2LU4025EFF000XXX XT2VU4025EFF000XXX XT2XU4025EFF000XXX
60 XT2NU4060EFF000XXX XT2SU4060EFF000XXX XT2HU4060EFF000XXX XT2LU4060EFF000XXX XT2VU4060EFF000XXX XT2XU4060EFF000XXX
100 XT2NU4100EFF000XXX XT2SU4100EFF000XXX XT2HU4100EFF000XXX XT2LU4100EFF000XXX XT2VU4100EFF000XXX XT2XU4100EFF000XXX
125 XT2NU4125EFF000XXX XT2SU4125EFF000XXX XT2HU4125EFF000XXX XT2LU4125EFF000XXX XT2VU4125EFF000XXX XT2XU4125EFF000XXX
Ekip LSI 10 XT2NU4010FFF000XXX XT2SU4010FFF000XXX XT2HU4010FFF000XXX XT2LU4010FFF000XXX XT2VU4010FFF000XXX XT2XU4010FFF000XXX
25 XT2NU4025FFF000XXX XT2SU4025FFF000XXX XT2HU4025FFF000XXX XT2LU4025FFF000XXX XT2VU4025FFF000XXX XT2XU4025FFF000XXX
60 XT2NU4060FFF000XXX XT2SU4060FFF000XXX XT2HU4060FFF000XXX XT2LU4060FFF000XXX XT2VU4060FFF000XXX XT2XU4060FFF000XXX
100 XT2NU4100FFF000XXX XT2SU4100FFF000XXX XT2HU4100FFF000XXX XT2LU4100FFF000XXX XT2VU4100FFF000XXX XT2XU4100FFF000XXX
125 XT2NU4125FFF000XXX XT2SU4125FFF000XXX XT2HU4125FFF000XXX XT2LU4125FFF000XXX XT2VU4125FFF000XXX XT2XU4125FFF000XXX
Ekip LSIG 10 XT2NU4010GFF000XXX XT2SU4010GFF000XXX XT2HU4010GFF000XXX XT2LU4010GFF000XXX XT2VU4010GFF000XXX XT2XU4010GFF000XXX
25 XT2NU4025GFF000XXX XT2SU4025GFF000XXX XT2HU4025GFF000XXX XT2LU4025GFF000XXX XT2VU4025GFF000XXX XT2XU4025GFF000XXX
60 XT2NU4060GFF000XXX XT2SU4060GFF000XXX XT2HU4060GFF000XXX XT2LU4060GFF000XXX XT2VU4060GFF000XXX XT2XU4060GFF000XXX
100 XT2NU4100GFF000XXX XT2SU4100GFF000XXX XT2HU4100GFF000XXX XT2LU4100GFF000XXX XT2VU4100GFF000XXX XT2XU4100GFF000XXX
125 XT2NU4125GFF000XXX XT2SU4125GFF000XXX XT2HU4125GFF000XXX XT2LU4125GFF000XXX XT2VU4125GFF000XXX XT2XU4125GFF000XXX
Ekip I 10 XT2NU4010JFF000XXX XT2SU4010JFF000XXX XT2HU4010JFF000XXX XT2LU4010JFF000XXX XT2VU4010JFF000XXX XT2XU4010JFF000XXX
25 XT2NU4025JFF000XXX XT2SU4025JFF000XXX XT2HU4025JFF000XXX XT2LU4025JFF000XXX XT2VU4025JFF000XXX XT2XU4025JFF000XXX
60 XT2NU4060JFF000XXX XT2SU4060JFF000XXX XT2HU4060JFF000XXX XT2LU4060JFF000XXX XT2VU4060JFF000XXX XT2XU4060JFF000XXX
100 XT2NU4100JFF000XXX XT2SU4100JFF000XXX XT2HU4100JFF000XXX XT2LU4100JFF000XXX XT2VU4100JFF000XXX XT2XU4100JFF000XXX
125 XT2NU4125JFF000XXX XT2SU4125JFF000XXX XT2HU4125JFF000XXX XT2LU4125JFF000XXX XT2VU4125JFF000XXX XT2XU4125JFF000XXX
(1)Consult ABB for availability.
7
ABB catalog | 1SXP210002C0201 7/19
XT2 125A switch - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
No Trip Unit Int Rtng
(480 V)
Type In Mag. Override
N
25 kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 kA
Part number
XT2-D 125 1250 XT2NU3125DFF000XXX XT2HU3125DFF000XXX XT2LU3125DFF000XXX XT2VU3125DFF000XXX
XT2 125A switch - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
No Trip Unit Int Rtng
(480 V)
Type In Mag. Override
N
25 kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 kA
Part number
XT2-D 125 1250 XT2NU4125DFF000XXX XT2HU4125DFF000XXX XT2LU4125DFF000XXX XT2VU4125DFF000XXX
XT2 125A Breaking part - UL/CSA
Type
N
25 kA
Part number
S
35 kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 kA
Part number
XT2 125A Breaking Part - 3p KXT2BP3N125 KXT2BP3S125 KXT2BP3H125 KXT2BP3L125 KXT2BP3V125
XT2 125A Breaking Part - 4p K XT2BP4N125 KX T2BP4S125 K XT2BP4H125 K XT2BP4L125 KXT2BP4V125
XT2 125A Loose trip unit - UL/CSA
Thermomagnetic trip units
Type In I3
3p
Part number
4p
Part number
TMF 50 500 KXT2TU3TMF50 KXT2TU4TMF50
60 600 KXT2TU3TMF60 KXT2TU4TMF60
70 700 KXT2TU3TMF70 KXT2TU4TMF70
TMA 56…80 400…800 KXT2TU3TMA80 KXT2TU4TMA80
63…90 450…900 KXT2TU3TMA90 KXT2TU4TMA90
70100 5001000 KXT2TU3TMA100 KXT2TU4TMA100
77110 550…1100 K XT2TU3TMA110 KXT2TU4TMA110
87.5…125 6251250 KXT2TU3TMA125 KXT2TU4TMA125
XT2 125A Loose trip unit - UL/CSA
Ekip electronic trip units
Type In 3p
Part number
4p
Part number
Ekip LS/I
60 KXT2TU3LS/I60 KXT2TU4LS/I60
100 KXT2TU3LS/I100 KXT2TU4LS/I100
125 K XT2TU3LS/I125 KX T2TU4LS/I125
Ekip LSI
60 KXT2TU3LSI60 KXT2TU4LSI60
100 KXT2TU3LSI100 KXT2TU4LSI100
125 K XT2TU3LSI125 KX T2TU4LSI125
T2-Ekip LSIG
60 KXT2TU3LSIG60 KXT2TU4LSIG60
100 KXT2TU3LSIG100 KXT2TU4LSIG100
125 K XT2TU3LSIG125 K XT2TU4LSIG125
Ekip I
60 KXT2TU3I60 KXT2TU4I60
100 KXT2TU3I100 KXT2TU4I100
125 K XT2TU3I125 K XT2TU4I125
7
7/20 1SXP210002C0201 | ABB catalog
Ordering codes for XT2 UL/CSA
Accessories

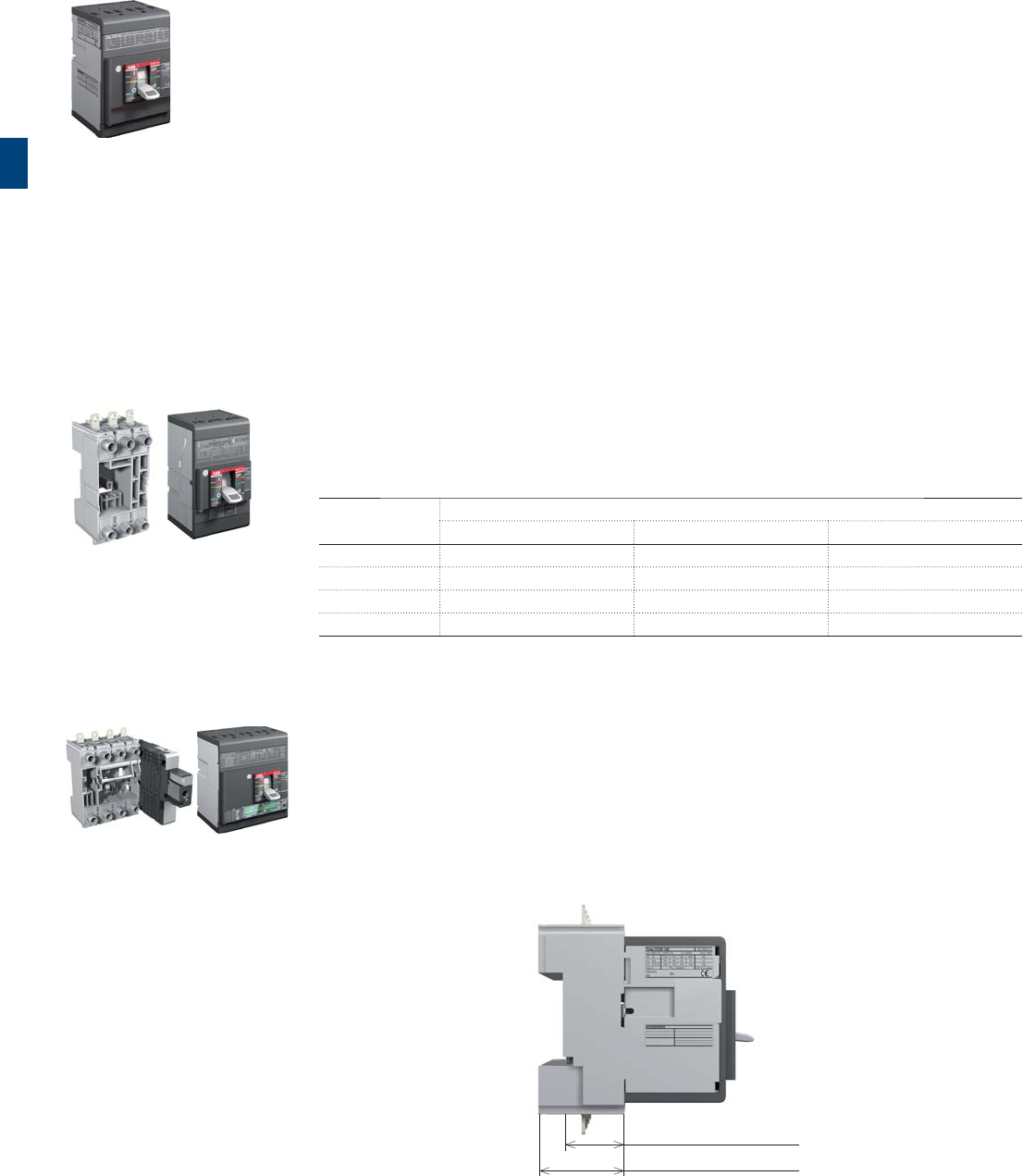

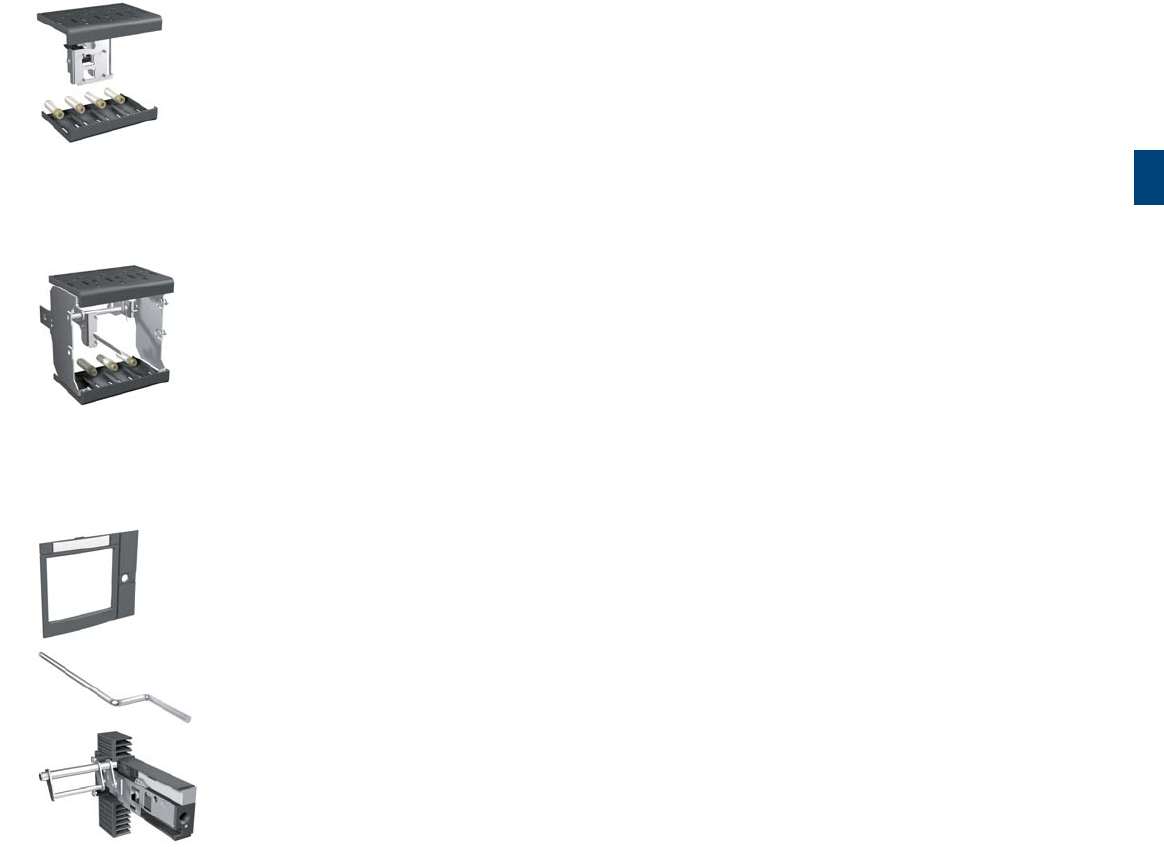

Fixed parts, conversion kits and accessories for fixed parts
Fixed part of plug-in (P)
Type 3p 4p
Part number Part number
Kit P FP EF KXT2PFPEF-3 KXT2PFPEF-4
Kit P FP HR/VR(1) KXT2EPFPHR-3 KXT2EPFPHR-4
(1)IEC rated only. The terminals are factory-mounted in the horizontal position (HR).
Fixed part terminals(1)
Type 3p 4p
Part number Part number
EF - Front extended terminals KXT2EEFFP-3 KXT2EEFFP-4
R - Rear terminals HR/VR KXT2ERFP-3 KXT2ERFP-4
PS - Rear phase separators 90mm/3.54in KXTAEPB90-3 KXTAEPB90-4
(1)IEC rated only.
Conversion kit of the circuit breaker from fixed into moving part of plug-in
Type 3p 4p
Part number Part number
P MP kit KXT2PMP-3 KXT2PMP-4
Fixed part of withdrawable (W)
Type 3p 4p
Part number Part number
Kit W FP EF KXT2WFPEF-3 KXT2WFPEF-4
Kit W FP HR/VR(1) KXT2EWFPHR-3 KXT2EWFPHR-4
(1)IEC rated only. The terminals are factory-mounted in the horizontal position (HR).
Conversion kit of the circuit breaker from fixed into moving part of withdrawable
Type 3p 4p
Part number Part number
W MP kit KXT2WMP-3 KXT2WMP-4
Fixed part of plug-in
Fixed part of withdrawable
Conversion kit of the circuit breaker
from fixed into moving part of plug-in
Conversion kit for turning a fixed
circuit breaker into the moving part
of a withdrawable circuit breaker Conversion kit of the fixed part from plug-in to withdrawable
Type
Part number
FP P>W kit KXT2FPPtoFPW
7
ABB catalog | 1SXP210002C0201 7/21

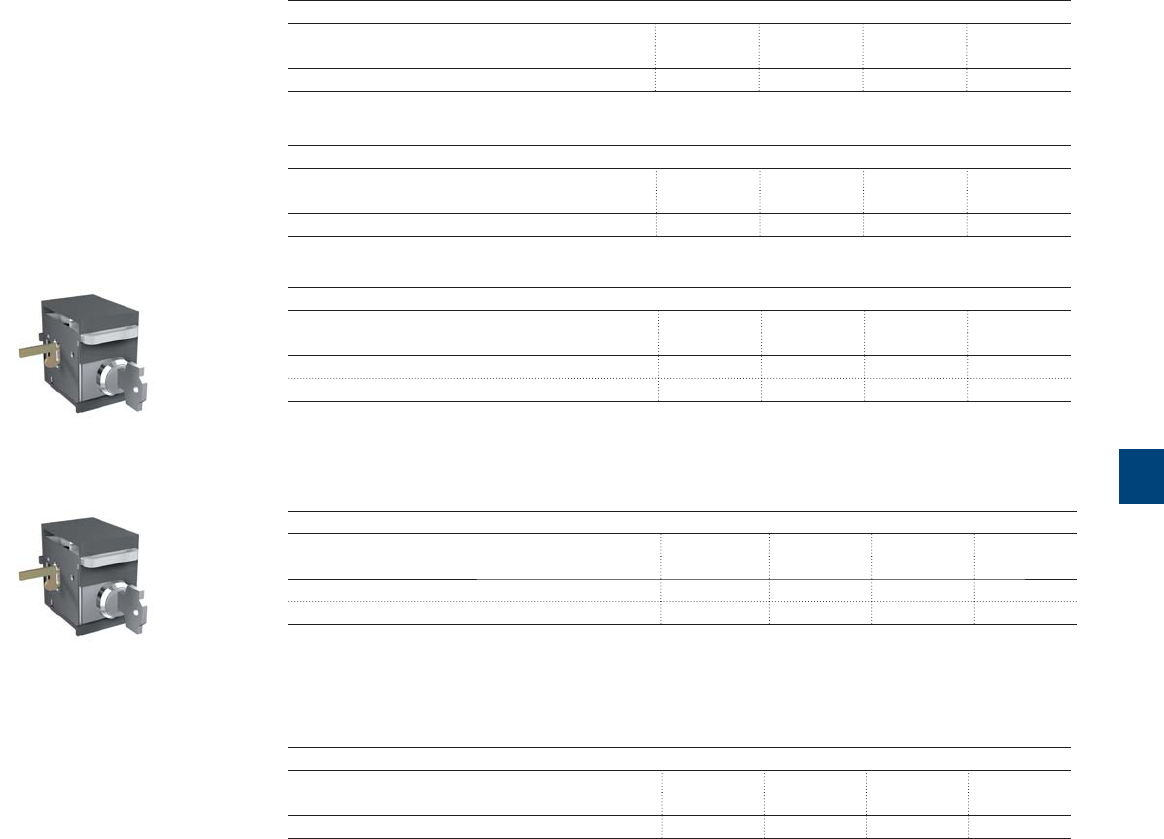

Adapter for mounting the terminals of the fixed circuit breaker on the fixed part
Type 3p 4p
Part number Part number
ADP adapter for fixed part (2 pieces) KXT2ADP-3 KXT2ADP-4
Note: When using ADP with ES/MC terminals, also order “Kit F Front Terminals”.
Conversion kit of RC Sel from fixed to plug-in(1)
Type 4p
Part number
P MP RC Sel 4p kit KXT2EPMPRC-4
(1)IEC rated only.
Key lock for fixed part of withdrawable(1)
Type
Part number
KL-D key lock FP, different keys KXTCEKLDFPW
KL-S key lock FP, same keys N.20005 KXTCEKLSFPW
(1)IEC rated only.
Ronis key lock for fixed part of withdrawable(1)
Type
Part number
KL-D Ronis FP key lock, different keys KXTCEKLDRonFPW
KL-S Ronis FP key lock, same Type A keys KXTCEKLSRonFPW
(1)IEC rated only.
Conversion kit of RC Sel from plug-in to withdrawable(1)
Type 4p
Part number
W MP RC Sel kit KXT2WFPEF-4
(1)IEC rated only.
Key lock/padlock for fi xed part
Ronis key lock/padlock for fi xed part
7
7/22 1SXP210002C0201 | ABB catalog
Service releases
Shunt opening release - SOR
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Uncabled version
SOR 12V DC KXTASORA -
SOR 24-30V AC/DC KXTASORB -
SOR 48-60V AC/DC KXTASORC -
SOR 110...127V AC / 110...125V DC KXTASORD -
SOR 220...240V AC / 220...250V DC KXTASORE -
SOR 380-440V AC KXTASORF -
SOR 480-525V AC KXTASORG -
Cabled version
SOR-C 12V DC KXTASORCFPA KXTCSORCWA
SOR-C 24-30V AC/DC KXTASORCFPB KXTCSORCWB
SOR-C 48-60V AC/DC KXTASORCFPC KXTCSORCWC
SOR-C 110...127V AC / 110...125V DC
KXTASORCFPD KXTCSORCWD
SOR-C 220...240V AC / 220...250V DC
KXTASORCFPE KXTCSORCWE
SOR-C 380-440V AC KXTASORCFPF KXTCSORCWF
SOR-C 480-525V AC KXTASORCFPG KXTCSORCWG
Undervoltage release - UVR
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Uncabled version
UVR 24-30V AC/DC KXTAUVR1 -
UVR 48V AC/DC KXTAUVR2 -
UVR 60V AC/DC KXTAUVR3 -
UVR 110...127V AC / 110...125V DC KXTAUVR4 -
UVR 220...240V AC / 220...250V DC KXTAUVR5 -
UVR 380-440V AC KXTAUVR6 -
UVR 480-525V AC KXTAUVR7 -
Cabled version
UVR-C 24-30V AC/DC KXTAUVRCFP1 KXTCUVRCW1
UVR-C 48V AC/DC KXTAUVRCFP2 KXTCUVRCW2
UVR-C 60V AC/DC KXTAUVRCFP3 KXTCUVRCW3
UVR-C 110...127V AC / 110...125V DC
KXTAUVRCFP4 KXTCUVRCW4
UVR-C 220...240V AC / 220...250V DC
KXTAUVRCFP5 KXTCUVRCW5
UVR-C 380-440V AC KXTAUVRCFP6 KXTCUVRCW6
UVR-C 480-525V AC KXTAUVRCFP7 KXTCUVRCW7
SOR uncabled
SOR cabled
SOR for withdrawable
UVR uncabled
UVR cabled
UVR for withdrawable
Ordering codes for XT2 UL/CSA
Accessories
Time delay device for
undervoltage release
Delay device for undervoltage release - UVD(1)
Type
Part number
UVD 24...30V AC/DC KT3UVD8
UVD 48...60V AC/DC KT3UVD7
UVD 110...125V AC/DC KT3UVD4
UVD 220...250V AC/DC KT3UVD2
(1)IEC rated only.
7
ABB catalog | 1SXP210002C0201 7/23
Connectors
Fourth pole connectors for withdrawable(1)
Type
Part number
Connector 4th Pole SOR / PS-SOR KXTCE3PINCONSOR
Connector 4th Pole UVR KXTCE3PINCONUVR
(1)IEC rated only.
Electrical signals

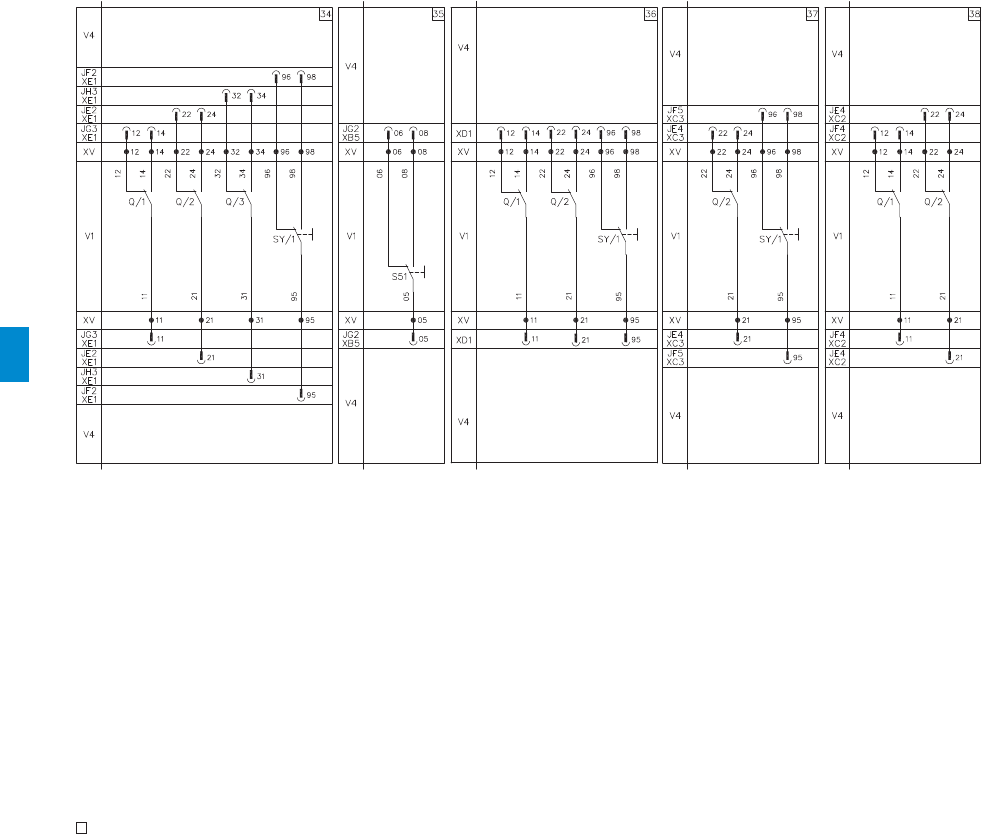

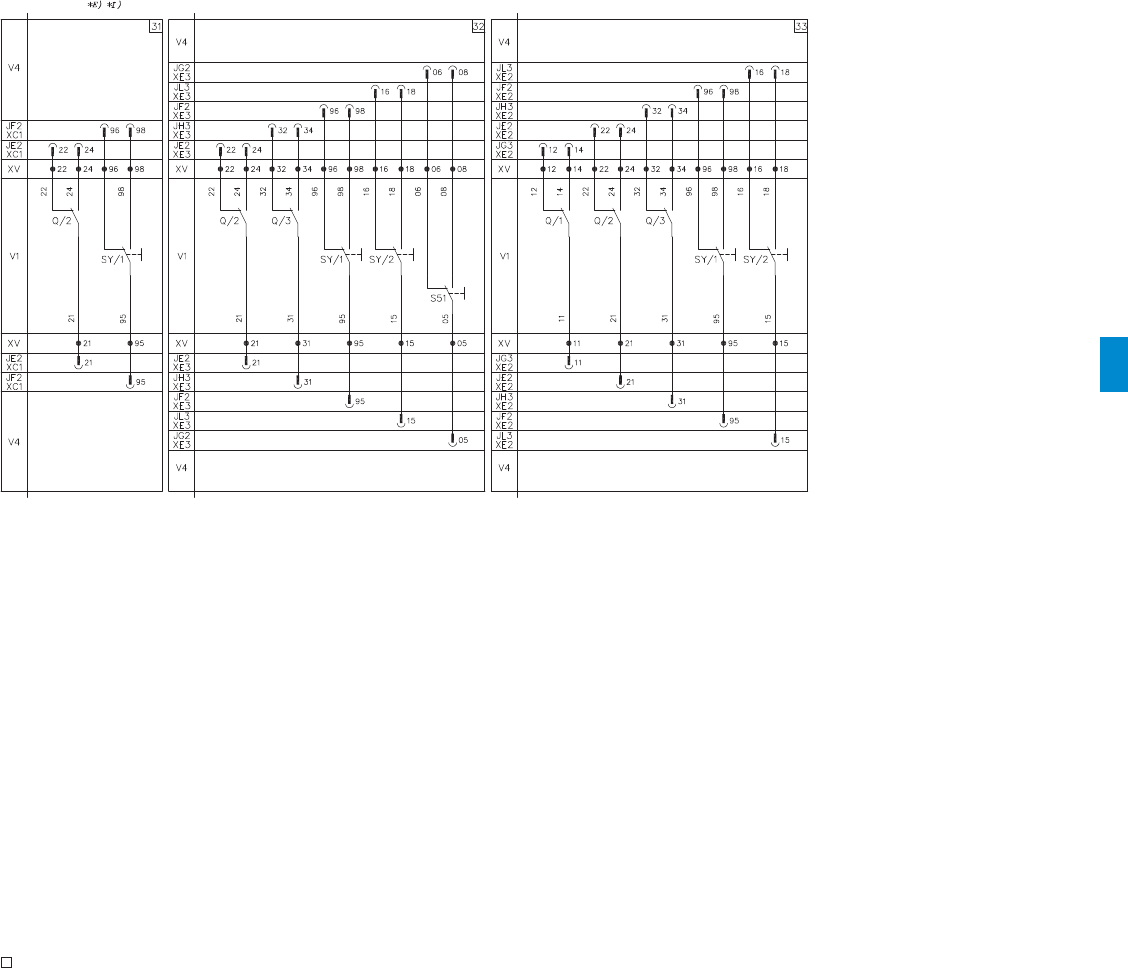

Auxiliary contacts - AUX
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Uncabled version
AUX 250V KXTAAUX -
AUX 24V DC KXTAAUXD -
AUX-S51 250V KXTCAXS51 -
AUX-S51 24V DC KXTCAXDS51 -
Cabled version
AUX-C 3 Q 250V Left KXTCAXC3QL -
AUX-C 1 Q + 1 SY 250V KXTAAXCQSYFP KXTCAXCQSYW
AUX-C 2 Q + 1 SY 250V KXTAAXC2QSYFP -
AUX-C 3 Q + 1 SY 250V KXTDAXC3QSYFP KXTCAXC3QSYW
AUX-C 3 Q + 2 SY 250V KXTCAXC3Q2SYFP KXTCAXC3Q2SYW
AUX-C 2 Q + 2 SY + 1 S51 250V KXTCAXC2Q2SYS51FP KXTCAXC2Q2SYS51W
AUX-S51-C 250V KXTCAXCS51FP KXTCAXCS51W
AUX-C 1 Q + 1 SY 24V DC KXTAAXCDQSYFP KXTCAXCDQSYW
AUX-C 3 Q + 1 SY 24V DC KXTDAXCD3QSYFP KXTCAXCD3QSYW
AUX-S51-C 24V DC KXTCAXDS51FP KXTCAXDS51W
AUX-C 1 Q + 1 SY 400V AC KXTCAXC4QSYFP KXTCAXC4QSYW
AUX-C 2 Q 400V AC KXTCAXC42QFP KXTCAXC42QW
Socket plug connector on the panel(1)
Type
Part number
Socket -plug connector with 3 PINS KXTAE3PINCON
Socket -plug connector with 6 PINS KXTAE6PINCON
Socket -plug connector with 9 PINS KXTAE9PINCON
Socket -plug connector with 15 PINS KXTAE15PINCON
(1)IEC rated only.
Fixed part socket-plug connector(1)
Type
Part number
Socket-plug connector of moving part - 12 PINS KXTCE12PINMPCON
Socket-plug connector of fixed part - 12 PINS KXTCE12PINFPCON
(1)IEC rated only.
Socket-plug panel connector
Fixed part socket-plug connector
AUX uncabled
AUX cabled
AUX for withdrawable
7
7/24 1SXP210002C0201 | ABB catalog
Ordering codes for XT2 UL/CSA
Accessories
Auxiliary position contacts - AUP
Type
Part number
Cabled version
AUP-I – Four racked-in contacts 250V for plug-in circuit breaker KXTAAUP250IN
AUP-I – Four racked-in contacts 24V DC for plug-in circuit breaker KXTAAUP24IN
AUP-R – Two racked-out contacts 250V for withdrawable circuit breaker KXTCAUP250W
AUP-R – Two racked-out contacts
24V DC for withdrawable circuit breaker
KXTCAUP24W
Early auxiliary contacts - AUE
Type Fixed/Plug-in
Part number
Withdrawable
Part number
AUE – Two contacts in the rotary handle RHx (Closed) KXTAAUECLFP KXTCAUECLW
AUE – Two contacts in the rotary handle RHx (Open) KXTDAUEOPFP KXTCAUEOPW

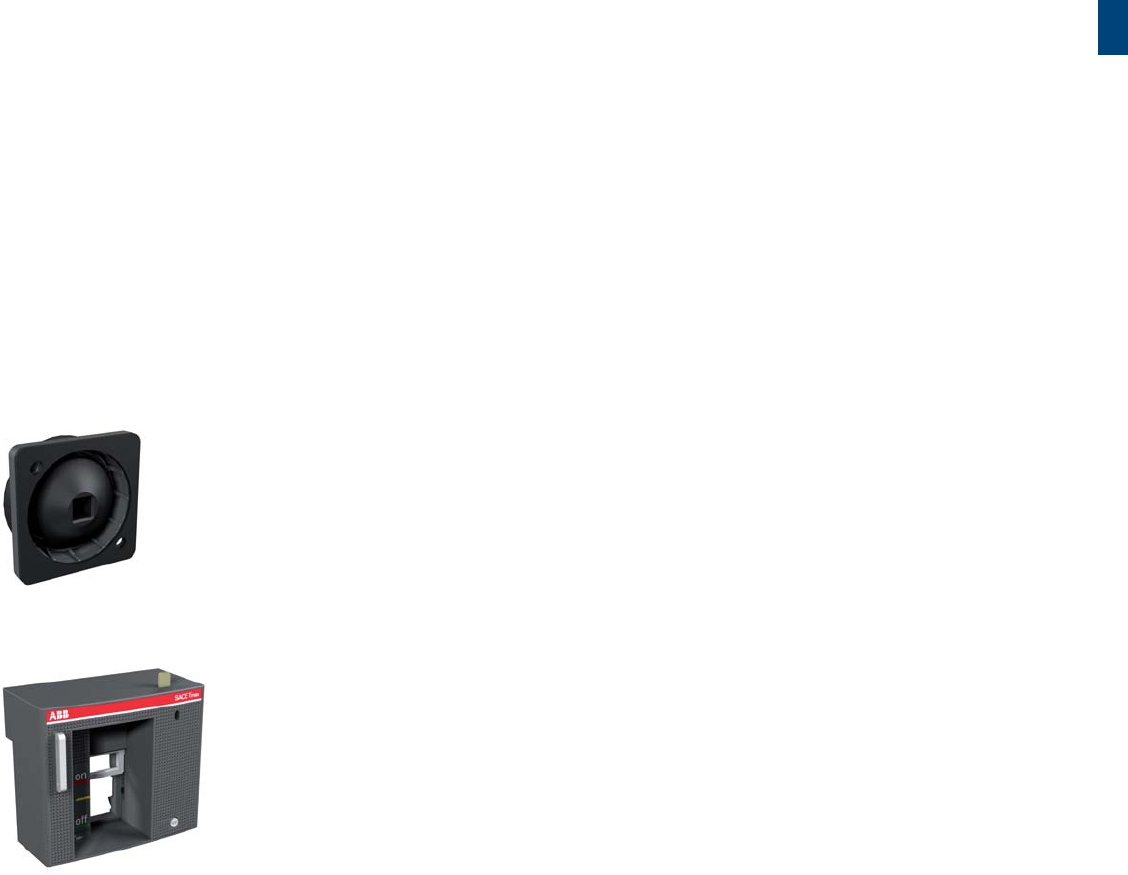

Motor Operators
Stored energy motor operator - MOE
Type
Part number
MOE 24V DC KXTCMOE24
MOE 48...60V DC KXTCMOE48-60
MOE 110...125V AC/ DC K XTCMOE110-125
MOE 220...250V AC/DC KXTCMOE220-250
MOE 380...440V AC KXTCMOE380-440
MOE 480...525V AC KXTCMOE480-525
Electronic stored energy motor operator - MOE-E(1)
Type
Part number
MOE-E 24V DC KXTCEMOEE24
MOE-E 48...60V DC KXTCEMOEE48-60
MOE-E 110...125V AC/DC KXTCEMOEE110-125
MOE-E 220...250V AC/DC KXTCEMOEE220-250
MOE-E 380...440V AC KXTCEMOEE380-440
MOE-E 480...525V AC KXTCEMOEE480-525
(1)IEC rated only.
AUP - Auxiliary position contacts
AUE - Early auxiliary contacts
MOE - Motor operator
7
ABB catalog | 1SXP210002C0201 7/25
Rotary handle operating mechanisms
Rotary handle operating mechanisms
Type Fixed/Plug-in
Part number
Withdrawable
Part number
RHD Standard Direct Handle KXTCRHDSTFP KXTCRHDSTW
RHD Emergency Direct Handle KXTCRHDEMFP KXTCRHDEMW
RHE Standard Extended Handle KXTCRHESTFP KXTCRHESTW
RHE Emergency Extended Handle KXTCRHEEMFP KXTCRHEEMW
RHE Standard Extended Handle with Padlock(1) KXTCRHESTFPPLK KXTCRHESTWPLK
RHE Emergency Extended Handle with Padlock(1) KXTCRHEEMFPPLK KXTCRHEEMWPLK
RHS-L Standard Left Side Handle KXTCRHSLSTFP -
RHS-L Emergency Left Side Handle KXTCRHSLEMFP -
RHS-R Standard Right Side Handle KXTCRHSRSTFP -
RHS-R Emergency Right Side Handle KXTCRHSREMFP -
Extended Handle Spare Parts
RHE_B Base for Extended Handle KXTCRHEBFP KXTCRHEBW
RHE_B Base for Extended Handle with Padlock(1) KXTCRHEBFPPLK KXTCRHEBWPLK
RHE_S 500mm Shaft KXTARHES500 KXTARHES500
RHE_H Standard Extended Handle KXTARHEHST KXTARHEHST
RHE_H Emergency Extended Handle KXTARHEHEM KXTARHEHEM
LH Standard Large Handle, NEMA 1 KXTALHNDLST KXTALHNDLST
LH Emergency Large Handle, NEMA 1 KXTALHNDLEM KXTALHNDLEM
Standard Pistol Handle with reset function, 65mm, NEMA 3R, 12 OHB65J10B OHB65J10B
Emergency Pistol Handle with reset function, 65mm, NEMA 3R, 12(1) OHY65J10B OHY65J10B
Standard Pistol Handle with reset function, 65mm, NEMA 4, 4X(1) OHB65L10B OHB65L10B
Emergency Pistol Handle with reset function, 65mm, NEMA 4, 4X(1) OHY65L10B OHY65L10B
Standard Pistol Handle with reset function, 125mm, NEMA 3R, 12 OHB125J10B OHB125J10B
Emergency Pistol Handle with reset function, 125mm, NEMA 3R, 12(1) OHY125J10B OHY125J10B
Standard Pistol Handle with reset function, 125mm, NEMA 4, 4X(1) OHB125L10B OHB125L10B
Emergency Pistol Handle with reset function, 125mm, NEMA 4, 4X(1) OHY125L10B OHY125L10B
148mm Pistol Handle Shaft OXP10X148 OXP10X148
225mm Pistol Handle Shaft OXP10X225 OXP10X225
500mm Pistol Handle Shaft OXP10X500 OXP10X500
(1)Consult ABB for availability.
Direct handle
Extended handle
IP54 protection for transmitted rotary handle(1)
Type
Part number
IP54 Protection for RHE KXTAERHEIP54
(1)IEC rated only.
Flange handle(1)
Type
Part number
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4) KXT2N12FLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4) KXT2N12FLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4) KXT2N12FLHDL10
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT2N4XFLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT2N4XFLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT2N4XFLHDL10
Flange Handle Spare Parts
Flange Handle only (NEMA 1, 3R, 12, 4) KXTAN12FLHDL
Flange Handle only (NEMA 1, 3R, 12, 4, 4X) KXTAN4XFLHDL
Flange Handle Hardware KXTAFLHDLHW
Flange Mounting Hardware KXTCFLMTHW
(1)Consult ABB for availability.
IP54
7
7/26 1SXP210002C0201 | ABB catalog
Mechanical interlock
Type
Part number
Chassis MIR-H KXTAMIRHR
Chassis MIR-V KXTAMIRVR
Plate XT1 F KXT1MIRPLF
Plate XT1 P KXT1MIRPLP
Plate XT2 F KXT2MIRPLF
Plate XT2 P/W KXT2MIRPLPW
Plate XT4 F KXT4MIRPLF
Plate XT4 P/W KXT4MIRPLPW
Front for operating lever mechanism
Type Fixed/Plug-in
Part number
Withdrawable
Part number
FLD front for operating lever mechanism KXTCFLDFP KXTCFLDW
Key lock on the handle
Front for operating lever mechanism
Interlock
Ordering codes for XT2 UL/CSA
Accessories
Locks
Padlock on the circuit breaker
Type
Part number
PLL Fixed lock with padlocks in open position KXTCPLLOP
PLL Fixed lock with padlocks in open/closed position KXTCPLLOPCL
Key lock on the circuit breaker
Fixed padlock Key lock on the circuit breaker
Type
Part number
KLC Ronis key lock open, different keys, removable in open position KXTCKLCCBDIF
KLC Ronis key lock open, same Type A keys, removable in open position KXTCKLCCBA
KLC Ronis key lock open, same Type B keys, removable in open position KXTCKLCCBB
KLC Ronis key lock open, same Type C keys, removable in open position KXTCKLCCBC
KLC Ronis key lock open, same Type D keys, removable in open position KXTCKLCCBD
KLC Ronis key lock open/closed, different keys, removable in both positions KXTCKLCCBOPCL
Key lock on the rotary handle / key lock on the front for locks
Type
Part number
RHL Ronis key lock open, different keys, RHx/FLD KXTARHLDIF
RHL Ronis key lock open, same Type A keys, RHx/FLD KXTARHLA
RHL Ronis key lock open, same Type B keys, RHx/FLD KXTARHLB
RHL Ronis key lock open, same Type C keys, RHx/FLD KXTARHLC
RHL Ronis key lock open, same Type D keys, RHx/FLD KXTARHLD
RHL Ronis key lock open/closed, different keys, RHx KXTARHLOPCL
RHL Ronis key lock open/closed, different keys, FLD KXTCRHLFLD
Key lock on the motor(1)
Type
Part number
MOL-D Ronis key lock open, different keys KXTCEMOLDIF
MOL-S Ronis key lock open, same Type A keys KXTCEMOLA
MOL-S Ronis key lock open, same Type B keys KXTCEMOLB
MOL-S Ronis key lock open, same Type C keys KXTCEMOLC
MOL-S Ronis key lock open, same Type D keys KXTCEMOLD
MOL-M Key lock against manual operation KXTCEMOLMO
(1)IEC rated only
Key lock on the motor
7
ABB catalog | 1SXP210002C0201 7/27
Terminals, terminal covers and phase barriers
Insulating terminal covers
Type 3p
Part number
4p
Part number
LTC low terminal covers KXT2LTC-3 KXT2LTC-4
HTC high terminal covers KXT2HTC-3 KXT2HTC-4
Terminal cover
Phase barriers
Type 4 pcs
Part number
6 pcs
Part number
PB Height 25mm/0.98in KXTCPB25-3 KXTCPB25-4
PB Height 100mm/3.94in KXTCPB100-3 KXTCPB100-4
PB Height 200mm/7.87in KXTCPB200-3 KXTCPB200-4
Phase barriers
Residual current devices
Residual current devices(1)
Type 3p
Part number
4p
Part number
RC Sel KXT2ERCSEL-4
(1)IEC rated only.
Panel type residual current relay(1)
Type
Part number
RCQ020/A 115-230V AC KXTAERCQ230
RCQ020/A 415V AC KXTAERCQ415
Toroid closed Ø 60mm KXTTETOR60
Toroid closed Ø 110mm KXTTETOR110
Toroid closed Ø 185mm KXTTETOR185
(1)IEC rated only.
Sealable screws for terminal covers(1)
Type
Part number
Kit with two sealable screws KXTAESSEAL
(1)IEC rated only.
RC Sel
Installation
Bracket for DIN rail mounting
Type 3p
Part number
4p
Part number
KIT DIN50022(1) KXTCEDINPL KXTCEDINPL
KIT DIN50022 UL KXT2DIN-3 KXT2DIN-4
(1)IEC rated only.
DIN guide
Sealable screw
7
7/28 1SXP210002C0201 | ABB catalog
Accessories for electronic trip units
General electronic trip unit accessories(1)
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Ekip Display KXTCEDISP KXTCEDISP
Ekip LED Meter KXTCELED KXTCELED
Ekip Com KXTCECOMFP KXTCECOMW
HMI030 interface on front of panel HMI030 HMI030
(1)IEC rated only.
Current sensor for external neutral(1)
Type
Part number
CT external neutral of 10A KXT2ECT10
CT external neutral of 25A KXT2ECT25
CT external neutral of 63A KXT2ECT63
CT external neutral of 100A KXT2ECT100
CT external neutral of 160A KXT2ECT160
(1)IEC rated only.
Connection kits
Type Fixed/Plug-in
Part number
Withdrawable
Part number
24V DC auxiliary voltage kit for electronic trip units(1) KXTCECAUXFP KXTCECAUXW
External neutral connection kit KXTCECNEFP KXTCECNEW
(1)IEC rated only.
Test and configuration units(1)
Type
Part number
Ekip TT - Trip test unit ZEAEKPTT
Ekip T&P - Programming and test unit EKIP
(1)IEC rated only.
Ekip Display
Ekip LED Meter
Ekip T&P unit

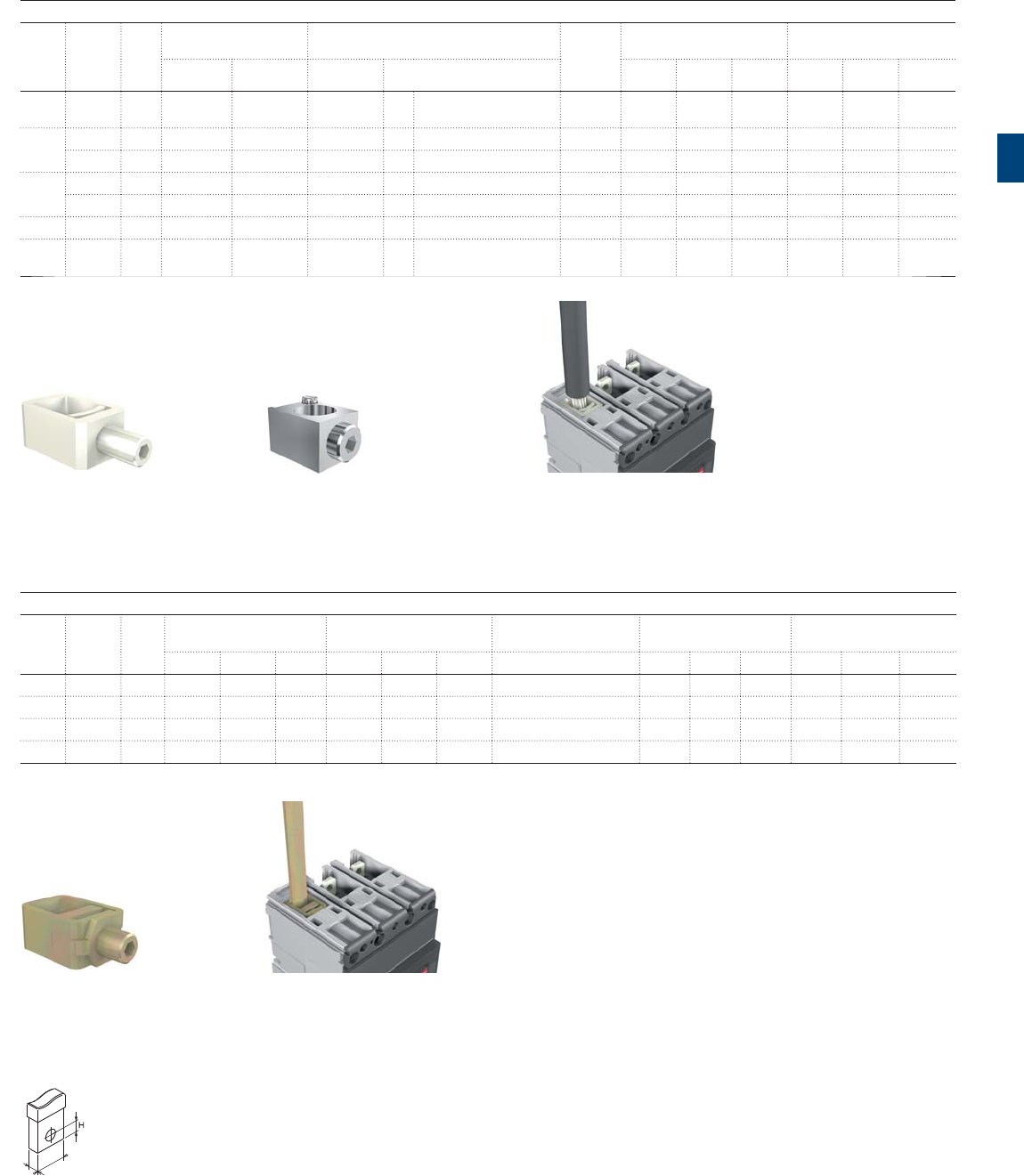

Terminals
Type 3 pcs
Part number
4 pcs
Part number
6 pcs
Part number
8 pcs
Part number
F Front terminals KXT2F-3PC KXT2F-4PC KXT2F-6PC KXT2F-8PC
EF Extended front terminals KXT2EF-3PC KXT2EF-4PC KXT2EF-6PC KXT2EF-8PC
ES Extended spread terminals KXT2ES-3PC KXT2ES-4PC KXT2ES-6PC KXT2ES-8PC
FC CuAl Terminals for CuAl cables 110A,
14-1/0 AWG, 1x2.5…50mm2(1) KXT2CUAL1-3PC KXT2CUAL1-4PC - -
FC Cu Terminals for Cu cables 125A,
14-1/0 AWG, 1x2.5…95mm2KXT2CU-3PC KXT2CU-4PC KXT2CU-6PC KXT2CU-8PC
MC Multi cable terminals for Cu cables,
6X14-2 AWG, 6X2.5…35mm2KXT2MC-3PC KXT2MC-4PC KXT2MC-6PC KXT2MC-8PC
R Rear adjustable terminals(2) KXT2ER-3PC KXT2ER-4PC KXT2ER-6PC KXT2ER-8PC
FB Flexibar terminals(2) KXT2EFB-3PC KXT2EFB-4PC KXT2EFB-6PC KXT2EFB-8PC
(1)Consult ABB for availability.
(2)IEC rated only.
EF terminal
FCCu terminal
Ordering codes for XT2 UL/CSA
Accessories
7
ATS021
ABB catalog | 1SXP210002C0201 7/29
Connectors for fixed part/moving part of withdrawable circuit breakers(1)
Type
Part number
1 connector for with 2 pins for SOR/UVR up to 400V KXTCE2PINCONSOUV
1 connector with 3 pins for AUX up to 400V KXTCE3PINCONAUX
(1)IEC rated only.
Flanges for the compartment door(1)
Type 3p
Fixed/Plug-in
Part number
4p
Fixed/Plug-in
Part number
3p
Withdrawable
Part number
4p
Withdrawable
Part number
Small "optional" flange for circuit breaker KXTAEFLASMFP KXTAEFLASMFP - -
Large "standard" flange for circuit breaker KXT2EFLAFP-3 KXT2EFLAFP-4 - -
Flange for MOE/MOE-E/FLD KXTCEFLAMOEFP KXTCEFLAMOEFP KXTCEFLAMOEW KXTCEFLAMOEW
Flange for direct handle RHD KXTAEFLARHDFP KXTAEFLARHDFP KXTCEFLARHDW KXTCEFLARHDW
Flange for residual current RC Sel - KXT2EFLARCFP-4 - KXT2EFLARCW-4
(1)IEC rated only.
Flange
Fixed/Moving part connector
for withdrawable
Automatic transfer devices
ATS021 - ATS022 automatic transfer devices(1)
Type
Part number
ATS021 ATS021
ATS022 ATS022
(1)IEC rated only.
Spare parts
Type Fixed/Plug-in
Part number
Withdrawable
Part number
SA RC Sel / RC Inst -
Opening solenoid for the residual current device(1)
KXT2ESARCFP KXT2ESARCW
AUX-C - Loose cabled auxiliary contact 250V AC(2) KXTAAUXCFP KXTCEAUXCW
AUX-C - Loose cabled auxiliary contact 24V DC(2) KXTAAUXCDFP KXTCEAUXCDW
AUX-C - Loose cabled auxiliary contact 250V AC HD for 600V KXTAAUXCFPHD KXTCAUXCWHD
AUX-C - Loose cabled auxiliary contact 24V DC HD for 600V KXTAAUXCDFPHD KXTCAUXCDWHD
(1)IEC rated only.
(2)Un-numbered cables. Withdrawable versions are IEC rated only.
7
7/30 1SXP210002C0201 | ABB catalog
XT3 225A TMF - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Thermal magnetic trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
Type In I3
TMF 60 600 XT3NU3060AFF000XXX XT3SU3060AFF000XXX
70 700 XT3NU3070AFF000XXX XT3SU3070AFF000XXX
80 800 XT3NU3080AFF000XXX XT3SU3080AFF000XXX
90 900 XT3NU3090AFF000XXX XT3SU3090AFF000XXX
100 1000 XT3NU3100AFF000XXX XT3SU3100AFF000XXX
110 1100 XT3NU3110AFF000XXX XT3SU3110AFF000XXX
125 1250 XT3NU3125AFF000XXX XT3SU3125AFF000XXX
150 1500 XT3NU3150AFF000XXX XT3SU3150AFF000XXX
175 1750 XT3NU3175AFF000XXX XT3SU3175AFF000XXX
200 2000 XT3NU3200AFF000XXX XT3SU3200AFF000XXX
225 2250 XT3NU3225AFF000XXX XT3SU3225AFF000XXX
Ordering codes for XT3 UL/CSA
Circuit breakers
XT3 225A TMF - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
Thermal magnetic trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
Type In I3
TMF 60 600 XT3NU4060AFF000XXX XT3SU4060AFF000XXX
70 700 XT3NU4070AFF000XXX XT3SU4070AFF000XXX
80 800 XT3NU4080AFF000XXX XT3SU4080AFF000XXX
90 900 XT3NU4090AFF000XXX XT3SU4090AFF000XXX
100 1000 XT3NU4100AFF000XXX XT3SU4100AFF000XXX
110 1100 XT3NU4110AFF000XXX XT3SU4110AFF000XXX
125 1250 XT3NU4125AFF000XXX XT3SU4125AFF000XXX
150 1500 XT3NU4150AFF000XXX XT3SU4150AFF000XXX
175 1750 XT3NU4175AFF000XXX XT3SU4175AFF000XXX
200 2000 XT3NU4200AFF000XXX XT3SU4200AFF000XXX
225 2250 XT3NU4225AFF000XXX XT3SU4225AFF000XXX
XT3 225A MCP (MA) - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Magnetic trip unit Int Rtng
(480 V)
S
35 kA
Part number
Type In I3
MCP 100 6001200 XT3SU3100MFF000XXX
110 6601320 XT3SU3110MFF000XXX
125 7501500 XT3SU3125MFF000XXX
150 900…1800 XT3SU3150MFF000XXX
200 1200…2400 XT3SU3200MFF000XXX
7
ABB catalog | 1SXP210002C0201 7/31
XT3 225A switch - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
No trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
Type In Mag. Override
XT3 - D 225 2250 XT3NU3225DFF000XXX XT3SU3225DFF000XXX
XT3 225A switch - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
No trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
Type In Mag. Override
XT3 - D 225 2250 XT3NU4225DFF000XXX XT3SU4225DFF000XXX
7
7/32 1SXP210002C0201 | ABB catalog
Ordering codes for XT3 UL/CSA
Accessories
Fixed parts, conversion kits and accessories for fixed parts
Fixed part of plug-in (P)
Type 3p
Part number
4p
Part number
Kit P FP EF KXT3PFPEF-3 KXT3PFPEF-4
Kit P FP HR/VR(1) KXT3EPFPHR-3 KXT3EPFPHR-4
(1)IEC rated only. The terminals are factory-mounted in the horizontal position (HR).
Terminals for the fixed parts(1)
Type 3p
Part number
4p
Part number
EF - Front extended terminals KXT3EEFFP-3 KXT3EEFFP-4
R - Rear terminals HR/VR KXTEERFP-3 KXTEERFP-4
PS - Rear phase separators 90mm/3.54in KXTAEPB90-3 KXTAEPB90-4
(1)IEC rated only.
Conversion kit of the circuit breaker from fixed into moving part of plug-in
Type 3p
Part number
4p
Part number
P MP kit KXT3PMP-3 -
Adapter for mounting the terminals of the fixed circuit breaker on the fixed part
Type 3p 4p
Part number Part number
ADP adapter for fixed part (2 pieces) KXT3EADP-3 KXT3EADP-4
Note: When using ADP with ES/MC terminals, also order “Kit F Front Terminals”.
Fixed part of plug-in
Conversion kit for turning a fixed
circuit breaker into the moving
part of a plug-in circuit breaker
Fixed part adapter
7
ABB catalog | 1SXP210002C0201 7/33
Service releases
Shunt opening release - SOR
Type
Part number
Uncabled version
SOR 12V DC KXTASORA
SOR 24-30V AC/DC KXTASORB
SOR 48-60V AC/DC KXTASORC
SOR 110...127V AC / 110...125V DC KXTASORD
SOR 220...240V AC / 220...250V DC KXTASORE
SOR 380-440V AC KXTASORF
SOR 480-525V AC KXTASORG
Cabled version
SOR-C 12V DC KXTASORCFPA
SOR-C 24-30V AC/DC KXTASORCFPB
SOR-C 48-60V AC/DC KXTASORCFPC
SOR-C 110...127V AC / 110...125V DC
KXTASORCFPD
SOR-C 220...240V AC / 220...250V DC
KXTASORCFPE
SOR-C 380-440V AC KXTASORCFPF
SOR-C 480-525V AC KXTASORCFPG
Undervoltage release - UVR
Type
Part number
Uncabled version
UVR 24-30V AC/DC KXTAUVR1
UVR 48V AC/DC KXTAUVR2
UVR 60V AC/DC KXTAUVR3
UVR 110...127V AC / 110...125V DC KXTAUVR4
UVR 220...240V AC / 220...250V DC KXTAUVR5
UVR 380-440V AC KXTAUVR6
UVR 480-525V AC KXTAUVR7
Cabled version
UVR-C 24-30V AC/DC KXTAUVRCFP1
UVR-C 48V AC/DC KXTAUVRCFP2
UVR-C 60V AC/DC KXTAUVRCFP3
UVR-C 110...127V AC / 110...125V DC
KXTAUVRCFP4
UVR-C 220...240V AC / 220...250V DC
KXTAUVRCFP5
UVR-C 380-440V AC KXTAUVRCFP6
UVR-C 480-525V AC KXTAUVRCFP7
UVR cabled
UVR uncabled
SOR uncabled
SOR cabled
Time delay device for
undervoltage release
Delay device for undervoltage release - UVD(1)
Type
Part number
UVD 24...30V AC/DC KT3UVD8
UVD 48...60V AC/DC KT3UVD7
UVD 110...125V AC/DC KT3UVD4
UVD 220...250V AC/DC KT3UVD2
(1)IEC rated only.
7
7/34 1SXP210002C0201 | ABB catalog
Electrical signals
Auxiliary contacts - AUX
Type
Part number
Uncabled version
AUX 250V KXTAAUX
AUX 24V DC KXTAAUXD
Cabled version
AUX-C 3 Q 250V Left KXT3AXC3QL
AUX-C 1 Q + 1 SY 250V KXTAAXCQSYFP
AUX-C 2 Q + 1 SY 250V KXTAAXC2QSYFP
AUX-C 3 Q + 1 SY 250V
KXTDAXC3QSYFP
AUX-C 1 Q + 1 SY 24V DC
KXTAAXCDQSYFP
AUX-C 3 Q + 1 SY 24V DC KXTDAXCD3QSYFP
AUX uncabled
AUX cabled
Early auxiliary contacts - AUE
Type
Part number
AUE – Two contacts in the rotary handle RHx (Closed) KXTAAUECLFP
AUE – Two contacts in the rotary handle RHx (Open) KXTDAUEOPFP
AUE - Early auxiliary contacts

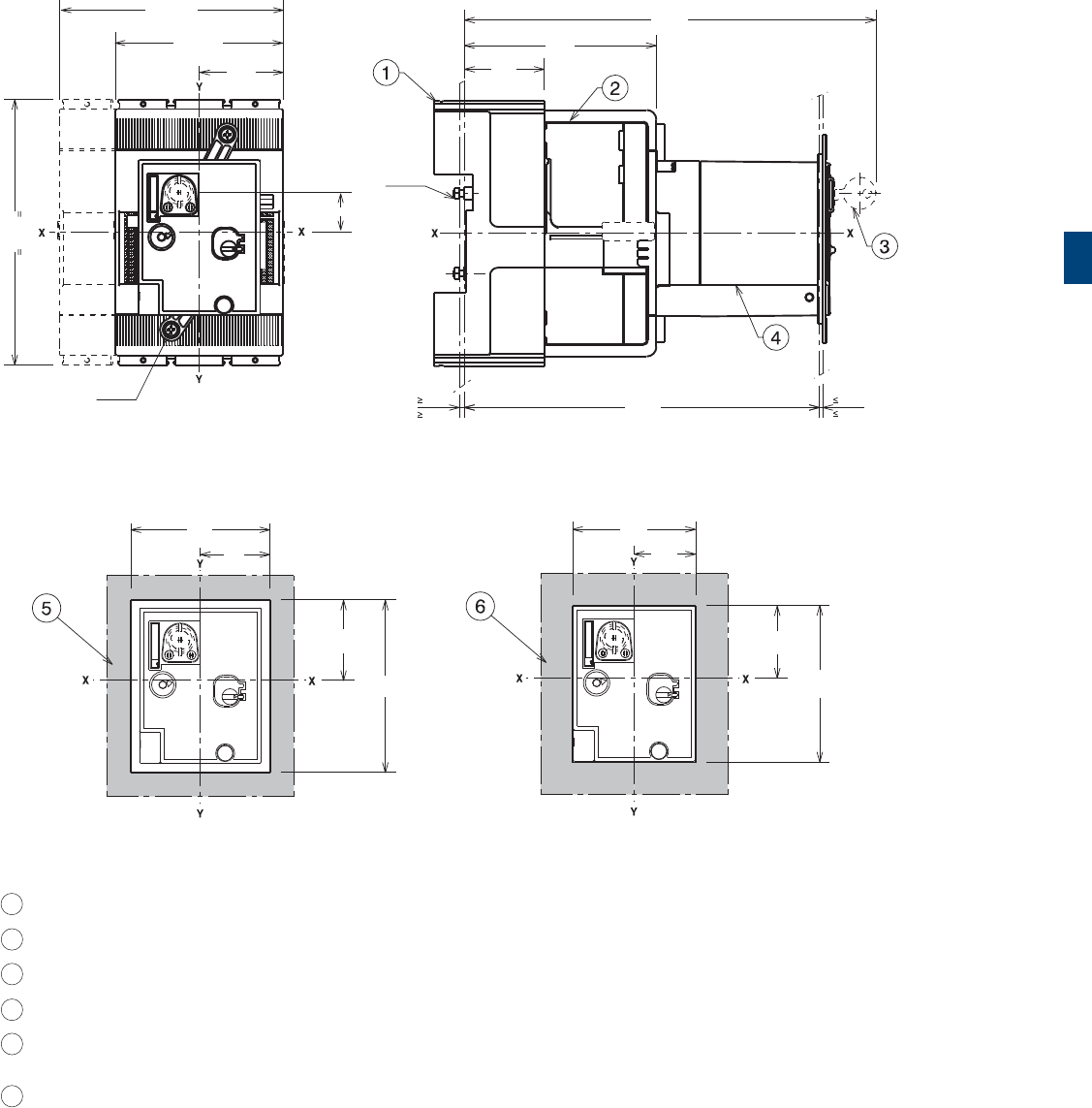

Motor operators
Motor operator with direct action - MOD
Type
Part number
MOD 24V DC KXTBMOD24
MOD 48...60V DC KXTBMOD48-60
MOD 110...125V AC/DC KXTBMOD110-125
MOD 220...250V AC/DC KXTBMOD220-250
MOD 380...440V AC KXTBMOD280-240
MOD 480...525V AC KXTBMOD480-525
Motor operator
Ordering codes for XT3 UL/CSA
Accessories
Connectors
Socket plug connector on the panel(1)
Type
Part number
Socket-plug connector with 3 PINS KXTAE3PINCON
Socket-plug connector with 6 PINS KXTAE6PINCON
Socket-plug connector with 9 PINS KXTAE9PINCON
Socket-plug connector with 15 PINS KXTAE15PINCON
(1)IEC rated only.
Socket-plug panel connector
Auxiliary position contacts - AUP
Type
Part number
Cabled version
AUP-I – Four racked-in contacts 250V for plug-in circuit breaker KXTAAUP250IN
AUP-I – Four racked-in contacts 24V DC for plug-in circuit breaker KXTAAUP24IN
AUP - Auxiliary position contacts
7
ABB catalog | 1SXP210002C0201 7/35

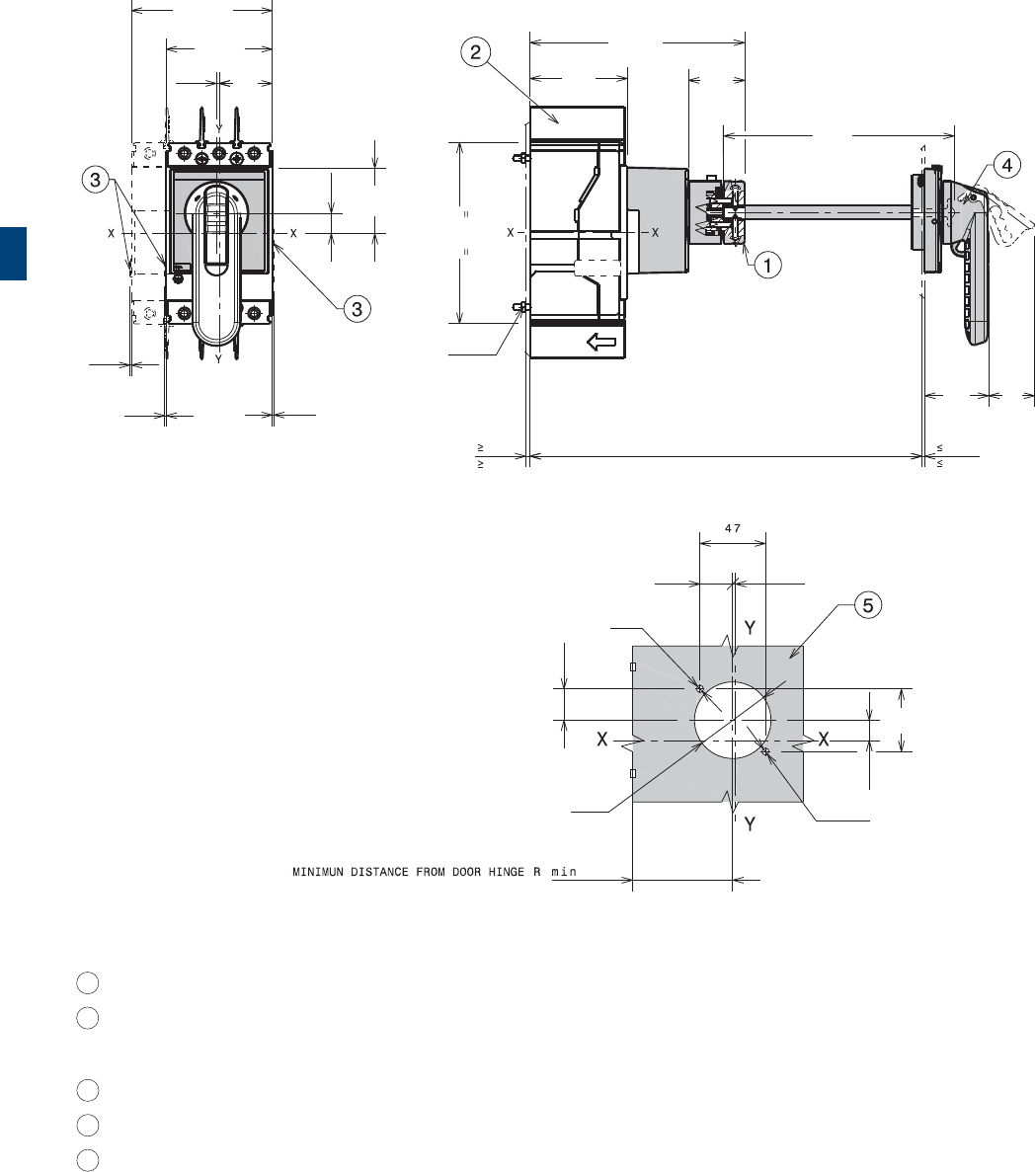

Rotary handle operating mechanisms
Rotary handle operating mechanisms
Type
Part number
RHD standard direct handle KXTBRHDSTFP
RHD emergency direct handle KXTBRHDEMFP
RHE standard extended handle KXTBRHESTFP
RHE emergency extended handle KXTBRHEEMFP
RHE standard extended handle with padlock(1) KXTBRHESTFPPLK
RHE emergency extended handle with padlock(1) KXTBRHEEMFPPLK
RHS-L standard left side handle KXTBRHSLSTFP
RHS-L emergency left side handle KXTBRHSLEMFP
RHS-R standard right side handle KXTBRHSRSTFP
RHS-R emergency right side handle KXTBRHSREMFP
Extended Handle Spare Parts
RHE_B base for extended handle KXTBRHEBFP
RHE_B base for extended handle with padlock(1) KXTBRHEBFPPLK
RHE_S 500mm shaft KXTARHES500
RHE_H standard extended handle KXTARHEHST
RHE_H emergency extended handle KXTARHEHEM
LH standard large handle, NEMA 1 KXTALHNDLST
LH emergency large handle, NEMA 1 KXTALHNDLEM
Standard Pistol Handle with reset function, 65mm, NEMA 3R, 12 OHB65J10B
Emergency Pistol Handle with reset function, 65mm, NEMA 3R, 12(1) OHY65J10B
Standard Pistol Handle with reset function, 65mm, NEMA 4, 4X(1) OHB65L10B
Emergency Pistol Handle with reset function, 65mm, NEMA 4, 4X(1) OHY65L10B
Standard Pistol Handle with reset function, 125mm, NEMA 3R, 12 OHB125J10B
Emergency Pistol Handle with reset function, 125mm, NEMA 3R, 12(1) OHY125J10B
Standard Pistol Handle with reset function, 125mm, NEMA 4, 4X(1) OHB125L10B
Emergency Pistol Handle with reset function, 125mm, NEMA 4, 4X(1) OHY125L10B
148mm Pistol Handle Shaft OXP10X148
225mm Pistol Handle Shaft OXP10X225
500mm Pistol Handle Shaft OXP10X500
(1)Consult ABB for availability.
Direct rotary handle
Extended rotary handle
IP54 Protection for extended rotary handle(1)
Type
Part number
IP54 protection for RHE KXTAERHEIP54
(1)IEC rated only.
Flange handle(1)
Type
Part number
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4) KXT3N12FLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4) KXT3N12FLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4) KXT3N12FLHDL10
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT3N4XFLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT3N4XFLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT3N4XFLHDL10
Flange Handle Spare Parts
Flange Handle only (NEMA 1, 3R, 12, 4) KXTAN12FLHDL
Flange Handle only (NEMA 1, 3R, 12, 4, 4X) KXTAN4XFLHDL
Flange Handle Hardware KXTAFLHDLHW
Flange Mounting Hardware KXTBFLMTHW
(1)Consult ABB for availability
IP54
7
7/36 1SXP210002C0201 | ABB catalog
Key lock on the rotary handle
Type
Part number
RHL Ronis key lock open, different keys, RHx KXTARHLDIF
RHL Ronis key lock open, same Type A keys, RHx KXTARHLA
RHL Ronis key lock open, same Type B keys, RHx KXTARHLB
RHL Ronis key lock open, same Type C keys, RHx KXTARHLC
RHL Ronis key lock open, same Type D keys, RHx KXTARHLD
RHL Ronis key lock open/closed, different keys, RHx KXTARHLOPCL
Mechanical interlock
Type
Part number
Chassis MIR-H KXTAMIRHR
Chassis MIR-V KXTAMIRVR
Plate XT1 F KXT1MIRPLF
Plate XT1 P KXT1MIRPLP
Plate XT3 F KXT3MIRPLF
Plate XT3 P KXT3MIRPLP
Key lock on the handle
Interlock
Ordering codes for XT3 UL/CSA
Accessories
Key lock on the circuit breaker
Type
Part number
KLC Ronis key lock open, different keys, removable in open position KXT3KLCCBDIF
KLC Ronis key lock open, same Type A keys, removable in open position KXT3KLCCBA
KLC Ronis key lock open, same Type B keys, removable in open position KXT3KLCCBB
KLC Ronis key lock open, same Type C keys, removable in open position KXT3KLCCBC
KLC Ronis key lock open, same Type D keys, removable in open position KXT3KLCCBD
KLC Ronis key lock open/closed, different keys, removable in both positions KXT3KLCCBOPCL
Locks
Padlock on the circuit breaker
Type
Part number
PLL removable lock with padlocks in open position KXTBPLLREM
PLL fixed lock with padlocks in open position KXTBPLLOP
PLL fixed lock with padlocks in open/closed position KXTBPLLOPCL
Fixed padlock
Key lock on the circuit breaker
Key lock on the motor(1)
Type
Part number
MOL-D Ronis key lock open, different keys KXTBEMOLDIF
MOL-S Ronis key lock open, same Type A keys KXTBEMOLA
MOL-S Ronis key lock open, same Type B keys KXTBEMOLB
MOL-S Ronis key lock open, same Type C keys KXTBEMOLC
MOL-S Ronis key lock open, same Type D keys KXTBEMOLD
(1)IEC rated only.
Sealable lock of thermal setting(1)
Type
Part number
Lock on thermal setting for TMA or MA trip units KXTAEAASEALREL
(1)IEC rated only.
Key lock on the motor
7
ABB catalog | 1SXP210002C0201 7/37
Terminals, terminal covers and phase barriers
Insulating terminal covers
Type 3p
Part number
4p
Part number
LTC low terminal covers KXT3LTC-3 KXT3LTC-4
HTC high terminal covers KXT3HTC-3 KXT3HTC-4
Phase barriers
Type 4pcs
Part number
6pcs
Part number
PB height 25mm/0.98in KXTBPB25-3 KXTBPB25-4
PB height 100mm/3.94in KXTBPB100-3 KXTBPB100-4
PB height 200mm/7.87in KXTBPB200-3 KXTBPB200-4
Terminal covers
Phase barriers

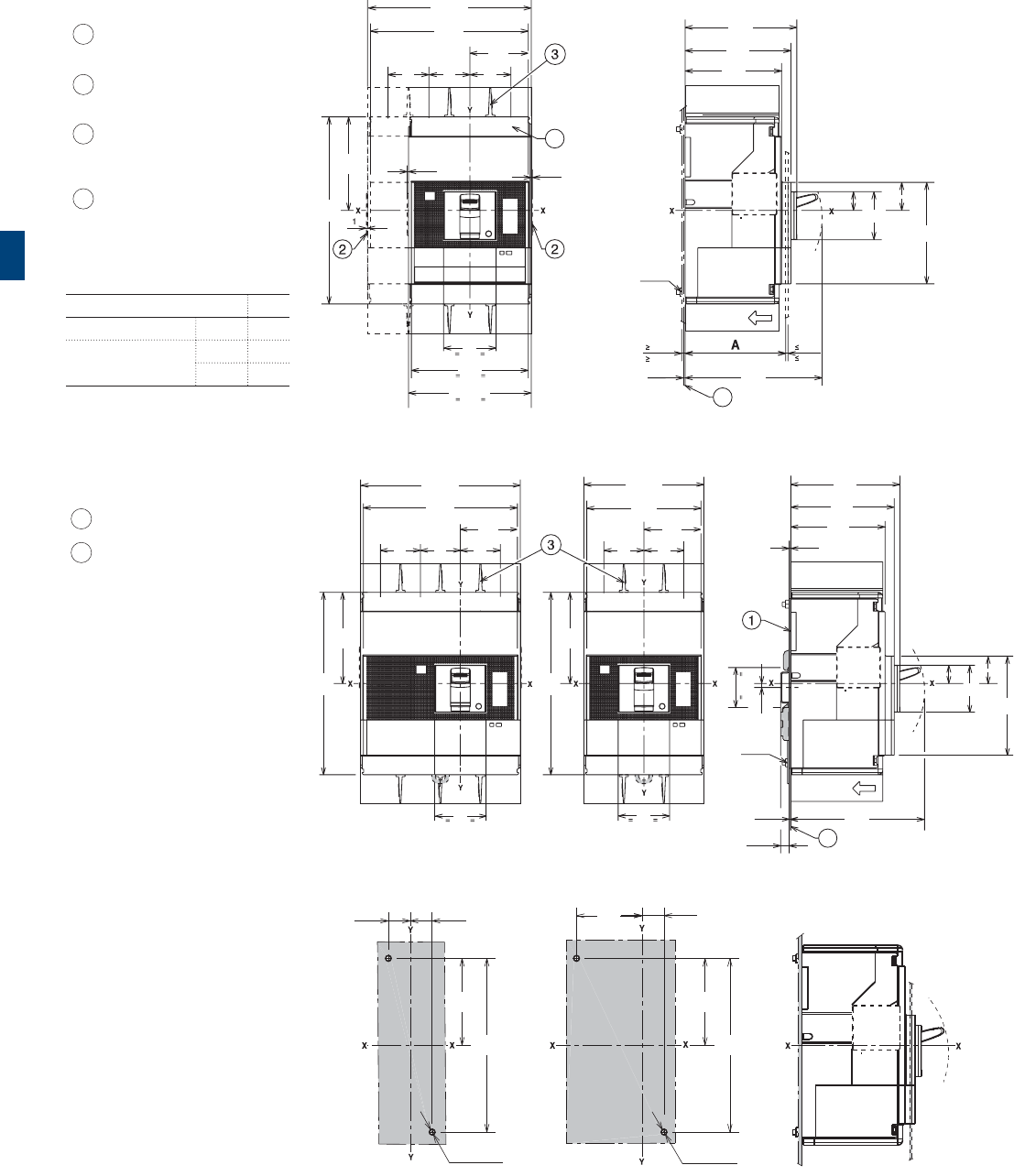

Residual current devices
Residual current devices
Type 3p
Part number
4p
Part number
RC inst(1) KXT3ERCINST-3 KXT3ERCINST-4
RC Sel(1) KXT3ERCSEL-3 KXT3ERCSEL-4
RC B Type(1) -KXT3ERCB-4
(1)IEC rated only.
Panel-type residual current relay(1)
Type
Part number
RCQ020/A 115-230V AC KXTAERCQ230
RCQ020/A 415V AC KXTAERCQ415
Toroid closed Ø 60mm KXTTETOR60
Toroid closed Ø 110mm KXTTETOR110
Toroid closed Ø 185mm KXTTETOR185
(1)IEC rated only.
Installation
Bracket for DIN rail mounting(1)
Type 3p
Part number
4p
Part number
KIT DIN50022 KXT3EDIN-3 KXT3EDIN-4
KIT DIN50022 XT3+RC Sel/RC Inst KXT3EDINRCPL KXT3EDINRCPL
(1)IEC rated only.
Sealable screws for terminal covers(1)
Type
Part number
Kit with two sealable screws KXTAESSEAL
(1)IEC rated only.
RC Inst / RC Sel
DIN guide
Sealable screw
7
ATS021
7/38 1SXP210002C0201 | ABB catalog

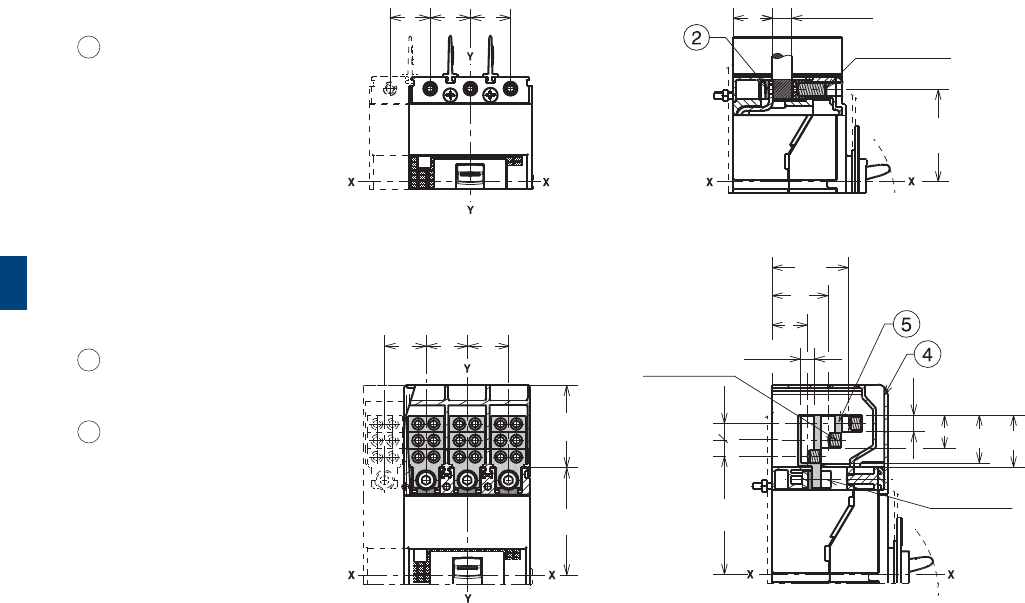

Terminals
Type 3 pcs
Part number
4 pcs
Part number
6 pcs
Part number
8 pcs
Part number
F Front terminals KXT3F-3PC KXT3F-4PC KXT3F-6PC KXT3F-8PC
EF Extended front terminals KXT3EF-3PC KXT3EF-4PC KXT3EF-6PC KXT3EF-8PC
ES Extended spread terminals KXT3ES-3PC KXT3ES-4PC KXT3ES-6PC KXT3ES-8PC
FC CuAl Terminals for CuAl cables 100A,
14-1/0 AWG, 1x2.5…50mm2(1) KXT3CUAL1-3PC KXT3CUAL1-4PC KXT3CUAL1-6PC KXT3CUAL1-8PC
FC CuAl Terminals for CuAl cables w/Control Tap 100A,
14-1/0 AWG, 1x2.5…50mm2(1) KXT3CUAL1C-3PC KXT3CUAL1C-4PC - -
FC CuAl Terminals for CuAl cables 225A,
4 AWG -300 kcmil, 1x35…150mm2(1) KXT3CUAL2-3PC KXT3CUAL2-4PC KXT3CUAL2-6PC KXT3CUAL2-8PC
FC CuAl Terminals for CuAl cables w/Control Tap 225A,
4 AWG-300 kcmil, 1x35…150mm2(1) KXT3CUAL2C-3PC KXT3CUAL2C-4PC - -
FC Cu Terminals for Cu cables, 10-250 AWG, 1x6…185mm2KXT3CU-3PC KXT3CU-4PC KXT3CU-6PC KXT3CU-8PC
MC Multi cable terminals for Cu cables, 6x12-2 AWG, 6x2.5…35mm2KXT3MC-3PC KXT3MC-4PC KXT3MC-6PC KXT3MC-8PC
R Rear adjustable terminals(2) KXT3ER-3PC KXT3ER-4PC KXT3ER-6PC KXT3ER-8PC
R-RC Rear terminal for residual current(2) -KXT3ERRC-4PC--
FB Flexibar terminals(2) KXT3EFB-3PC KXT3EFB-4PC KXT3EFB-6PC KXT3EFB-8PC
(1)Consult ABB for availability.
(2)IEC rated only.

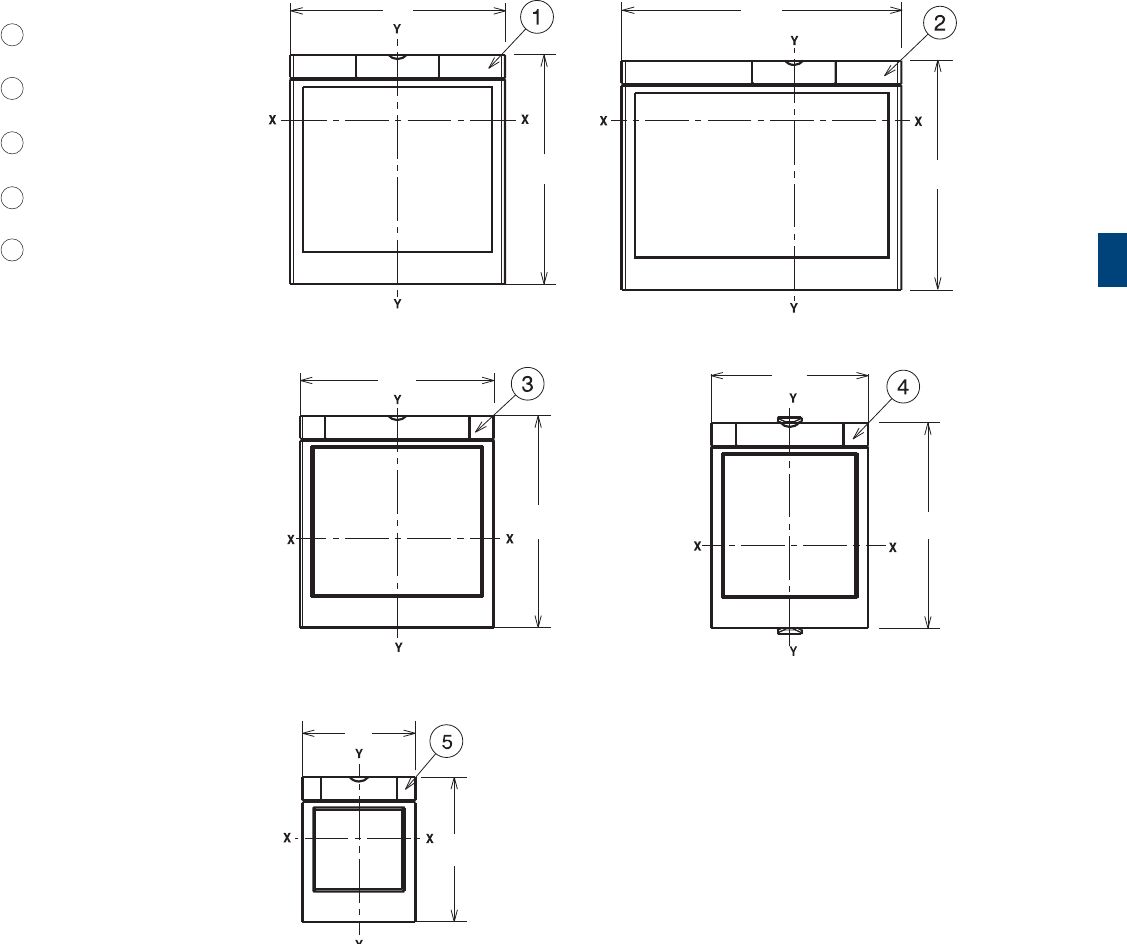

Flanges for the compartment door
Type 3p
Part number
4p
Part number
Small "optional" flange for circuit breaker KXTAEFLASMFP KXTAEFLASMFP
Large "standard" flange for circuit breaker KXT3EFLAFP-3 KXT3EFLAFP-4
Flange for MOD KXTBEFLAMOD KXTBEFLAMOD
Flange for direct handle RHD KXTAEFLARHDFP KXTAEFLARHDFP
Flange for residual current RC Sel / Inst KXT3EFLARCFP-3 KXT3EFLARCFP-4
(1)IEC rated only.
EF terminal
FCCuAl terminal
Flange
Automatic transfer devices
ATS021 - ATS022 automatic transfer devices(1)
Type
Part number
ATS021 ATS021
ATS022 ATS022
(1)IEC rated only.
Spare parts
Type Fixed/Plugin-in
Part number
SA RC Sel/RC B Type - opening solenoid for the residual current device(1) KXT3ESARCFP
SA RC B Type - Opening solenoid for the residual current device(1) KXT3ESARCFPB
AUX-C - Loose cabled auxiliary contact 250V AC(2) KXTAAUXCFP
AUX-C - Loose cabled auxiliary contact 24V DC(2) KXTAAUXCDFP
AUX-C - Loose cabled auxiliary contact 250V AC HD for 600V KXTAAUXCFPHD
AUX-C - Loose cabled auxiliary contact 24V DC HD for 600V KXTAAUXCDFPHD
(1)IEC rated only
(2)Un-numbered cables
Ordering codes for XT3 UL/CSA
Accessories
7
ABB catalog | 1SXP210002C0201 7/39
XT4 250A TMF - Fixed (F) - 2 poles - Front terminals (F) - UL/CSA
Thermal magnetic trip unit Int Rtng
(480 V)
N
25kA
Part number
Type In I3
TMF 25 400 XT4NU2025AFF000XXX
30 400 XT4NU2030AFF000XXX
35 400 XT4NU2035AFF000XXX
40 400 XT4NU2040AFF000XXX
50 500 XT4NU2050AFF000XXX
60 600 XT4NU2060AFF000XXX
70 700 XT4NU2070AFF000XXX
80 800 XT4NU2080AFF000XXX
90 900 XT4NU2090AFF000XXX
100 1000 XT4NU2100AFF000XXX
110 1100 XT4NU2110AFF000XX X
125 1250 XT4NU2125AFF000XXX
150 1500 XT4NU2150AFF000XXX
175 1750 XT4NU2175AFF000XXX
200 2000 XT4NU2200AFF000XXX
225 2250 XT4NU2225AFF000XXX
250 2500 XT4NU2250AFF000XXX
Ordering codes for XT4 UL/CSA
Circuit breakers
XT4 250A TMF/TMA - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Thermomagnetic trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
H
65 kA
Part number
L
100 kA
Part number
V
150 k A
Part number
X
200 kA
Part number
Type In I3
TMF 25 400 XT4NU3025AFF000XXX XT4SU3025AFF000XXX XT4HU3025AFF000XXX XT4LU3025AFF000XXX XT4VU3025AFF000XXX XT4XU3025AFF000XXX
30 400 XT4NU3030AFF000XXX XT4SU3030AFF000XXX XT4HU3030AFF000XXX XT4LU3030AFF000XXX XT4VU3030AFF000XXX XT4XU3030AFF000XXX
35 400 XT4NU3035AFF000XXX XT4SU3035AFF000XXX XT4HU3035AFF000XXX XT4LU3035AFF000XXX XT4VU3035AFF000XXX XT4XU3035AFF000XXX
40 400 XT4NU3040AFF000XXX XT4SU3040AFF000XXX XT4HU3040AFF000XXX XT4LU3040AFF000XXX XT4VU3040AFF000XXX XT4XU3040AFF000XXX
50 500 XT4NU3050AFF000XXX XT4SU3050AFF000XXX XT4HU3050AFF000XXX XT4LU3050AFF000XXX XT4VU3050AFF000XXX XT4XU3050AFF000XXX
60 600 XT4NU3060AFF000XXX XT4SU3060AFF000XXX XT4HU3060AFF000XXX XT4LU3060AFF000XXX XT4VU3060AFF000XXX XT4XU3060AFF000XXX
70 700 XT4NU3070AFF000XXX XT4SU3070AFF000XXX XT4HU3070AFF000XXX XT4LU3070AFF000XXX XT4VU3070AFF000XXX XT4XU3070AFF000XXX
80 800 XT4NU3080AFF000XXX XT4SU3080AFF000XXX XT4HU3080AFF000XXX XT4LU3080AFF000XXX XT4VU3080AFF000XXX XT4XU3080AFF000XXX
90 900 XT4NU3090AFF000XXX XT4SU3090AFF000XXX XT4HU3090AFF000XXX XT4LU3090AFF000XXX XT4VU3090AFF000XXX XT4XU3090AFF000XXX
100 1000 XT4NU3100AFF000XXX XT4SU3100AFF000XXX XT4HU3100AFF000XXX XT4LU3100AFF000XXX XT4VU3100AFF000XXX XT4XU3100AFF000XXX
110 1100 XT4NU3110AFF000XXX XT4SU3110AFF000XXX XT4HU3110AFF000XXX XT4LU3110AFF000XXX XT4VU3110AFF000XXX XT4XU3110AFF000XXX
125 1250 XT4NU3125AFF000XXX XT4SU3125AFF000XXX XT4HU3125AFF000XXX XT4LU3125AFF000XXX XT4VU3125AFF000XXX XT4XU3125AFF000XXX
150 1500 XT4NU3150AFF000XXX XT4SU3150AFF000XXX XT4HU3150AFF000XXX XT4LU3150AFF000XXX XT4VU3150AFF000XXX XT4XU3150AFF000XXX
175 1750 XT4NU3175AFF000XXX XT4SU3175AFF000XXX XT4HU3175AFF000XXX XT4LU3175AFF000XXX XT4VU3175AFF000XXX XT4XU3175AFF000XXX
200 2000 XT4NU3200AFF000XXX XT4SU3200AFF000XXX XT4HU3200AFF000XXX XT4LU3200AFF000XXX XT4VU3200AFF000XXX XT4XU3200AFF000XXX
225 2250 XT4NU3225AFF000XXX XT4SU3225AFF000XXX XT4HU3225AFF000XXX XT4LU3225AFF000XXX XT4VU3225AFF000XXX XT4XU3225AFF000XXX
250 2500 XT4NU3250AFF000XXX XT4SU3250AFF000XXX XT4HU3250AFF000XXX XT4LU3250AFF000XXX XT4VU3250AFF000XXX XT4XU3250AFF000XXX
TMA 56…80 400…800 XT4NU3080BFF000XXX XT4SU3080BFF000XXX XT4HU3080BFF000XXX XT4LU3080BFF000XXX XT4VU3080BFF000XXX XT4XU3080BFF000XXX
63…90 450…900 XT4NU3090BFF000XXX XT4SU3090BFF000XXX XT4HU3090BFF000XXX XT4LU3090BFF000XXX XT4VU3090BFF000XXX XT4XU3090BFF000XXX
70100 5001000 XT4NU3100BFF000XXX XT4SU3100BFF000XXX XT4HU3100BFF000XXX XT4LU3100BFF000XXX XT4VU3100BFF000XXX XT4XU3100BFF000XXX
77110 550…1100 XT4NU3110BFF000XXX XT4SU3110BFF000XXX XT4HU3110BFF000XXX XT4LU3110BFF000XXX XT4VU3110BFF000XXX XT4XU3110BFF000XXX
87.5125 6251250 XT4NU3125BFF000XXX XT4SU3125BFF000XXX XT4HU3125BFF000XXX XT4LU3125BFF000XXX XT4VU3125BFF000XXX XT4XU3125BFF000XXX
105150 7501500 XT4NU3150BFF000XXX XT4SU3150BFF000XXX XT4HU3150BFF000XXX XT4LU3150BFF000XXX XT4VU3150BFF000XXX XT4XU3150BFF000XXX
122.5175 875…1750 XT4NU3175BFF000XXX XT4SU3175BFF000XXX XT4HU3175BFF000XXX XT4LU3175BFF000XXX XT4VU3175BFF000XXX XT4XU3175BFF000XXX
140…200 1000…2000 XT4NU3200BFF000XXX XT4SU3200BFF000XXX XT4HU3200BFF000XXX XT4LU3200BFF000XXX XT4VU3200BFF000XXX XT4XU3200BFF000XXX
157.5…225 1125…2250 XT4NU3225BFF000XXX XT4SU3225BFF000XXX XT4HU3225BFF000XXX XT4LU3225BFF000XXX XT4VU3225BFF000XXX XT4XU3225BFF000XXX
175…250 1250…2500 XT4NU3250BFF000XXX XT4SU3250BFF000XXX XT4HU3250BFF000XXX XT4LU3250BFF000XXX XT4VU3250BFF000XXX XT4XU3250BFF000XXX
7
7/40 1SXP210002C0201 | ABB catalog
Ordering codes for XT4 UL/CSA
Circuit breakers
XT4 250A TMF/TMA - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
Thermomagnetic trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
L
100kA
Part number
V
150kA
Part number
X
200kA
Part number
Type In I3
TMF 25 400 XT4NU4025AFF000XXX XT4SU4025AFF000XXX XT4HU4025AFF000XXX XT4LU4025AFF000XXX XT4VU4025AFF000XXX XT4XU4025AFF000XXX
30 400 XT4NU4030AFF000XXX XT4SU4030AFF000XXX XT4HU4030AFF000XXX XT4LU4030AFF000XXX XT4VU4030AFF000XXX XT4XU4030AFF000XXX
35 400 XT4NU4035AFF000XXX XT4SU4035AFF000XXX XT4HU4035AFF000XXX XT4LU4035AFF000XXX XT4VU4035AFF000XXX XT4XU4035AFF000XXX
40 400 XT4NU4040AFF000XXX XT4SU4040AFF000XXX XT4HU4040AFF000XXX XT4LU4040AFF000XXX XT4VU4040AFF000XXX XT4XU4040AFF000XXX
50 500 XT4NU4050AFF000XXX XT4SU4050AFF000XXX XT4HU4050AFF000XXX XT4LU4050AFF000XXX XT4VU4050AFF000XXX XT4XU4050AFF000XXX
60 600 XT4NU4060AFF000XXX XT4SU4060AFF000XXX XT4HU4060AFF000XXX XT4LU4060AFF000XXX XT4VU4060AFF000XXX XT4XU4060AFF000XXX
70 700 XT4NU4070AFF000XXX XT4SU4070AFF000XXX XT4HU4070AFF000XXX XT4LU4070AFF000XXX XT4VU4070AFF000XXX XT4XU4070AFF000XXX
TMA 56…80 400…800 XT4NU4080BFF000XXX XT4SU4080BFF000XXX XT4HU4080BFF000XXX XT4LU4080BFF000XXX XT4VU4080BFF000XXX XT4XU4080BFF000XXX
63…90 450…900 XT4NU4090BFF000XXX XT4SU4090BFF000XXX XT4HU4090BFF000XXX XT4LU4090BFF000XXX XT4VU4090BFF000XXX XT4XU4090BFF000XXX
70100 5001000 XT4NU4100BFF000XXX XT4SU4100BFF000XXX XT4HU4100BFF000XXX XT4LU4100BFF000XXX XT4VU4100BFF000XXX XT4XU4100BFF000XXX
77110 550…1100 XT4NU4110BFF000XXX XT4SU4110BFF000XXX XT4HU4110BFF000XXX XT4LU4110BFF000XXX XT4VU4110BFF000XXX XT4XU4110BFF000XXX
87.5125 6251250 XT4NU4125BFF000XXX XT4SU4125BFF000XXX XT4HU4125BFF000XXX XT4LU4125BFF000XXX XT4VU4125BFF000XXX XT4XU4125BFF000XXX
105150 7501500 XT4NU4150BFF000XXX XT4SU4150BFF000XXX XT4HU4150BFF000XXX XT4LU4150BFF000XXX XT4VU4150BFF000XXX XT4XU4150BFF000XXX
122.5175 875…1750 XT4NU4175BFF000XXX XT4SU4175BFF000XXX XT4HU4175BFF000XXX XT4LU4175BFF000XXX XT4VU4175BFF000XXX XT4XU4175BFF000XXX
140…200 1000…2000 XT4NU4200BFF000XXX XT4SU4200BFF000XXX XT4HU4200BFF000XXX XT4LU4200BFF000XXX XT4VU4200BFF000XXX XT4XU4200BFF000XXX
157.5…225 1125…2250 XT4NU4225BFF000XXX XT4SU4225BFF000XXX XT4HU4225BFF000XXX XT4LU4225BFF000XXX XT4VU4225BFF000XXX XT4XU4225BFF000XXX
175…250 1250…2500 XT4NU4250BFF000XXX XT4SU4250BFF000XXX XT4HU4250BFF000XXX XT4LU4250BFF000XXX XT4VU4250BFF000XXX XT4XU4250BFF000XXX
XT4 250A MCP (MA) - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Magnetic trip unit Int Rtng
(480 V)
H
65kA
Part number
Type In I3
MCP 25 75…275 XT4HU3025MFF000XXX
50 150…550 XT4HU3050MFF000XXX
80 400…800 XT4HU3080MFF000XXX
100 500…7000 XT4HU3100MFF000XXX
110 550…1100 XT4HU3110MFF000XXX
125 625…1250 XT4HU3125MFF000XXX
150 7501500 XT4HU3150MFF000XXX
175 875…1750 XT4HU3175MFF000XXX
200 1000…2000 XT4HU3200MFF000XXX
225 1125…2250 XT4HU3225MFF000XXX
250 1250…2500 XT4HU3250MFF000XXX
7
ABB catalog | 1SXP210002C0201 7/41
XT4 250A Ekip - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
Ekip electronic
trip units
Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
L
100kA
Part number
V
150kA
Part number
X(1)
200kA
Part number
Type In
Ekip LS/I 40 XT4NU3040EFF000XXX XT4SU3040EFF000XXX XT4HU3040EFF000XXX XT4LU3040EFF000XXX XT4VU3040EFF000XXX XT4XU3040EFF000XXX
60 XT4NU3060EFF000XXX XT4SU3060EFF000XXX XT4HU3060EFF000XXX XT4LU3060EFF000XXX XT4VU3060EFF000XXX XT4XU3060EFF000XXX
100 XT4NU3100EFF000XXX XT4SU3100EFF000XXX XT4HU3100EFF000XXX XT4LU3100EFF000XXX XT4VU3100EFF000XXX XT4XU3100EFF000XXX
150 XT4NU3150EFF000XXX XT4SU3150EFF000XXX XT4HU3150EFF000XXX XT4LU3150EFF000XXX XT4VU3150EFF000XXX XT4XU3150EFF000XXX
225 XT4NU3225EFF000XXX XT4SU3225EFF000XXX XT4HU3225EFF000XXX XT4LU3225EFF000XXX XT4VU3225EFF000XXX XT4XU3225EFF000XXX
250 XT4NU3250EFF000XXX XT4SU3250EFF000XXX XT4HU3250EFF000XXX XT4LU3250EFF000XXX XT4VU3250EFF000XXX XT4XU3250EFF000XXX
Ekip LSI 40 XT4NU3040FFF000XXX XT4SU3040FFF000XXX XT4HU3040FFF000XXX XT4LU3040FFF000XXX XT4VU3040FFF000XXX XT4XU3040FFF000XXX
60 XT4NU3060FFF000XXX XT4SU3060FFF000XXX XT4HU3060FFF000XXX XT4LU3060FFF000XXX XT4VU3060FFF000XXX XT4XU3060FFF000XXX
100 XT4NU3100FFF000XXX XT4SU3100FFF000XXX XT4HU3100FFF000XXX XT4LU3100FFF000XXX XT4VU3100FFF000XXX XT4XU3100FFF000XXX
150 XT4NU3150FFF000XXX XT4SU3150FFF000XXX XT4HU3150FFF000XXX XT4LU3150FFF000XXX XT4VU3150FFF000XXX XT4XU3150FFF000XXX
225 XT4NU3225FFF000XXX XT4SU3225FFF000XXX XT4HU3225FFF000XXX XT4LU3225FFF000XXX XT4VU3225FFF000XXX XT4XU3225FFF000XXX
250 XT4NU3250FFF000XXX XT4SU3250FFF000XXX XT4HU3250FFF000XXX XT4LU3250FFF000XXX XT4VU3250FFF000XXX XT4XU3250FFF000XXX
Ekip LSIG 40 XT4NU3040GFF000XXX XT4SU3040GFF000XXX XT4HU3040GFF000XXX XT4LU3040GFF000XXX XT4VU3040GFF000XXX XT4XU3040GFF000XXX
60 XT4NU3060GFF000XXX XT4SU3060GFF000XXX XT4HU3060GFF000XXX XT4LU3060GFF000XXX XT4VU3060GFF000XXX XT4XU3060GFF000XXX
100 XT4NU3100GFF000XXX XT4SU3100GFF000XXX XT4HU3100GFF000XXX XT4LU3100GFF000XXX XT4VU3100GFF000XXX XT4XU3100GFF000XXX
150 XT4NU3150GFF000XXX XT4SU3150GFF000XXX XT4HU3150GFF000XXX XT4LU3150GFF000XXX XT4VU3150GFF000XXX XT4XU3150GFF000XXX
225 XT4NU3225GFF000XXX XT4SU3225GFF000XXX XT4HU3225GFF000XXX XT4LU3225GFF000XXX XT4VU3225GFF000XXX XT4XU3225GFF000XXX
250 XT4NU3250GFF000XXX XT4SU3250GFF000XXX XT4HU3250GFF000XXX XT4LU3250GFF000XXX XT4VU3250GFF000XXX XT4XU3250GFF000XXX
Ekip E-LSIG 40 XT4NU3040HFF000XXX XT4SU3040HFF000XXX XT4HU3040HFF000XXX XT4LU3040HFF000XXX XT4VU3040HFF000XXX -
60 XT4NU3060HFF000XXX XT4SU3060HFF000XXX XT4HU3060HFF000XXX XT4LU3060HFF000XXX XT4VU3060HFF000XXX -
100 XT4NU3100HFF000XXX XT4SU3100HFF000XXX XT4HU3100HFF000XXX XT4LU3100HFF000XXX XT4VU3100HFF000XXX -
150 XT4NU3150HFF000XXX XT4SU3150HFF000XXX XT4HU3150HFF000XXX XT4LU3150HFF000XXX XT4VU3150HFF000XXX -
225 XT4NU3225HFF000XXX XT4SU3225HFF000XXX XT4HU3225HFF000XXX XT4LU3225HFF000XXX XT4VU3225HFF000XXX -
250 XT4NU3250HFF000XXX XT4SU3250HFF000XXX XT4HU3250HFF000XXX XT4LU3250HFF000XXX XT4VU3250HFF000XXX -
Ekip I 40 XT4NU3040JFF000XXX XT4SU3040JFF000XXX XT4HU3040JFF000XXX XT4LU3040JFF000XXX XT4VU3040JFF000XXX XT4XU3040JFF000XXX
60 XT4NU3060JFF000XXX XT4SU3060JFF000XXX XT4HU3060JFF000XXX XT4LU3060JFF000XXX XT4VU3060JFF000XXX XT4XU3060JFF000XXX
100 XT4NU3100JFF000XXX XT4SU3100JFF000XXX XT4HU3100JFF000XXX XT4LU3100JFF000XXX XT4VU3100JFF000XXX XT4XU3100JFF000XXX
150 XT4NU3150JFF000XXX XT4SU3150JFF000XXX XT4HU3150JFF000XXX XT4LU3150JFF000XXX XT4VU3150JFF000XXX XT4XU3150JFF000XXX
225 XT4NU3225JFF000XXX XT4SU3225JFF000XXX XT4HU3225JFF000XXX XT4LU3225JFF000XXX XT4VU3225JFF000XXX XT4XU3225JFF000XXX
250 XT4NU3250JFF000XXX XT4SU3250JFF000XXX XT4HU3250JFF000XXX XT4LU3250JFF000XXX XT4VU3250JFF000XXX XT4XU3250JFF000XXX
Ekip M-LIU 40 -- XT4HU3040LFF000XXX - --
60 -- XT4HU3060LFF000XXX - --
100 -- XT4HU3100LFF000XXX - --
150 -- XT4HU3150LFF000XXX - --
(1)Consult ABB for availability.
7
7/42 1SXP210002C0201 | ABB catalog
Ordering codes for XT4 UL/CSA
Circuit breakers
XT4 250A Ekip - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
Ekip electronic
trip units
Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
L
100kA
Part number
V
150kA
Part number
X(1)
200kA
Part number
Type In
Ekip LS/I 40 XT4NU4040EFF000XXX XT4SU4040EFF000XXX XT4HU4040EFF000XXX XT4LU4040EFF000XXX XT4VU4040EFF000XXX XT4XU4040EFF000XXX
60 XT4NU4060EFF000XXX XT4SU4060EFF000XXX XT4HU4060EFF000XXX XT4LU4060EFF000XXX XT4VU4060EFF000XXX XT4XU4060EFF000XXX
100 XT4NU4100EFF000XXX XT4SU4100EFF000XXX XT4HU4100EFF000XXX XT4LU4100EFF000XXX XT4VU4100EFF000XXX XT4XU4100EFF000XXX
150 XT4NU4150EFF000XXX XT4SU4150EFF000XXX XT4HU4150EFF000XXX XT4LU4150EFF000XXX XT4VU4150EFF000XXX XT4XU4150EFF000XXX
225 XT4NU4225EFF000XXX XT4SU4225EFF000XXX XT4HU4225EFF000XXX XT4LU4225EFF000XXX XT4VU4225EFF000XXX XT4XU4225EFF000XXX
250 XT4NU4250EFF000XXX XT4SU4250EFF000XXX XT4HU4250EFF000XXX XT4LU4250EFF000XXX XT4VU4250EFF000XXX XT4XU4250EFF000XXX
Ekip LSI 40 XT4NU4040FFF000XXX XT4SU4040FFF000XXX XT4HU4040FFF000XXX XT4LU4040FFF000XXX XT4VU4040FFF000XXX XT4XU4040FFF000XXX
60 XT4NU4060FFF000XXX XT4SU4060FFF000XXX XT4HU4060FFF000XXX XT4LU4060FFF000XXX XT4VU4060FFF000XXX XT4XU4060FFF000XXX
100 XT4NU4100FFF000XXX XT4SU4100FFF000XXX XT4HU4100FFF000XXX XT4LU4100FFF000XXX XT4VU4100FFF000XXX XT4XU4100FFF000XXX
150 XT4NU4150FFF000XXX XT4SU4150FFF000XXX XT4HU4150FFF000XXX XT4LU4150FFF000XXX XT4VU4150FFF000XXX XT4XU4150FFF000XXX
225 XT4NU4225FFF000XXX XT4SU4225FFF000XXX XT4HU4225FFF000XXX XT4LU4225FFF000XXX XT4VU4225FFF000XXX XT4XU4225FFF000XXX
250 XT4NU4250FFF000XXX XT4SU4250FFF000XXX XT4HU4250FFF000XXX XT4LU4250FFF000XXX XT4VU4250FFF000XXX XT4XU4250FFF000XXX
Ekip LSIG 40 XT4NU4040GFF000XXX XT4SU4040GFF000XXX XT4HU4040GFF000XXX XT4LU4040GFF000XXX XT4VU4040GFF000XXX XT4XU4040GFF000XXX
60 XT4NU4060GFF000XXX XT4SU4060GFF000XXX XT4HU4060GFF000XXX XT4LU4060GFF000XXX XT4VU4060GFF000XXX XT4XU4060GFF000XXX
100 XT4NU4100GFF000XXX XT4SU4100GFF000XXX XT4HU4100GFF000XXX XT4LU4100GFF000XXX XT4VU4100GFF000XXX XT4XU4100GFF000XXX
150 XT4NU4150GFF000XXX XT4SU4150GFF000XXX XT4HU4150GFF000XXX XT4LU4150GFF000XXX XT4VU4150GFF000XXX XT4XU4150GFF000XXX
225 XT4NU4225GFF000XXX XT4SU4225GFF000XXX XT4HU4225GFF000XXX XT4LU4225GFF000XXX XT4VU4225GFF000XXX XT4XU4225GFF000XXX
250 XT4NU4250GFF000XXX XT4SU4250GFF000XXX XT4HU4250GFF000XXX XT4LU4250GFF000XXX XT4VU4250GFF000XXX XT4XU4250GFF000XXX
Ekip E-LSIG 40 XT4NU4040HFF000XXX XT4SU4040HFF000XXX XT4HU4040HFF000XXX XT4LU4040HFF000XXX XT4VU4040HFF000XXX -
60 XT4NU4060HFF000XXX XT4SU4060HFF000XXX XT4HU4060HFF000XXX XT4LU4060HFF000XXX XT4VU4060HFF000XXX -
100 XT4NU4100HFF000XXX XT4SU4100HFF000XXX XT4HU4100HFF000XXX XT4LU4100HFF000XXX XT4VU4100HFF000XXX -
150 XT4NU4150HFF000XXX XT4SU4150HFF000XXX XT4HU4150HFF000XXX XT4LU4150HFF000XXX XT4VU4150HFF000XXX -
225 XT4NU4225HFF000XXX XT4SU4225HFF000XXX XT4HU4225HFF000XXX XT4LU4225HFF000XXX XT4VU4225HFF000XXX -
250 XT4NU4250HFF000XXX XT4SU4250HFF000XXX XT4HU4250HFF000XXX XT4LU4250HFF000XXX XT4VU4250HFF000XXX -
Ekip I 40 XT4NU4040JFF000XXX XT4SU4040JFF000XXX XT4HU4040JFF000XXX XT4LU4040JFF000XXX XT4VU4040JFF000XXX XT4XU4040JFF000XXX
60 XT4NU4060JFF000XXX XT4SU4060JFF000XXX XT4HU4060JFF000XXX XT4LU4060JFF000XXX XT4VU4060JFF000XXX XT4XU4060JFF000XXX
100 XT4NU4100JFF000XXX XT4SU4100JFF000XXX XT4HU4100JFF000XXX XT4LU4100JFF000XXX XT4VU4100JFF000XXX XT4XU4100JFF000XXX
150 XT4NU4150JFF000XXX XT4SU4150JFF000XXX XT4HU4150JFF000XXX XT4LU4150JFF000XXX XT4VU4150JFF000XXX XT4XU4150JFF000XXX
225 XT4NU4225JFF000XXX XT4SU4225JFF000XXX XT4HU4225JFF000XXX XT4LU4225JFF000XXX XT4VU4225JFF000XXX XT4XU4225JFF000XXX
250 XT4NU4250JFF000XXX XT4SU4250JFF000XXX XT4HU4250JFF000XXX XT4LU4250JFF000XXX XT4VU4250JFF000XXX XT4XU4250JFF000XXX
(1)Consult ABB for availability.
XT4 250A switch - Fixed (F) - 3 poles - Front terminals (F) - UL/CSA
No trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
L
100kA
Part number
V
150kA
Part number
Type In Mag. Override
XT4-D 250 2500 XT4NU3250DFF000XXX XT4SU3250DFF000XXX XT4HU3250DFF000XXX XT4LU3250DFF000XXX XT4VU3250DFF000XXX
XT4 250A switch - Fixed (F) - 4 poles - Front terminals (F) - UL/CSA
No trip unit Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
L
100kA
Part number
V
150kA
Part number
Type In Mag. Override
XT4-D 250 2500 XT4NU4250DFF000XXX XT4SU4250DFF000XXX XT4HU4250DFF000XXX XT4LU4250DFF000XXX XT4VU4250DFF000XXX
7
ABB catalog | 1SXP210002C0201 7/43
XT4 250A Breaking part - UL/CSA
Type Int Rtng
(480 V)
N
25kA
Part number
S
35kA
Part number
H
65kA
Part number
L
100kA
Part number
V
150kA
Part number
XT4 250A breaking part - 3p KXT4BP3N250 KXT4BP3S250 KXT4BP3H250 KXT4BP3L250 KXT4BP3V250
XT4 250A breaking part - 4p KXT4BP4N250 KXT4BP4S250 KXT4BP4H250 KXT4BP4L250 KXT4BP4V250
XT4 250A Loose trip unit - UL/CSA
Thermal magnetic trip unit 3p 4p
Type In I3Part number Part number
TMF 25 400 KXT4TU3TMF25 KXT4TU4TMF25
30 400 KXT4TU3TMF30 KXT4TU4TMF30
35 400 KXT4TU3TMF35 KXT4TU4TMF35
40 400 KXT4TU3TMF40 KXT4TU4TMF40
50 500 KXT4TU3TMF50 KXT4TU4TMF50
60 600 KXT4TU3TMF60 KXT4TU4TMF60
70 700 KXT4TU3TMF70 KXT4TU4TMF70
80 800 KXT4TU3TMF80 -
90 900 KXT4TU3TMF90 -
100 1000 K XT4TU3TMF100 -
110 110 K X T4T U3TMF110 -
125 1250 KXT4TU3TMF125 -
150 1500 KXT4TU3TMF150 -
175 1750 KXT4TU3TMF175 -
200 2000 KXT4TU3TMF200 -
225 2250 KXT4TU3TMF225 -
250 2500 KXT4TU3TMF250 -
TMA 56…80 400…800 KXT4TU3TMA80 KXT4TU4TMA80
63…90 450…900 KXT4TU3TMA90 KXT4TU4TMA90
70100 500…1000 KXT4TU3TMA100 KXT4TU4TMA100
77110 5501100 KXT4TU3TMA110 KXT4TU4TMA110
87.5…125 625…1250 KX T4TU3TMA125 K XT4TU4TMA125
105150 7501500 KXT4TU3TMA150 KXT4TU4TMA150
122.5…175 8751750 KXT4TU3TMA175 KXT4TU4TMA175
140…200 1000…2000 KXT4TU3TMA200 KXT4TU4TMA200
157.5…225 1125…2250 KXT4TU3TMA225 KXT4TU4TMA225
175…250 1250…2500 KXT4TU3TMA250 KXT4TU4TMA250
7
7/44 1SXP210002C0201 | ABB catalog
XT4 250A Loose trip unit - UL/CSA
Ekip electronic trip units 3p 4p
Type In Part number Part number
Ekip LS/I 40 KXT4TU3LS/I40 KXT4TU4LS/I40
60 KXT4TU3LS/I60 KXT4TU4LS/I60
100 KXT4TU3LS/I100 K XT4TU4LS/I100
150 K XT4TU3LS/I150 K XT4TU4LS/I150
225 KXT4TU3LS/I225 KXT4TU4LS/I225
250 KXT4TU3LS/I250 KXT4TU4LS/I250
Ekip LSI 40 KXT4TU3LSI40 KXT4TU4LSI40
60 KXT4TU3LSI60 KXT4TU4LSI60
100 KXT4TU3LSI100 K XT4TU4LSI100
150 KXT4TU3LSI150 KXT4TU4LSI150
225 KXT4TU3LSI225 KXT4TU4LSI225
250 KXT4TU3LSI250 KXT4TU4LSI250
Ekip LSIG 40 KXT4TU3LSIG40 KXT4TU4LSIG40
60 KXT4TU3LSIG60 KXT4TU4LSIG60
100 KXT4TU3LSIG100 KXT4TU4LSIG100
150 K XT4TU3LSIG150 KX T4TU4LSIG150
225 KXT4TU3LSIG225 KXT4TU4LSIG225
250 KXT4TU3LSIG250 KXT4TU4LSIG250
Ekip E-LSIG 40 KXT4TU3E-LSIG40 KXT4TU4E-LSIG40
60 KXT4TU3E-LSIG60 KXT4TU3E-LSIG60
100 KXT4TU3E-LSIG100 K XT4TU4E-LSIG100
150 K XT4TU3E-LSIG150 KXT4TU4E-LSIG150
225 KXT4TU3E-LSIG225 KXT4TU4E-LSIG225
250 KXT4TU3E-LSIG250 KXT4TU4E-LSIG250
Ekip I 40 KXT4TU3I40 KXT4TU4I40
60 KXT4TU3I60 KXT4TU4I60
100 KXT4TU3I100 K XT4TU4I100
150 KXT4TU3I150 KXT4TU4I150
225 KXT4TU3I225 KXT4TU4I225
250 KXT4TU3I250 KXT4TU4I250
Ordering codes for XT4 UL/CSA
Circuit breakers
7
ABB catalog | 1SXP210002C0201 7/45
Ordering codes for XT4 UL/CSA
Accessories
Fixed parts, conversion kits and accessories for fixed parts
Fixed part of plug-in (P)
Type 3p
Part number
4p
Part number
Kit P FP E KXT4PFPEF-3 KXT4PFPEF-4
Kit P FP HR/VR(1) KXT4EPFPHR-3 KXT4EPFPHR-4
(1)IEC rated only. The terminals are factory-mounted in the horizontal position (HR).

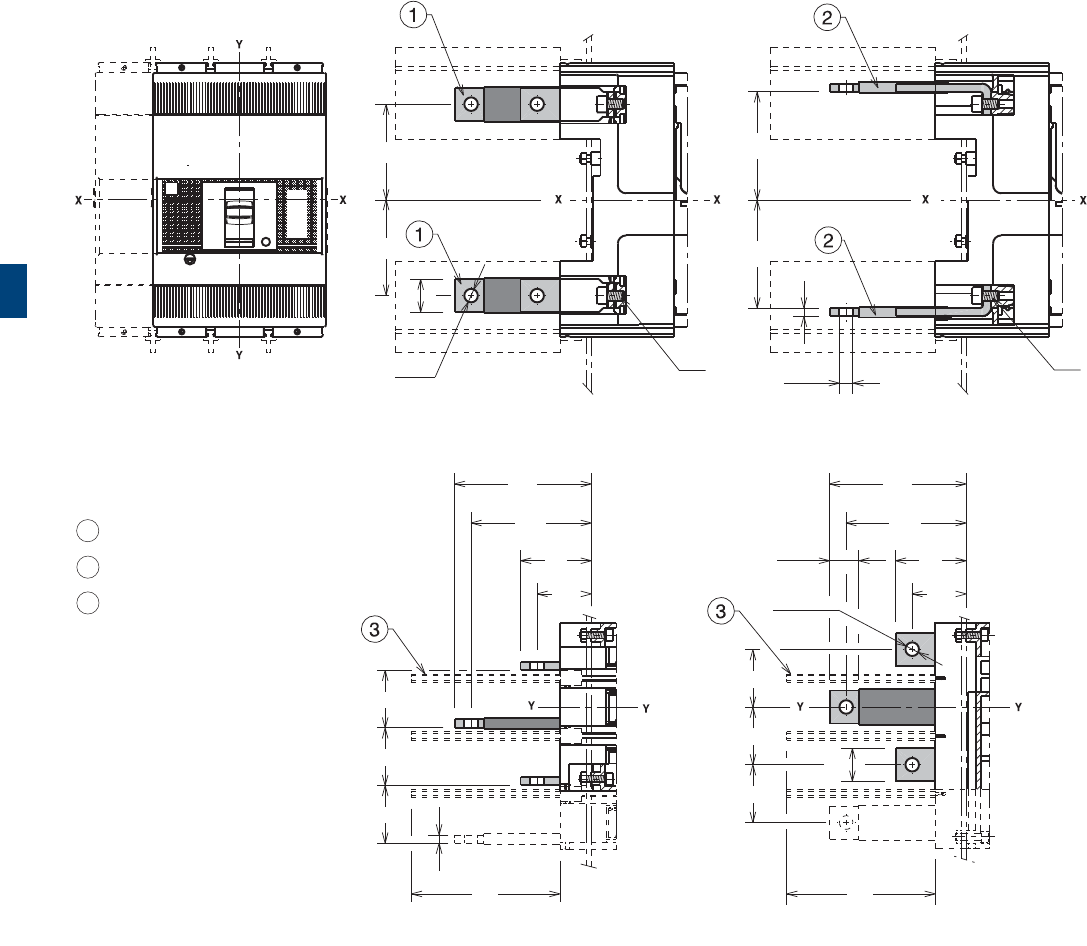

Fixed part terminals(1)
Type 3p
Part number
4p
Part number
EF - Front extended terminals KXT4EEFFP-3 KXT4EEFFP-4
R - Rear terminals HR/VR KXTEERFP-3 KXTEERFP-4
PS - Rear phase separators 90mm/3.54in KXTAEPB90-3 KXTAEPB90-4
(1)IEC rated only.
Conversion kit of the circuit breaker from fixed into moving part of plug-in
Type 3p
Part number
4p
Part number
P MP kit KXT4PMP-3 KXT4PMP-4

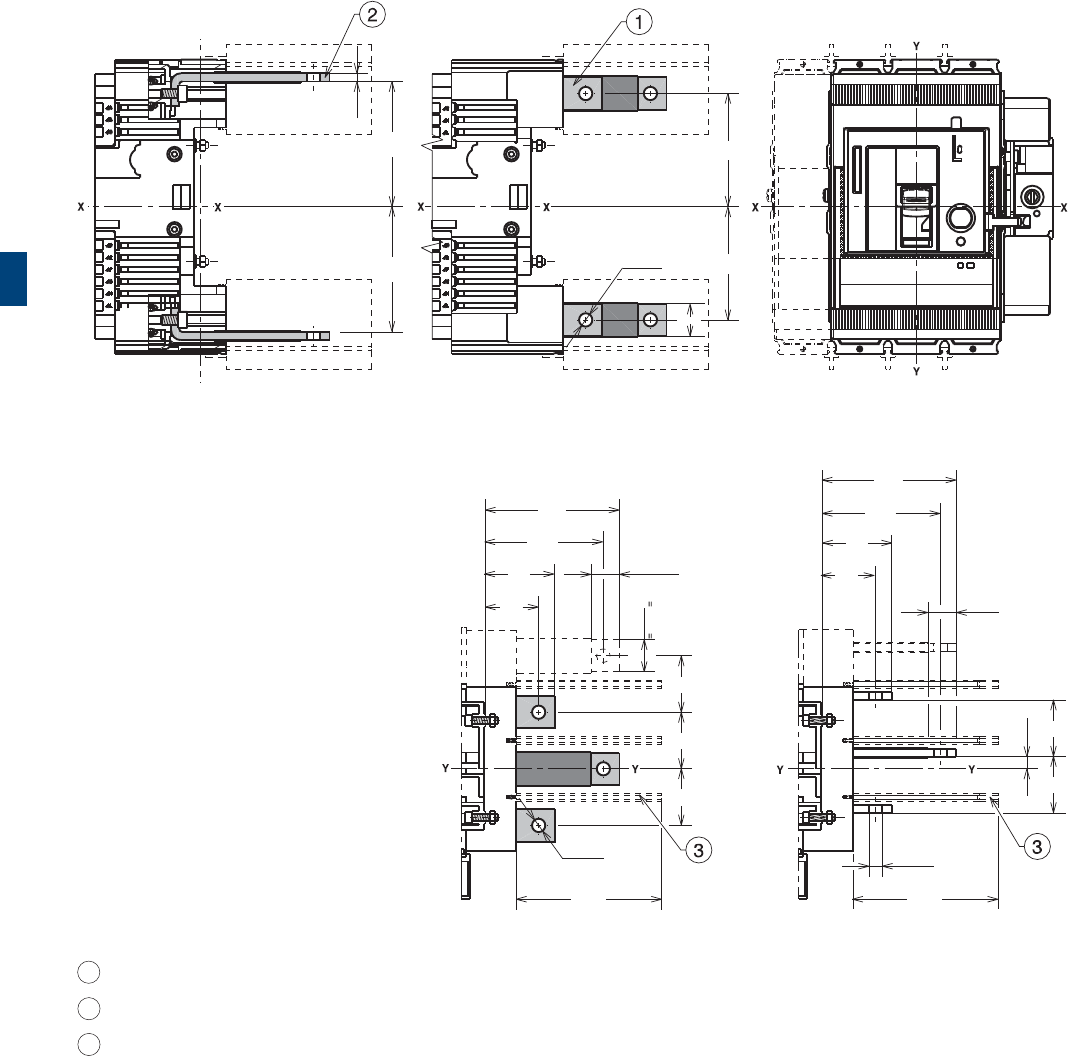

Fixed part of withdrawable (W)
Type 3p
Part number
4p
Part number
Kit W FP EF KXT4WFPEF-3 KXT4WFPEF-4
Kit W FP HR/VR(1) KXT4EWFPHR-3 KXT4EWFPHR-4
(1)IEC rated only. The terminals are factory-mounted in the horizontal position (HR).
Conversion Kit of the fixed part from plug-in to withdrawable
Type
Part number
FP P>W kit KXT4FPPtoFPW
Fixed part of plug-in
Fixed part of withdrawable
Conversion kit for turning a fixed
circuit breaker into the moving
part of a plug-in circuit breaker
Conversion kit for turning a fixed
circuit breaker into the moving part
of a withdrawable circuit breaker
Conversion kit of the circuit breaker from fixed into moving part of withdrawable
Type 3p
Part number
4p
Part number
W MP kit KXT4WMP-3 KXT4WMP-4
7
7/46 1SXP210002C0201 | ABB catalog
Adapter for mounting the terminals of the fixed circuit breaker on the fixed part
Type 3p 4p
Part number Part number
ADP adapter for fixed part (2 pieces) KXT4ADP-3 KXT4ADP-4
Note: When using ADP with ES/MC terminals, also order “Kit F Front Terminals”.
Fixed part adapter
Conversion Kit of the RC Sel from fixed to plug-in(1)
Type 3p
Part number
4p
Part number
P MP RC Sel 4p KIT KXT4EPMPRC-4
(1)IEC rated only.
Key lock for fixed part of withdrawable(1)
Type
Part number
KL-D Key Lock FP, different keys KXTCEKLDFPW
KL-S Key Lock FP, same keys N.20005 KXTCEKLSFPW
(1)IEC rated only.
Ronis key lock for fixed part of withdrawable(1)
Type
Part number
KL-D Roins FP key lock, different keys KXTCEKLDRonFPW
KL-S Roins FP key lock, same Type A keys KXTCEKLSRonFPW
(1)IEC rated only.
Conversion Kit of RC Sel from plug-in to withdrawable(1)
Type 3p
Part number
4p
Part number
W MP RC Sel 4p KIT - KXT4EWMPRC-4
(1)IEC rated only.
Ordering codes for XT4 UL/CSA
Accessories
Key lock/padlock for fi xed part
Ronis key lock/padlock for fi xed part
7
ABB catalog | 1SXP210002C0201 7/47
Service releases
Shunt opening release - SOR
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Uncabled version
SOR 12V DC KXTASORA -
SOR 24-30V AC/DC KXTASORB -
SOR 48-60V AC/DC KXTASORC -
SOR 110...127V AC / 110...125V DC KXTASORD -
SOR 220...240V AC / 220...250V DC KXTASORE -
SOR 380-440V AC KXTASORF -
SOR 480-525V AC KXTASORG -
Cabled version
SOR-C 12V DC KXTASORCFPA KXTCSORCWA
SOR-C 24-30V AC/DC KXTASORCFPB KXTCSORCWB
SOR-C 48-60V AC/DC KXTASORCFPC KXTCSORCWC
SOR-C 110...127V AC / 110...125V DC
KXTASORCFPD KXTCSORCWD
SOR-C 220...240V AC / 220...250V DC
KXTASORCFPE KXTCSORCWE
SOR-C 380-440V AC KXTASORCFPF KXTCSORCWF
SOR-C 480-525V AC KXTASORCFPG KXTCSORCWG
Undervoltage release - UVR
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Uncabled version
UVR 24-30V AC/DC KXTAUVR1 -
UVR 48V AC/DC KXTAUVR2 -
UVR 60V AC/DC KXTAUVR3 -
UVR 110...127V AC / 110...125V DC KXTAUVR4 -
UVR 220...240V AC / 220...250V DC KXTAUVR5 -
UVR 380-440V AC KXTAUVR6 -
UVR 480-525V AC KXTAUVR7 -
Cabled version
UVR-C 24-30V AC/DC KXTAUVRCFP1 KXTCUVRCW1
UVR-C 48V AC/DC KXTAUVRCFP2 KXTCUVRCW2
UVR-C 60V AC/DC KXTAUVRCFP3 KXTCUVRCW3
UVR-C 110...127V AC / 110...125V DC
KXTAUVRCFP4 KXTCUVRCW4
UVR-C 220...240V AC / 220...250V DC
KXTAUVRCFP5 KXTCUVRCW5
UVR-C 380-440V AC KXTAUVRCFP6 KXTCUVRCW6
UVR-C 480-525V AC KXTAUVRCFP7 KXTCUVRCW7
SOR uncabled
SOR cabled
SOR for withdrawable
UVR uncabled
UVR cabled
SOR for withdrawable
Time delay device for
undervoltage release
Delay device for undervoltage release - UVD(1)
Type
Part number
UVD 24...30V AC/DC KT3UVD8
UVD 48...60V AC/DC KT3UVD7
UVD 110...125V AC/DC KT3UVD4
UVD 220...250V AC/DC KT3UVD2
(1)IEC rated only.
7
7/48 1SXP210002C0201 | ABB catalog
Connectors
Fourth pole connectors for withdrawable(1)
Type
Part number
Connector 4th pole SOR KXTCE3PINCONSOR
Connector 4th pole UVR KXTCE3PINCONUVR
(1)IEC rated only.
Socket-plug connector on the panel(1)
Type
Part number
Socket-plug connector with 3 PINS KXTAE3PINCON
Socket-plug connector with 6 PINS KXTAE6PINCON
Socket-plug connector with 9 PINS KXTAE9PINCON
Socket-plug connector with 15 PINS KXTAE15PINCON
(1)IEC rated only.
Fixed part socket-plug connector(1)
Type
Part number
Socket-plug connector of moving part - 12 PINS KXTCE12PINMPCON
Socket-plug connector of fixed part - 12 PINS KXTCE12PINFPCON
(1)IEC rated only.
Electrical signals
Auxiliary contacts - AUX
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Uncabled version
AUX 250V KXTAAUX -
AUX 24V DC KXTAAUXD -
AUX-S51 250V KXTCAXS51 -
AUX-S51 24V DC KXTCAXDS51 -
Cabled version
AUX-C 3 Q 250V left KXTCAXC3QL -
AUX-C 1 Q + 1 SY 250V KXTAAXCQSYFP KXTCAXCQSYW
AUX-C 2 Q + 1 SY 250V KXTAAXC2QSYFP -
AUX-C 3 Q + 1 SY 250V
KXTDAXC3QSYFP KXTCAXC3QSYW
AUX-C 3 Q + 2 SY 250V KXTCAXC3Q2SYFP KXTCAXC3Q2SYW
AUX-C 2 Q + 2 SY + 1 S51 250V KXTCAXC2Q2SYS51FP KXTCAXC2Q2SYS51W
AUX-S51-C 250V KXTCAXCS51FP KXTCAXCS51W
AUX-C 1 Q + 1 SY 24V DC KXTAAXCDQSYFP KXTCAXCDQSYW
AUX-C 3 Q + 1 SY 24V DC KXTDAXCD3QSYFP KXTCAXCD3QSYW
AUX-S51-C 24V DC KXTCAXDS51FP KXTCAXDS51W
AUX-C 1 Q + 1 SY 400V AC KXTCAXC4QSYFP KXTCAXC4QSYW
AUX-C 2 Q 400V AC KXTCAXC42QFP KXTCAXC42QW
Socket-plug connector of fixed part
AUX uncabled
AUX cabled
AUX for withdrawable
Ordering codes for XT4 UL/CSA
Accessories
7
ABB catalog | 1SXP210002C0201 7/49
Auxiliary position contacts - AUP
Type
Part number
Cabled version
AUP-I - Four racked-in contacts 250V for plug-in circuit breaker KXTAAUP250IN
AUP-I - Four racked-in contacts 24V DC for plug-in circuit breaker KXTAAUP24IN
AUP-R - Two racked-out contacts 250V for withdrawable circuit breaker KXTCAUP250W
AUP-R - Two racked-out contacts 24V DC for withdrawable circuit breaker
KXTCAUP24W
Early auxiliary contacts - AUE
Type Fixed/Plug-in
Part number
Withdrawable
Part number
AUE – Two contacts in the rotary handle RHx (Closed) KXTAAUECLFP KXTCAUECLW
AUE – Two contacts in the rotary handle RHx (Open) KXTDAUEOPFP KXTCAUEOPW
Motor operators
Stored energy motor operator - MOE
Type
Part number
MOE 24V DC KXTCMOE24
MOE 48...60V DC KXTCMOE48-60
MOE 110...125V AC/ DC K XTCMOE110-125
MOE 220...250V AC/DC KXTCMOE220-250
MOE 380...440V AC KXTCMOE380-440
MOE 480...525V AC KXTCMOE480-525
Electronic stored energy motor operator - MOE-E(1)
Type
Part number
MOE-E 24V DC KXTCEMOEE24
MOE-E 48...60V DC KXTCEMOEE48-60
MOE-E 110...125V AC/DC KXTCEMOEE110-125
MOE-E 220...250V AC/DC KXTCEMOEE220-250
MOE-E 380...440V AC KXTCEMOEE380-440
MOE-E 480...525V AC KXTCEMOEE480-525
(1)IEC rated only.
MOE - Motor operator
AUP - Auxiliary position contacts
AUE - Early auxiliary
contacts
7
7/50 1SXP210002C0201 | ABB catalog
Rotary handle operating mechanisms
Rotary handle operating mechanisms
Type Fixed/Plug-In
Part number
Withdrawable
Part number
RHD Standard Direct Handle KXTCRHDSTFP KXTCRHDSTW
RHD Emergency Direct Handle KXTCRHDEMFP KXTCRHDEMW
RHE Standard Extended Handle KXTCRHESTFP KXTCRHESTW
RHE Emergency Extended Handle KXTCRHEEMFP KXTCRHEEMW
RHE Standard Extended Handle with Padlock(1) KXTCRHESTFPPLK KXTCRHESTWPLK
RHE Emergency Extended Handle with Padlock(1) KXTCRHEEMFPPLK KXTCRHEEMWPLK
RHS-L Standard Left Side Handle KXTCRHSLSTFP -
RHS-L Emergency Left Side Handle KXTCRHSLEMFP -
RHS-R Standard Right Side Handle KXTCRHSRSTFP -
RHS-R Emergency Right Side Handle KXTCRHSREMFP -
Extended Handle Spare Parts
RHE-B Base for Extended Handle KXTCRHEBFP KXTCRHEBW
RHE-B Base for Extended Handle with Padlock(1) KXTCRHEBFPPLK KXTCRHEBWPLK
RHE-S 500mm Shaft KXTARHES500 KXTARHES500
RHE-H Standard Extended Handle KXTARHEHST KXTARHEHST
RHE-H Emergency Extended Handle KXTARHEHEM KXTARHEHEM
LH Standard Large Handle, NEMA 1 KXTALHNDLST KXTALHNDLST
LH Emergency Large Handle, NEMA 1 KXTALHNDLEM KXTALHNDLEM
Standard Pistol Handle with reset function, 65mm, NEMA 3R, 12 OHB65J10B OHB65J10B
Emergency Pistol Handle with reset function, 65mm, NEMA 3R, 12(1) OHY65J10B OHY65J10B
Standard Pistol Handle with reset function, 65mm, NEMA 4, 4X(1) OHB65L10B OHB65L10B
Emergency Pistol Handle with reset function, 65mm, NEMA 4, 4X(1) OHY65L10B OHY65L10B
Standard Pistol Handle with reset function, 125mm, NEMA 3R, 12 OHB125J10B OHB125J10B
Emergency Pistol Handle with reset function, 125mm, NEMA 3R, 12(1) OHY125J10B OHY125J10B
Standard Pistol Handle with reset function, 125mm, NEMA 4, 4X(1) OHB125L10B OHB125L10B
Emergency Pistol Handle with reset function, 125mm, NEMA 4, 4X(1) OHY125L10B OHY125L10B
148mm Pistol Handle Shaft OXP10X148 OXP10X148
225mm Pistol Handle Shaft OXP10X225 OXP10X225
500mm Pistol Handle Shaft OXP10X500 OXP10X500
(1)Consult ABB for availability.
Direct rotary handle
Extended rotary handle
IP54 Protection for extended rotary handle(1)
Type
Part number
IP54 Protection for RHE KXTAERHEIP54
(1)IEC rated only.
Flange handle(1)
Type
Part number
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4) KXT4N12FLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4) KXT4N12FLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4) KXT4N12FLHDL10
Flange Handle + Mechanism + 4ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT4N4XFLHDL4
Flange Handle + Mechanism + 6ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT4N4XFLHDL6
Flange Handle + Mechanism + 10ft Cable (NEMA 1, 3R, 12, 4, 4X) KXT4N4XFLHDL10
Flange Handle Spare Parts
Flange Handle only (NEMA 1, 3R, 12, 4) KXTAN12FLHDL
Flange Handle only (NEMA 1, 3R, 12, 4, 4X) KXTAN4XFLHDL
Flange Handle Hardware KXTAFLHDLHW
Flange Mounting Hardware KXTCFLMTHW
(1)Consult ABB for availability.
IP54
Ordering codes for XT4 UL/CSA
Accessories
7
ABB catalog | 1SXP210002C0201 7/51
Key lock on the circuit breaker
Type
Part number
KLC Ronis key lock open, different keys, removable in open position KXTCKLCCBDIF
KLC Ronis key lock open, same Type A keys, removable in open position KXTCKLCCBA
KLC Ronis key lock open, same Type B keys, removable in open position KXTCKLCCBB
KLC Ronis key lock open, same Type C keys, removable in open position KXTCKLCCBC
KLC Ronis key lock open, same Type D keys, removable in open position KXTCKLCCBD
KLC Ronis key lock open/closed, different keys, removable in both positions KXTCKLCCBOPCL
Key lock on the circuit breaker
Key lock on the rotary handle / key lock on the front for locks
Type
Part number
RHL Ronis key lock open, different keys, RHx/FLD KXTARHLDIF
RHL Ronis key lock open, same Type A keys, RHx/FLD KXTARHLA
RHL Ronis key lock open, same Type B keys, RHx/FLD KXTARHLB
RHL Ronis key lock open, same Type C keys, RHx/FLD KXTARHLC
RHL Ronis key lock open, same Type D keys, RHx/FLD KXTARHLD
RHL Ronis key lock open/closed, different keys, RHx KXTARHLOPCL
RHL Ronis key lock open/closed, different keys, FLD KXTCRHLFLD
Front for operating lever mechanism
Type Fixed/Plug-in
Part number
Withdrawable
Part number
FLD Front for operating lever mechanism KXTCFLDFP KXTCFLDW
Front for opeerating lever
mechanism
Interlock
Key lock on the handle

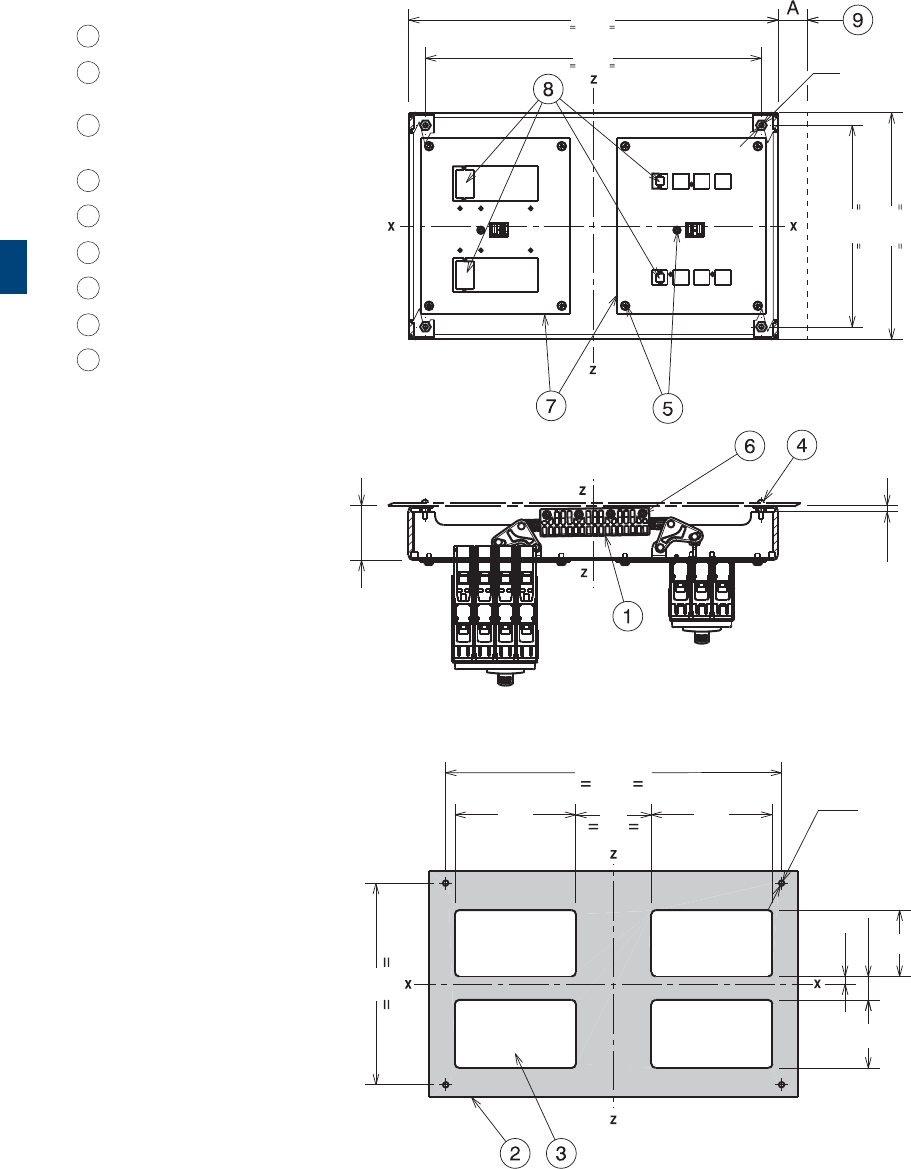

Mechanical interlock
Type
Part number
Chassis MIR-H KXTAMIRHR
Chassis MIR-V KXTAMIRVR
Plate XT1 F KXT1MIRPLF
Plate XT1 P KXT1MIRPLP
Plate XT2 F KXT2MIRPLF
Plate XT2 P/W KXT2MIRPLPW
Plate XT4 F KXT4MIRPLF
Plate XT4 P/W KXT4MIRPLPW
Key lock on the motor(1)
Type
Part number
MOL-D Roins key lock, open, different keys KXTCEMOLDIF
MOL-D Ronis key lock open, same Type A keys KXTCEMOLA
MOL-D Ronis key lock open, same Type B keys KXTCEMOLB
MOL-D Ronis key lock open, same Type C keys KXTCEMOLC
MOL-D Ronis key lock open, same Type D keys KXTCEMOLD
MOL-M Key lock against manual operation KXTCEMOLMO
(1)IEC rated only
Key lock on the motor
Locks
Padlock on the circuit breaker
Type
Part number
PLL Fixed lock with padlocks in open position KXTCPLLOP
PLL Fixed lock with padlocks in open/closed position KXTCPLLOPCL
Fixed padlock
7
7/52 1SXP210002C0201 | ABB catalog

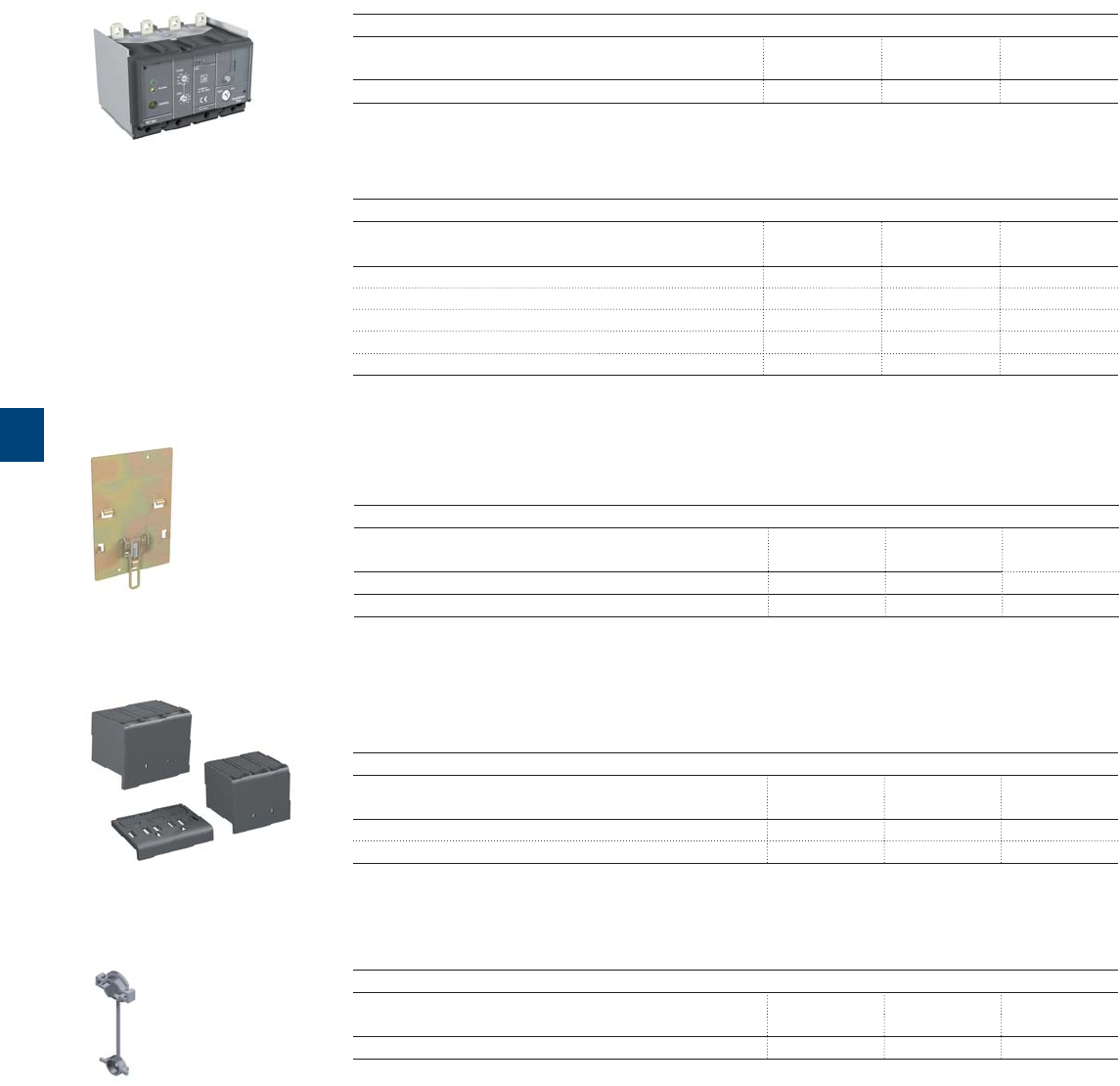

Terminals, terminal covers and phase barriers
Insulating terminal covers
Type 3p
Part number
4p
Part number
LTC low terminal covers KXT4LTC-3 KXT4LTC-4
HTC high terminal covers KXT4HTC-3 KXT4HTC-4
Terminal covers
Sealable screws for terminal covers(1)
Type
Part number
Kit with two sealable screws KXTAESSEAL
(1)IEC rated only.
Residual current devices(1)
Residual current devices
Type 3p
Part number
4p
Part number
RC Sel - KXT4ERCSEL-4
(1)IEC rated only.
Panel type residual current relay(1)
Type
Part number
RCQ020/A 115-230V AC KXTAERCQ230
RCQ020/A 415V AC KXTAERCQ415
Toroid closed Ø 60mm KXTTETOR60
Toroid closed Ø 110mm KXTTETOR110
Toroid closed Ø 185mm KXTTETOR185
(1)IEC rated only.
Installation
Bracket for DIN rail mounting
Type 3p
Part number
4p
Part number
KIT DIN50022(1) KXTCEDINPL KXTCEDINPL
KIT DIN50022 UL KXT4DIN-3 KXT4DIN-4
(1)IEC rated only.
Sealable screw
RC Sel
DIN guide
Ordering codes for XT4 UL/CSA
Accessories
7
ABB catalog | 1SXP210002C0201 7/53
Phase barriers
Type 4 pcs
Part number
6 pcs
Part number
PB height 25mm/0.98in KXTCPB25-3 KXTCPB25-4
PB height 100mm/3.94in KXTCPB100-3 KXTCPB100-4
PB height 200mm/7.87in KXTCPB200-3 KXTCPB200-4

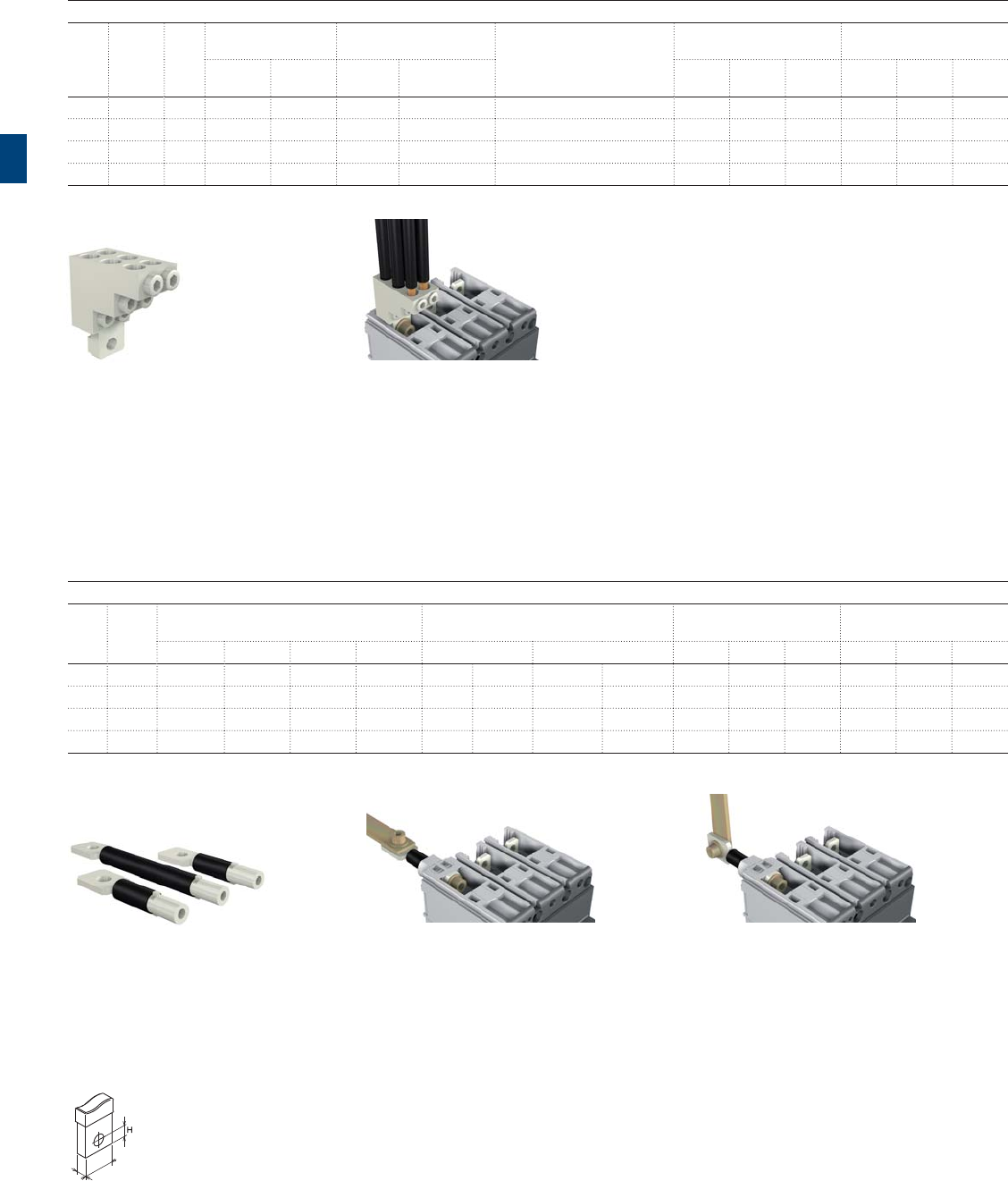

Terminals
Type 3 pcs
Part number
4 pcs
Part number
6 pcs
Part number
8 pcs
Part number
F Front terminals KXT4F-3PC KXT4F-4PC KXT4F-6PC KXT4F-8PC
EF Extended front terminals KXT4EF-3PC KXT4EF-4PC KXT4EF-6PC KXT4EF-8PC
ES Extended spread terminals KXT4ES-3PC KXT4ES-4PC KXT4ES-6PC KXT4ES-8PC
FC CuAl Terminals for CuAl cables 100A,
14-1/0 AWG, 1x2.5…50mm2(1) KXT4CUAL1-3PC KXT4CUAL1-4PC KXT4CUAL1-6PC KXT4CUAL1-8PC
FC CuAl Terminals for CuAl cables w/Control Tap 100A,
14-1/0 AWG, 1x2.5…50mm2(1)(2) KXT4CUAL1C-3PC KXT4CUAL1C-4PC - -
FC CuAl Terminals for CuAl cables 225A,
4 AWG -300 kcmil, 1x35…150mm2(1) KXT4CUAL2-3PC KXT4CUAL2-4PC KXT4CUAL2-6PC KXT4CUAL2-8PC
FC CuAl Terminals for CuAl cables w/Control Tap 225A,
4 AWG -300 kcmil, 1x35…150mm2(1)(2) KXT4CUAL2C-3PC KXT4CUAL2C-4PC - -
FC CuAl Terminals for CuAl cables 250A,
250-350 kcmil, 1x120…185mm2(1)(2) KXT4CUAL3-3PC KXT4CUAL3-4PC KXT4CUAL3-6PC KXT4CUAL3-8PC
FC Cu Terminals for Cu cables 250A,
10-250 AWG, 1x6…185mm2KXT4CU-3PC KXT4CU-4PC KXT4CU-6PC KXT4CU-8PC
FC Cu Terminals for Cu cables, XT4X to 150A,
14-1/0 AWG, 1x2.5…50mm2(3) KXT4XCU-3PC KXT4XCU-4PC - -
MC Multi cable terminals for Cu cables,
6x12-2 AWG, 6x2.5…35mm2KXT4MC-3PC KXT4MC-4PC KXT4MC-6PC KXT4MC-8PC
R Rear adjustable terminals(4) KXT4ER-3PC KXT4ER-4PC KXT4ER-6PC KXT4ER-8PC
FB Flexibar terminals(4) KXT4EFB-3PC KXT4EFB-4PC KXT4EFB-6PC KXT4EFB-8PC
(1)Not available for XT4 X up to 150A.
(2)Consult ABB for availability.
(3)For use with the XT4 X version up to 150A only. Note: XT4X from 175-250A uses the standard 250A CU lug.
(4)IEC rated only.
Phase barriers
EF terminal
FCCuAl terminal
7
7/54 1SXP210002C0201 | ABB catalog
ATS021
Accessories for electronic trip units
General electronic trip unit accessories(1)
Type Fixed/Plug-in
Part number
Withdrawable
Part number
Ekip Display KXTCEDISP KXTCEDISP
Ekip LED Meter KXTCELED KXTCELED
Ekip Com KXTCECOMFP KXTCECOMW
HMI030 Interface on front of panel HMI030 HMI030
PR212/CI contactor control unit 1SDA050708R1 1SDA050708R1
(1)IEC rated only.
Current sensor for external neutral(1)
Type
Part number
CT external neutral of 40A KXT4ECT40
CT external neutral of 63A KXT4ECT63
CT external neutral of 100A KXT4ECT100
CT external neutral of 160A KXT4ECT160
CT external neutral of 250A KXT4ECT250
(1)IEC rated only.
Ekip Display
Ekip LED Meter
Connection kits
Type Fixed/Plug-in
Part number
Withdrawable
Part number
24V DC auxiliary voltage kit for electronic trip units(1) KXTCECAUXFP KXTCECAUXW
External neutral connection kit KXTCECNEFP KXTCECNEW
(1)IEC rated only.
Test and configurator units(1)
Type
Part number
Ekip TT - Trip test unit ZEAEKPTT
Ekip T&P - Programming and test unit EKIP
(1)IEC rated only.
Ekip T&P unit
Automatic transfer devices
ATS021 - ATS022 Automatic transfer devices(1)
Type
Part number
ATS021 ATS021
ATS022 ATS022
(1)IEC rated only.
Ordering codes for XT4 UL/CSA
Accessories
7
ABB catalog | 1SXP210002C0201 7/55

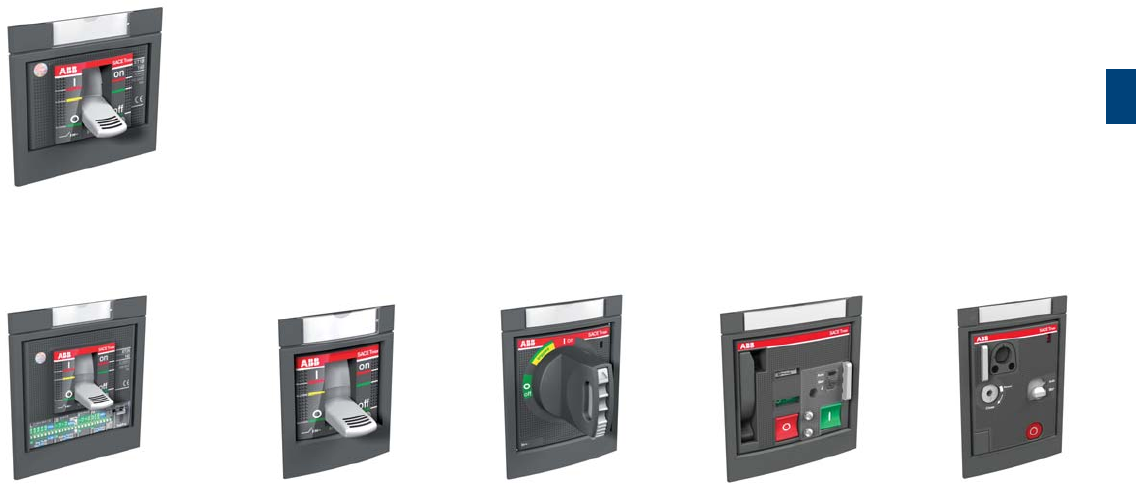

Flanges for the compartment door(1)
Type 3p
Fixed/Plug-in
Part number
4p
Fixed/Plug-in
Part number
3p
Withdrawable
Part number
4p
Withdrawable
Part number
Small "optional" flange for circuit breaker KXTAEFLASMFP KXTAEFLASMFP - -
Large "standard" flange for circuit breaker KXT4EFLAFP-3 KXT4EFLAFP-4 - -
Flange for MOE/MOE-E/FLD KXTCEFLAMOEFP KXTCEFLAMOEFP KXTCEFLAMOEW KXTCEFLAMOEW
Flange for direct handle RHD KXTAEFLARHDFP KXTAEFLARHDFP KXTCEFLARHDW KXTCEFLARHDW
Flange for residual current RC Sel -KXT4EFLARCFP-4-KXT4EFLARCW-4
(1)IEC rated only.
Flange
Connectors for fixed part/moving part of withdrawable circuit breakers(1)
Type
Part number
1 connector for with 2 pins for SOR/UVR up to 400V KXTCE2PINCONSOUV
1 connector with 3 pins for AUX up to 400V KXTCE3PINCONAUX
(1)IEC rated only.
Fixed/Moving part connector
for withdrawable
Spare parts
Type Fixed/Plug-in
Part number
Withdrawable
Part number
SA RC Sel - Opening solenoid for the residual current device(1) KXT4ESARCFP KXT4ESARCW
AUX-C - Loose cabled auxiliary contact 250V AC(2) KXTAAUXCFP KXTCEAUXCW
AUX-C - Loose cabled auxiliary contact 24V DC(2) KXTAAUXCDFP KXTCEAUXCDW
AUX-C - Loose cabled auxiliary contact 250V AC HD KXTAAUXCFPHD KXTCAUXCWHD
AUX-C - Loose cabled auxiliary contact 24V DC HD KXTAAUXCDFPHD KXTCAUXCDWHD
(1)IEC rated only.
(2)Un-numbered cables. Withdrawable versions are IEC rated only.
ABB Canada
Low Voltage Products
2117 - 32nd Avenue
Lachine, Qc H8T 3J1
www.abb.com/lowvoltage
Technical Support:
lvp.support@ca.abb.com
The data and illustrations are not binding. We reserve
the right to make changes in the course of technical
development of the product.
© Copyright 2015 ABB.
All rights reserved.
1SXP210002C0201- May 2015
Contact us

Navigation menu
