Mounting Foot Kit
DMFK1, DMFK2
Hoffman Enclosures Inc.
2100 Hoffman Way
Anoka, MN 55303−1745
(763) 422−2211
www.hoffmanonline.com

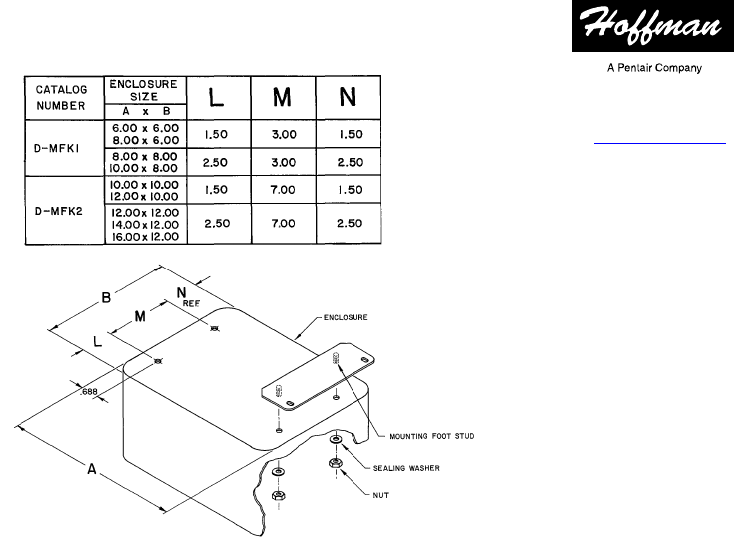

1. Locate holes for mounting foot studs
using the dimensions given.
2. Use center punch to mark hole centers.
Drill four .219 inch diameter holes.
3. Deburr Holes
4. Insert mounting foot studs into drilled
holes, and turn enclosure upright.
5. Lightly lubricate the sealing washer and
press onto mounting foot stud, neoprene
side down.
6. Thread nut onto stud and tighten to 15 to
20 in−lbs.
7. Repeat steps 4−6 to other end to
complete installation.
87568177
E 2005 Hoffman Enclosures Inc.Rev. B 113357 P/N 54381001
®
