Ring Terminal
T&B Catalog Number:
RCS10-6X
UPC Number: 78621070335
Status: Active
Description:
Heat Shrinkable Ring Terminal, Length 1.34 Inches, Width .31 Inches,
Maximum Insulation .250, Bolt Hole #6, Wire Range #12-#10 AWG, Color
Yellow, Copper, Tin Plated
WEB_USE
US Cutsheet PDF Catalog Link http://www-public.tnb.com/contractor/docs/
stakon.pdf
Features
These terminals are self-insulated. Upon complet-
ed installation, a fully sealed connection is achieved
to protect the joint against the degrading effects of
galvanic action, corrosion, and environmental expo-
sure.
General
Insulation Type Heat-Shrinkable Polyolefin
Terminal Series RCS
Material Copper
Finish Electro -Tin Plated
Color Yellow
Wire Range 12-10
Stud Size #6
Dimension Information
Maximum Insulation (inches) .250
Stock Thickness .04

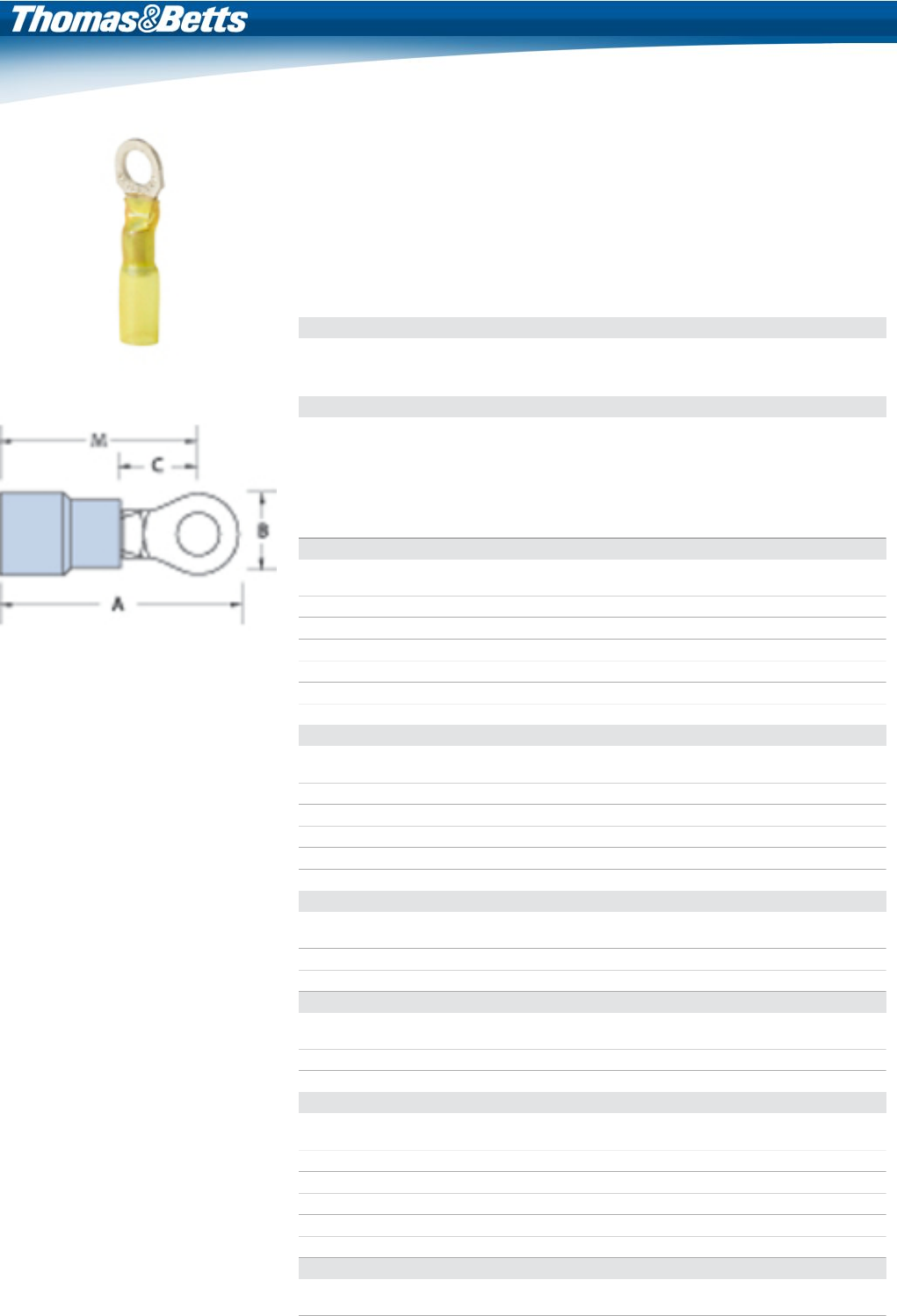

A (inches) 1.34
B (inches) .31
C (inches) .27
M (inches) 1.15
Specifications
Temperature Rating 105°C
Voltage Rating 600V
Flammability Rating UL 94 V-2
Tooling
Tool Charts Available on Website
Application Tools WT1255
Recommended Tool ERG4255
Packaging
T&B Order Multiple 50
T&B Inner Pack 50
Package in Units 250
Package Type Standard
T&B Sold in UOM Each
T&B Weight Per UOM 7.5 lbs. per 1000
Application Support
Overview Available on Website
Wire Guide Tables Available on Website
Notes
Not available on Mylar Tape.
Certifications
RoHS Compliance Yes
Certifications
File Nbr:
E9809
