VENTILATION FANS

BROAN VENTILATION SOLUTIONS.

BETTER AIR. BETTER LIFE.

2

WHY INDOOR AIR QUALITY IS IMPORTANT TO YOU.

Consider this, according to the EPA (epa.gov), indoor air quality is five times worse than outdoor

air quality. Most homeowners know that indoor air quality is important, but not all recognize what

contributes to poor indoor air quality, the potential effects and harm, and how to address these

problems. Broan is here to help. For more than 80 years, Broan has led the industry with residential

ventilation solutions that improve indoor air quality and provide healthier home environments.

WHEN YOUR HOME BREATHES, YOU BREATHE EASIER TOO.

Moisture that is not

properly ventilated can cause

mildew and mold formation,

which can potentially lead to

structural problems and health

problems. Exhaust ventilation

solutions from Broan remove

humidity at the source to help

maintain the optimal humidity

balance of 40 to 60 percent.

Off-gassing from

construction materials,

carpeting, adhesives and

synthetic materials—as well

as solvents from common

household cleaners—can

accumulate in tightly built

homes. Look to Broan

for continuous ventilation

solutions that meet

ASHRAE 62.2.

Particulates from

dust, allergens, pet dander,

and more can contribute to

poor indoor air quality up to

100 times dirtier than outside

air. With a properly ventilated

home, you create a more

enjoyable, comfortable and

healthier environment.

Cooking effluents

from food preparation can

infiltrate the whole house

in minutes. Grease, oils and

aromas settle permanently

into carpets, furniture, clothing

and other surfaces. Kitchen

ventilation solutions help

eliminate cooking effluents

for a cleaner, more comfortable

and healthier environment.

3

From clearing humidity in the bathroom to removing heat, steam and airborne effluents in the kitchen.

From whole-house HEPA air filtration and balanced fresh air exchange solutions to attic ventilation.

From the family room to the master bedroom and in every room in between, no company knows

residential and light commercial ventilation like Broan-NuTone. After more than 80 years, countless

innovations and a commitment to indoor air quality, trust Broan to clear up every concern.

BROAN CAN IMPROVE INDOOR AIR QUALITY

IN EVERY ROOM OF THE HOME.

BREATHES, YOU BREATHE EASIER TOO.

Most homeowners are tuned in to

residential Indoor Air Quality concerns:

60%

know that indoor air

quality has a greater

impact on their health

than outdoor air quality.

90%

realize poor indoor air

quality contributes to

certain health issues and

that healthy air helps

prevent illness.

Some homeowners don't recognize

the causes of poor indoor air quality:

Only 42%

are concerned about

moisture that causes

mold or mildew.

Only 33%

know food aromas

after preparation is an

indicator of poor IAQ.

81%

don’t know that

a foggy mirror

means poor IAQ.

Knowing the facts goes a long way

toward a healthier indoor environment:

Just 46%

recognize not having

a bathroom fan has a

negative impact on indoor

air quality—only 42%

recognize that a lack of

a range hood also has a

negative impact.

60%

have a fan in each

bathroom but only one

in five let it run for 10

minutes after showering.

DID YOU KNOW?*

EXHAUST VENTILATION

removes excess moisture and

odor from any room in the home,

and can also provide continuous,

whole-house ventilation.

KITCHEN VENTILATION

expels cooking effluents from food

preparation to eliminate airborne

pollutants from spreading through

the entire house.

WHOLE-HOUSE

BALANCED VENTILATION

efficiently exchanges inside air

with fresh outside air, and

removes airborne particulate

with HEPA filtration.

* 2014 Kelton Broan-NuTone Air Quality Survey

4

INDOOR AIR QUALITY IS IMPORTANT

IN EVERY ROOM OF THE HOME,

2–9 INTRODUCTION

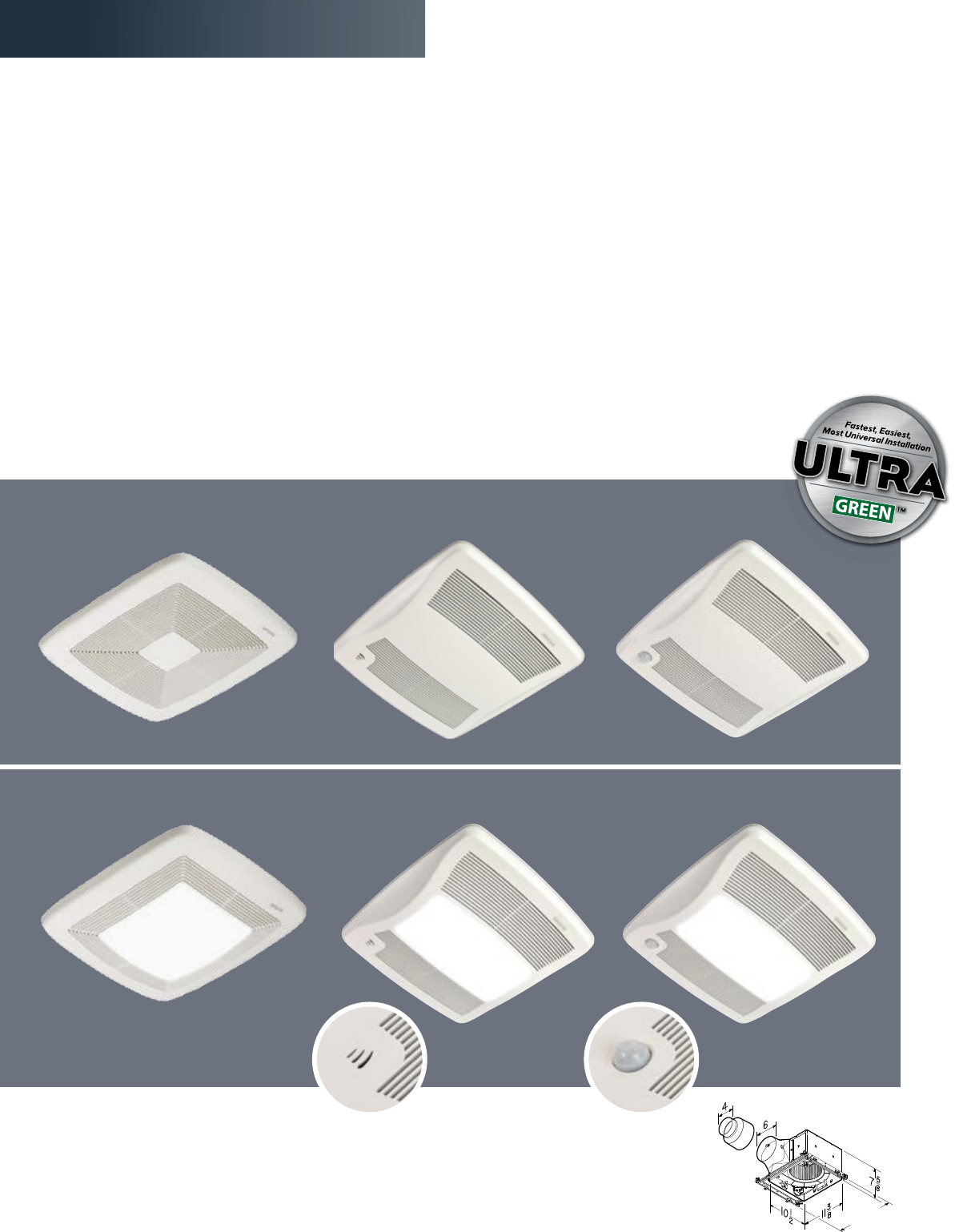

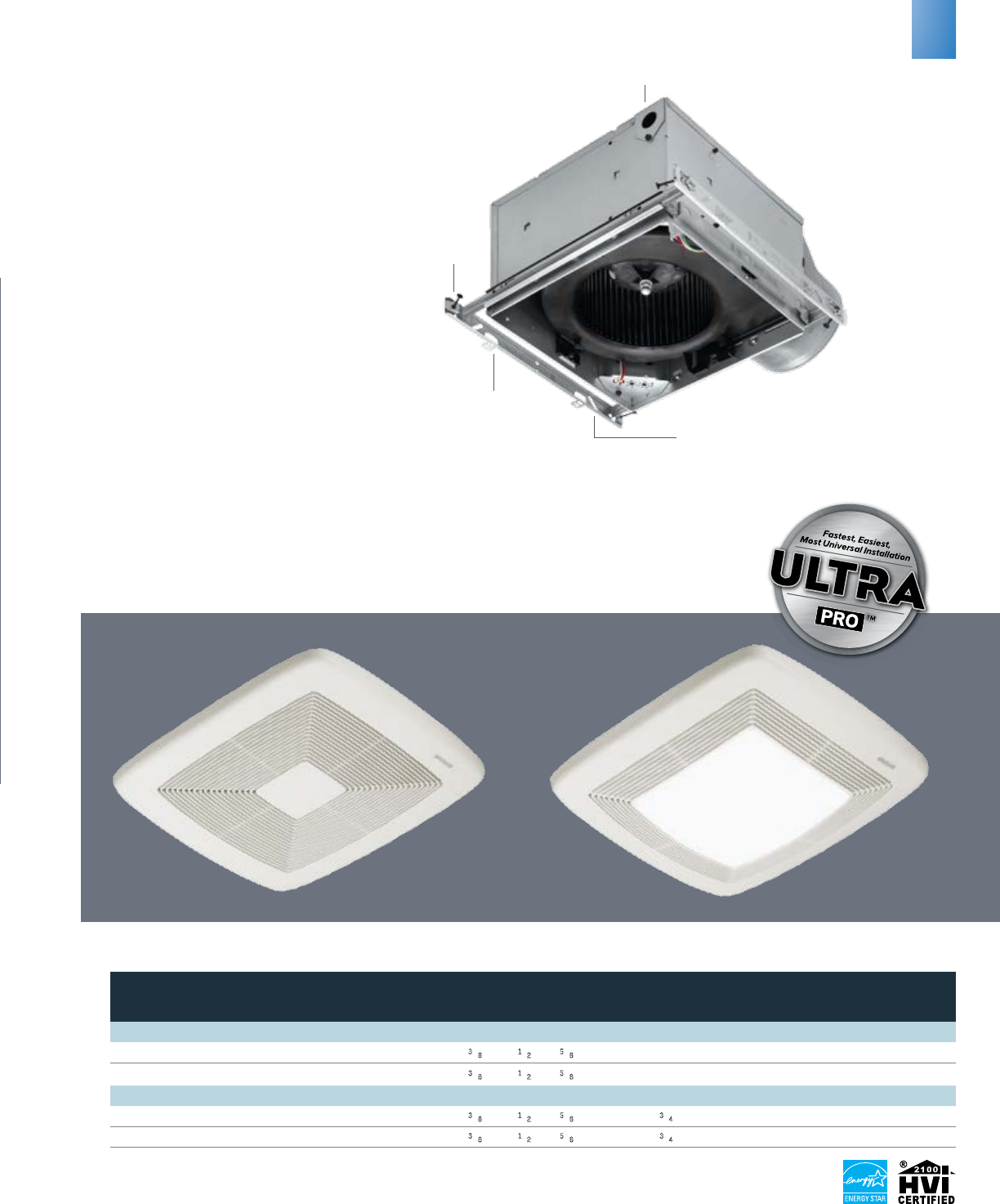

10–15 ULTRA™ SERIES

16–21 QT SERIES

22–23 SMARTSENSE SERIES

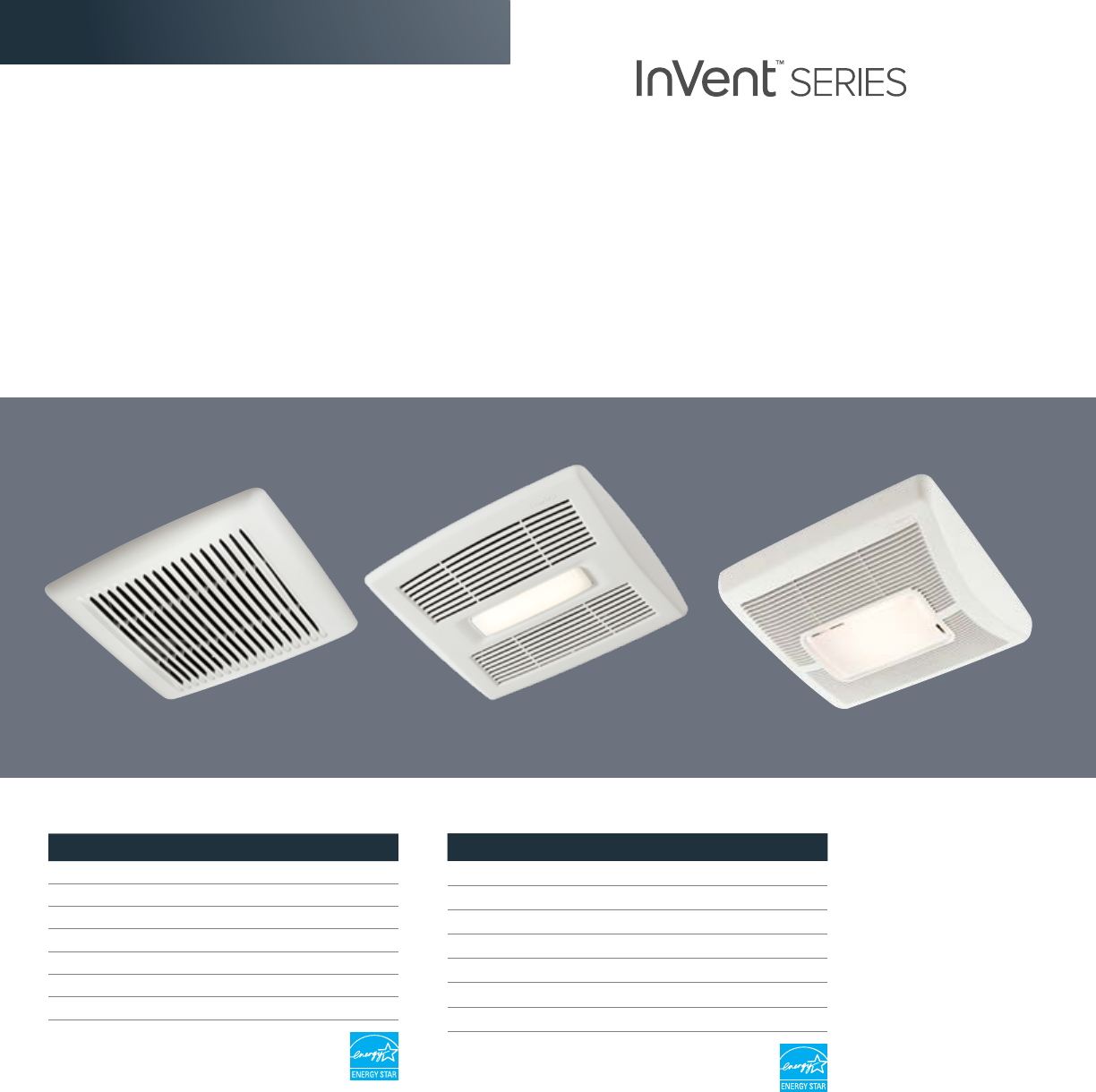

24–27 INVENT™ SERIES

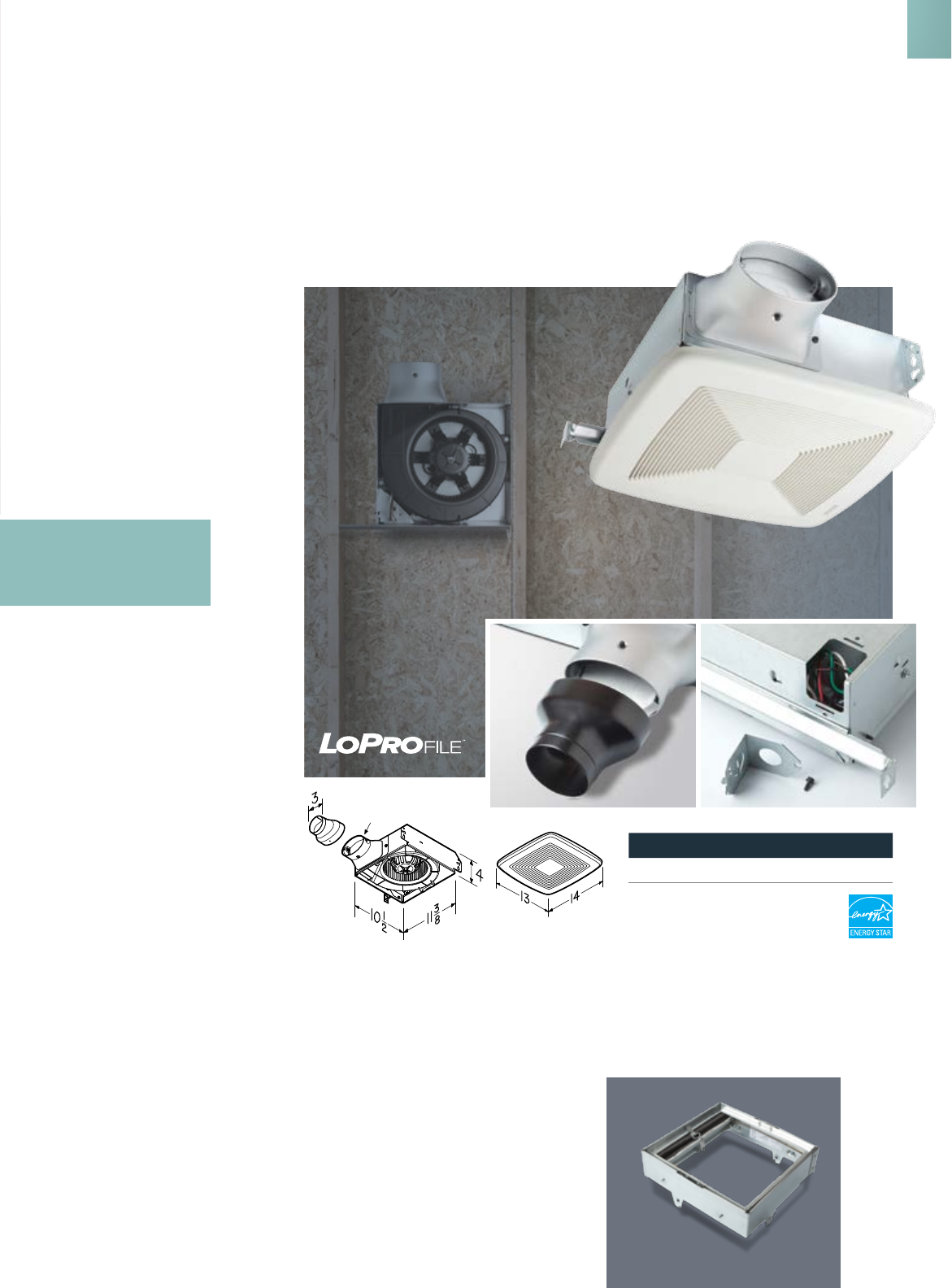

28–29 LOPROFILE™

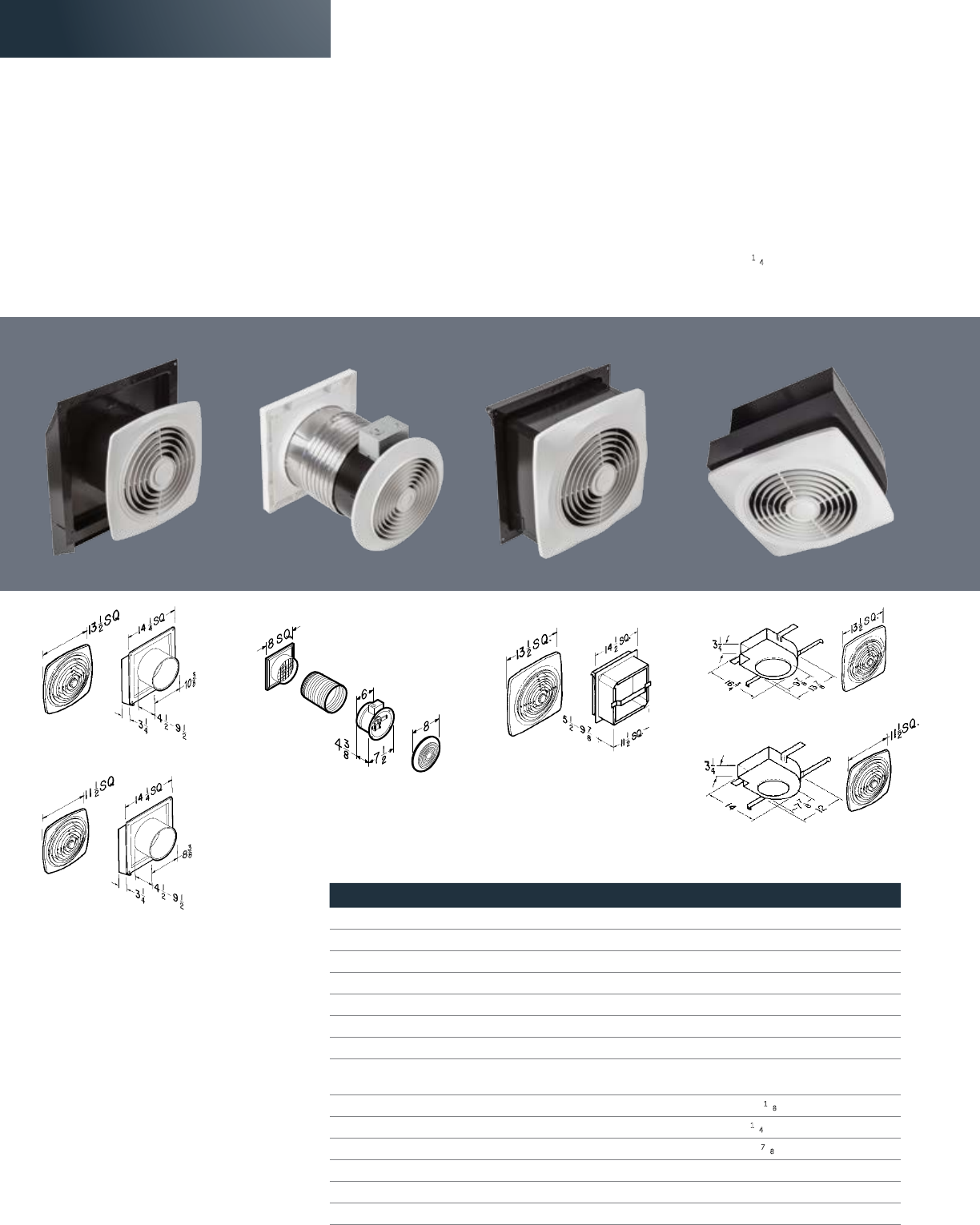

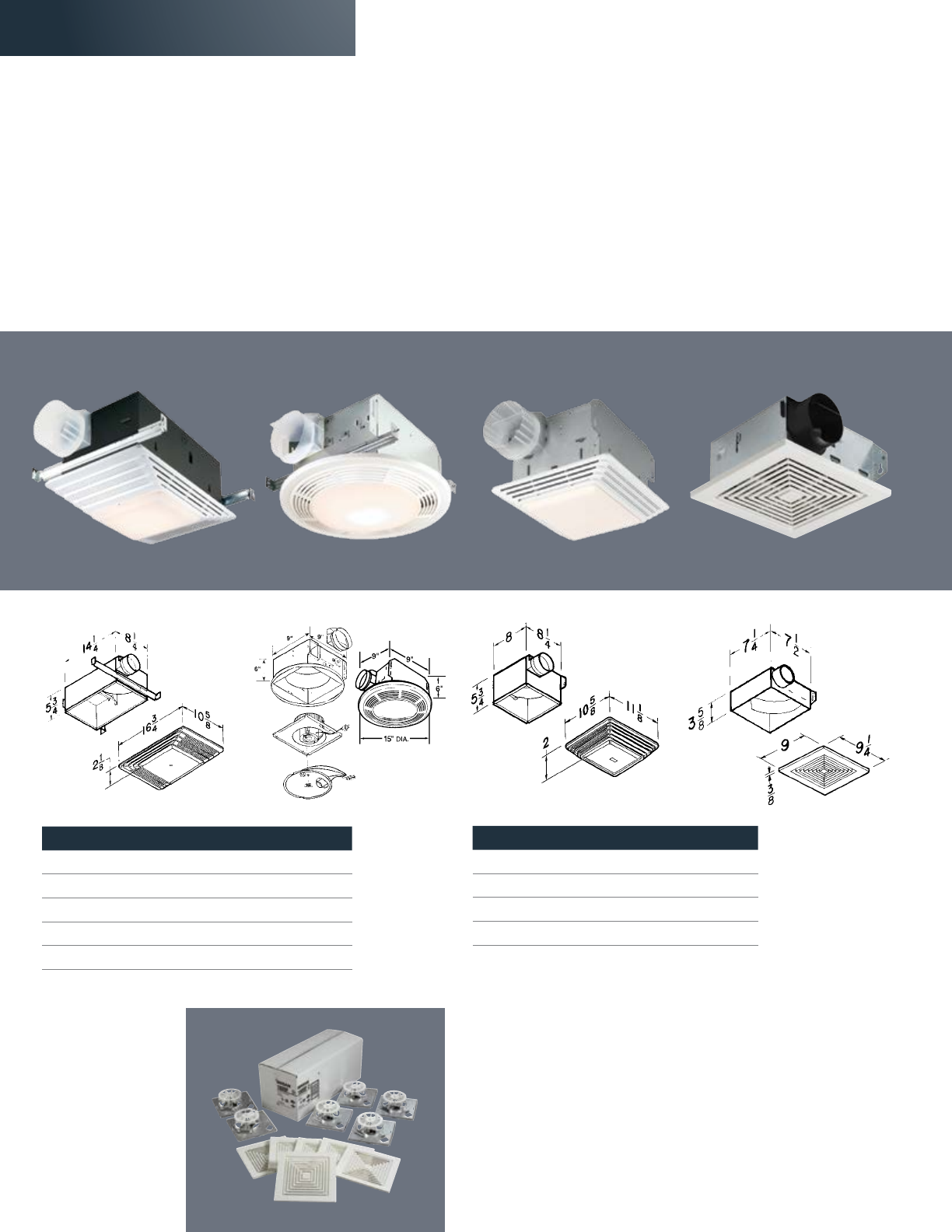

30–31 CLASSIC VENTILATION

32–35 ARCHITECTURAL FAN/LIGHTS

36–41 SPECIALTY

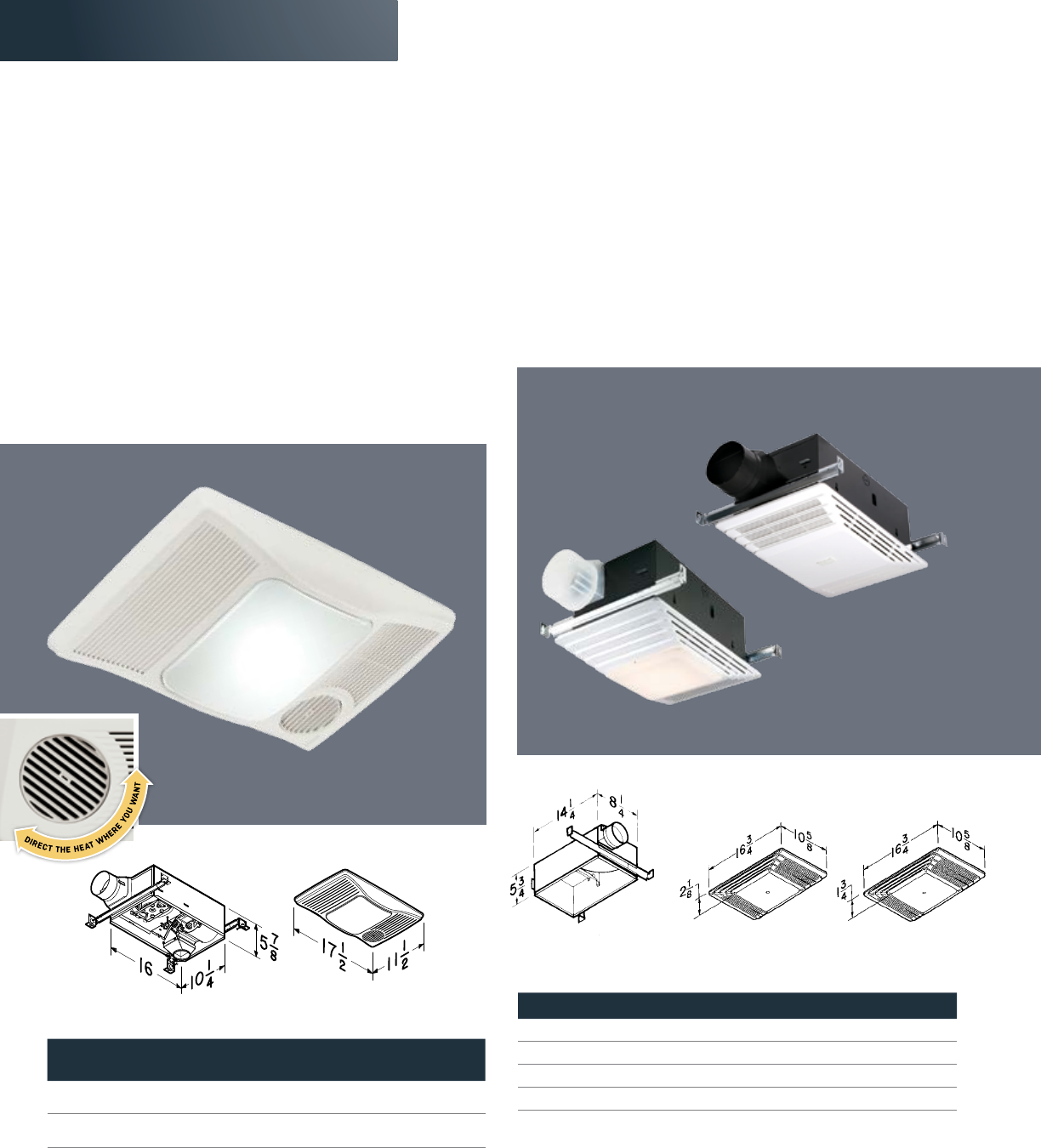

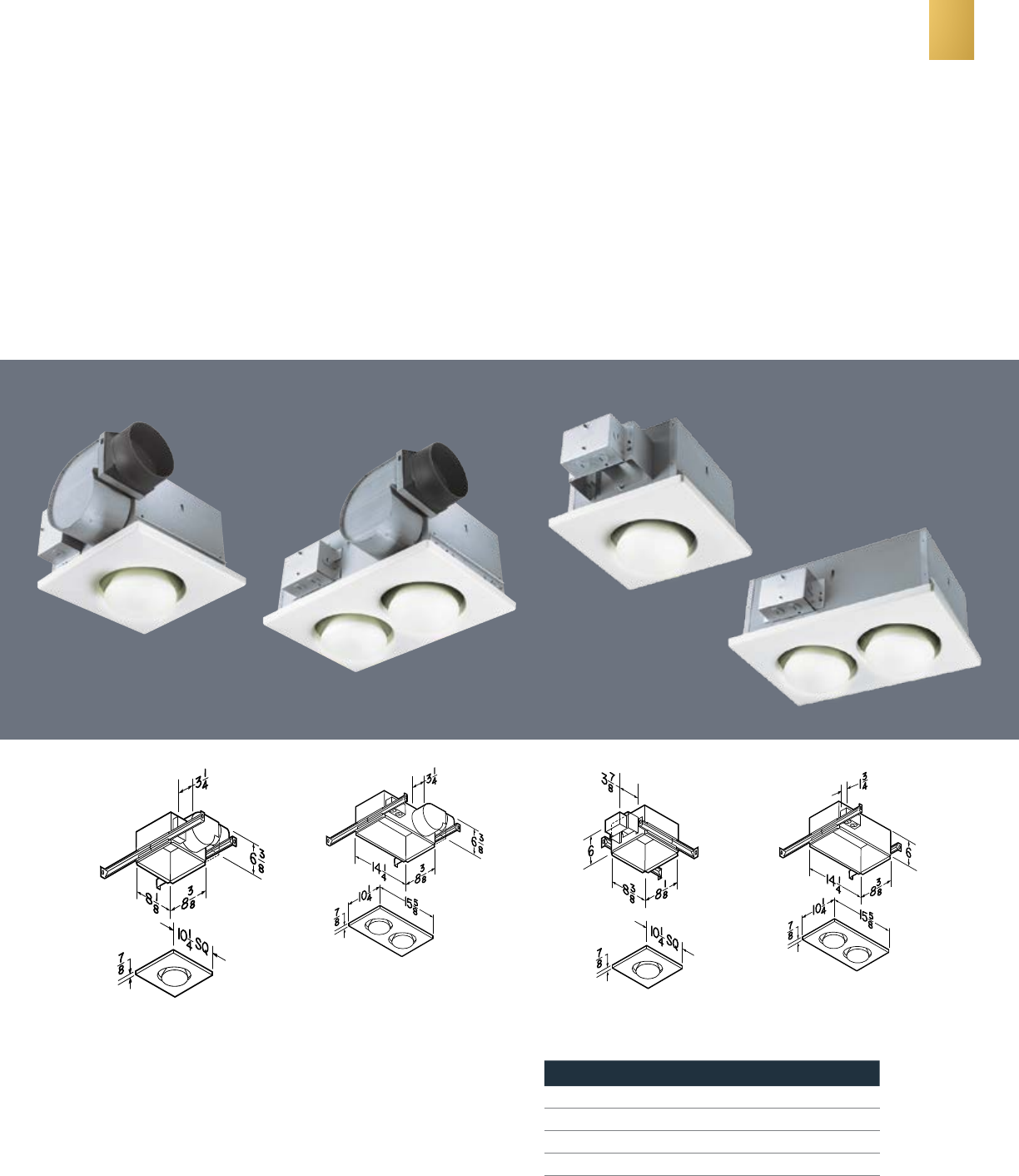

42–45 HEATER/FAN/LIGHTS

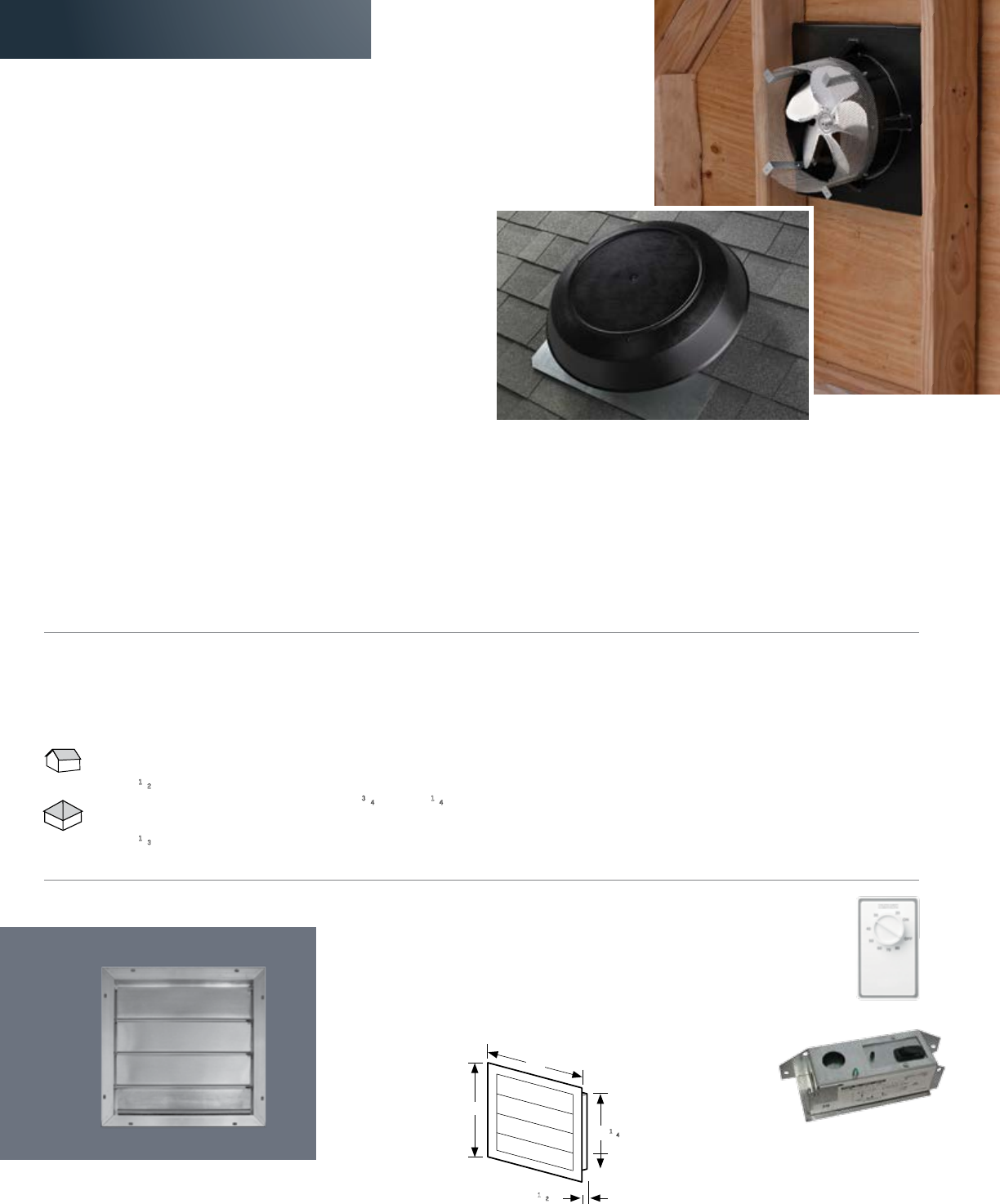

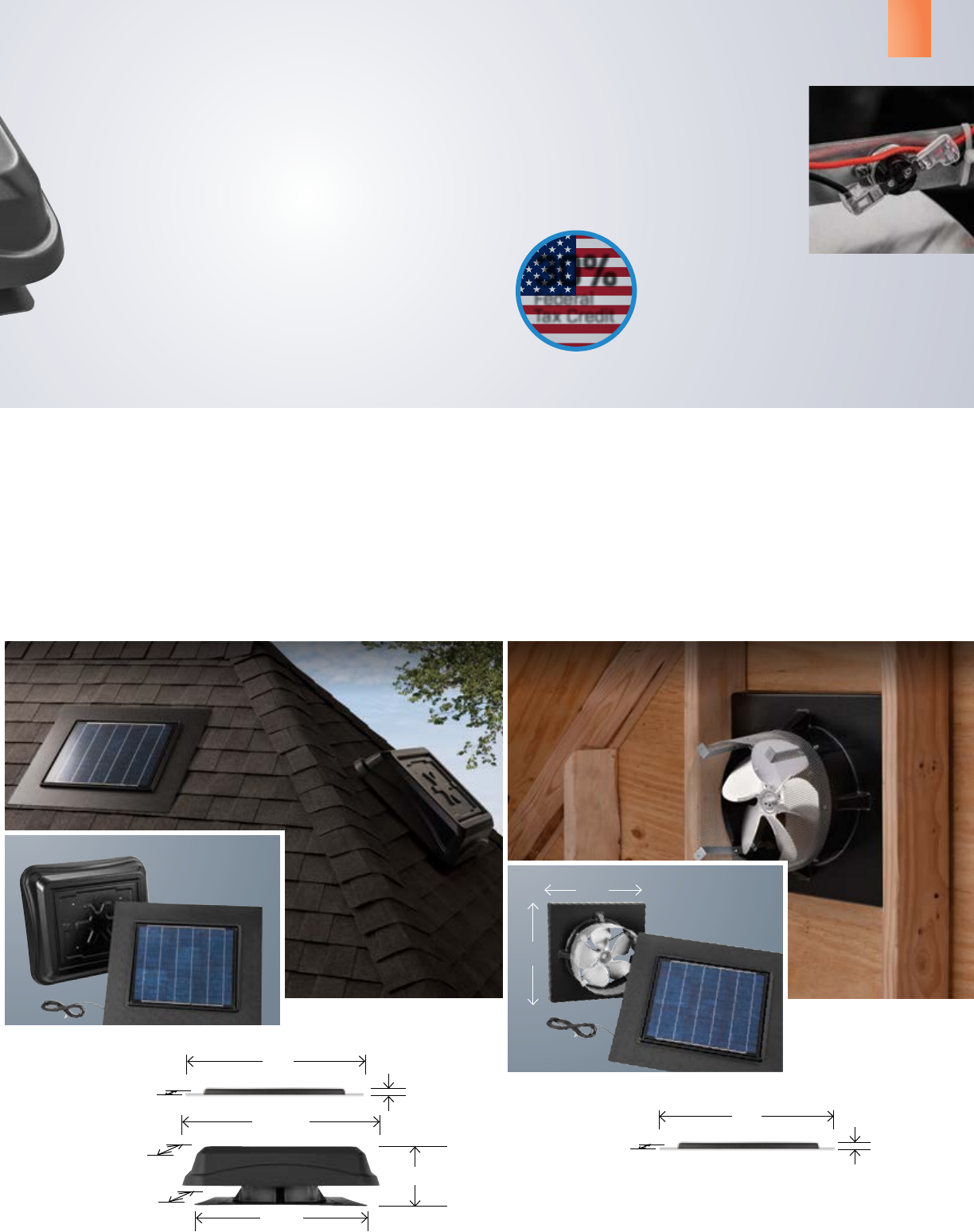

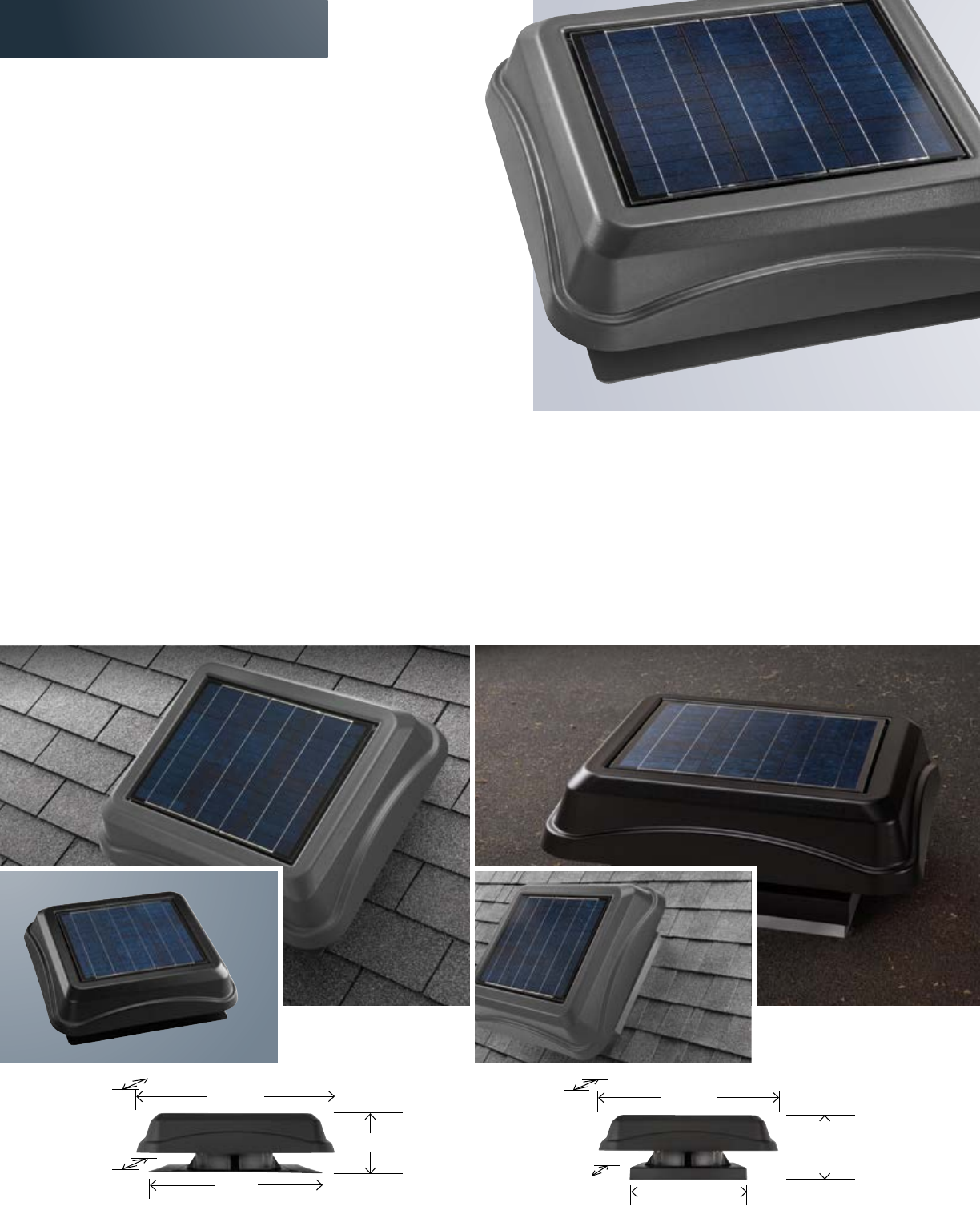

46–49 ATTIC VENTILATORS

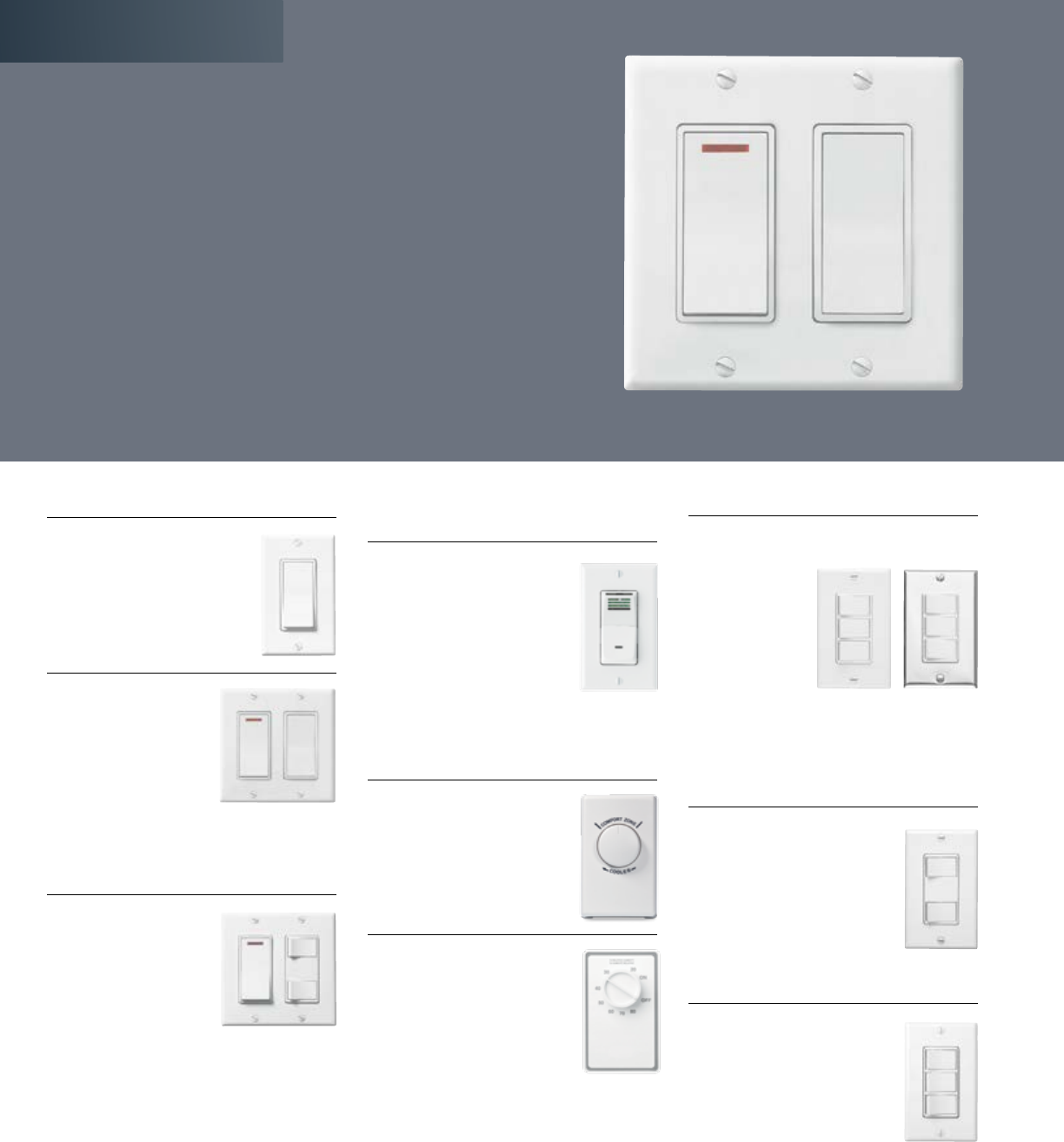

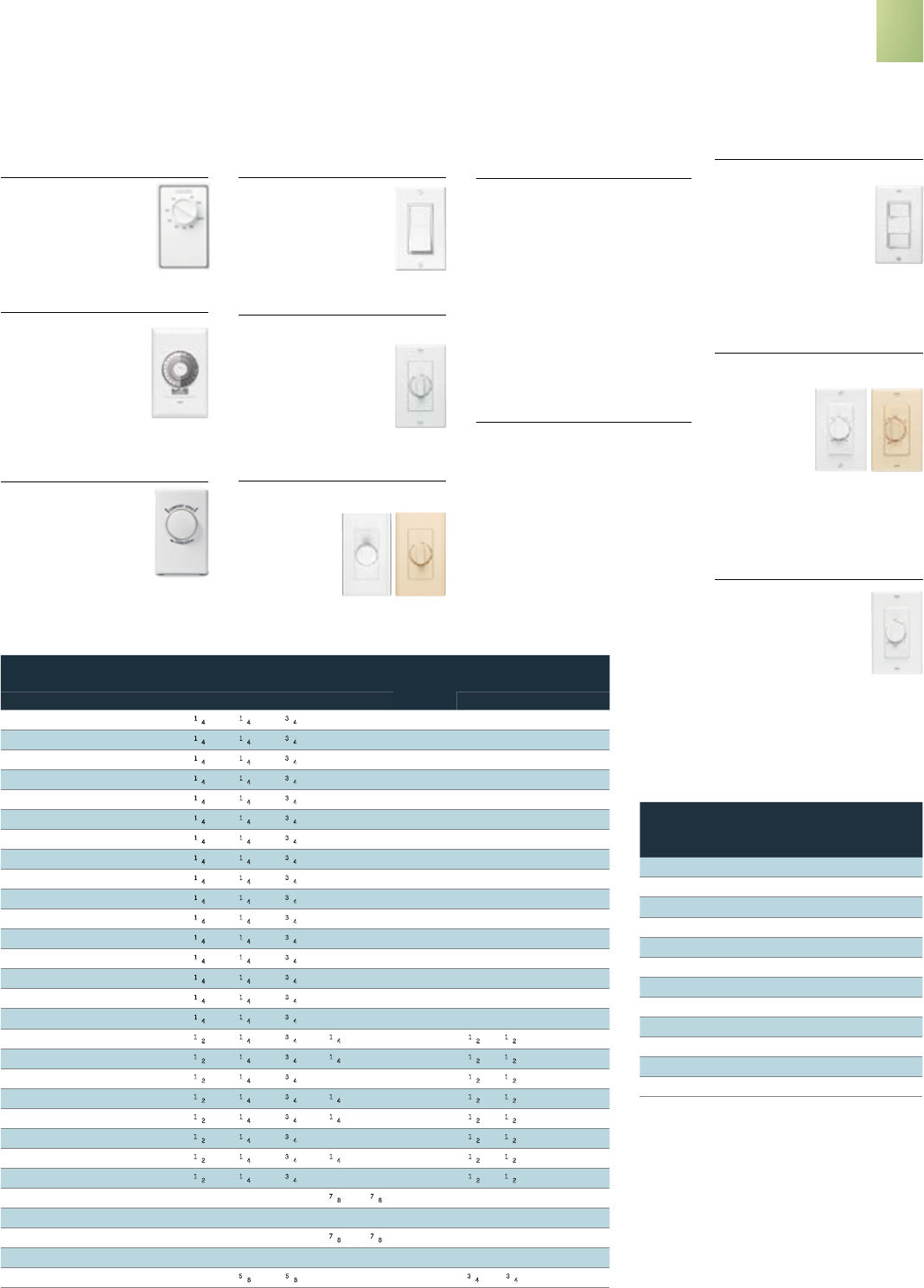

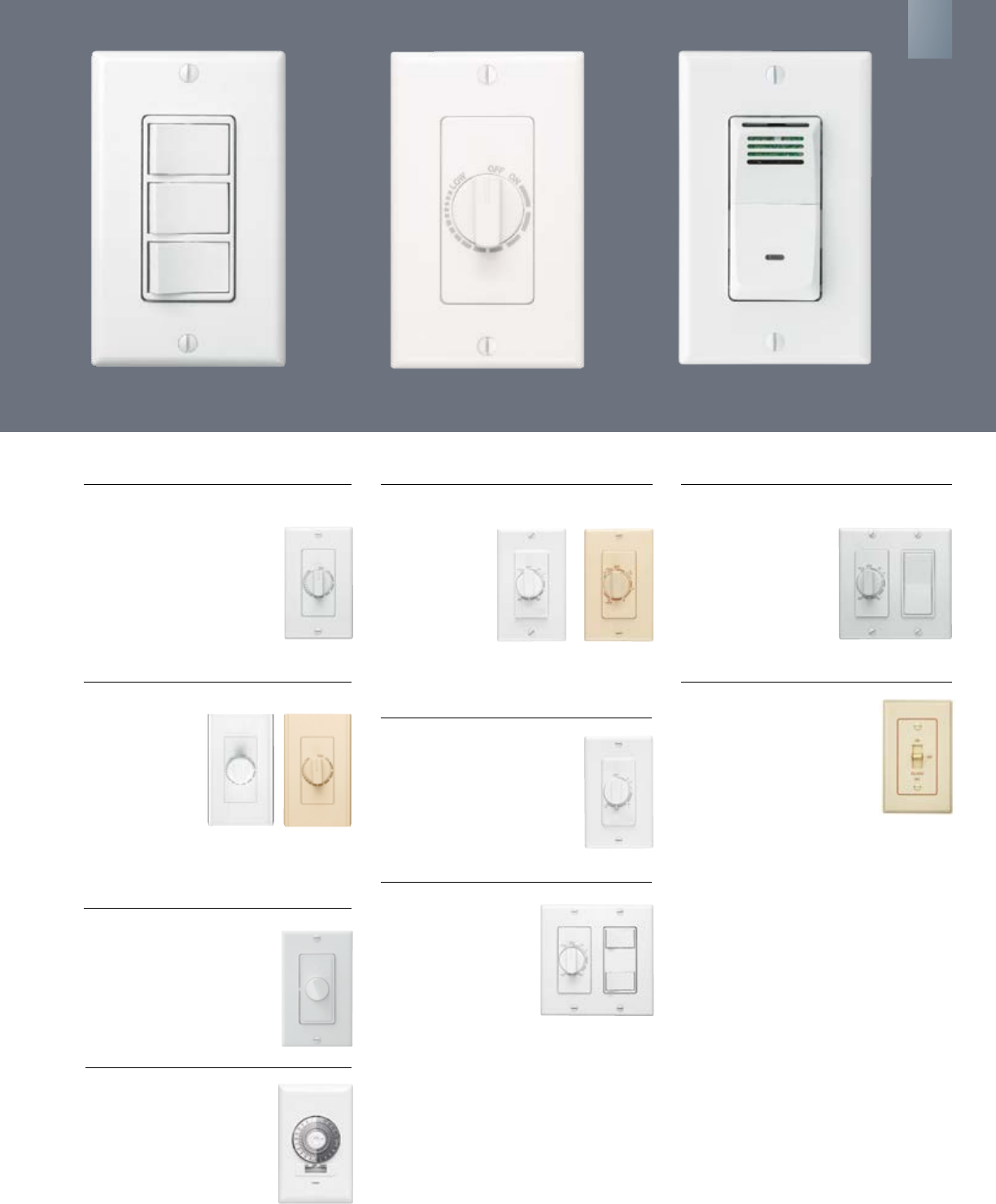

50–53 WALL CONTROLS

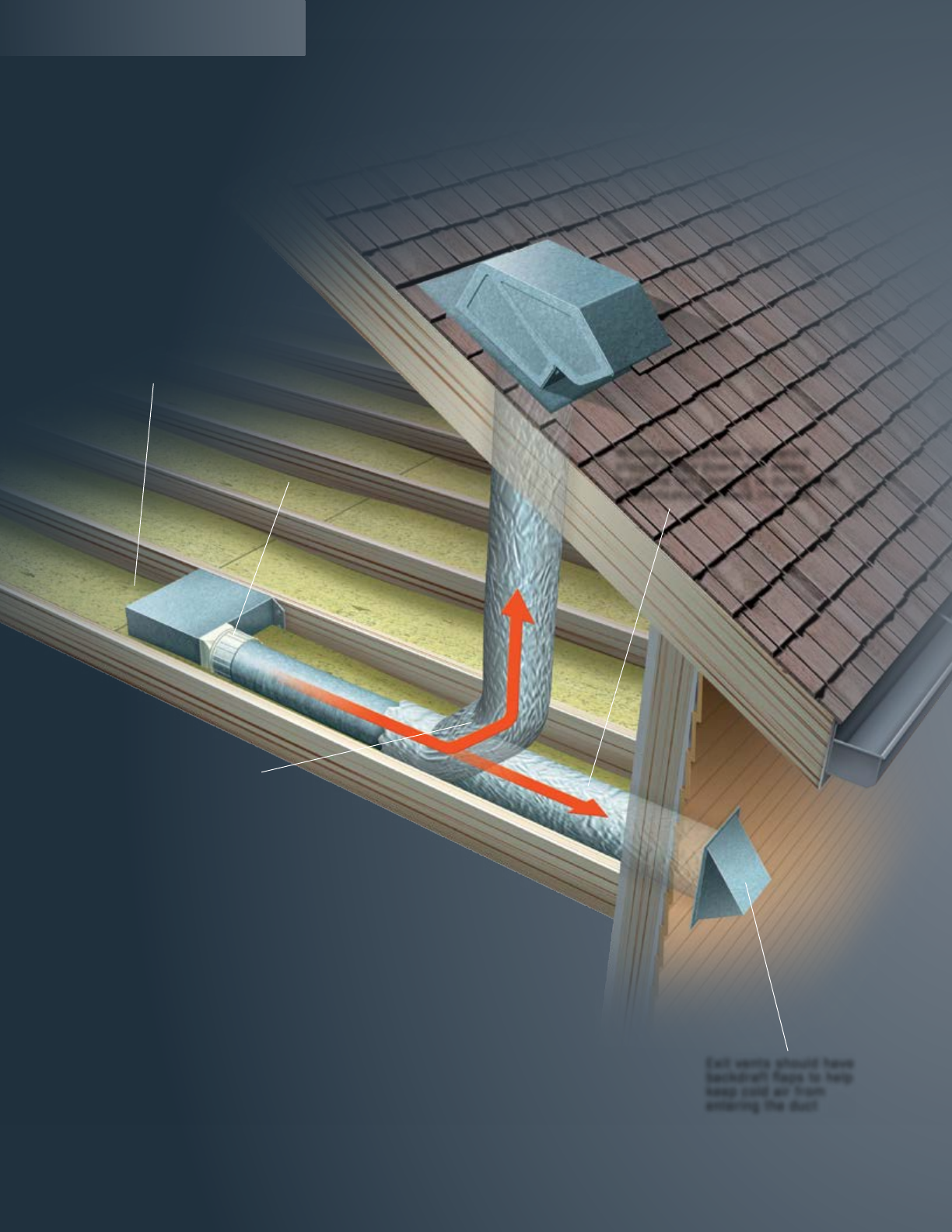

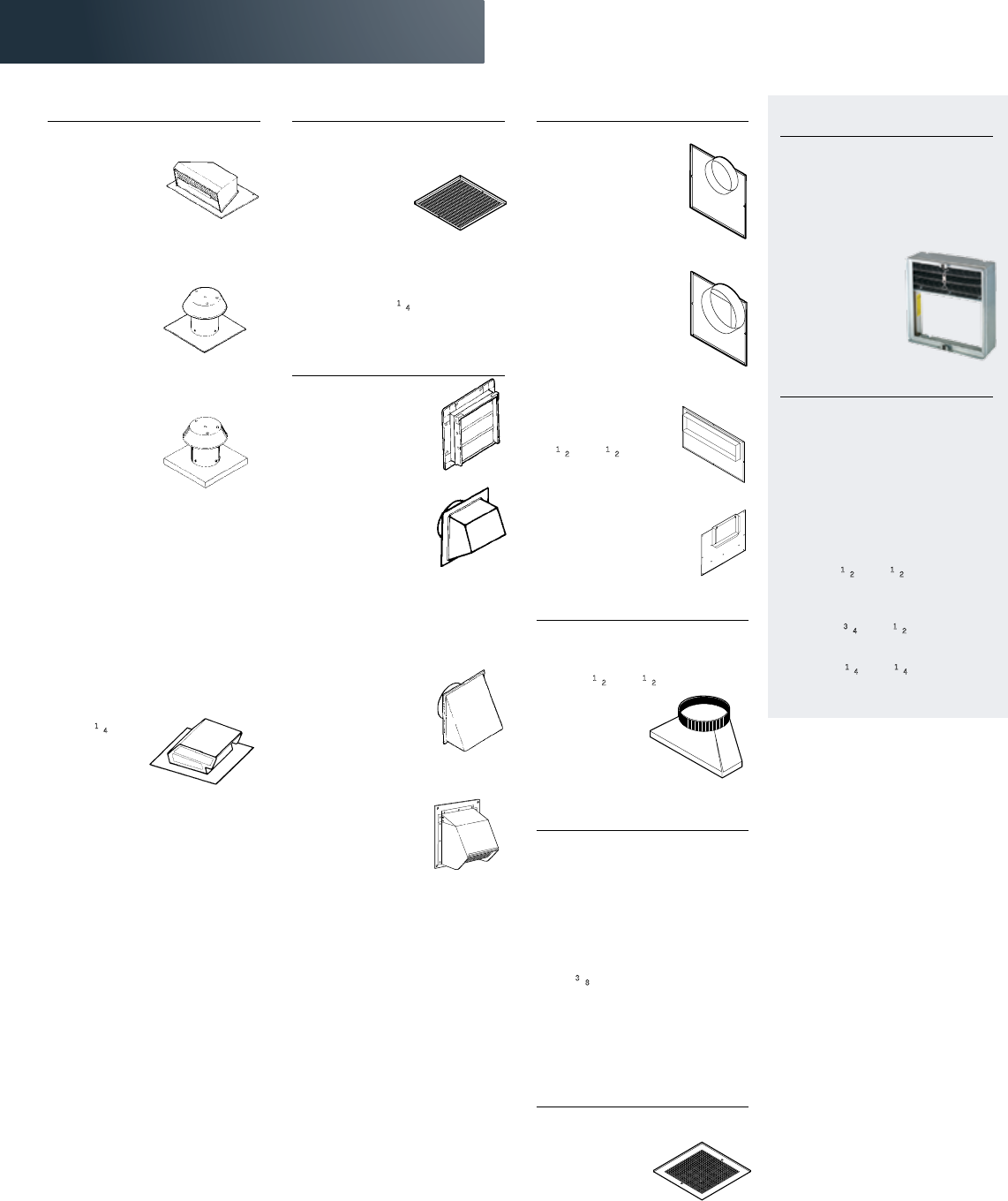

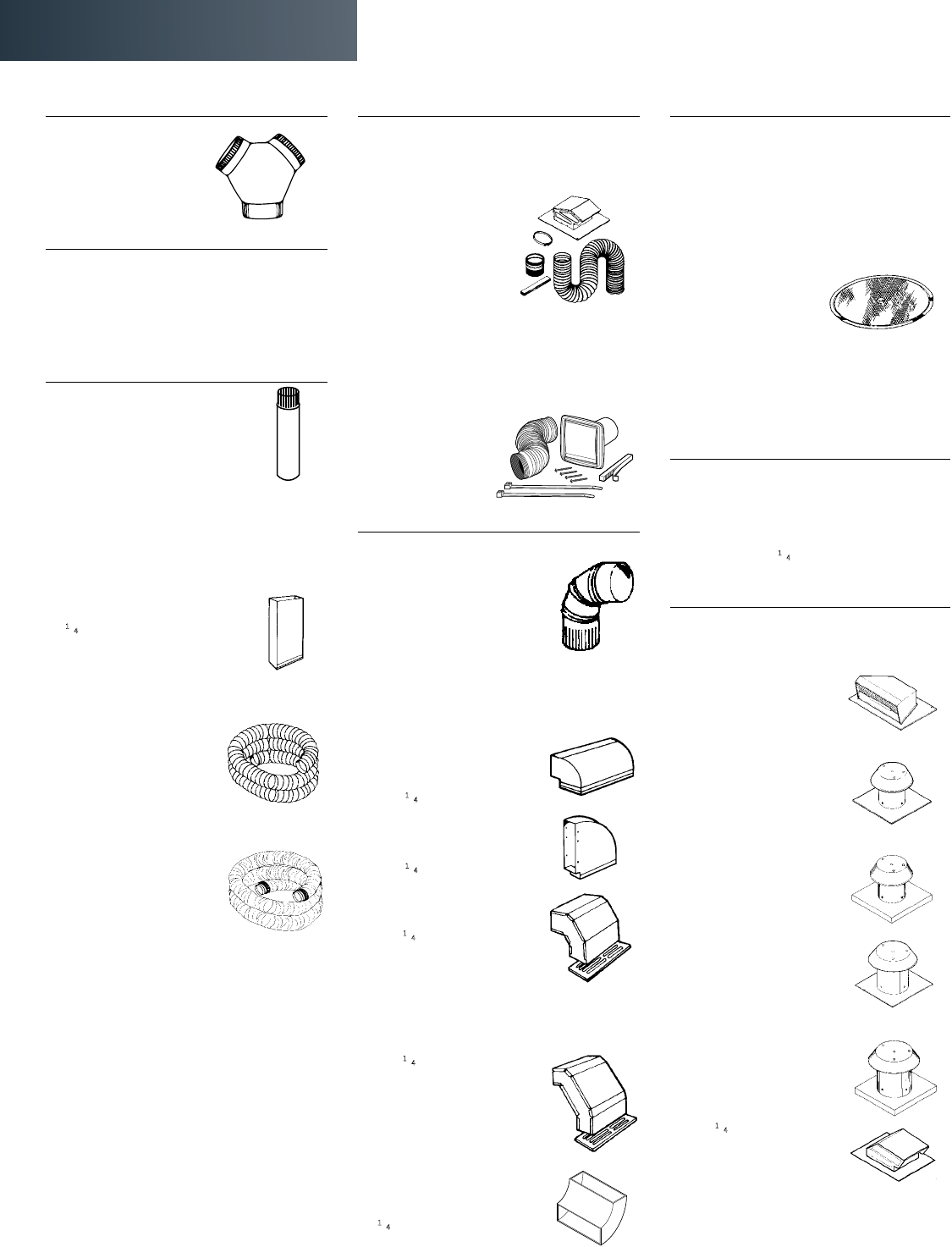

54–55 DUCTING ACCESSORIES

56–57 FAQS

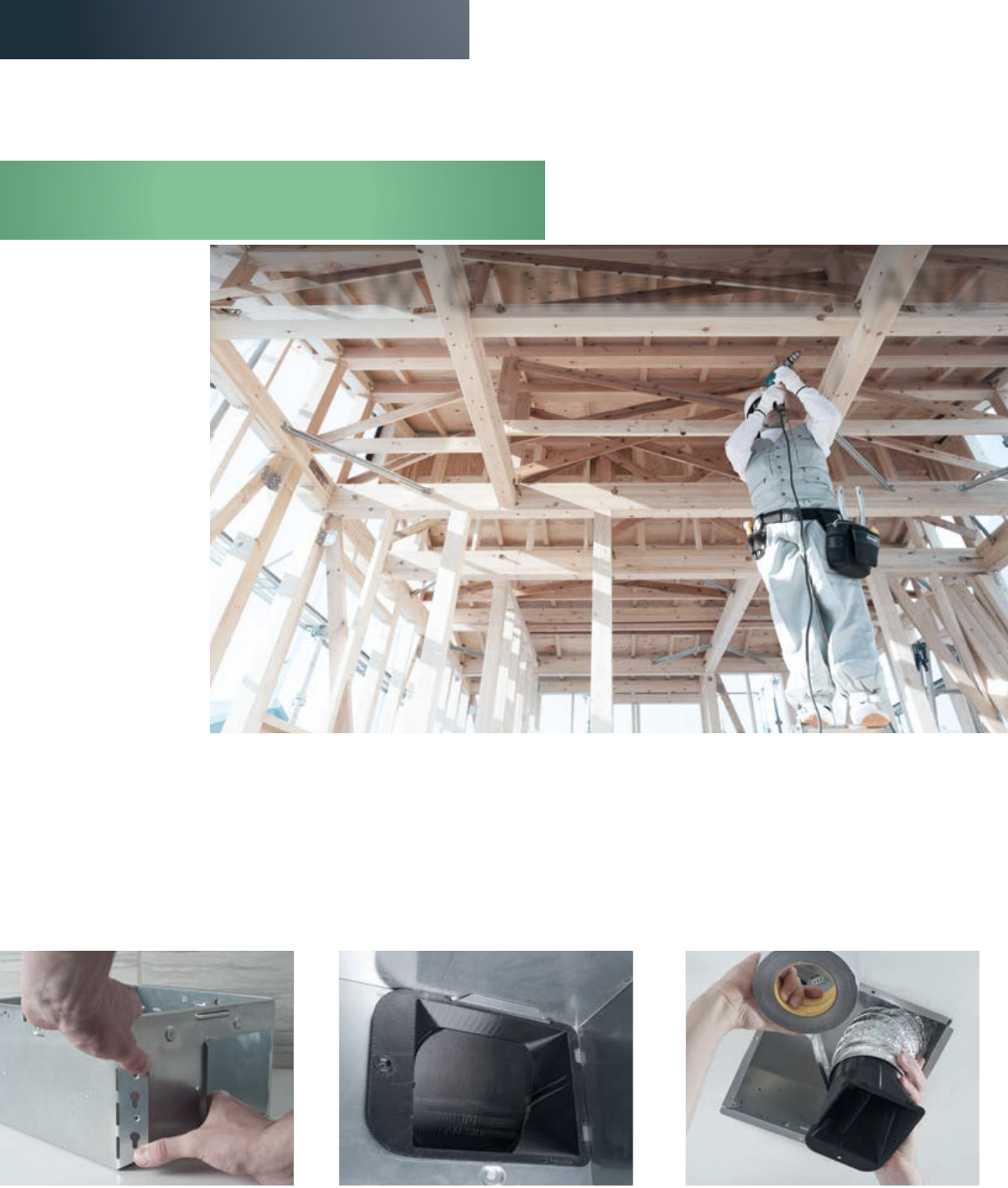

58–59 INSTALLATION NOTES

60–63 SPECIFICATIONS

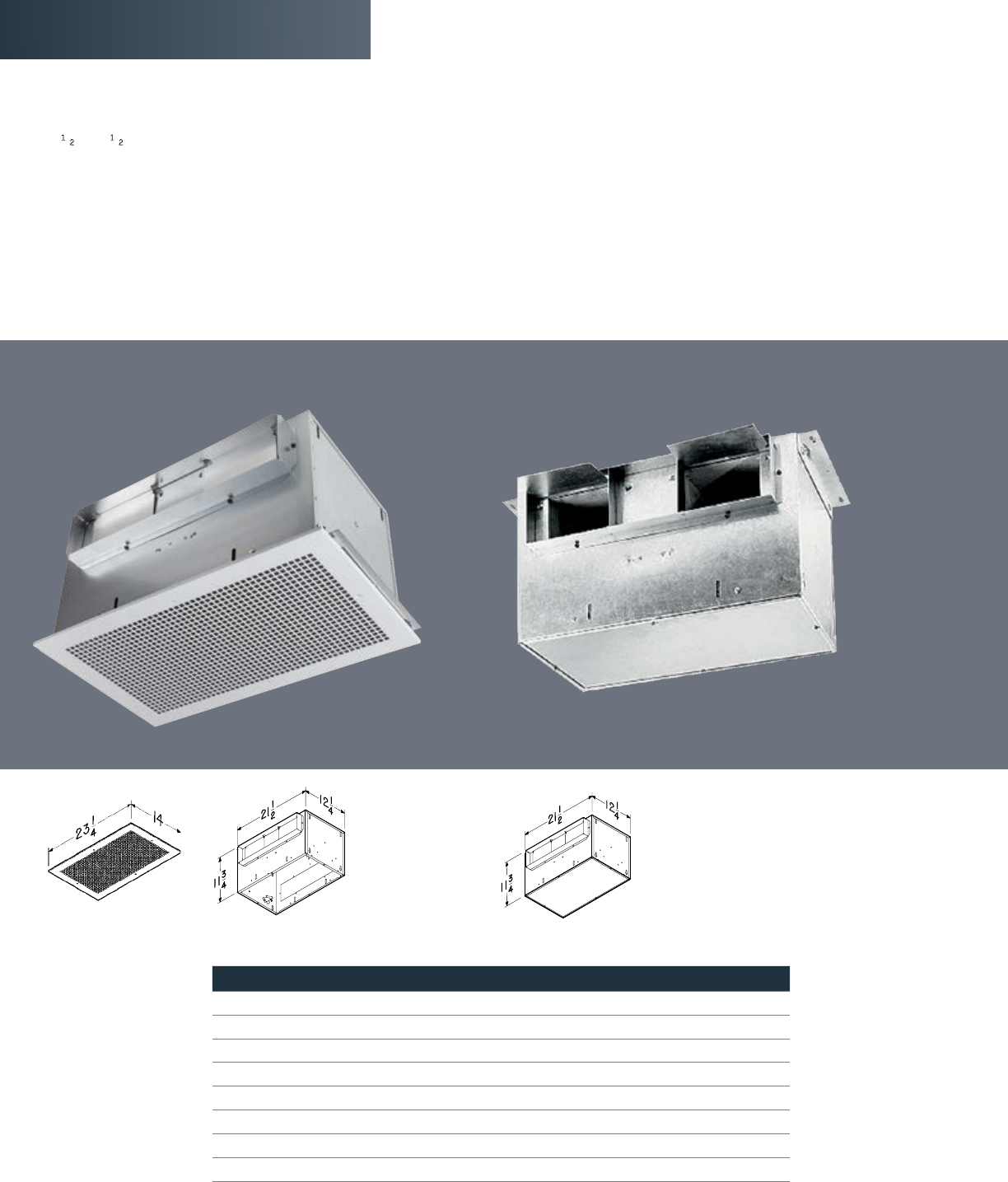

64–73 LIGHT COMMERCIAL

NOT JUST THE BATHROOM.

5

In southeastern Wisconsin some eight

decades ago, an engineer named Henry Broan

had a revelation: Wouldn't a built-in mechanical

ventilation solution help to provide better indoor

air quality in the kitchen? And so, Motordor

was conceived—the first kitchen ventilator—

and a company was born. Once Mr. Broan had

invented a new category, other applications

were the natural next step. The bath ventilation

fan soon followed, as the passion for improving

indoor air quality continued.

Leadership is built on standards, all to help

ensure the professionalism of an industry. So

in 1957, Broan was among five companies that

founded the Home Ventilating Institute (HVI).

To this day the HVI mark ensures what's stated

on the package is tested and certified for your

confidence. Because Mr. Broan believed that

if you paid good money for something, you

deserved to get what was promised.

Throughout the years, countless innovations

followed, including some of the first certified

ventilation fans and range hoods with efficient

motors and lighting that reduced energy

consumption by as much as 70%. And as homes

were built tighter, Broan was on the leading

edge of whole-house ventilation solutions with

HEPA filtration and energy recovery capabilities.

Today, Broan continues to lead the industry with

efficient and quiet ventilation solutions that are

easier than ever to install.

You see, leadership isn’t about entering a

market, offering a handful of products, and

staking a claim. Leadership is earned and

proven through a passion and commitment

to finding novel solutions to real problems time

and time again. This is exactly why Broan has

taken the job of improving air quality in our

homes very seriously for more than 80 years.

INDUSTRY LEADERSHIP ISN’T A CLAIM.

IT’S EARNED THROUGH INNOVATION.

THE UNDISPUTED LEADER IN

INDOOR AIR QUALITY SINCE 1932.

WE INVENTED THE CATEGORY IN 1932. WE HAVE NO INTENTION OF STOPPING.

1933: Kitchen ventilator:

Motordor is sold

1955: Founder of the

Home Ventilating Institute

The original

1932 Motordor

1965:

Introduced the first

heater fan light

1959: The fan/light

1956: The bath fan

1993: The

first humidity

sensing

fan hits the

shelves

6

DID YOU KNOW?

INDUSTRY LEADERSHIP ISN’T A CLAIM.

IT’S EARNED THROUGH INNOVATION.

Broan was a founding member

of the Home Ventilating Institute®

, an

independent organization that certifies

airflow and sound performance of

ventilation products. hvi.org

Twenty-four*

of the top 25 builders

specify the Broan brand. More builders

use Broan ventilation products than

any other brand.

*2015 Hanley Wood Builder Brand Use Study

ENERGY STAR A partner since

2005, Broan has one of the largest

ENERGY STAR offerings in the industry,

including many ENERGY STAR Most

Efficient products. energystar.gov

Broan-NuTone is the only company

in North America with an HVI Certified

on-site sound testing facility.

About 80% of Broan

products are manufactured in our

state-of-the-art manufacturing

facilities in Hartford, Wisconsin.

Broan is a three-time winner of

the International Service Excellence

award. The Customer Service Institute

of America recognizes organizations

for customer service professionalism.

Professional contractors

recognize the Broan ventilation brand

above all others.

2014:

The first fan with Soft

Surround™ LED lighting

technology

2005: The

ENERGY STAR®

qualified fan

2015:

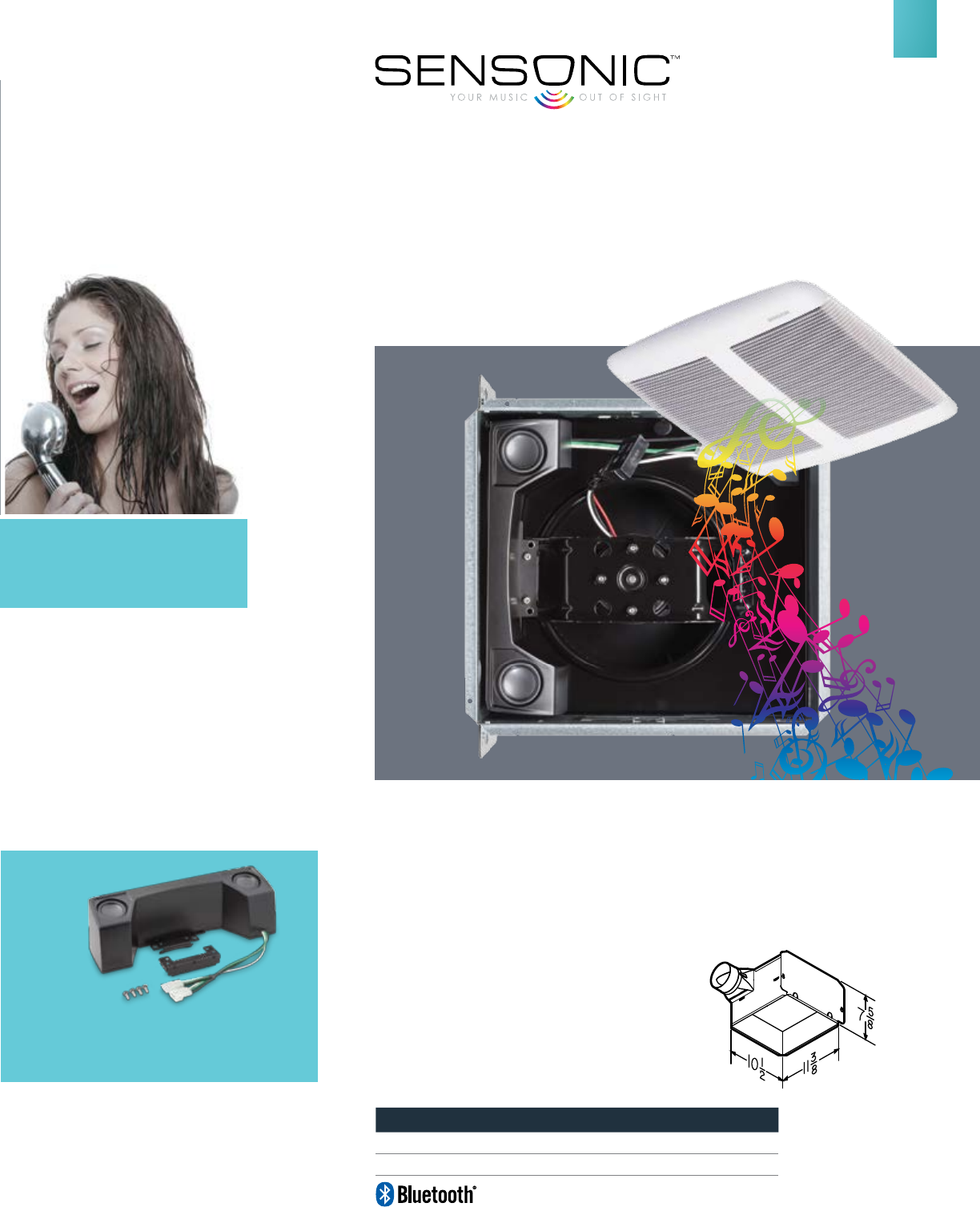

The wireless

speaker fan

2012: The first fan enabling

easy room-side installation

2004: The first

recessed fan light

2004:

The quiet fan

<0.3 sones

7

Because today’s homes are built tighter than ever before, what

gets in stays in, unless mechanically ventilated out. Premium

ventilation solutions from Broan dramatically reduce moisture

as well as airborne pollutants from off-gassing building

materials, adhesives and household cleaners. They also help

eliminate allergens, dust, pet dander and cooking effluents—

everything that contributes to poor indoor air quality.

Both spot and whole-house ventilation are important.

Spot ventilation products remove pollutants at the source when

they occur—think bathroom fans and kitchen range hoods—

quickly eliminating humidity, odor and cooking effluents.

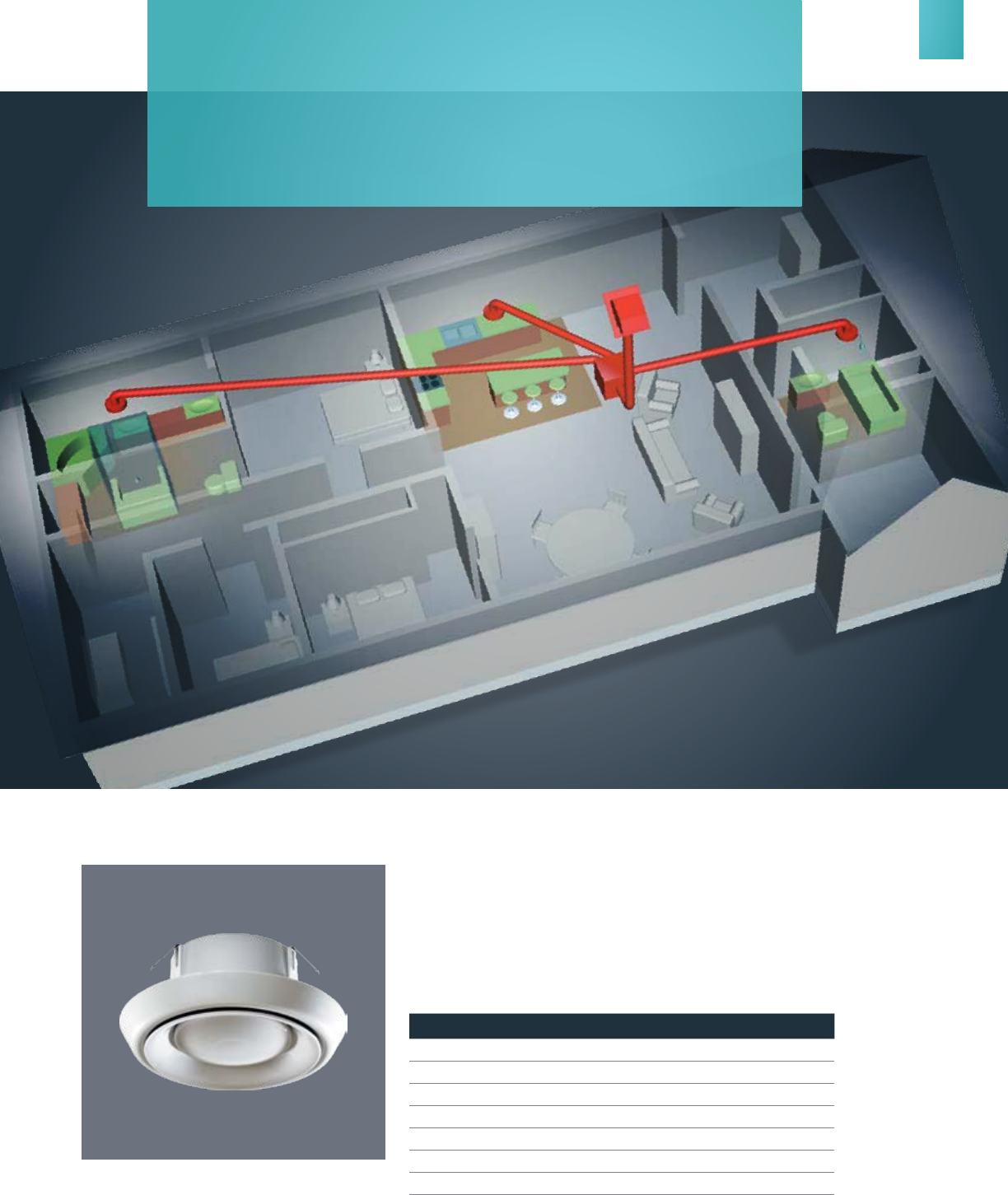

Whole-house ventilation, also known as continuous or dwelling

unit ventilation (DUV), continually removes what’s not captured

by spot ventilation for a more healthy and comfortable home.

Understanding today’s ventilation requirements.

The American Society of Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE) set the industry standard

for ventilation and acceptable indoor air quality for low-rise

residential buildings with ASHRAE 62.2. It sets the minimum

standard for spot or local ventilation of individual bathrooms of

50 Cubic Feet per Minute (CFM) delivered airflow at 3.0 sones

or less. It also specifies the requirements for whole-house

ventilation of an entire dwelling at the maximum sound rating

of 1.0 sone for ventilation fans.

Code adoption growing rapidly.

California was a leader in this area with their Title 24 Code.

Other state and city governments are quickly adopting similar

codes such as the International Energy Conservation Code

(IECC) to improve energy efficiency as well as indoor

air quality.

Above-code green building programs such as ENERGY STAR®

for Homes, ENERGY STAR® Indoor Air Plus, the Leadership in

Energy and Environment Design (LEED) Certification Building

Program and the National Association of Home Builders (NAHB)

Green Building Standard are certified green building programs

that promote human health and conserve natural resources.

Let Broan help you meet the goals of these programs.

You’ve come to the right place for product solutions.

With Broan’s extensive product line-up, including exhaust and

balanced ventilation options such as Heat Recovery Ventilators

(HRVs) and Energy Recovery Ventilators (ERVs), you’re sure to

find the ideal solution to meet your needs.

BROAN KNOWS TODAY’S STRINGENT

VENTILATION CODES AND STANDARDS.

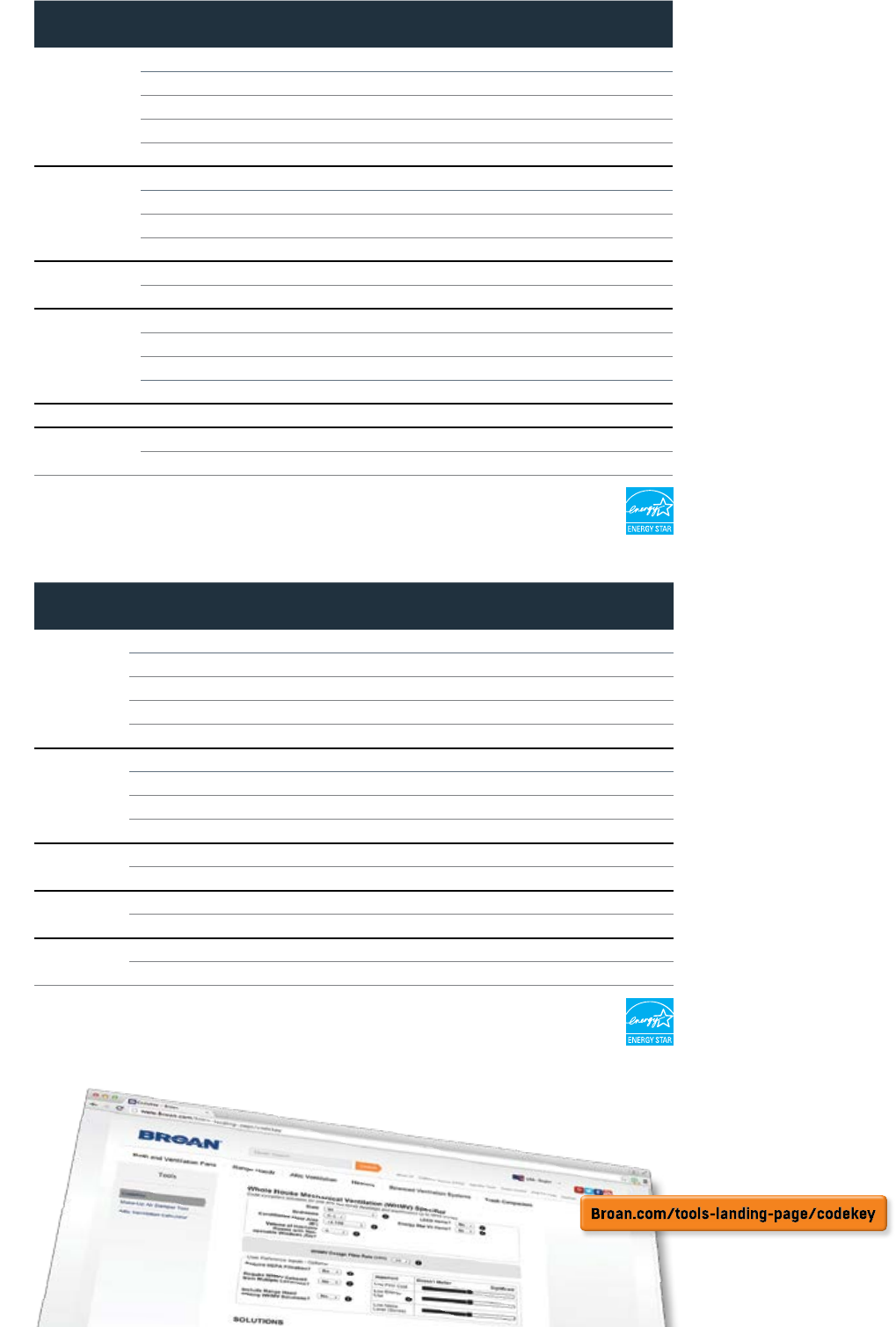

SELECTING THE PROPER WHOLE HOUSE RESIDENTIAL VENTILATION SOLUTION.

Sizing your solution is a factor of square footage and the number of bedrooms in the dwelling to meet

requirements. These charts are based on ASHRAE 62.2. Note that the 2010 and 2013 versions are

different. Most states still operate under 62.2–2010 rates. Before specifying, check local building codes

to ensure it meets requirements.

AN ALTERNATIVE FORMULA APPROACH TO THE TABLES GIVEN ABOVE.

An alternative formula approach to the tables

given above also exists and typically results

in a lower, more precise CFM requirement.

Under the more common 62.2-2010 version,

continuous CFM requirements can be

calculated using a formula as follows.

CFM = .01 x floor area (in square feet) plus

7.5 x (number of bedrooms + 1).

Example: A 3,500 square foot home with

4 bedrooms would require 73 CFM

.01 x 3,500 = 35

7.5 x (4+1) = 38

Add together for a total of 73 CFM

(as compared to the 90 from the above table).

The 62.2-2013 version increases the

multiplier for floor area from .01 to .03. Note

however that infiltration credits can be taken

if blower door testing is conducted.

ASHRAE 62.2—2010 Required Continuous

Ventilation Rate (CFM)

Floor Area

Sq. Ft. 0–1 BR 2–3 BR 4–5 BR 6–7 BR >7 BR

<1500 30 45 60 75 90

1501–3000 45 60 75 90 105

3001–4500 60 75 90 105 120

4501–6000 75 90 105 120 135

6001–7500 90 105 120 135 150

>7500 105 120 135 150 165

ASHRAE 62.2—2013 Required Continuous

Ventilation Rate (CFM)

Floor Area

Sq. Ft. 0–1 BR 2–3 BR 4–5 BR 6–7 BR >7 BR

<500 30 40 45 55 60

500–1000 45 55 60 70 75

1001–1500 60 70 70 85 90

1501–2000 75 85 90 100 105

2001–2500 90 100 105 115 120

2501–3000 105 115 120 130 135

3001–3500 120 130 135 145 150

>3501 135 145 150 160 165

8

Fan/Light

Series Model CFM 0.25"

CFM Sones Motor

Type Sensing Duct

Size

Page

No.

UltraGreen

Multi Speed

ZB80L 80 80 <0.3* DC — 6" or 4" 12

ZB80ML 80 80 <0.3* DC Motion 6" or 4" 12

ZB110L 110 110 <0.3 DC —6" 12

ZB110HL 110 110 <0.3 DC Humidity 6" 12

ZB110ML 110 110 <0.3 DC Motion 6" 12

UltraGreen

Single Speed

XB50L 50 50 <0.3 DC — 6" or 4" 12

XB80L 80 80 <0.3* DC — 6" or 4" 12

XB110L 110 110 <0.3 DC —6" 12

XB110HL 110 110 <0.3 DC Humidity 6" 12

UltraPro RB80L 80 60 <0.3 PSC —4" 14–15

RB110L 110 91 0.8 PSC —4" 14–15

QTXE QTXE080FLT 80 56 0.3 PSC —6" 18

QTXE110FLT 110 86 0.7 PSC —6" 18

InVent AE80L 80 60 0.8 PSC —4" 26

A80L 80 92 1.0 PSC —4" 26

ENERGY STAR® fans use 70% less energy, on average, than standard models

and may qualify for local utility rebates

Note that in addition to exhaust solutions to meet DUV requirements, we also offer

a full line of balanced ventilation models (HRVs and ERVs).

Whole-house Ventilation Options

Fan Series Model CFM 0.25"

CFM Sones Motor

Type Sensing Duct

Size

Page

No.

UltraGreen

Multi Speed

ZB80 80 80 <0.3* DC — 6" or 4" 12–13

ZB80M 80 80 <0.3* DC Motion 6" or 4" 12–13

ZB110 110 110 <0.3 DC —6" 12–13

ZB110H 110 110 <0.3 DC Humidity 6" 12–13

ZB110M 110 110 <0.3 DC Motion 6" 12–13

UltraGreen

Single Speed

XB50 50 50 <0.3 DC — 6" or 4" 12–13

XB80 80 80 <0.3* DC — 6" or 4" 12–13

XB110 110 110 <0.3 DC —6" 12–13

XB110H 110 110 <0.3 DC Humidity 6" 12–13

UltraPro RB80 80 60 <0.3 PSC —4" 14-15

RB110 110 91 0.6 PSC —4" 14-15

QTXE

SmartSense**

QTXE080 80 56 0.3 PSC —6" 18

QTXE110 110 86 0.7 PSC —6" 18

SSQTXE080 80 56 0.7 PSC —6" 22–23

SSQTXE110 110 86 0.7 PSC —6" 22–23

LoProfile LP80 80 55 1.0 PSC —4" 29

InVent AE80 80 60 0.8 PSC —4" 26

AE50 50 92 0.5 PSC —4" 26

ENERGY STAR® fans use 70% less energy, on average, than standard models

and may qualify for local utility rebates

*With 6" duct (0.3 sones with 4" duct)

**SmartSense Models: SSQTXEO80 and SSQTXE110 (see pages 22 and 23)

BROAN CODE KEY

The exclusive online tool

that ensures compliant

ventilation selection.

Specifying a dwelling unit ventilation

(DUV) system for residences can be

complicated. Code Key from Broan

is the only online resource that

helps you select the right product

in minutes. Choose the dwelling's

state, home size facts and user

preferences to receive a list of

recommended ventilation products.

Change parameters to instantly see

a range of options. Code Key requires

no software and works on mobile

devices. It's another way Broan—

the pioneer in ventilation for more

than 80 years—leads the ventilation

industry with forward-thinking

products and customer service.

9

ULTRA

™ SERIES FANS & FAN/LIGHTS

ENGINEERED TO SIMPLIFY

INSTALLATION.

A REVOLUTION IN

VENTILATION FAN TECHNOLOGY

WE DIDN’T JUST CHANGE ONE THING TO MAKE INSTALLATIONS

FASTER, WE CHANGED EVERYTHING. From a unique telescoping mounting

frame that installs room-side on retro-fits to an easy-to-insert housing and blower

that snap into place, we designed the ULTRA™ Series to be the fastest, easiest, most

universal installation in new construction or retro-fit. No matter what’s behind the

drywall on your next retro-fit job, you’ll never have another difficult installation.

And just as important, the ULTRA™ Series meets whole-house mechanical ventilation

codes and green building program requirements. It’s a revolutionary way to install

and a revolutionary way to ventilate.

10

For energy saving

options see ULTRA

GREEN on page 12

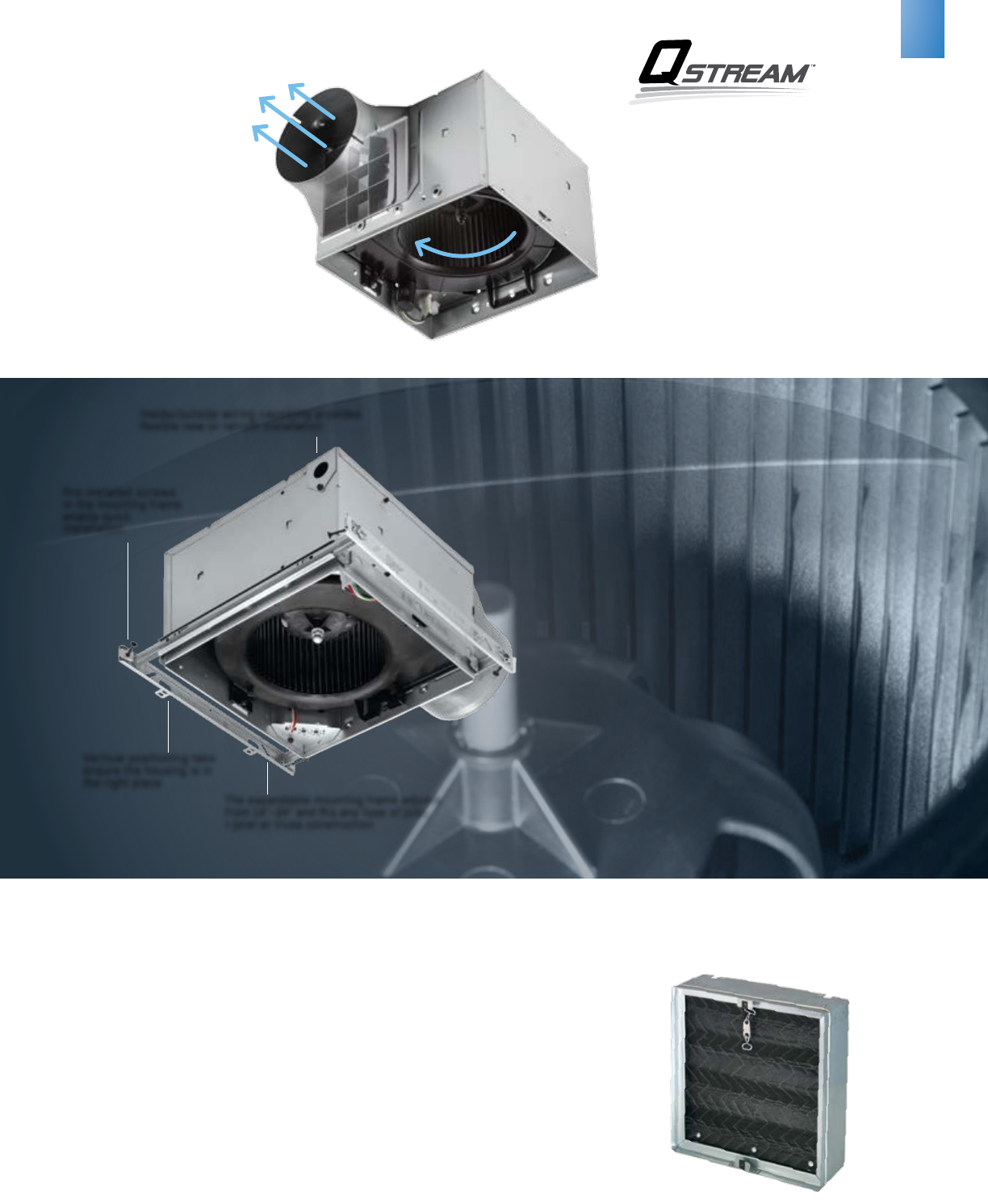

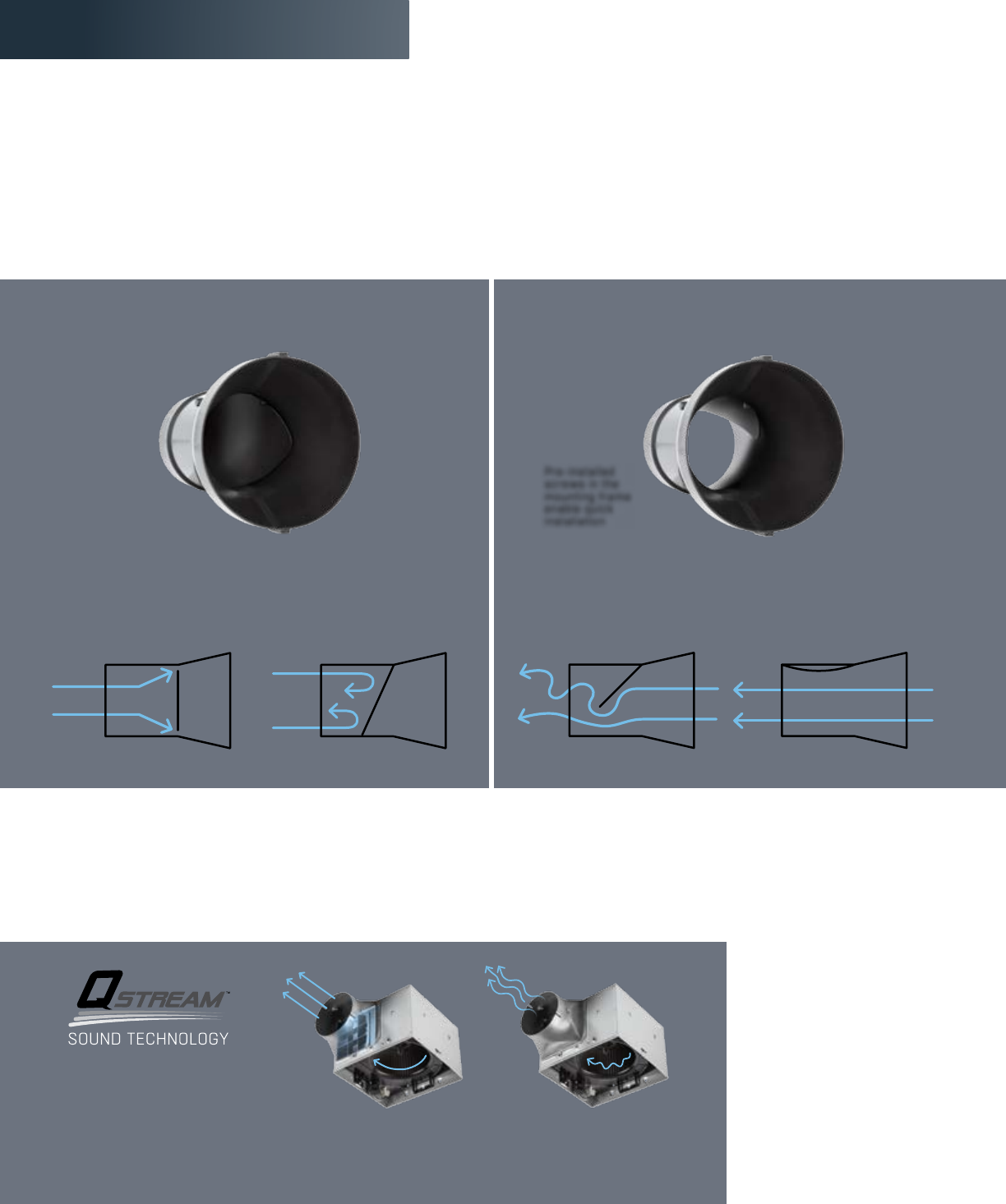

SOUND TECHNOLOGY

Reduce sound levels and improve sound

quality in real-world installations. The

innovative, patent-pending QStream™

technology utilizes airflow-smoothing

baffles that reduce turbulence which

means the blower can turn more slowly

and quietly—without airflow loss.*

*Not available on 110 CFM UltraGreen Models

ULTRAQUICK™

INSTALLATION TECHNOLOGY

ULTRA™ Series Ventilation Fans are

engineered to be the fastest, easiest,

most universal installation in remodel,

retrofit and new construction—in any

type of joist or truss system. Exclusive

features simplify room-side installation

to save valuable time and money.

Pre-installed screws

in the mounting frame

enable quick

installation

Vertical positioning tabs

ensure the housing is in

the right place

The expandable mounting frame adjusts

from 14"–24" and fits any type of joist,

I-Joist or truss construction

Inside/outside wiring capability provides

flexible new or retrofit installation

RDFU PREMIUM RADIATION DAMPER FOR ULTRA GREEN™

AND ULTRA PRO™ FANS.

When the air temperature passing through the damper exceeds 165°F the

fusible link melts, triggering the thermal fabric to automatically close across

the damper. Airflow is interrupted by a flame and heat barrier, preventing

the rapid spread of fire to other areas.

• Motor serviceable without disturbing

drywall

• Galvanized steel frame

• High temperature, non-asbestos,

reinforced fiber thermal fabric

• Stainless steel closure springs

• 165°F fusible link

• Use the same grille provided with the

ULTRA™ Series fan

• Use Model RDFU with RDJUMPU for

ULTRA Green™ and ULTRA Pro™ models

with lighting and/or sensing

• UL Standard 555C Classified

11

ULTRA

™ GREEN FANS & FAN/LIGHTS

Motion SensingHumidity Sensing

• HVI certified at <0.3 Sones,

ULTRA Silent™ Sound

Technology provides the

quietest sound rating

obtainable

• 50, 80 or 110 CFM

• Intermittent and continuous

ventilation

• ULTRA Smart™ DC Motor and

Control Technology monitors

performance and adjusts

motor speed to ensure rated

air movement

• ENERGY STAR® qualified

• ULTRA Quick™ Installation

Technology saves time with

the fastest, easiest, most

universal installation

• XB and ZB models feature

6" ducting—50 and 80 CFM

models include an optional

6" to 4" duct reducer

• Bright, energy efficient

36 watt fluorescent lighting

• UL Listed for use over

bathtub or shower when

connected to a GFCI

protected branch circuit

• Type IC

• Fits 2" x 8" ceiling

construction

• Optional RDFU Premium

Radiation Damper Kit

available for all XB and ZB

models.

• Models XB50, XB80, ZB50

and ZB80 feature QStream

Technology

THE PERFECT SOLUTION TO MEET

TODAY’S CONTINUOUS VENTILATION

REQUIREMENTS. Built for easy installation in

either new construction or retrofit applications, the

ULTRA Green™ Series makes it simple to ventilate

any room in the house. In today’s tightly built homes,

unhealthy pollutants and excess humidity stay trapped

inside unless they are mechanically vented away.

Exclusive ULTRA Smart™ DC Motor and Control

Technology enables fans to maintain their powerful

operation—even at high static pressures—and provide

required air movement levels for whole-house

ventilation, all while meeting spot ventilation needs

on demand. Continuous CFM levels can be precisely

adjusted to meet the specific needs of each home.

XB50 | XB80 | XB110 | ZB80 | ZB110

FANS

XB50L | XB80L | XB110L | ZB80L |

ZB110L FAN/LIGHTS

XB110H | ZB110H

HUMIDITY SENSING FANS

XB110HL | ZB110HL

HUMIDITY SENSING FAN/LIGHTS

ZB80M | ZB110M

MOTION SENSING FANS

ZB80ML | ZB110ML

MOTION SENSING FAN/LIGHTS

SPANS 14" TO

24"-ON-CENTER

FRAMING

12

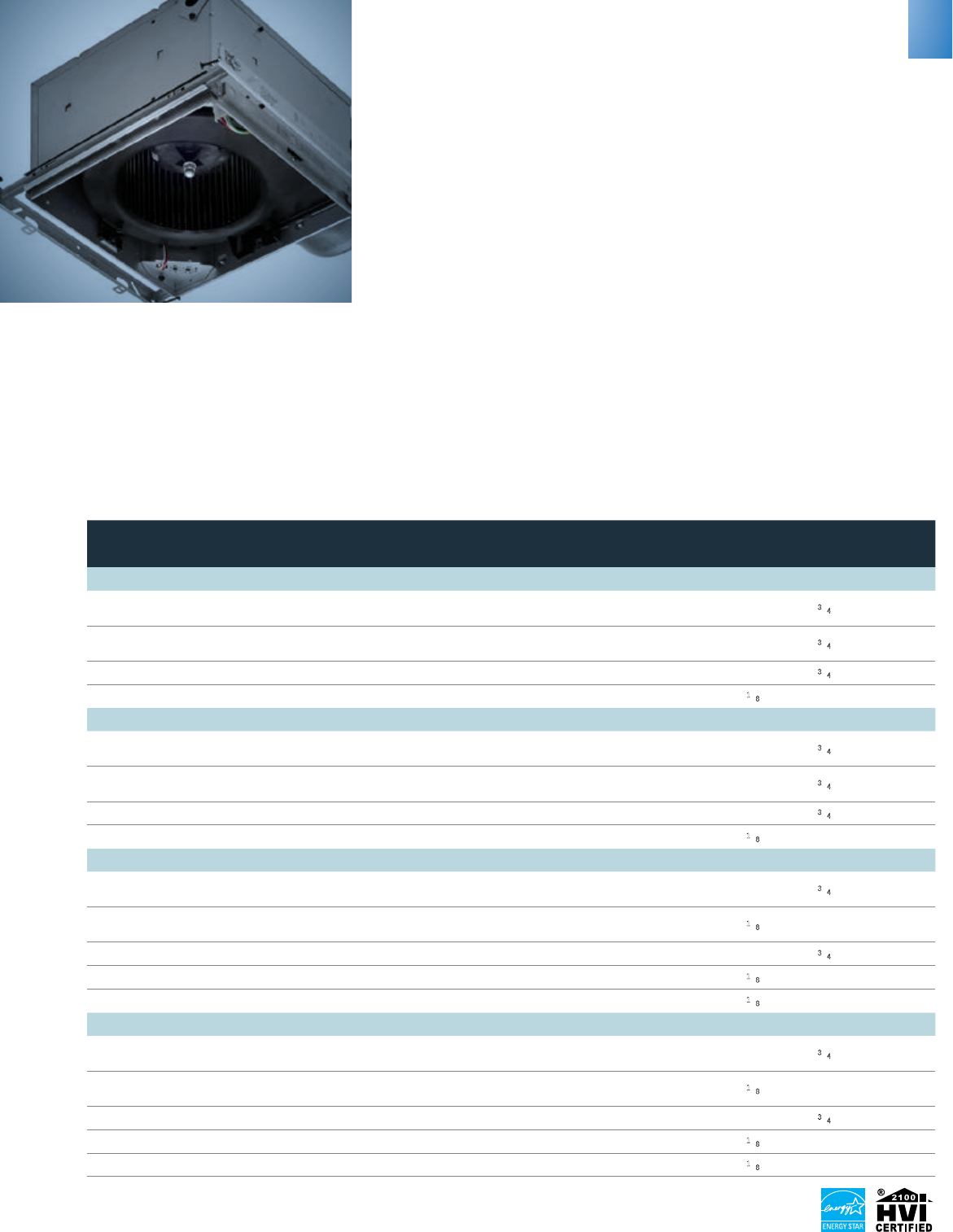

Model CFM Sones Light/Night Light Humidity

Sensing

Motion

Sensing Ducting Grill Dimensions (in) ENERGY

STAR®

L W

Single-speed Fans

XB50 50

50

<0.3

<0.3 — — — 6"

6" to 4" reducer 13 133⁄4Yes

XB80 80

80

<0.3

0.3 — — — 6"

6" to 4" reducer 13 133⁄4Yes

XB110 110 <0.3 — — — 6" 13 133⁄4Yes

XB110H 110 <0.3 — Yes 6" 131⁄814 Yes

Single-speed Fan/Lights

XB50L 50

50

<0.3

<0.3 2- 18W GU24 / 4W — — 6"

6" to 4" reducer 13 133⁄4Yes

XB80L 80

80

<0.3

0.3 2- 18W GU24 / 4W — — 6"

6" to 4" reducer 13 133⁄4Yes

XB110L 110 <0.3 2- 18W GU24 / 4W — — 6" 13 133⁄4Yes

XB110HL 110 <0.3 2- 18W GU24 / 4W Yes — 6" 131⁄814 Yes

Multi-speed Fans

ZB80 80

80

<0.3

0.3 — — — 6"

6" to 4" reducer 13 133⁄4Yes

ZB80M 80

80

<0.3

0.3 — — Yes 6"

6" to 4" reducer 131⁄814 Yes

ZB110 110 <0.3 — — — 6" 13 133⁄4Yes

ZB110H 110 <0.3 — Yes — 6" 131⁄814 Yes

ZB110M 110 <0.3 — — Yes 6" 131⁄814 Yes

Multi-speed Fan/Lights

ZB80L 80

80

<0.3

0.3 2- 18W GU24 / 4W — — 6"

6" to 4" reducer 13 133⁄4Yes

ZB80ML 80

80

<0.3

0.3 2- 18W GU24 / 4W —Yes 6"

6" to 4" reducer 131⁄814 Yes

ZB110L 110 <0.3 2- 18W GU24 / 4W — — 6" 13 133⁄4Yes

ZB110HL 110 <0.3 2- 18W GU24 / 4W Yes — 6" 131⁄814 Yes

ZB110ML 110 <0.3 2- 18W GU24 / 4W —Yes 6" 131⁄814 Yes

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

ULTRASMART™

DC MOTOR AND CONTROL

TECHNOLOGY

To virtually ensure full-rated performance—

regardless of the ducting situation—ULTRA™ Green

Series fans automatically monitor and adjust CFM

output. For continuous ventilation needs, multi-

speed models may be precisely set as low as 30

CFM to avoid costly over-ventilating. A second

dial controls runtime at maximum CFM. Our DC

motor is the most efficient in our line—80 CFM

models use only 5.8 watts.

ULTRASILENT™

SOUND TECHNOLOGY

ULTRA™ Green Series Ventilation Fans are HVI

certified at a remarkable <0.3 Sones; the quietest

sound rating obtainable. A dynamically balanced

DC motor mounted behind the wheel, a state-

of-the-art blower that reduces turbulence, and

a free-flowing 6" duct outlet opening that won’t

inhibit airflow make it possible. There’s no quieter

fan available.

POWERFUL

MOTION & SENSING

TECHNOLOGIES

ULTRA Fans with Sensaire humidity sensing

technology detect the rapid rise in humidity at

the ceiling level. This means that they will react

to shower humidity much faster than competitive

fans or wall controls. Multi-speed models turn

the fan speed up from the lower continuous

CFM level. Single-speed models turn the fan on

automatically.

ULTRA Fans with motion sensing and multi-

speed capability automatically turn the fan up

to maximum speed from the lower continuous

setting when motion is detected which is ideal

for family members who forget to turn the fan on.

* Compared to a central fan-integrated system when used for continuous ventilation; based on software calculations

and analysis conducted by Broan-NuTone.

ULTRA™ GREEN SERIES FANS

SAVE UP TO 10 HERS POINTS

AND UP TO $200 PER YEAR IN

OPERATING COST.*

13

REDUCE SOUND LEVELS AND IMPROVE

SOUND QUALITY IN REAL-WORLD INSTALLATIONS.

Pre-installed

screws in the

mounting frame

enable quick

installation

Without QFlow,

outdoor air can intrude

past the damper edges.

With QFlow, outdoor air

intrusion is blocked with

its edge-to-edge design.

Without QFlow, the flap

impedes airflow which

increases static pressure,

turbulence and noise.

With QFlow, the flap lifts out of

the way, minimizing turbulence

for more quiet operation.

ULTRA PRO™ FANS & FAN/LIGHTS

QFLOW™ TECHNOLOGY MEANS SMOOTHER AIRFLOW

AND OPTIMAL BACKDRAFT SEALING.

QFlow™ Damper Technology. Patent-pending QFlow technology helps achieve desired

building airtightness scores when the fan is off. It also removes the duct damper

flap from the airstream path, reducing static pressure and noise when the fan is on.

*Not available on 110 CFM UltraGreen Models

Without QStream™

Technology

With QStream™

Technology

FAN OFF FAN ON

The innovative, patent-pending

QStream™ technology utilizes

airflow-smoothing baffles that

reduce turbulence which means

the blower can turn more slowly

and quietly—without airflow loss.*

14

RB80L | RB110LRB80 | RB110

ULTRAQUICK™

INSTALLATION TECHNOLOGY

ULTRA™ Series Ventilation Fans are engineered

to be the fastest, easiest, most universal

installation in remodel, retrofit or new

construction—in any type of joist or truss

system. Exclusive features simplify room-side

installation to save valuable time and money.

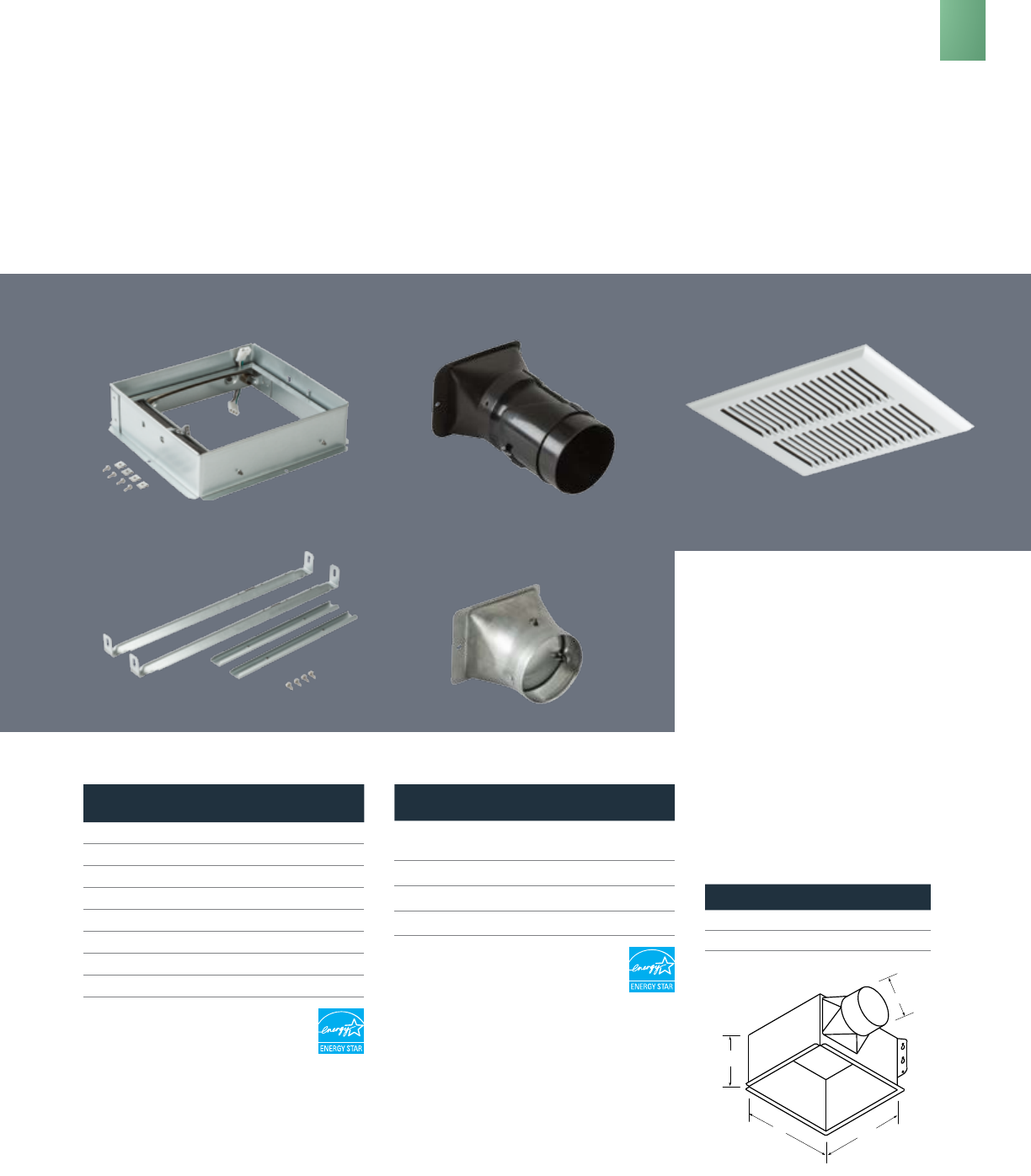

Pre-installed screws in the mounting

frame enable quick installation

Vertical positioning tabs ensure

the housing is in the right place The expandable mounting frame adjusts

from 14"–24" and fits any type of joist,

I-Joist or truss construction

Inside/outside wiring capability provides

flexible new or retrofit installation

Ultra Pro Series

Model Duct

Size CFM Sones Light/Night

Light

Housing Dims (in) Grille Dims (in) Grille Finish

UL Listed for

Tub/Shower

Use

ENERGY

STAR®

W L H L W

Single-Speed Fans

RB80 4" 80 <0.3 — 113⁄8101⁄275⁄813 14 White Polymeric Yes Yes

RB110 4" 110 0.6 — 113⁄8101⁄275⁄813 14 White Polymeric Yes Yes

Single-Speed Fan/Lights

RB80L 4" 80 <0.3 2- 18W GU24 / 4W 113⁄8101⁄275⁄813 133⁄4White Polymeric Yes Yes

RB110L 4" 110 0.8 2- 18W GU24 / 4W 113⁄8101⁄275⁄813 133⁄4White Polymeric Yes Yes

ENERGY STAR® fans use 70% less energy, on average, than standard models and may qualify for local utility rebates

ULTRA PRO FEATURES

• Provide your customers extremely

quiet operation with innovative sound

reduction technologies.

• QStream™ technology features airflow-

smoothing baffles to reduce turbulence.

• Optional RDFU Premium Radiation

Damper Kit available for RB models.

The preferred install

choice for professionals to

deliver quiet performance

15

QT SERIES QUIET FANS & FAN/LIGHTS

BROAN QT SERIES

SO QUIET, YOU MIGHT EASILY FORGET IT’S ON.

16

SO QUIET, YOU MIGHT EASILY FORGET IT’S ON.

PEACEFUL MOMENTS CAN BE ENJOYED EVEN MORE WITH

VENTILATION FROM A QUIET, QT SERIES FAN. The very quiet Broan QT Series

is the ideal solution for any room that benefits from ventilation. Most QT models operate

at less than one sone—the sound of a quiet running refrigerator. But quiet operation

doesn’t mean less power. Installed properly, the QT Series maintains full-rated airflow in

real-world installations. So choose a QT Series bath fan, fan/light or heater/fan/light for

your application. Broan has the perfect solution for every room.

17

QT SERIES QUIET FANS & FAN/LIGHTS

Broan QT Series™ Bath Fans. A bath fan needn’t call

attention to itself, especially when you don’t want

it to overpower the design of your bath or powder

room. More important, it shouldn’t call attention

to itself when it’s working. So we developed the

QT Series™ to provide very relaxing ventilation.

With an energy efficient option, it simply does its

job quietly, in every sense of the word.

Models QTXE150 Models QTXE080, QTXE110

QTXE FAN FEATURES

• Very quiet operation 0.3 to

1.4 sones

• 80 CFM to 150 CFM

• QTXE features 6" ducting for

superior performance

• QTXE models are ENERGY

STAR® qualified

• HVI Certified

• QTXE includes hanger bar

system for fast, flexible

installation for all types

of construction

• Motor engineered for

continuous operation

• UL Listed for use over

bathtub or shower when

connected to a GFCI

protected branch circuit

• Fits 2" x 8" ceiling

construction

• Radiation damper available

separately, see page 19

QTXE

ENERGY STAR® fans use 70% less energy, on average, than standard models

and may qualify for local utility rebates

s

See page 54 for 6" ducting (DT6W) product specifications

◆

2, 18 watt GU24 based fluorescent bulbs included

* Night-light bulbs not included

Model CFM Sones Lighting Bath Sq. Ft. Ducting ENERGY

STAR®

QTXE080 80 0.3 75 6"

s

Yes

QTXE110 110 0.7 100 6"

s

Yes

QTXE150 150 1.4 140 6"

s

Yes

QTXE080FLT 80 0.3 36W

◆

/ 4W* 75 6"

s

Yes

QTXE110FLT 110 0.7 36W

◆

/ 4W* 100 6"

s

Yes

QTXE150FLT 150 1.4 36W

◆

/ 4W* 135 6"

s

Yes

18

Models QTXE080, QTXE110 Models QTXE150FLT Models QTXE080FLT, QTXE110FLT

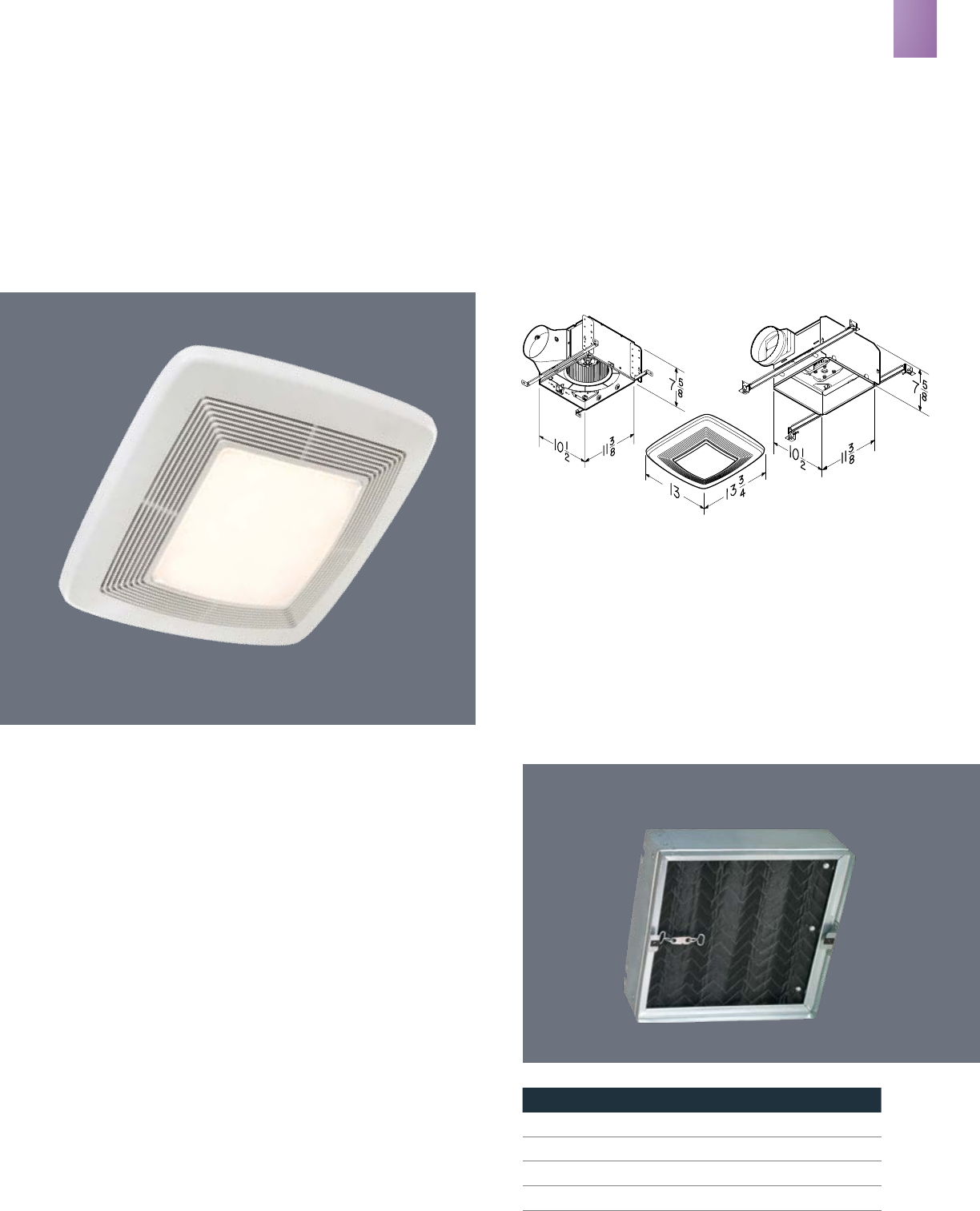

Broan QT Series™ Fan/Lights. The QT Series™ is the

ultimate bath fan solution for today’s homes. Select

a QT Series™ fan/light to bring simple elegance to

any bath or powder room. By sight or by sound,

you’ll barely notice a QT Series™ fan. Except, of

course, when you need just the right amount of

ventilation and light at the touch of a switch.

QTXE FAN/LIGHT FEATURES

• Very quiet operation

0.3 to 1.4 sones

• 80 CFM to 150 CFM

• QTXE models feature

6" ducting for superior

performance

• QTXE models are

ENERGY STAR® qualified

• Bright, energy efficient

36 watt fluorescent lighting

(2, 18 watt GU24 based

bulbs) included with non-

sensing QTXE and QTRE

models

• QTXE includes hanger bar

system for fast and flexible

installation for all types of

construction

• 4 watt night light on all

models (bulb not included)

• Motor engineered for

continuous operation

• UL Listed for use over

bathtub or shower when

connected to a GFCI

protected branch circuit

• HVI Certified

• Type IC

• Fits 2" x 8" ceiling

construction

• Radiation damper available

separately, see below

QTXE

PREMIUM RADIATION DAMPERS FEATURES

• Motor serviceable without

disturbing drywall

• Galvanized steel frame

• High temperature, non-

asbestos, reinforced fiber

thermal fabric

• UL Standard 555C Classified

• Stainless steel closure

springs

• 165°F fusible link

• Use the same grille

provided with the

QT Series™ fan

Premium Radiation Dampers. When the air

temperature passing through the damper

exceeds 165°F the fusible link melts, triggering

the thermal fabric to automatically close

across the damper. Airflow is interrupted by a

flame and heat barrier, preventing the rapid

spread of fire to other areas.

Radiation Dampers Description

RDFQF For QTXE080 & QTXE110

RDFQL For QTXE080FLT & QTXE110FLT

RDFQF plus RDJUMPQ For QTXE110S & QTRE100S

RDFQL plus RDJUMPQ For QTXE110SFLT

19

QT SERIES HUMIDITY SENSING FANS & FAN/LIGHTS

QTX110SL | QTXE110SFLT

QTXE AND QTRE HUMIDITY SENSING FAN AND FAN/LIGHT FEATURES

• Detects a rapid rise in humidity

• Humidity is sensed at the ceiling level

• QTXE110S features easily accessible sensitivity adjustment

• Easy-to-set shut-off timer: 5–60 minutes on QTXE110S

• Auto shut-off timer: 20 minutes on QTRE100S

• Fits 2" x 8" ceiling construction

• UL Listed for use over bathtub and shower when connected to

a GFCI protected branch circuit

• Includes hanger bar system for fast and flexible installation for

all types of construction

• ENERGY STAR® qualified

• HVI Certified

• RDFQL and RDFQF radiation damper with RDJUMPQ accessory

QTXE110S

QT Series™ Humidity Sensing Fans with Sensaire®

Technology. Broan Sensaire® technology is a

hands-free solution to fighting excess humidity and

possible mold problems. It detects rapid increases

in moisture levels at the ceiling, where steam and

humidity naturally rise, and automatically turns the

fan on. With a fan this quiet, we included automatic

shutoff to save worry, and money. Broan Sensaire®

technology is a perfect solution for high traffic

bathrooms, the kids’ bathroom, or for anyone who

leaves the house before humidity is properly vented.

Model CFM Sones Bath Sq. Ft. Lighting/Night Light Ducting ENERGY STAR®

QTXE110S 110 0.7 100 6"

s

Yes

QTRE100S 100 1.5 90 4" Yes

QTXE110SFLT 110 0.7 2- 18W / 4W 6"

s

Yes

Q T X 1 10 S L* 110 0.9 A19 Base / 4W 6"

s

—

ENERGY STAR® fans use 70% less energy, on average, than standard models

and may qualify for local utility rebates

s See page 54 for 6" ducting (

DT6W)

product specifications

* No radiation damper available

QTRE100S

20

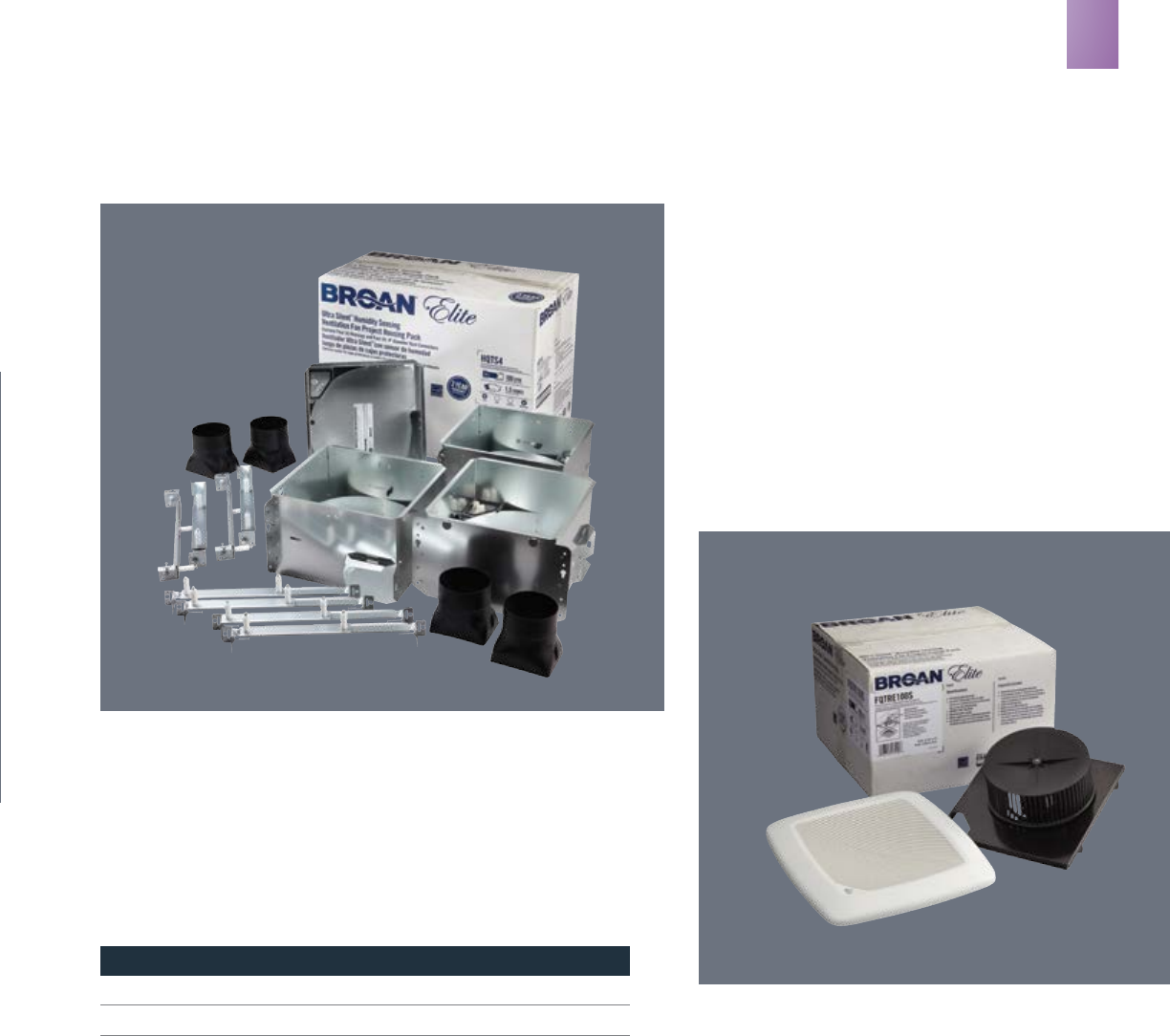

HQTS4 PROJECT PACK

Project Packs Available for QTRE100S model.

To simplify installation, a Project Pack is available with four

fan housings. When drywall work and painting is complete,

the fan components needed to finish the job are available in

a single pack under a separate model number. The finish kit

includes the motor plate, motor, wheel and grille. See the

matrix below for Project Pack order information.

FQTRE100S FINISH KIT

Project Pack Kit number For model

Four-pack of FAN housings only: HQTS4

Single-pack finish kits for FAN models: FQTRE100S

QTRE100S

21

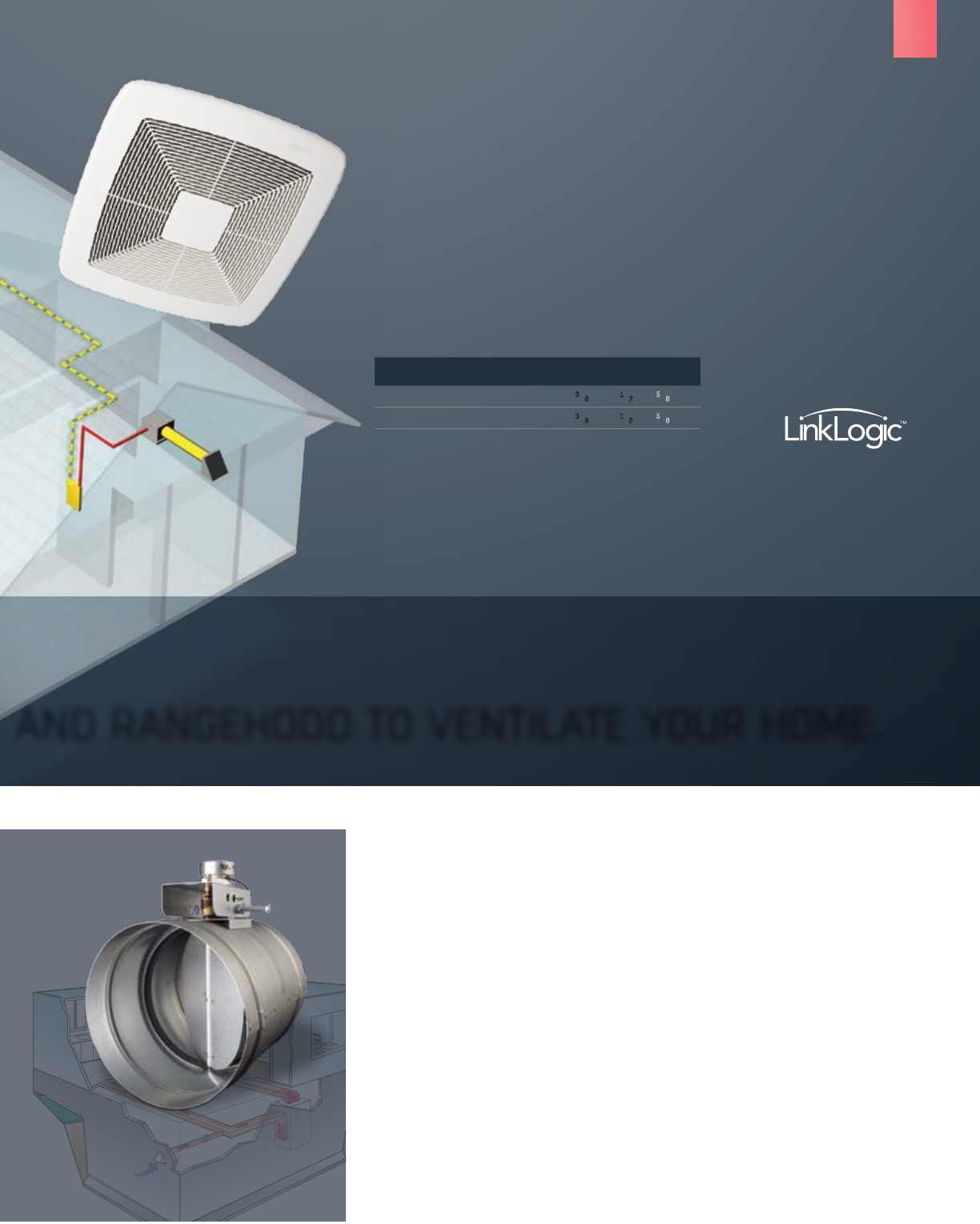

SMARTSENSE® VENTILATION SYSTEM

BROAN SMARTSENSE®

Select range hoods

are available with

our LinkLogic™

enabled residential

communications

system

Exhaust

Vent

Exhaust

Vent

Broan

SmartSense®

Control

Broan

SmartSense®

Control

Broan

QT Series™

Fan

Broan

QT Series™

Fan

One control monitors and

manages the total run time of

all SmartSense® fans on the

system. You choose which

control is the master

RDFQF RDFQF PREMIUM RADIATION DAMPER FEATURES.

When the air temperature passing through the damper exceeds 165°F the

fusible link melts, triggering the thermal fabric to automatically close across

the damper. Airflow is interrupted by a flame and heat barrier, preventing the

rapid spread of fire to other areas.

Digital communication over

existing power wires

Exhaustion of stale air

Power to fan

AUTOMATICALLY COORDINATE YOUR BATH FANS AND RANGEHOOD TO VENTILATE YOUR HOME.

22

AUTOMATICALLY COORDINATE YOUR BATH FANS AND RANGEHOOD TO VENTILATE YOUR HOME.

Wireless home control technology powered by INSTEON™.

• New timed-off and delayed-off features with new firmware

• Automatically operates the SMD series Make-Up Air Damper for installations

requiring make-up air

• Interfaces with other LinkLogic® enabled products by Broan® or BEST®

Model CFM Dimension

SSQTXE080 80 113⁄8 x 101⁄2 x 75⁄8

SSQTXE110 110 113⁄8 x 101⁄2 x 75⁄8

Exhaust

Vent

Broan

SmartSense®

Control

Broan

QT Series™

Fan

SSQTXE080 | SSQTXE110

SMD6 | SMD8

A SMART, ECONOMICAL OPTION TO MEET

ASHRAE STANDARD 62.2.

Since most homes have several ventilation fans, Broan SmartSense®

automatically operates your fans to ventilate your home around the clock.

It’s one solution for continuous and spot ventilation requirements.

A SmartSense® system coordinates ventilation fans in various locations to

introduce fresher, healthier air. It may be programmed to ventilate based

on the home’s size, automatically cycling different fans based in the

dwelling based on square footage and the number of bedrooms. LinkLogic

control is at the heart of the system and requires no separate control

wiring. SmartSense® is cost effective as it does require integration with

the home’s air handler, and with only one fan running at a time, it uses

less than 40 watts during ventilation cycles.

A BROAN AUTOMATIC MAKE-UP AIR DAMPER INTELLIGENTLY

BRINGS FRESH AIR INSIDE.

The damper communicates with SSQTXE080 and SSQTXE110 fans as well as select BEST®

and Broan range hoods to form a complete balanced ventilation system that ensures fresh

air is available while ventilation is in process. This ensures balanced indoor air pressure

while preventing unwanted air infiltration and wasted energy. SmartSense™ automatically

operates the Make-Up Air Damper for installations requiring make-up air.

Easy Installation

• Located in a 6-inch or 8-inch duct running between an exterior wall fresh air inlet

(641FA or 643FA) to an interior location such as a cold-air return or supply duct

• Locally powered by a 24 VAC transformer

• Communicates over existing home electrical wiring

Broan Make-Up Air Damper features:

• Heavy-duty galvanized steel construction

• 24 VAC transformer

• 6-inch round (SMD6), 8-inch round (SMD8)

• Use with any single fan or combination of SSQTXE080 or SSQTXE110 fans

23

INVENT™ SERIES FANS & FAN/LIGHTS

FLEXIBILITY FOR

FoldAway™ Mounting Ears are precisely

positioned for new construction and fold flat

for room-side retrofits. Every installation can

be handled more efficiently.

EzDuct™ Connector enables room-side

installation without attic access. Attach the

housing, pull the duct through, attach the

EzDuct™ Connector and reset it with one screw.

With our TrueSeal™ Damper Technology, InVent

fans reduce air leakage by up to 50% compared

to competitive models1

, resulting in better home

performance via blower door tests.

NEW CONSTRUCTION AND

*

Compared to competitive fans; based on software calculations and analysis conducted by Broan-NuTone

Testing reflects total fan housing air tightness. 1See Broan.com/InVent for details

INVENT SERIES FANS WITH TRUESEAL™ DAMPER TECHNOLOGY CAN

SAVE UP TO 1 HERS POINT AND UP TO $9 PER YEAR IN OPERATING COSTS.

*

24

VERSATILE INSTALLATION. AIRTIGHT PERFORMANCE. LED LIGHTING.

InVent Series gives professionals smart options for new construction or room-side

retrofits in one, hard-working product line. InVent is about innovations such as

FoldAway™ mounting ears and TrueSeal™ Damper Technology that improves building

airtightness like never before. With fresh grille designs and a full range of operating

points, there’s an InVent Series solution for every installation.

ROOM-SIDE RETROFIT FROM

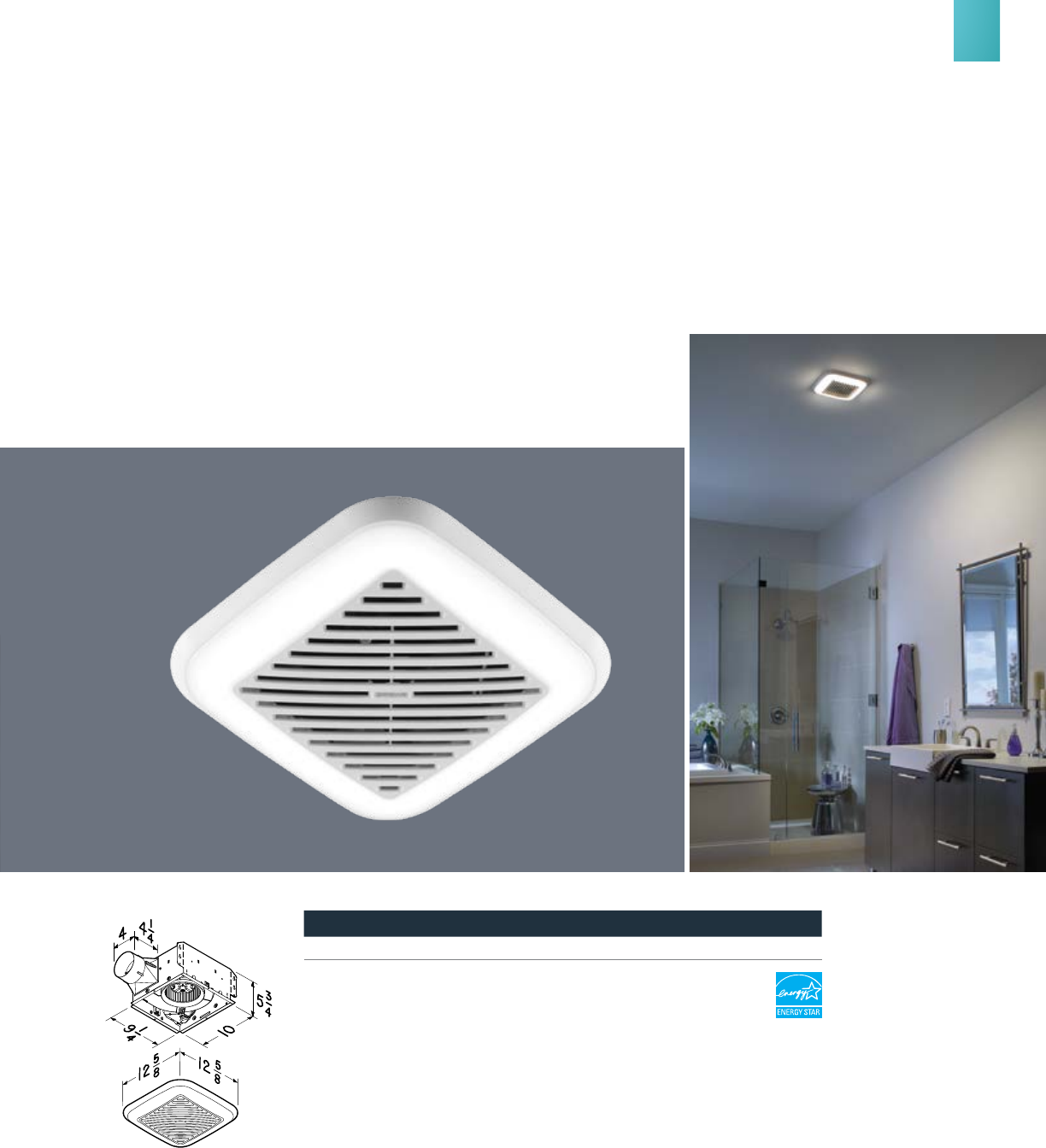

LED Lighting offers greater energy efficiency and

longevity, and adds a unique design detail to this

hard-working fan. 11 watt, 800 Lumens integrated

LED module lasts up to 25,000 hours.

ONE FAN.

2525

INVENT™ SERIES FANS & FAN/LIGHTS

INVENT Fan Models

Model CFM Sones ENERGY STAR®

A80 80 2.0 No

A80HD* 80 2.0 No

A110 110 3.0 No

AE50 50 0.5 Yes

AE80 80 0.8 Yes

AE80B 80 1.5 Yes

AE110 110 1.3 Yes

ENERGY STAR® fans use 70% less energy,

on average, than standard models and may

qualify for local utility rebates

*Metal Grille

INVENT Fan/Light Models

Model CFM Sones Lighting ENERGY STAR®

A50L 50 1.5 A19 Base** No

A70L 70 2.0 A19 Base** No

A80L 80 1.0 A19 Base** No

A110L 110 1.3 A19 Base** No

AE80BL 80 1.5 LED Yes

AE80L 80 0.8 LED Yes

AE110L 110 1.3 LED Yes

ENERGY STAR® fans use 70% less energy, on

average, than standard models and may qualify

for local utility rebates

**Bulb Not Included

INVENT FAN & FAN/LIGHT FEATURES

AE50, AE80, AE110, AE80B, A80,

A80HD, A110

• FoldAway™ mounting ears allow for easy

installation in both new construction

and room-side replacement

• New TrueSeal™ damper technology

forms a tighter seal to reduce

backdrafts

• EzDuct™ Connector allows room-

side installation with no attic access

required

• Effective ventilation clears humidity

and odors

• Attractive grille styling

AE80L, AE80BL, AE110L

• LED Fan/Light with 11 watt,

800 Lumens, 3000K, 80 CRI integrated

module

• LED lasts up to 25,000 hours for

maintenance-free convenience

A50L, A70L, A80L, A110L

• Incandescent Fan/Light with A19 Base

(bulb not included)

AE50 | A80 | AE80 | AE80B |

A110 | AE110

AE80L | AE80BL | AE110L A50L | A70L | A80L | A110L

26

53/4

"

10 "9 "

1

/

4

4"

INVENT Fan Finish Packs

Model CFM Sones ENERGY

STAR®

A50HDF 50 0.5 Yes

A80F 80 2.0 No

A80HDF* 80 2.0 No

A110F 110 3.0 No

AE50F 50 0.5 Yes

AE80BF 80 1.5 Yes

AE80F 80 0.8 Yes

AE110F 110 1.3 Yes

ENERGY STAR® fans use 70% less energy,

on average, than standard models and

may qualify for local utility rebates

*Metal Grille

Broan InVent™ Series Project Packs.

Keep your job on schedule and your

inventory safe. Even if the final fan

or fan/light product has not been

selected, a project pack enables

you to install a fan or fan/light

housing now and choose the

right-sized finish pack later. You

won’t have an open box on the job

site with a motor and grille that

could be lost or damaged.

INVENT Fan/Light Finish Packs

Model CFM Sones Lighting ENERGY

STAR®

A70LF 70 2.0 A19

Base** No

AE80BLF 80 1.5 LED Yes

AE80LF 80 0.8 LED Yes

AE110LF 100 1.3 LED Yes

ENERGY STAR® fans use 70% less energy,

on average, than standard models and

may qualify for local utility rebates

**Bulb Not Included

INVENT Housing Packs

Model Description

A000HF Fan Housing

A000HL Fan/Light Housing

INVENT™ SERIES ACCESSORIES

A range of accessories ensures a custom fit in

any application. Choose optional duct connectors,

a radiation damper and a metal grille for commercial

installations, and hanger bars for exact positioning.

With our QFlow™ Duct Connector (MODEL MQF4), InVent

fans reduce air leakage by up to 65% compared to

competitive models1, offering an extremely tight seal

when closed and completely open airflow when open.

RDM1 RADIATION DAMPER for fans

and ENERGY STAR fan/lights only

MHB4 HANGER BARS

MQF4 DUCT CONNECTOR

MMDC4 METAL DUCT CONNECTOR

MMG METAL GRILL

1Testing reflects total fan housing air tightness. See Broan.com/InVent for details.

27

LOPROFILE™

HEALTHIER ROOM.

A WELL VENTILATED ROOM IS A

LOOK TO BROAN, THE VENTILATION EXPERTS, TO KEEP EVERY ROOM

OF YOUR HOUSE FRESH. Broan engineers the right product to fit every application,

room size and need. Select from a variety of features that best meet your spot ventilation

needs. Begin by assessing how powerful the fan should be or whether you could use

additional lighting in your space. Think about what product style, finish or shape would

look best. Rest assured, if you’re concerned about saving money and energy, Broan bath

fans that feature ENERGY STAR® can reduce energy consumption by as much as 70%.

Broan has the perfect product designed around your needs.

28

HEALTHIER ROOM.

Model CFM Sones ENERGY STAR®

LP80 80 1.0 Yes

ENERGY STAR® fans use 70% less

energy, on average, than standard

models and may qualify for local

utility rebates

The oval connector accepts

standard 4" duct, or 3" duct

with the supplied adapter

Wall or ceiling mount, LoProfile is the right fan for a tight fit. The new Broan

LoProfile™ Fan is our latest solution for installations where conventional

ventilation simply won’t fit. Where multi-family applications require it, the

LoProfile™ fan is narrow enough to be installed in a wall between 2x4 studs.

When plumbing or electrical obstructions are found behind the drywall in

ceiling remodel applications our LoProfile™ fan can still fit without having to

move anything. And that means most any room with space constraints

can have powerful, quiet, efficient ventilation.

OVAL DUCT

CONNECTOR

FOR 4" ROUND DUCT

OVAL DUCT

CONNECTOR

FOR 4" ROUND DUCT

LP80

FEATURES

• Fits in 2x4 ceiling or wall construction

• 80 CFM with 4" duct ensures ample air

movement; 70 CFM with 3" duct reducer

• >50 CFM at 0.25" static pressure

meets ASHRAE 62.2 local ventilation

requirements (with 4" oval duct or 3"

round duct)

• Only 1.0 sones for quiet operation

(4" duct)

• 4" oval or 3" round duct connection for

installation flexibility

• Efficient operation lowers utility bills

• Ideal for multi-family applications

• Compatible with RDF1 Premium

Radiation Damper

• Project Packs available

Electrical connections can

be made through the top or

the side of the housing

RDF1

29

CLASSIC FANS & FAN/LIGHTS

CEILING & WALL

MOUNT FEATURES

670, 671, 688, 689

• Compact housing fits

between ceiling joists

or wall studs

• Metal grille kits (available

separately)

• Project Packs available for

most models

FAN/LIGHT FEATURES

657, 696

• Powerful centrifugal blower

• White polymeric grille

complements virtually any

decor

• A19 base lighting (bulb not

included)

• Ceiling mount

750, 751

• Powerful centrifugal blower

• Round design eliminates

squaring with walls

• Model 751 is the same

as Model 750, but without

a night light

• A19 base lighting (bulb not

included)

• Ceiling mount

678

• White polymeric grille

complements virtually

any decor

• Ceiling mount

• Project Packs available

657 | 696

657, 696

670 | 671 | 688 | 689

670, 671, 688, 689

750 | 751

750, 751

678

678

Model CFM Sones Light/Night Light Ducting

657 70 4.0 A19 Base 4"

696 100 4.5 A19 Base 4"

750 100 3.5 A19 Base / 7W 4"

751 100 3.5 A19 Base 4"

678 50 2.5 A19 Base 4"

Model CFM Sones Ducting Mounts

670 50 3.5 3" Wall / Ceiling

671 70 6.0 3" Wall / Ceiling

688 50 4.0 3" Wall / Ceiling

689 60 5.5 3" Wall / Ceiling

Project Packs. Convenient options for

today’s contractor. Broan “H” Packs include

rough-in housings only, making multi-unit

installation more convenient. “F” Packs

allow motor/blower and grille assemblies to

be ordered separately, nearer project

completion, to help avoid losing, damaging

or having to store components.

30

690

682 Model CFM Sones Lighting Notes

682 — — — Duct-free Circulation

S97009563 — — — Replacement filter

Measure your existing fan housing

to ensure proper fit

For use only with these

bath fan models.* Measurements Yes No

NuTone

693, 695, 696N

7½" x 7¼" •

8" x 71⁄4"•

Broan 670, 671,

688, 689 71⁄2" x 71⁄4"•

8" x 81⁄4"•

Nautilus

N671, N688

71⁄2" x 71⁄4"•

8" x 81⁄4"•

* No other usage has been tested or authorized by Broan-NuTone LLC.

Broan 690 Upgrade Kit replaces

the models below

If your

grille looks

like this:

The fan is very

likely one of

these models:

Housing

dimensions:

NuTone

693, 695, 696N

7½" x 7¼" or

8" x 7¼"

Broan 670, 671,

688, 689

Nautilus

N671, N688

7½" x 7¼"

Not compatible

with 8" x 8¼"

1. Remove old grille

2. Remove old fan assembly

3. Attach new fan and new motor

plate. Install into existing housing

4. Install new grille

690 BATH FAN UPGRADE KIT

The Broan bath fan upgrade kit lets you convert

your old bath fan to a brand new unit in just 10 minutes.

Improve performance, reduce the sound level, and

upgrade the appearance of your economy fan in minutes.

Included: Grille; two motor plates, depending on your

fan model; wrench; quieter plug-in fan motor

Duct-free. This easy-to-install solution is ideal where

air circulation is needed but ducting is impossible or

impractical. Use it as a solution for half baths or

rooms where humidity isn’t a concern.

682 DUCT FREE FAN

• Patented, fast snap-in metal

housing installation

• Fan circulates air past replaceable

activated charcoal filter

• Fits 2" x 4" ceiling or wall construction

• Cut sound levels up to 50%

• Boost air movement up

to 20%

• 10 minute installation

• 60 CFM, 3.0 Sones

• Modern white grille

• No special tools needed

31

ARCHITECTURAL FAN/LIGHTS

QUALITY VENTILATION THAT COMPLEMENTS YOUR DÉCOR.

Every room needs ventilation, from closets to bedrooms to baths. But adding a fan/light

combination that complements or enhances the room décor has been challenging. That’s

why the Broan Architectural products are perfect. Imagine a fan/light combination fixture

that unobtrusively blends into the ceiling. Or a statement fan/light with a stunning LED

perimeter glow that showcases your unique décor. The Architectural series helps you meet

your decorating challenges without compromising your style.

VENTILATION THAT MOVES THE AIR,

IN RATHER MOVING WAYS.

32

VENTILATION THAT MOVES THE AIR,

IN RATHER MOVING WAYS.

33

ARCHITECTURAL FAN/LIGHTS

Model CFM Sones Lighting Humidity Sensing Ducting ENERGY STAR®

744 70 1.5 75W MAX — 4" —

744FL 70 1.5 16W Fluor. —4" Yes

744LED 70 1.5 14W LED — 4" Yes

744SFL 70 1.5 16W Fluor. Yes 4" Yes

ENERGY STAR® fans use 70% less energy, on average,

than standard models and may qualify for local utility rebates

744 SERIES RECESSED FAN/LIGHT FEATURES

• High efficiency centrifugal fan

• 70 CFM at 1.5 sones

• Trim matched to designs of major

recessed light manufacturers

• Put multiple units in larger rooms

• Model 744 uses a standard A19 base,

75 watt maximum (R30 or BR30 for

standard applications)

• Models 744FL and 744SFL include a

16 watt, GU24 based, R30 shaped CFL

bulb (included)

• Model 744LED includes a 14 watt, GU24

based LED bulb (included)

• All models UL Listed for use over

bathtub or shower when connected to

a GFCI protected branch circuit. Model

744 requires a PAR30L or PAR30LN type

bulb (not included)

• 67⁄8" high housing appropriate for new

construction and 2" x 8" ceiling joists

• 4" round duct connector

• Optional wall control switches available

• Type IC, sealed housing

• Not for use over cooking surfaces

Humidity Sensing Model 744SFL Features

• SensAire® technology detects the rapid

rise in humidity and automatically turns

the fan on and off

• Humidity is sensed at the ceiling level

• Easily accessible sensitivity adjustment

• Easy-to-set 5–60 minute shut-off timer

SensAire®

technology behind

the trim detects

changes in humidity

and automatically

turns the fan on

and off

YOU’D NEVER KNOW

IT’S A FAN, AND THAT’S THE POINT

Broan took recessed lighting a step further by incorporating powerful, quiet

ventilation in the same design. These fan/lights disappear into the ceiling and

match perfectly with other recessed lights. Models 744, 744FL and 744LED are

practical ventilation solutions for any room in the house, such as the utility

room, kitchen or high-traffic family room—any space you wish to keep fresh

and comfortable. In the bath, Model 744SFL starts automatically when a rapid

rise in humidity is detected. You'll never forget to turn the fan on again.

744 SERIES

34

Model CFM Sones Lighting HVI Ducting ENERGY STAR®

791LEDM 110 1.5 9W LED Yes 4" Yes

ENERGY STAR® fans use 70% less energy, on average,

than standard models and may qualify for local utility rebates

791LEDM

A unique design that’s attractive and efficient.

The new Broan® ventilation fan with Soft Surround™ LED lighting technology is our

latest innovation in lighting technology. Soft lighting is a result of high quality lens

diffusion, eliminating typical LED hotspots for even, consistent and bright

illumination. The unique perimeter lens surrounds the grille to provide broader light

coverage, better illuminating the entire room. The LEDs last up to 25,000 hours,

nearly eliminating the hassle of bulb replacement. Additionally, the grille’s distinctly

low-profile design installs close to the ceiling for an unobtrusive look that is

perfect for an upgrade to your current fan light.

FAN WITH SOFT SURROUND™ TECHNOLOGY FEATURES

• LED lasts up to 25,000 hours,

nearly eliminating the hassle of bulb

replacement

• 9 watt lighting for extreme energy

efficiency

• Bright 800 lumen integrated LED light

engine for energy efficiency

• 3000K color temperature provides

bright, soft light ideal for bathrooms

• Minimum 80 Color Rendering Index

(CRI) which meets ENERGY STAR®

requirements

• Fits in 2"x 6" ceiling construction

• 110 CFM for strong air movement

• 1.5 sones for quiet operation

• ENERGY STAR® qualified

• 4" duct connector balances powerful,

quiet operation with easy installation

• UL listed for use over bathtubs and

showers when connected to a GFCI

protected branch circuit

• Type IC for use in direct contact with

thermal insulation

*Patent pending

35

SPECIALTY FANS & FAN/LIGHTS

THERE’S A BROAN VENTILATION SOLUTION FOR EVERY ROOM IN

YOUR HOME. Without doubt, every room needs ventilation. That’s why our specialty

lines deliver clean, fresh air where you need it most–including your bathrooms, laundry

room, recreation room, workshop or nursery. Look to our room-to-room, wall/ceiling

mount, through-wall or vertical discharge utility fans for powerful spot ventilation. Or,

install our remote mounted in-line ventilation system for a quiet whole-house solution.

Our recessed fan/lights perfectly match other recessed fixtures, including humidity

sensing options that start automatically when a rapid rise in humidity is detected.

Elegant, simple, practical and powerful. Exactly what you’ve come to expect from Broan.

COMFORTABLE WITH A LITTLE VENTILATION.

EVERY ROOM CAN BE MORE

36

COMFORTABLE WITH A LITTLE VENTILATION.

SPKACC

Quiet Ventilation Fan with Quality Wireless Speakers.

It’s your music—out of sight. Unlike wireless speakers that require counter

space, Sensonic™ speakers with Bluetooth® wireless technology fill your

room with rich sound from above. From hard rock to news talk, play any

audio through the dual high-fidelity speakers and

enjoy entertainment and privacy at

the touch of a button.

Speaker also available as an accessory.

Quickly and easily add a high-fidelity

Sensonic™ speaker to most Broan or

NuTone QT Series Ventilation Fans

Model Description CFM Sones Ducting

SPK110 Fan with Speaker 110 1.0 4"

SPKACC Speaker Accessory — — —

SENSONIC FEATURES

• Dual High-Fidelity Sensonic™ Speakers

• Brilliant audio performance concealed

behind your fan grille

• Play any audio through most

Bluetooth®-enabled devices

• Effective, extremely quiet ventilation

clears humidity and odors quickly

• ENERGY STAR® qualified

• UL Listed for use over bathtub or shower

when installed with a GFCI protected

branch circuit

• Type IC for use in direct contact with

thermal insulation

• Fits 2"x 8" ceiling construction

• Includes unique spacer for easy I-joist

mounting

• Mounts between joists with optional

QTHB1 Hanger Bar Kit (sold separately)

SPK110

VENTILATION FOR THE MUSIC FAN

37

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by Broan-NuTone LLC is under license.

SPECIALTY UTILITY FANS

THROUGH-WALL FANS

• Housing adjusts to fit walls

from 4½"–9½" thick

• Specially designed

polymeric fan blade

• Built-in damper minimizes

backdrafts for energy

efficiency

• Paintable polymeric grilles

• Accessorize with wall

switch or variable speed

wall control

508 (10"), 509/509S (8")

• 509S: features an integral

ON/OFF rotary switch–no

wall switch to wire

512M

• 6" Through-Wall

• Louvered exterior wall cap

with built-in bird screen

• 6" diameter flexible

aluminum duct included

12C MOTORDOR®

• 10" Through-Wall

• Separate motor opens

and closes the vent door

automatically

508 | 509 | 509S 512M 12C MOTORDOR®502 | 503

Model CFM Sones Diameter Sizing Specifications

506 470 8.0 10" Fits 4½"–9½" thick walls

507 250 7.0 8" Fits 4½"–9½" thick walls

510 380 6.5 10" Fits 3"–5½" thick walls

511 180 4.5 8" Fits 3"–5½" thick walls

502 270 8.0 10" Fits 3¼" x 10" duct

503 160 5.0 8" Fits 3¼" x 10" duct

508 270 6.0 10" Fits 4½"–9½" thick walls

509/509S 180 6.5 8" Fits 4½"–9½" thick walls

509S Integral ON/OFF Rotary Switch

512 90 3.5 6" Fits up to 51⁄8" thick walls

512M 70 3.5 6" Fits up to 51⁄4"–10" thick walls

12C Motordor®360 8.0 10" Fits 5½"–97⁄8" thick walls

504 350 6.5 10" Fits 10" round duct

505 180 6.5 8" Fits 8" round duct

673 60 4.5 6" Fits 6" round duct

WALL/CEILING-MOUNT,

SIDE DISCHARGE FANS

502, 503

• Installs easily between

ceiling joists or wall studs

• Built-in damper prevents

backdrafts

• Fits 31⁄4" x 10" duct

509/509S

503, 8"

508 502, 10"512M 12C Motordor®

38

VERTICAL DISCHARGE

• Galvanized steel housing

installs easily between

ceiling joists

• Steel mounting brackets

with keyhole slots for fast

installation

504

• 10" vertical discharge

• Fits 10" round duct–use

Model 472 transition/

damper (available

separately) for 8" round

duct (performance will be

reduced)

505

• 8" vertical discharge with

built-in damper

• 8" fan, 8¼" diameter housing

673

• 6" vertical discharge with

built-in damper

• 6" paintable fan, spin-on,

white polymeric grille

CHAIN-OPERATED UTILITY FANS

• Pull-chain opens the door

and starts fan

• Housing adjusts to fit walls

from 4½"–9½" thick

• Specially designed

polymeric fan blade

• Housing features foam-

insulated door for energy

efficiency

506

• 10" fan (103⁄8" diameter

sleeve)

507

• 8" fan (83⁄8" diameter sleeve)

512

• 6" Room-to-Room

• Use 57W or 57V variable

speed control separately

ROOM-TO-ROOM FANS

Room-to-Room ventilators provide quick

solutions where more ventilation is

needed—without installing new ductwork.

• Built-in variable speed control

• Easy installation through wall 3"–5½" thick

• Permanently lubricated motor

• Paintable white polymeric grilles

• Not for use in kitchens

510, 10"; 511, 8"

506 | 507

510 | 511

512

504 | 505 673

504 673 504

505

506

507

39

SPECIALTY IN-LINE FANS

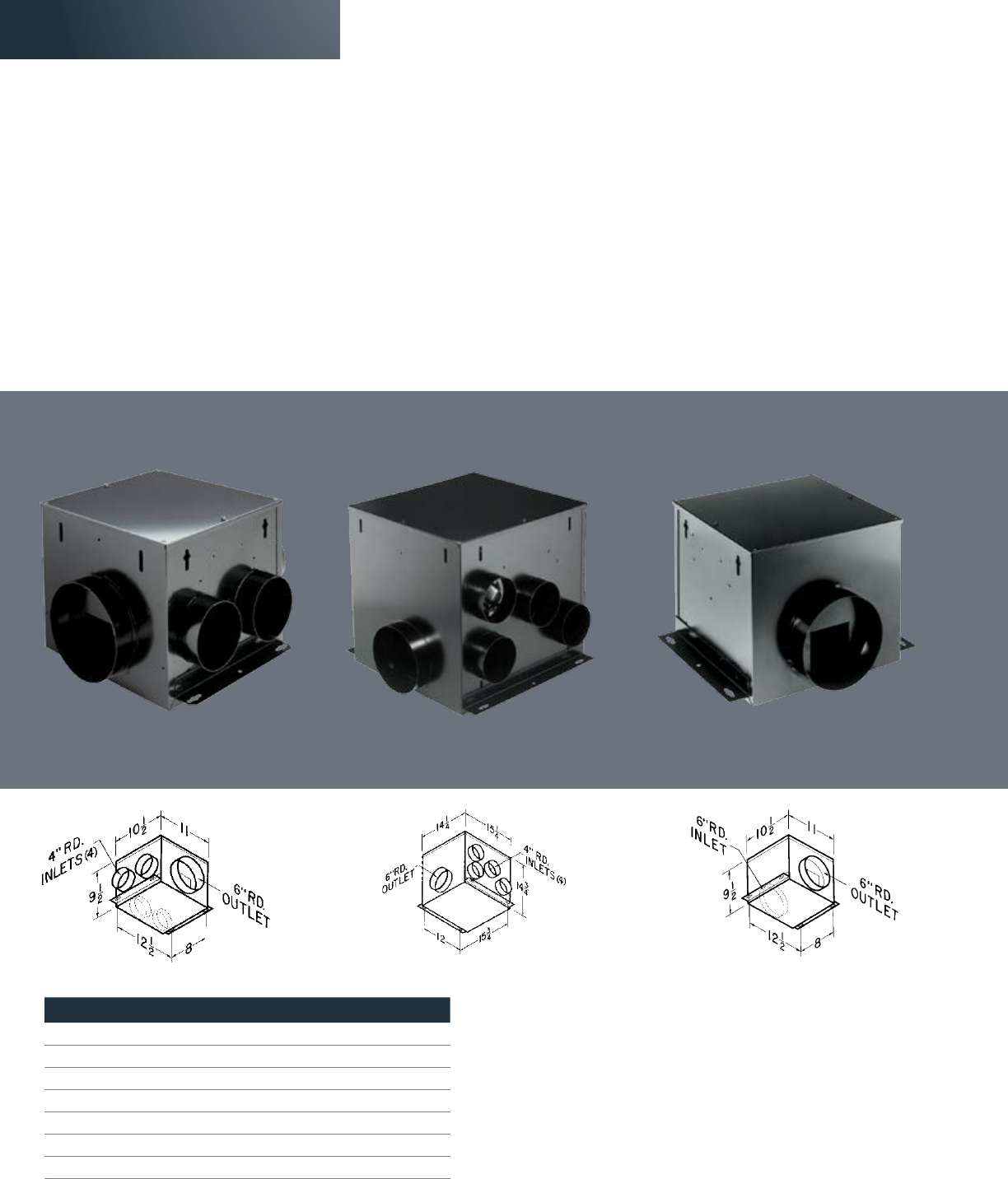

MP100 | MP140 | MP200 MP280 SP100 | SP140 | SP200

MULTI- AND SINGLE-PORT IN-LINE VENTILATORS FEATURES

• Energy-efficient, permanently lubricated

motors

• High pressure centrifugal blowers easily

accommodate long duct runs

• Designed for quick, easy installation

• HVI certified and AMCA licensed

• Suitable for intermittent or continuous

ventilation applications

• Removable panels offer easy access to

the motor without disturbing ductwork

• Plug-in blower simplifies wiring

Multi-Port In-Line Ventilators

• Ventilate multiple bathrooms or other

rooms simultaneously

• Great solution for large, open spaces

• Install in virtually any orientation

• 6" round outlet; 4" round inlets (two inlet

duct covers included)

• Use 2, 3 or all 4 inlet ports

Single-Port In-Line Ventilators

• Ventilate any room in virtual silence

• 6" round outlet and inlet for easy duct

connections

Multi-Port CFM Sones Notes

MP100 110 1.0 Four inlets

MP140 150 1.5 Four inlets

MP200 210 2.0 Four inlets

MP280 290 3.0 Four inlets

SP100 110 1.0 One inlet only

SP140 150 1.5 One inlet only

SP200 210 2.0 One inlet only

HVI rated air flow at 0.2" static pressure. Sound test procedures are similar

to HVI tests for other exhaust fans.

Remote Mounted In-Line Ventilation Fans.

Quiet and efficient residential solutions. The

concept is simple: mount a high-performance

ventilator in an out-of-the-way spot and you get

the power with virtually no sound. Install the

housing in the attic or the basement, wherever

it’s most convenient and discrete.

40

CVG4, CVG6

Room Inlets

• Models available for 6" (CVG6) or 4" (CVG4) round duct

• Install in ceiling or wall

• Paint to match room décor

• Available in six packs only

Accessories

Model Description Ducting/Size Notes

CVG4 Grille Intake 4" Round Grille

CVG6 Grille Intake 6" Round Grille

CVLD4 Sleeve 4" Sleeve with damper

CVLD6 Sleeve 6" Sleeve with damper

CVL4 Sleeve 4" Sleeve without damper

CVL6 Sleeve 6" Sleeve without damper

FY6 Y Adapter Only 6" x 6" x 6"

WITH A MULTI-PORT, IN-LINE VENTILATION SOLUTION

the blower is mounted away from the living area for virtually silent

operation. Multi-port installations allow ventilation of up to four rooms,

or use multiple inlet ports to clear the air in larger rooms. Single-port,

In-line ventilators provide the same noise reduction benefits.

41

HEATERS FANS & FAN/LIGHTS

POWERFUL HEATING, LIGHT AND VENTILATION AT THE TOUCH OF A SWITCH.

No matter where you live your house can become chilled. Maybe it’s early fall before the furnace is

on, or maybe the cool desert nights mean colder rooms. And there’s certainly one room you never

want to be chilly—the bathroom. Whether it’s taking a morning shower, or relaxing in a whirlpool at

the end of a long day, your family appreciates a warm, comfortable bathroom. Broan heater/fan/lights

are the perfect solution. You have instant heat to quickly warm up the room, a quiet ventilation fan to

remove excess humidity and a convenient light–all in one fixture. Each one can be operated

separately, or they can be used simultaneously when needed, no furnace required.

INSTANT HEAT, RIGHT WHEN YOU NEED IT.

AND ONLY WHERE YOU WANT IT.

42

PowerHeat™ is a Broan design that

maximizes heat output per watt. With

the heater element close to the forced

air exit grille, the internal components

are not heated. Heat is delivered into

the room and does not escape into the

ceiling or attic space.

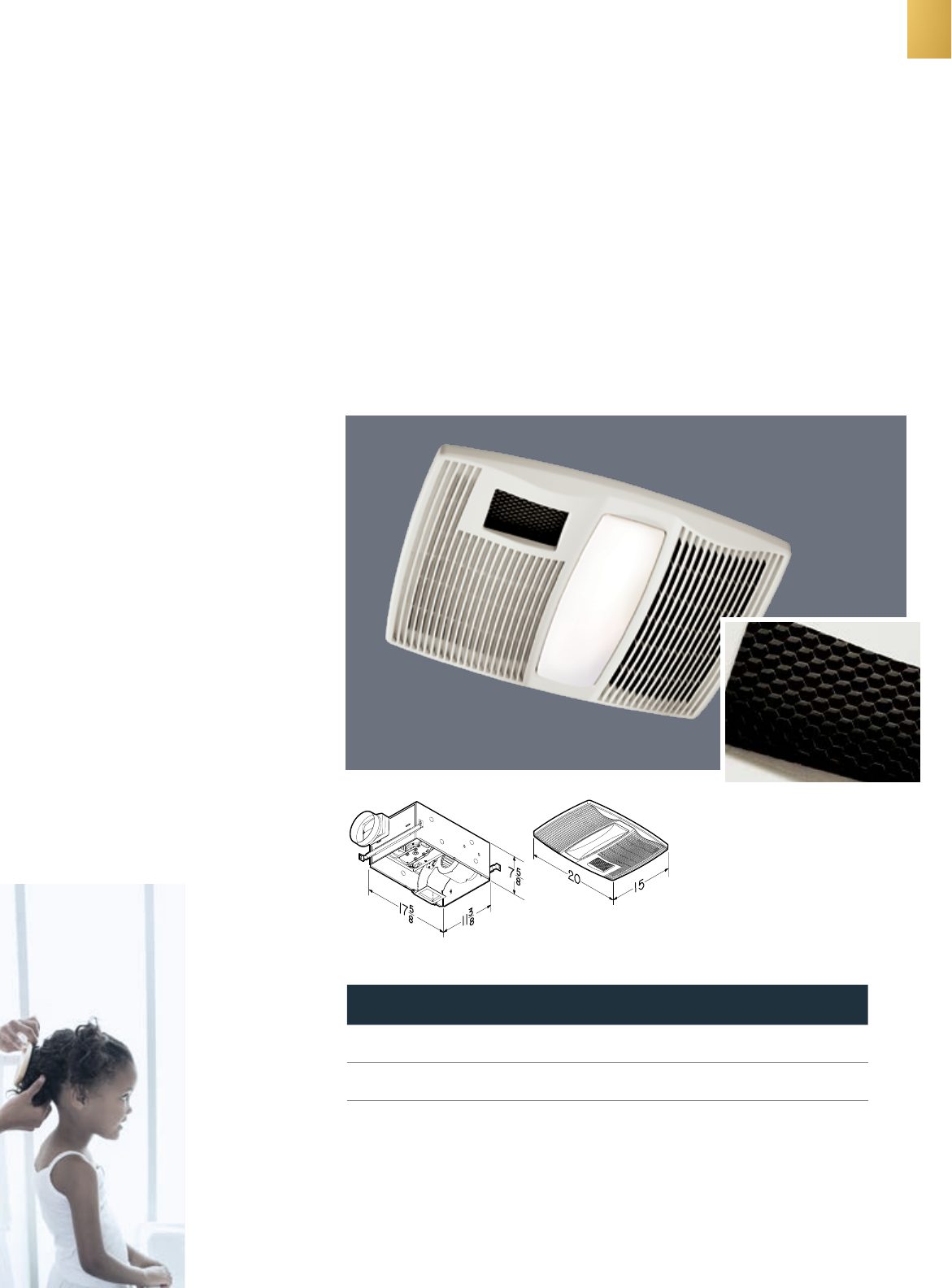

Heater/Fan/Light

Model CFM Sones Bath

Sq Ft. Lighting/

Night Light Heater

Watts Ducting

QTX110HL 110 0.9 100 Std. A19 Base

(2- 60W)** / 7W** 1500 6"

QTX110HFLT 110 0.9 100 36W Fluorescent

(2- 18W)* / 7W** 1500 6"

*Bulbs included

**Bulbs not included

QT SERIES FEATURES

• Efficient PowerHeat™ heater design

• Choice of standard A19 base (2, 60 watt)

lighting (bulbs not included) or energy-

efficient 36 watt GU24 fluorescent (bulbs

included)

• Fan motor is engineered for continuous

operation

• HVI Certified

• Type IC

• Requires a dedicated 20 amp circuit

• Switches sold separately

• 7 watt night-light bulb not included

INSTANT HEAT, RIGHT WHEN YOU NEED IT.

AND ONLY WHERE YOU WANT IT.

43

HEATER/FAN & HEATER/FAN/LIGHT FEATURES

• Designer white polymeric

grilles complement virtually

any décor

• 1300 watt heaters

• Fan, light and heater function

independently or together

• Type IC

• Fits 2" x 6" ceiling

construction

• Two- or three-function

wall controls are available

separately

• 655: 20-amp circuit required

• 659: 15-amp circuit required

• 656: Heater/Light Only,

15-amp circuit required

• 658: Heater/Fan, 15-amp

circuit acceptable

Heaters & Heater Fans

Model CFM Sones Lighting Ducting Heater

655 70 4.0 Std A19 Base 4" 1300W

656 — — Std A19 Base — 1300W

658 70 4.0 No Light 4" 1300W

659 50 2.5 Std A19 Base 4" 1300W

Heater/Fan/Lights

Model CFM Sones Bath

Sq Ft. Lighting Heater

Watts Ducting

100HL 100 2.0 90 Std A19 Base 1500 4"

100HFL 100 2.0 90 27W GU24

Fluorescent 1500 4"

Broan Directionally-adjustable Heater/Fan/Lights.

With our 360° directionally-adjustable heat outlet, you’re

assured the heat will end up exactly where you need it.

100HL | 100HFL

DIRECTIONALLY ADJUSTABLE HEATER/FAN

LIGHT FEATURES

• Heater/Fan/Light brings

convenient, comforting

warmth to your bathroom

• Quiet, high-output heater

with exclusive directionally

adjustable design (see

below)

• 4" ducting for new

construction or retrofit

• Multi-function wall switches

sold separately

• Choice of Standard A19

base or energy-efficient 27

watt GU24 (bulb included)

fluorescent lighting

• Fan motor is engineered for

continuous operation

• HVI Certified

• Type IC

• Requires a dedicated 20

amp circuit

• Fits 2" x 6" ceiling

construction 655 | 659 | 656 658

658 Grille655, 656, 659 Grille

HEATERS FANS & FAN/LIGHTS

44

BULB HEATER/FAN FEATURES

• Quiet, highly efficient

polymeric blower wheels

• Polymeric dampers prevent

backdrafts and eliminate

mechanical noise

• Polymeric 4" round duct

connectors with tapered

sleeves simplify ducting

• Operate fan and heater

independently or together

• Attractive white polymeric

grilles

• Compact steel housings with

adjustable mounting

brackets with keyhole slots

that span up to 24"

• 250 watt R40 or BR40 size

infrared bulbs (not included)

• Type IC, UL Listed for 60°C

wiring (retrofits)

• 162: One-Bulb Heater/Fan

• 164: Two-Bulb Heater/

Fan, Two-function control

(available separately)

ONE OR TWO-BULB HEATERS—NO FAN

•

Infrared bulbs deliver

energy-saving warmth

• Get instant comfort in the

bathroom without turning

up the central thermostat

• 250 watt R40/BR40 size

infrared bulbs (not included)

• Attractive, white polymeric

grilles

• Compact steel housings

• Adjustable mounting

brackets with keyhole

slots span up to 24"

• 161: One-Bulb Heater,

UL Listed for 75°C wiring

• 163: Two-Bulb Heater,

Type IC

Bulb Heater/Fan & Bulb Heaters

Model CFM Sones Bulb Watts

162 70 3.5 250

164 70 3.5 500

161*— — 250

163 — — 500

*NOT IC RATED

Bulb Heater Fans. Silent warmth and superior

ventilation. Trust Broan Bulb Heater/Fans and Bulb

Heaters for energy-saving warmth and instant comfort

without ever having to touch your central thermostat.

These units deliver superior performance and excellent

ventilation in a compact package.

162 161 163

162 164 161 163

164

163

45

ATTIC POWERED VENTILATION

DH100W Humidistat

• Sold separately for use

with all Broan powered

attic ventilators. Humidistats

automatically turn on the

fan when moisture in the

attic is detected

Model 73

• High Temperature

Cut-off sold

separately for use

with all Broan

powered attic

ventilators. High temperature

controls automatically turn off

the ventilator at 204°F

• For additional switches see page 52–53

433 Automatic Shutter for

Gable Mount Attic Ventilators

• Feature counter-balanced aluminum

vanes that automatically open and close

when the ventilator turns on and off

• Better air flow than stationary attic louvers

• Extruded aluminum frame fits flush with

outside wall

• Weather-tight

closure

• Easy to install

For use with Broan Models 353,

35316, 345GOBK or 345GOWW.

19"

19"

161⁄4"

11⁄2"

1. Calculate the volume of your attic, in cubic

feet, depending on the style of your home’s

roof.

Attic Volume for Gable Roof:

Volume = Length x Width x

Height x 1⁄2

Attic Volume for Hip Roof:

Volume = Length x Width x

Height x 1⁄3

2. Attic Volume x 10 Air Changes per Hour

= Total Cubic Feet per Hour of ventilation

recommended.3. Total Cubic Feet per Hour

60 Minutes/Hour = Cubic Feet Per Minute

(CFM) of Ventilation Recommended.

Example: Average Gable Attic Volume =

583⁄4' x 29' x 71⁄4' x ½ = 6,176 Cubic Feet

6,176 Cubic Feet x 10 Air Changes/Hour =

61,760 Cubic Feet/Hour ÷ 60 Min./Hour =

1,029 CFM

3. Replacement air is drawn through vents

in your soffit. To determine the minimum

soffit vent area required (in square inches)

multiply the total CFM of your powered

ventilator(s) by 0.48. This number is the total

square inches of soffit venting required by

your powered ventilator(s).

Example: 1,029 CFM x 0.48 = 494 Square

Inches of soffit vent area recommended

DETERMINE YOUR VENTILATION NEEDS

PUT MONEY BACK

IN YOUR WALLET.

433

ACCESSORIES

Prevent heat and moisture build-up. In summer, attics

can reach 150°F or more, warming your living area,

increasing the air-conditioning load, and adding to your

energy bill. In winter, ice dams can result, and moist air

can condense causing mildew, rotting wood and wet

insulation. Year-round attic ventilation ensures a cooler,

drier attic that can extend roof life by preventing rot,

premature aging and shingle distortion. A cooler attic

extends the life of your air conditioner and lowers air

conditioning expense.

How Much Ventilation Do You Need? Effective ventilation

requires air to exit at or near the peak of the roof

with replacement air drawn through soffit venting

and louvers. The Home Ventilating Institute (HVI)

recommends at least 10 air changes hourly to equalize

temperature. Determine your attic ventilation needs

below, or try the Attic Ventilation Calculator at broan.com.

PULL THE HEAT OUT OF YOUR ATTIC.

46

DETERMINING THE CFM* REQUIREMENTS FOR YOUR ATTIC

349BR

350BK | 355BK | 356BK

358

350BR | 355BR | 356BR

353 | 35316

ROOF MOUNT, POWERED ATTIC VENTILATION GABLE MOUNT, POWERED ATTIC VENTILATION

Powered Attic Ventilation Specifications

Model Attic Sq Ft AMPs CFM* RPM Height Diameter Dome Material Color

Roof Mount

349BR Up to 1400 4 1000 1050 9" 241⁄2"Painted Steel Dark Brown

350BR | 350BK Up to 1500 3.6 1050 1000 8" 231⁄4"PVC Brown/Black

355BR | 355BK Up to 1715 4.3 1200 1050 8" 231⁄4"PVC Brown/Black

356BR | 356BK Up to 2285 8.0 1600 1500 8" 231⁄4"PVC Brown/Black

358 Up to 1715 4.3 1200 1050 8" 231⁄4"Aluminum Silver

Gable Mount

353†Up to 1460 3.4 1020 / 760** 1030 — — — —

35316†Up to 2285 3.9 1600 / 1160** 1420 — — — —

Gable Mount Ventilators

Roof Pitch 8/12 or Less 9/12 12/12 15/12

Standard

Louver

433

Louver

Standard

Louver

433

Louver

Standard

Louver

433

Louver

Standard

Louver

433

Louver

Light Colored Roof Square Footage

353 1085 1460 1015 1360 570 765 355 385

35316 1658 2285 1549 2135 870 200 559 770

Dark Colored Roof Square Footage

353 950 1275 880 1185 500 670 315 425

35316 1442 1985 1347 1855 757 1055 486 670

Numbers in charts are attic square footage that fan can ventilate.

Roof Mount Ventilators

Roof Pitch CFM 8/12 or Less 9/12 12/12 15/12

Light Colored Roof Square Footage

349BR 1000 1490 1180 782 501

350BR, 350BK 1050 1500 1399 790 508

355BR, 355BK 1200 1715 1600 900 575

356BR, 356BK 1600 2285 2135 1200 770

358 1200 1715 1600 900 575

Dark Colored Roof Square Footage

349BR 1000 1290 1200 684 427

350BR, 350BK 1050 1304 1219 694 430

355BR, 355BK 1200 1495 1390 790 505

356BR, 356BK 1600 1985 1855 1055 670

358 1200 1495 1390 790 505

† Model 433 Automatic Shutter Accessory

sold separately. See page 46.

*Exhaust capacity HVI certified @ .03"

static pressure.

**Higher CFM with Model 433 shutter.

Lower CFM with standard wood louvre.

The Home Ventilating Institute (HVI)

recommends 1 sq. ft. of open air inlet per

300 CFM of fan capacity. The best location

for these air intake vents is under the

eaves with direct access to the attic.

Vents for gable installations should be

placed at the end of the house opposite

the installed ventilator. Failure to provide

these intakes could cause natural-draft

gas appliances to backdraft.

47

ATTIC SOLAR VENTILATION

Weathered Wood

29.875"

25.5"

9"

25.5"

26.625"

Dome

Base 19.75"

29.875"

11"

19.75"

26.625"

Dome

Base

Black Model shown with

a flat roof installation

Surface Mount—345SOBK and 345SOWW

For most roofs, our one piece SPAV is the perfect

solution. Because our solar cells are highly efficient at

capturing the sun’s energy, there is no need for

unsightly raised panels or tracking systems. Instead,

what you see is a low profile ventilator in a contoured

design that integrates well with the roof.

Curb Mount—345CSOBK and 345CSOWW

Identical in design to the Surface Mount unit but with an

added lip for flat, tiled, or unusually steep roof

installations. A Curb Mount installation requires the

fabrication of a simple curb box frame made from

treated 2x4s to create a solid platform and better

manage water runoff.

VENTILATE

YOUR ATTIC

WITH THE POWER

OF THE SUN.

345CSOBK (BLACK) | 345CSOWW (WEATHERED WOOD)345SOBK (BLACK) | 345SOWW (WEATHERED WOOD)

Weathered

Wood Model

shown with

a steep roof

installation

Black Model

48

Black Model

Weathered

Wood Model

Solar Panel

0.75"

30"

26.625"

Ventilator

29.875"

25.5"

9"

25.5"

26.625"

Dome

Base

Remote Mount, 345RSOBK and 345RSOWW

In some cases, installing the ventilator in a location

that is either less visible, more convenient to reach

from the roof-side, or more accessible from the attic-

side, is desirable. Remote mount enables the ventilator

to be installed independent of the solar panel, up to 50'

away (15' of wire included). Locate the remote, flat

panel to receive the best sunlight exposure and hide

the ventilator from view.

Gable Mount, 345GOBK & 345GOWW

If roof mounting is not possible or desired, gable

installation provides the benefits of the SPAV with a

remote-mounted, flat solar panel positioned to best

capture the sun’s energy, up to 50' away (15' of wire

included). Finish the outside with a Broan model 433

gable shutter.

Solar Panel Integrated, low profile, 28 watt Solar Panel efficiently

captures sunlight from dawn to dusk without the unsightly props

or pivoting stands used by some manufacturers. Rugged,

tempered glass withstands large hail and resists delaminating.

Housing Attractive, low profile, molded design, of UV-stabilized,

color-dyed, rugged ABS plastic withstands impact from hail and

resists fading. May also be painted to match roof color for

installation flexibility.

Motor Direct-current, variable speed 17 volt motor is dynamically

balanced for superior performance and silent operation.

Fan 12" Diameter, one-piece aluminum 5-blade, fan pitched for

maximum air flow.

Hardware Stainless steel fasteners secure galvanized steel

brackets and aluminum, heavy gauge screen for durability and

corrosion resistance. Screen keeps out insects, animals, and

birds without impeding airflow.

0.75"

30"

26.625"

Solar Panel

345GOBK (BLACK) | 345GOWW (WEATHERED WOOD)345RSOBK (BLACK) | 345RSOWW (WEATHERED WOOD)

Black Model

Weathered

Wood Model

19.75"

19.75"

Visit broan.com

for more information.

30%

Federal

Tax Credit

Optional Thermostat—Model CWT45 Easy to

install, this optional accessory disables the

motor below 50° for climates where cold-

weather condensation isn’t a concern and to

extend motor life. The thermostat activates

the motor at temperatures above 61° to vent

air from dawn through dusk.

49

50

Model 69W*

• Single-Function Controls

• Ideal for use with quiet

models, or Remote In-Line

Ventilators

• 120V, 15 amps

INDICATOR LIGHT CONTROLS THERMOSTAT AND

HUMIDITY CONTROLS

Model 685WL,

685VL

• Three-Function Controls

• For use especially

with quiet models

• Lighted fan control

120V, 20 amps;

two additional on/off

rocker switches 120V, 15 amps each

(20 amps total)

• Fits two-gang box

• Blister packs (P685WL, P685VL)

• Controls available in White (W) or Ivory (V)

Model 269WL,

269VL

• Two-Function Controls

• For use especially with

quiet models and an

auxiliary light source

• Lighted fan control

120V, 20 amps;

unlighted 120⁄240⁄277V, 15 amps

• Fits two-gang box

• Controls available in White (W) or Ivory (V)

Model 70TW

• Thermostat for any fan

• 120, 250, 277 VAC,

• 22 amp capacity

• Fits single-gang box only

Model DH100W*

• Dehumidistat

• Dual voltage (24V/120V)

• Variable setting from

20–80% relative humidity

• Usage guide included

• Fits single-gang box only

MULTI-FUNCTION CONTROLS

Model 66W, 66V, 67W, 67V

• Three-Function Controls

• Three

independent,

120V, 15 amp

rocker switches

(20 amps total)

• Fits single-gang

opening

• Blister packs

available

(P66W, P66V, P67W)

• Controls available in White (W) or Ivory (V)

• Wall plates available in: White (66W)

or Ivory (66V); Polished chrome finish

(67W, 67V)

Model 77DW, 77DV

• Four-Function Controls

• Single switch provides three

settings for fan sensor

(On-Auto-Off) on Sensing

models

• Remaining switches for

light/night light

• Works with QTX110HL

heater/fan/light/night light

• Controls available in White (W) or Ivory (V)

• Fits single-gang opening

• Blister packs available (P77DW)

Model 68W, 68V

• Two-Function Controls

• Two independent, 120V,

15 amp rocker

switches(20 amps total)

• Fits single-gang box

• Blister packs available

(P68W, P68V)

• Controls available in White

(W) or Ivory (V)

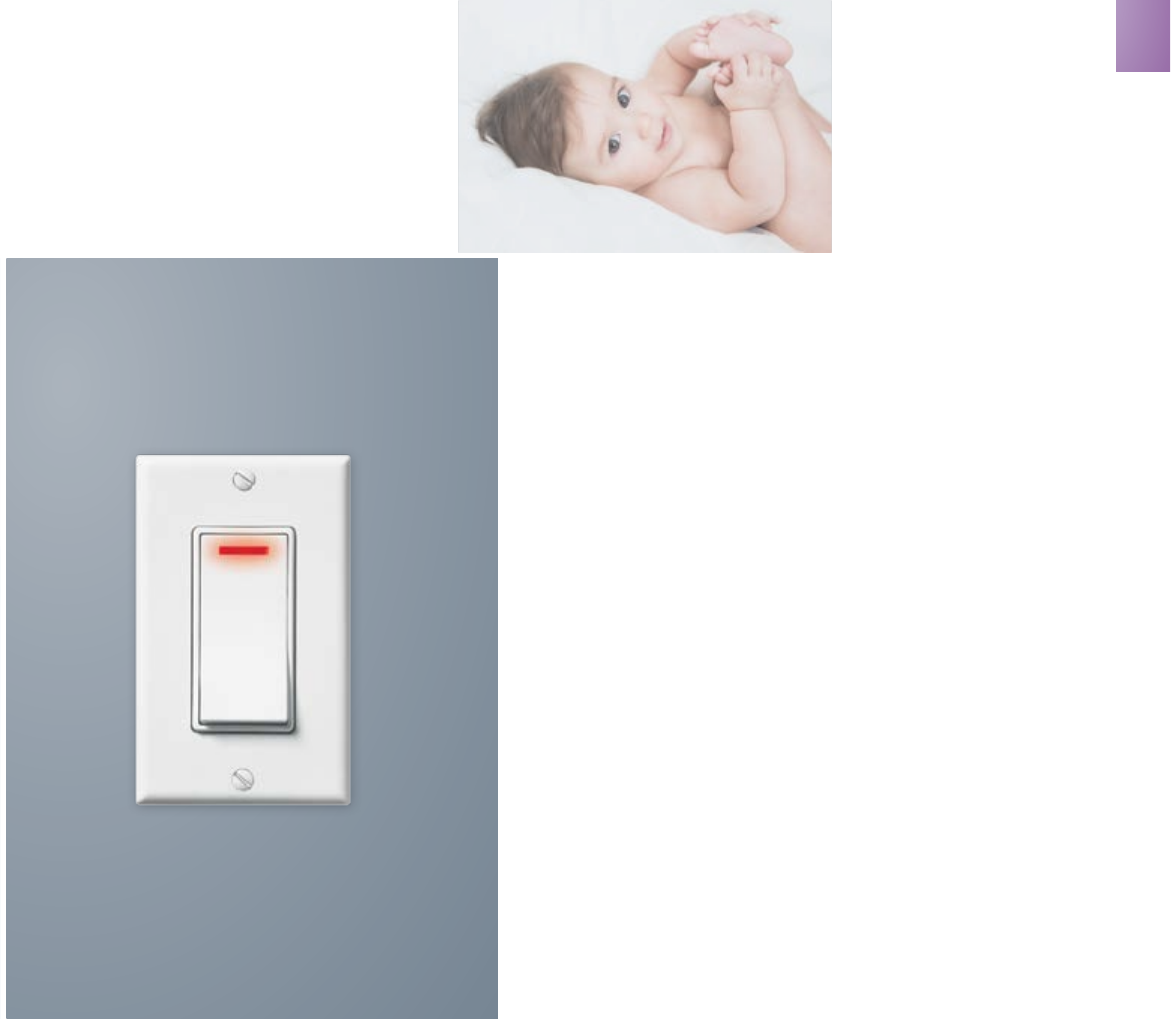

INDICATOR LIGHT CONTROL FOR CONVENIENCE

WALL CONTROLS

NEW Model 82W

• SensAire® technology

responds to humidity up to

70% faster than competitive

models; setpoint mode

satisfies CA requirements

• Continuous ventilation mode

helps to meet ASHRAE 62.2

• Compatible with any

existing fan within electrical

ratings

• Available in white; faceplate not included

• 120V, 4 amp

*Also for use with Powered Attic Ventilators—see pages 46–47

THE PERFECT

CONTROL SOLUTION

FOR EVERY ROOM

AND NEED.

51

SPEED CONTROLS

Model 57W, 57V (3-amp)

• 120V, 3 amps

• Fits single-gang box

• Positive on/off action—dial

for variable selection of air

speeds and sound levels

• Built-in radio noise

suppressor

• Controls available in White

(W) or Ivory (V)

• Blister packs available (P57W)

Model 72W, 72V (6-amp)

• 120V, 6 amps—

Models 72W, 72V

• Fits single-gang

box only

• Positive on/off

action—dial for

variable selection

of air speeds

and sound levels

• Built-in radio noise suppressor

• Controls available in White (W) or

Ivory (V)

Model TC24H*

• 24-Hour Programmable Timer

• 120V, 8 amps

• Sets up to 36 on/off cycles

as short as 20 minutes

• Manual on/off override

switch

• Fits single-gang box only

Model 78W, 78V

• 4-speed “no-hum” ceiling

fan speed control

• Decorator wall plate

• Screws included

• 120V AC 1.5 amp

• Controls available

in White (W) or Ivory (V)

Model 61W, 61V

• Operate for any set period

up to 15 minutes (no

“continuous on” position)

• Fits single-gang box

• 120V, 20 amps; 240V,

10 amps

• Controls available in White (W)

or Ivory (V)

Model 62W, 62V

• 60 Minute

• Two separate 120V,

15 amp on/off

rocker switches

(20 amps total)

• 120V, 20 amps or

240V, 10 amp timer

• Timer operates

continuously or for any set

period up to 60 minutes

• Fits two-gang box

• Controls available in White (W) or Ivory (V)

Model 63W, 63V

• 60 Minute

• Separate 120V, 15 amp

on/off rocker switch

• Timer operates

continuously or for

any set period up

to 60 minutes

• Fits two-gang box only

• Controls available in

White (W) or Ivory (V)

Model 59W, 59V, 71V*

• Model 59W, 59V—up to

60 minutes

• Model 71V—up

to 12 hours

• Fits single-gang

box

• 120V, 20 amps;

240V, 10 amps

• Operate

continuously or for any set period

• Controls available in White (W) or Ivory (V)

• Blister packs available (P59W, P59V)

TIMER AND OFF-DELAY CONTROLS

Model 64W, 64V

• Fan/Light Control with

Off-Delay

• Fan and light operate

together when control

is turned on

• Fan continues to operate for

a user adjustable time period

5–60 minutes after light is

turned off

• Center position bypasses timer

and turns fan and light off immediately

• Fits single-gang box only

• 120V, 4 amps (fan), 4 amps (light)

• Requires hot and neutral wires in the

switch box

• Controls available in White (W) or Ivory (V)

MULTI-FUNCTION CONTROL

TO SUIT EVERY NEED

HUMIDITY SENSING TO HELP

PREVENT FOGGY MIRRORS

SPEED CONTROL FOR QUIETER

OPERATION OR FULL POWER

*Also for use with Powered Attic Ventilators—see pages 46–47

57W

57V 59W 61W

61V

62W

62V

63W

63V

64W

64V

66W

66V

67W

67V

68W

68V

69WL

69VL 70TW 71V 72W

72V 73 77DW

77DV

78W

78V

269WL

269VL 685WL 82W,

DH100W TC24H

Utility

Fans

12C • • • • • • • • • •

502 • • • • • • • • • • •

503 • • • • • • • • • • •

504 • • • • • • • • • • •

505 • • • • • • • • • • •

506 & 507

508 • • • • • • • • • • •

509 • • • • • • • •

509S1• • • • • • • •

5102• • • • • • • •

5112• •

512 & 512M • • • • • • • • • •

673 • • • • • • • • •

Ventilation

Fans

670 • • • • • • • • • • •

682 • • • • • • • • • • •

688 • • • • • • • • • • •

689 • • • • • • • • • • •

690 • • • • • • • • • • •

LP80 • • • • • • • • • • •

QTXE080

QTXE110, QTXE150 • • • • • • • • • • • •

QTXE110S • •

XB50 • •

XB80 • •

XB110 • •

XB110H • • •

ZB80 • • •

ZB80M • • •

ZB110 • • •

ZB110H • • •

ZB110M • • •

RB80, RB110 • • • •

A80HD • • • •

AE50, A80, AE80,

AE80B, A110, AE110 • • • •

Ventilation

Fan/Lights

657 • • • • • • • • • • •

678 • • • • • • • • • • •

696 • • • • • • • • • • •

744 • • • •

744FL • • • •

744LED • • • •

744SFL • • • • • •

750 • • • • • • • • • • • • • • •

751 • • • • • • • • • • • •

791LEDM • • • • • •

RB80L, RB110L • • • • •

AE80L, AE80BL,

AE110L • • • • •

A50L, A70L, A80L

A110L • • • • •

1Built-in on/off switch. 2Built-in on/off variable switch

52

WALL CONTROLS

SELECTION GUIDE

53

57W

57V 59W 61W

61V

62W

62V

63W

63V

64W

64V

66W

66V

67W

67V

68W

68V

69WL

69VL 70TW 71V 72W

72V 73 77DW

77DV

78W

78V

269WL

269VL 685WL

82W,

DH

100W

TC24H

Ventilation

Fan/Lights

Continued

HD80L • • • • • • • • • • • •

QTXE080FLT,

QTXE110FLT,

QTXE150FLT

•••••• •• •••

QTX110SL,

QTXE110SFLT • • •

XB50L • • •

XB80L • • •

XB110L • • •

XB110HL • • •

ZB80L •

ZB80ML •

ZB110L •

ZB110HL • • •

ZB110ML •

Heater/

Fan/

Lights

100HL •••• •• ••• ••

100HFL •••• •• ••• ••

161 • • • • • •

162 • • • • • • • • • • • •

163 • • • • • •

164 ••••• ••• ••• ••••

655 •••• •• ••• ••••

656 • • • • • • •

658 • • • • • • • • • • •

659 •••• •• ••• ••••

QTX110HL • • • • • • • • • •

QTX110HFL • • • • • • • • • •

In-Line MP100, MP140

MP200 ••• •••• ••

MP280 ••• •••• ••

SP100, SP140,

SP200 ••• •••• ••

Attic

Ventilation

349BR •• ••••• ••

350BK •• ••••• ••

350BR •• ••••• ••

353 •• ••••• ••

35316 •• ••••• ••

355BK •• ••••• ••

355BR •• ••••• ••

356BK • • • • • • •

356BR • • • • • • •

358 •• ••••• ••

1Built-in on/off switch. 2Built-in on/off variable switch

54

FILTERS

Model 834 Filter

• For 8" fans

Model 854 Filter

• Aluminum mesh grease filter

• For 10" fans

Model 99010042 Aluminum Filter

• Fits Utility Ventilator

Models 503, 503MG,

505, 505MG, 509,

509MG, 509S

and 509SMG

Model 99010271 Aluminum Filter

• Fits Utility Ventilator Models 12C, 12CMG,

502, 502MG, 504, 504MG, 508, 508MG,

510, 510MG, 511 and 511MG

METAL GRILLE KIT

Model 97011308

• Steel baked white enamel finish

• Fits fan Models 670, 671, 676,

684, 688 and 689

• Grille size is 101⁄4" square

ROOF CAPS

Model 437* 10" Round

• High-capacity design up to 1200 CFM

• Built-in bird screen

• Steel housing, black

electrically bonded

epoxy finish

Model 611 Roof Cap*

• For flat roof installation

• Aluminum natural finish

• For up to 8" round duct

Model 611CM Roof Cap*

• For curb mount installation

• Other features same

as Model 611

Model 612 Roof Cap*

• For flat roof installation

• Aluminum natural finish

• For up to 12" round duct

Model 612CM Roof Cap*

• For curb mount installation

• Other features same as

Model 612

Model 634 Roof Cap*

• For 31⁄4" x 10" or up

to 8" round duct

• Black

• Backdraft damper

and birdscreen

ADAPTERS

Model FY6

• 6" x 6" x 6" Y adapter

Model FY86

• 8" x 6" x 6" Y adapter

DAMPERS

Model 97 Damper

• 7" spring-loaded, in-line damper

Model BP87 Damper

• 7" vertical discharge damper

DUCTING

Model 406 Round Duct

• 6" round duct

• 2' galvanized section

Model 407 Round Duct

• 7" round duct

• 2' galvanized section

Model 410 Round Duct

• 10" round duct

• 2' galvanized section

Model 889 Duct

• 31⁄4" x 10" duct

• 2' galvanized sections

Models DT4C & DT6C

Non-Insulated Flexible Duct

• 4" (DT4C) or

6" (DT6C) round

• DT4C is a 4-pack

• 25' standard length

Models DT4W,

DT6W & 804DU Insulated

Flexible Duct

• 4" (DT4W & 804DU)

or 6" (DT6W) round

• 25' standard length

DUCTING KITS

Model RVK1A*

Flexible Roof Ducting Kit

• Includes Model 636 Roof Cap

• 4" diameter metal duct

connector

• 2 duct clamps

• 4" to 3" reducer

• 8' of 4" flexible

aluminum ducting

Model WVK2A*

Flexible Wall Ducting Kit

• Includes white polymeric wall cap

• 4" diameter metal duct connector

• 2 duct clamps

• 4" to 3" reducer

• 5' of 4" flexible

aluminum ducting

ELBOWS

Model 415

Adjustable Elbow

• Fits 7" round duct

Model 418

Adjustable Elbow

• Fits 10" round duct

Model 419

Adjustable Elbow

• Fits 6" round duct

Model 428

Vertical Elbow

• Fits 31⁄4" x 10" duct

Model 429

Horizontal Elbow

• Fits 31⁄4" x 10" duct

Model 430

Short Eave Elbow

• For 31⁄4" x 10" duct

• Includes backdraft

damper and grille (black)

• Only recommended for fans

with more than 160 CFM

Model 431 Long Eave Elbow

• For 31⁄4" x 10" duct

• Includes backdraft

damper and grille (black)

• Only recommended for fans

with more than 160 CFM

Model 839 Elbow

• 90° turn

• For use with

31⁄4" x 10" duct

DUCTING ACCESSORIES

*Not for use with dryers.

55

WALL CAPS

Model 613 Wall Cap*

• For 12" round duct

• Built-in backdraft damper

and bird screen

• Aluminum natural finish

Model 639 Wall Cap*

• For 31⁄4" x 10" duct

• Spring-loaded

backdraft damper

• Built-in bird screen

• Steel baked black enamel finish

Model 649 Wall Cap*

• Same as Model 639, except aluminum

natural finish

Model 641 Wall Cap*

• For 6" round duct

• Built-in backdraft damper

and bird screen

• Aluminum natural finish

• Model 647 for 7" Round duct

Model 647 Wall Cap*

• For 7" round duct

• Other features same

as Model 641

Model 649 Wall Cap*

• Same as Model 639,

except aluminum

natural finish

Model 843BL Wall Cap*

• For 6" round duct

• Built-in backdraft damper

and bird screen

• Black finish

WALL CAPS CONTINUED

Models 885AL and

885BL Wall Cap*

• For 3" or 4"

round duct

• 4" to 3"

transition included

• Aluminum natural finish

(885AL) and steel black

enamel finish (885BL)

• Standard package—6 to a carton

• Built-in bird screen and damper

Model 643 Wall Cap*

• For 8" round duct

• Aluminum natural finish

• Backdraft damper, no birdscreen

Model 646 Louvered Wall*

Cap for 6" Round Duct

• Single pack

• White polymeric

Model WC650 Wall Cap*

• For 4" round duct

• White polymeric

• 4 to a carton

ROOF CAPS CONTINUED

Model 634M Roof Cap*

• Same as Model 634 except

for 6" round duct

Model 636 Roof Cap*

• For 3" or 4" round duct

• Built-in backdraft

damper and bird screen

• Steel baked black enamel finish

Model 636AL Roof Cap*

• Same as Model 636,

except aluminum

natural finish

Model 644 Roof Cap*

• Same as Model 634,

except for

aluminum natural finish

SLEEVES

Model CVLD4

• 4" sleeve with damper

Model CVLD6

• 6" sleeve with damper

TRANSITIONS

Model 886 Transition

• Converts 7" round to

31⁄4" x 10" duct

Model 475 Transition

• Converts 6" round duct

to 4" round duct reducer

• Available in 6 Pack (475B)

Model 413 Transition

• Converts 31⁄4" x 10" duct

to 8" round duct

*Not for use with dryers.

Model 843 BL

TECHNICAL

What is a sone, and how is

it measured? A sone is a

measurement of sound of how

sound is sensed. The lower

the sone value, the quieter the

listening environment. One sone

is the equivalent of a quiet

refrigerator. Broan fans feature

the quietest rating possible at

<0.3 sones as tested for HVI

certification.

What does “HVI certified” mean?

The Home Ventilating Institute

(HVI) is an independent

organization that certifies the

airflow and sound performance

of Broan products. For more

information visit www.hvi.org.

What is ENERGY STAR®? Refer

to the product matrix for specific

Broan fans that meet

ENERGY STAR® requirements.

Many of these Broan products use

high efficiency motors and lighting

to reduce energy consumption by

as much as 70%. Learn more

about ENERGY STAR® at

www.energystar.gov.

What does CFM mean? Cubic Feet

per Minute (CFM) is the measure

of air volume moved by the fan

blower. Choose a fan with a CFM

rating appropriate for your room

size to ensure adequate

ventilation.

What does “static pressure” mean?

Static pressure is the

measurement of airflow resistance

as it is pushed through ductwork

which reduces the effectiveness

of the fan. Learn more on the

Home Ventilating Institute website

www.hvi.org.

What is whole-house ventilation?

Whole-house ventilation provides

today’s airtight homes with a

relatively constant and controlled

lower level of ventilation. Broan

offers many virtually silent

continuous ventilation solutions

for ASHRAE 62.2 and programs

such as LEED, ENERGY STAR® for

Homes and CA Title 24.

OPERATION

How do I size a fan properly for my

room size and the duct run? See

the sizing guidelines on page 59

for details on proper sizing. This

section provides an explanation

and examples to help you make

the right decision.

How long should a bath fan run

after a shower is used? The Home

Ventilating Institute recommends

that a fan should be left on for

20 minutes more to clear humidity

adequately and to ensure moisture

and condensation is minimized.

How does Sensing Technology

operate? Broan has unique sensing

technology that detects humidity

or motion. Multi-speed models

automatically turn the fan speed

up when someone enters the

room or there is a rapid rise in

the humidity level from the lower

continuous CFM level. Single-

speed models turn the fan

on automatically.

How does the delay-off timer

operate? Delay-off timers

automatically shut the fan off after

a time interval set by the user.

Why do the windows and mirrors

fog even when the fan is running?

If windows and mirrors are very

cold, condensation can still form

on these surfaces. And if your

bathroom is sealed tightly,

replacement air may not be

entering the room fast enough

to displace the moist air. Fan

placement can also be a factor.

Your fan should be located far

from the replacement air source

to ensure the moist air is drawn

out first. Finally, make sure your

ductwork is as short and straight

as it can be in order to ensure

proper air outflow.

Why is water dripping from the

grille of the fan? Dripping water is

either condensation (usually due

to cold ductwork or improper duct

installation), or a problem with

the seal on a wall or roof vent.

Insulated ductwork can help solve

condensation problems, and

running the fan longer will ensure

moisture is completely removed

from the duct.

Will Broan fans work in wall-mount

applications? Refer to the product

matrix for specific Broan bath and

utility fans that may be wall

mounted.

What type of exhaust fan is best

for a sauna or hot tub area? High

CFM-rated devices are normally

recommended for this type of

application.

Can I use a fan in a steam shower?

No. Since these are normally

sealed chambers, a vacuum

will be created.

FAQS FANS & FAN/LIGHTS

56

INSTALLATION

Can I mount Broan fans above my

tub and shower? Most Broan fans

are rated for use over a shower or

bathtub with a GFCI (Ground Fault

Circuit Interrupter).

Can my bath fan be surrounded by

insulation? Yes. Broan bath fans

are designed to provide adequate

cooling for motors and lighting,

as well as products with integral

heaters.

Can I vent more than one bath fan

out of a roof or wall cap? No.

Always follow the manufacturer’s

recommended ventilation

requirements.

What is the Broan

Ventilation fan warranty? Go to

http://www.broan.com/warranty

for this information.

Do I need attic access to install

a fan in a retrofit situation? Refer

to the product matrix for specific

Broan fans that may be installed

without access from above with

features such as telescoping

mounting frames, snap-in

housings, bendable mounting ears,

drywall-mounting tabs and inside-

out mounting duct connectors.

Room-side retrofit installations

are now a reality.

Can I install a heater over the

bathtub or in a shower?

No. Heaters are not UL Listed

(Underwriter’s Laboratory) for

installation over a bathtub or

in a shower.

Can I use an inline or multi-port fan

in one large bathroom? Yes, this

works the best for large rooms

because you can install the ports

over the areas where the

ventilation is needed the most

(source control). The size of the

multi-port would be determined

by the size of the room.

Can larger diameter ducting be

used with my bath fan? Yes, larger

diameters will result in improved

performance.

Can I use a smaller diameter duct

than what the fan is designed for?

This is not recommended. It will

cause the fan to run harder, greatly

reducing the CFM performance of

the fan and create excess noise.

What type of duct is recommended,

rigid or flexible? It is recommended,

where possible, to use rigid duct. It

has less resistance to air flow and

allows the fan to operate much

more efficiently. If flexible duct is

used, be sure the duct is as

straight as possible.

Can I exhaust my fan into my attic

instead of out the roof or wall?

Never exhaust air into spaces

within walls, ceilings, attics, crawl

spaces or garages. Humidity may

damage the structure and

insulation.

Where should the exhaust fan

be located? Exhaust fans should

be located in or near the shower

or tub, and in an enclosed water

closet. Keep exhaust points

opposite the supply air source to

ensure that the fresh air is drawn

through the room. Bathroom doors

should not be sealed too tightly at

the bottom in order to allow

“makeup air” to enter the room

when the door is closed.

In what direction should I orient the

exhaust outlet? The exhaust outlet

is the point where air is discharged

through the body of

the fan housing into the ductwork.

During installation, orient your fan

with the exhaust outlet pointing

toward the exit vent on your roof or

wall to minimize turns in ductwork

that impede airflow.

Will a bath fan or wall-mount utility

fan serve as a range hood?

No. Range hoods are specifically

designed to handle grease and

high temperature environments.

Broan bath fans supplement odor

and moisture removal in the

kitchen, but are not intended

for use as a range hood.

Can I use CFL or LED bulbs in

fan/lights with A19 screw-base

sockets? Yes, if key guidelines

are followed. Go to broan.com

FAQs for details.

57

Tape or caulk around

the seam where the

fan housing meets the

sheetrock on the ceiling

If possible, use smooth,

rigid ductwork as large

as the exit opening on the

body of the fan housing

Whether rigid or flexduct,

the turning radius for the duct

should be as large as possible

Whenever possible, ductwork

should slope down and away

from the fan housing to direct any

condensation toward the vent

Exit vents should have

backdraft flaps to help

keep cold air from

entering the duct

PROPER INSTALLATION

MAKES ALL THE DIFFERENCE.

INSTALLATION NOTES

Pre-installed screws, keyhole slots and

alignment tabs facilitate installation, taking the

guesswork out of proper mounting.

Elbows, turns, long ducts and ductwork smaller

than the fan’s exit outlet will reduce performance.

Use wide aluminum foil or duct tape to join

smooth metal ductwork seams.

Do not let flexible ductwork sag as this impedes

airflow.

During installation, orient the bath fan outlet in

the direction of the home’s exit point to minimize

duct turns.

Before adding an elbow or bend,allow 24" to 36"

of straight run from the fan outlet point.

Duct-wrap insulation (R-5 or above) will help

minimize condensation in cold climates,

especially on long duct runs.

Quick guideline: For bathrooms up to 100

square feet, the HVI recommends ventilation

of at least 1 CFM per square foot (about eight

air changes per hour). For bathrooms over 100

square feet, add up the needs of each fixture

to determine the total ventilation rate:

• Toilet 50 CFM

• Shower 50 CFM

• Bathtub 50 CFM

• Jetted tub 100 CFM

58

EASY STEPS FOR CHOOSING AND SIZING THE RIGHT

VENTILATION FAN FOR YOUR HOME.

Determine which rooms could use ventilation, and how much is needed. Spot ventilation is used in localized

areas to remove moisture, odor and airborne pollutants quickly. Most commonly used in the bath or powder

room, spot ventilation can also be used in a laundry room, exercise area, closet, or bedroom, wherever air

should be changed frequently. Decorative and recessed models can be ideal solutions for these situations.

According to the Home Ventilating Institute (HVI), Air Changes per Hour (ACH) for comfortable and healthy living

should be as follows: Bathrooms: 8 changes, Kitchens: 15 changes, Living/Bedrooms: 6 changes. Broan bath

fans, utility fans and high capacity fans can meet these needs.

Calculate the air movement necessary for proper

ventilation. Air movement is measured in Cubic Feet

per Minute (CFM). To determine CFM requirements,

first determine the size of your room. Measure and

multiply the length, width and ceiling height of your

room to determine cubic footage. Then use the

multiplication factor of .13 and round up to the next

“ten.” See the three examples that follow.

Example 1:

Bathroom with 8' ceiling:

7' wide x 9' long x 8' high x .13 = 66. Select a bath fan

with at least 70 CFM

Example 2:

Bathroom with 9' ceiling: 10' wide x 9' long x 9' high x

.13 = 105. Select a bath fan with at least 110 CFM

Example 3:

For a bathroom with a vaulted ceiling, use the average

ceiling height at the wall and the peak:8' wide x 12' long

x ((8' at wall + 12' at peak) / 2 = 10') average height x

.13 = 125. Select a fan(s) with at least 130 CFM

Account for long duct runs and ductwork that turns

before it reaches the exterior vent. When airflow is

restricted in any way it slows down. Just as a car

must slow down for a sharp corner, air decelerates

when going through a turn in a duct run. Whenever

possible, create a straight duct run with large radius

turns, if they’re necessary at all. Rigid ductwork is

optimal because airflow restriction is minimized.

Flexible tubing may be convenient to install, but

resistance is created as air is moved over the spiral

metal frame of the tubing. With long duct runs or

ducts with multiple turns the fan works harder, noise

increases and fan performance (CFM) is

compromised. Select a fan model with an even

greater CFM rating to compensate.

6" ducting overcomes most performance-related

installation issues. Broan’s ULTRA and QTX Green

Series fans deliver high performance in virtually any

real-world installation. They are engineered with a 6"

duct connector for peak air movement and extremely

quiet operation, even when the duct run is not short

and straight.

59

SPECIFICATIONS

60

Fans

Model Page CFM

Sones,

HVI-

Certified

Baths

up to

( ) Sq Ft

ENERGY

STAR®

Duct

Size"

Housing Dims Grille Dims

Grille Finish AmpsL" W" H" L" W"

670 30 50 3.5 45 — 3 71⁄471⁄235⁄89 91⁄4White Polymeric 0.8

671 30 70 6.0 65 — 3 71⁄471⁄235⁄89 91⁄4White Polymeric 1.2

682 31 — — — — Duct-free 71⁄871⁄833⁄481⁄281⁄2White Polymeric 1.0

688 30 50 4.0 45 — 3 71⁄471⁄235⁄89 91⁄4White Polymeric 0.9

689 30 60 5.5 55 — 3 71⁄471⁄235⁄89 91⁄4White Polymeric 1.5

690** 31 60 3.0 55 — — — — — 95⁄8111⁄8White Polymeric 1.5

LP80 29 80 1.0 75 Yes 4 / 3 113⁄8101⁄24 13 133⁄4White Polymeric 0.3

SPK110 37 110 1.0 75 Yes 4 113⁄8101⁄273⁄413 14 White Polymeric 0.9

SSQTXE080 23 80 — — Yes — 113⁄8101⁄273⁄4— — — —

SSQTXE110 23 110 — — Yes — 113⁄8101⁄273⁄4— — — —

QTXE080 18 80 0.3 75 Yes 6 113⁄8101⁄275⁄813 14 White Polymeric 0.4

QTXE110 18 110 0.7 100 Yes 6 113⁄8101⁄275⁄813 14 White Polymeric 0.3

QTXE110S 20 110 0.7 100 Yes 6 113⁄8101⁄275⁄8127⁄8133⁄4White Polymeric 0.3

QTXE150 18 150 1.4 140 Yes 6 113⁄8101⁄275⁄813 14 White Polymeric 0.5

QTRE100S 20 100 1.5 90 Yes 4 113⁄8101⁄275⁄8127⁄8133⁄4White Polymeric 0.3

RB80 15 80 <0.3 75 Yes 4 113⁄8101⁄275⁄813 133⁄4White Polymeric 0.3

RB110 15 110 0.6 100 Yes 4 113⁄8101⁄275⁄813 133⁄4White Polymeric 0.3

XB50 13 50 <0.3 45 Yes 6 / 4 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.1

XB80 13 80 <0.3* 75 Yes 6 / 4 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.1

XB110 13 110 <0.3 100 Yes 6 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.2

XB110H 13 110 <0.3 100 Yes 6 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.2

ZB80 13 80 <0.3* 75 Yes 6 / 4 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.1

ZB80M 13 80 <0.3* 75 Yes 6 / 4 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.1

ZB110 13 110 <0.3 100 Yes 6 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.2

ZB110H 13 110 <0.3 100 Yes 6 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.2

ZB110M 13 110 <0.3 100 Yes 6 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.2

Radiation Dampers can be found on page 11, 19, 22, 27, 29 and 72

*With 6" duct (with 4" duct 0.3)

**Replacement grille and motor kit

INVENT Fans and Fan/Lights

Model Page CFM

Sones,

HVI-

Certified

Baths

up to

( ) Sq Ft

Lighting

Watts Main/

Night Light

ENERGY

STAR®

Fluorescent

Lighting

Duct

Size"

Housing Dims Grille Dims

Grille FinishL" W" H" L" W" Amps

AE80 26 80 0.8 75 — Yes — 4 91⁄410 53⁄4113⁄812 White Polymeric 0.3

AE110 26 110 1.3 105 — Yes — 4 91⁄410 53⁄4113⁄812 White Polymeric 0.3

AE80B 26 80 1.5 75 — Yes — 4 91⁄410 53⁄4113⁄812 White Polymeric 0.3

AE50 26 50 0.5 45 — Yes — 4 91⁄410 53⁄4113⁄812 White Polymeric 0.2

A80HD* 26 80 2.0 75 — No — 4 91⁄410 53⁄411 12 White Painted Metal 0.37

A80 26 80 2.0 75 — No — 4 91⁄410 53⁄4113⁄812 White Polymeric 0.37

A110 26 110 3.0 105 — No — 4 91⁄410 53⁄4113⁄812 White Polymeric 0.4

A80L** 26 80 1.0 75 A19 Base No — 4 91⁄410 53⁄4111⁄2121⁄8White Polymeric 1.2

A110L** 26 110 1.3 105 A19 Base No — 4 91⁄410 53⁄4111⁄2121⁄8White Polymeric 1.2

A50L** 26 50 1.5 45 A19 Base No — 4 91⁄410 53⁄4111⁄2121⁄8White Polymeric 1.0

A70L** 26 70 2.0 65 A19 Base No — 4 91⁄410 53⁄4111⁄2121⁄8White Polymeric 1.2

AE80BL 26 80 1.5 75 LED Yes — 4 91⁄410 53⁄4113⁄4121⁄2White Polymeric 0.3

AE80L 26 80 0.8 75 LED Yes — 4 91⁄410 53⁄4113⁄4121⁄2White Polymeric 0.3

AE110L 26 110 1.3 105 LED Yes — 4 91⁄410 53⁄4113⁄4121⁄2White Polymeric 0.3

*Metal grille. **Bulb not included.

61

Fan/Lights

Model Page CFM

Sones,

HVI-

Certified

Baths

up to

( ) Sq Ft

Lighting

Watts Main/

Night Light

ENERGY

STAR®

Fluorescent

Lighting

Duct

Size"

Housing Dims Grille Dims

Grille FinishL" W" H" L" W" Amps

657 30 70 4.0 65 100 — — 4 141⁄481⁄453⁄4163⁄4105⁄8White Polymeric 2.0

678 30 50 2.5 45 100 — — 4 81⁄48 53⁄4111⁄8105⁄8White Polymeric 1.6

696 30 100 4.5 90 100 — — 4 141⁄481⁄453⁄4163⁄4105⁄8White Polymeric 2.0

744 34 70 1.5 65 75 — — 4 81⁄4123⁄463⁄473⁄8 Dia —Matte White 1.2

744FL 34 70 1.5 65 14 Yes Yes 4 81⁄4123⁄463⁄473⁄8 Dia —Matte White 0.7

744LED 34 70 1.5 65 14W LED Yes — 4 81⁄4123⁄463⁄473⁄8 Dia —Matte White 0.55

744SFL 34 70 1.5 65 14 Yes Yes 4 81⁄4123⁄463⁄473⁄8 Dia —Matte White 0.7

750 30 100 3.5 90 100 / 7 — — 4 9 9 6 15 Dia —White Polymeric 1.9

751 30 100 3.5 90 100 — — 4 9 9 6 15 Dia —White Polymeric 1.9

791LEDM 35 100 1.5 100 9W LED Yes LED 4 91⁄410 53⁄4125⁄8125⁄8White 0.5

QTX110SL 20 110 0.9 100 100 / 4 — — 6 113⁄8101⁄275⁄813 133⁄4White Polymeric 0.3

QTXE080FLT 18 80 0.3 75 2- 18W fluor/4 Yes Yes 6 113⁄8101⁄275⁄8133⁄8141⁄4White Polymeric 1.0

QTXE110FLT 18 110 0.7 100 2- 18W fluor/4 Yes Yes 6 113⁄8101⁄275⁄8133⁄8141⁄4White Polymeric 1.0

QTXE110SFLT 20 110 0.7 100 2- 18W fluor/4 Yes Yes 6 113⁄8101⁄275⁄8127⁄8133⁄4White Polymeric 0.3

QTXE150FLT 18 150 1.4 140 2- 18W fluor/4 Yes Yes 6 113⁄8101⁄275⁄8133⁄8141⁄4White Polymeric 1.2

RB80L 15 80 <0.3 75 2- 18W fluor/4 Yes Yes 4 113⁄8101⁄275⁄813 133⁄4White Polymeric 1.0

RB110L 15 110 0.8 100 2- 18W fluor/4 Yes Yes 4 113⁄8101⁄275⁄813 133⁄4White Polymeric 1.0

XB50L 13 50 <0.3 45 2- 18W fluor/4 Yes Yes 6 / 4 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.7

XB80L 13 80 <0.3* 75 2- 18W fluor/4 Yes Yes 6 / 4 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.7

XB110L 13 110 <0.3 100 2- 18W fluor/4 Yes Yes 6 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.9

XB110HL 13 110 <0.3 100 2- 18W fluor/4 Yes Yes 6 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.9

ZB80L 13 80 <0.3* 75 2- 18W fluor/4 Yes Yes 6 / 4 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.8

ZB80ML 13 80 <0.3* 75 2- 18W fluor/4 Yes Yes 6 / 4 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.8

ZB110L 13 110 <0.3 100 2- 18W fluor/4 Yes Yes 6 101⁄2113⁄875⁄813 133⁄4White Polymeric 0.9

ZB110HL 13 110 <0.3 100 2- 18W fluor/4 Yes Yes 6 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.9

ZB110ML 13 110 <0.3 100 2- 18W fluor/4 Yes Yes 6 101⁄2113⁄875⁄8131⁄814 White Polymeric 0.9

*With 6" duct (with 4" duct 0.3)

Heater/Fan/Lights

Model Page CFM

Sones,

HVI-

Certified

Lighting Watts

Main/ Night Light

Housing

Dimensions

Grille

Dimensions

Total Connected

BTUGrille Finish

Duct

Size"

Load In

Watts

Heater

WattageL" W" H" L" W" Amps

100HL 44 100 2.0 100W 16 101⁄457⁄8171⁄2111⁄2White Polymeric 4 14.5 1830 1500 5120

100HFL 44 100 2.0 27W Fluor. (Incl.) 16 101⁄457⁄8171⁄2111⁄2White Polymeric 4 14.0 1760 1500 5120

162*45 70 3.5 *250W (1) 81⁄883⁄863⁄8101⁄4 101⁄4 White Polymeric 4 2.5 300 250* 853

164*45 70 3.5 *250W (2) 141⁄483⁄863⁄8155⁄8101⁄4White Polymeric 4 4.5 545 500* 1707

655 44 70 4.0 100W 141⁄481⁄453⁄4163⁄4105⁄8White Polymeric 4 12.8 1536 1300 4437

656 44 — — 100W 141⁄481⁄453⁄4163⁄4105⁄8White Polymeric — 11.9 1428 1300 4437

658 44 70 4.0 n/a 141⁄481⁄453⁄4163⁄4105⁄8White Polymeric 4 11.9 1428 1300 4437

659 44 50 2.5 100W 141⁄481⁄453⁄4163⁄4105⁄8White Polymeric 4 12.0 1440 1300 4437

QTX110HL 43 110 0.9 120W/7W 175⁄8113⁄875⁄820 15 White Polymeric 6 14.6 1710 1500 5120

QTX110HFLT 43 110 0.9 36W Fluor.

(GU24 Incl.)/7W 175⁄8113⁄875⁄820 15 White Polymeric 6 13.9 1626 1500 5120

*Ventilation Fan/Bulb Heater versions

Bulb Heater (no fan)

Model Page CFM

Sones,

HVI-

Certified

Lighting Watts

Main/ Night Light

Housing

Dimensions

Grille

Dimensions

Total Connected

BTUGrille Finish

Duct

Size"

Load In

Watts

Heater

WattageL" W" H" L" W" Amps

161 45 n/a 81⁄883⁄863⁄8101⁄4101⁄4White Polymeric 2.1 250 853

163 45 n/a 81⁄8141⁄463⁄8155⁄8101⁄4White Polymeric 4.3 500 1707

See models 162 and 164 above for Ventilation Fan/Bulb Heater versions

SPECIFICATIONS

62

Powered Attic Ventilators—Gable and Roof Mount

Housing Dimensions

Model Page Description L" W" H" CFM Sones Amps Dome Color Dome Material

349BR 47 PAV–Roof Mount 25 Sq 241⁄2 Dia Dome 9 1000 n/a 4.0 Dark Brown Metal

350BK 47 PAV–Roof Mount 221⁄4 Sq 231⁄4 Dia Dome 8 1050 n/a 3.6 Black PVC

350BR 47 PAV–Roof Mount 221⁄4 Sq 231⁄4 Dia Dome 8 1050 n/a 3.6 Brown PVC

353 47 PAV–Gable Mount 15 Dia — 8 1020 n/a 3.4 — —

35316 47 PAV–Gable Mount 15 Dia — 8 1600 n/a 3.9 — —

355BK 47 PAV–Roof Mount 221⁄4 Sq 231⁄4 Dia Dome 8 1200 n/a 4.3 Black PVC

355BR 47 PAV–Roof Mount 221⁄4 Sq 231⁄4 Dia Dome 8 1200 n/a 4.3 Brown PVC

356BK 47 PAV–Roof Mount 221⁄4 Sq 231⁄4 Dia Dome 8 1600 n/a 8.0 Black PVC

356BR 47 PAV–Roof Mount 221⁄4 Sq 231⁄4 Dia Dome 8 1600 n/a 8.0 Brown PVC

358 47 PAV–Roof Mount 221⁄4 Sq 231⁄4 Dia Dome 8 1200 n/a 4.3 Silver Metal

Utility Fans

Housing Dimensions Grille Dimensions

Model Page CFM Sones L" W" H" L" W" Amps Duct Size

12C 38 360 8.0 — 111⁄2 Sq — 131⁄2 Sq 1.7 Direct Discharge

502 38 270 8.0 163⁄4137⁄831⁄4131⁄2 Sq 1.7 31⁄4" x 10"

503 38 160 5.0 14 12 31⁄4111⁄2 Sq 1.5 31⁄4" x 10"

504 38 350 6.5 — 101⁄4 Rd 7 131⁄2 Sq 1.7 10"

505 38 180 6.5 — 81⁄4 Rd 7 111⁄2 Sq 1.5 8"

506 38 470 8.0 — 103⁄8 Rd — 131⁄2 Sq 1.7 Direct Discharge

507 38 250 7.0 — 83⁄8 Rd — 111⁄2 Sq 1.5 Direct Discharge

508 38 270 6.0 — 103⁄8 Rd — 131⁄2 Sq 1.7 Direct Discharge

509 38 180 6.5 — 83⁄8 Rd — 131⁄2 Sq 1.5 Direct Discharge

509S 38 180 6.5 — 83⁄8 Rd — 131⁄2 Sq 1.5 Direct Discharge

510 38 380 6.5 — 111⁄2 Sq — 131⁄2 Sq 1.7 Room to room wall fan

511 38 180 4.5 — 111⁄2 Sq — 131⁄2 Sq 0.9 Room to room wall fan

512 38 90 3.5 — 6 Rd —8 Dia 0.7 Room to room wall fan

512M 38 70 3.5 — 6 Rd —8 Dia 0.7 Direct Discharge

673 38 60 4.5 — 61⁄4 Rd 5 1⁄48 Dia 1.0 6"

In-Line Ventilators

0.2" Ps Housing Dimensions

Model Page CFM Sones L" W" H" Amps Duct Size

MP100 40 110 1.0 11 101⁄291⁄20.5 4- 4" Rd Inlets, 6" Rd Outlet

MP140 40 150 1.5 11 101⁄291⁄20.8 4- 4" Rd Inlets, 6" Rd Outlet

MP200 40 210 2.0 11 101⁄291⁄21.3 4- 4" Rd Inlets, 6" Rd Outlet

MP280 40 290 3.0 151⁄4141⁄4143⁄42.5 4- 4" Rd Inlets, 6" Rd Outlet

SP100 40 110 1.0 11 101⁄291⁄20.5 6" Rd Inlet and Outlet

SP140 40 150 1.5 11 101⁄291⁄20.8 6" Rd Inlet and Outlet

SP200 40 210 2.0 11 101⁄291⁄21.3 6" Rd Inlet and Outlet

63

Solar-Powered Attic Ventilators—Surface, Curb, Remote and Gable

Model* Page Mount Color

Housing

Material*

Solar Panel

Power Output Pieces

Dome/Panel Dimensions (inches)

Height" Width" Length"

345CSOBK 48 Curb Black ABS Plastic 28 Watts 1 pc 11 297⁄8265⁄8

345CSOWW 48 Curb Weathered Wood ABS Plastic 28 Watts 1 pc 11 297⁄8265⁄8

345GOBK 49 Gable Black ABS Plastic 28 Watts 2 pcs 3⁄4 / 11 30 / 193⁄4265⁄8 / 193⁄4

345GOWW 49 Gable Weathered Wood ABS Plastic 28 Watts 2 pcs 3⁄4 / 11 30 / 193⁄4265⁄8 / 193⁄4

345RSOBK 49 Remote Black ABS Plastic 28 Watts 2 pcs 3⁄4 / 9 30 / 297⁄8265⁄8 / 265⁄8

345RSOWW 49 Remote Weathered Wood ABS Plastic 28 Watts 2 pcs 3⁄4 / 9 30 / 297⁄8265⁄8 / 265⁄8

345SOBK 48 Surface Black ABS Plastic 28 Watts 1 pc 9 297⁄8265⁄8

345SOWW 48 Surface Weathered Wood ABS Plastic 28 Watts 1 pc 9 297⁄8265⁄8

*All UV-enhanced ABS plastic housings may be painted to match roof color

LIGHT COMMERCIAL FANS

HIGH-TRAFFIC ENVIRONMENTS

NEED HIGH PERFORMANCE VENTILATION.

64

HIGH-TRAFFIC ENVIRONMENTS

NEED HIGH PERFORMANCE VENTILATION.

LOOKING FOR AN EXCEPTIONALLY QUIET SOLUTION TO LIGHT

COMMERCIAL VENTILATION? With their heavy-duty motors, Broan High

Capacity Ventilation Fans are the perfect answer for ventilating conference rooms,

dining areas, public restrooms and other heavily-trafficked spaces. Low-vibration and

low-profile, these discrete products work quietly and powerfully behind the scenes to

remove odor, humidity and air-borne particulates that affect indoor air quality.

65

LIGHT COMMERCIAL FANS

SPECIAL FEATURES FOR

Model L300KMG

• Removable access panel; Suitable for kitchen use

Models L100L, L150L

• Removable access panel, no insulation

• Two 6" round duct connectors

• No grille

Models L200L L250L, L300L

• Suitable for kitchen installations

• Removable access panel, no insulation

• Two 8" round duct connectors

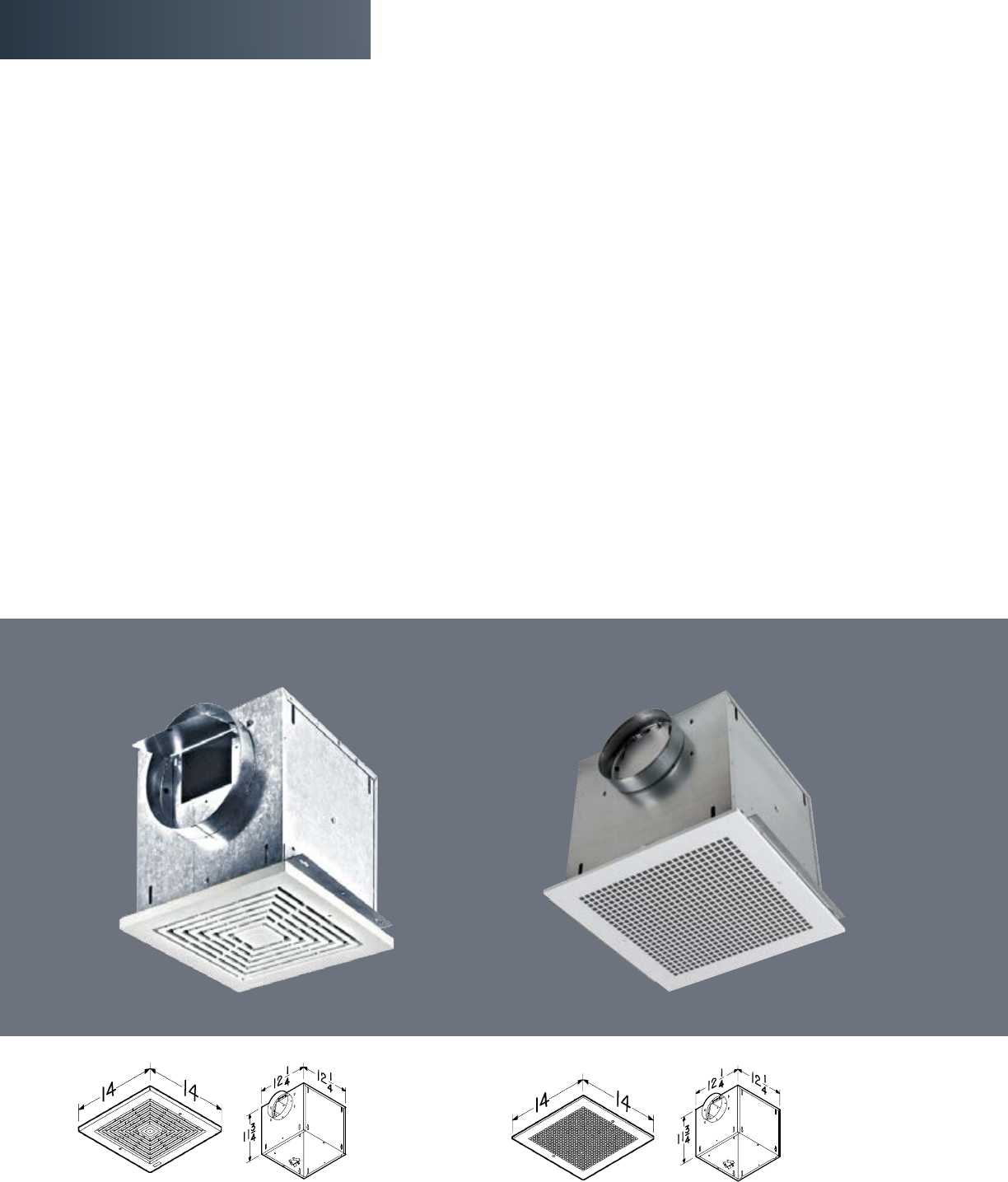

L100 | L150 | L200 | L250 | L300

POLYMERIC GRILL

L100MG | L150MG | L200MG | L250MG, L300MG | L300KMG

METAL GRILL

100/150 CFM FEATURES

• 6" round metal duct connector

• Single, impact-resistant centrifugal blower wheel housing

• 20 gauge galvanized steel housing

• Duct horizontally, vertically, or in-line with a separate adapter

• Low profile, white polymeric or painted white enamel

metal grille

• Models L100L and L150L are UL Listed for use over bathtubs

or showers when connected to a GFCI branch circuit

• Model 80L Variable Speed Control adjusts blower speed

and sound level (available separately)

200/250/300 CFM FEATURES

• 8" round metal duct connector

• Single, impact-resistant centrifugal blower wheel

(Model L300KMG has a metal wheel)

• 20 gauge galvanized steel housing

• Duct horizontally, vertically, or in-line with a separate adapter

• Models L200L, L250L and L300L are UL Listed for use over

bathtubs or showers when connected to a GFCI branch circuit

• Model 80L Variable Speed Control adjusts blower speed and

sound level (available separately)

66

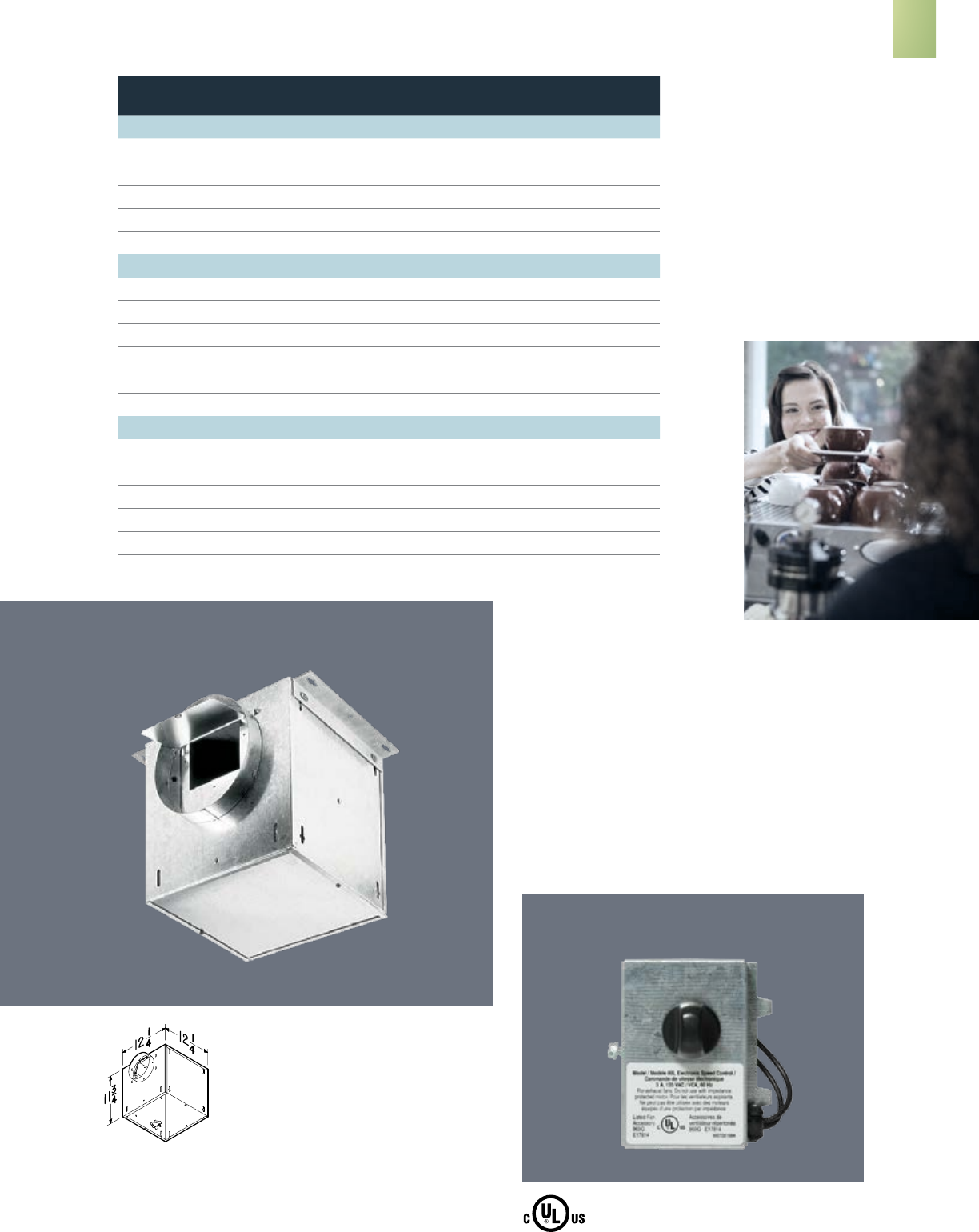

L100L | L150L | L200L | L250L | L300L

IN-LINE VENTILATORS

80L

VARIABLE SPEED CONTROL

100–300 CFM Specifications

Model CFM Sones Amps Sound

Insulation Notes

White Polymeric Grill

L100 109 0.9 1.1 Yes

L150 157 1.5 1.3 Yes

L200 210 1.7 1.8 Yes

L250 259 2.2 2.1 Yes

L300 308 2.9 2.6 Yes

White Metal Grill

L100MG 115 0.9 1.1 Yes

L150MG 161 1.4 1.3 Yes

L200MG 215 1.9 1.8 No

L250MG 265 2.5 2.1 No

L300MG 316 3.0 2.6 No

L300KMG 277 3.1 2.6 No

In-line Ventilator

L100L 106 0.7 1.1 No No Grille

L150L 147 1.1 1.3 No No Grille

L200L 195 1.9 1.8 No No Grille

L250L 245 2.3 2.1 No No Grille

L300L 293 3.1 2.6 No No Grille

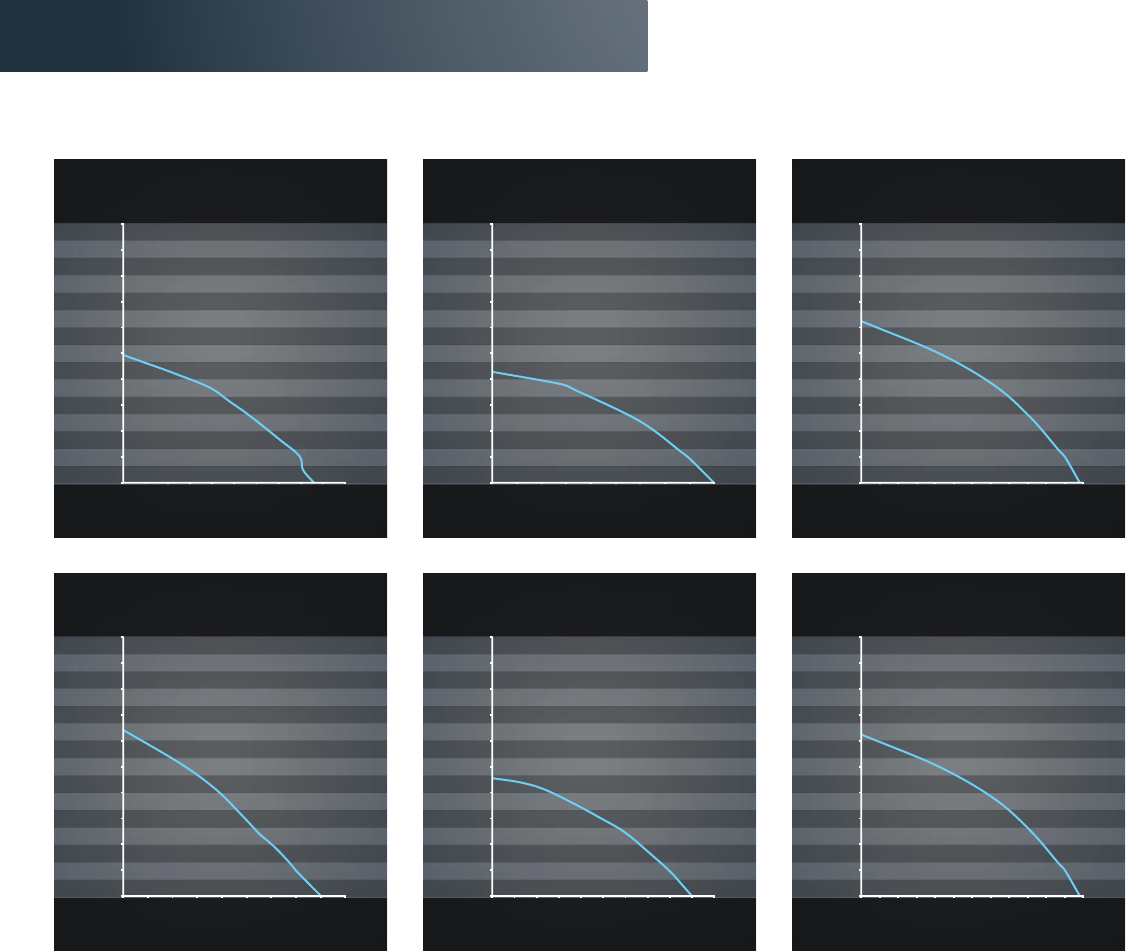

See page 71 for CFM details.

FOR EVERY

VENTILATION NEED

MODEL 80L

• Adjust ventilation easily in any room

• Variable Speed Control mounts inside the fan housing

and allows blower speed adjustment

• For Broan High Capacity Fans L100–L900

• Speed control with metal housing

• Fan insulation is perforated for easy installation

• 120V, 3 amps, 60 Hz

67

LIGHT COMMERCIAL FANS

L400* | L400K | L500* | L500K | L700*

METAL GRILLE

L400L | L500L | L700L

IN-LINE VENTILATORS

400/500/700 CFM FEATURES

• 41⁄2" x 181⁄2" duct connector

• Two impact-resistant centrifugal blower

wheels

• Duct horizontally or vertically—In-line

available with separate adapter

• Quiet automatic backdraft dampers

• Variable Speed Control adjusts

blower speed and sound level

(available separately)

• Models with “K” suffix suitable

for kitchens

Models L400L, L500L, L700L

• Removable access panel; no insulation

Model L400K

• Suitable for kitchens

• Two metal centrifugal blower wheels

• Order Aluminum Filter LAF2

Model L500K

• Two metal centrifugal blower wheels

• Order Aluminum Filter LAF2

• Suitable for kitchens

400–700 CFM Specifications

Model CFM Sones Amps Sound Insulation Notes

L400 434 2.3 1.4 Yes Metal grille

L400K 406 3.3 1.4 No Suitable for kitchens

L500 514 3.3 2.2 Yes Metal grille

L500K 481 4.4 2.2 No Suitable for kitchens

L700 701 4.7 2.9 Yes Metal grille

L400L 406 1.6 1.4 No No grille

L500L 519 3.4 2.2 No No grille

L700L 681 3.7 2.9 No No grille

*See page 71 for CFM details

68

L900 | L1500*

METAL GRILLE

L900L | L1500L

IN-LINE VENTILATORS

L2000L

IN-LINE VENTILATORS

MODEL 80L

• Adjust ventilation easily in any room

• Variable Speed Control mounts inside

the fan housing and allows blower speed

adjustment

• For Broan High Capacity Fans L100–L900L

• Speed control with metal housing

• Fan insulation is perforated for easy

installation

• 120V, 3 amps, 60 Hz

900/1500/2000 CFM FEATURES

•

8" x 12" duct

• Painted white enamel metal grille

• Single, impact-resistant centrifugal

blower wheel

• Ducted horizontally or vertically,

or in-line with separate adapter

• Model 80L Variable Speed Control

adjusts blower speed and sound level

(available separately)

Models L900, L1500 (shown)

• L900 can use the 80L variable speed

blower control (sold separately)

Models L900L, L1500L

• Removable access panel; no insulation

• Can use the 80L variable speed blower

control (sold separately)

Model L2000L

• 38"L x 145⁄8"W x 145⁄8"H

• Fits 73⁄4" x 333⁄4" duct

• Optional metal grille (Model G102)

and damper kit (Model D100)

900–2000 CFM Specifications

Model CFM Sones Amps Notes

L900 901 4.1 3.0 Painted white enamel metal grille

L1500 1513 8.4 5.0 Painted white enamel metal grille

L900L 894 3.8 3.0 In-line

L1500L 1214 6.7 5.0 In-line

L2000L 1791 9.4 5.8 In-line

See page 71 for CFM details

Shown with optional metal grille

(Model G102) and damper kit (Model D100).

80L

VARIABLE SPEED CONTROL

69

PERFORMANCE DATA FANS & FAN/LIGHTS

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 252015 40 453530 50 55 60

Airflow Rate (CFM)

AE50

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 302010 60 705040 80 90

Airflow Rate (CFM)

LP80

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 302010 60 705040 80 90

Airflow Rate (CFM)

AE80, AE80B

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 302010 60 705040 80 90 100

Airflow Rate (CFM)

AE80L, AE80BL

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 302010 60 705040 80 90 120110100

Airflow Rate (CFM)

AE110

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 302010 60 705040 80 90 120110100

Airflow Rate (CFM)

AE110L

(Ceiling Mount)

Static Pressure (In. WG)

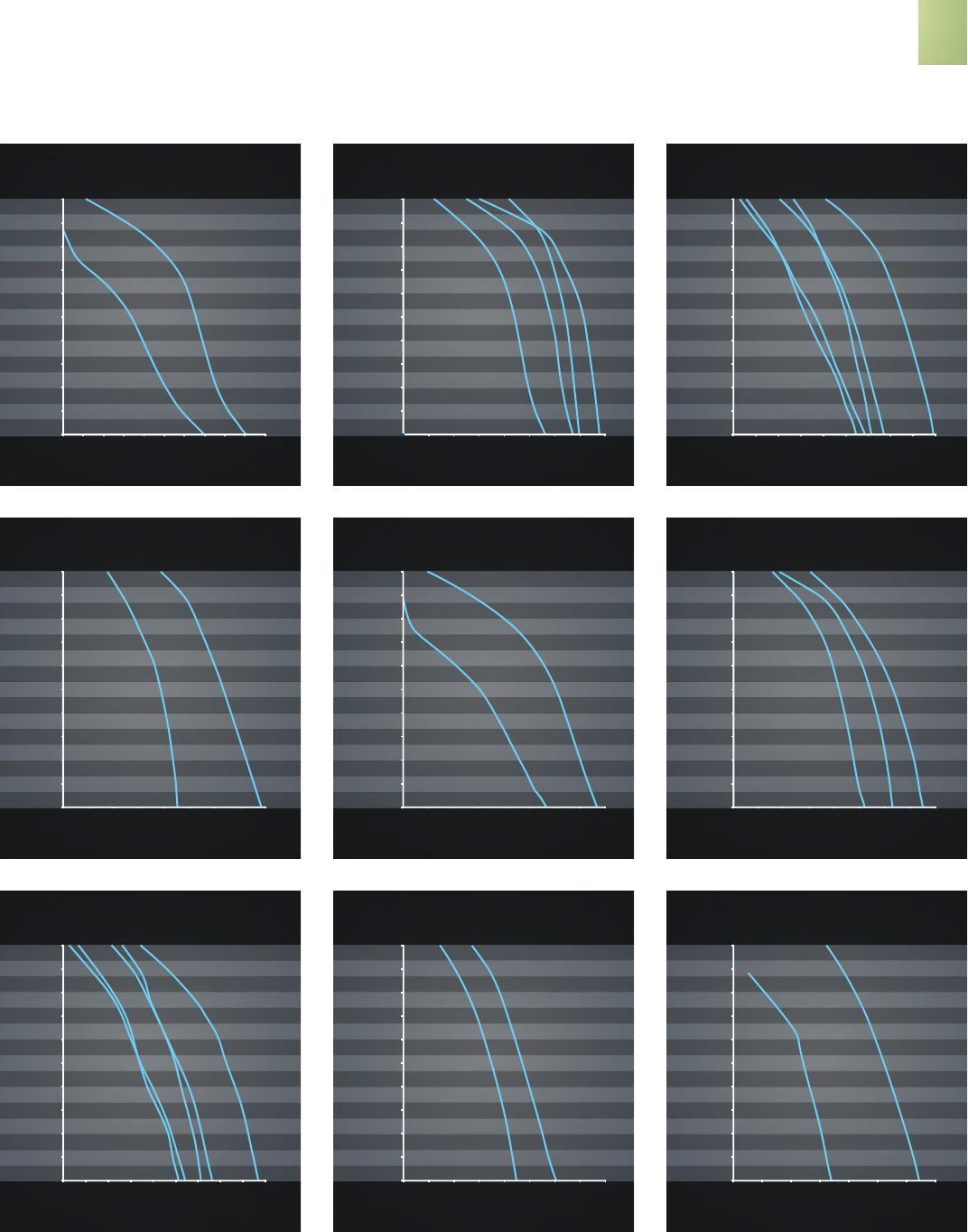

PERFORMANCE DATA INVENT

70

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150 Series

L100 Series

10080 160 180 200

Airflow Rate (CFM)

L100, L150 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 604020 120 140

L150L Series

L100L Series

10080 160

Airflow Rate (CFM)

L100L, L150L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500 Series

L900 Series

1000800 1600

Airflow Rate (CFM)

L900, L1500 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 600400200 1200 1400

L1500L Series

L900L Series

1000800 1600

Airflow Rate (CFM)

L900L, L1500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 1200600 3000 3600

L1500L Series

L900L Series

24001800

Airflow Rate (CFM)

L2000L, L3500L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250L Series

L300L Series

L200L Series

12080 240 280 320

Airflow Rate (CFM)

L200L, L250L, L300L

(In-Line)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 40 160 200

L250 Series

L300K Series

L300 Series

L200 Series

12080 240 280 320

Airflow Rate (CFM)

L200, L250, L300, L300K Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500 Series

L500K Series

L700 Series

L400 Series

L400K Series

240160 480 560 720640

Airflow Rate (CFM)

L400, L500, L700 Series

(Ceiling Mount)

Static Pressure (In. WG)

1.00

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

0

0 80 320 400

L500L

L500KL

L700L

L400KL

L400L

240160 480 560 720640

Airflow Rate (CFM)

L400L, L400KL, L500L,

L500KL, L700L (In-Line)

Static Pressure (In. WG)

For In-line models, performance listed is for straight-through ducting at .125" static pressure.

For complete Sones and CFM at other static pressures, see our Web site at www.Broan.com.

PERFORMANCE DATA LIGHT COMMERCIAL

71

LIGHT COMMERCIAL ACCESSORIES

IN-LINE ADAPTERS

Model 961L

• For L100/L150

Series

• Galvanized steel

• 6" round duct intake

Model 981L

• For L200/L250/L300

Series

• Galvanized steel

• 8" round duct intake

Model 982L

• For L400/L500/L700

Series

• Galvanized steel

• 41⁄2" x 181⁄2"

duct intake

Model 983L

• For L900/L1500 Series

• Galvanized steel

• 8" x 12" duct intake

DUCT TRANSITIONS

Models 423 & T81212

• Galvanized steel

• 423: (41⁄2" x 181⁄2"

to 10" round)

• T81212:

(8" x 12" to

12" round)

VIBRATION

DAMPENING HANGERS

Model V104 (not shown)

• For Model L2000L

• Heavy gauge steel construction

• Neoprene vibration dampening

cushion

• Maximum load 75 lbs (each)

• For 3⁄8" diameter threaded

rod (available separately from

others)

• Set of four required for each

ventilator

METAL GRILLE KIT

Model MG1

• For L100/150/200/

250/300 Series

• White enamel

painted steel

• Mounting screws

included

ROOF CAPS

Model 437

• High-capacity

design up to

1200 CFM

• Built-in bird screen

• Steel housing, black

electrically bonded epoxy

finish

Model 611

• For flat roof

installation

• Aluminum natural finish

• For up to 8" round duct

Model 611CM

• For curb mount

installation

• Other features

same as Model 611

Model 612

• For flat roof installation

• Aluminum natural finish

• For up to 12" round duct

Model 612CM

• For curb mount installation

• Other features same as

Model 612

Model 634

• For 31⁄4" x 10"

or up to 8"

round duct

• Built-in backdraft

damper and bird screen

• Steel housing, black

electrically bonded epoxy

finish

Model 634M

• Same as Model 634, except

for 6" round duct

Model 644

• Same as Model 634, except

aluminum natural finish

GREASE FILTERS

Models LAF1 & LAF2

• Aluminum mesh filter

traps grease and

protects motor

• Dishwasher safe

• LAF1 (12" x 12") for

L100/150/200/250/300 Series

• LAF1 for use with metal grilles

• LAF2 (12" x 211⁄4")

for L400/500 Series

WALL CAPS

Model 441

• For 10" round duct

• Steel with

aluminum louvers

Model 613

• For 12" round duct

• Built-in backdraft

damper and

bird screen

• Aluminum natural finish

Model 641

• Same as Model 613,

except for 6" round duct

Model 643

• For 8" round duct

• Built-in backdraft

damper

• Aluminum natural finish

Model 843BL

• For 6" round duct

• Built-in backdraft

damper and

bird screen

• Black finish

Model 843 BL

RADIATION DAMPERS

When excessive heat is

detected, the breakaway fusible

link triggers the closing of the

radiation damper’s fire resistant

screen to prevent smoke and

fire from traveling through

ductwork.

Features

• 165° fusible link

• Galvanized

steel frame

• Stainless steel

negator-type

closure spring

High Capacity Models

RD1, RD2, RD3

(not shown)

• UL rated 3-hour ceiling

radiation dampers

• High temperature, non-

asbestos, reinforced fiber

thermal fabric

• RD1 (121⁄2" x 121⁄2") for

L100/150/200/250/300

Series

• RD2 (213⁄4" x 121⁄2")

for L400/500/700 Series

• RD3 (221⁄4" x 181⁄4")

for L900/1500 Series

72

REMOTE IN-LINE

VENTILATOR ACCESSORIES

Model DH100W

• Dehumidistat

• Dual voltage (24V/120V)

• Variable setting from

20–80% relative

humidity

• Usage guide included

Model TC24H

• 24-Hour Programmable

Timer

• 120V, 8 amps

• Sets up to 36 on/off

cycles as short as 20

minutes

• Manual on/off override switch

• Fits single-gang box

Model 70TW

• Thermostat for any fan

120, 250, 277 VAC, 22

amp capacity

TWO-FUNCTION CONTROLS

Model 68W, 68V

• Two-Function Controls

• Two independent, 120V,

15 amp rocker switches

(20 amps total)

• Fits single-gang box

• Blister packs available

(P68W, P68V)

TIMER & OFF-DELAY

CONTROLS

Model 59W, 59V, 71V

• Model 59W,

59V—up to

60 minutes

• Model 71V—

up to 12 hours

• Fits single-

gang box

• 120V, 20 amps; 240V, 10 amps

• Blister packs available

(P59W, P59V)

• Operate continuously or for any

set period

Model 61W, 61V

• Operate for any set

period up to 15 minutes

(no “continuous on”

position)

• Other features same

as 59W/59V

TIMER & OFF-DELAY

CONTROLS

Model 64V, 64W

• Fan/Light Control with Off-Delay

• Fan and light operate together

when control is turned on

• Fan continues to operate for a

user adjustable time period 5-60

minutes after light is turned off

• Center position bypasses timer

and turns fan and light off

immediately

• Fits single-gang box

• 120V, 4 amps (fan), 4 amps (light)

• Requires hot and neutral wires in

the switch box

Model 80L

• For Broan High Capacity Fans

L100–L900L

• Speed control with metal housing

• Fan insulation is perforated for

easy installation

• 120V, 3 amps, 60 Hz

• cUL Listed

WALL CONTROLS

DECORATOR WALL

CONTROLS

Model 69W

• Single-Function Controls

• 120V, 15 amps

SPEED CONTROLS

Model 57W, 57V 3-Amp

• 120V, 3 amps

• Fits single-gang box

• Positive on/off

action—dial for variable

selection of air speeds

and sound levels

• Built-in radio noise suppressor

• Blister packs available (P57W)

Model 72W, 72V 6-Amp

• 120V, 6

amps—Models

72W, 72V

• Same features

as 57W/57V

Specifications

CFM/Sones

.125" Ps (AMCA)

Housing

Dimensions

Grille

Dimensions Amps

at 60 Hz

Model CFM Sones L" W" H" L" W" Duct" Watts Volts

L100 109 0.9 121⁄4121⁄4113⁄414 14 1.1 6 87 120

L100L 106 0.7 121⁄4121⁄4113⁄4— — 1.1 6 87 120

L100MG 115 0.9 121⁄4121⁄4113⁄414 14 1.1 6 87 120

L150 157 1.5 121⁄4121⁄4113⁄414 14 1.3 6 100 120

L150L 147 1.1 121⁄4121⁄4113⁄4— — 1.3 6 100 120

L150MG 161 1.4 121⁄4121⁄4113⁄414 14 1.3 6 100 120

L200 210 1.7 121⁄4121⁄4113⁄414 14 1.8 8 127 120

L200L 195 1.9 121⁄4121⁄4113⁄4— — 1.8 8 127 120

L200MG 215 1.9 121⁄4121⁄4113⁄414 14 1.8 8 127 120

L250 259 2.2 121⁄4121⁄4113⁄414 14 2.1 8 166 120

L250L 245 2.3 121⁄4121⁄4113⁄4— — 2.1 8 166 120

L250MG 265 2.5 121⁄4121⁄4113⁄414 14 2.1 8 166 120

L300 308 2.9 121⁄4121⁄4113⁄414 14 2.6 8 212 120

L300KMG 277 3.1 121⁄4121⁄4113⁄414 14 2.6 8 212 120

L300L 293 3.1 121⁄4121⁄4113⁄4— — 2.6 8 212 120

L300MG 316 3.0 121⁄4121⁄4113⁄414 14 2.6 8 212 120

L400 434 2.3 211⁄2121⁄4113⁄4231⁄414 1.4 41⁄2 x 181⁄2146 120

L400K 406 3.3 211⁄2121⁄4113⁄4231⁄414 1.4 41⁄2 x 181⁄2146 120

L400L 406 1.6 211⁄2121⁄4113⁄4— — 1.4 41⁄2 x 181⁄2146 120

L500 514 3.3 211⁄2121⁄4113⁄4231⁄414 2.2 41⁄2 x 181⁄2232 120

L500K 481 4.4 211⁄2121⁄4113⁄4231⁄414 2.2 41⁄2 x 181⁄2232 120

L500L 519 3.4 211⁄2121⁄4113⁄4— — 2.2 41⁄2 x 181⁄2232 120

L700 701 4.7 211⁄2121⁄4113⁄4231⁄414 2.9 41⁄2 x 181⁄2313 120

L700L 681 3.7 211⁄2121⁄4113⁄4— — 2.9 41⁄2 x 181⁄2313 120

L900 901 4.1 22 18 18 237⁄8197⁄83.0 8 x 12 306 120

L900L 894 3.8 22 18 18 — — 3.0 8 x 12 306 120

L1500 1513 8.4 22 18 18 237⁄8197⁄85.0 8 x 12 468 120

L1500L 1214 6.7 22 18 18 — — 5.0 8 x 12 468 120

L2000L 1791 9.4 38 145⁄8145⁄8— — 5.8 73⁄4 x 333⁄4590 120
