CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC. 1
THE ULTIMATE CONNECTION
CADWELD® TO THERMOWELD® CROSS REFERENCE
FOR CATHODIC PROTECTION
4102 SOUTH 74TH EAST AVENUE / P.O. BOX 994
TULSA, OKLAHOMA 74101
PHONE (918) 663-1440 FAX (918) 622-1275
A DIVISION OF CONTINENTAL® INDUSTRIES
®ECN 1521 REV "A" 2/12/96
2 CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC.
The THERMOWELD® cathodic connection process is a
simple, efficient method of welding copper to copper or
copper to steel. No outside source of power is required
when using ThermOweld®. ThermOweld® connections use
the high temperature of reaction of powdered copper oxide
and aluminum. The reaction takes place in a semi-perma-
nent graphite mold (THERMOMOLD) that last for fifty or
more welds if properly cared for. The ThermOweld® reac-
tion takes place in a very few seconds, therefore the total
amount of heat (calories or BTU's) applied to the
conductors or surfaces is considerably less than that em-
ployed in brazing or soldering. This is an important consid-
eration when welding to insulated cable or thin wall pipe.
ThermOweld® is ideal for field use, since it is light and
portable and requires no outside power source. It requires
very little time or skill to obtain an efficient, maintenance free
electrical connection when using ThermOweld®.

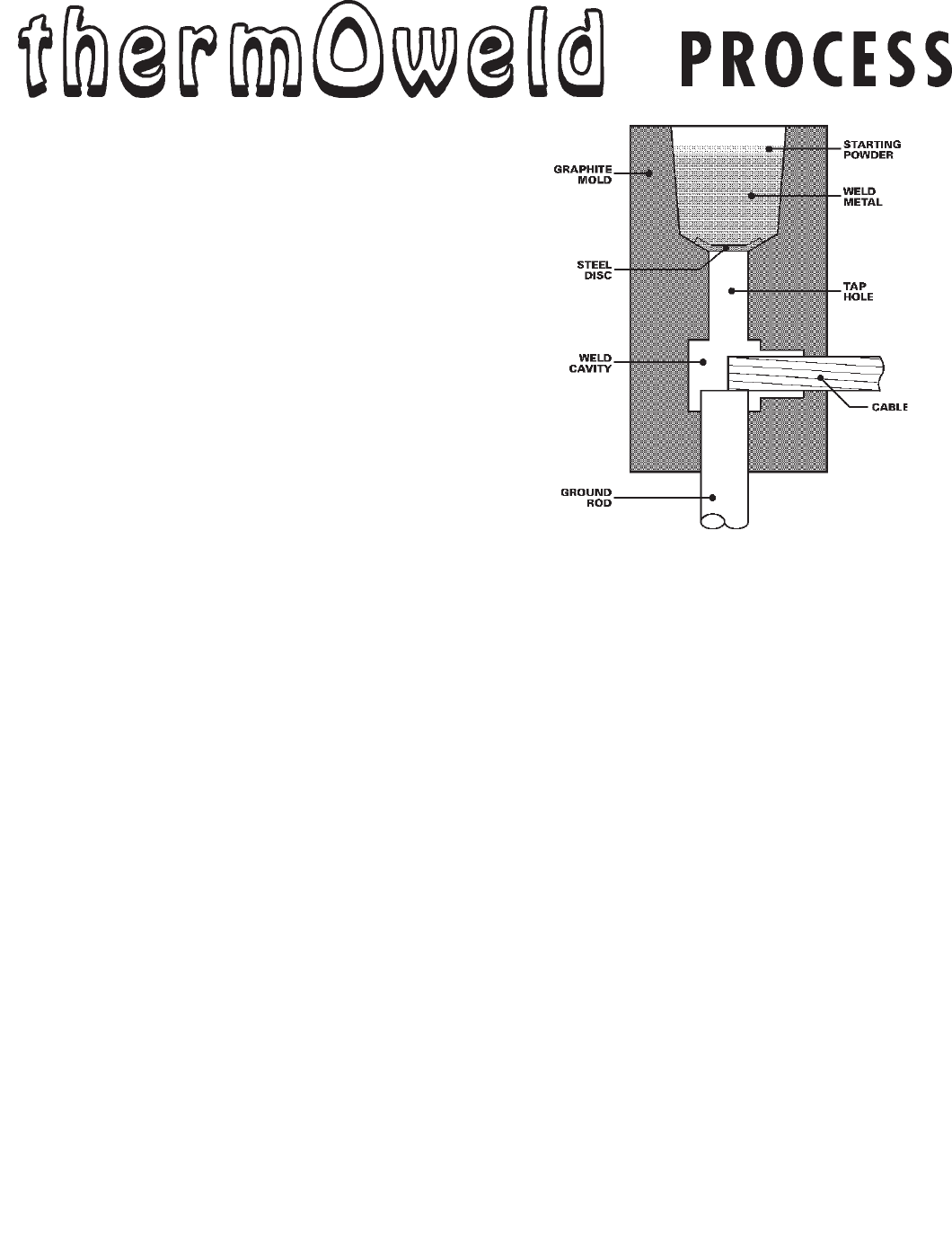

Cutaway Section of CR-1 Type Mold
THERMOWELD® CONNECTION
CADWELD®
TYPE THERMOWELD®
TYPE PAGE #
CAGR .............. CR-1 .................................................... 5
CAGT .............. CR-2 .................................................... 6
CAHA .............. CS-32 .................................................. 7
CAHB .............. CS-33 .................................................. 9
CAHC .............. CS-34 .................................................. 8
CAHE .............. CS-35 ................................................ 10
CALA ............... CB-1 .................................................. 12
CAPC .............. CC-6 .................................................... 4
CASS .............. CC-1 .................................................... 3
CATA............... CC-2 .................................................... 3
CAVH .............. CS-37 ................................................ 12
CAVS .............. CS-36 ................................................ 11

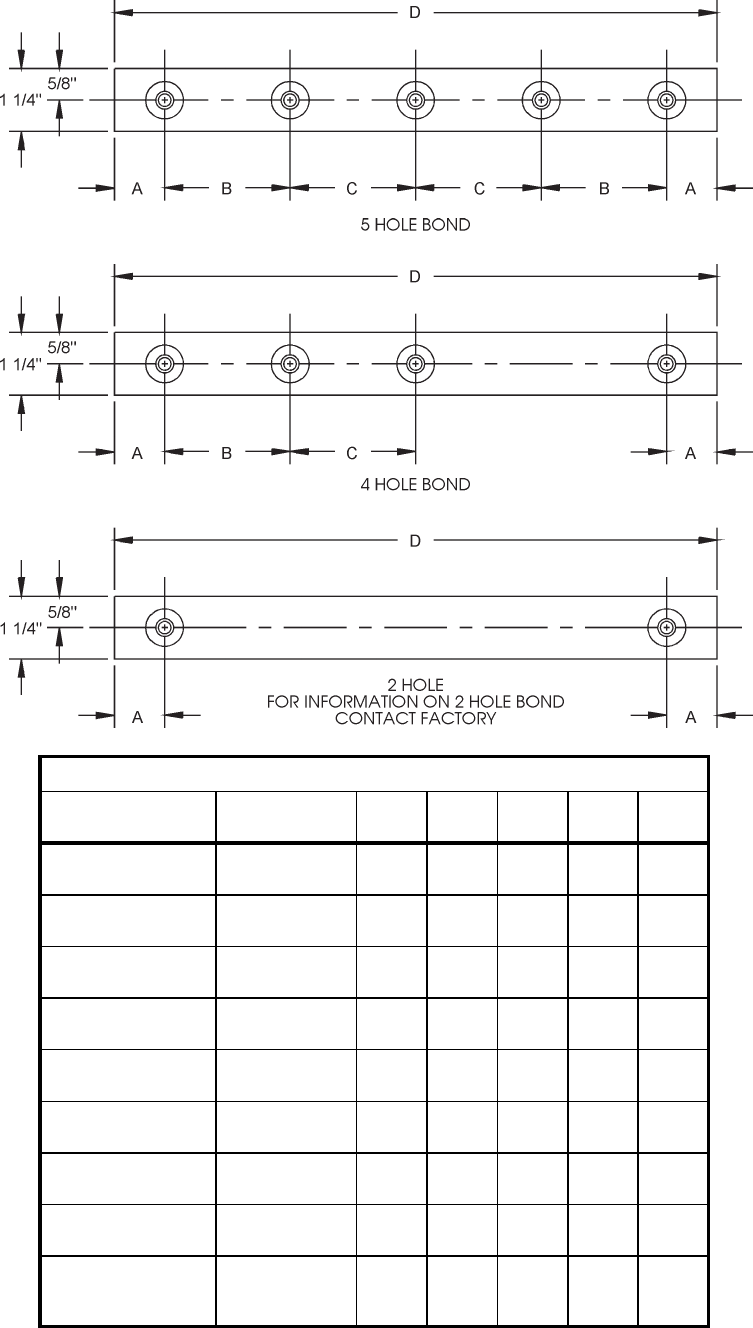

STRAP BONDS13
ACCESSORIES14
CADWELD®
TYPE THERMOWELD®
TYPE PAGE #
INDEX
®
ThermOweld® equipment has been used to weld materials other than copper for electrical purposes. Materials welded have
included:
Stainless Steel Monel Copper Clad Steel Steel Rail Brass
Copperweld ® 1 Plain Steel Bronze Chromax Nichrome
Nichrome V Everdur ® 2 Galvanized Steel Wrought Iron Cast Iron
Kama Cor-Ten ® 3 Silcone Bronze Columbium Niobium
1 Copperweld® is a registered trademark of Copperweld Steel Co.
2 Everdur® is a registered trademark of Anaconda Copper Co.
3 Cor-Ten® is a registered trademark of United States Steel Corp.
The ThermOweld® connection is a molecular weld. The
weld metal has the same melting point as copper. Because
of these factors along with the increased cross section of
the connection, ThermOweld® connections:
1. Will not be affected by a high current surge. Tests have
shown that the electrical conductor will melt before the
ThermOweld® connection when subjected to high short-
circuit current. Consult I.E.E.E. Standard 80-1989.
2. Will not loosen or corrode at the point of weld. There are
no contact surfaces or mechanical pressures involved.
A ThermOweld® connection becomes an integral part of
the conductor.
3. Have a current-carrying capacity equal to or greater
than that of the conductors.
CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC. 3

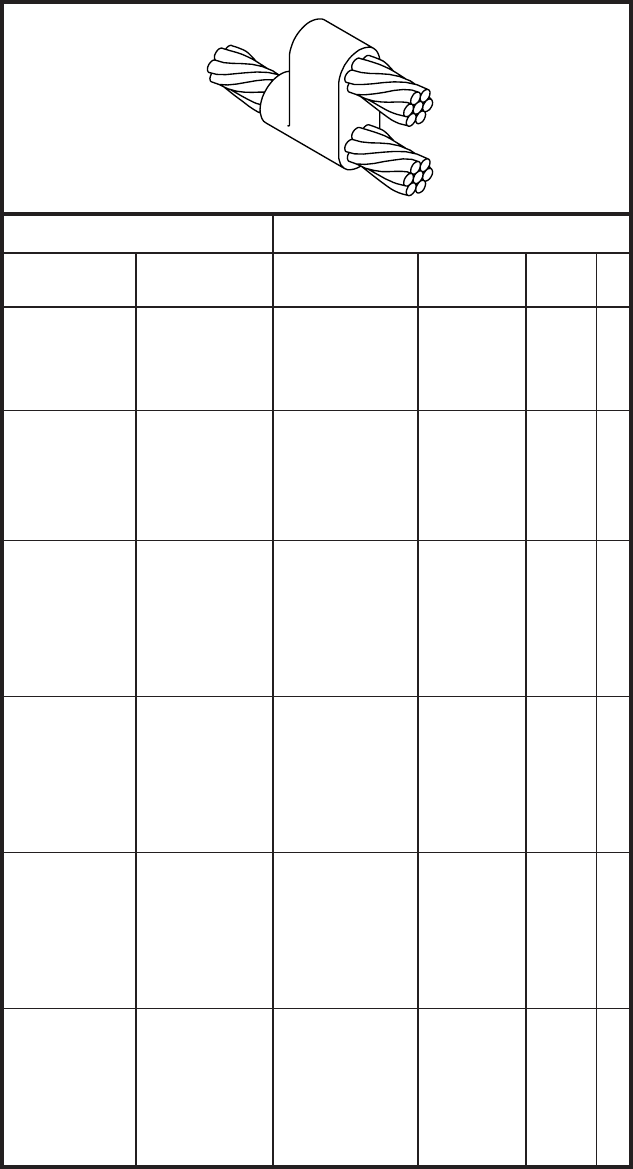

CART.
SIZE

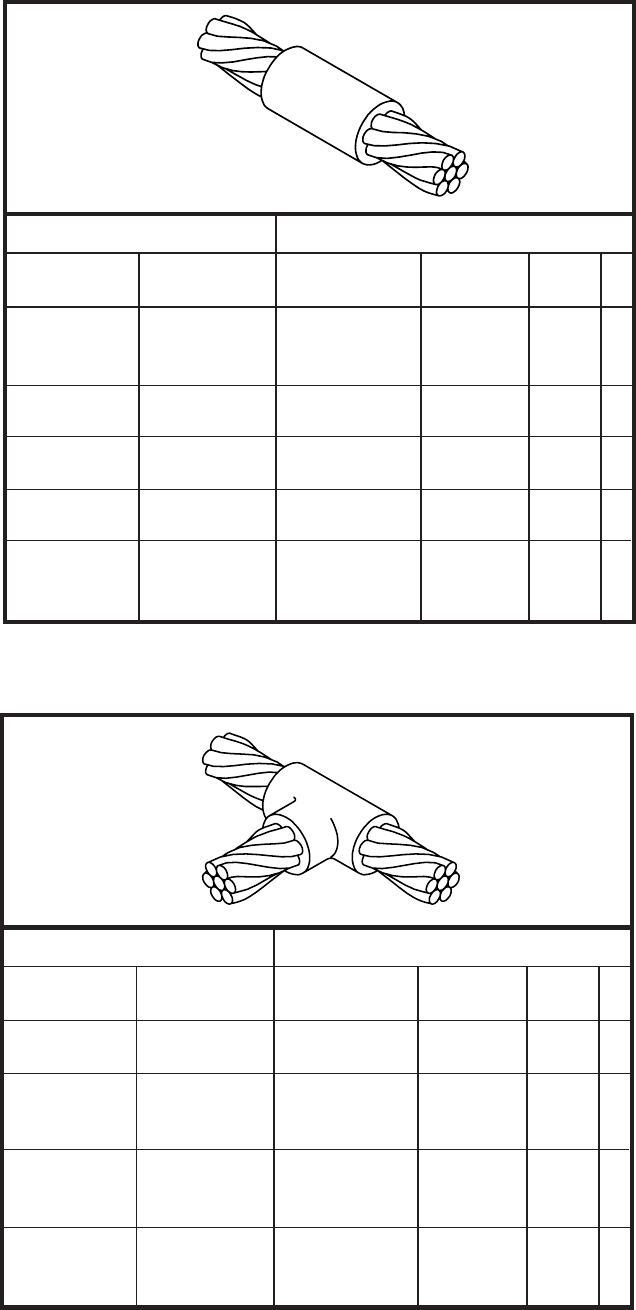

STANDARD MOLDS

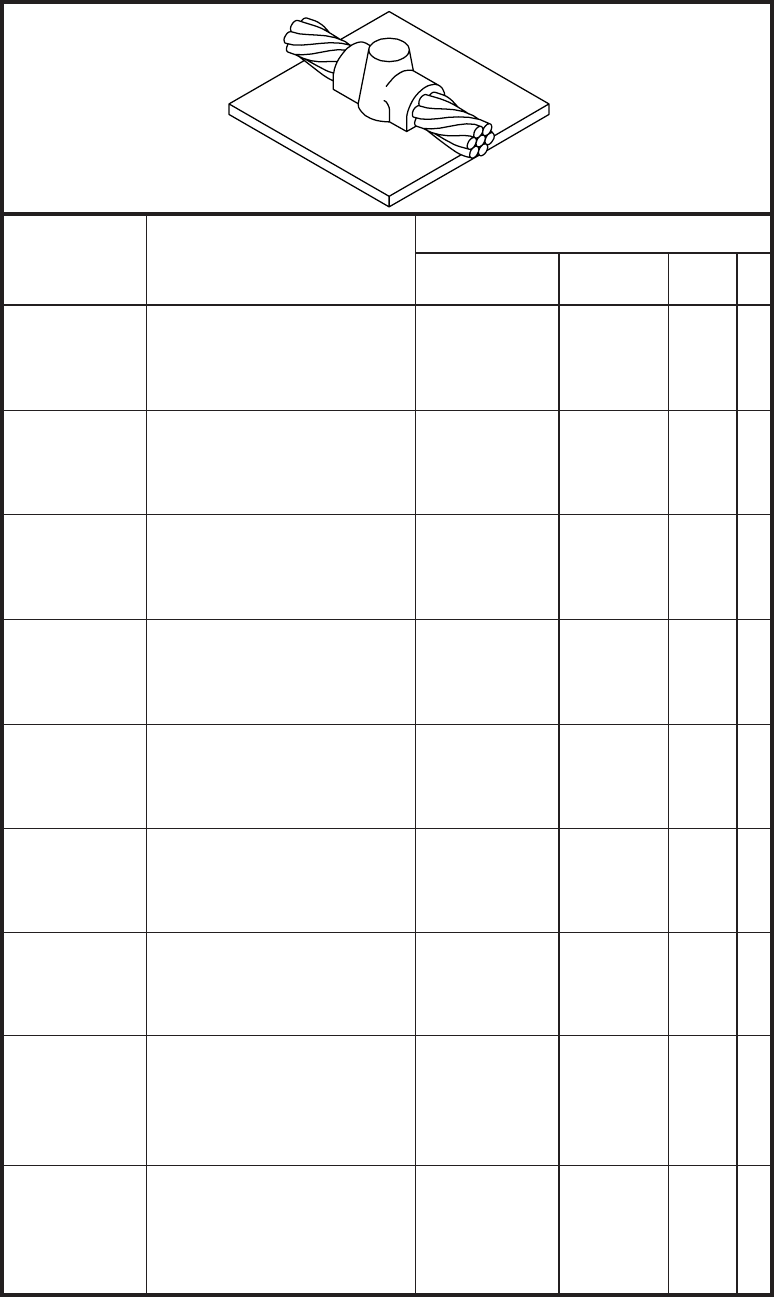

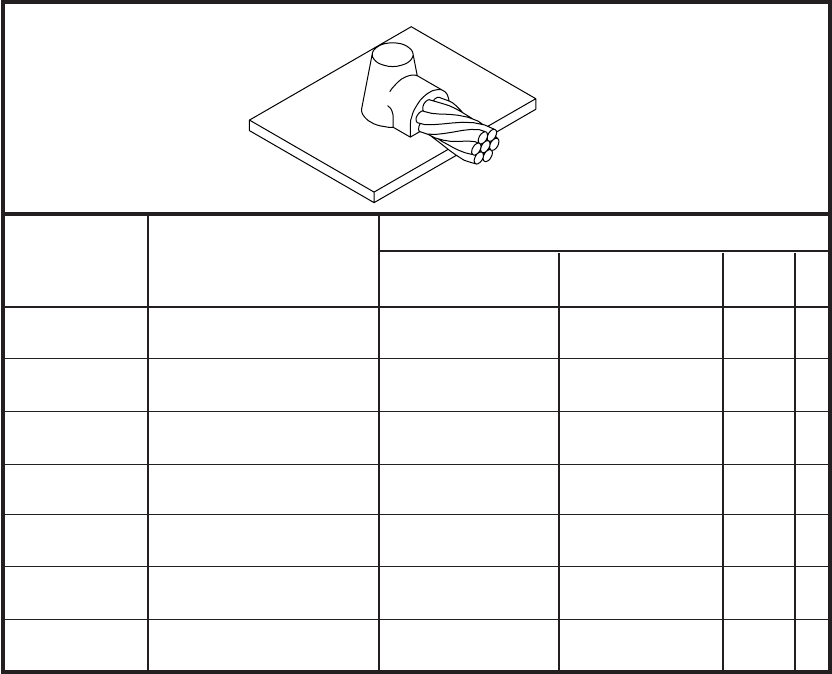

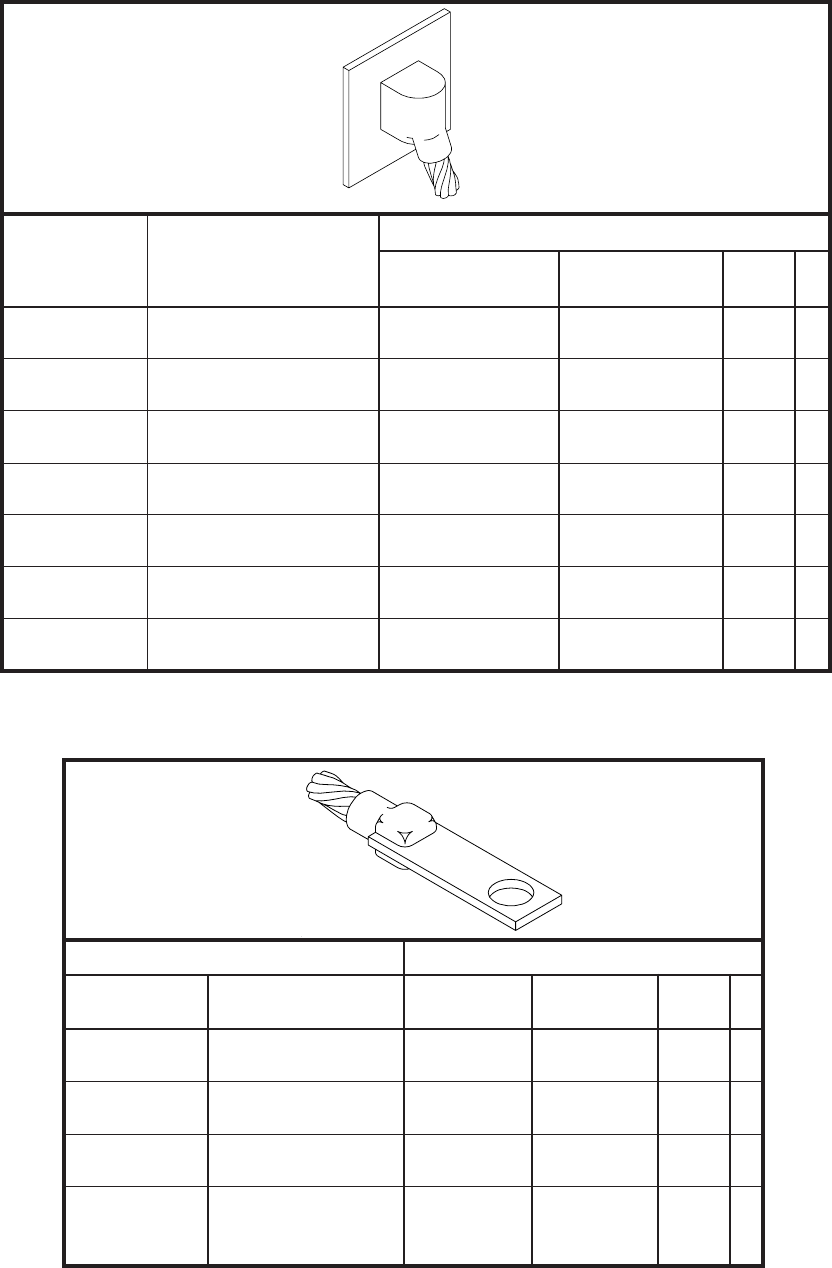

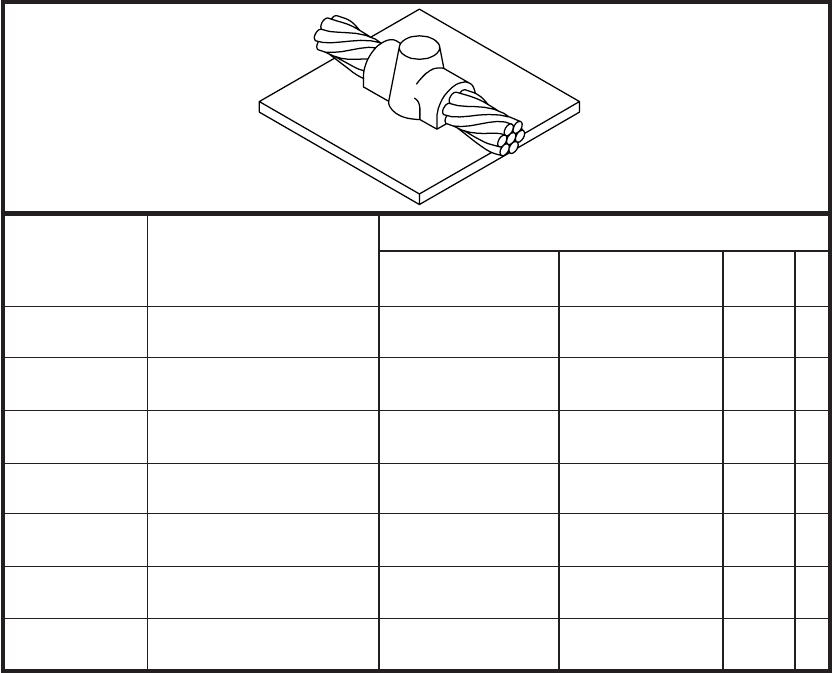

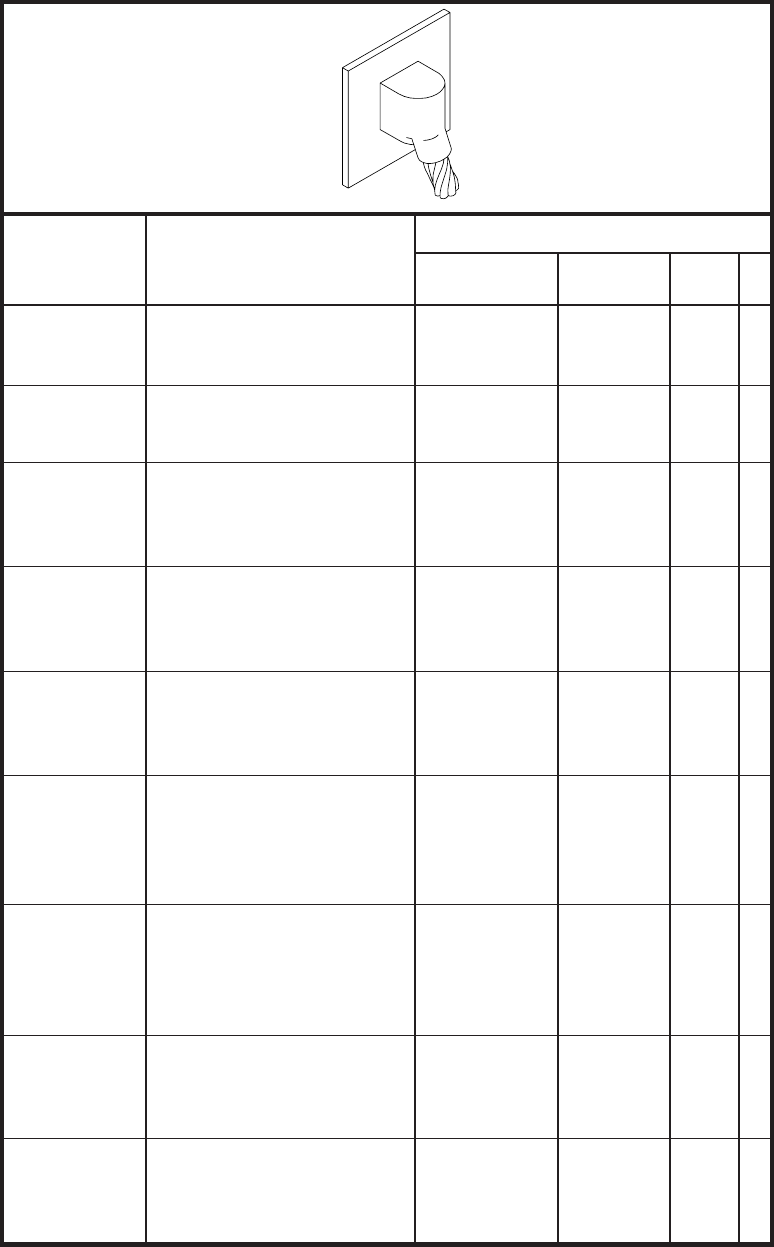

THERMOWELD®
TYPE
CC-1
CABLE SIZE
RUN TAP CADWELD®
MOLD # THERMO
MOLD #
P
K
CADWELD®
TYPE
CASS
#12 Sol #12 Sol CASST-001 M-8224-S 15 18
#10 Sol #10 Sol CASST-1A M-8225-S 15 18
#8 Sol #8 Sol CASST-1D M-8228-S 15 18
#6 Sol #6 Sol CASST-1G M-8229-S 25 18
#6 Str #6 Str CASST-1H M-8229 25 18
#4 Sol #4 Sol CASST-1K M-8232-S 25 18
#4 Str #4 Str CASST-1L M-8232 25 18
#2 Sol #2 Sol CASST-1T M-8235-S 32 18
#2 Str #2 Str CASST-1V M-8235 32 18
#1 Str #1 Str CASST-1Y M-8239 32 18
1/0 Str 1/0 Str CASSP-2C M-8242 45 19
2/0 Str 2/0 Str CASSP-2G M-8244 65 19
Sold with handle clamps. If not required, specify MOLD NUMBER
followed by suffix "-G".
CART.
SIZE
STANDARD MOLDS
THERMOWELD®
TYPE
CC-2
CABLE SIZE
RUN TAP CADWELD®
MOLD # THERMO
MOLD #
P
K
CADWELD®
TYPE
CATA
#2 Str #2 Str CATAN-1V1V M-8245 45 20
#4 Str CATAN-1V1L M-8246 45 20
#1 Str #1 Str CATAN-1Y1Y M-8247 45 20
#2 Str CATAN-1Y1V M-8248 45 20
#4 Str CATAN-1Y1L M-8249 45 20
1/0 Str #1 Str CATAN-2C1Y M-8250 45 20
#2 Str CATAN-2C1V M-8251 45 20
#4 Str CATAN-2C1L M-8252 45 20
2/0 Str #1 Str CATAN-2G1Y M-8253 45 20
#2 Str CATAN-2G1V M-8256 45 20
#4 Str CATAN-2G1L M-8260 45 20
Sold with handle clamps. If not required, specify MOLD NUMBER
followed by suffix "-G".
4 CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC.
#6 Str #6 Str CAPCT-1H1H M-8261 25 18
#6 Sol CAPCT-1H1G M-8264 25 18
#8 Str CAPCT-1H1E M-8265 25 18
#8 Sol CAPCT-1H1D M-8266 25 18
#4 Str #4 Str CAPCT-1L1L M-8267 32 18
#6 Str CAPCT-1L1H M-8268 32 18
#6 Sol CAPCT-1L1G M-8269 32 18
#8 Str CAPCT-1L1E M-8274 32 18
#8 Sol CAPCT-1L1D M-8275 32 18
#2 Str #2 Str CAPCP-1V1V M-8276 65 19
#4 Str CAPCP-1V1L M-8280 45 19
#6 Str CAPCT-1V1H M-8281 32 18
#6 Sol CAPCT-1V1G M-8283 32 18
#8 Str CAPCT-1V1E M-8284 32 18
#8 Sol CAPCT-1V1D M-8285 32 18
#1 Str #2 Str CAPCP-1Y1V M-8286 65 19
#4 Str CAPCP-1Y1L M-8287 45 19
#6 Str CAPCP-1Y1H M-8288 45 19
#6 Sol CAPCP-1Y1G M-8291 45 19
#8 Str CAPCP-1Y1E M-8292 45 19
#8 Sol CAPCP-1Y1D M-8293 45 19
1/0 Str #2 Str CAPCP-2C1V M-8295 65 19
#4 Str CAPCP-2C1L M-8297 65 19
#6 Str CAPCP-2C1H M-8299 45 19
#6 Sol CAPCP-2C1G M-8300 45 19
#8 Str CAPCP-2C1E M-8301 45 19
#8 Sol CAPCP-2C1D M-8304 45 19
2/0 Str #2 Str CAPCN-2G1V M-8306 2-45 20
#4 Str CAPCP-2G1L M-8307 65 19
#6 Str CAPCP-2G1H M-8310 65 19
#6 Sol CAPCP-2G1G M-8311 65 19
#8 Str CAPCP-2G1E M-8313 65 19
#8 Sol CAPCP-2G1D M-8316 65 19
CART.
SIZE
STANDARD MOLDS
THERMOWELD®
TYPE
CC-6
CABLE SIZE
RUN TAP CADWELD®
MOLD # THERMO
MOLD #
P
K
CADWELD®
TYPE
CAPC
Sold with handle clamps. If not required, specify MOLD NUMBER
followed by suffix "-G".
CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC. 5

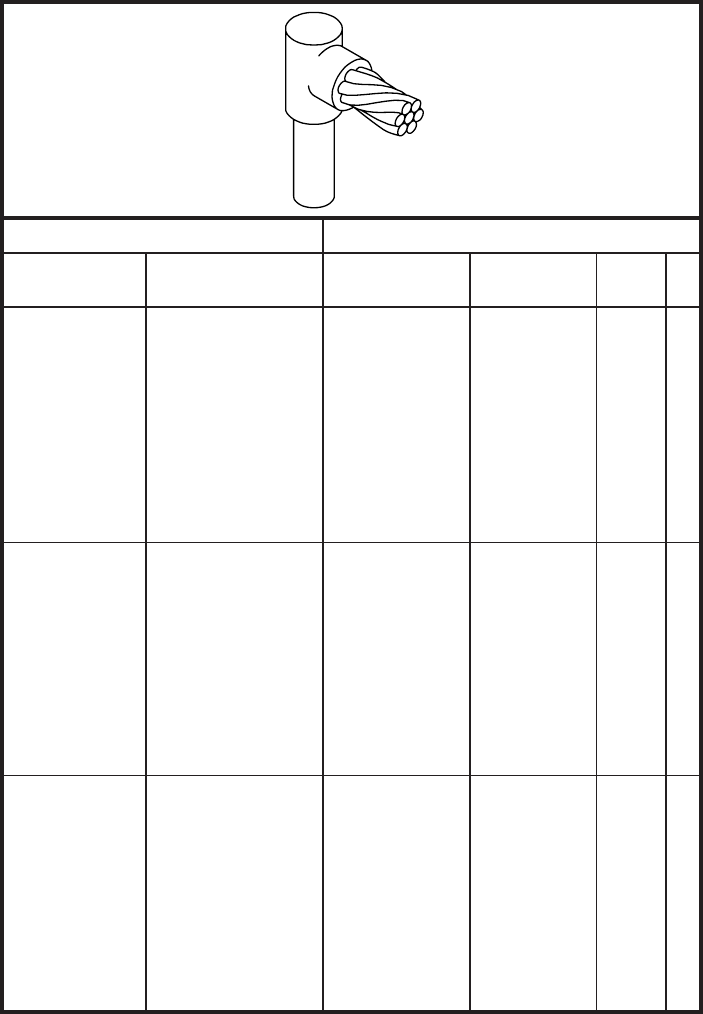

GROUND ROD & CABLE
1/2" #6 Sol)CAGRT-151G M-1960-S 25 18
#6 Str CAGRT-151H M-1960 25 18
#4 Sol CAGRT-151K M-1961-S 25 18
#4 Str CAGRT-151L M-1961 25 18
#2 Sol CAGRT-151T M-1962-S 32 18
#2 Str CAGRT-151V M-1962 32 18
#1 Str CAGRP-151Y M-1963 45 19
1/0 Str CAGRP-152C M-1964 65 19
2/0 Str CAGRP-152G M-1965 65 19
5/8" #6 Sol)CAGRT-161G M-1968-S 32 18
#6 Str CAGRT-161H M-1968 32 18
#4 Sol CAGRT-161K M-1969-S 32 18
#4 Str CAGRT-161L M-1969 32 18
#2 Sol CAGRP-161T M-1970-S 45 19
#2 Str CAGRP-161V M-1970 45 19
#1 Str CAGRP-161Y M-1971 45 19
1/0 Str CAGRP-162C M-1972 65 19
2/0 Str CAGRP-162G M-1973 65 19
3/4" #6 Sol)CAGRT-181G M-1976-S 32 18
#6 Str CAGRT-181H M-1976 32 18
#4 Sol CAGRP-181K M-1977-S 45 19
#4 Str CAGRP-181L M-1977 45 19
#2 Sol CAGRP-181T M-1978-S 45 19
#2 Str CAGRP-181V M-1978 45 19
#1 Str CAGRP-181Y M-1979 45 19
1/0 Str CAGRP-182C M-1980 65 19
2/0 Str CAGRP-182G M-1981 65 19
CART.
SIZE P
K
THERMO
MOLD #
STANDARD MOLDS
CADWELD®
MOLD #
GRD ROD
SIZE CABLE
SIZE
THERMOWELD®
TYPE CR-1 CADWELD®
TYPE CAGR
Sold with handle clamps. If not required, specify MOLD NUMBER followed
by suffix "-G".
)For wire size #14 to #10 solid, order (1) 38-0200-00 sleeve per weld.
6 CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC.

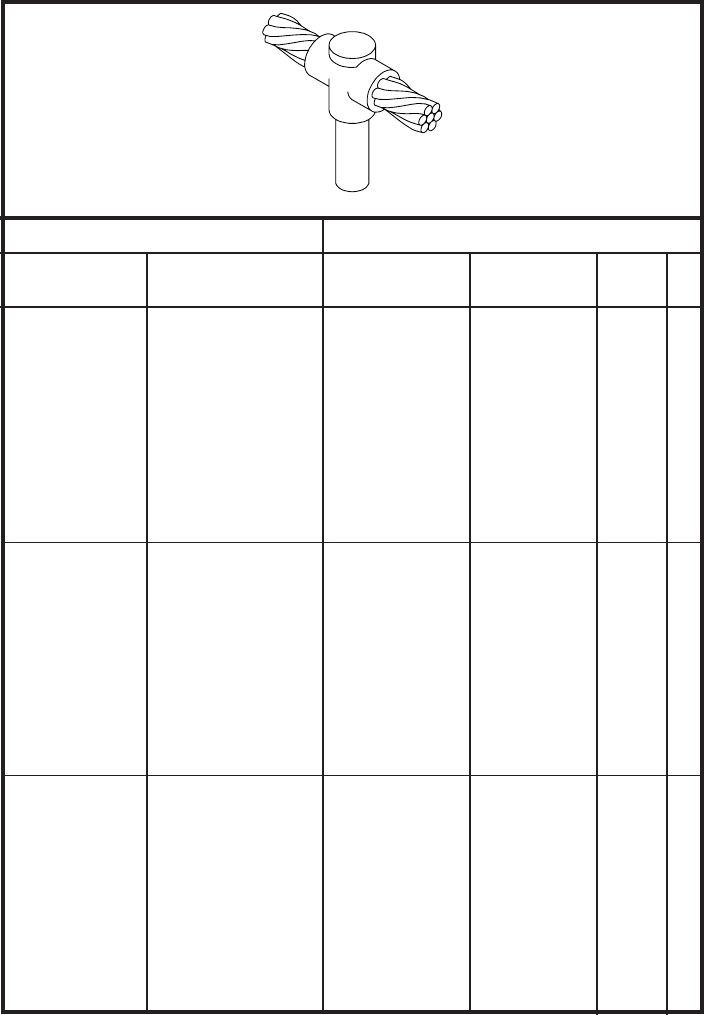

GROUND ROD & CABLE
1/2" #6 Sol)CAGTT-151G M-1984-S 32 18
#6 Str CAGTT-151H M-1984 32 18
#4 Sol CAGTT-151K M-1985-S 32 18
#4 Str CAGTT-151L M-1985 32 18
#2 Sol CAGTP-151T M-1986-S 45 19
#2 Str CAGTP-151V M-1986 45 19
#1 Str CAGTP-151Y M-1987 65 19
1/0 Str CAGTP-152C M-1988 65 19
2/0 Str CAGTP-152G M-1989 65 19
5/8" #6 Sol)CAGTP-161G M-1992-S 45 19
#6 Str CAGTP-161H M-1992 45 19
#4 Sol CAGTP-161K M-1993-S 65 19
#4 Str CAGTP-161L M-1993 65 19
#2 Sol CAGTP-161T M-1994-S 65 19
#2 Str CAGTP-161V M-1994 65 19
#1 Str CAGTP-161Y M-1995 65 19
1/0 Str CAGTN-162C M-1996 2-45 20
2/0 Str CAGTN-162G M-1997 2-45 20
3/4" #6 Sol)CAGTP-181G M-2000-S 45 19
#6 Str CAGTP-181H M-2000 45 19
#4 Sol CAGTP-181K M-2001-S 65 19
#4 Str CAGTP-181L M-2001 65 19
#2 Sol CAGTP-181T M-2002-S 65 19
#2 Str CAGTP-181V M-2002 65 19
#1 Str CAGTP-181Y M-2003 65 19
1/0 Str CAGTN-182C M-2004 2-45 20
2/0 Str CAGTN-182G M-2005 2-45 20
CART.
SIZE P
K
THERMO
MOLD #
STANDARD MOLDS
CADWELD®
MOLD #
GRD ROD
SIZE CABLE
SIZE
THERMOWELD®
TYPE CR-2 CADWELD®
TYPE CAGT
Sold with handle clamps. If not required, specify MOLD NUMBER followed
by suffix "-G".
)For wire size #14 to #10 solid, order (2) 38-0200-00 sleeve per weld.
CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC. 7

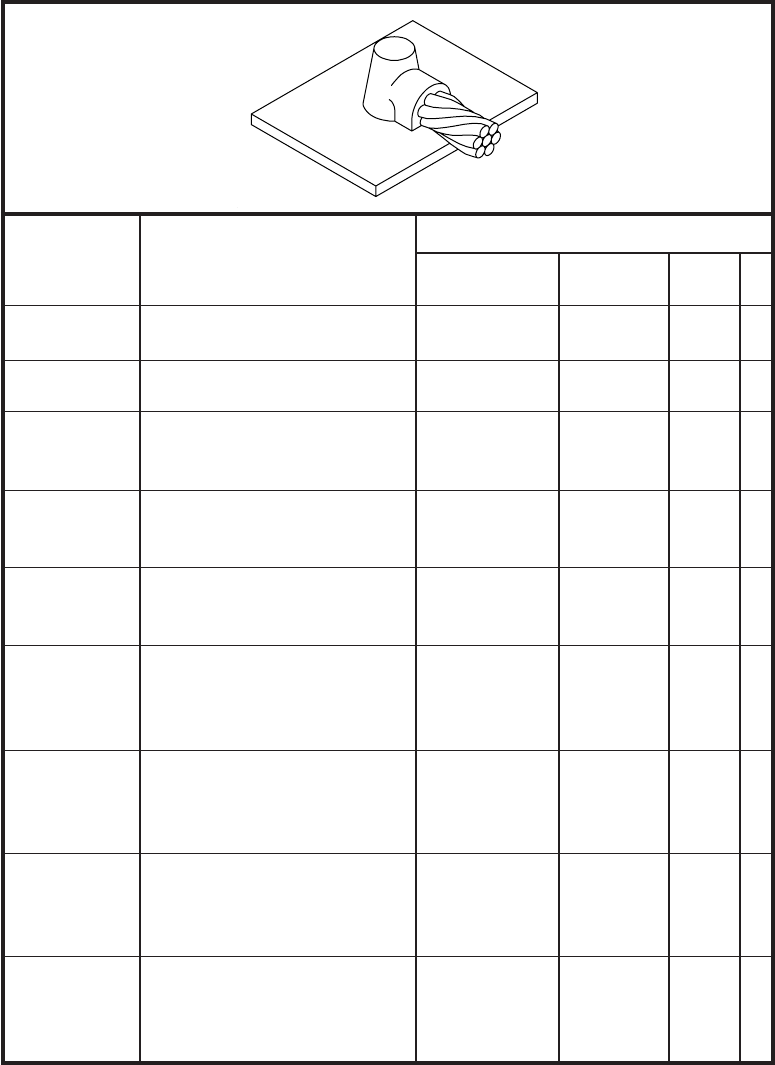

#6 Sol)Flat (4" & larger pipe) CAHAA-1G M-100 15 2
3/4" to 3 1/2" CAHAA-1GA M-101 15 3
#6 Str Flat (4" & larger pipe) CAHAA-1H M-102 15 2
3/4" to 3 1/2" pipe CAHAA-1HA M-103 15 3
#4 Sol Flat (6" & larger pipe) CAHAA-1K M-104 15 2
3/4" to 3 1/2" pipe CAHAA-1KA M-105 15 3
4" to 5" pipe CAHAA-1KB M-130 15 3
#4 Str Flat (6" & larger pipe) CAHAA-1L M-106 15 2
3/4" to 3 1/2" pipe CAHAA-1LA M-107 15 3
4" to 5" pipe CAHAA-1LB M-108 15 3
#2 Sol Flat (10" & larger pipe) CAHAA-1T M-109 25 3
1" to 3 1/2" pipe CAHAA-1TA M-110 25 3
4" to 8" pipe CAHAA-1TB M-111 25 3
#2 Str Flat (16" & larger pipe) CAHAA-1V M-112 32 3
1" to 3 1/2" pipe CAHAA-1VA M-113 32 3
4" to 8" pipe CAHAA-1VB M-114 32 3
10" to 14" pipe CAHAA-1VC M-115 32 3
#1 Str Flat (16" & larger pipe) CAHAA-1Y M-116 45 3
1 1/2" to 3 1/2" pipe CAHAA-1YA M-117 45 3
4" to 8" pipe CAHAA-1YB M-118 45 3
10" to 14" pipe CAHAA-1YC M-119 45 3
1/0 Str Flat (20" & larger pipe) CAHAA-2C M-120 65 3
2 1/2" to 3 1/2" pipe CAHAA-2CA M-121 65 3
4" to 8" pipe CAHAA-2CB M-122 65 3
10" to 18" pipe CAHAA-2CC M-123 65 3
2/0 Str Flat (20" & larger pipe) CAHAA-2G M-124 65 3
2 1/2" to 3 1/2" pipe CAHAA-2GA M-125 65 3
4" to 8" pipe CAHAA-2GB M-126 65 3
10" to 18" pipe CAHAA-2GC M-127 65 3
THERMOWELD®
TYPE
CS-32
P
K
CART.
SIZE
THERMO
MOLD #
CADWELD®
MOLD #
SURFACECABLE SIZE
STANDARD MOLDS
CADWELD®
TYPE
CAHA
Sold with frame. If not required, specify MOLD NUMBER followed by suffix "-G".
)For wire size #14 to #10 solid, order (1) 38-0200-00 sleeve per weld.
8 CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC.
#6 Sol)Flat (12" & larger pipe) CAHCA-1G M-1955 25 3
3/4" to 2" pipe CAHCA-1GA M-5666 25 3
2 1/2" to 5" pipe CAHCA-1GB M-3097 25 3
6" to 10" pipe CAHCA-1GC M-3141 25 3
#6 Str Flat (12" & larger pipe) CAHCA-1H M-5661 25 3
3/4" to 2" pipe CAHCA-1HA M-5662 25 3
2 1/2" to 5" pipe CAHCA-1HB M-5663 25 3
6" to 10" pipe CAHCA-1HC M-5664 25 3
#4 Sol Flat (12" & larger pipe) CAHCA-1K M-1956 25 3
3/4" to 2" pipe CAHCA-1KA M-1957 25 3
2 1/2" to 5" pipe CAHCA-1KB M-1958 25 3
6" to 10" pipe CAHCA-1KC M-1966 25 3
#4 Str Flat (12" & larger pipe) CAHCA-1L M-6000 25 3
3/4" to 2" pipe CAHCA-1LA M-1967 25 3
2 1/2" to 5" pipe CAHCA-1LB M-5501 25 3
6" to 10" pipe CAHCA-1LC M-5503 25 3
#2 Sol Flat (14" & larger pipe) CAHCA-1T M-5505 32 3
2" to 3 1/2" pipe CAHCA-1TA M-5507 32 3
4" to 6" pipe CAHCA-1TB M-5510 32 3
8" to 10" pipe CAHCA-1TC M-5514 32 3
#2 Str Flat (18" & larger pipe) CAHCA-1V M-5518 45 3
2" to 3 1/2" pipe CAHCA-1VA M-5986 45 3
4" to 8" pipe CAHCA-1VB M-5605 45 3
10" to 16" pipe CAHCA-1VC M-5988 45 3
#1 Str Flat (18" & larger pipe) CAHCA-1Y M-5519 45 3
2" to 3 1/2" pipe CAHCA-1YA M-5520 45 3
4" to 8" pipe CAHCA-1YB M-5521 45 3
10" to 16" pipe CAHCA-1YC M-5523 45 3
1/0 Str Flat (30" & larger pipe) CAHCA-2C M-5524 65 3
3" to 4" pipe CAHCA-2CA M-5525 65 3
5" to 6" pipe CAHCA-2CB M-5526 65 3
8" to 10" pipe CAHCA-2CC M-5527 65 3
12" to 28" pipe CAHCA-2CD M-5529 65 3
2/0 Str Flat (30" & larger pipe) CAHCA-2G M-6251 65 3
3" to 4" pipe CAHCA-2GA M-5530 65 3
5" to 6" pipe CAHCA-2GB M-5531 65 3
8" to 10" pipe CAHCA-2GC M-5532 65 3
12" to 28" pipe CAHCA-2GD M-5533 65 3
THERMOWELD®
TYPE
CS-34
P
K
CART.
SIZE
THERMO
MOLD #
CADWELD®
MOLD #
SURFACECABLE SIZE
STANDARD MOLDS
CADWELD®
TYPE
CAHC
Sold with frame. If not required, specify MOLD NUMBER followed by suffix "-G".
)For wire size #14 to #10 solid, order (2) 38-0200-00 sleeve per weld.
CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC. 9
#6 Sol)Flat (30" & larger pipe) CAHBA-1G M-156 25CI 3
4" to 24" pipe CAHBA-1G-P.S.* M-156-P.S.* 25CI 3
#6 Str Flat (30" & larger pipe) CAHBA-1H M-157 25CI 3
4" to 24" pipe CAHBA-1H-P.S.* M-157-P.S.* 25CI 3
#4 Sol Flat (30" & larger pipe) CAHBA-1K M-158 45CI 3
4" to 24" pipe CAHBA-1K-P.S.* M-158-P.S.* 45CI 3
#4 Str Flat (30" & larger pipe) CAHBA-1L M-159 45CI 3
4" to 24" pipe CAHBA-1L-P.S.* M-159-P.S.* 45CI 3
#2 Sol Flat (30" & larger pipe) CAHBA-1T M-160 45CI 3
4" to 24" pipe CAHBA-1T-P.S.* M-160-P.S.* 45CI 3
#2 Str Flat (30" & larger pipe) CAHBA-1V M-161 45CI 3
4" to 24" pipe CAHBA-1V-P.S.* M-161-P.S.* 45CI 3
#1 Str Flat (30" & larger pipe) CAHBA-1Y M-163 65CI 3
4" to 24" pipe CAHBA-1Y-P.S.* M-163-P.S.* 65CI 3
THERMOWELD®
TYPE
CS-33
THERMO
MOLD #
CADWELD®
MOLD #
CABLE SIZE
STANDARD MOLDS
CADWELD®
TYPE
CAHB
SURFACE P
K
CART.
SIZE
Sold with frame. If not required, specify MOLD NUMBER followed by suffix "-G".
)For wire size #14 to #10 solid, order (1) 38-0200-00 sleeve per weld.
P.S. = Specify pipe size.
10 CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC.
#6 Sol)Flat (30" & larger pipe) CAHEA-1G M-5316 32CI 3
4" to 24" pipe CAHEA-1G-P.S.* M-5316-P.S.* 32CI 3
#6 Str Flat (30" & larger pipe) CAHEA-1H M-5535 32CI 3
4" to 24" pipe CAHEA-1H-P.S.* M-5535-P.S.* 32CI 3
#4 Sol Flat (30" & larger pipe) CAHEA-1K M-5536 45CI 3
4" to 24" pipe CAHEA-1K-P.S.* M-5536-P.S.* 45CI 3
#4 Str Flat (30" & larger pipe) CAHEA-1L M-5537 45CI 3
4" to 24" pipe CAHEA-1L-P.S.* M-5537-P.S.* 45CI 3
#2 Sol Flat (30" & larger pipe) CAHEA-1T M-5538 45CI 3
4" to 24" pipe CAHEA-1T-P.S.* M-5538-P.S.* 45CI 3
#2 Str Flat (30" & larger pipe) CAHEA-1V M-5540 45CI 3
4" to 24" pipe CAHEA-1V-P.S.* M-5540-P.S.* 45CI 3
#1 Str Flat (30" & larger pipe) CAHEA-1Y M-5542 65CI 3
4" to 24" pipe CAHEA-1Y-P.S.* M-5542-P.S.* 65CI 3
THERMOWELD®
TYPE
CS-35
THERMO
MOLD #
CADWELD®
MOLD #
CABLE SIZE
STANDARD MOLDS
CADWELD®
TYPE
CAHE
SURFACE P
K
CART.
SIZE
Sold with frame. If not required, specify MOLD NUMBER followed by suffix "-G".
)For wire size #14 to #10 solid, order (2) 38-0200-00 sleeve per weld.
P.S. = Specify pipe size.
CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC. 11
#6 Sol)Flat (12" & larger pipe) CAVST-1G M-142 15 18
3/4" to 3-1/2" pipe CAVST-1GA M-150 15 18
4" to 10" pipe CAVST-1GB M-151 15 18
#6 Str Flat (12" & larger pipe) CAVST-1H M-144 15 18
3/4" to 3-1/2" pipe CAVST-1HA M-152 15 18
4" to 10" pipe CAVST-1HB M-153 15 18
#4 Sol Flat (12" & larger pipe) CAVST-1K M-145 25 18
3/4" to 1-1/2" pipe CAVST-1KA M-186 25 18
2" to 4" pipe CAVST-1KB M-187 25 18
5" to 10" pipe CAVST-1KC M-188 25 18
#4 Str Flat (12" & larger pipe) CAVST-1L M-146 25 18
3/4" to 3-1/2" pipe CAVST-1LA M-189 25 18
2" to 4" pipe CAVST-1LB M-190 25 18
5" to 10" pipe CAVST-1LC M-191 25 18
#2 Sol Flat (14" & larger pipe) CAVST-1T M-147 25 18
1" to 1-1/2" pipe CAVST-1TA M-192 25 18
2" to 4" pipe CAVST-1TB M-193 25 18
5" to 12" pipe CAVST-1TC M-194 25 18
#2 Str Flat (14" & larger pipe) CAVST-1V M-148 32 18
1" to 1-1/2" pipe CAVST-1VA M-195 32 18
2" to 3" pipe CAVST-1VB M-196 32 18
4" to 6" pipe CAVST-1VC M-197 32 18
8" to 12" pipe CAVST-1VD M-198 32 18
#1 Str Flat (18" & larger pipe) CAVSP-1Y M-6117 45 19
1-1/2" to 2-1/2" pipe CAVSP-1YA M-6118 45 19
3" to 4" pipe CAVSP-1YB M-6119 45 19
5" to 10" pipe CAVSP-1YC M-6120 45 19
12" to 16" pipe CAVSP-1YD M-6121 45 19
1/0 Str Flat (18" & larger pipe) CAVSP-2C M-2586 65 19
2-1/2" to 4" pipe CAVSP-2CA M-2587 65 19
5" to 10" pipe CAVSP-2CB M-2588 65 19
12" to 16" pipe CAVSP-2CC M-2589 65 19
2/0 Str Flat (18" & larger pipe) CAVSP-2G M-2590 65 19
3" to 4" pipe CAVSP-2GA M-2591 65 19
5" to 10" pipe CAVSP-2GB M-2592 65 19
12" to 16" pipe CAVSP-2GC M-2953 65 19
THERMOWELD®
TYPE
CS-36
P
K
CART.
SIZE
THERMO
MOLD #
CADWELD®
MOLD #
SURFACECABLE SIZE
STANDARD MOLDS
CADWELD®
TYPE
CAVS
Sold with handle clamps. If not required, specify MOLD NUMBER followed by
suffix "-G".
)For wire size #14 to #10 solid, order (1) 38-0200-00 sleeve per weld.
12 CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC.
#6 Sol)Flat (30" & Larger Pipe) CAVHT-1G M-2594-S 25CI 18
4" to 24" pipe CAVHT-1G-P.S.* M-2594-S-P.S.* 25CI 18
#6 Str Flat (30" & Larger Pipe) CAVHT-1H M-2594 25CI 18
4" to 24" pipe CAVHT-1H-P.S.* M-2594-P.S.* 25CI 18
#4 Sol Flat (30" & Larger Pipe) CAVHT-1K M-2595-S 32CI 18
4" to 24" pipe CAVHT-1K-P.S.* M-2595-S-P.S.* 32CI 18
#4 Str Flat (30" & Larger Pipe) CAVHT-1L M-2595 32CI 18
4" to 24" pipe CAVHT-1L-P.S.* M-2595-P.S.* 32CI 18
#2 Sol Flat (30" & Larger Pipe) CAVHP-1T M-2596-S 45CI 19
4" to 24" pipe CAVHP-1T-P.S.* M-2596-S-P.S.* 45CI 19
#2 Str Flat (30" & Larger Pipe) CAVHP-1V M-2596 45CI 19
4" to 24" pipe CAVHP-1V-P.S.* M-2596-P.S.* 45CI 19
#1 Str Flat (36" & Larger Pipe) CAVHP-1Y M-2597 65CI 19
4" to 30" pipe CAVHP-1Y-P.S.* M-2597-P.S.* 65CI 19
THERMOWELD®
TYPE
CS-37
THERMO
MOLD #
CADWELD®
MOLD #
CABLE SIZE
STANDARD MOLDS
CADWELD®
TYPE
CAVH
SURFACE P
K
CART.
SIZE
Sold with handle clamps. If not required, specify MOLD NUMBER followed by suffix "-G".
)For wire size #14 to #10 solid, order (1) 38-0200-00 sleeve per weld.
P.S. = Specify pipe size.
CABLE & LUG SIZE
LUGW
#6 Sol)1/16 X 1/2 CALAT-1G M-8391-S 25 18
#6 StrV1/16 X 1/2 CALAT-1H M-8391 25 18
#4 Sol 1/16 X 1/2 CALAT-1K M-8393-S 25 18
#4 Str 1/16 X 1/2 CALAT-1L M-8393 25 18
#2 Sol 1/16 X 1/2 CALAT-1T M-8395-S 32 18
#2 Str 1/16 X 1/2 CALAT-1V M-8395 32 18
#1 Str 1/16 X 1/2 CALAT-1Y M-8397 32 18
1/0 Str 1/16 X 1/2 CALAP-2C M-8398 45 19
2/0 Str 1/8 X 1 CALAP-2G M-8399 45 19
CART.
SIZE P
K
THERMO
MOLD #
STANDARD MOLDS
CADWELD®
MOLD #
THERMOWELD®
TYPE
CB-1
CADWELD®
TYPE
CALA
CABLE
Sold with handle clamps. If not required, specify MOLD NUMBER followed by suffix "-G".
)Requires (1) 38-0201-00 sleeve per weld.
VRequires (1) 38-0202-00 sleeve per weld.
W Lug part number: 1/16"x1/2" 38-4709-00
1/8"x1" 38-4200-00
CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC. 13
COPPER STRAP BONDS
COUPLING SIZE CATALOG NO. # OF
HOLES ABCD
5" & LARGER PIPE
STYLE 38 # 27-0180-00 41" 3 3/4" 5 1/4" 20"
5" & LARGER PIPE
STYLE 38 # 27-0181-00 41" 3 3/4" 6 1/4" 22"
5" & LARGER PIPE
STYLE 38 # 27-0182-00 51" 3 3/4" 5 1/4" 20"
5" & LARGER PIPE
STYLE 38 # 27-0183-00 51" 3 3/4" 6 1/4" 22"
UNDER 5" & LIGHT
PATTERN STYLE 38 # 27-0184-00 41" 3 1/4" 4 1/4" 17"
UNDER 5" & LIGHT
PATTERN STYLE 38 # 27-0185-00 41" 3 1/4" 5 1/4" 19"
UNDER 5" & LIGHT
PATTERN STYLE 38 # 27-0186-00 51" 3 1/4" 4 1/4" 17"
UNDER 5" & LIGHT
PATTERN STYLE 38 # 27-0187-00 51" 3 1/4" 5 1/4" 19"
FOR ALL STYLE 40
COUPLINGS USE (2)
27-0188-00 BONDS # 27-0188-00 31" 3 3/4" -- 9 1/2"
CURRENT CAPACITY OF THE COPPER
STRAP BONDS IS EQUIVALENT TO
1/0 STR COPPER CABLE
USE MOLD M-128 TO ATTACH BONDS
WITH #15 CART.
14 CADWELD® IS A REGISTERED TRADEMARK OF ERICO®, INC.
ACCESSORIES
CAB-112 .......... 38-0202-00 ......COPPER ADAPTER SLEEVE
CAB-133-1H .... 38-0200-00 ......COPPER ADAPTER SLEEVE
CAB-133-1K .... 38-0208-00 ......COPPER ADAPTER SLEEVE
CAB-133-1L..... 38-0201-00 ......COPPER ADAPTER SLEEVE
CAB-136-A ...... 40-0319-03 ......MOLD CLEANER
CAB-140-A ...... 38-0329-00 ......COPPER SHIM STOCK
CAB-319 .......... 40-0141-00 ......VERTICAL PIPE CLAMP FOR PK-18, 19 & 20 MOLDS
CAB-320 .......... 40-4042-00 ......HORIZONTAL CHAIN CLAMP FOR PK-3 MOLDS
CAB-321-15..... 40-0904-03 ......EXTENSION WITH FLINT GUN (15")
CAB-321-36..... 40-0904-00 ......EXTENSION WITH FLINT GUN (36")
CAB-322 .......... N/A...................LEAD HOLDING CLIP - FITS ALL PRICE KEY 3 MOLDS
CAD-03............ 38-0312-00 ......HAMMER DIE
CAD-05............ 38-0311-00 ......HAMMER DIE
CAD-09............ 38-0310-00 ......HAMMER DIE
CAT-111 .......... 38-4391-01 ......SELF IGNITING TORCH HEAD
CAT-305 .......... 38-0308-00 ......SCREWDRIVER
CAT-313 .......... 38-0306-00 ......CARD CLOTH BRUSH
CAT-317 .......... 38-4129-00 ......PACKING MATERIAL 1lb PACKAGE
CAT-317-A ...... 38-4129-05 ......PACKING MATERIAL 5lb PACKAGE
CAT-320 .......... 38-0309-00 ......FLINT IGNITER
CAT-320-A ...... 38-0309-01 ......REPLACEMENT FLINTS FOR 38-0309-00
CAT-321 .......... 38-0101-00 ......RASP
CAT-321-A ...... 38-0101-01 ......REPLACEMENT BLADE FOR 38-0101-00 RASP
CAT-328 .......... N/A...................DISK CONTAINER
CAT-329 .......... 38-0304-00 ......FILE AND HANDLE
CAT-335 .......... 38-0307-00 ......CRIMPING TOOL
CAT-336 .......... 38-0305-00 ......WIRE BRUSH
CAT-337 .......... 38-0302-00 ......TOOL BOX COMPLETE WITH TOOLS
CAT-338 .......... N/A...................TOOL BOX ONLY
CAT-343 .......... N/A...................TOOL BOX COMPLETE WITH TOOLS
CAT-396 .......... N/A...................TOOL BOX ONLY
