Industrial and hazardous location lighting

Product catalogue

Product Catalogue | May 2015

Industrial and hazardous location lighting product catalogue | EKPC-0612 0814 1

Introduction

Overview

Area lighting

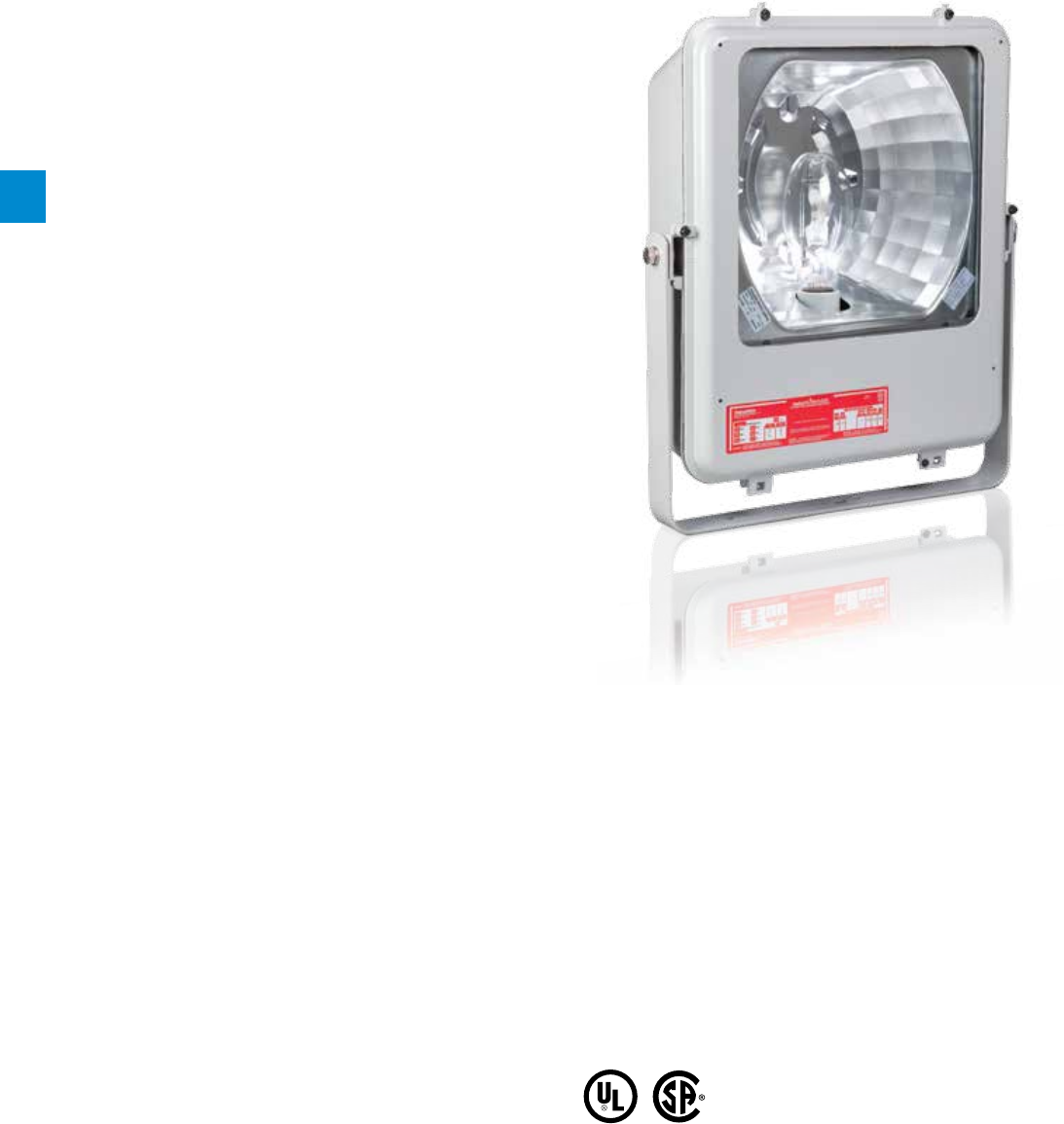

Floodlights

Strobe lights

Technical section

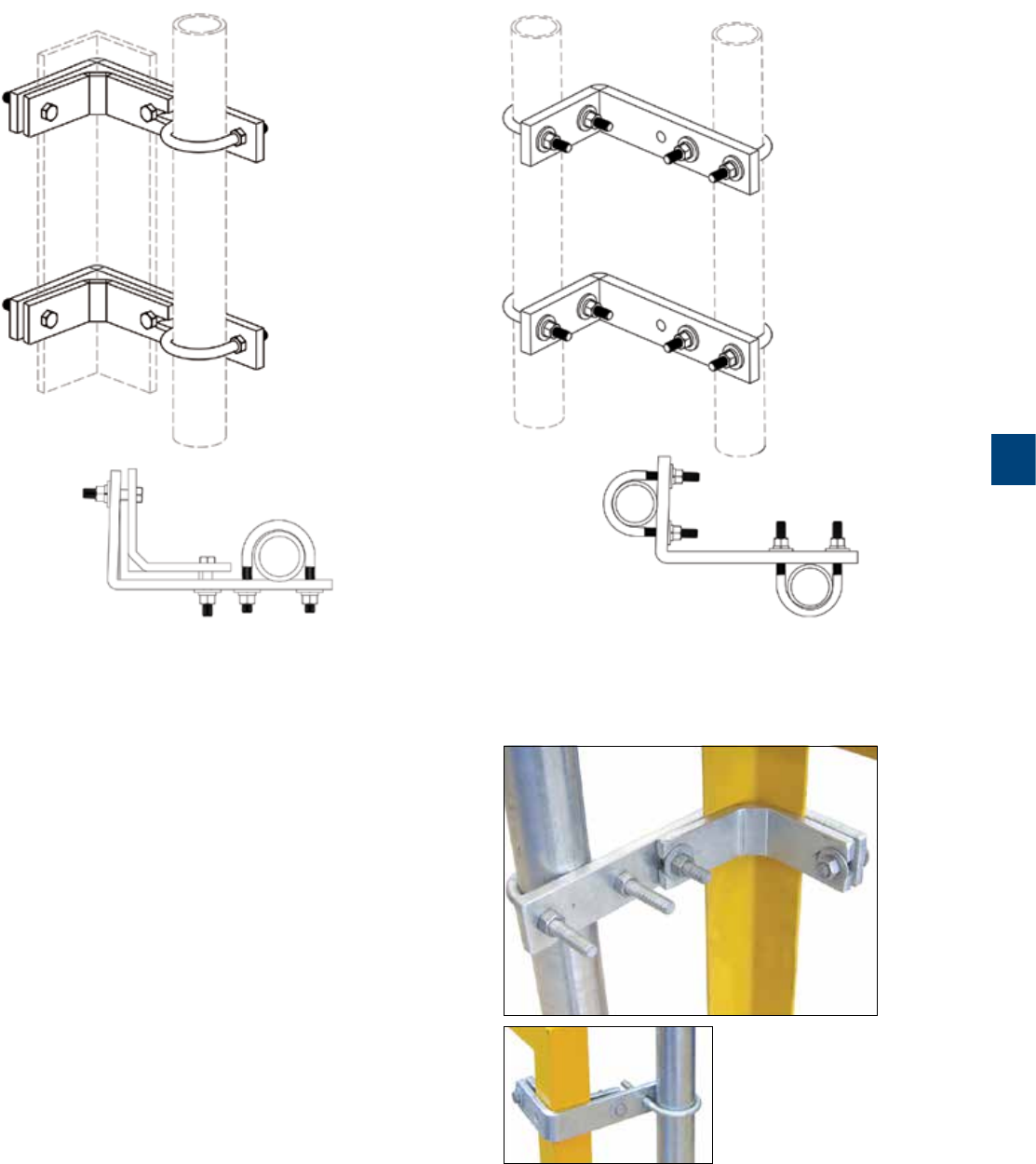

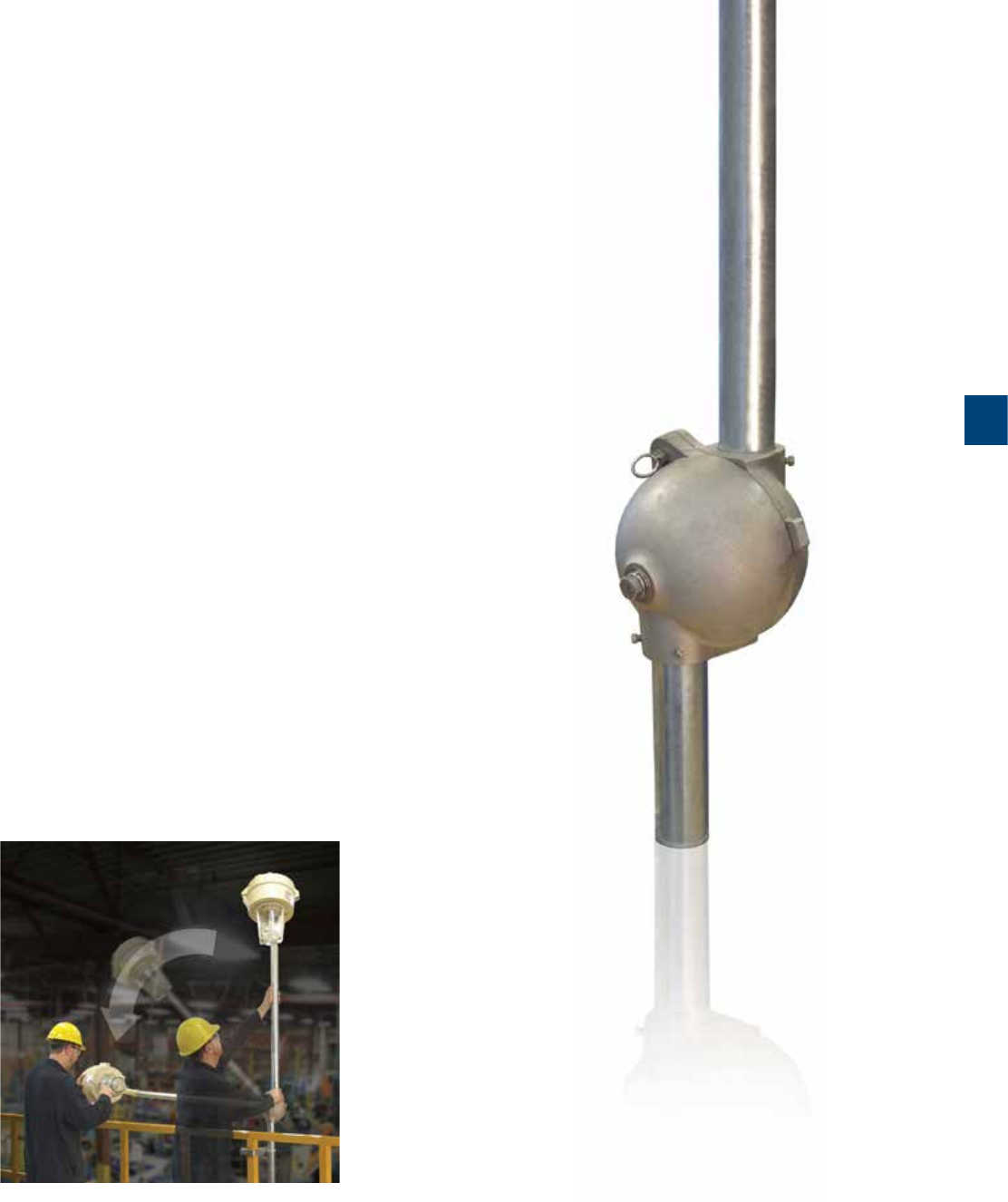

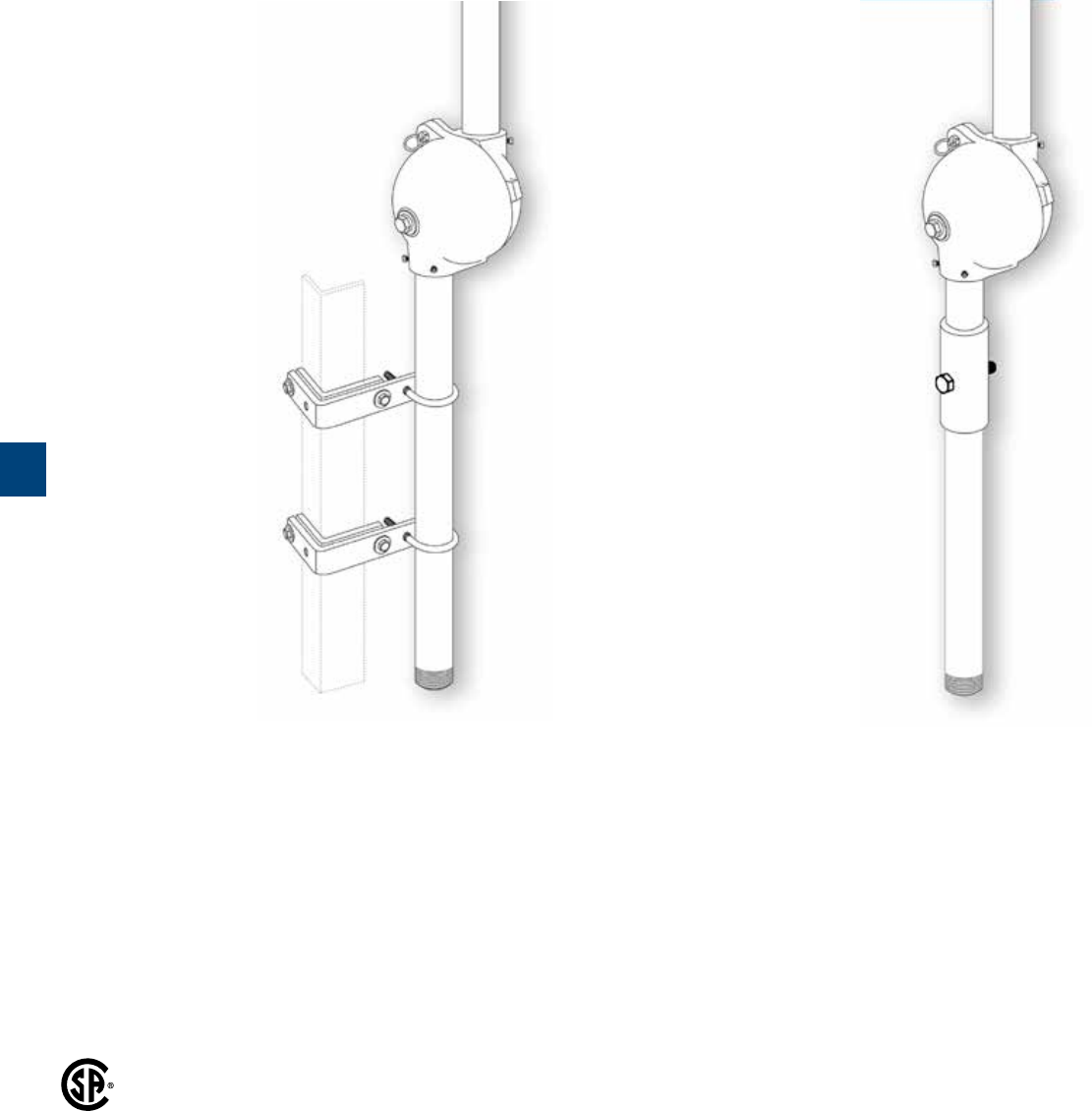

Quick pole assembly

Industrial and hazardous location lighting

Product catalogue

Industrial and hazardous location lighting product catalogue | EKPC-1114 1/1

Introduction

Made in Canada at the Thomas & Betts production facility 1/2

Quality products 1/4

Introduction

1/2 Industrial and hazardous location lighting product catalogue | EKPC-1114

Hazlux® products are assembled in

Canada to meet strict Thomas & Betts

quality standards and shipped quickly.

We produce what you need when you

need it - no waiting for large production

runs or shipments from overseas.

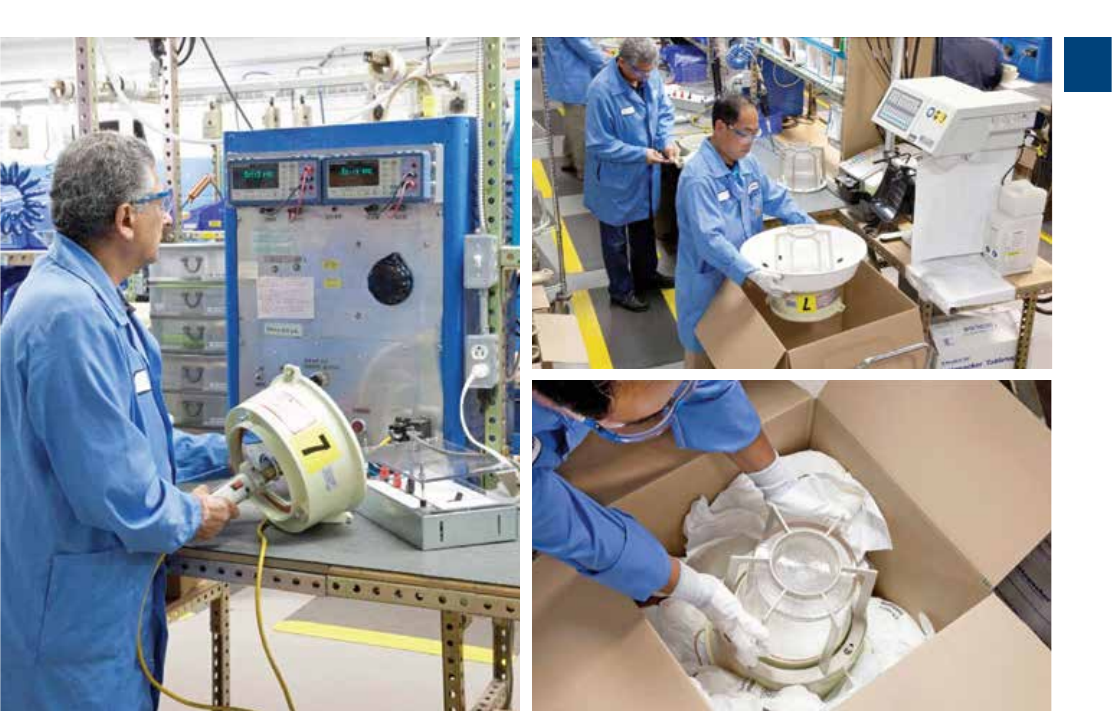

All units are inspected on site and then

professionally packed so that your order

will arrive intact at your installation site.

When you need speed and service

without sacriﬁcing quality or reliability.

you can count on the Thomas & Betts

Hazlux® production team.

Speed

Thomas & Betts offers a lead time advantage thanks to the

dedicated Hazlux® production operation in Canada. When you

need an order fulfilled right away, we have everything we

need in house to meet your requirements. The flexible

capacity of our assembly operation can easily accommodate

both large and small production runs with a fast turnaround.

All units are made to order and assembled by our efficient,

experienced in-house Hazlux® team. Your complete order is

sent out the door as quickly as possible.

Introduction

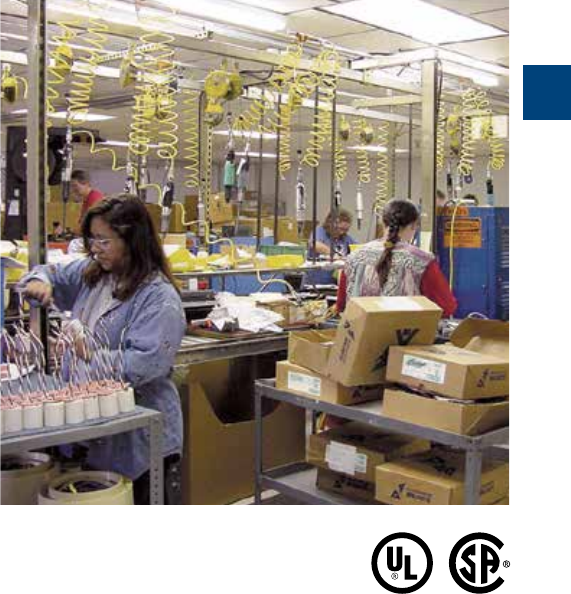

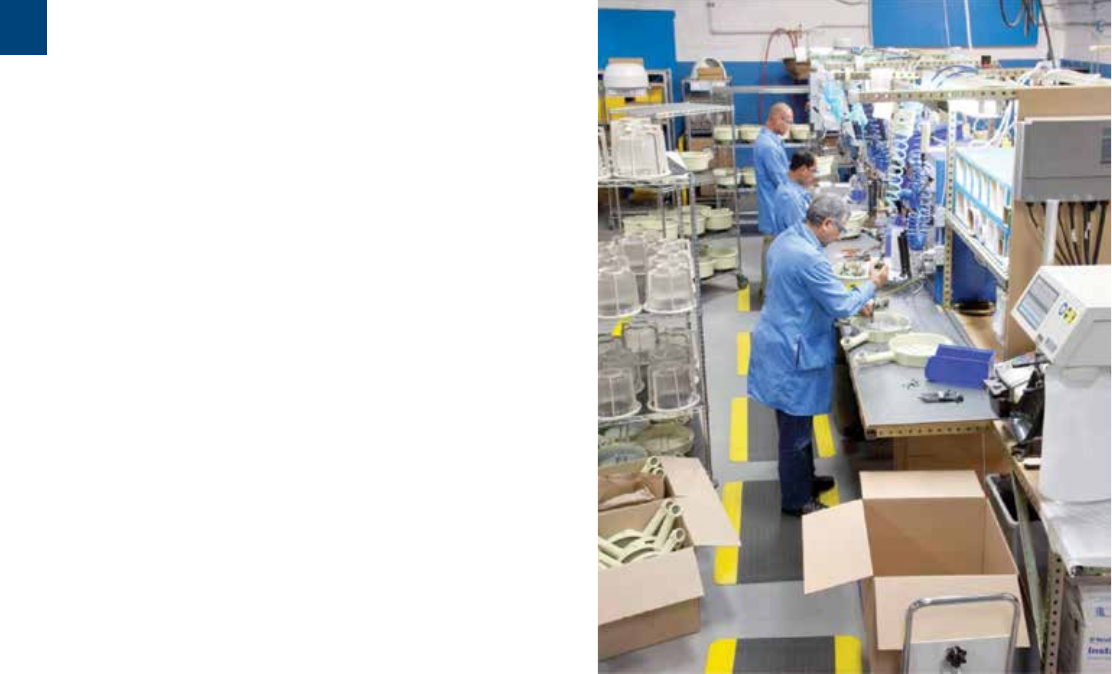

Made in Canada at the Thomas & Betts production facility

Industrial and hazardous location lighting product catalogue | EKPC-1114 1/3

Excellence

Our skilled professionals build quality into every product at

every step of the process, from design to final assembly.

Each product is inspected and tested to ensure that it meets

strict Thomas & Betts quality standards.

Dependability

The reliability and high standards of the Thomas & Betts

brand stand behind all Hazlux® products. We take extra steps

to ensure that each unit is protected all the way from our

production facility to your installation. Special expandable

foam packaging is used on all units to prevent shifting in

transport so that your order arrives safely.

To reduce the carbon footprint and minimize the environmental

impact of operations, a Sustainable Development policy is in

effect at the Thomas & Betts production facility. Through a

series of initiatives, reductions in usage of water, water bottles,

electricity and natural gas, packaging, and pallets have already

been realized. Forward-looking initiatives include reductions

in paper, further recycling of pallets, and implementation of an

eco-delivery schedule.

The Thomas & Betts production facility has been

ISO 9001 compliant since 2001.

1/4 Industrial and hazardous location lighting product catalogue | EKPC-0814

Introduction

Quality products

Thomas & Betts® is committed to

delivering high quality industrial lighting

ﬁxtures designed, tested and certiﬁed

for use in hazardous locations and

adverse environment conditions.

You can rely on Hazlux® to safely provide

light where you need it - even under

the harshest indoor and outdoor

conditions. If safety, labor reduction,

quality and reliability are your priorities,

consider Hazlux® lighting products.

Features & benefits

– Nameplate displays third party certification for all

electrical ratings and hazardous location ratings as required

by the Canadian Electrical Code, OSHA regulations and

CSA, allows for peace of mind, confirming the right lighting

fixture is installed in a certified condition

– Cast, copper-free aluminum construction for high

strength, light weight and corrosion resistance meeting

the highest life expectancy you can expect from a lighting

fixture in a particular application

– The paint used in our standard finish is baked,

electro-deposited, pure epoxy powder for maximum

corrosion protection. Additional paint finishes are available,

offering increased protection against harsh environment

– All exposed hardware is corrosion-resistant stainless

– steel will limit and ease all maintenance required on the

lighting fixture

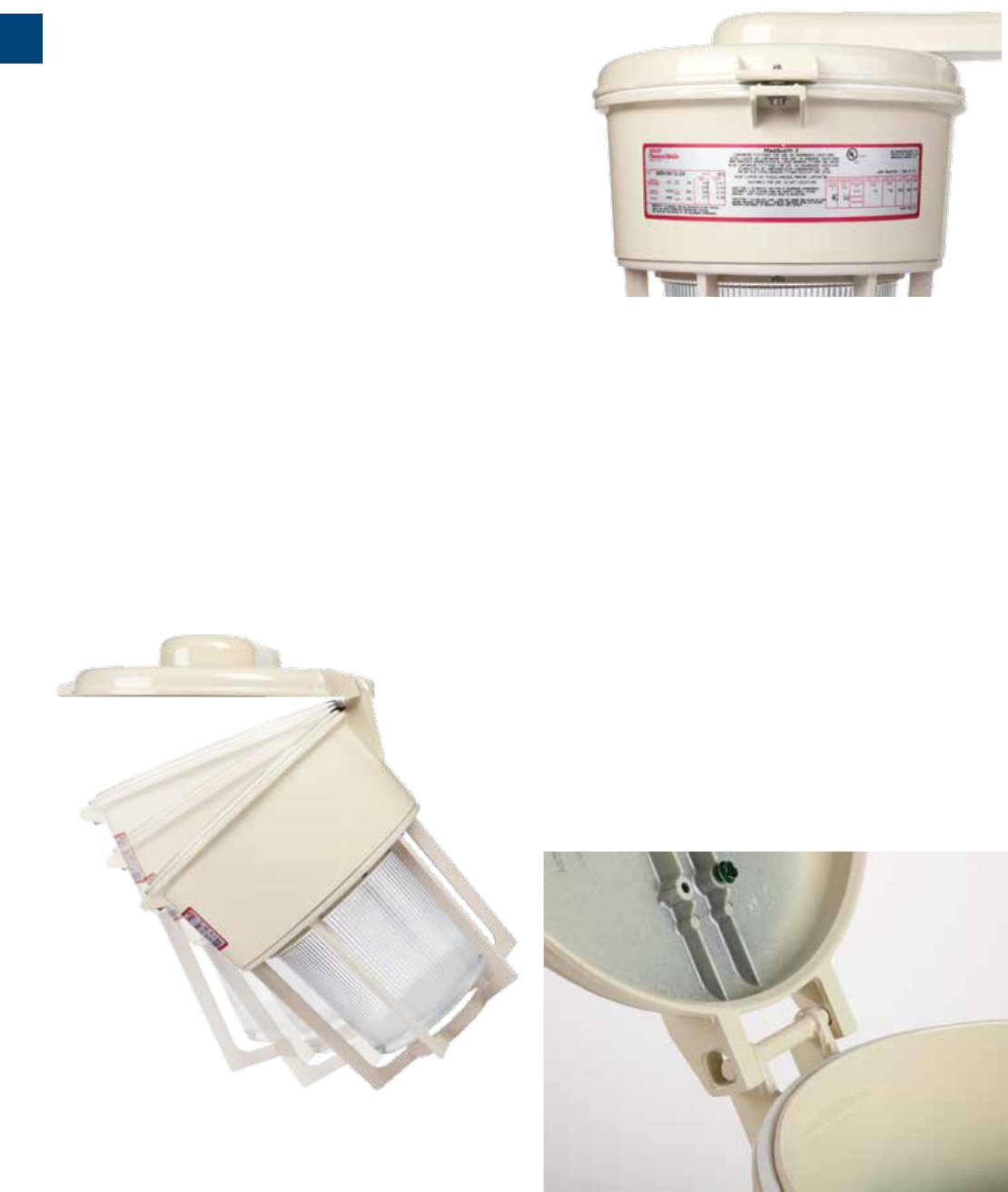

– Faster and easier installation with simple hinge arrangement

that permits “hands-free” wiring

Industrial and hazardous location lighting product catalogue | EKPC-0814 1/5

Installation & operation

– Seizure-resistant threads make installation and

maintenance easy over years, and Hazlux® 5, Dual pitch

acme threads for easier, faster assembly

– Heat-sunk internal components results in cooler operation

for extended ballast life, higher lamp wattage and a

broader range of hazardous locations

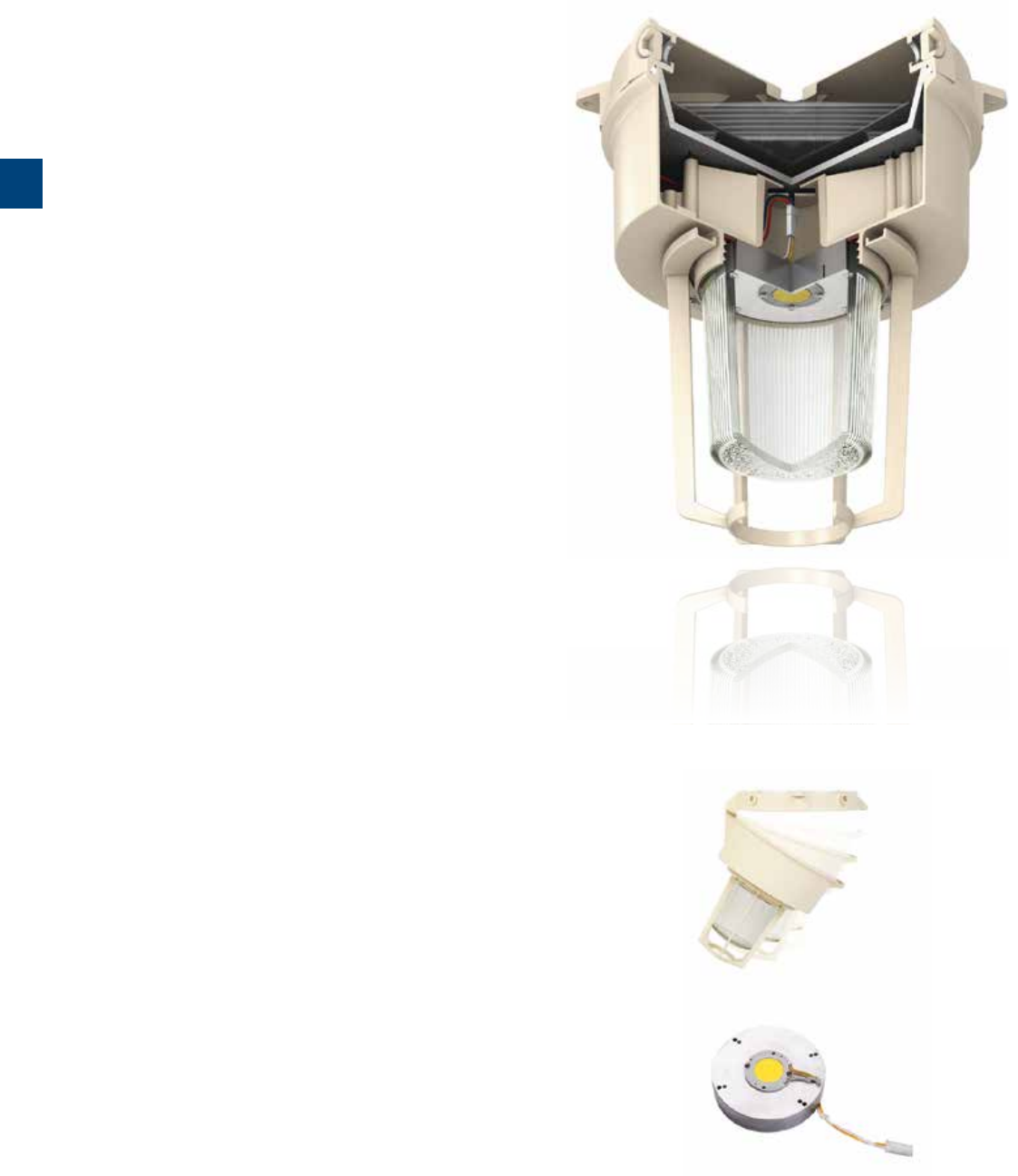

Design & components

– Hazlux® products are designed with top and bottom

fins to provide maximum heat dissipation

– In order to use the whole luminaire as a heat sink, the

ballast/generator is installed so that it transfers heat

to the luminaire body

– Select induction lamp options feature an additional inner

heat sink to provide the coolest possible design for

maximum luminaire efficiency

– A metal plate provides two separate compartments for

the ballast/generator and lamp source to maximize

life expectancy

– Hazlux® 5 fixtures feature electromechanical connect

block for quick, safe fixture removal for bench relamping

and/or maintenance

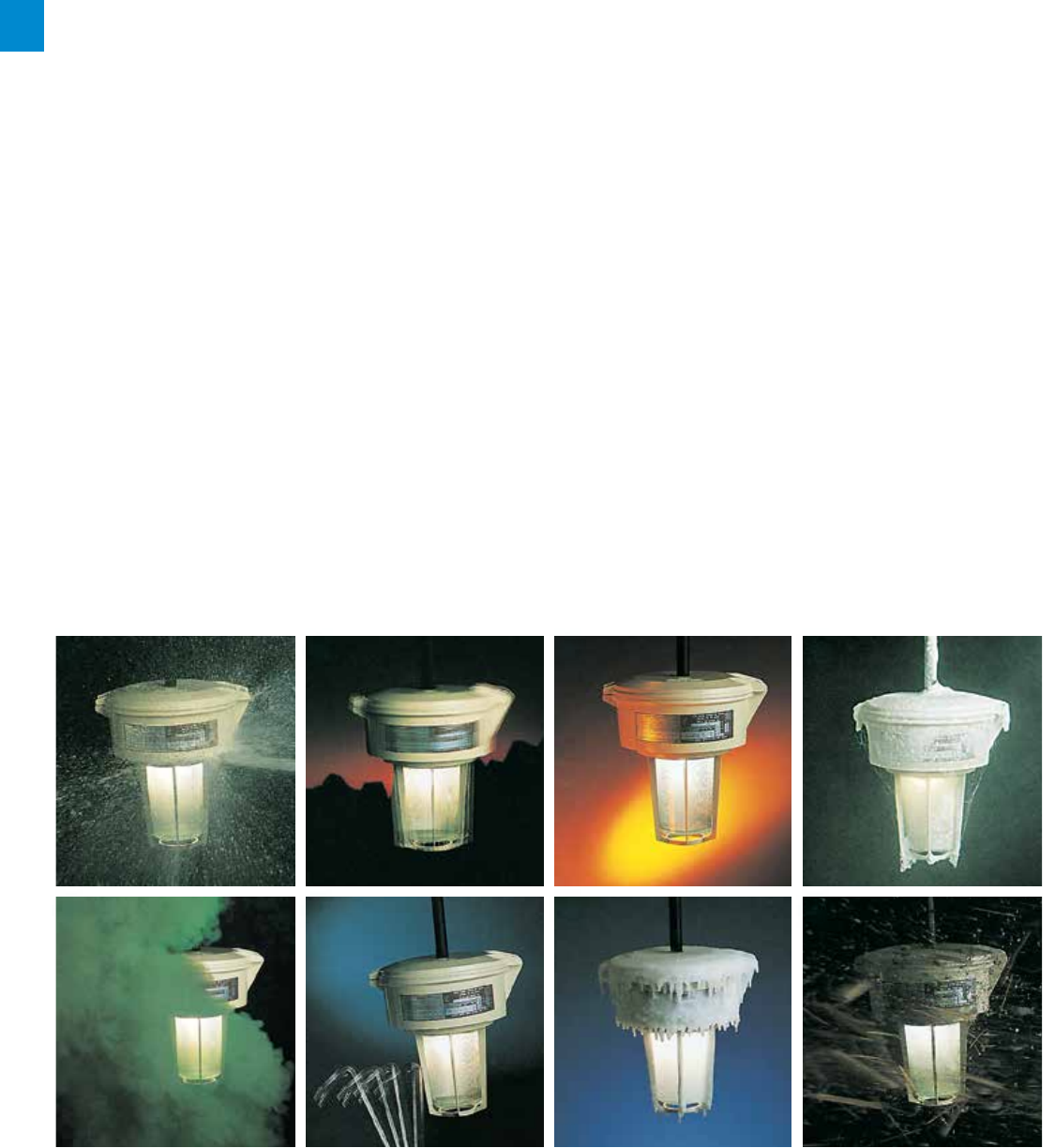

– High strength mechanical mounting, robust design and

components to withstand ice, strong wind loads or

heavy vibrations

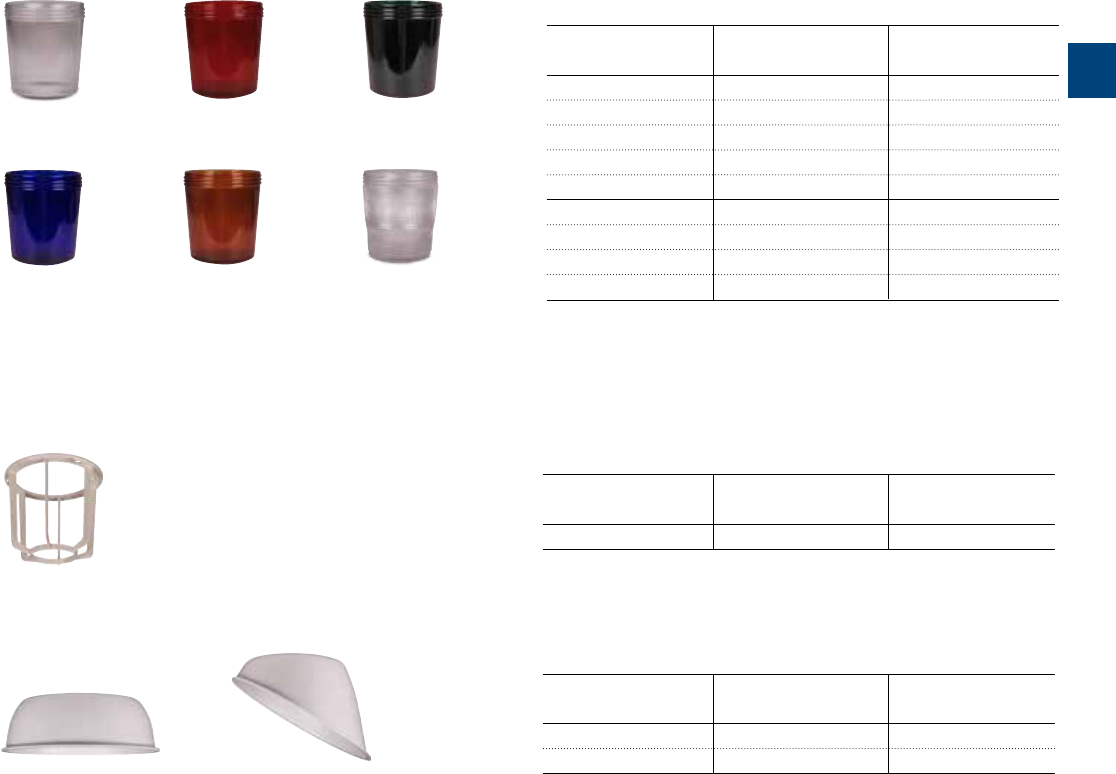

– Heat tempered glass for greater strength and thermal

shock resistance to selection of refractors to meet your

application and lighting requirements

Industrial and hazardous location lighting product catalogue | EKPC-1114 2/1

Overview

Hazardous Locations 2/2

Hazlux® Applications 2/4

Overview

2/2 Industrial and hazardous location lighting product catalogue | EKPC-0814

Overview

Hazardous locations

Class I - Gas

Class I - Class I locations are those in which ﬂammable gases,

flammable liquid-produced vapors or combustible

liquid-produced vapors are or may be present in the air in

quantities sufficient to produce explosive or ignitable mixtures.

Typical Class I Locations:

– Petroleum refineries and gasoline storage and

dispensing areas

– Industrial firms that use flammable liquids in dip tanks for

parts cleaning or other operations

– Petrochemical companies that manufacture chemicals

from gas and oil

– Dry cleaning plants where vapors from cleaning fluids can

be present

– Companies that have spraying areas where they coat pro-

ducts with paint or plastics

– Aircraft hangars and fuel serving areas

– Utility gas plants and operations involving storage and

handling of liquified petroleum gas or natural gas

Class II - Dust

Class II - Class II locations are those that are hazardous

because of the presence of combustible dust.

Typical Class II Locations:

– Grain elevators, flour and feed mills

– Plants that manufacture, use or store magnesium or

aluminum powders

– Plants that have chemical or metallurgical processes:

producers of plastics, medicines and fireworks, etc.

– Producers of starch or candies

– Spice-grinding plants, sugar plants and cocoa plants

– Coal preparation plants and other carbon handling or

processing areas

Class III - Fibers

Class III - Class III locations are those that are hazardous

because of the presence of easily ignitable fibers or where

materials producing combustible flyings are handled,

manufactured or used, but in which such fibers/flyings are not

likely to be in suspension in the air in quantities sufficient to

produce ignitable mixtures.

Typical Class III Locations:

– Textile mills, cotton gins, cotton seed mills and flax

processing plants

– Any plant that shapes, pulverizes or cuts wood and creates

sawdust or flyings

Note: Fibers and flyings are not likely to be suspended in the

air but can collect around machinery or on lighting fixtures

and where heat, a spark or hot metal can ignite them.

Division 1 - Normally Hazardous

Division 1 - Hazardous gases or dusts are present under

normal operation conditions or during frequent repair and

maintenance activity.

Groups A, B, C, D

Groups A, B, C and D - The gases and vapors of Class I

locations are broken into four groups by the code A, B, C and

D. These materials are grouped according to the ignition

temperature of the substance, its explosion pressure and

other flammable characteristics.

Groups E, F, G

Groups E, F, G - Class II dust locations groups E, F and G

are classified according to the ignition temperature and the

conductivity of the hazardous substance.

Division 2 - Not Normally Hazardous

Division 2 - Hazardous gases or dusts are not present under

normal operating conditions.

Hazardous location - An area where the possibility of explosion and ﬁre is created

by the presence of ﬂammable gases, vapors, dust, ﬁbers or ﬂyings.

Divisions vs. Zones: Area Classification

Continuous Internittent Hazard under

Hazard Hazard Abnormal Conditions

Zone 0 Zone 1 Zone 2

Division 1 Division 2

Note: These are simpliﬁed deﬁnitions - complete data is in the Canadian Electicral Code (C.E.C)

Industrial and hazardous location lighting product catalogue | EKPC-0814 2/3

Four step method for selecting lighting

ﬁxtures for hazardous locations.

1. Select a fixture that meets your Class, Division and

Group requirements, for example:

– Class I, Division 2, Group D

– Class II, Division 1, Group G

2. Determine the T-Number for your selected fixture. Be

sure it is for the specific wattage, ballast housing, optical

assembly and ambient temperature.

– Use the published information in this catalog or in Hazlux®

product brochures

3. Determine the Maximum Allowable Temperature for the

hazardous materials involved.

Class I Gas:

– Ignition Temperature for the Specific Gas (from NFPA497M)

Class II Dust:

– Group E - 200°C

– Group F - 200°C

– Group G - 165°C

– Or ignition temperature of dust if lower

– Above from NEC® Table 500-3(F)

4. Compare T-Number (from Step 2) to Maximum

Allowable Temperature (from Step 3).

– If T-Number is cooler than the Maximum Allowable

Temperature, the selected fixture is suitable.

– If T-Number is hotter than the Maximum Allowable

Temperature, the selected fixture is not suitable.

T-Number Table

Class I, II, Div. 1, 2 T-Number Max. Temperature

T1 450ºC

T2 300ºC

T2A 280ºC

T2B 260ºC

T2C 230ºC

T2D 215ºC

T3 200ºC

T3A 180ºC

T3B 165ºC

T3C 160ºC

T4 135ºC

T4A 120ºC

T5 100ºC

T6 85ºC

2/4 Industrial and hazardous location lighting product catalogue | EKPC-0814

Overview

Hazlux® Applications

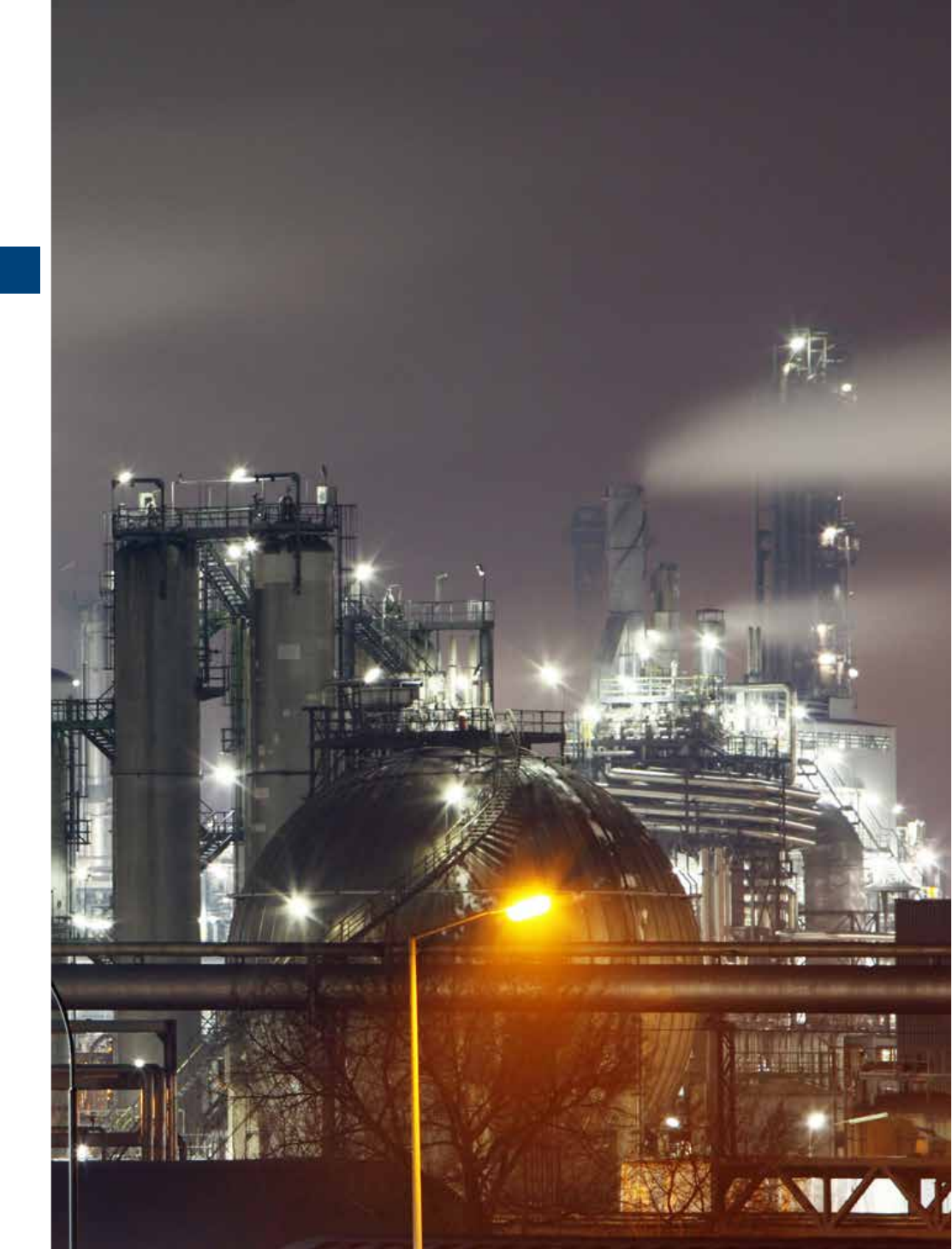

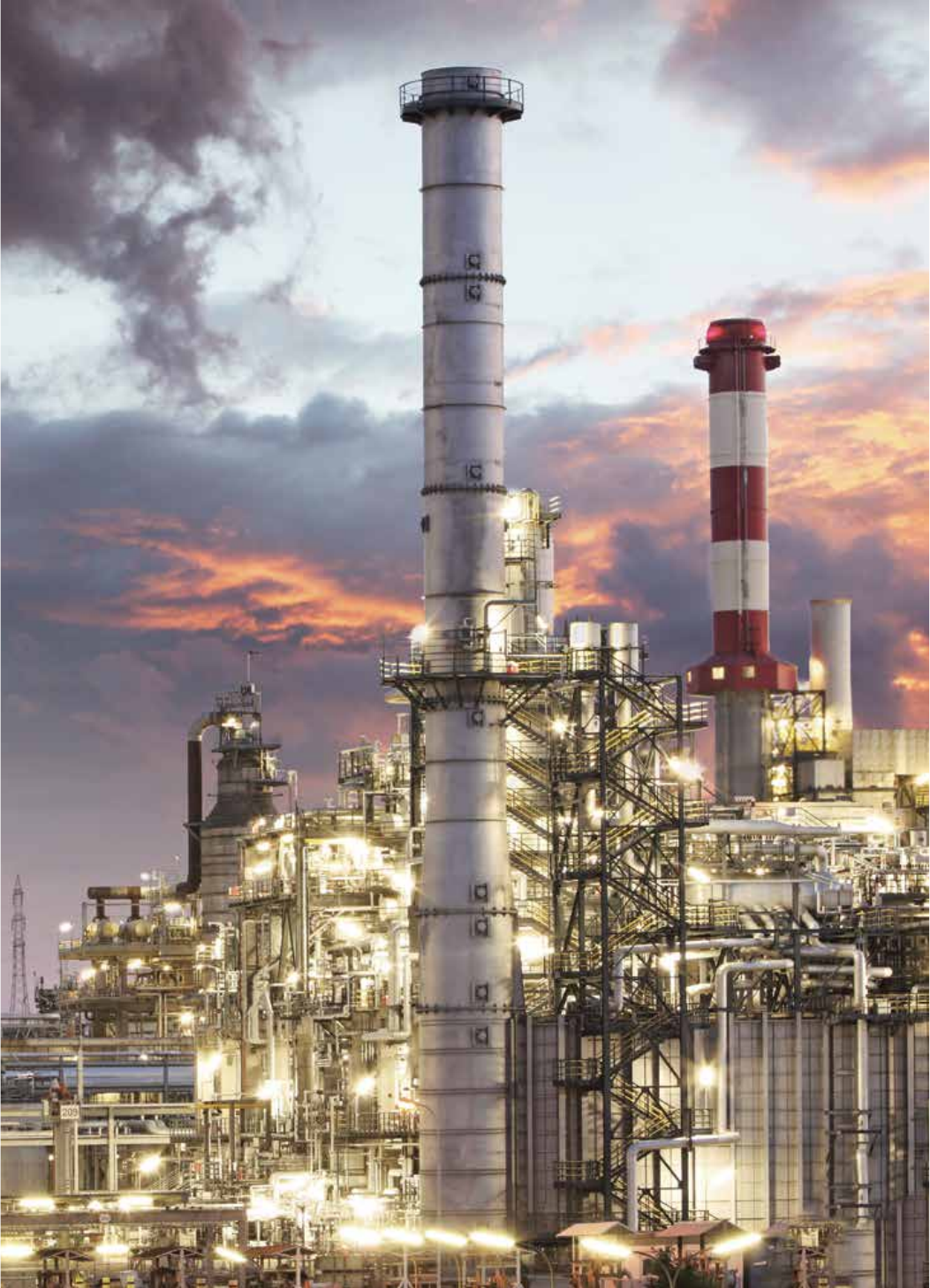

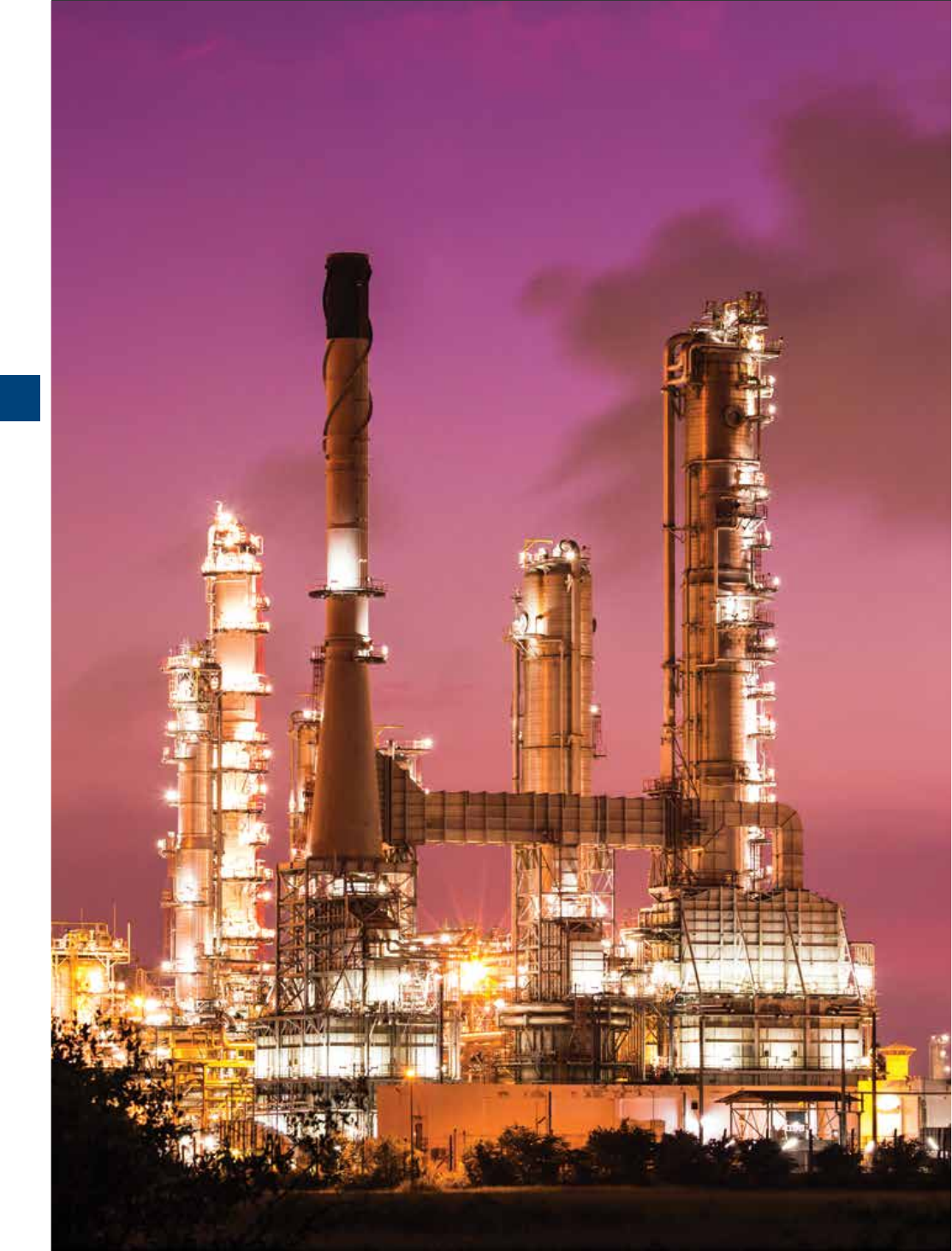

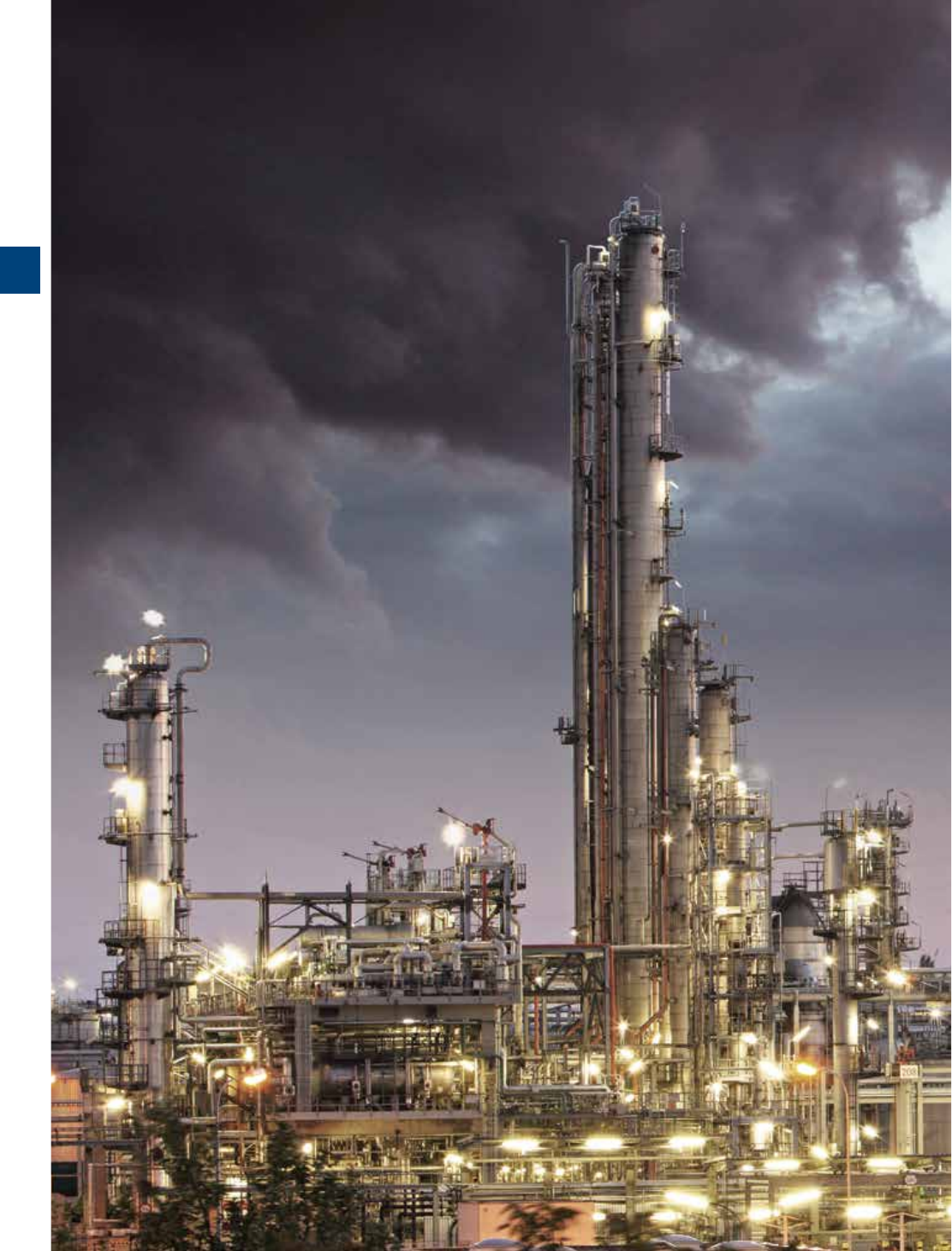

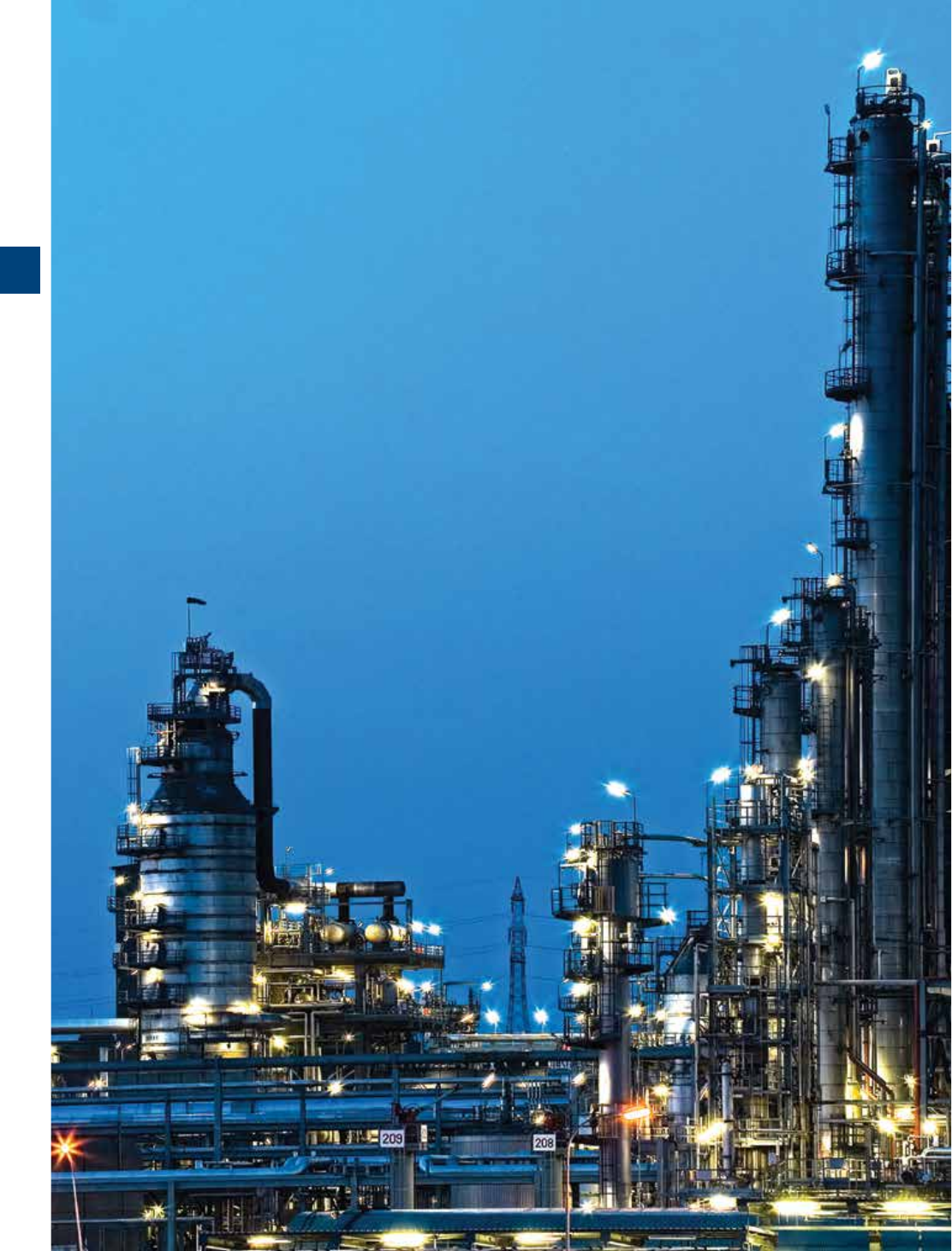

From an offshore oil rig in the Atlantic Ocean to the factory ﬂoor, there’s a Hazlux®

lighting ﬁxture to stand up to virtually every hazardous location.

Here are some of the places you’ll find Hazlux® fixtures:

– Chemical manufacturing and processing plants

– Oil refineries

– Oil drilling rigs

– Offshore platforms

– Pipeline pumping stations

– Pulp and paper plants

– Aluminum and copper smelting

– Steel mills and foundries

– Mining operations

– Grain handling facilities

– Flour, sugar and starch processing

– Food processing plants

– Paint and rubber manufacturing facilities

– Marine and coastal facilities

– Shipyards and shipbuilding plants

– Power generation plants

– Waste treatment facilities

– Paint, chemical and plastic mixing/storage areas

– Bulk truck terminals

– Solvent/cleaning areas

Hazlux® lighting fixtures are built to withstand the harsh

environmental conditions that exist in real settings.

Industrial and hazardous location lighting product catalogue | EKPC-0814 2/5

Hose-Down and Wet Locations

– Certified for wet locations - NEMA 4X, IP66 (indoor and

outdoor); UL1598A (marine) and CSA Listed

– Superior gasketing system - both tank and globe gasketing

systems withstand hose-down pressures

– Uninterrupted globe thread - assures positive seal

– Baked-on, dry epoxy coating - not paint but 100% dry solids

– Globes, refractors and finish designed to withstand thermal

shock during hose down

High-Ambient Temperature Areas

– All standard fixtures are tested and listed for at least 40°C

ambient - even under heavy dust blanket and no air flow

– Exclusive heat sink design results in a cool operating

fixture, extended ballast/lamp life and lower

maintenance costs

– Unmatched selection of high-ambient, temperature rated

fixtures- contact factory for fixtures certified for 55°C

and 65°C applications

– Steam spray and thermal shock resistant

Corrosion and Abrasion

– Baked-on, dry epoxy coating - not paint but 100% dry solids

– Stainless steel external hardware

– Sand-blast resistant finish

– Superior silicone gasketing system on both tank and globe.

Other gasketing systems available for special corrosive

applications such as phosphates

– Aluminum components contain less than 0.4% copper -

maximum corrosion resistance

– Special HazCote® corrosion fighter finish available for

extremely corrosive areas; consult Thomas & Betts

for details

Ice and Arctic Conditions

– Gasketing system and finish allow for expansion and

contraction through wide temperature variations

– Metal halide ballasts start at -29°C; high-pressure sodium

ballasts start as low as -51°C (consult Thomas & Betts

for details)

– High-strength mechanical mountings withstand extra

ice loading

– Tempered glassware available for extra thermal shock

safety margin

Vibration, Seismic Shock and Vandalism

– Vibration tested by UL and CSA

– Vibration-resistant hardware throughout fixture

– Screw retainers on guard ensure retention even if screws

are not completely tightened

– Vibration-resistant globe thread and sealing system

– Optional refractors, high-strength tempered glass and

Tuff-Skin® globes for protection from vandalism

Dust Blanket

– Tested and listed by UL and CSA

– Thermal performance is at 40°C ambient; optional thermal

performance to 55°C and 65°C ambient available

(consult factory)

– Cone pendant mount available (45° sloped sides) for areas

where dust or other residue buildup is a problem

– Exclusive heat sink design - results in a cool operating

fixture, extended ballast/lamp life and lower

maintenance costs

Marine-Duty Option

– This feature is supplied as standard on most

Hazlux® 3 fixtures

– Designed for abuse - hose down, arctic, hurricane,

vibration and shock, high temperature, corrosion and

other environmental conditions typical of adverse

marine locations

– Exclusive combination of marine and hazardous location

approvals on the same fixture line

Wind

– Wind-tunnel tested at McDonnell Douglas Corporation at

air flow speeds in excess of 198 mph (320 km/h)

– Guard specially designed to secure reflector during high

wind loading

– All fasteners are stainless steel

– High-strength mechanical mountings withstand strong

wind loads

Note: Tuff-Skin is a registered trademark of Thomas

Manufacturing Corp.

Industrial and hazardous location lighting product catalogue | EKPC-1114 3/1

Area lighting

Hazlux® 3 LED DL SeriesRH - Girder clamp for threaded rod 3/3

Hazlux® 3 Girder clamps for threaded rod 3/11

Hazlux® 3 Standard Housing ype YH - Girder clamps for threaded rod 3/14

Hazlux® 3 R-Housing 3/20

Hazlux® 3 Large HousingType RM-AM - Purlin clips for threaded rod 3/26

Hazlux® 3 Thermal Performance DataType VM-BM - Purlin clips for rod 3/32

Hazlux® 3 R-Housing Thermal Performance DataTBM - Pn clips for rod 3/38

Hazlux® 3 InductionType VM-BM - Purlin clips for rod 3/41

Hazlux® 3 Induction - High WattageType VM-BM - Purlin clips for rod 3/42

Hazlux® 3 Induction - Low Wattage (Hazardous Area Class I, Div2) 3/44

Hazlux® M3 Hazlite™ Type VM-BM - Purlin clips for rod 3/48

Hazlux® 1 Type VM-BM - Purlin clips for rod 3/55

Hazlux® 1 Hazlite™ Type VM-BM - Purlin clips for rod 3/62

Hazlux® 5 Induction Type VM-BM - Purlin clips for rod 3/69

Hazlux® 5 Induction (Hazardous Area Class I, Div1) TypBrlin clips for rod 3/78

Hazlux® M5 Hazlite™ Type VM-BM - Purlin clips for rod 3/80

Hazlux® 5 Thermal performance DataT Type VM-BM - Purlin clips for rod 3 /8 4

Hazlux® M4 Hazlite™T Type VM-BM - Purlin clips for rod 3/89

Hazlux® M4 Hazlite™ IncandescentT Type VM-BM - Purlin clips for rod 3/90

Hazlux® M4 Hazlite™ FluorescentType VM-BM - Purlin clips for rod 3/95

Hazlux® 6 DFP Series - Safety TechnologyType VM-B Purin clips for rod 3/100

Hazlux® 7 XFM Series - Safety Technologype T- Threaded rod onnector 3/104

Industrial and hazardous location lighting

Hazlux® Area lighting

3/2 Industrial and hazardous location lighting product catalogue | EKPC-1114

Industrial and hazardous location lighting product catalogue | EKPC-1114 3/3

Area Lighting

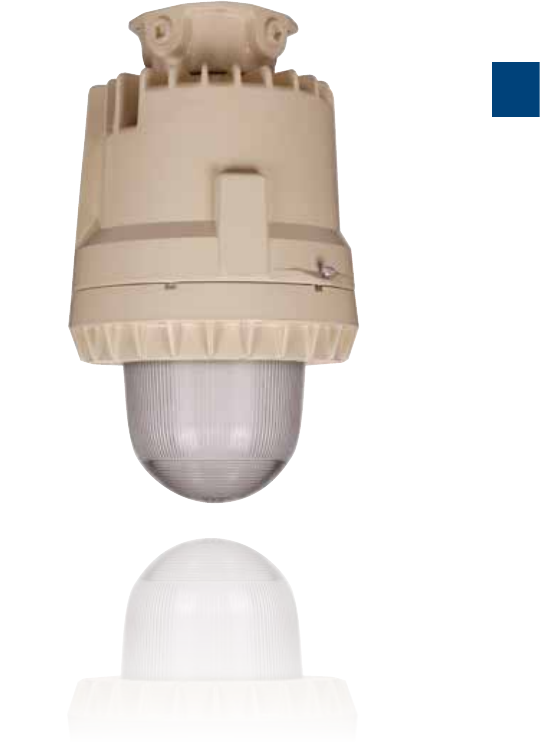

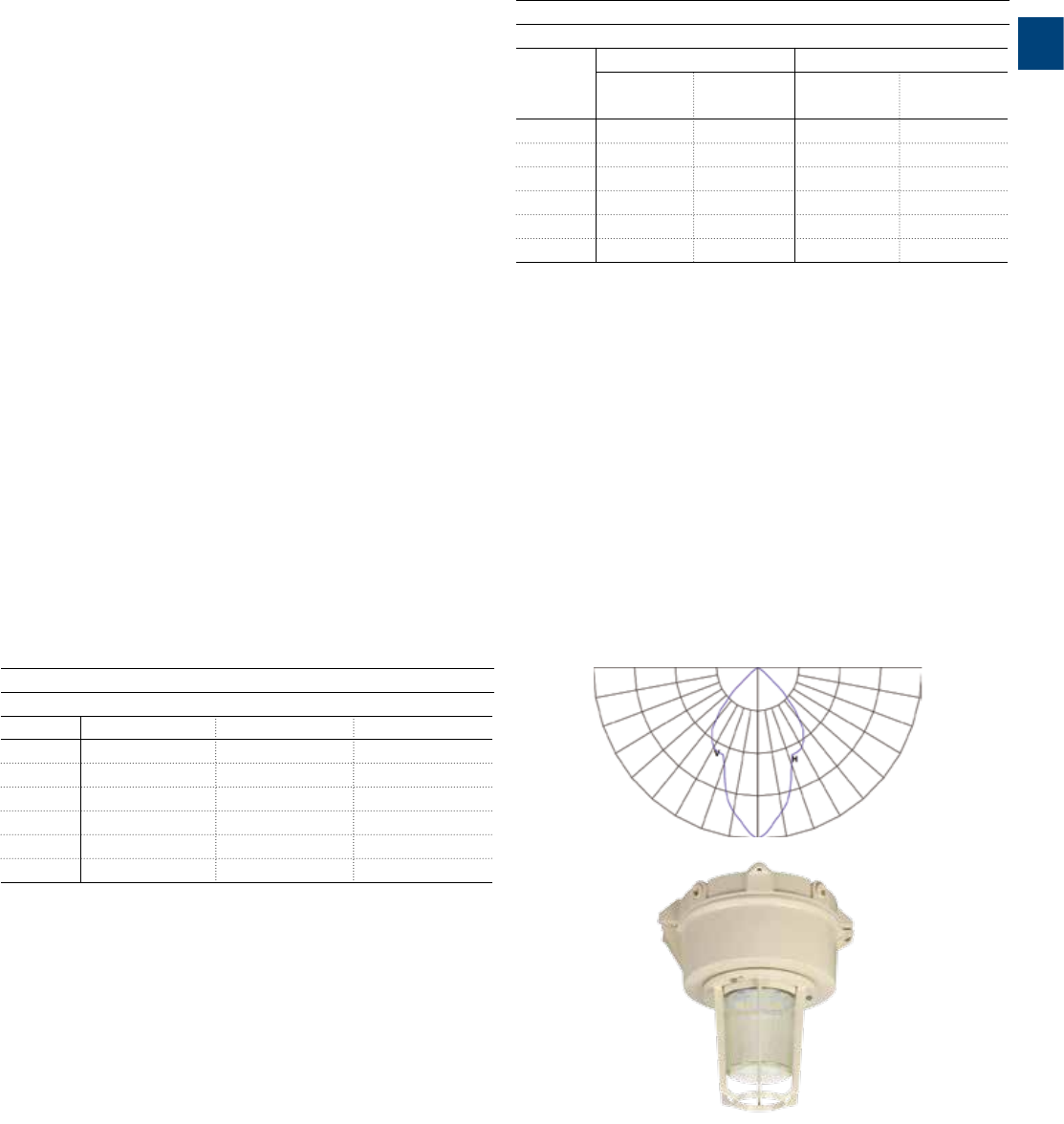

Hazlux® 3 LED DL Series

Hazlux® durability meets LED technology.

Superior performance lighting for hazardous locations.

Safe, durable and now available with LED technology

for superior energy efficiency.

Thomas & Betts Hazlux® luminaires are known as high quality

industrial lighting fixtures designed, tested and certified for

use in hazardous locations and adverse environment

conditions. Specifiers rely on Hazlux® to safely provide light

where it’s needed - even under the harshest indoor and

outdoor conditions.

Safe, dependable, durable Hazlux® luminaires are now

available with LED technology to offer longer life,

enhanced energy efficiency, reduced maintenance, and a

smaller footprint.

All Hazlux® LED products are designed and assembled

in Canada for exceptional service and support with

reduced lead times. Experienced assembly operation easily

accommodates both large and small production runs

with a fast turnaround.

High-efficacy luminaire offers excellent performance

and energy savings

Thomas & Betts has taken the rugged, reliable design of

Hazlux® lighting fixtures and introduced the capabilities of

LED technology to create a high-performance luminaire

with an impressive lumen output.

Higher T-ratings and optimal thermal management

With an exclusive design that maximizes heat dissipation,

Hazlux® LED fixtures lower internal temperature allow for

higher T-rating and extended LED and driver life in extreme

ambient temperatures. With the entire luminaire acting

as a heat sink, Hazlux® LED fixtures allow higher wattages

for better performance.

Versatile optics include reflector options for diffuse

light distribution

The Hazlux® LED fixture is available with a thermal-resistant

globe and a variety of reflectors for the ideal beam angle

from 35˚ to 65˚.

40˚C 55˚C

Class I Class I Div 2 Class I Class I Div 2

Model Div 2 & Class II Div 2 & Class II

DL005 T5 T4A T5 T4

DL007 T5 T4A T5 T4

DL010 T4A T4A T4A T4

DL015 T4 T3C N/A N/A

DL017 T4 T3C N/A N/A

DL020 T3C T3C N/A N/A

Model AC Power (W) Lumen Lm/W

DL005 45 5,800 129

DL007 58 7,100 122

DL010 88 10,100 114

DL015 122 15,600 128

DL017 131 17,800 135

DL020 166 20,400 123

High-efficacy Luminaire

T-ratings & Thermal Management

3/4 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3 LED DL Series

Labor-saving installation

and maintenance-friendly construction.

Designed for easy retrofit installation

Using the same mounting style options as existing Hazlux®

lighting fixtures, the new LED luminaires can easily be

attached as retrofit fixtures.*

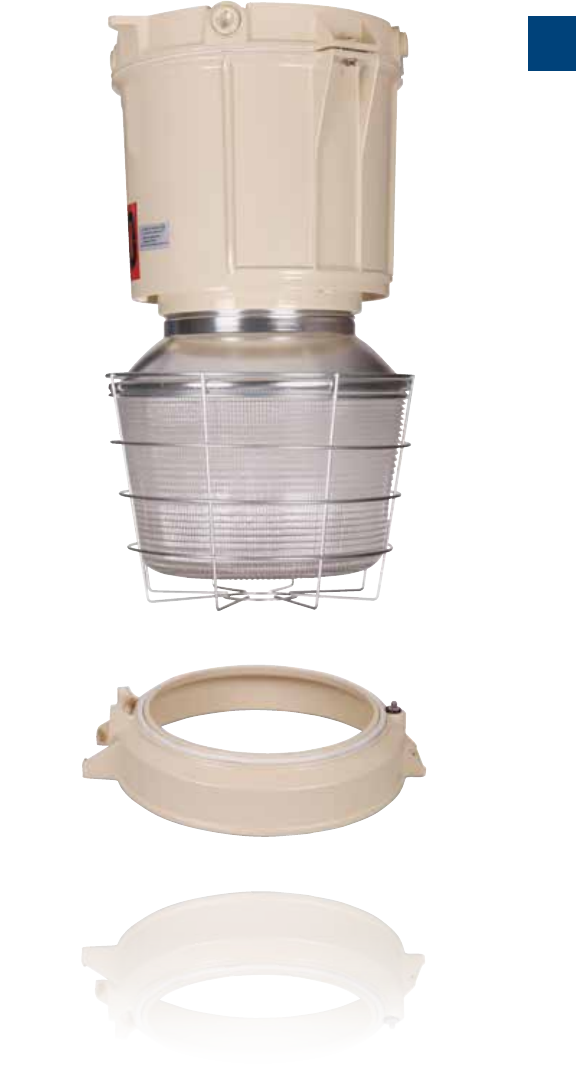

The HazVertor™ adapter ring makes it easy to replace

Crouse-Hinds Champ® series lighting fixtures without

removing the top hat from the conduit system.

Hinged design for hands-free wiring

Easy tank access allows Hazlux® lighting fixtures to be

maintained quickly and safely. The hinged lid is designed to

support the weight of the tank, leaving both the installer’s

hands free.

Field-replaceable LED engine and driver

The LED driver is designed in its own compartment so it can

be easily replaced in the field using a connector, with no

re-wiring required. A fiberglass insulator protects the driver

from the heat of the LED engine.

Robust construction for long life expectancy

Cast, copper-free aluminum construction offers corrosion

resistance in a strong, lightweight fixture for maximum life

expectancy. Baked epoxy powder finishes and stainless steel

exposed hardware provide additional corrosion resistance.

Certifications shown on external surface

An easily identifiable nameplate displays third party

certification for all electrical and hazardous location ratings

as required by the Canadian Electrical Code, OSHA

regulations and CSA to provide peace of mind, confirming

that the correct lighting fixture with the required certifications

is in place.

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/5

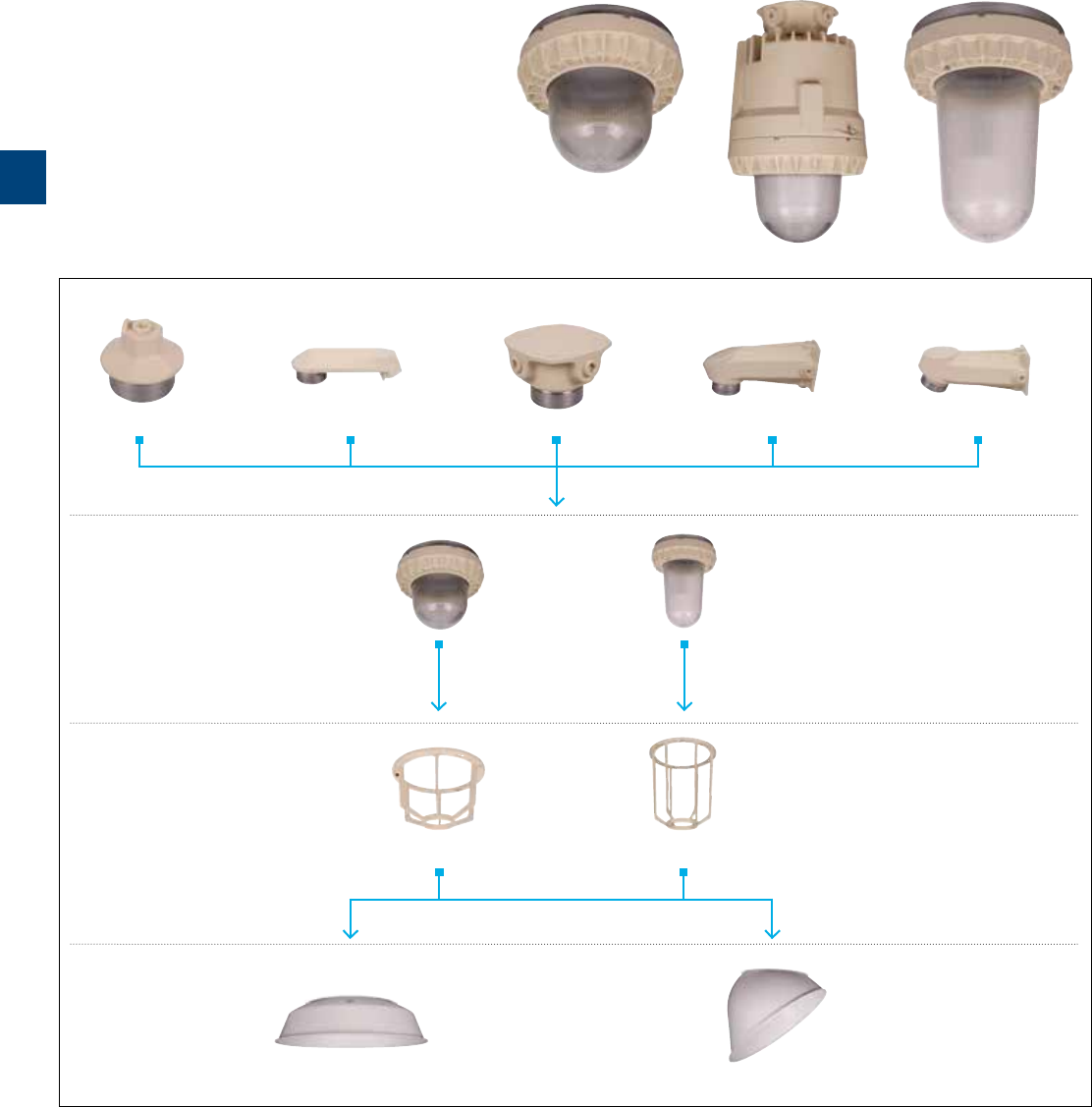

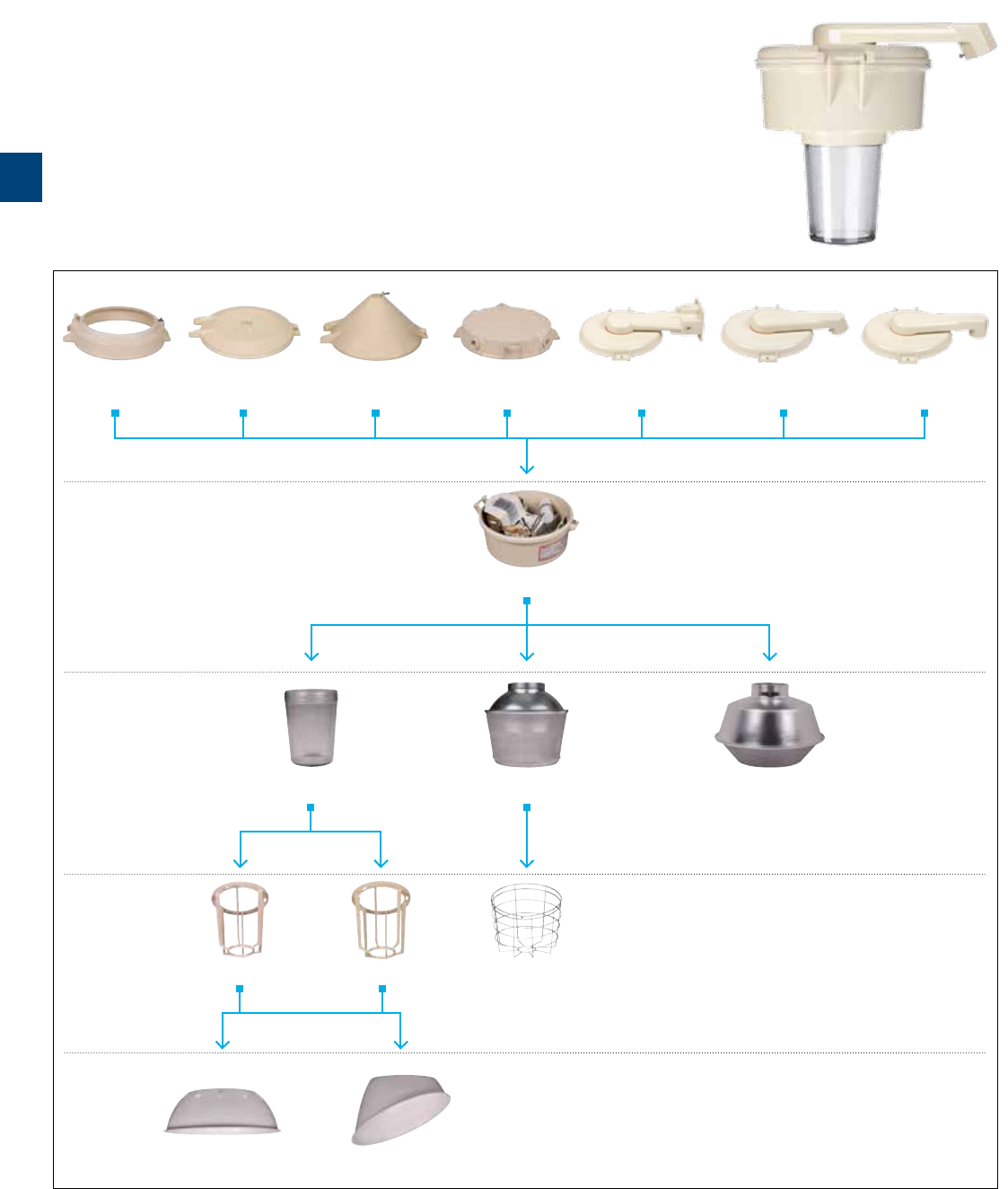

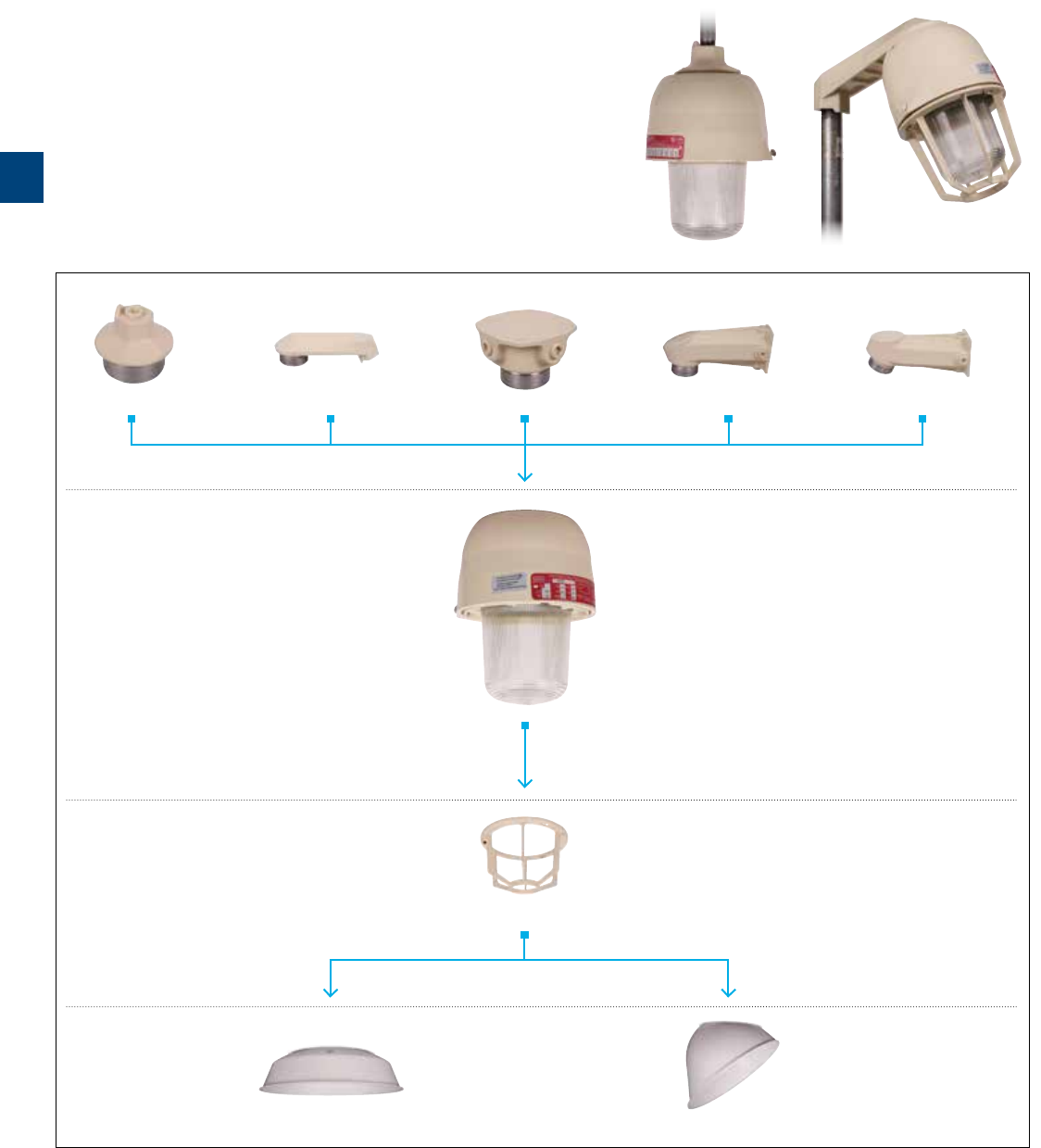

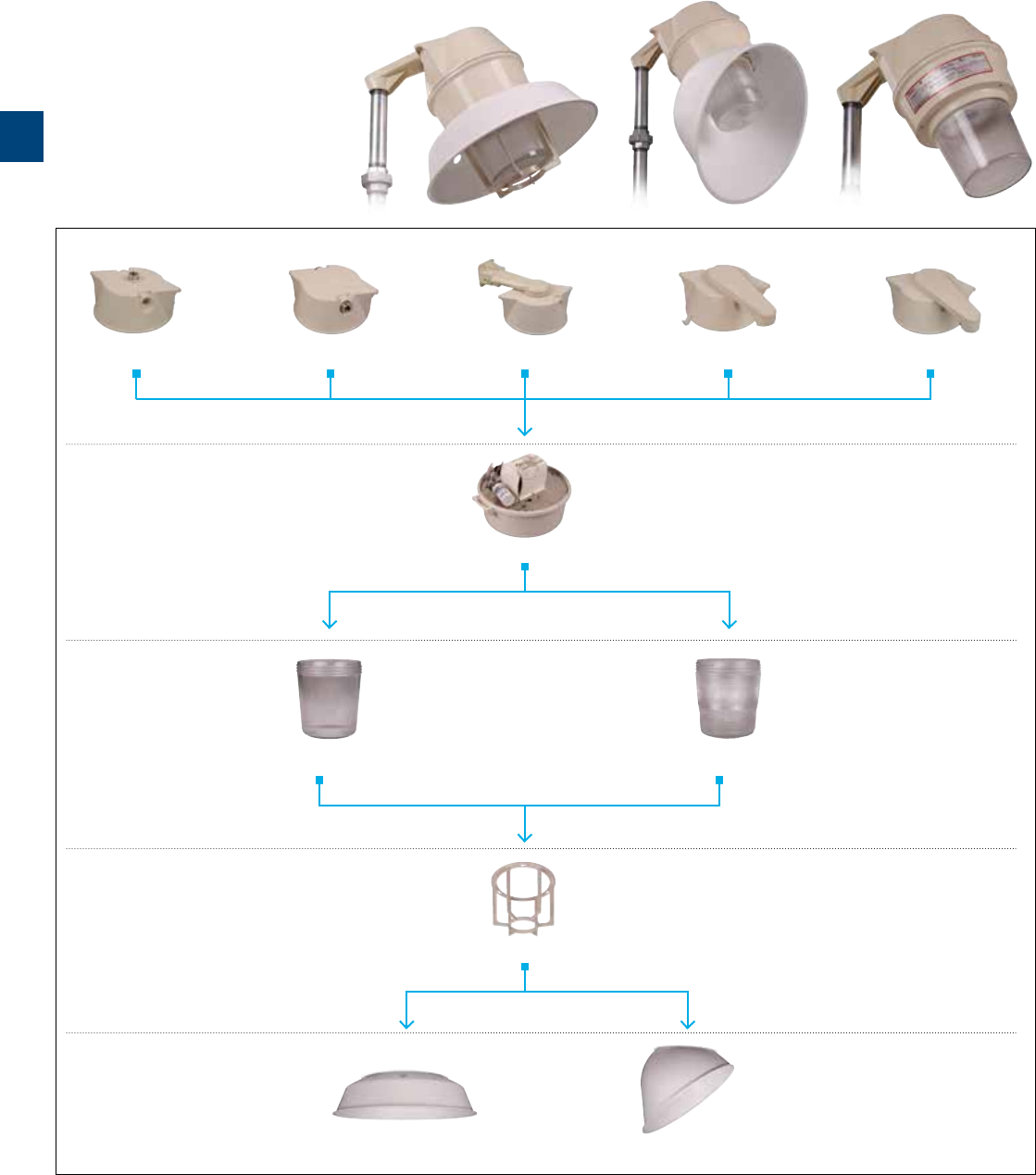

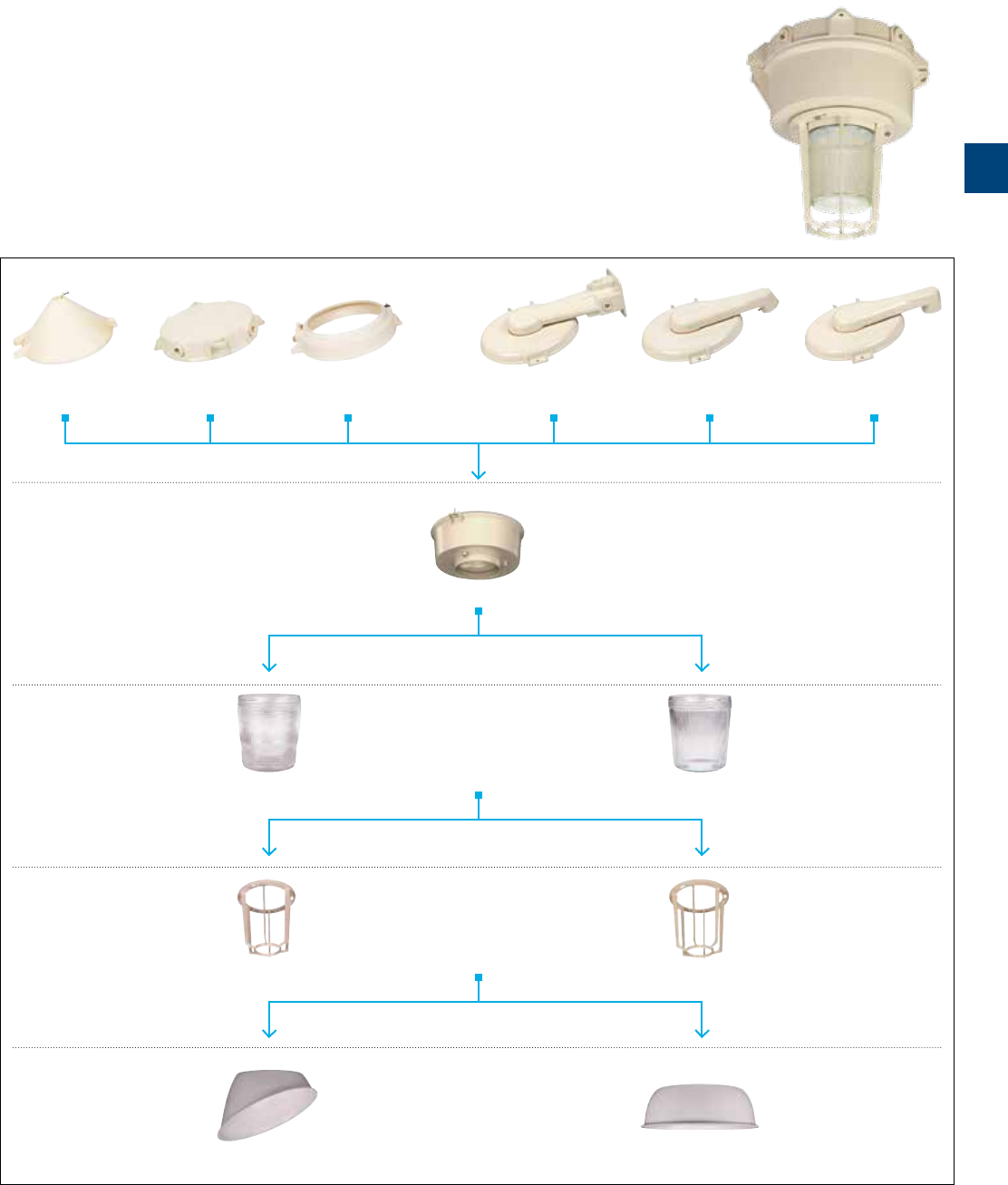

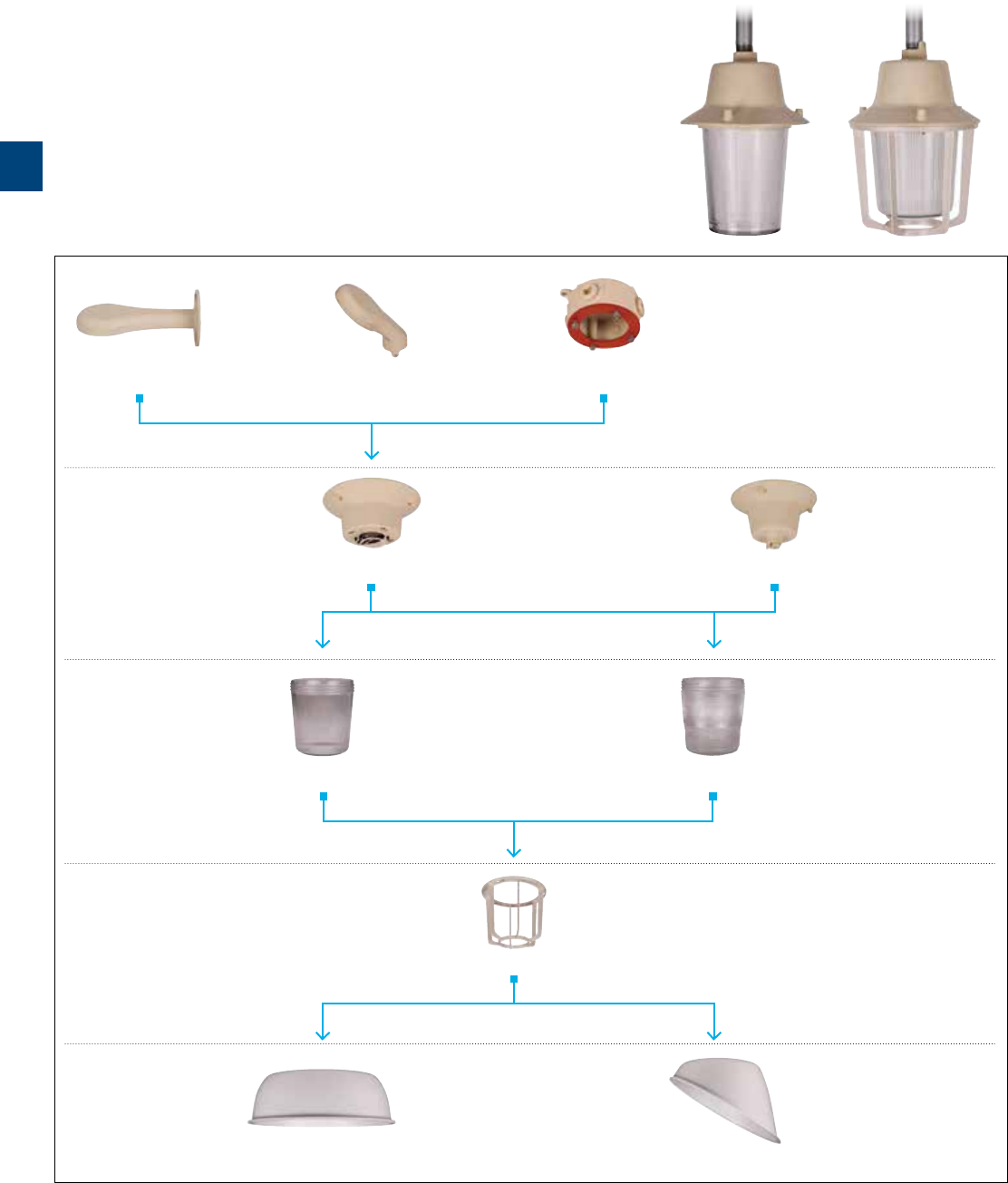

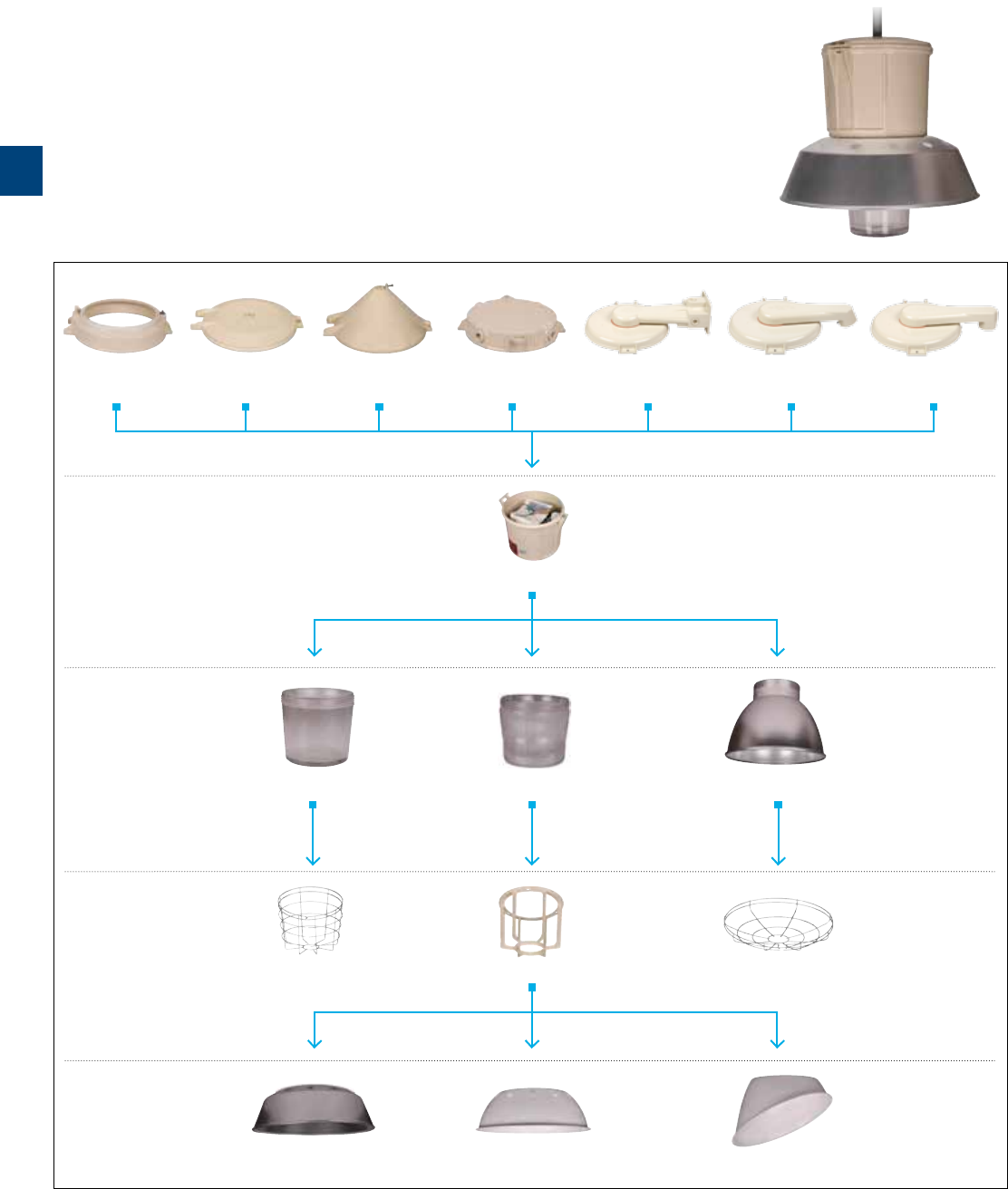

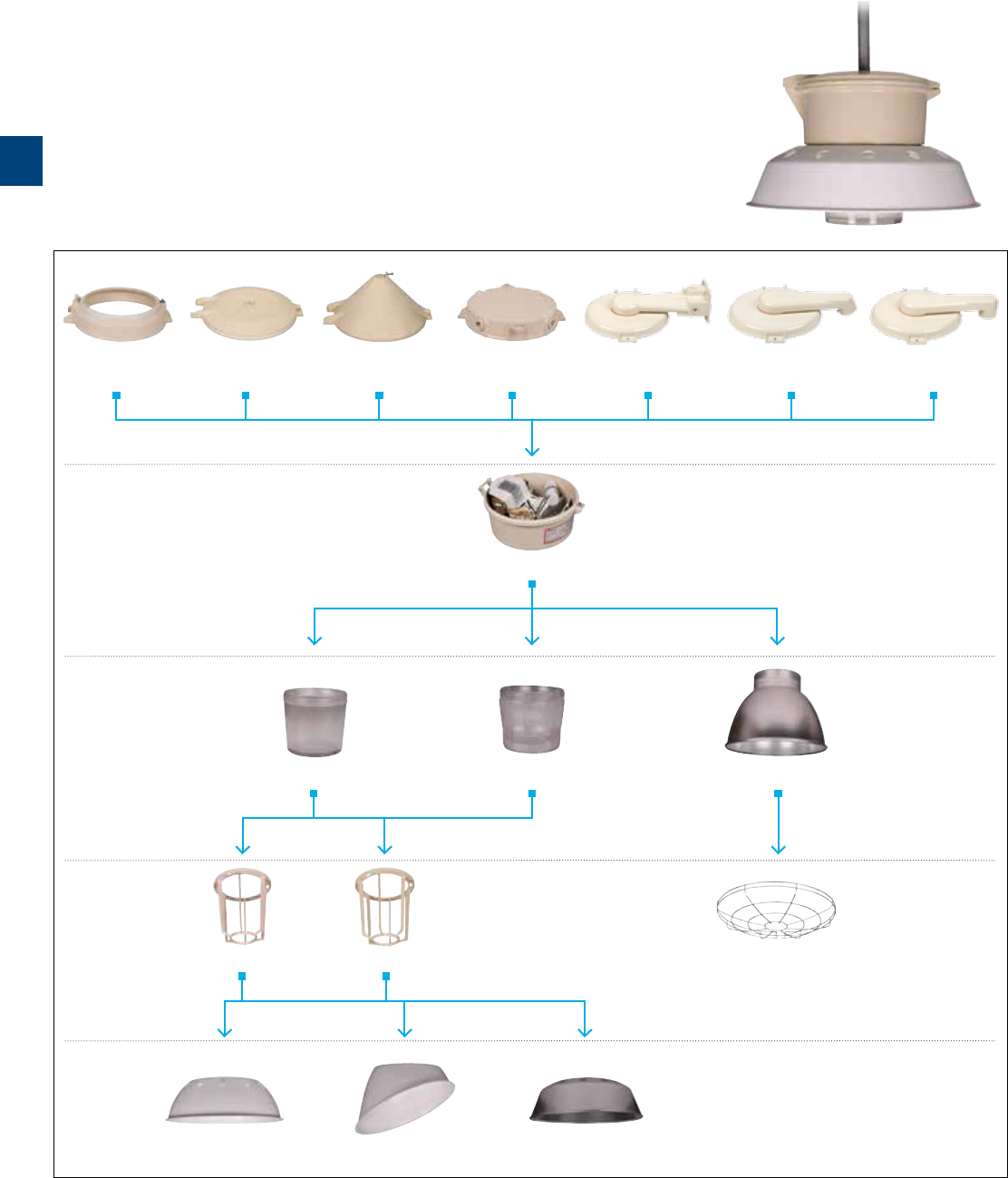

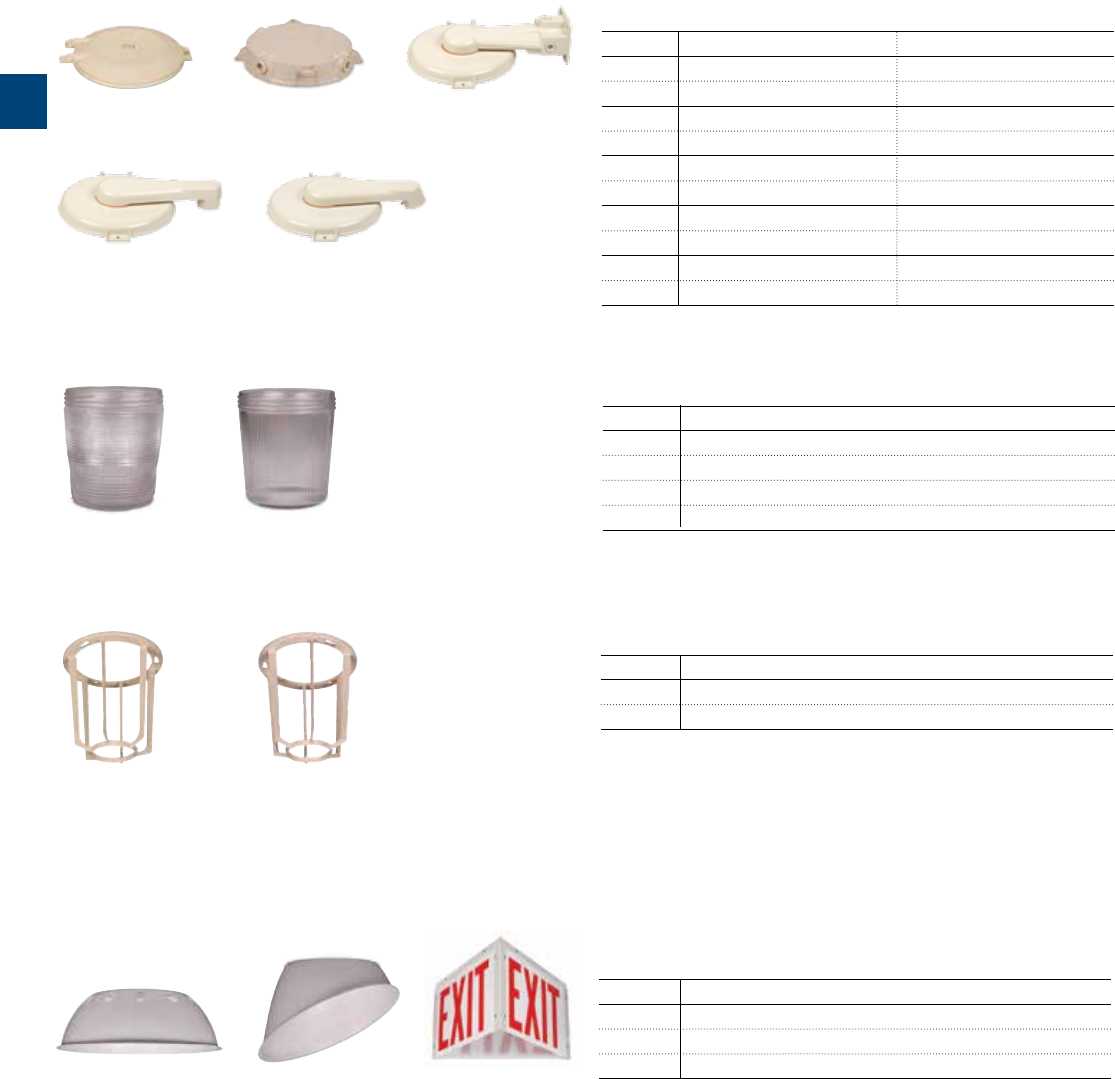

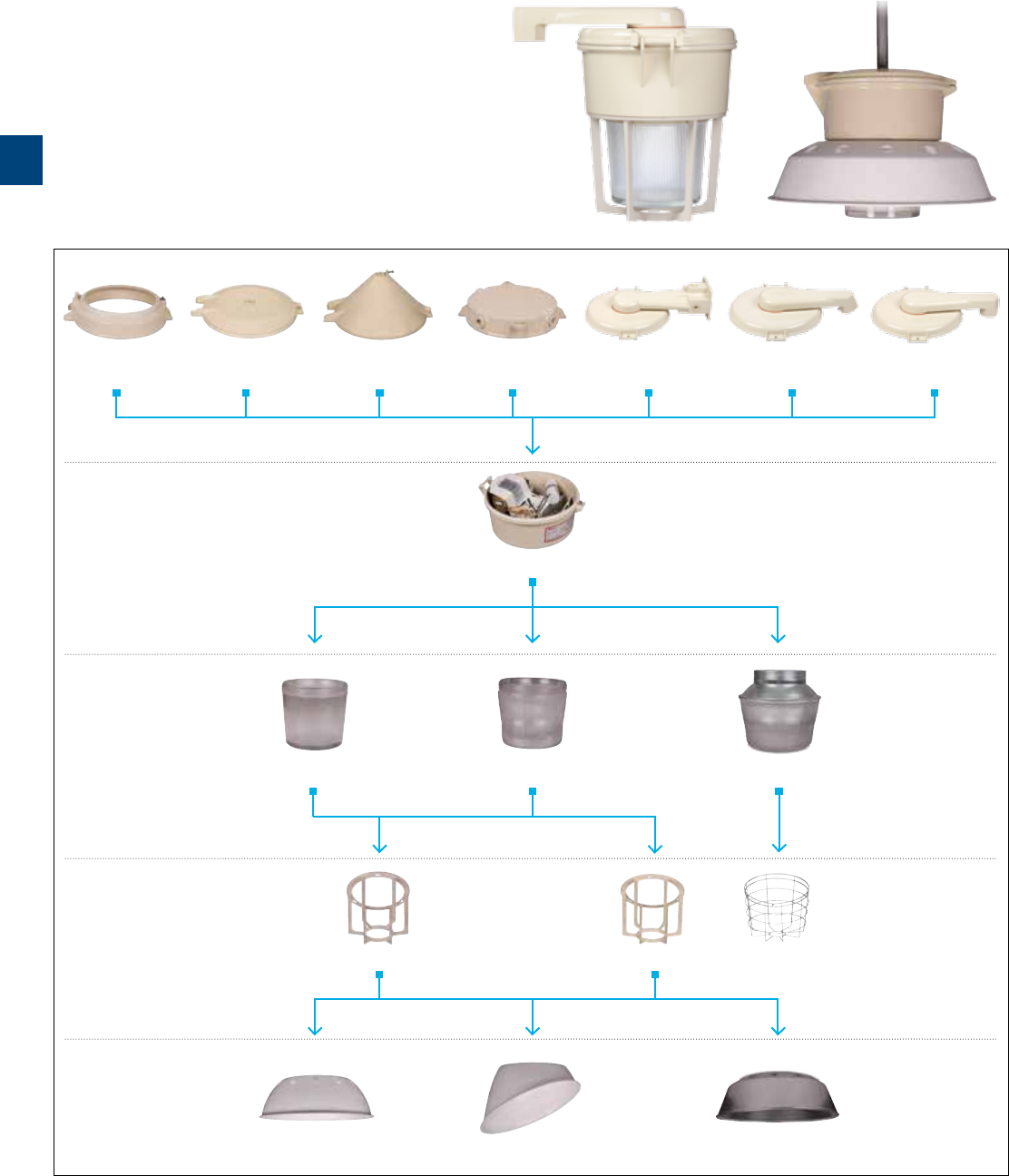

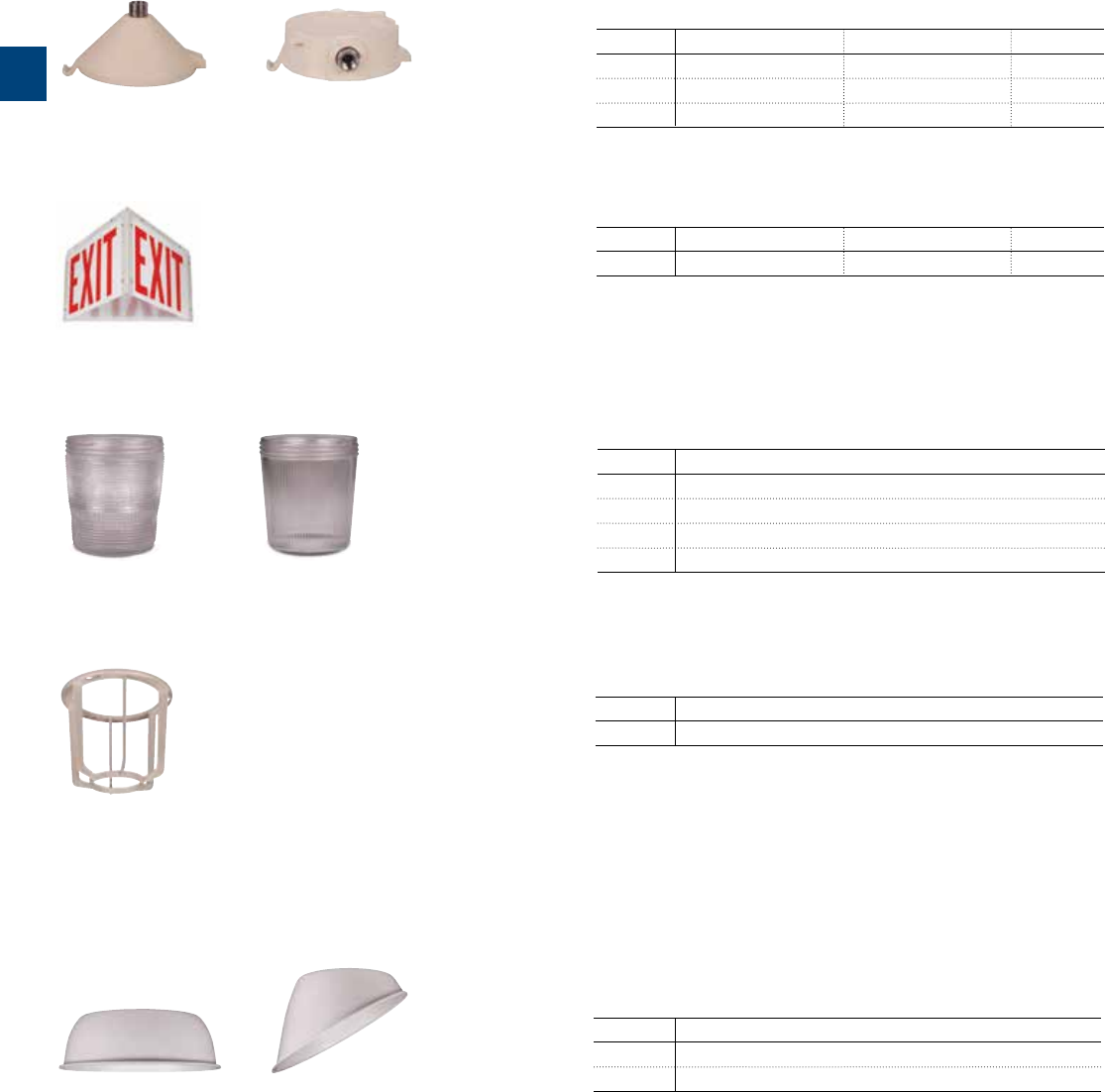

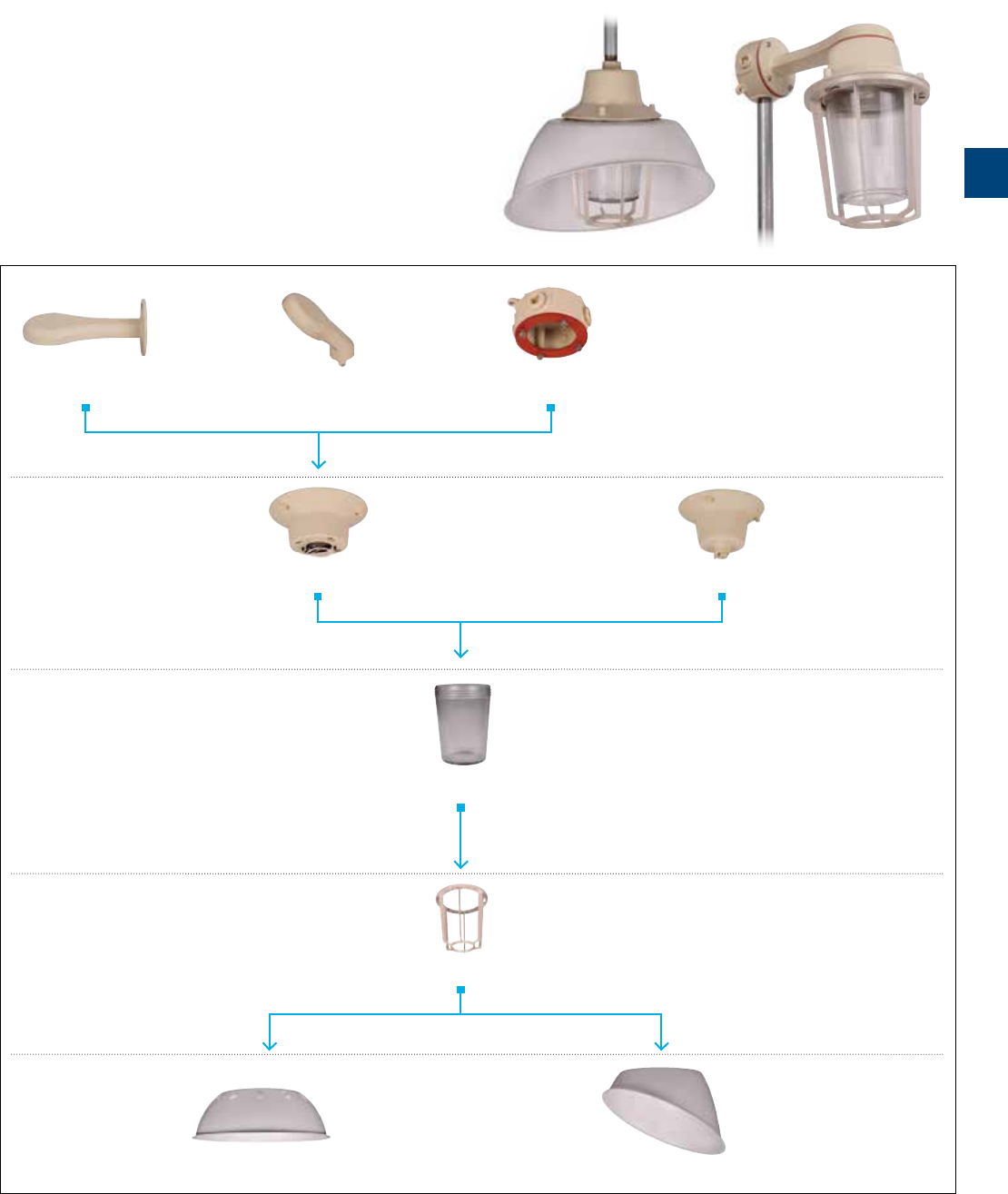

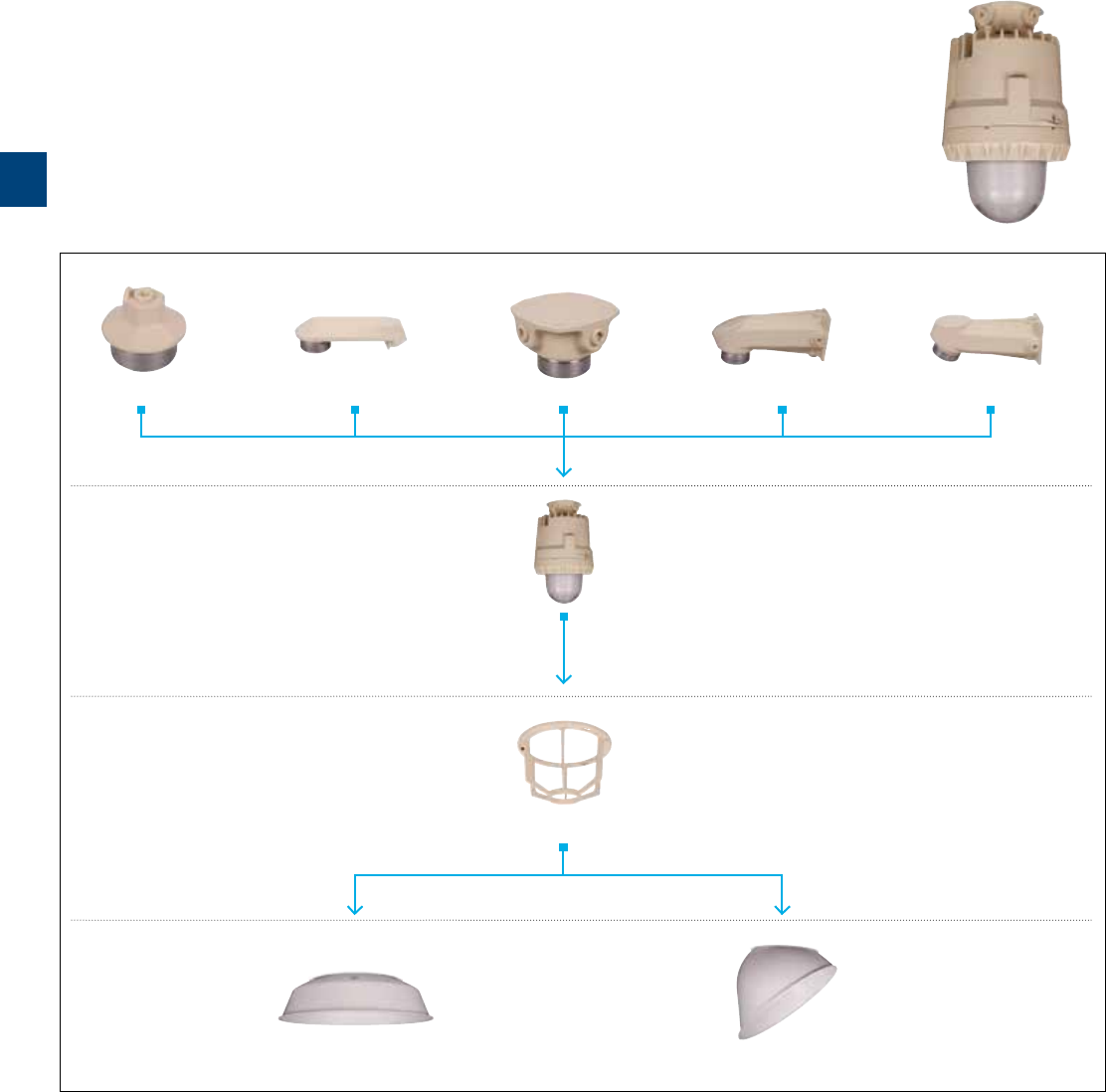

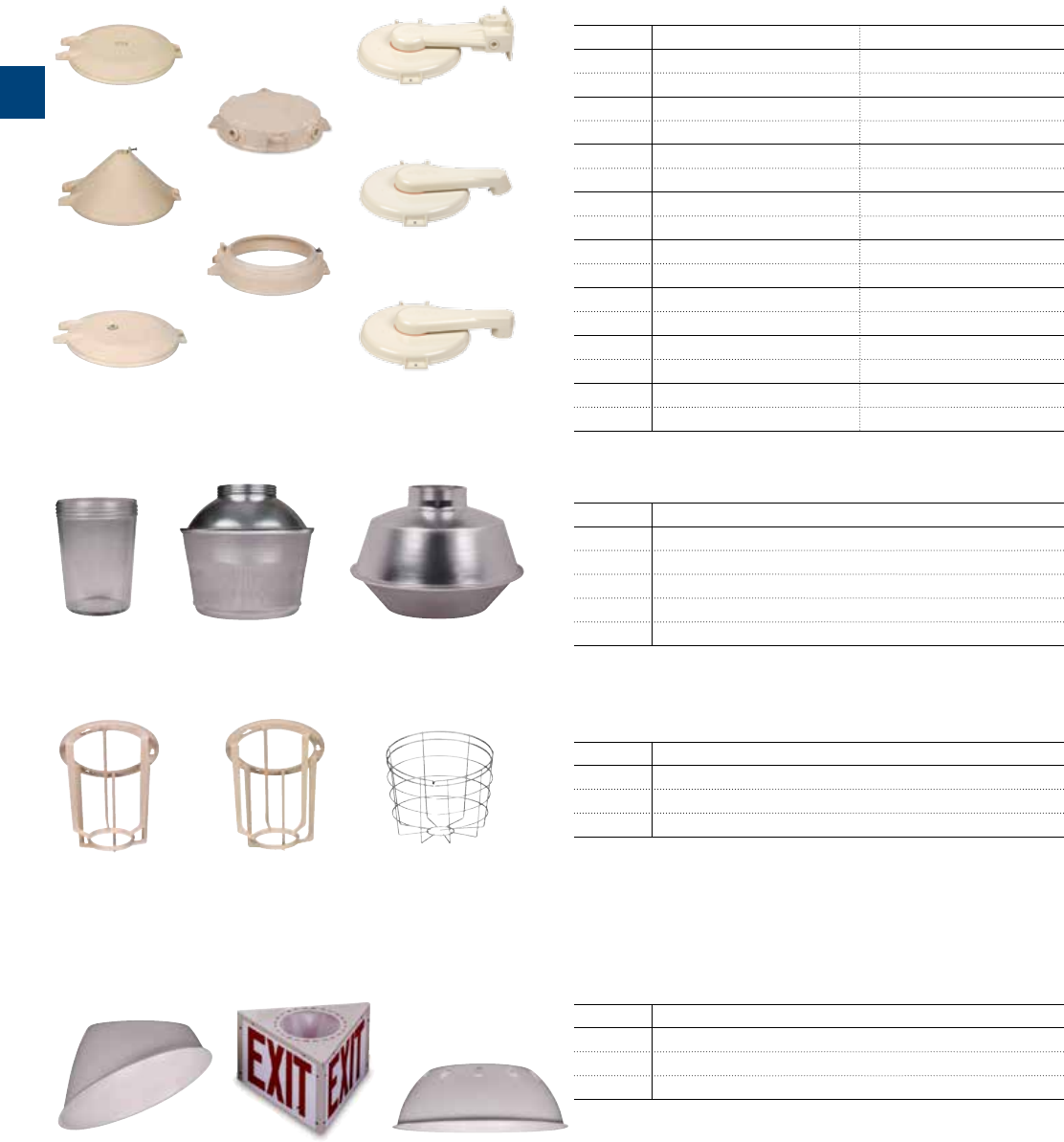

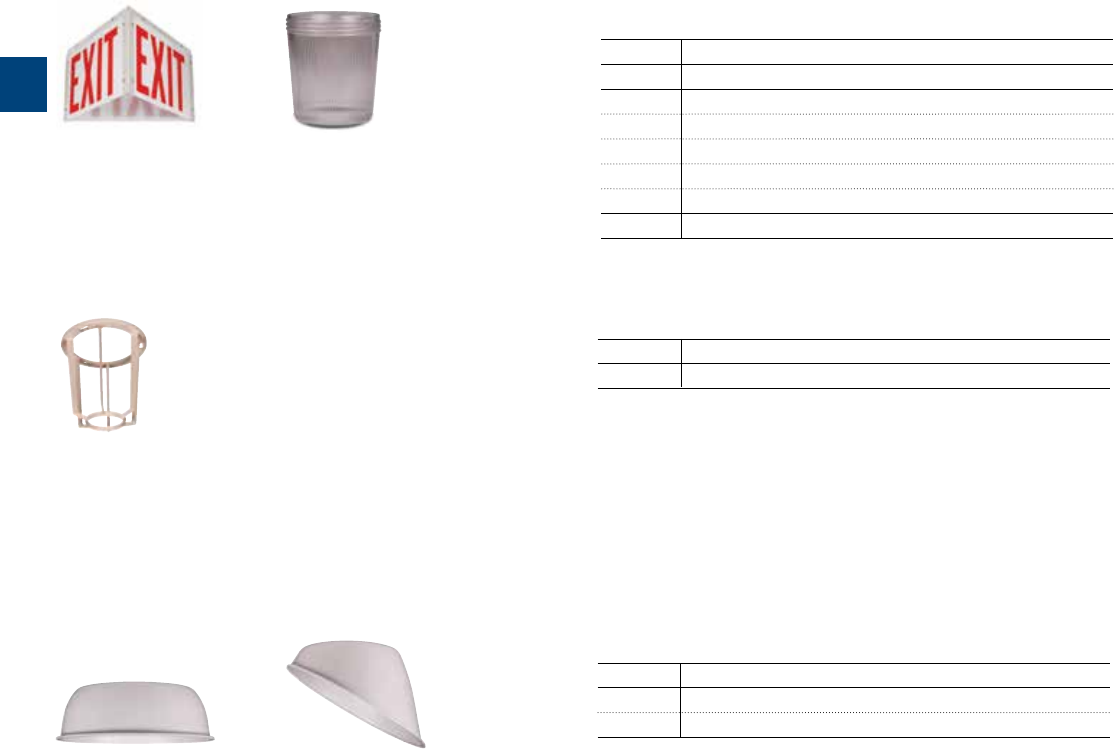

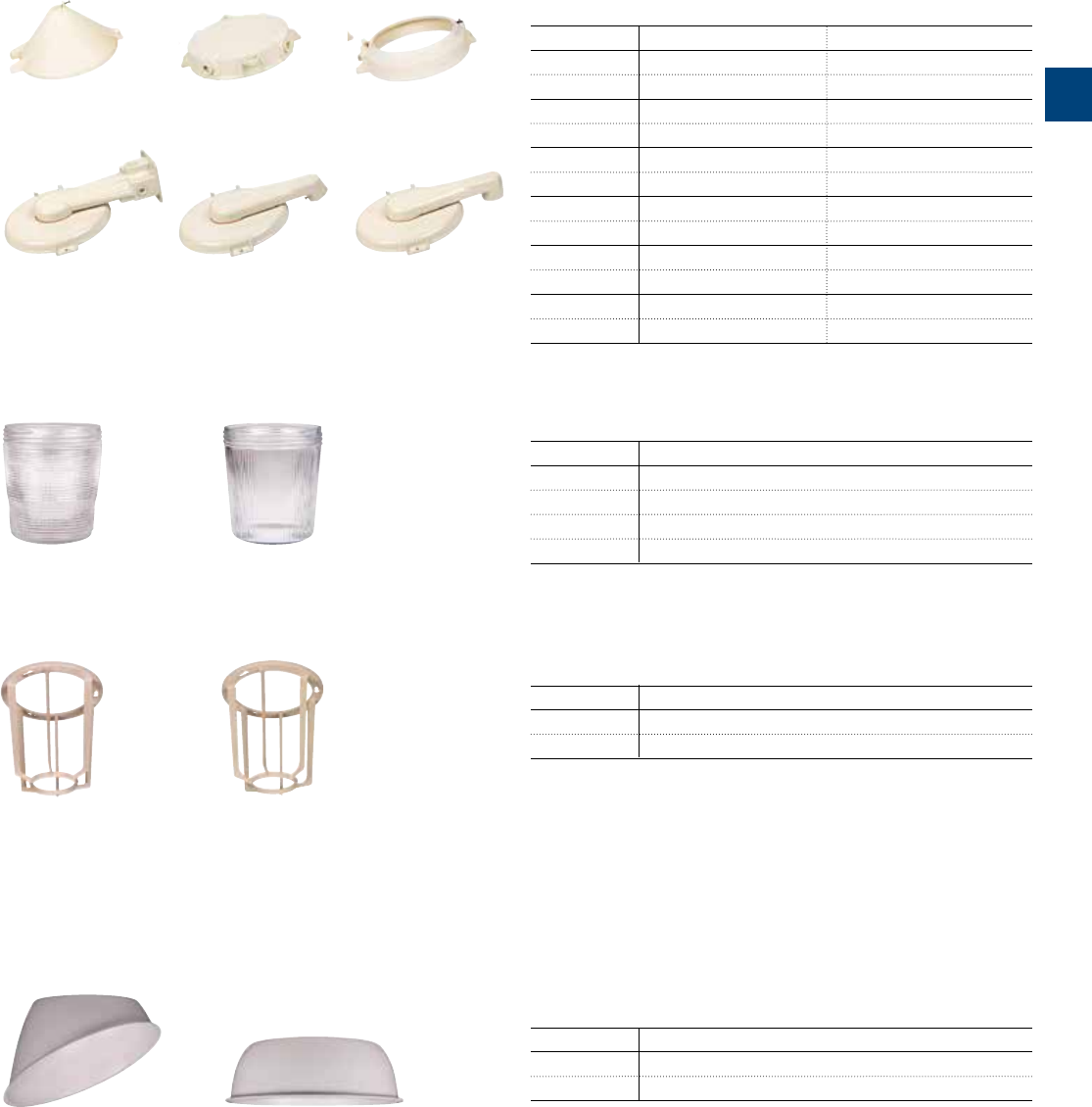

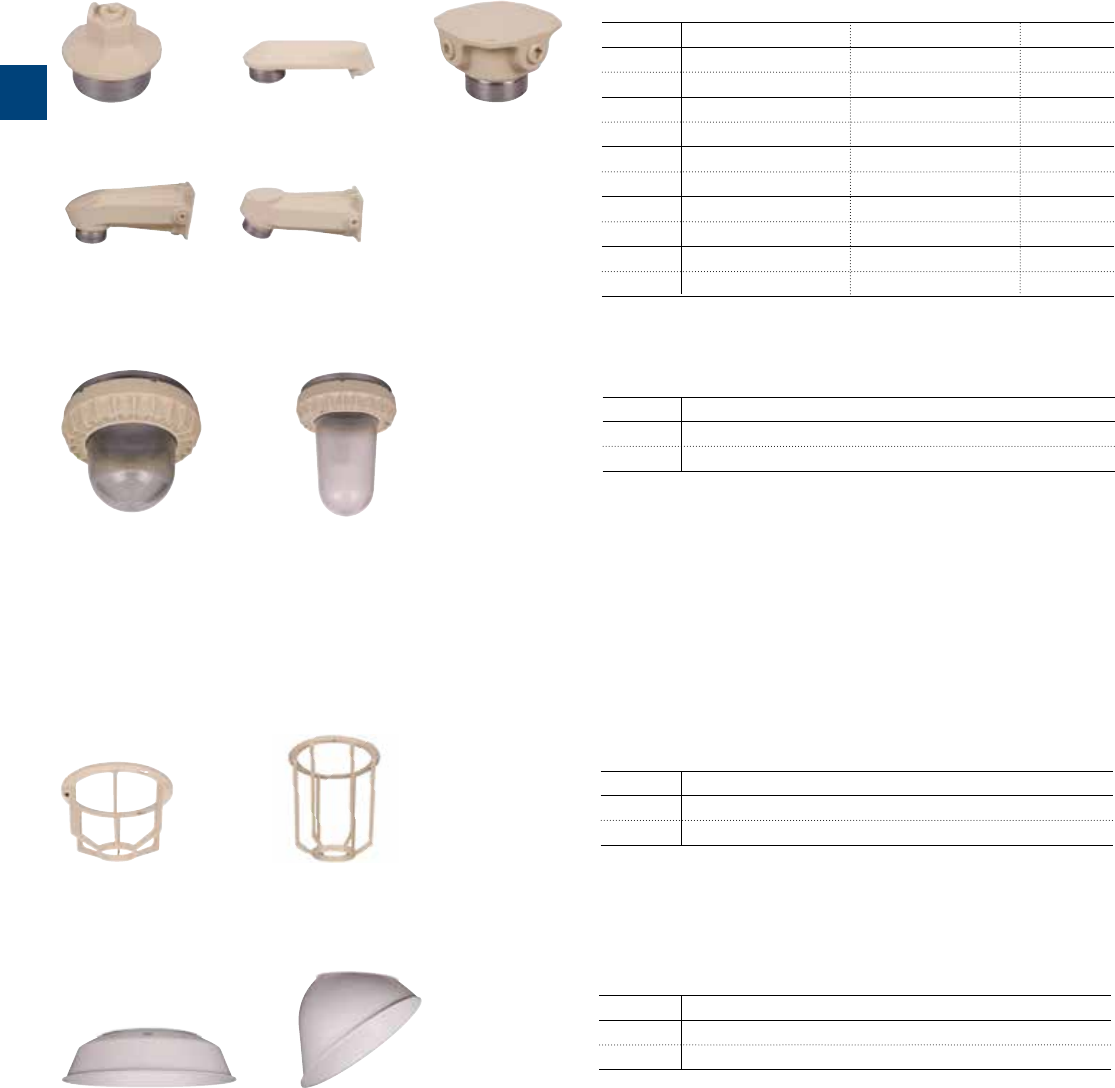

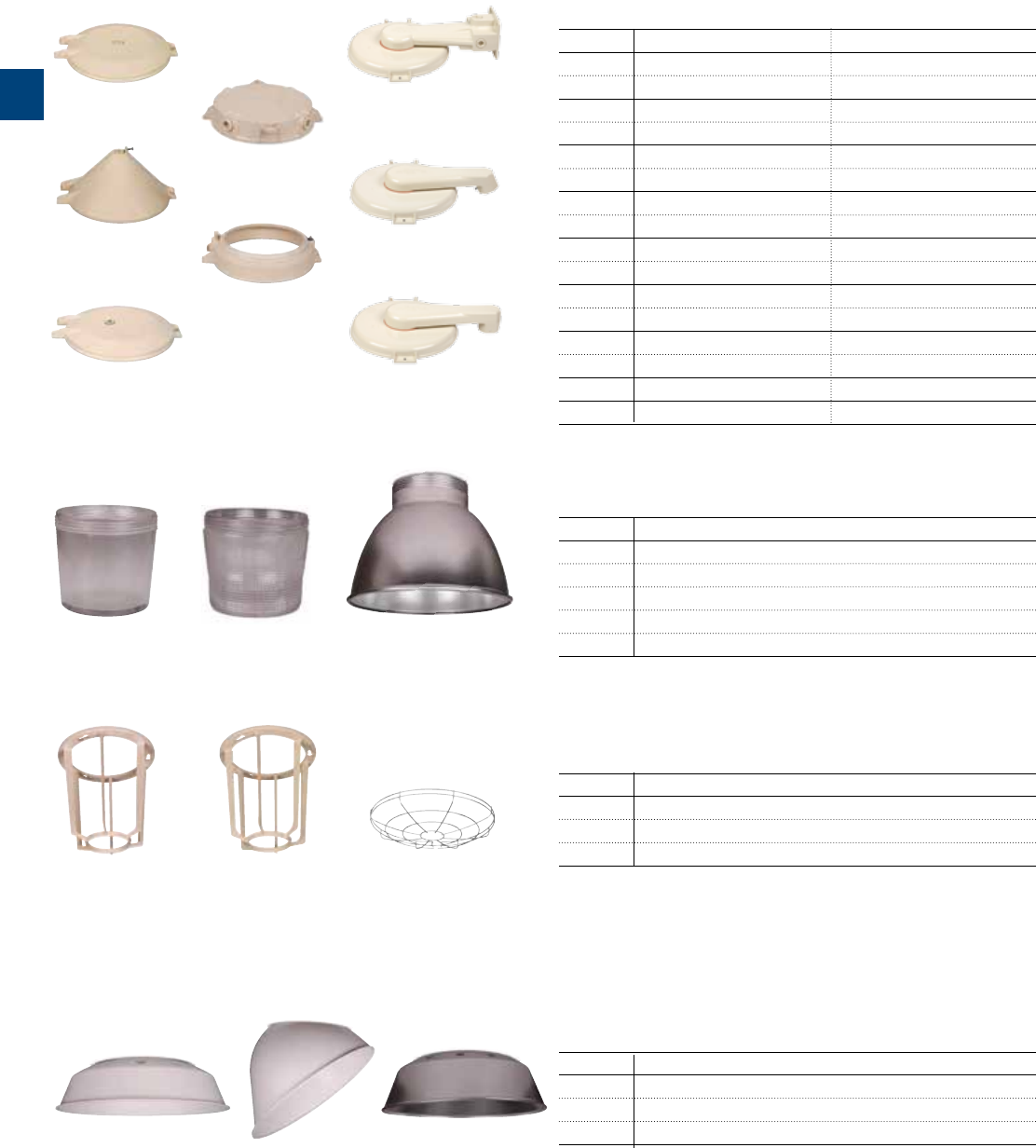

Assembly guide

Complete luminaire consists of:

– A mounting style

– Driver Tank

– Globe or Refractor

– Optional Guard and/or Reflector

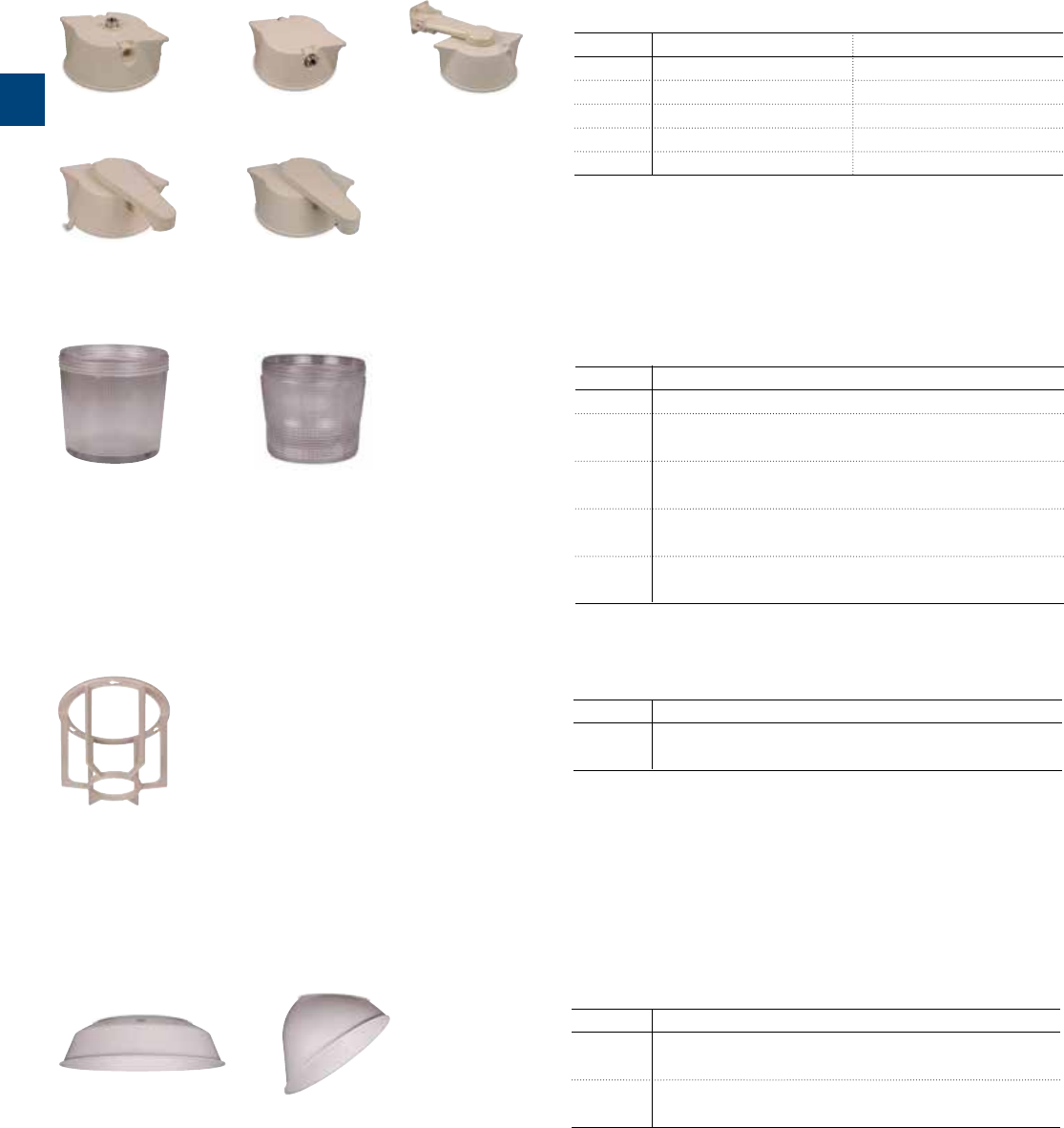

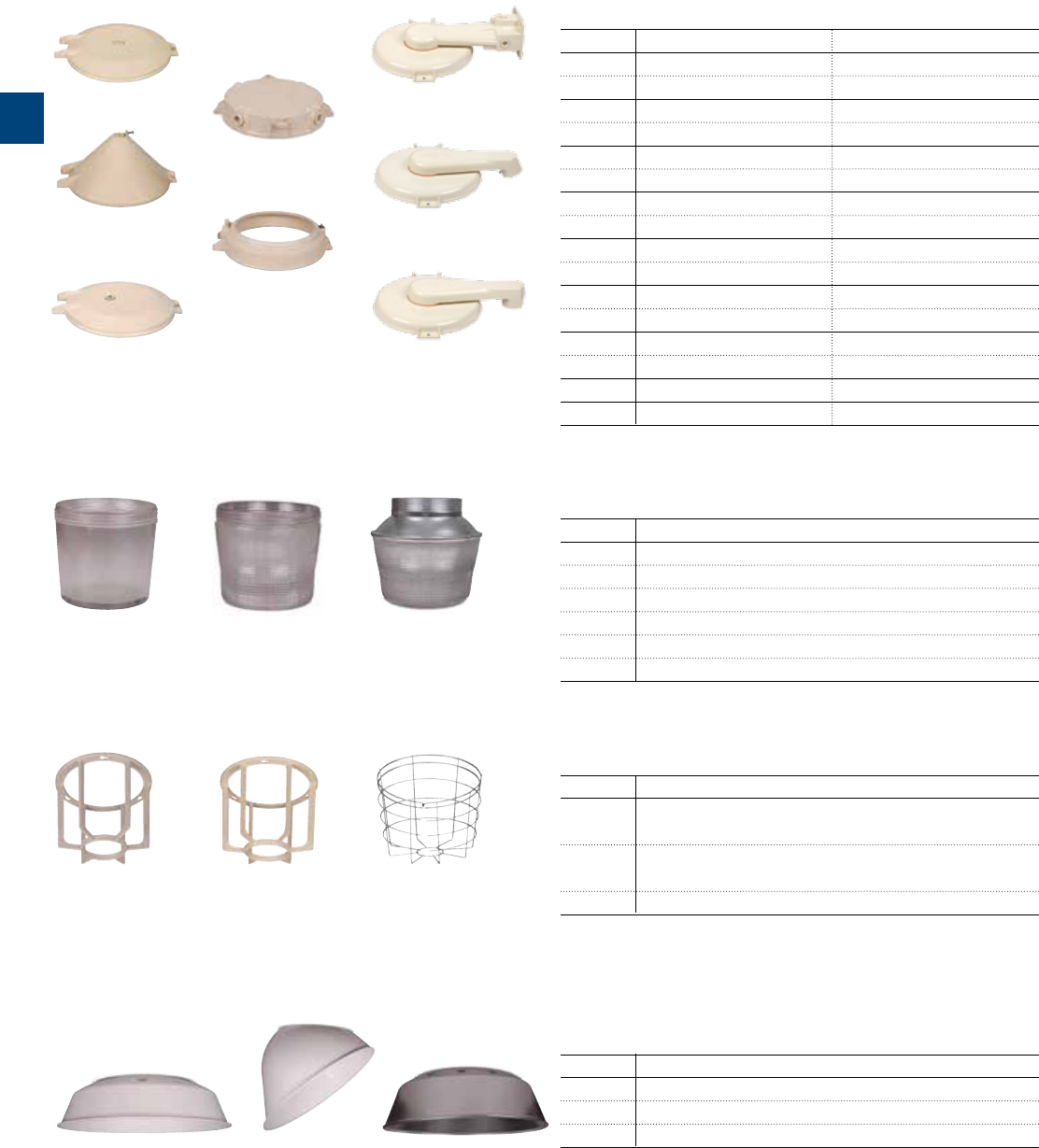

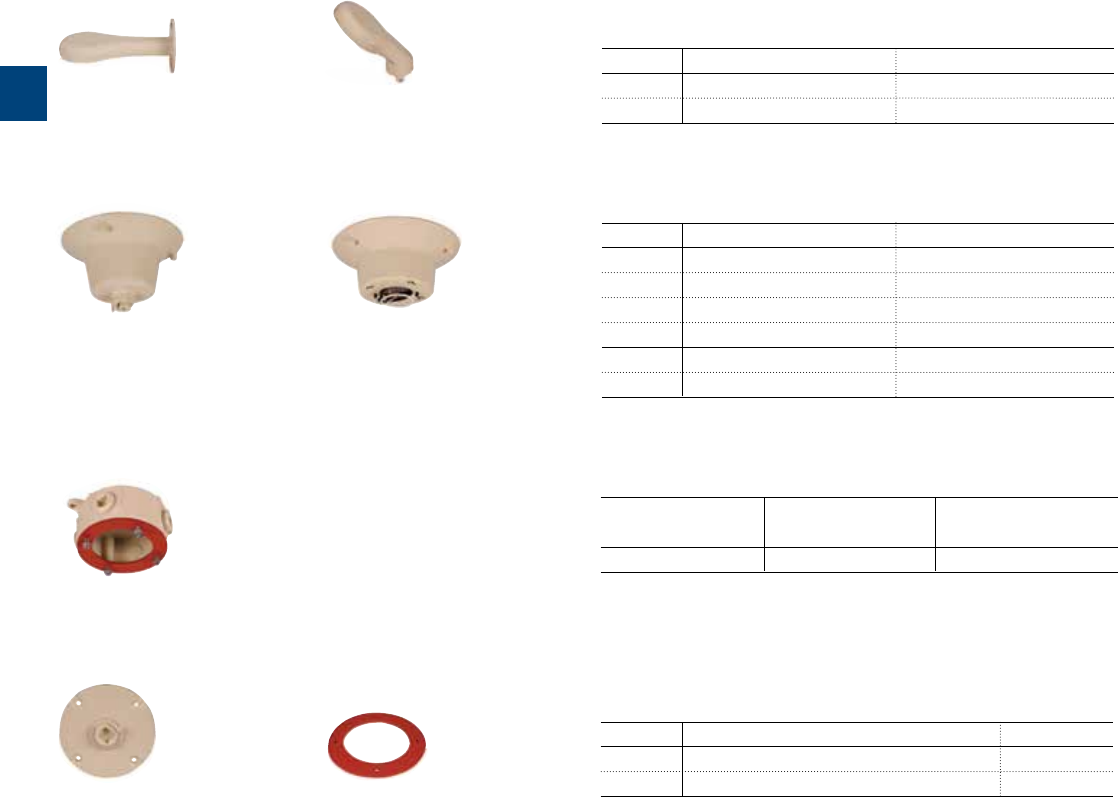

Mounting Style

Ballast Tank

Globe or Refractor

Guard

Reﬂector*

HazVertor™ Adapter Ring Wall Mount 25˚ Angle Stanchion

Standard Housing

Heat-Resistant Prismatic Glass

Refractor Globe

Cone-Top Pendant Ceiling and

Pendant Mount

Straight Stanchion

Polymeric Guard

Cast Guard

Standard Dome

30° Angle Reflector

*Reflectors are sold separately

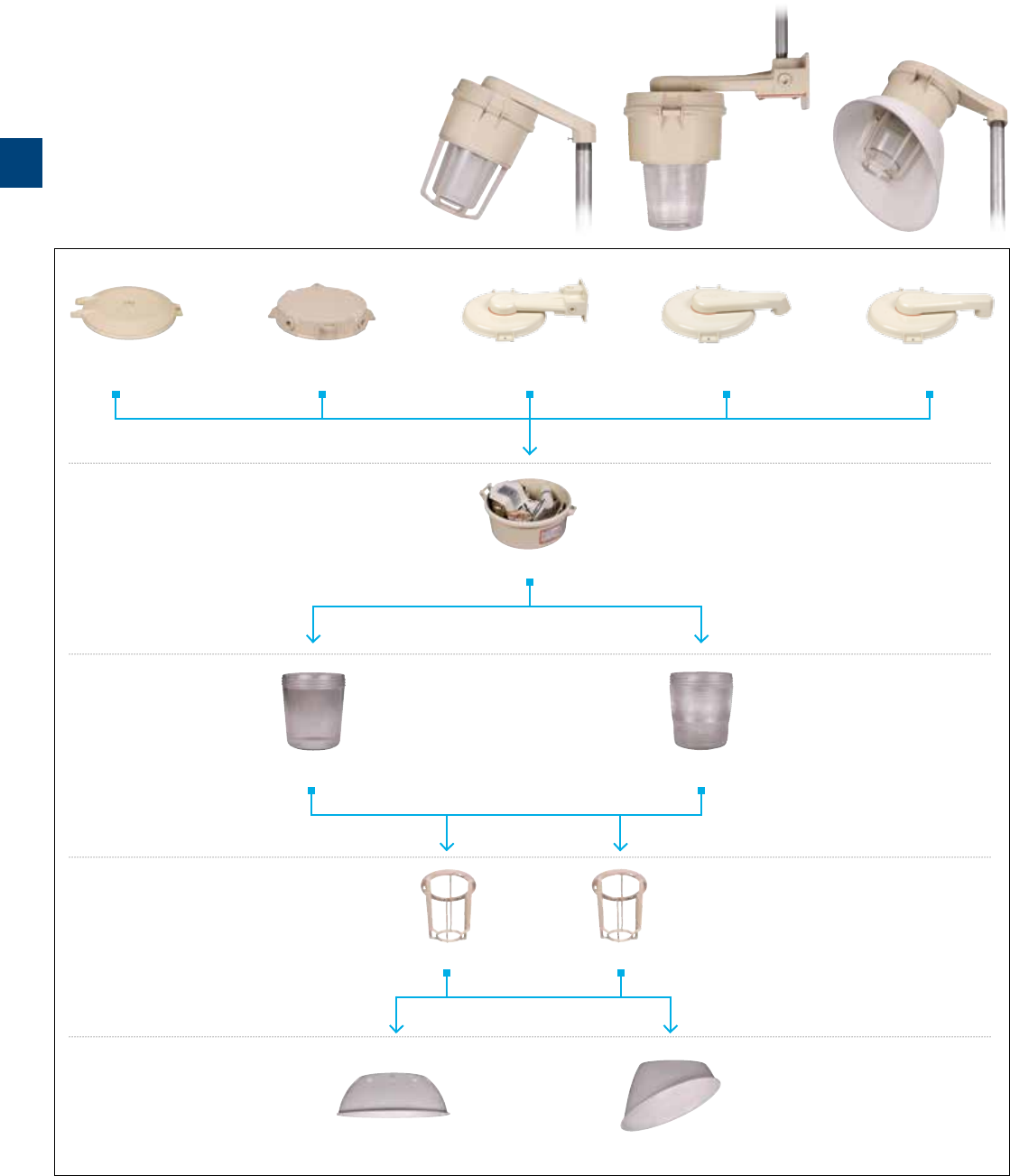

Hazlux® 3 LED DL Series - Assembly Guide

3/6 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3 LED DL Series

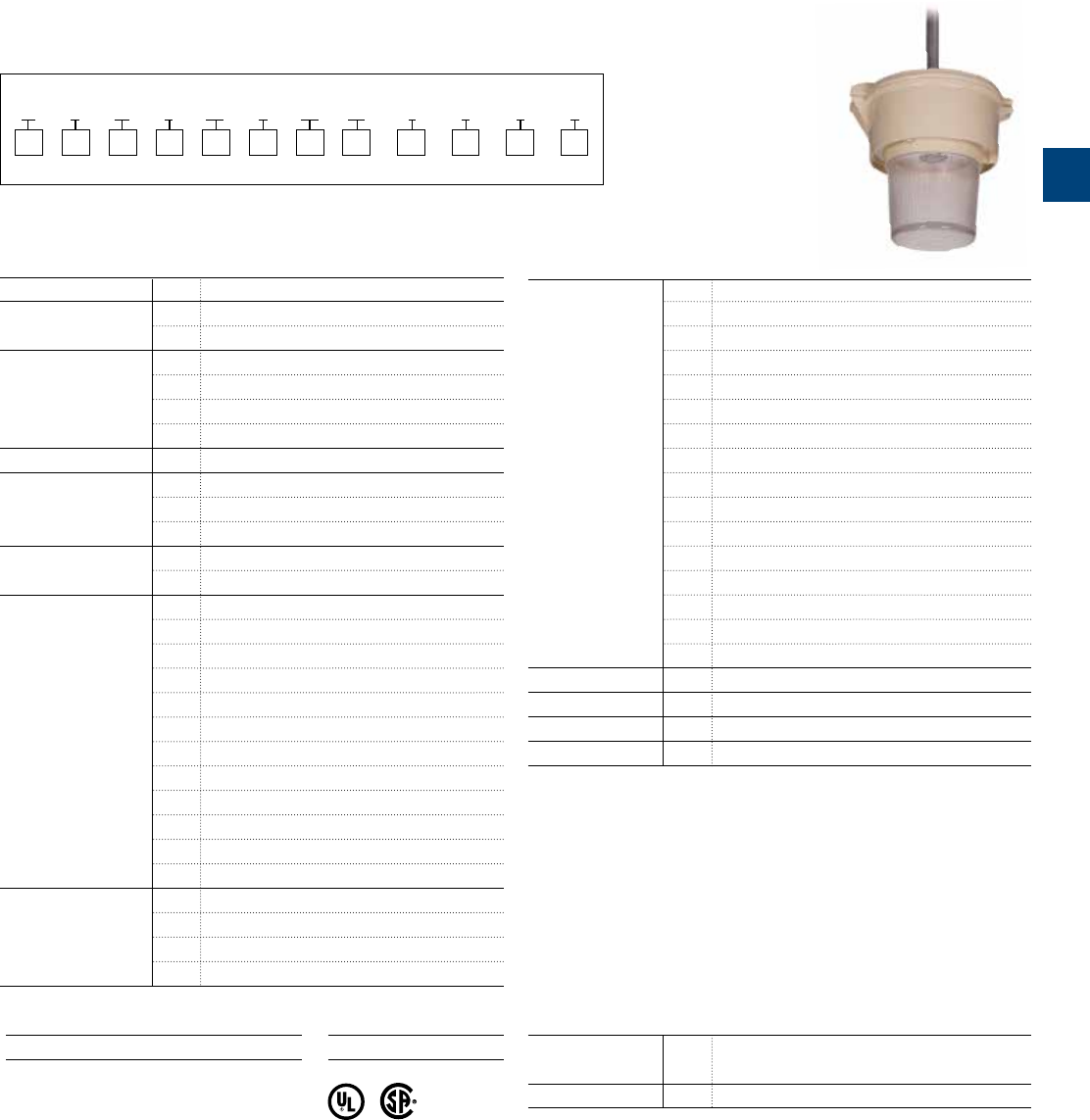

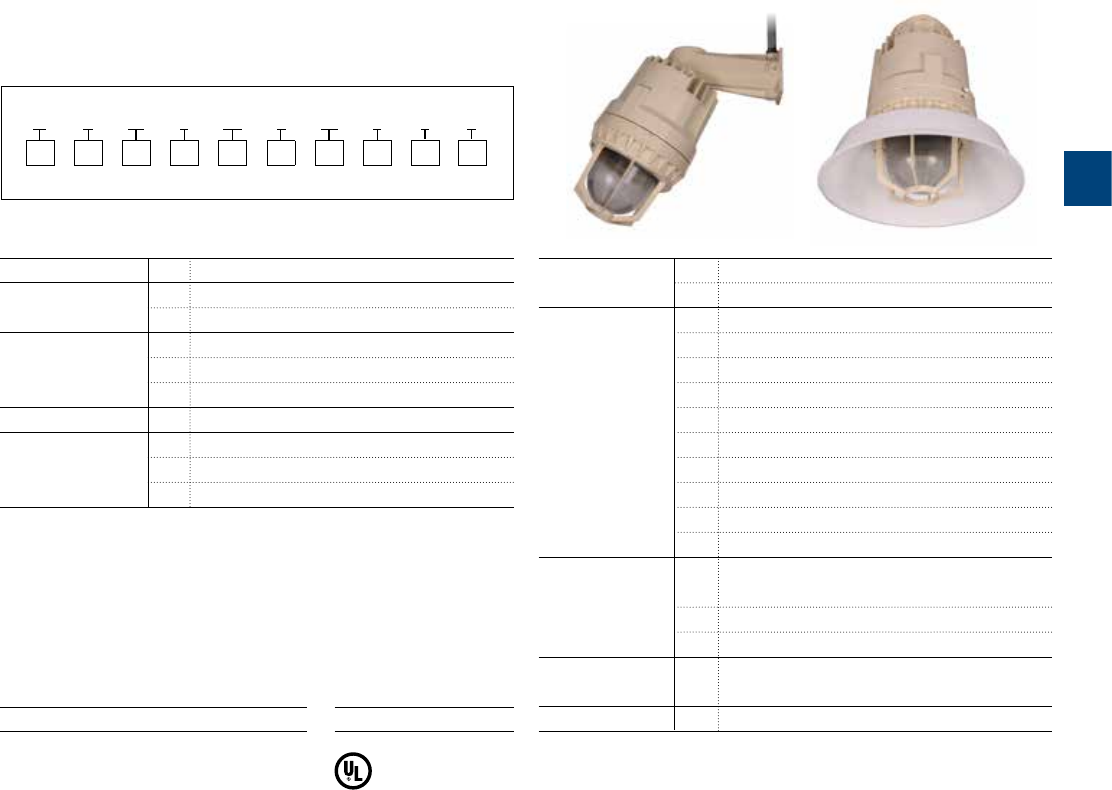

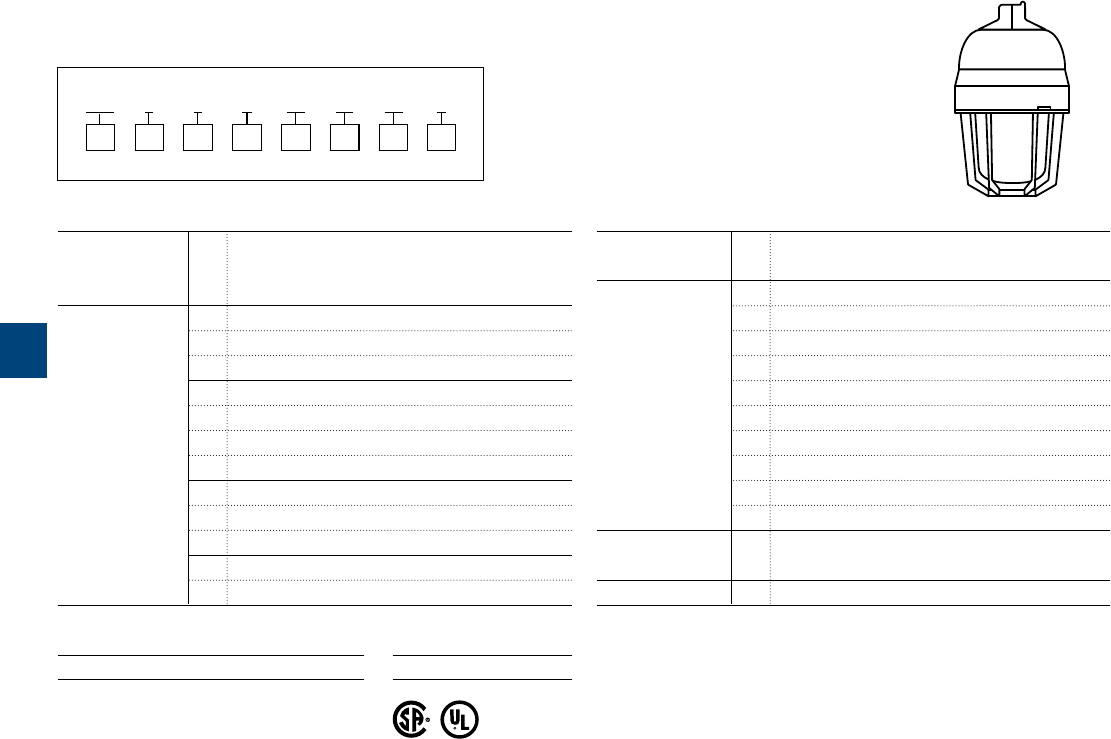

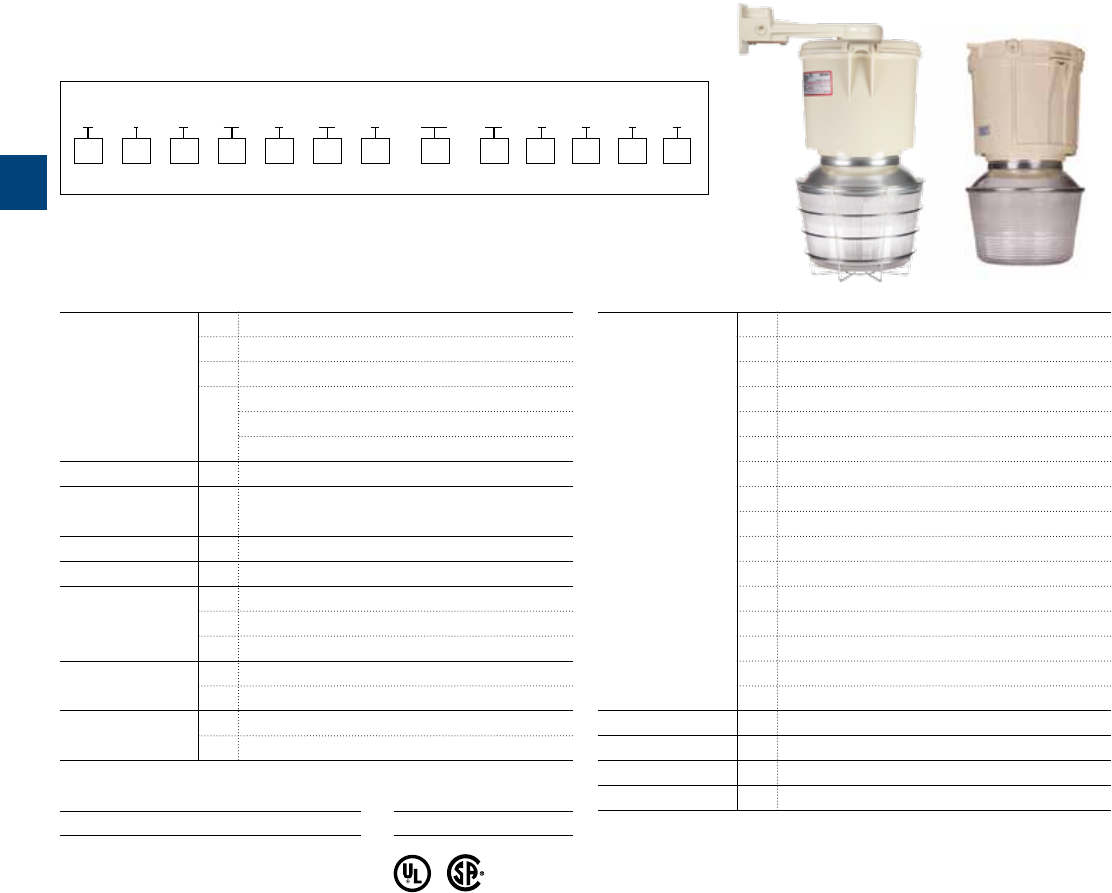

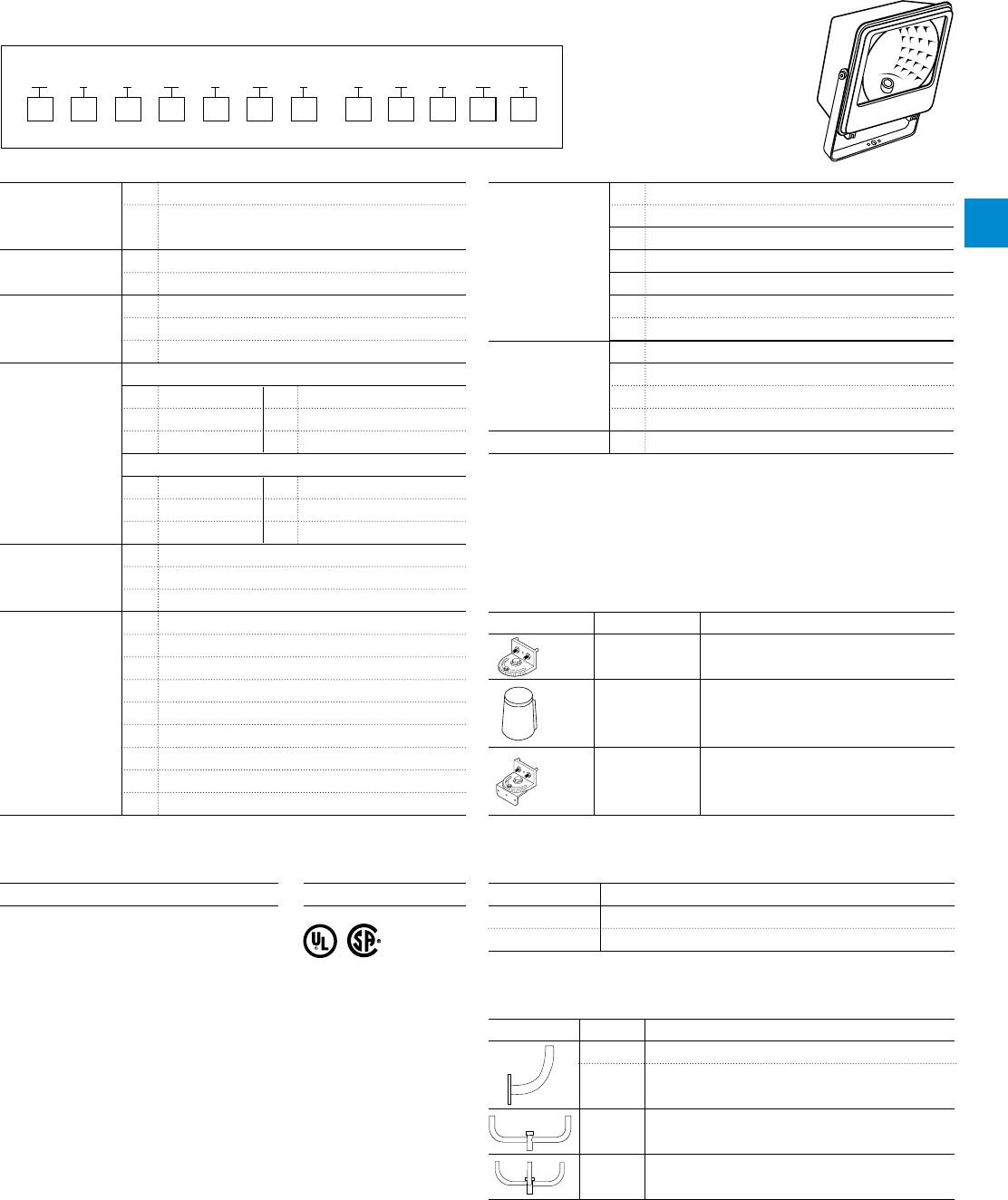

Catalog numbering system

Approvals / CharacteristicsCertifications & Standards

Class I – Division 2, Groups A, B, C and D

– Zone 2, Groups IIC, IIB, IIA

Class II – Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X

– CSA C22.2 No. 137

UNIPAK™ =

– LED Driver Tank +

– Optics & Mountings +

– Options (if necessary) 12345

6 78910111213

DL O 10 E UN O

Ø-TGL-P2 E T F C

Optics & Mountings Options

78910 56 789101112

TG C C2 E UN O Ø-TGL-P2 E T F

123456 7811 12 3456 78

T 16 10 E UN O Ø-TGL-

123456

910111213

DL O 10 E UN O

Ø-TGL-P2

E T F C

Optics & Mountings Options

78910

56 789101112

TG C C2 E

UN O Ø-TGL-P2 E T F

123456 7811 12 3456 78

T 16 10 E UN O Ø-TGL-

123456 78910111213

DL O 10 E UN O Ø-TGL-P2 E

F C

Optics & Mountings Options

78910 56

789101112

TG C C2 E UN

Ø-TGL-P2 E T F

123456 78

11 12

3456 78

T 16

10 E UN O Ø-TGL-

LED driver tank Optics and mountings Options

LED Driver Tank Optics & Mountings

1 Fixture Series DL Hazlux® 3 Fixture

2 FIxture C Standard Fixture

3 Lumen Output 05 5,800 lumens, 45W

07 7,100 lumens, 58W

10 10,100 lumens, 88W

15 15,600 lumens, 122W

17 17,800 lumens, 131W

20 20,400 lumens, 166W

4 FIxture E Electronic LED Driver

5 Voltage/ UN 120 to 277VAC 50/60Hz

Frequency (voltage range includes 208V, 220V, 240V etc.)

UN2 Universal 347/480VAC 50/60Hz

(Not available for DL017 and DL020)

6 LED Driver O Standard Housing

Housing Style S Standard Housing with Stainless Steel Inserts

7 Optical Assembly TG Thermal Shock-Resistant Globe

Options R1 Type I Glass Refractor Globe

R3 Type III Glass Refractor Globe

R5 Type V Glass Refractor Globe

8 Guard Option C Cast Aluminium Guard

L Polymeric Guard

9 Mounting Style A2 3⁄4“ Cone-Top Pendant

A3 1“ Cone-Top Pendant

B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling / Pendant Mount

C3 1“ Ceiling Mount

HV1 HazVertor™ Ring - Class I, Div. 2, Zone 2

HV2 HazVertor™ Ring - Class I Div. 2 Zone 2 , Class II

L4 11⁄4“ Straight Stanchion

L5 11⁄2“ Straight Stanchion

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

Blank No mounting (to replace exisiting fixture)

10 UNIPAK™ E UNIPAK™ with LED Light Source

Options

11 Special Options T Hazcote® Custom Anti-corrosion Coating

(Consult factory)

G Grey Colour Option

12 Light Distribution I3 Internal reflector 35˚ beam angle*

Options I4 Internal reflector 45˚ beam angle*

I5 Internal reflector 65˚ beam angle*

*DL005, DL007 and DL010 only

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/7

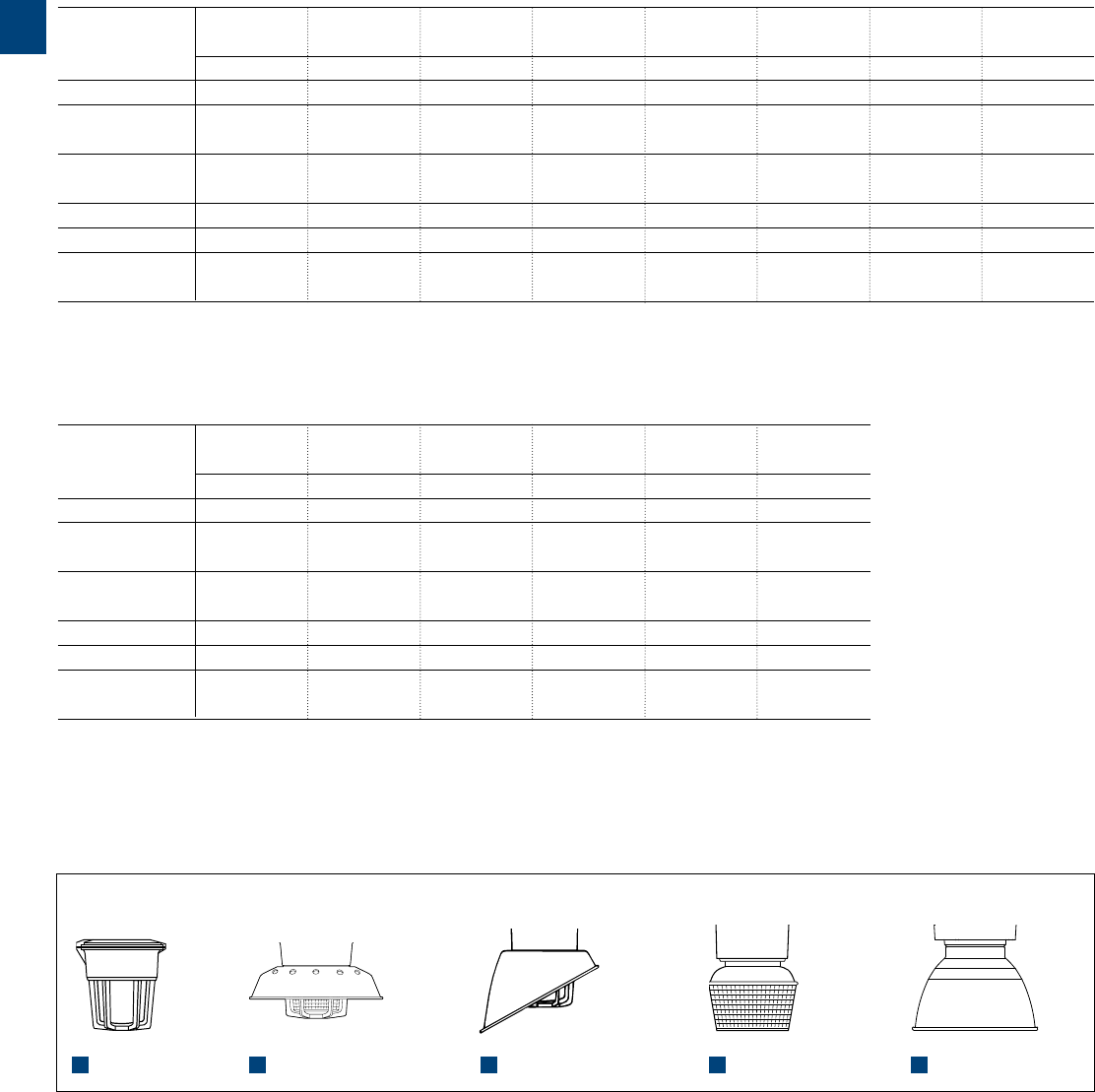

Options

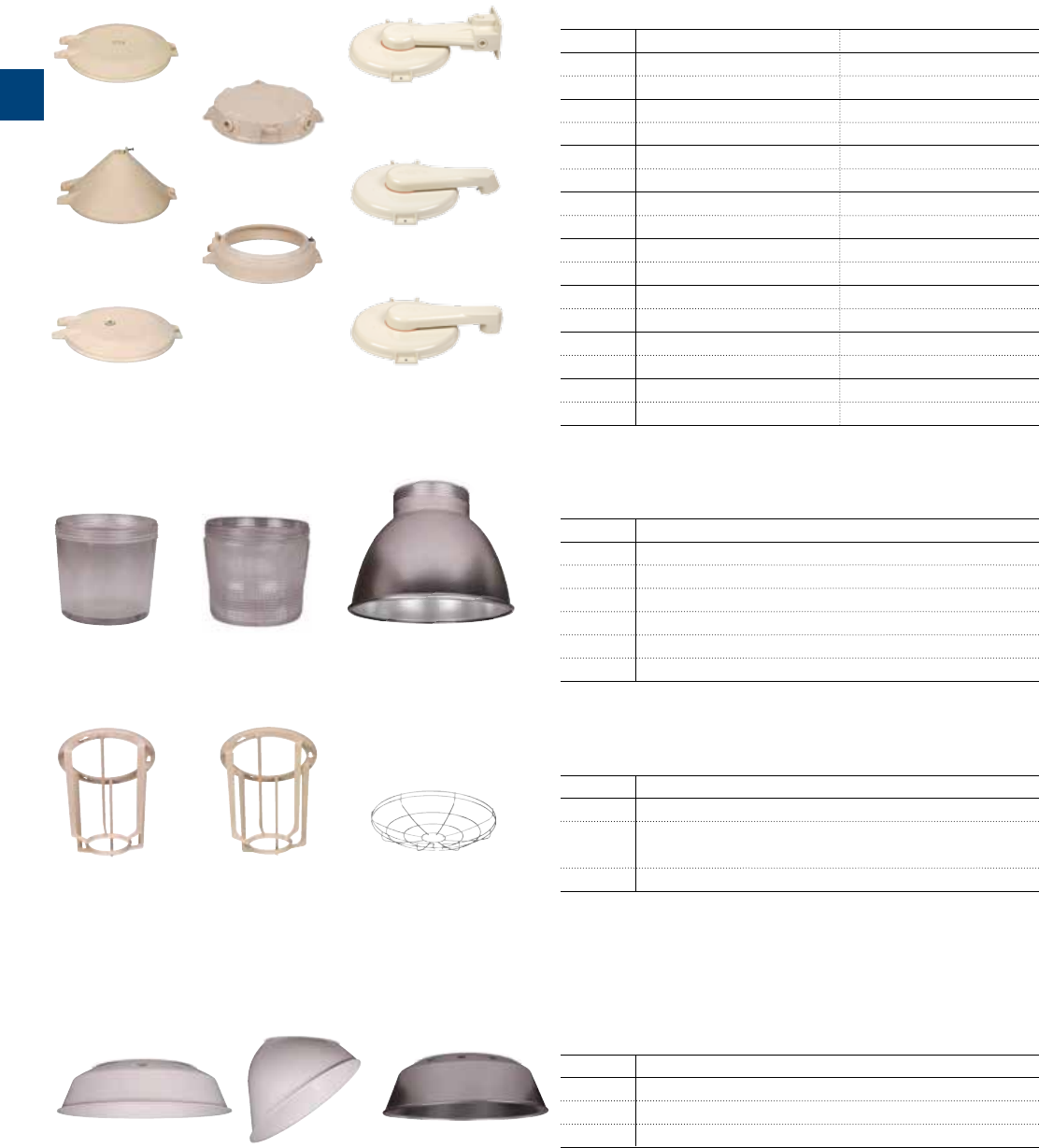

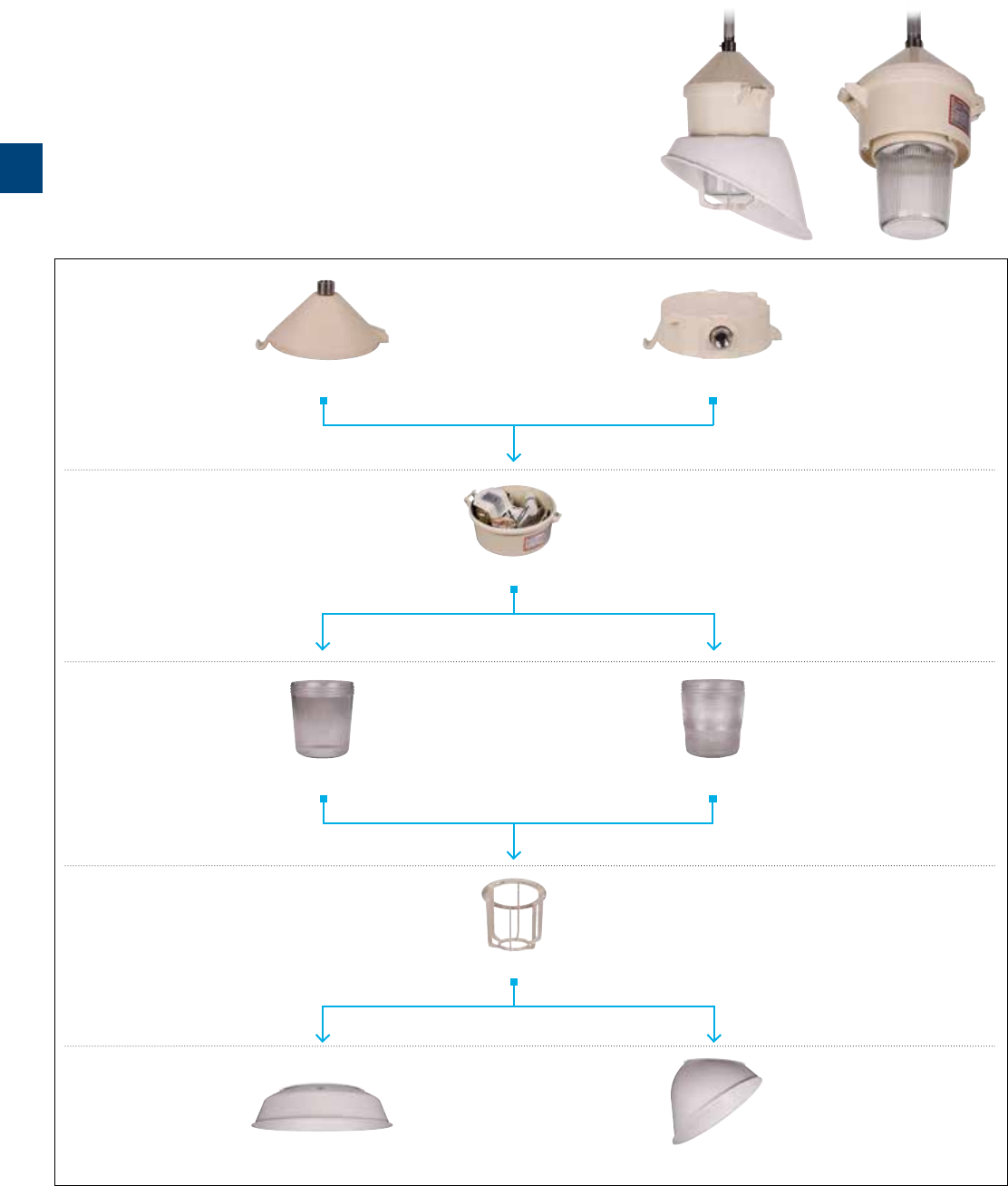

Individual components (to be used with LED driver housing)

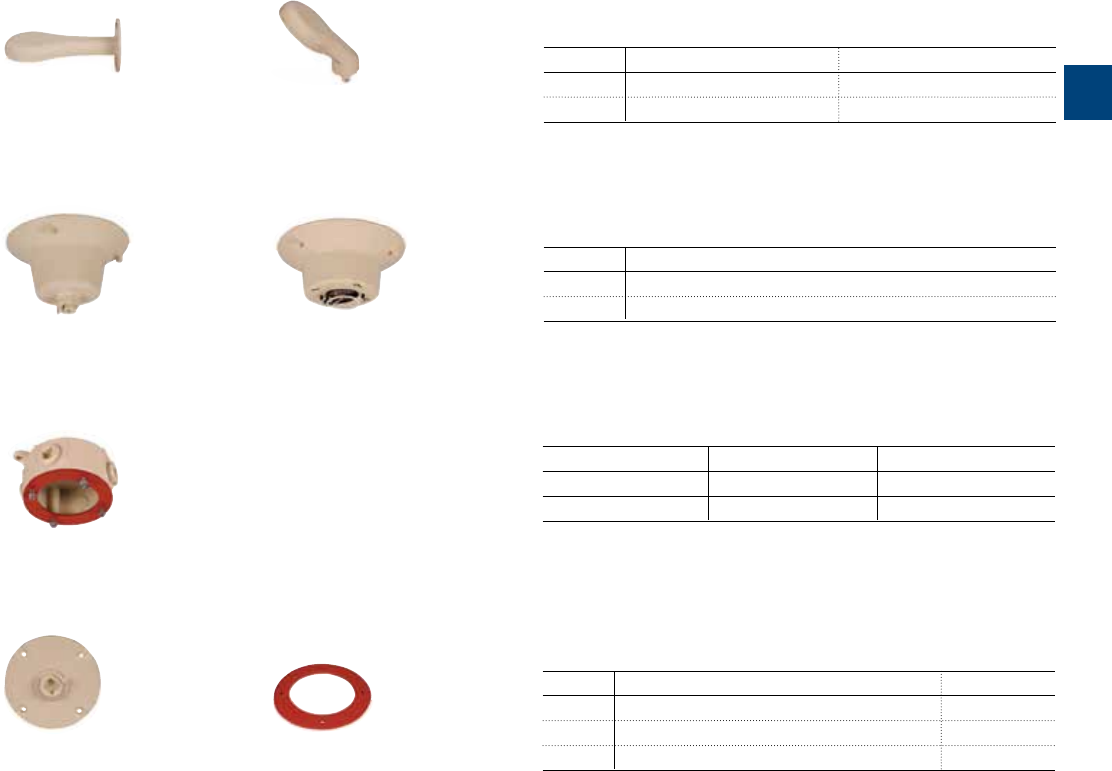

Mounting Options

Globes or Refractors

Reflectors or Exit Sign

Optional components

Part No. Description Conduit Hub Size

VA2 Cone-Top Pendant 3⁄4“

VA3 Cone-Top Pendant 1“

VC2 Ceiling Mount 3⁄4“

VC3 Ceiling Mount 1“

VB2-VIB Wall Mount 3⁄4“

VB3-VIB Wall Mount 1“

VS4-VIB 25° Angle Stanchion 11⁄4”

VS5-VIB 25° Angle Stanchion 11⁄2”

VL4-VIB Straight Stanchion 11⁄4”

VL5-VIB Straight Stanchion 11⁄2”

HV1 HazVertor™ Adapter Ring N/A

HV2 HazVertor™ Adapter Ring N/A

Part No. Description

VGT15 Heat-Resistant Prismatic Glass Globe

VGL15R1 IES Type I Refractor Globe

VGL15R3 IES Type III Refractor Globe

VGL15R5 IES Type V Refractor Globe

Part No. Description

VGU22P Polymeric Guard

VGU22 Cast Guard

Part No. Description

VR15P Standard Dome, Fiberglass-Reinforced Polyester

VRA15P Angular Dome, Fiberglass-Reinforced Polyester

Note: Reﬂectors are shipped bulk unless speciﬁed

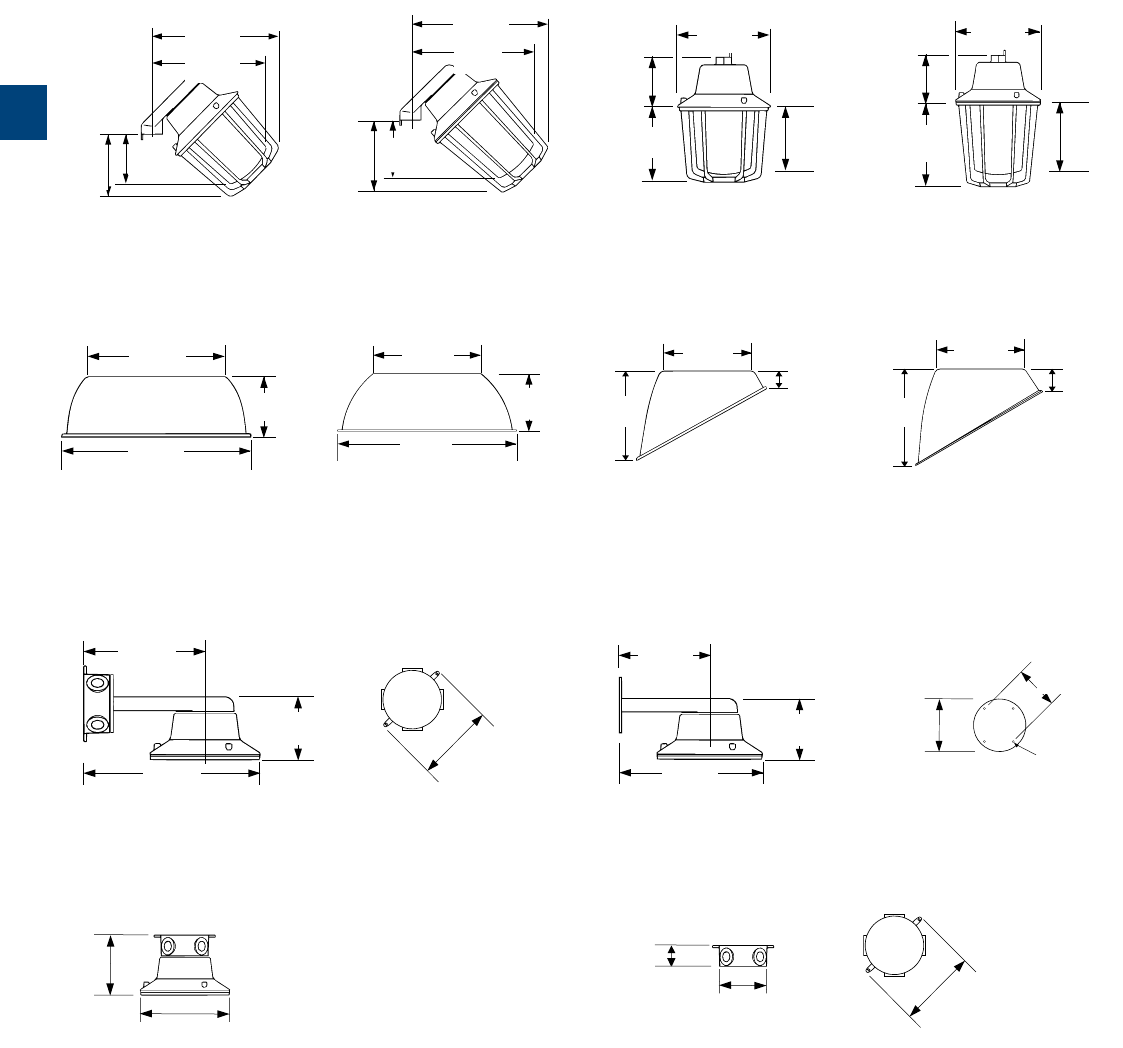

Cone-Top Pendant

Wall Mount

HazVertor™ Adapter

Ring

Straight Stanchion

Ceiling and

Pendant Mount

25˚ Angle Stanchion

Heat-Resistant Prismatic Glass Globe

Cast Guard

Standard Dome

Refractor Globe

Polymeric Guard

30° Angle Reflector

Optics & Mountings

Options

3/8 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3 LED DL Series

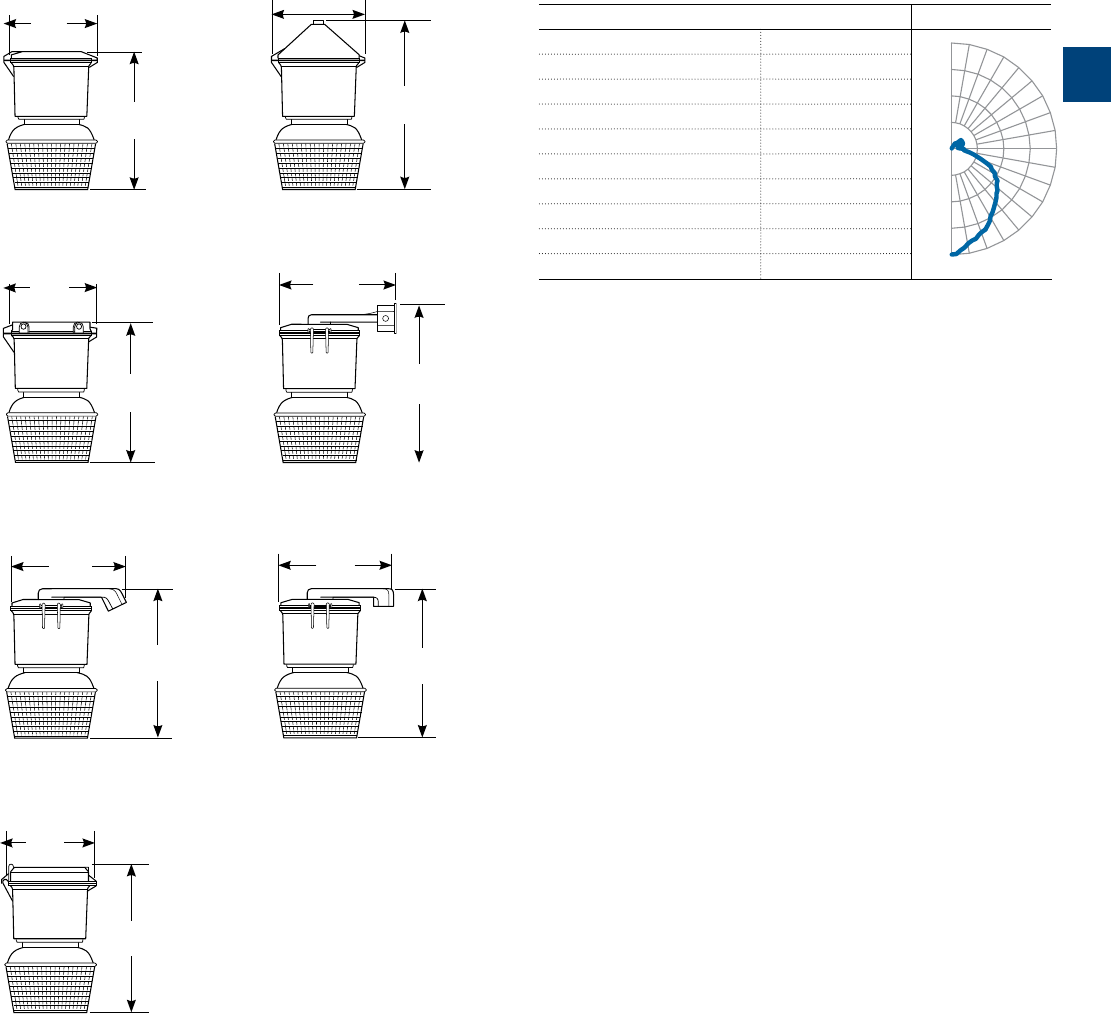

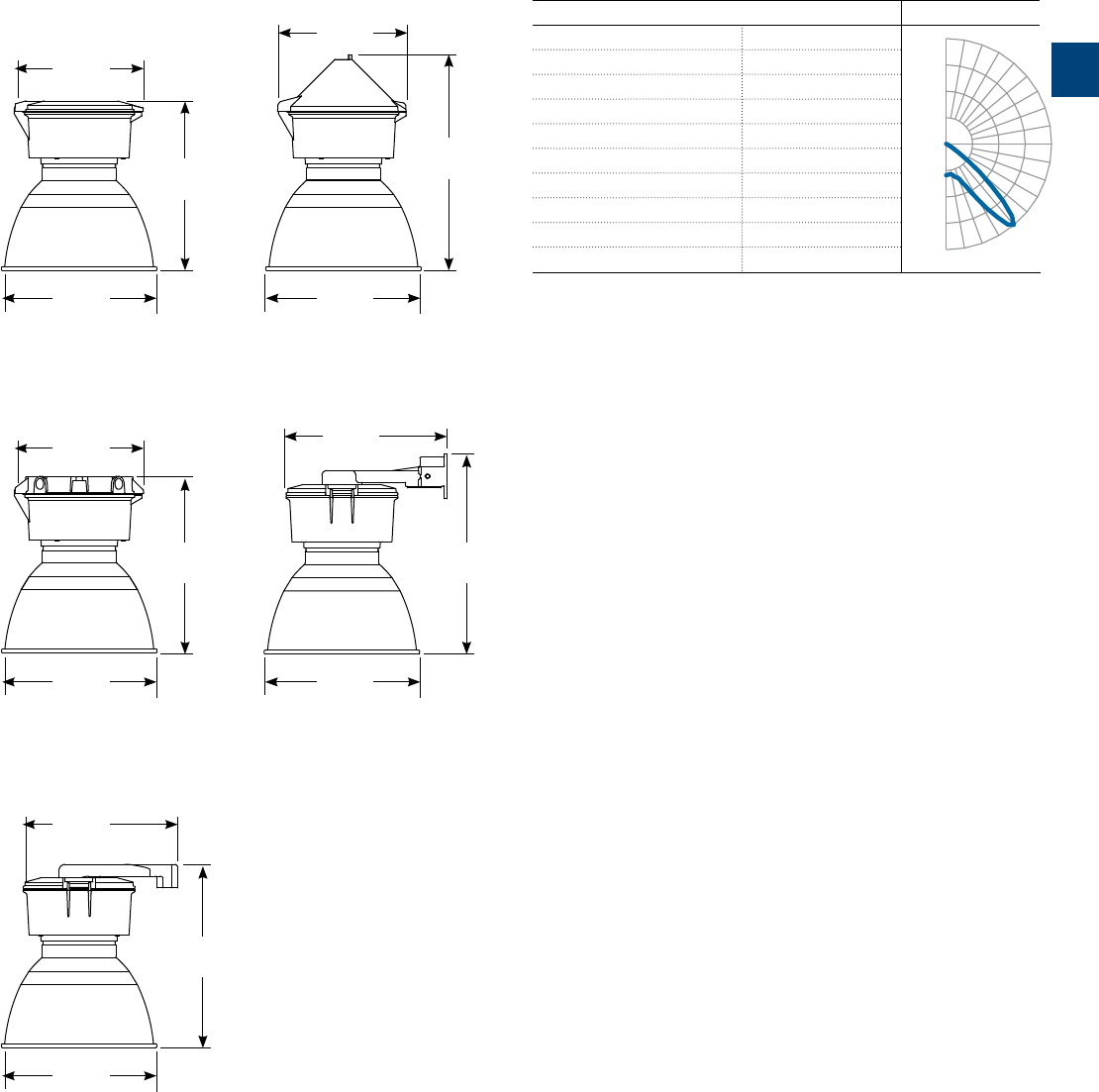

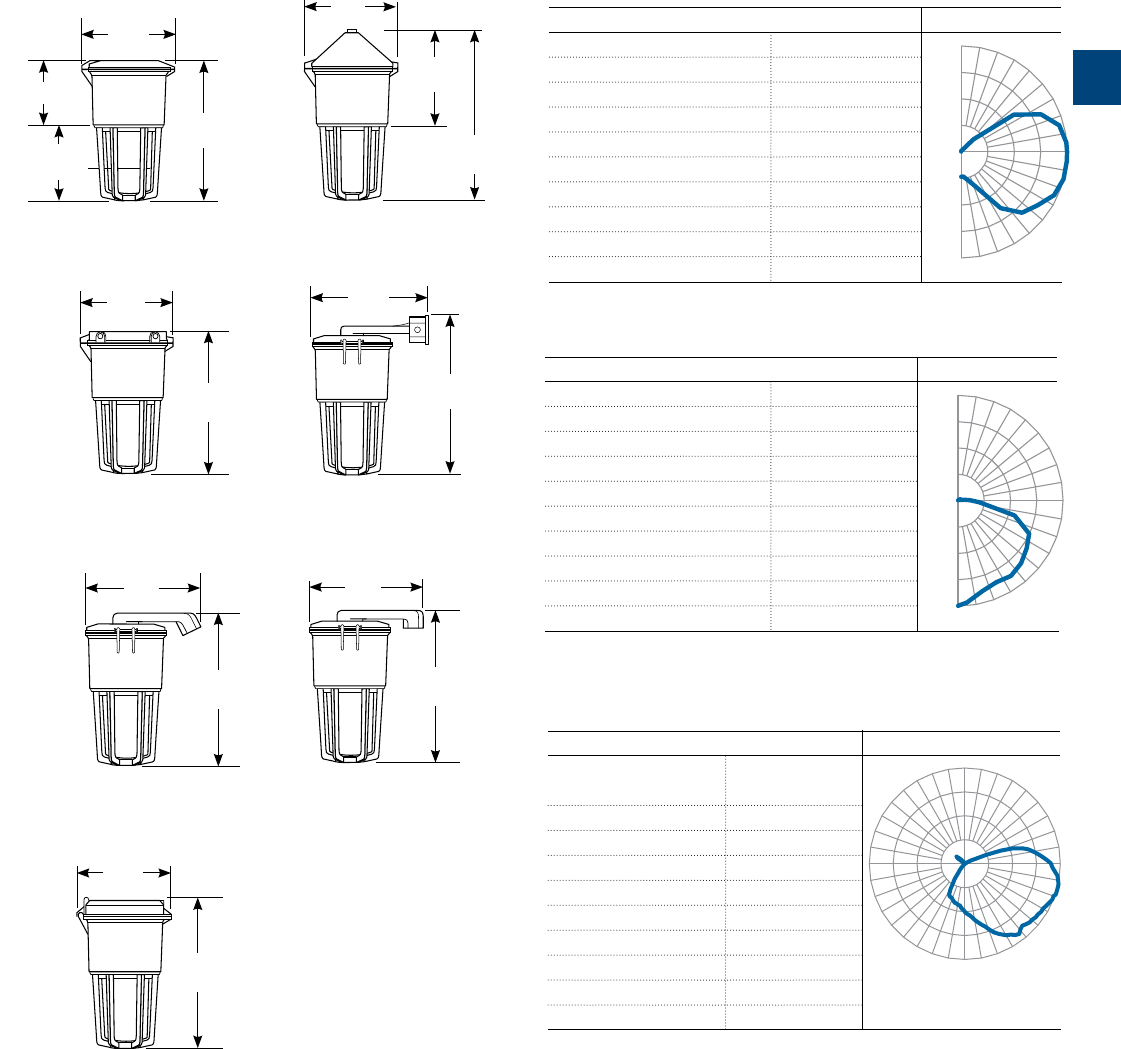

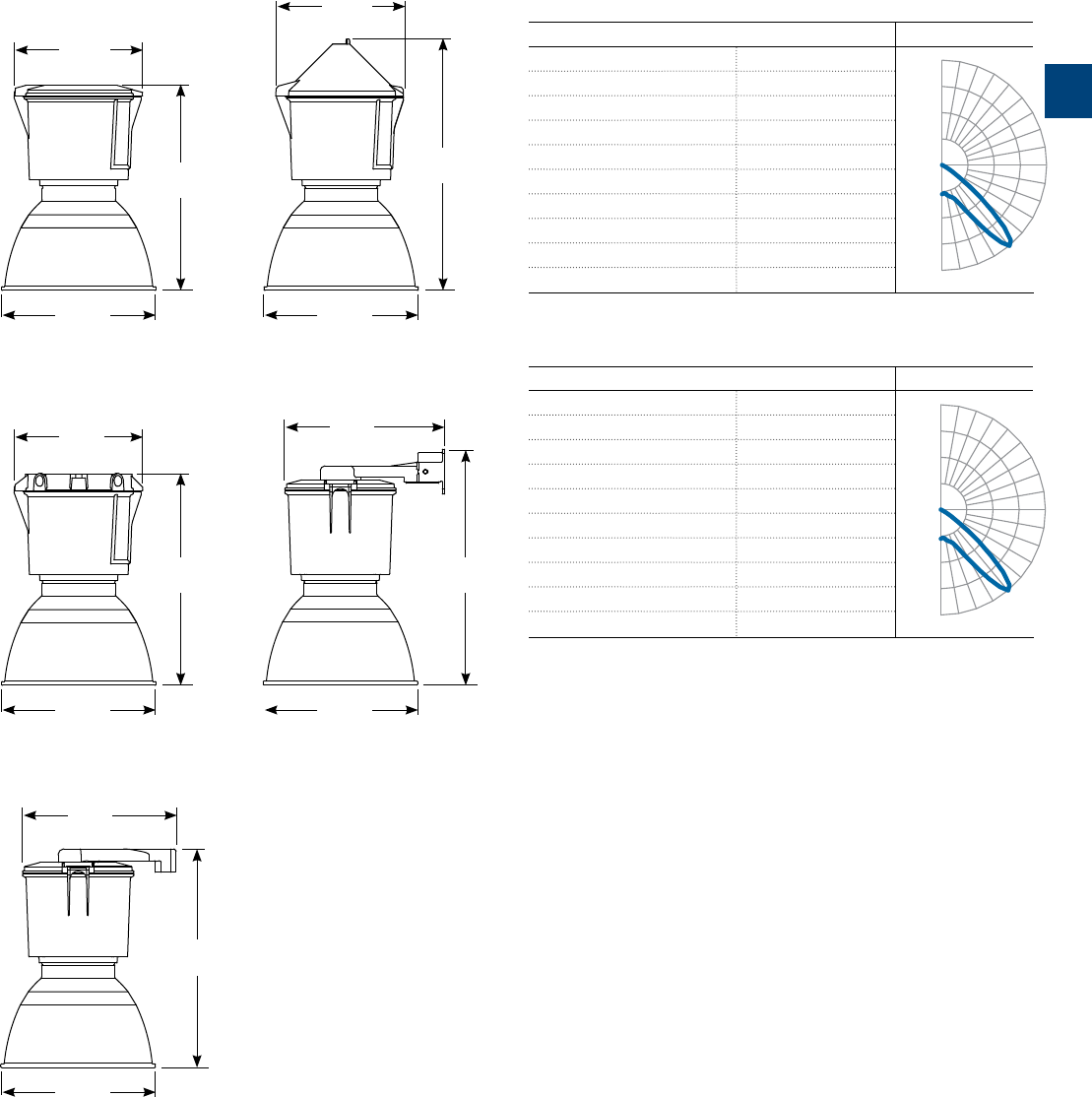

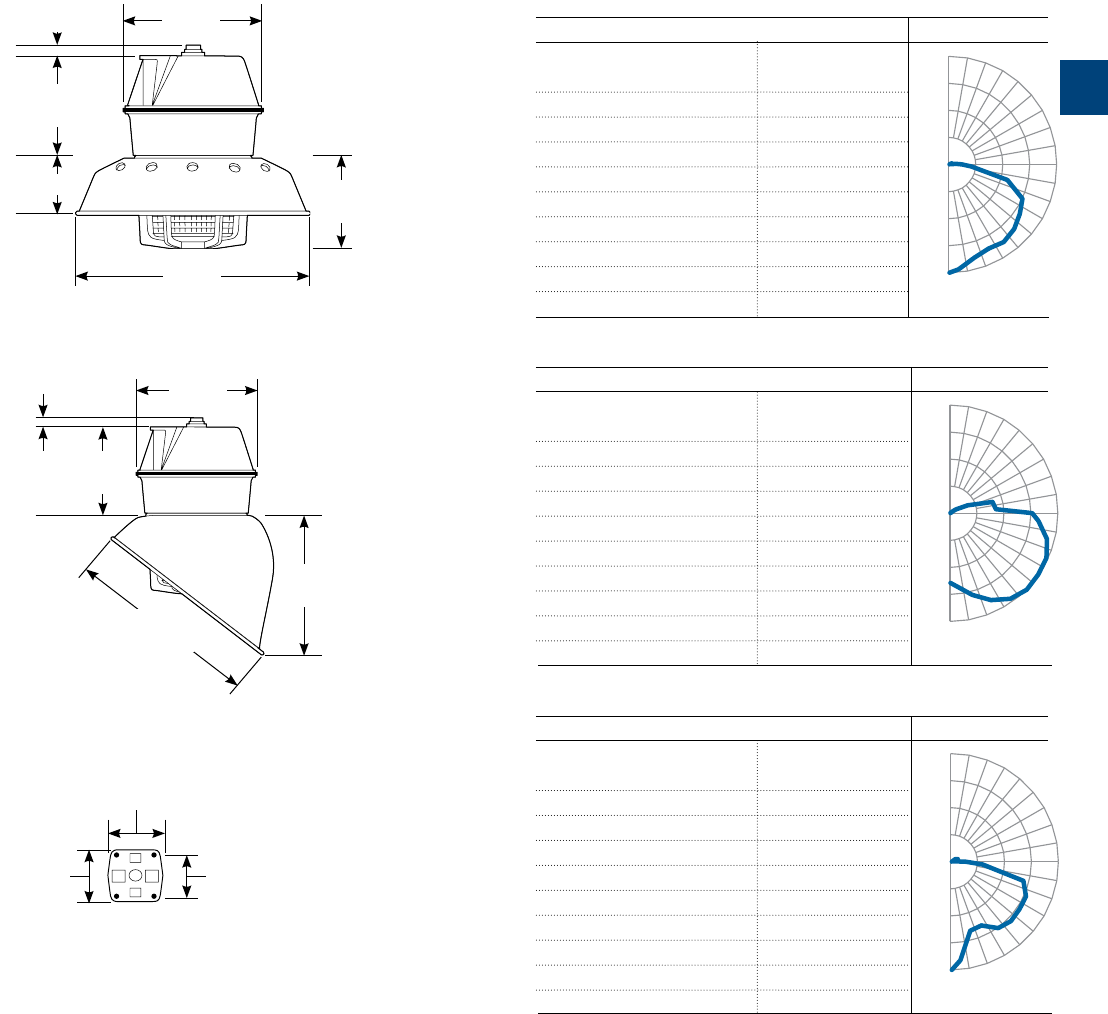

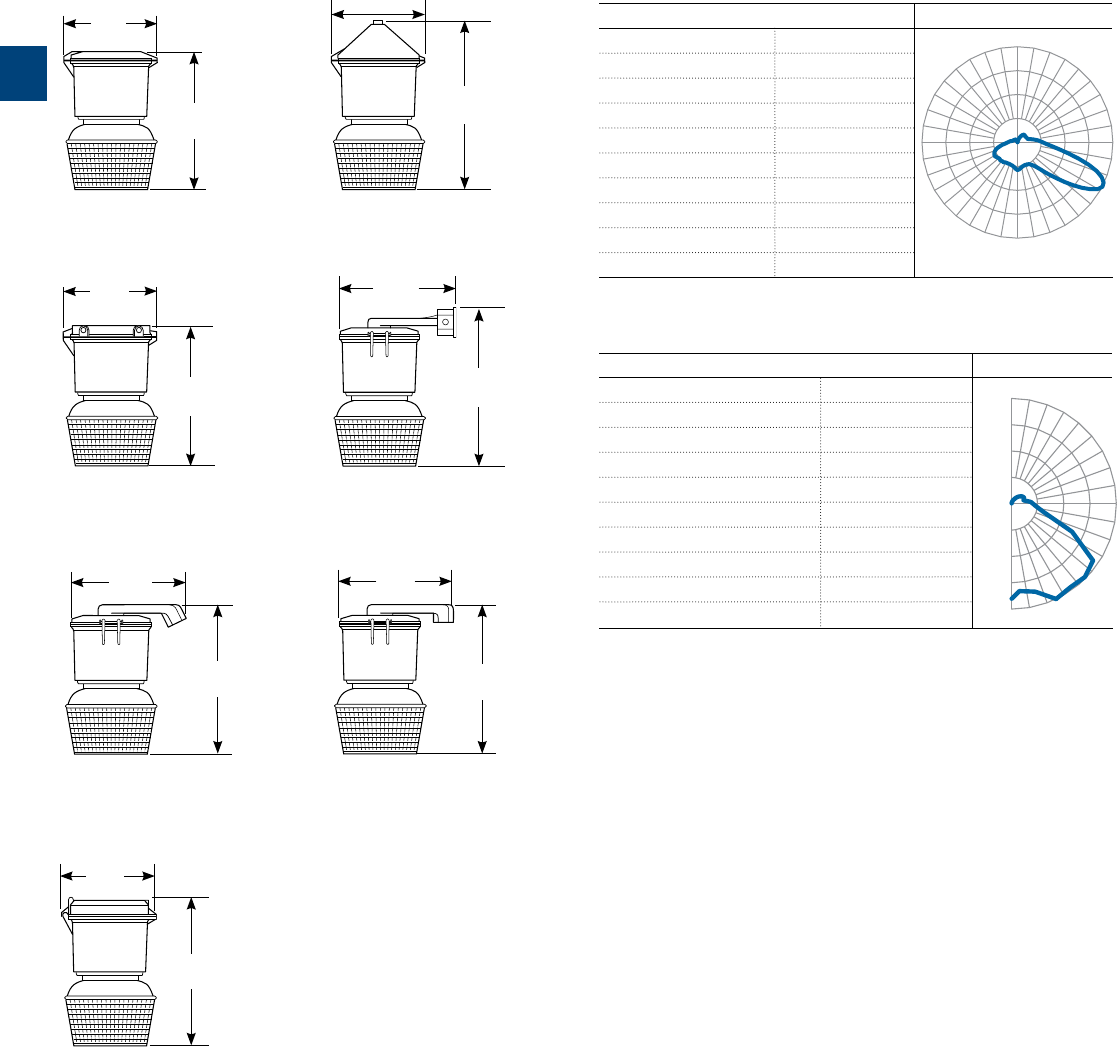

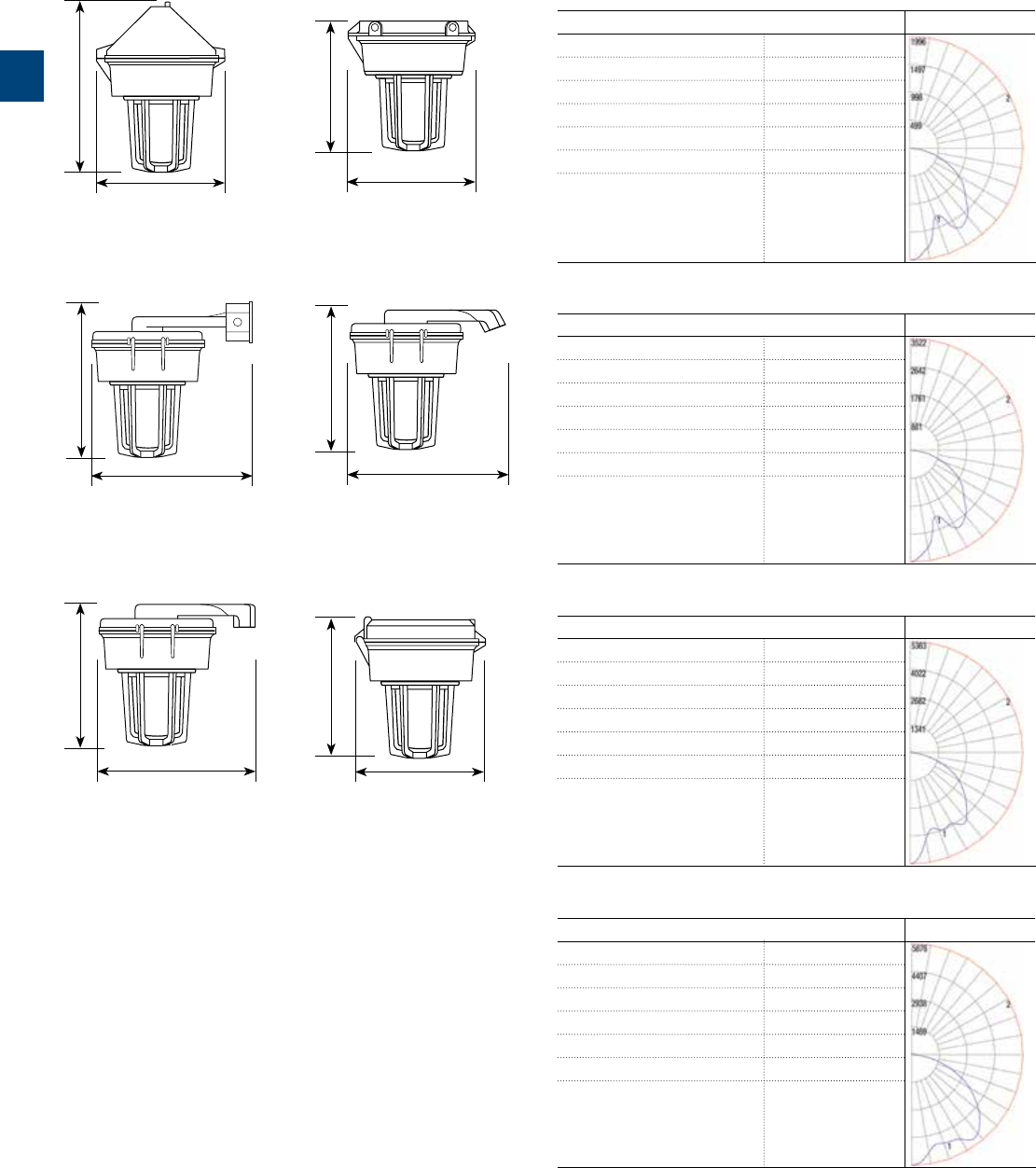

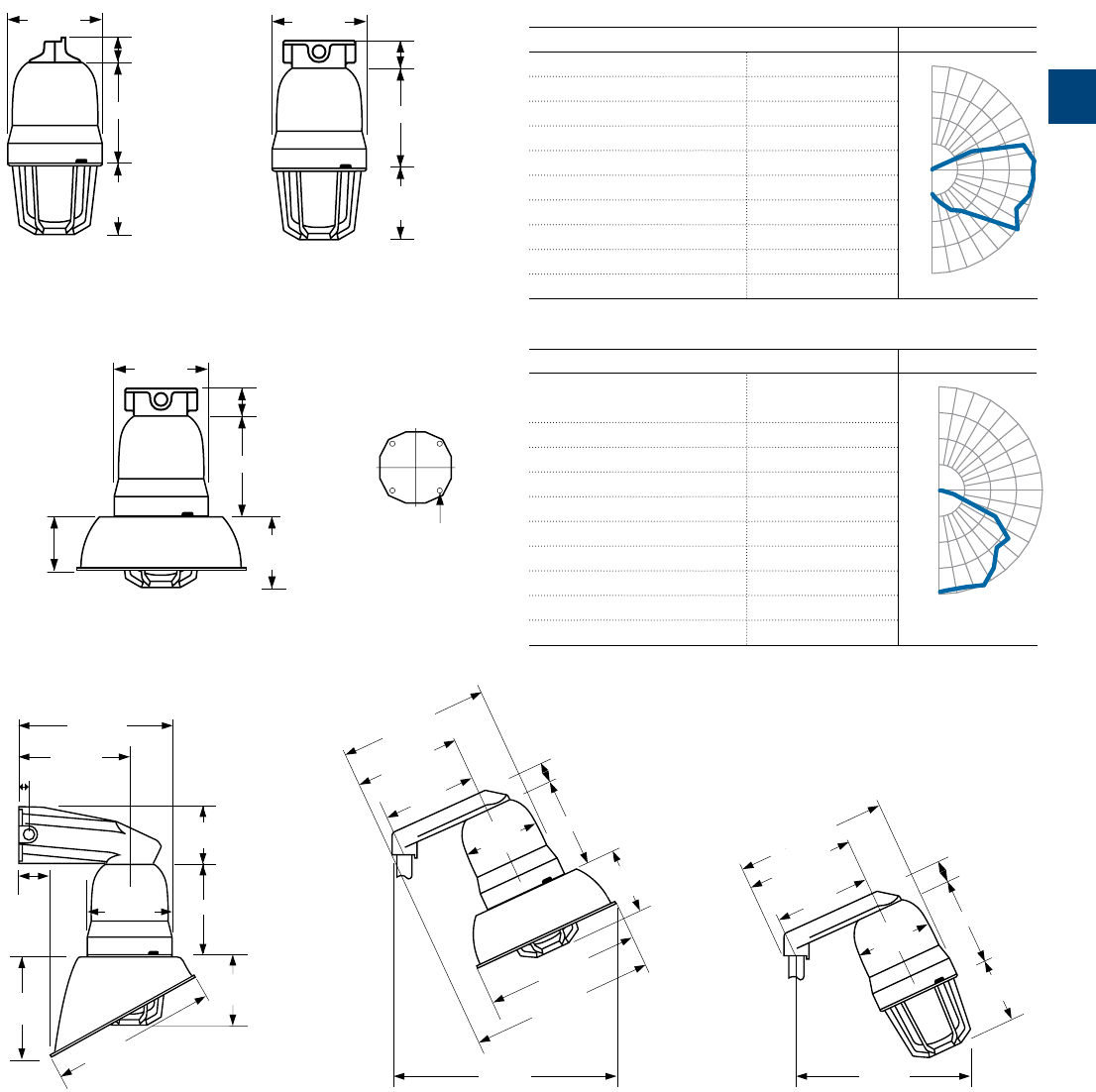

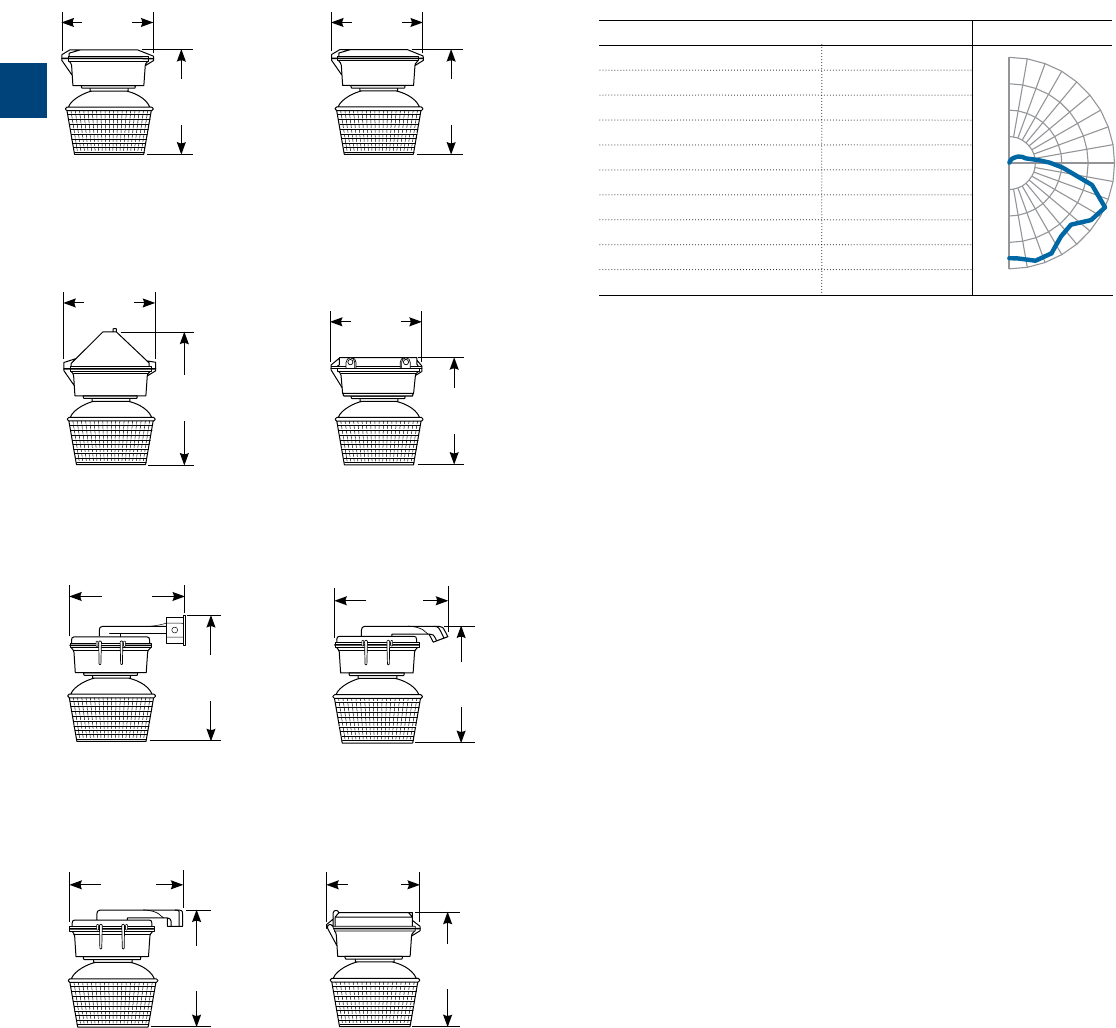

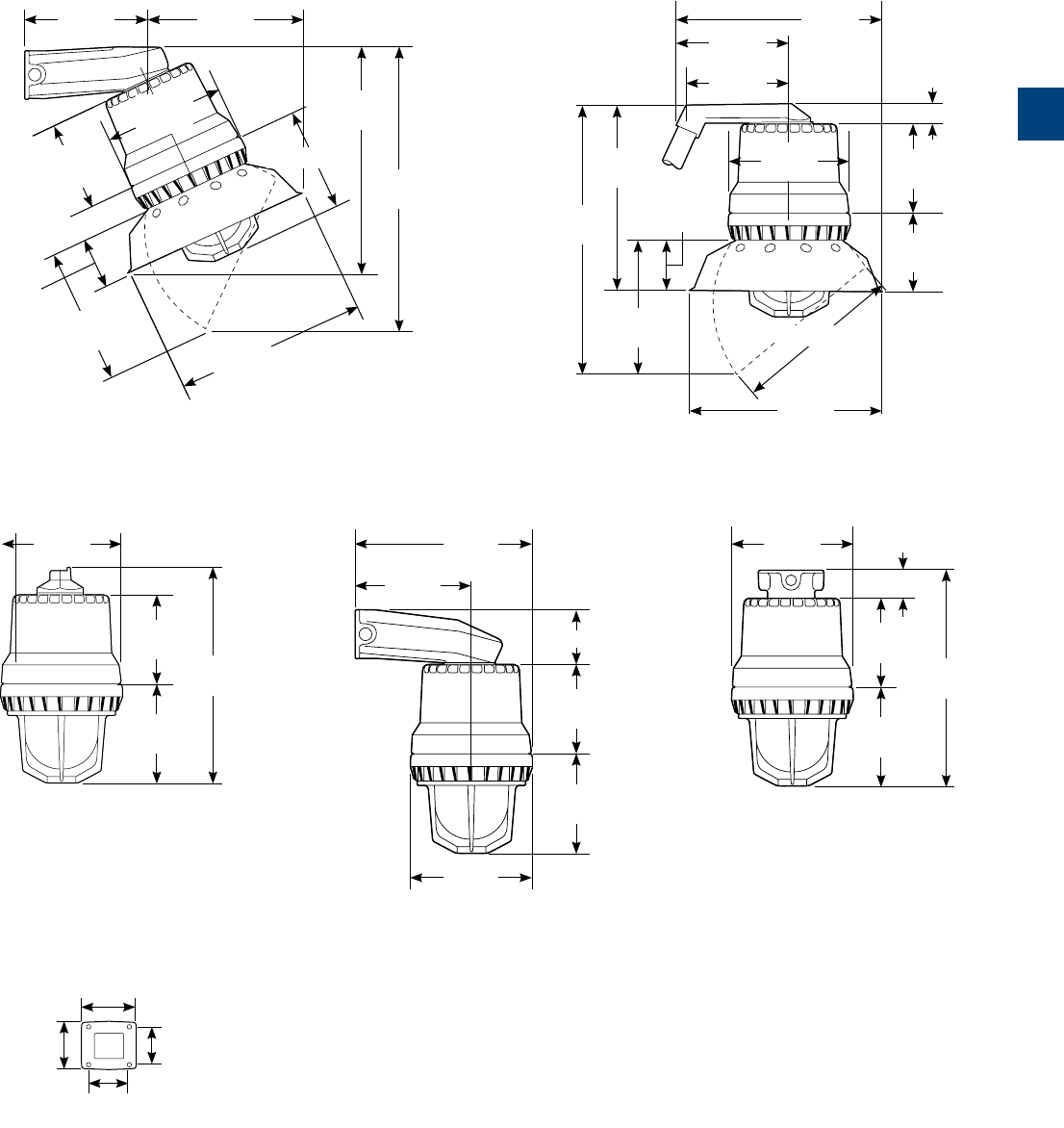

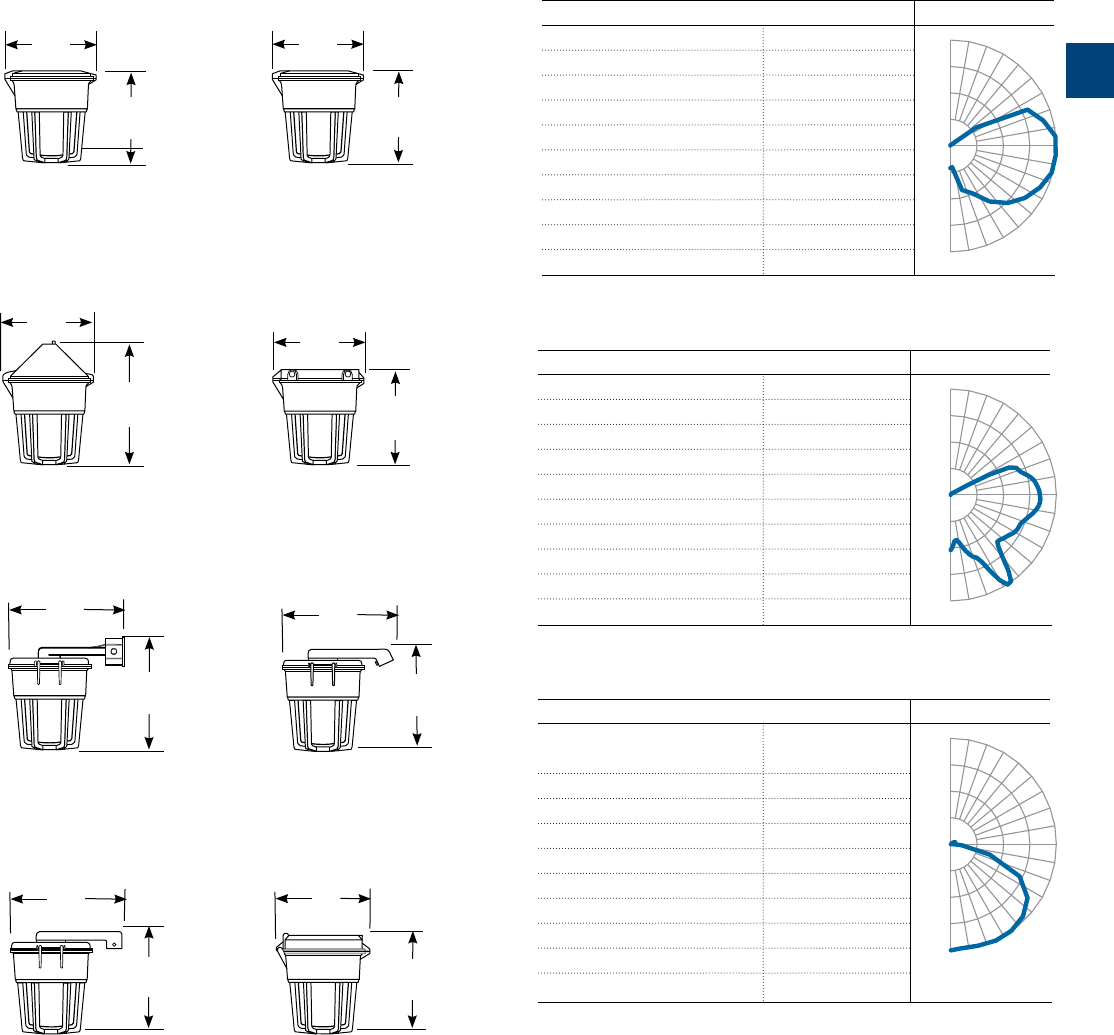

Dimensions - Standard housing with

globe and guard

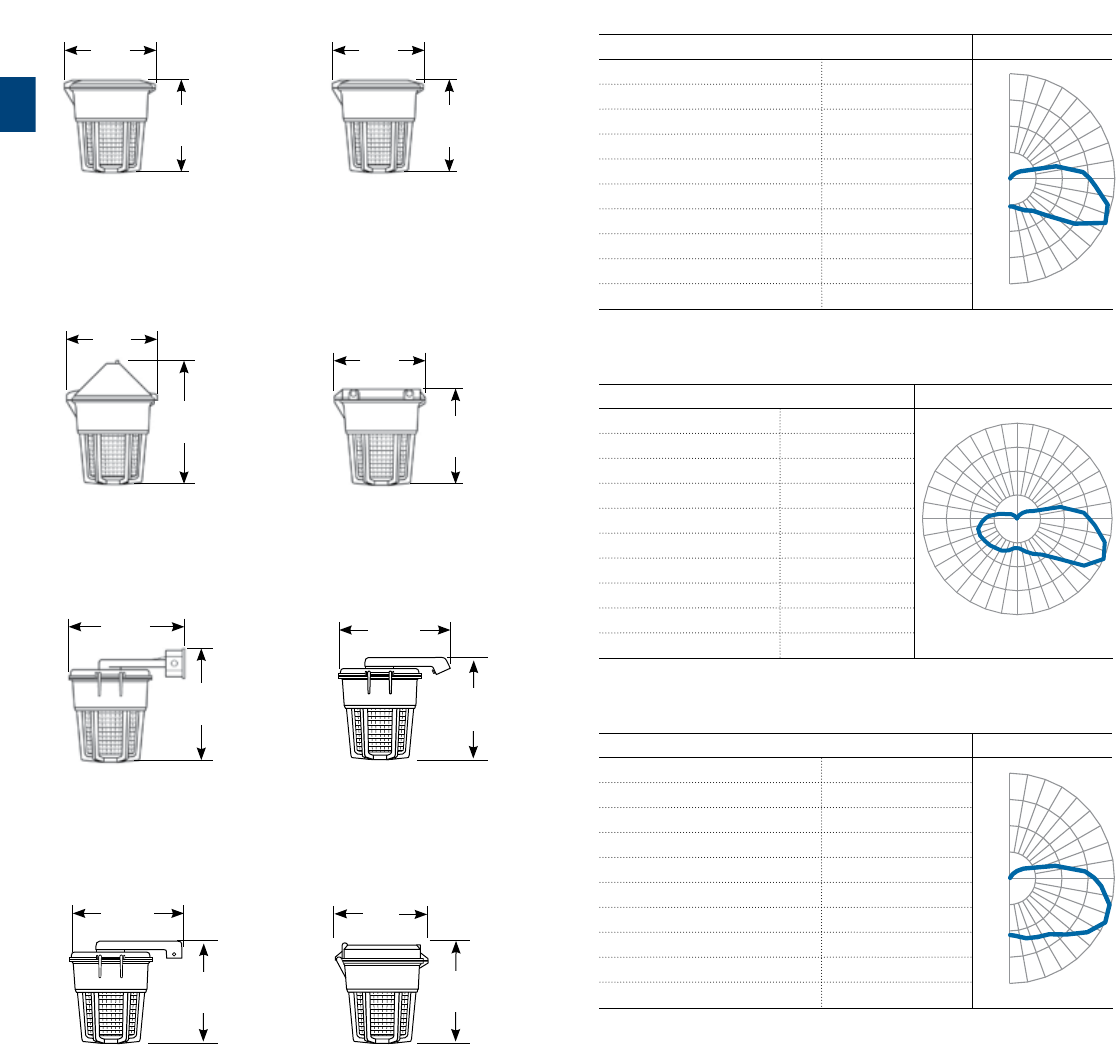

Photometry - Standard housing with

globe and guard

Cone-Top Pendant Ceiling Mount

Wall Mount 25˚ Angle Stanchion

Straight Stanchion

13-3/8 in. (340mm)

18-11/32 in. (466mm)

16-3/4 in. (425mm)

13-3/8 in. (340mm)

16-3/4 in. (425mm)

14-7/8 in. (378mm)

15-3/16 in. (386mm)

16-1/8 in. (410mm)

15-3/16 in. (386mm)

15-3/4 in. (400mm)

14-3/4 in. (375mm)

13-3/8 in. (340mm)

HazVertor™ Ring

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DL005EUN0TGC2E

Luminaire Lumens 5,895

Luminaire Efficacy Rating (LER) 131

Input Watt 260

Spacing Criterion 1.3

Spacing Criterion (90-270 1.3

Spacing Criterion (diagonal) 1.44

Reference Data Candlepower Curve

Catalogue No. DL010EUN0TGC2E

Luminaire Lumens 10,123

Luminaire Efficacy Rating (LER) 115

Input Watt 88.19

Spacing Criterion 1.24

Spacing Criterion (90-270 1.24

Spacing Criterion (diagonal) 1.4

Reference Data Candlepower Curve

Catalogue No. DL010EUN0TGC2E

Luminaire Lumens 15,605

Luminaire Efficacy Rating (LER) 128

Input Watt 121.8

Spacing Criterion 1.08

Spacing Criterion (90-270 1.08

Spacing Criterion (diagonal) 1.42

Reference Data Candlepower Curve

Catalogue No. DL020EUN0TGC2E

Luminaire Lumens 20,476

Luminaire Efficacy Rating (LER) 123

Input Watt 166.1

Spacing Criterion 1.46

Spacing Criterion (90-270 1.46

Spacing Criterion (diagonal) 1.58

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/9

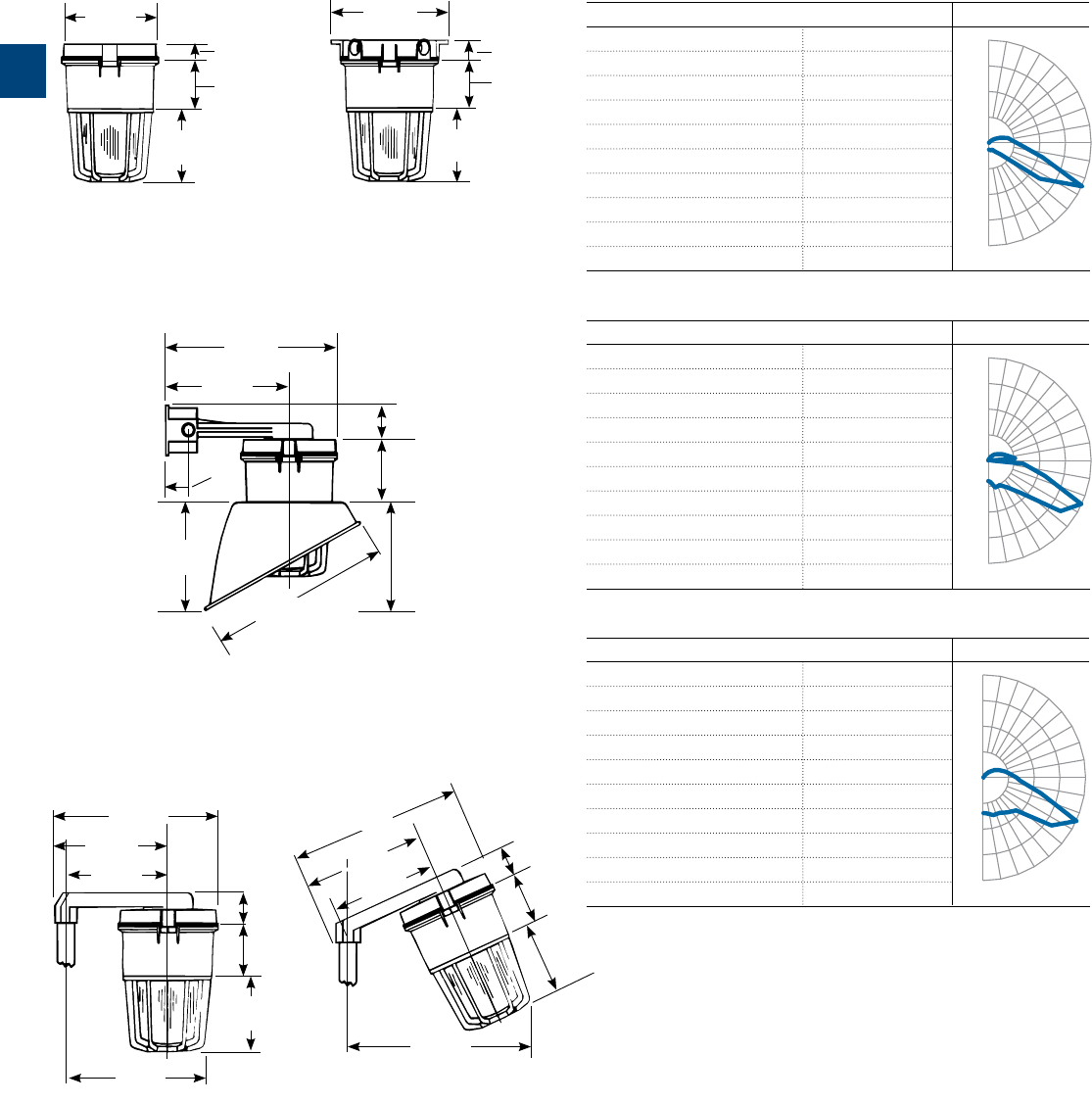

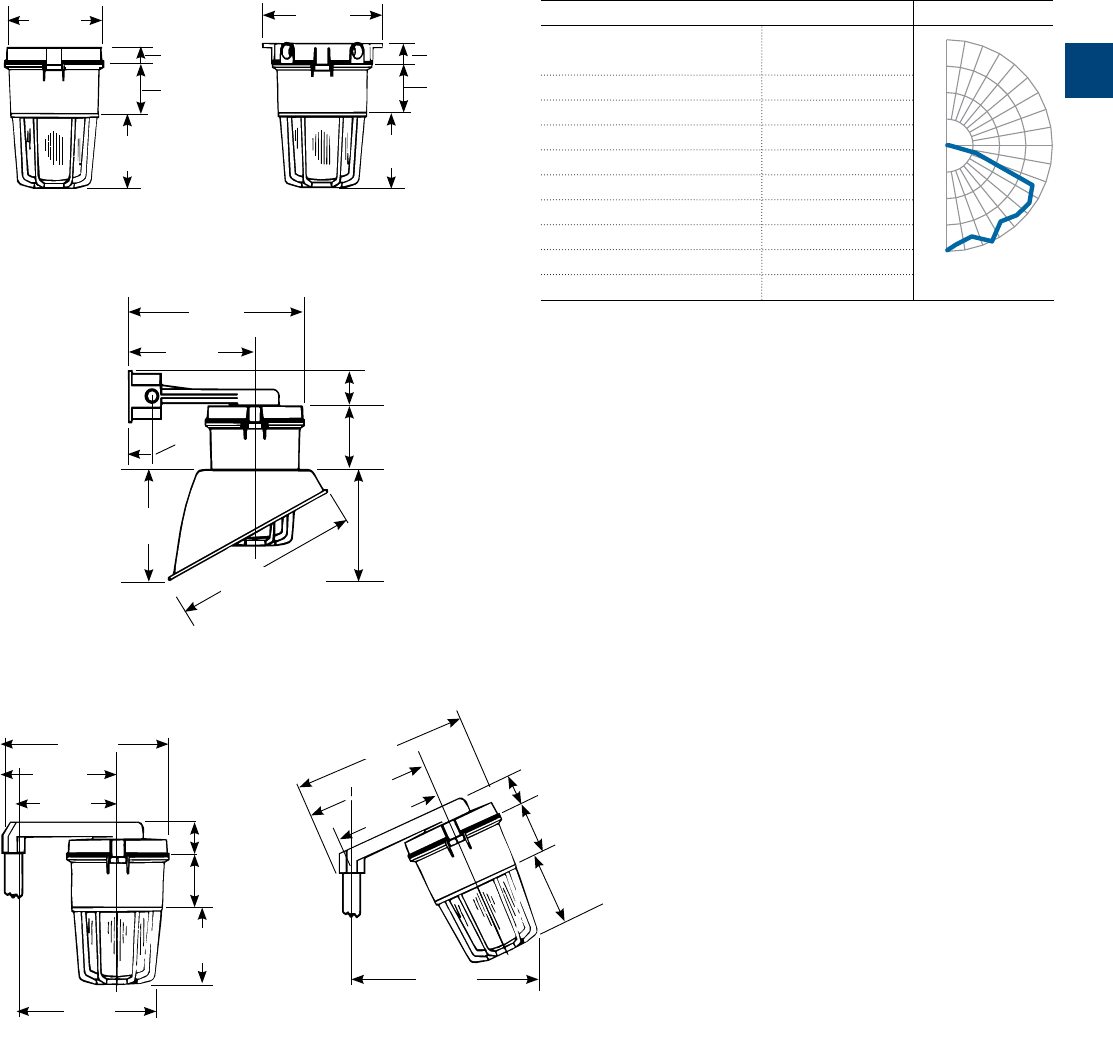

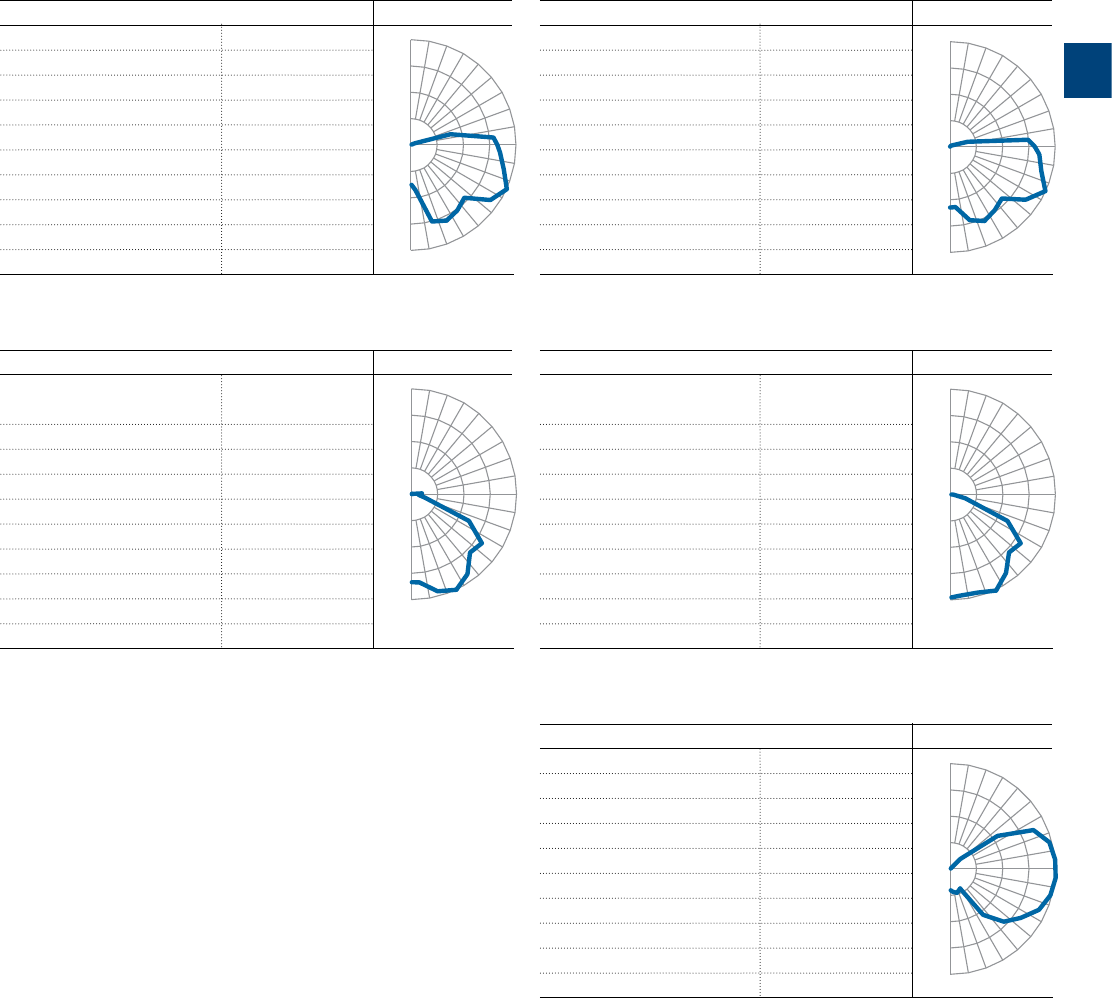

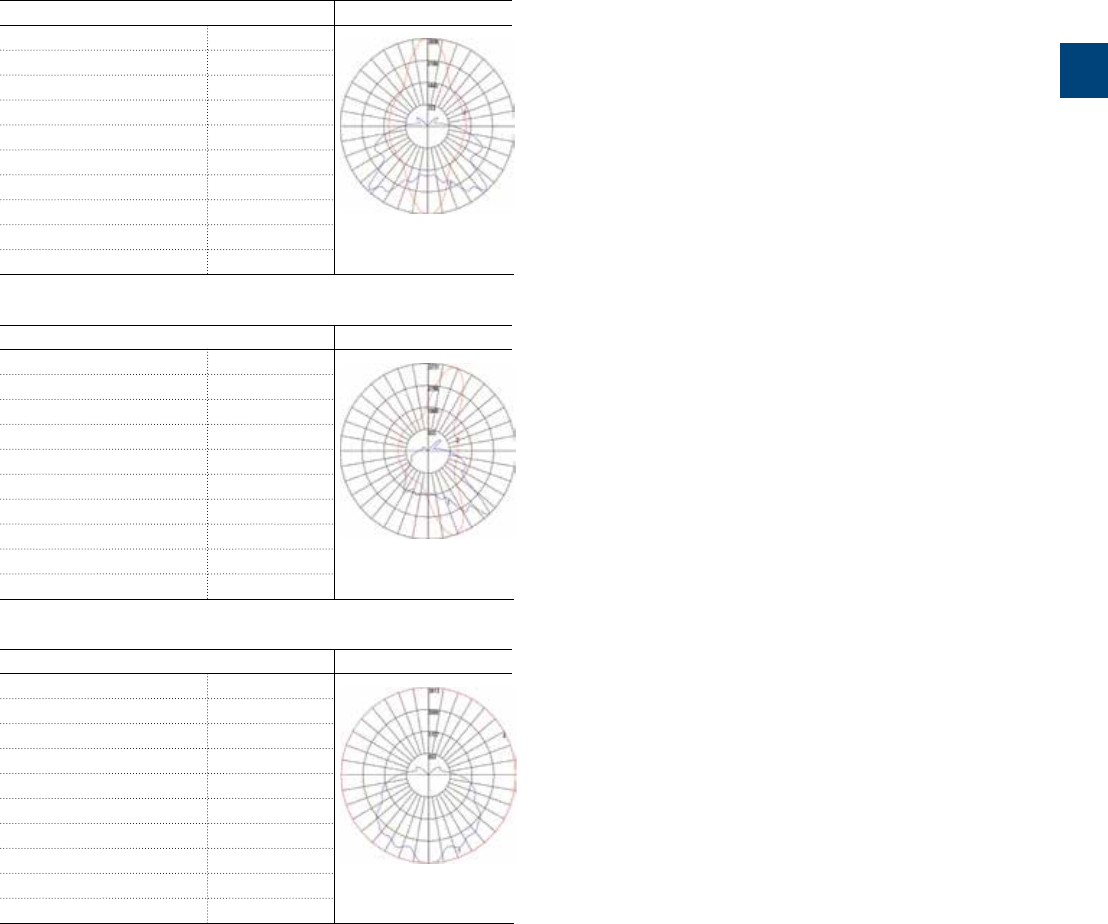

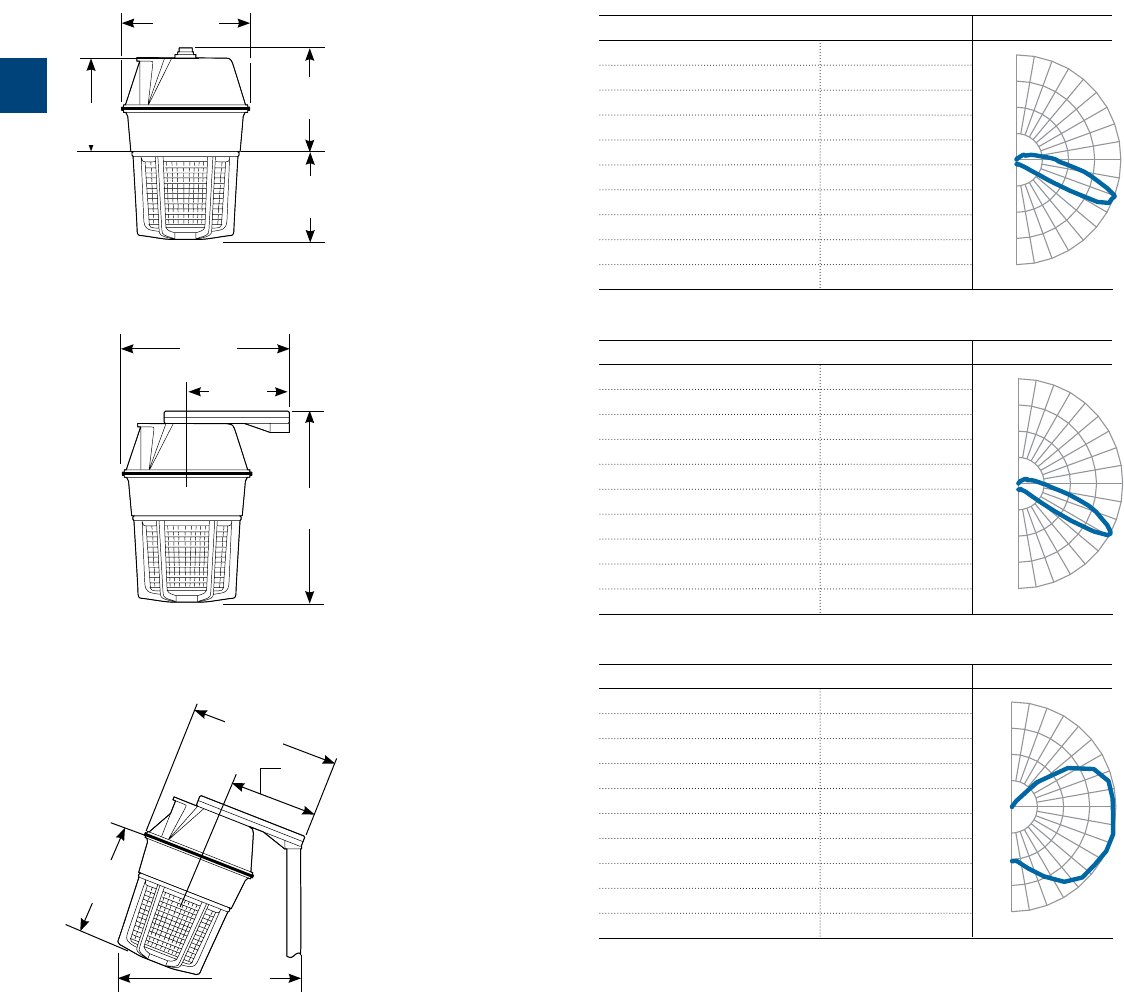

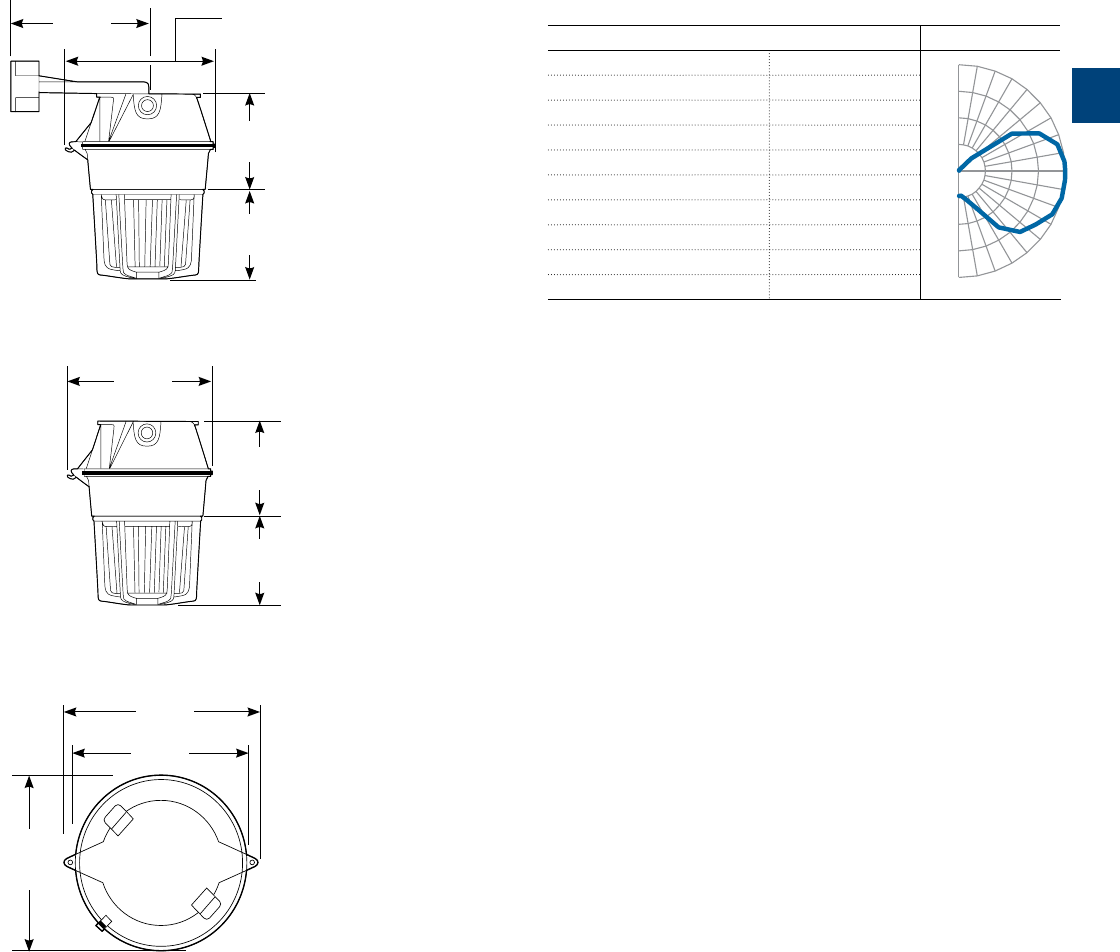

Photometry - Standard housing with

glass refractor - Ceiling mount

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DL010EUN0R1C2E

Luminaire Lumens 8,047

Luminaire Efficacy Rating (LER) 92

Total luminaire watts 87

Maximum Candela 2,890

Maximum Candela (< 90˚ Vertical) 2,890

Maximum Candela 887 (11.0%)

at 90˚ Vertical luminaire lumens)

Maximum Candela 1,463 (18.2%)

from 80 to < 90˚ Vertical luminaire lumens)

Reference Data Candlepower Curve

Catalogue No. DL010EUNOR3C2E

Luminaire Lumens 8,649

Luminaire Efficacy Rating (LER) 99

Total luminaire watts 87.27

Maximum Candela 3,731

Maximum Candela (< 90˚ Vertical) 3,731

Maximum Candela 883 (10.2%)

at 90˚ Vertical luminaire lumens)

Maximum Candela 1,308 (15.1%)

from 80 to < 90˚ Vertical luminaire lumens)

Reference Data Candlepower Curve

Catalogue No. DL020EUN0R5C2E

Luminaire Lumens 17,004

Luminaire Efficacy Rating (LER) 102

Total luminaire watts 166.3

Maximum Candela 3,413

Maximum Candela (< 90˚ Vertical) 3,413

Maximum Candela 1,171.3 (6.9%)

at 90˚ Vertical luminaire lumens)

Maximum Candela 1,662.7 (9.8%)

from 80 to < 90˚ Vertical luminaire lumens)

3/10 Industrial and hazardous location lighting product catalogue | EKPC-0814

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/11

Area lighting

Hazlux® 3

Designed, tested and certiﬁed for use in hazardous locations and adverse

environments. New labor-saving features for Hazlux® 3 ﬁxtures.

Induction Lighting

Long life for reduced maintenance

Hazlux® 3 induction lighting provides a 60,000+ hour lamp

life, drastically reducing expensive maintenance costs of

industrial lighting in hazardous locations.

HazVertor™ Adapter Ring

Replace other brand fixtures without removing the top hat

The HazVertor™ adapter ring gives you the freedom to

replace Crouse-Hinds Champ® series lighting fixtures (VMV,

DMV or LMV types) with Hazlux® 3 lighting fixtures without

removing the Crouse-Hinds top hat from the conduit

system, eliminating the need to replace conduit and wiring.

Save time and increase efficiency. The HazVertor™ can be

ordered as a separate item or as part of a Hazlux® 3

fixture assembly. Look for the HV1 or HV2 mounting style

options and switch to increased efficiency, wider suitability

for hazardous locations, improved light distribution and

improved T-numbers.

Hazlux® UNIPAK™ Packaging

– UNIPAK™ is the Hazlux customized packaging system that

is designed to save money for all concerned

– UNIPAK™ fixtures are normally assembled and can include

globes, guards, reflectors, lamps, fuses and other options

– Outlet boxes are normally shipped separately; consult

factory regarding outlet boxes to be assembled to

– UNIPAK™ fixtures

– Assembled UNIPAK™ fixtures are shipped in one carton

with the fixture foam packed in place

– Refer to the “Catalog Numbering System” for each

individual Hazlux® fixture series for ordering information

UNIPAK™ saves seven ways:

– Fewer cartons to receive, count, move, open and

disposeFewer storage problems

– Reduces inventory expense

– Eliminates lost or back-ordered parts

– Eliminates mismatched fixtures or lamps

– Significantly reduces labor costs

– Reduces total installed cost per fixture

3/12 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3

Fixtures for Class I, Division 2; Class II; wet and marine locations.

Applications

– Chemical Plants

– Oil Refineries

– Paint, Rubber Manufacturing

– Offshore Platforms

– Oil Drilling Rigs

– Oil, Gas Transmission

– Waste Treatment Facilities

– Airplane, Aerospace Facilities

– Electronics Manufacturing

– Pharmaceutical Plants

– Aircraft Manufacturing

– Vehicle Maintenance Facilities

– Grain Handling, Food Processing

– Coal Handling and Processing

– Flour, Sugar, Starch Processing

– Ammunition Manufacturing

– Coal, Gold and Copper Mining

– Pulp and Paper Manufacturing

– Copper, Aluminum Smelting

– Breweries, Malt Plants

– Shipyards, Shipbuilding Facilities

– Automobile Manufacturing

– Marine and Coastal Facilities

– Utility Power Plants

– Steel Mills, Foundries

– General Manufacturing Plants

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/13

Fixtures for Class I, Division 2; Class II; wet and marine locations.

Features

– Modular fixture components enable hundreds of easy-to-

assemble combinations

– Cast copper-free aluminum housings and mounting covers

are lightweight and resist corrosion

– Electrostatically applied powder-coat finish for added

corrosion resistance

– Thermal shock-resistant glass globes and refractors

protect lamps in wet, marine and outdoor applications

– All glass globes and refractors are fully threaded and provide

– a dust-tight, watertight seal with silicone rubber gaskets

– Standard globe guards are made from rugged polycarbonate

plastic or cast aluminum with keyhole slots for ease of

installation and do not interfere with globe threads

– All exposed hardware is stainless steel for corrosion

resistance and screws are slotted, hex-head style to further

ease installation

– Comprehensive UL Listings for Class I, Division 2; Class I,

Zone 2; and Class II

– Available for use with high-pressure sodium and metal

halide lamps up to 400 watts

– Eight different mounting styles - rigid pendant, flexible

pendant, cone pendant, ceiling, wall, 25° angle stanchion,

straight stanchion and HazVertor™ Adapter Ring

– Three ballast housing choices - standard housing,

R-housing and large housing

– Heat sinks in ballast housings enable ballasts to operate

cooler, provide longer life and improve temperature

performance

– Bright white FRP (fiberglass-reinforced polyester) angle or

dome reflectors resist corrosion while maximizing

lighting effectiveness

– Many optical choices - standard globes, threaded refractor

globes, 73⁄4“ globes, 12“ refractors, enclosed high-bay

reflectors and more

– All mounting covers provided with dual-lead ground wire for

connection to field and fixture grounds

– Optional HazCote® coating for extremely corrosive applications

– Optional stainless steel inserts for guard screws and ballast

tank closure screw for enhanced corrosion resistance

– Optional Tuff-Skin® silicone coating on glass optics

contains fragments if glass is broken (for food processing)

– Optional instant restrike starter for HPS lamps up to 150

watts restarts hot HPS lamp after momentary power failure

Note: Tuff-Skin is a registered trademark of Thomas

Manufacturing Corp.

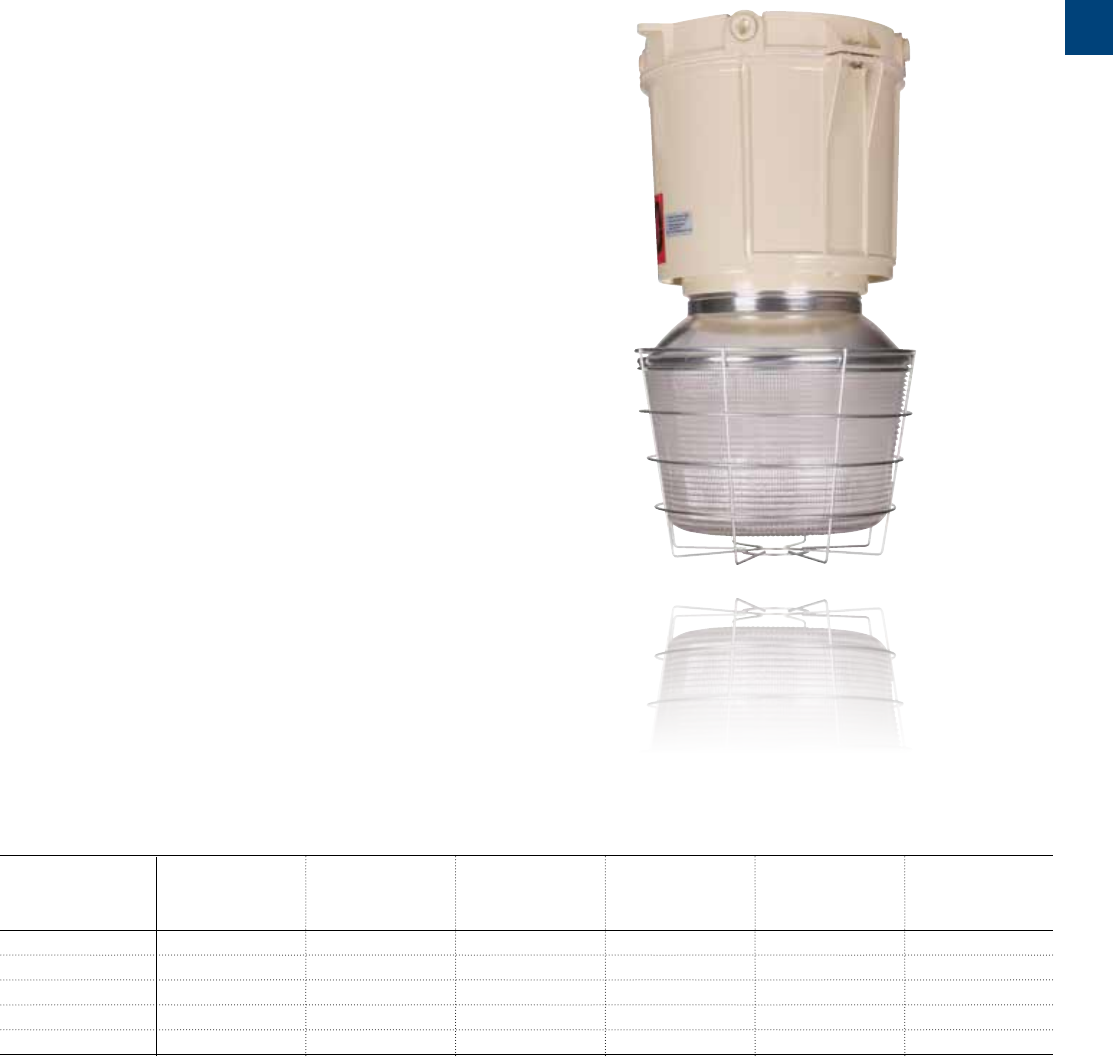

Certifications / Compliances

UL® Listed (UL844) and CSA certiﬁed (csa C22.2 no. 137) for:

– Class I, Division 2, Groups A, B, C, D

– Class I, Zone 2, Groups IIA, IIB, IIC

– Class II, Divisions 1 & 2, Groups E, F, G

– Class III

– Wet locations

UL® Listed (UL1598A) for:

– Marine Locations

– NEMA 4X, IP66

Materials and Finishes

– Ballast Housings - Copper-free aluminum, powder finish

– Mounting Covers - Copper-free aluminum, powder finish

– Guards - Polycarbonate, copper-free aluminum or steel

– Globes - Tempered glass or borosilicate glass

– Refractor Globes - Borosilicate glass

– Refractors (12“) - Borosilicate glass

– Hardware - Stainless steel

– Reflectors - Fiberglass-reinforced polyester (standard dome,

angle); anodized aluminum (deep dome, high bay enclosed)

– Gaskets - High-temperature silicone rubber

3/14 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3 Standard housing

Assembly guide

Complete luminaire consists of:

– A mounting style

– Ballast Tank

– Globe or Refractor

– Optional Guard and/or Reflector

Mounting Style

Ballast Tank

Globe or Refractor

Guard

Reflectors*

Standard Housing

Low-Bay Refractor

Type V Refractor

Heat-Resistant Globe

Polymeric Guard

Cast Guard

Wire Guard

30° Angle Reflector

*Reflectors are sold separately

Cone-Top Pendant Wall Mount 25˚ Angle StanchionHazVertor™

Adapter Ring

Rigid or Flexible

Pendant

Ceiling Mount Straight Stanchion

Standard Dome

Hazlux® 3 Standard Housing - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/15

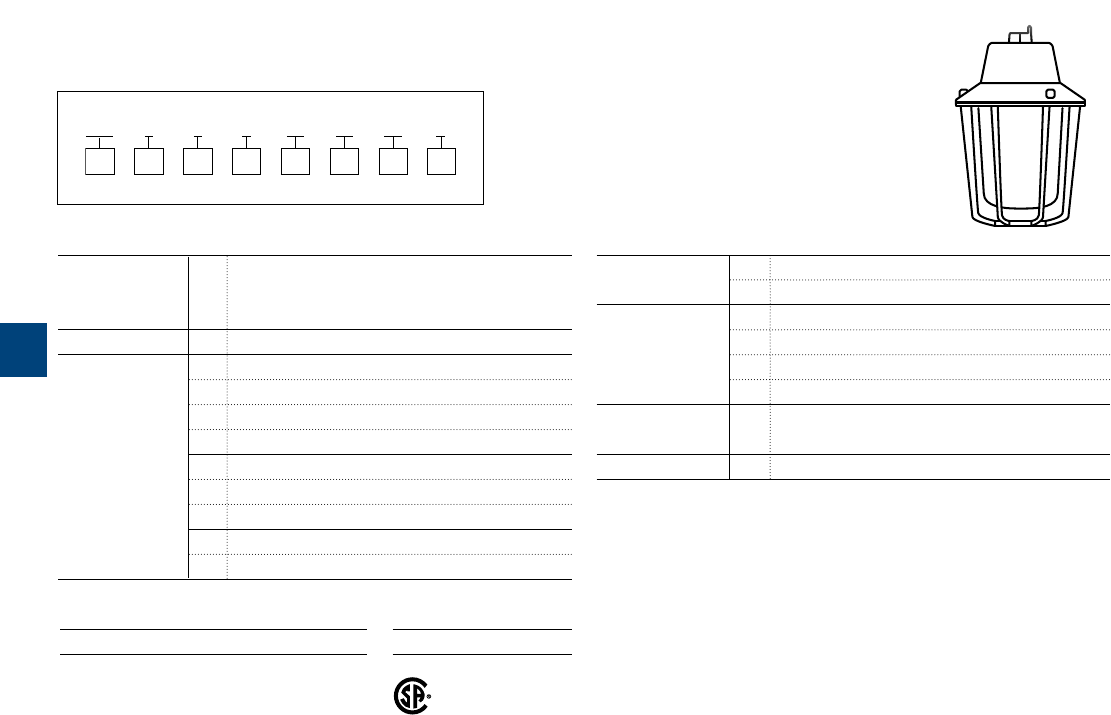

Catalog numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast tank Optics and mountings Options

Ballast Tank Optics & Mountings

Options

1 Fixture Series D Hazlux® 3 Fixture

2 Lamp Type S High-Pressure Sodium

H Metal Halide

C 150-Watt HPS 100V Only

3 Starter Circuit/ Ø Standard Fixture (Without Options)

Quartz Options P Pulse Start (MH Only)*

Q Quartz Auxiliary Option (Not Hazardous Rated)

R Instant Restart (50 - 150W HPS)

J Auto Shutoff Starter (HPS Only)

Y Auto Shutoff Starter with Quartz Restrike (HPS only, non-UL)

4 Lamp Wattage Metal Halide Lamps

07 70W ED28 10 100W ED28

17 175W ED28 20 200W ED28PS

25 250W ED28

High Pressure Sodium Lamps

05 50W ED23 1/2 07 70W ED23 1/2

10 100W ED23 1/2 15 150W ED23 1/2

5 Ballast Circuit H High Reactance

C Constant Wattage Autotransformer (CWA)

I CWI

P Reactor (AII ballasts high power factor)

6 Voltage/ 03 120/277V, 60 Hz

Frequency 04 120/208/240/277V, 60 Hz

09 120/277/347V, 60 Hz (CSA)

12 120V, 60 Hz

20 208V, 60 Hz

24 240V, 60 Hz

27 277V, 60 Hz

34 347V, 60 Hz

48 480V, 60 Hz

225 220V, 50 Hz

245 240V, 50 Hz

7 Ballast Housing Ø Standard Housing

Style S Standard Housing with Stainless Steel Inserts

8 Optical Assembly TG Thermal Shock-Resistant Globe

Options TGC Thermal Shock-Resistant Globe with Cast Guard

TGL Thermal Shock-Resistant Globe with Polymeric Guard

SG Tuff-Skin® Coated Globe

SGC Tuff-Skin® Coated Globe with Cast Guard

SGL Tuff-Skin® Coated Globe with Polymeric Guard

R2 12-in. Glass Refractor, Type II

R5 12-in. Glass Refractor, Type V

R2G R2 with Wire Guard

R5G R5 with Wire Guard

CBDL Closed Bottom Refractor with Polycarbonate Lens

9 Mounting style A2 3⁄4“ Cone-Top Pendant

A3 1“ Cone-Top Pendant

B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling Mount

C3 1“ Ceiling Mount

F2 3⁄4“ Flexible Pendant

F3 1“ Flexible Pendant

HV1 HazVertor™ Ring - Class I, Div. 2, Zone 2

HV2 HazVertor™ Ring - Class I Div. 2, Zone 2, Class II

L4 11⁄4“ Straight Stanchion

L5 11⁄2“ Straight Stanchion

P2 3⁄4“ Rigid Pendant

P3 1“ Rigid Pendant

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

10 UNIPAK™ E UNIPAK™ with Clear Lamp

Options D UNIPAK™ with Dual Arc Lamp

U UNIPAK™ No Lamp

Tuff-Skin is a registered trademark of Thomas Manufacturing Corp

11 Special Options T HazCote® custom anti-corrosion coating (Consult factory)

12 Fusing Options F Fuse Block(s) with Fuse(s)*

13 Certification C Canadian Market

123456

78910111213

D S Ø 15 H 04

Ø-TGL-P2 E T F C

12345678910111213

D S Ø 15 H 04 Ø-

TGL-P2 E

T F C

123456789101

D S Ø 15 H 04 Ø-TGL-P2 E

T F C

*Fuse Block are not available for Marine Locations

3/16 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Mounting Options

Globes or Refractors

Reflectors or Exit Sign

Part No. Description Conduit Hub Size

VP2 Rigid Pendant 3⁄4“

VP3 Rigid Pendant 1“

VA2 Cone-Top Pendant 3⁄4“

VA3 Cone-Top Pendant 1“

VF2 Flexible Pendant 3⁄4“

VF3 Flexible Pendant 1“

VC2 Ceiling Mount 3⁄4“

VC3 Ceiling Mount 1“

VB2-VIB Wall Mount 3⁄4“

VB3-VIB Wall Mount 1“

VS4-VIB 25° Angle Stanchion 11⁄4”

VS5-VIB 25° Angle Stanchion 11⁄2”

VL4-VIB Straight Stanchion 11⁄4”

VL5-VIB Straight Stanchion 11⁄2”

HV1 HazVertor™ Adapter Ring N/A

HV2 HazVertor™ Adapter Ring N/A

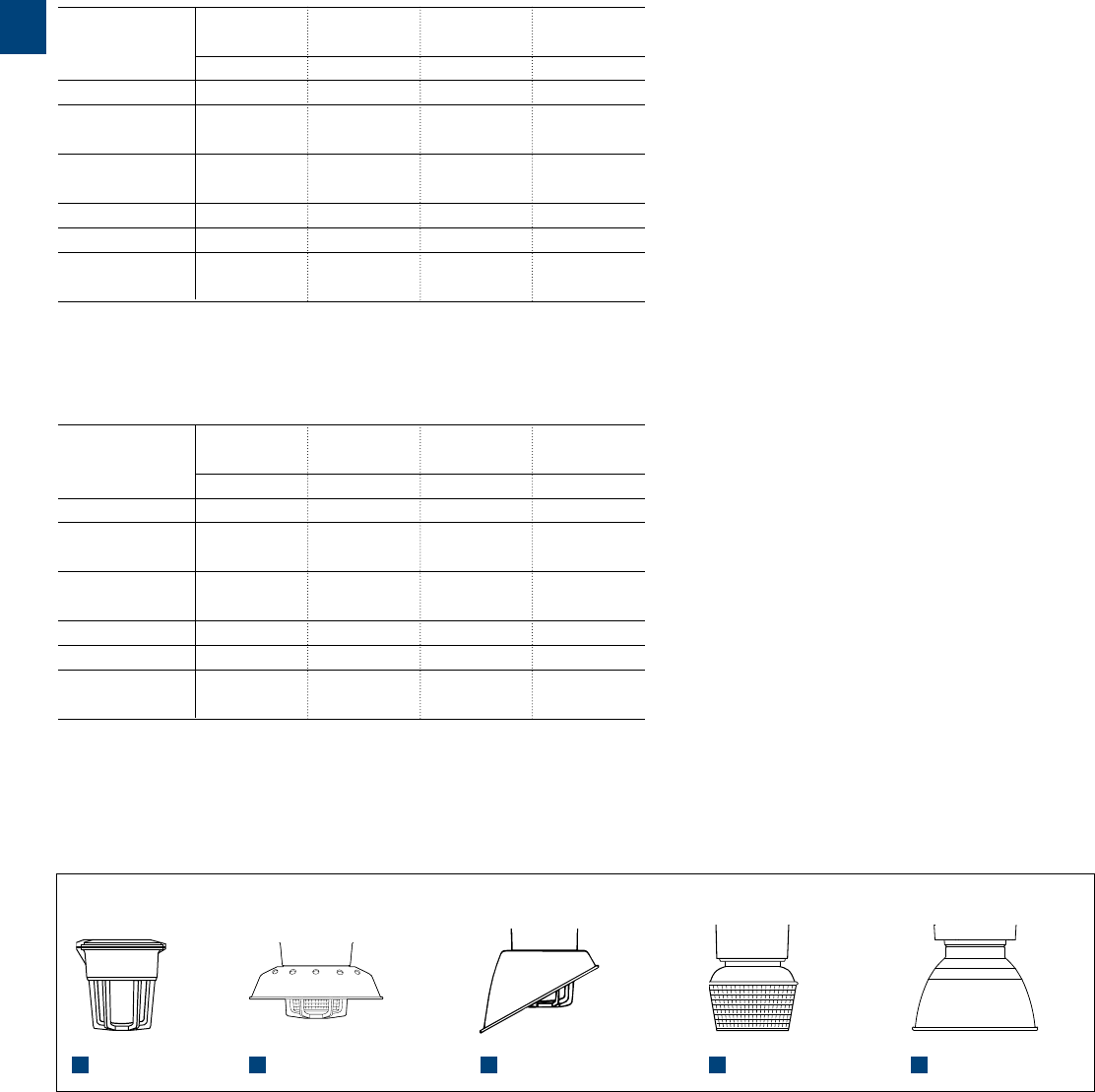

Part No. Description

VGT22 51⁄2“-dia. Heat-Resistant Globe (250W max.)

VGT22TS 51⁄2“-dia. Heat-Resistant Globe (250W max.) Coated with Tuff-Skin®

VRF22C2 12“-dia. IES Type II Refractor, 51⁄2“ thread

VRF22C5 12“-dia. IES Type V Refractor, 51⁄2“ thread

VR22CBDL Low-Bay Refractor with Plastic Lens

Part No. Description

VGU22P Polymeric Guard for VGT22 Series Globe

VGU22 Polymeric Guard for VGT22 Series Globe

VGR48 Steel Wire Guard for All VRF Series 12“ Refractors

Part No. Description

VR22P Standard Dome, Fiberglass-Reinforced Polyester

VRA22P 30° Angle Reflector, Fiberglass-Reinforced Polyester

VRE22 Three-Sided Exit Sign

Note: Reﬂectors are shipped bulk unless speciﬁed

Cone-Top Pendant

HazVertor™ Adapter

Flexible Pendant

Rigid Pendant

Ceiling Mount

25˚ Angle Stanchion

Straight Stanchion

Wall Mount

Low-Bay Refractor Refractor Glass

Cast Guard Wire Guard

Standard Dome

Heat-Resistant

Globe

Polymeric Guard

30° Angle Reflector Three sided Exit Sign

Area lighting

Hazlux® 3 Standard housing

Individual components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/17

Dimensions - Standard housing with

globe and guard

Photometry - Standard housing with

globe and guard

Rigid and Flexible Pendant Cone-Top Pendant

Ceiling Mount Wall Mount

25˚ Angle Stanchion

HazVertor™ Ring

Straight Stanchion

Ceiling Mount

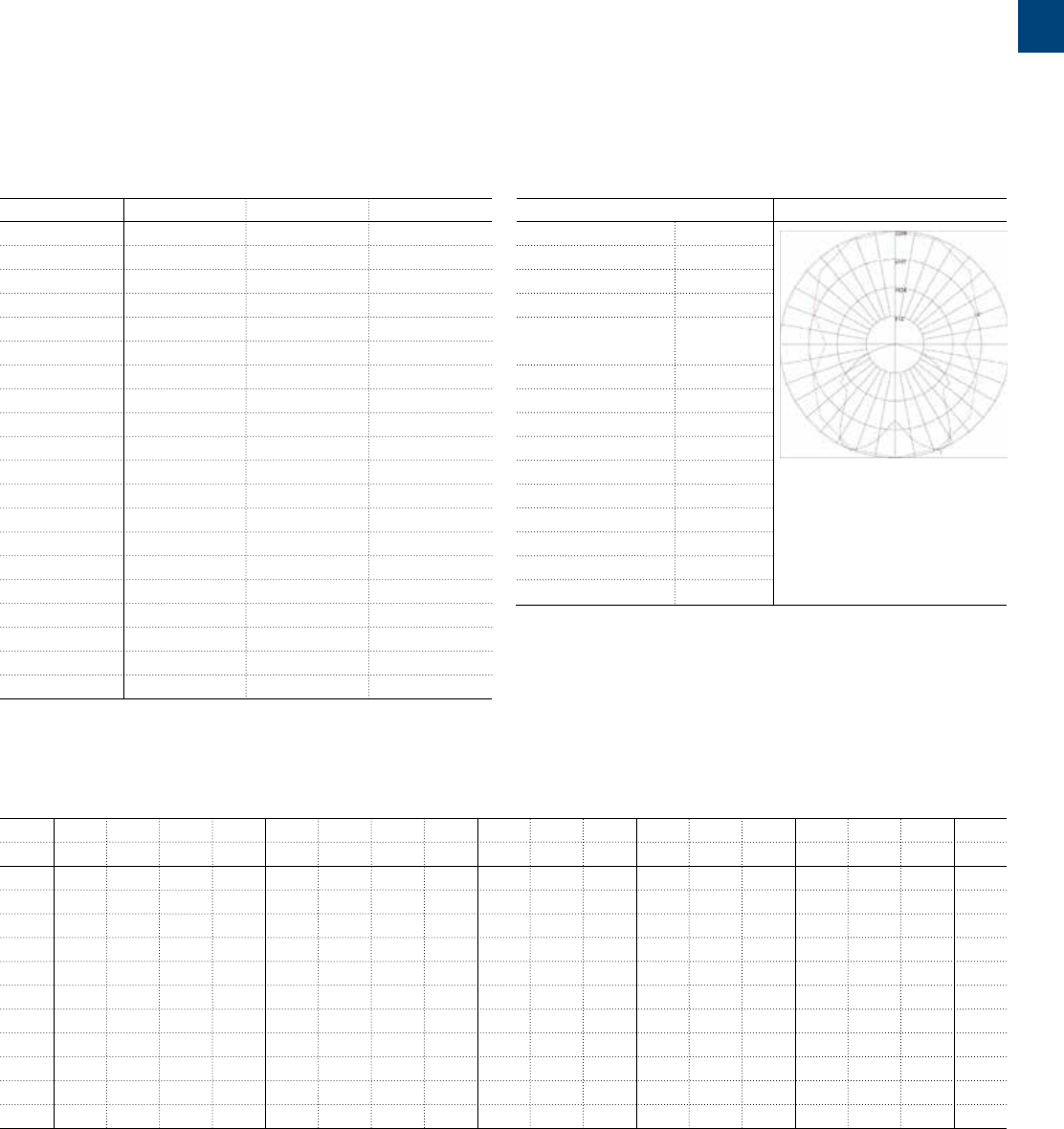

Reference Data Candlepower Curve

Catalogue No. DSO10H09O-TGLA2E

Lamp 100W HPS ED23 1/2

Lamp Lumens 9500

Input Watt 130

Luminaire Lumens 8318

Efficiency 88%

Efficacy Rating (LER) 64.0

Spacing Criterion (0-180) 3.56

Spacing Criterion (90-270) 3.56

Spacing Criterion (diagonal) 3.42

Reference Data Candlepower Curve

Catalogue No. DHO17C09O-TGLA3E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 12719

Efficiency 91%

Efficacy Rating (LER) 60.6

Spacing Criterion (0-180) 2.38

Spacing Criterion (90-270) 2.38

Spacing Criterion (diagonal) 2.36

Reference Data Candlepower Curve

Catalogue No. DHO17C09O-TGLA3E

& VR22P

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 10006

Efficiency 71%

Efficacy Rating (LER) 47.7

Spacing Criterion (0-180) 1.52

Spacing Criterion (90-270) 1.52

Spacing Criterion (diagonal) 1.68

147⁄8"

(378mm)

163⁄4"

(425mm)

133⁄8"

(340mm)

163⁄4"

(425mm)

133⁄8"

(340mm)

1811⁄32"

(466mm)

133⁄4"

(349mm)

133⁄8"

(340mm)

153⁄16"

(386mm)

161⁄8"

(410mm)

153⁄16"

(386mm)

153⁄4"

(400mm)

133⁄8"

(340mm)

143⁄4"

(375mm)

250

500

750

1000

355

710

1065

1420

576

1152

1727

2303

3/18 Industrial and hazardous location lighting product catalogue | EKPC-0814

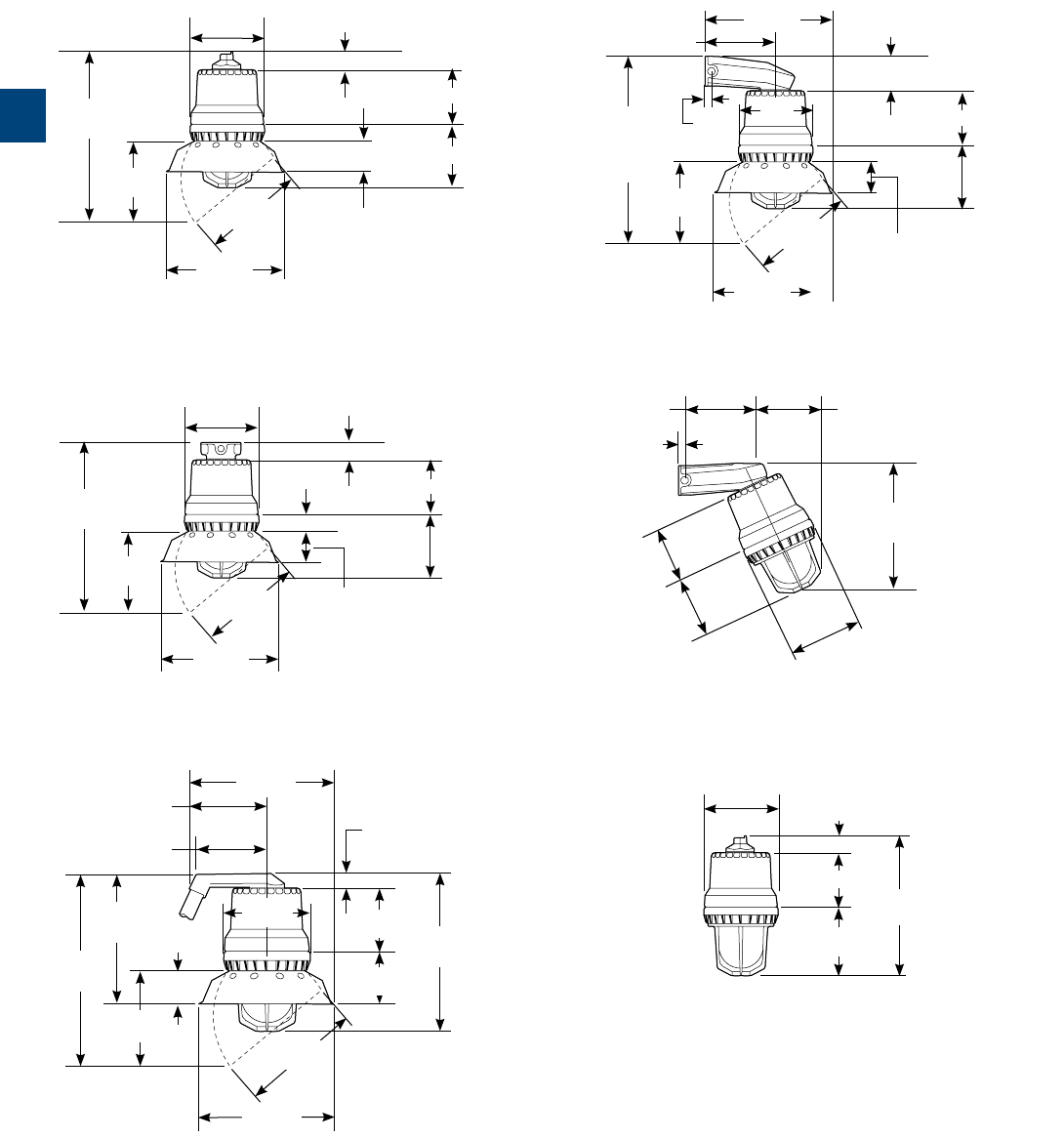

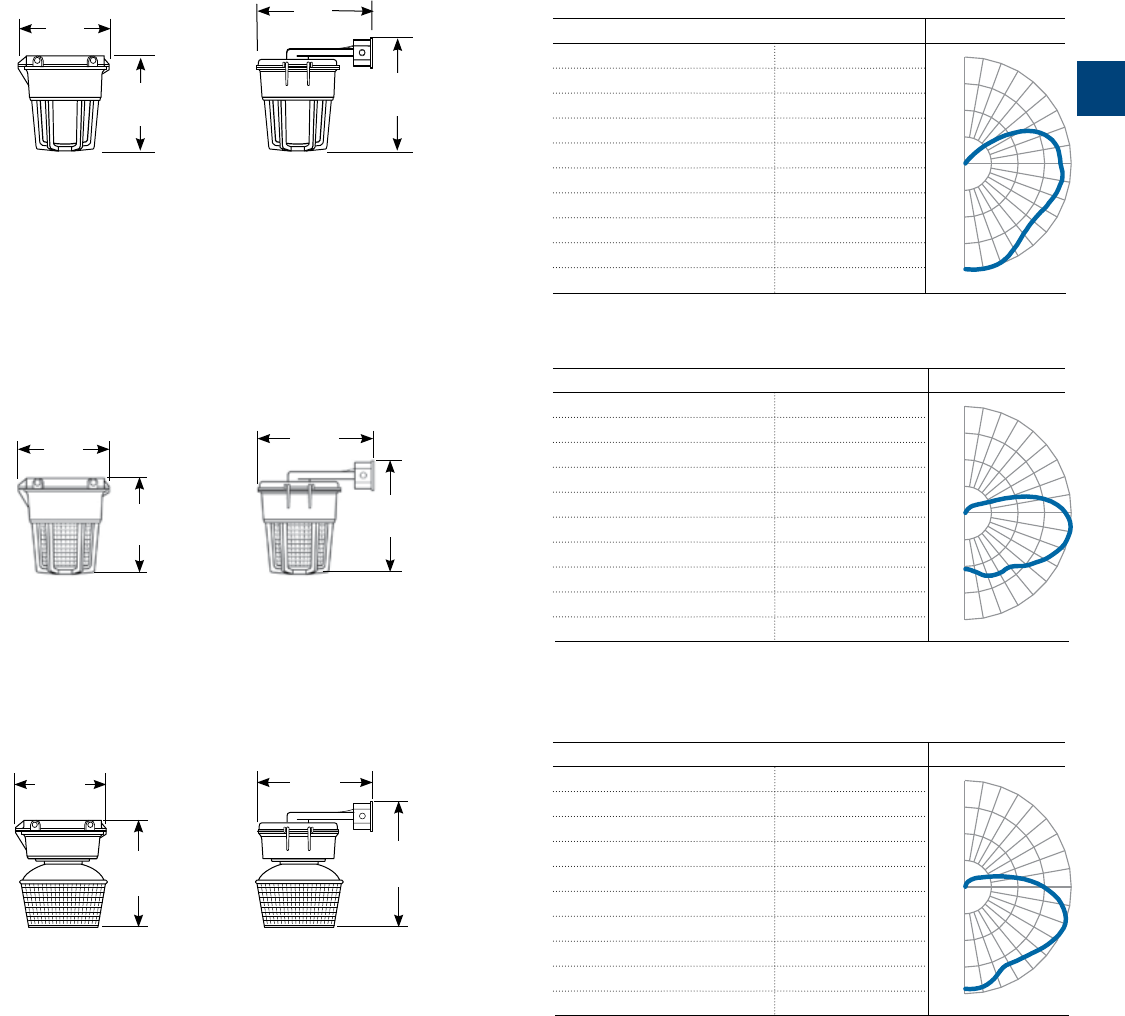

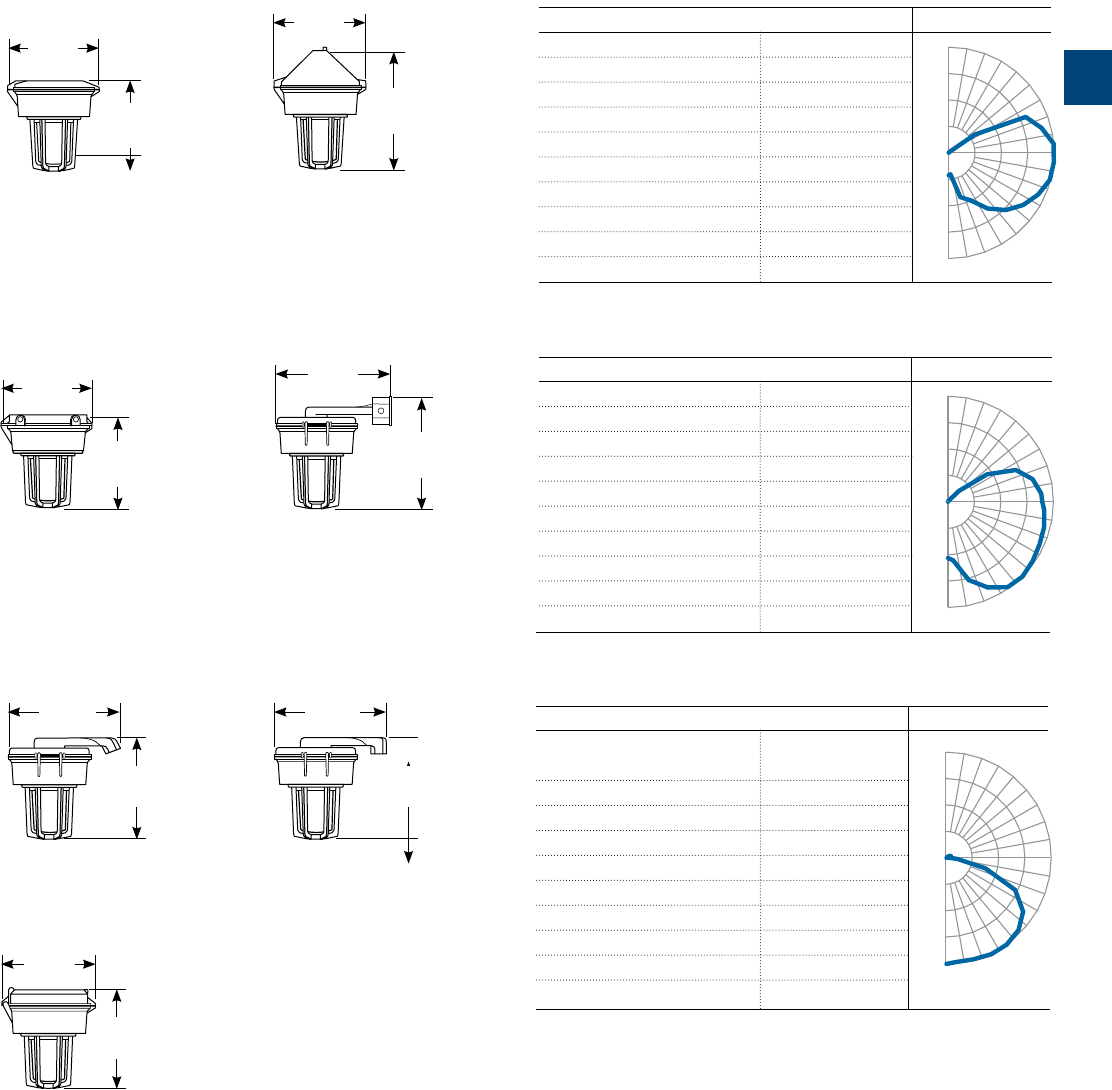

Dimensions - Standard housing with

12” refractor and guard

Photometry - Standard housing with

12” refractor and guard

Rigid Pendant Flexible Pendant

Cone-Top Pendant Ceiling Mount

Wall Mount

Straight Stanchion HazVertor™ Ring

25˚ Angle Stanchion Mount

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DHO17C09O-R5A2E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 11690

Efficiency 84%

Efficacy Rating (LER) 55.7

Spacing Criterion (0-180) 1.46

Spacing Criterion (90-270) 1.46

Spacing Criterion (diagonal) 1.74

147⁄8"

(378mm)

199⁄16"

(497mm)

17 5⁄16"

(440mm)

133⁄8"

(340mm)

133⁄8"

(340mm)

20 1⁄2"

(546mm)

133⁄8"

(340mm)

1611⁄16"

(424mm)

133⁄8"

(340mm)

1611⁄16"

(424mm)

161⁄8"

(206mm)

181⁄8"

(460mm)

153⁄4"

(400mm)

181⁄8"

(460mm)

133⁄8"

(340mm)

181⁄8"

(460mm)

488

975

1463

1950

Area lighting

Hazlux® 3 Standard housing

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/19

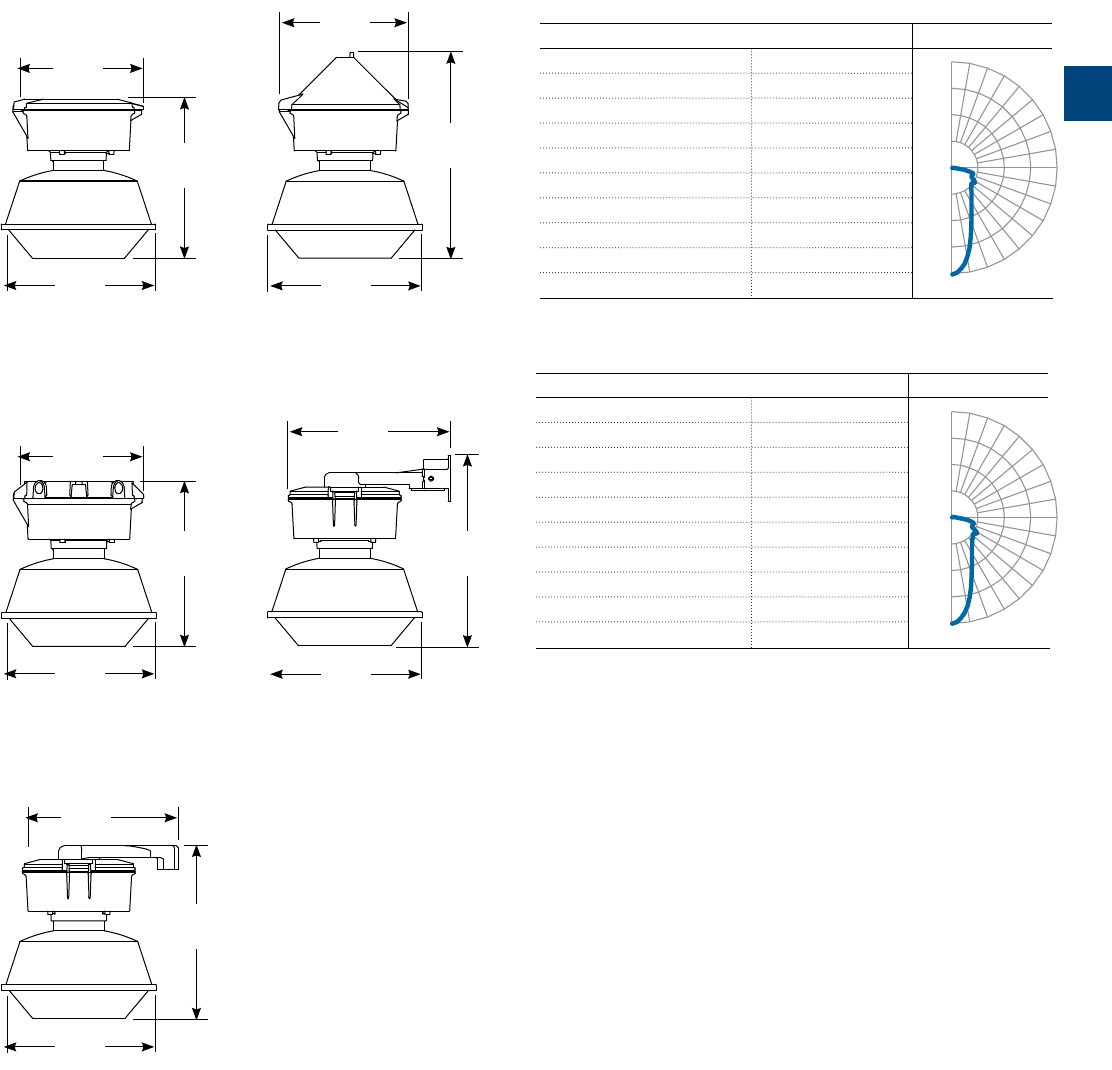

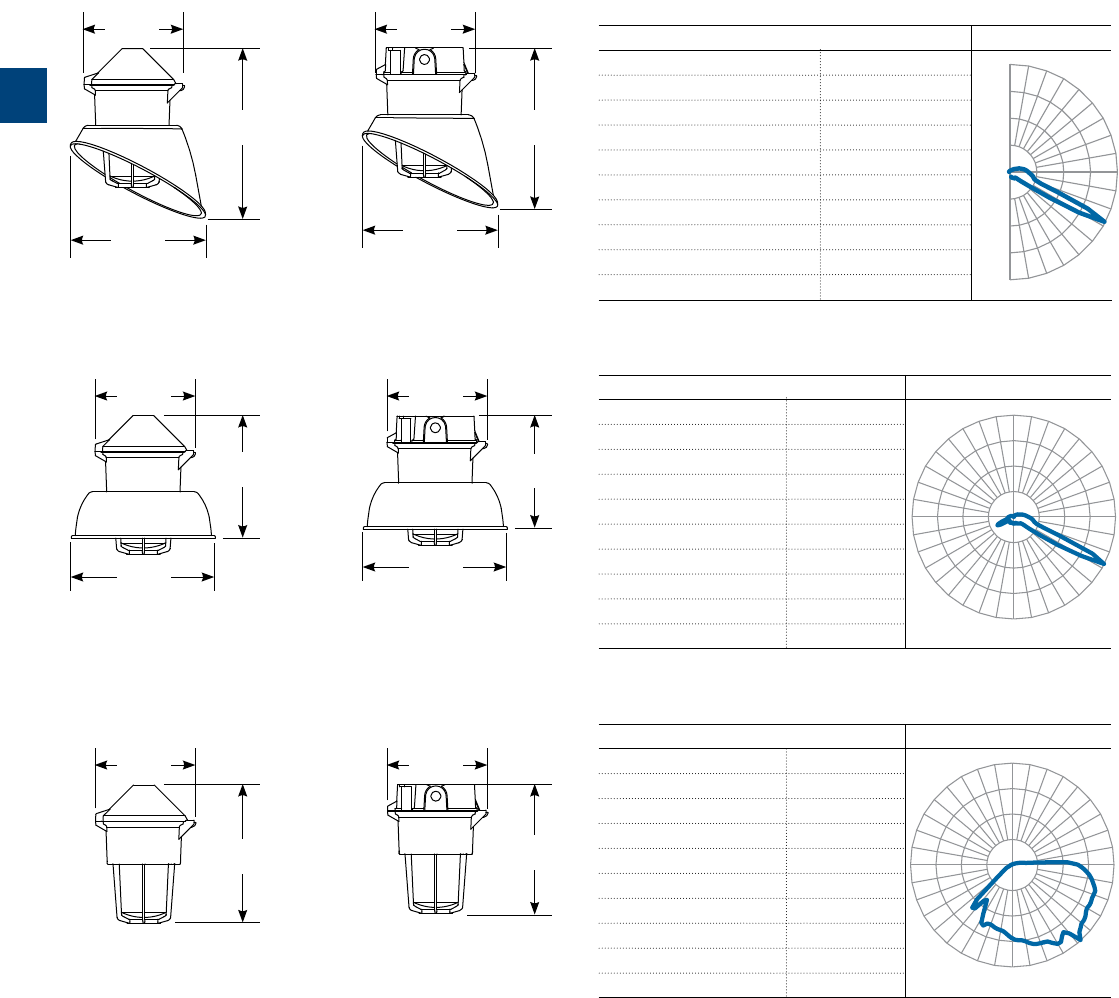

Dimensions - Standard housing with

low bay refractor

Photometry - Standard housing with

low bay refractor

Straight Stanchion

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSO15H09O-CBDL-A2E

Lamp 150W HPS ED23 1/2

Lamp Lumens 16000

Input Watt 165

Luminaire Lumens 8744

Efficiency 55%

Efficacy Rating (LER) 53

Spacing Criterion (0-180) 0.66

Spacing Criterion (90-270) 0.66

Spacing Criterion (diagonal) 0.80

Reference Data Candlepower Curve

Catalogue No. DHO25C09O-CBDL-A2E

Lamp 250W MH ED28

Lamp Lumens 20500

Input Watt 275

Luminaire Lumens 11869

Efficiency 58%

Efficacy Rating (LER) 43

Spacing Criterion (0-180) 0.68

Spacing Criterion (90-270) 0.68

Spacing Criterion (diagonal) 0.82

13 5⁄8"

(345mm)

161⁄2"

(420mm)

16 1⁄8"

(409mm)

13 5⁄8"

(345mm)

17 1⁄4"

(437mm)

16 1⁄8"

(409mm)

13 1⁄2"

(343mm)

213⁄8"

(544mm)

16 1⁄8"

(409mm)

16 7⁄8"

(429mm)

19 3⁄4"

(503mm)

16 1⁄8"

(409mm)

16 1⁄4"

(412mm)

18"

(457mm)

16 1⁄8"

(409mm)

Rigid and Flexible Pendant Cone-Top Pendant

Wall MountCeiling Mount

1339

2677

4016

5354

1725

3451

5176

6901

3/20 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3 R-Housing

Assembly guide

Mounting Style

Ballast Tank

Globe or Refractor

Guard

Reflector*

R-Housing

Low-Bay Refractor

Type V Refractor

Polymeric Guard

Cast Guard

Wire Guard

30° Angle Reflector

Deep Dome

Standard Dome

*Reﬂectors are sold separately

Cone-Top Pendant Wall Mount 25˚ Angle StanchionHazVertor™

Adapter Ring

Rigid or Flexible

Pendant

Ceiling Mount Straight Stanchion

Complete luminaire consists of:

– A mounting style

– Ballast Tank

– Globe or Refractor

– Optional Guard and/or Reflector

Heat-Resistant Globe

Hazlux® 3 R-Housing - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/21

Catalog numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast tank Optics and mountings Options

Ballast Tank Optics & Mountings

Options

1 Fixture Series D Hazlux® 3 Fixture

2 Lamp Type S High-Pressure Sodium

H Metal Halide

3 Starter Circuit/ Ø Standard Fixture (Without Options)

Quartz Options P Pulse Start (MH Only)*

Q Quartz Auxiliary Option (Not Hazardous Rated)

R Instant Restart (50 - 150W HPS)

J Auto Shutoff Starter (HPS Only)

Y Auto Shutoff Starter with Quartz Restrike (HPS only, non-UL)

4 Lamp Wattage Metal Halide Lamps

10 100W ED28 17 175W ED28

20 200W ED28PS 25 250W ED28

High Pressure Sodium Lamps

05 50W ED23 1/2 07 70W ED23 1/2

10 100W ED23 1/2 15 150W ED23 1/2

5 Ballast Circuit H High Reactance

C Constant Wattage Autotransformer (CWA)

I CWI

P Reactor (AII ballasts high power factor)

6 Voltage/ 03 120/277V, 60 Hz

Frequency 04 120/208/240/277V, 60 Hz

09 120/277/347V, 60 Hz (CSA)

12 120V, 60 Hz

20 208V, 60 Hz

24 240V, 60 Hz

27 277V, 60 Hz

34 347V, 60 Hz

48 480V, 60 Hz

225 220V, 50 Hz

245 240V, 50 Hz

7 Ballast Housing R R-Housing

Style I R-Housing with Stainless Steel Inserts

For high ambient temperature (55ºC, 65ºC) please consult factory

8 Optical Assembly R1 73⁄4” Refractor Globe, Type I

Options R3 73⁄4” Refractor Globe, Type III

R5 73⁄4” Refractor Globe, Type V

R1P R1 with Polymeric Guard

R3P R3 with Polymeric Guard

R5P R5 with Polymeric Guard

R1G R1 with Cast Guard

R3G R3 with Cast Guard

R5G R5 with Cast Guard

TG 73⁄4” Thermal Shock-Resistant

TGP TG with Polymeric Guard

TGC TG with Cast Guard

RCB Enclosed High-Bay Reflector

RCG RCB with Steel Wire Guard

9 Mounting style A2 3⁄4“ Cone-Top Pendant

A3 1“ Cone-Top Pendant

B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling Mount

C3 1“ Ceiling Mount

F2 3⁄4“ Flexible Pendant

F3 1“ Flexible Pendant

HV1 HazVertor™ Ring - Class I, Div. 2, Zone 2

HV2 HazVertor™ Ring - Class I Div. 2, Zone 2, Class II

L4 11⁄4“ Straight Stanchion

L5 11⁄2“ Straight Stanchion

P2 3⁄4“ Rigid Pendant

P3 1“ Rigid Pendant

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

10 UNIPAK™ E UNIPAK™ with Clear Lamp

Options D UNIPAK™ with Dual Arc Lamp

U UNIPAK™ No Lamp

11 Special Options T HazCote® custom anti-corrosion coating (Consult factory)

12 Fusing Options F Fuse Block(s) with Fuse(s)*

13 Certification C Canadian Market

123456

78910111213

D S Ø 15 H 04

R-TGP-P2 E T F C

12345678910111213

D S Ø 15 H 04 R-

TGP-P2 E

T F C

123456789101

D S Ø 15 H 04 R-TGP-P2 E

T F C

*Fuse Block are not available for Marine Locations

3/22 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Mounting Options

Globes or Refractors

Guards

Reflectors or Exit Sign

Part No. Description Conduit Hub Size

VP2 Rigid Pendant 3⁄4“

VP3 Rigid Pendant 1“

VA2 Cone-Top Pendant 3⁄4“

VA3 Cone-Top Pendant 1“

VF2 Flexible Pendant 3⁄4“

VF3 Flexible Pendant 1“

VC2 Ceiling Mount 3⁄4“

VC3 Ceiling Mount 1“

VB2-VIB Wall Mount 3⁄4“

VB3-VIB Wall Mount 1“

VS4-VIB 25° Angle Stanchion 11⁄4”

VS5-VIB 25° Angle Stanchion 11⁄2”

VL4-VIB Straight Stanchion 11⁄4”

VL5-VIB Straight Stanchion 11⁄2”

HV1 HazVertor™ Adapter Ring N/A

HV2 HazVertor™ Adapter Ring N/A

Part No. Description

VGT31S 73⁄4“ dia. Heat-Resistant Globe (250W max.)

VGT31STS 73⁄4“ dia. Heat-Resistant Globe (250W max.) coated with Tuff-Skin®

VGL31R1 73⁄4“ dia. IES Type I Refractor Globe (250W max.)

VGL31R3 73⁄4“ dia. IES Type III Refractor Globe (250W max.)

VGL31R5 73⁄4“ dia. IES Type V Refractor Globe (250W max.)

VR31CB Enclosed High-Bay, Anodized Aluminum with Lens

Part No. Description

VGU31RP Polymeric Guard for VGT31S Globe and VGL31R Series Refractor Globes

VGU31R Cast Aluminum Guard for VGT31S Globe and VGL31R Series

Refractor Globes

VGR64 Steel Wire Guard for VR31CB Enclosed High Bay Reflector

Part No. Description

VR31P Standard Dome, Fiberglass-Reinforced Polyester

VRA31P 30° Angle Reflector, Fiberglass-Reinforced Polyester

VRD31 Deep Dome, Anodized Aluminum

Note: Reﬂectors are shipped bulk unless speciﬁed

Cone-Top Pendant

HazVertor™ Adapter

Flexible Pendant

Rigid Pendant

Ceiling Mount

25˚ Angle Stanchion

Straight Stanchion

Wall Mount

Enclosed High-Bay Reflector Type I, III or V

Refractor Globe

Cast Guard VGR64 Wire Guard

Deep Dome

Heat-Resistant

Globe

Polymeric Guard

Standard Dome 30° Angle Reflector

Area lighting

Hazlux® 3 R-Housing

Optional components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/23

Dimensions - R-Housing with 7-3/4”

refractor and guard

Photometry - R-Housing with 7-3/4”

refractor and guard

Rigid Pendant Flexible Pendant

Cone-Top Pendant Ceiling Mount

Wall Mount

Straight Stanchion

Straight Stanchion Mount

HazVertor™ Ring

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSO10H09R-TGCA3E

Lamp 100W HPS ED23 1/2

Lamp Lumens 9500

Input Watt 130

Luminaire Lumens 8318

Efficiency 88%

Efficacy Rating (LER) 64.0

Spacing Criterion (0-180) 3.56

Spacing Criterion (90-270) 3.56

Spacing Criterion (diagonal) 3.42

Reference Data Candlepower Curve

Catalogue No. DHP17C09R-TGA3E

Lamp 175W MH ED28PS

Lamp Lumens 17700

Input Watt 192.5

Luminaire Lumens 14969

Efficiency 85%

Efficacy Rating (LER) 78

Spacing Criterion (0-180) 1.86

Spacing Criterion (90-270) 1.86

Spacing Criterion (diagonal) 2.00

Reference Data Candlepower Curve

Catalogue No. DHO17C09R-TGA3E

& VR31P

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 10006

Efficiency 71%

Efficacy Rating (LER) 47.7

Spacing Criterion (0-180) 1.52

Spacing Criterion (90-270) 1.52

Spacing Criterion (diagonal) 1.68

141⁄4"

(362mm)

133⁄8"

(340mm)

141⁄4"

(362mm)

133⁄8"

(340mm)

1811⁄16"

(475mm)

133⁄8"

(340mm)

141⁄2"

(368mm)

133⁄8"

(340mm)

165⁄8"

(422mm)

147⁄8"

(377mm)

153⁄16"

(391mm)

161⁄8"

(410mm)

153⁄16"

(386mm)

153⁄4"

(400mm)

143⁄4"

(375mm)

133⁄8"

(340mm)

250

500

750

1000

537

1074

1611

2148

576

1152

1727

2303

3/24 Industrial and hazardous location lighting product catalogue | EKPC-0814

Photometry - R-Housing with 7-3/4“

refractor and guard

Cone-Top Pendant Ceiling Mount

Wall Mount

Straight Stanchion HazVertor™ Ring

25˚ Stanchion Mount

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DHO17C09R-R1A3E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 10352

Efficiency 74%

Efficacy Rating (LER) 49.3

Spacing Criterion (0-180) 1.68

Spacing Criterion (90-270) 3.02

Spacing Criterion (diagonal) 2.02

Reference Data Candlepower Curve

Catalogue No. DHO17C09R-R5A3E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 10221

Efficiency 73%

Efficacy Rating (LER) 48.7

Spacing Criterion (0-180) 2.00

Spacing Criterion (90-270) 2.00

Spacing Criterion (diagonal) 2.30

Area lighting

Hazlux® 3 R-Housing

133⁄8"

(340mm)

141⁄4"

(362mm)

141⁄4"

(362mm)

133⁄8"

(340mm)

153⁄16"

(386mm)

161⁄8"

(410mm)

153⁄16"

(386mm)

153⁄4"

(400mm)

143⁄4"

(375mm)

133⁄8"

(340mm)

133⁄8"

(340mm)

1811⁄16"

(475mm)

133⁄8"

(340mm)

141⁄2"

(368mm)

147⁄8"

(378mm)

165⁄8"

(422mm)

Dimensions - R-Housing with 7-3/4“

refractor and guard

Rigid Pendant Flexible Pendant

723

1446

2168

2891

793

1587

2380

3173

365

730

1094

1459

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DHO17C09R-R3A3E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 10609

Efficiency 76%

Efficacy Rating (LER) 50.5

Spacing Criterion (0-180) 1.62

Spacing Criterion (90-270) 2.28

Spacing Criterion (diagonal) 2.10

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/25

Dimensions - R-Housing with

high bay refractor

Photometry - R-Housing with

high bay refractor

Straight Stanchion

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DHP25C04R-RCB-P2E

Lamp 250W MH ED28PS

Lamp Lumens 25000

Input Watt 250

Luminaire Lumens 16988

Efficiency 68%

Efficacy Rating (LER) 68

Spacing Criterion (0-180) 2.28

Spacing Criterion (90-270) 2.28

Spacing Criterion (diagonal) 1.82

Rigid and Flexible Pendant Cone-Top Pendant

Wall MountCeiling Mount

13 5⁄8"

(345mm)

16 3⁄8"

(415mm)

17 7⁄8"

(453mm)

13 5⁄8"

(345mm)

16 3⁄8"

(415mm)

18 1⁄2"

(470mm)

16 1⁄4"

(412mm)

16 3⁄8"

(415mm)

19 1⁄4"

(490mm)

16 7⁄8"

(429mm)

16 3⁄8"

(415mm)

21 1⁄8"

(536mm)

13 1⁄2"

(343mm)

16 3⁄8"

(415mm)

22 3⁄4"

(577mm)

2600

5200

7799

10399

3/26 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3 Large housing

Assembly guide

Complete luminaire consists of:

– A mounting style

– Ballast Tank

– Globe or Refractor

– Optional Guard and/or Reflector

Mounting Style

Ballast Tank

Globe or Refractor

Guard

Reflectors*

Low-Bay Refractor

Type V Refractor

Heat-Resistant Globe

Steel Wire Guard

30° Angle Reflector

*Reﬂectors are sold separately

Cone-Top Pendant Wall Mount 25˚ Angle StanchionHazVertor™

Adapter Ring

Rigid or Flexible

Pendant

Ceiling Mount Straight Stanchion

L-Housing

Steel Wire Guard

Cast Aluminium Guard

Standard Dome Reflector

Deep Dome Reflector

Hazlux® 3 Large Housing - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/27

Catalog numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast tank Optics and mountings Options

Ballast Tank Optics & Mountings

Options

1 Fixture Series D Hazlux® 3 Fixture

2 Lamp Type S High-Pressure Sodium

H Metal Halide

3 Starter Circuit/ Ø Standard Fixture (Without Options)

Quartz Options P Pulse Start (MH Only)

Q Quartz Auxiliary Option (Not Hazardous Rated)

J Auto Shutoff Starter (HPS Only)

4 Lamp Wattage Metal Halide Lamps

20 200W ED28PS 25 250W ED28

32 320W ED28PS 35 350W ED37PS

40 400W ED37

High Pressure Sodium Lamps

20 200W ED18 25 250W ED18

40 400W ED18

5 Ballast Circuit H High Reactance

C Constant Wattage Autotransformer (CWA)

I CWI

P Reactor (AII ballasts high power factor)

6 Voltage/ 03 120/277V, 60 Hz

Frequency 04 120/208/240/277V, 60 Hz

09 120/277/347V, 60 Hz (CSA)

12 120V, 60 Hz

20 208V, 60 Hz

27 277V, 60 Hz

34 347V, 60 Hz

48 480V, 60 Hz

225 220V, 50 Hz

245 240V, 50 Hz

7 Ballast Housing L Large Housing

Style M Large Housing with Stainless Steel Inserts

8 Optics and R2 12” Refractor Glass, Type II

Guards R5 12” Refractor Glass, Type V

R2G R2 with Steel Wire Guard

R5G R5 with Cast Guard

RCB Enclosed High-Bay Reflector

RCG RCB with Steel Wire Guard

TG 73⁄4” Thermal Shock-Resistant CBDL Globe

TGC TG with Cast Aluminum Guard

SG Tuff-Skin® Coated Globe*

SGC SG with Cast Aluminum Guard

9 Mounting style A2 3⁄4“ Cone-Top Pendant

A3 1“ Cone-Top Pendant

B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling Mount

C3 1“ Ceiling Mount

F2 3⁄4“ Flexible Pendant

F3 1“ Flexible Pendant

HV1 HazVertor™ Ring - Class I, Div. 2, Zone 2

HV2 HazVertor™ Ring - Class I Div. 2, Zone 2, Class II

L4 11⁄4“ Straight Stanchion

L5 11⁄2“ Straight Stanchion

P2 3⁄4“ Rigid Pendant

P3 1“ Rigid Pendant

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

10 UNIPAK™ E UNIPAK™ with Clear Lamp

Options D UNIPAK™ with Dual Arc Lamp

U UNIPAK™ No Lamp

*Tuff-Skin is a registered trademark of Thomas Manufacturing Corp

11 Special Options T HazCote® custom anti-corrosion coating (Consult factory)

12 Fusing Options F Fuse Block(s) with Fuse(s)*

13 Certification C Canadian Market

* Fusing is not available with Marine locations

1234567 8910 11 12 13

D S Ø 25 H 04

L-TGC-P2 E T F C

1234567

8910

11 12 13

D S Ø 25 H 04 L-

TGC-P2 E

T F C

1234567 8910

11 12 13

D S Ø 25 H 04 L-TGC-P2 E

T F C

3/28 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Part No. Description Conduit Hub Size

VP2 Rigid Pendant 3⁄4”

VP3 Rigid Pendant 1”

VA2 Cone-Top Pendant 3⁄4”

VA3 Cone-Top Pendant 1”

VF2 Flexible Pendant 3⁄4”

VF3 Flexible Pendant 1”

VC2 Ceiling Mount 3⁄4”

VC3 Ceiling Mount 1”

VB2-VIB Wall Mount 3⁄4”

VB3-VIB Wall Mount 1”

VS4-VIB 25° Angle Stanchion 11⁄4”

VS5-VIB 25° Angle Stanchion 11⁄2”

VL4-VIB Straight Stanchion 11⁄4”

VL5-VIB Straight Stanchion 11⁄2”

HV1 HazVertor™ Adapter Ring N/A

HV2 HazVertor™ Adapter Ring N/A

Part No. Description

VGT31 73⁄4“ dia. Heat-Resistant Globe (400W max.)

VGT31TS 73⁄4“ dia. Heat-Resistant Globe (400W max.) coated with Tuff-Skin®

VRF31C2 12“ dia. IES Type II Refractor, 73⁄4“ Thread

VRF31C5 12“ dia. IES Type V Refractor, 73⁄4“ Thread

VR31CB Enclosed High-Bay, Anodized Aluminum with Lens

Part No. Description

VGU31 Cast Aluminum Guard for VGT31 Globe

VGR48 Steel Wire Guard for All VRF Series 12“ Refractors

VGR64 Steel Wire Guard for VR31CB Enclosed High Bay Reflector

Part No. Description

VR31P Standard Dome, Fiberglass-Reinforced Polyester

VRA31P 30° Angle Reflector, Fiberglass-Reinforced Polyester

VRD31 Deep Dome, Anodized Aluminum

Note: Reﬂectors are shipped bulk unless speciﬁed

Area lighting

Hazlux® 3 Large housing

Cone-Top Pendant

HazVertor™ Adapter

Flexible Pendant

Rigid Pendant

Ceiling Mount

25˚ Angle Stanchion

Straight Stanchion

Wall Mount

Enclosed High-Bay Reflector Type III or V

Refractor Globe

Cast Guard VGR64 Wire Guard

Deep Dome

Heat-Resistant

Globe

Polymeric Guard

Standard Dome 30° Angle Reflector

Optional components

Mounting Options

Globes or Refractors

Guards

Reflectors or Exit Sign

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/29

Dimensions - Large housing with

globe and guard

Photometry - Large Housing with

globe and guard

Rigid Pendant Cone-Top Pendant

Ceiling Mount Wall Mount

Straight Stanchion

HazVertor™ Ring

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSO20C09L-TGCA3E

Lamp 200W HPS ED18

Lamp Lumens 22000

Input Watt 255

Luminaire Lumens 18415

Efficiency 84%

Efficacy Rating (LER) 72.2

Spacing Criterion (0-180) NA

Spacing Criterion (90-270) NA

Spacing Criterion (diagonal) NA

Reference Data Candlepower Curve

Catalogue No. DHO35C09L-TGCA3E

Lamp 350W MH ED37PS

Lamp Lumens 34000

Input Watt 400

Luminaire Lumens 26392

Efficiency 78%

Efficacy Rating (LER) 66.0

Spacing Criterion (0-180) 1.36

Spacing Criterion (90-270) 1.36

Spacing Criterion (diagonal) 1.58

133⁄8"

(340mm)

221⁄8"

(562mm)

133⁄8"

(340mm)

143⁄8"

(365mm)

26"

(660mm)

147⁄8"

(340mm)

243⁄8"

(619mm)

153⁄4"

(400mm)

23"

(584mm)

133⁄8"

(340mm)

233⁄8"

(594mm)

133⁄8"

(340mm)

97⁄8" (251mm)

115⁄8"

(295mm)

211⁄2"

(546mm)

161⁄8"

(410mm)

23"

(584mm)

25˚ Angle Stanchion Mount

523

1045

1568

2090

2398

4797

7195

9593

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DHP40C04L-TG-P2V

& VRA31P

Lamp 400W MH ED37PS

Lamp Lumens 44000

Input Watt 400

Luminaire Lumens 30407

Efficiency 69%

Efficacy Rating (LER) 76

Spacing Criterion (0-180) 2.32

Spacing Criterion (90-270) 1.72

Spacing Criterion (diagonal) 1.58

1523

3045

4568

6090

3/30 Industrial and hazardous location lighting product catalogue | EKPC-0814

Photometry - Large housing with

12” refractor

25˚ Angle Stanchion Mount

HazVertor™ Ring

Straight Stanchion

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSO20C04L-R5-P2E

Lamp 200W HPS ED18

Lamp Lumens 22000

Input Watt 240

Luminaire Lumens 16414

Efficiency 75%

Efficacy Rating (LER) 68

Spacing Criterion (0-180) 1.66

Spacing Criterion (90-270) 1.66

Spacing Criterion (diagonal) 1.80

Area lighting

Hazlux® 3 Large housing

Dimensions - Large housing with

12” refractor

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DHP32C04L-R2-P2E

Lamp 320W MH ED28PS

Lamp Lumens 30000

Input Watt 352

Luminaire Lumens 21773

Efficiency 73%

Efficacy Rating (LER) 62

Spacing Criterion (0-180) 1.56

Spacing Criterion (90-270) 1.50

Spacing Criterion (diagonal) 1.90

133⁄8"

(340mm)

207⁄8"

(530mm)

133⁄8"

(340mm)

253⁄8"

(644mm)

161⁄8"

(410mm)

223⁄8"

(568mm)

133⁄8"

(340mm)

211⁄2"

(546mm)

133⁄8"

(340mm)

213⁄4"

(552mm)

147⁄8"

(378mm)

233⁄4"

(603mm)

153⁄4"

(400mm)

223⁄8"

(568mm)

Cone-Top Pendant

Rigid and Flexible Pendant

Ceiling Mount Wall Mount

2457

4913

7370

9826

838

1675

2513

3350

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/31

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSO20C04L-RCB-A3E

Lamp 200W HPS ED18

Lamp Lumens 22000

Input Watt 240

Luminaire Lumens 12810

Efficiency 58%

Efficacy Rating (LER) 53

Spacing Criterion (0-180) 1.70

Spacing Criterion (90-270) 1.70

Spacing Criterion (diagonal) 1.38

Dimensions - Large housing with

high bay refractor

Photometry - Large housing with

high bay refractor

Straight Stanchion

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DHP25C04-RCB-A3E

Lamp 250W MH ED28PS

Lamp Lumens 25000

Input Watt 250

Luminaire Lumens 17383

Efficiency 70%

Efficacy Rating (LER) 70

Spacing Criterion (0-180) 2.36

Spacing Criterion (90-270) 2.36

Spacing Criterion (diagonal) 1.86

Rigid and Flexible Pendant Cone-Top Pendant

Wall MountCeiling Mount

13 5⁄8"

(345mm)

16 3⁄8"

(415mm)

21 3⁄4"

(551mm)

13 5⁄8"

(345mm)

16 3⁄8"

(415mm)

22 3⁄8"

(567mm)

13 1⁄2"

(343mm)

16 3⁄8"

(415mm)

26 5⁄8"

(675mm)

16 1⁄4"

(412mm)

16 3⁄8"

(415mm)

23 1⁄8"

(588mm)

16 7⁄8"

(429mm)

16 3⁄8"

(415mm)

25"

(633mm)

2607

5213

7820

10426

2607

5213

7820

10426

3/32 Industrial and hazardous location lighting product catalogue | EKPC-0814

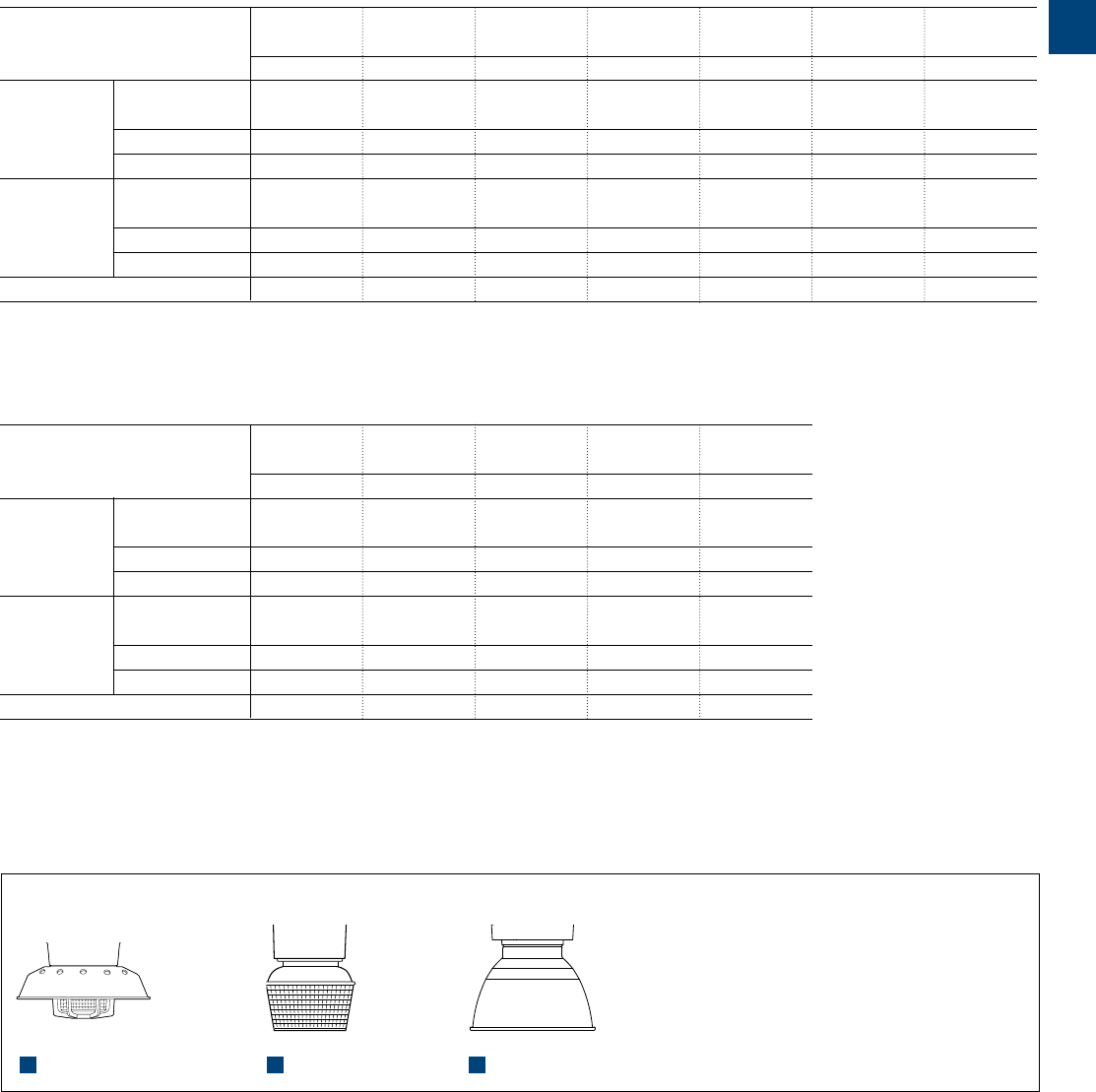

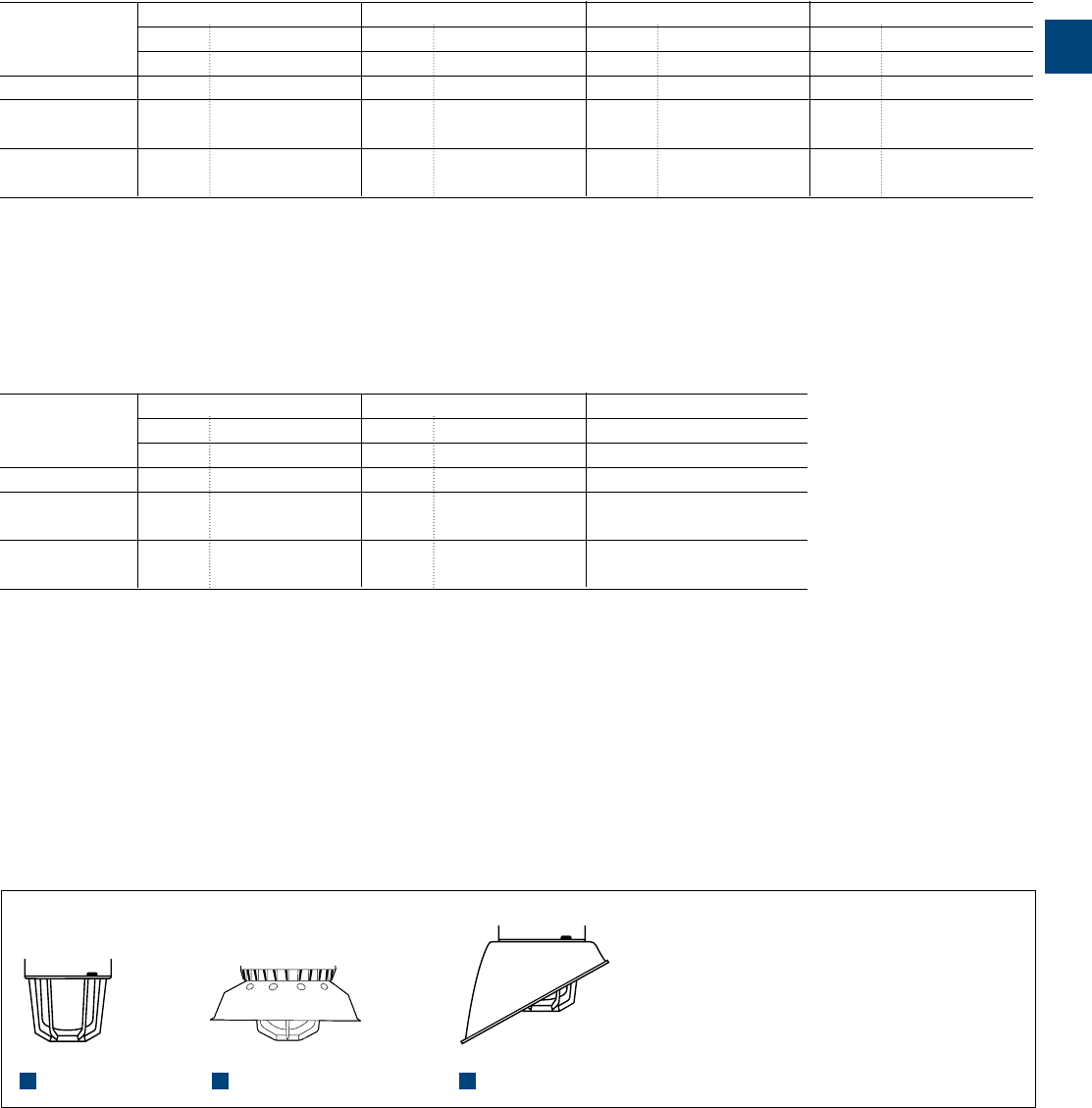

Hazlux® 3 Thermal Performance Data (40ºC)

Hazardous Location

Area lighting

Hazlux® 3 Thermal performance data (40ºC)

50W (S68 Lamp) 70W 100W 150W (S55 or 200W 250W 400W/D* Any HPS w/

(S68 Lamp) (S62 Lamp) (S54 Lamp) S56 Lamp) (S66 Lamp) (S50 Lamp) (S50 Lamp) Auxiliary Qtz.)

Configuration “T” No. “T” No. “T” No. “T” No. “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T3C T3A T2C T2A T2 325 T2A 625

Globe, Guard

& Dome Reflector B T3C T3A T2C T2A T2 325 T2A 625

Globe, Guard

& Angle Reflector C T3C T3A T2C T2A T2 325 T2A 625

12” Refractor D T4 T3C T2D T2B T2A 325 T2B 625

Enclosed Reflector E N/A N/A N/A N/A T2A 325 T2B 625

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC 110ºC –

*Requires use of 400W Diffuse Lamp

70W 100W 175W 250W 400W Any MH Lamp w/

(M98 Lamp) (M90 Lamp) (M57 Lamp) (M58 Lamp) (M59 Lamp) (Auxiliary Qtz.)

Configuration “T” No. “T” No. “T” No. “T” No. “T” No. “T” No

Globe & Guard A T3C T3A T2A T2 350 625

Globe, Guard

& Dome Reflector B T3C T3A T2C T2 350 625

Globe, Guard

& Angle Reflector C T3C T3A T2A T2 350 625

12” Refractor D T2C T2C T2C T2 325 625

Enclosed Reflector E N/A N/A N/A N/A 325 625

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 125ºC 110ºC –

Note: Temperature rating for all fixtures with the auxiliary quartz option is 625ºC

Class I, Division 1 Group C & D - Lamp Surface Temperature in ºC @ 40ºC Ambient in Free Air

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Metal Halide / Nameplate marked with Rating based on hottest ﬁxture congestion

Section E Hazlux® 3

Class I, Division 1 Group C & D - Lamp Surface Temperature in ºC @ 40ºC Ambient in Free Air

A B C D E

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/33

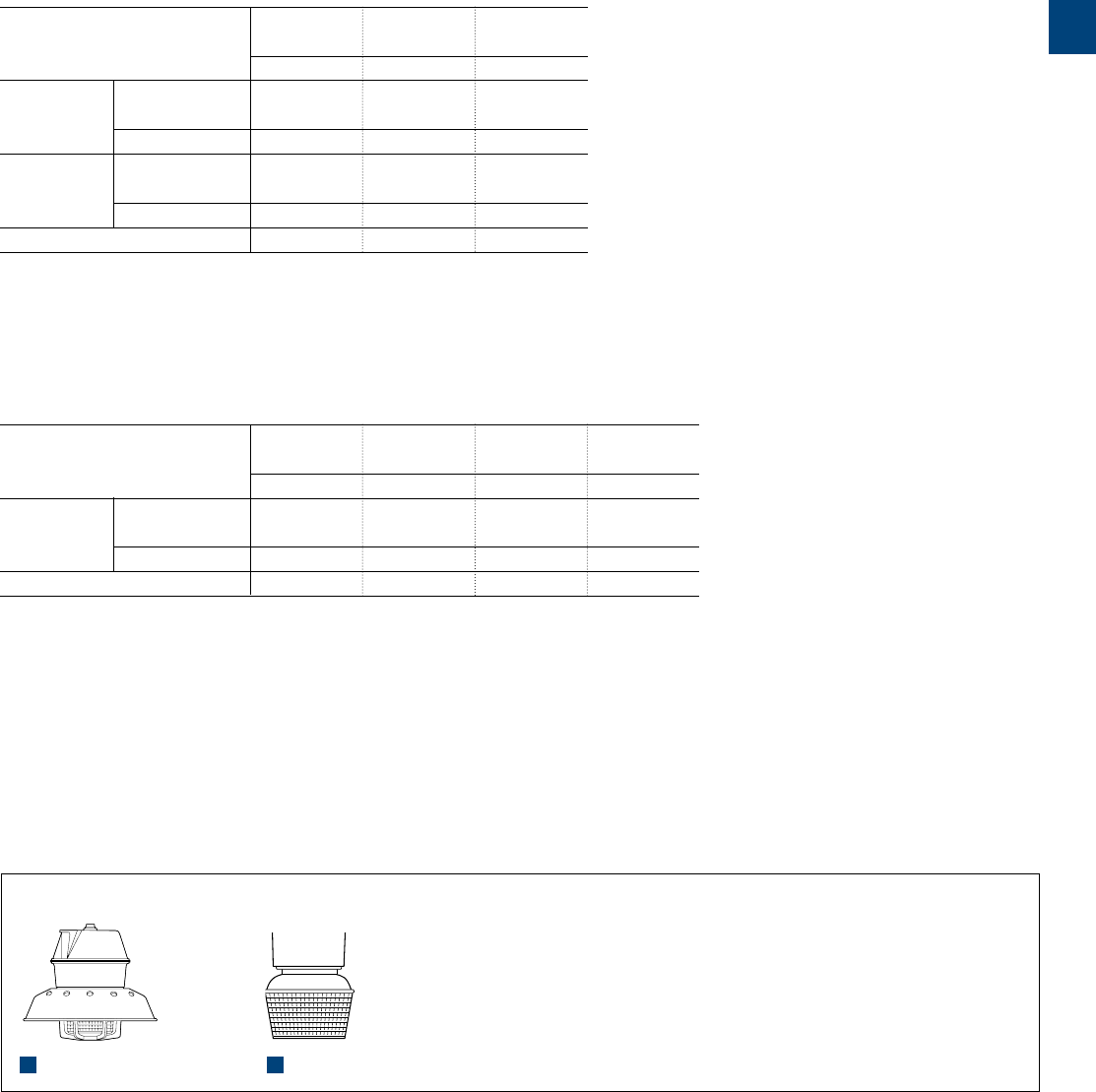

Hazlux® 3 Thermal Performance Data (40ºC)

Hazardous Location

50W 70W 100W 150W 200W 250W 400W/D*

(S68 Lamp) (S62 Lamp) (S54 Lamp) S55 Lamp) (S66 Lamp) (S50 Lamp) (S51 Lamp)

Configuration Class II Groups Class II Groups Class II Groups Class II Groups Class II Groups Class II Groups Class II Groups

Standard Globe, Guard

& any Reflector F EFG EFG EFG N/A EFG EFG N/A

Refractor G EFG EFG EFG EFG EFG EFG EFG

Enclosed Reflector H N/A N/A N/A N/A EFG EFG EFG

With Quartz Globe, Guard

Auxiliary Lamp & any Reflector F N/A N/A N/A N/A EFG EFG N/A

(100W) Refractor G EFG EFG EFG EFG EFG EFG EFG

Enclosed Reflector H N/A N/A N/A N/A EFG EFG EFG

Supply Wire Temp Rating 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC 110ºC

*Requires use of 400W Diffuse Lamp

70W 100W 175W 250W 400W/

(M98 Lamp) (M90 Lamp) (M57 Lamp) (M58 Lamp) (M59 Lamp)

Configuration Class II Groups Class II Groups Class II Groups Class II Groups Class II Groups

Standard Globe & Guard

& any Reflector F EFG EFG N/A EFG EFG

Refractor G EFG EFG EFG EFG EFG

Enclosed Reflector H N/A N/A N/A N/A EFG

With Quartz Globe & Guard

Auxiliary Lamp & any Reflector F N/A N/A N/A N/A EFG

(100W) Refractor G EFG EFG EFG EFG EFG

Enclosed Reflector H N/A N/A N/A N/A N/A

Supply Wire Temp Rating 90ºC 90ºC 90ºC 90ºC 110ºC

*Note: Fixtures certified for group G are also certified for Class III

Class II & III*, Division 1 & 2 - Maximum External Fixture Temperature In ºC @ 40ºC Ambient under a Dust Blanket

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Metal Halide / Nameplate marked with Rating based on hottest ﬁxture congestion

Section E Hazlux® 3

Class II & III*, Division 1 & 2 - Maximum External Fixture Temperature In ºC @ 40ºC Ambient under a Dust Blanket

F G H

3/34 Industrial and hazardous location lighting product catalogue | EKPC-0814

Hazlux® 3 Thermal Performance Data (55ºC)

Hazardous Location

Area lighting

Hazlux® 3 Thermal performance data (55ºC)

70W 100W 150W Any HPS w/

(S62 Lamp) (S54 Lamp) S55 Lamp) Auxiliary Qtz.)

Configuration “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T3 T2C T2A 625 (2)

Globe, Guard

& Dome Reflector B T3 T2C T2A 625 (2)

Globe, Guard

& Angle Reflector C T3 T2C T2A 625 (2)

Refractor D T3B T2D T2B 625 (2)

Enclosed Reflector E N/A N/A N/A N/A

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC

*Requires use of 400W Diffuse Lamp

70W 100W 175W 250W

(M98 Lamp) (M90 Lamp) (M57 Lamp) (M58 Lamp)

Configuration “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T3A T3 T2 (2) N/A

Globe, Guard

& Dome Reflector B T3A T3 T2 (2) N/A

Globe, Guard

& Angle Reflector C T3A T3 T2 (2) N/A

12” Refractor D N/A N/A T2B T2A

Enclosed Reflector E N/A N/A N/A N/A

Supply Wire

Temp Rating 60ºC 75ºC 90ºC 125ºC

(1) Configuration not tested. (Rating based on hottest fixture configuration)

(2) Consult Factory

Class I, Division 2 - Lamp Surface Temperature in ºC @ 55ºC Ambient in Free Air

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Metal Halide / Nameplate marked with Rating based on hottest ﬁxture congestion

Section E Hazlux® 3

Class I, Division 2 - Lamp Surface Temperature in ºC @ 55ºC Ambient in Free Air

A B C D E

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/35

Hazlux® 3 Thermal Performance Data (55ºC)

Hazardous Location

70W 100W 150W

(S62 Lamp) (S54 Lamp) S55 Lamp)

Configuration Class II Groups Class II Groups Class II Groups

Standard Globe, Guard

& any Reflector F EFG N/A N/A

Refractor G EFG EFG EFG

With Quartz Globe, Guard

Auxiliary Lamp & any Reflector F N/A N/A N/A

(100W) Refractor G EFG (2) N/A N/A

Supply Wire Temp Rating 90ºC 90ºC 90ºC

*Requires use of 400W Diffuse Lamp

70W 100W 175W 250W

(M98 Lamp) (M90 Lamp) (M57 Lamp) (M58 Lamp)

Configuration Class II Groups Class II Groups Class II Groups Class II Groups

Standard Globe, Guard

Fixture & any Reflector F N/A N/A N/A N/A

Refractor G N/A N/A EFG (2) N/A

Supply Wire Temp Rating 60ºC 75ºC 90ºC 125ºC

(2) Consult Factory

*Note: Fixtures certified for group G are also certified for Class III

Class II & III*, Division 1 & 2 - Maximum External Fixture Temperature @ 55ºC Ambient under a Dust Blanket

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Metal Halide / Nameplate marked with Rating based on hottest ﬁxture congestion

Section E Hazlux® 3

Class II & III*, Division 1 & 2 - Maximum External Fixture Temperature @ 55ºC Ambient under a Dust Blanket

F G

3/36 Industrial and hazardous location lighting product catalogue | EKPC-0814

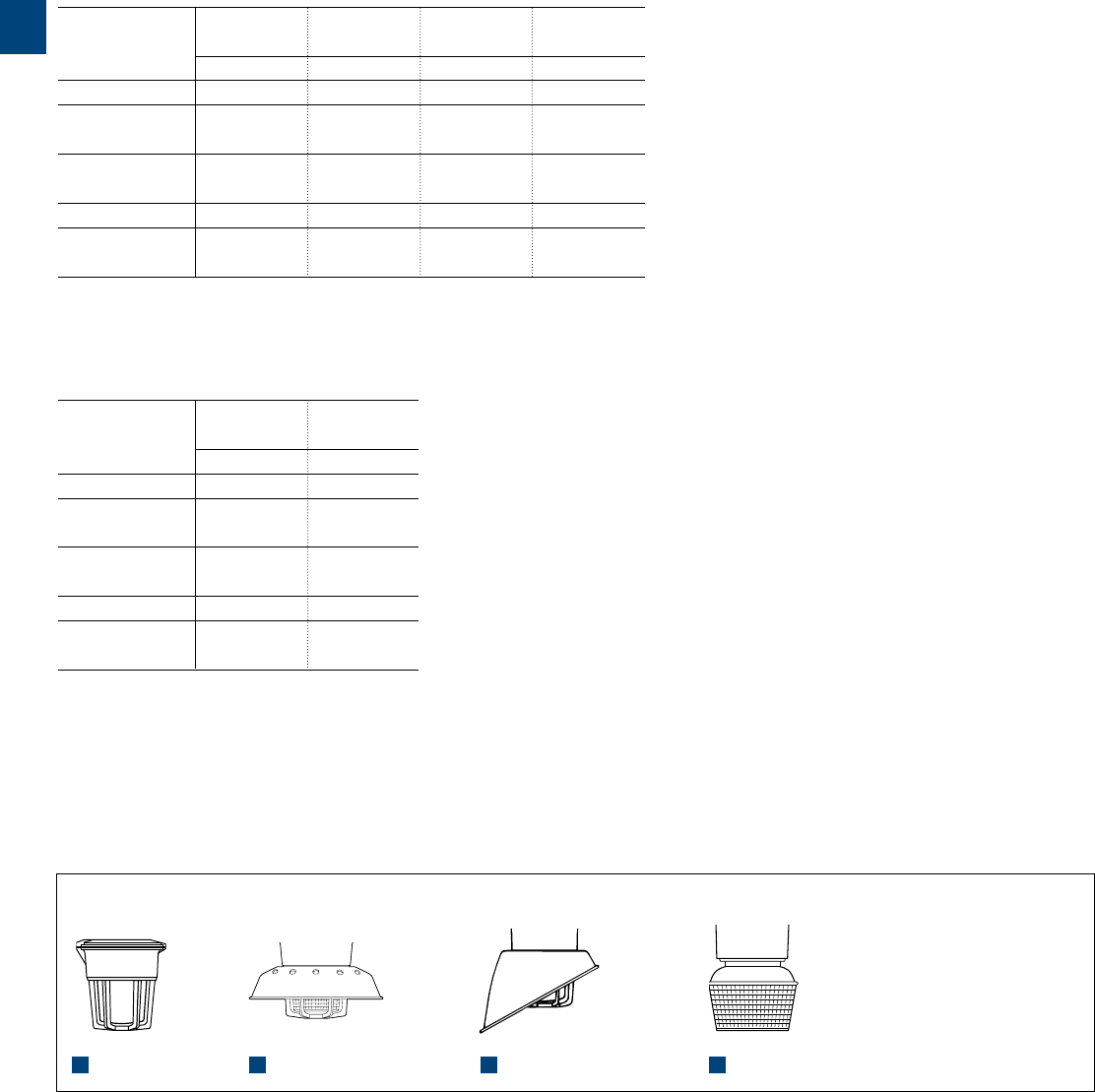

Hazlux® 3 Thermal Performance Data (65ºC)

Hazardous Location

Area lighting

Hazlux® 3 Thermal performance data (65ºC)

70W 100W 150W Any HPS w/

(S62 Lamp) (S54 Lamp) S55 Lamp) Auxiliary Qtz.)

Configuration “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T3 T2C (2) T2A (2) N/A

Globe, Guard

& Dome Reflector B T3 T2C (2) T2A (2) N/A

Globe, Guard

& Angle Reflector C T3 T2C (2) T2A (2) N/A

Refractor D T3A T2D (2) T2B 625 (2)

Supply Wire

Temp Rating 125ºC 125ºC 125ºC 125ºC

70W 100W

(M85 Lamp) (M90 Lamp)

Configuration “T” No. “T” No.

Globe & Guard A T3A T3

Globe, Guard

& Dome Reflector B T3A T3

Globe, Guard

& Angle Reflector C T3A T3

Refractor D N/A N/A

Supply Wire

Temp Rating 75ºC 90ºC

(1) Configuration not tested.

(Rating based on hottest fixture configuration)

(2) Consult Factory

Class I, Division 2 - Lamp Surface Temperature in ºC @ 65ºC Ambient in Free Air

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Metal Halide / Nameplate marked with Rating based on hottest ﬁxture congestion

Section E Hazlux® 3

Class I, Division 2 - Lamp Surface Temperature in ºC @ 65ºC Ambient in Free Air

A B C D

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/37

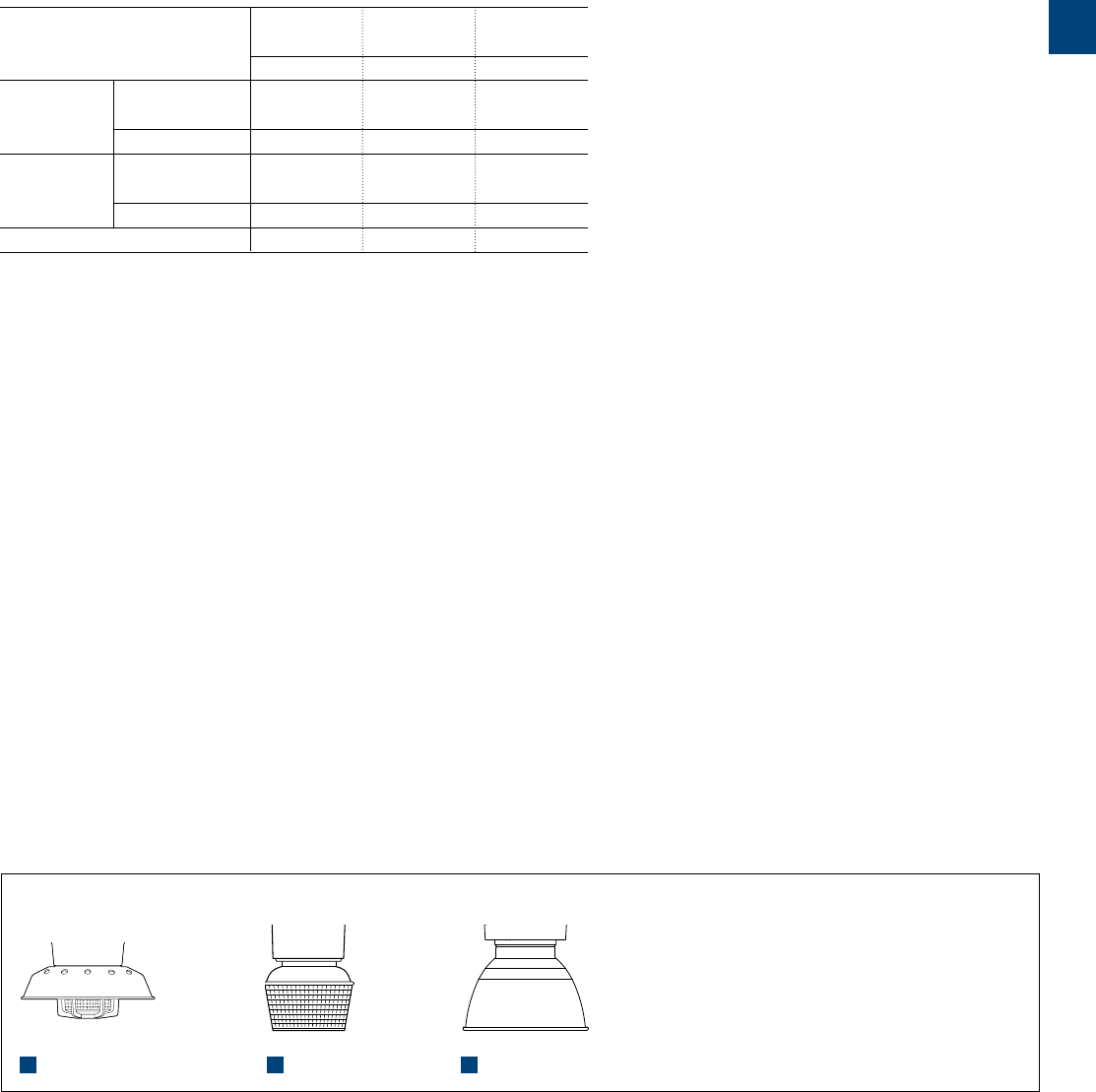

Hazlux® 3 Thermal Performance Data (65ºC)

Hazardous Location

70W 100W 150W

(S62 Lamp) (S54 Lamp) (S55 Lamp)

Configuration Class II Groups Class II Groups Class II Groups

Globe, Guard

Standard & any Reflector F EFG N/A N/A

Refractor G EFG EFG (2) EFG (2)

With Quartz Globe, Guard

Lamp & any Reflector F N/A N/A N/A

(100W) Refractor G EFG (2) N/A N/A

Supply Wire Temp Rating 125ºC 125ºC 125ºC

*Requires use of 400W Diffuse Lamp

Class II & III*, Division 1 & 2 - Maximum External Fixture Temperature @ 65ºC Ambient under a Dust Blanket

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Section E Hazlux® 3

F G H

3/38 Industrial and hazardous location lighting product catalogue | EKPC-0814

Hazlux® 3 R-Housing Thermal Performance Data (40ºC) - Hazardous Location

Hazlux® 3 R-Housing Thermal Performance Data (55ºC) - Hazardous Location

Hazlux® 3 R-Housing Thermal Performance Data (65ºC) - Hazardous Location

Area lighting

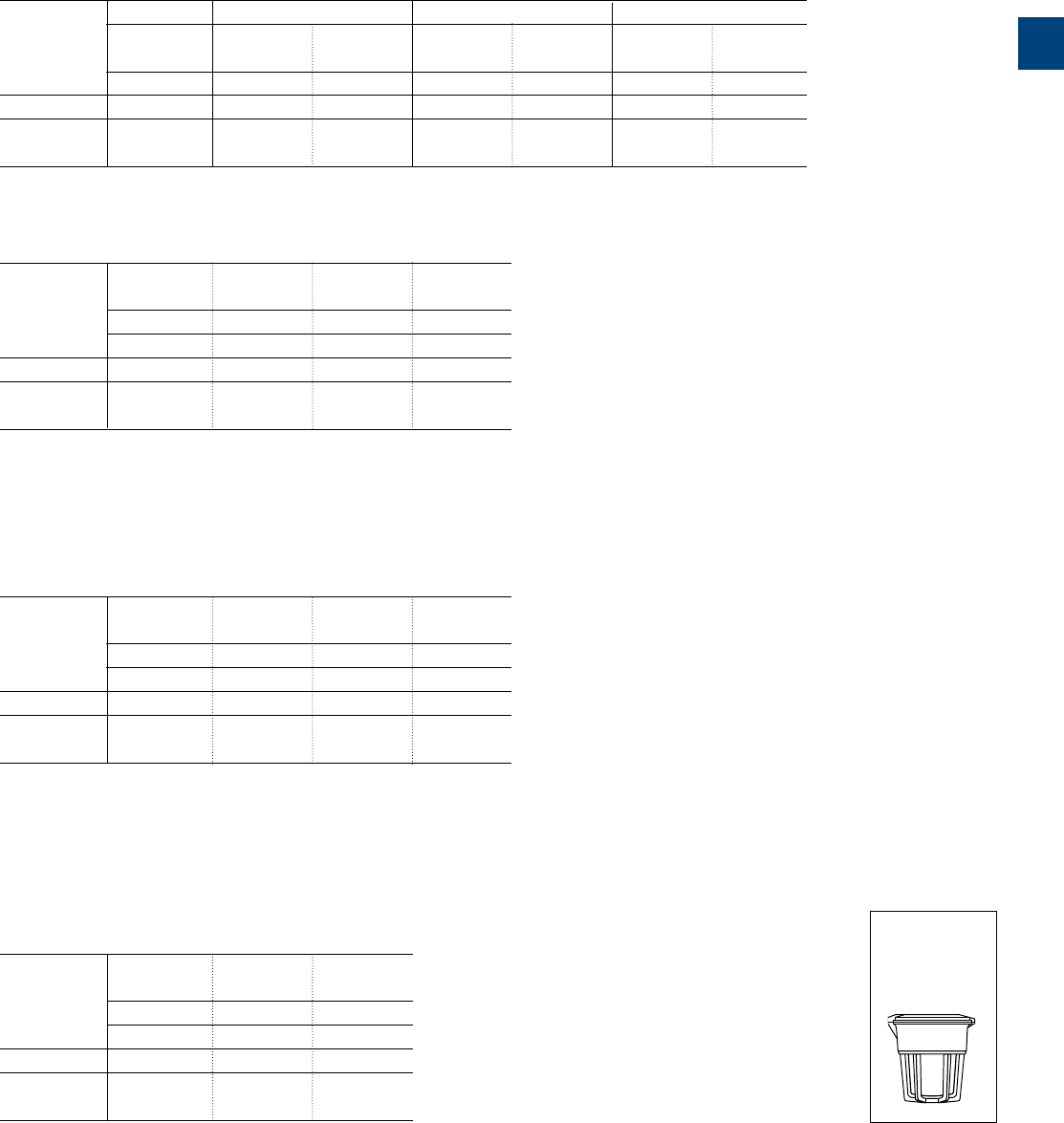

Hazlux® 3 R-Housing thermal performance data

35W 50W 70W 100W 150W 50, 70 or

(S76 Lamp) (S68 Lamp) (S62 Lamp) (S54 Lamp) (S55 or S56 Lamp) 100W

Lamp w/ Lamp w/ Lamp w/ Lamp w/

Configuration Lamp Lamp Lamp Instant Restart Lamp Instant Restart Lamp Instant Restart Auxiliary Qtz.

Refractor & Guard ?? T3C T3A T3A T3 T3 T2B T2B 625

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC –

50W 70W 100W 150W 150W 50W

(S68 Lamp) (S62 Lamp) (S54 Lamp) (S55 Lamp) (S56 Lamp) (68 Lamp)

Lamp w/

Lamp Lamp Lamp Lamp Lamp Auxiliary Qtz.

Configuration “T” No. “T” No. “T” No. “T” No. “T” No. “T” No.

Refractor & Guard T3C T3A T2D T2B T2C 625

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC

50W 70W 100W

(S68 Lamp) (S62 Lamp) (S54 Lamp)

Lamp Lamp Lamp

Configuration “T” No. “T” No. “T” No.

Refractor & Guard T3C T3 T2D

Supply Wire

Temp Rating 125ºC 125ºC 125ºC

50W 100W

(M98 Lamp) (M90 Lamp)

Lamp Lamp

Configuration “T” No. “T” No.

Refractor & Guard T3A T3

Supply Wire

Temp Rating 90ºC 90ºC

70W 100W 175W 250W

(M98 Lamp) (M90 Lamp) (M57 Lamp) (M58 Lamp)

Lamp Lamp Lamp Lamp

Configuration “T” No. “T” No. “T” No. “T” No.

Refractor & Guard T3 T3 T2B T2

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC

Class I, Division 2 - Lamp Surface Temperature in ºC @ 40ºC Ambient in Free Air

High Pressure Sodium

Class I, Division 2 - Lamp Surface Temperature in ºC @ 55ºC Ambient in Free Air

High Pressure Sodium

Class I, Division 2 - Lamp Surface Temperature in ºC @ 65ºC Ambient in Free Air

High Pressure Sodium

Metal Halide

Section E

Hazlux® 3

Class I, Division 2 - Lamp Surface Temperature in ºC @ 40ºC Ambient in Free Air

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/39

Hazlux® 3 R-Housing Thermal Performance Data (40ºC) - Hazardous Location

Hazlux® 3 R-Housing Thermal Performance Data (55ºC) - Hazardous Location

Hazlux® 3 R-Housing Thermal Performance Data (65ºC) - Hazardous Location

50W (S68 Lamp) 70W (S62 Lamp) 100W (S54 Lamp) 150W (S55 or S56 Lamp)

Lamp w/ Lamp w/ Lamp w/

Lamp Lamp Instant Restart Lamp Instant Restart Lamp Instant Restart

Configuration Class II Groups Class II Groups Class II Groups Class II Groups Class II Groups Class II Groups Class II Groups

Refractor & Guard EFG EFG EFG EFG EFG EFG EFG

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC 90ºC

50W 70W 100W 150W (S55 or

(S68 Lamp) (S62 Lamp) (S54 Lamp) S56 Lamp)

Lamp Lamp Lamp Lamp

Configuration Class II Groups Class II Groups Class II Groups Class II Groups

Refractor & Guard EFG EFG EFG EFG

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC

50W 70W 100W

(S68 Lamp) (S62 Lamp) (S54 Lamp)

Lamp Lamp Lamp

Configuration Class II Groups Class II Groups Class II Groups

Refractor & Guard EFG EFG EFG

Supply Wire

Temp Rating 125ºC 125ºC 125ºC

70W 100W 175W 250W

(M98 Lamp) (M90 Lamp) (M57 Lamp) (M58 Lamp)

Lamp Lamp Lamp Lamp

Configuration Class II Groups Class II Groups Class II Groups Class II Groups

Refractor & Guard EFG EFG EFG EFG

Supply Wire

Temp Rating 90ºC 90ºC 90ºC 90ºC

Class II & III*, Division 1 & 2 - Lamp Surface Temperature in ºC @ 40ºC Ambient under a Dust Blanket

High Pressure Sodium

Class II & III*, Division 1 & 2 - Lamp Surface Temperature in ºC @ 55ºC Ambient under a Dust Blanket

High Pressure Sodium

Class II & III*, Division 1 & 2 - Lamp Surface Temperature in ºC @ 65ºC Ambient under a Dust Blanket

High Pressure Sodium

Metal Halide

Section E

Hazlux® 3

Class II & III*, Division 1 & 2 - Lamp Surface Temperature in ºC @ 40ºC Ambient under a Dust Blanket

3/40 Industrial and hazardous location lighting product catalogue | EKPC-0814

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/41

Area lighting

Hazlux® 3 Induction

With the introduction of Hazlux® Induction Lighting Fixtures for

hazardous areas (Class 1, Div. 2 Groups A, B, C, D) and

non-hazardous areas, you can benefit from the longest lamp

life available on the market.

Features include:

– 60,000+ hour lamp life

– Reduced maintenance/re-lamp operations

– Instant On/Instant Restrike

– Automatic switch-off in case of failure

– 5000K CCT Standard

– Exceptional energy efficiency

– -45°C to 40°C ambient operating range

– Retrofits into existing Hazlux 3 applications

– RFI-approved (FCC part 18 reference luminaire)

Here’s how you save maintenance costs with Hazlux®

Induction Lighting:

– Eliminates the need for expensive HID options such as

Quartz Auxiliary Lamps or Instant Restrike

– Reduces risks to installers performing maintenance in

hard-to-reach places

– Increases efficiency by decreasing machine shutdown time

– Reduces number of times necessary to de-energize entire

circuit of lights for maintenance in hazardous locations

– Lowers cost of expensive rental of scissor lifts or bucket trucks

Hazlux® Induction Lighting reduces the cost of expensive

maintenance of industrial lighting in hazardous locations.

Hazlux® 3 Induction Certification Guide

Class I Div 2

Ambient Groups A, B, C, D Class Il UL 1598A NEMA Supply Wire

Watts Temperature Temperature Code Division 1 Marine 4X* Temerature Rating

35 W 40ºC T3B T6 Yes Yes 90ºC

55 W 40ºC T3B T6 Yes Yes 90ºC

85 W 40ºC T2A T6 Yes Yes 90ºC

100 W 40ºC T2A T6 Yes Yes 90ºC

65 W 40ºC T2A T6 Yes Yes 90ºC

Note: (1) Simultaneous presence applications: Some Hazlux 3 ﬁxtures are UL Listed for simultaneous presence of gas and dust. Contact Hazlux for speciﬁc information

(2) Tuff-Skin Coated Optics: Many Hazlux 3 ﬁxtures are UL Listed with Tuff-Skin (silicone) coating on glass optics. Contact Hazlux for speciﬁc information

(3) For UL and CSA Certiﬁcation Information on other ambient temperatures and ﬁxture conﬁgurations, consult the factory

In the typical process industry plant, reliable lighting is often required in hazardous,

hard-to-reach places. Lamp replace ment not only places employees at risk, but

often requires the rental of expensive equipment such as scissors lifts.

3/42 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 3 Induction - High wattage

Catalog numbering system

1234567 8910 11 12 13

D I Ø 16 E 12 L-R5G-P2 T E F C

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

1 Hazlux® 3 D Class I, Div. 2, Groups A, B, C and D

HID Fixture D Class I, Zone 2, Groups IIA, IIB, IIC

D Class II, Div. 1 & 2, Groups E, F and G

D Class III

UL 595 Marine Locations,

Wet Locations, NEMA 4X

2 Lamp Type H Induction Lighting

3 Starter Circuit/ Ø Standard Fixture

Quartz Options

4 Lamp Wattage 16 165 Watt Induction System

5 Ballast Circuit E Electronic Ballast (Induction Fixture)

6 Voltage 12 120V, 60 Hz

06 208/240/277V 50 or 60 Hz

34 347V 60 Hz (CSA)

7 Ballast Housing L Large Housing

Style M Large Housing with Stainless Steel Inserts

8 Refractor R5G Type V Refractor with Wire Guard

R5 Type V Refractor

9 Mounting style A2 3⁄4“ Cone-Top Pendant

A3 1“ Cone-Top Pendant

B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling Mount

C3 1“ Ceiling Mount

F2 3⁄4“ Flexible Pendant

F3 1“ Flexible Pendant

HV1 HazVertor™ Ring - Class I, Division 2, Zone 2

HV2 HazVertor™ Ring - Class I Div.2, Zone 2, Class II

L4 11⁄4“ Straight Stanchion

L5 11⁄2“ Straight Stanchion

P2 3⁄4“ Rigid Pendant

P3 1“ Rigid Pendant

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

10 Coating T HazCote® Custom Corrosion Coating

11 UNIPAK™ * E UNIPAK™ with Induction Lamp

12 Fusing Options F Fuse Block(s) with Fuse(s)**

13 Certification C Canadian Market

Available Unipak only

** Fusing is not available with Marine locations

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/43

Dimensions - Large housing with

12” refractor

Photometry - Large housing with

12” refractor

Ceiling Mount Wall Mount

Straight Stanchion

HazVertor™ Ring

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DI016E12L-R5-P2E

Lamp 165W Induction lamp

Lamp Lumens 12000

Input Watt 165

Luminaire Lumens 6890

Efficiency 57%

Efficacy Rating (LER) 42

Spacing Criterion (0-180) 1.12

Spacing Criterion (90-270) 1.12

Spacing Criterion (diagonal) 1.30

25˚ Angle Stanchion Mount

133⁄8"

(340mm)

207⁄8"

(530mm)

133⁄8"

(340mm)

253⁄8"

(644mm)

161⁄8"

(410mm)

223⁄8"

(568mm)

133⁄8"

(340mm)

211⁄2"

(546mm)

133⁄8"

(340mm)

213⁄4"

(552mm)

147⁄8"

(378mm)

233⁄4"

(603mm)

153⁄4"

(400mm)

223⁄8"

(568mm)

Flexible Pendant Cone-Top Pendant

525

1050

1574

2099

3/44 Industrial and hazardous location lighting product catalogue | EKPC-0814

Assembly guide

Mounting Style

Ballast Tank

Globe or Refractor

Guard

Reflectors*

Refractor Glass

Refractor Globe

Heat-Resistant Globe

Deep Dome

Cone-Top Pendant Wall Mount 25˚ Angle StanchionHazVertor™

Adapter Ring

Rigid or Flexible

Pendant

Ceiling Mount Straight Stanchion

R-Housing

30° Angle Reflector

Standard Dome

Steel Wire Guard

Cast Guard

Polymeric Guard

*Reﬂectors are sold separately

Area lighting

Hazlux® 3 Induction - Low wattage (Hazardous area - Class I, Div 2)

Hazlux® 3 Induction / Low Wattage - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/45

Catalogue numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

1 Fixture Series DI Hazlux® 3 Induction Series

2 Starter Circuit/ Ø Standard Fixture (Without Options)

Quartz Options C Cold Weather Circuit (-45°C)

3 Lamp Wattage 03 35 Watts

05 55 Watts

08 85 Watts

10 100 Watts

4 Ballast Circuit E Electronic Ballast

5 Voltage /Frequency UN 120 to 277 Vac, 50/60 Hz

34 347 Vac, 60 Hz

48 480 Vac, 60 Hz

6 Ballast Housing R R-Housing

Style I R-Housing with Stainless Steel Inserts

7 Optical Assembly R1 73⁄4” Refractor Globe, Type I

Options R3 73⁄4” Refractor Globe, Type III

Globes are available R5 73⁄4” Refractor Globe, Type V

only for 35W and 55W

R1C R1 with Cast Guard

R3C R3 with Cast Guard

R5C R5 with Cast Guard

R1P R1 with Polymeric Guard

R3P R3 with Polymeric Guard

R5P R5 with Polymeric Guard

TG 73⁄4” Thermal Shock-Resistant Globe

TGC TG with Cast Guard

TGP TG with Polymeric Guard

Refractor Glass are RR2 12” Glass Refractor Type II

available for all RR2G 12” Glass Refractor Type II with Wire Guard

wattages RR5 12” Glass Refractor Type V

RR5G RR5 with Wire Guard

9 Mounting style A2 3⁄4“ Cone-Top Pendant

A3 1“ Cone-Top Pendant

B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling Mount

C3 1“ Ceiling Mount

F2 3⁄4“ Flexible Pendant

F3 1“ Flexible Pendant

HV1 HazVertor™ Ring - Class I, Division 2, Zone 2

HV2 HazVertor™ Ring - Class I Div. 2, Zone 2, Class II

L4 11⁄4“ Straight Stanchion

L5 11⁄2“ Straight Stanchion

P2 3⁄4“ Rigid Pendant

P3 1“ Rigid Pendant

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

9 Special Options T HazCote® Custom Corrosion Coating (consult factory)

10 UNIPAK™ * E UNIPAK™ with Induction Lamp

11 Fusing Options F Fuse Block(s) with Fuse(s)**

12 Certification C Canadian Market

Available Unipak only

**Fusing is not available with Marine locations

12345678910 11 12

DI Ø 03 E UN R R1 A2 - T-E F C

Ballast Tank & Optics Mountings

10 Special Options T HazCote® Custom Corrosion Coating on all Aluminum

Parts (Consult Factory)

11 Certification C Canadian Market

Options

3/46 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Mounting Options

Globes or Refractors

Guards

Part No. Description Conduit Hub Size

VP2 Rigid Pendant 3⁄4”

VP3 Rigid Pendant 1”

VA2 Cone-Top Pendant 3⁄4”

VA3 Cone-Top Pendant 1”

VF2 Flexible Pendant 3⁄4”

VF3 Flexible Pendant 1”

VC2 Ceiling Mount 3⁄4”

VC3 Ceiling Mount 1”

VB2-VIB Wall Mount 3⁄4”

VB3-VIB Wall Mount 1”

VS4-VIB 25° Angle Stanchion 11⁄4”

VS5-VIB 25° Angle Stanchion 11⁄2”

VL4-VIB Straight Stanchion 11⁄4”

VL5-VIB Straight Stanchion 11⁄2”

HV1 HazVertor™ Adapter Ring N/A

HV2 HazVertor™ Adapter Ring N/A

Part No. Description

VGT31S 73⁄4“ dia. Heat-Resistant Globe (250W max.)

VGL31R1 73⁄4“ dia. IES Type I Refractor Globe (250W max.)

VGL31R3 73⁄4“ dia. IES Type III Refractor Globe (250W max.)

VGL31R5 73⁄4“ dia. IES Type V Refractor Globe (250W max.)

VRF31C2 12“ dia. IES Type II Refractor Glass, 73⁄4“ Thread

VRF31C5 12“ dia. IES Type V Refractor Glass, 73⁄4“ Thread

Part No. Description

VGU31RP Polymeric Guard for VGT31S Globe and VGL31R

Series Refractor Globes

VGU31R Cast Aluminum Guard for VGT31S Globe and VGL31R

Series Refractor Globes

VGR48 Steel Wire Guard for All VRF Series 12“ Refractors

Part No. Description

VR31P Standard Dome, Fiberglass-Reinforced Polyester

VRA31P 30° Angle Reflector, Fiberglass-Reinforced Polyester

VRD31 Deep Dome, Anodized Aluminum

Note: Reﬂectors are shipped bulk unless speciﬁed

Cone-Top Pendant

HazVertor™ Adapter

Flexible Pendant

Rigid Pendant

Ceiling Mount

25˚ Angle Stanchion

Straight Stanchion

Wall Mount

Type II or V

Refractor Glass

Type II or V

Refractor Globe

Cast Guard Wire Guard

Deep Dome

Heat-Resistant

Globe

Polymeric Guard

Standard Dome 30° Angle

Reflector

Area lighting

Hazlux® 3 Induction - Low wattage (Hazardous area - Class I, Div 2)

Reflectors or Exit Sign

Optional components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/47

Dimensions - R-Housing with

globe and guard

R-Housing with 12” refractor

and Guard

R-Housing with refractor glass

Photometry - R-Housing with refractor

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DI55EUNRTGA2-E

Lamp 55W Induction lamp

Lamp Lumens N.A. (absolute)

Input Watt 55.71

Luminaire Lumens 3644

Efficiency NA

Efficacy Rating (LER) 65

Spacing Criterion (0-180) 1.38

Spacing Criterion (90-270) 1.38

Spacing Criterion (diagonal) 1.58

Flexible Pendant Cone-Top Pendant

141⁄2"

(368mm)

133⁄8"

(340mm)

165⁄8"

(422mm)

147⁄8"

(377mm)

133⁄8"

(340mm)

141⁄2"

(368mm)

147⁄8"

(378mm)

165⁄8"

(422mm)

147⁄8"

(378mm)

199⁄16"

(497mm)

17 5⁄16"

(440mm)

133⁄8"

(340mm)

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DIO55EUNRR5A2-E

Lamp 55W Induction lamp

Lamp Lumens N.A. (absolute)

Input Watt 55.87

Luminaire Lumens 3351

Efficiency NA

Efficacy Rating (LER) 60

Spacing Criterion (0-180) 1.90

Spacing Criterion (90-270) 1.90

Spacing Criterion (diagonal) 2.22

Reference Data Candlepower Curve

Catalogue No. DI10EUNRRR5A2-E

Lamp 100W Induction lamp

Lamp Lumens N.A. (absolute)

Input Watt 100.5

Luminaire Lumens 5245

Efficiency NA

Efficacy Rating (LER) 61

Spacing Criterion (0-180) 1.36

Spacing Criterion (90-270) 1.36

Spacing Criterion (diagonal) 1.70

Ceiling Mount Wall Mount

Straight Stanchion25˚ Angle Stanchion Mount

180

360

540

720

104

209

313

417

115

230

345

460

3/48 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® M3 Hazlite™

Assembly guide

Complete luminaire consists of:

– A mounting style

– Ballast Tank

– Globe or Refractor

– Optional Guard and/or Reflector

Ballast Tank

Globe or Refractor

Guard

Reflectors*

Refractor Globe

Heat-Resistant Globe

30° Angle Reflector

Mounting Style

*Reﬂectors are sold separately

Wall Mount 25˚ Angle StanchionRigid Pendant Ceiling Mount Straight Stanchion

HID-Housing

Polymeric Guard

Cast Aluminium Guard

Standard Dome

Hazlux® M3 Hazlite™ - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/49

Catalog numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast tank Optics and mountings Options

Ballast Tank Optics & Mountings

Options

1 Fixture Series D Hazlite™ M3 Fixture

2 Lamp Type S High-Pressure Sodium

H Metal Halide

3 Lampholder M Medium-Base Lampholder

4 Lamp Wattage Metal Halide Lamps

05 200W ED28PS

07 70W ED17

10 100W ED17

High Pressure Sodium Lamps

03 35W BD17

05 50W BD17

07 70W BD17

10 100W BD17

15 150W BD17

5 Ballast Circuit P Reactor Type

6 Voltage 12 120 Volt

7 Optical Assembly TG Tempered Globe Only

Options TGP Tempered Globe and Polymeric Guard

TGC Tempered Globe and Cast Guard

R1 Type I (Long and Narrow) Refractor Globe

R3 Type III (Assymetric) Refractor Globe

R5 Type V (Symetric) Refractor Globe

R1P R1 with Polymeric Guard

R3P R3 with Polymeric Guard

R5P R5 with Polymeric Guard

R1C R1 with Cast Guard

R3C R3 with Cast Guard

R5C R5 with Cast Guard

R5A 8” Refractor Glass (Type V)

8 Mounting style P2 3⁄4“ Rigid Pendant

P3 1“ Rigid Pendant

B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling Mount

C3 1“ Ceiling Mount

L4 11⁄4“ Straight Stanchion

L5 11⁄2“ Straight Stanchion

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

9 UNIPAK™ D UNIPAK™ with Diffused Coated Lamp

Options E UNIPAK™ with Clear Lamp

U UNIPAK™ No Lamp

10 Special Options T HazCote® Custom Corrosion Coating on all Aluminum

Parts (Consult Factory)

11 Certification C Canadian Market

12345

678910 11

D S M 07 P 12 - R5P- C2 - E T C

12345678910 11

D S M 07 P 12 - R5P- C2 - E T C

123456789

10 11

D S M 07 P 12 - R5P- C2 - E T C

HID

3/50 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Mounting Options

Globes or Refractors

Guards

Part No. Description Conduit Hub Size

VMP2 Rigid Pendant 3⁄4”

VMP3 Rigid Pendant 1”

VMC2 Ceiling Mount 3⁄4”

VMC3 Ceiling Mount 1”

VMB2 Wall Mount 3⁄4”

VMB3 Wall Mount 1”

VMS4 25° Angle Stanchion 11⁄4”

VMS5 25° Angle Stanchion 11⁄2”

VML4 Straight Stanchion 11⁄4”

VML5 Straight Stanchion 11⁄2”

Part No. Description

VGT15 Heat-Resistant Prismatic Glass Globe

VGL15R1 IES Type I Refractor Globe

VGL15R3 IES Type III Refractor Globe

VGL15R5 IES Type V Refractor Globe

Part No. Description

VGU15 Cast Aluminum for Use with Glass Globes or Refractors

VGU15P Polymeric for Use with Glass Globes or Refractors

Part No. Description

VR15P Standard Dome, Fiberglass-Reinforced Polyester

VRA15P 30° Angle Reflector, Fiberglass-Reinforced Polyester

VRE22 Three-Sided Exit Sign

Note: Reﬂectors are shipped bulk unless speciﬁed

Rigid Pendant Ceiling Mount

25˚ Angle Stanchion

Straight Stanchion

Wall Mount

Heat-Resistant

Prismatic Glass Globe

Polymeric Guard

Three-Sided

Exit Sign

Refractor Globe

Cast Aluminum

Standard Dome 30 degree

Angle Reflector

Area lighting

Hazlux® M3 Hazlite™

Reflectors or Exit Sign

Optional components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/51

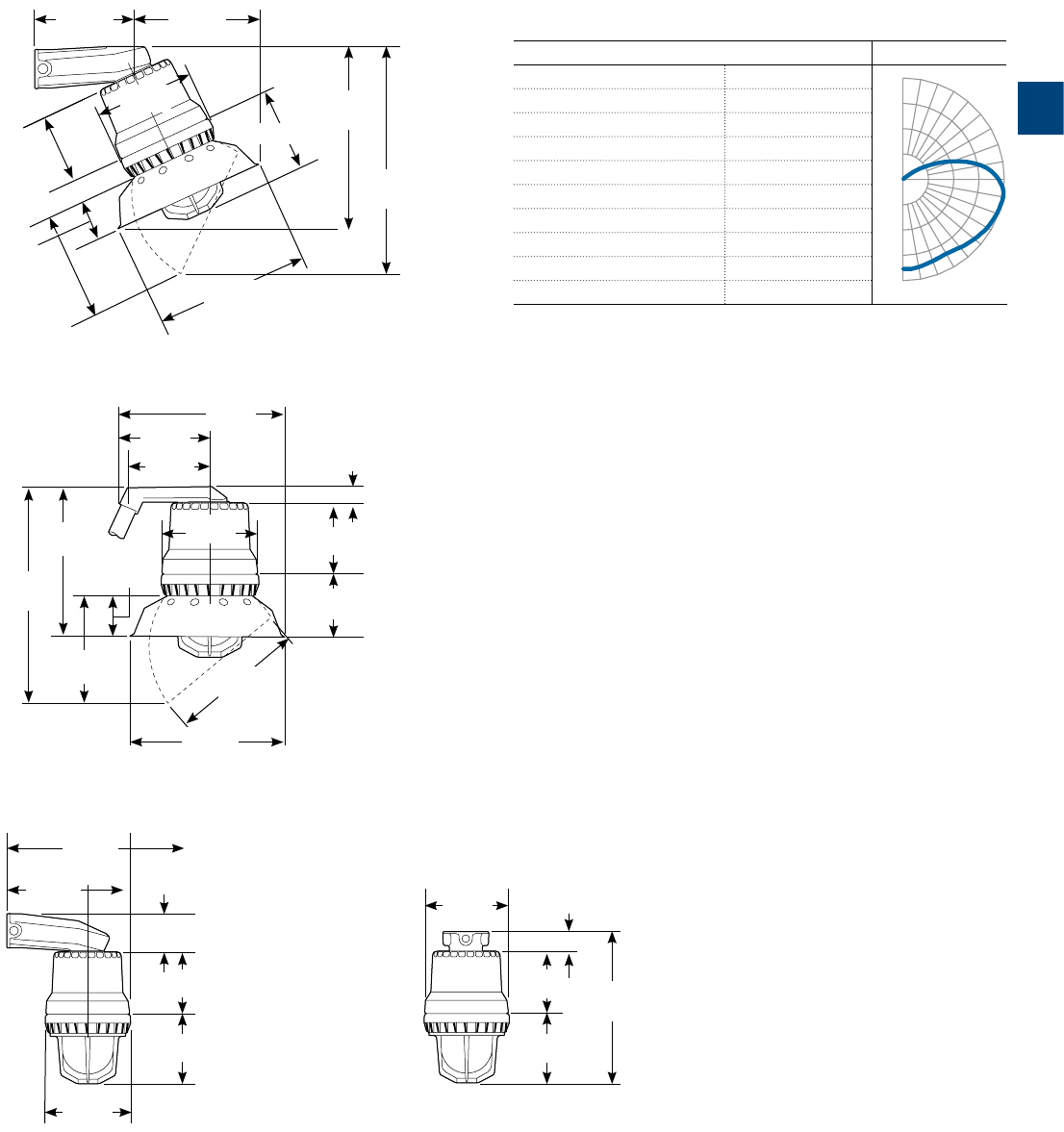

Dimensions - Hazlite™ M3 ﬁxtures with

heat-resistant globe

Photometry - Hazlite™ M3 ﬁxtures with

heat-resistant globe

Wall Mount

25˚ Angle Stanchion Mount

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSM05P12-TG-P2-E

& VR15P

Lamp 50W HPS BD17

Lamp Lumens 4000

Input Watt 62

Luminaire Lumens 2865

Efficiency 72%

Efficacy Rating (LER) 46.2

Spacing Criterion (0-180) 1.38

Spacing Criterion (90-270) 1.38

Spacing Criterion (diagonal) 1.70

Straight Stanchion Mount

Rigid Pendant Ceiling Mount

27⁄8"

(73mm)

43⁄16"

(106mm)

61⁄2"

(165mm)

149⁄16"

(370mm)

101⁄4"

(260mm)

91⁄4"

(235mm)

157⁄8"

(403mm)

61⁄2"

(165mm)

43⁄16"

(106mm)

13⁄8"

(35mm)

85⁄8"

(219mm)

61⁄2"

(165mm)

43⁄16"

(106mm)

13⁄4"

(44mm)

95⁄8"

(244mm)

149⁄16"

(370mm)

149⁄16"

(370mm)

101⁄4"

(260mm)

91⁄4"

(235mm)

61⁄2"

(165mm)

43⁄16"

(106mm)

27⁄8"

(73mm)

611⁄16"

(200mm)

43⁄16"

(106mm)

49⁄16"

(116mm)

93⁄4"

(248mm)

153⁄8"

(390mm)

11"

(279mm)

(51mm)

157⁄8"

(403mm)

173

347

520

693

3/52 Industrial and hazardous location lighting product catalogue | EKPC-0814

Photometry - Hazlite™ M3 ﬁxtures with

heat-resistant globe

25˚ Angle Stanchion MountStraight Stanchion

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSM05P12-R3-P2-E

Lamp 50W HPS BD17

Lamp Lumens 4000

Input Watt 62

Luminaire Lumens 2979

Efficiency 74%

Efficacy Rating (LER) 48.1

Spacing Criterion (0-180) 1.30

Spacing Criterion (90-270) 1.70

Spacing Criterion (diagonal) 2.40

Reference Data Candlepower Curve

Catalogue No. DSM05P12-R5-P2-E

Lamp 50W HPS BD17

Lamp Lumens 4000

Input Watt 62

Luminaire Lumens 2935

Efficiency 73%

Efficacy Rating (LER) 47.3

Spacing Criterion (0-180) 1.88

Spacing Criterion (90-270) 1.88

Spacing Criterion (diagonal) 2.84

Area lighting

Hazlux® M3 Hazlite™

Dimensions - Hazlite™ M3 ﬁxtures with

heat-resistant globe

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. DSM05P12-R1-P2-E

Lamp 50W HPS BD17

Lamp Lumens 4000

Input Watt 62

Luminaire Lumens 3340

Efficiency 83%

Efficacy Rating (LER) 53.9

Spacing Criterion (0-180) 1.44

Spacing Criterion (90-270) 3.60

Spacing Criterion (diagonal) 2.32

Ceiling Mount

Rigid Pendant

Wall Mount

27⁄8"

(73mm)

43⁄16"

(106mm)

61⁄2"

(165mm)

149⁄16"

(370mm)

101⁄4"

(260mm)

91⁄4"

(235mm)

157⁄8"

(403mm)

61⁄2"

(165mm)

43⁄16"

(106mm)

13⁄8"

(35mm)

85⁄8"

(219mm)

61⁄2"

(165mm)

43⁄16"

(106mm)

13⁄4"

(44mm)

95⁄8"

(244mm)

149⁄16"

(370mm)

149⁄16"

(370mm)

101⁄4"

(260mm)

91⁄4"

(235mm)

61⁄2"

(165mm)

43⁄16"

(106mm)

27⁄8"

(73mm)

611⁄16"

(200mm)

43⁄16"

(106mm)

49⁄16"

(116mm)

93⁄4"

(248mm)

153⁄8"

(390mm)

11"

(279mm)

(51mm)

157⁄8"

(403mm)

1033

2066

3098

4131

342

683

1025

1366

161

322

483

644

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/53

Class II & III

Globes or TR-REFR. 8” REFR. Supply Wire

Lamp Type Ambient Temperature Div 2 Temp. Code Groups Groups Suitable ºC Voltage

35 Watt 40ºC T3A EFG EFG 75ºC 120 V

HPS 55ºC T3A EFG EFG 75ºC 120 V

Type S76 65ºC T3 EFG EFG 85ºC 120 V

50 Watt 40ºC T3 EFG EFG 75ºC 120 V

HPS 55ºC T2D EFG EFG 85ºC 120 V

Type S68 65ºC T2D EFG EFG 90ºC 120 V

70 Watt 40ºC T2B EFG EFG 75ºC 120 V

HPS 55ºC T2B EFG EFG 85ºC 120 V

Type S62 65ºC T2B EFG EFG 90ºC 120 V

100 WATT HPS 40ºC T2A EF EFG 85ºC 120 V

Type S54 55ºC T2 EF EFG 110ºC 120 V

150 WATT HPS

Type S55 40ºC 325ºC ˚ EF EFG 110ºC 120 V

100 WATT M.V

Type S38 40ºC 325ºC ˚ EF EFG 110ºC 120 V

9 Watt Fluor. 40ºC TC3 EFG EFG 90ºC 120 V

18 Watt Fluor.

(2 lamps) Type PL9 40ºC TC3 EFG EFG 90ºC 120 V

13 Watt Fluor. 40ºC TC3 EFG EFG 90ºC 120 V

26 Watt Fluor.

Type PL13 40ºC T3 EFG EFG 90ºC 120 V

60 Watt T2B T3 EF EFG 75ºC 120 V

Incandescent T2B T3 EF EFG 90ºC 120 V

Type A19 65ºC T2D EF EFG 110ºC 120 V

100 Watt 40ºC T3 EF EFG 75ºC 120 V

Incandescent 55ºC T3 EF EFG 90ºC 120 V

Type A19 or A21 65ºC T2D EF EFG 110ºC 120 V

150 Watt 40ºC T2B – EFG 90ºC 120 V

Incandescent 55ºC T2B – EFG 110ºC 120 V

Type A21 65ºC T2B – EFG 110ºC 120 V

Metal Halide

70 Watt

Type M98 40ºC T2A EF – 90ºC 120 V

Metal Halide

100 Watt

Type M90 40ºC T2A EF – 90ºC 120 V

Hazlite™ M3 Thermal Data - This data includes Globe, Guard and Reflector

3/54 Industrial and hazardous location lighting product catalogue | EKPC-0814

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/55

Area lighting

Hazlux® 1

Features & beneﬁts

– Fiberglass-reinforced polyester housing and mounting covers

provide excellent strength, durability and corrosion resistance

– Impact-resistant and corrosion-resistant polycarbonate

guards protect glass globes and refractors

– Guards have keyhole slots for ease of attachment to

grounded, stainless steel guard screws

– Thermal shock-resistant globes and refractor globes

provide superior protection for HID lamps and effective

options for light distribution

– Polymeric reflectors are reinforced fiberglass that resist

corrosion, UV rays and weathering and are bright white for

maximum reflectance

Class I Division 2

Temperature Code NEMA 4X Supply wire

Ambient Globe/Guard Refractor/ (Suitable for Temperature

Lamp Type Wattage Temperature & Reflector Guard Marine Hosedown) Wet Locations Rating

High Pressure 50 W 40ºC T3 T3 Yes Yes Yes 90ºC

Sodium 70 W 40ºC T3 T3 Yes Yes Yes 90ºC

100 W 40ºC T3 T3 Yes Yes Yes 90ºC

150 W 40ºC T2C T2C Yes Yes Yes 90ºC

Metal Halide 70 W 40ºC T3C T3C Yes Yes Yes 90ºC

100 W 40ºC T3 T3 Yes Yes Yes 90ºC

150 W 40ºC T2B T2A Yes Yes Yes 90ºC

Class I Division 2 Globes - ‘TR’ NEMA 4X

Ambient Refractor with/without Relectors (Suitable for Supply wire

Lamp Type Temperature Marine Ordinary Temperature Temp. Code Hosedown) Suitable Voltage

35-Watt 40ºC Yes Yes 180ºC T3A Yes 75ºC 120 V

HPS Type S76 55ºC Yes Yes 200ºC T3 Yes 90ºC 120 V

50-Watt 40ºC Yes Yes 215ºC T2D Yes 75ºC 120 V

HPS Type S68 55ºC Yes Yes 215ºC T2D Yes 90ºC 120 V

70-Watt 40ºC Yes Yes 260ºC T2B Yes 75ºC 120 V

HPS Type S62 55ºC Yes Yes 260ºC T2B Yes 90ºC 120 V

70-Watt 40ºC Yes Yes 260ºC T2B Yes 75ºC 120 V

HPS Type S62 55ºC Yes Yes 260ºC T2B Yes 90ºC 120 V

100-Watt

HPS Type S54 40ºC No Yes 280ºC T2A Yes 125ºC 120 V

70-Watt

MH T-rating 40ºC Yes Yes 290ºC T2A Yes 125ºC 120 V

100-Watt

MH T-rating 40ºC No Yes 290ºC T2A Yes 125ºC 120 V

Hazlux® 1 Certification Guide (40°C Ambient)

Hazlux® M1 Certification Guide

Hazlux® 1 mogul base polymeric lighting ﬁxtures are certiﬁed for use in Class I,

Zone 2 and Division 2 locations and indoor or outdoor locations where lighting

fixtures are exposed to corrosion accelerators such as dust, rain, hose-directed

water and ice formation.

3/56 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 1

Assembly guide

Complete luminaire consists of:

– A mounting style

– Ballast Tank

– Globe or Refractor

– Optional Guard and/or Reflector

Ballast Tank

Globe or Refractor

Guard

Reflectors*

Refractor Globe

Heat-Resistant Globe

Mounting Style

Wall Mount 25˚ Angle StanchionRigid Pendant Ceiling Mount Straight Stanchion

Polymeric Guard

*Reﬂectors are sold separately

30° Angle Reflector

Standard Dome

Standard Housing

Hazlux® 1 - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/57

Catalog numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

Class III

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast tank Optics and mountings Options

Ballast Tank Optics & Mountings

Options

1 Fixture Series P Hazlux® 1 Fixture

2 Lamp Type H Metal Halide

S High-Pressure Sodium

3 Starter Circuit/ Ø Standard Fixture

Quartz Options J Auto Shutoff

P Pulse Start (Metal Halide only)*

4 Lamp Wattage Metal Halide Lamps

10 100 Watts

17 175 Watts

High Pressure Sodium Lamps

05 50 Watts

07 70 Watts

10 100 Watts

15 150 Watts

5 Ballast Circuit C Constant Wattage Auto Transformer

H High Reactance

P Reactor Type

I CWI

6 Voltage/ 03 120/277 Volt

Frequency 04 120/208/240/277 Volt

09 120/277/347 Volt

12 120 Volt

20 208 Volt

27 277 Volt

34 347 Volt

48 480 Volt

7 Ballast Housing Ø Standard Housing

Style

*150-Watt Metal Halide and 175-Watt Metal Halide not available with Pendant Mount

8 Optical Assembly TG Tempered Globe Only

Options TGP Tempered Globe with Polymeric Guard

R1 Refractor Globe (IES Type I)

R3 Refractor Globe (IES Type III)

R5 Refractor Globe (IES Type V)

R1P Refractor Globe (IES Type I) with Polymeric Guard

R3P Refractor Globe (IES Type III) with Polymeric Guard

R5P Refractor Globe (IES Type V) with Polymeric Guard

9 Mounting style P2 3⁄4“Pendant Mount*

B2 3⁄4“ Wall Mount

C2 3⁄4“ Ceiling Mount

S5 11⁄2“ 25° Angle Stanchion

L5 11⁄2“ Straight Stanchion

10 UNIPAK™ E UNIPAK™ with Clear Lamp

Options D UNIPAK™ with Diffused Coated Lamp

U UNIPAK™ without Lamp

11 Fusing Options F Fuse Block(s) with Fuse(s)*

12 Certification C Canadian Market

* Fusing is not available with Marine locations

123456

789101112

P S Ø 07 H 04 Ø-R5P-C2 E F C

123456789101112

P S Ø 07 H 04 Ø-R5P-C2 E F C

12345678910111

P S Ø 07 H 04 Ø-R5P-C2 E F C

3/58 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Mounting Options

Globes or Refractors

Guards

Part No. Description Conduit Hub Size

VNP2 Rigid Pendant 3⁄4”

VNC2 Ceiling Mount 3⁄4”

VNB2 Wall Mount with Metallic Arm 3⁄4”

VNS5 25° Angle Stanchion 11⁄2”

VNL5 Straight Stanchion 11⁄2”

Designed for all Hazlux® 1 Ballasts Housings

Part No. Description

VGT31S Heat-Resistant Glass Globe (73⁄4“ dia.) 250 Watt Max

VGT31STS Heat-Resistant Glass Globe (73⁄4“ dia.) Coated with Tuff-Skin®,

250 Watt Max.

VGL31R1 IES Type I Light Distribution (Long and Narrow) Threaded Glass Globe

Refractor 73⁄4“ dia.

VGL31R3 IES Type III Light Distribution (Asymmetric) Threaded Glass Globe

Refractor 73⁄4“ dia.

VGL31R5 IES Type V Light Distribution (Symmetric) Threaded Glass Globe

Refractor 73⁄4“ dia.

Part No. Description

VGU31RP Polymeric Guard for Use with Threaded Glass Globes and Refractors

(73⁄4“ dia.)

Part No. Description

VR31P Standard Dome, Fiberglass-Reinforced Polyester, for use with

73⁄4“-dia. Globes

VRA31P 30° Angle Reflector, Fiberglass-Reinforced Polyester, for use with

73⁄4“-dia. Globes

Rigid Pendant Ceiling Mount

Straight Stanchion

25˚ Angle Stanchion

Wall Mount with

Metallic Arm

Refractor Globe

Heat-Resistant

Glass Globe

Polymeric Guard

Standard Dome 30 degree Angle Reflector

Area lighting

Hazlux® 1

Reflectors or Exit Sign

Optional components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/59

Dimensions - Hazlux® 1 ﬁxtures Photometry - Hazlux® 1 ﬁxtures

Wall Mount

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PSO15H090-TGP-C2E

Lamp 150W HPS ED23 1/2

Lamp Lumens 16000

Input Watt 188

Luminaire Lumens 13388

Efficiency 84%

Efficacy Rating (LER) 71.2

Spacing Criterion (0-180) NA

Spacing Criterion (90-270) NA

Spacing Criterion (diagonal) NA

1215⁄16"

(332mm)

135⁄8"

(346mm)

113⁄4"

(298mm)

Dia.

10"

(254mm)

10"

(254mm)

10"

(254mm)

10"

(254mm)

113⁄4"

(298mm)

(229mm)

(203mm)

Wall Arm Mount with Globe and Guard

Ceiling Mount with Globe and Guard

Ceiling Mount Top View

380

760

1140

1519

3/60 Industrial and hazardous location lighting product catalogue | EKPC-0814

Photometry - Hazlux® 1 ﬁxtures

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PSO15H090-R3-C2E

Lamp 150W HPS ED23 1/2

Lamp Lumens 16000

Input Watt 188

Luminaire Lumens 14148

Efficiency 88%

Efficacy Rating (LER) 75.3

Spacing Criterion (0-180) 1.44

Spacing Criterion (90-270) 1.84

Spacing Criterion (diagonal) 2.78

Reference Data Candlepower Curve

Catalogue No. PHO17C090-R5-C2E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 12489

Efficiency 89%

Efficacy Rating (LER) 59.5

Spacing Criterion (0-180) 2.38

Spacing Criterion (90-270) 2.38

Spacing Criterion (diagonal) 2.40

Area lighting

Hazlux® 1

Dimensions - Hazlux® 1 ﬁxtures

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PHO17C090-R1-C2E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 11973

Efficiency 86%

Efficacy Rating (LER) 57.0

Spacing Criterion (0-180) 1.82

Spacing Criterion (90-270) 6.64

Spacing Criterion (diagonal) 3.10

97⁄8"

(251mm)

181⁄8"

(460mm)

167⁄8"

(429mm)

203⁄4"

(527mm)

(229mm)

10"

(254mm)

(203mm)

113⁄4"

(298mm)

167⁄8"

(429mm)

97⁄8"

(251mm)

181⁄8"

(460mm)

Pendant Mount with Refractor and Guard

Straight Stanchion Mount

25° Angle Stanchion Mount

3293

6586

9878

13171

3869

7738

11607

15476

325

651

976

1302

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/61

Dome Reflector with Refractor and Guard

Angle Reflector with Globe and Guard

Wall-Mount Flange Template

Dimensions - Hazlux® 1 ﬁxtures Photometry - Hazlux® 1 ﬁxtures

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PHO17C090-TGP-C2E

& VR31P

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 10873

Efficiency 78%

Efficacy Rating (LER) 51.8

Spacing Criterion (0-180) 1.36

Spacing Criterion (90-270) 1.36

Spacing Criterion (diagonal) 158

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PHO17C090-TGP-C2E

& VRA31P

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 9587

Efficiency 68%

Efficacy Rating (LER) 45.7

Spacing Criterion (0-180) 2.14

Spacing Criterion (90-270) 1.64

Spacing Criterion (diagonal) 1.54

Reference Data Candlepower Curve

Catalogue No. PSO15H090-TGP-C2E

& VR31P

Lamp 150W HPS ED23 1/2

Lamp Lumens 16000

Input Watt 188

Luminaire Lumens 12675

Efficiency 79%

Efficacy Rating (LER) 67.4

Spacing Criterion (0-180) 0.90

Spacing Criterion (90-270) 0.90

Spacing Criterion (diagonal) 1.50

47⁄8"

(117mm)

33⁄4"

(95mm)

45⁄8"

(117mm)

201⁄4"

(514mm)

(203mm)

51⁄8" (130mm)

(229mm)

(25mm)

113⁄4"

(298mm)

20"

(508mm)

(229mm)

151⁄4"

(387mm)

(25mm)

113⁄4"

(298mm)

627

1255

1882

2509

749

1498

2246

2995

745

1490

2236

2981

3/62 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® M1 Hazlite™

Assembly guide

Complete luminaire consists of:

– A mounting style

– Ballast Tank

– Globe or Refractor

– Optional Guard and/or Reflector

Ballast Tank

Globe or Refractor

Guard

Reflectors*

Refractor Globe

Heat-Resistant Globe

Mounting Style

Ceiling MountRigid Pendant Cone

Standard Housing

*Reﬂectors are sold separately

30° Angle Reflector

Standard Dome

Polymeric Guard

Hazlux® M1 Hazlite™ - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/63

Catalog numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA

- Division 2, Groups A, B, C and D

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast Tank Optics & Mountings

1 Fixture Series PD Hazlite™ M1 Fixture

2 Lamp Type H Metal Halide

S High-Pressure Sodium

3 Lampholder M Medium Base Lampholder

4 Lamp Wattage Metal Halide Lamps

05 50W ED17

07 70W ED17

10 100W ED17

High Pressure Sodium Lamps

03 35W BD17

05 50W BD17

07 70W BD17

10 100W BD17

5 Ballast Circuit P Reactor Type

6 Voltage 12 120 Volt

7 Ballast Housing Ø Standard Housing

Style

8 Optical Assembly TG Tempered Globe Only

Options TGP Tempered Globe with Polymeric Guard

R1 Refractor Globe (IES Type I)

R3 Refractor Globe (IES Type III)

R5 Refractor Globe (IES Type V)

R1P Refractor Globe (IES Type I) with Polymeric Guard

R3P Refractor Globe (IES Type III) with Polymeric Guard

R5P Refractor Globe (IES Type V) with Polymeric Guard

9 Mounting style P2 3⁄4“ Cone Pendant

C2 3⁄4“ Ceiling, 1 Hub

C22 3⁄4“ Ceiling, 2 Hubs

10 UNIPAK™ E UNIPAK™ with Clear Lamp

Options U UNIPAK™ without Lamp

11 Fusing Options F Fuse Block(s) with Fuse(s)*

12 Certification C Canadian Market

* Fusing is not available with Marine locations

Ballast tank

12345678910 11 12

PD S M 05 P 12 Ø TGP C2 E F C

Optics and mountings

123456789

11 12

PD S M 05 P 12 Ø TGP C2 E F C

Options

12345678910

11 12

PD S M 05 P 12 Ø TGP C2 E F C

High -

Pressure

Sodium /

Metal Halide

12345678910 11 12

PD S M 05 P 12 Ø TGP C2 E F C

12345678910 11 12

PD S M 05 P 12 Ø TGP C2 E F C

12345678910 11 12

PD S M 05 P 12 Ø TGP C2 E F C

12345678910 11 12

PD S M 05 P 12 Ø TGP C2 E F C

12345678910 11 12

PD S M 05 P 12 Ø TGP C2 E F C

12345678910 11 12

PD S M 05 P 12 Ø TGP C2 E F C

Options

3/64 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Mounting Options

Exit Sign

Globes or Refractors

Guards

Part No. Description Conduit Hub Size Std. Pkg.

VPA2 Rigid Pendant Cone 3⁄4” 5

VPC2 Ceiling Mount 3⁄4” 5

VPC22 Feed-through

Part No. Description Colour Std. Pkg.

VRE22 Three-sided Exit Sign Red 1

Part No. Description

VGT15 Heat-Resistant Globe

VGL15R1 IES Type I Refractor Globe

VGL15R3 IES Type III Refractor Globe

VGL15R5 IES Type V Refractor Globe

Part No. Description

VGU15P Polymeric Guard for use with Glass Globes and Refractors

Part No. Description

VR15P Standard Dome, Fiberglass-Reinforced Polyester

VRA15P 30° Angle Reflector, Fiberglass-Reinforced Polyester

Rigid Pendant Cone

Three-Sided Exit Sign

Ceiling Mount

Heat-Resistant

Glass Globe

Refractor Globe

Polymeric Guard

Standard Dome 30 degree Angle Reflector

Area lighting

Hazlux® M1 Hazlite™

Reflectors

Optional components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/65

Glass Globe with Angled Reflector

Glass Globe with Dome Reflector

Glass Globe and No Reflector

Dimensions

Cone pendant mount Ceiling mount

Photometry

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PDHM07P120TGLC2

& VR15P

Lamp 70W PSMH ED17

Lamp Lumens 5700

Input Watt 77

Luminaire Lumens 3756

Efficiency 66%

Efficacy Rating (LER) 49

Spacing Criterion (0-180) 1.42

Spacing Criterion (90-270) 1.42

Spacing Criterion (diagonal) 1.72

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PDHM07P120TGLC2

Lamp 70W PSMH ED17

Lamp Lumens 5700

Input Watt 77

Luminaire Lumens 4804

Efficiency 84%

Efficacy Rating (LER) 62

Spacing Criterion (0-180) 2.26

Spacing Criterion (90-270) 2.26

Spacing Criterion (diagonal) 2.38

Reference Data Candlepower Curve

Catalogue No. PDHM07H120TGLC22

& VRA15P

Lamp 70W PSMH ED17

Lamp Lumens 5700

Input Watt 77

Luminaire Lumens 3855

Efficiency 68%

Efficacy Rating (LER) 50

Spacing Criterion (0-180) 1.92

Spacing Criterion (90-270) 1.38

Spacing Criterion (diagonal) 1.64

85⁄8"

(219mm)

77⁄8"

(200mm)

611⁄16"

(170mm)

157⁄8"

(403mm)

157⁄8"

(403mm)

67⁄8"

(174mm)

85⁄8"

(219mm)

95⁄8" (244mm)

Dia. Bolt Center

611⁄16"

(170mm)

93⁄4"

(248mm)

157⁄8"

(403mm)

15"

(381mm)

47⁄8"

(124mm)

67⁄8"

(174mm)

85⁄8"

(219mm)

95⁄8" (244mm)

Dia. Bolt Center

611⁄16"

(170mm)

85⁄8"

(219mm)

77⁄8"

(200mm)

61⁄2"

(165mm)

85⁄8"

(219mm)

95⁄8" (244mm)

Dia. Bolt Center

67⁄8"

(174mm)

61⁄2"

(165mm)

85⁄8"

(219mm)

15"

(381mm)

47⁄8"

(124mm)

77⁄8"

(200mm)

611⁄16"

(170mm)

234

468

702

936

150

300

450

600

299

598

897

1196

3/66 Industrial and hazardous location lighting product catalogue | EKPC-0814

Glass Globe with Angled Reflector

Glass Globe with Dome Reflector

Glass Globe and No Reflector

Dimensions

Cone pendant mount Ceiling mount

Photometry

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PDHM07P120R1

Lamp 70W PSMH ED17

Lamp Lumens 5700

Input Watt 77

Luminaire Lumens 4490

Efficiency 79%

Efficacy Rating (LER) 58

Spacing Criterion (0-180) 1.42

Spacing Criterion (90-270) 5.04

Spacing Criterion (diagonal) 2.98

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. PDHM07P120R3

Lamp 70W PSMH ED17

Lamp Lumens 5700

Input Watt 77

Luminaire Lumens 4864

Efficiency 85%

Efficacy Rating (LER) 63

Spacing Criterion (0-180) 1.24

Spacing Criterion (90-270) 1.62

Spacing Criterion (diagonal) 1.62

10 1⁄2"

(266mm)

17 5⁄8"

(449mm)

14 1⁄8"

(358mm)

10 1⁄2"

(266mm)

16 5⁄8"

(449mm)

14 1⁄8"

(358mm)

10 1⁄2"

(266mm)

14 1⁄2"

(368mm)

15"

(381mm)

10 1⁄2"

(266mm)

13 1⁄2"

(342mm)

15"

(381mm)

10 1⁄2"

(266mm)

14 3⁄8"

(366mm)

10 1⁄2"

(266mm)

13 3⁄8"

(341mm)

1959

3918

5877

7836

1703

3405

5108

6810

299

598

897

1196

Reference Data Candlepower Curve

Catalogue No. PDHM07P120R5

Lamp 70W PSMH ED17

Lamp Lumens 5700

Input Watt 77

Luminaire Lumens 4791

Efficiency 84%

Efficacy Rating (LER) 62

Spacing Criterion (0-180) 1.68

Spacing Criterion (90-270) 1.68

Spacing Criterion (diagonal) 3.08

Area lighting

Hazlux® M1 Hazlite™

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/67

3/68 Industrial and hazardous location lighting product catalogue | EKPC-1114

Industrial and hazardous location lighting product catalogue | EKPC-1114 3/69

Features

– UL® Listed for Class I, Division 1 for safe, explosion-proof

application in a variety of hazardous areas

– Factory-sealed assembly meets code requirements without the

need for external sealing ﬁttings

– Dual-pitch Acme threads make assembly easy and faster than

designs with standard V-cut threads, greatly reducing the risk

of cross threading

– Factory-wired connection block means ballast is pre-wired

to lower half of electrical connection block, allowing wireless

connection of ballast housing to mounting module

– Five mounting styles - pendant, ceiling, wall, angle stanchion

and bulkhead - provide versatility for installation

– Thermal shock-resistant glass globes are factory assembled

and pre-tested to ensure the highest quality and safety

– Die-cast aluminum guards are epoxy powder coated

for corrosion resistance and have keyhole slots for easy

attachment to stainless steel screws

– Choice of high-pressure sodium and metal halide light sources

in wattages from 50 to 400 watts

– Polymeric reﬂectors are available in standard dome

– and 30˚ angle versions

– UL® Listed for Marine and Wet Locations, making Hazlux® 5

ﬁxtures ideal for use in many outdoor, offshore, hosedown and

coastal locations

– UL® Paint Spray Listed in wattages up to 100 watts

Applications

– Chemical Plants

– Oil Reﬁneries

– Offshore Platforms

– Waste Treatment Facilities

– Automotive Manufacturing Plants

– Paint Manufacturing Facilities

– Paint Spray Locations

– Chemical and Plastic Mixing and Storage Areas

– Pipeline Pumping Stations

– Oil and Gas Terminals

– Defense and Government Facilities

Wattages and Voltages

– High-Pressure Sodium: 50-400 Watts

– Metal Halide: 70-400 Watts

– All Luminaires: Multi-Tap standard (120, 208, 240, 277V),

wired 120V (Other voltages, frequencies available)

Materials and Finishes

– Ballast Housing: Copper-free aluminum, powder ﬁnish

– Mounting Modules: Copper-free aluminum, powder ﬁnish

– Hardware: Stainless steel

– Globes: Tempered glass

– Guard: Copper-free aluminum, powder ﬁnish

– Reﬂectors: Fiberglass-reinforced

Certifications

– UL844 Class I, Division 1, Groups C, D

– UL844 Paint Spray (100W max.)

– UL844 Class II, Division 1, Groups E, F, G

– Outdoor Wet Locations

– UL1598A Marine Locations

– Temperature Range: -30°C to 40°C

Area lighting

Hazlux® 5 Induction

Hazlux® 5 HID Lighting Fixtures for Class I, Division 1, Groups C and D

Hazardous Locations.

3/70 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 5

Assembly guide

Complete luminaire consists of:

– A mounting style

– Ballast Tank

– Globe or Refractor

– Optional Guard and/or Reflector

Fixture and Globe

Guard

Reflectors*

Cast Guard

Mounting Style

Wall Mount Bulkhead MountStanchion Mount Ceiling Mount

*Reﬂectors are sold separately

30° Angle Reflector

Standard Dome

Pendant Mount

Hazlux® 5 - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/71

Catalog numbering system

Certifications & Standards

Class I - Division 1, Groups C and D

- Zone 2, Groups IIC, IIB and IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast tank Optics and mountings Options

Ballast Tank Optics & Mountings

Options

1 Fixture Series X Hazlux® 5 Fixture

2 Lamp Type S High-Pressure Sodium

H Metal Halide

3 Starter Circuit/ Ø Standard Fixture (Without Options)

Quartz Options P Pulse Start (Metal Halide Only)

Q Quartz Auxiliary Option (Not Hazardous Rated)

R Fixture with Instant Restart Option (70, 100 and 150 HPS Only)

4 Lamp Wattage Metal Halide Lamps

10 100W ED28 17 175W ED28

25 250W ED28 32 320W ED28PS

40 400W ED37

High Pressure Sodium Lamps

05 50W ED23 1/2 07 70W ED23 1/2

10 100W ED23 1/2 15 150W ED23 1/2

20 200W ED18 25 250W ED18

40 100W ED18

5 Ballast Circuit C Constant Wattage Autotransformer (CWA)

I Constant Wattage Insulated Transformer (CWI)

H High Reactance

P Reactor

6 Ballast Voltage 04 Multi-Tap 120/208/240/277 Volt

09 120/277/347V Volt (CSA)

12 120 Volt

24 240V Volt

20 208V Volt

27 277V, 60 Hz

34 347V Volt

48 480V Volt

7 Ballast Housing Ø Standard Housing

Style S Standard Housing with Stainless Steel Inserts

8 Guard G Cast Guard (Omit “G” if Guard Not Required)

9 Mounting style P2 3⁄4“ Pendant

P3 1“ Pendant

C2 3⁄4“ Ceiling

C3 1“ Ceiling

B2 3⁄4“ Wall

B3 1“ Wall

J2 3⁄4“ Bulkhead

J3 1“ Bulkhead

S4 11⁄4“ 25° Stanchion

S5 11⁄2“ 25° Stanchion

10 UNIPAK™ D UNIPAK™ with Dual Arc Lamp

Options E UNIPAK™ with Clear Lamp

11 Special Options T HazCote® Custom Corrosion Coating on all Aluminum

Parts (Consult Factory)

12 Fusing Options F Fuse Block(s) with Fuse(s)*

13 Certification C Canadian Market

* Fusing is not available with Marine locations

12345678910111213

D S Ø 15 H 04 Ø-TGL-P2 E T F C

12345678 910111213

X S Q 07 H 04

G-C2 - E T F C

12345678 910111213

X S Q 07 H 04

G-C2 - E T F C

12345678 9101

X S Q 07 H 04

G-C2 - E T F C

3/72 Industrial and hazardous location lighting product catalogue | EKPC-0814

Individual components (to be used with ballast housing)

Mounting Options

Replacement Globe Assemblies

Part No. Description Conduit Hub Size Std. Pkg.

XP2 Pendant Mount 3 ⁄4” 1

XP3 Pendant Mount 1”

XS4 Stanchion Mount 11⁄4” 1

XS5 Stanchion Mount 11⁄2”

XC2 Ceiling Mount 3⁄4” 1

XC3 Ceiling Mount 1”

XB2 Wall Mount 3⁄4” 1

XB3 Wall Mount 1”

XJ2 Bulkead Mount 3⁄4” 1

XJ3 Bulkead Mount 1”

Outlet Boxes include female electrical connectors and appropriate close-up plugs

Part No. Description

XGSA44 Hazlux 5 Replacement Globe Assembly - 150 HPS

XGSA44A Hazlux 5 Replacement Globe Assembly - 400 Watts and 250 HPS/MH

Part No. Description

XGU44 Cast Aluminum Guard

VGU31* Cast Aluminum Guard

* Used on all 400-watt ﬁxtures, 250-watt HPS ﬁxtures and 250-watt metal halide ﬁxtures

Part No. Description

VR31P Standard Dome, Fiberglass-Reinforced Polyester

VRA31P 30° Angle Reflector, Fiberglass-Reinforced Polyester

Note: Reﬂectors are shipped bulk unless speciﬁed

Pendant Mount Stanchion Mount

Bulhead MountWall Mount

Ceiling Mount

XGSA44A Replacement

Globe Assembly

XGSA44 Replacement

Globe Assembly

XGU44 Cast Aluminum VGU31 Cast Aluminum

Standard Dome 30° Angle Reflector

Area lighting

Hazlux® 5

Reflectors

Guards

Optional components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/73

Dimensions - Hazlux® 5 ﬁxtures

(127mm)

(102mm)

53⁄8"

(137mm)

35⁄8"

(92mm)

59⁄16" (141mm)

1111⁄16"

(297mm)

1913⁄16"

(503mm)

85⁄8"

(219mm)

815⁄16"

(227mm)

1619⁄32"

(421mm)

103⁄4"

(273mm)

85⁄8"

(219mm)

815⁄16"

(227mm)

1111⁄16"

(297mm)

29⁄16" (65mm)

85⁄8"

(219mm)

1111⁄16"

(297mm)

201⁄8"

(511mm)

815⁄16"

(227mm)

113⁄8"

(289mm)

1111⁄16"

(297mm)

143⁄16"

(360mm)

267⁄16"

(672mm)

201⁄8"

(511mm)

133⁄4"

(349mm)

815⁄16" (227mm)

(127mm)

85⁄8"

(219mm)

181⁄2"

(470mm) 85⁄8" (219mm)

2019⁄32"

(523mm)

101⁄2"

(267mm)

91⁄2"

(241mm)

2629⁄32"

(683mm)

133⁄4"

(349mm)

(127mm)

201⁄8"

(511mm)

815⁄16"

(227mm)

181⁄8" (460mm)

183⁄32"

(460mm)

85⁄8"

(219mm)

1111⁄16"

(297mm)

Bulkhead Mount with Globe, Guard and Reflector Stanchion Mount with Globe, Guard and Reflector

Pendant Mount with Globe and Guard

Wall Mount with Globe and Guard

Ceiling Mount with Globe and Guard

Template for Bulkhead for Wall Mount

3/74 Industrial and hazardous location lighting product catalogue | EKPC-1114

Dimensions - Hazlux® 5 ﬁxtures (continued)

Area lighting

Hazlux® 5

1111⁄16"

(297mm)

85⁄8" (219mm)

21⁄4" (57mm)

41⁄2"

(368mm)

253⁄8"

(645mm)

1111⁄16"

(297mm)

271⁄4"

(692mm)

85⁄8" (219mm)

815⁄16" (227mm)

5" (127mm)

133⁄4"

(349mm)

201⁄8"

(511mm)

21⁄4" (57mm)

181⁄8"

(460mm)

29⁄16" (65mm)

25⁄8" (67mm)

1111⁄16"

(297mm)

133⁄4"

(349mm)

201⁄8"

(511mm)

181⁄8"

(460mm)

279⁄16"

(700mm)

(127mm)

85⁄8" (219mm)

815⁄16" (227mm)

133⁄4" (349mm)*

1" (25mm)

113⁄8"

(289mm)

103⁄4"

(273mm)

1911⁄16"

(500mm)

1111⁄16"

(297mm)

815⁄16"

(227mm)

85⁄8"

(219mm)

103⁄4"

(273mm)

2013⁄16"

(528mm)

59⁄16" (141mm)

(127mm)

1111⁄16"

(297mm)

201⁄8"

(511mm)

181⁄8"

(460mm)

85⁄8" (219mm)

815⁄16" (227mm)

141⁄2" (368mm)*

271⁄4"

(692mm)

3017⁄32"

(775mm)

133⁄4"

(349mm)

(25mm)

17⁄8" (48mm)

181⁄8"

(460mm)

209⁄16"

(523mm)

85⁄8"

(219mm) 25"

(635mm)

101⁄2"

(267mm)

183⁄32"

(460mm)

2627⁄32"

(682mm)

201⁄8"

(511mm)

(127mm)

91⁄2"

(241mm)

1111⁄16"

(297mm)

815⁄16"

(227mm)

133⁄4"

(349mm)

Pendant Mount with Globe, Guard and Reflector Wall Mount with Globe, Guard and Reflector

Ceiling Mount with Globe, Guard and Reflector Bulkhead Mount with Globe and Guard

Pendant Mount with Globe and Guard*

Stanchion Mount with Globe, Guard and Reflector* * When XGSA44A globe assembly is used with ED18 and ED37

Industrial and hazardous location lighting product catalogue | EKPC-1114 3/75

Photometry - Hazlux® 5 ﬁxtures

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. XHO17C090G-C2-E

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 9368

Efficiency 67%

Efficacy Rating (LER) 44.6

Spacing Criterion (0-180) 1.82

Spacing Criterion (90-270) 1.82

Spacing Criterion (diagonal) 2.20

Reference Data Candlepower Curve

Catalogue No. XHO17C090G-C2-E

& VR31P

Lamp 175W MH ED28

Lamp Lumens 14000

Input Watt 210

Luminaire Lumens 8264

Efficiency 59%

Efficacy Rating (LER) 39.4

Spacing Criterion (0-180) 1.44

Spacing Criterion (90-270) 1.44

Spacing Criterion (diagonal) 1.54

Reference Data Candlepower Curve

Catalogue No. XHO32C090-C2-E

Lamp 320W MH ED28PS

Lamp Lumens 30000

Input Watt 368

Luminaire Lumens 27341

Efficiency 91%

Efficacy Rating (LER) 74.3

Spacing Criterion (0-180) NA

Spacing Criterion (90-270) NA

Spacing Criterion (diagonal) NA

Reference Data Candlepower Curve

Catalogue No. XSO10H090G-C2-E

Lamp 100W HPS ED23 1/2

Lamp Lumens 9500

Input Watt 130

Luminaire Lumens 7162

Efficiency 75%

Efficacy Rating (LER) 55.1

Spacing Criterion (0-180) 2.66

Spacing Criterion (90-270) 2.66

Spacing Criterion (diagonal) 2.74

Reference Data Candlepower Curve

Catalogue No. XSO10H090G-C2-E

& VR31P

Lamp 100W HPS ED23 1/2

Lamp Lumens 9500

Input Watt 130

Luminaire Lumens 6254

Efficiency 66%

Efficacy Rating (LER) 48.1

Spacing Criterion (0-180) 1.60

Spacing Criterion (90-270) 1.60

Spacing Criterion (diagonal) 1.70

270

540

810

1080

370

740

1110

1480

425

850

1275

1700

593

1185

1778

2370

815

1631

2446

3261

3/76 Industrial and hazardous location lighting product catalogue | EKPC-1114

Area lighting

Hazlux® 5 Induction (Hazardous area - Class I, Div1)

Assembly guide

Fixture and Globe

Guard

Reflectors*

Cast Guard

Mounting Style

Wall Mount Bulkhead MountStanchion Mount Ceiling Mount

* Reﬂectors are sold separately

30° Angle Reflector

Standard Dome

Pendant Mount

Hazlux® 5 Induction (Hazardous Area Lighting - Class I, Div 1) - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-1114 3/77

Catalog numbering system

Certifications & Standards

Class I - Division 1, Groups C and D

- Zone 2, Groups IIC, IIB and IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

– UL844

– CSA C22.2 No. 137

Approvals / Characteristics

1 Fixture Series XI Hazlux® 5 Induction Series

2 Starter Circuit/ Ø Standard Fixture (Without Options)

C Cold Weather Circuit (-45°C)

3 Lamp Wattage 03 35 Watts

05 55 Watts

08 85 Watts

4 Ballast Circuit E Electronic Ballast

5 Voltages/Frequency UN 120 to 277 Vac, 50/60 Hz

34 347 Vac, 60 Hz

48 480 Vac, 60 Hz

6 Guard Blank No Guard

G Cast Guard

7 Mounting style B2 3⁄4“ Wall Mount

B3 1“ Wall Mount

C2 3⁄4“ Ceiling Mount

C3 1“ Ceiling Mount

J2 3⁄4“ Bulkhead

J3 1“ Bulkhead

P2 3⁄4“ Rigid Pendant

P3 1“ Rigid Pendant

S4 11⁄4“ 25° Angle Stanchion

S5 11⁄2“ 25° Angle Stanchion

8 Special Options T HazCote® Custom Corrosion Coating on all

Aluminum Parts

PS UL® Listed Fixture for Paint Spray Areas

PST UL® Listed Fixture for Paint Spray Areas with HazCote®

9 UNIPAK™ E UNIPAK™ with Clear Lamp

Options

10 Certification C Canadian Market

12345678910111213

D S Ø 15 H 04 Ø-TGL-P2 E T F C

12345678

03 E UN G B2 T E C

3/78 Industrial and hazardous location lighting product catalogue | EKPC-1114

Mounting Options

Guards

Part No. Description Conduit Hub Size Std. Pkg.

XP2 Pendant Mount 3⁄4” 1

XP3 1”

XS4 Stanchion Mount 11⁄4” 1

XS5 11⁄ 2”

XC2 Ceiling Mount 3⁄4” 1

XC3 1”

XB2 Wall Mount 3⁄4” 1

XB3 1”

XJ2 Bulkead Mount 3⁄4” 1

XJ3 1”

Outlet Boxes include female electrical connectors and appropriate close-up plugs

Part No. Description

XGU44 Cast Aluminum Guard

Part No. Description

XGSA44 Hazlux 5 Replacement Globe Assembly

Part No. Description

VR31P Standard Dome, Fiberglass-Reinforced Polyester

VRA31P 30° Angle Reflector, Fiberglass-Reinforced Polyester

Note: Reﬂectors are shipped bulk unless speciﬁed

XGU44 Cast Aluminum

Guard

Standard Dome 30° Angle Reflector

Area lighting

Hazlux® 5 Induction (Hazardous area - Class I, Div1)

Reflectors

Replacement Globe Assemblies

Individual components (to be used with ballast housing)

Pendant Mount Stanchion Mount

Bulhead MountWall Mount

Ceiling Mount

Industrial and hazardous location lighting product catalogue | EKPC-1114 3/79

Dimensions - Hazlux® 5 ﬁxtures

Bulkhead Mount with Globe, Guard and Reflector

Stanchion Mount with Globe, Guard and Reflector

113⁄8"

(289mm)

1111⁄16"

(297mm)

143⁄16"

(360mm)

267⁄16"

(672mm)

201⁄8"

(511mm)

133⁄4"

(349mm)

815⁄16" (227mm)

(127mm)

85⁄8"

(219mm)

181⁄2"

(470mm)

85⁄8" (219mm)

2019⁄32"

(523mm)

101⁄2"

(267mm)

91⁄2"

(241mm)

2629⁄32"

(683mm)

133⁄4"

(349mm)

(127mm)

201⁄8"

(511mm)

815⁄16"

(227mm)

181⁄8"

(460mm)

183⁄32"

(460mm)

85⁄8"

(219mm)

1111⁄16"

(297mm)

Wall Mount with Globe and Guard Ceiling Mount with Globe and Guard

59⁄16" (141mm)

1619⁄32"

(421mm)

103⁄4"

(273mm)

85⁄8"

(219mm)

815⁄16"

(227mm)

1111⁄16"

(297mm)

29⁄16" (65mm)

85⁄8"

(219mm)

1111⁄16"

(297mm)

201⁄8"

(511mm)

815⁄16"

(227mm)

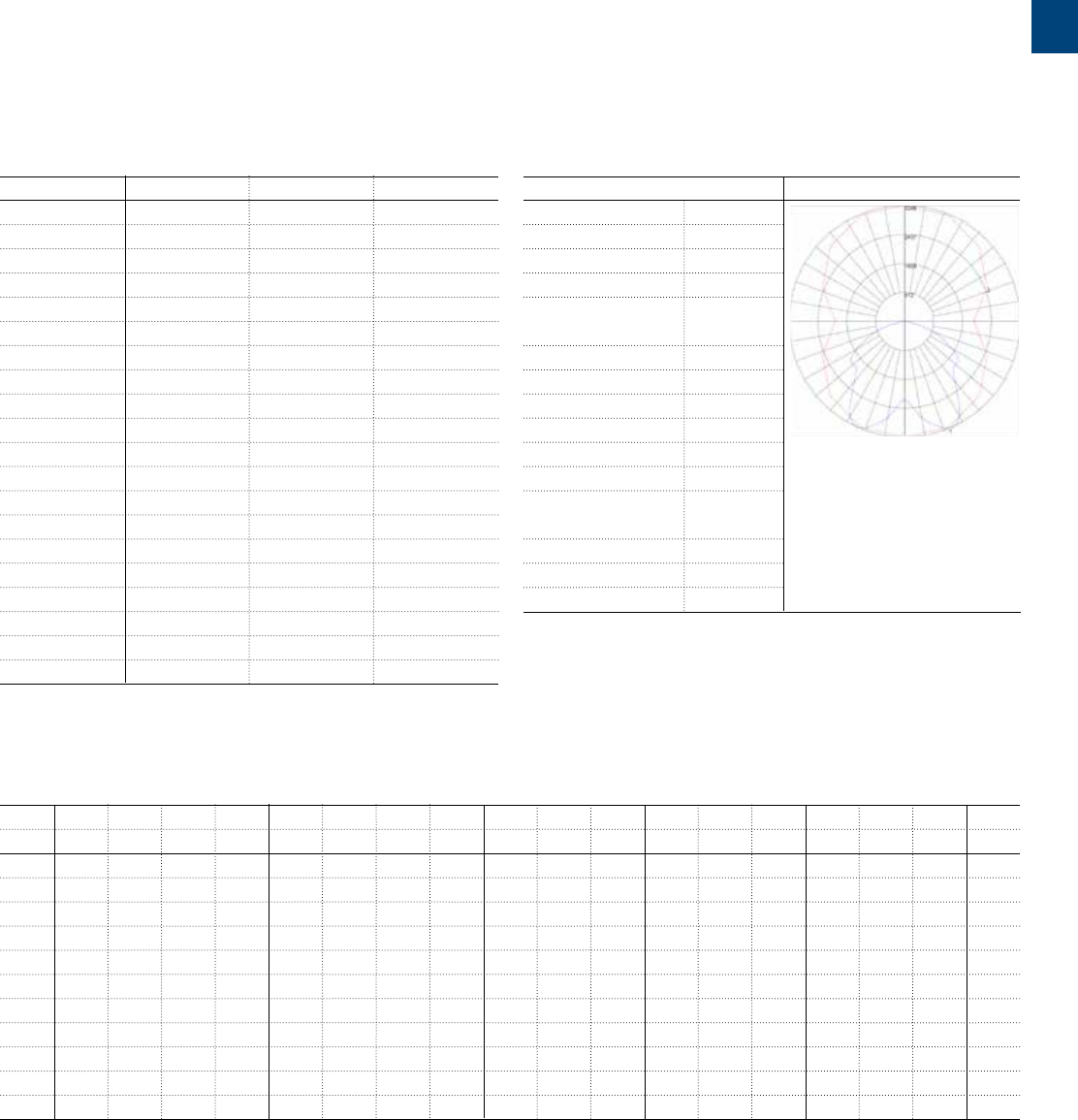

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. XI008EUNC2E

Lamp 85W Induction lamp

Lamp Lumens N.A. (absolute)

Input Watt 80.45

Luminaire Lumens 3633

Efficiency N.A.

Efficacy Rating (LER) 45

Spacing Criterion (0-180) 1.50

Spacing Criterion (90-270) 1.50

Spacing Criterion (diagonal) 1.80

Photometry - Hazlux® 5 ﬁxtures

113

227

340

453

3/80 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® M5 Hazlite™

Assembly guide

Complete luminaire consists of:

– A mounting style

– Fixture

– Globe

– Optional Guard and/or Reflector

Fixture and Globe

Guard

Reflectors*

Cast Guard

Mounting Style

Wall Mount Bulkhead MountStanchion Mount Ceiling Mount

*Reﬂectors are sold separately

30° Angle Reflector

Standard Dome

Pendant Mount

Hazlux® M5 Hazlite™ - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/81

Catalog numbering system

UNIPAK™ =

– Ballast Tank +

– Optics & Mountings +

– Options (if necessary)

Ballast Tank Optics & Mountings

Options

1 Fixture Series X Hazlite™ M5 Fixture

2 Lamp Type S High-Pressure Sodium

3 Lampholder M Medium Base Lampholder

4 Lamp Wattage High Pressure Sodium

05 50W BD17

07 70W BD17

15 150W BD17

10 100W BD17

5 Ballast Circuit P Reactor Type

6 Voltage 12 120 Volt

7 Ballast Housing Ø Standard Housing

Style S Standard Housing with Stainless Steel Inserts

8 Optics and G Cast Guard (Omit “G” if Guard is Not Required)

Guards

9 Mounting style P2 3⁄4” Rigid Pendant

P3 1” Rigid Pendant

C2 3⁄4” Ceiling

C3 1” Ceiling

B2 3⁄4” Wall

B3 1” Wall

J2 3⁄4” Bulkhead

J3 1” Bulkhead

S4 11⁄4” 25° Angle Stanchion

S5 11⁄2” 25° Angle Stanchion

10 UNIPAK™ D UNIPAK™ with Diffuse Coated Lamp

Options E UNIPAK™ with Clear Lamp

11 Special Options T HazCote® Custom Corrosion Coating on all Aluminum

Parts (Consult Factory)

PS Paint Spray Label

12 Certification C Canadian Market

Fixture and globe Optics and mountings Options

High-

Pressure

Sodium

Certifications & Standards

Class I - Division 1, Groups C and D

- Zone 2, Groups IIC, IIB and IIA

- Division 2, Groups A, B, C and D

Class II - Division 1 and 2, Groups E, F and G

– UL® Listed (UL1598A) for Marine Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

1234567 8910 11 12

X S M 05 P 12 - Ø

-G-C2 E-T C

1234567

8910

11 12

X S M 05 P 12 - Ø-

G-C2

E-T C

1234567 8910

11 12

X S M 05 P 12 - Ø-G-C2 E-

T C

3/82 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® M5 Hazlite™

Mounting Options

Guards

Part No. Description Conduit Hub Size Std. Pkg.

XP2 Pendant Mount 3⁄4” 1

XP3 1”

XS4 Stanchion Mount 11⁄4” 1

XS5 11⁄ 2”

XC2 Ceiling Mount 3⁄4” 1

XC3 1”

XB2 Wall Mount 3⁄4” 1

XB3 1”

XJ2 Bulkead Mount 3⁄4” 1

XJ3 1”

Outlet Boxes include female electrical connectors and appropriate close-up plugs

Part No. Description

XGU15 Cast Aluminum, Powder Finish

Part No. Description

XGSA15 Replacement Globe Assembly, 35–150 Watts

Part No. Description

VR15P Standard Dome, Fiberglass-Reinforced Polyester

VRA15P 30° Angle Reflector, Fiberglass-Reinforced Polyester

Note: Reﬂectors are shipped bulk unless speciﬁed

Pendant Mount Stanchion Mount

Bulhead MountWall Mount

Ceiling Mount

Standard Dome 30° Angle Reflector

Replacement Globe Assemblies

Optional components

Reflectors

Individual components (to be used with ballast tank)

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/83

Dimensions - Hazlux® M5 Hazlite™ ﬁxtures

Rigid Pendant Globe/Guard

Ceiling Mount Globe/Guard with Dome Reflector

Ceiling Mount Globe/Guard

Wall Mount Globe/Guard with 30°

Angle Reflector

Stanchion Mount Globe/Guard with

30° Angle Reflector

Stanchion Mount Globe/Guard

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. XSM05P12-O-P2E

Lamp 50W HPS BD17

Lamp Lumens 4000

Input Watt 66

Luminaire Lumens 2984

Efficiency 75%

Efficacy Rating (LER) 45.2

Spacing Criterion (0-180) 3.48

Spacing Criterion (90-270) 3.48

Spacing Criterion (diagonal) 3.22

Reference Data Candlepower Curve

Catalogue No. XSM05P12-O-P2E

& VR15P

Lamp 50W HPS BD17

Lamp Lumens 4000

Input Watt 66

Luminaire Lumens 2651

Efficiency 66%

Efficacy Rating (LER) 40.2

Spacing Criterion (0-180) 1.54

Spacing Criterion (90-270) 1.54

Spacing Criterion (diagonal) 1.88

Photometry - Hazlux® M5 Hazlite™ ﬁxtures

8 1/4"

(210 mm)

14 7/

(378 mm)

10 3/4"

(273 mm)

3/16"

(81 mm)

(25 mm)

6 9/16"

(167 mm)

5 7/16"

(141 mm)

3/4"

(248 mm)

15 7/8"

(403 mm)

69⁄16"

(167mm)

57⁄16"

(141mm)

157⁄8"

(403mm)

93⁄4"

(248mm)

33⁄16"

(81mm)

81⁄4"

(210mm)

147⁄8"

(378mm)

103⁄4"

(273mm)

(25mm)

8 1/

(210 mm)

6 3/8"

(162 mm)

2 9/16"

(68 mm)

81⁄4"

(210mm)

29⁄16"

(68mm)

63⁄8"

(162mm)

8 1/4"

(210 mm)

6 9/16"

(167 mm)

4 7/8"

(124 mm)

2 9/16"

(68 mm)

81⁄4"

(210mm)

29⁄16"

(68mm)

47⁄8"

(124mm) 69⁄16"

(167mm)

Four 3/8" (9.5 mm)

diameter

Holes on a 6" (152 mm)

diameter B.C.

Four 3⁄8" (9.5mm)

diameter holes on a 6"

(152mm) diameter B.C.

8 1/

(210 mm)

6 3/8"

(162 mm)

1/4"

(57 mm)

81⁄4"

(210mm)

21⁄4"

(57mm)

63⁄8"

(162mm)

20 7/8"

(530 mm)

14 5/8"

(371 mm)

10 1/2"

(267 mm)

9 3/8"

(238 mm)

8 1/4"

(210 mm)

15"

(381 mm)

18"

(457 mm)

1 7/8"

(48 mm)

6 9/16"

(167 mm)

145⁄8"

(371mm)

101⁄2"

(267mm)

93⁄8"

(238mm)

69⁄16"

(167mm)

207⁄8"

(530mm)

18"

(457mm)

15"

(381mm)

17⁄8"

(48mm)

81⁄4"

(210mm)

17 1/4"

(438 mm)

6 3/8"

(162 mm)

14 5/8"

(371 mm)

10 1/2"

(267 mm)

9 3/8"

(238 mm)

1 7/8"

(48 mm)

8 1/4"

(210 mm)

17⁄8"

(48mm)

63⁄8"

(162mm)

145⁄8"

(371mm)

101⁄2"

(267mm)

93⁄8"

(238mm)

171⁄4"

(438mm)

81⁄4"

(210mm)

100

201

301

401

593

1185

1778

2370

3/84 Industrial and hazardous location lighting product catalogue | EKPC-0814

Hazlux® 5 Thermal Performance Data (40ºC) - Hazardous Location

Hazlux® 5 Thermal Performance Data (40˚C) - Hazardous Location

Area lighting

Hazlux® 5 Thermal performance data

50W (S68 Lamp) 70W (S62 Lamp) 100W (S54 Lamp) 150W (S55 or S56 Lamp)

Lamp Lamp w / Auxiliary Qtz. Lamp Lamp w / Auxiliary Qtz. Lamp Lam p w / Auxilia ry Qt z. Lamp Lamp w / Auxiliary Qtz.

Configuration “T” No. “T” No. “T” No. “T” No. “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T6 T4A T6 T4A T5 T4 T4A T4A

Globe, Guard

& Dome Reflector B T6 T4A T6 T4A T5 T4 T4A T3C

Globe, Guard

& Angle Reflector C T6 T4A T6 T4A T5 T3C T4A T3C

50W (S68 Lamp) 70W (S62 Lamp) 100W (S54 Lamp) 150W (S55 or S56 Lamp)

Lamp Lamp w / Auxiliary Qtz. Lamp Lamp w / Auxiliary Qtz. Lamp Lam p w / Auxilia ry Qt z. Lamp Lamp w / Auxiliary Qtz.

Class II Class II Class II Class II

Configuration Groups Class II Groups Groups Class II Groups Groups Class II Groups Groups Class II Groups

Globe & Guard A EFG EFG EFG EFG EFG EF EFG EF

Globe, Guard

& Dome Reflector B EFG EFG EFG EFG EFG EF EFG EF

Globe, Guard

& Angle Reflector C EFG EFG EFG EFG EFG EF EFG EF

100W (M90 Lamp) 175W (M57 Lamp) 150W (S56 Lamp)

Lamp Lamp Lamp w / Auxiliary Qtz. Lamp Lamp w / Auxilia ry Qt z.

Configuration “T” No. “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T5 T4A T3C (2) T3C T3C (2)

Globe, Guard

& Dome Reflector B T5 T4A T3C (2) T3C T3A (2)

Globe, Guard

& Angle Reflector C T5 T4A T3C (2) T3C T3A (2)

175W (M57 Lamp) 250W (M58 Lamp)

Lamp Lamp

Configuration Class II Groups Class II Groups

Globe & Guard A EF EF

Globe, Guard

& Dome Reflector B EF EF

Globe, Guard

& Angle Reflector C EF EF

Class I, Division 1 Group C & D - Maximum External Fixture Temperature in ºC @ 40ºC Ambient in Free Air

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Class II & III,* Division 1 & 2 - Maximum External Fixture Temperature in ºC @ 40ºC Ambient in Free Air

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Metal Halide / Nameplate marked with Rating based on hottest ﬁxture congestion

Class I, Division 1 Group C & D - Maximum External Fixture Temperature in ºC @ 40ºC Ambient in Free Air

Class II & III,* Division 1 & 2 - Maximum External Fixture Temperature in ºC @ 40ºC Ambient in Free Air

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/85

Hazlux® 5 Thermal Performance Data (55ºC) - Hazardous Location

Hazlux® 5 Thermal Performance Data (65˚C) - Hazardous Location

50W (S68 Lamp) 70W (S62 Lamp) 100W (S54 Lamp) 150W (S55 or S56 Lamp)

Lamp Lamp w / Auxiliary Qtz. Lamp Lamp w / Auxiliary Qtz. Lamp Lam p w / Auxilia ry Qt z. Lamp Lamp w / Auxiliary Qtz.

Configuration “T” No. “T” No. “T” No. “T” No. “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T6 T4 T5 T4 T5 T4A N/A T4A

Globe, Guard

& Dome Reflector B T6 T4 T5 T4 T5 T4A N/A T4A

Globe, Guard

& Angle Reflector C T6 T4 T5 T4 T5 T4A N/A T4A

50W (S68 Lamp) 70W (S62 Lamp) 100W (S54 Lamp)

Lamp Lamp w / Auxiliary Qtz. Lamp Lamp w / Auxiliary Qtz. Lamp

Configuration “T” No. “T” No. “T” No. “T” No. “T” No.

Globe & Guard A T5 N/A T4A N/A T4A

Globe, Guard

& Dome Reflector B T5 N/A T4A N/A T4A

Globe, Guard

& Angle Reflector C T5 N/A T4A N/A T4A

Class I, Division 1 Group C & D - Maximum External Fixture Temperature in ºC @ 55ºC Ambient in Free Air

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

Class I, Division 1 Group C & D - Maximum External Fixture Temperature in ºC @ 65ºC Ambient in Free Air

High Pressure Sodium / Nameplate marked with Rating based on hottest ﬁxture congestion

8 1/4"

(210 mm)

6 3/8"

(162 mm)

2 1/4"

(57 mm)

8 1/4"

(210 mm)

14 7/8"

(378 mm)

10 3/4"

(273 mm)

3 3/16"

(81 mm)

(25 mm)

6 9/16"

(167 mm)

5 7/16"

(141 mm)

9 3/4"

(248 mm)

15 7/8"

(403 mm)

Section E Hazlux® 5

A B C

3/86 Industrial and hazardous location lighting product catalogue | EKPC-0814

Class I Supply Wire

Lamp Type Ambient Temperature Groups Temp. Code Suitable Temperature

250 Watt HPS

Type S50 40 C,D T4A 85

400 Watt HPS

Type S51 40 C,D T4C 85

400 Watt M.H. 40ºC C,D T3B 85ºC

Type M59 40ºC C,D T3B 85ºC

Class I Class II Supply Wire

Lamp Type Ambient Temperature Groups Temp. Code Groups Temp. Code Suitable Temperature

35 Watt 40ºC C,D T6 E,F,G T5 60ºC

HPS 55ºC C,D T6 E,F,G T4A 75ºC

Type S76 65ºC C,D T5 E,F,G T4A 85ºC

50 Watt 40ºC C,D T6 E,F,G T4A 60ºC

HPS 55ºC C,D T6 E,F,G T4A 75ºC

Type S68 65ºC C,D T5 E,F,G T4 85ºC

70 Watt 40ºC C,D T5 E,F,G T4 75ºC

HPS 55ºC C,D T4A E,F,G T3C 75ºC

Type S62 65ºC C,D T4A E,F,G T3C 85ºC

100 WATT HPS 40ºC C,D T4A E,F,G T3C 75ºC

Type S54 55ºC C,D T4A E,F,G T3C 85ºC

Hazlite™ 5 (400 Series) Thermal Data

Hazlite™ M5 Thermal Data

Area lighting

Hazlux® 5 Thermal data

Hazlite™ 5 (400 Series) Thermal Data - This data includes Globe, Guard and Reflector

Hazlite™ M5 Thermal Data - This data includes Globe, Guard and Reflector

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/87

3/88 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

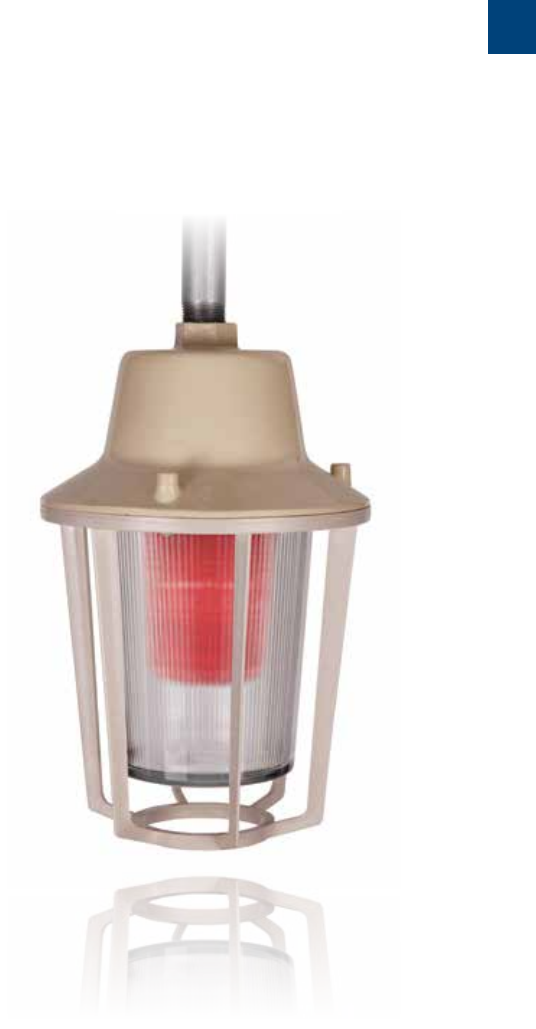

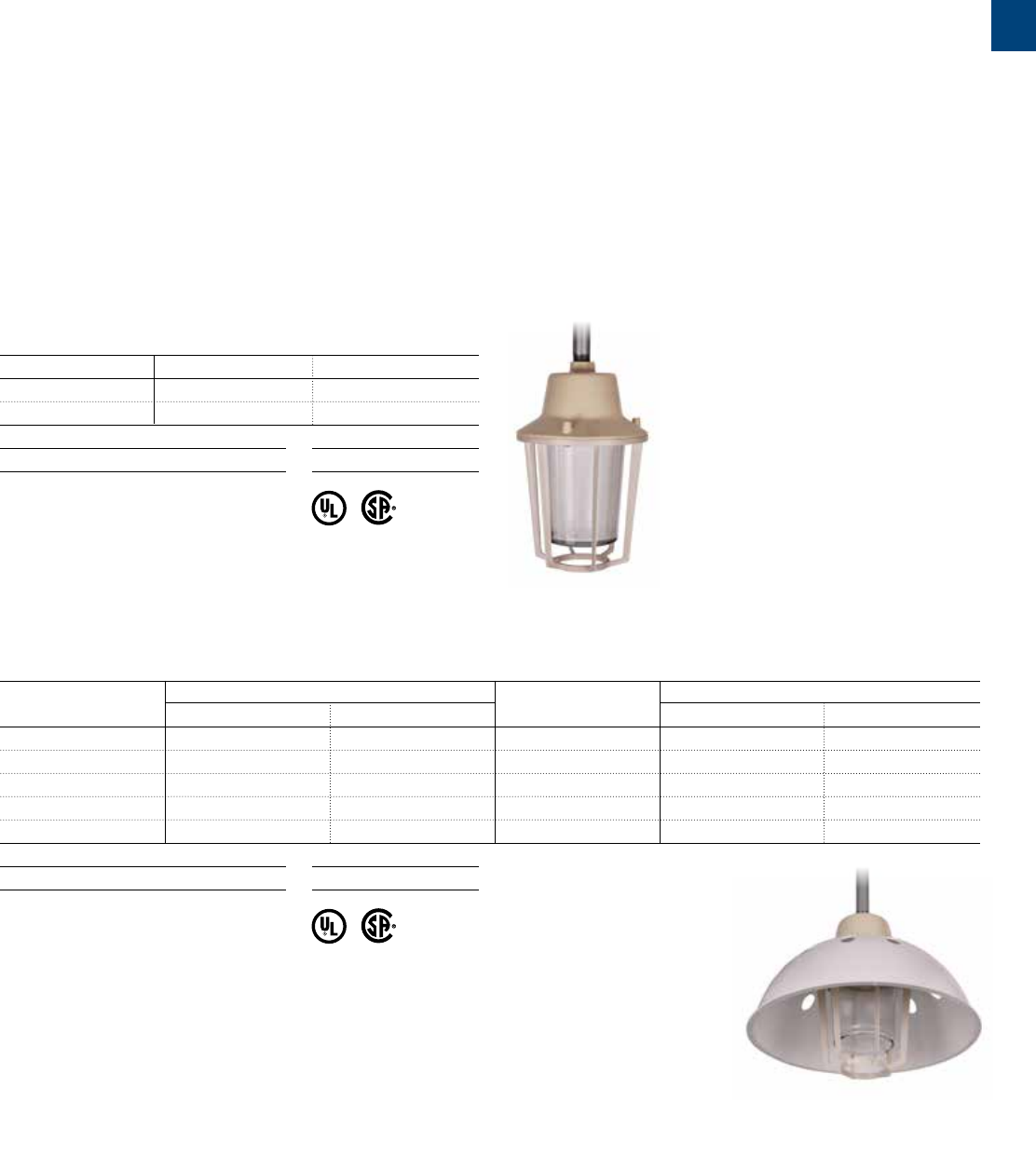

Hazlux® M4 Hazlite™

Hazardous Location Fixtures for Class I, Division 2; Class II; and Wet and Marine Locations.

Hazlite™ M4 lighting fixtures have a compact, low-profile

design that is ideally suited for areas where space or fixture

weight is restricted. While it is available for use with both

incandescent and fluorescent lamps, the Hazlite™ M4 fixture

with fluorescent lamps is particularly energy efficient.

– Easy-to-assemble, modular construction

– Fully threaded glass globes, refractors and silicone rubber

gaskets seal out dirt, dust and moisture

– Bright white FRP material reflectors optimize light output

and resist corrosion and abuse

– Clear glass globes are standard; tempered globes, colored

glass globes and plastic globes are also available

– 13⁄4“-deep boxes are standard on ceiling and wall mount

fixtures; 3“-deep boxes available for added wiring room

– Four mounting styles - pendant, ceiling, wall, angle

stanchion - to meet all mounting needs

– Polycarbonate guards are corrosion and impact resistant

and do not interfere with globe seal

Incandescent:

– Two basic sizes cover all popular wattages up to 300 watts

Fluorescent:

– Factory-wired integral ballasts for easy installation

– 10,000-hour rated lamp life - extremely energy efficient

– One or two 13-, 22- and 28-watt lamps provide up to

44 watts of fluorescent light

– 22-, 28- and 44-watt fixtures start and operate reliably in

cold temperature applications (-29°C)

Lighting Fixture Components - Temperature Ratings

Hazlite™ M4 Compact Fluorescent Lighting Fixtures - Temperature Information Chart

Certifications & Standards

Class I - Division 2, Groups A, B, C and D

Class II - Division 2, Groups E, F, and G*

– Enclosed and Gasketed for Wet Locations

– UL® Listed (UL1598A) for Marine Locations

– NEMA 4X , IP66

*Pendant mount only, 100 watts max

Certifications & Standards

Class I - Division 2, Groups A, B, C and D

Class II - Division 2, Groups E, F, and G*

– UL844

– Enclosed and Gasketed for Wet Locations

– NEMA 4X , IP66

*Pendant mount only

Approvals / Characteristics

Maximum Lamp Watts Without Reflector With Reflector

150 T2A T2

300 T1 T1

Ambient Temperature Class I, Division 2 T-Number

Fixture Wattage Minimum Maximum Supply Wire Temperature Globe, Guard Globe, Guard & Reflector

13 Watt 0°C (32° F) 40°C (104° F) 110°C T3 T3

22 Watt -29°C (-20° F) 40°C (104° F) 110°C T3 T3

26 Watt 0°C (32° F) 40°C (104° F) 110°C T3 T3

28 Watt -29°C (-20° F) 40°C (104° F) 110°C T3 T3

44 Watt -29°C (-20° F) 40°C (104° F) 110°C T3 T3

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/89

3/90 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® M4 Hazlite™ Incandescent

Assembly guide

Complete luminaire consists of:

– A mounting style

– Fixture Assembly

– Globe or Refractor

– Optional Guard and/or Reflector

Fixture Assembly

Globe or Refractor

Guard

Reflectors*

Refractor Globe

Heat-Resistant Globe

Mounting Style

Ceiling Junction BoxStanchion Bracket ArmWall Mount Bracket Arm

Ceiling, Wall or Stanchion Mount

Rigid Pendant

*Reﬂectors are sold separately

30° Angle Reflector

Standard Dome

Polymeric Guard

Hazlux® 5 Induction - Assembly Guide

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/91

Catalog numbering system

Certifications & Standards

Class I - Division 2, Groups A, B, C and D

Class II - Division 2, Groups E, F and G*

– Enclosed and Gasketed for Wet Locations

– UL® Listed (UL1598A) for Marine Locations

– NEMA 4X , IP66

– CSA C22.2 No. 137

*Pendant mount only, 100 watts max.

Approvals / Characteristics

1 Fixture Series and VDA M4 Incandescent Pendant Mount Fixture

Mounting Style VXH M4 Incandescent Fixture Body for Ceiling, Wall or

Stanchion Mount

VXHA M4 Incandescent Stanchion Mount Fixture

VXHB M4 Incandescent Wall Mount Fixture (No Box)

VXHBF Wall Mount Fixture with Box

VXHF Ceiling Mount with Box

2 Hub Size 2 3⁄4” in. NPT Hub

4 11⁄4” in. NPT Hub

3 Lamp Wattage 5 150 Watt Maximum

2 200 to 300 Watt

4 Optics and Guards GP Clear Globe with Polymeric Guard

TG Tempered Globe

TGP Tempered Globe with Polymeric Guard

ACG Amber Globe

BCG Blue Globe

GCG Green Globe

RCG Red Globe

ACGP Amber Globe with Polymeric Guard

BCGP Blue Globe with Polymeric Guard

GCGP Green Globe with Polymeric Guard

RCGP Red Globe with Polymeric Guard

RI Refractor Globe (IES Type I)*

R3 Refractor Globe (IES Type III)*

R5 Refractor Globe (IES Type V)*

R1P Refractor Globe (IES Type I) with Polymeric Guard

R3P Refractor Globe (IES Type III) with Polymeric Guard

R5P Refractor Globe (IES Type V) with Polymeric Guard

*150 Watt maximum

5 Reflector Options RD Dome Reflector

RA Angle Reflector

6 Certification C Canadian Market

12345678910111213

D S Ø 15 H 04 Ø-TGL-P2 E T F C

123 456

VDA 2 5 GP RD C

3/92 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® M4 Hazlite™ Incandescent

Mounting Options

Fixture Assembly

Part No. Description Conduit Hub Size

VXB Wall Mount Bracket Arm N.A.

VXA4 Stanchion Bracket Arm 11⁄4”

Part No. Watt max. Lamp Size Conduit Hub Size

VDA15 150W 1⁄2”

VDA25 150W 3⁄4”

VDA12 200–300W 1⁄2”

VDA22 200–300W 3⁄4”

VXH15 150W N.A.

VXH12 200–300W N.A.

Part No. (4 Hubs) Part No. (5 Hubs) Conduit Hub Size

VXF10 VXFT10 1⁄2”

Part No. Description Conduit Hub Size

VHC2 Fixture Hanger Hub Cover for VXF and VXFD Boxes 3⁄4“

GASK643 Covers, Flat Covers and Bracket Arms N.A.

Wall Mount Bracket Arm

Pendant Mount

Cover

13⁄4“ Inside Depth

Stanchion Bracket Arm

Celing, Wall or

Stanchion Mount

Gasket

Junction Box for Wall or Ceiling

Covers and Gaskets

Individual components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/93

Part No. Part No.

150W Max. Lamp Size 200–300W Max. Lamp Size Description

VGU15P VGU22P Polymeric Guard

Part No. Part No.

150W Max. Lamp Size 200–300W Max. Lamp Size Description

VGT15 VGT22 Clear, Heat Resistant

VGT15R VGT22R Red

VG15G VGT22G Green

VGT15B VGT22B Blue

VGT15A VGT22A Amber

VGL15 VGL22 Clear

VGL15R1 VGL22R1 IES Type V Refractor

VGL15R3 VGL22R3 IES Type V Refractor

VGL15R5 VGL22R5 IES Type V Refractor

*Not Heat-Resistant

Part No. Part No.

150W Max. Lamp Size 200–300W Max. Lamp Size Description

VR15P VR22P Dome

VRA15P VRA22P Angled

Note: Reﬂectors are shipped bulk unless speciﬁed

Clear*

Blue

Red

Amber

Green

Refractor Globe

Standard Dome

Polymeric Guard

30° Angle Reflector

Replacement Globe Assemblies

Guards

Optional Components

Reflectors

3/94 Industrial and hazardous location lighting product catalogue | EKPC-0814

Dimensions - Hazlite™ M4 Incandescent ﬁxtures

Area lighting

Hazlux® M4 Hazlite™ Incandescent

Angle Stanchion Mount

150 Watts Maximum

Dome Reflector

150 Watts Maximum

Wall Mount with Box

Ceiling Mount

Angle Stanchion Mount

300 Watts Maximum

Pendant Mount

150 Watts Maximum

Angle Dome

150 Watts Maximum

Wall Mount without Box

Junction Box for Wall or Ceiling Mount

Pendant Mount

300 Watts Maximum

Angle Reflector

300 Watts Maximum

(203 mm)

(127 mm)

203mm

127mm

4 3/16"

(106 mm)

1 7/8"

(48 mm)

43⁄16"

106mm

17⁄8"

48mm

4 15/16"

(125 mm)

415⁄16"

125mm

9 15/16"

(252 mm)

115/16"

(49 mm)

9 11/16"

(246 mm)

115⁄16"

49mm

1915⁄16"

252mm

911⁄16"

246mm

(256 mm)

(66 mm)

(276 mm)

21⁄2"

66mm

101⁄16"

256mm

107⁄8"

276mm

10 3/16"

(259 mm)

16 7/8"

(429 mm)

51/2"

(140 mm)

51⁄2"

140mm

103⁄16"

259mm

167⁄8"

429mm

111/16"

(281 mm)

15"

(381 mm)

413/16"

(122 mm)

413⁄16"

122mm

111⁄16"

281mm

15"

381mm

(203 mm)

513/16"

(148 mm)

6 1/2"

(165 mm)

4 5/16"

(110 mm)

203mm

61⁄2"

165mm

45⁄16"

110mm

513⁄16"

148mm

(203 mm)

615/16"

(176 mm)

8 1/8"

(206 mm)

4 5/16"

(110 mm)

203mm

615⁄16"

176mm

45⁄16"

110mm

81⁄8"

206mm

11 3/16"

(284 mm)

12 1/2"

(318 mm)

515/16"

(151 mm)

7 1/4"

(184 mm)

121⁄2"

318mm

113⁄16"

284mm

71⁄4"

184mm

515⁄16"

151mm

(264 mm)

(295 mm)

(130 mm)

(159 mm)

115⁄8"

295mm

103⁄8"

264mm

61⁄4"

159mm

51⁄8"

130mm

(175 mm)

(276 mm)

(106 mm)

67⁄8"

175mm

107⁄8"

276mm

43⁄16"

106mm

8 13/16"

(224 mm)

12 13/16"

(325 mm)

4 3/16"

(106 mm)

813⁄16"

224mm

43⁄16"

106mm

1213⁄16"

325mm

4 15/16"

(125 mm)

415⁄16"

125mm

(90 mm)

.201"dia. hole

(5 mm)

(106 mm)

31⁄2"

90mm

.201" dia.

hole (5mm)

43⁄16"

106mm

Dome Reflector

300 Watts Maximum

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/95

Area lighting

Hazlux® M4 Hazlite™ Fluorescent

Assembly guide

Complete luminaire consists of:

– A mounting style

– Fixture Assembly

– Globe or Refractor

– Optional Guard and/or Reflector

Fixture Assembly

Globe or Refractor

Guard

Reflectors*

Heat-Resistant Globe

Mounting Style

Ceiling Junction BoxStanchion Bracket ArmWall Mount Bracket Arm

Ceiling, Wall or Stanchion Mount

Rigid Pendant

*Reﬂectors are sold separately

30° Angle Reflector

Standard Dome

Polymeric Guard

Hazlux® M4 Hazlite™ Fluorescent - Assembly Guide

3/96 Industrial and hazardous location lighting product catalogue | EKPC-0814

Catalog numbering system

Certifications & Standards

Class I - Zone 2, Groups IIC, IIB, IIA,

- Division 2, Groups A, B, C and D

Class II - Division 2, Groups E, F and G

– Enclosed and Gasketed for Wet Locations

– UL844

– NEMA 4X , IP66

– CSA C22.2 No. 137

Approvals / Characteristics

1 Fixture Series and VFA M4 Fluorescent Pendant Mount

Mounting Style VFH M4 Fluorescent Body for Ceiling, Wall or

Stanchion Mount

VFHA M4 Fluorescent Stanchion Mount

VFHB M4 Fluorescent Wall Mount (No Box)

VFHBF Fluorescent Wall Mount (Std. Box)

VFHBFD M4 Fluorescent Wall Mount (Deep Box)

VFHF M4 Fluorescent Ceiling Mount (Std. Box)

VFHFD M4 Fluorescent Wall Mount (Deep Box)

2 Hub Size 1 1⁄2” NPT Hub (Except VFH and VFHB)

2 3⁄4” in. NPT Hub

4 11⁄4” in. NPT Hub

3 Lamp Wattage 13 13 Watt (One 13W Lamp

22 22 Watt (One 22W Lamp)

26 26 Watt (Two 13W Lamps)

28 28 Watt (One 28W Lamp)

44 44 Watt (Two 22W Lamps)

4 Voltage 12 120VAC

5 Optics and Guards GP Clear Globe with Polymeric Guard

TG Tempered Globe

TGP Tempered Globe with Polymeric Guard

ACG Amber Globe

BCG Blue Globe

GCG Green Globe

RCG Red Globe

ACGP Amber Globe with Polymeric Guard

BCGP Blue Globe with Polymeric Guard

GCGP Green Globe with Polymeric Guard

RCGP Red Globe with Polymeric Guard

6 Packaging Options D UNIPAK® Packaging (Completely Assembled with

Lamps in One Carton)

P PROJECPAK™ Packaging (All Components,

Including Lamp(s), in One Carton, Unassembled)

Area lighting

Hazlux® M4 Hazlite™ Fluorescent

UNIPAK™ =

– Fixture Assembly +

– Optics & Mountings +

– Options (if necessary)

Ballast tank Optics and mountings Options

Options

7 Reflector Options RD Dome Reflector

RA Angle Reflector

8 Certification C Canadian Market

Note: If no packaging code is speciﬁed, ﬁxture components will be shipped in separate cartons

All ﬁxtures and ﬁxture housings include lamps

234 56 78

VFHA 2 44 12

- GP D RD C

1234 56 78

VFHA 2 44 12 -

GP D

RD C

1234 56 78

VFHA 2 44 12 - GP D

RD C

Fixture Assembly Optics & Mountings

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/97

Options

Fixture Assembly

Part No. Description Conduit Hub Size

VXB Wall Mount Bracket Arm N.A.

VXA4 Stanchion Bracket Arm 11⁄4”

Part No. Conduit Hub Size

VFH N.A.

VFA 1⁄2”

Part No. 4 Hubs Part No. 5 Hubs Conduit Hub Size

VXF10 VXFT10 1⁄2”

VXF20 VXFT20 3⁄4”

Part No. Description Conduit Hub Size

VHC1 Fixture Hanger 1⁄2”

VHC2 FiHub Cover for VXF and VXF Boxes 3⁄4”

GASK643 Gasket for Hub Covers, Flat Covers and Bracket Arms N.A.

Covers and Gaskets

Individual components

Mounting Options

Wall Mount Bracket Arm

Pendant Mount

Cover

13⁄4“ Inside Depth

Stanchion Bracket Arm

Celing, Wall or

Stanchion Mount

Gasket

3/98 Industrial and hazardous location lighting product catalogue | EKPC-0814

Part No. Description

VGU22P Polymeric Guard

Part No. Description

VGL22 Clear, Non Heat Resistant

VGT22 Clear, Heat Resistant

VGT22R Red

VGT22G Green

VGT22B Blue

VGT22A Amber

VRE22 Three-Sided Exit Sign

Part No. Description

VR22P Dome

VRA22P Angled

Note: Reﬂectors are shipped bulk unless speciﬁed

Three-Sided Exit Sign Globe

Standard Dome

Polymeric Guard

30° Angle Reflector

Individual components (continued)

Area lighting

Hazlux® M4 Hazlite™ Fluorescent

Globes and Exit Sign

Guards

Reflectors

Optional components

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/99

Dimensions - Hazlite™ M4 Fluorescent ﬁxtures

11 3/16"

(284 mm)

12 1/2"

(318 mm)

515/16"

(151 mm)

7 1/4"

(184 mm)

121⁄2"

(318mm)

113⁄16"

(284mm)

71⁄4"

(184mm)

515⁄16"

(151mm)

(203 mm)

615/16"

(176 mm)

8 1/8"

(206 mm)

4 5/16"

(110 mm)

(203mm)

45⁄16"

(110mm)

81⁄8"

(206mm)

615⁄16"

(176mm)

10 1/16"

(256 mm)

2 1/2"

(66 mm)

10 7/8"

(276 mm)

10 7⁄8"

(276mm)

21⁄2"

(66mm)

101⁄16"

(256mm)

8 13/16"

(224 mm)

12 13/16"

(325 mm)

4 3/16"

(106 mm)

813⁄16"

(224mm)

1213⁄16"

(325mm)

43⁄16"

(106mm)

4 15/16"

(125 mm)

⁄

(125mm)

6 7/8"

(175 mm)

10 7/8"

(276 mm)

4 3/16"

(106 mm)

3 1/2"

(90 mm)

.201"dia. hole

(5 mm)

4 3/16"

(106 mm)

67⁄8"

(175mm)

43⁄16"

(106mm)

10 7⁄8"

(276mm)

43⁄16"

(106mm)

31⁄2"

(90mm)

.201" dia. hole

(5mm)

(203 mm)

(127 mm)

(127mm)

(203mm)

4 15/16"

(125 mm)

⁄

(125mm)

4 3/16"

(106 mm)

1 7/8"

(48 mm)

17⁄8"

(48mm)

43⁄16"

(106mm)

10 3/16"

(259 mm)

16 7/8"

(429 mm)

51/2"

(140 mm)

51⁄2"

(140mm)

103⁄16"

(259mm)

167⁄8"

(159mm)

Angle Stanchion Mount

Fluorescent

Dome Reflector

Fluorescent

Wall Mount with Box

Ceiling Mount

Pendant Mount

Fluorescent

Angle Reflector

Fluorescent

Wall Mount without Box

Junction Box for Wall or Ceiling Mount

3/100 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

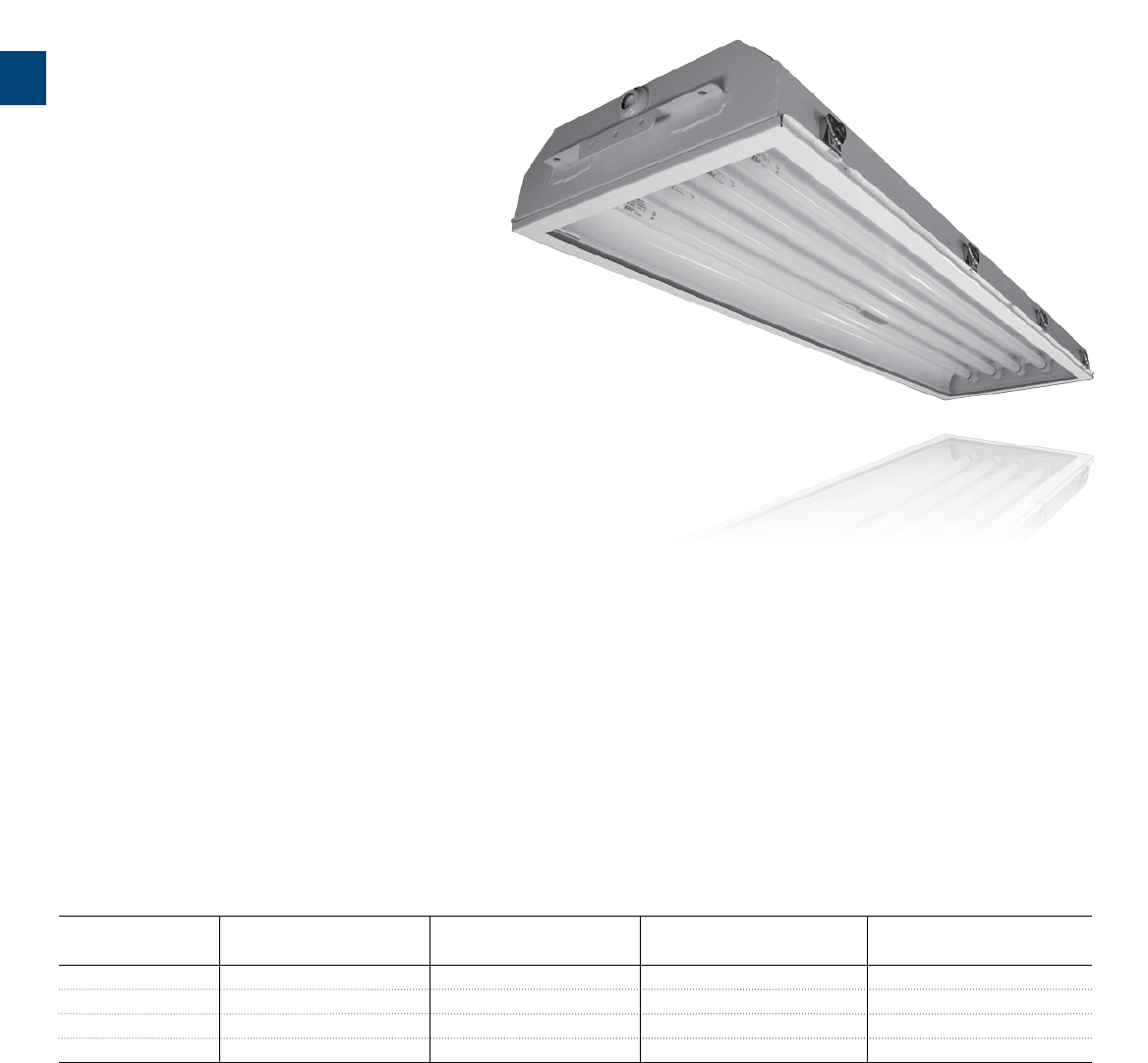

Hazlux® 6 DFP Series - Safety technology

DFP Series

Vapor / Dust Proof Lighting

T-Ratings

Class I, Div 2 Class II, Div 2

Model Rated Ambient Deg. C Supply Wiring Temp. Operating Temperature Code Operating Temperature Code

DFPT5 40 75 T3C (160˚C) T4A (120˚C)

DFPT5HO 40 75 T3C (160˚C) T4A (120˚C)

DFPT8HO 40 75 TT4A (120˚C) T4A (120˚C)

DFPT8 55* 75 T5 (100˚C) T4A (120˚C)

Standard Features:

– Front access ﬁxture for hazardous locations

– Hinged front door frame with hinged ballast tray

– Spring loaded lamp holders - standard

– Available in 2, 3, 4,5 and 6 lamp options

– Multiple hub locations can meet most wiring needs

Construction

– Sturdy 18 Ga. Steel white powder coated housing

– 3/16” tempered glass lens

– Zinc latches

Electrical

– Available with T5, T5HO, T8, T8HO

– Wattage available in 28, 32, 44 and 54 watts

– Through feed wiring

– Voltage of 120, 277, 347 and 480

Options

– Adjustable surface mount brackets

– Cable mount

– Wire guard

– Acrylic lens

– Polycarbonate lens

– HLO (high light output ballast for T8 32 watt lamp only)

Accessories

– Chain mount kit

– 8 ft. 3 wire whip

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/101

Certifications & Standards

Class I - Division 2, Groups A, B, C and D

Class II - Division I and 2, Groups F and G

Class III

Class I - Zone 2, Groups IIC, IIB and IIA

– UL844

– IP65, Wet Location

– CSA C22.2 No. 137

Approvals / Characteristics

Catalog numbering system

1 Fixture Series DFP Hazlux Linear Class I Div 1

2 Lamp Type T5 28W T5 Fluorescent

(lamps not included) T5HO 54W T5HO Fluorescent

T8 32W T8 Fluorescent

T8HO 44W T8HO Fluorescent

3 Lamp Quantity 2 2 lamp configuration, 4’ length

3 3 lamp configuration, 4’ length

4 4 lamp configuration, 4’ length

5 5 lamp configuration, 4’ length

6 1000W BT37

4 Voltages UN Universal voltage 120 - 277, 50/60Hz

UN2 Universal voltage 347 - 480, 50/60Hz (T5H0 only)

34 347 Volt

5 Hub PFT 1/2” NPT hubs on top and side

6 Options KH Adjustable surface mount brackets (galvanized)

CX 5ft. Cable Mount

PW 8 ft. 3 wire whip

SR Specular reflector

WG Wire guard

F Fusing (not listed for Canada)

A Acrylic lens

P Polycarbonate Shield

EM Emergency lighting ballast

123 456

DFP T5HO 4 UN PFT -SR

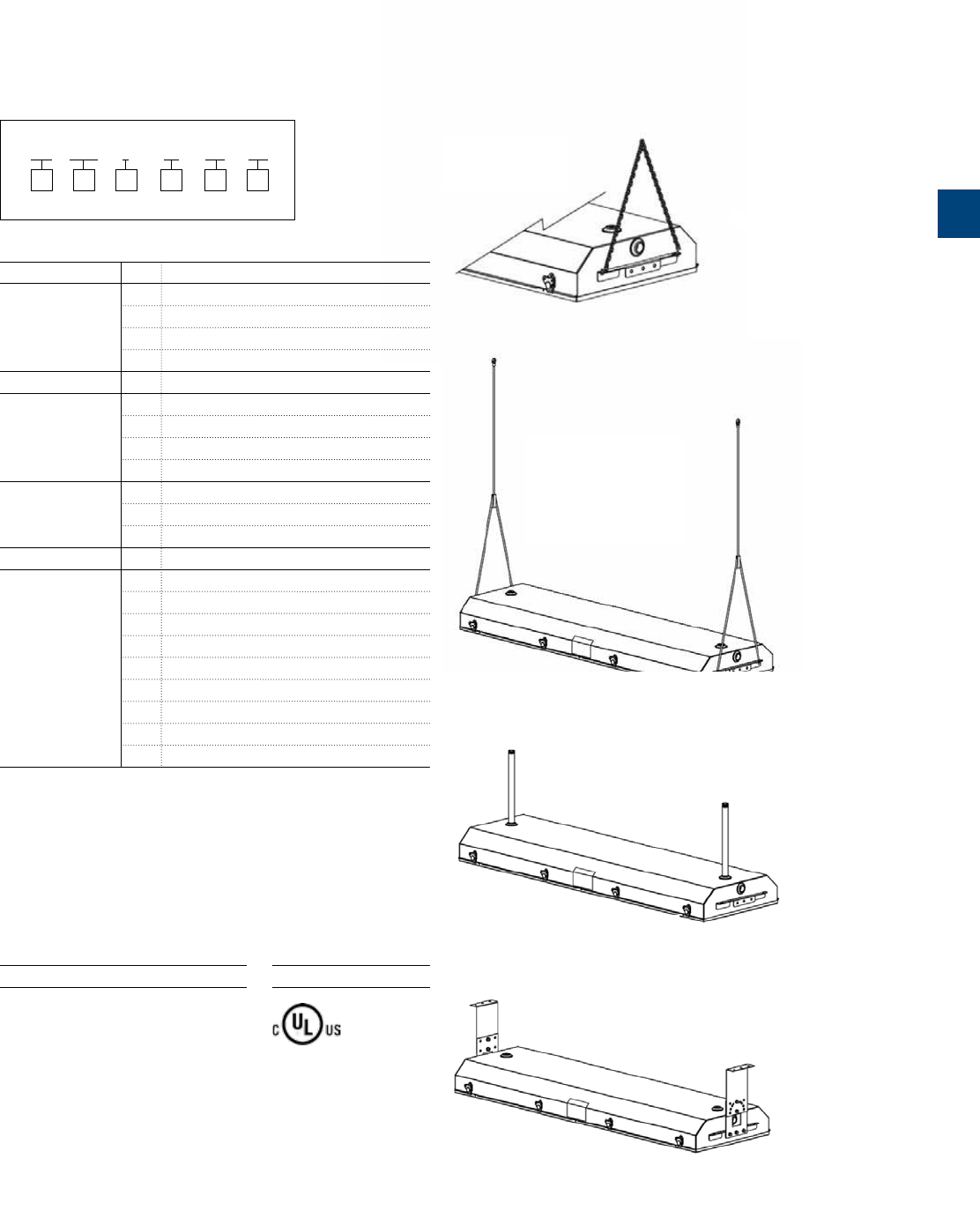

Mounting accessory drawings

(order separately)

Chain Kit

P/N: DFP-CHAIN

Pendant Style Mounting

Note: Conduit supply by others

45” between conduit

Cable Hang Kit

P/N: DFP-CABLE (zinc coated), Qty 2 cables with

Adjustable Surface Mounting Bracket Kit

P/N: DFP-SURFACE (galvanized),

toggle ends and qty 2 self locking gripples

3/102 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 6 DFP Series - Safety technology

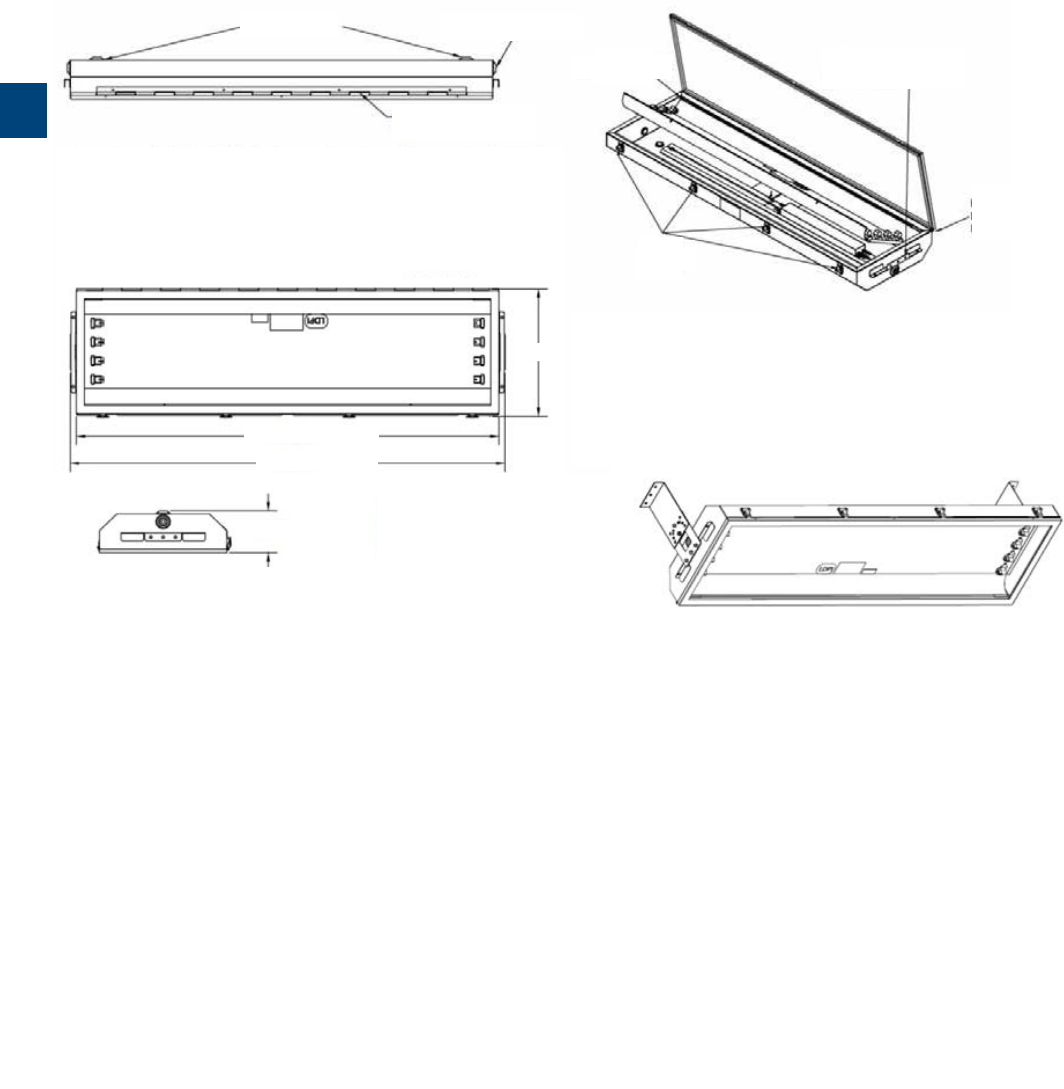

Dimensions - Nominal

1/2 NPT HUBS 1/2 NPT Both Ends

Integrated Access

Door Hinge

Brackets For

Optional Mounting Kits

Hinged

Door

Frame

51 1/2” [130.81 cm]

“A”

53 1/8” [134.94]

5 5/16” [13.49 cm]

“A”:

2 Lamp: 12 3/16” [30.96 cm]

3 & 4 Lamp: 16 3/16” [41.12]

5 & 6 Lamp: 20 11/16” [52.54 cm]

Hinged

Refelector

Rotary Draw

Latches

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/103

Photometry - Description information

Description Information

IESNA: LM-63-2002

[TEST]27371

[TESTLAB]LIGHTING SCIENCES, INC. [ISSUEDATE] 7/22/2010

[MANUFAC]Thomas & Betts - 4’ LINEAR FLUORSCENT LUMINAIRE

[LUMCAT]DFPT84UNPFT[LUMINAIRE]WITH WHITE INTERIOR AND CLEAR FLAT GLASS LENS

[LAMP]FOUR 32 WATT T8 LAMPS [LAMPCAT]F32T8/TL850. LUMEN RATING = 3100 LMS.

[OTHER]ONE PHILIPS ICN-4P32-SC BALLAST OPERATING AT 120 VAC AND 103 WATTS

Zonal Lumen Summary

Zone Lumens % Lamp %FixT

0-20 1070.4 8.60 12.00

0-30 2321.08 18.70 26.00

0-40 3886.93 31.30 43.50

0-60 7132.08 57.50 79.90

0-80 8860.05 71.50 99.20

0-90 8927.15 72.00 100.00

10-90 8654.5 69.80 96.90

20-40 2816.53 22.70 31.60

20-50 4500.47 36.30 50.40

40-70 4418.19 35.60 49.50

60-80 1727.97 13.90 19.40

70-80 554.94 4.50 6.20

80-90 67.09 0.50 0.80

90-110 0.00 0.00 0.00

90-120 0.00 0.00 0.00

90-130 0.00 0.00 0.00

90-150 0.00 0.00 0.00

90-180 0.00 0.00 0.00

110-180 0.00 0.00 0.00

0-180 8927.15 72.00 100.00

Total Luminaire Efficiency = 72.00%

Characteristics Polar Graph

Lumens Per Lamp 3100 (4 lamps)

Total Lamp Lumens 12400

Luminaire Lumens 8927

Total Luminaire Efficiency 72%

Luminaire Efficacy Rating

(LER) 87

Total Luminaire Watts 103

Ballast Factor 1.00

CIE Type Direct

Spacing Criterion (0-180) 1.28

Spacing Criterion (90-270) 1.42

Spacing Criterion (diagonal) 1.50

Basic Luminous Shape Rectangular

Luminous Length (0-180) 4.96 ft

Luminous Width (90-270) 1.11 ft

Luminous Height 0.00 ft

Maximum Candela = 3248.9, Located at Horizontal Angle = 90, Vertical Angle = 25

(1) Vertical Plane Through Horizantal Angles (90 - 270) (Through Max. Cd.)

(2) Horizontal Cone Through Vertical Angle (25) (Through Max. Cd.)

Effective Floor Cavity Reﬂectance 0.20

Coefficients of Utilization - Zonal Cavity Method

RC 80 70 50 30 10 0

RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

0 101 101 101 101 98 98 98 98 94 94 94 90 90 90 86 86 86 84

1 90 86 82 78 88 84 80 77 80 77 74 77 74 72 86 86 86 84

2 81 74 67 62 79 72 66 61 69 64 60 66 62 58 63 60 57 55

3 74 64 56 50 72 63 56 50 60 54 49 58 52 48 55 51 47 38

4 67 56 48 42 65 55 48 42 53 46 41 51 45 41 49 44 40 38

5 62 50 42 36 60 49 41 36 47 40 35 45 40 35 44 39 34 33

6 57 45 37 31 55 44 36 31 42 36 31 41 35 30 40 34 30 28

7 53 41 33 27 51 40 32 27 38 32 27 37 31 27 36 31 27 25

8 49 37 29 24 47 36 29 24 35 29 24 34 28 24 33 28 24 22

9 46 34 27 22 44 33 26 22 31 26 21 30 25 21 30 25 21 20

10 43 31 24 20 42 31 24 20 30 24 19 29 23 19 28 23 19 18

Area lighting

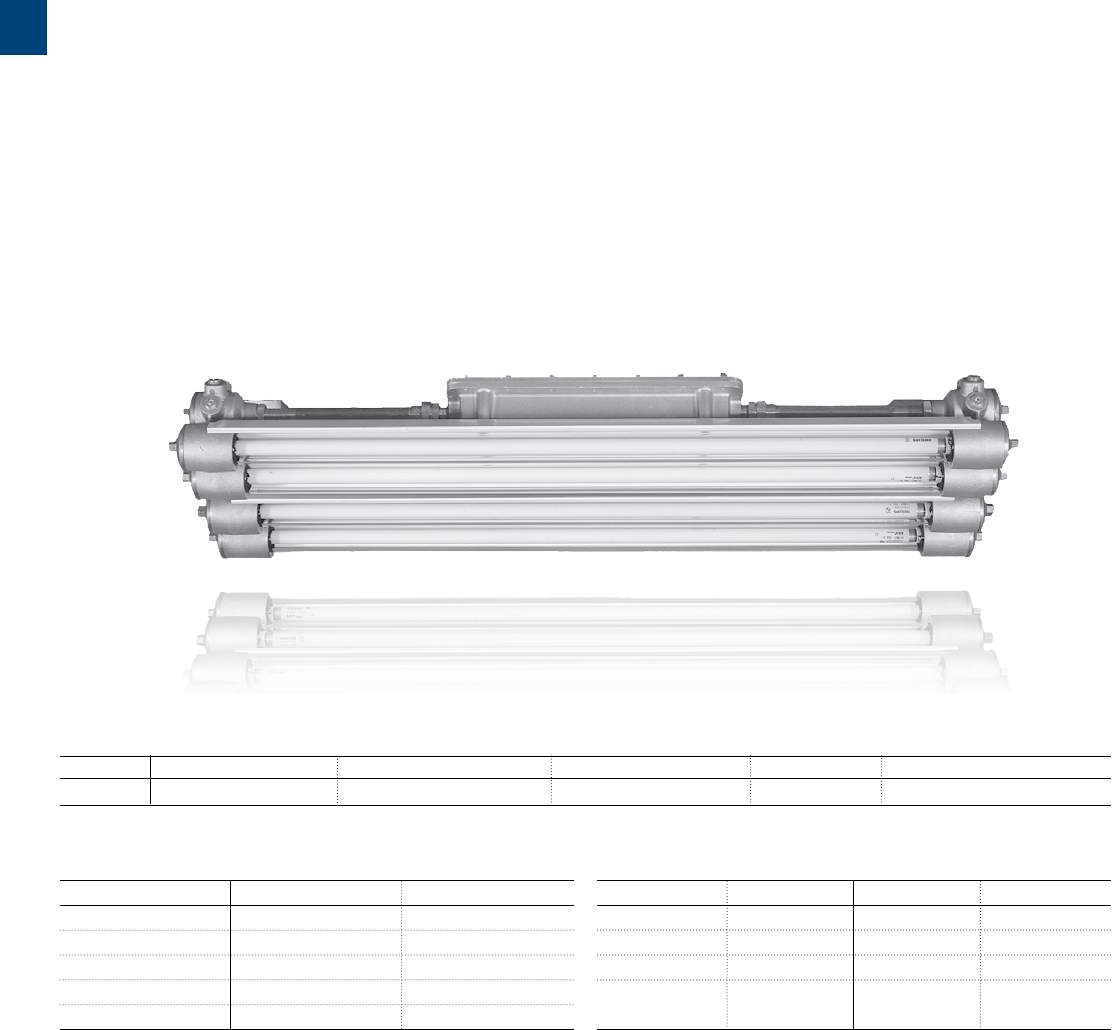

Hazlux® 7 XFM Series - Safety technology

3/104 Industrial and hazardous location lighting product catalogue | EKPC-0814

XFM Series

Explosion Proof Lighting

Standard Features:

– Factory sealed, lightweight cast natural aluminum

– 5 different 1/2” NPT hubs entries at each end

– Center ballast placement for better balanced and low profile

– Available with 2 lamp in 2ft and 4ft

– Available in 3 or 4 lamp in 4ft

– One piece painted aluminum reflector

– Suitable for use inside a spray booth

Construction

– Cast natural aluminum

– .189” wall Borosilicate glass tubes

T-Ratings - Operating Temperature Codes based on 40º Ambient

Fixture Class I, Div 1 Groups C & D Class I, Div 2 Groups A, B, C & D Class II, Div 1 Groups E, F & G Class III Simultaneous Presence Class I & II

XFM T6 = 85ºC T4 = 135ºC T4 = 135ºC T4 = 135ºC T4 = 135ºC

Weights

Configuration Fixture Weight Shipping Weight

2L - 2 Ft. 30 lbs 33 lbs

2L - 4 Ft. 40 lbs 43 lbs

2L - 4 Ft. (EB) 57 lbs 60 lbs

3L - 4 Ft. 45 lbs 52 lbs

4L - 4 Ft. 80 lbs 84 lbs

2FT. Watts 4FT. Watts

T5 14 Watt T5 28 W

T5HO 24 Watt T5HO 54 W

T8. 17 Watt T8 32 W

T8HO N.A. T8HO 44 W

Lamp Wattage

Electrical

– Available with T5, T5HO, T8, T8HO

– 120V (T8HO), 277V (T8HO) and 347V (T5HO & T8 only)

Options

– Wall / Ceiling Mount Kit (4 Lamps)

– Wire guard

– Polycarbonate shield

– 93% reflective premium specular reflector insert

Accessories

– Wall / Ceiling and Drop Mount K

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/105

Certifications & Standards

Class I - Division 1, Groups C and D

- Division 2, Groups A, B, C and D

Class II - Division I and 2, Groups E, F and G

Class III

Class I - Zone 1, Groups IIB and IIA

– UL Listed (UL1598) for Marine Locations

– NEMA 4X

– NFPA Standard 33 and NEC Article 516

– UL844

– CSA C22.2 No. 137

Approvals / Characteristics

Catalog Numbering System

1 Fixture Series XFM Hazlux Linear Class I Div 1

2 Lamp Type T5 T5 Fluorescent

(lamps included) T5HO T5HO Fluorescent

T8 T8 Fluorescent

T8HO T8HO Fluorescent

3 Lamp Quantity 2 2 lamp configuration

3 3 lamp configuration

4 4 lamp configuration

4 Length (Ft.) 2 2 Ft.

4 4 Ft.

5 Voltage UN Universal voltage 120 - 277, 50/60Hz

34 347 Volt

6 Options WG Stainless Steel Wire Guard

P Polycarbonate Shield

SR Premium Specular Reflector

MK Wall / Ceiling Mount Kit (4 Lamps)

123 456

XFM T5HO 4 2 34 -SR

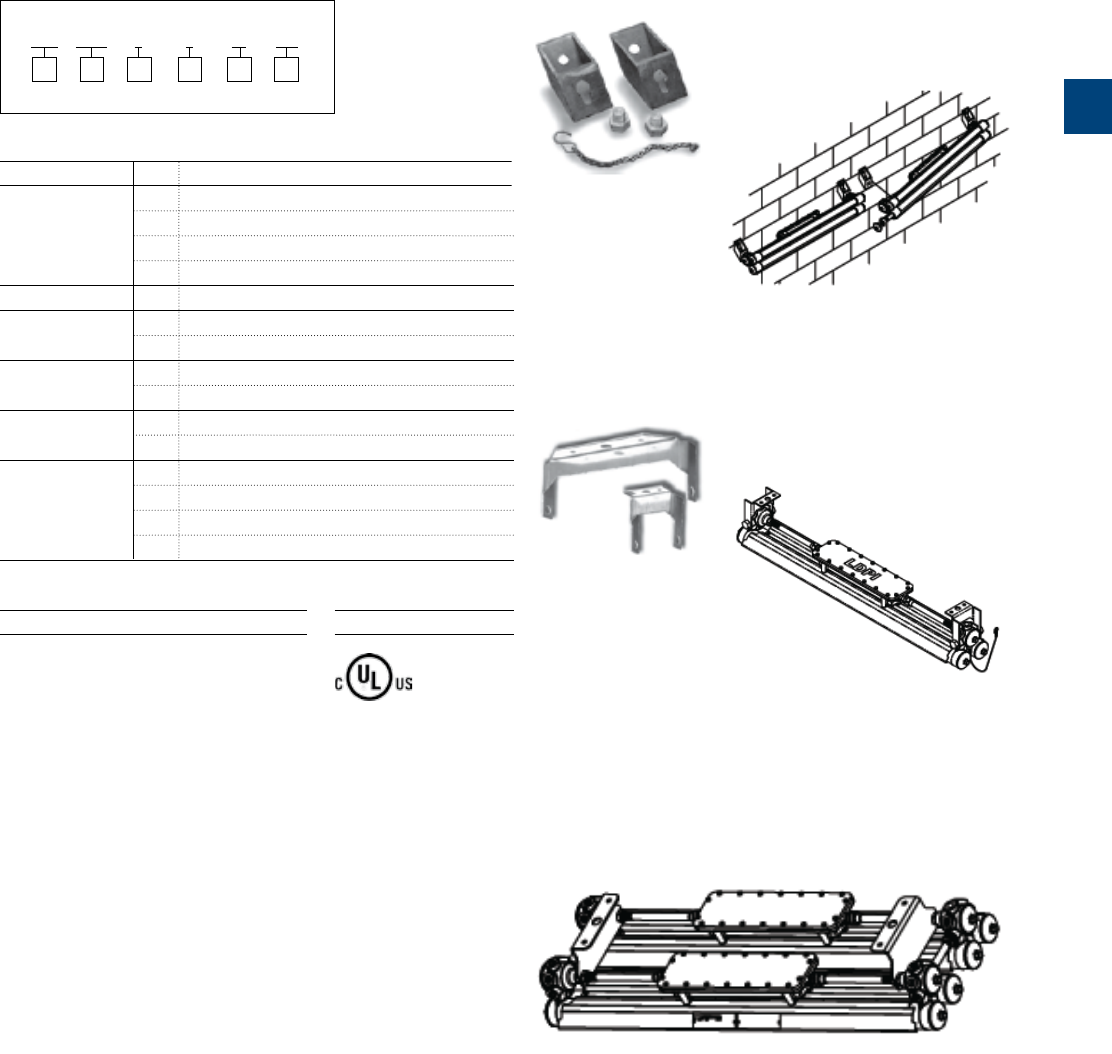

Mounting options

Wall/Ceiling mount kit for 2 or 3 lamps

P/N: XFM-4401

Drop mount kit for 2 or 3 lamps

P/N: XFM-4401

For 4 lamps

P/N: XFM-4403

Wall/Ceiling mount kit for 4 lamps

P/N: XFM-4400

These are factory fitted please contact

sales office for further details

3/106 Industrial and hazardous location lighting product catalogue | EKPC-0814

Area lighting

Hazlux® 7 XFM Series - Safety technology

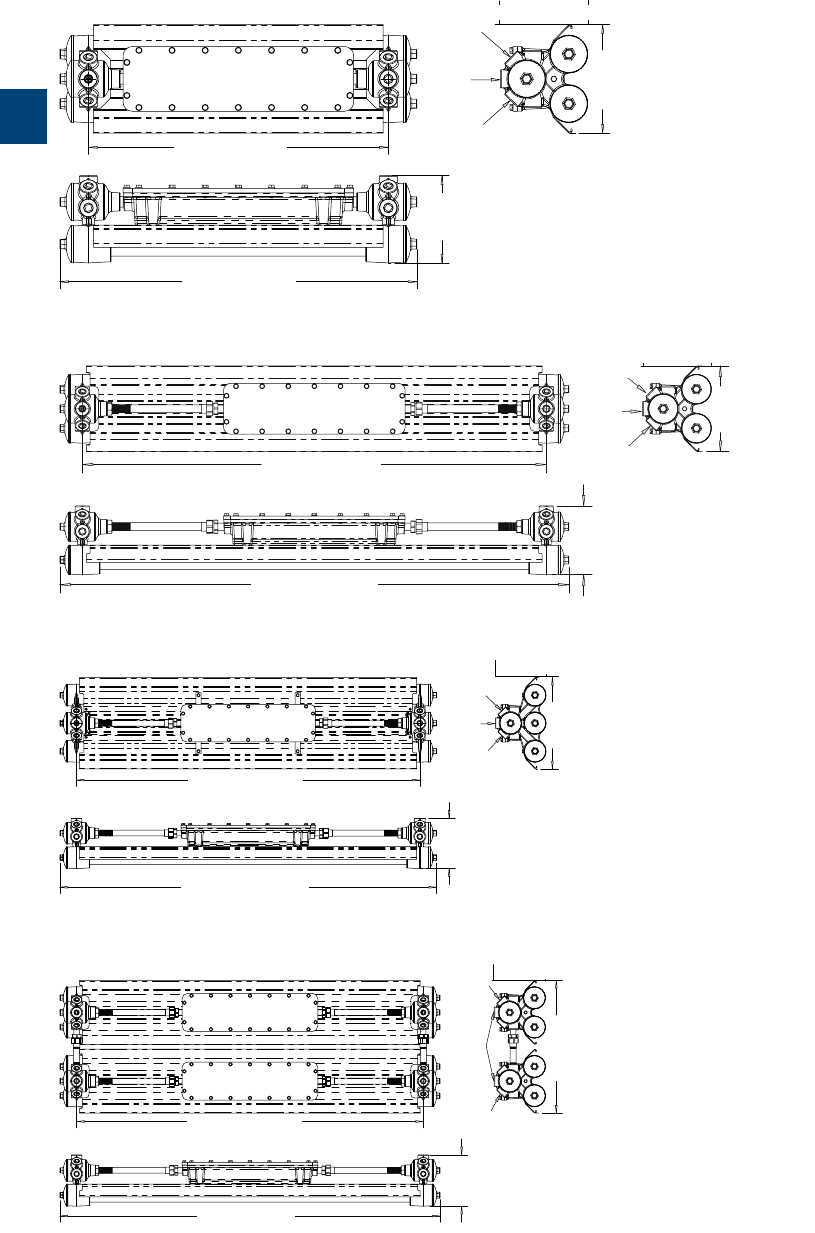

Dimensions - Nominal

18 3/4” [47.62 cm]

STD

HUB

45 HUB

90 HUB

7 1/4” [18.41 cm]

9” [22.86 cm]

STD

HUB

45 HUB

24 7/8” [63.16 cm]

29 5/8” [75.25 cm]

7 1/4” [18.41 cm]

9” [22.86 cm]

90 HUB

7 1/4” [18.41 cm]

STD

HUB

45 HUB

7 1/4” [18.41 cm]

48 7/8” [124.14 cm]

53 5/8” [136.20 cm]

7 1/4” [18.41 cm]

9” [22.86 cm]

STD

HUB

45 HUB

90 HUB

53 5/8” [136.20 cm]

48 7/8” [124.14 cm]

7 1/4” [18.41 cm]

48 7/8” [124.14 cm]

7 1/4” [18.41 cm]

2L 2FT. Dimensions

2L 4FT. Dimensions

3L 4FT. Dimensions

4L 4FT. Dimensions

Industrial and hazardous location lighting product catalogue | EKPC-0814 3/107

Photometry - Description information

Description Information

IES Indoor Report / Photometric Filename: XFMT844UN.IES

IESNA: LM-63-1995

[TEST] THOMAS & BETTS PHOTOMETRIC REPORT

[LUMINAIRE] PROJECT: XFMT844UN CAST ALUMINUM BALLAST HOUSING AND HUB ASSEMBLIES

WHITE POWDER C ALUMINUM REFLECTORS. CYLINDRICAL GLASS LAMP ENCLOSURES

LAMP TUBES ORIENTED HORIZONTALLY. LAMP F32T8/TL850 2950 LUMENS

Zonal Lumen Summary

Zone Lumens % Lamp %FixT

0-20 1048.45 9.20 10.90

0-30 2249.54 19.70 23.40

0-40 3736.08 32.80 38.80

0-60 6879.98 60.40 71.40

0-80 9249.22 81.10 96.00

0-90 9632.88 84.50 100.00

10-90 9366.11 82.20 97.20

20-40 2687.63 23.60 27.90

20-50 4282.04 37.60 44.50

40-70 4513.03 39.60 46.90

60-80 2369.24 20.80 24.60

70-80 1000.1 8.80 10.40

80-90 383.66 3.40 4.00

90-110 0.00 0.00 0.00

90-120 0.00 0.00 0.00

90-130 0.00 0.00 0.00

90-150 0.00 0.00 0.00

90-180 0.00 0.00 0.00

110-180 0.00 0.00 0.00

0-180 9632.88 84.50 100.00

Total Luminaire Efficiency = 84.50%

Characteristics Polar Graph

Lumens Per Lamp 2850 (4 lamps)

Total Lamp Lumens 11400

Luminaire Lumens 9633

Total Luminaire Efficiency 84%

Luminaire Efficacy Rating

(LER) 62

Total Luminaire Watts 156

Ballast Factor 1.00

CIE Type Direct

Spacing Criterion (0-180) 1.42

Spacing Criterion (90-270) 1.48

Spacing Criterion (diagonal) 1.52

Basic Luminous Shape Rectangular

w/Sides

Luminous Length (0-180) 4.34 ft

Luminous Width (90-270) 1.53 ft

Luminous Height 0.28 ft

Maximum Candela = 3248.9, Located at Horizontal Angle = 90, Vertical Angle = 25

(1) Vertical Plane Through Horizantal Angles (90 - 270) (Through Max. Cd.)

(2) Horizontal Cone Through Vertical Angle (25) (Through Max. Cd.)

Effective Floor Cavity Reﬂectance 0.20

Coefficients of Utilization - Zonal Cavity Method

RC 80 70 50 30 10 0

RW 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

0 101 101 101 101 98 98 98 98 94 94 94 90 90 90 86 86 86 84

1 90 86 82 78 88 84 80 77 80 77 74 77 74 72 86 86 86 84

2 81 74 67 62 79 72 66 61 69 64 60 66 62 58 63 60 57 55

3 74 64 56 50 72 63 56 50 60 54 49 58 52 48 55 51 47 38

4 67 56 48 42 65 55 48 42 53 46 41 51 45 41 49 44 40 38

5 62 50 42 36 60 49 41 36 47 40 35 45 40 35 44 39 34 33

6 57 45 37 31 55 44 36 31 42 36 31 41 35 30 40 34 30 28

7 53 41 33 27 51 40 32 27 38 32 27 37 31 27 36 31 27 25

8 49 37 29 24 47 36 29 24 35 29 24 34 28 24 33 28 24 22

9 46 34 27 22 44 33 26 22 31 26 21 30 25 21 30 25 21 20

10 43 31 24 20 42 31 24 20 30 24 19 29 23 19 28 23 19 18

Industrial and hazardous location lighting product catalogue | EKPC-1114 4/1

Floodlights

Hazlux® 3 Marine-duty floodlights Type Girder clamp for threaded rod 4/2

Hazlux® 3 HID Floodlights for wet locations 4/4

Industrial and hazardous location lighting

Hazlux® Floodlights

4/2 Industrial and hazardous location lighting product catalogue | EKPC-0814

Floodlights

Hazlux® 3 Marine-duty floodlights

Marine-Duty Floodlights

Class I, Division 2

Applications

– Chemical plants

– Oil reﬁneries

– Offshore platforms

– Waste treatment facilities

– Food processing plants

– Steel mills, foundries

– Power plants

– Pulp and paper facilities

– General manufacturing plants

– Shipyards and shipbuilding facilities

– Airplane manufacturing plants

– Defense and government facilities

Features and Benefits

–Computer-Designed Reﬂectors - for optimal light distribution

and efﬁciency

–Die-Cast Aluminum - housings and covers for excellent

strength, light weight, and corrosion resistance; Marine-duty

ﬂoodlights are copper-free aluminum alloy

– Polyester Powder Finish - provides superior corrosion

resistance and attractive appearance

–Fully Pivoting Steel Yoke - is standard for ease of aiming and

mounting ﬂexibility

–Tempered Glass Lens - resists thermal shock and is fully

sealed and mechanically retained

–Hinged Door - swings down for easy lamp replacement; is

easily removable for maintenance

–Aiming Sight - is standard on all Hazlux UltraFlood® ﬂoodlights

which makes installation faster and easier

Wattages, Voltages

– High-Pressure Sodium: 70-1000 watts

– Metal Halide: 175-1000 watts

– All Floodlights: 120, 277, 480 or Multi-tap voltages available

Materials, Finishes

– Housings, Covers: Powder-coated aluminum

– Hardware: Corrosion-resistant steel

– Lens: Tempered glass

Certifications

– Class I, Division 2, Groups A, B, C, D - All (UL844)

– CSA C22.2 No 137

– Outdoor Wet Locations - All

– Marine Locations (UL1598A) - FDM Series

– Temperature Range:

70W–400W (All) -30°C to 40°C

1000W HPS -30°C to 40°C

1000W MH -30°C to 25°C

Industrial and hazardous location lighting product catalogue | EKPC-0814 4/3

Catalog numbering system

1 Fixture Series FD Class I, Division 2, Groups A, B, C, D

FDM Class I, Division 2, Groups A, B, C, D and

Marine Locations*

2 Lamp Type S High-Pressure Sodium

H Metal Halide

3 Starter Circuit 0 Standard Fixture (Without Options)

R Instant Restart (HPS) 150W max

P Pulse Star (MH)

4 Lamp Wattage Metal Halide Lamps

10 100W ED28 15 150W ED23 1/2

20 200W ED18 40 400W ED37

00 1000W BT37

High Pressure Sodium Lamps

10 100W ED23 1/2 15 150W ED23 1/2

20 200W ED18 25 250W ED18

40 400W ED18 00 1000W ED37

5 Ballast Circuit C Constant Wattage Autotransformer

H High Reactance

I Constant Wattage insulated (for 208,240,480 Volts)

6 Voltage 04 120/208/277/240VAC (wired to 120VAC)

08 120/277/347VAC (wired to 120V)

09 120/277/347VAC (wired to 277V)

10 120/277/347VAC (wired to 347V)

12 20VAC

20 208VAC

24 240VAC

27 277VAC

48 480VAC

Contact the factory for other available voltages

7 Housing Size 0 Standard Housing (400W max.)

L Large Housing (1000W)

8 Mounting style Y Yoke (Trunnion) Mount

9 Beam Type W Wide Beam

N Narrow Beam (Not available with 1000W MH)

10 Packaging E UNIPAK™ with Clear Lamp

D UNIPAK™ with Diffuse Lamp

11 Options OF Single Fuse

FF Double Fuse

BRZ Bronze Color

BLK Black Color

12 Certification C Canadian Market

Note: Standard color is grey

* Minimum order quantity applies; consult customer service for details

12345678910111213

D S Ø 15 H 04 Ø-TGL-P2 E T F C

Yoke Mount Floodlights - Mounting Brackets

Integral Slipﬁtter Floodlights - Mounting Brackets

Accessories

Cat. No. Description

9901H-TB Steel Cross-Arm Mounting Bracket

9902H-TB Pole-Top Mounting Bracket

9920H-TB Universal Wall Mounting Bracket

Cat. No. Description

9605 Wall Mount Pipe Bracket (2“) with Flange (Prime Coated)

9605-G Wall Mount Pipe Bracket (2“) with Flange (Galvanized)

9352-TB Pole-Top Mounting Bracket

9333-TB Universal Wall Mounting Bracket

Cat. No. Description

75-8-TB Polycarbonate Vandal Shield

75-V-TB Glare Control Shield

Certifications & Standards

Class I - Division 2, Groups A, B, C and D

– UL844

– UL1598A for Marine Locations

– NEMA 4X (FDM Series)

– NEMA 3R

– CSA C22.2 No 137

Approvals / Characteristics

1234567 8910 11 12

FD S O 40 C 48 0-Y W E-FF C

1234567 8910 11 12

FD S O 40 C 48 0-Y W E-FF C

4/4 Industrial and hazardous location lighting product catalogue | EKPC-0814

Floodlights

Hazlux® 3 HID Floodlights for wet locations

Lamp Type Lamp Watts Voltage Yoke (Trunnion) Mount Beam Type*

High-Pressure Sodium 100 W 120 V FDS010P120-YW Wide

MT FDS010H080-YW

150 W 120 V FDS015P120-YW Wide

MT FDS015H080-YW

200 W 120 V FDS020C120-YW Wide

MT FDS020C080-YW

250 W 120 V FDS025C120-YW Wide

MT FDS025C080-YW

400 W 120 V FDS040C120-YW Wide

MT FDS040C080-YW

1000 W 120 V FDS000C120-YW Wide

MT FDS000C080-YW

Metal Halide 100 W 120 V FDH010H120-YW Wide

MT FDH010H080-YW

175 W 120 V FDH017C120-YW Wide

MT FDH017C080-YW

250 W 120 V FDH025C120-YW Wide

MT FDH025C080-YW

400 W 120 V FDH040C120-YW Wide

MT FDH040C080-YW

1000 W 120 V FDH000C12L-YW Wide

MT FDH000C08L-YW

*For narrow-beam floodlights, replace ‘W’ at end part number with ‘N’

Lamp Type Lamp Watts Voltage Yoke (Trunnion) Mount Beam Type*

High-Pressure Sodium 100 W 120 V FDMS010P120-YW Wide

MT FDMS010H080-YW

150 W 120 V FDMS015P120-YW Wide

MT FDMS015H080-YW

200 W 120 V FDMS020C120-YW Wide

MT FDMS020C080-YW

250 W 120 V FDMS025C120-YW Wide

MT FDMS025C080-YW

400 W 120 V FDMS040C120-YW Wide

MT FDMS040C080-YW

1000 W 120 V FDMS000C120-YW Wide

MT FDMS000C080-YW

Metal Halide 100 W 120 V FDMH010H120-YW Wide

MT FDMH010H080-YW

175 W 120 V FDMH017C120-YW Wide

MT FDMH017C080-YW

250 W 120 V FDMH025C120-YW Wide

MT FDMH025C080-YW

400 W 120 V FDMH040C120-YW Wide

MT FDMH040C080-YW

1000 W 120 V FDMH000C12L-YW Wide

MT FDMH000C08L-YW

*For narrow-beam floodlights, replace ‘W’ at end part number with ‘N’

Hazlux® 3 - Class I, Division 2 HID Floodlights for Wet Locations

Hazlux® 3 - Class I, Division 2 HID Floodlights for Marine Locations

7⁄16"(11)

(51)

(25)

25⁄32"(20)

2" (51)

Industrial and hazardous location lighting product catalogue | EKPC-0814 4/5

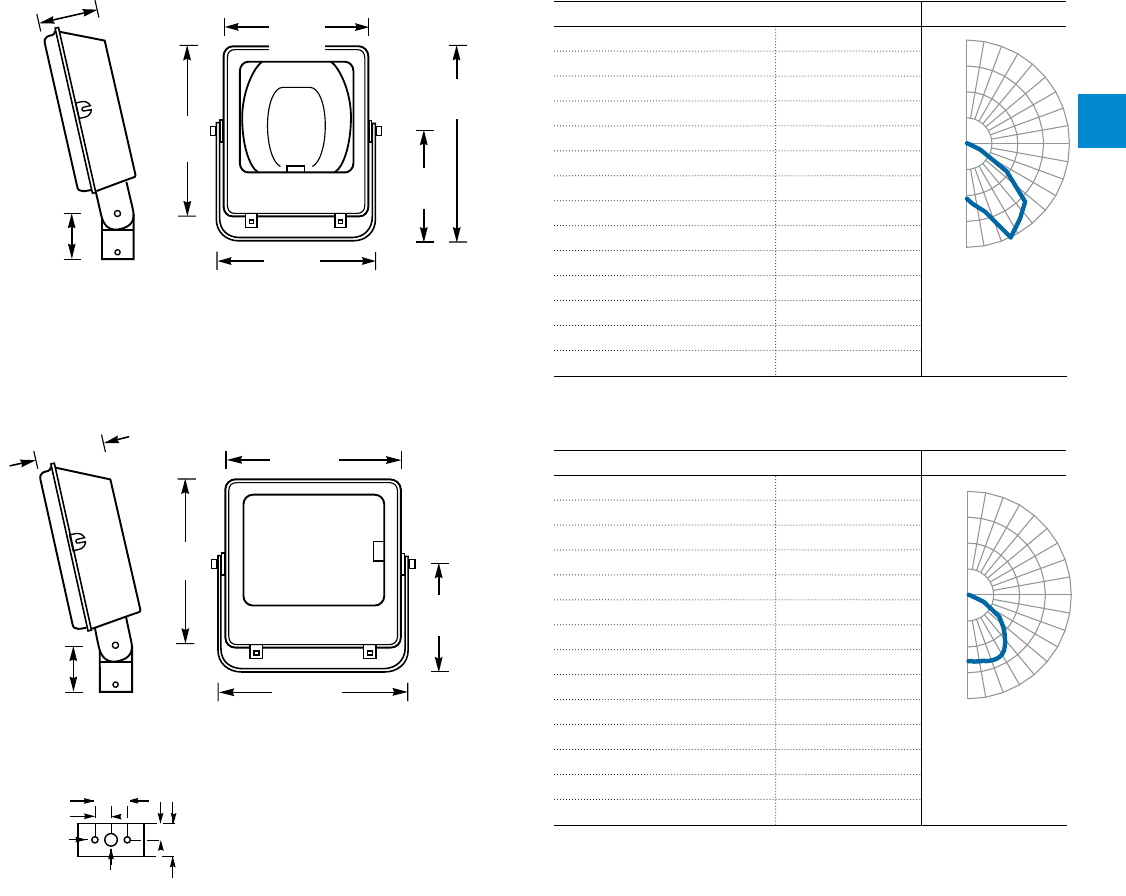

Dimensions - Hazlux® 3

Floodlight HID ﬁxtures

Ceiling Mount

Reference Data Candlepower Curve

Catalogue No. FDH040H090-YWE

Lamp 400W MH ED37

Lamp Lumens 34000

NEMA Type 7 H x 6 V

Maximum Candela 19153

Maximum Candela Angle 25H 0V

Horizontal Beam Angle (50%) 108.2

Vertical Beam Angle (50%) 33.8

Horizontal Field Angle (10%) 137.2

Vertical Field Angle (10%) 123.3

Luminaire Lumens 25756

Total Efficiency 76%

Total Luminaire Watts 465

Ballast Factor 1.00

Reference Data Candlepower Curve

Catalogue No. FDH0100H090-YWE

Lamp 1000W MH BT37

Lamp Lumens 107800

NEMA Type 6 H x 6 V

Maximum Candela 33506

Maximum Candela Angle 0H 33V

Horizontal Beam Angle (50%) 86.2

Vertical Beam Angle (50%) 95.5

Horizontal Field Angle (10%) 128.5

Vertical Field Angle (10%) 126.1

Luminaire Lumens 68208

Total Efficiency 63%

Total Luminaire Watts 1069

Ballast Factor 1.00

Photometry - Hazlux® 3

Floodlight HID ﬁxtures

4788

9577

14365

19153

8377

16753

25130

33506

7" (179)

51⁄2"

(140)

211⁄8"

(537)

173⁄5"

(447)

191⁄2"

(495)

121⁄2"

(317)

23"

(584)

7" (179)

51⁄2"

(140)

201⁄2"

(521)

217⁄16"

(545)

13"

(33)

237⁄16"

(595)

Industrial and hazardous location lighting product catalogue | EKPC-1114 5/1

Strobe Lights

Introduction 5/3

Hazlux® M4 HazFlash Series 5/4

Hazlux® M5 HazFlash Series 5/6

Industrial and hazardous location lighting

Strobe lights

5/2 Industrial and hazardous location lighting product catalogue | EKPC-0814

Industrial and hazardous location lighting product catalogue | EKPC-0814 5/3

Introduction

Strobe lights

HazFlash M4 induction lighting provides a 100,000+ hour lamp life, drastically

reducing expensive maintenance costs of industrial lighting in hazardous locations.

Lamp replacement not only places employees at risk, but

often requires the rental of expensive equipment such as

scissors lifts. With the introduction of Hazlux Induction

Lighting Fixtures for hazardous areas (Class 1, Div. 2 Groups

A, B, C, D) and non-hazardous areas, you can benefit from

the longest lamp life available on the market.

HazFlash M4 lights are equipped with Philips® QL Induction

lamps for the longest lamp life ever.

Strobe Series and Suitability

– DXS = HazFlash® M4 Xenon Strobe

– Class I, Division 2, Groups A, B, C, D

– Class II, Division 1, Groups E, F, G

– Class II: Pendant-Mount Strobes Only

Flash Rate

6 = 60 Flashes per Minute

Voltage

1 = 120 Volts AC, 50/60 Hz (Standard)

2 = 240 Volts AC, 50/60 Hz

8 = 10-30 Volts DC

9 = 90-130 Volts DC

Lens Color

R = Red

B = Blue

C = Clear

G = Green

A = Amber

Optical Assembly Options

TG = Tempered Glass Globe

TGP = Tempered Globe and Polymeric Guard

Mounting Style

P2 = 3⁄4” Pendant Mount

C2 = 3⁄4” Ceiling Mount

B2 = 3⁄4” Wall Mount with Box

S4 = 1 1⁄4” Angle Stanchion Mount

Options

SR = Sealing Ring Kit for Inverted Mounting

(Maintains Marine Listing in Globe-Up Position)

5/4 Industrial and hazardous location lighting product catalogue | EKPC-0814

Catalog numbering system

1 Strobe Series DXS HazFlash® M4 Xenon Strobe

and Suitability Class I, Division 2, Groups A, B, C, D

Class II, Division 1, Groups E, F, G*

2 Flash Rate 6 60 Flashes per Minute

3 Voltage 1 120 Volts AC, 50/60 Hz (Standard)

2 240 Volts AC, 50/60 Hz

8 10-30 Volts DC

9 90-130 Volts DC

4 Lens Color R Red

B Blue

C Clear

G Green

A Amber

5 Optical Assembly TG Tempered Glass Globe

Options TGP Tempered Globe and Polymeric Guard

6 Mounting style P2 3⁄4” Pendant Mount

C2 3⁄4” Ceiling Mount

B2 3⁄4” Wall Mount with Box

S4 11⁄4” Angle Stanchion Mount

7 Options SR Sealing Ring Kit for Inverted Mounting

(Maintains Marine Listing in Globe-Up Position)

8 Certification C Canadian Market

*Class II: Pendant Mount Strobes only

**Sealing Ring Option required when mounting in globe-up position

12345678910111213

D S Ø 15 H 04 Ø-TGL-P2 E T F C

Certifications & Standards

Class I - Division 2, Groups A, B, C and D

Class II - Division 1, Groups E, F, and G*

– CSA - NRTL/C

– Outdoor Wet Locations, NEMA 3R

– Outdoor Marine**, NEMA 4X**

Approvals / Characteristics

Strobe lights

Hazlux® M4 HazFlash Series - Hazardous area strobe lights

12345678

DXS 6 1 R TG - P2 SR C

Industrial and hazardous location lighting product catalogue | EKPC-0814 5/5

120 VAC, 50/60 HZ 240 VAC, 50/60 HZ 10–30 VDC 90–130 VDC

Mounting Style Conduit Size Cat. No. Cat. No. Cat. No. Cat. No.

Red Lens HazFlash® M4 DXS Strobe Lights

Pendant 3⁄4” DXS61RGP-P2 DSX62RGP-P2 DXS68RGP-P2 DXS69RGP-P2

Ceiling 3⁄4” DXS61RGP-C2 DXS62RGP-C2 DXS68RGP-C2 DXS69RGP-C2

Wall 3⁄4” DXS61RGP-B2 DXS62RGP-B2 DXS68RGP-B2 DXS69RGP-B2

Stanchion 11⁄4” DXS61RGP-S4 DXS62RGP-S4 DXS68RGP-S4 DXS69RGP-S4

Blue Lens HazFlash® M4 DXS Strobe Lights

Pendant 3⁄4” DXS61BGP-P2 DSX62BGP-P2 DXS68BGP-P2 DXS69BGP-P2

Ceiling 3⁄4” DXS61BGP-C2 DXS62BGP-C2 DXS68BGP-C2 DXS69BGP-C2

Wall 3⁄4” DXS61BGP-B2 DXS62BGP-B2 DXS68BGP-B2 DXS69BGP-B2

Stanchion 11⁄4” DXS61BGP-S4 DXS62BGP-S4 DXS68BGP-S4 DXS69BGP-S4

Clear Lens HazFlash® M4 DXS Strobe Lights

Pendant 3⁄4” DXS61CGP-P2 DSX62CGP-P2 DXS68CGP-P2 DXS69CGP-P2

Ceiling 3⁄4” DXS61CGP-C2 DXS62CGP-C2 DXS68CGP-C2 DXS69CGP-C2

Wall 3⁄4” DXS61CGP-B2 DXS62CGP-B2 DXS68CGP-B2 DXS69CGP-B2

Stanchion 11⁄4” DXS61CGP-S4 DXS62CGP-S4 DXS68CGP-S4 DXS69CGP-S4

Green Lens HazFlash® M4 DXS Strobe Lights

Pendant 3⁄4” DXS61GGP-P2 DSX62GGP-P2 DXS68GGP-P2 DXS69GGP-P2

Ceiling 3⁄4” DXS61GGP-C2 DXS62GGP-C2 DXS68GGP-C2 DXS69GGP-C2

Wall 3⁄4” DXS61GGP-B2 DXS62GGP-B2 DXS68GGP-B2 DXS69GGP-B2

Stanchion 11⁄4” DXS61GGP-S4 DXS62GGP-S4 DXS68GGP-S4 DXS69GGP-S4

Amber Lens HazFlash® M4 DXS Strobe Lights

Pendant 3⁄4” DXS61AGP-P2 DSX62AGP-P2 DXS68AGP-P2 DXS69AGP-P2

Ceiling 3⁄4” DXS61AGP-C2 DXS62AGP-C2 DXS68AGP-C2 DXS69AGP-C2

Wall 3⁄4” DXS61AGP-B2 DXS62AGP-B2 DXS68AGP-B2 DXS69AGP-B2

Stanchion 11⁄4” DXS61AGP-S4 DXS62AGP-S4 DXS68AGP-S4 DXS69AGP-S4

Use pendant mount strobes only for Class II locations

Use sealing ring kit (below) to maintain Outdoor Marine and NEMA 4X ratings when installing in the inverted position

To order DXS strobe light with sealing ring kit for inverted mounting (globe pointing up), add suffix “-SR” to the catalog number. Example: DXS61RGP-P2-SR

DXS Strobe Light Replacement Parts

Cat. No. Description

XSFT Replacement Flash Tube

XSFL-R Replacement Fresnel Lens - Red

XSFL-B Replacement Fresnel Lens - Blue

XSFL-C Replacement Fresnel Lens - Clear

XSFL-G Replacement Fresnel Lens - Green

XSFL-A Replacement Fresnel Lens - Amber

VGU22P Replacement Polycarbonate Guard

VGL22 Clear Globe

VGT22 Tempered Globe

SRKIT-1 Sealing Ring Kit - includes sealing ring and gasket

Hazlux® M4 HazFlash Series - Hazardous area strobe lights

5/6 Industrial and hazardous location lighting product catalogue | EKPC-0814

Catalog numbering system

1 Strobe Series XXS HazFlash® M5 Xenon Strobe

and Suitability Class I, Division 1, Groups C, D

Class II, Division 1, Groups E, F, G

2 Flash Rate 6 60 Flashes per Minute

4 40 Flashes per Minute (Standard)

8 80 Flashes per Minute

3 Electrical Ratings 1 120 Volts AC, 50/60 Hz (Standard)

2 240 Volts AC, 50/60 Hz

8 10-30 Volts DC

9 90-130 Volts DC

4 Lens Color R Red

B Blue

C Clear

G Green

A Amber

5 Guard G Cast Guard

(Omit “G” if guard is not required.)

6 Mounting style P2 3⁄4” Pendant Mount

P3 1” Pendant Mount

C2 3⁄4” Ceiling Mount

C3 1” Ceiling Mount

B2 3⁄4” Wall Mount with Box

B3 1” Wall Mount with Box

J2 3⁄4” Bulkhead Mount

J3 1” Bulkhead Mount

S4 11⁄4” Angle Stanchion Mount

S5 11⁄4” Angle Stanchion Mount

7 Options SR Sealing Ring Kit for Inverted Mounting

(Maintains Marine Listing in Globe-Up Position)

8 Certification C Canadian Market

*Pendant Mount only

12345678910111213

D S Ø 15 H 04 Ø-TGL-P2 E T F C

Certifications & Standards

Class I - Division 1, Groups C and D

Class II - Division 1, Groups E, F, and G*

– Outdoor Wet Locations*, NEMA 4X

– UL864, UL1598, UL844

– CSA C22.2 No. 137

Approvals / Characteristics

Strobe lights

Hazlux® M5 HazFlash Series - Explosion-proof strobe lights

12345678

DXS 6 1 R TG - P2 SR C

Industrial and hazardous location lighting product catalogue | EKPC-0814 5/7

120 VAC, 50/60 HZ 240 VAC, 50/60 HZ 10–30 VDC 90–130 VDC

Mounting Style Conduit Size Cat. No. Cat. No. Cat. No. Cat. No.

Red Lens HazFlash® M5 XXS Strobe Lights

Pendant 3⁄4” XXS61R-G-P2 XSX62R-G-P2 XXS68R-G-P2 XXS69R-G-P2

Ceiling 3⁄4” XXS61R-G-C2 XXS62R-G-C2 XXS68R-G-C2 XXS69R-G-C2

Wall 3⁄4” XXS61R-G-B2 XXS62R-G-B2 XXS68R-G-B2 XXS69R-G-B2

Stanchion 11⁄4” XXS61R-G-S4 XXS62R-G-S4 XXS68R-G-S4 XXS69R-G-S4

Blue Lens HazFlash® M5 XXS Strobe Lights

Pendant 3⁄4” XXS61B-G-P2 XSX62B-G-P2 XXS68B-G-P2 XXS69B-G-P2

Ceiling 3⁄4” XXS61B-G-C2 XXS62B-G-C2 XXS68B-G-C2 XXS69B-G-C2

Wall 3⁄4” XXS61B-G-B2 XXS62B-G-B2 XXS68B-G-B2 XXS69B-G-B2

Stanchion 11⁄4” XXS61B-G-S4 XXS62B-G-S4 XXS68B-G-S4 XXS69B-G-S4

Clear Lens HazFlash® M5 XXS Strobe Lights

Pendant 3⁄4” DXS61C-G-P2 DSX62C-G-P2 DXS68C-G-P2 DXS69C-G-P2

Ceiling 3⁄4” DXS61C-G-C2 DXS62C-G-C2 DXS68C-G-C2 DXS69C-G-C2

Wall 3⁄4” DXS61C-G-B2 DXS62C-G-B2 DXS68C-G-B2 DXS69C-G-B2

Stanchion 11⁄4” DXS61C-G-S4 DXS62C-G-S4 DXS68C-G-S4 DXS69C-G-S4

Green Lens HazFlash® M5 XXS Strobe Lights

Pendant 3⁄4” XXS61G-G-P2 XSX62G-G-P2 XXS68G-G-P2 XXS69G-G-P2

Ceiling 3⁄4” XXS61G-G-C2 XXS62G-G-C2 XXS68G-G-C2 XXS69G-G-C2

Wall 3⁄4” XXS61G-G-B2 XXS62G-G-B2 XXS68G-G-B2 XXS69G-G-B2

Stanchion 11⁄4” XXS61G-G-S4 XXS62G-G-S4 XXS68G-G-S4 XXS69G-G-S4

Amber Lens HazFlash® M5 XXS Strobe Lights

Pendant 3⁄4” XXS61A-G-P2 XSX62A-G-P2 XXS68A-G-P2 XXS69A-G-P2

Ceiling 3⁄4” XXS61A-G-C2 XXS62A-G-C2 XXS68A-G-C2 XXS69A-G-C2

Wall 3⁄4” XXS61A-G-B2 XXS62A-G-B2 XXS68A-G-B2 XXS69A-G-B2

Stanchion 11⁄4” XXS61A-G-S4 XXS62A-G-S4 XXS68A-G-S4 XXS69A-G-S4

Note: To order XXS strobe light with sealing ring kit for inverted mounting (globe pointing up), add suffix “-SR” to the catalog number. Example: XXS61RGP-P2-SR

DXS Strobe Light Replacement Parts

Cat. No. Description

XSFT Replacement Flash Tube

XSFL-R Replacement Fresnel Lens - Red

XSFL-B Replacement Fresnel Lens - Blue

XSFL-C Replacement Fresnel Lens - Clear

XSFL-G Replacement Fresnel Lens - Green

XSFL-A Replacement Fresnel Lens - Amber

XGU15 Replacement Guard

XGSA15 Replacement Globe Assembly

Hazlux® M5 HazFlash Series - Explosion-proof strobe lights

Electrical and mechanical fixing system product catalogue | EKPC-1114 6/1

Technical Section

Ignition Temperatures and Group Classifications 6/2

Lamp Charts 6/4

Technical section

Product characteristics, classification & performance

6/2 Electrical and mechanical fixing system product catalogue | EKPC-0814

Technical section

Ignition temperatures and group classifications

Ignition Temperatures and Group Classiﬁcations for Flammable Gases and Vapors

Autoignition Temperature

Material Group Degrees F Degrees C

Acetaldehyde C 347 175

Acetic Acid D 867 464

Acetic Anhydride D 600 316

Acetone D 869 465

Acetone Cyanohydrin D 1270 688

Acetonitrile D 975 524

Acetylene A 581 305

Acrolein (Inhibited) B (C) 455 285

Acrylic Acid D 820 438

Acrylonitrile D 898 481

Allyl Alcohol C 713 378

Allyl Chloride D 905 485

Alpha-Methyl Styrene D 1066 574

Ammonia D 928 498

n-Amyl Acetate D 680 360

Aniline D 1139 615

Benzene D 928 498

Benzyl Chloride D 1085 585

1.3-Butadiene B (D) 788 420

Butane D 550 288

1-Butanol D 650 343

2-Butanol D 761 405

n-Butyl Acetate D 790 421

n-Butyl Acrylate (Inhibited) D 559 293

Butylamine D 594 312

Butylene D 725 385

n-Butyraldehyde C 425 218

n-Butyric Acid D 830 443

Carbon Disulfide * 194 90

Carbon Monoxide C 1128 609

Chlorobenzene D 1099 593

Cresol D 1038–1110 559–599

Crotonaldehyde C 450 232

Cumene D 795 424

Cyclohexane D 473 245

Cyclohexanol D 572 300

Cyclohexanone D 473 245

Cyclohexene D 471 244

Cyclopropane D 938 503

p-Cymene D 817 436

n-Decanol D 550 288

Decene D 455 235

Di-Isobutyl Ketone D 745 396

Di-Isobutylene D 736 391

Di-N-Propylamine C 570 299

Diacetone Alcohol D 1118 603

o-Dichlorobenzene D 1198 647

1.1-Dichloroethane D 820 438

Autoignition Temperature

Material Group Degrees F Degrees C

1.2-Dichloroethylene D 860 460

Dicylopentadiene C 937 503

Diethyl Benzene D 743–842 395–450

Diethyl Ether C 320 160

Diethylamine C 594 312

Diethylene Glycol Monobutyl Ether C 442 228

Diethylene Glycol Monomethyl Ether C 465 241

n-n-Dimethyl Aniline C 700 371

Dimethyl Formamide D 833 455

Dimethyl Sulfate D 370 188

Dimethylamine C 752 400

1,4-Dioxane C 356 180

Dipentene D 458 237

Dodecene D 491 255

Du-Isopropylamine C 600 316

Epichlorohydrin C 772 411

Ethane D 882 472

Ethanol D 685 363

Ethyl Acetate D 800 427

Ethyl Acetate (Inhibited) D 702 372

Ethyl Benzene D 810 432

Ethyl Chloride D 966 519

Ethyl Formate D 851 455

2-Ethyl Hexanol D 448 231

2-Ethyl Hexyl Acrylate D 485 252

Ethyl Mercaptan C 572 300

Ethylamine D 725 385

Ethylene C 842 450

Ethylene Chlorohydrin D 797 425

Ethylene Dichloride D 775 413

Ethylene Glycol Monobutyl Ether C 460 238

Ethylene Glycol Monobutyl Ether Acetate C 645 340

Ethylene Glycol Monoethyl Ether C 455 235

Ethylene Glycol Monoethyl Ether Acetate C 715 379

Ethylene Glycol Monomethyl Ether D 545 285

Etheylene Oxide B (C) 804 429

Ethylenediamine D 725 385

Ethylenimine C 608 320

2-Ethylehexaldehyde C 375 191

Formaldehyde (Gas) B 795 429

Formic Acid (90%) D 813 434

Fuel Oils D 410–765 210–407

Furfural C 600 316

Furfuryl Alcohol C 915 490

Gasoline D 536–880 280–471

Heptane D 399 204

Heptene D 500 260

Hexane D 437 225

*Carbon Disulfide has characteristics which require safeguards beyond those required for any of the above groups

Electrical and mechanical fixing system product catalogue | EKPC-0814 6/3

Autoignition Temperature

Material Group Degrees F Degrees C

2-Hexanone D 795 424

Hexenes D 473 245

Hydrazine C 74–518 23–270

Hydrogen B 968 520

Hydrogen Cyanide C 1000 538

Hydrogen Sulfide C 500 260

Iso-Butyl Acetate D 790 421

Iso-Octyl Aldehyde C 387 197

Isoamyl Acetate D 680 360

Isoamyl Alcohol D 662 350

Isobutyl Acrylate D 800 427

Isobutyraldehyde C 385 196

Isophorone D 860 460

Isoprene D 428 220

Isopropyl Acetate D 860 460

Isopropyl Ether D 830 443

Isopropylamine D 756 402

Kerosene D 410 210

Liquified Petroleum Gas D 761–842 405–450

Mesityl Oxide D 652 344

Methane D 999 537

Methanol D 725 385

Methyl Acetate D 850 454

Methyl Acrylate D 875 468

Methyl Ether C 662 350

Methyl Ethyl Ketone D 759 404

Methyl Formal C 460 238

Methyl Formate D 840 449

Methyl Isobutyl Ketone D 840 449

Methyl Isocyanate D 994 534

Methyl Methacrylate D 792 422

Methyl N-Amyl Ketone D 740 393

2-Methyl-1-Propanol D 780 416

2-Methyl-2-Propanol D 892 478

Methylamine D 806 430

Methylcyclohexane D 482 250

Methylcyclohexanol D 565 296

Monoethanolamine D 770 410

Monoisopropanolamine D 705 374

Monomethyl Aniline C 900 482

Monomethyl Hydrazine C 382 194

Morpholine C 590 310

Naphtha (Coal Tar) D 531 277

Naphtha (Petroleum) D 550 288

Nitrobenzene D 900 482

Nitroethane C 778 414

Nitromethane C 785 418

2-Nitropropane C 802 428

Autoignition Temperature

Material Group Degrees F Degrees C

1-Nitropropane C 789 421

Nonane D 401 205

Octane D 403 206

Octene D 446 230

Pentane D 470 243

1-Pentanol D 572 300

2-Pentanone D 846 452

1-Pentene D 527 275

Propane D 842 450

2-Propanol D 750 399

1-Propanol D 775 413

Propionaldehyde C 405 207

Proprionic Acid D 870 466

Proprionic Anhydride D 545 285

N-Propyl Acetate D 842 450

N-Propyl Ether C 419 215

Propyl Nitrate B 347 175

Propylene D 851 455

Propylene Dichloride D 1035 537

Propylene Oxide B (C) 840 449

Pyridine D 900 482

Styrene D 914 490

Tetrahydrofuran C 610 321

Tetrahydronapthalene D 725 385

Toluene D 896 480

Turpentine D 488 253

Unsymmetrical Dimethyl Hydrazine (Udmh) C 480 249

Valeraldehyde C 432 222

Vinyl Acetate D 756 402

Vinyl Chloride D 882 472

Vinyl Toluene D 921 494

Vinylidene Chloride D 1058 570

Xylenes D 867–984 464–529

Ignition Temperatures and Group Classiﬁcations for Flammable Gases and Vapors (continued)

6/4 Electrical and mechanical fixing system product catalogue | EKPC-0814

Technical section

Lamp charts

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

Metal Halide Lamps

100 ED28 M140/M90/E Mog. 10,000 9,000 4100 92

175 ED28 M57/E Mog. 10,000 14,000 4000 65

175 ED28PS M152/M137-0 Mog. 14,000 16,000 3500 62

200 ED28PS M136/E Mog. 15,000 21,000 4000 68

250 ED28 M58 Mog. 10,000 21,250 4000 65

250 ED28PS M153/O Mog. 24,000 21,300 4200 90

High Pressure Sodium

50 ED23 1/2 S68 Mog. 24,000+ 4,000 2100 21

70 ED23 1/2 S62 Mog. 24,000+ 6,500 2100 21

100 ED23 1/2 S54 Mog. 24,000+ 9,400 2100 21

150 ED23 1/2 S55 Mog. 24,000+ 15,800 2100 21

Hazlux® 3 - Standard Tank / R-Tank - Lamp Chart

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

Metal Halide Lamps

200 ED28PS M136/E Mog. 15,000 21,000 4000 68

250 ED28 M58 Mog. 10,000 21,250 4000 65

250 ED28PS M153/O Mog. 24,000 21,300 4200 90

320 ED28PS M154/M132/E Mog. 20,000 30,000 4100 62

350 ED37PS M131/E Mog. 20,000 37,000 4000 68

400 ED37 M59 Mog. 20,000 39,000 3900 65

400 ED37PS M155/M128/M135/S Mog. 15,000 40,000 3800 65

High Pressure Sodium

200 ED18 S66MN-200 Mog. 24,000+ 21,400 2100 21

250 ED18 S50 Mog. 24,000+ 28,500 2100 21

400 ED18 S51 Mog. 24,000+ 50,000 2100 21

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

Metal Halide Lamps

50 ED17 M148/M110/O Med. 20,000 3,750 4000 92

70 ED17 M143/M98/E Med. 20,000 5,900 4000 92

100 ED17 M140/M90/E Med. 20,000 9,000 4000 92

High Pressure Sodium

35 BD17 S76 Med. 24,000+ 2,250 2100 21

50 BD17 S68 Med. 24,000+ 4,000 2100 21

70 BD17 S62 Med. 24,000+ 6,300 2100 21

100 BD17 S54S Med. 24,000+ 9,500 2100 21

150 BD17 S55 Med. 24,000+ 16,000 2100 21

Hazlux® 3 - Large Tan - Lamp Chart

Hazlux® 3 - M3 Hazlite™ - Lamp Chart

Electrical and mechanical fixing system product catalogue | EKPC-0814 6/5

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

Metal Halide Lamps

100 ED28 M140/M90/E Mog. 10,000 9,000 4100 92

175 ED28 M57/E Mog. 10,000 14,000 4000 65

High Pressure Sodium

50 ED23 1/2 S68 Mog. 24,000+ 4,000 2100 21

70 ED23 1/2 S62 Mog. 24,000+ 6,500 2100 21

100 ED23 1/2 S54 Mog. 24,000+ 9,400 2100 21

150 ED23 1/2 S55 Mog. 24,000+ 15,800 2100 21

Hazlux® 1 - Lamp Chart

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

Metal Halide Lamps

50 ED17 M148/M110/O Med. 20,000 3,600 4000 92

70 ED17 M143/M98/E Med. 20,000 5,900 4000 92

100 ED17 M140/M90/E Med. 20,000 9,000 4000 92

High Pressure Sodium

35 BD17 S76 Med. 24,000+ 2,250 2100 21

50 BD17 S68 Med. 24,000+ 4,000 2100 21

70 BD17 S62 Med. 24,000+ 6,300 2100 21

100 BD17 S54S Med. 24,000+ 9,500 2100 21

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

Metal Halide Lamps

100 ED28 M140/M90/E Mog. 10,000 9,000 4100 92

175 ED28 M57/E Mog. 10,000 14,000 4000 65

175 ED28PS M152/M137-0 Mog. 14,000 16,000 3500 62

250 ED28 M58 Mog. 10,000 21,250 4000 65

250 ED28PS M153/O Mog. 24,000 21,300 4200 90

400 ED37 M59 Mog. 20,000 39,000 3900 65

400 ED37PS M155/M128/M135/S Mog. 15,000 40,000 3800 65

High Pressure Sodium

35 BD17 S76 Med. 24,000+ 2,250 2100 21

50 BD17 S68 Med. 24,000+ 4,000 2100 21

70 BD17 S62 Med. 24,000+ 6,300 2100 21

100 BD17 S54S Med. 24,000+ 9,500 2100 21

150 BD17 S55 Med. 24,000+ 16,000 2100 21

Hazlux® M1 Hazlite™ - Lamp Chart

Hazlux® 5 - Lamp Chart

6/6 Electrical and mechanical fixing system product catalogue | EKPC-1114

Technical section

Lamp charts

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

High Pressure Sodium

50 BD17 S68 Med. 24,000+ 4,000 2100 21

70 BD17 S62 Med. 24,000+ 6,300 2100 21

100 BD17 S54S Med. 24,000+ 9,500 2100 21

150 BD17 S55 Mog. 24,000+ 16,000 2100 21

Hazlux® M5 Hazlite™ - Lamp Chart

Wattage Description ANSI Ballast Code Base Rated Life Initial Lumens Colour Temp. CRI

Metal Halide Lamps

175 ED28 M57/E Mog. 10,000 14,000 4000 65

175 ED28PS M152/M137-0 Mog. 14,000 16,000 3500 62

250 ED28 M58 Mog. 10,000 21,250 4000 65

250 ED28PS M153/O Mog. 24,000 21,300 4200 90

400 ED37 M59 Mog. 20,000 39,000 3900 65

400 ED37PS M155/M128/M135/S Mog. 15,000 40,000 3800 65

400 ED37PS M47E Mog. 10,000 110,000 3700 65

High Pressure Sodium

70 ED23 1/2 S62 Mog. 24,000+ 6,500 2100 21

100 ED23 1/2 S54 Mog. 24,000+ 9,400 2100 21

150 ED23 1/2 S55 Mog. 24,000+ 15,800 2100 21

250 ED18 S50 Mog. 24,000+ 28,500 2100 21

400 ED18 S51 Mog. 4,000+ 50,000 2100 21

1000 ED37 S52 Mog. 24,000 125,000 2100 21

Hazlux® 3 Floodlight - Lamp Chart

Electrical and mechanical fixing system product catalogue | EKPC-1114 6/7

Industrial and hazardous location lighting product catalogue | EKPC-1114 7/1

Quick Pole Assembly

Introduction 7/3

Galvanised standard kit & Retro kit 7/4

Universal bracket kit 7/5

Industrial and hazardous location lighting

Hazlux® Quick pole assembly

7/2 Industrial and hazardous location lighting product catalogue | EKPC-1114

Industrial and hazardous location lighting product catalogue | EKPC-1114 7/3

Introduction

Hazlux® Quick pole assembly

Quick pole assembly

– Operates in any kind of weather

– Overall length is 10’ (3 m)

– Pole trade size is 1-1/2” treaded NPT. Aluminum pole

trade size is 2” treaded NPT

– Top pole section is 70” (1.78 m) long

– Lower pole section is 50” (1.27 m) long

– Set screws secure top and bottom section into the

quick knuckle

Quick knuckle assembly

– Rotates 180º (90º left and right) around knuckle’s center

axis allowing freedom of installation and easy adjustment

– Easy one man operation. After center bolt is loosen,

use the pull pin to lock and unlock the assembly

– Pre-fished with tape to ease wiring

Brackets

– Universal mounting for 2” to 3” angle iron railings

– Quick mounting brackets can be installed inside or outside

the guardrails

– Quick knuckle assembly should be mounted above hand

rail allowing the pole sections to rotate before

final positionning

Features & benefits

– Sphere shaped, quick knuckle features round edges,

preventing injuries and contaminent build-up of components

– The quick release mechanism is activated using one

hand and one pull pin

– The quick pole assembly blocks at a 90º angle when the

pull pin reaches the stopper

– All quick knuckle hardware is made of stainless steel

– All mounting brackets hardware are hot dip galvanized

The quick pole assembly blocks at a 90º angle

7/4 Industrial and hazardous location lighting product catalogue | EKPC-1114

Safety first

– One person operation

– No ladders or lifts required

– Simplified maintenance

– Hot dipped galvanized steel and aluminum finishes

– Free’s up catwalks and walkways during maintenance

– Epoxy coated finishes available

– Suitable for 180km/h winds* as per AASHTO LTS-4 2001

– Steel pole treads are treated and protected to prevent

galvanic reaction as per AASHTO LTS-4 2001

– CSA certified products

Galvanised standard kit

– Overall height of 10’ (3 m)

– 1-1/2” NPT treads at both ends

– Installed with two rail mounting brackets

1. Rotating Quick Knuckle Assembly

2. Angle Iron Mounting Brackets

allowing the pole section to

rotate before final positionning

Retrofit kit

– Overall maximum and predetermined

height of 10’ (3 m) once assembled

– Can be adapted to existing pole

– Upgrades existing assembly with

quick and easy maintenance

features

– See instruction sheets provided

with product for installation details

1. Rotating Quick Knuckle Assembly

2. Tapered Adaptor, fits over

Standard 1-1/4” or 1-1/2”

NPT Pipe

Type Q-P-5-10-N

Type Q-P-A-5-10-N (Aluminum)

Galvanise Standard Kit

Type RQ-P-5-10-N

Type RQ-P-A-5-10-N (Aluminum)

Retrofit Kit

Hazlux® - Quick pole assembly

Galvanised standard kit & Retro kit

Industrial and hazardous location lighting product catalogue | EKPC-1114 7/5

Hazlux® - Quick pole assembly

Universal bracket kit

Type RMB-QP-BKT-N

Type RMB-QP-A-BKT-N (Aluminum)

Universal Bracket Kit

Universal bracket kit

– Quick bolt-on installation, no welding or drilling

– Can be attached to angle iron guardrails up to 3”

– Can be installed on tubular structures less than 2” O.D.

– Allows the pole sections to rotate before final positionning

Type AMB-QP-BKT-N

Type AMB-QP-A-BKT-N (Aluminum)

Universal Bracket Kit

Quick bolt-on installation

7/6 Industrial and hazardous location lighting product catalogue | EKPC-1114

Notes

7/6 Industrial and hazardous location lighting product catalogue | EKPC-1114

Index

Part No. Page Part No. PagePart No. Page Part No. Page

VP2 3/18

VP3 3/18

VA2 3/18

VA3 3/18

VF2 3/18

VF3 3/18

VC2 3/18

VC3 3/18

VB2-VIB 3/18

VB3-VIB 3/18

VS4-VIB 3/18

VS5-VIB 3/18

VL4-VIB 3/18

VL5-VIB 3/18

HV1 3/18

HV2 3/18

VGT22 3/18

VGT22TS 3/18

VRF22C2 3/18

VRF22C5 3/18

VR22CBDL 3/18

VGU22P 3/18

VGU22 3/18

VGR48 3/18

VR22P 3/18

VRA22P 3/18

VRE22 3/18

VP2 3/22

VP3 3/22

VA2 3/22

VA3 3/22

VF2 3/22

VF3 3/22

VC2 3/22

VC3 3/22

VB2-VIB 3/22

VB3-VIB 3/22

VS4-VIB 3/22

VS5-VIB 3/22

VL4-VIB 3/22

VL5-VIB 3/22

HV1 3/22

HV2 3/22

VGT31S 3/22

VGT31STS 3/22

VGL31R1 3/22

VGL31R3 3/22

VGL31R5 3/22

VR31CB 3/22

VGU31RP 3/22

VGU31R 3/22

VGR64 3/22

VR31P 3/22

VRA31P 3/22

VRD31 3/22

VP2 3/28

VP3 3/28

VA2 3/28

VA3 3/28

VF2 3/28

VF3 3/28

VC2 3/28

VC3 3/28

VB2-VIB 3/28

VB3-VIB 3/28

VS4-VIB 3/28

VS5-VIB 3/28

VL4-VIB 3/28

VL5-VIB 3/28

HV1 3/28

HV2 3/28

VGT31 3/28

VGT31TS 3/28

VRF31C2 3/28

VRF31C5 3/28

VR31CB 3/28

VGU31 3/28

VGR48 3/28

VGR64 3/28

VR31P 3/28

VRA31P 3/28

VRD31 3/28

VP2 3/46

VP3 3/46

VA2 3/46

VA3 3/46

VF2 3/46

VF3 3/46

VC2 3/46

VC3 3/46

VB2-VIB 3/46

VB3-VIB 3/46

VS4-VIB 3/46

VS5-VIB 3/46

VL4-VIB 3/46

VL5-VIB 3/46

HV1 3/46

HV2 3/46

VGT31S 3/46

VGL31R1 3/46

VGL31R3 3/46

VGL31R5 3/46

VRF31C2 3/46

VRF31C5 3/46

VGU31RP 3/46

VGU31R 3/46

VGR48 3/46

VR31P 3/46

VRA31P 3/46

VRD31 3/46

VMP2 3/50

VMP3 3/50

VMC2 3/50

VMC3 3/50

VMB2 3/50

VMB3 3/50

VMS4 3/50

VMS5 3/50

VML4 3/50

VML5 3/50

VGT15 3/50

VGL15R1 3/50

VGL15R3 3/50

VGL15R5 3/50

VGU15 3/50

VGU15P 3/50

VR15P 3/50

VRA15P 3/50

VRE22 3/50

VNP2 3/58

VNC2 3/58

VNB2 3/58

VNS5 3/58

VNL5 3/58

VGT31S 3/58

VGT31STS 3/58

VGL31R1 3/58

VGL31R3 3/58

VGL31R5 3/58

VGU31RP 3/58

VR31P 3/58

VRA31P 3/58

VPA2 3/64

VPC2 3/64

VPC22 3/64

VRE22 3/64

VGT15 3/64

VGL15R1 3/64

VGL15R3 3/64

VGL15R5 3/64

VGU15P 3/64

VR15P 3/64

VRA15P 3/64

XP2 3/72

XP3 3/72

XS4 3/72

XS5 3/72

XC2 3/72

XC3 3/72

XB2 3/72

XB3 3/72

XJ2 3/72

XJ3 3/72

XGSA44 3/72

XGSA44A 3/72

XGU44 3/72

VGU31 3/72

VR31P 3/72

VRA31P 3/72

XP2 3/78

XP3 3/78

XS4 3/78

XS5 3/78

XC2 3/78

XC3 3/78

XB2 3/78

XB3 3/78

XJ2 3/78

XJ3 3/78

XGU44 3/78

XGSA44 3/78

VR31P 3/78

VRA31P 3/78

XP2 3/82

XP3 3/82

XS4 3/82

XS5 3/82

XC2 3/82

XC3 3/82

XB2 3/82

XB3 3/82

XJ2 3/82

XJ3 3/82

XGSA15 3/82

XGU15 3/82

VR15P 3/82

VRA15P 3/82

VXB 3/92

VXA4 3/92

VDA15 3/92

VDA25 3/92

VDA12 3/92

VDA22 3/92

VXH15 3/92

VXH12 3/92

VXF10 3/92

VHC2 3/92

GASK643 3/92

VXFT10 3/92

VGT15 3/93

VGT15R 3/93

VG15G 3/93

VGT15B 3/93

VGT15A 3/93

VG L15 3/9 3

VG L15R1 3/93

Index

Part No. Page

VG L15R3 3/93

VGL15R5 3/93

VGT22 3/93

VGT22R 3/93

VGT22G 3/93

VGT22B 3/93

VGT22A 3/93

VGL22 3/93

VGL22R1 3/93

VGL22R3 3/93

VGL22R5 3/93

VGU15P 3/93

VGU22P 3/93

VR15P 3/93

VRA15P 3/93

VR22P 3/93

VRA22P 3/93

VXB 3/97

VXA4 3/97

VFH 3/97

VFA 3/97

VXF10 3/97

VXF20 3/97

VXFT10 3/97

VXFT20 3/97

VHC1 3/97

VHC2 3/97

GASK643 3/97

VGL22 3/98

VGT22 3/98

VGT22R 3/98

VGT22G 3/98

VGT22B 3/98

VGT22A 3/98

VRE22 3/98

VGU22P 3/98

VR22P 3/98

VRA22P 3/98

Note: We reserve the right to make technical changes or modify

the contents of this document without prior notice. With regard to

purchase orders, the agreed particulars shall prevail. ABB AG does

not accept any responsibility whatsoever for potential errors or

possible lack of information in this document.

We reserve all rights in this document and in the subject matter

and illustrations contained therein. Any reproduction, disclosure

to third parties or utilization of its contents – in whole or in parts –

is forbidden without prior written consent of ABB AG.

Thomas & Betts

Station Road

Coleshill,

Birmingham B46 1HT

Tel: +44 (0) 1675 468 213

E-Mail: enquiryuk@tnb.com

Thomas & Betts

Middle East

West Wing, Building 6

Block A - suite 724

PO Box 54567

Dubai

United Arab Emirates

Tel: +971 (0) 4 609 1635

E-Mail: enquiryme@tnb.com

Thomas & Betts

France

19/21 Avenue Henri Beaudelet

BP 27

77330 Ozoir la Ferrière

France

Tel: +33 (0) 1 64 40 27 26

E-Mail: france@dtselec.fr

Thomas & Betts

Spain

Avda. Vallés, 22

P.I. Cardedeu Sud

08440 Cardedeu (Barcelona)

Tel: 34 938 45 45 70

E-Mail: info@pma-es.com

Thomas & Betts

Italy

Via Marmolada 12

20037 Paderno Dugnano

(MI) Italy

Tel: 39 / 02 91084241

E-Mail: info@pma-it.com

1000434549 Catalog

1000509563-Brochure 1 1000509563-Brochure_1 1000509563-Brochure_1 B5 unilog cesco-content

Navigation menu

Versions of this User Manual:

Views

Navigation
