Low Voltage Products

ABB Low Voltage Essentials

Industrial & Automation Products

Power and productivity

for a better world

ABB Low Voltage Essentials

Industrial & Automation Products

Within this catalogue, you will ﬁnd products for industrial and automation applications available from stock

from ABB Low Voltage Products in the UK and via our expanding distributor network which can be located

in the links section of our website: http://www.abb.co.uk/lowvoltage

Our global range of Low Voltage Products not covered in our Low Voltage Essentials stock product

catalogues are available on factory lead times. See overleaf for our complete range of technical

catalogues. Alternatively please visit our website: http://www.abb.co.uk/lowvoltage

As well as our range of industrial products contained in this catalogue, we have a comprehensive range of

contractor/wholesaler products too, with the same emphasis on providing items from stock, all of which are

included in our catalogue Low Voltage Essentials - Contractor/Installer Products.

ABB has a reputation for manufacturing and supplying quality low voltage components, the result of our

on-going research and development programme. Our product ranges are supported by full and extensive technical

documentation and the page opposite shows some of the major supporting catalogues. In addition, a visit to

our website at http://www.abb.co.uk/lowvoltage will provide you with a wealth of product information including

catalogue downloads, cad drawings and product conﬁgurators.”

http://view.digi-page.net/?id=1TXD000001P0210

Industrial LV Essentials

http://view.digi-page.net/?id=1TXD00000P0209

Contractor LV Essentials

To view these publications on line

with our turning page technology

type the URLs into your web browser,

you do not have to download

pdf ﬁles. Save the URLs in your

favourites for future viewing.

2CDC110004C0206

1SBC100122C0202

1SFC132004C0201

1SFC151003C0201

Block Contactors Pilot Devices

Soft Starters Relay & Timers

1SBC100155C0201

Installation Equipment

2CSC400002D0208

1SDC210015D0204 1SDC200006D0207

MCCBs ACBs

1SCC311013C0201 1SCC301001C0201

1SEC311001C0201 1SCC302003C0201

Switch Fuses Switch Disconnectors

XR SlimLine Switch Fuses Cam Switches

1SCC303003C0201

Changeover Switches

1SNC160001C0207 1SNK161001C0201

5000 Series SNK Series

Integrated Control Range

New

KNX Equipment

2CDC500007B0207

1TXD00000P0209

Contractor LV Essentials

New

Our main technical catalogues are illustrated on this page.

Visit the ABB Library at:

http://www.abb.com/abblibrary/DownloadCenter/

or enter the catalogue part number into a search engine to

download the catalogue(s) you require.

ABB Low Voltage

Technical Publications

Wiring Accessories

1SXF610007C0201

Watchdog PIRs

9AKK104295D5667

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

We have created two dedicated publications focussing on our core products for industrial automation and

contractor/installer markets.

You will ﬁnd information on our stocked products including brief technical speciﬁcation, short code, order

code and product hierarchy. (Example below)

The Product Hierarchy has been included to assist in identifying discounts for particular product ranges when

used in conjunction with the customer discount structure ﬁle.

By focusing on core products, we are conﬁdent that the majority of your requirements can be satisﬁed from

stock by selecting products from the Low Voltage Essentials catalogues. Of course, our full range of products

is still available to you, but on factory lead times.

We have also included complimentary items that support other products in our range. These products are not

normally stocked.

As a customer, you can also take advantage of the services provided by our web based on-line solutions,

MyABB.

From this portal you can obtain price and availability, check order status, obtain copy documentation and

place orders on-line 24/7/365. If you have not already registered, you can do this by talking to your local ABB

sales engineer.

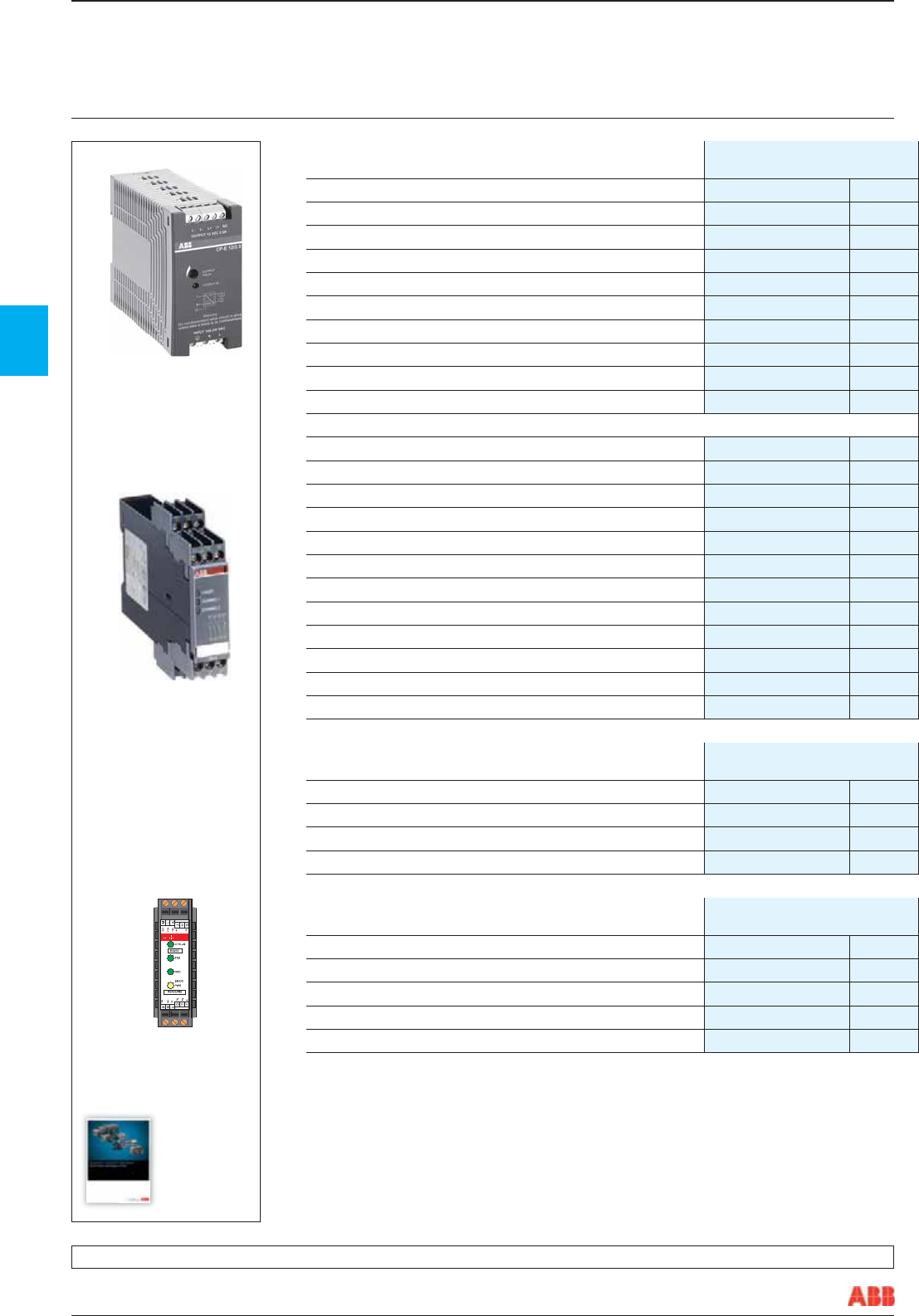

Measuring & Monitioring Relays

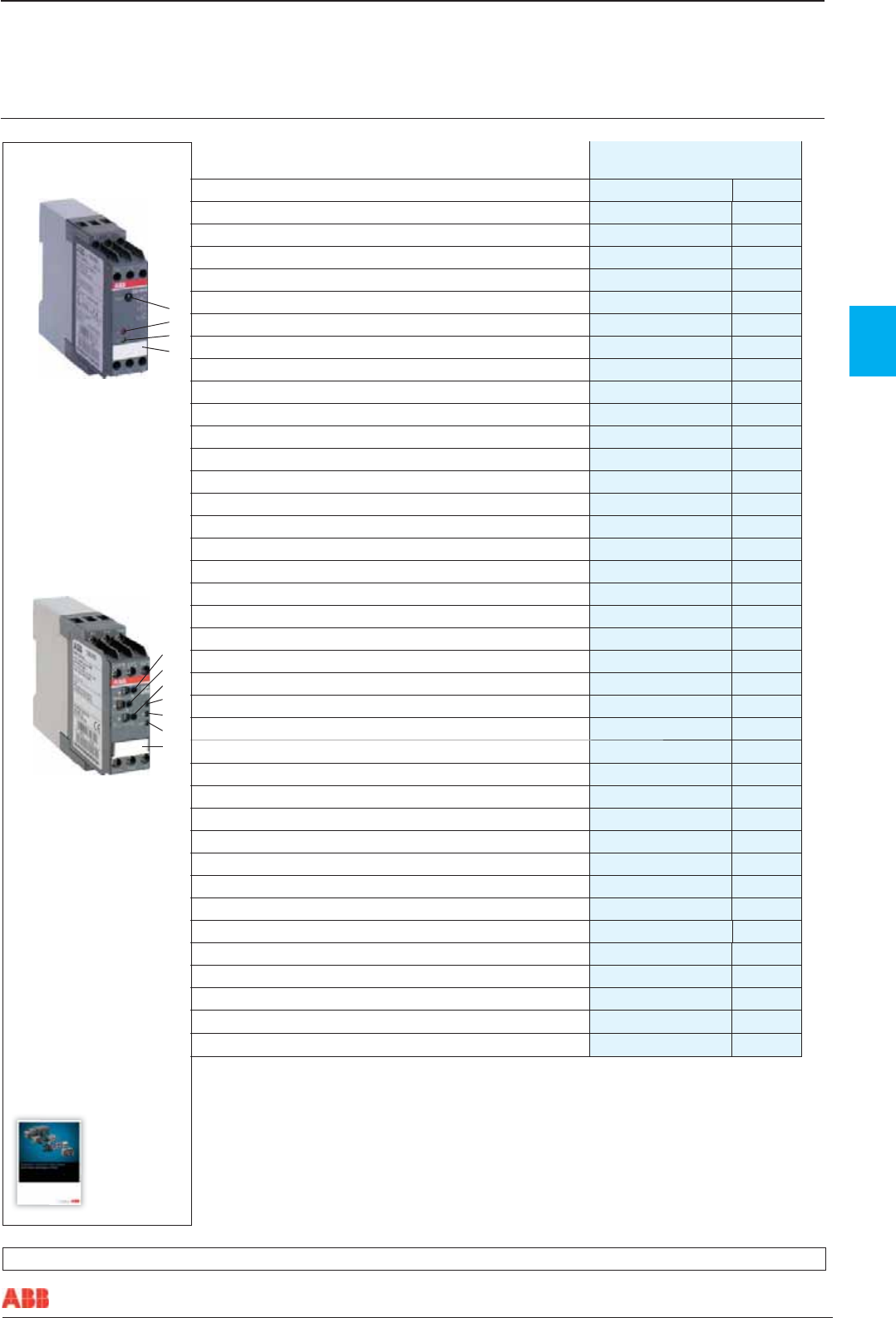

Measuring & Monitoring Relays Product Hierarchy 400004

Description Order Code Price

CM-MSS Thermistor motor protection relay , 2x1c/o, 24-240VAC/DC 1SVR430710R0200 98.76

CM-MSS Thermistor motor protection relay , 2c/o, 24VAC/DC 1SVR430710R9300 45.33

CM-MSS Thermistor motor protection relay , 2c/o, 110-130VAC 1SVR430711R0300 45.33

CM-MSS Thermistor motor protection relay , 2c/o, 380-415VAC 1SVR430711R2300 51.87

General Information

Strategic Partners

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

This price list supercedes all previously issued prices.

All prices are in £’s Sterling and do not include VAT.

Every effort has been made to ensure that the information given in this publication is correct,

and we accept no liability in respect of contingencies arising from errors.

All goods are offered subject to our Terms of Tender and Sale, Form TS.2c see pages 13/84

M6 London

M6 Birmingham

Coventry

City Centre

A444

Nuneaton

B4112

Longford

Road

Novotel

Lockhurst

Lane

A444

Foleshill

Road

Edgewick

Arena

2000

A444

Phoenix

Way

Holbrook Way

Junction 3

Canel

Basin

Tower Court

Foleshill Enterprise Park

Courtaulds Way

Coventry

CV6 5NX

Sales Desk

Knowledge Base General Enquiries: LV.Enquiries@gb.abb.com

Customer Services: LV.CustomerService@gb.abb.com

Technical: LV.TechnicalSupport@gb.abb.com

To find your nearest stockists, please visit:

http://www.abb.co.uk/lowvoltage

Telephone: 02476 368676

Facsimile: 02476 368401

Credit Control: 01480 475321

If you already have an account you can place orders:

Online: http://online.abb.com/bol

Email: orders.lvp@gb.abb.com

Facsimile: 02476 368401

Tower Court

Foleshill Enterprise Park

Courtaulds Way

Coventry

CV6 5NX

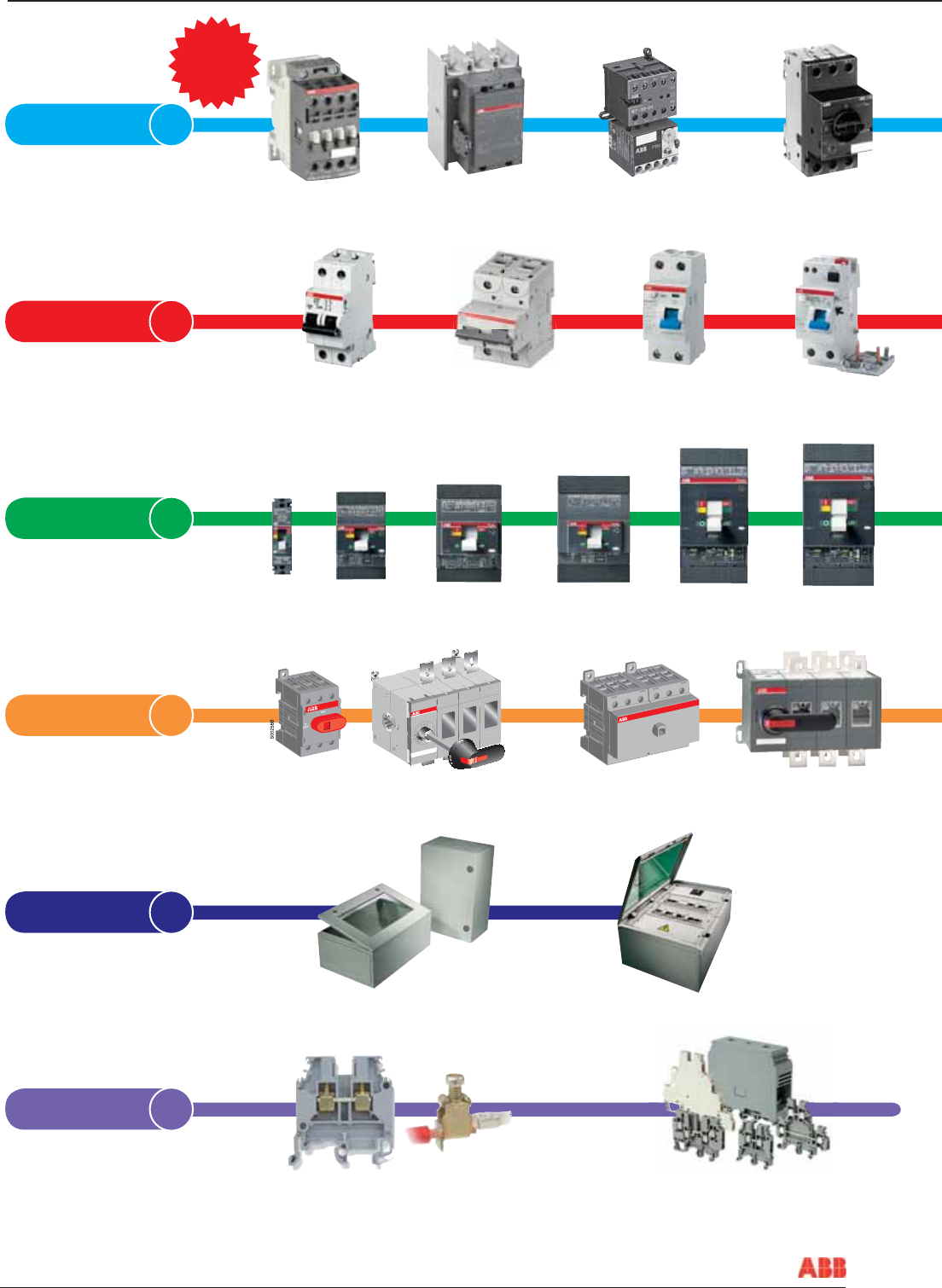

Easy View Product Finder

A & EK contactors

Control

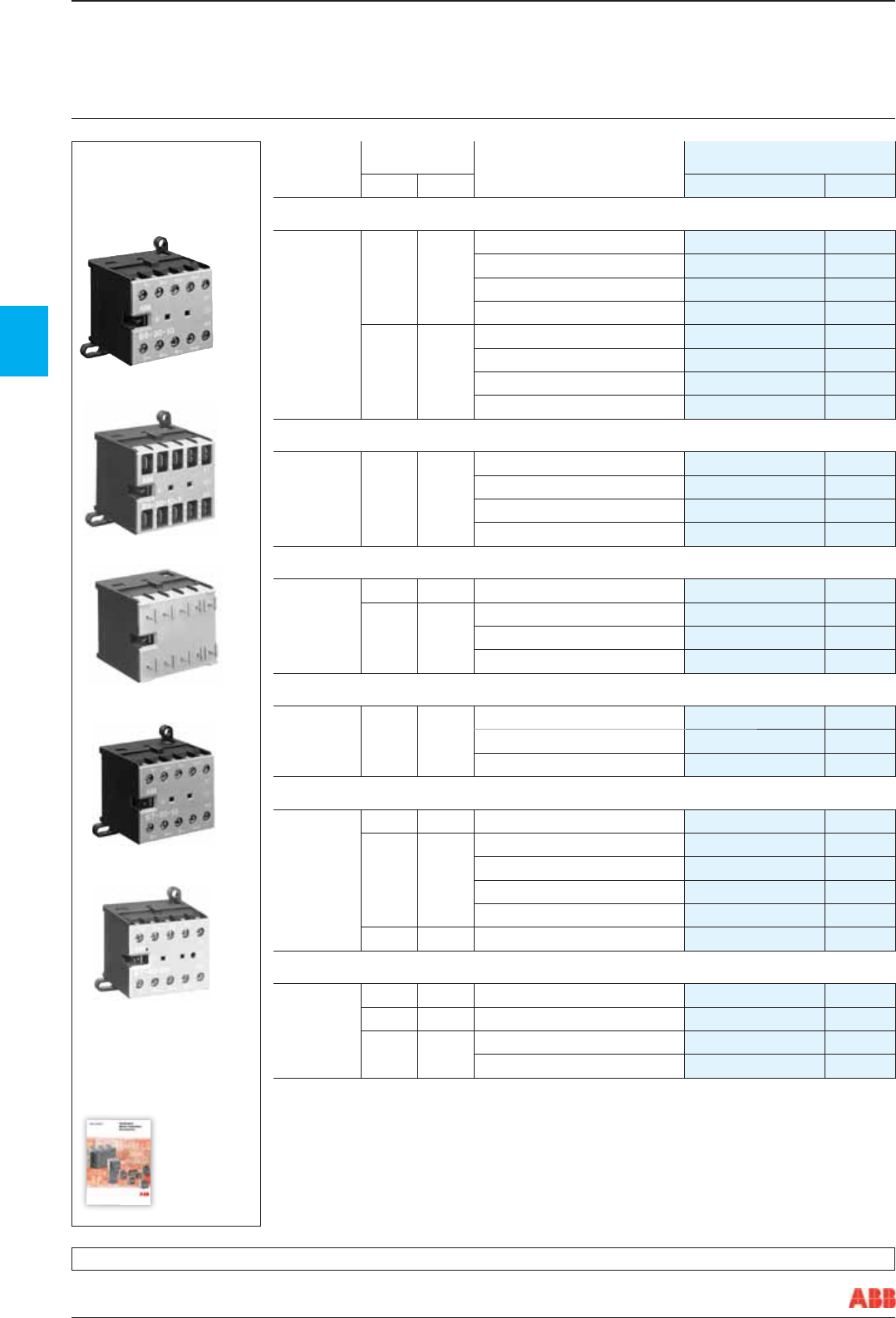

Mini Contactors

Manual Motor Starters

Compact

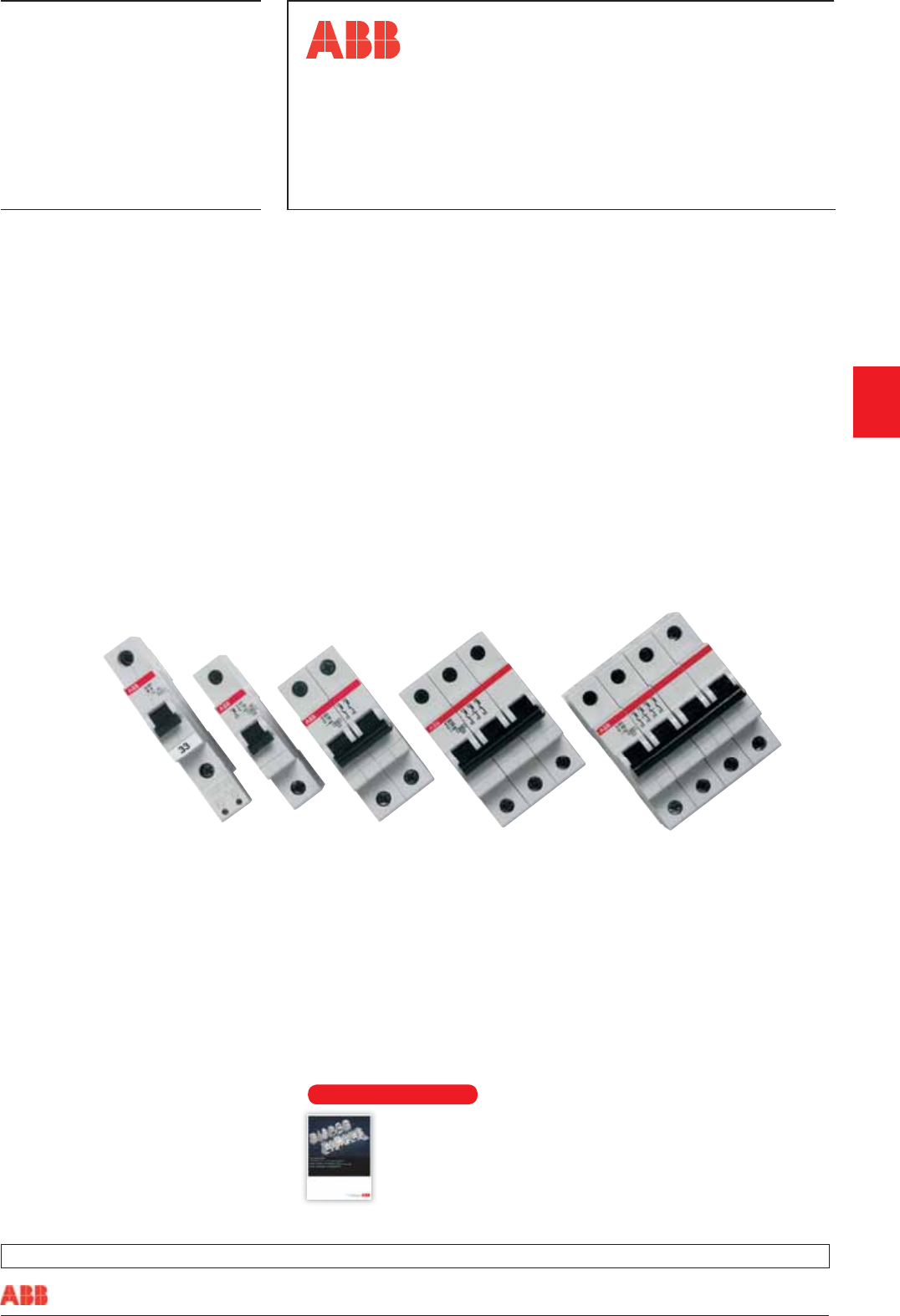

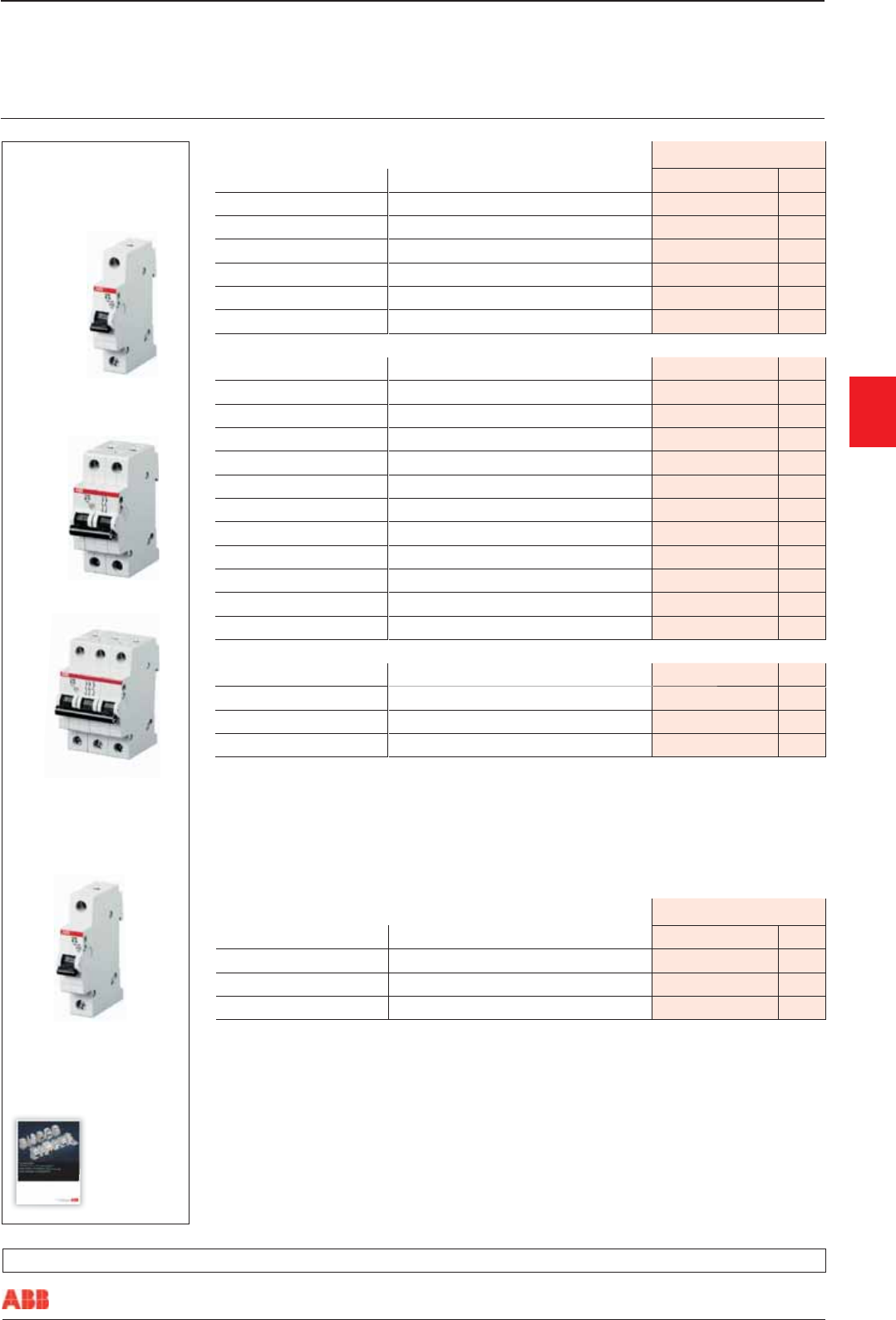

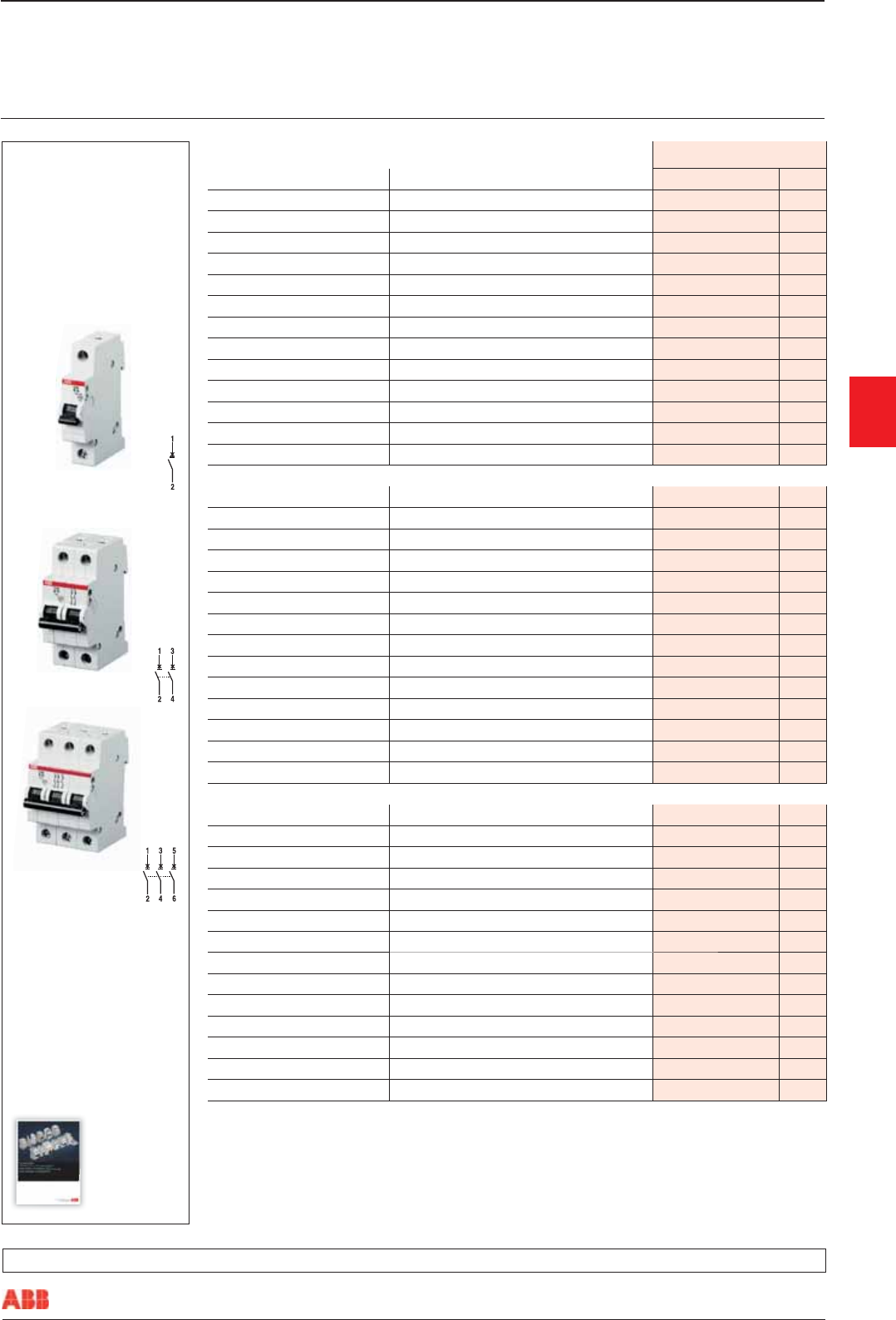

S200 Series

Line Protection

Compact

800 Series

Power Breakers

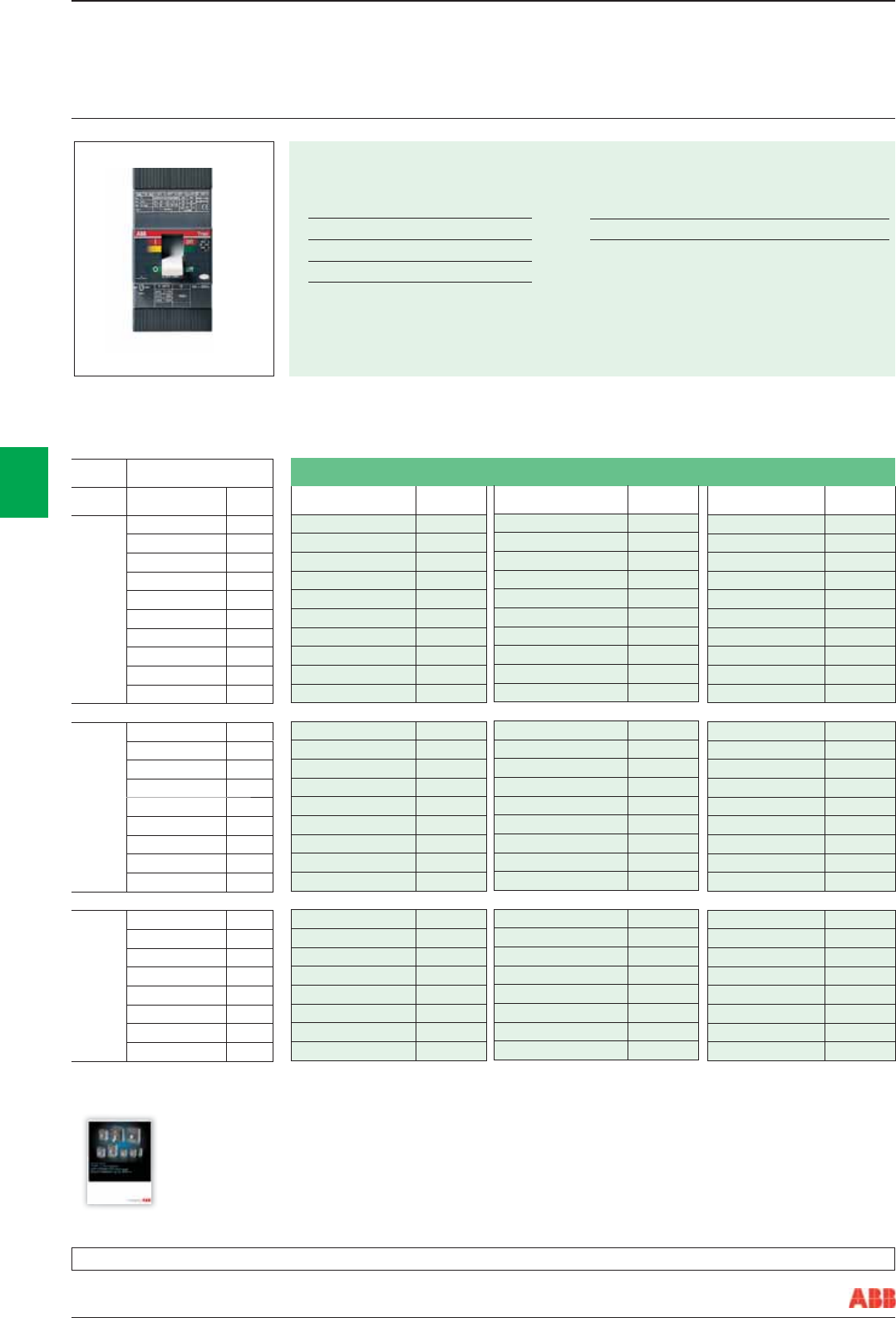

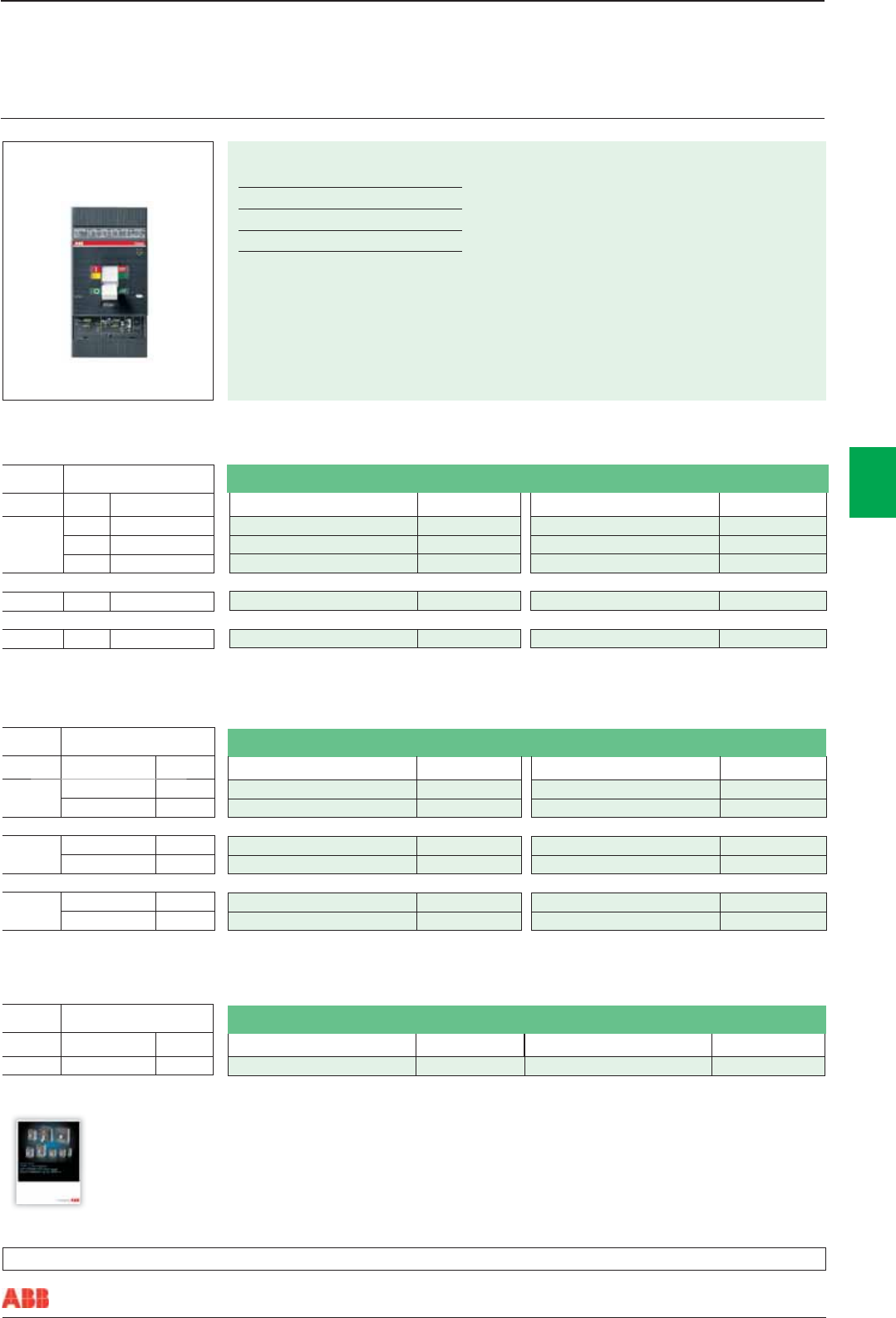

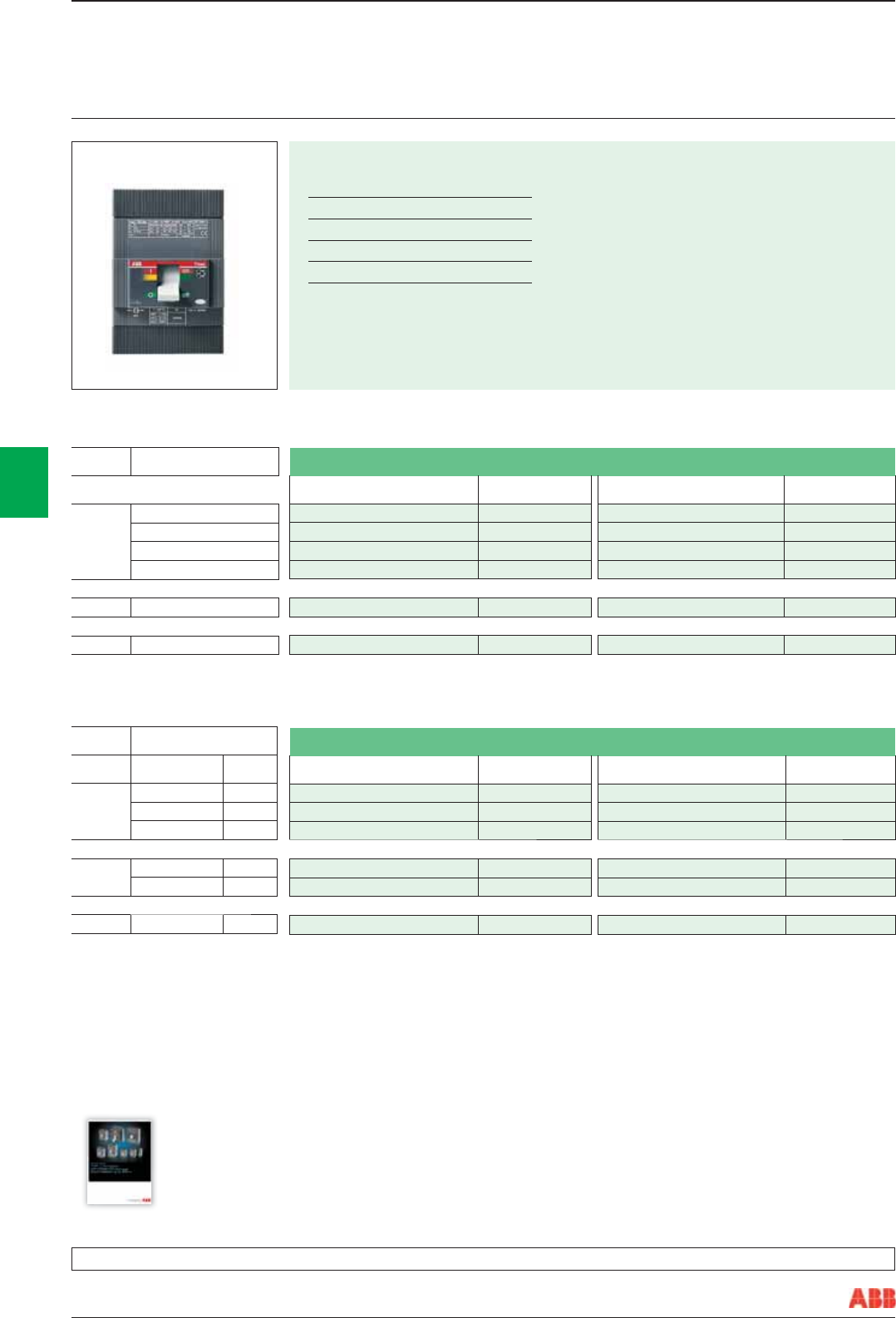

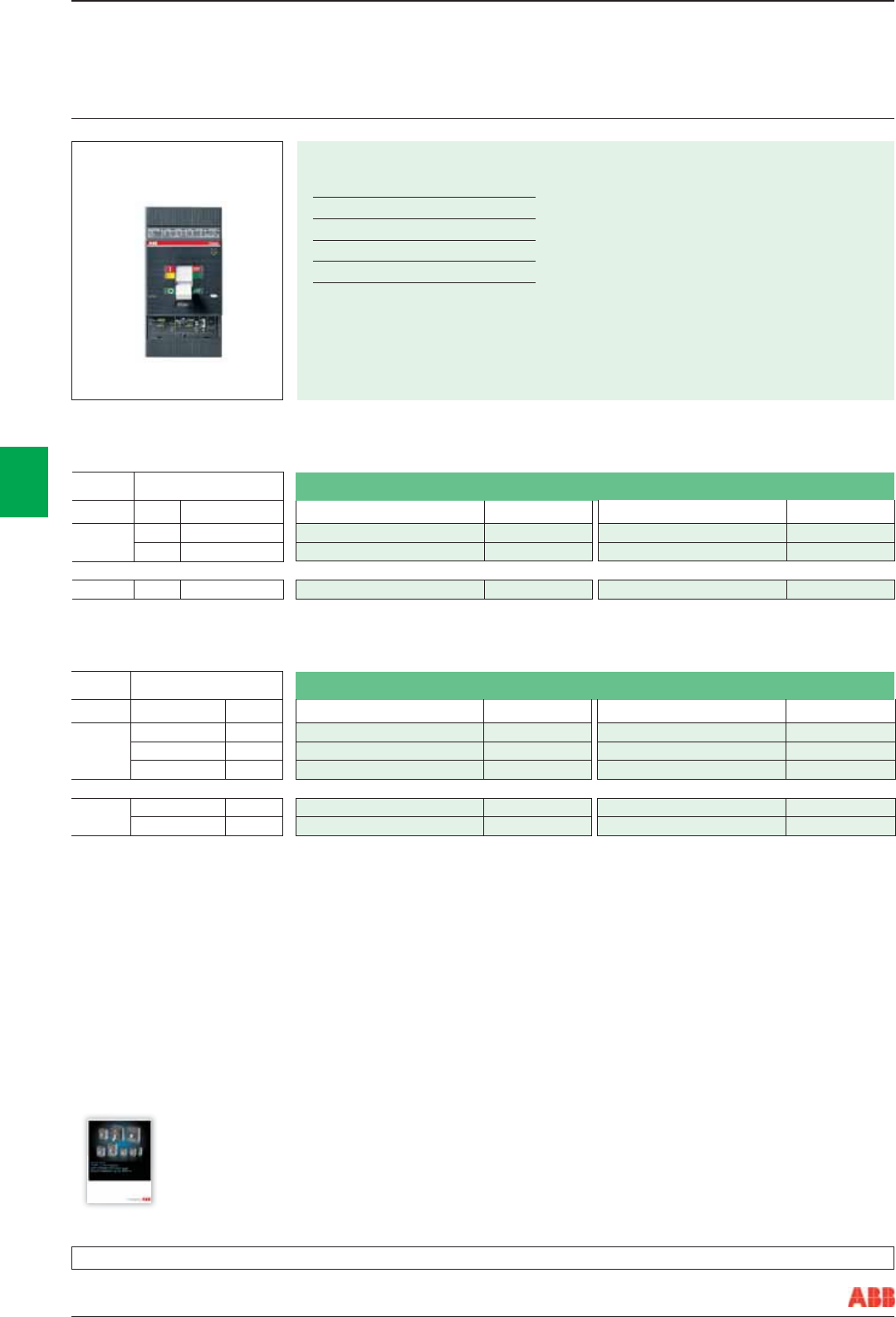

Tmax T1 ... T7

Switchgear

SwitchLine Disconnectors

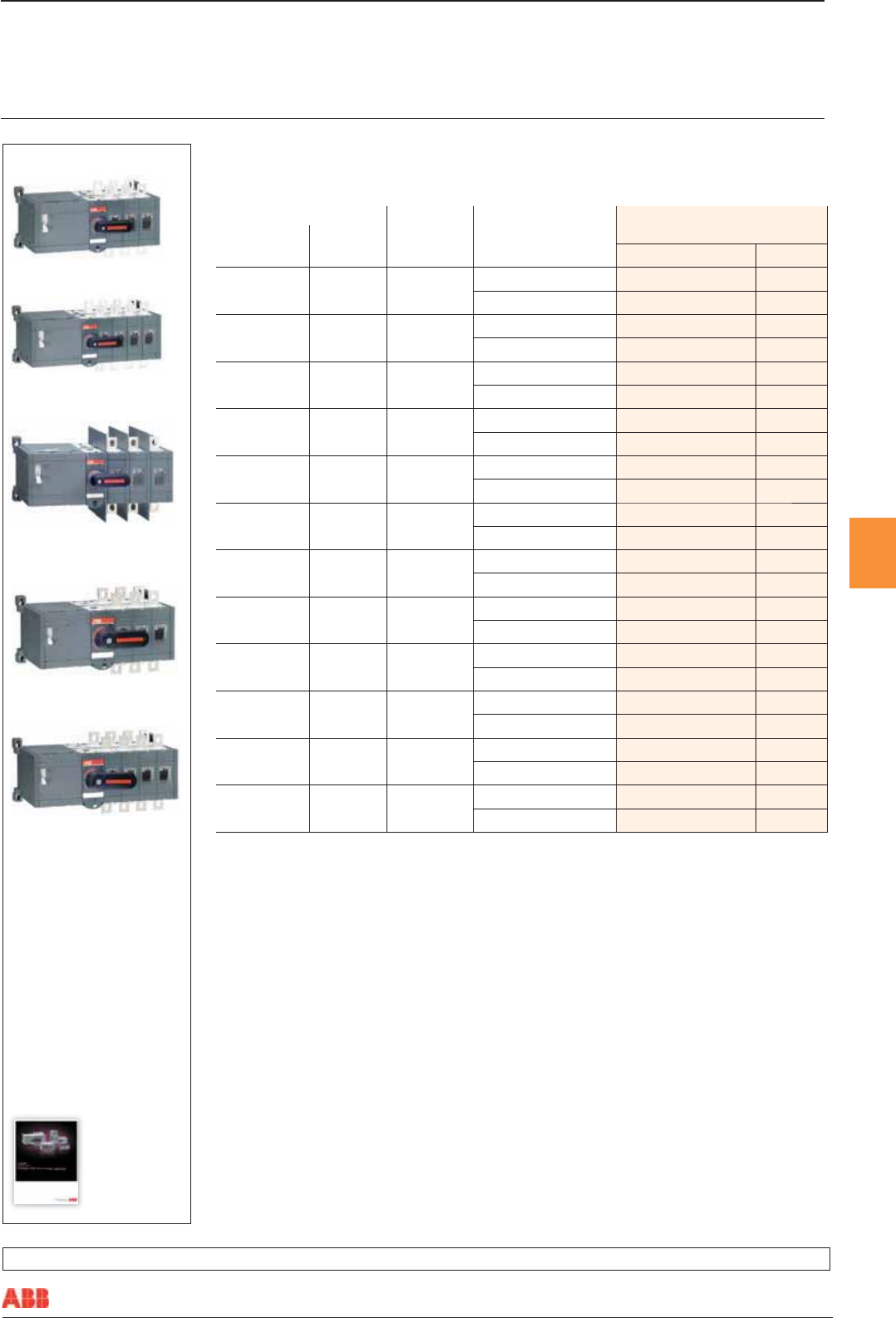

SwitchLine Changeover Switches

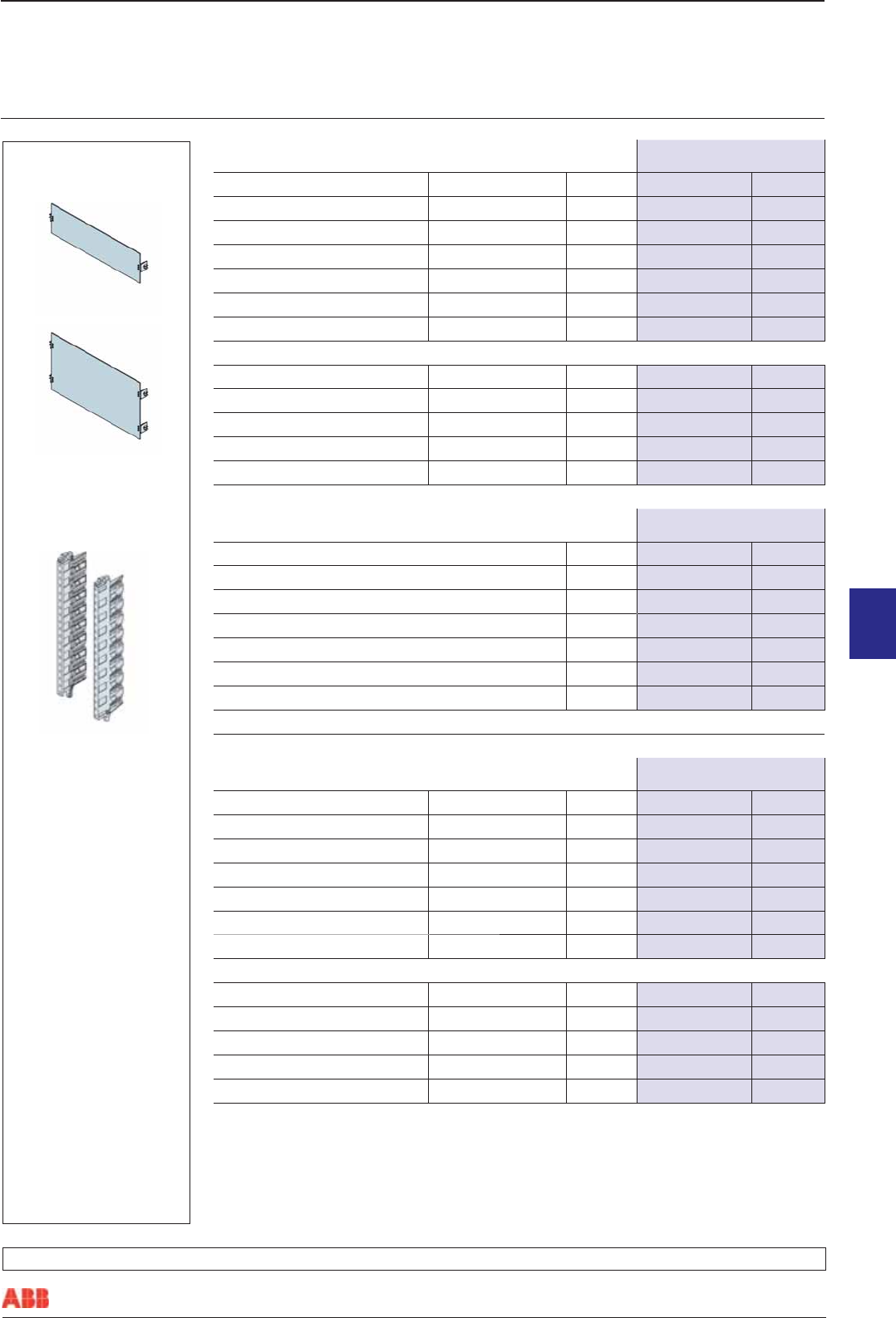

Enclosures

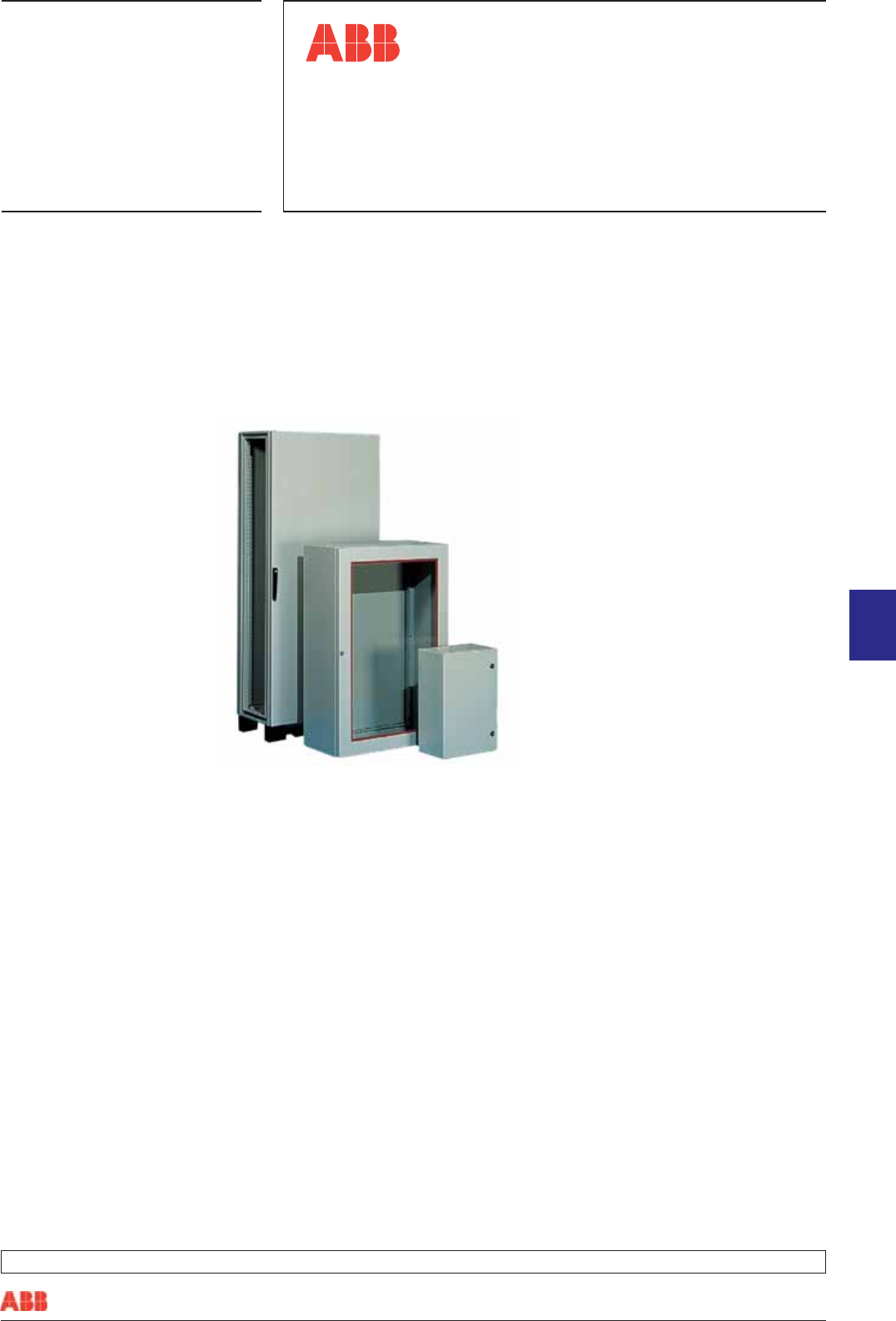

Sheet Steel

Enclosures 98

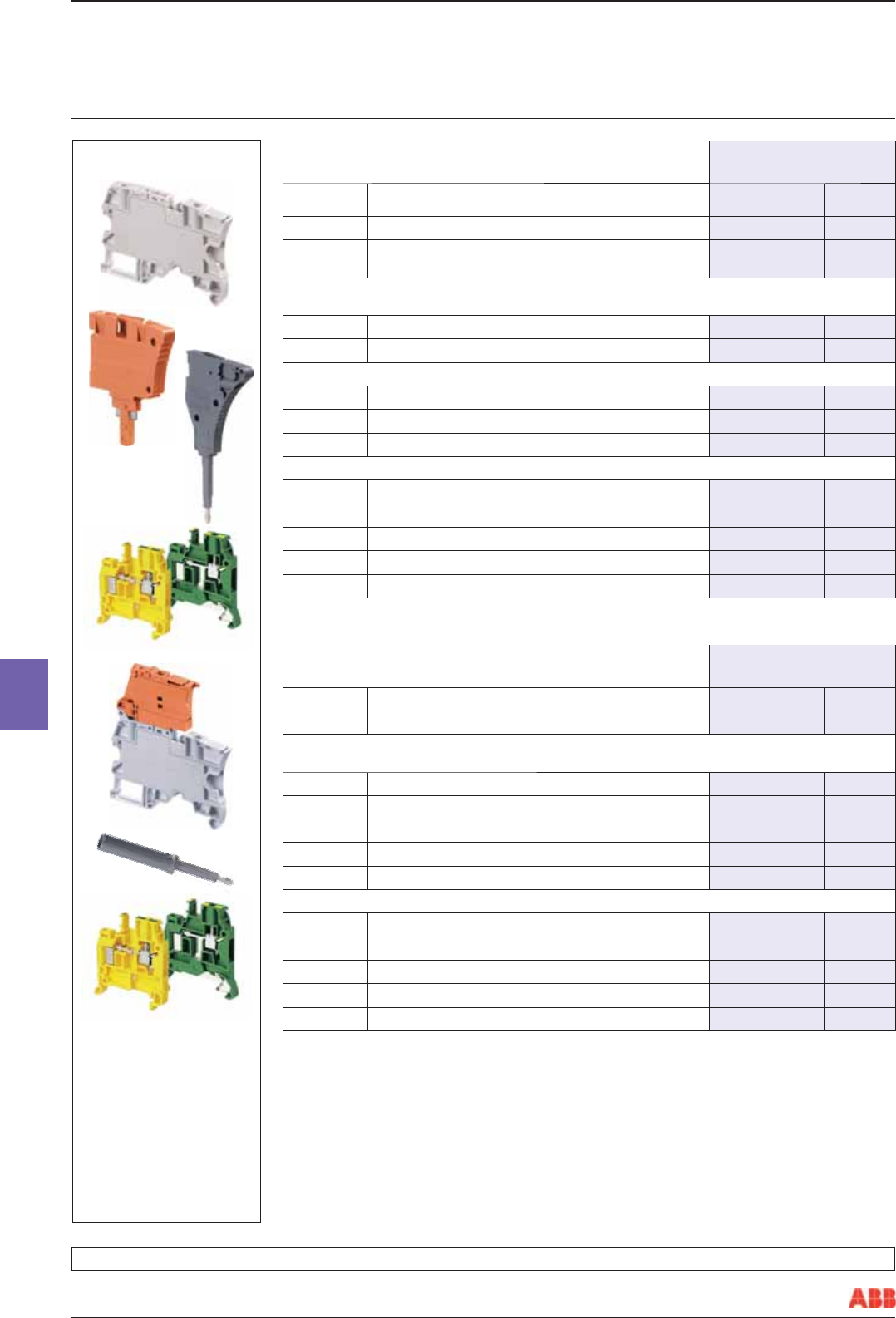

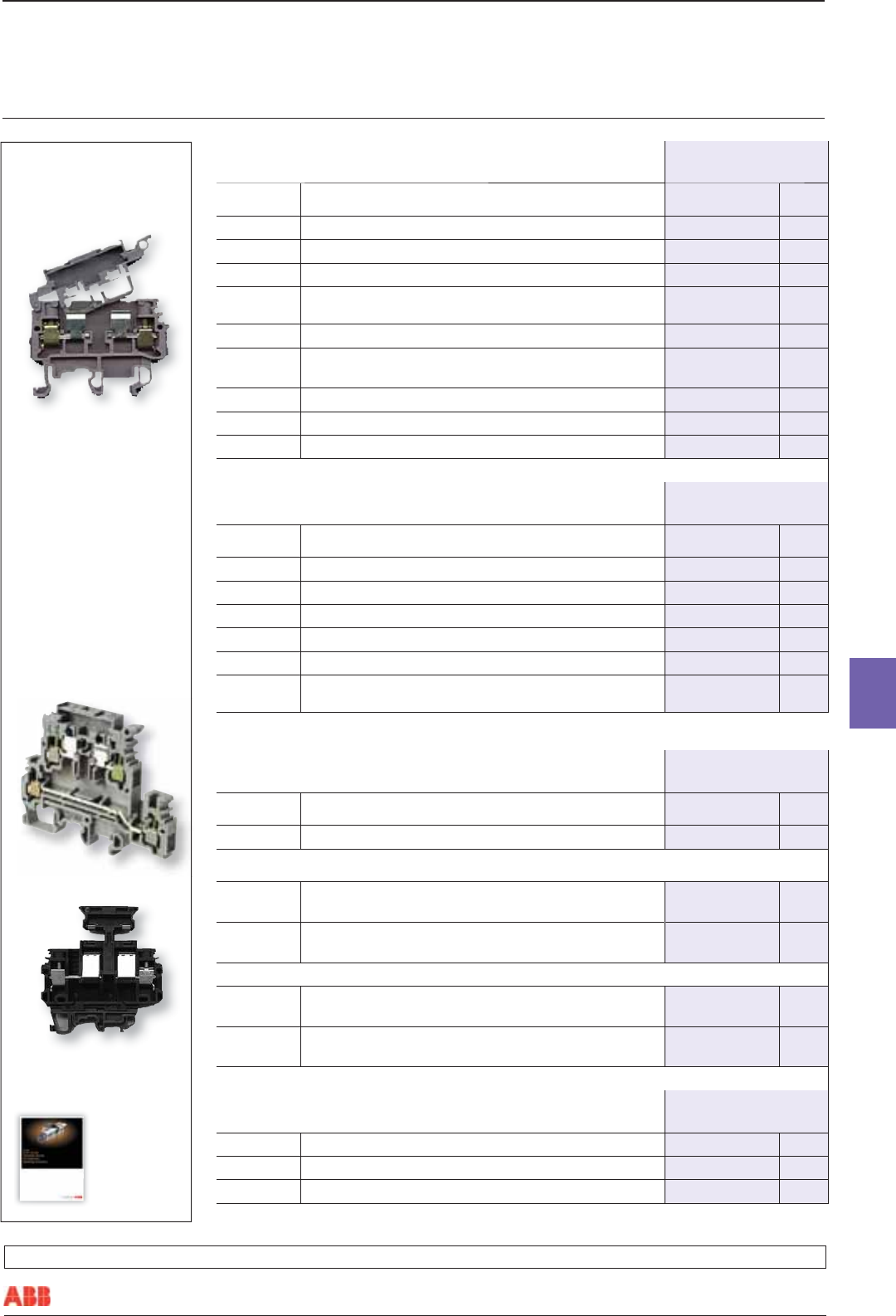

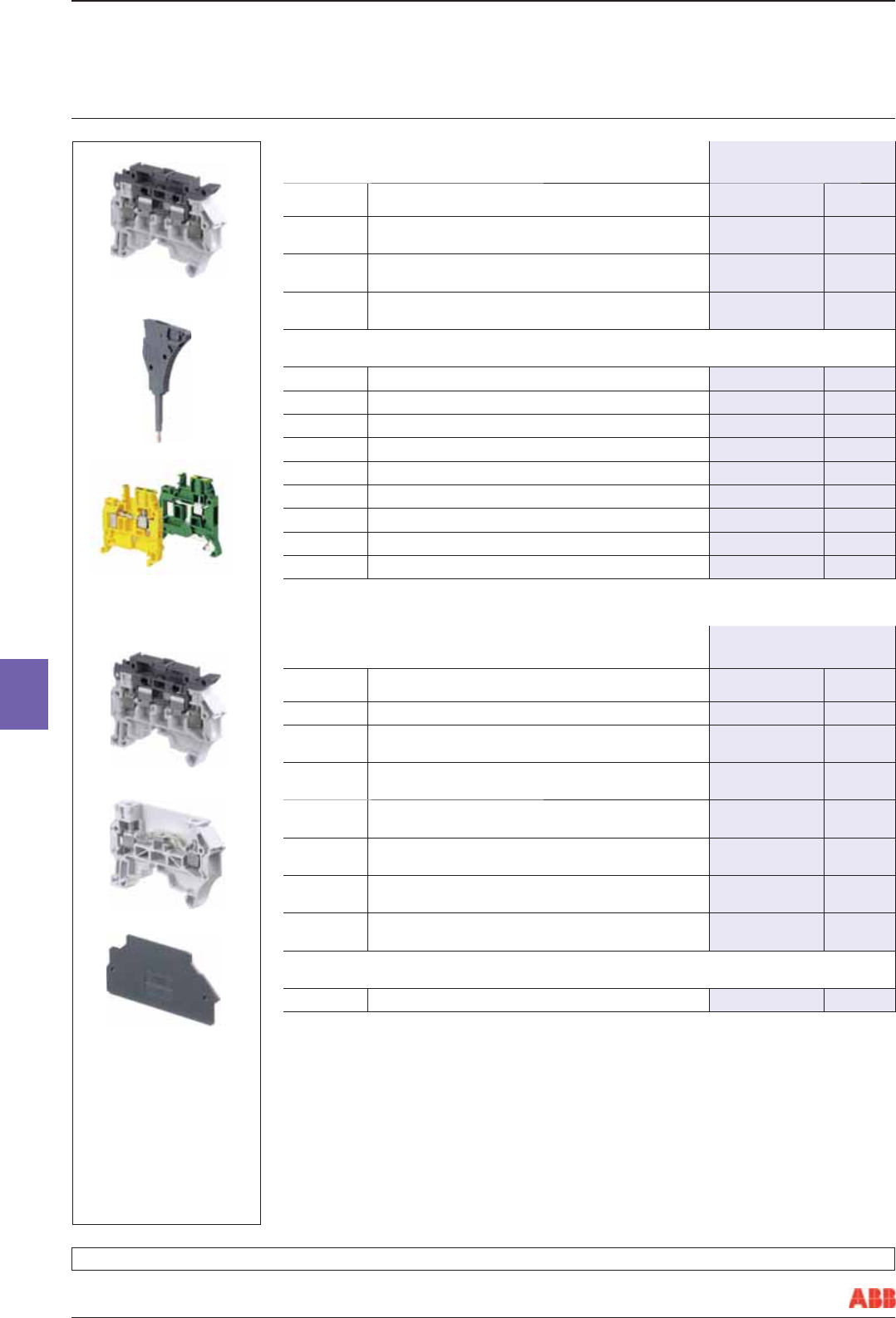

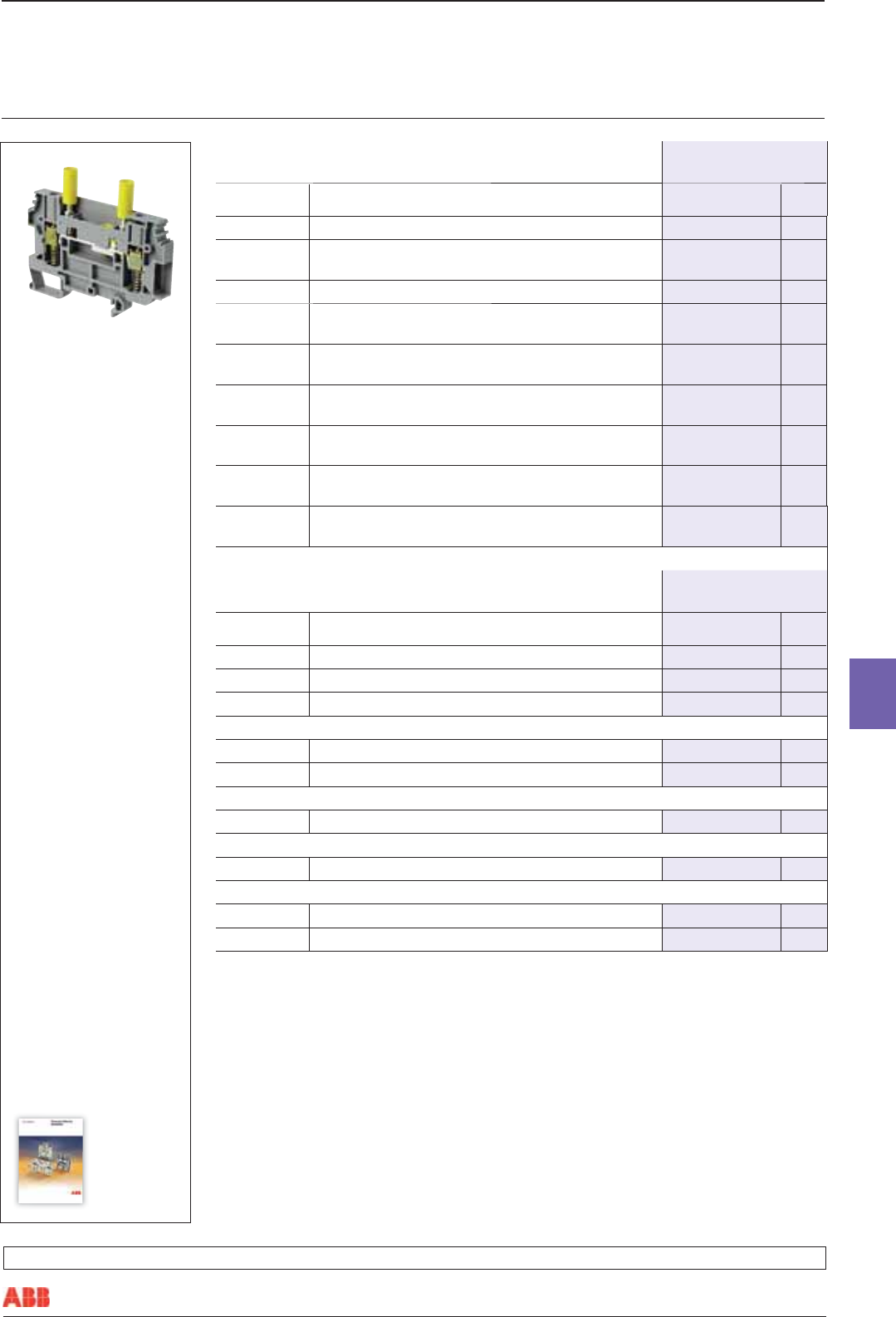

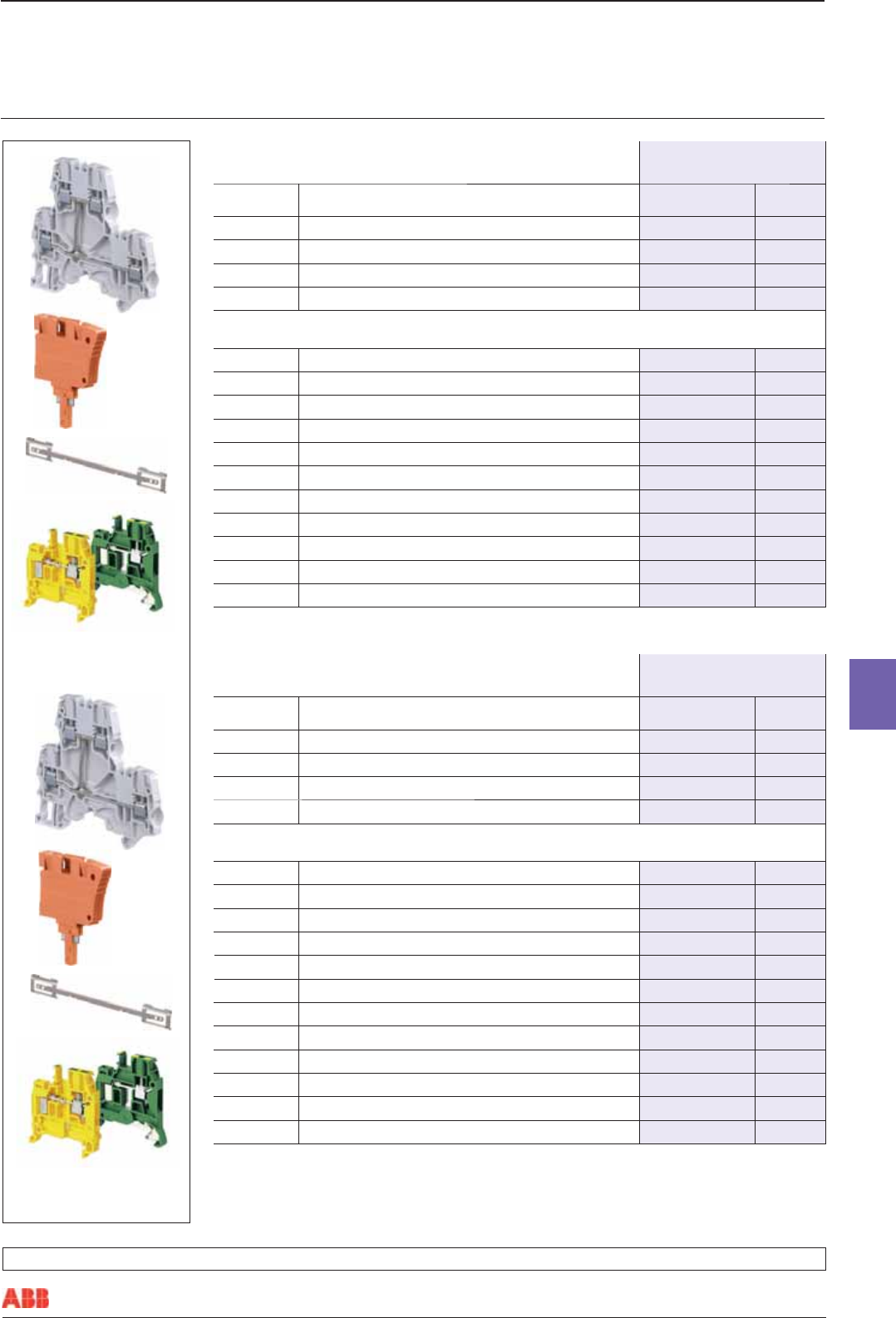

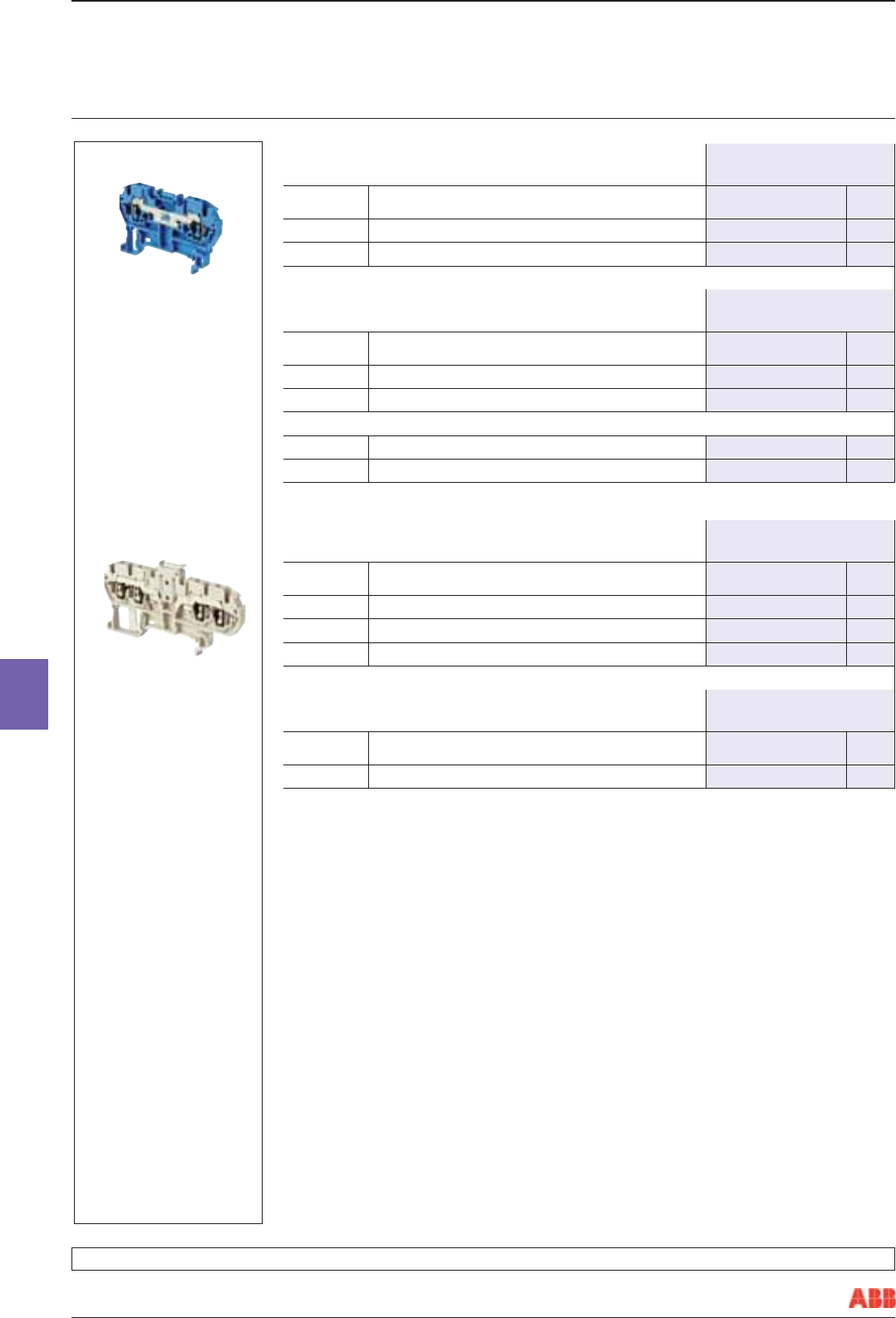

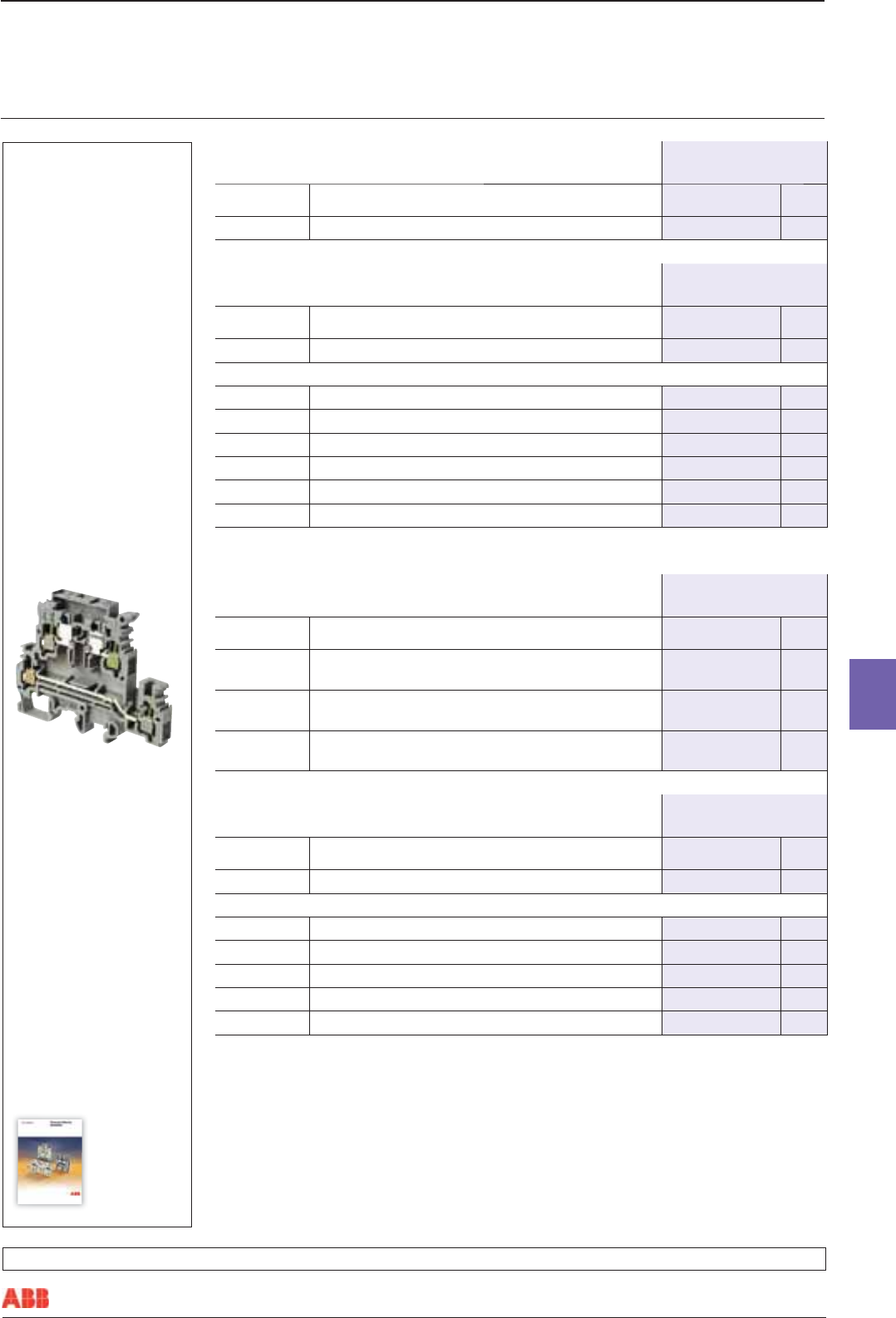

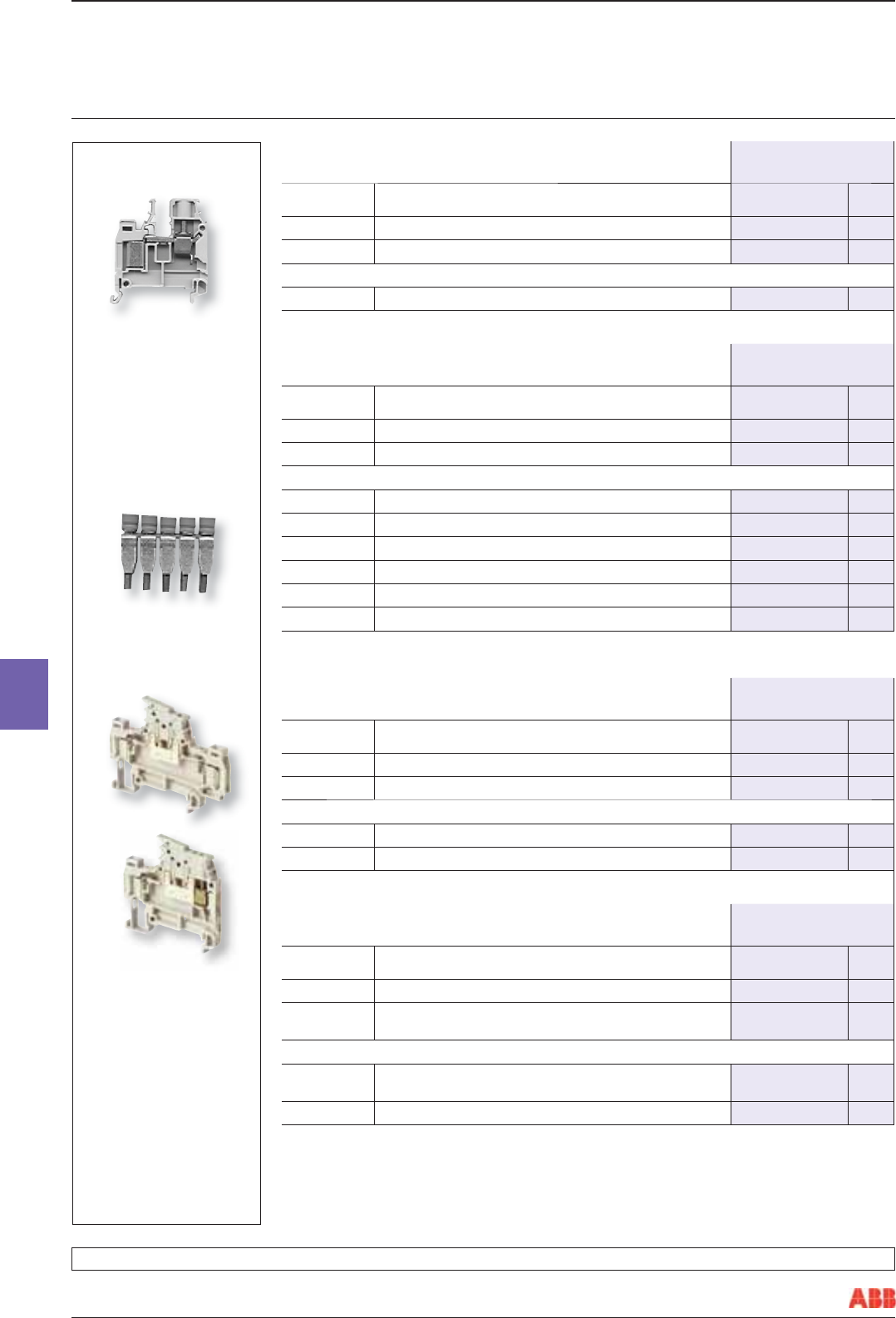

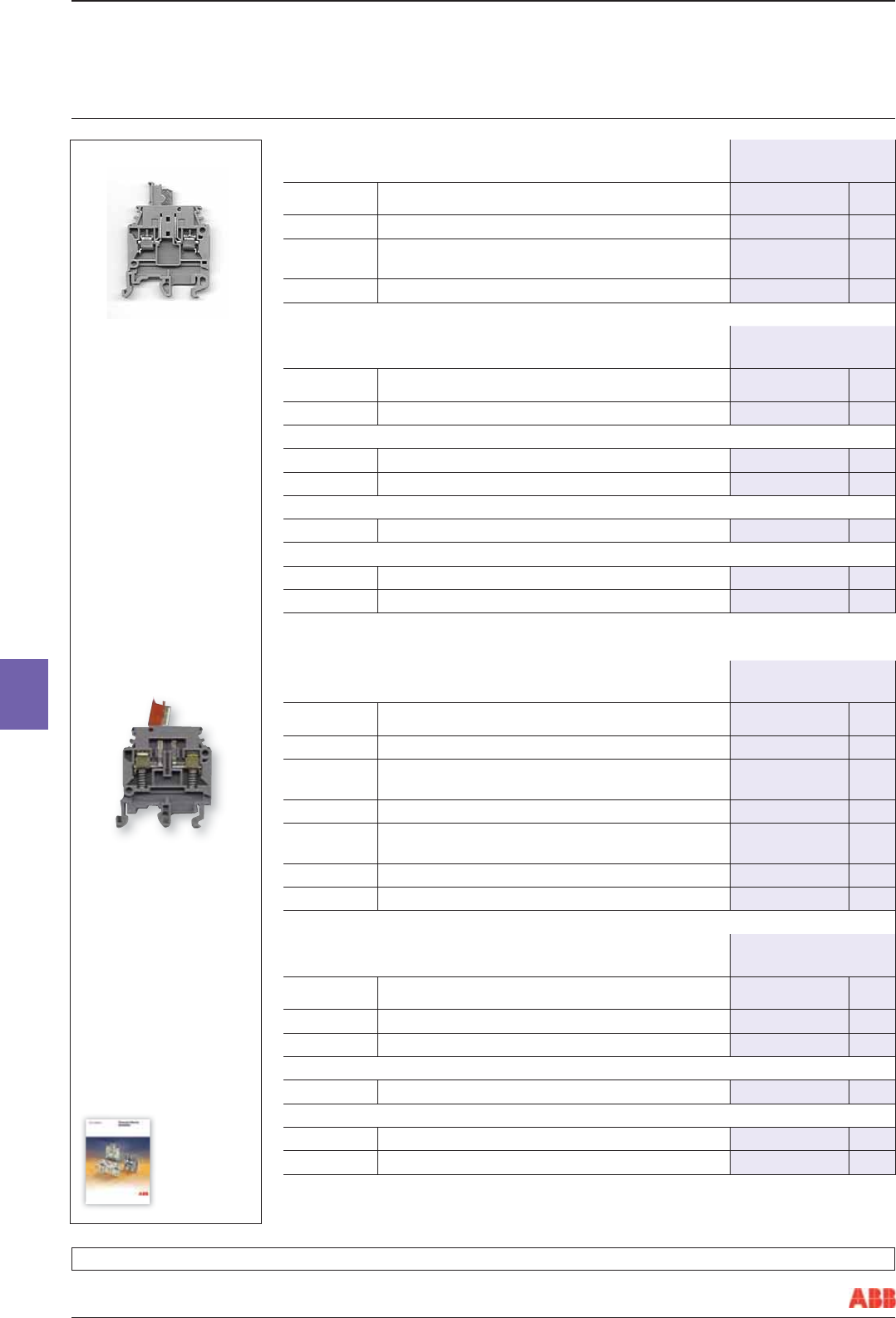

Terminals

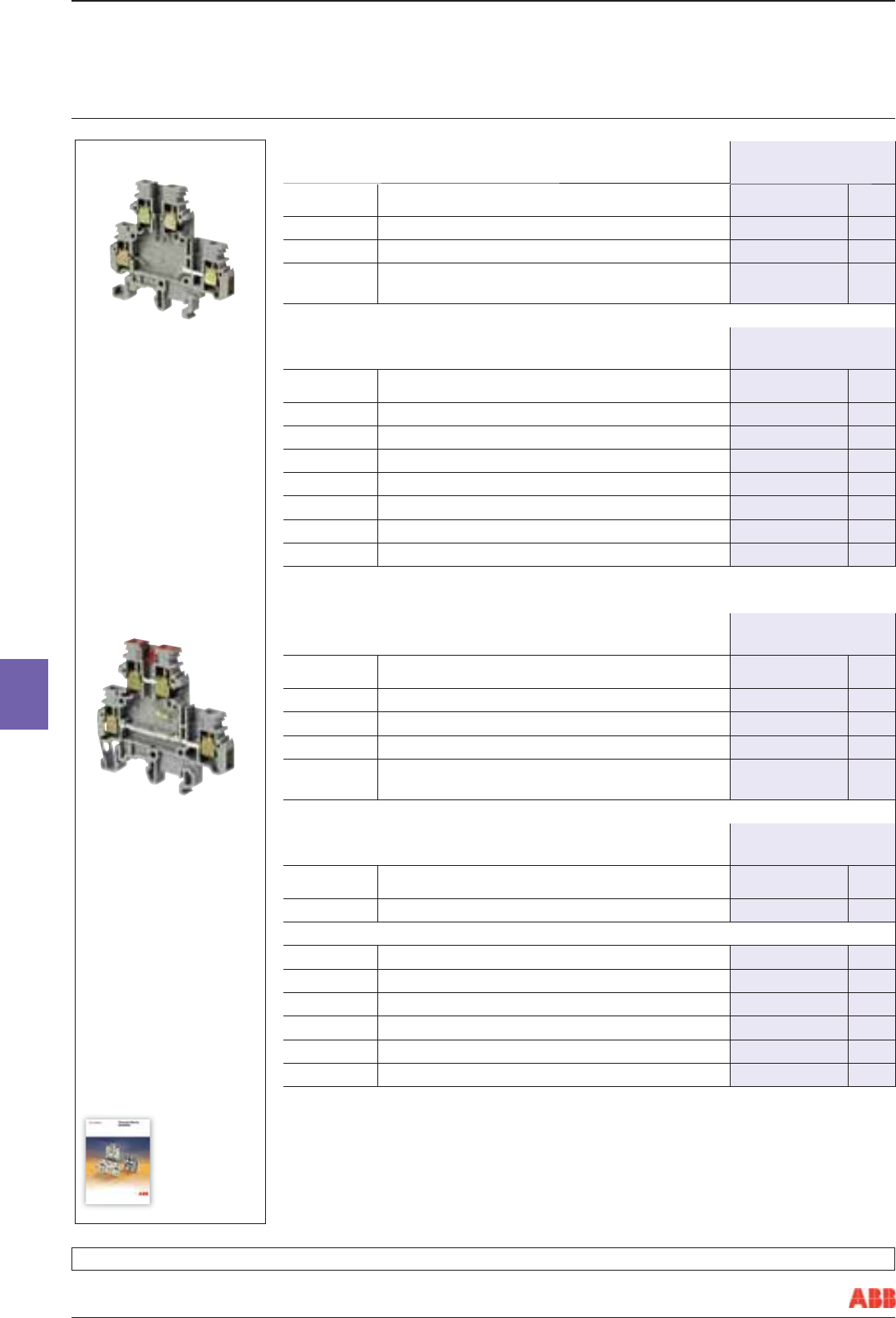

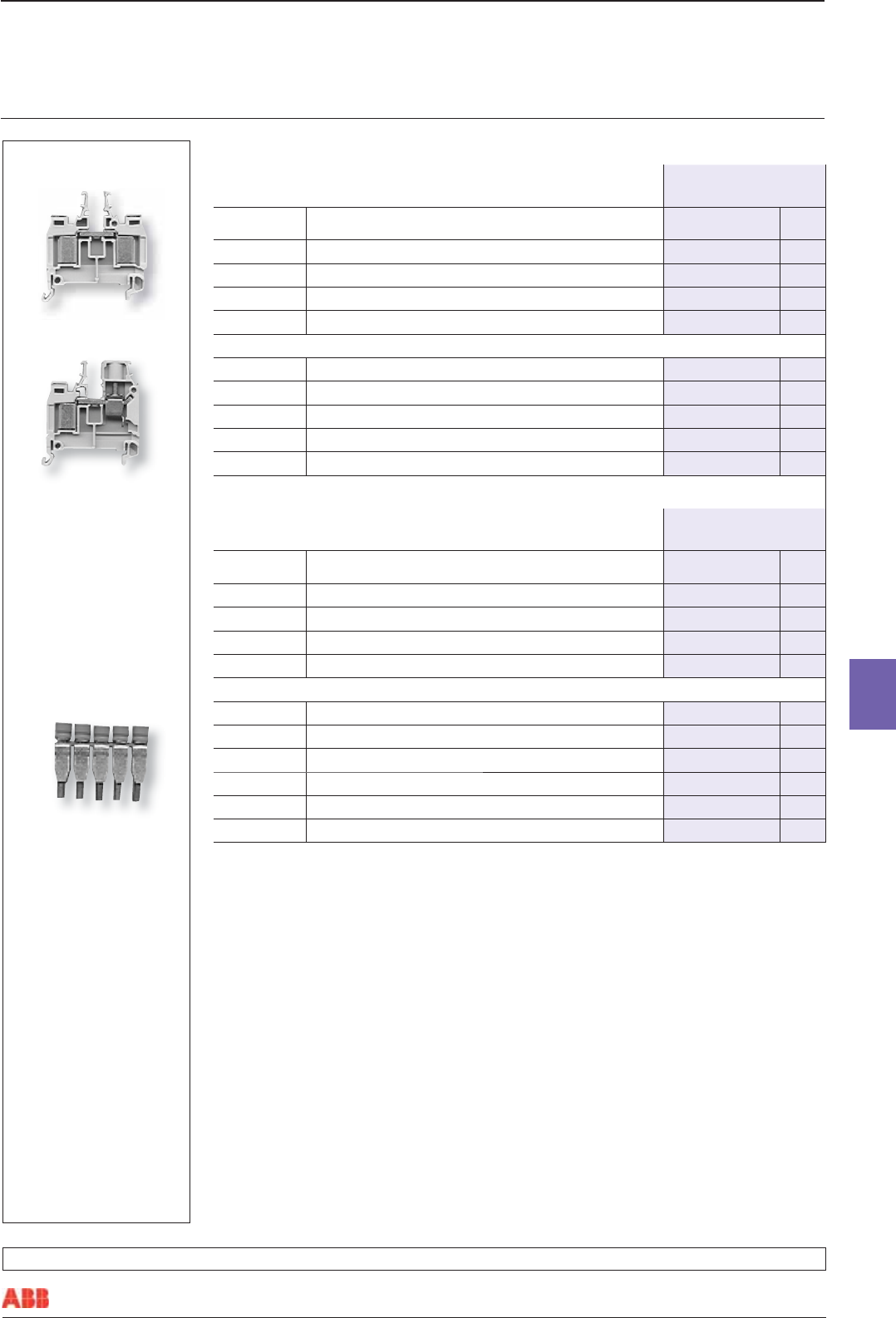

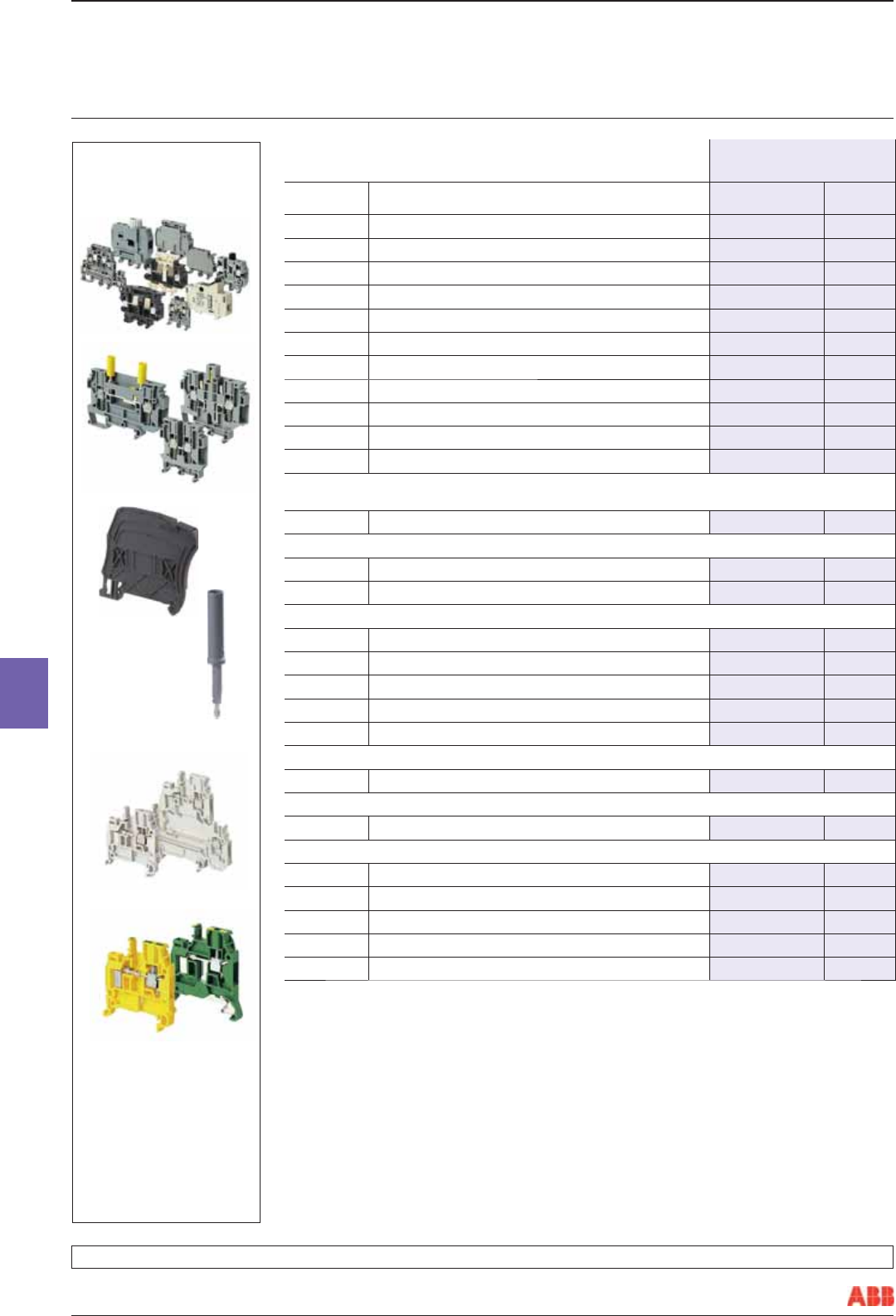

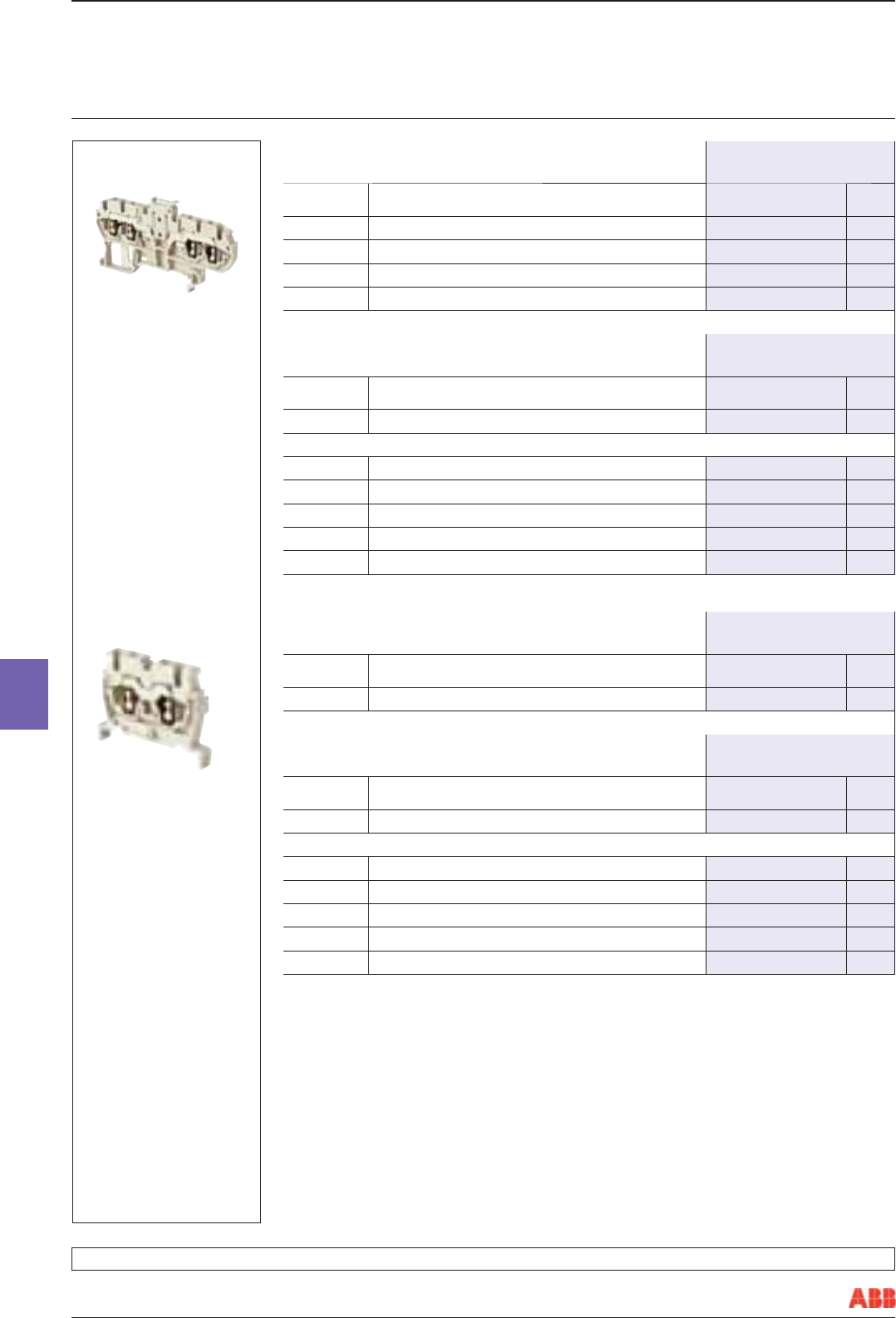

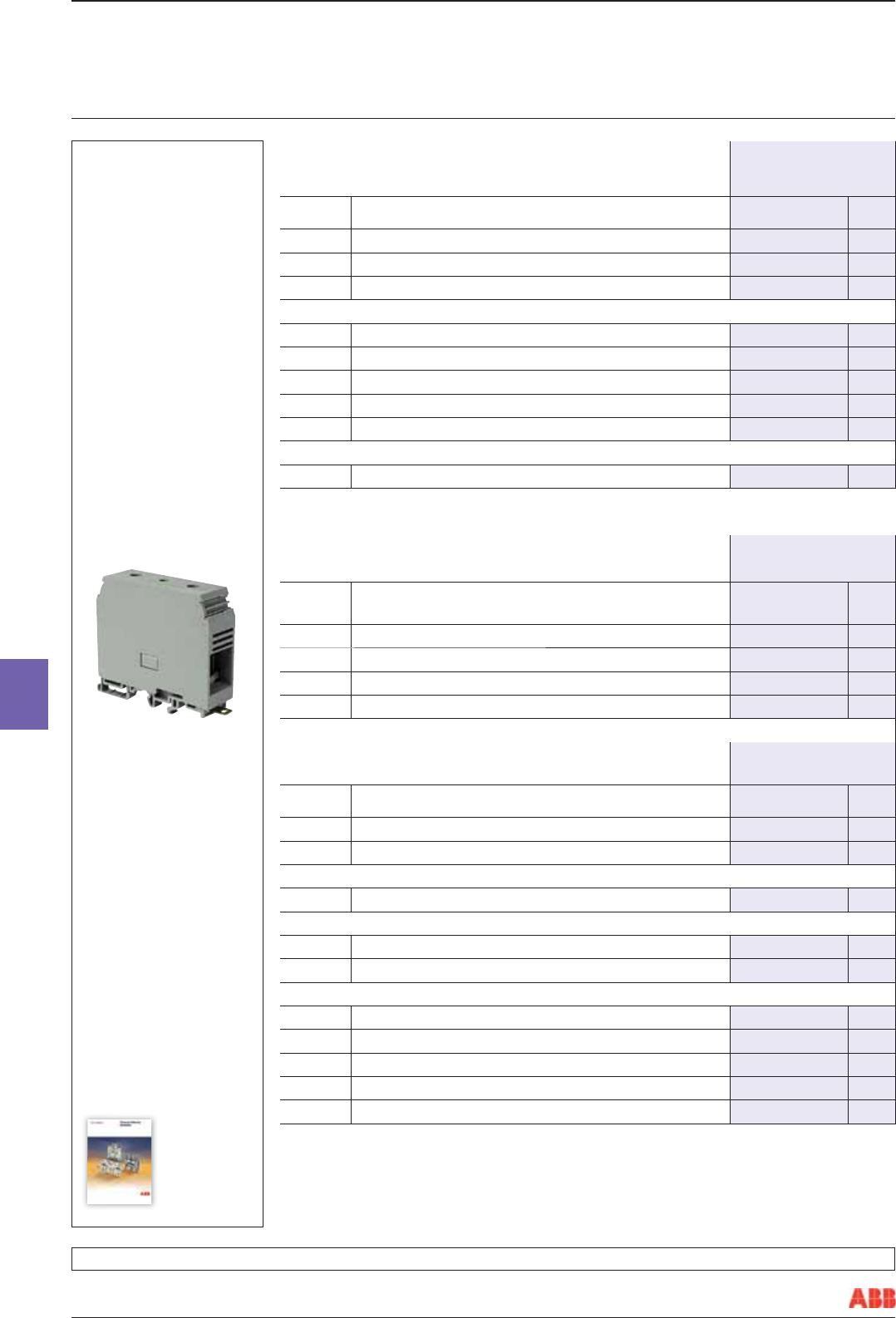

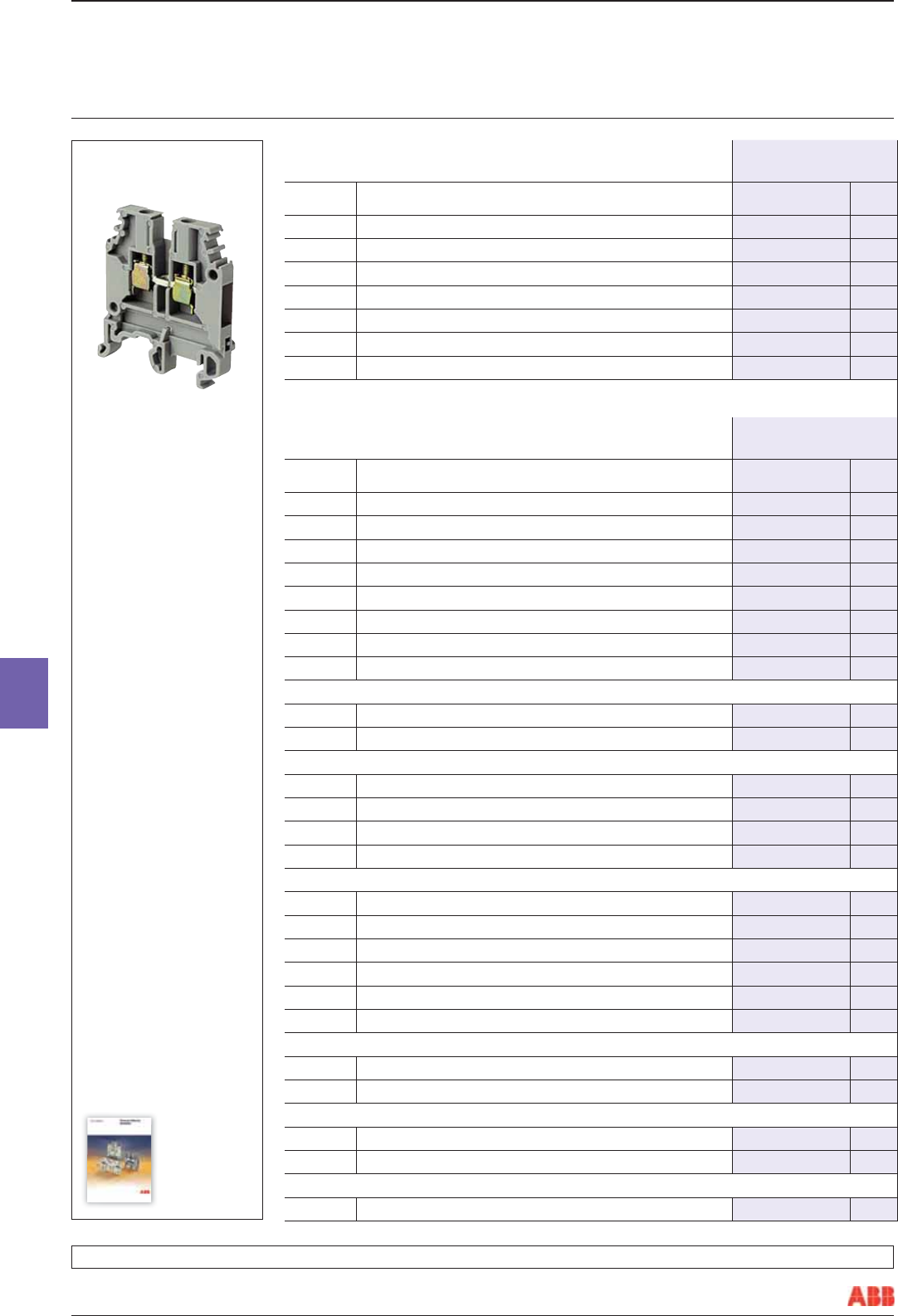

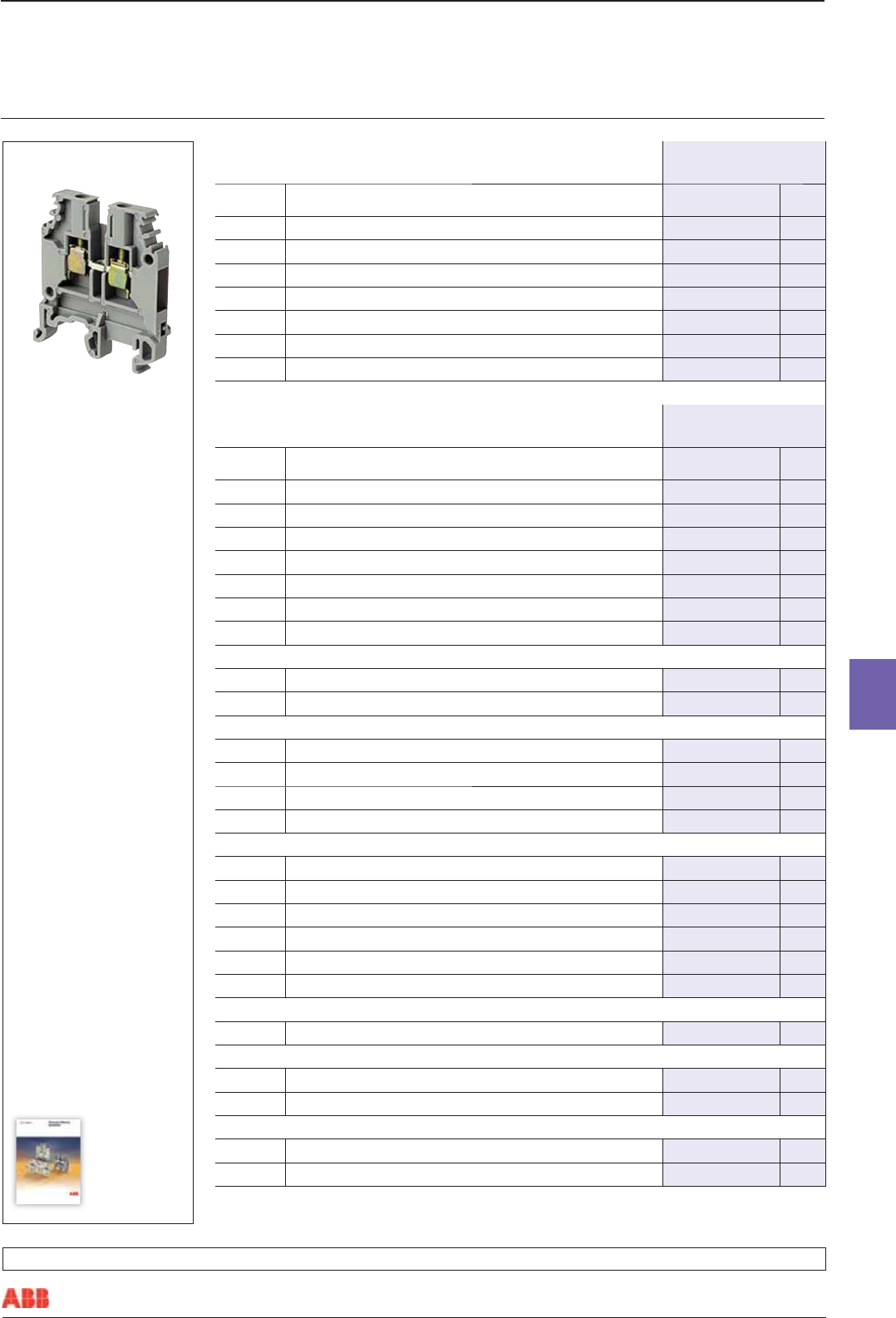

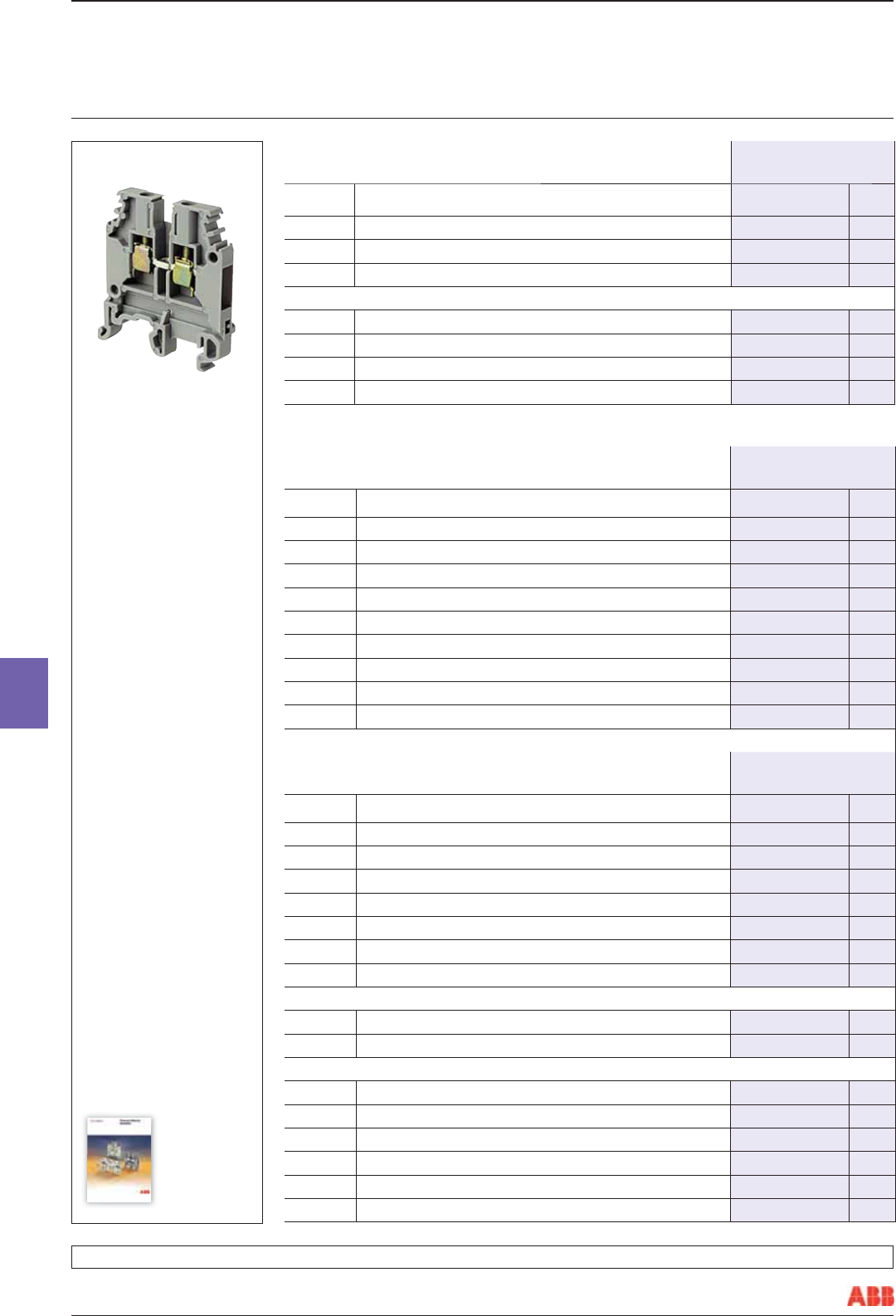

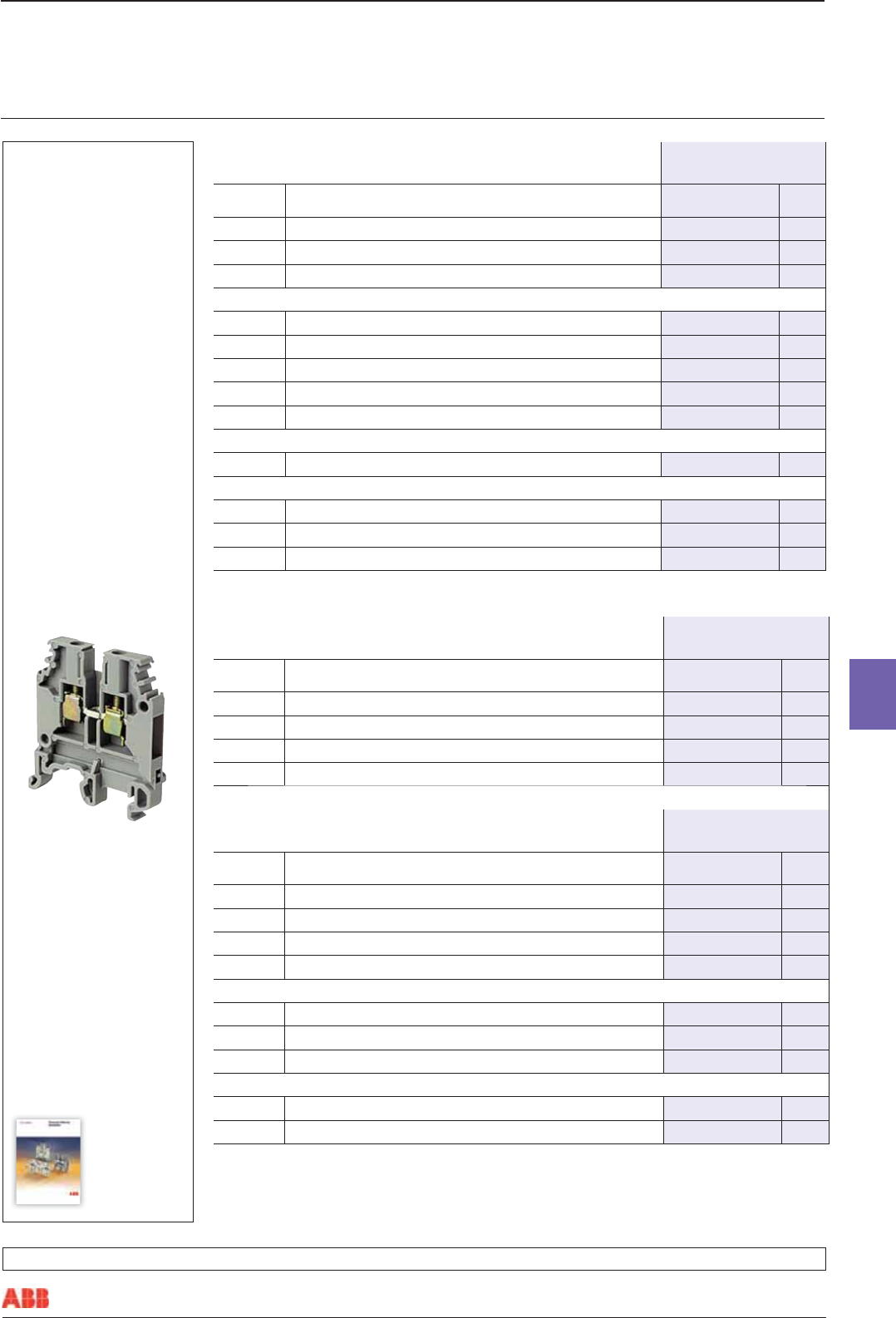

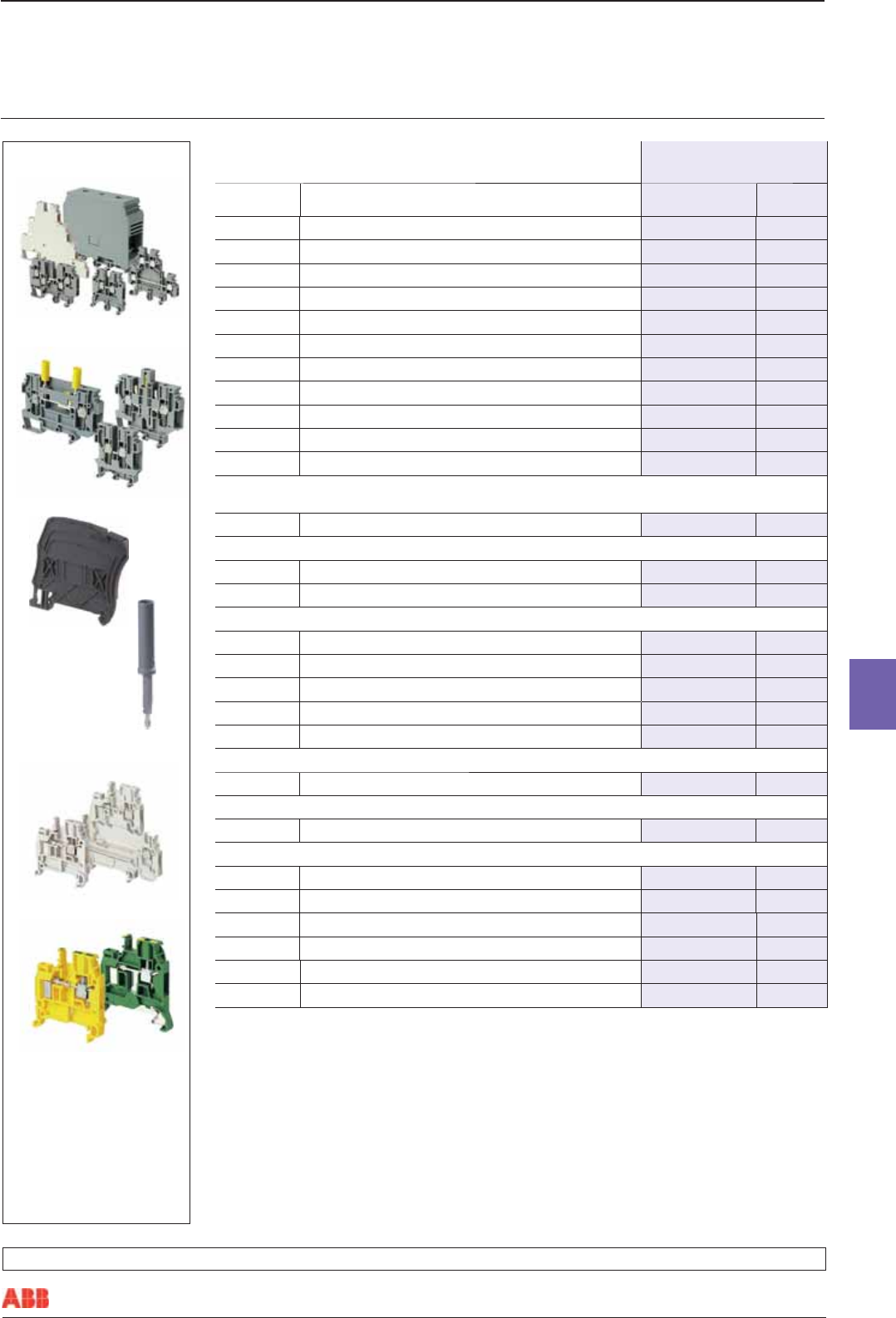

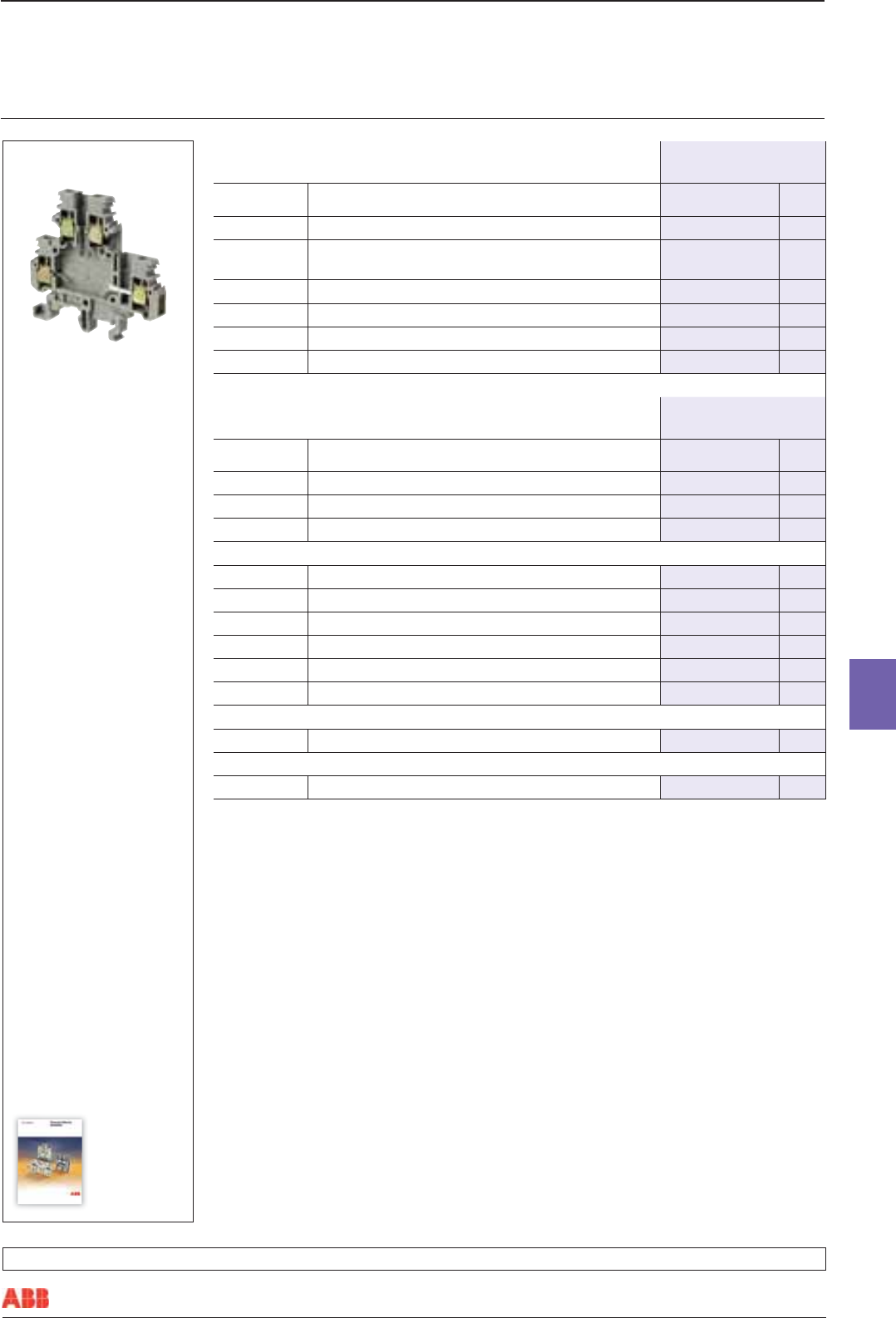

Feed Through Terminals

104

SNK Terminals

142

OFF

Gemini

Enclosures 99

Compact

RCCBs

Compact

RCDs

AF Series contactors

New

AF Range

Available

September 2010

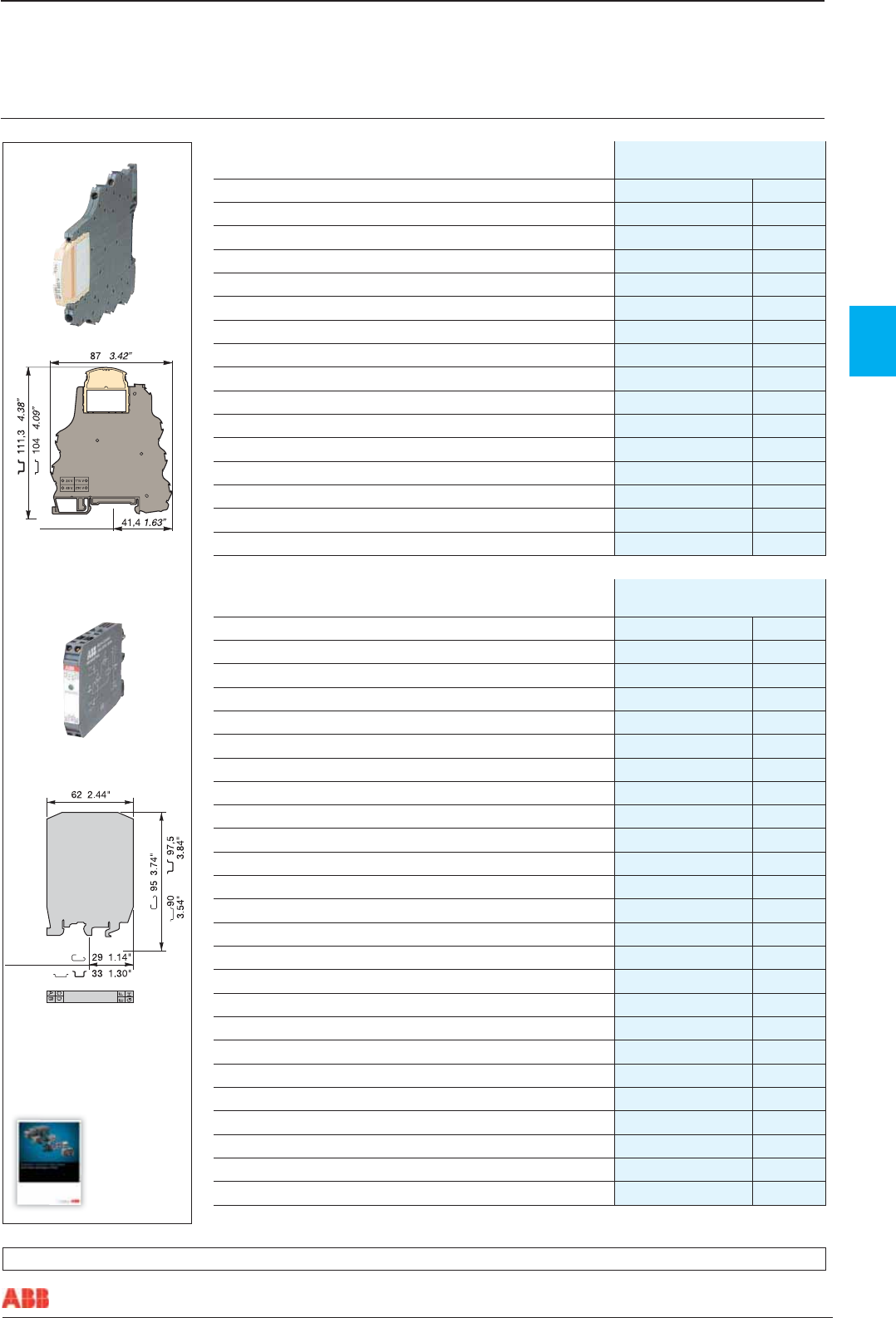

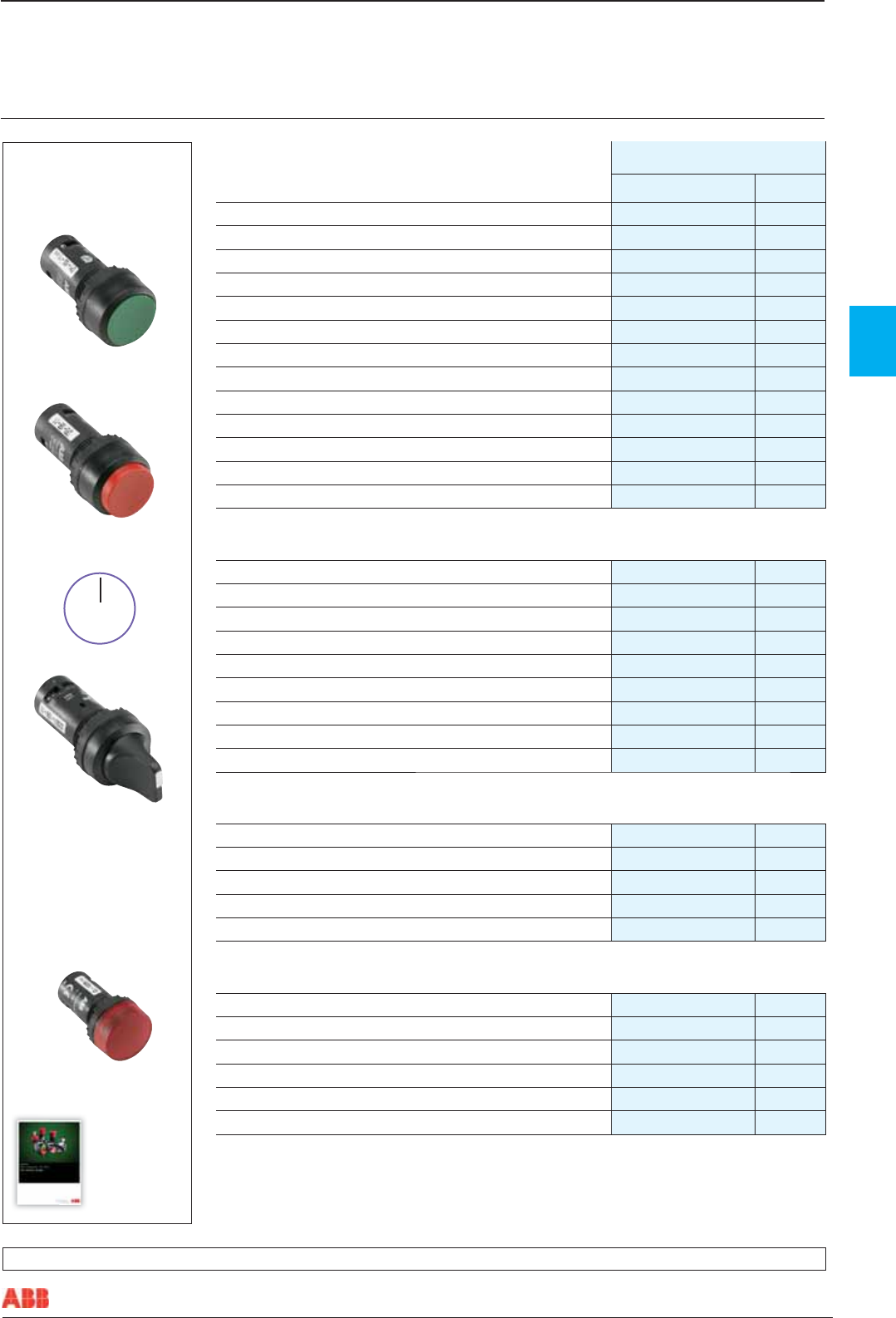

Pilot Devices Electronic Relays

Timers 3429

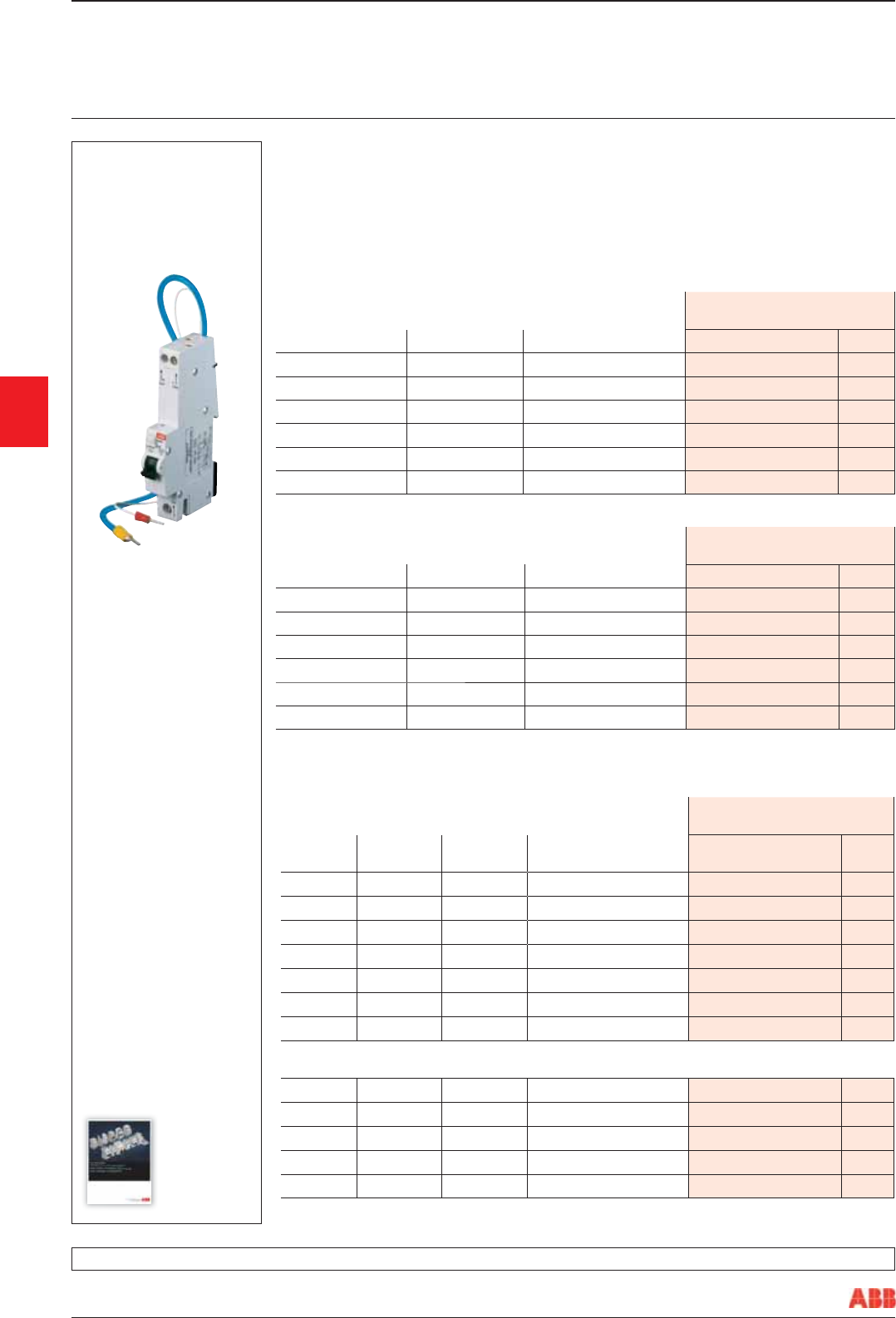

S271 RCBOs

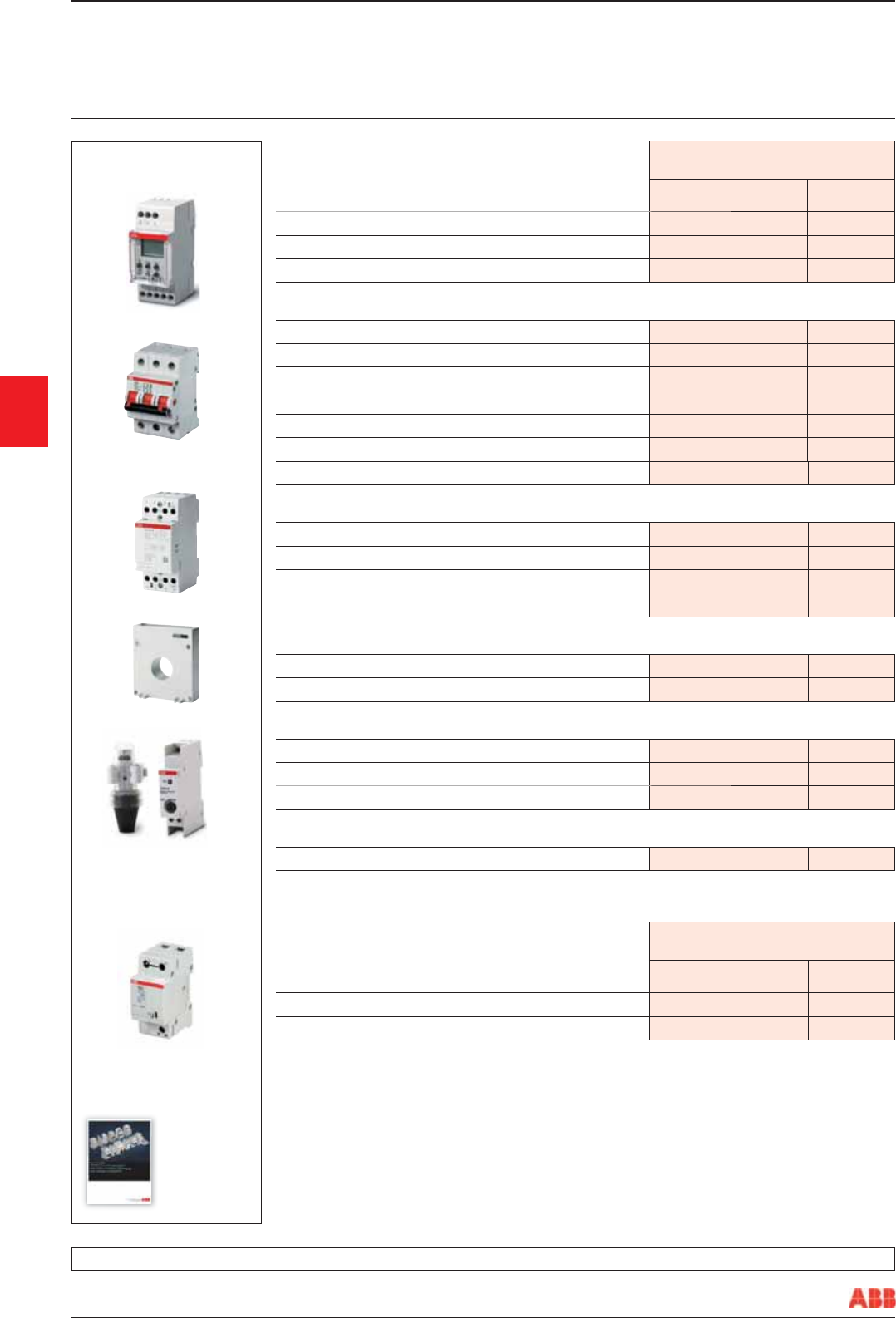

Compact Modular

Devices 58

Compact Energy

Meters 57

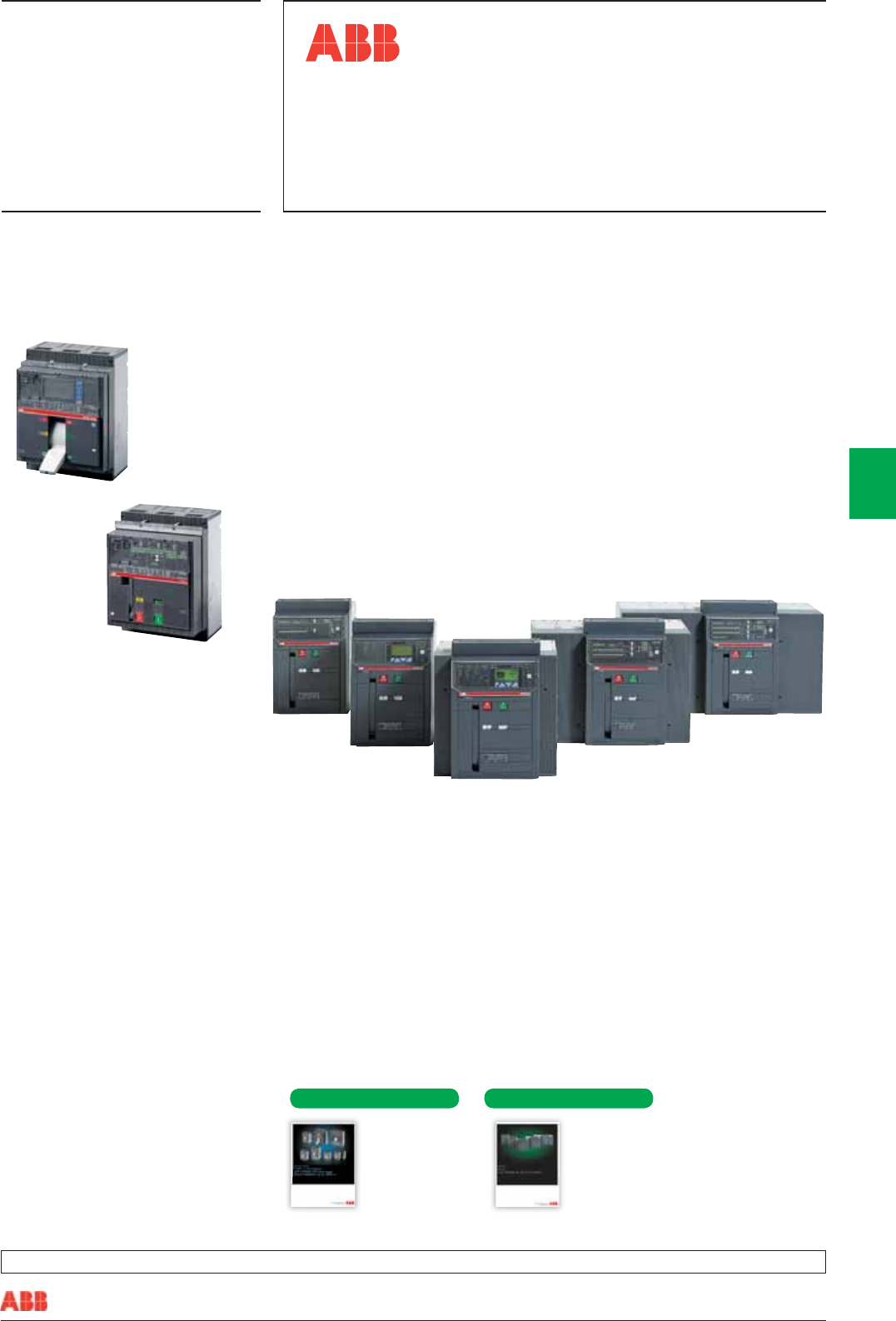

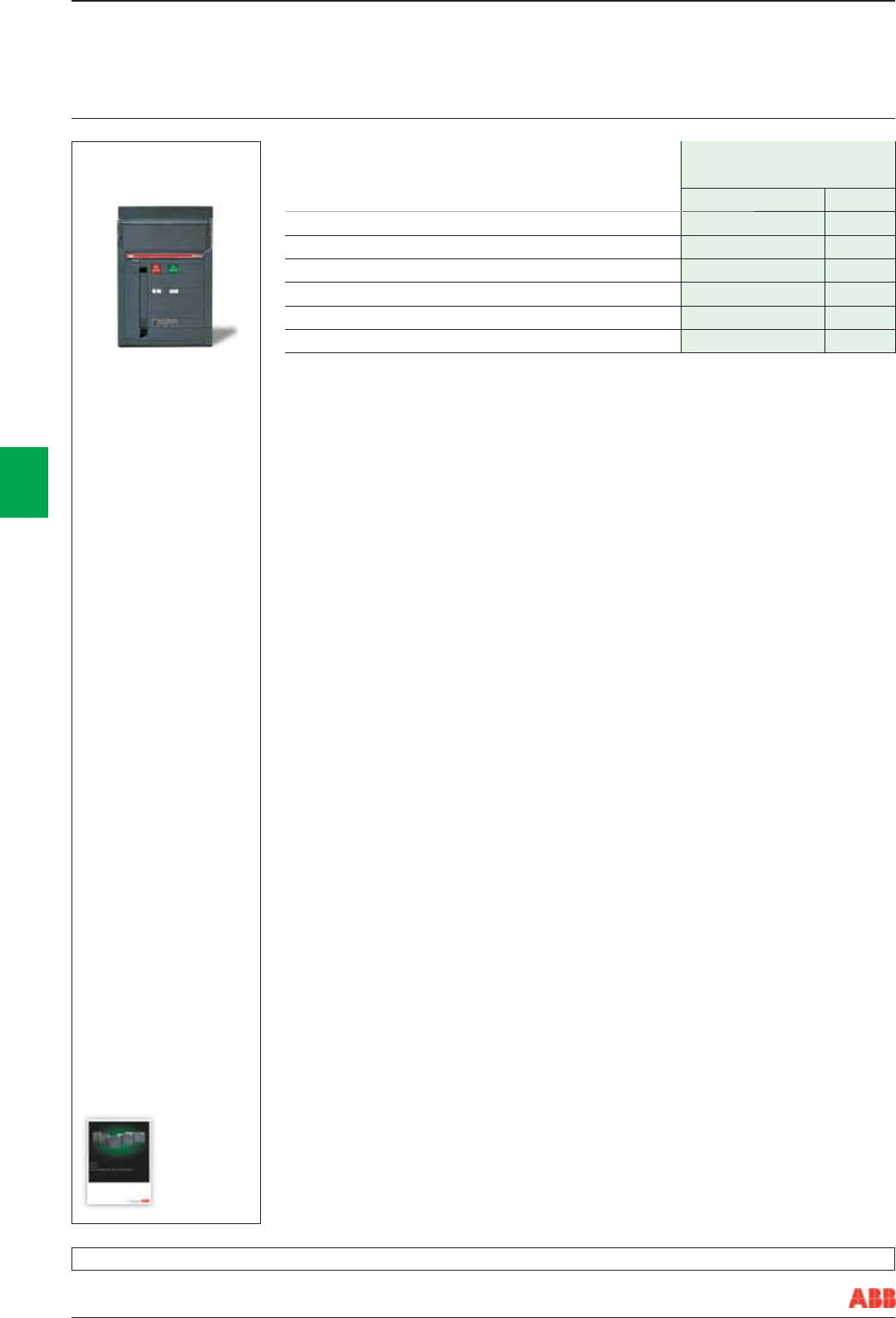

X Series ACBs

E Series ACBs

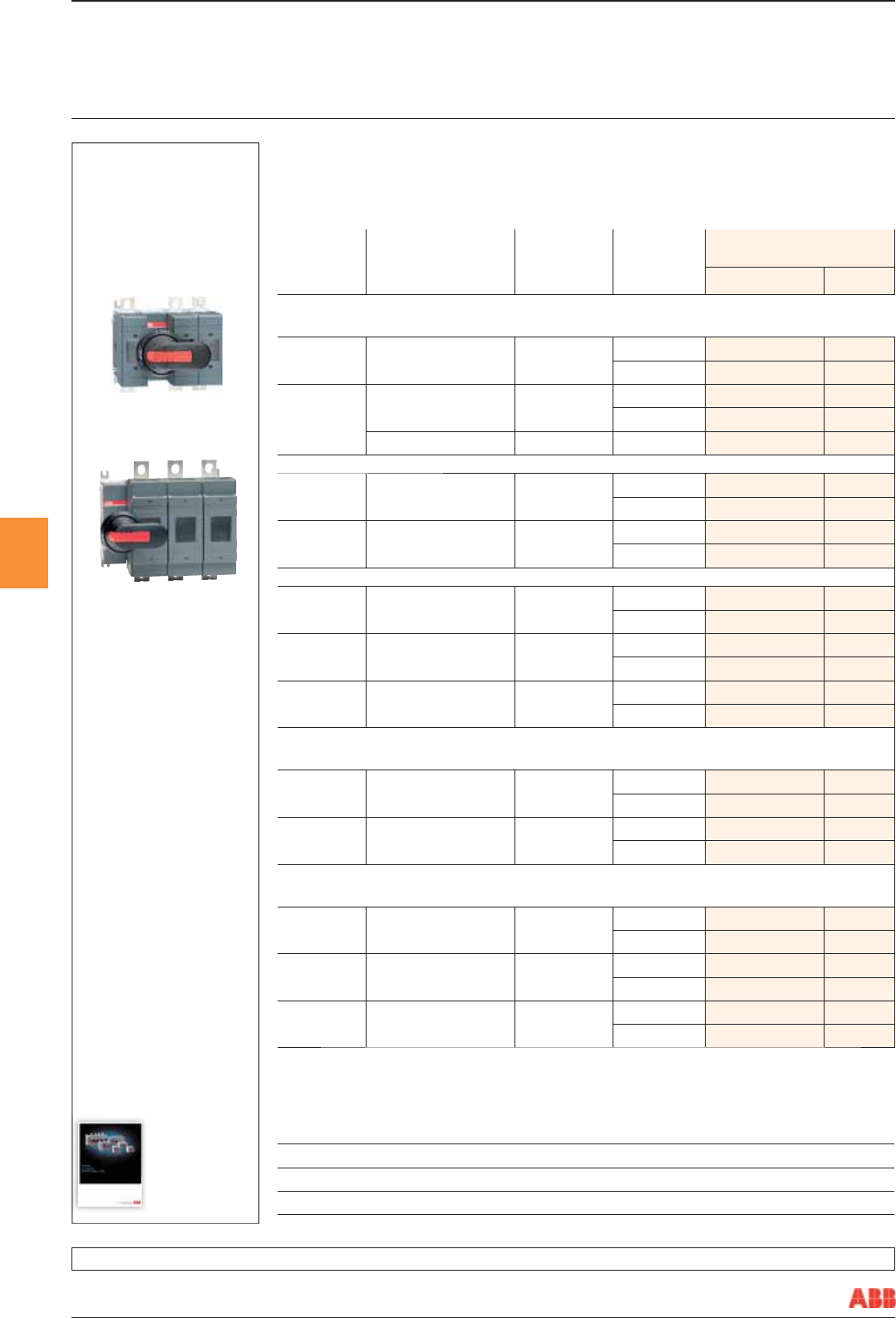

PowerLine Switch

Fuses 86

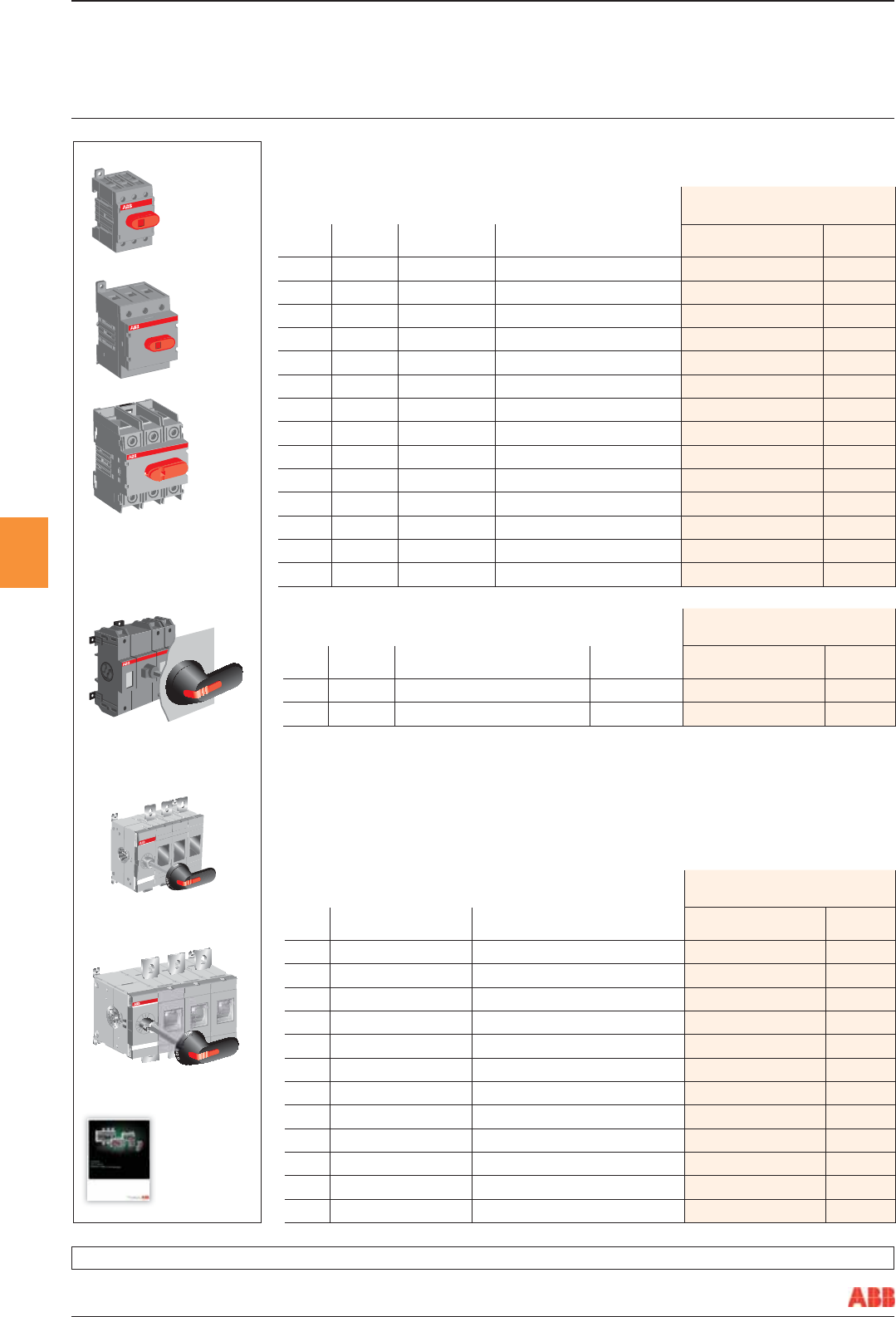

SlimLine Switch

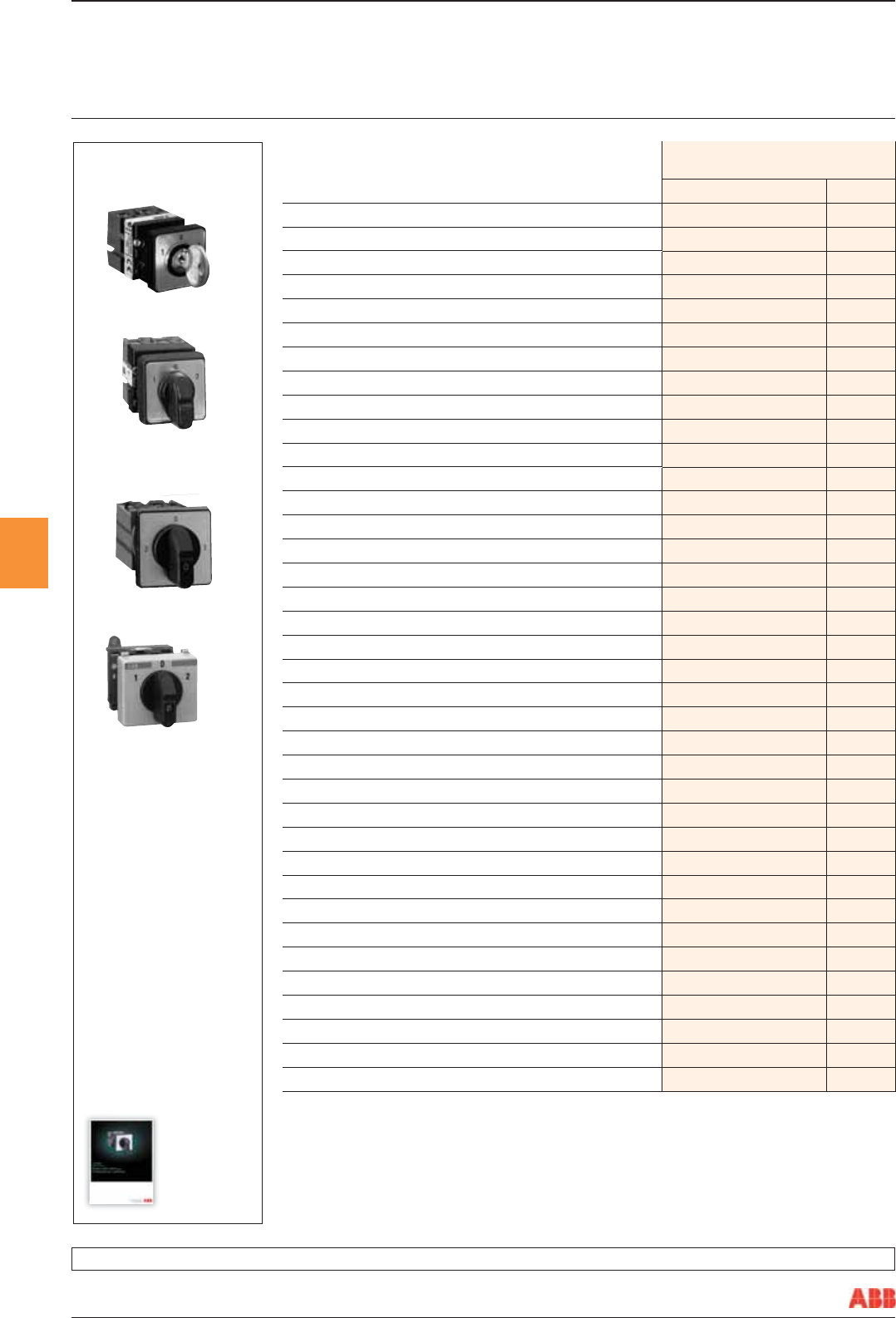

Disconnectors 95 CamLine

Cam Switches 96

The integrated product

range for the system builder

Soft Starters

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

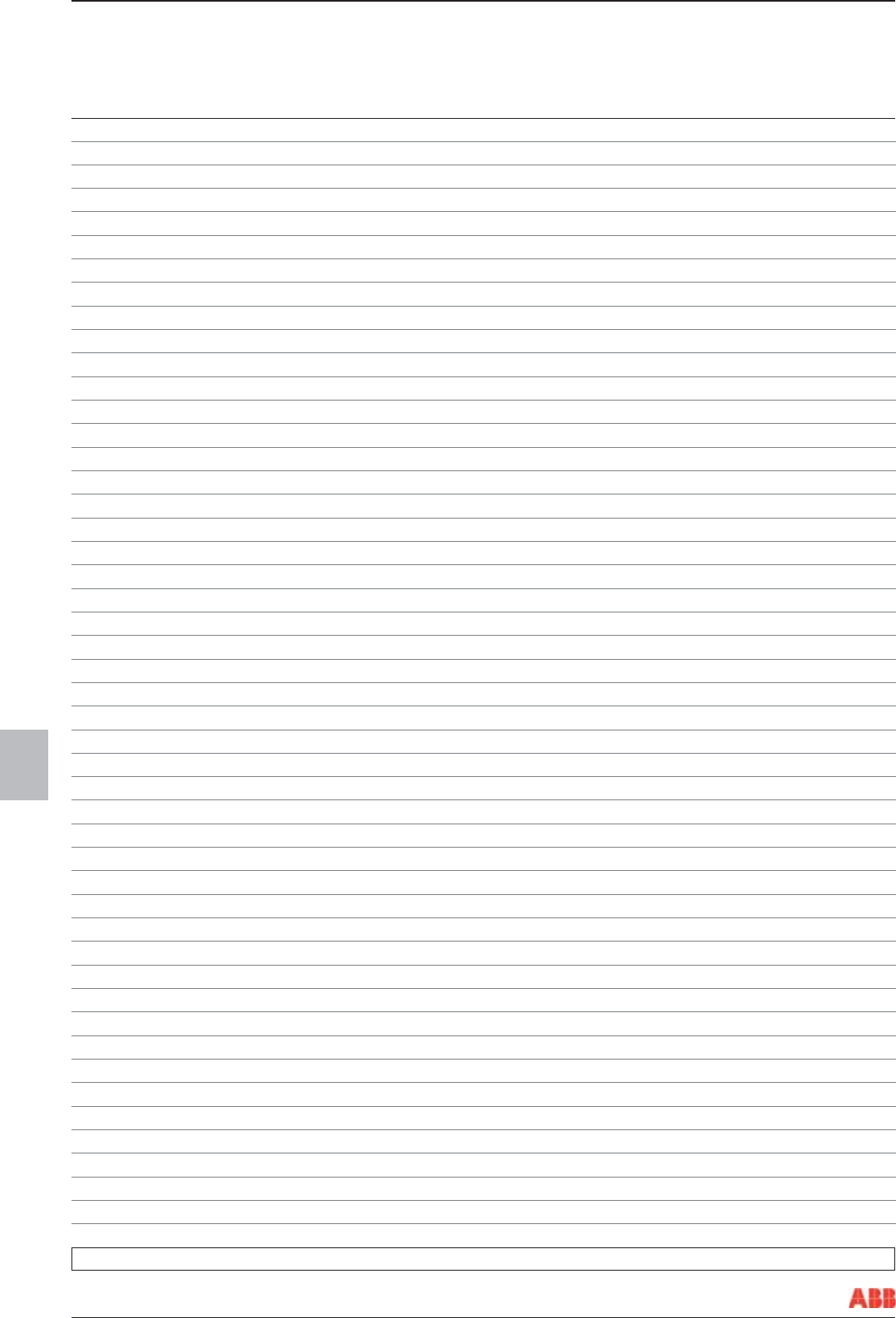

Notes

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

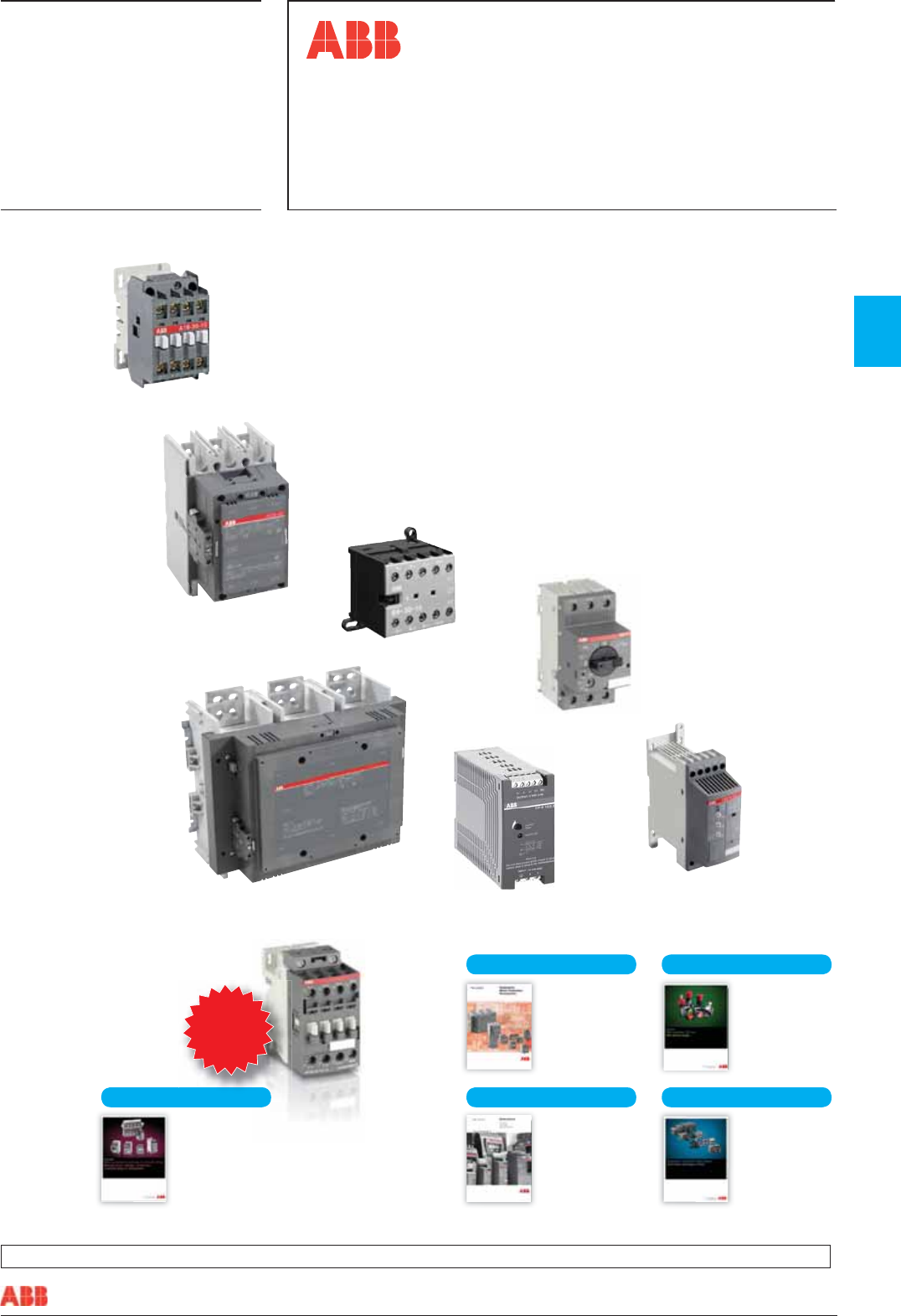

Control Gear

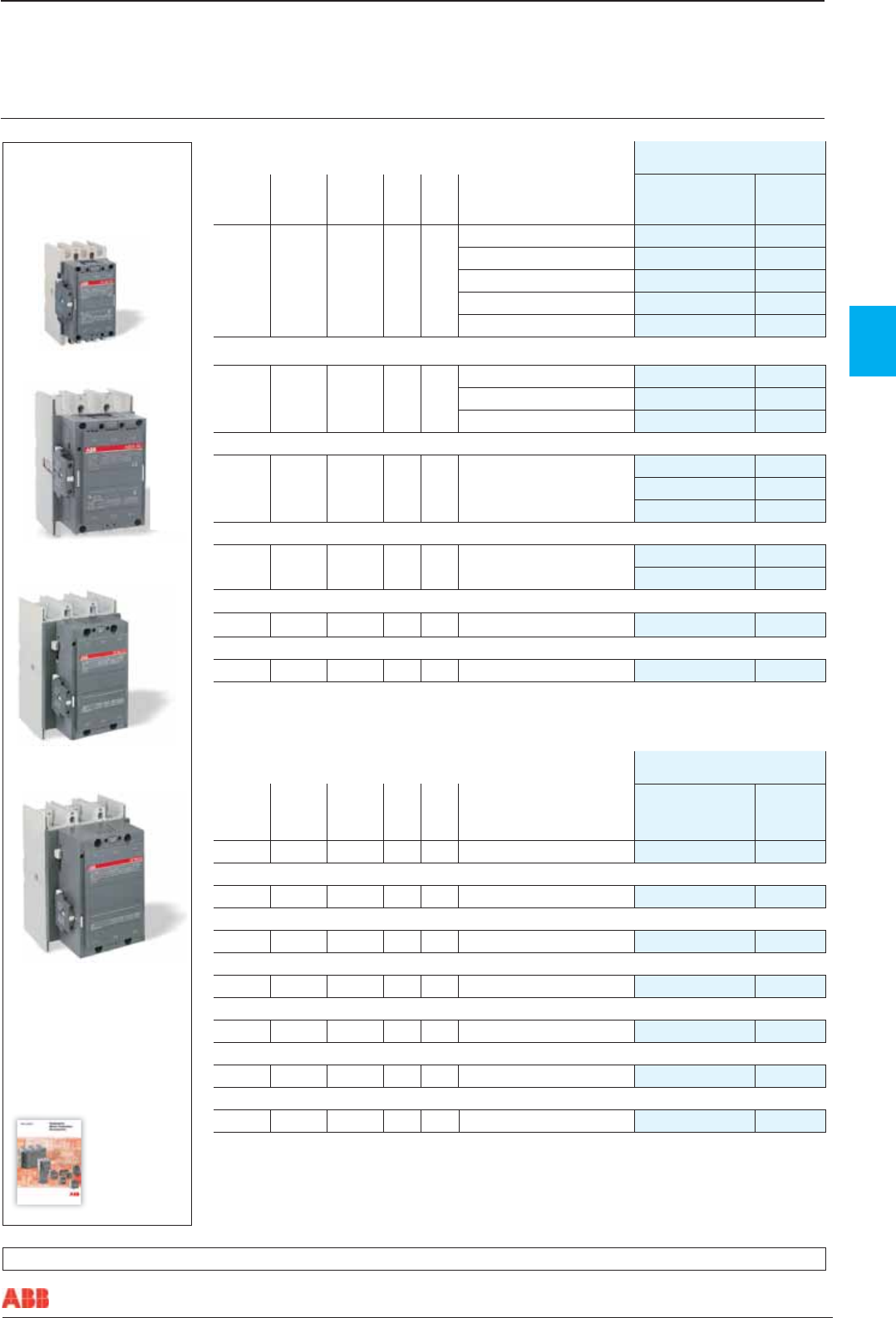

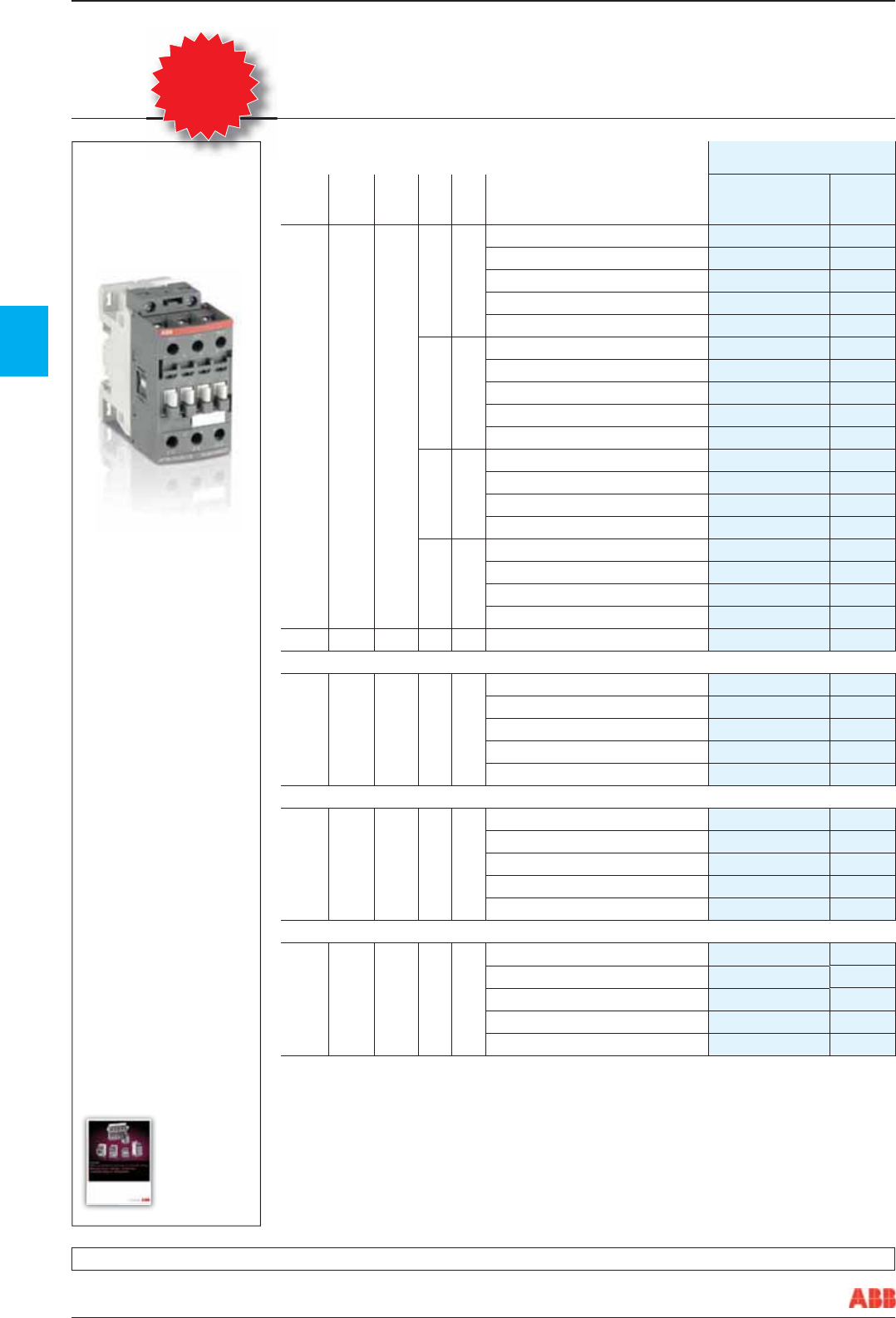

New AF Series Block Contactors .....................................................2 - 9

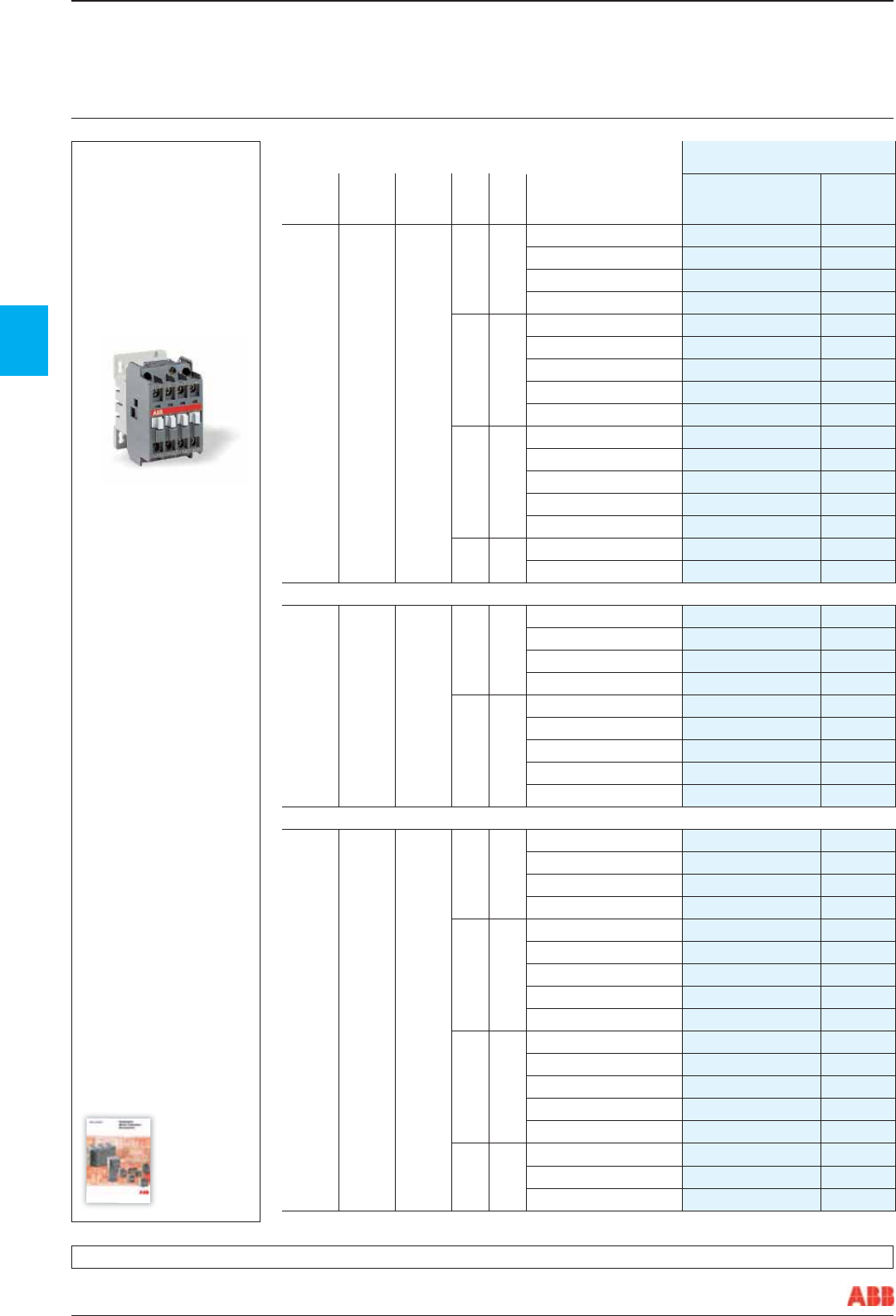

A and EK Series 3 & 4 Pole Block Contactors ..............................10 - 23

Mini Contactors ............................................................................24 - 25

Manual Motor Starters ..................................................................26 - 27

Soft Starters ........................................................................................ 28

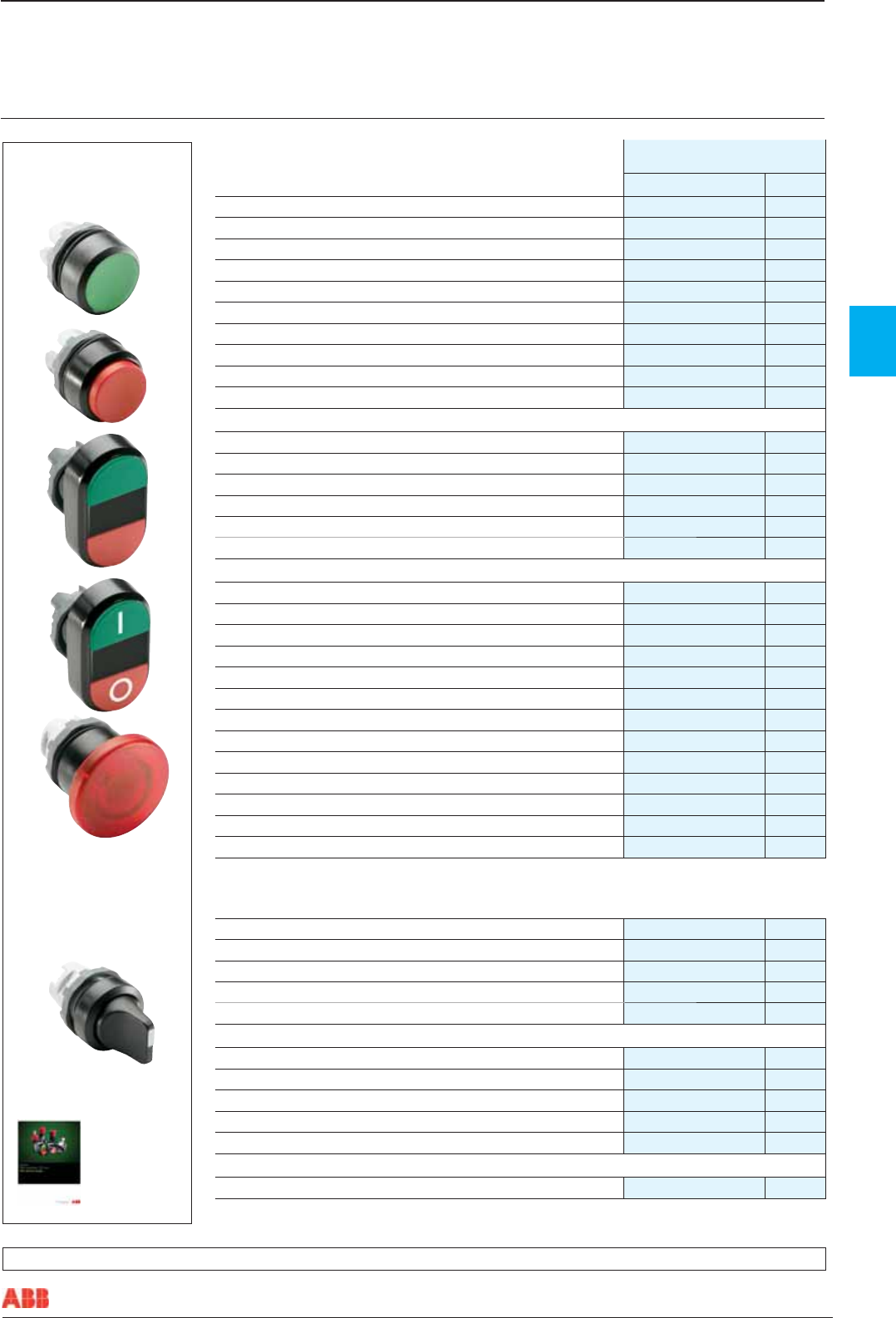

Pilot Devices .................................................................................29 - 33

Electronic Relays & Timers ...........................................................34 - 41

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC132004C0201

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC151003C0201

Block Contactors Pilot Devices

Soft Starters Relay & Timers

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

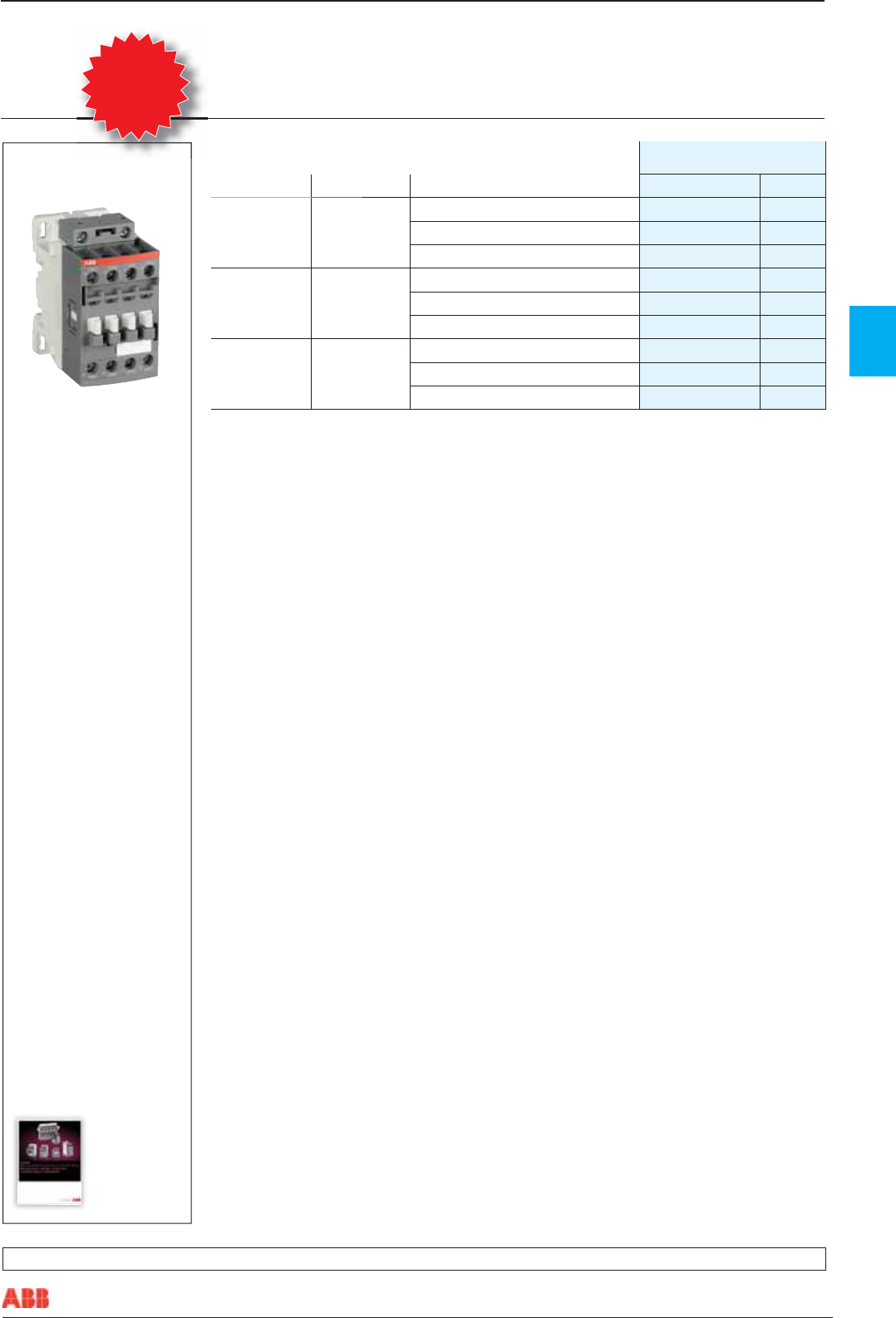

New Range Contactors

Ctt

New

AF Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

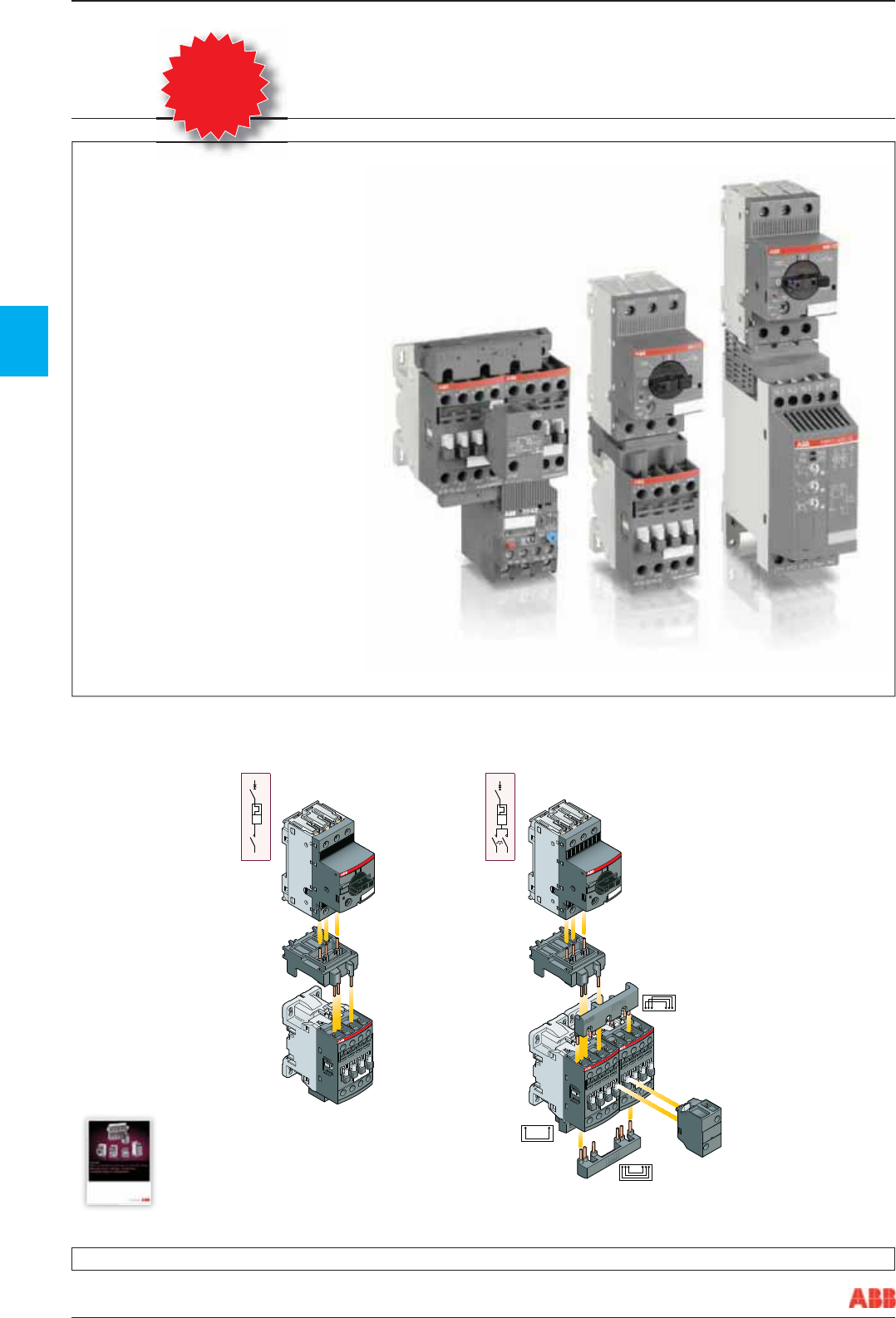

Motor Protection and Control up to 18kW/20hp

Overview

• Harmonised design and colour

• Modular and compact

• Low energy consumption

• Small number of components

• Minimum need for accessories

• Optimised wiring and

configuration

• High ratings and service

capability

• Increased application

possibilities

• Reliable and experienced

Starters Protected by Manual Motor Starters

I >

Reversing StartersDirect-On-Line Starters

VEM4

mechanical &

electrical

interlock set

BEA...

Connecting link

MS...

Manual motor starter

MS...

Manual motor starter

BEA...

Connecting link

AF...

Contactor

BER..-4

Connection set

AF...

Contactor

A2-A2

Connection

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

New

AF Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

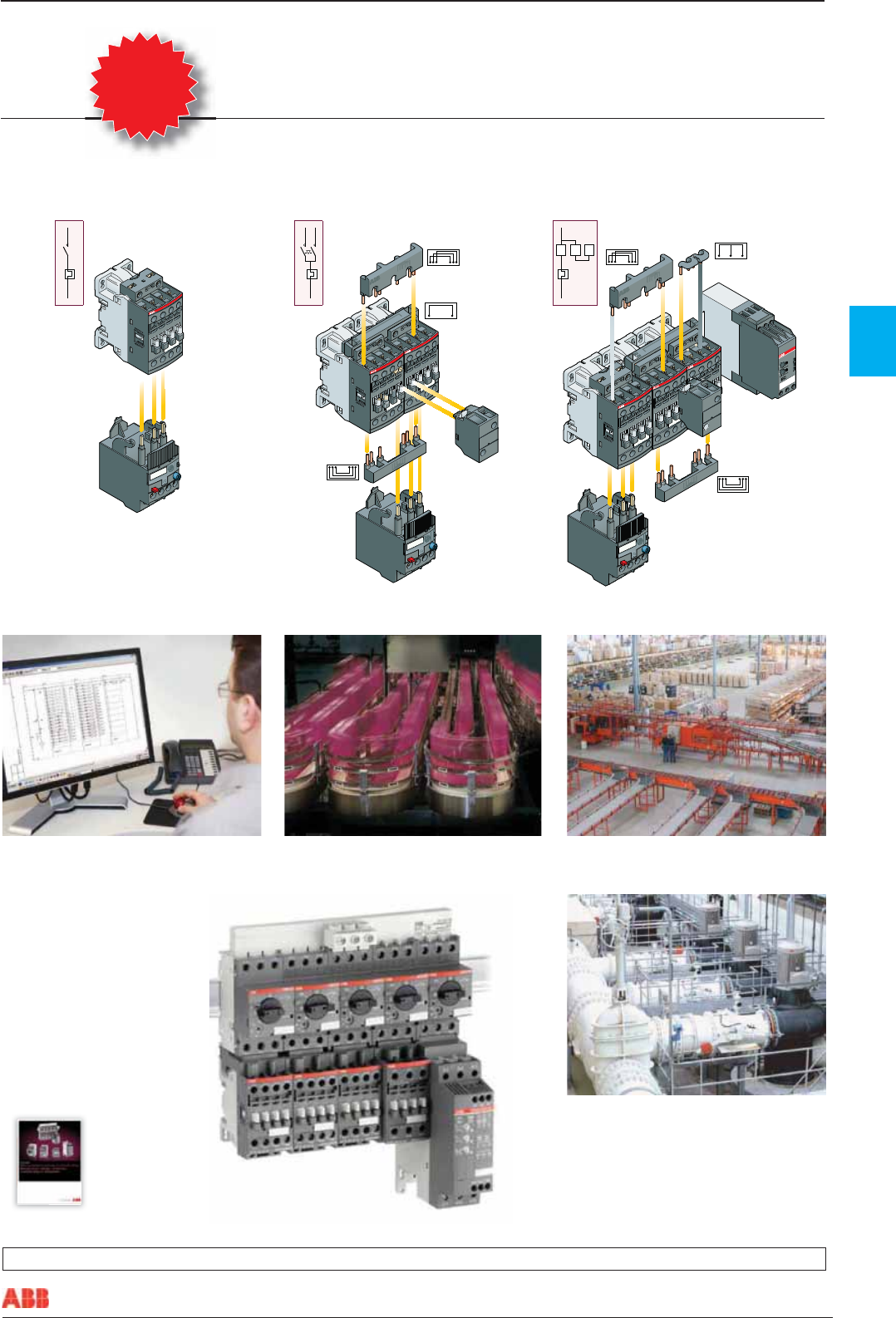

Starters Protected by Thermal Overload Relays



Reversing Starters Star-Delta StartersDirect-On-Line Starters

TF42

Thermal overload relay

BER..-4

Connection set

AF...

Contactor

TF42

Thermal overload relay

TF42

Thermal overload relay

BEY..-4

Connection set

AF...

Contactor

VEM4

mechanical &

electrical

interlock set

A2-A2

Connection

VEM4

mechanical &

electrical

interlock set

AF...

Contactor

On-delay timer

06 S0201

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

Greater flexibility with fewer components Meets all relevant electrical standards Allows the design engineer greater flexibility

Reliability of operation through years of experience

Motor Protection and Control up to 18kW/20hp

Overview

New

AF Range

Available

September 2010

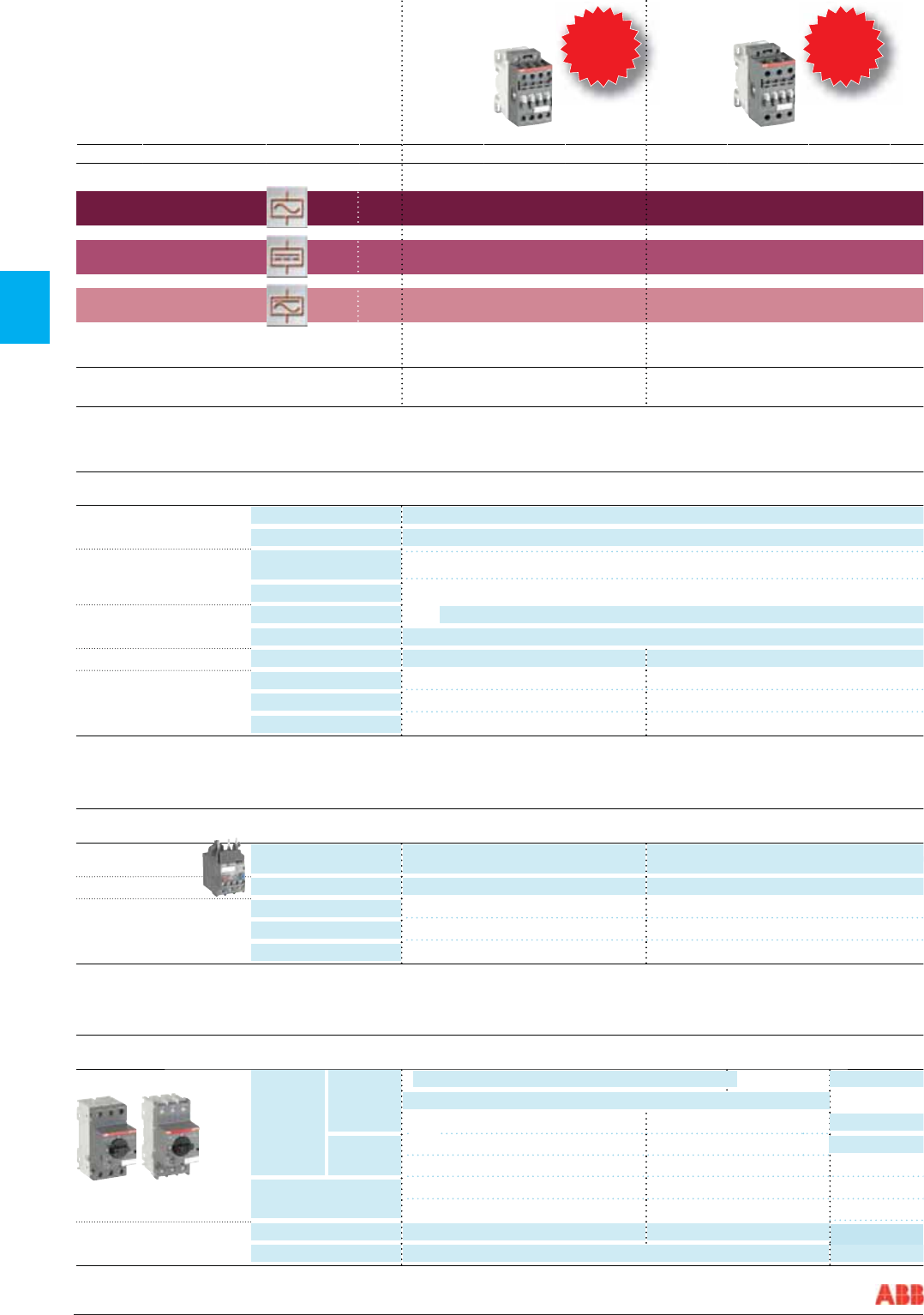

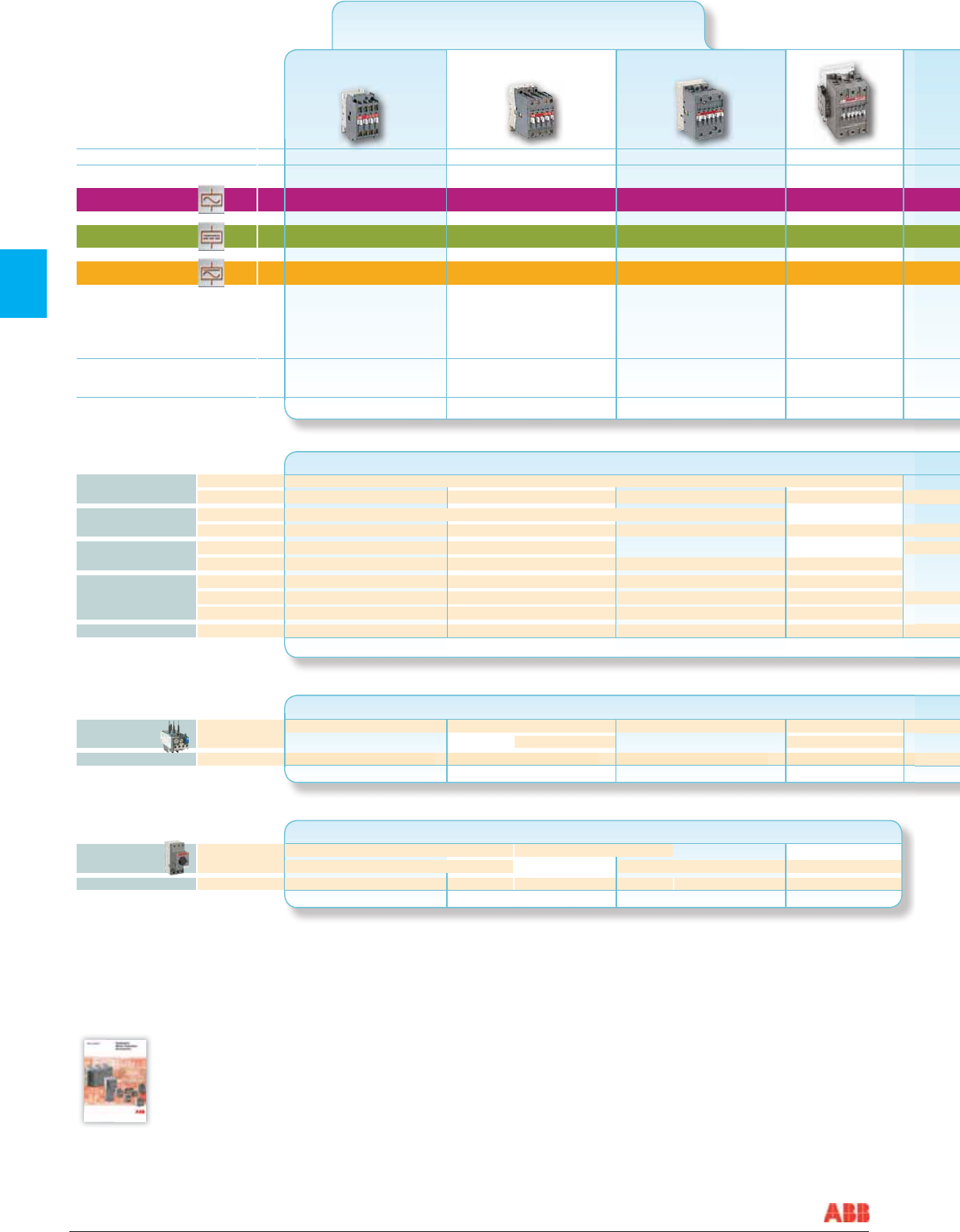

IEC

AC-3 Rated Power θ ≤ 55 °C, 400 V

kW 4 5.5 7.5 11 15 18.5

UL/CSA

3-phase Motor Power

480 V hp 5 7.5 10 15 20 20

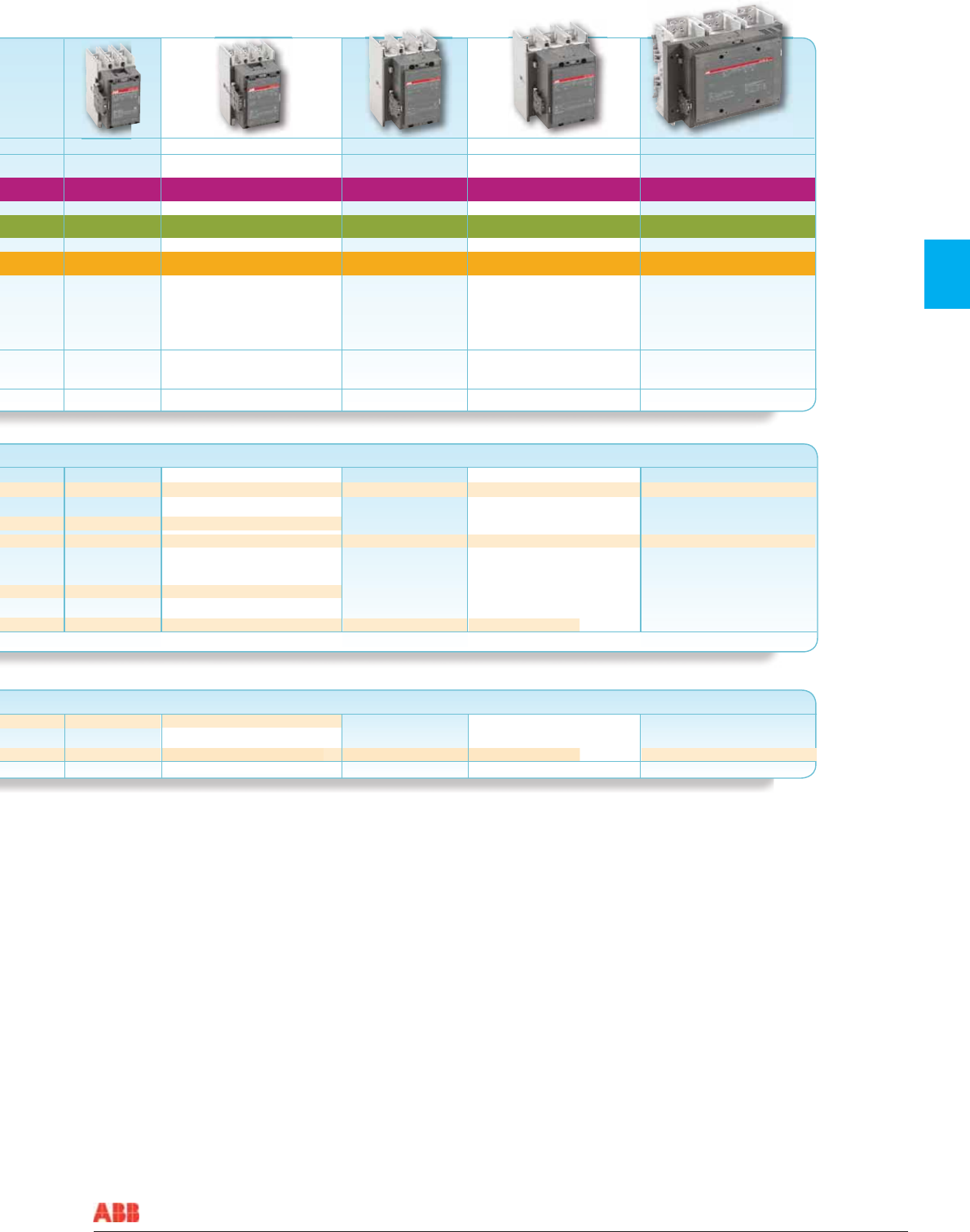

AC Control Supply Type AF09 AF12 AF16 AF26 AF30 AF38

DC Control Supply Type AF09 AF12 AF16 AF26 AF30 AF38

AC / DC Control Supply Type AF09 AF12 AF16 AF26 AF30 AF38

IEC

AC-3 Rated Current θ ≤ 55 °C, 400 V

A 9 12 18 26 32 38

AC-1 Rated Current θ ≤ 40 °C, 690 V

A252830 45 50 50

UL/CSA

NEMA Size

00 0 — 1 — —

General Use Rating 600 V A252830 45 50 50

for all industrial applications

and motor starting

Manual Motor Starters

Thermal /

magnetic

protection

Class 10

MS116 for class 10A (0.10…16 A) I cs up to 50 kA MS450(11…50 A)

MS132 (0.10…32 A) I cs up to 100 kA

MS497(11…100 A

)

Class 20

MS451(11…50 A)

Magnetic only types

Accessories

For contactor mounting

BEA16-4 BEA38-4

Aux. trip units, aux. contacts, busbars

HKF1, HK1, UA1, AA1, PS1, S1, SK1, CK1 (MS132 only) AA4, PS4, S4, SK4

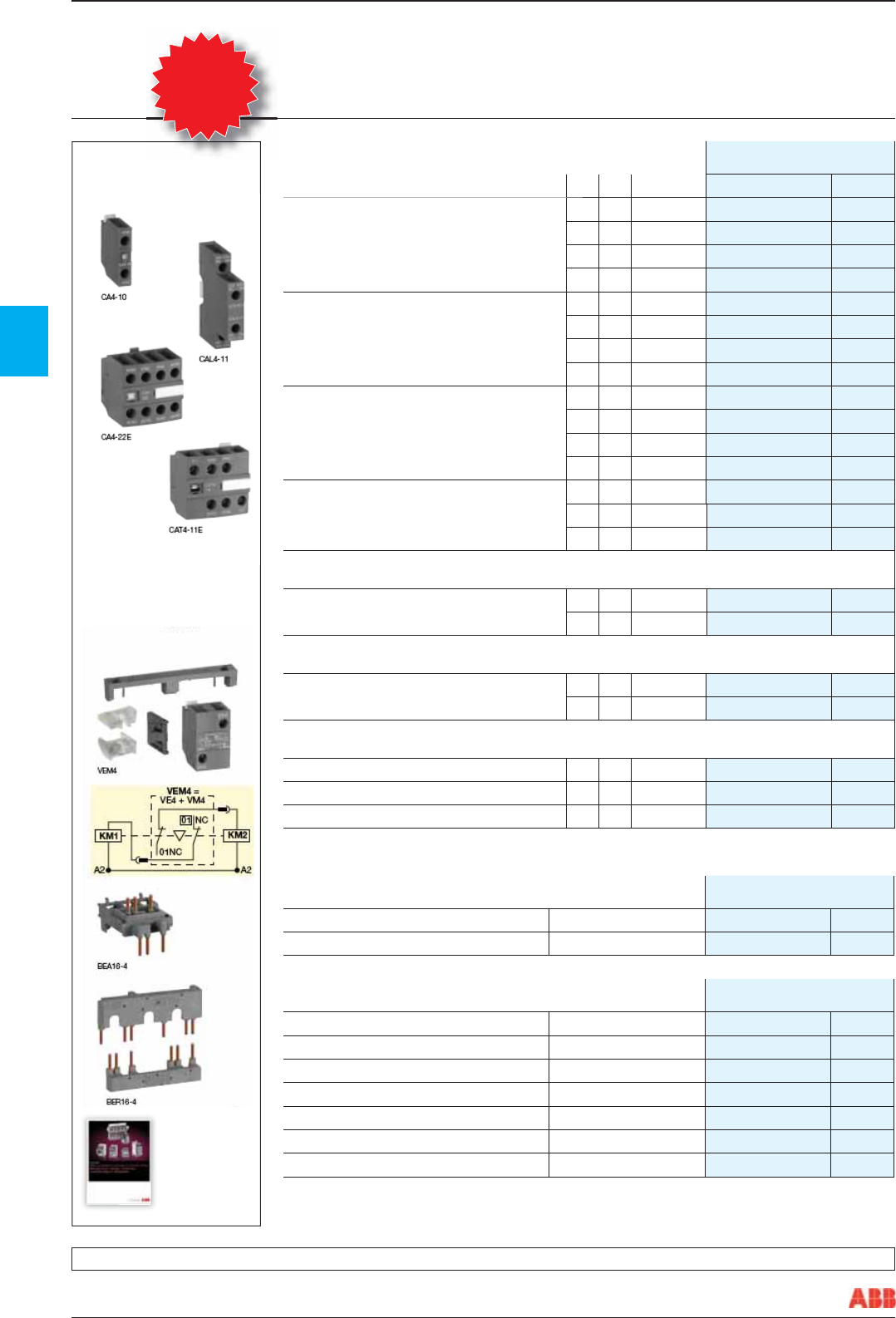

Main Accessories

Auxiliary Contact Blocks

Front mounting

CA4-10 (1 x N.O.) CA4-01 (1 x N.C.)

Side mounting

CAL4-11 (1 x N.O. + 1 x N.C.)

Timers Pneumatic

(Front mounting)

Electronic*

Interlocking Units Mechanical VM4

Mechanical / Electrical VEM4

Connection

Sets

For reversing contactors BER16-4 BER38-4

Surge Suppressors

AF contactors have built-in surge

protection

Varistor (AC/DC)

RC Type (AC)

Transil diode (DC)

* AF contactors do not need TE5S electronic timer

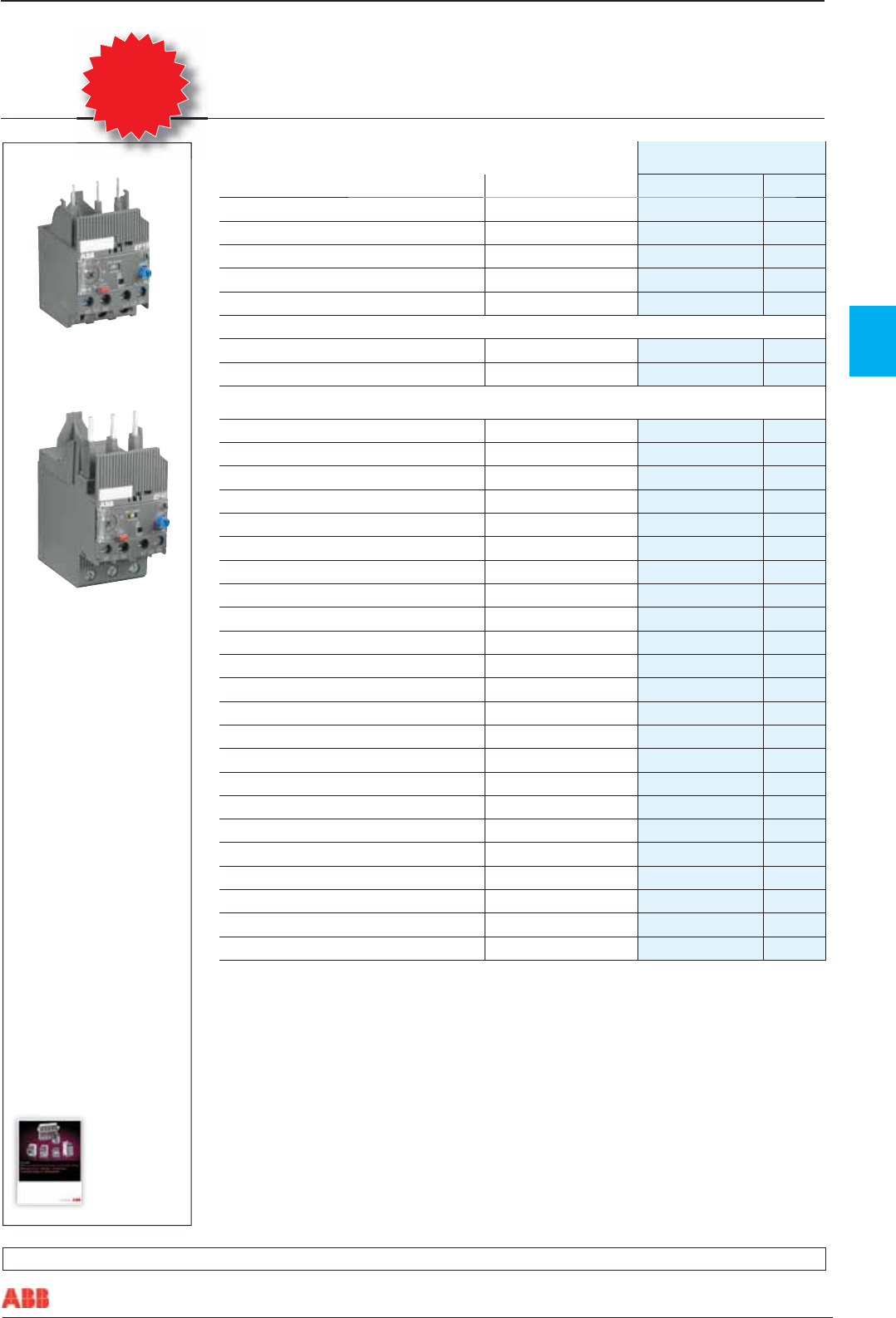

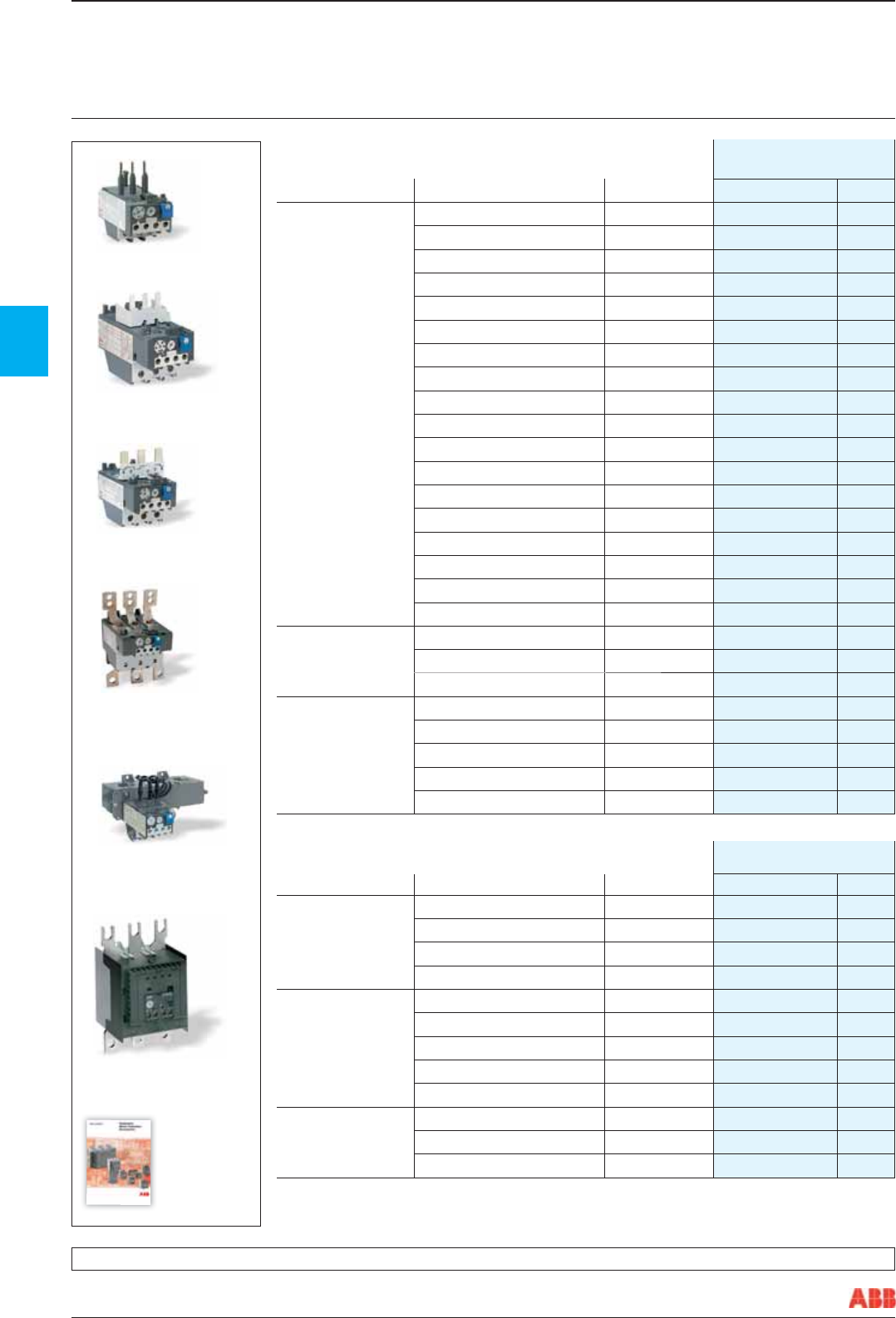

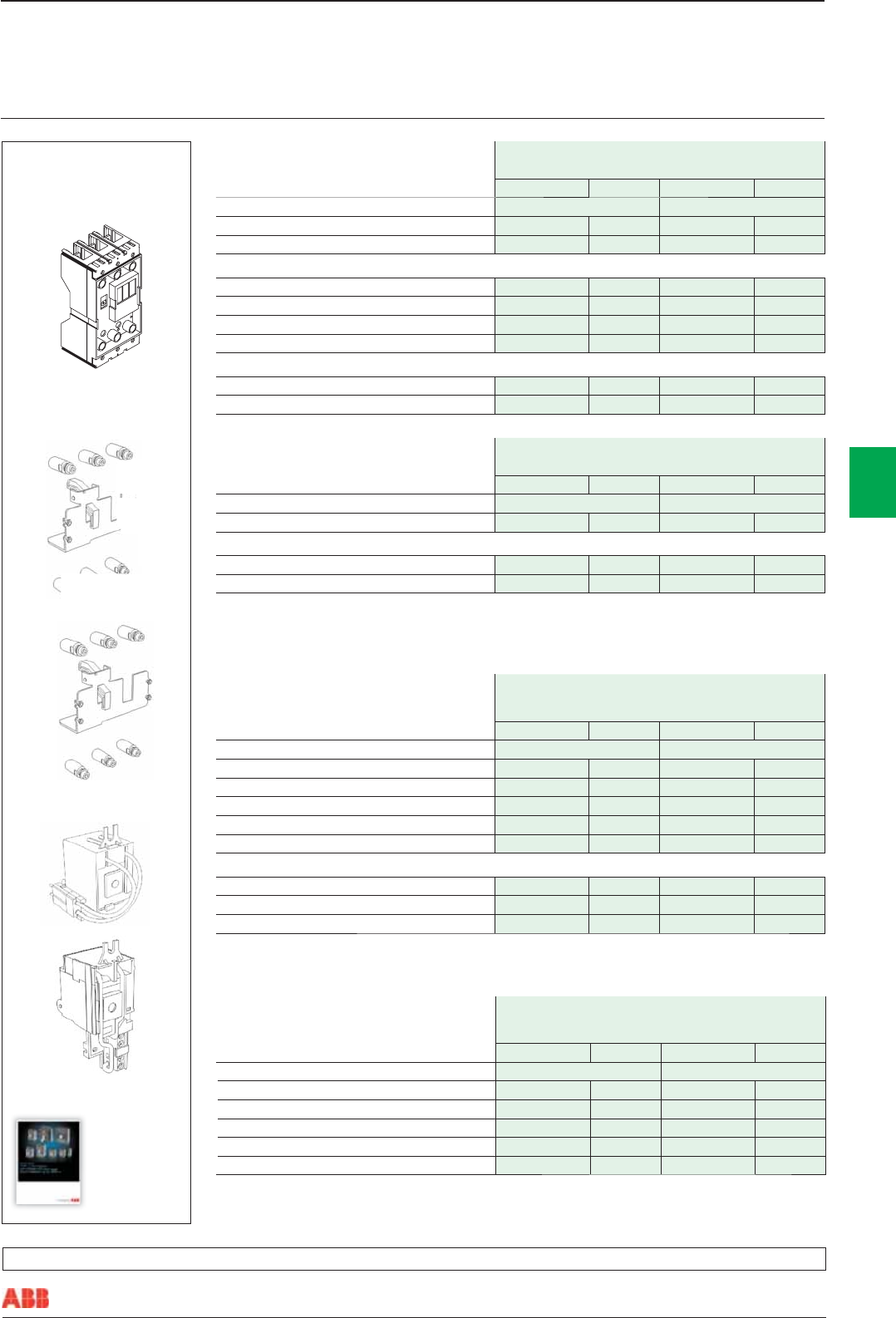

Overload Relays

Thermal Relays

Class 10 (10A or 20

for TA42DU to TA80DU)

TF42 TF42

Electronic Relays

Class 10E, 20E, 30E

EF19 (0.10…18.9 A) EF19 (0.10…18.9 A) EF45 (9…45 A)

Accessories for Thermal

Overload Relays

Remote tripping coil

Remote reset coil

Wall/separate mounting kit

New

HK4, HKS4, UA4,

3 Pole Block Contactors

New

AF Range

Available

September 2010

New

AF Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

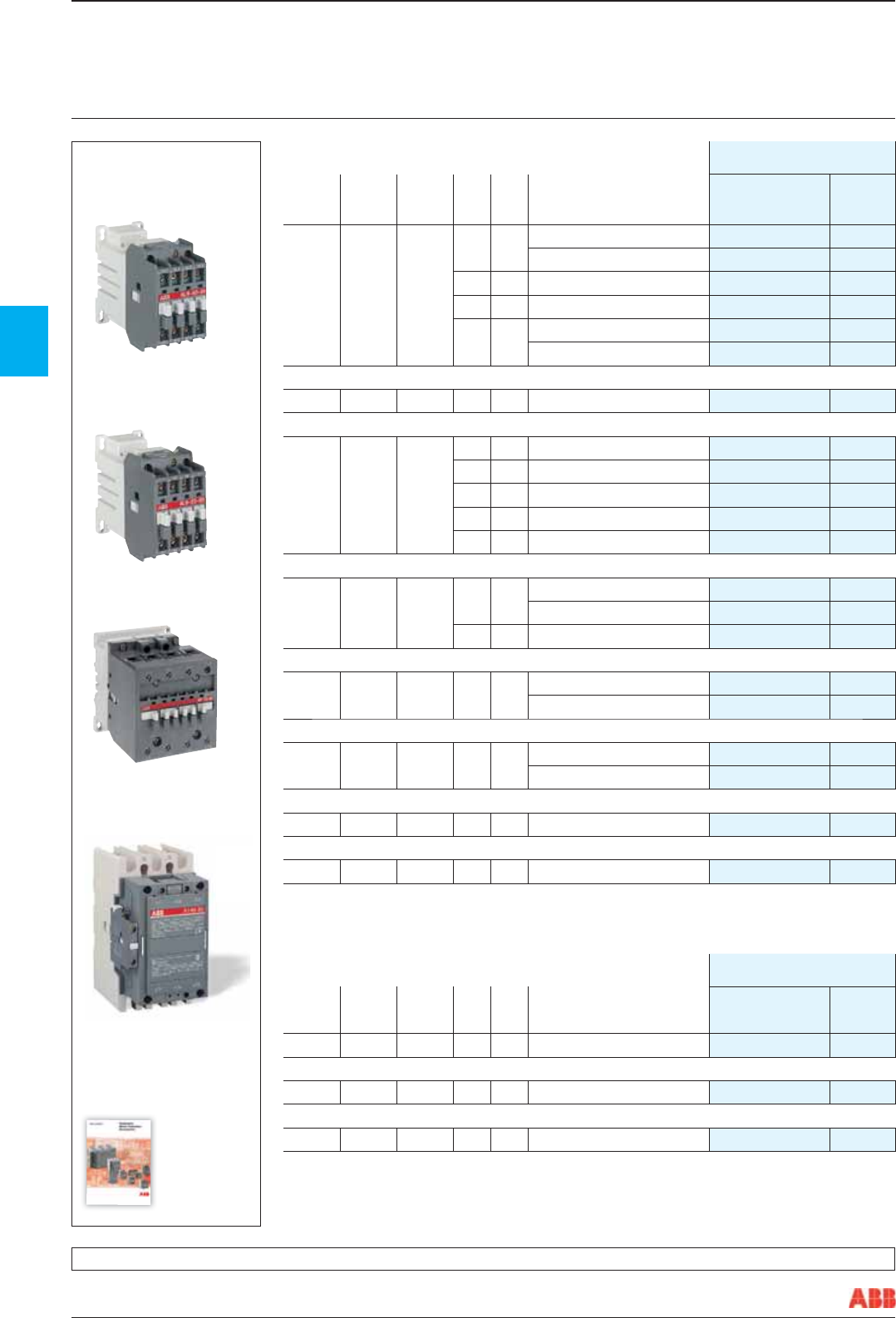

AF9 ... AF12 Contactors Product Hierarchy 1700009

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

4925

AF09-30-10-12 48-130V50/60HZ-DC 1SBL137001R1210 19.38

AF09-30-10-13 100-250V50/60HZ-DC 1SBL137001R1310 19.38

AF09-30-10-14 250-500V50/60HZ-DC 1SBL137001R1410 19.38

AF09Z-30-10-20 12-20VDC 1SBL136001R2010 38.55

AF09Z-30-10-21 24-60V50/60HZ 20-60VDC

1SBL136001R2110 38.55

-1

AF09-30-01-12 48-130V50/60HZ-DC 1SBL137001R1201 19.38

AF09-30-01-13 100-250V50/60HZ-DC 1SBL137001R1301 19.38

AF09-30-01-14 250-500V50/60HZ-DC 1SBL137001R1401 19.38

AF09Z-30-01-20 12-20VDC 1SBL136001R2001 38.55

AF09Z-30-01-21 24-60V50/60HZ 20-60VDC

1SBL136001R2101 38.55

AF09-22-00-12 48-130V50/60HZ-DC 1SBL137501R1200 20.25

AF09-22-00-13 100-250V50/60HZ-DC 1SBL137501R1300 20.25

AF09-22-00-14 250-500V50/60HZ-DC 1SBL137501R1400 20.25

AF09Z-22-00-21 24-60V50/60HZ 20-60VDC

1SBL136501R2100 45.88

AF09-40-00-12 48-130V50/60HZ-DC 1SBL137201R1200 20.25

AF09-40-00-13 100-250V50/60HZ-DC 1SBL137201R1300 20.25

AF09-40-00-14 250-500V50/60HZ-DC 1SBL137201R1400 20.25

AF09Z-40-00-20 12-20VDC 1SBL136201R2000 40.72

AF09Z-40-00-21 24-60V50/60HZ 20-

60VDC 1SBL136201R2100 40.72

5.5 12 27

AF12Z-30-10-20 12-20VDC 1SBL156001R2010 40.72

AF12-30-10-12 48-130V50/60HZ-DC 1SBL157001R1210 23.37

AF12-30-10-13 100-250V50/60HZ-DC 1SBL157001R1310 23.37

AF12-30-10-14 250-500V50/60HZ-DC 1SBL157001R1410 23.37

AF12Z-30-10-21 24-60V50/60HZ 20-60VDC

1SBL156001R2110 40.72

-1

AF12Z-30-01-20 12-20VDC 1SBL156001R2001 40.72

AF12-30-01-12 48-130V50/60HZ-DC 1SBL157001R1201 23.37

AF12-30-01-13 100-250V50/60HZ-DC 1SBL157001R1301 23.37

AF12-30-01-14 250-500V50/60HZ-DC 1SBL157001R1401 23.37

AF12Z-30-01-21 24-60V50/60HZ 20-60VDC

1SBL156001R2101 40.72

AF9 ... AF12 contactors

AC/DC Operated with screw terminals

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

New

AF Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

AF16 ... AF38 Contactors Product Hierarchy 1700009

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

7.5 17 30

AF16-30-10-12 48-130V50/60HZ-DC 1SBL177001R1210 30.86

AF16-30-10-13 100-250V50/60HZ-DC 1SBL177001R1310 30.86

AF16-30-10-14 250-500V50/60HZ-DC 1SBL177001R1410 30.86

AF16Z-30-10-20 12-20VDC 1SBL176001R2010 53.08

AF16Z-30-10-21 24-60V50/60HZ 20-60VDC

1SBL176001R2110 53.08

-1

AF16-30-01-12 48-130V50/60HZ-DC 1SBL177001R1201 30.86

AF16-30-01-13 100-250V50/60HZ-DC 1SBL177001R1301 30.86

AF16-30-01-14 250-500V50/60HZ-DC 1SBL177001R1401 30.86

AF16Z-30-01-20 12-20VDC 1SBL176001R2001 53.08

AF16Z-30-01-21 24-60V50/60HZ 20-60VDC

1SBL176001R2101 53.08

AF16-22-00-12 48-130V50/60HZ-DC 1SBL177501R1200 36.35

AF16-22-00-13 100-250V50/60HZ-DC 1SBL177501R1300 36.35

AF16-22-00-14 250-500V50/60HZ-DC 1SBL177501R1400 36.35

AF16Z-22-00-21 24-60V50/60HZ 20-60VDC

1SBL176501R2100 56.33

AF16-40-00-12 48-130V50/60HZ-DC 1SBL177201R1200 32.60

AF16-40-00-13 100-250V50/60HZ-DC 1SBL177201R1300 32.60

AF16-40-00-14 250-500V50/60HZ-DC 1SBL177201R1400 32.60

AF16Z-40-00-20 12-20VDC 1SBL176201R2000 54.57

AF16Z-40-00-21 24-60V50/60HZ 20-

60VDC 1SBL176201R2100 54.57

11 26 45 - -

AF26-30-00-12 48-130V50/60HZ-DC 1SBL237001R1200 40.07

AF26-30-00-13 100-250V50/60HZ-DC 1SBL237001R1300 40.07

AF26-30-00-14 250-500V50/60HZ-DC 1SBL237001R1400 40.07

AF26Z-30-00-20 12-20VDC 1SBL236001R2000 61.40

AF26Z-30-00-21 24-60V50/60HZ 20-60VDC

1SBL236001R2100 61.40

15 32 55 - -

AF30-30-00-12 48-130V50/60HZ-DC 1SBL277001R1200 61.77

AF30-30-00-13 100-250V50/60HZ-DC 1SBL277001R1300 61.77

AF30-30-00-14 250-500V50/60HZ-DC 1SBL277001R1400 61.77

AF30Z-30-00-20 12-20VDC 1SBL276001R2000 80.63

AF30Z-30-00-21 24-60V50/60HZ 20-60VDC

1SBL276001R2100 80.63

18.5 35 60 - -

AF38-30-00-12 48-130V50/60HZ-DC 1SBL297001R1200 76.79

AF38-30-00-13 100-250V50/60HZ-DC 1SBL297001R1300 76.79

AF38-30-00-14 250-500V50/60HZ-DC 1SBL297001R1400 76.79

AF38Z-30-00-20 12-20VDC 1SBL296001R2000 91.19

AF38Z-30-00-21 24-60V50/60HZ 20-60VDC

1SBL296001R2100 91.19

AF16 ... AF38 contactors

AC/DC Operated with screw terminals

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

New

AF Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

NF Contactor Relays Product Hierarchy 1700009

NO NC Part No Order Code Price £

NF22E-12 48-130V50/60HZ-DC 1SBH137001R1222 19.59

NF22E-13 100-250V50/60HZ-DC 1SBH137001R1322 19.59

NFZ22E-21 24-60V50/60HZ 20-60VDC 1SBH136001R2122 40.20

NF31E-12 48-130V50/60HZ-DC 1SBH137001R1231 19.59

NF31E-13 100-250V50/60HZ-DC 1SBH137001R1331 19.59

NFZ31E-21 24-60V50/60HZ 20-60VDC 1SBH136001R2131 40.20

NF40E-12 48-130V50/60HZ-DC 1SBH137001R1240 19.59

NF40E-13 100-250V50/60HZ-DC 1SBH137001R1340 19.59

NFZ40E-21 24-60V50/60HZ 20-60VDC 1SBH136001R2140 40.20

NF contactor relays

AC/DC Operated with screw terminals

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

New

AF Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

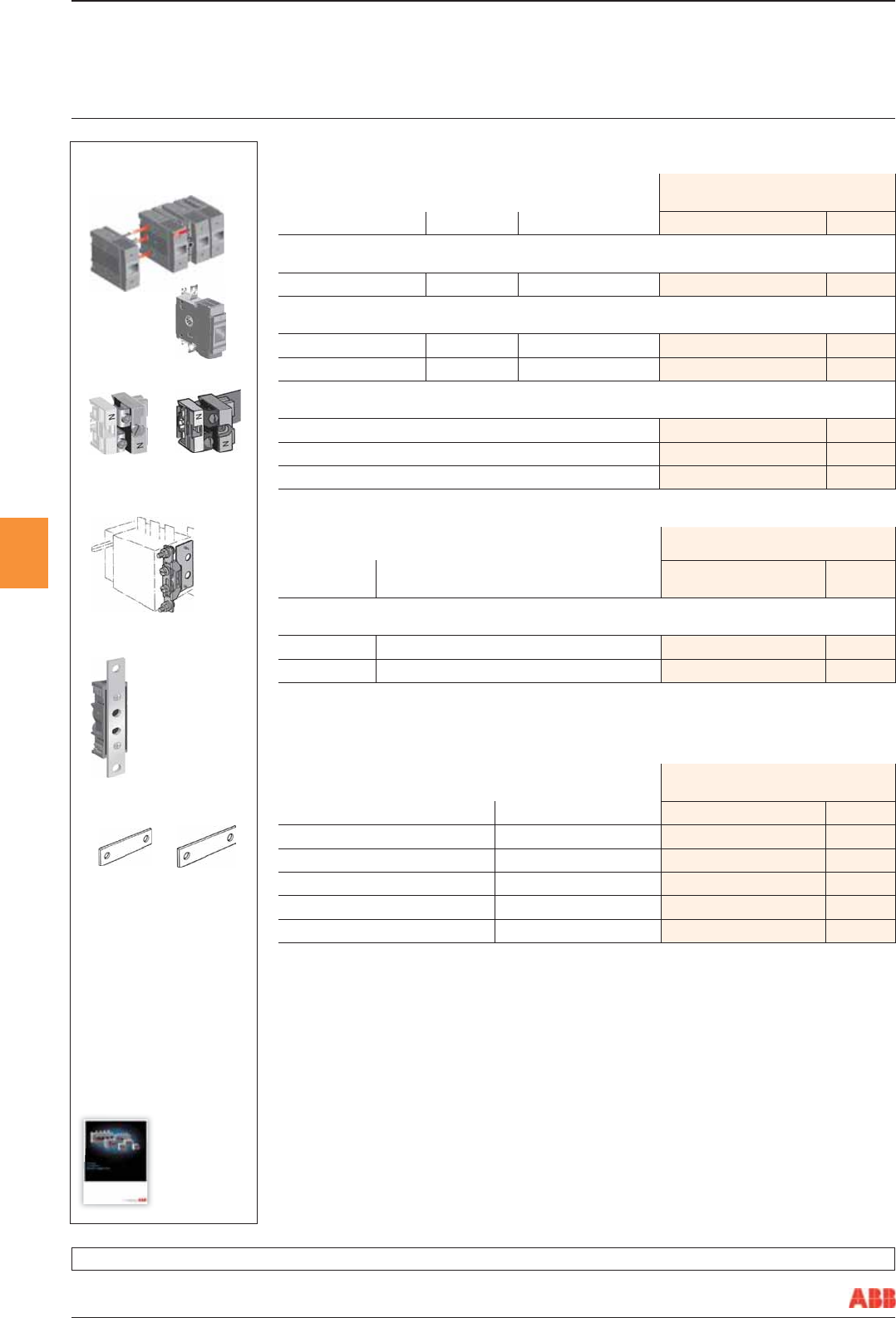

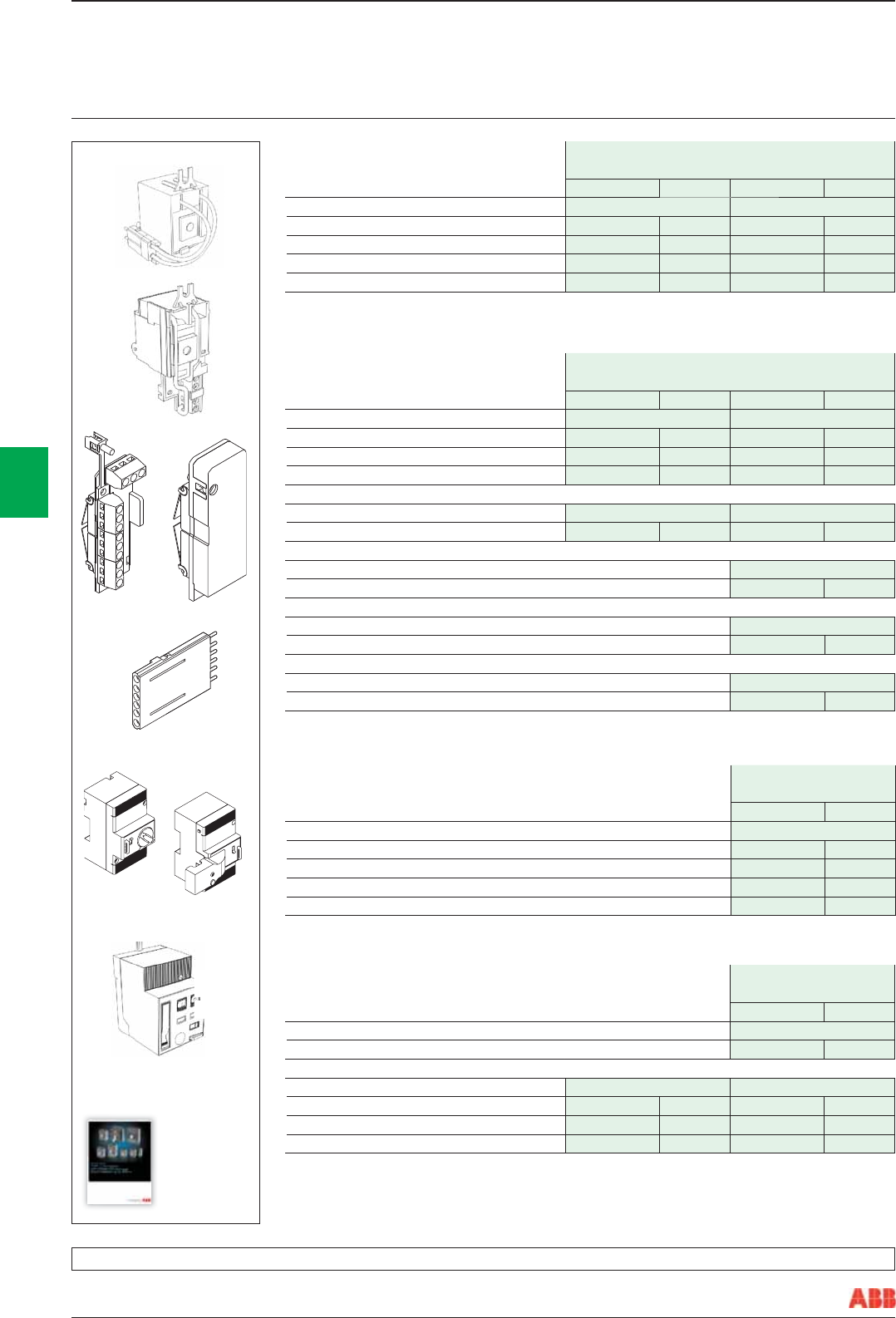

Add on Mechanical Interlocks Product Hierarchy 1700009

Mechanical and Electrical Interlock Unit VEM4 1SBN030111R1000 11.30

Mechanical Interlock Unit VM4 1SBN030105T1000 6.04

Connecting Links Product Hierarchy 1700009

Connecting Link BEA16-4 1SBN081306T1000 3.61

Connecting Link BEA38-4 1SBN082306T2000 4.39

Connection kit for PSR24-30 and MS132 PSR30-MS132 1SFA896212R1001 12.09

Connection Set for Reversing Starter BER16-4 1SBN081311R1000 7.43

Connection Set for Reversing Starter BER38-4 1SBN082311R1000 10.24

Connection Set for Star-Delta Starter BEY16-4 1SBN081313R2000 11.64

Connection Set for Star-Delta Starter BEY38-4 1SBN082713R2000 15.97

AF09 ... AF38 Main Accessories

for contactors and relays

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

Front mounted instantaneous auxiliary contacts Product Hierarchy 1700009

For Contactor NO NC Part No. Order Code Price

AF09 ... AF38

1 0 CA4-10 1SBN010110R1010 2.82

1 0 CA4-10-T 1SBN010110T1010 2.82

0 1 CA4-01 1SBN010110R1001 2.82

0 1 CA4-01-T 1SBN010110T1001 2.82

AF09 ... AF16-30-10

2 2 CA4-22M 1SBN010140R1122 10.08

3 1 CA4-31M 1SBN010140R1131 10.08

1 3 CA4-13M 1SBN010140R1113 10.08

0 4 CA4-04M 1SBN010140R1104 10.08

AF26 ... AF38-30-00

2 2 CA4-22E 1SBN010140R1022 10.08

3 1 CA4-31E 1SBN010140R1031 10.08

4 0 CA4-40E 1SBN010140R1040 10.08

0 4 CA4-04E 1SBN010140R1004 10.08

AF09 ... AF16-30-10

2 2 CA4-22U 1SBN010140R1322 10.08

3 1 CA4-31U 1SBN010140R1331 10.08

4 0 CA4-40U 1SBN010140R1340 10.08

Front mounted auxiliary contacts with NO leading and NC lagging

AF09 ... AF38 1 0 CC4-10 1SBN010111R1010 8.56

0 1 CC4-01 1SBN010111R1001 8.56

Side mounted instantaneous auxiliary contacts

AF09 ... AF38 1 1 CAL4-11 1SBN010120R1011 6.40

1 1 CAL4-11-T 1SBN010120T1011 6.40

Front mounted instantaneous auxiliary contacts with A1/A2 terminal blocks

AF09 ... AF16-30-10 1 1 CAT4-11E 1SBN010151R1011 6.07

AF26 ... AF38-30-00 1 1 CAT4-11M 1SBN010151R1111 6.07

AF09 ... AF16-30-10 1 1 CAT4-11U 1SBN010151R1311 6.07

New

AF Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Electronic Overload Relays Product Hierarchy 1700006

Setting [A] Part No Order Code Price

0.10...0.32 A EF19-0.32 1SAX121001R1101 51.91

0.30...1.00 A EF19-1.0 1SAX121001R1102 51.91

0.80...2.70 A EF19-2.7 1SAX121001R1103 51.91

1.90...6.30 A EF19-6.3 1SAX121001R1104 54.87

5.70...18.9 A EF19-18.9 1SAX121001R1105 54.87

9.00...30.0 A EF45-30 1SAX221001R1101 81.52

15.0...45.0 A EF45-45 1SAX221001R1102 98.48

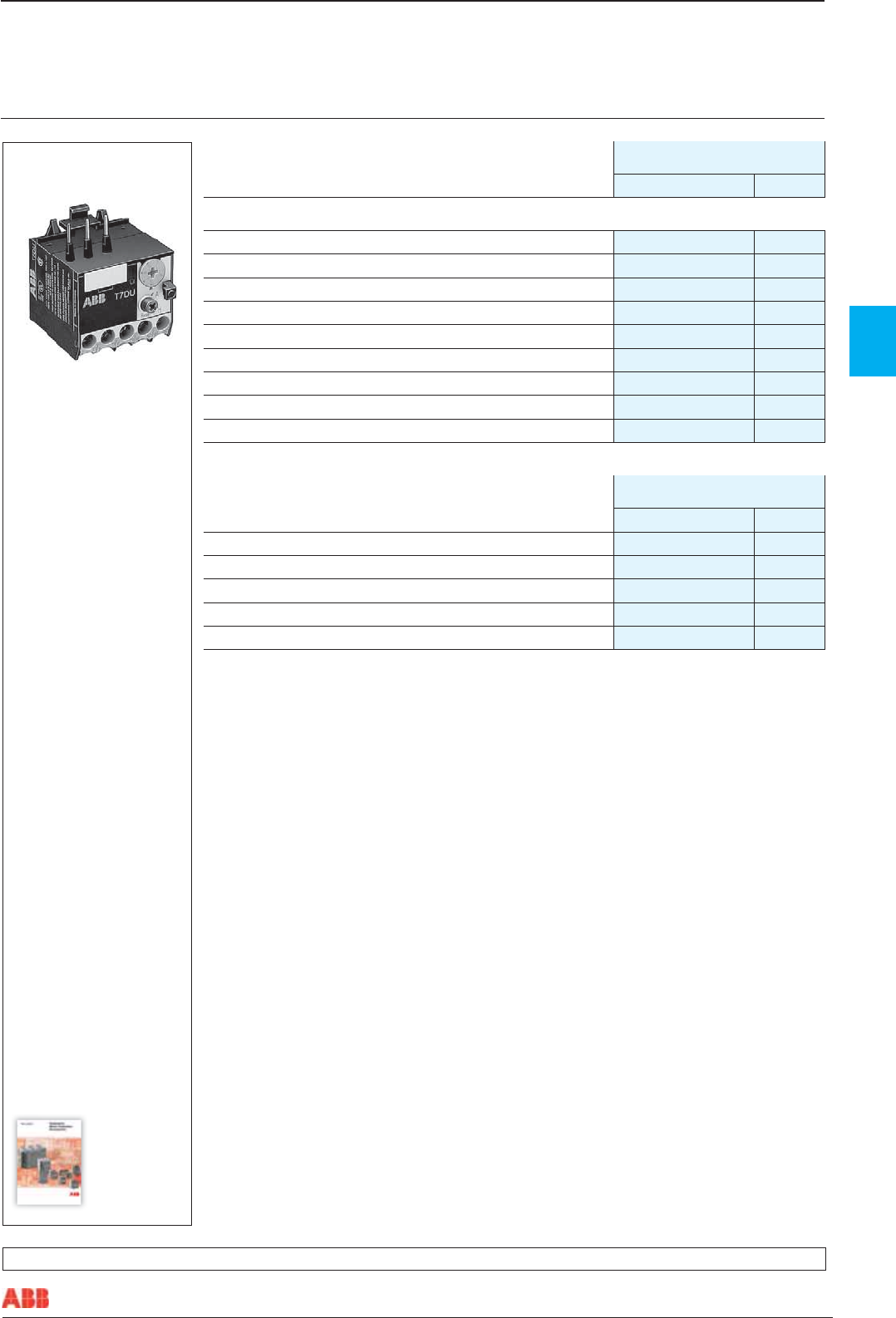

Thermal Overload Relays

0.10...0.13 A TF42-0.13 1SAZ721201R1005 25.50

0.13...0.17 A TF42-0.17 1SAZ721201R1008 25.50

0.17...0.23 A TF42-0.23 1SAZ721201R1009 25.50

0.23...0.31 A TF42-0.31 1SAZ721201R1013 25.50

0.31...0.41 A TF42-0.41 1SAZ721201R1014 25.50

0.41...0.55 A TF42-0.55 1SAZ721201R1017 25.50

0.55...0.74 A TF42-0.74 1SAZ721201R1021 25.50

0.74...1.00 A TF42-1.0 1SAZ721201R1023 25.50

1.00...1.30 A TF42-1.3 1SAZ721201R1025 25.50

1.30...1.70 A TF42-1.7 1SAZ721201R1028 25.50

1.70...2.30 A TF42-2.3 1SAZ721201R1031 25.50

2.30...3.10 A TF42-3.1 1SAZ721201R1033 25.50

3.10...4.20 A TF42-4.2 1SAZ721201R1035 25.50

4.20...5.70 A TF42-5.7 1SAZ721201R1038 25.50

5.70...7.60 A TF42-7.6 1SAZ721201R1040 25.50

7.60...10.0 A TF42-10 1SAZ721201R1043 25.50

10.0...13.0 A TF42-13 1SAZ721201R1045 26.58

13.0...16.0 A TF42-16 1SAZ721201R1047 31.84

16.0...20.0 A TF42-20 1SAZ721201R1049 32.95

20.0...24.0 A TF42-24 1SAZ721201R1051 41.82

24.0...29.0 A TF42-29 1SAZ721201R1052 44.24

29.0...35.0 A TF42-35 1SAZ721201R1053 46.66

35.0...38.0 A TF42-38 1SAZ721201R1055 46.66

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

Overload Protection

EF19

EF45

New

AF Range

Available

September 2010

3 Pole Block Contactors (see also New AF Range page 4 onwards - Available from September 2010)

IEC

AC-3 Power Rating θ≤ 55 °C, 400 V

kW 4 5.5 7.5 11 15 18.5 22 30 37 45 55

UL/CSA

3-phase Motor Rating

480 V

hp 5 7.5 10 20 25 30 40 60 60 60 75

a.c. Control Supply Type A 9 A 12 A 16 A 26 A 30 A 40 A 50 A 63 A 75 A 95 A 110

d.c. Control Supply Type AL 9 AL 12 AL 16 AL 26 AL 30 AL 40 AE 50 AE 63 AE 75 AE 95 AE 110

a.c. / d.c. Control Supply Type – – – – – – AF 50 AF 63 AF 75 AF 95 AF 110

IEC

AC-3 Rated Current θ≤ 55 °C, 400 V

θ≤ 55 °C, 690 V

AC-1 Rated Current θ≤ 40 °C, 690 V

θ≤ 55 °C, 690 V

θ≤ 70 °C, 690 V

UL/CSA

3-phase Motor Rating

480 V

General Use Rating

600 V

Nema Size

Main Accessories

Auxiliary Contact Blocks

Front mounting

(1 or 4-pole)

CA 5-10

(1 x N.O.)

CA 5-01

(1 x N.C.)

CA 5-40..

(4 x N.O.)

CA 5-31..

(3 x N.O. + 1 x N.C.)

CA 5-22..

(2 x N.O. + 2 x N.C.)

Side mounting

(2-pole)

CAL 5-11

(1 x N.O. + 1 x N.C.)

CAL 5-11

(1 x N.O. + 1 x N.C.)

CAL 5-11

(1 x N.O. + 1 x N.C.)

CAL 18-11

(1 x N.O. + 1 x N.C.)

Timers

Pneumatic*

TP 40 DA, TP 180 DA

Direct timing - Front mounting

TP 40 IA, TP 180 IA

Inverse timing - Front mounting

Electronic**

TE5S-..

Direct timing - Separate mounting

TE5S-..

Direct timing - Separate mounting

TE5S-..

Direct timing - Separate mounting

TE5S-..

Interlocking Units

Mechanical

VM 5-1 VM 5-1

Mechanical / Electrical

VE 5-1 VE 5-1 VE 5-2 VE 5-2

Surge Suppressors**

Varistor (a.c./d.c.)

RV 5/..

(24 ... 440 V)

RV 5/..

(24 ... 440 V)

RV 5/..

(24 ... 440 V)

RV 5/..

(24 ... 440 V)

RC Type (a.c.)

RC 5-1/..

(24 ... 440 V)

RC 5-1/..

(24 ... 440 V)

RC 5-2/..

(24 ... 440 V)

RC 5-2/..

(24 ... 440 V)

Transil diode (d.c.)

RT 5/..

(12 ... 264 V)

RT 5/..

(12 ... 264 V)

RT 5/..

(12 ... 264 V)

RT 5/..

(12 ... 264 V)

Connection

Sets

For reversing contactors

BER 16.. BER 40.. BEM 75-30 BEM 110-30

Overload Relays

Thermal Relays

Class 10A

TA 25 DU

(0.1 ... 32 A)

TA 25 DU

(0.1 ... 32 A)

TA 75 DU

(18 ... 80 A)

TA 80 DU

(29 ... 80 A)

(10 A or 20 for TA 25 to TA 80)

TA 42 DU

(18 ... 42 A)

TA 110 DU

(65 ... 110 A)

Electronic Relays

Class 10, 20, 30

E 16 DU

(0.1 ... 18.9 A)

E 45 DU

(9 ... 45 A)

E 80 DU

(27 ... 80 A)

E 140 DU

(50 ... 140 A)

Manual Motor Starters

Thermal / magnetic

MS 116

(0.16 ... 16 A)

MS 450

(11 ... 50 A)

protection

MS 325

(0.16 ... 25 A)

MS 495

(28 ... 100 A)

MS 495

(28 ... 100 A)

Connecting Links

For contactor mounting

BEA 16/.. BEA 26/.. BEA 40/..

BEA 50/..

BEA 75/.. BEA 110..

3-pole Block Contactors for all industrial applic

* For AL 26 ... AL 40, see the technical documentation

* TP pneumatic timer not suitable for (T)AL contactors and (T)NL...E contactor relays ** AF contactors do not need TE5S electronic timer or extra surge suppressor

Direct timing

Separate mounting

9 12 17 26 32 37 50 65 75 96 110

7 9 10 17* 21* 25* 35 43 46 65 82

25 27 30 45 55 60 100 115 125 145 160

22 25 27 40 55 60 85 95 105 135 145

18 20 23 32 39 42 70 80 85 115 130

5 7.5 10 20 25 30 40 60 60 60 75

21 25 30 40 50 60 80 90 105 125 140

00 0 - 1 1P - 2 - 3 - -

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

110 140 160 200 250 315 400 – 475 560

150 200 250 350 400 500 600 – 800 900

A 210 A 260 A 300 AF 400 AF 460 AF 580 AF 750 AF 1250 AF 1350 AF 1650

AF 210 AF 260 AF 300 AF 400 AF 460 AF 580 AF 750 AF 1250 AF 1350 AF 1650

CAL 18-11 (1 x N.O. + 1 x N.C.) CAL 18-11

(1 x N.O. + 1 x N.C.)

CAL 18-11 (1 x N.O. + 1 x N.C.) CAL 18-11 (1 x N.O. + 1 x N.C.)

TE5S-.. Direct timing - Separate mounting

VM 300H VM 750H VM 750H VM 1650H

RC-EH 300

BEM 300-30 BEM 460-30 BEM 750-30

TA 450 DU (130 ... 310 A)

E 320 DU (100 ... 320 A) E 500 DU (150 ... 500 A)

E 800 DU

(250 ... 800 A)

E 1250 DU (375 ... 1250 A)

210 260 305 400 460 580 750 - 860 1050 -

210 220 280 350 400 500 650 - 800 950 -

350 400 500 600 700 800 1050 1260 1350 1650 2050

300 350 400 500 600 700 875 1040 1150 1450 -

240 290 325 400 480 580 720 875 1000 1270 -

150 200 250 350 400 500 600 - 800 900 -

300 350 400 550 650 750 900 1210 1350 1650 2100

-5--6-7--8-

AF 2050

100

A 145

AF 145

CAL 18-11

(1 x

TE5S-..

VM 300H

RC-EH 300

BEM 185-30

TA 200 DU (66

E 200 DU (60 ...

Direct timing

Separate mounting

125

A 185

AF 185

145 185

120 170

250 275

230 250

180 180

100 125

230 250

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Product Hierarchy 1700003

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

4925

-1

A9-30-01 110V 50/60Hz 1SBL141001R8401 19.38

A9-30-01 220-230V 50Hz 1SBL141001R8101 19.38

A9-30-01 230-240V 50Hz 1SBL141001R8801 19.38

A9-30-01 24V 50/60Hz 1SBL141001R8101 19.38

A9-30-10 110V 50/60Hz 1SBL141001R8410 19.38

A9-30-10 220-230V 50Hz 1SBL141001R8010 19.38

A9-30-10 230-240V 50Hz 1SBL141001R8810 19.38

A9-30-10 24V 50/60Hz 1SBL141001R8110 19.38

A9-30-10 400-415V 50Hz 1SBL141001R8610 19.38

A9-40-00 110V 50/60Hz 1SBL141201R8400 20.25

A9-40-00 220-230V 50Hz 1SBL141201R8000 20.25

A9-40-00 230-240v 50Hz 1SBL141201R8800 20.25

A9-40-00 24V 50/60Hz 1SBL141201R8100 20.25

A9-40-00 400-415V 50Hz 1SBL141201R8600 20.25

A9-22-00 110V 50/60Hz 1SBL141501R8400 20.25

A9-22-00 230-240v 50Hz 1SBL141501R8800 20.25

-1

A12-30-01 110V 50/60Hz 1SBL161001R8401 23.37

A12-30-01 220-230V 50Hz 1SBL161001R8001 23.37

A12-30-01 230-240v 50Hz 1SBL161001R8801 23.37

A12-30-01 24V 50/60Hz 1SBL161001R8101 23.37

5.5 12 27

A12-30-10 110V 50/60Hz 1SBL161001R8410 23.37

A12-30-10 220-230V 50Hz 1SBL161001R8010 23.37

A12-30-10 230-240v 50Hz 1SBL161001R8810 23.37

A12-30-10 24V 50/60Hz 1SBL161001R8110 23.37

A12-30-10 400-415V 50Hz 1SBL161001R8610 23.37

7.5 17 30

-1

A16-30-01 110V 50/60Hz 1SBL181001R8401 30.86

A16-30-01 220-230V 50Hz 1SBL181001R8001 30.86

A16-30-01 230-240v 50Hz 1SBL181001R8801 30.86

A16-30-01 24V 50/60Hz 1SBL181001R8101 30.86

A16-30-10 110V 50/60Hz 1SBL181001R8410 30.86

A16-30-10 220-230V 50Hz 1SBL181001R8010 30.86

A16-30-10 230-240v 50Hz 1SBL181001R8810 30.86

A16-30-10 24V 50/60Hz 1SBL181001R8110 30.86

A16-30-10 400-415V 50Hz 1SBL181001R8610 30.86

A16-40-00 110V 50/60Hz 1SBL181201R8400 32.60

A16-40-00 220-230V 50Hz 1SBL181201R8000 32.60

A16-40-00 230-240v 50Hz 1SBL181201R8800 32.60

A16-40-00 24V 50/60Hz 1SBL181201R8100 32.60

A16-40-00 400-415V 50Hz 1SBL181201R8600 32.60

A16-22-00 110V 50/60Hz 1SBL181501R8400 36.35

A16-22-00 230-240v 50Hz 1SBL181501R8800 36.35

A16-22-00 24V 50/60Hz 1SBL181501R8100 36.35

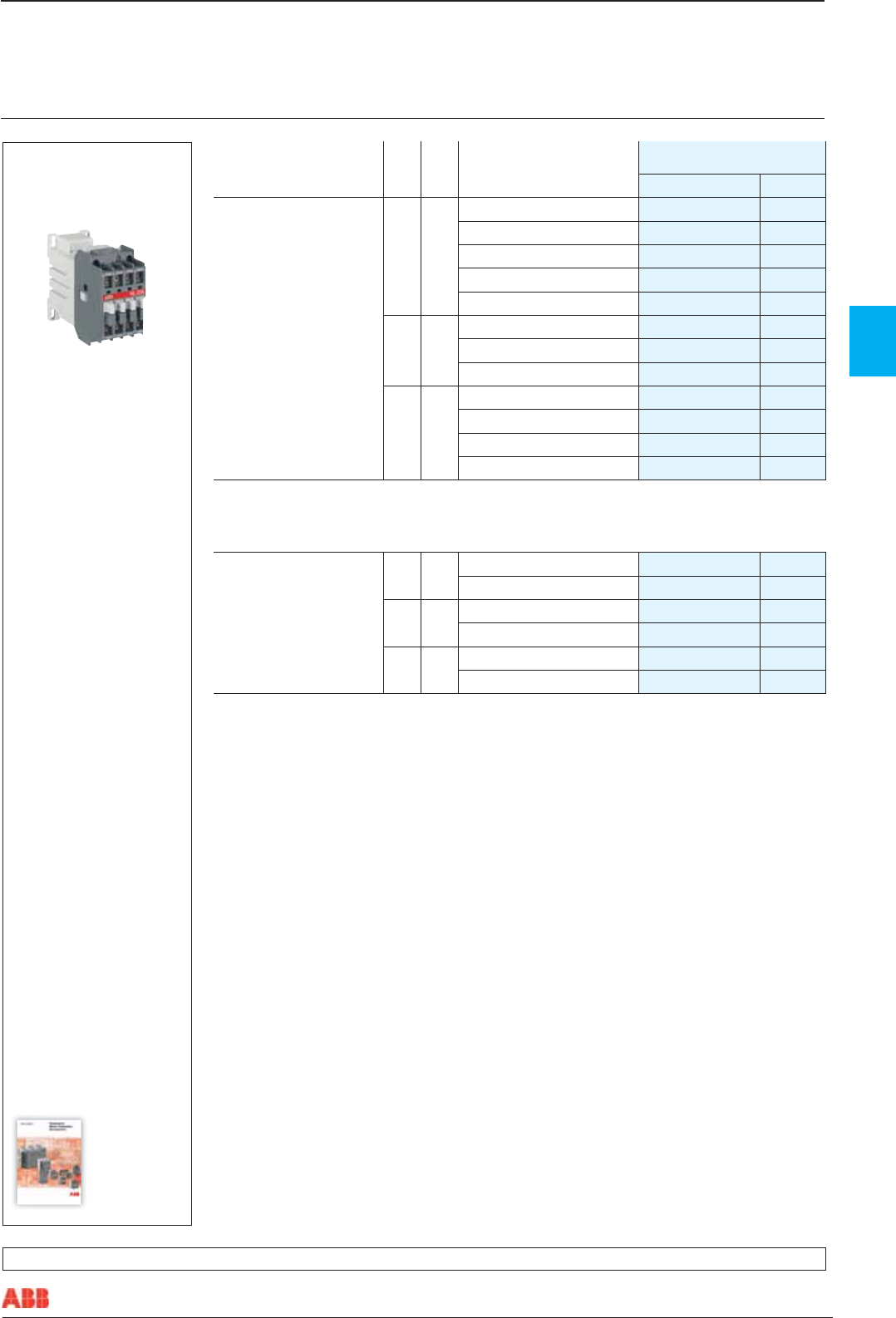

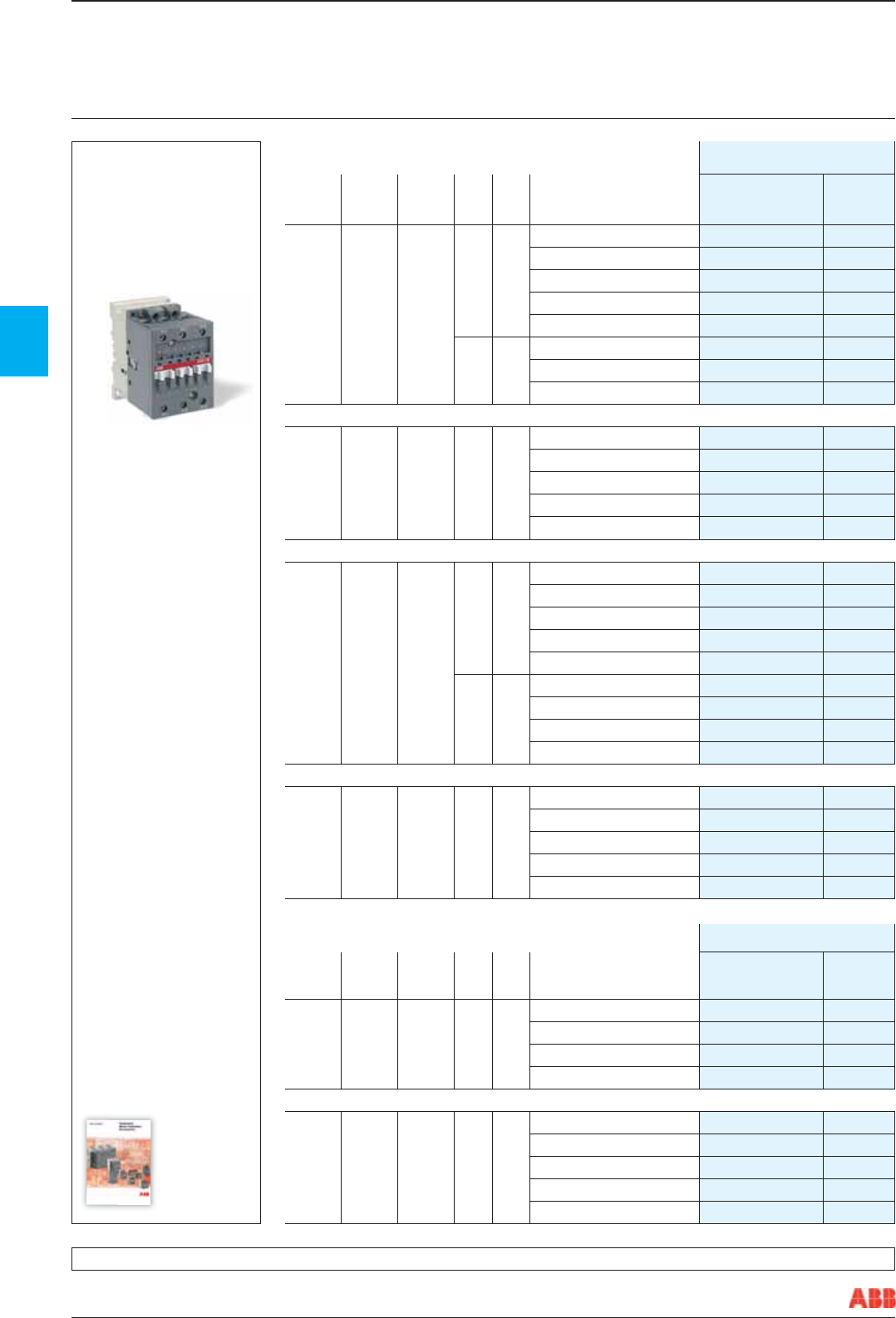

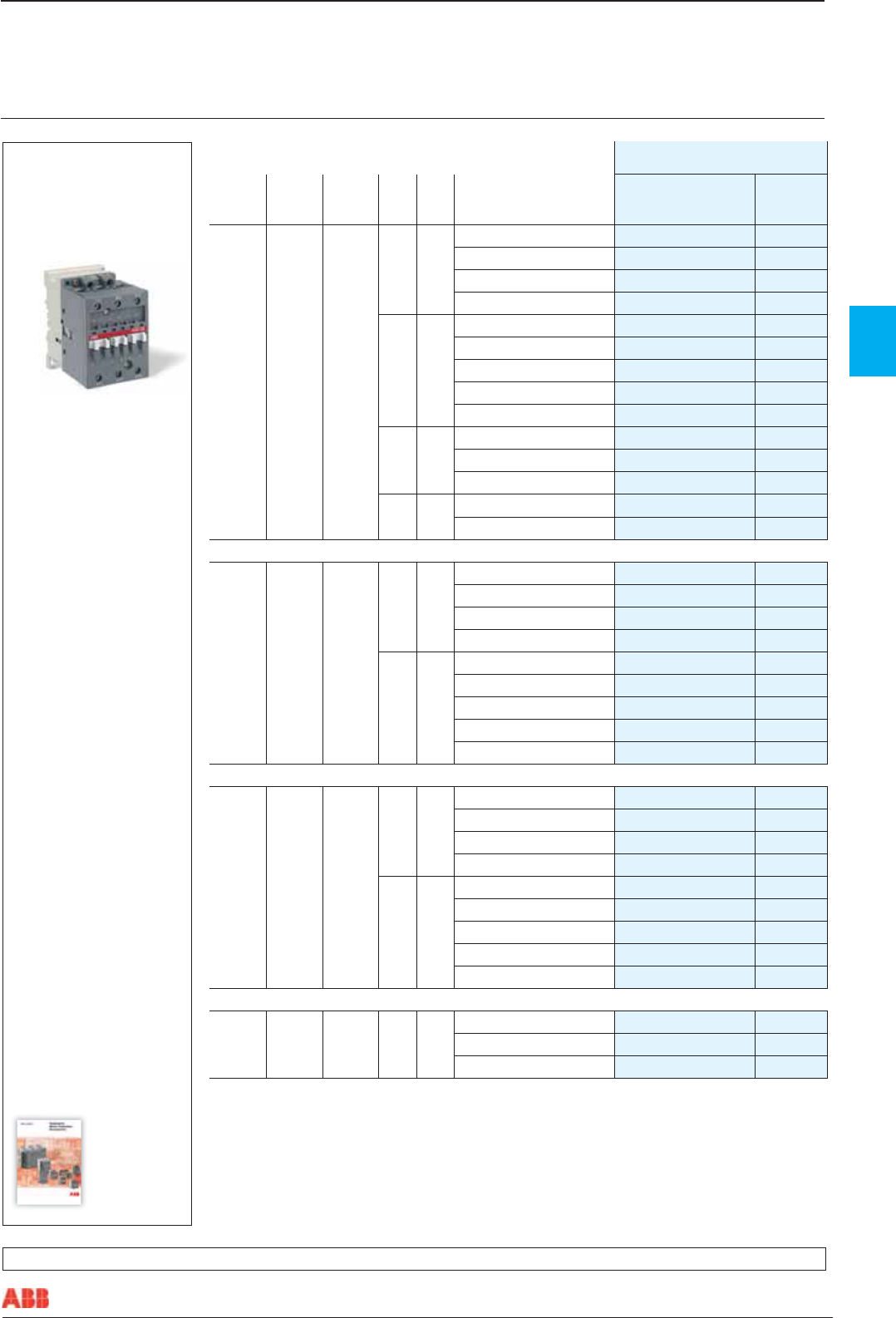

Block Contactors

A9 ... A16 ac operated

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Product Hierarchy 1700003

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

11 26 45

-1

A26-30-01 110V 50/60Hz 1SBL241001R8401 42.89

A26-30-01 220-230V 50Hz 1SBL241001R8001 42.89

A26-30-01 230-240v 50Hz 1SBL241001R8801 42.89

A26-30-01 24V 50/60Hz 1SBL241001R8101 42.89

A26-30-10 110V 50/60Hz 1SBL241001R8410 42.89

A26-30-10 220-230V 50Hz 1SBL241001R8010 42.89

A26-30-10 230-240v 50Hz 1SBL241001R8810 42.89

A26-30-10 24V 50/60Hz 1SBL241001R8110 42.89

A26-30-10 400-415V 50Hz 1SBL241001R8610 42.89

A26-40-00 110V 50/60Hz 1SBL241201R8400 48.91

A26-40-00 230-240v 50Hz 1SBL241201R8800 48.91

A26-40-00 24V 50/60Hz 1SBL241201R8100 48.91

A26-22-00 110v 50/60Hz 1SBL241501R8400 55.11

A26-22-00 230-240v 50Hz 1SBL241501R8800 55.11

-1

A30-30-01 110V 50/60Hz 1SBL281001R8401 64.59

A30-30-01 220-230V 50Hz 1SBL281001R8001 64.59

A30-30-01 230-240v 50Hz 1SBL281001R8801 64.59

A30-30-01 24V 50/60Hz 1SBL281001R8101 64.59

15 32 55

A30-30-10 110V 50/60Hz 1SBL281001R8410 64.59

A30-30-10 220-230V 50Hz 1SBL281001R8010 64.59

A30-30-10 230-240v 50Hz 1SBL281001R8810 64.59

A30-30-10 24V 50/60Hz 1SBL281001R8110 64.59

A30-30-10 400-415V 50Hz 1SBL281001R8610 64.59

18.5 37 60

-1

A40-30-01 110V 50/60Hz 1SBL321001R8401 79.61

A40-30-01 220-230V 50Hz 1SBL321001R8001 79.61

A40-30-01 230-240v 50Hz 1SBL321001R8801 79.61

A40-30-01 24V 50/60Hz 1SBL321001R8101 79.61

A40-30-10 110V 50/60Hz 1SBL321001R8410 79.61

A40-30-10 220-230V 50Hz 1SBL321001R8010 79.61

A40-30-10 230-240v 50Hz 1SBL321001R8810 79.61

A40-30-10 24V 50/60Hz 1SBL321001R8110 79.61

A40-30-10 400-415V 50Hz 1SBL321001R8610 79.61

--80--

A45-22-00 230-240v 50Hz 1SBL331501R8800 120.55

A45-40-00 220-230V 50Hz 1SBL331201R8000 120.55

A45-40-00 230-240v 50Hz 1SBL331201R8800 120.55

Block Contactors

A26 ... A45 ac operated

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Product Hierarchy 1700003

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

22 50 100

A50-30-11 110V 50/60Hz 1SBL351001R8411 101.78

A50-30-11 220-230V 50Hz 1SBL351001R8011 101.78

A50-30-11 230-240v 50Hz 1SBL351001R8811 101.78

A50-30-11 24V 50/60Hz 1SBL351001R8111 101.78

A50-30-11 400-415V 50Hz 1SBL351001R8611 101.78

A50-40-00 110V 50/60Hz 1SBL351201R8400 149.99

A50-40-00 220-230V 50Hz 1SBL351201R8000 149.99

A50-40-00 230-240v 50Hz 1SBL351201R8800 149.99

37 65 115 1 1

A63-30-11 110V 50/60Hz 1SBL371001R8411 137.37

A63-30-11 220-230V 50Hz 1SBL371001R8011 137.37

A63-30-11 230-240v 50Hz 1SBL371001R8811 137.37

A63-30-11 24V 50/60Hz 1SBL371001R8111 137.37

A63-30-11 400-415V 50Hz 1SBL371001R8611 137.37

40 75 125

A75-30-11 110V 50/60Hz 1SBL411001R8411 161.11

A75-30-11 220-230V 50Hz 1SBL411001R8011 161.11

A75-30-11 230-240v 50Hz 1SBL411001R8811 161.11

A75-30-11 24V 50/60Hz 1SBL411001R8111 161.11

A75-30-11 400-415V 50Hz 1SBL411001R8611 161.11

A75-40-00 110V 50/60Hz 1SBL411201R8400 216.43

A75-40-00 220-230V 50Hz 1SBL411201R8000 216.43

A75-40-00 230-240v 50Hz 1SBL411201R8800 216.43

A75-22-00 230-240v 50Hz 1SBL411501R8800 185.50

45 96 145 1 1

A95-30-11 110V 50Hz 1SFL431001R8411 172.98

A95-30-11 220-230V 50Hz 1SFL431001R8011 172.98

A95-30-11 230-240V 50Hz 1SFL431001R8811 172.98

A95-30-11 24V 50Hz 1SFL431001R8111 172.98

A95-30-11 400-415V 50Hz 1SFL431001R8611 172.98

Product Hierarchy 1700001

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

55 110 160 1 1

A110-30-11 110V 50/60Hz 1SFL451001R8411 225.21

A110-30-11 220-230V 50Hz 1SFL451001R8011 225.21

A110-30-11 230-240V 50Hz 1SFL451001R8811 225.21

A110-30-11 400-415V 50Hz 1SFL451001R8611 225.21

75 145 250 1 1

A145-30-11 110V 50Hz 1SFL471001R8411 274.68

A145-30-11 220-230V 50Hz 1SFL471001R8011 274.68

A145-30-11 230-240V 50Hz 1SFL471001R8811 274.68

A145-30-11 24V 50Hz 1SFL471001R8111 274.68

A145-30-11 400-415V 50Hz 1SFL471001R8611 274.68

Block Contactors

A50 ... A145 ac operated

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Product Hierarchy 1700003

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

90 185 275 1 1

A185-30-11 110V 50Hz 1SFL491001R8411 371.44

A185-30-11 220-230V 50Hz 1SFL491001R8011 371.44

A185-30-11 230-240V 50Hz 1SFL491001R8811 371.44

A185-30-11 24V 50Hz 1SFL491001R8111 371.44

A185-30-11 400-415V 50Hz 1SFL491001R8611 371.44

110 210 350 1 1

A210-30-11 110V 50Hz 1SFL511001R8411 415.22

A210-30-11 220-230V 50Hz 1SFL511001R8011 415.22

A210-30-11 230-240V 50Hz 1SFL511001R8811 415.22

140 260 400 1 1

A260-30-11 110V 50Hz 1SFL531001R8411 602.74

A260-30-11 230-240V 50Hz 1SFL531001R8811 602.74

A260-30-11 400-415V 50Hz 1SFL531001R8611 602.74

160 305 500 1 1 A300-30-11 110V 50Hz 1SFL551001R8411 732.40

A300-30-11 230-240V 50Hz 1SFL551001R8811 732.40

22 52 100 1 1 AF50-30-11 100-250V AC/DC 1SFL477001R7011 326.76

40 75 125 1 1 AF75-30-11 100-250V AC/DC 1SBL417001R7211 205.81

Product Hierarchy 1700001

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

75 145 250 1 1 AF145-30-11 100-250V AC/DC 1SFL477001R7011 326.76

55 110 160 1 1 AF210-30-11 100-250V AC/DC 1SFL517001R7011 444.18

160 305 500 1 1 AF300-30-11 100-250V AC/DC 1SFL557001R7011 787.19

200 400 600 1 1 AF400-30-11 100-250V AC/DC 1SFL577001R7011 876.85

250 460 700 1 1 AF460-30-11 100-250V AC/DC 1SFL597001R7011 1039.28

315 580 800 1 1 AF580-30-11 100-250V AC/DC 1SFL617001R7011 1543.37

400 750 1050 1 1 AF750-30-11 100-250V AC/DC 1SFL637001R7011 2407.41

Block Contactors

A195 ... A300 ac operated

AF50 ... AF750 ac/dc operated

AF 460-30-11

A 300-30-11

A 145-30-11

SB8028C2

AF 750-30-11

SB8476C3

SB8173C3

SB8171C3

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Product Hierarchy 1700003

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

4925

AL9-30-10 110V DC 1SBL143001R8610 38.55

AL9-30-10 24V DC 1SBL143001R8110 38.55

-1

AL9-30-01 24V DC 1SBL143001R8101 38.55

AL9-40-00 24V DC 1SBL143201R8100 40.72

AL9-22-00 110V DC 1SBL143501R8600 45.88

AL9-22-00 24V DC 1SBL143501R8100 45.88

5.5 12 27 1 - AL12-30-10 24V DC 1SBL163001R8110 40.72

7.5 17 30

AL16-30-10 24V DC 1SBL183001R8110 53.08

-1

AL16-30-01 24V DC 1SBL183001R8101 53.08

AL16-40-00 24V DC 1SBL183201R8100 54.57

AL16-22-00 110V DC 1SBL183501R8600 56.33

AL16-22-00 24V DC 1SBL183501R8100 56.33

11 26 45

AL26-30-10 110V DC 1SBL243001R8610 64.22

AL26-30-10 24V DC 1SBL243001R8110 64.22

AL26-40-00 24V DC 1SBL243201R8100 66.44

15 32 55 1 -

AL30-30-10 110V DC 1SBL283001R8610 83.45

AL30-30-10 24V DC 1SBL283001R8110 83.45

18.5 37 60 1 -

AL40-30-10 110V DC 1SBL323001R8610 94.01

AL40-30-10 24V DC 1SBL323001R8110 94.01

22 50 100 1 1 AF50-30-11 20-60V DC 1SBL357001R7211 144.34

37 65 115 1 1 AF63-30-11 20-60V DC 1SBL377001R7211 178.89

Product Hierarchy 1700003

AC-3

400V

AC-3

400V

AC-1

40oC

Aux

NC Description Order Code Price £

55 110 160 1 1 AF110-30-11 20-60V DC 1SFL457001R7211 277.29

75 145 250 1 1 AF145-30-11 20-60V DC 1SFL477001R7211 326.76

140 260 400 1 1 AF260-30-11 20-60V DC 1SFL537001R7211 632.04

AL9 ... AL40 - AF50 ... AF260 contactors

dc operated

AL 9-40-00

1SBC5 8793 4F0302

AL 9-22-00

1SBC5 8780 4F0301

AF 75-40-00

1SBC5 8270 3F0301

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

AC Operated Relays

Aux

Product Hierarchy 1700003

Description Order Code Price £

N22E 110V 50/60Hz 1SBH141001R8422 19.59

N22E 220-230V 50Hz 1SBH141001R8022 19.59

N22E 230-240v 50Hz 1SBH141001R8822 19.59

N22E 24V 50/60Hz 1SBH141001R8122 19.59

N22E 400-415V 50Hz 1SBH141001R8622 19.59

N31E 110V 50/60Hz 1SBH141001R8431 19.59

N31E 220-230V 50Hz 1SBH141001R8031 19.59

N31E 230-240v 50Hz 1SBH141001R8831 19.59

N40E 110V 50/60Hz 1SBH141001R8440 19.59

N40E 220-230V 50Hz 1SBH141001R8040 19.59

N40E 230-240v 50Hz 1SBH141001R8840 19.59

N40E 24V 50/60Hz 1SBH141001R8140 19.59

DC Operated Relays

NL22E 110V DC 1SBH143001R8622 40.20

NL22E 24V DC 1SBH143001R8122 40.20

NL31E 110V DC 1SBH143001R8631 40.20

NL31E 24V DC 1SBH143001R8131 40.20

NL40E 110V DC 1SBH143001R8640 40.20

NL40E 24V DC 1SBH143001R8140 40.20

N - NL Relays

ac-dc operated

NL 22 E

1SBC5 8791 4F0302

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

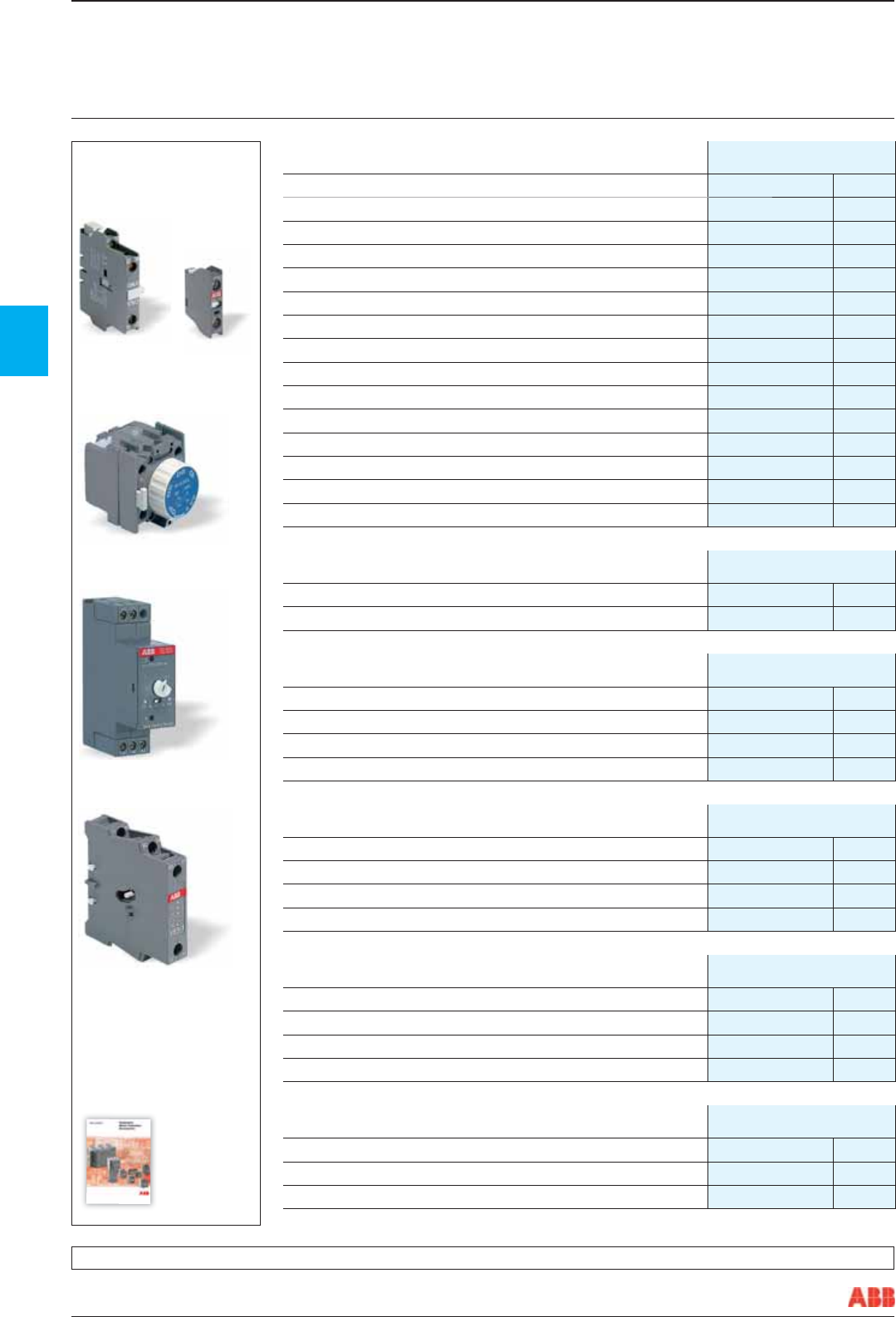

Add on Contacts A9 - A95 Product Hierarchy 1700003

Description Order Code Price

CA5-04E Top Mount Aux Block 1SBN010040R1004 10.08

CA5-04N Top Mount Aux Block 1SBN010040R1204 10.08

CA5-10 Top Mount Aux Block 1SBN010010R1010 2.82

CA5-22E Aux. Contacts 1SBN010040R1022 10.08

CA5-22M Top Mount Aux Block 1SBN010040R1122 10.08

CA5-22N Top Mount Aux Block 1SBN010040R1222 10.08

CA5-31E Top Mount Aux Block 1SBN010040R1031 10.08

CA5-31M Top Mount Aux Block 1SBN010040R1131 10.08

CA5-40E Top Mount Aux Block 1SBN010040R1040 10.08

CA5-40N Top Mount Aux Block 1SBN010040R1240 10.08

CAL5-11B Side Mount Aux Block 1SBN010420R3311 6.40

CAL5-11 Side Mount Aux Block 1SBN010020R1011 6.40

CCL5-11 Side Mount Aux Block 1SBN011421R1008 9.24

CB5-10 Start Contact 1SBN010013R1010 10.68

Add on Contacts A110> Product Hierarchy 1700001

CAL18-11 Side Mount Aux Block 1SFN010720R1011 12.97

CAL18-11B Side Mount Aux Block 1SFN010720R3311 12.97

Add on Timers A9 - A95 Product Hierarchy 1700003

TP180DA Pneumatic Timer 10-180s On Delay 1SBN020300R1001 48.54

TP180IA Pneumatic Timer 10-180s OffDelay 1SBN020301R1001 48.54

TP40DA Pneumatic Timer 0.1-40s On Delay 1SBN020300R1000 40.57

TP40IA Pneumatic Timer 0.1-40s Off Delay 1SBN020301R1000 40.57

Star Delta Timers Product Hierarchy 1700003

TE5S-120 Star/Delta Timer 110/120V AC 1SBN020010R1002 37.55

TE5S-24 Star/Delta Timer 24V AC/DC 1SBN020010R1001 37.53

TE5S-240 Star/Delta Timer 220/240V AC 1SBN020010R1003 37.55

TE5S-440 Star/Delta Timer 380/440V AC 1SBN020010R1004 37.55

Mechanical Interlocks & Latches A9 - A95 Product Hierarchy 1700003

VM5-1 1SBN030100R1000 6.04

VE5-1 1SBN030110R1000 11.30

VE5-2 1SBN030210R1000 22.32

WB75A 24V latching block FPTN372726R1001 51.06

Mechanical Interlocks A110> Product Hierarchy 1700001

VM300/460H 1SFN035100R1000 18.75

VM300H 1SFN034700R1000 10.72

VM750H 1SFN035700R1000 20.03

SB7375C2

SB8099C2

CA 5-10 CAL 5-11

SB7589C3

SB7282C2

VE 5-1

TP 40 DA

TE5S-240

SB7558C2

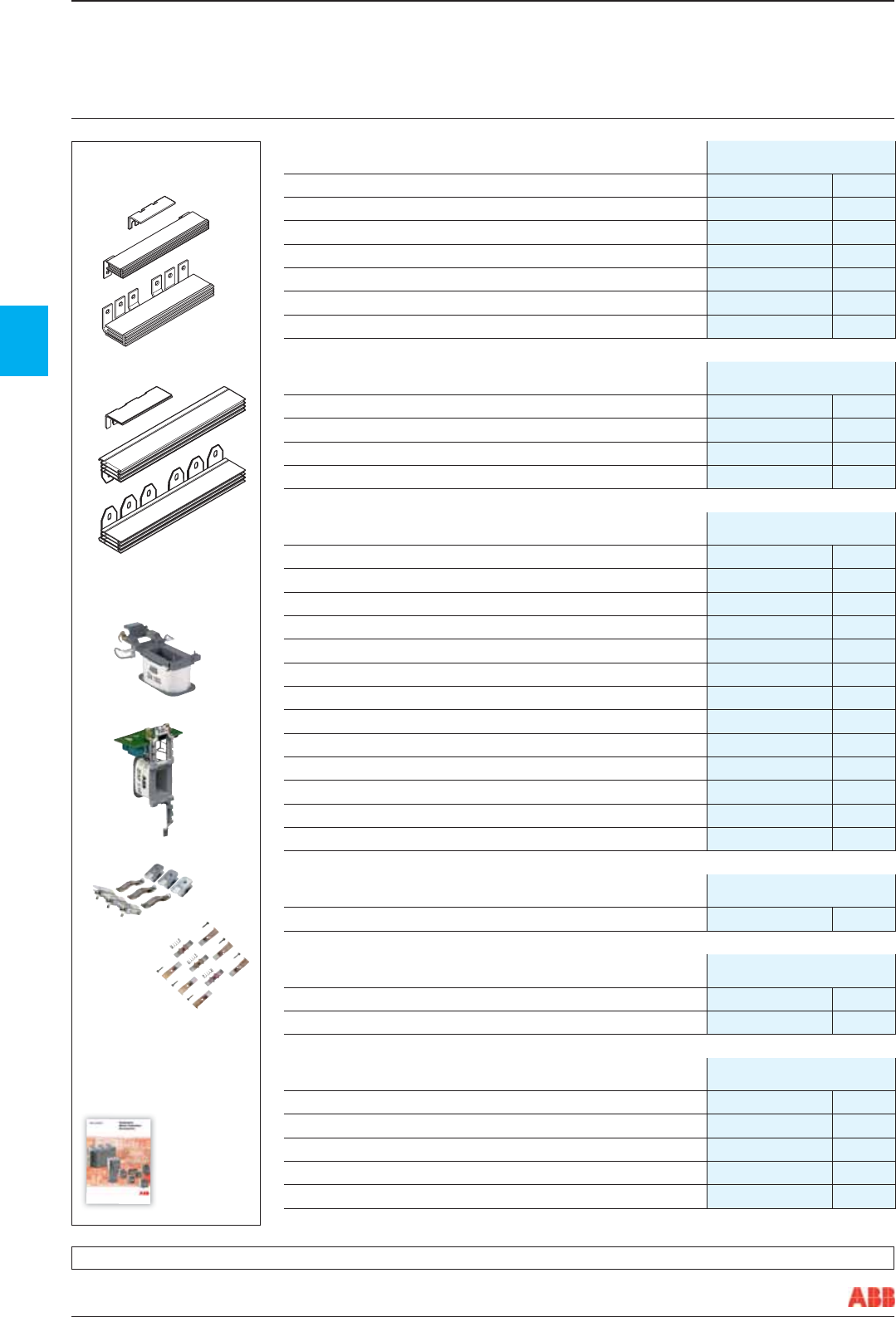

Contactor and Relays

Main Accessories

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Suppressors Product Hierarchy 1700003

Description Order Code Price

RC5-1/133 50-133VAC 1SBN050100R1001 7.73

RC5-1/250 110-250VAC 1SBN050100R1002 7.73

RC5-1/440 250-440VAC 1SBN050100R1003 7.73

RC5-1/50 24-50VAC 1SBN050100R1000 7.73

RC5-2/133 50-133VAC 1SBN050200R1001 7.73

RC5-2/250 110-250VAC 1SBN050200R1002 7.73

RC5-2/50 24-50VAC 1SBN050200R1000 7.73

RT5/150 77-150V DC 1SBN050020R1003 16.82

RT5/32 12-32V DC 1SBN050020R1000 16.82

RV5/250 110-250V AC/DC 1SBN050010R1002 7.14

RV5/50 24-50V AC/DC 1SBN050010R1000 7.14

RA5-1 Interface Relay 1SBN060300R1000 37.97

Terminal Shourds Product Hierarchy 1700001

LT185-AC 1SFN124701R1000 6.90

LT185-AL 1SFN124703R1000 9.65

LT185-AY 1SFN124704R1000 5.91

LT200/A 1SAZ401901R1001 26.63

LT200E E200DU 1SAX501904R0001 19.67

LT300-AC 1SFN125101R1000 13.80

LT300-AL 1SFN125103R1000 15.80

LT320E E320DU 1SAX601904R0001 21.86

LT460-AC 1SFN125701R1000 19.45

LT460-AL 1SFN125703R1000 51.91

LT500E E500DU 1SAX701904R0001 22.47

LT750-AC 1SFN126101R1000 17.51

LT750-AL 1SFN126103R1000 52.74

LW300 Terminal Enlargement 1SFN075107R1000 23.45

LD110 Terminal Extension (Pack 1) 1SFN074308R1000 10.43

LB6 Soldering receptacle 5-POL. GJL1201902R0001 7.92

Contactor and Relays

Main Accessories

RC 5-1/50RV 5/50

SB7400C1

SB7389C1

LT…-AL

LT…-AC

1SFT98099-019C3

1SFT98099-125

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Connection Sets A9 - A95 Product Hierarchy 1700003

Description Order Code Price

BSM6-30 Reversing connecting link GJL1201908R0001 1.78

BEY26-2 Star/Delta Starter Connection Set 1SBN082413R2000 15.97

BEY40-2 Star/Delta Main/Delta/Star Connection Set 1SBN082813R2000 17.65

BED50 Star/Delta Connection Set A30-A63 1SBN083503R1000 60.87

BED75 Star/Delta Connection Set A50-A75 1SBN084103R1000 62.72

BES75-40 Reversing Contactors A(E)45-75 1SBN083302R1000 27.33

Connection Sets A110> Product Hierarchy 1700001

BED95 Star/Delta Connection Set 1SFN084303R1000 61.24

BED110 Star/Delta Connection Set 1SFN084503R1000 65.00

BED145A Star/Delta Connection Set 1SFN084703R1000 83.44

BED210 Star/Delta Connection Set 1SFN085103R1000 96.85

Spare Coils A9 - A75 Product Hierarchy 1700003

ZA16 110V 50HZ Coil 1SBN151410R8406 11.66

ZA16 230-240V 50HZ Coil 1SBN151410R8806 11.66

ZA16 400-415V 50HZ Coil 1SBN151410R8606 11.66

ZA16 A16 24V 50/60HZ Coil 1SBN151410R8106 11.66

ZA40 110V 50HZ Coil 1SBN152410R8406 16.14

ZA40 220-230V 50HZ Coil 1SBN152410R8006 16.14

ZA40 230-240V 50HZ Coil 1SBN152410R8806 16.14

ZA40 24V 50/60HZ Coil 1SBN152410R8106 16.14

ZA40 A40 400-415V 50HZ Coil 1SBN152410R8606 16.14

ZA75 110V 50HZ Coil 1SBN153510R8406 28.99

ZA75 230-240V 50HZ Coil 1SBN153510R8806 28.99

ZA75 24V 50/60HZ COIL 1SBN153510R8106 28.99

ZA75 400-415V 50HZ Coil 1SBN153510R8606 28.99

Spare Coils A110> Product Hierarchy 1700001

ZA110 110V 50/60Hz Coil 1SFN154310R8406 57.60

Spare Contact Sets A50 - A95 Product Hierarchy 1700003

ZL50 Main Contact Set 1SBN163503R1000 71.57

ZL95 Main Contact Set 1SFN164303R1000 112.29

Spare Contact Sets A110> Product Hierarchy 1700001

ZL110 Main Contact Set 1SFN164503R1000 118.77

ZL145 Main Contact Set 1SFN164703R1000 177.52

ZL185 Main Contact Set 1SFN164903R1000 179.79

ZL210 Main Contact Set 1SFN165103R1000 214.64

ZL300 Main Contact Set 1SFN165503R1000 294.77

Contactor and Relay

Main Accessories

E2121D

E2122D

BED 400

BED 185

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

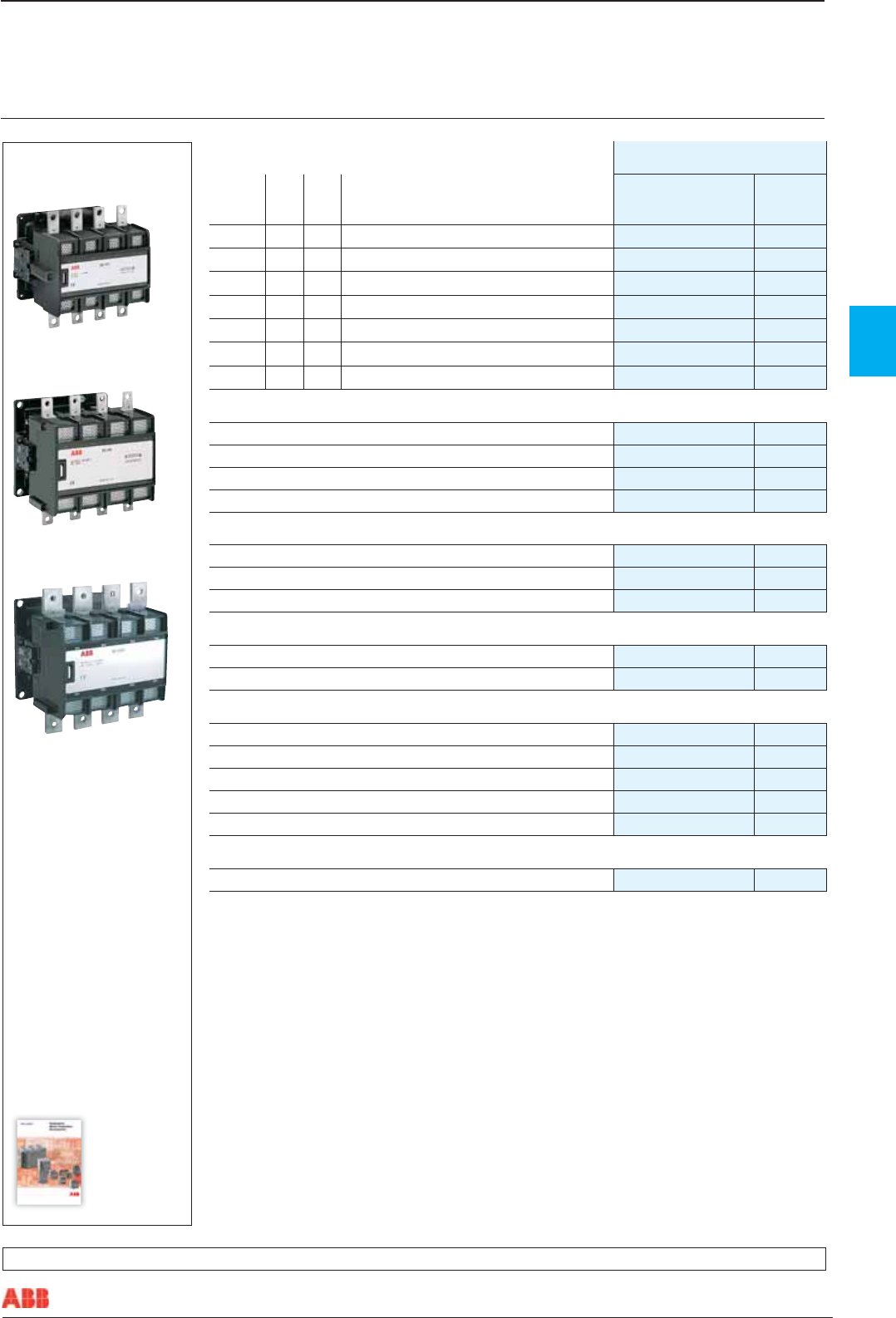

Product Hierarchy 1700002

AC-1

40oC

Aux

NC Description Order Code Price £

200 1 1 EK110-40-11 230-240V 50Hz SK824440-AM 306.41

250 1 1 EK150-40-11 230-240V 50Hz SK824441-AM 373.85

300 1 1 EK175-40-11 230-240V 50Hz SK825440-AM 524.22

350 1 1 EK210-40-11 230-240V 50Hz SK825441-AM 649.06

550 1 1 EK370-40-11 230-240V 50Hz SK827040-AM 1129.43

800 1 1 EK550-40-11 230-240V 50Hz SK827041-AM 1557.44

1000 1 1 EK1000-40-11 230-240V 50Hz SK827044-AM 1883.40

Aux Contacts

CAL16-11A Side Mount Aux Block SK829002-A 13.36

CAL16-11B Side Mount Aux Block SK829002-B 13.36

CAL16-11C Side Mount Aux Block SK829002-C 13.36

CAL16-11D Side Mount Aux Block SK829002-D 13.36

Mechanical Interlocks

VH145 SK829071-A 30.48

VH300 SK829071-B 32.08

VH800 SK829070-F 123.34

Terminal Shrouds

LT150-EK EK110 / EK150 SK178001-HB 17.79

LT210-EK EK175 / EK210 SK178001-KB 18.15

Connection Sets

BSS100 Connection Sets SK829090-B 41.25

BSS145 Connection Sets SK829090-F 42.36

BSS210 Connection Sets SK829090-G 69.19

BSS550 Connection Sets SK829090-E 123.16

BSS1000 Connection Sets SK829090-H 186.05

Suppressors

RC-EH300/415 110-415V AC Suppressor SK829007-B 23.37

Block Contactors

4 Pole EK110 ... EK1000

ac operated

EK 175-40-11

1SBC5 7341 2F0301

EK 370-40-11

1SBC5 7343 2F0301

EK 1000-40-11

1SFT98099-069C2

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Thermal O/L Relays, Class 10A

Product Hierarchy

1700006

For Contactors Setting Description Order Code Price

A9 ... A30

AL9 ... AL40

0.10 - 0.16A TA 25 DU 0.16 1SAZ211201R1005 24.48

0.16 - 0.25A TA 25 DU 0.25 1SAZ211201R1009 24.48

0.25 - 0.4A TA 25 DU 0.4 1SAZ211201R1013 24.48

0.40 - 0.63A TA 25 DU 0.63 1SAZ211201R1017 24.48

0.63 - 1.0A TA 25 DU 1.0 1SAZ211201R1021 24.48

1.0 - 1.4A TA 25 DU 1.4 1SAZ211201R1023 24.48

1.3 - 1.8A TA 25 DU 1.8 1SAZ211201R1025 24.48

1.7 - 2.4A TA 25 DU 2.4 1SAZ211201R1028 24.48

2.2 - 3.1A TA 25 DU 3.1 1SAZ211201R1031 24.48

2.8 - 4.0A TA 25 DU 4.0 1SAZ211201R1033 24.48

3.5 - 5.0A TA 25 DU 5.0 1SAZ211201R1035 24.48

4.5 - 6.5A TA 25 DU 6.5 1SAZ211201R1038 24.48

6.0 - 8.5A TA 25 DU 8.5 1SAZ211201R1040 24.48

7.5 - 11A TA 25 DU 11 1SAZ211201R1043 24.48

10 - 14A TA 25 DU 14 1SAZ211201R1045 25.76

13 - 19A TA 25 DU 19 1SAZ211201R1047 29.50

18 - 25A TA 25 DU 25 1SAZ211201R1051 32.78

24 - 32A TA 25 DU 32 1SAZ211201R1053 43.14

A30 ... A40

AL30 ... AL40

18 - 25A TA 42 DU 25 1SAZ311201R1001 43.22

22 - 32A TA 42 DU 32 1SAZ311201R1002 43.22

29 - 42A TA 42 DU 42 1SAZ311201R1003 43.22

A50 ... A75

AL50 ... AF75

22 - 32A TA 75 DU 32 1SAZ321201R1002 49.21

29 - 42A TA 75 DU 42 1SAZ321201R1003 49.21

36 - 52A TA 75 DU 52 1SAZ321201R1004 58.16

45 - 63A TA 75 DU 63 1SAZ321201R1005 60.95

60 - 80A TA 75 DU 80 1SAZ321201R1006 72.55

Thermal O/L Relays, Class 10A

Product Hierarchy

1700007

For Contactors Setting Description Order Code Price

A95 ... A110

AF95 ... AF110

45 - 63A TA 80 DU 63 1SAZ331201R1005 73.25

60 - 80A TA 80 DU 80 1SAZ331201R1006 76.25

65 - 90A TA 110 DU 90 1SAZ411201R1001 109.81

80 - 110A TA 110 DU 110 1SAZ411201R1002 121.21

A145 ... A185

80 - 110A TA 200 DU 110 1SAZ421201R1002 142.51

100 - 135A TA 200 DU 135 1SAZ421201R1003 142.51

110 - 150A TA 200 DU 150 1SAZ421201R1004 142.51

130 - 175A TA 200 DU 175 1SAZ421201R1005 142.51

150 - 200A TA 200 DU 200 1SAZ421201R1006 142.51

A210 ... A300

130 - 185A TA450 DU 185 1SAZ511201R1001 172.19

165 - 235A TA450 DU 235 1SAZ511201R1002 172.19

220 - 310A TA450 DU 310 1SAZ511201R1003 203.29

SB7387C2

TA 75 DU

TA 42 DU

SB7361C3

TA 25 DU

SB7386C2

Thermal & Electronic O/L Relays

A9 ... A300 - AL9 ... AL40

AF95 ... AF750 3-pole contactors

E 320 DU

TA 450 DU

TA 200 DU

1SFT91199-005C3

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Separate Mounting Kits

Product Hierarchy

1700006

For Overload Relays Description Order Code Price

TA25DU ... DB25/25A 1SAZ201108R0001 11.92

TA25DU32 ... DB25/32A 1SAZ201108R0002 11.92

TA42,TA75,TA80 ... DB80 1SAZ301110R0001 18.24

E16DU DB16E 1SAX101110R0001 15.21

E140DU DB140E 1SAX301110R1002 46.57

Separate Mounting Kits

Product Hierarchy

1700007

For Overload Relays Description Order Code Price

TA110,TA200 ... DB200 1SAZ401110R0001 23.58

TA450DU/SU ... DT450/A300 1SAZ501902R1001 58.55

E500DU DT500/AF460L 1SAX701902R1001 55.74

Accessories

Product Hierarchy

1700006

For Overload Relays Description Order Code Price

24v Remote Reset T25DU DR25-A-24 1SAZ201504R0001 25.13

110v Remote Reset T25DU DR25-A-110 1SAZ201504R0003 25.13

220/380v Remote Reset T25DU DR25-A-220/380 1SAZ201504R0005 25.13

Thermal & Electronic O/L Relays

Electronic Overload Relays & Accessories

Electronic O/L Relays

Product Hierarchy

1700006

For Contactors Setting Description Order Code Price

A9 ... A16

AL9 ... AL16

0.3 - 0.1.0A E16DU1.0 1SAZ211201R1005 50.39

0.9 - 2.7A E16DU2.7 1SAX111001R1103 50.39

2.0 - 6.3A E16DU6.3 1SAX111001R1104 52.80

5.7 - 18.9A E16DU18.9 1SAX111001R1105 52.80

Electronic O/L Relays

Product Hierarchy

1700007

For Contactors Setting Description Order Code Price

A145 ... A185 60 - 200A E200DU200 1SAX511001R1101 247.28

A210 ... A300 100 - 320A E320DU320 1SAX521001R1101 287.86

AF400 ... AF460 150 - 500A E500DU500 1SAX711001R1101 368.32

AF580 ... AF750 250 - 800A E800DU800 1SAX811001R1101 514.29

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

B6-30-10

B6-30-10F

B6-30-10P

B7-30-10

B7-40-10

AC3 @415v

Aux Contacts

Description

Product Hierarchy 1700004

NO NC Order Code Price

3 pole contactors

8.5

-1

B6-30-01 230AC GJL1211001R8010 14.20

B6-30-01 24AC GJL1211001R0011 14.20

B6-30-01-F 110AC • GJL1211003R8014 14.20

B6-30-01-F 24AC • GJL1211003R0011 14.20

B6-30-10 110AC GJL1211001R8104 14.20

B6-30-10 230AC GJL1211001R8100 14.20

B6-30-10 24AC GJL1211001R0101 14.20

B6-30-10 400AC GJL1211001R8105 14.20

4 pole contactors

8.5 - -

B6-40-00 110AC GJL1211201R8004 14.20

B6-40-00 230AC GJL1211201R8000 14.20

B6-40-00 24AC GJL1211201R0001 14.20

B6-40-00-F 230AC • GJL1211203R8000 14.20

3 pole interface contactors

8.5

- 1 B7-30-01 230AC GJL1311001R8010 23.34

B7-30-10 110AC GJL1311001R8104 23.34

B7-30-10 230AC GJL1311001R8100 23.34

B7-30-10 24AC GJL1311001R0101 23.34

3 pole DC contactors

8.5 - 1

BC6-30-01 110DC GJL1213001R0014 14.20

BC6-30-01 24DC GJL1213001R0011 14.20

BC6-30-01-F 24DC • GJL1213003R0011 14.20

Reversing Pairs

-1

VB6-30-01 110AC GJL1211901R8014 36.11

VB6-30-10 110AC GJL1211901R8104 36.11

VB6-30-10 230AC GJL1211901R8100 36.11

VB6-30-10 24AC GJL1211901R0101 36.11

VB6A-30-10 230AC GJL1211911R8100 36.11

VB6A-40-00 220-240V 40-450HZ GJL1211911R8000 36.11

Relays

K6-22Z 230AC Mini Contactor Relay GJH1211001R8220 14.20

K6-31Z 230AC Mini Contactor Relay GJH1211001R8310 14.20

KC6-22Z 110DC Mini Contactor Relay GJH1213001R0224 14.20

KC6-22Z 24DC Mini Contactor Relay GJH1213001R0221 14.20

• Flat Pin Terminals

Mini Contactors

3 - 4 Pole Contactors and Relays

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

Product Hierarchy 1700006

Description Order Code Price

Overload Relays

T7DU-0.4 Thermal Overload (0.24-0.4A) 1SAZ111301R0003 22.29

T7DU-0.6 Thermal Overload (0.4-0.6A) 1SAZ111301R0004 22.29

T7DU-1.0 Thermal Overload (0.6-1.0A) 1SAZ111301R0005 22.29

T7DU-1.6 Thermal Overload (1.0-1.6A) 1SAZ111301R0006 22.29

T7DU-2.4 Thermal Overload (1.6-2.4A) 1SAZ111301R0007 22.29

T7DU-4.0 Thermal Overload (2.4-4.0A 1SAZ111301R0008 22.29

T7DU-6.0 Thermal Overload (4.0-6.0A) 1SAZ111301R0009 22.29

T7DU-9.0 Thermal Overload (6.0-9.0A) 1SAZ111301R0010 22.29

T7DU-12.0 Thermal Overload (9.0-12A) 1SAZ111301R0011 22.29

Product Hierarchy 1700003

Accessories Order Code Price

DB16E Mounting Kit E16DU 1SAX101110R0001 15.21

LB6 Soldering receptacle 5-POL. GJL1201902R0001 7.92

BA5.50 pkt 50 markers for a range cont 1SBN110000R1000 21.53

BSM6-30 Reversing connecting link GJL1201908R0001 1.78

RV-BC6/60 Varistor GHV2501902R0002 2.67

Mini Contactors

Thermal Overloads and Accessories

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

SST11601

MS 116

Product Hierarchy 1800002

Manual Motor Starter MS116 Order Code Price

MS 116 - 0.25 1SAM250000R1002 30.41

MS 116 - 0.4 1SAM250000R1003 30.63

MS 116 - 0.63 1SAM250000R1004 30.63

MS 116 - 1.0 1SAM250000R1005 32.71

MS 116 - 1.6 1SAM250000R1006 34.65

MS 116 - 2.5 1SAM250000R1007 36.54

MS 116 - 4 1SAM250000R1008 36.54

MS 116 - 6.3 1SAM250000R1009 36.54

MS 116 - 10.0 1SAM250000R1010 40.50

MS 116 - 12..0 1SAM250000R1012 40.50

MS 116 - 16.0 1SAM250000R1011 40.50

Manual Motor Starters

MS116 ... M495

Manual Motor Starters MS132 Product Hierarchy 1800001

Description Order Code Price

MS 132 - 0.16 1SAM350000R1001 36.37

MS 132 - 0.25 1SAM350000R1002 36.37

MS 132 - 0.4 1SAM350000R1003 36.37

MS 132 - 0.63 1SAM350000R1004 36.37

MS 132 - 1.0 1SAM350000R1005 41.84

MS 132 - 1.6 1SAM350000R1006 41.84

MS 132 - 2.5 1SAM350000R1007 41.84

MS 132 - 4.0 1SAM350000R1008 41.84

MS 132 - 6.3 1SAM350000R1009 41.84

MS 132 - 10 1SAM350000R1010 45.98

MS 132 - 12 1SAM350000R1012 49.40

MS 132 - 16 1SAM350000R1011 49.40

MS 132 - 20 1SAM350000R1013 52.14

MS 132 - 25 1SAM350000R1014 59.01

MS 132 - 32 1SAM350000R1015 74.78

Product Hierarchy 1800001

Manual Motor Starter MS450 - 495 Order Code Price

MS 450 - 40 1SAM450000R1005 140.51

MS 450 - 50 1SAM450000R1007 157.92

MS 495 - 63 1SAM550000R1007 168.36

MS 495 - 75 1SAM550000R1008 177.09

MS 495 - 100 1SAM550000R1010 209.00

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100155C0201

New

Range

Available

September 2010

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SBC100122C0202

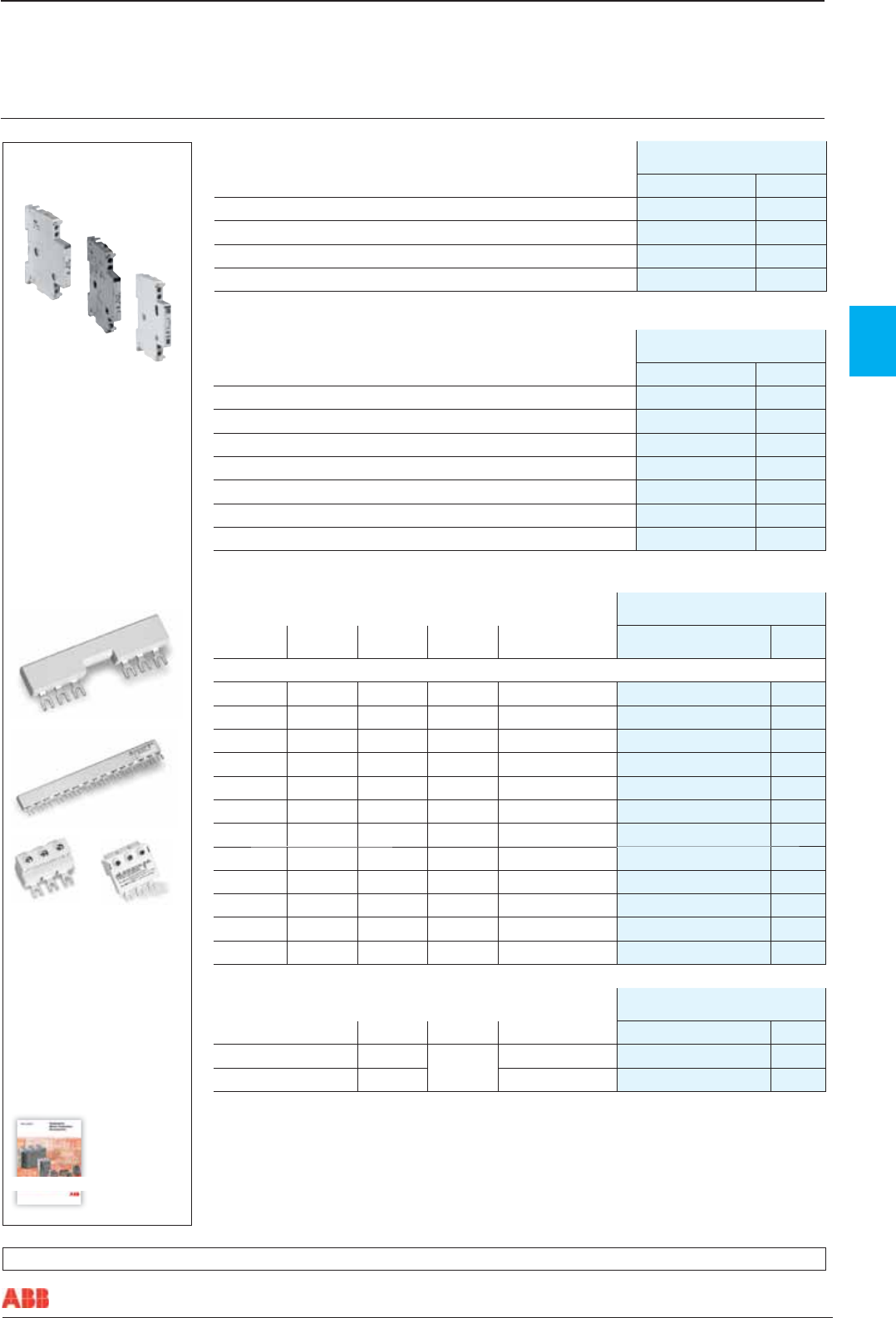

Product Hierarchy 1800002

Accessories Order Code Price

HK4-11 Side Mount Aux Block 1SAM401901R1001 9.79

AA1-24 Shunt Trip 24V 1SAM201910R1001 31.40

AA1-110 Shunt Trip 100V 1SAM201910R1002 31.40

BEA40/450 Connection Module 1SBN083206R1000 8.55

Manual Motor Starters

Accessories

Product Hierarchy 1800002

Accessories MS116 ... MS132 Order Code Price

HKF1-11 Front 1SAM201901R1001 6.10

HK1-11 Side 1SAM201902R1001 6.10

HK1-20 Side 1SAM201902R1002 6.10

SK1-11 Signal 1SAM201903R1001 9.63

BEA7/116 Connection Module 1SBN080906R1000 3.61

BEA16/116 Connection Module 1SBN081406R1000 3.61

OHB2AJM Black Handle OHB2AJM 6.79

Product Hierarchy 1800002

MS116 MS132 No. MMS Aux

Contacts Part no Order Code Price

3-phase busbar up to 65A

• • 2 0 PS1-2-0-65 1SAM201906R1102 5.92

• • 3 0 PS1-3-0-65 1SAM201906R1103 7.01

• • 4 0 PS1-4-0-65 1SAM201906R1104 8.18

• • 5 0 PS1-5-0-65 1SAM201906R1105 8.94

• • 2 1 PS1-2-1-65 1SAM201906R1112 6.18

• • 3 1 PS1-3-1-65 1SAM201906R1113 7.31

• • 4 1 PS1-4-1-65 1SAM201906R1114 8.29

• • 5 1 PS1-5-1-65 1SAM201906R1115 9.31

• • 2 2 PS1-2-2-65 1SAM201906R1122 7.09

• • 3 2 PS1-3-2-65 1SAM201906R1123 7.93

• • 4 2 PS1-4-2-65 1SAM201906R1124 8.81

• • 5 2 PS1-5-2-65 1SAM201906R1125 9.99

3-phase feeder terminals Product Hierarchy 1800002

65A Remarks mm2Part no Order Code Price

• ﬂat

25mm2

S1-M1-25 1SAM201907R1101 6.20

• high S1-M2-25 1SAM201 907R1102 7.41

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

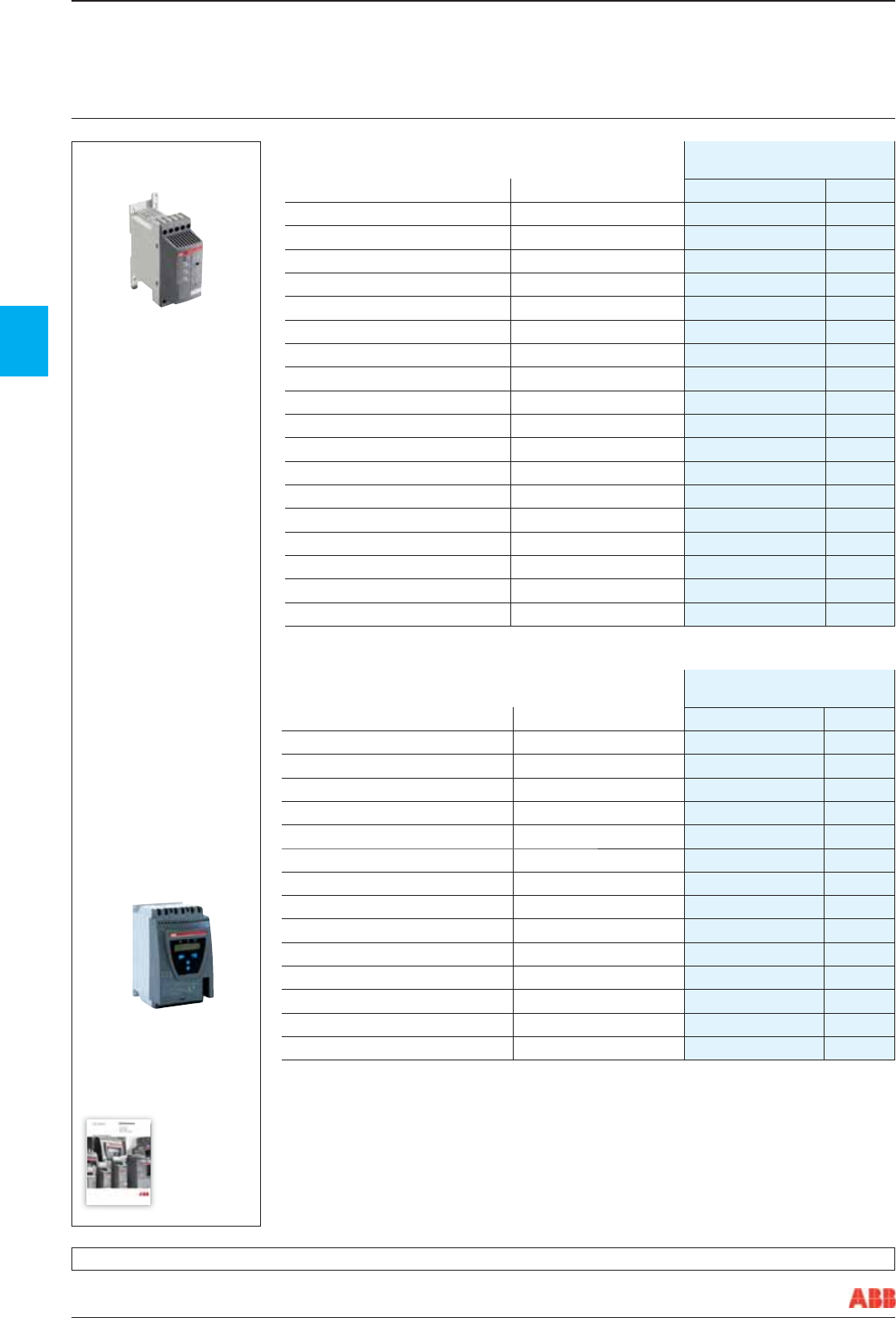

PST Advanced Softstarts Product Hierarchy 1600001

Description Part No Order Code Price

Advanced Softstarter 30A PST30-600-70 1SFA894002R7000 903.29

Advanced Softstarter 37A PST37-600-70 1SFA894003R7000 984.71

Advanced Softstarter 44A PST44-600-70 1SFA894004R7000 1038.53

Advanced Softstarter 50A PST50-600-70 1SFA894005R7000 1071.36

Advanced Softstarter 60A PST60-600-70 1SFA894006R7000 1159.33

Advanced Softstarter 72A PST72-600-70 1SFA894007R7000 1330.01

Advanced Softstarter 85A PST85-600-70 1SFA894008R7000 1441.61

Advanced Softstarter 105A PST105-600-70 1SFA894009R7000 1576.84

Advanced Softstarter 142A PST142-600-70 1SFA894010R7000 1819.74

Advanced Softstarter 175A PST175-600-70 1SFA894011R7000 2049.49

Advanced Softstarter 210A PST210-600-70 1SFA894012R7000 2239.88

Advanced Softstarter 250A PST250-600-70 1SFA894013R7000 2456.50

Advanced Softstarter 300A PST300-600-70 1SFA894014R7000 2526.09

External Keypad kit for PST range PSTEK 1SFA899003R1000 248.52

PST30...PST72

PSR Basic Softstarts Product Hierarchy 1600002

Description Part No Order Code Price

Basic Softstarter 3A PSR3-600-70 1SFA896103R7000 88.22

Basic Softstarter 6A PSR6-600-70 1SFA896104R7000 98.56

Basic Softstarter 9A PSR9-600-70 1SFA896105R7000 116.02

Basic Softstarter 12A PSR12-600-70 1SFA896106R7000 125.60

Basic Softstarter 16A PSR16-600-70 1SFA896107R7000 144.78

Basic Softstarter 25A PSR25-600-70 1SFA896108R7000 163.97

Basic Softstarter 30A PSR30-600-70 1SFA896109R7000 193.65

Basic Softstarter 37A PSR37-600-70 1SFA896110R7000 247.74

Basic Softstarter 45A PSR45-600-70 1SFA896111R7000 318.37

Basic Softstarter 60A PSR60-600-70 1SFA896112R7000 364.50

Basic Softstarter 72A PSR72-600-70 1SFA896113R7000 439.11

Basic Softstarter 85A PSR85-600-70 1SFA896114R7000 481.71

Basic Softstarter 105A PSR105-600-70 1SFA896115R7000 530.86

Connection Kit PSR3 - 16 and MS116 1SFA896211R1001 5.80

Connection Kit PSR37 - 45 and MS450 1SFA896213R1001 14.68

Connection Kit PSR60 - 105 and MS495 1SAM501903R1001 13.57

Fan for PSR3 to PSR45 1SFA896311R1001 34.26

Fan for PSR60 to PSR105 1SFA896313R1001 37.48

PSR3 ... PSR16

Soft Starters

Basic PSR and Advanced PSS/PST

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC132004C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Product Hierarchy 1300001

22mm Pushbuttons Order Code Price

Green 1NO 1SFA619100R1012 4.99

Yellow 1NO 1SFA619100R1013 4.99

Blue 1NO 1SFA619100R1014 4.99

Black 1NO 1SFA619100R1016 4.99

Green 2NO 1SFA619100R1022 7.06

Black 2NO 1SFA619100R1026 7.06

Red 1NC 1SFA619100R1041 4.99

Black 1NC 1SFA619100R1046 4.99

Red 1NO/1NC 1SFA619100R1071 7.06

Green 1NO/1NC 1SFA619100R1072 7.06

Yellow 1NO/1NC 1SFA619100R1073 7.06

Blue 1NO/1NC 1SFA619100R1074 7.06

Extended Red 1NC 1SFA619102R1041 4.99

22mm Selector Switches 2 Position

Black Stay Put Switch Position BC 1NO 1SFA619200R1016 7.05

Black Stay Put Switch Position BC 2NO 1SFA619200R1026 9.11

Black Stay Put Switch Position BC 1NO/1NC 1SFA619200R1076 9.11

Black Stay Put Switch Position AC 1NO 1SFA619201R1016 7.05

Black Stay Put Switch Position AC 2NO 1SFA619201R1026 9.11

Black Stay Put Switch Position AC 1NC 1SFA619201R1046 7.05

Black Stay Put Switch Position AC 1NO/1NC 1SFA619201R1076 9.11

Black Spring Return Switch Position BC 2NO 1SFA619202R1026 9.11

Black Spring Return Switch Position BC 2NO 1NO/1NC 1SFA619202R1076 9.11

22mm Selector Switches 3 Position

Black Stay Put Switch Position ABC 2NO 1SFA619210R1026 9.11

Black Stay Put Switch Position ABC 1NO/1NC 1SFA619210R1076 9.11

Black Spring Return Switch Position A-B-C 2NO 1SFA619211R1026 9.11

Black Spring Return Switch Position AB-C 2NO 1SFA619212R1026 9.11

Black Spring Return Switch Position AB-C 1NO/1NC 1SFA619212R1076 9.11

22mm Pilot Light Heads

Red 1SFA619402R1001 3.77

Green 1SFA619402R1002 3.77

Yellow 1SFA619402R1003 3.77

Blue 1SFA619402R1004 3.77

White 1SFA619402R1005 3.77

Clear 1SFA619402R1008 3.77

Pilot Devices - Compact 22mm

Push Buttons, Selector Switches, Pilot Lights

NO NC

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC151003C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

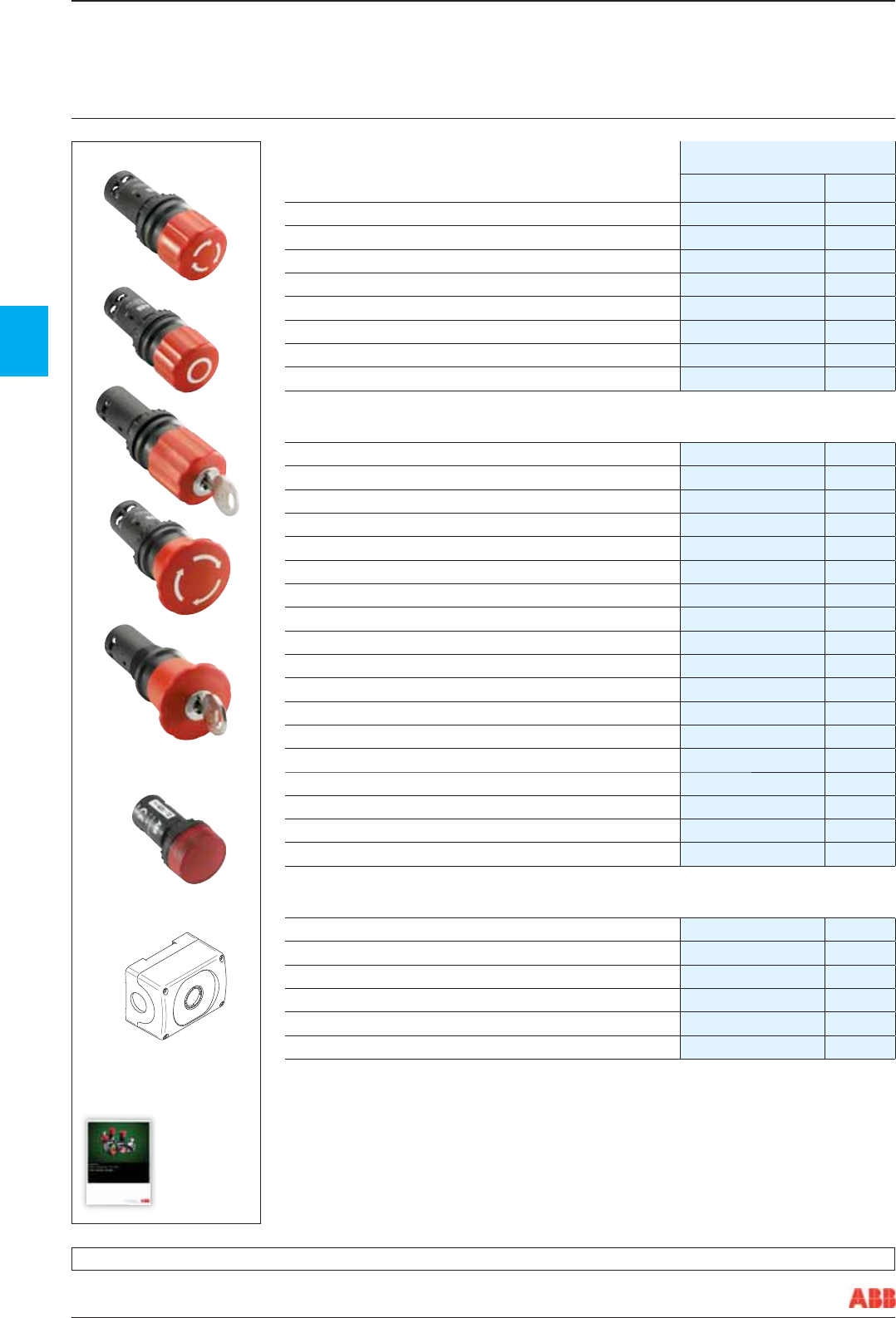

Product Hierarchy 1300001

Emergency Stop Buttons Order Code Price

30mm E. Stop Twist Release 1NC 1SFA619500R1041 8.64

30mm E. Stop Twist Release 2NC 1SFA619500R1051 10.43

30mm E. Stop Twist Release 1NO / 1NC 1SFA619500R1071 10.43

40mm E. Stop Twist Release 1NC 1SFA619550R1041 9.27

40mm E. Stop Twist Release 2NC 1SFA619550R1051 11.08

40mm E. Stop Twist Release 1NO / 1NC 1SFA619550R1071 11.08

40mm E. Stop Key Release 2NC 1SFA619552R1051 18.36

40mm E. Stop Key Release 1NO / 1NC 1SFA619552R1071 18.36

Pilot Light Bodies

Integrated Led 24V AC/DC Red 1SFA619402R5021 7.18

Integrated Led 24V AC/DC Green 1SFA619402R5022 7.18

Integrated Led 24V AC/DC Yellow 1SFA619402R5023 7.18

Integrated Led 24V AC/DC Blue 1SFA619402R5024 7.18

Integrated Led 24V AC/DC White 1SFA619402R5025 7.18

Integrated Led 110-130V AC Red 1SFA619402R5131 8.91

Integrated Led 110-130V AC Green 1SFA619402R5132 8.91

Integrated Led 110-130V AC Yellow 1SFA619402R5133 8.91

Integrated Led 110-130V AC White 1SFA619402R5135 8.91

Integrated Led 110-130V DC Red 1SFA619402R5151 9.57

Integrated Led 110-130V DC Green 1SFA619402R5152 9.57

Integrated Led 110-130V DC Yellow 1SFA619402R5153 9.57

Integrated Led 110-130V DC White 1SFA619402R5155 9.57

Integrated Led 230V AC Red 1SFA619402R5231 9.41

Integrated Led 230V AC Green 1SFA619402R5232 9.41

Integrated Led 230V AC Yellow 1SFA619402R5233 9.41

Integrated Led 230V AC Blue 1SFA619402R5234 9.41

Integrated Led 230V AC White 1SFA619402R5235 9.41

Pushbutton Enclosures

Compact Enclosure 1 Hole - Yellow 1SFA619821R1000 8.49

Compact Enclosed E-Stop 1SFA619821R1001 19.39

Compact Enclosed E-Stop With Shroud 1SFA619821R2001 22.06

E-Stop Shroud For Compact Enclosure 1SFA619920R8053 3.47

CP1-10W-10 Compact Pushbutton 1SFA619100R1015 4.99

C2SS1-10R-20 Compact Selector Switch 1SFA619200R1021 9.10

Pilot Devices - Compact 22mm

Emergency Stops, Pilot Light Bodies, Enclosures

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC151003C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

22mm Pushbuttons Product Hierarchy 1300002

Black Plastic Bezel Order Code Price

Red Non Illuminated Momentary Flush 1SFA611100R1001 3.18

Green Non Illuminated Momentary Flush 1SFA611100R1002 3.18

Yellow Non Illuminated Momentary Flush 1SFA611100R1003 3.18

Blue Non Illuminated Momentary Flush 1SFA611100R1004 3.18

White Non Illuminated Momentary Flush 1SFA611100R1005 3.18

Black Non Illuminated Momentary Flush 1SFA611100R1006 3.18

Red Illuminated Momentary Flush 1SFA611100R1101 3.18

Green Illuminated Momentary Flush 1SFA611100R1102 3.18

Yellow Illuminated Momentary Flush 1SFA611100R1103 3.18

White Illuminated Momentary Flush 1SFA611100R1105 3.18

Chrome Plastic Bezel

Red Non Illuminated Momentary Flush 1SFA611100R2001 3.18

Green Non Illuminated Momentary Flush 1SFA611100R2002 3.18

Yellow Non Illuminated Momentary Flush 1SFA611100R2003 3.18

Blue Non Illuminated Momentary Flush 1SFA611100R2004 3.18

White Non Illuminated Momentary Flush 1SFA611100R2005 3.18

Black Non Illuminated Momentary Flush 1SFA611100R2006 3.18

Metal Bezel

Red Non Illuminated Momentary Flush 1SFA611100R3001 4.20

Green Non Illuminated Momentary Flush 1SFA611100R3002 4.20

Black Non Illuminated Momentary Flush 1SFA611100R3006 4.20

Red Illuminated Momentary Flush 1SFA611100R3101 4.20

Blue Illuminated Momentary Flush 1SFA611100R3104 4.20

Red Non Illuminated Momentary Extended 1SFA611102R1001 3.18

Red Non Illuminated 40mm Mushroom 1SFA611124R1001 9.77

Red Non Illuminated 60mm Mushroom 1SFA611125R1001 10.30

Green/Red Non Illuminated Double Pushbutton 1SFA611130R1106 8.01

Green/Red Illuminated Double Pushbutton 1SFA611131R1102 10.82

Green/Red Non Illuminated Double Pushbutton 1SFA611131R1106 10.82

Green/Red Non Illuminated Double Pushbutton Ext Lower 1SFA611144R1106 10.82

Green/Red Illuminated Double Pushbutton 1SFA611144R1108 10.82

22mm Selector Switches

Black Plastic Bezel

Black Non Illuminated 2 Pos Selector Short Handle 1SFA611200R1006 5.74

Black Non Illuminated 2 Pos Selector Short Handle 1SFA611201R1006 5.74

Black Non Illuminated 3 Pos Selector Short Handle 1SFA611210R1006 5.74

Black Non Illuminated 3 Pos Selector Short Handle 1SFA611211R1006 5.74

Black Non Illuminated 3 Pos Selector Long Handle 1SFA611213R1006 5.74

Chrome Plastic Bezel

Black Non Illuminated 2 Pos Selector Short Handle 1SFA611200R2006 5.74

Black Non Illuminated 2 Pos Selector Short Handle 1SFA611201R2006 5.74

Black Non Illuminated 3 Pos Selector Short Handle 1SFA611211R2006 5.74

Black Non Illuminated 3 Pos Selector Short Handle 1SFA611212R2006 5.74

Metal Bezel

Black Non Illuminated 3 Pos Selector Short Handle 1SFA611201R3006 6.52

Pilot Devices - Modular 22mm

Push Buttons, Selector Switches

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC151003C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Product Hierarchy 1300002

22mm Key Switches Order Code Price

2 Pos Key Selector Key Remove Both 1SFA611280R1001 15.75

2 Pos Key Selector Key Remove B Only 1SFA611281R1001 15.75

2 Pos Key Selector Key Remove B Only (momentory) 1SFA611282R1001 15.75

3 Pos Key Selector Key Remove All 1SFA611283R1001 15.75

3 Pos Key Selector Key Remove B Only 1SFA611284R1001 15.75

3 Pos Key Selector Key Remove B Only (momentory) 1SFA611285R1001 15.75

Pilot Light Heads

Red 1SFA611400R1001 1.81

Green 1SFA611400R1002 1.81

Yellow 1SFA611400R1003 1.81

Blue 1SFA611400R1004 1.81

White 1SFA611400R1005 1.81

Clear 1SFA611400R1008 1.81

Emergency Stops

Red Non Illuminated E-Stop 40mm 1SFA611510R1001 9.29

Red Non Illuminated E-Stop 60mm 1SFA611513R1001 10.21

Contact Blocks

5 Block Holder 1SFA611601R1100 1.78

3 Block Holder 1SFA611605R1100 0.49

3 Block Holder + 1NO 1SFA611605R1101 3.05

3 Block Holder + 2NO 1SFA611605R1102 5.62

3 Block Holder + 1NC 1SFA611605R1110 3.05

3 Block Holder + 1NO & 1NC 1SFA611605R1111 5.62

3 Block Holder + 2NC 1SFA611605R1120 5.62

3 Block Holder + MLB-1 1SFA611605R1200 3.02

3 Block Holder + 1NO & 1LB 1SFA611605R1201 5.59

3 Block Holder + 1NO + 1NC + 1LB 1SFA611605R1211 8.16

Contact Block 1NO 1SFA611610R1001 2.58

Double Contact Block 2NO 1SFA611610R1002 5.20

Contact Block 1NC 1SFA611610R1010 2.58

Double Contact Block 1NO + 1NC 1SFA611610R1011 5.20

Double Contact Block 2NC 1SFA611610R1020 5.20

Rear Mount Contact Block - 1NO 1SFA611610R2001 2.58

Rear Mount Contact Block - 1NC 1SFA611610R2010 2.58

Rear Mount Contact Block - 1NO + 1NC 1SFA611610R2011 5.20

Pilot Devices - Modular 22mm

Key Switches, Pilot Lights, Contact Blocks

Key codes

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC151003C0201

Lamp Blocks

Lamp Block MLB-1 1SFA611620R1001 2.53

Lamp Block MLB-2 1SFA611620R1002 5.02

Lamp Block MLB-3 1SFA611620R1003 5.02

Lamp Block MLB-4 1SFA611620R1004 5.62

Lamp Block MLB-5 1SFA611620R1005 5.62

Rear Mount Lamp Block - Full Voltage 1SFA611620R2001 2.53

Diode Block 1SFA611630R1001 4.70

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Product Hierarchy 1300002

Enclosures & Accessories Order Code Price

Empty Grey Enclosure - 1 Seat 1SFA611811R1000 8.87

Empty Grey Enclosure - 2 Seat 1SFA611812R1000 10.44

Empty Grey Enclosure - 3 Seat 1SFA611813R1000 13.09

Empty Grey Enclosure - 4 Seat 1SFA611814R1000 18.34

Empty Yellow Enclosure - 1 Seat 1SFA611821R1000 6.64

Mounting Tool (New Modular) 1SFA611920R8015 4.28

Emergency Stop Shroud - Modular 1SFA611920R8053 5.56

Blanking Plug ( Black) 1SFA611920R8130 1.94

Legend Plate Holder - Black 1SFA616920R8120 0.91

Legend Plate Insert - Blank 1SFA616920R8121 0.30

Pilot Devices - Modular 22mm

Enclosures and Accessories

Full range of product

and technical information

place this part number

in a search engine and

download

1SFC151003C0201

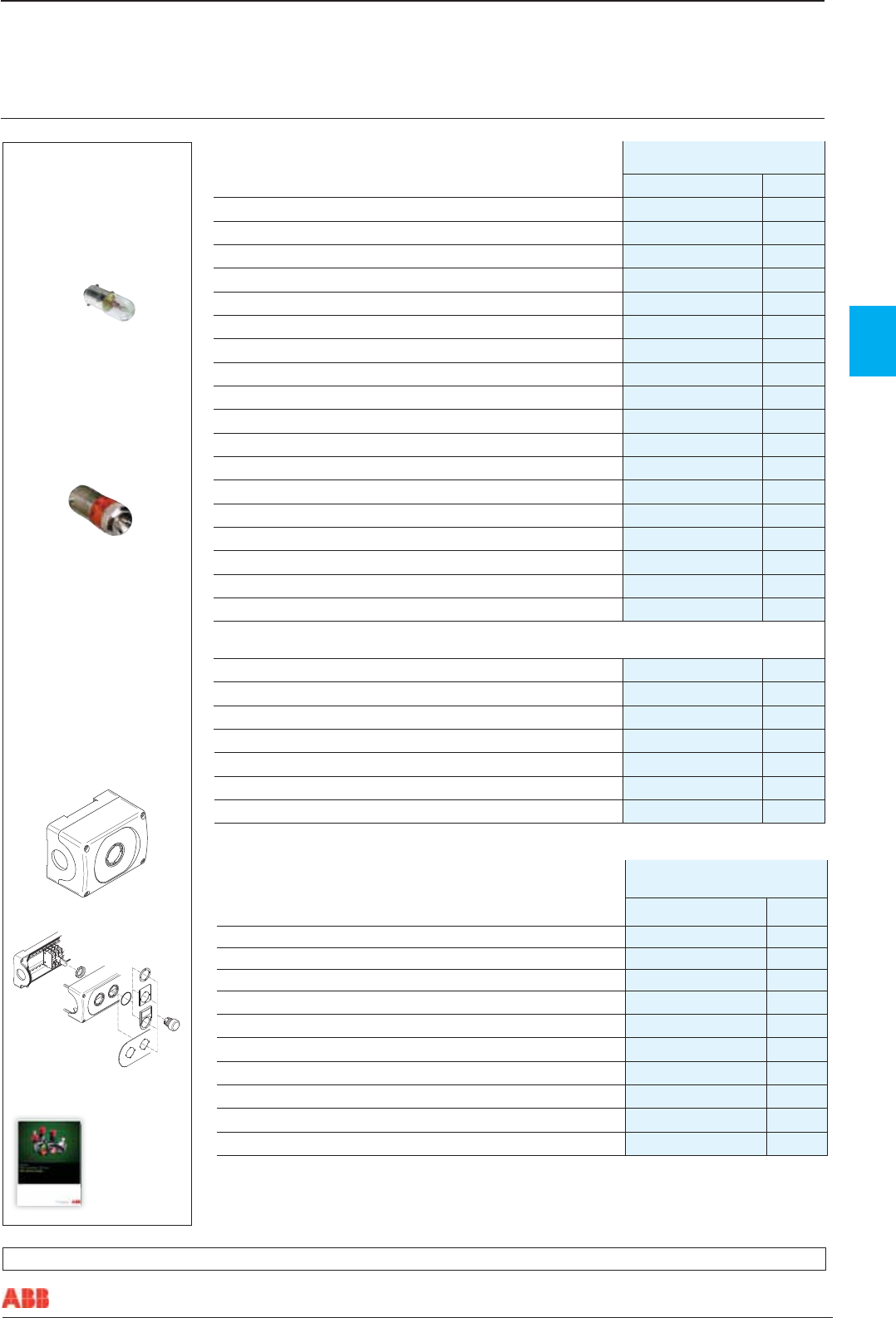

Product Hierarchy 1300002

LEDs Order Code Price

White LED 12V 1SFA616921R2015 8.39

Red LED 24V 1SFA616921R2021 8.39

Green LED 24V 1SFA616921R2022 8.39

Yellow LED 24V 1SFA616921R2023 8.39

Blue LED 24V 1SFA616921R2024 8.39

White LED 24V 1SFA616921R2025 8.39

Red LED 110-130V AC 1SFA616921R2131 8.39

Green LED 110-130V AC 1SFA616921R2132 8.39

Yellow LED 110-130V AC 1SFA616921R2133 8.39

Blue LED 110-130V AC 1SFA616921R2134 8.39

White LED 110-130V AC 1SFA616921R2135 8.39

Green LED 110-130V AC 1SFA616921R2142 8.39

White LED 110-130V AC/DC 1SFA616921R2145 8.39

Red LED 230V 1SFA616921R2221 8.39

Green LED 230V 1SFA616921R2222 8.39

Yellow LED 230V 1SFA616921R2223 8.39

Blue LED 230V 1SFA616921R2224 8.39

White LED 230V 1SFA616921R2225 8.39

Filament

6v Filament Bulb 5911086-11 0.76

12v Filament Bulb 5911086-12 0.76

24v Filament Bulb 5911086-13 0.74

60v Filament Bulb 5911086-14 1.13

130v Filament Bulb 5911086-15 1.74

30v Filament Bulb 5911086-4 0.83

110v Filament Bulb 5911086-7 1.74

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Electronic Products and Relays

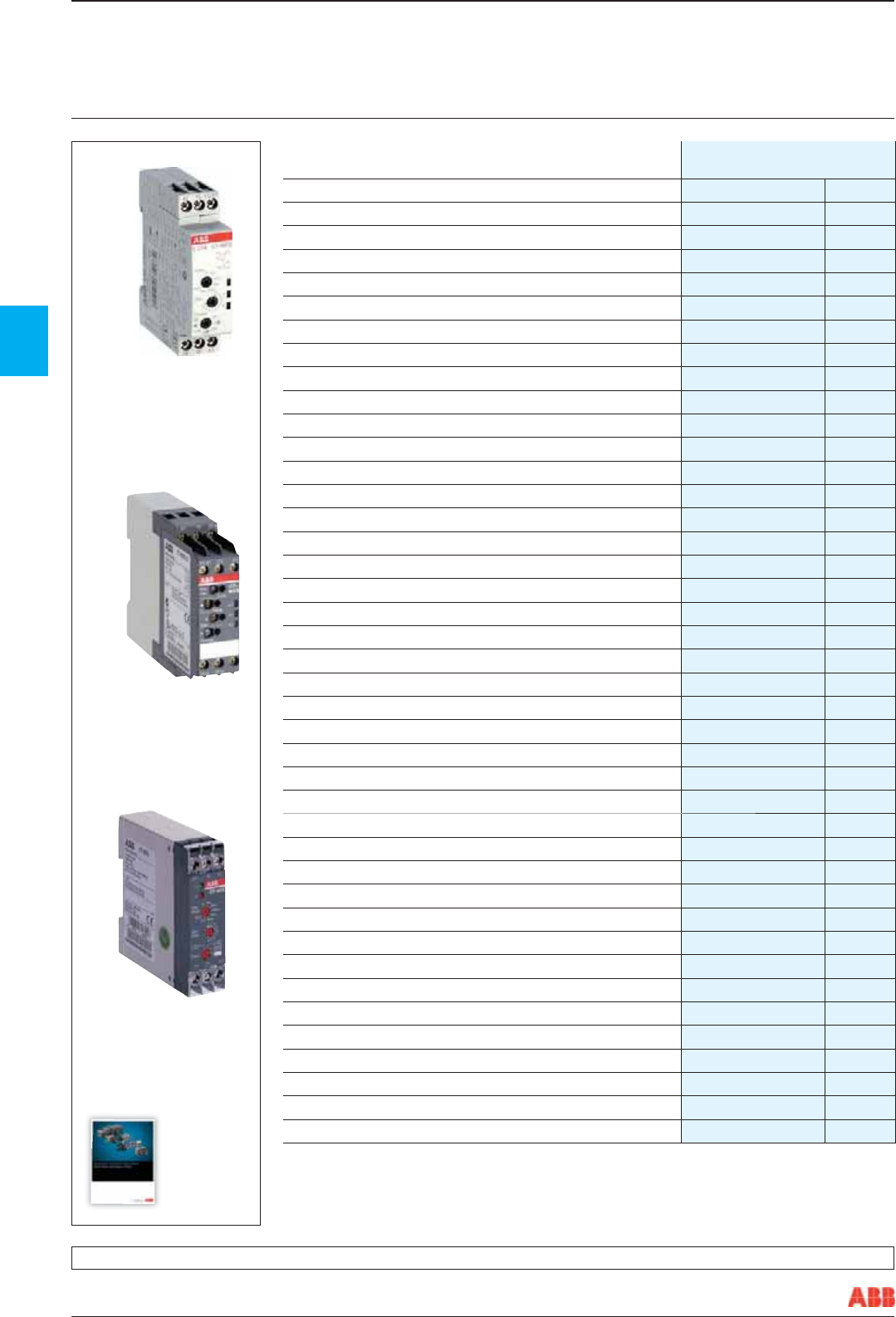

Timer Relays

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

Timer Relays Product Hierarchy 400006

Description Order Code Price

CT-AHE Time relay, OFF-delay , 1c/o, 3-300s, 24VAC/DC 1SVR550118R2100 33.39

CT-ARE Time relay, true OFF-delay , 1c/o, 0.1-10s, 24VAC/DC, 220-240VAC 1SVR550127R1100 36.68

CT-ARE Time relay, true OFF-delay , 1c/o, 0.3-30s, 24VAC/DC, 220-240VAC 1SVR550127R4100 36.68

CT-VWE Time relay, impulse-ON , 1c/o, 0.1-10s, 24VAC/DC 220-240VAC 1SVR550137R1100 23.58

CT-YDE Time relay, star-delta , 1c/o, 0.3-30s, 24VAC/DC 220-240VAC 1SVR550207R4100 23.58

CT-SDE Time relay, star-delta , 1c/o, 0.3-30s, 380-415VAC 1SVR550212R4100 22.06

CT-SDE Time relay, star-delta , 1c/o, 0.3-30s, 24VAC/DC 220-240VAC 1SVR550217R4100 22.06

CT-MFS.21 Time relay, multifunction , 2c/o, 24-240VAC/DC 1SVR630010R0200 73.54

CT-MBS.22 Time relay, multifunction , 2c/o, 24-48VDC, 24-240VAC 1SVR630010R3200 64.01

CT-MVS.21 Time relay, multifunction , 2c/o, 24-240VAC/DC 1SVR630020R0200 73.54

CT-MVS.12 Time relay, multifunction , 1c/o, 24-48VDC, 24-240VAC 1SVR630020R3100 57.20

CT-MVS.22 Time relay, multifunction , 2c/o, 24-48VDC, 24-240VAC 1SVR630020R3300 64.01

CT-MVS.23 Time relay, multifunction , 2c/o, 380-440VAC 1SVR630021R2300 70.81

CT-MXS.22 Time relay, multifunction , 2c/o, 24-48VDC, 24-240VAC 1SVR630030R3300 73.54

CT-WBS.22 Time relay, impulse & flasher , 2c/o, 24-48VDC, 24-240VAC 1SVR630040R3300 47.33

CT-ERS.21 Time relay, ON-delay , 2c/o, 24-240VAC/DC 1SVR630100R0300 52.11

CT-ERS.12 Time relay, ON-delay , 1c/o, 24-48VDC, 24-240VAC 1SVR630100R3100 38.48

CT-ERS.22 Time relay, ON-delay , 2c/o, 24-48VDC, 24-240VAC 1SVR630100R3300 45.29

CT-AHS.22 Time relay, OFF-delay , 2c/o, 24-48VDC, 24-240VAC 1SVR630110R3300 52.11

CT-ARS.11 Time relay, true OFF-delay , 1c/o, 24-240VAC/DC 1SVR630120R3100 64.01

CT-ARS.21 Time relay, true OFF-delay , 2c/o, 24-240VAC/DC 1SVR630120R3300 74.90

CT-APS.21 Time relay, OFF-delay , 2c/o, 24-240VAC/DC 1SVR630180R0300 58.90

CT-APS.12 Time relay, OFF-delay , 1c/o, 24-48VDC, 24-240VAC 1SVR630180R3100 46.66

CT-SDS.22 Time relay, star-delta , 2n/o, 24-48VDC, 24-240VAC 1SVR630210R3300 43.92

CT-SDS.23 Time relay, star-delta , 2n/o, 380-440VAC 1SVR630211R2300 50.74

CT-MFD.12 Time relay, multifunction , 1c/o, 24-240VAC 24-48VDC 1SVR500020R0000 45.86

CT-MFD.21 Time relay, multifunction , 2c/o, 12-240VAC/DC 1SVR500020R1100 85.55

CT-ERD.12 Time relay, ON-delay , 1c/o, 24-240VAC 24-48VDC 1SVR500100R0000 34.70

CT-AHD.12 Time relay, OFF-delay , 1c/o, 24-240VAC 24-48VDC 1SVR500110R0000 38.00

CT-VWD.12 Time relay, impulse-ON , 1c/o, 24-240VAC 24-48VDC 1SVR500130R0000 34.70

CT-EBD.12 Time relay, flasher , 1c/o, 24-240VAC 24-48VDC 1SVR500150R0000 34.70

CT-TGD.12 Time relay, pulse generator , 1c/o, 24-240VAC 24-48VDC 1SVR500160R0000 43.23

CT-SAD.22 Time relay, star-delta , 2n/o, 24-48VDC, 24-240VAC 1SVR500210R0100 58.42

CT-MKE Time relay, solid-state, multif. , 1n/o, 0.1-10s/3-300s, 24-240VAC/DC 1SVR550019R0000 32.09

CT-MFE Time relay, multifunction , 1c/o, 0.05s-100h, 24-240VAC/DC 1SVR550029R8100 36.68

CT-ERE Time relay, ON-delay , 1c/o, 0.1-10s, 24VAC/DC 220-240VAC 1SVR550107R1100 23.58

CT-ERE Time relay, ON-delay , 1c/o, 3-300s, 24VAC/DC 220-240VAC 1SVR550107R2100 23.58

CT-ERE Time relay, ON-delay , 1c/o, 0.3-30s, 24VAC/DC 220-240VAC 1SVR550107R4100 23.58

CT-ERE Time relay, ON-delay , 1c/o, 0.3-30min, 24VAC/DC 220-240VAC 1SVR550107R5100 23.58

CT-AHE Time relay, OFF-delay , 1c/o, 3-300s, 220-240VAC 1SVR550111R2100 33.39

2CDC 251 089 F0b06

CT-MFD.12

T-MFE

1SVR 550 029 F8100

2CDC 251 049 F0b07

CT-MVS.21

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Electronic Products and Relays

Measuring & Monitioring Relays

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

Measuring & Monitoring Relays Product Hierarchy 400004

Description Order Code Price

CM-MSS Thermistor motor protection relay , 2x1c/o, 24-240VAC/DC 1SVR430710R0200 98.76

CM-MSS Thermistor motor protection relay , 2c/o, 24VAC/DC 1SVR430710R9300 45.33

CM-MSS Thermistor motor protection relay , 2c/o, 110-130VAC 1SVR430711R0300 45.33

CM-MSS Thermistor motor protection relay , 2c/o, 380-415VAC 1SVR430711R2300 51.87

CM-MSS Thermistor motor protection relay , 2c/o, 24-240VAC/DC 1SVR430720R0300 80.19

CM-MSS Thermistor motor protection relay , 1n/o+1n/c, 24-240VAC/DC 1SVR430720R0400 75.72

CM-EFS.2 Voltage window monitoring relay , 2c/o, B-C=3-600VRMS, 24-240VAC/DC 1SVR430750R0400 140.46

CM-MSS Thermistor motor protection relay , 1c/o, 24VAC/DC 1SVR430800R9100 39.56

CM-MSS Thermistor motor protection relay , 1c/o, 220-240VAC 1SVR430801R1100 39.56

CM-MSS Thermistor motor protection relay , 2c/o, 24VAC/DC 1SVR430810R9300 42.83

CM-MSS Thermistor motor protection relay , 2c/o, 110-130VAC 1SVR430811R0300 42.83

CM-MSS Thermistor motor protection relay , 2c/o, 220-240VAC 1SVR430811R1300 42.83

CM-MSS Thermistor motor protection relay , 2c/o, 24VAC 1SVR430811R9300 42.83

CM-PFS Three-phase monitoring relay , 2c/o, L1-L2-L3=200-500VAC 50/60Hz 1SVR430824R9300 56.85

CM-ESS.1 Voltage monitoring relay , 1c/o, B-C=3-600VRMS, 24-240VAC/DC 1SVR430830R0300 118.98

CM-ESS.2 Voltage monitoring relay , 2c/o, B-C=3-600VRMS, 24-240VAC/DC 1SVR430830R0400 129.71

CM-ESS.M Voltage monitoring relay , 2c/o, B-C=3-600VRMS, 24-240VAC/DC 1SVR430830R0500 140.46

CM-ESS.1 Voltage monitoring relay , 1c/o, B-C=3-600VRMS, 220-240VAC 1SVR430831R1300 99.96

CM-SRS.21 Current monitoring relay , 2c/o, B-C=3mA-1A RMS, 24-240VAC/DC 1SVR430840R0400 129.71

CM-SRS.22 Current monitoring relay , 2c/o,B-C=0.3-15A RMS, 24-240VAC/DC 1SVR430840R0500 129.71

CM-SRS.M1 Current monitoring relay , 2c/o, B-C=3mA-1A RMS, 24-240VAC/DC 1SVR430840R0600 140.46

CM-SRS.22 Current monitoring relay , 2c/o, B-C=0.3-15A RMS, 110-130VAC 1SVR430841R0500 110.71

CM-SRS.12 Current monitoring relay , 1c/o, B-C=0.3-15A RMS, 220-240VAC 1SVR430841R1300 110.71

CM-MSE Thermistor motor protection relay , 1n/o, 110-130VAC 1SVR550800R9300 34.58

CM-MSE Thermistor motor protection relay , 1n/o, 220-240VAC 1SVR550801R9300 34.58

CM-MSE Thermistor motor protection relay , 1n/o, 24VAC 1SVR550805R9300 34.58

CM-PFE Phase sequence monitoring relay , 1c/o, L1-L2-L3=208-440VAC 1SVR550824R9100 43.62

CM-PVE Phase monitoring relay , 1n/o, L1,2,3-N=185-265VAC 1SVR550870R9400 43.62

CM-PBE Phase loss monitoring relay , 1n/o, L1,2,3-N=220-240VAC 1SVR550881R9400 40.36

CM-PBE Phase loss monitoring relay , 1n/o, L1,2,3= 380-440VAC 1SVR550882R9500 40.36

CM-PAS.41 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3=3x300-500VAC 1SVR630774R3300 118.10

CM-PSS.41 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3=3x400VAC 1SVR630784R3300 99.02

CM-PVS.41 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3=3x300-500VAC 1SVR630794R3300 124.18

CM-MPS.41 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3=3x300-500VAC 1SVR630884R3300 126.46

CM-MPS.43 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3=3x300-500VAC 1SVR630884R4300 150.83

CM-MPS.21 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3-N=3x180-280VAC 1SVR630885R3300 132.54

CM-MPS.23 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3-N=3x180-280VAC 1SVR630885R4300 156.92

CM-MPN.62 Three-phase monitoring relay , 2c/o, 0,0,1-30s, L1-L2-L3=3x450-720VAC 1SVR650488R8300 171.40

1SVR 430 711 F1300









CM-MSS (3)

 F: red LED -

fault tripping

 U: green LED -

control supply voltage

 Marker label

 Reset button

CM-SRS.2

2CDC 251 245 F0t05















 Threshold value

adjustment

 Hysteresis adjustment

 DIP switches (see

DIP switch functions)

 U/T: green LED -

control supply voltage,

(timing)

 R: yellow LED -

relay status

 I: red LED -

over- / undercurrent

 Adjustment of the tripping

delay TV

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Electronic Products and Relays

Power Supplies - Serial Delta Converters

Safety Relays

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

1SAR 501 031 F0001

C573

2CDC 271 013 F0b06

Power Supplies Product Hierarchy 400002

Description Order Code Price

CP-E 5/3.0 Power supply , In:100-240VAC Out: 5VDC/3.0A 1SVR427033R3000 58.71

CP-E 24/5.0 Power supply , In:115/230VAC Out: 24VDC/5A 1SVR427034R0000 94.76

CP-E 24/10.0 Power supply , In:115/230VAC Out: 24VDC/10A 1SVR427035R0000 133.90

CP-E 12/10.0 Power supply , In:115/230VAC Out: 12VDC/10A 1SVR427035R1000 106.09

CP-E 24/20.0 Power supply , In:115/230VAC Out: 24VDC/20A 1SVR427036R0000 183.34

CP-D 24/0.42 Power supply , In: 100-240VAC Out: 24VDC/0.42A 1SVR427041R0000 50.51

CP-A RU Redundancy unit for CP range , power supplies, In: 2x20A, Out: 1x40A 1SVR427071R0000 78.63

CP-A CM Control module for CP-A RU , 2x14-28V adjustable, 2 relay outputs 1SVR427075R0000 33.51

CP-C MM Messaging module for CP-C , VIN>85VAC/90VDC, VOUT>20VDC, remote OFF 1SVR427081R0000 61.05

CP-S 24/5.0 Power supply , In:110-240VAC/100-350VDC Out:DC 24V/5A 1SVR427014R0000 109.18

CP-S 24/10.0 Power supply , In:110-130VAC/220-240VAC Out:DC 24V/10A 1SVR427015R0100 162.74

CP-S 24/20.0 Power supply , In:110-130VAC/220-240VAC Out:DC 24V/20A 1SVR427016R0100 252.35

CP-C 24/5.0 Power supply , In:110-240VAC/100-350VDC Out:DC 24V/5A 1SVR427024R0000 117.42

CP-C 24/10.0 Power supply , In:110-240VAC/100-350VDC Out:DC 24V/10A 1SVR427025R0000 179.22

CP-C 24/20.0 Power supply , In:110-240VAC/100-350VDC Out:DC 24V/20A 1SVR427026R0000 278.10

CP-E 24/0.75 Power supply , In:100-240VAC Out: 24VDC/0.75A 1SVR427030R0000 47.38

CP-E 48/0.62 Power supply , In:100-240VAC Out: 48VDC/0.62A 1SVR427030R2000 61.80

CP-E 24/1.25 Power supply , In:100-240VAC Out: 24VDC/1.25A 1SVR427031R0000 51.50

CP-E 48/1.25 Power supply , In:100-240VAC Out: 48VDC/1.25A 1SVR427031R2000 78.28

CP-E 24/2.5 Power supply , In:100-240VAC Out: 24VDC/2.5A 1SVR427032R0000 64.89

CP-E 12/2.5 Power supply , In:100-240VAC Out: 12VDC/2.5A 1SVR427032R1000 58.71

Safety Relays Product Hierarchy 400007

Description Order Code Price

C573 Safety relay , 24VAC/DC, 3n/o,1n/c 1SAR501031R0001 145.83

C572 Safety relay , 24VAC, 3n/o, 2n/c 1SAR501032R0002 201.32

C572 Safety relay , 24VDC, 3n/o, 2n/c 1SAR501032R0003 256.17

Serial Delta Converters Product Hierarchy 400003

Description Order Code Price

ILPH RS422-485/RS422-RS485 Serial Data Converter 1SNA684212R2200 205.92

ILPH RS232/RS485-422 24VDC Serial Data Converter 1SNA684231R2500 129.33

ILPH RS232/RS485-422 Isolated Serial Data Converter 1SNA684233R2700 215.55

ILPH RS485-422/RS232 115/230V Serial Data Converter 1SNA684334R2400 215.55

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Electronic Products and Relays

Analogue Signal Converters

Interface Relays & Opt. Couplers

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

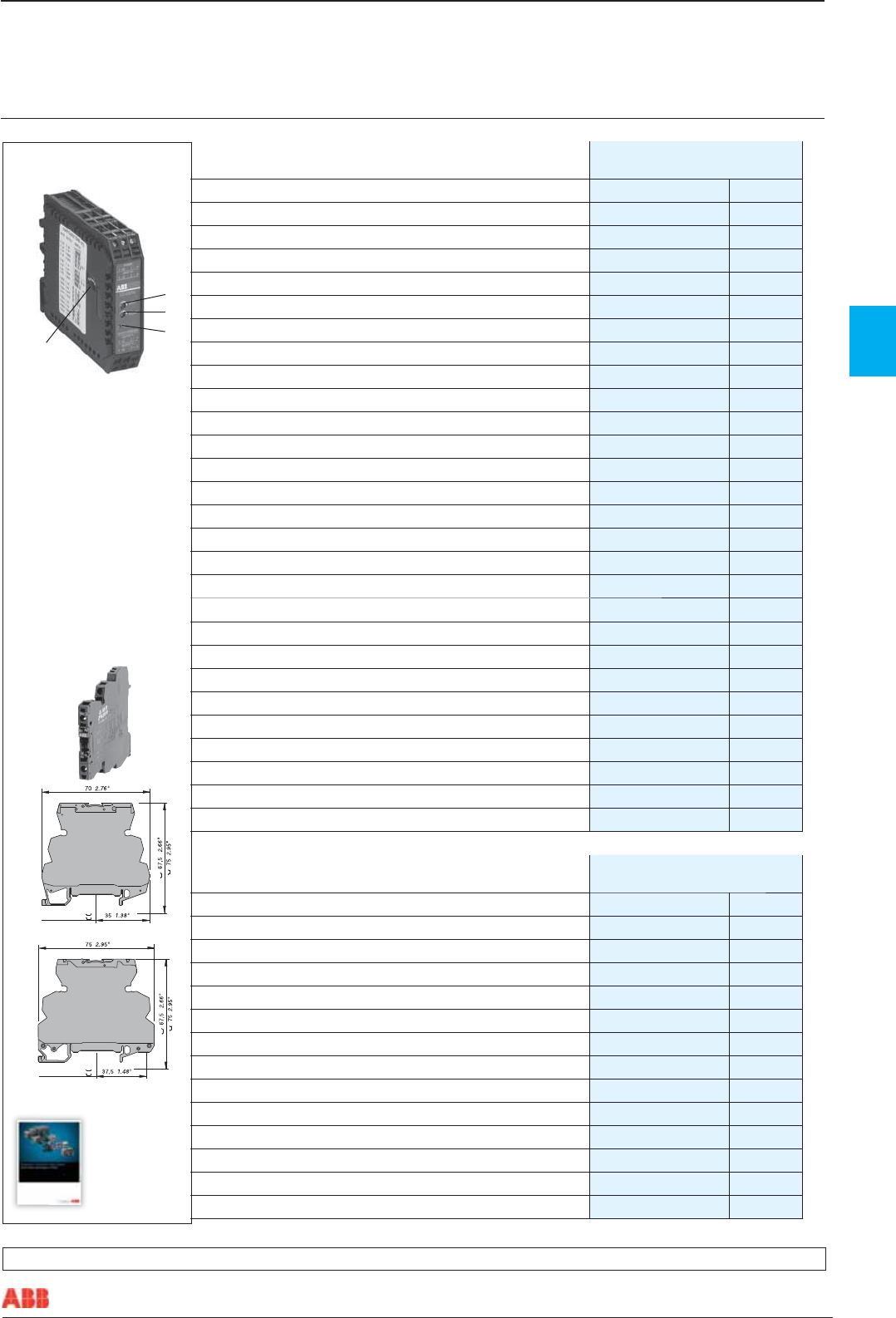

CC-E/STD

2CDC 281 001 F 0003

1 Gain adjustment

2 Offset adjustment

3 U: green LED - supply

voltage

4 DIP switch for input and

output conﬁ guration (only

available on universal

devices)

center of rail

Screw clamp module

center of rail

Analogue Signal Converters Product Hierarchy 400001

Description Order Code Price

CC-E I/I-1 Current / current isolator , 1 channel, loop-powered 1SVR010200R1600 144.86

CC-E/STD Signal converter, univers. , V/I / V/I, 24VDC 1SVR011700R0000 144.08

CC-E/TC Temp. converter, univers. , J/K / V/I, 24VDC 1SVR011702R2600 150.62

CC-E/STD Signal converter, univers. , V/I / V/I, 110-240VAC 1SVR011705R2100 144.08

CC-E V/V Signal converter, singlef. , 0-10V / 0-10V, 24VDC 1SVR011710R2100 129.68

CC-E V/I Signal converter, singlef. , 0-10V / 0-20mA, 24VDC 1SVR011711R1600 129.68

CC-E V/I Signal converter, singlef. , 0-10V / 4-20mA, 24VDC 1SVR011712R1700 129.68

CC-E I/V Signal converter, singlef. , 0-20mA / 0-10V, 24VDC 1SVR011713R1000 129.68

CC-E I/I Signal converter, singlef. , 0-20mA / 0-20mA, 24VDC 1SVR011714R1100 129.68

CC-E I/I Signal converter, singlef. , 4-20mA / 4-20mA, 24VDC 1SVR011718R2500 129.68

CC-E I/I Signal converter, singlef. , 4-20mA / 4-20mA, 110-240VAC 1SVR011728R2700 129.68

CC-U/STD Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040000R1700 191.12

CC-U/STD Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040001R0400 191.12

CC-U/RTD Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040002R0500 230.52

CC-U/RTD Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040003R0600 230.52

CC-U/TC Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040004R0700 228.57

CC-U/TC Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040005R0000 228.57

CC-U/I Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040006R0100 225.95

CC-U/I Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040007R0200 225.95

CC-U/V Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040008R1300 225.95

CC-U/V Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040009R1400 225.95

CC-U/STDR Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040010R0000 157.18

CC-U/STDR Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040011R2500 157.18

CC-U/RTDR Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040012R2600 177.75

CC-U/RTDR Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040013R2700 177.75

CC-U/TCR Universal signal converter , 24-48VDC / 24VAC 50/60Hz 1SVR040014R2000 177.75

CC-U/TCR Universal signal converter , 110-240VAC 50/60Hz / 100-300VDC 1SVR040015R2100 177.75

Interface Relays and Connectors Product Hierarchy 400005

Description Order Code Price

RB121B Relay 1SNA630004R0300 23.06

M4/9.PV270/130 1SNA007013R1300 4.58

EBA 125V 1SNA010103R2100 69.47

RM111 24VCC 1SNA020032R1600 18.47

EM4PC 20 000 Series Patchboard 4 way 1SNA020260R1300 20.25

EM8PC 20 000 Series Patchboard 8 way 1SNA020261R0000 39.51

EM16D Diode Board 1SNA020265R0400 43.64

Component Carrier, 8 clamp 1SNA103305R0200 7.29

AF50 Accro Din 1/3 1SNA103323R2300 0.39

AF76 Acro Din 1/3 1SNA103324R2400 0.5

FEF 12-1 End Block 1SNA103332R2400 0.38

ENF5, 5.08mm Spacer 1SNA103335R2700 0.55

ENF12, 12.7mm Spacer 1SNA103337R2100 0.53

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Electronic Products and Relays

Interface Relays & Opt. Couplers

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

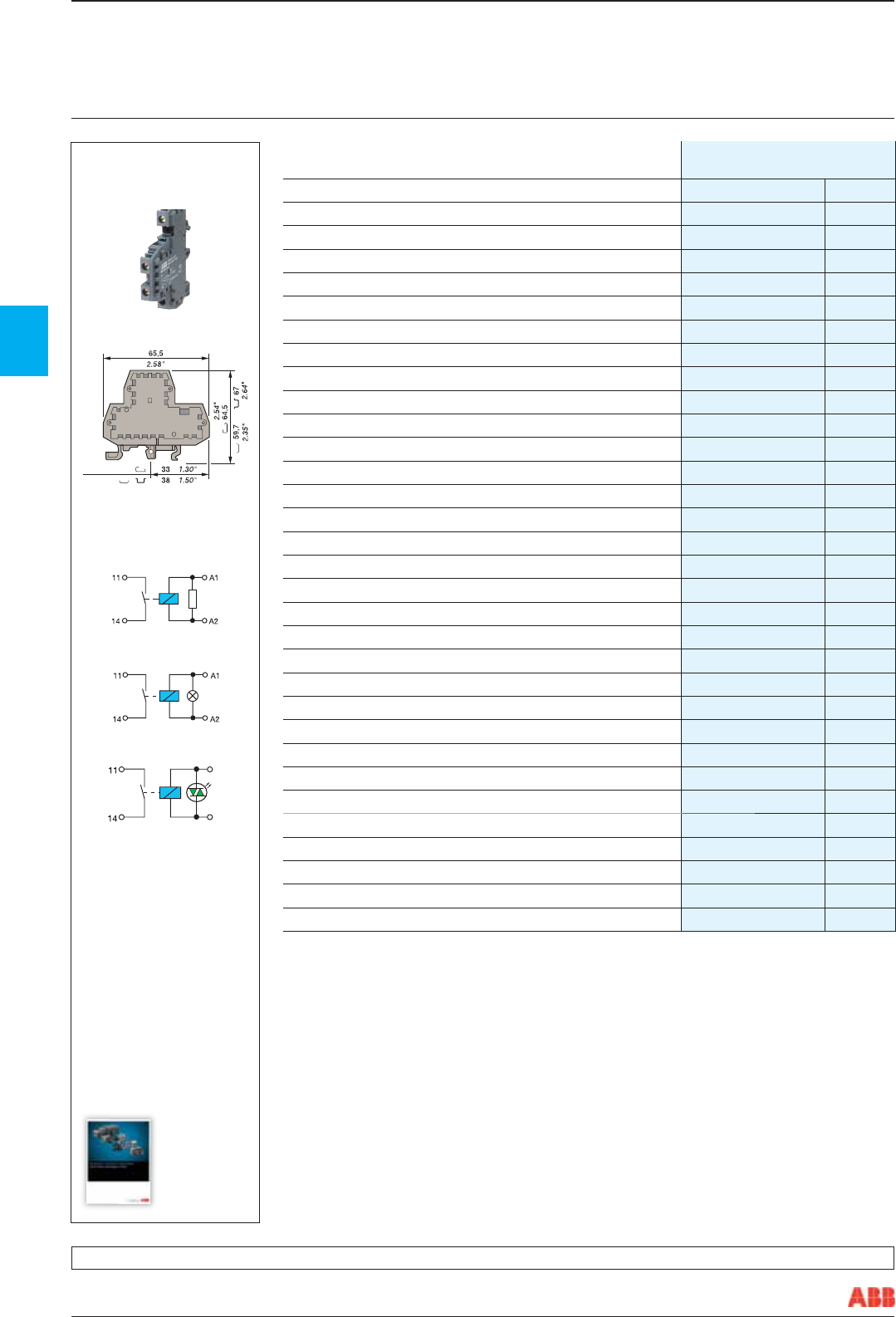

Interface Relays & Opt. Couplers Product Hierarchy 400005

Description Order Code Price

ENF25, 25.4mm Spacer 1SNA103338R0200 0.58

EEF 12-2, 12.7mm Cover Block 1SNA103339R0300 0.71

ENF101, 100mm Spacer 1SNA103356R0400 0.88

PF11.0, 11 000 Series End Plate Left 1SNA103595R1500 0.61

PF12.0, 11 000 Series End Plate Right 1SNA103596R1600 0.61

PF 13 O, 11 000 Series Deep End Plate Right 1SNA103762R0300 1.74

AFSE 71 D RHS Foot/End Section 1SNA103796R2600 1.14

AFSE 71 G LHS Foot/End Section 1SNA103797R2700 1.14

20 000 Series EXTRUDE SE71X ORANGE L=1M 1SNA103868R0600 27.24

20 000 Series EXTRUDE SE100X ORANGE L=1M 1SNA103885R1000 27.24

AFSE 100 D 100mm Carrier Foot RHS 1SNA103968R0200 1.42

AFSE 100 G 100mm Carrier Foot LHS 1SNA103969R0300 1.42

PF N1, 3.5mm End Section 1SNA113091R0000 0.55

PF N2, 8.5mm End Section 1SNA113095R0400 0.55

PF N3 1SNA114289R2400 1.10

Empty Function Unit 8 clamp 1SNA114533R0000 6.53

PF 11G, 11 000 Series End Plate LHS 1SNA116519R1400 0.61

PF 12G, 11 000 Series End Plate RHS 1SNA116520R1100 0.61

BFU2 S 12G, 11 000 Series 12 Clamp Unit 1SNA116522R0700 8.29

BFU2 S 6G, 11 000 Series 6 Clamp Unit 1SNA116523R0000 6.34

PF 13 G, 11 000 Series Deep End Plate Right 1SNA116718R2300 1.74

CI 115, Perforated PCB 1SNA174021R1600 3.36

20 000 series Screw, pozi 2 x 8mm 1SNA174582R1600 0.05

CI 11P1, 11 000 Series PCB 1SNA175207R0700 7.40

VIS CB X ST3,3X15 PL TS203 1SNA178135R2100 0.05

SC612, R600 Separator End Section 1SNA290474R0200 0.66

M4/9 R111L-12VDC Relay 1SNA607001R2000 9.41

M 4/9 R111L-24VDC Relay 1SNA607002R0700 9.41

M 4/9 R111-12VDC Relay 1SNA607029R0100 8.89

M 4/9 R111-24VDC Relay 1SNA607030R0600 8.89

D2.5/5-R121L 24VDC Relay 1SNA607201R1300 10.37

M 4/9.R111...

M 4/9.R111

M 4/9.R111L

center of rail

resistor

lamp

LED

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

center of rail

Relay blocks R900

Electronic Products and Relays

Interfast Wiring System

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

center of rail

PLC Wiring System Product Hierarchy 500001

Description Order Code Price

BFM ELCO 56/56 - 1 1SNA020135R1200 96.92

BFM ELCO 56/56 - 2 1SNA020136R1300 96.92

BFM ELCO 38/38 - 1 1SNA020137R1400 109.34

BFM ELCO 38/38 - 2 1SNA020138R2500 109.34

BFM SUB 9M HR Interface 9 way 1SNA020351R0200 23.21

BFM SUB25M HR Interface 25 way 1SNA020353R0400 34.80

BNMS T24V-1, 24VDC Opto 1SNA031800R2100 17.22

BNMS T24V-1, 24VAC 100mA Opto 1SNA031802R1700 19.50

BNMS P5V-1, 5VDC 30VDC/2A Opto 1SNA031814R0200 22.29

BNMS P24V-1, 24VDC 30VDC/2A Opto 1SNA031815R0300 22.29

BNMS R24V-1 1SNA031820R1400 4.79

BNMS ST1 1SNA031829R1100 1.91

BNMS ST2 1SNA031830R1600 2.12

PCMS 20 Wat Jumper Bar Red 1SNA205564R0300 2.27

BJ612-10 Way Jumper Bar Grey 1SNA290488R0100 0.94

Interface Relays & Opt. Couplers Product Hierarchy 400005

Description Order Code Price

D2.5/5-MP 24VDC Base without plug 1SNA607222R0700 5.41

D2.5/5-MP1 Base without plug 1SNA607223R0000 7.00

D2.5/5-MP Grey 1SNA607224R0100 9.69

OBC1000-5VDC Opto 1SNA608014R2200 30.02

OBC0100-24VDC Opto 1SNA608017R0600 20.16

OBC1000-24VDC Opto 1SNA608018R1700 30.02

OBA 1000 24VDC Opto 1SNA608019R1000 29.27

ORA111-24VDC Long Life Opto 1SNA608069R2200 41.81

RB121A-110-220VAC-DC Relay 1SNA610132R2300 26.50

RB121-12VDC Relay 1SPDT 1SNA630001R0000 20.15

RB121A-24V AC/DC Relay 1 SPDT 1SNA630002R0100 20.15

RB121A-48VAC/DC Relay 1 SPDT 1SNA630003R0200 20.15

RB121B 110VAC/50HZ Relay 1 SPDT 1SNA630004R0300 23.06

RB121B 230VAC/50HZ Relay 1SPDT 1SNA630006R0500 24.42

RB122A 24VAC/DC Relay 1 DPDT 1SNA630011R2100 36.09

RB121A 24vac/dc SPDT Relay 10mA - 6A 1SNA645001R0300 11.38

RB121A 115vac/dc SPDT Relay 10mA - 6A 1SNA645003R0500 13.65

RB121A 230vac/dc SPDT Relay 10mA - 6A 1SNA645004R0400 14.21

RB121A 24vac/dc SPDT Relay 1mA - 6A 1SNA645005R0700 11.38

RB122A 24vac/dc DPDT Relay 1mA - 6A 1SNA645012R2500 16.12

RB122A 230vac/dc DPDT Relay 1mA - 6A 1SNA645013R2600 22.74

RB111A 24vac/dc 1NO Relay 10mA - 6A 1SNA645014R2700 9.86

OBIC0100 24vdc Opto 1SNA645021R2600 15.26

RB121 12vdc SPDT Relay 10mA - 6A 1SNA645035R2400 14.21

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

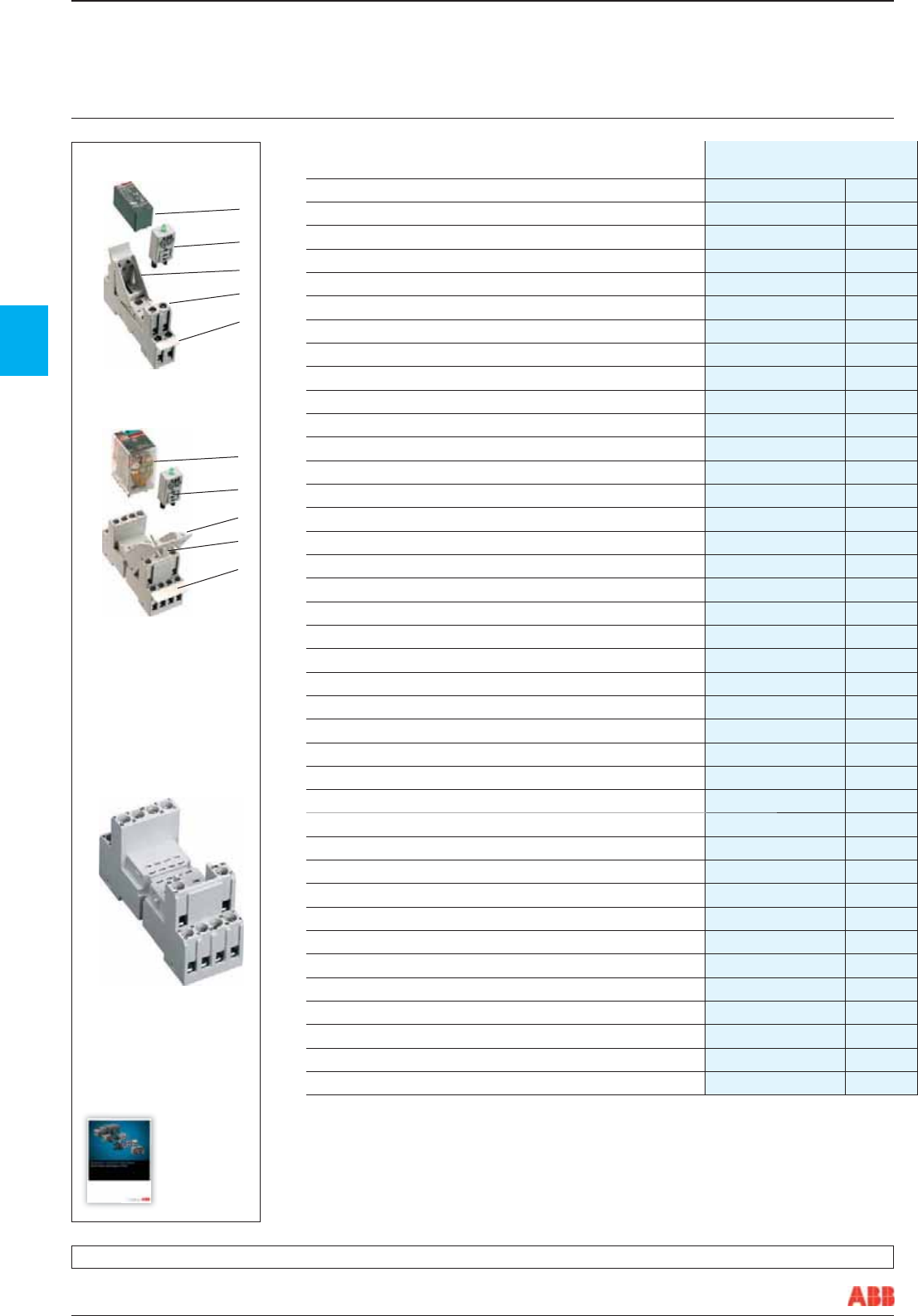

 Interface relay

 Pluggable function module

 Socket

 Holder

 Marker

2CDC 293 035 F0t04











CR-M

2CDC 291 041 F0b04

CR-M4SS

Electronic Products and Relays

Interfast Wiring System

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

Pluggable Relays Product Hierarchy 500003

Description Order Code Price

CR-P024DC1 Pluggable interface relay , 1c/o, A1-A2=24VDC, 250V/16A 1SVR405600R1000 1.86

CR-P230AC1 Pluggable interface relay , 1c/o, A1-A2=230VAC, 250V/16A 1SVR405600R3000 3.66

CR-P024AC2 Pluggable interface relay , 2c/o, A1-A2=24VAC, 250V/8A 1SVR405601R0000 2.60

CR-P024DC2 Pluggable interface relay , 2c/o, A1-A2=24VDC, 250V/8A 1SVR405601R1000 2.21

CR-P230AC2 Pluggable interface relay , 2c/o, A1-A2=230VAC, 250V/8A 1SVR405601R3000 4.05

CR-P012DC2 Pluggable interface relay , 2c/o, A1-A2=12VDC, 250V/8A 1SVR405601R4000 2.21

CR-M024AC2 Pluggable interface relay , 2c/o, A1-A2=24VAC, 250V/12A 1SVR405611R0000 4.33

CR-M024DC2 Pluggable interface relay , 2c/o, A1-A2=24VDC, 250V/12A 1SVR405611R1000 4.11

CR-M024DC2L Pluggable interface relay , 2c/o, A1-A2=24VDC, 250V/12A, LED 1SVR405611R1100 4.92

CR-M230AC2 Pluggable interface relay , 2c/o, A1-A2=230VAC, 250V/12A 1SVR405611R3000 4.81

CR-M012DC2 Pluggable interface relay , 2c/o, A1-A2=12VDC, 250V/12A 1SVR405611R4000 4.11

CR-M012DC2L Pluggable interface relay , 2c/o, A1-A2=12VDC, 250V/12A, LED 1SVR405611R4100 4.92

CR-M110AC2 Pluggable interface relay , 2c/o, A1-A2=110VAC, 250V/12A 1SVR405611R7000 4.47

CR-M110AC2L Pluggable interface relay , 2c/o, A1-A2=110VAC, 250V/12A, LED 1SVR405611R7100 5.26

CR-M024AC3 Pluggable interface relay , 3c/o, A1-A2=24VAC, 250V/10A 1SVR405612R0000 4.47

CR-M024DC3 Pluggable interface relay , 3c/o, A1-A2=24VDC, 250V/10A 1SVR405612R1000 4.25

CR-M024DC3L Pluggable interface relay , 3c/o, A1-A2=24VDC, 250V/10A, LED 1SVR405612R1100 5.06

CR-M230AC3 Pluggable interface relay , 3c/o, A1-A2=230VAC, 250V/10A 1SVR405612R3000 4.95

CR-M012DC3 Pluggable interface relay , 3c/o, A1-A2=12VDC, 250V/10A 1SVR405612R4000 4.25

CR-M110AC3 Pluggable interface relay , 3c/o, A1-A2=110VAC, 250V/10A 1SVR405612R7000 4.60

CR-M024AC4 Pluggable interface relay , 4c/o, A1-A2=24VAC, 250V/6A 1SVR405613R0000 4.60

CR-M024AC4L Pluggable interface relay , 4c/o, A1-A2=24VAC, 250V/6A, LED 1SVR405613R0100 5.41

CR-M024DC4 Pluggable interface relay , 4c/o, A1-A2=24VDC, 250V/6A 1SVR405613R1000 4.39

CR-M024DC4L Pluggable interface relay , 4c/o, A1-A2=24VDC, 250V/6A, LED 1SVR405613R1100 5.20

CR-M230AC4 Pluggable interface relay , 4c/o, A1-A2=230VAC, 250V/6A 1SVR405613R3000 5.10

CR-M230AC4L Pluggable interface relay , 4c/o, A1-A2=230VAC, 250V/6A, LED 1SVR405613R3100 5.90

CR-M012DC4 Pluggable interface relay , 4c/o, A1-A2=12VDC, 250V/6A 1SVR405613R4000 4.39

CR-M012DC4L Pluggable interface relay , 4c/o, A1-A2=12VDC, 250V/6A, LED 1SVR405613R4100 5.20

CR-M110AC4 Pluggable interface relay , 4c/o, A1-A2=110VAC, 250V/6A 1SVR405613R7000 4.75

CR-M110AC4L Pluggable interface relay , 4c/o, A1-A2=110VAC, 250V/6A, LED 1SVR405613R7100 5.55

CR-M110DC4L Pluggable interface relay , 4c/o, A1-A2=110VDC, 250V/6A, LED 1SVR405613R8100 5.77

CR-U024AC2 Pluggable interface relay , 2c/o, A1-A2=24VAC, 250V/10A 1SVR405621R0000 6.25

CR-U230AC2 Pluggable interface relay , 2c/o, A1-A2=230VAC, 250V/10A 1SVR405621R3000 6.54

CR-U230AC3 Pluggable interface relay , 3c/o, A1-A2=230VAC, 250V/10A 1SVR405622R3000 6.78

CR-U110AC3 Pluggable interface relay , 3c/o, A1-A2=110VAC, 250V/10A 1SVR405622R7000 6.61

CR-PLS Logical socket , for 1c/o or 2c/o CR-P relays 1SVR405650R0000 2.81

CR-PSS Standard socket , for 1c/o or 2c/o CR-P relays 1SVR405650R1000 2.67

CR-P/M 22 Pluggable module , polarity protection, 6-230VDC,A1+, A2- 1SVR405651R0000 0.81

2CDC 293 034 F0t04











CR-P

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Electronic Products and Relays

Interfast Wiring System

Full range of product

and technical information

place this part number

in a search engine and

download

2CDC110004C0206

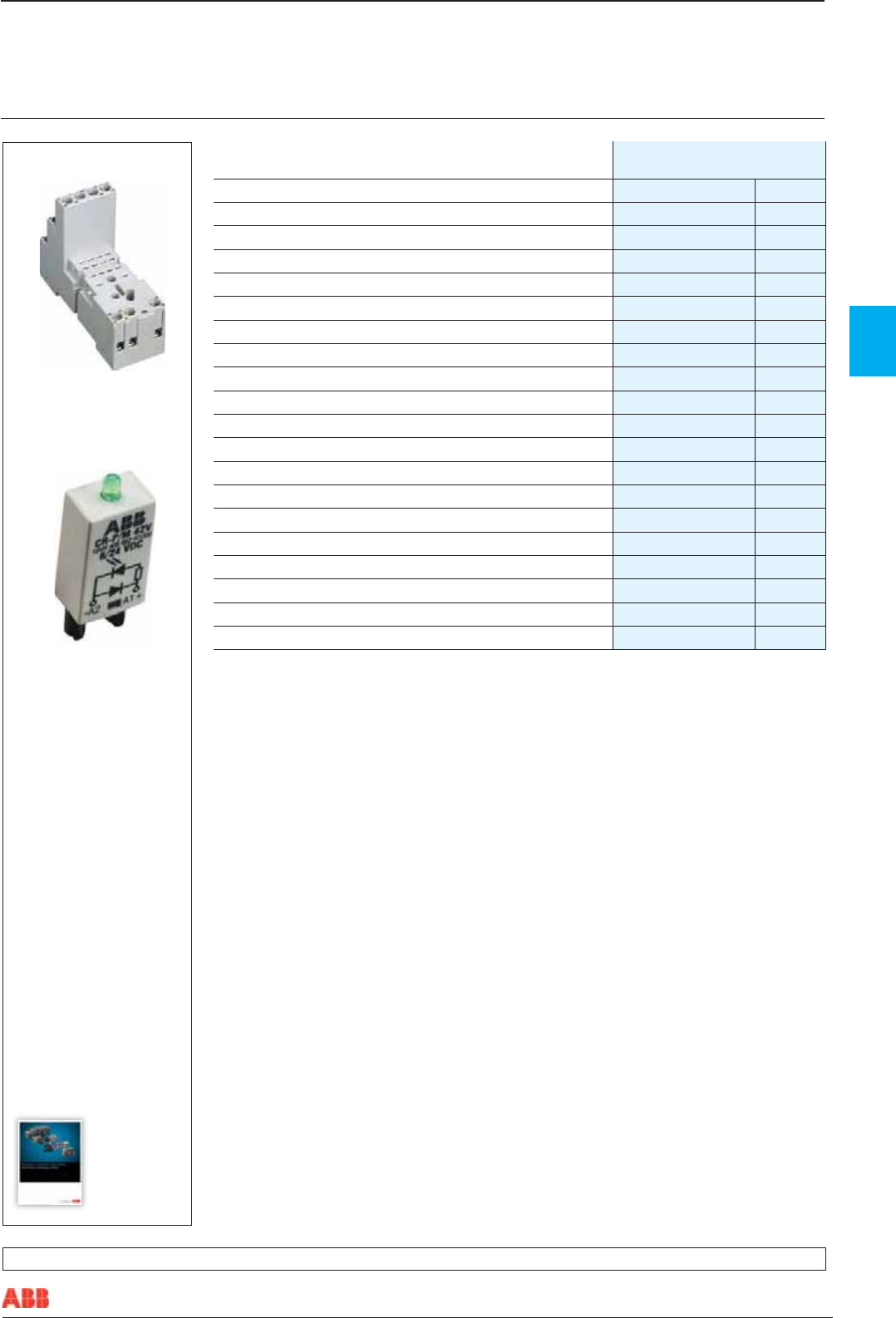

Pluggable Relays Product Hierarchy 500003

Description Order Code Price

CR-M2LC Logical socket , for 2c/o CR-M relay 1SVR405651R1200 3.66

CR-M3SS Standard socket , for 3c/o CR-M relay 1SVR405651R2000 2.74

CR-M4SS Standard socket , for 2c/o or 4c/o CR-M relay 1SVR405651R3000 2.96

CR-M4LS Logical socket , for 2c/o or 4c/o CR-M relay 1SVR405651R3100 3.09

CR-M4LC Logical socket , for 2c/o or 4c/o CR-M relay 1SVR405651R3200 4.07

CR-P/M 42 Pluggable module , diode and LED red, 6-24VDC, A1+, A2- 1SVR405652R0000 1.66

CR-P/M 62C Pluggable module , varistor and LED red, 6-24VAC/DC 1SVR405655R0000 2.6

CR-P/M 72 Pluggable module , varistor, without LED, 24VAC 1SVR405656R0000 1.86

CR-PH Holder for CR-P socket , 1SVR405659R0000 0.22

CR-MH Holder for CR-M socket , 1SVR405659R1000 0.36

CR-U3S Socket , for 3c/o CR-U relay 1SVR405660R0000 3.12

CR-U3E Socket , for 3c/o CR-U relay 1SVR405660R0100 2.96

CR-UH Holder for CR-U socket , 1SVR405669R0000 1.02

CR-U2S Socket , for 2c/o CR-U relay 1SVR405670R0000 3.05

CR-P024AC1 Pluggable interface relay , 1c/o, A1-A2=24VAC, 250V/16A 1SVR405600R0000 2.21

CR-M230AC3L Pluggable interface relay , 3c/o, A1-A2=230VAC, 250V/10A, LED 1SVR405612R3100 5.77

CR-U024AC3 Pluggable interface relay , 3c/o, A1-A2=24VAC, 250V/10A 1SVR405622R0000 6.47

CR-P/M 42V Pluggable module , diode and LED green, 6-24VDC, A1+, A2- 1SVR405652R1000 1.66

CR-MH1 Metal holder for CR-M sockets , 1SVR405659R1100 0.29

2CDC 291 037 F0b04

2CDC 291 042 F0b04

CR-M4LS

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Notes

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Installation Equipment

System ProM compact

S200 compact Series MCBs ........................................................44 - 50

S800 Series MCBs .............................................................................. 51

F200 compact Series RCCBs ............................................................. 52

DDA200 compact Series RCD Blocks ................................................. 53

DS271 Series RCB0s .......................................................................... 54

S200 & F200 compact Series Accessories ..................................... 55-56

Modular Devices .................................................................................. 57

Installation Equipment

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

1) The indicated tripping values of electromagnetic tripping devices apply to a

frequency range of 16 2/3...60 Hz. In the case of diverging frequencies or direct

current, see paragraph “Variation of tripping threshold of MCBs, according to

network frequency” (page 6/7)

IEC-EN60898

Z,KscitsiretcarahCD,C,BscitsiretcarahC

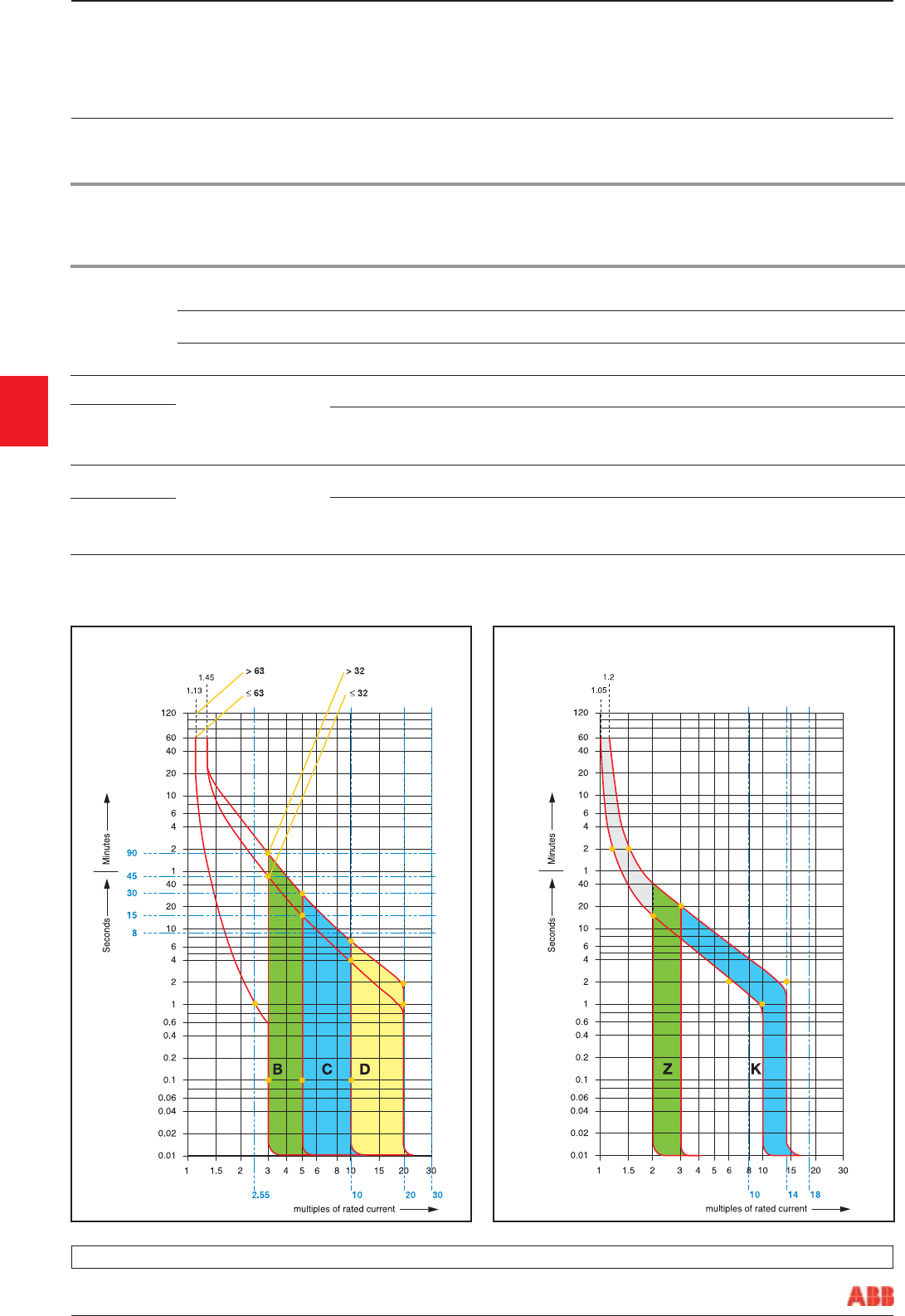

Tripping characteristics

esaelerlamrehT

Electromagnetic release

Acc. to Tripping characteristic Current: Tripping time Currents: Tripping time

pirtdlohlanoitnevnoclanoitnevnoctnerrucdetardna

tatsaeltatnerruc.cgnippirt.cgnippirt-non

segrus

IEC/EN 60898 B6 to 63 A 1.13 · I

> 1 h 3 · I

> 0.1 s

I·54.1

< 1 h 5 · I

< 0.1 s

C0.5 to 63 A 1.13 · I

> 1 h 5 · I

> 0.1 s

I·54.1

< 1 h 10 · I

< 0.1 s

D0.5 to 63 A 1.13 · I

> 1 h 10 · I

> 0.1 s

I·54.1

< 1 h 20 · I

< 0.1 s

DIN VDE 0660/9.82 K0.5 to 63 A 1.05 · I

> 1 h

I·2.1

< 1 h not applicable

IEC/EN 60947-2 1.05 · I

> 2 h 10 · I

> 0.2 s

DIN VDE 0660 1.2 · I

< 1 h

14 · I

< 0.2 s

8/69 1.5 · I

< 2 min.

Part 101 6.0 · I

> 2 s (T1)

DIN VDE 0660/9.82 Z0.5 to 63 A 1.05 · I

> 1 h

I·2.1

< 1 h not applicable

IEC/EN 60947-2 1.05 · I

> 2 h 2 · I

> 0.2 s

DIN VDE 0660 1.2 · I

< 1 h

3 · I

< 0.2 s

8/69 1.5 · I

< 2 min.

Part 101 6.0 · I

> 2 s (T1)

2) The thermal releases are calibrated to a nominal reference ambient temperature;

for Z and K, the value is 20 °C, for B and C = 30 °C. In the case of higher ambient

temperatures, the current values fall by ca. 6 % for each 10 K temperature rise.

3) As from operating temperature (after I

> 1 h or, as applicable, 2 h).

IEC-EN60947-2

Installation equipment

Tripping Characteristics

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

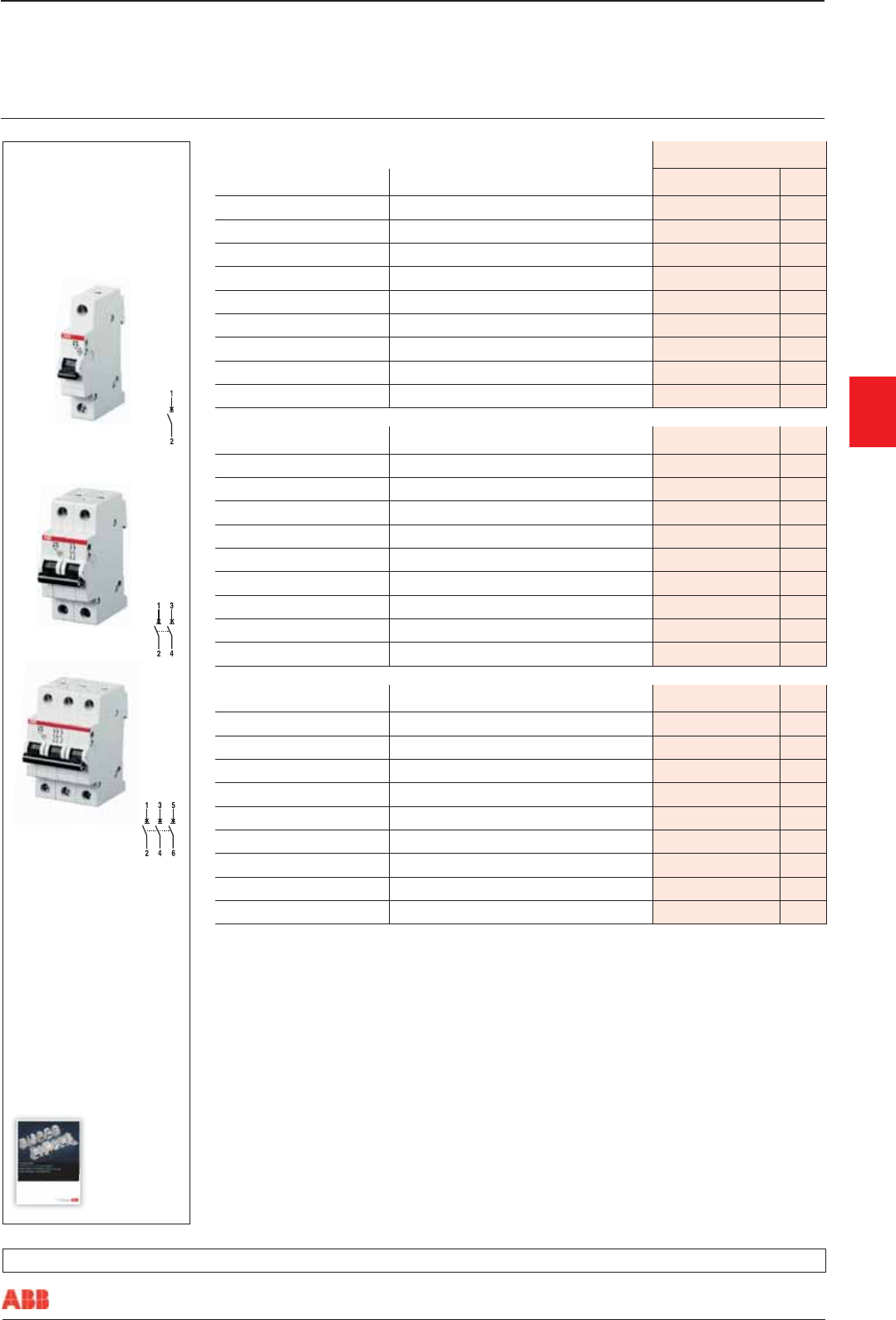

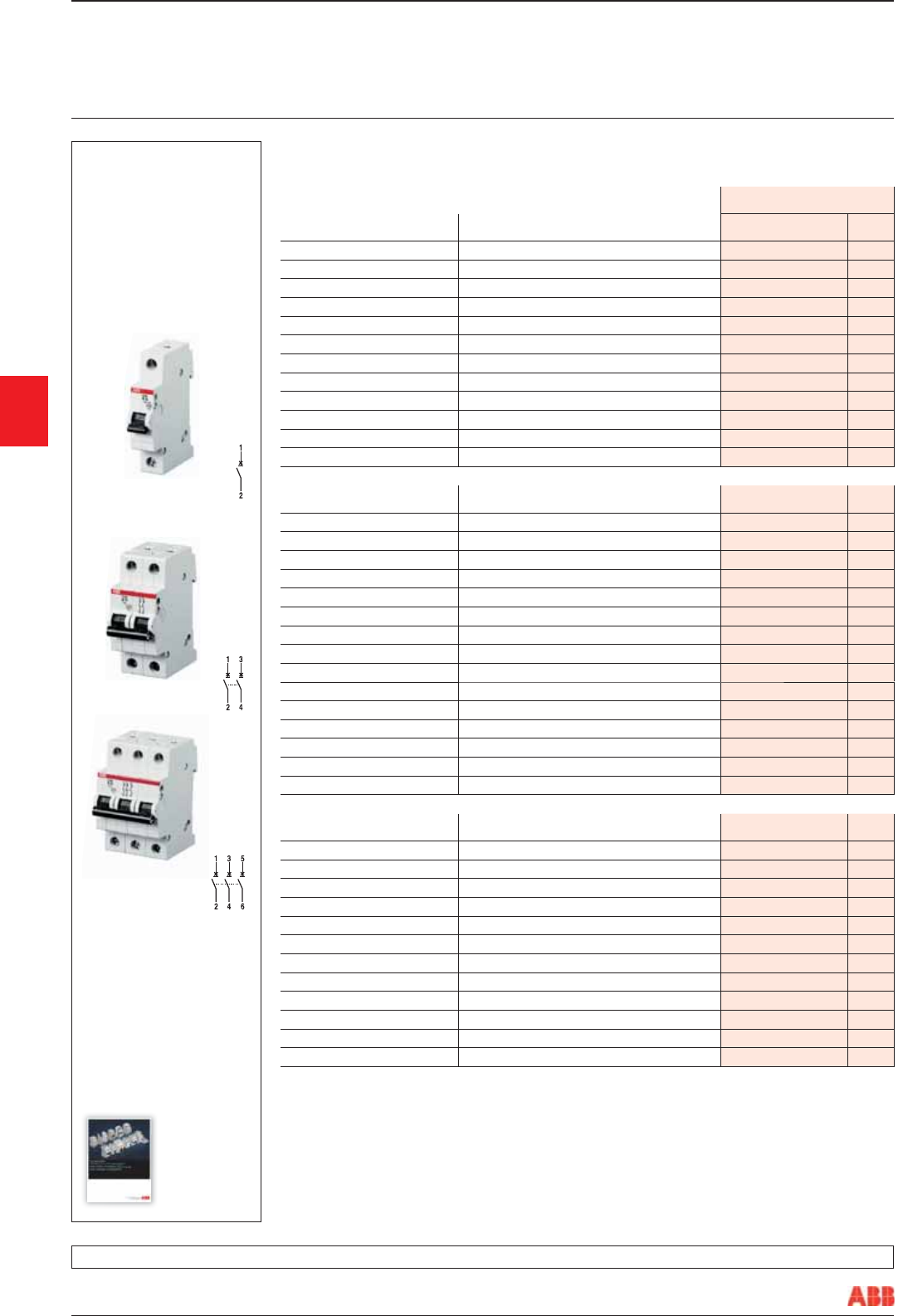

Product Hierarchy 2400004

Single Pole Order Code Price

S201MB6 2CDS271001R0065 10.01

S201MB10 2CDS271001R0105 9.18

S201MB16 2CDS271001R0165 9.18

S201MB20 2CDS271001R0205 9.18

S201MB25 2CDS271001R0255 9.18

S201MB32 2CDS271001R0325 9.18

S201MB40 2CDS271001R0405 10.01

S201MB50 2CDS271001R0505 10.53

S201MB63 2CDS271001R0635 10.65

Double Pole Order Code Price

S202MB6 2CDS272001R0065 28.75

S202MB10 2CDS272001R0105 26.41

S202MB16 2CDS272001R0165 9.18

S202MB20 2CDS272001R0205 9.18

S202MB25 2CDS272001R0255 9.18

S202MB32 2CDS272001R0325 9.18

S202MB40 2CDS272001R0405 10.01

S202MB50 2CDS272001R0505 10.53

S202MB63 2CDS272001R0635 30.46

Triple Pole Order Code Price

S203MB6 2CDS273001R0065 42.69

S203MB10 2CDS273001R0105 40.04

S203MB16 2CDS273001R0165 40.04

S203MB20 2CDS273001R0205 40.04

S203MB25 2CDS273001R0255 40.04

S203MB32 2CDS273001R0325 40.04

S203MB40 2CDS273001R0405 42.69

S203MB50 2CDS273001R0505 44.83

S203MB63 2CDS273001R0635 45.26

Type M-B 10kA

Rated

Current (A)

Rated

Current (A)

Rated

Current (A)

System ProM compact

Type S200 Series M-B

2CSC400413F0201 2CSC400411F02012CSC400415F0201

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

2CSC400413F0201 2CSC400411F02012CSC400415F0201

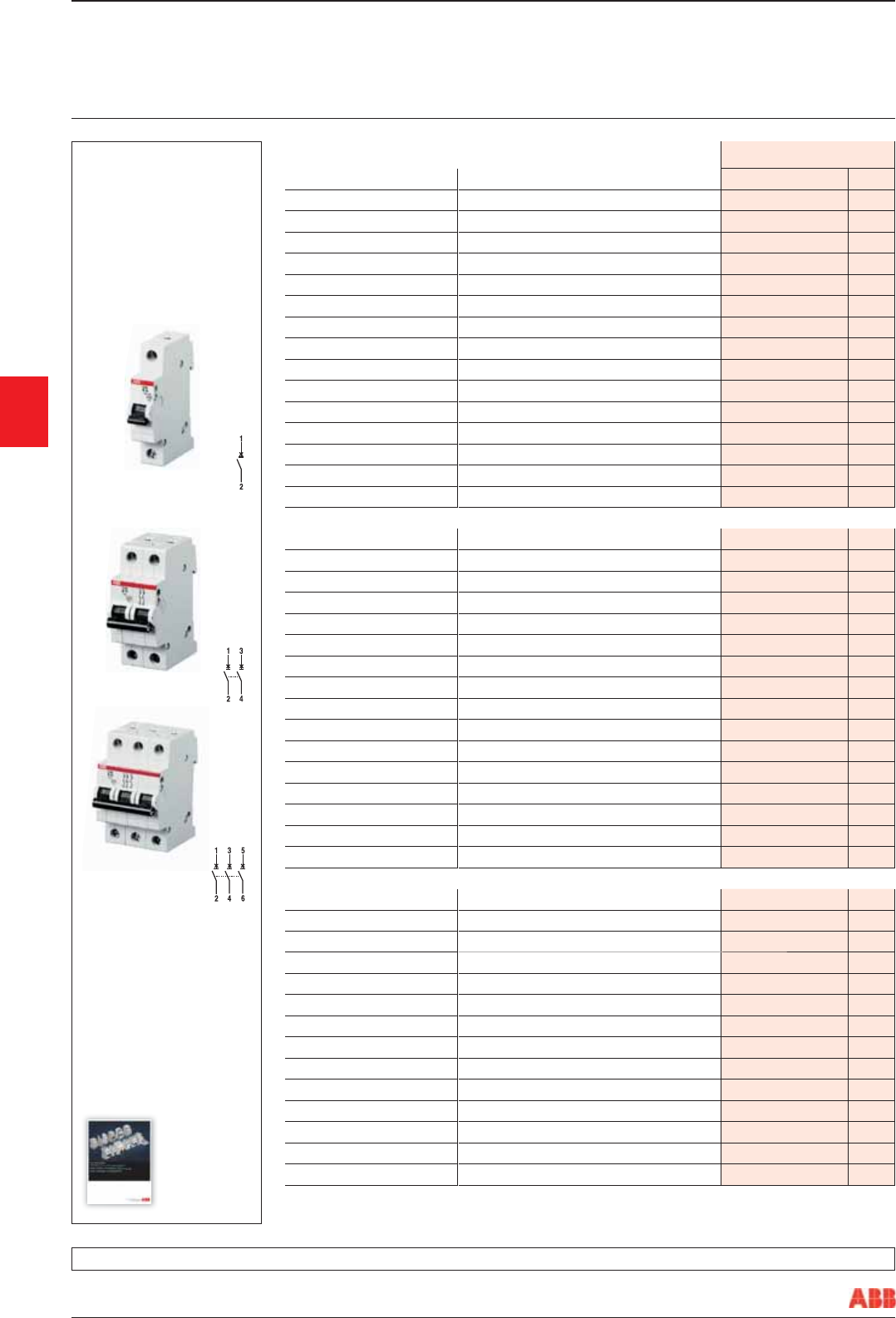

System ProM compact

Type S200 Series M-C

Product Hierarchy 2400004

Single Pole Order Code Price

S201MC1 2CDS271001R0014 10.65

S201MC2 2CDS271001R0024 10.53

S201MC3 2CDS271001R0034 10.53

S201MC4 2CDS271001R0044 10.32

S201MC6 2CDS271001R0064 10.01

S201MC8 2CDS271001R0084 10.01

S201MC10 2CDS271001R0104 9.18

S201MC13 2CDS271001R0134 9.18

S201MC16 2CDS271001R0164 9.18

S201MC20 2CDS271001R0204 9.18

S201MC25 2CDS271001R0254 9.18

S201MC32 2CDS271001R0324 9.18

S201MC40 2CDS271001R0404 10.01

S201MC50 2CDS271001R0504 10.53

S201MC63 2CDS271001R0634 10.65

Double Pole Order Code Price

S202MC1 2CDS272001R0014 30.46

S202MC2 2CDS272001R0024 30.20

S202MC3 2CDS272001R0034 30.20

S202MC4 2CDS272001R0044 29.65

S202MC6 2CDS272001R0064 28.75

S202MC8 2CDS272001R0084 26.41

S202MC10 2CDS272001R0104 26.41

S202MC13 2CDS272001R0134 26.41

S202MC16 2CDS272001R0164 26.41

S202MC20 2CDS272001R0204 26.41

S202MC25 2CDS272001R0254 26.41

S202MC32 2CDS272001R0324 26.41

S202MC40 2CDS272001R0404 28.82

S202MC50 2CDS272001R0504 30.20

S202MC63 2CDS272001R0634 30.46

Triple Pole Order Code Price

S203MC1 2CDS273001R0014 45.26

S203MC2 2CDS273001R0024 44.83

S203MC3 2CDS273001R0034 44.83

S203MC4 2CDS273001R0044 44.00

S203MC6 2CDS273001R0064 42.69

S203MC10 2CDS273001R0104 40.04

S203MC16 2CDS273001R0164 40.04

S203MC20 2CDS273001R0204 40.04

S203MC25 2CDS273001R0254 40.04

S203MC32 2CDS273001R0324 40.04

S203MC40 2CDS273001R0404 42.69

S203MC50 2CDS273001R0504 44.83

S203MC63 2CDS273001R0634 45.26

Type M-C 10kA

Rated

Current (A)

Rated

Current (A)

Rated

Current (A)

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

System ProM compact

Type S200 Series D

2CSC400413F0201 2CSC400411F02012CSC400415F0201

Product Hierarchy 2400004

Single Pole Order Code Price

S201D1 2CDS251001R0011 11.42

S201D2 2CDS251001R0021 11.31

S201D3 2CDS251001R0031 11.31

S201D4 2CDS251001R0041 11.10

S201D6 2CDS251001R0061 10.79

S201D10 2CDS251001R0101 9.90

S201D16 2CDS251001R0161 9.90

S201D20 2CDS251001R0201 9.90

S201D25 2CDS251001R0251 9.90

S201D32 2CDS251001R0321 9.90

S201D40 2CDS251001R0401 10.79

S201D50 2CDS251001R0501 11.31

S201D63 2CDS251001R0631 11.42

Double Pole Order Code Price

S202D1 2CDS252001R0011 32.68

S202D2 2CDS252001R0021 32.38

S202D3 2CDS252001R0031 32.38

S202D4 2CDS252001R0041 31.74

S202D6 2CDS252001R0061 30.85

S202D10 2CDS252001R0101 28.28

S202D16 2CDS252001R0161 28.28

S202D20 2CDS252001R0201 28.28

S202D25 2CDS252001R0251 28.28

S202D32 2CDS252001R0321 28.28

S202D40 2CDS252001R0401 30.85

S202D50 2CDS252001R0501 32.38

S202D63 2CDS252001R0631 32.68

Triple Pole Order Code Price

S203D1 2CDS253001R0011 48.46

S203D2 2CDS253001R0021 48.03

S203D3 2CDS253001R0031 48.03

S203D4 2CDS253001R0041 47.12

S203D6 2CDS253001R0061 45.73

S203D10 2CDS253001R0101 42.87

S203D16 2CDS253001R0161 42.87

S203D20 2CDS253001R0201 42.87

S203D25 2CDS253001R0251 42.87

S203D32 2CDS253001R0321 42.87

S203D40 2CDS253001R0401 45.73

S203D50 2CDS253001R0501 48.03

S203D63 2CDS253001R0631 48.46

Type D 6kA

Rated

Current (A)

Rated

Current (A)

Rated

Current (A)

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

Product Hierarchy 2400004

Single Pole Order Code Price

S201K0.5 2CDS251001R0157 12.32

S201K1 2CDS251001R0217 12.32

S201K2 2CDS251001R0277 12.32

S201K3 2CDS251001R0317 12.32

S201K4 2CDS251001R0337 12.32

S201K6 2CDS251001R0377 12.32

S201K8 2CDS251001R0407 12.32

S201K10 2CDS251001R0427 11.24

S201K16 2CDS251001R0467 11.24

S201K20 2CDS251001R0487 12.32

S201K25 2CDS251001R0517 12.75

S201K32 2CDS251001R0537 12.75

Double Pole Order Code Price

S202K0.5 2CDS252001R0157 34.17

S202K1 2CDS252001R0217 34.17

S202K2 2CDS252001R0277 34.17

S202K3 2CDS252001R0317 34.17

S202K4 2CDS252001R0337 34.17

S202K6 2CDS252001R0377 34.17

S202K8 2CDS252001R0407 34.17

S202K10 2CDS252001R0427 29.67

S202K16 2CDS252001R0467 29.67

S202K20 2CDS252001R0487 32.73

S202K25 2CDS252001R0517 33.81

S202K32 2CDS252001R0537 33.81

S202K40 2CDS252001R0557 39.75

S202K50 2CDS252001R0577 41.04

S202K63 2CDS252001R0607 44.09

Triple Pole Order Code Price

S203K1 2CDS253001R0217 51.76

S203K2 2CDS253001R0277 51.76

S203K4 2CDS253001R0337 51.76

S203K6 2CDS253001R0377 51.76

S203K8 2CDS253001R0407 51.76

S203K10 2CDS253001R0427 44.76

S203K16 2CDS253001R0467 44.76

S203K20 2CDS253001R0487 49.52

S203K32 2CDS253001R0537 51.14

S203K40 2CDS253001R0557 58.96

S203K50 2CDS253001R0577 62.28

S203K63 2CDS253001R0607 67.03

Type K 6kA

Rated

Current (A)

0.5

Rated

Current (A)

0.5

Rated

Current (A)

System ProM compact

Type S200 Series K

2CSC400413F0201 2CSC400411F02012CSC400415F0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

System ProM compact

Type S200 Series PK and PC

Product Hierarchy 2400002

Single Pole Order Code Price

S201PK3 25kA 2CDS281001R0317 19.04

S201PK6 25kA 2CDS281001R0377 19.04

S201PK10 25kA 2CDS281001R0427 16.92

S201PK20 25kA 2CDS281001R0487 19.34

S201PK32 15kA 2CDS281001R0537 23.29

S201PK40 15kA 2CDS281001R0557 26.96

Double Pole Order Code Price

S202PK1 25kA 2CDS282001R0217 41.59

S202PK2 25kA 2CDS282001R0277 41.59

S202PK3 25kA 2CDS282001R0317 41.59

S202PK4 25kA 2CDS282001R0337 41.59

S202PK6 25kA 2CDS282001R0377 41.59

S202PK8 25kA 2CDS282001R0407 41.59

S202PK16 25kA 2CDS282001R0467 37.73

S202PK20 25kA 2CDS282001R0487 41.95

S202PK25 25kA 2CDS282001R0517 44.25

S202PK40 15kA 2CDS282001R0557 57.52

S202PK50 15kA 2CDS282001R0577 65.31

Triple Pole Order Code Price

S203PK6 25kA 2CDS283001R0377 62.65

S203PK16 25kA 2CDS283001R0467 57.04

S203PK32 15kA 2CDS283001R0537 75.35

Type PK

Rated

Current (A)

Rated

Current (A)

Rated

Current (A)

Product Hierarchy 2400002

Single Pole Order Code Price

S201PC16 25kA 2CDS281001R0164 13.34

S201PC20 25kA 2CDS281001R0204 13.34

S201PC32 15kA 2CDS281001R0324 13.34

Type PC

Rated

Current (A)

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

Product Hierarchy 2400002

Single Pole + Switched Neutral Order Code Price

SN201C2 2CSS255101R0024 16.68

SN201C4 2CSS255101R0044 16.68

SN201C6 2CSS255101R0064 16.68

SN201C10 2CSS255101R0104 16.68

SN201C16 2CSS255101R0164 16.68

SN201C20 2CSS255101R0204 16.68

SN201C25 2CSS255101R0254 16.68

SN201C40 2CSS255101R0404 16.68

SN201C32 2CSS255101R0324 16.68

SN201MC1 2CSS275101R0014 13.69

SN201MC2 2CSS275101R0024 13.69

SN201MC4 2CSS275101R0044 13.69

SN201MC6 2CSS275101R0064 13.69

Type C 6kA

Type MC 10kA

System ProM compact

Type SN200 Series - Single pole & Switched Neutral

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

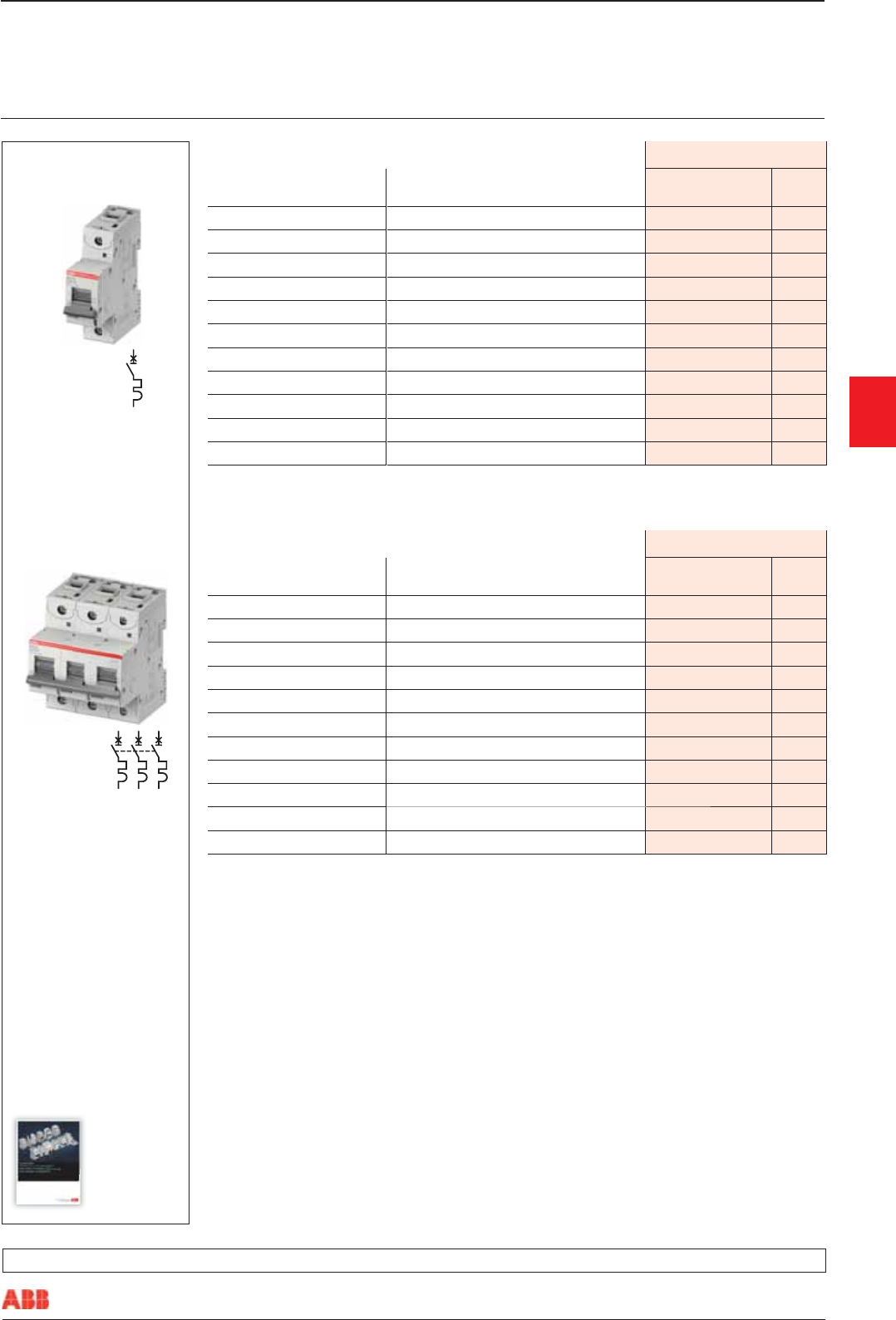

System ProM compact

Type S800C Series - Type C 25kA

Product Hierarchy 2400003

Single Pole Order Code Price

S801CC10 2CCS881001R0104 26.11

S801CC16 2CCS881001R0164 26.11

S801CC20 2CCS881001R0204 26.11

S801CC25 2CCS881001R0254 26.11

S801CC32 2CCS881001R0324 26.11

S801CC40 2CCS881001R0404 29.14

S801CC50 2CCS881001R0504 29.14

S801CC63 2CCS881001R0634 29.14

S801CC80 2CCS881001R0804 30.90

S801CC100 2CCS881001R0824 30.90

S801CC125 2CCS881001R0844 37.20

Type C 25kA

100

125

Product Hierarchy 2400003

Triple Pole Order Code Price

S803CC10 2CCS883001R0104 76.26

S803CC16 2CCS883001R0164 76.26

S803CC20 2CCS883001R0204 76.26

S803CC25 2CCS883001R0254 76.26

S803CC32 2CCS883001R0324 76.26

S803CC40 2CCS883001R0404 85.28

S803CC50 2CCS883001R0504 85.28

S803CC63 2CCS883001R0634 85.28

S803CC80 2CCS883001R0804 99.28

S803CC100 2CCS883001R0824 99.28

S803CC125 2CCS883001R0844 103.05

Type C 25kA

100

125

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

2CSC400565F02012CSC400569F0201

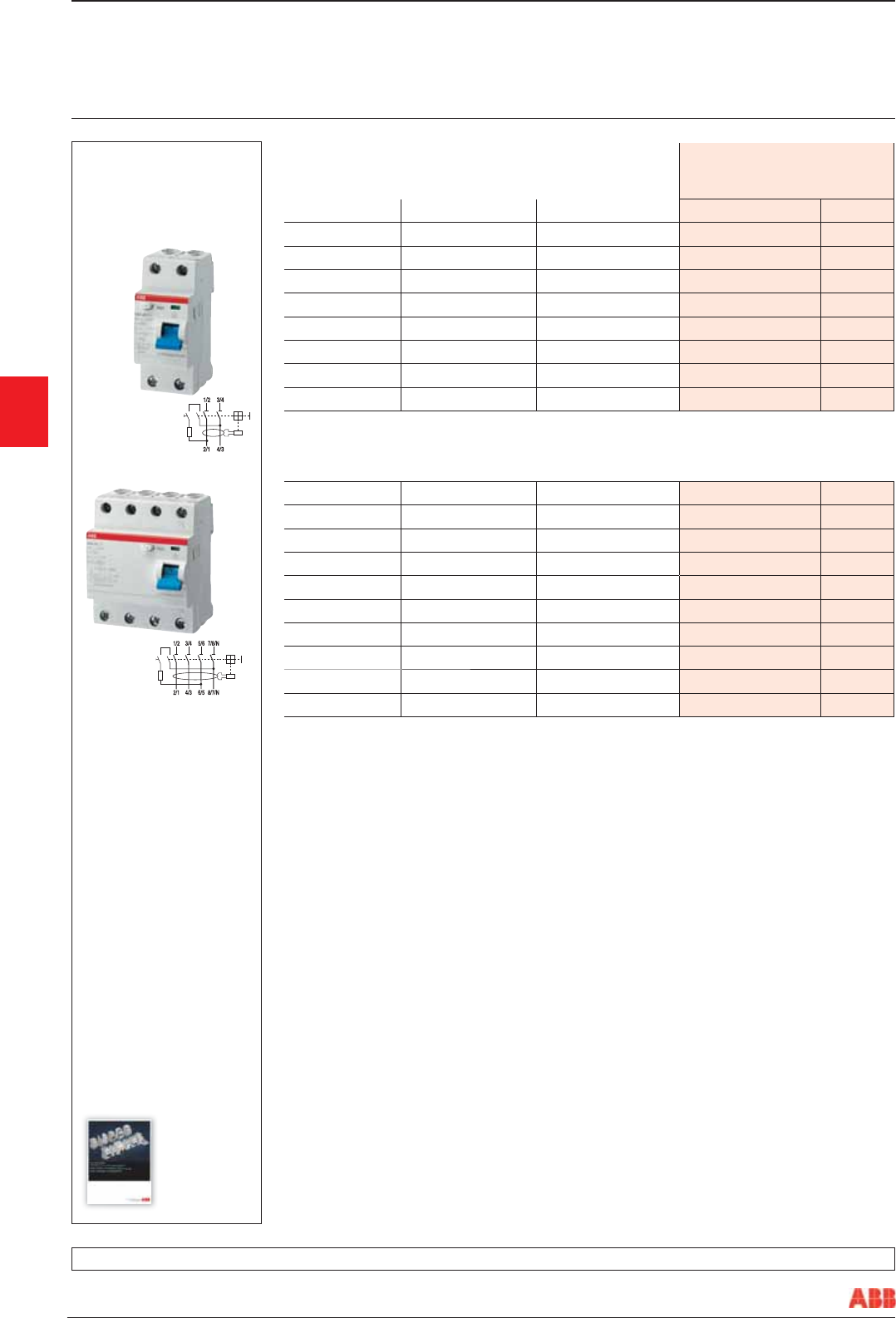

F200 Series RCCBs 2 Pole

AC - BS/EN 61008 Product Hierarchy 2500001

Rated Current Tripping mA Part No Order Code Price

25 30 F202 AC-25/0.03 2CSF202001R1250 57.90

40 30 F202 AC-40/0.03 2CSF202001R1400 61.13

63 30 F202 AC-63/0.03 2CSF202001R1630 73.58

80 30 F202 AC-80/0.03 2CSF202001R1800 91.04

100 30 F202 AC-100/0.03 2CSF202001R1900 106.78

25 300 F202 AC-25/0.3 2CSF202001R3250 54.19

40 300 F202 AC-40/0.3 2CSF202001R3400 55.28

63 300 F202 AC-63/0.3 2CSF202001R3630 62.11

F200 Series RCCBs 4 Pole

AC - BS/EN 61008

25 30 F204 AC-25/0.03 2CSF204001R1250 61.40

40 30 F204 AC-40/0.03 2CSF204001R1400 74.68

63 30 F204 AC-63/0.03 2CSF204001R1630 105.91

80 30 F204 AC-80/0.03 2CSF204001R1800 131.74

100 30 F204 AC-100/0.03 2CSF204001R1900 148.24

100 100 F204 AC-100/0.1 2CSF204001R2900 148.24

25 300 F204 AC-25/0.3 2CSF204001R3250 60.17

40 300 F204 AC-40/0.3 2CSF204001R3400 62.44

63 300 F204 AC-63/0.3 2CSF204001R3630 69.59

100 300 F204 AC-100/0.3 2CSF204001R3900 148.24

System ProM compact

Type F200 Series - 2 & 4 pole RCCBs

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

2CSC400163F0201

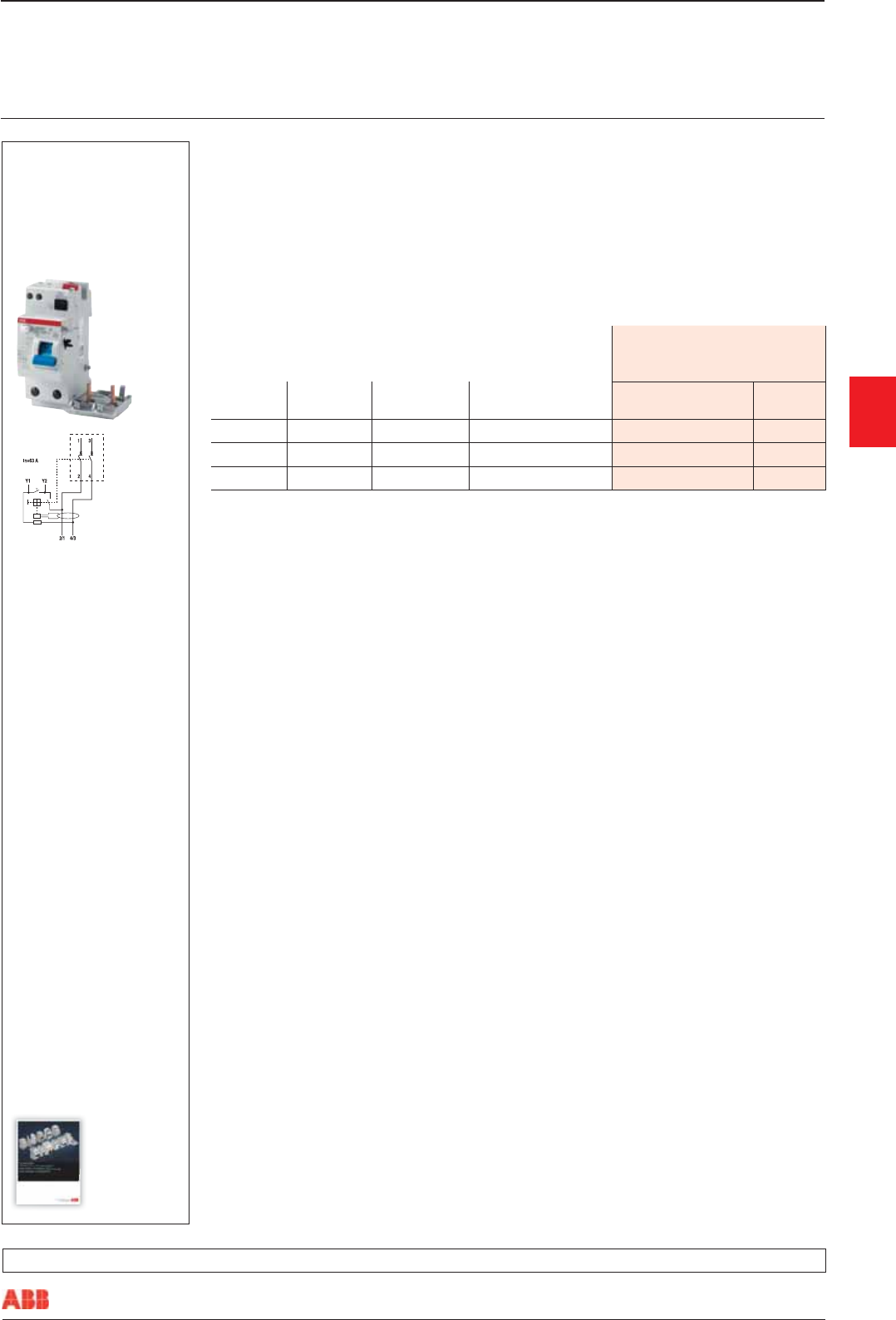

DDA 200 AC type

Function: RCD-block for assembly on site with MCBs S 200 series. Protection against the effects of sinusoidal

alternating earth fault currents; protection against indirect contacts and additional protection against direct

(with I6n=30 mA) contacts.

Application: residential, commercial, industrial.

Standard: IEC/EN 61009 Ann. G

Rated Current In A: 63A

DDA 200 AC type Product Hierarchy 2500001

Rated

Current

Tripping

Number

of poles Part No Order Code Price

63 30 2 DDA202AC-63/0.03 2CSB202001R1630 62.38

63 300 2 DDA202AC-63/0.3 2CSB202001R3630 65.33

63 300 4 DDA204AC-63/0.3 2CSB204001R1630 82.39

System ProM compact

Type DDA 200 Series - 2 & 4 pole RCD Block

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

System ProM compact

DS271 & DS201 Series RCBOs

DS 271 AC type, B and C characteristics

Function: protection against overload and short-circuit currents; protection against the effects of sinusoidal

alternating earth fault currents; protection against indirect contacts and additional protection against direct

contacts (I6n=30 mA); command and isolation of resistive and inductive loads.

Application: residential, commercial, industrial.

Standard: IEC/EN 61009 and BSEN61009-2-2

Icn=10 kA

Product Hierarchy 2500002

Current (A) Sensitivity Type B - 10kA Order Code Price

6 30mA DS271AC-B6/0.03 2CSR175092R1065 63.27

10 30mA DS271AC-B10/0.03 2CSR175092R1105 63.27

16 30mA DS271AC-B16/0.03 2CSR175092R1165 63.27

20 30mA DS271AC-B20/0.03 2CSR175092R1205 63.27

25 30mA DS271AC-B25/0.03 2CSR175092R1255 63.27

32 30mA DS271AC-B32/0.03 2CSR175092R1325 63.27

Product Hierarchy 2500002

Current (A) Sensitivity Type C - 10kA Order Code Price

6 30mA DS271AC-C6/0.03 2CSR175092R1064 63.27

10 30mA DS271AC-C10/0.03 2CSR175092R1104 63.27

16 30mA DS271AC-C16/0.03 2CSR175092R1164 63.27

20 30mA DS271AC-C20/0.03 2CSR175092R1204 63.27

25 30mA DS271AC-C25/0.03 2CSR175092R1254 63.27

32 30mA DS271AC-C32/0.03 2CSR175092R1324 63.27

DS201C RCBOs Single Pole + Switched Neutral Product Hierarchy 2500001

Breaking

Cap kA

Rated

Current

Tripping

mA Part No Order Code Price

66 30mA DS201C6AC30 2CSR255040R1064 70.52

610 30mA DS201C10AC30 2CSR255040R1104 70.52

616 30mA DS201C16AC30 2CSR255040R1164 70.52

620 30mA DS201C20AC30 2CSR255040R1204 70.52

625 30mA DS201C25AC30 2CSR255040R1254 70.52

632 30mA DS201C32AC30 2CSR255040R1324 70.52

6 40 30mA DS201C40AC30 2CSR255040R1404 70.52

DS201MC RCBOs Single Pole Single Pole + Switched Neutral

10 6 30mA DS201MC6AC30 2CSR275040R1064 76.20

10 10 30mA DS201MC10AC30 2CSR275040R1104 76.20

10 16 30mA DS201MC16AC30 2CSR275040R1164 76.20

10 20 30mA DS201MC20AC30 2CSR275040R1204 76.20

10 32 30mA DS201MC32AC30 2CSR275040R1324 76.20

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

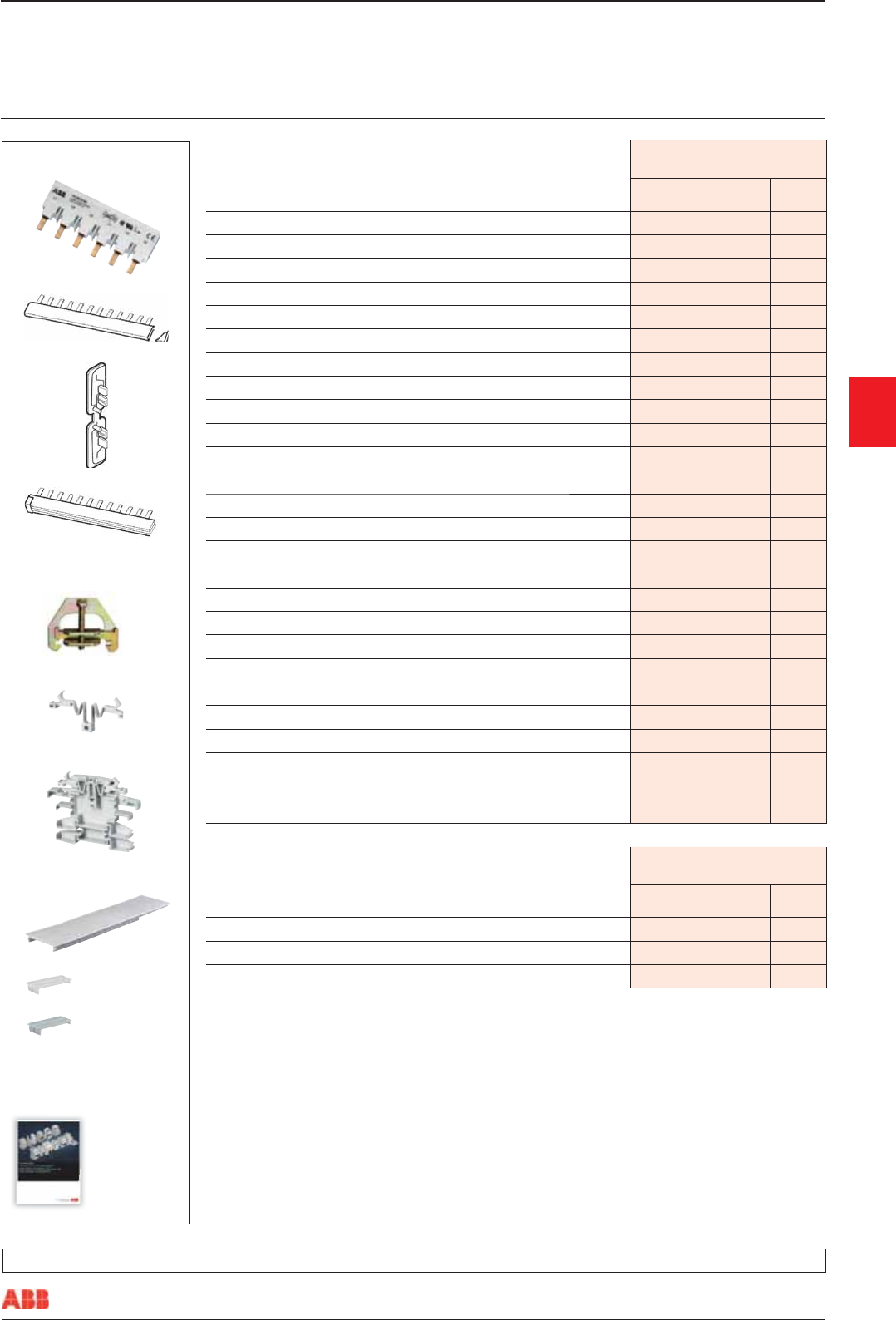

Product Hierarchy 2400002

Busbars and Connections Part No Order Code Price

BS Compact blank labels BS GHS2001946R0001 4.39

End end clamp END GJI1001814R0001 1.32

KA27H side cut to length term shroud KA27H GHS2101933R0001 6.95

KA27S end covers KA27S GHS2101934R0001 2.46

PS1/38/16h compact b/bar sp & aux PS1/38/16H 2CDL210001R1638 14.57

PS1/60/16 compact busbar sp 16mm 60 mod PS1/60/16 2CDL210001R1660 14.79

PS1-4/16 compact to classic connector PS1-4/16 2CDL210007R1604 3.64

PS2 compact busbar dp 16mm 58 mod PS2/58/16 2CDL220001R1658 32.39

PS2/48/16h compact busbar dp & aux PS2/48/16H 2CDL220001R1648 47.12

PS2/58 compact b/bar dp 10mm 58mod PS2/58 2CDL220001R1058 32.46

PS3/48/16h compact busbar tp & aux PS3/48/16H 2CDL230001R1648 41.01

PS3/60/16 compact busbar tp 16mm 60 mod PS3/60/16 2CDL230001R1660 45.17

PS4/60/16 compact busbar 4p 16mm 60 mod PS4/60/16 2CDL240001R1660 62.34

PS-END compact busbar end cap 2/3p PS-END 2CDL200001R0001 0.80

PS-END0 compact busbar end cap 1p PS-END0 2CDL200001R0004 2.03

PS-END1 compact busbar end cap 4p PS-END1 2CDL200001R0002 0.80

SZ-AST25I insulated terminal pin 25mm SZ-AST25I GHV0360501R0007 1.56

SZ-AST50I insulated terminal pin 50mm SZ-AST50I GHV0360501R0009 3.36

SZ-AST55I insulated terminal pin 80mm SZ-AST55I 2CDL200002R5002 5.21

SZ-AST9I 25mm insulated phase terminal SZ-AST9I 2CDL200001R2502 4.88

SZ-BSK5 insulated cover for busbar SZ-BSK5 GHV0360505R0001 1.32

SZ-ESK2 SZ-ESK2 2CDL200001R3501 3.10

SZ-FDT2 spring piece SZ-FDT2 GHL5301908R0005 0.74

SZ-FST2 filler piece SZ-FST2 GHL5301908R0002 1.02

SZ-KLB8 terminal bar 1x16 SZ-KLB8 GJI2320131R0001 3.84

SZ-KTR carrier for terminals SZKLB8 SZ-KTR GJI2024027R0001 0.56

Product Hierarchy 2400002

Blanks and Covers Part No Order Code Price

SZ-BP1 blanking cover SZ-BP1 GHL5301904R0001 2.08

SZ-BP2 blanking plate 1 module SZ-BP2 GHS2701913R0002 0.33

SZ-BSK Insulated cover for busbar SZ-BSK 2CDL200001R0011 1.36

System ProM compact

S200 Accessories

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0207

SZ-FDT 2

END

SZ-FST 2 + SZ-FDT 2

CSC CSC

2CSC400446F0201

END 1.1

PS-END 0

PS-END

SZ-BP 1

SZ-BP

SZ-BP 2

1020F050004CSC2

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

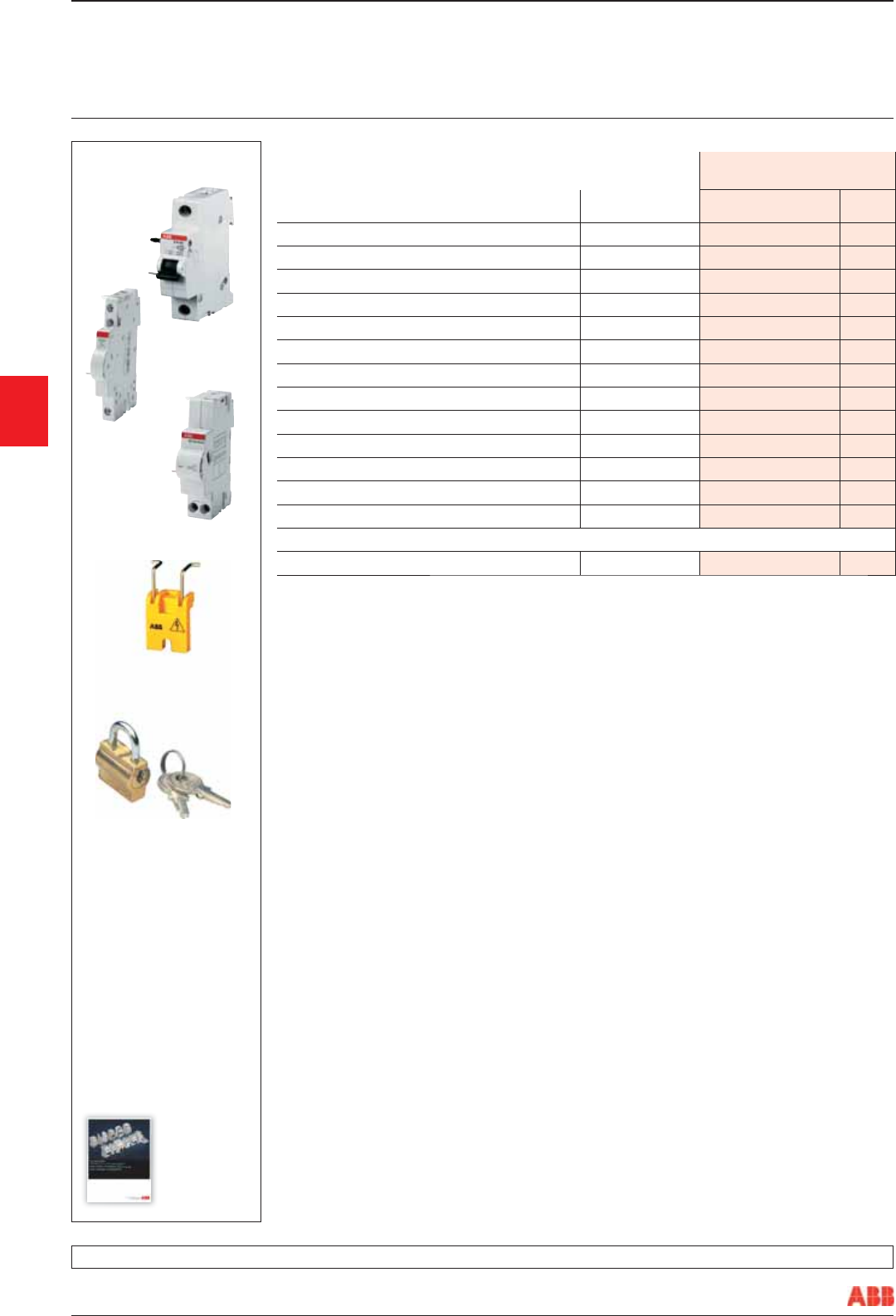

Product Hierarchy 2400002

Accessories Part No Order Code Price

Compact lower aux 1no SC2-H10 2CDS200970R0002 11.33

S2C-A1 compact shunt trip 12-60v S2C-A1 2CDS200909R0001 23.06

S2C-A2 compact shunt trip 110-415v S2C-A2 2CDS200909R0002 23.06

S2C-DH mcb rotary handle adaptor S2C-DH GHS2001901R0003 29.19

S2C-EST compact plug-in base S2C-EST 2CSS200999R0001 15.13

S2C-H11L compact left aux 1no 1nc S2C-H11L 2CDS200936R0001 12.51

S2C-H6R compact c/o auxilliary S2C-H6R 2CDS200912R0001 12.51

S2C-NT compact hand op neutral S2C-NT 2CDS200918R0001 8.47

S2C-S/H6r compact signal / auxilliary S2C-S/H6R 2CDS200922R0001 14.89

S2C-UA24ac compact u/v trip 24vac S2C-UA24 2CSS200911R0002 39.75

SA1 mcb padlock adaptor 3mm SA1 GJF1101903R0001 2.45

SA1E mcb padlock adaptor 6mm SA1E GJF1101903R0004 3.55

SA2 mcb padlock with two keys SA2 GJF1101903R0002 6.82

S2C Compact Plug-in Base S2C-EST 2CSS200999R0001 15.13

System ProM compact

S200 Accessories

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

DCB13000

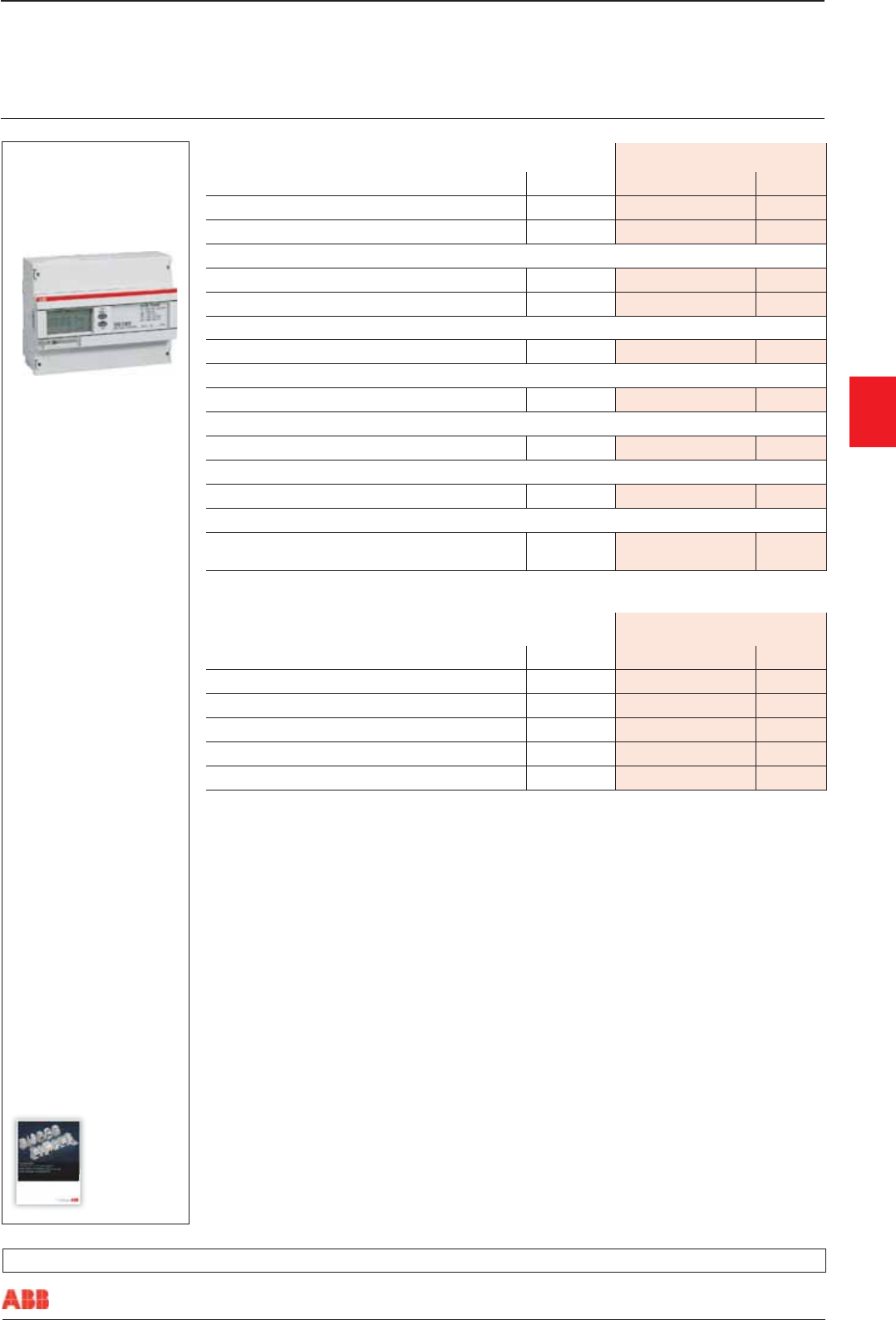

System ProM compact

Digital Energy Meters

Digital Meters Product Hierarchy 2700001

Description Part No Order Code Price

ODIN Single Phase, Direct Connected OD1065 2CMA131040R1000 81.00

ODIN Single Phase, Pulse Output, Direct Connected

OD1365 2CMA131041R1000 90.00

DELTA Single Phase - 2 Tariff with Pulse Output FBB11205 2CMA180894R1000 111.00

DELTA Single Phase - 2 Tariff FBU11205 2CMA180893R1000 105.00

ODIN 3 Phase + N - 1 Pulse Output, Direct Connected

OD4165 2CMA131024R1000 162.00

ODIN 3 Phase + N - 1 Pulse Output, CT Connected

OD4110 2CMA131025R1000 162.00

DELTA Plus 3 phase + N - 1 Tariff with Pulse Output

DAB13000 2CMA180806R1000 204.00

DELTA Max 3 phase + N - 2 Tariff with Internal Clock and THD

DEB13005 2CMA139495R1000 267.00

DELTA Max 3 phase + N - 2 Tariff with Time Dependant

Functions and THD

DEB13007 2CMA139497R1000 249.00

Communication Adaptors Product Hierarchy 2700001

Description Part No Order Code Price

LON PLC A-Band Adaptor CAL 06000 2CMA137100R1000 161.09

Ethernet Adaptor

CEM 05100

2CMA137121R1000 129.00

M-bus (Meter Bus) Adaptor

CTM 04000

2CMA137090R1000 114.00

LON PLC C-Band Adaptor CCL 06000 2CMA137103R1000 161.09

RS232 Adaptor CRM04000 2CMA137091R1000 114.00

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

2CSC400002D0208

Product Hierarchy 2700001

Timers Order Code Price

Analogue AT3-7R timer 7 day c/w reserve 2CSM204245R0601 75.60

Analogue AT3-R daily timer with reserve 2CSM204235R0601 77.25

Digital DT1 1 channel weekly time switch 2CSM204255R0611 100.60

Isolators

E202/100R 2P 100A 2CDE282001R0100 18.69

E202/125R 2P 125A 2CDE282001R0125 35.96

E202/63R 2P 63A 2CDE282001R0063 20.96

E203/100R 3P 100A 2CDE283001R0100 37.03

E203/125R 3P 125A 2CDE283001R0125 53.46

E204/125R 4P 125A 2CDE284001R0125 67.39

E204/63R 4P 63A 2CDE284001R0063 40.03

Contactors

EH04-20 ESB Aux 2no GHE3401321R0001 14.10

ESB20-02 Contactor 2nc 24V GHE3211202R0001 21.55

ESB24-04 Contactor 4no 24V GHE3291202R0001 31.16

ESB-DIS Distance Piece GHE3201902R0001 0.96

Fuseholders

E91/32 SP Fuseholder 32A 10.3x38 2CSM200923R1801 2.77

E931/125 E931/125A Fuse Carrier 2CSM371710R1801 2.77

Toroidal Transformers

TR2 60mm 2CSG060100R1211 87.05

TR3 80mm 2CSG080100R1211 103.69

TR4 110mm 2CSG110100R1211 120.13

Twilight Switch

TW1 2CSM204135R1341 45.61

Product Hierarchy 6000002

Surge Suppressors Order Code Price

OVR T1 3N 255 25TS Type1 3P&N 2CTB815101R0700 730.22

OVR T2 3N 40 275 SPTS Type 2 3P&N 2CTB803953R0200 185.70

2CSC400544F0201

System ProM compact

Modular Devices

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Power Breakers

Tmax Moulded Case Circuit Breakers

Tmax T1 ... T7 ................................................................................ 60 - 67

Tmax Non Automatic .............................................................................. 68

Tmax Accessories .......................................................................... 69 - 72

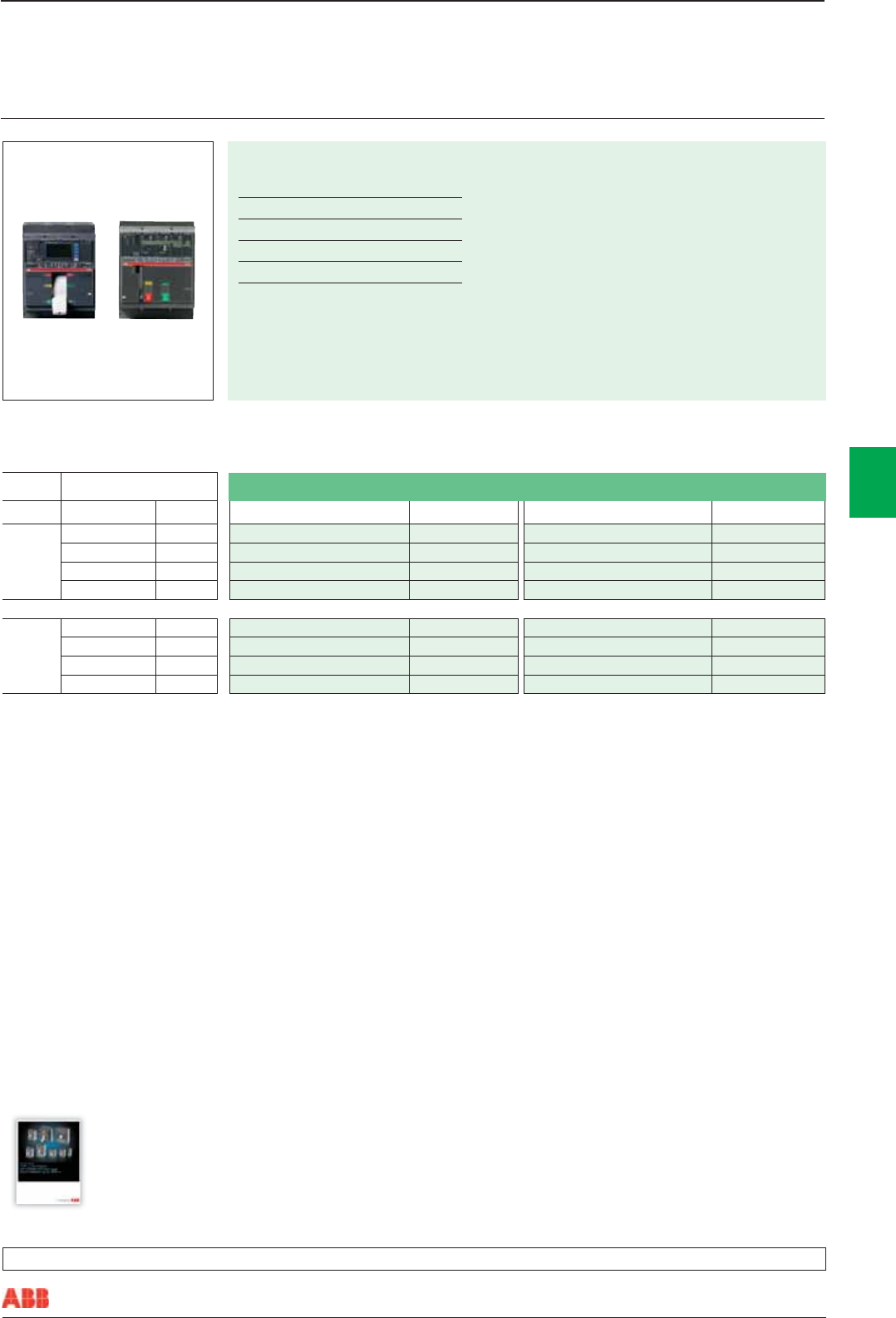

Emax Air Circuit Breakers

Emax X1 E1 ...E3 ..................................................................................73

Emax Non Automatic ........................................................................... 74

Emax Accessories .................................................................................. 75

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC200009D0203

MCCBs ACBs

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

3Product Hierarchy 3000004

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T1B 25kA 100%

T1C 25kA 100%

T1N 36kA 75%

Model Current [A]

Ith/In Im

T1B

T1B160R16 16A

T1B160R20 20A

T1B160R32 32A

T1B160R40 40A

T1B160R50 50A

T1B160R63 63A

T1B160R80 80A

T1B160R100 100A

T1B160R125 125A

T1B160R160 160A

T1C

T1C160R25 25A

T1C160R32 32A

T1C160R40 40A

T1C160R50 50A

T1C160R63 63A

T1C160R80 80A

T1C160R100 100A

T1C160R125 125A

T1C160R160 160A

T1N

T1N160R32 32A

T1N160R40 40A

T1N160R50 50A

T1N160R63 63A

T1N160R80 80A

T1N160R100 100A

T1N160R125 125A

T1N160R160 160A

Protection types available

Settings

Type Ith Im

Standard Distribution (3&4 pole) 70-100% 10xIth (*)

*Subject to a minimum value of 630A

4 Pole Price

- POA

1SDA050884R1 120.06

- POA

1SDA050887R1 120.06

1SDA050888R1 123.30

1SDA050889R1 123.30

1SDA050890R1 126.29

1SDA050936R1 168.51

- POA

1SDA050910R1 174.70

1SDA050911R1 174.70

1SDA050912R1 180.23

1SDA050937R1 221.58

1SDA050928R1 185.62

- POA

1SDA050931R1 185.62

- POA

1SDA050933R1 208.94

1SDA050934R1 224.65

1SDA050938R1 273.75

3 Pole Price

1SDA050870R1 92.35

1SDA050871R1 92.35

1SDA050873R1 92.35

1SDA050874R1 92.35

1SDA050875R1 92.35

1SDA050876R1 92.35

1SDA050877R1 94.87

1SDA050878R1 94.87

1SDA050879R1 97.13

1SDA050880R1 129.62

1SDA050894R1 125.35

1SDA050895R1 125.35

1SDA050896R1 125.35

1SDA050897R1 125.35

1SDA050898R1 125.35

1SDA050899R1 129.42

1SDA050900R1 129.42

1SDA050901R1 137.53

1SDA050902R1 168.83

1SDA050917R1 137.74

1SDA050918R1 137.74

1SDA050919R1 137.74

1SDA050920R1 137.74

1SDA050921R1 140.54

1SDA050922R1 140.54

1SDA050923R1 151.12

1SDA050924R1 195.28

1 Pole Price

1SDA052616R1 64.45

1SDA052617R1 64.45

1SDA052619R1 64.45

1SDA052620R1 64.45

1SDA052622R1 64.45

1SDA052623R1 64.45

1SDA052624R1 64.45

1SDA052625R1 71.12

1SDA052626R1 77.98

- POA

Power Distribution Circuit Breakers

Tmax T1

Thermomagnetic

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

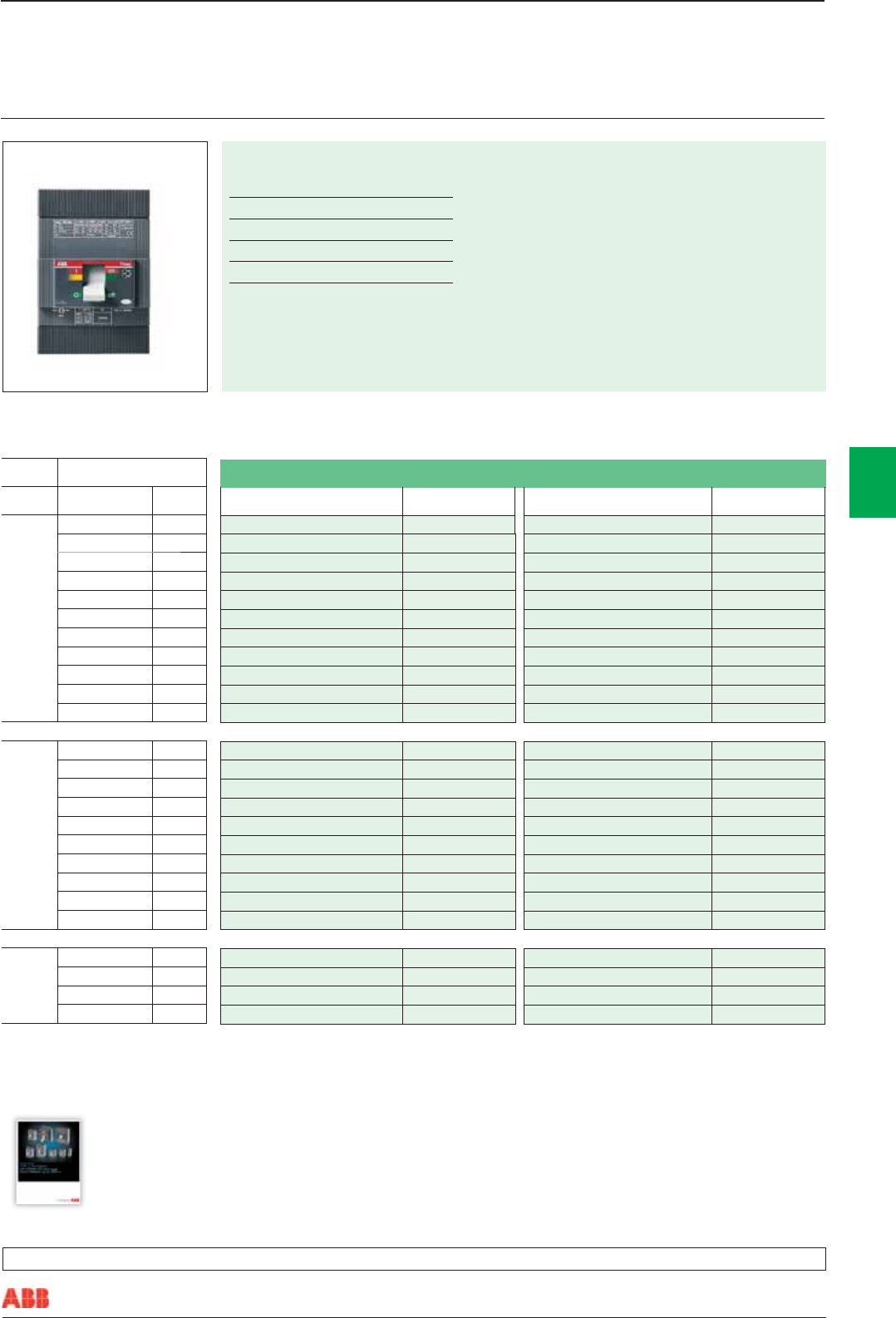

Product Hierarchy 3000004

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T2N 36kA 100%

T2S 50kA 100%

T2H 70kA 100%

T2L 85kA 75%

Model Current [A]

Ith/In Im

T2N

T2N160R16 16A

T2N160R20 20A

T2N160R32 25A

T2N160R32 32A

T2N160R40 40A

T2N160R50 50A

T2N160R63 63A

T2N160R80 80A

T2N160R100 100A

T2N160R125 125A

T2N160R160 160A

T2S

T2S160R16 16A

T2S160R20 20A

T2S160R32 32A

T2S160R40 40A

T2S160R50 50A

T2S160R63 63A

T2S160R80 80A

T2S160R100 100A

T2S160R125 125A

T2S160R160 160A

T2H

T2H160R32 32A

T2H160R80 80A

T2H160R100 100A

T2H160R160 160A

4 Pole Price

- POA

1SDA050973R1 206.54

- POA

1SDA050975R1 206.54

- POA

1SDA050978R1 206.54

1SDA050979R1 220.76

1SDA050980R1 220.76

1SDA051115R1 238.66

1SDA051116R1 283.81

- POA

1SDA051019R1 210.15

- POA

1SDA051022R1 210.15

- POA

1SDA051024R1 222.38

- POA

3 Pole Price

1SDA050950R1 163.51

1SDA050951R1 163.51

1SDA050952R1 163.51

1SDA050953R1 163.51

1SDA050954R1 163.51

1SDA050955R1 163.51

1SDA050956R1 163.51

1SDA050957R1 163.51

1SDA050958R1 163.51

1SDA050959R1 166.81

1SDA050960R1 215.56

1SDA050994R1 165.77

1SDA050995R1 165.77

1SDA050997R1 165.77

1SDA050998R1 165.77

1SDA051000R1 165.77

1SDA051001R1 169.32

1SDA051002R1 169.32

1SDA051003R1 180.91

1SDA051004R1 214.34

1SDA051041R1 168.91

1SDA051045R1 172.50

1SDA051046R1 172.50

1SDA051048R1 282.08

Power Distribution Circuit Breakers

Tmax T2

Thermomagnetic

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

3Product Hierarchy 3000004

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T2N 36kA 100%

T2S 50kA 100%

T2H 70kA 100%

T2L 85kA 75%

Model Current [A]

T2N

T2N160MA32

T2N160MA52

T2N160MA80

T2N160MA100

T2S T2S160MA32

T2H T2H160MA52

4 Pole Price

- POA

3 Pole Price

1SDA051208R1 134.63

1SDA051209R1 134.63

1SDA051210R1 134.63

1SDA051211R1 134.63

1SDA051217R1 136.93

1SDA051226R1 138.67

Product Hierarchy 3000004

Model Current [A]

Ith/In Im

T2N

T2N160R63 63A

T2N160R100 100A

T2N160R160 160A

T2S T2S160R100 100A

T2S160R160 160A

T2L T2L160R160 160A

4 Pole Price

1SDA051130R1 287.69

- POA

3 Pole Price

- POA

1SDA051126R1 221.31

1SDA051127R1 300.08

1SDA051136R1 238.24

1SDA051137R1 321.51

1SDA051157R1 526.88

Power Distribution Circuit Breakers

Tmax T2

Thermomagnetic

PR221DS/LS

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T3N 36kA 75%

T3S 50kA 50%

Model Current [A]

Ith/In Im

T3N

T3N250R63 63A

T3N250R100 100A

T3N250R125 125A

T3N250R160 160A

T3N250R200 200A

T3N250R250 250A

T3S

T3S250R63 63A

T3S250R100 100A

T3S250R125 125A

T3S250R160 160A

T3S250R200 200A

T3S250R250 250A

3 Pole Price

1SDA051241R1 186.57

1SDA051243R1 186.57

1SDA051244R1 205.76

1SDA051245R1 262.00

1SDA051246R1 262.00

1SDA051247R1 361.99

1SDA051263R1 205.23

1SDA051265R1 205.23

1SDA051266R1 226.37

- POA

1SDA051268R1 288.20

1SDA051269R1 398.19

4 Pole Price

- POA

1SDA051304R1 379.96

1SDA051305R1 379.96

1SDA051306R1 483.38

- POA

1SDA051310R1 531.72

Product Hierarchy 3000004

Model Current [A]

T3N T3N250MA200

4 Pole Price

- POA

3 Pole Price

1SDA051318R1 288.20

Power Distribution Circuit Breakers

Tmax T3

Thermomagnetic

Magnetic Only

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

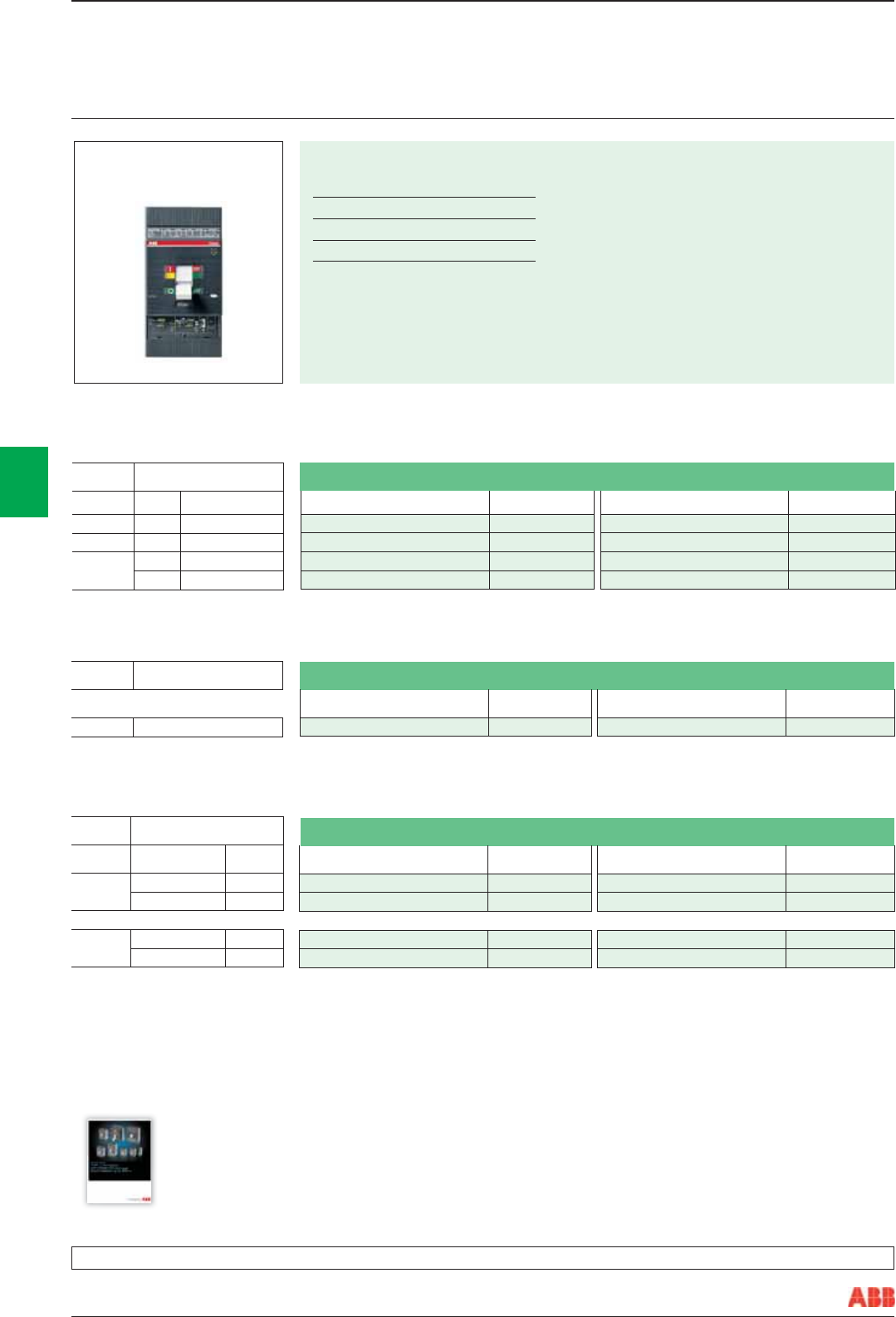

3Model Current [A]

Ith/In Im

T4N 200 1000...2000

T4S 250 1250...2500

T4H 200 1000...2000

250 1250...2500

3 pole Price

1SDA054214R1 355.61

1SDA054179R1 373.18

1SDA054214R1 355.61

1SDA054215R1 460.93

Product Hierarchy 3000006

4 pole Price

- POA

Product Hierarchy 3000006

Model Current [A]

T4N T4N250MA200

4 Pole Price

- POA

3 Pole Price

1SDA054300R1 270.11

Product Hierarchy 3000006

Model Current [A]

Ith/In Im

T4N T4N250R250 250A

T4N320R320 320A

T4S T4S250R100 100A

T4S250R250 250A

4 Pole Price

1SDA054011R1 574.01

1SDA054121R1 611.02

- POA

1SDA054035R1 631.41

3 Pole Price

1SDA053999R1 431.82

1SDA054117R1 464.08

1SDA054021R1 319.28

1SDA054023R1 501.39

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T4N 36kA 100%

T4S 50kA 100%

T4H 70kA 100%

Power Distribution Circuit Breakers

Tmax T4

Thermomagnetic

Magnetic Only

PR221DS/LS

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

Model Current [A]

Ith/In Im

T5N

320 1600...3200

400 2000...4000

500 2500...5000

T5S 400 2000...4000

T5H 400 2000...4000

3 pole Price

1SDA054436R1 483.50

1SDA054437R1 483.50

1SDA054456R1 711.83

1SDA054441R1 531.84

1SDA054445R1 571.45

Product Hierarchy 3000006

4 pole Price

1SDA054477R1 642.12

1SDA054478R1 642.14

1SDA054487R1 919.98

- POA

Product Hierarchy 3000006

Model Current [A]

Ith/In Im

T5N T5N400R400 400A

T5N630R630 630A

T5S T5S400R400 400A

T5S630R630 630A

T5H T5S400R400 400A

T5S630R630 630A

4 Pole Price

1SDA054325R1 684.85

1SDA054400R1 1073.72

- POA

3 Pole Price

1SDA054317R1 514.44

1SDA054396R1 819.37

1SDA054333R1 565.87

1SDA054405R1 901.31

1SDA054349R1 573.96

1SDA054412R1 913.83

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T5N 36kA 100%

T5S 50kA 100%

T5H 70kA 100%

Product Hierarchy 3000006

Model Current [A]

Ith/In Im

T5N T5N630R630 630A

4 Pole Price

1SDA054402R1 1216.53

3 Pole Price

Power Distribution Circuit Breakers

Tmax T5

Thermomagnetic

PR221DS/LS

PR222DS/LS

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

3Model Current [A]

Ith/In Im

T6N 630 3150...6300

800 4000...8000

T6S 800 4000...8000

3 pole Price

1SDA060202R1 738.79

1SDA060214R1 952.51

1SDA060216R1 998.31

Product Hierarchy 3000006

4 pole Price

1SDA060210R1 954.41

- POA

1SDA060222R1 1214.57

Product Hierarchy 3000006

Model Current [A]

Ith/In Im

T6N

T6N630R630 630A

T6N800R630 800A

T6N1000R1000 1000A

T6S T6S630R630 630A

T6S800R630 800A

4 Pole Price

1SDA060231R1 996.36

1SDA060273R1 1257.43

1SDA060542R1 1409.04

1SDA060241R1 1117.81

1SDA060283R1 1301.05

3 Pole Price

1SDA060226R1 776.07

1SDA060268R1 990.73

1SDA060537R1 1256.35

- POA

1SDA060278R1 1036.53

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T6N 36kA 100%

T6S 50kA 100%

T6H 70kA 100%

T6L 100kA 100%

Power Distribution Circuit Breakers

Tmax T6

Thermomagnetic

PR221DS/LS

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

Product Hierarchy 3000006

Model Current [A]

Ith/In Im

*T7S

Lever

T7S800 800A

T7S1000 1000A

T7S1250 1250A

T7S1250 1600A

T7S

Push

Button

T7S800M 800A

T7S1000M 1000A

T7S1250M 1250A

T7S1250M 1600A

*Please note: It is not possible to motorise this breaker

4 Pole Price

1SDA061973R1 1306.46

1SDA062746R1 1577.93

1SDA062874R1 1869.97

1SDA063002R1 2495.31

1SDA061989R1 1437.11

1SDA062762R1 1735.73

1SDA062890R1 2056.97

1SDA063018R1 2744.83

3 Pole Price

1SDA061963R1 1091.48

1SDA062738R1 1232.44

1SDA062866R1 1502.19

1SDA062994R1 2116.95

1SDA061981R1 1200.64

1SDA062754R1 1356.23

1SDA062882R1 1652.40

1SDA063010R1 2328.65

Fixed Pattern Circuit Breaker

Supplied as standard with front bar terminals for busbar - for other terminals see

accessories section

Ratings @ 400V

Icu Ics

T7S 50kA 100%

T7H 70kA 100%

T7L 120kA 100%

T7V 150kA 100%

Power Distribution Circuit Breakers

Tmax T7

PR231LS/I

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

Non Automatic

Icw Model Current [A] Iu

2kA T1D 160 F FC Cu 160

3.6kA T3D 250 F F 250

Non Automatic

3.6kA T4D 250 F F 250

T4D 320 F F 320

6kA T5D 400 F F 400

T5D 630 F F 630

15kA

T6D 630 F F 630

T6D 800 F F 1000

T6D 1000 F F 1250

25kA

T7D 1000 F F 1000

T7D 1250 F F 1250

T7D 1600 F F 1600

T7D 1000 M F F 1000

T7D 1250 M F F 1250

T7D 1600 M F F 1600

3 pole Price

1SDA051325R1 123.54

1SDA051327R1 198.81

- POA

1SDA054599R1 440.51

1SDA054601R1 628.59

1SDA060343R1 599.57

1SDA060345R1 929.19

- POA

4 pole Price

1SDA051326R1 160.91

1SDA051328R1 257.46

- POA

1SDA054598R1 552.93

1SDA054600R1 628.59

1SDA054602R1 876.17

- POA

1SDA062039R1 1583.83

1SDA062041R1 1683.10

- POA

1SDA062043R1 1851.43

Power Distribution Circuit Breakers

Tmax Switch Disconnectors

Product Hierarchy 3000006

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

Plug-in (P) - Fixed Part Product Hierarchy 3000006

Order Code Price Order Code Price

F = Front terminals 3 pole 4 pole

T2 circuit breaker in plug-in version In max = 144A 1SDA051329R1 49.48 1SDA051330R1 64.90

T3 circuit breaker in plug-in version In max = 225A 1SDA051331R1 78.51 1SDA051332R1 103.01

EF = Extended front terminals 3 pole Price 4 pole Price

T4 1SDA054737R1 95.59 1SDA054740R1 124.29

T5 400 1SDA054749R1 192.55 1SDA054752R1 250.32

T5 630 circuit breaker in plug-in version In max = 570A 1SDA054762R1 205.21 - POA

HR = Rear ﬂat horizontal terminals 3 pole Price 4 pole Price

1SDA054739R1 117.68 - POA

Withdrawable (W) - Fixed Part Product Hierarchy 3000006

Order Code Price Order Code Price

F = Front terminals 3 pole 4 pole

T6 1SDA060384R1 280.01 1SDA060387R1 363.98

HR = Rear ﬂat horizontal terminals 3 pole Price 4 pole Price

T6 - POA 1SDA060388R1 507.45

Note: Fixed parts on T7 - T7M circuit breakers with **** terminals are supplied a s standard with terminals mounted

in horizontal. To order the terminals mounted vertically, use the extra code 1SDA063521R1

1SDC210N23F0001

Conversion of the version Product Hierarchy 3000006

Order Code Price Order Code Price

T2...T5 Fixed to moving part of plug-in 3 pole 4 pole

Kit P MP T2 1SDA051411R1 32.99 1SDA051412R1 43.26

Kit P MP T3 1SDA051413R1 39.26 - POA

Kit P MP T4 1SDA054839R1 41.16 1SDA054840R1 53.97

Kit P MP T5 400 1SDA054843R1 56.04 1SDA054844R1 72.87

Kit P MP T5 630 1SDA054847R1 80.06 - POA

T4...T7 Fixed to moving part of withdrawable 3 pole Price 4 pole Price

Kit P MP T4 1SDA054841R1 68.28 - -

Kit P MP T6 1SDA060390R1 96.92 1SDA060391R1 126.00

Shunt Opening Releases - SOR Product Hierarchy 3000006

Order Code Price Order Code Price

Cabled version 3 pole 4 pole

SOR-C 12V DC 1SDA053001R1 45.58 - POA

SOR-C 24...30V AC/DC 1SDA051339R1 45.58 1SDA054870R1 49.01

SOR-C 110...127V AC - 110...125V DC 1SDA051341R1 45.58 1SDA054872R1 49.01

SOR-C 220...240V AC - 220...250V DC 1SDA051342R1 45.58 1SDA054873R1 49.01

SOR-C 380...440V AC 1SDA051343R1 45.58 - POA

Power Distribution Circuit Breakers

T1 ... T7 Accessories

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

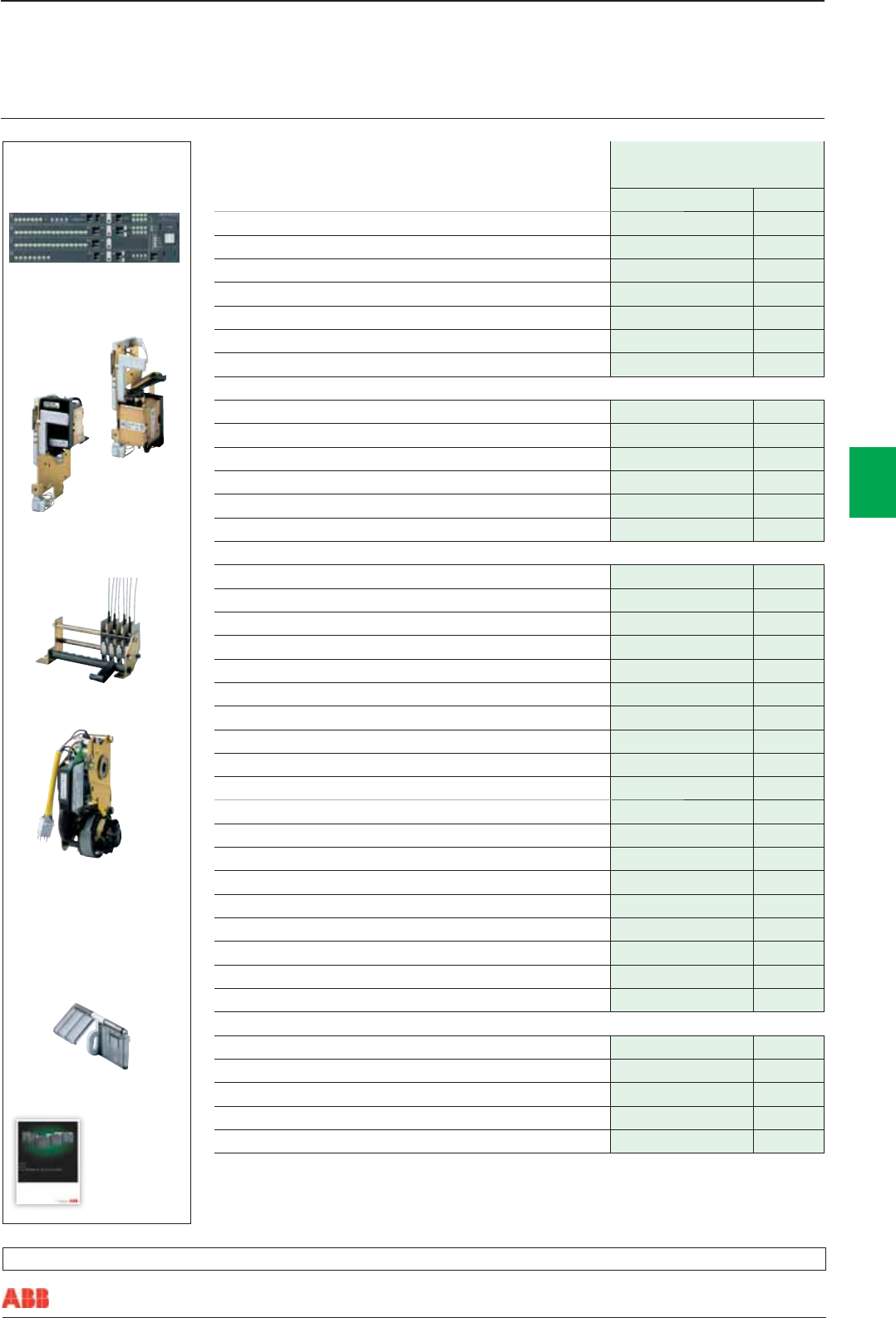

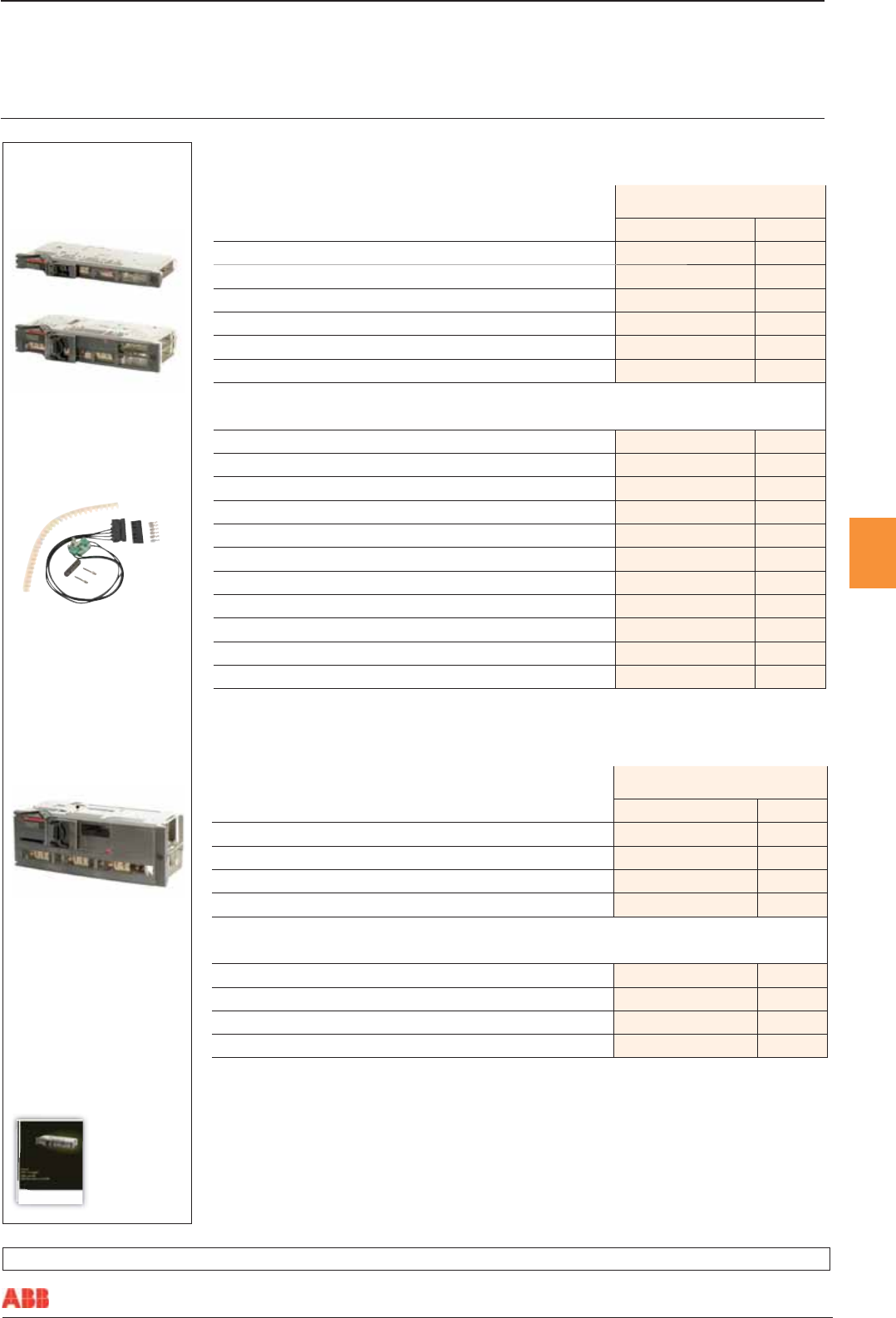

Undervoltage Releases - UVR Product Hierarchy 3000006

Order Code Price Order Code Price

Cabled version T1-T2-T3 T1-T2-T3

UVR-C 24...30V AC/DC 1SDA051351R1 71.25 1SDA054887R1 69.27

UVR-C 110...127V AC - 110...125V DC 1SDA051353R1 71.25 1SDA054890R1 69.27

UVR-C 240...250V AC/DC 1SDA051354R1 71.25 1SDA054891R1 69.27

UVR-C 380...440V AC - POA 1SDA054892R1 69.27

Auxiliary Contacts - AUX Product Hierarchy 3000006

Order Code Price Order Code Price

Cabled version with 1m cables T1-T2-T3 T4-T5-T6

AUX-C 1Q 1SY 250AC/DC 1SDA051370R1 30.03 1SDA054910R1 29.43

AUX-C 3Q 1SY 250AC/DC 1SDA051371R1 60.06 1SDA054911R1 58.84

AUX-C 3Q 1SY 250AC/DC 1SDA051354R1 1SDA054913R1 29.43

Cabled version T2 with PR221 DS trip T2 T4-T5

AUX-C 1 S51 1Q SY 1SDA053704R1 18.33 - POA

Cabled contact, signalling trip coil release trip T1-T2-T3

AUX-SA 1 S51 T4-T5 1SDA055050R1 28.84

Cabled version with 1m cables T7-T7M

AUX-C 1Q 1SY 400AC 1SDA062104R1 25.66

Cabled contact, signalling trip coil release trip T7-T7M

AUX-SA 1 S51 T7M 1SDA062105R1 49.11

1SDC210N29F0001

Adapters - ADP

Product Hierarchy

3000006

Order Code Price

Type T4-T5-T6

ADP - Adapter 5 pin 1SDA055173R1 7.23

ADP - Adapter 6 pin 1SDA054922R1 7.23

ADP - Adapter 12 pin 1SDA054923R1 10.33

ADP - Adapter 10 pin 1SDA054924R1 9.27

1SDC210N35F0001

1SDC210N36F0001

Motor Operator

Product Hierarchy

3000006

Order Code Price

Solenoid operator - MOS T4-T5-T6

ADP - Adapter 5 pin 1SDA055173R1 7.23

Stored energy motor operator - MOE T4-T5 T6

MOE T4-T5 24V DC 1SDA054894R1 479.11 1SDA060395R1 569.34

MOE T4-T5 110...125V AC/DC 1SDA054896R1 479.11 - POA

MOE T4-T5 220...250V AC/DC 1SDA054897R1 479.11 1SDA060398R1 569.34

1SDC210N37F0001

Power Distribution Circuit Breakers

T1 ... T7 Accessories

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

1SDC210N54F0001

1SDC210N55F0001

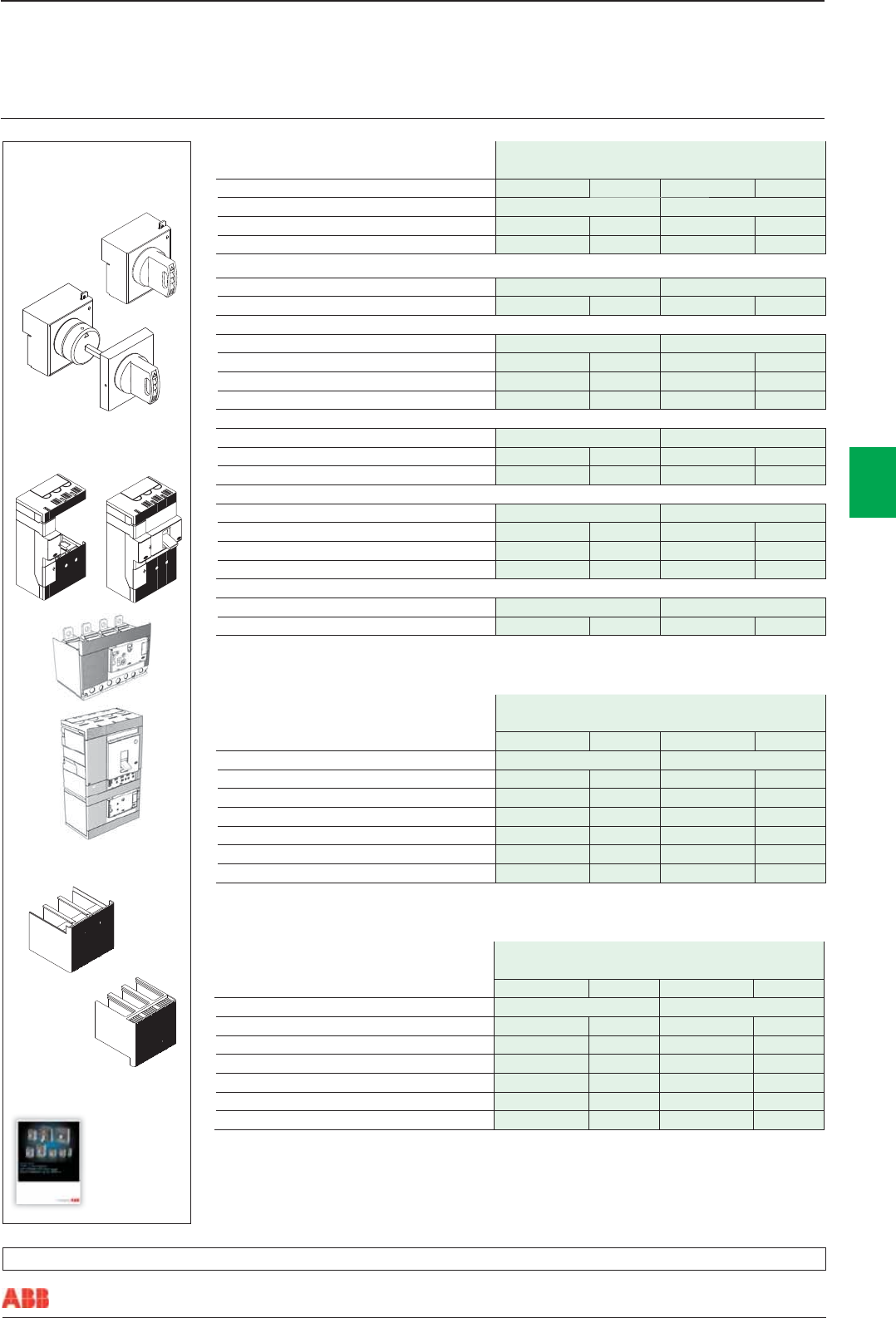

Rotary handle operating mechanism Product Hierarchy 3000006

Order Code Price Order Code Price

Direct - RHD T1-T2-T3 T4-T5

RHD normal for fixed & plug-in 1SDA051381R1 33.49 1SDA054926R1 52.53

RHD normal for withdrawable - POA 1SDA054928R1 51.52

Direct - RHD T6 T7

RHD normal for withdrawable 1SDA060405R1 55.64 1SDA062120R1 124.29

Door mounted rotary handle - RHE T1-T2-T3 T4-T5

RHE normal for fixed & plug-in 1SDA051383R1 47.82 1SDA054929R1 66.46

RHE-EM emergency for fixed & plug-in 1SDA051384R1 50.21 1SDA054930R1 81.29

RHE normal for withdrawable - POA 1SDA054933R1 66.44

Door mounted rotary handle - RHE T6 T7

RHE normal for fixed & plug-in 1SDA060409R1 83.72 1SDA062122R1 91.43

RHE normal for withdrawable 1SDA060411R1 83.72 1SDA062122R1 91.43

Individual Components T1-T2-T3 T4-T5

RHE-B just base for RHE for fixed & plug-in 1SDA051385R1 22.62 - POA

RHE-S just rod 500mm for RHE 1SDA051386R1 7.55 - POA

RHE-S just handle for RHE 1SDA051387R1 20.09 - POA

IP54 protection for rotary handle T1-T2-T3 T4-T5

RHE-IP54 protection kit 1SDA051392R1 17.55 1SDA054938R1 25.77

1SDC210N43F0001

1SDC210N44F0001

1SDC210N45F0001

Residual current releases Product Hierarchy 3000006

Order Code Price Order Code Price

RC221, RC222, RC223 3 pole 4 pole

R221/1 per T1 - POA 1SDA051401R1 262.88

R222/1 per T1 1SDA051400R1 286.03 1SDA051402R1 314.65

R221/3 per T3 - POA 1SDA051409R1 393.31

R222/3 per T3 - POA 1SDA051410R1 578.37

R222/4 per T4 - POA 1SDA054954R1 594.66

R222/5 per T5 - POA 1SDA054955R1 731.45

1SDC210N47F0001

1SDC210N48F0001

Connection terminals Product Hierarchy 3000006

Order Code Price Order Code Price

Type 3 pole 4 pole

HTC T1 1SDA051415R1 10.66 1SDA051416R1 13.86

HTC T2 1SDA051417R1 12.20 1SDA051418R1 15.86

HTC T3 1SDA051419R1 15.25 1SDA051420R1 19.82

HTC T4 1SDA054958R1 17.26 1SDA054959R1 22.43

HTC T5 1SDA054960R1 21.57 1SDA054961R1 28.06

HTC T7 - T7M 1SDA063091R1 23.94 1SDA063092R1 30.47

Power Distribution Circuit Breakers

T1 ... T7 Accessories

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC210015D0204

Front extended

terminals - EF Product Hierarchy 3000006

Order Code

Price

Order Code

Price

Order Code

Price

Order Code

Price

Type 3 pieces 4 pieces 6 pieces 8 pieces

EF T1 1SDA051442R1 11.00 1SDA051443R1 14.72 1SDA051440R1 21.99 - POA

EF T2 1SDA051466R1 12.56 1SDA051467R1 16.83 1SDA051464R1 25.11 - POA

EF T3 1SDA051490R1 15.70 - POA 1SDA051488R1 31.39 - POA

EF T4 - - - POA 1SDA054998R1 32.91 - POA

EF T5 1SDA055036R1 21.32 1SDA055037R1 27.71 1SDA055034R1 42.64 1SDA055035R1 55.42

EF T6 630 1SDA023379R1 21.04 - POA 1SDA013920R1 42.10 - POA

EF T6 800 1SDA023383R1 23.84 1SDA023393R1 30.99 1SDA013954R1 47.71 - POA

EF T7-T7M 1SDA063103R1 53.76 - POA 1SDA063105R1 107.59 1SDA063106R1 139.86

Low insulating terminals covers - HTC Product Hierarchy 3000006

Order Code Price Order Code Price

Type 3 pole 4 pole

LTC T1 1SDA051421R1 8.96 1SDA051422R1 11.67

LTC T2 1SDA051423R1 10.25 1SDA051424R1 13.34

LTC T3 1SDA051425R1 12.82 1SDA051426R1 16.69

LTC T4 1SDA054966R1 13.71 - POA

LTC T5 1SDA054968R1 17.11 - POA

Front terminals for copper-

aluminiumcables - FC CuAl

Product Hierarchy 3000006

Order Code

Price

Order Code

Price

Order Code

Price

Type 3 pieces 4 pieces 8 pieces

FC CuAl T1 95mm2 1SDA051446R1 22.87 1SDA051447R1 30.62 1SDA51445R1 56.19

FC CuAl T2 95mm2 1SDA051458R1 11.86 - POA - POA

FC CuAl T7 4x240mm2 1SDA063112R1 102.99 - POA - POA

Front extended spread terminals - ES Product Hierarchy 3000006

Order Code

Price

Order Code

Price

Order Code

Price

Order Code

Price

Type 3 pieces 4 pieces 6 pieces 8 pieces

ES T3 1SDA051494R1 18.09 1SDA051495R1 24.24 1SDA051492R1 36.16 - POA

ES T4 1SDA055040R1 27.50 - POA 1SDA055038R1 54.99 1SDA055039R1 71.50

Front terminals for copper cables - FC Cu Product Hierarchy 3000006

Order Code

Price

Order Code

Price

Order Code

Price

Type 3 pieces Price 4 pieces Price 6 pieces Price

FC Cu T2 1SDA051454R1 5.92 - POA - POA

FC Cu T3 1SDA051482R1 8.53 1SDA051483R1 11.42 1SDA051480R1 17.07

1SDC210N59F0001

Power Distribution Circuit Breakers

T1 ... T7 Accessories

POA Price on Application please consult us

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

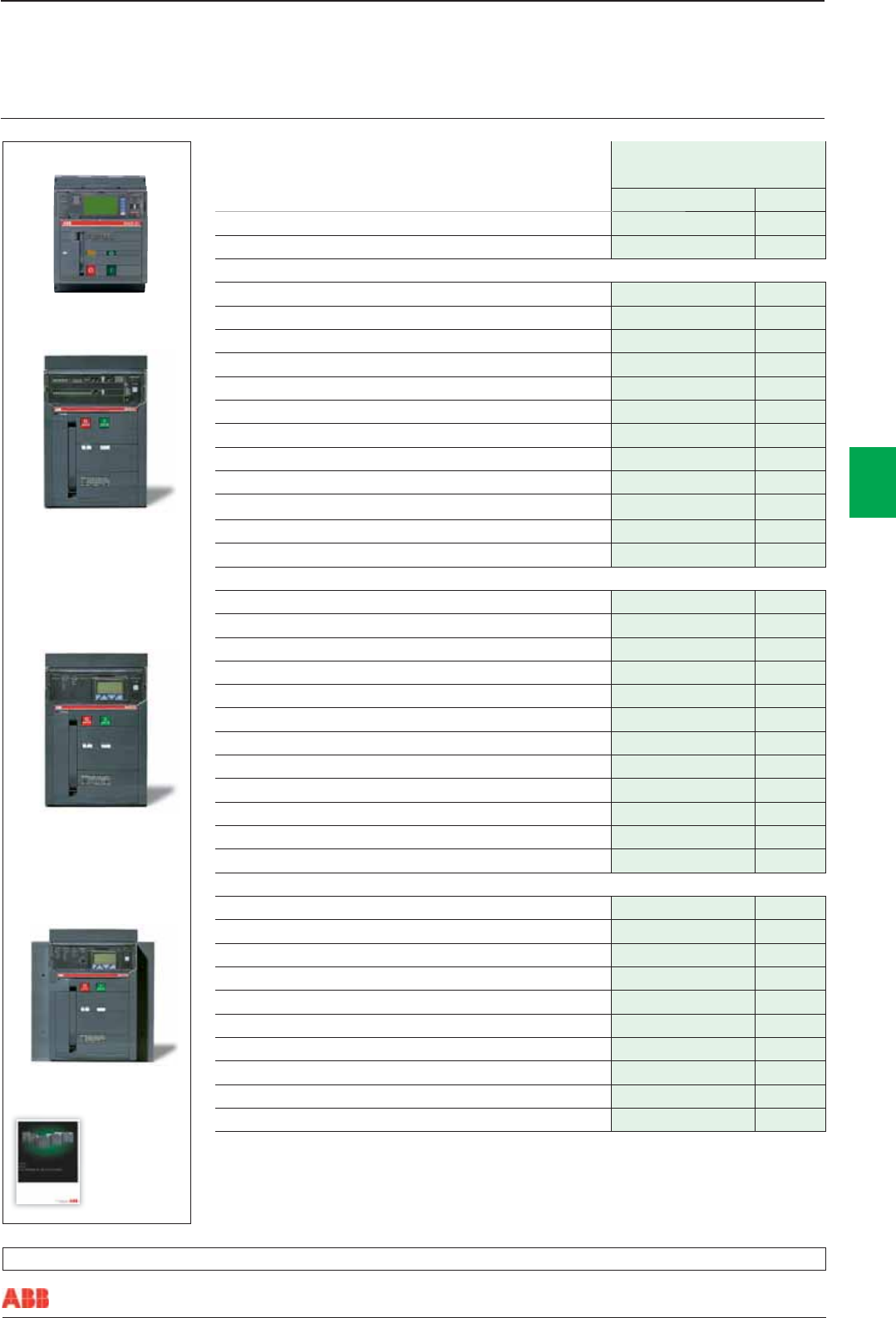

Emax Air Circuit Breakers Product Hierarchy 2900003

Description Order Code Price

X1N 1250 PR331/P LSIG IN=1250A 1SDA062508R1 2884.30

X1N 1600 PR331/P LSI In=1600A 3p F 1SDA062606R1 2279.78

E1N 800 PR121/P-LSI In=800A 3p F HR 1SDA055697R1 2220.02

E1N 1000 PR121/P-LSIG In=1000A 4p W 1SDA059224R1 3245.42

E1N 1250 PR121/P-LSI In=1250A 3p F 1SDA055729R1 2343.17

E1N 1250 PR121/P-LSI In=1250A 3p W 1SDA055745R1 2489.39

E1N 1250 PR121/P-LSI In=1250A 4p F 1SDA055737R1 3100.58

E1N 1250 PR121/P-LSI In=1250A 4p W 1SDA055753R1 3200.70

E1N 1250 PR121/P-LSIG In=1250A 4p W 1SDA055754R1 3340.53

E1N 1600 PR121/P-LSI In=1600A 3p F 1SDA055761R1 2377.13

E1N 1250 PR121/P-LSI In=1250A 4p F 1SDA055737R1 3100.58

E1N 1250 PR121/P-LSI In=1250A 4p W 1SDA055753R1 3200.70

E1N 1250 PR121/P-LSIG In=1250A 4p W 1SDA055754R1 3340.53

E1N 1600 PR121/P-LSI In=1600A 3p F 1SDA055761R1 2377.13

E2N 1000 PR121/P-LSIG In=1000A 4p W 1SDA059268R1 3254.88

E2N 1250 PR121/P-LSI In=1250A 3p F 1SDA055857R1 2389.97

E2N 1250 PR121/P-LSI In=1250A 3p W 1SDA055873R1 2493.23

E2N 1250 PR121/P-LSI In=1250A 4p F 1SDA055865R1 3170.48

E2N 1250 PR121/P-LSIG In=1250A 4p W 1SDA055882R1 3351.08

E2N 1600 PR121/P-LSI In=1600A 3p F 1SDA055889R1 2470.76

E2N 1600 PR121/P-LSI In=1600A 4p F 1SDA055897R1 3302.77

E2N 1600 PR121/P-LSIG In=1600A 4p W 1SDA055914R1 4022.60

E2N 2000 PR121/P-LSI In=2000A 3p F 1SDA055921R1 3318.91

E2N 2000 PR121/P-LSI In=2000A 3p W 1SDA055937R1 3598.98

E2N 2000 PR121/P-LSI In=2000A 4p F 1SDA055929R1 4255.47

E2N 2000 PR121/P-LSIG In=2000A 4p W 1SDA055946R1 4885.92

E3N 2500 PR121/P-LSI In=2500A 3p F 1SDA056113R1 3859.08

E3N 2500 PR121/P-LSI In=2500A 3p W 1SDA056129R1 4788.11

E3N 2500 PR121/P-LSI In=2500A 4p F 1SDA056121R1 5521.54

E3N 2500 PR121/P-LSI In=2500A 4p W 1SDA056137R1 5992.19

E3N 2500 PR121/P-LSIG In=2500A 4p F 1SDA056122R1 5367.93

E3N 2500 PR121/P-LSIG In=2500A 4p W 1SDA056138R1 6516.25

E3N 3200 PR121/P-LSI In=3200A 3p F 1SDA056145R1 5222.91

E3N 3200 PR121/P-LSI In=3200A 4p F 1SDA056153R1 6762.11

E3N 3200 PR121/P-LSI In=3200A 4p W 1SDA056169R1 8331.17

E3N/MS 2500 4p W MP new 1SDA058988R1 4655.09

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC200009D0203

Power Distribution Circuit Breakers

Emax Air Circuit Breakers

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC200009D0203

Power Distribution Circuit Breakers

Non-Automatic Emax Air Circuit Breakers

Emax Air Circuit Breakers Product Hierarchy 2900003

Description Order Code Price

T7-X1 W FP 4p HR-HR 1SDA062048R1 935.58

E2 W FP 3p HR-HR new 1SDA059667R1 634.40

E2 W FP 4p HR-HR new 1SDA059763R1 793.00

E2 W FP 4p VR-VR new 1SDA059771R1 863.83

E3 W FP 3p HR-HR new 1SDA059669R1 735.62

E3 W FP 4p HR-HR new 1SDA059765R1 948.95

Non Automatic

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SDC200009D0203

Power Distribution Circuit Breakers

Emax Air Circuit Breakers Accessories

1SDC200131F0001

1SDC200136F0001

1SDC200145F0001

Shunt Release

UVR

Signal Contacts

Motor Operator

1SDC200139F0001

1SDC200158F0001

PR1 Release

Emax Air Circuit Breakers Product Hierarchy 2900003

Description Order Code Price

PR121/P-LSI E1-E6 1SDA058193R1 629.58

PR121/P-LSIG E1-E6 1SDA058195R1 906.38

ELE.I1/4 TRIP RESE 24-30V PR12x E1- 1SDA058263R1 22.15

ELE.I1/4 TRIP RESE110-130V PR12x E1 1SDA058262R1 22.15

ELE.I1/4 TRIP RESE220-240V PR12x E1 1SDA058261R1 22.15

ELE.TIME DEL.xUVR 110/127V E1/6-T7- 1SDA038319R1 165.04

ELE.TIME DEL.xUVR 220/250V E1/6-T7- 1SDA038320R1 165.04

UNDER VOLTAGE RELEASE 220/240V E1 1SDA038312R1 140.74

UNDER VOLTAGE RELEASE 240/250V E1 1SDA038313R1 140.74

UNDER VOLTAGE RELEASE 24V DC E1/6 1SDA038306R1 140.74

UNDER VOLTAGE RELEASE 380/400V E1 1SDA038314R1 168.86

SHUNT OPEN.RELEASE 30V E1/6-T8 1SDA038287R1 84.43

SHUNT OPEN.RELEASE 110/120V E1/6 1SDA038290R1 84.43

4 OPEN/CLOSED AUX.CONTACTS E1/6 1SDA038326R1 111.32

ACCESSORY INTERLOCK W FP -C E1/6 1SDA038365R1 175.66

AUT.TRANS.SWITCH DEVICE ATS010 24-4 1SDA052927R1 1117.60

AUX-SA T7M-X1 1 S51 250Va.c. 1SDA063553R1 25.66

AUX-SC T7M-X1 250Vac/dc SPRINGS CHA 1SDA062107R1 16.55

BT030 WIREL.EXT.MOD.BLUE.E1/6-T4.T7 1SDA058259R1 478.35

CURR.S.EX.NEUTRAL N50-100%E1-2 N50% 1SDA058191R1 349.45

EMAX OPEN/CLOSE COIL 240VAC/DC 1SDA038293R1 84.43

INTERLOCK CABLES 3CB.S HORIZ. -C- 1SDA038331R1 227.45

IP54 PROTECT WITH KEYS LOCK SEV. E1 1SDA038344R1 176.81

KEY LOCK OPEN POS. DIFF. KEYS E1/6 1SDA058271R1 57.10

KIT CABLE x PR121-2-3/P xPR010/T E1 1SDA063383R1 256.91

KIT VR T7-T7M-X1 8pcs 1SDA063127R1 136.08

KIT W FP 3p HR 3pcs E3 >FP VR 1SDA055483R1 224.09

MECC.OPERATION COUNTER E1/6-T8 1SDA038345R1 75.47

MOTOR OPERATOR 24/30V E1 1SDA038321R1 511.69

NEW E1N 800 PR121-LSI 3P 1SDA055713R1 2356.97

PADLOCK DEVICE FOR SHUTTERS E1/6 1SDA038363R1 35.95

PLASTIC COVER PR121 1SDA063226R1 81.94

PR030/B BATTERY UNIT E1/6-T7-T7M-X1 1SDA058258R1 89.75

PUSHBUTTONS PROTECTION E1/6-T8 1SDA038343R1 23.18

RATING PLUG In=1600A E1-E6IEC E2-E4 1SDA058226R1 34.94

RATING PLUG In=2500A E3-E6IEC E3-E4 1SDA058228R1 34.94

UNIT PR010/T-T8 1SDA048964R1 3536.25

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Notes

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Switchgear - Switch

Disconnectors, Switch Fuses

and Cam Switches

Switch Disconnectors

OT 16...1600 Disconnectors ........................................................78 - 79

OT Accessories ...........................................................................80 - 83

OT 16... 2500 Changeover Switches .........................................84 - 85

Switch Fuses

OS16...160 Switchfuses ...................................................................... 86

OS200...800 Switchfuses .................................................................... 87

OS Accessories ............................................................................88 - 92

BS88 Fuses ..................................................................................93 - 94

XR SlimLine Switch Fuses

SlimLine Switch Fuses ......................................................................... 95

Cam Switches

Cam Switches Open Type ................................................................... 96

The switches in this catalogue only represent a small

selection of the full range available.

DIN, NFC, CSA and UL type switches are readily available & all switches are made in

many different configurations e.g. plug-in terminals, side operation, back connection ter-

minals, side to side terminals, please refer to our technical brochure for full details.

OFF

S00685A

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

Full range of product

and technical information

place this part number

in a search engine and

download

1SEC311001C0201

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC302003C0201

Switch Disconnectors Switch Fuses

XR SlimLine Switch Fuses Cam Switches

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC303003C0201

Changeover Switches

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

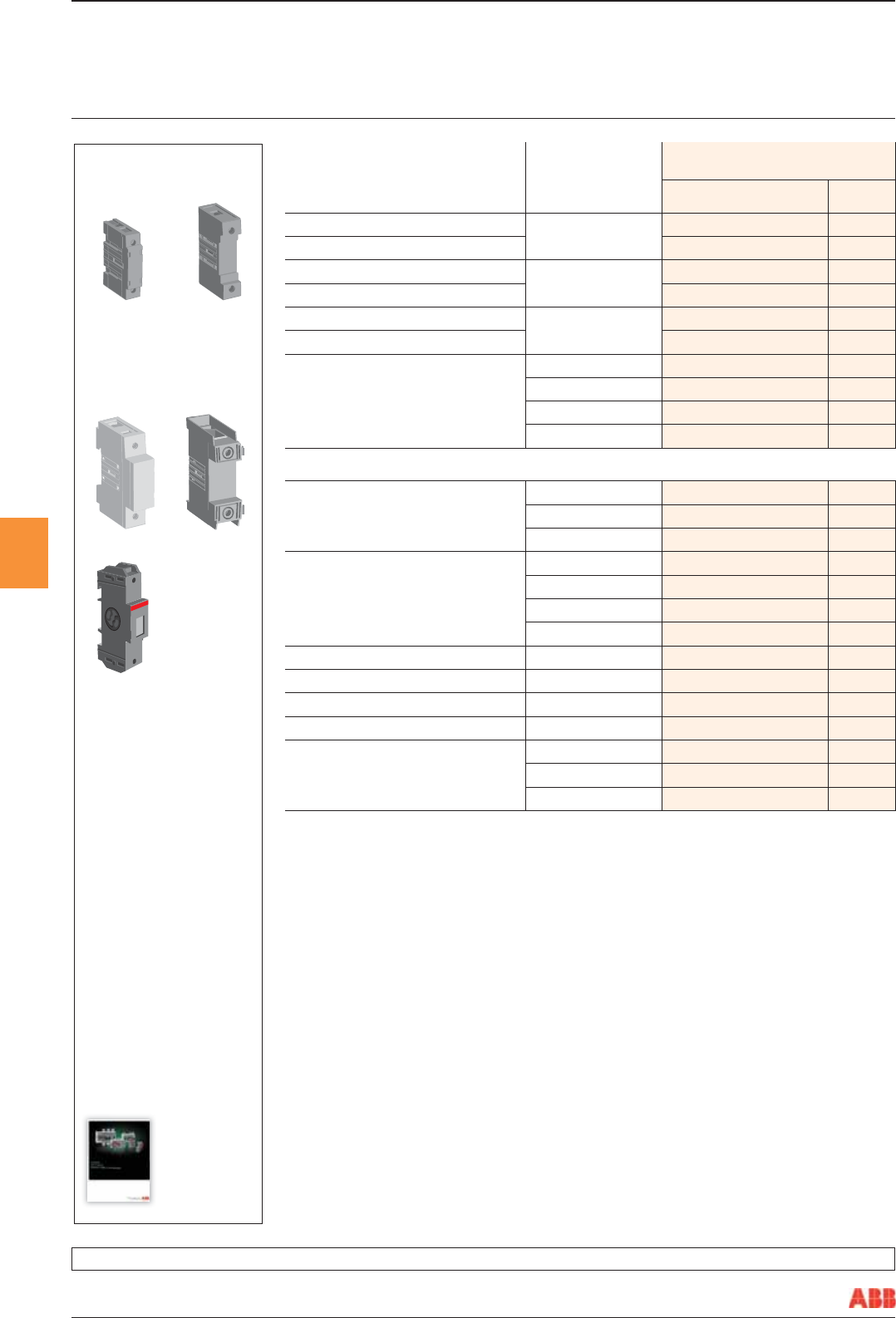

Front operated switch-disconnectors, base and DIN-rail mounting

Including protected terminal clamps, IP20. Handle and shaft have to be ordered seperately.

OT 16 - 125 Product Hierarchy 2200003

No of

Poles

Ith (open)

[A]

Cable Cross

Section mm2

Operational Currents

AC22A/AC23A 400V Order Code Price

3 25 0.75...10 16/16 OT16F3 12.32

4 25 0.75...10 16/16 OT16F4N2 16.10

3 32 0.75...10 25/20 OT25F3 13.20

4 32 0.75...10 25/20 OT25F4N2 17.10

3 63 1.5...35 40/23 OT40F3 14.98

4 63 1.5...35 40/23 OT40F4N2 19.23

3 80 1.5...35 63/45 OT63F3 22.69

4 80 1.5...35 63/45 OT63F4N2 27.84

3 100 1.5...504) 80/75 OT80F3 24.72

4 100 1.5...504) 80/75 OT80F4N2 32.46

3 115 10...70 100/80 OT100F3 42.44

4 115 10...70 100/80 OT100F4N2 51.61

3 125 10...70 125/90 OT125F3 58.05

4 125 10...70 125/90 OT125F4N2 72.03

OT 160 Product Hierarchy 2200003

No of

Poles

Ith (open)

[A]

Operational Currents

AC22A/AC23A 400V

Shaft Diameter

mm Order Code Price

3 200 200/135 6 OT160E3 94.07

4 200 200/135 6 OT160E4 125.43

Including the handle OHB65J6, IP65, and shaft OXP6X210, length 210mm

OFF

I ON

S00258B

OT16...32E3

SwitchLine

OFF

S00259C

OT 45...63E3

OFF

S00685A

OT 100...125E3

I ON

O

OFF

S00464B

OT 160E3

Switch Disconnectors

OT 16...800E

Front operated switch-disconnectors, with pistol handle

OT 200...800

Including a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable in the OFF-

position and with door interlock in the ON-position. The shaft is adjustable for a range of installation depths.

OT 200 - 800 Product Hierarchy 2200003

No of

Poles Ith (open) [A] Operational Currents

AC22A/AC23A 400V Order Code Price

3 200 200/200 OT200E03P 95.24

4 200 200/200 OT200E04P 110.06

3 250 250/250 OT250E03P 147.48

4 250 250/250 OT250E04P 165.32

3 315 315/315 OT315E03P 161.47

4 315 315/315 OT315E04P 213.67

3 400 400/400 OT400E03P 188.40

4 400 400/400 OT400E04P 215.64

3 630 630/630 OT630E03P 332.20

4 630 630/630 OT630E04P 378.89

3 800 800/800 OT800E03P 460.60

4 800 800/800 OT800E04P 520.03

OT200 - 250E03

S02101A

OT630 - 800E03

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

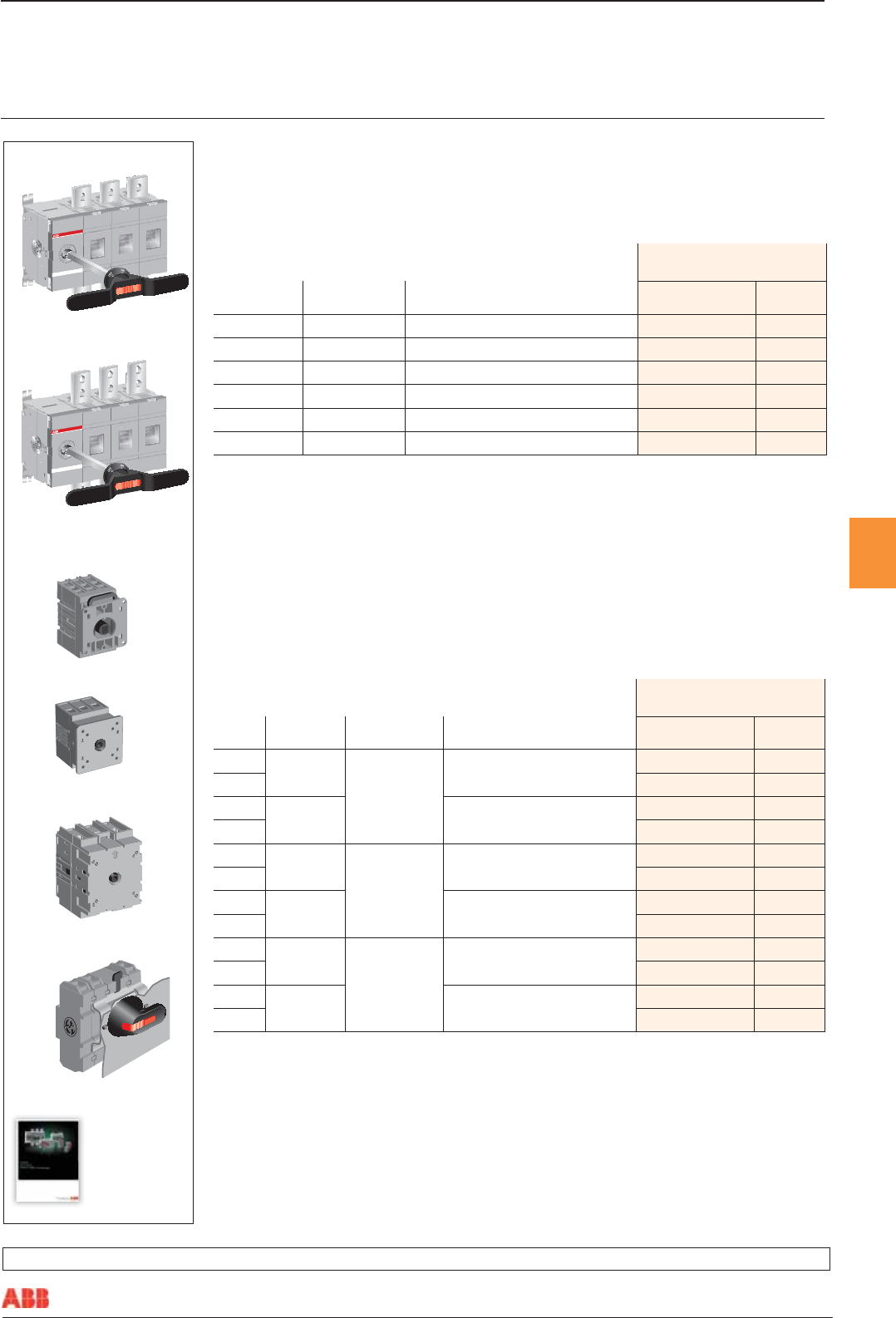

Front operated switch-disconnectors

OT 1000...1600

Including standard terminal bolt kit, a black ON-OFF plastic handle OHB200J12P and shaft OXP12x280 as standard.

The handle is IP65 protected, padlockable in the OFF-position and with door interlock in the ON-position. The shaft is

adjustable for a range of installation depths.

Product Hierarchy 2200003

No of Poles Ith (open) [A] Operational Currents

AC22A/AC23A 400V Order Code Price

3 1000 1000/800 OT1000E03P 804.12

4 1000 1000/800 OT1000E04P 917.87

3 1250 1250/1000 OT1250E03P 890.41

4 1250 1250/1000 OT1250E04P 1090.46

3 1600 1600/1000 OT1600E03P 1372.88

4 1600 1600/1000 OT1600E04P 1561.10

OT1000 - 1250_03P

KE00050

OT1600_03P

KE00046

Switch Disconnectors

OT 1000...1600 OT 16...125 Door Mounting

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

Door mounting, front operated switch-disconnectors,

OT16...125

Including protected terminal clamps, IP20. The handle has to be ordered separately.

Product Hierarchy 2200003

No of

Poles

Ith

(open) [A]

Cable Cross

Section mm2

Operational Currents

AC22/AC23 415V Order Code Price

0.75...10

16/16

OT16FT3 15.42

4 OT16FT4N2 20.60

32 25/20

OT25FT3 19.29

4 OT25FT4N2 24.70

1.5...35

40/23

OT40FT3 21.98

4 OT40FT4N2 27.67

63 63/45

OT63FT3 24.92

4 OT63FT4 32.43

115

10...70

100/80

OT100FT3 52.82

4 OT100FT4 66.79

125 125/90

OT125FT3 56.04

4 OT125FT4N2 70.05

S00260A

OT 160ET3

OT 16 - 32ET3

OT 45 - 63ET3

OT 100 - 125ET3

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

Product Hierarchy 2200001

Aux Contacts For Switch Type Order Code Price

1NC

OT16 .. OT125

OA1G01 5.39

1NO+1NC OA2G11 7.36

1NO

OT200 .. OT2500

OA1G10 5.39

1NC OA3 G01 5.39

1N/C

OT160

OBEA01 5.39

1N/O OBEA10 5.39

Aux Contact Frame

OT160 OEZNP1 9.06

OT160 OAZX1 7.76

for OBEA OEZNP1 9.06

OT200 .. OT2500 OEA28 9.34

Add on Poles and Neutrals

Fixed Neutral Pole

OT16 .. 40F3 OTPN40FP 4.56

OT63 .. 80F3 OTPN80FP 6.85

OT100 .. 125F3 OTPN125FP 15.54

Detach Neutral

OT16 .. 40F3 OTPD40FP 4.56

OT63 .. 80F3 OTPD80FP 6.85

OT100 .. 125F3 OTPD125FP 15.54

OT160F3 OTPN160EP 26.18

40A Fourth Pole OT16 .. 40F3 OTPS40FPN1 4.56

63A..80A Fourth Pole OT63 .. 80F3 OTPS80FP 6.85

125..160A Fourth Pole OT100 .. 125F3 OTPS160EP 26.18

Neutral Pole Late Break/Early Make OT16 .. 40F3 OTPL40FP 4.56

Earth Pole

OT16 .. 40F3 OTPE40FP 4.56

OT63 .. 80F3 OTPE80FP 6.85

OT125 ..160 OTPE160EP 26.07

Switch Disconnectors

Accessories

OTP_ 32_ OTP_ 63_

S00262A

S00263A

OTP_ 80_ OTP_ 125_

OTZNA1-160E4

OTP_160EP

S01342A

S00387AS01250A

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

Switch Disconnectors

Accessories

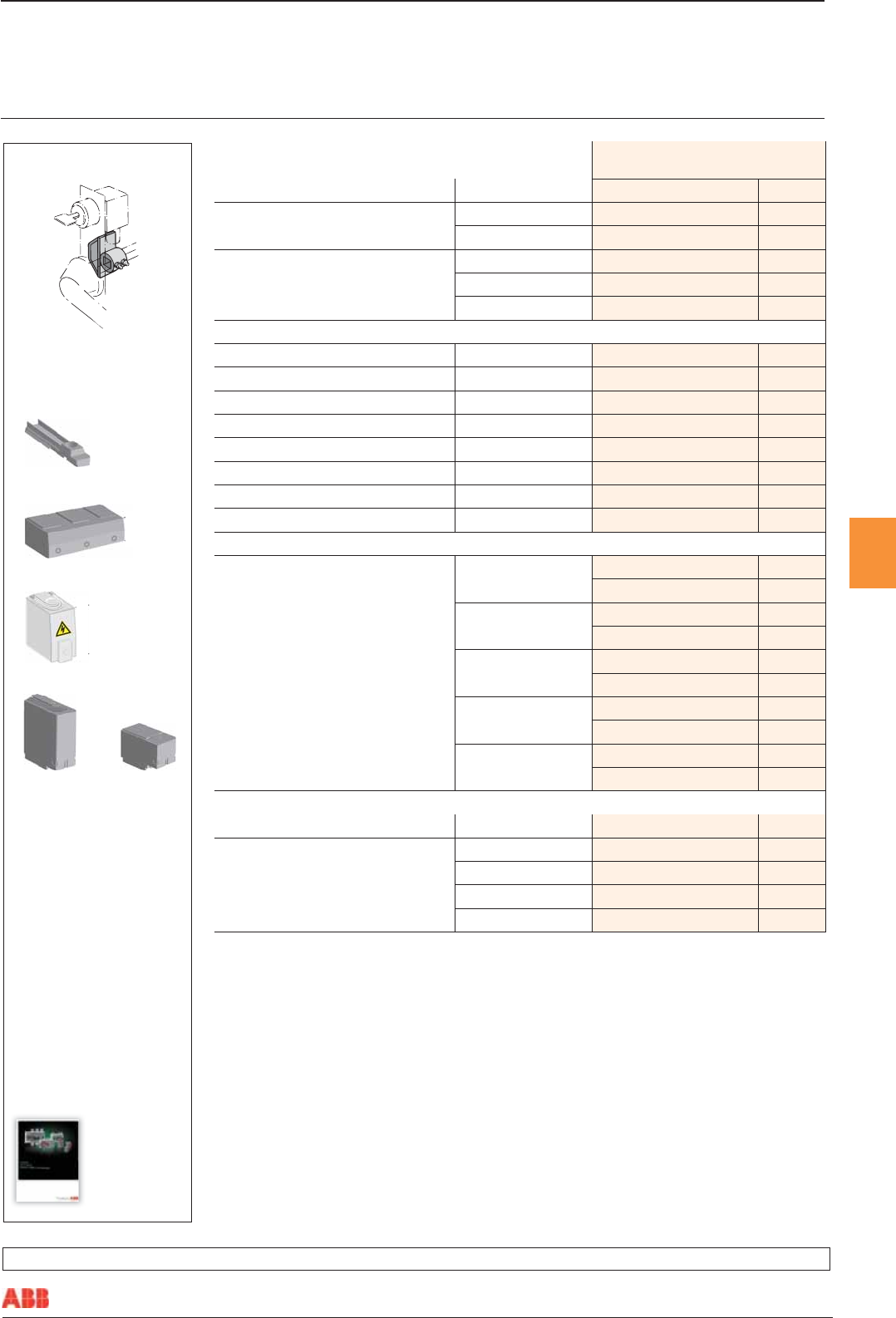

Locks and Terminal Shrouds Product Hierarchy 2200001

Description For Switch Order Code Price

Castell Lock Cam Attachment

OT16 .. OT250 OETLZW16 42.58

OT315 .. OT2500 OETLZW5 29.84

6/8 Pole Attachment

OT16 .. OT125 OETLZW8 19.65

OT160 .. OT250 OESA2W2 59.88

OT315 .. OT800 OETLZW9 98.12

1 Pole Terminal Shroud OT_40F OTS40T1 1.82

3 Pole Terminal Shroud OT16 .. 40F3 OTS40T3 2.66

4 Pole Terminal Shroud OTP_80F OTS63T1 3.11

1 Pole Terminal Shroud OT100 .. OT125E OTS125T1 4.38

3 Pole Terminal Shroud OT100 .. OT125E,ET3 OTS125T3 5.85

3 Pole Terminal Shroud OT125 .. 160E3 OTS160T3 22.99

4 Pole Terminal Shroud OT125 .. 160E4 OTS160T4 29.99

1 Pole Terminal Shroud OT160E OTS160T1 4.06

3 Pole Terminal Shroud Long (3 off)

OT200 .. OT250 OTS250G1L/3 19.11

OTS250G1S/3 17.35

OT315 .. OT400 OTS400G1L/3 26.68

OTS400G1S/3 21.34

OT630 .. OT800 OTS800G1L/3 57.17

OTS800G1S/3 42.87

OT1000 .. OT1600 OTS1600G1L/3 30.95

OTS1600G1S/3 24.74

OT2000 .. OT2500 OTS2500G1L/3 40.95

OTS2500G1S/3 32.90

Description Suitable for Order Code Price

Snap on transparent plastic IP 2X

OZXB2, 2L OZXB2K 13.75

OZXB3, 4 OZXB3K 25.93

OZXB5, 6 OZXB4K 38.56

OZXB7, 7L OZXB5K 39.29

S00059A

OETLZW 5

OSS160G3_

OSS160T1_

OSS63G1

S01637A

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

Switch Disconnectors

Accessories

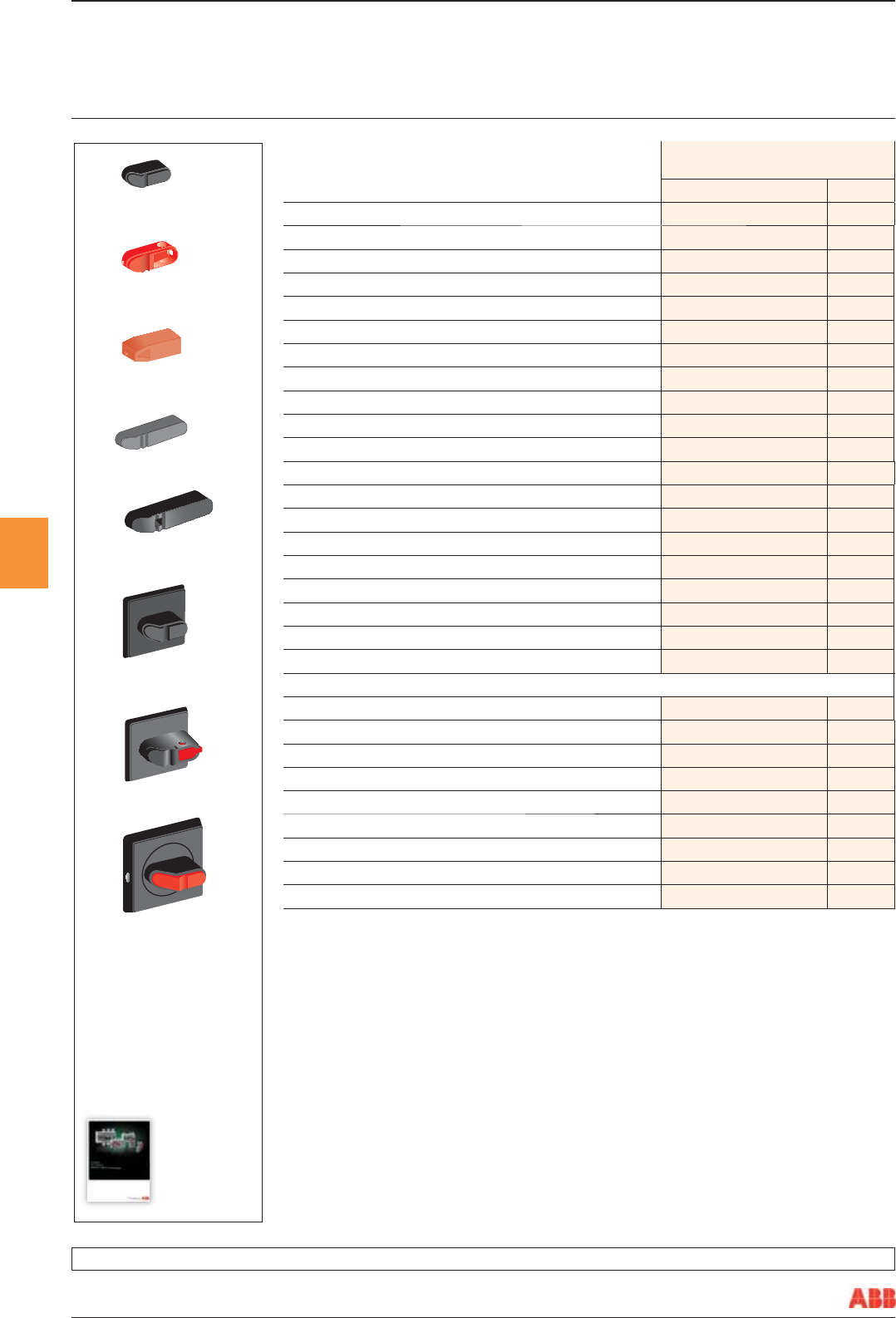

OT16 ... 125 Handles & Shafts Product Hierarchy 2200001

Description Order Code Price

Black Direct Mounted Handle OHBS1 3.07

IP54 Handle Blk and Defeatable in the ON position OHBS1AH1 3.82

IP54 Door Mtd Handle Black OHBS1PH 4.56

Handle Direct Mtd Black OHBS2 3.77

IP65 Handle Black Interlockable and Defeatable OHBS2AJ 5.48

IP65 Handle Black Padlockable OHBS2AJ1 4.56

IP65 Door Mtd Handle Black Screw Type OHBS2RJ 6.88

IP54 Blk Handle 1 P/Lk OHBS3AH 4.04

IP54 Blk Handle 1 P/Lk OHBS3AH1 4.38

IP54 D/Mount Blk Handle 1 P/Lk OHBS3PH 4.38

IP54 Handle Red/Yellowl OHYS1AH 2.97

IP54 Handle Door Interlocked and Defeatable in the ON position OHYS1AH1 3.82

IP65 Handle/Yellow Interlockable and Defeatable OHYS2AJ 5.48

IP65 Hdl Red/Yellow Padlockable OHYS2AJ1 4.56

IP65 Door Mtd Handle Red/Yellow OHYS2PJ 6.88

IP65 Door Mtd Handle Red/Yellow Screw Type OHYS2RJ 6.88

IP54 Selector Handle IP54 Padlockable OHYS3AH 4.04

IP54 Selecter Handle Y/R Padlockable OHYS3AH1 4.38

IP54 Selector Handle OHYS3PH 4.38

IP54 D/Mount R/Y Handle 1 P/Lk Screw Type OHYS3RH 4.38

Shaft Extension Socket 6mm OESAZX167 17.67

Shaft Extension Socket 12mm OETLZX95 26.80

6-12mm Adaptor For Extension OETLZK19 17.08

Shaft Support Bracket OETLZX58 4.76

85mm Shaft For OT Switches OXS6X85 2.02

130mm Shaft For OT Switches OXS6X130 2.20

180mm Shaft For OT Switches OXS6X180 2.74

250mm Shaft For OT Switches OXS6X250 3.46

330mm Shaft For OT Switches OXS6X330 4.20

OHB 1

S00684A

OHR 3

OHB 9

S00535A

OHR 2

S01368A

S01369A

OHB 13

S01613A

OFF

S00395A

OH_ 1_

I ON

O OFF

S00687A

I 

O 

OFF

S00396A

OH_ 2_

OH_ 3_

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

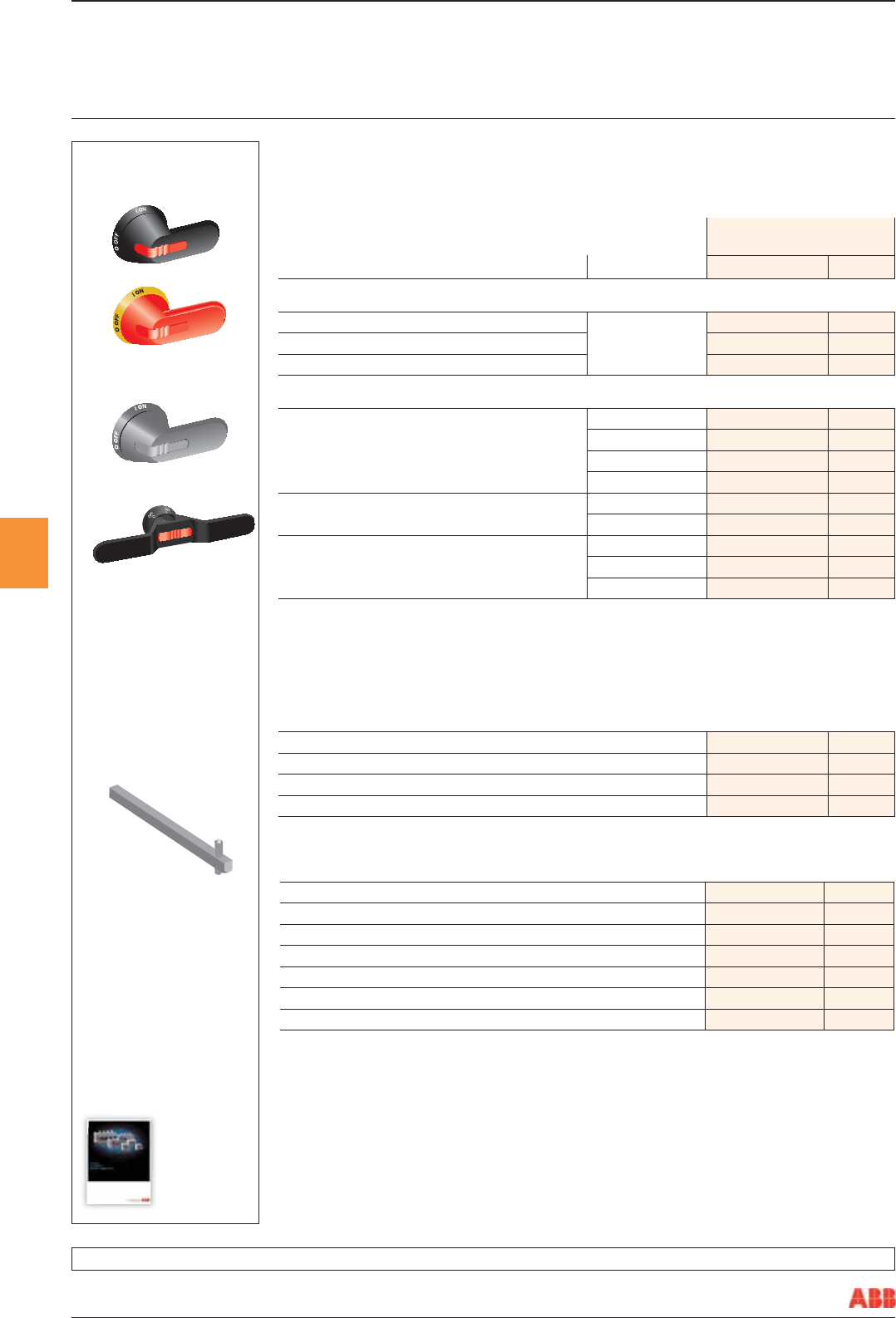

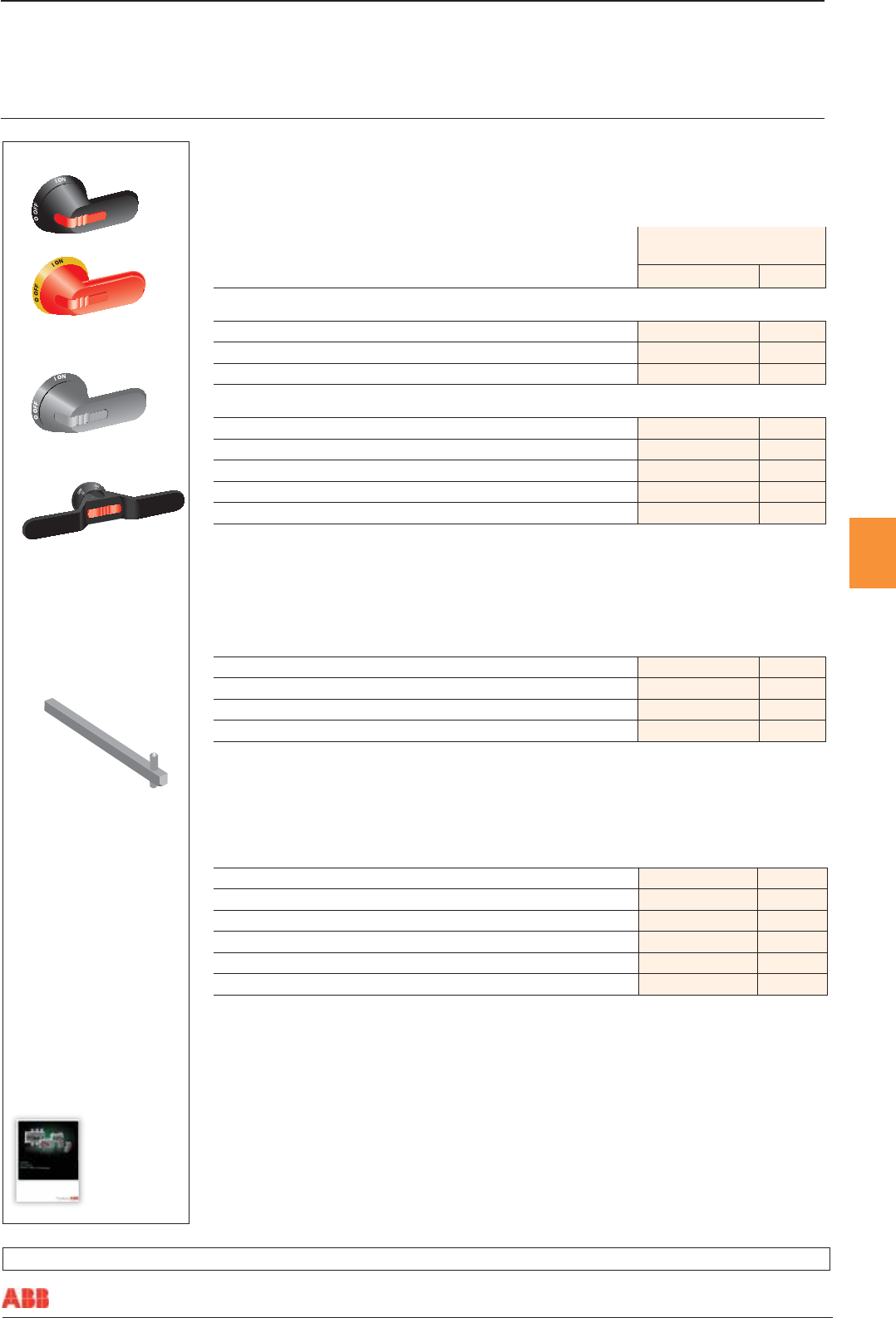

Optional handles, IP65

For front operated switch disconnectors

Padlockable with 3 padlocks in the OFF-position, door interlock in the ON-position. Units/type = 1 pcs.

Screw ﬁxing from the back side of the handle, no screws on the front, ensures double protection.

Product Hierarchy 2100004

Description Order Code Price

For 6 mm shaft

Black OHB65J6 13.58

Red-Yellow OHY65J6 13.58

Black - Test OHB65J6T 15.50

For 12mm shaft

Black OHB125J12 35.54

Black OHB145J12 35.54

Black OHB175J12 37.49

Black Butterfly Handle On/Off OHB150J12P 42.60

Black Butterfly Handle On/Off OHB200J12P 45.43

Shafts

6 mm

Shaft Length mm

150 OXP6X150 2.56

210 OXP6X210 3.14

265 OXP6X265 4.11

400 OXP6X400 5.77

S00601AS00836AS01200A

OH_65J_

S00050A

OXP6X_

12 mm

Shaft Length mm

250 OXP12X250 8.17

280 OXP12X280 8.43

325 OXP12X325 9.11

395 OXP12X395 9.96

465 OXP12X465 11.97

535 OXP12X535 16.72

Switch Disconnectors

Accessories

OHB_

S02195A

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

O

OFF

I

O

OFF

I

S01296A

S01295A

OFF

S01415A

OT 16 E3C

OT 45...63 E3C

OT 125 E3C

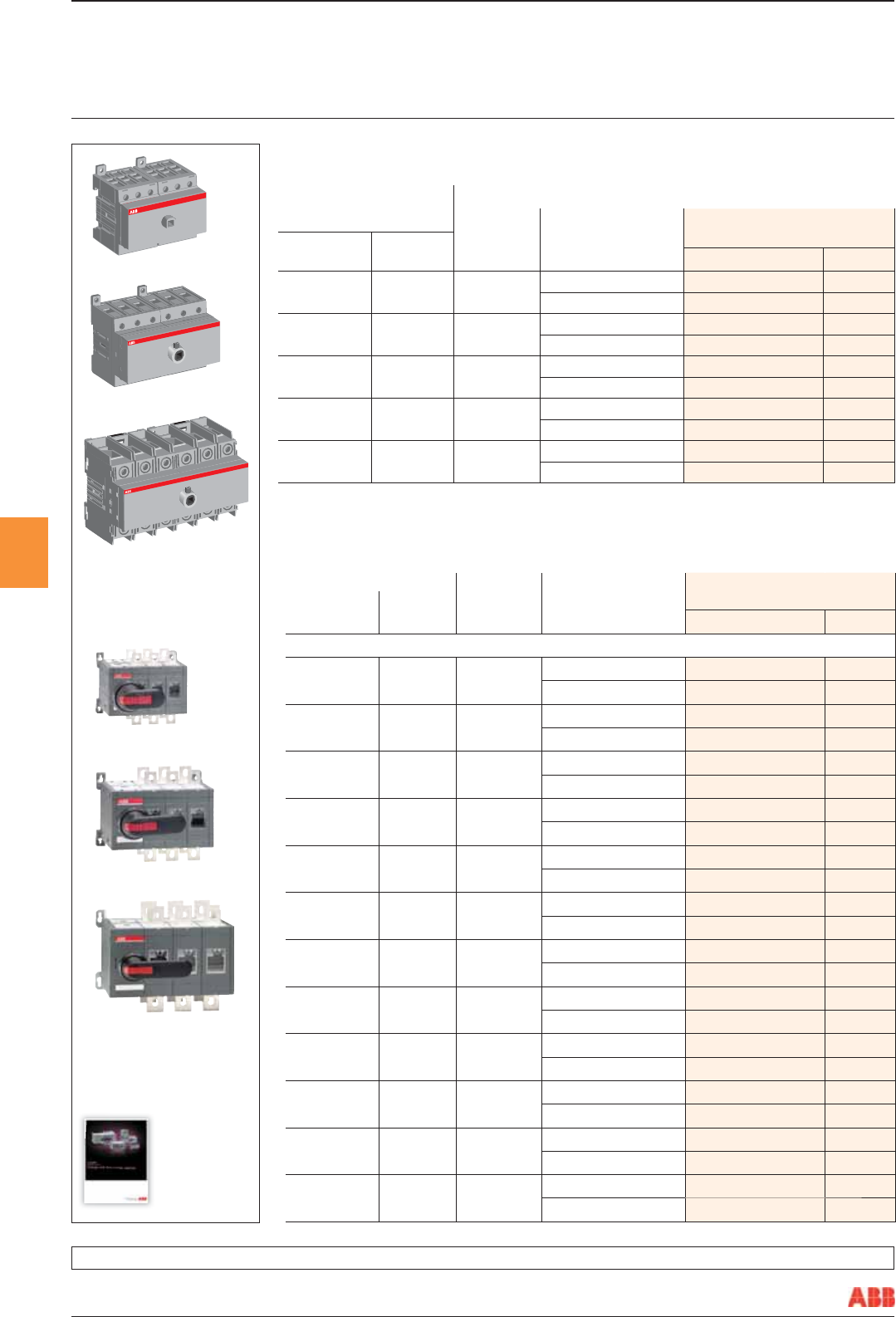

Change-over switches, 3 & 4 pole, I-O-II -indication

Includes terminal clamps IP20. Handle and shaft has to be ordered separately.

Rated current / Rate Power

AC-21A...AC-22A AC-23A

400-415V

I/[A], P/[kW] Number of Poles

Product Hierarchy 2200003

Up to 415V

I/[A]

400V

S/[kVA] Order Code Price

16 11 16/7.5 3OT16F3C 31.54

4 OT16F4C 39.66

63 43 45/22 3OT40F3C 41.92

4 OT40F4C 50.89

80 55 75/37 3OT63F3C 55.42

4 OT63F4C 66.21

100 70 80/37 3OT100F3C 132.44

4 OT100F4C 162.80

125 86 90/45 3OT125F3C 152.00

4 OT125F4C 167.00

Switch Disconnectors

Manual Change-over switches OT16...2500

Manual Change-over switches, 3 & 4 pole, I-O-II -indication

Including a black plastic IP65 I-O-II pistol type handle, padlockable in the O-position, door interlock in the I- & II-positions

and when padlocked.

Rated current / Rated Power

AC-21A...AC-22A AC-23A

Product Hierarchy 2200003

Up to 415V 400V 400-415V

I/[A] S/[kVA] I/[A], P/[kW] Number of Poles Order Code Price

Mechanism at the end of the switch

160 110 160/90

3OT160E03CP 290.00

4OT160E04CP 313.00

200 135 200/110

3OT200E03CP 410.00

4OT200E04CP 445.00

250 170 250/140

3OT250E03CP 420.00

4OT250E04CP 460.00

315 215 315/160

3OT315E03CP 490.00

4OT315E04CP 570.00

400 275 400/220

3OT400E03CP 550.00

4OT400E04CP 615.00

630 435 630/355

3OT630E03CP 645.00

4OT630E04CP 720.00

800 550 800/450

3OT800E03CP 965.00

4OT800E04CP 1,140.00

1000 680 1000/560

3OT1000E03CP 1,900.00

4OT1000E04CP 2,500.00

1250 850 1250/710

3OT1250E03CP 2,150.00

4OT1250E04CP 2,700.00

1600 1000 1250/710

3OT1600E03CP 3,274.25

4OT1600E04CP 3.974.51

2000 1350 -

3OT2000E03CP 3,400.00

4OT2000E04CP 4,380.00

2500 1700 -

3OT2500E03CP 4,000.00

4OT2500E04CP 4,860.00

OT315...400E03CP

OT160...250E03CP

OT630...800E03CP

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC303003C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Motorised Change-over switches, 3 & 4 pole, I-O-II -indication

Including a handle for manual operation, bolt kit with nut and washers for all terminals.

Rated current / Rated Power

AC-21A...AC-22A AC-23A

Product Hierarchy 2200003

Up to 415V 400V 400-415V

I/[A] S/[kVA] I/[A], P/[kW] Number of Poles Order Code Price

160 110 160/160

3OTM160E3CM230C 1,100.00

4OTM160E4CM230C 1,130.00

200 135 200/200

3OTM200E3CM230C 1,341.91

4OTM200E4CM230C 1,400.00

250 170 250/250

3OTM250E3CM230C 1,395.00

4OTM250E4CM230C 1,435.00

315 215 315/315

3OTM315E3CM230C 1,500.00

4OTM315E4CM230C 1,580.00

400 275 400/400

3OTM400E3CM230C 1,820.00

4OTM400E4CM230C 1,985.00

630 435 650/650

3OTM630E3CM230C 2,710.00

4OTM630E4CM230C 2,800.00

800 550 720/650

3OTM800E3CM230C 3,300.00

4OTM800E4CM230C 4,500.00

1000 680 1000/1000

3OT1000E3CM230C 3,480.00

4OT1000E4CM230C 3,650.00

1250 850 1250/1000

3OT1250E3CM230C 3,680.00

4OT1250E4CM230C 3,900.00

1600 1000 1600/1000

3OT1600E3CM230C 4,060.00

4OT1600E4CM230C 4,300.00

2000 1350 -

3OT2000E3CM230C 7,901.00

4OT2000E4CM230C 8,500.00

2500 1700 -

3OT2500E3CM230C 8,450.00

4OT2500E4CM230C 8,875.00

Switch Disconnectors

Motorised Change-over switches OTM16...2500

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC303003C0201

OTM160...250E3_

OTM315...400E3_

OTM160...250E4_

OTM315...400E4_

OTM160...250E3W_

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Front operated switch fuses

Including terminal bolt kit (OS100...160), a black ON-OFF plastic handle and shaft as standard. The handle is IP65 pro-

tected, padlockable in the OFF-position and with door interlock in the ON-position.

The shaft is adjustable for a range of installation depths.

Rated current

AC-20...23

b 690V

[A]

Rated Power

AC-23

400/500/690V

[kW] Fuse Size

Product Hierarchy 2100002

No. of

poles Order Code Price

Mechanism between the poles

20 7.5/11/15 A1

3OS20FB12A1-2 29.35

4 OS20FB22A1N1 50.08

15/18/25 A1

3OS32FB12A1 54.00

4 OS32FB22A1N1 62.70

15/18.5/22 A2 3 OS32FB12A2 54.00

32 15/18.5/22 A2, A3

3OS32GB12P 57.20

4 OS32GB22N1P 69.00

63 30/37/55 A2, A3

3OS63GB12P 82.80

4 OS63GB22N1P 104.77

100 55/55/90 A2, A3

3OS100GB12P 113.56

4 OS100GB22N1P 145.62

125 55/75/110 A2, A3, A41)

3 OS125GB12P 158.00

4 OS125GB22N1P 173.53

160 75/90/132 A2, A3, A41)

3 OS160GB12P 166.00

4 OS160GB22N1P 207.00

Mechanism at the end of the switch fuse

32 15/18.5/22 A2, A3

3OS32GB03P 56.20

4 OS32GB04N1P 67.00

63 30/37/55 A2, A3

3OS63GB03P 80.50

4 OS63GB04N1P 98.50

Terminal Bolt Kit

100 55/55/90 A2, A3, A41)

3 OS100GB03P 104.68

4 OS100GB04N1P 130.67

125 55/75/110 A2, A3, A41)

3 OS125GB03P 139.58

4 OS125GB04N1P 166.17

160 75/90/132 A2, A3, A41)

3 OS160GB03P 163.00

4 OS160GB04N1P 202.00

Shafts, handles & bolt kits included as standard

Suitable for switches Included shaft Included handle Included terminal bolts

OS20...32FB (OS Mini) OXP6X150 OHB65J6 -

OS32G...63G_P OXP6X161 OHB45J6 -

OS100G...160G_P OXP6X161 OHB65J6 M8x25

1) Max. fuse diameter 32 mm N1 = Non-fused neutral on the left side

Switch Fuses

Switch fuses OS20...160

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

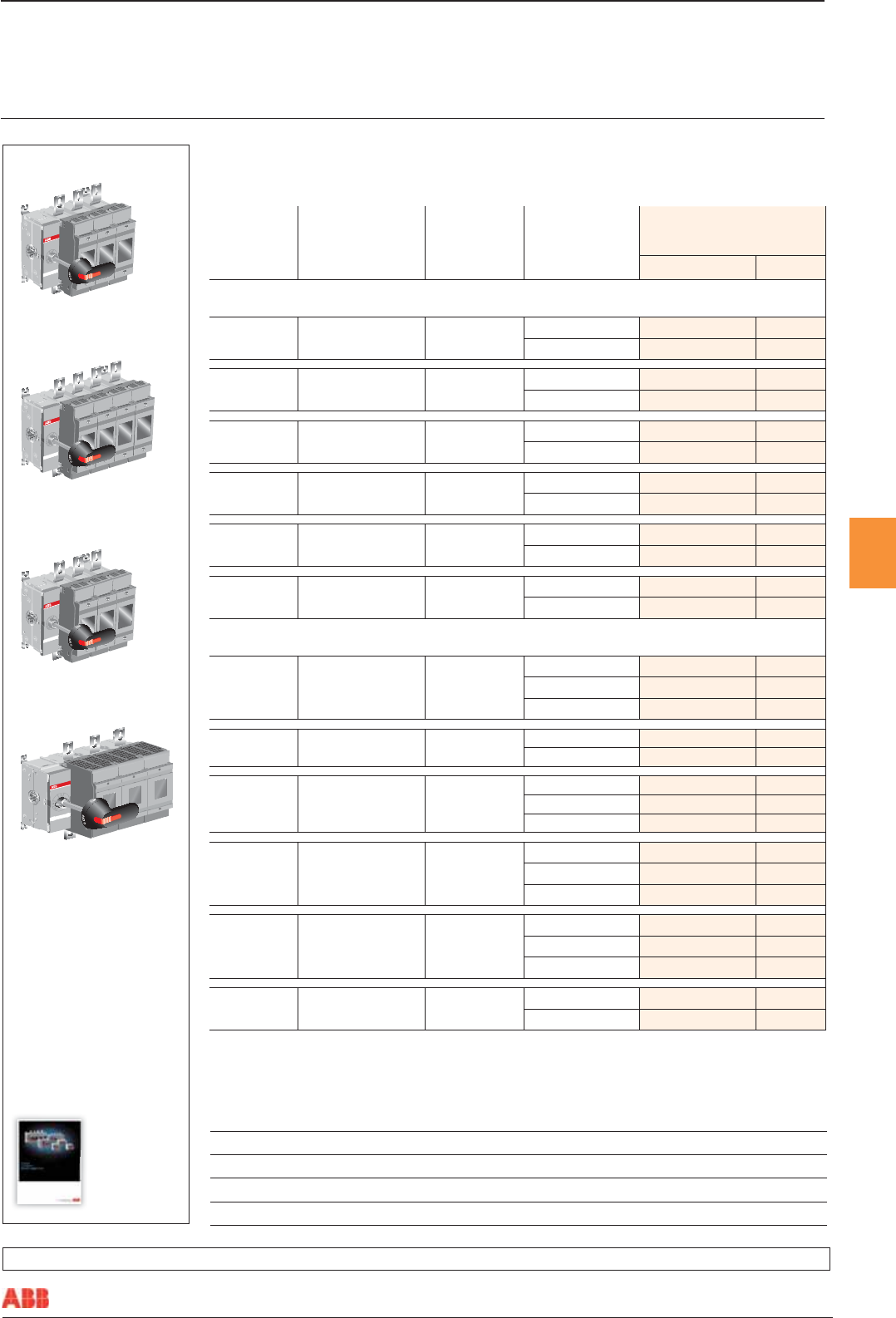

Front operated switch fuses

Including terminal bolt kit, a black ON-OFF plastic handle and shaft as standard. The handle is IP65 protected, padlockable

in the OFF-position and with door interlock in the ON-position. The shaft is adjustable for a range of installation depths.

Rated current

AC-20...23

b 690V

[A]

Rated Power

AC-23

400/500/690V

[kW] Fuse Size

No. of

poles

Product Hierarchy 2100002

Order Code Price

Mechanism between the poles

200 110/132/200 B1-B2 3OS200B12P 225.84

4OS200B22N2P 260.69

250 140/170/250 B1-B3 3OS250B12P 278.73

4 OS250B22N2P 325.73

315 160/220/220 B1-B4 3OS315B12P 316.36

4 OS315B22N2P 453.30

400 220/280/400 B1-B4 3OS400B12P 411.70

4 OS400B22N2P 545.58

630 355/450/630 C1-C2 3OS630B12P 785.45

4 OS630B22N2P 1023.35

800 450/560/710 C1-C2 3OS800B12P 1011.01

4 OS800B22N2P 1305.70

Mechanism at the end of the switch fuse

200 110/132/200 B1-B2

3OS200B03P 216.34

3+N1) OS200B03N3P 239.21

4OS200B04N2P 268.41

250 140/170/250 B1-B3 3 OS250B03P 278.73

4OS250B04N2P 325.73

315 160/220/220 B1-B4

3OS315B03P 316.36

3+N1) OS315B03N3P 384.84

4 OS315B04N2P 453.30

400 220/280/400 B1-B4

3OS400B03P 413.21

3+N1) OS400B03N3P 439.80

4 OS400B04N2P 525.97

630 355/450/630 C1-C2

3OS630B03P 678.19

3+N1) OS630B03N3P 847.79

4 OS630B04N2P 837.96

800 450/560/710 C1-C3 3OS800B03P 965.68

4 OS800B04N2P 1305.70

Shafts, handles & bolt kits included as standard

Suitable for switches Included shaft Included handle Included terminal bolts

OS200_P OXP6X210 OHB65J6 M8x25

OS250_P OXP6X210 OHB65J6 M10x30

OS315...400_P OXP12X250 OHB95J12 M10x30

OS630...800_P OXP12X395 OHB145J12 M12x40

1) Include a detachable neutral link integrated into the mechanism

OS200B03

OS200B04

OS315...400B03

OS250B03

S01622A S01622AS01623AS01835A

Switch Fuses

Switch fuses OS200...800

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Switch Fuses

Accessories

S00601AS00836AS01200A

OH_65J_

S00050A

OXP6X_

12 mm

Shaft Length mm

250 OXP12X250 8.17

280 OXP12X280 8.43

325 OXP12X325 9.11

395 OXP12X395 9.96

465 OXP12X465 11.97

535 OXP12X535 16.72

OHB_

S02195A

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

Optional handles, IP65

For front operated switch fuses

Padlockable with 3 padlocks in the OFF-position, door interlock in the ON-position. Units/type = 1 pcs.

Screw ﬁxing from the back side of the handle, no screws on the front, ensures double protection.

Product Hierarchy 2100004

Description Shaft Length mm Order Code Price

For 6 mm shaft

Black

OHB65J6 13.58

Red-Yellow OHY65J6 13.58

Black - Test OHB65J6T 15.50

For 12mm shaft

Black ON/OFF

95 OHB95J12 35.54

125 OHB125J12 35.54

145 OHB145J12 35.54

175 OHB175J12 37.49

Black Butterfly Handle ON/OFF 150 OHB150J12P 42.60

200 OHB200J12P 45.43

Black ON/OFF/TEST

95 OHB95J12T 43.75

125 OHB125J12T 41.24

145 OHB145J12T 41.24

Shafts

6 mm

Shaft Length mm

150 OXP6X150 2.56

210 OXP6X210 3.14

265 OXP6X265 4.11

400 OXP6X400 5.77

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

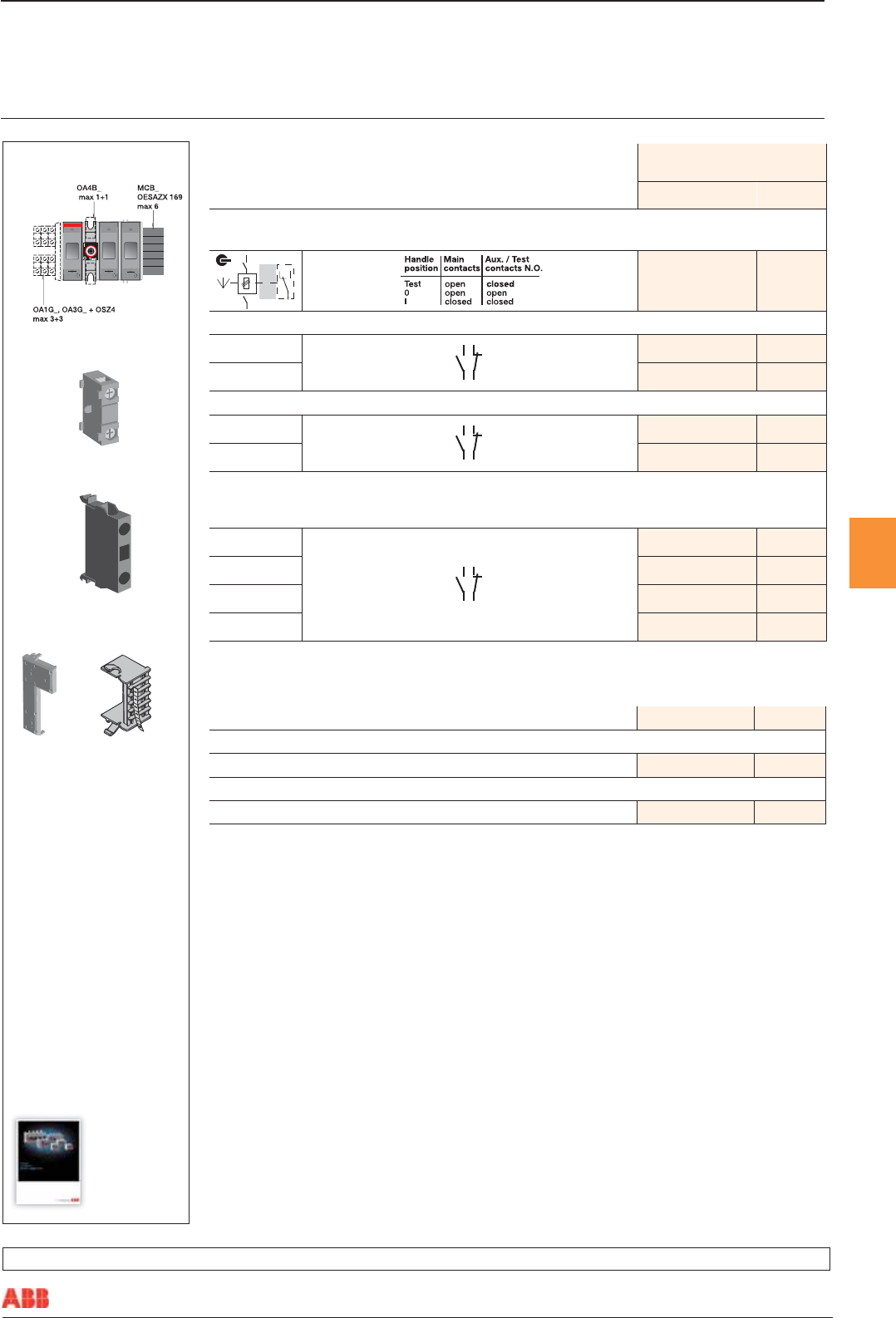

Auxiliary contacts Product Hierarchy 2100004

OS Mini

Order Code Price

Auxiliary contacts for OS Mini

Mounting to the switch mechanism, auxiliary/test contacts. Max. two change over contacts.

Change-over contacts

Test 01

12 14

OA4B1C 8.28

Single pole contacts > 3mm contact gap

1NO _1

NO NC

OA4B10 8.34

1NC OA4B01 8.34

Mounting on the side of the switch with aux. frame OESAZX169

1NO _1

NO NC

MCB-10 2.58

1NC MCb-01 2.58

Snap-on mounting on the switch, by using a frame OSZ4. IP20.

NO contacts are provided with a positive opening feature. Units/type = 1 piece. Types _AU have gold

plated contacts for harsh environments and low operating voltages.

1NO

NO NC

OA1G10 5.39

1NC OA3G01 5.39

1NO OA1G10AU 6.93

1NC OA3G01AU 6.93

OS Mini

S01399A

Switch Fuses

Accessories

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

Mounting frames for auxiliary contacts of OS Mini

Description

Order Code Price

Frame for auxiliary contacts OA1G10 & OA3F01 & for fuse monitor. Max. 6 auxiliary contacts can be fitted.

Mounting on the left side of the switch OSZ4 3.44

Frame for MCB-_ auxiliary contacts. Not suitable for side operated switches. Max. 6 auxiliary contacts can be fitted.

Mounting on the right side of the switch OESAZX169 4.86

S00544A

S01163B

OESAZX169

OSZ4

S00040A S00261A

OA_G

MCB_

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

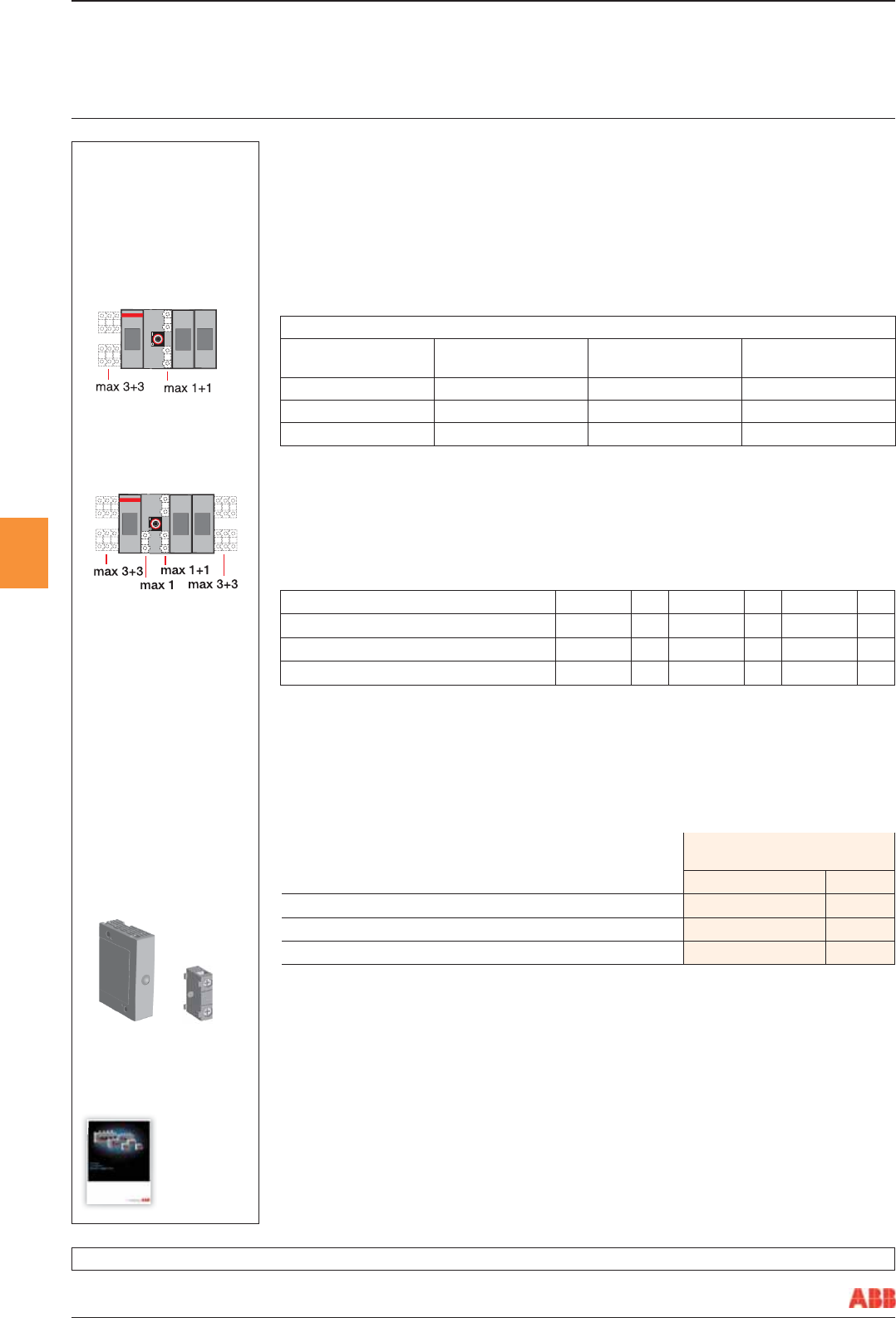

Auxiliary contacts for OS32G...1250

Mounting on the left side of the switch: Max. 8 auxiliary contact blocks with the OEA28 module.

Mounting under the mechanism cover: - OS200...250: Max 4 test contacts or 2 test contacts + 2 test indication contacts.

- OS315...400: Max 4 test contacts and 4 test indication contacts.

The test contacts can be used as standard auxiliary

contacts as well. Auxiliary contacts for 3 + N types only with the OEA28 module.

Product Hierarchy 2100004

Description

Order Code Price

Module for auxiliary contacts screw mounting to the left side of the switch OEA28 9.34

1 NO contact block OA1G10 5.39

1 NC contact block OA3G01 5.39

OA_G_OEA28

S00261A

S01641A

Auxiliary contacts for OS32G ... 1250

The “test” contacts operate in ON- and OFF-positions as well as when the handle is turned to TEST

position = 45 degrees over the OFF-position. The “test indication” contacts operate only when the handle

is turned to TEST-position. See the function table below. The OA1G10 (N.O.) or OA3G01 (N.C.) auxiliary

contact blocks can be used as standard auxiliary contacts, “test” or “test indication” contacts. The

desired functions are achieved when an auxiliary contact block is installed in a specific place shown in

the mounting instruction. In order to activate the “test” and “test indication” features a handle with test

function is required. See the optional handles, page 88.

Function table of OS32G…1250 auxiliary contacts

Handle position Main contacts Aux./Test contacts N.O. Test indication contacts

N.O.

Test open closed closed

0 open open open

I closed closed open

Maximum number of contact blocks, “Aux./test” contacts and “test indication” contacts, see the table

below. Standard versions include all except for N3-types which are equipped with integrated neutral

through the mechanism.

Maximum number of auxiliary contacts under the mechanism cover

Pole version Standard N3 Standard N3 Standard N3

Maximum number of contact blocks 4 0 8 4 12 8

Aux./Test contacts 4 0 4 2 81) 6

Test indication contacts 2 0 4 2 4 2

OS 30...60

OS 100...200

S01162AS01160A

Switch Fuses

Accessories

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Switch Fuses

Accessories

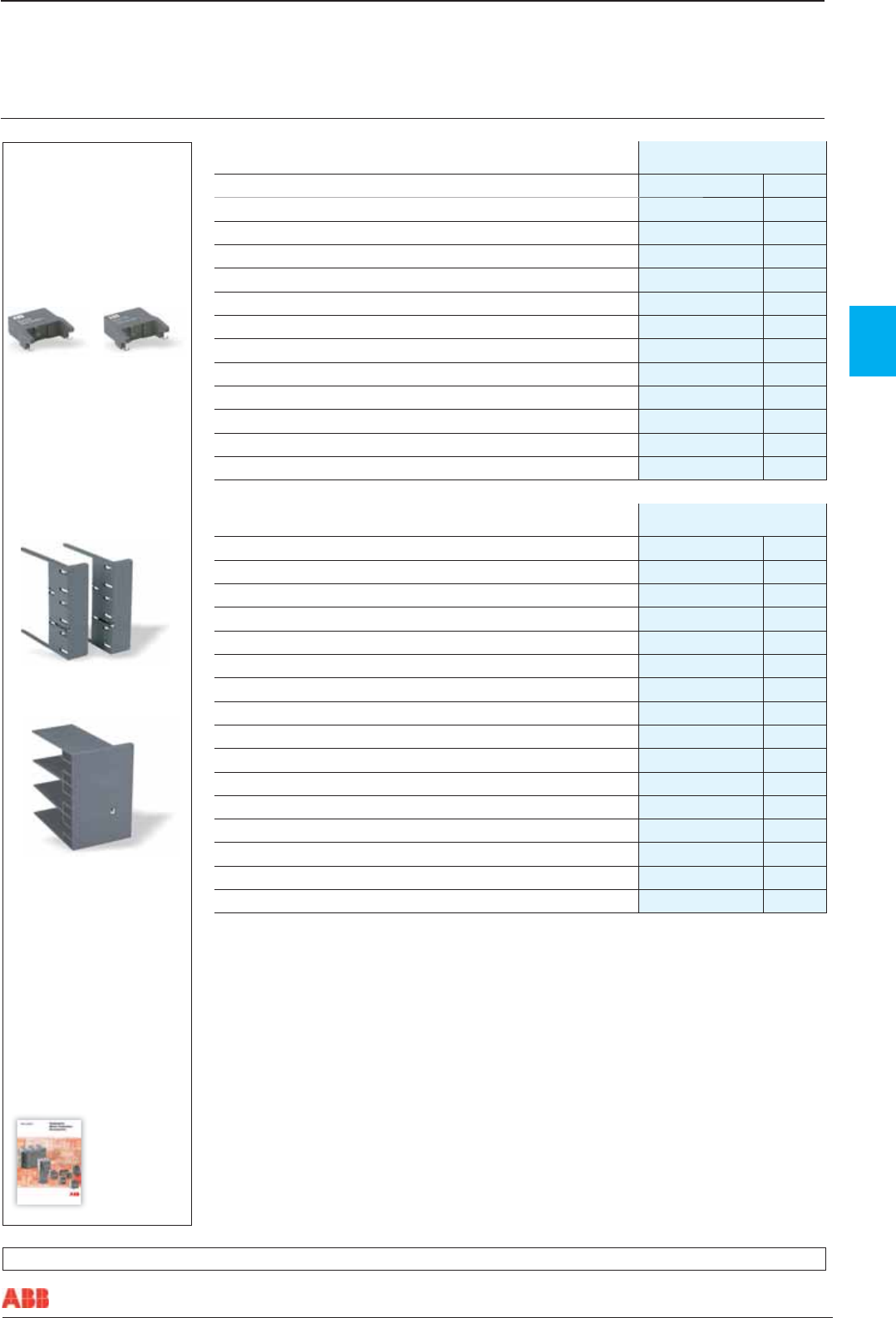

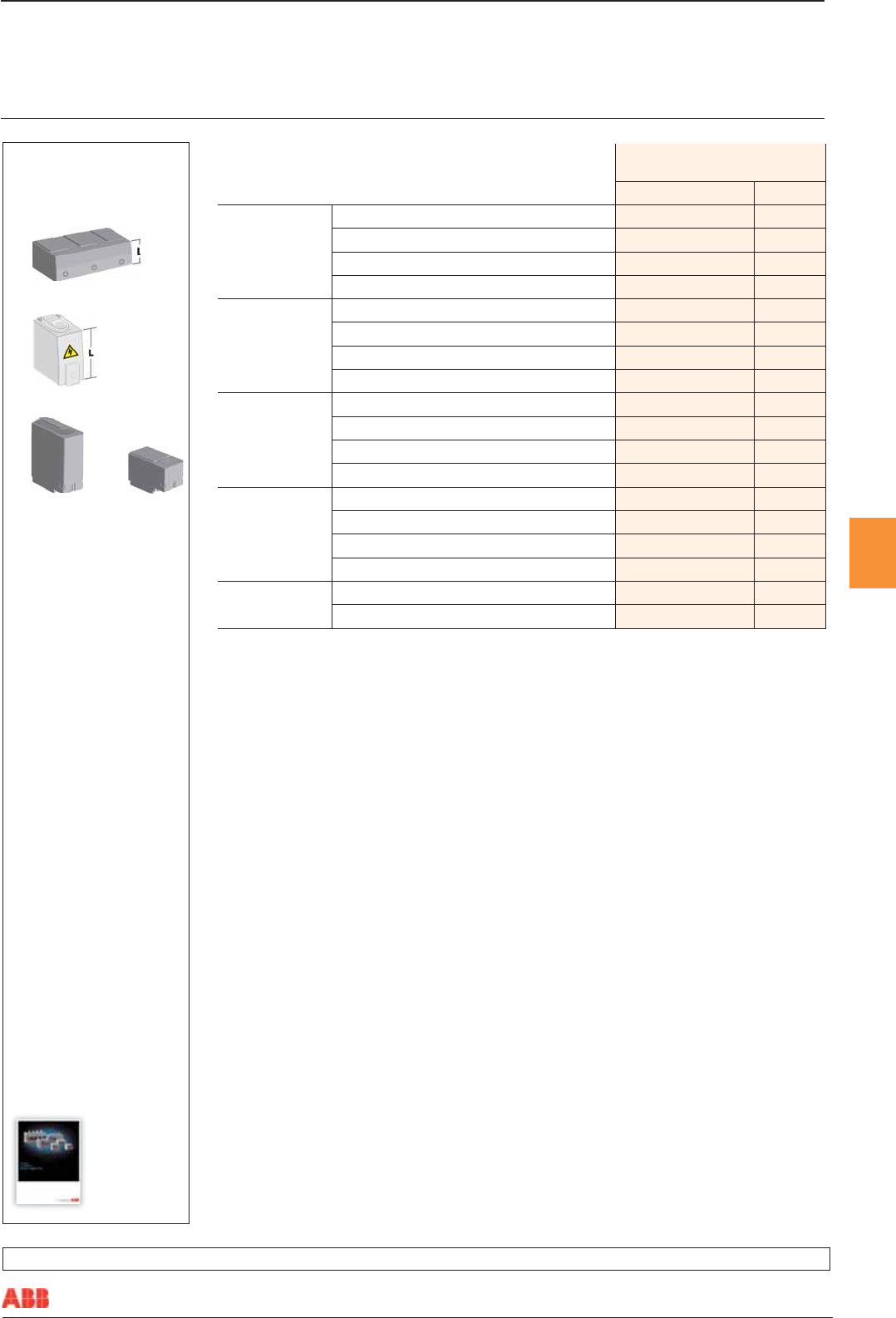

Terminal shrouds OS100 ... 800 Product Hierarchy 2100004

Suitable Switch Handle Type Order Code Price

OS 100G ... 160G

Long type OSS160GG1L/3 6.54

Short type OSS160GG1S/3 6.00

Long type OSS160GG1L/4 8.72

Short type OSS160GG1S/4 8.00

OS 200

Long type OSS200G1L/3 15.18

Short type OSS200G1S/3 14.56

Long type OSS200G1L/4 20.25

Short type OSS200G1S/4 18.66

OS 250

Long type OSS250G1L/3 16.35

Short type OSS250G1S/3 15.18

Long type OSS250G1L/4 21.79

Short type OSS250G1S/4 21.03

OS 315...400

Long type OSS400G1L/3 19.69

Short type OSS400G1S/3 19.11

Long type OSS400G1L/4 26.25

Short type OSS400G1S/4 25.47

OS 630...800

Long type OSS800G1L/3 35.52

Long type OSS800G1L/4 44.38

OSS160G3_

OSS160T1_

OSS_L OSS_S

S01202AS01207A

S01637A

S01638A

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Switch Fuses

Accessories

Neutral links

Product Hierarchy 2100004

Max. wire H/W/D [mm] Mounting holes

Order Code Price

For OS Mini and OS 32...63

Detachable, mounting on the side of the switch, on the mounting plate or DIN-rail.

16mm2 Cu 39/41/40 ø 4.2, distance 32 OESAZX171 9.03

For OS 30...160

Detachable, mounting onto the base plate or DIN-rail.

16mm2 Cu 39/41/40 ø 4.2, distance 32 OSZ1 6.99

35mm2 Cu 39/44/45 ø 4.2, distance 365 OSZ2 10.51

For OS 200...400

Mounting with screws (included) onto either side of the switch or on the base plate.

OS200...250 OXN250 31.43

OS315...400 OXN400 50.18

OS630...800 OXN800S 78.91

Product Hierarchy 2100004

[A] Terminal size (WxD) [mm]; bolt size

Order Code Price

Mounting separately to the base plate

250 12x3 ø 6,5 OESAZX162 19.25

400 25x4 ø 11 OESAZX165 24.48

Solid links

Product Hierarchy 2100004

Fuse type Suitable for

Order Code Price

A1 OS 20B...OS 32B 1 OESAZG98 3.85

BS 88: A2...A3 OS 32B...OS 100B 1 OESAZG5 4.74

BS 88: A4 OS 125B...OS 160B 1 OESAZS36 8.42

OESA 400B OESAZK98 15.24

OESA 630B, 800B OESAZL79 42.23

OESAZX88

OFAW00

OESAZG5,

OESAZS36

OESAZK98,

OESAZL79

OESAZX_

S00586A

S00955AS01042A

S01994A

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC311013C0201

OSP4_

OESAZX171

OSZ1, 2

OSP

S00542A

S00957AS00968A

S02023A

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

ATCP

ATFP

ATIA

ATIS

AOS80-100

ANIT

AOS125-200

Switch Fuses

BS 88 Fuses

Product Hierarchy 2000002

Fuse Size Order Code Price £

2A A1 fuselink ANIT2 1.37

4A A1 fuselink ANIT4 1.37

6A A1 fuselink ANIT6 1.37

10A A1 fuselink ANIT10 1.37

16A A1 fuselink ANIT16 1.37

20A A1 fuselink ANIT20 1.84

25A fuselink ANIT25 1.97

32A fuselink ANIT32 1.97

2A A2 fuselink ATIA2 2.20

4A A2 fuselink ATIA4 2.20

6A A2 fuselink ATIA6 2.20

10A A2 fuselink ATIA10 2.20

16A A2 fuselink ATIA16 2.20

20A A2 fuselink ATIA20 2.44

25A A2 fuselink ATIA25 2.61

32A A2 fuselink ATIA32 2.61

35A A3 fuselink ATIS35 4.14

40A A3 fuselink ATIS40 4.14

50A A3 fuselink ATIS50 4.14

63A A3 fuselink ATIS63 4.41

80A fuselink AOS80 4.67

100A fuselink AOS100 5.15

125A fuselink AOS125 10.72

160A fuselink AOS160 11.80

200A fuselink AOS200 12.35

80A A4 fuselink ATCP80 6.30

100A A4 fuselink ATCP100 6.30

125A fuselink ATFP125 10.82

160A fuselink ATFP160 11.80

200A fuselink ATFP200 12.34

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

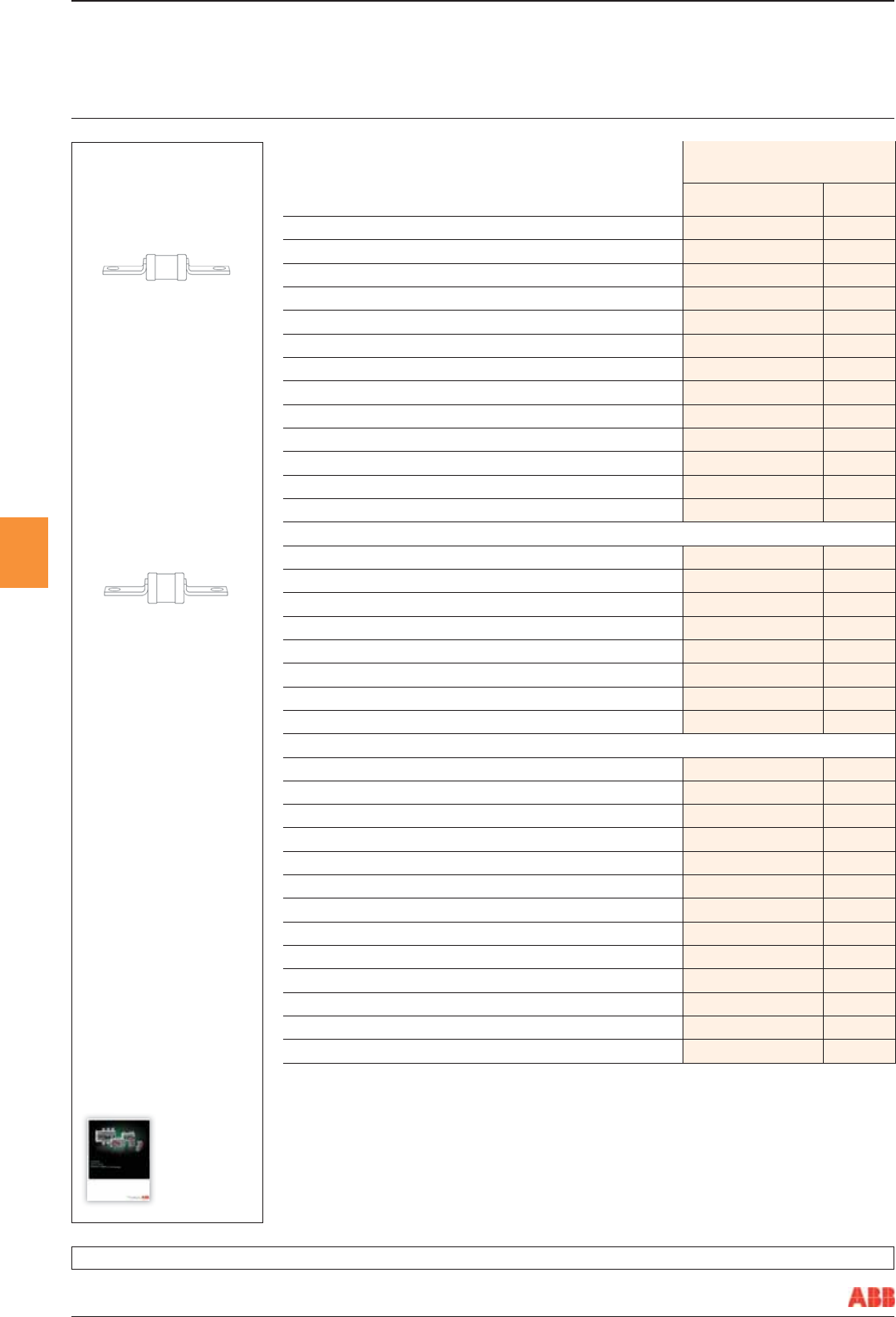

Switch Fuses

BS 88 Fuses

Product Hierarchy 2000002

Fuse Size Order Code Price £

80A B1 fuselink ATC80 6.30

100A B1 fuselink ATC100 6.30

125A B2 fuselink ATF125 10.75

160A B2 fuselink ATF160 11.80

200A B2 fuselink ATF200 12.35

250A B3 fuselink ATKF250 15.58

315A B3 fuselink ATKF315 17.37

355A B4 fuselink ATMF355 21.79

400A B4 fuselink ATMF400 23.13

450A Fuselink Fixing Centre: 111 ATMF450 33.78

500A Fuselink Fixing Centre: 111 ATMF500 36.19

560A Fuselink Fixing Centre: 111 ATMF560 37.56

630A Fuselink Fixing Centre: 111 ATMF630 39.66

250A fuselink ATKM250 15.58

315A fuselink ATKM315 17.37

355A C1 fuselink ATM355 21.79

400A C1 fuselink ATM400 23.13

450A C2 fuselink ATTM450 33.78

500A C2 fuselink ATTM500 36.06

630A C2 fuselink ATTM630 39.66

800A C3 fuselink ATLM800 89.79

2A F1 fuselink ANS2 1.38

4A F1 fuselink ANS4 1.38

6A F1 fuselink ANS6 1.38

10A F1 fuselink ANS10 1.38

16A F1 fuselink ANS16 1.38

20A F1 fuselink ANS20 1.67

25A F1 fuselink ANS25 1.97

20A F2 fuselink AES20 2.17

25A F2 fuselink AES25 2.61

32A F2 fuselink AES32 2.61

40A F2 fuselink AES40 2.89

50A F2 fuselink AES50 3.36

63A F2 fuselink AES63 3.82

ATC

ATF

ATKF

ATMF

ATKM

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC301001C0201

SlimLine XR

Switchfuses and Accessories

XR Switch Fuse 3-pole - 185mm busbar

distance BS - British Standard

Product Hierarchy 2300001

Description

Order Code Price

XR Slimline 63A 3P

1SEP102244R3300 198.90

XR Slimline 100A 3P

1SEP102245R3300 245.85

XR Slimline 160A 3P

1SEP102246R3300 332.44

XR Slimline 250A 3P

1SEP102247R3300 358.23

XR Slimline 400A 3P

1SEP102248R3300 660.19

XR Slimline 630A 3P

1SEP102249R3300 895.89

Accessories

XR 50mm Ventilated Blind Cover

1SEP408528R0001 26.54

XR 00 Auxillary Switch 1NO

1SEP408504R0001 46.83

XR 00 Auxillary Switch 1NC

1SEP408505R0001 46.83

XR 1 Auxillary Switch 1NO

1SEP408506R0001 46.83

XR 1 Auxillary Switch 1NC

1SEP408507R0001 46.83

XR 2/3 Auxillary Switch 1NO

1SEP408508R0001 46.83

XR 2/3 Auxillary Switch 1NC

1SEP408509R0001 46.83

XR Single Auxiliary Switch 1NO

1SEP407742R0013 7.70

XR 63A - 160A 3P Shroud Size 0

1SEP408496R0001 41.47

XR 250A 3P Shroud Size 1

1SEP408497R0001 48.72

XR 400A/630A Shroud Size 2/3

1SEP408498R0001 84.48

XR-E Switch fuse 4-pole - 185mm

busbar distance BS - British Standard

Product Hierarchy 2300001

Type designation

Order Code Price

160A BS 185mm 4 Pole AC23B

1SEP102246R3400 488.52

250A BS 185mm 4 Pole AC23B

1SEP102247R3400 582.90

400A BS 185mm 4 Pole AC23B

1SEP102248R3400 1179.90

630A BS 185mm 4 Pole AC23B

1SEP102249R3400 1201.47

Accessories

63A - 160A Terminal Extension 3 pieces

1SEP408523R0001 96.46

250A Terminal Extension 3 pieces

1SEP408525R0001 100.23

4Pole Cable Shroud Size SR00-3

1SEP407775R0001 8.38

SRM Busbar Support

NHP 343139P0001 44.98

Full range of product

and technical information

place this part number

in a search engine and

download

1SEC311001C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

CamLine

Rotary Cam Switches

Srew mounting also

available.

All switches available

without an escutcheon

& with a round front

ring only, call sales

for details or visit cam

web design platform

https://a.saleconfigurator.

com. Alternatively see

page 5 of the latest

CamLine Catalogue

1SCC302003C0201

Product Hierarchy 4000003

Description Order Code Price

10A 1P 0-1 Mini Cam Switch OMA1PB 9.70

10A 2P 0-1 Mini Cam Switch OMA2PB 9.81

10A 3P 0-1 Mini Cam Switch OMA3PB 13.92

25A 2P 0-1 Mini Cam Switch ONA2PB 10.43

25A 3P 0-1 Mini Cam Switch ONA3PB 12.78

25A 1P On-Off switch, round front ring ONA1XB 8.80

25A 2P On-Off switch, round front ring ONA2XB 10.25

25A 3P On-Off switch, round front ring ONA3XB 12.56

10A 1P 0-1 Mini Key Op Cam Switch OMA1KB 23.79

10A 3P 0-1 Mini Key Op Cam Switch OMA3KB 28.12

25A 3P Key Op C/O Cam switch, 1-0-2 ONU3KB 29.24

25A 1P C/O Cam sw/ rnd frnt rng, 1-2 ONWS1XB 12.04

25A 2P C/O Cam sw/ rnd frnt rng, 1-2 ONWS2XB 14.41

25A 3P C/O Cam sw/ rnd frnt rng, 1-2 ONWS3XB 19.53

10A 1P 1-0-2 Mini Changeover Cam switch OMU1PB 9.81

10A 2P 1-0-2 Mini Changeover Cam switch OMU2PB 13.40

10A 3P 1-0-2 Mini Changeover Cam switch OMU3PB 17.01

25A 1P 1-0-2 Mini Changeover Cam switch ONU1PB 10.43

25A 2P 1-0-2 Mini Changeover Cam switch ONU2PB 14.30

25A 3P 1-0-2 Mini Changeover Cam switch ONU3PB 18.13

10A 1P 1-2 Mini Changeover Cam switch OMWS1PB 11.21

10A 3P 1-2 Mini Changeover Cam switch OMWS3PB 20.33

10A 2P 1-2 Mini Changeover Cam switch ONWS2PB 14.44

10A 3P 1-2 Mini Changeover Cam switch ONWS3PB 18.80

25A 1P Key Op C/O Cam switch, 1-0-2 ONU1KB 28.12

10A 1P, 2 Step, Multistep Switch 0-1-2 OMSO21PB 9.81

10A 1P, 3 Step, Multistep Switch 0-1-2-3 OMSO31PB 11.97

10A 2P, 3 Step, Multistep Switch 0-1-2-3 OMSO32PB 17.01

25A 1P, 2 Step, Multistep Switch 0-1-2 ONSO21PB 10.43

25A 2P, 2 Step, Multistep Switch 0-1-2 ONSO22PB 14.30

25A 3P, 2 Step, Multistep Switch 0-1-2 ONSO23PB 23.79

25A 2P, 3 Step, Multistep Switch 0-1-2-3 ONSO32PB 18.13

25A 3P, 3 Step, Multistep Switch 0-1-2-3 ONSO33PB 24.30

25A 1P 4 Step Multistep Switch 1-2-3 ONSO41PB 14.30

25A 2P 4 Step Multistep Switch 1-2-3 ONSO42PB 29.60

25A 2P IP65 Enc 0-1 Cam Switch ONA2EPB 17.20

25A 3P IP65 Enc 0-1 Cam Switch ONA3EPB 19.32

Full range of product

and technical information

place this part number

in a search engine and

download

1SCC302003C0201

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Enclosures

SR Sheet Steel Enclosures IP65 98

Gemini Weather proof Enclosures IP66 99 - 102

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Enclosures

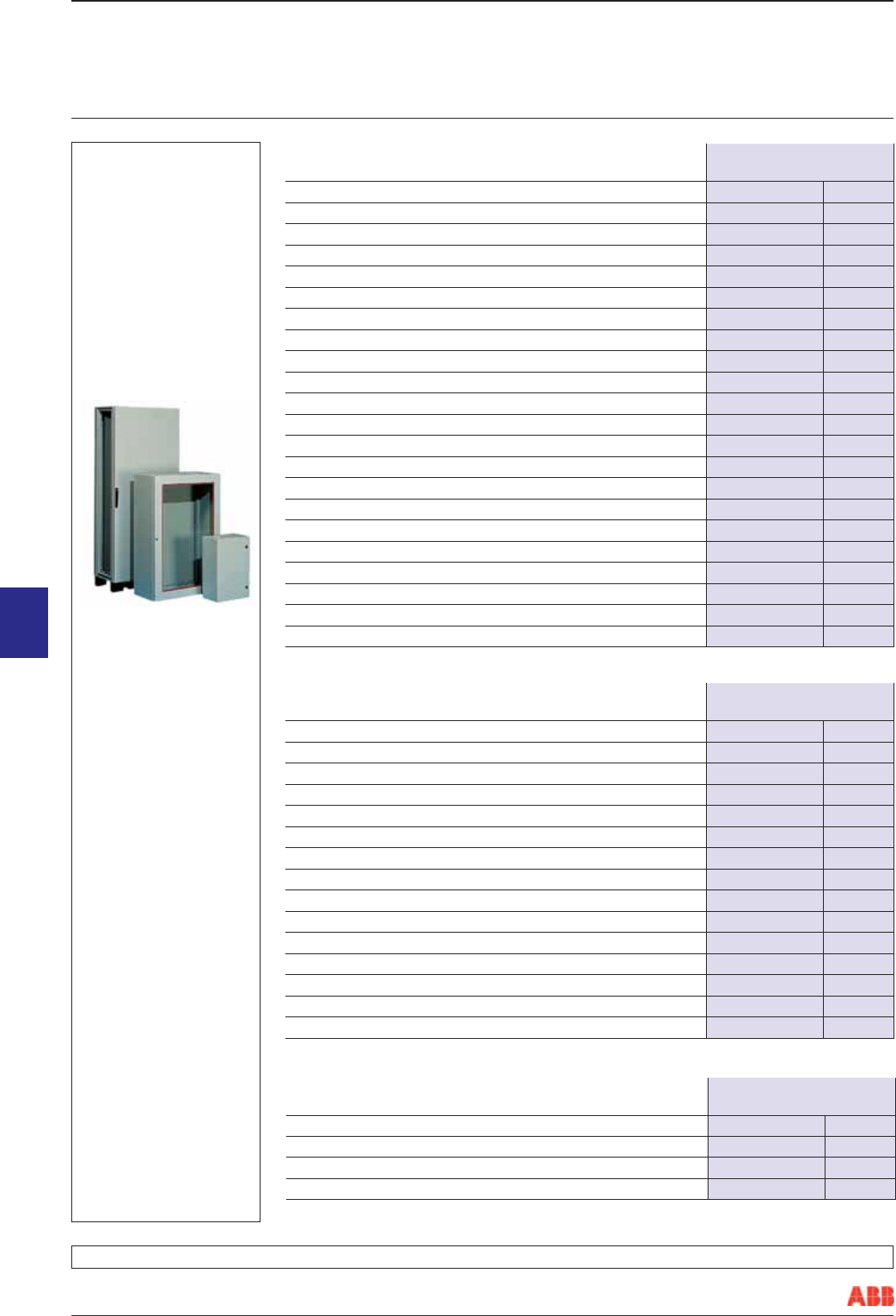

IP65 Sheet Steel Enclosure

Solid Door Sheet Steel Enclosures IP65 Product Hierarchy 3200003

Description H x W x D Order Code Price

300 x 200 x 150 SRN3215K 38.26

300 x 300 x 150 SRN3315K 41.74

400 x 300 x 150 SRN4315K 47.01

400 x 300 x 200 SRN4320K 49.52

400 x 600 x 200 SRN4620K 78.36

500 x 300 x 200 SRN5320K 58.04

500 x 400 x 200 SRN5420K 64.43

500 x 400 x 250 SRN5425K 67.92

600 x 400 x 200 SRN6420K 78.36

600 x 400 x 250 SRN6425K 83.58

800 x 600 x 250 SRN8625K 136.99

600 x 600 x 250 SRN6625K 100.41

700 x 500 x 200 SRN7520K 100.41

700 x 500 x 250 SRN7525K 106.22

800 x 600 x 300 SRN8630K 145.69

800 x 800 x 300 SRN8830K 158.36

1000 x 600 x 250 SRN10625K 175.88

1000 x 600 x 300 SRN10630K 193.30

1000 x 800 x 300 SRN10830K 222.29

1200 x 600 x 300 SRN12630K 228.70

1200 x 800 x 300 SRN12830K 245.52

Glazed Door Sheet Steel Enclosures IP65 Product Hierarchy 3200003

Description H x W x D Order Code Price

500 x 400 x 200 SRN5420VK 86.48

500 x 400 x 250 SRN5425VK 90.55

600 x 400 x 200 SRN6420VK 103.90

600 x 400 x 250 SRN6425VK 109.71

800 x 600 x 250 SRN8625VK 163.10

700 x 500 x 200 SRN7520VK 121.07

700 x 500 x 250 SRN7525VK 127.69

800 x 600 x 250 SRN8625VK 163.10

800 x 600 x 300 SRN8630VK 184.00

1000 x 600 x 250 SRN10625VK 208.39

1000 x 600 x 300 SRN10630VK 225.80

1000 x 800 x 300 SRN10830VK 249.59

1200 x 600 x 300 SRN12630VK 255.40

1200 x 800 x 300 SRN12830VK 272.81

Accessories Product Hierarchy 3200003

Description Order Code Price

Document pocket AA5600 14.07

N.4 wall mounting brackets AA1206 5.62

Lock with Yale insert & key AA8002 13.93

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

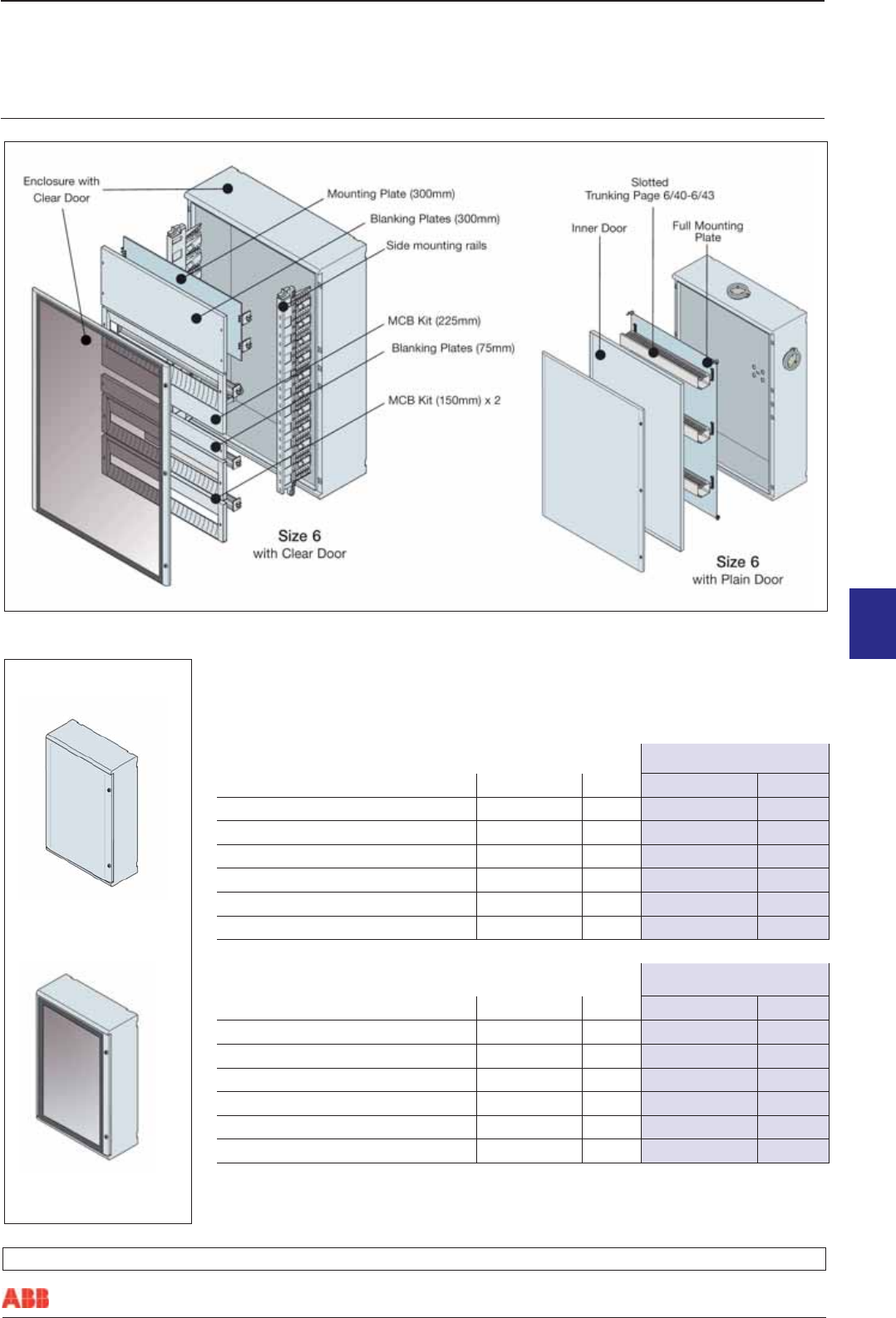

Gemini Enclosures

Components are suitable for any type and size of enclosure

Enclosure with Plain Door Product Hierarchy 3100007

Size HxWxD Usable Height Size Order Code Price

400 x 335 x 210 300 1 1SL0201A00 79.42

550 x 460 x 260 450 2 1SL0202A00 121.19

700 x 460 x 260 600 3 1SL0203A00 153.85

700 x 590 x 260 600 4 1SL0204A00 182.94

855 x 590 x 360 750 5 1SL0205A00 275.01

1005 x 840 x 360 900 6 1SL0206A00 533.46

Enclosure with Plain Door Product Hierarchy 3100007

Size HxWxD Usable Height Size Order Code Price

400 x 335 x 210 300 1 1SL0211A00 96.88

550 x 460 x 260 450 2 1SL0212A00 140.77

700 x 460 x 260 600 3 1SL0213A00 168.23

700 x 590 x 260 600 4 1SL0214A00 220.68

855 x 590 x 360 750 5 1SL0215A00 294.55

1005 x 840 x 360 900 6 1SL0216A00 566.52

Enclosures

IP66 Gemini Weather Proof Range

100

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

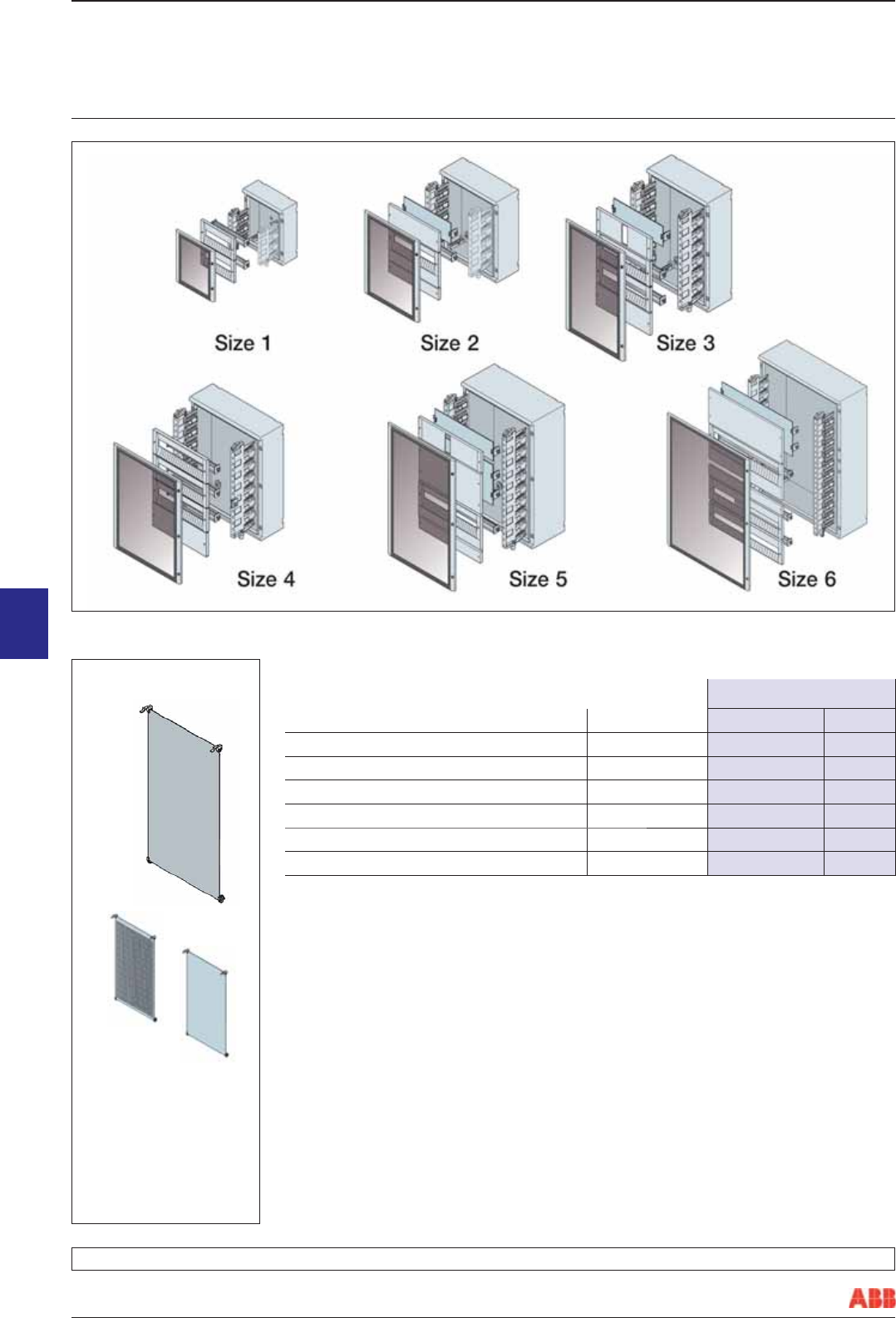

Enclosures

IP66 Gemini Weather Proof Range

Full Mounting Plates Product Hierarchy 3100007

Size HxW Size Order Code Price

285 x 235 1 1SL0259A00 8.37

435 x 360 2 1SL0260A00 13.00

585 x 360 3 1SL0261A00 17.69

585 x 485 4 1SL0262A00 23.16

735 x 485 5 1SL0263A00 33.51

885 x 735 6 1SL0264A00 64.64

Also available:

• Perforated Mounting Plates suitable for use with floating nuts.

• Insulated Mounting Plates.

Please consult us for availabilty

101

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Mounting Plates Product Hierarchy 3100007

Size HxW Nominal Size Size Order Code Price £

130 x 210 150 1 1SL0296A00 6.44

130 x 318 150 2 1SL0297A00 8.37

130 x 318 150 3 1SL0297A00 8.37

130 x 443 150 4 1SL0298A00 11.09

130 x 443 150 5 1SL0298A00 11.09

130 x 663 150 6 1SL0299A00 20.25

280 x 318 300 2 1SL0302A00 16.87

280 x 318 300 3 1SL0302A00 16.87

280 x 443 300 4 1SL0303A00 20.96

280 x 443 300 5 1SL0303A00 20.96

280 x 663 300 6 1SL0304A00 37.00

Side Mounting Rails Product Hierarchy 3100007

Size H Size Order Code Price £

300 1 1SL0283A00 10.06

450 2 1SL0284A00 10.75

600 3 1SL0285A00 13.54

600 4 1SL0285A00 13.54

750 5 1SL0286A00 16.32

900 6 1SL0287A00 25.53

MCB Kits Product Hierarchy 3100007

Size HxW Modules Size Order Code Price £

150 x 250 12 1 1SL0307A00 11.52

150 x 375 18 2 1SL0308A00 12.83

150 x 375 18 3 1SL0308A00 12.83

150 x 500 24 4 1SL0309A00 15.97

150 x 500 24 5 1SL0309A00 15.97

150 x 750 36 6 1SL0310A00 21.09

225 x 375 2 18 1SL0313A00 17.35

225 x 375 3 18 1SL0313A00 17.35

225 x 500 4 24 1SL0314A00 21.55

225 x 500 5 24 1SL0314A00 21.55

225 x 750 6 36 1SL0315A00 28.48

Enclosures

IP66 Gemini Weather Proof Range

102

www.abb.co.uk/lowvoltage email LV.enquiries@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

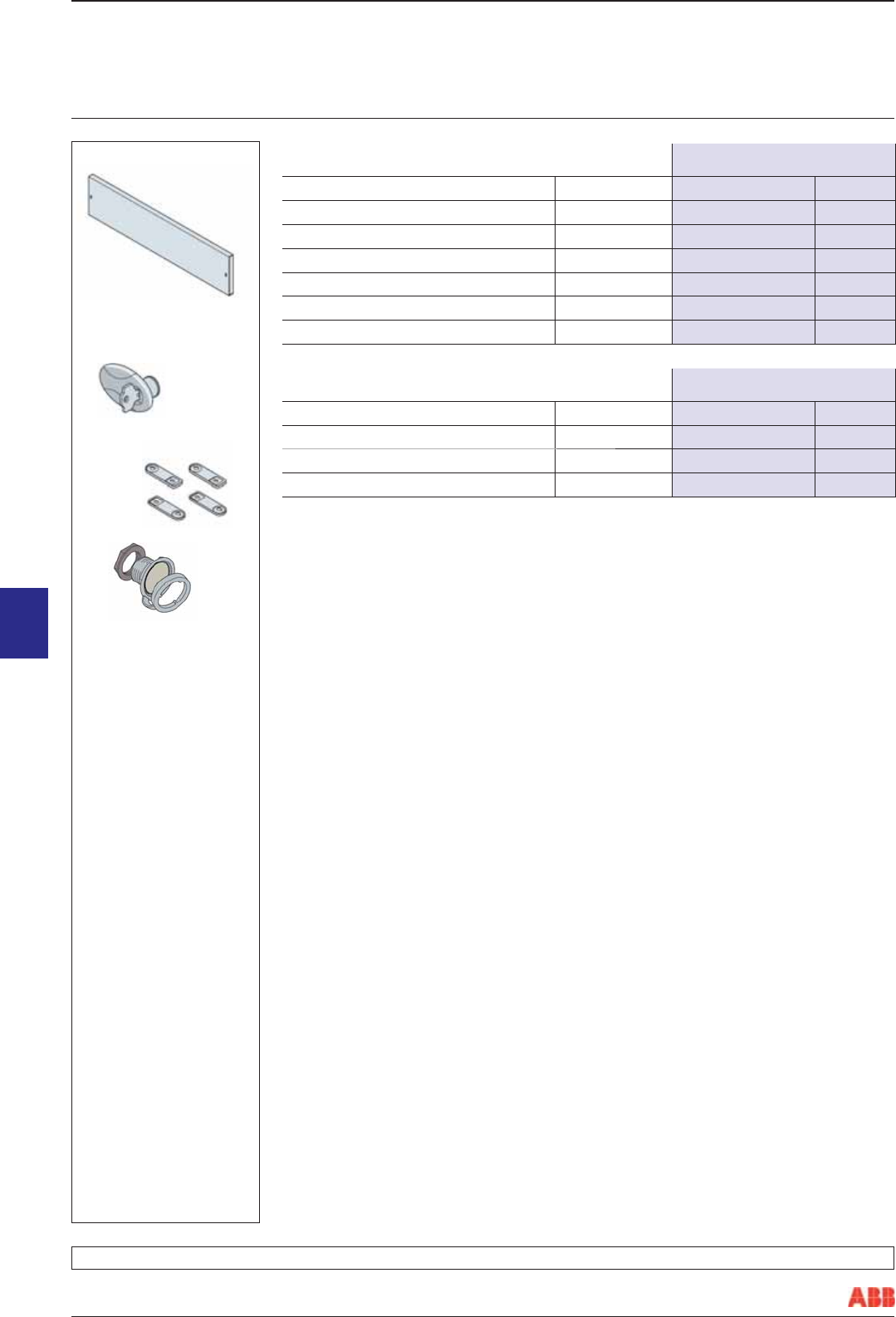

Blanking Plates Product Hierarchy 3100007

Size HxW Size Order Code Price £

150 x 250 1 1SL0324A00 9.50

150 x 375 2 1SL0325A00 10.83

150 x 375 3 1SL0325A00 10.83

150 x 500 4 1SL0326A00 12.71

150 x 500 5 1SL0326A00 12.71

150 x 750 6 1SL0327A00 14.22

Accessories Product Hierarchy 3100007

Description Size Order Code Price £

Key lock and handle Fits All 1SL0340A00 9.71

Square lock Fits All 1SL0339A00 1.35

Wall mounting brackets (4off) Fits All 1SL0342A00 5.72

Enclosures

IP66 Gemini Weather Proof Range

103

www.abb.co.uk/lowvoltage email LV.enquires@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

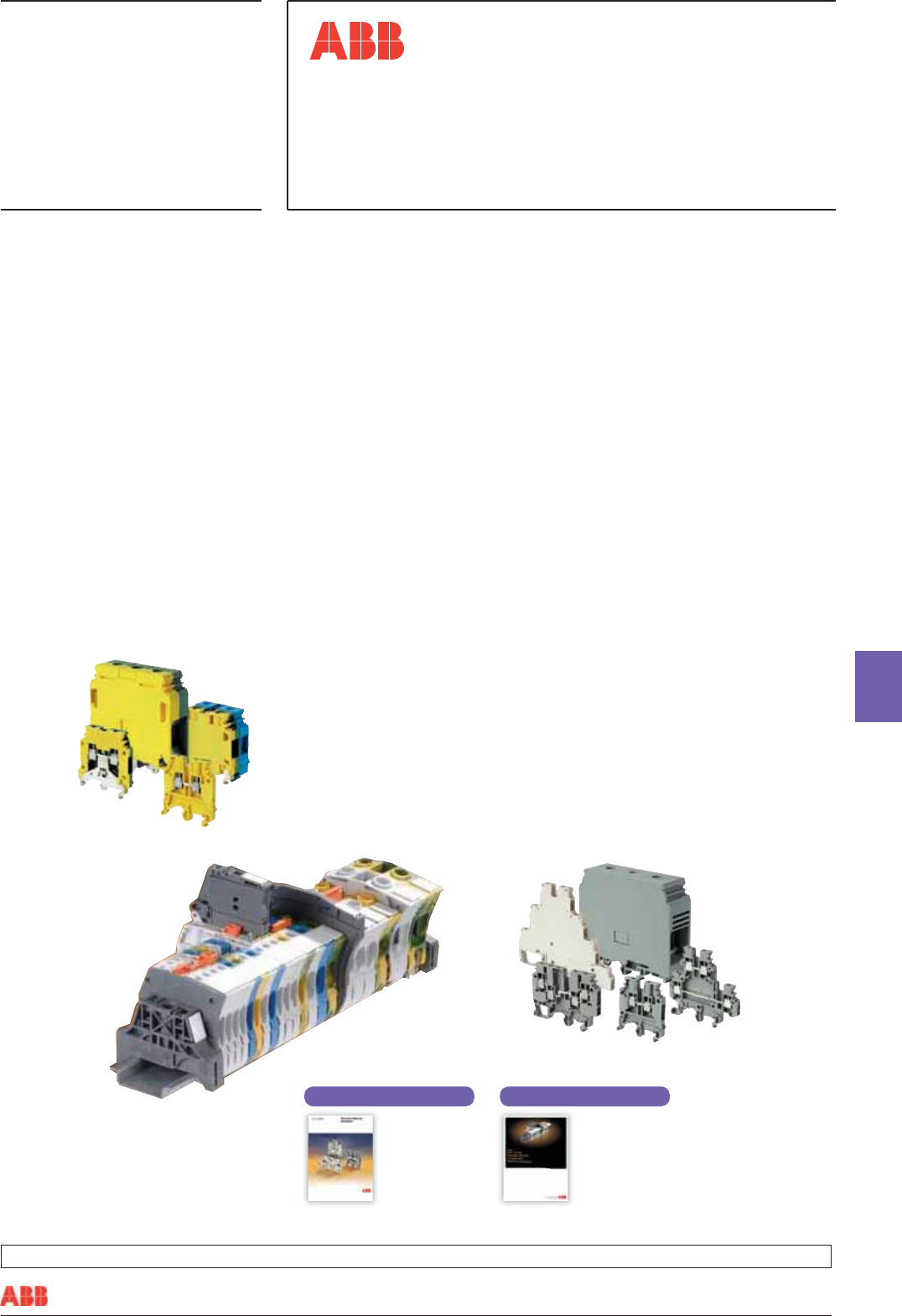

Entrelec Terminals

Contents

Feed Through Terminal Blocks ..........................................................104

Mini Feed Through & Fuse Terminal Blocks ............................. 112 - 113

Double Deck Terminals ........................................................... 114 - 120

Triple Deck Terminals ........................................................................121

Disconnect Terminals .............................................................. 122 - 125

Power Terminals ...................................................................... 126 - 127

Security Terminals .............................................................................128

Fuse Terminals ..................................................................................129

Distribution Blocks .............................................................................132

General Accessories ..........................................................................133

Spring Clamp Terminal Blocks ................................................ 134 - 141

SNK Terminal Blocks ............................................................... 142 - 154

ADO Terminal Blocks .............................................................. 155 - 160

Marker Cards .......................................................................... 161 - 163

Full range of product

and technical information

place this part number

in a search engine and

download

1SNC160001C0207

Full range of product

and technical information

place this part number

in a search engine and

download

1SNK161001C0201

5000 Series SNK Series

104

www.abb.co.uk/lowvoltage email LV.enquires@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Terminals & Connectors

Feed Through Terminal Blocks

Full range of product

and technical information

place this part number

in a search engine and

download

1SNC160001C0207

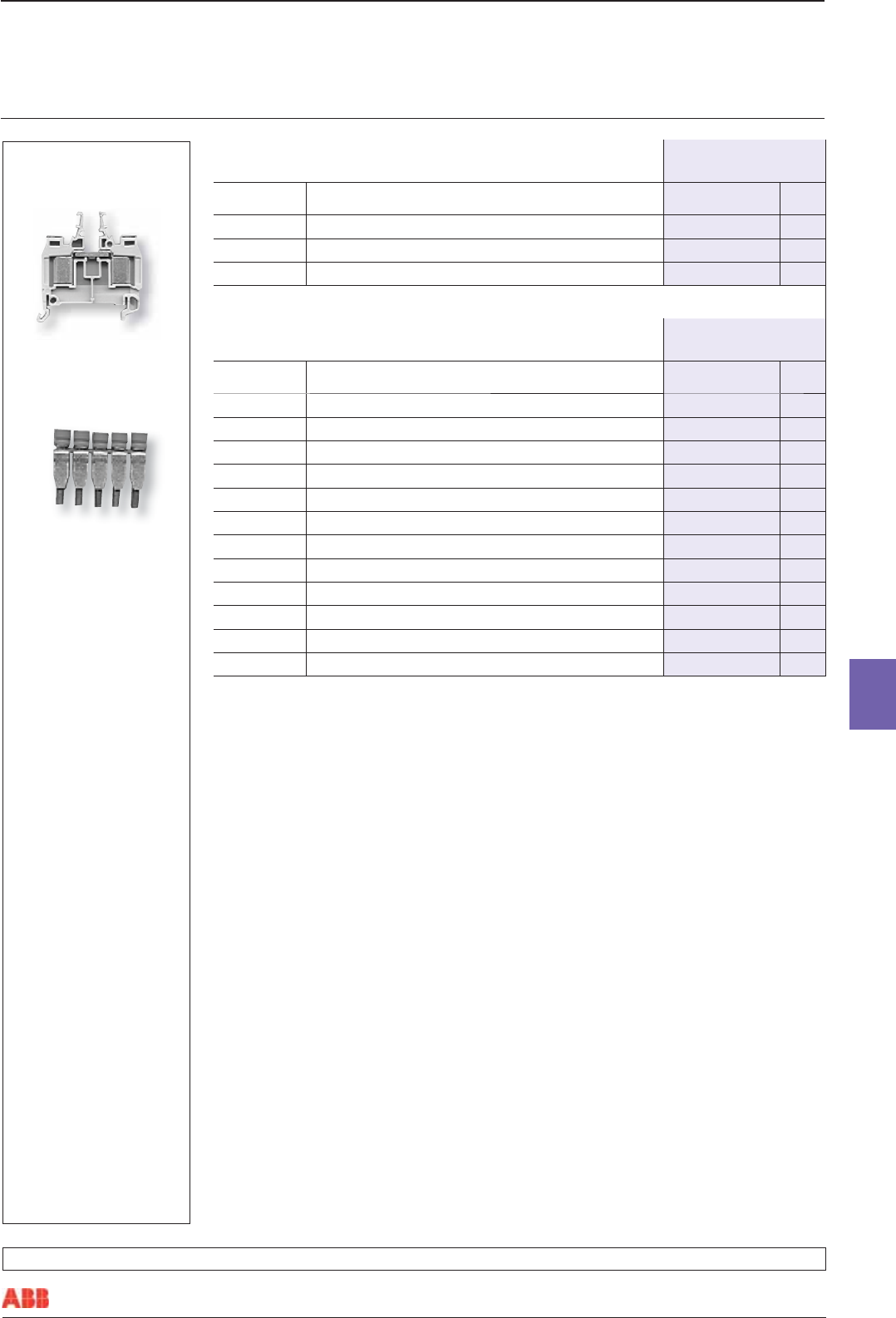

Feed Through Terminal Blocks 2.5mm²

Product Hierarchy

300002

Type Description Order Code Price

MA2,5/5 2.5mm² feed through terminal (Grey) 1SNA115486R0300 0.49

MA2,5/5.N 2.5mm² feed through terminal (Blue) 1SNA125486R0500 0.63

MA2,5/5.P 2.5mm² feed through terminal, Ground (Green/Yellow) 1SNA165488R2700 2.13

MA2,5/5.V0 2.5mm² feed through terminal (Beige) V0 1SNA195486R0400 0.66

MA2,5/5 2.5mm² feed through terminal (White) 1SNA105052R2100 0.63

MA2,5/5 2.5mm² feed through terminal (Yellow) 1SNA105486R1200 0.49

MA2,5/5.1 2.5mm² feed through terminal with partition (Grey) 1SNA115485R0200 0.53

Accessories

Product Hierarchy

300008

Type Description

Order Code Price

FEM6 End section 2.5mm² - 10mm² (Grey) 1SNA118368R1600 0.23

FEM6 End section 2.5mm² - 10mm² (Blue) 1SNA128368R1000 0.29

FEM6 End section 2.5mm² - 10mm² (Yellow) 1SNA103062R2100 0.23

FEM6 End section 2.5mm² - 10mm² (Green) 1SNA103125R1500 0.29

FEM6 End section 2.5mm² - 10mm² (Orange) 1SNA103126R1600 0.29

FEM6 End section 2.5mm² - 10mm² (White) 1SNA103312R2000 0.18

FEM6 V0 End section 2.5mm² - 10mm² (Beige) V0 1SNA198368R1700 0.36

FEM61 End section 2.5mm² - 10mm² (Grey) snaps onto dinrail 1SNA114776R2300 0.43

FEM6C Circuit separator 2.5mm² - 10mm² (Grey) snaps onto dinrail, for CPM cover 1SNA114777R2400 0.44

SCMA5 Circuit separator 2.5mm² - 10mm² (Grey) fits into top of terminal 1SNA116728R2500 0.23

SCF6 Separator end section 2.5mm² - 10mm² (Grey) for CPM cover 1SNA118707R0300 0.34

SCF61 Separator end section 2.5mm² - 10mm² (Grey) 1SNA114202R2500 0.58

SCFM6 Separator end section 2.5mm² - 10mm² (Grey) snaps onto dinrail, for CPM cover 1SNA114825R0500 0.48

SCFCV1-2 Separator end section (Grey) for CPV cover 1SNA116795R1100 1.39

BJMI5 Jumper bar - 2 pole (IP20) 1SNA176278R1600 1.04

BJMI5 Jumper bar - 3 pole (IP20) 1SNA176279R1700 1.15

BJMI5 Jumper bar - 4 pole (IP20) 1SNA176280R0500 1.34

BJMI5 Jumper bar - 5 pole (IP20) 1SNA176281R2200 1.71

BJMI5 Jumper bar - 10 pole (IP20) 1SNA176282R2300 2.86

EL6 Connector plate for linking two jumper bars together 1SNA173627R2100 0.22

PC5 Comb jumper bar - 10 poles 1SNA113544R1200 1.35

EIP Insulating tip for comb jumper bar 1SNA113550R2400 0.19

CPM Protective cover (Clear) 0.5 metres 1SNA187312R1400 2.13

CPV1-2 Protective cover (Clear) 1 metre 1SNA176816R1200 8.98

AL2 Test socket 2mm dia. 1SNA163043R2100 0.21

105

www.abb.co.uk/lowvoltage email LV.enquires@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

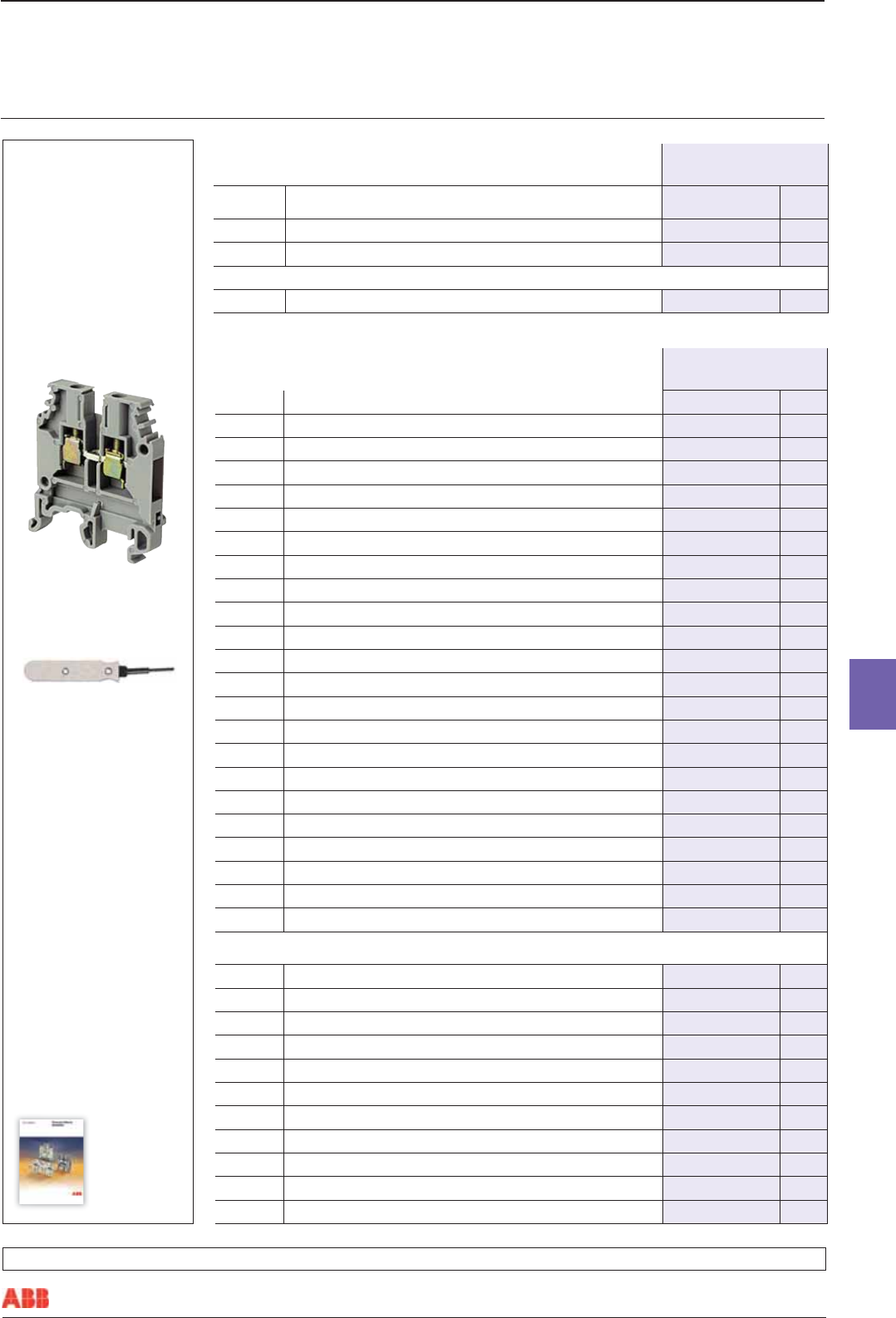

Terminal & Connectors

Feed Through Terminal Blocks

Full range of product

and technical information

place this part number

in a search engine and

download

1SNC160001C0207

Accessories

Product Hierarchy

300008

Type Description

Order Code Price

CBM5 Screen bar 0.5mm thickness 1SNA178745R1400 0.34

CBM8 Screen bar 0.8mm thickness 1SNA178746R1500 0.43

EPU5 Yellow protection label (strip of 12 labels) 1SNA107033R1000 2.80

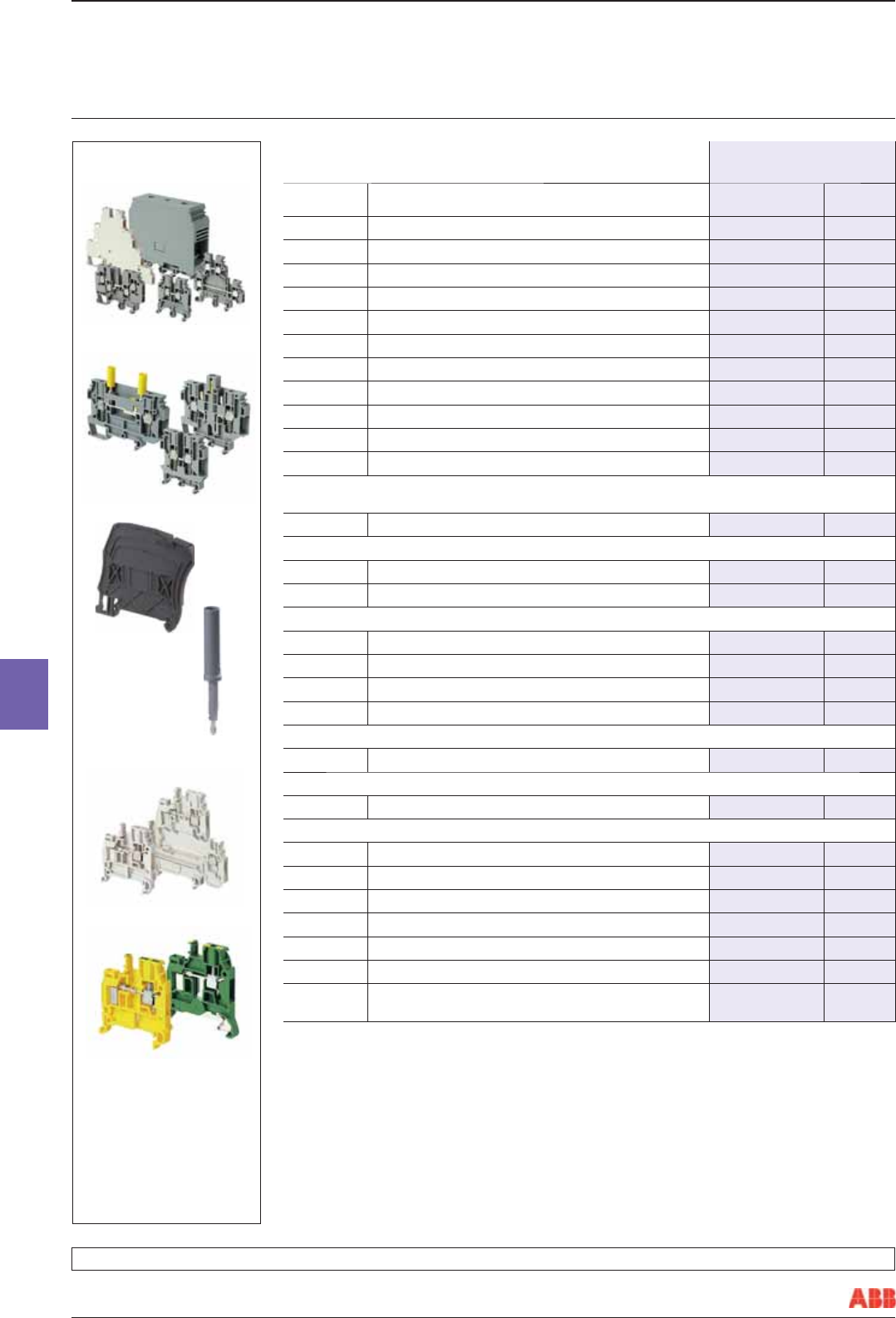

Feed Through Terminal Blocks 4.0mm²

Product Hierarchy

300002

Type Description Order Code Price

M4/6 4.0mm² feed through terminal (Grey) 1SNA115116R0700 0.49

M4/6 4.0mm² feed through terminal (Blue) 1SNA125116R0100 0.63

M4/6.P 4.0mm² feed through terminal, Ground screws onto dinrail (Green/Yellow) 1SNA165113R1600 2.08

D4/6.P 4.0mm² feed through terminal, Ground snaps onto dinrail (Green/Yellow) 1SNA165809R0100 1.87

M4/6 4.0mm² feed through terminal (Green) 1SNA105001R2700 0.63

M4/6 4.0mm² feed through terminal (Orange) 1SNA105002R2000 0.49

M4/6 4.0mm² feed through terminal (Black) 1SNA105031R1400 0.49

M4/6 4.0mm² feed through terminal (Red) 1SNA105032R1500 0.49

M4/6 4.0mm² feed through terminal (White) 1SNA105051R2000 0.63

M4/6 4.0mm² feed through terminal (Yellow) 1SNA105116R1600 0.49

M4/6 4.0mm² feed through terminal (Brown) 1SNA105209R1400 0.49

M4/6 V0 4.0mm² feed through terminal (Beige) V0 1SNA195116R0000 0.66

M4/6.1 4.0mm² feed through terminal with partition (Grey) 1SNA115259R0600 0.69

M4/6.C 4.0mm² feed through terminal with partition and 2.5mm dia. test socket (Grey) 1SNA115208R0400 1.24

M4/6.3A 4.0mm² feed through terminal (3 screw clamps) (Grey) 1SNA115468R2000 1.00

M4/6.3A 4.0mm² feed through terminal (3 screw clamps) (Blue) 1SNA125468R2200 1.44

M4/6.3A.P 4.0mm² feed through terminal, (3 screw clamps) Ground (Green/Yellow) 1SNA195637R1200 2.78

M4/6.3A.1 4.0mm² feed through terminal with partition (3 screw clamps) (Grey) 1SNA115483R0000 1.42

M4/6.4A 4.0mm² feed through terminal (4 screw clamps) (Grey) 1SNA115479R2300 1.17

M4/6.4A 4.0mm² feed through terminal (4 screw clamps) (Blue) 1SNA125479R2500 1.70

M4/6.4A.P 4.0mm² feed through terminal, (4 screw clamps) Ground (Green/Yellow) 1SNA195638R2300 3.15

MS4/6 4.0mm² compact feed through terminal (Grey) 1SNA115265R2400 0.52

Accessories

FEM6 End section 2.5mm² - 10mm² (Grey) 1SNA118368R1600 0.23

FEM6 End section 2.5mm² - 10mm² (Blue) 1SNA128368R1000 0.29

FEM6 End section 2.5mm² - 10mm² (Yellow) 1SNA103062R2100 0.23

FEM6 End section 2.5mm² - 10mm² (Green) 1SNA103125R1500 0.29

FEM6 End section 2.5mm² - 10mm² (Orange) 1SNA103126R1600 0.29

FEM6 End section 2.5mm² - 10mm² (White) 1SNA103312R2000 0.18

FEM6 V0 End section 2.5mm² - 10mm² (Beige) V0 1SNA198368R1700 0.36

FEM3A End section for M4/6.3A Series (Grey) 1SNA116576R1500 0.24

FEM3AP End section for M4/6.3A.P (Green) 1SNA199876R2600 0.24

FEM4A End section for M4/6.4A (Grey) 1SNA116629R2200 0.25

FEM4AP End section for M4/6.4A.P (Green) 1SNA199879R0100 0.24

106

www.abb.co.uk/lowvoltage email LV.enquires@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Terminal & Connectors

Feed Through Terminal Blocks

Full range of product

and technical information

place this part number

in a search engine and

download

1SNC160001C0207

Accessories

Product Hierarchy

300008

Type Description

Order Code Price

FEMS6 Compact end section for MS4/6 (Grey) 1SNA113885R0100 0.25

FEM6C Circuit separator 2.5mm² - 10mm² (Grey) snaps onto dinrail, for CPM cover 1SNA114777R2400 0.44

SCMA5 Circuit separator 2.5mm² - 10mm² (Grey) fits into top of terminal 1SNA116728R2500 0.23

SCF6 Separator end section 2.5mm² - 10mm² (Grey) for CPM cover 1SNA118707R0300 0.34

SCF61 Separator end section 2.5mm² - 10mm² (Grey) 1SNA114202R2500 0.58

SCFM6 Separator end section 2.5mm² - 10mm² (Grey) snaps onto Dinrail, for CPM cover 1SNA114825R0500 0.48

SCFCV1-2 Separator end section (Grey) for CPV cover 1SNA116795R1100 1.39

BJMI6 Jumper bar - 2 pole (IP20) 1SNA176663R0000 0.52

BJMI6 Jumper bar - 3 pole (IP20) 1SNA176664R0100 0.76

BJMI6 Jumper bar - 4 pole (IP20) 1SNA176665R0200 0.96

BJMI6 Jumper bar - 5 pole (IP20) 1SNA176666R0300 1.29

BJMI6 Jumper bar - 10 pole (IP20) 1SNA176667R0400 3.34

EL6 Connector plate for linking two jumper bars together 1SNA173627R2100 0.22

PC6 Comb jumper bar - 2 pole for MS4/6 compact terminal 1SNA113546R1400 0.98

PC6 Comb jumper bar - 10 pole for MS4/6 compact terminal 1SNA113548R2600 1.43

EIP Insulating tip for comb jumper bar 1SNA113550R2400 0.19

CPM Protective cover (Clear) 0.5 metres 1SNA187312R1400 2.13

CPV1-2 Protective cover (Clear) 1 metre 1SNA176816R1200 8.98

AL2 Test socket 2mm dia. 1SNA163043R2100 0.21

FC2 Test plug 2mm diameter 1SNA007865R2600 1.21

CBM5 Screen bar 0.5mm thickness 1SNA178745R1400 0.34

CBM8 Screen bar 0.8mm thickness 1SNA178746R1500 0.43

EP6 Protection label for 4 x 6mm pitch blocks 1SNA163427R1700 0.91

VSP6 Nylon screw for EP6 label 1SNA163433R1500 0.11

EPU6 Yellow protection label (strip of 12 labels) 1SNA107038R2500 2.80

107

www.abb.co.uk/lowvoltage email LV.enquires@gb.abb.com Telephone 02476 368500 Facsimile 02476 368401

Terminal & Connectors

Feed Through Terminal Blocks

Full range of product

and technical information

place this part number

in a search engine and

download

1SNC160001C0207

Feed Through Terminal Blocks 6.0mm²

Product Hierarchy

300002

Type Description Order Code Price

M6/8 6.0mm² feed through terminal (Grey) 1SNA115118R1100 0.72

M6/8.N 6.0mm² feed through terminal (Blue) 1SNA125118R1300 0.83

M6/8.P 6.0mm² feed through terminal, Earth (Green/Yellow) 1SNA165114R1700 2.38

M6/8 6.0mm² feed through terminal (Yellow) 1SNA105118R2000 0.72

M6/8.V0 6.0mm² feed through terminal (Beige) V0 1SNA195118R1200 0.84

M6/8.1 6.0mm² feed through terminal with partition (Grey) 1SNA115260R0300 0.88

M6/8.4 6.0mm² feed through terminal with partition and 4mm dia. test socket (Grey) 1SNA115219R2600 1.12
