BUSBAR DISTRIBUTION SYSTEM 60-mm BusBar systems
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS1
SPEC-00507
J
763.422.2211
763.422.2600
BUSBAR SYSTEMS
BUSBAR DISTRIBUTION SYSTEM
60-MM BUSBAR SYSTEMS

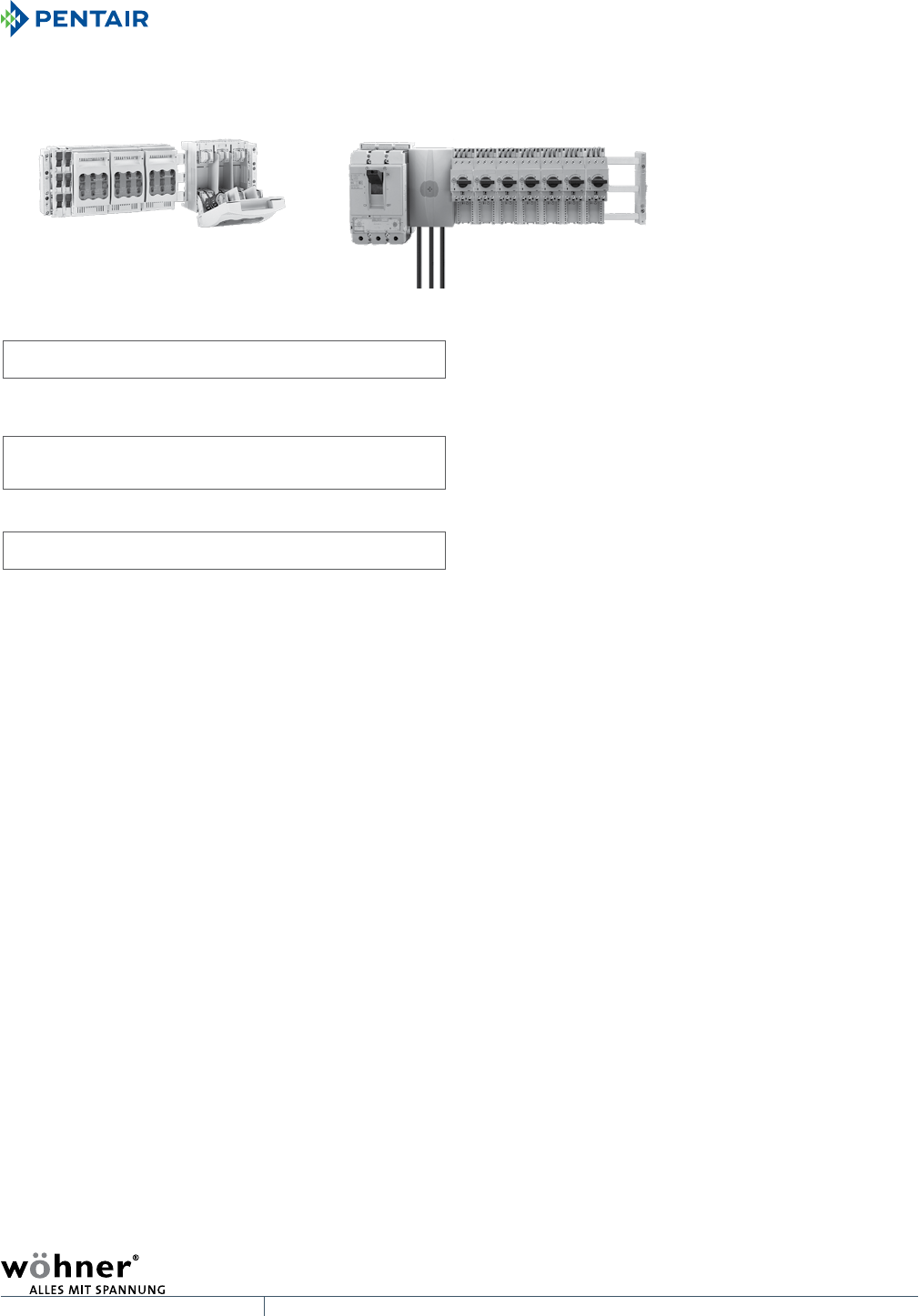

BUSBAR SYSTEM OVERVIEW
INDUSTRY STANDARDS
Fuseholders:
UL 4248 Listed; File No. E230163 and E342576
cUL Listed per CSA C22.2 No. 39; File No. E230163
CSA Certified
Flexible Busbars:
UL 67 & 891 Component Recognized; File No. E197039
cUL Component Recognized per CSA C22.2 No. 29 & 244; File No.
E197039
Busbar Components:
UL 508 Listed; File No. E123577
cUL Listed per CSA C22.2 No. 14; File No. E123577
CE
APPLICATION
Busbar systems distribute power throughout a panel by enabling
components to be mounted onto adapters that snap onto three
copper bars attached to end supports connected to the back panel.
Establishing an electrical connection and mechanically fastening
in one step, this design reduces wiring time by up to 40 percent and
allows power to be easily distributed to multiple components while
being touch-safe rated to IP20. In addition, busbar systems utilize
pre-wired adapters and sliding DIN rails, enabling components to
be placed closer together while reducing the raceway and bending
radius space required. With this arrangement, the 60-mm Busbar
System consumes up to 25 percent less panel space than traditional
wiring.
• Distributes 3-phase power, up to 690 V, coming from a main
breaker or fuse block; can also be used for single-phase or DC
power applications
• Convenient solution for delivering power throughout panels
containing smaller devices and fed by a 100 A or higher main
breaker
• Provides direct mounting solutions for major component
manufacturers (ABB, Allen-Bradley, Eaton Cutler-Hammer,
General Electric, Merlin Gerlin, Moeller, SiemensITE, Schneider
SquareD®)
Drawings can be found on www.hoffmanonline.com
Technical information and support can be found on Wöhner’s
website at www.woehner.com/en/technics/
Remove the “HB” prefix from Hoffman’s catalog numbers to find the
comparable Wöhner part numbers.
AMBUS, CRITO, EQUES, J-CARRIER and QUADRON are trademarks of
Wöhner GmbH & Co. KG.
FEATURES
• The 60-mm on-center distance of the busbars minimizes the
overall footprint, allowing large ampacities to be distributed in a
small space
• Ampacity range of 0–2000 A covers most key applications
• Reduces panel wiring time by up to 40 percent versus
conventional wiring
• Electrical and mechanical connections are completed in one step
• The design and layout are efficient and can be changed at any
time; innovative terminal solutions connect wires directly to the
busbar system; no drilling or tapping is required
• Requires up to 25 percent less panel space than conventional
wiring by eliminating some raceway and reducing bending radius
space
• Provides the highest standard of safety; designed to be touch-
safe to IP20
• Snap-together design makes planning, project design and
installation easy; fuse bases and fuse switch disconnectors are
simply “clicked” onto the busbars
• Application versatility reduces inventory requirements
• Adapts to most cabinets and enclosures; position busbars
vertically or horizontally anywhere within grid dimensions for
optimum use of space
• Add components easily to extend the panel; number of
connections is minimized
• Shielded connections reduce arc flash danger
SPECIFICATIONS
• Busbar is constructed of tinned copper for superior corrosion
resistance
ORDERING
For assistance with layouts, drawings and specifying a busbar
system, contact Hoffman Customer Service at 763 422 2211.
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 2
60-MM SYSTEM CL ASSIC
MCCB MOUNTING REFERENCE
MCCB Mounting Reference All major manufacturers
Manufacturer MCCB Frame Adapter UL508 cUL
ABB T-max 1 HB32575 • •
T-max 2 HB32575 • •
T-max 4 HB32601 • •
T-max 5 HB32593 • •
Allen-Bradley 140-CMN HB32549 • •
140U-H, TopaHB32577 • •
140U-H, BottombHB32571 • •
140U-J HB32137 • •
140U-L HB32138 • •
Eaton (Cutler-Hammer) EG-Frame TopaHB32570 • •
EG-Frame BottomBHB32571 • •
JG-Frame HB32137 • •
K-Frame HB32138 • •
LG-Frame HB32138 • •
General Electric FD160 HB32575 • •
FD250 HB32156 • •
Merlin Gerin NS80 HB32575 • •
NS100 HB32156 • •
NS250 HB32156 • •
NS400 HB32157 • •
NS630 HB32157 • •
Mitsubishi NF250 HB32592 • •
Eaton (Moeller) NZM1 HB32570 • •
NZM2-XKR4 HB32140 • •
NZM3-XKR130 HB32170 • •
Siemens 3VL1 HB32976 • •
3VL2 HB32977 • •
3VL3 HB32977 • •
3VL4 HB32975 • •
EG-Frame (NEG-Type), TopaHB32577 • •
EG-Frame (NEG-Type), BottombHB32571 • •
NGG-TypeTopac HB32577 • •
NGG-Type, Bottombc HB23571 • •
NGG-Type (up to 80 A), DIN rail mount HB32469, HB32963 • •
Schneider Square D H-Frame HB32140, HBUS76490 • •
J-Frame HB32156 • •
D-Frame HB32157 • •
Terasaki XS250 HB2592 • •
aTop refers to the adapter connection to the top of the breaker, typical of a branch circuit protective device.
bBottom refers to the adapter connection to the bottom of the breaker, typical of a feeder circuit protective device.
cSome modification may be required.
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS3
SUPPORT SPACING AND SHORT CIRCUIT CURRENT
RATING (SCCR) VALUES  HB80508, HB01508
Consult Hoffman for HB01231 and HB01232 support spacing and
SCCR values.
Circuit Breaker Protected System (Any DIVQ/7)
Busbar, cross section Max. CB Rating SCCR Max. support spacinga
480VAC
HB01618 (12x5 mm) 250 A 65 kA 800 mma
HB01620 (20x5 mm) 400 A 65 kA 800 mma
HB01622 (30x5 mm) 400 A 65 kA 800 mm
HB01622 (30x5 mm) 600 A 50 kA 800 mm
HB01625 (30x10 mm) 400 A 65 kA 800 mm
HB01625 (30x10 mm) 600 A 50 kA 800 mm
600VAC
HB01618 (12x5 mm) 250 A 25 kA 800 mma
HB01620 (20x5 mm) 400 A 35 kA 800 mma
HB01622 (30x5 mm) 600 A 25 kA 800 mm
HB01625 (30x10 mm) 400 A 35 kA 800 mm
HB01625 (30x10 mm) 600 A 25 kA 800 mm
aConsideration should be made for mechanical support of the devices mounted to the busbar system.
Fuse Protected System
Busbar, cross section Max. Fuse Rating SCCR Max. support spacinga
480VAC
HB01618 (12x5 mm) 400 A - J, T, RK1 100 kA 800 mma
HB01620 (20x5 mm) 400 A - RK1 100 kA 800 mma
HB01620 (20x5 mm) 500 A - J, T 100 kA 800 mma
HB01622 (30x5 mm) 400 A - RK1 100 kA 800 mm
HB01622 (30x5 mm) 500 A - J, T 100 kA 800 mm
HB01625 (30x10 mm) 400 A - RK1 100 kA 800 mm
HB01625 (30x10 mm) 600 A - J, T 100 kA 800 mm
600VAC
HB01618 (12x5 mm) 100 A - RK1 100 kA 800 mma
HB01618 (12x5 mm) 175 A - J, T 100 kA 800 mma
HB01620 (20x5 mm) 200 A - RK1 100 kA 800 mma
HB01620 (20x5 mm) 400 A - J, T 100 kA 800 mma
HB01622 (30x5 mm) 400 A - RK1 100 kA 800 mm
HB01622 (30x5 mm) 500 A - J, T 100 kA 800 mm
HB01625 (30x10 mm) 400 A - RK1 100 kA 800 mm
HB01625 (30x10 mm) 450 A - J, T 100 kA 800 mm
aConsideration should be made for mechanical support of the devices mounted to the busbar system.
Unprotected System
Busbar, cross section Max. Fuse Rating SCCR Max. support spacinga
HB01618 (12x5 mm) 150 A, 600 VAC 18 kA 250 mm, 400 mma
HB01620 (20x5 mm) 362 A, 600 VAC 18 kA 250 mm, 400 mma
HB01622 (30x5 mm) 500 A, 600 VAC 22 kA 400 mm
HB01622 (30x5 mm) 500 A, 600 VAC 25 kA 250 mm
HB01625 (30x10 mm) 756 A, 600 VAC 22 kA 400 mm
HB01625 (30x10 mm) 756 A, 600 VAC 25 kA 250 mm
aConsideration should be made for mechanical support of the devices mounted to the busbar system.
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 4

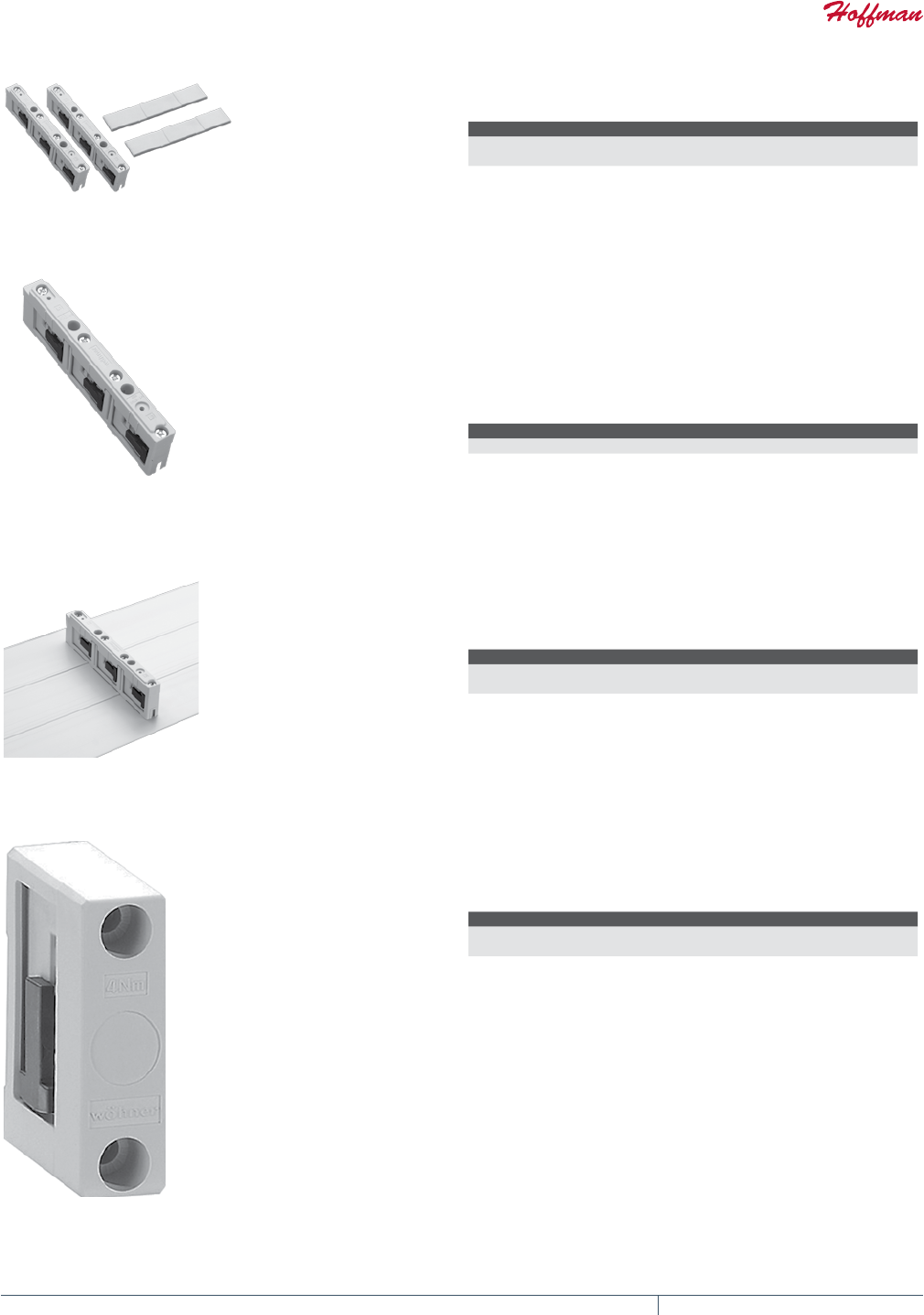

END SUPPORT KIT This will be the first part of any system bill of material utilizing
rectangular busbar between 12 x 5 - 30 x 10.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB80508 Contains 2 busbar supports (HB01508)
and 2 end covers (HB01573)
1 kit • •
UL BUSBAR SUPPORT Holds the rigid copper busbars that span the enclosure width or
height in place. Systems can be mounted either horizontally or
vertically. These supports provide critical bracing against the
forces exerted upon the busbar structure in the event of a short
circuit condition. While typically mounted to the backpanel of the
enclosure, these supports can also be mounted on the frame or
support structure of a modular PROLINE™ enclosure system.
Each support can be adjusted to accommodate all six rectangular
standard sizes of rigid copper busbar.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01508 For busbars 12, 20, 30 x 5/10, 3-pole with internal screw holes 1 • •
BASE PLATE Serves as an insulator between the current-carrying parts of
the busbar structure and adaptor components and the metallic
backpanel of the enclosure. This component is required to satisfy
UL508 requirements for 2-in. over surface and 1-in. through-the-air
arcing distances defined under the UL standard.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01518 For UL Busbar Support
HB01508, HB01231, HB01232, 240 x 1100
1 • •
HB01515 For UL Busbar Support
HB01508, HB01231, HB01232, 240 x 700
1 • •
HB01231 and HB01232 do not require base plate for UL approval.
EARTH/NEUTRAL BUSBAR SUPPORTS These single-pole supports can accommodate all six rectangular
sizes of rigid copper busbar to be used for grounding purposes.
When mounted immediately below the three-pole support, the 60-
mm system spacing is maintained for a 4-pole system.
BULLETIN: HB2
Catalog Number Description Qty.
HB01601 For busbars 12, 20, 30 x 5/10 1-pole for mounting individually.
Includes earth and neutral labels.
1
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS5

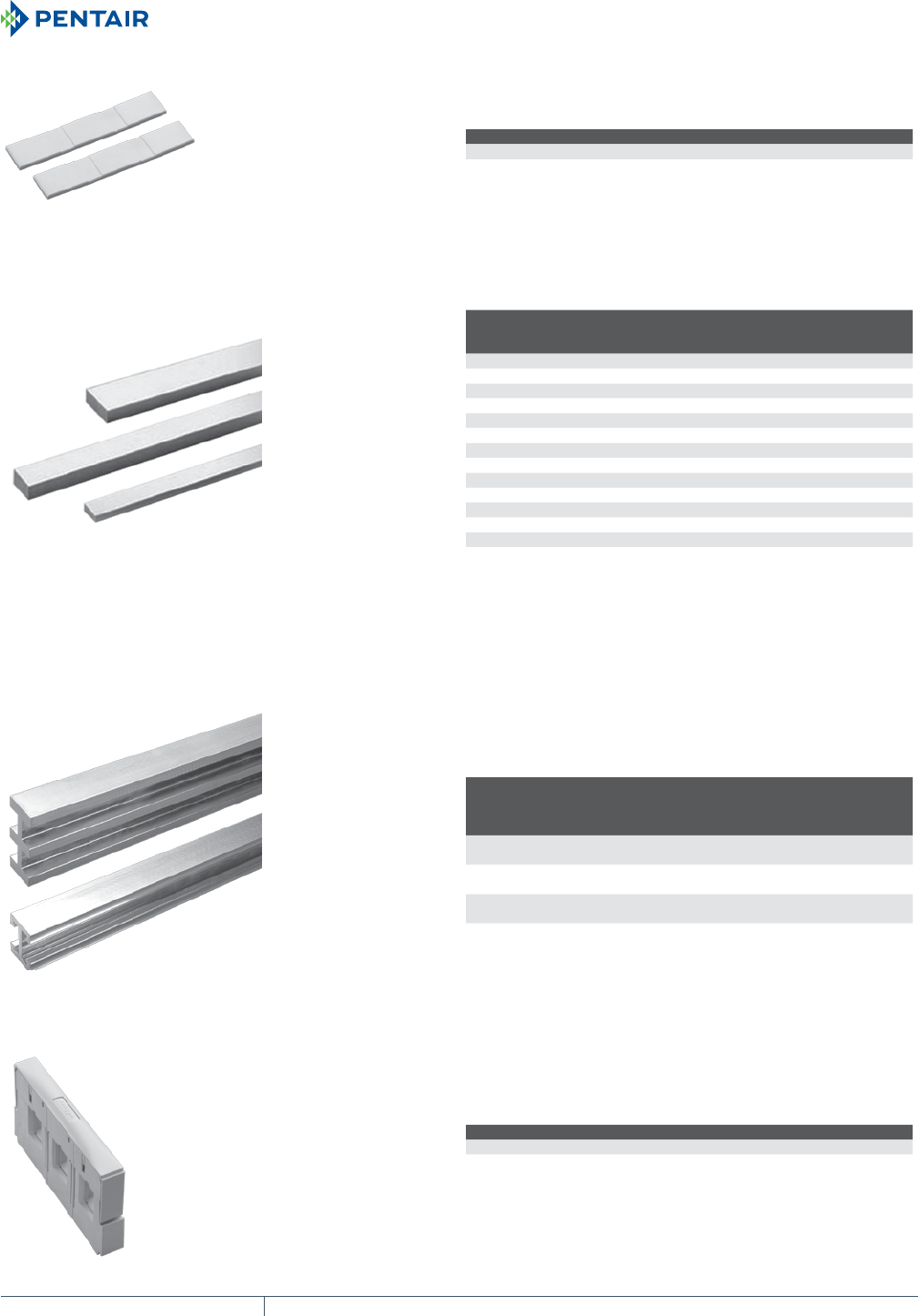

END COVER Insulates the ends of the three rigid copper busbars installed in the
HB01508 busbar support.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01573 End Cover 2 • •
STANDARD COPPER BUSBAR
Manufactured to strict engineering tolerances for the 60-mm
busbar system, all busbars are tin-plated copper for superior
corrosion resistance in harsh environments.
BULLETIN: HB1
Catalog Number
Description
mm/in.
Length
(m)
UL Current
Capacity
(max.)
IEC Current
Capacity (max.) Qty.aUL508 cUL
HB0161812 12 x 5 1.2 150 A 250 A 3 bar • •
HB01618 12 x 5 2.4 150 A 250 A 3 bar • •
HB0162012 20 x 5 1.2 362 A 400 A 3 bar • •
HB01620 20 x 5 2.4 362 A 400 A 3 bar • •
HB0162212 30 x 5 1.2 500 A 550 A 3 bar • •
HB01622 30 x 5 2.4 500 A 550 A 3 bar • •
HB0162312 12 x 10 1.2 300A 450A 3 bar • •
HB01623 12 x 10 2.4 300A 450A 3 bar • •
HB0162412 20 x 10 1.2 564A 630A 3 bar • •
HB01624 20 x 10 2.4 564A 630A 3 bar • •
HB0162512 30 x 10 1.2 756 A 800 A 3 bar • •
HB01625 30 x 10 2.4 756 A 800 A 3 bar • •
HBCUCUT --- Custom --- --- 3 bar
aTo order models in qty. 1 use catalog number with HBB prefix (i.e. HBB0161812, HBB01623)
STANDARD COPPER BUSBAR, FOR DOUBLET AND
TRIPLET BUSBAR SECTIONS
Use in higher-current applications between 756 A and 2,000 A
(please contact Hoffman regarding how to achieve 4,000 A). The
outer-most section of these symmetrical profile busbars are 30 x
10 mm. All 60-mm system components can be mounted on systems
using this busbar structure.
BULLETIN: HB1
Catalog Number Description Length (m)a
Cross
section
(mm2)
UL
Current
Capacity
(max.)
IEC
Current
Capacity
(max.) Qty. UL508 cUL
HB01609 Double-T busbar
section, tin plated
2.4 500 1200 A 1250 A 1 • •
HB01608 Double-T busbar
section, tin plated
2.4 720 1400 A 1600 A 1 • •
HB01187 Triple-T busbar
section, tin plated
2.4 1140 1800 Ab2500 A 1 • •
aShorter lengths available on request.
bUp to 2000 A within 800 mm of the power connection for HB01187

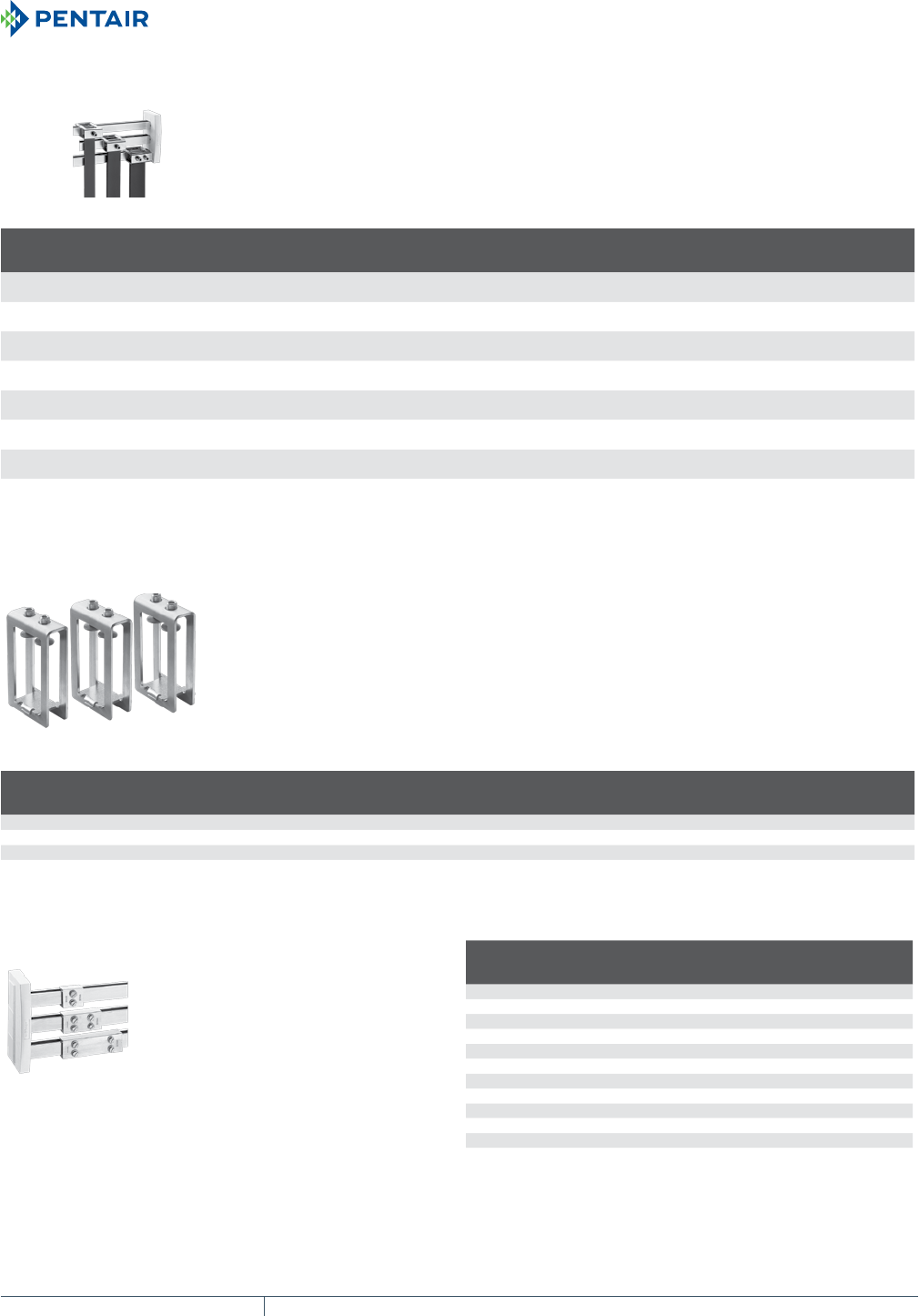

BUSBAR SUPPORT, FOR DOUBLET BUSBAR SECTIONS This busbar support is suitable for both the 500-mm2 and 720-mm2
Double-T profiles. Use to fasten the busbars to a backpanel or
modular enclosure system structure. The supports also serve as
bracing against the forces present during short circuit conditions.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01876 1-pole, without end cover 1 --- ---
HB01231 3-pole, without end cover 2 • •
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 6
BUSBAR SUPPORT, FOR TRIPLET BUSBAR SECTIONS Suitable for the 1140-mm2 Triple-T profile. Use to fasten the
busbars to a backpanel or modular enclosure system structure. The
supports also serve as bracing against the forces present during
short circuit conditions.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01232 3-pole, without end cover 2 • •
END COVER, FOR DOUBLET AND TRIPLET BUSBAR
SECTIONS
Insulates the ends of three rigid copper busbars installed in the
HB01231 and HB01232.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01234 For HB01231 and HB01232 2 • •

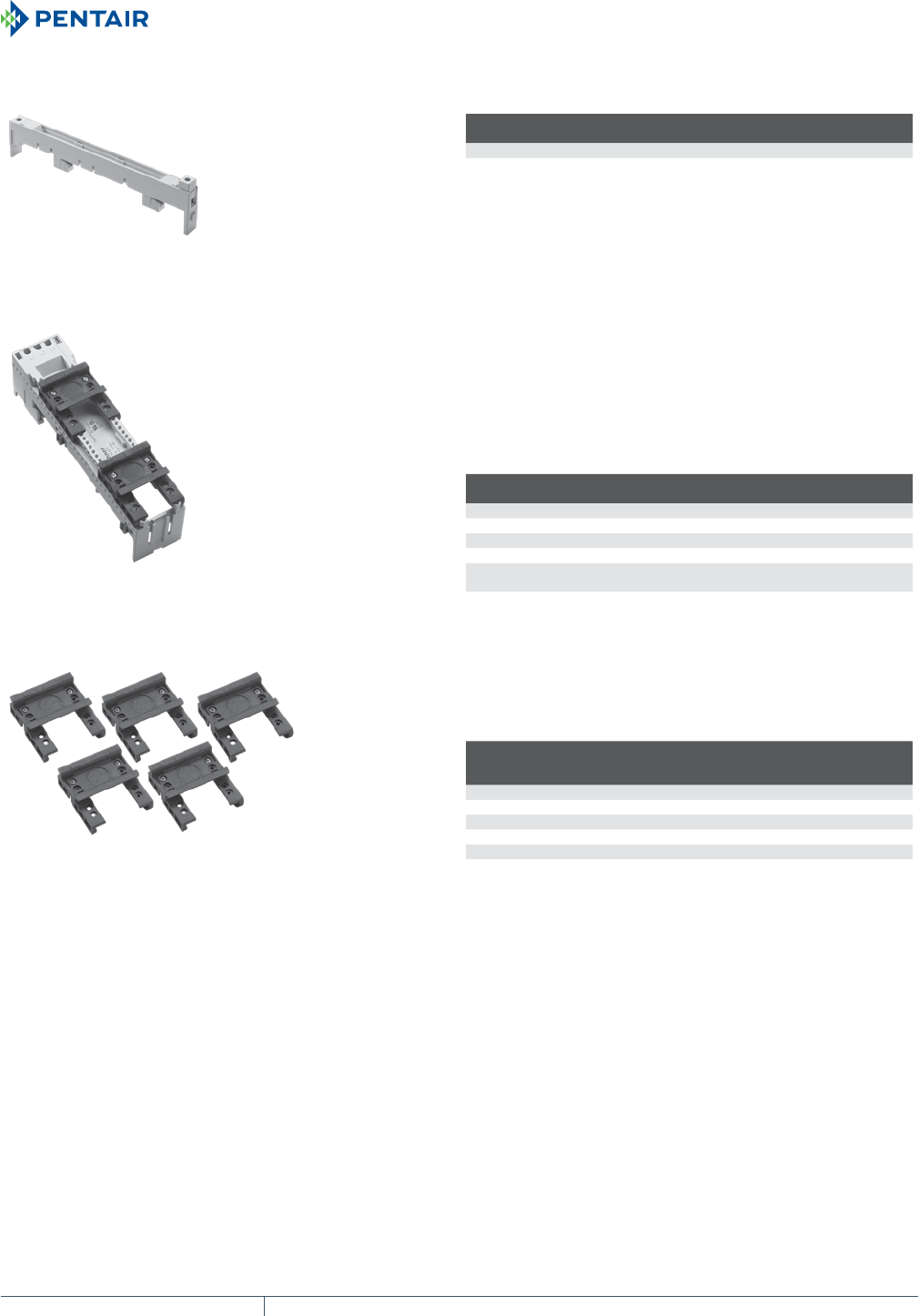

BUSBAR COVER, FOR INDIVIDUAL BUSBARS
(INDEPENDENT OF THE SYSTEM)
Plastic cover for standard busbar, 12 x 5 – 30 x 10, as well as
double-T and triple-T profile busbars. Provides touchsafe security
while covering unused sections of busbar that can be uncovered
during future system expansion.
BULLETIN: HB2
Catalog Number Description Length (m) Qty. UL508 cUL
HB01244 For 12 x 5 mm,
20 x 5 mm, 30 x 5 mm
1 2 • •
HB01245 For 30 x 10 mm 1 2 • •
HB01252 For Double-T and
Triple-T busbar sections
1 1 • •

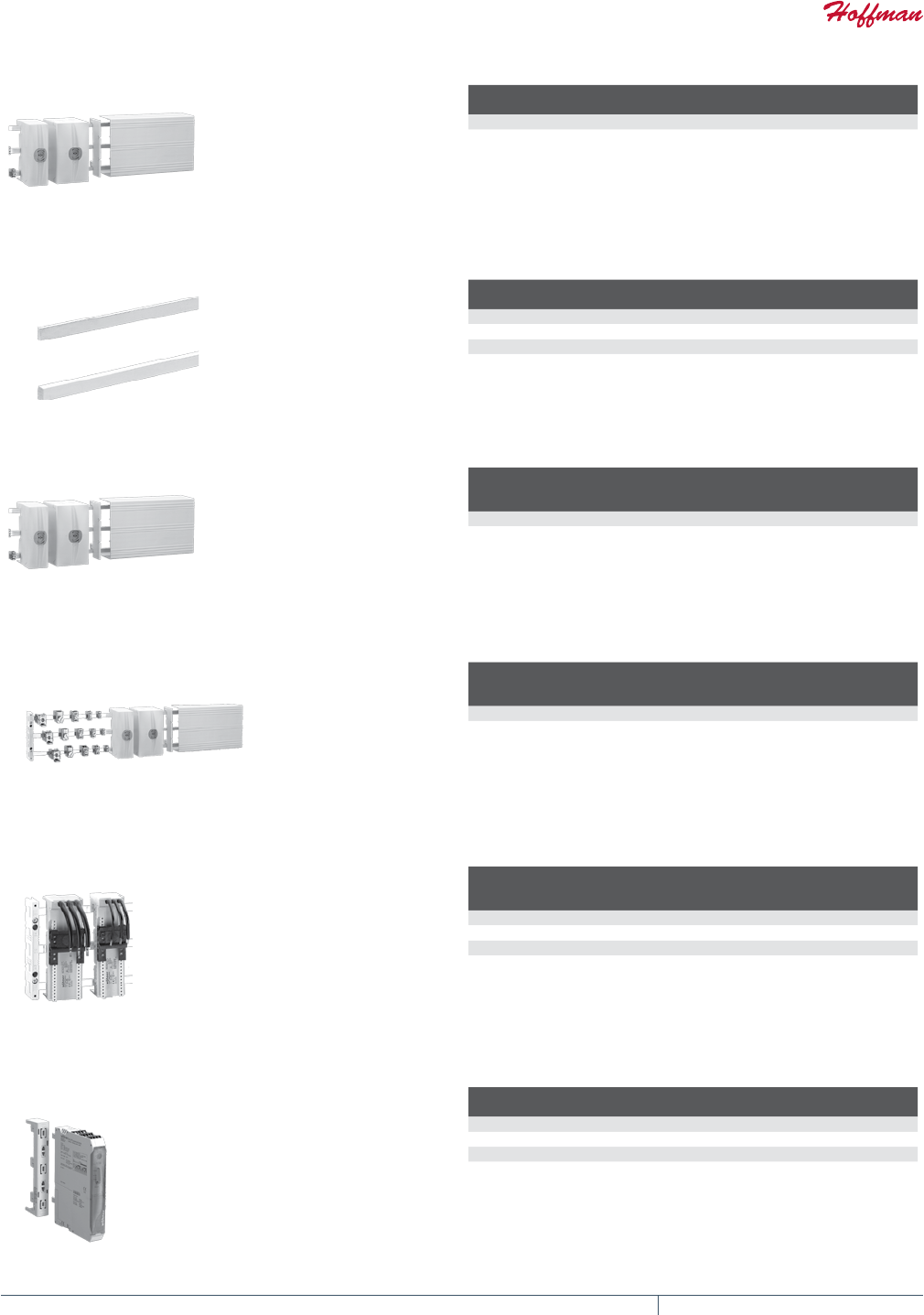

RESERVE SECTION COVER, 3POLE Use to provide touchsafe protection of all three bars of a 60-mm
system. Cover section is sold in 1100-mm lengths and can be cut to
length. Mounts on a set of plastic brackets that clip directly to the
busbar of your system.
BULLETIN: HB2
Catalog Number Description Length (mm) Qty. UL508 cUL
HB01025 Cover section.
Use only with HB01026.
700 1 • •
HB01026 Mount for cover
section HB01025
— 2 • •
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS7

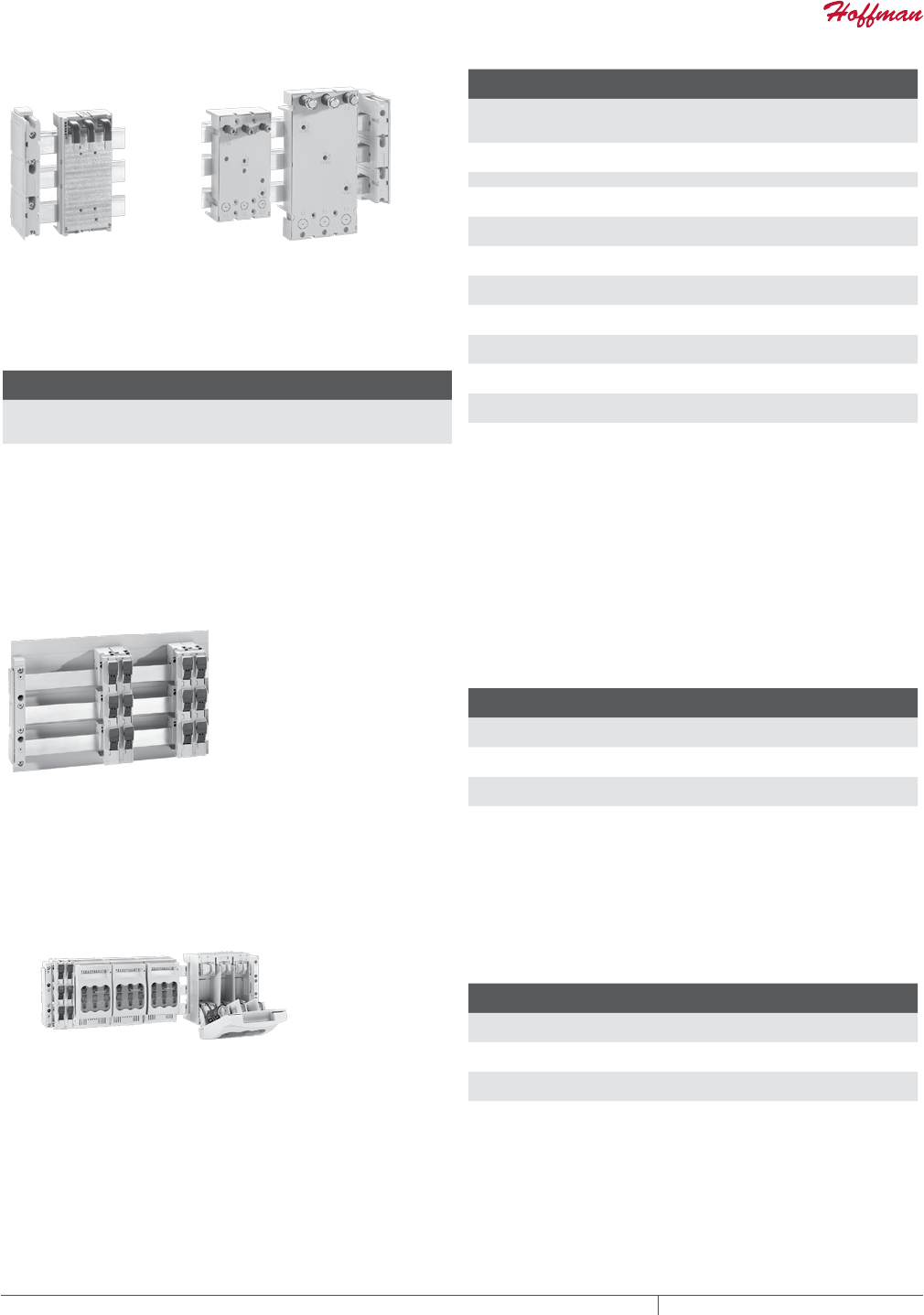

SYSTEM COVER, 3POLE The combination of these components provides touchsafe protection
over connection sets and terminals that mount on the face of
the busbar system. System cover provides space underneath to
accommodate these mounted components. Components need to be
cut to appropriate length.
BULLETIN: HB2
Catalog Number Description Length (mm) Qty. UL508 cUL
HB01554 Front cover section, 3-pole.
Use only with HB01136
1100 1 • •
HB01555 Top/bottom cover section.
Use only with HB01136 or HB01137
1100 1 • •
HB01136 Set of holders (left and right) for covers sections, 3P --- 1
COVER CAP, 3POLE Can also be used as reserve section cover. Use to cover most
connection sets.
BULLETIN: HB2
Catalog Number Description H x W (mm) Qty. UL508 cUL
HB01539 For 12 - 30 x 5/10, Double-T
and Triple-T busbar sections
180 x 200 x 90 1 • •
HB01596 For 30 x 5/10, Double-T
and Triple-T busbar sections
228 x 200 x 90 1 • •
HB01540 For 12 30 x 5/10, Double-T
and Triple-T busbar sections
250 x 200 x 90 1 • •
HB01756 For 12-30x5/10, Double-T and
Triple-T busbar sections
135 x 200 x 90 1 •
HB01757 For 12-30x5/10, Double-T and
Triple-T busbar sections
135 x 200 x 90 1 •
COMPARTMENT SECTION Provides additional depth to system covers and reserve section
covers that are mounted on Double-T and Triple-T profile busbars.
Sold in 1200-mm sections, they can be cut to length and mounted to
the support structure. Provide additional touchsafe protection and
prevent personnel from reaching behind the 3-pole covers where
they might come in contact with a live component.
BULLETIN: HB2
Catalog Number Description Length (m) Depth (mm) Qty.
HB0123612 For adjusting installation depth in
Double-T and Triple-T busbar sections
1.2 48 2
HB0123712 For adjusting installation depth in
Double-T and Triple-T busbar sections
1.2 76 2
CRITO® PROFILINER CONNECTION MODULE At 20-mm wide, this cage-clamp device is the narrowest connection
method available. Use to feed or draw up to 48 A (UL) or 80 A (IEC) of
power.
CRITO ProfiLiner is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description W x H (mm)
UL Current
Capacity (max.)
IEC Current
Capacity (max.) Qty. UL508 cUL
HB01563 AWG 16-4 20 x 200 48 A 80 A 1 • •
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 8

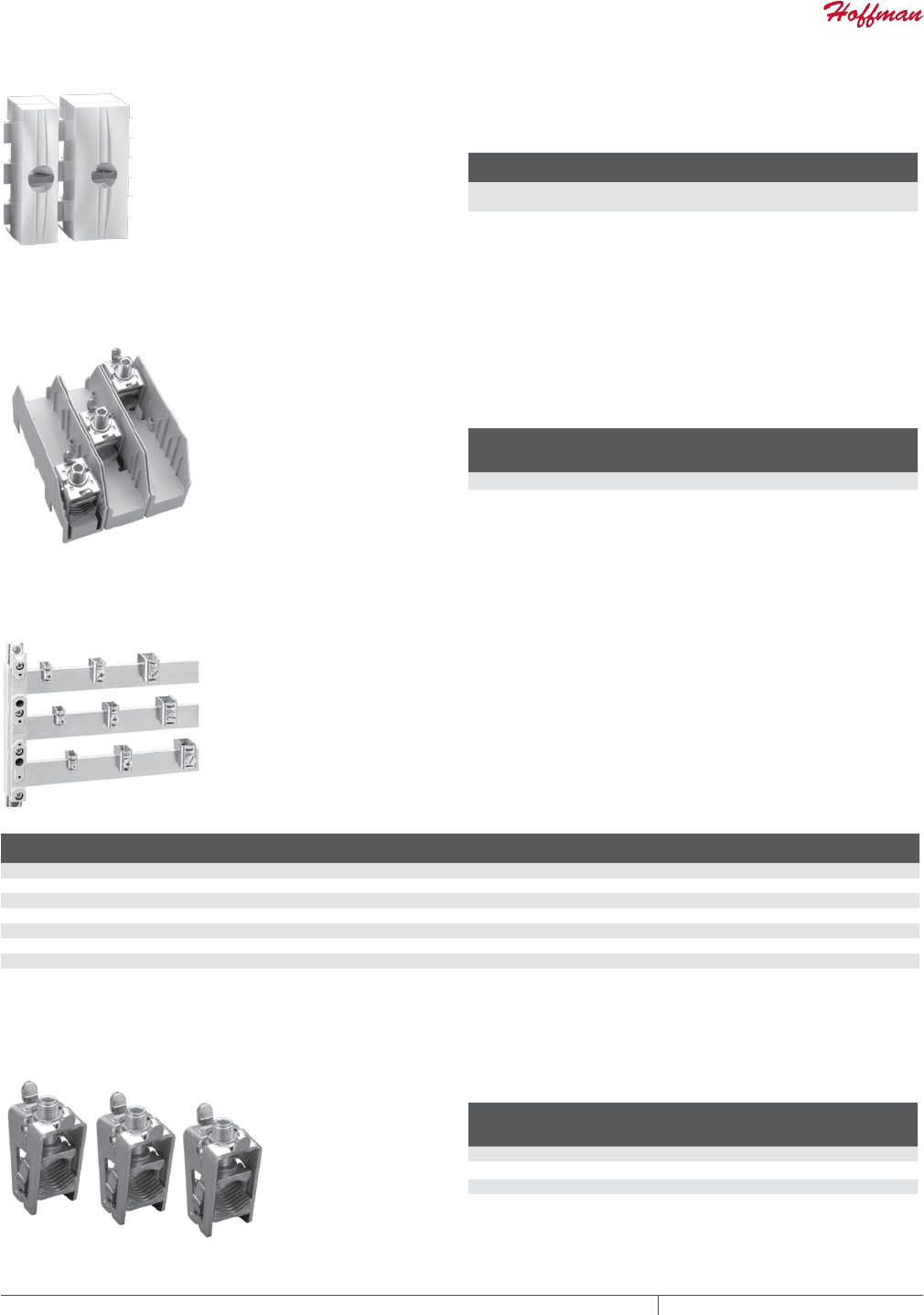

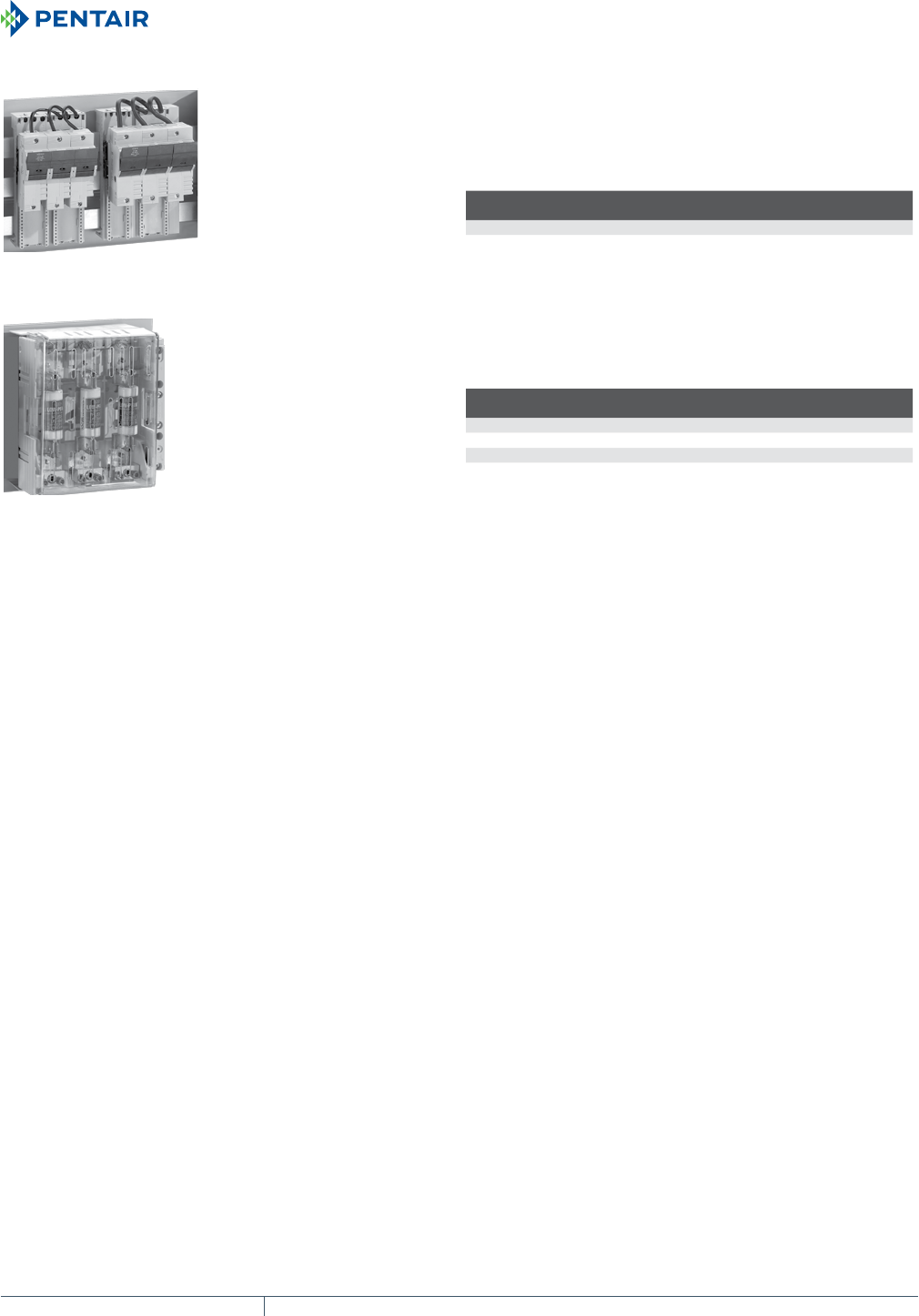

CONNECTING TERMINAL PLATE Use to connect round conductors or flat flexible conductors to
the busbar system and to feed or draw power to, from or between
lengths of busbar. Each terminal plate comes with a cover cap
providing finger-safe protection.
BULLETIN: HB2
Catalog Number Description W x H (mm)
Current
Capacity (max.) Qty. UL508 cUL
HB01240 AWG 10 – 1/0, s(r),
f, f+AE, la. Cu 6 x 9 x 0.8
54 x 200 300 A 1 • •
HB01243 AWG 2 – 250MCM, s(r),
f, f+AE, la. Cu 6 / 10 x 15.5 x 0.8
81 x 200 440 A 1 • •
CONNECTION SET, 3POLE Modular design allows phase connections to be spread out along
the busbar structure. Each phase conductor can be run parallel
from the upstream or downstream device. These connection sets do
not come with a cover cap – use Cover Cap or System Cover to gain
finger-safe protection.
BULLETIN: HB2
Catalog Number Description
Current
Capacity
(max.) Qty. UL508 cUL
HB01537 CU and Ala AWG 4/0 - 600MCM, s(r), s(s), f 560 A 1 • •
HB01538 Flat busbars up to 32 x 20 mm 800 A 1 • •
a Not maintenance-free when aluminum conductors are used.
Cover cap for HB01537 and HB01538 is HB01539 when the phase conductors are butted side-by-side (not
spaced apart).
UNIVERSAL CONDUCTOR TERMINAL Terminals for round American Wire Gauge (AWG) conductor are
used to either supply power to or draw power from the busbar
system. These parts must match the thickness of the busbar being
applied in your system. Cover caps are sold separately. Sold in sets
of three terminals.
BULLETIN: HB2
Catalog Number Description
Connection
AWG (min.-max.)
Terminal Space
H x W
Current
Capacity (max.) Qty. UL508 cUL
HB01284 5-mm flat busbars 16-6 7.5 x 7.5 (mm) 180 A 3 • •
HB01285 5-mm flat busbars 12-2 10.5 x 11 (mm) 270 A 3 • •
HB01287 5-mm flat busbars 6-2/0 14 x 14 (mm) 400 A 3 • •
HB01068 5-mm flat busbars 6-250 MCM 17 x 15 (mm) 440 A 3 • •
HB01289 10-mm flat busbars 16-6 7.5 x 7.5 (mm) 180 A 3 • •
HB01290 10-mm flat busbars 12-2 10.5 x 11 (mm) 270 A 3 • •
HB01292 10-mm Double-T and Triple-T busbar sections 6-2/0 14 x 14 (mm) 400 A 3 • •
HB01203 10-mm Double-T and Triple-T busbar sections 6-250 MCM 17 x 15 (mm) 440 A 3 • •
Meets UL508 when properly installed.

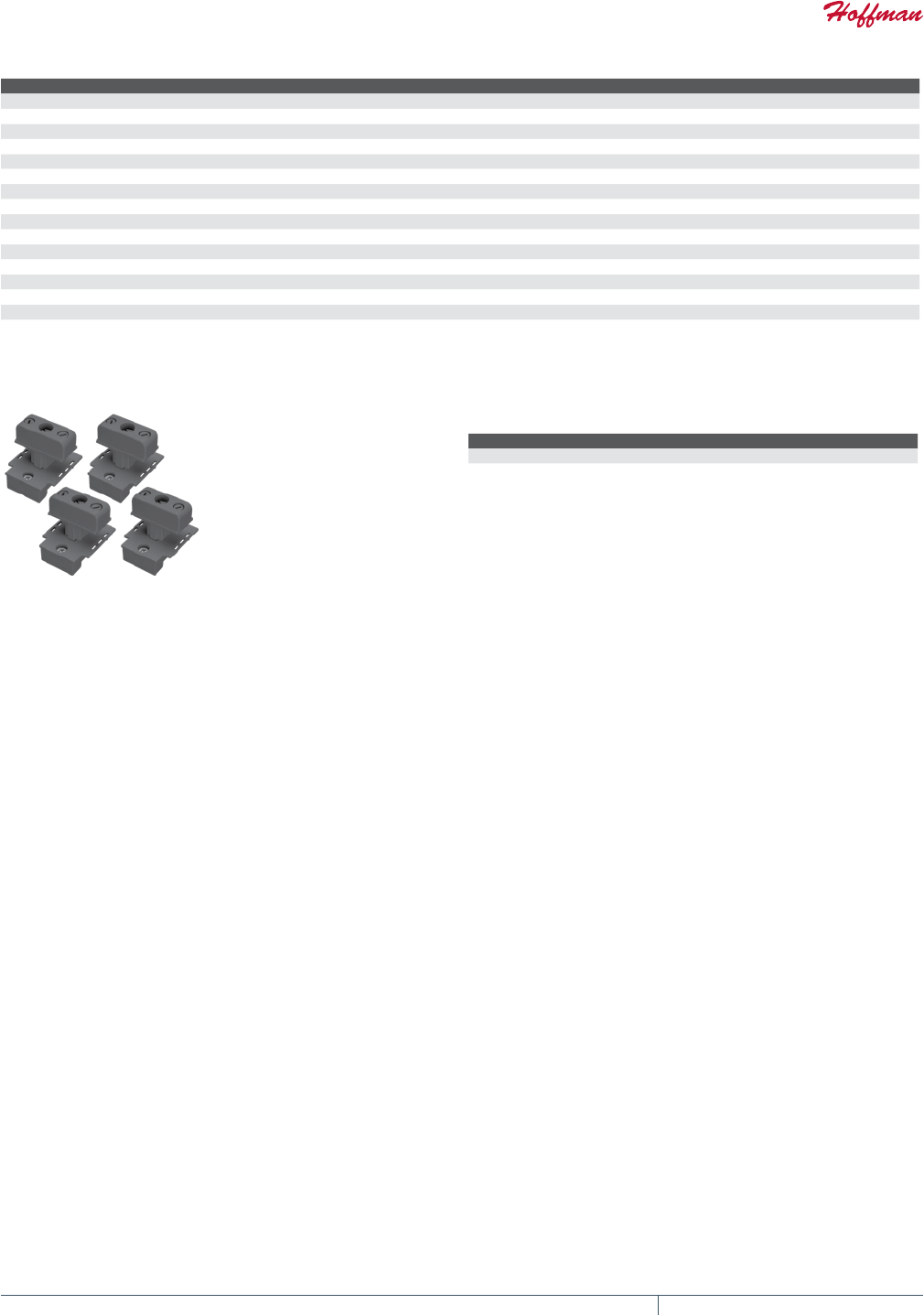

CRITO® PROFICLIP, BRACE TERMINALS
20 x 5 – 30 x 10, Double-T and Triple-T
CRITO ProfiClip is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description
Current
Capacity
(max.) Qty. UL508 cUL
HB01319 For flat busbars up to 30 mm x 20 mm 750 A 3 • •
HB01318 Cu and Ala AWG 3/0 - 350 MCM 500 A 3 • •
HB01759 For flat busbars up to 32 mm x 20 mm 800 A 3 • •
HB01760 Cu and Ala AWG 3/0 - 350 MCM600 A 600 A 3 • •
a Not maintenance-free when aluminum conductors are used.
Meets UL508 when properly installed.
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS9
PROFILE TERMINAL, FOR DOUBLET BUSBAR
SECTIONS
Terminals for insulated flat flexible busbar used to either supply
power to or draw power from the busbar system. Cover caps are
sold separately. Sold in sets of three terminals.
BULLETIN: HB2
Catalog Number Description
Connection
Cross Section
(sq. mm)
Terminal
Space
W x H (mm)
Current
Capacity
(max.) Qty. UL508 cUL
HB01185 For connecting flat busbars
and flexible copper busbars
320–800 41 x 20 – 42 1600 A 3 • •
HB01906 For connecting flat busbars
and flexible copper busbars
500–750 51 x 5 – 28 1600 A 3 • •
HB01907 For connecting flat busbars
and flexible copper busbars
600–900 64 x 5 – 28 1600 A 3 • •
HB01936 For connecting flat busbars
and flexible copper busbars
500–1000 51 x 20 – 42 1600 A/2000 A 3 • •
HB01911 For connecting flat busbars
and flexible copper busbars
600–1200 64 x 20 – 42 1600 A/2000 A 3 • •
HB01934 For connecting flat busbars
and flexible copper busbars
800–1600 81 x 20 – 42 1600 A/2500 A 3 • •
HB01935 For connecting flat busbars
and flexible copper busbars
1000–2000 101 x 20 – 42 1600 A/2800 A 3 • •
HB01936, HB01911, HB01934, HB01935: current capacity for center feeding
Meets UL508 when properly installed.

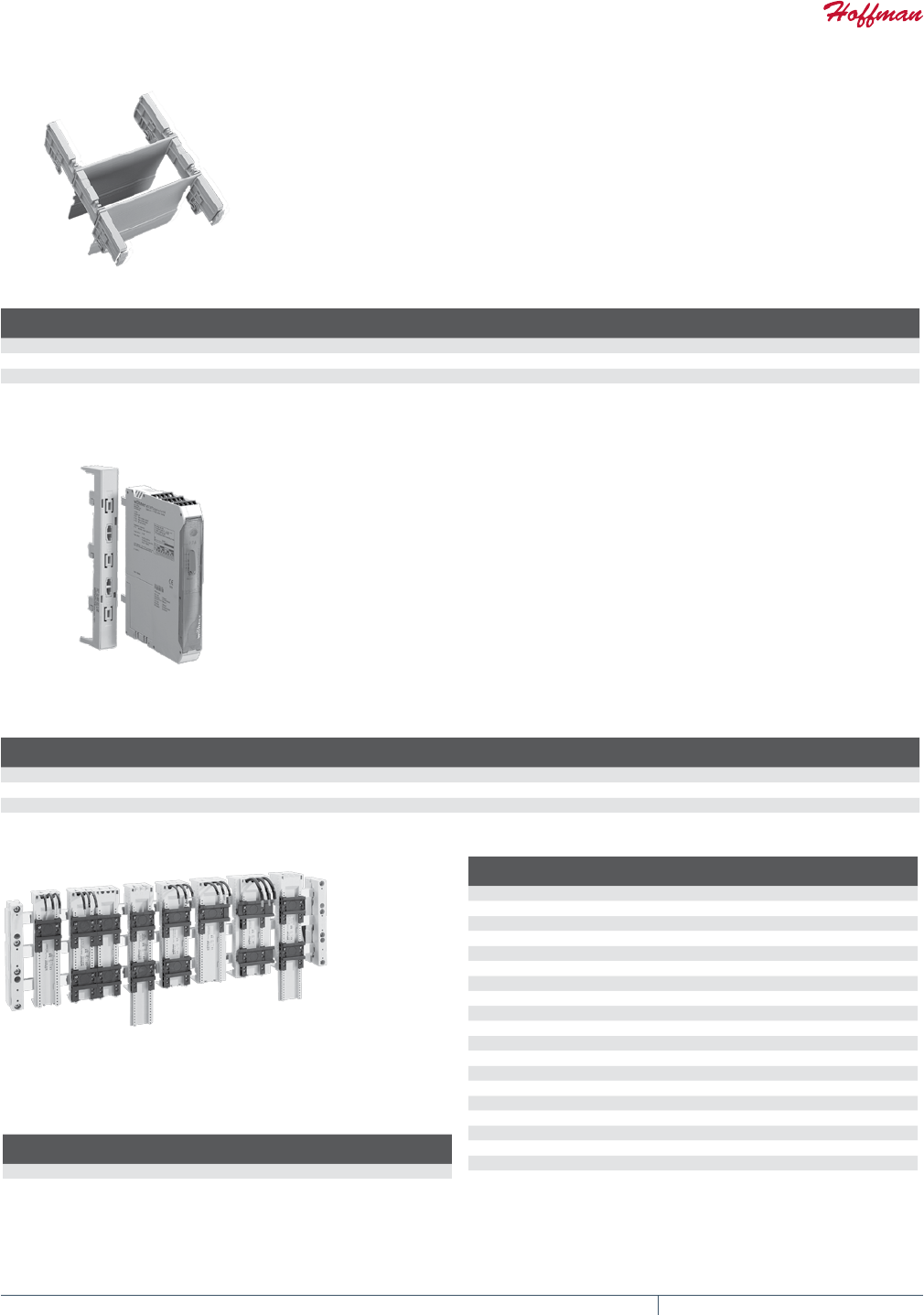

PROFILE TERMINAL, FOR TRIPLET BUSBAR SECTIONS Terminals for insulated flat flexible busbar used to either supply
power to or draw power from the busbar system. Cover caps are
sold separately. Sold in sets of three terminals.
BULLETIN: HB2
Catalog Number Description
Connection
Cross
Section (mm)
Terminal
Space
W x H (mm)
Current
Capacity
(max.) Qty. UL508 cUL
HB01513 For Triple-T busbar sections 320–860 41 x 23 – 45 1600 A 3 • •
HB01008 For Triple-T busbar sections 500–1260 64 x 23 – 45 2500 A 3 • •
HB01186 For Triple-T busbar sections 1200–3600 101 x 23 – 45 3200 A 3 • •
Meets UL508A when properly installed.
BUSBAR CONNECTOR, FOR SAMESIZE BUSBARS
Use to extend busbar lengths or to install a shipping split in a
modular enclosure assembly.
BULLETIN: HB2
Catalog Number Description
Length
(mm)
System
Spacing
(mm)
Current
Capacity
(max.) Qty. UL508acUL
HB01166 12 – 20 X 5 / 10 55 5 – 10 630 A 3 — —
HB01193 12 – 20 X 5 / 10 150 100 – 110 630 A 3 — —
HB01990 20 – 30 X 5 / 10 40 9 – 20 630 A 3 — —
HB01823 20 – 30 X 5 / 10 40 13 – 20 630 A 3 — —
HB01141 20 – 30 X 5 / 10 95 50 – 60 630 A 3 — —
HB01886 20 – 30 X 5 / 10 150 100 – 110 630 A 3 — —
HB01827 Double-T Section 50 9 – 20 1600 A 3 — —
HB01145 Double-T Section 95 50 – 60 1600 A 3 — —
HB01829 Double-T Section 150 100 – 110 1600 A 3 — —
HB01274 Triple-T Section 95 50 – 60 2500 A 3 — —
HB01275 Triple-T Section 150 100 – 110 2500 A 3 — —
aMeets UL508 requirements when phase separators are installed.
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 10
PHASE SEPARATORS, FOR UL INSTALLATION OF ENDTOEND BUSBAR CONNECTION, 3POLE
Satisfy the through-air arcing distances of the UL508 standard
when using end-to-end bubsar connectors, for the same-size
busbars.
BULLETIN: HB2
Catalog Number
Width
mm/in. For Use With Qty. UL508 cUL
HB01360 105 HB01166, HB01990, HB01823, HB01827 1 • •
HB01361 145 HB01141, HB01145, HB01274 1 • •
HB01362 200 HB01193, HB01886, HB01829, HB01275 1 • •
MOTUS® CONTACTRONCONTROL, HYBRID MOTOR STARTER FOR 60MM SYSTEM CLASSIC
Woehner USA’s hybrid motor starter, MOTUS® ContactronControl
offers system designers space and labor savings by making up
to 75% more space available on a busbar system compared to
conventional starter combinations. It delivers versatile, reliable and
long-lasting motor control with a product lifespan 10 times longer
than conventional contactors.
MOTUS® ContactronControl is a trademark of Wöhner GmbH & Co. KG
BULLETIN: HB2
Catalog Number Description
Width
mm/in.
Rated Current/
Rated Voltage Qty. UL508
HB36102 Version 0.075 - 0.6A 22.5 0.6A/480V 1 •
HB36105 Version 0.18 – 2.4A 22.5 2.4A/480V 1 •
HB36108 Version 1.5 – 9.0A 22.5 9A/480V 1 •
EQUES® EASYCONNECTOR, BUSBAR ADAPTER
DIN rail adapters for components that have symmetrical DIN
rail mounting provision. Additional DIN rails can be added to the
adapter.
EQUES EasyConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description
Adapter
W x L (mm) Current Leads Qty. UL508 cUL
HB32430 1 mounting rail 45 x 200 25 A 12 AWG 1 • •
HB32431 2 mounting rails 45 x 200 25 A 12 AWG 1 • •
Catalog Number Description
Adapter
W x L (mm) Current Leads Qty. UL508 cUL
HB32432 2 mounting rails 90 x 200 25 A 12 AWG 1 • •
HB32433 2 mounting rails 45 x 260 25 A 12 AWG 1 • •
HB32436 2 mounting rails 45 x 200 25 A 10 AWG 1 • •
HB32439 2 mounting rails 45 x 260 25 A 10 AWG 1 • •
HB32441 1 mounting rail 54 x 200 32 A 10 AWG 1 • •
HB32442 2 mounting rails 54 x 200 32 A 10 AWG 1 • •
HB32443 1 mounting rail 63 x 200 32 A 10 AWG 1 • •
HB32444 1 mounting rail 72 x 200 32 A 10 AWG 1 • •
HB32446 2 mounting rails 81 x 200 32 A 10 AWG 1 • •
HB32449 2 mounting rails 54 x 260 32 A 10 AWG 1 • •
HB32454 1 mounting rail 54 x 200 63 A 8 AWG 1 • •
HB32455 2 mounting rails 54 x 200 63 A 8 AWG 1 • •
HB32456 1 mounting rail 63 x 200 63 A 8 AWG 1 • •
HB32457 1 mounting rail 72 x 200 63 A 8 AWG 1 • •
HB32459 2 mounting rails 81 x 200 63 A 8 AWG 1 • •
HB32461 2 mounting rails 54 x 260 63 A 8 AWG 1 • •
HB32466 1 mounting rail 54 x 200 80 A 6 AWG 1 • •
HB32467 2 mounting rails 54 x 200 80 A 6 AWG 1 • •
HB32469 1 mounting rail 72 x 200 80 A 6 AWG 1 • •
HB32472 2 mounting rails 54 x 260 80 A 6 AWG 1 • •
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS11
EARTH/NEUTRAL ADAPTER MODULE, WITH 6 AWG
TERMINALS, TOP AND BOTTOM
Earth or neutral terminal connection for the busbar system.
BULLETIN: HB2
Catalog Number Description
Adapter
W x L (mm) Qty. UL508
HB32146 For EEC adapters, connectable on both sides 18 x 260 1 •
EQUES® EASYCONNECTOR EMPTY DIN rail adapters for components that have a 35-mm symmetrical
DIN rail mounting provision. Available in 45-mm or 54-mm widths
and 200-mm or 260-mm heights with one or two DIN rails. Most
commonly used to add width to a powered EQUES EasyConnector
for reversing contactor applications or to mount other components
that are wider than 81 mm. The side-mounted module adds width to
any adapter in 9-mm increments and maintains the IP20 fingersafe
design of the busbar system.
EQUES EasyConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description
Adapter
W x L (mm) Qty. UL508 cUL
HB32477 Universal 45 x 200 1 • •
HB32478 Universal 54 x 200 1 • •
HB32484 Universal 45 x 260 1 • •
HB32485 Universal 54 x 260 1 • •
HB32963 Side-mounted module,
connectable on both sides
9 x 200 5 — —
EQUES® TECHNOLOGY ACCESSORIES Additional DIN mounting rails for EQUES EasyConnectors.
Connecting elements are used to fasten adjacent EQUES
EasyConnectors, 9-mm extenders and mounting rails.
EQUES EasyConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description
Adapter
Width
(mm) Qty. UL508 cUL
HB32948 Mounting Rail 54 10 • •
HB32949 Mounting Rail 63 10 • •
HB32950 Mounting Rail 72 10 • •
HB32951 Mounting Rail 81 10 • •
HB32954 Connecting Element 45 50 • •
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 12
EQUES® POWERCONNECTOR, BUSBAR ADAPTER
Adapters configured specifically for many of the industry’s leading
molded-case circuit breakers. The hole pattern for the mounting
screws, pitch and length of the terminal connections are specific to
the breaker they are designed to mount.
EQUES PowerConnector is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description
Adapter
W x L
Terminal
Pitch Qty. UL508 cUL
HB32571 125 A for Eaton
Cutler-Hammer
EG & H, bottom feed
90 x 200 mm 23-30 mm 1 • •
HB32577 125 A for Eaton
Cutler-Hammer E G & H
90 x 200 mm 23-30 mm 1 • •
Catalog Number Description
Adapter
W x L
Terminal
Pitch Qty. UL508 cUL
HB32575 160 A for ABB T-max 1,
T-max 2, GE FD160,
Merlin Gerin NS80
90 x 200 mm 23-30 mm 1 • •
HB32549 125 A for Allen-Bradley
140-CMN
90 x 200 mm 23-30 mm 1 • •
HB32570 160 A for Moeller NZM1 90 x 200 mm 23-30 mm 1 • •
HB32137 250 A for Allen-Bradley
140 U-J
106 x 192 mm 35-36 mm 1 • •
HB32156 250 A for Merlin Gerin
NS100, NS250, GE FD250
106 x 192 mm 35-36 mm 1 • •
HB32140 250 A for Moeller
NZM2-XKR4
106 x 192 mm 35-36 mm 1 • •
HB32976 160 A for Siemens
3VL1 UL
106 x 192 mm 35-36 mm 1 • •
HB32977 250 A for Siemens
3VL2, 3VL3 UL
106 x 192 mm 35-36 mm 1 • •
HB32138 600 A for Allen-Bradley
140 U-L
140 x 272 mm 43-45 mm 1 • •
HB32157 570 A for Merlin Gerin
NS400, NS630
140 x 272 mm 43-45 mm 1 • •
HB32170 550 A for Moeller
NZM3-XKR13O
140 x 272 mm 43-45 mm 1 • •
HB32975 400 A for Siemens 3VL4 140 x 295 mm 43-45 mm 1 • •
AMBUS® EASYLINER, BUSMOUNTING FUSE HOLDER,
3POLE, 3POLE ISOLATION
Busbar-mounted 3-pole fuse holder for UL recognized midget (10 x
38 mm) and UL Listed Class CC fuses. Holders are offered with or
without open fuse indication. In indication units, the LED indicator
lamp will glow when the fuse is open. At 27 mm wide, the AMBUS
EasyLine is half the width of traditional 3-phase holders of the same
class. Indicator units operate at voltages between 110 and 690 V.
AMBUS EasyLiner is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description
Rated Current/
Rated Voltage Qty. UL4248 cUL
HB31954 For 10 x 38 mm cylindrical
fuses IEC-EN 60 269-2-1
32 A / 690 V 1 • •
HB31955 For 10 x 38 mm cylindrical
fuses IEC-EN 60 269-2-1, with LED
32 A / 690 V 1 • •
HB31958 For Class CC, cylindrical
fuses UL 248-4
30 A / 600 V 1 • •
HB31959 For Class CC, cylindrical
fuses UL 248-4, with LED
30 A / 600 V 1 • •
QUADRON® CROSSLINK CARRIER CLASS J,
CONNECTION BOTTOM OR TOP
The QUADRON® CrossLink Carrier Class J fuse holder allows 30,
60, 100 and 200 amp 3-phase fuse holders to be mounted directly
to the 60mm classic busbar structure. The cover design provides
touch-safety and allows for quick fuse change-out with its integral
puller. Easily reversible connection on bottom, top or 3-pole busbar
sections.
QUADRON® CrossLink Carrier is a trademark of Wöhner GmbH & Co.
KG
BULLETIN: HB2
Catalog Number Description
Width
mm/in.
Rated Current/
Rated Voltage Qty. UL508 cUL
HB33421 For Class J,
30A frame size
106 30A/600V 1 • •
HB33422 For Class J,
60A frame size
106 60A/600V 1 • •
HB33402 For Class J,
100A frame size
106 100A/600V 1 • •
HB33403 For Class J,
200A frame size
106 200A/600V 1 • •
BUSBAR DISTRIBUTION SYSTEM 60-mm system ClassiC
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS13
QUADRON® JCARRIER Busbar mounted 3-pole fuse holder for UL Listed Class J 30 and 60
A ferrule size fuses. Holders are offered with or without open fuse
indication. In indication units, the LED indicator lamp will glow when
the fuse is open. Indicator units operate at voltages between 110 and
600 V. Complete solution on busbar adaptor, 3-pole for all busbars.
QUADRON J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number
Description
(mm)
Width
(mm)
Rated Current/
Rated Voltage Qty. UL508 cUL
HB31968 Class J, 21 x 57, with LED 108 30 A / 600 V 1 • •
HB31970 Class J, 27 x 60, with LED 126 60 A / 600 V 1 • •
QUADRON® JCARRIER, CONNECTION BOTTOM OR TOP Blade size Class J bus-mounting fuse holders in 100 A, 200 A and
400 A frame sizes. Connection on bottom or top, 3-pole, 30 x 10,
Double-T and Triple-T busbar sections.
QUADRON J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number
Description
(mm)
Width
(mm)
Rated Current/
Rated Voltage Qty. UL4248 cUL
HB33309 Class J, 29 x 117 184 100 A / 600 V 1 • •
HB33310 Class J, 41 x 146 210 200 A / 600 V 1 • •
HB33311 Class J, 54 x 181 256 400 A / 600 V 1 • •
BUSBAR DISTRIBUTION SYSTEM 60mm-system CompaCt
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 14
60MM-SYSTEM COMPACT
BUSBAR SUPPORT AND BASE PLATE BULLETIN: HB2
Catalog Number Description
Width (x
Height mm) Qty. UL508 cUL
HB01272 Compact Busbar Support 12.5 x 156 1 • •
HB01371 Compact Base Plate 160 x 700 1 • •
STANDARD COPPER BUSBAR BULLETIN: HB1
Catalog Number Description
Dims
mm/in. Current Rating QtyaUL508 cUL
HB01618 Tin plated, Cu Busbar, 2.4m 12x5 150A 1 • •
HB0161812 Tin plated, Cu Busbar, 1.2m 12x5 150A 1 • •
HB01623 Tin plated, Cu Busbar, 2.4m 12x10 300A 1 • •
HB0162312 Tin plated, Cu Busbar, 1.2m 12x10 300A 1 • •
aTo order models in qty. 1 use catalog number with HBB prefix (i.e. HBB0161812, HBB01623)
RESERVE SECTION COVER, 3POLE BULLETIN: HB2
Catalog Number Description
Width x
Height
mm/in. Qty. UL508 cUL
HB01314 Cover Section 700 x 160 1 • •
HB01317 Mount for Cover Section 5 x 156 2 • •
CONNECTING TERMINAL PLATE BULLETIN: HB2
Catalog Number Description
Width x
Height
mm/in.
Rated Current/
Rated
Voltage Qty. UL508 cUL
HB01401 Compact Connection Set 54 x 160 300A/600V 1 • •
HB01165 Compact Connection Set 90 x 160 480A/600V 1 • •
EQUES EASYCONNECTORS, SYSTEM COMPACT BULLETIN: HB2
Catalog Number Description
Width x
Height
mm/in.
Rated Current/
Rated
Voltage Qty UL508 cUL
HB32590 32A, 1 mounting rail 45x160 32A/60V 1 • •
HB32591 63A, 1 mounting rail 54x160 63A/600V 1 • •
HB32912 9mm side-mount module 9x160 --- 5 • •
MOTUS CONTACTRONCONTROL, HYBRID MOTOR
STARTER FOR 60MM SYSTEM COMPACT
BULLETIN: HB2
Catalog Number Description
Width
mm/in.
Rated Current/
Rated Voltage Qty UL508
HB36101 Version 0.075 - 0.6a 22.5 0.6A/480V 1 •
HB36104 Version 0.18 - 2.4A 22.5 2.4A/480V 1 •
HB36107 Version 1.5 - 9.0A 22.5 9A/480V 1 •
BUSBAR DISTRIBUTION SYSTEM insulated FlexiBle BusBar
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS15

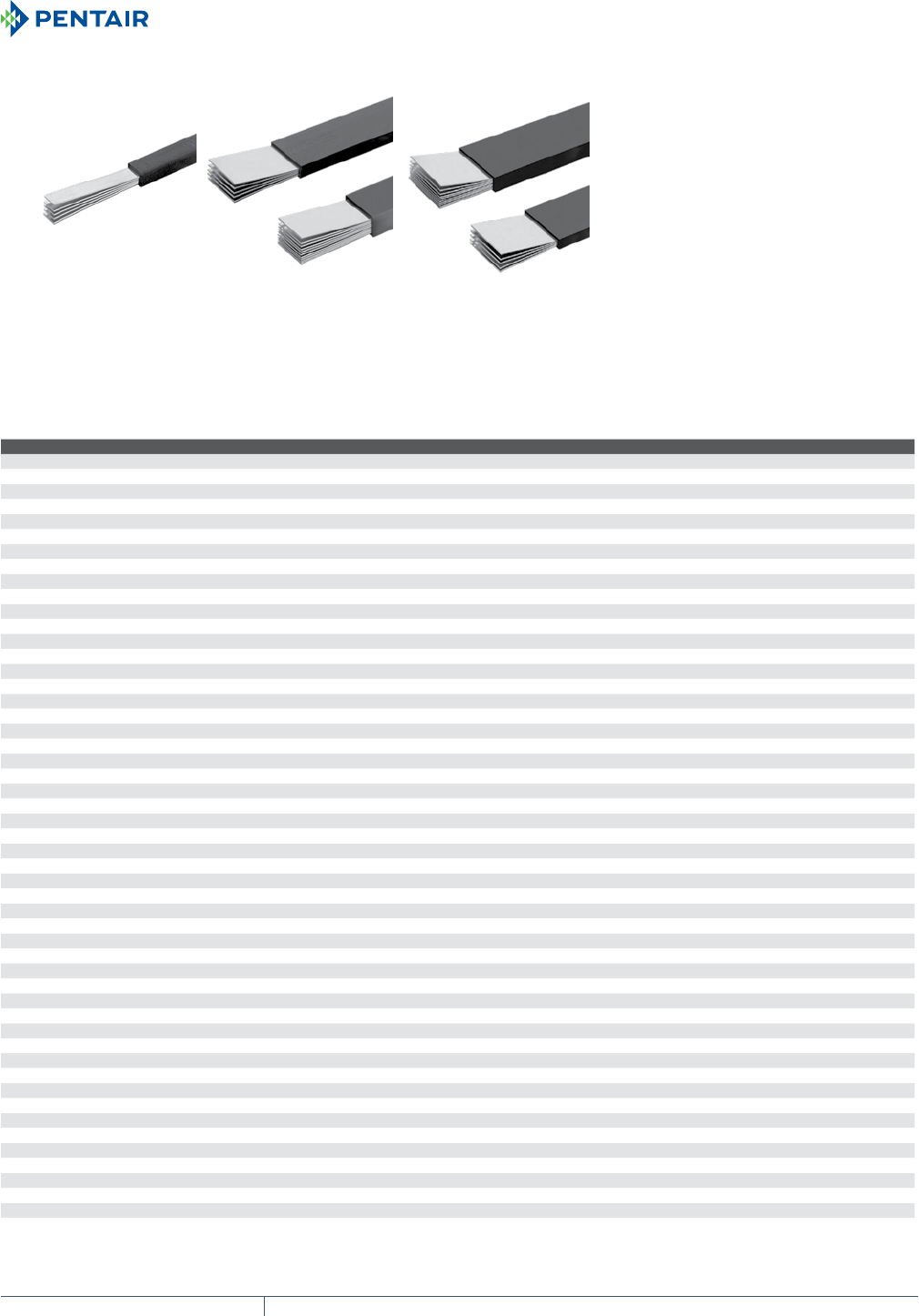

INSULATED FLE XIBLE BUSBAR
FLEXIBLE BUSBARS, CU TINNED, INSULATED
APPLICATION
Flat, flexible busbar complements the space-saving nature of the
60-mm busbar system. Unlike traditional round conductors, flexible
busbar can be folded and shaped without regard to AWG bending
radius issues. Choose connection sets that are designed to accept
flexible busbar, or drill the flex for use with a stud connection (on
your breaker, VFD, SCR or other system component.)
BULLETIN: HB1
Standard Product 3-M Long
Catalog Number Description (mm) Rated Current at 75 C Cross Section (sq. mm) Qty.
HB01083100 3 x 9 x 0.8 141 A 21.6 1
HB01084100 6 x 9 x 0.8 210 A 43.2 1
HB01146100 6 x 13 x 0.5 207 A 39 1
HB01089100 4 x 15.5 x 0.8 244 A 49.6 1
HB01090100 6 x 15.5 x 0.8 306 A 74.4 1
HB01091100 10 x 15.5 x 0.8 411 A 124 1
HB01446100 2 x 20 x 1 230 A 40 1
HB01062100 3 x 20 x 1 286 A 60 1
HB01447100 4 x 20 x 1 334 A 80 1
HB01448100 5 x 20 x 1 377 A 100 1
HB01063100 6 x 20 x 1 418 A 120 1
HB01449100 8 x 20 x 1 492 A 160 1
HB01064100 10 x 20 x 1 560 A 200 1
HB01450100 2 x 24 x 1 265 A 48 1
HB01451100 3 x 24 x 1 329 A 72 1
HB01452100 4 x 24 x 1 383 A 96 1
HB01075100 5 x 24 x 1 433 A 120 1
HB01453100 6 x 24 x 1 479 A 144 1
HB01076100 10 x 24 x 1 637 A 240 1
HB01454100 2 x 32 x 1 334 A 64 1
HB01455100 3 x 32 x 1 413 A 96 1
HB01456100 4 x 32 x 1 480 A 128 1
HB01095100 5 x 32 x 1 540 A 160 1
HB01457100 6 x 32 x 1 596 A 192 1
HB01458100 8 x 32 x 1 695 A 256 1
HB01096100 10 x 32 x 1 783 A 320 1
HB01459100 3 x 40 x 1 494 A 120 1
HB01460100 4 x 40 x 1 574 A 160 1
HB01097100 5 x 40 x 1 644 A 200 1
HB01461100 6 x 40 x 1 708 A 240 1
HB01462100 8 x 40 x 1 822 A 320 1
HB01099100 10 x 40 x 1 922 A 400 1
HB01463100 3 x 50 x 1 594 A 150 1
HB01464100 4 x 50 x 1 688 A 200 1
HB01112100 5 x 50 x 1 770 A 250 1
HB01465100 6 x 50 x 1 844 A 300 1
HB01466100 8 x 50 x 1 975 A 400 1
HB01113100 10 x 50 x 1 1089 A 500 1
HB01467100 4 x 63 x 1 832 A 252 1
HB01468100 5 x 63 x 1 929 A 315 1
HB01469100 6 x 63 x 1 1015 A 378 1
HB01123100 10 63 x 1 1296 A 630 1
HB01470100 4 x 80 x 1 1014 A 320 1
HB01471100 5 x 80 x 1 1128 A 400 1
HB01472100 6 x 80 x 1 1229 A 480 1
HB01473100 10 x 80 x 1 1556 A 800 1
HB01474100 4 x 100 x 1 1220 A 400 1
HB01475100 5 x 100 x 1 1354 A 500 1
HB01476100 60 x 100 x 1 1471 A 600 1
HB01477100 8 x 100 x 1 1674 A 800 1
HB01478100 10 x 100 x 1 1848 A 1000 1
BUSBAR DISTRIBUTION SYSTEM insulated FlexiBle BusBar
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 16
Standard Product 2 - M Long
Catalog Number Description (mm) Rated Current at 75 C Cross Section (sq. mm) Qty.
HB01084 6 x 9 x 0.8 210 A 43.2 1
HB01146 6 x 13 x 0.5 207 A 39.0 1
HB01089 4 x 15.5 x 0.8 244 A 49.6 1
HB01090 6 x 15.5 x 0.8 306 A 74.4 1
HB01091 10 x 15.5 x 0.8 411 A 124 1
HB01062 3 x 20 x 1 286 A 60 1
HB01063 6 x 20 x 1 418 A 120 1
HB01064 10 x 20 x 1 560 A 200 1
HB01075 5 x 24 x 1 433 A 120 1
HB01076 10 x 24 x 1 637 A 240 1
HB01095 5 x 32 x 1 540 A 160 1
HB01096 10 x 32 x 1 783 A 320 1
HB01099 10 x 40 x 1 922 A 400 1
HB01112 5 x 50 x 1 770 A 250 1
HB01113 10 x 50 x 1 1089 A 500 1
HOLDERS, FOR LAMINATED BUSBARS (UP TO 10MM
LAMINATION PACKS)
Holders fasten to 35-mm symmetrical DIN rail. A set of 4 can be
used to hold 3 lengths of flexible busbars in a typical application.
BULLETIN: HB2
Catalog Number Description Qty. UL508 cUL
HB01303 Holder 4 — —
BUSBAR DISTRIBUTION SYSTEM panel mount Fuse Holders
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS17
PANEL MOUNT FUSE HOLDERS
AMBUS® JCARRIER, CLASS J FUSE HOLDER, CLIPON
MOUNTING, STANDARD MODEL
DIN Rail mountable fuse holders for 30 and 60 A ferrule size
UL Class J fuses. Offered in single pole, 2-pole or 3-pole
configurations. Holders meet IP20 touchsafe design standards.
AMBUS J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 CSA
HB31284 21 x 57 1-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 36 6 • •
HBF31284 21 x 57 1-pole 30 A/600 VAC30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 36 1 • •
HB31285 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 72 3 • •
HBF31285 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 72 1 • •
HB31287 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 108 2 — •
HBF31287 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 18-1 108 1 — •
HB31920 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 40 6 — •
HBF31920 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 40 1 — •
HB31921 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 80 3 — •
HBF31921 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 80 1 — •
HB31922 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 120 2 — •
HBF31922 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 14-1 120 1 — •
AMBUS® JCARRIER, CLASS J FUSE HOLDER, CLIPON
MOUNTING, MODEL WITH LIGHT INDICATOR 110600
VAC/DC
DIN Rail mountable fuse holders for 30 and 60 A ferrule size UL
Class J fuses. Offered in single pole, 2-pole or 3-pole configurations
with LED open fuse indication. Indicator operates on systems
between 110 and 600 V. The LED lamp will glow when the fuse is
open (blown). Holders meet IP20 touchsafe design standards.
AMBUS J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 CSA
HB31932 21 x 57 1-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 36 6 • •
HBF31932 21 x 57 1-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 36 1 • •
HB31933 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 72 3 • •
HBF31933 21 x 57 2-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 72 1 • •
HB31934 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 108 2 • •
HBF31934 21 x 57 3-pole 30 A/600 VAC 0.75 - 50 sq. mm AWG 108 1 • •
HB31923 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 40 6 • •
HBF31923 27 x 60 1-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 40 1 • •
HB31924 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 80 3 • •
HBF31924 27 x 60 2-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 80 1 • •
HB31925 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 120 2 • •
HBF31925 27 x 60 3-pole 60 A/600 VAC 2.5 - 50 sq. mm AWG 120 1 • •
BUSBAR DISTRIBUTION SYSTEM panel mount Fuse Holders
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 18
QUADRON® JCARRIER, CLASS J FUSE HOLDER,
SCREWON
UL Class J 100 A, 200 A and 400 A panel-mount fuse holders. Clear
plastic cover satisfies IP20 touchsafe design standards. The only
3-pole blade size Class J fuse holder in the industry with integral
touchsafe cover.
QUADRON J-Carrier is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 CSA
HB33306 29 x 117 3-pole 100 A/600 VAC 6.0 - 70 sq. mm AWG 10-2/0 184 1 • •
HB33307 41 x 146 3-pole 200 A/600 VAC 10 - 150 sq. mm AWG 8-300 MCM 210 1 • •
HB33308 54 x 181 3-pole 200 A/600 VAC 16 - 300 sq. mm AWG 4-600 MCM 256 1 • •
AMBUS® EASYSWITCH DIN Rail mountable fuse holders for UL recognized Midget (10 x
38 mm) dimension cylindrical fuses. Offered in single pole, 2-pole
or 3-pole configurations with or without LED open fuse indication.
Indicator operates on systems between 110 and 690 V. The LED
lamp will glow when the fuse is open (blown). Holders meet IP20
touchsafe design standards.
AMBUS EasySwitch is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description (mm) Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 CSA
HB31110 10 x 38 1-pole 32 A/690 VAC, 440 VDC 0.75 - 25 sq. mm AWG 18-4 18 12 • •
HB31971 10 x 38 1-pole 1000 VDC 0.75 - 25 sq. mm AWG 18-4 18 10 — —
HB31112 10 x 38 2-pole 32 A/690 VAC, 440 VDC 0.75 - 25 sq. mm AWG 18-4 36 6 • •
HB31113 10 x 38 3-pole 32 A/690 VAC, 440 VDC 0.75 - 25 sq. mm AWG 18-4 54 4 • •
HB31130 10 x 38 w/LED 1-pole 32 A/690 VAC, 440 VDC 0.75 - 25 sq. mm AWG 18-4 18 12 • •
HB31132 10 x 38 w/LED 2-pole 32 A/690 VAC, 440 VDC 0.75 - 25 sq. mm AWG 18-4 36 6 • •
HB31133 10 x 38 w/LED 3-pole 32 A/690 VAC, 440 VDC 0.75 - 25 sq. mm AWG 18-4 54 4 • •
AMBUS® EASYSWITCH CLASS CC DIN Rail mountable fuse holders for UL Listed Class CC fuses.
Offered in single pole, 2-pole or 3-pole configurations with LED
open fuse indication. Indicator operates on systems between 110
and 600 V. The LED lamp will glow when the fuse is open (blown).
Holders meet IP20 touchsafe design standards.
AMBUS EasySwitch is a trademark of Wöhner GmbH & Co. KG.
BULLETIN: HB2
Catalog Number Description Type Rated Current/Rated Voltage Connection Width (mm) Qty. UL4248 CSA
HB31295 Standard Model 1-pole 30 A/600 VAC 0.75 - 25 sq. mm AWG 18-4 18 12 • •
HB31296 Standard Model 2-pole 30 A/600 VAC 0.75 - 25 sq. mm AWG 18-4 36 6 • •
HB31297 Standard Model 3-pole 30 A/600 VAC 0.75 - 25 sq. mm AWG 18-4 54 4 • •
HB31298 Model with light indicator 110-600 VAC/DC 1-pole 30 A/600 VAC 0.75 - 25 sq. mm AWG 18-4 18 12 • •
HB31299 Model with light indicator 110-600 VAC/DC 2-pole 30 A/600 VAC 0.75 - 25 sq. mm AWG 18-4 36 6 • •
HB31300 Model with light indicator 110-600 VAC/DC 3-pole 30 A/600 VAC 0.75 - 25 sq. mm AWG 18-4 54 4 • •
HB31929 Model with LED 12-72 VAC/DC 1-pole 30 A/600 VAC 0.75 - 25 sq. mm AWG 18-4 18 12 • •
BUSBAR DISTRIBUTION SYSTEM panel mount Fuse Holders
Spec-00507 J
EQUIPMENT PROTECTIONSUBJECT TO CHANGE WITHOUT NOTICEBUSBAR SYSTEMS19

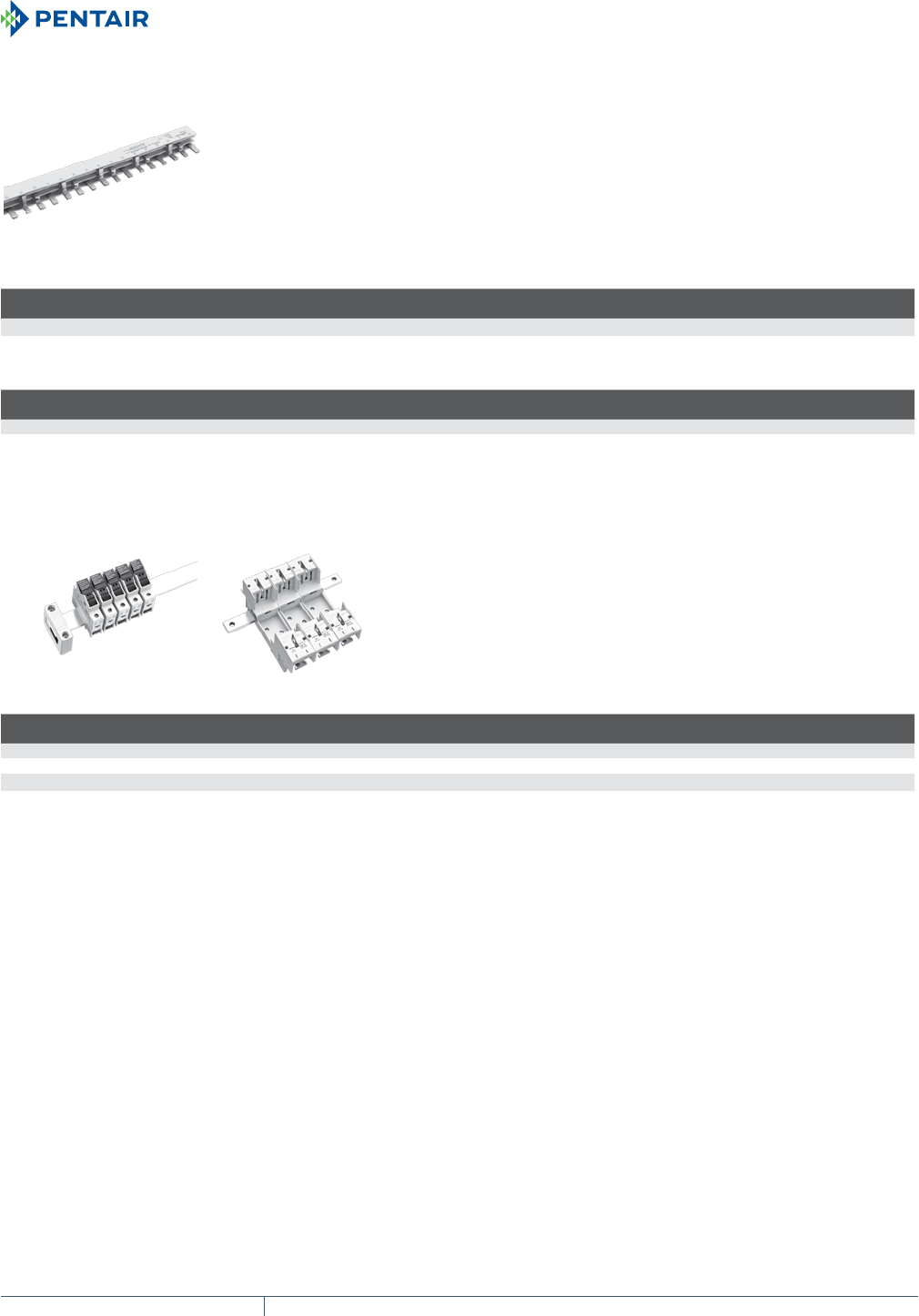

ACCESSORIES FOR AMBUS® EASYSWITCH, CONNECTION BOTTOM OR TOP
Comb-type busbar is an alternative to point-to-point wiring on the
primary side of the 10x38 and Class CC fuse holders that have an
18mm pitch. It eliminates the need for a power distribution block
and wiring duct to contain the AWG wires feeding multiple fuse
blocks. Available for both 1-pole and 3-phase configurations.
AMBUS® EasySwitch is a trademark of Wöhner GmbH & Co. KG
BULLETIN: HB2
Catalog Number Description Length (m)
Rated Current/
Rated Voltage Qty. UL508 CSA
HB31548 1-pole, insulated, 18mm pitch 1 100Aa/1000V 1 • •
HB31549 3-pole, insulated, 18mm pitch 1 100Aa/600V 1 • •
a 100 ampere rated if connected from one end, 200 ampere rated if connected in the center.
Catalog Number Description
Rated Current/
Rated Voltage Qty. UL508 cUL
HB31550 Connection terminal, AWG 10 - 1/0 11A/1000V 1 • •
HB31552 3-pole, end-insulator --- 2 • •
PV FUSE HOLDERS, BUSBAR COMBINED DC CURRENT
Fuse holders for mounting circuit protection devices for the wires
and cables associated with photovoltaic installations. These devices
allow the combining of current on metric dimension busbars. The
design eliminates the bending radius space associated with large
cables.
BULLETIN: HB2
Catalog Number
Width
mm/in. For Use With Qty. UL4248
HBF31570 22.5 30A, 1000Vdc, 10x38 PV fuses, 30x5 or 30x10 bar 1 •
HB31570 22.5 30A, 1000Vdc, 10x38 PV fuses, 30x5 or 30x10 bar 12 •
HB03289 60 200A, 1500Vdc, NH1XL PV fuses, 2x 30x10 bar 1 •a
HB03293 83 400A, 1500Vd, NH2XL/NH3L PV fuses, 2x 40x10 bar 1 •a
aUL4248-18 pending.
BUSBAR DISTRIBUTION SYSTEM panel mount Fuse Holders
Spec-00507 J
PH 763.422.2211 • • FAX 763.422.2600 • • PENTAIRPROTECT.COMEQUIPMENT PROTECTION BUSBAR SYSTEMS 20
Notes

Navigation menu
