2Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

> Who we are

Schneider Electric total sales in North

America in 2007 were $6.6 billion (U.S.).

These include the sales of the North

American Operating Division of Schneider

Electric (NAOD), as well as North American

sales of other Schneider Electric companies

such as APC, T.A.C., etc.

Headquartered in Palatine, Ill., the

North American Operating Division markets

many of the brands of Schneider Electric

to customers in the United States,

Canada and Mexico. In the United States,

Schneider Electric is best known by its

 agship Square D® brand. Schneider

Electric, the global specialist in energy

management, offers integrated solutions

making energy safer, more reliable, more

ef cient, more productive and more green

in the energy & infrastructure industry,

data centers & networks, buildings and

residential markets. With sales of $23.7

billion in 2007, the company's 120,000

employees in 102 countries help individuals

and organizations make the most of

their energy.

Thinking Outside the Square

> A new business perspective

Innovation is nothing new to Schneider Electric and Square D

products. Without our quality, innovation and reliability, we would

not have made it this far. We attribute much of our success to our

customers and work every day to ensure our bright futures together.

Through an innovative merchandising strategy and on-going new

product development, we are continually striving to meet the

needs of an ever-changing global community. We offer customized

planograms from concept to store set-up. We assist you in reaching

your customer in new and exciting ways by providing creative

signage, product and marketing initiatives and consistently explore

opportunities to advance your business and engage your customers.

Our goal is to provide continuous support for your business and

constantly strengthen our partnership.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 3

> Overview

Thinking Outside the Square . . . . . . . . . 2

Completing Four Sides of the Square . . . 5

> Product Definitions

Circuit Breakers . . . . . . . . . . . . . . . . . . . 6

Circuit Breaker Application Guide . . . . . . 6

Load Centers and Electrical Devices. . . . 7

> QO® Product Information

Introduction to QO Circuit Breakers . . . . 8

Full Size 3/4” Circuit Breakers. . . . . . 9

Tandem Breakers . . . . . . . . . . . . . . 10

Replacement Tandem Breakers . . . 10

GFCI Breakers . . . . . . . . . . . . . . . . 10

Circuit Breaker Wire Sizes . . . . . . . 10

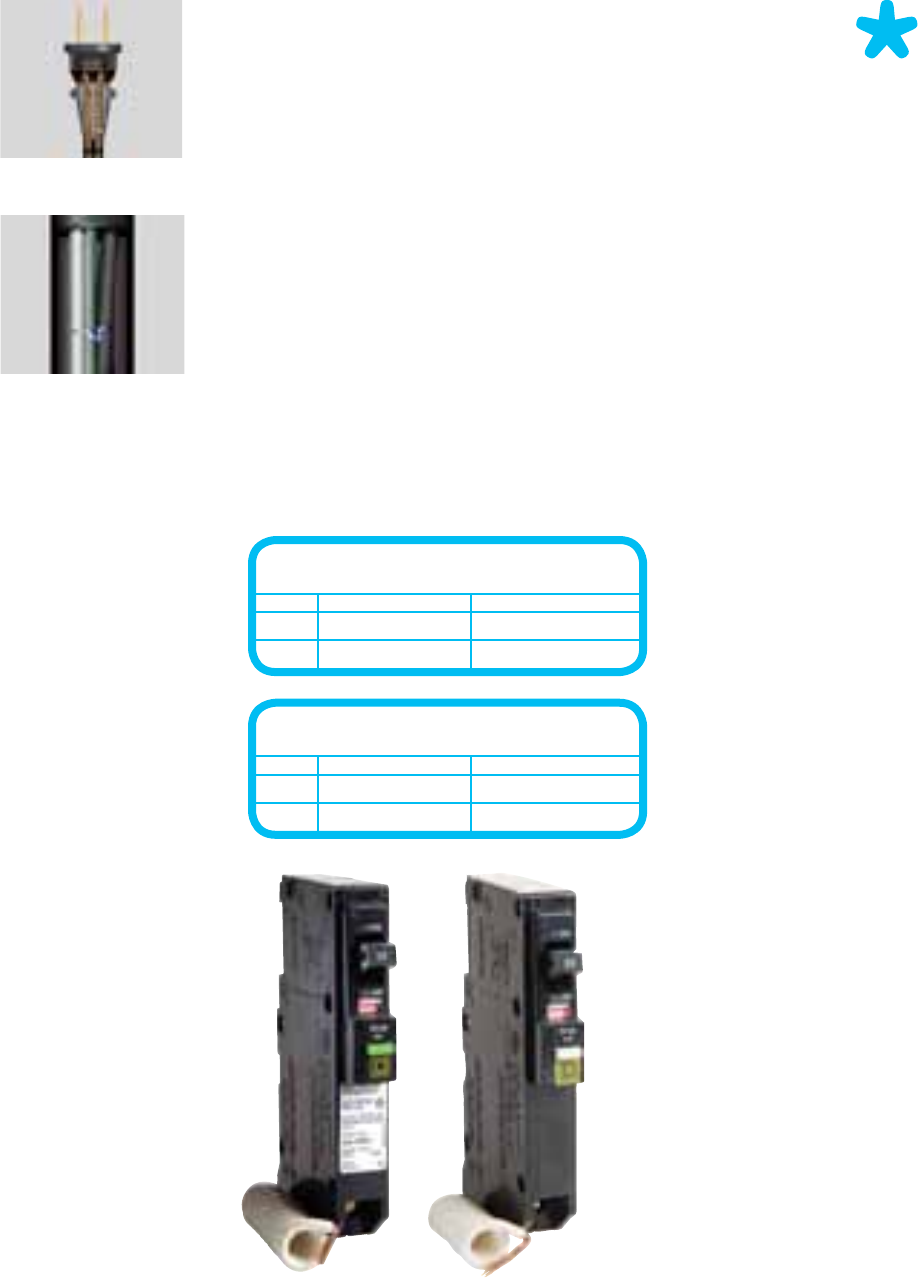

AFCI Breakers . . . . . . . . . . . . . . . . 11

Accessories: Load Center

and Circuit Breaker. . . . . . . . . . . 12-13

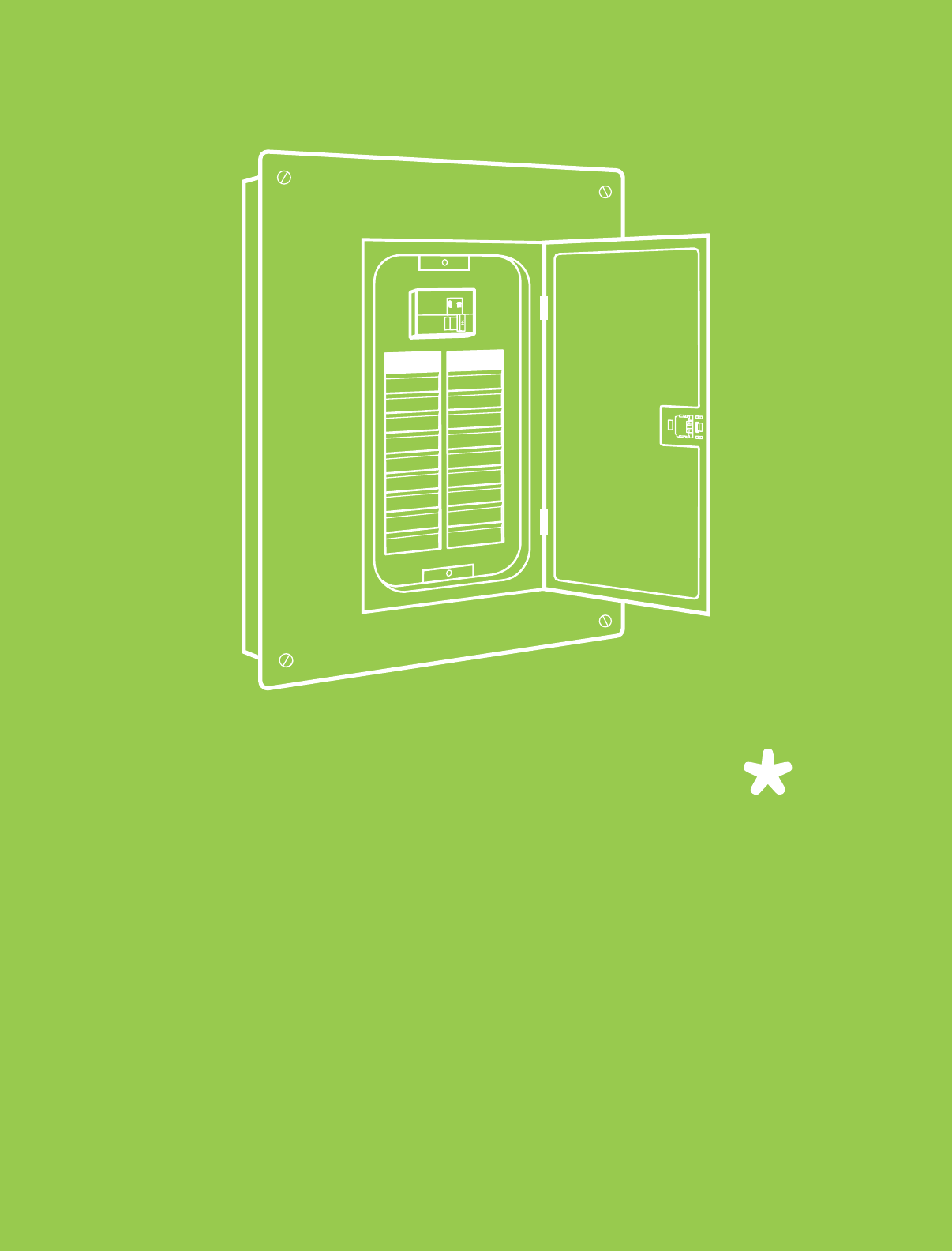

Introduction to QO Load Centers . . . . . 14

Main Circuit Breaker Load Centers. 15

Feed Thru Load Centers. . . . . . . . . 15

Main Lugs Load Centers . . . . . . . . 16

Catalog Number Guide. . . . . . . . . . 17

Field Installable QO Main Breakers . 17

Load Center Accessories . . . . . . 12-13

High Amp Breaker Enclosures . . . . 18

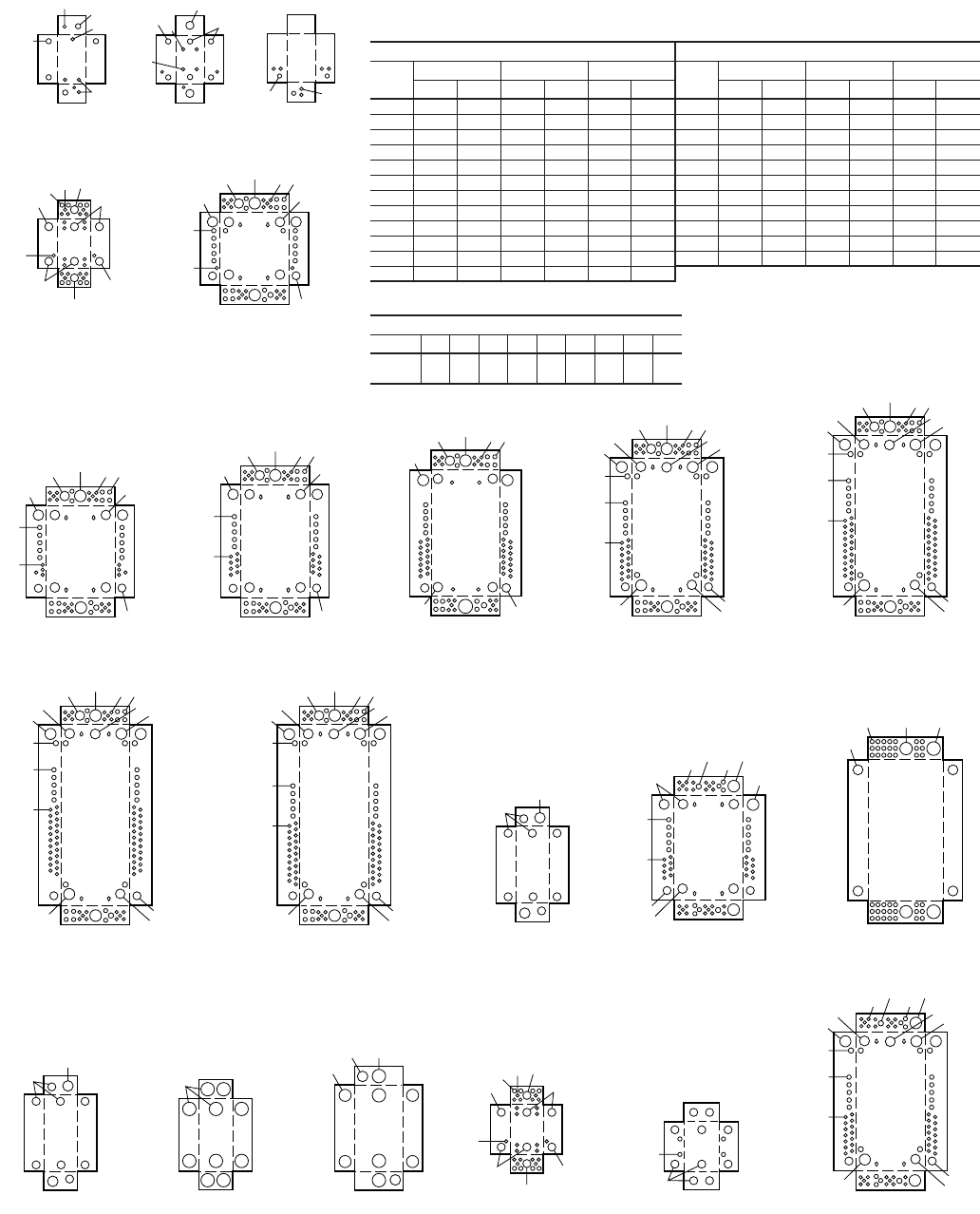

Knockouts . . . . . . . . . . . . . . . . . 18-19

Dimensions. . . . . . . . . . . . . . . . . 18-19

Bolt-on Hubs . . . . . . . . . . . . . . . . . 19

Load Center Main Wire Size . . . . . . 20

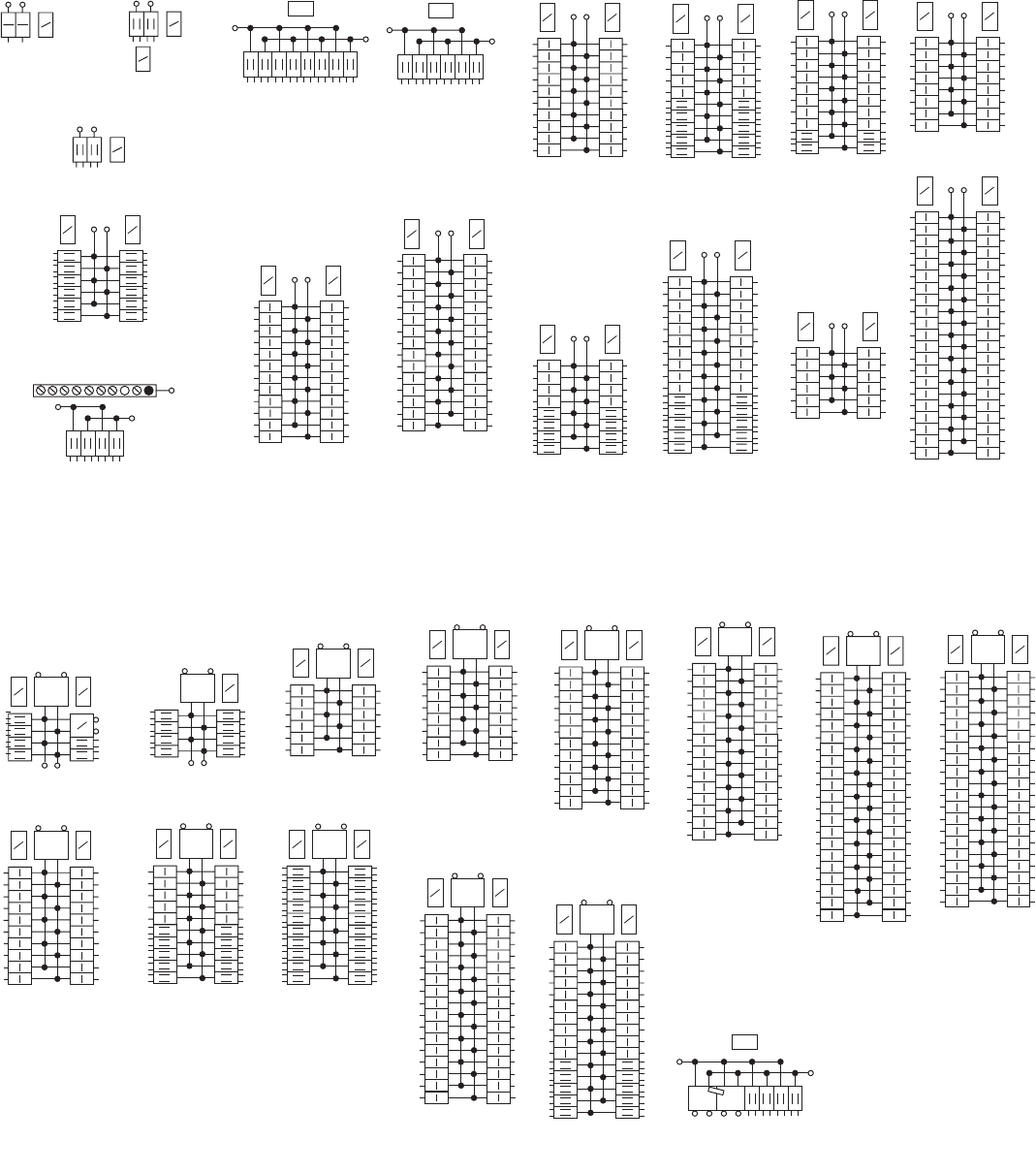

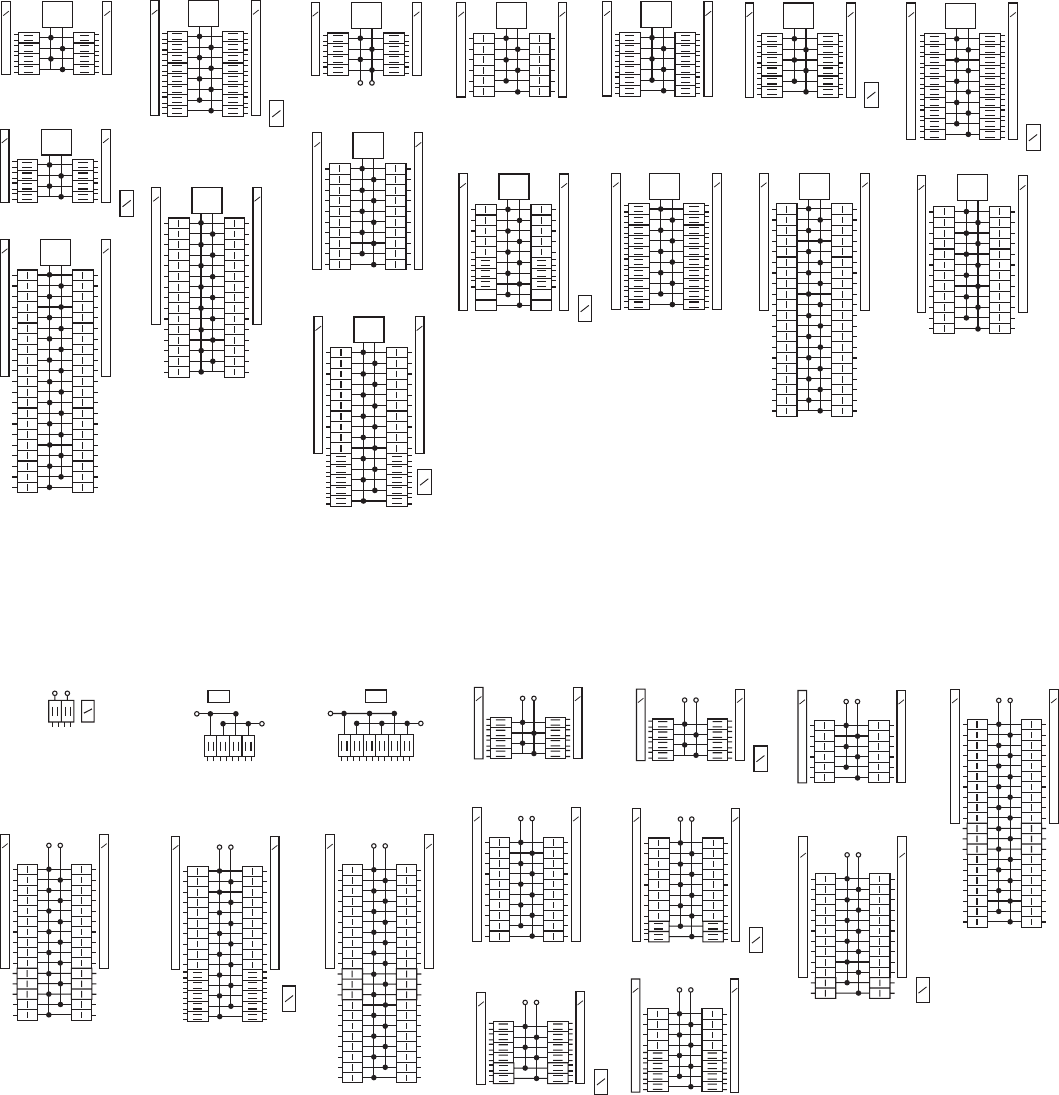

Load Center Wiring Diagrams. . . . . 21

> Homeline® Product Information

Introduction to Homeline

Circuit Breakers . . . . . . . . . . . . . . . . . . 22

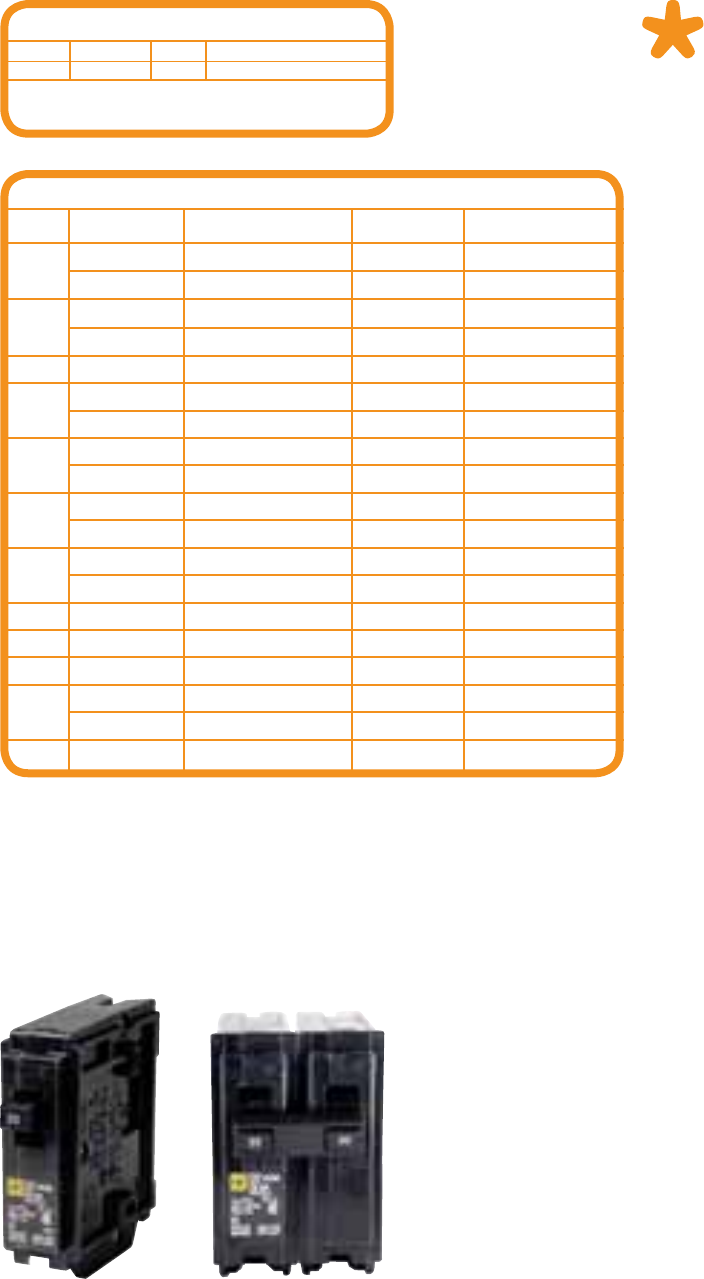

Full Size 1” Circuit Breakers . . . . . . 23

Tandem Breakers . . . . . . . . . . . . . . 24

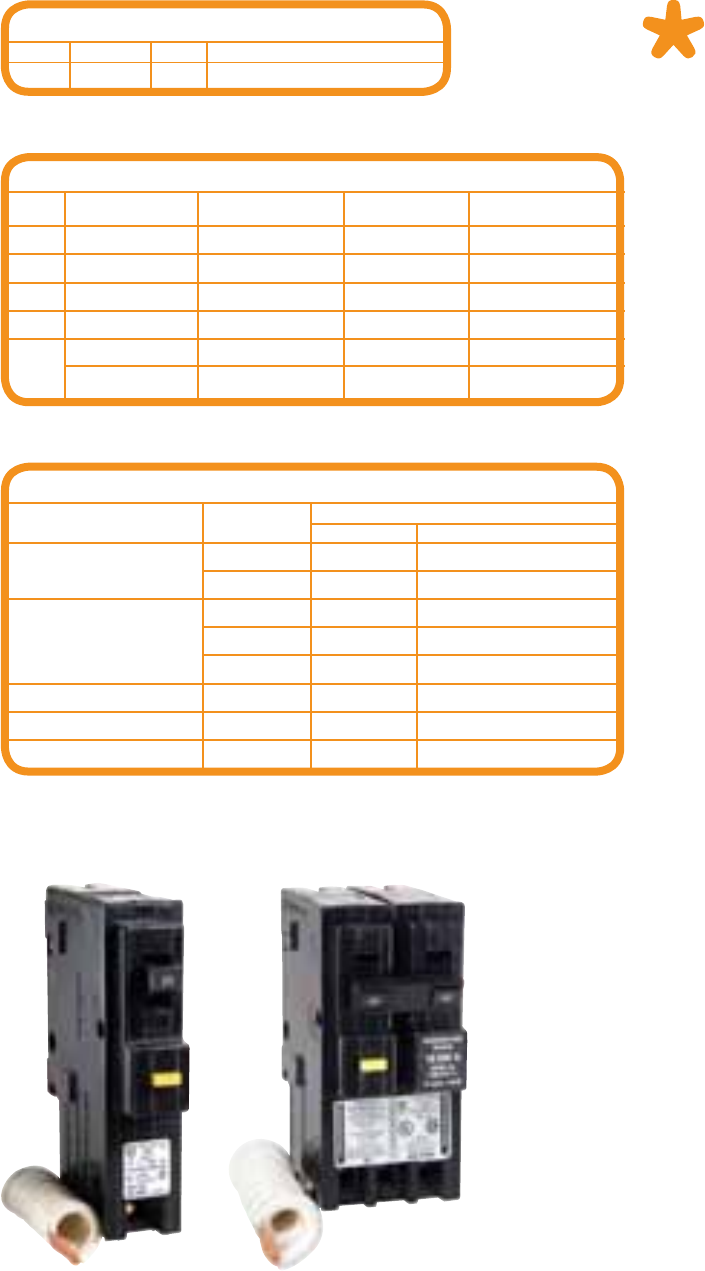

AFCI & CAFI Circuit Breakers . . . . . 24

GFCI Circuit Breakers. . . . . . . . . . . 25

Circuit Breakers Wire Sizes. . . . . . . 25

Accessories: Load Center

and Circuit Breaker. . . . . . . . . . . 12-13

Introduction to Homeline

Load Centers . . . . . . . . . . . . . . . . . . . . 26

Main Circuit Breaker Load Centers. 27

Feed Thru Load Centers. . . . . . . . . 27

Main Lugs Load Centers . . . . . . . . 28

Catalog Number Guide. . . . . . . . . . 17

Field Installable Homeline

Main Breakers . . . . . . . . . . . . . . . . 17

Load Center Accessories . . . . . . 12-13

Knockouts . . . . . . . . . . . . . . . . . 18-19

Dimensions. . . . . . . . . . . . . . . . . 18-19

Load Center Main Wire Size . . . . . . 29

Load Center Wiring Diagrams. . . . . 30

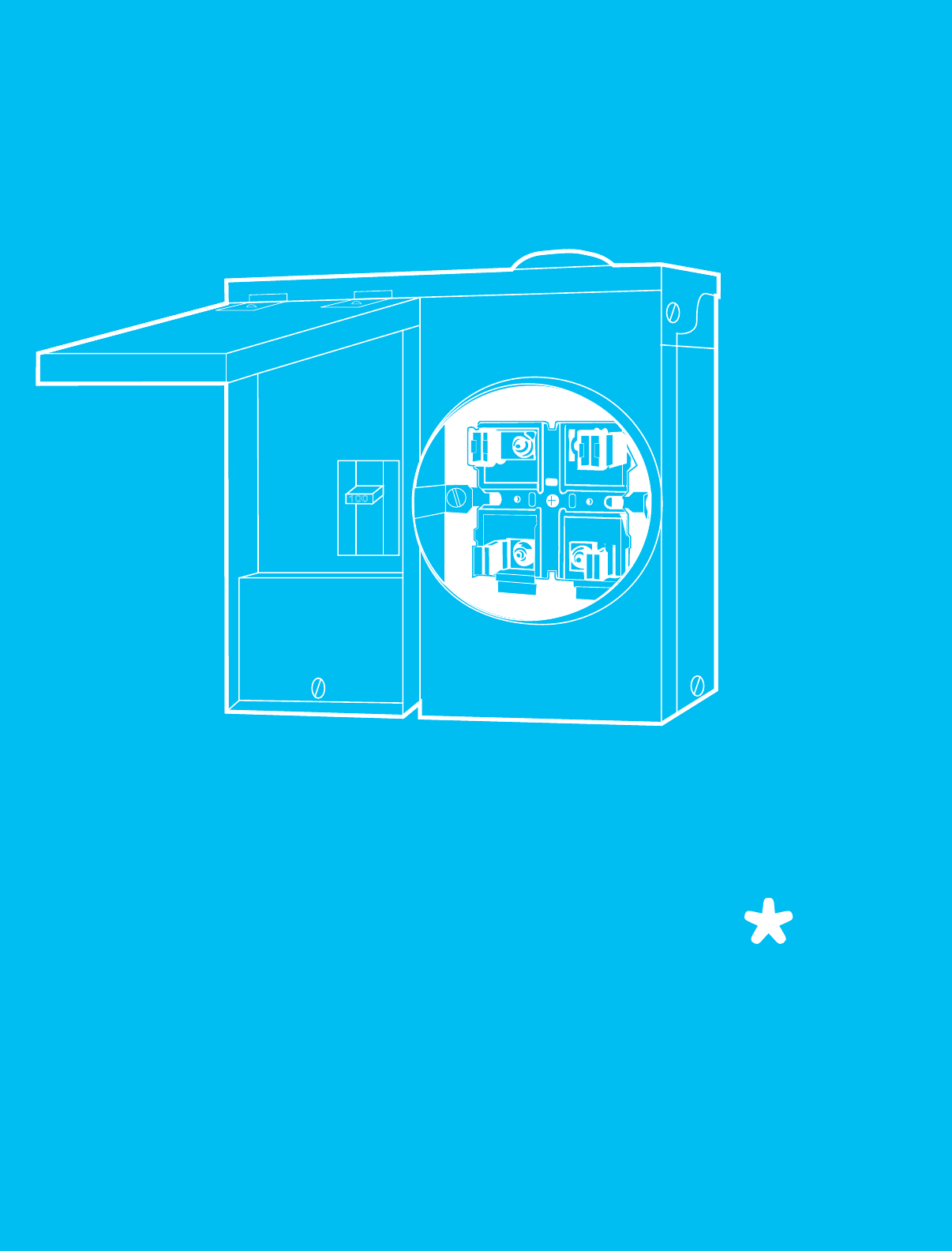

> Meter Mains, Metering Devices and

All-In-Ones Product Information

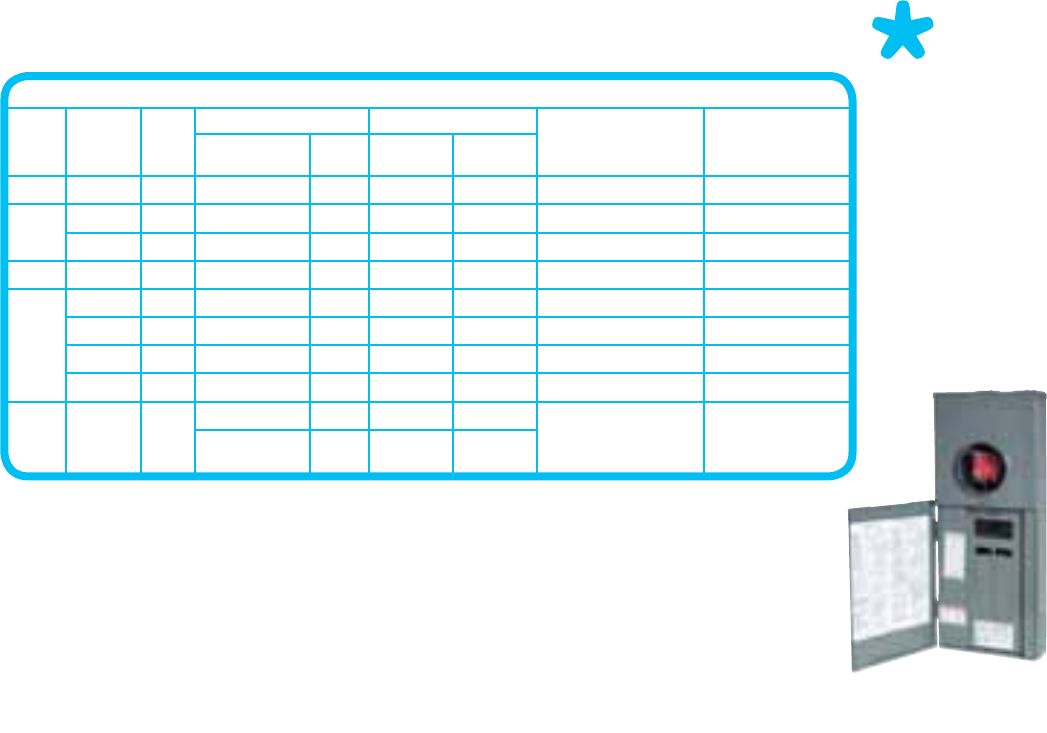

Introduction to Meter Mains . . . . . . . . . 32

Meter Mains . . . . . . . . . . . . . . . . 33-34

Knockouts . . . . . . . . . . . . . . . . 39

Dimensions . . . . . . . . . . . . . . . 39

All-In-Ones . . . . . . . . . . . . . . . . . 35-36

Knockouts . . . . . . . . . . . . . . . . 39

Dimensions . . . . . . . . . . . . . . . 39

Metering Equipment . . . . . . . . . . . . 37

Catalog Number Guide. . . . . . . . . . 36

Accessories . . . . . . . . . . . . . . . . . . 38

Meter Mains Wire Size . . . . . . . . . . 40

All-in-Ones Wire Size . . . . . . . . . . . 41

> Value Packs Product Information

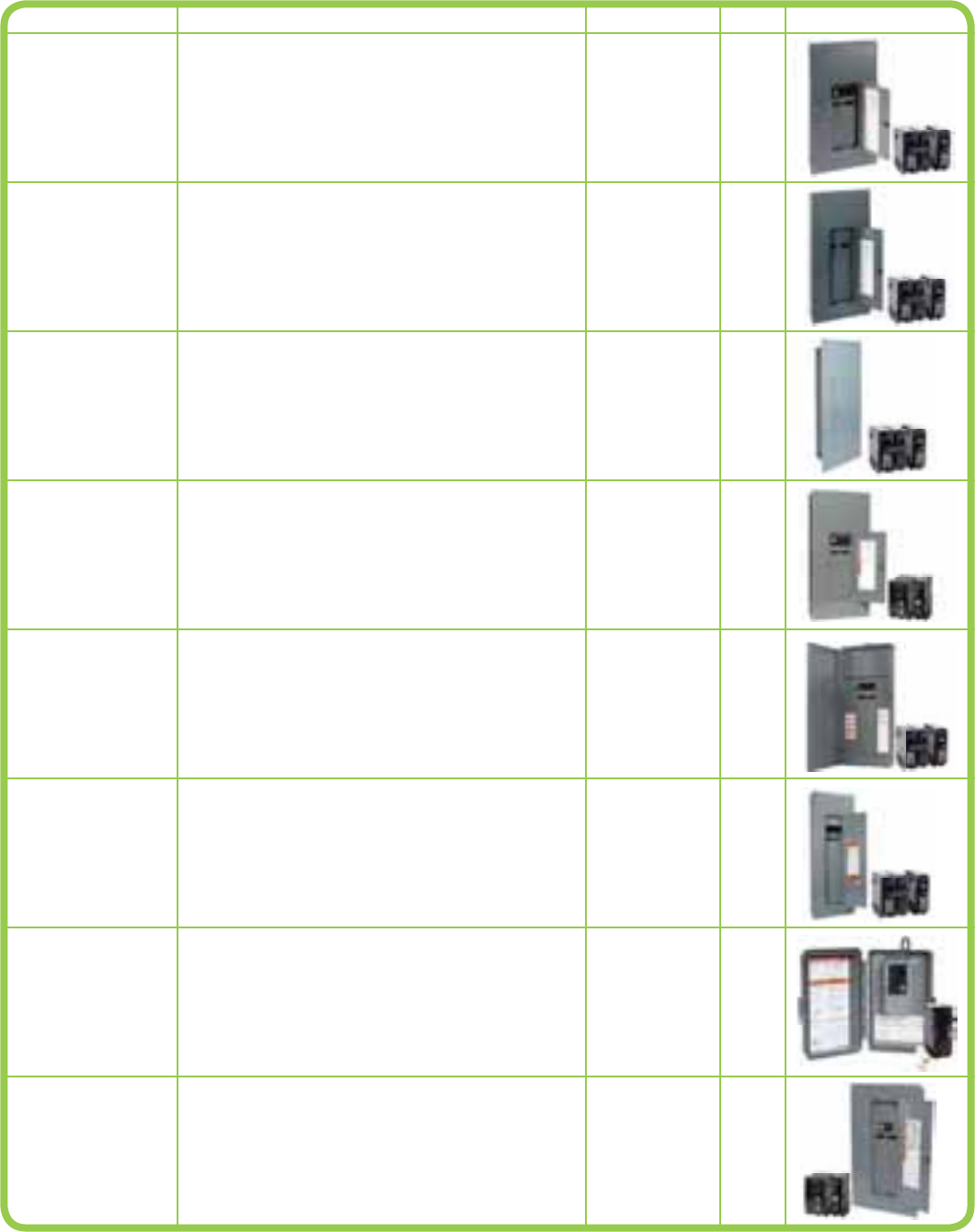

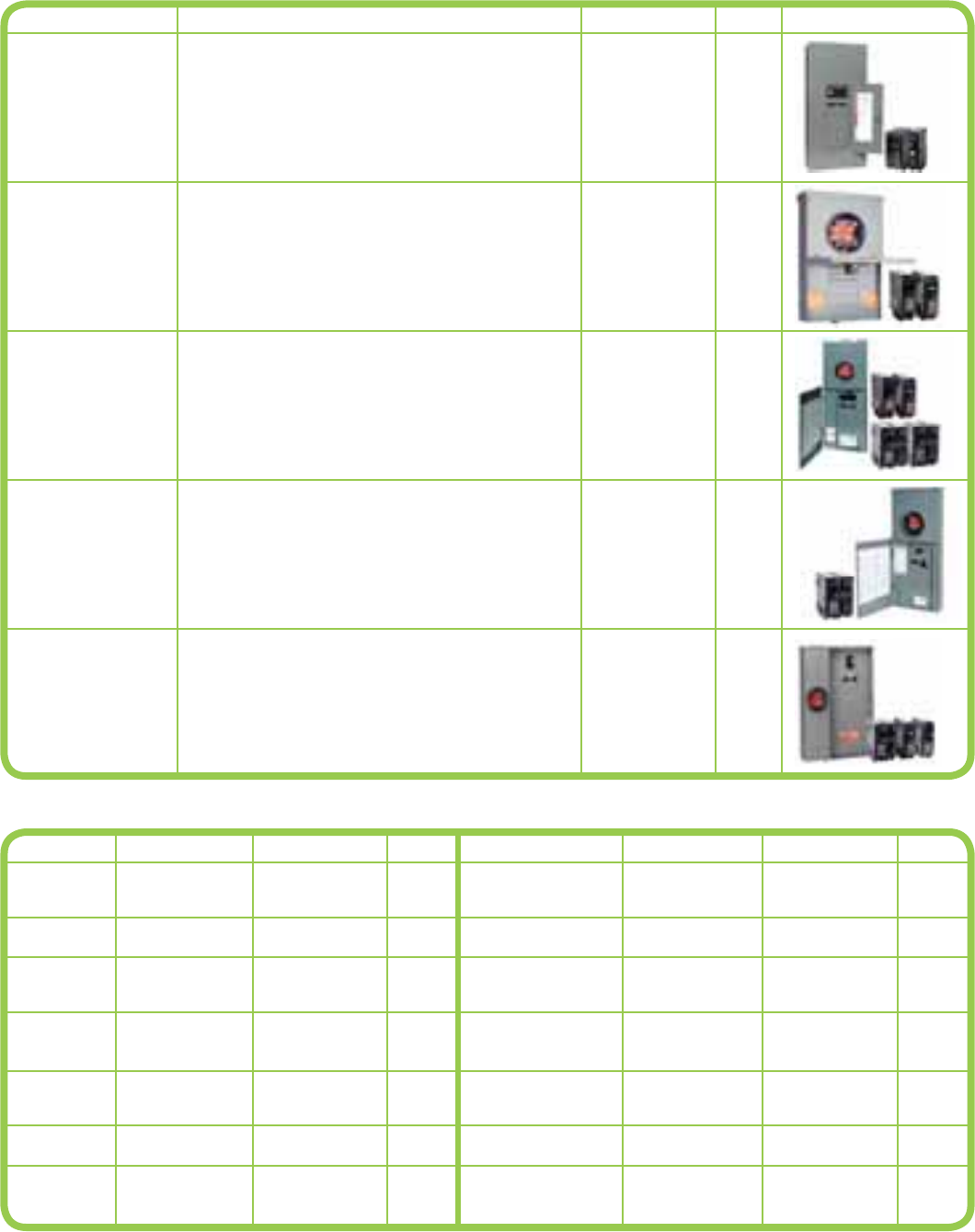

Introduction to Value Packs . . . . . . . . . 42

Homeline (50A-150A) . . . . . . . . . . . 43

Homeline (200A) . . . . . . . . . . . . . . . 44

QO (60A-100A). . . . . . . . . . . . . . . . 44

QO (200A) & CSED. . . . . . . . . . . . . 45

Obsoleted Value Packs. . . . . . . . . . 45

> Control Switches

Introduction to Control Switches. . . . . . 46

Float Switches . . . . . . . . . . . . . . . . 47

Sump or Open Tank. . . . . . . . . 47

Closed Tank. . . . . . . . . . . . . . . 48

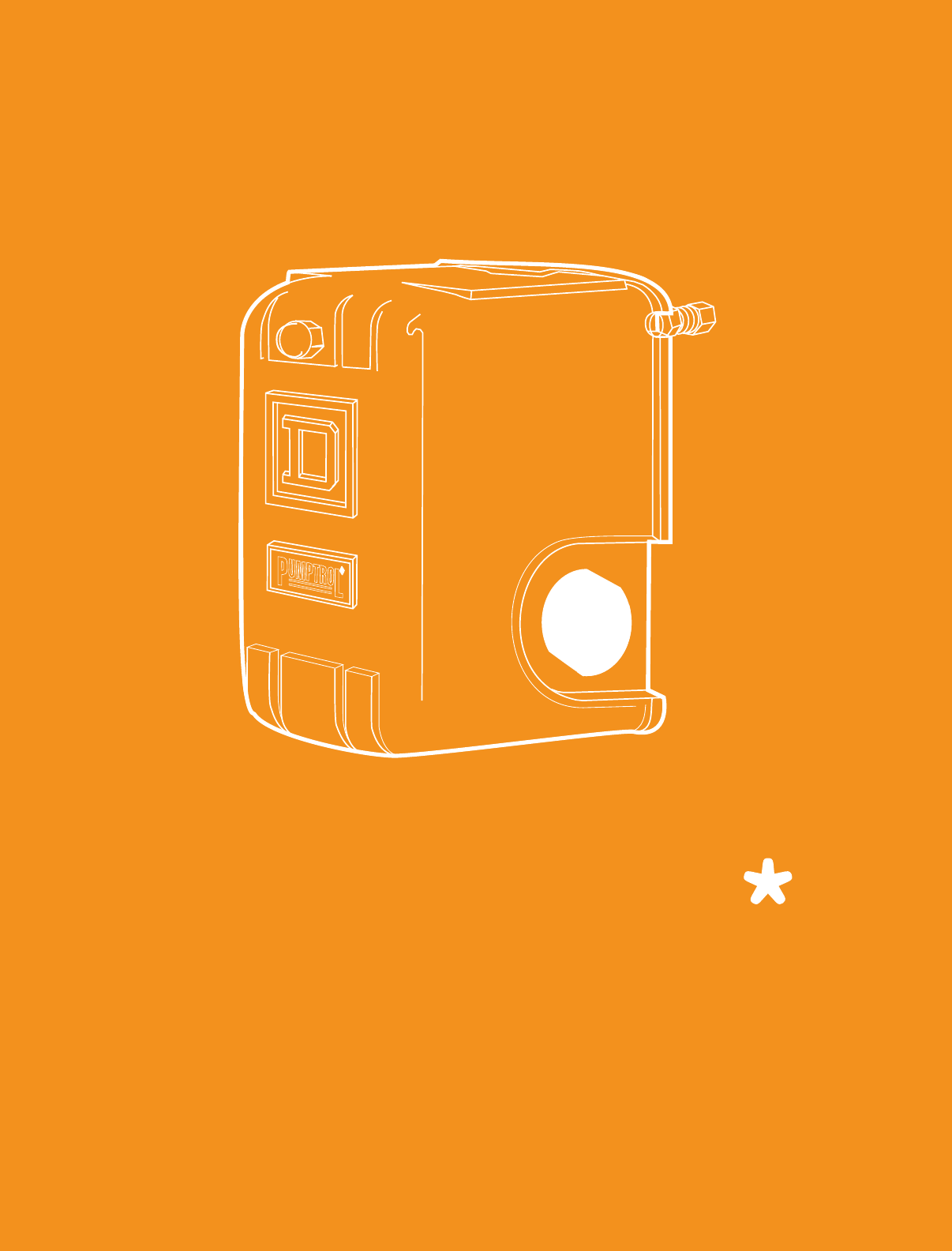

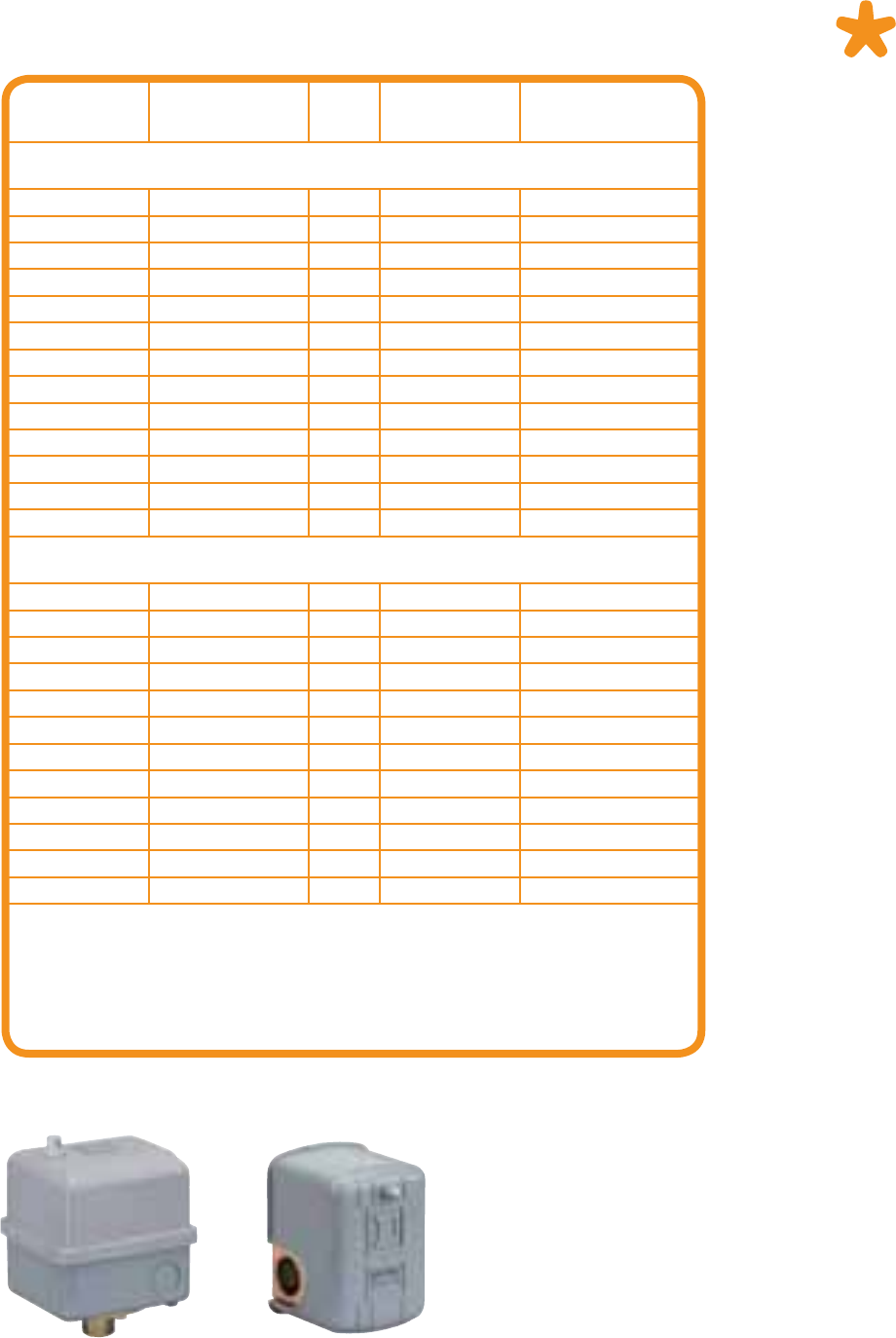

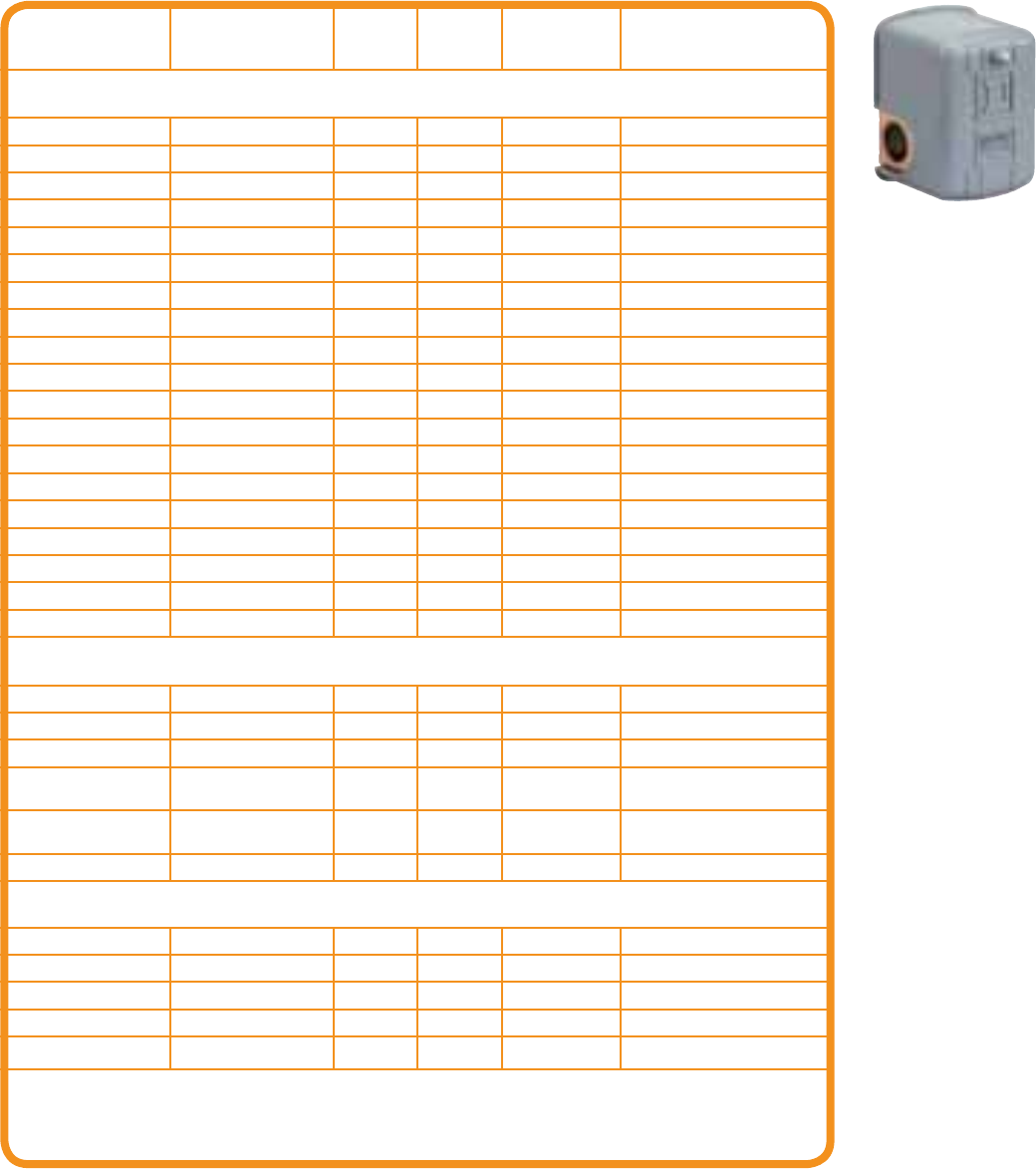

Pressure Switches . . . . . . . . . . . . . 50

Water Pump. . . . . . . . . . . . . . . 50

Air Compressor . . . . . . . . . . . . 51

> Safety Switches, Surge Protection

& Other Residential Products

Introduction. . . . . . . . . . . . . . . . . . . . . . 52

AC Disconnects . . . . . . . . . . . . . . . 53

Light Duty Safety Switches . . . . . . . 53

General Duty Safety Switches. . . . . 54

Circuit Breaker Enclosures . . . . . . . 55

Surge Protection. . . . . . . . . . . . . . . 56

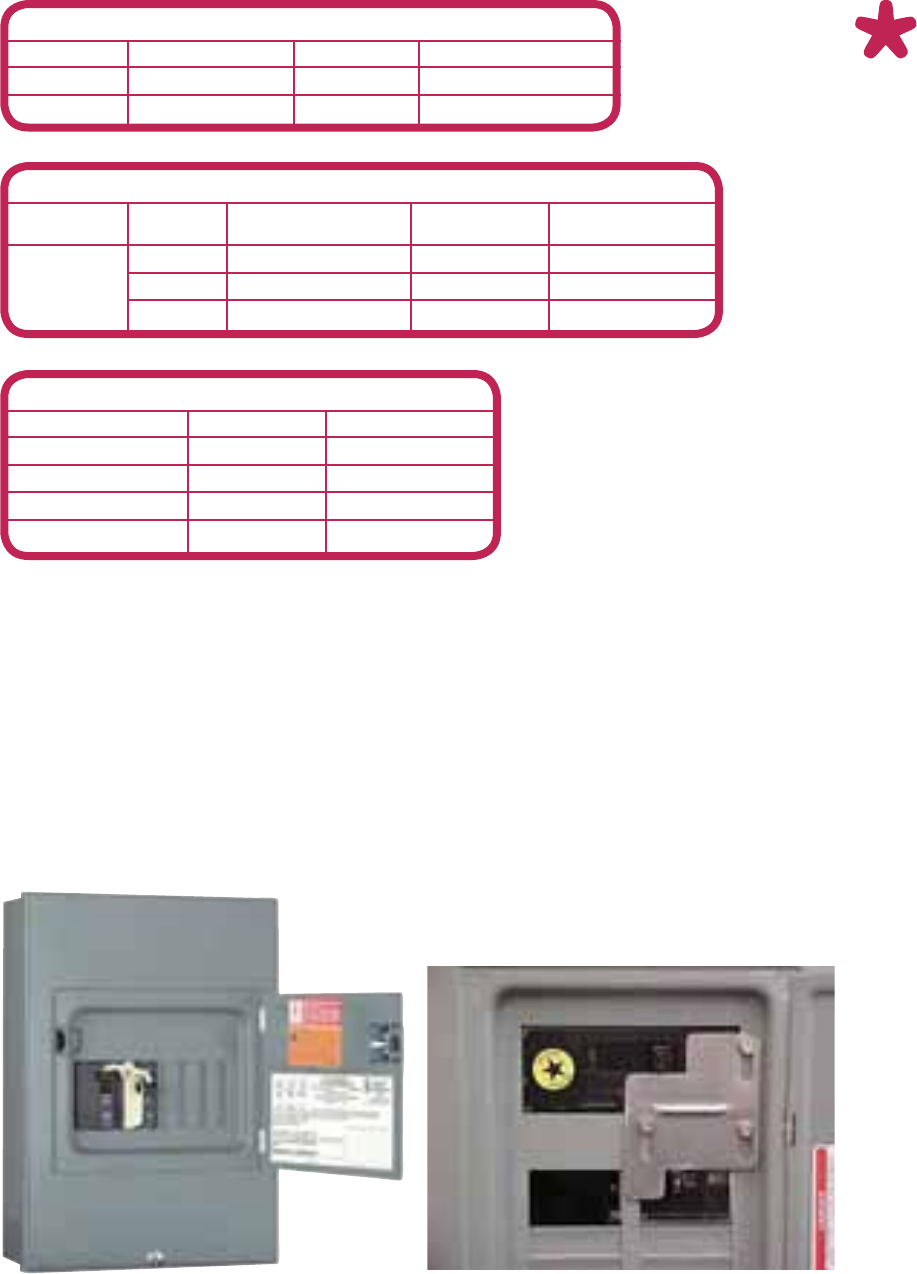

Generator Panels . . . . . . . . . . . . . . 57

> Important Information

Warranty Information. . . . . . . . . . . . . . . 58

Square D Warranty . . . . . . . . . . . . . 58

Surgebreaker Warranty. . . . . . . . . . 59

Surgebreaker Plus Low-voltage

Device Warranty . . . . . . . . . . . . . . . 60

Surgebreaker Plus Warranty . . . . . . 61

Conductor Ampacity . . . . . . . . . . . . . . . 62

Things to Know to Protect Your House. . 64

Choosing The Right Load Center:

QO vs. Homeline. . . . . . . . . . . . . . . . . . 66

Product Index Locator . . . . . . . . . . . 68-69

Table of Contents

4

Completing Four Sides

of the Square...

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 5

> Customer

Market research is conducted on an on-going basis. One more way Square D products

continue to stay ahead of the competition. We continuously study the market and utilize the

information collected by:

• Dispersing bounce back cards to solicit customer feedback

• Tracking sales at the store level

• Generating accurate maps of buying activity from a national perspective to individual

markets and stores

• Pinpointing marketing efforts to drive sales where needed

• Customizing mailings for our partners from a retail chain to an individual store

• Providing in-store product knowledge training

• Having two distribution centers dedicated solely to the retail channel

• Focusing on customers at our Customer Service Center 800-432-2599

> Store

Square D merchandising is designed to drive pro table buying behavior in your electrical aisle:

• Eye-catching signs attract and assist prospective buyers in locating products faster and

make better buying decisions

• Signage that communicates brand and product messages simply and clearly

• Packaging and assembling of kits of products to simplify installation

• Brand-speci c packaging consistent with Square D image

• Customized digital planogram service from creative concept to actual store set.

Square D products continue to lead in this area using the latest technology. Our database

contains up-to-date measurements of all our products. We offer the most effective and

comprehensive planogram service available from any electrical and distribution equipment

manufacturer.

> Staff

Training: Offering one of the most complete programs in the industry; the three levels include:

• Level 1: Videotape and Workbook Courses

– Tapes and workbooks provide a detailed introduction to the distribution and control

of electricity.

– Features, bene ts, applications and commonly asked questions of Square D products.

• Level 2 - Hands-on Classes

– Teaches retail employees how to install various Square D products in

basic applications.

– Course customization available to meet our partners’ needs such as length, location,

date, etc.

• Level 3 - Intensive Four-hour Course (15 or more participants required)

– Provides a detailed look at Square D products, selling features and applications

– Participants take part in building display panels by wiring load centers and other

Square D products and by installing circuit breakers.

Advertising: Provides brochures, sell sheets, product images and educational pieces on

Square D products.

> Technology

Visit the Square D products web site for additional information on our retail products.

• New product information

• Easy to understand product basics

• Online product literature

• Retail products catalog

Unique, value-added

programs that provide

marketing, merchandising

and sales support to

our retail partners. Our

experienced team brings

you exciting programs

designed to help grow

your business in today’s

ever changing and

competitive environment.

Store

Customer

Technology

Staff

6Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

> Single-Pole Circuit Breaker

Available in various ampere ratings, these circuit breakers occupy

one space in the load center and are used for single 120 Vac

circuits. A typical residential service contains electrical branch

circuits supplying wall receptacles, lighting  xtures and appliances

such as dishwashers and disposals.

> Double-Pole Circuit Breaker

Also available in various ampere ratings. Appliances which require

larger amounts of power (clothes dryers, ranges, furnaces, air

conditioners, etc.) will use separate 30A, 40A, or 50A 240 Vac

branch circuits.

> Tandem Circuit Breaker

These low amperage breakers provide two isolated single-pole

circuits utilizing only one single-pole space in the load center. Only

designated Square D load centers will accept tandem breakers.

> Quad Circuit Breaker (Homeline only)

This circuit breaker provides three isolated circuits (two single-pole

and one double-pole) utilizing two spaces in the load center. Only

designated Homeline load centers will accept quad breakers.

> Main Circuit Breaker

(for replacement or conversion)

Available in various amperage ratings, this is the main circuit breaker

for the load center. It may be ordered to replace the existing main

breaker in a main breaker load center or to convert selected main

lugs load centers into main breaker load centers.

Types of Circuit Breakers, Residential Load

Centers & other Electrical Devices

Circuit Breakers: A circuit breaker is designed to protect the wiring in a home. It automatically interrupts a circuit

(shutting off the  ow of electricity) whenever a circuit is overloaded or a short circuit occurs. Circuit breakers carry

three primary ratings:

1. Ampere Rating: the speci c continuous current on which the

breaker is designed to operate

2. Maximum Voltage Rating: either 120 Vac for single-pole (one

space) breakers or 240 Vac for double-pole (two space) breakers

3. Interrupting Rating: the maximum fault current a breaker is

designed to interrupt

Circuit Breaker Application Guide

(Local codes may vary. Check with your electrical

inspector for applicable codes.)

Circuit Breaker

Application

Circuit Breaker Copper

Wire SizeAmps # Spaces

Air Conditioner

120V–up to 11K BTU 20 1 12-2*

240V–up to 23K BTU 20 2 12-2*

240V–up to 36K BTU 30 2 10-2*

Attic Fan

120V–up to 1/2 HP 15 1 14-2

Branch Circuit

120V–15A 15 1 14-2

120V–20A 20 1 12-2

Clothes Dryer

240V 30 2 10-3

Dishwasher

120V 20 1 12-2

Doorbell Transformer – Class 5

120V 15 1 14-2

Electric Heater

120V–up to 1.92KW 20 1 12-2

Electric Range

240V–up to 5.7KW 30 2 10-3

240V–up to 7.6KW 40 2 6-3

240V–up to 9.6KW 50 2 6-3

240V–up to 11.5KW 60 2 6-3

Garbage Disposal

120V–up to 1/2 HP 15 1 14-2

Motors (Single Phase)

120V–up to 1/2 HP 20 1 12-2

120V–up to 1 HP 20 1 12-2

240V–up to 1 HP 15 2 14-2

240V–1-1/2 to 3 HP 30 2 10-2

Outdoor Lighting:

120V 15 1 14-2

Range Hood

120V 15 1 14-2

Spa/Hot Tub

240V 240 2 6-2

Sump Pump

120V 15 1 14-2

Water Heater

240V–up to 6KW 25 or 30 2 10-3

Well Pump: up to 1 HP

120V–up to 150’ 30 1 8-2

240V–151’ to 200’ 15 1 12-2

240V–201’ to 300’ 15 1 10-2

* With ground.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 7

> Ground Fault Circuit

Interrupter (GFCI)

This breaker is used as a device to provide

personal protection by opening the circuit

when a current to ground exceeds a

predetermined level. A ground fault as

low as 4-6mA (6/1000A) will trip a GFCI

breaker. Check the National Electrical

Code® (NEC®) and local codes as GFCI

breakers may be required for bathrooms,

kitchens, patios, garages, hot tubs,

fountains, pools and other areas where

a shock hazard may exist. Available in

both single or double pole and in various

amperage ratings.

> Arc Fault Circuit Interrupter

(AFCI)

• AFCI: Provides the ability to detect

dangerous arcing conditions that can

cause res when electrical products or

wires are damaged, aged or improperly

used. Arc faults cannot be detected

by standard circuit breakers and fuses.

The Square D AFCI special electronic

sensing circuitry can “sense” arc faults

as well as overloads and short circuits

and disconnect the power before a

potentially dangerous condition occurs.

• Combination AFCI: Because series arcs

are often associated with damaged

devices or cord sets, the enhanced

protection provided in this area is

signicant. When an arcing event

is detected, the Combination AFCI

analyzes the event and the circuit

breaker opens when it determines

a hazardous condition exists. The

Combination AFCI detects arcing at

levels down to 5 amperes, including

series arcs, parallel arc and line-to-

ground arcs. Check the local code to

determine requirements for using this

product over an AFCI.

• Available for Square D QO® or

Homeline® load centers.

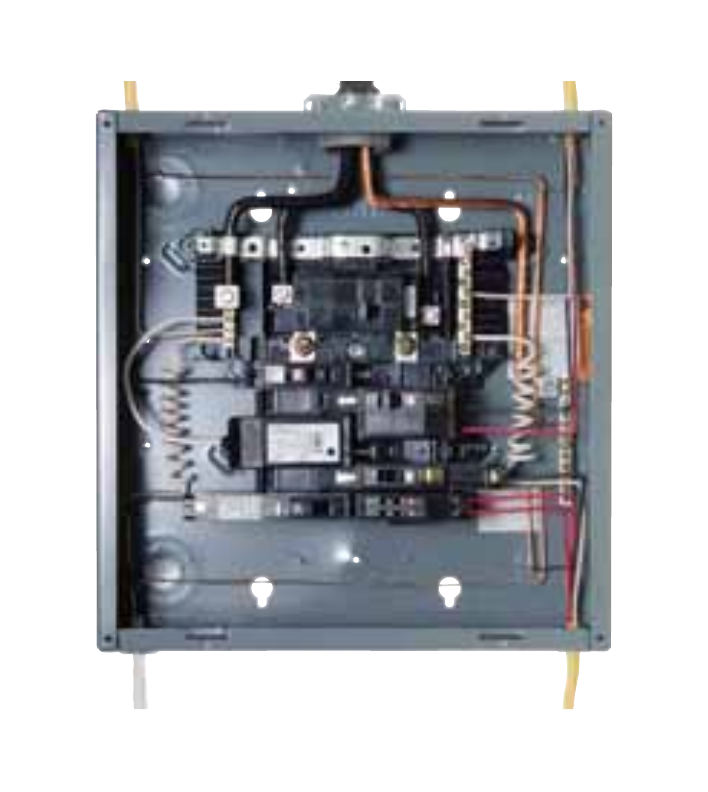

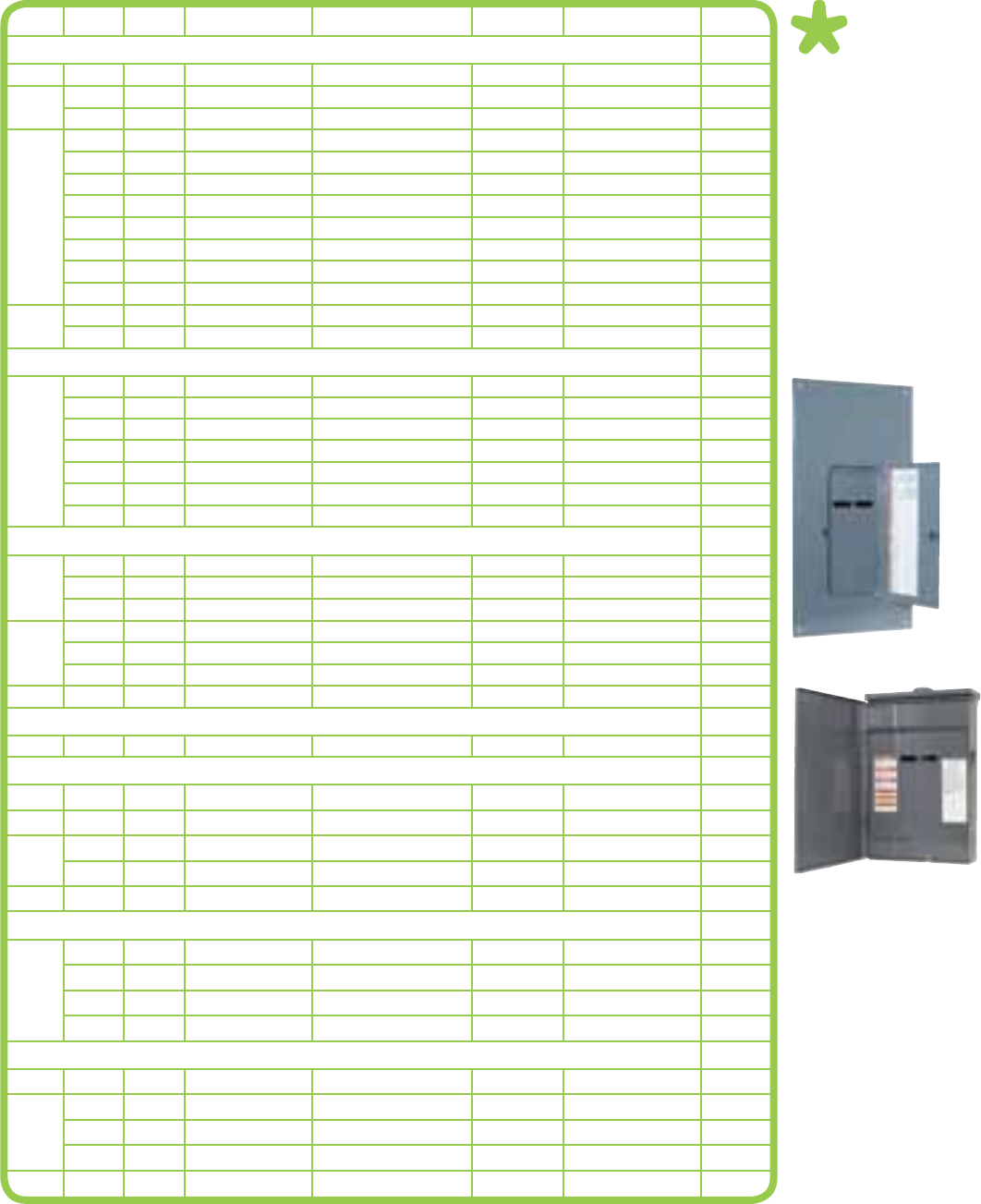

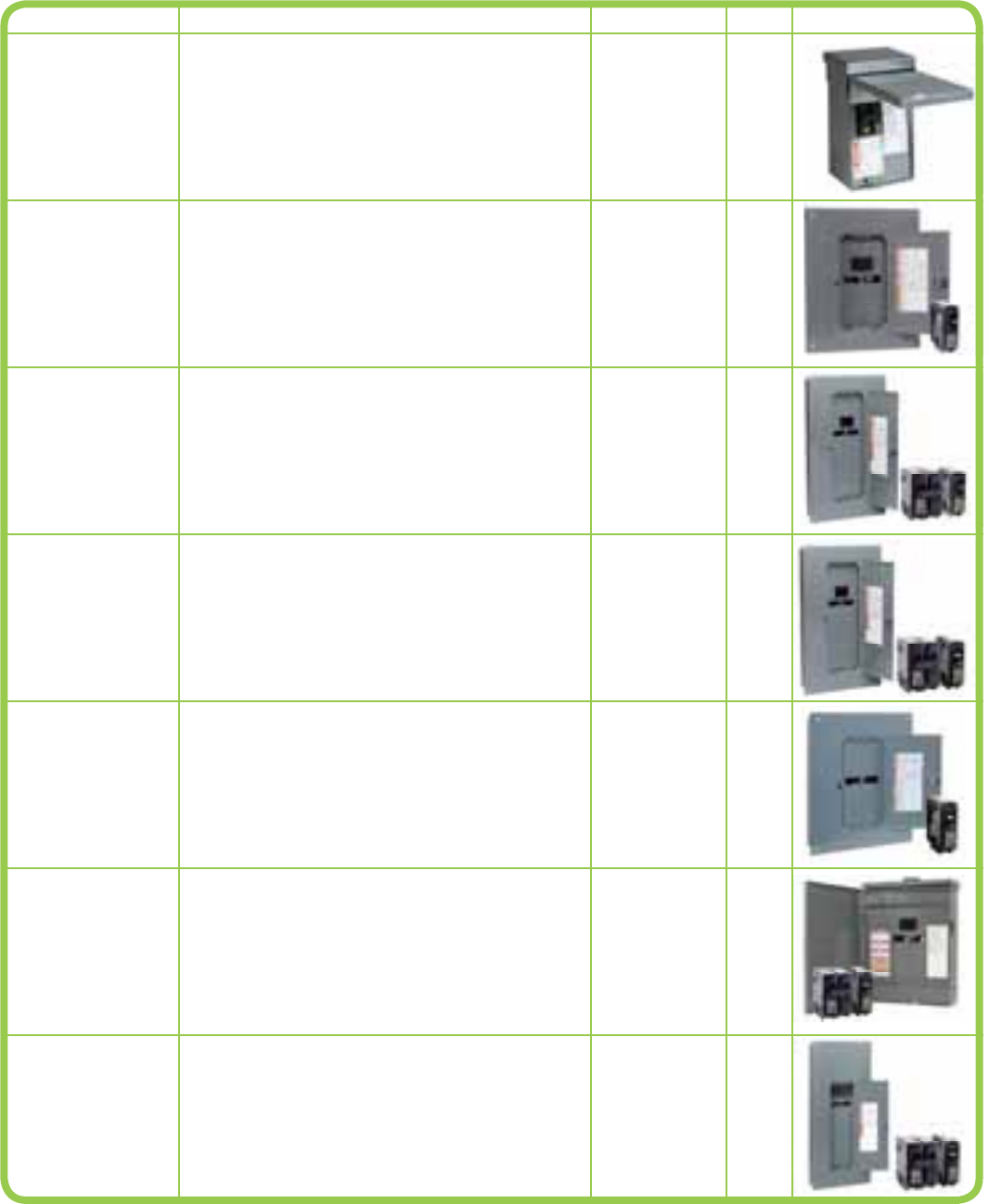

> Main Breaker Load Centers

This is the service entrance panel which is connected to the

electrical meter and distributes electricity throughout the home. Each

is equipped with a factory installed main circuit breaker, which serves

as the main disconnect to turn off power to the entire home, as well

as to protect the load center from an overload or short circuit.

> Main Lugs Load Centers

This is typically used as an add-on or “sub panel” load center and

is connected to the main breaker load center when spaces for more

circuits are needed or when a main disconnect is located elsewhere.

It does not contain a main breaker. Convertible main lug panels can

be converted to main breaker panels with a replacement

main breaker.

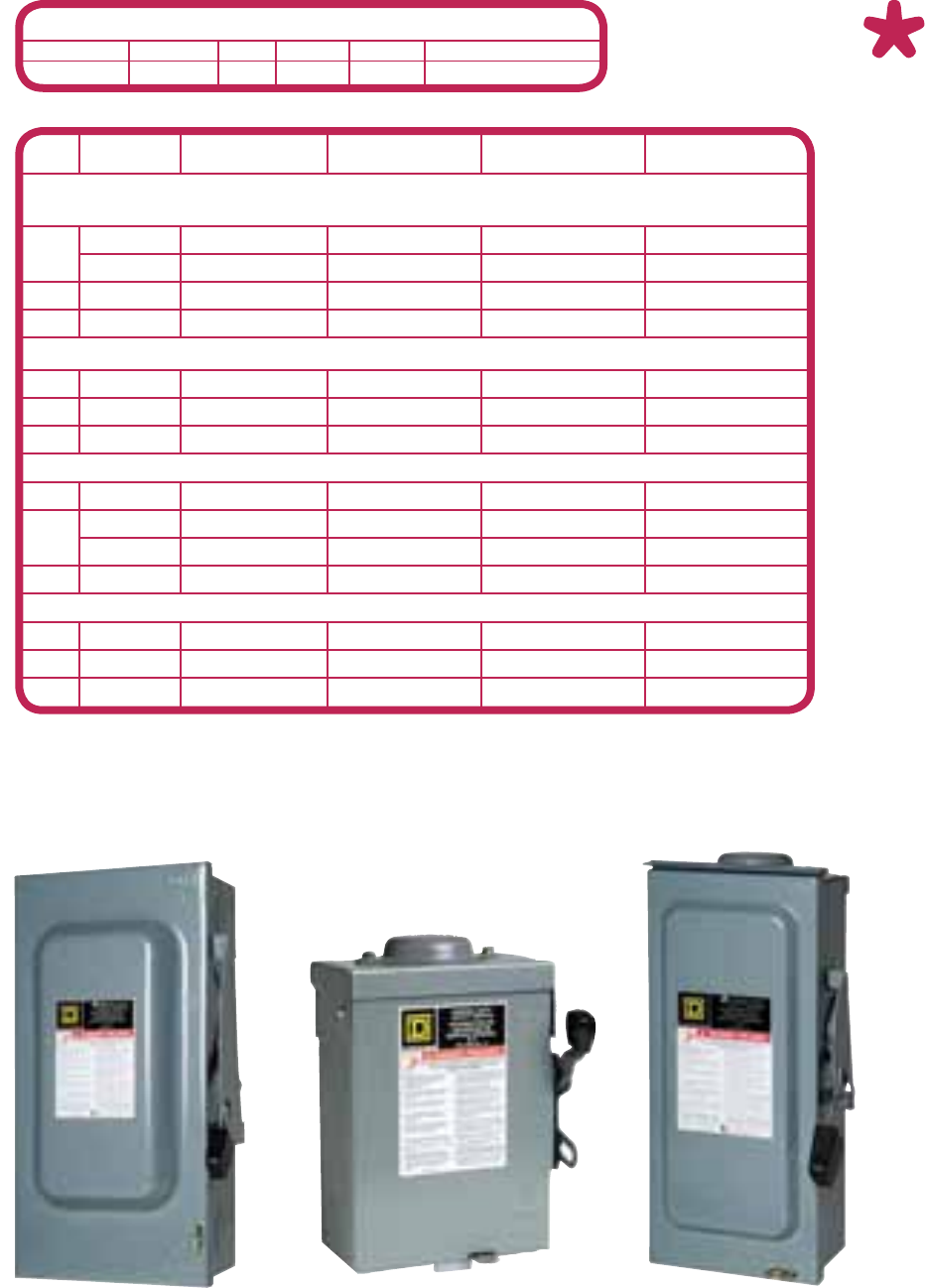

> Safety Switches

These are designed for residential and light commercial applications

where operation and handling are moderate. Typical applications

include residential, farm and small business service entrances and

light-duty branch circuit disconnects.

> Pressure Switches

These devices are designed for the control of water pumps and air

compressors. They are available in a variety of pressure settings and

cutoff levels.

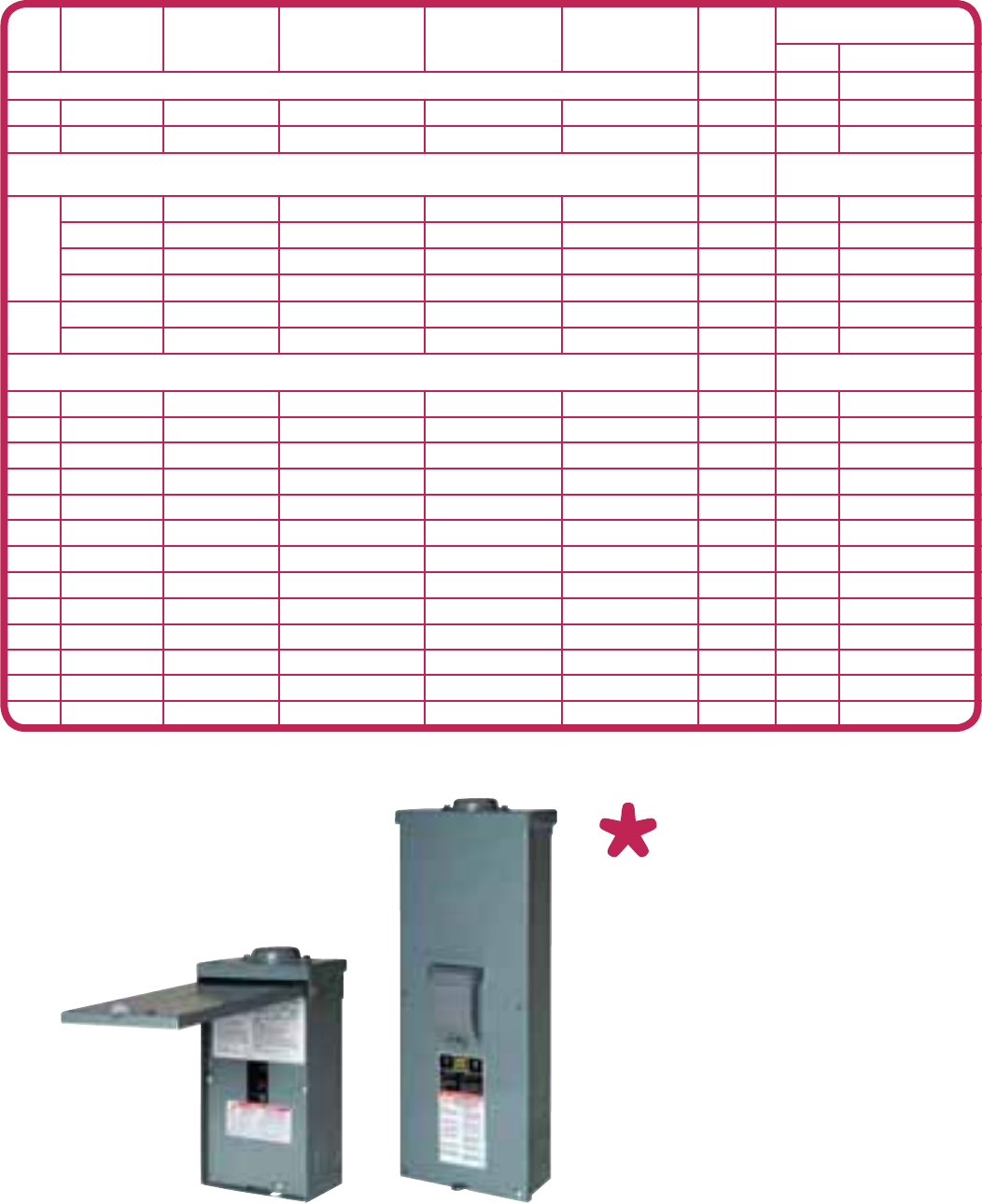

> Enclosed Circuit Breakers

These devices include provisions for a double-pole circuit breaker

to be installed in an enclosure. Typical applications include a main

service entrance disconnect for mobile homes and residences, as

well as equipment or outbuilding disconnects.

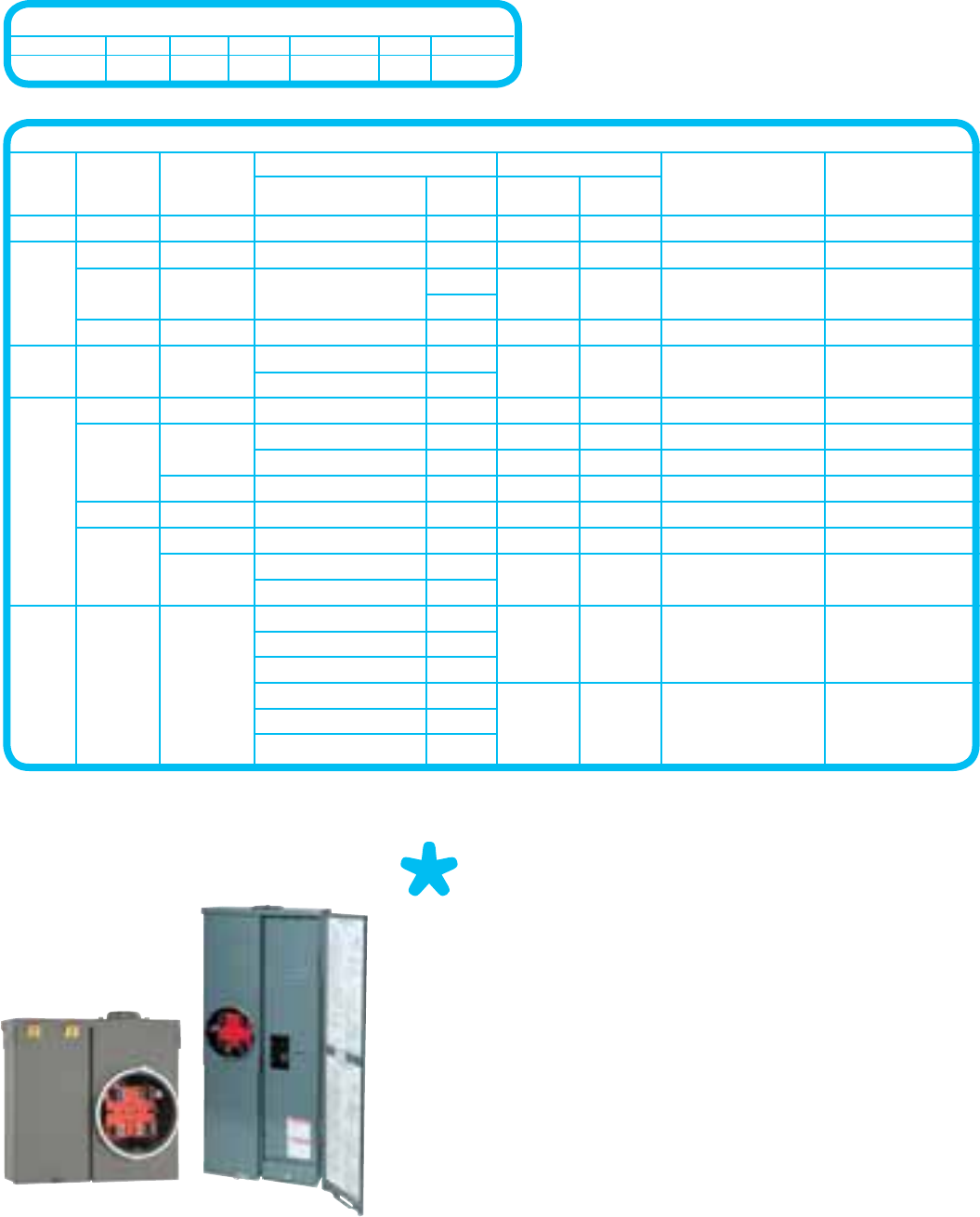

> Meter Sockets

These individual meter sockets are designed for single family

residential applications. They are the point of placement for the

utility company’s detachable watt hour meter and are used in

conjunction with a load center located inside the home. The

enclosures are of rainproof construction and accept “A” type

bolt-on hubs for conduit entry.

• Ring Type

A ring type meter socket uses a sealing ring to retain the meter

in position. In order to remove the meter, the sealing ring is

removed without removing the cover.

• Ringless Type

A ringless type meter socket uses the cover itself as a retaining

means to hold the meter in position. To remove the meter, the

cover must rst be removed.

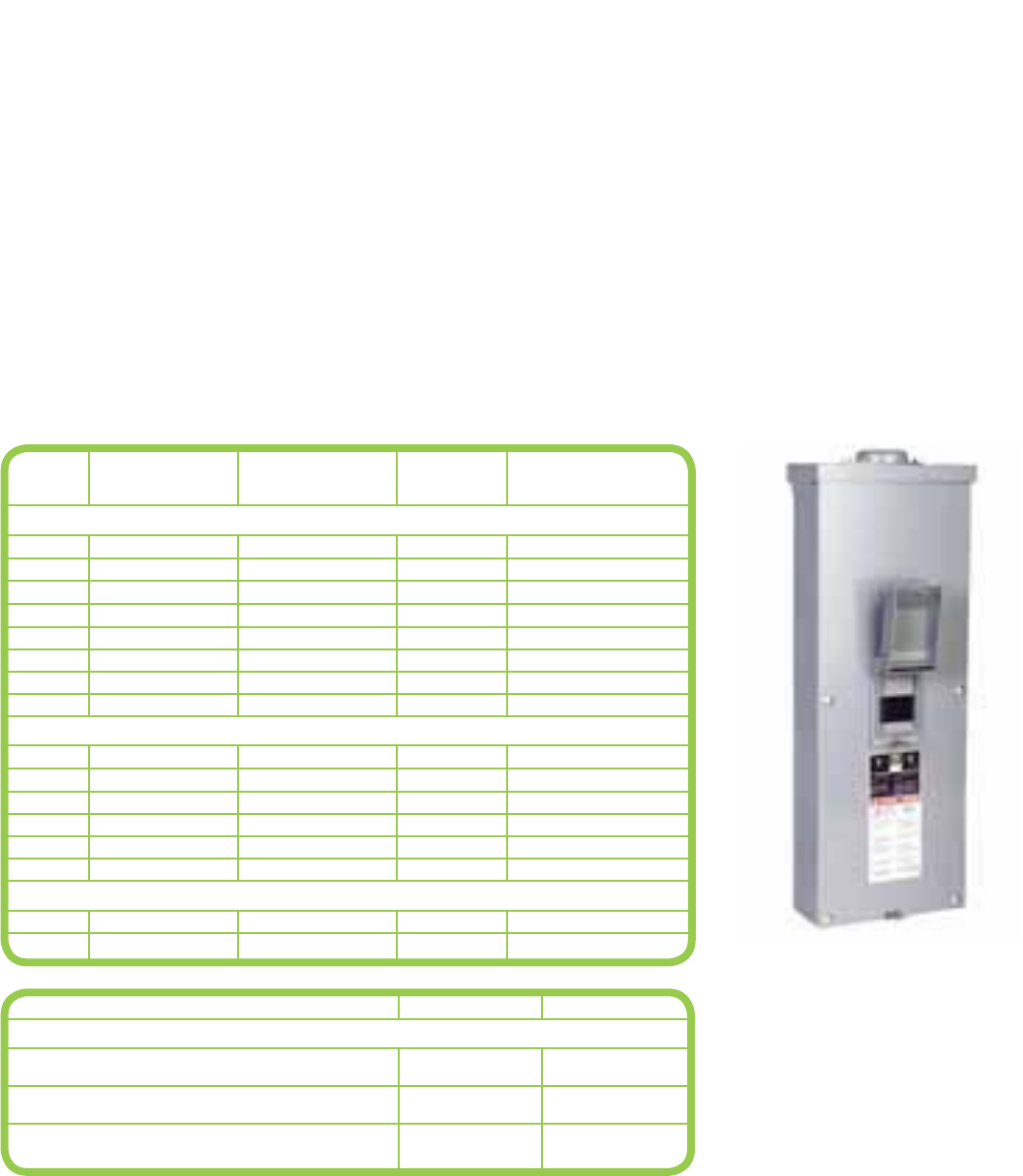

> Combination Service Entrance Devices (CSED)

CSEDs primarily serve the West Coast residential market.

“All-in-one” devices combine the meter socket, main disconnect

and load center into one enclosure. “Meter mains” combine the

meter socket and main breaker disconnect in the same enclosure.

8

For nearly half a

century, QO products

have been the choice of

professionals – chosen

two to one over any other

brand. The quality and

protection standards

of the QO line lead the

industry by providing

unsurpassed protection

and reliability advantages.

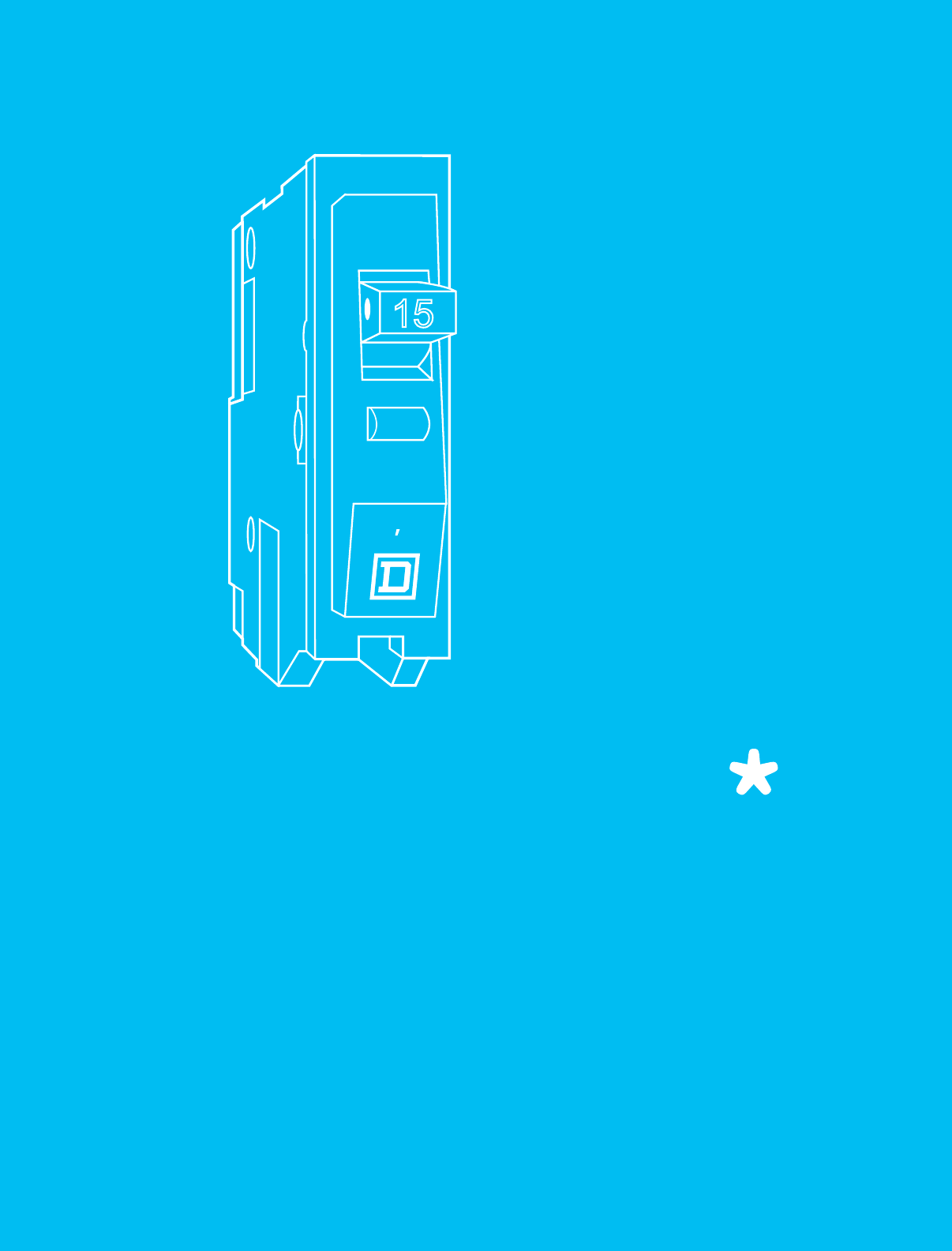

QO Circuit Breakers

> The Exclusive QO Visi-Trip® Indicator

All QO circuit breakers are equipped with the exclusive Visi-Trip

indicator. When a QO Visi-Trip circuit breaker trips, the handle snaps

to a midpoint position between “OFF” and “ON” and a highly visible,

red indicator easily identi es the tripped breaker. This enables you

to easily distinguish which breaker has tripped in a load center that

may contain up to 42 different circuit breakers. QO circuit breakers

have features no other manufacturer can offer. They come in many

different sizes and can meet the needs of virtually every function in

your home or business. These types of quality, industry exclusive

products keep the Square D brand ahead of the competition

and are builders’ and electrical contractors’  rst choice in

electrical protection.

QO Circuit Breaker Features:

• Qwik-Open® circuit breaker protection (trips within 1/60th of a

second) on 15A and 20A single-pole breakers at currents as low

as 150A to 200A

• Trips thermally (in an overload situation) or magnetically (under a

short circuit situation)

• Quick make - quick break mechanism

• SWD (switching duty) rating on 15A and 20A

single-pole breakers

• Plug-on design, easy to install

• Wire terminals UL listed for 2 branch wires

(10A-30A, single- and double-pole)

• Limited lifetime warranty (see page 58 for details)

OFF

ON

10

A/C

000

120/240 Vac

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 9

QO Circuit Breakers

Plug-On Circuit Breakers

• UL Listed, CSA Approved

• 120/240 Vac

• 10,000 AIR

• Visi-Trip Indicator

3/4" Breakers*

Amps▼

1-Pole

Catalog # UPC Code

2-Pole

Catalog # UPC Code

15 QO115CP▲0-47569-83798-2 QO215CP 0-47569-00894-8

QO115C▲0-47569-52237-6 QO215C 0-47569-52216-1

20 QO120CP▲0-47569-83799-9 QO220CP 0-47569-83802-6

QO120C▲ 0-47569-52238-3 QO220C 0-47569-52217-8

25 – – QO225CP 0-47569-02382-8

30 QO130CP 0-47569-83800-2 QO230CP 0-47569-83803-3

QO130C 0-47569-52239-0 QO230C 0-47569-52218-5

40 QO140CP 0-47569-83801-9 QO240CP 0-47569-83804-0

QO140C 0-47569-17791-0 QO240C 0-47569-52219-2

50 QO150CP 0-47569-00893-1 QO250CP 0-47569-83805-7

– – QO250C 0-47569-52220-8

60 – – QO260CP 0-47569-83806-4

– – QO260C 0-47569-52221-5

70 – – QO270CP 0-47569-00895-5

80 – – QO280CP 0-47569-52227-7

90 – – QO290CP 0-47569-52228-4

100 – – QO2100CP 0-47569-52229-1

– – QO2100C 7-85901-69123-5

125 – – QO2125CP 0-47569-04400-7

QO2100

QO120

3/4" Breaker Catalog Number Description

QO 1 15 C

Brand # of Poles Amps Clam Shell Packaging

“C” denotes clam shell packaging .

“CP” denotes bulk bar coded breakers .

High Magnetic 3/4" Breakers*

Amps▼1-Pole Catalog # UPC Code

15 QO115HM 7-85901-40007-3

20 QO120HM 7-85901-40011-0

* All 15A to 60A circuit breakers

listed on this page are UL

listed as HACR type for use

with air conditioning, heating

and refrigeration equipment

having motor group

combinations and marked

for use with HACR type

circuit breakers.

▼ 10A to 30A circuit breakers

are suitable for use with 60°C

or 75°C conductors. 35A to

125A circuit breakers are

suitable for use with

75°C conductors.

▲ UL listed as SWD (switching

duty) rated. Suitable for

switching 120 Vac  uorescent

lighting loads.

10 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

QOT1515

Circuit Limiting QOT

Tandem Breakers

QOT tandem breakers have

a mounting cam as shown.

Installation into a QO load

center can only be made

in those positions having

a mounting pan rail slot.

Meets Par. 384-15 of NEC.

UL listed as class CTL.

QO120GFI

QO250GFI

QO Circuit Breakers – Tandem

Plug-On Circuit Breakers

• UL Listed, CSA Approved

• 120/240 Vac

• 10,000 AIR

• Visi-Trip Indicator

Amps▼1-Pole

Catalog # UPC Code 2-Pole Tandem1-Pole 2-Pole

Tandem Breakers 1-Pole (120/240 Vac) and 2-Pole

15 15 QOT1515CP 0-47569-06269-8 Order two QOT1515 or

QOT2020 circuit breakers

and handle tie, catalog #

QOTHT, for common

switching of center

double-poles.

20 20 QOT2020CP 0-47569-00896-2

QOT2020C 0-47569-07198-0

Replacement Tandem Breakers

For use in Old Style Non-Class CTL QO Load Centers (built prior to 1967)

15 15 QO1515CP 0-47569-08277-1 Order two QO1515 or

QO2020 circuit breakers

and handle tie, catalog #

QOTHT, for common

switching of center

double-poles.

QO1515C 0-47569-07195-9

20 20 QO2020CP 0-47569-00898-6

QO2020C 0-47569-07196-6

Tandem Catalog Number Description

QO T 15 15

Brand Tandem Breakers 1st Pole Amps 2nd Pole Amps

“C” denotes clam shell packaging .

“CP” denotes bulk bar coded breakers .

QO Circuit Breakers – GFCI

GFCI Breakers &

Application Info

• UL Listed,

CSA Approved

• QOE250GFINM Value

Pack (see page 44)

GFCI Breakers◗■: 1-Pole (120 Vac) and 2-Pole (120/240 Vac)

Amps▼

1-Pole

Catalog # UPC Code

2-Pole

Catalog # UPC Code

15 QO115GFICP●0-47569-52231-4 QO215GFI✚7-85901-56298-6

20 QO120GFICP●0-47569-52232-1 QO220GFICP 0-47569-83831-6

30 QO130GFI✚7-85901-25509-3 QO230GFICP 0-47569-03467-1

40 QO240GFI 7-85901-76485-4

50 QO250GFIC●7-85901-30312-1

QO250GFICP 0-47569-04392-5

60 QO260GFICP◗0-47569-04393-2

GFCI Catalog Number Description

QO 1 15 GFI

Brand # of Poles Amps Ground Fault

Circuit Interrupter

Circuit Breaker Wire Sizes

Breaker

Type Amp Rating▼

Wire Size (AWG)

Aluminum Copper

QO 10-30 #14 - 8 (1) #14 - 8 or (2) #14 - 10

35-70 #8 - 2 #8 - 2

80-125 #12 - 2/0 #12 - 2/0

QOT 15-20 #12 - 8 #14 - 8

QO-GFI 15-30 #12 - 8 #14 - 8

40, 50, 60 #12 - 4 #14 - 6

▼ 10A to 30A circuit breakers

are suitable for use with

60°C or 75°C conductors.

35A-125A circuit breakers

are suitable for use with

75°C conductors.

◗ Suitable only for feeding

240 Vac and 208 Vac

2 wire loads. Does not contain

load neutral connection.

● Only available in clam

shell packaging.

▼ 10A to 30A circuit breakers

are suitable for use with

60°C or 75°C conductors.

35A-125A circuit breakers

are suitable for use with

75°C conductors.

■ Do not connect to more than

250 feet of load conductor

for the total one-way run to

prevent nuisance tripping.

✚ Item may require additional

lead time.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 11

AFCI Breakers

• UL Listed, CSA Approved

• 120/240 Vac

• 10,000 AIR

• Branch feed AFCI:

Green Reset Button

• Combination AFCI:

White Reset Button

Arc Fault Circuit Interrupters*

Visi-Trip Indicator

Amps 1-Pole Catalog # UPC Code

15 QO115AFIC 7-85901-30133-2

20 QO120AFIC 7-85901-30134-9

Combination Arc Fault Circuit Interrupters*

Visi-Trip Indicator

Amps 1-Pole Catalog # UPC Code

15 QO115CAFIC 7-85901-61044-1

20 QO120CAFIC 7-85901-69818-0

> New Technology Designed for Safety

The Square D brand Arc Fault Circuit Interrupter (AFCI) is designed

to detect arcs that are caused by damaged, aged or improperly

used wires or cords and to disconnect the power. In addition ,

they can also detect overloads and short circuits .

Arc faults cannot be detected by standard circuit breakers or

fuses and have been identi ed as an early event in the cause of

many electrical  res. These electrical arcs may be as hot as 10,000˚F

and can easily ignite combustible materials located nearby such

as wood frames, insulation , etc.

Square D brand AFCIs will  t into our existing load centers and

can be used as a direct replacement for standard circuit breakers

for remodeling or as direct installation items with the exception of

ground fault circuit interrupters (GFCI).

The 2008 National Electrical Code requires that combination AFCIs

be installed on all circuits that supply a dwelling unit living area. Arc

Faults can occur on any type of circuit where you may have wire that

has deteriorated insulation or has been damaged (such as during

pulling, service or installation) or in worn extension or appliance

cords. For more information, visit www.SquareD.com/afci or

www.afcisafety.org.

QO Circuit Breakers – AFCI

Series Arc Fault

Parallel Arc Fault

QO120AFIC QO120CAFIC

* “C” denotes Clam Shell

packaging . All 15A and 20A

single-pole arc fault circuit

interrupters are UL listed

and can be used on circuits

requiring standard QO or

Homeline circuit breakers.

AFCI circuit breakers cannot

be used on circuits requiring

GFCI breakers.

12 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Accessory Description Catalog # UPC Code**

Handle Attachments

Handle Tie Secured as back-fed main for HOM612L100F/S,

RB. HOM48L125C,GRB load centers HOM1RKCP 0-47569-07145-4

Converts any two adjacent 120/240 Vac

1-pole Homeline circuit breakers to independent

trip 2-pole

HOM1HTCP 0-47569-07147-8

Converts any two adjacent 120/240 Vac

1-pole QO circuit breakers to independent trip

2-pole

QO1HTCP 0-47569-57040-7

Converts any two adjacent 120/240 Vac 1-pole

side-by-side Homeline tandem breakers to

independent trip 2-pole

HOMTHTCP 0-47569-07148-5

Converts any two adjacent 120/240 Vac 1-pole

side-by-side QOT circuit breakers to independent

trip 2-pole

QOTHTCP 0-47569-17831-3

Handle Lock-Off Clip for fixing QO 1-pole handle in “ON”

or “OFF” position QO1LOCP 0-47569-49462-8

Clip for fixing QO or Q1 either 1-, 2- or 3-pole

breaker handles in “ON” or “OFF” position HLO-1CP 0-47569-51772-3

Handle Padlock

Attachment For padlocking 1-pole Homeline breakers

in “ON” or “OFF” position HOM1PACP 0-47569-79871-9

For padlocking 2-pole Homeline breakers

in “ON” or “OFF” position

For high amperage HOM2PAHACP 7-85901-33158-2

For low amperage HOM2PALACP 7-85901-33159-9

For padlocking the center of a 2-pole Homeline

quad breaker in the “OFF” position HOMQPA✚7-85901-86581-0

For padlocking 1-pole QO circuit breakers

in “ON” or “OFF” position

Fixed attachment QO1PACP 0-47569-49743-8

Loose attachment QOHPL✚7-85901-76347-5

For padlocking 1-pole side-by-side QOT circuit

breakers in “ON” or “OFF” position. QOTHPA✚7-85901-00255-0

For 2- and 3-pole QO and Q1 circuit breakers

which require padlocking in either “ON” or “OFF”

position

Fixed attachment QO1PL✚7-85901-51907-2

Loose attachment QO1HPLCP 0-47569-79864-1

Mechanical

Interlock

Attachment with

Retaining Kit

QO2DTI mechanical interlock attachment

with retaining kit for securing two adjacent

back-fed circuit breakers in dual power supply

applications. Can be used with (2) 2-poles or

(1) 2-pole and (1) 1-pole QO circuit breakers in

QO816L100 load centers.

QO2DTIM✚7-85901-78471-5

Bolt-On Hubs Meter socket Bolt-On “A” hub A100

7-85901-02948-9

A125

7-85901-02949-6

A150

7-85901-02950-2

A200 7-85901-02951-9

A200L

7-85901-13009-3

A250

7-85901-02952-6

A250L

7-85901-10798-9

A300L

7-85901-10797-2

Outdoor

Bolt-On “B” hub B075

7-85901-45941-5

B100

7-85901-45942-2

B125

7-85901-45944-6

B150

7-85901-45945-3

B200

7-85901-45947-7

B250

7-85901-45948-4

B300

7-85901-61583-5

QO & Homeline Circuit Breakers – Accessories

A125

QO1PACP

QO2DTIM

B100

HOMTHTCP

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 13

Accessory Description Catalog # UPC Code**

Sub-Feed Lugs 2-pole plug-on – 2 spaces required

125A HOML2125✚7-85901-06592-0

60A (#6 - 2 Al/Cu) QO60SL Special Order

125A (#4 - 2/0 Al/Cu) QO2125SL✚7-85901-03115-4

Filler Plates Fills opening in covers if twistout is

removed in error HOMFPCP 7-85901-07149-2

QOFPCP 0-47569-07224-6

Closing Plates To be installed on TOP endwall ACPACP 0-47569-73540-0

ACPCP 0-47569-73539-4

Lock Kits Use with convertible load center covers (Indoor) PK6FL✚7-85901-74631-7

Nuetral Lugs/

Ground Lugs

Field installed for #12 - 2 Al or #14 - 4 Cu wire LK70ANCP▲7-85901-48311-3

HOM70AN 7-85901-07658-2

QO70AN 7-85901-53973-5

Field installed for #6 - 2/0 Al/Cu wire LK100ANCP▲7-85901-43664-2

HOM100AN 7-85901-07659-9

Field installed for #2 - 3/0 Al/Cu wire LK150AN▲✚ 7-85901-73835-0

Ground Bar Kits Standard PK15GTA with a #1 - 4/0 Al/Cu Lug PK15GTA-L✚7-85901-44087-1

Standard PK18GTA with a #1 - 4/0 Al/Cu Lug PK18GTA-L✚7-85901-44088-8

Standard PK23GTA with a #1 - 4/0 Al/Cu Lug PK23GTA-L✚7-85901-44089-5

Ground Bars

Number of

terminals listed at

right.

All suitable for:

(1) #14 - 4 or

(2) #14 or #12 Cu

or (1) #12 - 4

or (2) #12 or #10 Al

Two terminals suitable for (1) #10 - 2/0 Cu

or (1) #6 - 2/0 Al PK0GTA-2 7-85901-43267-8

Three terminals PK3GTA-1CP 0-47569-51730-3

Four terminals PK4GTACP 0-47569-51731-0

Seven terminals PK7GTACP 0-47569-51732-7

Nine terminals PK9GTACP 0-47569-51733-4

Twelve terminals PK12GTACP 0-47569-51735-8

Fifteen terminals PK15GTACP 0-47569-57033-9

Eighteen terminals PK18GTACP 0-47569-51738-9

Twenty-three terminals PK23GTACP 0-47569-51739-6

Miscellaneous

Retaining Kit Secures circuit breaker to interior when used

as a back-fed main. For QO612L100F/S,RB,

QO612L100DF/S, QO816L100F/S,RB and

QO816L100DF/S load centers.

PK2MBCP 0-47569-51734-1

Secures ONE circuit breaker, with or without

electrical accessories, to right side of interior

when used as a back-fed main. For 100 to 125A

convertible main load centers. Series S01 and

S02.

PK4MB2LA✚7-85901-30718-1

Secures ONE circuit breaker, with or without

electrical accessories, to right side of interior

when used as a back-fed main. For 150 to 225A

convertible main load centers. Series S01 and

S02.

PK4MB2HA✚7-85901-30717-4

Manual Transfer

Equipment Transfer Secures TWO circuit breakers to right side

of interior when used as back-fed mains, a

QO2DTI Kit included for back-up power supply

applications. For 100A to 125A convertible main

load centers. Series S01 and S02.

PK4DTIM4LA✚7-85901-40027-1

Secures TWO circuit breakers to right side

of interior when used as back-fed mains, a

QO2DTI Kit included for back-up power supply

applications. For 150A to 225A convertible main

load centers. Series S01 and S02.

PK4DTIM4HA✚7-85901-30716-7

Secures TWO circuit breakers to left side

of interior when used as back-fed mains, a

QO2DTI Kit included for back-up power supply

applications. For 100A to 125A convertible main

load centers. Series S01 and S02.

PK4DTIM4LAL✚7-85901-30721-1

Cover Screws Clamshell package of six load center cover

screws. Fits all QO and Homeline load centers. S106 0-47569-44073-1

Surge Arrester

Mounting Kit UL listed for mounting hardwired SDSA1175

surge arrester into ground bar mounting holes on

convertible load centers.

QOSAMK 7-85901-00298-7

Accessories

• UL Listed

• QO accessories can

only be used with QO

load centers

* For use in QO load centers

prior to series S1.

** Where UPC code is not

shown, contact Square D

sales representative for

ordering information.

▲ For use in QO and Homeline

load centers.

✚ Item may require additional

lead time.

ACPCP

LK100ANCP

S106

PK7GTACP

14

For nearly half a century,

QO products have

been the choice of

professionals – chosen

two to one over any other

brand. The quality and

protection standards

of the QO line lead the

industry by providing

unsurpassed protection

and reliability advantages.

QO Load Centers

> The Leading Choice

Our Square D brand load centers are the leading choice of electrical

contractors and electricians. Every feature of the QO load centers

was designed to provide clear advantages. Quality features designed

to simplify installation, improve reliability and enhance safety.

QO Load Center Features:

• Shielded copper bus bar insulates and secures the interior

• Increased neutral capacity reduces clutter and simpli es wiring

• Easy-mount interiors save time and money

• Slot/square drive screws let you use either standard  at blade

screwdriver or square-head driver for positive drive and

improved torque

• Ground bar is included with all main lugs load centers with

three mounting locations

• Convertible mains allow you to meet changing job site

requirements by  eld converting main breaker load

centers to main lugs and vice versa

• Straight-in mains design minimized cable bends, cutting waste

and saving time

• Top or bottom feed can be accessed simply by rotating the

load center

• 22,000/10,000 AIR standard series connected rating

• Lifetime limited warranty (see page 58)

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 15

QO120M100C QO120M100RB QO140M200RB

QO140M200C

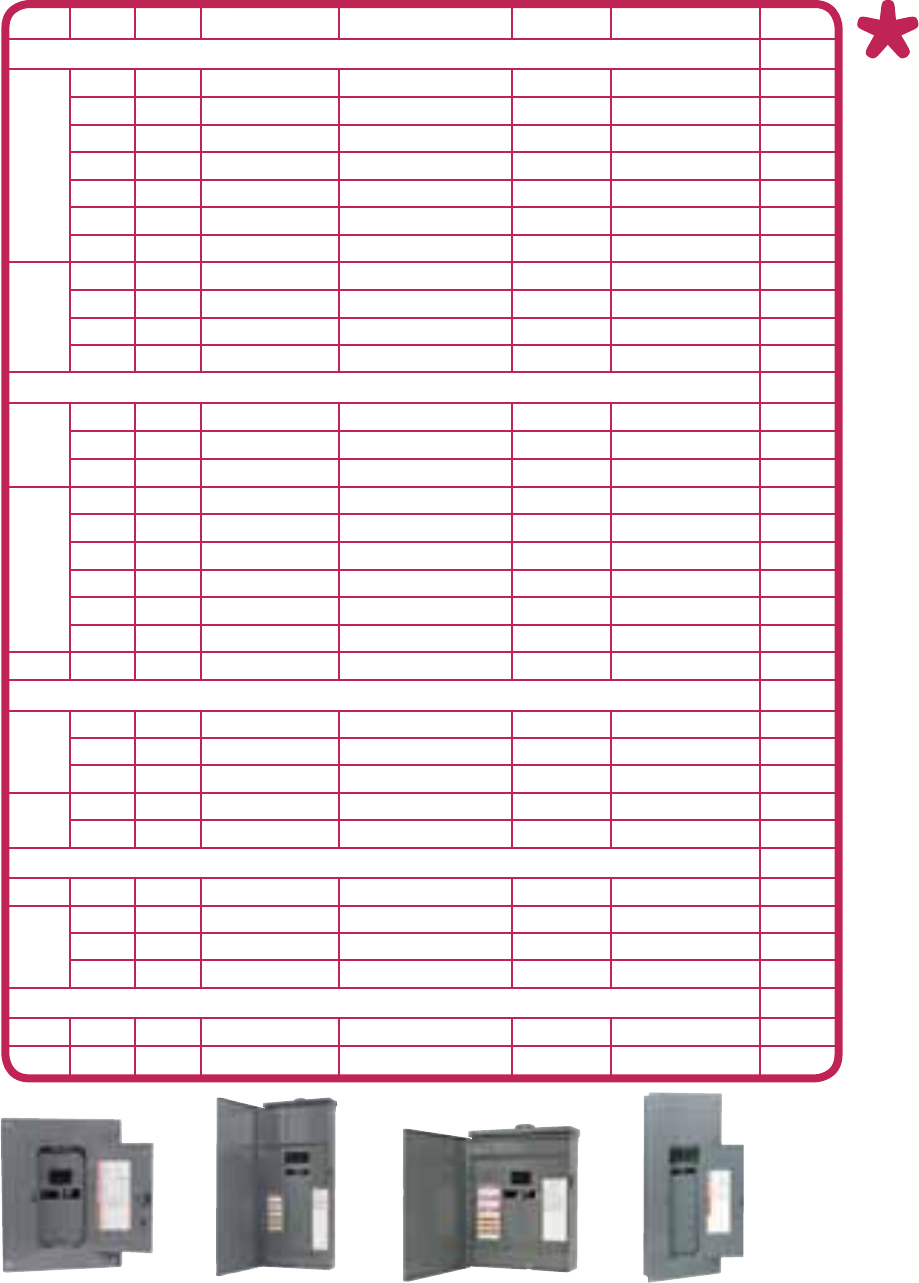

QO Load Centers – Main Breaker

Main Circuit Breakers

• UL Listed, NOM Certified

• Single-Phase, 3-Wire

• 120/240 Vac—UL Listed

• 22,000 AIR◆

• Convertible to Main

Lugs or Lower Amperage

Main Breaker

• Factory Installed

Main Breaker

• Copper Bus

• Catalog Number Guide

Page 17

Amps Spaces

Max.

Circuits Cover Catalog # Ground Bar UPC Code Box Size

Indoor – QOM1 Main Breaker Frame Size (see pg.18)

100 12 12 Combination QO112M100C PK9GTA 7-85901-84127-2 4

12 20 Combination QO11220M100C PK15GTA 7-85901-84118-0 5

16 16 Combination QO116M100C PK15GTA 7-85901-84775-5 5

20 20 Combination QO120M100C PK15GTA 7-85901-84788-5 5

24 24 Order Separately* QO124M100✚PK15GTA 7-85901-84792-2 6

32 32 Order Separately* QO132M100 PK18GTA 7-85901-19337-1 6

125 24 24 Order Separately* QO124M125✚PK15GTA 7-85901-84793-9 6

32 32 Order Separately* QO132M125 PK18GTA 7-85901-19338-8 6

Indoor – QOM2 Main Breaker Frame Size (see pg.18)

150 24 24 Order Separately* QO124M150✚PK15GTA 7-85901-84794-6 8

30 30 Combination QO130M150C PK18GTA 7-85901-86743-2 8

32 32 Order Separately* QO132M150✚PK23GTA 7-85901-39489-1 9

200 20 40 Combination QO12040M200C PK23GTA 7-85901-84783-0 8

24 24 Order Separately* QO124M200✚PK15GTA 7-85901-84795-3 8

30 30 Combination QO130M200C PK18GTA 7-85901-86754-8 8

30 40 Combination QO13040M200C PK23GTA 7-85901-84800-4 8

40 40 Combination QO140M200C PK23GTA 7-85901-86766-1 9

42 42 Order Separately* QO142M200✚PK23GTA 7-85901-39490-7 10

225 40 40 Order Separately* QO140M225✚PK23GTA 7-85901-86767-8 10

Outdoor – QOM1 Main Breaker Frame Size (see pg.19)

100 12 12 Rainproof QO112M100RB✚PK9GTA 7-85901-86787-6 3R

16 16 Rainproof QO116M100RB✚PK12GTA 7-85901-86794-4 4R

20 20 Rainproof QO120M100RB PK15GTA 7-85901-86798-2 4R

125 24 24 Rainproof QO124M125RB✚PK15GTA 7-85901-86804-0 4R

Outdoor – QOM2 Main Breaker Frame Size (see pg.19)

150 20 30 Rainproof QO12030M150RB PK18GTA 7-85901-86796-8 5R

30 30 Rainproof QO130M150RB✚PK18GTA 7-85901-86810-1 6R

200 20 40 Rainproof QO12040M200RB PK23GTA 7-85901-86797-5 5R

30 30 Rainproof QO130M200RB PK18GTA 7-85901-86811-8 6R

40 40 Rainproof QO140M200RB PK23GTA 7-85901-86813-2 7R

Outdoor – Feed Thru: 22,000 AIR (mobile home applications) (see pg.19)

125 6 12 Rainproof QO1612M125FTRB✚▲ PK12GTA 7-85901-86816-3 3R

150 8 16 Rainproof QO1816M150FTRB PK15GTA-L 7-85901-86817-0 6R

200 8 16 Rainproof QO1816M200FTRB PK15GTA-L 7-85901-86818-7 6R

Listings thru 200A mains meet

Federal Speci cation W-P-115c

as Type 1, Class 2.

◆ 22,000 AIR main circuit

breaker UL listed for use

ahead of QO and QOT

10,000 AIR branch breakers

to permit their application

systems with up to 22,000A

available fault current.

* Contact Square D

sales representative for

ordering information .

✚ Item may require additional

lead time.

▲ QO1612M125FTRB provided

with QOM1 frame main

circuit breaker.

16 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

QO Load Centers – Main Lugs

Main Lugs

• UL Listed

• Single-Phase, 3-Wire

• 120/240 Vac

• 12 Spaces and Higher

Panels Convertible to

Main Breaker

• Factory Installed

Main Lugs

• Copper Bus Bar Only on

12 Circuits and Higher

• Catalog Number Guide

Page 17

QO13040L200GC

QO11624L125GRB

Amps Spaces

Max.

Circuits Cover Catalog # Ground Bar UPC Code Box Size

Indoor – 10,000 AIR (see pg.18)

30 2 2 Surface QO2L30SCP●❋❐ PK3GTA-1 0-47569-80432-8 1

70 2 4 Flush QO24L70FCP●■ PK4GTA 0-47569-80435-9 2

2 4 Surface QO24L70SCP●■ PK4GTA 0-47569-80436-6 2

100 6 12 Flush QO612L100FCP●PK7GTA 0-47569-80508-0 3

6 12 Surface QO612L100SCP●PK7GTA 0-47569-80507-3 3

6 12 Flush QO612L100DF●PK7GTA 7-85901-78564-4 3

6 12 Surface QO612L100DS●PK7GTA 7-85901-78562-0 3

8 16 Flush QO816L100FCP●PK7GTA 0-47569-80475-5 3

8 16 Surface QO816L100SCP●PK7GTA 0-47569-80476-2 3

8 16 Flush QO816L100DF●PK7GTA 7-85901-78569-9 3

8 16 Surface QO816L100DS●PK7GTA 7-85901-78574-3 3

125 4 8 Flush QO148L125GF✚Included 7-85901-48438-7 22

4 8 Surface QO148L125GS✚Included 7-85901-48440-0 22

Indoor – QOM1 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.18)

125 12 12 Combination QO112L125GC Included 7-85901-86845-3 5A

12 24 Combination QO11224L125GC Included 7-85901-84120-3 5A

16 16 Order Separately* QO116L125G Included 7-85901-84773-1 6

16 24 Order Separately* QO11624L125G✚Included 7-85901-84130-2 6

20 20 Combination QO120L125GC Included 7-85901-84786-1 6

20 24 Order Separately* QO12024L125G✚Included 7-85901-84777-9 6

24 24 Order Separately* QO124L125G✚Included 7-85901-84790-8 6

Indoor – QOM2 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.18)

150 20 30 Order Separately* QO12030L150G✚Included 7-85901-84779-3 8

24 24 Order Separately* QO124L150G✚Included 7-85901-84791-5 8

30 30 Order Separately* QO130L150G✚Included 7-85901-84801-1 8

200 12 12 Order Separately* QO112L200G✚Included 7-85901-84124-1 8

30 30 Order Separately* QO130L200G✚Included 7-85901-84802-8 8

30 40 Combination QO13040L200GC Included 7-85901-84798-4 8

225 42 42 Order Separately* QO142L225G✚Included 7-85901-86775-3 10

Outdoor – Non-metallic Enclosure (see pg.19)

60 2 4 Rainproof QO24L60NRNM Included 7-85901-32802-5 1NM

Outdoor – 10,000 AIR (see pg.19)

40 2 2 Rainproof QO2L40RBCP●■ PK3GTA-1 0-47569-80437-3 1R

70 2 4 Rainproof QO24L70RBCP●■ PK4GTA 0-47569-80438-0 1R

100 6 12 Rainproof QO612L100RBCP●PK7GTA 0-47569-80509-7 2R

8 16 Rainproof QO816L100RBCP●PK7GTA 0-47569-80477-9 2R

125 4 8 Rainproof QO148L125GRB✚Included 7-85901-48439-4 9R

Outdoor – QOM1 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.19)

125 12 12 Rainproof QO112L125GRB✚Included 7-85901-86785-2 3R

12 24 Rainproof QO11224L125GRB Included 7-85901-86784-5 3R

16 24 Rainproof QO11624L125GRB Included 7-85901-86788-3 4R

24 24 Rainproof QO124L125GRB Included 7-85901-86799-9 4R

Outdoor – QOM2 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.19)

150 30 30 Rainproof QO130L150GRB Included 7-85901-86808-8 6R

200 12 12 Rainproof QO112L200GRB Included 7-85901-86786-9 5R

30 30 Rainproof QO130L200GRB Included 7-85901-86809-5 6R

30 40 Rainproof QO13040L200GRB Included 7-85901-86806-4 6R

225 42 42 Rainproof QO142L225GRB✚Included 7-85901-86815-6 8R

Listings thru 200A mains meet

Federal Speci cation W-P-115c

as Type 1, Class 2.

● Not supplied with copper

bus bar.

❋ Will not accept Qwik-Gard

QO GFI circuit breakers.

❐ Mains rated 25A when

aluminum wire is used.

■ Use #10 maximum size

wire for GFI circuit breaker.

* Contact Square D sales

representative for

ordering information.

✚ Item may require additional

lead time.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 17

✚ Item may require additional

lead time.

▲ Do not exceed the load center

mains rating.

QO Load Centers

Amps▲

Use With Main

Lug Load Center

Mains Rating

Main Circuit Breaker

Catalog #

Main Wire Size

AWG/kcmil

(Al or Cu) UPC Code

Field Installable Main Breaker (convertible load centers only): QOM1 Frame Size

50 100-125 QOM50VH✚7-85901-87959-6

60 100-125 QOM60VH✚7-85901-87960-2

70 100-125 QOM70VH✚7-85901-05471-9

80 100-125 QOM80VH✚7-85901-05472-6

90 100-125 QOM90VH✚#12 - 2/0 7-85901-05473-3

100 100-125 QOM100VHCP 0-47569-82259-9

110 125 QOM110VH Special Order

125 125 QOM125VHCP 0-47569-03461-9

Field Installable Main Breaker (convertible load centers only): QOM2 Frame Size

100 150-225 QOM2100VH✚7-85901-02195-7

125 150-225 QOM2125VH✚7-85901-02197-1

150 150-225 QOM2150VH #4 - 300 7-85901-00405-9

175 200-225 QOM2175VH✚7-85901-84858-5

200 200-225 QOM2200VH 7-85901-00406-6

225 225 QOM2225VH 7-85901-00407-3

Field Installable Main Lugs (convertible load centers only)

125 100-125 QOL125✚#6 - 2/0 7-85901-74796-3

200 150-225 QOL225✚#6 - 300 7-85901-74797-0

> Catalog Number Guide

QO 1 8 16 M 100 T FT C CP

Position 1 – Brand

“QO” = QO

“HOM” = Homeline

Position 2 – Phases

Only applies to QO

Blank or “1” = Single

“3” = Three

Position 3 – Spaces

Maximum number of full-size

single-pole circuit breaker spaces.

Position 4 – Circuits

Maximum number of single-pole

circuits when using tandem breakers

Note: Number of circuits minus

number of spaces equals number

of tandem breakers accepted.

Position 5 – Mains Type

“M” = Main Breaker

“L” = Main Lugs

Position 6 – Mains Ratings

(Amps)

Position 10 -

Consumer Product

“CP” = Consumer Products

CP only applies to Homeline

load centers with six spaces

or less and QO load centers

with eight spaces or less and

does not change the product.

Position 9 - Cover

“C” = Combination Cover

“F” = Flush Cover

“S” = Surface Cover

“RB” = Rainproof

“EP” = Longer Cover

Accessory

Blank = Order separately

Position 8 –

Special Construction

“FT” = Feed Through

Position 7 – Ground Bar

“G” = Included

“T” = Factory Installed

Blank = Order separately

Product Catalog # UPC Code

High Amperage Breaker Enclosures

Outdoor Enclosure with Factory Installed 200A

Main Breaker (Replaces Q2E2200NRBCP) QOM2E2200NRB 7-85901-37530-2

Outdoor Enclosure Only

(100A to 225A QOM2 Main Breaker order separately) QOM22225NRB 7-85901-32887-2

Indoor Surface Mount Enclosure Only

(100A to 225A QOM2 Main Breaker order separately) QOM22225NS✚7-85901-32886-5

QOM2E2200NRB

18 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Table 1.46: Enclosure Dimensions

Dimensions Dimensions

Box

No.

WH D

Box

No.

WHD

in.mmin.mmin.mm in.mmin.mmin.mm

1 3.81 97 6.72 171 3.00 76 13 5.88 149 13.12 333 3.38 86

2 4.81 122 9.30 236 3.19 81 14 14.25 362 20.92 531 3.75 95

3 4.81 122 9.30 236 3.19 81 15 20.00 508 50.00 1270 5.75 146

4 8.88 226 12.57 319 3.80 97 16 20.00 508 68.00 1727 5.75 146

5 14.25 362 14.92 379 3.75 95 17 20.00 508 53.00 1346 5.75 146

6 14.25 362 17.92 455 3.75 95 18 5.88 149 16.12 409 3.38 86

7 14.25 362 20.92 531 3.75 95 19 7.56 192 23.12 587 4.25 108

8 14.25 362 26.04 661 3.75 95 20 9.62 244 26.12 663 4.75 121

9 14.25 362 29.86 758 3.75 95 21 8.88 226 14.80 376 3.80 97

10 14.25 362 33.78 858 3.75 95 22 8.55 217 23.92 608 3.95 100

11 14.25 362 37.98 965 3.75 95 23 14.25 362 29.86 758 3.75 95

12 14.25 362 39.37 1000 3.75 95

Table 1.47: Knockout Information

Knockouts

SymbolABCDEFGH I

Conduit

Size 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 3-1/2

Box 1

A,B,C

A

A

A,B,C

A

A,B,C,D

A,B,C

A

A,B,C

A

Box 2

A

Box 3

A,B

B,C,D,E

B,C,D,E

A

A,B

A

Box 4

B,C,D,E

B,C,D,E

B,C,D,E

B,C,D,E

Box 5

A

B,C,D,E C,D,E,F,G A,B

B,C,D,E

A,B,C,D

A,B

A

C,D,E,F

A,B

A

C,D,E,F

Box 6

B,C,D,E

A,B,C,D

B,C,D,E A

C,D,E,F,G A,B

B,C,D,E A

C,D,E,F,G A,B

A,B

A

C,D,E,F

Box 7

B,C,D,E

A,B,C,D

B,C,D,E A

C,D,E,F,G A,B

Box 8

A,B,C,D

B,C,D,E

C,D,E,F

B,C,D,E

D,E,F,G

B,C,D,E A

C,D,E,F,G A,B

A,B

B,C

A

D,E,F,G

C,D,E,F

A,B,C,D

C,D,E,F

D,E,F,G

Box 9

B,C,D,E A

C,D,E,F,G A,B

D,E,F,G

D,E,F,G

C,D,E,F

A,B,C,D

C,D,E,F

B,C,D,E

D,E,F,G

A,B

B,C

A

Box 10

B,C,D,E A

C,D,E,F,G A,B

D,E,F,G

D,E,F,G

C,D,E,F

A,B,C,D

C,D,E,F

B,C,D,E

D,E,F,G

Box 11

A,B

B,C

A

B,C,D,E A

C,D,E,F,G A,B

C,D,E,F

D,E,F,G

C,D,E,F

B,C,D,E

A,B,C,D

B,C,D,E

D,E,F,G

Box 12

A,B

B,C

A

Box 13

A,B,C,D

C,D,E,F

C,D,E,F

Box 14

A,B

A

B,C,D,E

B,C,D,E

A,B,C,D

A,B,C

AA,B

D,E,F,G

A,B

C,D,E,F

D,E,F,G,H,I

D,E,F,G,H

Box 15, 16, 17

Box 18

A,B,C,D

C,D,E,F

Box 19

D,E,F,G

Box 20

C,D,E,F

D,E,F,G

E,F,G,H

B,C,D,E

B,C,D,E

A

A,B

A

Box 21

B,C,D,E

B,C,D,E

B,C,D,E

B,C,D,E

Box 22

A,B

C,D,E,F

B,C,D,E

D,E,F,G

A,B

B,C

A

D,E,F,G

C,D,E,F

A,B,C,D

C,D,E,F

D,E,F,G

Box 23

A,B,C

AA,B

D,E,F,G

Load Centers

> Indoor Knockout Information and Enclosure Dimensions

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 19

Bolt-On Hubs

Square D equipment with “R’’ or “RB’’ suffix, designated NEMA 3R rainproof construction,

utilizes bolt-on hubs listed below. “RB’’ devices will accept 3/4" through 2-1/2" bolt-on

hubs without the use of reducers. Off-center conduit thread openings and elongated

mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and

bends. Catalog suffix “R’’ devices require 3" through 4" field cut opening. Hubs are

suitable for use with conduit having ANSI standard taper pipe thread.

▲Closing cap (Cat. No. BCAP) is provided factory-installed on each device having “RB’’ suffix.

Table 1.48: Enclosure Dimensions

Dimensions

Box No. DHW

in. mm in. mm in. mm

1NM 6.52 166 8.79 223 3.90 99

1R◗4.88 124 9.38 238 4.00 102

2R 8.88 226 12.65 321 4.27 108

3R 14.75 375 18.92 481 4.52 115

4R 14.75 375 22.06 560 4.52 115

5R 14.75 375 26.04 661 4.52 115

6R 14.75 375 29.86 758 4.52 115

7R 14.75 375 33.78 858 4.52 115

8R 14.75 375 37.98 965 4.52 115

9R 4.56 116 6.50 165 3.88 99

10R 6.92 176 13.18 335 4.12 105

11R 7.56 192 23.24 590 4.75 121

12R 9.62 244 26.24 666 5.50 140

13R 6.92 176 16.18 411 4.12 105

14R 14.75 375 39.37 1000 4.52 115

15R 8.88 226 14.80 376 4.27 108

16R 8.55 217 24.75 629 4.16 106

◗HOME250SPA and QO260NATR top endwall has no hub opening.

Table 1.49: Knockout Information

Knockouts

SymbolABCDEFGH

Conduit Size 1/2 in. 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in. 2-1/2 in. 3 in.

Table 1.50: Bolt-On Hubs UL Listed for “RB” Devices▲

Conduit Size 3/4 in. 1 in. 1-1/4 in. 1-1/2 in. 2 in. 2-1/2 in.

Hub Cat. No. B075B100B125B150B200B250

Table 1.51: Bolt-On Hubs UL Listed for Mounting in Field-Cut Opening

Conduit Size 3in. 3-1/2in. 4in. Designed for mounting in field cut opening.

Includes gasket and four mounting bolts and nuts.

Hub Cat. No. B300 B350 B400

Box 3R, 4R

AA,B C,D,E,F,G

C,D,E,F

C,D,E,F,G

2

12

"

Hub Maximum

C,D,E,F A,B,C

Box 5R

AA,B C,D,E,F,G

C,D,E,F

C,D,E,F,G

212"Hub Maximum

C,D,E,F A,B,C

Box 6R, 7R, 8R

AA,B C,D,E,F,G

C,D,E,F

C,D,E,F,G

2

12

"

Hub Maximum

C,D,E,F A,B,C

Box 1NM

A,B B,C

A,B,C,D

A

Box 1R

A,B

212"Hub Maximum

B,C,D,E

B,C,D,E

A

Box 2R

A,B

212"Hub Maximum

B,C,D,E

Box 9R

A,B,C

A,B,C,D

C,D,E,F

Box 10R, 13R

B,C,D,E

B,C,D,E

2

12

"

Hub Maximum

D,E,F,G

Box 11R

212"Hub Maximum

Box 1NM

A,B B,C

Box 14R

212"Hub Maximum

AA,B C,D,E,F,G

C,D,E,F

C,D,E,F,G

C,D,E,F A,B,C

D,E,F,G

Box 12R

2

12

"

Hub Maximum

E,F,G,H E,F B,C,D,E

B,C,D,E

A

Box 15R

A,B

2

12

"

Hub Maximum

B,C,D,E

Box 16R

A,B

212"Hub Maximum

C,D,E,F

“RB’’ Hub

> Rainproof Knockouts, Dimensions, Bolt-On Hubs Information

20 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Main Breaker Load Centers

Catalog Number Main Wire Size AWG/kcmil (Al or Cu)

Indoor

QO112M100C #6 - 1

QO11220M100C #6 - 2/0

QO116M100C #6 - 1

QO120M100C #6 - 1

QO124M100 #6 - 2/0

QO124M125 #6 - 2/0

QO12030M150C #4 - 250

QO124M150 #4 - 250

QO130M150C #4 - 250

QO12040M200C #4 - 250

QO124M200 #4 - 250

QO130M200C #4 - 250

QO13040M200C #4 - 250

QO132M125C #6 - 2/0

QO132M150 #4 - 250

QO140M200C #4 - 250

QO140M225 #4 - 300

QO142M200 #4 - 300

Outdoor

QO112M100RB #6 - 2/0

QO116M100RB #6 - 2/0

QO120M100RB #6 - 2/0

QO124M125RB #6 - 2/0

QO12030M150RB #4 - 250

QO130M150RB #4 - 250

QO12040M200RB #4 - 250

QO130M200RB #4 - 250

QO140M200RB #4 - 250

Feed Thru

QO1612M125FTRB #6 - 2/0

QO1816M150FTRB #4 - 250

QO1816M200FTRB #4 - 250

QO Load Centers – Main Wire Sizes

Main Lugs Load Centers

Catalog Number Main Wire Size AWG/kcmil (Al or Cu)

Indoor

QO2L30SCP #12 - 10 (Al) or #14 - 10 (Cu)

QO24L70FCP #12 - 3 (Al) or #14 - 4 (Cu)

QO24L70SCP #12 - 3 (Al) or #14 - 4 (Cu)

QO612L100FCP #8 - #1

QO612L100DF #8 - #1

QO612L100DS #8 - #1

QO612L100SCP #8 - #1

QO816L100FCP #8 - #1

QO816L100DF #8 - #1

QO816L100DS #8 - #1

QO816L100SCP #8 - #1

QO148L125GF #14 - 2/0

QO148L125GS #14 - 2/0

QO112L125GC #6 - 2/0

QO11224L125GC #6 - 2/0

QO116L125G #6 - 2/0

QO11624L125G #6 - 2/0

QO120L125GC #6 - 2/0

QO12024L125G #6 - 2/0

QO124L125G #6 - 2/0

QO12030L150G #6 - 250

QO124L150G #6 - 250

QO130L150G #6 - 250

QO112L200G #6 - 250

QO130L200G #6 - 250

QO13040L200GC #6 - 250

QO142L225G #6 - 300

Outdoor

QO24L60NRNM #14 - 4

QO2L40RBCP #12 - 6 (Al) or #14 - 6 (Cu)

QO24L70RBCP #12 - 3 (Al) or #14 - 4 (Cu)

QO612L100RBCP #8 - 1

QO816L100RBCP #8 - 1

QO148L125GRB #14 - 2/0

QO112L125GRB #6 - 2/0

QO11224L125GRB #6 - 2/0

QO11624L125GRB #6 - 2/0

QO124L125GRB #6 - 2/0

QO130L150GRB #4 - 250

QO112L200GRB #4 - 250

QO130L200GRB #4 - 250

QO13040L200GRB #4 - 250

QO142L225GRB #4 - 300

> 1-Phase 3-Wire Main Breakers

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 21

> 1-Phase 3-Wire Main Lugs

QO Load Centers – Wiring Diagrams

QO2L30SCP

QO2L40RBCP

S

N

QO112L125GC

QO112L125GRB

QO112L200G

QO112L200GRB

S

N

S

N

S

N

S

N

QO11224L125GRB

QO11224L125GC

QO24L70F/SCP

QO24L70RBCP

S

N

QO612L100F/SCP

QO612L100DF/S

QO612L100RBCP

S/N

QO148L125GF/S

QO148L125GRB

QO816L100F/SCP

QO816L100DF/S

QO816L100RBCP

S/N

QO116L125G

S

N

S

N

QO11624L125G

QO11624L125GRB

S

N

S

N

S

N

S

N

QO120L125GC

S

N

S

N

QO12030L150G

S

N

S

N

QO12024L125G

S

N

S

N

QO124L125G

QO124L150G

QO124L125GRB

S

N

S

N

QO130L150G

QO130L200G

QO130L150GRB

QO130L200GRB

S

N

S

N

QO13040L200GRB

QO13040L200GC

S

N

S

N

QO142L225G

QO142L225GRB

QO24L60NRNM

S

N

G

B

S/N

MAIN S

N

QO1612M125FTRB

S

F

S

N

MAIN S

N

QO1816M150FTRB

QO1816M200FTRB

MAIN S

N

S

N

QO112M100RB

QO112M100C

MAIN S

N

S

N

QO116M100RB

QO116M100C

MAIN S

N

S

N

QO120M100RB

QO120M100C

MAIN S

N

S

N

QO12030M150RB

QO12030M150C

MAIN S

N

S

N

QO12040M200RB

QO12040M200C

MAIN S

N

S

N

QO124M125

QO124M125RB

QO124M150

QO124M200

QO124M100

MAIN S

N

S

N

QO130M150RB

QO130M150C

QO130M200C

QO130M200RB

MAIN S

N

S

N

QO140M225

QO140M200RB

QO140M200C

MAIN S

N

S

N

QO13040M200C

MAIN S

N

S

N

QO132M100C

QO132M125C

QO132M150 QO48M30DSGP

QO48M60DSGP

S/N

Main Main

MAIN S

N

S

N

QO142M200

> 1-Phase 3-Wire Main Breakers

22

Homeline circuit breakers

are the best in class.

Designed exclusively for

the residential market,

Homeline products offer

everything you need

to distribute electricity

throughout your home.

Homeline offers the same

quality as the QO line

with only slight

modifications that

are tailored to the

residential market.

Homeline Circuit Breakers

> The Best In Class

Homeline Circuit Breakers are built with the same Square D brand

quality you have come to expect at a price that makes them the best

value in their class.

Homeline Circuit Breaker Features:

• Standard 1” format

• Trip thermally (in an overload situation) or magnetically

(under a short circuit situation)

• Switching duty rating (SWD) on 15A and 20A

single-pole breakers

• Quick make - quick break mechanism

• Available in convenient 10-packs

• Limited lifetime warranty (see page 58 for details)

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 23

Homeline Circuit Breakers

Plug-On Circuit Breakers

• UL Listed

• 120/240 Vac

• 10,000 AIR

Full Size 1" Breakers*

Amps

1-Pole

Catalog # UPC Code

2-Pole

Catalog # UPC Code

15 HOM115CP▲0-47569-06270-4 HOM215CP 0-47569-06275-9

HOM115C▲0-47569-06287-2 HOM215C 0-47569-06292-6

20 HOM120CP▲0-47569-06271-1 HOM220CP 0-47569-06276-6

HOM120C▲ 0-47569-06288-9 HOM220C 0-47569-07099-0

25 – – HOM225CP 0-47569-07160-7

30 HOM130CP 0-47569-06272-8 HOM230CP 0-47569-06277-3

HOM130C 0-47569-06289-6 HOM230C 0-47569-07100-3

40 HOM140CP 0-47569-06273-5 HOM240CP 0-47569-06278-0

HOM140C 0-47569-06290-2 HOM240C 0-47569-07101-0

50 HOM150CP 0-47569-06274-2 HOM250CP 0-47569-06279-7

– – HOM250C 0-47569-07102-7

60 – – HOM260CP 0-47569-06280-3

– – HOM260C 0-47569-07103-4

70 – – HOM270CP 0-47569-06281-0

80 – – HOM280CP 0-47569-06282-7

90 – – HOM290CP 0-47569-06283-4

100 – – HOM2100CP 0-47569-06285-8

– – HOM2100C 7-85901-48242-0

125 – – HOM2125CP 0-47569-06286-5

1" Breaker Catalog Number Description

HOM 1 15 C

Brand # of Poles Amps Clam Shell Packaging

“C” denotes clam shell packaging .

“CP” denotes bulk bar coded breakers .

HOM120 HOM230

* UL listed as HACR type for

use with air conditioning,

heating and refrigeration

equipment having motor

group combinations and

marked for use with HACR

type circuit breakers.

▲ 15A to 20A tandem or quad

tandem breakers are suitable

for use with 60˚C or 75˚C

conductors. 25A to 50A

tandem or quad tandem are

suitable for use with 75˚C

conductor only.

24 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Homeline Circuit Breakers – Tandem

Tandem Breakers*

1-Pole (120/240 Vac)

Quad Tandem Breakers*

2-Pole (120/240 Vac) 2 Spaces Required

Amps

1-Pole

Catalog # UPC Code

Amps

2-Pole

Catalog # UPC Code

1st

Pole

2nd

Pole

1st

Pole

2nd

Pole

15 15 HOMT1515CP 0-47569-07105-8 (2) 15 15 HOMT1515215 Special Order

HOMT1515C 0-47569-07107-2 20 HOMT1515220CP 0-47569-07220-8

15 20 HOMT1520CP 0-47569-40375-0 30 HOMT1515230CP 0-47569-07221-5

20 20 HOMT2020CP 0-47569-07106-5 40 HOMT1515240CP 7-85901-39582-9

HOMT2020C 0-47569-07108-9 50 HOMT1515250CP 7-85901-39583-6

(2) 20 20 HOMT2020220CP 0-47569-07222-2

30 HOMT2020230CP 0-47569-07223-9

40 HOMT2020240CP 7-85901-39584-3

50 HOMT2020250CP 7-85901-39400-6

Tandem Catalog Number Description

HOM T 15 15

Brand Tandem Breakers 1st Pole Amps 2nd Pole Amps

“C” denotes clam shell packaging .

“CP” denotes bulk bar coded breakers .

Plug-On Circuit Breakers

• UL Listed

• 120/240 Vac

• 10,000 AIR

* UL listed as HACR type for

use with air conditioning,

heating and refrigeration

equipment having motor

group combinations and

marked for use with HACR

type circuit breakers.

▲ 15A to 20A tandem or quad

tandem breakers are suitable

for use with 60˚C or 75˚C

conductors. 25A to 50A

tandem or quad tandem are

suitable for use with 75˚C

conductor only.

Arc Fault Circuit Interrupters*

Amps 1-Pole Catalog # UPC Code

15 HOM115AFIC 7-85901-30135-6

20 HOM120AFIC 7-85901-30136-3

* “C” denotes clam shell

packaging . All 15A and 20A

single-pole arc fault circuit

interrupters are UL listed

and can be used on circuits

requiring standard QO or

Homeline circuit breakers.

AFCI circuit breakers cannot

be used on circuits requiring

GFCI breakers.

Homeline Circuit Breakers – AFCI & CAFI

> New Technology Designed for Safety

Our Square D brand Arc Fault Circuit Interrupter (AFCI) is designed

to detect arcs that are caused by damaged, aged or improperly

used wires or cords and to disconnect the power. In addition ,

they can also detect overloads and short circuits .

Arc faults cannot be detected by standard circuit breakers or

fuses and have been identi ed as an early event in the cause of

many electrical  res. These electrical arcs may be as hot as 10,000˚F

and can easily ignite combustible materials located nearby such

as wood frames, insulation , etc.

The Square D brand AFCIs will  t into our existing load centers and

can be used as a direct replacement for standard Square D brand

circuit breakers for remodeling or as direct installation items with the

exception of ground fault circuit interrupters (GFCI).

The 2008 National Electrical Code requires that combination AFCIs

be installed on all circuits that supply a dwelling unit living area. Arc

Faults can occur on any type of circuit where you may have wire that

has deteriorated insulation or has been damaged (such as during

pulling, service or installation) or in worn extension or appliance

cords. For more information, visit www.SquareD.com/afci or

www.afcisafety.org.

Series Arc Fault

Parallel Arc Fault

AFCI & CAFI Breakers

• UL Listed, CSA Approved

• 120/240 Vac

• 10,000 AIR

• AFI: Green Reset Button

• CAFI: White Reset Button

Combination Arc Fault Circuit Interrupters*

Amps 1-Pole Catalog # UPC Code

15 HOM115CAFIC 7-85901-63098-2

20 HOM120CAFIC 7-85901-47715-0

HOMT1520CP HOMT2020240CP

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 25

HOM120GFI HOM240GFI

GFCI Breakers and

Application Info

• UL Listed

• 10,000 AIR

• HOME250SPA

Value Pack (see page 43)

Homeline Circuit Breakers – GFCI

GFCI Breakers: 1-Pole (120 Vac) and 2-Pole (120/240 Vac)

Amps

1-Pole

Catalog # UPC Code

2-Pole

Catalog # UPC Code

15 HOM115GFICP 0-47569-07109-6 HOM215GFI✚7-85901-30319-0

20 HOM120GFICP 0-47569-07110-2 HOM220GFI✚7-85901-30320-6

30 – – HOM230GFI✚7-85901-30323-7

40 – – HOM240GFI✚7-85901-30346-6

50 – – HOM250GFI 7-85901-78357-2

– – HOM250GFICP 7-85901-87589-5

GFCI Catalog Number Description

HOM 1 15 GFI

Brand # of Poles Amps Ground Fault Circuit Interrupter

Circuit Breaker Wire Sizes

Breaker Type Amp Rating

Wire Size (AWG)★

Aluminum Copper

HOM – 1-Pole 15-30★#14 - 8 (2) #14 - 10

45-50★#8 - 2 #8 - 2

HOM – 2-Pole 15-30★#14 - 8 #14 - 8 or (2) #14 - 10

35-70★#8 - 2 #8 - 2

80-125★#4 - 2/0 #4 - 2/0

HOMT and QUAD 15-30▲#14 - 8 #14 - 8

HOM-GFI – 1-Pole 15-20★#14 - 10 #14 - 10

HOM-GFI – 2-Pole 15-50★#12 - 4 #14 - 6

★

15A to 30A circuit breakers

are suitable for use with 60˚C

or 75˚C conductors. 40A to

125A circuit breakers are

suitable for use with 75˚C

conductors.

▲ 15A to 20A tandem or quad

tandem circuit breakers are

suitable for use with 60˚C

or 75˚C conductors. 25A to

50A tandem or quad tandem

circuit breakers are suitable for

use with 75˚C conductor only.

✚ Item may require additional

lead time.

26

Homeline load centers

are the best in class.

Designed exclusively for

the residential market,

Homeline products offer

everything you need

to distribute electricity

throughout your home.

Homeline offers the same

quality as the QO line with

only slight modifications

that are tailored to the

residential market.

Homeline Load Centers

> Value by Design

Homeline load centers are the smart choice for value-minded

contractors, remodelers, builders and homeowners. Feature for

feature, Homeline panels outclass the competition.

Homeline Load Center Features:

• Straight-In mains design saves expensive cable and time

• Convertible mains let you meet changing job site requirements

• Interiors that remove easily, attached by a single captive screw

that cannot be lost

• Split branch neutral with up to 50% more terminations

than required

• Bus and interior assembly is among the most rugged

in the industry

• Three ground bar mounting locations (left, right and end) let you

pick the easiest spot to wire

• Optional 22,000/10,000 AIR standard series connected rating

• Tangential main service knockouts eliminate the need for service

conduit offset, speeding installation

• Top or bottom feed can be accessed simply by rotating the

load center

• Ten-year limited warranty (see page 58 for details)

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 27

Homeline Load Centers – Main Breaker

HOM12M100C

Main Circuit Breakers

• UL Listed

• Single-Phase, 3-Wire

• 120/240 Vac

• 22,000 AIR◆

• Cover Included

• Factory Installed

Main Breaker

• Catalog Number Guide

Page 17

Amps Spaces

Max.

Circuits Cover Catalog # Ground Bar UPC Code Box Size

Indoor – QOM1 Main Breaker Frame Size (see pg.18)

100 8 16 Combination HOM816M100C PK12GTA 7-85901-06131-1 3

8 16 Combination HOM816M100TC✚Installed 7-85901-07514-1 3

12 12 Combination HOM12M100C PK12GTA 7-85901-06133-5 4

12 24 Combination HOM1224M100TC Installed 7-85901-07515-8 4

20 20 Combination HOM20M100C PK15GTA 7-85901-06135-9 5

24 24 Combination HOM24M100C PK15GTA 7-85901-77113-5 5

30 30 Combination HOM30M100C PK23GTA 7-85901-39486-0 9

125 12 24 Combination HOM1224M125C✚PK15GTA 7-85901-10746-0 4

12 24 Combination HOM1224M125TC Installed 7-85901-07651-3 4

24 24 Combination HOM24M125C PK15GTA 7-85901-10783-5 5

30 30 Combination HOM30M125C PK23GTA 7-85901-39487-7 9

Indoor – QOM2 Main Breaker Frame Size (see pg.18)

150 16 32 Combination HOM1632M150TC✚Installed 7-85901-08397-9 6

20 30 Combination HOM2030M150TC✚Installed 7-85901-82416-9 6

30 30 Combination HOM30M150C PK23GTA 7-85901-06137-3 7

200 16 32 Combination HOM1632M200TC Installed 7-85901-08398-6 6

20 40 Combination HOM2040M200C PK23GTA 7-85901-08400-6 6

20 40 Combination HOM2040M200TC✚Installed 7-85901-08399-3 6

30 30 Combination HOM30M200C PK23GTA 7-85901-06139-7 7

30 40 Combination HOM3040M200TC Installed 7-85901-07653-7 7

40 40 Combination HOM40M200C PK23GTA 7-85901-07649-0 8

225 42 42 Combination HOM42M225C✚PK23GTA 7-85901-82421-3 8

Outdoor – QOM1 Main Breaker Frame Size (see pg.19)

100 8 16 Rainproof HOM816M100RB PK15GTA 7-85901-06132-8 3R

12 12 Rainproof HOM12M100RB PK15GTA 7-85901-06134-2 3R

20 20 Rainproof HOM20M100RB PK15GTA 7-85901-06136-6 4R

125 8 16 Rainproof HOM816M125RB PK15GTA-L 7-85901-64916-8 6R

24 24 Rainproof HOM24M125RB PK15GTA 7-85901-62630-5 6R

Outdoor – QOM2 Main Breaker Frame Size (see pg.19)

150 30 30 Rainproof HOM30M150RB PK23GTA 7-85901-06138-0 7R

200 20 40 Rainproof HOM2040M200RB PK23GTA 7-85901-82419-0 6R

30 30 Rainproof HOM30M200RB PK23GTA 7-85901-07648-3 7R

40 40 Rainproof HOM40M200RB PK23GTA 7-85901-07650-6 8R

Outdoor – Feed Thru (ideal for mobile homes and farm applications) (see pg.19)

150 8 16 Rainproof HOM816M150FTRB PK15GTA-L 7-85901-08381-8 6R

200 8 16 Rainproof HOM816M200FTRB■PK15GTA-L 7-85901-07654-4 6R

HOM30M150RB HOM1224M125RB HOM3040M200C

Listings thru 200A mains meet

Federal Speci cation W-P-115c

as Type 1, Class 2.

■ Rated 200A when using

copper wire. Reference NEC

310-16 Note 3 when using

aluminum wire.

◆ 22,000 AIR main circuit

breaker UL Listed for use

ahead of HOM and HOMT

10,000 AIR branch breakers

to permit their application

systems with up to 22,000A

available fault current.

✚ Item may require additional

lead time.

28 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

HOM1224L125TC

Homeline Load Centers – Main Lugs

Main Lugs

• UL Listed

• Single-Phase, 3-Wire

• 120/240 Vac

• 10,000 AIR

• Factory Installed

Main Lugs

• Cover Included

• Catalog Number Guide

Page 17

Amps Spaces

Max.

Circuits Cover Catalog # Ground Bar UPC Code Box Size

Indoor – Factory Installed Fixed Main Lugs (see pg.18)

70 2 4 Flush HOM24L70FCP■PK3GTA-1 0-47569-07121-8 1

2 4 Surface HOM24L70SCP■PK3GTA-1 0-47569-07120-1 1

100 6 12 Flush HOM612L100FCP▲PK7GTA 0-47569-07124-9 2

6 12 Surface HOM612L100SCP▲PK7GTA 0-47569-07123-2 2

125 4 8 Combination HOM48L125GC Included 7-85901-48436-3 10

Indoor – QOM1 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.18)

125 8 16 Combination HOM816L125C PK15GTA 7-85901-82404-6 4

8 16 Combination HOM816L125TC✚Installed 7-85901-82405-3 4

12 12 Combination HOM12L125C PK15GTA 7-85901-82407-7 4

12 24 Combination HOM1224L125TC Installed 7-85901-51598-2 4

16 24 Combination HOM1624L125C✚PK15GTA 7-85901-82409-1 5

20 20 Combination HOM20L125C PK15GTA 7-85901-06125-0 5

20 24 Combination HOM2024L125TC Installed 7-85901-51611-8 5

24 24 Combination HOM24L125TC Installed 7-85901-10784-2 5

Indoor – QOM2 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.18)

150 30 30 Combination HOM30L150C PK23GTA 7-85901-82414-5 7

200 30 30 Combination HOM30L200C PK23GTA 7-85901-06127-4 7

30 40 Combination HOM3040L200TC Installed 7-85901-20900-3 7

40 40 Combination HOM40L200C PK23GTA 7-85901-06129-8 8

225 42 42 Combination HOM42L225C✚PK23GTA 7-85901-82415-2 8

Outdoor – Factory Installed Fixed Main Lugs (see pg.19)

70 2 4 Rainproof HOM24L70RBCP■PK4GTA 0-47569-07122-5 1R

100 6 12 Rainproof HOM612L100RBCP PK7GTA 0-47569-07125-6 2R

125 4 8 Rainproof HOM48L125GRB Included 7-85901-48437-0 9R

Outdoor – QOM1 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.19)

125 8 16 Rainproof HOM816L125RB PK15GTA 7-85901-82406-0 3R

12 12 Rainproof HOM12L125RB PK15GTA 7-85901-82408-4 3R

20 20 Rainproof HOM20L125RB PK15GTA 7-85901-06126-7 4R

Outdoor – QOM2 Main Frame Size: Convertible to 22,000 AIR Main Breaker (see pg.19)

200 12 12 Rainproof HOM12L200RB PK23GTA 7-85901-10782-8 5R

30 30 Rainproof HOM30L200RB PK23GTA 7-85901-06128-1 7R

40 40 Rainproof HOM40L200RB✚PK23GTA 7-85901-06130-4 8R

Listings thru 200A mains meet

Federal Speci cation W-P-115c

as Type 1, Class 2.

▲ 70A maximum branch circuit

breaker, 100A maximum back

feed main circuit breaker.

■

Use #10 maximum wire

size for GFI circuit breaker.

✚ Item may require

additional lead time.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 29

Homeline Load Centers – Main Wire Sizes

Main Breaker Load Centers

Catalog Number

Main Wire Size

AWG/kcmil (Al or Cu)

Indoor

HOM816M100C #6 - 1

HOM816M100TC #6 - 1

HOM12M100C #6 - 2/0

HOM1224M100TC #6 - 2/0

HOM20M100C #6 - 1

HOM24M100C #6 - 2/0

HOM30M100C #6 - 2/0

HOM1224M125C #6 - 2/0

HOM1224M125TC #6 - 2/0

HOM24M125C #6 - 2/0

HOM30M125C #6 - 2/0

HOM1632M150TC #4 - 250

HOM2030M150TC #4 - 250

HOM30M150C #4 - 250

HOM1224M200TC #4 - 250

HOM1632M200TC #4 - 250

HOM2040M200C #4 - 250

HOM2040M200TC #4 - 250

HOM30M200C #4 - 250

HOM3040M200TC #4 - 250

HOM40M200C #4 - 250

HOM42M225C #4 - 250

Outdoor

HOM816M100RB #6 - 1

HOM12M100RB #6 - 2/0

HOM20M100RB #6 - 2/0

HOM24M125RB #6 - 2/0

HOM30M150RB #4 - 250

HOM2040M200RB #4 - 250

HOM30M200RB #4 - 250

HOM40M200RB #4 - 250

Feed Thru

HOM816M150FTRB #4 - 250

HOM816M200FTRB #4 - 250

Main Lugs Load Centers

Catalog Number

Main Wire Size

AWG/kcmil (Al or Cu)

Indoor

HOM24L70FCP #12 - 3 (Al) or #14 - 4 (Cu)

HOM24L70SCP #12 - 3 (Al) or #14 - 4 (Cu)

HOM612L100FCP #8 - 1

HOM612L100SCP #8 - 1

HOM48L125GC #14 - 2/0

HOM816L125C #6 - 2/0

HOM816L125TC #6 - 2/0

HOM12L125C #6 - 2/0

HOM1224L125TC #6 - 2/0

HOM1624L125C #6 - 2/0

HOM20L125C #6 - 2/0

HOM2024L125TC #6 - 2/0

HOM24L125TC #6 - 2/0

HOM30L150C #4 - 250

HOM30L200C #4 - 250

HOM3040L200TC #4 - 250

HOM40L200C #4 - 250

HOM42L225C #4 - 250

Outdoor

HOM24L70RB #12 - 3 (Al) or #14 - 4 (Cu)

HOM612L100RB #8 - 1

HOM48L125GRB #14 - 2/0

HOM816L125RB #6 - 2/0

HOM12L125RB #6 - 2/0

HOM20L125RB #6 - 2/0

HOM12L200RB #4 - 250

HOM30L200RB #4 - 250

HOM40L200RB #4 - 250

30 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

> 1-Phase, 3-Wire Main Breakers

Homeline Load Centers – Wiring Diagrams

> 1-Phase, 3-Wire Main Lugs

S

N

HOM816M100C

HOM816M100RB

S

N

MAIN

G

B

S

N

HOM816M100TC

S

N

MAIN

S

N

HOM816M150FTRB

HOM816M200FTRB

S

N

MAIN

S

N

HOM12M100C

HOM12M100RB

S

N

MAIN

S

N

HOM1224M125C

S

N

MAIN

G

B

S

N

HOM1224M100TC

HOM1224M125TC

HOM1224M200TC

S

N

MAIN

G

B

S

N

HOM1632M150TC

HOM1632M200TC

S

N

MAIN

S

N

HOM20M100C

HOM20M100RB

S

N

MAIN

S

N

HOM2040M200C

HOM2040M200RB

S

N

MAIN

HOM2040M200TC

S

N

MAIN

G

B

S

N

G

B

S

N

HOM2030M150TC

S

N

MAIN

S

N

HOM24M100C

HOM24M125C

HOM24M125RB

S

N

MAIN

MAIN

S

N

HOM30M100C

HOM30M125C

HOM30M150C

HOM30M200C

HOM30M150RB

HOM30M200RB

S

N

MAIN

S

N

HOM3040M200TC

S

N

G

B

MAIN

S

N

HOM40M200C

HOM40M200RB

S

N

MAIN

S

N

HOM42M225C

S

N

HOM24L70F/SCP

HOM24L70RB

S

N

HOM612L100F/SCP

HOM612L100RB

S/N

HOM48L125GC

HOM48L125GRB

S/N

HOM816L125C

HOM816L125RB

HOM816L125TC

HOM12L125C

HOM12L125RB

HOM12L200RB

HOM1224L125TC HOM1624L125C

S

N

S

N

S

N

S

N

S

N

S

N

G

B

S

N

G

B

S

N

S

N

S

N

HOM2024L125TC

S

N

S

N

HOM20L125C

HOM20L125RB

S

N

S

N

S

N

G

B

G

B

S

N

HOM30L150C

HOM30L200C

HOM30L200RB

S

N

S

N

HOM3040L200TC

S

N

G

B

S

N

HOM40L200C

HOM40L200RB

S

N

S

N

HOM42L225C

S

N

HOM24L125TC

S

N

31

32

Our CSED line provides

unsurpassed electrical

protection, time

and money-saving

installation features

and world-class quality

that made Square D

products famous.

CSED – Meter Mains, Metering

Devices & All-In-Ones

Combination Service

Entrance Devices (CSED)

> The Best Electrical Service

Starts at the Meter Socket

Square D products offer the broadest, most complete line of

combination service entrance devices (CSED) because electrical

service for the home starts right at the meter socket.

CSED products fall into two categories:

• Meter mains that include the utility meter socket and factory

installed or provisions for  eld installation of service disconnect(s)

to feed downstream devices.

• All-in-ones include the utility meter socket, service disconnect(s)

and integral load center in a single unit. Now available for

overhead surface mount applications.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 33

CQRB100 SC816D200C

CSED – Meter Mains

Combination Service

Entrance Devices (CSED)

• UL Listed

• Single-Phase, 3-Wire

• 120/240 Vac

• NEMA Type 3R Enclosure

• Catalog Number Guide

pg . 36

• Suitable Only for Use as

Service Equipment

CSED Catalog Number Description

S C 8 16 F 200 S

Socket Type Service Spaces Circuits Main Breaker Amps Enclosure

Ring Type Meter Mains – Surface Mount (except as noted)

Amp

Rating

Service

Feed

Hub

Style❍

Service Disconnect Branch Breaker

Catalog # UPC-AType

Max

Amps Spaces Circuits

100 OH/UG B QOM100▲■ 125 0 0 CQRB100CP◗0-47569-04402-1

125 OH/UG B QOM1-VH 125 0 0 C125RB◗Special Order

OH/UG A (4) HOM (2-Pole only) (1) 125●00SC8L125S◗7-85901-30880-5

(3) 100

OH/UG A or B300 (4) HOM (2-Pole only) 110 0 0 SC8L125F◗7-85901-11148-1

150 OH/UG A or A-L (1) HOM2150■150 (8) HOM (16) HOM SC816D150C✧✩◗✚ 7-85901-85915-4

(1) HOM (2-Pole only) 50

200 OH❑/UG A-L QOM2200VH■200 (8) HOM (16) HOM SC816F200F✧✺✚ 7-85901-37731-3

OH/UG A QOM2200VH■200 0 0 CQRA200◆✺ 0-47569-29180-7

QOM2-VH 200 0 0 CM200S 7-85901-29176-3

A-L (6) HOM (2-Pole only) 200 0 0 SC12L200S◗✚ 7-85901-37730-6

OH❑/UG A-L (6) HOM (2-Pole only) 200 0 0 SC12L200F◗✚ Special Order

OH/UG A-L QOM2200VH■200 (8) HOM (16) HOM SC816F200S✧✺ 7-85901-32866-7

A or A-L (1) HOM2200■200 (8) HOM (16) HOM SC816D200C✧✩◗ 7-85901-85916-1

(1) HOM (2-Pole only) 50

400 UG

A-L (1)QDL22200■200 0 0 CU12L400CN Special Order

(1) QDL, QGL, QJL 200

(4) QOH 125

(1) QDL22200■200 0 0 CU12L400CB★▼✺✚ 7-85901-48666-4

(1) QDL, QGL, QJL 200

(4) QOH 125

▲ Order Type QOM1-VH replacement circuit breaker (10k).

❍ Order Type QOM2-VH replacement circuit breaker.

■ Service Disconnect Supplied Factory Installed.

◆ Consumer product only (same as C200RB).

★ For use only on 120/240 Vac, Single-Phase, 3-Wire system.

▼ Knockout provided in cover for use with Barrel Lock Kit, order

catalog number SCBRLLOCK (see Accessories page).

● 125A Homeline double-pole circuit breaker can be installed in top

position only. All other positions are limited to 100A max.

❑ Suitable for OH service with addition of Tunnel

Kit (SCTK20). Order separately.

✧ Supplied with load side feed thru lugs for #6 AWG-250 kc mil

(Al/Cu) conductors.

✩ Convertible to semi- ush with SC200F  ange kit

(order separately).

◗ 10,000 short circuit current rating.

✺ 22,000 short circuit current rating or UL short circuit current

rating is equal to the lowest interrupting rating of any circuit

breaker installed.

✚ Item may require additional lead time.

34 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

CSED – Meter Mains

Ringless Type Meter Mains – Surface Mount (except as noted)

Amp

Rating

Service

Feed Hub Style

Service Disconnect Branch Breaker

Catalog # UPC-AType

Max

Amps Spaces Circuits

100 OH/UG A QOM2100VH■100 (8) QO (16) QO QC816F100CH✧◗❍✺✚ Special Order

QOM2100VH■100 (8) HOM (16) HOM RC816F100CH✧◗❍✺ 7-85901-40182-7

125 OH/UG A QOM2125VH■125 (8) QO (16) QO QC816F125C✧◗✺ 7-85901-39097-8

QOM2125VH■125 (8) QO (16) QO QC816F125CH✧◗❍✺ 7-85901-40181-0

QOM2125VH■125 (8) HOM (16) HOM RC816F125CH✧◗❍✺ 7-85901-40183-4

(4) HOM (2-Pole only) 12500RC8L125S●✚ 7-85901-30883-6

150 OH/UG A QOM2150VH■150 (8) HOM (16) HOM RC816F150C✧◗✺ 7-85901-85919-2

QOM2150VH■150 (8) HOM (16) HOM RC816F150CH✧◗❍✺ 7-85901-86394-6

QOM2150VH■150 (8) QO (16) QO QC816F150C✧◗✺ 7-85901-00105-8

200 OH/UG A (6) HOM (2-Pole only) 200 0 0 RC12L200C◗● 7-85901-86398-4

(6) HOM (2-Pole only) 200 0 0 RC12L200CH◗❍●✚ 7-85901-00104-1

QOM2200VH■200 (8) HOM (16) HOM RC816F200C✧◗✺ 7-85901-86392-2

QOM2200VH■200 (8) HOM (16) HOM RC816F200CH✧◗❍✺ 7-85901-86396-0

A or B300 (1) HOM2200■200 (8) HOM (16) HOM RC816D200CH◗✧✩❍●✚ 7-85901-86397-7

(1) HOM (2-Pole only) 50 0 0

A QOM2-VH 200 0 0 RC200S✺✚ 7-85901-39318-4

QOM2-VH 200 0 0 RC2M200S✺✚ 7-85901-39669-7

QO-VH 50 0 0

(6) QO-VH (2-Pole only) 200 0 0 QC12L200C◗✺✚ 7-85901-00112-6

(6) QO-VH (2-Pole only) 200 0 0 QC12L200CH◗❍✺✚ 7-85901-00113-3

QOM2200VH■200 (8) QO (16) QO QC816F200C✧◗✺ 7-85901-00106-5

QOM2200VH■200 (8) QO (16) QO QC816F200CH✧◗❍✺✚ 7-85901-00108-9

▲ Order Type QOM1-VH replacement circuit breaker (10k).

■ Service disconnect supplied factory installed.

▼ Knockout provided in cover for use with Barrel Lock Kit, order

catalog number SCBRLLOCK (see accessories page).

 125A Homeline double-pole circuit breaker can be installed in top

position only. All other positions are limited to 100A max.

✧ Supplied with load side feed thru lugs for #6 AWG-250 kc mil

(Al/Cu) conductors.

✩ Convertible to semi- ush with SC200F  ange kit (order separately).

◗ Device supplied with barrel lock provisions factory installed.

❍ Supplied with horn bypass and  fth jaw factory installed.

● 10,000 short circuit current rating.

✺ 22,000 short circuit current rating.

✚ Item may require additional lead time.

Combination Service

Entrance Devices (CSED)

• UL Listed

• Single-Phase, 3-Wire

• 120/240 Vac

• NEMA Type 3R Enclosure

• Catalog Number Guide

pg . 36

• Suitable Only for Use as

Service Equipment

RC12L200CQC816F150C

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 35

SC1624M100F SC3040M200F

CSED – All-In-Ones

▲ Suitable for OH service with addition of tunnel kit (SCTK20).

Order separately.

★ Suitable for OH service with addition of tunnel kit (SCTK30).

Order separately.

◗ Knockout provided in cover for use with barrel lock kit, order

catalog number SCBRLLOCK (see accessories page).

❑ For use only on 120/240 Vac, Single-Phase, 3-Wire system

(4-jaw meter socket).

❙ 10,000 short circuit current rating.

✺ 22,000 short circuit current rating.

❖ Convertible to semi- ush with SC200F  ange kit (order separately).

✚ Item may require additional lead time.

◆ Device not EUSERC approved.

● UL short circuit current rating is equal to the lowest interrupting

rating of any circuit breaker installed.

❍ Additional service disconnect for  eld-installation, order pre x

QBL at 10kA, QDL at 25kA, QGL at 65kA or QJL at 100kA.

Order separately.

CSED Catalog Number Description

S C 16 24 M 100 S

Socket Type Service Spaces Circuits Main Breaker Amps Enclosure

Ring Type All-In-Ones – Surface Mount (except as noted)

Amp

Rating

Service

Feed Hub Style

Service Disconnect Branch Breaker

Catalog # UPC-AType

Max

Amps Spaces Circuits

100 OH/UG A HOM2100 100 (16) HOM (24) HOM SC1624M100S❙7-85901-30881-2

OH/UG A or B300 HOM2100 100 (16) HOM (24) HOM SC1624M100F❙7-85901-10779-8

OH◆A HOM2100 100 (10) HOM (20) HOM SO1020M100S❙7-85901-32804-9

125 OH/UG A HOM2125 125 (16) HOM (24) HOM SC1624M125S❙7-85901-30882-9

OH/UG A or B300 HOM2125 125 (16) HOM (24) HOM SC1624M125F❙7-85901-10780-4

200 OH/UG A-L QOM2200VH 200 (20) HOM (40) HOM SC2040M200S✺✚ 7-85901-37729-0

OH/UG A or A-L HOM2200 200 (20) HOM (40) HOM SC2040M200C❙❖ 7-85901-85909-3

OH◆A QOM2200VH 200 (20) HOM (40) HOM SO2040M200S✺7-85901-32803-2

OH/UG A-L QOM2200VH 200 (40) HOM (40) HOM SC40M200S✺7-85901-89419-3

OH/UG A-L QOM2200VH 200 (30) HOM (40) HOM SC3040M200S✺7-85901-37728-3

OH▲/UG A-L QOM2200VH 200 (20) HOM (40) HOM SC2040M200F✺7-85901-10781-1

OH★/UG A-L QOM2200VH 200 (30) HOM (40) HOM SC3040M200F✺7-85901-32863-6

UG A or B300 QOM2200VH 200 (30) HOM (40) HOM SU3040M200R❙7-85901-29190-9

225 UG A or B300 QOM2225VH 225 (30) HOM (40) HOM SU3040M225R❙7-85901-75121-2

OH★/UG A-L QOM2225VH 225 (30) HOM (40) HOM SC3040M225F✺✚ 7-85901-32864-3

400 UG A-L QDL22200 200 (30) HOM (40) HOM SU3040D400CN◗❑ 7-85901-49140-8

QDL, QGL, QJL❍● 200 0 0

UG A-L QDL22200 200 (30) HOM (40) HOM SU3040D400CB◗❑ 7-85901-52179-2

QDL, QGL, QJL❍● 200 0 0

Combination Service

Entrance Devices (CSED)

All-In-Ones

• UL Listed

• Single-Phase, 3-Wire

• 120/240 Vac

• NEMA Type 3R Enclosure

• Catalog Number Guide

pg . 36

• Service Disconnect(s)

Supplied Factory Installed

• Suitable Only for Use as

Service Equipment

36 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

RC2040M200C

CSED – All-In-Ones

▼ Additional service disconnect for  eld-installation, order pre x

QBL at 10kA, QDL at 25kA, QGL at 65kA or QJL at 100kA.

Order separately.

◗ Knockout provided in cover for use with barrel lock kit, order

catalog number SCBRLLOCK (see accessories page).

✧ Device not EUSERC approved.

✩ Device supplied with barrel lock provisions factory installed.

❍ Supplied with horn bypass and  fth jaw factory installed.

❙ 10,000 short circuit current rating.

✺ 22,000 short circuit current rating.

Ringless Type All-In-Ones – Surface Mount (except as noted)

Amp

Rating

Service

Feed

Hub

Style

Service Disconnect Branch Breaker

Catalog # UPC-AType

Max

Amps Spaces Circuits

100 OH/UG✧A HOM2100 100 16 (HOM) 24 (HOM) RC1624M100S❙✚ 7-85901-30884-3

125 OH/UG✧A HOM2125 125 16 (HOM) 24 (HOM) RC1624M125S❙✚ 7-85901-30885-0

OH/UG✧A QO2125VH 125 20 (HOM) 40 (HOM) RC2040M125CH✩❍✺✚ 7-85901-00284-0

150 OH/UG✧A QO2150VH 150 20 (HOM) 40 (HOM) RC2040M150CH✩❍✺ 7-85901-87831-5

200 OH/UG✧A QOM2200VH 200 20 (HOM) 40 (HOM) RC2040M200C✩✺✚ 7-85901-19336-4

OH/UG✧A QOM2200VH 200 20 (HOM) 40 (HOM) RC2040M200CH✩❍✺ 7-85901-84116-6

OH/UG✧A QOM2200VH 200 24 (QO) 42 (QO) QC2442M200C✩✺✚ 7-85901-39668-0

OH/UG✧A QOM2200VH 200 24 (QO) 42 (QO) QC2442M200CH✩❍✺✚ 7-85901-39678-9

400 UG A-L QDL22200●200 30 (HOM) 40 (HOM) RU3040D400CL◗▼✚ 7-85901-44543-2

QDL, QGL,

QJL■▲

200 0 0

Combination Service

Entrance Devices (CSED)

All-In-Ones

• UL Listed

• Single-Phase, 3-Wire,

• 120/240 Vac

• NEMA Type 3R Enclosure

• Catalog Number

Guide Below

• Service Disconnect(s)

Supplied Factory Installed

• Suitable Only for Use as

Service Equipment

CSED

> Catalog Number Logic System

R C 8 16 D 200 C H

Position 1 – Socket Type

“Q” = QO Ringless

“R” = HOM Ringless

“C” = QO Ring Type

“S” = HOM Ring Type

Position 2 – Service Feed

Blank = Combination Overhead/Underground

“C” = Combination Overhead/Underground

“O” = Overhead Only

“U” = Underground Only

Position 3 – Spaces

Service Disconnects or Branches

Maximum # of Single-Pole Spaces

Position 4 – Circuits

Maximum # of Single-Pole Circuits

Position 5 – Interior

“D” = Dual Main Service Disconnects

(feed-thru lugs on 100A to 200A only)

“F” = Single Main Service Disconnect with Feed-Thru Lugs

“L” = Main Lug Interior (service disconnects field installed)

“M” = Single Main Service Disconnect

Position 6 –

Amperage Rating

Position 8 -

Meter Socket Bypass Type

“H” = Horn Bypass

“K” = K-4 Bolt-on, No Bypass

“L” = Class 320 with Lever Bypass

“N” = Class 320 No Bypass

“B” = Class 320 Test Block Bypass

Blank = No Bypass

Position 7 -

Enclosure Mounting Style

“C” = Surface Mount or

Convertible to Semi-Flush

(with appropriate flange kit)

“F” = Semi-Flush Mount Only

“R” = Reverse Mount Only

“RB” = Surface Mount Only with

“B” Hub Provisions in

Top Endwall

“S” = Surface Mount Only

Blank = 300A/400A Only Surface

Convertible to Semi-Flush

with Flange Kit

✚ Item may require additional lead time.

● Service disconnect supplied factory-installed.

■ Circuit breaker pre x QBL at 10,000 AIR may be used.

For complete circuit breaker catalog number, see below.

▲ UL short circuit current rating is equal to the lowest interrupting

rating of any circuit breaker installed.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 37

Amps

# of

Positions Jaw Qty. Service Type Catalog # UPC Code

Ring Type – Individual (Check with local Utility for appropriate catalog number)

Single-Phase, 3-Wire

600 Vac Max.,

without Bypass

125 – 4 OH/UG URTRS101B▼◗ 7-85901-62764-7

200 – 4 OH/UG URTRS213B▼◗ 0-47569-29113-5

Ringless Type – Individual

Single-Phase, 3-Wire

600 Vac Max.,

without Bypass

125 – 4 OH UTRS101B 7-85901-62663-3

200 – 4 OH/UG UTRS213B▼7-85901-62766-1

Single-Phase, 3-Wire

600 Vac Max., with

Horn Bypass

125 – 4 OH/UG UHTRS101B▼7-85901-91163-0

200 – 4 OH/UG UHTRS213B▼7-85901-91167-8

Single-Phase, 3-Wire

600 Vac Max., with

Lever Bypass and

Jaw Release

200 – 4 OH/UG UTH4213T▼7-85901-62768-5

200 – 5 OH/UG UTH5213T▼7-85901-62782-1

Ringless Type – Horizontal Ganged Meter Sockets

Single-Phase, 3-Wire

600 Vac Max.,

without Bypass

100 2 4 OH/UG UT2R1121B▼✚ 7-85901-29120-6

200 2 4 OH/UG UT2R2122B▼✚ 7-85901-29124-4

CSED – Metering Devices

> Individual and Horizontal

Ganged Meter Sockets

Individual sockets available in ring or ringless type, single- or three-

phase, 600 Vac maximum with and without horn or lever bypass,

overhead and underground service feeds.

Horizontal ganged meter sockets available in ring or ringless type,

single-phase, 600 Vac maximum, main lugs only, two to six meter

positions, with and without horn or lever bypass, end or center feed,

overhead and underground service feeds.

This metering is generally utility speci c. Always check with

local utility company before installing. Contact local Square D

representative for additional catalog numbers.

Ring Type

• 10,000 RMS Symmetrical

Amps Short Circuit

Current Rating

• UL Listed, NEMA Type

3R Enclosure

• Units Supplied with

Bonded Neutral

• Units Supplied with Hub

Opening in TOP Endwall

Require the Use of a Bolt-

On Hub or Closing Plate

Ringless Type

• 10,000 RMS Symmetrical

Amps Short Circuit

Current Rating

• UL Listed, NEMA Type

3R Enclosure

• Units Supplied with

Bonded Neutral

• Units Supplied with Hub

Opening in TOP Endwall

Require the Use of a Bolt-

On Hub or Closing Plate

• Units Supplied with Solid

TOP are for Underground

Feed Only

◗ Device supplied with stainless

steel, snap-on sealing ring

(cat. # ARP00026).

▼ When unit is installed for

underground feed, the

appropriate closing plate must

be ordered separately and

installed over the hub opening

in TOP endwall of device.

✚ Item may require additional

lead time.

UHTRS101B URTRS101B UTRS213B

38 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Table 1.54: Circuit Breakers for use with Meter Mains and All-In-One devices

Ampere

Rating❁

Type: HOM, 1P Type: HOM, 2P Type: QO, 1P Type: QO, 2P Type: QO-VH, 1P Type: QO-VH, 2P

Cat. No. Cat. No. Cat. No. Cat. No. Cat. No. Cat. No.

10 — — QO110 — — —

15 HOM115 — QO115 — QO115VH —

20 HOM120 — QO120 — QO120VH —

25 HOM125 — QO125 — QO125VH —

30 HOM130 HOM230 QO130 QO230 QO130VH QO230VH

35 — HOM235 QO135 QO235 — —

40 HOM140 HOM240 QO140 QO240 — QO240VH

45 — HOM245 QO145 QO245 — —

50 HOM150 HOM250 QO150 QO250 — QO250VH

60 — HOM260 QO160 QO260 — QO260VH

70 — HOM270 QO170 QO270 — QO270VH

80 — HOM280 — QO280 — QO280VH

90 — HOM290 — QO290 — QO290VH

100 — HOM2100 — QO2100 — QO2100VH

110 — HOM2110 — QO2110 — QO2110VH

125 — HOM2125 — QO2125 — QO2125VH

150 — HOM2150BB — QO2150 — QO2150VH

175 — HOM2175BB — QO2175 — QO2175VH

200 — HOM2200BB — QO2200 — QO2200VH

Ampere

Rating ❁

P2,LDQ:epyTP2,HV-2MOQ:epyTP2,HV-1MOQ:epyT ❃

.oN.taC.oN.taC.oN.taC

HV05MOQ05 ❂——

——HV06MOQ06

07022LDQ—HV07MOQ07

08022LDQ—HV08MOQ08

09022LDQ—HV09MOQ09

00122LDQHV0012MOQHV001MOQ001

01122LDQ—HV011MOQ011

52122LDQHV5212MOQHV521MOQ521

05122LDQHV0512MOQ—051

57122LDQHV5712MOQ—571

00222LDQHV0022MOQ—002

—HV5222MOQ—522

❁Do not exceed mains rating of device

❂Reference National Electrical Code Article 230-79.

❃For additional interrupting rating circuit breakers, order circuit breaker prefix QBL at 10 kA, QGL at 65 kA or QJL at 100 kA.

Table 1.55: Accessories, Hubs and Closing Plates

Accessories Hubs and Closing Plates

.oN.taCnoitpircseD Hub

Series

Conduit Size

(inches) Cat. No. Disc.

Sch.

Generator Kit: Interlocks main service disconnect and generator circuit breaker (order

separately). For :

Closing Plate for “A” Hub opening ACP DE4

A

1.00 A100 DE4

•Homeline 4ED521A52.12KGCR-M0402OS,-M0402CR,-F618CRseciveDDESC

•4ED051A05.13KGCQ-M2442CQ,-F618CQseciveDDESCOQ

Fifth Jaw Kit for: Meter Main Types: C, RC, SC, QC

All-In-One Types: SC, SU (100–225 A), QC, RC, SO 5J 2.00 A200 DE4

2.50 A250 DE4

Bypass (Horn Type) for Ringless Type Meter Mains and All-In-Ones (100–200 A)

(except for RC200S and RC2M200S) RCHB2 Adapter plate to allow use of “A”

Hubs on “A-L” size hub openings AAP DE4

Lexan Meter Socket Cover Plate for:

•Ring and Ringless Type Meter Mains

•Ring and Ringless Type All-In-Ones

29007 Closing Plate for “A-L” Hub opening ACPL DE4

A-L

2.00 A200L ❄DE4

Meter Socket Sealing Rings for Ring Type Meter Mains and All-In Ones: 2.50 A250L DE4

•4EDL003A00.31000190292).dtS(munimulAepyTpanS

•4EDL053A05.3W80092munimulAepyTwercS

•4EDL004A00.462000PRAleetSsselniatSepyTpanS

Anti-Inversion Kit . For use ONLY on 400 A Meter Mains and All-In-Ones with lever bypass. MMLRK DE4 Closing Plate for “B” Hub opening BCAP DE1A

Trim Kit for 2 in. X 6 in. stud wall, used with Reverse All-In-Ones, SU3040M200R, and

SU3040M225R SU2X6TRIM DE3A

B

0.75 B075 DE1A

1.00 B100 DE1A

Barrel Lock Kit (Barrel Lock not included), supplied with bracket and mounting screw, refer to

listings for where used. SCBRLLOCK DE3A 1.25 B125 DE1A

1.50 B150 DE1A

Semiflush Flange Kit for: Meter Mains: SC816D150/200C and RC816D200CH

All-In-Ones: SC2040M200C SC200F DE3A 2.00 B200 DE1A

2.50 B250 DE1A

Semiflush Flange Kit for ring- and ringless-type Meter Mains and All-In-Ones (400 A Only) FK400 DE3A B300 3.00 B300 DE1A

Ringless Type Utility Cover for RU3040D400CL/FL, QU12L400CL/FL, and QU816D400CL/FL.

Includes one piece meter socket and pull box cover with handles and closing plate. R400L DE3A ❄Supplied with AAP adapter plate and “A” hub.

Lug Kit includes (4) lugs, for use with 2 AWG–600 kcmil Al/Cu conductors. Lugs are for standard

2-Hole mounting. Meter Main and All-In-One units supplied with (2) studs per phase and neutral

will accept one lug per phase and neutral. Not for use on 400 A devices with “K” suffix.

CMELK4 DE4

Overhead Feed Trough for 400 A ring- and ringless-type Meter Mains and All-In-Ones. OCK400 DE3A

3 in. Conduit Adapter Kit for 400 A ring- and ringless-type Meter Mains and All-In-Ones. SU400PVCHA3 DE3A

PS94KP)yarG94ASA(tniaPpU-hcuoT

Ground Bar Kit, Meter Mains and All-In-Ones QC, RC, and SC (100–225 A) PK15GTA DE3A

Filler Plate for: Meter Main Types: QC, CU

All-In-One Types: QC QOFP DE3A

Filler Plate for: Meter Main Types: RC, SC

All-In-One Types: SC, RC, SU HOMFP DE3A

Neutral Lug (6-2/0 AWG)

for:

Meter Main Types: RC, SC, QC

All-In-One Types: SC, SU, QC, RC LK100AN DE3A

CSED – Application Info

> Circuit Breakers & Accessories

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 39

▲Driphood supplied factory-installed and is required

for surface mount installation.

For semi-flush installation, remove driphood and

install flange kit SC200F (order separately).

■Unit supplied with blank top endwall (factory-

installed) for surface mount installation. For semi-

flush installation, install flange kit FK400 (order

separately). Kit includes replacement top endwall

(with knockouts) and flanges.

◆Unit supplied with semi-flush top endwall factory-

installed and semi-flush flanges factory included.

Table 1.56: Knockouts

SymbolABCDEFGH I J

Conduit

Size (in.) 1/2 3/4 1 1-1/4 1-1/2 2 2-1/2 3 3-1/2 4

7.14

181

14.97

380 “A” Hub

Drip Hood

C,D,F A

B,C,D

7.50

191

Semi-Flush End Wall

28.28

718

4.60

117

12.80

325

7.44

189

13.82

351

“B” Hub

C125RB (Shown)

CQRB100

A,B C,D,E,F

Ring Type:

CM200S

C2M200S (Shown)

C4L200S

Ringless Type:

RC200S

RC2M200S

RC2M200SH

A,B E,F,G,H

D,F,G

18.23

463

10.70

272

19.58

497

“A” Hub

4.60

117

A,B

B,C

A

21/2" Max “A” Hub

13.46

342

4.56

116

SO1020M100S

C,D,E,F

20.79

528

6.44

164

7.50

191

8.00

203

41.25

1048

28.25

718

C,D,F

A

B,C

CU12L400CN■

CU12L400CB■

QU12L400CL■

QU12L400SL

CU12L400FN◆

CU12L400FB◆

CU816D400FN◆

CU816D400FB◆

QU816D400CK

QU12L400FL◆

QU816D400FL◆

CU816D400CB■

CU816D400CN■

QU816D400CL■

QU816D400SL (Shown)

Blank End Wall

G,H,I,J

“A-L” Hub

SC816D150C▲(Shown)

SC816D200C▲

SC2040M200C▲

RC816D200CH▲

32.23

819

14.81

376

6.95

176

14.50

368

B,C C,D,F

21/2" Max “A” Hub

D,F,G

A,B

C,E,F,G,H

21/2" Max

“A-L” Hub

C,D,E,F B,C

B,C

A

10.87

276

25.12

638

14.77

375

SC8L125S (Shown)

RC8L125S

SC1624M100S

SC1624M125S

RC1624M100S

RC1624M125S

4.80

122

C,D,F

A

A,B

B,C

21/2" Max “A” Hub

21/2" Max

“A” Hub

D,F,G

Surface

2

1

/

2

" Max “A” Hub

10.04

255

35.13

892

14.37

365

RC816F100CH

RC816F125CH

RC816F150C/CH

RC816F200C/CH

RC12L200C/CH

RC2040M125CH

RC2040M150CH

RC2040M200C/CH

QC816F100CH

QC816F125C/CH

QC816F150C/CH (Shown)

QC816F200C/CH

QC12L200C/CH

QC2442M150CH

QC2442M200C/CH

SO2040M200S

4.67

119

C,D,E,F

D,E,F,G

A,B,C

A,B

C,D,E,F

SC8L125F (Shown)

SC1624M100F

SC1624M125F

25.12

638

10.87

276

3.39

86

14.50

368

B,C

A,B

C,D,F

A

AA,B B,C

D,F,G

21/2" Max

“A” Hub or

B300

SU3040M200R (Shown)

SU3040M225R

14.62

371

31.61

803

48.00

1219

B,C B

B

B

D,F,G C,D

C,D,F A,B A

A

7.90

201

4.40

112

3.50

89

27.00

686

C

L

Meter

Socket

C

L

Top

Branch

Circuit

Breaker

“A” Hub or

B300 Hub

3.40

86

C,E,F,G,H

21/2" Max

“A-L” Hub

SC816F200F

SC12L200F

SC2040M125F

SC2040M200F (Shown)

SC3040M200F

SC3040M225F

14.85

377

10.30

262

35.40

899

39.60

1006

A

A,B

C,D,E,F

35.40

899

C,D,E,F

B,C

A

B,C B

39.60

1006

21/2" Max “A” Hub

29.50

749

SC12L200S

SC816F150S

SC816F200S

SC40M200S

SC2040M200S (Shown)

SC3040M200S

5.80

147

21.50

546

C,E,F,G,H

21/2" Max

“A-L” Hub

A

B,C

B

C,D,E,F

11.10

282

32.30

820

37.30

947

SC40M200S

SC3040M200S

G,H,I,J

“A-L” Hub

8.00

203

SU3040D400CB■(Shown)

RU3040D400CL■

RU3040D400CK■

SU3040D300FB◆

SU3040D400FB◆

SU3040D400FN◆

7.50

191

41.25

1048

28.25

718

C,D,F

A

B,C

Blank End Wall

SU3040D300CB■

SU3040D400CN■

RU3040D400FL◆

RU3040D400FK◆

> Knockouts, Dimensions

40 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Catalog #

Line Side

Phase and Nuetral Lugs

AWG/kcmil (Al/Cu)

Service Ground Lug

AW/kcmil (Al/Cu)

Feed Through Lugs

AWG/kcmil (Al/Cu) Bypass Type

C125RB (1) #4 - 1/0 (1) #8 - 1/0 – –

CM200S (1) #4 - 250 (2) #8 - 2/0 – –

C2M200S (1) #4 - 250 (2) #8 - 2/0 – –

C4L200S (1) #4 - 250 (2) #8 - 2/0 – –

CU12L400CN (2) Studs #4 - 250 – –

CU12L400CB (2) Studs #4 - 250 – Class 320 Manual

CU816D400CN (2) Studs #4 - 250 – –

CU816D400CB (2) Studs #4 - 250 – Class 320 Manual

SC8L125S (1) #6 - 2/0 (1) #12 - 4 – –

SC12L200S (1) #4 - 250 (1) #12 - 2/0 – –

SC8L125F (1) #6 - 2/0 (1) #12 - 2/0 – –

SC12L200F (1) #4 - 250 (1) #12 - 2/0 – –

SC816F200F (1) #4 - 250 (1) #12 - 2/0 #6 - 250 –

SC816F150S (1) #4 - 250 (1) #12 - 2/0 #6 - 250 –

SC816D150C (1) #6 - 300 (1) #12 - 1/0 #6 - 250 –

SC816F200S (1) #4 - 250 (1) #12 - 2/0 #6 - 250 –

SC816D200C (1) #6 - 300 (1) #12 - 1/0 #6 - 250 –

RC200S (1) #6 - 350 (2) #8 - 2/0 – –

RC2M200S (1) #6 - 350 (2) #8 - 2/0 – –

RC2M200SH (1) #6 - 350 (2) #8 - 2/0 – Horn

QC12L200C (1) #6 - 350 (1) #12 - 2/0 – –

QC12L200CH (1) #6 - 350 (1) #12 - 2/0 – Horn

QC816F100CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

QC816F125C (1) #6 - 350 (1) #12 - 2/0 #6 - 250 –

QC816F125CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

QC816F150C (1) #6 - 350 (1) #12 - 2/0 #6 - 250 –

QC816F150CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

QC816F200C (1) #6 - 350 (1) #12 - 2/0 #6 - 250 –

QC816F200CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

QU12L400CL (2) Studs #4 - 250 – Class 320 Lever

QU12L400SL (2) Studs #4 - 250 – Class 320 Lever

QU816D400CL (2) Studs #4 - 250 #6 - 250 Class 320 Lever

QU816D400SL (2) Studs #4 - 250 #6 - 250 Class 320 Lever

RC8L125S (1) #6 - 2/0 (1) #12 - 4 – –

RC12L200C (1) #6 - 350 (1) #12 - 2/0 – –

RC12L200CH (1) #6 - 350 (1) #12 - 2/0 – Horn

RC816F100CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

RC816F125CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

RC816F150C (1) #6 - 350 (1) #12 - 2/0 #6 - 250 –

RC816F150CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

RC816F200C (1) #6 - 350 (1) #12 - 2/0 #6 - 250 –

RC816F200CH (1) #6 - 350 (1) #12 - 2/0 #6 - 250 Horn

RC816D200CH (1) #6 - 300 (1) #6 - 1/0 #6 - 250 Horn

CSED – Wire Size

> Meter Mains

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 41

Catalog #

Line Side

Phase and Nuetral Lugs

AWG/kcmil (Al/Cu)

Service

Ground Lug

AW/kcmil

(Al/Cu)

Feed Through Lugs

AWG/kcmil (Al/Cu) Bypass Type

SC1624M100S (1) #6 - 2/0 (1) #12 - 4 – –

SC1624M125S (1) #6 - 2/0 (1) #12 - 4 – –

SC2040M200S (1) #4 - 250 (1) #12 - 2/0 – –

SC2040M200C (1) #6 - 300 (1) #12 - 1/0 – –

SC1624M100F (1) #6 - 2/0 (1) #12 - 2/0 – –

SC1624M125F (1) #6 - 2/0 (1) #12 - 2/0 – –

SC2040M200F (1) #4 - 250 (1) #12 - 2/0 – –

SC3040M200F (1) #4 - 250 (1) #12 - 2/0 – –

SC3040M225F (1) #4 - 250 (1) #12 - 2/0 – –

SO1020M100S (1) #6 - 1 (1) #14 - 4 – –

SO2040M200S (1) #6 - 350 (1) #8 - 2/0 – –

SC3040M200S (1) #4 - 250 (1) #12 - 2/0 – –

SC40M200S (1) #4 - 250 (1) #12 - 2/0 – –

SU3040M200R (1) #6 - 300 (1) #12 - 1/0 – –

SU3040M225R (1) #6 - 300 (1) #12 - 1/0 – –

SU3040D300CB (2) Studs (1) #4 - 250 – Class 320 Manual

SU3040D400CN (2) Studs (1) #4 - 250 – –

SU3040D400CB (2) Studs (1) #4 - 250 – Class 320 Manual

RC1624M100S (1) #6 - 2/0 (1) #12 - 4 – –

RC1624M125S (1) #6 - 2/0 (1) #12 - 4 – –

RC2040M125CH (1) #6 - 350 (1) #12 - 2/0 – Horn

RC2040M150CH (1) #6 - 350 (1) #12 - 2/0 – Horn

RC2040M200C (1) #6 - 350 (1) #12 - 2/0 – –

RC2040M200CH (1) #6 - 350 (1) #12 - 2/0 – Horn

RU3040D400CL (2) Studs #4 - 250 – Class 320 Lever

RU3040D400CK (2) Studs #4 - 250 – K-4 Bolt-On

QC2442M150CH (1) #6 - 350 (1) #12 - 1/0 – Horn

QC2442M200C (1) #6 - 350 (1) #12 - 1/0 – –

QC2442M200CH (1) #6 - 350 (1) #12 - 1/0 – Horn

> All-In-Ones

42

Value Packs

> Offer Add-on Sales

Different value pack combinations offer an affordable mix of

products for load center customers. Value packs are ideal for

new construction, upgrades and remodels. Designed to meet

various needs, special packs are combined for QO, Homeline and

Combination Service Entrance Device (CSED) products.

OFF

ON

10

A/C

000

120/240 V

ac

OFF

ON

10

A/C

000

120/240 V

ac

OFF

ON

10

A/C

000

120/240 Vac

OFF

ON

10

A/C

000

120/240 Vac

OFF

ON

10

A/C

000

120/240 V

ac

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 43

Value Packs

Catalog # Description UPC Code Order # Image

HOME250SPA 1 – HOM24L50R Homeline 50A 2 Space/4 Circuit Max.

Main Lug Load Center

1 – HOM250GFI Homeline 50A Double-Pole

Ground Fault Circuit Interrupter

7-85901-23054-0 23054

HOMVP12M100CBP4 1 – HOM12M100C Homeline 100A 12 Space/12 Circuit Max.

Main Breaker Load Center

5 – HOM115 Homeline 15A Single-Pole Circuit Breakers

7-85901-37912-6 37912

HOM20M100CBP2 1 – HOM20M100C Homeline 100A 20 Space/20 Circuit Max.

Main Breaker Load Center

5 – HOM115 Homeline 15A Single-Pole Circuit Breakers

1 – HOM230 Homeline 30A Double-Pole Circuit Breaker

7-85901-37913-3 37913

HOM24M100VP

(replaces HOMVP5)

1 – HOM24M100C Homeline 100A 24 Space/24 Circuit Max.

Main Breaker Load Center

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-47799-0 47799

HOM1224L125VP

(replaces HOMVPL2)

1 – HOM1224L125TC Homeline 125A

12 Space/24 Circuit Max. Main Lug Load Center

with Equipment Ground Bar Kit

2 – HOM120 Homeline 20A Single-Pole Circuit Breakers

7-85901-61009-0 61009

HOM1224M125RBVP

(replaces

HOM816M125RBVP)

1 – HOM1224M125RB Homeline 125A 12 Space/24 Circuit

Max. Rainproof Main Breaker Load Center

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-66618-9 66618

HOM3040M150VP

(replaces HOMVP12)

1 – HOM3040M150C Homeline 150A

30 Space/30 Circuit Max. Main Breaker Load Center

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

1 – HOM230 Homeline 30A Double-Pole Circuit Breaker

7-85901-92127-1 92127

44 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Value Packs

Catalog # Description UPC Code Order # Image

HOM2040M200VP

(replaces HOMVP16)

1 – HOM2040M200TC Homeline 200A

20 Space/40 Circuit Max. Main Breaker Load Center

with Equipment Ground Bar Kit

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-67958-5 67958

HOM3040L200VP

(replaces HOMVPL1)

1 – HOM3040L200TC Homeline 200A

30 Space/40 Circuit Max. Main Lug Load Center

with Equipment Ground Bar Kit

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-40172-8 40172

HOM3040M200EPVP 1 – HOM3040M200EP Homeline 200A

30 Space/40 Circuit Max. Main Breaker Load Center

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-54177-6 54177

HOM3040M200VP

(replaces HOMVP1,

HOMVP9 and

HOMVP14)

1 – HOM3040M200TC Homeline 200A

30 Space/40 Circuit Max. Main Breaker Load Center

with Equipment Ground Bar Kit

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-49068-5 49068

HOM3040M200RBVP

(replaces HOMVPRB1)

1 – HOM3040M200RB Homeline 200A 30 Space/

40 Circuit Max. Rainproof Main Breaker Load Center

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-66606-6 66606

HOM40M200VP

(replaces HOMVP15)

1 – HOM40M200C Homeline 200A

40 Space/40 Circuit Max.Main Breaker Load Center

with Equipment Ground Bar Kit

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

2 – HOM230 Homeline 30A Double-Pole Circuit Breakers

7-85901-83169-3 83169

QOE250GFINM 1 – QO24L60NRNM QO 60A 2 Space/4 Circuit Max.

Non-Metallic Main Lug Load Center

1 – QO250GFI QO 50A Double-Pole

Ground Fault Circuit Interrupter

7-85901-38950-7 38950

QO32M100VP

(replaces QOVP2)

1 – QO132M100C QO 100A 32 Space/32 Circuit Max.

Main Breaker Load Center

3 – QO120 QO 20A Single-Pole Circuit Breakers

2 – QO230 QO 30A Double-Pole Circuit Breakers

7-85901-87965-7 87965

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 45

Catalog # Description UPC Code Order # Image

QO3040M200VP

(replaces QOVP1

and QOVP10)

1 – QO13040M200C QO 200A 30 Space/40 Circuit Max.

Main Breaker Load Center

3 – QO120 QO 20A Single-Pole Circuit Breakers

2 – QO230 QO 30A Double-Pole Circuit Breakers

7-85901-69267-6 69267

SO1020VP 1 – SO1020M100S 100A 10 Space/20 Circuit Max.

All-In-One Overhead Service Feed and

Integral Ring-Type Meter Socket

3 – HOM120 Homeline 20A Single-Pole Circuit Breakers

1 – HOMT2020 Homeline 20A Single-Pole Tandem

Circuit Breaker

7-85901-39642-0 39642

SO2040VP 1 – SO2040M200S 200A 20 Space/40 Circuit Max.

All-In-One Overhead Service Feed and

Integral Ring-Type Meter Socket

4 – HOM120 Homeline 20A Single-Pole Circuit Breakers

1 – HOMT2020 Homeline 20A

Single-Pole Tandem Circuit Breaker

1 – HOM230 Homeline 30A Double-Pole Circuit Breaker

1 – HOM250 Homeline 50A Double-Pole Circuit Breaker

7-85901-39643-7 39643

RC2040M200CGP

Generator Panel 1 – RC2040M200C 200A 20 Space/40 Circuit Max.

All-In-One Overhead/Underground Service Feed

and Integral Ringless-Type Meter Socket

1 – HOM230 Homeline 30A Double-Pole Circuit Breaker

1 – HOMCGK2C Homeline Indoor Generator Interlock Kit

7-85901-48190-4 48190

CSEDVP1 1 – SC3040M200S 200A 30 Space/40 Circuit Max.

All-In-One CSED Load Center

2 – HOM115 Homeline 15A Single-Pole Circuit Breakers

5 – HOM120 Homeline 20A Single-Pole Circuit Breakers

1 – HOM250 Homeline 50A Double-Pole Circuit Breaker

7-85901-88408-8 88408

Catalog # Description UPC Code Order # Catalog # Description UPC Code Order #

HOMVP1 HOM3040M200C

5-HOM120

1-HOM230

0-47569-79877-1 79877 HOMVPL1 HOM3040L200C

6-HOM115

6-HOM120

7-85901-40172-8 40172

HOMVP5 HOM20M100C

5-HOM120 0-47569-88407-8 88407 HOMVPL2 HOM1224L125C

5-HOM120 7-85901-32722-6 32722

HOMVP9 HOM3040M200C

6-HOM115

6-HOM120

7-85901-88411-8 88411 HOMVPRB1 HOM2040M200RB

6-HOM115

6-HOM120

7-85901-40170-4 40170

HOMVP12 HOM30M150C

5-HOM120

1-HOM230

7-85901-40171-1 40171 HOM816M125RB-VP HOM816M125RB

3-HOM120

1-HOM120

7-85901-19517-7 19517

HOMVP14 HOM3040M200C

12-HOM120

1-HOM230

7-85901-33047-9 33047 QOVP1 QO13040M200C

5-QO120 7-85901-33450-7 33450

HOMVP15 HOM40M200C

10-HOM120 7-85901-29601-0 29601 QOVP2 QO132M100C

5-QO120 7-85901-33451-4 33451

HOMVP16 HOM2040M200C

5-HOM120

1-HOM230

7-85901-29618-8 29618 QOVP10 QO13040M200C

10-QO120 7-85901-26473-6 26473

> Obsoleted Value Packs

Square D introduced the

FSG water pump switch in

1947. Today many more

Square D brand switches

are installed on pumps

than any other switch

available on the market.

> Float and Pressure Switches

For over 65 years, our Square D brand Pumptrol® FSG Pressure

Switches have been used to monitor and control electrically driven

water pumps. A long-time industry standard, you can trust that

Square D brand switches will do the necessary job every time.

46

Control Switches

Have questions? Get answers! Visit Pumptrol's website at www.pumptrol.com 47

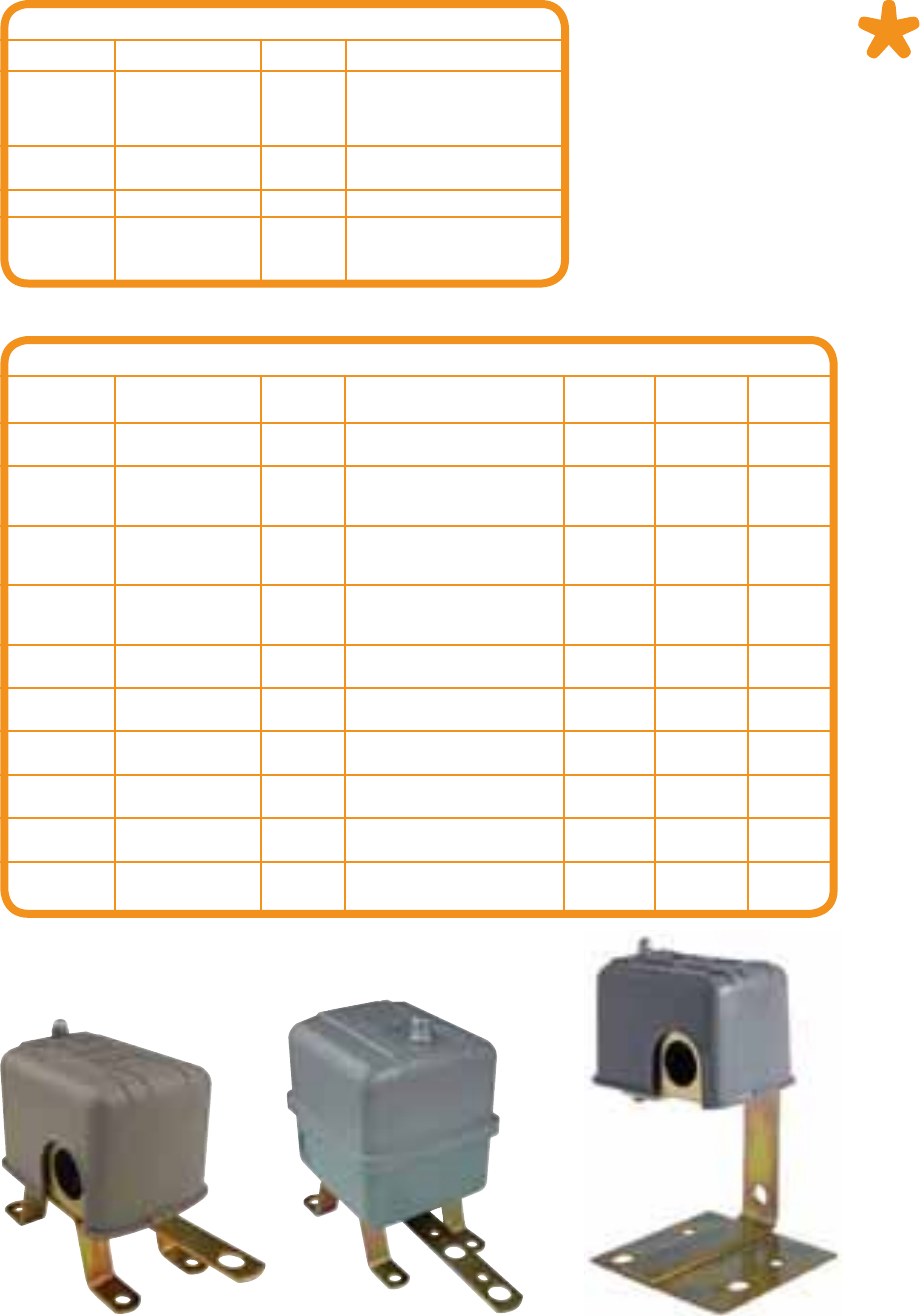

9036DG2

Switches - Float

Pumptrol Float Switches

Class 9036

• Pedestal Style

Type FG30

• Designed for liquid level

control with electric

motor operated pumps

either directly or through

a magnetic starter

• Can also be used to

activate alarms in liquid

level control systems

• Upward or downward

movement of the

lever arm of the Class

9036 Type FG30 float

switch controls the

ON and OFF positions

corresponding to the

water level changes

required to turn the

pump or alarm on

and off

• Sump or Open Tank

Type DG, GG

• Double-pole rated

• 2 HP @ 115 Vac and

3 HP @ 230 Vac

• Designed for automatic

control of liquid level in

open sumps or tanks

handling small motor

loads directly or through

a starter

• NEMA Type 1

Indoor Enclosure

• Type GG – heavier duty

for light commercial and

industrial applications

Sump or Open Tank Style – Type FG

Catalog # UPC Code Type Description

9036FG Special Order Universal kit which includes

switch, plastic center hole

float, rod and attaching

hardware

9036FG30 Special Order Switch

only Contacts close on liquid rise

2-pole NEMA 1

9049A60 Special Order Float Plastic center hole float

9049A61 Special Order Tubing 33.75 inch aluminum rod,

2 float stop assemblies and

attaching hardware

✚ Item may require additional

lead time.

9036GG2

Sump or Open Tank Style – Type DG, GG

Catalog # UPC Code Type Description

Force up to

trip

Force down

to Trip

Level

Position

9036DG2✚Special Order Switch

only Contacts close on

liquid Rise 9 oz. 8 oz. n/a

9036DG2R 7-85901-57643-3 Switch

only Contacts open on liquid rise;

universal float and rod kit

consists of 1-7"

9 oz. 8 oz. n/a

9036GG2✚Special Order Switch

only Contacts close on liquid rise;

top tapped 304 stainless

steel float, 2-2½ '

33 (21) oz. 39 (27) oz. short,

(long)

9036GG2R✚Special Order Switch

only Contacts open on liquid rise;

brass rods with connector

and 2-stop collars

34 (21) oz. 40 (27) oz. short,

(long)

9049A6✚Special Order Tapped-

at-Top #304 SS float; 5' brass

tubing and two stops –– –

9049A6S Special Order Floats #304 SS float; 5' SS tubing

and two stops –– –

9049A6C Special Order Center-

Hole #304 SS float; 5' brass

tubing and four stops –– –

9049A6CS Special Order Floats #304 SS float; 5' SS tubing

and four stops –– –

9049T1 Special Order Additional

Tubing 2½ ' brass tubing with

connector –– –

9049T1S Special Order Additional

Tubing 2.5 foot SS tubing with

connector –– –

9036FG

48 Have questions? Get answers! Visit Pumptrol's website at www.pumptrol.com

HF

R

L

4.5

114

3.625

92

1.81

46

1.0

25

A

Switches - Float

Pumptrol Float Switches

Class 9037

• Closed Tank-Type HG

• NEMA Type 1 Indoor

Enclosure

• Double-pole rated

• 2 HP @ 115 Vac and

3 HP @ 230 Vac

• Type HG switch is

attached to tank

by means of 2½ "

screw connection

• Switches come

complete with stainless

steel float and rod

• Buna N Quad-Ring®

seal is used between

the float rod and

sealing connector

• Can withstand tank

pressures up to 50

PSIG at temperatures

up to 220˚F

• Closed Tank-Type EG

• NEMA Type 1 Indoor

Enclosure

• Double-pole rated

• 2 HP @ 115 Vac

3 HP @ 230Vac

• Switches are flange

mounted and float

movement is

transmitted through a

stuffing box

• Can be built up to meet

exact requirements from

the basic switch, float

rod and float groups

• Switch may be

assembled in the field to

give contacts that open

on liquid rise or close on

liquid rise

Closed Tank – Screw-in Style – Type HG

Catalog # UPC Code Description

Float

Position▲

Float Rod

Angle

Approx. Water Level

Change (Field Adjustable)

Minimum Maximum

9037HG33✚Special Order Contacts close on liquid rise Right 45º offset 2" 5"

9037HG32 Special Order Left 90º offset 2" 11½ "

9037HG31 Special Order Contacts close on liquid rise Right 90º offset 2" 11½ "

9037HG30 Special Order Left 90º offset 2" 8¼ "

Closed Tank – Flange Mount Style – Type EG

Catalog # UPC Code Description

Post

Length

9037EG8 Special Order For minimum water level change 25/8"

9037EG9 Special Order For maximum water level change 25/8"

✚ Item may require additional

lead time.

▲ Viewed from front of switch

facing indicator scale.

QUAD-RING® is a registered

trademark of Minnesota

Rubber Co.

VITON® is a registered

trademark of DuPont Co.

9037HG

9037EG

5.98

152

2.88

73

0.44

11

0.38

10

11.5

292

2.58

65

2.5" NPT

2.0

51

3.86

98

16.06

408

7.13

184

Across

Flats

Bushing

H

R

C

L

f2

f1

F

C

L

C

L

49

50 Have questions? Get answers! Visit Pumptrol's website at www.pumptrol.com

Catalog # UPC Code

Cut-In

Setting

(PSIG)

Cut-Out

Setting

(PSIG)

Pressure

Connection

(NPSF Internal) Additional Features*

Water Pump Pressure Switches – Type FSG*

Standard Action: Contacts Open On Rising Pressure; 2-Pole, NEMA 1

FSG2J20BP 0-47569-11533-2 20 40 1/4"

FSG2J20CP 0-47569-00632-6 20 40 1/4"

FSG2J20PBP 0-47569-11534-9 20 40 1/4" Pulsation plug

FSG2J20PCP 0-47569-52171-3 20 40 1/4" Pulsation plug

FSG2J20M1BP 0-47569-11535-6 20 40 1/4" Manual cut-in lever

FSG2J20M1CP 0-47569-80786-2 20 40 1/4" Manual cut-in lever

FSG2J20M4BP 0-47569-11536-3 20 40 1/4" Low pressure cut-off

FSG2J20M4CP 0-47569-80787-9 20 40 1/4" Low pressure cut-off

FSG2J18CP Special Order 20 50 1/4"

FSG2J21BP 0-47569-11538-7 30 50 1/4"

FSG2J21CP 0-47569-80785-5 30 50 1/4"

FSG2J21M1BP 0-47569-11539-4 30 50 1/4" Manual cut-in lever

FSG2J21M1CP 0-47569-04397-0 30 50 1/4" Manual cut-in lever

FSG2J21M4BP 0-47569-11540-0 30 50 1/4" Low pressure cut-off

FSG2J21M4CP 0-47569-03466-4 30 50 1/4" Low pressure cut-off

FSG2J24BP 0-47569-11541-7 40 60 1/4"

FSG2J24CP 0-47569-07217-8 40 60 1/4"

FSG2J24M4BP 0-47569-11542-4 40 60 1/4" Low pressure cut-off

FSG2J24M4CP 0-47569-17782-8 40 60 1/4" Low pressure cut-off

Water Pump Pressure Switches – Type FRG**

Reverse Action: Contacts Open On Falling Pressure; 2-Pole, NEMA 1

9013FRG22J36 Special Order 10 5 1/4"

9013FRG22J19 Special Order 22 16 1/4"

9013FRG2J23 Special Order 40 20 1/4"

9013FRG2J23M3 Special Order 40 20 1/4" Momentary manual cut-in

lever (AUTO-START)

9013FRG2J23M5 Special Order 40 20 1/4" Maintained manual cut-in

lever (AUTO-ON)

9013FRG2J35 Special Order 50 30 1/4"

Water Pump Pressure Switches – Type FYG***

Standard Action: Contacts Open On Rising Pressure; 2-Pole, NEMA 1 with higher HP

9013FYG2J20 Special Order 20 40 1/4"

9013FYG2J21 Special Order 30 50 1/4"

9013FYG2J24 Special Order 40 60 1/4"

9013FYG2J33 Special Order 50 70 1/4"

9013FYG2J25 Special Order 60 80 1/4"

*FSG2 – 20-65 PSIG Cut-in Range, 10-45 PSIG Cut-out Range, 15-30 PSIG Approx. Adjustable Differential▲

**FRG2 – 23-65 PSIG Cut-in Range, 8-45 PSIG Cut-out Range, 15-30 PSIG Approx. Adjustable Differential▲

**FRG22 – 10-45 PSIG Cut-in Range, 6-20 PSIG Cut-out Range, 4-25 PSIG Approx. Adjustable Differential▲

***9013FYG2 – 25-80 PSIG Cut-in Range, 5-60 PSIG Cut-out Range, 20-30 PSIG Approx. Adjustable Differential▲

Switches – Pressure

Class 9013 Type FSG

Single-phase electrical ratings

• FSG:

1.5 HP @ 115 Vac

2 HP @ 230 Vac

• FRG:

1 HP @ 115 Vac

1 HP @ 230 Vac

• FYG:

2 HP @ 115 Vac

3 HP @ 230 Vac

• FHG:

1.5 HP @ 115 Vac

2 HP @ 230 Vac

• GSG, GHG

2 HP @ 115 Vac

3 HP @ 230 Vac

5 HP @ 460/575 Vac

Additional features de ned

• Maintained manual cut-out

lever has two positions:

AUTO–switch operates on

rising and falling pressure ;

and OFF – contacts are

held in the open or

off position.

• Low pressure cut-off

operates at approximately

10 PSIG below the cut-in

setting to stop the pump in

the event it runs dry or a

line breaks.

• Pulsation plug enables

the switch to operate on

reciprocating pump without

responding to the pressure

spikes at the end of each

piston stroke.

• 2-way pressure relief valve

releases head pressure

on the compressor upon

cut-off of the switch.

• CP – clamshell package

BP – box packaging.

▲ Differential – the difference

between cut-in and

cut-out pressure.

Have questions? Get answers! Visit Pumptrol's website at www.pumptrol.com 51

Pumptrol Water Pump and

Air Compressor Pressure

Switches Class 9013

Schneider Electric’s Square

D brand of pressure switches

have set the standard for

reliability, efficiency and

durability. As the most

trusted brand in residential,

commercial and industrial

pumping applications,

Square D pressure switches

continue to meet the daily

needs of the water

systems industry.

High reliability

• Rugged, robust

construction provides

a long life and provides

years of uninterrupted,

worry-free service

• Feature drift proof cut-in

and cut-out settings

• Has visible vertical

contacts, easy to inspect

without removal

• Extra wide diaphragm

orifice reduces clogging

• An extra strong frame

that resists distortion

when mounting the

switch to a pipe or

compressor

• Designed for the direct

control of motors in

pump and compressor

applications. Water

pump switches suitable

for all types of pumps:

jets, submersible,

reciprocating, etc.

• Diaphragm actuated

Models

• Type FSG is the standard

water pump switch

• Type FYG is designed

to meet higher

horse-power and

pressure requirements

• Type FRG is

reverse acting

• Type FHG for

air compressors

• Type G for higher

electrical ratings

(water pumps and

air compressors)

Catalog # UPC Code

Cut-Out

Setting

(PSIG)

Pressure Connection

(NPSF Internal) Additional Features*

Air Compressor Pressure Switches – Type FHG*

Standard Action: Contacts Open On Rising Pressure; 2-Pole, NEMA 1

FHG2J27BP 0-47569-11543-1 100 1/4"

FHG2J27CP 0-47569-17822-1 100 1/4"

FHG2J27XCP 0-47569-17823-8 100 1/4" 2-way pressure relief

FHG12J52XBP 0-47569-11545-5 125 1/4" 2-way pressure relief

FHG12J52XCP 0-47569-17824-5 125 1/4" 2-way pressure relief

FHG12J55BP Special Order 150 1/4"

FHG12J55CP 0-47569-17825-2 150 1/4"

FHG12J55XBP 0-47569-11547-9 150 1/4" 2-way pressure relief

FHG12J55XCP 0-47569-17826-9 150 1/4" 2-way pressure relief

9013FHG42J59 Special Order 175 1/4"

9013FHG42J59X Special Order 175 1/4"

9013FHG49J59 Special Order 175 1/4" NPT External

9013FHG49J59X Special Order 175 1/4" NPT External 2-way pressure relief

Air Compressor Water Pump Pressure Switches – Type GHG, GSG**

Standard Action: Contacts Open On Rising Pressure; 2-Pole, NEMA 1

9013GSG2J20 Special Order 40 1/4"

9013GSG2J21 Special Order 50 1/4"

9013GSG2J24 Special Order 60 1/4"

9013GSG2J25 Special Order 80 1/4"

9013GHG2J25 Special Order 80 1/4"

9013GHG2J29 Special Order 100 1/4"

9013GHG2J30 Special Order 100 1/4"

9013GHG2J53 Special Order 125 1/4"

9013GHG2J63 Special Order 175 1/4"

9013GHG2J30X Special Order 100 1/4" 2-way pressure relief

9013GHG2J53X Special Order 125 1/4" 2-way pressure relief

9013GHG2J63X Special Order 175 1/4" 2-way pressure relief

*FHG2 – 40-100 PSIG Cut-out Range, 20 PSIG Approx. Adjustable Differential▲

*FHG12 – 70-150 PSIG Cut-out Range, 30 PSIG Approx. Adjustable Differential▲

*FHG49 – 100-200 PSIG Cut-out Range, 40 PSIG Approx. Adjustable Differential▲

**9013GSG2 – 5-60 PSIG Cut-out Setting, 20-80 PSIG Cut-out Range,

15-30 PSIG Approx. Adjustable Differential▲

**9013GHG2 – 40-170 PSIG Cut-out Setting, 65-200 PSIG Cut-out Range,

20-40 PSIG Approx. Adjustable Differential▲

Class 9013 Type GHG Class 9013 Type FHG

Square D introduced the

enclosed safety switch

back in 1909 and for

more than 90 years we’ve

been the unchallenged

leader in safety switches.

> From the Beginning, the Safety Switch Leader

For more than 90 years, we’ve been the unchallenged leader in

safety switches. Our Square D brand safety switches are preferred

two to one over our closest competitor. We’ve continued our

tradition of innovation, developing new features that provide an

unsurpassed level of performance, reliability, safety and ease of

installation.

52

Safety Switches,

Surge Protection &

Other Residential Products

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 53

AC Disconnects & Switches – Light Duty

Amps Catalog # UPC Code

Maximum

Horsepower

Add’l

Access UPC Code

Fusible AC Disconnects – Pullout and Fuseholder▼

30 FP221R▲7-85901-30115-8 3 – –

60 FP222R▲7-85901-30116-5 10 – –

Not Fusible AC Disconnects – Pullout

60 UFP222R◗❐7-85901-30117-2 10 – –

UFP222RGFI◗❐7-85901-60710-6 – –

UFP222RD◗❐7-85901-42026-2 – –

Not Fusible AC Disconnects – Enclosed Molded Case Switch

60 QO200TRCP◗❐●0-47569-51769-3 10 PKHB 7-85901-11935-7

Light Duty Enclosed Switch Catalog Number Description

L221N CP

Light Duty # of Poles Vac Amps Neutral Consumer Products

> AC Disconnects

Catalog # UPC Code

Non-Metallic

FP221RNM✷7-85901-32798-1

FP222RNM✷7-85901-32799-8

UFP222RNM 7-85901-32800-1

QO200TRNM 7-85901-32801-8

AC Disconnects

• UL Listed

• 2 Wire

• 240 Vac

• Rainproof

Light Duty

Enclosed Switches

• UL Listed

• 10,000A Short Circuit

Current Rating

• 120/240 Vac

> Light Duty Switches

QO200TRNM UFP222R

L211N

Amps Fuse Type▼System Catalog # UPC Code

Horsepower

Rating

Fusible AC Disconnects – Pullout and Fuseholder▼

30 Plug 2-Wire L111N✷7-85901-11548-9 2 HP @ 120 Vac

Plug 3-Wire L211N✷7-85901-09052-6 3 HP @ 240 Vac

Cartridge 3-Wire L221N▲7-85901-49902-2 3 HP @ 240 Vac

◗ Suitable for use on systems

with up to 10,000 RMS

symmetrical amps with

available fault current at 240

Vac max. when protected by

a fuse or circuit breaker rated

60A or less.

● Bracket for QO200TR used

for stucco, aluminum and vinyl

siding available

(Catalog No. PKHB/UPC

Code 0-47569-11935-7).

❐ Does not contain

overcurrent protection.

▼ Fuses not included.

✷ 10,000A short circuit rating

with plug fuses.

▲ 10,000A short circuit rating

with Class H fuses.

54 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

D223N D221NRB D222NRB

Switches – General Duty

General Duty Safety Switch Catalog Number Description

D221N RB

General Duty # of Poles Vac 30A Neutral Outdoor Cover General Duty

Safety Switches

• UL Listed

• 100,000A Short Circuit

Withstand Rating with

Proper Fuses Installed

• NEMA Type 1 on

Indoor Units

• NEMA Type 3R on

Outdoor Units

◗ Enclosed molded case

switch, not suitable for

service equipment.

❐ Includes ground bar kit,

factory installed.

■ Includes solid neutral,

factory installed.

❋ For bolt-on hubs, refer

to page 19.

● For  eld installable

service ground bar kit

order PK3GTA-1.

✝ For  eld installable

service ground bar kit

order GTK0610.

★ For  eld installable service

ground bar kit order GTK03.

▼ 10,000A short circuit

current rating.

✚ Item may require additional

lead time.

Amps Fuse Type

Indoor Unit

Catalog # UPC Code

Rainproof Unit

Catalog #❋UPC Code

Fusible Safety Switches – 2-Pole, 3-Wire (2 Blades and Fuseholders, 1 S/N)

120/240 Vac (Plug), 240 Vac (Cartridge) Maximum

30 Plug D211NCP●▼ 0-47569-52154-6 D211NRBCP●▼ 0-47569-52160-7

Cartridge D221NCP●0-47569-52155-3 D221NRBCP●0-47569-52161-4

60 Cartridge D222NCP★0-47569-52156-0 D222NRBCP★0-47569-52162-1

100 Cartridge D223N✝7-85901-46068-8 D223NRB✝7-85901-46070-1

Fusible Safety Switches – 3-Pole, 4-Wire (3 Blades and Fuseholders, 1 S/N) 240 Vac Maximum

30 Cartridge D321NCP●7-85901-07189-1 D321NRBCP●7-85901-07190-7

60 Cartridge D322N★7-85901-46123-4 D322NRB★7-85901-46128-9

100 Cartridge D323N✝✚ 7-85901-46135-7 D323NRB✝✚ 7-85901-46140-1

Not Fusible Safety Switches – 2-Pole, 2-Wire (2 Blades) 240 Vac Maximum

30 – – – DU221RB●✚ 7-85901-49034-0

60 – – – QO260NATR◗❐■▼ 7-85901-62887-3

–QO260NATS◗❐■▼ 7-85901-62886-6 DU222RB●✚ 7-85901-49149-1

100 – QO2000NS◗■▼ 7-85901-53952-0 QO2000NRB◗■▼✚ 7-85901-53953-7

Not Fusible Safety Switches – 3-Pole, 3-Wire (3 Blades) 240 Vac Maximum

30 – DU321●✚ 7-85901-49160-6 DU321RB●✚ 7-85901-49162-0

60 – DU322●7-85901-49174-3 DU322RB●7-85901-49176-7

100 – DU323✝✚ 7-85901-49180-4 DU323RB▼✚ 7-85901-49182-8

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 55

QO2100NRB QOM2E2200NRB

Switches – Circuit Breaker Enclosures

Circuit Breaker

Enclosures

• UL Listed

Amps Service Vac

General Purpose

Catalog # UPC Code

Rainproof

Catalog # UPC Code Box #

Circuit Breakers

(order separately)

Amps Catalog #◗

Enclosed Circuit Breakers (Includes factory installed circuit breakers) (see pg.19) ––

100 120/240 – – QO2100NRBCP❍0-47569-51762-4 12R – –

200 120/240 – – QOM2E2200NRB 7-85901-37530-2 13R – –

Circuit Breaker Enclosures

(circuit breakers not included: order QO and QO-GFCI breakers from page 9 or 10)

(see pg.

18-19)

100 120/240 QO2100BNS✚❍ 7-85901-05172-5 QO2100BNRB❍7-85901-05174-9 17, 12R – –

120/240 QO2100BNF✚❍ 7-85901-05173-2 – – 17 – –

240 QO3100BNF✚❍ 7-85901-05175-6 QO3100BNRB✚❍ 7-85901-05177-0 17, 12R – –

240 QO3100BNS✚❍ 7-85901-05176-3 – – 17 – –

125 120/240 QO2125BNF✚❍ 7-85901-05178-7 QO2125BNRB❍7-85901-05180-0 22, 15R – –

120/240 QO2125BNS✚❍ 7-85901-05179-4 – – 22 – –

Q-Frame Enclosures & Circuit Breakers (circuit breakers not included: enclosure only) (see pg.

18-19)

– – – – – – – 100 QBL22100

– – – – – – – 110 QBL22110

– – – – – – – 125 QBL22125

– 240 – 2-Pole Q2-2200NS■▲✚ 7-85901-78544-0 Q2-2200NRB■▲✚ 7-85901-78545-3 24, 13R 150 QBL22150

– – – – – – – 175 QBL22175

– – – – – – – 200 QBL22200

240 – 3-Pole Q2-3225NF▲✚ 7-85901-47060-1 Q2-3225NRB▲✚ 7-85901-47062-5 25, 14R 100 QBL32100

240 – 3-Pole Q2-3225NS▲✚ 7-85901-47061-8 – – 25 110 QBL32110

– – – – – – 125 QBL32125

– – – – – – 150 QBL32150

– – – – – – 175 QBL32175

– – – – – – 200 QBL32200

– – – – – – – 225 QBL32225

◗ All breakers rated at

10,000 AIC.

❍ For ground bar kit order

PKOGTA-2.

■ Accepts 200A max.

2-pole Q-Frame breakers.

▲ Factory-installed groundable

neutral assembly included (2)

ground lugs and (2) neutral

lugs. Equipment ground kit

PKOGTA-2 also included.

✚ Item may require additional

lead time.

56 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Type Catalog # UPC Code

Clamping Voltage at Surge Currents of:■

1,500A 5,000A 10,000A

Surgebreaker® Secondary Surge Arrester ($10,000 Warranty – see page 59)

QO QO2175SB 7-85901-21089-4 475V 500V 600V

Homeline HOM2175SB 7-85901-21090-0 475V 500V 600V

Hardwire Secondary Surge Arrester (Warranty – see page 60)

– SDSA1175CP 7-85901-21087-0 500V 625V 750V

Surgebreaker Plus ($50,000 Warranty – see page 61)

Indoor SDSB1175C 7-85901-30713-6

Outdoor SDSB1175R 7-85901-30714-3

Surgebreaker® Plus Low Voltage Only ($10,000 Warranty – see page 60)

Outdoor SDSA4P2VR* 7-85901-83856-2

SDSB1175C

QO2175SB

HOM2175SB

SDSA1175

Surge Protection

Surgebreaker Secondary

Surge Arrester

• UL Listed: QO2175SB

and CSA Certified

• Suitable for Use in Service

Entrance Locations:

Meets Requirements of

NEC Article 280

• Protects from Electrical

Surges up to 20,000V

• Offers Added Protection

to Point of Use Surge

Protection , which

Normally Protects up to

6,000V

• LED Indicator

• 150Vac Phase-to-

Ground Maximum

• Installs like any Square D

Plug-On Circuit Breaker

(Requires 2-Poles)

• Equal Protection to all

Circuits and Receptacles

throughout the Home

Hard-Wire Secondary

Surge Arrester

• UL Listed

and CSA Certified

• Sealed Thermoplastic

Housing Suitable for

Indoor and Outdoor

Applications

• Ideal for Pumps and

Motor Applications

as well as Service

Entrance Locations

• Suitable for Use in

Service Entrance

Locations: Meets

Requirements of NEC

Article 280

• Protects from

Electrical Surges up

to 20,000V

• Offers Added Protection

to Point of Use Surge

Protection , which

Normally Protects

up to 6,000V

• 150Vac Phase-to-

Ground Maximum

• Equal Protection

to all Circuits and

Receptacles throughout

the Home

Surgebreaker Plus

Whole House Surge

Protector

• UL Listed 1449,

2nd edition

• Suitable for Use in

Service Entrance

Locations: Meets

Requirements of NEC

Article 280

• Suitable for Indoor and

Outdoor Applications

• LED Status Indicator

• Flush or Surface

Mounting for Indoor;

Outdoor is Surface

Mount Only

• Electrical System -

Connects Through the

Main Load Center

• Two Coax Lines –

Master Antenna,

Satellite Dish or Cable

• Four Line Telephone

(Analog Lines)

Protection

* Low Voltage Suppressor

contains telephone and

CATV only.

■ Clamping voltages measured

with 1" lead length.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 57

QO48M30DSGP Generator Interlock Kit (In use)

Generator Panels

Generator Panel

Amps Catalog # Ground Bar UPC Code

30 QO48M30DSGP PK7GTA 7-85901-86820-0

60 QO48M60DSGP PK7GTA 7-85901-82434-3

Outdoor Generator Transfer Switch Panel

Load Center

Amps

Generator

Main Amps Catalog # Power Inlet Type UPC Code

100 20 QO1DM10020TRBR NEMA L14-20 7-85901-62331-1

30 QO1DM10030TRBR NEMA L14-30P 7-85901-88322-7

50 QO1DM10050TRBR Hubbell CS6375 7-85901-46880-6

Generator Interlock Kit

Catalog # Indoor/Outdoor UPC Code

QOCGK2C Indoor 7-85901-48900-9

QORBGK2C Outdoor Special Order

HOMCGK2C Indoor 7-85901-94050-0

HOMRBGK2C Outdoor Special Order

Generator Panel

• Allows Connection to

a Standby Power

Source to as many as

Eight Circuits

• Lets You Change from

the Utility Power to a

Standby Source with

Flip of Two QO Main

Circuit Breakers

• Mechanical Interlock

Ensures that Only One

Main Circuit Breaker is

in the “ON” Position at

any Time

• Uses Eight Genuine

QO Circuit Breakers

from Square D -

“The World’s Finest”

• 4 Spaces/8 Circuits Max.

• See Page 21 for

wiring information

Generator Interlock Kit

• Interlocks the QOM1 and

QOM2 Main Breaker with

a 2-pole Breaker Back-

Fed from a Generator

• No Need for a Separate

Generator Panel

• Avoid the Inconveniences

that an Unexpected

Power Outage Can Cause

• Choose Where You

Want to Direct Generator

Power to any Circuit

Within the Home

58 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

> Square D/Schneider Electric Residential Products Limited Warranty

I. Square D/Schneider Electric QO Brand Load Center and Load Center Branch Circuit Breakers

Square D QO brand load centers and Square D breakers. Square D warrants its branch circuit breakers to be free from defects

in material and workmanship under normal care and proper usage in a residential installation, for the lifetime of the load center in

which it is installed. QO brand load centers are also covered under the same lifetime warranty. If the circuit breaker or QO brand

load center fails within the warranty period because of a defect in material or workmanship, Square D/Schneider Electric will replace

the defective breaker or device free of charge upon following the notice procedures below and return of the product to place of

purchase. Exclusive Remedy — The repair and/or replacement of defective products is your sole and exclusive remedy.

II. Square D/Schneider Electric Single-Phase Load Centers and Combination Service Entrance

Device (CSED)

Square D Homeline brand single phase load centers and combination service entrance devices. Square D warrants its Homeline

single phase load centers and combination service entrance devices to be free from defects in material and workmanship, under

normal care and proper usage in a residential installation, for a period of ten (10) years from the date of installation. If the product

fails within the warranty period because of a defect in material or workmanship, Square D will, at its option, repair or replace the

defective part or parts upon following the notice procedures below and return of product to place of purchase.

III. Warranty Redemption and Exclusions

A. Square D must be given prompt written notice of any defect or failure of any product covered by these limited warranties at

the following address: Square D Company, 1415 S. Roselle Road, Palatine, Illinois, 60067, (888) 778-2733, weekdays between

the hours of 8:00 a.m. and 5:00 p.m. Eastern Time. For warranty redemption, you must return the product to Square D at the

above address.

B. Any product returned under these limited warranties, if shipped, must be sent freight costs prepaid. Square D will deliver

repaired or replaced products to buyer, freight costs prepaid. Repaired or replaced products shall be warranted hereunder only

for the unexpired portion of the original warranty period. This warranty does not include costs or reimbursement for labor.

C. Any limited warranties granted or liabilities assumed hereunder will not apply to products that have been damaged, altered,

repaired or operated otherwise than in conformity with the requirements for safe operation and maintenance. For your safety

and to provide optimum short circuit protection, Square D recommends that you use only the Square D circuit breakers

identi ed on the load center or combination service entrance device label or wiring diagram. Square D disclaims all liability for

damage, injury or non-performance caused by the use or failure of incompatible or UL classi ed circuit breakers.

IV. Disclaimer of All Other Warranties

EXCEPT FOR THE EXPRESS WARRANTY SET FORTH ABOVE OR ANY WARRANTIES IMPLIED BY LAW, SQUARE D MAKES

NO OTHER EXPRESS OR IMPLIED WARRANTIES. TO THE FULLEST EXTENT PERMITTED BY LAW, SQUARE D DISCLAIMS

ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR

PURPOSE. THE FOREGOING DISCLAIMER MAY NOT APPLY TO YOU DEPENDING UPON THE PRODUCT YOU PURCHASE,

THE APPLICATION AND USE OF YOUR PRODUCT, OR YOUR STATUS AS A CONSUMER. TO THE EXTENT YOU ARE ENTITLED

TO RECOVER UNDER AN IMPLIED WARRANTY, THE DURATION OF THAT IMPLIED WARRANTY SHALL BE THE PERIOD OF

THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE.

V. Limitation of Liability

Square D expressly disclaims any and all liability to you for any consequential or incidental damages, damages for loss of use, loss

of pro ts, income or revenue, loss of time or inconvenience, loss or damage to associated equipment, damages to tangible or

intangible property, other than the equipment covered by this limited warranty, cost of substituted or replacement equipment other

than as expressly warranted, damages associated with excessive overvoltages, obsolescence, abuse, misuse, non-authorized

modi cation, alteration or catastrophic events, or any other incidental, consequential or special damage arising out of the use of

the products. Square D shall not be liable for indirect, special, incidental or consequential damages with respect to the sale of

the products, including any lost revenue or pro ts, consequential and/or incidental damages, business interruption or damage

to business reputation, regardless of the theory upon which any claim may be based, including any statutory, tort contract or

insurance subrogation causes of action or claims. In no event will Square D’s entire liability to you, including any liability in the event

the exclusive remedy set forth in this agreement fails of its essential purpose, exceed the purchase price for the affected products.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the preceding limitations or

exclusions may not apply to you. This limited warranty gives you speci c legal rights, and you may also have other rights, which vary

from state to state.

Product Warranty

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 59

> Surgebreaker Surge Protection Devices Warranty

I. Protection Limits

With regard to any Square D Surgebreaker surge protection device (catalog numbers QO2175SB and HOM2175SB) from

Square D/Schneider Electric that has been properly installed in a residential home in compliance with the current National Electrical

Code (NEC) requirements, Square D/Schneider Electric warrants to the homeowner at the time of such installation (or the initial

homeowner if installed as part of new construction) that Square D/Schneider Electric shall accept responsibility for any damage

to that homeowner’s major household appliances, as de ned below, up to the limits provided herein, to the extent such damage

is caused by the failure of such surge protection device to protect against electrical power surges caused by lightning or the

electric utility. As used herein, “major household appliances” shall mean: refrigerators, freezers, air conditioners, stoves, ovens

(except microwaves), clothes washers, clothes dryers and dishwashers. Major household appliances speci cally shall NOT include

electronic devices such as: microwave ovens, audio and stereo components, video equipment, televisions and computers. The limit

of Square D/Schneider Electric’s liability under this warranty shall be $10,000 or the deductible amount of customer’s insurance

policy covering such major household appliances, whichever is less.

II. Warranty Period

This warranty shall be in effect until three (3) years following the date of purchase of the Surgebreaker surge protection device, or

until two (2) years following the date of installation, whichever occurs earlier.

III. Warranty Not Transferable

This warranty may not be transferred from the homeowner who initially receives this warranty to any other party.

IV. Warranty Limitations

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING WITHOUT

LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. This warranty

excludes damage or loss arising from any of the following events or sources: unauthorized product modi cation or alteration,

force major events such as  ood or earthquake, war, insurrection, vandalism, theft, normal-use wear and tear, erosion, depletion,

obsolescence, abuse, defective software and computer virus infection. Square D/Schneider Electric shall not be liable for any

indirect, incidental, consequential damages. With respect to products purchased by consumers in the United States for personal

use, implied warranties, including but not limited to the warranties of merchantability and  tness for a particular purpose, are not

excluded but are limited to the extent allowed by law to the duration of the warranty period set forth above. No claim under this

warranty will be honored unless the homeowner has reported the damage within thirty (30) days after its occurrence in accordance

with the claims procedure below.

V. Claims Procedure

To make a claim under this warranty, please follow these steps: (1.) Retain the original dated sales receipts from the Square D

Surgebreaker device from Square D/Schneider Electric. (2.) Ask an independent repair person to write a report on the cause of

the damage. Retain all related repair receipts. (3.) File a claim under homeowner’s insurance. (4.) Within thirty (30) days of the

occurrence of the damage and prior to repairing the damaged equipment, contact Schneider Electric at (859)243-8220, Monday

through Friday 8:00 am. to 4:00 p.m. Eastern Standard Time (EST). (5.) Send the purchase receipt, repair receipt, damage report,

any homeowner’s insurance report along with the damaged Square D Surgebreaker Plus component(s) (electrical, telephone and/or

coaxial cable) to Schneider Electric, 1601 Mercer Road, Lexington, KY 40511, Attn: Surgebreaker Surge Protection

Devices Warranty.

60 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

> Surgebreaker Plus Low-voltage Only Devices Warranty

I. Protection Limits

With regard to the Square D Surgebreaker Plus low-voltage only device, catalog number SDSA4P2VR (Surgebreaker Plus device)

that has been properly installed in a residential home and in compliance with all applicable electrical code requirements, Square D

warrants to the homeowner at the time of such installation (or the initial homeowner if installed as part of new construction) that

Square D shall accept responsibility for any damage to that homeowner’s connected household equipment that is downstream from

the Surgebreaker Plus device, up to the limits provided herein, to the extent such damage is caused by the failure of such surge

protection device to protect against electrical power surges caused by lightning or a utility company (coaxial or telephone). As used

herein, “connected household equipment” shall mean electronic devices, including audio and stereo components, video equipment,

televisions and computers that are connected to the system protected by the Surgebreaker Plus device. “Connected household

equipment” shall exclude any commercial or industrial grade equipment not commonly found in a home. The limit of Square D’s

liability under this warranty shall be the lesser of $10,000 or the deductible amount of customer’s insurance policy covering such

connected household equipment.

II. Warranty Period

This warranty shall be in effect for three (3) years following the date of purchase of the Surgebreaker Plus device.

III. Warranty Not Transferable

This warranty may not be transferred from the homeowner who initially receives this Warranty to any other party.

IV. Warranty Limitations

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING WITHOUT

LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. This Warranty

excludes damage or loss arising from any of the following events or sources: unauthorized product modi cation or alteration, force

majeure events such as  ood or earthquake, war, insurrection, vandalism, theft, normal-use wear and tear, erosion, depletion,

obsolescence, abuse, defective software, and computer virus infection. Square D shall not be liable for any indirect, incidental,

consequential damages. With respect to products purchased by consumers in the United States for personal use, implied

warranties, including but not limited to the warranties of merchantability and  tness for a particular purpose, are not excluded but

are limited to the extent allowed by law to the duration of the warranty period set forth above. No claim under this warranty will be

honored unless the homeowner has reported the damage within thirty (30) days after its occurrence in accordance with the claims

procedure below.

V. Claims Procedure

To make a claim under this warranty please follow these steps: (1.)Retain the original dated sales receipts from the Square D

Surgebreaker Plus device. (2.) Ask an independent repairperson to write a report on the cause of the damage. Retain all related

repair receipts. (3.) File a claim under homeowner’s insurance. (4.) Within thirty (30) days of the occurrence of the damage and prior

to repairing the damaged equipment, contact EFI Electronics Corporation at (800) 877-1174, Monday through Friday 8:00 am. to

4:30 p.m. Mountain Time. (5.) Send the purchase receipt, repair receipt, damage report, and any homeowners insurance report and

any report along with the damaged Square D Surgebreaker Plus component(s) (telephone and/or coaxial cable) to: EFI Electronics

Corporation, 1751 South 4800 West, Salt Lake City, Utah 84104, Attn: Surgebreaker Plus Warranty. Failure to follow the claims

procedure set forth above may be grounds for refusing any warranty claim made hereunder.

> Warranty to Customers Purchasing Through Authorized Square D/

Schneider Electric Distributors and Customers Purchasing Directly From

Square D/Schneider Electric

Square D/Schneider Electric warrants equipment manufactured by it to be free from defects in materials and workmanship for

eighteen (18) months from date of invoice from Square D/Schneider Electric or its authorized sales channel. If within the applicable

warranty period purchaser discovers such item was not as warranted and promptly noti es Square D/Schneider Electric in writing,

Square D/Schneider Electric shall repair or replace the items or refund the purchase price, at Square D/Schneider Electric’s

option. This warranty shall not apply (a) to equipment not manufactured by Square D/Schneider Electric, (b) to equipment which

shall have been repaired or altered by others than Square D/Schneider Electric, (c) to equipment which shall have been subjected

to negligence, accident, or damage by circumstances beyond Square D/Schneider Electric’s control, or to improper operation ,

maintenance or storage, or to other than normal use or service. With respect to equipment sold but not manufactured by Square D/

Schneider Electric, the warranty obligations of Square D/Schneider Electric shall in all respects conform and be limited to the

warranty actually extended to Square D/Schneider Electric by its supplier. The foregoing warranties do not cover reimbursement for

labor, transportation , removal, installation, or other expenses which may be incurred in connection with repair or replacement.

Product Warranty

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 61

> Surgebreaker Plus Warranty

I. Protection Limits

With regard to any Surgebreaker Plus device (catalog number SBSB1175C amd SDSB1175R) from Square D® that has been

properly installed in a residential home in compliance with the current National Electrical Code (NEC) requirements, Square D/

Schneider Electric warrants to the homeowner at the time of such installation (or the initial homeowner if installed as part of new

construction) that Square D/Schneider Electric shall accept responsibility for any damage to that homeowner’s major household

connected equipment, as de ned below, up to the limits provided herein, to the extent such damage is caused by the failure of

such surge protection device to protect against electrical power surges caused by lightning or a utility company (electric, coaxial

or telephone). As used herein, “connected household equipment” shall mean major household appliances and electronic devices,

including refrigerators, freezers, air conditioners, stoves, oven, microwave oven, clothes washer, clothes dryer, dishwasher, audio

and stereo components, video equipment, televisions and computers. The limit of Square D’s liability under this warranty shall be

the lesser of $25,000 or the deductible amount of customer’s insurance policy covering such connected household equipment,

except that when the Surgebreaker Plus device is used in conjunction with both a point of use surge protective device and a Square

D QO or Homeline Load Center device, then the limit of Square D’s liability under this warranty shall be the lesser of $50,000 or the

deductible amount of customer’s insurance policy covering such major connected household equipment. As used herein, “point of

use surge protective device” shall mean a surge protective device that is listed to UL 1449 Listed (with a clamping voltage of 330V

for solid state devices) and that is located at and connected to the connected household equipment for which a damage claim

is made.

II. Warranty Period

This warranty shall be in effect for three (3) years following the date of purchase of the Surgebreaker Plus device, except that

when the Surgebreaker Plus device is used in conjunction with both a point of use surge protective device and a Square D QO

or Homeline load center, then this warranty shall be in effect for  ve (5) years following the date of purchase of the Surgebreaker

Plus device.

III. Warranty Not Transferable

This warranty may not be transferred from the homeowner who initially receives this Warranty to any other party.

IV. Warranty Limitations

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING WITHOUT

LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. This Warranty

excludes damage or loss arising from any of the following events or sources: unauthorized product modi cation or alteration,

force major events such as  ood or earthquake, war, insurrection, vandalism, theft, normal-use wear and tear, erosion, depletion,

obsolescence, abuse, defective software and computer virus infection. Square D shall not be liable for any indirect, incidental,

consequential damages. With respect to products purchased by consumers in the United States for personal use, implied

warranties, including but not limited to the warranties of merchantability and  tness for a particular purpose, are not excluded but

are limited to the extent allowed by law to the duration of the warranty period set forth above. No claim under this warranty will be

honored unless the homeowner has reported the damage within thirty (30) days after its occurrence in accordance with the claims

procedure below.

V. Claims Procedure

To make a claim under this warranty please follow these steps: (1.) Retain the original dated sales receipts of the Surgebreaker Plus

from Square D, and if applicable, the UL 1449 approved secondary surge protector(s). (2.) Ask an independent repairman to write a

report on the cause of the damage. Retain all related repair receipts. (3.) File a claim under homeowner’s insurance. (4.) File a claim

with the manufacturer of the UL 1449 secondary surge device, if applicable. (5.) Within thirty (30) days of the occurrence of the

damage and prior to repairing the damaged equipment, contact Schneider Electric at (859) 243-8220, Monday through Friday 8:00

a.m. to 4:00 p.m. Eastern Standard Time (EST). (6.) Send the purchase receipt, repair receipt, damage report, any homeowner’s

insurance report and any secondary surge manufacturer’s report along with the damaged Surgebreaker Plus component(s)

(electrical, telephone and/or coaxial cable) to Schneider Electric, 1601 Mercer Road, Lexington, KY 40511, Attn: Surgebreaker Plus

Warranty. (If no claim is  led with the UL 1449 secondary surge device manufacturer, any warranty claim here under will be subject

to three (3) year / $25,000 limitations stated here in.)

62 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Ratings for 120/240V, 3-Wire, Single-Phase Dwelling Services—

See NEC Table 310.15 (B)(6)

These are permitted ratings for Dwelling Unit service and feeder conductors which

carry the total load of the dwelling.

Adjustment Factors – See NEC Table 310.15 (B)(2)(a)

Where the number of current-carrying conductors in a raceway or cable exceeds

three, the allowable ampacities shall be reduced as shown in the following table:

See exceptions to NEC 310.15 (B)(2).

NEC 240.4 Protection of Conductors

Where conductors or cables are installed in conduits exposed to direct sunlight on

or above rooftops, see NEC Table 310.15(B)(2)(c). Conductors, other than flexible

cords and fixture wires, shall be protected against overcurrent in accordance with

Rating

(amps) 100 110 125 150 175 200 225 250 300 350 400

Copper 4 3 2 1 1/0 2/0 3/0 4/0 250 kcmil 350 kcmil 400 kcmil

Aluminum 2 1 1/0 2/0 3/0 4/0 250 kcmil 300 kcmil 350 kcmil 500 kcmil 600 kcmil

Number of

Current-Carrying Conductors

Percent of Values in Tables as Adjusted

for Ambient Temperature as Necessary

086hguorht4

079hguorht7

0502hguorht01

5403hguorht12

0404hguorht13

53evobAdna14

Ampacity Based on NEC Table 310.16 – Allowable Ampacities of Insulated Conductors Rated 0 through 2000V, 60° to 90°C (140° to 194°F). Not

more than three current-carrying conductors in raceway or cable or earth (directly buried), based on ambient temperature of 30°C (86°F)

For conduit fill see 2008 NEC Annex C.

For Information on Temperature Ratings of Terminations to Equipment See NEC 110 .14(C)

*See Section 240.4 (D).

eziS(A).31.013elbaTeeS

[ ]

.rotcudnoCfognitaRerutarepmeTeziS

AWG

kcmil

60°C (140°F) 75°C (167°F) 90°C (194°F) 60°C (140°F) 75°C (167°F) 90°C (194°F)

AWG

kcmil

Types TW, UF

Ty p e s

RHW, THHW, THW,

THWN, XHHW,

USE, ZW

Ty p e s

TBS, SA, SIS, FEP,

FEPB, MI, RHH,

RHW-2, THHN,

THHW, THW-2,

THWN-2, USE-2,

XHH, XHHW,

XHHW-2, ZW-2

Ty p e s

TW, UF

Ty p e s

RH, RHW, THW,

THHW, THWN,

XHHW, USE

Ty p e s

TBS, SA, SIS, THHN,

THHW, THW-2,

THWN-2, RHH,

RHW-2, USE-2,

XHH, XHHW,

XHHW-2, ZW-2

Copper Aluminum or Copper-Clad

Aluminum

18 .... .... 14 .... .... .... ....

16 .... .... 18 .... .... .... ....

14* 20 20 25 .... .... .... ....

12*25 25 30 20 20 25 12*

10*30 35 40 25 30 35 10*

8405055304045 8

6556575405060 6

4

708595556575 4

3585756011001583

20010957031511592

1511001580510310111

1/0 125 150 170 100 120 135 1/0

2/0 145 175 195 115 135 150 2/0

3/0 165 200 225 130 155 175 3/0

4/0 195 230 260 150 180 205 4/0

250 215 255 290 170 205 230 250

300 240 285 320 190 230 255 300

350 260 310 350 210 250 280 350

400 280 335 380 225 270 305 400

500 320 380 430 260 310 350 500

600 355 420 475 285 340 385 600

700 385 460 520 310 375 420 700

750 400 475 535 320 385 435 750

800 410 490 555 330 395 450 800

900 435 520 585 355 425 480 900

1000 455 545 615 375 445 500 1000

1250 495 590 665 405 485 545 1250

1500 520 625 705 435 520 585 1500

1750 545 650 735 455 545 615 1750

2000 560 665 750 470 560 630 2000

Correction Factors

Ambient Temp. °C For ambient temperatures other than 30°C (86°F), multiply the allowable ampacities shown above by the appropriate factor shown below. Ambient Temp. °F

21-25 1.08 1.05 1.04 1.08 1.05 1.04 70-77

26-30 1.00 1.00 1.00 1.00 1.00 1.00 78-86

31-35 .91 .94 .96 .91 .94 .96 87-95

36-40 .82 .88 .91 .82 .88 .91 96-104

41-45 .71 .82 .87 .71 .82 .87 105-113

46-50 .58 .75 .82 .58 .75 .82 114-122

51-55 .41 .67 .76 .41 .67 .76 123-131

56-60 . . . . .58 .71 . . . . .58 .71 132-140

61-70 . . . . .33 .58 . . . . .33 .58 141-158

71-80 . . . . . . . . .41 . . . . . . . . .41 159-176

NEC 240.4 (D) – Small Conductors

Unless specifically permitted in (E) through (G), the over-

current protection shall not exceed 15 amperes for #14 AWG,

20 amperes for #12 AWG, and 30 amperes for #10 AWG

copper; or 15 amperes for #12 AWG and 25 amperes for

#10 AWG aluminum and copper-clad aluminum after any

correction factors for ambient temperature and number of

conductors have been applied.

NEC 210.19 – Conductors, Minimum Ampacity and Size

The minimum branch circuit conductor size, before the

application of any adjustment or correction factors, shall have

an allowable ampacity not less than the noncontinuous load

plus 125 percent of the continuous load. (See exception for

100% rated devices)

NEC 210.20 (A) – Continuous and Noncontinuous Loads

Where a branch-circuit supplies continuous loads or any

combination of continuous and noncontinuous loads, the

rating of the overcurrent device shall not be less than the

noncontinuous load plus 125 percent of the continuous load.

(See Exception for 100% rated devices)

NEC 430.22 (A) – Single Motor Circuit Conductors

Branch-circuit conductors supplying a single motor shall have

an ampacity not less than 125 percent of the motor’s full-load

current rating. (See Exceptions)

their ampacities specified in NEC 310.15, unless otherwise

permitted or required in parts (A) through (G) of NEC 240.4.

Ampacity

> Conductor Ampacity Based on 2008 National Electric Code

63

64 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Before the next remodeling project begins in the bedroom, kitchen,

bathroom or another area of the home requiring a Combination Arc Fault

Circuit Interrupter (AFCI) or a Ground Fault Circuit Interrupter (GFCI),

educate yourself to the safety features that must be met to prevent

against electrical shock and  re hazards in the home. AFCI and GFCI

products from Square D offer the protection homeowners need.

> AFCIs provide protection for the home

The 2008 National Electric Code (NEC) developed by the National

Fire Protection Association (NFPA) requires speci c branch circuits

that supply 125V, 15A or 20A outlets to be protected by AFCIs. NEC

210.12 requires speci c rooms such as the bedrooms, living room,

dining room and others to be protected by AFCIs. The Square D

brand AFCI provides protection from the hazards of arc faults by

recognizing various types of arcing caused by worn or damaged

electrical wiring or cords plugged into outlets.

Arc Fault Facts

• An arc fault is an unintended arc created by current  owing

through an interrupted path.

• Arc temperatures can exceed 10,000°F.

• Arcing is believed to be the “early” event in many electrical  res.

• Traditional circuit breakers are unable to detect arc faults.

• Arc faults can occur in new, as well as old, electrical systems.

• AFCIs can be used in any 15A or 20A, 120V circuit.

• AFCIs can be used in conjunction with GFCI receptacles to

provide arc fault and ground fault protection.

• AFCIs can sense arcs and can protect against overloads and

short circuits.

To learn more about AFCIs facts, visit www.us.SquareD.com/afci or

www.afcisafety.org. Check local code to verify what is required in

your area.

> GFCIs provide personal protection

GFCIs are required by code in certain areas of the home, including

un nished basements, kitchens, bathrooms, garages, crawl spaces,

patios, hot tubs, pools and other locations, where a shock hazard

may exist.

GFCI Facts

Arc Fault vs. Ground Fault

AFCI GFCI

White reset button Yellow reset button

Designed to protect against fire hazards due to

“Arcing Conditions”

Designed to protect people from severe electrical shock

Required by the NEC in the following locations:

bedrooms, family rooms, dining rooms, living rooms,

parlors, libraries, dens, sunrooms, recreation rooms,

closets, hallways or similar rooms and/or areas

Required by the NEC in the following locations:

Bathroom, kitchen, basement, garage, outdoor

receptacle Also protects: pool pump, jacuzzi, hot tub,

wet bar

Can be used to provide protection on other circuits in

the home

Protects entire circuit with one device

Includes overload and short circuit protection Includes overload and short circuit protection

Things to Know to Protect Your House

• GFCIs are designed to help prevent serious

injury or death from electrical shock by

detecting ground faults at very low levels.

• GFCIs should be used in any area where

water may come in contact with

electrical products.

• A ground fault as low as 4-6mA (6/1000A)

will trip a GFCI.

• GFCIs provide all the protection of standard

circuit breakers and they detect current

leakage by measuring the current entering

the circuit and comparing it with the current

leaving the circuit.

• Square D products offer GFCIs in both

single and double-pole breaker formats and

various ampere ratings.

For more information on GFCI protection,

check with your Square D sales representative

or Customer Service at 800-432-2599.

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 65

As the temperature gets warmer, seasonal storms are right around

the corner. According to the National Weather Service, each year in

America there is an average of 10,000 thunderstorms, 2,500  oods,

1,000 tornadoes and six major hurricanes, which leads to nearly $14

billion in damages. Unfortunately we cannot prevent the bad weather

from happening this year, but we can take the necessary precautions to

protect ourselves and our homes.

> A Surge Strip is Not Enough

In today’s modern electrical household, many appliances are

connected to multiple power sources and communication lines.

In addition, most electrical products contain computer chips that

can be damaged by even a minor electrical surge. Uncontrolled

surges not only run the risk of overloading and destroying sensitive

electronics, but they can also damage hard-wired devices, such as

pumps and air conditioning compressors, as well as destroy the

wiring insulation within the home. These surges can enter the home

through one or more of the following paths:

• Electrical system: Surges entering through this system are

usually caused by lightning or utility disturbances. Without

proper protection, externally generated surges produce over

voltage conditions that can overwhelm point-of-use surge strips.

Diverting surges to ground at the service entrance device is the

best way to eliminate the damage caused by these external

surges.

• Telephone system: Surges through this system can cause

damage to answering machines and telephones. Computer

modems and DSL equipment are especially vulnerable to these

lightning-induced surges as they are directly connected to

telephone lines.

• Coaxial cable satellite TV system: Similar to the telephone

system, coaxial cable can carry surges from local lightning

activity, causing harm to connected equipment such as TV

receivers and computers (when connected via cable modem).

Protecting valuable appliances and home electronics requires a

two-stage, whole house approach. The  rst stage of protection

is to use a whole house surge device at the service entrance to

stop damaging surges from entering the home. The Square D

Surgebreaker Plus whole house surge protector helps prevent

the damage surges can cause when they jump between sources

by providing a common, low impedance path to ground for the

electrical, telephone and coaxial cable TV systems. It is rated for

up to 60,000A of protection with a solid state design to protect

120/240V circuits, four telephone lines and two coaxial television

lines for cable or satellite TV. In homes where the lines cannot be

routed to the load center, the Square D Surgebreaker Secondary

Surge Arrester or Hard-Wired Secondary Surge Arrester is

recommended to protect the electrical system against externally

generated surges.

> Don’t Get Caught in the Dark

When severe weather interrupts your utility power, the effects can

be more than the lights going out. Food may defrost in your freezer,

your basement could  ood, or the home of ce your livelihood

depends on could become useless. As we become more reliant

According to the National Weather Service, if you can

hear thunder, you are close enough to a storm to be

struck by lightning!

on the electrical lifeline of our homes, it is

important to be prepared for unexpected

service interruptions. To prevent a power

outage from happening in your home,

purchase a generator and the system to

interface with your home’s electrical equipment.

The Square D generator panel includes two

factory-installed QO main circuit breakers, one

fed by the utility and the other by an alternate

power source, such as a generator.

Features:

• Allows you to connect a standby power

source to as many as eight circuits

• Lets you change from the utility power to

a standby source with the  ip of two QO

main circuit breakers

• Mechanical interlock ensures that only one

main circuit breaker is in the “ON” position

at any time

• Uses up to eight genuine Square D

QO circuit breakers

Another alternative to adding a subpanel

is to modify your existing load center to

be generator capable. A limited number of

Square D load centers now can be converted

to be generator capable with the Square D

generator interlock kit.

Features:

• Interlocks the QOM2 main breaker

with a double-pole breaker back-fed

from a generator

• No need for a separate generator panel

• Avoid the inconveniences that an

unexpected power outage can cause

• Direct generator power to any circuit within

the home

With minimal cost and labor, you can add

standby generator switch capability to your

existing Square D load center and have the

 exibility to control the power wherever you

choose in your home.

Contact your Square D sales representative

today for more product information or call

our Customer Service Department at

1-800-432-2599.

66 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

Main Breaker

Designed For

Straight-In Wiring

minimizes bending

service cable and

cuts waste

22,000A Standard

Short Circuit Rating

higher short

circuit protection

Removable Interior

mounts quickly and

easily with single,

captive screws

Visi-Trip® Indicator

quick identi cation of

tripped circuit breakers

Shielded

Copper Bus

has two rugged

polymer shields to

insulate and secure

the interior

AFI Circuit Breaker

reduces  re risk by

detecting arc faults

GFI Circuit Breaker

To 60A

ground fault protection

for many applications

Tangential Main

Service Knockouts

no costly conduit offsets

and bends

Combination

Slot/Square Drive

Neutral, Ground

and Cover Screws

let you use a standard

 at blade or square-

head driver for

improved torque

Qwik-Open

Feature on

15A and 20A

Single-Pole

Circuit Breakers

unsurpassed short

circuit protection

Surgebreaker

Secondary

Surge Arrester

protection against

surges up to

20,000V

Automatic Flush

Cover Adjustment

reduced installation time

(see actual cover)

Tandem Circuit

Breaker

two single-pole circuits

utilizing one single-pole

space in load center

This display is for example purposes only. Your actual application or installation

may vary. Consult a quali ed electrician when making changes to your electrical

system. Local codes must be consulted in addition to the NEC.

Choosing The Right Load Center: QO vs. Homeline

> Two configurations of load centers:

• Main Breaker Type – includes a factory installed main breaker, which manually disconnects all electrical service to

the load center and automatically protects the load center main bus bar from short circuits and overloads.

• Main Lugs Type – does not include a factory installed main breaker. This type is used when the load center is

protected by a separate and upstream overcurrent device such as a circuit breaker or fusible safety switch.

> The Interior of the Load Centers consists of:

• Main Breaker (or Main Lugs) – connects and distributes incoming electrical power to the bus bars

• Main Bus Bar – conducts electrical current to the attached branch circuit breakers

• Ground Bar – provides connections for the equipment grounding wires

• Branch Circuit Breakers

• Neutral – provides connections for branch neutral wires

> QO... The Ultimate Choice for Load Centers

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 67

Tangential Main

Service Knockouts

no costly conduit

offsets and bends

Main Breaker

Designed For

Straight-In Wiring

minimizes bending

service cable

and cuts waste

Removable Interior

mounts quickly and

easily with single,

captive screws

Surgebreaker

Secondary

Surge Arrester

protection against

surges up to

20,000V

GFI Circuit Breaker

To 50A

ground fault protection

for many applications

Automatic Flush

Cover Adjustment

reduced installation time

(see actual cover)

22,000A Standard

Short Circuit Rating

higher short

circuit protection

Combination

Slot/Square Drive

Neutral, Ground

and Cover Screws

let you use a standard

 at blade or square-

head driver for improved

torque

AFI Circuit Breaker

reduces  re risk by

detecting Arc Faults

Tandem

Circuit Breaker

two single-pole circuits

utilizing one single-pole

space in load center

Qwik-Open

Feature on

15A and 20A

Single-Pole

Circuit Breakers

unsurpassed short

circuit protection

This display is for example purposes only. Your actual application or installation

may vary. Consult a quali ed electrician when making changes to your

electrical system. Local codes must be consulted in addition to the NEC.

> More Features: (Both QO and Homeline Products)

• Fully Convertible – Load centers can convert from main breaker to main lug and main lug to main breaker which

provides on-site  exibility for changing job-site requirements.

• Main Lug – Factory-included ground bar in all 12 circuit and higher QO load centers. Homeline main lug load

centers are available with factory-installed ground bars on select catalog numbers. Three locations to install to

meet customer requirements in the  eld.

• Branch Wiring – Now included on QO as standard, three neutral terminations suitable for up to 1/0 wire. Provides

economical, convenient and fast branch wiring for high current circuits with no extra lugs to purchase. Available on

QO load centers 12 circuits and higher.

• Top or Bottom Feed – Top or bottom feed without modi cation simpli es installation and meets all

job-site applications.

• Cover – Included with most indoor and rainproof load centers. It is identi ed according to surface or  ush

mounting. The cover and the box together are known as the enclosure

> Homeline

68 Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail

S.O. 9013FHG42J59. . . . . . .51

S.O. 9013FHG42J59X . . . . . .51

S.O. 9013FHG49J59. . . . . . .51

S.O. 9013FHG49J59X . . . . . .51

S.O. 9013FRG22J19 . . . . . . .50

S.O. 9013FRG22J36 . . . . . . .50

S.O. 9013FRG2J23 . . . . . . . .50

S.O. 9013FRG2J23M3 . . . . .50

S.O. 9013FRG2J23M5 . . . . .50

S.O. 9013FRG2J35 . . . . . . . .50

S.O. 9013FYG2J20 . . . . . . . .50

S.O. 9013FYG2J21 . . . . . . . .50

S.O. 9013FYG2J24 . . . . . . . .50

S.O. 9013FYG2J25 . . . . . . . .50

S.O. 9013FYG2J33 . . . . . . . .50

S.O. 9013GHG2J25 . . . . . . .51

S.O. 9013GHG2J29 . . . . . . .51

S.O. 9013GHG2J30 . . . . . . .51

S.O. 9013GHG2J30X . . . . . .51

S.O. 9013GHG2J53 . . . . . . .51

S.O. 9013GHG2J53X . . . . . .51

S.O. 9013GHG2J63 . . . . . . .51

S.O. 9013GHG2J63X . . . . . .51

S.O. 9013GSG2J20. . . . . . . .51

S.O. 9013GSG2J21. . . . . . . .51

S.O. 9013GSG2J24. . . . . . . .51

S.O. 9013GSG2J25. . . . . . . .51

S.O. 9036DG2 . . . . . . . . . . .47

57643 9036DG2R . . . . . . . . . .47

S.O. 9036FG. . . . . . . . . . . . .47

S.O. 9036FG30. . . . . . . . . . .47

S.O. 9036GG2 . . . . . . . . . . .47

S.O. 9036GG2R . . . . . . . . . .47

S.O. 9037EG8. . . . . . . . . . . .48

S.O. 9037EG9. . . . . . . . . . . .48

S.O. 9037HG30 . . . . . . . . . .48

S.O. 9037HG31 . . . . . . . . . .48

S.O. 9037HG32 . . . . . . . . . .48

S.O. 9037HG33 . . . . . . . . . .48

S.O. 9049A6. . . . . . . . . . . . .47

S.O. 9049A60. . . . . . . . . . . .47

S.O. 9049A61. . . . . . . . . . . .47

S.O. 9049A6CS . . . . . . . . . .47

S.O. 9049A6S. . . . . . . . . . . .47

S.O. 9049T1. . . . . . . . . . . . .47

S.O. 9049T1S. . . . . . . . . . . .47

02948 A100...............12

02949 A125...............12

02950 A150...............12

02951 A200...............12

13009 A200L. . . . . . . . . . . . . .12

02952 A250...............12

10798 A250L. . . . . . . . . . . . . .12

10797 A300L. . . . . . . . . . . . . .12

73540 ACPACP . . . . . . . . . . . .13

73539 ACPCP . . . . . . . . . . . . .13

45941 B075...............12

45942 B100...............12

45944 B125...............12

45945 B150...............12

45947 B200...............12

45948 B250...............12

61583 B300...............12

S.O. C125RB . . . . . . . . . . . .33

29176 CM200S . . . . . . . . . . . .33

29180 CQRA200 . . . . . . . . . . .33

04402 CQRB100CP . . . . . . . . .33

88408 CSEDVP1. . . . . . . . . . . .45

48666 CU12L400CB . . . . . . . .33

S.O. CU12L400CN . . . . . . . .33

52154 D211NCP . . . . . . . . . . .54

52160 D211NRBCP . . . . . . . . .54

52155 D221NCP . . . . . . . . . . .54

52161 D221NRBCP . . . . . . . . .54

52156 D222NCP . . . . . . . . . . .54

52162 D222NRBCP . . . . . . . . .54

46068 D223N . . . . . . . . . . . . .54

46070 D223NRB . . . . . . . . . . .54

07189 D321NCP . . . . . . . . . . .54

07190 D321NRBCP . . . . . . . . .54

46123 D322N . . . . . . . . . . . . .54

46128 D322NRB . . . . . . . . . . .54

46135 D323N . . . . . . . . . . . . .54

46140 D323NRB . . . . . . . . . . .54

49034 DU221RB . . . . . . . . . . .54

49149 DU222RB . . . . . . . . . . .54

49160 DU321 . . . . . . . . . . . . .54

49162 DU321RB . . . . . . . . . . .54

49174 DU322 . . . . . . . . . . . . .54

49176 DU322RB . . . . . . . . . . .54

49180 DU323 . . . . . . . . . . . . .54

49182 DU323RB . . . . . . . . . . .54

11545 FHG12J52XBP. . . . . . . .51

17824 FHG12J52XCP. . . . . . . .51

S.O. FHG12J55BP. . . . . . . . .51

17825 FHG12J55CP. . . . . . . . .51

11547 FHG12J55XBP. . . . . . . .51

17826 FHG12J55XCP. . . . . . . .51

11543 FHG2J27BP. . . . . . . . . .51

17822 FHG2J27CP. . . . . . . . . .51

17823 FHG2J27XCP. . . . . . . . .51

30115 FP221R. . . . . . . . . . . . .53

32798 FP221RNM . . . . . . . . . .53

30116 FP222R. . . . . . . . . . . . .53

32799 FP222RNM . . . . . . . . . .53

S.O. FSG2J18CP. . . . . . . . . .50

11533 FSG2J20BP. . . . . . . . . .50

00632 FSG2J20CP. . . . . . . . . .50

11535 FSG2J20M1BP . . . . . . .50

80786 FSG2J20M1CP . . . . . . .50

11536 FSG2J20M4BP . . . . . . .50

80787 FSG2J20M4CP . . . . . . .50

11534 FSG2J20PBP. . . . . . . . .50

52171 FSG2J20PCP. . . . . . . . .50

11538 FSG2J21BP. . . . . . . . . .50

80785 FSG2J21CP. . . . . . . . . .50

11539 FSG2J21M1BP . . . . . . .50

04397 FSG2J21M1CP . . . . . . .50

11540 FSG2J21M4BP . . . . . . .50

03466 FSG2J21M4CP . . . . . . .50

11541 FSG2J24BP. . . . . . . . . .50

07217 FSG2J24CP. . . . . . . . . .50

11542 FSG2J24M4BP . . . . . . .50

17782 FSG2J24M4CP . . . . . . .50

51772 HLO-1CP. . . . . . . . . . . .12

07659 HOM100AN . . . . . . . . . .13

30135 HOM115AFIC. . . . . . . . .24

06287 HOM115C . . . . . . . . . .23

63098 HOM115CAFIC . . . . . . .24

06270 HOM115CP . . . . . . . . . .23

07109 HOM115GFICP . . . . . . .25

30136 HOM120AFIC. . . . . . . . .24

06288 HOM120C . . . . . . . . . .23

47715 HOM120CAFIC . . . . . . .24

06271 HOM120CP . . . . . . . . . .23

07110 HOM120GFICP . . . . . . .25

51598 HOM1224L125TC . . . . .28

61009 HOM1224L125VP . . . . .43

07515 HOM1224M100TC . . . .27

10746 HOM1224M125C . . . . .27

66618 HOM1224M125RBVP . .43

07651 HOM1224M125TC . . . .27

82407 HOM12L125C . . . . . . . .28

82408 HOM12L125RB . . . . . . .28

10782 HOM12L200RB . . . . . . .28

06133 HOM12M100C . . . . . . .27

06134 HOM12M100RB . . . . . .27

06289 HOM130C . . . . . . . . . .23

06272 HOM130CP . . . . . . . . . .23

06290 HOM140C . . . . . . . . . .23

06273 HOM140CP . . . . . . . . . .23

06274 HOM150CP . . . . . . . . . .23

82409 HOM1624L125C . . . . . .28

08397 HOM1632M150TC . . . .27

08398 HOM1632M200TC . . . .27

07147 HOM1HTCP . . . . . . . . . .12

79871 HOM1PACP . . . . . . . . . .12

07145 HOM1RKCP . . . . . . . . . .12

51611 HOM2024L125TC . . . . .28

82416 HOM2030M150TC . . . .27

08400 HOM2040M200C . . . . .27

82419 HOM2040M200RB . . . .27

08399 HOM2040M200TC . . . .27

67958 HOM2040M200VP. . . . .44

06125 HOM20L125C . . . . . . . .28

06126 HOM20L125RB . . . . . . .28

06135 HOM20M100C . . . . . . .27

37913 HOM20M100CBP2 . . . .43

06136 HOM20M100RB . . . . . .27

48242 HOM2100C . . . . . . . . .23

06285 HOM2100CP . . . . . . . . .23

06286 HOM2125CP . . . . . . . . .23

06292 HOM215C . . . . . . . . . .23

06275 HOM215CP . . . . . . . . . .23

30319 HOM215GFI. . . . . . . . . .25

21090 HOM2175SB . . . . . . . . .56

07099 HOM220C . . . . . . . . . .23

06276 HOM220CP . . . . . . . . . .23

30320 HOM220GFI. . . . . . . . . .25

07160 HOM225CP . . . . . . . . . .23

07100 HOM230C . . . . . . . . . .23

06277 HOM230CP . . . . . . . . . .23

03032 HOM230GFI. . . . . . . . . .25

07101 HOM240C . . . . . . . . . .23

06278 HOM240CP . . . . . . . . . .23

30346 HOM240GFI. . . . . . . . . .25

10784 HOM24L125TC . . . . . . .28

07121 HOM24L70FCP . . . . . . .28

07122 HOM24L70RBCP . . . . . .28

07120 HOM24L70SCP . . . . . . .28

77113 HOM24M100C . . . . . . .27

47799 HOM24M100VP. . . . . . .43

10783 HOM24M125C . . . . . . .27

62630 HOM24M125RB . . . . . .27

07102 HOM250C . . . . . . . . . .23

06279 HOM250CP . . . . . . . . . .23

78357 HOM250GFI. . . . . . . . . .25

87589 HOM250GFICP . . . . . . .25

07103 HOM260C . . . . . . . . . .23

06280 HOM260CP . . . . . . . . . .23

06281 HOM270CP . . . . . . . . . .23

06282 HOM280CP . . . . . . . . . .23

06283 HOM290CP . . . . . . . . . .23

33158 HOM2PAHACP. . . . . . . .12

33159 HOM2PALACP . . . . . . . .12

20900 HOM3040L200TC . . . . .28

40172 HOM3040L200VP . . . . .44

92127 HOM3040M150VP. . . . .43

54177 HOM3040M200EPVP. . .44

66606 HOM3040M200RBVP . .44

07653 HOM3040M200TC . . . .27

49068 HOM3040M200VP. . . . .44

82414 HOM30L150C . . . . . . . .28

06127 HOM30L200C . . . . . . . .28

06128 HOM30L200RB . . . . . . .28

39486 HOM30M100C . . . . . . .27

39487 HOM30M125C . . . . . . .27

06137 HOM30M150C . . . . . . .27

06138 HOM30M150RB . . . . . .27

06139 HOM30M200C . . . . . . .27

07648 HOM30M200RB . . . . . .27

06129 HOM40L200C . . . . . . . .28

06130 HOM40L200RB . . . . . . .28

07649 HOM40M200C . . . . . . .27

07650 HOM40M200RB . . . . . .27

83169 HOM40M200VP. . . . . . .44

82415 HOM42L225C . . . . . . . .28

82421 HOM42M225C . . . . . . .27

48436 HOM48L125GC . . . . . . .28

48437 HOM48L125GRB . . . . . .28

07124 HOM612L100FCP . . . . .28

07125 HOM612L100RBCP . . . .28

07123 HOM612L100SCP . . . . .28

07658 HOM70AN . . . . . . . . . . .13

82404 HOM816L125C . . . . . . .28

82406 HOM816L125RB . . . . . .28

82405 HOM816L125TC . . . . . .28

06131 HOM816M100C . . . . . .27

06132 HOM816M100RB . . . . .27

07514 HOM816M100TC . . . . .27

64916 HOM816M125RB . . . . .27

19517 HOM816M125RB-VP . . .45

08381 HOM816M150FTRB. . . .27

07654 HOM816M200FTRB. . . .27

94050 HOMCGK2C. . . . . . . . . .57

23054 HOME250SPA . . . . . . . .43

07149 HOMFPCP . . . . . . . . . . .13

06592 HOML2125 . . . . . . . . . .13

86581 HOMQPA . . . . . . . . . . . .12

S.O. HOMRBGK2C. . . . . . . . .57

S.O. HOMT1515215 . . . . . . .24

07220 HOMT1515220CP . . . . .24

07221 HOMT1515230CP . . . . .24

39582 HOMT1515240CP . . . . .24

39583 HOMT1515250CP . . . . .24

07107 HOMT1515C . . . . . . . .24

07105 HOMT1515CP . . . . . . . .24

40375 HOMT1520CP . . . . . . . .24

07222 HOMT2020220CP . . . . .24

07223 HOMT2020230CP . . . . .24

39584 HOMT2020240CP . . . . .24

39400 HOMT2020250CP . . . . .24

07108 HOMT2020C . . . . . . . . .24

07106 HOMT2020CP . . . . . . . .24

07148 HOMTHTCP . . . . . . . . . .12

79877 HOMVP1 . . . . . . . . . . .45

40171 HOMVP12 . . . . . . . . . .45

37912 HOMVP12M100CBP4 . .43

33047 HOMVP14 . . . . . . . . . . .45

29601 HOMVP15 . . . . . . . . . . .45

29618 HOMVP16 . . . . . . . . . . .45

88407 HOMVP5 . . . . . . . . . . . .45

88411 HOMVP9 . . . . . . . . . . . .45

40172 HOMVPL1 . . . . . . . . . . .45

32722 HOMVPL2 . . . . . . . . . . .45

40170 HOMVPRB1 . . . . . . . . . .45

11548 L111N. . . . . . . . . . . . . .53

09052 L211N. . . . . . . . . . . . . .53

49902 L221N. . . . . . . . . . . . . .53

43664 LK100ANCP . . . . . . . . .13

73835 LK150AN. . . . . . . . . . . .13

48311 LK70ANCP . . . . . . . . . .13

43267 PK0GTA-2 . . . . . . . . . . .13

51735 PK12GTACP . . . . . . . . .13

57033 PK15GTACP . . . . . . . . .13

Product Catalog Catalog

Number* Number Page

Product Index Locator

> Alphanumeric Listing

*S.O. = Special Order

Product Catalog Catalog

Number* Number Page

Product Catalog Catalog

Number* Number Page

Product Catalog Catalog

Number* Number Page

Product Catalog Catalog

Number* Number Page

Have questions? Get answers! Call Customer Service at 1-800-432-2599 or visit our website at www.us.squared.com/retail 69

44087 PK15GTA-L . . . . . . . . . .13

51738 PK18GTACP . . . . . . . . .13

44088 PK18GTA-L . . . . . . . . . .13

51739 PK23GTACP . . . . . . . . .13

44089 PK23GTA-L . . . . . . . . . .13

51734 PK2MBCP . . . . . . . . . . .13

51730 PK3GTA-1CP . . . . . . . . .13

30716 PK4DTIM4HA. . . . . . . . .13

40027 PK4DTIM4LA . . . . . . . . .13

30721 PK4DTIM4LAL . . . . . . . .13

51731 PK4GTACP . . . . . . . . . .13

30717 PK4MB2HA . . . . . . . . . .13

30718 PK4MB2LA . . . . . . . . . .13

74631 PK6FL . . . . . . . . . . . . . .13

51732 PK7GTACP . . . . . . . . . .13

51733 PK9GTACP . . . . . . . . . .13

78545 Q2-2200NRB. . . . . . . . .55

78544 Q2-2200NS. . . . . . . . . .55

47060 Q2-3225NF . . . . . . . . . .55

47062 Q2-3225NRB. . . . . . . . .55

47061 Q2-3225NS. . . . . . . . . .55

00112 QC12L200C . . . . . . . . .34

00113 QC12L200CH . . . . . . . .34

39668 QC2442M200C . . . . . . .36

39678 QC2442M200CH . . . . . .36

S.O. QC816F100CH . . . . . . .34

39097 QC816F125C . . . . . . . .34

40181 QC816F125CH . . . . . . .34

00105 QC816F150C . . . . . . . .34

00106 QC816F200C . . . . . . . .34

00108 QC816F200CH . . . . . . .34

84118 QO11220M100C . . . . . .15

84120 QO11224L125GC . . . . .16

86784 QO11224L125GRB . . . .16

86845 QO112L125GC . . . . . . .16

86785 QO112L125GRB . . . . . .16

84124 QO112L200G . . . . . . . .16

86786 QO112L200GRB . . . . . .16

84127 QO112M100C . . . . . . . .15

86787 QO112M100RB . . . . . . .15

30133 QO115AFIC . . . . . . . . . .11

61044 QO115CAFIC . . . . . . . . .11

83798 QO115CP . . . . . . . . . . . .9

52231 QO115GFICP . . . . . . . . .10

40007 QO115HM . . . . . . . . . . . .9

84130 QO11624L125G . . . . . .16

86788 QO11624L125GRB . . . .16

84773 QO116L125G . . . . . . . .16

84775 QO116M100C . . . . . . . .15

86794 QO116M100RB . . . . . . .15

84777 QO12024L125G . . . . . .16

84779 QO12030L150G . . . . . .16

86796 QO12030M150RB . . . . .15

84783 QO12040M200C . . . . . .15

86797 QO12040M200RB . . . . .15

30134 QO120AFIC . . . . . . . . . .11

52238 QO120C . . . . . . . . . . . . .9

69818 QO120CAFIC . . . . . . . . .11

83799 QO120CP . . . . . . . . . . . .9

52232 QO120GFICP . . . . . . . . .10

40011 QO120HM . . . . . . . . . . . .9

84786 QO120L125GC . . . . . . .16

84788 QO120M100C . . . . . . . .15

86798 QO120M100RB . . . . . . .15

84790 QO124L125G . . . . . . . .16

86799 QO124L125GRB . . . . . .16

84791 QO124L150G . . . . . . . .16

84792 QO124M100 . . . . . . . . .15

84793 QO124M125 . . . . . . . . .15

86804 QO124M125RB . . . . . . .15

84794 QO124M150 . . . . . . . . .15

84795 QO124M200 . . . . . . . . .15

84798 QO13040L200GC . . . . .16

86806 QO13040L200GRB . . . .16

84800 QO13040M200C . . . . . .15

52239 QO130C . . . . . . . . . . . . .9

83800 QO130CP . . . . . . . . . . . .9

25509 QO130GFI . . . . . . . . . . .10

84801 QO130L150G . . . . . . . .16

86808 QO130L150GRB . . . . . .16

84802 QO130L200G . . . . . . . .16

86809 QO130L200GRB . . . . . .16

86743 QO130M150C . . . . . . . .15

86810 QO130M150RB . . . . . . .15

86754 QO130M200C . . . . . . . .15

86811 QO130M200RB . . . . . . .15

19337 QO132M100 . . . . . . . . .15

19338 QO132M125 . . . . . . . . .15

39489 QO132M150 . . . . . . . . .15

17791 QO140C . . . . . . . . . . . . .9

83801 QO140CP . . . . . . . . . . . .9

86766 QO140M200C . . . . . . . .15

86813 QO140M200RB . . . . . . .15

86767 QO140M225 . . . . . . . . .15

86775 QO142L225G . . . . . . . .16

86815 QO142L225GRB . . . . . .16

39490 QO142M200 . . . . . . . . .15

48438 QO148L125GF . . . . . . .16

48439 QO148L125GRB . . . . . .16

48440 QO148L125GS . . . . . . .16

00893 QO150CP . . . . . . . . . . . .9

07195 QO1515C . . . . . . . . . . .10

08277 QO1515CP . . . . . . . . . .10

86816 QO1612M125FTRB . . . .15

86817 QO1816M150FTRB . . . .15

86818 QO1816M200FTRB . . . .15

62331 QO1DM10020TRBR. . . .57

88322 QO1DM10030TRBR. . . .57

46880 QO1DM10050TRBR. . . .57

79864 QO1HPLCP . . . . . . . . . .12

57040 QO1HTCP . . . . . . . . . . .12

49462 QO1LOCP . . . . . . . . . . .12

49743 QO1PACP . . . . . . . . . . .12

51907 QO1PL . . . . . . . . . . . . .12

53953 QO2000NRB . . . . . . . . .54

53952 QO2000NS . . . . . . . . . .54

51769 QO200TRCP . . . . . . . . .53

32801 QO200TRNM . . . . . . . . .53

07196 QO2020C . . . . . . . . . . .10

00898 QO2020CP . . . . . . . . . .10

05173 QO2100BNF . . . . . . . . .55

05174 QO2100BNRB . . . . . . . .55

05172 QO2100BNS . . . . . . . . .55

69123 QO2100C . . . . . . . . . . . .9

52229 QO2100CP . . . . . . . . . . .9

51762 QO2100NRBCP . . . . . . .55

05178 QO2125BNF . . . . . . . . .55

05180 QO2125BNRB . . . . . . . .55

05179 QO2125BNS . . . . . . . . .55

04400 QO2125CP . . . . . . . . . . .9

03115 QO2125SL . . . . . . . . . .13

52216 QO215C . . . . . . . . . . . . .9

00894 QO215CP . . . . . . . . . . . .9

56298 QO215GFI . . . . . . . . . . .10

21089 QO2175SB . . . . . . . . . .56

52217 QO220C . . . . . . . . . . . . .9

83802 QO220CP . . . . . . . . . . . .9

83831 QO220GFICP . . . . . . . . .10

02382 QO225CP . . . . . . . . . . . .9

52218 QO230C . . . . . . . . . . . . .9

83803 QO230CP . . . . . . . . . . . .9

03467 QO230GFICP . . . . . . . . .10

52219 QO240C . . . . . . . . . . . . .9

83804 QO240CP . . . . . . . . . . . .9

76485 QO240GFI . . . . . . . . . . .10

32802 QO24L60NRNM. . . . . . .16

80435 QO24L70FCP . . . . . . . .16

80438 QO24L70RBCP . . . . . . .16

80436 QO24L70SCP . . . . . . . .16

52220 QO250C . . . . . . . . . . . . .9

83805 QO250CP . . . . . . . . . . . .9

30312 QO250GFIC . . . . . . . . . .10

04392 QO250GFICP . . . . . . . . .10

52221 QO260C . . . . . . . . . . . . .9

83806 QO260CP . . . . . . . . . . . .9

04393 QO260GFICP . . . . . . . . .10

62887 QO260NATR . . . . . . . . .54

62886 QO260NATS . . . . . . . . .54

00895 QO270CP . . . . . . . . . . . .9

52227 QO280CP . . . . . . . . . . . .9

52228 QO290CP . . . . . . . . . . . .9

78471 QO2DTIM . . . . . . . . . . .12

80432 QO2L30SCP . . . . . . . . .16

80437 QO2L40RBCP . . . . . . . .16

69267 QO3040M200VP . . . . . .45

05175 QO3100BNF . . . . . . . . .55

05177 QO3100BNRB . . . . . . . .55

05176 QO3100BNS . . . . . . . . .55

87965 QO32M100VP . . . . . . . .44

86820 QO48M30DSGP. . . . . . .57

82434 QO48M60DSGP. . . . . . .57

S.O. QO60SL . . . . . . . . . . . .13

78564 QO612L100DF . . . . . . .16

78562 QO612L100DS . . . . . . .16

80508 QO612L100FCP . . . . . .16

80509 QO612L100RBCP . . . . .16

80507 QO612L100SCP . . . . . .16

53973 QO70AN . . . . . . . . . . . .13

78569 QO816L100DF . . . . . . .16

78574 QO816L100DS . . . . . . .16

80475 QO816L100FCP . . . . . .16

80477 QO816L100RBCP . . . . .16

80476 QO816L100SCP . . . . . .16

48900 QOCGK2C . . . . . . . . . . .57

38950 QOE250GFINM . . . . . . .44

07224 QOFPCP . . . . . . . . . . . .13

76347 QOHPL . . . . . . . . . . . . .12

74796 QOL125 . . . . . . . . . . . .17

74797 QOL225 . . . . . . . . . . . .17

82259 QOM100VHCP . . . . . . . .17

S.O. QOM110VH . . . . . . . . . .17

03461 QOM125VHCP . . . . . . . .17

02195 QOM2100VH . . . . . . . . .17

02197 QOM2125VH . . . . . . . . .17

00405 QOM2150VH . . . . . . . . .17

84858 QOM2175VH . . . . . . . . .17

00406 QOM2200VH . . . . . . . . .17

32887 QOM22225NRB. . . . . . .17

32886 QOM22225NS . . . . . . . .17

00407 QOM2225VH . . . . . . . . .17

37530 QOM2E2200NRB . . .17, 55

87959 QOM50VH . . . . . . . . . . .17

87960 QOM60VH . . . . . . . . . . .17

05471 QOM70VH . . . . . . . . . . .17

05472 QOM80VH . . . . . . . . . . .17

05473 QOM90VH . . . . . . . . . . .17

S.O. QORBGK2C . . . . . . . . . .57

00298 QOSAMK . . . . . . . . . . . .13

06269 QOT1515CP . . . . . . . . .10

07198 QOT2020C . . . . . . . . . .10

00896 QOT2020CP . . . . . . . . .10

00255 QOTHPA . . . . . . . . . . . .12

17831 QOTHTCP . . . . . . . . . . .12

33450 QOVP1 . . . . . . . . . . . . .45

26473 QOVP10 . . . . . . . . . . . .45

33451 QOVP2 . . . . . . . . . . . . .45

86398 RC12L200C . . . . . . . . .34

00104 RC12L200CH . . . . . . . .34

30884 RC1624M100S . . . . . . .36

30885 RC1624M125S . . . . . . .36

39318 RC200S . . . . . . . . . . . .34

00284 RC2040M125CH . . . . . .36

87831 RC2040M150CH . . . . . .36

19336 RC2040M200C . . . . . . .36

48190 RC2040M200CGP . . . . .45

84116 RC2040M200CH . . . . . .36

39669 RC2M200S . . . . . . . . . .34

86397 RC816D200CH . . . . . . .34

40182 RC816F100CH . . . . . . .34

40183 RC816F125CH . . . . . . .34

85919 RC816F150C . . . . . . . .34

86394 RC816F150CH . . . . . . .34

86392 RC816F200C . . . . . . . .34

86396 RC816F200CH . . . . . . .34

30883 RC8L125S. . . . . . . . . . .34

44543 RU3040D400CL . . . . . .36

44073 S106...............13

S.O. SC12L200F . . . . . . . . . .33

37730 SC12L200S. . . . . . . . . .33

10779 SC1624M100F . . . . . . .35

30881 SC1624M100S . . . . . . .35

10780 SC1624M125F . . . . . . .35

30882 SC1624M125S . . . . . . .35

85909 SC2040M200C . . . . . . .35

10781 SC2040M200F . . . . . . .35

37729 SC2040M200S . . . . . . .35

32863 SC3040M200F . . . . . . .35

37728 SC3040M200S . . . . . . .35
