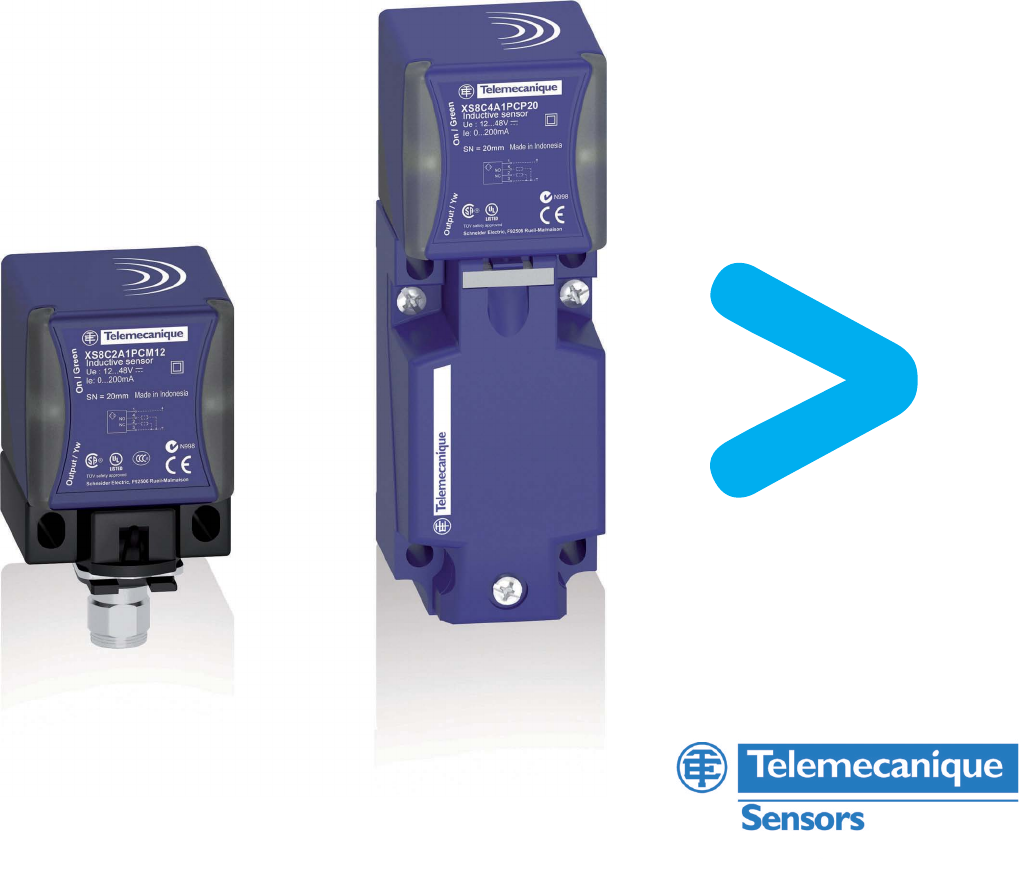

OsiSense™ XS

Inductive Proximity Sensors

Cubic Range

Catalog

3

Simple installation, easier maintenance

One-click concept makes operation and servicing easier

Robustness and compliance with SIL2

The rst general purpose proximity sensor with SIL2 certication (Safety Integrity Level 2)

Selection guide

Easily select the product best suited to your application

Contents

Customer benets .............................................................................................................page 3

OsiSense XSC sensor—Digital, 40 x 40 x 70 mm ....................................................... page 7

OsiSense XSC sensor—Digital, 40 x 40 x 117 mm ..................................................... page 9

OsiSense XSC sensor—Analog, 40 x 40 x 70/117 mm ........................................... page 11

A sensor that adapts

quickly and easily to your

machines

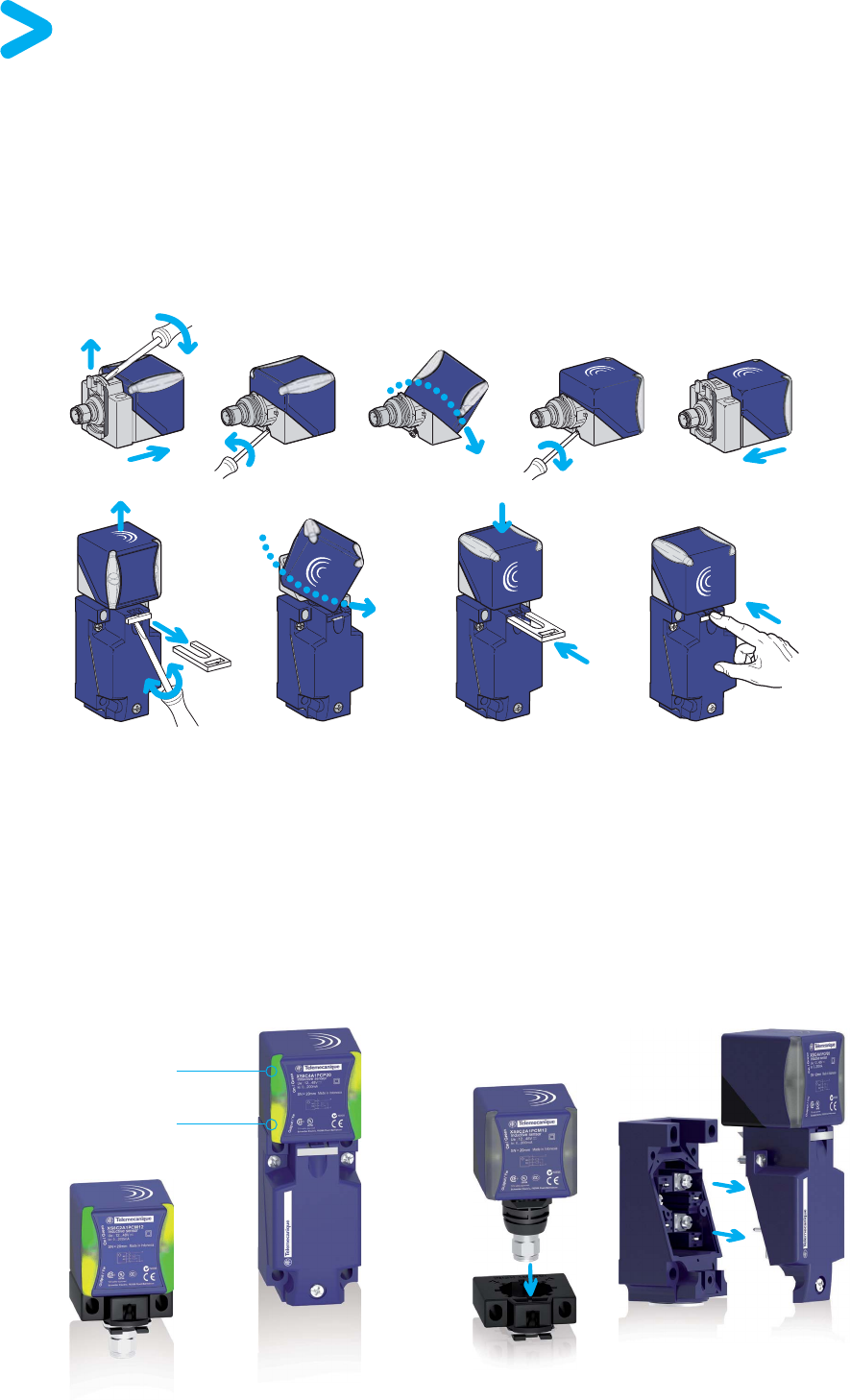

With unique one-click mounting and a rotating detection head, the new

OsiSense™ XS cubic sensor can be installed quickly and easily on your

machines or equipment.

Maintenance is simplified thanks to quick mounting and removal, as well as

LED indicators of sensor status that are clearly visible from a long distance

and from any direction.

Simply easy!™

4

5-position

Turret head

Maintenance

time halved

Simple installation,

easier maintenance

The new OsiSense XS proximity sensors, available in cubic and rectangular versions, have

a 5-position turret head, enabling accurate detection in any direction. The orientation of the

head can be adjusted manually and quickly without any special tools.

LEDs visible from any direction provide fast

status evaluation from several feet away.

Green LED

Power on

Yellow LED

Output state

For the cubic version, the detection head

can be changed without removing the

whole product from the machine, thanks to

the innovative one-click concept.

6

2

1

345

6

1

2345

"Click!"

SIL2

Certification

Reliable and robust detection

The compact design and robustness of these new sensors make

them perfectly suited for use in those industrial applications where

there is a high risk of damage or collision with moving parts.

The OsiSense XS range includes the rst SIL2 certied cubic

inductive sensor that signicantly reduces the risk of failure,

minimizing the chance of damage to your conveyors and machines.

Analog versions are also available for detection and monitoring of

material handling processes and many packaging applications.

The OsiSense XS sensors are IP69K tested and validated for use

in rough industrial environments.

5

8 x 22 x 8 mm

2.5 mm

Dimensions

Sensing Distance Sn

15 x 32 x 8 mm

5 mm

26 x 26 x 8 mm

10 mm

40 x 40 x 15 mm

15 mm

80 x 80 x 26 mm

40 mm

NO

or

NC

Selection guide

Flush mountable

Flush mountable

Non-ush mountable

Non-ush mountable

XS•C2

XS•C4

15 mm

15 mm

Sensing distance Sn

Sensing distance Sn

25 mm

25 mm

XS7C2A1M A U20

- -

- -

- - XS9C2A2A1 M12 -

- - XS9C2A2A2 M12 -

- - -XS9C4A 2 A1 P20

-

- - -XS9C4A2A2 P20

XS7C4A1DP P20 -

XS7C4A1MP P20 -

A

NO

NPN

PNP

Select the output

function B

NC

AC/DC

NO+NC

NO

or

NC

Analog

Analog

DC4

20 mm

20 mm

40 mm

40 mm

XS8C2A1M A U20 XS8C2A4M A U20

XS8C4A1DP P20 XS8C4A4DP P20

XS8C4A1MP P20 XS8C4A4MP P20

A A

B B

DC2

0–10 V

PG13

AC/DC

M20

Select

the type of

connection

4–20mA

1/2" NPT

P20 P20P20 P20

G13 G13G13 G13

N12 N12N12 N12

0–10 V

4–20mA

A comprehensive range of cubic and flat inductive sensors

Refer to the Telemecanique Sensors panorama

XS8C4A1PC P20 XS8C4A4PC P20

XS8C4A1NC P20 XS8C4A4NC P20

SIL2 sensors

XS7J1...Catalog Numbers XS7F1... XS7E1... XS7C1... XS7D1...

NO+NC - -XS8C2A1PC M12

- -XS8C2A1NC M12

DC4 PNP

NPN

XS8C2A4PC M12

XS8C2A4NC M12

XS7C2A1P A M12 -

XS7C2A1N A M12 -

PNP

NPN

DC3 - -

- -

XS7C2A1D A M12 -DC2 XS8C2A1D A M12 XS8C2A4D A M12

6

5 5

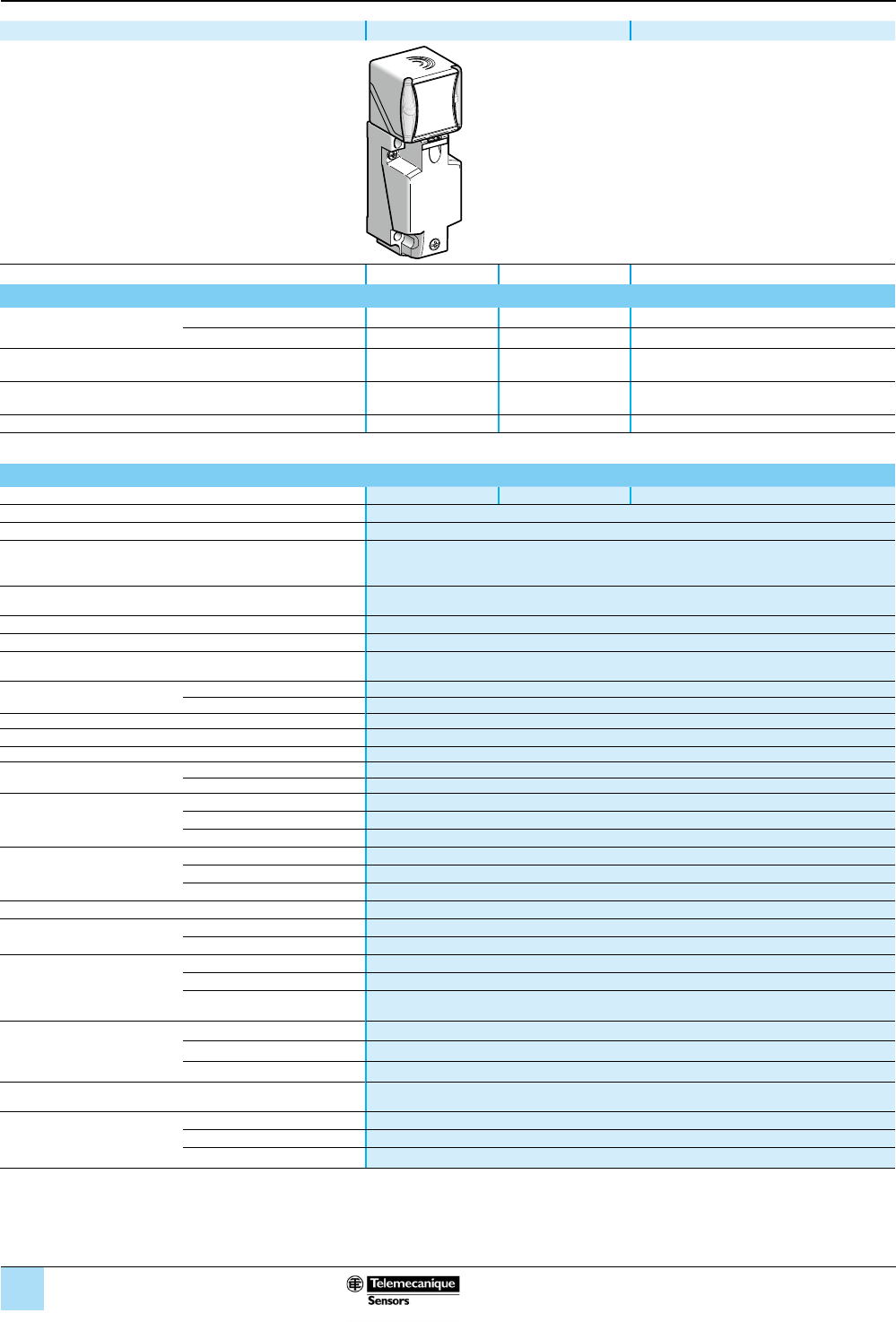

Catalog Numbers,

Specications

OsiSense™ XS

Inductive proximity sensors

General purpose,Cubic case, 40 x 40 x 70 mm,

M12 or 1/2"-20UNFconnector, 5 position turret head

Sensor Flush mountable in metal Non-ush mountable in metal

Nominal sensing distance (Sn) 15 mm (0.59 in.) 20 mm (0.78 in.) 40 mm (1.57 in.)

Catalog Numbers

4-wire cPNP NO+NC –XS8C2A1PCM12 XS8C2A4PCM12

NPN NO+NC –XS8C2A1NCM12 XS8C2A4NCM12

3-wire cPNP NO XS7C2A1PAM12 – –

NPN NO XS7C2A1NAM12 – –

PNP NC XS7C2A1PBM12 – –

NPN NC XS7C2A1NBM12 – –

2-wire c

Available 3rd quarter 2012

NO XS7C2A1DAM12 XS8C2A1DAM12 XS8C2A4DAM12

NC XS7C2A1DBM12 XS8C2A1DBM12 XS8C2A4DBM12

2-wire (a/c) unprotected (1)

Available 3rd quarter 2012

NO XS7C2A1MAU20 XS8C2A1MAU20 XS8C2A4MAU20

NC XS7C2A1MBU20 XS8C2A1MBU20 XS8C2A4MBU20

Weight, kg (lb) 0.149 (0.328) 0.149 (0.328) 0.149 (0.328)

Specications

Operating zone, mm (in.) 0–12 (0–0.47) 0–16 (0–0.62) 0–32 (0–1.25)

Product certications UL, CSA, CE. TÜV (4-wire versions)

Conformity to standards IEC 60947-5-2

Conformity to safety

standards (2)

For XS8 C2ApPCM12 EN 62061 (2005): SILcl2

EN 61508 (2010): SIL 2,

EN ISO 13849 (2008): PL d

Reliability data (2) For XS8 C2ApPCM12 MTTFd = 1546 years

PFHd = 7.4 10-8 1/h

Connection M12 connector for c versions

1/2 "-20UNF connector for a/c versions

Differential travel 3–15% of Sr

Degree of protection Conforming to IEC 60529

and DIN 40050

IP65, IP67 and IP69K

Temperature Storage −40 to +85 °C (−40 to +185 °F)

Operation (3) −25 to +70 °C (−13 to +158 °F)

Material Case: PBT

Vibration resistance Conforming to IEC 60068-2-6 25 gn, amplitude ±2 mm (10–55 Hz)

Shock resistance Conforming to IEC 60068-2-27 50 gn for 11 ms

Indicators Output state Yellow LED

Power on Green LED, for 4-wire c, 3-wire c and 2-wire a/c versions

Rated supply voltage 4-wire c12–48 V with protection against reverse polarity

3-wire c12–24 V with protection against reverse polarity

2-wire c12–48 V with protection against reverse polarity

2-wire a/c24–240 V (a 50/60 Hz)

Voltage limits

(including ripple)

4-wire c10–58 V

3-wire c10–36 V

2-wire c10–58 V

2-wire a/c20–264 V

Current consumption, no-load 3-wire and 4-wire c< 15 mA

Residual current, open state 2-wire c< 0.6 mA

2-wire a/c1.5 mA

Switching capacity 3-wire and 4-wire c< 200 mA with overload and short-circuit protection

2-wire c< 100 mA with overload and short-circuit protection

2-wire a/c a: 5–300 mA (1)

c: 5–200 mA (1)

Voltage drop, closed state 3-wire and 4-wire c< 2 V

2-wire c< 4.2 V

2-wire c/a< 5.5 V

Maximum switching frequency < 300 Hz (ush mountable)

< 200 Hz (non-ush mountable)

Delays First-up < 7 ms

Response Flush mountable: y 1.2 ms. Non-ush mountable: y 1.4 ms

Recovery Flush mountable: y 1.8 ms. Non-ush mountable: y 2.5 ms

(1) Sensor must be protected by a 0.4 A fast-acting fuse (XUZE04) connected in series with the load.

(2) SIL 2 protection can only be obtained by connecting both outputs to a safety PLC. Refer to catalog MKTED208051EN-US, Preventa Machine Safety Products.

(3) Sensors are available for very low temperatures (sufx TF: −40 to +70 °C / −40 to +158 °F) or very high temperatures (sufx TT: −25 to +85 °C / −13 to

+185 °F). Consult the Customer Care Center (1-800-435-2121).

1

2

3

4

5

6

7

8

9

10

7

5 5

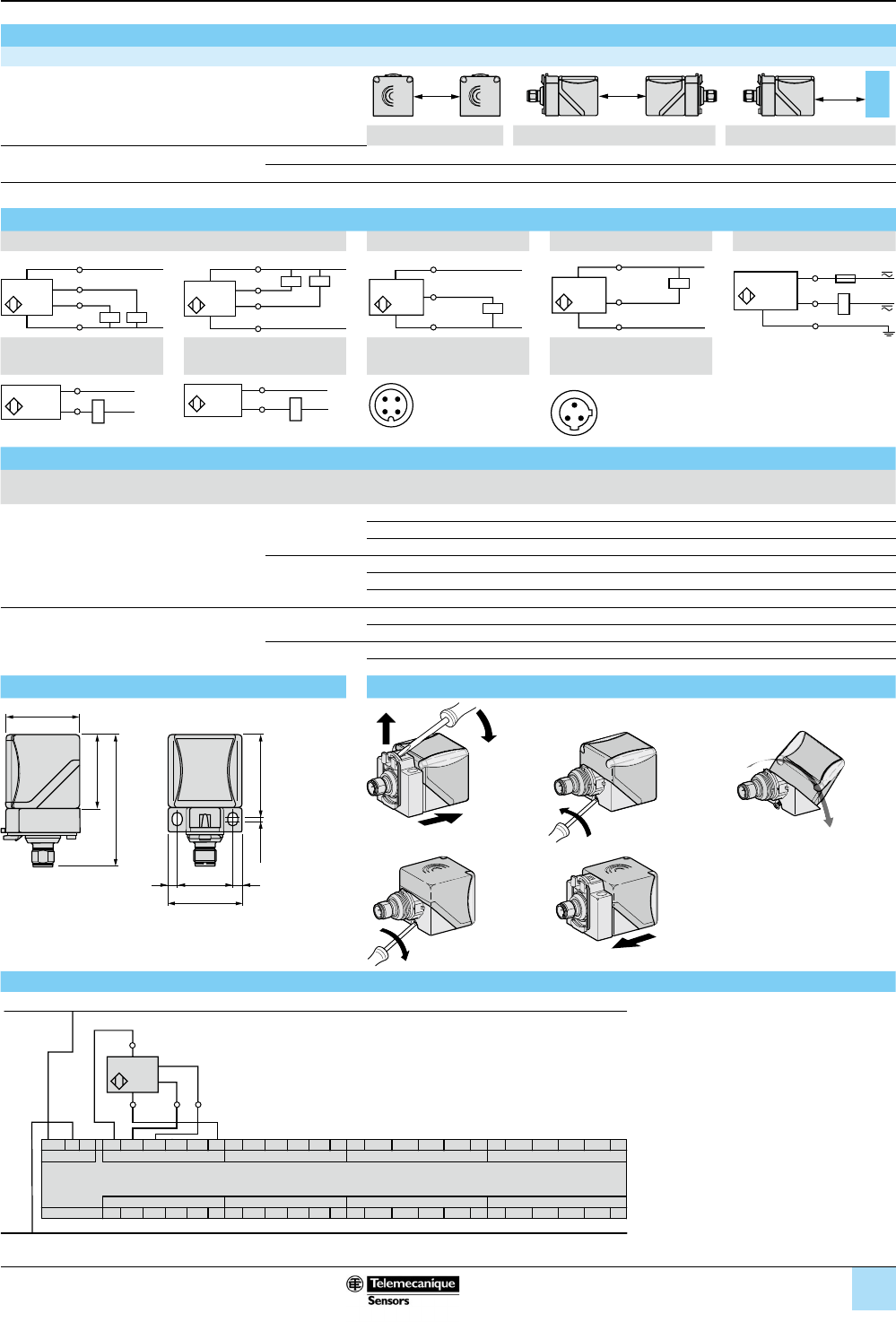

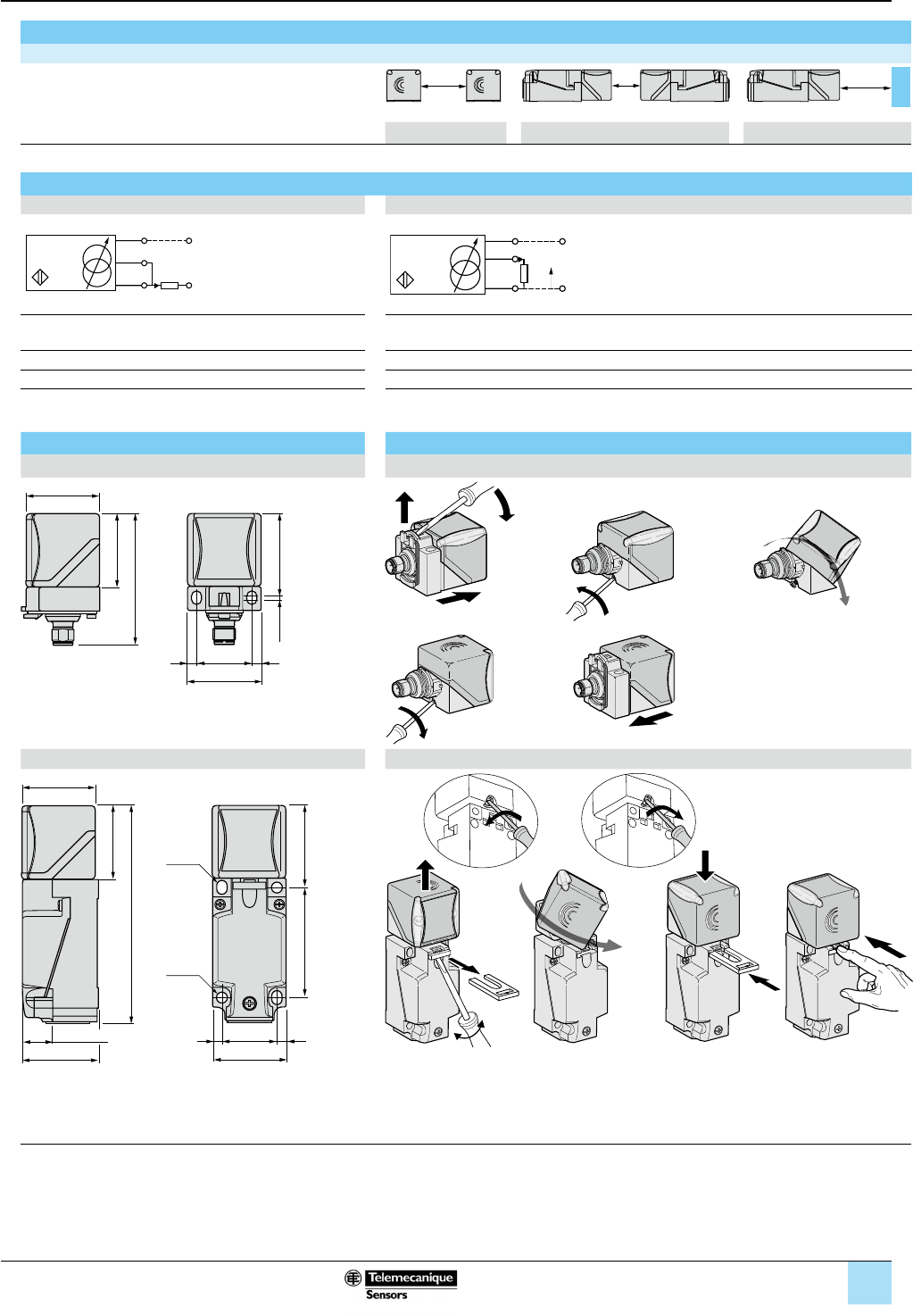

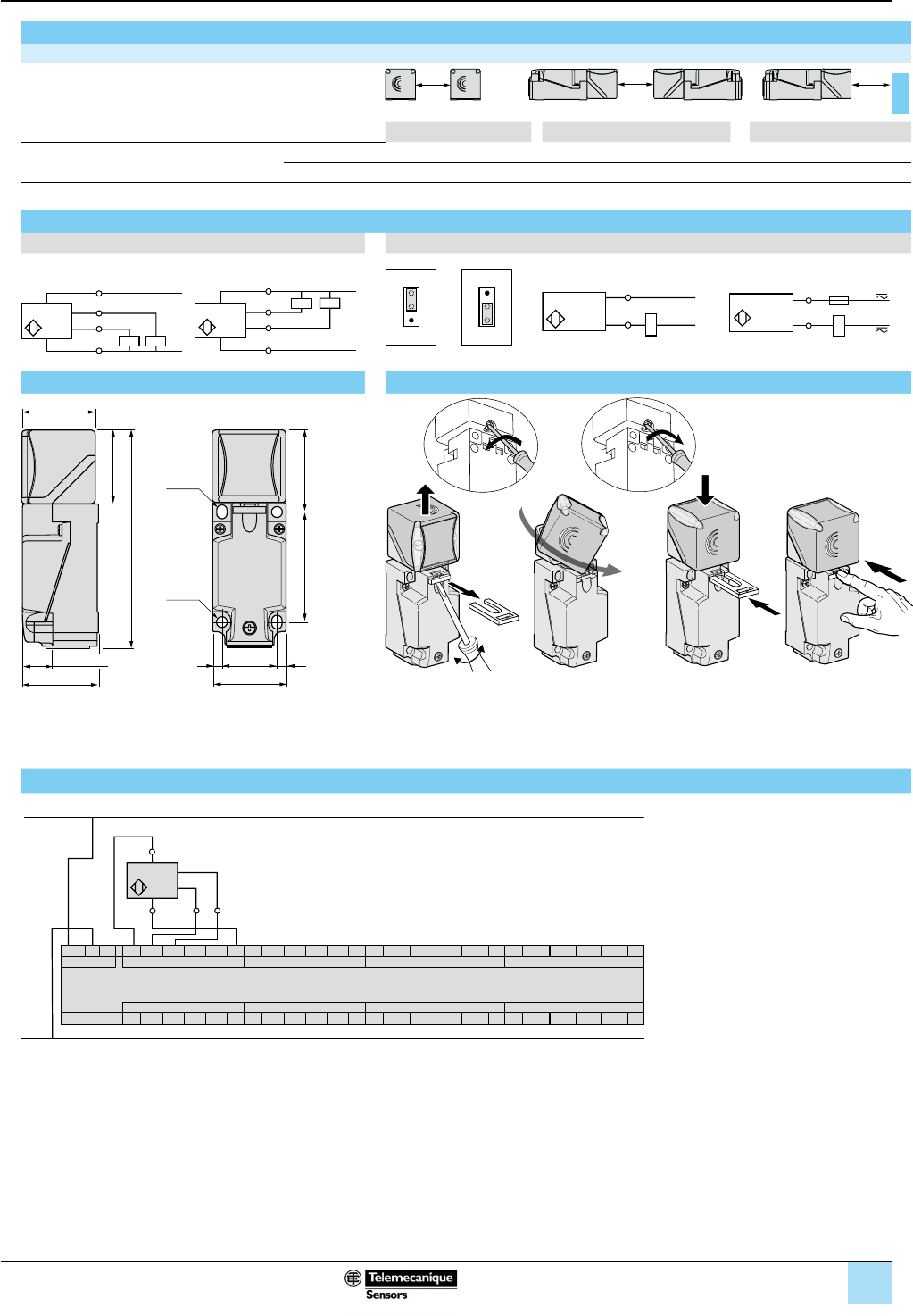

Setup,

Wiring Diagram,

Dimensions

OsiSense™ XS

Inductive proximity sensors

General purpose,Cubic case, 40 x 40 x 70 mm,

M12 or 1/2"-20UNF connector, 5 position turret head

Setup

Minimum mounting distances (mm)

e

e

e

Side by side Face to face Facing a metal object

Sensors ush mountable in metal XS7C2A1pp e u 60 e u 120 e u 45

XS8C2A1pp e u 80 e u 160 e u 60

Sensors non-ush mountable in metal XS8C2A4pp e u 160 e u 320 e u 120

Wiring diagrams

4-wire c, NO + NC outputs 3-wire, PNP 3-wire, NPN 2-wire, 1/2"- 20UNF

1

3

+

–

2

PNP 4

(NO)

(NC)

3

2

4

1

+

–

NPN (NO)

(NC)

1

PNP +

–

4 (NO)

2 (NC)

33

1

4 (NO)

2 (NC)

NPN +

–

3

2

XUZE04

1

2-wire c, NO output

(M12 connector)

2-wire c, NC output

(M12 connector)

M12 connector 1/2"-20UNF connector

3

NO 4

+/–

–/+

+/–

–/+

1

NC 2

12

43

1

23

z: 2

t: 1

z: 3

Accessory catalog numbers

Description Type Length

m

Catalog Number Weight

kg (lb)

Pre-wired M12 connectors

Female, 4-pin, zinc die-cast, nickel plated

clamping ring

Straight 2 XZCP1141L2 0.090 (0.198)

5XZCP1141L5 0.190 (0.418)

10 XZCP1141L10 0.370 (0.815)

Elbowed 2 XZCP1241L2 0.090 (0.198)

5XZCP1241L5 0.190 (0.418)

10 XZCP1241L10 0.370 (0.815)

Pre-wired 1/2"-20UNF connectors

Female, 3-pin, zinc die-cast, nickel plated

clamping ring

Straight 5XZCP1865L5 0.180 (0.396)

10 XZCP1865L10 0.350 (0.771)

Elbowed 5XZCP1965L5 0.180 (0.396)

10 XZCP1965L10 0.350 (0.771)

Dimensions (mm) Head positions

40

72.9

40

2

30

40

==

44.9

1

234

56

Example SIL 2 wiring diagram (with Preventa XPSMF40 safety PLC)

+24 V0 V S+FE I/O 1 I/O 2 I/O 3 I/O 4L -S+I/O 5 I/O 6 I/O 7 I/O 8L -S+I/O 9

I/O 10 I/O 11

I/O 12 L -S+I/O 13

I/O 14 I/O 15

I/O 16 L -

L -

TO 1TO 2 TO 3 TO 4

L -L -

TO 5TO 6 TO 7 TO 8

L -S+I/O

17

I/O

18 TO 19

I/O

20

L -S+I/O 21

I/O 22 I/O 23

I/O 24 L -

XPSMF40pp

+ 24 V

0 V

1

4

32

XS8CpApPCpp

Connector 1 Connector 2 Connector 3 Connector 5

Connector 4 Connector 8 Connector 6 Connector 7

Power supply

S+: 24 V

L -: 0 V

I/O 1–24: safety I/O

SFF (safe failure fraction): 92.68 %

DC (diagnosis coverage): 75.8 %

+ V: 1

NC: 2

- V: 3

NO: 4

1

2

3

4

5

6

7

8

9

10

8

5 5

Catalog Numbers,

Specications

OsiSense™ XS

Inductive proximity sensors

General purpose, Plastic case, 40 x 40 x 117 mm,

plug-in, 5 position turret head

Sensor Flush mountable in metal Non-ush mountable in metal

Nominal sensing distance (Sn) 15 mm (0.59 in.) 20 mm (0.78 in.) 40 mm (1.57 in.)

Catalog Numbers

4-wire cPNP NO+NC –XS8C4A1PCP20 XS8C4A4PCP20

NPN NO+NC –XS8C4A1NCP20 XS8C4A4NCP20

2-wire c

Available 3rd quarter 2012.

NO or NC programmable XS7C4A1DPP20 XS8C4A1DPP20 XS8C4A4DPP20

2-wire (a/c) unprotected (1)

Available 3rd quarter 2012.

NO or NC programmable XS7C4A1MPP20 XS8C4A1MPP20 XS8C4A4MPP20

Weight, kg (lb) 0.244 (0.537) 0.244 (0.537) 0.244 (0.537)

Note: These sensors have an M20 cable entry. They are also available with a Pg 13.5 cable entry (e.g. XS8C4A4PCG13) or a 1/2" NPT cable entry (e.g.

XS8C4A1MPN12). Consult the Customer Care Center (1-800-435-2121).

Specications

Operating zone 0–12 mm (0–0.47 in.) 0–16 mm (0–0.62 in.) 0–32 mm (0–1.25 in.)

Product certications UL, CSA, CE. TÜV (4-wire versions)

Conformity to standards IEC 60947-5-2

Conformity to safety

standards (2)

For XS8C4ApPCP20 EN 62061 (2005): SILcl2,

EN 61508 (2010): SIL 2,

EN ISO 13849 (2008): PL d

Reliability data (2) For XS8C4ApPCP20 MTTFd = 1546 years

PFHd = 7.4 10-8 1/h

Connection Screw terminals, clamping capacity: 2 or 4 x 1.5 mm2 (3)

Differential travel 3–15% of Sr

Degree of protection Conforming to IEC 60529 and

DIN 40050

IP65, IP67 and IP69K

Temperature Storage −40 to +85 °C (−40 to +185 °F)

Operation (4) −25 to +70 °C (−13 to +158 °F)

Material Case: PBT

Vibration resistance Conforming to IEC 60068-2-6 25 gn, amplitude ±2 mm (10–55 Hz)

Shock resistance Conforming to IEC 60068-2-27 50 gn for 11 ms

Indicators Output state Yellow LED

Power on Green LED, for 4-wire c and 2-wire a/c versions

Rated supply voltage 4-wire c12–48 V with protection against reverse polarity

2-wire c12–48 V with protection against reverse polarity

2-wire a/c24–240 V (a 50/60 Hz)

Voltage limits

(including ripple)

4-wire c10–58 V

2-wire c10–58 V

2-wire a/c20–264 V

Current consumption, no-load 4-wire c< 15 mA

Residual current, open state 2-wire c< 0.6 mA

2-wire a/c1.5 mA

Switching capacity 4-wire c< 200 mA with overload and short-circuit protection

2-wire c< 100 mA with overload and short-circuit protection

2-wire a/c a: 5–300 mA (1)

c: 5–200 mA (1)

Voltage drop, closed state 4-wire c< 2 V

2-wire c< 4.2 V

2-wire c/a< 5.5 V

Maximum switching frequency < 300 Hz (ush mountable)

< 200 Hz (non-ush mountable)

Delays First-up < 7 ms

Response Flush mountable: y 1.2 ms. Non-ush mountable: y 1.4 ms

Recovery Flush mountable: y 1.8 ms. Non-ush mountable: y 2.5 ms

(1) Sensor must be protected by a 0.4 A fast-acting fuse (XUZE04) connected in series with the load (see OsiSense XS Accessories in catalog 9006CT1007).

(2) SIL 2 protection can only be obtained by connecting both outputs to a safety PLC. Refer to catalog MKTED208051EN-US, Preventa Machine Safety Products.

(3) These sensors come without a cable connector. An adaptable Pg 13.5 cable connector is available (reference XSZ PE13). Accessories are available for

connection to an M12 or 7/8"-16UN connector, which can be added to the Pg 13.5 sensor. Consult the Customer Care Center (1-800-435-2121).

(4) Sensors are available for very low temperatures (sufx TF: −40 to +70 °C / −40 to +158 °F) or very high temperatures (sufx TT: −25 to +85 °C / −13 to +185 °F).

Consult the Customer Care Center (1-800-435-2121).

1

2

3

4

5

6

7

8

9

10

9

5 5

Setup,

Wiring Diagram,

Dimensions

OsiSense™ XS

Inductive proximity sensors

General purpose, Plastic case, 40 x 40 x 117 mm,

plug-in, 5 position turret head

Setup

Minimum mounting distances (mm)

e

e

e

Side by side Face to face Facing a metal object

Sensors ush mountable in metal XS7C4A1pp e u 60 e u 120 e u 45

XS8C4A1pp e u 80 e u 160 e u 60

Sensors non-ush mountable in metal XS8C4A4pp e u 160 e u 320 e u 120

Wiring diagrams

NO + NC outputs NO or NC outputs, depending on position of link

4-wire c

NO

NC

NO

NC

2-wire c (non-polarized) 2-wire a or c (programmable)

1

3

+

–

2

PNP 4

(NO)

(NC)

3

2

4

1

+

–

NPN (NO)

(NC)

5

6

+/–

–/+

6

5

XUZ E04

Dimensions (mm) Head positions

15.9

40

41.3

118.3

40

30

40

==

4559.9

(1)

Ø5.45

2

35

6

1

7

8

4

Example SIL 2 wiring diagram (with Preventa XPSMF40 safety PLC)

+24 V0 V S+FE I/O 1 I/O 2 I/O 3 I/O 4L -S+I/O 5 I/O 6 I/O 7 I/O 8L -S+I/O 9

I/O 10 I/O 11

I/O 12 L -S+I/O 13

I/O 14 I/O 15

I/O 16 L -

L -

TO 1TO 2 TO 3 TO 4

L -L -

TO 5TO 6 TO 7 TO 8

L -S+I/O

17

I/O

18 TO 19

I/O

20

L -S+I/O 21

I/O 22 I/O 23

I/O 24 L -

XPSMF40pp

+ 24 V

0 V

1

4

32

XS8CpApPCpp

Connector 1 Connector 2 Connector 3 Connector 5

Connector 4 Connector 8 Connector 6 Connector 7

Power supply

(1) 2 elongated holes Ø 5.3 x 7 cm.

Tightening torque of cover mounting screws and

clamp screws: < 1.2 N•m (10.6 lb-in)

S+: 24 V

L -: 0 V

I/O 1–24: safety I/O

SFF (safe failure fraction): 92.68 %

DC (diagnosis coverage): 75.8 %

1

2

3

4

5

6

7

8

9

10

10

5 5

Catalog Numbers,

Specications

OsiSense™ XS

Inductive proximity sensors

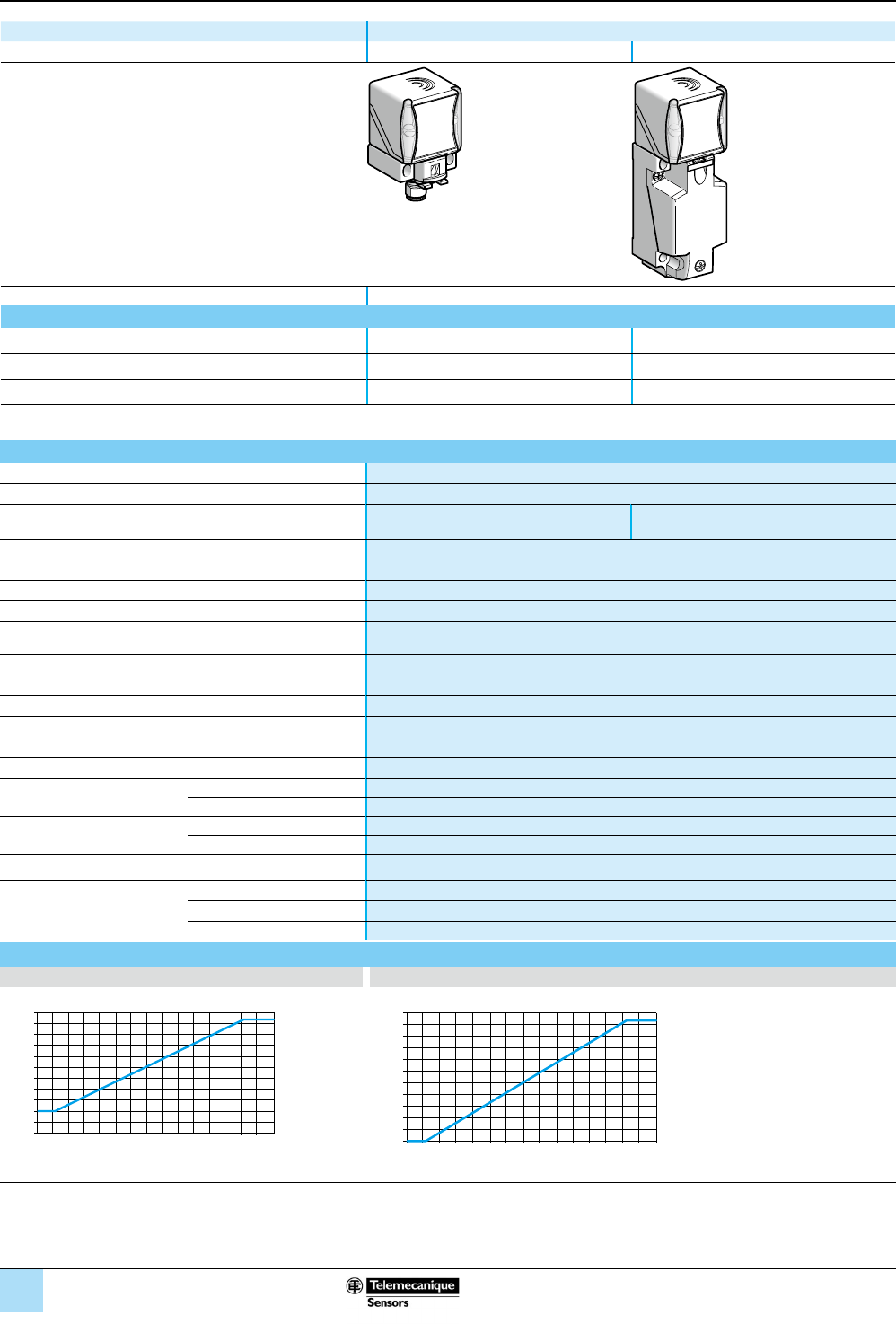

Application,Sensors with analog output signal

0–10 V (1),or 4–20 mA. Plastic case, 40 x 40 mm

front face, 5 position turret head

Sensor Non-ush mountable in metal

Dimensions 40 x 40 x 70 mm 40 x 40 x 117 mm

Nominal sensing distance (Sn) 25 mm

Catalog Numbers

3-wire c0–10 V output (1) XS9C2A2A1M12 XS9C4A2A1P20 (2)

2-wire c4–20 mA output XS9C2A2A2M12 XS9C4A2A2P20 (2)

Weight, kg (lb) 0.149 (0.328) 0.244 (0.537)

Note: XS9C4pppP20 sensors are available with an ISO M20 cable entry. They are also available with a Pg 13.5 (e.g. XS9C4A2A1G13) or a 1/2" NPT

(e.g. XS9C4A2A2N12) cable entry. Consult the Customer Care Center (1-800-435-2121) for more information.

Specications

Product certications UL, CSA, CE

Conformity to standards IEC 60947-5-2 and IEC 60947-5-7

Connection M12 connector (4-pin) Screw terminals, clamping capacity

3 x 1.5 mm2 (16 AWG)

Operating zone 2–27 mm (0.08–1.06 in.)

Linearity error < 3%

Repeat accuracy < 3%

Output current drift < 5%

Degree of protection Conforming to IEC 60529 and

DIN 40050

IP65, IP67 and IP69K

Temperature Storage −40 to +85 °C (−40 to +185 °F)

Operation (3) −25 to +70 °C (−13 to +158 °F)

Material Case: PBT

Vibration resistance Conforming to IEC 60068-2-6 25 gn, amplitude ±2 mm (10–55 Hz)

Shock resistance Conforming to IEC 60068-2-27 50 gn for 11 ms

Indicators Output state (alignment aid) Yellow LED

Rated supply voltage 4–20 mA c 12–24 V with protection against reverse polarity

0–10 V c 24 V with protection against reverse polarity

Voltage limits

(including ripple)

4–20 mA c 12–36 V

0–10 V c 15–36 V

Current consumption, no-load 3-wire c< 4 mA

Delays First-up < 7 ms

Response < 6 ms

Recovery < 6 ms

Analog outputs 4–20 mA and 0–10 V

XS9C2A2A2M12 and XS9C4A2A2P20 XS9C2A2A1M12 and XS9C4A2A1P20

024681012141618202224262830

0

2

4

6

8

10

12

14

16

18

20

22

Sensing distance (mm)

Output current (mA)

Sn = 2–25 mm

024681012141618202224262830

0

1

2

3

4

5

6

7

8

9

10

11

Sensing distance (mm)

Output voltage (V)

Sn = 2–25 mm

(1) Voltage range only obtained with a load impedance of 1000 Ω.

(2) These sensors come without a cable connector. An adaptable Pg 13.5 cable connector is available (catalog number XSZPE13).

(3) Sensors are available for very low temperatures (sufx TF: −40 to +70 °C / −40 to +158 °F) or very high temperatures (sufx TT: −25 to +85 °C / −13 to +185 °F).

Consult the Customer Care Center (1-800-435-2121).

1

2

3

4

5

6

7

8

9

10

11

5 5

Setup,

Wiring Diagram,

Dimensions

OsiSense™ XS

Inductive proximity sensors

Application, Sensors with analog output signal

0–10 V (1),or 4–20 mA. Plastic case, 40 x 40 mm

front face, 5 position turret head

Setup

Minimum mounting distances (mm)

e

e

e

Side by side Face to face Facing a metal object

Sensors non-ush mountable in metal e u 120 e u 240 e u 90

Wiring diagrams

2-wire 3-wire

1

4

3R

mA

–

+

Is

1

4

3R

mA

–

+

Is

Output current Load impedance value Output current Load impedance

value

Output voltage Load impedance value

12 V 4–20 mA R y 82 Ω 12 V 0–10 mA R y 630 Ω – –

24 V 4–20 mA R y 560 Ω 24 V 0–10 mA R y 1500 Ω 0–10 V R = 1000 Ω

Ensure a minimum of 10 V between the + and the - (terminal 3)

of the sensor.

Ensure a minimum of 5 V between the + and the sensor output (terminal 4).

Dimensions (mm) Head positions

XS9C2A2A1M12 and XS9C2A2A2M12 XS9C2A2A1M12 and XS9C2A2A2M12

40

72.9

40

2

30

40

==

44.9

1

234

56

XS9C4A2A1P20 and XS9C4A2A2P20 XS9C4A2A1P20 and XS9C4A2A2P20

15.9

40

41.3

118.3

40

30

40

==

4559.9

(1)

Ø5.45

(1) 2 elongated holes Ø 5.3 x 7 mm.

Tightening torque of cover mounting screws and clamp

screws: < 1.2 N•m (10.62 lb-in)

2

35

6

1

7

8

4

(1) Voltage range only obtained with a load impedance of 1000 Ω.

Output current

Output voltage

Us = R.Is

1

2

3

4

5

6

7

8

9

10

12

5 5

Catalog Numbers,

Specications

OsiSense™ XS

Inductive proximity sensors

General purpose, Plastic case, 40 x 40 x 117 mm,

plug-in, 5 position turret head

Sensor Flush mountable in metal Non-ush mountable in metal

Nominal sensing distance (Sn) 15 mm (0.59 in.) 20 mm (0.78 in.) 40 mm (1.57 in.)

Catalog Numbers

4-wire cPNP NO+NC –XS8C4A1PCP20 XS8C4A4PCP20

NPN NO+NC –XS8C4A1NCP20 XS8C4A4NCP20

2-wire c

Available 3rd quarter 2012

NO or NC programmable XS7C4A1DPP20 XS8C4A1DPP20 XS8C4A4DPP20

2-wire (a/c) unprotected (1)

Available 3rd quarter 2012

NO or NC programmable XS7C4A1MPP20 XS8C4A1MPP20 XS8C4A4MPP20

Weight, kg (lb) 0.244 (0.537) 0.244 (0.537) 0.244 (0.537)

Note: These sensors have an M20 cable entry. They are also available with a Pg 13.5 cable entry (e.g. XS8C4A4PCG13) or a 1/2" NPT cable entry

(e.g. XS8C4A1MPN12). Consult the Customer Care Center (1-800-435-2121).

Specications

Operating zone 0–12 mm (0–0.47 in.) 0–16 mm (0–0.62 in.) 0–32 mm (0–1.25 in.)

Product certications UL, CSA, CE. TÜV (4-wire versions)

Conformity to standards IEC 60947-5-2

Conformity to safety

standards (2)

For XS8C4ApPCP20 EN 62061 (2005): SILcl2,

EN 61508 (2010): SIL 2,

EN ISO 13849 (2008): PL d

Reliability data (2) For XS8C4ApPCP20 MTTFd = 1546 years

PFHd = 7.4 10-8 1/h

Connection Screw terminals, clamping capacity: 2 or 4 x 1.5 mm2 (3)

Differential travel 3–15% of Sr

Degree of protection Conforming to IEC 60529 and

DIN 40050

IP65, IP67 and IP69K

Temperature Storage −40 to +85 °C (−40 to +185 °F)

Operation (4) −25 to +70 °C (−13 to +158 °F)

Material Case: PBT

Vibration resistance Conforming to IEC 60068-2-6 25 gn, amplitude ±2 mm (10–55 Hz)

Shock resistance Conforming to IEC 60068-2-27 50 gn for 11 ms

Indicators Output state Yellow LED

Power on Green LED, for 4-wire c and 2-wire a/c versions

Rated supply voltage 4-wire c12–48 V with protection against reverse polarity

2-wire c12–48 V with protection against reverse polarity

2-wire a/c24–240 V (a 50/60 Hz)

Voltage limits

(including ripple)

4-wire c10–58 V

2-wire c10–58 V

2-wire a/c20–264 V

Current consumption, no-load 4-wire c< 15 mA

Residual current, open state 2-wire c< 0.6 mA

2-wire a/c1.5 mA

Switching capacity 4-wire c< 200 mA with overload and short-circuit protection

2-wire c< 100 mA with overload and short-circuit protection

2-wire a/c a: 5–300 mA (1)

c: 5–200 mA (1)

Voltage drop, closed state 4-wire c< 2 V

2-wire c< 4.2 V

2-wire c/a< 5.5 V

Maximum switching frequency < 300 Hz (ush mountable)

< 200 Hz (non-ush mountable)

Delays First-up < 7 ms

Response Flush mountable: y 1.2 ms. Non-ush mountable: y 1.4 ms

Recovery Flush mountable: y 1.8 ms. Non-ush mountable: y 2.5 ms

(1) Sensor must be protected by a 0.4 A fast-acting fuse (XUZE04) connected in series with the load (see OsiSense XS Accessories in catalog 9006CT1007).

(2) SIL 2 protection can only be obtained by connecting both outputs to a safety PLC. Refer to catalog MKTED208051EN-US, Preventa Machine Safety Products.

(3) These sensors come without a cable connector. An adaptable Pg 13.5 cable connector is available (reference XSZ PE13). Accessories are available for

connection to an M12 or 7/8"-16UN connector, which can be added to the Pg 13.5 sensor. Consult the Customer Care Center (1-800-435-2121).

(4) Sensors are available for very low temperatures (sufx TF: –40 to +70 °C / –40 to +158 °F) or very high temperatures (sufx TT: –25 to +85 °C / –13 to +185 °F).

Consult the Customer Care Center (1-800-435-2121).

1

2

3

4

5

6

7

8

9

10

13

5 5

Setup,

Wiring Diagram,

Dimensions

OsiSense™ XS

Inductive proximity sensors

General purpose, Plastic case, 40 x 40 x 117 mm,

plug-in, 5 position turret head

Setup

Minimum mounting distances (mm)

e

e

e

Side by side Face to face Facing a metal object

Sensors ush mountable in metal XS7C4A1pp e u 60 e u 120 e u 45

XS8C4A1pp e u 80 e u 160 e u 60

Sensors non-ush mountable in metal XS8C4A4pp e u 160 e u 320 e u 120

Wiring diagrams

NO + NC outputs NO or NC outputs, depending on the position of the link

4-wire c

NO

NC

NO

NC

2-wire c (non-polarized) 2-wire a or c (programmable)

1

3

+

–

2

PNP 4

(NO)

(NC)

3

2

4

1

+

–

NPN (NO)

(NC)

5

6

+/–

–/+

6

5

XUZ E04

Dimensions (mm) Head positions

15.9

40

41.3

118.3

40

30

40

==

4559.9

(1)

Ø5.45

2

35

6

1

7

8

4

Example SIL 2 wiring diagram (with Preventa XPSMF40 safety PLC)

+24 V0 V S+FE I/O 1 I/O 2 I/O 3 I/O 4L -S+I/O 5 I/O 6 I/O 7 I/O 8L -S+I/O 9

I/O 10 I/O 11

I/O 12 L -S+I/O 13

I/O 14 I/O 15

I/O 16 L -

L -

TO 1TO 2 TO 3 TO 4

L -L -

TO 5TO 6 TO 7 TO 8

L -S+I/O

17

I/O

18 TO 19

I/O

20

L -S+I/O 21

I/O 22 I/O 23

I/O 24 L -

XPSMF40pp

+ 24 V

0 V

1

4

32

XS8CpApPCpp

Connector 1 Connector 2 Connector 3 Connector 5

Connector 4 Connector 8 Connector 6 Connector 7

Power supply

(1) 2 elongated holes Ø 5.3 x 7 cm.

Tightening torque of cover mounting screws and

clamp screws: < 1.2 N•m (10.6 lb-in)

S+: 24 V

L -: 0 V

I/O 1–24: safety I/O

SFF (safe failure fraction): 92.68 %

DC (diagnosis coverage): 75.8 %

1

2

3

4

5

6

7

8

9

10

14

5 5

Catalog Numbers,

Specications

OsiSense™ XS

Inductive proximity sensors

Application Sensors with analog output signal

0–10 V (1) or 4–20 mA. Plastic case, 40 x 40 mm

front face, 5 position turret head

Sensor Non-ush mountable in metal

Dimensions 40 x 40 x 70 mm 40 x 40 x 117 mm

Nominal sensing distance (Sn) 25 mm

Catalog Numbers

3-wire c0–10 V output (1) XS9C2A2A1M12 XS9C4A2A1P20 (2)

2-wire c4–20 mA output XS9C2A2A2M12 XS9C4A2A2P20 (2)

Weight, kg (lb) 0.149 (0.328) 0.244 (0.537)

Note: XS9C4pppP20 sensors are available with an ISO M20 cable entry. They are also available with a Pg 13.5 (e.g. XS9C4A2A1G13) or a 1/2" NPT

(e.g. XS9C4A2A2N12) cable entry. Consult the Customer Care Center (1-800-435-2121) for more information.

Specications

Product certications UL, CSA, CE

Conformity to standards IEC 60947-5-2 and IEC 60947-5-7

Connection M12 connector (4-pin) Screw terminals, clamping capacity

3 x 1.5 mm2 (16 AWG)

Operating zone 2–27 mm (0.08–1.06 in.)

Linearity error < 3%

Repeat accuracy < 3%

Output current drift < 5%

Degree of protection Conforming to IEC 60529 and

DIN 40050

IP65, IP67 and IP69K

Temperature Storage −40 to +85 °C (−40 to +185 °F)

Operation (3) −25 to +70 °C (−13 to +158 °F)

Material Case: PBT

Vibration resistance Conforming to IEC 60068-2-6 25 gn, amplitude ±2 mm (10–55 Hz)

Shock resistance Conforming to IEC 60068-2-27 50 gn for 11 ms

Indicators Output state (alignment aid) Yellow LED

Rated supply voltage 4–20 mA c 12–24 V with protection against reverse polarity

0–10 V c 24 V with protection against reverse polarity

Voltage limits

(including ripple)

4–20 mA c 12–36 V

0–10 V c 15–36 V

Current consumption, no-load 3-wire c< 4 mA

Delays First-up < 7 ms

Response < 6 ms

Recovery < 6 ms

Analog outputs 4–20 mA and 0–10 V

XS9C2A2A2M12 and XS9C4A2A2P20 XS9C2A2A1M12 and XS9C4A2A1P20

024681012141618202224262830

0

2

4

6

8

10

12

14

16

18

20

22

Sensing distance (mm)

Output current (mA)

Sn = 2–25 mm

024681012141618202224262830

0

1

2

3

4

5

6

7

8

9

10

11

Sensing distance (mm)

Output voltage (V)

Sn = 2–25 mm

(1) Voltage range only obtained with a load impedance of 1000 Ω.

(2) These sensors come without a cable connector. An adaptable Pg 13.5 cable connector is available (Catalog number XSZPE13).

(3) Sensors are available for very low temperatures (sufx TF: –40 to +70 °C / –40 to +158 °F) or very high temperatures (sufx TT: –25 to +85 °C / –13 to +185 °F).

Consult the Customer Care Center (1-800-435-2121).

1

2

3

4

5

6

7

8

9

10

15

5 5

Setup,

Wiring Diagram,

Dimensions

OsiSense™ XS

Inductive proximity sensors

Application Sensors with analog output signal

0–10 V (1) or 4–20 mA. Plastic case, 40 x 40 mm

front face, 5 position turret head

Setup

Minimum mounting distances (mm)

e

e

e

Side by side Face to face Facing a metal object

Sensors non-ush mountable in metal e u 120 e u 240 e u 90

Wiring diagrams

2-wire 3-wire

1

4

3R

mA

–

+

Is

1

4

3R

mA

–

+

Is

Output current Load impedance value Output current Load impedance

value

Output voltage Load impedance value

12 V 4–20 mA R y 82 Ω 12 V 0–10 mA R y 630 Ω – –

24 V 4–20 mA R y 560 Ω 24 V 0–10 mA R y 1500 Ω 0–10 V R = 1000 Ω

Ensure a minimum of 10 V between the + and the - (terminal 3)

of the sensor.

Ensure a minimum of 5 V between the + and the sensor output (terminal 4).

Dimensions (mm) Head positions

XS9C2A2A1M12 and XS9C2A2A2M12 XS9C2A2A1M12 and XS9C2A2A2M12

40

72.9

40

2

30

40

==

44.9

1

234

56

XS9C4A2A1P20 and XS9C4A2A2P20 XS9C4A2A1P20 and XS9C4A2A2P20

15.9

40

41.3

118.3

40

30

40

==

4559.9

(1)

Ø5.45

(1) 2 elongated holes Ø 5.3 x 7 mm.

Tightening torque of cover mounting screws and clamp

screws: < 1.2 N•m (10.62 lb-in)

2

35

6

1

7

8

4

(1) Voltage range only obtained with a load impedance of 1000 Ω.

Output current

Output voltage

Us = R.Is

1

2

3

4

5

6

7

8

9

10

The information provided in this documentation contains general descriptions and/or technical

characteristics of the performance of the products contained herein. This documentation is not

intended as a substitute for and is not to be used for determining suitability or reliability of these

products for specic user applications. It is the duty of any such user or integrator to perform the

appropriate and complete risk analysis, evaluation, and testing of the products with respect to the

relevant specic application or use thereof. Neither Schneider Electric nor any of its afliates or

subsidiaries shall be responsible or liable for misuse of the information contained herein.

9006CT1201 May 2012

© 2012 Schneider Electric. All Rights Reserved.

Schneider Elec tric USA, Inc.

1875 Founders Drive

Dayton, Ohio 45420

(800) 435-2121

www.tesensors.us

Schneider Electric Canada,

Inc.

5985 McLaughlin Road

Mississauga, Ontario L5R 1B8

(800) 435-2121

www.tesensors.ca

Telemecanique Sensors www.tesensors.com
