Entertainment

Products

2

3

TABLE OF CONTENTS

Leviton brings innovative design and simplicity to the

world of lighting control solutions with system design,

product selection and service. The result—great aesthetics, flexibility

and superior lighting design. Only Leviton integrates all your lighting needs into

one cohesive system for lighting control that does exactly what you want it to do.

PRODUCTS FOR EVERY LIGHTING CONTROL APPLICATION

Whether your venue is a place to educate, entertain, worship, broadcast or hold conventions,

Leviton has proven lighting solutions. Our team of experienced in-house engineering and

application specialists support rapid product development, offering our customers a top-quality

selection of easy-to-install lighting controls.

INNOVATIVE TECHNOLOGY

Leviton’s innovative controls combine durable construction, universal ease-of-use features, and

overall superior performance. For the design professional, this means more options for delivering

the ideal energy efficient control solution for each application.

WORLD-CLASS QUALITY STANDARDS

Leviton continuously sets new energy and quality standards in the lighting industry. Backed by

a longstanding tradition in quality and ISO 9001 certification, Leviton applies the highest quality

standards to the development and manufacture of all our lighting products. Our in-house labs

test all products to ensure they meet or exceed the most rigorous industry standards to deliver

reliability and performance.

SUPERIOR VALUE

Your customers deserve products and systems that delivery reliability energy efficiency, conve-

nience and top performance. Leviton architectural lighting control products offer these benefits

plus ease of use, elegant styling and exceptionally long service life.

WE GET IT RIGHT

Leviton’s team of customer service representatives anticipate and respond to your needs.

Whether you have a technical question or complex shipping instructions, our people will get it

right the first time.

For more than 100 years, your satisfaction has been our primary mission … and cutting-edge lighting

has been our passion.

Entertainment Lighting Controls ........................................4-11

Architectural Lighting Controls ........................................12-27

Systems Management ...............................................28-31

Dimming .............................................................32-43

Fixtures ..............................................................44-49

Distribution Equipment .................................................. 50

Connectors ..............................................................51

David L. Lawrence Convention Center, Architect: Rafael Viñoly Architects, Lighting Design: LAM Partners

Pittsburgh, Pennsylvania

4

5

ENTERTAINMENT LIGHTING CONTROLSENTERTAINMENT LIGHTING CONTROLS

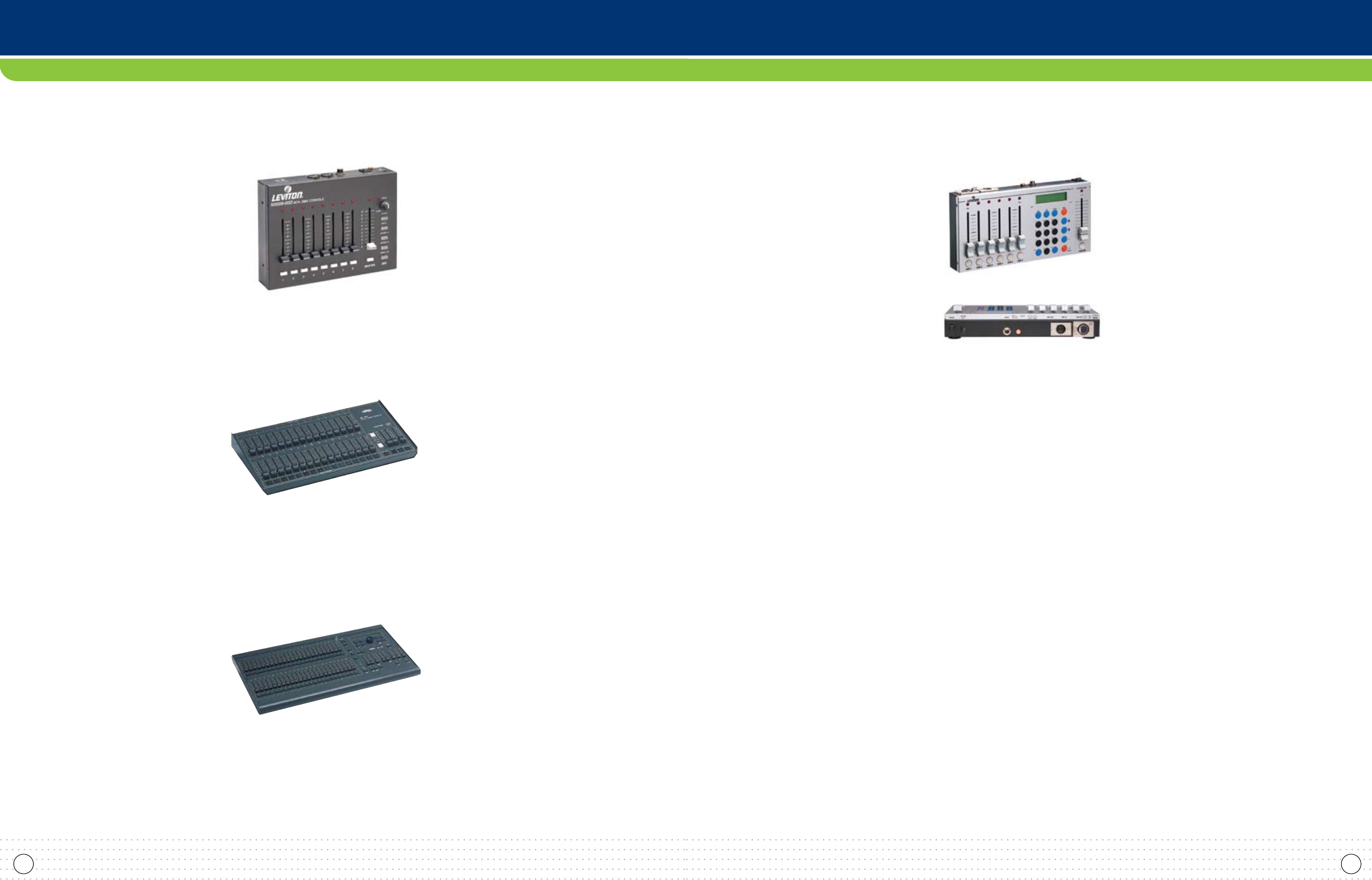

MC 7000

The MC 7000 series lighting consoles are simple and flexible with three operating modes. The MC 7000 series is particularly well-suited

to small theaters, stage performances and rental inventories. These products are so easy to program and operate, the instructions are

printed right on the consoles.

• Individual Control Channels

• 2-Scene or 1-Scene (wide mode)

• User Programmable Memory Scenes

• User Programmable Chase Functions

• Chase Rate Control (tap button)

• Grand Master

• Blackout Function

• NSI Micro-Plex Control Signal

• DMX512 Digital Control on all units

MC 7008 n7008-d00

- 8 Individual Control Channels,

- 8 Memory Scenes

MC 7016 n7016-d00

- 16 Individual Control Channels,

- 16 Memory Scenes

MC 7024 n7024-d00

- 24 Individual Control Channels,

- 24 Memory Scenes

MC 7500

Catering to the advanced lighting designer, the 7500 Series features operational modes such as cue stacking, level sensitive chasing

and memory scene capability. The encoder wheel and LCD readout make onboard editing quick and easy.

• 2-Scene or 1-Scene Preset or (wide mode)

• Dual Split Dipless Manual Crossfaders

• Soft patching

• Auto Faders

• Live or Blind Mode

• Audio Sync to Chase Effects Mode

• Cue Stacking

• NSI Microplex Control Signal

• DMX512 Digital Control on all units

• MIDI In/Out/Through

• 512 Memory Scenes

• 16/24/32 Chase Effects

MC 7516 n7516-000

- 16/32 Individual Control Channels

- 256 Memory Scenes

- w/37-pin 0-10VDC Output n7516-0a1

MC 7524 n7524-000

- 24/48 Individual Control Channels

- 384 Memory Scenes

- w/37-pin 0-10VDC Output n7524-0a1

- w/(2) 37-pin 0-10VDC Output n7516-0a1

MC 7532 n7532-000

- 32/64 Individual Control Channels

- 512 Memory Scenes

- w/37-pin 0-10VDC Output n7532-0a1

- w/(2) 37-pin 0-10VDC Output n7532-0a2

3000

The 3000 series of consoles is the perfect economical choice in lighting control product when a basic feature set is required. Designed to

be easy to operate—the most often used features are documented on the bottom of the console with connector pin outs permanently

screened next to the connector. When basic economical control is required, the 3000 series is the perfect choice.

• DMX512 output

• 4 or 8 dimming control channels

• 4 or 8 recordable scene memory

• Chaser functions:

- (2) selectable chases

- Speed control

- Direction control

- Audio input

• Bump buttons for each channel or scene

• Master output fader

3004 n3004-00d

- 4 Control Channels

- 4 Scenes

3008 n3008-00d

- 8 Control Channels

- 8 Scenes

1000

In its simplest application, this product can be used for recall of recorded scenes. Channel levels are set via the sub-masters in channel

mode, or direct via the keypad. Additionally, scenes can record the channel levels per the incoming DMX control signal. In a more complex

application, the 1000 series console can be used as both a scene controller and a backup console, offering immediate recall of a stored

scene upon loss of DMX input control signal.

• (6) Sub-masters & (1) Master Fader

• (40) Scene Memory

• Scene Memories can be assigned

to Sub-Masters

• Access to all (512) DMX control

channels from keypad

• Backup Console Mode – Scene fade

and activation upon sudden loss of

incoming DMX signal

• Simple to use and easy to carry

• Silver finish

• Operates from included re-chargeable

battery or from included power supply

• Supports DMX Snapshot

• 19" EIA Rack mount option

• LCD Power Save mode

1000 n1000-006

- 19" EIA Rack Mount Ears

for 1000 Series n1rkt-006

6

7

ENTERTAINMENT LIGHTING CONTROLSENTERTAINMENT LIGHTING CONTROLS

PICCOLO

Functions easily as a standard manual/memory board with traditional channel capacities and simple user interface components. Plus,

offers real cue-list support, full cue based attributes, additional effect combination and basic automated device support and the ability

to add a monitor.

NCM 508 n0508-000

- 8 Channels

- 4 Programmable Scenes

- 1 Manual Scene

NCM 5128 n5128-000

- 16 Channels

- 128 Programmable Scenes

- Non-Volatile EEPROM Memory

• Push Button Scene Crossfade and

Fadeout Controls

• Multimode Chase Includes Normal,

Scene and Program Chase Effects

• Scene Freeze for Pile-On Effects

• Audio Synchronization

• NSI 128 Channel Micro-Plex

• Variable Chase Rate

• LED Indicators for Scene Select,

Chase, Audio and Freeze Effects

• Blackout Control

FOOT CONTROLLERS

When hand’s on isn’t an option, Leviton’s Foot Controllers offer hands-free operation to lighting control – fully user programmable scenes

and effects are easily created or changed at the touch of a button.

MC 6300 n6300-d00

Leviton’s MC 6300 memory lighting console offers an excellent entry point to multiple memory/preset operation yet still allowing the

flexibility of constant manual fade time adjustment.

• Audio Sync to Chase or Channel Intensity

• MIDI In/Out/Through

• 128 User-Programmable Memory Scenes

• 32-step Chase Effects

• 128 Channel Softpatch Table

• NSI 128 Channel Microplex

• Manual Scene Preset with 16 Individual

Slide Controls

• Chase Rate Control

• Touch Pad Control Panel

• Add Button for Pile-On of Patterns

• Non-Volatile Memory

• MIDI In/Out/Through

• NSI 128 Channel Micro-Plex

• DMX512 Digital Control

• Blackout Control

• 16 Individual Control Channels

• 16 Memory Sequence Programmable

• Touch Control Panels with

Independent Channel Bump and

Latch Controls

TLC 16 ntc16-000

The unique TLC16 touch pad console offers retro styling yet full memory features with the basic compliment of effects.

MC 1616 n1616-d00

The MC 1616 lighting console delivers complete flexibility in entertainment lighting applications with 16 individual control channels and

16 pattern memory buttons. Any of 16 memories are programmable for chase effects or static scenes.

• 16 Individual Control Channels

• Grand Master

• 16 User Programmable Patterns

or Static Scenes

• 400 Step Pattern Memory

• Audio Sync

• Tap Sync Pattern Rate Control

• NSI 128 Channel Microplex Optional

DMX512 Digital Control

• MIDI In/Out/Through

• 12/48 console – 2 rows of 12 faders support

48 maximum channels.

• Three operating modes – single scene, two

scene, sub-master “theater” mode. Clear

indication of operating mode and masters –

multi-purpose. 10 pages.

• Cues – 10,000 x (8) attributes allows complex

cue timings and relationships.

• 99 cues, group, or channel effects, 6 attributes,

can be played back from masters for a wide

variety of effects and effect options.

• All programming and configuration can be

performed from on-board 240 x64 display.

Monitor not required.

• Optional monitor lets you view more show

information at once.

• Full keypad for rapid data entry support.

• Track functions with Alpha-numeric labeled

cues, maters, groups, effects, etc.

• Off-line editor for pre-programming and

configuration.

• Wireless remote.

• 32 attribute channels for automated devices.

Full access to all channels via faders.

• Ethernet supported for future proof and easy

DMX distribution

• Capture support – both off and on-line

visualization.

• 10 Sub-Master Pages

• 32 Attributes

• 512 DMX Channels

• 10,000 (0.0-999.9) Cues

• 99 Effects

• Unlimited Max Shows

• 1 DMX Output

• 1 DMX Input

12/48* ppic0-012

- 48 Channels

- 12 Subs

- 24 Handles

- w/Video Option* ppic0–v12

24/96* ppic0-024

- 96 Channels

- 24 Subs

- 48 Handles

- w/Video Option* ppic0–v24

36/144* ppic0-036

- 144 Channels

- 36 Subs

- 72 Handles

- w/Video Option* ppic0–v36

48/192* ppic0-048

- 192 Channels

- 48 Subs

- 96 Handles

- w/Video Option* ppic0–v48

Accessories

- Video option for installation ppico-vid

- Work light 7-2052

- 17” LCD monitor tamon-f17

- Dustcover for 17” LCD monitor tamdc-f17

- Dustcover for 19” LCD monitor tamdc-f19

- 19” LCD Flat Screen Monitor tamon-f19

* Power supply & dustcover included.

8

9

ENTERTAINMENT LIGHTING CONTROLS

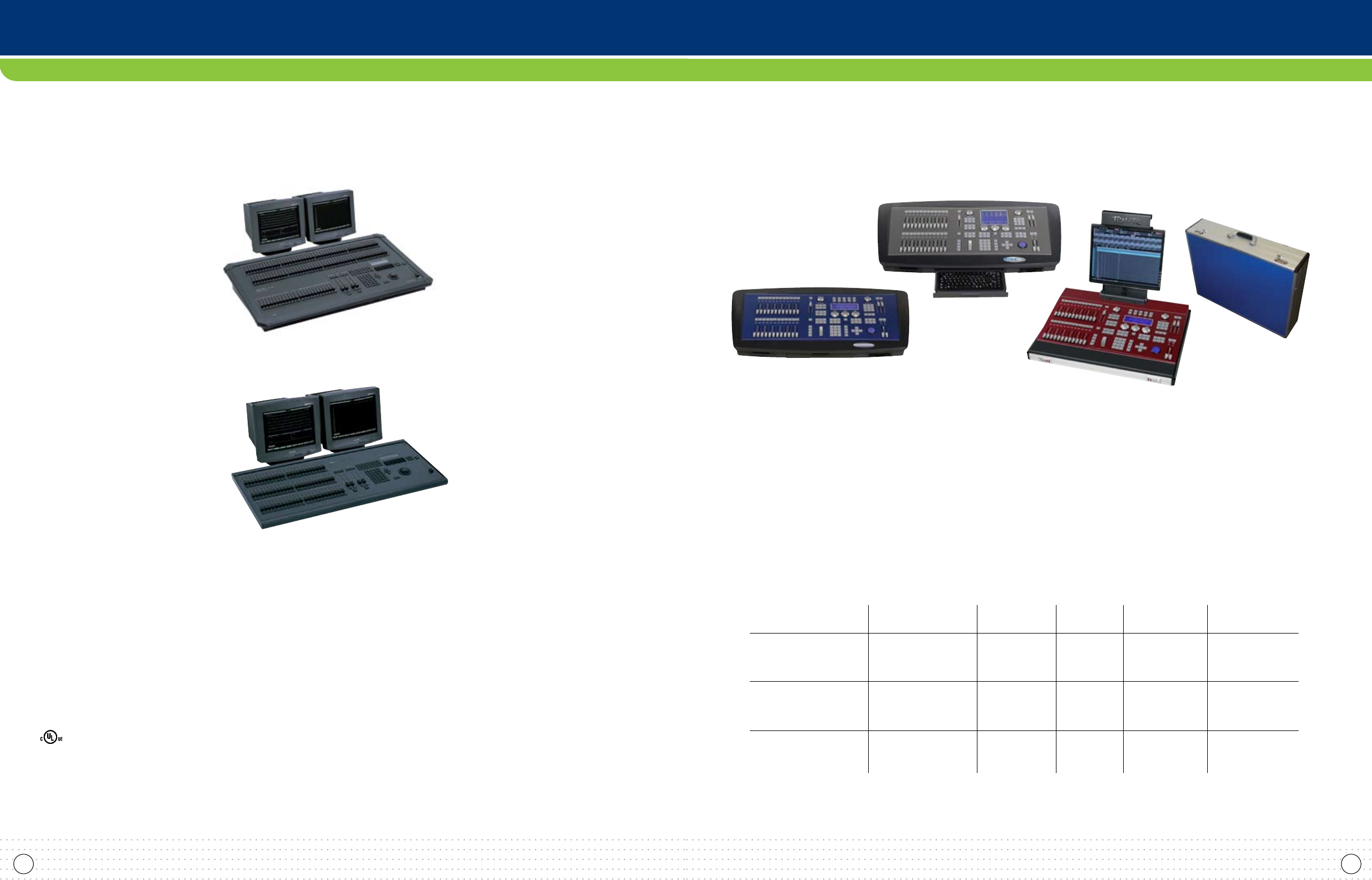

8700

The 8700 Series lighting control consoles are everything the sophisticated lighting professional needs with enhanced features which

make creating your design, programming your show, and executing your masterpiece easy and rewarding. The console delivers all the

power you need offering features like a slide out key board, touch screen and outputs for all your possible connections. Rugged and

available in multiple models and capacities, the 8700 series are the consoles for your leading edge creation.

• 24 or 48 Submasters — depending on model. Submasters can activate a scene, cue list, effect, effect rate, attribute or channel

• Conventional Lighting — full support for conventional lighting and traditional cue list control

• Automated Devices — position control via trackball, attribute control via touchscreen (GX series) or encoders (all models)

• Cues — support for up to 20,000 cues, each with up to nine parts. Jumps, loops, follows, split fade times and more

• Visualization & Design — visualization and design assistance provided with the included Capture software package (PC required)

• Full Tracking Backup — full tracking backup capability both to secondary console or connected PC

• Effects Generation — effects for rapid creation of chases, patterns, shapes, operating modes offering easy live modification

• Capacities — 20,000 cues, 2000 groups, 2000 macros, 2000 effects, 2000 pages, 99 libraries

• Response Curves — custom curves for most channel parameters

• Off & On Line Editing — from the comfort of your PC

• Touring models — built-in monitor and attaché style case

Part Number Sub-Masters Channels DMX Outputs VGA Outputs

p8724-gx 24

p8748-gx 48 2048 4 4

p8724-gxt (touring) 24

p8724-gs 24

p8748-gs 48 1024 2 2

p8724-gst (touring) 24

p8724-gl 24 512 1 1

p8724-glt (touring)

GX Series

with integral touch

screen and keyboard

GS Series

with integral keyboard

GL Series

INNOVATOR

Precise lighting control can be the difference between a good show and a spectacular event. The Innovator series of lighting consoles

gives you the powerful unification of advanced theatrical functions with sophisticated, intelligent control for capabilities never before

available at such an economical price. Just as the graphical user interface revolutionized computers, so the Innovator series revolutionizes

the lighting industry. Easy-to-use display and control features seamlessly link intelligent and standard light fixtures to help you create

any look you desire.

• Dual independent auto crossfaders

address discrete cue lists

• Up to 128 simultaneous crossfades

may be executed

• 256x64 pixel liquid crystal display

with CFL back light provides

intelligent device attribute values

• Supports up to 256 automated

devices (512 channels total of

intelligent light attributes)

• Ethernet based Colornet® standard

on all consoles provides DMX512

distribution, remote video and

networked Hand Held Remote.

(Innovator only)

• Up to 2,000 Macros

• 24 Submasters with up to 8 Pages

• 7 Encoder Wheels for Individual Trait

Control of Motorized Devices for Pan,

Tilt and Level Control

• Trackball

• Stage, Preview, Device, Cue Sheet,

Track Sheet, Playback, Patch and

Setup Display Screens

• Cue Numbering from .1 to 999.9

via Numeric Keypad

• Link to Cue or Macro

• Selective Cue Recording

• Multi-Part Cues

• Split Up/Down Fade Times

• Overlapping Inhibitive or Pile-On

Functions

• Programmable Up/Dwell/Down Times

• Master Fader

• Blackout Button

• Hold/Back Buttons

• Optional 2nd Video Card

• 384 Stage Lighting Channels

8724GS

8724GS

8724-GLT

ENTERTAINMENT LIGHTING CONTROLS

Innovator 24/48 ctp-7-0048

- 24 channel two-scene operation

- 48 channel single scene

Innovator 48/96 ctp-7-0096

- 48 channel two-scene operation

- 96 channel single scene

Innovator 72/144 ctp-7-0144

- 72 channel two-scene operation

- 144 channel single scene

Innovator 600 ctp-7-0600

- 600 stage lighting channels

- 512 intelligent lighting channels

MC 24/48 n2448-000

- No network support

- 600 max cues

- 1024 max dimmers

- 24 channel two-scene operation

- 48 channel single scene

- w/Video Option n2448-00v

10

11

ENTERTAINMENT LIGHTING CONTROLS

MLC 16 nmlc1-6d0

The MLC 16 accommodates any DMX512-capable device in the world. This versatility means that in addition to moving lights, you can

easily control dimmers, relays and fog machines.

• Controls 16 Intelligent Devices

• 512 Control Channels

• Up to 800 Step Memory

• 96 Total Programmable Memory Patterns

• 24 Scene Access Buttons

• Two Line by 40 Character Liquid Crystal Display

• 4 Pages of Pattern Memory

• Control Joystick

• Addresses Multiple Personalities at Once

• MIDI with Editing Capability

• 3.5” Disk Drive

• DMX512 Digital Control (5-pin XLR)

• RS232 Input/Output Port

• DMX input

• 24 Shows

MLC 128R nmlc1-28r

Onboard joystick and encoder wheels make show design a snap with the ingeniously organized MLC 128R’s front panel and pre-established

library of lighting fixtures.

• Control up to 128 Individual Intelligent Devices

• 512 Control Channels

• Extensive Memory Capacity that Provides up to

256 Device Patterns and 256 Shows

• Pre-focus Memories that Provide Fast Standard

Show Set-up Times with Minimal Editing

• Control of Similar Traits in Multiple Devices

• Two-line by 40-character LCD Display

• Four Encoder Wheels for Fast-Action Access

and Easy Modification of Device Trait information

• Joystick Provides Real Time Pan and Tilt Control

• Audio Synchronization for Triggering from

a Remote Line-level Audio Source such as a

Compact Disc Player or Audio Mixing Console

• DMX512 Output (3 pin XLR)

• Micro-Plex Output (3 pin XLR)

• MIDI In/Out/Through

• Up to 1,024 User Programmable Scenes

• Back up via RS232 Port

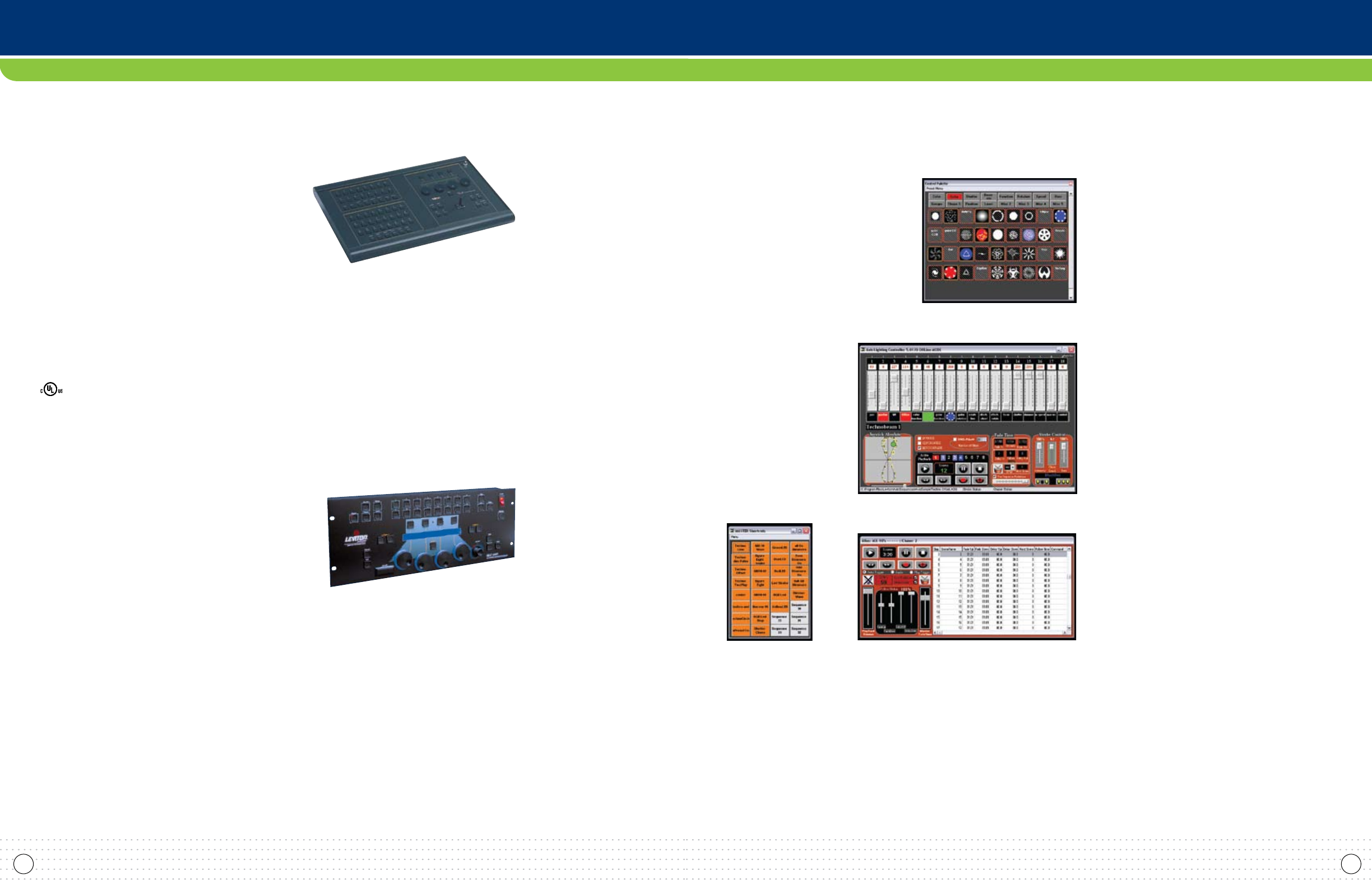

AXIS

POWER. VERSATILITY. CREATIVITY.

Leviton Axis™ Lighting Controller makes show production faster and easier than ever before, with

point-and-click advanced programming and effects generation features built right in. Shows that used to take hours of skilled programming

time now come together in just minutes, allowing you to produce more dazzling performances than you ever thought possible.

• 3D Visualizer

• Dynamic shape generator with

advanced StepShift technology

• Multiple masters

• Preset Palettes

• Area limits feature

• Live control

• One-touch synchronization

• SOLO mode

• DMX Input Pallette View

Playback View

Advanced Cue List Control

Shortcuts

ENTERTAINMENT LIGHTING CONTROLS

AXIS Basic axkb0-x1d

- 512 Channels

- 16 Playbacks

- Expansion for multiple identical outputs

AXIS Pro axkp0-x1d

- 512 Channels per Interface

- DMX Input

- Time Clock

- Scheduler

- Unlimited Playbacks

- RF Remote Support

- DMX Record

- Expansions used for additional 512

channels or multiple identical outputs

AXIS Expansion Kit axke0-x1d

- 512 Additional DMX Channels

- Requires (1) Pro Kit per System

12

13

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D4000

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D4000

DIMENSIONS® D4000 ARCHITECTURAL LIGHTING CONTROLS

The Dimensions D4000 system combines ease of operation, configuration, and installation, with a wide range of entry stations and

accessories to provide a powerful and flexible lighting control solution. The product offering includes scalable products for every need from

stand alone systems through complete network environments. The D4000 system is sophistication made simple, without the guesswork.

• Up to (32) Zones/Channels of Control

• Up to (6) Internal Network Dimmers

120V

Max 1,000W per Dimmer

Max 1,920W per unit (continuous)

Max 1,200W per side

230V

Max 800W per Dimmer

Max 2,420W per unit (continuous)

Max 1,200W per side

Load Types: Incandescent, Advance Mark 10®,

Lutron Tu-Wire®, Magnetic Low Voltage*

• (16 + 2) Scene Memory

• Fade Times for each scene

• Room Partition Control

• Remote Dimmer Configuration

• Lockout

• Sequencer

• Complete multi-event scheduler

• Integrated astronomical time clock

• Individual raise/lower buttons for each zone

• Master raise/lower buttons for changing all zone light

levels at the same time

• LED light-level indicators

• Built-in IR Receiver

• Mounts in 4-gang gangbox with 4-gang device cover

APPLICATIONS

• Ballrooms • Cafeterias • Auditoriums • Lecture Halls

• Conference Rooms • Hotel Suites • Restaurants

• Museums • Houses of Worship

*Mark 10® is a registered trademark of Advance Transformer Company.

Lutron Tu-Wire® is a registered trademark of Lutron Electronics, Inc.

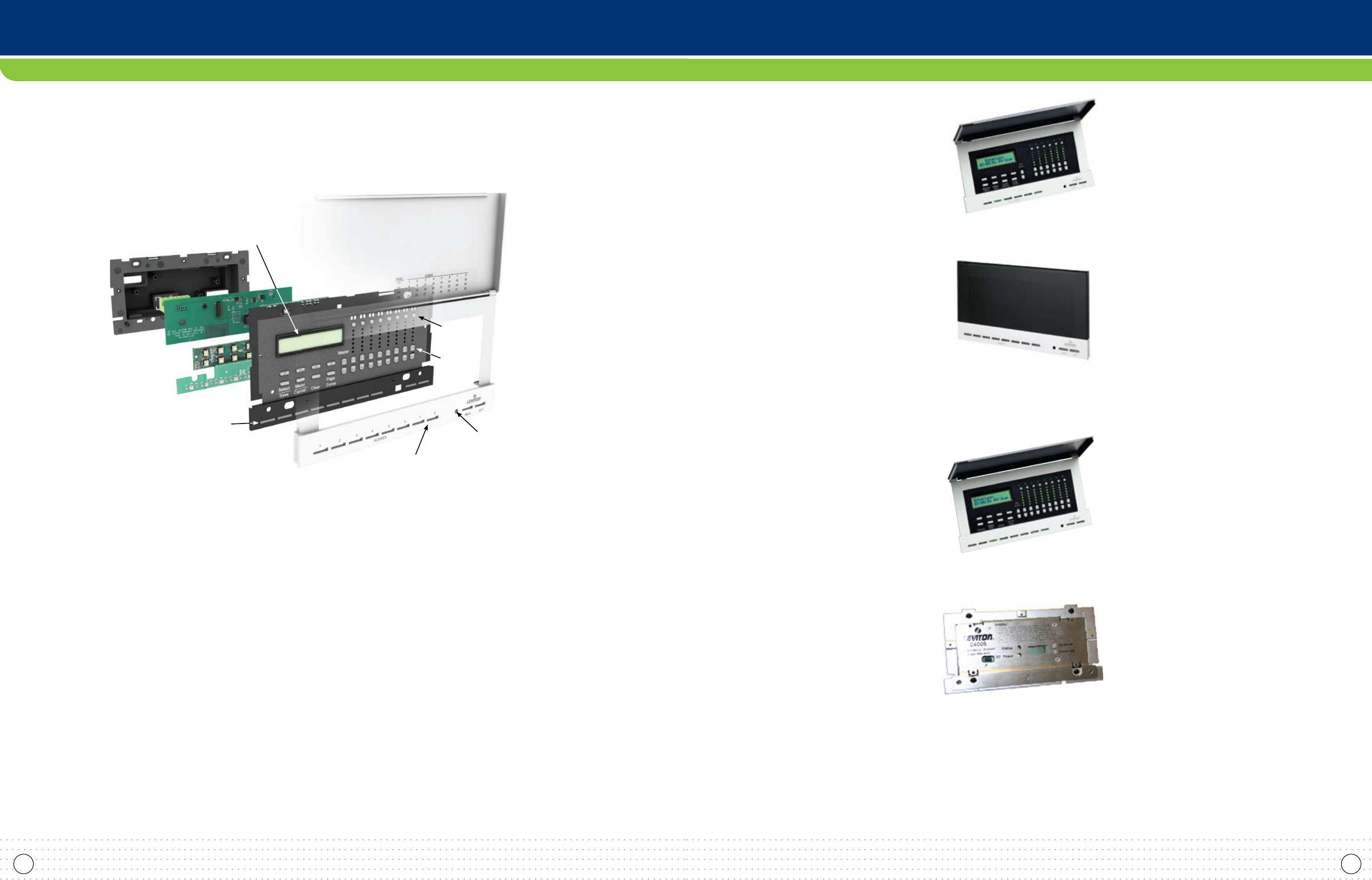

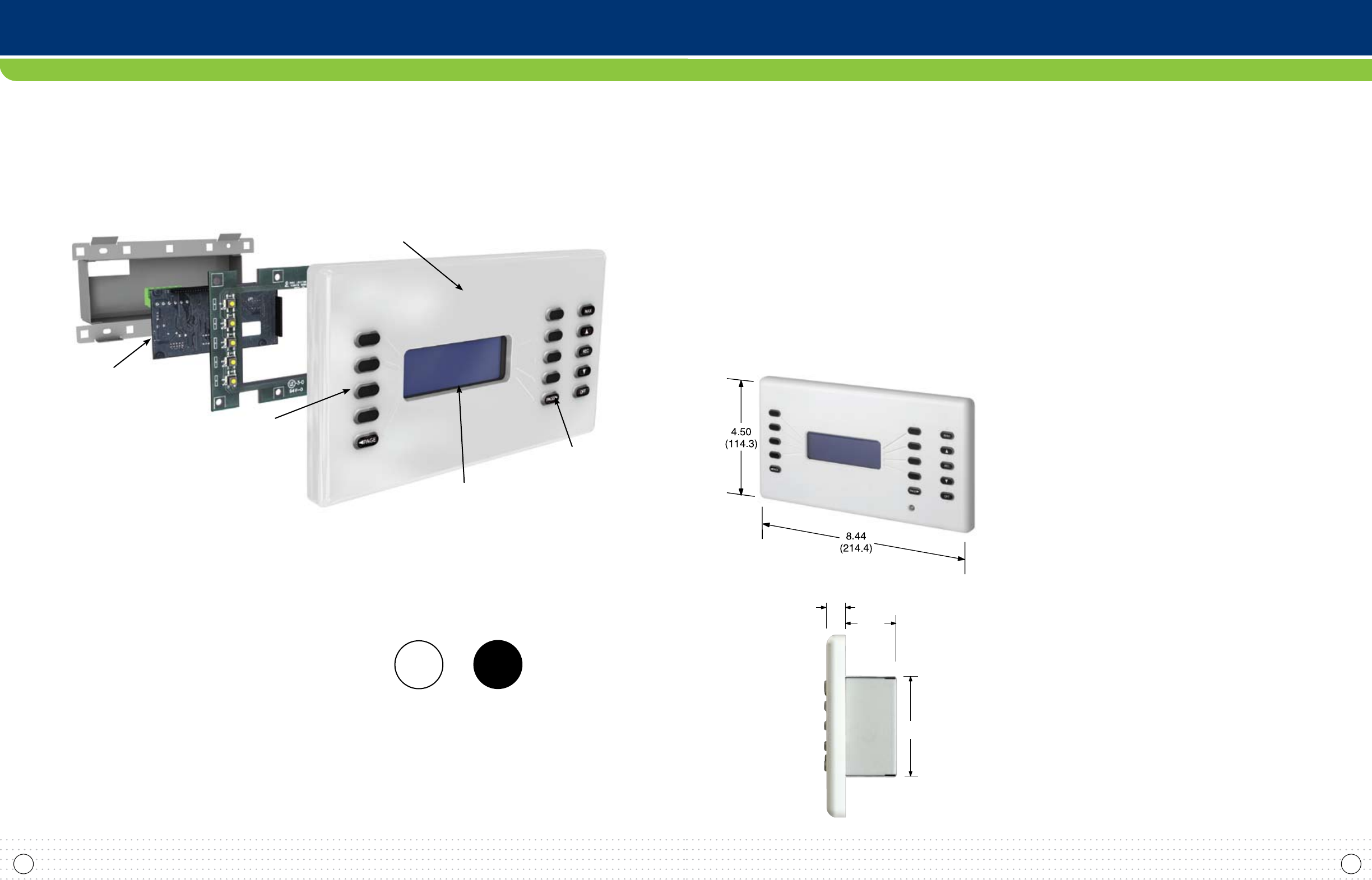

Bright LCD screen with detailed

zone and scene information

One-touch scene

recall buttons

Zone information buttons display

zone name and brightness level

Individual zone dim/bright control

Interchangeable cover

Built-in IR receiver

for use with

handheld remote control

D4106 (D4104 similar)

STAND ALONE SYSTEMS

• Compatible with Entry Stations

• Compatible with Room Combine stations

• Used when integration with other products

is not required

• (4) or (6) Channels & Dimmers

• UL Listed

• All units 50/60Hz

D4200 (D4206 similar)

Shown with black/

white cover

D4006

NETWORK CONTROLLER W/DIMMERS

• Full network and device compatibility

• (32) Control Channels

• Used to control other dimmers or relays

on the Luma-Net network

• (6) Internal Dimmers

Dimmers assignable to any network channel

Dimmers controllable by local controller and

any network control device

• UL Listed

• All units 50/60Hz

NETWORK CONTROLLER

• Full network compatibility

• (32) Control Channels

• Used to control other dimmers or relays on

the Luma-Net network

REMOTE DIMMER

• Full network compatibility

• Controllable by any network controller

• Start channel & Network ID (address) set

from front panel

• Full configuration from any connected

D4200 or D4206

• (6) Internal Dimmers

Dimmers assignable to any network channel

Dimmers controllable by local controller and

any network control device

• UL Listed

• All units 50/60Hz

- 120V, 4 Channels/Dimmers, d4104-1lw

- 230V, 4 Channels/Dimmers d4104-2lw

- 120V, 6 Channels/Dimmers d4106-1lw

- 230V, 6 Channels/Dimmers d4106-2lw

- 120V, 6 Channels/Dimmers d4206-1lw

- 230V, 6 Channels/Dimmers d4206-2lw

- Network Controller d4200-00w

- 120V, 6 Channels/Dimmers d4006-1lw

- 230V, 6 Channels/Dimmers d4006-2lw

14

15

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D4000

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D4000

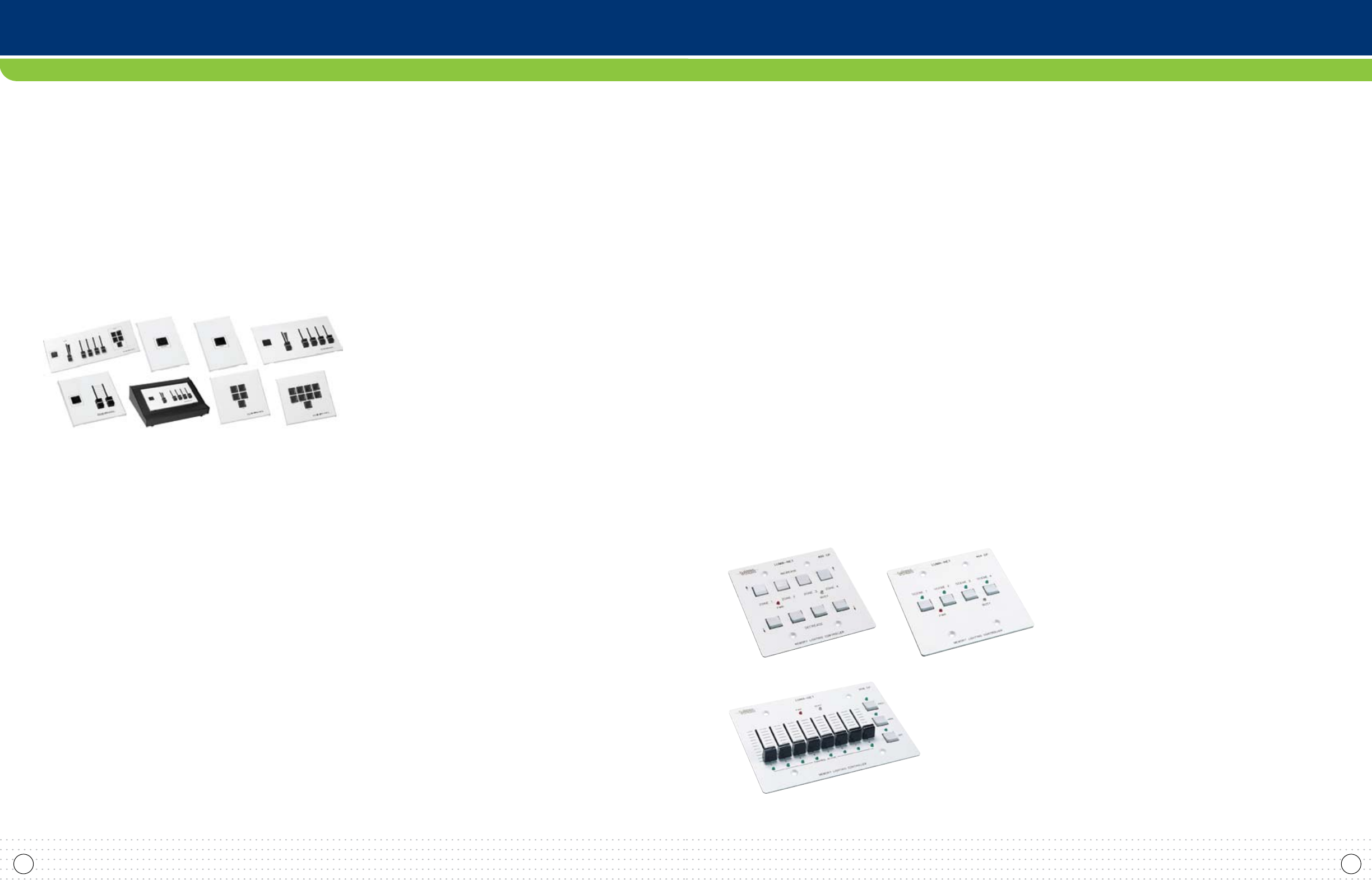

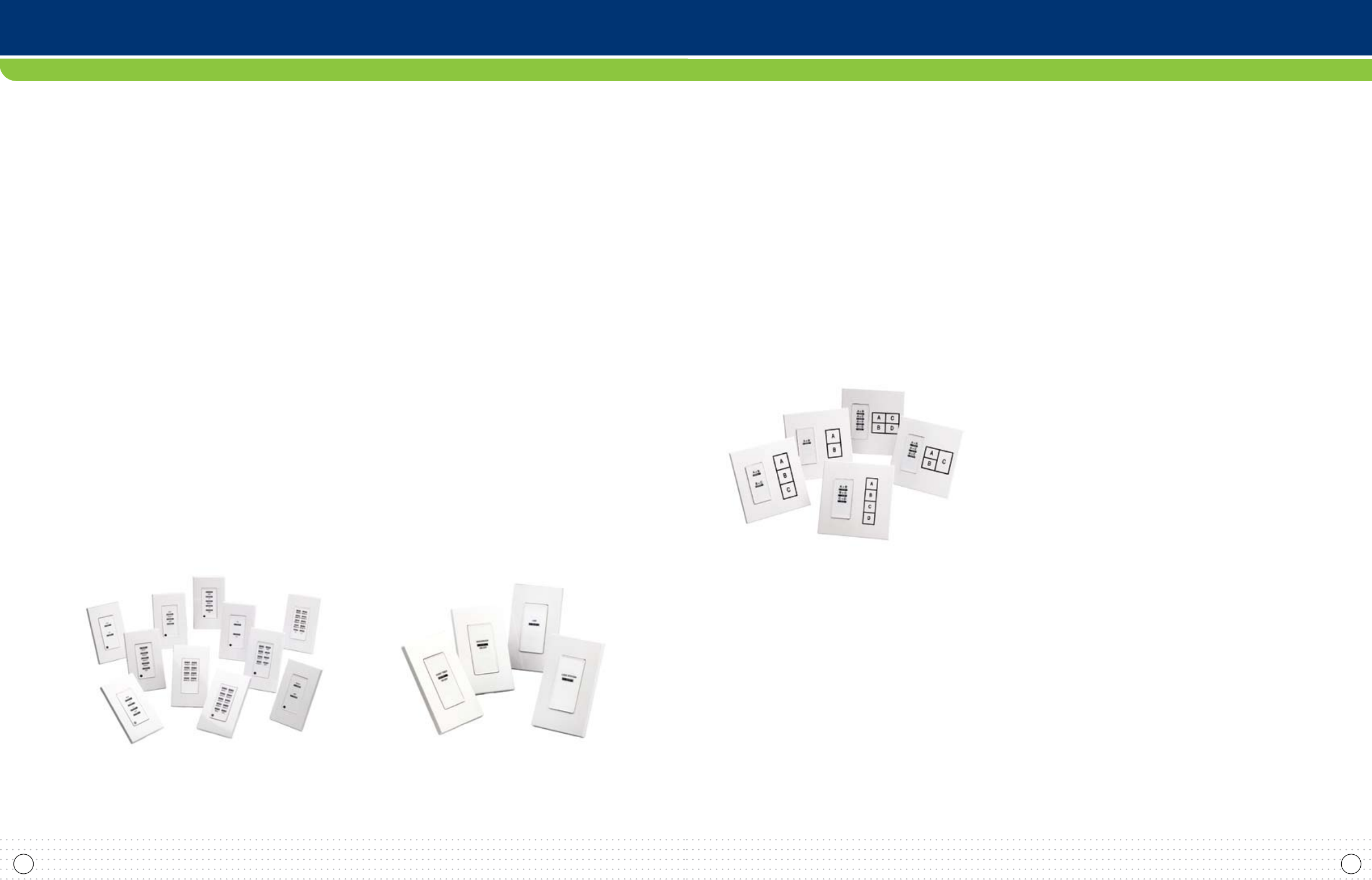

ROOM COMBINE STATIONS

Room Combine stations coordinate lighting in up to four rooms with up to four movable walls. Five different models address common

room configurations, and each feature an easy-to-understand graphic of the room layout. Each button is clearly labeled with its room

combination function, and illuminates when the rooms are combined. Pressing the button again returns the rooms to independent

operation and the button is no longer illuminated, confirming that the spaces are no longer joined.

• Connect to controller via Luma-Net network

• Requires (1) Master station in each room, addressed

10 for room 1, 20 for room 2, etc.

• Other room combine options available, contact your

local Leviton sales agent for more information

• Accommodates room partitions by combining and

separating lighting controls

• Wired via Luma-Net to D4200 Controller

• Minimal programming required

• Comes with snap-on Monet-style wallplate with

silk-screened room configuration

• Customizable

• Only 1-Gang Device Backbox required

Room Combine Stations

REMOTE STATIONS

The Dimensions D4000 line includes Remote Entrance and Command stations that extend many of the functions of a D4000 unit to

remote locations. Several remote stations can be combined in one location to provide the exact control functions required. Rooms

with multiple entrances may use different remote stations at each entry, providing control of the functions that are best suited to

that location. Remote location control can be as complex or as simple as needed, depending on the remote stations selected.

Entrance Stations

• Connect to controller via Luma-Net network

• Used to remotely control scenes and zones on a

master station

• Available in 11 configurations – most have built-in

IR receiver for use with handheld remote control

• Backlighting and tactile clicking indicate scene selection

• Wired via Luma-Net to D4200 Controller

• Mount in single-gang deep switchbox

• Attractive styling accepts Decora wallplates or

Decora Plus screwless wallplates

Command Stations

• Connect to controller via Luma-Net network

• Used to execute commands on a master station

• Available in 4 configurations – most have built-in IR

receiver for use with handheld remote control

• Backlighting and tactile clicking indicate scene selection

• Wired via Luma-Net to D4200 Controller

• Mount in single-gang deep switchbox

• Attractive styling accepts Decora wallplates or

Decora Plus screwless wallplates

Entrance Stations Command Stations

- Scene 1, OFF d42p1-00w

- Master Raise, Master Lower d42rl-00w

- MAX, OFF d42mo-00w

- MAX, Scene 1, OFF d42p1-m0w

- MAX, Master Raise, Master Lower, OFF d42mo-rlw

- Scene 1 – 4, OFF d42p4-00w

- MAX, Master Raise, Scene 1 Master Lower, OFF d42p1-rlw

- Scene 1 – 4, MAX, Master Raise, Master Lower, OFF d42p4-rlw

- Scene 9 – 16 d42p9-16w

- Scene 1 – 8, MAX, OFF d42p8-00w

- Scene 9 – 16, Master Raise, Master Lower d53p9-rlw

- Sequencer/ON-OFF – starts or stops the sequence d42sq-00w

- Event Timer/ON-OFF – starts or stops the event d42et-00w

- Link – joins or separates the controls on 2 adjacent

rooms that have a movable partition between them d42li-nkw

- Lock Station – locks or unlocks a control station at a

remote location d42lo-ckw

- Combines 2 rooms with 1 movable wall d42cs-01w

- Combines 3 rooms with 2 movable walls d42cs-02w

- Combines 3 rooms with 3 movable walls d42cs-3aw

- Combines 4 rooms with 3 movable walls d42cs-03w

- Combines 4 rooms with 4 movable walls d42cs-04w

16

17

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D4000

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D4000

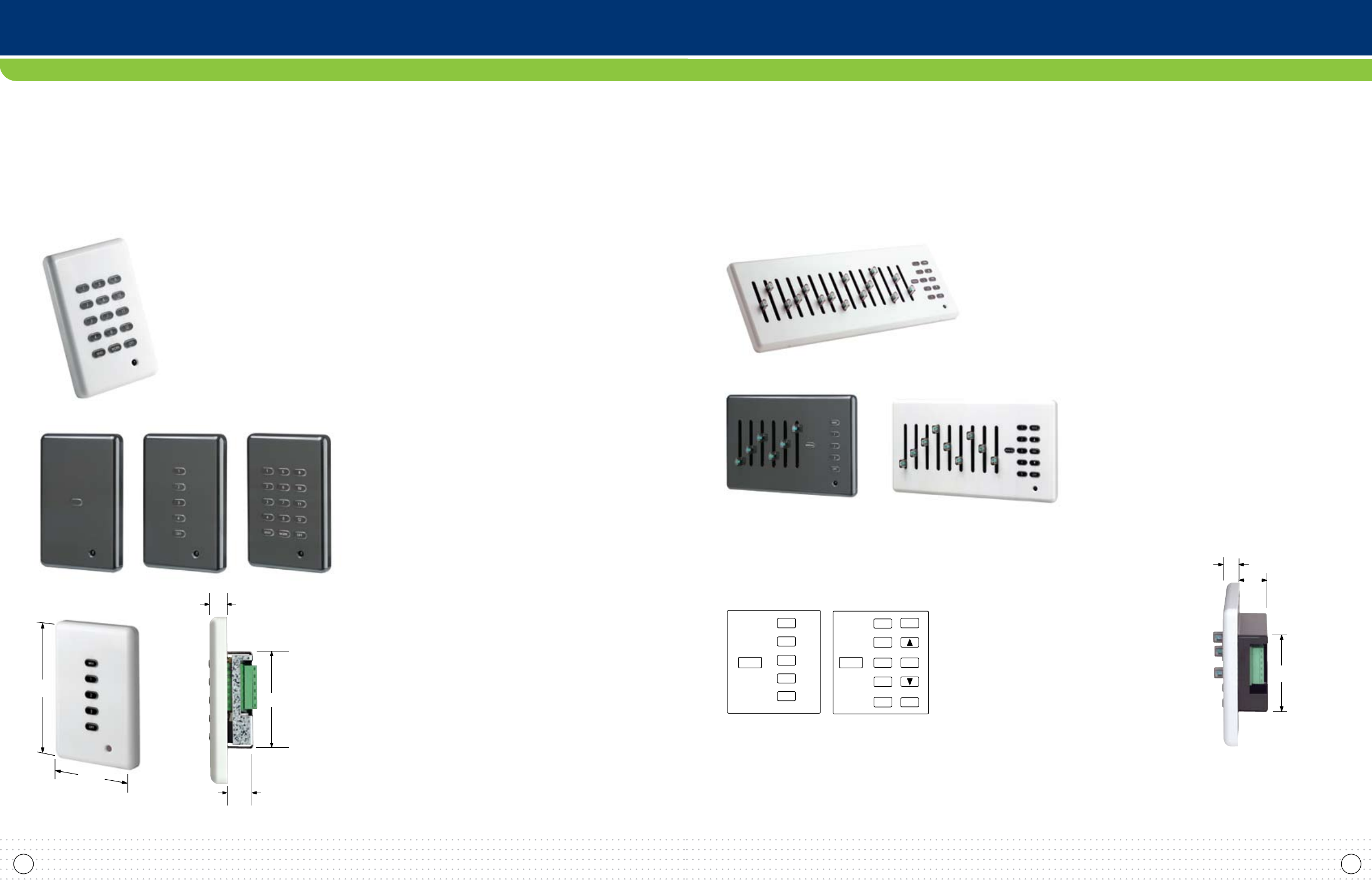

The Dimensions D4000 line puts total lighting control at your fingertips. This single panel can create and save lighting scenes, switch

lights and scenes instantly or with gradual fades, and provide complete control of your lighting applications.

PRODUCT COMPATIBILITY CHART - PRODUCTS BEING CONTROLLED

D4200 D4200 iSeries e Z-MAX Closure

Entrance Partition a-2000 Network D4104/ Input/

Stations Stations MDS Panels NPC D4106 D4200 D4206 D4006 Output AV

D4104/

D4106 Yes Yes - - - - - - - Yes Yes

D4200 Yes Yes Yes Yes Yes - - Yes Yes Yes Yes

D4206 Yes Yes Yes Yes Yes Yes - Yes Yes Yes Yes

D8000 - - Yes Yes Yes Yes - Yes Yes Yes Yes

Luma- - - Yes Yes Yes Yes - Yes Yes Yes Yes

Graphics

CONTROLLERS

Branch Output Circuits

{

D4006 Remote Dimmer

Scene 1-8/Max/Off

Entrance Station

Scene 1/Off

Entrance Station

D4206 TYPICAL SYSTEM

Luma-Net

(6) 120V Ouput Circuits to lighting leads

1000W maximum per circuit

1200W maximum per side

1920W maximum

(See data sheet for load types)

(1) 120V 20A Input Circuit

(6) 120V Ouput Circuits to lighting leads

1000W maximum per circuit

1200W maximum per side

1920W maximum

(See data sheet for load types)

{

{

Luma-Net

Luma-Net

D4206 Controller

Luma-Net Luma-Net

Input Feeder

Dimmer Rack

Standard Doors

- Cover: White Door & White Frame d32ck-0ww

- Cover: Ivory Door & Ivory Frame d32ck-0ii

- Cover: Almond Door & Almond Frame d32ck-0aa

- Cover: Grey Door & Grey Frame d32ck-0gg

- Cover: Black Door & Black Frame d32ck-0ee

- Cover: Smoke Door & White Frame d32ck-0sw

- Cover: Light Almond Door & Light Almond Frame d32ck-0at

- Cover: Smoke Door & Black Frame d32ck-0se

Doors with LCD Readout Hole

- Cover: White Door & White Frame d32ck-hww

- Cover: Ivory Door & Ivory Frame d32ck-hii

- Cover: Almond Door & Almond Frame d32ck-haa

- Cover: Grey Door & Grey Frame d32ck-hgg

- Cover: Black Door & Black Frame d32ck-hee

- Cover: Smoke Door & White Frame d32ck-hsw

- Cover: Light Almond Door & Light Almond Frame d32ck-hat

- Cover: Smoke Door & Black Frame d32ck-hse

White Custom Label

- White Conversion Kit with 1-Button Switch d42cl-01w

- White Conversion Kit with 2-Button Switch d42cl-02w

- White Conversion Kit with 3-Button Switch d42cl-03w

- White Conversion Kit with 4-Button Switch d42cl-04w

- White Conversion Kit with 6-Button Switch d42cl-06w

- White Conversion Kit with 8-Button Switch d42cl-08w

- White Conversion Kit with 10-Button Switch d42cl-10w

Accessories

- Infrared Remote Control, Scenes 1-4,

Raise, Lower, Max & Off d42ir-04l

- Infrared Remote Control, Scenes 1-8,

Raise, Lower, Max & Off d42ir-08l

- Infrared Remote Control, Scenes 1-16,

Raise, Lower, Max & Off d42ir-16l

- 4-Gang Gang Box bbg04-000

- 4-Gang Raised Device Wall Plate wpg04-d00

- 500 ft. Spool of Belden #1502R for

Luma-Net Wire Runs wirln-500

0.40 (10.0)

1.93

(49.0)

2.65

(67.4)

D4200-00W

18

19

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D8000

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D8000

DIMENSIONS® D8000 ARCHITECTURAL LIGHTING CONTROL SYSTEM

Dimensions

®

D8000 is an advanced line of lighting controls with distributed processing and network topology that brings the power,

flex

ibility and reliability of networked computing to the lighting realm. A complete D8000 system may include LCD, pushbutton and slider

stations; theatrical lighting consoles; dimming racks; relay cabinets; photocells; and occupancy sensors. The D8000 can accommodate

large-scale, complex projects that integrate theatrical, architectural and energy management lighting control systems, as well as small

applications that may benefit from its intuitive operations, flexibility and design-friendly aesthetics.

• LCD station comes in wall-mount and portable consolette models

• Programmable functions include: fade-to level and rate, personality

change, scene change, partitioning, scene record mode, group raise/

lower, maximum bright, and lockout

• Optional handheld remote control can be used with most stations

• Networks with up to 32,640 stations (127 per sub-network) over a

Luma-Net® network

• Controls up to 2,048 zones per network

• Interfaces with HVAC, emergency, time clock, and load shed

auxiliary systems

• Stations retain programming during power outages

• All wall stations fit in 3.5 in. deep, 4-gang wall box

• Optional customized faceplate including full range of Corian colors,

engraving, and fabrication from alternative materials

• Optional custom button legends

Microprocessors at every

station provides superior

reliability

Buttons are programmable

to any function, softkey design

Backlit buttons aid

intuitive operation

Bright, backlit LCD displays

scene + zone information

Corian construction for great

looks + extreme durability

Available Colors

Glacier White Nocturne Black

Additional Corian colors (and other materials)

are available per special order.

Note: Dimensions in pare nthesis are millimeters;

all other dimensions are in inches.

2.55

(64.8)

0.50 (12.7)

1.30

(33.1)

KLCDO-00W

- With standard buttons klcdo-00x

- With custom buttons klcdo-00x

- Portable Consolette with standard buttons klcdp-00x

- Portable Consolette with custom buttons klcdp-00x

* Add letter to end of catalog number suffix as follows for color selection:

Corian Glacier White (W), Corian Nocturne Black (B).

For a custom Corian color or otherwise customized faceplate, contact your

Leviton sales representative.

D8000 LCD WALL STATIONS

This advanced lighting control station is part of a highly scalable

system that is suited not only to sophisticated, large-scale

commercial applications but also to single-station installations.

The station comes in two versions: one that sits on a tabletop

and the other for wall mounting. The D8000 LCD Station features

menus for easy programming and lighting control, an IR receiver

for use with a handheld remote control, and a comprehensive

suite of functionality including event scheduling, partitioning and

networkability.

• All buttons are programmable and can execute any

system function

• Buttons are mechanically-captured to prevent vandalism

• Multiple levels of passwords and a lock-out feature

prevent unwanted changes

• Programming via LumaEdit™ (for system setup)

• Built-in IR receiver enables station to be accessed via

handheld remote

20

21

1-Button Pushbutton Station*

- Blank kb010-00x

- MAX kb011-00x

- PRESET kb012-00x

- ON kb013-00x

- PANIC kb014-00x

- Custom kb01c-00x

2-Button Pushbutton Station*

- Blank kb020-00x

- MAX, OFF kb021-00x

- PRESET, OFF kb022-00x

- Raise, Lower kb023-00x

- ON, OFF kb024-00x

- Custom kb02c-00x

3-Button Pushbutton Station*

- Blank kb030-00x

- Raise, Lower, OFF kb031-00x

- 1, 2, OFF kb032-00x

- Custom kb03c-00x

5-Button Pushbutton Station*

- Blank kb050-00x

- 1 – 4, OFF kb051-00x

- MAX, 1 – 3, OFF kb052-00x

- Custom kb05c-00x

10-Button Pushbutton Station*

- Blank kb100-00x

- 1 – 8, MAX, OFF kb101-00x

- 1 – 5, MAX, Raise,

RECord, Lower, OFF kb102-00x

- Custom kb10c-00x

15-Button Pushbutton Station*

- Blank kb150-00x

- 1 – 12, MAX, WORK, OFF kb151-00x

- 1 – 10, MAX, Raise,

RECord, Lower, OFF kb152-00x

- Custom kb15c-00x

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D8000

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D8000

D8000 DIGITAL SLIDER STATIONS

• 6-button configurations provide 3-scene recall, manual override,

maximum brightness, and off

• 11-button configurations provide 5-scene recall, manual override,

multiple scene record modes, maximum brightness, and off

• All buttons are programmable and can execute any system function

(buttons are mechanically-captured to prevent vandalism)

• Programming via LumaEdit™ (for system setup)

• Built-in IR receiver enables station to be accessed via handheld remote

KS151-00W

0.47 (11.9)

0.96

(24.4)

2.55

(64.8)

1

2

3

1

2

3

4

5

REC

MAX MAX

OFF

OFF

MANUAL MANUAL

D8000 Slider Stations - Width x Height

2 Gang 4.81 (12.2cm) x 4.50 (11.4cm)

3 Gang 6.62 (16.8cm) x 4.50 (11.4cm)

4 Gang 8.44 (21.4cm) x 4.50 (11.4cm)

5 Gang 10.25 (26.0cm) x 4.50 (11.4cm)

6 Gang 12.06 (30.6cm) x 4.50 (11.4cm)

STANDARD BUTTON LEGENDS

6-Button Slider Stations & Labels*

- 2-gang, 3-slider ks035-0ox

- 3-gang, 4-slider ns045-00x

- 3-gang, 6-slider ks065-0ox

- 4-gang, 9-slider ks095-0ox

- 5-gang, 12-slider ks125-0ox

- 6-gang, 15-slider ks155-0ox

11-Button Slider Stations & Labels*

- 2-gang, 3-slider ks031-0ox

- 3-gang, 6-slider ks061-0ox

- 4-gang, 9-slider ks091-0ox

- 5-gang, 12-slider ks121-0ox

- 6-gang, 15-slider ks151-0ox

*Add letter to end of catalog number suffix as follows

for color selection: Corian Glacier White (W) or Corian

Nocturne Black (B).

For custom button legend selection, add “C” before the

color code.

For a custom Corian color or otherwise customized face-

plate, contact your local Leviton sales representative.

D8000 PUSH BUTTON STATIONS

• Six different single-gang stations in 1-, 2-, 3-, 5-, 10- and 15-button configurations

• All buttons are programmable and can execute any system function

• Buttons are mechanically-captured to prevent vandalism

• Stations with raise/lower feature enable scene light level adjustment without changing programmed preset levels

• Programming via LumaEdit™ (for system setup)

• Built-in IR receiver enables station to be accessed via handheld remote

KB151-00W

0.50 (12.7)

0.71 (18.0)

2.69

(68.4)

3.00

(76.2)

4.50

(114.3)

KB052-00W

*Add letter to end of catalog number suffix as follows

for color selection: Corian Glacier White (W) or Corian

Nocturne Black (B).

For custom button legend selection, add “C” before the

color code.

For a custom Corian color or otherwise customized face-

plate, contact your local Leviton sales representative.

22

23

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D8000

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D8000

Minneapolis Convention Center, Architect: Arvid Elness Architects, Inc., Lighting Design: Schuler & Shook

Minneapolis, Minnesota

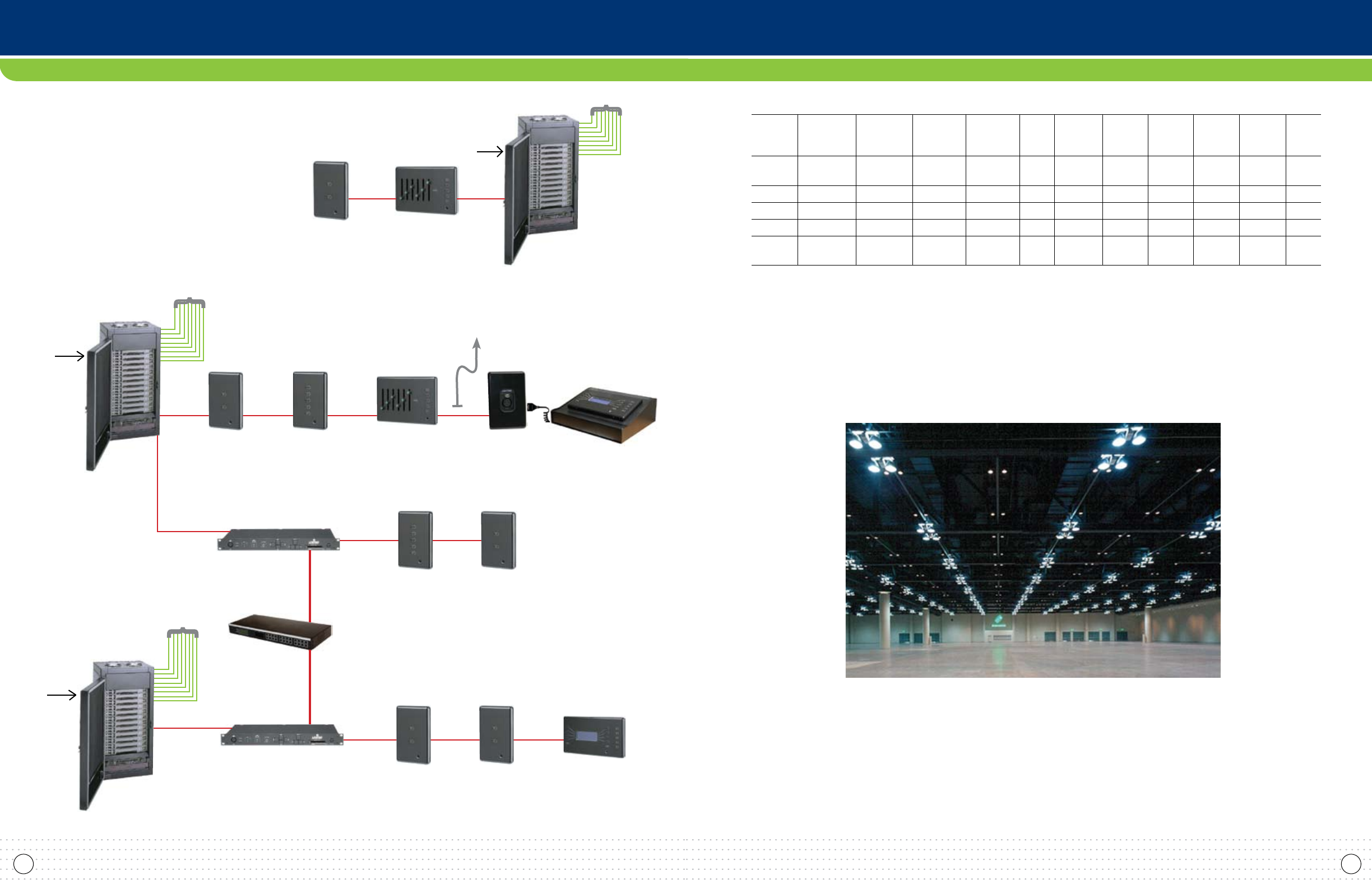

BASIC SYSTEM

D8000 is a flexible system with very few prerequisites. Almost any layout is possible

with most functionality easily achievable. Contact your Leviton sales representative

for assistance with system planning.

D8000

Pushbutton

Station

D8000

Slider Station

Branch Output Circuits

{

Dimmer

Rack*

Luma-Net Luma-Net

Input

Feeder

Branch Output Circuits

{

Network

Hub/Switch

ADVANCED SYSTEM

Dimmer

Rack*

Branch Output Circuits

{

DMX

Luma-Net

Luma-Net Luma-Net

Luma-Net

Portable

Jack D8000

Portable

LCD Station

Luma-Net protocol reqires

a Low Voltage Wire Run.

Leviton recommends the

use of Belden #1502R with

a Maximum run of 2000’

D8000

Slider Station

D8000

Pushbutton

Station

D8000

Pushbutton

Station

D8000

LCD Station

NPC

D8000

Pushbutton

Station

D8000

Pushbutton

Station

Dimmer

Rack*

D8000

Pushbutton

Station

D8000

Pushbutton

Station

NPC

Ethernet

Luma-Net

Ethernet

Luma-Net

Luma-Net

Luma-NetLuma-NetLuma-Net

Input

Feeder

Input

Feeder

*Leviton offers an extensive line of high density dimming systems for architectural or entertainment applications. Visit www.leviton.com/LMS for more information.

PRODUCT COMPATIBILITY CHART - PRODUCTS BEING CONTROLLED

D4200 D4200 iSeries e Z-MAX Closure

Entrance Partition a-2000 Network D4104/ Input/

Stations Stations MDS Panels NPC D4106 D4200 D4206 D4006 Output AV

D4104/

D4106 Yes Yes - - - - - - - Yes Yes

D4200 Yes Yes Yes Yes Yes - - Yes Yes Yes Yes

D4206 Yes Yes Yes Yes Yes Yes - Yes Yes Yes Yes

D8000 - - Yes Yes Yes Yes - Yes Yes Yes Yes

Luma- - - Yes Yes Yes Yes - Yes Yes Yes Yes

Graphics

CONTROLLERS

24

25

Morongo Casino Resort and Spa

West Springs, California

David L. Lawrence Convention Center

Pittsburgh, Pennsylvania

ARCHITECTURAL LIGHTING CONTROLS

DIMENSIONS® D8000

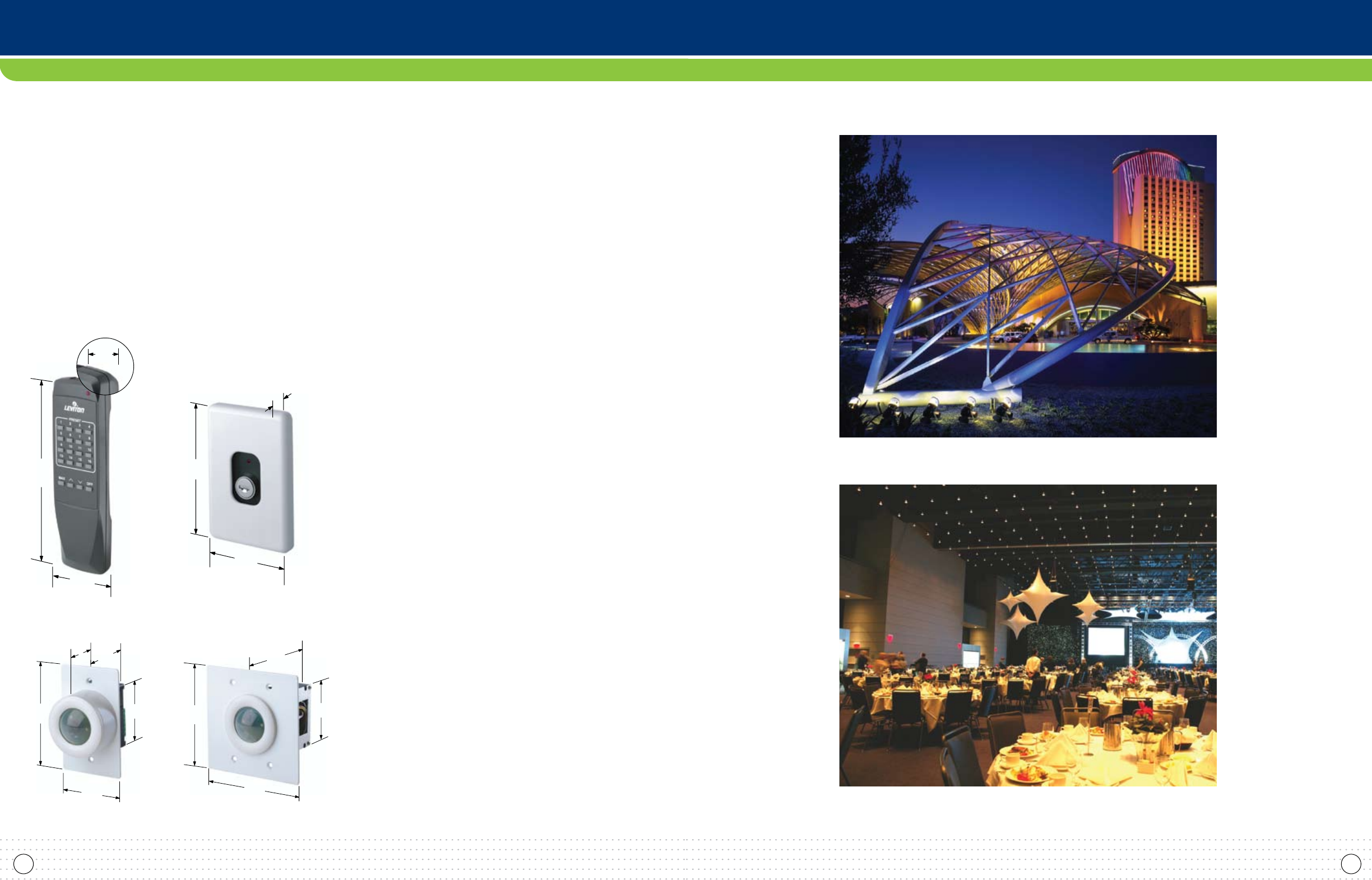

D8000 ACCESSORY STATIONS & REMOTE CONTROL

Accessory Stations

• All stations must be wired via Luma-Net®

• All fit inside 3.5-inch-deep, single-gang wallbox

• Optional, customized faceplate including full range of Corian

colors, engraving, and fabrication from alternative materials

Handheld Remote Control

• Features 4-, 8- or 16-scene presets plus maximum brightness and off

• Point at any IR-receiving D8000 station or at auxiliary IR receiver to

select scene, select maximum brightness, or turn off

• Operates at 56kHz frequency at 30- to 50-foot range

Auxiliary Infrared Receivers

• Available in flush- and surface-mount versions

• Must be programmed to work with IR-receiving D8000 Station

• Installs in a 3.5-inch-deep backbox

2.0

(50.8)

6.81

(173.0)

0.88

(22.2)

D42IR-16L

2.76

(70.1)

4.53

(115.0)

1.39

(35.2)

2.69

(68.3)

1.44

(36.6)

KIRRF-00W

4.57

(116.2)

4.5

(115.0)

2.71

(68.8)

2.71

(68.8)

KIRRS-00W

KLCK1-00W

3.00

(76.2)

4.50

(114.3)

0.48

(12.2)

* 0.96 (24.4) deep

* Add suffix to catalog number as follows for color selection: Corian Glacier

White (-00W), Corian Nocturne Black (-00B).

For a custom Corian color or otherwise customized faceplate, contact your

Leviton sales representative.

Single-Gang Accessory Stations*

- Key Switch Station–key operated lockout

station that can be programmed to lock

out any number of stations in the D8000

network klck1-00x

- Remote Portal Connection–for connecting

a Consolette LCD, button or slider station kifc1-00x

- PC Interface for LumaEdit™ Programming

9-pin female connector kifc2-00x

- A/V Serial Interface 9-pin female connector,

enables D8000 network to receive RS232

signals from personal computers and A/V

equipment kifc3-00x

Handheld Infrared Remote Controls

- 4 scene selections d42ir-04l

- 8 scene selections d42ir-08l

- 16 scene selections d42ir-16l

Auxiliary IR Receivers

- Flush-mounting IR Receiver

(2-gang backbox) kirrf-00w

- Surface-mounting IR Receiver

(single-gang backbox) kirrs-00w

Contact Closures

- MechoShade® Interface–Dimensions

contact closure output for use with

MechoShade devices. Three Luma-Net

channels to 2 standard MechoShade

(5 position) and 1 blackout (2 position) dcmsd-021

- Dimensions Contact Closure Output

Board – LumaNet to 8 low-voltage

contact closure relay outputs, each

rated for up to 24V, 0.5A dcout-008

- Combine Closure Card kclcm-000

- 8-Port Luma-Net Hub lhub8-000

26

27

Remembrance Analog Control Stations

- (1) Slider, (2) Gang rmb81-001

- (2) Sliders, (2) Gang rmb81-002

- (3) Sliders, (4) Gang rmb81-003

- (4) Sliders, (4) Gang rmb81-004

- (5) Sliders, (5) Gang rmb81-005

- (6) Sliders, (5) Gang rmb81-006

- (7) Sliders, (6) Gang rmb81-007

- (8) Sliders, (6) Gang rmb81-008

- (10) Sliders, (7) Gang rmb81-010

- (12) Sliders, (8) Gang rmb81-012

- (4) Sliders, (4) Presets, (6) Gang rmb81-044

- (4) Sliders, (8) Presets, (6) Gang rmb81-048

- (8) Sliders, (8) Presets, (8) Gang rmb81-088

Remembrance Entry Stations

- Entry Station, On/Off, (1) Gang rmb81-021

- Panic Station, On/Off, (1) Gang rmb81-022

- (4) Presets, iSeries e & Quad, (2) Gang rmb81-024

- (8) Presets, iSeries e & Quad, (2) Gang rmb81-028

Remembrance DMX Control Stations

- Master, (4) Sliders, (4) Gang rmb81-104

- Master, (6) Sliders, (5) Gang rmb81-106

- Master, (12) Sliders, (8) Gang rmb81-112

- Master, (4) Sliders, (6) Gang rmb81-144

- Master, (4) Sliders, (6) Gang rmb81-148

- Master, (8) Sliders, (8) Gang rmb81-188

- Master, (4) Sliders, Portable rmb81-204

- Master, (6) Sliders, Portable rmb81-206

- Master, (12) Sliders, Portable rmb81-212

REMEMBRANCE

Leviton’s Remembrance line provides a straightforward, economical solution for smaller systems with both programmable and manual

control for flexible lighting options that meet the needs for every mood the user looks to create. An economical solution for smaller sys-

tems, Remembrance offers “snapshot” function for easy programming in digital or analog. This system provides the greatest flexibility in

control for applications where lighting needs are constantly changing and cannot be met with a series of pre-designed looks.

• Integrates with DMX512 or 0-10VDC analog for complete

control of theatrical and architectural lighting

• Completely programmable buttons and sliders

• Wide variety of stations, including LCD buttons and sliders

• Available in DMX or analog versions

• Simple, powerful preset storage and recall

• DMX version controls up to 512 channels on up to 12 faders

ARCHITECTURAL LIGHTING CONTROLS

REMEMBRANCE

ARCHITECTURAL LIGHTING CONTROLS

LUMA-NET CP STATIONS

LUMA-NET CP STATIONS

These cost-effective, flexible architectural lighting control systems are excellent for churches, schools, and universities offering common

features like integration of house and stage lighting for total control over the entire facility. The CP Station is a very flexible lighting

control device with different models to cover zone and scene controls. Fader equipped models are very durable and will hold up to heavy

usage in commercial applications.

400 Series

• Programmable Fade Times

• Programmable Master/Slave Operation

• Control Lockout Function

• Front Panel Programmable or from PC

with Optional Luma-Net Software and

Interface I/F 501

• Mounts in Standard 2-Gang Electrical Box

• Works with any Luma-Net Product

• Compatible with DMX Dimmers or

Micro-plex Dimmers when used with I/F 501

800 Series

• Programmable Preset Buttons

• Programmable Fade Times

• All Off Button

• Each Slide Control Programmable for

up to 100 Dimmer Channels

• Control Lockout Function

• Programmable with Luma-Net Software

and Interface I/F 501 Only

• Mounts In Standard 2/3-Gang Electrical Box

• Works with any Luma-Net Product

400 CP n0400-cp0

- 4 Programmable Zones

- Controls 512 Dimmer Channels

404 CP n0404-cp0

- 4 Programmable Zones

- Controls 100 Dimmer Channels

408 CP n0408-cp0

- 8 Programmable Scenes

- Controls 100 Dimmer Channels

804 CP n0804-cp0

- 4 Programmable Slide Controls

- Controls 100 Dimmer Channels

808 CP n0808-cp0

- 8 Programmable Slide Controls

- Controls 500 Dimmer Channels

28

29

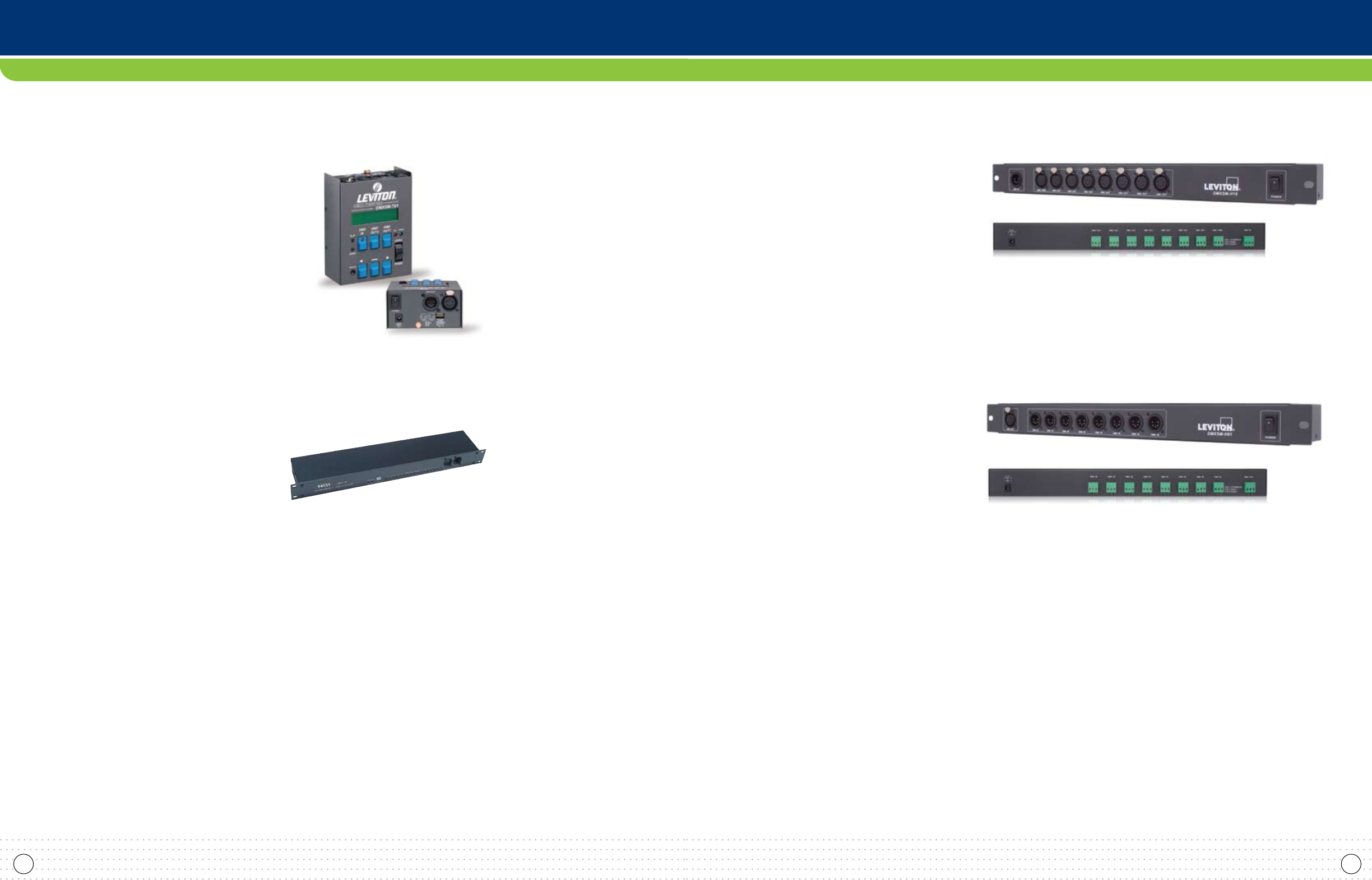

DMX OPTICALLY ISOLATED SPLITTER/REPEATER

The DMXSM-H18 splits a single DMX 512 channel DMX input into (8) completely isolated 512 channel DMX outputs. Perfect for segregating

automated devices from conventional lighting or when an alternative to the traditional daisy-chained signal routing is desired.

• 1 Input

• 8 Outputs

• 100% optically isolated outputs

• Outputs rated to withstand max +48Vdc

• DMX-512A Compliant

• Built-in Power Switch

• 2-part terminals at rear, series wired, for

permanent install

SYSTEMS MANAGEMENTSYSTEMS MANAGEMENT

DMX 16

16 channel de-multiplex from microplex to 0-10V for interface to any analog device.

• Adapts NSI 128 Channel Micro-Plex

to any 0-10 V Dimmer Packs

• 16 Independent Control Channels

• Automatic Lamp Test Function

• AC Power On Indicator

• Allows Interface of NSI Microprocessor

Memory Controllers

• LED Operation/Intensity Indicators

• Expands Easily

• User Programmable for Assignment of

any of a Possible 128 Channels

• 19” Rack Mountable Chassis

DMX BATTERY OPERATED TESTER

The DMX Tester is a portable DMX tester in a box so compact it can fit in a briefcase. This powerhouse tester combines multiple input

and output modes for receiving DMX signal information as well as generating DMX output signals. Extending the already complete

functionality, this battery operated tester can also be used as a DMX cable tester.

• View DMX input channel levels

• Generate DMX output channel levels

• “Auto-fade” automated output level generator

• Channel chase output mode

• Intelligent lighting equipment testing

• Display channel levels in percent (%) or hex

• LCD background lighting reduces power when

not used and saves power to extend battery life

• Connection to scope with synch to any

DMX channel

• Sleep mode – automatically enters sleep mode

if idle for 5 minutes to extend battery life

DMX INPUT MERGER

A DMX merger is used when multiple control inputs must communicate to the same device. A DMX merger helps to completely rid a

system of complex, error-prone, multi-location DMX input wiring schemes. This merger combines all (8) inputs, using a highest level

takes precedence (HTP) philosophy into a single 512 channel DMX output. All inputs are optically isolated from each other to ensure the

protection of sensitive equipment. For further extension of the DMX signal, the merger can be combined with Leviton’s DMXSM-H18 DMX

splitter for an (8) input/(8) output DMX powerhouse.

• 8 Inputs

• 1 Output

• Inputs merge in highest level takes

precedence (HTP) mode

• 100% optically isolated inputs

• Inputs rated to withstand max +48Vdc

• DMX-512A Compliant

• Built-in Power Switch

• 2-part terminals at rear, series wired, for

permanent install

DMX Tester

DMX Tester dmxsm-tst

DMX 16

16 Channel De-multiplexer, 120V n0016-000

16 Channel De-multiplexer, 240V n0016-009

DMX Optically Isolated Splitter/Repeater

Optically Isolated Splitter/Repeater (1 In, 8 Out) dmxsm-h18

DMX Input Merger

(8) Input Merger (8 In, 1 Out) dmxsm-h81

30

31

SYSTEMS MANAGEMENTSYSTEMS MANAGEMENT

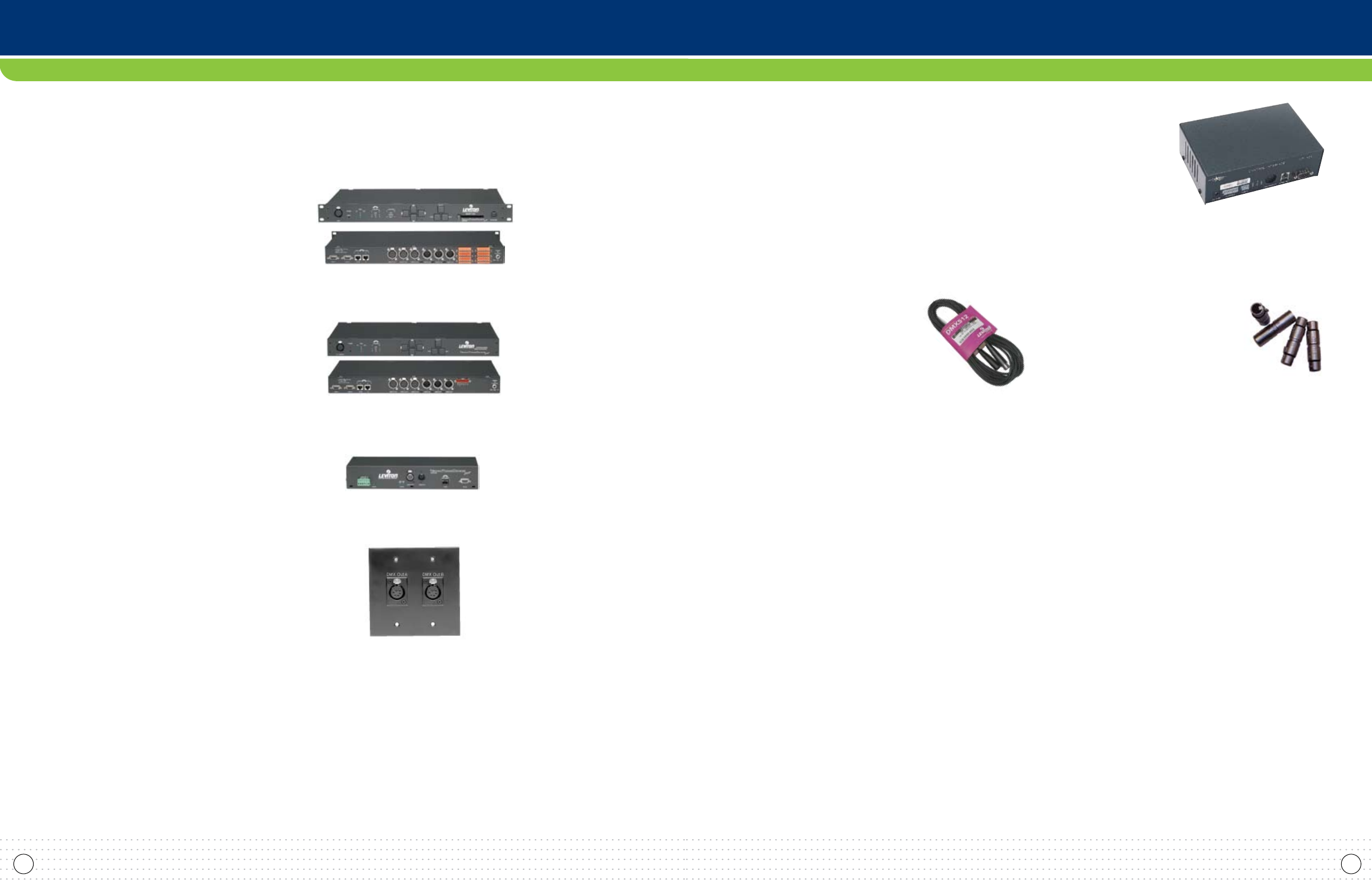

NPC

Leviton’s Network Protocol Converter (NPC) products provide exceptional convenience and flexibility as an interface between devices

on differing networks. In all cases, 10/100BaseT Ethernet speaking the Colornet 3 protocol is standard. In addition, each model has it’s

own unique I/O making it a valuable part of the product line. NPC is required for interface to dimmers without Luma-Net 3 Ports.

NPC XP

• Dual Remote Video Display (Console & Dimmers)

• Simple Universe-Based DMX patching

• DMX Channel Patching (Channel by Channel)

• 19” EIA Rack Mount or Desktop Units

• (3) DMX Inputs, (3) DMX Outputs

• (2) Luma-Net Ports

• (16) Analog Inputs (0-10 VDC & Contact Closure)

NPC DHV

• Dual Remote Video Display (Console & Dimmers)

• Simple Universe-Based DMX patching

• DMX Channel Patching (Channel by Channel)

• 19” EIA Rack Mount or Desktop Units

• (3) DMX Inputs, (3) DMX Outputs

NPC DLR

• Simple Universe-Based DMX patching

• DMX Channel Patching (Channel by Channel)

• Desktop, Surface Mount, or 4 Gang Backbox

(internal receptacles) mounting

• (1) DMX Input, (1) DMX Output

• (1) Luma-Net Port

NPC 2D

• Simple Universe-Based DMX patching

• DMX Channel Patching (Channel by Channel)

• Basic configuration from 8700 series console

•

2 Gang Backbox with internal Ethernet, External DMX

• Portable unit with C-Clamp for mounting

• (2) DMX Inputs, (2) DMX Outputs, or one of each.

• Power over ethernet supply

NPC 4D

• Simple Universe-Based DMX patching

• DMX Channel Patching (Channel by Channel)

• Basic configuration from 8700 series console

• 19” EIA Rack mount

• (4) DMX Inputs or Outputs on terminals

• (8) Universes of data conversion supporting

most standard ethernet protocols

I/F 501

The I/F 501 is a very flexible protocol interface device with a host of different in/out

combinations of the following protocols: DMX512, CMX, AMX, Micro-Plex, Luma-Net™,

MIDI, RS232 and 0-10V analog.

• A precision 20 cue sequence with fade and wait times from 0.1 seconds to 50 minutes

may be programmed into the non-volatile memory via the RS-232 port and triggered remotely.

• DMX / AMX / CMX / MPX Conversion

• 8 pre-programmed auto sequence chases for stand-alone operation

• Interface between a computer and the Luma-Net network for programming Luma-Net stations

• Trigger Luma-Net pre-sets with external contact closures

I/F 501 interface required

for most dimmers.

DMX CABLE

• 3 pin-3, 10, 25, 50, or 100 foot DMX Cable

• 5 pin-3, 10, 25, 50, or 100 foot DMX Cable

DMX ADAPTERS

• 3 Pin Female to 5 pin Female Adapter

• 3 Pin Female to 5 pin Male Adapter

• 3 Pin Male to 5 pin Female Adapter

• 3 Pin Male to 5 pin Male Adapter

• 5 Pin Female to 5 pin Female Adapter

• 5 Pin Female to 5 pin Male Adapter

NPC XP, Desktop np0xp-00d

NPC XP, Rack Mount np0xp-00r

Memory Card, ATA, 16MB (for NPC XP) np0xp-m16

NPC DHV, Desktop npdhv-00d

NPC DHV, Rack Mount npdhv-00r

NPC DLR, with BacNET npbac-000

NPC DLR, Desktop or Surface Mount npdlr-000

I/F 501

I/F 501, DMX512, Luma-Net 1 n0501-000

I/F 501, CMX to DMX n0501-001

I/F 501, MPX/DMX to CMX n0501-002

I/F 501, AMX to DMX n0501-003

I/F 501, AMX Output n0501-004

DMX Cable

3-Pin, 3ft dmx3p-003

3-Pin, 10ft dmx3p-010

3-Pin, 25ft dmx3p-025

3-Pin, 50ft dmx3p-050

3-Pin, 100ft dmx3p-100

5-Pin, 3ft dmx5p-003

5-Pin, 10ft dmx5p-010

5-Pin, 25ft dmx5p-025

5-Pin, 50ft dmx5p-050

5-Pin, 100ft dmx5p-100

DMX/CMX Control Cable, Custom dmx5p-cus

(Quote Required)

DMX Adapters

5-Pin Female to 5-Pin Female XLR 0a5ff-000

5-Pin Female to 5-Pin Male XLR 0a5fm-000

5-Pin Male to 5-Pin Male XLR 0a5mm-000

3-Pin Female to 5-Pin Female XLR a3f5f-000

3-Pin Female to 5-Pin Male XLR a3f5m-000

3-Pin Male to 5-Pin Female XLR a3m5f-000

3-Pin Male to 5-Pin Male XLR a3m5m-000

32

33

DIMMINGDIMMING

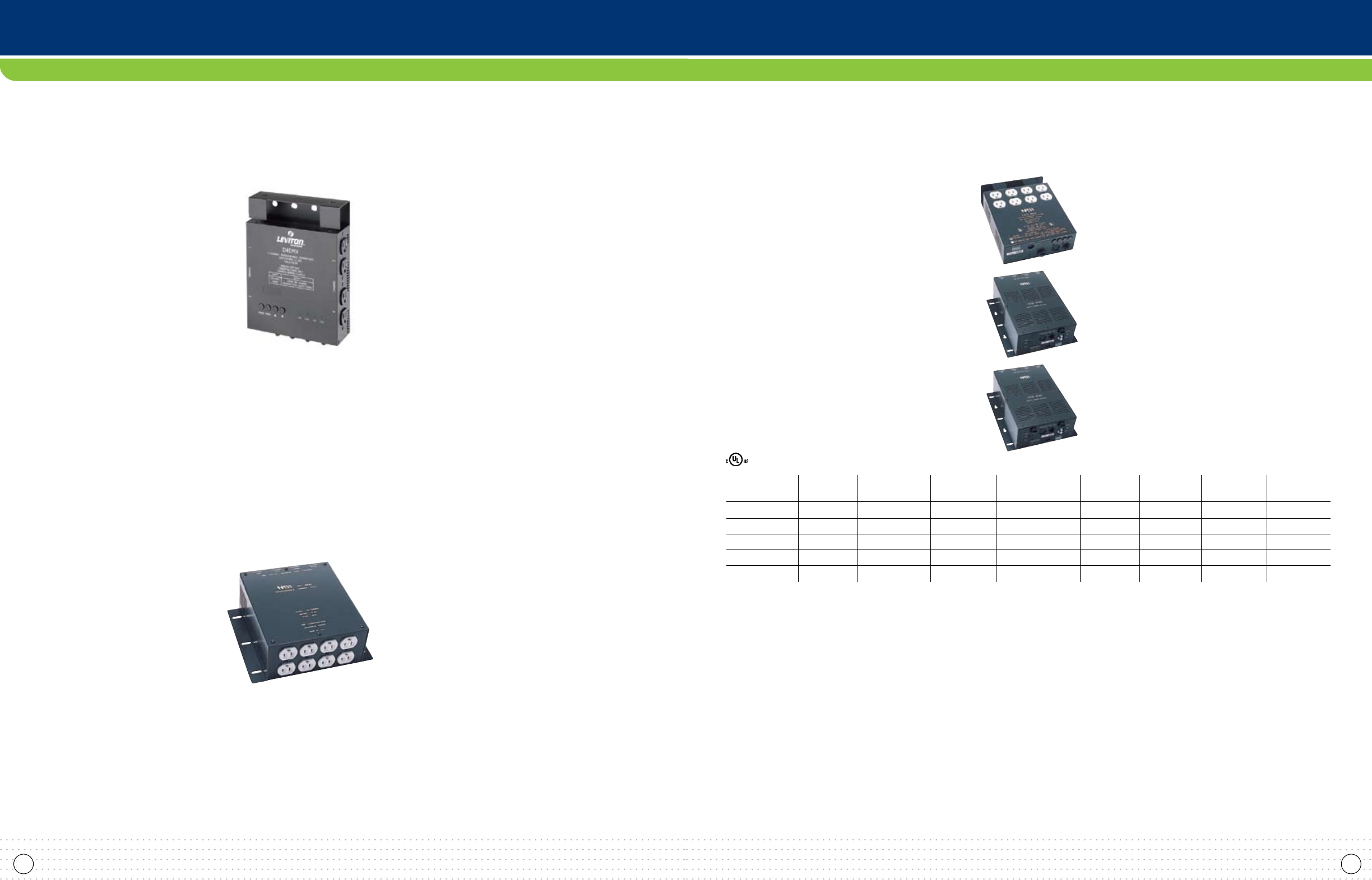

DDS

DDS digital dimming systems combine portability with high caliber rugged performance for a variety of applications. The DDS series provides

Leviton Micro-Plex system connect technology along with 0-10VDC analog control capability, with DMX512 always an available option.

The DDS products may be assigned by channel to act as dimmers or as a relay switch for on/off operation of lights or motorized devices.

The DDS series of digital dimming systems are offered in a variety of capacity and power configurations to meet every individual need.

• 4 Individual Dimmer/Relay Channels

• Dual SCR Circuit Design

• 512 Channel Address Capable

• External Fusing for Each Individual

Channel

• User Select for Dimmer/Relay Operation

• User Select for Soft Start Operation

to Increase Lamp Life

• Internal Jumpers Activate 8 Auto

Sequence Control Programs

• Power On LED Indicator

• Control Status Indicator LED

• Individual Channel Function LEDs

• NSI 128 Channel Micro-Plex

(3-pin XLR)

• Optional DMX512 Digital Control

(5-pin XLR )

• Available with Either 15 or 20 Amp

Power Supply Cords

DDS 5600

- 600 Watts per Channel

- 2400 Watts Maximum Power

- 160 Micro-Second Rise Time

- Integral Hanging Bracket

DDS 6000

- 1200 Watts per Channel

- 2400 Watts Maximum Power

- 400 Micro-Second Rise Time

- Optional Screw Terminal Outputs

DDS 6000+

- 1200 Watts per Channel

- 4800 Watts Maximum Power

- 2 Power Supply Cords

- 400 Micro-Second Rise Time

- Optional Screw Terminal Outputs

Number Max Load Max Load Non-Dim Rise Time Standard Optional

Dimmers per Dimmer per Pack Feeder Plug Mode (µs) Control Control

D4DMX 4 1200W 2400W 5-15P Yes - DMX/MPX -

ND4600 4 600W 2400W 5-15P No 160 NSI MPX -

DDS5600 4 600W 2400W 5-15P Yes 160 NSI MPX DMX

DDS6000 4 1200W 2400W 2* 5-15 or 20P Yes 400 NSI MPX DMX

DDS6000+ 4 1200W 4800W 2* 5-15 or 20P Yes 400 NSI MPX DMX

D4DMX

Leviton combines cutting edge technology and performance along with both DMX and Microplex control in the 4-channel Programmable

D4DMX Dimmer Pack. It boasts the latest convenience features: Resettable circuit breakers in lieu of fuses and one-button setup of

digital DMX addressing via a user-friendly LED panel, eliminating dip-switch settings. Its sturdy metal chassis makes this rugged pack

ideal for both stationary and portable applications. In addition to multi-channel DMX and Microplex dimming control, these units can also

provide a stand-alone chaser function with 16 preprogrammed patterns.

• Microplex and DMX512 protocols

• Available with DMX on 3-pin or 5-pin

XLR receptacles

• Data “in” and “out” provided for

easy daisy-chaining of devices

• Resettable circuit breakers

(no fuses to change)

• Simple pushbutton DMX addressing

makes setup a snap

• Bright LED display for easy,

menu-driven programming

• Versatile output channel selector

lets you choose the exact number

of channels you need

• Clear operation instructions printed

on back of unit for ease of use

• 16 Pre-programmed chase patterns

with chase speed and chase output

level controls.

• Input: 120V, 60Hz (15A Edison Plug)

• Output: 120V, 60Hz, 1200W per

channel, 2400W Maximum

• Built-in mounting bracket

• Housed in rugged metal protective chassis

ND 4600

• 4 Channel Programmable Satellite

Dimmer System

• Channel Address Switch

• Dual SCR Circuit Design

• Two Outputs per Channel

• NSI Micro-Plex Input and Through

Ports

• Power On LED Indicator

• Control Signal Status Indicator LEDs

• Toroidal filtering reduces audio inter-

ference and extends lamp life

• 600 Watts per Channel

• 2400 Watts Maximum Power

• 60 Micro-Second Rise Time

D4DMX

D4DMX with 5-Pin DMX, 120V d4dmx-md5

D4DMX with 3-Pin DMX, 120V d4dmx-md3

ND 4600

ND 4600, 120V n4600-000

ND 4600, 240V n4600-009

DDS 5600

DDS 5600, 15A Power Supply Cord, 120V n5600-000

DDS 5600, DMX Installed,

15A Power Supply Cord, 120V n5600-d00

DDS 5600, 20A Power Supply Cord, 120V n5600-020

DDS 5600, DMX Installed,

20A Power Supply Cord, 120V n5600-d20

DDS 5600, 15A Power Supply Cord, 240V n5600-009

DDS 5600, DMX Installed,

15A Power Supply Cord, 240V n5600-d09

DDS 6000 & 6000+

DDS 6000, 15A Power Supply Cord, 120V n6000-000

DDS 6000, DMX Installed, 15A Power Supply Cord, 120V n6000-d00

DDS 6000, 20A Power Supply Cord, 120V n6000-020

DDS 6000, DMX Installed, 20A Power Supply Cord, 120V n6000-d20

DDS 6000, 15A Power Supply Cord, 120V n6000-009

DDS 6000, DMX Installed, 15A Power Supply Cord, 240V n6000-d09

DDS 6000+, Dual 15A Power Supply Cords, 120V n600p-000

DDS 6000+, DMX Installed, Dual 15A Power Supply Cords, 120V n600p-d00

DDS 6000+, Dual 20A Power Supply Cords, 120V n600p-020

DDS 6000+, Knockout, 120V n600p-02k

DDS 6000+, DMX Installed, Dual 20A Power Supply Cords, 120V n600p-d20

DDS 6000+, DMX Installed, Knockout, 120V n600p-d2k

DDS 6000+, Dual 15A Power Supply Cords, 240V n600p-009

DDS 6000+, Knockout, 240V n600p-0k9

DDS 6000+, DMX Installed, 240V n600p-d09

DDS 6000+, DMX Installed, Knockout, 240V n600p-dk9

SATELLITE DIMMER PACKS SATELLITE DIMMER PACKS

34

35

DIMMING DIMMING

- 1200 Watts per Channel

- 9600 Watts Maximum Power

- 400 Micro-Second Rise Time

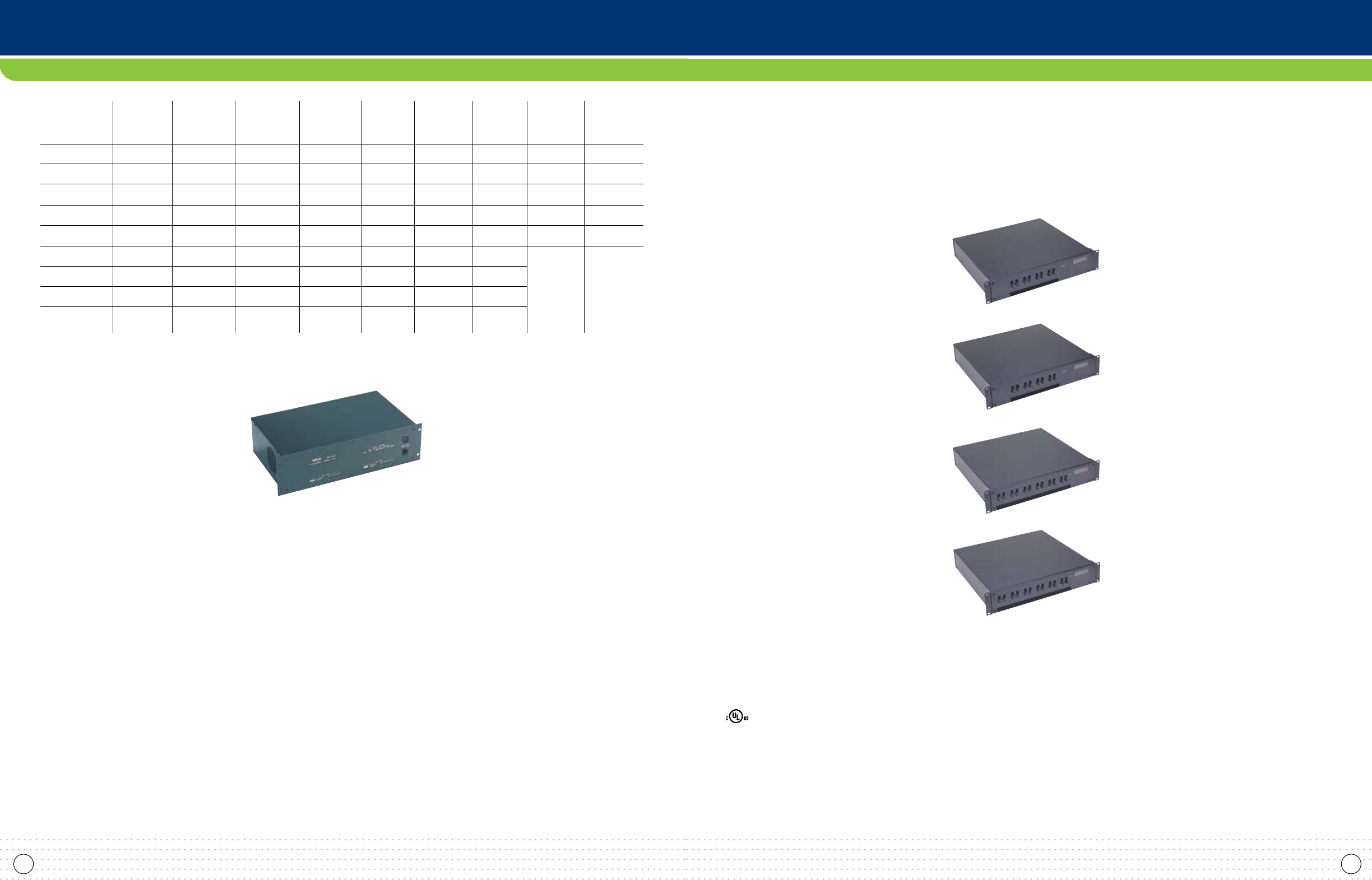

NRD 8000

• 8 Channel Programmable Satellite

Dimmer System

• 120/240 Volt Single-Phase

Power Operation

• Dual SCR Circuit Design

• Individual Channel Circuit

Breaker Protection

• NSI Micro-Plex Input and

Through Jacks

• Automatic Lamp Test Function

• Status Indicator LEDs

• Toroidal filtering reduces audio

interference and extends lamp life

• 19” Rack Mountable Chassis

Max Load 3-Phase

Number per Max Load 1-Phase Max Non-Dim RiseTime Standard Optional

Model Dimmers Dimmer per Pack Max Feed Feed Mode (µs) Control Control

NRD 8000 8 1200W 9600W - - No 400 MPX -

DDS 8600 6 1200W 7200W 30A 20A Yes 300 MPX DMX

DDS 8800 8 1200W 9600W 40A - Yes 300 MPX DMX

DDS 9600 6 2400W 14,400W 60A 40A Yes 400 MPX DMX

DDS 9800 8 2400W 19,200W 80A - Yes 400 MPX DMX

DS 8/12 8 1200W 9600W 40A - Yes 350

DS 8/24 8 2400W 19,200W 80A - Yes 350

DS 12/12 12 1200W 14,400W 60A 40A Yes 350

DS 12/24 12 2400W 28,800W 120A 80A Yes 350

DMX,

MPX, LN1,

0-10Vdc

-

DS MODULAR DIMMER

Leviton’s DS digital dimmer systems combine convenient mobility with a rugged design and high caliber performance for a variety of

lighting application demands. The DS dimmers include a sixteen character liquid crystal display and front panel keypad for intuitive

access to features like presets with time fades, soft patch of DMX and Leviton’s Micro-Plex control signals, 0-10VDC analog input

control, and module temperature data. LED’s on the front panel also provide status to a host of functions like dimmer control level,

active power sources, active DMX512 and NSI Micro-Plex control signals, and temperature conditions. A DMX512 termination switch

is provided on the front panel. All of these performance features combined with the highest power density on the market makes this

dimmer an unbeatable value.

• Fully Modular Design

• Dimmer and Control Modules are Easily

Serviced Using Removable Front Panel

While Dimmer Remains in Rack

• 8 & 12 Channel Versions

• 1200 kW & 2400 kW Per Channel Versions

• 16 Character X 2 Line Backlit Liquid

Crystal Display

• 20 Button Function Keypad

• Non-Volatile EEPROM Preset and

Softpatch Storage

• Softpatch Capable

• Programmable Time Fade Presets

• Programmable Bump Buttons

• Front Panel Accessible DMX512

Termination Switch

• Magnetic Circuit Breakers

• Voltage Regulation

• DMX512 Control Input (5 pin XLR)

• NSI Micro-Plex Control Input (3 pin XLR)

•

NSI Luma-Net® Architectural Control Input

• 0-10VDC Analog Control Inputs

• 120V Input Power- Single Phase &

Three Phase Available

• 15V RMS Preheat Range

• Full On Test/Focus

• Over Voltage and Over Temperature

Protection

• Valid DMX Signal Indicator

• Valid NSI Micro-Plex Signal Indicator

• Line Power Indicator LEDs

• Temperature Status LED

• 350 Micro-Second Rise Time

DS 8-12

- 8 - 1200 Watt Dimmer / Relay Channels

- 9,600 Watts Maximum Power Capability

- Single Phase Power Operation

- 2 pole 40 Amps Input Feed

DS 8-24

- 8 - 2400 Watt Dimmer / Relay Channels

- 19,200 Watts Maximum Power Capability

- Single Phase Power Operation

- 2 pole 80 Amps Input Feed

DS 12-12

- 12 - 1200 Watt Dimmer / Relay Channels

- 14,400 Watts Maximum Power Capability

- Single / Three Phase Power Operation

- 2 pole 60 Amps / 3 pole 40 Amps Input

Feed

DS 12-24

- 12 - 2400 Watt Dimmer / Relay Channels

- 28,800 Watts Maximum Power Capability

- Single /Three Phase Power Operation

- 2 pole 120 Amps / 3 Pole 80 Amps Input

Feed

NRD 8000, (8) Channel, Edison, Output, 120V n8000-0e0

NRD 8000, (8) Channel, Knockout Panel, 120V n8000-0k0

NRD 8000, (8) Channel, Edison, Output, 230V n8000-0e9

NRD 8000, (8) Channel, Knockout Panel, 230V n8000-0k9 DS 8-12 Dimmer Pack, Edison, 5-20 Outputs nds08-1e0

DS 8-12 Dimmer Pack, Knockout Panel nds08-1k0

DS 8-12 Dimmer Pack, Stage Pin Panel nds08-1s0

DS 8-24 Dimmer Pack, Edison 5-20R Outputs nds08-2e0

DS 8-24 Dimmer Pack, Knockout Panel nds08-2k0

DS 8-24 Dimmer Pack, Stage Pin Panel nds08-2s0

DS 12-12 Dimmer Pack, Edison 5-20R Outputs nds12-1e0

DS 12-12 Dimmer Pack, Knockout Panel nds12-1k0

DS 12-12 Dimmer Pack, Stage Pin Panel nds12-1s0

DS 12-12 Dimmer Pack, Edison 5-20R Outputs nds12-2e0

DS 12-24 Dimmer Pack, Knockout Panel nds12-2k0

DS 12-24 Dimmer Pack, Stage Pin Panel nds12-2s0

RACK MOUNT DIMMERS RACK MOUNT DIMMERS

36

37

DIMMINGDIMMING

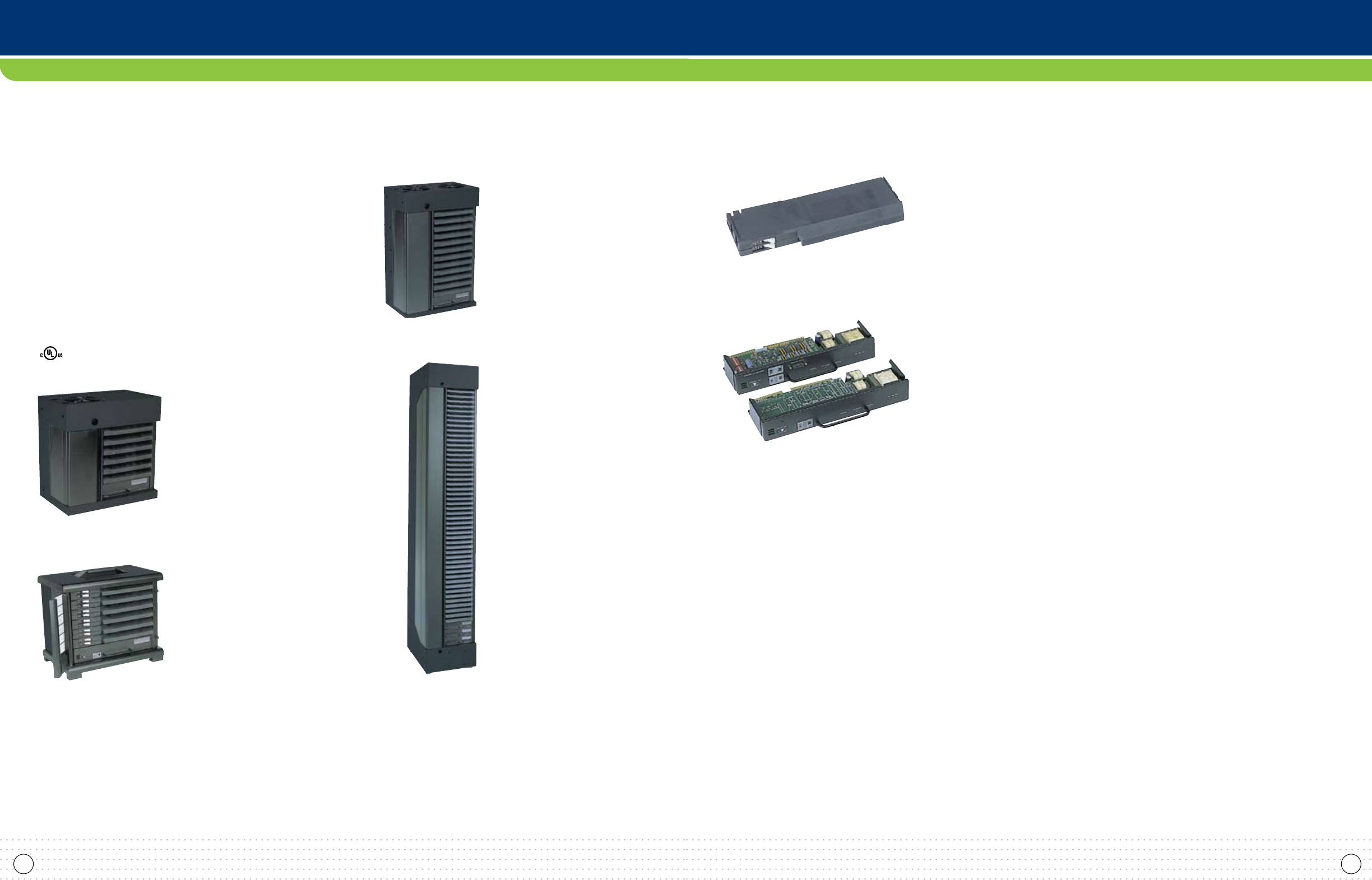

Topaz 96

- Houses 48 Plug-in Dimmer

Modules (96 channels)

- 120 Volt and 240 Volt Versions

- Lateral Busing Kit (connects 2

racks for a total of 192 channels)

- Single Phase or Three Phase

Input Power

TOPAZ

From theatrical to architectural environments, these compact and ruggedly designed dimming cabinets are ideal for permanent

installation in a wide array of facilities. They feature high density dimming in small footprint packages for versatile, powerful, yet

cost-effective performance. These heavy duty Leviton cabinets provide true theatrical grade performance for everything from

churches to theaters and more. For your most demanding dimming applications Leviton products meet the challenge.

• Plug-in Dimmer Modules

• Plug-in Electronic Control Module

• Lightweight

• Single or Three Phase Power

• Locking Door Prevents

Unauthorized Access

• 120 or 230 Voltage

• User Programmable Panic Switches

• Low Noise Fans

• Terminals Provided and Labeled for

All Control Circuits

Topaz Dimmer Modules

- Available in 1.8kW and 2.4kW 120 Volt and 2.5kW 240 Volt Versions

- Filler Module also Available

- 350 Micro-Second Rise Time

- Enclosed Two-piece Engineering Grade, “Rynite” FR530 Chassis

- All Heat Generating Components Have Separate Ambient Air Intakes

to Eliminate Heat Build Up

- Compact Design, Each Module is 1.25"H x 12.0"W x 4.0"D,

Weighing just 2.5 lbs.

Topaz Control Modules

- Digital/Analog and 120/240 Volt

- Completely Digital Circuitry Including a High-Speed Microprocessor

- Indicator LEDs Show That Power is Present and the System is

Functioning Properly

- User-selectable Rack Number Thumbwheel

- DMX or Analog Input

- Non-dim Switches for Each Dimmer

Topaz 12 Wall Pack

Topaz 12 Wall Dimmer Pack, 120V tz012-000

Topaz 12 Wall Dimmer Pack, 230V tz012-240

Topaz 12 Portable

(24) 20A Stage Pin Outputs tz12p-00s

(12) 20A Edison Duplex Outputs (NEMA 5-20RD) tz12p-02e

(12) Locking Connectors L5-20 Outputs tz12p-00l

(12) 15A Edison Duplex Outputs (NEMA 5-15RD) tz12p-01e

(24) 15A Stage Pin Outputs, 230V tz12p-24s

(12) 20A Locking Connectors

with 15A Dimmers, 230V tz12p-24l

Topaz 24

24 Channel Dimmer Rack, 120V tz024-000

Topaz 48 2-Topaz 24 Channel Racks

with Interconnect tz024-24d

Topaz 24 Channel Dimmer Rack, 230V tz024-240

Topaz 96

Topaz 96 Channel Dimmer Rack, 120V tz096-000

Topaz 96 Channel Dimmer Rack, 230V tz096-240

Topaz 12 Portable

- Houses 6 Plug-in Dimmer

Modules (12 channels)

- Less than 44 lbs. in Weight

- Stackable Design, Extremely

Compact

- 120 Volt Only

- Robust Enclosure – Built to

Endure the Demands of the Road

- Optional Cam-type Inputs and

Main Circuit Breaker

Topaz 12 Wall Pack

- Houses 6 Plug-in Dimmer

Modules (12 channels)

- Available with Semi-recessed

Mounting Kit

- 120 and 240 Volt Versions

- Bus Strapping is Arranged or Easy

Conversion from 3 Phase

to 1 Phase

- Ultra Low Noise Operation

Topaz 24

- Houses 12 plug-in Dimmer

Modules (24 channels)

- Plug-in Dimmer and Control

Modules (order separately)

- Wall Mount

- 120 Volt and 240 Volt Versions

- Lateral Busing Kit (connects 2

racks for a total of 48 channels)

- Single Phase or Three Phase

Input Power

Topaz Dimmer Modules

Airflow Module tzmod-fil

Dual 1.8kW, 15A, 120V, Dimmer Module tzmod-018

Dual 2.4kW, 20A, 120V, Dimmer Module tzmod-024

Dual 120V, 20A Constant Module tzmod-0cm

Dual 2.5kW, 15A, 230V, Universal Dimmer Module tzmod-224

Dual 2.4kW, 20A, 120V, Dimmer Module

with Thermal Magnetic Breakers tzmod-t24

Dual 230V, 25A Dimmer Module tzmod-260

Topaz Control Modules

96 Rack Control Module Wired 1-1, 120V tzcmd-961

Phase Balanced Rack Control Module

(Topaz 96, 2 required per Rack) tzcmd-96p

12 or 24 Dimmer Control Module tzcmd-unv

Remote Control Module tzcmd-dmx

96 Rack Control Module Wired 1-1, 230V tzcmd-291

96 Rack Control for 230V Racks Module -

Phase Balanced (2 per Rack) tzcmd-29p

Universal Control Module for 12 and 24 230V Racks tzcmd-2un

Remote Control Module for 230V Racks tzcmd-2dX

HIGH DENSITY DIMMING HIGH DENSITY DIMMING

38

39

DIMMINGDIMMING

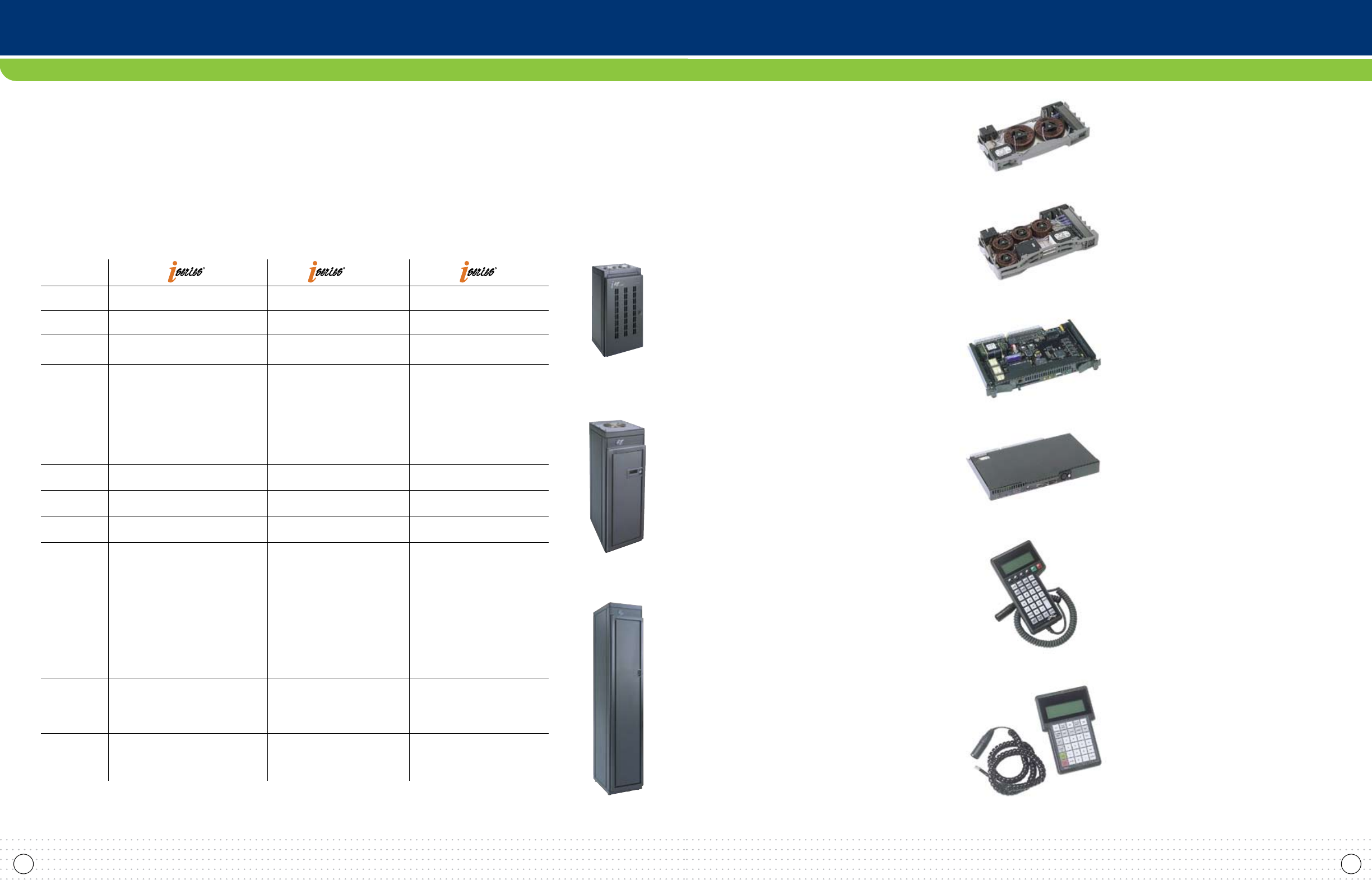

iSERIES DIMMER MODULES

• Contain 2 discrete dimmed circuits

(i48 Quad has 4 circuits)

• Floating load and line connectors for

smooth insertion and removal of

module and integrity of all power and

control contacts

• Built-in panic function for each dimmer

• Power regulation provides smooth

consistent power output despite

fluctuations in power input

• LED on face offers immediate, local

feedback at the rack

• Individual module over-temp warning

and shutdown feature

(i Series module only)

• Failure of single module will not affect

rack operations

• Ultra-smooth dimming (in 4000 steps)

• Optically isolated control signal to

4000 volts

• Available in U.S. and international

voltages

iSERIES CONTROL MODULES

• Provide seamless backup for each rack

plus control signal mapping

iSERIES HANDHELD TERMINAL

• For remote monitoring and programming

of dimmer operating parameters

*Module for iSeries contains additional circuitry for

monitoring and feedback

iSeries e Dimmer Module

iSeries Quad Dimmer Module

iSeries Control Module

iSeries e/Quad Control Module

iSeries Handheld Terminal

iSeries e/Quad Handheld Terminal

No. Modules

No. Circuits

Mounting

Load

Types

Voltage Rating

Voltage

Wattage Ratings

Reporting

Additional

Features

Interfaces

12, 24 or 48

up to 96

12-module cabinet is wall mountable;

others free standing

Supported by custom profiles:

• Incandescent

• Magnetic Low Voltage

• 2-Wire Fluorescent - Advance Mark

10® and Lutron Tu-Wire®*

• Solid State Low Voltage

US & International

+/- 1 Voltage Regulation

1.8 to 10kW

• Overtemp Warning

• Overtemp Shutdown

• Phase Voltage Anomaly

• Data Signal Anomaly

• Active Load

• Active Voltage

• Error Conditions

• Deviation from Recorded Load

• Tripped Breaker

• Panic Condition

• Incorrect Module for Rack Position

• Remote Programming and

Status Reporting

• Optional Electronic Noise Reduction

• Programmable to Numerous Parameters

• DMX

• Ethernet

12

4 per module, 48 per cabinet

wall mountable

Supported by built-in profiles:

• Incandescent

• Magnetic Low Voltage

• 2-Wire Fluorescent - Advance Mark

10® and Lutron Tu-Wire®*

• 3-Wire Fluorescent - Hi-Lume®

and Eco-10™*

• Solid State Low Voltage

US & International

+/- 1 Voltage Regulation

1.8 to 2.4kW (4.0kW International)

• Overtemp Warning

• Overtemp Shutdown

• Phase Voltage Anomaly

• Data Signal Anomaly

• Remote Programming and

Status Reporting

• DMX

• Luma-Net

• Analog

12, 24 or 48

up to 96

12-module cabinet is wall mountable;

others free standing

Supported by built-in profiles:

• Incandescent

• Magnetic Low Voltage

• 2-Wire Fluorescent - Advance Mark

10® and Lutron Tu-Wire®*

• 3-Wire Fluorescent - Hi-Lume®

and Eco-10™*

• Solid State Low Voltage

US & International

+/- 1 Voltage Regulation

1.8 to 10kW

• Overtemp Warning

• Overtemp Shutdown

• Phase Voltage Anomaly

• Data Signal Anomaly

• Remote Programming and

Status Reporting

• DMX

• Luma-Net

• Analog

QUAD e

iSERIES

The Leviton iSeries line of dimmer products is a cost effective line with the same, robust mechanical design approach as the standard

iSeries. The series features racks, which accommodate from 24 to 96 individual dimmers. The Leviton i48 Quad features double the

dimming capacity (48 dimmers) as the i24 in the same, basic cabinet.

• All rack configuration data is stored in rack electronics

• Hot-swappable modules require no programming

• Stores 100 timed backup looks; 12 looks for house or stage

• Optional handheld terminal provides feedback and control at each rack or remotely

• Optional redundant control module provides seamless backup for each rack

*Mark 10® is a registered trademark of Advance Transformer Company.

Eco-10™ is a trademark and Tu-Wire® and Hi-lume® are registered trademarks of Lutron Electronics, Inc.

24 Circuit Rack

(48 Circuit Quad)

48 Circuit Rack

96 Circuit Rack

HIGH DENSITY DIMMING HIGH DENSITY DIMMING

40

41

DIMMING

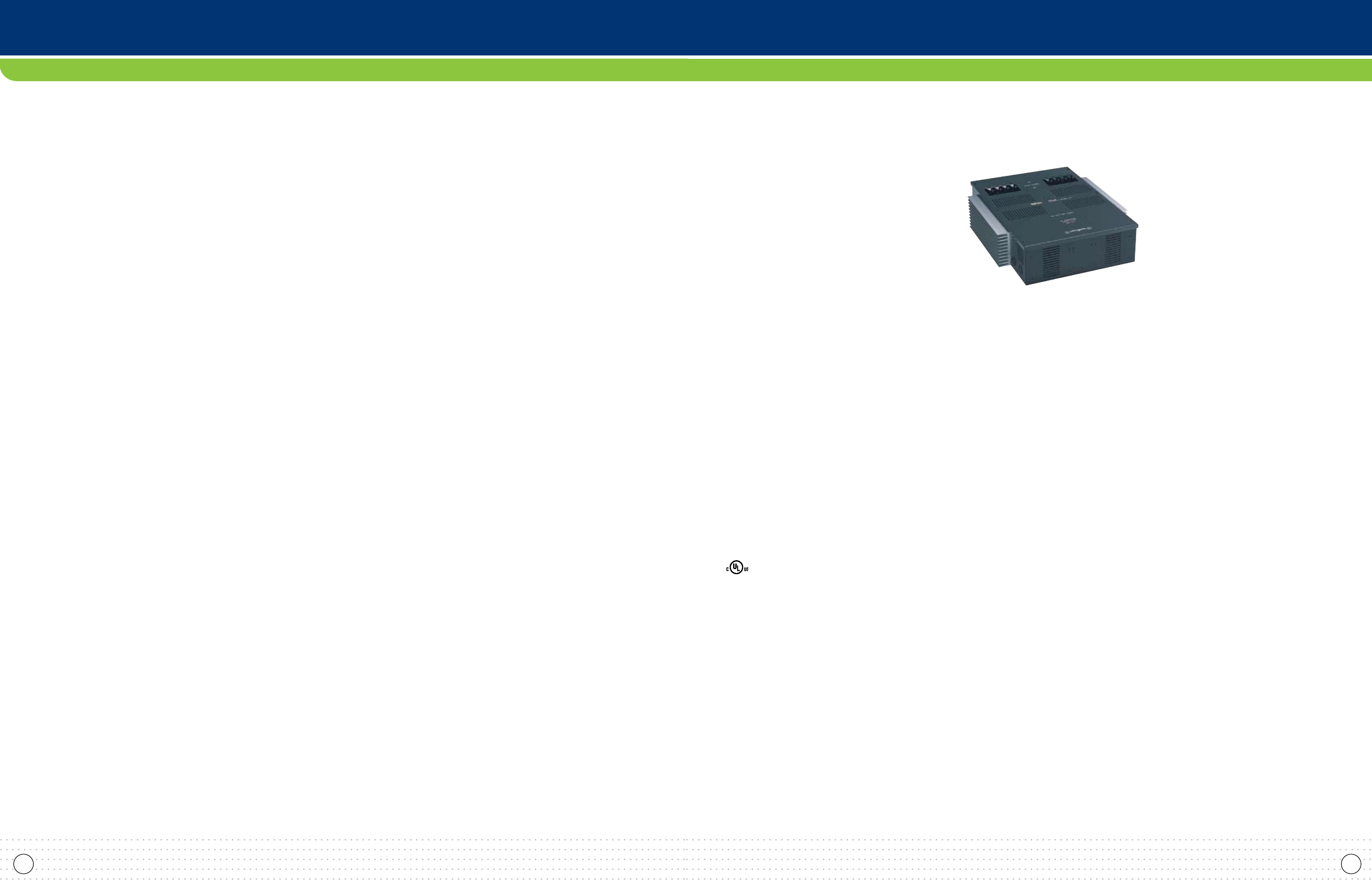

2408 CD

The 2408 CD takes the limits off traditional dimming packs, offering a simple solution to both architectural and entertainment lighting

needs. The 2408 CD is the height of versatility, providing Microplex, DMX512, and 0-10 Volt analog inputs, as well as Luma-Net® control

capability. It’s robust, conservative design means this dimmer is built to provide years of dependable service.

• 8 Individual Dimmer/Relay Channels

• 2,400 Watts per Channel, 19,200

Watts Maximum

• Dual SCR Circuit Design

• Toroidal filtering reduces audio

interference and extends lamp life

• Microprocessor Controlled

• 8 Fully Magnetic Circuit Breakers

• 120/240 Volt Operation

• 512 Channel Address Capable

• Channel Address Select Switch

• Extruded Aluminum Passive Heat

Dispersion

• NSI Micro-Plex, DMX512 and 0-10

Volt Analog Inputs

• Luma-Net® Architectural Control

Capable

• Pressure Screw Terminals for

Hardwire Inputs/Outputs

• Compatible with 0-10V and

Mark 10 Ballasts

• 400 Micro-Second RiseTime

• Single Phase Power

• 2 Pole 80 Amps

• 2404 CD 4-Channel Model Also

Available

• 2408 CR Relay Model Also Available

DIMMING

2408 CD Commercial Dimmer Pack with (8) Channels n2408-cd0

2408 CD Commercial Dimmer Pack with (8) Channels n2408-cd9

2408 CR Commercial Relay Pack with (8) Channels n2408-cr0

2408 CR Commercial Relay Pack with (8) Channels n2408-cr9

iSeries 24 Circuit Rack (48 Circuit Quad)*

i24 Standard, Dual 1.8/2.4kW, Phase Balanced ctp-4-0131

i24 Standard, Dual 2.5kW, Phase Balanced ctp-4-0171

12 Module 230V i24 Phase Balanced Dimmer Rack ctp-4-0175

iSeries e Rack*

24 Module iSeries e Dimmer Rack, Standard Configuration ctp-4-0122e

24 Module iSeries e Dimmer Rack, 230V, Dual 2.5kW, Sequential or Phase Balanced ctp-4-0162e

24 Module 230V i48e Dimmer Configured for Dual 5kw Dimmer Modules ctp-4-0166e

iSeries Quad Rack*

48 Rack, 120V, Quad 1.8/2.4kW, Sequential/Phase Balanced ctp-4-1132

48 Rack, 2300V, Quad 4.0kW, Sequential/Phase Balanced ctp-4-1176

iSeries 48 Circuit Rack*

i48 Standard, Dual 1.8/2.4kW, Phase Balanced ctp-4-0121

i48 Standard, Dual 2.5kW, Phase Balanced ctp-4-0161

i48 Standard, Dual 5.0kW, Phase Balanced ctp-4-0165

iSeries e Rack*

48 Module 120V i96e Dimmer Rack, Standard Configuration ctp-4-0112e

48 Module iSeries e Dimmer Rack, 230V, Dual 2.5kW, Sequential/Phase Balanced ctp-4-0152e

48 Module Dimmer Rack, 230V, Configured for Dual 5kw Dimmer Modules ctp-4-0156e

iSeries 96 Circuit Rack*

i96 Standard, Dual 1.8/2.4kW, Phase Balanced ctp-4-0111

i96 Standard, Dual 2.5kW, Phase Balanced ctp-4-0151

i96 Standard, Dual 5.0kW, Phase Balanced ctp-4-0155

iSeries e Dimmer Module

2.4kW Single Dimmer Module, 120V ied18-120

6.0kW Single Dimmer Module, 120V ied13-150

1.8kW Dual Dimmer Module, 120V ied23-115

2.4kW Dual Dimmer Module, 120V ied23-120

5.0kW Single Dimmer Module, 230V ied15-220

2.5kW Dual Dimmer Module, 230V ied23-210

5.0kW Dual Dimmer Module, 230V ied23-220

iSeries Quad Dimmer Module

1.8kW, Quad Dimmer Module, 120V ied43-115

2.4kW, Quad Dimmer Module, 120V ied43-120

15A Constant Module, 120V iec40-115

20A Constant Module, 120V iec40-120

4.0kW, Quad Dimmer Module, 230V iec43-215

iSeries Control Module

HHT/Control Module Adapter Cable for i24 ctp-4-0305

iSeries Control Module (ICM), 120V ctp-4-0311

iSeries Control Module (ICM), 230V ctp-4-0312

iSeries e/Quad Control Module

iSeries i48E/96E Quad Control Module ctp-4-0311e

iSeries Hand Held Terminal

iSeries Hand Held Terminal (HHT) ctp-4-0301

iSeries e/Quad Hand Held Terminal

iSeries e/Quad Hand Held Terminal (HHT) tahhr-0ie

* Consult factory for additional configurations. Sequential option available.

HIGH DENSITY DIMMING DIMMING PANEL

42

43

DIMMING

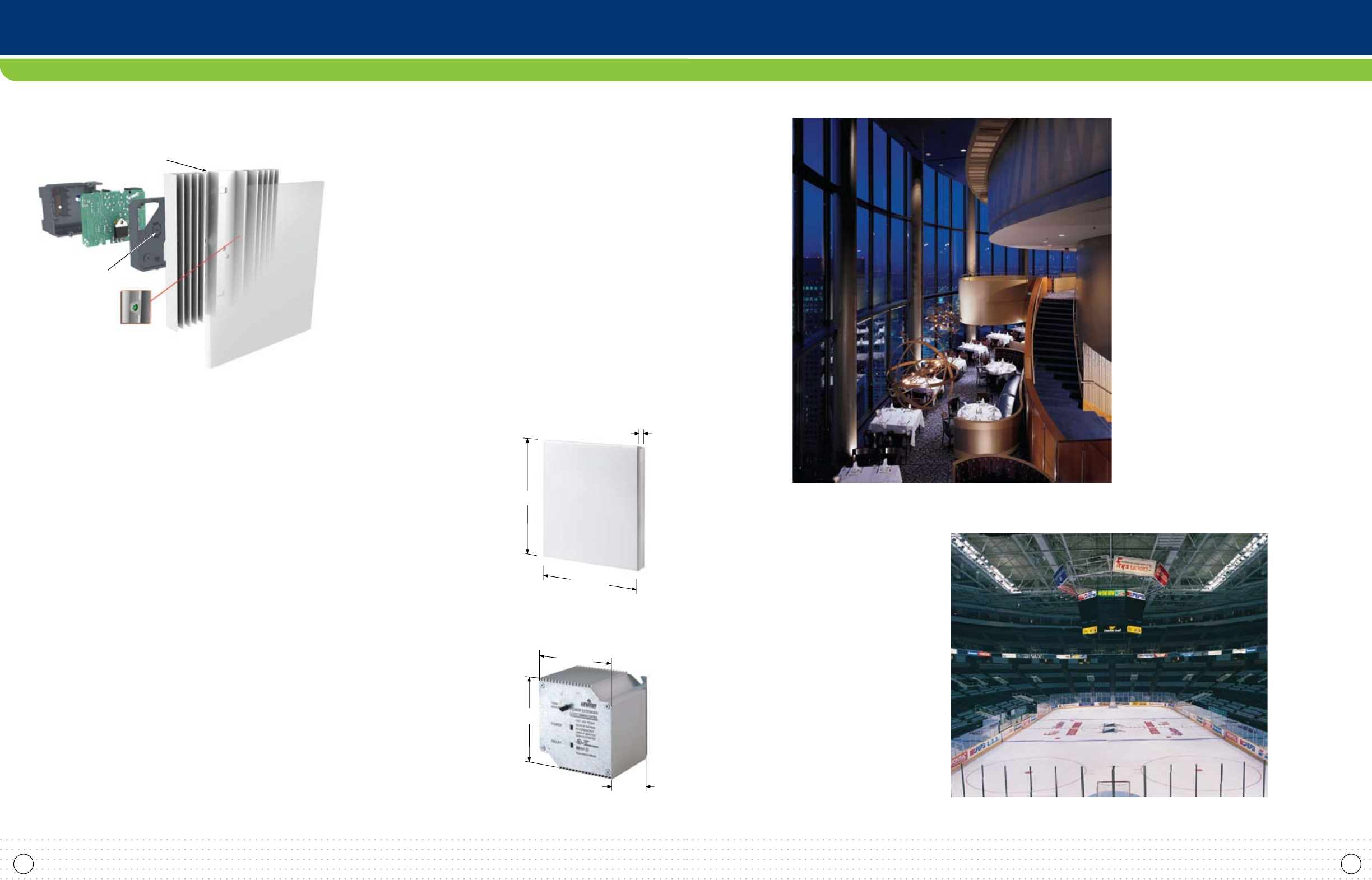

POWER EXTENDERS

POWER EXTENDERS

Leviton power extenders allow higher and different types of loads to be controlled by dimmers and architectural dimming systems than

would otherwise be possible. A variety of models are available for all types of lighting loads.

• Emulate characteristics of connected dimmers in terms of

dimming range and resolution

• Available low-end trim for setting minimum brightness level

• Most models can be surface- or flush-mounted

• UL Listed

Note: dimensions in parenthesis are millimeters; all other dimensions are inches.

San Jose Arena Ice Rink, Architect: Sink Combs Dethlefs

San Jose, California

Extruded aluminum heat sink

to dissipate heat

Low-end

trim adjustment

LED for “load on”

notification

Sun Dial Restaurant at the Westin Peachtree Plaza Hotel, Architect: John Portman

Atlanta, Georgia

4.50 (114.3)

4.72

(119.9)

2.06 (52.0)

PE100/200/400/AUX/AU7

4.30

(109.2)

3.62 (91.9)

4.00 (101.6)

PE300-DOW

DESCRIPTION CAT. NO. RATING COLOR

Extends dimming zone capacity for pe100-10w Input Voltage: 120V 50/60Hz* White

incandescent, magnetic low-voltage,

Load Rating: 1920W/VA

halogen, or neon/cold cathode lighting

Dimmer Input: 120V 50/60Hz

Extends dimming zone capacity pe200-10w Input Voltage: 120V 50/60Hz* White

for Mark 10® Powerline™, Hi-lume®, Load Rating: 1920VA

Lutron Tu-Wire® or equivalent Dimmer Input: 120V 50/60Hz

dimmable fluorescent ballasts

Extends dimming zone capacity pe200-70w Input Voltage: 277V 50/60Hz* White

for Mark 10® Powerline™, Hi-lume, Load Rating: 3000VA

Lutron Tu-Wire® or equivalent Dimmer Input: 120V 50/60Hz

dimmable fluorescent ballasts

Extends dimming zone capacity for

pe300-d0w Input Voltage: 120-277VAC 60Hz* Metallic

Mark 7™ 0-10V, Lutron 0-10V, Load Rating: 20A-2400VA Silver

OSRAM Sylvania Quicktronic® @ 120VAC, 5500VA @ 277VAC

Helios™, or equivalent ballasts Power Consumption: 6W @

120VAC, 18W @ 277VAC

Output Ballast Control: 0-10VDC

Dimmer Input: 120V 60Hz

Extends dimming zone capacity pe400-10w Input Voltage: 120VAC 50/60Hz* White

for electronic low voltage or Load Rating: 1000W/VA

incandescent lighting Dimmer Input: 120V 60Hz

Extends dimming zone capacity for

peau7-m1w I

nput Voltage: 120-230VAC 50/60Hz*

White

Mark 7®, OSRAM Sylvania Load Rating: 1920W/VA @ 120VAC,

Quicktronic® Helios™, or equivalent 2300W/VA @230VAC

to 0-10VDC electronic ballast Dimmer Input: 120V 50/60Hz

*Load output power is phase independent of control device.

44

45

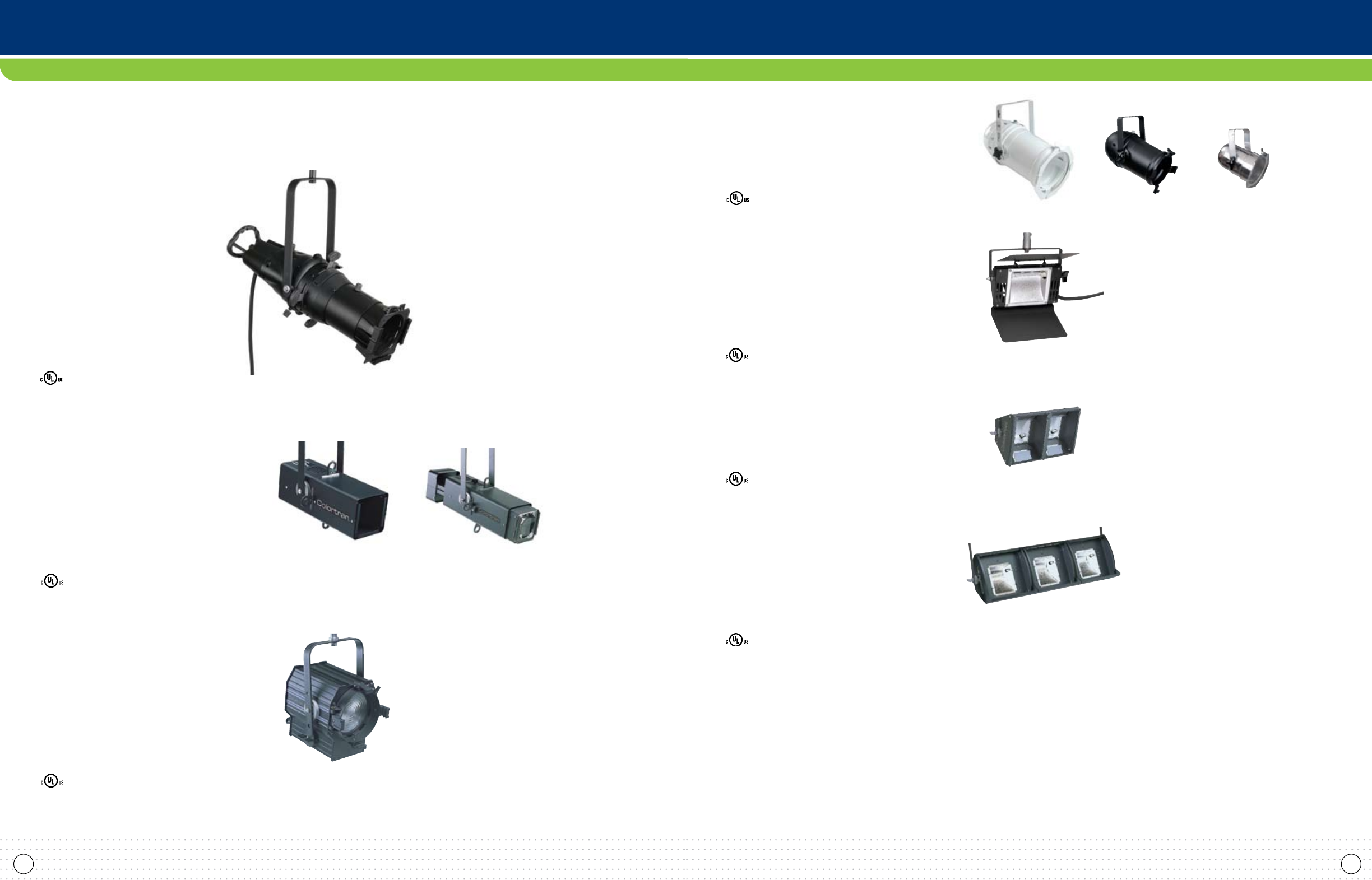

FIXTURESFIXTURES

PAR CANS

• Available in PAR 38, 56, & 64 models

• Rigid, rolled edge frame for extra strength

• Solid Steel Clutch Mechanism on PAR 56 & 64

• Includes color frame at no extra cost

• Black, White, & Chrome finishes available Par 56 Par 38

Par 64

- Compact light producing

asymmetric patter

- Used for small cycs, backdrops,

charts, etc.

- One piece high-efficiency reflector

for high output

- Barn doors provide sharp cutoff

SET LIGHT

The compact size of these instruments

makes them ideal for mounting in tight

places. A one-piece reflector—either

symmetrical or asymmetrical—is designed

to illuminate large surfaces such as cycs,

backings and charts, and are ideal for

location or small-studio requirements.

Integral barndoor provides for shaping

and sharp cutoffs.

CYC STRIP

Cyc Strip is a portable and efficient way to

light cycloramas or large drops. The unit

accepts 500, 750 or 1000 watt lamps.

It mounts in any position with trunion or

yoke and is wired for one through four

color circuits.

FAR CYC

Ideal for uniform, energy-efficient lighting

of large cycloramas, Far Cyc lights will

uniformly illuminate 40 vertical feet of cyc on

12’ centers 10’ from cyc. Color frame design

permits uniform radiation over color media.

Uneven fading is eliminated and color effects

filter life is increased by 50 percent. 1kW,

1.5kW and 2kW lamps are available for

maximum versatility.

- 1-9 light models, 1-3 ckt

continuous strip producing an

asymmetric pattern

- Useful for near-cyc even

illumination of a cyc is required

- One-piece high output reflector

- Wide variety of support lamps

- The premium incandescent

cyc light

- Uniformly illuminates 40 vertical

feet on 10-12 ft. centers

- 1K - 2K lamps available

- Designed for 20A circuits with

pass-thru

- 1, 2, 3, or 4 circuit models

LEO

Leviton’s Enhanced Optics ellipsoidal spotlight breaks through the barriers and pitfalls commonly associated with new generation

ellipsoidal reflector spotlights. LEO offers exceptional performance with a highly engineered optical system resulting in increased

efficiency and more light where you need it.

• 15°, 19°, 26°, 36°, & 50° field angles

• Continuous body & barrel on-axis

rotation (Greater than 360º)

• Up to 750W lamp

• 115-240V

• Cosine (Flat) & Peak focus with all

recommend lamps & beam angles

• Soft Focus

• 30-second lamp replacement

• Field adjustable lenses to change

field angle

• Cool Grip handles for all common

adjustments

• Supports popular HX series of lamps

MINI ELLIPSE

• Three field angles (50°, 40°, 30°) in one

unit, providing maximum versatility

• Unsurpassed photometric performance.

Delivers more light than any competitive unit

• Wide range of long-life lamps allow for

economical and reliable operation

•"Joy-Stick" design allows fast, precise

filament alignment without tools

• Built-in pattern slot

• Each framing shutter travels in its own

plane, eliminating interference

FRESNEL

• Lightweight rugged aluminum construction

• High intensity spot with a smooth even field

• Fully insulated handles

• Smooth focus operation

• Superior Ventilation System

• Available in 6" 1KW or 8" 2KW models

• Theater Models have medium or

pre-focus socket

• Television Models have medium or

mogul split bi-post socket

46

47

FIXTURESFIXTURES

LEO

LEO, 15° Beam Angle, Bare Leads lel15-00b

LEO, 15° Beam Angle Stage Pin Plug, Black lel15-0sb

LEO, 15° Beam Angle 5-15 Plug, Black lel15-0pb

LEO, 15° Beam Angle 5-20 Plug, Black lel15-0tb

LEO, 19° Beam Angle Bare Leads, Black lel19-00b

LEO, 19° Beam Angle Stage Pin Plug, Black lel19-0sb

LEO, 19° Beam Angle 5-15 Plug, Black lel19-0pb

LEO, 19° Beam Angle 5-20 Plug, Black lel19-0tb

LEO, 26° Beam Angle Bare Leads, Black lel26-00b

LEO, 26° Beam Angle Stage Pin Plug, Black lel26-0sb

LEO, 26° Beam Angle 5-15 Plug, Black lel26-0pb

LEO, 26° Beam Angle 5-20 Plug, Black lel26-0tb

LEO, 36° Beam Angle Bare Leads, Black lel36-00b

LEO, 36° Beam Angle Stage Pin Plug, Black lel36-0sb

LEO, 36° Beam Angle 5-15 Plug, Black lel36-0pb

LEO, 36° Beam Angle 5-20 Plug, Black lel36-0tb

LEO, 50° Beam Angle Bare Leads, Black lel50-00b

LEO, 50° Beam Angle Stage Pin Plug, Black lel50-0sb

LEO, 50° Beam Angle 5-15 Plug, Black lel50-0pb

LEO, 50° Beam Angle 5-20 Plug, Black lel50-0tb

Mini Ellipse

Mini Ellipse 30/40/50°, Bare Wire 000me-50b

Mini Ellipse 30/40/50°, Stage Pine Connector 000me-22b

Mini Ellipse 30/40/50°, Edison Connector 000me-42b

Mini Ellipse 30/40/50°, Locking Receptacle Connector 000me-62b

Fresnel - Television

6" Television Fresnel with Bare Leads fr1tv-50b

6" Television Fresnel with Stage Pin Connector fr1tv-22b

6" Television Fresnel with Edison Connector fr1tv-42b

6" Television Fresnel with Locking Receptacle Connector fr1tv-62b

8" Television Fresnel with Bare Leads fr2tv-50b

8" Television Fresnel with Stage Pin Connector fr2tv-22b

8" Television Fresnel with Edison Connector fr2tv-42b

8" Television Fresnel with Locking Receptacle Connector fr2tv-62b

Fresnel - Theater

6" Theater Fresnel, Bare Wire fr1th-50b

6" Theater Fresnel, 20A Male Stage Pin Installed fr1th-22b

6" Theater Fresnel, 15A Edison Plug Installed fr1th-42b

6" Theater Fresnel, 20A Locking Plug Installed fr1th-62b

8" Theater Fresnel, Bare Wire fr2th-50b

8" Theater Fresnel, 20A Male Stage Pin Installed fr2th-22b

8" Theater Fresnel, 15A Edison Pug Installed fr2th-42b

8" Theater Fresnel, 20A Locking Plug Installed fr2th-62b

Par Cans

Par 38 Fixture with 3ft Cable, Black par38-0bl

Par 38 Fixture with 3ft Cable, Polished par38-0cr

Par 56 Fixture with 3ft Cable. Black par56-0bl

Par 56 Fixture with 3ft Cable, Polished par56-0cr

Par 56 Fixture with 3ft Cable, White par56-0wh

Par 64 Fixture with 3 ft Cable, Black par64-0bl

Par 64 Fixture with 3 ft Cable, Polished par64-0cr

Par 64 Fixture with 3ft Cable, White par64-0wh

Set Light

Set Light with Bare Wire 000sl-50b

Set Light with Stage Pin 000sl-22b

Set Light with Edison 000sl-42b

Set Light with Locking Receptacle 000sl-62b

Cyc Strip

1 Cell, 1 Circuit, with Feed Thru cs1c1-50b

1 Cell, 1 Circuit, with 2-3' Cords Terminated with Stage Pin cs1c1-22b

1 Cell, 1 Circuit, with 2-3' Cords Terminated with Edison cs1c1-42b

1 Cell, 1 Circuit, with 2-3' Cords Terminated with Locking Receptacle cs1c1-62b

2 Cell, 1 Circuit, with Bare Leads cs2c1-50b

2 Cell, 1 Circuit, with 2-3' Cords Terminated with Stage pin cs2c1-22b

2 Cell, 1 Circuit, with 2-3' Cords Terminated with Edison cs2c1-42b

2 Cell, 1 Circuit, with 2-3' Cords Terminated with Locking Receptacle cs2c1-62b

2 Cell, 2 Circuit, with Feed Thru and Bare Leads cs2c2-50b

2 Cell, 2 Circuit, with 4 - 3' Cords Terminated with Stage Pin cs2c2-22b

2 Cell, 2 Circuit, with 4 - 3' Cords Terminated with Edison cs2c2-42b

2 Cell, 2 Circuit, with 4 - 3' Cords Terminated with Locking Receptacle cs2c2-62b

3 Cell, 3 Circuit,, with Feed Thru and Bare Leads cs3c3-50b

3 Cell, 3 Circuit, with 6 - 3' Cords Terminated with Stage Pin cs3c3-22b

3 Cell, 3 Circuit, with 6 - 3' Cords Terminated with Edison cs3c3-42b

3 Cell, 3 Circuit, with 6 - 3' Cords Terminated with Locking Receptacle cs3c3-62b

4 Cell, 4 Circuit, with Feed Thru and Bare Leads cs4c4-50b

4 Cell, 4 Circuit, with 6-3' Cords Terminated with Stage Pin cs4c4-22b

4 Cell, 4 Circuit, with 6-3' Cords Terminated with Edison cs4c4-42b

4 Cell, 4 Circuit, with 6-3' Cords Terminated with Locking Receptacle cs4c4-62b

6 Cell, 3 Circuit, with Feed Thru and Bare Leads cs6c3-50b

6 Cell, 3 Circuit, with 6 - 3' Cords Terminated with Stage Pin cs6c3-22b

6 Cell, 3 Circuit, with 6 - 3' Cords Terminated with Edison cs6c3-42b

6 Cell, 3 Circuit, with 6 - 3' Cords Terminated with Locking Receptacle cs6c3-62b

8 Cell, 4 Circuit, with Bare Leads cs8c4-50b

9 Cell, 3 Circuit, with Feed Thru and Bare Leads cs9c3-50b

Far Cyc

1 Cell, with "C" Clamp, Bare Ends, 120V 1fc1v-50b

1 Cell, with "C" Clamp, Stage Pin Connector, 120V 1fc1v-22b

1 Cell, with "C" Clamp, 5-15P Connector, 120V 1fc1v-42b

1 Cell, with "C" Clamp, Locking Receptacle (L5-20P) Connector, 120V 1fc1v-62b

1 Cell, with "C" Clamp, Bare Ends, 220V 1fc2v-50b

2 Cell, with "C" Clamp, Bare Ends, 120V 2fc1v-50b

2 Cell, with "C" Clamp, Stage Pin Connector, 120V 2fc1v-22b

2 Cell, with "C" Clamp, 5-15P Connector, 120V 2fc1v-42b

2 Cell, with "C" Clamp, Locking Receptacle (L5-20P) Connector, 120V 2fc1v-62b

2 Cell, with "C" Clamp, Bare Ends, 220V 2fc2v-50b

3 Cell, with "C" Clamp, Bare Ends, 120V 3fc1v-50b

3 Cell, with "C" Clamp, Stage Pin Connector, 120V 3fc1v-22b

3 Cell, with "C" Clamp, 5-15P Connector, 120V 3fc1v-42b

3 Cell, with "C" Clamp, Locking Receptacle (L5-20P) Connector, 120V 3fc1v-62b

3 Cell, with "C" Clamp, Bare Ends, 220V 3fc2v-50b

4 Cell, with "C" Clamp, Bare Ends, 120V 4fc1v-50b

4 Cell, with "C" Clamp, Stage Pin Connector, 120V 4fc1v-22b

4 Cell, with "C" Clamp, 5-15P Connector, 120V 4fc1v-42b

4 Cell, with "C" Clamp, Locking Receptacle (L5-20P) Connector, 120V 4fc1v-62b

4 Cell, with "C" Clamp, Locking Receptacle (L5-20P) Connector, 220V 4fc2v-50b

48

49

FIXTURES

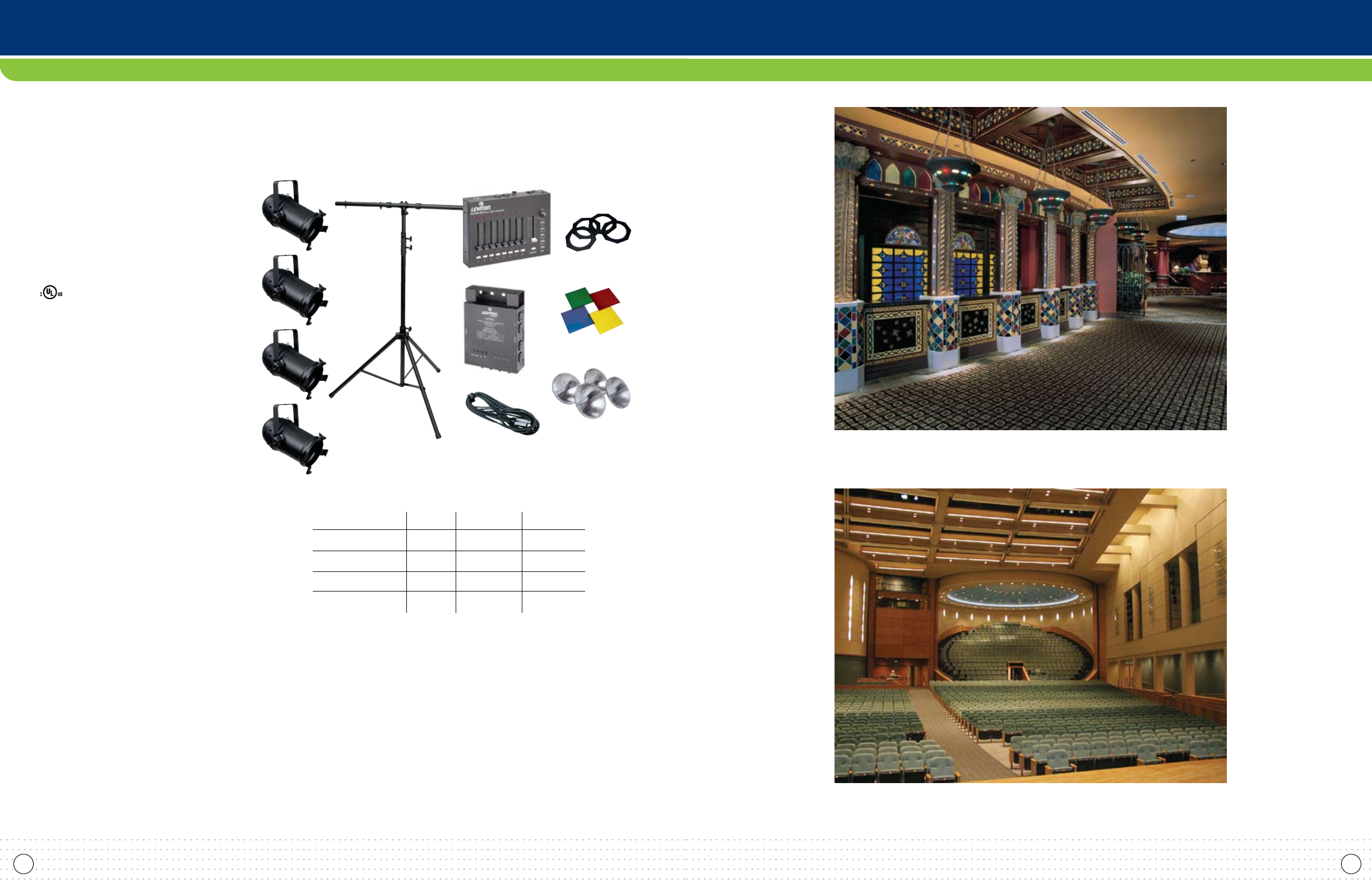

ENTERTAINMENT PACKAGED SYSTEMS

Leviton’s complete lighting systems provide everything you need to bring your performance to light. From the lamps to the color frames

and gels, these are true turn-key systems. With several control packages, there is sure to be a system that’s right for you. Need an

eight-light configuration? Just add an expansion kit to your base system and you’re set. It’s the easy, cost-effective way to build just the

system you need, when you need it.

• Easily Expandable by Adding More

of Your Own Dimmers and Lights

• Three Kits to Choose from

•

Color Frame Included at No Extra Cost

• Rolled Edges for Extra Strength

• Solid Steel Clutch on Par 56 Cans

• Black Finish

All systems include: stand, control cable, 4 color gels, 4 color

frames and 4 lamps.

Mini Standard Expansion

Par 38 or 56 4 4 4

3004 Console 1 - -

3008 Console - 1 -

D4DMX 1 1 1

PAR56 Expansion Kit honek-056

PAR38 Expansion Kit honek-038

PAR56 Mini Kit honmk-056

PAR56 Mini Kit honmk-038

PAR56 Standard Kit honsk-056

PAR38 Standard Kit honsk-038

House of Blues, Architect: Lawrence B. Berkley & Associates

Chicago, Illinois

Minneapolis Convention Center, Architect: Arvid Elness Architects, Inc., Lighting Design: Schuler & Shook

Minneapolis, Minnesota

ENTERTAINMENT PACKAGED SYSTEMS

50

51

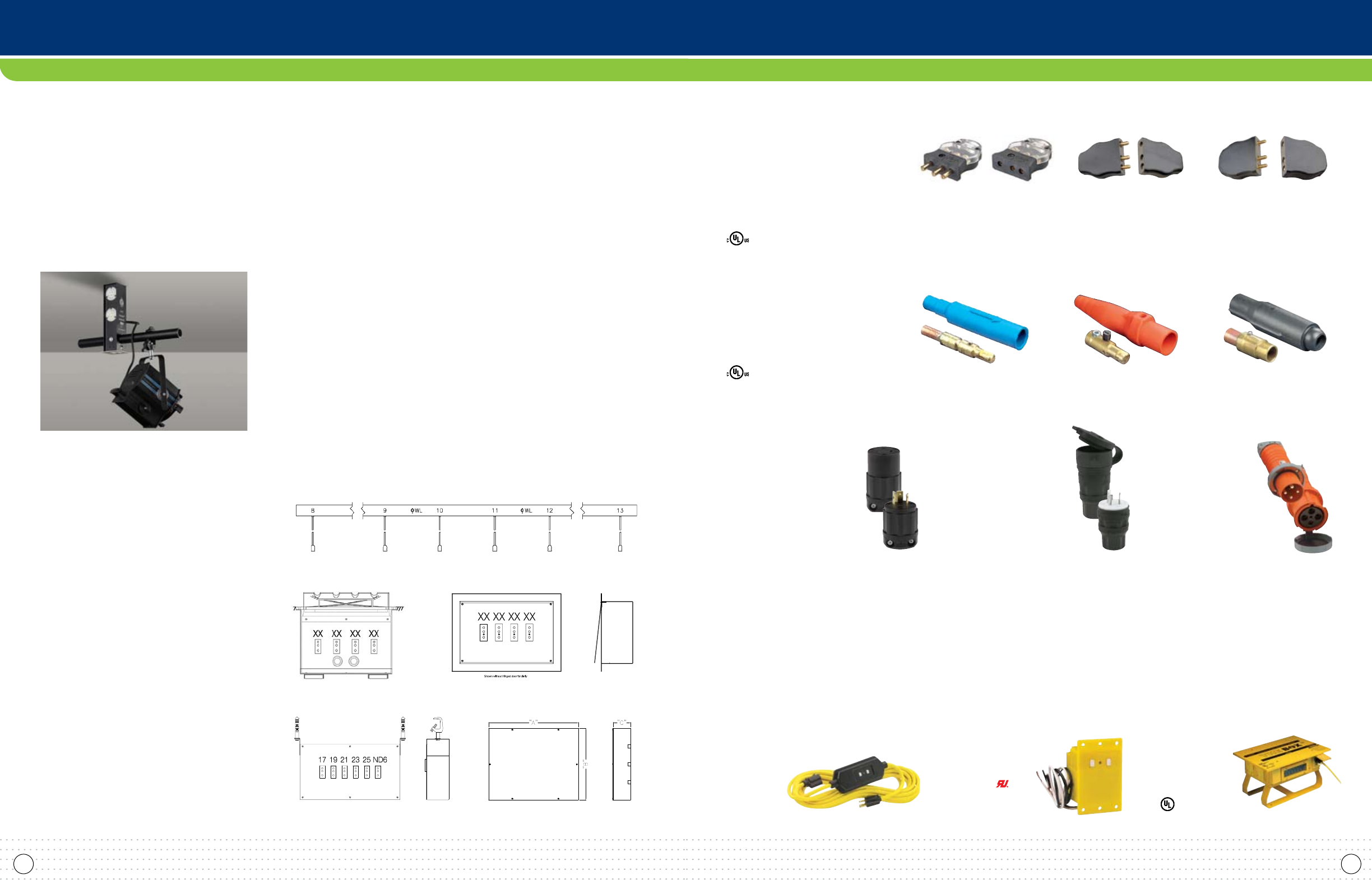

CONNECTORSDISTRIBUTION EQUIPMENT

SKYHOOK

The Skyhook is a unique retractable lighting support device

designed specifically to support theatrical lighting instruments.

• Revolutionary hide-away retractable lighting support

• 1,000 pound load limit

• All wiring housed inside

• Discrete 4.5” x 4.5” plate is the only visible part

• ETL Listed

• Available with most receptacle types

• Optional Data I/O

Connector Strip

Plug Boxes (other styles available) Gridiron Junction Boxes

ECT™ SINGLE POLE CAM DEVICES

• Santoprene Insulator —

Shatter and Crack Proof

• Slit and Cam Male Contact Design —

Compensates for Wear

• Color-Coded Insulators for Easy

Phase Identification 15D23-B

15 Series

Taper Nose

16D21-O

16 Series

Taper Nose

18V28-E

18 Series

Ball Nose

NEMA - All Black

• 15A & 20A Straight Blade

• 15A, 20A & 30A Locking

• PowerLight™ Available

• Super Tough Nylon

• One-Piece Connector Contacts

• Fast-Threading Combination

Screws

• Solid Brass Plug Blades

26W47-B &

27W47-B

2313-PLB &

2311-PLB

IEC Pin & Sleeve

• 20A-100A Watertight

& Splash Proof

- Plugs & Connectors

- Receptacles

- Inlets

• 20A -100A Switches

- Mechanical Interlock

- Non-Fused & Fused

• Valox® Back Boxes

• Replacement Components

Valox® is a registered trademark of GE.

4100P-12W &

4100C-12W

NEMA Watertight Wetguard

®

• IP67 Watertight

Industrial Connections

• 15A & 20A Straight Blade

• 15A, 20A & 30A Locking

• EPTR High Abuse Rubber

• Nickel-Plated Brass Blades

and Contacts

• Watertight Cord Strain Relief System

• Double-Combo Screws

NEMA & IEC CONNECTION DEVICES

66591-25C

“THE BOX”™ Portable Power Center

• 6 GFCI Protected 20A 125V Straight

Blade or Locking Receptacles

• GFCI Protected 30A 250V Locking

Receptacle

• 50A 125/250V Non-NEMA Power Con-

nections

• Meets OSHA

Regulation 20,

Subpart K

Standards

PB101-SGF

GFCI Cord Sets

• 15A & 20A 125V; 15A & 20A 240V

• Automatic and Manual Reset Types

• Orange Power Status Indicator

• Yellow Cord 14/3 SJT

• Resistant to Surge, Noise & Corrosion

• Per 2003 UL Requirements

36596

Recognized

Component

Panel Mount GFCI with 16" Leads

• 20A 125V

• Orange LED Indicator Light

• Weather-Resistant Housing & Test/Re-

set Buttons

• Resistant to Surge, Noise & Corrosion

• DIN-Rail Mountable

GFCI Receptacles

Also Available

PORTABLE POWER & GFCI DEVICES

OUTDOOR

DISTRIBUTION EQUIPMENT

Leviton‘s distribution equipment is designed

for use in theaters, television studios and other

spaces where the distribution of power to lighting

circuits is required. Providing ease of installation,

ease of use, and robust durability, Leviton’s dis-

tribution equipment is available in standard and

complete custom options for any configuration.

Floor Pockets Wall Pocket (other sizes available)

ECT™ STAGE PIN DEVICES

• Rugged Phenolic Housings

• One-Piece Brass Blades/Contacts for

Superior Current Flow

• Slit In Male Pin Provides Spring

Action — Compensates for Wear

• Made in the USA

• Intermateable and Compatible with

Competitive Pin-Type Products

60MP-E 60FP-E

60 AMP

100MP-E 100FP-E

100 AMP

20MP-CL 20FP-CL

20 AMP

Skyhook*

w/(2) 15A PGB sh000-020

w/(3) 15A PGB sh000-030

w/(4) 15A PGB sh000-040

w/(4) 20A Stage Pin sh000-400

w/(4) 20A Locking Receptacles sh000-004

w/(2) 15A PBG, (1) 5-Pin DMX Output shd00-020

w/(3) 15A PBG, (1) 5-Pin DMX Output,

(1) 5-Pin DMX Input shdis-030

w/(1) 15A PBG, (1) 5-Pin DMX Output,

(2) 20A Stage Pin shd00-210

w/(3) 20A Locking Receptacles,

(1) 5-Pin DMX Output, (1) 5-Pin DMX Input shdis-003

w/(4) User Installed Receptacles sh000-000

w/(3) User Installed Receptacles,

(1) 5-Pin DMX Output shd00-000

w/(3) User Installed Receptacles,

(1) 5-Pin DMX Output, (1) 5-Pin DMX Input shdis-000

w/(2) 15A PBG, (2) User Installed Receptacles shxx0-020

w/(3) 15A PBG, (2) User Installed Receptacles shxx0-030

w/(4) 15A PBG, (2) User Installed Receptacles shxx0-040

w/(4) 20A Locking Receptacles,

(2) User Installed Receptacles shxx0-004

* Consult factory for additional configurations. Sequential option available.

C-738A/J9-ak

REV OCT 2009

Leviton Manufacturing Co., Inc.

20497 SW Teton Avenue, Tualatin, OR 97062

Telephone: 1-800-736-6682 • FAX: 503-404-5594 • Tech Line (6:00AM-4:00PM P.S.T. Monday-Friday): 1-800-959-6004

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 • Telephone: 1-800-469-7890 • FAX: 1-800-563-1853

Leviton S. de R.L. de C.V.

Lago Tana 43, Mexico DF, Mexico CP 11290 • Tel. (+52) 55-5082-1040 • www.leviton.com.mx

Visit our Website at www.leviton.com

© 2009 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.
