1/24

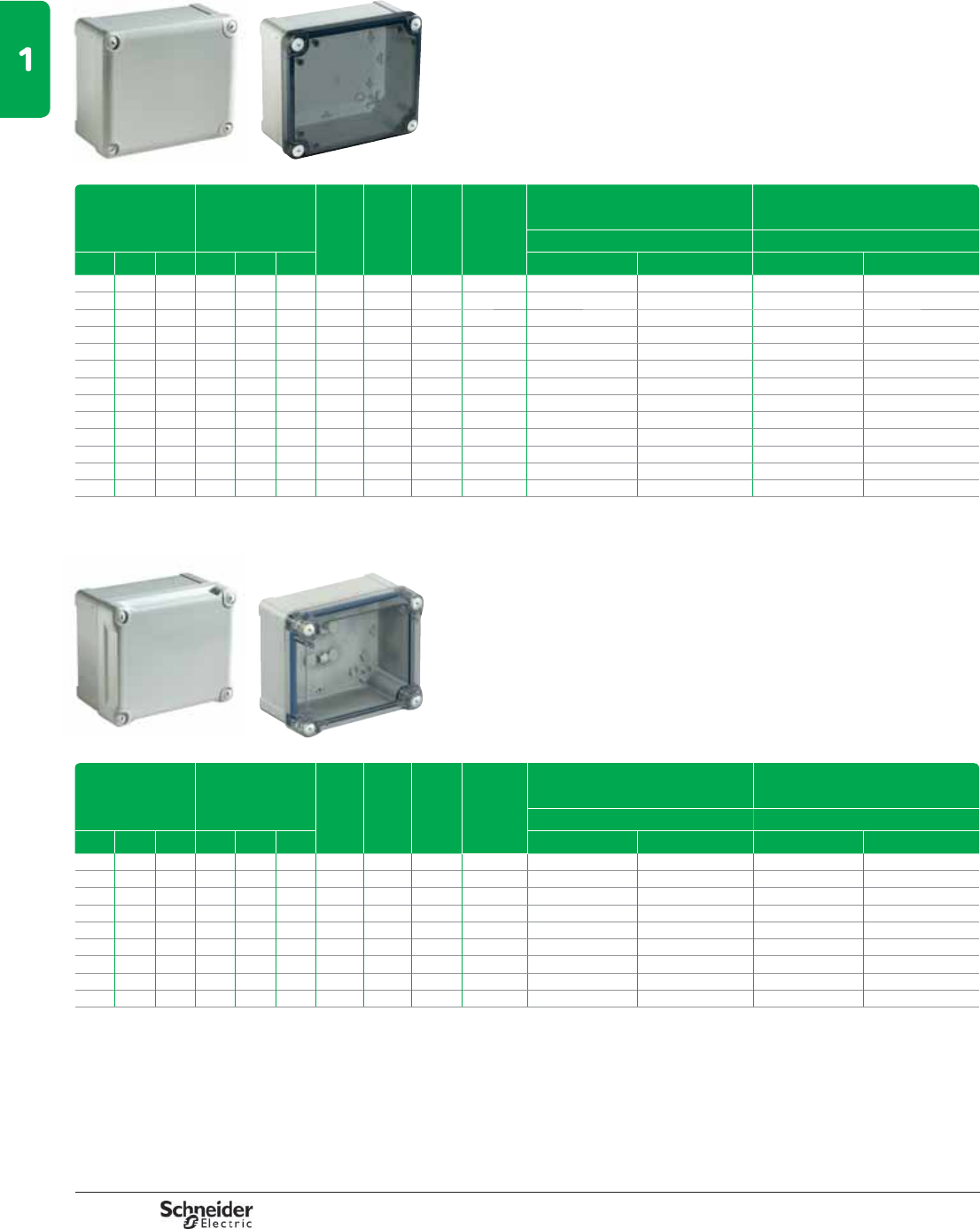

Thalassa TBS - TBP

Overall external

dimensions (mm)

Overall internal

dimensions (mm) Body

(mm)

Cover

(mm)

Minor

pack.

Cover

screw

ABS boxes

IP 66 - IK 07

PC-UL boxes

IP 66 - IK 08

Cover Cover

Height Width Depth Height Width Depth Opaque Transparent Opaque Transparent

74 74 54 65 65 47 37 10 5 Metal NSYTBS775 - NSYTBP775 -

89 89 54 80 80 47 37 10 5 Metal NSYTBS885 - NSYTBP885 -

116 74 62 105 65 55 45 10 5 Metal NSYTBS1176 - NSYTBP1176 -

116 116 62 105 105 55 45 10 5 Plastic NSYTBS11116 - NSYTBP11116 -

138 93 72 125 80 65 45 20 2 Plastic NSYTBS1397 NSYTBS1397T NSYTBP1397 NSYTBP1397T

164 121 87 150 105 80 60 20 2 Plastic NSYTBS16128 NSYTBS16128T NSYTBP16128 NSYTBP16128T

192 121 87 175 105 80 60 20 2 Plastic NSYTBS19128 NSYTBS19128T NSYTBP19128 NSYTBP19128T

192 164 87 175 150 80 60 20 1 Plastic NSYTBS19168 NSYTBS19168T NSYTBP19168 NSYTBP19168T

241 194 87 225 175 80 60 20 1 Plastic NSYTBS24198 NSYTBS24198T NSYTBP24198 NSYTBP24198T

241 194 107 225 175 100 80 20 1 Plastic NSYTBS241910 NSYTBS241910T NSYTBP241910 NSYTBP241910T

291 241 88 275 225 80 60 20 1 Plastic NSYTBS29248 NSYTBS29248T NSYTBP29248 NSYTBP29248T

291 241 128 275 225 120 100 20 1 Plastic NSYTBS292412 NSYTBS292412T NSYTBP292412 NSYTBP292412T

341 291 128 325 275 120 100 20 1 Plastic NSYTBS342912 NSYTBS342912T NSYTBP342912 NSYTBP342912T

ABS or polycarbonate boxes

with low cover

● IP 66 - NEMA 4.4X.

● IK 07 (ABS) - IK 08 (PC).

● RAL 7035 grey.

● Boxes 54 to 128 mm deep with 10- to 20-mm covers.

● Opaque or transparent cover.

● Hinges: as accessories and only for the 20-mm covers.

Overall

external

dimensions (mm)

Overall internal

dimensions (mm) Body

(mm)

Cover

(mm)

Minor

pack.

Cover

screw

ABS boxes

IP 66 - IK 07

PC-UL boxes

IP 66 - IK 08

Cover Cover

Height Width Depth Height Width Depth Opaque Transparent Opaque Transparent

116 74 94 105 65 85 45 40 3 Metal

NSYTBS1179H

---

116 116 133 105 105 125 45 80 2 Plastic

NSYTBS111113H

---

192 121 105 175 105 100 60 40 2 Plastic

NSYTBS191210H

NSYTBS191210HT

NSYTBP191210H

NSYTBP191210HT

192 164 105 175 150 100 60 40 1 Plastic

NSYTBS191610H

NSYTBS191610HT

NSYTBP191610H

NSYTBP191610HT

241 194 107 225 175 100 60 40 1 Plastic

NSYTBS241910H

NSYTBS241910HT

NSYTBP241910H

NSYTBP241910HT

241 194 127 225 175 120 80 40 1 Plastic

NSYTBS241912H

NSYTBS241912HT

NSYTBP241912H

NSYTBP241912HT

291 241 128 275 225 120 60 60 1 Plastic

NSYTBS292412H

NSYTBS292412HT

NSYTBP292412H

NSYTBP292412HT

291 241 168 275 225 160 100 60 1 Plastic

NSYTBS292416H

NSYTBS292416HT

NSYTBP292416H

NSYTBP292416HT

341 291 168 325 275 160 100 60 1 Plastic

NSYTBS342916H

NSYTBS342916HT

NSYTBP342916H

NSYTBP342916HT

ABS or polycarbonate boxes

with high cover

● IP 66 - NEMA 4.4X.

● IK 07 (ABS) - IK 08 (PC).

● RAL 7035 grey.

● Boxes 94 to 168 mm deep with 40- to 80-mm covers.

● Opaque or transparent cover.

● Hinges: as accessories and only for the 40-mm covers.

Thermoplastic industrial boxes
