SFCS-6002A-0502
May, 2002
Industrial Plug-In Relay
Catalog Supplement
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
1
IMPORTANT
This catalog supplement does not purport to cover all details or variations in equipment, nor to provide for every
possible contingency to be met in connection with installation, operation or maintenance. Should further informa-
tion be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes,
the matter should be referred to the local Siemens sales office. The contents of this catalog supplement shall not
become part of or modify any prior or existing agreement, commitment or relationship. The sales contract contains
the entire obligation of Siemens. The warranty contained in the contract between the parties is the sole warranty
of Siemens. Any statements contained herein do not create new warranties or modify the existing warranty.
NOTE: For a current copy of all the pertinent instruction sheets, which contain important safety, application, and
installation information relating to this product, please see the Siemens Energy & Automation web site:
www.sea.siemens.com/controls. Downloading is highly recommended. Failure to review this information could
create a situation leading to death, serious injury, or property damage.
We have updated our general purpose
plug in relay offering to better suit your
needs. Plug in relays are easy to use
and install. The sockets can be either
panel mounted or DIN rail mounted.
Since most of our relays have the indus-
try standard form, fit and funtion they
can typically fit right into your current
application.
Premium LLine
Our new durable Premium Line has
many features and covers multiple con-
tact configurations such as: Single
Pole/Double Throw, Double Pole/Double
Throw, Three Pole/Double Throw or Four
Pole/Double Throw and are available in
most common coil voltages. Each relay
has Easy Grip covers, LED status indica-
tor, mechanical indicator with push to
test button as well as an I.D. label. Our
new Premium Line offers premium bene-
fits at a reasonable price.
Basic LLine
For simple applications that require a reli-
able relay, we offer our standard Basic
Line. Our Basic Line can cover most any
relay need up to currents as high as 25A
and come in many different styles and
contact configurations.

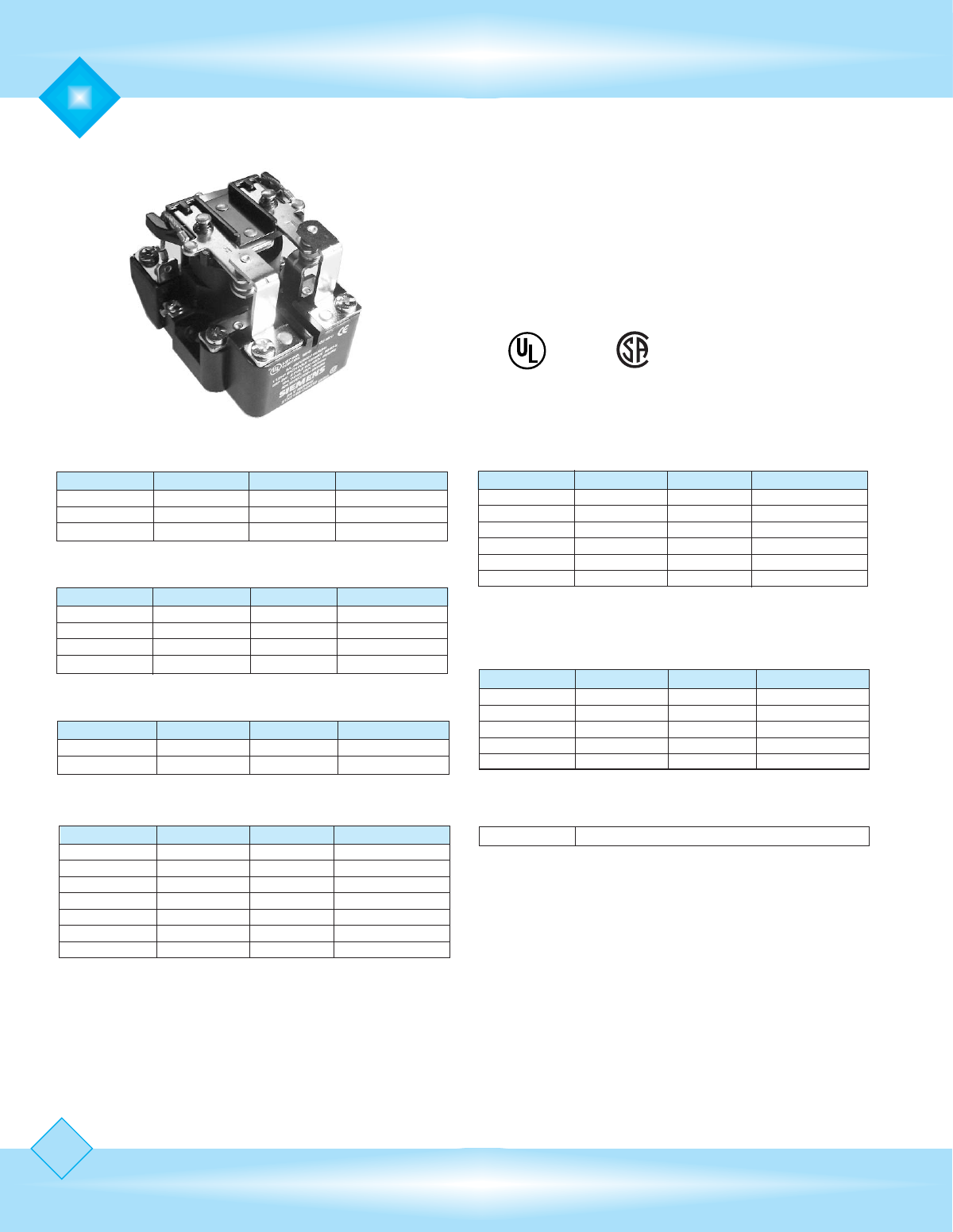

Heavy DDuty PPower RRelays
For heavy duty applications we offer our
3TX7130 series of power relays. These
durable relays can handle currents up to
30A and come in various contact config-
urations.
Our ccommitment tto yyou
Our mission is to be your relay provider
of choice by providing quick service and
reliable relays at a reasonable price.
Plug In Relay Line Overview
Siemens nnew ggeneral ppurpose pplug iin rrelay lline iis ddesigned tto mmeet yyour nneeds
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
2

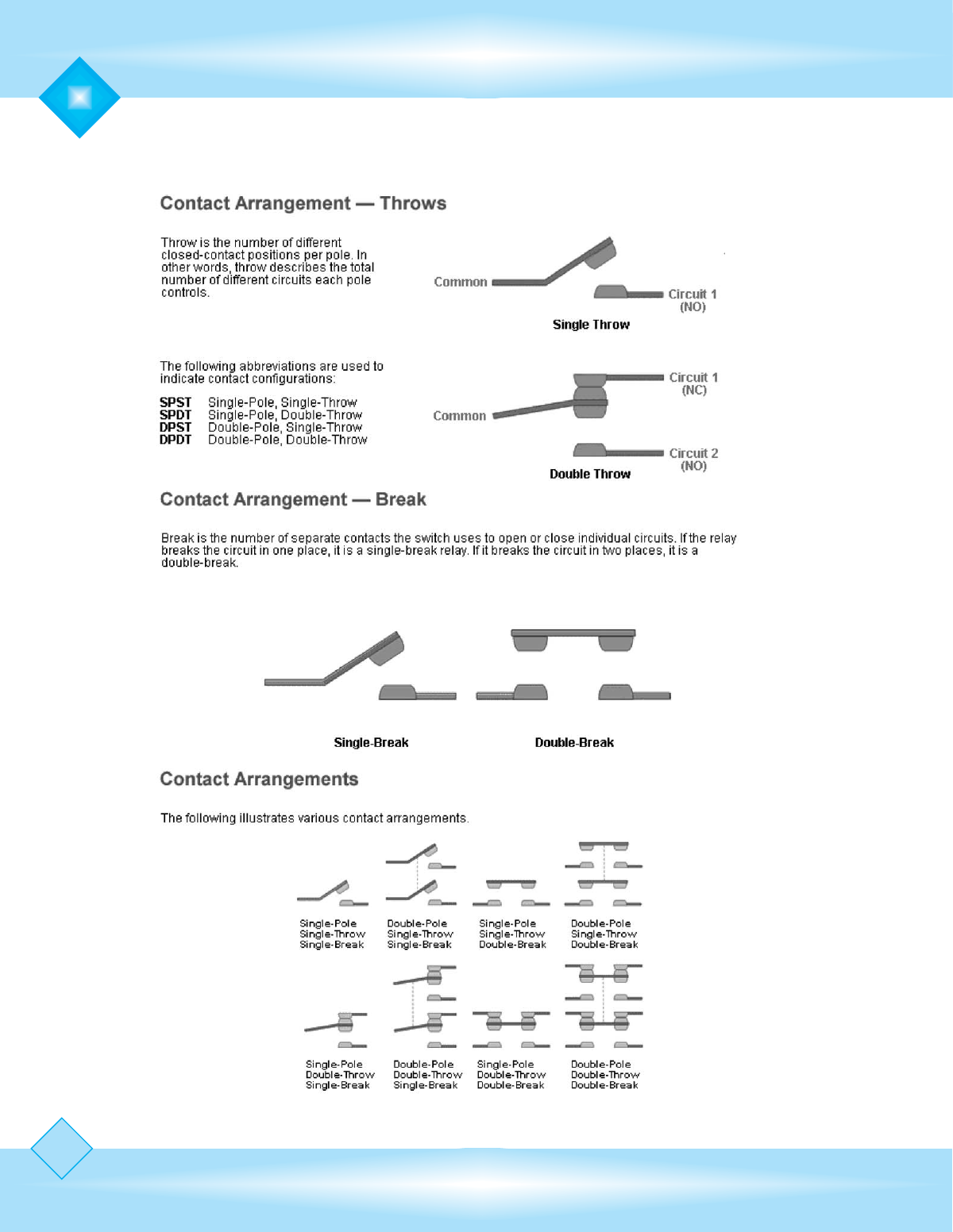

General Relay Information
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
3
Contents Pages
Plug In Relay Line Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
General Relay Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
8 and 11 Pin Octal Base Relays
Premium Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Basic Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7
Socket Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-11
General Purpose Square Base Relays
Premium Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
Basic Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-17
Magnetic Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19
Socket Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-21
Miniature Relays
Premium Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22-29
Basic Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30-35
Socket Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-41
Heavy Duty Power Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-45
Solid State Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47
Timing Relays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48-51
Standard Terms and Conditions of Sale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Table of Contents
Contents
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
4

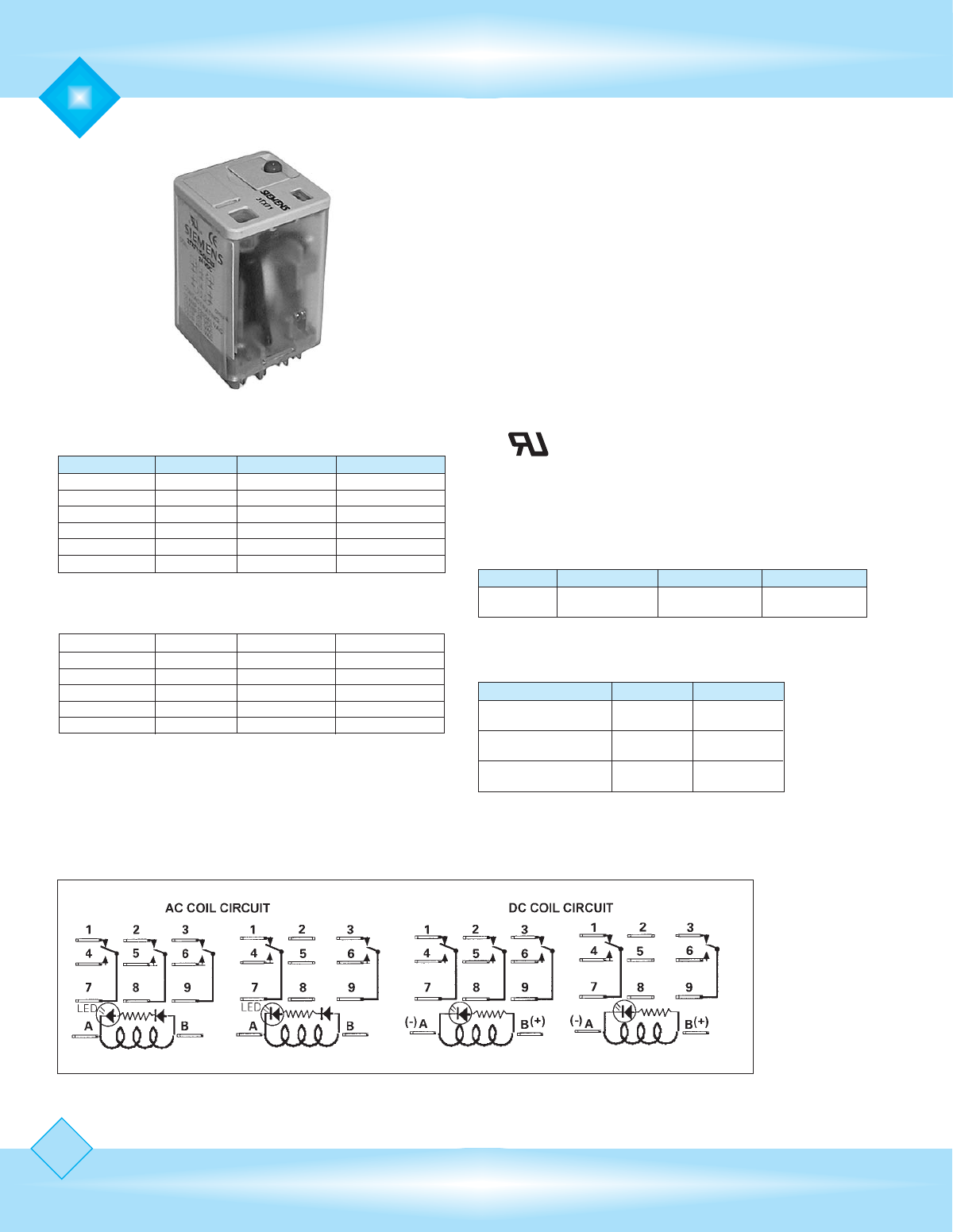

Wiring Diagrams
Viewed from pin end

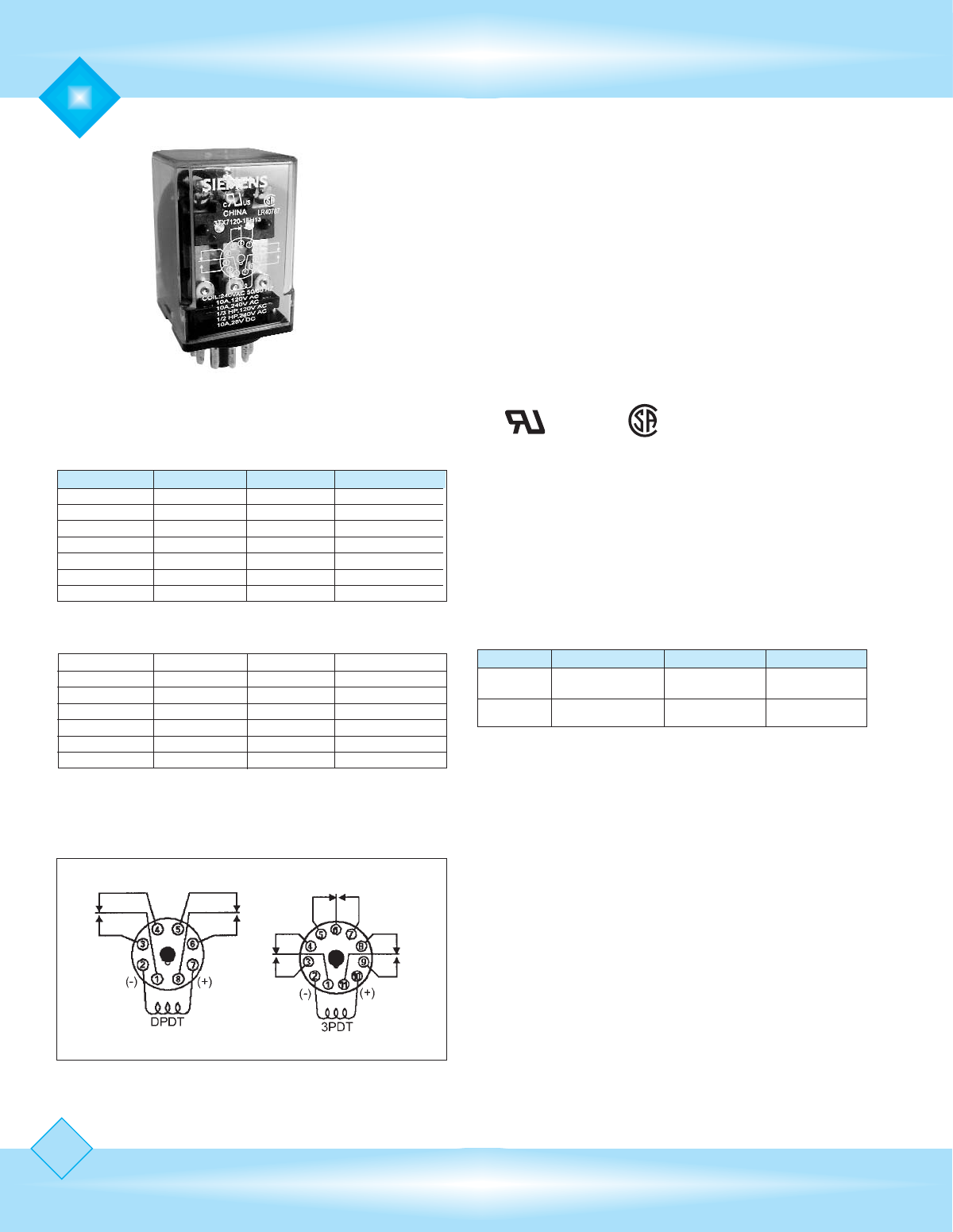

8 and 11 Pin Octal Base Relays - Premium Line
Premium Line 12A, 8 PIN Octal Socket,DPDT
Premium Line 12A, 11 PIN Octal, 3PDT
3TX7112-1NB13 12VAC $17.50 3TX7144-1E3
3TX7112-1NC13 24VAC $17.50 3TX7144-1E3
3TX7112-1NF13 120VAC $17.50 3TX7144-1E3
3TX7112-1NG13 220/230VAC $17.50 3TX7144-1E3
3TX7112-1NB03 12VDC $17.50 3TX7144-1E3
3TX7112-1NC03 24VDC $17.50 3TX7144-1E3
3TX7112-1NF03 110VDC $17.50 3TX7144-1E3
UL Contact Ratings Table
Green LED status indicator - Allows worker to see the relay
status in dark conditions
Mechanical Indicator - Allows worker to see relay status under
normal light or bright conditions
Push to test button with pull-out locking tab-makes testing
and analyzing your circuit easier
Easy Grip cover - Adds to the ease of removing the relay from
the socket
Removable I.D. Label - Allows for easy identification
Features
UL Recognized
File No: E14900
CUS
Catalog NNo. Coil VVoltage List PPrice Socket
3TX7112-1LB13 12VAC $17.00 3TX7144-1E2
3TX7112-1LC13 24VAC $17.00 3TX7144-1E2
3TX7112-1LF13 120VAC $17.00 3TX7144-1E2
3TX7112-1LG13 220/230VAC $17.00 3TX7144-1E2
3TX7112-1LB03 12VDC $17.00 3TX7144-1E2
3TX7112-1LC03 24VDC $17.00 3TX7144-1E2
3TX7112-1LF03 110VDC $17.00 3TX7144-1E2 POLES 120 VAC 240 VAC 28 VDC
2 & 3 12 AMP 12 AMP 12 AMP
POLE 1/3 HP 1/2 HP
Specifications
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
12
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog SupplementSiemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
8 and 11 Pin Octal Base Relays - Premium Line

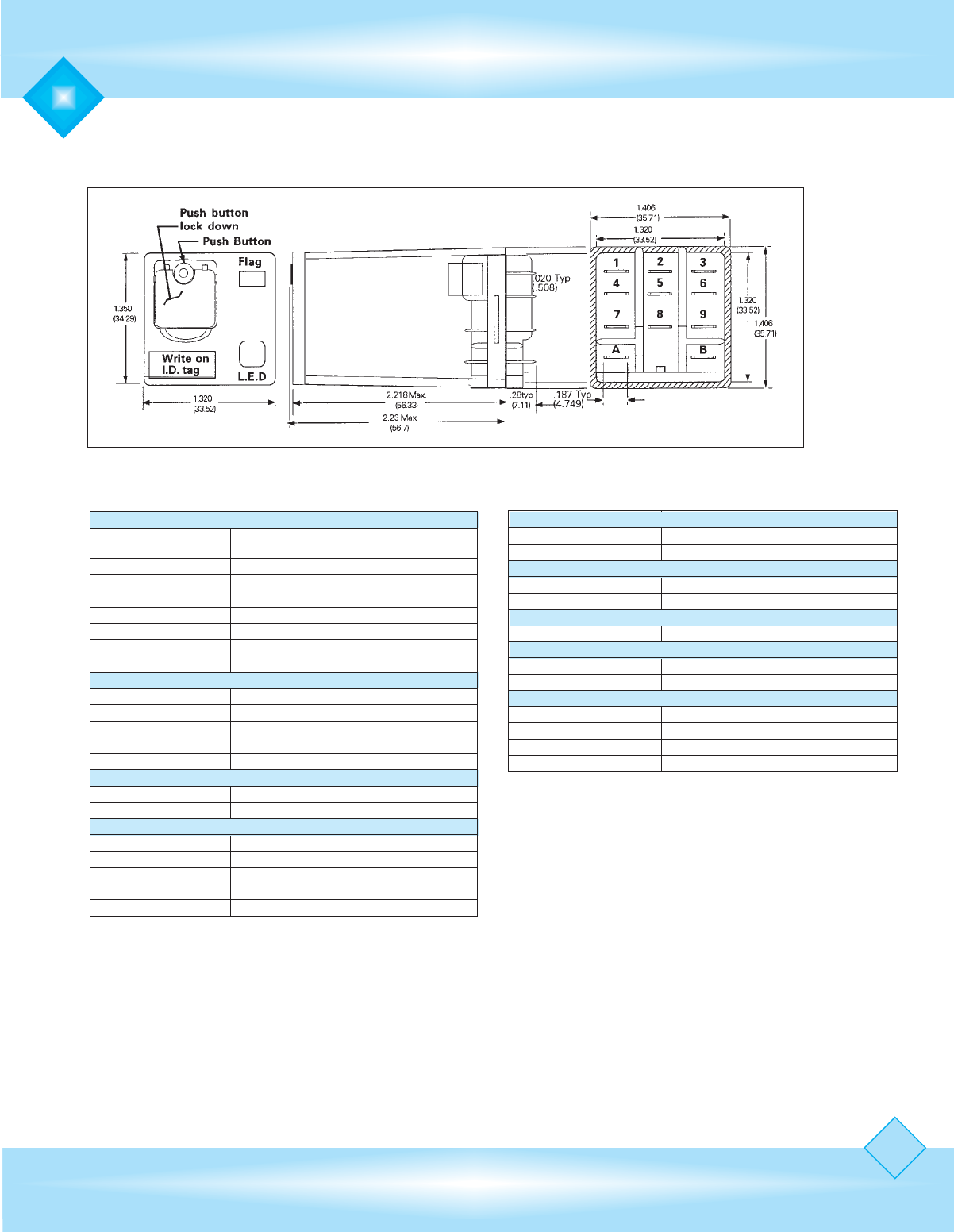

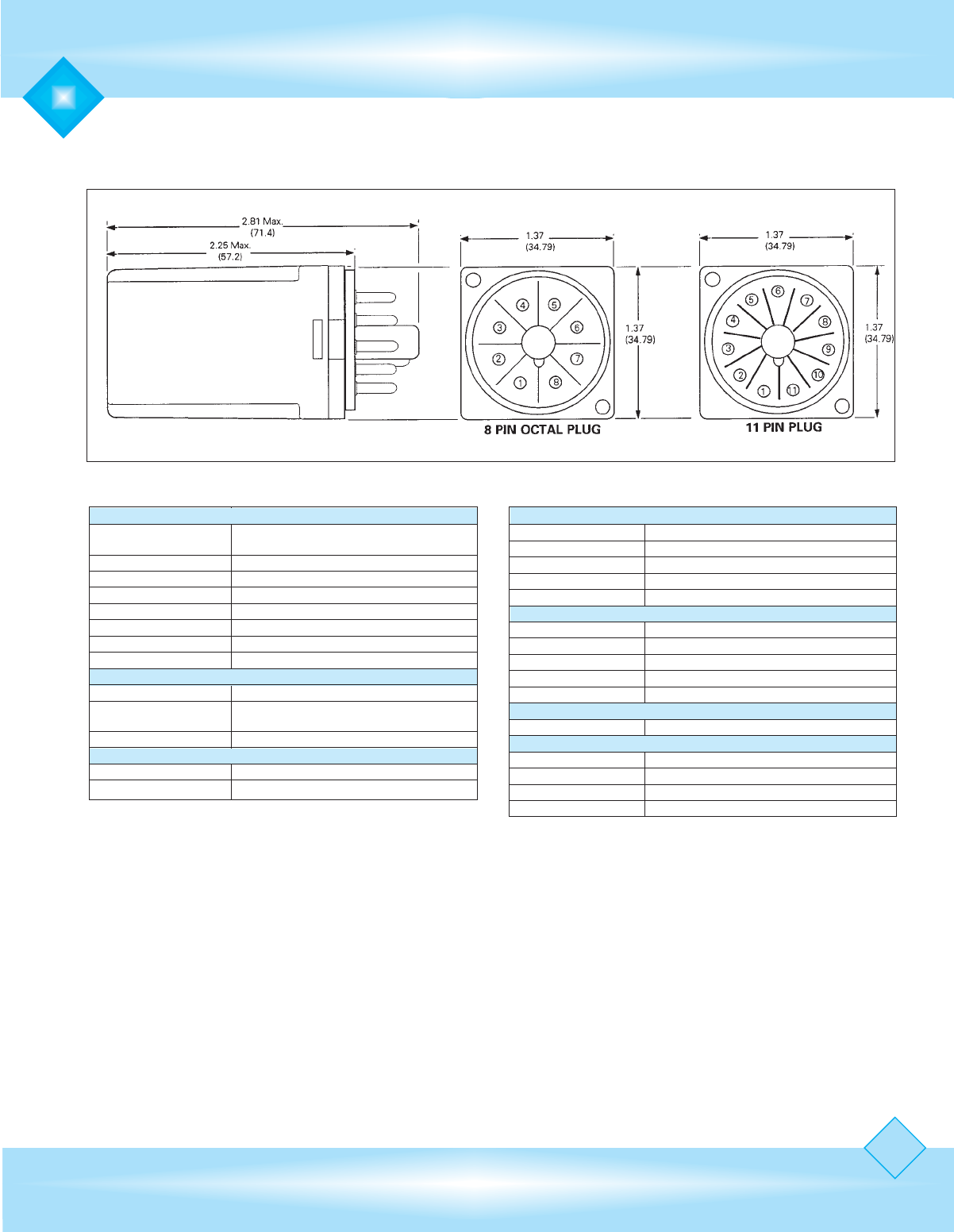

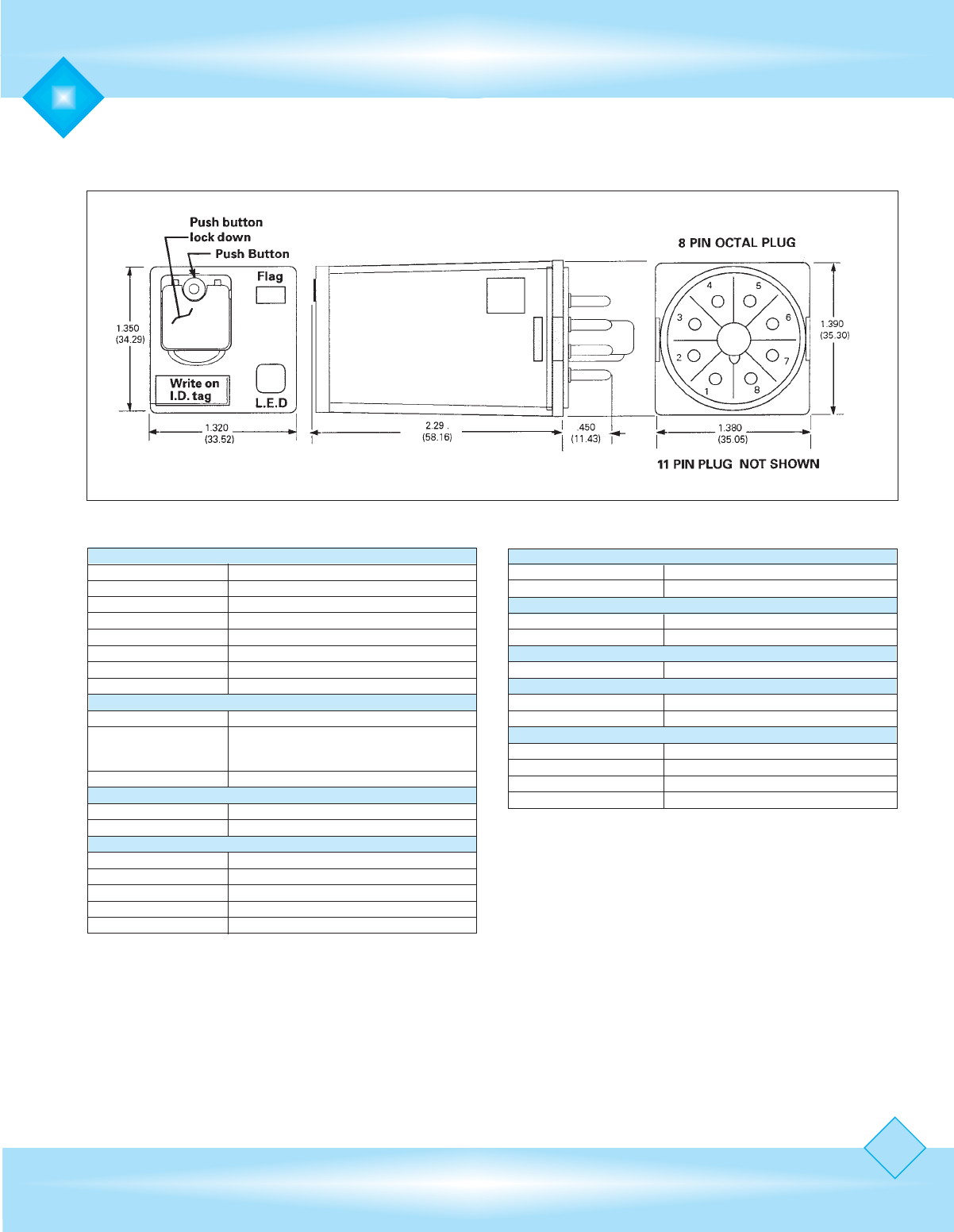

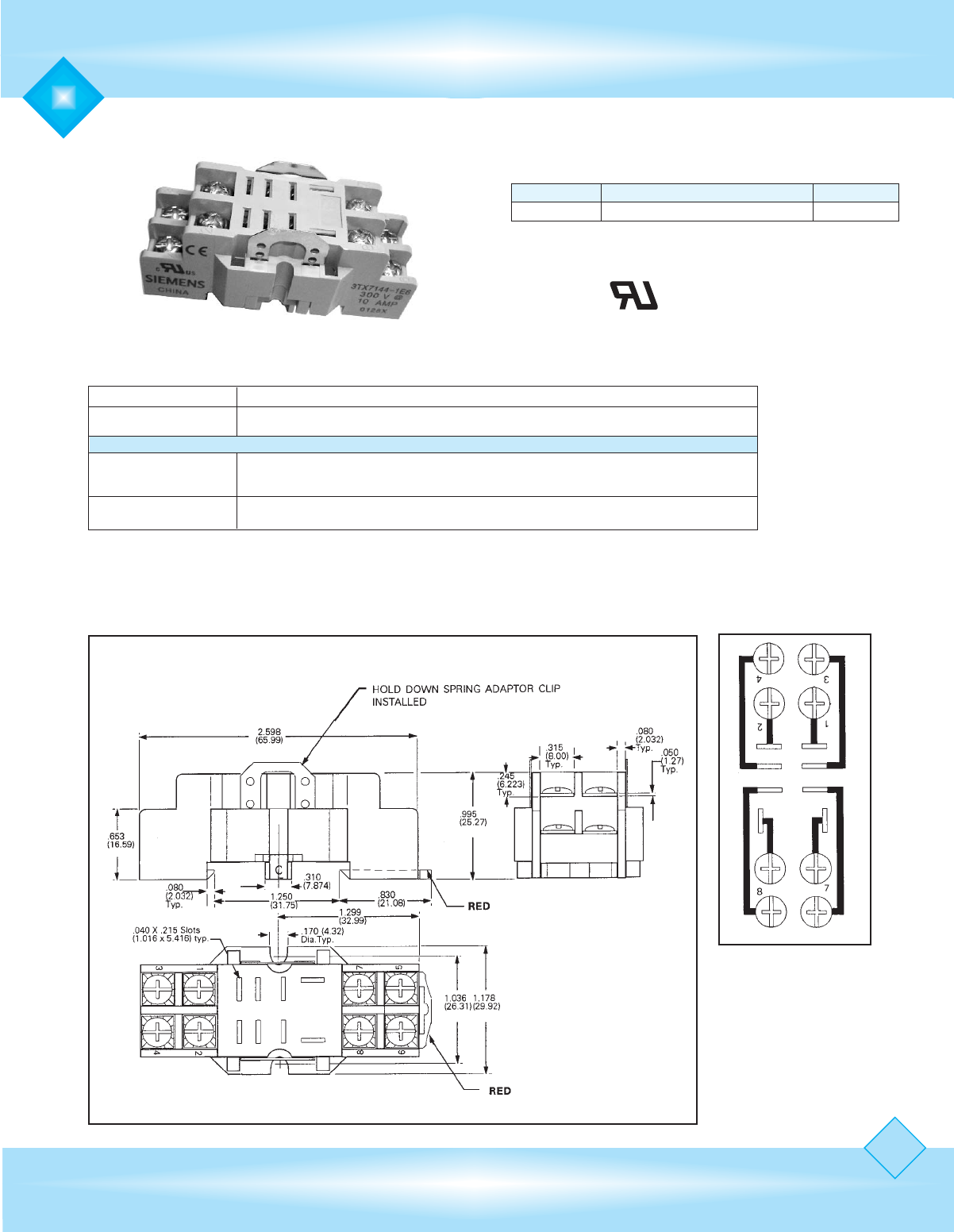

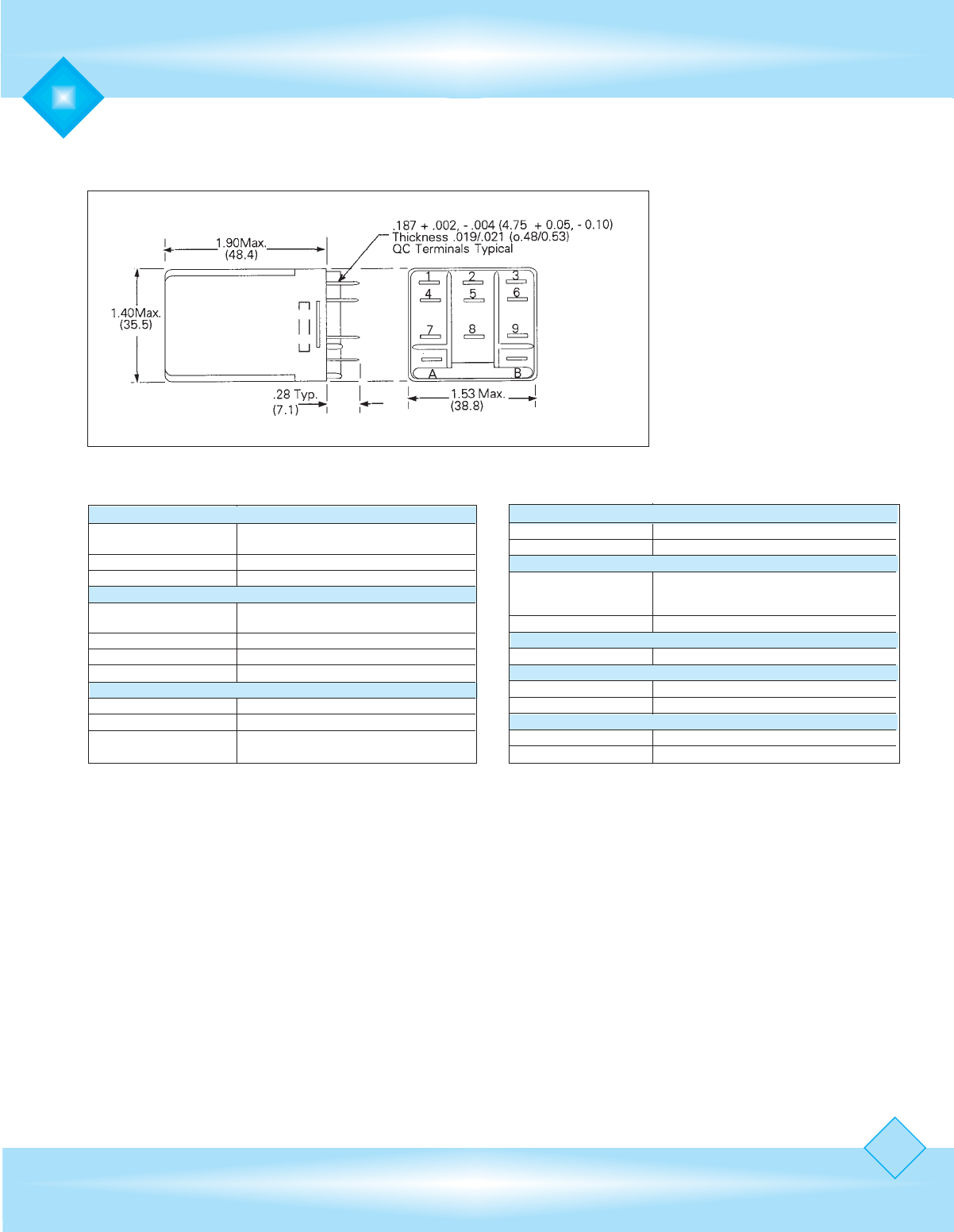

Outline Dimensions
Dimensions shown in Inches & (Millimeters)
COIL
Pull-in voltage: 80% of nominal voltage or less for DC coils
85% of nominal voltage or less for AC coils
Drop-out voltage: ≥10% of nominal voltage.
Coil resistance: ± 10 % measured @ 25IC
Minimum sensitivity: 125 milliwatts per pole
Nominal power: 1.2 Watts for DC coils, 2 VA-2.75VA for AC coils
Insulation System: Class "B" (130IC per UL std. 1446)
Duty: Continuous
CONTACTS
Contact material: 3/16" silver cadmium oxide, gold flashed.
Contact resistance: 50 milliohms maximum @ 10A, 120VAC or 24 VDC
Contact conditioned for 50 make & break
Operations at 1 second "ON and 1 second "OFF".
Minimum Load: 12 V @ 100 Milliamps
TIMING
Operate time: Max. 20 ms.
Release time: Max. 15 ms.
DIELECTRIC STRENGTH
Contacts to coil: 2500 V rms
Across open contacts: 1500 V rms
Pole to pole: 2500 V rms
Contacts to frame: 2500 V rms
Insulation resistance: 100 Megohms min. @ 500 VDC
Temperature
Ambient Temperature (Operating): -30IC to + 50IC (AC), -30IC to +65IC (DC)
Non operating storage: -30IC to +100IC
SHOCK RESISTANCE
Operating: 5 G's
Non-operating: 20 G's
Vibration Resistance
Operating: 5 G's, 10 Hz to 55 Hz
LIFE
Electrical: 200,000 Operations
Mechanical: 5,000,000 Operations
MISCELLANEOUS
Insulation material: Molded plastic
Operating Position: Any
Terminals: 8 pin or 11 pin octal plug-in
Weight: 83 grams
5
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
6

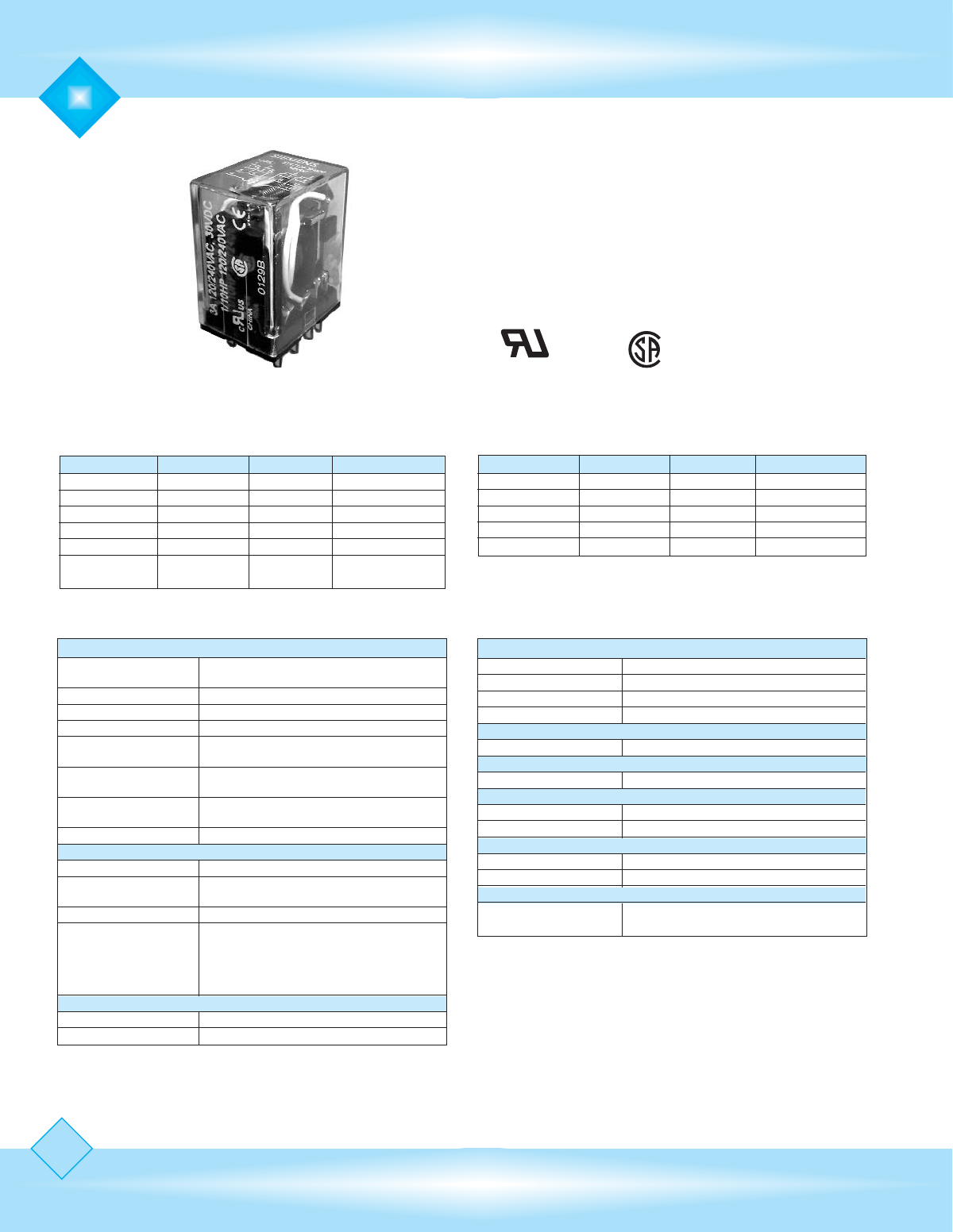

Basic 10A, 8 PIN Octal DPDT
Basic 10A, 11 PIN Octal 3PDT
3TX7120-1FB13 12VAC $14.50 3TX7144-1E3
3TX7120-1FC13 24VAC $14.50 3TX7144-1E3
3TX7120-1FF13 120VAC $14.50 3TX7144-1E3
3TX7120-1FH13 240VAC $14.50 3TX7144-1E3
3TX7120-1FB03 12VDC $14.50 3TX7144-1E3
3TX7120-1FC03 24VDC $14.50 3TX7144-1E3
3TX7120-1FF03 110VDC $14.50 3TX7144-1E3
UL Contact Ratings Table
8 and 11 Pin Octal Base Relays - Basic Line
Available in multiple coil voltages
Available with current ratings up to 10A
Economical
DPDT & 3PDT contact configurations
Uses industry standard socket
Features
UL Recognized
File No: E14900
CUS
LR 6535
Wiring Diagrams
Viewed from pin end
Catalog NNo. Coil VVoltage List PPrice Socket
3TX7120-1DB13 12VAC $14.00 3TX7144-1E2
3TX7120-1DC13 24VAC $14.00 3TX7144-1E2
3TX7120-1DF13 120VAC $14.00 3TX7144-1E2
3TX7120-1DH13 240VAC $14.00 3TX7144-1E2
3TX7120-1DB03 12VDC $14.00 3TX7144-1E2
3TX7120-1DC03 24VDC $14.00 3TX7144-1E2
3TX7120-1DF03 110VDC $14.00 3TX7144-1E2
POLES 120 VAC 240 VAC 28 VDC
DPDT 12 AMP 10 AMP 10 AMP
1/3 HP 1/2 HP
3PDT 10 AMP 10 AMP 10 AMP
1/3 HP 1/2 HP
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
7
Specifications
8 and 11 Pin Octal Base Relays - Basic Line
*Measured at 25IC
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
COIL
Pull-in voltage* 80% of nominal voltage or less for DC coils
85% of nominal voltage or less for AC coils
Drop-out voltage: ≥10% of nominal voltage.
Coil resistance* ±10%
Minimum sensitivity* 125 milliwatts per pole
Nominal power* 1.2 Watts for DC coils, 2 VA-2.75VA for AC coils
Maximum coil dissipation* Capability of DC coils 3.0 Watts max.
Coil insulation System Class "B" coil insulation (130°C) per UL std. 1446
Duty: Continuous
CONTACTS
Contact material 3/16" silver cadmium oxide, gold flashed Std.
Contact resistance: 50 milliohms maximum initial
resistance at rated current
Minimum Load: 12 V @ 100 Milliamps
TIMING
Operate time: Max. 25 ms.
Release time: Max. 20 ms.
DIELECTRIC STRENGTH
Contacts to coil: 1500 V rms
Across open contacts: 1000 V rms
Pole to pole: 1500 V rms
Contacts to frame: 1500 V rms
Insulation resistance: 1,000 Megohms min. @ 500 VDC
TEMPERATURE
Operating: -10°C to +50°C (AC), -10°C to +60°C (DC)
Storage: -30°C to +105°C
Shock Resistance
Operating: 5 G's,
Non operating: 20 G's
VIBRATION RESISTANCE
Operating: 5 G's, 10 Hz to 55 Hz
MISCELLANEOUS
Insulation material: Molded plastic
Operating Position: Any
Terminals: 8 or 11 pin octal plug-in
Weight: 3 1/2 ozs. 99.2 g approx.
Catalog No. Additional Description List Price
3TX7144-1E2 8 pin octal, panel/DIN rail, screw term socket $4.75
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
8

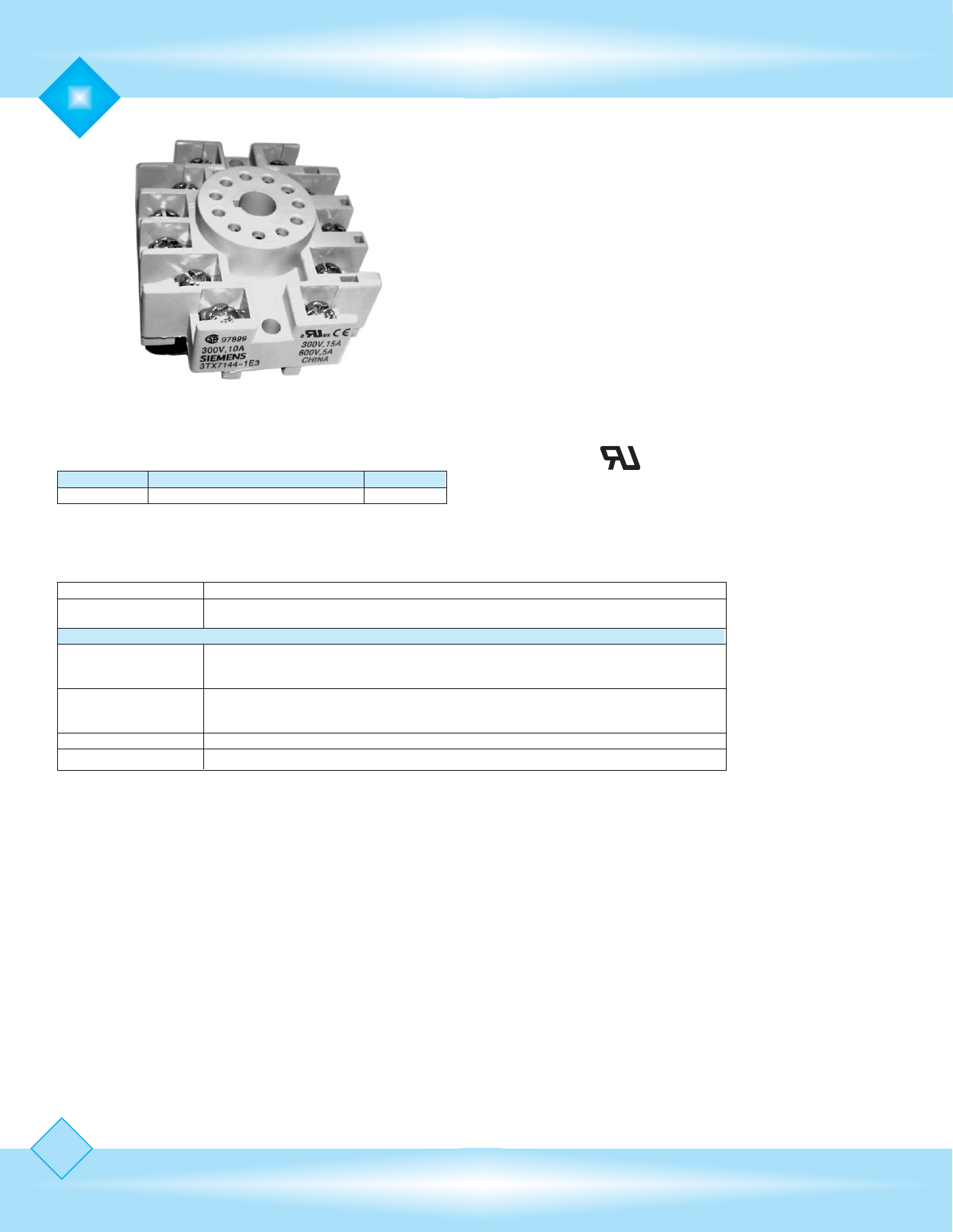

Specifications
UL Recognized
File No: E196786
CUS

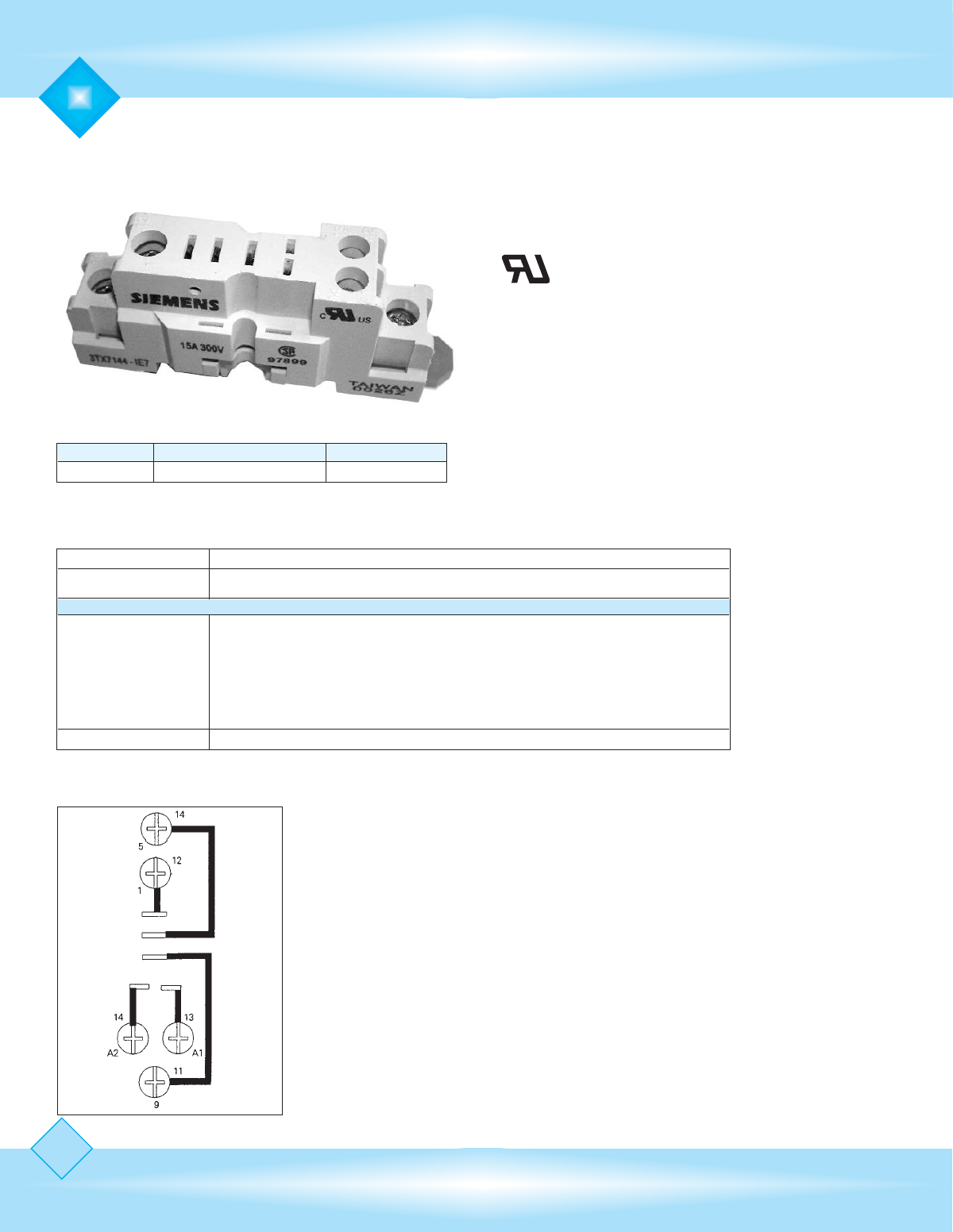

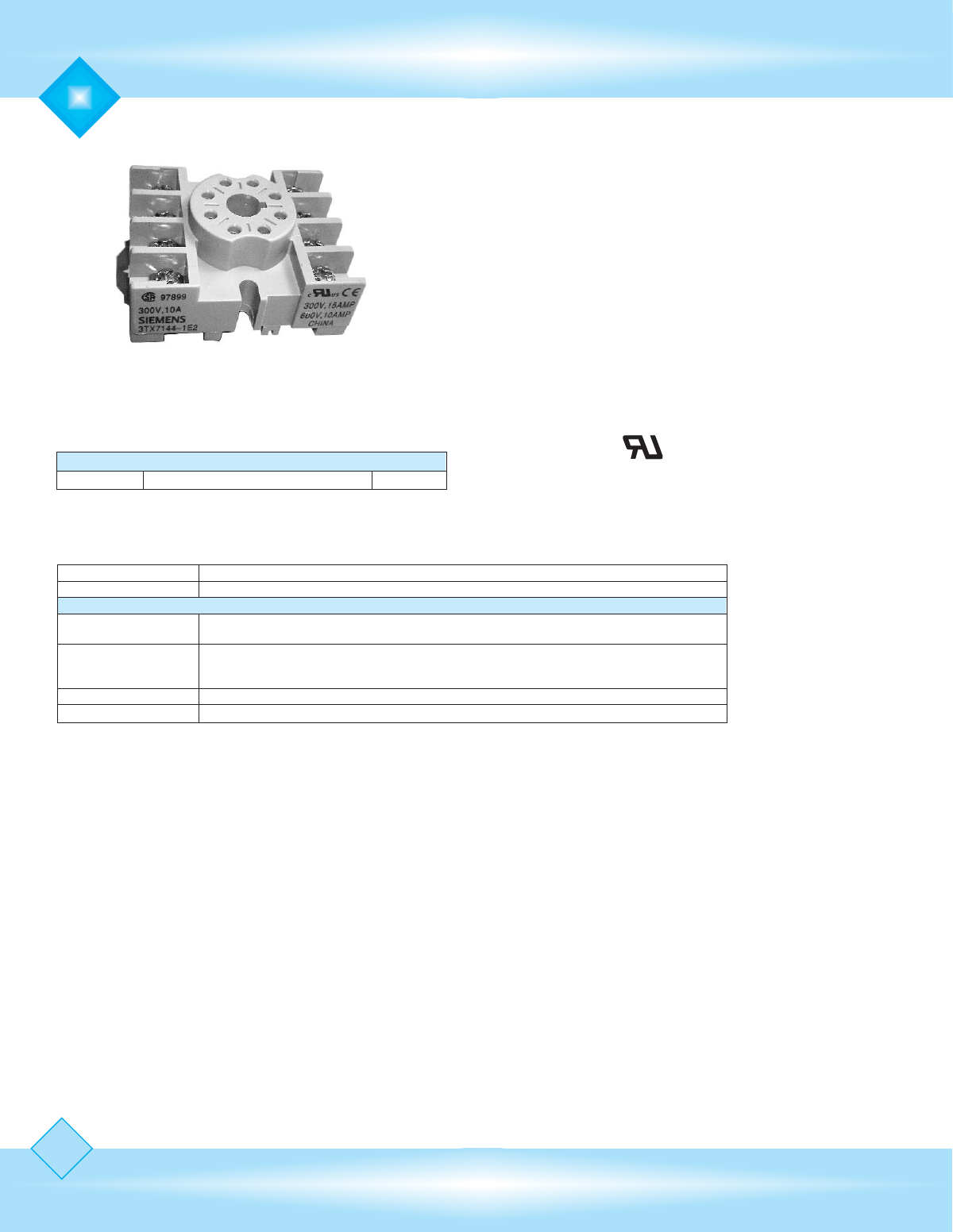

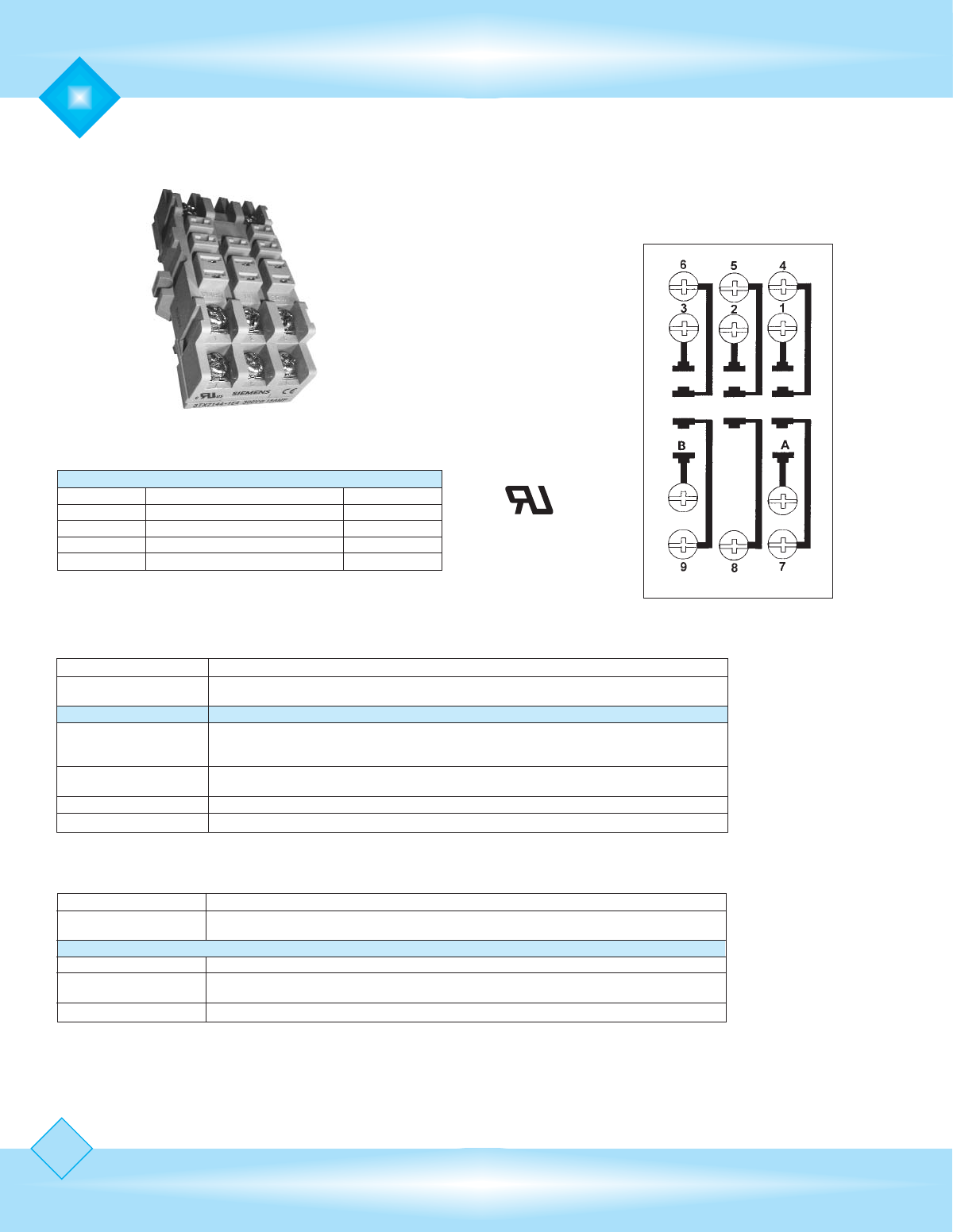

Sockets & Accessories
8 and 11 Pin Octal Base Relays - Socket Selection
Electrical Rating: 300 V, 15 AMPS / 600V, 10 AMPS
Voltage: 2000 V rms Min. between all electrical elements of opposite polarity including a metal mounting surface
CONSTRUCTION
Terminals: Clamping screws: M 3.5 x 0.6 yelow zinc plated with pressure clamp washers.Terminal connections are capable of accepting
two #12 AWG wires or smaller, one wire on each side of the clamping screw.
Molding: Break resistant high electrical grade thermoplastic
Internal electrical current carrying elements conform with UL requirements for relay sockets, including maximum
operating temperature rise limits and electrical spacing.
Grips: Fits 35mm wide DIN mounting track
Torque: Max. torque to clamping screws should not exceed 8-10 inch lbs.
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
9

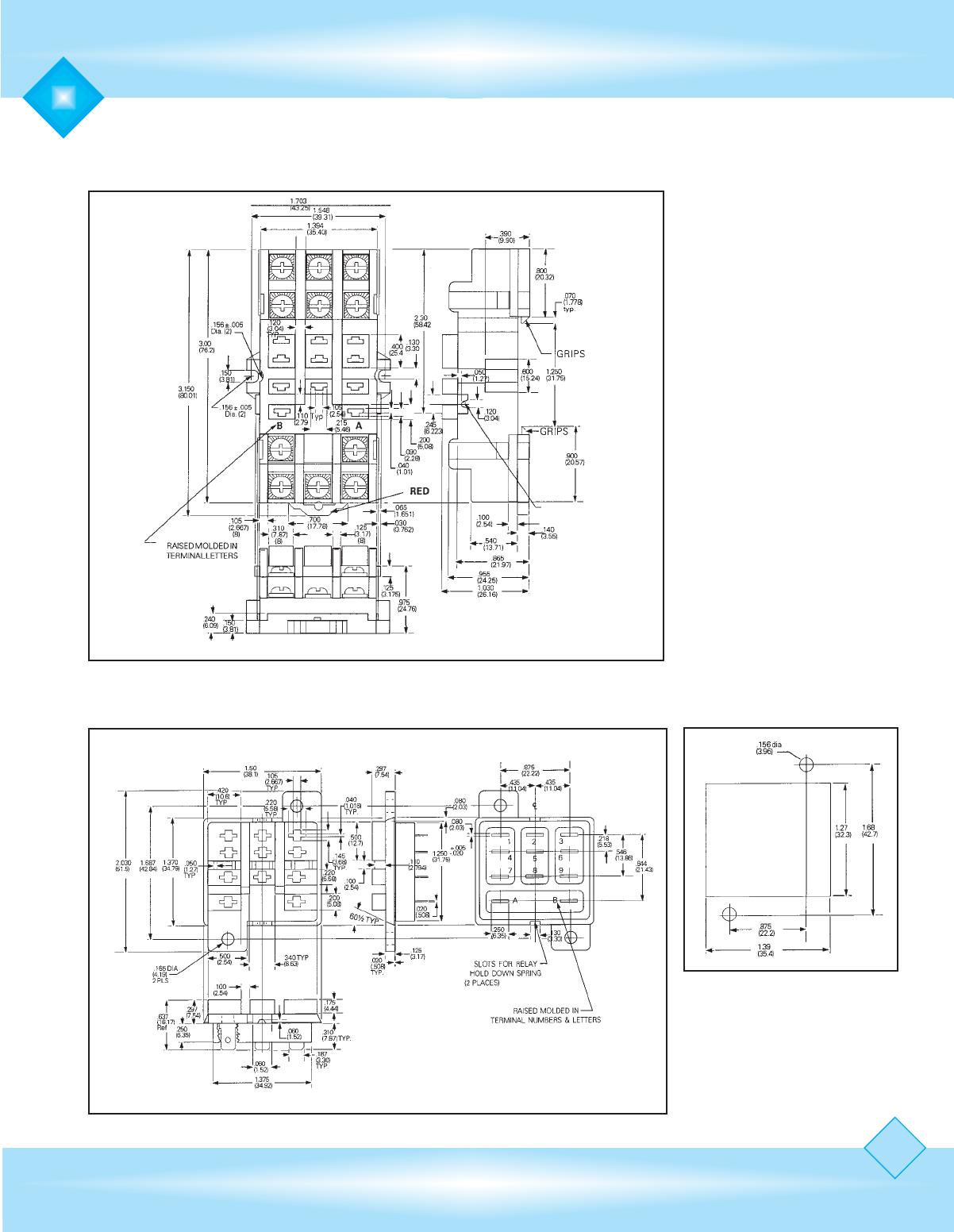

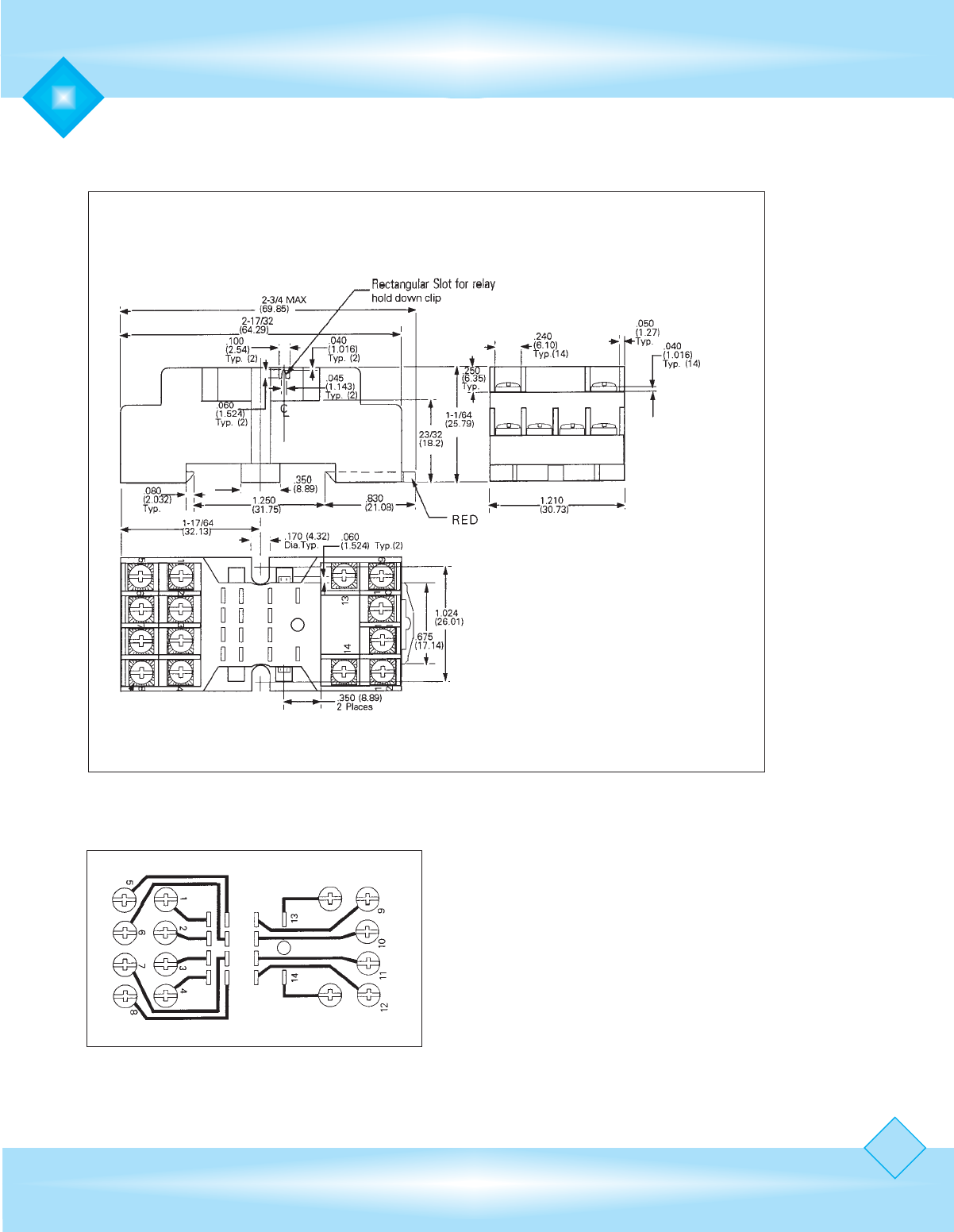

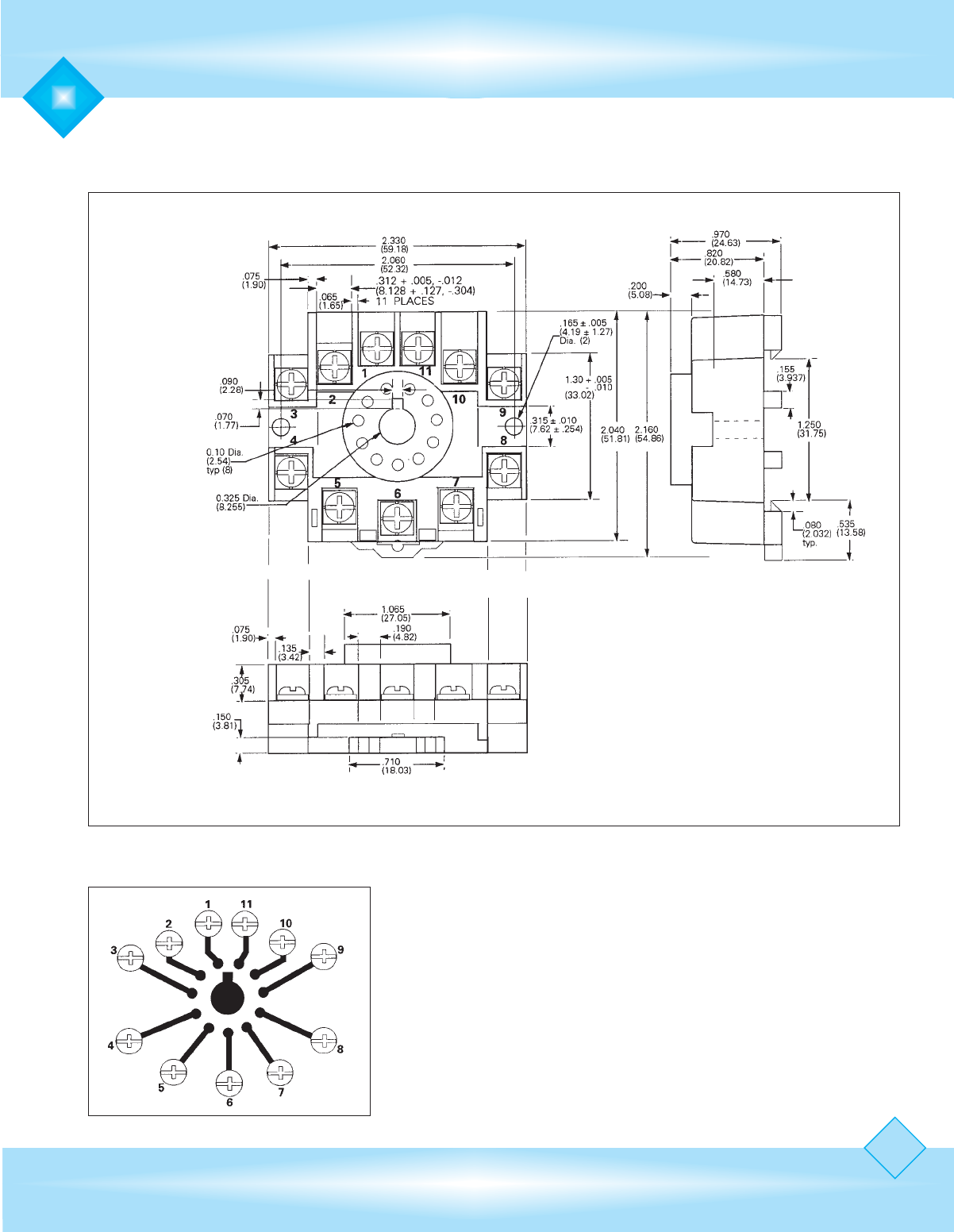

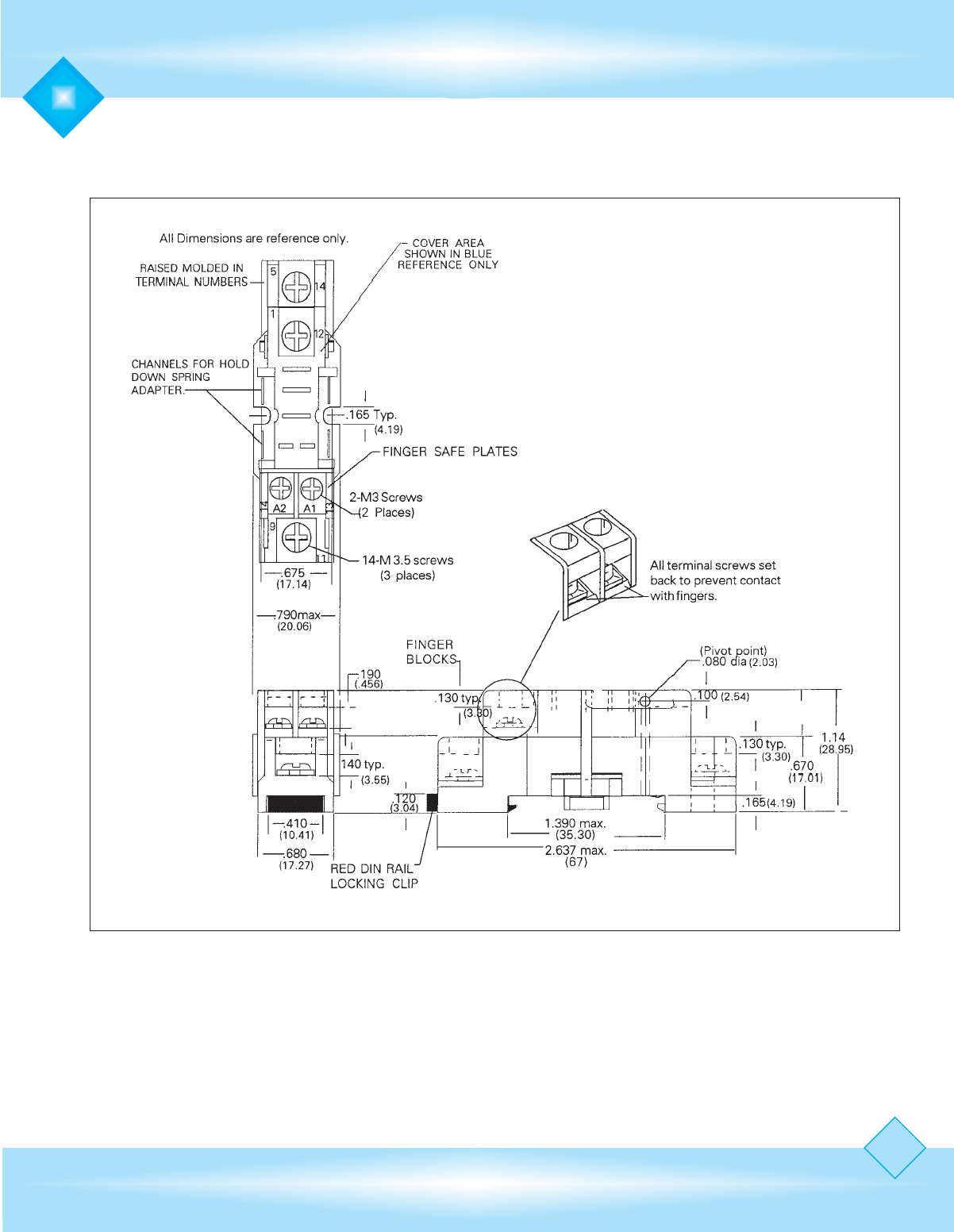

Outline Dimensions
Dimensions shown in Inches & (Millimeters)
8 and 11 Pin Octal Base Relays - Socket Selection
Wiring Diagram
Top View
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
10

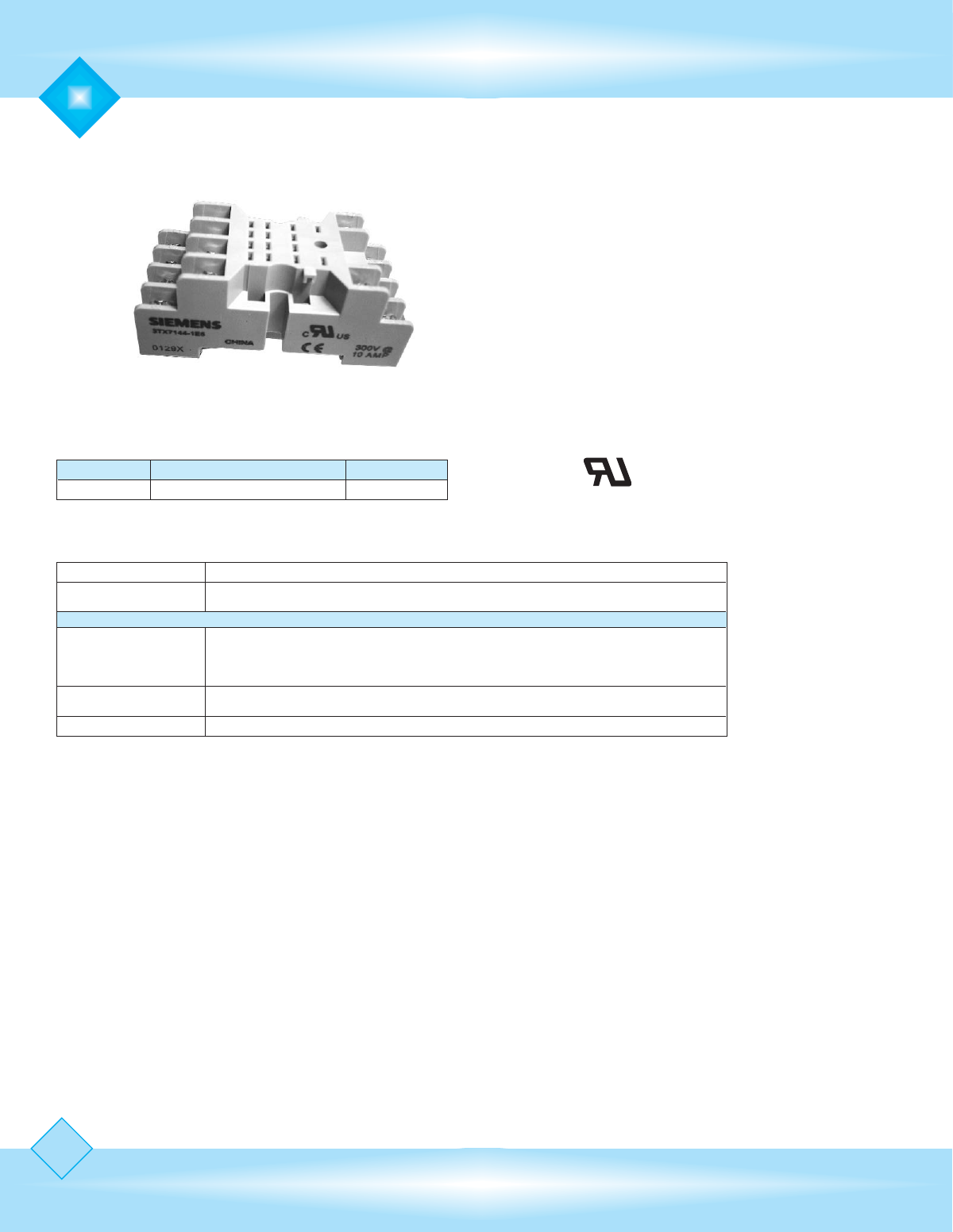

Specifications
8 and 11 Pin Octal Base Relays - Socket Selection
UL Recognized
File No: E196786
CUS
Sockets & Accessories
Catalog No. Additional Description List Price
3TX7144-1E3 11pin octal, panel/DIN rail, screw term socket $10.00
Electrical Rating: 300V rms, 15 AMPS 600V rms 5 AMPS
Dielectric Withstanding
Voltage: 2000 V rms Min. between all electrical elements of opposite polarity including a metal mounting surface
CONSTRUCTION
Terminals: Clamping screws: M 3.5 x 0.6 yellow zinc plated with pressure clamp washers.Terminal connections shall be capable of
accepting two #12 AWG wires or smaller, one wire on each side of the clamping screw.Terminal wire clamp must provide
equally good clamping when either one or two wire conductors are connected to a single terminal.
Molding: Break resistant high electrical grade thermoplastic
Internal electrical current carrying elements conform with UL and CSA requirements for relay sockets, including maximum
operating temperature rise limits and electrical spacing.
Grips: Fit 35mm wide DIN mounting track
Torque: Max. torque to clamping screws should not exceed 8-10 inch lbs.
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
11
8 and 11 Pin Octal Base Relays - Socket Selection
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Wiring Diagram
Top View
3TX7115-5NC13 24VAC $17.50 3TX7144-1E4
3TX7115-5NF13 120VAC $17.50 3TX7144-1E4
3TX7115-5NH13 240VAC $17.50 3TX7144-1E4
3TX7115-5NB03 12VDC $17.50 3TX7144-1E4
3TX7115-5NC03 24VDC $17.50 3TX7144-1E4
3TX7115-5NF03 110VDC $17.50 3TX7144-1E4
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
12

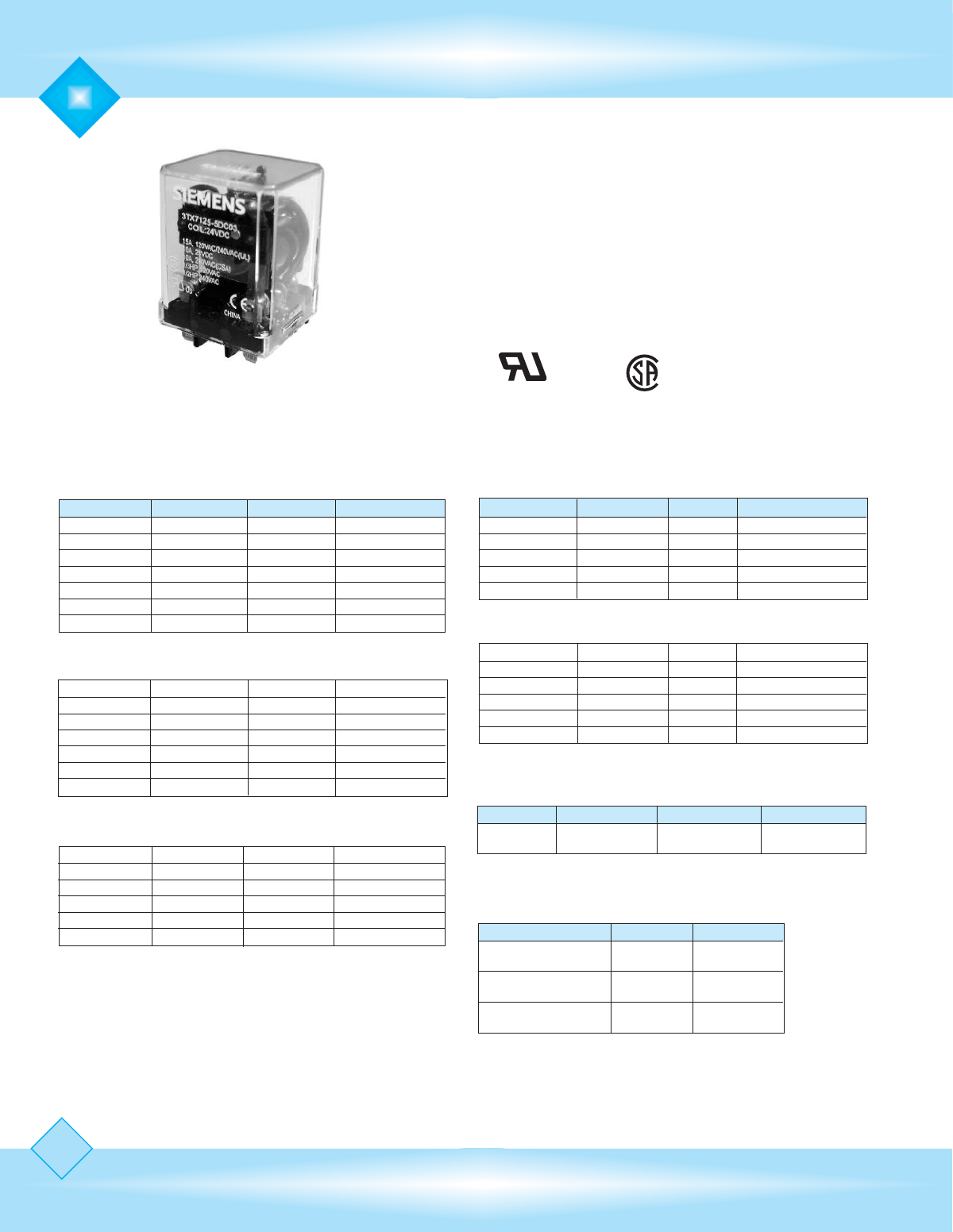

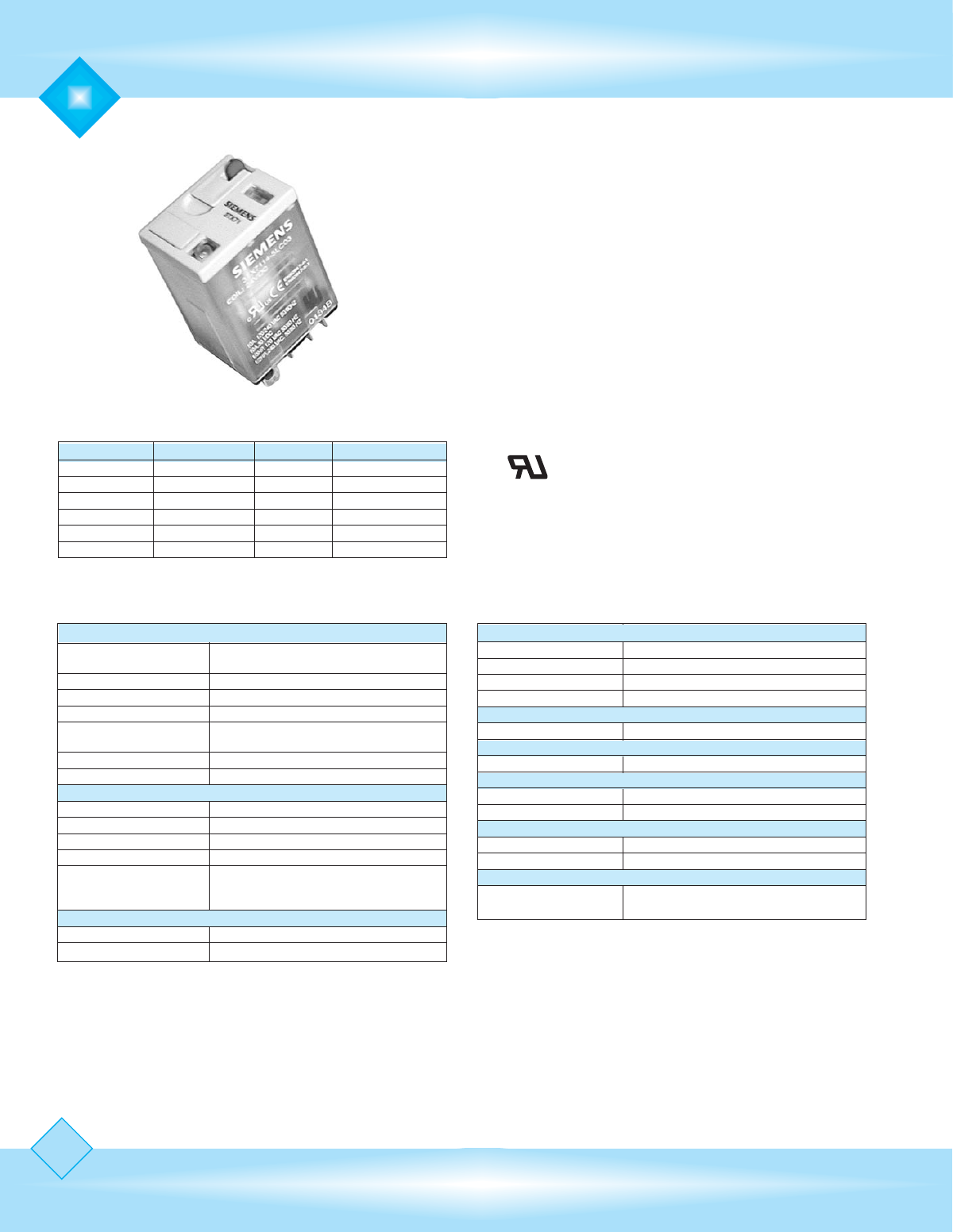

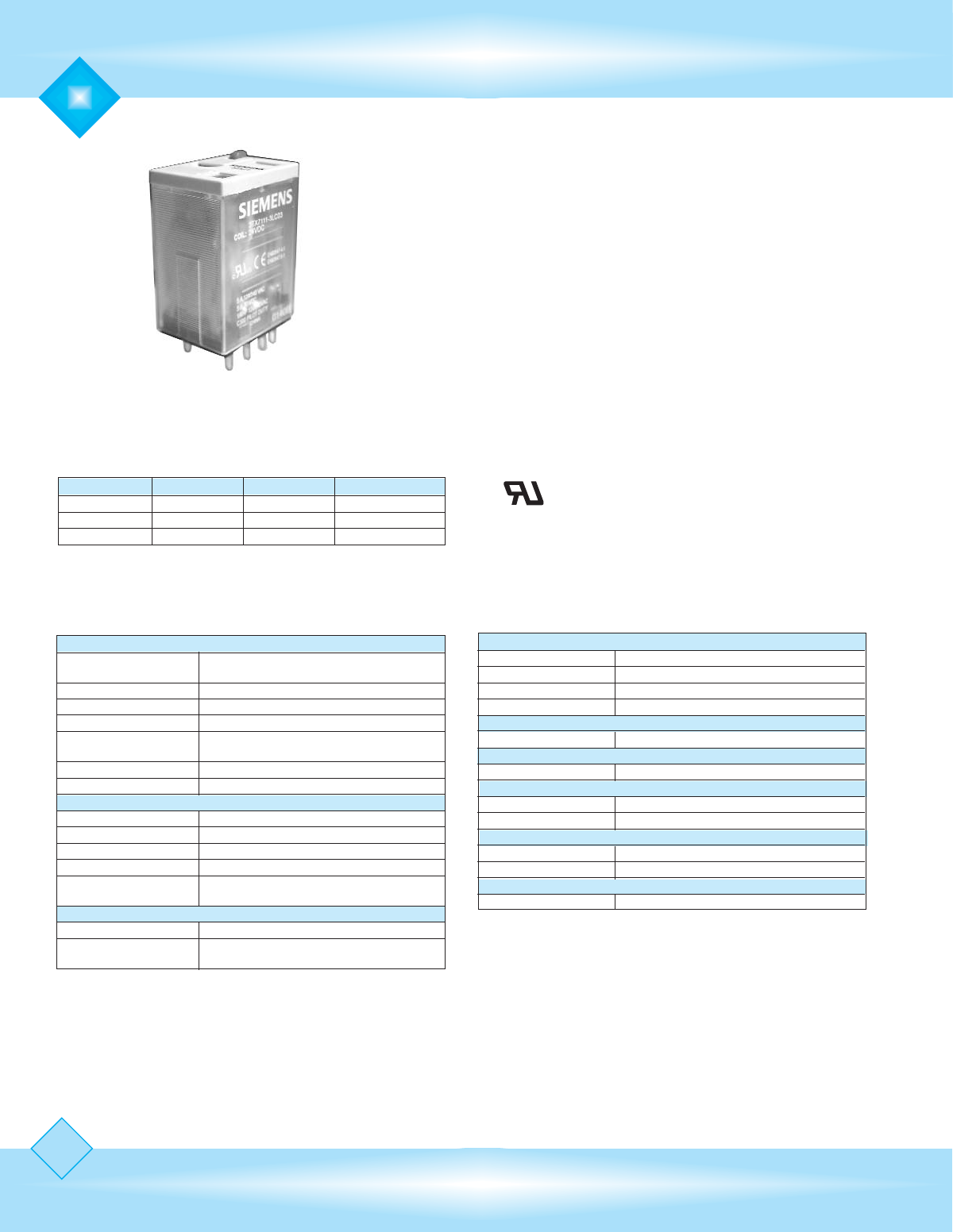

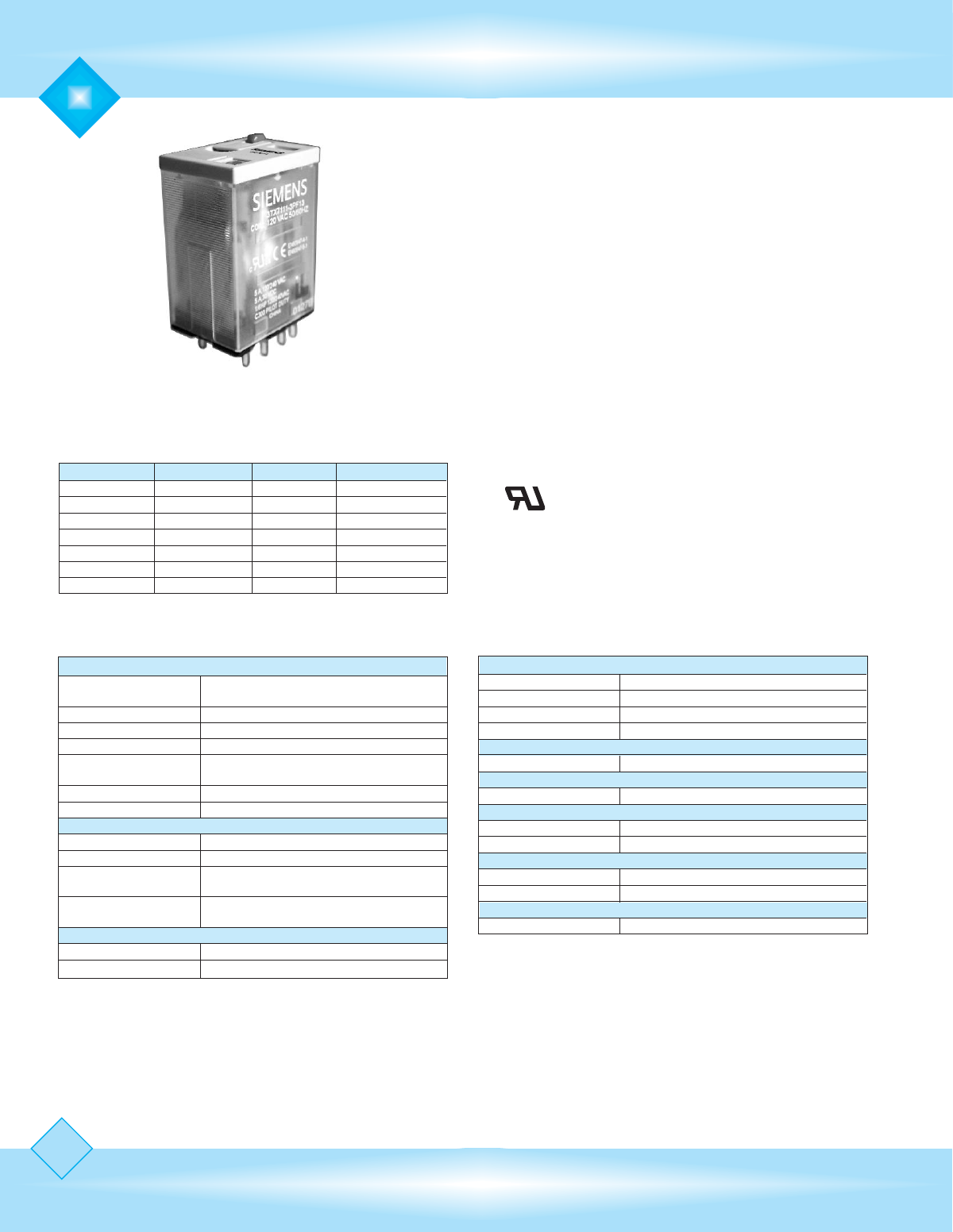

General Purpose Square Base Relays - Premium Line
Premium Line 12A, Square Base, DPDT
Premium Line 12A, Square Base, 3PDT
UL Contact Ratings Table
Typical Operating Characteristics
(For DC voltage types only @ 25°C)
UL Recognized
File No: E14900
CUS
Features
Wiring Diagrams
Viewed from pin end
Catalog No. Coil Voltage List Price Socket Style
3TX7115-5LC13 24VAC $17.00 3TX7144-1E4
3TX7115-5LF13 120VAC $17.00 3TX7144-1E4
3TX7115-5LH13 240VAC $17.00 3TX7144-1E4
3TX7115-5LB03 12VDC $17.00 3TX7144-1E4
3TX7115-5LC03 24VDC $17.00 3TX7144-1E4
3TX7115-5LF03 110VDC $17.00 3TX7144-1E4
POLES DPDT 3PDT
Min. Operate mW
Sensitivity 250 375
Operate Time
(Milliseconds maximum) 20.0 24.0
Release Time
(Milliseconds maximum) 28.0 26.0
POLES 120 VAC 240 VAC 28 VDC
2 & 3 12 AMP 12 AMP 12 AMP
POLE 1/3 HP 1/2 HP
Green LED status indicator - Allows worker to see the relay
status in dark conditions
Mechanical Indicator - Allows worker to see relay status under
normal light or bright conditions
Push to test button with pull-out locking tab-makes testing
and analyzing your circuit easier
Easy Grip cover - Adds to the ease of removing the relay from
the socket
Removable I.D. Label - Allows for easy identification
Specifications
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
13

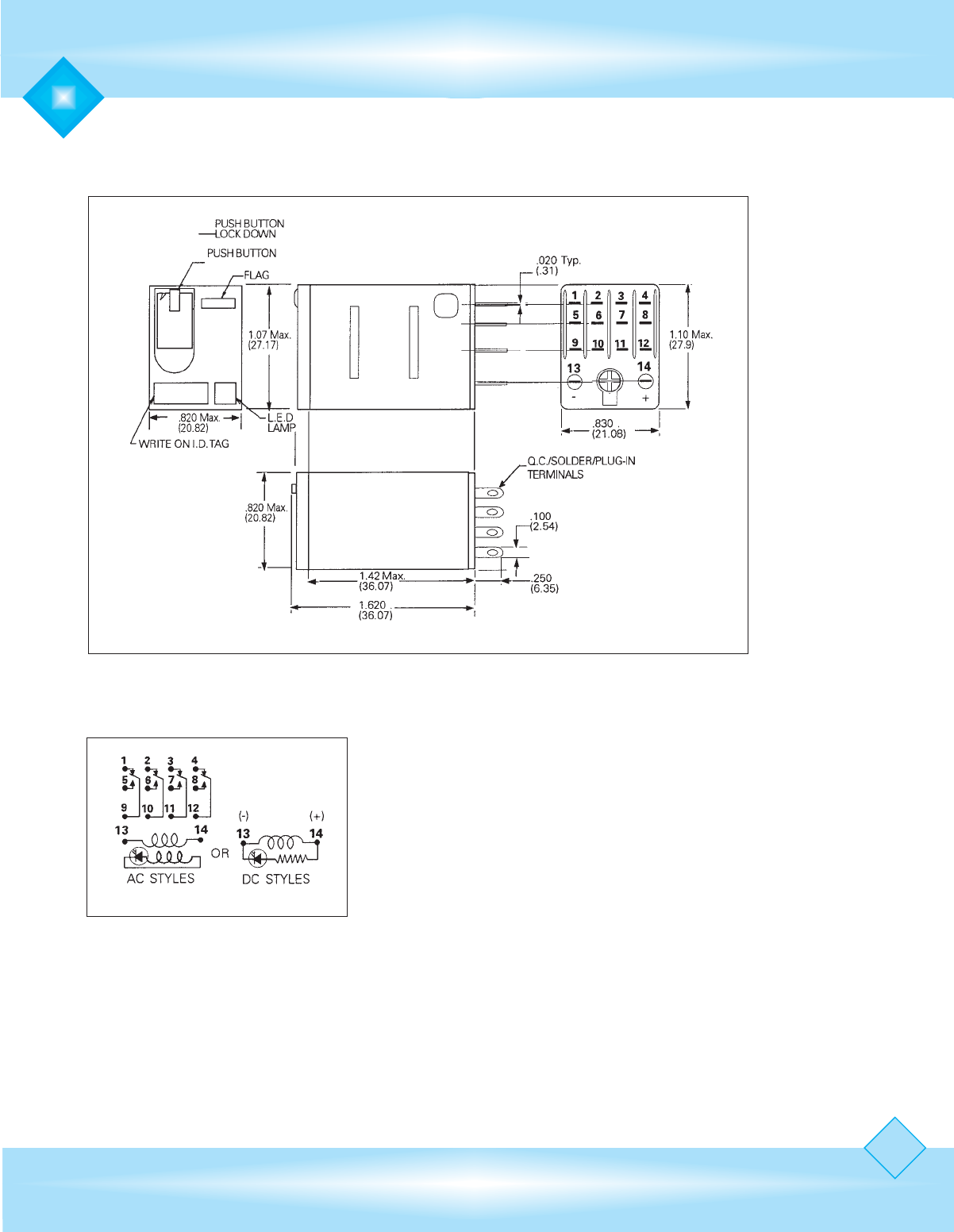

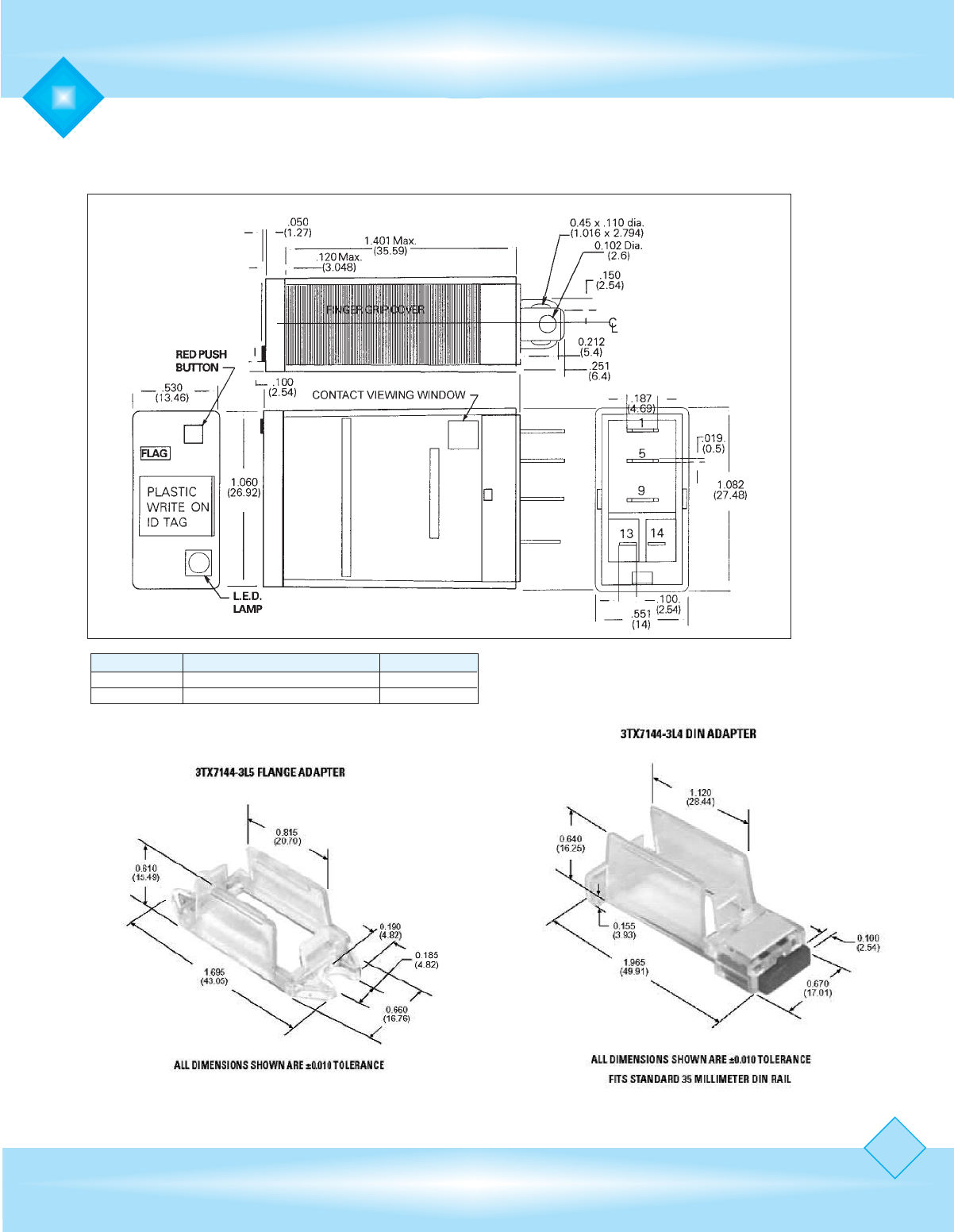

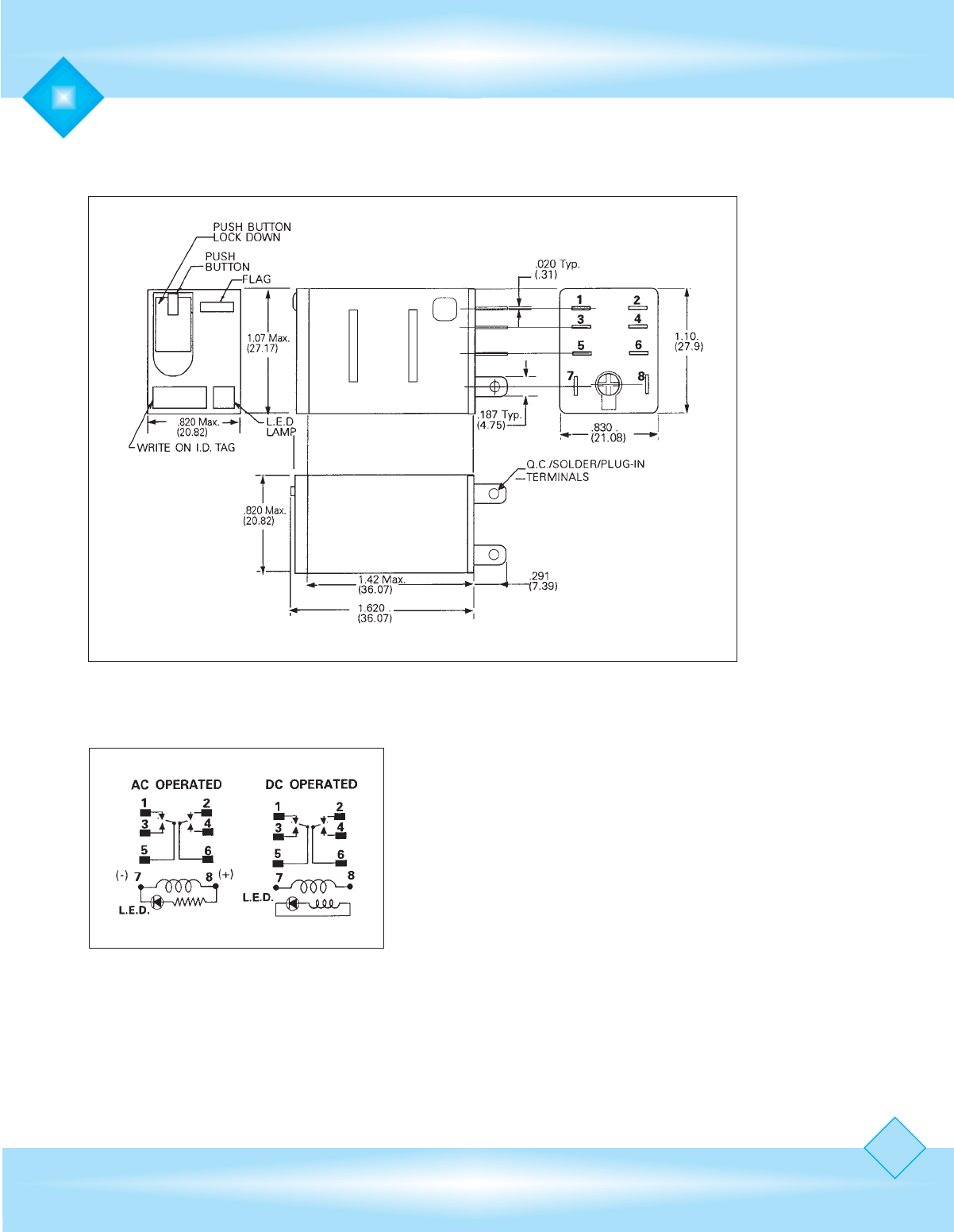

Outline Dimensions
Dimensions shown in Inches & (Millimeters)
General Purpose Square Base Relays - Premium Line
TEMPERATURE
Ambient Temperature (Operating): -30IC to + 50IC (AC), -30IC to +65IC (DC)
Non operating storage: -30IC to +100IC
SHOCK RESISTANCE
Operating: 5 G’s,
Non operating: 20 G’s
VIBRATION RESISTANCE
Operating: 5 G’s, 10 Hz to 55 Hz
LIFE
Electrical: 200,000 Operations
Mechanical: 5,000,000 Operations
MISCELLANEOUS
Insulation material: Molded plastic
Operating Position: Any
Terminals: 3/16” x .020 Q.C. Solder/ plug-in
Weight: 83 grams approx.
COIL
Pull-in voltage: 80% of nominal voltage or less. for DC coils
85% of nominal voltage or less for AC coils.
Drop-out voltage: ≥10% of nominal voltage.
Coil resistance: ± 10 % measured @ 25IC
Minimum sensitivity: 125 milliwatts per pole
Nominal power: 1.2 Watts for DC coils, 2 VA-2.75VA for AC coils
Maximum coil dissipation: Capability of DC coils 3.0 Watts max.
Insulation System Class “B” (130IC per UL std. 1446)
Duty: Continuous
CONTACTS
Contact material: 3/16" silver cadmium oxide, gold flashed.
Contact resistance: 50 milliohms maximum @ 10A, 120VAC or 24 VDC
Contact conditioned for 50 make & break operations
at 1 second “ON and 1 second “OFF”
Minimum Load: 12 V @ 100 Milliamps
TIMING
Operate time: Max. 20 ms
Release time: Max. 15 ms
DIELECTRIC STRENGTH
Contacts to coil: 2500 V rms
Across open contacts: 1500 V rms
Pole to pole: 2500 V rms
Contacts to frame: 2500 V rms
Insulation resistance: 100 Megohms min. @ 500 VDC
16A, Square Base,DPDT
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
12
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog SupplementSiemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
Available in multiple coil voltages
Styles available with current ratings up to 16A and 25A
Economical
Mechanical Indicator - Allows worker to see relay status under
normal light or bright conditions
Push to test button - Makes testing and analyzing your
circuit easier
Various contact configurations: DPDT, 3PST and 3PDT
Both Socket Mount and Panel Flange Mount available
Features
16A, Mounting Bracket,DPDT
3TX7113-6DC13 24VAC $16.00 Require .187 Quick Connect
3TX7113-6DF13 120VAC $16.00 Require .187 Quick Connect
3TX7113-6DH13 240VAC $16.00 Require .187 Quick Connect
3TX7113-6DB03 12VDC $16.00 Require .187 Quick Connect
3TX7113-6DC03 24VDC $16.00 Require .187 Quick Connect
25A, Mounting Bracket, DPDT
3TX7113-4DC13 24VAC $16.50 Require .250 Quick Connect
3TX7113-4DF13 120VAC $16.50 Require .250 Quick Connect
3TX7113-4DH13 240VAC $16.50 Require .250 Quick Connect
3TX7113-4DC03 24VDC $16.50 Require .250 Quick Connect
3TX7113-4DB03 12VDC $16.50 Require .250 Quick Connect
16A, Square Base,3PST
3TX7113-5EC13 24VAC $16.00 3TX7144-1E4
3TX7113-5EF13 120VAC $16.00 3TX7144-1E4
3TX7113-5EH13 240VAC $16.00 3TX7144-1E4
3TX7113-5EC03 24VDC $16.00 3TX7144-1E4
16A, Square Base,3PDT
16A, Mounting Bracket,3PDT
3TX7113-6FC13 24VAC $16.00 Require .187 Quick Connect
3TX7113-6FF13 120VAC $16.00 Require .187 Quick Connect
3TX7113-4FF13 120VAC $16.00 Require .250 Quick Connect
3TX7113-6FH13 240VAC $16.00 Require .187 Quick Connect
3TX7113-6FC03 24VDC $16.00 Require .187 Quick Connect

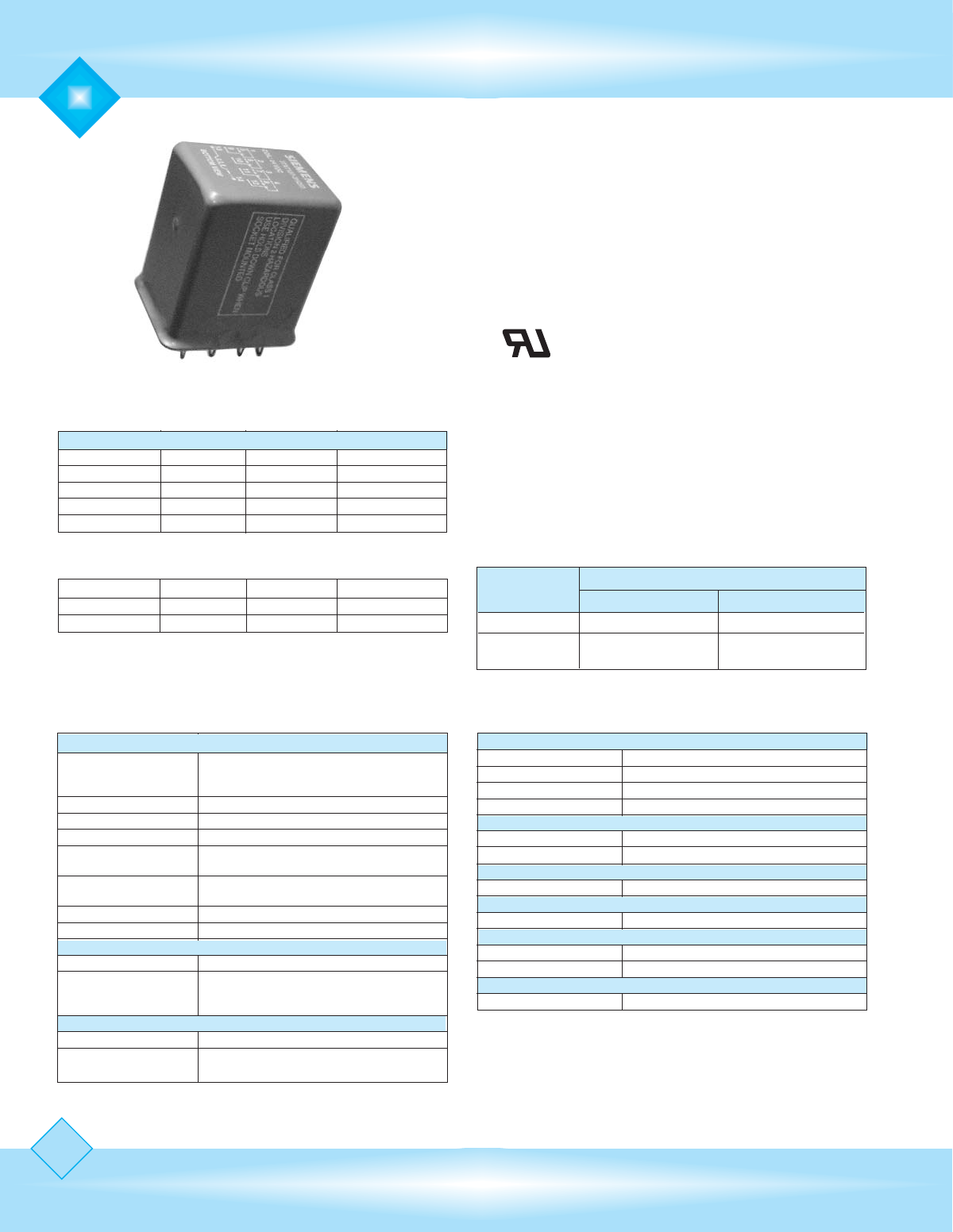

General Purpose Square Base Relays - Basic Line
UL Recognized
File No: E14900
CUS
LR 6535
Catalog No. Coil Voltage List Price Socket Style
3TX7113-5DC13 24VAC $16.00 3TX7144-1E4
3TX7113-5DF13 120VAC $16.00 3TX7144-1E4
3TX7113-5DH13 240VAC $16.00 3TX7144-1E4
3TX7113-5DB03 12VDC $16.00 3TX7144-1E4
3TX7113-5DC03 24VDC $16.00 3TX7144-1E4
Catalog No. Coil Voltage List Price Socket Style
3TX7113-5FC13 24VAC $16.00 3TX7144-1E4
3TX7113-5FF13 120VAC $16.00 3TX7144-1E4
3TX7113-5FG13 220VAC $16.00 3TX7144-1E4
3TX7113-5FB03 12VDC $16.00 3TX7144-1E4
3TX7113-5FC03 24VDC $16.00 3TX7144-1E4
14
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
15
General Purpose Square Base Relays - Basic Line
Specifications
NEMA Pilot Duty Contact Ratings
Rating Codes for AC control-circuit contacts at 50/60Hz
MAXIMUM CURRENT,AMPERES
NEMA
CONTACT
CODE
DESIGNATION
THERMAL
CONTINUOUS
TEST CURRENT
AMPERES
120 VOLTS
50/60Hz 240 VOLTS
50/60Hz 480 VOLTS
50/60Hz 600 VOLTS
50/60Hz MAXIMUM
VOLT-AMPERES
*Measured at 25IC

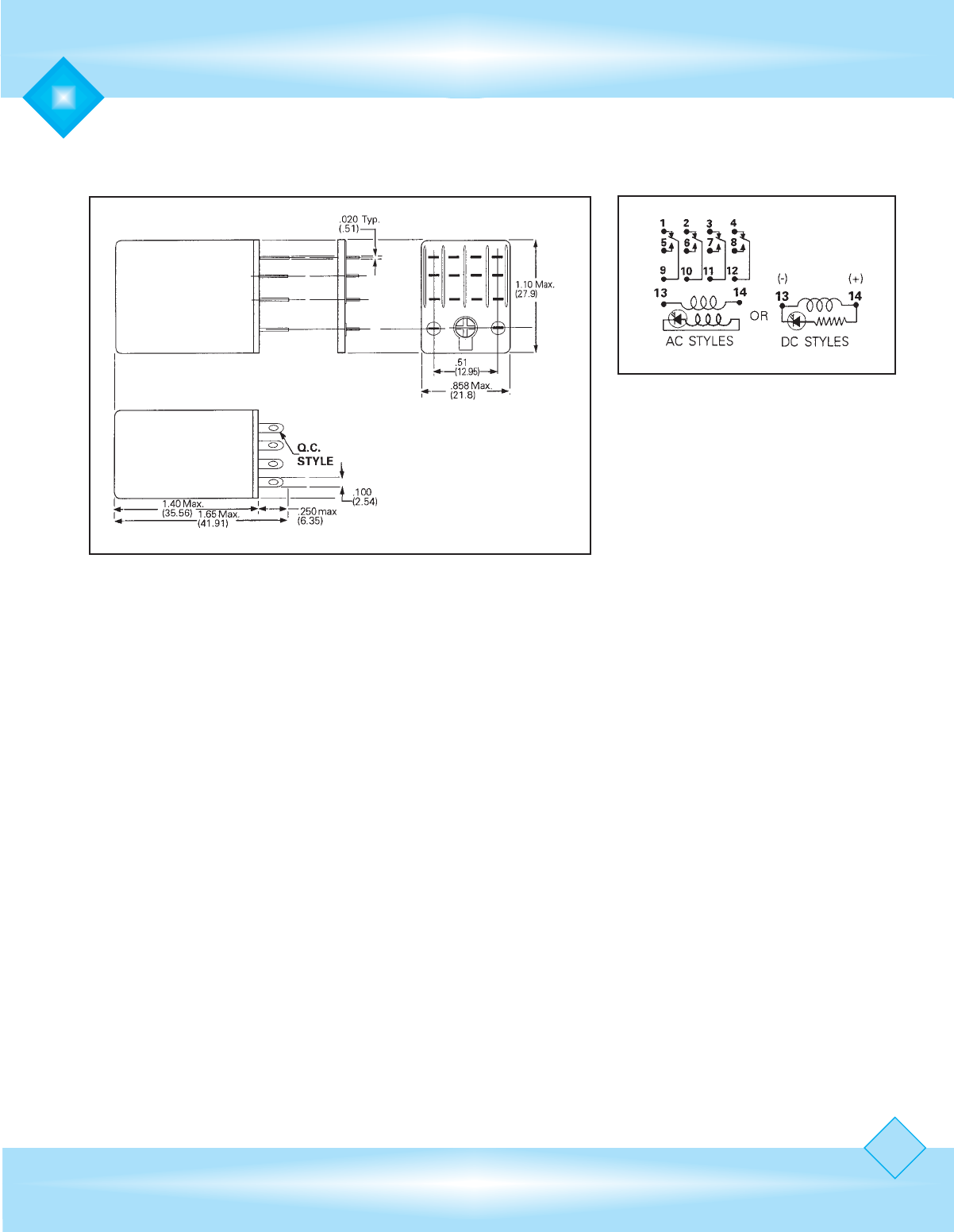

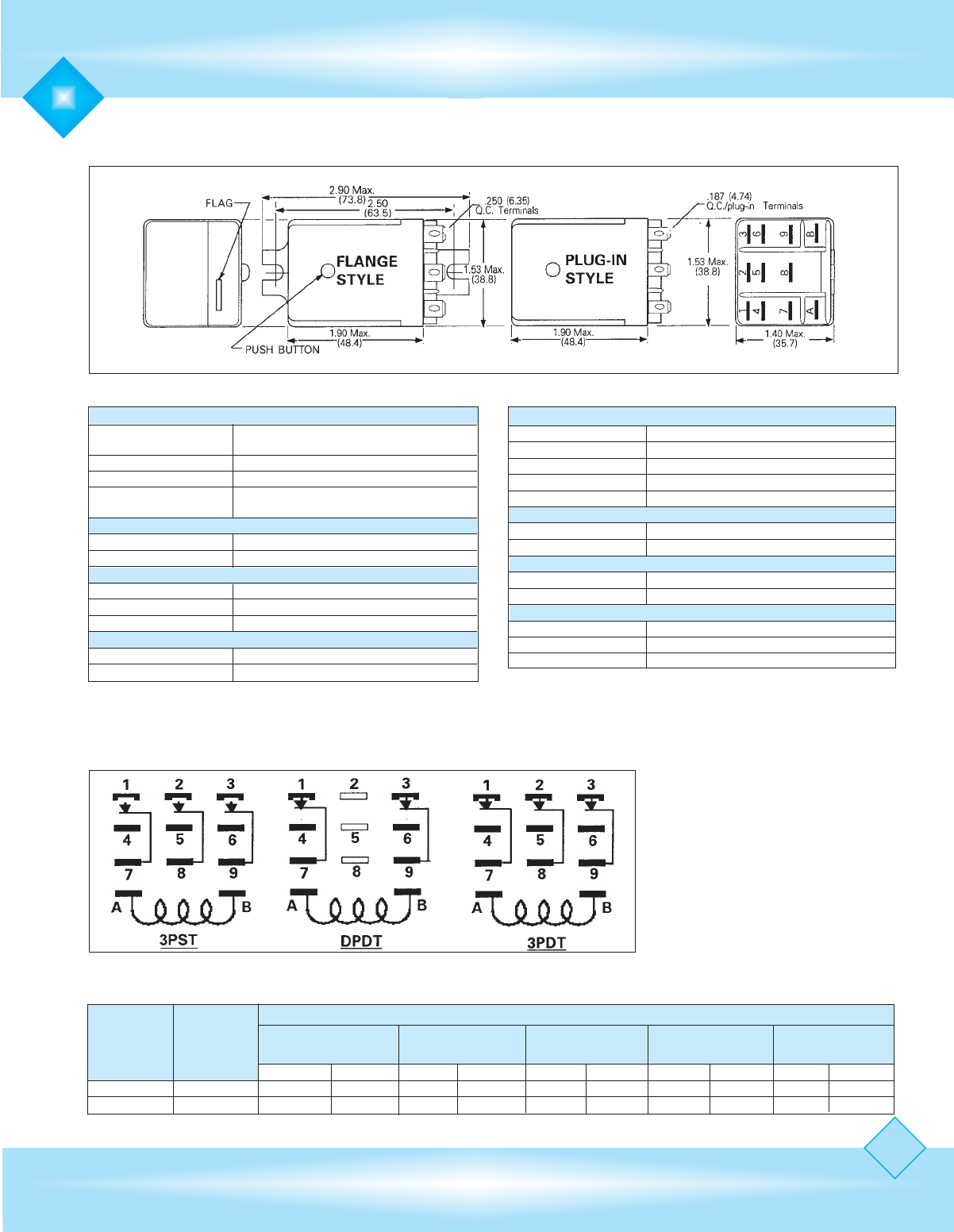

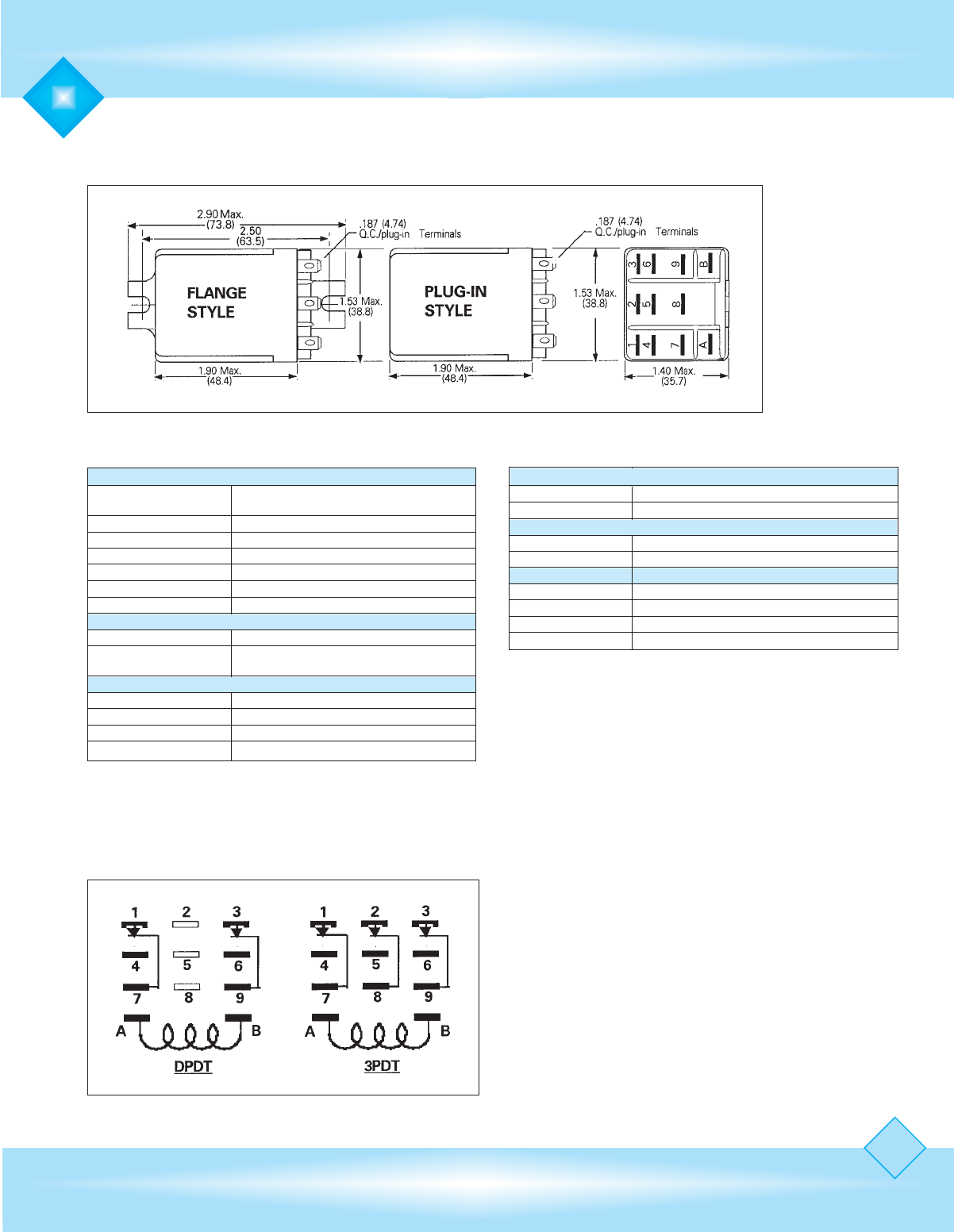

Outline Dimensions
Dimensions shown in Inch & (Millimeters)
Wiring Diagrams
Viewed from pin end
DIELECTRIC STRENGTH
Contacts to coil: 2000 V rms
Across open contacts: 500 V rms
Pole to pole: 2000 V rms
Contacts to frame: 2000 V rms
Insulation resistance: 1000 megohms min. @ 500 VDC.
TEMPERATURE
Operating: -30IC to +50IC (AC), -30IC to +60IC (DC)
Storage: -30IC to 100IC
LIFE
Electrical: 100,000 at rated load.
Mechanical: 5 Million Operations no load
MISCELLANEOUS
Insulation material: Molded plastic
Terminals: .250 x 0.032 QC, .187 x 0.020 QC plug-in
Weight: 3.3 ozs. (94 grams) approx. with cover.
Make Break Make Break Make Break Make Break Make Break
B300 5 30 3.00 15 1.50 - - - - 3600 360
B600 5 30 3.00 15 1.50 0.75 0.75 6 0.06 3600 360
COIL
Pull-in voltage:* 80% of nominal voltage or less. for DC coils.
85% of nominal voltage or less for AC coils.
Drop-out voltage: ≥10% of nominal voltage.
Coil resistance:* ± 10 %
Coil insulation: Class “B” coil insulation system (130IC) per
UL Standard 1446
COIL POWER
Maximum coil dissipation:* Capability of DC coils 2.5 Watts max.
Duty: Continuous
CONTACTS
Contact material: 1/4" silver cadmium oxide, gold flashed
Contact gap: 0.015 min. is standard
Contact resistance: 50 Milliohms max. initial resist. at rated current
TIMING
Operate time, (exc. bounce): 20 ms typical at nominal voltage.
Release time, (exc. bounce): 20 ms typical at nominal voltage.
3TX7121-6FC13 24VAC $14.50 Require .187 Quick Connect
3TX7121-6FF13 120VAC $14.50 Require .187 Quick Connect
3TX7121-6FH13 240VAC $14.50 Require .187 Quick Connect
3TX7121-6FB03 12VDC $14.50 Require .187 Quick Connect
3TX7121-6FC03 24VDC $14.50 Require .187 Quick Connect
3TX7121-6FF03 110VDC $14.50 Require .187 Quick Connect
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
16
Available in multiple coil voltages
Available with current ratings up to 15A and 20A
Economical
DPDT and 3PDT contact configurations
Both Socket Mount and Panel Flange Mount available
Features
UL Recognized
File No: E14900
CUS
LR 6535

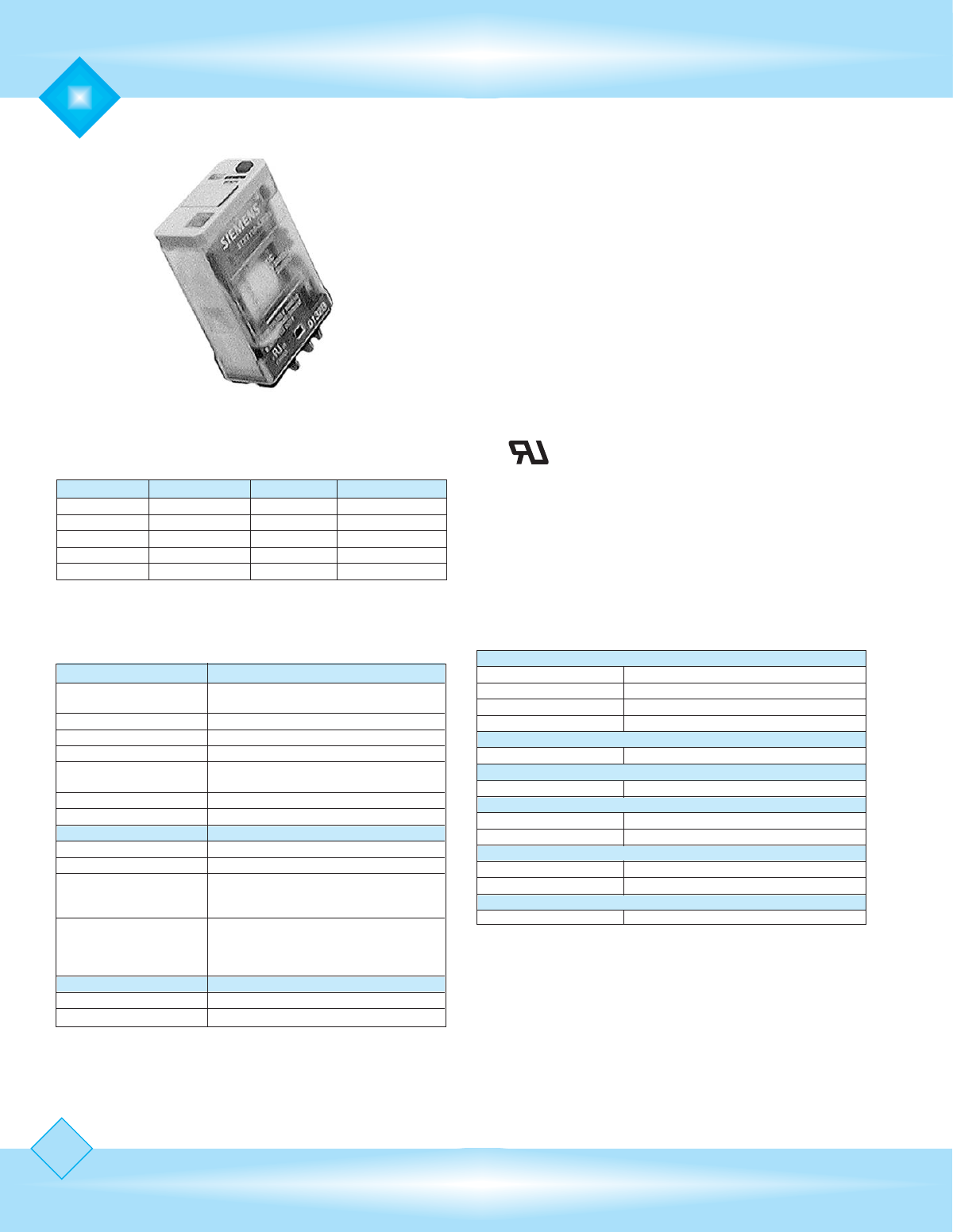

15A, Square Base,DPDT
15A, Square Base,3PDT
3TX7121-5FB13 12VAC $14.50 3TX7144-1E4
3TX7121-5FC13 24VAC $14.50 3TX7144-1E4
3TX7121-5FF13 120VAC $14.50 3TX7144-1E4
3TX7121-5FH13 240VAC $14.50 3TX7144-1E4
3TX7121-5FB03 12VDC $14.50 3TX7144-1E4
3TX7121-5FC03 24VDC $14.50 3TX7144-1E4
3TX7121-5FF03 110VDC $14.50 3TX7144-1E4
15A, Mounting Bracket,DPDT
15A, Mounting Bracket,3PDT
UL Contact Ratings Table
Typical Operating Characteristics
(For DC voltage types only @ 25°C)
20A, Square Base,DPDT
3TX7122-5DC13 24VAC $15.50 3TX7144-1E4
3TX7122-5DF13 120VAC $15.50 3TX7144-1E4
3TX7122-5DH13 240VAC $15.50 3TX7144-1E4
3TX7122-5DB03 12VDC $15.50 3TX7144-1E4
3TX7122-5DC03 24VDC $15.50 3TX7144-1E4
3TX7122-5DF03 110VDC $15.50 3TX7144-1E4
Catalog No. Coil Voltage List Price Socket Style
3TX7121-5DB13 12VAC $13.50 3TX7144-1E4
3TX7121-5DC13 24VAC $13.50 3TX7144-1E4
3TX7121-5DF13 120VAC $13.50 3TX7144-1E4
3TX7121-5DH13 240VAC $13.50 3TX7144-1E4
3TX7121-5DB03 12VDC $13.50 3TX7144-1E4
3TX7121-5DC03 24VDC $13.50 3TX7144-1E4
3TX7121-5DF03 110VDC $13.50 3TX7144-1E4
Catalog No. Coil Voltage List Price Socket Style
3TX7121-6DC13 24VAC $14.00 Require .187 Quick Connect
3TX7121-6DF13 120VAC $14.00 Require .187 Quick Connect
3TX7121-6DB03 12VDC $14.00 Require .187 Quick Connect
3TX7121-6DC03 24VDC $14.00 Require .187 Quick Connect
3TX7121-6DF03 110VDC $14.00 Require .187 Quick Connect
POLES 120 VAC 240 VAC 28 VDC
2 & 3 12 AMP 12 AMP 12 AMP
POLE 1/3 HP 1/2 HP
POLES DPDT 3PDT
Min. Operate mW
Sensitivity 250 375
Operate Time
(Milliseconds maximum) 20.0 24.0
Release Time
(Milliseconds maximum) 28.0 26.0
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
17
Wiring Diagrams
Viewed from pin end
Specifications
General Purpose Square Base Relays - Basic Line
*Measured at 25IC
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
COIL
Pull-in voltage:* 80% of nominal voltage or less for DC coils
85% of nominal voltage or less for AC coils
Drop-out voltage: ≥10% of nominal voltage.
Resistance:* ± 10 %
Coil power:* 1.2 Watts for DC coils, 2 VA to 2.75 VA for AC coils
Insulation System: Class “B” (130IC per UL std. 1446)
Maximum coil dissipation: Capability of DC coils 3.0 Watts max.
Duty: Continuous
CONTACTS
Contact material: 3/16" silver cadmium oxide, gold flashed
Contact resistance: 50 Milliohms maximum initial resistance
at rated current
DIELECTRIC STRENGTH
Across open contacts: 500 V rms
Pole to pole 2000 V rms
Contacts to frame: 2000 V rms
Insulation resistance: 1000 Megohms min. @ 500 VDC
TEMPERATURE
Operating: -30IC to +50IC (AC), -30IC to +65IC (DC)
Storage: -30IC to 100IC
LIFE EXPECTANCY
Electrical: 100,000 Operations @ rated AC load
Mechanical: 5,000,000 Operations @ No load
MISCELLANEOUS
Operating Position: Any
Insulation material: Molded plastic
Terminals: 3/16" (.187) solder/plug-in
Weight: 3.1 oz. (88 g approx).
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
18
UL Recognized
File No: E14900
CUS

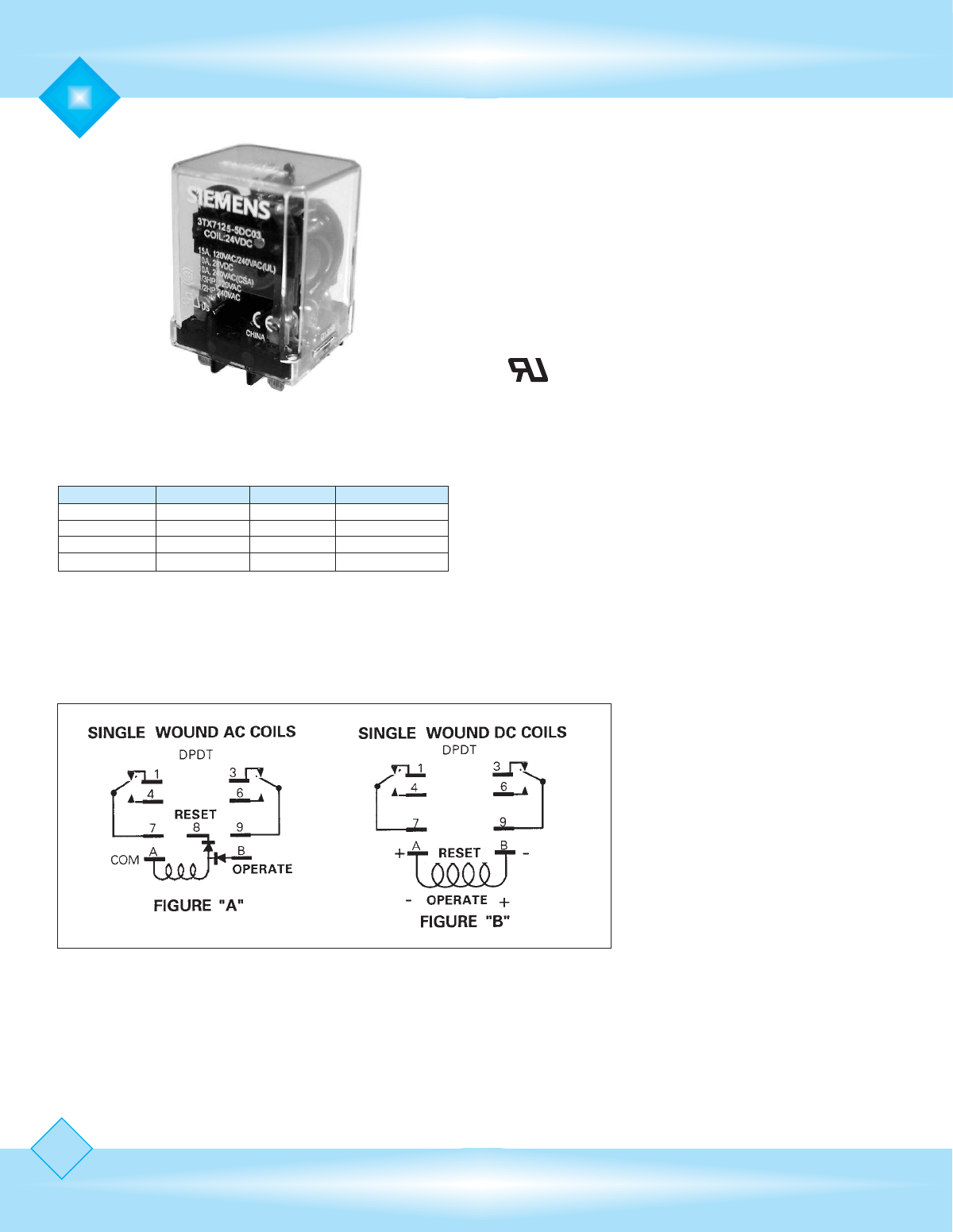

Magnetic Latch Relays
Available in multiple coil voltages
Available with current ratings up to 10A
Economical
DPDT contact configurations
Features
10 A Latching Relay , DPDT
Wiring Diagrams
Catalog No. Coil Voltage List Price Socket Style
3TX7125-5DC13 24VAC $30.00 3TX7144-1E4
3TX7125-5DF13 120VAC $30.00 3TX7144-1E4
3TX7125-5DB03 12VDC $35.00 3TX7144-1E4
3TX7125-5DC03 24VDC $35.00 3TX7144-1E4
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
19
Magnetic Latch Relays
Specifications
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
COIL
Pull-in Voltage: AC: 85%, DC: 75% of nominal voltage measured
at 25IC
Duty Cycle: (Nominal Voltage) Dual coil are intermittent duty.
Pulse Duration Min.: 30 Milliseconds
MAX. OVER VOLTAGE
Intermittent:* 5 x Nominal voltage with no false transfer
of contacts during operate or reset pulse.
Continuous:* 110% of nominal voltage
Coil Resistance: ±10% Measured @ 25IC
Coil Insulation: Class “B” (130IC per UL std.1446)
CONTACTS
Contact Material: Silver Cadmium Oxide, Gold Flashed.
Contact configuration: DPDT
Contact Rating: 10 Amps @ 120/240VAC, 28VDC
1/3 HP @ 120 VAC, 1/2 HP @ 240 VAC
TIMING
Operate Time: (@ Nom. V) AC: 30 ms max., DC: 20 ms max.
Release Time: (@ Nom.V) AC: 30 ms max., DC: 20 ms max.
DIELECTRIC STRENGTH
Across open contacts 500 V rms
between current carrying
parts to ground: 1500 V rms
Insulation Resistance: 500 VDC Exceeds 1000 Megohms min.
TEMPERATURE
Temperature Rating: -45IC to +70IC @ Rated Operation.
LIFE EXPECTANCY
Mechanical: 10 Million Operations no load
Electrical: 100,000 Operations @ Rated Load.
MISCELLANEOUS
Terminals: 3/16" (.187) Quick Connect Style
Weight: 3 oz. 85 grams approx.
Sockets & Accessories
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
20
Wiring Diagrams
Top View
3TX7144-1E4 Specifications
E196786
CUS
General Purpose Square Base Relays - Socket Selection
Spring clip 3TX144-1L5 ordered separately
3TX7144-3D0 Specifications
Catalog No. Additional Description List Price
3TX7144-1E4 11 Pin, panel/DIN rail,Screwterm socket $11.00
3TX7144-3D0 11 Pin, Chassis Mount Socket $11.00
3TX7144-1L5 Spring Clip 3TX7144-1E4 $0.75
3TX7144-4L6 Spring Clip for 3TX7144-3D0 $0.75
3TX7144-1L2 Spring Clip for 3TX7115 $0.75
Electrical Rating: 300 V rms, 15 AMPS
Dielectric Withstanding
Voltage: 2000 V rms Min. between all electrical elements of opposite polarity including a metal mounting surface
CONSTRUCTION
Terminals: Clamping screws: M 3.5 x 0.6 yellow zinc plated with pressure clamp washers.Terminal connections shall be capable of
accepting two #12 AWG wires or smaller, one wire on each side of the clamping screw.Terminal wire clamp must provide
equally good clamping when either one t two wire conductors are connected to a single terminal.
Molding: Break resistant high electrical grade thermoplastic. Internal electrical current carrying elements must conform with
UL and CSA requirements for relay sockets, including maximum operating temperature rise limits and electrical spacing.
Grips: To fit 35mm DIN mounting track.
Torque: Max. torque to clamping screws should not exceed 8-10 inch lbs.
Electrical Rating: 300 V rms, 15 AMPS
Dielectric Withstanding
Voltage: 2000 V rms Min. between all electrical elements of opposite polarity including a metal mounting surface
CONSTRUCTION
Terminals: .187 quick connect
Molding: Break resistant high electrical grade thermoplastic. Internal electrical current carrying elements conform with
UL and CSA requirements for relay sockets, including maximum operating temperature rise limits and electrical spacing.
Clip: Hold down 3TX7144-4L6 clips not supplied with socket and are ordered and supplied separately.
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
21

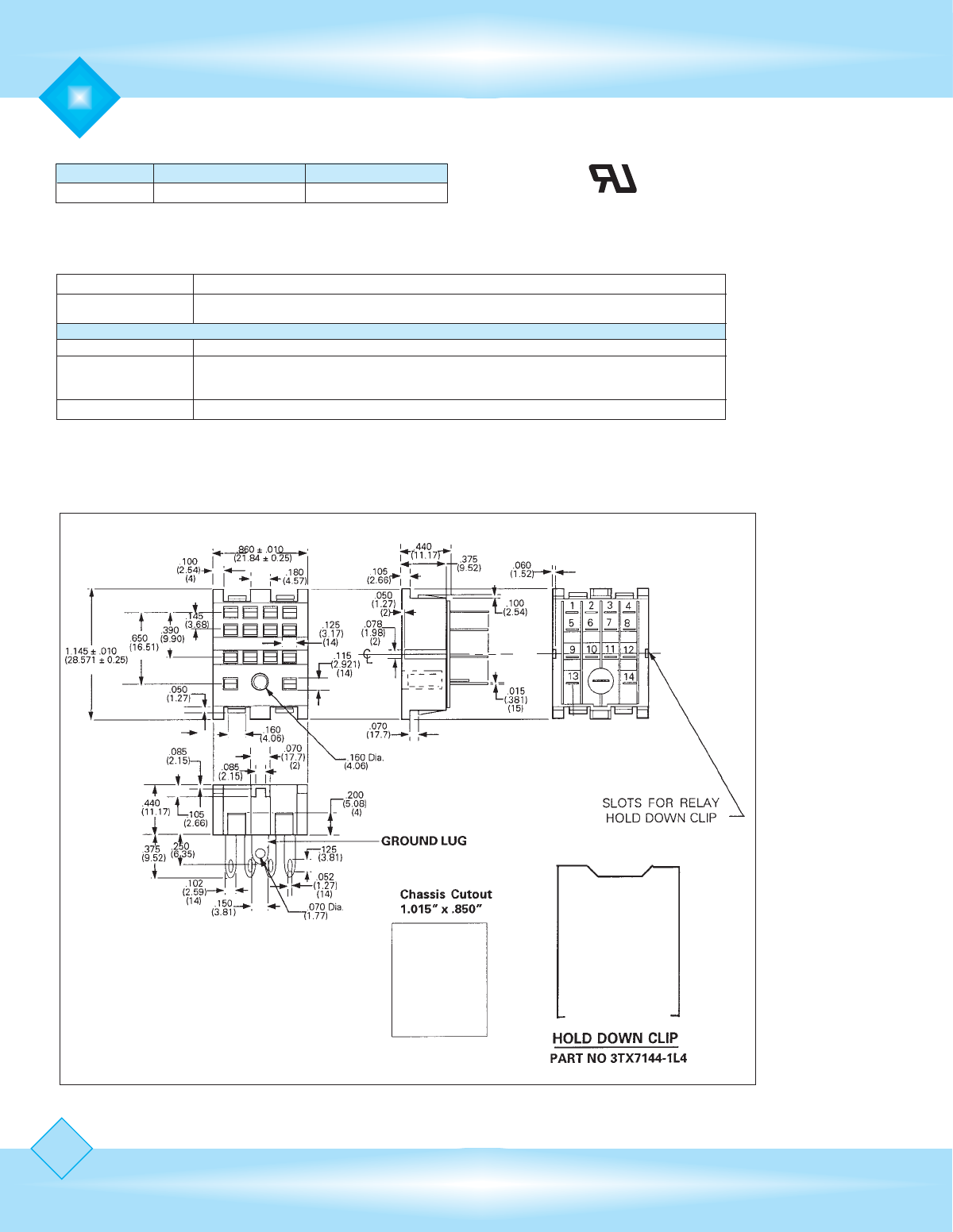

3TX7144-1E4 Outline Dimensions
Dimensions shown in Inches & (Millimeters)
General Purpose Square Base Relays - Socket Selection
3TX7144-3D0 Outline Dimensions
Dimensions shown in Inches & (Millimeters) Recommended Chassis Cutout
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
22
Premium Line 15A, SPDT
Miniature Relays - Premium Line
Specifications
Features
Green LED status indicator - Allows worker to see the relay
status in dark conditions
Mechanical Indicator - Allows worker to see relay status
under normal light or bright conditions
Push to test button - Makes testing and analyzing your circuit
easier
Easy Grip cover - Adds to the ease of removing the relay
from the socket
Removable I.D. Label - Allows for easy identification
Convenient cover adapters - Adds flexibility for socketless
mounting for either soldering or quick connect leads with DIN
rail mount or flange mount adapters
UL Recognized
File No: E14900
CUS
Catalog No. Coil Voltage List Price Socket Style
3TX7110-5JC13 24VAC $10.00 3TX7144-1E7
3TX7110-5JF13 120VAC $10.00 3TX7144-1E7
3TX7110-5JG13 220/230VAC $10.00 3TX7144-1E7
3TX7110-5JB03 12VDC $10.00 3TX7144-1E7
3TX7110-5JC03 24VDC $10.00 3TX7144-1E7
COIL
Pull-in Voltage: DC:75%, AC: 80% of Nominal Voltage or
less @ 25IC
Drop-out voltage: DC -10% min., AC - 30% min.
Max.Voltage: 110%
Coil Resistance: ±15% AC & DC
Coil insulation: Class "B" coil insulation system (130IC per UL
standard 1446)
Power consumption (Approx.): DC: 0.8 Watts DC, AC: 1.1 VA (50Hz), 1.0 VA (60 Hz).
Duty: Continuous
CONTACTS
Contact Configurations: SPDT
Contact Material: Silver Cadmium Oxide. (Ag-CdO)
Contact Resistance: 50 Milliohms Max. @ 10A, 120VAC or 24 VDC.
Contacts to be conditioned for 50 operations make
and break @ 1 second ON & 1 second OFF.
Contact Rating: 15 Amps @ 110-120 VAC 50/60 Hz, 15 AMPS @
28 VDC, 12 AMPS 220-277VAC, 50/60Hz, 1/2 HP,
110-120VAC 50/60Hz, 1 HP 220-250VAC 50/60Hz
TIMING
Operate Time: 25 ms Max. @ Nominal Voltage
Release Time: 25 ms Max. @ Nominal Voltage
DIELECTRIC STRENGTH
Coil to Contacts: 1500 V rms (1 minute)
Across Open Contacts: 1000 V rms (1 minute)
Contact to Frame: 1500 V rms (1 minute)
Insulation Resistance: 100 Megohms Min. @ 500 VDC
TEMPERATURE
Ambient Temperature: -40IC to + 70IC @ Rated Operation
VIBRATION RESISTANCE
Functional: 10 to 55 Hz; 1mm (Double Amplitude)
SHOCK RESISTANCE
Mechanical Durability: Mechanical Durability, 1000 m/s2(approx. 100 G )
Malfunction Durability: Malfunction Durability, 2000 m/s2(approx. 20 G )
LIFE EXPECTANCY
Mechanical (No Load): 10,000,000 Operations
Electrical (Rated Load): 150,000 Operations Min. (at rated Resistive load)
MISCELLANEOUS
Weight: 24g (Approx.)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
23
Miniature Relays - Premium Line
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Catalog No. Description List Price
3TX7144-3L5 Top/Bottom Flange for 3TX7110 style relay $0.75
3TX7144-3L4 Top Din Rail Adapter for 3TX7110 $1.25
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
24
Features
Green LED status indicator - Allows worker to see the relay
status in dark conditions
Mechanical Indicator - Allows worker to see relay status
under normal light or bright conditions
Push to test button with pull-out locking tab - Makes testing
and analyzing your circuit easier
Easy Grip cover - Adds to the ease of removing the relay from
the socket
Removable I.D. Label - Allows for easy identification
Convenient cover adapters - Adds flexibility for socketless
mounting for either soldering or quick connect leads with DIN
rail mount or flange mount adapters
Specifications
Premium Line 5A, DPDT
Miniature Relays - Premium Line
UL Recognized
File No: E14900
CUS
Catalog No. Coil Voltage List Price Socket Style
3TX7111-3LC13 24VAC $11.00 3TX7144-1E5
3TX7111-3LF13 120VAC $11.00 3TX7144-1E5
3TX7111-3LC03 24VDC $11.00 3TX7144-1E5
DIELECTRIC STRENGTH
Coil to Frame: 1500 V rms
Across Open Contacts: 1000 V rms
Contact to Frame: 1500 V rms
Insulation Resistance: 100 Megohms Min. @ 500 VDC
TEMPERATURE
Ambient Temperature: -40IC to + 70IC @ Rated Operation
VIBRATION RESISTANCE
Functional: 10 to 55 Hz; 1mm (Double Amplitude)
SHOCK RESISTANCE
Mechanical Durability: Mechanical Durability, 1000 m/s2(approx. 100 G )
Malfunction Durability: Malfunction Durability, 2000 m/s2(approx. 20 G )
LIFE EXPECTANCY
Mechanical (No Load): 10,000,000 Operations (AC & DC)
Electrical (Rated Load): 200,000 Operations Min. (at rated Resistive load).
MISCELLANEOUS
Weight: 36 grams Approx.
COIL
Pull-in Voltage: 75% of Nominal Voltage or less for DC,
80% of nominal or less for AC.
Drop-out voltage: DC -10% min., AC - 30% min.
Max.Voltage: 110% of nominal voltage
Coil Resistance: ±15% AC & DC measured @ 25IC
Coil Insulation: Class "B" coil insulation system
(130IC per UL standard 1446)
Maximum coil dissipation: 2.3 Watts DC, 2.55 VA (60Hz) AC
Duty: Continuous
CONTACTS
Contact Configurations: DPDT
Contact Material: 5 Amp, Silver Cadmium Oxide (gold flashed)
Contact Resistance: 100 Milliohms Max (3 & 5 @ 6V, 1 Amp)
50 Milliohms Max. (3 Amp bifurcated) @ 6V, 0.1 AMP
Contact Rating: 5 Amps @ 120 VAC, 30VDC, 1/10HP 120/240VAC,
C300 pilot duty
TIMING
Operate Time: 25 ms Max. @ Nominal Voltage
Release Time: 25 ms Max. @ Nominal Voltage
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
25
Miniature Relays - Premium Line
Wiring Diagram
Viewed from pin end
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Catalog No. Description List Price
3TX7144-3L7 Top/Bottom Flange for 3TX7111 & 3TX7114 style relay $0.75
3TX7144-3L6 Top Din Rail Adapter for 3TX7111 & 3TX7114 style relay $1.25
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
12
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog SupplementSiemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
Features
Green LED status indicator - Allows worker to see the relay
status in dark conditions
Mechanical Indicator - Allows worker to see relay status
under normal light or bright conditions
Push to test button with pull-out locking tab - Makes testing
and analyzing your circuit easier
Easy Grip cover - Adds to the ease of removing the relay from
the socket
Removable I.D. Label - Allows for easy identification
Convenient cover adapters - Adds flexibility for socketless
mounting for either soldering or quick connect leads with DIN
rail mount or flange mount adapters
Specifications
Miniature Relays - Premium Line
UL Recognized
File No: E14900
CUS
Premium Line 5A, 4PDT
COIL
Pull-in Voltage: 75% of Nominal Voltage or less for DC, 80% of
nominal or less for AC
Drop-out voltage: DC -10% min., AC - 30% min.
Max.Voltage: 110% of nominal voltage
Coil Resistance: ±15% AC & DC measured @ 25IC
Coil Insulation: Class "B" coil insulation system (130IC per UL
standard 1446)
Maximum coil dissipation: 2.3 Watts DC, 2.55 VA (60Hz) AC
Duty: Continuous
CONTACTS
Contact Configurations: 4PDT
Contact Material: 5 Amp, Silver Cadmium Oxide (gold flashed)
Contact Resistance: 100 Milliohms Max (3 & 5 @ 6V, 1 Amp)
50 Milliohms Max. (3 AMP bifurcated) @ 6V, 0.1 Amp
Contact Rating: 5 Amps @ 120 VAC, 30VDC, 1/10HP 120/240VAC,
C300 pilot duty
TIMING
Operate Time: Max. 25 ms @ Nominal Voltage
Release Time: Max. 25 ms @ Nominal Voltage
Catalog No. Coil Voltage List Price Socket Style
3TX7111-3PB13 12VAC $11.50 3TX7144-1E5
3TX7111-3PC13 24VAC $11.50 3TX7144-1E5
3TX7111-3PF13 120VAC $11.50 3TX7144-1E5
3TX7111-3PG13 230VAC $11.50 3TX7144-1E5
3TX7111-3PA03 6VDC $11.50 3TX7144-1E5
3TX7111-3PB03 12VDC $11.50 3TX7144-1E5
3TX7111-3PC03 24VDC $11.50 3TX7144-1E5
DIELECTRIC STRENGTH
Coil to Frame: 1500 V rms
Across Open Contacts: 1000 V rms
Contact to Frame: 1500 V rms
Insulation Resistance: 100 Megohms Min. @ 500 VDC
TEMPERATURE
Ambient Temperature: -40IC to + 70IC @ Rated Operation
VIBRATION RESISTANCE
Functional: 10 to 55 Hz; 1mm (Double Amplitude).
SHOCK RESISTANCE
Mechanical Durability: Mechanical Durability, 1000 m/s2(approx. 100 G )
Malfunction Durability: Malfunction Durability, 2000 m/s2(approx. 20 G )
LIFE EXPECTANCY
Mechanical (No Load): 10,000,000 Operations (AC & DC)
Electrical (Rated Load): 200,000 Operations Min. (at rated Resistive load)
MISCELLANEOUS
Weight: 36 grams Approx.
26
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
27
Miniature Relays - Premium Line
Wiring Diagrams
Viewed from pin end
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Note:
For top/bottom flange adaptors see page 24
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
28
Features
Green LED status indicator - Allows worker to see the relay
status in dark conditions
Mechanical Indicator - Allows worker to see relay status
under normal light or bright conditions
Push to test button with pull-out locking tab - Makes testing
and analyzing your circuit easier
Easy Grip cover - Adds to the ease of removing the relay from
the socket
Removable I.D. Label - Allows for easy identification
Convenient cover adapters - Adds flexibility for socketless
mounting for either soldering or quick connect leads with DIN
rail mount or flange mount adapters.
Specifications
Miniature Relays - Premium Line
UL Recognized
File No: E14900
CUS
Premium Line 10A, DPDT
Catalog No. Coil Voltage List Price Socket Style
3TX7114-5LC13 24VAC $11.50 3TX7144-1E6
3TX7114-5LF13 120VAC $11.50 3TX7144-1E6
3TX7114-5LH13 240VAC $11.50 3TX7144-1E6
3TX7114-5LB03 12VDC $11.50 3TX7144-1E6
3TX7114-5LC03 24VDC $11.50 3TX7144-1E6
3TX7114-5LF03 110VDC $11.50 3TX7144-1E6
COIL
Pull-in Voltage: DC: 75%, AC :80% of Nominal Voltage or less
@ 25IC
Dropout: DC -10% min., AC - 30% min.
Max.Voltage: 110%
Coil Resistance: ±15% AC & DC
Coil insulation: Class "B" coil insulation system (130°C per UL
standard 1446)
Power consumption (Approx.): DC: 0.8 Watts DC, AC: 1.1 VA (50Hz), 1.0 VA (60 Hz)
Duty: Continuous
CONTACTS
Contact Configurations: DPDT
Contact Material: Silver Cadmium Oxide. (Ag-CdO)
Contact Resistance: 50 Milliohms Max. @ 10A, 6V
Min. Load: 5V Min. @ 100 mA
Contact Rating: 10 Amps @ 120/240 VAC 50/60 Hz, 10 Amps @ 30
VDC, 1/3 HP,120VAC 50/60Hz. 1/2 HP 240VAC
50/60Hz Pilot Duty B300
TIMING
Operate Time: 25 ms Max. @ Nominal Voltage
Release Time: 25 ms Max. @ Nominal Voltage
DIELECTRIC STRENGTH
Coil to Contacts: 1500 V rms (1minute)
Across Open Contacts: 1000 V rms (1 minute)
Contact to Frame: 1500 V rms (1 minute)
Insulation Resistance: 100 Megohms Min. @ 500 VDC
TEMPERATURE
Ambient Temperature: -40IC to + 70IC @ Rated Operation
VIBRATION RESISTANCE
Functional: 10 to 55 Hz; 1mm (Double Amplitude)
SHOCK RESISTANCE
Mechanical Durability: Mechanical Durability, 1000 m/s2(approx. 100 G )
Malfunction Durability: Malfunction Durability, 2000 m/s2(approx. 20 G )
LIFE EXPECTANCY
Mechanical (No Load): 10,000,000 Operations (AC & DC)
Electrical (Rated Load): 200,000 Operations Min. (at rated Resistive load)
MISCELLANEOUS
Weight: 37 g (Approx.)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
29
Miniature Relays - Premium Line
Wiring Diagrams
Viewed from pin end
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Note:
For top/bottom flange adaptors see page 24
Basic Line 5A, 4PDT
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
30
Specifications
Miniature Relays - Basic Line
Basic Line 3A, 4PDT
UL Recognized
File No: E14900
CUS
LR 6535
Features
Available in multiple coil voltages
Available with current ratings up to 3A & 5A
Economical
4PDT contact configurations
Uses industry standard socket
Catalog No. Coil Voltage List Price Socket Style
3TX7126-3HB10 12VAC $9.00 3TX7144-1E5
3TX7126-3HC10 24VAC $9.00 3TX7144-1E5
3TX7126-3HF10 120VAC $9.00 3TX7144-1E5
3TX7126-3HB03 12VDC $9.00 3TX7144-1E5
3TX7126-3HC00 24VDC $9.00 3TX7144-1E5
3TX7126-3HF00 110VDC $9.00 3TX7144-1E5 *with lamp
DIELECTRIC STRENGTH
Contacts to Coil: 1500 V rms
Across open Contacts: 1000 V rms
Contact to Frame: 1500 V rms
Insulation Resistance: 100 Megohms min. @ 500 VDC
TEMPERATURE
Operating: -40IC to + 70IC @ Rated Operation
VIBRATION RESISTANCE
Functional: 10 to 55Hz; 1mm (Double Amplitude)
SHOCK RESISTANCE
Mechanical Durability: Mechanical Durability, 1000 m/s2(approx. 100 G )
Malfunction Durability: Malfunction Durability, 2000 m/s2(approx. 20 G )
LIFE EXPECTANCY
Mechanical (No Load): 10,000,000 Operations (AC & DC).
Electrical (Rated Load): 200,000 Operations min. (at rated resistive load)
MISCELLANEOUS
Weight: 1.12 oz. (Approx. 32 g).
Catalog No. Coil Voltage List Price Socket Style
3TX7126-3HF13 120VAC $9.00 3TX7144-1E5
3TX7126-3PF13* 120VAC $9.00 3TX7144-1E5
3TX7126-3HB03 12VDC $9.00 3TX7144-1E5
3TX7126-3HC03 24VDC $9.00 3TX7144-1E5
3TX7126-3HF03 110VDC $9.00 3TX7144-1E5
COIL
Pull-in Voltage: 75% of Nominal Voltage or less for DC, 80%
of nominal or less for AC @ 25IC
Drop-out voltage: DC-10% min., AC-30% min.@ 25IC
Maximum Voltage: 110%
Coil Resistance: ±15% AC & DC @ 25IC
Coil Insulation : Class "B" Coil Insulation system (130IC
per UL standard. 1446)
Maximum coil dissipation: 2.3 Watts DC, 2.55 VA (60Hz) AC, 5 minutes
maximum at 40IC
Approx. Continuous
(Nominal coil) dissipation: 0.9 to 1.1 Watts DC, 1.2 to 1.4 VA (60Hz) AC
Duty: Continuous
CONTACTS
Contact Configuration: 4PDT
Contact Material: (3A Bifurcated) - Silver gold plate, (3A) - Silver
(Gold Flash 10 microinches min.)
Contact Resistance: 100 Milliohms Max. @6V, 1 Amp.
Contact Rating: 3 Amp Bifurcated @ 120/240VAC. 30VDC. 1/16HP
(2.8A FLA), 120VAC, pilot duty -5 Amp make, 1/2 amp
break. 3 Amps continuous
3 Amp contacts - 3 Amps, 120VAC. 30VDC. 1/10HP.
120/240VAC, C300 Pilot Duty
TIMING
Operate Time: 25 ms Max. @ Nominal Voltage
Release Time: 25ms Max. @ Nominal Voltage
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
31
Miniature Relays - Basic Line
Wiring Diagrams
Viewed from pin end
3TX126 Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Specifications
Hermetically Sealed,Basic Line 3A, 4PDT
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
32
Miniature Relays - Basic Line
UL Recognized
File No: E14900
CUS
Hermetically Sealed,Basic Line 5A, 4PDT
3TX7127-3HF13 120VAC $60.00 3TX7144-1E5
3TX7127-3HB03 12VDC $55.00 3TX7144-1E5
3TX7127-3HC03 24VDC $55.00 3TX7144-1E5
Resistive CContact RRating
Contact Material and Ratings Table
Features
Available in multiple coil voltages
Available with current ratings up to 3A & 5A
Meet UL Class 1 Division 2
4PDT contact configurations
Uses industry standard socket
Catalog No. Coil Voltage List Price Socket Style
3TX7127-3HC10 24VAC $60.00 3TX7144-1E5
3TX7127-3HF10 120VAC $60.00 3TX7144-1E5
3TX7127-3HB00 12VDC $55.00 3TX7144-1E5
3TX7127-3HC00 24VDC $55.00 3TX7144-1E5
3TX7127-3HF00 110VDC $55.00 3TX7144-1E5
Contact MMaterial
Minimum Maximum
Silver 100 mA @ 12VAC/12VDC 3A @ 120/240VAC, 28VDC
Silver Cadmium
Oxide 500 mA @ 12VAC/12VDC 5A @ 120/240VAC, 28VDC
COIL
Pull-in Voltage: 75% of Nominal Voltage or less for DC, 80% of nominal
or less for AC.@ 25IC Ambient (Coil Warm
and Stablized)
Drop-out voltage: DC-10% min., AC-30% min. @ 25IC
Maximum Voltage: 110% of nominal voltage
Coil Resistance: ±15% AC & DC measured @ 25IC
Coil Insulation : Class "B" Coil Insulation system (130IC per
UL standard. 1446)
Maximum intermittent
coil dissipation: 2.0 Watts DC, 5 minutes maximum at 25IC
Nominal coil dissipation: 0.9 Watts DC, 1.2 VA (60Hz) AC @ 25IC
Duty: Continuous
CONTACTS
Contact Configuration: 4PDT
Contact Material:
Contact Load min.: See contact material and ratings table
Contact Rating max.:
TIMING
Operate Time: 13 ms max. @ Nominal Voltage typical excluding bounce
Release Time: 6 ms max. @ Nominal Voltage typical excluding bounce
DIELECTRIC STRENGTH
Contacts to Coil: 1240 V rms
Across open Contacts: 500 V rms
Contact to Frame: 1240 V rms
Insulation Resistance: 100 Megohms min. @ 500 VDC
TEMPERATURE
Operating: -45IC to + 70IC @ Rated Operation
Storage: -60IC to + 130IC
VIBRATION RESISTANCE
Functional: 10 to 55Hz; 6 g's (Double Amplitude)
SHOCK RESISTANCE
Operating: 10 g's (11mS)
LIFE EXPECTANCY
Mechanical (No Load): 10 Million Operations (AC & DC)
Electrical (Rated Load): 100,000 Operations min. (at rated resistive load)
MISCELLANEOUS
Weight: 1.6 oz. (Approx. 45 g)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
33
Miniature Relays - Basic Line

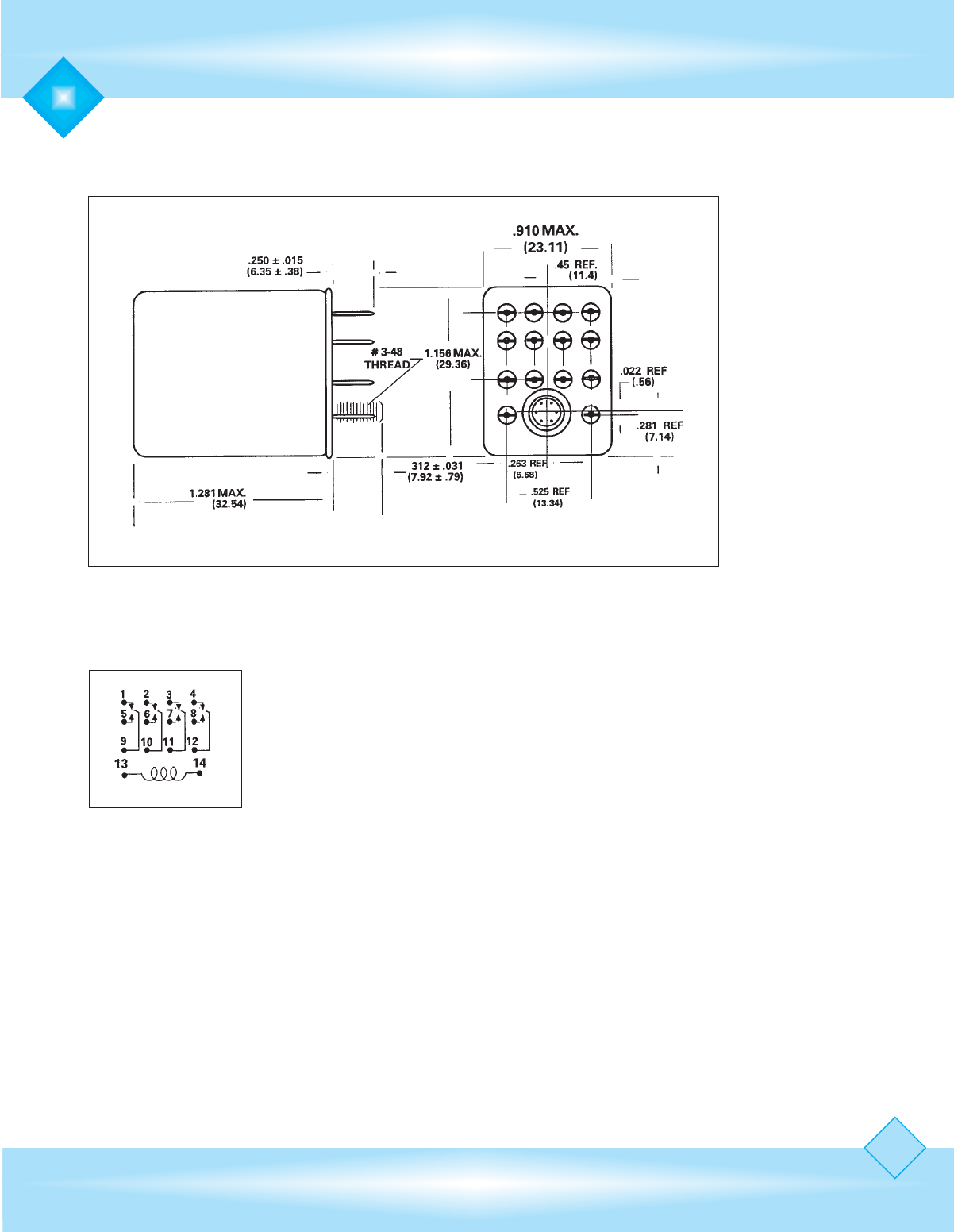

Wiring Diagram
Viewed from pin end
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
34
Miniature Relays - Basic Line
3TX7123-5DB13 12VAC $9.50 3TX7144-1E6
3TX7123-5DC13 24VAC $9.50 3TX7144-1E6
3TX7123-5DF13 120VAC $9.50 3TX7144-1E6
3TX7123-5DB03 12VDC $9.50 3TX7144-1E6
3TX7123-5DC03 24VDC $9.50 3TX7144-1E6
3TX7123-5DF03 110VDC $9.50 3TX7144-1E6
Basic Line 10A, DPDT
Basic Line 10A, DPDT, PC Term
Basic Line 10A, DPDT, Mounting Bracket
3TX7123-6DF13 120VAC $9.50 Require .187 Quick Connect
3TX7123-6DB03 12VDC $9.50 Require .187 Quick Connect
3TX7123-6DC03 24VDC $9.50 Require .187 Quick Connect
UL Recognized
File No: E27683
CUS
LR 6535
Printed Circuit Board Layout
Bottom view
Wiring Diagram
Viewed from pin end
Features
Available in multiple coil voltages
Available with current ratings up to 10A
Economical
DPDT contact configurations
Socket Mount, Panel Flange Mount, or PCB pins
available
Catalog No. Coil Voltage List Price Socket Style
3TX7123-2DB03 12VDC $9.50 Not required
3TX7123-2DC03 24VDC $9.50 Not required
3TX7123-2DF03 110VDC $9.50 Not required
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
35

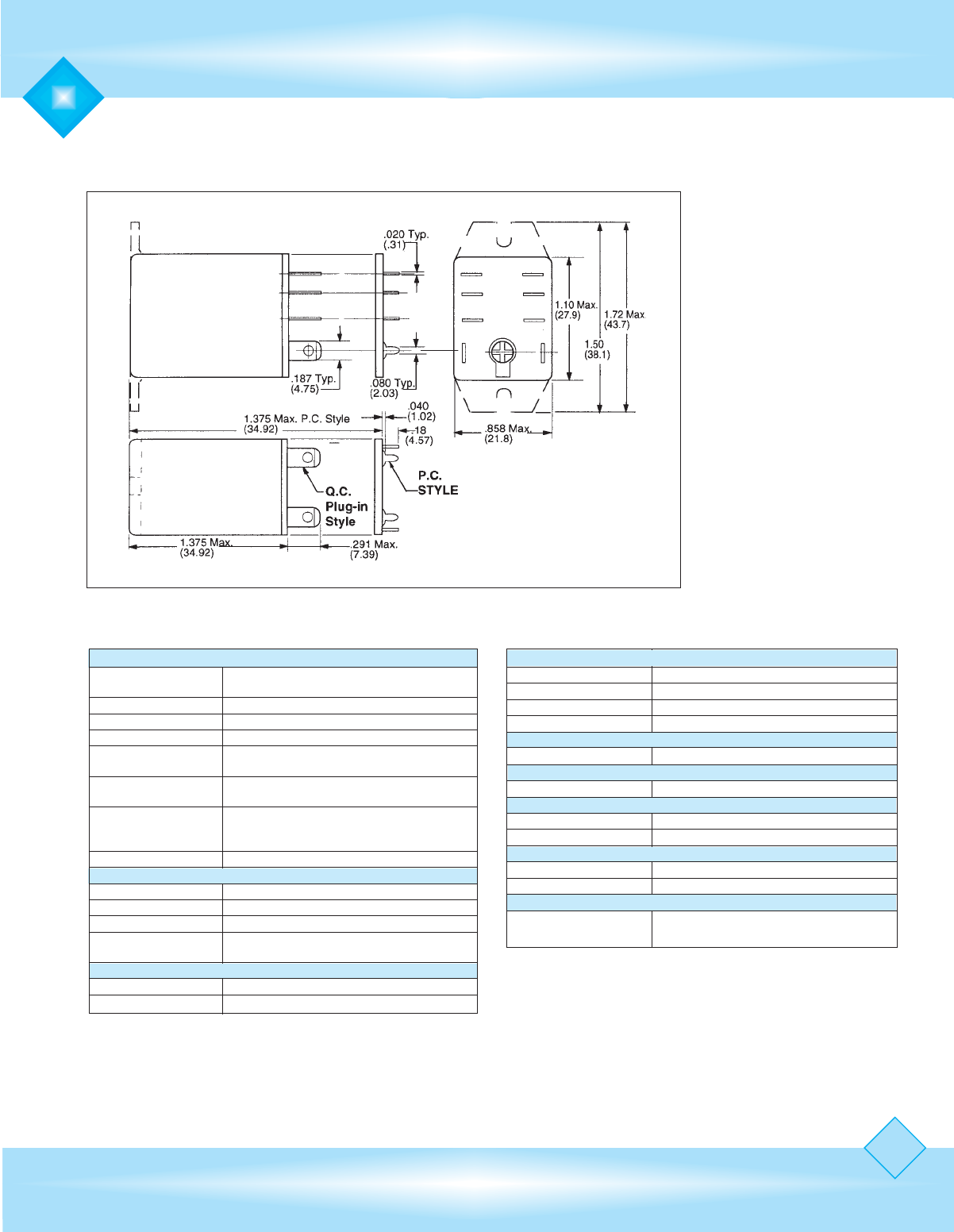

Specifications
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Miniature Relays - Basic Line
COIL
Pull-in Voltage: 75% of Nominal Voltage or less for DC, 80% of
nominal or less for AC
Drop-out voltage: DC-10% min., AC-30%min.
Maximum Voltage: 110%
Coil Resistance: ±15% AC & DC
Coil Insulation : Class "B" Coil Insulation system (130IC per UL
standard.1446)
Maximum coil 2.3 Watts DC, 2.55 VA (60Hz) AC,
dissipation: 5 minutes maximum at 40°C
Approx. Continuous
(Nominal coil)
dissipation: 0.9 to 1.1 Watts DC, 1.2 to 1.4 VA (60Hz) AC
Duty: Continuous
CONTACTS
Contact Configuration: DPDT
Contact Material: Silver Cadmium Oxide
Contact Resistance: 100 Milliohms Max.@ 6V, 1 Amp
Contact Rating: 10 AMPS @ 120/240VAC, 30VDC 1/3HP
120, 1/2 HP, 240VAC
TIMING
Operate: 25 ms max. @ Nominal Voltage
Release: 25 ms max. @ Nominal Voltage
DIELECTRIC STRENGTH
Contacts to Coil: 1500 V rms
Coil to Frame: 1500 V rms
Contact to Frame: 1500 V rms
Insulation Resistance: 100 Megohms min. @ 500 VDC
TEMPERATURE
Operating: -40IC to + 70IC @ Rated Operation
VIBRATION RESISTANCE
Functional: 10 to 55Hz; 1mm (Double Amplitude)
SHOCK RESISTANCE
Mechanical Durability: Mechanical Durability, 1000 m/s2(approx. 100 G )
Malfunction Durability: Malfunction Durability, 2000 m/s2(approx. 20 G )
LIFE EXPECTANCY
Mechanical (No Load): 10,000,000 Operations (AC & DC)
Electrical (Rated Load): 200,000 Operations min. (at rated resistive load)
MISCELLANEOUS
Weight: 1.41 oz. (Approx. 40 g)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
36
Miniature Relays - Socket Selection
E196786
CUS
Specifications
* Hold down clip included
Wiring Diagram
Viewed from pin end
Catalog No. Coil Voltage List Price
3TX7144-1E7 SPDT, Panel/DIN rail, Screw term $8.00
Electrical Rating: 300 V, 15 AMPS
Dielectric Withstanding
Voltage: 2000 V rms Min. between all electrical elements of opposite polarity including a metal mounting surface
CONSTRUCTION
Terminals: Clamping screws: M 3.5 x 0.6 yellow zinc plated with pressure clamp washers. Screws are assembled in the socket with
pressure clamping plates under the finger safe blocks. Contact terminal connections shall be capable of accepting two #12
AWG wires or smaller, one wire on each side of the clamping screw.Terminal wire clamp must provide equally good clamping
when either one or two wire conductors are connected to a single terminal. Internal connections must be made up of metal
tracks.The terminal receptable and screw terminal plate must be an integral part of the track. (Each track is one piece
construction). No soldered or crimped internal wire is allowed in the construction of this socket. Sockets to be molded from
break resistant high electrical grade thermoplastic. Internal electrical current carrying elements must conform with
UL and CSA requirements for relay sockets, including maximum operating temperature rise limits and electrical spacing.
Torque: Max. torque to clamping screws should not exceed 6-8 inch lbs.
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
37
Miniature Relays - Socket Selection
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
38
Miniature Relays - Socket Selection
E196786
CUS
Specifications
NOTE:
1) Basic line spring clip 3TX7144-1L4 ordered separately
2) Premium line spring clip 3TX7144-1L1 ordered separately
3) Spring clip 3TX7144-1L3 for 3TX7127 hermitically sealed relay ordered separately
Catalog No. Coil Voltage List Price
3TX7144-1E5 4 Pole, Panel/DIN rail, Screw term socket $12.50
Electrical Rating: 300 V rms, 10 AMPS
Dielectric Withstanding
Voltage: 1600V rms Min. between all electrical elements of opposite polarity including a metal mounting surface.
CONSTRUCTION
Terminals: Clamping screws: M 3 x 0.5 yellow zinc plated with pressure clamp washers. Screws are assembled in the socket with
pressure clamping washers.Terminal connections shall be capable of accepting two #16 AWG wires or smaller, one wire
on each side of the clamping screw.Terminal wire clamp must provide equally good clamping when either one or two wire
conductors are connected to a single terminal.
Molding: Break resistant high electrical grade thermoplastic. Internal electrical curent carrying elements must conform with
UL and CSA requirements for relay sockets, including maximum operating temperature rise limits and electrical spacing.
Torque: Max. torque to clamping screws should not exceed 6-8 inch lbs.
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
39
Wiring Diagram
Top view
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Miniature Relays - Socket Selection
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
40
Miniature Relays - Socket Selection
E196786
CUS
Specifications
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Catalog No. Description List Price
3TX7144-3E0 Socket $4.80
Electrical Rating: 5 AMPS, 120 VAC
Dielectric Withstanding
Voltage: 1500 V rms Min. between all electrical elements of opposite polarity including a metal mounting surface
CONSTRUCTION
Terminals: Solder
Molding: Break resistant high electrical grade thermoplastic
Internal electrical current carrying elements conform with UL and CSA requirements for relay sockets, including
maximum operating temperature rise limits and electrical spacing.
Clip Hold down clips not supplied with socket and are ordered and supplied separately
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
41
Miniature Relays - Socket Selection
E196786
CUS
Specifications
Catalog No. Coil Voltage List Price
3TX7144-1E6 1 or 2 Pole, Panel/DIN rail, Screw term socket $9.00
Wiring Diagram
Top view
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
NOTE:
1) Basic line spring clip 3TX7144-1L4 ordered separately
2) Premium line spring clip 3TX7144-1L1 ordered separately
Electrical Rating: 300 V rms, 10 AMPS
Dielectric Withstanding
Voltage: 2000 V rms Min. between all electrical elements of opposite polarity including a metal mounting surface.
CONSTRUCTION
Terminals: Clamping screws: M 3.5 x 0.6 yellow zinc plated with pressure clamp washers.Terminal connections shall be capable of
accepting two #12 AWG wires or smaller, one wire on each side of the clamping screw.Terminal wire clamp must provide
equally good clamping when either one or two wire conductors are connected to a single terminal.
Molded: Break resistant high electrical grade thermoplastic. Internal electrical current carrying elements must conform with
UL and CSA requirements for relay sockets, including maximum operating temperature rise limits and electrical spacing.
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
42
Heavy Duty Power Relays
UL Recognized
File No: E14900
LR 6535
Catalog No. Coil Voltage List Price Socket Style
3TX7130-0AC13 24VAC $22.00 No base required
3TX7130-0AF13 120VAC $22.00 No base required
3TX7130-0AH13 240VAC $22.00 No base required
Heavy Duty Power Relays 30A,SPST-NO
Features
Available in multiple coil voltages
Available with current ratings up to 30A
Economical
Various contact configurations: SPST-NC, SPST-NO, SPDT,
DPST-NO, DPDT, DPDT with Magnetic Blowout
Panel Mount
Heavy Duty Power Relays 30A,SPST-NC
Catalog No. Coil Voltage List Price Socket Style
3TX7130-0BC13 24VAC $24.00 No base required
3TX7130-0BF13 120VAC $24.00 No base required
3TX7130-0BH13 240VAC $24.00 No base required
3TX7130-0BS13 277VAC $24.00 No base required
Heavy Duty Power Relays 30A,SPDT
Heavy Duty Power Relays 30A,DPST-NO
Heavy Duty Power Relays 30A,DPDT
Heavy Duty Power Relays 30A,DPDT w/Magnetic Blowout
Heavy Duty Power Relay Dust Cover
3TX7144-1M0 $19.00
Catalog No. Coil Voltage List Price Socket Style
3TX7130-0RB03 12VDC $31.00 No base required
3TX7130-0RC03 24VDC $31.00 No base required
3TX7130-0RF03 110VDC $31.00 No base required
3TX7130-0RF13 120VAC $31.00 No base required
3TX7130-0RD03 48VDC $31.00 No base required
Catalog No. Coil Voltage List Price Socket Style
3TX7130-0DC13 24VAC $26.00 No base required
3TX7130-0DF13 120VAC $26.00 No base required
3TX7130-0DH13 240VAC $26.00 No base required
3TX7130-0DS13 277VAC $26.00 No base required
3TX7130-0DB03 12VDC $26.00 No base required
3TX7130-0DC03 24VDC $26.00 No base required
3TX7130-0DD03 48VDC $26.00 No base required
Catalog No. Coil Voltage List Price Socket Style
3TX7130-0AC03 24VDC $22.00 No base required
3TX7130-0QF13 120VAC $22.00 No base required
Catalog No. Coil Voltage List Price Socket Style
3TX7130-0CC13 24VAC $24.00 No base required
3TX7130-0CF13 120VAC $24.00 No base required
3TX7130-0CH13 240VAC $24.00 No base required
3TX7130-0CS13 277VAC $24.00 No base required
3TX7130-0CB03 12VDC $24.00 No base required
3TX7130-0CC03 24VDC $24.00 No base required
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
43

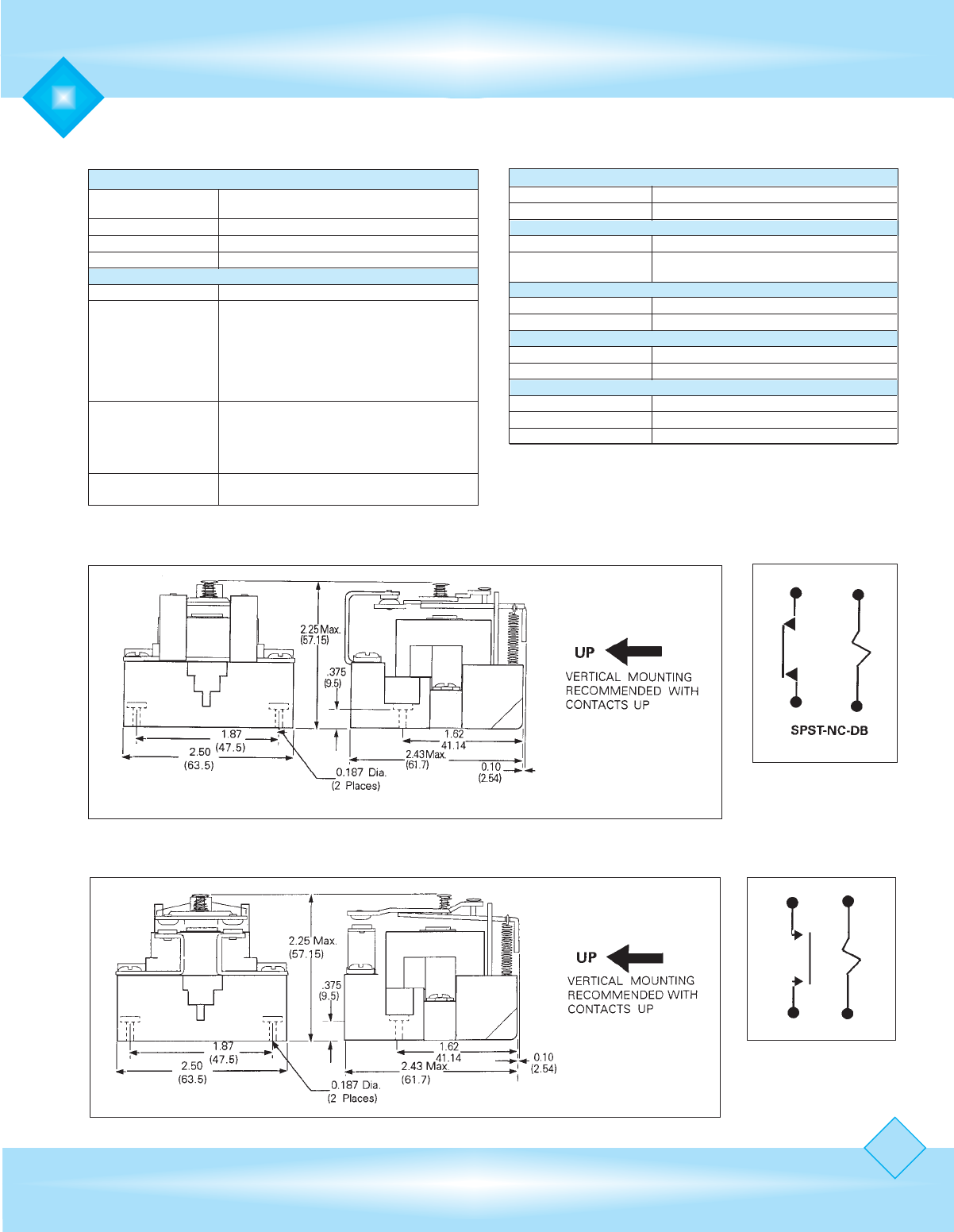

Wiring Diagram
Top view
SPST-NO Double Make Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Heavy Duty Power Relays
Wiring Diagram
Top view
SPST-NC Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Specifications
TIMING
Operate time: 40 Milliseconds Max. @ Nominal V
Release Time: 30 Milliseconds Max. @ Nominal V
DIELECTRIC STRENGTH
Between Open Contacts: 1500 V rms
Mutually Insulated
Conductive elements: 2200 V rms
TEMPERATURE
Operating Range: (AC) -30IC to +50IC, (DC) -30IC +60IC
Non-Operating Storage: -30IC to +100IC
LIFE
Electrical (Rated Load): 100,000 Operations
Mechanical (No Load): 5,000,000 Operations
MISCELLANEOUS
Coil Terminals: 6-32 Combination Head Screws
Contact Terminals: 8-32 Combination Head Screws
Short Circuit Rating: 5KA (RMS) 600V fuses only
COIL
Pull-in Voltage: 80% DC Coils, 85% AC coils of nominal voltage
or less @ 25IC
Drop-out voltage: 10% of Nominal Voltage or more @ 25IC
Coil Resistance: ±10% @ 25IC
Max. Coil Dissipation: DC Coils - 4 Watts Max. Continuous
CONTACTS
Contact Combinations: DPDT
Contact Rating 30 Amps up to 300 VAC, 50/60Hz 5 Amps @
for each pole: 480/600VAC , 0.75pF Inductive Load. 1-1/2 HP Motor
Load (each Pole) @ 120 thru 600 VAC, 50/60 Hz. 2 HP
Motor Load @ 200 thru 600 VAC, 50/60 Hz only when
using two poles to switch both sides of Load 30 Amps
@ 28 VDC Resistive each Pole.
NEMA A600 Pilot Duty 50/60 Hz
DC Ratings for DPDT 10 Amps @ 110 VDC, Resistive; 4 Amps at 220 VDC,
w/Magnetic blowout: Resistive, 2 Amps @ 325VDC Resistive. For inductive
Loads, contacts must be derated accordingly.
Capacitive loads must have current limiting to insure
that inrush current will not exceed 50 Amps
Contact Material: Silver Cadmium Oxide, Gold Flashed
5/16" Diameter Standard
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
44

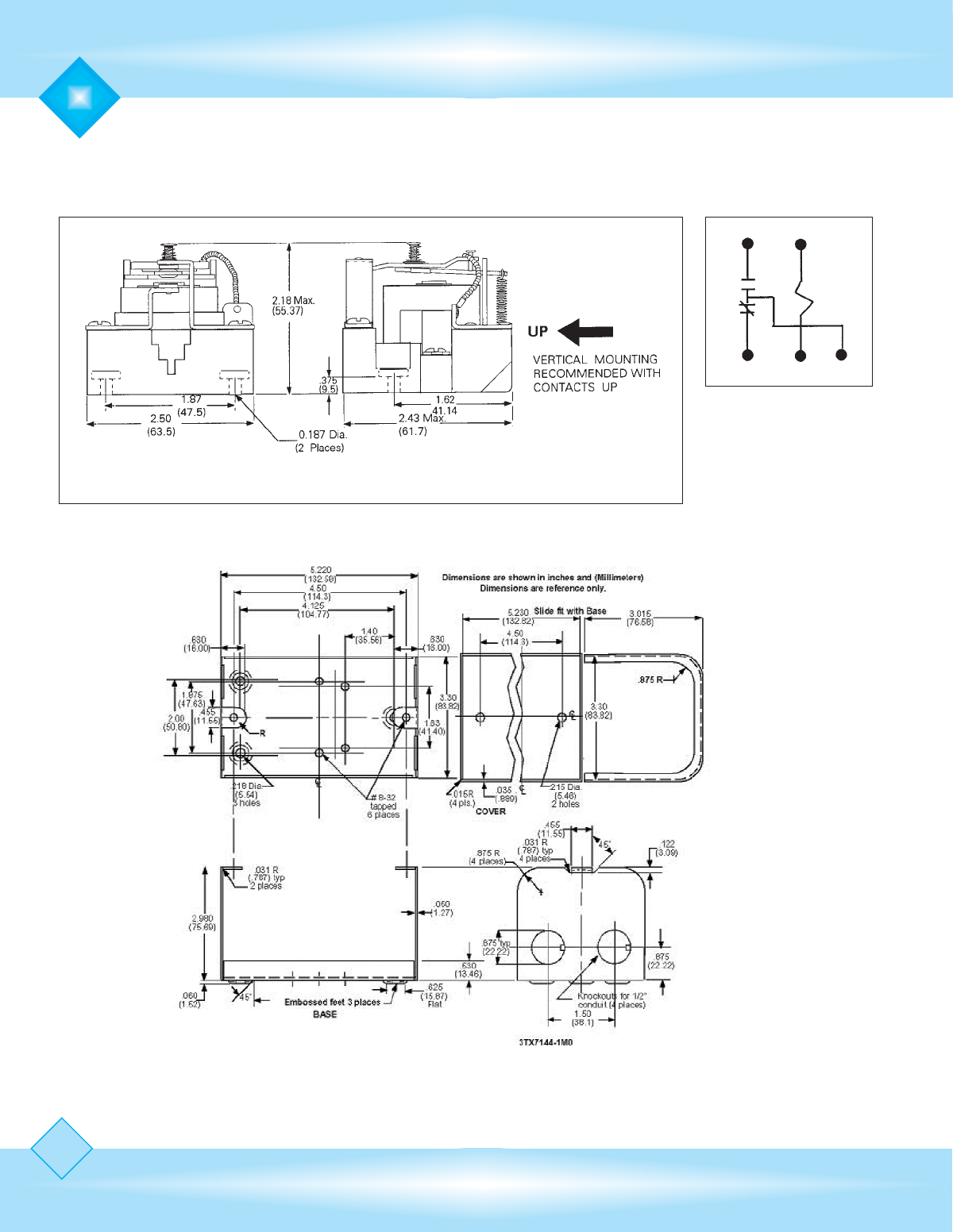

Heavy Duty Power Relays
Wiring Diagram
Top view
SPDT Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
45

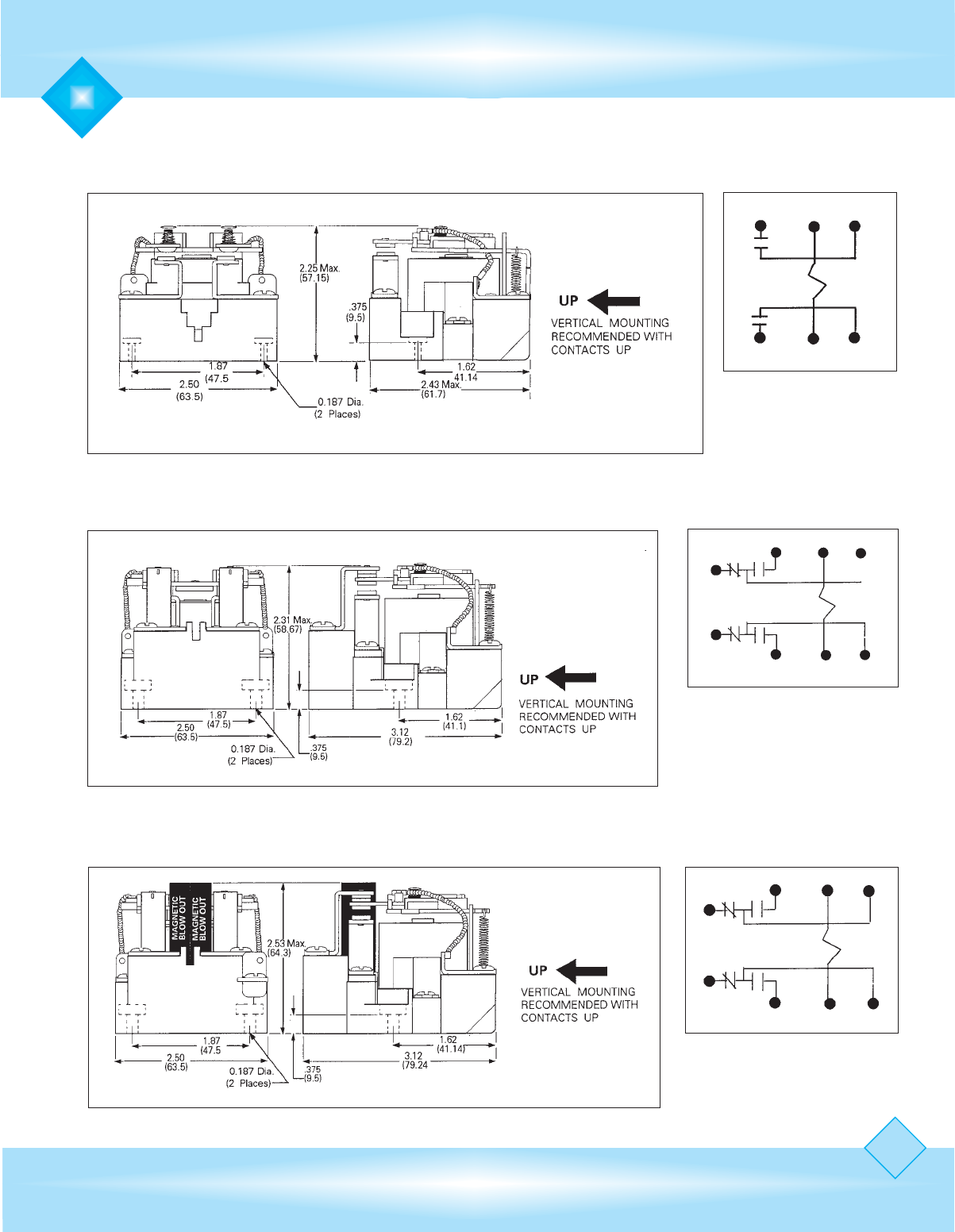

Heavy Duty Power Relays
Wiring Diagram
Top view
DPST-NO Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Wiring Diagram
Top view
DPDT Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Wiring Diagram
Top view
DPDT w/Magnetic Blowout Outline Dimensions
Dimensions shown in Inches & (Millimeters)
12

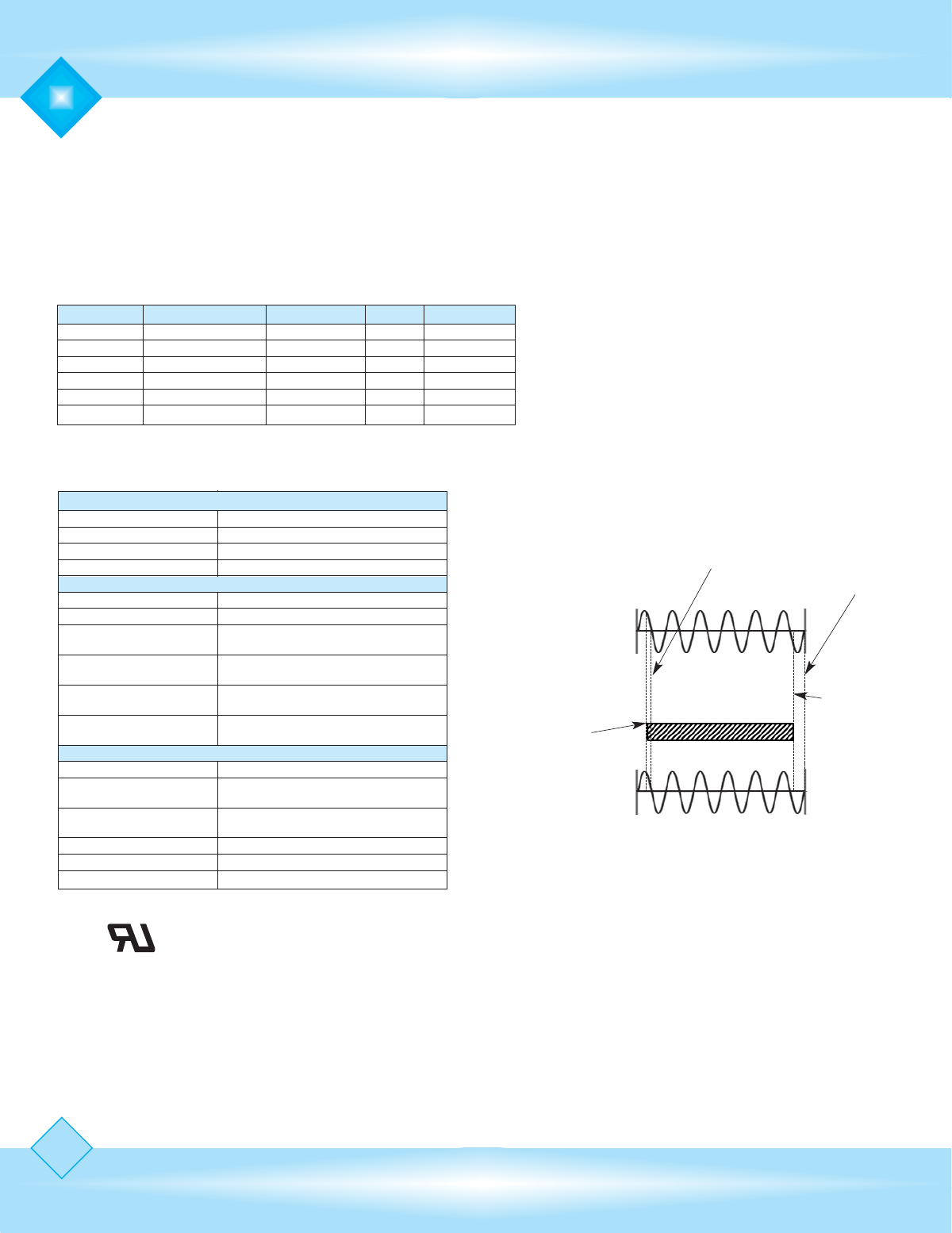

Solid State Relays
Specifications
Solid State Relay Line
UL Recognized
File No: E27683
CUS
Switch closes when
control voltage sine
wave crosses zero
Control Voltage
Load Current
Power applied to
relay
Power removed
from relay
Figure A
When power is
removed switch
opens when load
current sine wave
crosses zero
Our 3TX71 Solid State relays function as zero crossing
relays; that means the relay turns on when control volt-
age is present and the Sine wave crosses zero. The relay
is turned off when the control voltage is removed and
load current Sine wave crosses zero. In the case where
the input voltage is DC the relay will turn on immediate-
ly when the input voltage is applied. When the output
voltage is DC the relay will turn off as soon as the input
power is removed. See figure A for AC input/AC output
applications.
INPUT
Input current 8 mA @ 3 VDC, 25mA @ 32 VDC
Input power indicator YES (Red L.E.D.)
Reverse Polarity Protected YES (On DC input Styles)
Response Time: 1/2 Cycle max.
OUTPUT
Maximum Off State Voltage dv/dt 200 uS to 500 uS for 25A to 40 A models
Min. Load Current to maintain “On” 10A (50 mA), 25A (120 mA), 40A (250mA)
Non-Repetitive Surge Current
ITSM(1 Cycle Surge) 10A (83), 25A (250), 40A (625)
Max. RMS Overload current
for 1 second 10A (24), 25A (40), 40A (80)
Max. Off State Leakage
current ID(RMS) 10 Milliamps Max.
Typical On-State Voltage
Voltage drop (RMS) Up to 40 Amp (1.6V)
MISCELLANEOUS
Suggested Heat Sink *CW 10A (3.2), 25A (0.5), 40A (0.2)
Dielectric Strength VISO
(Input-Output Isolation) 4000 V rms
Insulation Resistance RISO
@ 500VDC 1010 O
Operating Temperature Range -40IC to + 80IC
Storage temperature Range -40IC to + 100IC
Weight 100 g up to 40 Amps
Catalog No. Additional Description Nom. Input Voltage List Price Socket Style
3TX7133-0SK14 10A, AC INPUT 90-280VAC $27.00 None required
3TX7134-0SK14 25A, AC INPUT 90-280VAC $34.00 None required
3TX7135-0SK14 40A, AC INPUT 90-280VAC $52.00 None required
3TX7133-0SJ04 10A, DC INPUT 3-32VDC $27.00 None required
3TX7134-0SJ04 25A, DC INPUT 3-32VDC $34.00 None required
3TX7135-0SJ04 40A, DC INPUT 3-32VDC $48.00 None required
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
46
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
47

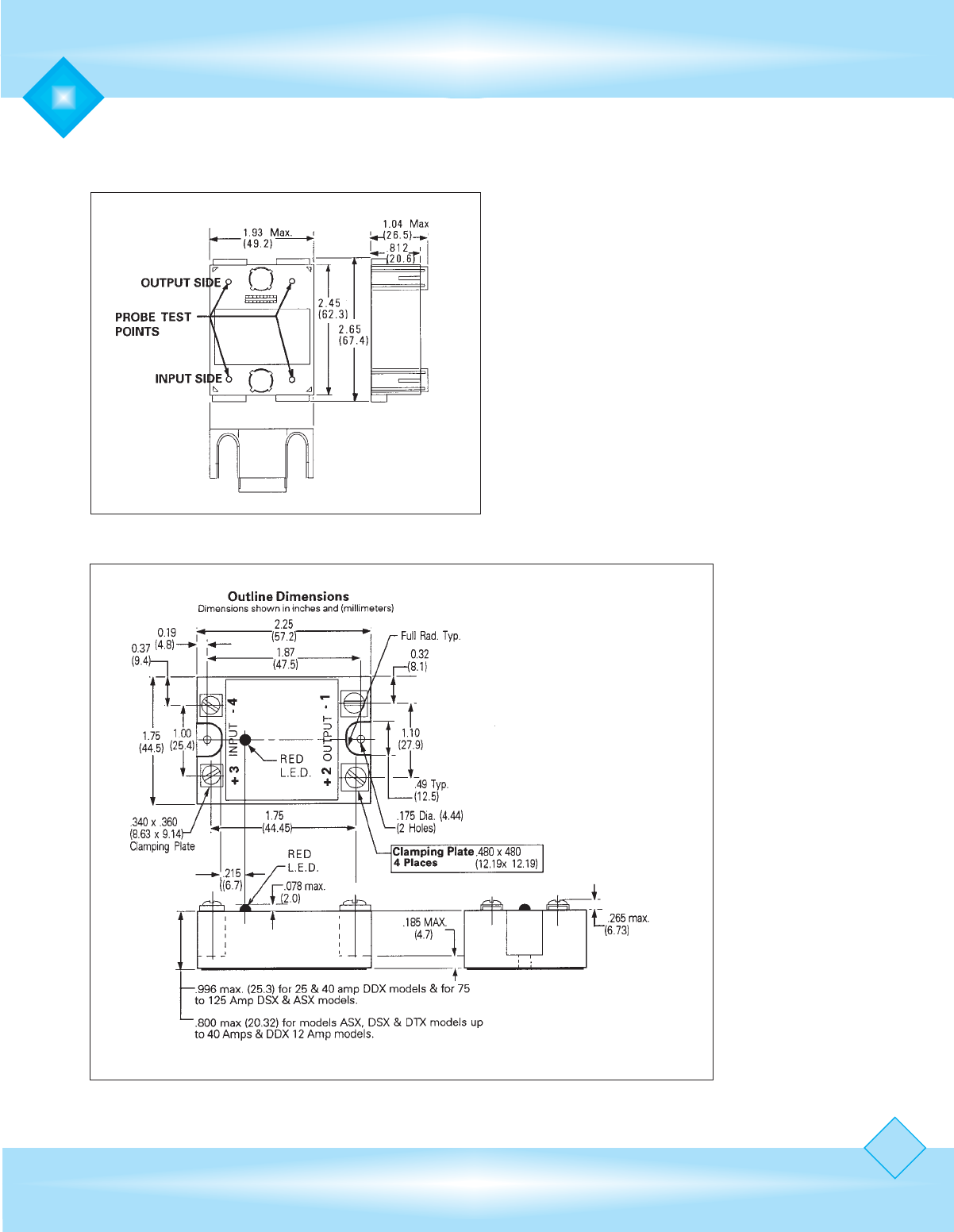

Solid State Relays
Outline Dimensions
Outline Dimensions
Clear Cover, dimensions shown in Inches & (Millimeters)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
48
UL Recognized
File No: E14900
CUS
LR 6535
When used with socket

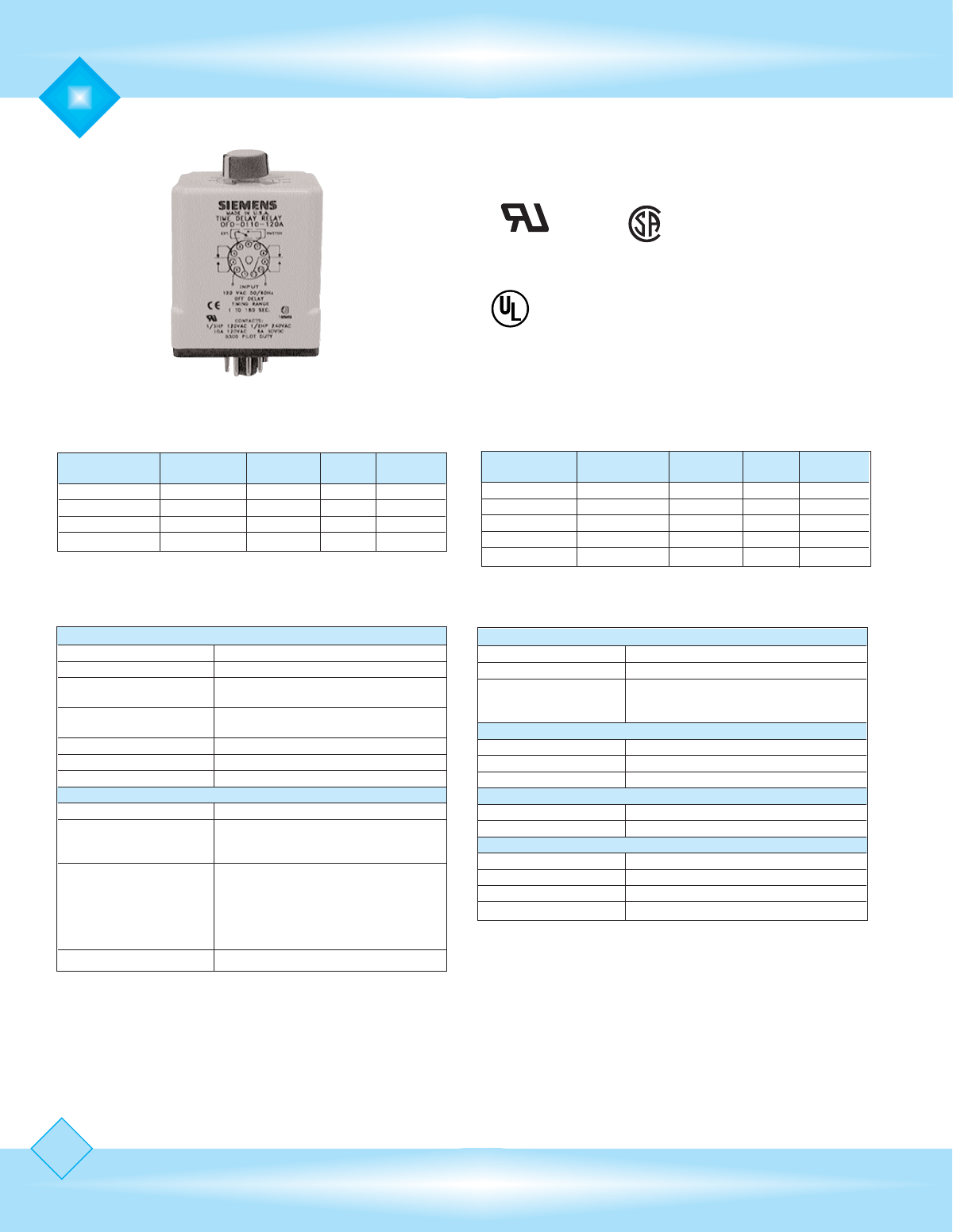

Timing Relays
Specifications
OFF Delay timers Nominal
11 Pin Octal Socket Timing Range Input Voltage List Price Base Style
OFD-0110-24D 0.1 - 10 Seconds 24VDC $103.00 3TX7144-1E3
OFD-0110-24A 0.1 - 10 Seconds 24VAC $103.00 3TX7144-1E3
OFD-0110-120A 0.1 - 10 Seconds 120VAC $103.00 3TX7144-1E3
OFD-1180-120A 1.0 - 180 Seconds 120VAC $103.00 3TX7144-1E3
On Delay timers Nominal
8 Pin Octal Socket Timing Range Input Voltage List Price Base Style
OND-0110-24D 0.1 - 10 Seconds 24VDC $95.00 3TX7144-1E2
OND-0110-24A 0.1 - 10 Seconds 24VAC $95.00 3TX7144-1E2
OND-1180-24A 1.0 - 180 Seconds 24VAC $95.00 3TX7144-1E2
OND-0110-120A 0.1 - 10 Seconds 120VAC $95.00 3TX7144-1E2
OND-1180-120A 1.0 - 180 Seconds 120VAC $95.00 3TX7144-1E2
TIMING
Operating Modes Available: On Delay, Interval, Off Delay
Timing Adjustments: See Part number table.
Repeatability (repeat Accuracy ±0.1% max. or ± 33 ms AC min. or ± 10 ms DC. min.
when Stabilized): @ Constant voltage & temperature
Timing change over temperature
and voltage range: ± 10%
Timing Tolerance high end of range: - 0 to + 40%
Timing Tolerance low end of range:: + 0 to - 40%
Reset time: 100 Milliseconds Max.
CONTACTS
Contact Configuration: DPDT
Contact Rating: 10 Amps @ 120VAC/30VDC Resistive Load, 1/2 Hp
@ 240 VAC, 1/3 Hp @120 VAC,
NEMA B300 Pilot Duty.
Contact Life: 200,000 Operations @ 120VAC,
10Amp resistive Load.
1,000,000 Operations @ 120 VAC,5 Amp
Resistive Load
2,000,000 Operations @ 120VAC,
2 Amp Resistive Load.
Mechanical Life: 10,000,000 operations
INPUT
Temperature Range (Operate): - 30IC to + 55IC
Temperature Range (Storage): - 55IC to + 85IC
Steady State Input Current: 20 mA @ 120 VAC, 40 mA @ 24 VAC
20 mA @ 48 VDC, 80 mA @ 24 VDC
15 mA @ 230 VAC, 80 mA @ 12 VDC
PROTECTION
Reverse Polarity: DC models only
Transient: UL 508 Surge test: 5000V for 50 uS
Noise Immunity: NEMA ICS2-230 2500 VAC
DIELECTRIC STRENGTH
Coil to Contacts: 1500 V rms
Across Open Contacts: 1000 V rms
MECHANICAL
Enclosure: Polycarbonate dust cover.
Mounting: Standard 8 or 11 Pin Octal
Operating Position: Any
Weight: 4 oz. (115 grams)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
49

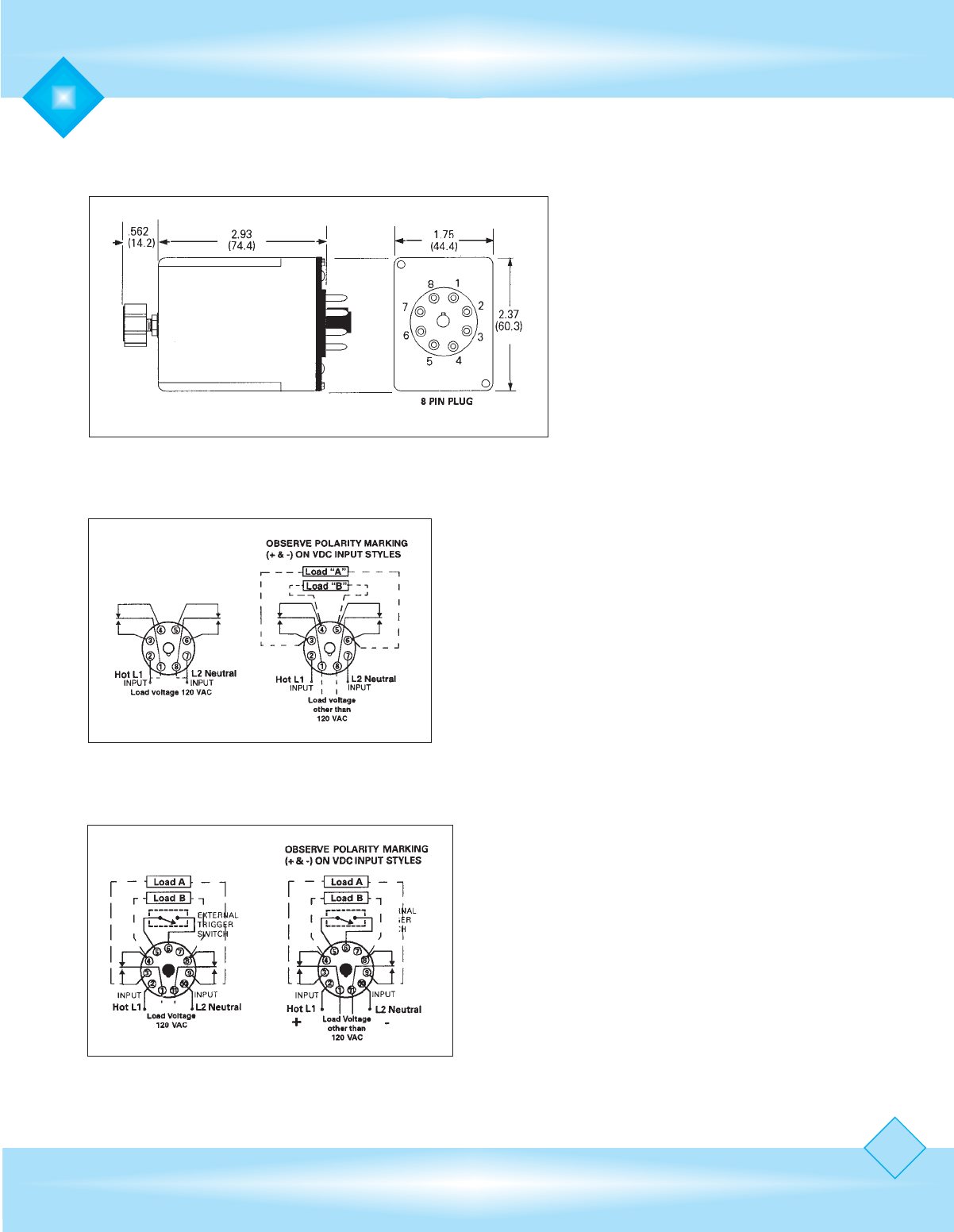

On DelayWiring Diagrams
Viewed from pin end
Timing Relays
Off DelayWiring Diagrams
Viewed from pin end
Outline Dimensions
Dimensions shown in Inches & (Millimeters)
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
50

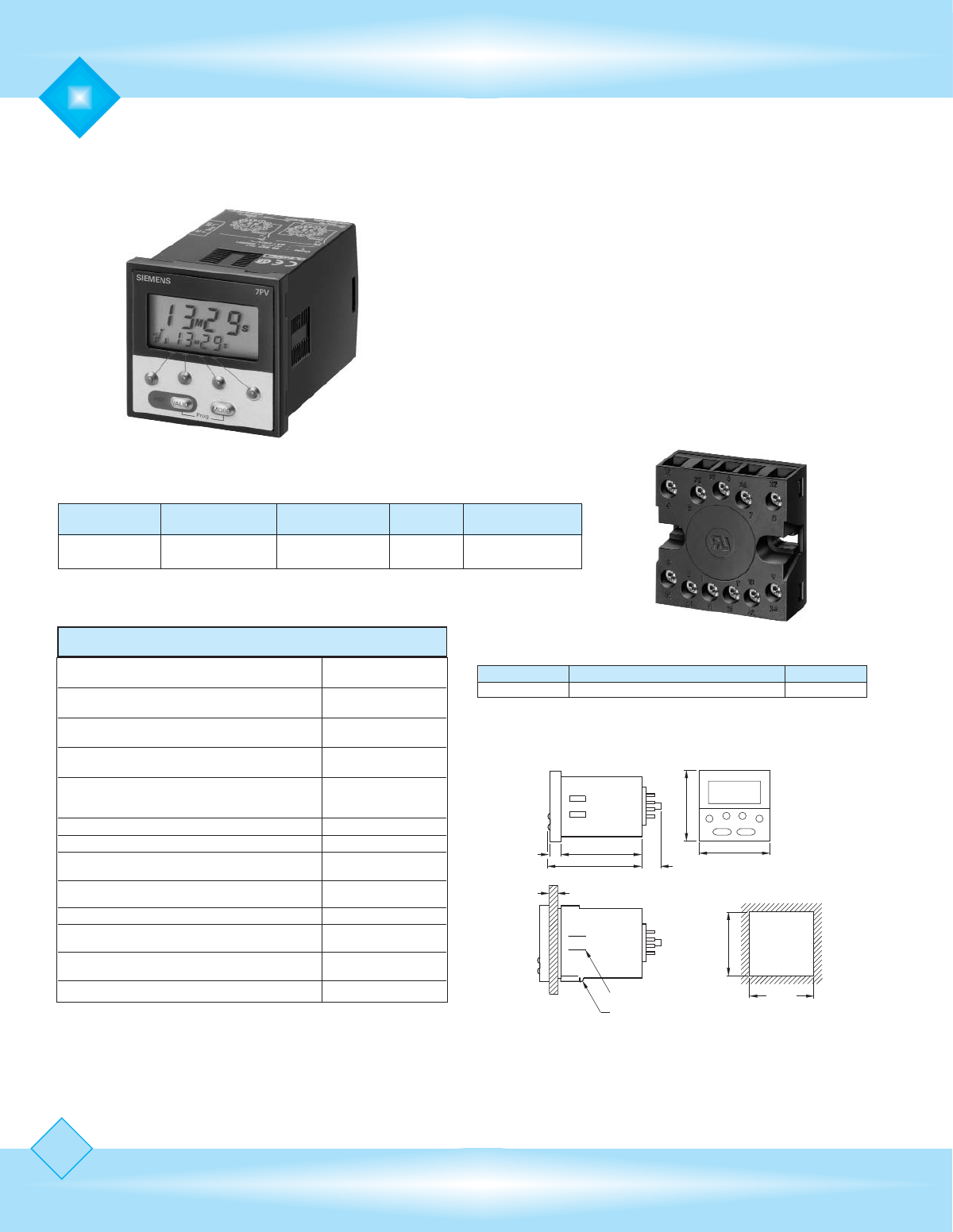

General description
Multi-function (6 functions)
ON-Delay
OFF-Delay with auxiliary voltage
Flashing, pulse-starting
Flashing, interval-starting
Making pulse contact
Pulse shaping
1 SPDT contact
LCD display
0.01sec - 9999h 11 possible settings
24V AC/DC / 110-240V AC
OFF Delay timers Timing Range Nominal
11 Pin Octal Socket 11 Time Setting Ranges Input Voltage List Price Base Style
7PV3348-2AX34 0.01s... - 9999 h 24VDC, 24/110 ... 240AC $115.00 3TX7144-1E3 or 7PX9921
Technical Data
Rated iinsulation vvoltage 250V AC
Overvoltage category C acc. to DIN VDE 0110
Working rrange oof eexcitation +10 ...
-15%
Rated ppower 1 W
Power consumption at AC 230 V, 50 Hz 11VA
Rated ooperational ccurrent Ie
AC-1 at AC 230 V, 50 Hz 8A
Operating ffrequency
when loaded with IeAC 230 V 600 /h
when loaded with 3RT10 16 contactor, AC 230 V
Recovery ttime 50 ms
Minimum OON pperiod 50 ms
Setting aaccuracy ±0.03%
with reference to upper limit of scale ±10 ms
Repeat aaccuracy ±0.03%,
±10 ms
Mechanical eendurance operating cycles 5 x 106
Permissible aambient ttemperature in operation -10°... +60°C
when stored -30°... +70°C
Degree oof pprotection
acc. to EN 60 529 IP 65
Permissible mmounting pposition any
7PV Socket for front mounting with rear connection
Catalog No. Additional Description List Price
7PX9921 11pin octal, front panel mount, screw term socket $12.00
NSB01127a
Frame for panel mounting
Positioning screw
Control panel thickness 0.04"-0.14"
(1 to 3.5mm) Panel cutout
1.89
(48mm)
1.77
(45mm)
1.77
(45mm)
1.89
(48mm)
2.77
(70.4mm)
0.22
(5.5mm) 0.57
(14.5mm)
2.52
(64mm)
Timing Relays
Dimensions shown in Inches & (Millimeters)
12
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
t
NSB00858
2/10
1/3
1/4

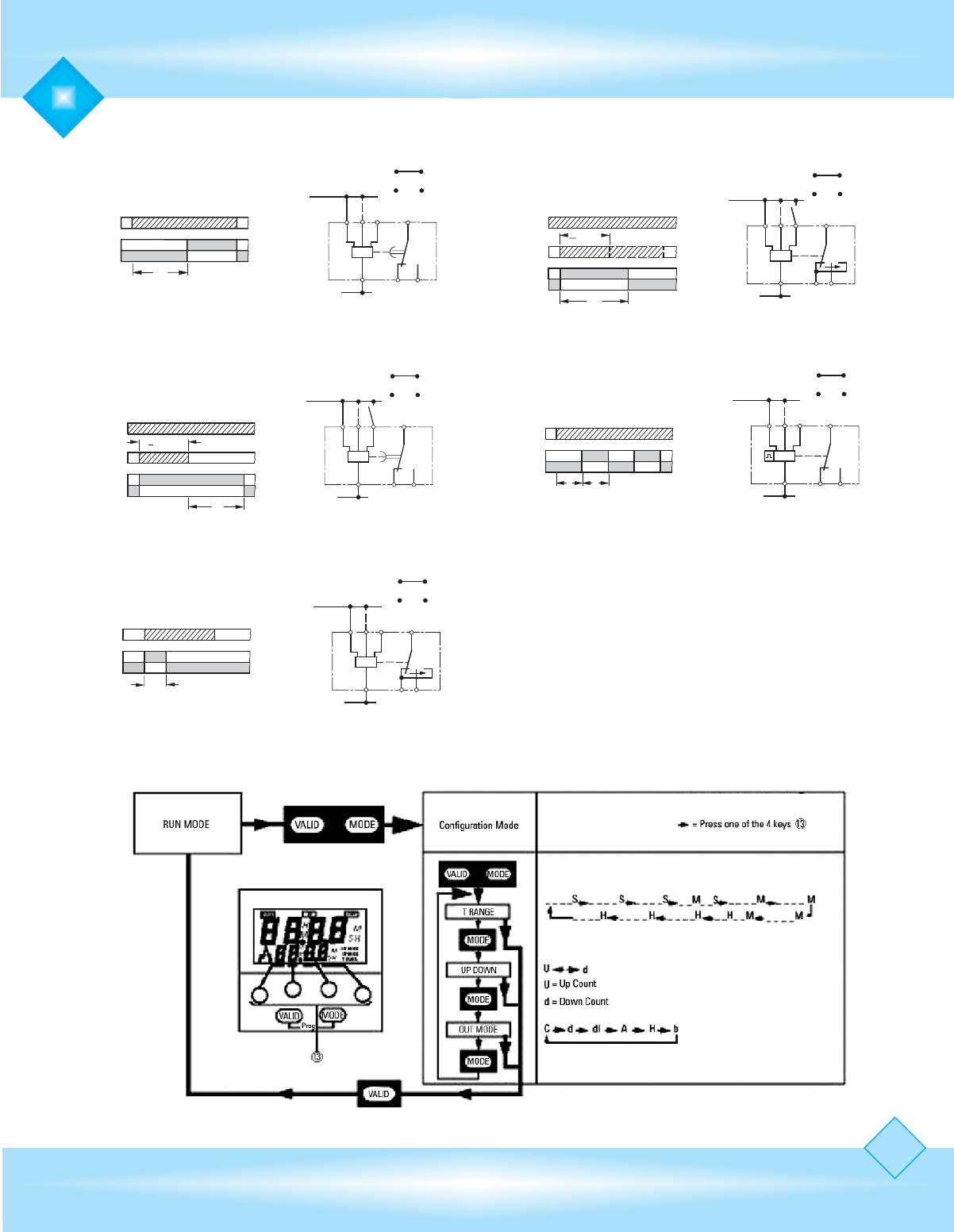

Functions
1) ON-Delay (A)
NSB01109a
AC /DC 24V
AC110 - 240V
A1
15
A2
1816
B1
2
211
11
2115
10 4 3
1
ON-Delay (A)
NSB0 0862
tt
1/4
1/3
2/10
5) 6) Flashing, starting with
interval (D) or starting with
pulse (Di)
NSB01113a
AC /DC 24 V
AC110 - 240V
A1
15
A2
1816
B1
2
211
11
2115
10 4 3
1
~
Flashing, Starting with Interval (D) or
Flashing, Starting with Pulse (Di)
t
NSB0 0867
>
35 ms
1/4
1/3
5/10
2/10
4) For pulse shaping with
auxiliary voltage (B)
2/10
1/4
1/3
5/10
t
35 ms
NSB0 0859
>
2) OFF-Delay with Auxiliary
Voltage (C)
NSB0 0864
t
2/10
1/4
1/3
3) Passing make contact (H)
Timing Relays
51
Siemens Energy & Automation, Inc. - Industrial Plug-In Relay Catalog Supplement
52
Siemens Energy & Automation, Inc. (“Seller”)
Standard Terms and Conditions of Sale (09/01/2001)
General
1. WARRANTY - (a) Seller warrants that on the date of shipment the goods are of the kind and
quality described herein and are free of non-conformities in workmanship and material. This war-
ranty does not apply to goods delivered by Seller but manufactured by others.
(b) Buyer's exclusive remedy for a nonconformity in any item of the goods shall be the repair or
the replacement (at Seller's option) of the item and any affected part of the goods. Seller's obli-
gation to repair or replace shall be in effect for a period of one (1) year from initial operation of
the goods but not more than eighteen (18) months from Seller's shipment of the goods, provided
Buyer has sent written notice within that period of time to Seller that the goods do not conform
to the above warranty. Repaired and replacement parts shall be warranted for the remainder of
the original period of notification set forth above, but in no event less than 12 months from repair
or replacement. At its expense, Buyer shall remove and ship to Seller any such nonconforming
items and shall reinstall the repaired or replaced parts. Buyer shall grant Seller access to the
goods at all reasonable times in order for Seller to determine any nonconformity in the goods.
Seller shall have the right of disposal of items replaced by it. If Seller is unable or unwilling to
repair or replace, or if repair or replacement does not remedy the nonconformity, Seller and Buyer
shall negotiate an equitable adjustment in the contract price, which may include a full refund of
the contract price for the nonconforming goods.
(c) SSELLER HHEREBY DDISCLAIMS AALL OOTHER WWARRANTIES, EEXPRESS OOR IIMPLIED, EEXCEPT TTHAT
OF TTITLE. SSPECIFICALLY, IIT DDISCLAIMS TTHE IIMPLIED WWARRANTIES OOF MMERCHANTABILITY, FFIT-
NESS FFOR AA PPARTICULAR PPURPOSE, CCOURSE OOF DDEALING AAND UUSAGE OOF TTRADE.
(d) Buyer and successors of Buyer are limited to the remedies specified in this article and shall
have no others for a nonconformity in the goods. Buyer agrees that these remedies provide Buyer
and its successors with a minimum adequate remedy and are their exclusive remedies, whether
Buyer's or its successors' remedies are based on contract, warranty, tort (including negligence),
strict liability, indemnity, or any other legal theory, and whether arising out of warranties, repre-
sentations, instructions, installations, or non-conformities from any cause.
(e) Note: This article 1 does not apply to any software which may be furnished by Seller. In such
cases, the attached Software License Addendum applies.
2. PATENTS - Seller shall pay costs and damages finally awarded in any suit against Buyer or
its vendees to the extent based upon a finding that the design or construction of the goods as
furnished infringes a United States patent (except infringement occurring as a result of incorpo-
rating a design or modification at Buyer's request), provided that Buyer promptly notifies Seller of
any charge of infringement, and Seller is given the right at its expense to settle such charge and
to defend or control the defense of any suit based upon such charge. Seller shall have no obliga-
tion hereunder with respect to claims, suits or proceedings, resulting from or related to, in whole
or in part, (i) the use of software or software documentation, (ii) compliance with Buyer's specifi-
cations, (iii) the combination with, or modification of, the goods after delivery by Seller, or (iv) the
use of the goods, or any part thereof, in the practice of a process. THIS ARTICLE SETS FORTH
SELLER'S ENTIRE LIABILITY WITH RESPECT TO PATENTS.
3. PERFORMANCE; DDELAYS - Timely performance by Seller is contingent upon Buyer's supply-
ing to Seller, when needed, all required technical information and data, including drawing
approvals, and all required commercial documentation. If Seller suffers delay in performance due
to any cause beyond its reasonable control, the time of performance shall be extended a period
of time equal to the period of the delay and its consequences. Seller will give to Buyer notice
within a reasonable time after Seller becomes aware of any such delay.
4. SHIPMENT, TTITLE AAND RRISK OOF LLOSS - Unless the delivery terms of this contract expressly
provide for F.O.B. destination, shipping/delivery will be F.O.B. Seller's point of shipment with title to
the goods and risk of loss or damage passing to Buyer at that point. Buyer will be responsible for
shipment during transit and for filing any damage or loss claims directly with the carrier. Seller
may make partial shipments.
5. TAXES - Any applicable duties or sales, use, excise, value-added or similar taxes will be
added to the price and invoiced separately (unless an acceptable exemption certificate is fur-
nished).
6. TERMS OOF PPAYMENT - (a) Unless otherwise stated, all payments shall be in United States
dollars, and a pro rata payment shall become due as each shipment is made. If shipment is
delayed by Buyer, date of notice of readiness for shipment shall be deemed to be date of ship-
ment for payment purposes.
(b) On late payments, the contract price shall, without prejudice to Seller's right to immediate pay-
ment, be increased by 1 1/2% per month on the unpaid balance, but not to exceed the maximum
permitted by law.
(c) If any time in Seller's judgment Buyer is unable or unwilling to meet the terms specified, Seller
may require satisfactory assurance or full or partial payment as a condition to commencing or
continuing manufacture or making shipment, and may, if shipment has been made, recover the
goods from the carrier, pending receipt of such assurances.
7. NONCANCELLATION - Buyer may not cancel or terminate for convenience, or direct suspen-
sion of manufacture, except with Seller's written consent and then only upon terms that will com-
pensate Seller for its engineering, fabrication and purchasing charges and any other costs relating
to such cancellation, termination or suspension, plus a reasonable amount for profit.
8. NUCLEAR - Buyer represents and warrants that the goods covered by this contract shall not
be used in or in connection with a nuclear facility or application. If Buyer is unable to make such
representation and warranty, then Buyer agrees to indemnify and hold harmless Seller and to
waive and require its insurers to waive all right of recovery against Seller for any damage, loss,
destruction, injury or death resulting from a "nuclear incident", as that term is defined in the
Atomic Energy Act of 1954, as amended, whether or not due to Seller's negligence.
9. LIMITATION OOF LLIABILITY - Neither Seller, nor its suppliers shall be liable, whether in con-
tract, warranty, failure of a remedy to achieve its intended or essential purposes, tort (including
negligence), strict liability, indemnity or any other legal theory, for loss of use, revenue or profit, or
for costs of capital or of substitute use or performance, or for indirect, special, liquidated, inciden-
tal or consequential damages, or for any other loss or cost of a similar type, or for claims by Buyer
for damages of Buyer's customers. Seller's maximum liability under this contract shall be the con-
tract price. Buyer and Seller agree that the exclusions and limitations set forth in this article are
separate and independent from any remedies which Buyer may have hereunder and shall be
given full force and effect whether or not any or all such remedies shall be deemed to have failed
of their essential purpose.
10. GOVERNING LLAW AAND AASSIGNMENT - The laws of the State of Georgia shall govern the
validity, interpretation and enforcement of this contract, without regard to its conflicts of law prin-
ciples. The application of the United Nations Convention on Contracts for the International Sale of
Goods shall be excluded. Assignment may be made only with written consent of both parties;
provided, however, Seller may assign to its affiliate without Buyer's consent.
11. ATTORNEY FFEES - Buyer shall be liable to Seller for any attorney fees and costs incurred by
Seller in enforcing any of its rights hereunder.
12. DISPUTES - Either party may give the other party written notice of any dispute arising out of
or relating to this contract and not resolved in the normal course of business. The parties shall
attempt in good faith to resolve such dispute promptly by negotiations between executives who
have authority to settle the dispute. If the matter has not been resolved within 60 days of the
notice, either party may initiate non-binding mediation of the dispute.
13. STATUTE OOF LLIMITATIONS - To the extent permitted by applicable law, any lawsuit for
breach of contract, including breach of warranty, arising out of the transactions covered by this
contract, must be commenced not later than twelve (12) months from the date the cause of
action accrued.
14. PRICES - In the event of a price increase or decrease, the price of goods on order will be
adjusted to reflect such increase or decrease. This does not apply to a shipment held by request
of Buyer. Goods already shipped are not subject to price increase or decrease. Orders on a bid or
contract basis are not subject to this article. Seller's prices include the costs of standard domes-
tic packing only. Any deviation from this standard packing (domestic or export), including U.S.
Government sealed packing, will result in extra charges. To determine such extra charges, consult
Seller's sales offices. Orders of less than $400 will be charged a $25 handling fee.
15. ADDITIONAL TTERMS OOF PPAYMENT - (a) Invoice payment terms are as shown on latest dis-
count sheets as issued from time to time. Cash discounts are not applicable to notes or trade
acceptances, to prepaid transportation charges when added to Seller's invoices or to discount-
able items if there are undisputed past due items on the account. Portions of an invoice in dis-
pute should be deducted and the balance remitted with a detailed explanation of the deduction.
Cash discounts will only be allowed on that portion of the invoice paid within the normal discount
period.
(b) Freight will be allowed to any common-carrier free-delivery point within the United States,
excluding Alaska and Hawaii, on shipments exceeding $1,000 net or more providing Seller selects
the carrier. On shipments to Alaska and Hawaii, freight will be allowed to dockside at the listed
port of debarkation nearest the destination point on shipments of $1,000 net or more. Buyer shall
pay all special costs such as cartage, stevedoring and insurance. Special freight allowances are
as shown on latest discount sheets as issued from time to time. Cataloged weights are estimat-
ed, not guaranteed. Seller assumes no responsibility for tariff classifications on carriers.
16. CHANGES IIN LLAWS AAND RREGULATIONS - Seller's prices and timely performance are based
on all applicable laws, rules, regulations, orders, codes, standards or requirements of governmen-
tal authorities effective on the date of Seller's proposal. Any change to any law, rule, regulation,
order, code, standard or requirement which requires any change hereunder shall entitle Seller to
an equitable adjustment in the prices and any time of performance.
© 2002 Siemens Energy & Automation, Inc.
Lit. No. SFCS-6002A-0502
Subject to change without prior notice
Siemens Energy & Automation, Inc. Tel: 630/879-6000
Power Distribution Infrastructure & Controls Division Tel: 800/683-6000
1000 McKee Street, Batavia, IL 60510 http://www.sea.siemens.com
Siemens is a registered trademark of Siemens AG.

Navigation menu
