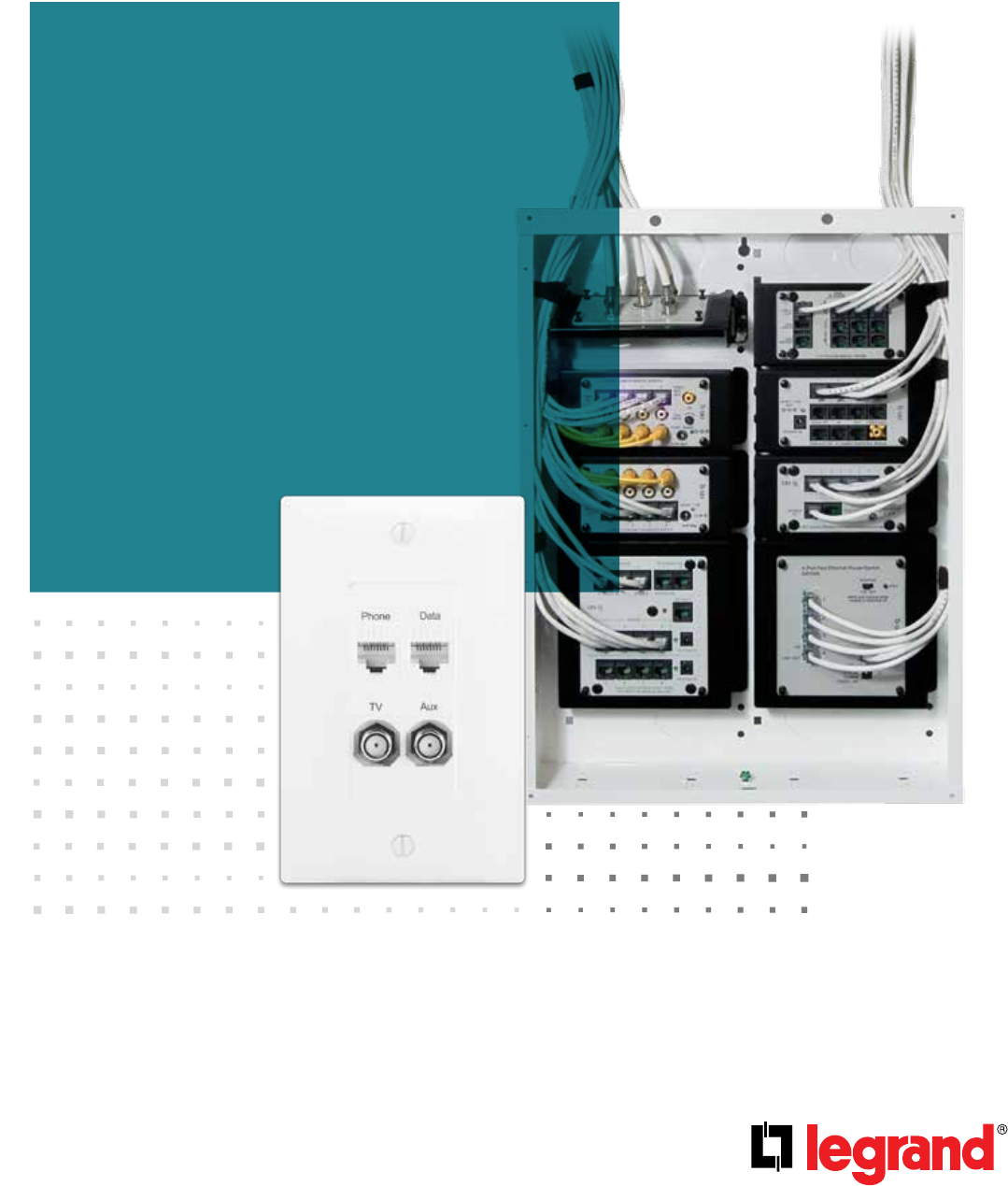

designed to be better.™
On-Q
Enclosures & Connectivity
STRUCTURED WIRING
GUIDE
WWW.LEGRAND.US/ONQ
2
STRUCTURED WIRING
SUPERIOR
INFRASTRUCTURE
SOLUTIONS
CONNECTIVITY
As the industry leader in structured wiring, Legrand provides
the proven, practical solutions preferred by installers and major
home builders across the country. Our comprehensive On-Q
product offering — which includes wall plates, jacks, straps, tools,
modules and enclosures — simplifies installations and reduces
time on site. We specialize in meeting the right specifications for
any project — residential or light commercial — with solutions
that exceed your needs. From single-family homes to apartments,
townhomes to condominiums, Legrand has the professional
answer for any project.
3
STRUCTURED WIRING
ENCLOSURES ................................................4
DATA CONNECTIVITY ......................................6
Keystone Inserts ....................................................67
Keystone Wall Plates ............................................89
Keystone Decorator Straps .......................................9
Surface Mount Boxes ............................................. 10
Pre-Molded Plates & Straps .............................1011
Pre-Configured Plates & Straps .............................11
Patch Cables ...........................................................12
HDMI Cables ........................................................... 13

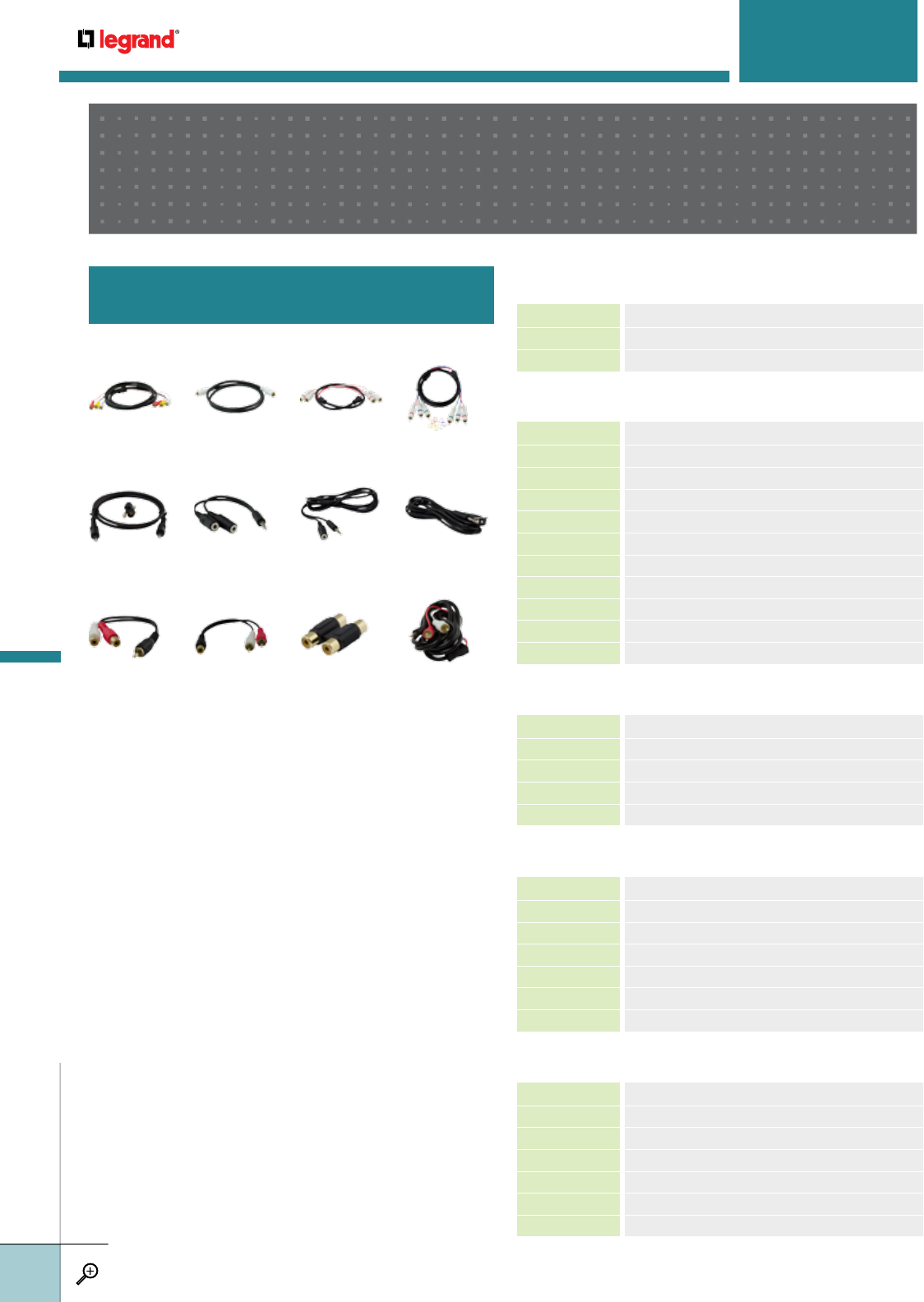

Audio/Video Cables ................................................. 14

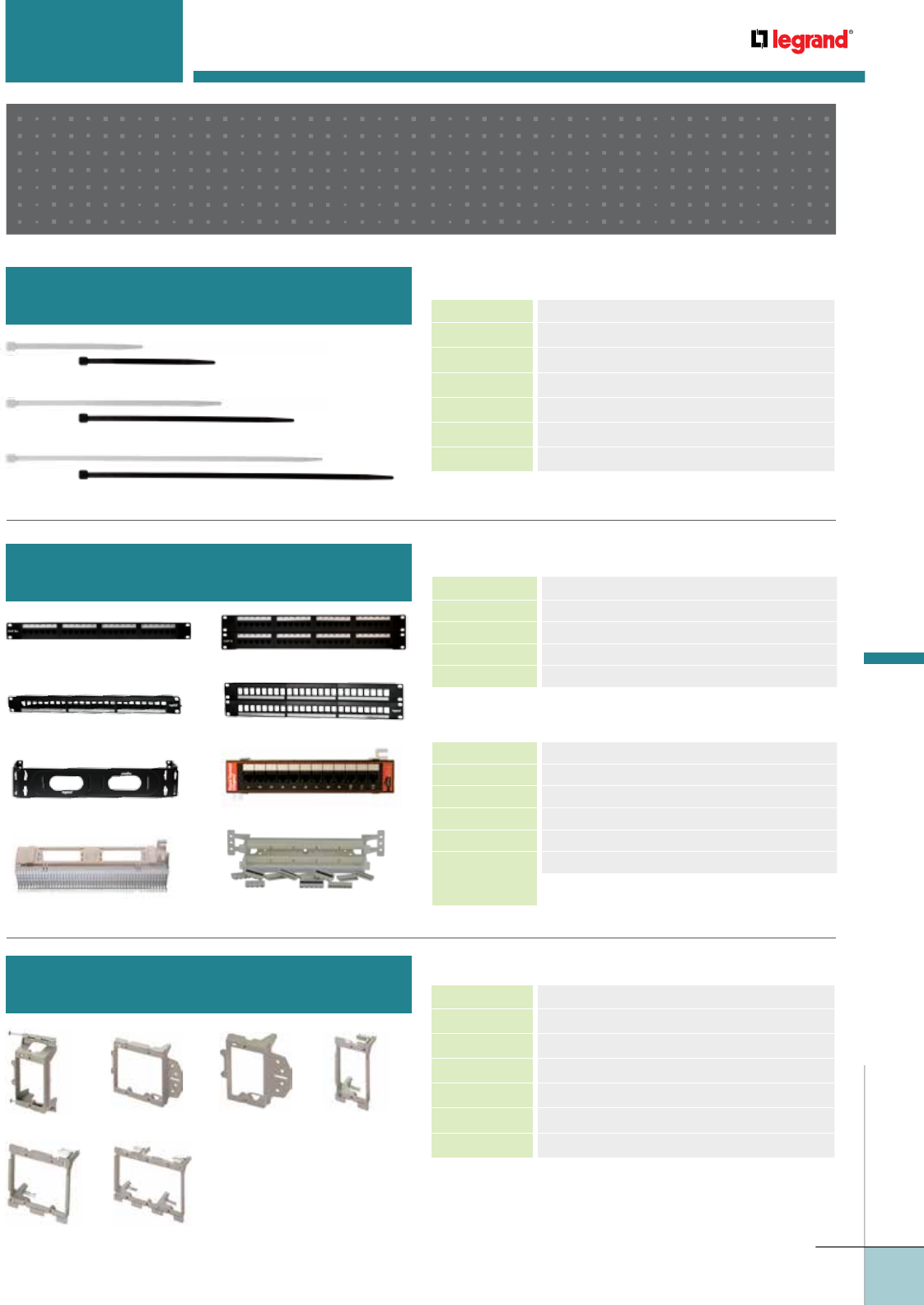

Patch Panels ........................................................... 15
Low Voltage Brackets ............................................. 15
TABLE OF
CONTENTS

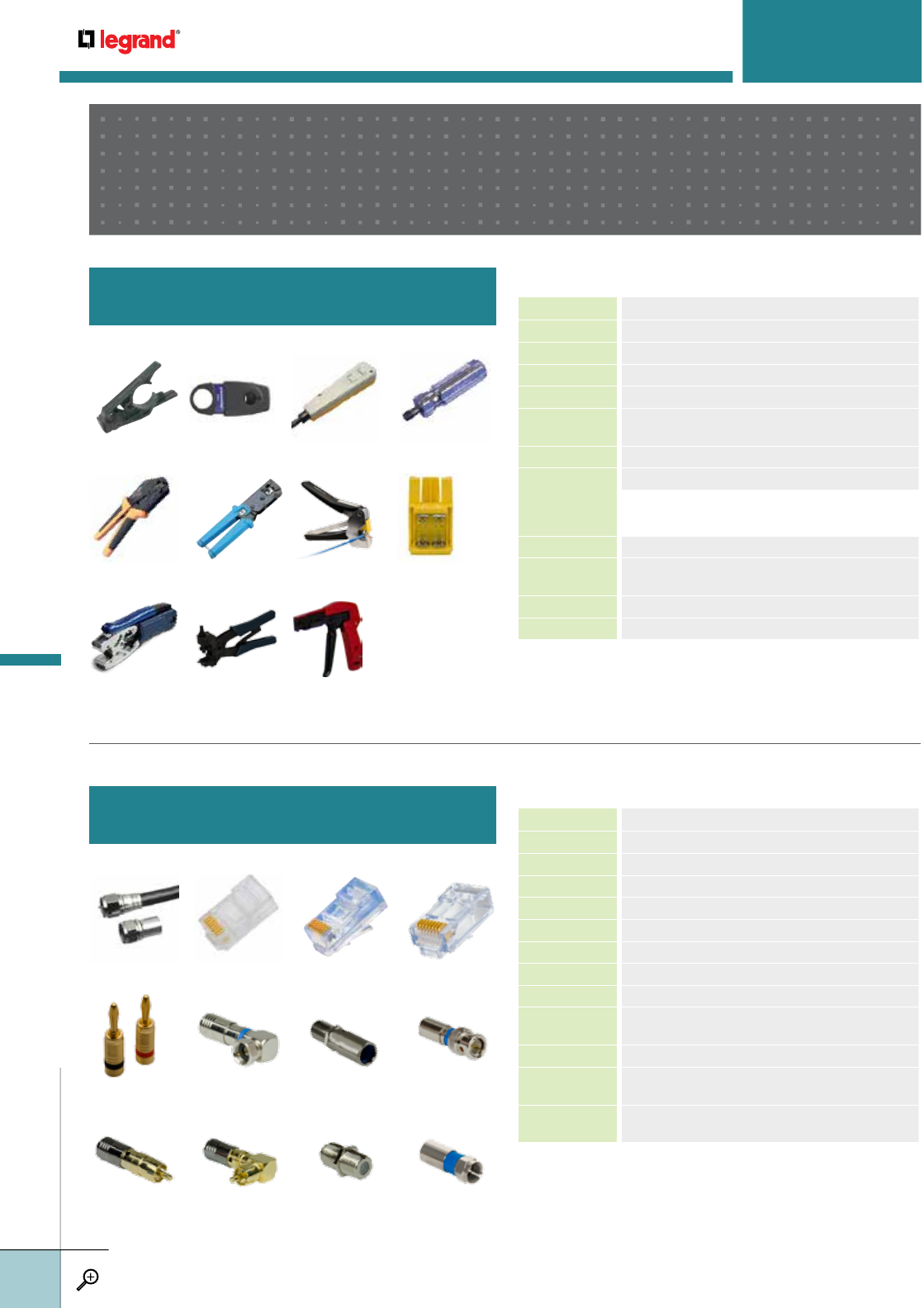

INSTALLATION TOOLS & CONNECTORS ......16
POWER MANAGEMENT ............................... 17
VIDEO & VOICE DISTRIBUTION ...................18
NETWORKING .............................................19
WWW.LEGRAND.US/ONQ
4

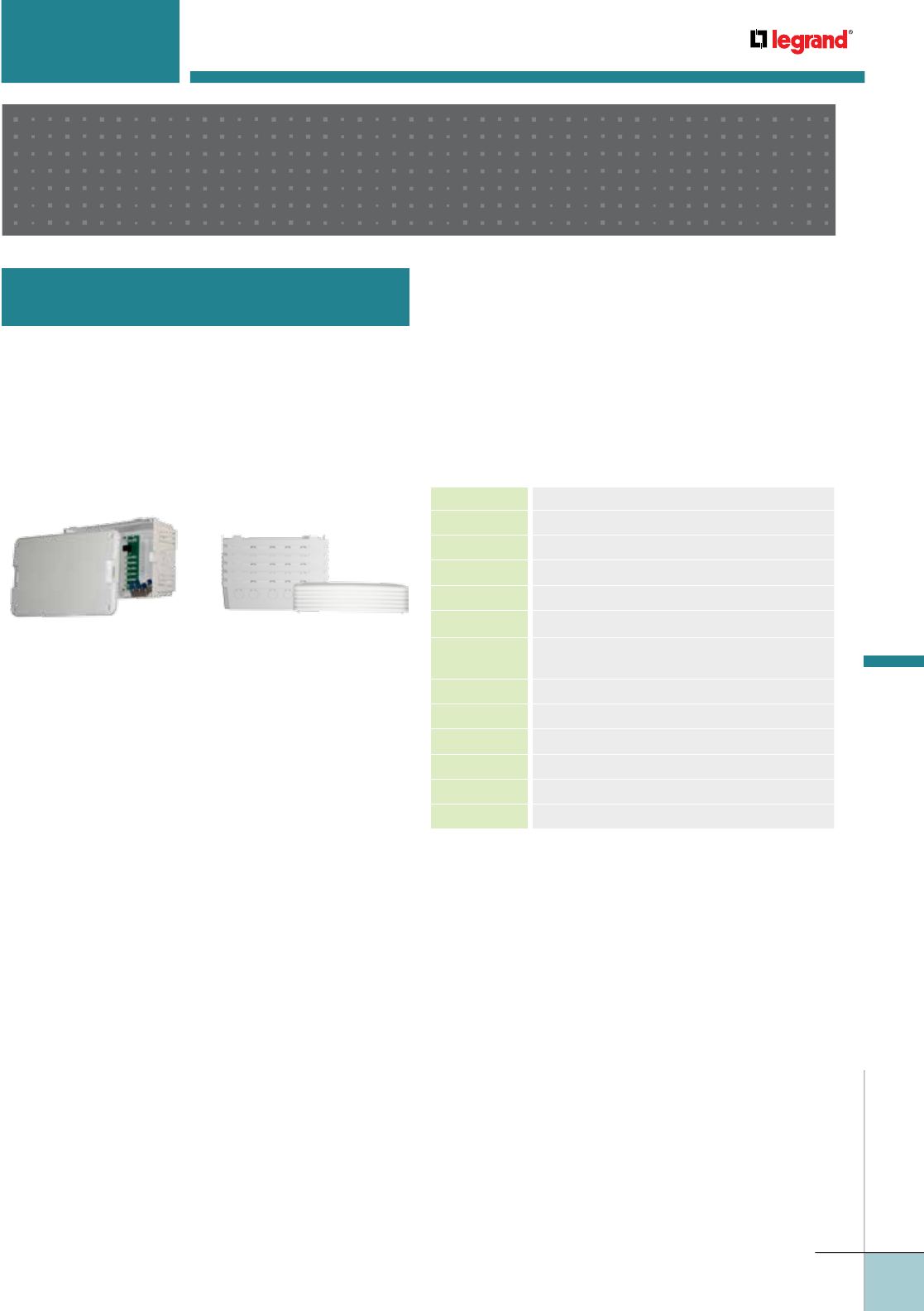

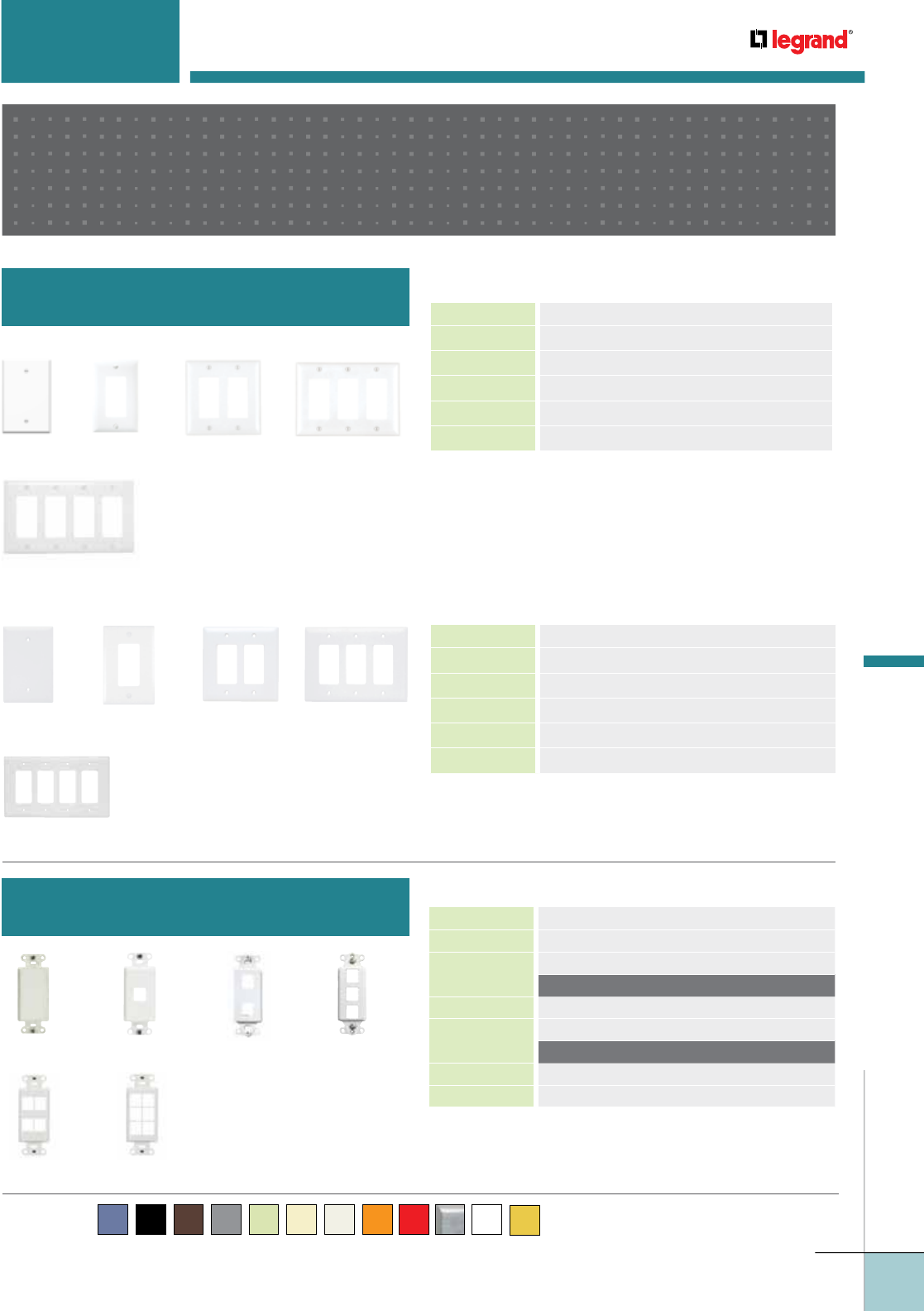

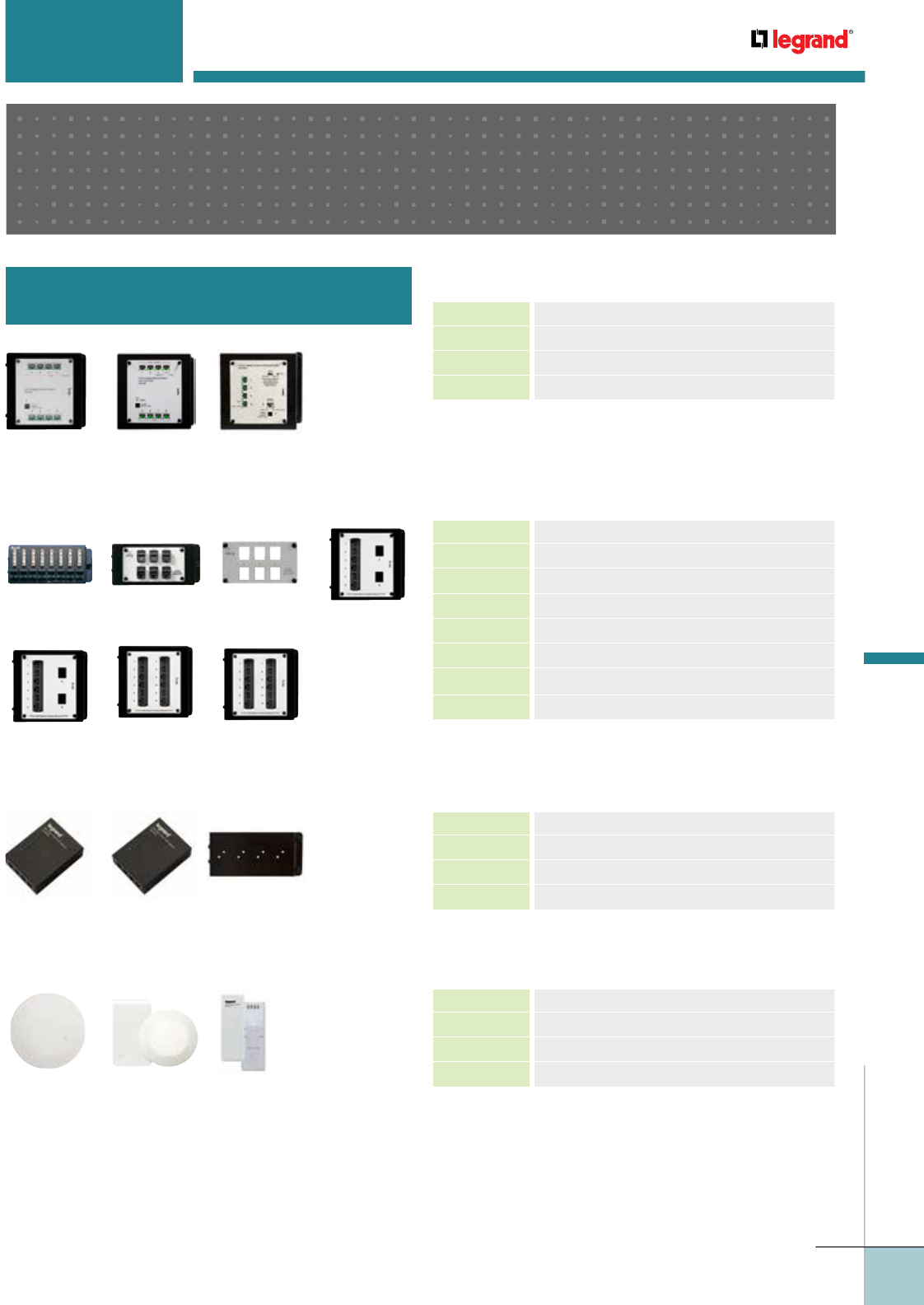

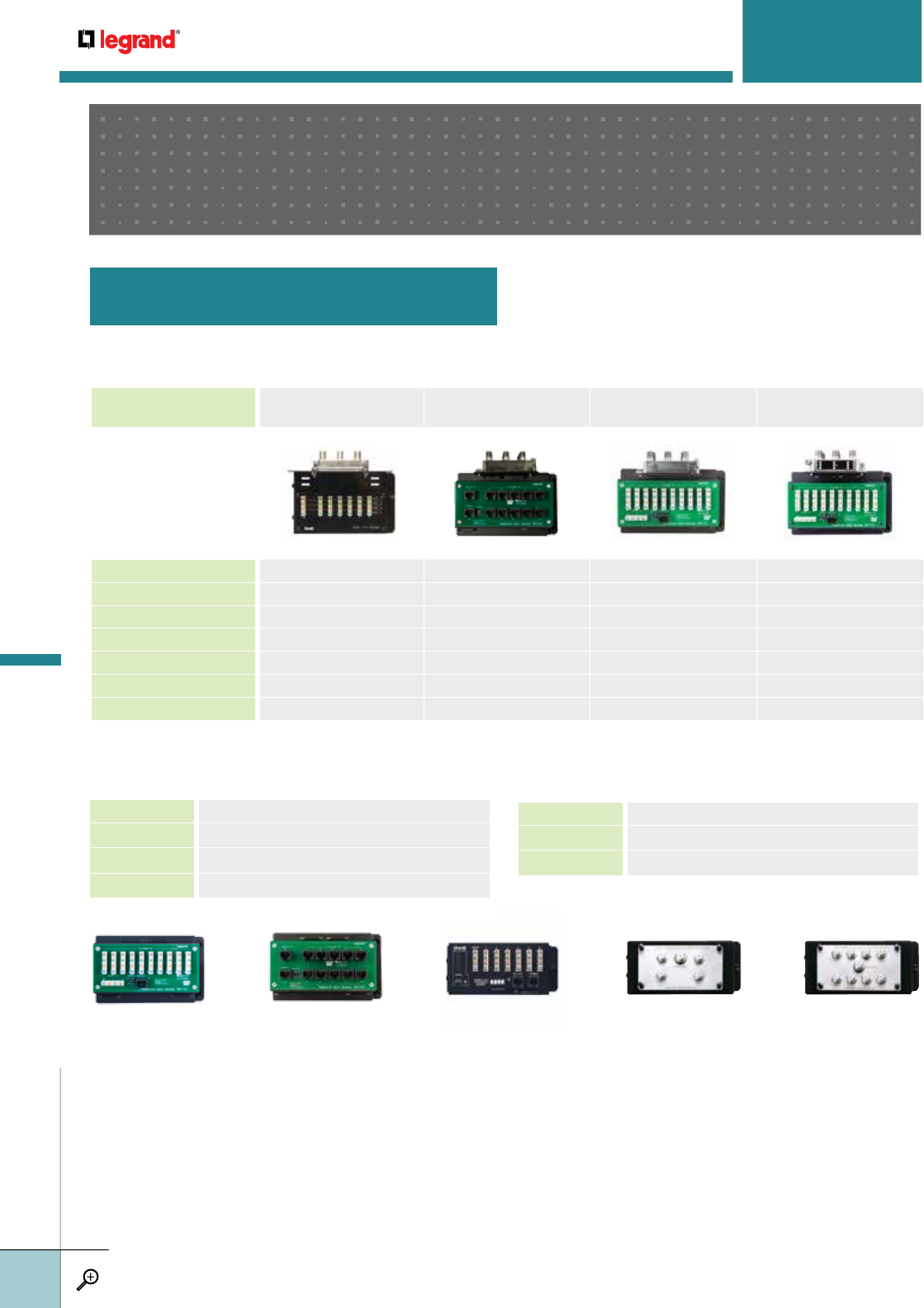

ON-Q
STRUCTURED WIRING
ENCLOSURES
DESCRIPTION 12" Enclosure 14" Enclosure 20" Enclosure 28" Enclosure 42" Enclosure
Enclosure
Dimensions
12.13” H x
12” W x 3.7” D
14” H x
14.25” W x 3.6” D
20” H x
14.25” W x 3.6” D
28” H x
14.25” W x 3.6” D
42” H x
14.25” W x 3.6” D
Enclosure with
Screw-On Cover EN1200 EN1400 EN2000 EN2800 EN4200
Enclosure with
Hinged Cover N/A EN1450 EN2050 EN2850 EN4250
Enclosure, Only N/A EN1480 EN2080 EN2880 EN4280
Screw On Cover, Only EN1220 EN1420 EN2020 EN2820 EN4220
Hinged Cover, Only N/A EN1460 EN2060 EN2860 EN4260
Enclosure Only, with
Stackable Knockouts* N/A EN1485 EN2085 EN2885 EN4285
Enclosure Depth
Extender** N/A N/A N/A 364450-03 364450-04
* This enclosure has five knockout locations and allows vertical alignment of two enclosures for cable pass-through.
** Extenders add 2.5” of enclosure depth.
• Flush and surface installation options
• Flanged covers hide drywall openings
• UL listed for fire and security alarm equipment
• Made in the USA
• Cable guard insert protects cables and equipment from
dust, paint and debris between rough-in and trim out
• Includes 3 powder-coated openings for cable
pass-through
METAL
5
ON-Q
STRUCTURED WIRING
ENCLOSURES
• Knockouts include screw driver holes for easy removal
• Includes four self-tapping screws for mounting
and optional hardware to lock the cover
• Multiple compatible video, voice, and data
distribution modules available
• Flush and surface-mount installation options
PART NO. DESCRIPTION
EN0800 8-Inch MDU Enclosure And Cover
EN0801 8-Inch MDU Enclosure Cover
EN0802 8-Inch MDU Enclosure Kit (6 phone, 4 video)
EN0806 8-Inch MDU Enclosure Bulk Pack (6)
TM0106 6-Way Telephone Board (For use with EN0800)
TM0404 Combo 4-Way Phone / 4 Port Cat 5e Data Board
(For use with EN0800)
VM0104 4-Way Vertical 1Ghz Splitter (For use with EN0800)
VM0106 6-Way Vertical 1Ghz Splitter (For use with EN0800)
VM0108 8-Way Vertical 1Ghz Splitter (For use with EN0800)
VM0204 4-Way Vertical 2Ghz Splitter (For use with EN0800)
VM0206 6-Way Vertical 2Ghz Splitter (For use with EN0800)
VM0208 8-Way Vertical 2Ghz Splitter (For use with EN0800)
PLASTIC
EN0802 EN0806
WWW.LEGRAND.US/ONQ

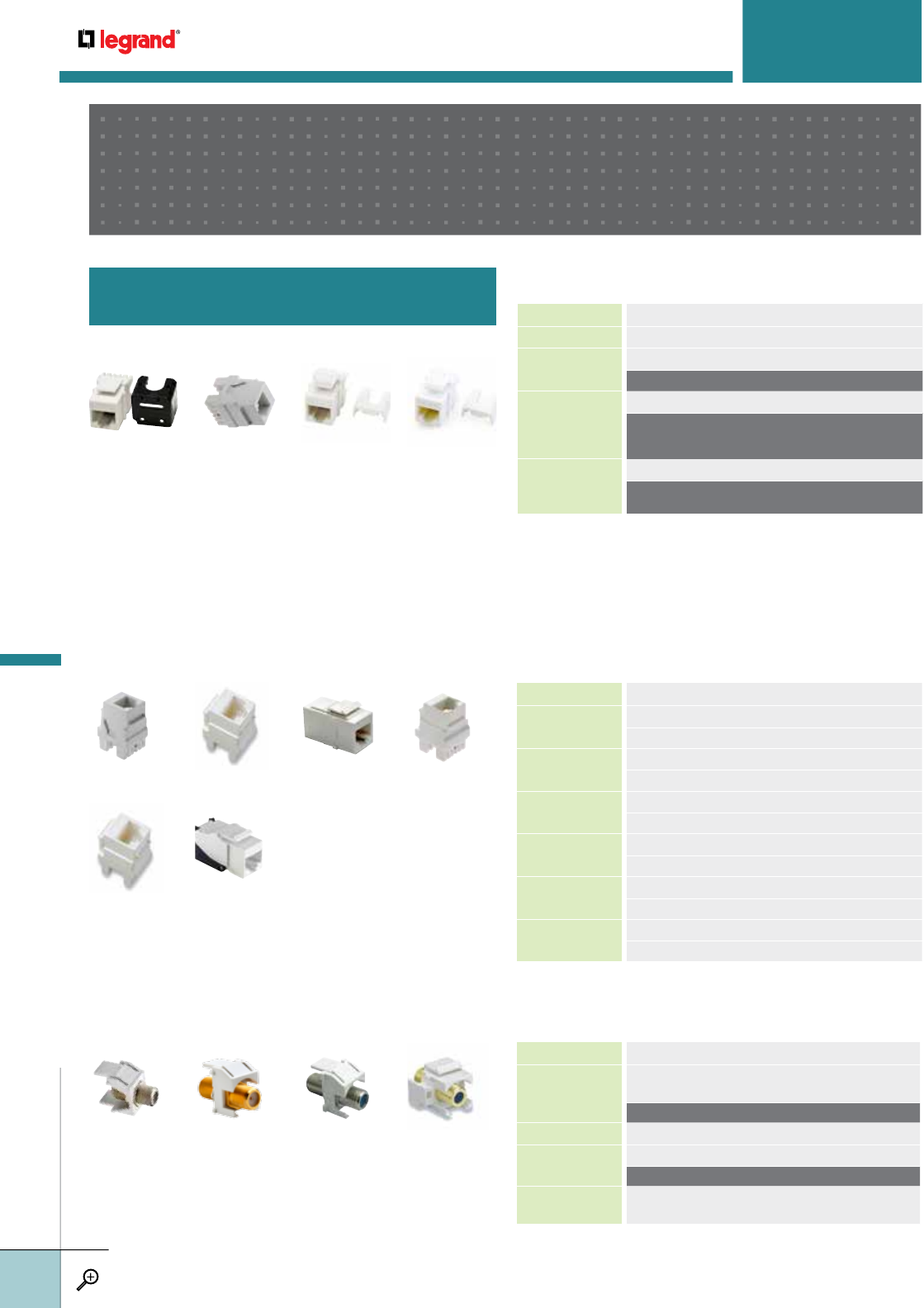

6
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY
PART NO. DESCRIPTION
WP3425-XX RJ25 6P6C Keystone Connector
Colors: BK, BR, IV, LA, WH
WP3450-XX Cat 5e RJ45 Keystone Connector
Colors: BE, BK, BR, GY, IV, LA, OR, RE, WH
WP3451-XX Cat 5e RJ45 Keystone Coupler
Colors: BK, WH
WP3458-XX Cat 5e Keyed RJ45 Keystone Connector
Colors: BK, BR, IV, LA, WH
WP3460-XX Cat 6 RJ45 Keystone Connector
Colors: BE, BK, BR, GY, IV, LA, OR, RE, WH
WP3560-XX Snap & Go Cat 6 Keystone Connector
Colors: BE, BK, BR, GY, IV, LA, OR, RE, WH
PART NO. DESCRIPTION
WP3479-XX Non-Recessed Coax Keystone F-Connector
(1 GHz)
50 COUNT BULK PACK IN WH OR LA (WP3479-XX-50)
WP3480-XX Recessed Gold F-Connector (3 GHz)
WP3481-XX Recessed Nickle F-Connector (3 GHz)
50 COUNT BULK PACK IN WH (WP3481-WH-50)
WP3482-XX Recessed Self-Terminating Keystone
F-Connector (1 GHz)
COLORS: BK, BR, IV, LA, WH
QUICK CONNECT INSERTS
OTHER INSERTS
COAX VIDEO INSERTS
KEYSTONE INSERTS
WP346AWH
WP3425WH
WP3479WH
WP3460WH
WP3473WH
WP3450WH
WP3480WH
WP3560WH
WP3475WH
WP3451WH
WP3481WH
WP3476WH
WP3458WH
WP3482WH
PART NO. DESCRIPTION
WP346A-XX Cat 6a Quick Connect RJ45 Keystone Insert
WP3473-XX
RJ25 6-Position, 6-Conductor Telephone Keystone Insert
10 COUNT BULK PACKS IN WH AND LA (WP3473-XX-10)
WP3475-XX Cat 5e Quick Connect RJ45 Keystone Connector
10 COUNT BULK PACKS IN WH AND LA (WP3475-XX-10)
50 COUNT BULK PACKS IN WH, LA AND BE (WP3475-XX-50)
100 COUNT BULK PACKS IN WH (WP3475-WH-100)
WP3476-XX Cat 6 Quick Connect RJ45 Keystone Connector
10 COUNT BULK PACKS IN WH, LA AND BE (WP3476-XX-10)
25 COUNT BULK PACKS IN WH (WP3476-WH-25)
COLORS: BE, BK, BR, GY, GN, IV, LA, OR, RE, WH, YE
NOTES: YOU CAN EASILY TERMINATE ALL WIRES AT ONCE USING
THE AC3400 PUNCH & GO TOOL.

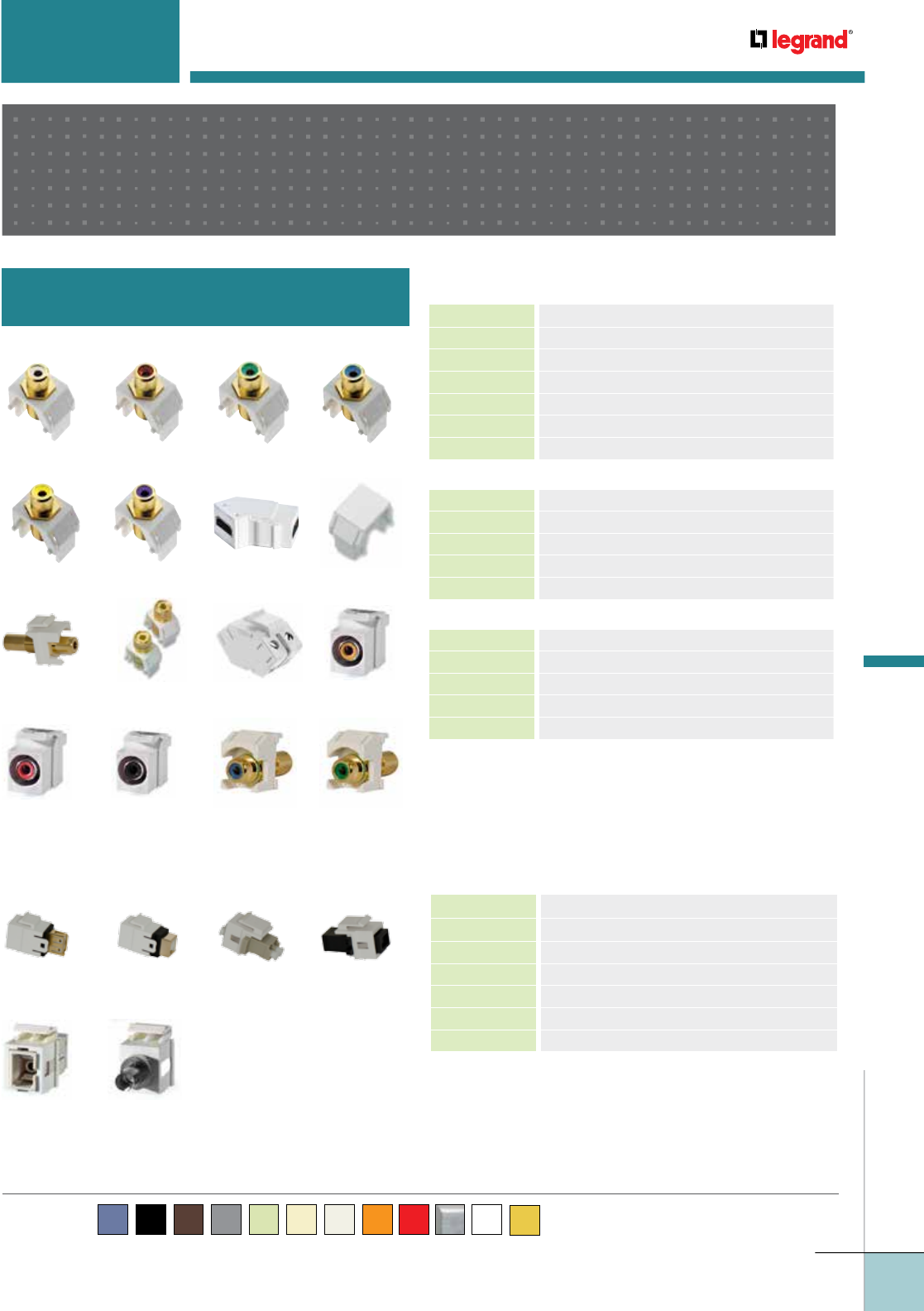

7
ON-Q
STRUCTURED WIRING
KEYSTONE INSERTS (cont.)
WP3460-WH
PART NO. DESCRIPTION
WP3461-XX White Keystone RCA-to-F Connector
WP3462-XX Red Keystone RCA-to-F Connector
WP3463-XX Green Keystone RCA-to-F Connector
WP3464-XX Blue Keystone RCA-to-F Connector
WP3465-XX Yellow Keystone RCA-to-F Connector
WP3466-XX Purple Keystone RCA-to-F Connector
Colors: BK, BR, IV, LA, WH
WP1234-XX HDMI Keystone Coupler
WP3455-XX Blank Keystone Insert
WP1215-XX 3.5MM Stereo Coupler
WP3457-XX Audio Keystone Binding Post (Pair)
WP3456-XX Speaker Keystone Binding Post
Colors: BK, BR, LA, WH
KSRCAYW Keystone RCA-to-RCA (Yellow Insulator)
KSRCARW Keystone RCA-to-RCA (Red Insulator)
KSRCABW Keystone RCA-to-RCA (Black Insulator)
KSRCABEW Keystone RCA-to-RCA (Blue Insulator)
KSRCAGNW Keystone RCA-to-RCA (Green Insulator)
DATA CONNECTIVITY
PART NO. DESCRIPTION
WP1220-XX USB 2.0 A/A Coupler
WP1221-XX USB 2.0 A/B Adapter
WP1210-XX MTRJ Coupler MM
WP1211-XX LC Coupler MM
KSSCXX SC Coupler MM
KSSTXX ST Coupler MM
COLORS: BK, BR, LA, WH
AUDIO/VIDEO INSERTS
USB & FIBER INSERTS
WP3461-WH
WP3465-WH
WP1215-WH
KSRCARW
WP1220-WH
KSSCWH
WP3462-WH
WP3466-WH
WP3457-WH
KSRCABW
WP1221-WH
KSSTWH
WP3463-WH
WP1234-WH
WP3456-WH
KSRCABEW
WP1210-WH
WP3464-WH
WP3455-WH
KSRCAYW
KSRCAGNW
WP1211-WH
COLOR KEY: RE
GY/
GRY GN OR
IV/I LA
BK WH/
WYE
SSBE NOTE: The following suffixes should be added to the end of all
applicable part numbers. Omit color code to order brown device.
WWW.LEGRAND.US/ONQ
8
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY
PART NO. DESCRIPTION
WP3401-XX 1-Gang, 1-Port Wall Plate
10 COUNT BULK PACK IN WH OR LA (WP3401-XX-10)
25 COUNT BULK PACK IN WH OR LA (WP3401-XX-25)
WP3402-XX 1-Gang, 2-Port Wall Plate
10 COUNT BULK PACK IN WH OR LA (WP3402-XX-10)
25 COUNT BULK PACK IN WH OR LA (WP3402-XX-25)
WP3403-XX 1-Gang, 3-Port Wall Plate
WP3404-XX 1-Gang, 4-Port Wall Plate
WP3406-XX 1-Gang, 6-Port Wall Plate
COLORS: BK, BR, IV, LA, WH, GY, SS
WP3212-XX 2-Gang, 12-Port Wall Plate
Colors: IV, LA, WH
DIMENSIONS: 1GANG: 2.9375” x 4.6875” 2GANG: 8.375” x 4.6875”
PART NO. DESCRIPTION
WP3300-XX 1-Gang, Blank Oversized Wall Plate
WP3301-XX 1-Gang, 1-Port Oversized Wall Plate
10 COUNT BULK PACK IN WH OR LA (WP3301-XX-10)
WP3302-XX 1-Gang, 2-Port Oversized Wall Plate
10 COUNT BULK PACK IN WH OR LA (WP3302-XX-10)
WP3303-XX 1-Gang, 3-Port Oversized Wall Plate
WP3304-XX 1-Gang, 4-Port Oversized Wall Plate
WP3306-XX 1-Gang, 6-Port Oversized Wall Plate
COLORS: WH, LA
DIMENSIONS: 1GANG: 3.3125” x 5.0625”
WALL PLATES
OVERSIZED WALL PLATES
KEYSTONE WALL PLATES
WP3300-WH
WP3403-WH
WP3304-WH
WP3212-WH
WP3301-WH
WP3404-WH
WP3306-WH
WP3401-WH
WP3302-WH
WP3406-WH
WP3402-WH
WP3303-WH
PART NO. DESCRIPTION
KTPDL1XX 1-Port Keystone Labeled Wall Plate
KTPDL2XX 2-Port Keystone Labeled Wall Plate
KTPDL3XX 3-Port Keystone Labeled Wall Plate
KTPDL4XX 4-Port Keystone Labeled Wall Plate
KTPDL6XX 6-Port Keystone Labeled Wall Plate
COLORS: I, LA, W
DIMENSIONS: 1GANG: 2.9375” x 4.6875”
LABELED WALL PLATES
KTPDL1W
KTPDL6W
KTPDL2W KTPDL3W KTPDL4W

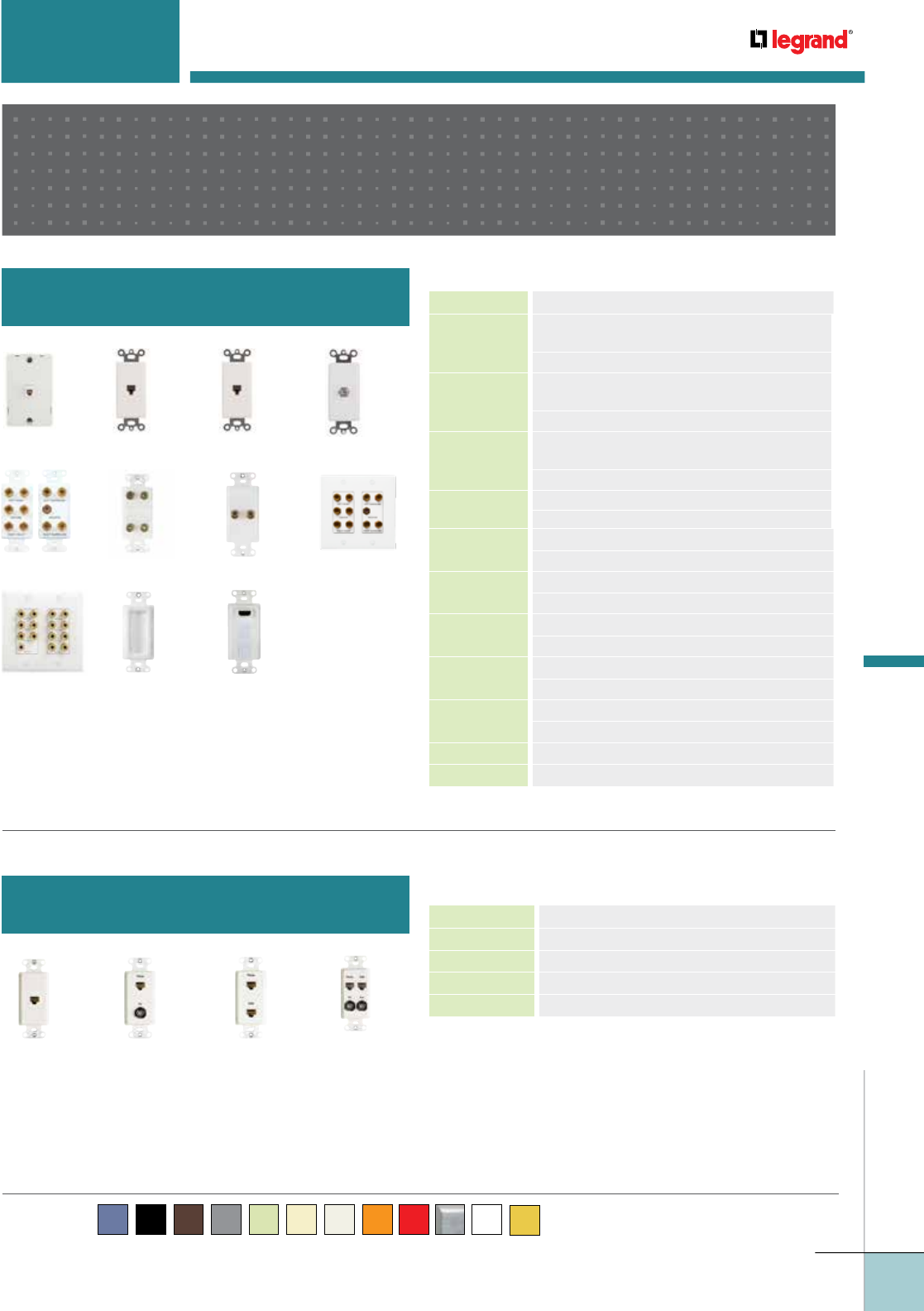

9
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY
PART NO. DESCRIPTION
TP13XXX 1-Gang Blank Wall Plate
TP26XXX 1-Gang Decorator Wall Plate
TP262XXX 2-Gang Decorator Wall Plate
TP263XXX 3-Gang Decorator Wall Plate
TP264XXX 4-Gang Decorator Wall Plate
COLORS: BK, I, LA, W, GRY (for Brown, leave blank)
DIMENSIONS: 1GANG: 2.9375” x 4.6875” 2GANG: 4.75” x 4.6875”
3GANG: 6.563” x 4.6875 4GANG: 8.375” x 4.6875”
STANDARD DECORATOR WALL PLATES
KEYSTONE WALL PLATES
KEYSTONE DECORATOR STRAPS
TP13W
TP264W
TP26W TP262W TP263W
PART NO. DESCRIPTION
TPJ13XXX Jumbo 1-Gang Blank Wall Plate
TPJ26XXX Jumbo 1-Gang Wall Plate
TPJ262XXX Jumbo 2-Gang Wall Plate
TPJ263XXX Jumbo 3-Gang Wall Plate
TPJ264XXX Jumbo 4-Gang Wall Plate
COLORS: BK, I, LA, W, GRY (for Brown, leave blank)
DIMENSIONS: 1-GANG: 3.3125” x 5.0625” 2-GANG: 5.125” x 5.0625”
3-GANG: 6.9375” x 5.0625” 4-GANG: 8.75” x 5.0625”
JUMBO DECORATOR WALL PLATES
TPJ13W
TPJ264W
TPJ26W TPJ262W TPJ263W
WP3460-WH
PART NO. DESCRIPTION
WP3410-XX Blank Decorator Outlet Strap
WP3411-XX 1-Port Decorator Outlet Strap
10 COUNT BULK PACK IN WH OR LA (WP3411-XX-10)
WP3412-XX 2-Port Decorator Outlet Strap
WP3413-XX 3-Port Decorator Outlet Strap
10 COUNT BULK PACK IN WH OR LA (WP3413-XX-10)
WP3414-XX 4-Port Decorator Outlet Strap
WP3416-XX 6-Port Decorator Outlet Strap
COLORS: BK, BR, IV, LA, WH, GY
WP3410-WH
WP3416-WH
WP3412-WH
WP3411-WH WP3413-WH
WP3414-WH
COLOR KEY: RE
GY/
GRY GN OR
IV/I LA
BK WH/
WYE
SSBE NOTE: The following suffixes should be added to the end of all
applicable part numbers. Omit color code to order brown device.
WWW.LEGRAND.US/ONQ

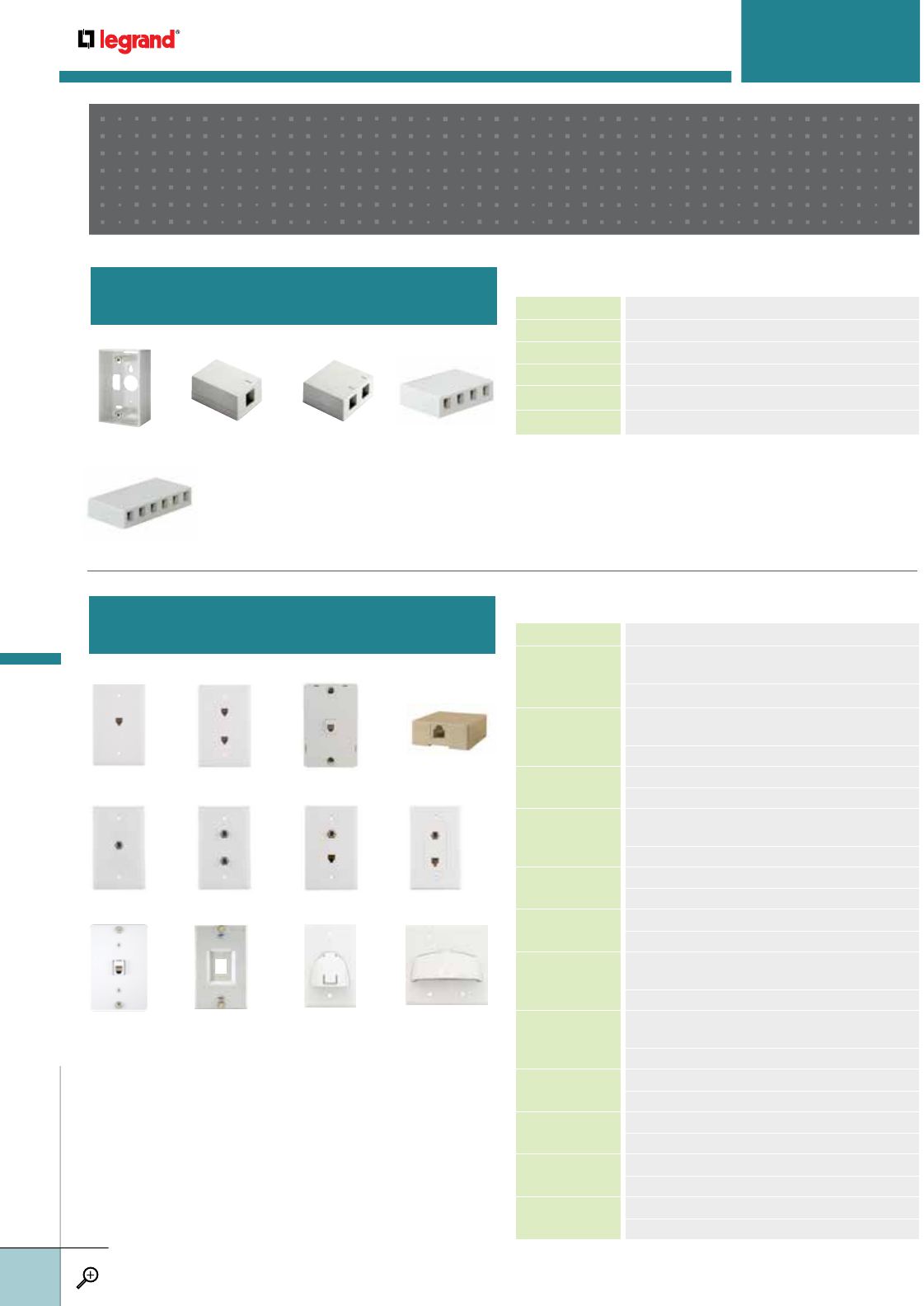

10
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY
PART NO. DESCRIPTION
TPTE1XX 2-Line Telephone Jack Wall Plate
(4 Conductor Configuration)
Colors: BK, BR, I, LA, W, GRY
TPTE2XX Dual 2-LineTelephone Jack Wall Plate
(4 Conductor Configuration)
Colors: BK, BR, I, LA, W
WMTE14W
Modular Wall Mount Telephone Jack for Hanging Phones
Colors: W
SMTE14I Surface Mount Modular 2-Line Telephone Jack
(4 Conductor Configuration)
Colors: I
TPCATVXX 1 GHz Coaxial Connector & Wall Plate
Colors: I, LA, W, BR, BK
TPCATV2XX Dual 1 GHz Coaxial Connector Wall Plate
Colors: I, LA, W, BR, BK
TPTELTVXX 1 GHz Coaxial Connector & 2-Line Phone Jack
Wall Plate
Colors: I, LA, W, BR, BK
26TELTVXX 1 GHz Coaxial Connector & 2-Line Phone Jack
with 1-Piece Molded Decorator Plate
Colors: I, LA, W
WP2002-WH 1-Gang 6P6C RJ25 Terminating Wall Phone Plate
Colors: WH
WP3467-XX Keystone Wall Phone Plate
Colors: WH, SS (Stainless Steel)
WP9001-XX Single Gang Bullnose Wall Plate
Colors: BK, WH
WP9002-XX Double Gang Bullnose Wall Plate
Colors BK, WH
PREMOLDED WALL PLATES & STRAPS
TPTE1W
TPCATVW
WP9001-WH
TPTE2W
TPCATV2W
WP2002-WH WP9002-WH
WMTE14W
TPTELTVW
SMTE14I
26TELTVW
WP3467-WH
PART NO. DESCRIPTION
WP3409-WH Single Gang Surface Mount Box
WP3501-WH Surface Mount Box 1-Port
WP3502-WH Surface Mount Box 2-Port
WP3504-WH Surface Mount Box 4-Port
WP3506-WH Surface Mount Box 6-Port
COLORS: IV, LA, WH
SURFACE MOUNT BOXES
WP3501-WHWP3409-WH WP3502-WH WP3504-WH
WP3506-WH
11
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY
PART NO. DESCRIPTION
WP3210-XX 1-Port Strap, 1RJ45
WP3211-XX 2-Port Strap Phone/TV
WP3220-XX 2-Port Strap Phone/Data
WP3422-XX 4-Port Strap Phone/Data, TV/AUX
COLORS: BK, LA, WH
PART NO. DESCRIPTION
WMTE14XX 2-Line Wall Mount Telephone Jack for Hanging
Phones (4 Conductor Configuration)
Colors: I, LA, W
26TE14XX Decorator 2-Line Telephone Jack
(4 Conductor Configuration)
Colors: I, LA, W
26TE16XX Decorator 3-Line Telephone Jack
(6 Conductor Configuration)
Colors: I, W
26CATVXX Decorator 1GHz Coaxial Connector
Colors: I, LA, W
F9004-XX 5.1 Home Theater Strap
Colors: BK, BR, IV, LA, WH
F9005-XX 2-Speaker Connection Strap
Colors: BK, BR, IV, LA, WH
F9006-XX Single Speaker Connection Strap
Colors: BK, BR, IV, LA, WH
F9008-XX-V1 5.1 Home Theater Strap with Wall Plate
Colors: DM, LA, WH
WP9009-XX-V1 7.1 Home Theater Strap with Wall Plate
Colors: BK, BR, IV, LA, WH
WP1014-WH Cable Access Strap
WP1011-WH HDMI 2-Port Strap
PREMOLDED WALL PLATES & STRAPS
PRECONFIGURED PLATES & STRAPS
WMTE14W
WP3210-WH
F9004-WH
WP9009-XX-V1
26TE14W
WP3211-WH
F9005-WH
WP1014-WH
26TE16W
WP3220-WH
F9006-WH
WP1011-WH
26CATVW
WP3422-WH
F9008-WH-V1
COLOR KEY: RE
GY/
GRY GN OR
IV/I LA
BK WH/
WYE
SSBE NOTE: The following suffixes should be added to the end of all
applicable part numbers. Omit color code to order brown device.
WWW.LEGRAND.US/ONQ
12
ON-Q
STRUCTURED WIRING

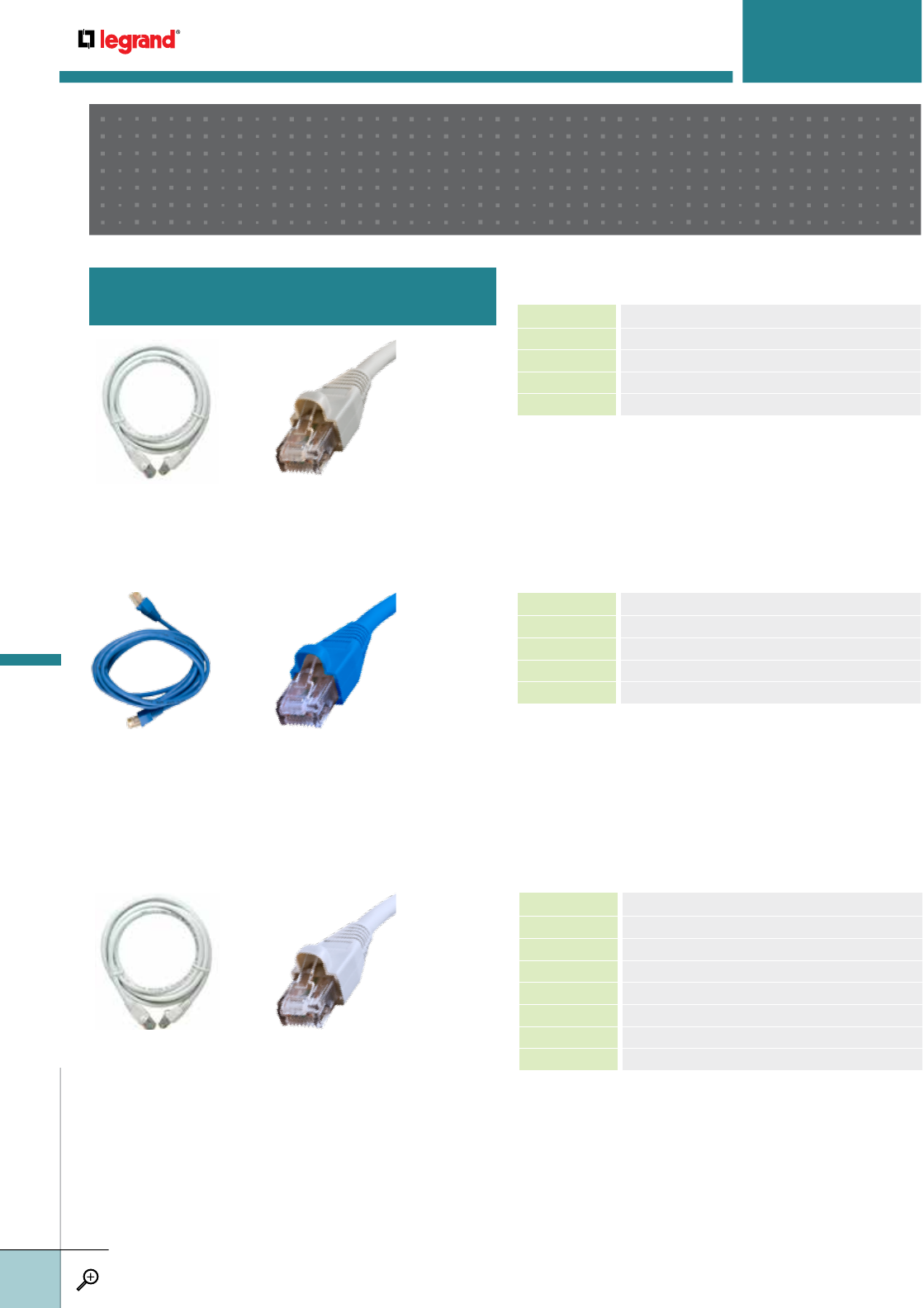

PART NO. DESCRIPTION
363201-25-V1 1 Foot Cat 5e Patch Cable
363201-26-V1 2 Foot Cat 5e Patch Cable
AC3503-WH-V1 3 Foot Cat 5e Patch Cable
AC3507-WH-V1 7 Foot Cat 5e Patch Cable
AC3514-WH-V1 14 Foot Cat 5e Patch Cable
AC3525-WH-V1 25 Foot Cat 5e Patch Cable
AC3550-WH-V1 50 Foot Cat 5e Patch Cable
• 100MHZ PATCH CABLE SUPPORTS 10 GIGABIT ETHERNET SPEEDS
• UL VERIFIED TO SUPPORT THE CAT 5e PERFORMANCE
PATCH CABLE SPECIFICATION
• SNAGLESS OVERMOLD PREVENTS INSERTION TAB
FROM CATCHING ON OTHER CABLES
• 24 AWG STRANDED PATCH CABLE
CAT 5E PATCH CABLES
AC3507-WH-V1
DATA CONNECTIVITY
PATCH CABLES
PART NO. DESCRIPTION
AC3607-BE-V1 7 Foot Cat 6 Patch Cable
AC3614-BE-V1 14 Foot Cat 6 Patch Cable
AC3625-BE-V1 25 Foot Cat 6 Patch Cable
AC3650-BE-V1 50 Foot Cat 6 Patch Cable
• 250MHZ PATCH CABLE FULLY SUPPORTS 10 GIGABIT ETHERNET SPEEDS
• UL VERIFIED TO SUPPORT THE CAT 6 PERFORMANCE PATCH CABLE
SPECIFICATION
• SNAGLESS OVERMOLD PREVENTS INSERTION TAB FROM CATCHING ON
OTHER CABLES
• 22 AWG STRANDED PATCH CABLE
CAT 6 PATCH CABLES
AC3607-BE-V1
PART NO. DESCRIPTION
AC6A07-GY-V1 7 Foot Cat 6a Patch Cable
AC6A14-GY-V1 14 Foot Cat 6a Patch Cable
AC6A25-GY-V1 25 Foot Cat 6a Patch Cable
AC6A50-GY-V1 50 Foot Cat 6a Patch Cable
• 500MHZ PATCH CABLE FULLY SUPPORTS 10 GIGABIT ETHERNET SPEEDS
• UL VERIFIED TO SUPPORT THE CAT 6a PERFORMANCE PATCH CABLE
SPECIFICATION
• SNAGLESS OVERMOLD PREVENTS INSERTION TAB FROM CATCHING ON
OTHER CABLES
• 22 AWG STRANDED PATCH CABLE
CAT 6A PATCH CABLES
AC6A07-GY-V1
13
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY

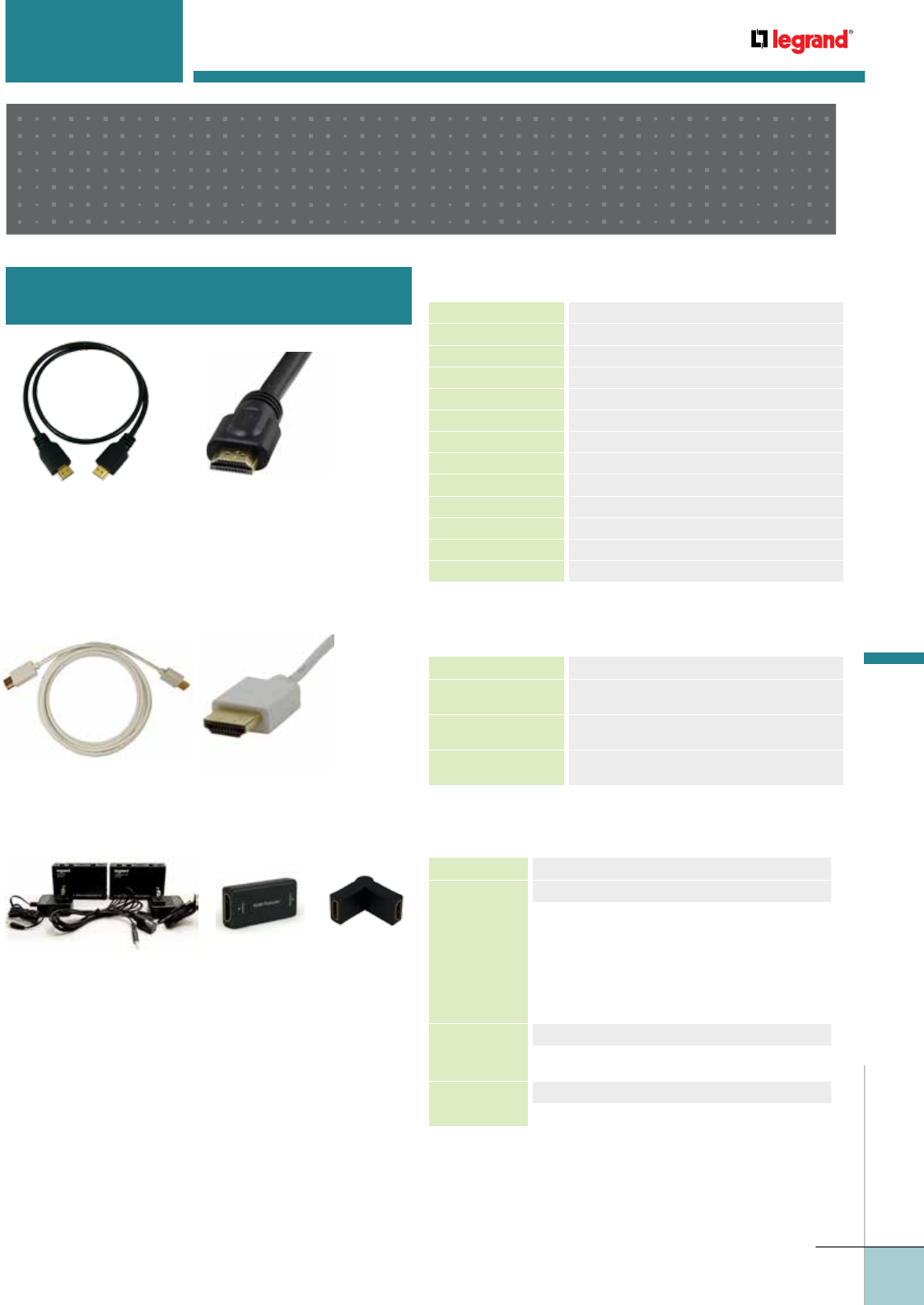

AC2M01BK
PART NO. DESCRIPTION
AC2M00-BK 0.7 Meter HDMI cable w/Ethernet
AC2M01-BK 1 Meter HDMI cable w/Ethernet
AC2M02-BK 2 Meter HDMI cable w/Ethernet
AC2M03-BK 3 Meter HDMI cable w/Ethernet
AC2M04-BK 4 Meter HDMI cable w/Ethernet
AC2M05-BK 5 Meter HDMI cable w/Ethernet
AC2M07-BK 7.5 Meter HDMI cable w/Ethernet
AC2M10-BK 10 Meter HDMI cable w/Ethernet
AC2M15-BK 15 Meter HDMI cable w/Ethernet
AC2M20-BK 20 Meter HDMI cable w/Ethernet
AC2A05-BK 5 Meter HDMI cable w/ Ethernet
AC2A07-BK 7 Meter HDMI cable w/ Ethernet
AC3M01WHV1
PART NO. DESCRIPTION
AC3M01-WH-V1 1 Meter High Speed HDMI with
Ethernet Slimline Cable
AC3M02-WH-V1 2 Meter High Speed HDMI with
Ethernet Slimline Cable
AC3M04-WH-V1 4 Meter High Speed HDMI with
Ethernet Slimline Cable
PART NO. DESCRIPTION
AC1030 HDBaseT HDMI Extender
THE AC1030 KIT EXTENDS HDMI AND INTERNET
SIGNALS UP TO 328 FEET USING CAT 5E OR
CAT 6 WIRING. IT SUPPORTS 3D VIDEO AND 1080P
RESOLUTION, WHILE DUAL IR TARGETS ALLOW
THE SOURCE DEVICE TO RECOGNIZE REMOTE
COMMANDS AT A SECONDARY LOCATION.
KIT INCLUDES: TRANSMITTER AND RECEIVER UNITS,
TWO IR TARGETS AND TWO POWER SUPPLIES.
AC2100 HDMI Repeater
CONNECTS TWO HDMI CABLES AND EXTENDS SIGNAL
UP TO 20 FEET.
AC2101 HDMI Hinged Coupler
CONNECTS CABLES TO TIGHT CORNERS.
HIGH SPEED HDMI CABLES WITH ETHERNET
ACCESSORIES
HIGH SPEED HDMI WITH ETHERNET SLIMLINE CABLE
AC1030 AC2100 AC2101
HDMI CABLES
WWW.LEGRAND.US/ONQ
14
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY
PART NO. DESCRIPTION
AC2006-BK 6 Feet Composite Vid L/R Audio Cable
AC2012-BK 12 Feet Composite Vid L/R Audio Cable
PART NO. DESCRIPTION
AC2103-BK 3 Feet Universal 1 Subwoofer Cable
AC2106-BK 6 Feet Universal 1 Subwoofer Cable
AC2112-BK 12 Feet Universal 1 Subwoofer Cable
AC2125-BK 25 Feet Universal 1 Subwoofer Cable
AC2203-BK 3 Feet Universal 2 L/R Audio Cable
AC2206-BK 6 Feet Universal 2 L/R Audio Cable
AC2303-BK 3 Feet Universal 3 Component Video Cable
AC2306-BK 6 Feet Universal 3 Component Video Cable
AC2312-BK 12 Feet Universal 3 Component Video Cable
AC2325-BK 25 Feet Universal 3 Component Video Cable
PART NO. DESCRIPTION
AC2403-BK 3 Feet Toslink w/Mini Audio Cable
AC2406-BK 6 Feet Toslink w/Mini Audio Cable
AC2412-BK 12 Feet Toslink w/Mini Audio Cable
AC2425-BK 25 Feet Toslink w/Mini Audio Cable
PART NO. DESCRIPTION
AC2501-BK 6 Inches Stereo 3.5 mm Y M/2F Adapter
AC2506-BK 6 Feet Stereo 3.5 mm M/F Audio Cable
AC2512-BK 12 Feet Stereo 3.5 mm M/F Audio Cable
AC2606-BK 6 Feet Stereo 3.5 mm M/M Audio Cable
AC2612-BK 12 Feet Stereo 3.5 mm M/M Audio Cable
AC2625-BK 25 Feet Stereo 3.5 mm M/M Audio Cable
PART NO. DESCRIPTION
AC2701-BK 6 Inches RCA Y M/2F Adapter
AC2702-BK 6 Inches RCA Y F/2M Adapter
AC2704-BK RCA Coupler Pair
AC2706-BK 6 Feet 3.5 mm to L/R RCA Audio Cable
AC2712-BK 12 Feet 3.5 mm to L/R RCA Audio Cable
AC2725-BK 25 Feet 3.5 mm to L/R RCA Audio Cable
AUDIO/VIDEO CABLES
AC2303-BK
AC2403-BK
AC2701-BK
AC2203-BK
AC2501-BK
AC2702-BK
AC2103-BK
AC2704-BK
AC2006-BK
AC2506-BK AC2606-BK
AC2706-BK
COMPOSITE
UNIVERSAL
TOSLINK
3.5 MM
RCA
15
ON-Q
STRUCTURED WIRING
DATA CONNECTIVITY
PART NO. DESCRIPTION
24845C5E Category 5e 24-Port T568A/B Universal Wiring
48845C5E Category 5e 48-Port T568A/B Universal Wiring
24845CC6 Category 6 24-Port T568A/B Universal Wiring
48845CC6 Category 6 48-Port T568A/B Universal Wiring
• 24 PORT PATCH PANEL USES 1 RACK MOUNT SPACE
• 48 PORT PATCH PANEL USES 2 RACK MOUNT SPACES
• 110 PUNCHDOWN REAR TERMINATION
WP24RM 24 Port Keystone Blank
WP48RM 48 Port Keystone Blank
AC1902 2 U Wall Mount Rack with Extenders
12845C5E89 12-Port T568A/B Universal Wiring
PS665089V 50-Pair 66 Block, Unwired & Mounting Bracket
PS11050KIT4V 50-Pair 110 Kit with Legs
KIT INCLUDES: 110 PUNCH DOWN BLOCK WITH
STAND-OFF LEGS, 10 C5 CLIPS, AND LABEL BAR.
12845C5E89
WP24RM WP48RM
PS11050KIT4V
AC1902
PS665089V
48845CC624845C5E
PATCH PANELS
PART NO. DESCRIPTION
AC1009-01 1-Gang, LV Bracket w/Nail, New Const.
AC1009-02 2-Gang, LV Bracket, Face Mount, New Const.
AC1009-11 1-Gang, LV Bracket, Face Mount, New Const.
AC1010-01 1-Gang, LV Bracket, Retrofit
AC1010-02 2-Gang, LV Bracket, Retrofit
AC1010-03 3-Gang, LV Bracket, Retrofit
CRAFTED WITH DURABLE HEAVY-DUTY PLASTIC, ON-Q LV BRACKETS
FEATURE AN OPEN BACK AND AN INTEGRATED CABLE MANAGEMENT
SYSTEM FOR CLEAN CONNECTIONS AND EASY INSTALLATION.
LOW VOLTAGE BRACKETS
AC1009-01
AC1010-02
AC1009-02
AC1010-03
AC1009-11 AC1010-01
PART NO. DESCRIPTION
AC4000 4.75 Inch, Natural, Cable Ties
AC4001 4.75 Inch, Black, Cable Ties
AC4002 7.5 Inch, Natural, Cable Ties
AC4003 7.5 Inch, Black, Cable Ties
AC4004 11 Inch, Natural, Cable Ties
AC4005 11 Inch, Black, Cable Ties
CABLE TIES
AC4000
AC4001
AC4002
AC4003
AC4004
AC4005
WWW.LEGRAND.US/ONQ
16
ON-Q
STRUCTURED WIRING
INSTALLATION TOOLS & CONNECTORS
PART NO. DESCRIPTION
362721-02 RG-6 Coax Stripper
363292-01 Cat 5e Strip and Fit Tool
363293-01 110 Punch Down Tool, Impact
364346-01 Coax Flaring and Insertion Tool
364406-01 High Performance RJ45 Modular Plug
Hand Tool
364555-01 EZ RJ-45 Modular Plug Hand Tool
AC3400 Punch & Go Tool
IMPROVES TERMINATION SPEEDS, REDUCES
COMPROMISED CONNECTIONS AND INCREASES
PRODUCTIVITY OF ANY QUICK CONNECT DATA INSERT.
AC3401 Punch & Go Tool Replacement Blade
AC1018 Radial Taper Compression Tool
(use with 364246-01 Coax F Plug)
AC3007 Adjustable Compression Tool
AC4006 Cable Tie Tool
PART NO. DESCRIPTION
364246-01 360 Conical Coax F Plug
364405-01 High Performance RJ45 Modular Plugs (25 Pack)
364554-01 EZ-RJ45 Modular Cat 5e Plug
AC2006 EZ-RJ45 Modular Cat 6 Plug
WP3483-01 Banana Plugs (pair)
AC3001-10 Compression RG6U/Quad F Plug, 10 Pack
AC3002-10 Compression RG6U/Quad 3 GHz F Jack, 10 Pack
AC3003-10
Compression RG6U/Quad Shield BNC Plug, 10 Pack
AC3004-10 Compression RG6U/Quad Shield RCA Plug, 10 Pack
(50 Pack also available, AC3004-10)
AC3005-10
Compression RG6U/Quad Shield Right Angle RCA Plug
AC3006-10 Nickle F-81 1 GHz Coupler, 10 Pack
(50 Pack also available, AC3006-50)
AC3008-10 Compression RG6U/Quad F Plug 10 Pack
(50 Pack also available, AC3008-50)
TOOLS
CONNECTORS
362721-02
364246-01
364346-01
AC3400
364405-01 AC2006
AC3401
363292-01
364406-01
AC1018 AC3007
363293-01
364554-01
364555-01
WP3483-01
AC3004-10
AC3001-10
AC3005-10
AC3002-10
AC3006-10
AC3003-10
AC3008-10
AC4006
17
ON-Q
STRUCTURED WIRING

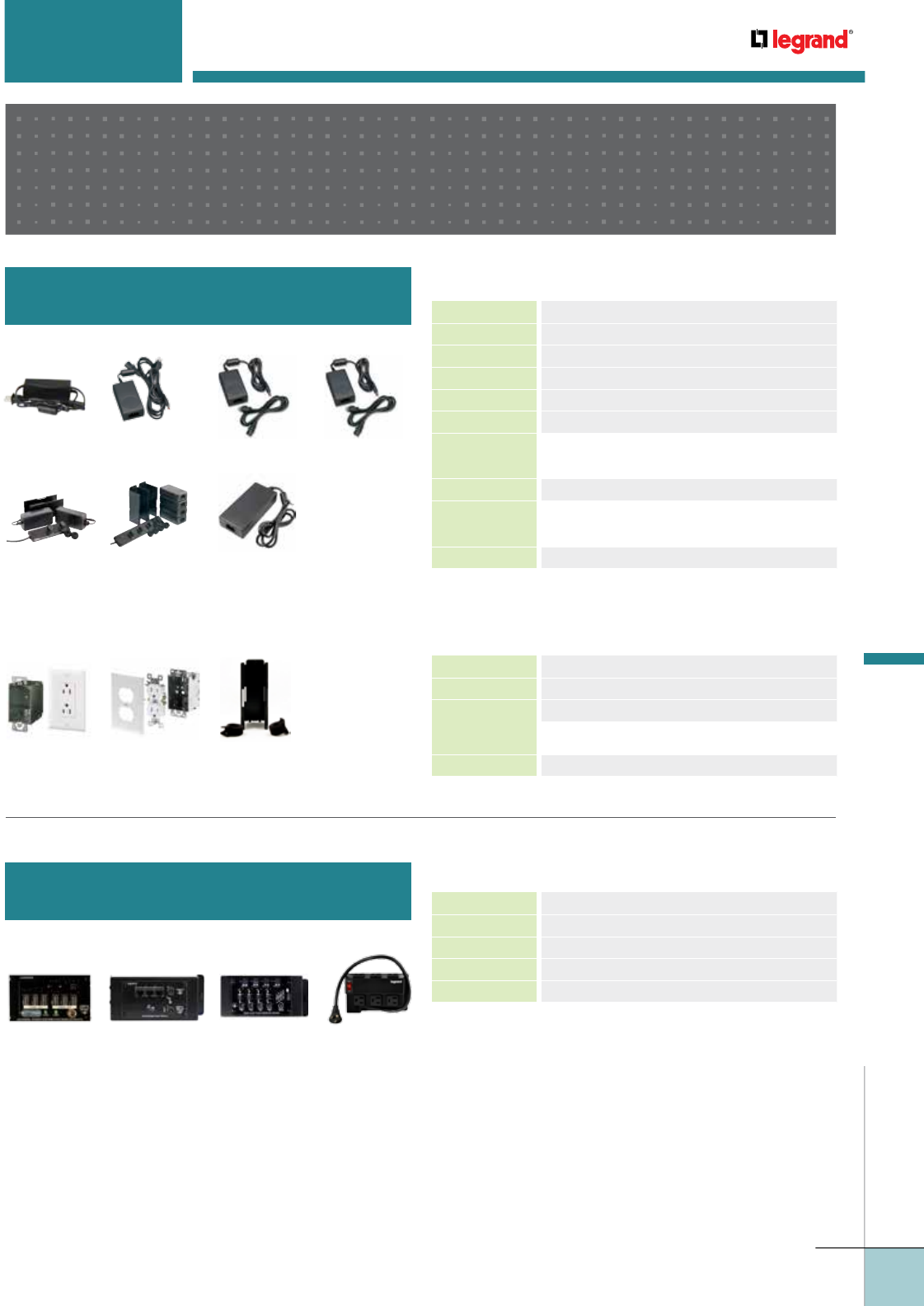

POWER MANAGEMENT
PART NO. DESCRIPTION
PW7760 12VDC, 18W Power Supply
PW7725 12VDC, 30W Power Supply
PW1030 24VDC, 30W Power Supply
PW1060 24VDC, 60W Power Supply
PW1120 24VDC, 120W Power Supply Kit
KIT INCLUDES: TWO 24VDC, 60W POWER SUPPLIES
(PW1060), ONE MOUNTING BRACKET (PW1006), ONE
CUSTOM MOUNTING BRACKET, AND VELCRO STRIPS
PW1240 24VDC, 240W Power Supply Kit
KIT INCLUDES: FOUR 24VDC, 60W POWER SUPPLIES
(PW1060), TWO MOUNTING BRACKETS (PW1006), ONE
CUSTOM POWER STRIP, AND VELCRO STRAPS
PW1248 48VDC, 100W Power Supply
PART NO. DESCRIPTION
364569-02-V1 Surge Protected Duplex Power Kit
F7526 Duplex Power Kit
KIT INCLUDES: A SURGE PROTECTED DUPLEX OUTLET,
METAL JUNCTION BOX AND A FACEPLATE KIT.
PW1006 Twin Power Supply Bracket
PART NO. DESCRIPTION
PW1012 Universal Power Distribution Module
PW1013 Intuity Bridge Power Module
PW1020 Digital Audio Power Distribution Module
AC1031 Enclosure Power Strip Module, Half Width
POWER SUPPLIES
POWER MODULES
ACCESSORIES
PW7760
PW1012
364569-02-V1
PW1120
PW7725
PW1013
F7526
PW1240
PW1030
PW1020 AC1031
PW1248
PW1006
PW1060
WWW.LEGRAND.US/ONQ
18
ON-Q
STRUCTURED WIRING
VIDEO & VOICE DISTRIBUTION
DESCRIPTION Basic 6x4 Combo
(110 Punchdown)
10x8 Combo with
RJ31X (RJ45)
10x8 Combo with RJ31X
(110 Punchdown)
10x8 Combo with RJ31X
MoCA Optimized
PART NO. 364400-04 CO1045 CO1110 CO2110-V1
Telecom Outlets 6 10 10 10
Video Outlets 4 8 8 8
Telecom Connections 110 Punchdown RJ45 110 Punchdown 110 Punchdown
RJ31X Line Seizure N Y Y Y
Bandwidth 1 GHz 1 GHz 1 GHz 1 GHz
Dimensions 51/8” x 61/2” 51/8” x 61/2” 51/8” x 61/2” 51/8” x 61/2”
VOICE & VIDEO MODULES
PART NO. DESCRIPTION
TM1110 10-Way IDC Telephone Module with RJ31X
TM1045 10-Way RJ45 Telephone Module with RJ31X
1267062-01-V1 6-Way Basic Telecom Module with RJ31X
PART NO. DESCRIPTION
VM1000 1x4 Enhanced Passive Video Splitter/Combiner
VM1002 1x8 Enhanced Passive Video Splitter/Combiner
VM1002 VM1000 126706201V1TM1110 TM1045
VIDEO MODULESVOICE MODULES
COMBO MODULES
19
ON-Q
STRUCTURED WIRING
NETWORKING
PART NO. DESCRIPTION
363486-01 8-Port Cat 5e Network Interface Module
AC1000 6-Port Cat 5e Network Interface Module
AC1001 6-Port Network Interface Module (Unpopulated)
AC1012 6-Port Cat 5e Network Interface Module
AC1013 6-Port Cat 6 Network Interface Module
AC1014 12-Port Cat 5e Network Interface Module
AC1015 12-Port Cat 6 Network Interface Module
PART NO. DESCRIPTION
DA1008 8-Port Gigabit Switch
DA1458 8-Port Gigabit Switch with 4-Port PoE Injector
DA1054 4-Port Gigabit Ethernet Router/Switch
PART NO. DESCRIPTION
DA2400 802.3af 4-Port PoE Injector
DA2401 802.3at 4-Port High Performance PoE Injector
AC1025 Power Over Ethernet Mounting Plate
PART NO. DESCRIPTION
DA1104 802.11ac Low Profile Wireless Access Point
DA1101 802.11n In-Wall/Ceiling Wireless Access Point
DA2131-V1 802.11n Outdoor Wireless Access Point
36348601
DA1008
DA2400
DA1104
AC1000
DA1054
DA2401 AC1025
DA1101
AC1012AC1001
DA2131V1
DA1458
AC1013 AC1014 AC1015
WIRED NETWORKS ROUTERS & SWITCHES
MODULES
POWER OVER ETHERNET
WIRELESS NETWORKS
301 Fulling Mill Road, Suite G
Middletown, PA 17057
(800) 321-2343
www.legrand.us/onq
570 Applewood Crescent
Vaughan, Ontario L4K 4B4
905.738.9195
www.legrand.ca
designed to be better™
© 2015 by Legrand. All Rights Reserved. 5M - GC/RRD - 12/15 - Part# BR1210151
RESOURCES & SUPPORT
TECH SUPPORT Need help on the job? Legrand’s expert team of support specialists are
available Monday through Friday, from 8:30 am to 6:30 pm Eastern Time, to
answer your product or installation questions. The staff can be reached during
these standard hours by any of the below options:
Phone: 800.223.4162, Option #3, then Option #2
Email: technical.support-hs@legrand.us
Live Chat: available through the www.legrand.us website
CUSTOMER SERVICE Friendly and knowledgeable, our team can handle a wide variety of needs and
requests – from order processing to system registration – and is available
Monday through Friday, from 9 am to 6 pm Eastern Time.
Phone: 844.334.8044
Email (general inquiries): customer.support.lv@legrand.us
Email (orders): orders.lv@legrand.us
TRAINING Knowledge is power, and Legrand offers a wealth of product, industry,
and installation knowledge through our on-site and online courses.
Visit the Legrand University at http://go.bluevolt.com/Legrand/Home/
for convenient online courses you can complete at your own pace,
recorded past webinars to catch anything you may have missed,
as well as a complete schedule of upcoming FREE webinars.

Navigation menu
