SPECIFICATION

The shielded connector shall meet or exceed all

requirements for Category 6A as described in ANSI/TIA-

568-C.2, as well as Class EA requirements as described

in ISO/IEC 11801. The connector shall comply with all

National Electrical Codes, be compliant with ANSI/TIA-

1096-A, be UL listed, and be independently veried.

The connector shall be encased in a die-cast housing

to protect from potential EMI/RFI. The connector shall

support tool-free termination/re-termination and shall not

require a specialized termination tool. The connector

wiring shall be universal to accommodate T568A and

T568B wiring schemes. The connector shall be available

in 13 colors; more than established by the ANSI/TIA-

606 standard. The connector shall be supplied with

interchangeable icons, and be offered with internal

shutter and standard styles.

DESIGN CONSIDERATIONS

• Fits most QuickPort applications in patch panels,

faceplates, and surface-mount boxes

• Can be used to terminate all types of shielded cable

• To identify ports, use different colored modules and

icons for each application (full selection of ANSI/TIA-

606 compatible colors, 13 available)

• Robust housing and internal shutter protects the

connector in harsh environments

FEATURES

• Independently tested and guaranteed to exceed all component,

permanent link, and channel margins

• Patented Retention Force Technology (RFT) protects against

tine damage from 4- or 6-pin plugs

• Shielding provides EMI/RFI protection, signal isolation, and

excellent alien crosstalk (AXT) suppression

• Unique design supports tool-free termination/re-termination and

requires no specialized termination tool

• Short connector design supports a wider range of applications

(e.g. shallow boxes, enclosures, bend radius, etc.)

• Terminates from 26 to 22-gauge solid or stranded conductors for

use on various cable types

• Robust IDCs can withstand 20 re-termination cycles and

connector contacts are tested for 750 plug-mating cycles to

ensure system longevity

• Available in 13 ANSI/TIA-606-B compatible colors for color

coding or organization

• Connector supplied with interchangeable icons (voice, data, A/V,

and blank, color coded to match the connector face) for easy

identication and tracking of data, voice, or other functions

• Connector with internal shutter is available to protect against dust

and debris

STANDARDS COMPLIANCE

• ANSI/TIA-568-C.2 (Cat 6A)

• ISO/IEC 11801 Class EA

• cULus Listed

• IEC 60603-7

• IEC 60512-99-001

• UL 2043 Plenum Certied

• RoHS 2

• ANSI/TIA-1096-A (formerly FCC Part 68)

• IEEE 802.3at (Type 1) Power over Ethernet (PoE) up to

15.4 watts

• IEEE 802.3at (Type 2) Power over Ethernet (PoE+) up to

30 watts

• IEEE Draft 802.3bt/D1.2 (Type 3) Power over Ethernet (PoE+)

up to 60 watts

• IEEE Draft 802.3bt/D1.2 (Type 4) Power over Ethernet (PoE+)

up to 100 watts

• Cisco Universal Power Over Ethernet (UPOE) up to 60 watts

• Power over HDBaseTTM (POH) up to 100 watts

PHYSICAL SPECIFICATIONS

Dimensions: See page two

Materials: Connector Body: Die-cast zinc

Spring-Wire Contacts: High-quality, copper-

based alloy, plated with 50 micro-inches of gold

for lowest contact resistance and maximum life

APPLICATION

The Atlas-X1 Cat 6A Component-Rated Shielded

QuickPort Connector supports 10GBASE-T networks.

The shielded connector provides superior alien

crosstalk (AXT) suppression and protects critical data

from potential EMI/RFI (electromagnetic interference/

radio frequency interference). The connector is part of

a complete Atlas-X1 Cat 6A shielded system ideal for

government, healthcare, manufacturing, transportation,

gaming, and other environments where EMI/RFI and/or

security may be a concern.

PRODUCT SPECIFICATIONS

6ASJK-xx6, ICONS-ICx

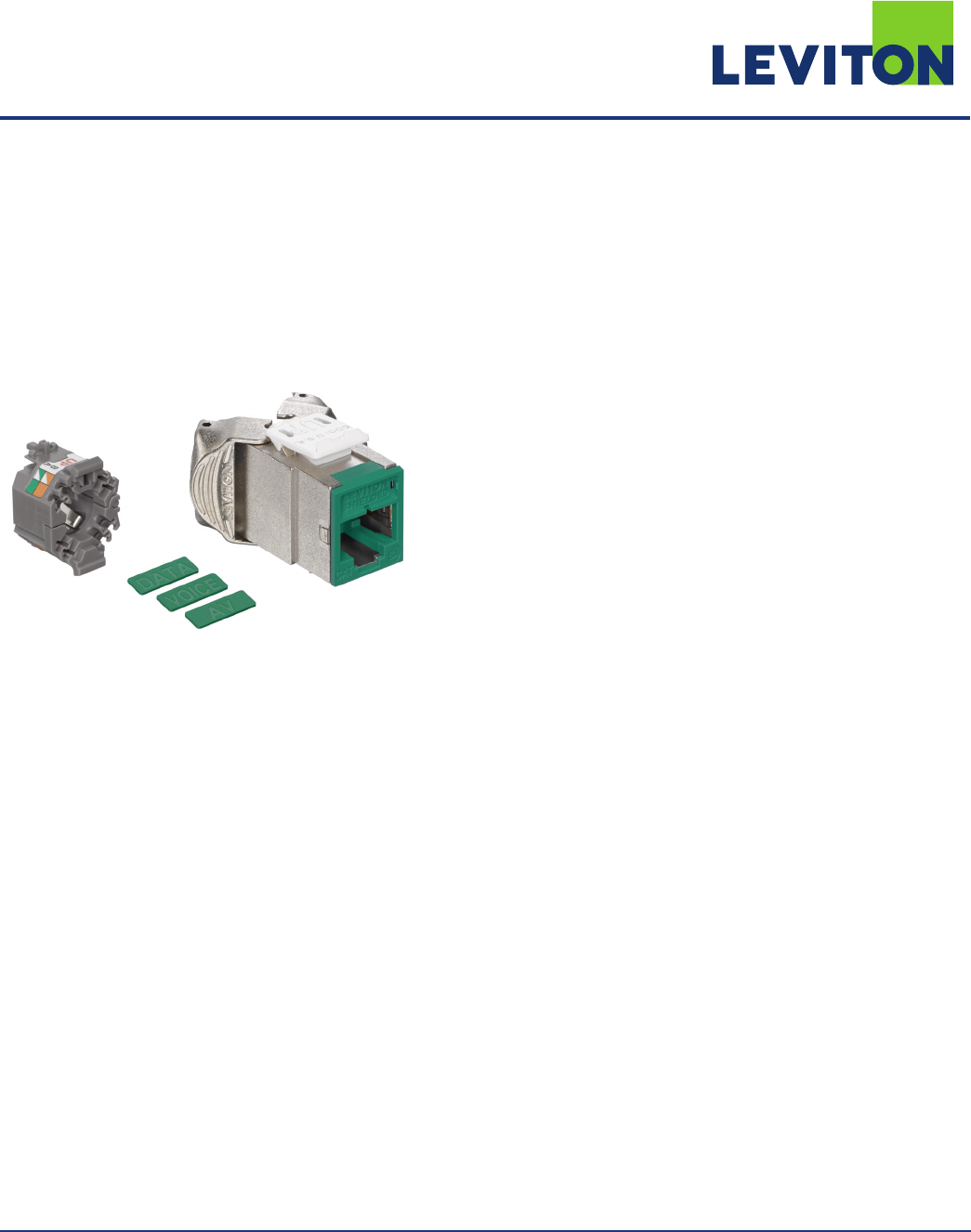

Atlas-X1TM Cat 6A Component-Rated Shielded QuickPort® Connector

6ASJK-xx6, ICONS-ICx

Page 1 of 2

Leviton Network Solutions

2222 - 222nd St. SE

Bothell, WA 98021-4416

tel 1-800-824-3005

tel +1-425-486-2222

appeng@leviton.com

www.leviton.com

Asia / Pacic

T +1.631.812.6228

E infoasean@leviton.com

Canada

T +1.514.954.1840

E pcservice@leviton.com

Caribbean

T +1.954.593.1896

E infocaribbean@leviton.com

China

T +852.2774.9876

E infochina@leviton.com

Colombia

T +57.1.743.6045

E infocolombia@leviton.com

Europe

T +33.6.8869.1380

E infoeurope@leviton.com

India / SAARC

T +971.4.886.4722

E infoindia@leviton.com

Mexico

T +52.55.5082.1040

E lsamarketing@leviton.com

Middle East & Africa

T +971.4.886.4722

E lmeinfo@leviton.com

South Korea

T +82.2.3273.9963

E infokorea@leviton.com

Copyright © 2015 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice. Revised October 2015

PRODUCT SPECIFICATIONS

6ASJK-xx6, ICONS-ICx

6ASJK-xx6, ICONS-ICx

J15 5813

COUNTRY OF ORIGIN

USA

WARRANTY INFORMATION

Note: Limited Product and Limited Extended Warranties are rendered VOID if the installed structured cabling system

is used for PoE applications that exceed the product's specied power rating.

For a copy of Leviton product warranties, visit www.leviton.com/warranty.

ELECTRONIC FILES

For CAD les, typical specs, or technical drawings (.DXF, .DWG), visit www.leviton.com.

Page 2 of 2

PART NUMBERS

Description Standard

Connector

Connector w/

Internal Shutters

Atlas-X1TM Cat 6A Component-Rated Shielded QuickPort® Connector, white 6ASJK-RW6 6ASJK-SW6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, light almond 6ASJK-RT6 6ASJK-ST6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, ivory 6ASJK-RI6 6ASJK-SI6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, yellow 6ASJK-RY6 6ASJK-SY6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, orange 6ASJK-RO6 6ASJK-SO6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, crimson 6ASJK-RC6 6ASJK-SC6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, dark red 6ASJK-RR6 6ASJK-SR6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, purple 6ASJK-RP6 6ASJK-SP6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, blue 6ASJK-RL6 6ASJK-SL6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, green 6ASJK-RV6 6ASJK-SV6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, grey 6ASJK-RG6 6ASJK-SG6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, black 6ASJK-RE6 6ASJK-SE6

Atlas-X1 Cat 6A Component-Rated Shielded QuickPort Connector, brown 6ASJK-RB6 6ASJK-SB6

Leviton Network Solutions

2222 - 222nd St. SE

Bothell, WA 98021-4416

tel 1-800-824-3005

tel +1-425-486-2222

appeng@leviton.com

www.leviton.com

Asia / Pacic

T +1.631.812.6228

E infoasean@leviton.com

Canada

T +1.514.954.1840

E pcservice@leviton.com

Caribbean

T +1.954.593.1896

E infocaribbean@leviton.com

China

T +852.2774.9876

E infochina@leviton.com

Colombia

T +57.1.743.6045

E infocolombia@leviton.com

Europe

T +33.6.8869.1380

E infoeurope@leviton.com

India / SAARC

T +971.4.886.4722

E infoindia@leviton.com

Mexico

T +52.55.5082.1040

E lsamarketing@leviton.com

Middle East & Africa

T +971.4.886.4722

E lmeinfo@leviton.com

South Korea

T +82.2.3273.9963

E infokorea@leviton.com

Copyright © 2015 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice. Revised October 2015

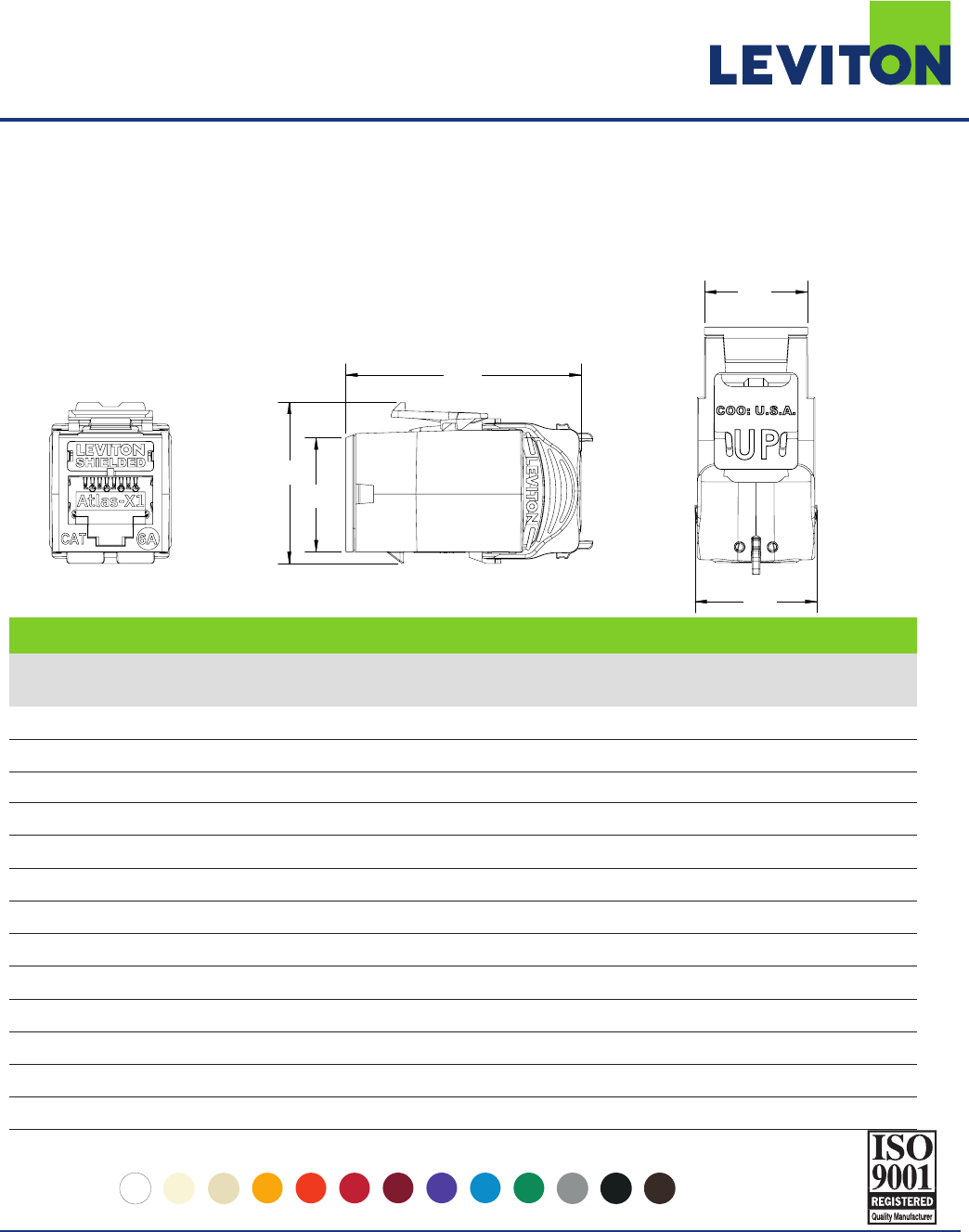

.58

.68

.64

.90

1.31

6ASJK-Rxx

.90"

.64"

1.31"

.58

.68

.64

.90

1.31

6AUJK-Rxx

.68"

.58"

Color-matched icons (ICONS-ICx) can be ordered separately in 72-quantity packs.

Bulk wire managers (AXSJK-BGM) can be ordered separately in 10-quantity packs.

x = color

Green (V) Blue (L)Purple (P)

Crimson (C) Dark

Red (R)

Orange (O) Yellow (Y) Black (E)Grey (G)

Ivory (I)Light

Almond (T)

Brown (B)

White (W)
