Rail & Transit
WIRE AND CABLE
OCTOBER 2014
TRANSIT
Servicing the Rail & Transit
Markets
This catalog contains in-depth
information on the most
comprehensive line of rail &
transit wire and cable available
today. It features the latest
information on products, along
with detailed technical and
specification data in indexed
sections — with an easy-to-use
“spec-on-a-page” format.
The “spec-on-a-page” format
was developed to meet your
needs. It features up-to-the-
minute product information,
from applications and
constructions to detailed
technical and specification
data. There’s also a technical
information section for
additional assistance.
And, of course, if you need
any further data, General
Cable’s Customer Service staff
provides the answers you need
quickly and efficiently.
All information in this catalog is presented solely
as a guide to product selection and is believed
to be reliable. All printing errors are subject to
correction in subsequent releases of this catalog.
Although General Cable has taken precautions to
ensure the accuracy of the product specifications
at the time of publication, the specifications of all
products contained herein are subject to change
without notice.
GENERAL CABLE, DURALOX, POLYRAD,
UNIBLEND and UNISHIELD are trademarks of
General Cable Technologies Corporation.
© 2014. General Cable Technologies
Corporation.
Highland Heights, KY 41076
All rights reserved. Printed in USA.
Phone: 866.248.7060
www.generalcable.com
General Cable – Your Rail & Transit Partner
For rapid transit, locomotive applications and rolling stock, General Cable provides the toughest cables to meet the most
demanding requirements for long-term performance and reliability. As an industry leader in a challenging marketplace,
General Cable has the expertise, facilities and structure to deliver results:
• Leadership in Material Development
• Dedicated Engineering Expertise
• ISO 9001 Quality Assurance Program
• Advanced Customer eBusiness Tools
A Wide Range of Products
• Car/Locomotive Wiring
• Power Cables
• Control Cables
• Instrumentations Cables
• Coupler Cables
• Electronically Controlled Pneumatic Brake (ECP) Cables
• Data Communications Cables
• Diesel-Electric Locomotive (DLO) Cables
• 2 HR Fire-Rated Circuit Integrity Cables
• Head-End Power Cables
• HVAC System Cables
• Off-Road Equipment Cables
Major End-Users Supplied
• Original Equipment Manufacturers (OEM)
- Car Builders & Rebuilders
- Locomotive Builders & Rebuilders
• Transit Agencies
• Distributors
• Subcontractors to Original Equipment Manufacturers (OEM)
• System Integrators
General Cables Willimantic, Connecticut
plant is one of the most diverse
manufacturing facilities of its kind. More
than 600,000 square feet of modern
manufacturing space is dedicated to
design, development, engineering and
manufacturing, as well as a wide range
of in-house testing and technical support.
General Cable’s Industrial & Specialty
facility has the expertise to design and
develop an extensive variety of materials
into thousands of cable constructions for
sustained and continuous operations in
challenging environments. Focused on
providing outstanding quality, service
and technical support on behalf of our
customers, General Cable is the best
partner for current and next-generation
transit cabling systems.
Phone: 866.248.7060
www.generalcable.com
Quality is Number One
“Quality is not something
that is achieved and then
forgotten but something
that we work to improve
every day by continuously
focusing on design,
technology, and control.
Improved product designs
and investment in people
and equipment are all
part of our quality
commitment to you.
Greg Lampert
President and CEO
General Cable
North America
General Cable is always committed to exceeding our customers
expectations for quality and performance. We strive to ensure
quality through extensive in-house and third-party testing with
strict adherence to specifications and industry standards, as
demonstrated by the following certifications and compliances.
IRIS Certification
General Cable’s transit wire and cable facility is now IRIS
(International Railway Industry Standard) Certified. UNIFE, the
Association of the European Rail Industry, was created in 1991
in anticipation of the creation of the European Union. In 2005,
UNIFE established IRIS with the goal of securing higher quality
in the railway industry. This recognized industry certification
enables railway component suppliers to meet globally recognized
levels of quality for its railway components. General Cable is
the first wire and cable manufacturer in the Americas to achieve
IRIS Certification*. Combined with IRIS Certication in our
Barcelona, Spain facility, General Cable meets the transit sector’s
needs throughout the Americas and Europe. General Cable’s
IRIS Certication ensures improved product quality and efcient
procedures throughout the whole supply chain.
ISO 9001/2008 Compliance
ISO 9001 is the world’s most established quality framework
to demonstrate the ability to consistently provide product
that meets applicable requirements and enhances customer
satisfaction through processes that ensure quality. General Cable
is the only wire and cable company in North America to
be both ISO 9001:2008 and IRIS Certified.
UL and CSA Approved Laboratories
General Cable’s Willimantic, CT facility has a laboratory quality system based on
ISO/IEC 17025:2005, encompassing proper test equipment, test environment, personnel
qualifications, test standards and procedures, and data recording and reporting procedures.
Accordingly, the Willimantic lab is approved by Underwriters Laboratories (UL) as a testing
facility. In fact, the facility is audited and approved by UL for their Client Test Data Program
(CTDP), demonstrating a level of performance that does not require UL to witness on-site
testing. UL assesses the lab’s quality systems and testing methods on an annual basis.
The Willimantic lab is also approved by CSA International
(CSA). The CSA Category Program Certification (CPC)
is based on ISO/IEC 17025:2005, which provides more
repeatable and reliable test results to bring innovative
products to market quicker. The General Cable Willimantic
facility is certified by CSA to conduct our own testing in
a product category. CSA certification requires General
Cable to have thorough knowledge of the applicable
product standards, access to suitable test facilities and
a demonstrated ability to design, manufacture and test
products that consistently comply with the standards.
* IRIS Certifications are for Product Category 12, Cabling and Cabinets
(design, development and production of electric special cables
[power and instrumentation] for the railway industry).
Phone: 866.248.7060
www.generalcable.com
PRODUCT SELECTION LOCATOR
SECTION PAGES
1Polyrad® XT, Polyrad® ULTRA
and Polyrad® XT-TX Wire and
Cable Products
1-8
2Transit Data
Communications Cables 9-12
3Transit Specialty Cables 13-16
4Technical Information 17-30
Phone: 866.248.7060
www.generalcable.com
Serving the Rail & Transit Markets
TABLE OF CONTENTS
Section 1 Polyrad® XT, Polyrad® ULTRA and Polyrad® XT-TX Wire and Cable Products 1-8

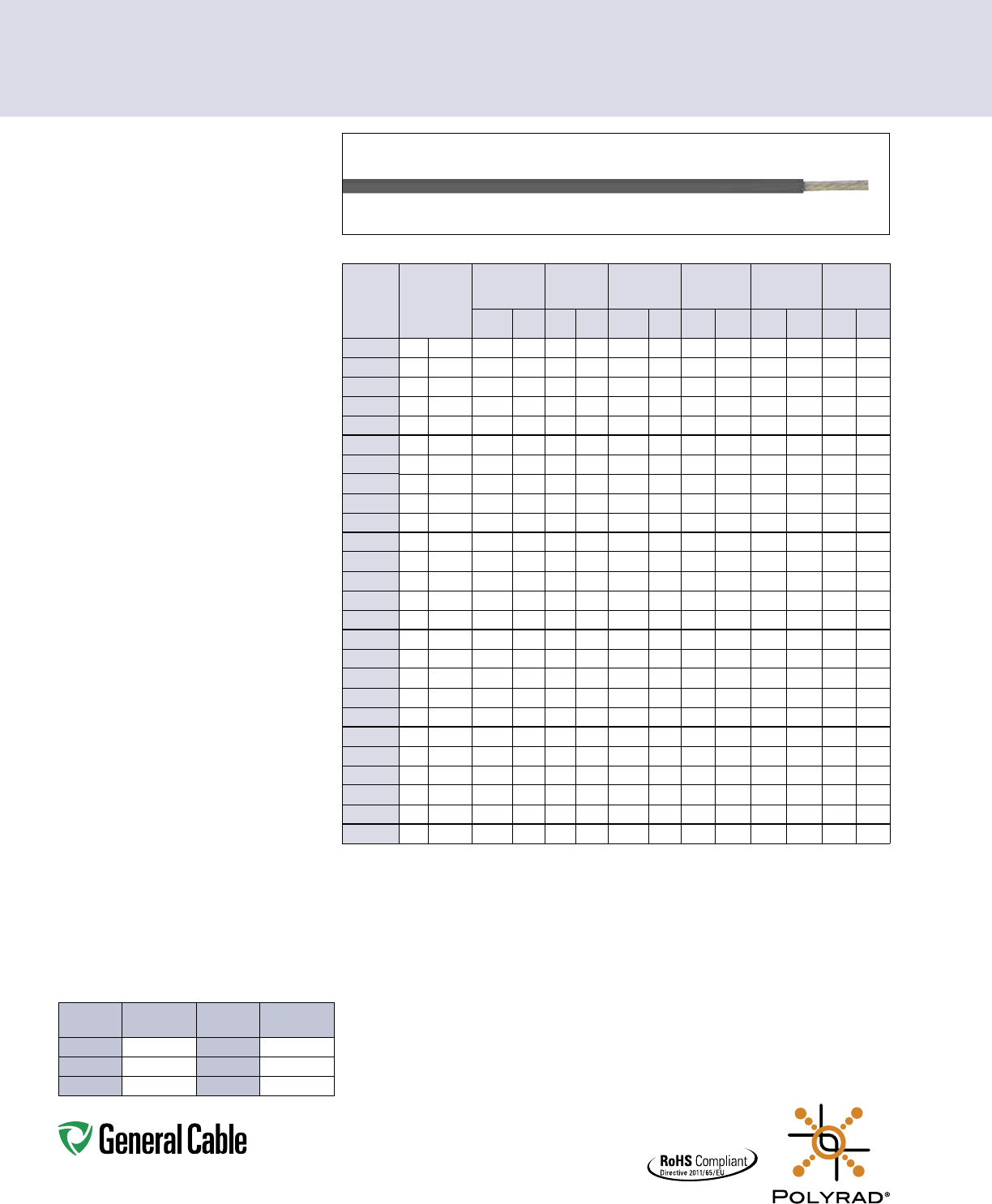

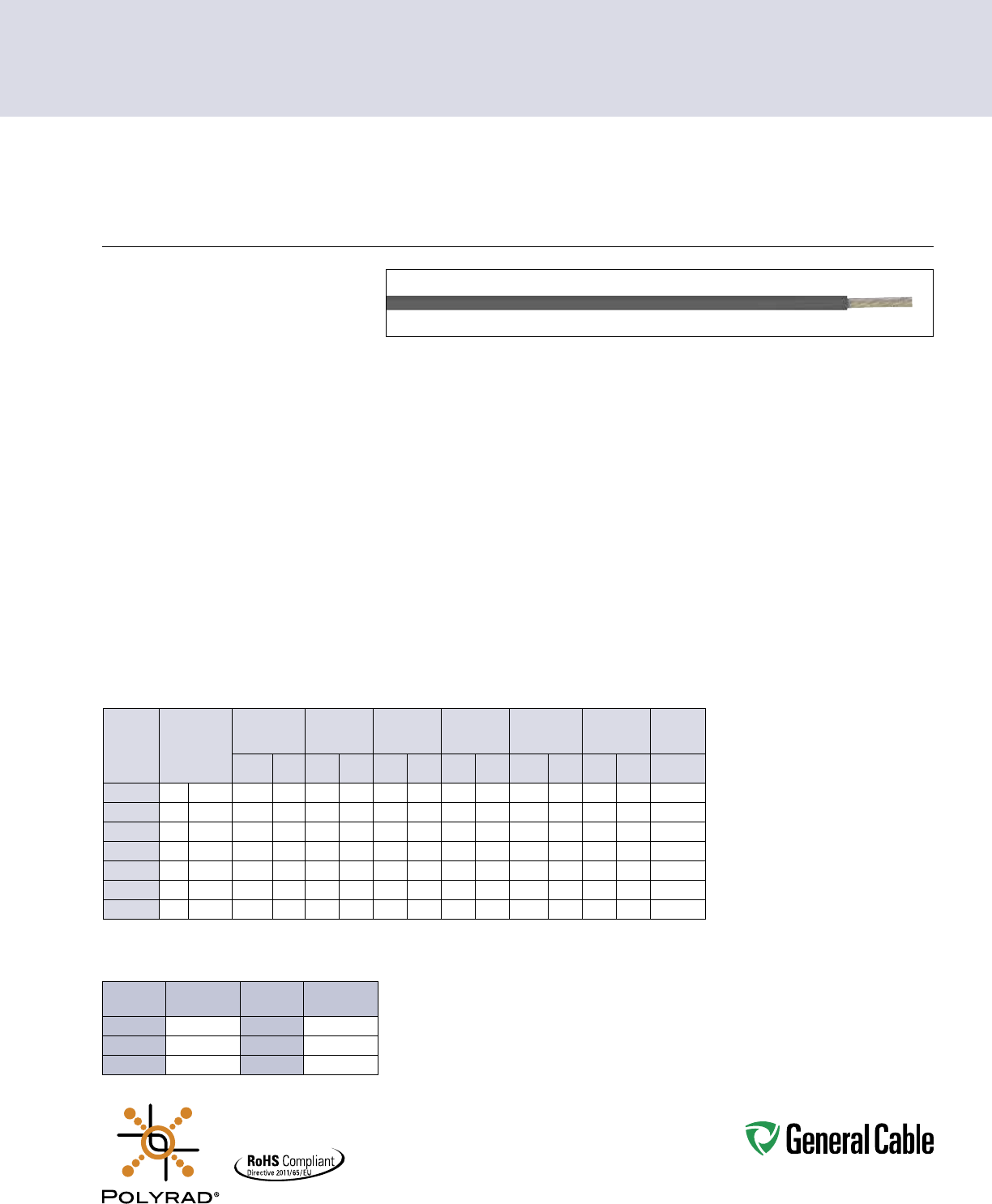

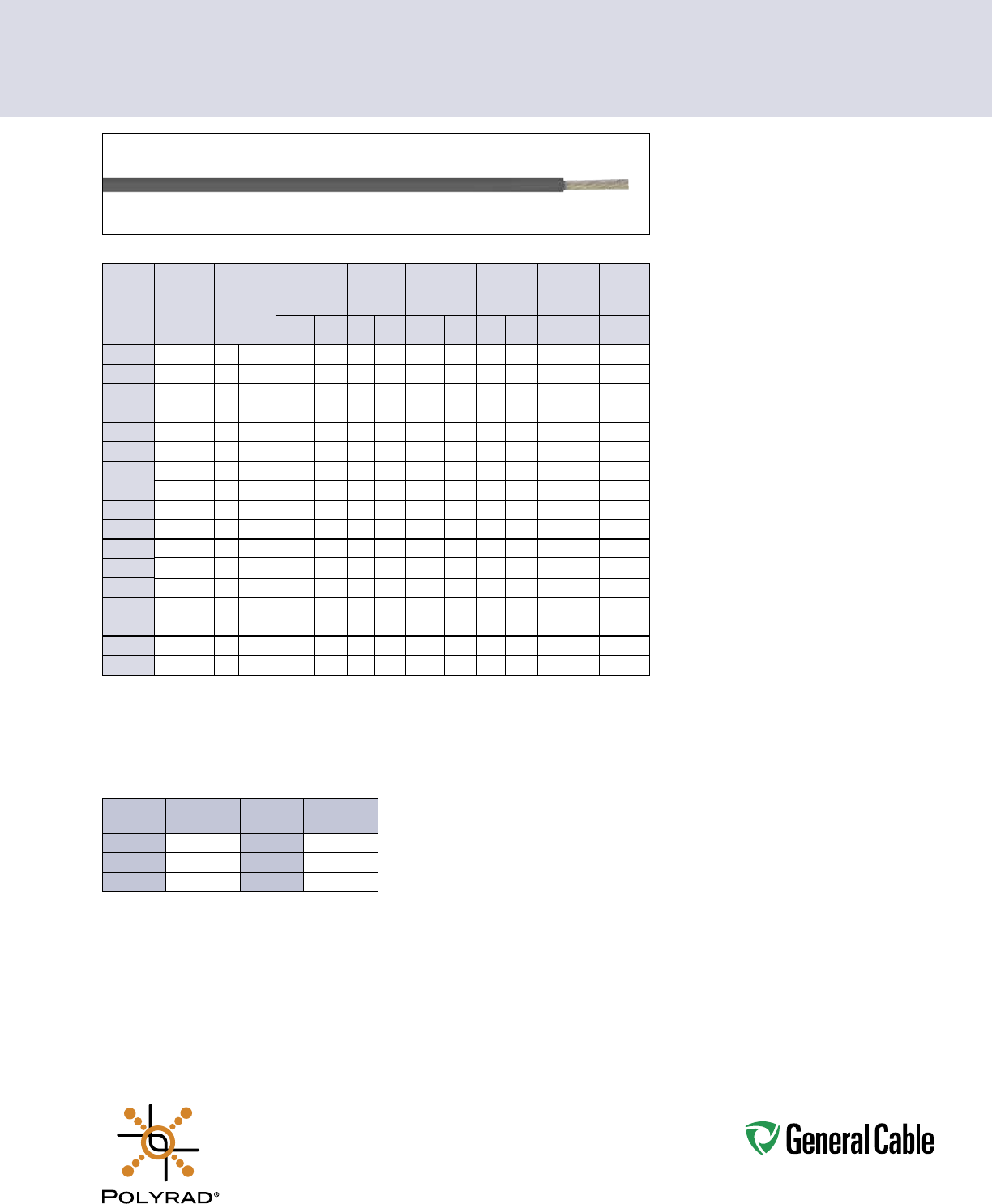

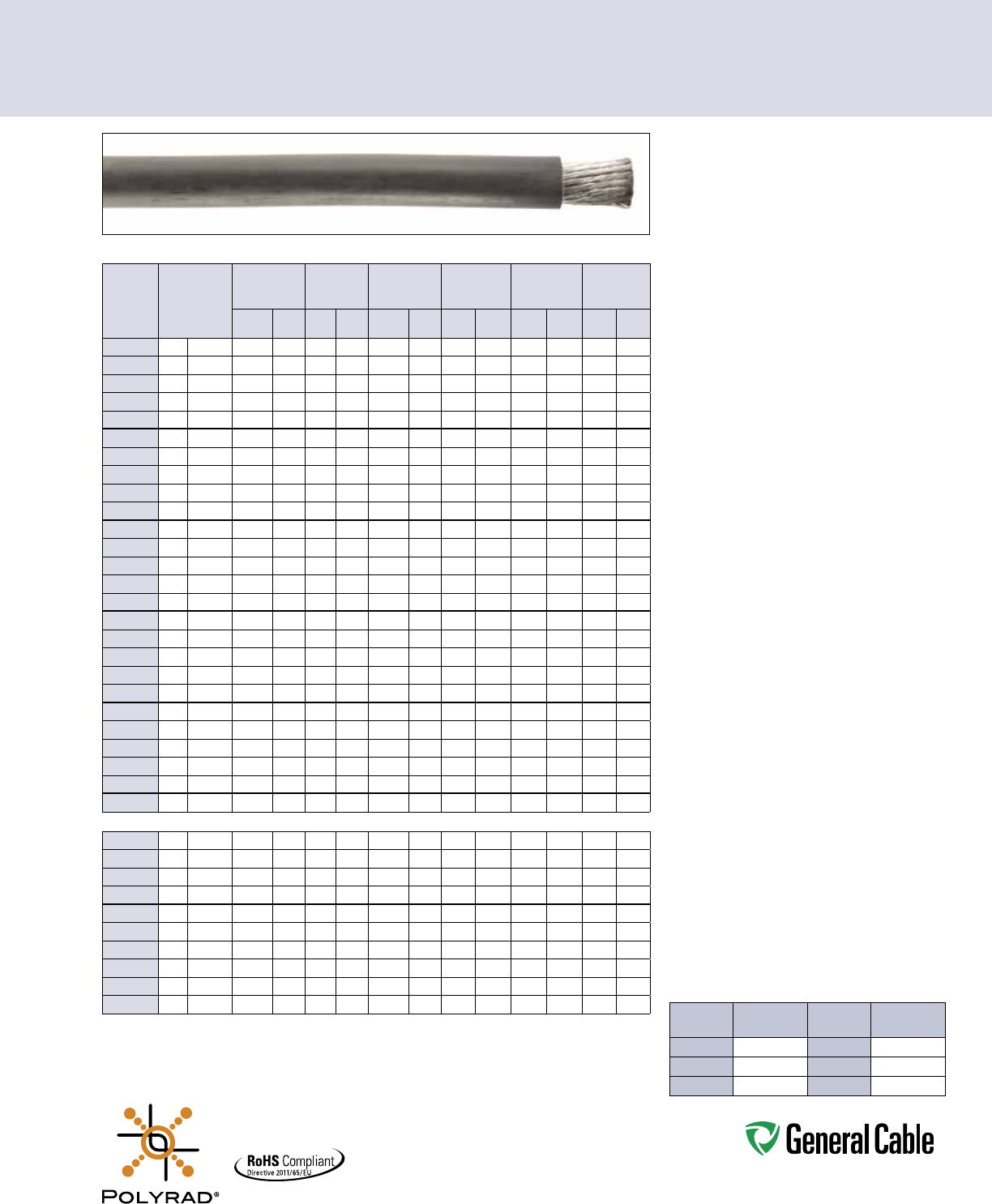

Polyrad® XT Flexible Wire and Cable
600 V, Single-Conductor, Dual Rated – 125°C/110°C 2

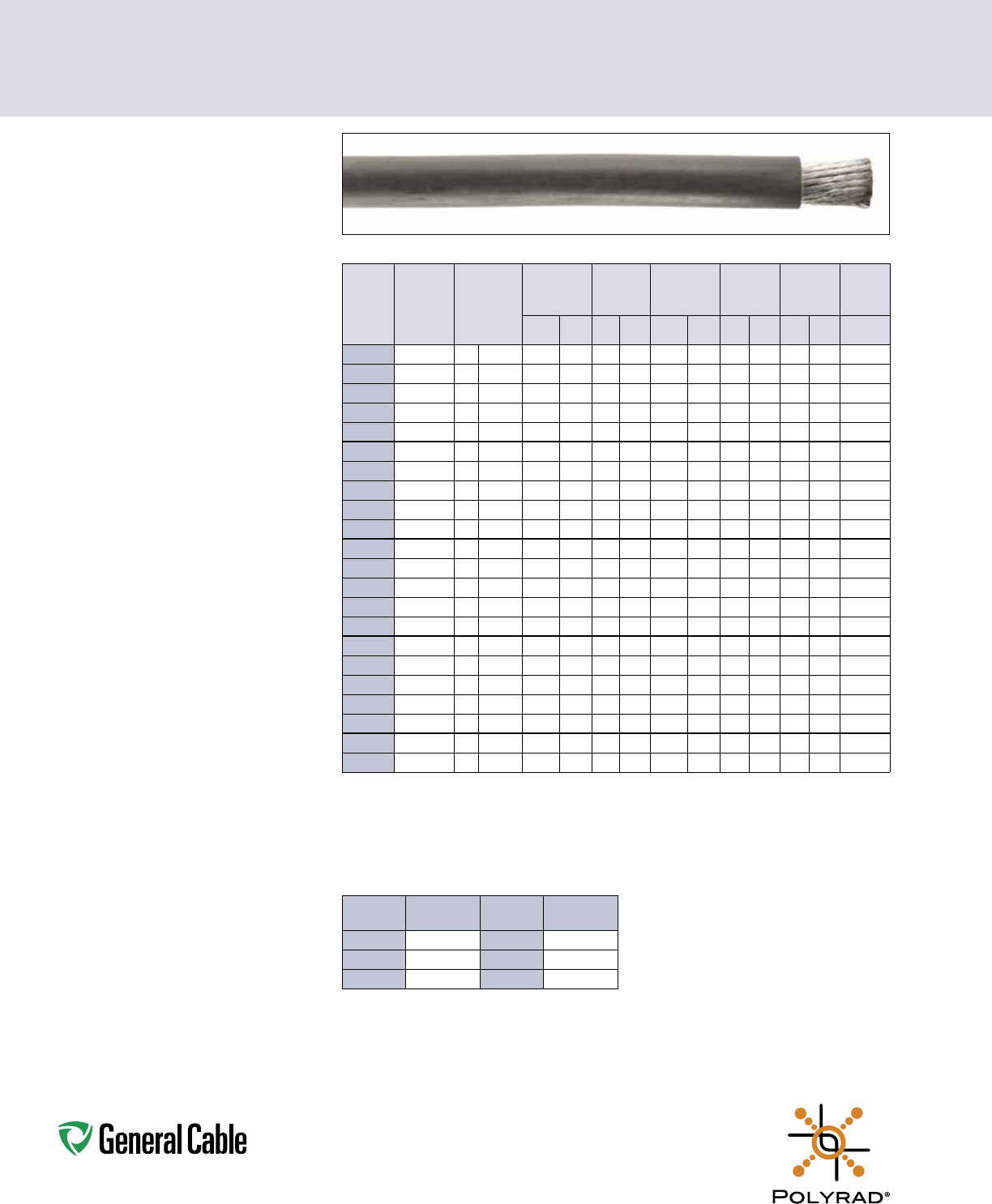

Polyrad® XT Flexible Wire and Cable
2000 V, Single-Conductor, Dual Rated – 125°C/110°C 3

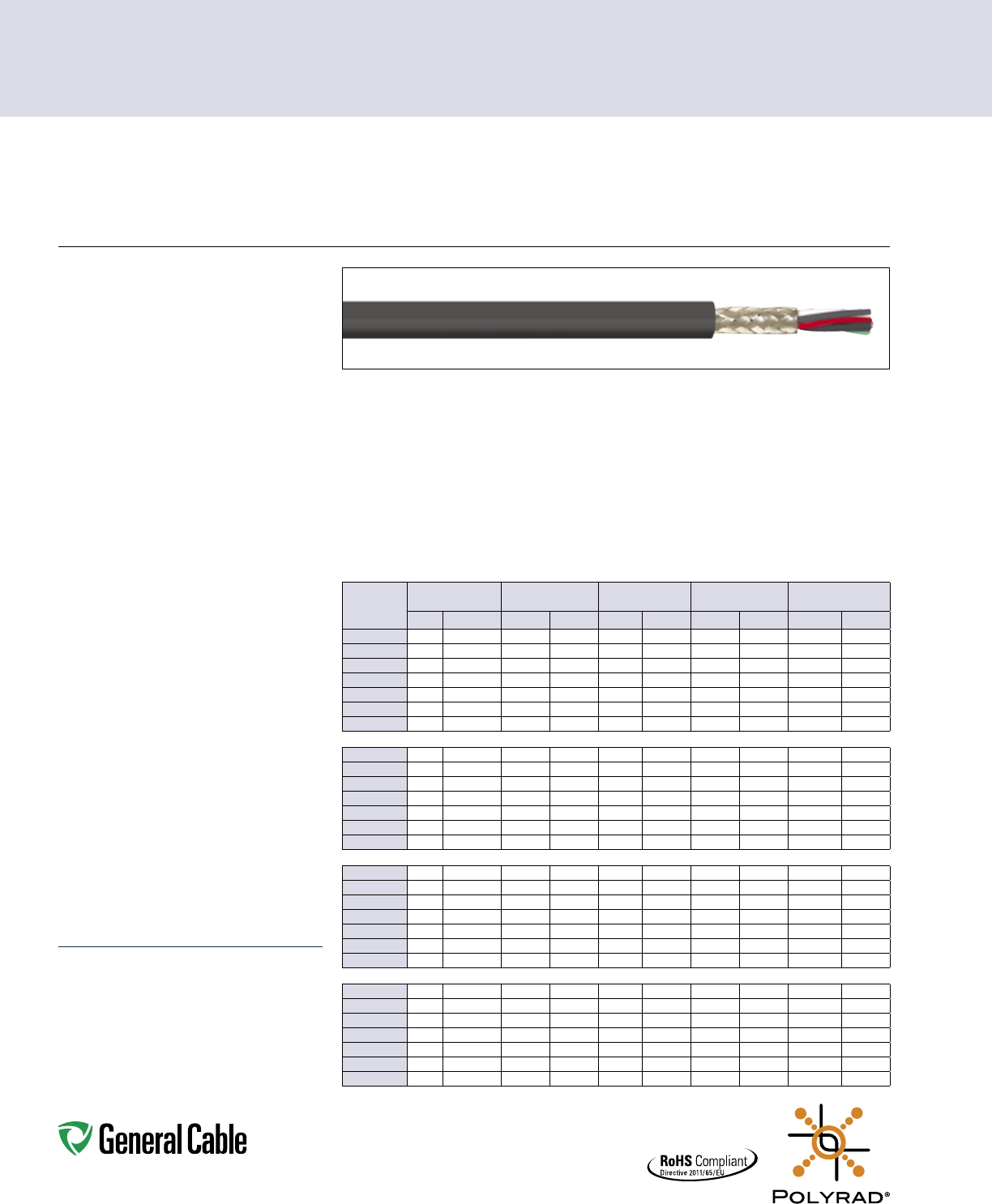

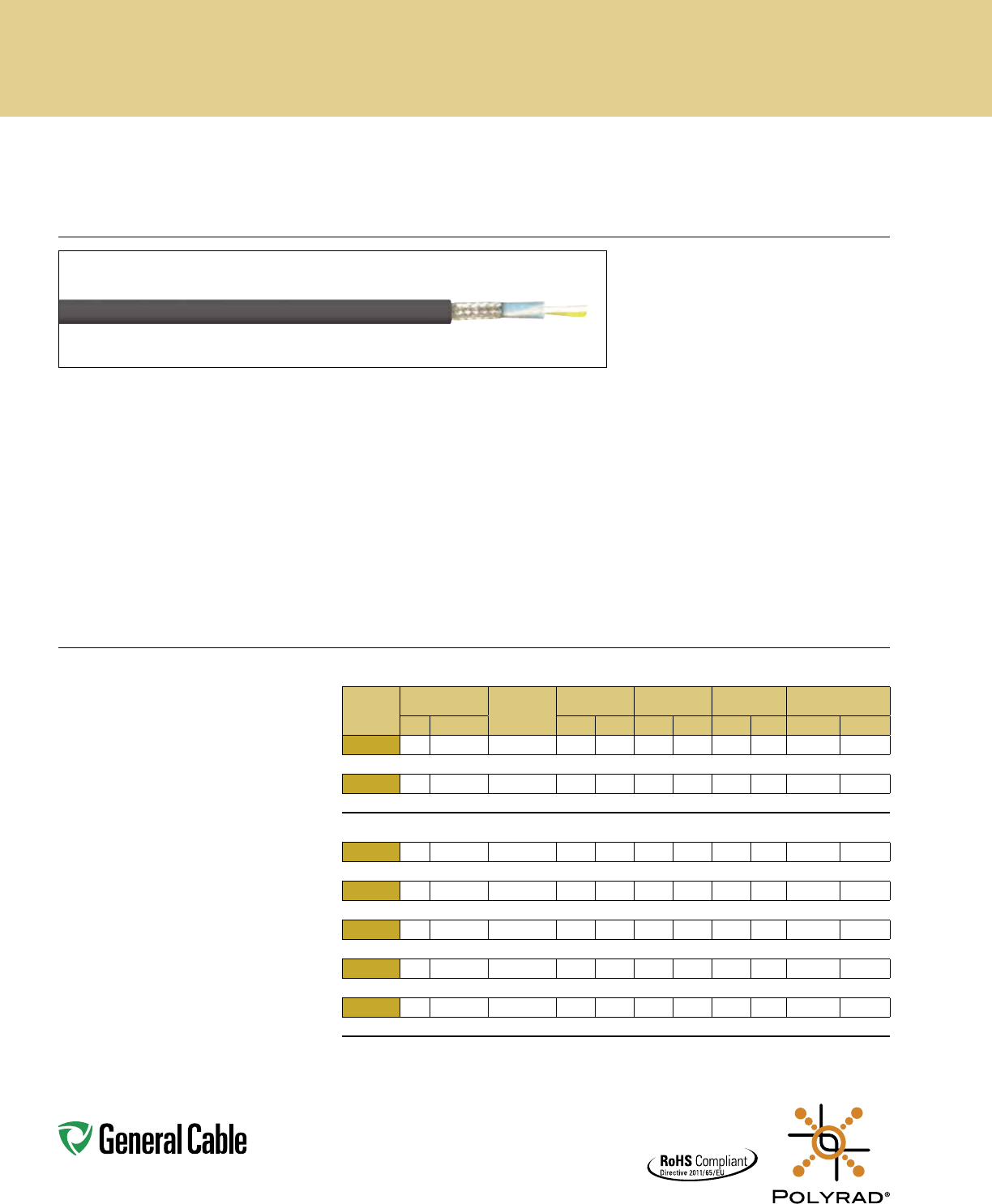

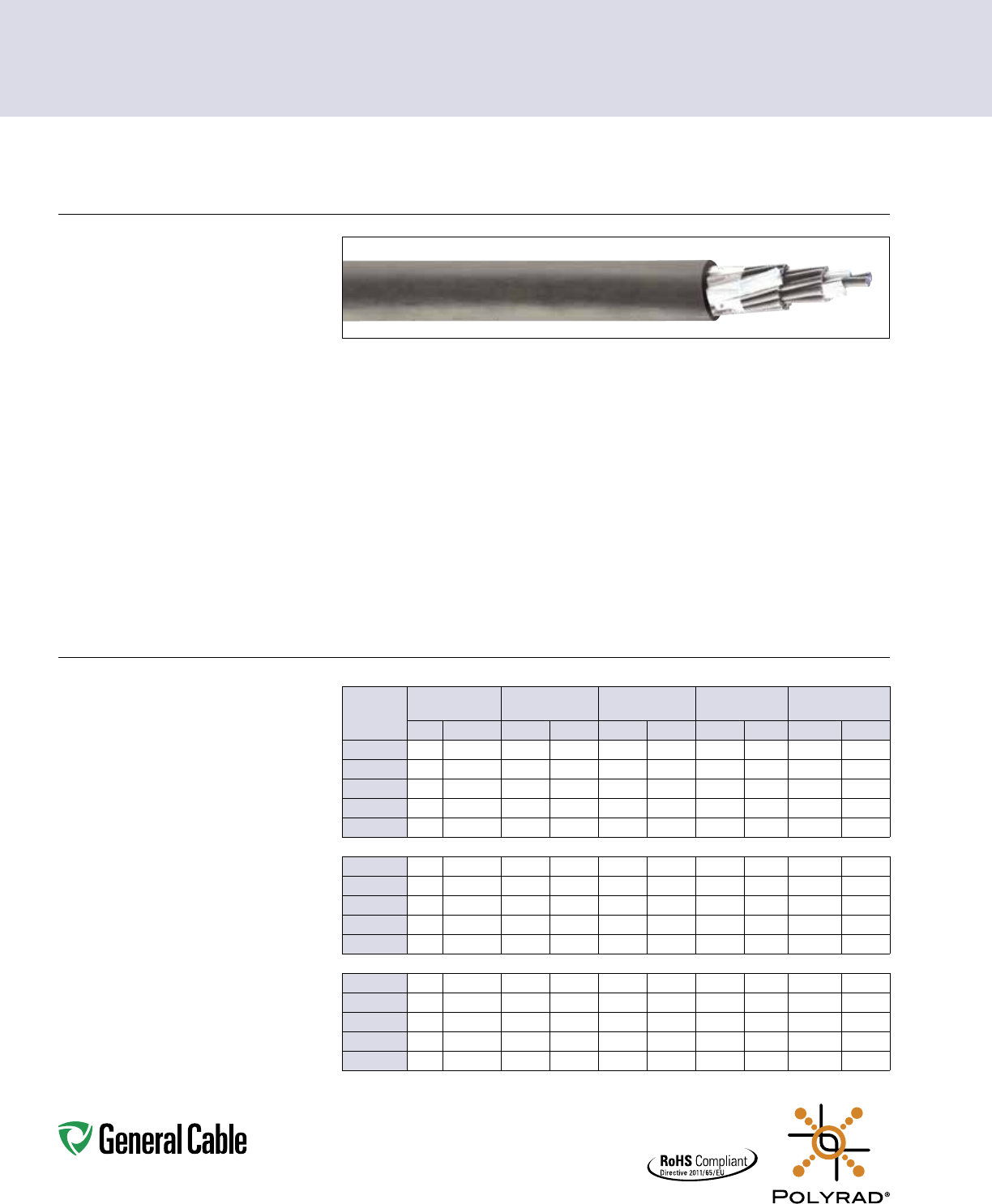

Polyrad® XT Multi-Conductor Cable
600 V or 2000 V, 125°C, Shielded or Non-Shielded 4
Polyrad® ULTRA Wire
600 V, Single-Conductor, 125°C, Reduced Weight, Smaller Diameter, Dual Wall 5
Polyrad® ULTRA Multi-Conductor Cable
600 V, 125°C, Shielded or Non-Shielded 6
Polyrad® XT-TX Flexible Wire and Cable
600 V, Single-Conductor, NYCT Type TX 7
Polyrad® XT-TX Flexible Wire and Cable
2000 V, Single-Conductor, NYCT Type TX 8
Section 2 Transit Data Communications Cables 9-12

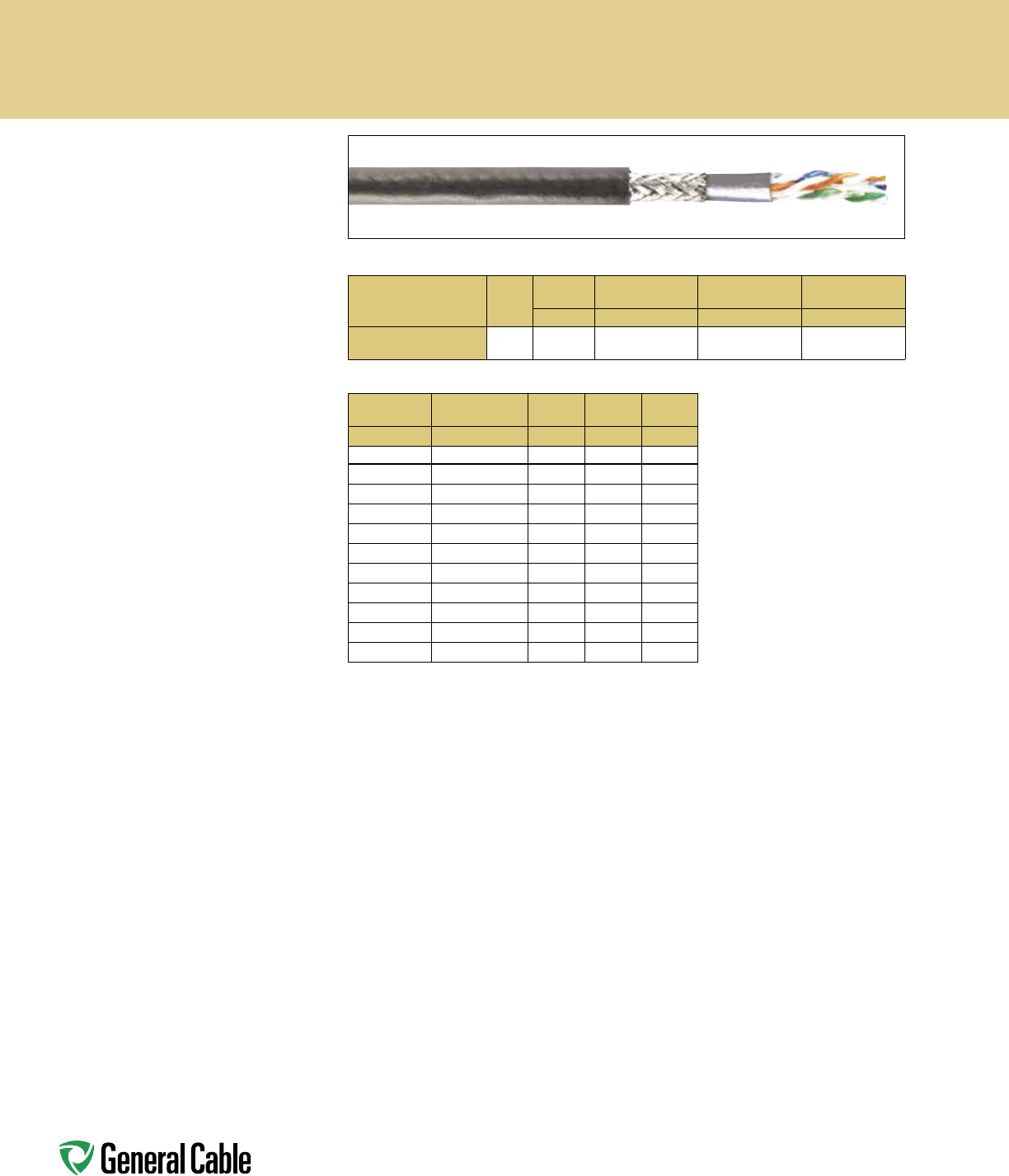

Category 5e Shielded Cable
4 Pair, 24 AWG, TIA/EIA 568-C.2 Patch 10

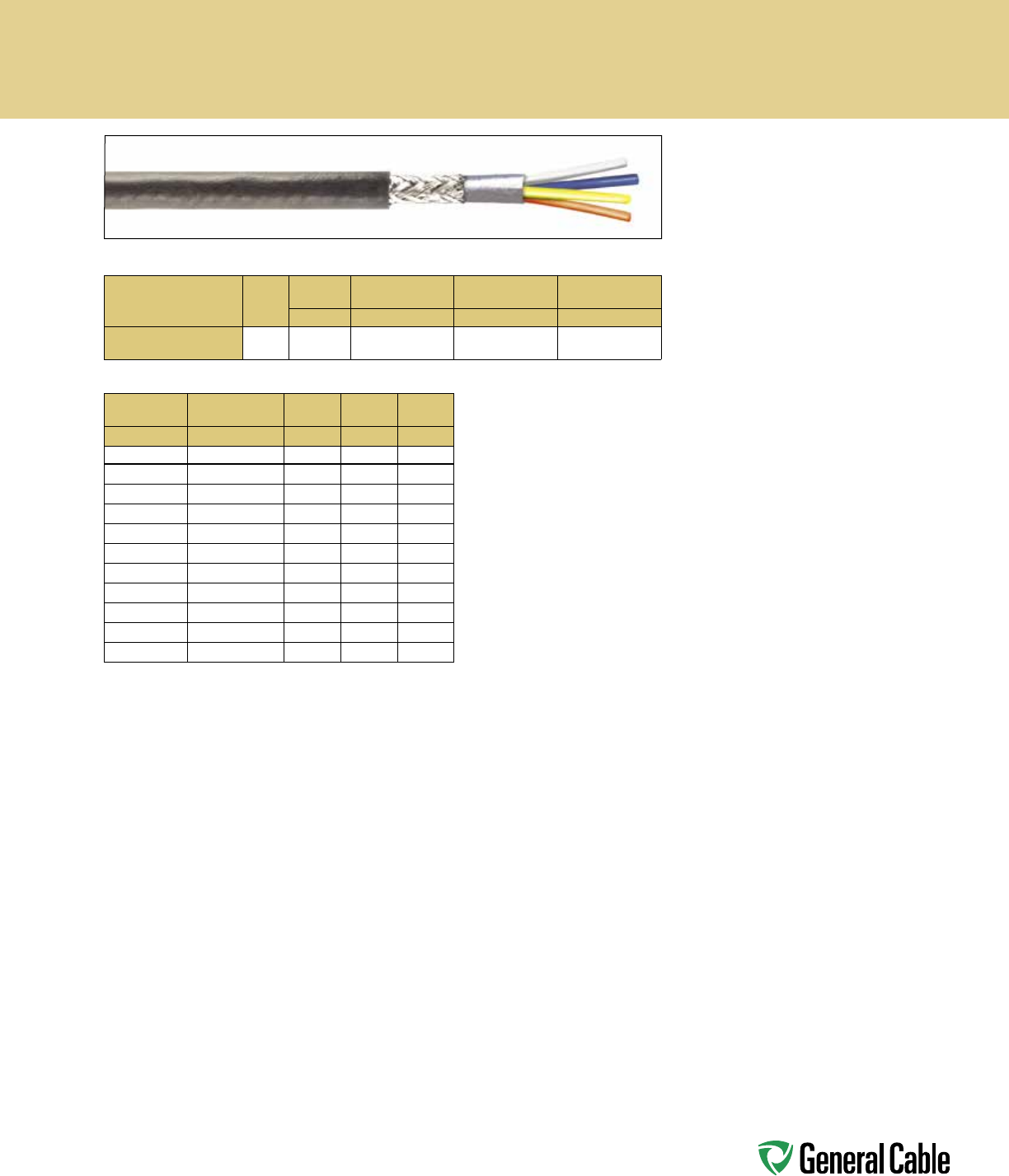

Category 5e Quad Shielded Cable
4 Conductor, 22 AWG, TIA/EIA 568-C.2 Patch 11
Polyrad® XT Transit Data Communications Cables 12
Section 3 Transit Specialty Cables 13-16

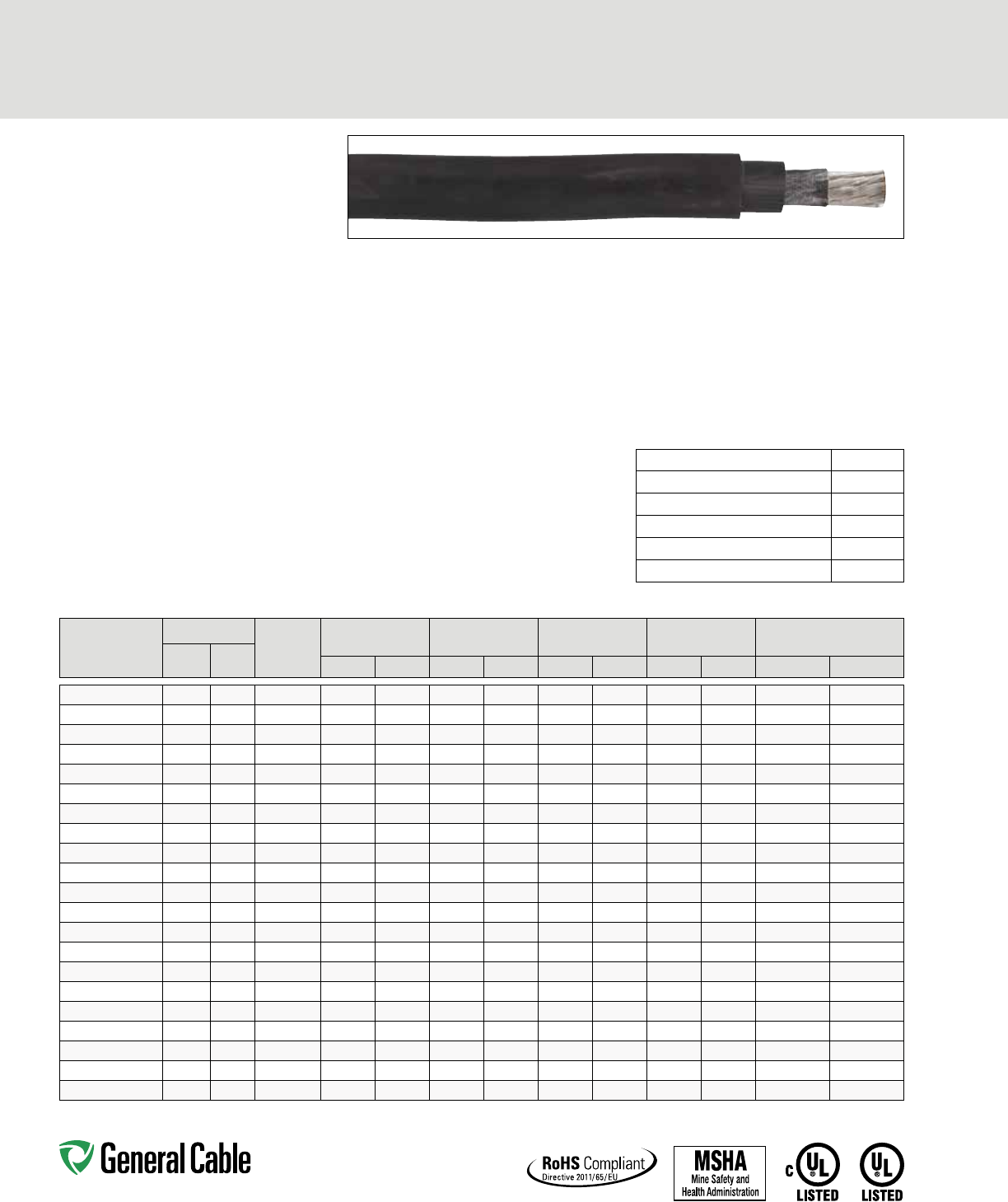

Diesel Locomotive Cable 2000 Volts (EPR/XL-CPE) - SPEC 5310
UL RHH/RHW-2, 2000 V and c(UL) RW90, 1000 V
Flexible, Oil-, Sunlight- and Ozone-Resistant, Flame-Retardant, -40°C to 90°C 14

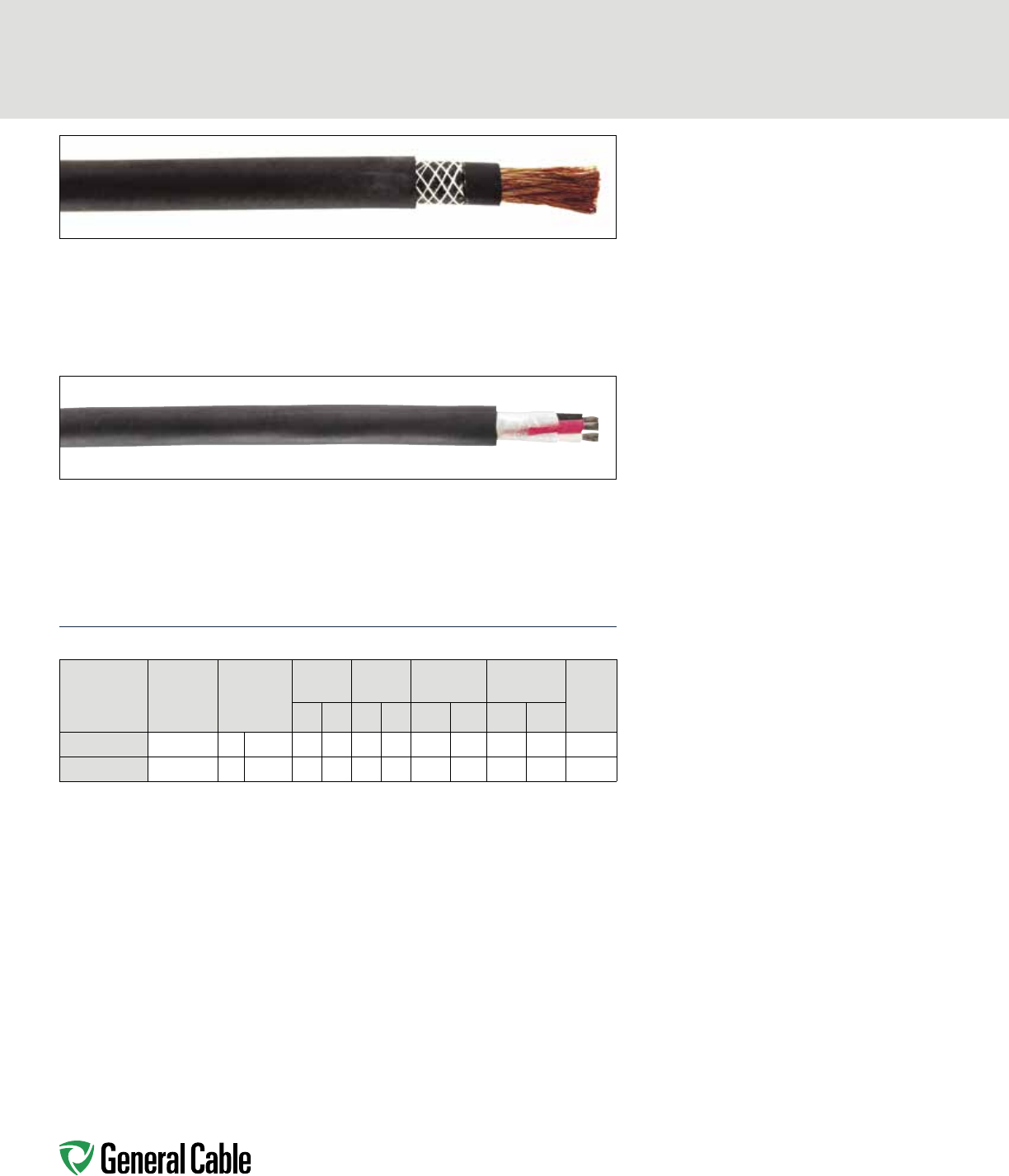

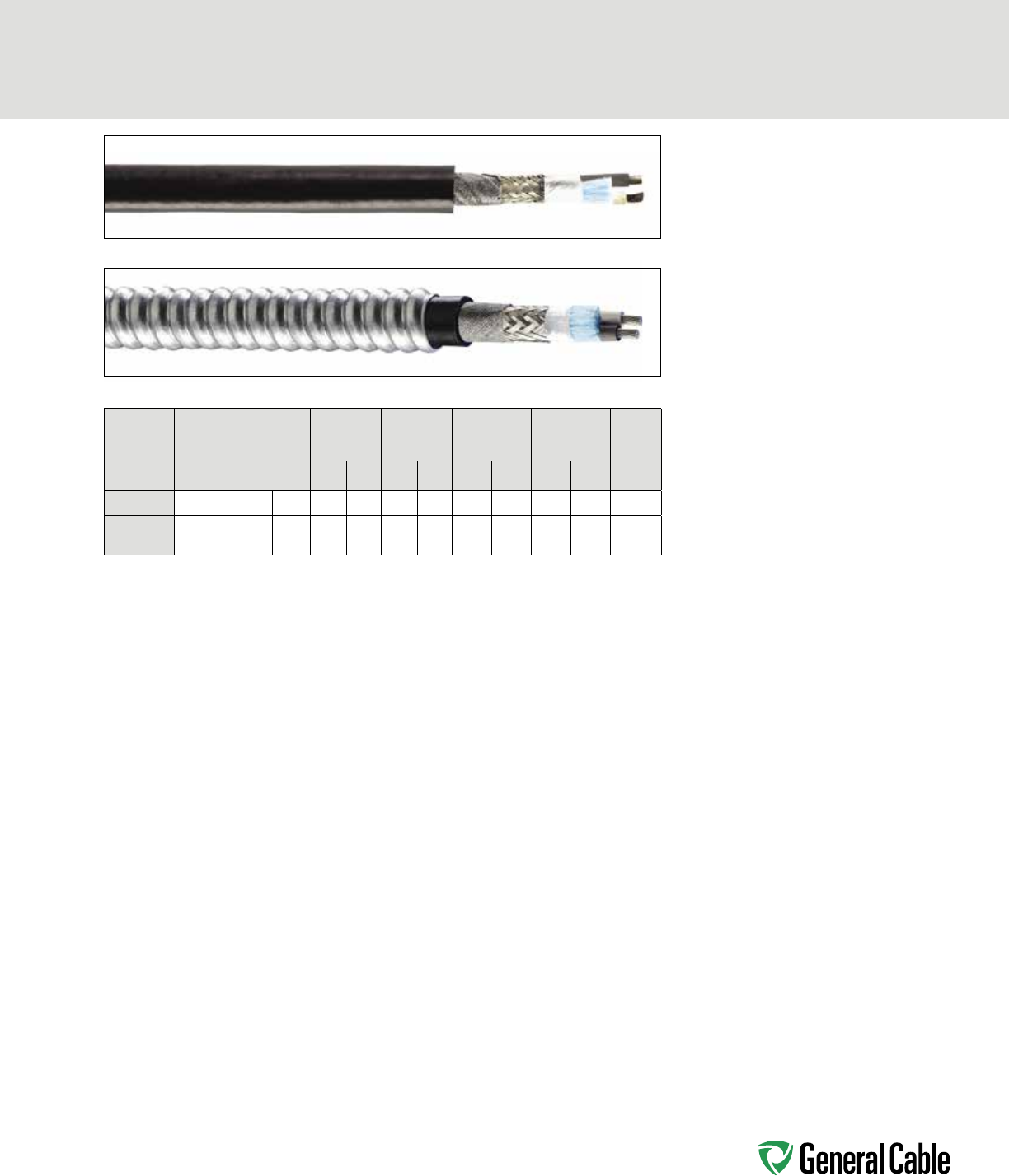

Electronically Controlled Pneumatic (ECP) Brake Cable
600 V, Two Conductor, Unarmored and Armored 15
TRANSPOWER Head-End Power (HEP) 600 V Cables
Single-Conductor, 4/0 AWG or Three Conductor, 10 AWG 16
Phone: 866.248.7060
www.generalcable.com
Section 4 Technical Information 17-30
General Technical Information
SPEC A100 Common Color Sequence 18
SPEC A125 Temperature Conversion Table 19
SPEC A150 Metric Conversion Factors 20
SPEC A186 AWG (American Wire Gauge) to mm2 (Millimeters Squared) Conversion 21

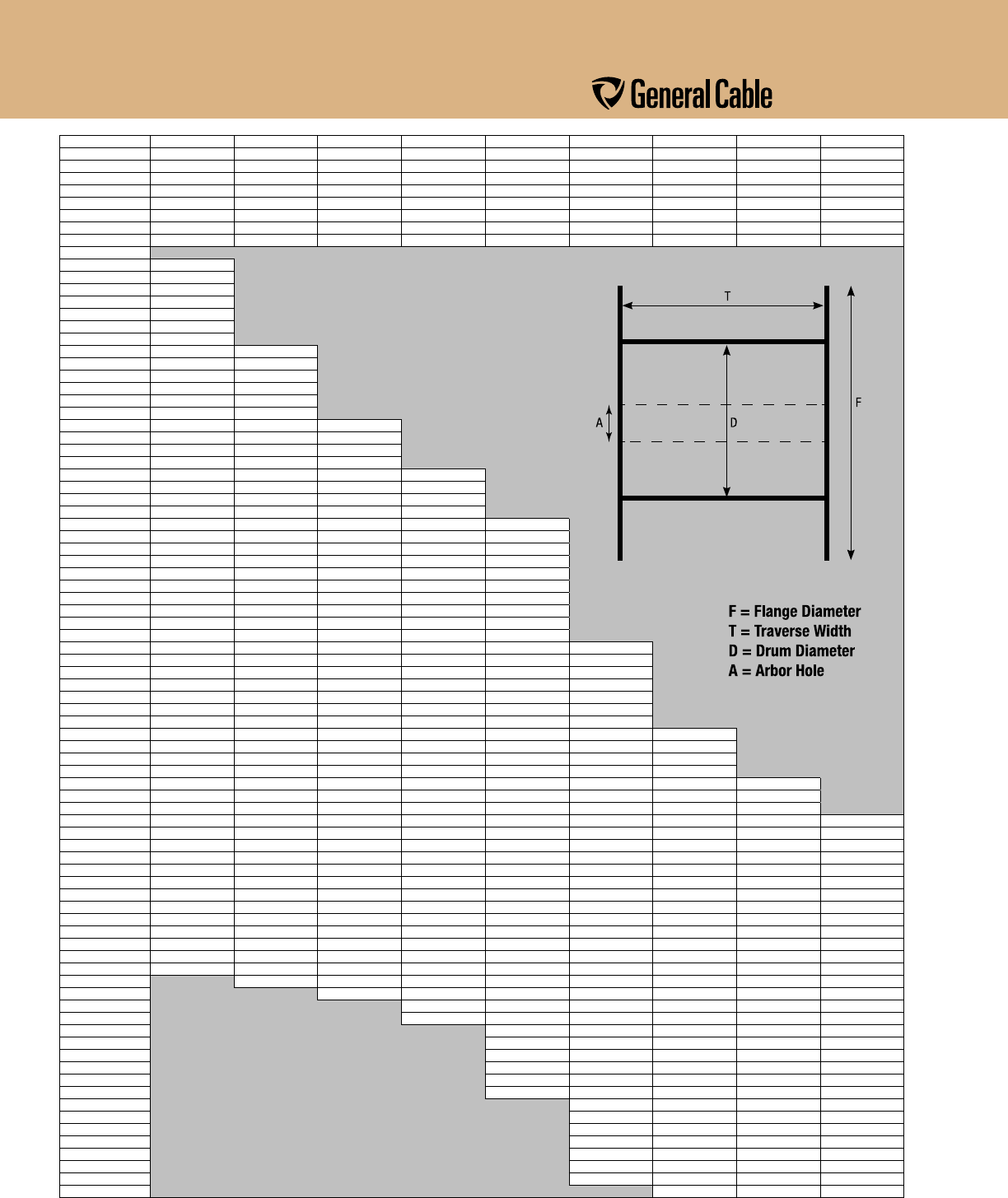

SPEC A200 Reel Capacity Chart 22

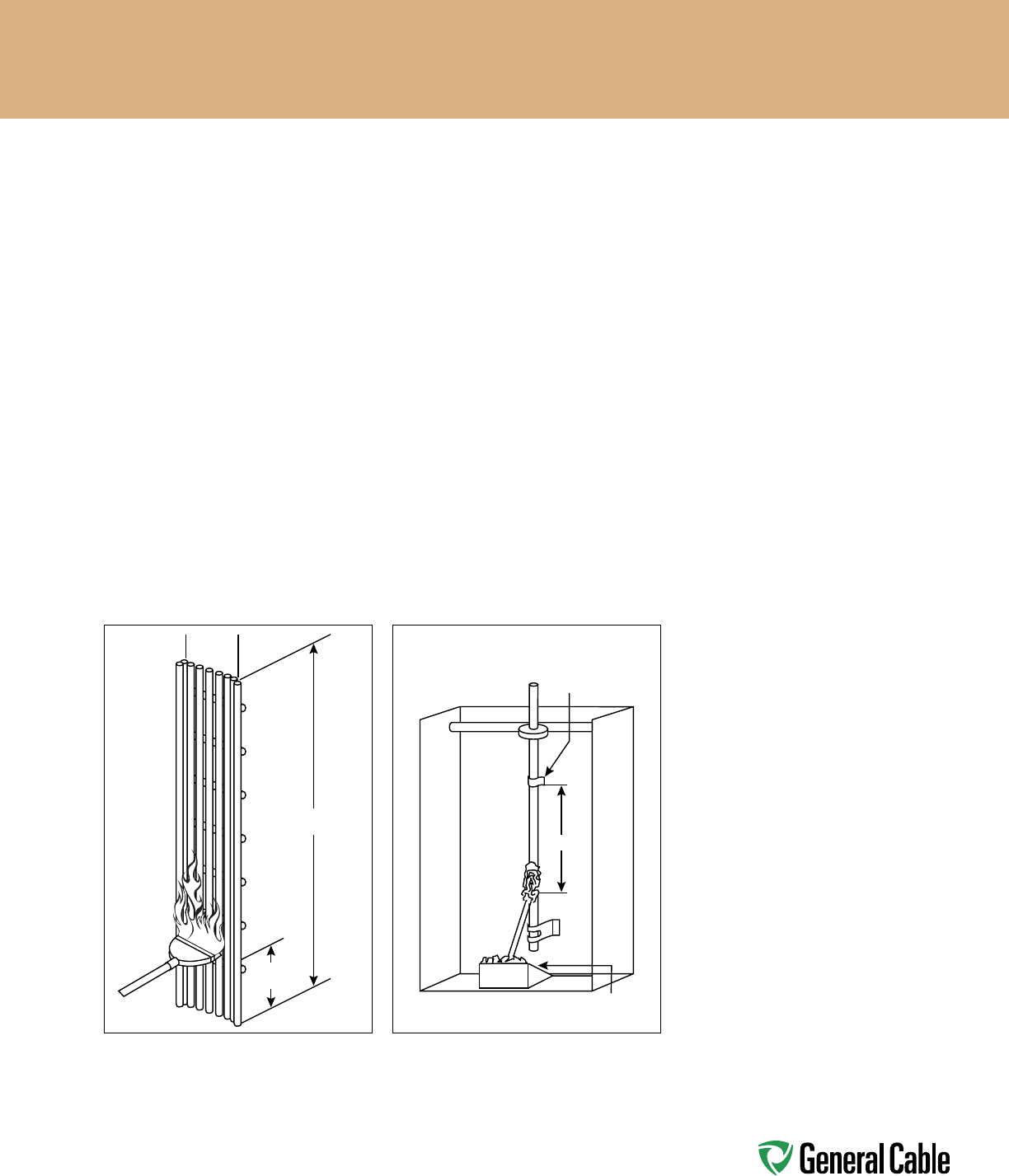

SPEC A210 Flame Test Comparison 23
Conductor Data
SPEC B041 Class I Conductors for General Wiring 24
SPEC B046 Class K Conductors for General Wiring 25
Handling and Storage Recommendations
SPEC D001 Minimum Bend Radius 26

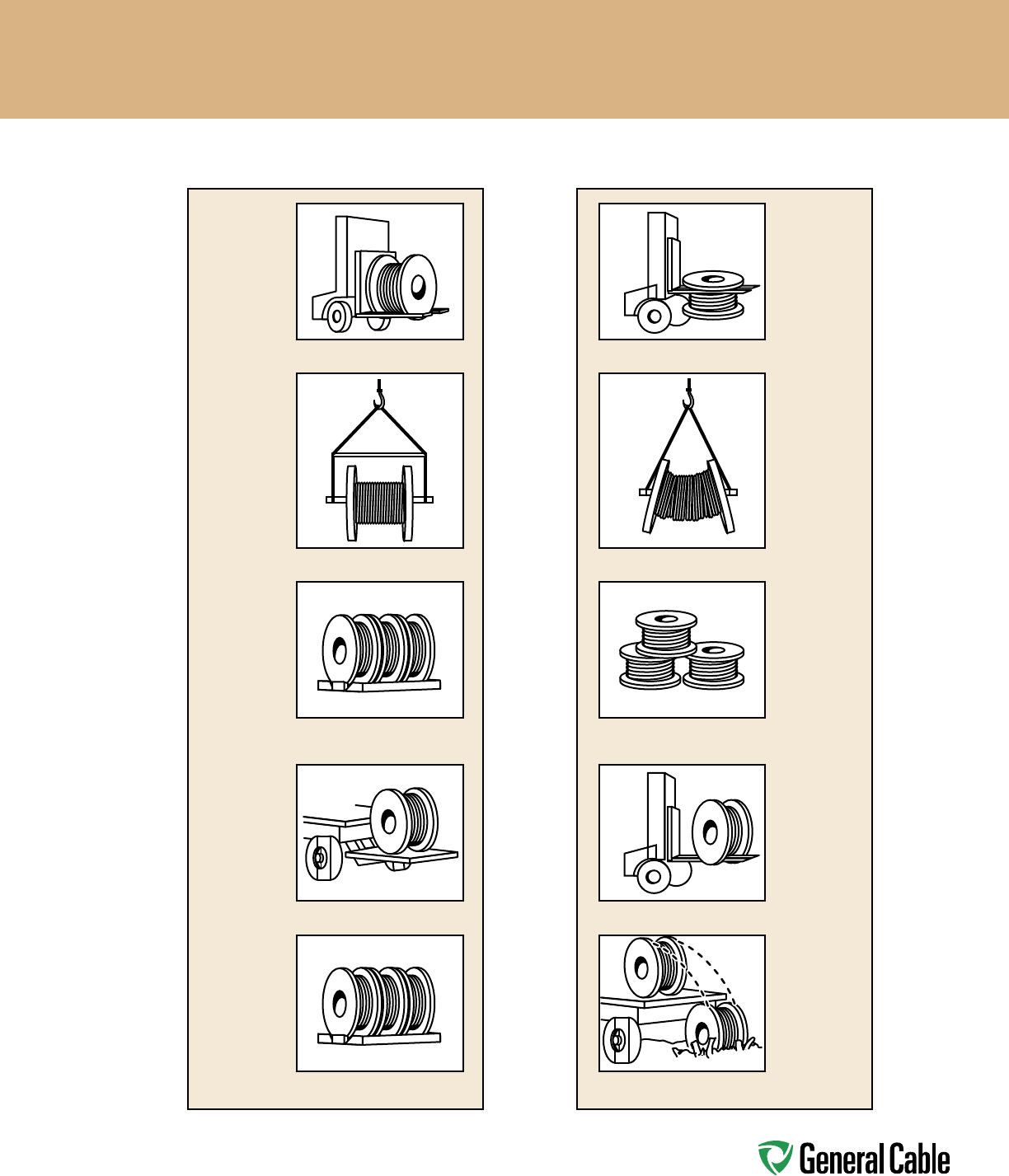

SPEC D005 Recommended Reel Handling Practices 27
SPEC D025 Recommended Cable Handling Practices 28
SPEC D050 Recommended Cable Storage Practices 29
Catalog Number Index 30
Serving the Rail & Transit Markets
TABLE OF CONTENTS
One Company
Connecting
The World
POWERFUL PRESENCE · PRODUCTS
PERFORMANCE · PEOPLE
General Cable has been a wire and cable innovator for over
170 years, always dedicated to connecting and powering people’s
lives. Today, with more than 14,500 employees and more than
$6 billion in revenues, we are one of the largest wire and cable
manufacturers in the world.
Our company serves customers through a global network of 57
manufacturing facilities in 26 countries and has worldwide sales
representation and distribution. We are dedicated to the production
of high-quality aluminum, copper and fiber optic wire and cable and
systems solutions for the energy, construction, industrial, specialty
and communications sectors. With a vast portfolio of products to
meet thousands of diverse application requirements, we continue to
invest in research and development in order to maintain and extend
our technology leadership by developing new materials, designing
new products, and creating new solutions to meet tomorrow’s
market challenges.
In addition to our strong brand recognition and strengths in
technology and manufacturing, General Cable is also competitive
in such areas as distribution and logistics, marketing, sales and
customer service. This combination enables us to better serve our
customers globally and as they expand into new geographic markets.
General Cable offers our customers all the
strengths and value of a large company, but our
people give us the agility and responsiveness of
a small one. We service you globally or locally.
Visit our Website at
www.generalcable.com
General Cable believes corporate social responsibility (CSR) is about creating shared value.
That means keeping a dual focus in our business decisions: what is good for us as a company
and what contributes to the greater good of the communities in which we live and work.
Corporate Social Responsibility
CREATING SHARED VALUE
+1.859.572.8000
info@generalcable.com
Visit www.GeneralCableCSR.com
to learn more.
A commitment to achieving industry-leading standards
and responding proactively to environmental global issues.
SAFETY
Working safer by working together
General Cable has one worldwide safety vision and goal –
ZERO & BEYOND
. We measure safety
performance globally, share best practices and implement sound health and safety management
systems. Many of our facilities worldwide are OHSAS 18001 (safety management system) certified.
All North American facilities have implemented an equivalent health and safety management system.
General Cable was a pioneer in obtaining the OHSAS 18001 Certificate for Occupational Health and
Safety Management Systems in Europe and North Africa.
SUSTAINABILITY
Responsible practices in daily operations
As a global leader in the wire and cable industry, General Cable recognizes its role and responsibility
in promoting sustainability. Our strongest business value is continuous improvement in all areas of
our company. Across our many businesses, the quest to introduce new and better products through
continuous improvement in environmental designs reflects our commitment to achieving industry-leading
standards and responding proactively to global environmental issues. General Cable was the first cable
manufacturer to obtain certification for its environmental management system, in accordance with the
ISO 14001 and EMAS Standards.
CITIZENSHIP
A commitment to being good citizens
Being responsible citizens in our communities is of the utmost importance to us. Unequivocal honesty,
integrity, forthrightness and fair dealing have long been part of General Cable’s core values and are
expected globally in all of our business relationships with our customers, employees, suppliers, neighbors
and competitors. Our company leaders and employees strive to make a difference throughout a host of
volunteer activities and financial support, improving the communities in which we live and work.
INNOVATION
Technologies that power and connect the world
General Cable is delivering innovation that matters. We are focusing on R&D expertise
and investing in developing wire and cable solutions that meet the challenges confronting
our customers and the world. In working together and using all the ingenuity and
creativity we have, we will reach the goal of being the preeminent supplier of
wire and cabling solutions in the industry, with both green constructions
and designs for the ever-growing renewable energy market.
Polyrad
®
XT – The Trusted
Name in Rail & Transit
Wire and Cable
For more than 30 years, General
Cable’s Polyrad® XT has been
the most respected name in rail
& transit wire and cable. First
introduced to the marine market
for offshore oil rigs, ships and
mobile land rigs, Polyrad® XT
was developed to perform in the
most rugged conditions, passing
a wide range of stringent test
procedures and standards. Since
its introduction to the rail & transit
markets, Polyrad® XT has been the
leading wire and cable choice for
rapid transit and freight cars, heavy-
and light-rail cars, diesel-electric
locomotives and off-road vehicles.
Polyrad
®
XT’s Dual Rating
As the industry’s first rail &
transit wire and cable with a dual
125°C/110°C temperature rating,
Polyrad® XT combines the superior
properties and performance of a
125°C product while meeting all
industry requirements for traditional
110°C transit wire. For distributors,
this unique dual rating practically
reduces inventory by half.
Polyrad® XT meets all performance
requirements of AAR RP-585 and
ICEA S-95-658, as well as transit
industry specifications.
General Cables Polyrad® XT rail & transit wire
and cable is the chosen solution for demanding
environments throughout North America and the
world. Polyrad® XT is used extensively on all types of
rapid transit and freight cars, heavy- and light-rail cars,
diesel-electric locomotives and off-road vehicles.
Polyrad® XT rail & transit cables are specifically designed for original
equipment and retrofit use in power and control circuits and in motor
leads. Polyrad® XT’s superior heat, flexibility and abrasion resistance,
combined with its reduced size, simplifies cable installation and permits
higher ampacities. Fully tested to meet all applicable specifications,
Polyrad® XT cables ensure lifelong dependable service for transit,
off-road and diesel-powered locomotives.
Unlike conventional insulating systems,
Polyrad® XT offers a better balance of
electrical properties for superior stability and
performance. Available in both 600 volt and
2000 volt constructions, Polyrad® XT single-
conductor rail & transit cables are dual-rated
at 125°C and 110°C. Available in 600 volt and
2000 volt constructions, Polyrad® XT multi-
conductor shielded and non-shielded rail &
transit cables are rated at 125°C.
Insulation System and
Construction
Polyrad® XT insulation features a
highly engineered and refined low-
smoke polyolefin formulation used in
conjunction with soft annealed tinned
copper conductors per ASTM B33.
This innovative insulation technology
combines outstanding flame retardance
with excellent moisture-stable
electrical values. The construction
is further enhanced by radiation
cross-linking, which transforms the
original thermoplastic into a rugged
thermosetting material. The end result
is a compound with excellent thermal
stability – it will not soften or flow at
elevated temperatures.
• Increased durability
• Greater resistance to cut-through
• Superior oil resistance
• Excellent low-temperature
performance
• Maximum flexibility
Product Features
and Benefits
Polyrad® XT wire and cables combine
superior electrical properties and
performance for advanced rapid transit,
locomotive and off-road equipment
applications.
• Dual 125°C/110°C temperature rating
for long life, higher ampacities and
protection from thermal overloads
(single wires)
• Maximum flame retardance as
demonstrated by VW-1 and, for
multi-conductor cables, IEEE 383
(70,000 BTU/hr.) and IEEE 1202
(70,000 BTU/hr.)
• Excellent oil and chemical resistance
• Maximum dependability and
mechanical toughness
• Smaller outside diameter and flexible
stranding and insulation simplify
installation
Polyrad® XT Flexible Rail & Transit
Wire and Cable
Phone: 866.248.7060
www.generalcable.com

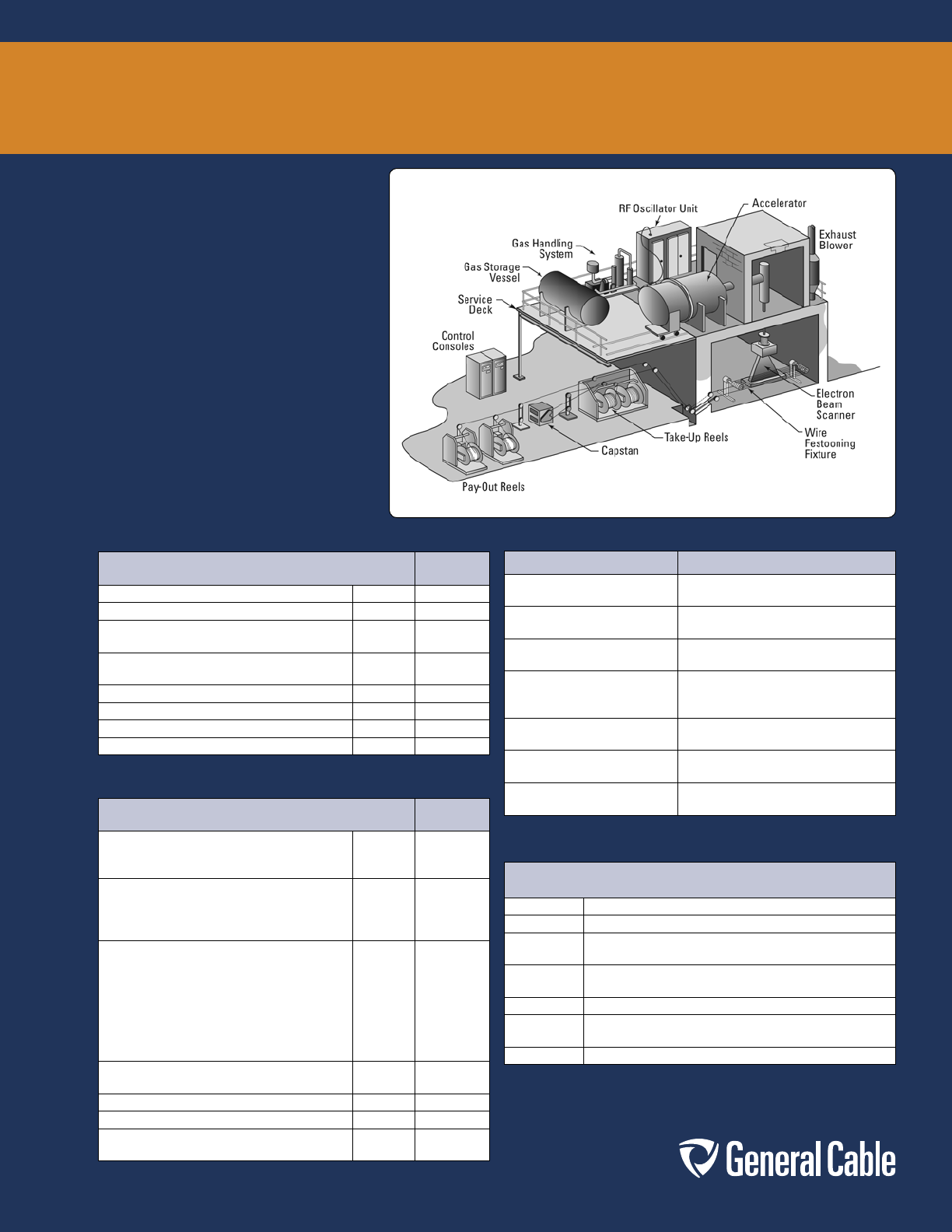

General Cable has perfected the
technique of radiation processing.
Cross-linking the insulation and
jacket using our unique radiation
process creates a more flexible
product. In radiation cross-linking,
a scanner accurately and uniformly
directs a high-energy electron
beam from a power source over
the wire insulation, resulting in a
precise degree of cross-linking. This
technique enables General Cable
to effectively process smaller wires
with thin insulation walls to meet
the transit market’s critical demand
for high-density cabling.
Electrical Properties
Requirement ICEA S-95-658
Typical
General Cable*
Insulation Resistance @ 125°C (megohms-Mft) 2.0 Min. 8.3
Insulation Resistance Constant (K) 10,000 Min. 30,600
Long-Term Insulation Resistance 26 Weeks
@ 90°C in water (megohms-Mft) 10 Min. 15
Accelerated Water Absorption
Electrical SIC 24 hours @ 75°C 6.0 Max. 4.9
Increase in Capacitance, Percent
1-14 Days
3.0 Max.
2.5
7-14 Days 1.5 Max. 1.3
Stability Factor after 14 days 1.0 Max. 0.18
Standards
Polyrad® XT cables are manufactured, tested and inspected in accordance
with the latest issue of the following standards:
AAR RP-585 Wiring and Cable Specification
ASTM B33 Tinned Soft or Annealed Copper Wire
ASTM D149 Test for Dielectric Breakdown Voltage and Dielectric Strength of
Electrical Insulating Materials at Commercial Power Frequencies
ICEA S-95-658 Standard for Non-Shielded Power Cables Rated 2000 V or Less for
the Distribution of Electrical Energy
UL 44 Standard for Rubber Insulated Wire and Cable
IEEE 1202 Standard for Flame Testing of cables for use in cable tray within
Industrial and Commercial occupancies
NFPA® 130 Standard for Fixed Guideway Transit and Passenger Rail Systems
Important Advantages of Radiation Cross-Linking
Advantage Reason
More flexible cable Pressure-applied insulation and jacket are not
required
No separator tapes Less pressure is applied during the radiation
process
Free stripping Insulation is not driven into the conductor
stranding
Better electrical properties
No chemical catalyst required. No residues
which lower electrical properties and corrode
copper
Cables and interstices kept free of
water
Water is not used in the radiation cure
operation
Range of insulation thickness Radiation process can economically cross-link
thin or heavy walls
Permanent colors Radiation does not change or fade colors.
Tracer colors remain vivid
* Typical values are from various General Cable and independent laboratory testing.
Physical Properties
Requirement AAR RP-585 (S-501)
Typical
General Cable*
Unaged Requirement
Tensile Strength, Min. PSI
Elongation at Rupture, Min. %
1,400 Min.
200 Min.
2,710
260
Aged Requirement
After Air Oven 7 days @ 158°C ± 2°C
Tensile Strength (% of original)
Elongation (% of original)
90 Min.
50 Min.
100
69
Oil Immersion Aging – ASTM #2
18 hours @ 120°C
Tensile Strength (% of original)
Elongation (% of original)
7 days @ 70°C
Tensile Strength (% of original)
Elongation (% of original)
50 Min.
50 Min.
70 Min.
70 Min.
69
65
76
74
Hot Oil Resistance, % Swell
100 hours @ 150°C 60 Max. 32
Cold Bend @ -55°C No Cracks No Cracks
Cold Shock 1 hour @ -40°C No Cracks No Cracks
Cut-Through Penetration
10 minutes @ 125°C No Failure Pass
Polyrad® XT Wire and Cable Testing
Phone: 866.248.7060
www.generalcable.com
Phone: 866.248.7060
www.generalcable.com
Transit Cable Design Parameters
General Applications
Transit General Purpose
Control Wiring
Cab Control Area
HVAC System
Speed Sensor Control
Hot Bearing Detector Area
Trainline Control Cables
Multi-Conductor Composite
Interconnect Cables
480 V Transpower Cables
General Interior Car Body Wiring
Category 5e
Shielded Pair 100 Ohm + 120 Ohm
Control Circuit Cables
Braking System Cables
Instrumentation
Customer _______________________________________________________________________
Contact ________________________________________________________________________
Phone ____________________ E-mail ______________________ Fax _____________________
Type of Application: General Purpose Speed Sensor Control Trainline Control
Interconnect Cables General Interior Car Body Wiring
Description of Application or Program: _________________________________________________
_________________________________________________
Estimated Annual Usage: ___________________________________________________________
Description of Cable Construction:
Example: 3/C 16 AWG 600 V Shielded
_______________________________________________________________________________
_______________________________________________________________________________
Operating Environment:
Inside Locomotive or Cab Wiring Outside Car or Car Wiring
Single-Conductor Cables Multi-Conductor Primary Wires
Conductor AWG Size: _______________________________________________________________
Conductor Stranding: Per AAR RP-585
19 Strands: 20 AWG - 12 AWG Class I: 10 AWG - 1111 kcmil Class K
Insulation Type: Polyrad® XT (XLPO) Polyrad® Ultra (XLPO/XL Fluoropolymer-Dual Wall)
Other _______________________________________________________
Temperature Rating: 125°C 110°C Other ____________________________________
Voltage Rating: 600 V 2000 V Other ____________________________________
Cable Diameter Limitations: None Other ____________________________________
Cable Marking: Standard GC Print Legend Other ______________________________
Put-Up Length: Standard GC Reel Put-Up Other ______________________________
Maximum Reel Size: ______________________________________________________________
Multi-Conductor Cables
Number of Conductors or Pairs: ______________________________________________________
Color Code: E1 (Black, White, Red, etc.)
E2 (Black, Red, Blue, etc.)
Method 4 (All Conductors Black with Printed Numbers)
Other _______________________________________________________
Shield Type: Aluminum/Mylar Tape with Drain Wire
Braid
AWG Size ____________________________________________
Coverage ____________________________________________
Other _______________________________________________________
Jacket Type: Polyrad® XT
Neoprene
Other ____________________________________
Cable Diameter Limitations: None Other ____________________________________
Cable Marking: Standard GC Print Legend Other ______________________________
Put-Up Length: Standard GC Reel Put-Up Other ______________________________
Maximum Reel Size: ______________________________________________________________
1
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
Polyrad® XT, Polyrad® ULTRA and Polyrad® XT-TX
Wire and Cable Products
PRODUCT DESCRIPTION PAGE
Polyrad® XT Flexible Wire and Cable
600 V, Single-Conductor, Dual Rated – 125°C/110°C 2
Polyrad® XT Flexible Wire and Cable
2000 V, Single-Conductor, Dual Rated – 12C/110°C 3
Polyrad® XT Multi-Conductor Cable
600 V or 2000 V, 125°C, Shielded or Non-Shielded 4
Polyrad® ULTRA Wire
600 V, Single-Conductor, 125°C, Reduced Weight, Smaller Diameter, Dual Wall 5
Polyrad® ULTRA Multi-Conductor Cable
600 V, 125°C, Shielded or Non-Shielded 6
Polyrad® XT-TX Flexible Wire and Cable
600 V, Single-Conductor, NYCT Type TX 7
Polyrad® XT-TX Flexible Wire and Cable
2000 V, Single-Conductor, NYCT Type TX 8
1
2
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
POLYRAD® XT 600 V
CATALOG
NUMBER
STOCK*
CONDUCTOR
(AWG/kcmil)
SIZE AND
STRANDING
NOMINAL
CONDUCTOR
DIAMETER
NOMINAL
INSULATION
THICKNESS
NOMINAL
CABLE
DIAMETER
COPPER
WEIGHT
NET CABLE
WEIGHT
AMPACITY
(FREE AIR 40˚C
AMBIENT)
INCHES mm MILS mm INCHES mm
LBS./
1000' kg/km
LBS./
1000' kg/km 110˚C 125˚C
315130
20 19/32 0.038 0.97 30 0.76 0.098 2.49 4 6 8 12 15 17
280710*
18 19/30 0.048 1.21 30 0.76 0.108 2.74 6 9 11 16 17 19
280720*
16 19/29 0.054 1.37 30 0.76 0.114 2.90 8 12 13 19 23 25
280700*
14 19/27 0.067 1.70 30 0.76 0.127 3.23 12 18 17 25 39 42
296420*
12 19/25 0.086 2.18 30 0.76 0.146 3.71 19 28 26 39 51 55
303910*
10 27/24 0.117 2.97 30 0.76 0.177 4.50 34 50 42 63 67 72
296490
8 37/24 0.135 3.43 45 1.14 0.225 5.72 47 70 61 91 85 92
330230*
6 61/24 0.174 4.42 45 1.14 0.264 6.71 76 114 95 142 120 130
355320
5 91/24 0.242 6.15 45 1.14 0.332 8.43 116 173 139 211 151 163
318420
4 105/24 0.262 6.68 45 1.14 0.352 8.94 137 204 162 241 160 173
355330
3 125/24 0.285 7.24 45 1.14 0.375 9.53 167 284 191 284 199 215
355340
2 150/24 0.307 7.80 45 1.14 0.397 10.08 190 283 218 325 214 231
355350
1 225/24 0.380 9.65 55 1.40 0.490 12.45 287 427 346 515 247 267
355360
1/0 275/24 0.410 10.41 55 1.40 0.520 13.21 351 522 414 616 286 309
355370
2/0 325/24 0.470 11.94 55 1.40 0.580 14.73 407 606 471 701 329 355
355380
3/0 450/24 0.549 13.94 55 1.40 0.659 16.74 594 884 652 970 380 410
355390
4/0 550/24 0.593 15.06 55 1.40 0.703 17.86 696 1036 771 1147 446 482
355400
262 650/24 0.630 16.00 65 1.65 0.760 19.30 820 1220 913 1359 524 566
355410
313 775/24 0.685 17.40 65 1.65 0.815 20.70 987 1469 1089 1621 590 637
355420
373 925/24 0.750 19.05 65 1.65 0.880 22.35 1176 1750 1289 1918 657 710
355430
444 1100/24 0.820 20.83 65 1.65 0.950 24.13 1413 2207 1537 2287 734 793
355440
535 1325/24 0.895 22.73 80 2.03 1.055 26.80 1697 2525 1862 2771 828 894
355450
646 1600/24 0.980 24.89 80 2.03 1.140 28.96 2020 3006 2202 3277 931 1005
355460
777 1925/24 1.075 27.31 80 2.03 1.235 31.37 2435 3624 2564 3816 1047 1130
355470
929 2300/24 1.230 31.24 80 2.03 1.390 35.31 3117 4638 3401 5061 1168 1260
355480
1111 2750/24 1.328 33.73 95 2.41 1.518 38.56 3400 5060 3915 5826 1254 1354
Dimensions and weights are nominal; subject to industry tolerances.
Note: At the option of the purchaser, the manufacturer’s standard type of stranding will be acceptable, providing that the conductor
diameter does not exceed the values shown. The total number of wires shall be as specified, plus or minus one percent, except
150/24 which may vary by minus two percent, providing that the conductor diameter does not exceed the values shown.
*Standard stock items
Product Construction:
Conductor:
• 20 AWG thru 1111 kcmil soft annealed tinned
copper per ASTM B33, B8 and B172
Insulation:
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Print:
• GENERAL CABLE® (WC) POLYRAD® XT
125˚C/110˚C XXAWG 600 V YEAR/MONTH
Options:
• Available in multi-conductor constructions
• Class K stranding
• Available in colors other than dark gray
Applications:
• Ideally suited for use where environmental
factors require cable characteristics to perform
with a high degree of flame retardancy and
excellent moisture-stable electrical values.
Where reliability is the major concern and where
maximum performance will be demanded
• Engineered and manufactured for both original
equipment and retrofit use in power and control
circuits and in motor leads
• Extensively found on all types of heavy- and
light-rail cars, rapid transit cars, diesel-electric
locomotives, freight cars and off-road vehicles
Features:
• Dual temperature rating at 125ºC/11C for
long life, higher ampacities and protection
from thermal overloads
• Excellent flexibility & free stripping
• Outstanding thermal stability at elevated
temperatures
• Maximum flame retardance and low toxicity
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated
thermoset insulation
• Resistant to most oils and chemicals
• Meets cold bend test at –55ºC
• Meets cold impact test at –40ºC
Compliances:
Industry:
• AAR S-501/AAR RP-585
• ICEA S-95-658
• RoHS Compliant
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Other:
• BSS 7239
• SMP 800-C
• ASTM E662
• NFPA 130 STD 2010
• ASTM 1354
Packaging:
• Standard reel put-up
2
Polyrad® XT Flexible Wire and Cable
600 V, Single-Conductor, Dual Rated – 12C/110°C
Color Code Chart
(Including but not limited to)
ORDERING
SUFFIX COLOR
ORDERING
SUFFIX COLOR
00 Dark Gray 05 Green
02 Red 08 Light Gray
04 Yellow 09 White
3
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
POLYRAD® XT 2000 V – STANDARD INSULATION THICKNESS
CATALOG
NUMBER
STOCK*
CONDUCTOR
(AWG/kcmil)
SIZE AND
STRANDING
NOMINAL
CONDUCTOR
DIAMETER
NOMINAL
INSULATION
THICKNESS
NOMINAL
CABLE
DIAMETER
COPPER
WEIGHT
NET CABLE
WEiGHT
AMPACITY
(FREE AIR 40˚C
AMBIENT
INCHES mm MILS mm INCHES mm
LBS./
1000' kg/km
LBS./
1000' kg/km 110˚C 125˚C
364980
20 19/32 0.038 0.97 45 1.14 0.128 3.25 4 6 10 15 15 17
300620*
18 19/30 0.048 1.21 45 1.14 0.138 3.51 6 9 14 21 17 19
300890*
16 19/29 0.054 1.37 45 1.14 0.144 3.66 8 12 16 24 23 25
280740*
14 19/27 0.067 1.70 45 1.14 0.157 3.99 12 18 22 33 39 42
303480*
12 19/25 0.086 2.18 45 1.14 0.176 4.47 19 28 31 46 51 55
301260*
10 27/24 0.117 2.97 45 1.14 0.207 5.26 34 50 47 70 67 72
269970*
8 37/24 0.135 3.43 55 1.40 0.245 6.22 47 70 66 98 85 92
297970*
6 61/24 0.174 4.42 55 1.40 0.284 6.96 76 114 100 149 120 130
355490*
5 91/24 0.242 6.15 55 1.40 0.352 8.94 116 173 149 222 151 163
301270*
4 105/24 0.262 6.68 55 1.40 0.372 9.45 137 204 169 252 160 173
325290*
3 125/24 0.285 7.24 55 1.40 0.395 10.03 167 284 197 293 199 215
302440*
2 150/24 0.307 7.80 55 1.40 0.417 10.59 190 283 226 336 214 231
355500*
1 225/24 0.380 9.65 65 1.65 0.510 12.95 287 427 353 525 247 267
296500*
1/0 275/24 0.410 10.41 65 1.65 0.540 13.72 351 522 420 625 286 309
301280*
2/0 325/24 0.470 11.94 65 1.65 0.600 15.24 407 606 481 716 329 355
300900*
3/0 450/24 0.549 13.94 65 1.65 0.679 17.25 594 884 663 987 380 410
296510*
4/0 550/24 0.593 15.06 65 1.65 0.723 18.36 696 1036 792 1179 446 482
267040*
262 650/24 0.630 16.00 75 1.91 0.780 19.81 820 1220 931 1386 524 566
296520*
313 775/24 0.685 17.40 75 1.91 0.835 21.21 987 1469 1108 1649 590 637
304020*
373 925/24 0.750 19.05 75 1.91 0.900 22.86 1176 1750 1310 1950 657 710
300180
444 1100/24 0.820 20.83 75 1.91 0.970 24.64 1413 2207 1561 2323 734 793
263400*
535 1325/24 0.895 22.73 90 2.29 1.075 27.31 1697 2525 1888 2810 828 894
355570
646 1600/24 0.980 24.89 90 2.29 1.160 29.46 2020 3006 2231 3320 931 1005
260080
777 1925/24 1.075 27.31 90 2.29 1.255 31.88 2435 3624 2681 3990 1047 1130
355600
929 2300/24 1.230 31.24 90 2.29 1.410 35.81 3117 4638 3431 5106 1168 1260
355620
1111 2750/24 1.328 33.73 110 2.79 1.548 39.32 3400 5060 3972 5911 1254 1354
POLYRAD® XT 2000 V – HEAVY WALL INSULATION THICKNESS
355510
4/0 550/24 0.593 15.06 105 2.67 0.803 20.40 696 1036 837 1246 446 482
355520
262 650/24 0.630 16.00 105 2.67 0.840 21.34 820 1220 969 1442 524 566
355530
313 775/24 0.685 17.40 105 2.67 0.895 22.73 987 1469 1149 1710 590 637
355540
373 925/24 0.750 19.05 105 2.67 0.960 24.38 1176 1750 1353 2013 657 710
355550
444 1100/24 0.820 20.83 105 2.67 1.030 26.16 1413 2207 1607 2392 734 793
355560
535 1325/24 0.895 22.73 120 3.05 1.135 28.83 1697 2525 1946 2896 828 894
355580
646 1600/24 0.980 24.89 120 3.05 1.220 30.99 2020 3006 2285 3400 931 1005
355590
777 1925/24 1.075 27.31 120 3.05 1.315 33.40 2435 3624 2727 4058 1047 1130
355610
929 2300/24 1.230 31.24 120 3.05 1.470 37.34 3117 4638 3539 5267 1168 1260
355630
1111 2750/24 1.328 33.73 120 3.05 1.568 39.83 3400 5060 4011 5969 1254 1354
Dimensions and weights are nominal; subject to industry tolerances.
Note #1: Where additional insulation thickness is desired for added mechanical protection, these values are noted in the second chart.
Note #2: At the option of the purchaser, the manufacturer’s standard type of stranding will be acceptable providing that the conductor
diameter does not exceed the values shown. The total number of wires shall be as specified, plus or minus one percent, except
150/24 which may vary by minus two percent, providing that the conductor diameter does not exceed the values shown.
*Standard stock items
Polyrad® XT Flexible Wire and Cable
2000 V, Single-Conductor, Dual Rated – 125°C/110°C
Product Construction:
Conductor:
• 20 AWG thru 1111 kcmil soft annealed tinned
copper per ASTM B33, B8 and B172
Insulation:
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Print:
• GENERAL CABLE® (WC) POLYRAD® XT
125˚C/110˚C XXAWG 2000 V YEAR/MONTH
Options:
• Class K stranding
• Available in colors other than dark gray
Applications:
• Ideally suited for use where environmental
factors require cable characteristics to perform
with a high degree of flame retardancy and
excellent moisture-stable electrical values.
Where reliability is the major concern and where
maximum performance will be demanded
• Engineered and manufactured for both original
equipment and retrofit use in power and control
circuits and in motor leads
• Extensively found on all types of heavy- and
light-rail cars, rapid transit cars, diesel-electric
locomotives, freight cars and off-road vehicles
Features:
• Dual temperature rating at 125ºC/11C for
long life, higher ampacities and protection
from thermal overloads
• Excellent flexibility and free stripping
• Outstanding thermal stability at elevated
temperatures
• Maximum flame retardance and low toxicity
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated
thermoset insulation
• Resistant to most oils and chemicals
• Meets cold bend test at –55ºC
• Meets cold impact test at –40ºC
Compliances:
Industry:
• AAR S-501/AAR RP-585
• ICEA S-95-658
• RoHS Compliant
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Other:
• BSS 7239
• SMP 800-C
• ASTM E662
• NFPA 130 STD 2010
• ASTM 1354
Packaging:
• Standard reel put-up
Color Code Chart
(Including but not limited to)
ORDERING
SUFFIX COLOR
ORDERING
SUFFIX COLOR
00 Dark Gray 05 Green
02 Red 08 Light Gray
04 Yellow 09 White
4
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
Polyrad® XT Multi-Conductor Cable
600 V or 2000 V, 125°C, Shielded or Non-Shielded
TWO CONDUCTOR POLYRAD® XT 600 V SHIELDED - 36 AWG TINNED COPPER BRAID - 85% MINIMUM COVERAGE
CATALOG
NUMBER
AWG INSULATED
DIAMETER
JACKET
THICKNESS
CABLE
DIAMETER
NET CABLE
WEIGHT
SIZE STRANDING INCHES mm MILS mm INCHES mm LBS./1000' kg/km
324680
20 19/32 0.098 2.49 45 1.14 0.315 8.0 59 88
376760
18 19/30 0.108 2.74 45 1.14 0.330 8.4 63 94
373770
16 19/29 0.114 2.90 45 1.14 0.345 8.8 73 109
412170
14 19/27 0.127 3.23 45 1.14 0.370 9.4 86 130
373750
12 19/25 0.146 3.71 45 1.14 0.410 10.4 109 162
THREE CONDUCTOR POLYRAD® XT 600 V SHIELDED - 36 AWG TINNED COPPER BRAID - 85% MINIMUM COVERAGE
374360
20 19/32 0.098 2.49 45 1.14 0.325 8.3 68 88
387460
18 19/30 0.108 2.74 45 1.14 0.345 8.8 72 94
373780
16 19/29 0.114 2.90 45 1.14 0.360 9.2 87 130
412180
14 19/27 0.127 3.23 45 1.14 0.390 9.7 108 161
373760
12 19/25 0.146 3.71 45 1.14 0.430 10.9 139 162
FOUR CONDUCTOR POLYRAD® XT 600 V SHIELDED - 36 AWG TINNED COPPER BRAID - 85% MINIMUM COVERAGE
412190
20 19/32 0.098 2.49 45 1.14 0.350 8.9 81 121
387570
18 19/30 0.108 2.74 45 1.14 0.380 9.7 85 127
387070
16 19/29 0.114 2.90 45 1.14 0.390 9.9 106 158
412200
14 19/27 0.127 3.23 45 1.14 0.420 10.7 131 195
412210
12 19/25 0.146 3.71 45 1.14 0.465 11.8 176 262
The multi-conductor cables shown in the
following tables are merely a sampling of
General Cable’s wide range of products.
Other conductor sizes, designs and/or
specific installation requirements are
available to meet virtually all the cabling
needs of the transit and locomotive industry.
For more information, contact General
Cable’s Transit inside sales at
info@generalcable.com.
General Cable manufactures an extensive array of cables to support the many and diverse applications of transit infrastructures. To meet the
needs of the evolving transit and locomotive industry, General Cable consistently brings new innovative cabling concepts to market with better
technology, superior safety, easier and faster installation and extended performance. Polyrad® XT multi-conductor shielded and non-shielded
rapid transit and locomotive car cables are rated at 125°C and supplied in both 600 and 2000 Volt constructions.
Product Construction:
Conductor:
• 20 AWG thru 4/0 AWG soft annealed tinned
copper per ASTM B33, B8 and B172
Insulation:
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Shield Options:
• Tinned copper braid
• Foil with drain wire
• Non-shielded
Jacket:
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Print (Including but not limited to):
• GENERAL CABLE® (WC) POLYRAD® XT
XX/COND XXAWG SHIELDED 12C 600 V
YEAR/MONTH
Options:
• Available in E1, E2 or Method 4 color codes
Applications:
Ideally suited for use where environmental
factors require cable characteristics
to perform with a high degree of flame
retardancy and excellent moisture-stable
electrical values. Where reliability is the major
concern and where maximum performance
will be demanded
Applications (cont'd.):
• Engineered and manufactured for both
original equipment and retrofit use in
electronic equipment
• Extensively found on all types of heavy- and
light-rail cars, rapid transit cars, diesel-
electric locomotives, freight cars and
off-road vehicles
Features:
• Temperature rating at 125°C for long life,
higher ampacities and protection from
thermal overloads
• Excellent flexibility and free stripping
• Outstanding thermal stability at elevated
temperatures
• Maximum flame retardance
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated
thermoset insulation and jacket
• Resistant to most oils and chemicals
Compliances:
Industry:
• ICEA S-95-658
• RoHS Compliant
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Other:
• BSS 7239
• SMP 800-C
• ASTM E662
• NFPA 130 STD 2010
Packaging
• Standard reel put-up
5
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
Polyrad® ULTRA Wire
600 V, Single-Conductor, 125°C, Reduced Weight, Smaller Diameter, Dual Wall
UP TO 33% WEIGHT & SPACE SAVINGS
POLYRAD® ULTRA 600 V
CATALOG
NUMBER
CONDUCTOR
(AWG)
SIZE AND
STRANDING
NOMINAL
CONDUCTOR
DIAMETER
NOMINAL
INSULATION
THICKNESS
NOMINAL
JACKET
THICKNESS
COPPER
WEIGHT
NOMINAL
CABLE
DIAMETER
NET CABLE
WEIGHT
AMPACITY
(FREE AIR
40˚C
AMBIENT)
INCHES mm MILS mm MILS mm
LBS./
1000' kg/km INCHES mm
LBS./
1000' kg/km 125˚C
369550
22 19/34 0.030 0.76 10 0.254 5 0.127 2 3 0.060 1.53 4 6 14
369560
20 19/32 0.038 0.97 10 0.254 5 0.127 4 6 0.068 1.73 6 9 17
369570
18 19/30 0.048 1.22 10 0.254 5 0.127 6 9 0.078 1.98 8 12 19
369580
16 19/29 0.054 1.37 10 0.254 5 0.127 8 12 0.084 2.13 10 15 25
369590
14 19/27 0.067 1.70 10 0.254 5 0.127 12 18 0.097 2.46 15 22 42
369600
12 19/25 0.086 2.18 10 0.254 5 0.127 19 28 0.116 2.95 23 34 55
369610
10 65/28 0.111 2.82 10 0.254 5 0.127 33 49 0.141 3.58 37 55 72
Dimensions and weights are nominal; subject to industry tolerances.
Through our wealth of experience in providing effective cabling solutions for challenging and hazardous environments, General Cable responds
to yet another industry demand. As developments and opportunities in transit technology drive the adoption of more sophisticated train
networks, available space decreases and becomes more costly. As a result, the transit industry is experiencing an increasing demand for the
reduction of both size and weight of cabling systems. Polyrad® ULTRA wire offers better performance, reduced weight and smaller diameters,
defining the next generation of cable, ideal where high-density cabling is required. Polyrad® ULTRA singles can be designed into multi-
conductor constructions that are 600 Volt and rated 125˚C, ideal for high-density cabling applications.
Product Construction:
Conductor:
• 22 AWG thru 10 AWG soft annealed tinned
copper per ASTM B33, B8 and B172
Dual Insulation:
• Polyrad® ULTRA flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
• Cross-linked fluoropolymer
Print:
• GENERAL CABLE® (WC) POLYRAD® ULTRA
125˚C XXAWG 600 V
Options:
• Available in multi-conductor constructions
• Available in colors other than dark gray
Applications:
• Ideally suited for use where high-density
cabling is required, as this wire offers both
size and weight advantages
• Engineered and manufactured for both
original equipment and retrofit use in
electronics equipment
Applications (cont’d):
• Utilized where environmental factors require
wire characteristics to perform with a high
degree of flame retardancy and excellent
moisture-stable electrical values. Where
reliability is the major concern and where
maximum performance will be demanded
• For use on all types of heavy- and light-rail
cars, rapid transit cars and diesel-electric
locomotives
Features:
• Reduced diameter and lighter-weight
transit wire — up to 33% smaller in diameter
and lighter in weight than conventional
Polyrad® XT 600 V
• Temperature rating at 125ºC for long life,
higher ampacities and protection from
thermal overloads
• Outstanding thermal stability at elevated
temperatures
• Maximum flame retardance
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
Features (cont’d):
• Extra-tough, mechanically rugged irradiated
thermoset insulation
• Resistant to most oils and chemicals
• Meets cold bend test at –55ºC
Compliances:
Industry:
• ICEA S-95-658
• RoHS Compliant
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Other:
• BSS 7239
• SMP 800-C
• ASTM E662
• NFPA 130 STD 2010
• ASTM 1354
Packaging:
• Standard reel put-up
Color Code Chart
(Including but not limited to)
ORDERING
SUFFIX COLOR
ORDERING
SUFFIX COLOR
00 Dark Gray 05 Green
02 Red 08 Light Gray
04 Yellow 09 White
6
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
Through a wealth of experience providing effective cabling solutions for challenging and hazardous environments, General Cable responds
to yet another industry demand by defining the next generation of cable — Polyrad® ULTRA. As developments and opportunities in transit
technology drive the adoption of more sophisticated transit infrastructures, available space decreases. Consequently, the transit industry is
experiencing an increasing demand for reduced size and weight of cabling systems. Ideal wherever space is at a premium and high-density
cabling is required, Polyrad® ULTRA cables offer better performance, reduced weight and smaller diameters. Polyrad® ULTRA singles are
designed into multi-conductor 600 Volt constructions rated at 125˚C to meet a variety of high-density cabling applications.
Product Construction:
Conductor:
• 22 AWG thru 10 AWG soft annealed tinned
copper per ASTM B33, B8 and B172
Insulation:
• Polyrad® ULTR A flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
• Cross-linked fluoropolymer
Shield Options:
• Tinned copper braid
• Foil with drain wire
• Non-shielded
Jacket:
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Print (Including but not limited to):
• GENERAL CABLE® (WC) POLYRAD® ULTRA
XX/COND XXAWG SHIELDED 12C 600 V
YEAR/MONTH
Options:
• Available in E1, E2 or Method 4 color codes
Applications:
• Ideally suited for use where high-density
cabling is required, as these cables offer both
size and weight advantages
• Engineered and manufactured for both
original equipment and retrofit use in
electronic equipment
• Utilized where environmental factors require
cable characteristics to perform with a high
degree of flame retardancy and excellent
moisture-stable electrical values. Where
reliability is the major concern and where
maximum performance will be demanded
• For use on all types of heavy- and light-rail
cars, rapid transit cars and diesel-electric
locomotives
Features:
• Reduced diameter and lighter-weight transit
cable - 25% smaller in diameter and lighter in
weight than conventional Polyrad® XT 600 V
• Temperature rating at 125°C for long life,
higher ampacities and protection from
terminal overloads
• Higher ampacities and simplified installations
possible due to small outside diameters,
flexible stranding and insulation
Features (cont'd.):
• Outstanding thermal stability at elevated
temperatures
• Maximum flame retardance
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated
thermoset insulation and jacket
• Resistant to most oils and chemicals
Compliances:
Industry:
• ICEA S-95-658
• RoHS Compliant
Compliances: (cont'd.):
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Other:
• BSS 7239
• SMP 800-C
• ASTM E662
• NFPA 130 STD 2010
Packaging:
• Standard reel put-up
TWO CONDUCTOR POLYRAD
®
ULTRA NON-SHIELDED
CATALOG
NUMBER
AWG INSULATED
DIAMETER
JACKET
THICKNESS
CABLE
DIAMETER
NET CABLE
WEIGHT
SIZE STRANDING INCHES mm MILS mm INCHES mm LBS./1000' kg/km
398540
22 19/34 0.060 1.53 20 0.51 0.165 4.2 14 21
398550
20 19/32 0.068 1.73 20 0.51 0.180 4.6 18 27
398560
18 19/30 0.078 1.98 20 0.51 0.200 5.1 23 34
387700
16 19/29 0.084 2.13 20 0.51 0.215 5.5 28 42
398570
14 19/27 0.097 2.46 20 0.51 0.240 6.1 39 58
398580
12 19/25 0.116 2.95 20 0.51 0.275 7.0 56 83
398590
10 65/28 0.147 3.81 20 0.51 0.345 8.8 88 131
TWO CONDUCTOR POLYRAD
®
ULTRA SHIELDED - 36 AWG TINNED COPPER BRAID - 85% MINIMUM COVERAGE
398600
22 19/34 0.060 1.53 20 0.51 0.185 4.7 23 34
398610
20 19/32 0.068 1.73 20 0.51 0.200 5.1 30 45
398620
18 19/30 0.078 1.98 20 0.51 0.220 5.6 36 54
387710
16 19/29 0.084 2.13 20 0.51 0.235 6.0 42 61
398630
14 19/27 0.097 2.46 20 0.51 0.260 6.6 54 80
398640
12 19/25 0.116 2.95 20 0.51 0.300 7.6 73 109
398650
10 65/28 0.147 3.81 20 0.51 0.365 9.3 112 167
THREE CONDUCTOR POLYRAD
®
ULTRA NON-SHIELDED
398660
22 19/34 0.060 1.53 20 0.51 0.175 4.5 19 28
398670
20 19/32 0.068 1.73 20 0.51 0.190 4.8 25 37
398680
18 19/30 0.078 1.98 20 0.51 0.210 5.3 32 48
398690
16 19/29 0.084 2.13 20 0.51 0.225 5.7 38 57
398700
14 19/27 0.097 2.46 20 0.51 0.250 6.4 52 77
398710
12 19/25 0.116 2.95 20 0.51 0.290 7.4 78 116
398720
10 65/28 0.147 3.81 20 0.51 0.360 9.2 127 189
THREE CONDUCTOR POLYRAD
®
ULTRA SHIELDED - 36 AWG TINNED COPPER BRAID - 85% MINIMUM COVERAGE
398730
22 19/34 0.060 1.53 20 0.51 0.195 5.0 29 43
398740
20 19/32 0.068 1.73 20 0.51 0.210 5.3 37 55
387730
18 19/30 0.078 1.98 20 0.51 0.235 6.0 45 67
398750
16 19/29 0.084 2.13 20 0.51 0.245 6.2 52 77
398760
14 19/27 0.097 2.46 20 0.51 0.275 7.0 69 103
398770
12 19/25 0.116 2.95 20 0.51 0.315 8.0 96 143
398780
10 65/28 0.147 3.81 20 0.51 0.385 9.8 149 222
The multi-conductor cables shown in the
following tables are merely a sampling of
General Cable’s wide range of products.
Other conductor sizes, designs and/or specific
installation requirements are available to meet
virtually all the cabling needs of the transit and
locomotive industry. For more information,
contact General Cables Transit inside sales
at info@generalcable.com.
Polyrad® ULTRA Multi-Conductor Cable
600 V, 125°C, Shielded or Non-Shielded
7
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
POLYRAD® XT-TX 600 V
CATALOG
NUMBER
NYCT
TYPE TX
STOCK CODE
NUMBER
CONDUCTOR
(AWG/kcmil)
SIZE AND
STRANDING
NOMINAL
CONDUCTOR
DIAMETER
MINIMUM
AVERAGE
INSULATION
THICKNESS
NOMINAL
CABLE
DIAMETER
COPPER
WEIGHT
NET CABLE
WEIGHT
AMPACITY
(FREE AIR
40˚C
AMBIENT)
INCHES mm MILS mm INCHES mm
LBS./
1000'
kg/
km
LBS./
1000'
kg/
km 110˚C
389980
*20 19/32 0.038 0.97 30 0.76 0.100 2.54 4 6 9 13 15
389990
20-88-150X 18 19/30 0.048 1.22 30 0.76 0.110 2.79 6 9 12 18 17
389740
20-88-170X 16 19/29 0.054 1.37 30 0.76 0.116 2.95 8 13 13 19 23
390000
20-88-190X 14 19/27 0.067 1.70 30 0.76 0.129 3.28 12 18 18 27 39
390010
20-88-210X 12 19/25 0.086 2.18 30 0.76 0.148 3.76 19 28 27 40 51
390020
20-88-230X 10 27/24 0.117 2.97 30 0.76 0.179 4.55 34 50 43 64 67
390030
20-88-250X 8 37/24 0.135 3.43 45 1.14 1.227 5.77 47 70 63 94 85
390040
20-88-270X 6 61/24 0.174 4.42 45 1.14 0.266 6.75 76 114 97 144 120
390050
*5 91/24 0.242 6.15 45 1.14 0.334 8.48 116 173 141 210 151
390060
20-88-290X 4 105/24 0.262 6.65 45 1.14 0.354 8.99 137 204 164 244 160
390070
20-88-310X 3 125/24 0.285 7.24 45 1.14 0.377 9.58 167 249 193 287 199
390080
20-88-330X 2 150/24 0.307 7.80 45 1.14 0.399 10.14 190 283 220 327 214
390090
20-88-380X 1 225/24 0.380 9.65 55 1.40 0.494 12.55 287 427 349 519 247
390100
*1/0 275/24 0.410 10.41 55 1.40 0.524 13.31 351 522 417 621 286
390110
*2/0 325/24 0.470 11.94 55 1.40 0.584 14.83 407 606 474 705 329
390120
*3/0 450/24 0.549 13.94 55 1.40 0.663 16.84 594 884 655 975 380
390130
20-88-460X 4/0 550/24 0.593 15.06 55 1.40 0.707 17.96 696 1036 774 1152 446
Dimensions and weights are nominal; subject to industry tolerances.
Note: At the option of the purchaser, the manufacturer’s standard type of stranding will be acceptable, providing that the conductor
diameter does not exceed the values shown. The total number of wires shall be as specified, plus or minus one percent, except
150/24 which may vary by minus two percent, providing that the conductor diameter does not exceed the values shown.
*Sizes without NYCT Type TX stock code numbers are not listed in the NYCT TX specification.
Product Construction:
Conductor:
• 20 AWG thru 4/0 AWG soft annealed tinned
copper per ASTM B33, B8 and B172
Insulation:
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Print:
• GENERAL CABLE® (WC) POLYRAD® XT-T X
1/C XXAWG 600 V NYCT
TX 20-88-XXXX DAY/MONTH/YEAR
XXXX = NYCT TX Stock Code - last x is used
to identify insulation color as listed below:
0 = Black, 1 = White, 2 = Red, 3 = Blue,
4 = Green, 5 = Orange, 6 = Yellow, 7 = Gray,
8 = Brown, 9 = Purple
Options:
• Available in multi-conductor constructions
• Available in colors other than dark gray
Applications:
• Ideally suited for use where environmental
factors require cable characteristics
to perform with a high degree of flame
retardancy and excellent moisture-stable
electrical values. Where reliability is the major
concern and where maximum performance
will be demanded
• Engineered and manufactured for both
original equipment and retrofit use in power
and control circuits and in motor leads
• Extensively found on all types of heavy- and
light-rail cars, rapid transit cars, diesel-
electric locomotives, freight cars and
off-road vehicles
Features:
• Cables meet NYCT TX specification
• Temperature rating at 110ºC
• Excellent flexibility & free stripping
• Outstanding thermal stability at elevated
temperatures
• Maximum flame retardance and low toxicity
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated
thermoset insulation
• Resistant to most oils and chemicals
• Meets cold bend test at –55ºC
• Meets cold impact test at –40ºC
Compliances:
Industry:
• AAR S-501/AAR RP-585
• ICEA S-95-658
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Other:
• Meets NYCT TX specification
• BSS 7239
• SMP 800-C
• ASTM E662
• NFPA 130 STD 2010
Packaging:
• Standard reel put-up
Polyrad® XT-TX Flexible Wire and Cable
600 V, Single-Conductor, NYCT Type TX
Color Code Chart
(Including but not limited to)
ORDERING
SUFFIX COLOR
ORDERING
SUFFIX COLOR
00 Dark Gray 05 Green
02 Red 08 Light Gray
04 Yellow 09 White
8
Phone: 866.248.7060
www.generalcable.com
Rail & Transit Wire and Cable
POLYRAD® XT-TX 2000 V
CATALOG
NUMBER
NYCT
TYPE TX
STOCK CODE
NUMBER
CONDUCTOR
(AWG/kcmil)
SIZE AND
STRANDING
NOMINAL
CONDUCTOR
DIAMETER
MINIMUM
AVERAGE
INSULATION
THICKNESS
NOMINAL
CABLE
DIAMETER
COPPER
WEIGHT
NET CABLE
WEIGHT
AMPACITY
(FREE AIR
40˚C
AMBIENT)
INCHES mm MILS mm INCHES mm
LBS./
1000'
kg/
km
LBS./
1000'
kg/
km 110˚C
390500
*20 19/32 0.038 0.97 45 1.14 0.130 3.30 4 6 11 16 15
390140
20-90-160X 18 19/30 0.048 1.22 45 1.14 0.140 3.56 6 9 15 22 17
390150
20-90-180X 16 19/29 0.054 1.37 45 1.14 0.146 3.71 8 13 17 25 23
390160
20-90-200X 14 19/27 0.067 1.70 45 1.14 0.159 4.04 12 18 23 34 39
390170
20-90-220X 12 19/25 0.086 2.18 45 1.14 0.178 4.52 19 28 32 48 51
390180
20-90-240X 10 27/24 0.117 2.97 45 1.14 0.209 5.31 34 50 49 73 67
390190
20-90-260X 8 37/24 0.135 3.43 55 1.40 0.249 6.33 47 70 68 101 85
390200
20-90-280X 6 61/24 0.174 4.60 55 1.40 0.288 7.32 76 114 104 155 120
390210
*5 91/24 0.242 6.15 55 1.40 0.356 9.04 116 173 149 222 151
390220
20-90-320X 4 105/24 0.262 6.65 55 1.40 0.376 9.55 137 204 172 256 160
390230
20-90-340X 3 125/24 0.285 7.24 55 1.40 0.399 10.14 167 249 201 299 199
390240
20-90-360X 2 150/24 0.307 7.80 55 1.40 0.421 10.69 190 283 230 343 214
390250
20-90-380X 1 225/24 0.380 9.65 65 1.65 0.514 13.06 287 427 357 531 247
390260
20-90-400X 1/0 275/24 0.410 10.41 65 1.65 0.544 13.82 351 522 424 631 286
389730
20-90-420X 2/0 325/24 0.470 11.94 65 1.65 0.604 15.34 407 606 485 722 329
390270
20-90-440X 3/0 450/24 0.549 13.94 65 1.65 0.683 17.35 594 884 667 993 380
390280
20-90-460X 4/0 550/24 0.593 15.06 65 1.65 0.727 18.47 696 1036 796 1185 446
390290
20-90-480X 262 650/24 0.630 16.00 105 2.67 0.844 21.44 820 1220 936 1393 524
389750
20-90-500X 313 775/24 0.685 17.40 105 2.67 0.899 26.30 987 1469 1113 1656 590
390300
20-90-520X 373 925/24 0.750 19.05 105 2.67 0.964 24.49 1176 1750 1315 1957 657
390310
20-90-540X 444 1100/24 0.820 20.83 105 2.67 1.034 26.26 1413 2103 1566 2330 734
390320
20-90-560X 535 1325/24 0.895 22.73 105 2.67 1.109 28.17 1697 2525 1894 2819 828
Dimensions and weights are nominal; subject to industry tolerances.
Note: At the option of the purchaser, the manufacturer’s standard type of stranding will be acceptable, providing that the conductor
diameter does not exceed the values shown. The total number of wires shall be as specified, plus or minus one percent, except
150/24 which may vary by minus two percent, providing that the conductor diameter does not exceed the values shown.
*Sizes without NYCT Type TX stock code numbers are not listed in the NYCT TX specification.
Polyrad® XT-TX Flexible Wire and Cable
2000 V, Single-Conductor, NYCT Type TX
Product Construction:
Conductor:
• 20 AWG thru 535 kcmil soft annealed tinned
copper per ASTM B33, B8 and B172
Insulation:
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Print:
• GENERAL CABLE® (WC) POLYRAD® XT-T X
1/C XXAWG 2000 V NYCT
TX 20-90-XXXX DAY/MONTH/YEAR
XXXX = NYCT TX Stock Code - last x is used
to identify insulation color as listed below:
0 = Black, 1 = White, 2 = Red, 3 = Blue,
4 = Green, 5 = Orange, 6 = Yellow, 7 = Gray,
8 = Brown, 9 = Purple
Options:
• Available in colors other than dark gray
Applications:
• Ideally suited for use where environmental
factors require cable characteristics
to perform with a high degree of flame
retardancy and excellent moisture-stable
electrical values. Where reliability is the major
concern and where maximum performance
will be demanded
• Engineered and manufactured for both
original equipment and retrofit use in power
and control circuits and in motor leads
• Extensively found on all types of heavy- and
light-rail cars, rapid transit cars, diesel-
electric locomotives, freight cars and
off-road vehicles
Features:
• Cables meet NYCT TX specification
• Temperature rating at 110ºC
• Excellent flexibility and free stripping
• Outstanding thermal stability at elevated
temperatures
• Maximum flame retardance and low toxicity
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated
thermoset insulation
• Resistant to most oils and chemicals
• Meets cold bend test at –55ºC
• Meets cold impact test at –40ºC
Compliances:
Industry:
• AAR S-501/AAR RP-585
• ICEA S-95-658
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Other:
• Meets NYCT TX specification
• BSS 7239
• SMP 800-C
• ASTM E662
• NFPA 130 STD 2010
Packaging:
• Standard reel put-up
Color Code Chart
(Including but not limited to)
ORDERING
SUFFIX COLOR
ORDERING
SUFFIX COLOR
00 Dark Gray 05 Green
02 Red 08 Light Gray
04 Yellow 09 White
9
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Transit Data Communications Cables
PRODUCT DESCRIPTION PAGE
Category 5e Shielded Cable
4 Pair, 24 AWG, TIA/EIA 568-C.2 Patch 10
Category 5e Quad Shielded Cable
4 Conductor, 22 AWG, TIA/EIA 568-C.2 Patch 11
Polyrad® XT Transit Data Communications Cables 12
2
10
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
TRANSIT, 4 PAIR/24 AWG, SHIELDED FOIL TWISTED PAIR (SFTP) CAT 5e, LOW SMOKE
CATALOG NUMBER
# OF
PAIRS
COND.
SIZE
NOMINAL
INSULATION O.D.
NOMINAL JACKET
THICKNESS
NOMINAL CABLE
DIAMETER
AWG INCHES INCHES INCHES
LO24P0045664-5e
424 AWG
7/32 0.047 0.025 0.300
Category 5e Shielded Cable
4 Pair, 24 AWG, TIA/EIA 568-C.2 Patch
Product Construction:
Conductor:
4 pair, 24 AWG 7/32 tinned copper:
Diameter
: .024"
Insulation:
• Polyolefin: Diameter: .047"
Pairs:
• Two conductors twisted together
(each pair twisted with a different lay length)
• Color code:
P1: White/Blue, Blue
P3: White/Green, Green
P2: White/Orange, Orange
P4: White/Brown, Brown
Binding:
• Polyester tape, 25% min. lap.
Inner Shield:
• Aluminum/polyester tape, 100% coverage
Outer Shield:
• Tinned copper braid, 80% coverage
Jacket:
• Polyrad® XT flame-retardant, low-smoke,
irradiated Cross-linked Polyolefin (XLPO),
.025" wall, Dark Gray: Diameter: .300"
Print (Including but not limited to):
GENERAL CABLE® (F) LO24P0045664-5E
4PR/24 AWG SFTP CAT5E PATCH AAAAA*
MO/YR** XXXXXX FT***
*Order number
**Date
***Footage markings every 2 ft
Applications:
• For high-speed data transmission. Tested to
100 MHz
• Category 5e construction is suitable for use
in transit applications with flexible stranding,
overall shield and a Polyrad® XT jacket
Features:
• Meets Category 5e electricals
Compliances:
Industry:
• TIA/EIA 568-C.2 Patch
Flame Test:
• 49 CFR Part 238 Appendix B for low-voltage wire
and cable
• NYCT Type TX Test 11 per ICEA S-95-658-1999
• Type B per AAR RP-585 Paragraph 5.9.6
Other:
• BSS 7239
• ASTM E662
ELECTRICAL CHARACTERISTICS
FREQUENCY INSERTION LOSS NEXT ACRF RL
(MHz) (dB/100 m) (dB) (dB) (dB)
max. min. min. min.
1 2.4 65.3 63.8 20.0
4 4.9 56.3 51.8 23.0
8 6.9 51.8 45.7 24.5
10 7.8 50.3 43.8 25.0
16 9.9 47.2 39.7 25.0
20 11.1 45.8 37.8 25.0
25 12.5 44.3 35.8 24.2
31.25 14.1 42.9 33.9 23.3
62.5 20.4 38.4 27.9 20.7
100 26.4 35.3 23.8 19.0
DC Resistance: 9.38 Ω /100 m (28.6 Ω/kft) Max.
DCR Unbalanced: 5% Max.
Mutual Capacitance: 55.8 pF/m (17 pF/ft) Max.
Capacitance Unbalanced: 330 pF/100 m (1 pF/ft) Max.
Characteristic Impedance: 100 Ω
+/- 15 Ω (1-100 MHz)
Prop Delay (Skew): 45 ns/100 m Max.
Velocity of Propagation: 72% Nom.
Temp. & Voltage Rating: -55˚C to +75˚C / 600 V Max.
11
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Category 5e Quad Shielded Cable
4 Conductor, 22 AWG, TIA/EIA 568-C.2 Patch
Product Construction:
Conductor:
• 4 conductor, 22 AWG 7/30 tinned copper:
Diameter: .030”
Insulation:
• Polyolefin: Diameter: .047"
Color Code:
Conductor 1: White
Conductor 2: Blue
Conductor 3: Yellow
Conductor 4: Orange
Inner Shield:
• Aluminum/polyester tape, 100% coverage
Outer Shield:
• Tinned copper braid, 95% coverage
Jacket:
• Flame-retardant, low-smoke, irradiated Cross-
linked Polyolefin (XLPO), .035" wall, Dark Gray:
Diameter: .275"
Print (Including but not limited to):
• GENERAL CABLE LO22C0045664 4 CDR 22
AWG CAT 5E 100MHZ DATA CABLE NFPA130
2010
600 V XXXX FEET MO/YR
Applications:
• For high-speed data transmission.
Tested to 100 MHz
• Category 5e construction is suitable for use
in transit applications with flexible stranding,
overall shield and a low-smoke, irradiated
Cross-linked Polyolefin jacket
Features:
• Meets Category 5e electricals
Compliances:
Industry:
• TIA/EIA 568-C.2 Patch
Flame Test:
• 49 CFR Part 238 Appendix B for low-voltage wire
and cable
Other:
• NFPA 130 STD 2010
• ASTM E662
• BSS 7239
TRANSIT, 4 CONDUCTOR/22 AWG, SHIELDED FOIL CAT 5e, LOW-SMOKE
CATALOG NUMBER
# OF
COND.
COND.
SIZE
NOMINAL
INSULATION O.D.
NOMINAL JACKET
THICKNESS
NOMINAL CABLE
DIAMETER
AWG INCHES INCHES INCHES
LO22C0045664
422 AWG
7/30 0.076 0.035 0.275
ELECTRICAL CHARACTERISTICS
FREQUENCY INSERTION LOSS NEXT ACRF RL
(MHz) (dB/100 m) (dB) (dB) (dB)
max. min. min. min.
1 2.4 65.3 63.8 20.0
4 4.9 56.3 51.8 23.0
8 6.9 51.8 45.7 24.5
10 7.8 50.3 43.8 25.0
16 9.9 47.2 39.7 25.0
20 11.1 45.8 37.8 25.0
25 12.5 44.3 35.8 24.2
31.25 14.1 42.9 33.9 23.3
62.5 20.4 38.4 27.9 20.7
100 26.4 35.3 23.8 19.0
DC Resistance: 9.38 Ω /100 m (28.6 Ω/kft) Max.
DCR Unbalanced: 5% Max.
Mutual Capacitance: 55.8 pF/m (17 pF/ft) Max.
Capacitance Unbalanced: 330 pF/100 m (1 pF/ft) Max.
Characteristic Impedance: 100 Ω
+/- 15 Ω (1-100 MHz)
Prop Delay (Skew): 45 ns/100 m Max.
Velocity of Propagation: 72% Nom.
Temp. & Voltage Rating: -55˚C to +75˚C / 600 V Max.
12
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Polyrad® XT Transit Data Communications Cables
100 OHM SHIELDED DATA CABLE
CATALOG
NUMBER
AWG NUMBER OF
CONDUCTORS
INSULATED
DIAMETER
JACKET
THICKNESS
CABLE
DIAMETER
NET CABLE
WEIGHT
SIZE STRANDING INCHES mm MILS mm INCHES mm LBS./1000' kg/km
387090
20 19/32 2 0.092 2.34 45 1.14 0.305 8.0 55 82
Shield: 36 AWG Tinned Copper Braid - 95% Minimum Coverage Color Code: Yellow, White
387550
16 19/29 2 0.154 3.91 45 1.14 0.425 10.8 63 150
Shield: 36 AWG Tinned Copper Braid - 95% Minimum Coverage + Aluminum/Mylar Tape Color Code: Yellow, White
120 OHM SHIELDED DATA CABLE
329960
20 19/32 2 0.114 2.90 45 1.14 0.342 8.7 62 92
Shield: 36 AWG Tinned Copper Braid - 90% Minimum Coverage Color Code: Black, White
387540
18 19/30 2 0.173 4.40 45 1.14 0.460 11.7 99 147
Shield: 36 AWG Tinned Copper Braid - 95% Minimum Coverage + Aluminum/Mylar Tape Color Code: Yellow, White
388500
18 19/30 3 0.173 4.40 45 1.14 0.470 11.9 83 124
Shield: Aluminum/Mylar Tape + 22 AWG 7/30 Tinned Copper Drain Wire Color Code: White, Red, Green
329950
16 19/29 2 0.164 4.17 45 1.14 0.446 11.3 92 137
Shield: 36 AWG Tinned Copper Braid - 95% Minimum Coverage + Aluminum/Mylar Tape Color Code: Yellow, White
388610
20 19/32 2/Pair 0.108 2.74 45 1.14 0.510 13.0 111 165
Shield: 36 AWG Tinned Copper Braid - 90% Minimum Coverage + Aluminum/Mylar Tape Color Code: White, Blue + Red, Black
General Cable offers a wide variety of transit data communications cables that meet UL 1581 VW-1 flammability requirements, ASTM E662
smoke density, and Boeing BSS 7239 and Bombardier SMP 800-C toxicity standards. Transit data communications cables are produced in
multi-conductors, coaxial, and shielded twisted pairs. Our high-quality products are engineered with outstanding thermal stability at elevated
temperatures as well as excellent performance in sub-zero conditions. An extra-tough irradiated thermoset jacket provides resistance to most
oils, chemicals, and moisture but still allows for flexibility and free stripping. General Cable also has the ability to design products specifically
catered to individual customer needs and requirements.
Product Construction:
Conductor:
• 20 AWG thru 12 AWG soft annealed tinned
copper per ASTM B33, B8 and B172
Insulation:
• Low-smoke irradiated Cross-linked Polyolefin
(XLPO)
Jacket
• Polyrad® XT flame-retardant, low-smoke
irradiated Cross-linked Polyolefin (XLPO)
Print (Including but not limited to):
• GENERAL CABLE® (WC) POLYRAD® XT
XX/COND XXAWG SHIELDED XXX OHM
110˚C 600 V YEAR/MONTH
Options:
• Other data communications cables available
upon request
Applications:
• Ideally suited for use where specific and
stable electrical values are required
• Engineered and manufactured for both
original equipment and retrofit use in
electronic equipment
Features:
• Excellent flexibility and free stripping
• Outstanding thermal stability at elevated
temperatures
• Excellent low-temperature performance;
suitable for installation in sub-zero conditions
• Extra-tough, mechanically rugged irradiated
thermoset jacket
• Resistant to most oils and chemicals
Compliances:
Industry:
• RoHS Compliant
Flame Test:
VW-1
Other:
• BSS 7239
• SMP 800-C
• ASTM E662
Packaging:
• Standard reel put-up
The data communications cables shown in
the following tables are merely a sampling
of General Cable’s wide range of products.
Other conductor sizes, designs and/or
specific installation requirements are available
to meet virtually all the cabling needs of the
transit and locomotive industry. For more
information, contact General Cable’s Transit
inside sales at info@generalcable.com.
13
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Transit Specialty Cables
PRODUCT DESCRIPTION PAGE
Diesel Locomotive Cable 2000 Volts (EPR/XL-CPE) - SPEC 5310
UL RHH/RHW-2, 2000 V and c(UL) RW90, 1000 V
Flexible, Oil-, Sunlight- and Ozone-Resistant, Flame-Retardant, -40°C to 90°C 14
Electronically Controlled Pneumatic (ECP) Brake Cable
600 V, Two Conductor, Unarmored and Armored 15
TRANSPOWER Head-End Power (HEP) 600 V Cables
Single-Conductor, 4/0 AWG or Three Conductor, 10 AWG 16
3
14
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Diesel Locomotive Cable 2000 Volts (EPR/XL-CPE)
UL RHH/RHW-2 2000 V and c(UL) RW90 1000 V
Flexible, Oil-, Sunlight- and Ozone-Resistant, Flame-Retardant, -40°C to 90°C
SPEC 5310
May, 2012
CATALOG
NUMBER
COND. SIZE
COND.
STRAND
NOMINAL
COND. O.D.
NOM. INS.
THICKNESS
JACKET
THICKNESS NOMINAL O.D.
APPROX.
NET WEIGHT
AWG/
kcmil mm2INCHES mm INCHES mm INCHES mm INCHES mm LBS/1000 FT kg/km
5310.01014 14 2.08 19/.0147 0.070 1.8 0.045 1.1 0.015 0.4 0.20 5.1 30 45
5310.01012 12 3.31 19/.0185 0.088 2.2 0.045 1.1 0.015 0.4 0.22 5.6 39 58
5310.01010 10 5.26 27/24 0.117 3.0 0.045 1.1 0.015 0.4 0.25 6.4 56 83
5310.01008 8 8.36 37/24 0.144 3.7 0.055 1.4 0.030 0.8 0.33 8.3 87 129
5310.01006 6 13.3 61/24 0.190 4.8 0.060 1.5 0.030 0.8 0.38 9.7 131 195
5310.01004 4 21.1 105/24 0.262 6.7 0.060 1.5 0.030 0.8 0.46 11.7 202 301
5310.01002 2 33.6 158/24 0.315 8.0 0.060 1.5 0.030 0.8 0.51 13.0 285 424
5310.01001 1 42.4 224/24 0.375 9.5 0.080 2.0 0.045 1.1 0.64 16.3 417 621
5310.01110 1/0 53.5 280/24 0.435 11.0 0.080 2.0 0.045 1.1 0.70 17.8 494 735
5310.01210 2/0 67.4 329/24 0.465 11.8 0.080 2.0 0.045 1.1 0.73 18.5 587 874
5310.01310 3/0 85 456/24 0.535 13.6 0.080 2.0 0.045 1.1 0.80 20.3 718 1069
5310.01410 4/0 107 551/24 0.581 14.8 0.080 2.0 0.045 1.1 0.84 21.3 845 1258
5310.01262 262.6 133 650/24 0.617 15.7 0.090 2.3 0.065 1.7 0.94 23.9 1050 1563
5310.01313 313.3 158 777/24 0.671 17.0 0.090 2.3 0.065 1.7 1.00 25.3 1195 1778
5310.01373 373.7 189 925/24 0.735 18.7 0.090 2.3 0.065 1.7 1.06 26.9 1384 2060
5310.01444 444.4 225 1110/24 0.786 20.0 0.090 2.3 0.065 1.7 1.11 28.2 1634 2432
5310.01535 535.3 271 1332/24 0.877 22.3 0.090 2.3 0.065 1.7 1.20 30.5 1925 2865
5310.01646 646.4 327 1609/24 0.960 24.4 0.090 2.3 0.065 1.7 1.29 32.8 2307 3433
5310.01777 777.7 394 1924/24 1.054 26.8 0.090 2.3 0.065 1.7 1.38 35.1 2728 4060
5310.01929* 929.9 475 2318/24 1.230 31.2 0.090 2.3 0.065 1.7 1.56 39.6 3570 5313
5310.01111* 1111.1 562 2745/24 1.328 33.7 0.115 2.9 0.095 2.4 1.77 44.9 4232 6298
* Non-stock item; minimum runs apply. Please consult Customer Service for price and delivery.
Product Construction:
Conductor:
• 14 AWG (2.08 mm) thru 1111.1 kcmil (562 mm)
Class I fully annealed flexible stranded tin
coated copper per AAR 589
Insulation:
• Flame-retardant, lead-free cross-linked
Ethylene Propylene (EP) with separator tape
over the conductor to facilitate stripping
Jacket:
• Black, flame-retardant, sunlight-, ozone-
and oil-resistant, lead-free Cross-linked
Chlorinated Polyethylene (XL-CPE)
Print:
GENERAL CABLE
®
(MFG LOCATION)
DIESEL
LOCOMOTIVE
2000 V P-07-KA120005-MSHA
C(UL)US TYPE RHH OR RHW-2 VW-1 (SIZE)
AWG/kcmil (MM
2
) EP FOR CT USE* SR -40ºC FT4
OR RW90 EP 1000 V ROHS MONTH/YEAR OF
MFG SEQUENTIAL FOOTAGE MARK
*Applicable for sizes 1/0 AWG and larger only
Options:
• Fully annealed, flexible bare copper stranding
per AAR 589
• Other jacket colors available upon request
Applications:
• For use up to 2000 V as power cables in
wind turbine generator applications per UL
Subject 6140
• Diesel electric locomotives
• Mining and earth-moving equipment
• General purpose use as flexible power leads
Applications (cont'd.):
• Flexible power leads in cable trays in sizes
1/0 AWG and larger
Accepted for listing as flame-resistant by
MSHA
Features:
• Rated 90°C wet or dry per UL 44/CSA
C.22.2-38
• Flexible tinned copper stranding
• Excellent resistance to oils, gear lubricants,
ozone, sunlight, heat and flame
• Designed to withstand continuous flexing
Minimum Bend Radius:
• 8X O.D. for fixed installations or mobile
applications
Torsion Requirements:
• +/-180° twists per meter for 5,000 cycles
at -40°C with cable weight compensated
to 18 meters
Compliances:
Industry Compliances:
• Type RHH/RHW-2 per UL 44, UL File #
E90494
• c(UL)US Type RW90 per CSA C.22.2-38,
UL File # E90494
Compliances (cont'd.):
• National Electrical Code (NEC)
• ICEA S-95-658/NEMA WC70
• “For CT Use” on 1/0 AWG and larger in
accordance with NEC®
Accepted for listing as flame resistant by MSHA
RoHS Compliant
Flame Test Compliances:
• UL 2556 VW-1
• IEEE 1202/CSA FT4 for sizes 1/0 AWG and
larger
AC Withstand Voltage Testing
requirements per UL 44:
14 - 10 AWG 6000 V
8 - 2 AWG 7500 V
1 - 4/0 AWG 9000 V
262.6 kcmil - 444 kcmil 10000 V
535.3 kcmil - 929.9 kcmil 11000 V
1111.1 kcmil 13500 V
15
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
ECP BRAKE CABLE
CATALOG
NUMBER
NUMBER OF
CONDUCTORS
CONDUCTOR
(AWG)
SIZE AND
STRANDING
NOMINAL
INSULATION
THICKNESS
NOMINAL
JACKET
THICKNESS
NOMINAL
CABLE
DIAMETER
NET CABLE
WEIGHT
AMPACITY
(FREE AIR
40˚C
AMBIENT)
MILS mm MILS mm INCHES mm
LBS./
1000'
kg/
km 125˚C
282400
2 8 37/24 40 1.02 100 2.54 0.725 18.42 405 603 69
287940
(ARMORED)
2 8 37/24 40 1.02 100 2.54 0.960 24.38 730 1086 69
Product Construction:
Conductor:
• 8 AWG soft annealed tinned copper per
ASTM B33
Insulation:
• Cross-linked Polyolefin (XLPO) - 125°C
Shield:
• 34 AWG tinned copper braid with drain wire
Jacket:
• Arctic-grade, heavy-duty reinforced
Neoprene
Optional Armor:
• Galvanized steel or aluminum
Print:
• AAR ECP BRAKE CABLE S-4210 GENERAL
CABLE® (WC) T-75128 2/C 8 AWG 600 V
QUARTER/YEAR
Applications:
• Designed specifically for installation both
under and between freight cars
• Meets all AAR specification S-4210
requirements
Features:
• 125ºC rated Cross-linked Polyolefin (XLPO)
insulation allows for routing through higher
temperature areas. Insulation is also flexible
and free stripping
• Tinned copper braided shield designed for
significant EMI/RFI reduction
• Arctic-grade, heavy-duty reinforced neoprene
jacket offers the lowest diameter for easier
conduit pull and can be used in a ¾" conduit
in lieu of 1". Excellent low-temperature
performance suitable for installation in sub-
zero conditions. Tough mechanical properties
• Optional galvanized or aluminum armor
over the cable jacket allows for conduit-free
installations providing significant installed
cost savings
• Temperature range of -45ºC to +100ºC
Compliances:
Industry:
• AAR S-4210
Flame Test:
• IEEE 1202 (70,000 BTU/hr)
• IEEE 383 (70,000 BTU/hr)
VW-1
Electronically Controlled Pneumatic (ECP) Brake Cable
600 V, Two Conductor, Unarmored and Armored
16
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
TRANSPOWER HEAD-END POWER (HEP) 600 V CABLES
CATALOG
NUMBER
NUMBER OF
CONDUCTORS
CONDUCTOR
(AWG)
SIZE AND
STRANDING
NOMINAL
INSULATION
THICKNESS
NOMINAL
JACKET
THICKNESS
NOMINAL
CABLE
DIAMETER
NET CABLE
WEIGHT AMPACITY
(FREE AIR
30˚C
AMBIENT)MILS mm MILS mm INCHES mm
LBS./
1000'
kg/
km
650870.00.77
1 4/0 5320/34 60 1.52 85 2.16 0.885 22.5 872 1298 400
696420.00.77
3 10 259/34 47 1.19 93 2.36 0.685 17.4 338 503 40
Product Construction
Single-Conductor:
• 4/0 AWG 5320/34 Rope Bare Copper
Insulation:
• Thermoplastic Elastomer (TPE)
Jacket:
• Reinforced Neoprene – Black
Product Construction
Three Conductors:
• 10 AWG 259/34 Tinned Copper
Insulation:
• Thermoplastic Elastomer (TPE)
Jacket:
• Neoprene – Black
TRANSPOWER Head-End Power (HEP) 600 V Cables
Single-Conductor, 4/0 AWG or Three Conductor, 10 AWG
Ampacity:
• 400 amps @ 30°C
Print:
• GENERAL CABLE® (WC) 600 VOLT 4/0 AWG
Color Code:
• Black, White, Red
Print:
• GENERAL CABLE® (WC) 600 VOLT
TRANSPOWER 3/C 10 AWG
Applications:
• Head-End Power cable used in jumper
assemblies locomotive-to-locomotive,
locomotive-to-car and car-to-car for
transmission of 480 V, 3 phase 50/60 Hz
• Designed for heavy-duty service where
severe flexing is encountered
Features:
• Rated at 600 V
• Normal operating temperature: -55°C to
+90°C
• Extreme temperature resistance during
molding operation: 375°F
• Excellent flexibility; withstands continuous
vibrations
• Outstanding resistance to moisture, oils and
fluids, abrasion, tearing, compression, ozone,
sunlight, flame, and heat
• Bend radius:
1/C 4/0 AWG: 3.5" minimum
3/C 10 AWG: 2.75" minimum
Industry Compliances:
• Amtrak Specification: D-77-24
• ASTM B3
• ASTM B172
• UL Standard 62
• ICEA S-95-658/NEMA WC70
17
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Technical Information
GENERAL TECHNICAL INFORMATION PAGE
SPEC A100 Common Color Sequence 18
SPEC A125 Temperature Conversion Table 19
SPEC A150 Metric Conversion Factors 20
SPEC A186 AWG (American Wire Gauge) to mm2 (Millimeters Squared) Conversion 21
SPEC A200 Reel Capacity Chart 22
SPEC A210 Flame Test Comparison 23
CONDUCTOR DATA
SPEC B041 Class I Conductors for General Wiring 24
SPEC B046 Class K Conductors for General Wiring 25
HANDLING AND STORAGE RECOMMENDATIONS
SPEC D001 Minimum Bend Radius 26
SPEC D005 Recommended Reel Handling Practices 27
SPEC D025 Recommended Cable Handling Practices 28
SPEC D050 Recommended Cable Storage Practices 29
CATALOG NUMBER INDEX 30
4
18
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Common Color Sequence SPEC A10 0
May, 2013
Method 1 -
Table E1 Color Sequence
COND.
NO.
BACKGROUND
OR BASE
COLOR
FIRST
TRACER
COLOR
SECOND
TRACER
COLOR
COND.
NO.
BACKGROUND
OR BASE
COLOR
FIRST
TRACER
COLOR
SECOND
TRACER
COLOR
1
Black - -
20
Red Green -
2
White - -
21
Orange Green -
3
Red - -
22
Black White Red
4
Green - -
23
White Black Red
5
Orange - -
24
Red Black White
6
Blue - -
25
Green Black White
7
White Black -
26
Orange Black White
8
Red Black -
27
Blue Black White
9
Green Black -
28
Black Red Green
10
Orange Black -
29
White Red Green
11
Blue Black -
30
Red Black Green
12
Black White -
31
Green Black Orange
13
Red White -
32
Orange Black Green
14
Green White -
33
Blue White Orange
15
Blue White -
34
Black White Orange
16
Black Red -
35
White Red Orange
17
White Red -
36
Orange White Blue
18
Orange Red -
37
White Red Blue
19
Blue Red -
Pair cables are Black, White and numbered. Triad cables are Black, White, Red and numbered.
Method 1 -
Table E2 Color Sequence
COND.
NO.
BACKGROUND
OR BASE
COLOR
TRACER
COLOR
COND.
NO.
BACKGROUND
OR BASE
COLOR
TRACER
COLOR
1
Black -
19
Orange Blue
2
Red -
20
Yellow Blue
3
Blue -
21
Brown Blue
4
Orange -
22
Black Orange
5
Yellow -
23
Red Orange
6
Brown -
24
Blue Orange
7
Red Black
25
Yellow Orange
8
Blue Black
26
Brown Orange
9
Orange Black
27
Black Yellow
10
Yellow Black
28
Red Yellow
11
Brown Black
29
Blue Yellow
12
Black Red
30
Orange Yellow
13
Blue Red
31
Brown Yellow
14
Orange Red
32
Black Brown
15
Yellow Red
33
Red Brown
16
Brown Red
34
Blue Brown
17
Black Blue
35
Orange Brown
18
Red Blue
36
Yellow Brown
Pair cables are Black, Red and numbered. Triad cables are Black, Red, Blue and numbered.
Colors repeat after 36 conductors. There are no Green or White conductors or stripes.
Method 4 -
All Conductors Black
COND. CONDUCTOR PRINTING
1st
“1-One”
2nd
“2-Two”
3rd
“3-Three”
4th
“4-Four”
5th
“5-Five”
ANSI MC 96.1 Conductor Alloy and Color Code
COND.
TYPE
POSITIVE WIRE NEGATIVE WIRE OUTER
JACKETALLOY COLOR ALLOY COLOR
EX
Chromel Purple Constantan Red Purple
JX
Iron White Constantan Red Black
KX
Chromel Yellow Alumel Red Yellow
TX
Copper Blue Constantan Red Blue
19
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Temperature Conversion Table
Known temperature is in boldface type-Temp (°F or °C). Corresponding temperature in degrees Fahrenheit will be found in the
column to the right. Corresponding temperature in degrees Centigrade will be found in the column to the left.
-5 TO -100 0 TO 100 100 TO 500
°C Temp
(˚F or ˚C) °F °C Temp
(˚F or ˚C) °F °C Temp
(˚F or ˚C) °F °C Temp
(˚F or ˚C) °F
-73.3
-70.5
-67.8
-65.0
-62.2
-59.5
-56.7
-53.9
-51.1
-48.3
-45.6
-42.8
-40.0
-37.2
-34.4
-31.6
-28.9
-26.1
-23.3
-20.5
-100
-95
-90
-85
-80
-75
-70
-65
-60
-55
-50
-45
-40
-35
-30
-25
-20
-15
-10
-5
-148
-139
-130
-121
-112
-103
-94
-85
-76
-67
-58
-49
-40
-31
-22
-13
-4
5
14
23
-17.8
-17.2
-16.7
-16.1
-15.6
-15.0
-14.4
-13.9
-13.3
-12.8
-12.2
-11.7
-11.1
-10.6
-10.0
-9.44
-8.89
-8.33
-7.78
-7.22
-6.67
-6.11
-5.56
-5.00
-4.44
-3.89
-3.33
-2.78
-2.22
-1.67
-1.11
-0.56
0
0.56
1.11
1.67
2.22
2.78
3.33
3.89
4.44
5.00
5.56
6.11
6.67
7.22
7.78
8.33
8.89
9.44
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
32.0
33.8
35.6
37.4
39.2
41.0
42.8
44.6
46.4
48.2
50.0
51.8
53.6
55.4
57.2
59.0
60.8
62.6
64.4
66.2
68.0
69.8
71.6
73.4
75.2
77.0
78.8
80.6
82.4
84.2
86.0
87.7
89.6
91.4
93.2
95.0
96.8
98.6
100.4
102.2
104.0
105.8
107.6
109.4
111.2
113.0
114.8
116.6
118.4
120.2
10.0
10.6
11.1
11.7
12.2
12.8
13.3
13.9
14.4
15.0
15.6
16.1
16.7
17.2
17.8
18.3
18.9
19.4
20.0
20.6
21.1
21.7
22.2
22.8
23.3
23.9
24.4
25.0
25.6
26.1
26.7
27.2
27.8
28.3
28.9
29.4
30.0
30.6
31.1
31.7
32.2
32.8
33.3
33.9
34.4
35.0
35.6
36.1
36.7
37.2
37.8
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
122.0
123.8
125.6
127.4
129.2
131.0
132.8
134.6
136.4
138.2
140.0
141.8
143.6
145.4
147.2
149.0
150.8
152.6
154.4
156.2
158.0
159.8
161.6
163.4
165.2
167.0
168.8
170.6
172.4
174.2
176.0
177.8
179.6
181.4
183.2
185.0
186.8
188.6
190.4
192.2
194.0
195.8
197.6
199.4
201.2
203.0
204.8
206.6
208.4
210.2
212.0
38
43
49
54
60
66
71
77
82
88
93
99
100
104
110
116
121
127
132
138
143
149
154
160
166
171
177
182
188
193
199
204
210
216
221
227
232
238
243
249
254
260
100
110
120
130
140
150
160
170
180
190
200
210
212
220
230
240
250
260
270
280
290
300
310
320
330
340
350
360
370
380
390
400
410
420
430
440
450
460
470
480
490
500
212
230
248
266
284
302
320
338
356
374
392
410
413
428
446
464
482
500
518
536
554
572
590
608
626
644
662
680
698
716
734
752
770
788
806
824
842
860
878
896
914
932
Interpolation Factors
°C Temp
(˚F or ˚C) °F °C Temp
(˚F or ˚C) °F °C Temp
(˚F or ˚C) °F
0.56
1.11
1.67
1
2
3
1.8
3.6
5.4
2.22
2.78
3.33
4
5
6
7.2
9.0
10.8
3.89
4.44
5.00
7
8
9
12.6
14.4
16.2
SPEC A12 5
October, 2011
20
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
To Convert From To Multiply By
Inches Millimeters 25.4
Millimeters Inches 0.03937
Inches Centimeters 2.54
Centimeters Inches 0.3937
Length
Feet Meters 0.3048
Meters Feet 3.2808
Kilofeet (1000 feet) Kilometers 0.3048
Kilometers Kilofeet (1000 feet) 3.2808
Square Inches Square Millimeters 645.16
Square Millimeters Square Inches 0.00155
Square Inches Square Centimeters 6.4516
Square Centimeters Square Inches 0.155
Area Square Inches Circular Mils 1,273,240
Circular Mils Square Inches 7.854 x 10-7
Circular Mils Square Millimeters 5.066 x 104
Square Millimeters Circular Mils 1973.51
Square Feet Square Meters 0.0929
Square Meters Square Feet 10.764
Pounds Kilograms 0.4536
Kilograms Pounds 2.2046
Weight
Pound/Kilofeet Kilograms/Kilometer 1.4882
Kilograms/Kilometer Pounds/Kilofeet 0.6720
Ohms/Kilofeet Ohms/Kilometer 3.2808
Ohms/Kilometer Ohms/Kilofeet 0.3048
Microfarads/Kilofeet Microfarads/Kilometer 3.2808
Electrical Microfarads/Kilometer Microfarads/Kilofeet 0.3048
Insulation Resistance:
Megohms—Kilofeet Megohms—Kilometer 0.3048
Megohms—Kilometer Megohms—Kilofeet 3.2808
Pounds/Square Inch Kilo Pascal* 6.895
Mechanical Kilo Pascal* Pounds/Square Inch 0.1432
Pounds (force) Newtons 4.448
* 1 Pascal = 1 Newton/square meters
Metric Conversion Factors
SPEC A150
September, 2010
21
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
AWG (American Wire Gauge) to
mm2 (Millimeters Squared) Conversion
AWG/KCMIL Circ. Mils1
Cross-Sectional
Area
(mm2)
AWG/KCMIL Circ. Mils1
Cross-Sectional
Area
(mm2)
929 929,200 471 2/0 134,200 68
789,410 400 1/0 108,350 55
777 777,700 394 98,676 50
750 750,000 380 1 87,295 44
646 646,400 327 69,073 35
600 600,000 304 2 63,480 32
592,058 300 49,338 25
535 535,300 271 4 42,080 21
500 500,000 253 31,576 16
473,646 240 6 25,440 12.9
444 444,400 225 19,735 10.0
400 400,000 203 8 15,730 8.0
373 373,700 187 11,841 6.0
365,102 185 10 10,645 5.4
350 350,000 177 7,894 4.0
313 313,100 159 12 6,309 3.2
300 300,000 152 4,934 2.50
296,029 150 14 3,970 2.04
262 262,600 133 2,960 1.50
250 250,000 127 16 2,503 1.31
236,823 120 1,974 1.00
4/0 216,900 110 18 1,760 0.82
187,485 95 1,480 0.75
3/0 174,800 89 20 1,118 0.52
138,147 70 987 0.50
1 Circular Mil Area values are approximate and are provided as a reference guide.
SPEC A18 6
October, 2011
22
Rail & Transit Wire and Cable
WOOD REELS
Reel (FxTxD ) 30x18x12 36x24x17 40x24x17 45x28x21 50x32x24 58x32x28 72x36x36 84x36x48 90x36x48
RM Code 61-1215 61-1659 61-1808 61-2056 61-2253 61-2764 61-3655 61-4265 61-4366
Arbor Hole 2.75 3.06 3.06 3.06 3.06 3.06 3.06 3.5 3.5
Drive Hole 1111.5 1.5 1.5 1.5 1.5 1.5
Drive Hole Radius 4.5 6 6 8.5 10 10 10 10 10
Clearance 1.5 22222223
Factor 509.3 1155.4 1582.8 2274.2 3227.7 4468.6 7847.4 9658.4 1120 5. 2
Max Weight 750 1500 2000 3000 4800 6500 8000 9000 10,000
Net Weight 47 91 110 142 208 271 513 744 821
Cable OD
.241 - .250 11040
.251 - .260 10200
.261 - .270 9460
.271 - .280 8800
.281 - .290 8200
.291 - .300 7660
.301 - .310 7180
.311 - .320 6740 10790
.321 - .330 6330 10110
.331 - .340 5970 9610
.341 - .350 5630 9030
.351 - .360 6320 8490
.361 - .370 5040 8100
.371 - .380 4780 7620 10520
.381 - .390 4530 7300 9940
.391 - .400 4310 6880 9540
.401 - .410 4100 6600 9030
.411 - .420 3910 6230 8550 12580
.421 - .430 3730 6000 8220 11940
.431 - .440 3560 5660 7790 113 3 0
.441 - .450 3410 5450 7510 10910
.451 - .460 3260 5250 7120 10370 15010
.461 - .470 3120 4970 6880 10000 14290
.471 - .480 2990 4700 6530 9510 13790
.481 - .490 2870 4630 6310 9180 13150
.491 - .500 2760 4390 6110 8880 12700
.501 - .525 2500 4040 5530 8050 1154 0
.526 - .550 2280 3650 5030 7330 10510
.551 - .575 2090 3310 4580 6680 9610
.576 - .600 1920 3080 4180 6110 8800
.601 - .625 1770 2810 3910 5590 8050
.626 - .650 1630 2630 3580 5240 7430 10420
.651 - .675 1510 2400 3280 4820 6970 9630
.676 - .700 1410 2260 3090 4530 6430 8900
.701 - .725 1310 2070 2840 4180 5940 8260
.726 - .750 1230 1950 2690 3950 5610 7800
.751 - .775 115 0 1840 2480 3650 5190 7250
.776 - .800 1080 1690 2350 3460 4920 6870
.801 - .825 1010 1610 2230 3200 4670 6400 1153 0
.826 - .850 950 1530 2060 3040 4340 6090 10860
.851 - .875 900 1450 1970 2900 4130 5680 10250
.876 - .900 850 1340 1880 2690 3850 5420 9690
.901 - .925 810 1280 1735 2570 3670 5060 9170 1129 0
.926 - .950 760 1220 1660 2460 3510 4840 8700 10700
.951 - .975 730 1170 1590 2280 3270 4630 8250 10160
.976 - 1.000 690 1075 1525 2190 3130 4340 7850 9660 11210
1.001 - 1.050 630 990 1360 2010 2880 3990 7120 8760 10160
1.051 - 1.100 570 910 1260 1800 2590 3600 6490 7980 9260
1.101 - 1.150 520 810 1120 1670 2400 3250 5930 7300 8470
1.151 - 1.200 480 750 1040 1500 2160 3030 5450 6710 7780
1.201 - 1.250 440 700 980 1400 2020 2740 5020 6180 7170
1.251 - 1.300 410 650 870 1310 1820 2570 4640 5720 6630
1.301 - 1.350 380 580 820 1180 1710 2410 4320 5300 6150
1.351 - 1.400 350 550 770 1110 1610 2190 4000 4930 5720
1.401 - 1.450 330 520 690 1040 1460 2070 3730 4590 5330
1.451 - 1.500 310 490 650 990 1370 1950 3490 4290 4980
1.501 - 1.600 270 410 590 840 1230 1690 3070 3770 4380
1.601 - 1.700 240 370 500 760 1060 1520 2720 3340 3880
1.701 - 1.800 330 450 650 960 1325 2420 2980 3460
1.801 - 1.900 420 600 880 1210 2170 2680 3100
1.091 - 2.000 540 760 1060 1960 2410 2800
2.001 - 2.100 500 700 970 1740 2190 2540
2.101 - 2.200 650 900 1620 2000 2320
2.201 - 2.300 600 790 1480 1830 2120
2.301 - 2.400 520 740 1360 1680 1950
2.401 - 2.500 490 690 1260 1550 1790
2.501 - 2.600 460 640 1160 1430 1660
2.601 - 2.700 430 600 1080 1320 1540
2.701 - 2.800 530 1000 1230 1430
2.801 - 2.900 500 930 1150 1330
2.901 - 3.000 470 870 1070 1250
3.001 - 3.100 440 820 1010 1170
3.101 - 3.200 420 770 940 1090
3.201 - 3.300 400 720 890 1030
3.301 - 3.400 380 680 840 970
3.401 - 3.500 640 790 910
Phone: 866.248.7060
www.generalcable.com
Reel Capacity Chart SPEC A200
January, 2012
23
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Flame Test Comparison
UL 1581 VW-1 Vertical Wire
Flame Test:
This is a small-scale test conducted
on a single 24” length of wire. The
flame source is a Tirrill burner
(similar to a Bunsen burner) with
a heat output of approximately
3,000 BTU per hour. The flame is
applied for 15 seconds and then
is reapplied four more times. If
the sample burns longer than 60
seconds after any application, or if
the indicator flag or the cotton laid
below the wire is ignited during the
test, the cable fails the test.
Per AAR RP-585 – Application of
the flame shall be 5 times with
15-second rest periods with 10
seconds maximum burn after each
flame application.
Per NYCT - Application of the flame
shall be 5 times with 15-second
rest periods with 3 seconds
maximum burn after each flame
application.
The flammability of a cable is
normally the ability of the material
to cease burning once the source
of heat is removed. Several tests
have been formulated to measure
this requirement.
UL FLAME TESTS
UL 1581 Vertical Tray Flame Test:
This test is conducted on
cables lashed to a vertical metal
ladder tray 8 feet in height. The
combustion source is a ribbon
burner with a flame temperature
of approximately 1500°F which
supplies 70,000 BTU of heat per
hour. The flame application time is
20 minutes. This test requires the
cable to self-extinguish prior to
reaching the top of the tray which
is 8 feet in height. A UL Type TC
(Tray-Rated) cable must meet this
test. UL 1581 is an equivalent test
for IEEE 383-1974.
IEEE FLAME TESTS
IEEE 1202
This test is conducted on
cables lashed to a vertical metal
ladder tray 8 feet in height. The
combustion source is a ribbon
burner with a flame temperature
of approximately 1500°F which
supplies 70,000 BTU of heat per
hour. The flame application time is
20 minutes. To pass this test, the
resulting char distance must not be
greater than 1.5 meters (4.92 feet)
from the point of flame application.
This test is very similar to the CSA
FT4 flame test. It is also similar to
but more severe than the UL 1581
Vertical Tray Flame Test.
[See UL 1581 Vertical Flame Test]
CSA FLAME TESTS
CSA FT4 Vertical Tray Flame Test
(CSA C22.2 No. 03):
This test is conducted on
cables lashed to a vertical metal
ladder tray 8 feet in height. The
combustion source is a ribbon
burner with a flame temperature
of approximately 1500°F which
supplies 70,000 BTU of heat per
hour. The flame application time is
20 minutes. To pass this test, the
resulting char distance must not be
greater than 1.5 meters (4.92 feet)
from the point of flame application.
This test is very similar to the IEEE
1202 flame test. It is also similar to,
but more severe than the UL 1581
Vertical Tray Flame Test.
[See UL 1581 Vertical Flame Test]
UL 1581 Vertical Tray Flame Test UL 1581 VW-1 Flame Test
1 ft.
COTTON
INDICATOR
FLAG
96"
(2.44 m)
18"
(0.46 m)
10 INCHES
SPEC A210
October, 2011
24
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Class I Conductors for General Wiring
Copper Conductor
ASTM CLASS I
SIZE STRANDING NOMINAL AREA NOMINAL DIAMETER NOMINAL WEIGHT
AWG/kcmil INCHES
CIRCULAR
MILS mm2INCHES mm LBS/KFT kg/km
10 27/24 10,910 5.53 0.117 2.97 34 51
9 — — — — —
8 37/24 14,950 7.57 0.135 3.43 46 68
7 — — — — —
6 61/24 24,640 12.50 0.174 4.42 77 114
5 91/24 36,760 19 0.242 6.15 116 173
4 105/24 42,420 21 0.262 6.60 137 204
3 126/24 50,500 25 0.285 7.24 167 249
2 147/24 60,600 31 0.307 7.80 190 283
1 224/24 90,900 46 0.380 9.65 287 427
1/0 273/24 111,100 56 0.410 10.41 351 522
2/0 323/24 131,300 66 0.470 11.90 407 606
3/0 456/24 184,200 92 0.549 13.94 594 884
4/0 551/24 222,600 112 0.593 14.70 696 1035
250 — — — — —
262.6 646/24 261,000 133 0.630 16 820 1220
300 — — — — —
313.1 777/24 313,900 159 0.685 17.40 987 1469
350 — — — — —
373.7 925/24 373,700 189 0.750 19 1176 1750
400 — — — — —
444.4 1110/24 448,400 225 0.820 20.80 1413 2103
500 — — — — —
535.3 1332/24 538,100 271 0.895 22.70 1697 2525
592 1480/24 597,900 303 0.972 24.70 1858 2765
600 — — — — —
646.4 1591/24 642,800 327 0.980 24.90 2020 3006
750 — — — — —
777.7 1924/24 777,700 394 1.075 27.30 2435 3624
1000 — — — — —
1111 2745/24 1,111,000 563 1.328 33.70 3400 5059
Dimensions and weights are nominal; subject to industry tolerances.
SPEC B041
March, 2012
25
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Class K Conductors for General Wiring
Copper Conductor
ASTM CLASS K
SIZE STRANDING NOMINAL AREA NOMINAL DIAMETER NOMINAL WEIGHT
AWG/kcmil INCHES
CIRCULAR
MILS mm2INCHES mm LBS/KFT kg/km
22 — — — — —
20 10/30 1,020 0.52 0.036 0.91 3.2 4.8
18 16/30 1,620 0.82 0.046 1.20 5 7.4
16 26/30 2,580 1.31 0.057 1.40 7.97 12
14 41/30 4,110 2.08 0.071 1.80 12.8 19
12 65/30 6,530 3.31 0.088 2.20 20.3 30.2
10 105/30 10,380 5.26 0.112 2.80 33.3 49.6
9 133/30 13,090 6.63 0.150 3.80 42.4 63.1
8 168/30 16,510 8.37 0.164 4 53.2 80.8
7 210/30 20,820 10.50 0.175 4.40 66.8 99.4
6 266/30 26,240 13.30 0.198 5.00 84.2 125
5 336/30 33,090 16.80 0.261 6.60 106 158
4 420/30 41,740 21.20 0.249 6.30 132 196
3 532/30 52,620 26.70 0.298 7.60 169 251
2 665/30 66,360 33.60 0.317 8.10 211 314
1 836/30 83,690 42.40 0.356 9 266 396
1/0 1045/30 104,500 53 0.400 10.2 333 496
2/0 1330/30 133,100 67.40 0.450 11.4 425 632
3/0 1672/30 167,800 85 0.525 13.3 535 796
4/0 2109/30 210,900 107 0.575 14.6 676 1006
250 2499/30 250,000 127 0.688 17 802 1193
262.6 2627/30 262,600 133 0.680 17 824 1226
300 2989/30 300,000 152 0.753 19 960 1428
313.1 3145/30 315,288 160 0.710 18 1002 1491
350 3458/30 350,000 177 0.818 21 1120 1667
373.7 3737/30 373,700 189 0.790 20 1210 1800
400 3990/30 400,000 203 0.878 22 1290 1920
444.4 4514/30 451,400 229 0.825 21 1415 2106
500 5054/30 500,000 253 0.990 25 1635 2433
535.3 5320/30 532,000 270 0.950 24 1732 2577
592 — — — — —
600 5985/30 600,000 340 1.125 29 1950 2902
646.4 6466/30 646,600 328 1.035 26 2058 3063
750 7448/30 750,000 380 1.276 32 2427 3611
777.7 — — — — —
1000 9975/30 1,000,000 507 1.498 38 3250 4769
1111 — — — — —
Dimensions and weights are nominal; subject to industry tolerances.
SPEC B046
September, 2014
26
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Minimum Bend Radius
Standard Thermosetting (XLP, Rubber)
and Thermoplastic (PE, PVC, etc.)
Insulated and Jacketed Single and
Multi-Conductor Cables
Permanent Training
After Installation
(Static)
Pulling/Flexing
(Dynamic)
a. Without Shield or Armor,
O.D. Less Than 1.0" 410
b. Without Shield or Armor,
O.D. Greater Than 1.0" 512
c. With Overall Braided Copper Shield 512
d. With Aluminum/Polyester Shield 512
e. With 26 AWG or Smaller Braided Steel or
Alloy Armor 614
f. With Solid Overall Flat Metallic Copper
Tape Shield 10 20
g. With Solid Overall Flat Metallic Tape Armor 12 24
h. With Interlocked Armor (“S” Profile) 714
i. With Components Individually Shielded with
Copper Braids or Laminated Copper or
Aluminum/Polyester Tapes
512
j. With Corrugated Armor or Shield Tape 816
k. Coax & Triax 420
Multiply the ratio in this table times the nominal (calculated) overall cable diameter to obtain the minimum
bending radius.
SPEC D001
October, 2011
27
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
How to Handle Cable Reels
.
Cradle both reel flanges between forks.
Reels can be hoisted with a shaft
extended through both flanges.
Lower reels from truck using hydraulic
gate, hoist or fork lift. LOWER CAREFULLY.
Always load with flanges on edge and
chock and block securely.
Always load with flanges on edge and
chock and block securely.
YES
Do not lift by top flange. Cable or reel
will be damaged.
Use a spreader bar to prevent bending
the reel flanges and mashing the cable.
Upended heavy reels will often arrive
damaged. Refuse or receive subject to
inspection for hidden damage.
Never allow forks to touch cable surface
or reel wrap.
Never drop reels.
NO
Recommended Reel Handling Practices SPEC D005
May, 2013
.
28
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Recommended Cable Handling Practices SPEC D025
October, 2011
Unloading and Moving of Reels:
Cable reels are never shipped upended (flat side down). Cable reels that arrive in this manner should be rejected
or received only after a thorough inspection for damage.
See “Recommended Reel Handling Practices” page.
Upon receipt, a cable’s protective covering and/or lagging should be inspected for evidence of damage during
shipment. If evidence of damage is found, a report should immediately be made to the carrier.
Under no circumstances should reels be dropped from the delivering vehicle to the ground.
Unloading and reel handling should be accomplished so that the equipment used does not contact the cable
surface, and in the case of protective wrap, that the equipment does not contact the protective wrap.
If unloading and reel handling is accomplished by crane, either a cradle supporting the reel flanges or a shaft
through the arbor hole should be used. If a fork lift is utilized, the forks must lift the reel at 90˚ to the flanges
and the forks must be long enough to make complete lifting contact with both flanges. Under no circumstances
should the forks come into contact with the cable surface or the protective wraps.
When a reel of cable is rolled from one point to another, care must be taken to see that there are no objects on
the surface area which could contact or damage the cable surface or protective wrap.
If an inclined ramp is used for unloading, the ramp must be wide enough to contact both flanges completely.
The stopping of the reels at the bottom shall be accomplished by using the reel flanges and not the surface of
the cable.
Minimum Drum Diameters for Packaging Cables
Type of Cable Minimum Drum Diameter as a
Multiple of Outside
Diameter of Cable
1. Single and multiple conductor cable - unshielded 0-2000 V 10
2. Single and multiple conductor cable - unshielded 2400 V 12
3. Single and multiple conductor cable - wire shield (UniShield®)
5-35 kV
12
4. Single and multiple conductor cable - helically applied tape shield
(Uniblend®) 5-35 kV
14
5. Single and multiple conductor cable - longitudinally applied flat
tape shield (Type TC)
20
6.
Single and multiple conductor cable - Interlocked Armor (Duralox
®
)
600 V-35 kV
14
7. Triplexed single conductors cabled together. The circumscribing
overall diameter* shall be multiplied by the factor in 1 - 6 and then
by the reduction factor.
.75
*Single conductor times 2.155 times
NEMA WC26 EEMAC201-2007 Binational Wire and Cable Packaging Standard
29
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
Recommended Cable Storage Practices
Storage and Storage Maintenance:
Finished cables have no established shelf-life. Moisture and atmospheric conditions can cause exposed
conductors to oxidize and discolor. Uncovered/unsheltered cable will degrade due to exposure to direct sunlight
and/or the elements. If the cables are protected, there should be no degradation of the insulation.
In general, any cable for use indoors should be stored indoors. Any cable suitable for installation outdoors is
suitable for storage outdoors. Cables stored outdoors should have the ends sealed to prevent moisture ingress
into the cable and should be used within two years or less.
Cables should be stored in a sheltered area. The cable conductor should not be exposed to water.
Cables with a cold temperature marking, e.g. –10˚C, –25˚C, or –40˚C, may be stored outdoors. Cables without a
cold temperature marking must be stored indoors.
Cable reels must remain in the upright position. Cable reels must not be stored on their sides. Reels must not be
stacked.
Cable reels should be stored with the protective covering or lagging in place. If a length of cable has been cut
from the reel, the cable end should be immediately resealed to prevent the entrance of moisture. If a part length
is returned to storage, the reel’s protective covering should be restored.
Wooden reels should be stored off the ground to prevent rotting. Reels should be stored on a flat, hard surface
so that flanges do not sink into the earth. The weight of the reel and cable must be carried at all times by the reel
flanges.
Cable reels and lagging must not be stored for an extended time period sitting in direct contact with water or
dampness. Timbers or metal supports must be placed under the reel flanges to provide elevated storage of the
reels away from the direct contact with water or damp soil.
Reels should be stored in an area where construction equipment, falling or flying objects or other materials will
not contact the cable.
Cable should be stored in an area where chemicals or petroleum products will not be spilled or sprayed on the
cable.
Cable should be stored in an area away from open fires or sources of high heat.
If the reels are relocated, they should be handled as suggested in the “Recommended Reel Handling Practices”
section, and inspection made on each reel during the relocation.
If the cables are stored in a secure area and not exposed to the effects of the weather, an annual inspection
should be satisfactory.
Where the reels are exposed to the weather, a bimonthly inspection should be performed to observe any sign of
deterioration.
If the reels are exposed in a non-secure area, policing of the area at frequent intervals may be required
depending on circumstances.
Records of delivery date, manufacturer, installation date, any extenuating circumstances, along with all test
reports, should be kept on file.
SPEC D050
May, 2013
30
Rail & Transit Wire and Cable
Phone: 866.248.7060
www.generalcable.com
CATALOG NUMBER PAGE CATALOG NUMBER PAGE CATALOG NUMBER PAGE CATALOG NUMBER PAGE
Catalog Number Index
5310.01001 ......................14
5310.01002 ......................14
5310.01004 ......................14
5310.01006 ......................14
5310.01008 ......................14
5310.01010 ......................14
5310.01012 ......................14
5310.01014 ......................14
5310.01110 ......................14
5310.01111 ......................14
5310.01210 ......................14
5310.01262 ......................14
5310.01310 ......................14
5310.01313 ......................14
5310.01373 ......................14
5310.01410 ......................14
5310.01444 ......................14
5310.01535 ......................14
5310.01646 ......................14
5310.01777 ......................14
5310.01929 ......................14
260080 ...............................3
263400 ...............................3
267040 ...............................3
269970 ...............................3
280700 ...............................2
280710 ...............................2
280720 ...............................2
280740 ...............................3
282400 .............................15
287940 .............................15
296420 ...............................2
296490 ...............................2
296500 ...............................3
296510 ...............................3
296520 ...............................3
297970 ...............................3
300180 ...............................3
300620 ...............................3
300890 ...............................3
300900 ...............................3
301260 ...............................3
301270 ...............................3
301280 ...............................3
302440 ...............................3
303480 ...............................3
303910 ...............................2
304020 ...............................3
315130 ...............................2
318420 ...............................2
324680 ...............................4
325290 ...............................3
329950 .............................12
329960 .............................12
330230 ...............................2
355320 ...............................2
355330 ...............................2
355340 ...............................2
355350 ...............................2
355360 ...............................2
355370 ...............................2
355380 ...............................2
355390 ...............................2
355400 ...............................2
355410 ...............................2
355420 ...............................2
355430 ...............................2
355440 ...............................2
355450 ...............................2
355460 ...............................2
355470 ...............................2
355480 ...............................2
355490 ...............................3
355500 ...............................3
355510 ...............................3
355520 ...............................3
355530 ...............................3
355540 ...............................3
355550 ...............................3
355560 ...............................3
355570 ...............................3
355580 ...............................3
355590 ...............................3
355600 ...............................3
355610 ...............................3
355620 ...............................3
355630 ...............................3
364980 ...............................3
369550 ...............................5
369560 ...............................5
369570 ...............................5
369580 ...............................5
369590 ...............................5
369600 ...............................5
369610 ...............................5
373750 ...............................4
373760 ...............................4
373770 ...............................4
373780 ...............................4
374360 ...............................4
376760 ...............................4
387070 ...............................4
387090 .............................12
387460 ...............................4
387540 .............................12
387550 .............................12
387570 ...............................4
387700 ...............................6
387710 ...............................6
387730 ...............................6
388500 .............................12
388610 .............................12
389730 ...............................8
389740 ...............................7
389750 ...............................8
389980 ...............................7
389990 ...............................7
390000 ...............................7
390010 ...............................7
390020 ...............................7
390030 ...............................7
390040 ...............................7
390050 ...............................7
390060 ...............................7
390070 ...............................7
390080 ...............................7
390090 ...............................7
390100 ...............................7
390110 ...............................7
390120 ...............................7
390130 ...............................7
390140 ...............................8
390150 ...............................8
390160 ...............................8
390170 ...............................8
390180 ...............................8
390190 ...............................8
390200 ...............................8
390210 ...............................8
390220 ...............................8
390230 ...............................8
390240 ...............................8
390250 ...............................8
390260 ...............................8
390270 ...............................8
390280 ...............................8
390290 ...............................8
390300 ...............................8
390310 ...............................8
390320 ...............................8
390500 ...............................8
398540 ...............................6
398550 ...............................6
398560 ...............................6
398570 ...............................6
398580 ...............................6
398590 ...............................6
398600 ...............................6
398610 ...............................6
398620 ...............................6
398630 ...............................6
398640 ...............................6
398650 ...............................6
398660 ...............................6
398670 ...............................6
398680 ...............................6
398690 ...............................6
398700 ...............................6
398710 ...............................6
398720 ...............................6
398730 ...............................6
398740 ...............................6
398750 ...............................6
398760 ...............................6
398770 ...............................6
398780 ...............................6
412170 ...............................4
412180 ...............................4
412190 ...............................4
412200 ...............................4
412210 ...............................4
650870.00.77 ...................16
696420.00.77 ...................16
LO22C0045664 ................11
LO24P0045664-5e ...........10
POWERING YOUR
As developments in the transit industry continue to increase
the demand for safety, instantaneous response to commands
