18/1
Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: IC10 18/1
Contents Pages
Heavy Duty Enclosed Safety Switches
Features and Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . 18/2
240V Selection ...............................18/3
600V Selection . . . . . . . . . . . . . . . . . . . . . . . . . . 18/4 - 18/5
Switches with Viewing Window . . . . . . . . . . . . . . . . . . 18/6
4-Pole and 6-Pole Switches . . . . . . . . . . . . . . . . . . . . . . 18/7
Interlocked Receptacle Switches . . . . . . . . . . . . . . . . . 18/8
Type VBII Non-Metallic & 316 Grade Stainless Steel . . 18/9
Enclosed Solar Photovoltaic (PV) Switches . . . . . . . . . 18/10
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . .18/11 - 18/13
Rotary Disconnect Switches in
Non-Metallic Enclosures . . . . . . . . . . . . . . 18/14 - 18/15
Contents Pages
Open Disconnect Switches
Compact Non-Fusible —
Rotary and Toggle (LBR) . . . . . . . . . . . . . . . . . . . . . 18/16
Compact Non-Fusible —
Rotary and Toggle (3LD) . . . . . . . . . . . . . . .18/17 - 18/19
Type VBII (30-600A) with Flange Mounted
Operating Handle . . . . . . . . . . . . . . . . . . . . . . . . . . 18/20
Type VBII Switch, Handle and
Linkage Kit Selection . . . . . . . . . . . . . . . . . . . . . . . 18/21
Accessories Type VBII . . . . . . . . . . . . . . . . . . . 18/22 - 18/24
Type MCS (30-200A) — Switches, Fuse and
No Fuse Kits . . . . . . . . . . . . . . . . . . . . . . .18/25 - 18/26
Type CFS Compact Fusible Switches . . . . . . . 18/27 - 18/30
Heavy Duty Safety Switch Standards and Ratings
Standards
b UL98 approved per file #E4776
b Suitable for use as service entrance equipment (where
applicable)
b Meets NEMA standard KS-1-1990 for Type HD switches
b Seismic qualification – all switches have been tested and
comply with the 2007 California Building Code CBC
(Zone 4)
Ratings
b 30-1200A, 240V and 600V AC and DC
b 2, 3, 4 and 6 pole fusible and non-fusible
b All HD safety switches are both HP and load break rated
b Enclosures are available to meet NEMA 1, 3R, 12 & 4/4X
requirements
Safety Switch AIC Ratings When Protected
by Fuses
b
30-600A – 10,000 AIC with Class H fuses
b
30-600A – 200,000 AIC with Class R, J or T fuses
b
800 & 1200A – 200,000 AIC with Class L or T fuse
Fuse Provisions supplied in fusible switches
b 30 & 60A 240V – Class H standard, Class R with kit
b 100-600A 240V – Class H standard, Class J by moving load
base, Class R with kit
b 30-600A 600V - Class H standard, Class J by moving load
base, Class R with kit
b 100 & 200A - Class T with kit
b 400 & 600A - Class H standard, Class J & T by moving load
base, Class R with kit
b 800A – Class L standard, Class T by moving load base
b 1200A – Class L standard, Class T with kit (240V max)
Switches
Safety and Disconnect Switches
All switches above are rated at 10 KA when protected by any UL Listed CB
Circuit breaker trip rating must not exceed switch ampere rating
Non- Fusible Safety Switch AIC Ratings
When Protected by a Circuit Breaker
Breaker Frame Non-Fused Switch UL Listed Short Circuit
Current Rating
NEG, NGB, ED4 30 DT (240V) 18 kA Thru 240 VAC
NEB, NEG, NGG, NGB, ED4 60-100A GD & DT (240V) 18 kA Thru 240 VAC
NEB, NEG, NGG, NGB, ED4 30-100A HD & DT (600V) 18 kA Thru 480 VAC
ED6 30-100A HD & DT (600V) 18 kA Thru 600 VAC
FD6-A, JD6-A 200A HD & DT (600V) 18 KA Thru 600 VAC
JD6-A, LD6-A 400A GD & DT (240V) 18 kA Thru 240 VAC
JD6-A, LD6-A 400A HD & DT (600V) 18 kA Thru 600 VAC
LD6-A 600A GD & DT (240V) 25kA Thru 240 VAC
LD6-A 600A HD & DT (600V) 25kA Thru 600 VAC
NNG 1200A HD & DT (600V) 25 kA Thru 600 VAC
![](asset-2.png)
18/2 Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: IC10 18/2
Features
Switches
Heavy Duty Safety Switches
15
3
2
4
18
6
7
10
11
19
12
14
13
8
5
1
16
20
17
9
1. Quick-make, quick-break operating mechanism
that ensures positive operation.
2. Visible blade, double-break switching action.
3. Arc chutes dissipate heat and prolong switch life.
4. Highly visible red handle grip.
Designed for hook stick operation.
5. Defeatable dual cover interlock.
6. Center punch provided for field drilling
to allow ON padlocking.
7. Handle can be padlocked in the OFF position
with up to (3) padlocks with 5/16" hasps.
8. Generous top, bottom and side gutters that
meet or exceed NEC wire-bending space
requirements.
9. Informative door labeling which includes
replacement parts list.
10. Tangential knockouts through 600A for easy
conduit lineup.
11. Side-hinged door that opens past 180 degrees
for easier wiring.
12. Unique enclosure design increases rigidity and
prevents cuts and scrapes to conductors and
installer’s hands.
13. Spring reinforced fuse clips that assure reliable
contact for cool operation.
14. Door latch securely holds door closed and
allows cover padlocking.
15. Front removable mechanical lugs that are
suitable for CU/AI 60 or 75° C conductors.
16. Lugs are field convertible to copper
body and to a wide variety of compression
connectors.
17. Hinged clear line terminal shield
with probe holes for inspecting or
testing line side terminals.
18. Embossed aluminum nameplate on Heavy
Duty Switches provides highly visible ON/OFF
indication.
19. Drawn cover for increased rigidity
and resistance to abuse.
20. Top key hole and bottom mounting holes
provide easy 2 or 3 point mounting.
![](asset-3.png)

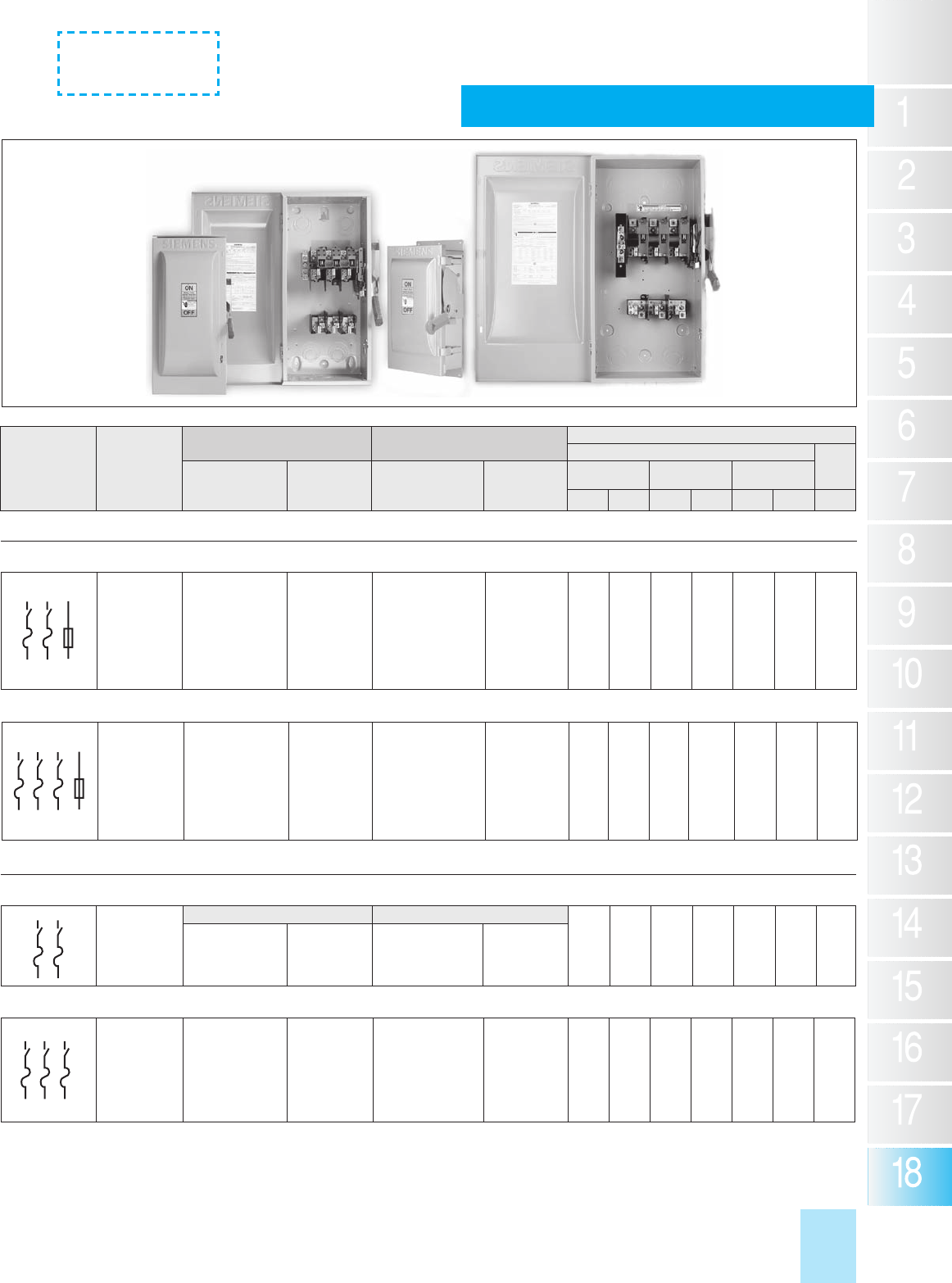

18/3
Siemens Industry, Inc.
Industrial Controls Catalog Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-10
Switches
Heavy Duty Safety Switches
Selection
n
Built to order. Allow 3-5 weeks for delivery.
Height reduced switch (45.25 rather than 56 inches in
height) for use with 500MCM or smaller conductors.
Dual horsepower ratings: Std.- applies when non-time
delay fuses are installed. Max.- applies when time-
delay fuses are installed.
These switches are UL-listed for application on
grounded B-phase systems and are suitable for
3-phase motor applications.
When a neutral is required use a field installed
neutral kit.
Suitable for use as service entrance equipment.
Also rated Type 3S/3R.
304 grade stainless steel. For switches with enclosures
constructed from 316 grade stainless steel, see page 18/9.
System Ampere
Rating
Indoor — Type 1 Outdoor — Type 3R
Horsepower Rating
240V AC 250
Volt
DC
Catalog Number
Ship Wt.
(lbs.)
Std. Pkg Catalog Number
Ship Wt.
(lbs.)
Std. Pkg
1-Phase,
2-Wire 2-Phase,
4-Wire 3-Phase,
3-Wire
Std. Max. Std. Max. Std. Max. Std.
240 Volt Fusible
2-Pole, 2-Fuse, and Solid Neutral (Also used for 2-Pole, 2-Wire Applications) 240 Volt AC/250 Volt DC
30 HF221N 012 HF221NR 013 011⁄203 — — 0030071⁄205
60 HF222N 018 HF222NR 019 03 10 — — 0071⁄2015 10
100 HF223N 023 HF223NR 024 071⁄215 — — 015 030 20
200 HF224N 047 HF224NR 048 15 — — — 025 060 40
400 HF225NA 91.1 HF225NRA 91.1 15 — — — 050 125 50
600 HF226NA 95.6 HF226NRA 95.6 15 — — — 075 200 50
800 HF227N 365 HF227NR 365 — — — — 100 250 50
1200 HF228Nn385 HF228NRn385 — — — — 100 250 50
3-Pole, 3-Fuse, and Solid Neutral (Also used for 3-Pole, 3-Wire Applications) 240 Volt AC/250 Volt DC
0030 HF321N 014 HF321NR 015 011⁄203 — — 0030071⁄205
0060 HF322N 019 HF322NR 020 03 10 — — 0071⁄2015 10
0100 HF323N 025 HF323NR 026 071⁄215 — — 015 030 20
0200 HF324N 049 HF324NR 050 15 — — — 025 060 40
0400 HF325NA 94.6 HF325NRA 94.6 15 — — — 050 125 50
0600 HF326NA 99.6 HF326NRA 99.6 15 — — — 075 200 50
0800 HF327N 375 HF327NR 375 — — — — 100 250 50
1200 HF328N 395 HF328NR 388 — — — — 100 250 50
240 Volt Fusible
2-Pole, 2-Fuse 240 Volt AC/250 Volt DC
Type 4/4X StainlessType 12 Industrial
0030 HF221S 013 HF221J 013 011⁄203— — 0030071⁄205
0060 HF222S 019 HF222J 019 03 10 — — 0071⁄2015 10
0100 HF223S 024 HF223J 024 071⁄215 — — 015 030 20
0200 HF224S 048 HF224J 048 15 — — — 025 060 40
3-Pole, 3-Fuse (Also used for 2-Pole, 2-Wire Applications in 400–800A Ratings) 240 Volt AC/250 Volt DC
0030 HF321S 014 HF321J 014 011⁄2 3 — — 0030071⁄2—
0060 HF322S 020 HF322J 020 3 10 — — 0071⁄2015 10
0100 HF323S 025 HF323J 025 071⁄215 — — 015 030 20
0200 HF324S 049 HF324J 049 15 — — — 025 060 40
400 HF325SA 93 HF325JA 93 15 — — — 50 125 50
600 HF326SA 98 HF326JA 98 15 — — — 75 200 50
800 HF327Sn370 HF327Jn365 — — — — 100 250 50
• Revised •
07/15/15
![](asset-4.png)

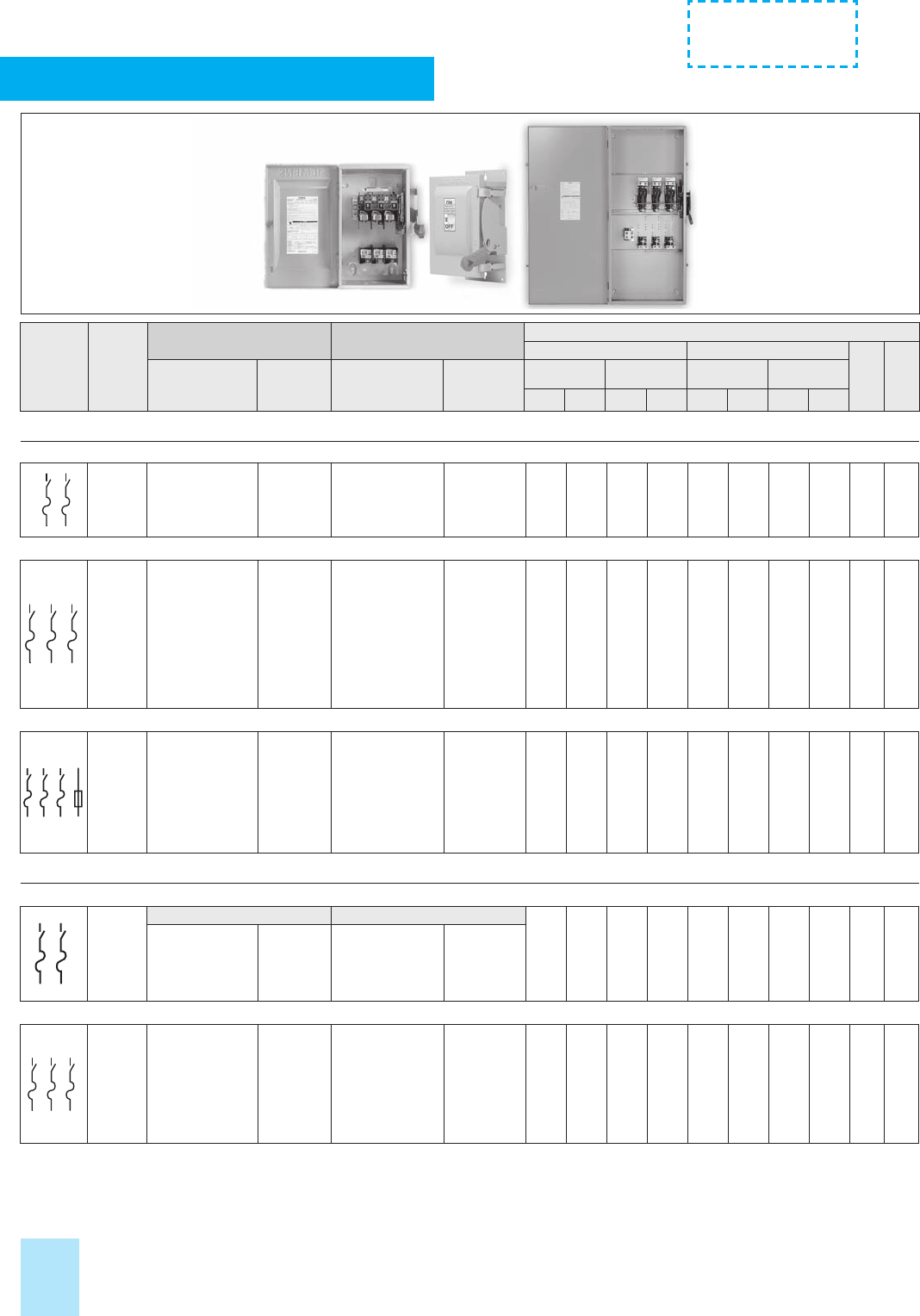

18/4 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-11
Selection
Switches
Heavy Duty Safety Switches
n
Built to order. Allow 3-5 weeks for delivery.
60-600A 3-Pole switches are also rated 600V DC.
Height reduced switch (45.25 rather than 56 inches in
height) for use with 500MCM or smaller conductors.
Use 3-Pole switch for 200A applications.
Dual horsepower ratings: Std.- applies when non-time
delay fuses are installed. Max.- applies when time-
delay fuses are installed.
Suitable for use as service entrance equipment except on
1200 Amp solidly grounded wye systems per NEC 230.95
.
Also rated Type 3S/3R.
Indicates oversized enclosure (30A switch with 60A
lugs in a 60A enclosure or 60A switch with 100A lugs
in a 100A enclosure).
h
600V DC & 600V DC horsepower rating shown
requires (2) poles to be connected in series.
304 grade stainless steel. For switches with enclosures
constructed from 316 grade stainless steel, see page 18/9..
System Ampere
Rating
Indoor — Type 1 Outdoor — Type 3R
Horsepower Rating
480V AC 600V AC
250
Volt
DC
600
Volt
DC
Catalog Number
Ship Wt.
(lbs.)
Std. Pkg Catalog Number
Ship Wt.
(lbs.)
Std. Pkg
1-Phase,
2-Wire 3-Phase,
3-Wire 1-Phase,
2-Wire 3-Phase,
3-Wire
Std. Max. Std. Max. Std. Max. Std. Max.
600 Volt Fusible
2-Pole, 2-Fuse 480 Volt AC/600 Volt AC/600 Volt DC
0030 HF261 015 HF261R 015 03071⁄2——03 10 — — 05 15
0060 HF262 020 HF262R 020 05 20 — — 10 25 — — 10 30
0100 HF263 026 HF263R 027 10 30 — — 15 40 — — 20 50
3-Pole, 3-Fuse 480 Volt AC/600 Volt AC/250 Volt DC
0030 HF361 14 HF361R 015 03071⁄2005015 03100071⁄2020 05 —
0030 HF361L19 HF361RL020 03071⁄2005015 03100071⁄2020 05 —
0060 HF362 19 HF362R 020 0520015 030 10 25 015 050 10 30h
0060 ——HF362RL025 0520015 030 10 25 015 050 10 30h
0100 HF363 24 HF363R 025 0520025 060 15 40 030 075 20 50h
0200 HF364 48 HF364R 049 25 50 050 125 30 50 060 150 40 50
0400 HF365A93 HF365RA157 — — 100 250 — — 125 350 50 —
0600 HF366A98 HF366RA161 — — 150 400 — — 200 500 50 —
0800 HF367 365 HF367R 365 — — 200 500 — — 250 500 50 —
1200 HF368 383 HF368R 385 — — 200 500 — — 250 500 50 —
3-Pole, 3-Fuse and Solid Neutral 480 Volt AC/600 Volt AC/250 Volt DC
0030 HF361N 014 HF361NR 015 03071⁄2005015 03100071⁄2020 05 —
0060 HF362N 019 HF362NR 020 0520015 030 10 25 015 050 10 30h
0100 HF363N 025 HF363NR 026 10 30 025 060 15 40 030 075 20 50h
0200 HF364N 049 HF364NR 050 25 50 050 125 30 50 060 150 40 50
0400 HF365NA 94.6 HF365NRA 94.6 — — 100 250 — — 125 350 50 —
0600 HF366NA 99.6 HF366NRA 99.6 — — 150 400 — — 200 500 50 —
0800 HF367N 375 HF367NR 375 — — 250 500 — — 250 500 50 —
1200 HF368N 395 HF368NR 388 — — 250 500 — — 250 500 50 —
600 Volt Fusible (For 2-Pole Applications use outside poles of 3-Pole Switches)
2-Pole, 2-Fuse 480 Volt AC/600 Volt AC/600 Volt DC
Type 4/4X StainlessType 12 Industrial
0030 HF261S 015 HF261Jn015 03071⁄2——03 10 — — 05 15
0060 HF262S 020 HF262Jn020 05 20 — — 10 25 — — 10 30
0100 HF263Sn027 HF263Jn027 10 30 — — 15 40 — — 20 50
3-Pole, 3-Fuse 480 Volt AC/600 Volt AC/250 Volt DC
0030 HF361S 013 HF361J 014 — — 005015 — — 0071⁄2020 05 —
0060 HF362S 020 HF362J 020 — — 015 030 — — 015 050 10 30h
0100 HF363S 025 HF363J 025 — — 025 060 — — 030 075 20 50h
0200 HF364S 049 HF364J 049 — — 050 125 — — 060 150 40 50
0400 HF365SA93 HF365JA93 — — 100 250 — — 125 350 50 —
0600 HF366SA98 HF366JA98 — — 150 400 — — 200 500 50 —
0800 HF367S 370 HF367Jn365 — — 200 500 — — 250 500 50 —
1200 HF368Sn388 HF368Jn388 — — 250 500 — — 250 500 50 —
• Revised •
07/15/15
![](asset-5.png)
18/5
Siemens Industry, Inc.

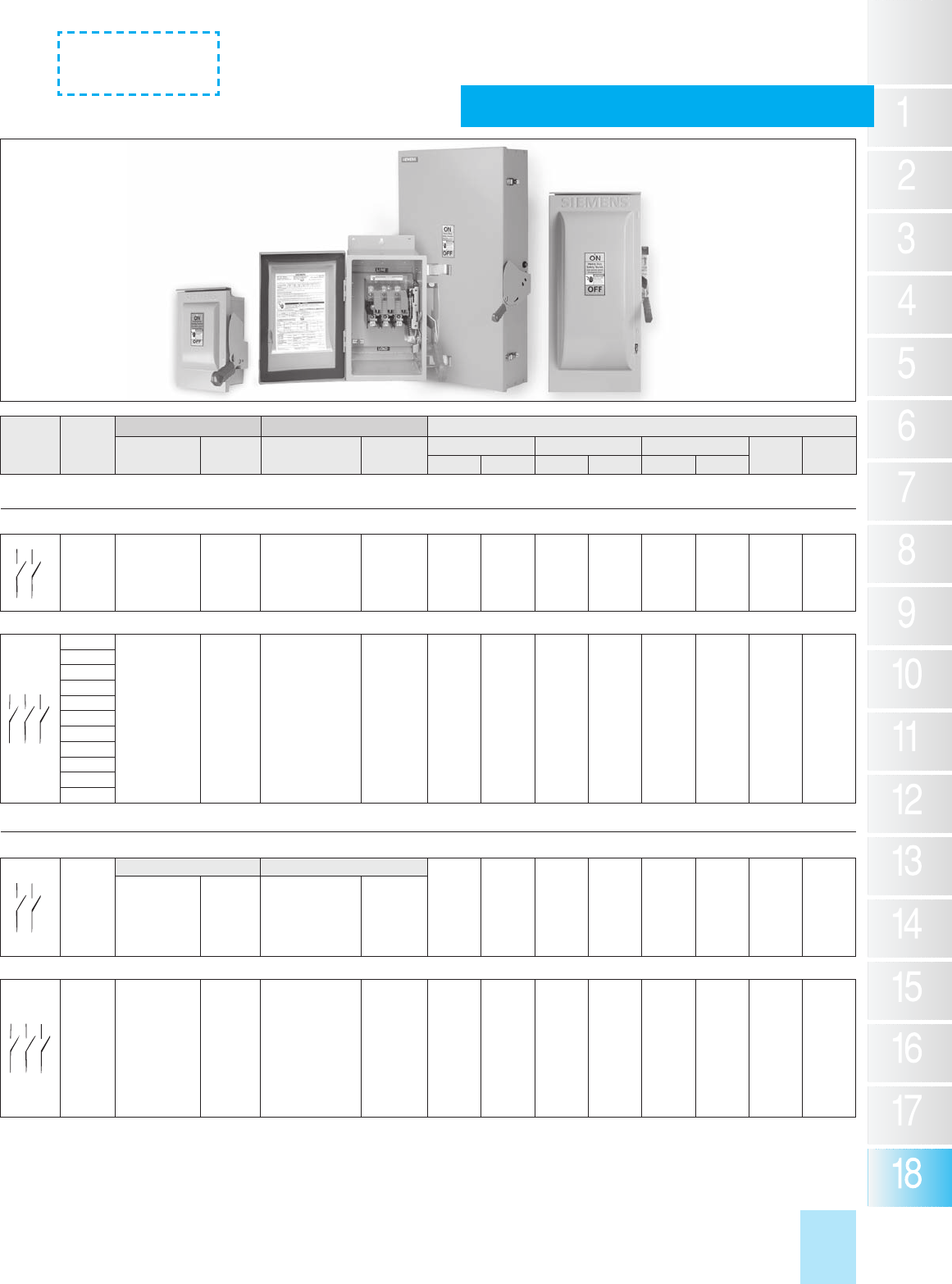

Industrial Controls Catalog Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-12
Selection
Switches
Heavy Duty Safety Switches
• Revised •
07/15/15
n
Built to order. Allow 3-5 weeks for delivery.
60-600A 3-Pole switches are also rated 600V DC.
Compact switch (11.1"H, 6.6"W box less cover and handle).
Short circuit withstand rating—100,000 RMS sym. amps.
Use 3-Pole switch for 200A application.
Suitable for use as service entrance equipment except for
1200 when used on a 480 or 600V grounded wye system.
Also rated type 3S / 3R.
Indicates oversized enclosure (30A switch in a 60A
enclosure or a 60A switch in a 100A enclosure.
600V DC and 600V DC horsepower rating shown
requires (2) poles to be connected in series.
h
304 grade stainless steel. For switches with enclosures
constructed from 316 grade stainless steel, see page 18/9.
600 Volt Non-Fusible
2-Pole 480 Volt AC / 600 Volt AC / 600 Volt DC
30 HNF261 12 HNF261R 13 — — 071⁄2— 10 — 5 15
60 HNF262 19 HNF262R 20 — — 20 — 25 — 10 30
100 HNF263 24 HNF263R 25 — — 30 — 40 — 20 50
3-Pole 480 Volt AC / 600 Volt AC / 250 Volt DC
30 HNF361 12 HNF361R 13 5 10 071⁄220 10 30 5 —
30 ——HNF361RL19 5 10 071⁄220 10 30 5 —
60 HNF362H11 HNF362RH11 10 20 20 50 20 40 10 —
60 HNF36218 HNF362R19 10 20 20 50 25 60 10 30
60 ——HNF362RL24 10 20 20 50 25 60 10 30
100 HNF36323 HNF363R24 15 40 30 75 40 100 20 50
200 HNF36446 HNF364R47 15 60 50 125 50 150 40 50
400 HNF365A75 HNF365RA75 15 125 50 250 50 350 50 —
600 HNF366A77 HNF366RA77 15 200 50 400 50 500 50 —
800 HNF367 295 HNF367R 295 15 250 50 500 50 500 50 —
1200 HNF368 305 HNF368R 307 15 250 50 500 50 500 50 —
600 Volt Non-Fusible
2-Pole 480 Volt AC / 600 Volt AC / 600 Volt DC
Type 4 / 4X StainlesshType 12 Industrial
30 HNF261S 13 HNF261J 13 — — 071⁄2— 10 — 5 15
60 HNF262S 20 HNF262J 20 — — 20 — 25 — 10 30
100 HNF263Sn25 HNF263Jn25 — — 30 — 40 — 20 50
3-Pole 480 Volt AC / 600 Volt AC / 250 Volt DC
30 HNF361S 13 HNF361J 13 5 10 071⁄220 10 30 5 —
60 HNF362SH15 HNF362JH14 10 20 20 50 20 40 10 —
60 HNF362S19 HNF362J19 10 20 20 50 25 60 10 30
100 HNF363S24 HNF363J24 15 40 30 75 40 100 20 50
200 HNF364S47 HNF364J47 15 60 50 125 50 150 40 50
400 HNF365SA75 HNF365JA75 15 125 50 250 50 350 50 —
600 HNF366SA77 HNF366JA77 15 200 50 400 50 500 50 —
800 HNF367S 295 HNF367Jn295 15 250 50 500 50 500 50 —
1200 HNF368Sn310 HNF368Jn310 15 250 50 500 50 500 50 —
System Ampere
Rating
Indoor — Type 1 Outdoor — Type 3R Horsepower Rating
Catalog
Number Ship
Wt. (lbs.) Catalog
Number Ship
Wt. (lbs.)
240 Volt 480 Volt 600 Volt 250V
DC
600V
DC1-Phase 3-Phase 1-Phase 3-Phase 1-Phase 3-Phase
![](asset-6.png)
18/6 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-13

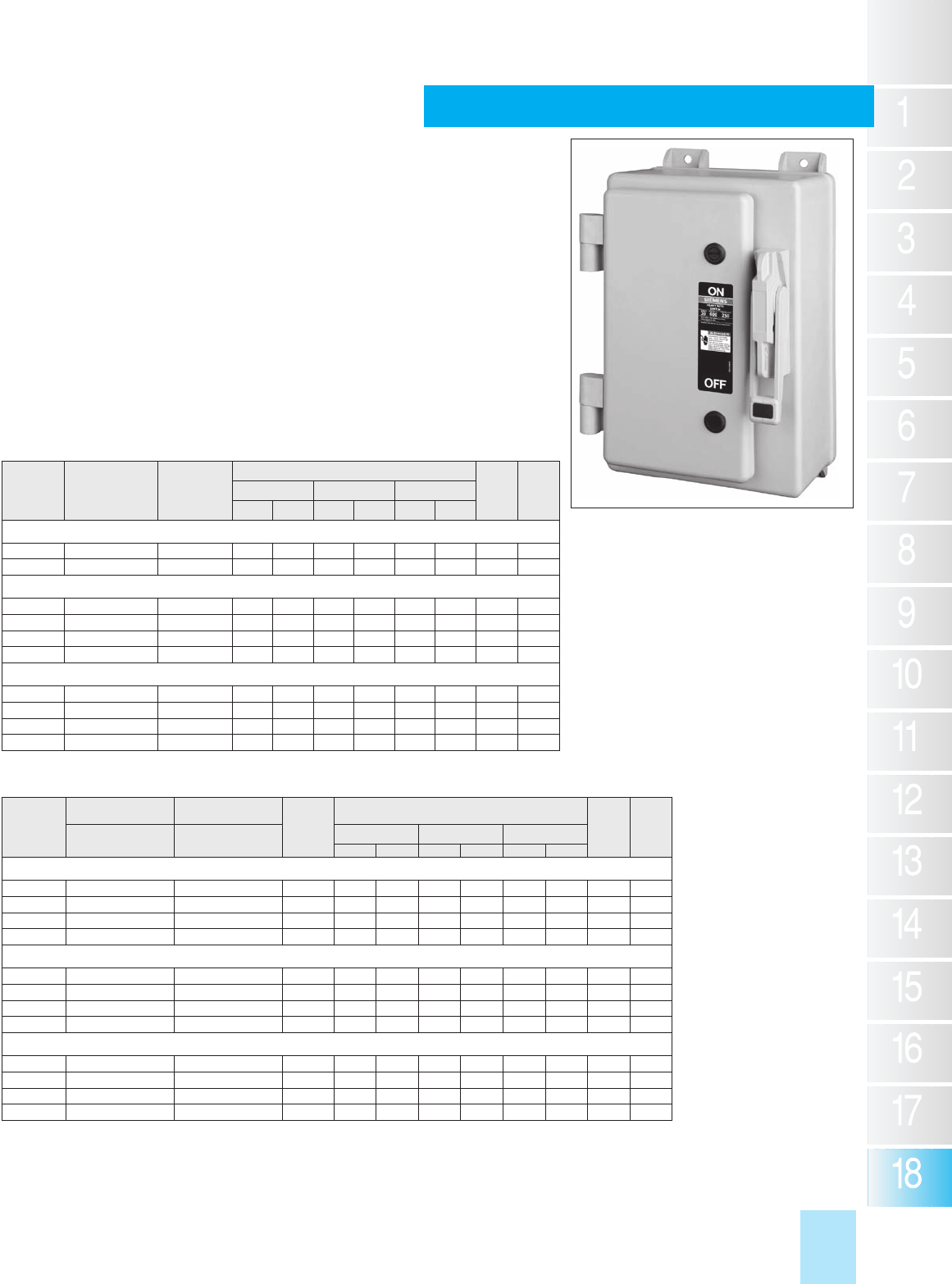

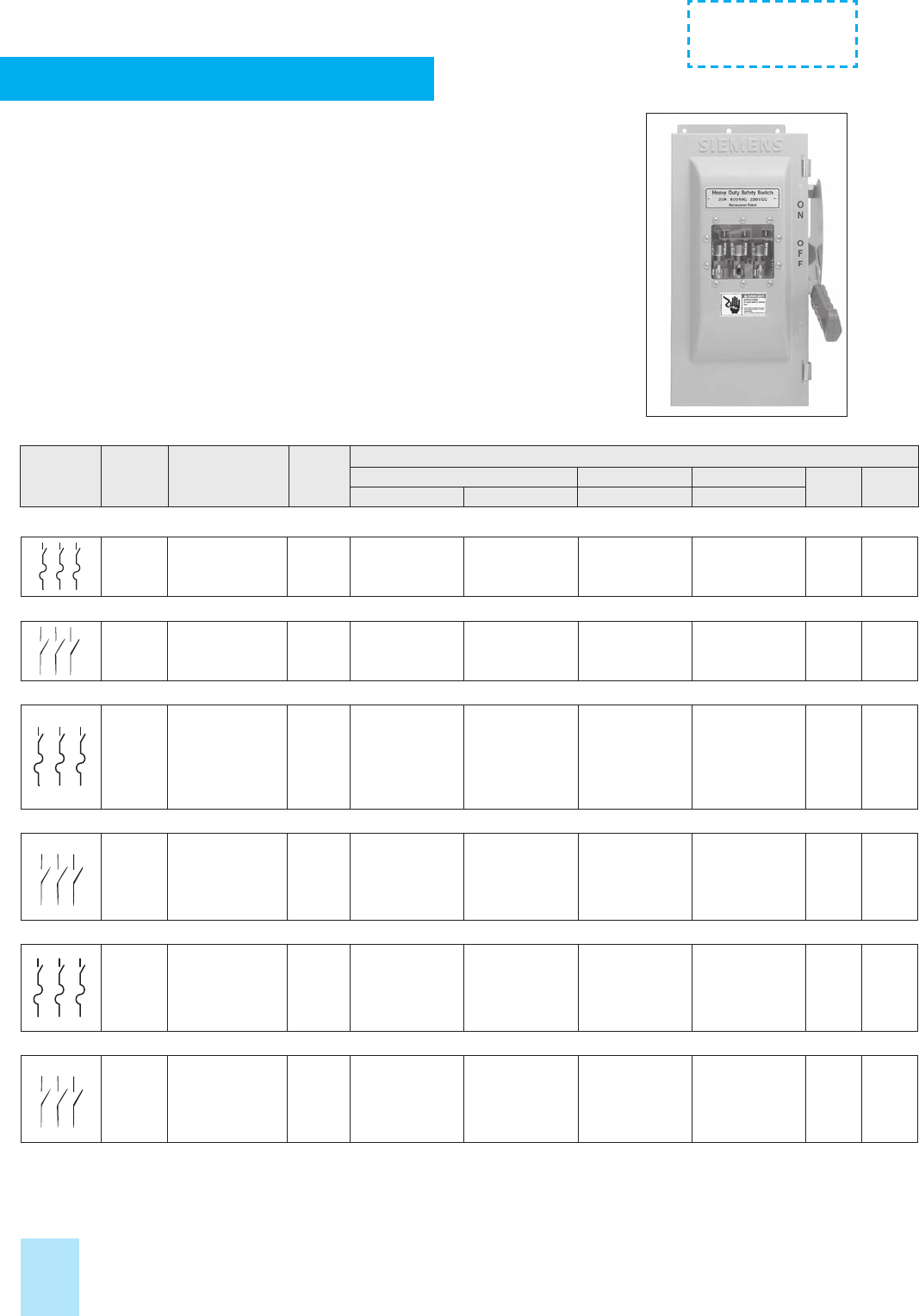

Type 3R, 4/4X, & 12 with Viewing Window
Switches
Heavy Duty Safety Switches
Description
30–600A, 3-pole 600V max. in fusible and
non-fusible versions in Type 4/4X stainless
steel and Type 12 enclosures.
All allow viewing of visible blade position.
30–200A also allow viewing of indicating
type fuses.
Features
b Rugged installer-friendly enclosure
design features a gasket flange with
continuously welded seams
b Tool-free cover latches
b Two, three and four point mounting
b Metal handle with large insulating grip
features a positive stop in both ON and
OFF position
b Ground lugs provided as standard
b Type 12 enclosures are fabricated from
galvanized steel and are also rated for
3R/3S outdoor applications
b Type 4X stainless steel switches
(30–200A) are provided with stainless
steel interior parts
b The widest range of accessories
available including 200% neutrals,
gold plated PLC auxiliary contacts
and isolated ground kits
200A switches are also rated 600V DC.
Maximum HP ratings listed apply only when time delay
fuses are used.
Also rated 3S/3R for outdoor use.
All switches are suitable for use as service entrance
equipment. Use outside poles of 3-pole switch for 2-pole
application.
600V DC and 600V DC horsepower rating shown
requires (2) poles to be connected in series.
304 grade stainless steel. For switches with enclosures
constructed from 316 grade stainless steel, see page 18/9.
3-Pole, 3-Wire Fusible, Type 3R 600 Volt AC / 250 Volt DC
30 HF361RW 17 3 71⁄215 20 5 —
60 HF362RW 22 10 15 30 50 10 30
3-Pole, 3-Wire Non-Fusible, Type 3R 600 Volt AC / 250 Volt DC
30 HNF361RW 14 3 10 20 30 5 —
60 HNF362RW 21 10 20 50 60 10 30
3-Pole, 3-Wire Fusible, Type 12 600 Volt AC / 250 Volt DC
30 HF361JW 17 3 71⁄215 20 5 —
60 HF362JW 22 10 15 30 50 10 30
100 HF363JW 26 15 30 60 75 20 50
200 HF364JW 53 — 60 125 150 40 50
400 HF365JWA 93 — 125 250 350 50 —
600 HF366JWA 98 — 200 400 500 50 —
3-Pole, 3-Wire Non-Fusible, Type 12 600 Volt AC / 250 Volt DC
30 HNF361JW 14 3 10 20 30 5 —
60 HNF362JW 21 10 20 50 60 10 30
100 HNF363JW 25 15 40 75 100 20 50
200 HNF364JW 51 15 60 125 150 40 50
400 HNF365JWA 75 15 125 250 350 50 —
3-Pole, 3-Wire Fusible, Type 4X Stainless Steel 600 Volt AC / 250 Volt DC
30 HF361SW 17 3 71⁄215 20 5 —
60 HF362SW 23 10 15 30 50 10 30
100 HF363SW 28 15 30 60 75 20 50
200 HF364SW 55 — 60 125 150 40 50
400 HF365SWA 75 15 125 250 350 50 —
3-Pole, 3-Wire Non-Fusible, Type 4X Stainless Steel 600 Volt AC / 250 Volt DC
30 HNF361SW 15 3 10 20 30 5 —
60 HNF362SW 23 10 20 50 60 10 30
100 HNF363SW 27 15 40 75 100 20 50
200 HNF364SW 54 15 60 125 150 40 50
400 HNF365SWA 75 15 125 250 350 50 —
System Ampere
Rating Catalog Number Ship
Wt. (lbs.)
Maximum Horsepower Rating
240V AC 480V AC 600V AC 250V
DC 600V
DC1-Phase, 2-Wire 3-Phase, 3-Wire 3-Phase, 3-Wire 3-Phase, 3-Wire
• Revised •
07/15/15
![](asset-7.png)
18/7
Siemens Industry, Inc.
Industrial Controls Catalog Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-14
Type VBII 4 & 6 Pole
Heavy Duty Safety Switches
Switches
Heavy Duty Safety Switches
Application
4 & 6-pole Switches are commonly
used as a disconnecting means for
two-speed, two-winding motors.
Fused switches provide both over
current and short circuit protection.
Non-fusible switches normally provide
a local disconnection means for two-
speed motors which are remote from
their motor controller. 4-pole switches
are also used in 3-phase, 4-wire circuits
when a switching neutral is required.
All 4 & 6-pole switches are service
entrance rated.
Description
4 & 6-pole switches are available in
30-200A ratings and in both fusible and
non-fusible versions. 4-pole switches are
supplied with either Type 1 or Type12/3R
enclosures.
6-pole switches are available with either
Type 12/3R or Type 4X stainless steel
enclosures.
Standards
b UL & CUL listed under file #E4776
b Meets UL98 for enclosed switches
b 4 & 6-Pole switches are suitable for
use as service entrance
b Meets NEMA Standard KS-1 for
enclosed switches
b Meets NEC wire bending space
requirements
Features
b Visible blade, double break switching
action
b Highly visible ON/OFF indication
b Defeatable dual cover interlock
b Padlock option in OFF position
b All copper current carrying parts
b Tangenital knockouts (Type 1,
4-pole switches)
HNF663S
4-Pole Type VBII Switches
Indoor Type 1 Type 12/3R Industrial Horsepower Ratings
Amp Catalog Ship Wt. Catalog Ship Wt. 240V, 2
Ø
, 4W 240V 3
Ø
480V, 3
Ø
600V, 3
Ø
250V
System Rating Number (lbs.) Number (lbs.) DC
Std. Max. Std. Max. Std. Max. Std. Max.
Fusible 600 Volt AC, 250 Volt DC — 4-Pole, 4 Fuse
30 HF461 36 HF461J 36 3 10 3 71⁄2 5 15 71⁄2 20 5
60 HF462 40 HF462J 40 71⁄2 20 71⁄2 15 15 30 15 50 10
100 HF463 43 HF463J 43 15 30 15 30 25 60 30 75 20
200 HF464n 88 HF464Jn 88 25 50 25 60 50 125 60 150 40
Non-fusible 600 Volt AC, 250 Volt DC — 4-Pole
30 HNF461 32 HNF461J 32 — 10 — 10 — 20 — 30 5
60 HNF462 34 HNF462J 34 — 20 — 20 — 50 — 60 10
100 HNF463n 36 HNF463Jn 36 — 30 — 40 — 75 — 100 20
200 HNF464n 78 HNF464Jn 78 — 50 — 60 — 125 — 150 4
Type 12/3R Industrial Type 4X Stainless Steel Horsepower Ratings
Amp Catalog Ship Wt. Catalog Ship Wt. 240V 3
Ø
480V, 3
Ø
600V, 3
Ø
250V
System Rating Number (lbs.) Number (lbs.) DC
Fusible 600 Volt AC, 250 Volt DC — 6-Pole, 6 Fuse
6-Pole Type VBII Switches
30 HF661J 37 HF661Sn 37 3 71⁄2 5 15 71⁄2 20 5
60 HF662J 41 HF662Sn 41 71⁄2 15 15 30 15 50 10
100 HF663Jn 44 HF663Sn 44 15 30 25 60 30 75 20
200 HF664Jn 90 HF664Sn 90 25 60 50 125 60 150 40
Non-fusible 600 Volt AC, 250 Volt DC — 6-Pole
Std. Max.
30 HNF661J 33 HNF661S 33 — 10 — 20 — 30 5
60 HNF662J 35 HNF662S 35 — 20 — 50 — 60 10
100 HNF663J 37 HNF663S 37 — 40 — 75 — 100 20
200 HNF664J 80 HNF664Sn 80 — 60 — 125 — 150 40
Std. Max. Std. Max.
n
Built to order. Allow 3-5 weeks for delivery.
Lugs are aluminum alloy as standard. Optional cop-
per body lugs are available.
All 4 & 6-pole VBII switches are suitable for use as
service equipment when a neutral is installed or
equipment ground kit is properly connected.
Dual horsepower ratings: Std. – applies when
non-time-delay fuses are installed. Max. – applies
when time delay fuses are installed.
Fusible switches accept Class H Fuses as the stan-
dard. Class R & J fuses can also be installed and
increase the rating from 10,000 to 200,000 AIC. For
Class J, the load base is moved upward. For Class R
fuses, rejection kits are required.
Supplied with factory installed ground lugs.
![](asset-8.png)
18/8 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-15

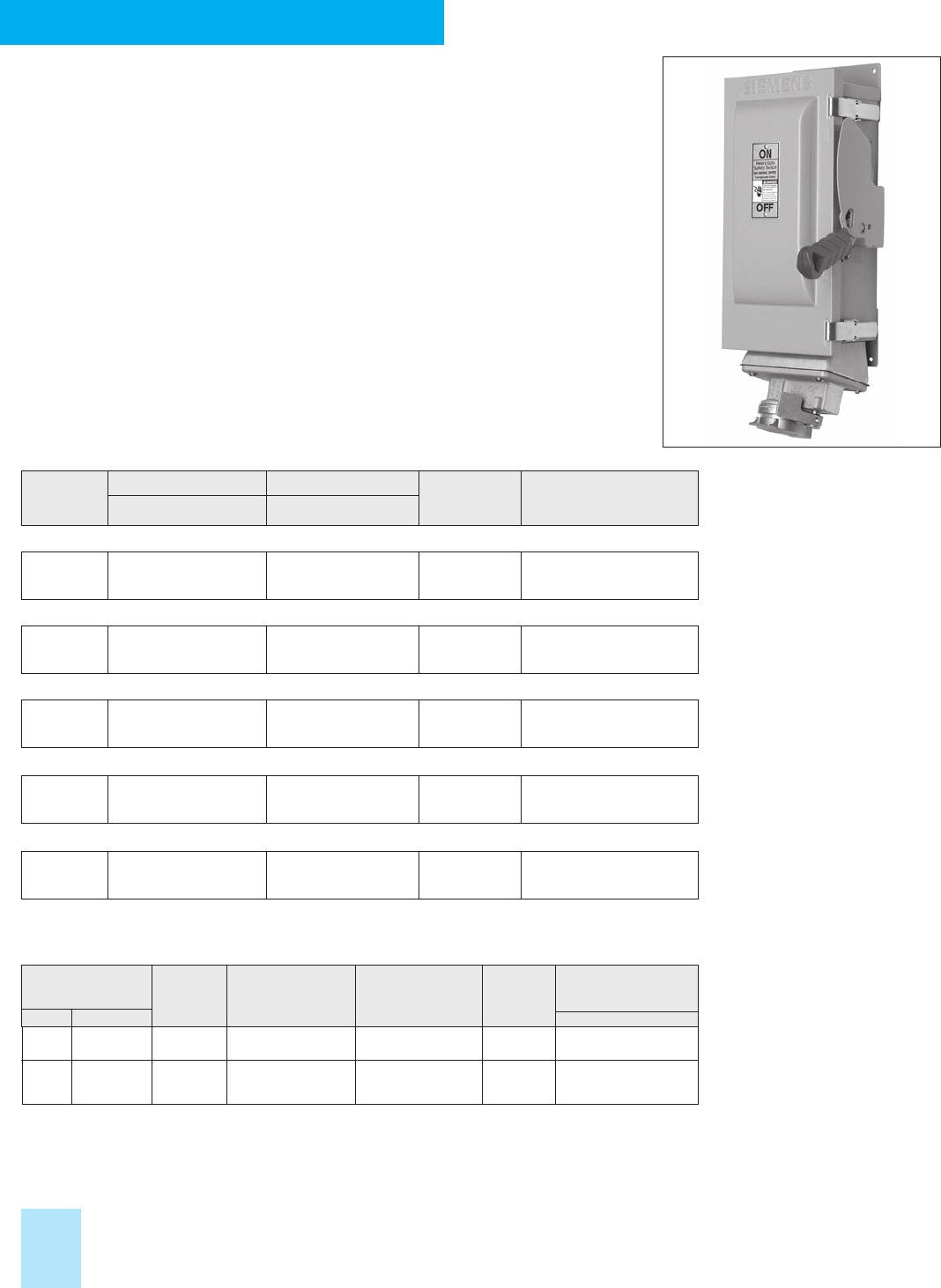

Special Application Switches /
Interlocked Receptacle Switches
Switches
Heavy Duty Safety Switches
Application
Receptacle Safety Switches
provide cord connection protection
of heavy-duty portable equipment
(welders, infrared ovens, batch
feeders, portable conveyors, assem-
bly line fixtures and tools, refrigerator
trucks, etc.) under load or fault
conditions.
Standards
All receptacle switches are UL listed
under file #E4776. Those with a
viewing window are also CSA certified
under file #1079316.
Description
Type 12 and 4/4X Receptacle
Safety Switches are available
with 3-phase, 4-wire grounded
type Crouse-Hinds Arkite™ 2 or
Pyle-National receptacle, pre-wired
and mounted with interlock linkage to
the switch mechanism. Insertion or
removal of the plug is prevented by
the interlock linkage while the switch
is in the “ON” position. Receptacle
prevents operation of switch if
incorrect plug is inserted.
s
Built to order. Allow 6–8 weeks for delivery.
Arktite™ is a registered trademark of the Crouse-
Hinds Company. Plugs are not sold or supplied by
Siemens.
Indicates plug with maximum diameter cable bushing.
QuelArc™ is a registered trademark of the Pyle-
National Company.
Ampere rating of both switch and receptacle.
Also rated Type 3R/3S.
Enclosure is constructed of Type 304 stainless steel.
240V Fusible, 3-Pole, 3-Wire
Crouse-Hinds Interlocked Receptacle Switches
Type 12 Type 4/4X Shipping Accepts Crouse-Hinds
Ampere Wt. (lbs.) Arktite Plug
Rating Catalog Number Catalog Number Std. Pkg. Catalog Number
30 HF321JCH HF321SCHs 23 APJ3485 & NPJ3485
60 HF322JCH HF322SCHs 30 APJ6485 & NPJ6485
100 HF323JCH HF323SCHs 36 APJ10487 & NPJ10487
600V Fusible, 3-Pole, 3-Wire
30 HF361JCH HF361SCH 24 APJ3485 & NPJ3485
60 HF362JCH HF362SCH 30 APJ6485 & NPJ6485
100 HF363JCH HF363SCHs 36 APJ10487 & NPJ10487
600V Non-Fusible, 3-Pole, 3-Wire
30 HNF361JCHs HNF361SCHs 22 APJ3485 & NPJ3485
60 HNF362JCH HNF362SCH 29 APJ6485 & NPJ6485
100 HNF363JCHs HNF363SCHs 35 APJ10487 & NPJ10487
600V Fusible, 3-Pole, 3-Wire with Viewing Window
30 HF361JCHWs HF361SCHWs 24 APJ3485 & NPJ3485
60 HF362JCHW HF362SCHW 30 APJ6485 & NPJ6485
100 HF363JCHWs HF363SCHWs 36 APJ10487 & NPJ10487
600V Non-Fusible, 3-Pole, 3-Wire with Viewing Window
30 HNF361JCHWs HNF361SCHWs 22 APJ3485 & NPJ3485
60 HNF362JCHW HNF362SCHWs 29 APJ6485 & NPJ6485
100 HNF363JCHWs HNF363SCHWs 35 APJ10487 & NPJ10487
Type 12
Type 12 Stainless Steel Shipping Accepts Pyle-National
Ampere Rating Voltage Catalog Catalog Wt. (lbs.) QuelArc™ Plugs
Switch Receptacle Rating Number Number Std. Pkg. Plug Catalog Number
Pyle-National Interlocked Receptacle Switches
3-Poles Fusible and Non-Fusible
30 30 600 (F) HF361JPNs HF361SPNs 23 JPD-83046
600 (N-F) HNF361JPN HNF361SPN 21
240 (F) HF322JPNs — 28
60 60 600 (F) HF362JPNs HF362SPNs 28 JPD-116046
600 (N-F) HNF362JPN HNF362SPN 27
![](asset-9.png)
18/9
Siemens Industry, Inc.
Industrial Controls Catalog Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-16
Special Application Safety Switches /
Type VBII Non-Metallic & 316 Grade Stainless Steel
Switches
Heavy Duty Safety Switches
s
Built to order. Allow 6–8 weeks for delivery.
Also used for 240 volt applications.
Add “L” to end of catalog number for switches less
line & load lugs with mounting hardware for crimp
type or copper body lugs.
200A switches are also rated 600V DC max.
600V DC voltage and horsepower rating shown
requires (2) poles to be connected in series.
Supplied with factory installed neutral.
of corrosive atmospheres. They allow a
wide range of operating temperatures
and their insulating properties virtually
eliminate problems caused by internal
condensation.
Description
30-200A, 600V Max, fusible and non-
fusible switches are available in both
non-metallic and 316 grade stainless
steel versions. All are supplied with
factory installed ground bars as
standard. Viewing windows are also
available in the stainless offering.
Application
Siemens Non-metallic and 316 grade
stainless steel switches provide a
superior level of corrosion resistance
to assure trouble free performance in
the most severe conditions. 316 grade
stainless steel provides increased
corrosion resistance when compared to
304 grade, especially in atmospheres
containing a high level of chlorine
commonly encountered in marine and
waste management applications. Our
non-metallic enclosures are constructed
from fiberglass reinforced polyester and
are extremely resistant to a wide range
Ampere
Rating Catalog
Number
Ship Weight
Std. pkg.
(lbs.)
Horsepower Rating—3-Phase 250
Volts
DC
600
Volts
DC
240 Volt AC 480 Volt AC 600 Volt AC
Std. Max. Std. Max. Std. Max.
3-Pole, 4-Wire, 240 Volt Fusible, Type 4X
30 HF321NX 21 3 71⁄2 — — — — 5 —
60 HF322NXs22 71⁄2 15 — — — — 10 —
3-Pole, 4-Wire, 600 Volt AC Fusible, Type 4X
30 HF361NX 21 3 71⁄2 5 15 71⁄2 20 5 15
60 HF362NX 22 71⁄2 15 15 30 15 50 10 30
100 HF363NXs39 15 30 25 60 30 75 20 50
200 HF364NXs83 25 60 50 125 60 150 40 50
3-Pole, 3-Wire, 600 AC Volt Non-Fusible, Type 4X
30 HNF361X 20
—
71⁄2
—
20
—
30 5 15
60 HNF362X 20
—
15
—
50
—
60 10 30
100 HNF363Xs38
—
30
—
75
—
100 20 50
200 HNF364Xs81
—
60
—
125
—
150 40 50
Ampere
Rating
Standard With Viewing
Window Ship
Weight
(lbs.)
Horsepower Rating—3-Phase 250
Volts
DC
600
Volts
DC
Catalog
Number Catalog
Number 240 Volt AC 480 Volt AC 600 Volt AC
Std. Max. Std. Max. Std. Max.
240V AC, 250V DC Fusible 3-Pole, 3-Wire
30 HF321SSs
—
15 3 71⁄2 — — — — 5 —
60 HF322SSs
—
19 71⁄2 15 — — — — 10 —
100 HF323SSs
—
27 15 30 — — — — 20 —
200 HF324SSs
—
48 25 60 — — — — 40 —
600V AC, 250V DC Fusible 3-Pole, 3-Wire
30 HF361SS HF361SSW 17 3 71⁄2 5 15 71⁄2 20 5 —
60 HF362SS HF362SSWs21 71⁄2 15 10 30 15 50 10 30
100 HF363SS HF363SSWs28 15 30 25 60 30 75 20 50
200 HF364SS HF364SSWs54 25 60 50 125 60 150 40 50
600V AC, 250 V DC Non-Fusible 3-Pole, 3-Wire
30 HNF361SS HNF361SSW 15
—
10
—
20
—
30 5 —
60 HNF362SS HNF362SSWs21
—
20
—
50
—
60 10 30
100 HNF363SS HNF363SSWs26
—
40
—
75
—
100 20 50
200 HNF364SS HNF364SSWs51
—
60
—
125
—
150 40 50
Type 4/4X 316 Grade Stainless Steel
Type 4/4X Non-Metallic
![](asset-a.png)
18/10 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-17

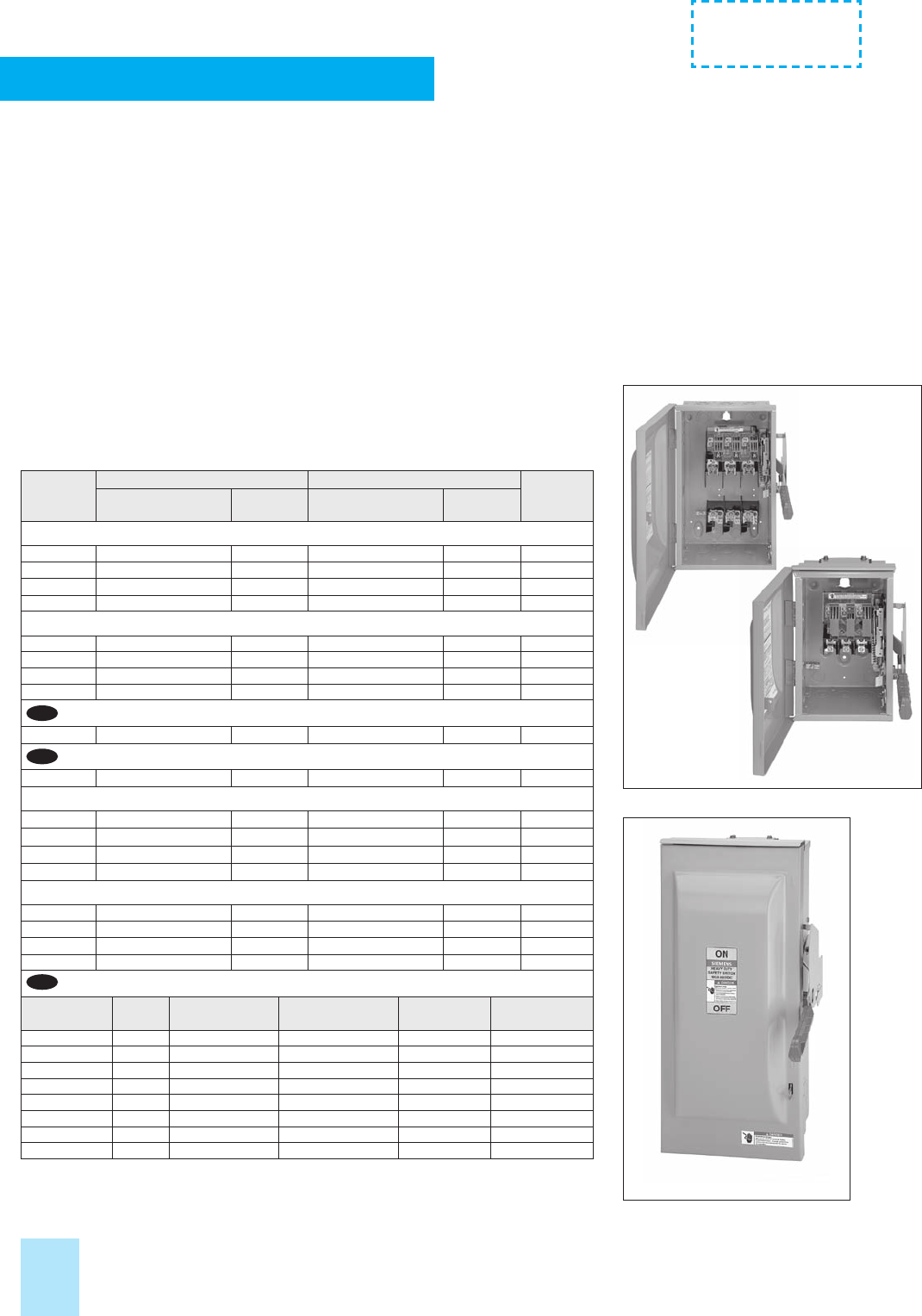

Enclosed Solar Photovoltaic (PV) Switches
Switches
Heavy Duty Safety Switches
s
Built to order. Allow 6–8 weeks for delivery.
* In pounds (lbs)
Note: All disconnects are rated at 10,000 AIC per UL
requirements when used with or protected by Class K, J
or R fuses rated at 600VDC.
Application
Solar disconnect switches are
designed to be used in the DC por-
tion of photovoltaic power generation
circuits. They incorporate powerful
magnets within the switch line base
which work in combination with a
double break switching action to
quickly dissipate the very hot arc that
is generated when a 600V DC circuit
is opened under load. These circuits
are defined by article 690 of the NEC
which requires the grounded conductor
to be at ground potential at all times
and therefore cannot be switched.
Description
30-200A switches are available in
both Type 1 and 3R enclosures and in
both fusible and non–fusible versions.
They are provided with an additional
door mounted warning label as
required by the NEC and are supplied
with a factory installed equipment
ground bar. They are built to UL98
requirements but are UL listed in file
number E335018 as UL1741 photo-
voltaic disconnect switches. They are
3 pole switches that are approved to
switch 3 separate 600V DC circuits
(one per pole). The design incorporates
many of the standard VBII switch
features including a rolled out enclosure
front flange, a large metal operating
handle, oversized line and load lugs
and large wire gutters. 1000VDC
photovoltaic switches are UL98B listed
for solar applications and comply with
article 690 of the NEC. The new
400-600Amp switches are also UL98B
listed at 600VDC and come in NEMA
Type 3R.
Solar Photovoltaic Enclosed Disconnect Switches
Ampere
Rating
Indoor – Type 1 Outdoor – Type 3R Rated Isc
Per NEC
Article 690Catalog Number Ship Wt*
Std. Pkg. Catalog Number Ship Wt*
Std. Pkg.
Negative Ground 3 Pole 3 Wire Fusible 600Volt DC
30 HF361PV 14 HF361RPV 15 19.2 A
60 HF362PV 20 HF362RPV 21 38.4 A
100 HF363PVs25 HF363RPV 26 64.0 A
200 HF364PVs49 HF364RPV 50 128.0 A
Negative Ground 3 Pole 3 Wire Non-Fusible 600Volt DC
30 HNF361PV 12 HNF361RPV 13 24.0 A
60 HNF362PV 19 HNF362RPV 20 48.0 A
100 HNF363PVs24 HNF363RPV 25 80.0 A
200 HNF364PVs47 HNF364RPV 48 160.0 A
NEW Positive and Negative Ground, 1 Pole, Fusible 1000 Volt DC
200 HF1104NPVs52 HF1104NRPVs53 128.0A
NEW Positive and Negative Ground, 1 Pole, Non-Fusible 1000 Volt DC
200 HNF1104NPVs50 HNF1104NRPVs51 160.0A
Positive Ground 3 Pole 3 Wire Fusible 600Volt DC
30 HF361PVPG 14 HF361RPVPG 15 19.2 A
60 HF362PVPGs20 HF362RPVPG 21 38.4 A
100 HF363PVPGs25 HF363RPVPGs26 64.0 A
200 HF364PVPGs49 HF364RPVPGs50 128.0 A
Positive Ground 3 Pole 3 Wire Non-Fusible 600Volt DC
30 HNF361PVPG 12 HNF361RPVPG 13 24.0 A
60 HNF362PVPGs19 HNF362RPVPG 20 48.0 A
100 HNF363PVPGs24 HNF363RPVPGs25 80.0 A
200 HNF364PVPGs47 HNF364RPVPGs48 160.0 A
HF362PV
HNF361RPV
HNF363RPV
NEW Positive and Negative Ground, 2 Wire, 600Volt DC, Type 3R
Amperage
Rating No.
Poles Fuse Type Catalog Number Ship Wt*
Std. Pkg Rated Isc Per
NEC Article 690
400A 1 Fusible HF165NRPVs165 256A
400A 1 Non-fusible HNF165NRPVs127 256A
400A 2 Fusible HF265NRPVs325 256A
400A 2 Non-fusible HNF265NRPVs315 256A
600A 1 Fusible HF166NRPVs167 384A
600A 1 Non-fusible HNF166NRPVs129 384A
600A 2 Fusible HF266NRPVs327 384A
600A 2 Non-fusible HNF266NRPVs315 384A
• Revised •
04/30/15
![](asset-b.png)
18/11
Siemens Industry, Inc.
Industrial Controls Catalog Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-18

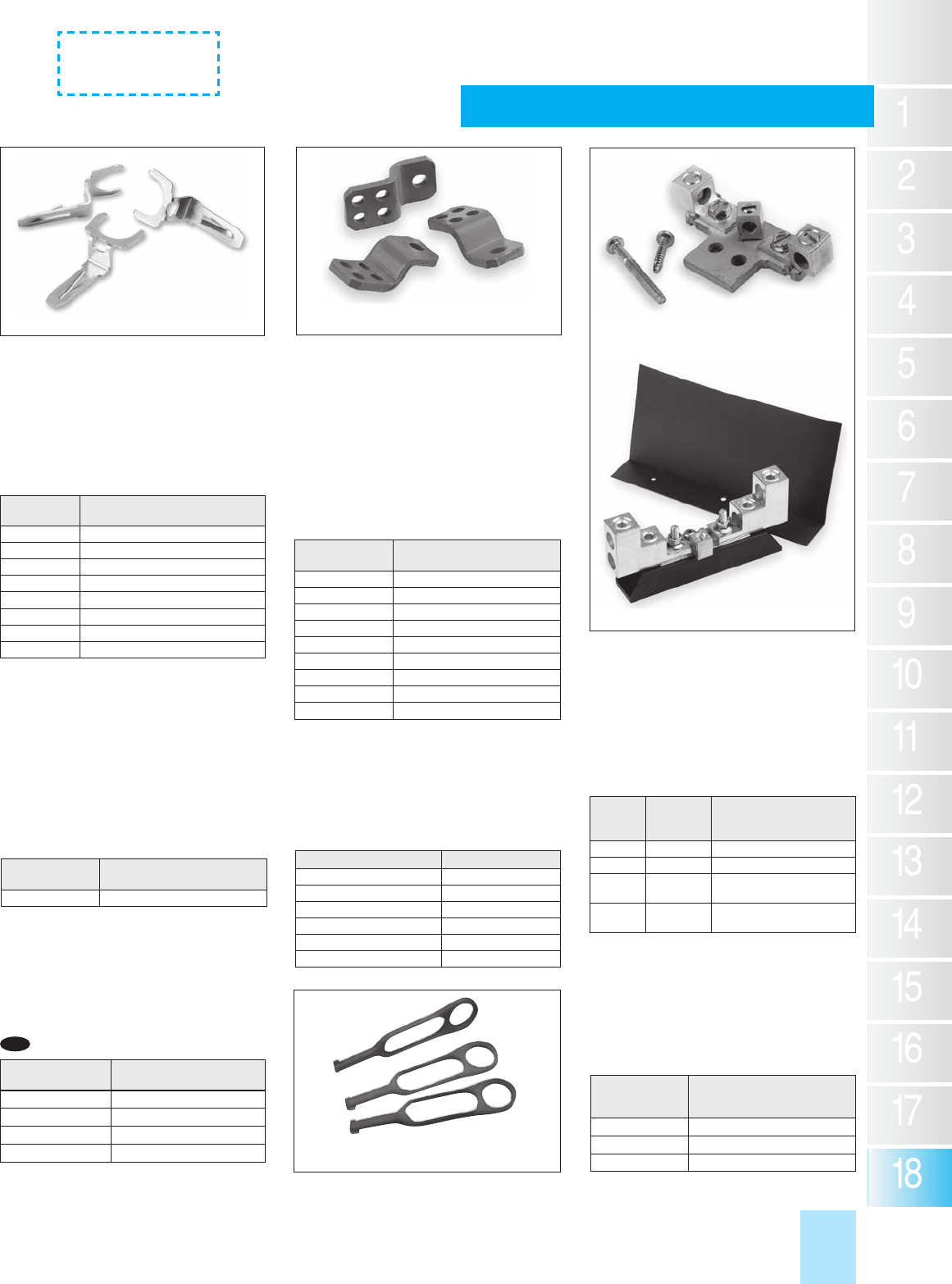

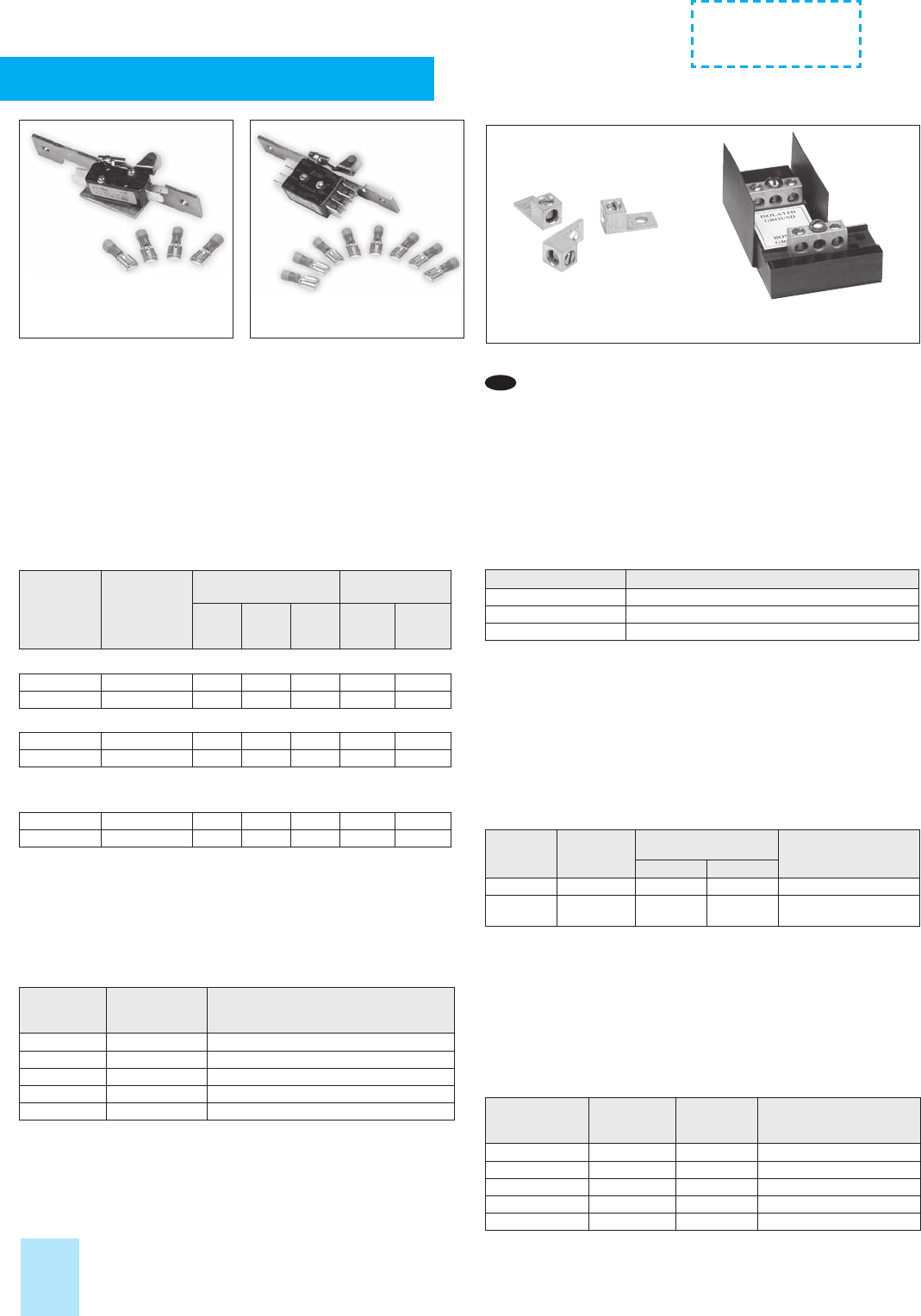

Accessories
Switches
Heavy Duty Safety Switches
• Revised •
07/15/15
Class R Fuse Clip Kits
All General Duty and Heavy Duty
Switches are field convertible to accept
Class R Fuse Clip Kits. The kits prevent
the installation of Class H and K fuses
(one kit required per 3-pole switch).
Class J Fusing
All 30-600A, 600V and 100-600A,240V
fusible Heavy Duty Switches are field
convertible to accept Class J fuses by
moving the load base to a pre-drilled J
fuse position. All 100-600A, 240V
fusible General Duty switches can also
be field converted to accept Class J fuses.
Class T Fuse Adapter Kits
All 100-600A, General Duty and 100-
200Amp and 1200Amp Heavy Duty
Switches are field convertible to accept
Class T fuses.800A switches are field
convertible to accept Class T fuses by
moving the load base to a pre-drilled
T fuse position.
Neutral Kits
Standard Neutral Kits can be field
installed in General and Heavy Duty
Switches.
Internal Shield Kits (for fusible switches)
Kits provide a clear plastic inner door to
prevent accidental contact with live parts.
Test probe holes are provided and fuses
can be replaced without removal of kit.
200% Neutral Kits
UL listed 200% Neutrals are available
on 100-600A Heavy Duty Switches.
They are typically used with non-linear
transformers or where increased neutral
ampacity/lug capacity is required.
HN264
HN612
Fuse Puller Kits
Fuse Puller Kits are field installable in
30-100A Type VBII Heavy Duty Switches
(one kit required per 3-pole switch).
HP61
030 HP61
060 HP62s
100 HP63s
Fuse Puller Kits
Switch
Ampere Fuse Puller Kit
Rating Catalog Number
s
Built to order. Allow 6–8 weeks for delivery.
One kit per pole required.
Not designed for use in Non-metallic 4X safety
switches. Not designed for use with Auxiliary Contacts.
Switch
Ampere Rating Kit Catalog Number
30A HD HSK61SSW
60A HD HSK62SSW
100A HD HSK63SSW
200A HD HSK64SSW
Internal Shield Kits
NEW
Class R Fuse Clip Kits
Catalog
Number Description
GSRK321 30A, 240V Kit (GD only)
HR21 30A, 240V Kit (HD only)
HR612 30A, 600V Kit/60A, 240V Kit
HR62 60A, 600V Kit
HR63 100A Kit
HR64 200A Kit
HR65A 400A Kit
HR66A 600A Kit
Class T Fuse Adapter Kits
Catalog
Number Description
HT23 100A, 240V Kit
HT63 100A, 600V Kit
HT24 200A, 240V Kit
HT64s200A, 600V Kit
HT25A 400A, 240V Kit
HT65A 400A, 600V Kit
HT26A 600A, 240V Kit
HT66A 600A, 600V Kit
TFAK82 1200A, 240V Kit
Neutral Kits
Switch Ampere Rating Kit Catalog Number
30 GD W410190
30 HD, 60 GD HN612
60, 100 HD, 100 GD HN623
200 HN64
400 & 600 HN656A
800 & 1200 HN678
200% Neutral Kits
Switch
Ampere
Rating
Kit
Catalog
Number Wire Range Line &
Load Lugs (Cu/Al)
100 HN263 (2) #14-1/0 AWG
200 HN264 (2) #6 AWG-300 Kcmil
400 HN656A (2) 1/0 AWG-600 Kcmil
(2) #6 AWG-300 Kcmil
600 HN678A (2) 1/0 AWG-600 Kcmil
(2) #6 AWG-300 Kcmil
Class J Fuse Kits
Catalog
Number Description
HJ66A 600A, 240V/600V Kit
HR612 HT63
![](asset-c.png)
18/12 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-19
Accessories
Switches
Heavy Duty Safety Switches
Auxiliary Contacts
Auxiliary Contacts are available only for Heavy Duty Switches.
The auxiliary contacts are available in 1 normally open and
1 normally closed or 2 normally open and 2 normally closed
configurations. Siemens offers a PLC Auxiliary Switch (30-
200A) that has very low resistance for low voltage and current
typical in PLC circuits. All auxiliary contacts make after and
break before main switch contacts.
HA161234
Isolated Ground Kits
Isolated Ground Kits are available on 30-600A Heavy Duty
Switches. They are normally used on circuits with a high content
of computer or other electronic loading which require a ground
which is isolated from the building ground and neutral circuits. The
kit includes both isolated and grounded terminals as listed below.
Copper Lug Kits
Heavy duty switches are UL approved to accept
field installed copper lug kits.
s
Built to order. Allow 6–8 weeks for delivery.
n
Purchase field replacement kit along with lugs.
HA261234
Auxiliary Contacts
Switch
Ampere
Aux. Switch
Catalog
Number
Kit Ampere
Rating Horsepower
Rating
125V
AC
Max.
250V
AC
Max.
28V
DC
Max.
125V
AC
Max.
250V
AC
Max.
With 1 NO & 1 NC Isolated Contacts
30-600 HA161234 10 10 7 1/2 3/4
800-1200 HA165678 10 10 — 1/2 3/4
With 2 NO & 2 NC Isolated Contacts
30-600 HA261234 10 10 7 1/2 3/4
800-1200 HA265678 10 10 7 1/2 3/4
Low Current PLC Type with 1 NO &
1 NC Gold Plated Contacts
30-600 HA361234 10 10 7 1/2 3/4
800-1200 HA365678 10 10 — 1/2 3/4
Copper Lug Kits
Switch
Ampere
Rating
Copper Lug
Catalog
Number Description
30–60 HLC612 (9) Lugs/Kit #14-4 AWG Cu
100 HLC63s(9) Lugs/Kit #14-1/0 AWG Cu
200 HLC64s(9) Lugs/Kit #6 AWG-300 Kcmil Cu
400-600 HCU656An(1) Lugs/Kit #1/0 AWG-600 Kcmil Cu
800–1200 HLC65678 (1) Lugs/Kit #1/0 AWG-600 Kcmil Cu
Isolated Ground Kits
Switch
Ampere
Rating Catalog
Number
Number of Terminals Wire Range
Per Terminal (Cu/Al)Isolated Grounded
30–200 HG261234 2 2 #14-4 AWG
400–600 HG2656A 4 4 2/0-14 AWG
2/0-6 AWG
Equipment Ground Kits
Switch
Ampere
Rating Catalog
Number Number of
Terminals Wire Range
Per Terminal (Cu/Al)
30A GD GSGK60 2 #14-8 AWG
60–200 GD HG61234 2 #14-4 AWG
30–200 HD HG61234 2 #14-4 AWG
400 & 600 HG656A 4 2/0-6 AWG
800–1200 HG678 8 #6 AWG-250 Kcmil
Equipment Ground Kits
Equipment Ground Lug Kits are available for all General and
Heavy Duty Switches. They are field installable in Type 1
and Type 3R Switches and are factory installed as standard
in Type 4 / 4X and Type 12 and also in all VBII 4&6-pole
Switches.
Quick Connects
Catalog Number Description
HCQ62 60A 2 wire quick connect kit
HCQ63 100A 2 wire quick connect kit
HCQ64 200A 2 wire quick connect kit
NEW Quick Connects
They provide two point control power take-off capability and
are normally used on two poles on the line side when it is
required to have control power available when the switch is
in the OFF position. They provide a mounting provision for
standard ¼” quick connect terminal. Installed in the line or
load side. 30A VBII switches have lugs UL listed to accept (2)
wires per pole as standard so a 30A kit is not required.
HG261234
HLC612
• Revised •
07/15/15
![](asset-d.png)
18/13
Siemens Industry, Inc.
Industrial Controls Catalog Product Category: HDSS

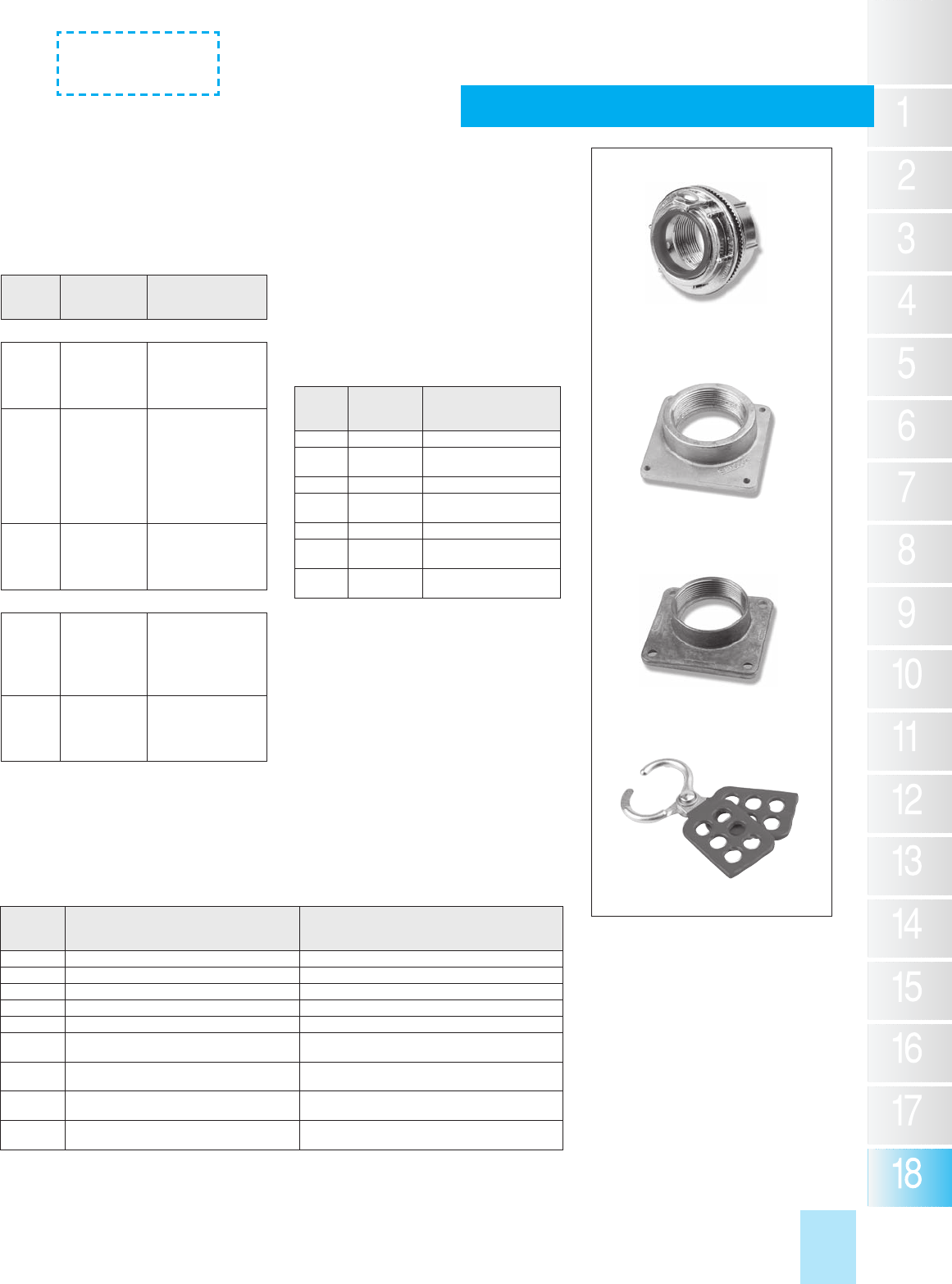

Hub and Lug Data
Switches
Heavy Duty Safety Switches
• Revised •
07/15/15
SSH150
ECHV300
ECHS200
SL0420
Interchangeable Hubs
Conduit hubs are available for Type 3R,
12 and 4 / 4X applications. 30-200A
Type 3R Switches are provided with a
conduit hub provision and a removable
hub plate on their top rainshed.
Field Replacement Kits and
Neutral Barrier Kits
All Heavy Duty Switches are field
convertible for (Crimp) type lugs.
When compression lugs are required for
30-100A switches, a neutral barrier kit
is required for 1-Phase, 3W or 3-Phase,
4W applications. When compression
lugs are required on 400-1200A switch-
es, lug mounting kits are required.
Multiple Padlock Accessory
A tamper-proof device to provide for
multiple padlocking to meet OSHA or
plant requirements. Accepts up to 6
1/4” padlocks. Catalog number SL0420.
Standard Carton-12.
Lugs
30 & 60A Switches are suitable for use
with 60° or 75°C wire. 100–1200A are
suitable for use with 75°C rated wire.
Note: 30 thru 200A. Type 3R Switches have
removable hub plates on rainshed. 400A and
larger Type 3R Switches have no provisions for
mounting hubs. Drill or punch hole in the field to
accommodate hub size desired.
n Built to order. Allow 3-4 weeks for delivery.
Hubs suitable for 3R Switches.
Also suitable for Type 12 applications.
Neutral Barrier kits are required on 30-100A switches
only and only with 1-Phase / 3W or 3-Phase / 4W
loads. Compression Lugs mounting kits are required
on 400-1200A switches only.
Provides mounting for a single line or load lug.
Provides mounting for (2) compression lugs per phase
on line or load.
Line base lugs (only) are UL approved to accept #14-6
CU/Al cable.
Max. wire size for height reduced switches is 500 kcmil
(Cu/Al).
h All but 60A GD & Compact HD NF switches are also
UL approved for #2 Cu/Al conductors.
All 200A Heavy Duty Switches have a wire range
& wire bending space for (1) #6-300 Kcmil (Cu/Al).
j Also for 30A oversized heavy duty switches.
k Also for 60A oversized heavy duty switches.
Field Replacement Kits and
Neutral Barrier Kits
Switch
Ampere
Rating Catalog
Number Kit Description
30 HCL612 Neutral Barrier Kit
60 &
100 HCL623 Neutral Barrier Kit
400 HCM65A
240V/600V Fusible Kit
400 HNCM65A 240/600V Non-
Fusible
Kit
600 HCM66A
240V/600V Fusible Kit
600 HNCM66A 240V/600V Non-
Fusible
Kit
800 &
1200HCL65678n1 Pole, Compression
Lug Mounting Kit
Wire Ranges (Line, Load and Standard Neutral)
Switch
Ampere
Rating
Wire Range with
Wire Bending Space
Per NEC Requirements Lug Wire Range
30GD #14-8 AWG (Cu/AI)#14-6 AWG (Cu/Al)
30HD #14-6 AWG (Cu/AI) #14-2 AWG (Cu/Al)
60hj #14-3 AWG (Cu/AI) #14-2 AWG (Cu/Al)
100k#14-1/0 AWG (Cu/Al) #14-1/0 AWG (Cu/Al)
200#6 AWG-250 Kcmil (Cu/Al) #6 AWG-300 Kcmil (Cu/Al)
400(1) 1/0 AWG-600 Kcmil (Cu/Al)
(2) 1/0 AWG-500 Kcmil (Cu/Al) (2) 1/0 AWG-600 Kcmil (Cu/Al)
600(1) 1/0 AWG-600 Kcmil (Cu/Al)
(2) 1/0 AWG-500 Kcmil (Cu/Al) (2) 1/0 AWG-600 Kcmil (Cu/Al)
800 (3) 1/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral (3) 1/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral
1200
(4) 3/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral (4) 1/0 AWG-750 Kcmil (Cu/Al) Line Load
(4) 1/0 AWG-750 Kcmil (Cu/Al) neutral
Conduit
Size
(inches) Catalog
Number Used On
Type 3R
Cover ECHA000
30A GD Only
3/4 ECHA075
1ECHA100
1 1/4 ECHA125
Cover ECHS000
60–200A GD
30–200A HD
3/4 ECHS075
1ECHS100
1 1/4 ECHS125
1 1/2 ECHS150
2ECHS200
2 1/2 ECHS250
2 1/2 ECHV250
400–1200A
3ECHV300
3 1/2 ECHV350
4ECHV400
Type 4/4X
3/4 SSH075
30–200A
1SSH100
1 1/4 SSH125
1 1/2 SSH150
2SSH200
2 1/2 SSH250
400–600A
3SSH300
3 1/2 SSH350
4SSH400
![](asset-e.png)
18/14 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg04-32

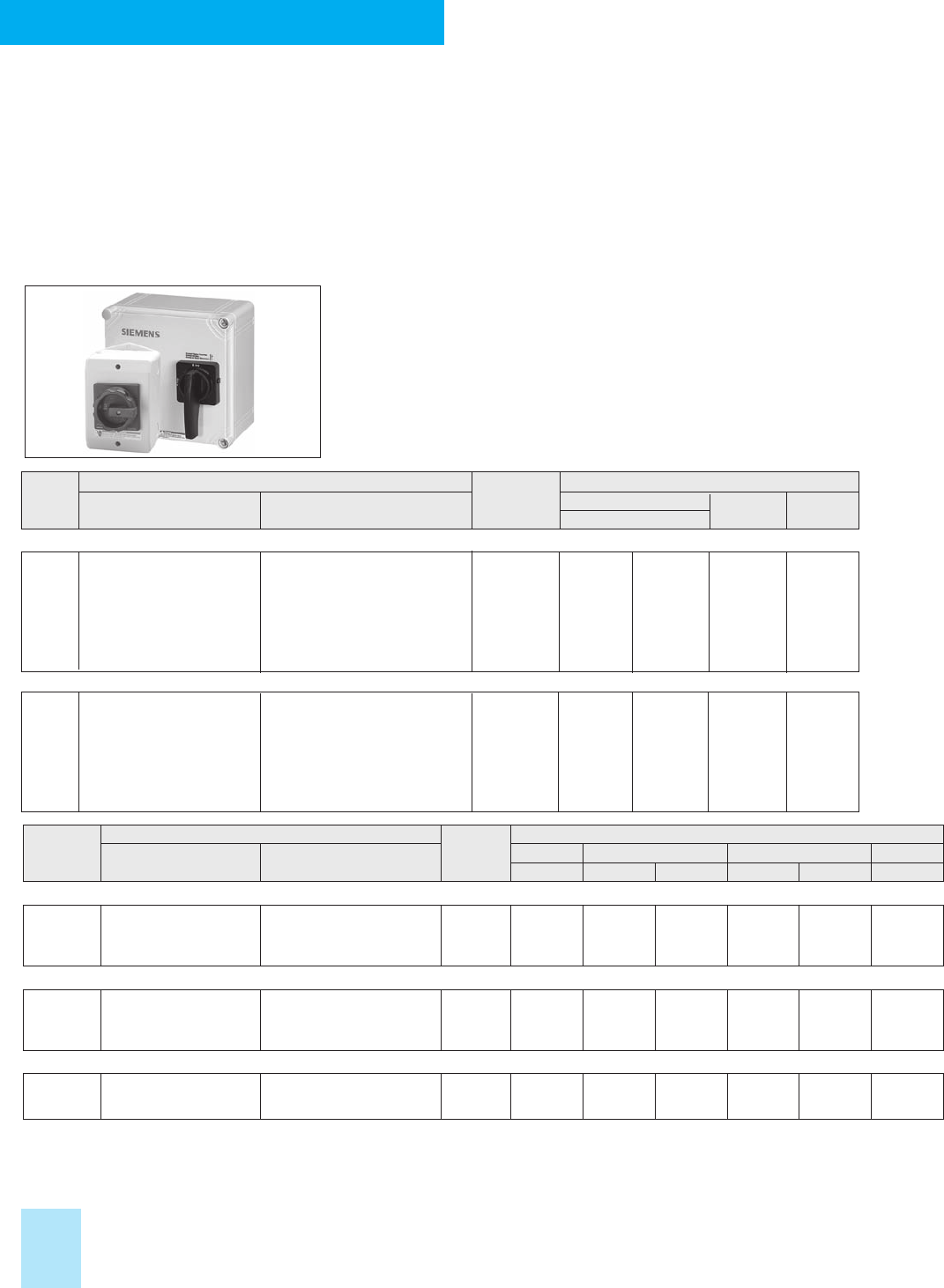

Rotary Disconnect Switches
in Non-Metallic Enclosures
Switches
Enclosed Switches
Non-Fusible, Type 1, 4X & 12K with Screw Cover and Black Rotary Handle 600V AC Max.
Catalog Number Horsepower Ratings
Ampere 3 Pole, 3 Wire with (1) NO Shipping 240V AC 480V AC 600V AC
Rating 3 Pole, 3 Wire & (1) NC Aux. Contacth Weight 1 Phase 3 Phase 3 Phase 3 Phase
16 3LD2064-0TB51-0US2 3LD2064-1GP51-0US2 1 11⁄2 3 71⁄2 10
25 3LD2164-0TB51-0US2 3LD2164-1GP51-0US2 1 3 71⁄2 10 15
30 3LD2264-0TB51-0US2 3LD2264-1GP51-0US2 1 3 71⁄2 15 20
30 — 3LD2264-1TS51-0US2s 1 3 71⁄2 15 20
30 — 3LD2264-2TW51-0US2s 1 3 71⁄2 15 20
63 3LD2565-0TB51-0US2 3LD2565-1GP51-0US2s 3 10 15 40 50
100 3LD2766-0TB51-0US2 3LD2766-1GP51-0US2s 6 — 30 60 75
125 3LD2866-0TB51-0US2 3LD2866-1GP51-0US2s 6 — 40 75 100
Non-Fusible, Type 1, 4X & 12K with Screw Cover and Red and Yellow Rotary Handle 600V AC Max.
16 3LD2064-0TB53-0US2 3LD2064-1GP53-0US2 1 11⁄2 3 71⁄2 10
25 3LD2164-0TB53-0US2 3LD2164-1GP53-0US2 1 3 71⁄2 10 15
30 3LD2264-0TB53-0US2 3LD2264-1GP53-0US2 1 3 71⁄2 15 20
30 — 3LD2264-1TS53-0US2s 1 3 71⁄2 15 20
30 — 3LD2264-2TW53-0US2s 1 3 71⁄2 15 20
63 3LD2565-0TB53-0US2 3LD2565-1GP53-0US2s 3 10 15 40 50
100 3LD2766-0TB53-0US2s 3LD2766-1GP53-0US2s 6 — 30 60 75
125 3LD2866-0TB53-0US2s 3LD2866-1GP53-0US2s 6 — 40 75 100
s
Built to order. Allow 6–8 weeks for delivery.
Carton quantity of (1). Shipping weight in pounds (lbs.).
Approved for indoor/outdoor use. No cover interlock provided.
30 and 60A switches are also rated 600V AC.
Also rated as Type 12 and UL approved for both indoor and
outdoor use. Defeatable cover interlock provided.
Screw cover enclosures are constructed from Makrolon 9425.
Hinged cover enclosures are constructed from fiberglass rein-
forced polycarbonate.
Switch is supplied with (2) NO and no NC aux. contacts.
Switch is supplied with (4) NO and no NC aux. contacts.
Ground bar is not provided or available.
h
Aux. contacts break about 3 Ms before and make about 3 Ms
after main switch contacts.
6P, 25A, switch with 1 NO & 1 NC aux. contacts and a black
operating handle is also available. Order catalog number
3LD2165-4VD51 (Discount Code: Pilot Devices).
Description
16–125A non-fusible switches are available
in fiberglass reinforced polycarbonate
enclosures which are UL approved as Type
12 & 4X and for either indoor or outdoor
use. All are horsepower and load break
rated. All are panel mounted and are either
supplied with factory installed aux. contacts
or will accept contact kits. All are compact
in size while providing ample wiring space
for copper line & load conductors.
b 16–125A, Non-Fusible
b 600VAC max. rated (except catalog no.
HNF3100CX is rated 480VAC max.)
b Available in both Type 12 and 4X
non-metallic enclosures
b Both screw and hinged cover
designs available
b Listed and marked “suitable for use
as motor disconnect” per NEC
Section 430-109
b Screw cover switches are UL listed
under File No. E47705 and are CSA
certified under File No. 203576
b IEC 60947-3 rated and CE marked
(enclosures are IP65 rated)
b HP rated
b Hinged door switches are UL listed
for multiple line and load conduc-
tors per phase in 30–100A ratings.
They are UL & CUL listed under File
No. E191706
b Rotary handles are available in
black, red, and yellow and in pistol
grip designs
b 16–63A screw cover switches have
factory installed ground bars. All
hinge cover switches accept ground
lug kits
b Screw cover switches are
provided with knockouts
b Padlockable in OFF position
with up to (3) padlocks
Ampere
Rating
Catalog Number
Shipping
Weight
Horsepower Ratings
3 Pole, 3 Wire 3 Pole, 3 Wire with (1) NO
& (1) NC Aux. Contacth
120V AC 240V AC 480V AC 600V AC
1 Phase 1 Phase 3 Phase 1 Phase 3 Phase 3 Phase
3 Pole, Non-Fusible, Type 12 with Screw Cover and Black Rotary Handle 480V AC Max
20 HNF3020CJ— 1 ¾ 2 5 5 10 —
30 HNF3030CJ— 2 2 3 7½ 7½ 15 20
60 HNF3060CJ— 4 3 10 15 20 40 50
100 HNF3100CJ— 5 5 15 25 30 50 —
3 Pole, Non-Fusible, Type 12 with Screw Cover and Red and Yellow Rotary Handle 480V AC Max
20 HNF3020CJE— 1 ¾ 2 5 7½ 10 —
30 HNF3030CJE— 2 2 3 7½ 20 15 20
60 HNF3060CJE— 4 3 10 15 30 40 50
100 HNF3100CJE— 5 5 15 25 30 50 —
3 Pole, Non-Fusible, Type 4, 4X with Hinged Door and Black Pistol Grip Rotary Handle 480V AC Max.
30 HNF3030CX — 4 2 3 7½ 7½ 15 20
60 HNF3060CX — 4 3 10 15 20 40 50
100 HNF3100CX — 5 5 15 25 30 50 —
Siemens Enclosed Rotary Disconnect Switches
![](asset-f.png)

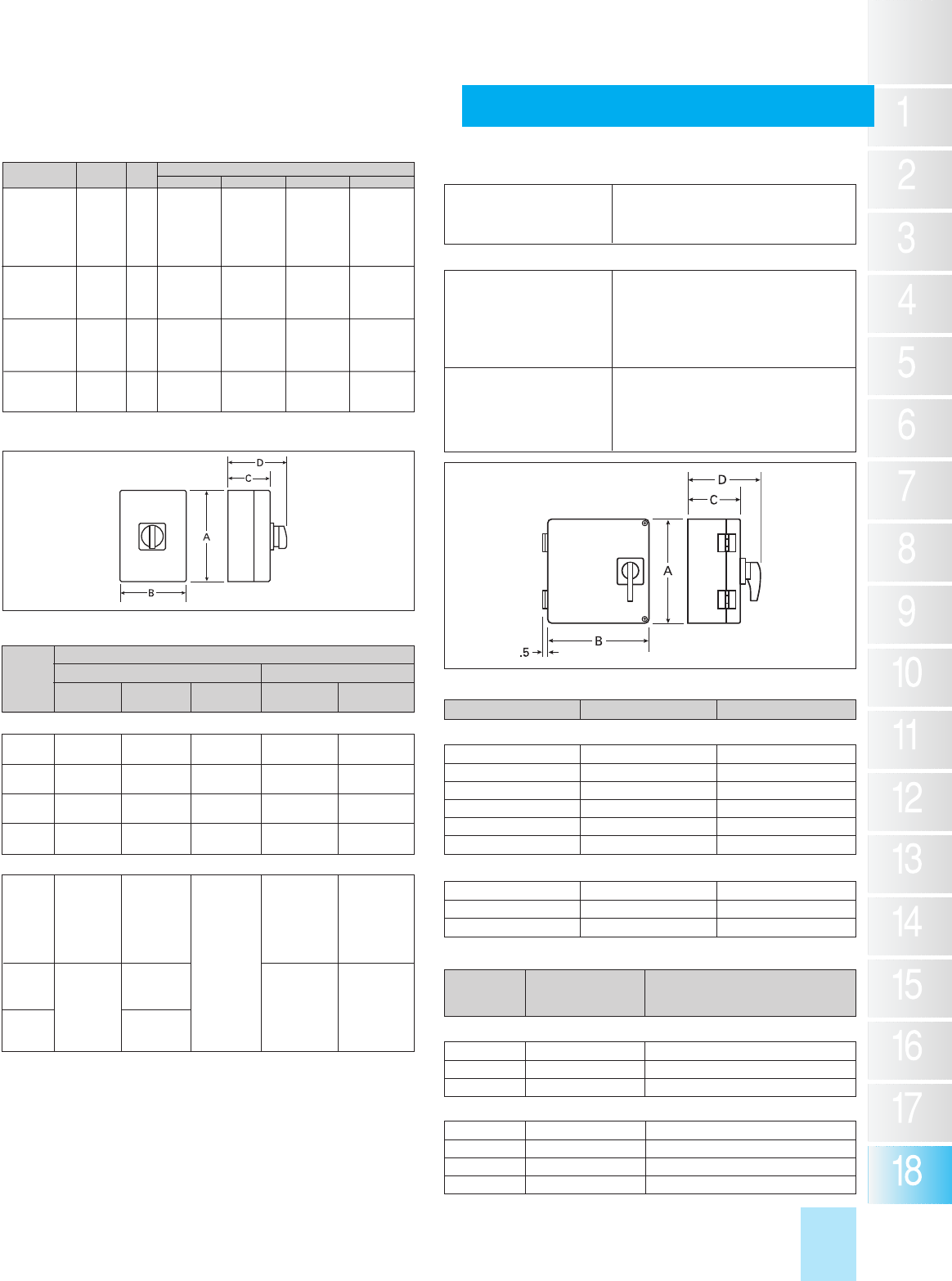

18/15
Siemens Industry, Inc.
Industrial Controls Catalog Product Category: HDSS
Rotary Disconnect Switches
Switches
Enclosed Switches
Siemens / Industrial Controls Previous folio: SF11 pg04-33
Ampere Rating
gG Fuse Size Short Circuit Rating
16 Amps (1) #18-10 AWG
25–30 Amps (1) #14-10 AWG
63 Amps (1) #14-6 AWG
100–125 Amps (1) #12-1 AWG
3LD2 Type Switches
(1) #14-#10 AWG Solid
(1) #14-#4 AWG Stranded
Up to (4) #12 AWG Solid
30 Amps Up to (3) #12 AWG Stranded
Up to (6) #14 AWG Stranded
Up to (4) #14 AWG Stranded
with (1) #10 AWG Stranded
(1) #14-#10 AWG Solid
(1) #14-#1 AWG Stranded
60 & 100 Amps (2) #6 AWG Stranded
Up to (3) #8 AWG Stranded
Up to (6) #10 AWG Stranded
Up to (6) #12 AWG Solid
HNF Type Switches
Figure 2
16 20A 5k Arms
25 25A 10k Arms
32 50A 10k Arms
63 63A 15k Arms
100 100A 20k Arms
125 125A 20k Arms
3LD2 Screw Cover Switches
30 63A 10k Arms
60 100A 10k Arms
100 100A 10k Arms
HNF Hinged Cover Switches
30–100A GSGK60 Ground Lug Kit
30A LBRA1 Auxiliary Contact Kit (1 NO-1 NC)
60–100A LBRA2 Auxiliary Contact Kit (1 NO-1 NC)
30–100A HF63CX
Neutral Kit
Switch
Ampere Catalog
Rating Number Description
HNF Type Switches
16–30A 3LD9220-2C Neutral Kit
63A 3LD9250-2CA Neutral Kit
100–125A 3LD9280-2C Neutral Kit
3LD2 Type Switches
Accessories
IEC Fuse and Withstand Ratings
Wire ranges 60/75°C Cu Only
Enclosed Disconnect Switch Dimensions (Inches)*
Figure 1
For use as supplemental protection on the load side of the branch circuit over current
protective device.
Ground lug kit has two lugs for #14-4 Cu/Al wire.
Factory installed ground lugs supplied as follows: 16-30A #14-10 Cu, 63A #14-8 Cu.
Ground lug not provided and is not available on catalog numbers 3LD2264-2TW51-0US2
and 3LD2264-2TW53-0US2.
6.38 inches high including mounting feet.
7.85 inches high including mounting feet.
60 & 100A HNF switches are rated 10kA at 480V max. with line side Class H, K & RK5
150A max. fuses.
Wire range (1) #14-2 AWG 60/75 °C Cu only.
h
16-63A 3LD switches are also rated 5kA at 600VAC max when protected by a 3RV type
MSP of the same or lesser ampere rating.
* For inches / millimeters conversion, multiply inches by 25.4.
Short Circuit Withstand Rating and Fuse Class
With Line Side Fusing With Load Side Fusing
Ampere 5 kA at 10 kA at 18 kA at 5 kA at 18 kA at
Rating
600V Max
600V Max
480V Max
480V Max
480V Max
16 RK5 — — — —
(50A Max)
25 & 30 RK5 — — — —
(80A Max)
63 RK5 — — — —
(175A Max)
100 & — RK5 — — —
125 (200A Max)
3LD2 Type Switchesh
Ferraz
Shawmut
H, K & RK5 H, K & RK5 A50P or lower
30 — (100A Max) (30A Max) let-through
semiconductor
fuses
J, T & CC (60A Max)
H, K & RK5 (100A Max) Ferraz
60 (150A Max) Shawmut
H, K & RK5 A50P or lower
(60A Max) let-through
semiconductor
100 fuses
(100A Max)
HNF Type Switches
UL and CUL Short Circuit Withstand Ratings
Catalog Ampere Fig.
Dimensions
Number
Rating No. A B C D
3LD2064- 16 5.52 3.94 3.19 4.57
3LD2164- 25 5.52 3.94 3.19 4.57
3LD2264- 30 1 5.52 3.94 3.19 4.57
3LD2565- 63 6.93 5.75 4.10 5.87
3LD2766- 100 11.90 8.35 5.36 7.13
3LD2866- 125 11.90 8.35 5.36 7.13
HNF3020CJ 20 4.92 2.95 3.94 5.44
HNF3020CJE 20 1 4.92 2.95 3.94 5.44
HNF3030CJ 30 6.89 4.92 3.94 5.44
HNF3030CJE 30 6.89 4.92 3.94 5.44
HNF3060CJ 60 9.46 6.31 4.77 6.27
HNF3060CJE 60 1 9.46 6.31 4.77 6.27
HNF3100CJ 100 11.77 7.87 5.20 6.70
HNF3100CJE 100 11.77 7.87 5.20 6.70
HNF3030CX 30 7.87 7.87 5.20 7.29
HNF3060CX 60 2 11.77 7.87 5.20 7.29
HNF3100CX 100 11.77 7.87 5.20 7.29
Note: 3LD2 Type switches only have top and bottom end KOs as follows:
16-30A - 1/2” & 3/4”, 63A - 3/4” & 1”, 100 & 25A - 1” & 1 1/4”
![](asset-10.png)

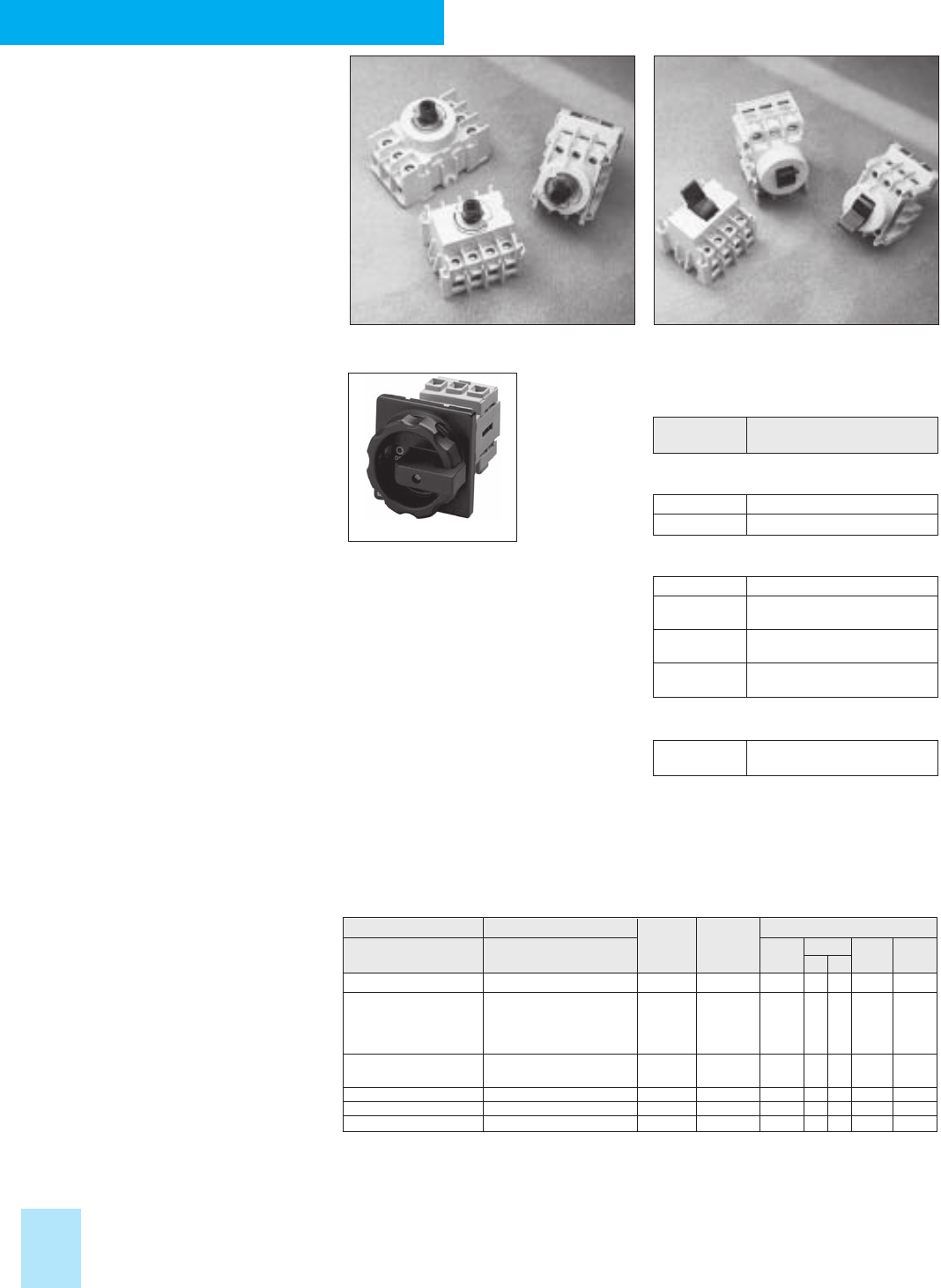

18/16 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: PILO
Siemens / Industrial Controls Previous folio: SF11 pg05-02
Compact Non-Fusible —
Rotary and Toggle
Switches
Disconnect Switches
Ordering Information
Door Mounted Switches (Rotary
Type Only) — Order either complete
“3LD2” assemblies or individual “LBR”
components as follows:
Complete Assemblies include switch,
handle, and shaft. Certain 25 and 32A
assemblies are also available with facto-
ry installed neutral blocks and/or aux.
contacts. These accessories can also
be ordered as field installed kits.
Individual Components are ordered as
follows:
25A — LBR3025D switch + LBRH3 or 4
handle.
40–100A — LBR switch + LBRH3 or 4
handle + LBRD1.
Notes: (LBR Type switches only)
1. Aux contacts are available as field
installed kits on 25A units only.
2. Lugs on 25A units face to the rear and
lugs on 40–100A units face toward
the front.
Features
b
16–250 Ampere, to 100 hp, 480V & 600V
b
Rotary and Toggle actuation models
b
LBR Type switches are padlockable in the
OFF position and are UL & CUL listed
under File No. E191706 as manual motor
controllers per UL Standard UL508
b
3LD2 Type switches are padlockable in the
OFF position and are UL listed under File
No. E47705 per UL508 and are CSA
certified under File No. 203576
b
Base, DIN-rail and door mounting
b
Multiple conductor, distribution terminal type
rating LBR & LBT Type (40A -100A only)
b
IEC 947-1 rated, CE marked
b
Listed and marked “suitable as motor
disconnect” per NEC Section 430-109
Application
Siemens Load Break Switches are listed
as manual motor controllers and are suit-
able as motor disconnects. They are load
break rated and act as enclosure discon-
nects when short circuit protection is
provided upstream of the switch. If
upstream over current protection is not
provided, use a Siemens fusible Type
VBII, CFS or MCS Disconnect Switch.
Type LBR Rotary Switches
3LD2254-0TK51
Type LBT Toggle Switches
Switch Rating
& Type Max. Line Side Fuse Rating
25 & 32A 3LD2 80A Max. at 600V AC Max.
63A 3LD2 175A Max. at 600V AC Max.
Short Circuit Withstand Ratings
5kA with Line Side Class H, K, or
RK5 Fuses
25A LBR 30A Max. at 480V AC Max.
40A, 4P 60A Max. at 480V AC Max.
LBR & LBT
40 & 60A, 3P 100A Max. at 480V AC Max.
LBR & LBT
80 & 100A 150A Max. at 480V AC Max.
LBR & LBT
10kA with Line Side Class H, K, or
RK5 Fuses
40–100A, 3P 100A Max. at 480V AC Max.
LBR & LBT
18kA with Line Side Class J, T, or
CC Fuses
Includes auxiliary contacts (1 NO and 1 NC).
Handles are IP65 rated and are also UL listed for Type 1, 4X
and 12 applications.
Add 51 for a black handle or 53 for a red & yellow handle
to the end of the catalog number.
100-250A 3LD2 switches are rated 10kA when protected by
200A Max. Class RK5 fuses.
Shaft Mounted 4 Hole Mounted AC Horsepower Ratings
Number Ampere 120V 240V 480V 600V
Catalog Number Catalog Number of Poles Rating 1
Ø
1
Ø
3
Ø
3
Ø
3
Ø
— 3LD2003-1TP53 3 16 1⁄2 11⁄2 3 71⁄2 10
3LD2154-0TK 3LD2103-0TK 3
3LD2154-1TP 3LD2103-1TP 3
3LD2154-1TL 3LD2103-1TL 3 + N 25 2 3 71/2 10 15
3LD2154-2EP 3LD2103-2EP 3 + N
3LD2254-0TK 3LD2203-0TK 3
3LD2254-1TL 3LD2203-1TL 3 + N 32 2 3 10 20 20
3LD2555-0TK 3LD2504-0TK 3 63 — 10 15 40 50
— 3LD2704-0TK 3 100 — — 30 60 75
— 3LD2804-0TK 3 125 — — 40 75 100
Door Mounted Complete Assemblies
Operator, Shaft, & Switch) 600V AC Max.
Base/DIN Rail Mounted Switches
(Rotary or Toggle Type) — Order
individual components as follows:
Toggle — Order the LBT switch required
and a toggle switch cover plate if
needed.
Rotary, Base Mounted with Door
Mounted Handle — Order “LBR”
switch + door mounted handle + shaft +
any accessories.
Rotary, Base Mounted with Direct
Mounted Handle — Order “LBR”
switch + direct mounted handle.
Note: 3LD2 switches are also rated 5kA at 600V
AC Max. when protected by a 3RV motor starter
with a FLA rating equal to or less than the switch
ampere rating.
![](asset-11.png)

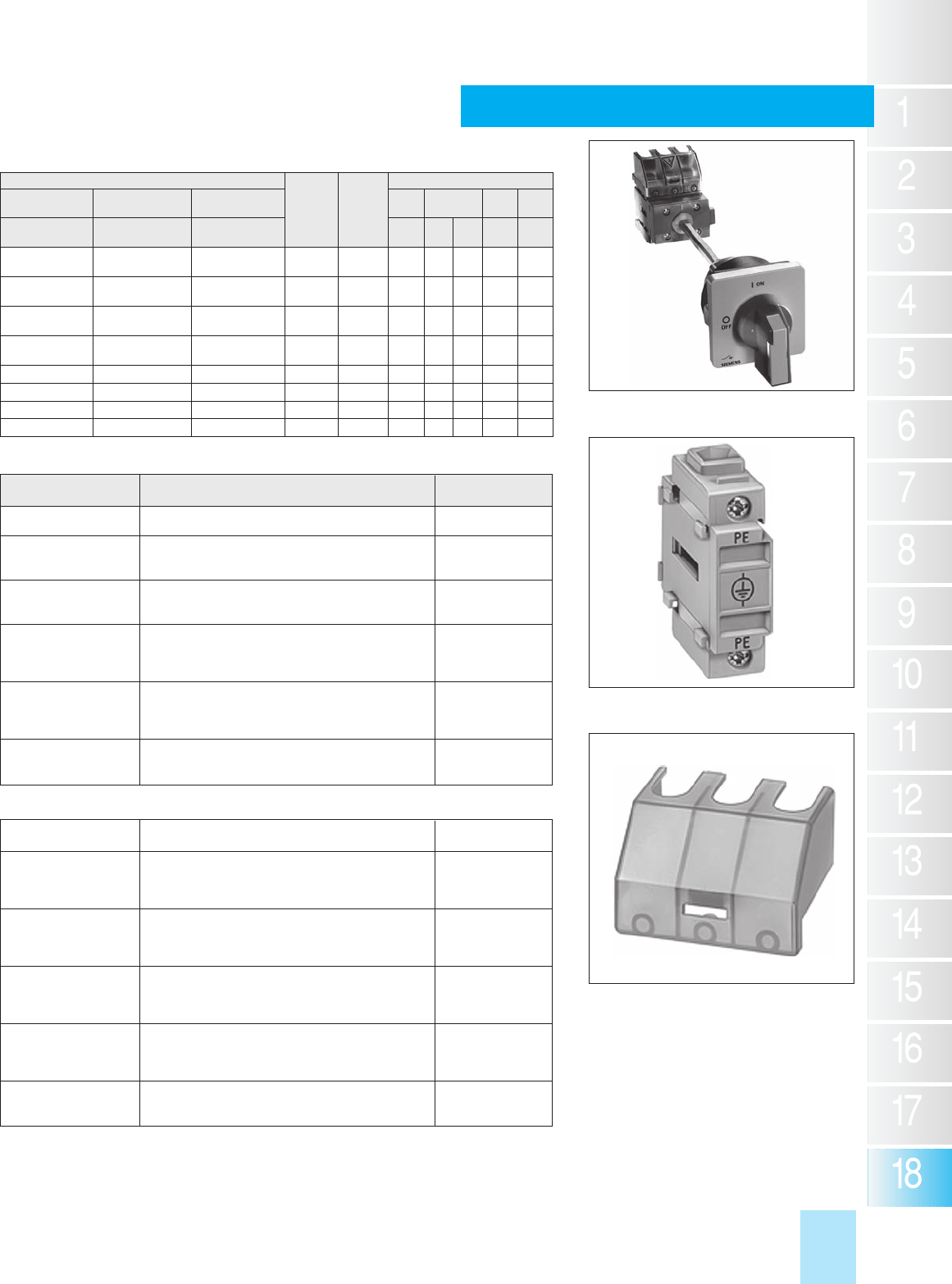

18/17
Siemens Industry, Inc.
Industrial Controls Catalog Product Category: PILO
Siemens / Industrial Controls Previous folio: SF11 pg05-03
Compact Non-Fusible —
Rotary and Toggle
Switches
Disconnect Switches
Handle mounting
Number
of Poles Ampere
Rating
AC Horsepower Ratings
Shaft
(center hole) 4 Hole
(no defeat) 4 Hole
(with defeat) 120V 240V 480V 600V
Catalog
Number Catalog Number Catalog
Number 1
Ø
1
Ø
3
Ø
3
Ø
3
Ø
—3LD2013-0TK5_ 3LD2017-0TK1 316 ½ 1½ 3 7½ 10
—— 3LD2017-1TL1 3 + N
3LD2144-0TK5 3LD2113-0TK5 — 325 2 3 7½ 10 15
3LD2144-1TL5 3LD2113-1TL5 — 3 + N
3LD2244-0TK5 3LD2213-0TK5 3LD2217-0TK1 332 2 3 10 20 20
3LD2244-1TL53 3LD2213-1TL53 3LD2217-1TL1 3 + N
3LD2545-0TK5 3LD2514-0TK5 3LD2517-0TK1 363 3 10 15 40 50
—— 3LD2517-1TL1 3 + N
—3LD2714-0TK5 —3 100 — — 30 60 75
—3LD2814-0TK5 —3 125 — — 40 75 100
—3LD2318-0TK1 —3 160 — — 40 75 75
—3LD2418-0TK1 —3 250 — — 50 100 75
3LD Type Base Mounted Complete Assemblies
(Operator, Shaft, & Switch) 600V AC Max.
3LD2217-0TK13
3LD9220-2C
Handles and line side terminal covers are supplied as
standard with 3LD2 switches.
Add suffix 1 for a black or 3 for a red & yellow handle to the
catalog number (except 3LD2244-1TL53 & 3LD2213-1TL53).
Handles are IP65 rated and are also listed by UL for Type 1,
4X and 12 applications.
Aux. contacts break about 30 Ms before and make about 3
Ms after main switch contacts.
Ratings 10A at 120V AC
6A at 240V AC
1.4A at 480V AC
Can be used as replacement handles on enclosed 3LD2
switches.
Base mounted switches with direct mount handles
are also available (3LD2330-0TK1 _
rated 160A and
3LD2430-0TK1_
rated 250).
Accessories for Front Mounted 3LD2 Switches
Catalog Switches
Number Description Used With
3LD9200-5B 1 NO, 1 NC Aux. Contact 25-125A
3LD9200-5BF 1 NO, 1 NC Aux. with Gold Plated Contacts 25-125A
3LD9220-2B Neutral/Ground Terminal 25 & 32A
3LD9250-2BA Neutral/Ground Terminal 63A
3LD9280-2B Neutral/Ground Terminal 100 & 125A
3LD9220-0B 4th Pole (leading ON, lagging OFF) 25 & 32A
3LD9250-0BA 4th Pole (leading ON, lagging OFF) 63A
3LD9280-0B 4th Pole (leading ON, lagging OFF) 100 & 125A
3LD9224-1B Black Handle (4 hole mtg.) 25 & 32A
3LD9284-1B Black Handle (4 hole mtg.) 63-125A
3LD9224-3B Red/Yellow Handle (4 hole mtg.) 25 & 32A
3LD9284-3B Red/Yellow Handle (4 hole mtg.) 63-125A
3LD9224-1D Black Handle (shaft mtg.) 25 & 32A
3LD9284-1D Black Handle (shaft mtg.) 63-125A
3LD9224-3D Red/Yellow Handle (shaft mtg.) 25 & 32A
3LD9284-3D Red/Yellow Handle (shaft mtg.) 63-125A
3LD9221-2A Terminal Cover 1P (Pack of 4) 25 & 32A
3LD9221-0A Terminal Cover 3P (Pack of 4) 25 & 32A
3LD9251-0A Terminal Cover 3P (Pack of 4) 63A
Accessories for Base Mounted 3LD2 Switches
3LD9200-5C 1 NO, 1 NC Aux. Contact 25-250A
3LD9200-5CF 1 NO, 1 NC Aux. with Gold Plated Contacts 25-250A
3LD9220-2C Neutral/Ground Terminal 25 & 32A
3LD9250-2CA Neutral/Ground Terminal 63A
3LD9280-2C Neutral/Ground Terminal 100 & 125A
3LD9240-2C Neutral/Ground Terminal 160 & 250A
3LD9220-0C 4th Pole (leading ON, lagging OFF) 25 & 32A
3LD9250-0CA 4th Pole (leading ON, lagging OFF) 63A
3LD9280-0C 4th Pole (leading ON, lagging OFF) 100 & 125A
3LD9240-0C 4th Pole (leading ON, lagging OFF) 160 & 250A
3LD9224-1B Black Handle (4 hole mtg. no defeat) 25 & 32A
3LD9284-1B Black Handle (4 hole mtg. no defeat) 63-125A
3LD9224-3B Red/Yellow Handle (4 hole mtg. no defeat) 25 & 32A
3LD9284-3B Red/Yellow Handle (4 hole mtg. no defeat) 63-125A
3LD9224-1D Black Handle (shaft mtg.) 25 & 32A
3LD9284-1D Black Handle (shaft mtg.) 63-125A
3LD9224-3D Red/Yellow Handle (shaft mtg.) 25 & 32A
3LD9284-3D Red/Yellow Handle (shaft mtg.) 63-125A
3LD9221-2A Terminal Cover 1P (Pack of 4) 25 & 32A
3LD9221-0A Terminal Cover 3P (Pack of 4) 25 & 32A
3LD9251-0A Terminal Cover 3P (Pack of 4) 63A
3LD9251-0A
Note: 3LD2 shaft lengths allow the following
maximum enclosure depths from the switch
mounting surface to the outside of the cover:
16-32A, 15.25"
63-125A, 15.75"
160 & 250A, 23.70"
Base Mount
![](asset-12.png)

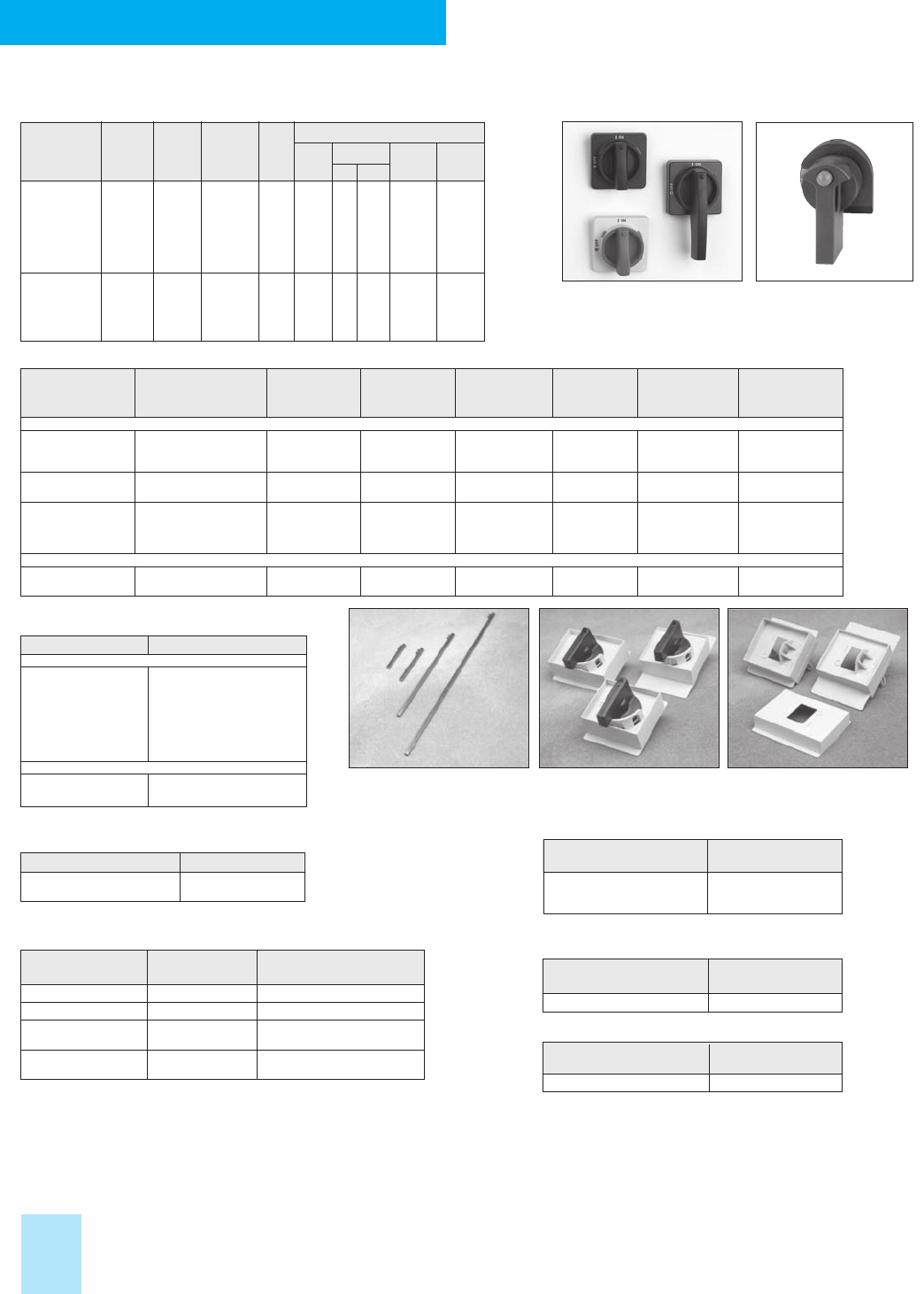

18/18 Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: 18/17
Product Category: HDSS
Compact Non-Fusible —
Rotary and Toggle
Switches
Disconnect Switches
No cover interlock defeat mechanism provided.
To elimi-
nate cover interlock, order additional catalog number
LBRDC1.
LBRH2 is IP54 rated. All others are IP65.
Ratings
15.1A resistive at 250V AC max.
.5A at 125V DC
.25A at 250V DC
.5 HP at 250V AC max.
Auxiliary switch contacts break about 30 Ms before and
make about 3 Ms after main switch contacts.
Lug wire ranges:
HF63CX—(1) #14-2 AWG 60/75°C Cu only
Only door mountable and for use with LBRH3 &
4 handles only.
For door mounting of 40–100A LBR switches use
door mounting kit LBRD1 & LBRH3 or 4 handle.
h
LBRD1 does not require shaft.
Rotary and Toggle Switches
Max AC Horsepower Ratings
Catalog Switch No. of Ampere AC 115V 240V 480V 600V
Number Type Poles Rating Volt 1
Ø
1
Ø
3
Ø
3
Ø
3
Ø
LBR3025 Rotary 3 25 480 3⁄4 2 5 10 —
LBR3025D
Rotary 3 25 480 3⁄4 2 5 10 —
LBR3040
Rotary 3 40 600 2 3 71⁄2 20 25
LBR3060
Rotary 3 60 480 2 5 10 25 —
LBR3080
Rotary 3 80 600 3 10 20 40 50
LBR3100
Rotary 3 100 480 5 15 25 50 —
LBR4040 Rotary 4 40 480 2 3 71⁄2 20 —
LBT3040 Toggle 3 40 600 2 3 71⁄2 20 25
LBT3060 Toggle 3 60 480 2 5 10 25 —
LBT3080 Toggle 3 80 600 3 10 20 40 50
LBT3100 Toggle 3 100 480 5 15 25 50 —
LBT4040 Toggle 4 40 480 2 3 71⁄2 20 —
Standard Duty Rotary
Switch Door Handles
Rotary Switch Direct
Mount Handles
Rotary Shafts Toggle Switch Cover
Plates
Used on Catalog No Catalog Number
LBR3025 LBRP25
LBR3025D LBRP25D
25 Amp, 4th Pole
Used on Catalog
Rotary Switch Number Contact Arrangement
LBR3025 LBRA25 1 NO & 1 NC
LBR3025D LBRA25D 1 NO & 1 NC
LBR3040, LBRA1 1 NO/1 NC
LBR3060 with common point
LBR3080, LBRA2 1 NO/1 NC
LBR3100 with common point
Auxiliary Switch Kits
Individual Components and Assemblies
Recommended for Basemount. For Door mounting only, use LBRD1.
h
Heavy Duty Rotary
Switch Door Handle
LBR Type Rotary Shafts
Catalog No Length In. (mm)
For Standard Duty Handles
LBRS040 1.57 (40)
LBRS050 1.97 (50)
LBRS055 2.17 (55)
LBRS080 3.15 (80)
LBRS120 4.72 (120)
LBRS180 7.09 (180)
LBRS305 12.00 (305)
For Heavy Duty Handles
CFSS5200H 7.9 (200)
CFSS5400H 15.7 (400)
Used with
Catalog Number Catalog Number
All HF63CX
LBR/LBT Neutral Kit
Used on
Rotary Switch Catalog Number
40-100 Amps LBRD1h
LBR Type Rotary Switch Door Mounting
Kit (For use with LBRH3 & LBRH4 only)
Used on
Toggle Switches Catalog Number
LBT3040, LBT3060 LBTCP1
LBT3080,LBT3100 LBTCP2
LBT4040 LBTCP3
LBR Type Toggle Switch Cover Plate
LBR Type Handles
Cover
Catalog Used on NEMA Interlock
Number Rotary Switches Type Mounting Marking Color Supplied Padlockable
Standard Duty
LBRH2 All 1 Door ON/OFF Black No No
LBRH3 All 1, 3R, 12, 4X Door O/I, ON/OFF Black Yes
Yes
LBRH4 All 1, 3R, 12, 4X Door O/I, ON/OFF Red/Yel Yes
Yes
LBRH9 All (Pistol Grip Type) 1, 3R, 12, 4X Door O/I, ON/OFF Black Yes Yes
LBRH10 All (Pistol Grip Type) 1, 3R, 12, 4X Door O/I, ON/OFF Red/Yel Yes Yes
LBRH5 25 Amps 1 Direct Mount O/I Black — Yes
LBRH6 3-Pole, 40-60 Amps 1 Direct Mount O/I Black — Yes
LBRH7 3-Pole, 80-100 Amps 1 Direct Mount O/I Black — Yes
LBRH8 4-Pole, 40-60 Amps 1 Direct Mount O/I Black — Yes
Heavy Duty
CFSH10B12 All 1, 3R, 12 Door O/I, ON/OFF Black Yes Yes
CFSH10R12 All 1, 3R, 12 Door O/I, ON/OFF Red/Yel Yes Yes
![](asset-13.png)

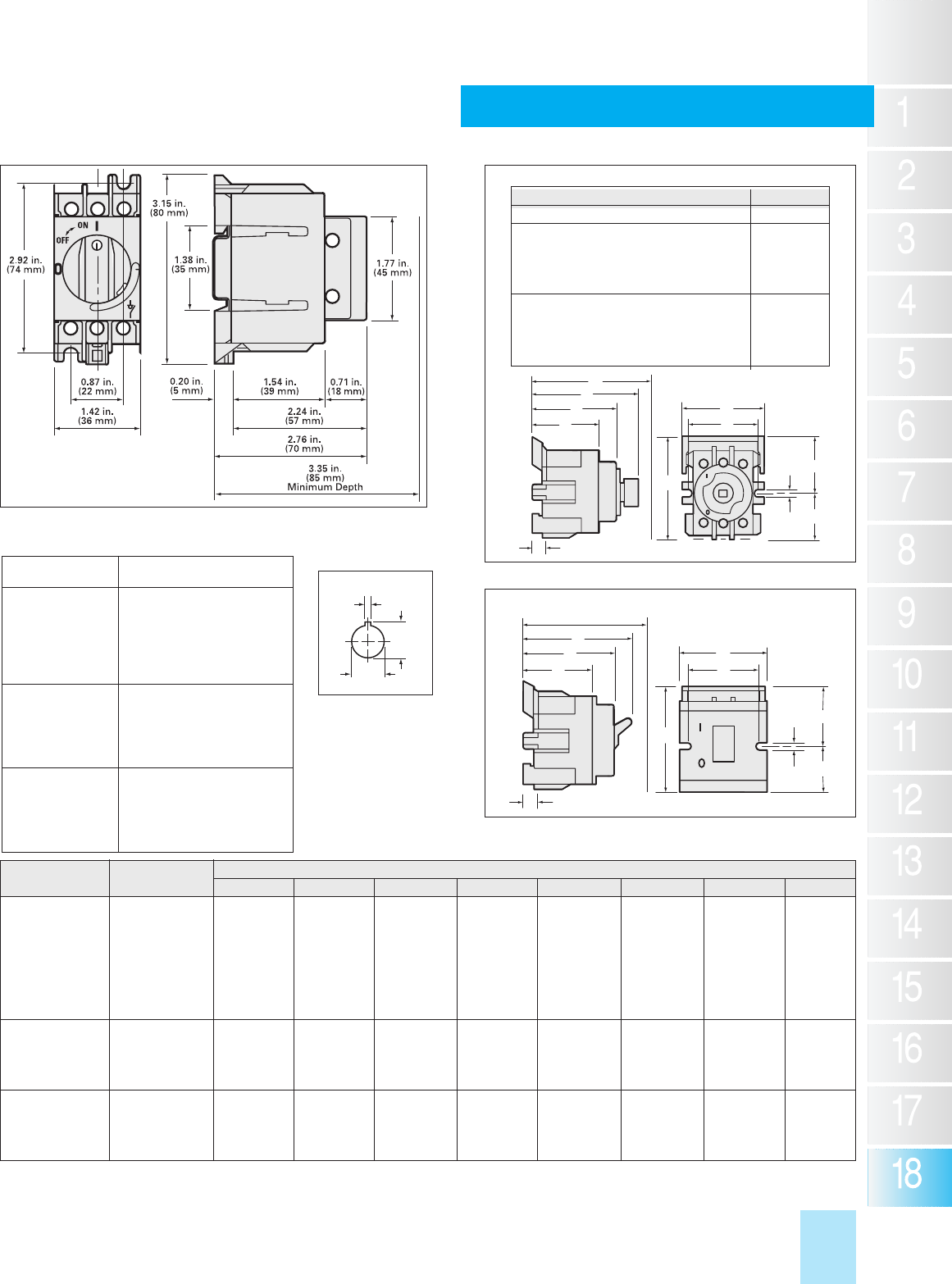

18/19
Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SF 4-5
Compact Non-Fusible —
Rotary and Toggle
Switches
Disconnect Switches
Switch Switch Dimensions Inches (mm)
Type Catalog Number A B C D E F G H
Rotary LBR3040 2.00 (51) 2.72 (69) 2.72 (69) 1.78 (45) 2.16 (55) 1.67 (42) 1.50 (38) 1.22 (31)
Rotary LBR3060 2.00 (51) 2.72 (69) 2.72 (69) 1.78 (45) 2.16 (55) 1.67 (42) 1.50 (38) 1.22 (31)
Rotary LBR3080 2.09 (53) 3.32 (84) 2.92 (74) 1.97 (50) 2.29 (58) 1.69 (42) 1.66 (42) 1.66 (42)
Rotary LBR3100 2.09 (53) 3.32 (84) 2.92 (74) 1.97 (50) 2.29 (58) 1.69 (42) 1.66 (42) 1.66 (42)
Rotary LBR4040 2.42 (61) 2.72 (69) 2.72 (69) 2.28 (58) 2.16 (55) 1.67 (42) 1.50 (38) 1.22 (31)
Rotary Front Mtg. 3LD20 1.89 (48) 1.97 (50) 1.97 (50) — — — — —
Rotary Front Mtg. 3LD21 & 2 1.81 (46) 2.17 (55) 1.97 (50) — — — — —
Rotary Front Mtg. 3LD25 2.36 (60) 2.52 (64) 2.32 (59) — — — — —
Rotary Front Mtg. 3LD27 & 8 2.40 (61) 3.27 (83) 2.40 (61) — — — — —
Rotary Base Mtg. 3LD20 1.89 (48) 1.97 (50) 2.29 (58) — — — — —
Rotary Base Mtg. 3LD21 & 2 1.81 (46) 2.17 (55) 2.29 (58) — — — — —
Rotary Base Mtg. 3LD25 2.36 (60) 2.52 (64) 2.68 (68) — — — — —
Rotary Base Mtg. 3LD27 & 8 2.80 (71) 3.27 (83) 2.76 (70) — — — — —
Rotary Base Mtg. 3LD23 & 4 4.41 (112) 5.83 (148) 4.10 (104) — — — — —
Toggle LBT3040 2.00 (51) 2.72 (69) 2.75 (70) 1.78 (45) 2.16 (55) 1.67 (42) 1.50 (38) 1.22 (31)
Toggle LBT3060 2.00 (51) 2.72 (69) 2.75 (70) 1.78 (45) 2.16 (55) 1.67 (42) 1.50 (38) 1.22 (31)
Toggle LBT3080 2.09 (53) 3.32 (84) 2.90 (74) 1.97 (50) 2.29 (58) 1.69 (42) 1.66 (42) 1.66 (42)
Toggle LBT3100 2.09 (53) 3.32 (84) 2.90 (74) 1.97 (50) 2.29 (58) 1.69 (42) 1.66 (42) 1.66 (42)
Toggle LBT4040 2.42 (61) 2.72 (69) 2.75 (70) 2.28 (58) 2.16 (55) 1.67 (42) 1.50 (38) 1.22 (31)
LBR 3025
0.31 in.
(8 mm)
F
E
C
D
A
H
G
0.16 in.
(4 mm)
B
J
LBR 40-100 Amps & 3LD2 16-250A
0.31 in.
(8 mm)
F
E
C
B
D
A
H
G
0.16 in.
(4 mm)
Minimum Depth
3.00 in.
(76 mm)
LBT Toggle — 40-100 Amps
Wire Ranges 60/75°C Cu only
25 Amps LBR (1) #14 - #10 AWG Solid
(1) #14 - #8 AWG Stranded
(1) #14 - #10 AWG Solid
(1) #14 - #4 AWG Stranded
40 & 60 Amps UP to (4) #12 AWG Solid
LBR & LBT Up to (3) #12 AWG Stranded
Up to (6) #14 AWG Stranded
Up to (4) #14 AWG Stranded
with (1) #10 AWG Stranded
(1) #14 - #10 AWG Solid
(1) #14 - #1 AWG Stranded
80 & 100 Amps (2) #6 AWG Stranded
LBR & LBT Up to (3) #8 AWG Stranded
Up to (6) #10 AWG Stranded
Up to (6) #12 AWG Solid
16A, 3LD20 (1) #18-10 AWG
25A, 3LD21 (1) #14-8 AWG
32A, 3LD22 (1) #14-8 AWG
63A, 3LD25 (1) #14-6 AWG
100, 125A, 3LD2 (1) #12-1 AWG
160, 250A, 3LD2 (1) #1-400 MCM
Dimension J Minimum Depth
Switch Dimension J
LBR 40-100A 3.35 (85)
3LD2 25 & 32A Front Shaft Mounted 3.07 (78)
3LD2 63 Front Shaft Mounted 3.35 (85)
3LD2 16-32A Front 4-hole Mounted 2.13 (54)
3LD2 63A Front 4-hole Mounted 2.48 (63)
3LD2 100 & 125A Front 4-hole Mounted 2.56 (65)
3LD2 25 & 32A Base w/shaft Mtg. Handle 6.46 (164)
3LD2 63A Base w/shaft Mtg. Handle 6.77 (172)
3LD2 16-32A Base w/4-hole Mtg. Handle 5.59 (142)
3LD2 63A Base w/4-hole Mtg. Handle 5.99 (152)
3LD2 100-250A Base w/4-hole Mtg. Handle 6.07 (154)
Dimension Drawings and Wire Ranges
Depth from outside of cover to back of switch
.
Handle front plate dimensions:
3LD 16-32A—2.64 inches square
3LD 63-125—3.55 inches square
Shaft Mounted
3LD2 Handle Cutout
(4-hole pattern)
.877
(22.5)
.95
(24.1)
.125
(3.2)
Drilling
Pattern
![](asset-14.png)
18/20 Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SF11 pg05-06
Type VBII (30-600A)
with Flange Mounted Operating Handle
Switches
Disconnect Switches
Features
b
30-600A, 600VAC and DC ratings
b
240 & 600V AC switches are UL
Recognized under file number
E121152, Vol. 3 and CSA certified
under file number 154852
b
600V DC Photovoltaic switches are
UL Recognized under file number
E335018, Vol. 3 and are rated to
switch 3 separate 600V DC circuits
b
Visible blade quick make and break
switching action
b
Panel and Flange mounted assemblies
facilite installation
b
Panel mounted switches are variable
depth
b
Short circuit rating of 10,000 AIC with
class H fuse, and of 200,000 AIC with
class R or J fuses. PV switches are
rated 10,000 AIC at 600V DC with
600V DC rated class K, J or R fuses.
b
Flange mounted handles rated as Type
1, 3R & 12 or 4X are padlockable in
the off position with up to (3) padlocks
with 5/16 hasps
b
Meets UL98 requirements and suitable
for both main and branch circuit appli-
cations
b
A complete line of aux contacts are
available
b
Load break and horsepower rated
b
Defeatable cover interlock standard
with all handles
b
Meets NFPA79 requirements
b
Seismic qualified
—
complies with the
2010 California Building Code (CBC)
—
and with the International Building
Code (IBC)
—
Compliance Level
SDS = 1.85 g
VBFS361, VBLK1 & VBH1 VBNFS365, VBLK4 & VBH2
VBFS363F
Ordering Information
1. Determine the ratings required (amps,
volts, HP, Fusible, NF), the mounting
needed (Panel or Flange), and select
the appropriate switch.
2. For panel mounted switches with a
rigid operating shaft (30-600A), order
panel mounted switch, flange mount-
ed operating handle & rigid linkage kit
based on depth required.
3. For panel mounted switches with a
Max-Flex operator, order panel mount-
ed switch, Max-Flex Handle & Adapter
Kit and drive cable.
4. Select accessories if required.
![](asset-15.png)
18/21
Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SF11 pg05-07

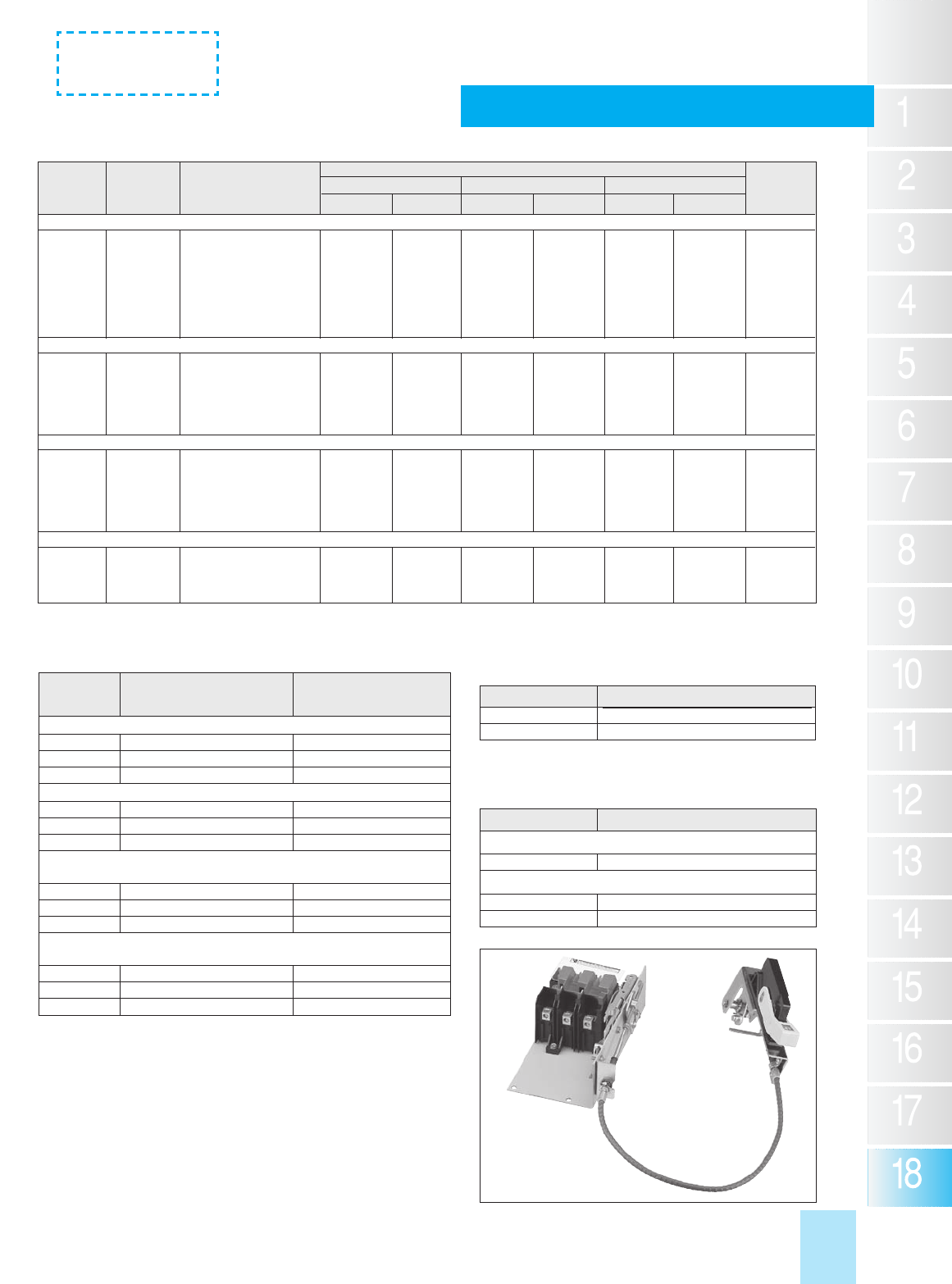

Type VBII Switch, Handle and
Linkage Kit Selection
Switches
Disconnect Switches
• Revised •
08/05/14
VBNFS361,
VBHM1 &
FHOEC036
Rated 5 HP at 250V DC.
Rated 10 HP at 250V DC.
600V DC & 600V DC horsepower rating shown requires (2) poles to be connected
in series.
Std. - applies when non-time delay fuses are used.
Max. - applies when time delay fuses are used.
Includes line base, load base, operating mechanism and line and load lugs.
Order operating handle and linkage kits from tables on pages 18/21 or 18/22.
Includes line base, load base, operating mechanism line and load lugs plastic
operating handle and required linkage.
All photovoltaic switches are rated to be used with
3 separate 600V DC circuits.
h Fusible switches accept Class K or R fuses as standard and Class J fuses by
relocating the load base.
Rated 250V DC max and 50HP at 250V DC.
Switch Max. AC Horsepower Rating, Switches and 3-Phase 600
Ampere Voltage Catalog 240 Volts AC 480 Volts AC 600 Volts AC Volts DC
Rating Rating Number Standard Max. Standard Max. Standard Max. (max)
Fusible Panel Mounted Variable Depth Switches - 3-Pole
30 240 VBFS321 3 7 1/2 — — — — —
60 240 VBFS322 7 1/2 15 — — — — —
30 600 VBFS361 — — 5 15 7 1/2 20 15
60 600 VBFS362 — — 15 30 15 50 30
100 600VBFS363— — 25 60 30 75 50
200 600VBFS364— — 50 125 60 150 50
400 600VBFS365— — 100 250 125 350 —
600 600VBFS366— — 150 400 200 500 —
Non-fusible Panel Mounted Variable Depth Switches - 3-Pole!
30 600VBNFS361— 10 — 20 — 30 15
60 600VBNFS362— 20 — 50 — 60 30
100 600VBNFS363— 40 — 75 — 100 50
200 600VBNFS364— 60 — 125 — 150 50
400 600VBNFS365— 125 — 250 — 300 —
600 600VBNFS366— 200 — 400 — 500 —
Fusible Flange Mounted Switches - 3-Pole
30 240VBFS321F3 7 1/2 — — — — —
60 240VBFS322F7 1/2 15 — — — — —
30 600VBFS361F— — 5 15 7 1/2 20 15
60 600VBFS362F— — 15 30 15 50 30
100 600VBFS363F— — 50 60 30 75 50
200 600VBFS364F— — 100 125 60 150 50
Non-fusible Flange Mounted Switches – 3-Pole
30 600VBNFS361F— 10 — 20 — 30 15
60 600VBNFS362F— 20 — 50 — 60 30
100 600VBNFS363F— 40 — 75 — 100 50
200 600VBNFS364F— 60 — 125 — 150 50
Note: Fusible switches include fuse provisions for Class H Fuses. The load base can be moved to pre-drilled holes for Class J Fuses on all 600V switches. If Class R
Fuses are required, add a Class R Fuse Clip Kit.
Switches—for Standard 600V Max AC or DC Applications
Switches—for Photovoltaic Applications, 600VDC Max.
(for use in negative ground systems only)
Switch
Ampere
Rating Catalog Number Rated Isc per NEC
Article 690
Fusible Panel Mounted Variable Depth Switches—3 Poleh
30 VBFS361PV 19.2A
60 VBFS362PV 38.4A
100 VBFS363PV 64.0A
Non-Fusible Panel Mounted Variable Depth Switches—3 Pole
30 VBNFS361PV 24.0A
60 VBNFS362PV 48.0A
100 VBNFS363PV 80.0A
Fusible Flange Mounted Variable Depth Switches—3 Pole
(Includes Type 1, 3R and 12 Rated Operating Handle)h
30 VBFS361FPV 19.2A
60 VBFS362FPV 38.4A
100 VBFS363FPV 64.0A
Non-Fusible Flange Mounted Variable Depth Switches—3 Pole
(Includes Type 1, 3R and 12 Rated Operating Handle)
30 VBNFS361FPV 24.0A
60 VBNFS362FPV 48.0A
100 VBNFS363FPV 80.0A
Cable Kit
For use with 30-200A panel mounted switches and Max-Flex
handle and adapter kit .
Catalog Number Description
FHOEC036 36" long drive cable
FHOEC048 48" long drive cable
Max-Flex
TM
Handle and Adapter Kit
(Type 1, 12, 3R & 4X) Use with 30-200A panel mounted
switches and cable kit .
Catalog Number Operating Handle Description
Plastic Handles
VBHM1 30-200A Type 1, 3R, 12 and 4X
Metal Handles
VBHM2 30-200A Type 1, 3R and 12
VBHM2X 30-200A Type 4X
![](asset-16.png)
18/22 Siemens Industry, Inc.
Industrial Controls Catalog

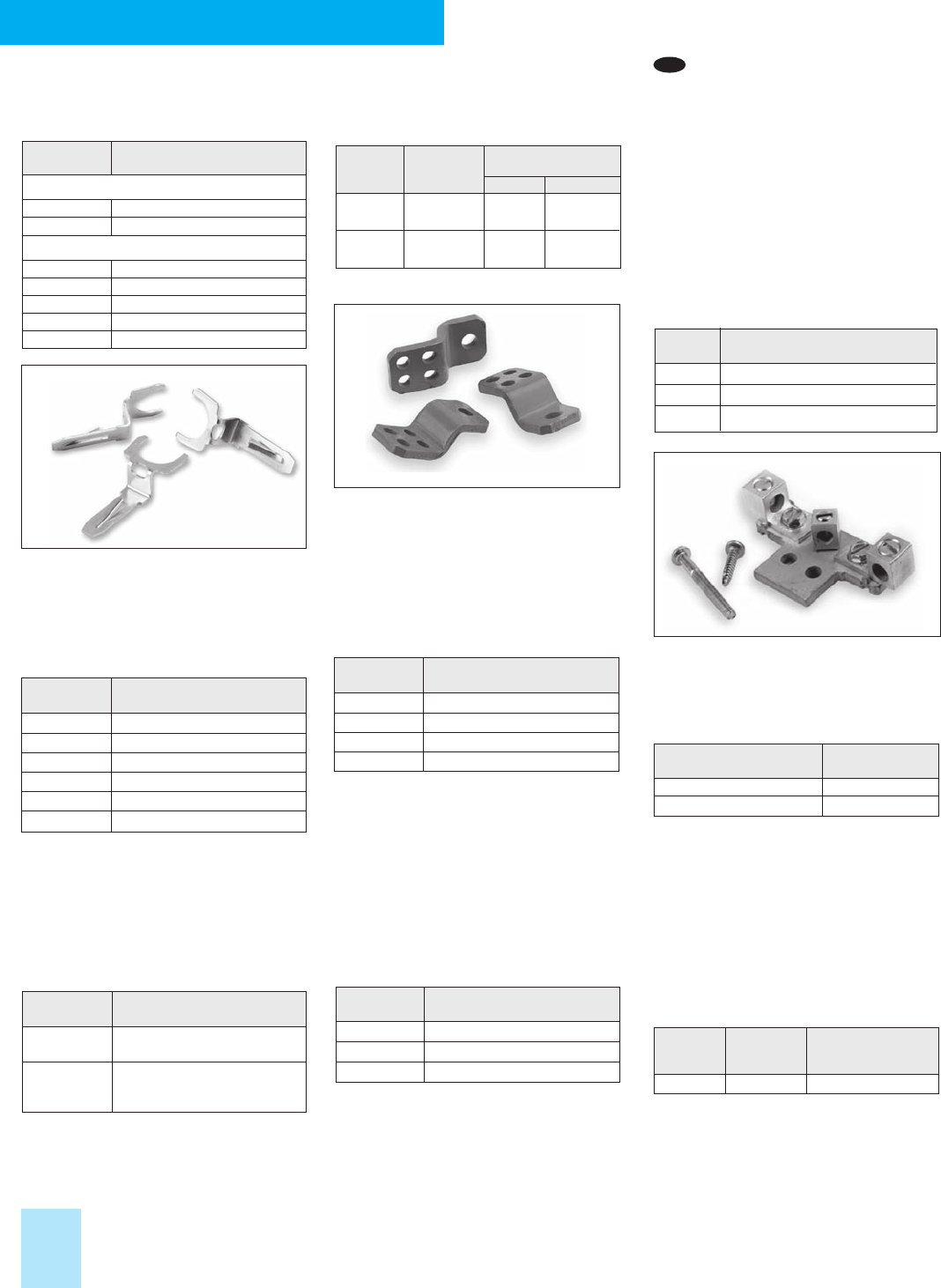

Quick Connects
They provide two point control power
take-off capability and are normally
used on two poles on the line side
when it is required to have control
power available when the switch is
in the OFF position. They provide a
mounting provision for standard ¼”
quick connect terminal. Installed in
the line or load side. 30A VBII switches
have lugs UL listed to accept (2) wires
per pole as standard so a 30A kit is
not required.
Catalog
Number Description
HCQ6260A 2 wire quick connect kit
HCQ63100A 2 wire quick connect kit
HCQ64200A 2 wire quick connect kit
Product Category: HDSS
Siemens / Industrial Controls Previous folio: SF11 pg05-08
Accessories Type VBII
Switches
Disconnect Switches
Class R Fuse Clip Kits
These kits prevent the installation of
Class H and K fuses (one kit required per
switch).
Internal Door Latch Kits
For use with enclosures with door
mounted latching bar. Required when a
flange mounted switch is mounted in a
Hoffmann or Rittal enclosure provided
with an AB cutout.
Class J Fuse Provisions
All 30-600A, 600V fusible switches are
field convertible to accept Class J fuses
by moving the load base to a pre-drilled
J fuse position. 200% Neutral Kits
UL listed 200% Neutrals are available
on 60 & 100A switches. They are typi-
cally used with non-linear transformers
or where increased neutral ampacity/lug
capacity is required.
Neutral Kits
Standard Neutral Kits can be field
installed in 30-100A switches.
HR612
HN612
HT63
s
Built to order. Allow 6–8 weeks for delivery.
Dimensions (min. & max.) from enclosure mounting pan
to outside surface of enclosure handle mounting flange.
7.12 for 200A switches.
One kit per pole required.
UL approved (not CSA certified).
Window Kits (Type 1, 12, 3R and 4x)
Allows viewing of visible blades and of
indicating fuses through 200A.
Class T Fuse Adapter Kits
100-600A fusible switches are field
convertible to accept Class T fuses.
400-600A switches are field convertible
to accept Class T fuses by moving the
load base to a pre-drilled T fuse position.
Class T Fuse Adapter Kits
Catalog
Number Operating Handle Description
Plastic Handles
VBH1 30-200A Type 1, 3R & 12
VBH14X 30-200A Type 4X
Metal Handles
VBH112 30-200A Type 1, 3R & 12
VBH14 30-200A Type 4X
VBH2 400A Type 1 & 12
VBH2R 400 & 600A Type 1, 3R & 12
VBH24X 400 & 600A Type 4X
Flange Mounted Operating Handles
For use with Panel Mounted Switches.
Plastic handle is included with Flange
Mounted Switches as standard.
Catalog
Number Description
DKR2 2 point (for use with
enclosures less than 40" high)
3 point (for use with
DKR3 enclosures 40" or larger
in height)
Catalog
Number Description
VBWK1 30A Window Kit
VBWK2 60 & 100A Window Kit
VBWK3 200-600A Window Kit
Rigid Linkage Kits
For use with Panel Mounted Switches.
Not required for Flange Mounted
Switches.
Switch
Catalog Ampere Enclosure Depth
Number Rating Min Max.
VBLK130-200 6.946.94
VBLK230-200 6.9419.0
VBLK3400 & 600 9.00 8.75
VBLK4400 & 600 9.00 19.0
HR21 30A, 240V Kit (HD only)
HR612 30A, 600V Kit/60A, 240V Kit
HR62 60A, 600V Kit
HR63 100A Kit
HR64 200A Kit
HR656 400A/600A Kit
Class R Fuse Clip Kits
Catalog
Number Description
Catalog
Number Description
HT23 100A, 240V Kit
HT63 100A, 600V Kit
HT24 200A, 240V Kit
HT64s 200A, 600V Kit
Neutral Kits
30A 600V, 60A 240V HN612
60A, 600V & 100A HN623
Switch Kit Catalog
Ampere Rating Number
200% Neutral Kits
Switch
Ampere Kit Catalog Wire Range Line &
Rating Number Load Lugs (Cu/Al)
60 & 100A HN263 (2) #14-1/0 AWG
NEW
![](asset-17.png)
18/23
Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SF11 pg05-09
Product Category: HDSS

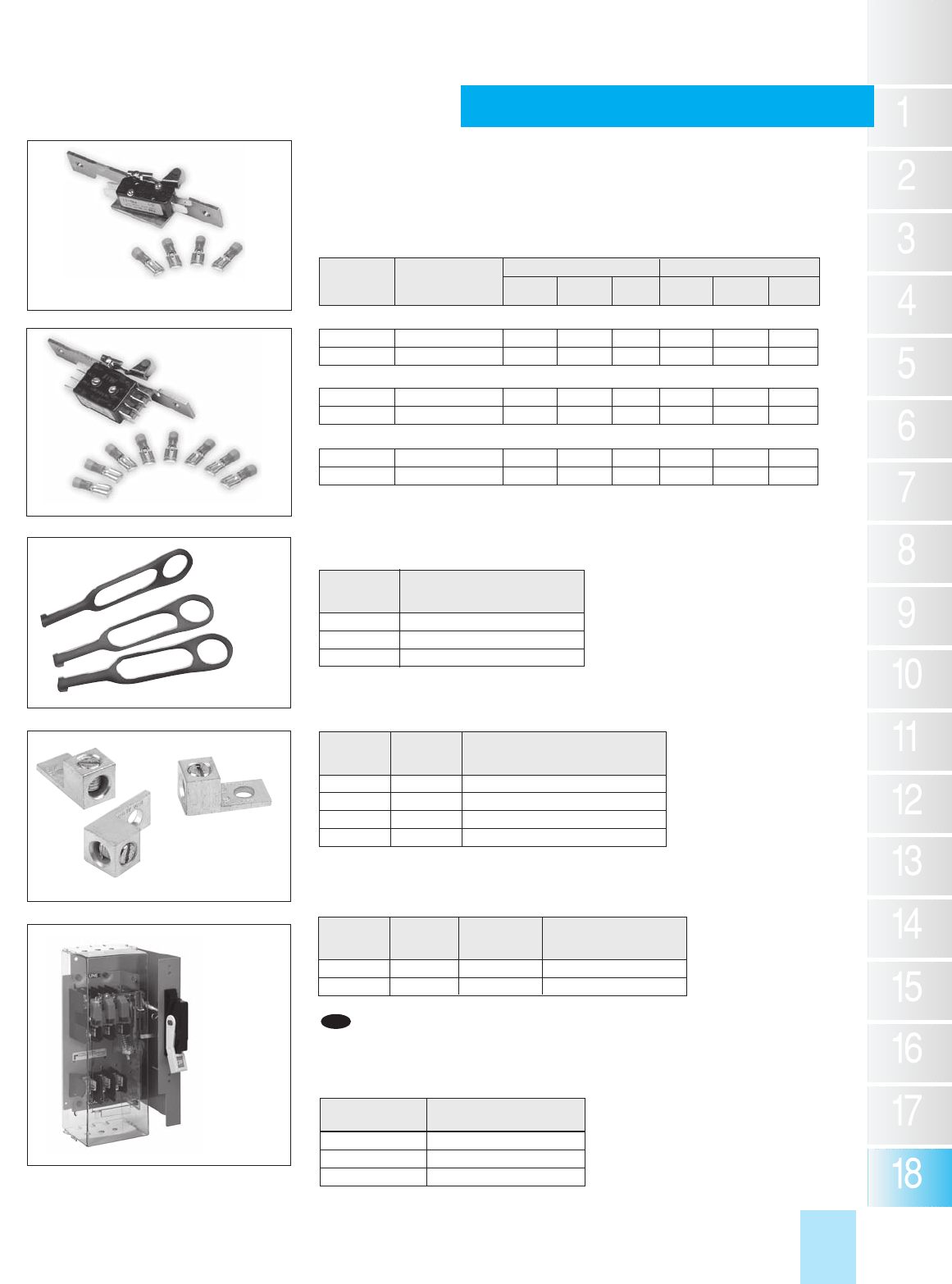

Type VBII Accessories
Switches
Disconnect Switches
Fuse Puller Kits
Fuse Puller Kits are field installable in 30-100A Type VBII Heavy Duty
Switches (one kit required per 3-pole switch).
Internal Shield Kits (for fusible switches)
Kits provide a “skirt” that encloses the VBII switch and also a clear plastic
inner door to prevent accidental contact with live parts. Test probe holes
are provided and fuses can be replaced without removal of kit.
Auxiliary Contacts
The auxiliary contacts are available in 1 normally open and 1 normally closed
or 2 normally open and 2 normally closed configurations. Siemens offers a
PLC Auxiliary Switch (30-200A) that has very low resistance for low voltage
and current typical in PLC circuits. All auxiliary contacts make after and break
before main switch contacts.
30-200 HA161234 10 10 — 1/2 3/4 —
400-600 HA165678 10 10 — 1/2 3/4 —
Switch Kit Ampere Rating Kit Horsepower Rating
Ampere Aux. Switch 125V AC 250V AC 28V DC 125V AC 250V AC 28V DC
Rating Catalog Number Max. Max. Max. Max. Max. Max.
With 1 NO & 1 NC Isolated Contacts
30-200 HA261234 10 10 7 1/2 3/4 —
400-600 HA265678 10 10 7 1/2 3/4 —
With 2 NO & 2 NC Isolated Contacts
30-200 HA361234 10 10 — 1/2 3/4 —
400-600 HA365678 10 10 — 1/2 3/4 —
Low Current PLC Type with 1 NO & 1 NC Gold Plated Contacts
030 HP61
060 HP62s
100 HP63s
Switch
Ampere Fuse Puller Kit
Rating Catalog Number
30A HSK61
60-100A HSK623
200A HSK64
Switch Shield Kit
Ampere Rating Catalog Number
s
Built to order. Allow 6–8 weeks for delivery.
HA161234
HA261234
HP61 Copper Lug Kits
All switches are UL approved to accept field installed copper lug kits.
30–60 HLC612 (9) Lugs/Kit #14-4 AWG Cu
100 HLC63s (9) Lugs/Kit #14-1/0 AWG Cu
200 HLC64s (9) Lugs/Kit #6 AWG-300 Kcmil Cu
400–600A HLC65678 (1) Lugs/Kit #1/0 AWG-600 Kcmil Cu
Switch Copper Lug
Ampere Catalog
Rating Number Description
Equipment Ground Kits
Equipment Ground Lug Kits are available for all switches.
30–200 HG61234 2 #14-4 AWG
400 & 600 HG656 4 #6 AWG-250 Kcmil
Switch
Ampere Catalog Number of Wire Range
Rating Number Terminals Per Terminal (Cu/Al)
NEW
HSK61
HLC612
![](asset-18.png)
18/24 Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SF 4-10
Type VBII Lug Wire Ranges & Dimensions
Switches
Disconnect Switches
Lugs
30 & 60A switches are suitable for use with 60° or 75°C wire. 100–600A
switches are suitable for use with 75°C rated wire. All switches are supplied
with factory installed line and load lugs.
Approximate Dimensions
Mounting bracket shown with handle installed is supplied
with Flange Mounted Switches only. All Panel Mounted
Switches have a “L” shaped mounting pan with a line base,
load base (if fusible) and mechanism installed.
Fusible, Panel Mounted
VBFS321 11.88 N/A 7.47 6.94 19
VBFS322 13.12 N/A 8.50 6.94 19
VBFS361, PV 11.88 N/A 7.47 6.94 19
VBFS362, PV 13.12 N/A 8.50 6.94 19
VBFS363, PV 13.12 N/A 8.50 6.94 19
VBFS364 17 N/A 12.33 7.12 19
VBFS365 26.25 N/A 16.50 8.63 19
VBFS366 26.25 N/A 16.50 8.63 19
Non-fusible, Panel Mounted
VBNFS361, PV 9.79 N/A 7.47 6.94 19
VBNFS362, PV 9.79 N/A 8.50 6.94 19
VBNFS363, PV 9.79 N/A 8.50 6.94 19
VBNFS364 10.77 N/A 12.33 7.12 19
VBNFS365 13 N/A 16.50 8.63 19
VBNFS366 13 N/A 16.50 8.63 19
Fusible, Flange Mounted
VBFS321F 11.88 14.08 7.47 7.27 N/A
VBFS322F 13.12 15.83 8.85 7.27 N/A
VBFS361F, PV 11.88 14.08 7.47 7.27 N/A
VBFS362F, PV 13.12 15.83 8.85 7.27 N/A
VBFS363F, PV 13.12 15.83 8.85 7.27 N/A
VBFS364F 17 18.20 12.68 7.57 N/A
Non-fusible, Flange Mounted
VBNFS361F, PV 9.79 11.78 7.47 7.27 N/A
VBNFS362F, PV 9.79 11.78 8.85 7.27 N/A
VBNFS363F, PV 9.79 11.78 8.85 7.27 N/A
VBNFS364F 10.77 11.97 12.68 7.57 N/A
Catalog Dimensions
Number A B C
D (min) D (max)
A
D
C
Dimension C for panel mounted switches indicates the minimum width from the left
hand edge of the switch mounting pan to the right hand inside surface of the enclosure.
Switch
Ampere
Rating UL Approved Wire Range Lug Wire Range
30 #14-6 AWG (Cu/AI) #14-2 AWG (Cu/Al)
60 #14-2 AWG (Cu/AI) #14-2 AWG (Cu/Al)
100 #14-1/0 AWG (Cu/Al) #14-1/0 AWG (Cu/Al)
200 #6 AWG-300 Kcmil (Cu/Al) #6 AWG-300 Kcmil (Cu/Al)
400 1/0 AWG-750 Kcmil (Cu/Al) or (1) 1/0 AWG-750 Kcmil (Cu/Al) or
(2) 1/0 AWG-250 Kcmil (Cu/Al) (2) 1/0 AWG-250 Kcmil (Cu/Al)
600 (2) 1/0 AWG-750 Kcmil (Cu/Al) or (2) 1/0 AWG-750 Kcmil (Cu/Al) or
(4) 1/0 -250 Kcmil (Cu/Al) (4) 1/0 AWG-250 Kcmil (Cu/Al)
Wire Ranges (Line, Load and Standard Neutral)
![](asset-19.png)
18/25
Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: 18/24

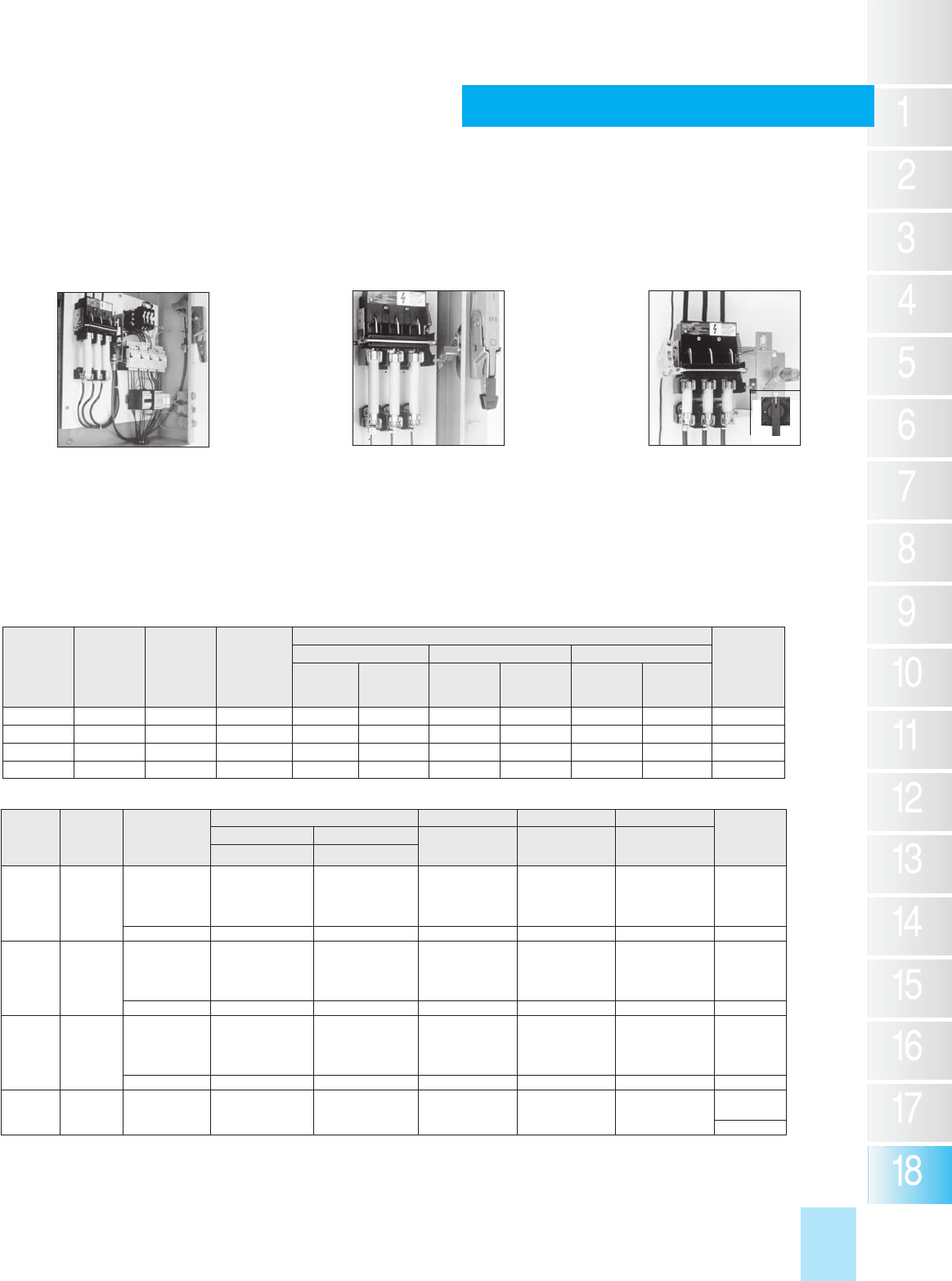

Type MCS (30-200A) —
Switches, Fuse and No Fuse Kits
Switches
Disconnect Switches
Features
b
30, 60, 100 and 200 Ampere Switches
b
UL Recognized (file # E121152 vol. 1 &
2) and CSA Certified
b
Simple Mounting — with an integral
switch and over center mechanism
b
Horsepower & load break rated
b
Compact Size
b
Visible Blade Contacts
b
Rugged Construction — with a short
circuit current rating of 10,000 amps
with Class H or 200,000 amps at 600V
maximum AC, when fused with Class
R or Class J fuses
b
Available with three operator handle
options, allowing flexible placement
of switch
b
Field Installable Auxiliary Contacts
b
Flexible Fuse Class Configurations
b
Flange mounted handles meet NFPA79
requirements
Ordering Information
1. Select the basic switch size you need
(30, 60, 100 or 200 ampere).
2. Check the switch selected against the
maximum horsepower rating required
for our application. “L” or “R” suffix on
switch catalog numbers denotes left or
right-handed mechanism drive.
3. Choose either fuse or no fuse kit from
chart below.
Information
4. Check “Minimum Dimensions
”
on page
18/26 for installation space requirements.
5. Select from the list of handle operators,
the type which best suits your
application. Handle operators can be
selected from the next page.
s
Built to order. Allow 6–8 weeks for delivery.
For “copper only” connectors, order as follows:
Fusible—order standard switch, standard fuse kit and cop-
per only no fuse kit.
Non-Fusible—order standard switch and copper only no
fuse kit.
Includes both line and load lugs.
For Class R fuses order Class H kit from this table and the
Class R conversion kit from the next page.
HP ratings for time delay fuses and for 250V DC also
apply to Non-fusible switches.
Type MCS Disconnect Switch with
Max-Flex™ handle operator
Type MCS Disconnect Switch with
rotary handle
Type MCS Disconnect Switch with
fixed-depth, flange-mounted handle
Basic Switches
Maximum Horsepower Rating, 3 Phase
Catalog Catalog 240 Volts AC 480 Volts AC 600 Volts AC 250
Switch Maximum Number Number Time Time Time Volts
Ampere Voltage Right Left Standard Delay Standard Delay Standard Delay DC
Rating Rating Hand Hand Fuse Fuse Fuse Fuse Fuse Fuse (max)
130 600 MCS603R MCS603L 13 171⁄2 15 115 171⁄2 120 15
160 600 MCS606R MCS606L 171⁄2 15 15 130 15 150 10
100 600 MCS610R MCS610Ls 15 30 25 160 30 175 20
200 600 MCS620R MCS620Ls 25 60 50 125 60 150 40
Fuse And No Fuse Kits (Includes load base plus line and load fuse clips)
Basic
Switch
Ampere
Rating
Switch
Catalog
Number Kit
Description
No Fuse Kits For Class H For Class J For Class R Lug
Wire
Size
Standard Cu OnlyCatalog
Number
Catalog
Number
Catalog
Number
Catalog Number Catalog Number
1
30 MCS603R
or
MCS603L
No Fuse TMK606 — — — —
30A, 250V — — FCK203
s
— FCRK203 #14 to
30A, 600V — — FCK206 FCJK603 FCRK206 #4 AWG
60A, 250V — — FCK206 — FCRK206 Cu/AI
60A, 600V — — FCK606 FCJK606 FCRK606
1
60 MCS606R
or
MCS606L
No Fuse TMK606 — — — —
60A, 250V — — FCK206 — FCRK206 #14 to
60A, 600V — — FCK606 FCJK606 FCRK606 #4 AWG
100A, 250V — — OFCK661
s
OFCK661
s
Cu/AI
100A, 600V — — OFCK661
s
OFCK661
s
100
MCS610R
or
MCS610L
No Fuse TMK610 TMK610C — — —
100A, 250V — — FCK610 FCK610 #14 to
100A, 600V — — FCK610 FCK610 #2/0 AWG
200A, 250V — — OFCK620 OFCK620 Cu/AI
200A, 600V — — OFCK620 OFCK620
200
MCS620R
or
MCS620L
No Fuse TMK620 TMK620C
s
———#6 to
200A, 250V — — FCK620 FCK620 300 kcmil
200A, 600V — — FCK620 FCK620 Cu/AI
![](asset-1a.png)
18/26 Siemens Industry, Inc.
Industrial Controls Catalog
Product Category: HDSS
Siemens / Industrial Controls Previous folio: 18/25

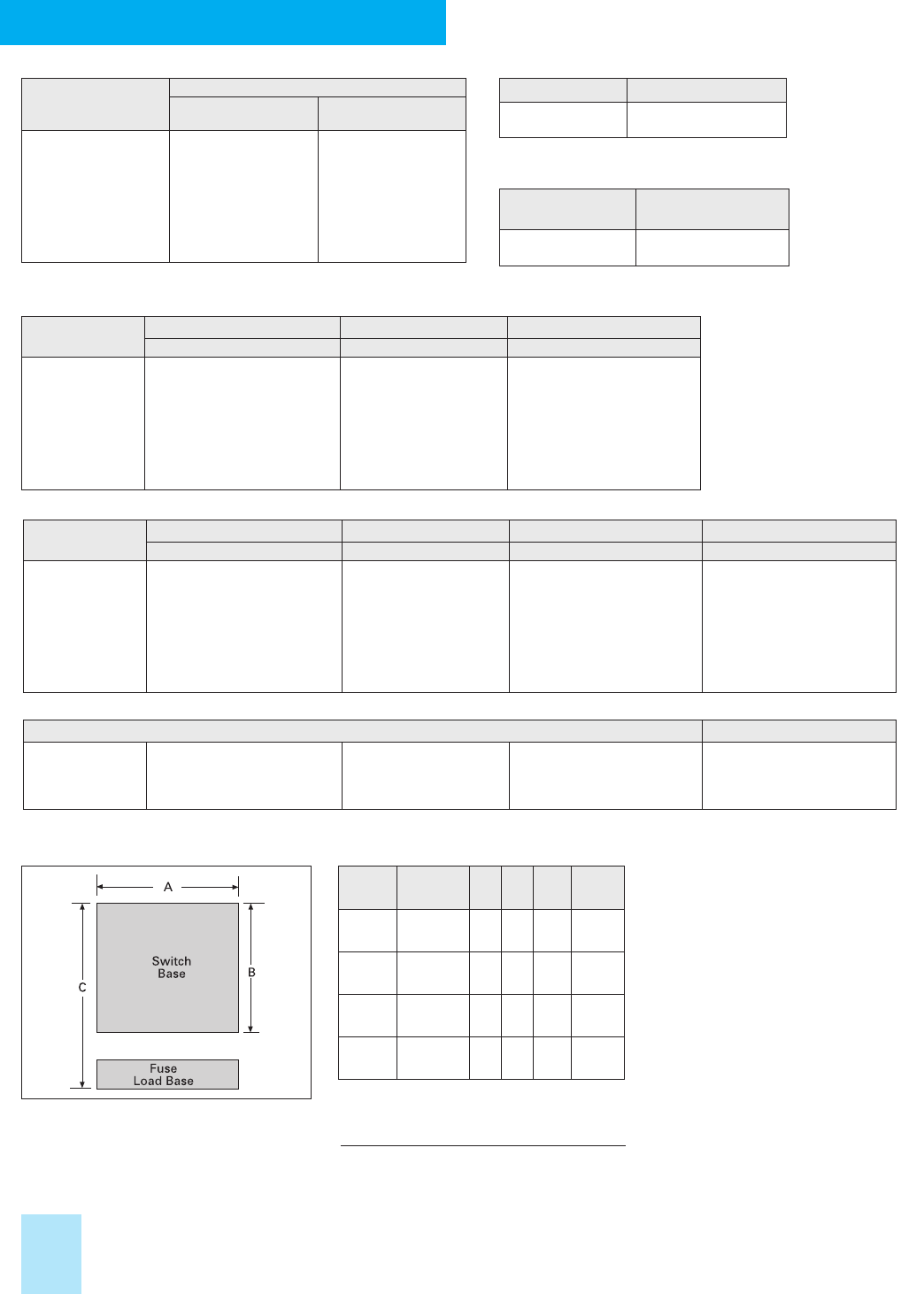

Type MCS (30-200A)
Switches
Disconnect Switches
s
Built to order. Allow 6–8 weeks for delivery.
For Type 4 and 4X applications, order handle only
Catalog Number
100A - FDH104 200A - FDH204
For Type 4 and 4X applications, order handle only
Catalog Number FHOHS4
Standard cable length is 36 inches. Alternate lengths are
available as follows:
Length Amps Cat. No.
48" 30–100 FHOEC048
60" 30–100 FHOEC060
48" 200 FHOJC048
60" 200 FHOJC060
For Type 4 and 4X applications, order handle only
Catalog Number RHOH4
For Type 3 and 3R applications, order handle only
Catalog Number RHOH
Min. enclosure depth from mounting pan to handle mount-
ing surfaces: 30-100A 6.44 Inches
200A 10.93 Inches
*For millimeters multiply inches by 25.4.
Panel Space Requirements Minimum Dimensions (inches*)
Switch
Catalog Fuse
Number Size “A” “B” “C” Class
30A/240V 6.13 5.52 8.11 H, K, R
MCS603
30A/600V 6.13 5.52 10.11 H, K, R
30A/600V 6.13 5.52 8.48 J
60A/240V 6.13 5.52 7.86 H, K, R
MCS606
60A/600V 6.13 5.52 10.38 H, K, R
60A/600V 6.13 5.52 8.35 J
100A/240V 7.38 7.59 11.85 H, K, R
MCS610
100A/600V 7.38 7.59 13.85 H, K, R
100A/600V 7.38 7.59 10.6 J
200A/240V 9.17 9.00 14.7 H, K, R
MCS620
200A/600V 9.17 9.00 17.2 H, K, R
200A/600V 9.17 9.00 13.32 J
“A” – Dimension is measured from each
cross bail pin.
“B” – Dimension is measured from line
side barrier to load side barrier.
“C” – Dimension is measured from line
side terminal of switch to load side
terminal of fuse load base.
MCS Disconnect Switch Panel Space Requirements
Auxiliary Switch Kits
Switch
Catalog Number
Contact Arrangement
1 NO/1 NC
Catalog Number 2 NO/2 NC
Catalog Number
MCS603R MCSAKR136 MCSAKR236
MCS603L MCSAKL136 MCSAKL236s
MCS606R MCSAKR136 MCSAKR236
MCS606L MCSAKL136 MCSAKL236s
MCS610R MCSAK116 MCSAK216
MCS610L MCSAK116 MCSAK216
MCS620R MCSAK126 MCSAK226
MCS620L MCSAK126 MCSAK226
Class R Fuse Conversion Kits
Fuse Clip Rating Catalog Number
100A, 600V SSRK33
200A, 600V SSRK34
Fuse Ejector Kits
Switch
Catalog Number Fuse Ejector Kit
Catalog Number
MCS610 FE100s
MCS620 FE200s
Handle Operators
Fixed Depth, Flange Mounted, Types 1, 3, 3R, 12
Switch
Catalog Number
Complete Handle Mechanism Handle Only Switch Operator Only
Catalog Number Catalog Number Catalog Number
MCS603R FDFS06R FDH10 FDS06R
MCS603L FDFS06L FDH10 FDS06L
MCS606R FDFS06R FDH10 FDS06R
MCS606L FDFS06L FDH10 FDS06L
MCS610R FDFS06R FDH10 FDS06R
MCS610L FDFS06L FDH10 FDS06L
MCS620R FDFS20R FDH20 FDS20R
MCS620L FDFS20L FDH20 FDS20L
Variable Depth, Flange Mounted Max-Flex™, Types 1, 3, 3R, 12
Switch
Catalog Number
Complete Handle Mechanism Handle Only Switch Operator Only Cable Only
Catalog Number Catalog Number Catalog Number Catalog Number
MCS603R FHOS06036R FHOHS FHOS06R FHOEC036
MCS603L FHOS06036L FHOHS FHOS06L FHOEC036
MCS606R FHOS06036R FHOHS FHOS06R FHOEC036
MCS606L FHOS06036L FHOHS FHOS06L FHOEC036
MCS610R FHOS06036R FHOHS FHOS06R FHOEC036
MCS610L FHOS06036L FHOHS FHOS06L FHOEC036
MCS620R FHOS20036R FHOHS FHOS20R FHOJC036
MCS620L FHOS20036L FHOHS FHOS20L FHOJC036
Variable Depth Rotary, Through-The-Door-Mounted, Types 1, 12
Variable Depth Shaft Only Variable Depth
MCS603R CRHOS06VD CRHOH RHOS06 RHOSVD
MCS606R CRHOS06VD CRHOH RHOS06 RHOSVD
MCS610R CRHOS06VD CRHOH RHOS06 RHOSVD
MCS620R CRHOS20VD RHOH RHOS20 RHOSVD
![](asset-1b.png)
18/27
Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SSBR-03000-0313 pg 4

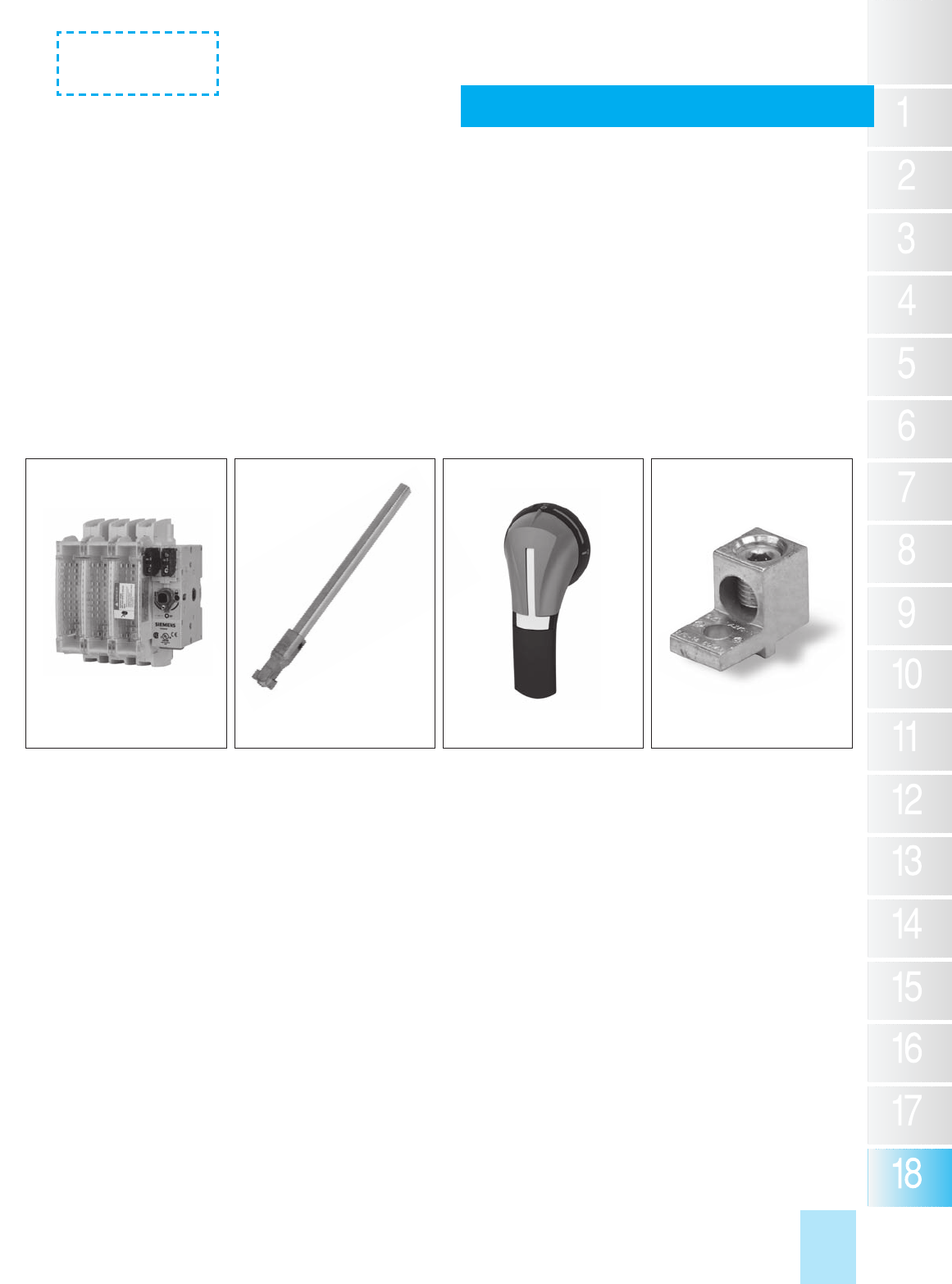

Type CFS Compact Fusible Switches
Switches
Disconnect Switches
Features
n
30 - 800A ratings
n
UL Listed under file #E121152
& CSA Certified under file #222227
n
Door mounted rotary handles with
defeatable cover interlock
n
Meets UL requirements for both main and
branch circuit applications
n
Compact size
n
100kA with Class CC fuses or up to 200kA
with Class J fuses
n
Load break and horsepower rated
n
Quick make and break operation
n
All handles are padlockable with up to (3) padlocks
with 5/16” hasps in the OFF position
Ordering information
1. Select the panel mounted switch required based on
Ampere, HP and AIC requirements. Switches with a right
hand mechanism are standard, 30-100A switches with a
left hand mechanism are available.
2. Select handle based on environmental rating required.
3. Select operating shaft (200 or 400mm in length). For
enclosure depths of 9.0” or less from panel mounting
surface to inside of door use 200mm long shafts. For
deeper enclosures use 400mm long shafts. 30A 100kA
switches can be used in 10” deep enclosures (panel to
inside of door) with 200mm shaft and CFSH5N handles.
Note: Be sure to check shaft and handle compatibility with
the switch selected by using information provided in the
selection tables.
4. Line & load lugs are provided as standard on 30-100A
switches. Terminal kits are available for 200-800A
switches if needed.
5. Auxiliary contact are available if needed as follows.
A. 30A switch CFS361C5 and non-fusible 30A switch
CNFS361 will accept up to (4) aux contacts
B. 30A switch CFS361J5 will accept up to (2) aux con-
tacts without an aux contact holder. If more than (2)
aux contacts are required order aux contacts PLUS
aux contact holder kit CFSAUXH1. All other switches
will accept up to (4) aux contacts.
6. If non-fusible switch is required order a shorting bar for
60-600A switches or catalog number CNFS361 for 30A.
7. 30-100A switches are designed to prevent inadvertent
contact with live parts and shields are not required.
200 & 400A switches are not supplied with terminal
shields. They are available as field installed kits for both
line and load terminals. 400-800A switches are supplied
as standard with line shields and terminal shroud kits are
available for the load side.
Switch Shaft Handle Lugs/Accessories
CFS363JN
with (2) CFSAUX1NO CFSS10200HN CFSH10BL12N CFSL200
n
Catalog number CFS361C5, CFS361J5 and CNFS361 can
be DIN-rail mounted and can be either front or side oper-
ated with standard rotary handles.
n
All CFS part numbers ending in N can be either front or side
operated with standard rotary handles.
n
Handles are available in Type 1, 3R, 4/4X & 12 ratings
n
NFPA 79 field installed kits are available
n
30-400A, 200kA switches are provided with quick
connect terminal provisions for voltage sensing or for
10A max. control circuits
n
Fusible switches, 3-pole 600V AC Max. 30-100A & 600-
800A switches are also rated 250V DC Max when poles are
field connected in series.
• Revised •
04/30/15
![](asset-1c.png)
18/28 Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SSBR-03000-0313 pg 5

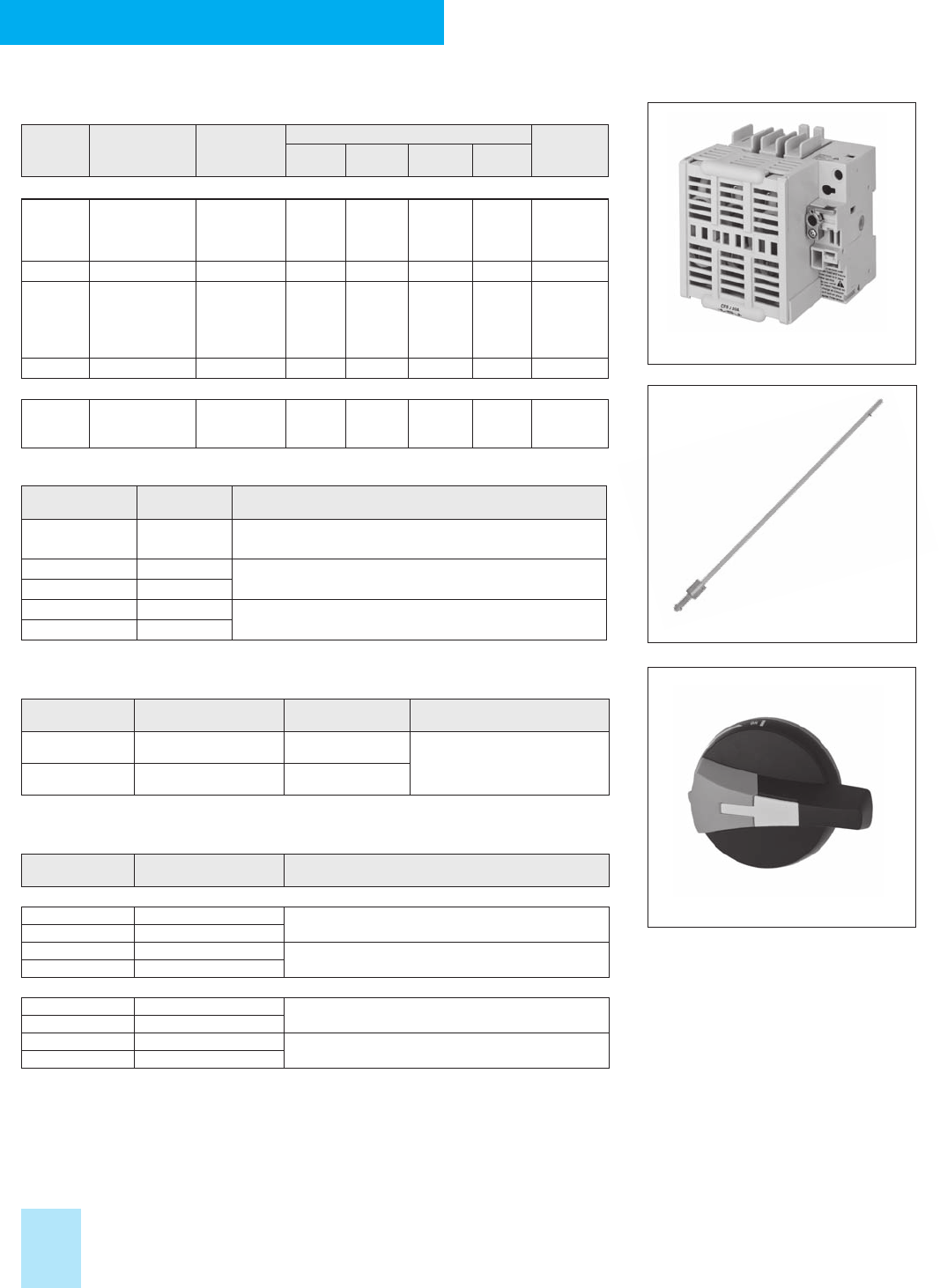

Type CFS Compact Fusible Switches
Switches
Disconnect Switches
Fusible switches, 3-pole 600V AC Max. 30-100A & 600-800A
switches are also rated 250V DC Max when poles are field
connected in series
Switch
ampere
rating Catalog
number
Fuse
provisions
provided
Max horsepower ratings AC short
circuit
rating
240V
3Ø AC 480V
3Ø AC 600V
3Ø AC 250V
DC
Standard – with right hand mounted mechanism
30
30
30
30
CFS361C5
CFS361J5
CFS361JN
CNFS361hk
Class CC
Class J
Class J
None
7.5
7.5
7.5
7.5
15
15
15
15
20
20
20
20
5
5
5
5
100kA
100kA
200kA
65kA
60CFS362JN1 Class J 15 30 50 10100kA
60
100
200
400
600
CFS362JN
CFS363JN
CFS364JN
CFS365JN
CFS366Jj
Class J
15
30
60
125
200
30
60
125
250
400
50
75
150
350
500
10
20
–
–
–
200kA
800CFS367Lj Class L 200 400 500 – 200kA
Optional – with left hand mounted mechanism
30
60
100
CFS361JLN
CFS362JLN
CFS363JLN Class J 7.5
15
30
15
30
60
20
50
75
5
10
20
200kA
Operating shafts for 30-400A switches
Catalog
number Shaft length
in. (mm) Switch & handle compatibility
CFSS5200N 7.9 (200) 5mm x 5mm for use with CFS361C5, CFS361J5 &CNFS361
switches & with “CFSH5” handles only
CFSS5400N 15.7 (400)
CFSS5200HN 7.9 (200) 5mm x 5mm for use with all ”CFSH10” handles & with
CFS361C5, CFS361J5 & CNFS361 switches only
CFSS5400HN 15.7 (400)
CFSS10200HN 7.9 (200) 10mm x 10mm for use with all “CFSH10” handles & with all
30-400A switches except CFS361C5, CFS361J5 & CNFS361
CFSS10400HN 15.7 (400)
Compact rotary operating handles – door mounted (for use
with CFS361C5, CFS3361J5 & CNFS361 switches only)
Catalog
number Color UL Type Operating shaft compatibility
CFSH5B12N
CFSH5R12N Blue & Black
Yellow & Red 1, 3R & 12 CFSS5200N or CFSS5400N
CFSH5B4N
CFSH5R4N Blue & Black
Yellow & Red 1, 3R, 12 & 4/4X
Rotary operating handles - door mounted (for use with
CFSS5200HN, CFSS5400HN, CFSS10200HN & CFSS10400HN)
Catalog
number Color Description
Type 1, 3R & 12
CFSH10B12N Blue & Black Heavy duty pistol grip (2.75” long for use
with 30A switches & CFS362JN1)
CFSH10R12N Yellow & Red
CFSH10BL12N Blue & Black Heavy duty pistol grip
(4.92” long for 30-400A switches)
CFSH10RL12N Yellow & Red
Type 1, 3R, 4/4X & 12
CFSH10B4N Blue & Black Heavy duty pistol grip (2.75” long for use
with 30A switches & CFS362JN1)
CFSH10R4N Yellow & Red
CFSH10BL4N Blue & Black Heavy duty pistol grip
(4.92” long for 30-400A switches)
CFSH10RL4N Yellow & Red
Line and load lugs included.
Line and load lugs are not included.
Order from table on next page if required.
DC HP rating shown requires (3) poles to be connected
in series.
CFS361J5
CFSS5400N
CFSH5B12N
CFS364JN & CFS365JN can be rotated 180º for left
hand operation as standard.
Catalog numbers CFS361C5, CFS361J5 & CNFS361
accept 5mm x 5mm operating shafts. All other
30-400A switches accept 10mm x 10mm operating
shafts.
Compact pistol grip design (2.75” long) with defeatable
cover interlock. Cover can be opened when handle is
padlocked in the OFF position.
Defeatable cover interlock provided. Cover cannot be
opened when handle is padlocked in the OFF position.
h Catalog number CNFS361 is a non-fusible switch.
4 pole 600 & 800A switches, CFS466J & CFS467L are
also available.
j CFS366J and CFS367L are rated 250 & 600V DC when
(2) poles are connected in series.
k CNFS361 is rated 65kA when protected by Class J or
CC 30A max. fuses.
![](asset-1d.png)
18/29
Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SSBR-03000-0313 pg 6

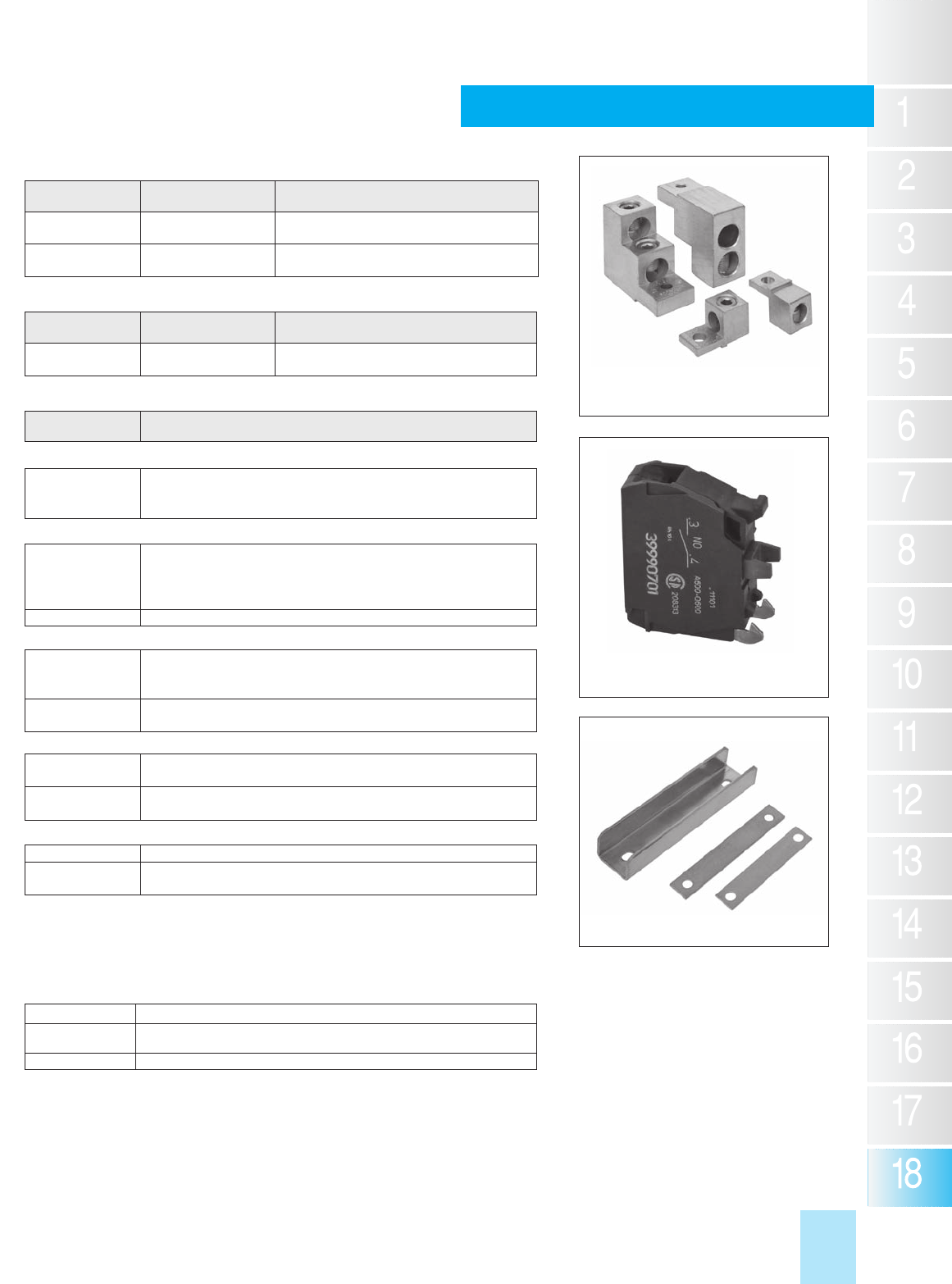

Type CFS Compact Fusible Switches
Switches
Disconnect Switches
600 & 800A rotary operating handles - door mounted
(8.27” long)
Catalog
number Color UL Type
CFSH12BL12 Blue & Black 1, 3R & 12
CFSH12RL12 Yellow & Red 1, 3R & 12
CFSH12BL4 Blue & Black 1, 3R, 12 & 4/4X
CFSH12RL4 Yellow & Red 1, 3R, 12 & 4/4X
600 & 800A operating shafts (cross section 12 x 12 mm)
Catalog
number Shaft length
in. (mm) Enclosure depth
(switch mounting surface to door OD)
CFSS12200H 12.59 (320) 10.43 – 16.68 in.
CFSS12400H 15.75 (400) 10.43 – 19.84 in.
Type CFS fusible switch accessories
Catalog
number Description
Terminals
CFSL200 200A lug kit (6 lugs per kit) (1)#6-3/0
CFSL400N 400A lug kit (6 lugs per kit) (1)#2-600kcmil (for CFS365JN only)
CFSL400 600-800A lug kit (6 lugs per kit) (2)#2-600kcmil
Shorting bars (no fuse kits)
CFSSB60 60A shorting bar kit (3 links per kit)
CFSSB100 100A shorting bar kit (3 links per kit)
CFSSB200 200A shorting bar kit (3 links per kit)
CFSSB400 400A shorting bar kit (3 links per kit)
CFSSB680 600 & 800A shorting bar kit (1 link per kit)
Auxiliary contacts (NEMA ratings AC A600 DC N600)
CFSAUXH1Aux contact holder (CFS361J5, CFS361C5 & CNFS361)
CFSAUX1NO Aux contact 1 NO (30-800A Sws)
CFSAUX1NC Aux contact 1 NC (30-800A Sws)
CFS11AUX 1NO, 1NC aux contact kit (side mount for 200kA switches)
CFS22AUX 2NO, 2NC aux contact kit (side mount for 200kA switches)
Terminal shrouds (line or load)
CFSTS200Nh200A shroud kit (line or load 3-pole kit)
CFSTS400Nh400A shroud kit (line or load 3-pole kit for CFS365JN only)
CFSTS680600/800A 3-pole shroud kit
CFSTS6804600/800A 4-pole shroud kit
30A compact switch kits
CFSPLK Shaft padlocking kit for 30A compact switch when door is open
CFSH5CDM Direct mount handle kit for CFS361C5 & CNFS361
CFSH5JDM Direct mount handle kit for CFS361J5
NFPA 79 kits
(if auxiliary contacts are needed, see table on page 7)
Kits provide an operating shaft suitable for use with all heavy duty handles
(not for use with CFSH5 handles). Kits also provide an internal operating
handle and an internal OFF padlocking provision.
CFSNFPA1For use with CFS361C5, CFS361J5 & CNFS361
CFSNFPA2NFor use with CFS361JN, CFS361CN, CFS362JN1, CFS362JN, CFS363JN
& CFS364JN
CFSNFPA3NFor use with CFS365JN only
Supplied as standard on 30-100A switches
CFS361C5 and CNFS361 will accept (4) aux contacts without
an aux contact holder. CFS361J5 will accept (2) aux contacts
without an aux contact holder.
CFSL200 & 400
CFSAUX1NC
CFSSB100 - CFSSB400
Supplied as standard on all but 30A, 65kA & 100kA
compact switches.
12.6 in. (320 mm) long operating shaft included
12.7 in. (323 mm) long operating shaft included
Line side terminal shrouds supplied with switch
Defeatable cover interlock included. Cover cannot
be opened when the handle is padlocked in the OFF
position.
h Neither line or load terminal shrouds are supplied as
standard with new style 200 & 400A switches.
![](asset-1e.png)
18/30 Siemens Industry, Inc.
Industrial Controls Catalog
Siemens / Industrial Controls Previous folio: SSBR-03000-0313 pg 7
Type CFS Compact Fusible Switches
Switches
Disconnect Switches
UL & CSA technical characteristics and panel space requirements
Catalog
number Amps Fuse
Class
AC short
circuit
rating Electrical
endurance Mechanical
endurance
Panel space requirements - in. (mm)
Height Width Depth
CFS361C5 30 CC 100kA 6000 10000 4.56 (116) 3.78 (96) 6.00 (152)
CFS361J5 30 J 100kA 6000 10000 4.56 (116) 4.15 (105) 6.00 (152)
CFS361JN 30 J 200kA 6000 10000 5.35 (136) 5.89 (150) 6.00 (152)
CFS361JLN 30 J 200kA 6000 10000 5.35 (136) 5.89 (150) 6.00 (152)
CNFS361 30 None 65kA6000 10000 4.56 (116) 3.78 (96) 6.00 (152)
CFS362JN1 60 J 100kA 6000 10000 5.35 (136) 5.89 (150) 6.00 (152)
CFS362JN 60 J 200kA 6000 10000 7.32 (186) 5.89 (150) 6.00 (152)
CFS362JLN 60 J 200kA 6000 10000 7.32 (186) 5.89 (150) 6.00 (152)
CFS363JN 100 J 200kA 6000 10000 7.32 (186) 5.89 (150) 6.00 (152)
CFS363JLN 100 J 200kA 6000 10000 7.32 (186) 5.89 (150) 6.00 (152)
CFS364JN 200 J 200kA 6000 8000 11.46 (291) 7.72 (196) 6.00 (152)
CFS365JN 400 J 200kA 1000 6000 15.35 (390) 10.19 (259) 8.00 (203)
CFS366J 600 J 200kA 1000 5000 11.81 (300) 14.33 (364) 11 (280)
CFS466J 600 J 200kA 1000 5000 11.81 (300) 18.03 (458) 11 (280)
CFS367L 800 L 200kA 500 3500 11.81 (300) 14.33 (364) 11 (280)
CFS467L 800 L 200kA 500 3500 11.81 (300) 18.03 (458) 11 (280)
Wire ranges line & load lugs
Switch Amperage
Rating UL approved
wire size (75º C)
CFS361J5 30 (1)#14-10
CFS361C5 30 (1)#14-10
CNFS361 30 (1)#14-10
CFS361JN 30 (1)#14-6
CFS362JN1 60 (1)#14-6
CFS362JN 60 (1)#12-1
CFS363JN 100 (1)#12-1
CFS364JN 200 (1)#3/0
CFS365JN 400 (1)600MCM
CFS366J 600 (2)350 MCM
CFS367L 800 (2)600 MCM
Auxiliary contact capability when an NFPA79 kit is used
Switch NFPA79 kit Aux contacts that can be installed
CNFS361 CFSNFPA1 (2) Total, CFSAUX1NO
or CFSAUX1NC
CFS361C5
CFS361J5 (1) CFSAUX1NO or (1) CFSAUX1NC
CFS361JN CFSNFPA2N (2) Total, CFSAUX1NO or CFSAUX1NC
CFS362JN1
CFS362JN
CFS363JN
CFS364JN
CFS365JN CFSNFPA3N (2) Total, CFSAUX1NO or CFSAUX1NC
Minimum dimensions from mounting surface
to inside of cover. Dimensions shown can be
decreased if aux contacts are not required.
CNFS361 is rated 65kA when protected by 30A max.
Class J or CC fuses.
For additional auxiliary contacts use side mounted
CFS11AUX or CFS22AUX.
