NONMETALLIC ENCLOSURES SPECIFICATION CATALOG
Fiberglass Reinforced Polyester & Polycarbonate Enclosures
SUPERIOR UV PROTECTION
222 North Union St. • Bryan, OH 43506
Ph: 800.722.2679 • Fax: 800.237.7269
www.alliedmoulded.com
Available Through:
Allied Moulded Products, Inc. manufactures a complete line of corrosion
and UV resistant NEMA Type 4X nonmetallic (fiberglass and polycarbonate)
enclosures for indoor or outdoor industrial applications. The fiberglass
reinforced polyester enclosures are manufactured with ULTRAGUARD®,
a proprietary material formulation offering all the advantages of
nonmetallic materials including: UL® listed, RoHS compliance, increased
strength, reduced weight, corrosion resistance, non-conductivity, UV
resistance and ease of installation. The polycarbonate enclosures are
injection molded with polycarbonate thermoplastic, offering many of the
same great features as the fiberglass enclosures, with the option of a
clear cover.
Allied Moulded Brand Names: POLYLINE®, ULTRALINE®,
ULTRAGUARD®, ULTRAPLUG®
Enclosure Ratings: NEMA 4X, 6P, IP66, and IP68
Enclosure Series: JIC, AM, AMHD-R, AMP, AM-R, AMU, Control & Empire
2014
Allied Moulded Products, Inc. Nonmetallic Enclosures 2014
We’re Committed.
Founded in 1958 and backed by more than 55 years of
knowledge and experience molding fiberglass reinforced
polyester materials and polycarbonate thermoplastic, Allied
Moulded Products is well established within the electrical
and enclosure industries. We have what it takes to prevent
damaging elements such as water, salt, chemicals and UV
from threatening your equipment. Our line of NEMA Type 4X,
IEC Type IP66 nonmetallic enclosures provides maximum
protection where you need it most.
Centrally located in the heart of the country, Allied Moulded is
unique among enclosure manufacturers as we are vertically
integrated from mold design and fabrication to product
delivery. With one of the newest production facilities in
the United States dedicated to manufacturing nonmetallic
enclosures, we formulate our own ULTRAGUARD®
fiberglass reinforced polyester material and assure the value
of our polycarbonate thermoplastics, which allows us to
control quality and costs. On-site molding, assembly and
warehousing enables us to produce a high quality product
while delivering quick turnaround on standard orders. We
can also provide timely delivery on complete modification
work, including holes, cutouts and special colors.
Together with our sales agents throughout the country, the
Allied Moulded inside sales and engineering team is readily
available to assist you with sales and technical support.
Whether you need standard or modified product, Allied
Moulded is truly a one-stop shop for your nonmetallic
enclosure and accessory needs.
Exceptional Customer Service.
Research and Development
Inventory
Innovative Design
Quality Standard Excellence
Customer Service
We’ll Work With You.
Our responsiveness to you goes beyond offering a quality product
line. Valuing the relationships we have built with each customer, we
work with you as partners to solve your protection requirements.
From product design to quick, on-time delivery, Allied Moulded
provides fast, efficient service to meet your specific needs.
EXPERIENCED MANUFACTURING
Allied Moulded Products . . .
we’ve got you covered!
Give us a try . . .
we’ll work with you!
STANDARDS
2-3
INDEX
142-144
Industry Standards ......................................................... 2-3
POLYLINE® Series Polycarbonate Enclosures .................................. 4-25
AM Series Small Junction Boxes

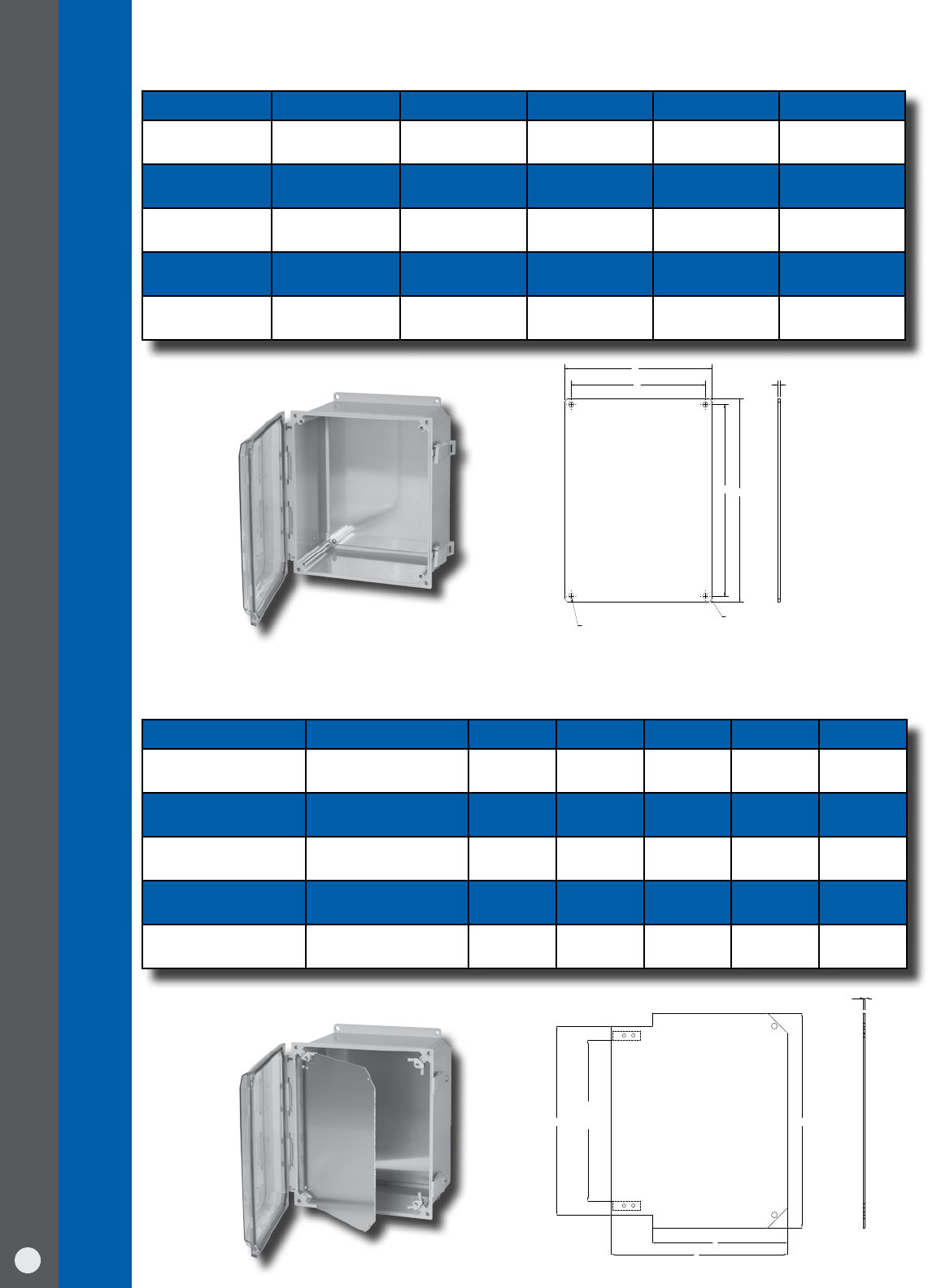

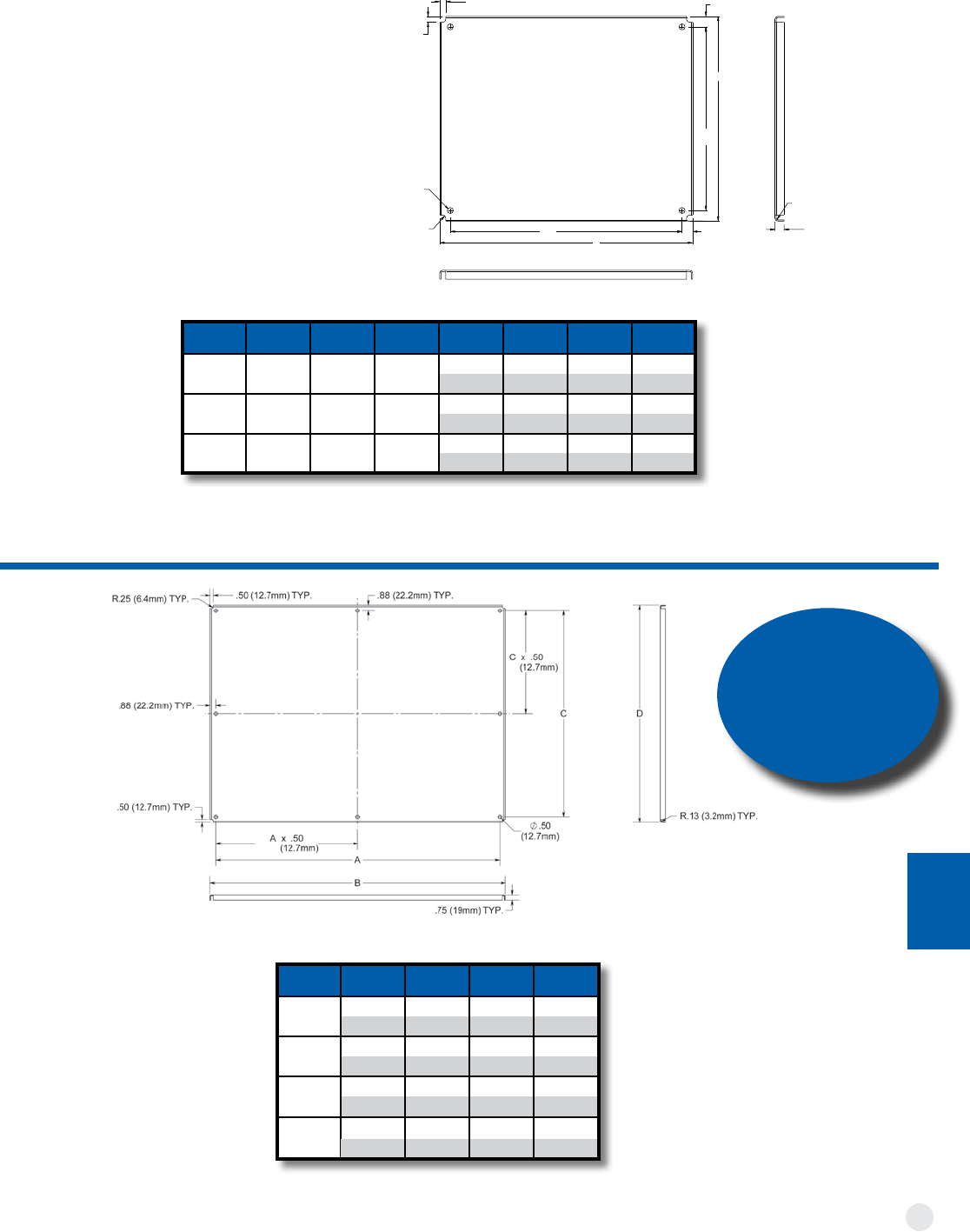

Optional Back Panels for POLYLINE enclosures (pages 24-25)
ULTR AGUARD® Material Formulation........................................ 26-27
The FIBERGLASS Advantage............................................... 28-29
AM Series Fiberglass Enclosures ...........................................30-55
AM Series Small Junction Boxes (Size ranges 7 x 4 – 9 x 4)
AM Series Pushbutton Enclosures (Size ranges 6 x 4 – 18 x 16)
AM Series JIC Size Junction Boxes (Size ranges 6 x 6 – 20 x 16)
Optional Back Panels for Small Junction Boxes (page 33)
AM-R Series Fiberglass Enclosures ......................................... 56-73
(Size ranges 6 x 6 – 20 x 16)
AMHD HEAVY DUTY SOLAR BATTERY Fiberglass Enclosures ....................74-75
(Size 18 x 16)
ULTRALINE® AMU Series Fiberglass Enclosures ............................. 76-107
AMU Series JIC Size Junction Boxes (Size ranges 6 x 6 – 20 x 16)
CONTROL Series Fiberglass Enclosures ....................................108-117
(Size ranges 24 x 20 – 30 x 24)

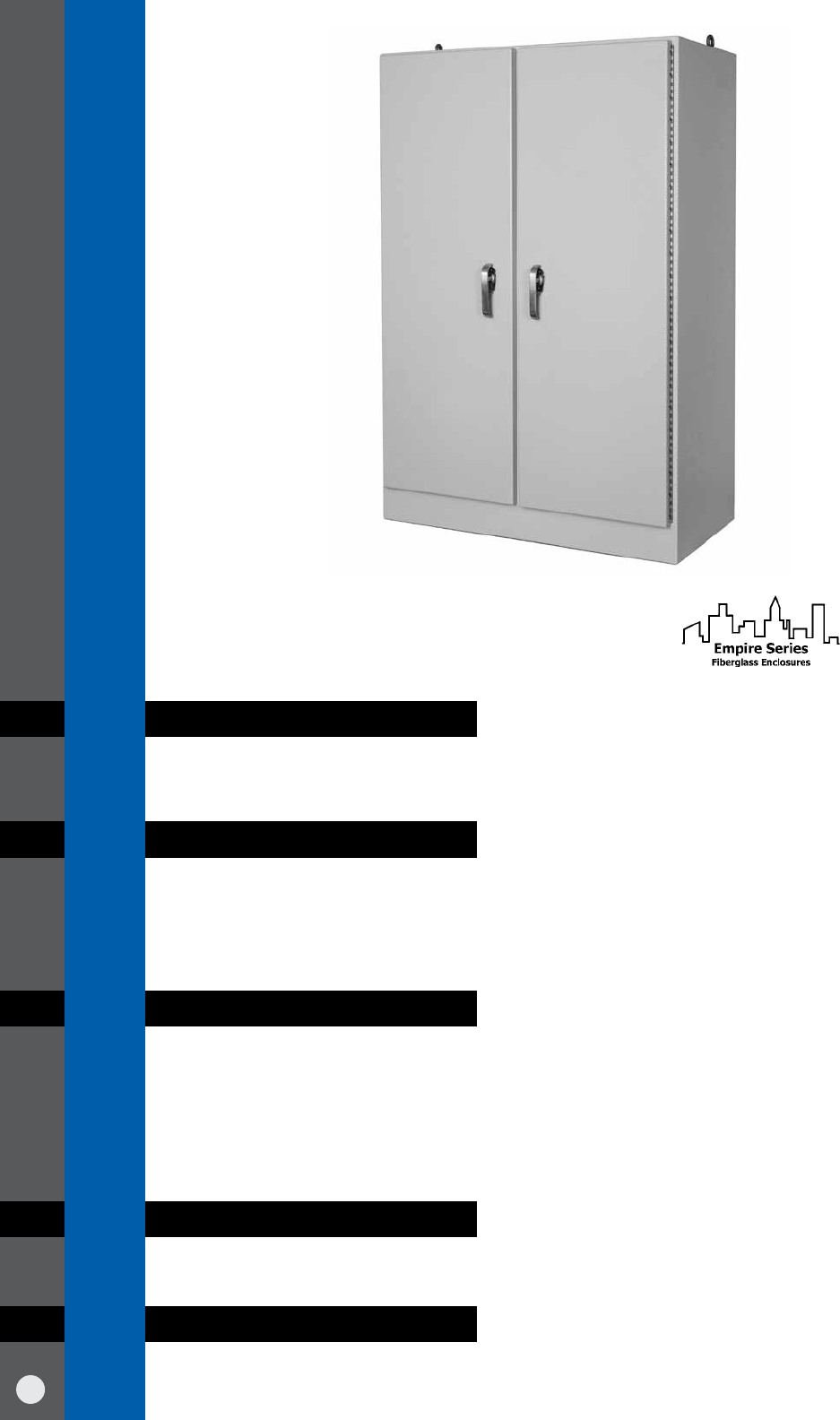

EMPIRE Series Fiberglass Cabinets ........................................118-127
Wall Mount (Size ranges 36 x 30 – 60 x 36)
Free Standing (Size ranges 72 x 25 – 72 x 49)
Optional Back Panels for EMPIRE Series cabinets (pages 125 & 127)
Panels & Enclosure Accessory Products ....................................128-135
Print Pocket
Ventilation Kits
Filter Kits
Keylock Kits
Pull Type Handles
Pole Mount Kits
Cord Grips
ULTRAPLUG™ Hole Plugs
Custom Modifications....................................................136-137
Specials/Modification Request Form ..........................................138
Product Technical Information .............................................139-141
Index .................................................................142-144
TABLE OF CONTENTS
POLYLINE
4-25
ULTRAGUARD®
26-27
FIBERGLASS
28-29
AM SERIES
30-55
AM-R SERIES
56-73
CONTROL SERIES
108-117
ULTRALINE
76-107
EMPIRE SERIES
118-127
ACCESSORIES
128-134
TECHNICAL
138-141
AMHD-R SERIES
74-75
MODIFICATIONS
135-137
2
Enclosure Ratings
In order to assist in the selection of an enclosure, rating classifications have been established by the National
Electrical Manufacturers Association (NEMA). These ratings identify the ability of the enclosure to provide a
degree of protection against incidental contact with the enclosed equipment and protection to the enclosed
equipment from environmental elements such as dirt, dust, water and other corrosive agents. Underwriters
Laboratories (UL) and the Canadian Standards Association (CSA) are widely recognized testing organizations
that perform enclosure product testing to these standards and provide regular follow up service to ensure that
manufacturers conform to established product and manufacturing specifications.
These ratings, however, are intended to be used only as a guide. To ensure a proper choice, it is
recommended that an assessment of the application and environment be conducted before product selection.
NEMA 1
Indoor use to provide a degree of protection against falling dirt.
NEMA 2
Indoor use to provide a degree of protection against limited amounts of falling water and dirt.
NEMA 3
Indoor or outdoor use to provide a degree of protection against falling dirt, rain, sleet, snow and windblown
dust; and that will be undamaged by the external formation of ice on the enclosure.
NEMA 3R
Indoor or outdoor use to provide a degree of protection against falling dirt, rain, sleet and snow; and that will
be undamaged by the external formation of ice on the enclosure.
NEMA 4
Indoor or outdoor use to provide a degree of protection against falling dirt, rain, sleet, snow, windblown dust,
splashing water, hose-directed water; and that will be undamaged by the external formation of ice on the
enclosure.
NEMA 4X
Indoor or outdoor use to provide a degree of protection against falling dirt, rain, sleet, snow, windblown dust,
splashing water, hose-directed water and corrosion; and that will be undamaged by the external formation of
ice on the enclosure.
NEMA 6P
Indoor or outdoor use primarily to provide a degree of protection against the entry of water during occasional
temporary submersion at a limited depth.
NEMA 12
Indoor use to provide a degree of protection against falling dirt; circulating dust, lint, fibers and flyings; and
dripping and light splashing of liquids.
NEMA 13
Indoor use to provide a degree of protection against falling dirt; circulating dust, lint, fibers and flyings; and
spraying and seepage of water, oil and non-corrosive coolants.
INDUSTRY STANDARDS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
3
STANDARDS
First Digit
IP Test
0 No protection
1 Protection against solid bodies larger
than 50 mm (for example accidentally
touching with the hand)
2 Protection against solid bodies larger
than 12 mm (for example a finger)
3 Protection against solid bodies larger
than 2.5 mm (tools, wires)
4 Protection against solid bodies larger
than 1mm (tools, wires)
5 Protection against dust
(no harmful deposits)
6 Complete protection against dust
Second Digit
IP Test
0 No protection
1 Protection against vertical water drops
and condensation
2 Protection against water drops up to
15” from the vertical
3 Protected against rain up to 60°
from the vertical
4 Protected against water splashing from
a hose from all directions
5 Protected against water sprayed from
a hose from all directions
6 Protected against powerful water jets
7 Protected against the effects of
immersion
8 Protected against effects of prolonged
immersion under pressure
International Standards IP Protection Classification Data
The first digit character represents the degree of protection against a person’s contact with live parts and the protection of the equipment
against the ingress of solid foreign bodies. The second digit represents the degree of protection against the ingress of liquids. Both of
these values are represented in ascending value with the larger number equaling the greatest protection.
Industrial enclosures manufactured by Allied Moulded Products and
bearing the UL and CSA labels have been tested and certified to the
following standards:
• UL 50 Enclosures For Electrical Equipment
• UL 50E Enclosures For Electrical Equipment,
Environmental Considerations
• UL 508A Industrial Control Panels
• UL 746C Polymeric Materials – Use In Electrical
Equipment Evaluations
• CSA-C22 No. 14 Industrial Control Equipment
• CAN/CSA-C22 No. 94 Special Purpose Enclosures
Allied Moulded Products enclosures series AMU, AM, AMP and
AM-R maximum size 30 x 24 x 10 are certified:
• UL Types 1, 2, 3, 3R, 4, 4X, 12, and 13
• CSA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
AM and AM-R JIC flat and raised cover models sizes 14” x 12” x
6” and smaller (excluding AM743 and AM943) and all AMU and
AMP models utilizing covers secured with four mounting screws
(excluding window covers) are UL and CSA listed Type 6P.
Allied Moulded Products enclosures series AM sizes 36 x 30 x 12
and larger are certified:
• UL Types 1, 4, and 4X
• CSA Types 1, 4, and 4X
• NEMA Types 1, 4, and 4X
AM, AMP and AMU series meet IEC60529 Type IP66. Models rated
NEMA 6P meet IEC60529 Type IP68 submersible up to 24 hours
at a depth of 6 feet (1.8meters)
Conformance to Industry Standards
4

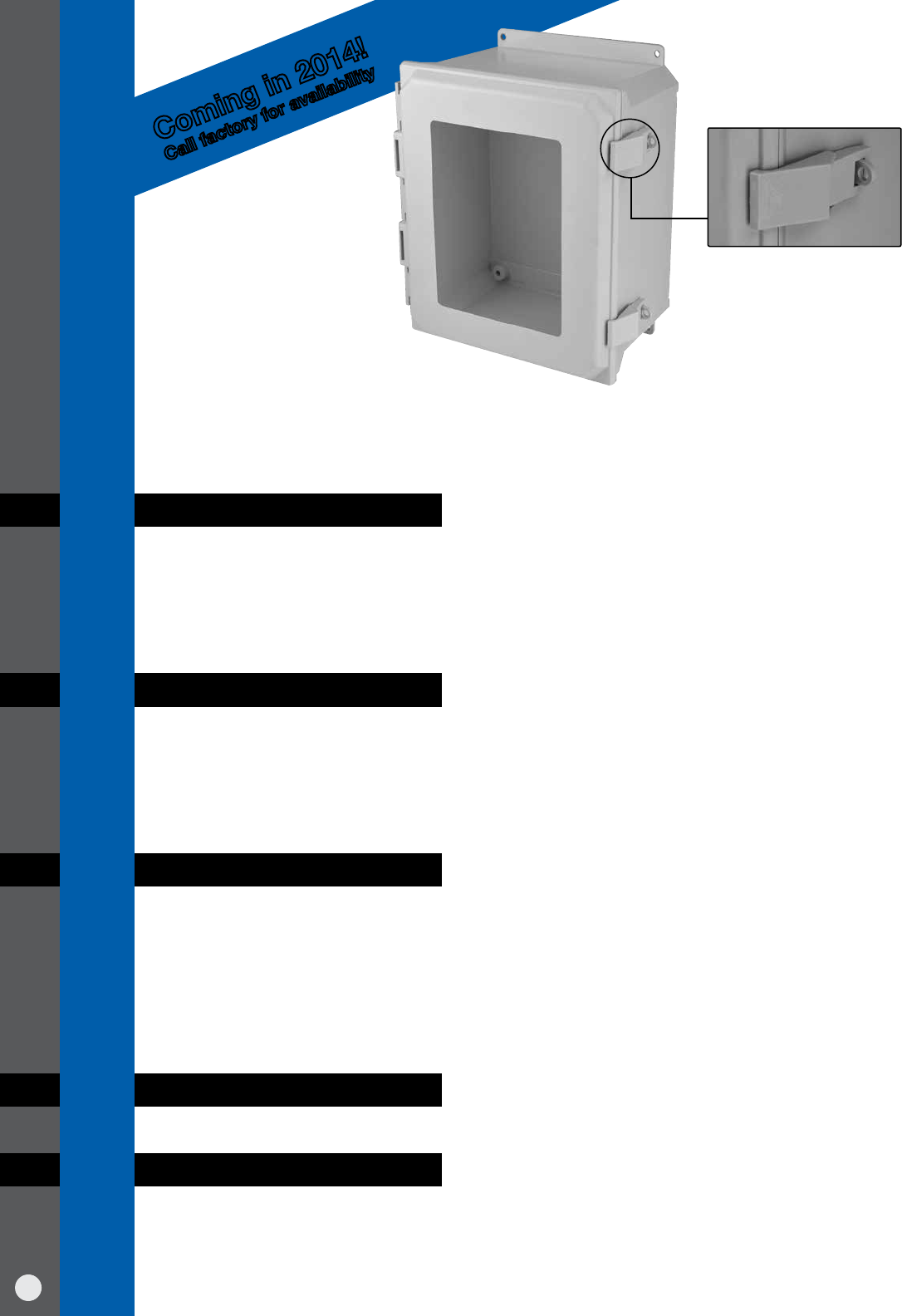

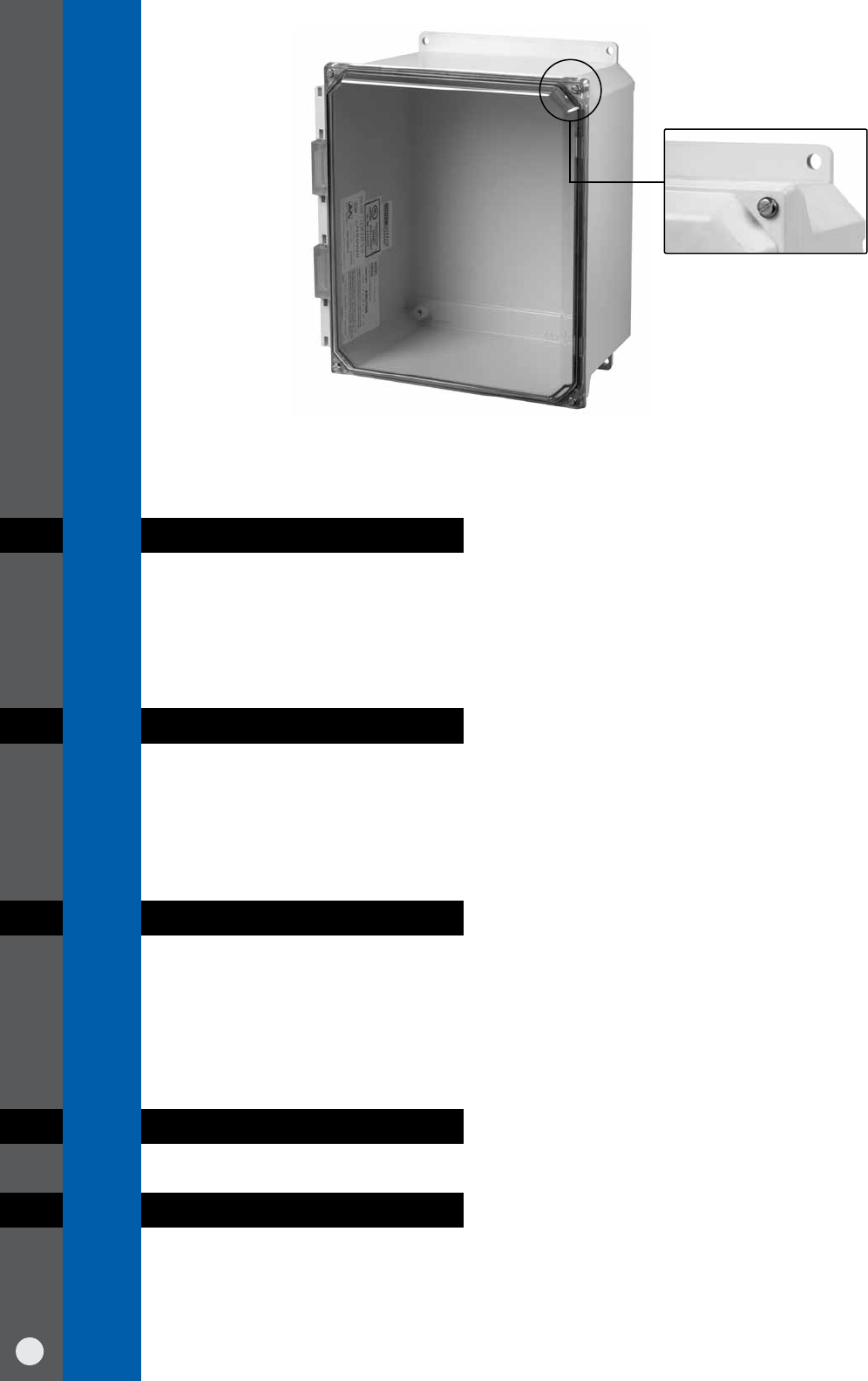

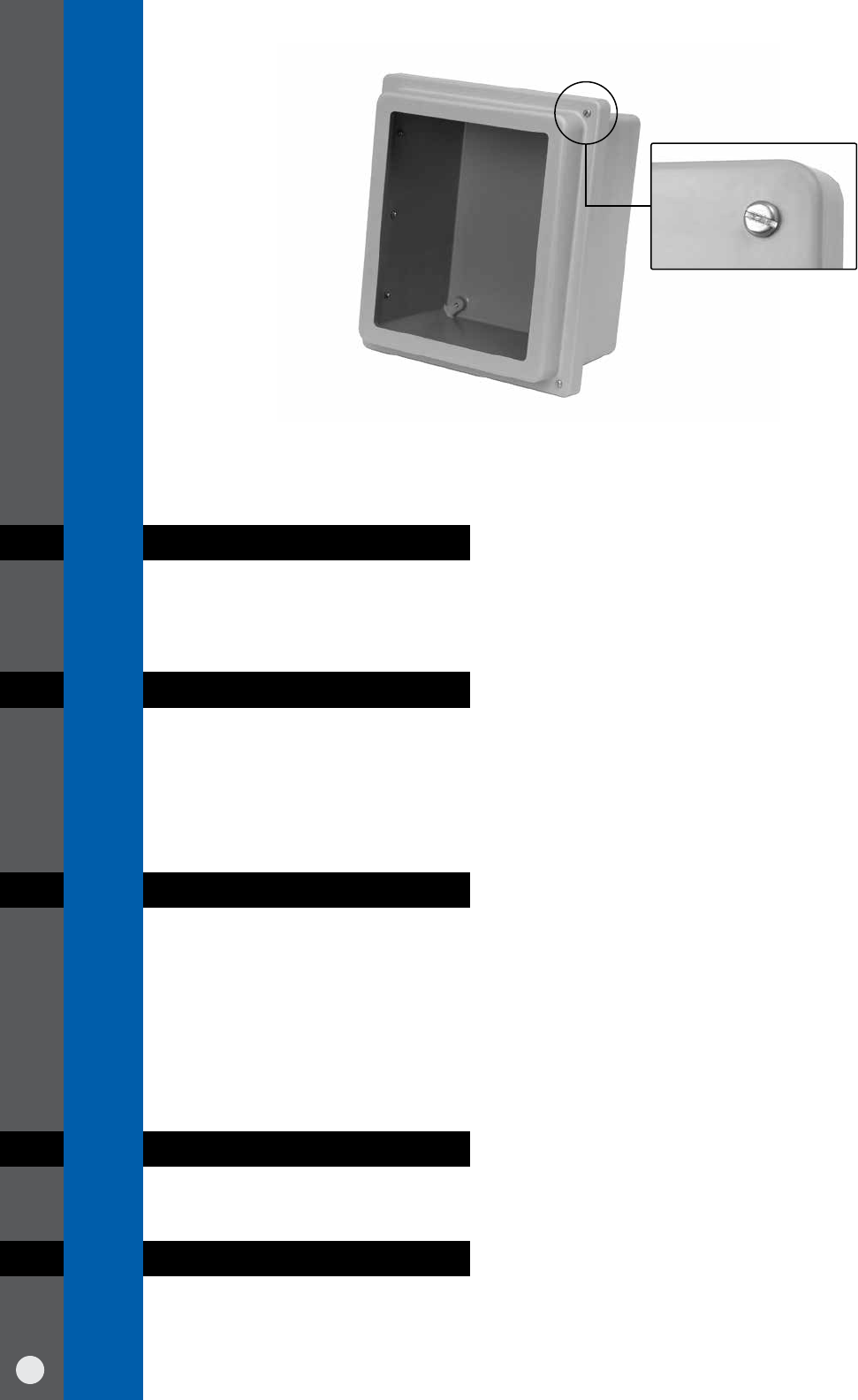

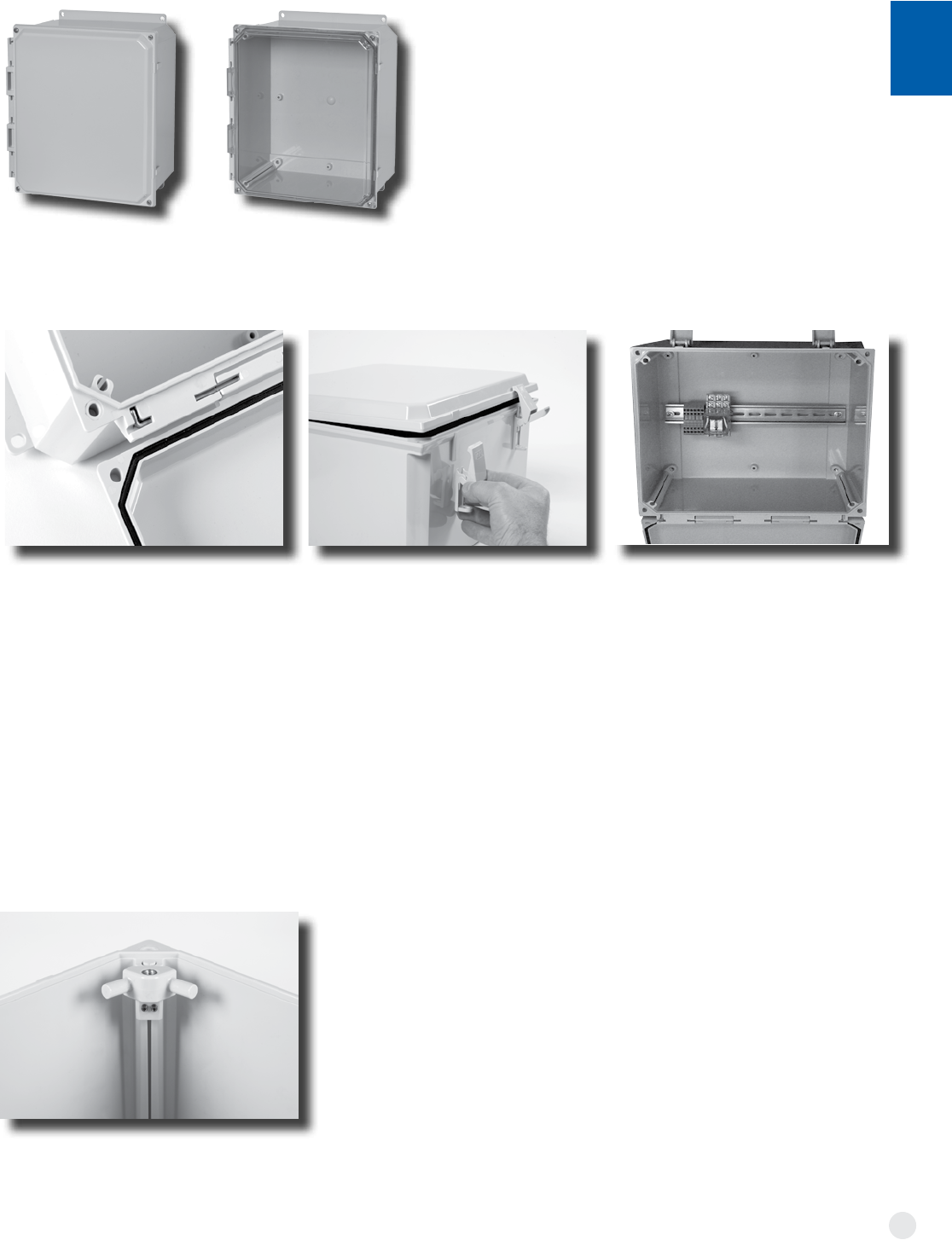

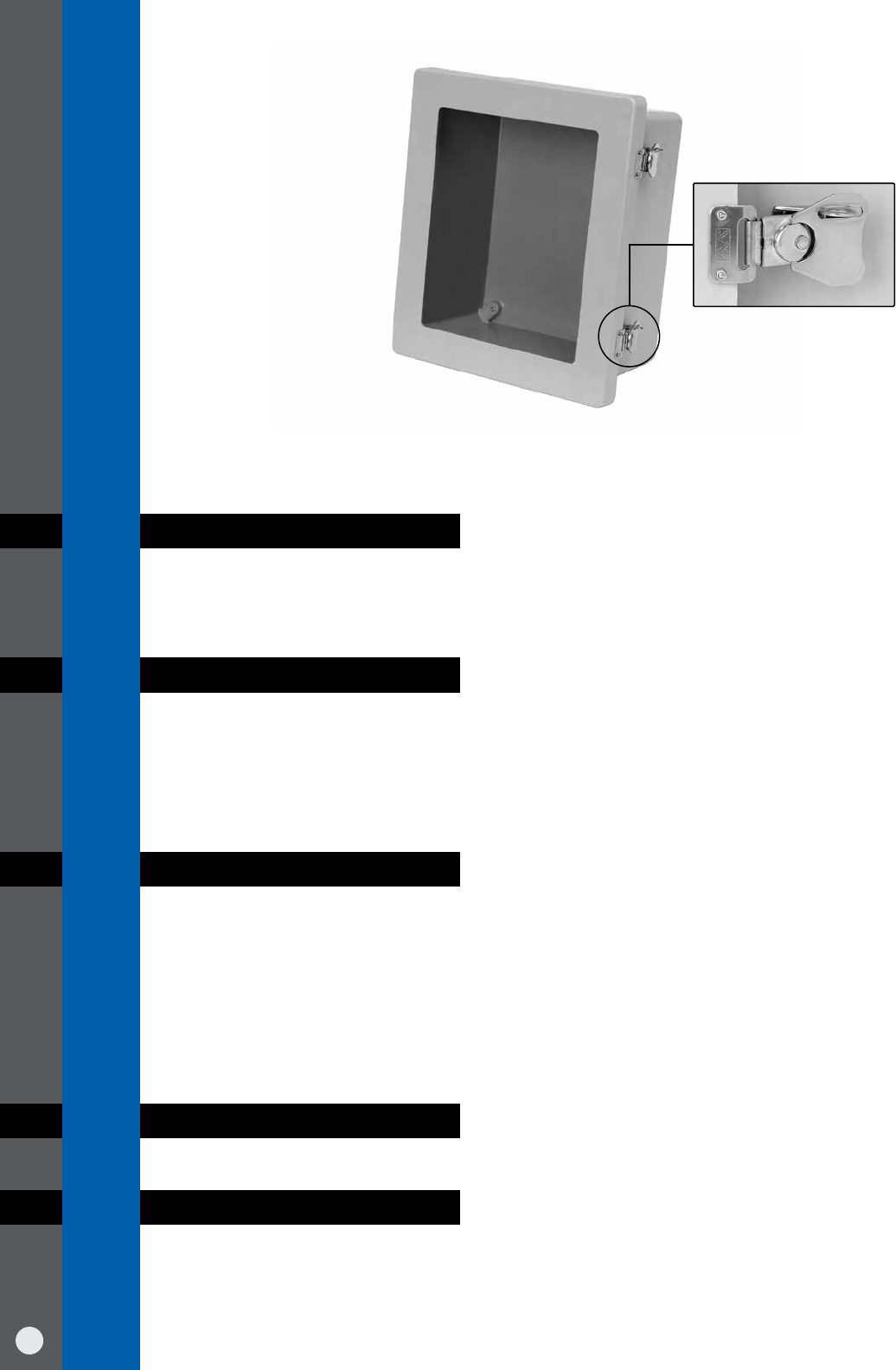

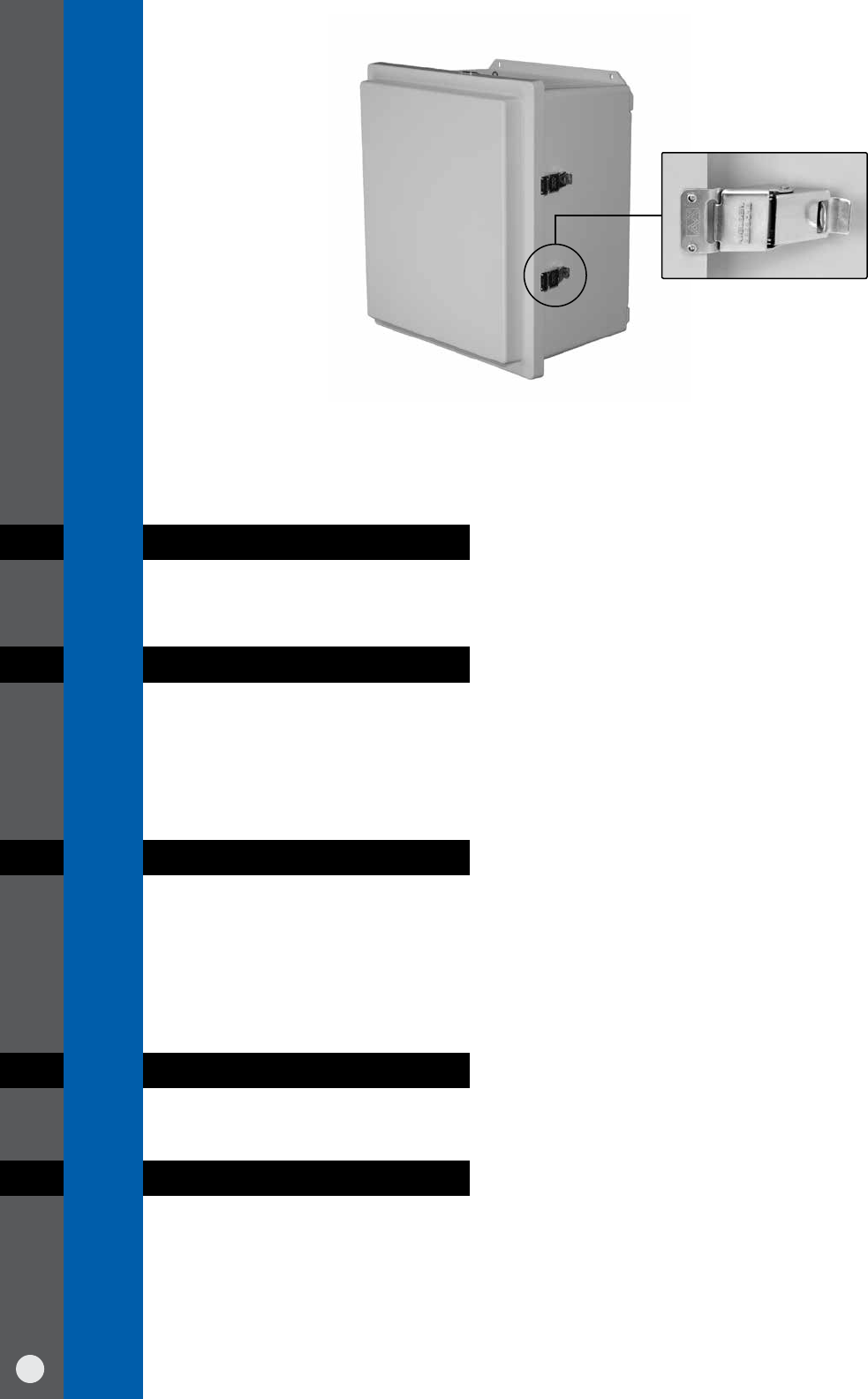

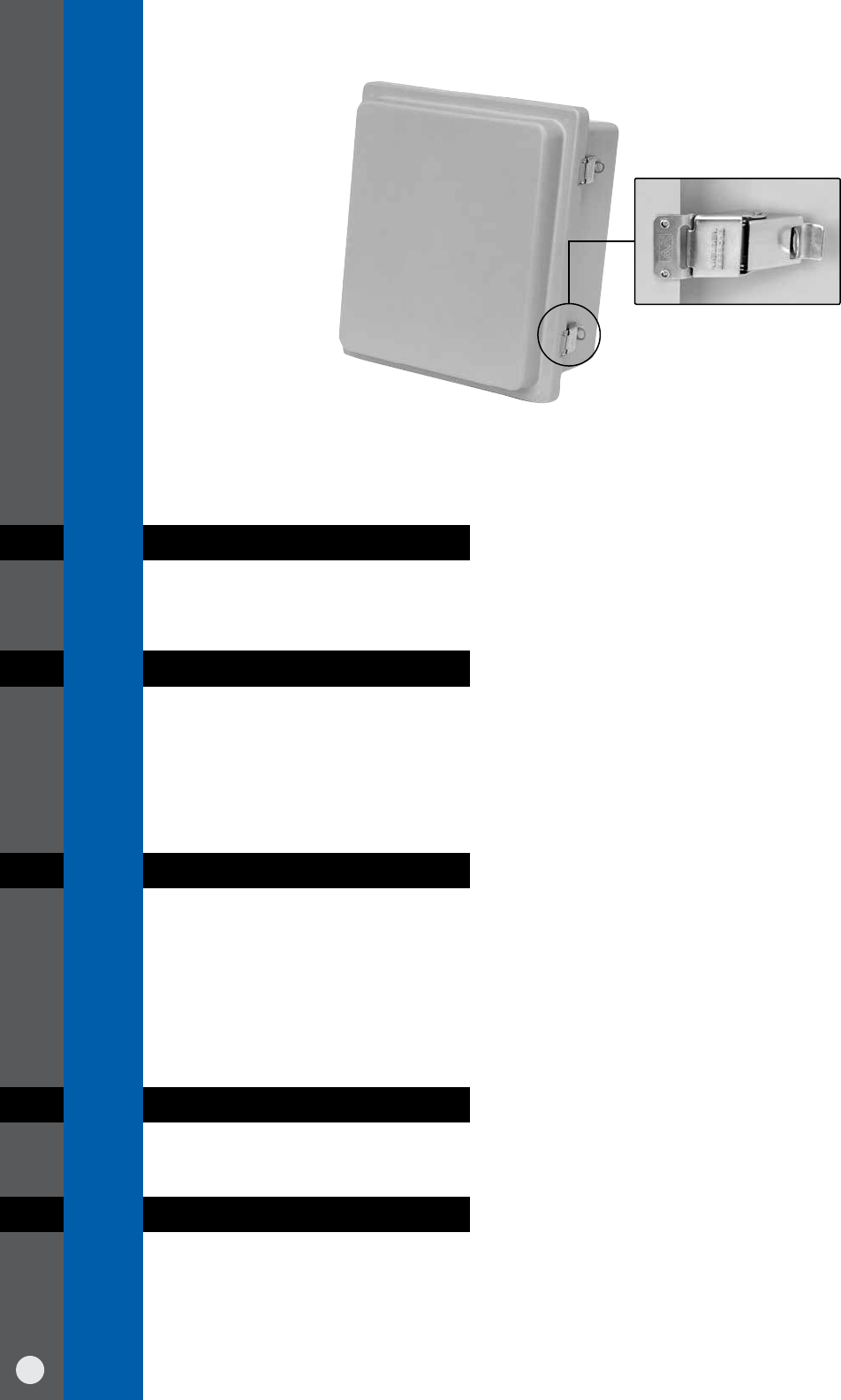

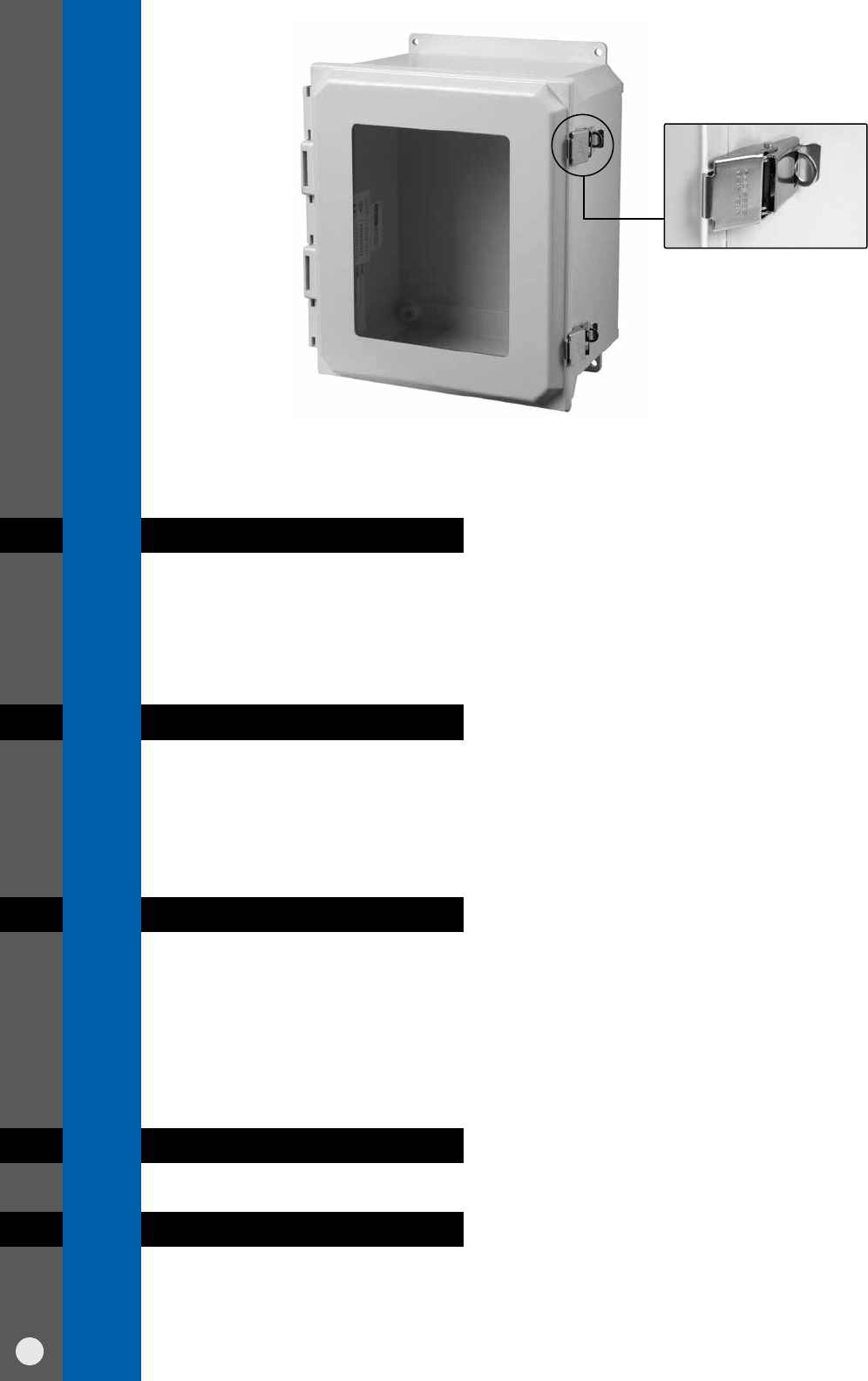

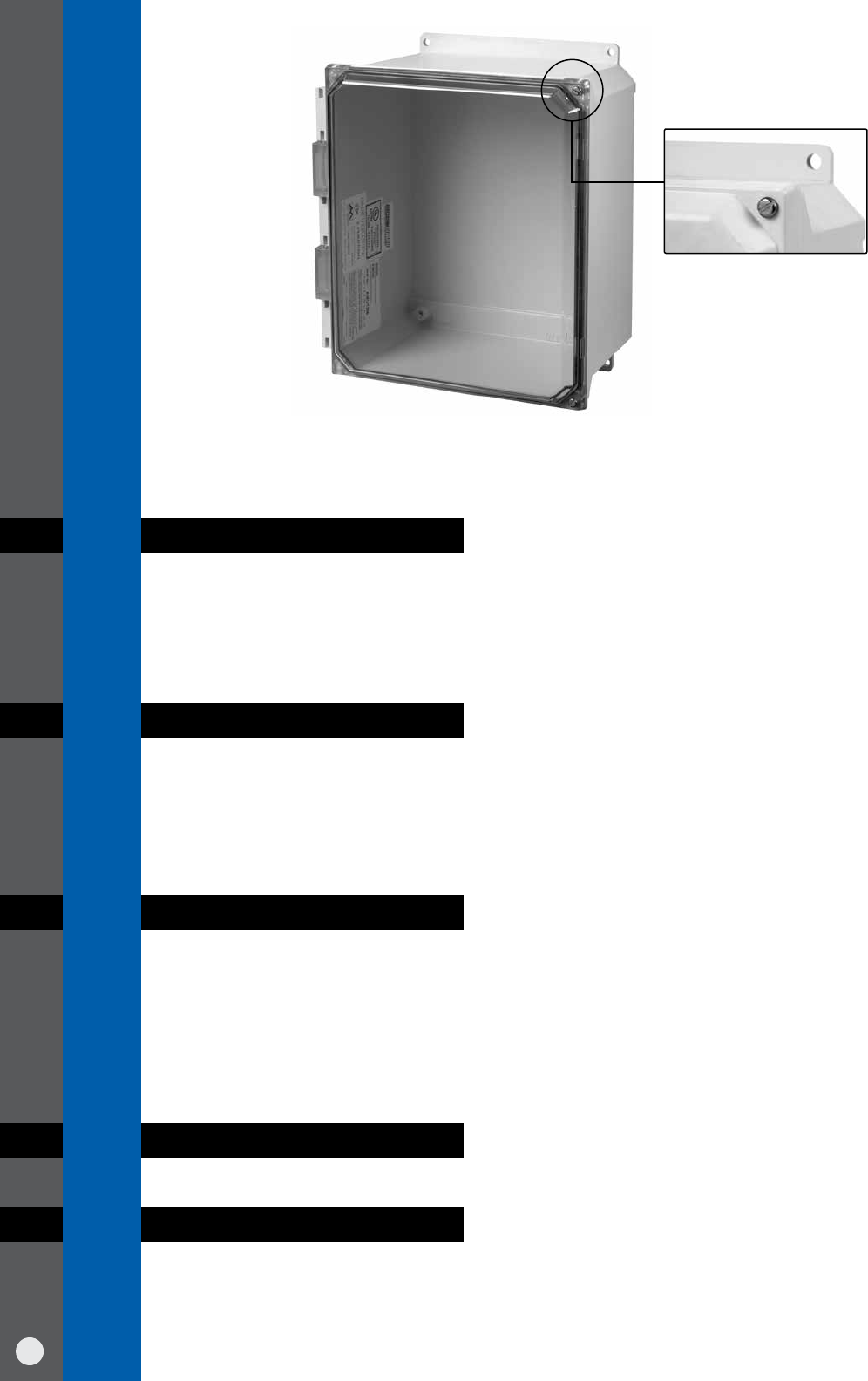

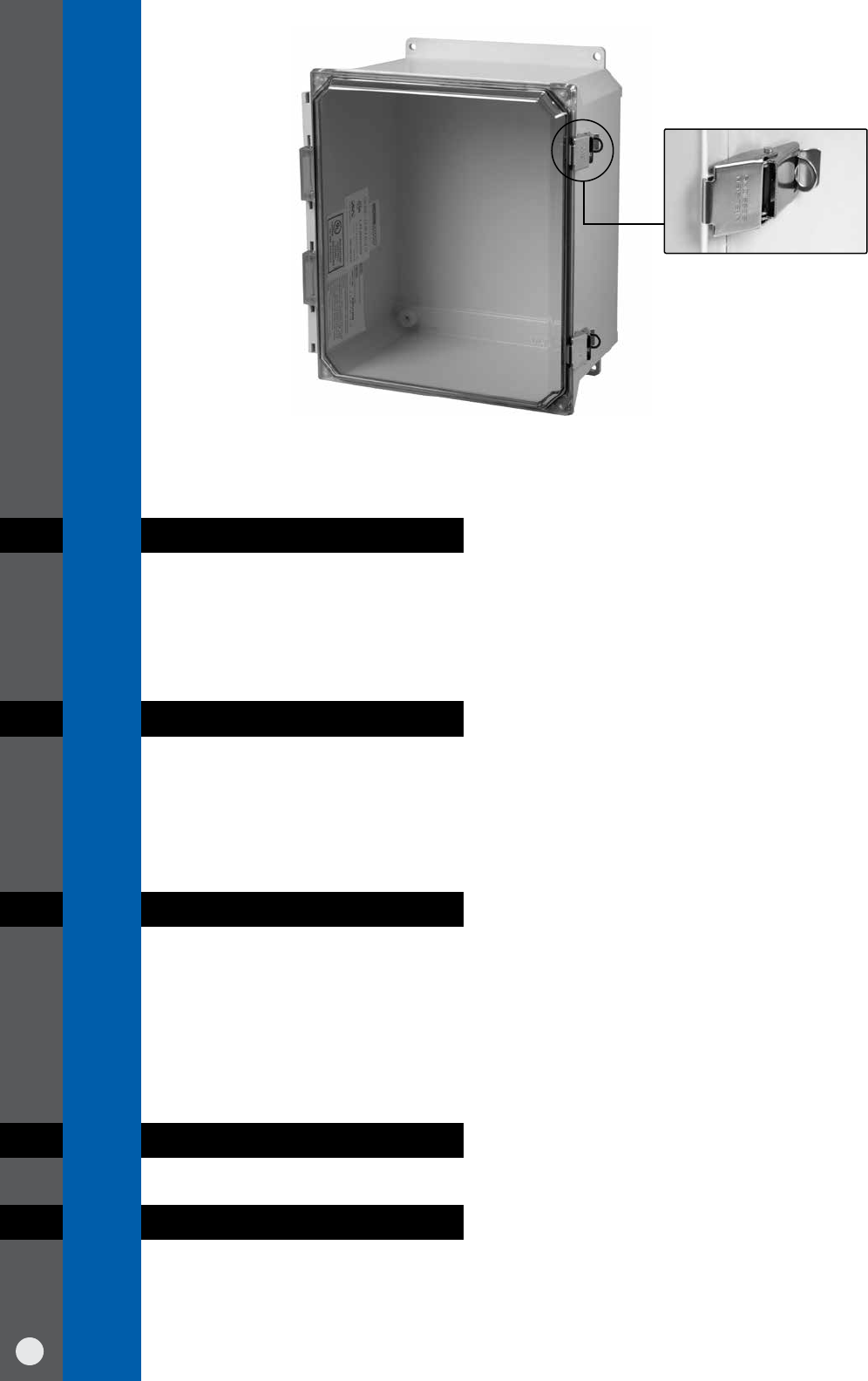

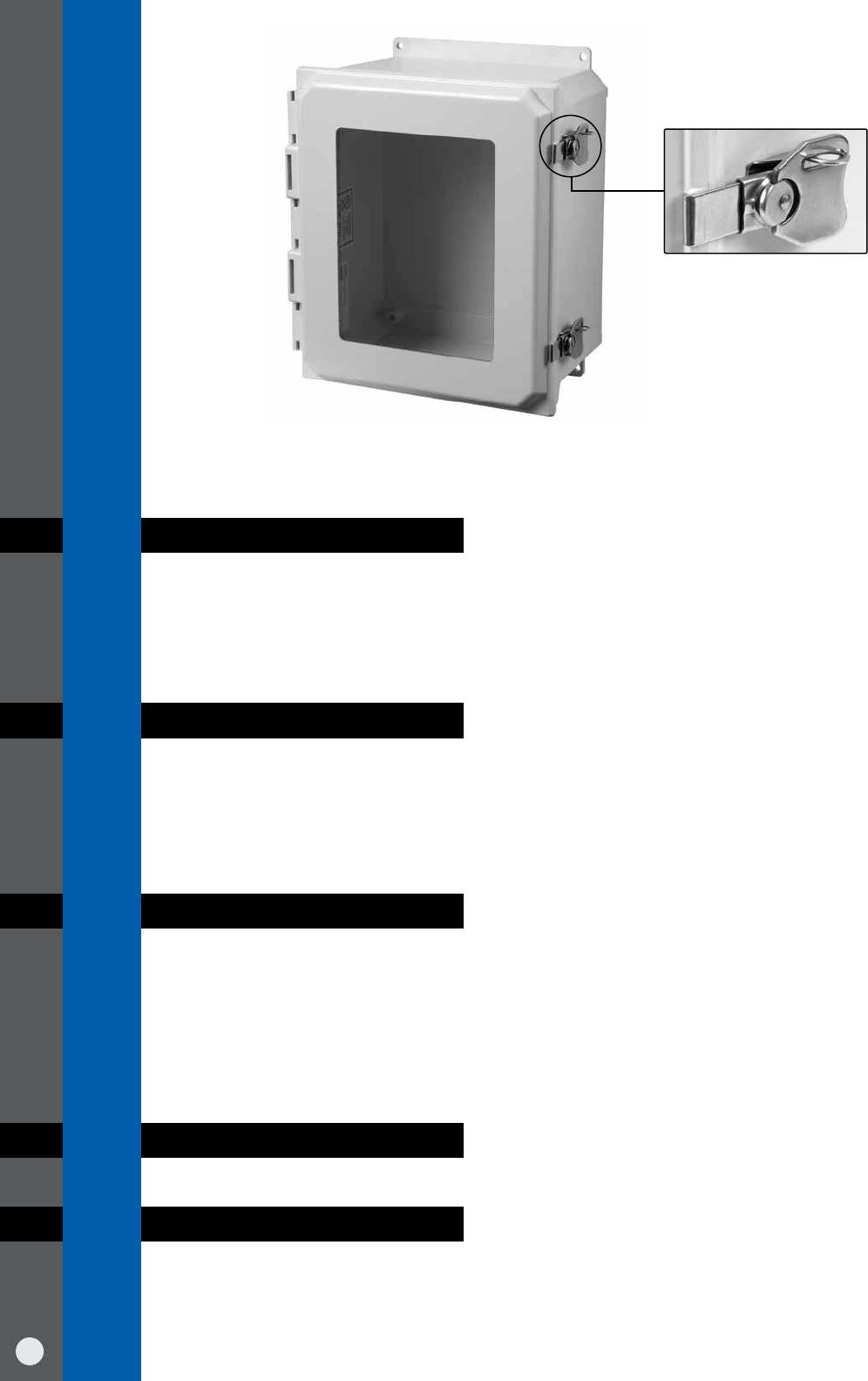

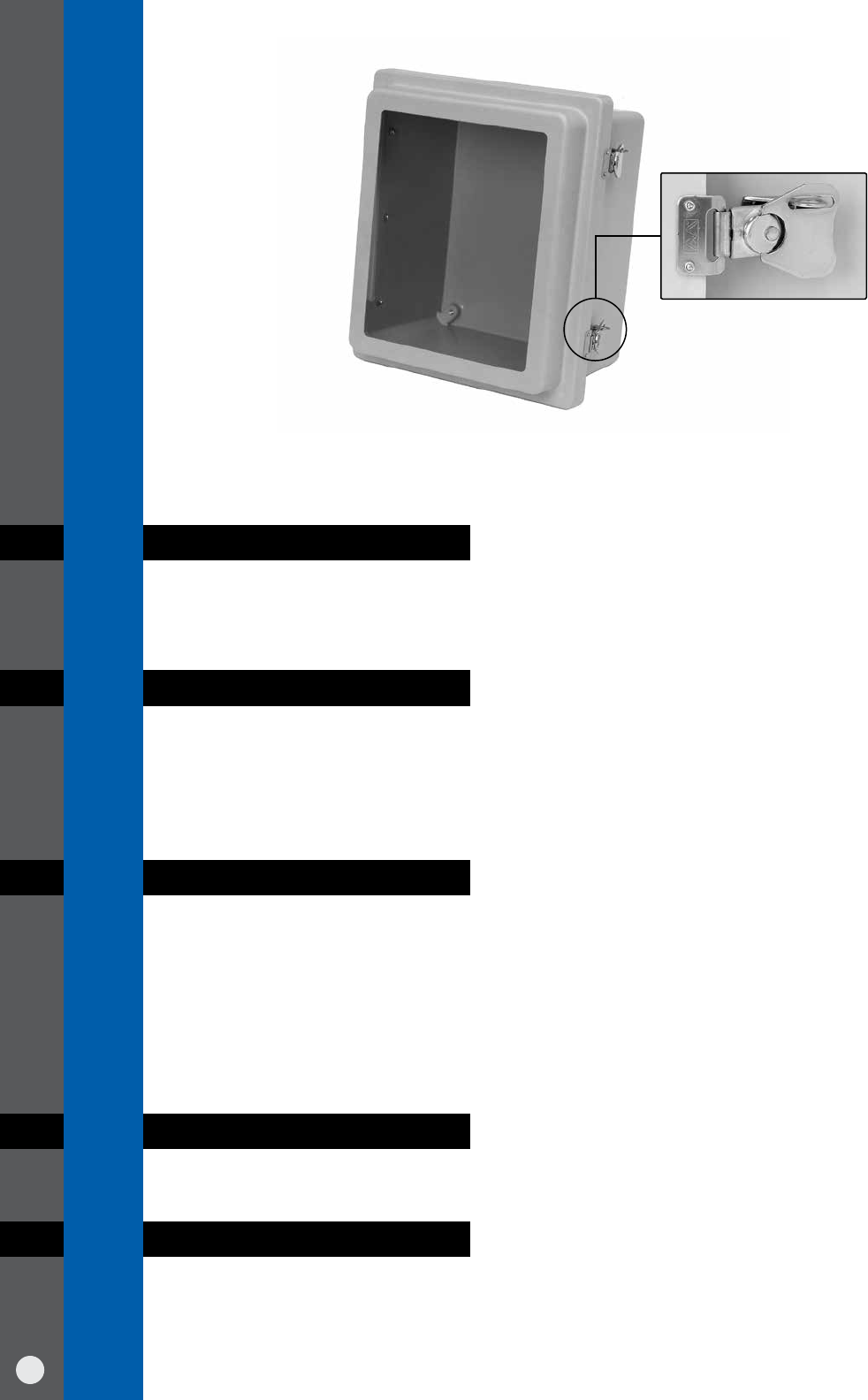

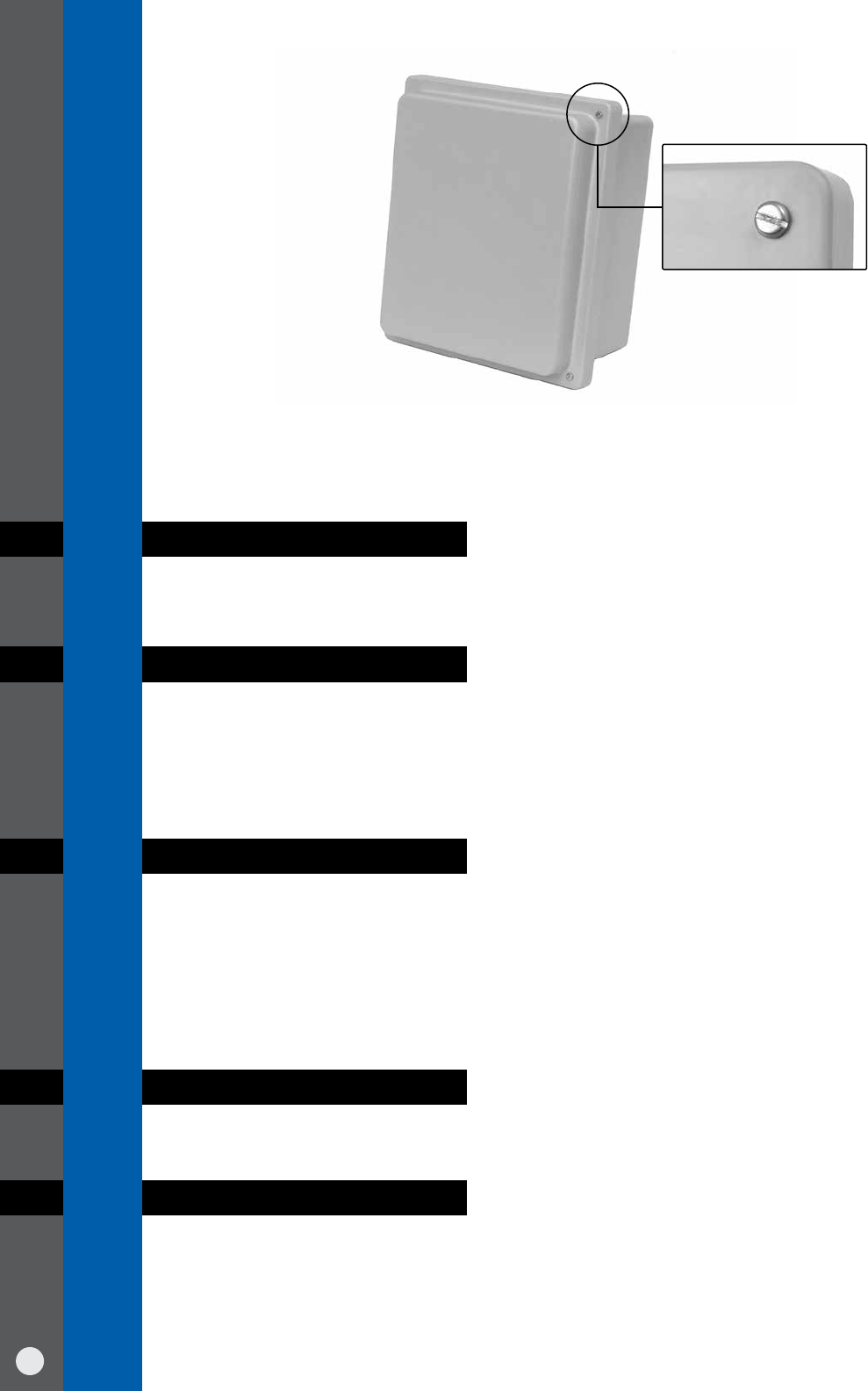

POLYLINE® comes standard with “industry exclusive” multi-mounting capability,
including an out-of-the-box mounting flange or adjustable mounting feet which
adapt to various mounting configurations. Featuring metallic or nonmetallic
latches and molded-in latch keepers and mounting bosses, a tongue and groove
seal joint between cover and base, POLYLINE is the ultimate in polycarbonate
enclosures. A clear polycarbonate cover option is also available for instrumentation
applications where critical electronic equipment must be visible and protected
from the elements.
AMP Series Features & Benefits
• Patented multi-mounting capability
• Out-of-the-box flange design – factory
installed
• Optional foot mount brackets for multi-
directional mounting (vertical or horizontal
positioning)
• Mounting dimensions molded into the enclosure
base
• Durable polycarbonate feet/flanges resist cracking
during wall mount assembly
• Feet and flanges act as an enclosure pad on uneven
surfaces preventing enclosure from being drawn
down and binding
• Feet and flange pads also allow an air gap or barrier
between the enclosure and a warm machine chassis
or mounting wall to prevent over-heating
POLYLINE® SERIES
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
5

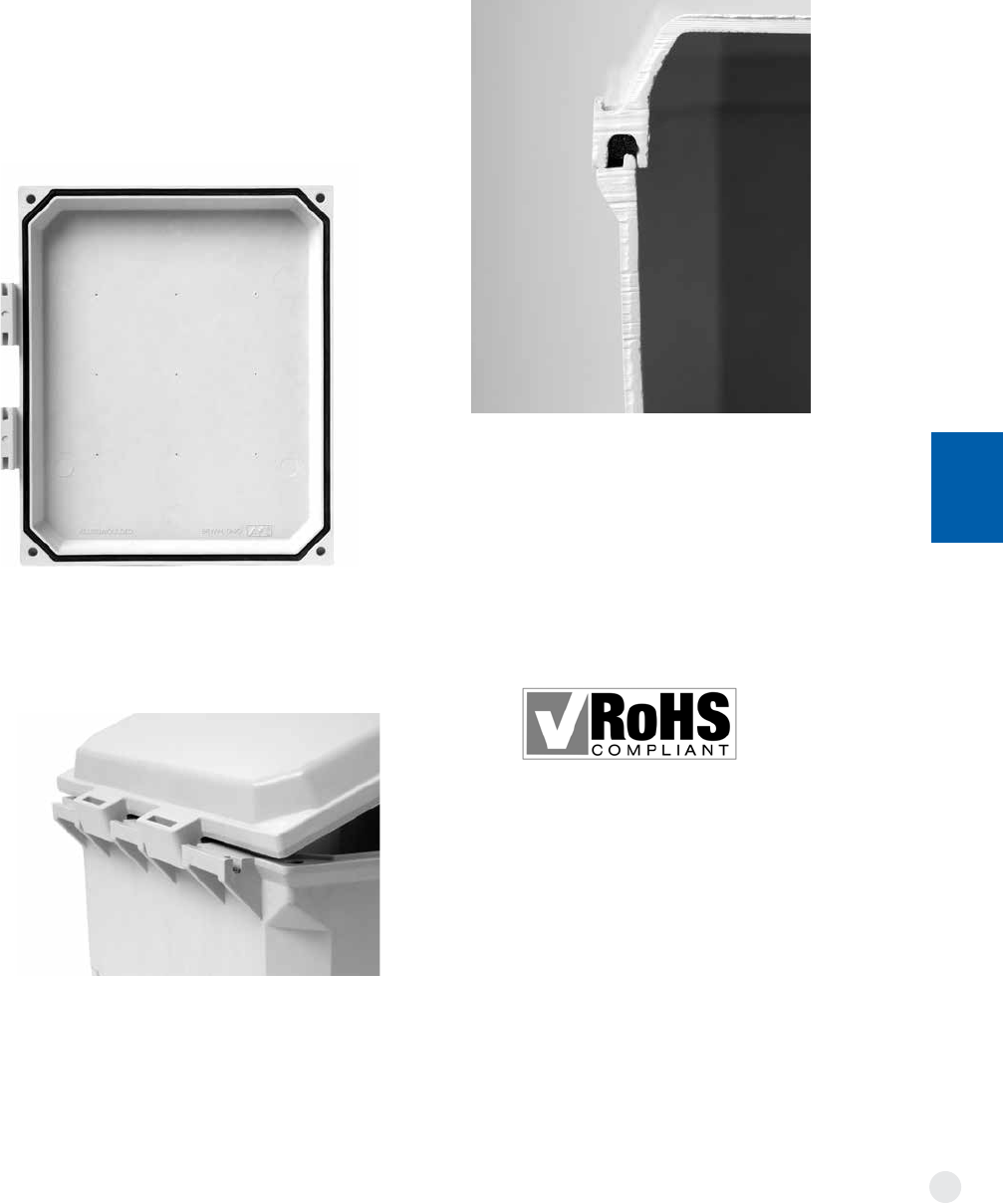

POLYLINE

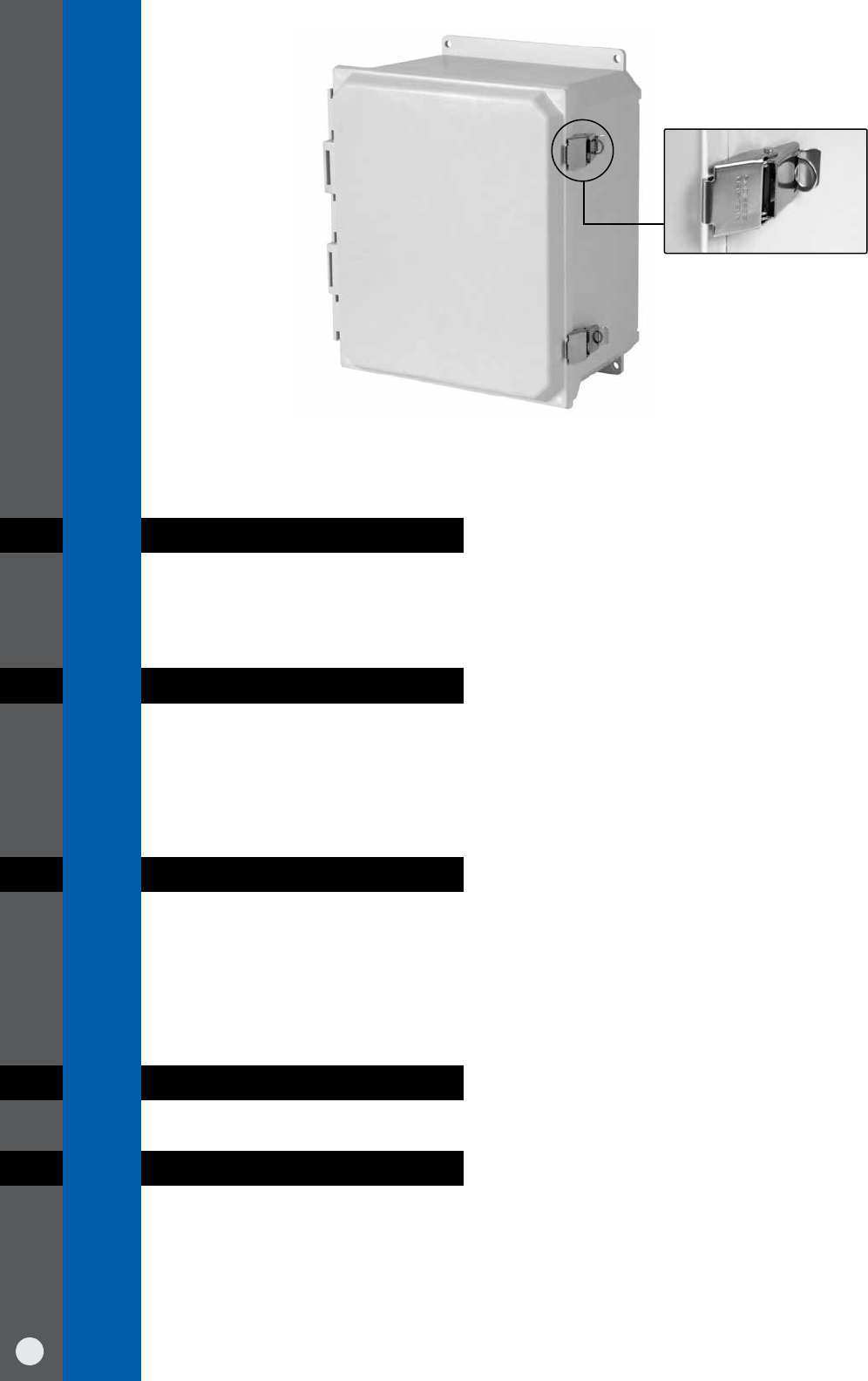

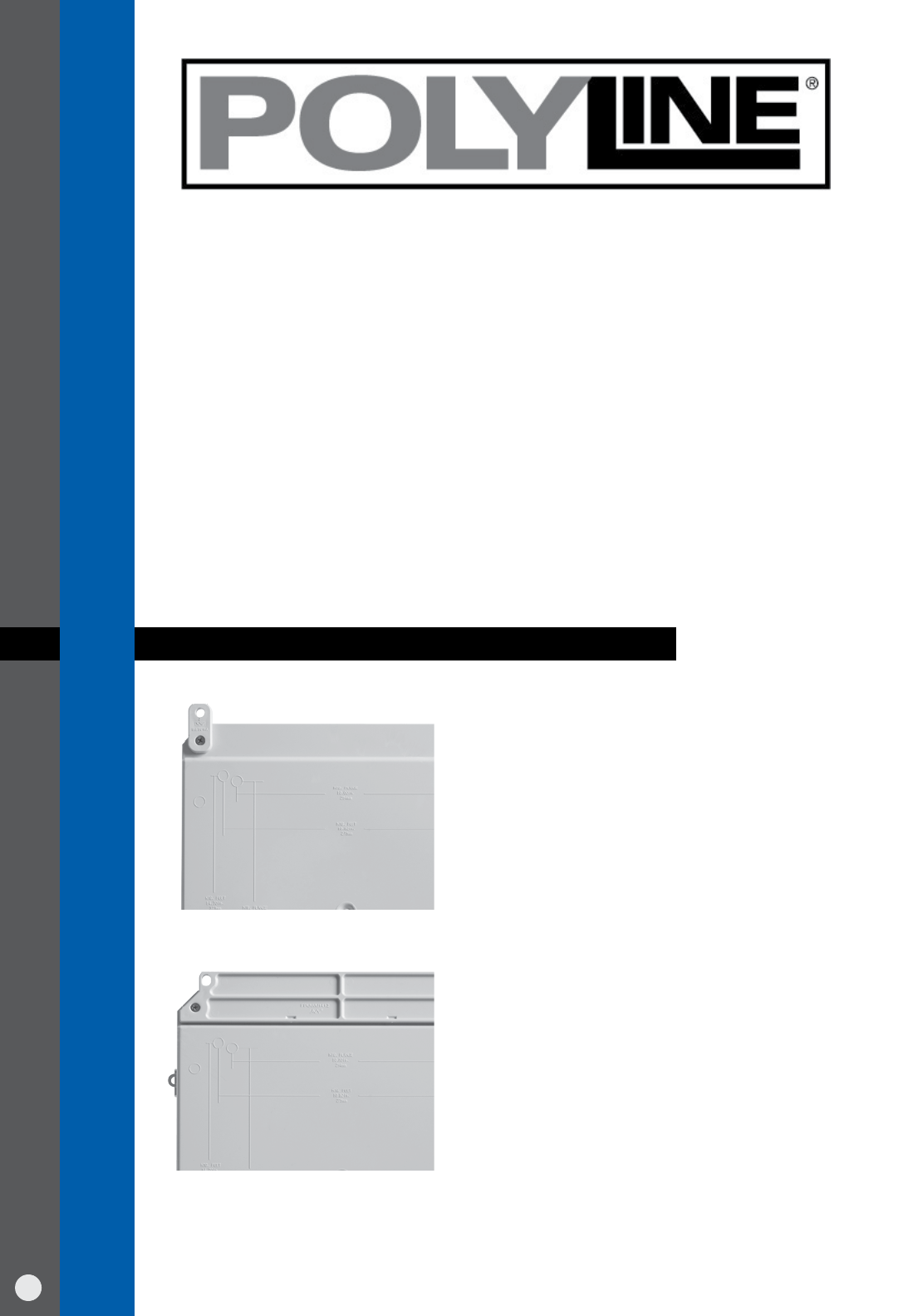

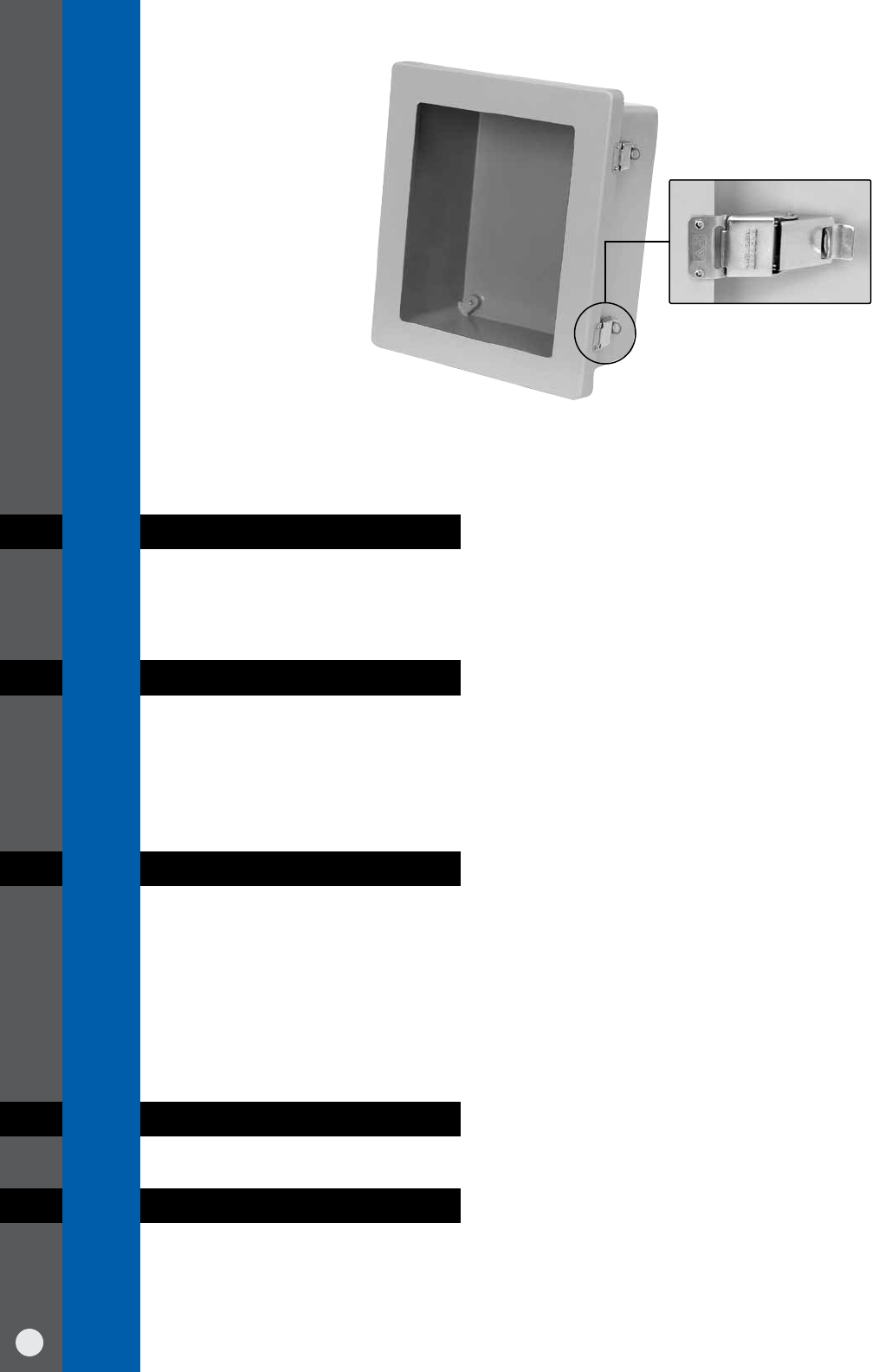

• Molded hinge design with
stainless steel tamper
resistant hinge pin with no
wall penetrations
• Tongue and groove, closed
cell neoprene seal design
achieves NEMA Type 4X
rating
• Metal or nonmetal snap
latches mount on a molded-
in boss and they latch to
molded-in keepers with no
additional wall penetrations
• Padlock hasp comes standard
on all snap latches
• Molded-in back panel bosses
with brass inserts and
additional center bosses for
mounting din rail using #10
sheet metal screws
• Cover to base design – flush, aesthetically pleasing
and more modern architecture
− Clear polycarbonate instrumentation cover
where critical electrical/electronic equipment
must be visible and protected from the
elements
− Solid/opaque covers available as an additional
option
• Adjustable corner panel mounts for supporting the
aluminum hinge front panel within the molded-in corner
slots and provides either flush positioning with the box
top or adjustability down in the box 1.5” deep
6

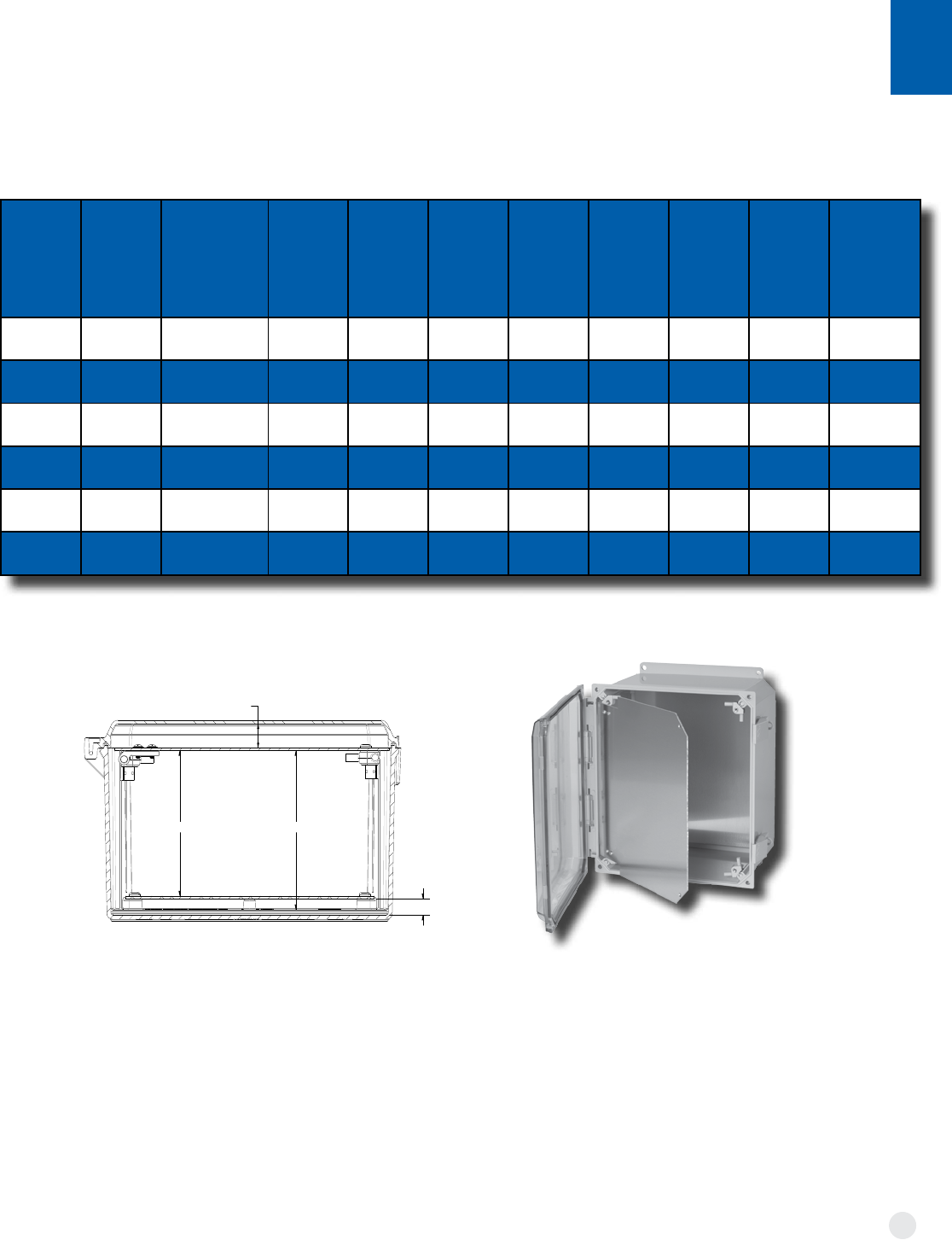

Base
Number
Size
Size
Opaque
Cover
(none)
Clear
Cover
(CC)
Screw
Cover
(none)
Hinged
Screw
Cover
(H)
Hinged
Nonmetal
Latch
(NL)
Hinged
Snap
Latch
(L)
Foot
Mount
(none)
Flange
Mount
(F)
AMP664 6x6x4 ✓✓✓✓✓✓✓✓
AMP864 8x6x4 ✓✓✓✓✓✓✓✓
AMP1084 10x8x4 ✓✓✓✓✓✓✓✓
AMP1206 12x10x6 ✓✓✓✓✓✓✓✓
AMP1426 14x12x6 ✓✓✓✓✓✓✓✓
Covers Available Cover Attachment Options Mount Options
Enclosure Material
Typical Properties ASTM Test Method Polycarbonate Cover Seal-Closed
Cell Neoprene
Impact Strength (ft - lb/in) D 256 12
Flexural Strength (psi) D 790 13,000
Tensile Strength (psi) D 638 9,000 1,500
Compressive Strength (psi) D 695 11,000
Water Absorption (%) D 570 0.25 5.00
Specific Gravity D 792 1.20 1.23
Shrinkage in/in D 955 0.007
Hardness (Barcol-Rockwell M-Shore A) D 2583 75 45
Elongation (%) D 638 7.00 350
Dielectric Strength (kV/in) D 149 732
Arc Resistance (sec) D 495 117
Flammability UL 94 V-0 V-O
Heat Deflection (°F at 264 psi) D 648 266
Service Temperature (°F) -31°F to 266°F -31°F to 225°F
K Factor, Thermal Conductivity
(BTU/hr/ft2/°F/in)
D1269E 1.25
Thermal Expansion (10-6 in/in°F) D 696 36
UV Rating UL 746C (f1)
POLYLINE® Physical Properties
Summary of Product Options
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
7
POLYLINE
Metal Enclosures Nonmetal Enclosures
304 SS 316 SS Painted CS Polycarbonate Compression
FRP Gelcoat FRP Custom PVC
Cost 4 5 1 2 3 4 4
Weight 5 5 5 2 3 3 2
Impact (flex) N/A N/A N/A 4 3 3 2
Flex Strength
(rigidity) N/A N/A N/A 13,000 psi 23,000 psi 33,400 psi 10,500 psi
MFG Process
Type Fabricated sheet Fabricated sheet Fabricated sheet Injection Mold Compression
Mold Open Mold Fabricated
sheet
Size Limits Custom NL Custom NL Custom NL Typically up to
18” Max
Typically up to
36” Max
Typically 36”
up to 90” Custom NL
Outdoor Corro-
sion (rating) NEMA 4 NEMA 4X NEMA 4 NEMA 4X NEMA 4X NEMA 4X NEMA 4
Solvents Alkalis Mild Acids
Examples
cleaning solvents
carbon tetrachloride
isopropyl alcohol
perchlorethylene
toluene
xylene
ammonium chloride
ammonium nitrate
calcium hydroxide
calcium hypochlorite
magnesium hydroxide
sodium hypochlorite
aluminum chloride
boric acid
calcium chloride
potassium nitrate
sea water
sodium nitrate
zinc chloride
Recommended
304 SS
316 SS
Compression Fiberglass
Aluminum
304 SS
316 SS
Compression Fiberglass
Gelcoat Fiberglass
Polycarbonate
304 SS
316 SS
Satisfactory Painted Carbon Steel
Gelcoat Fiberglass
Polycarbonate
Gelcoat Fiberglass
Compression Fiberglass
Painted Carbon Steel
Limited Use Polycarbonate Painted Carbon Steel
Aluminum Aluminum
Note: Those categories containing rating numbers are based on 1 as low and 5 as high.
Note: This chart is only intended to be used as a general guideline for applying “typical” metal and nonmetal enclosures in chemical
environments. Allied Moulded Products, Inc. recommends specific material compatibility tests for the most accurate application of
enclosures. Please contact Allied Moulded customer service for specific requirements.
General Enclosure Specifying Guidelines
Corrosion Resistance Guidelines
8

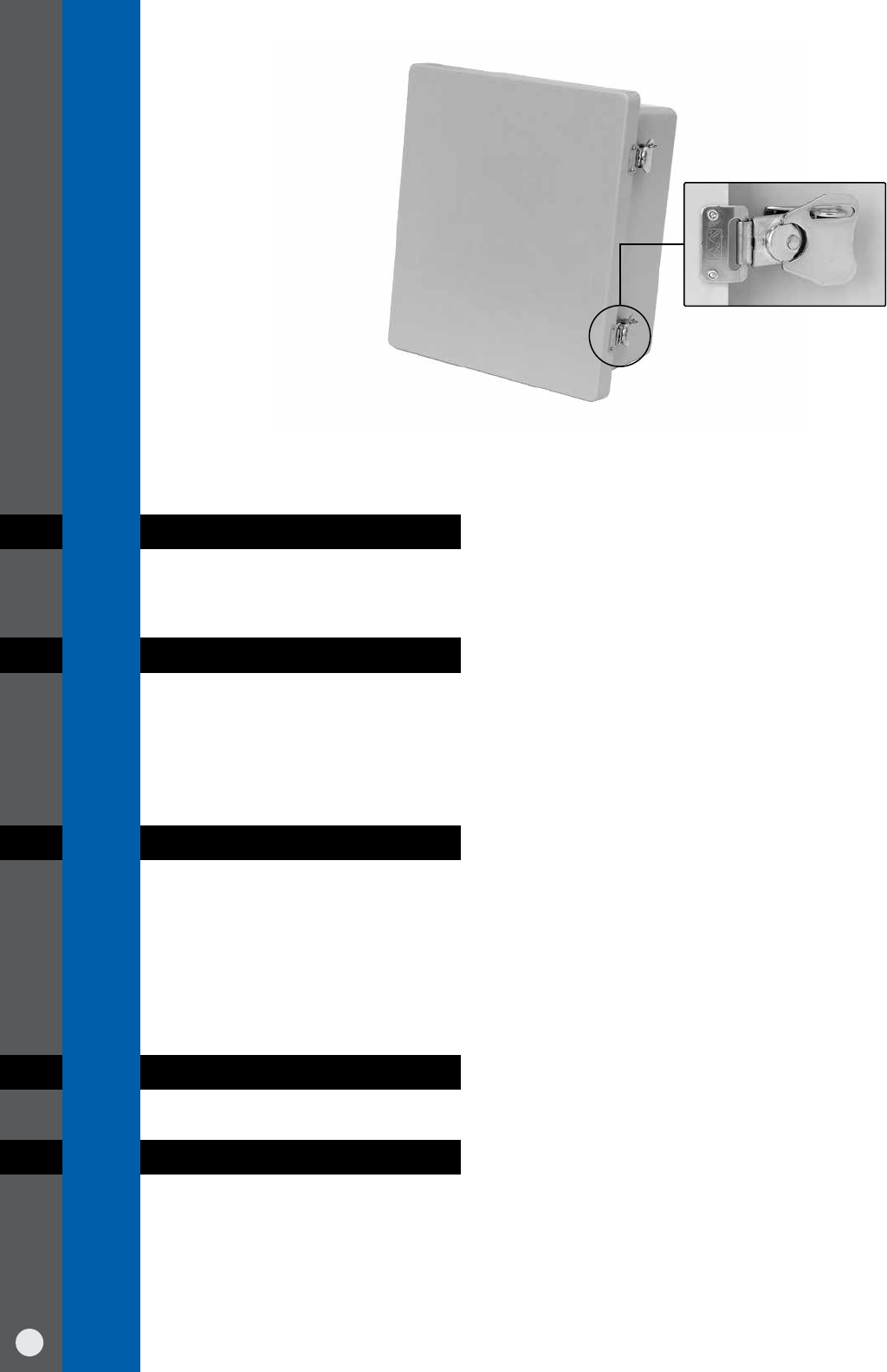

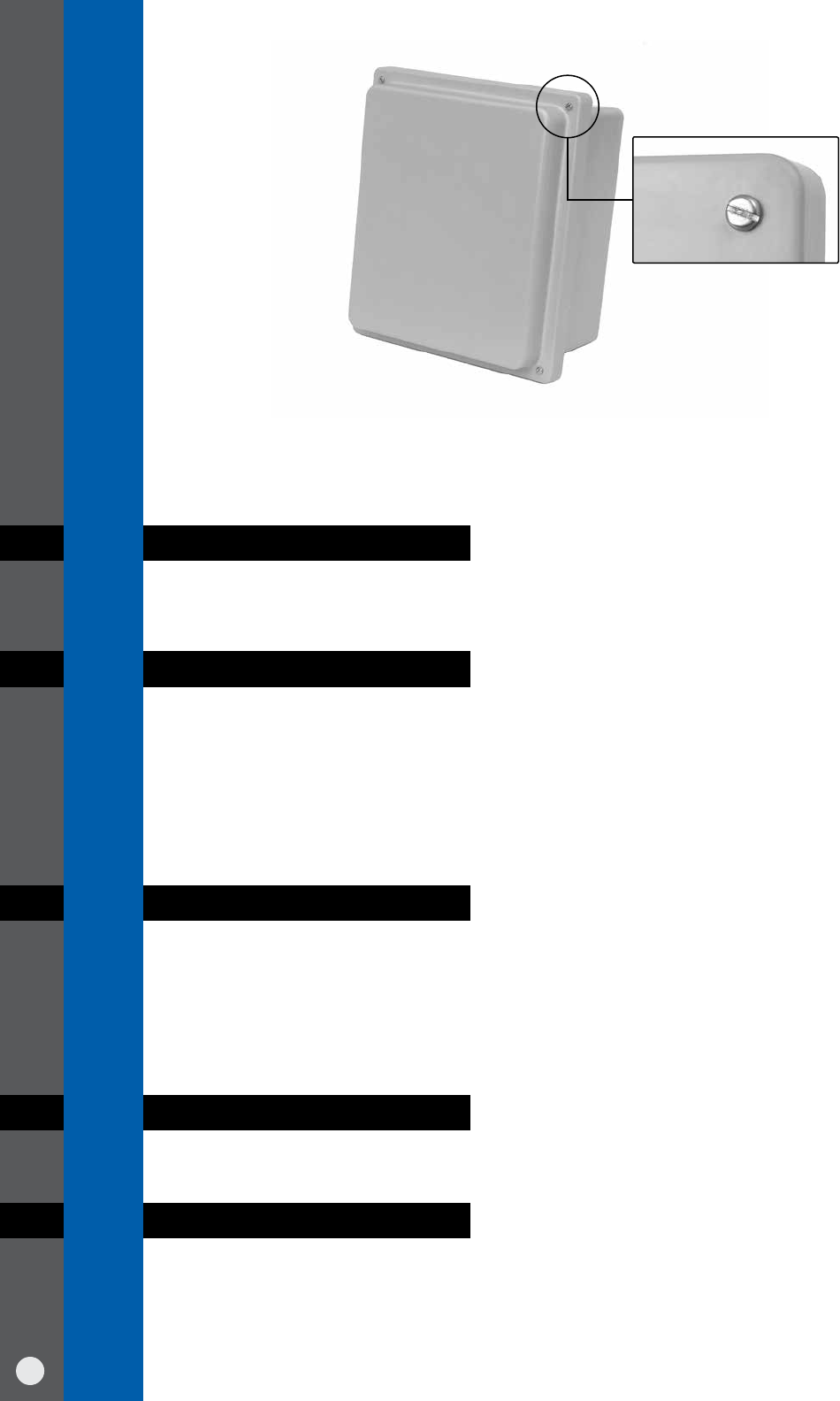

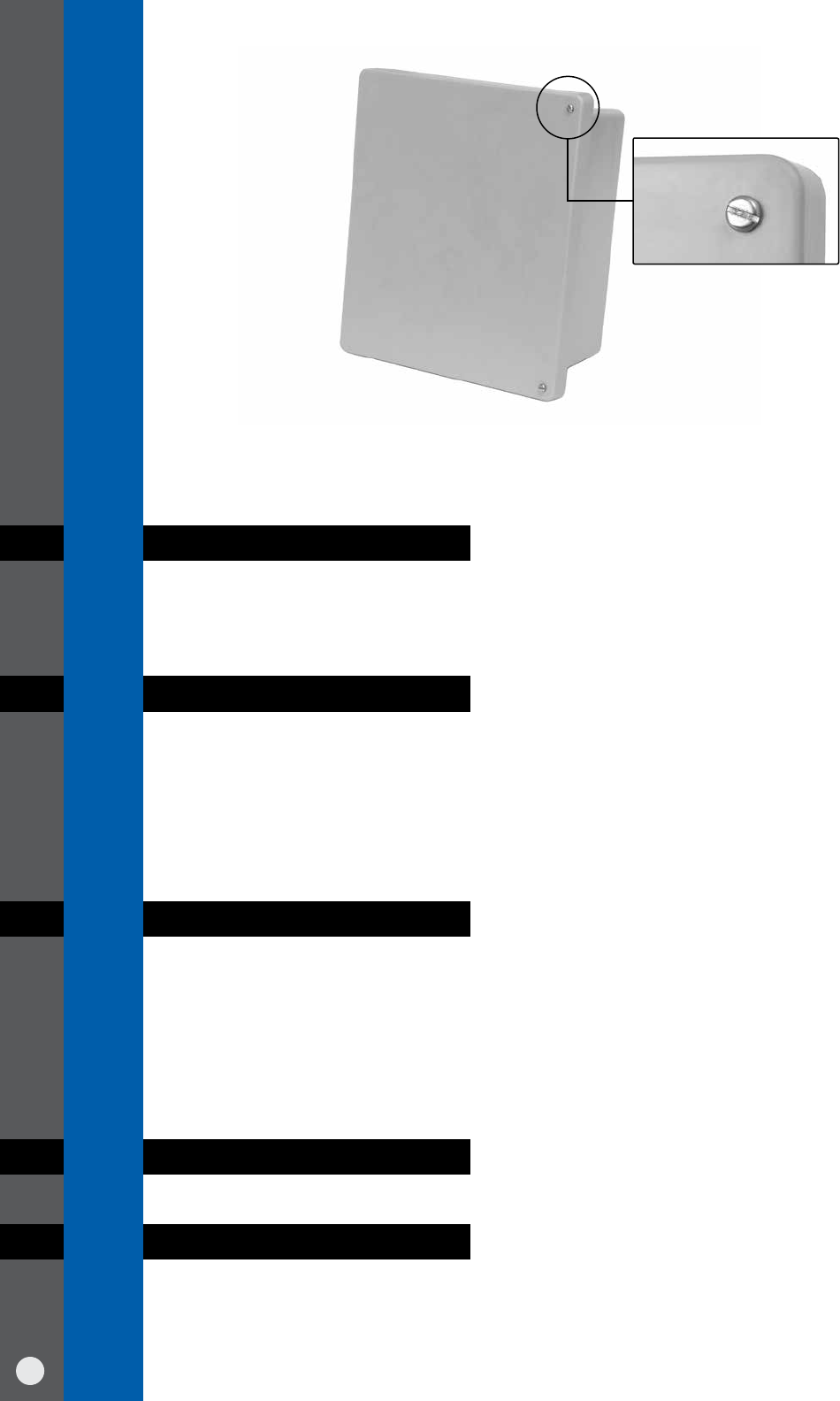

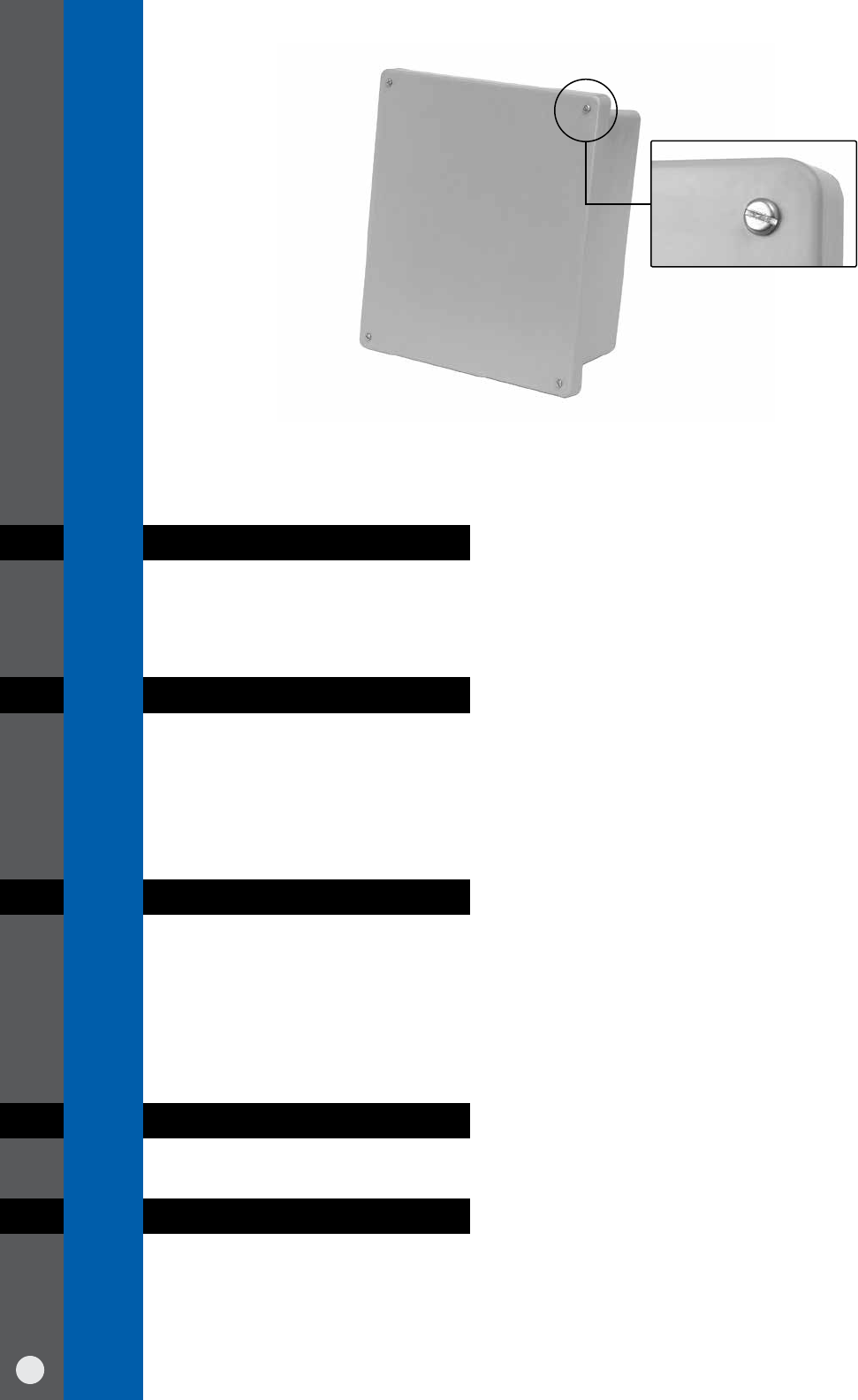

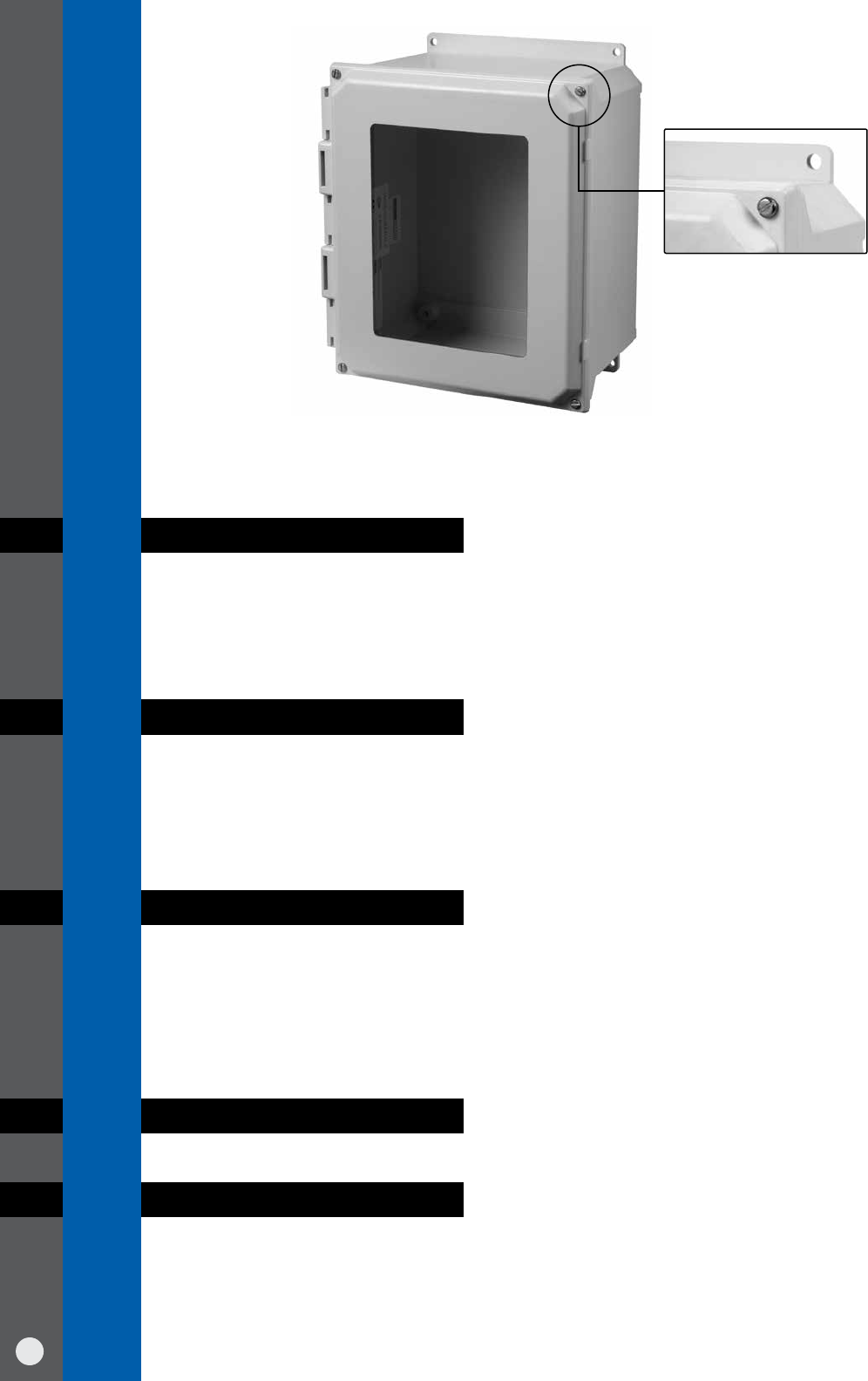

AMP Series POLYLINE® JIC Size Junction Boxes:
Lift-Off Screw Cover – Solid/Opaque
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
− IEC 60529 Type IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – opaque cover, enclosure base, feet and flanges
• Opaque cover, base, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel captive cover screws and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
9

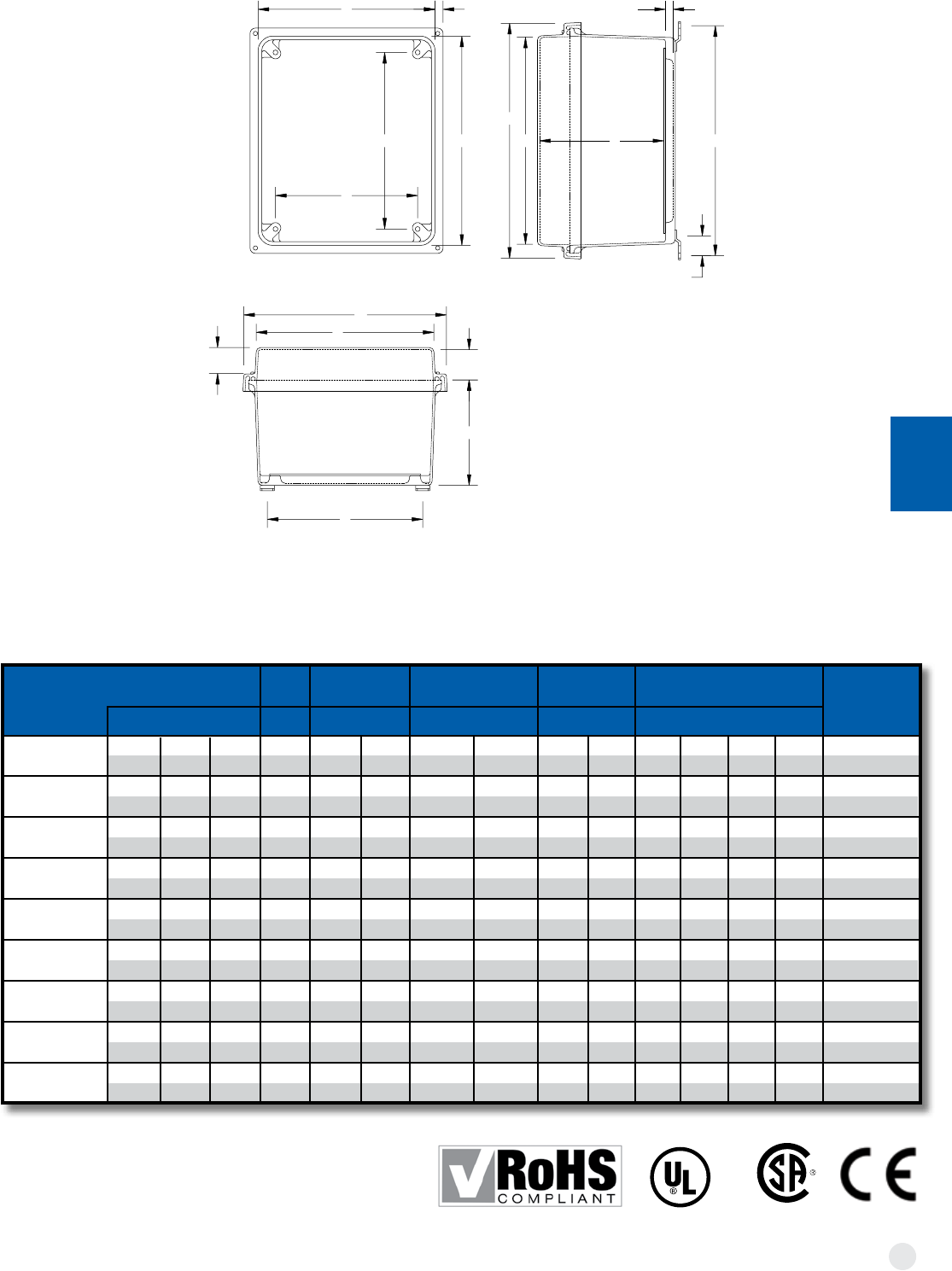

POLYLINE
B
Z
S
A

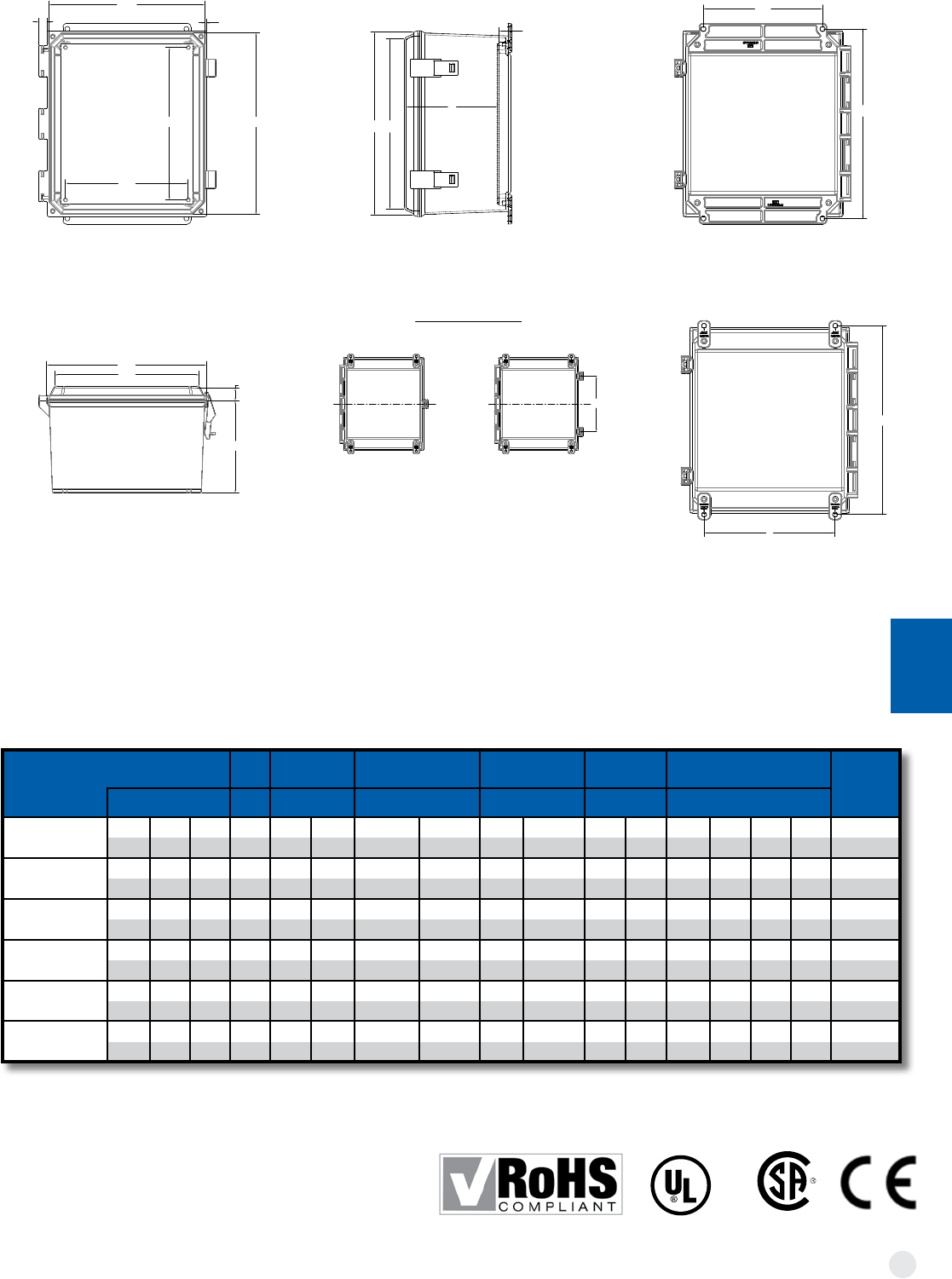

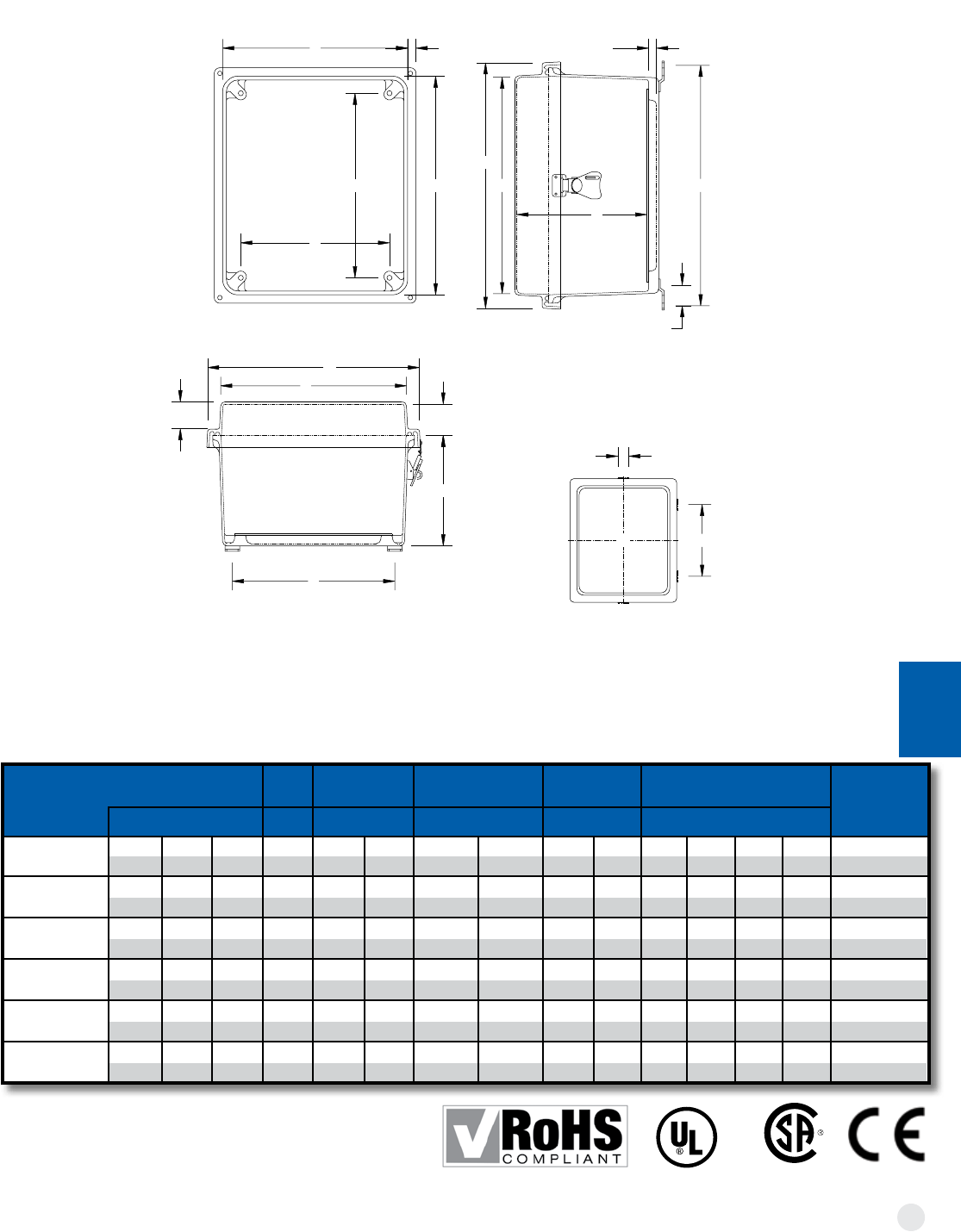

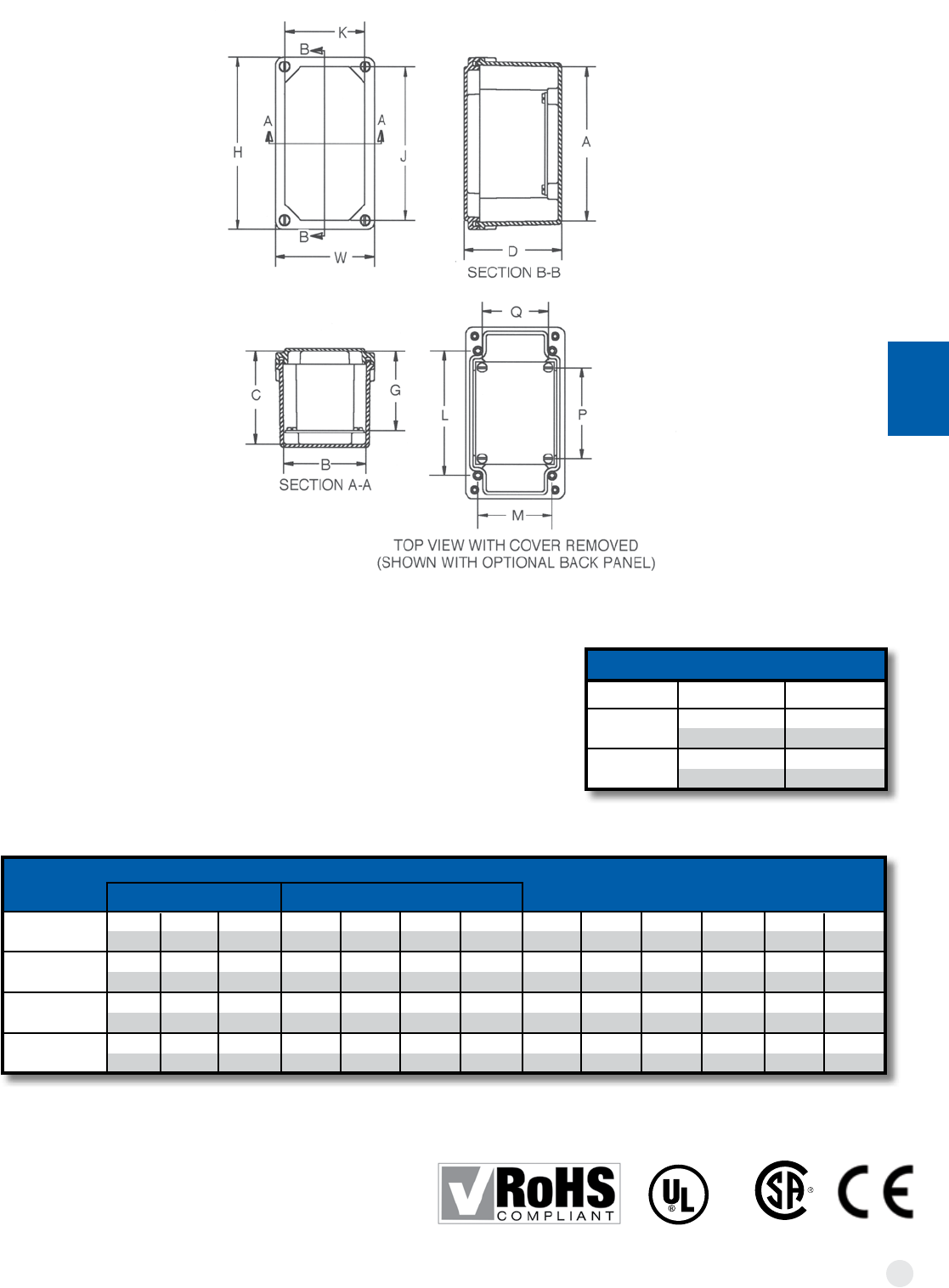

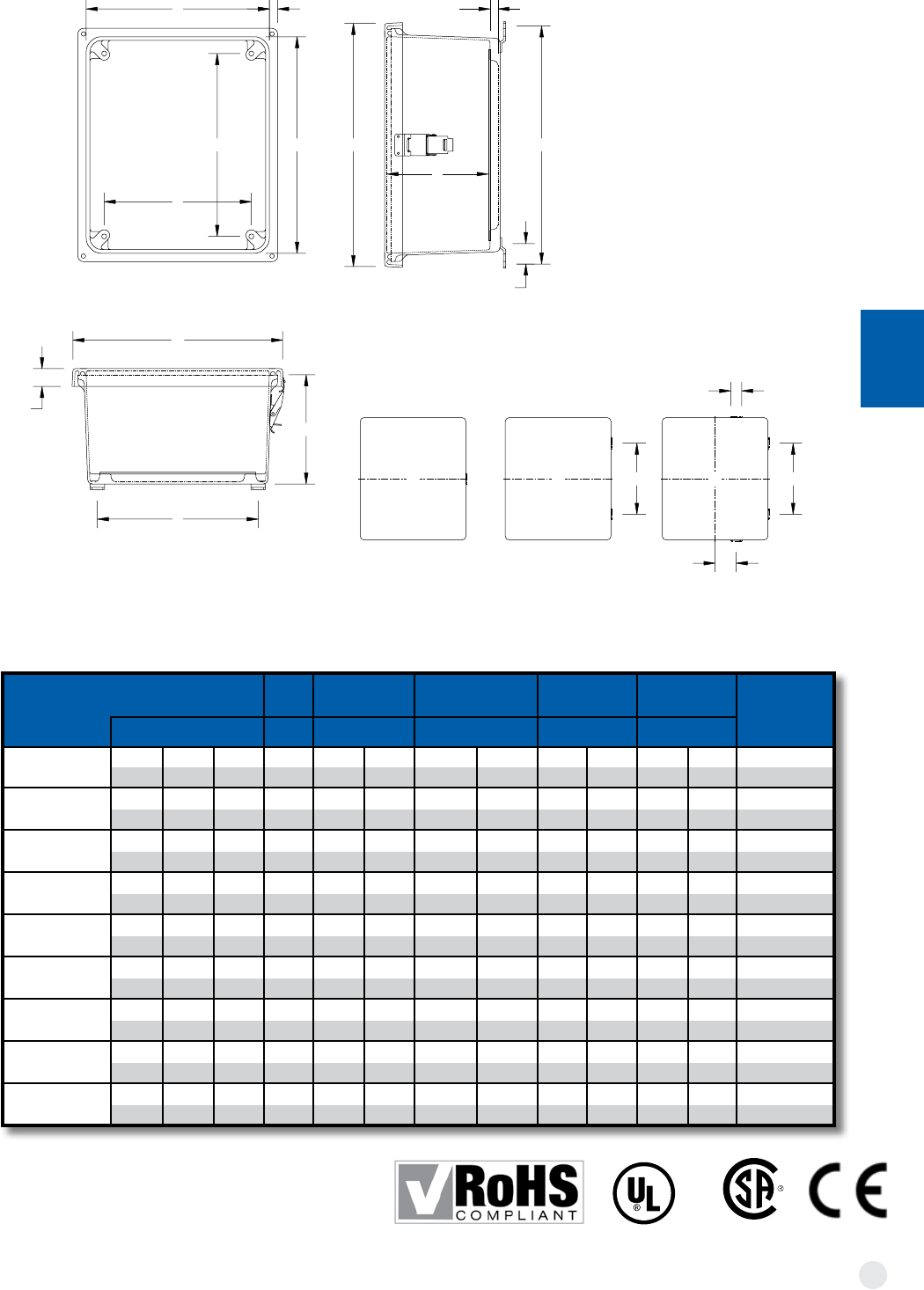

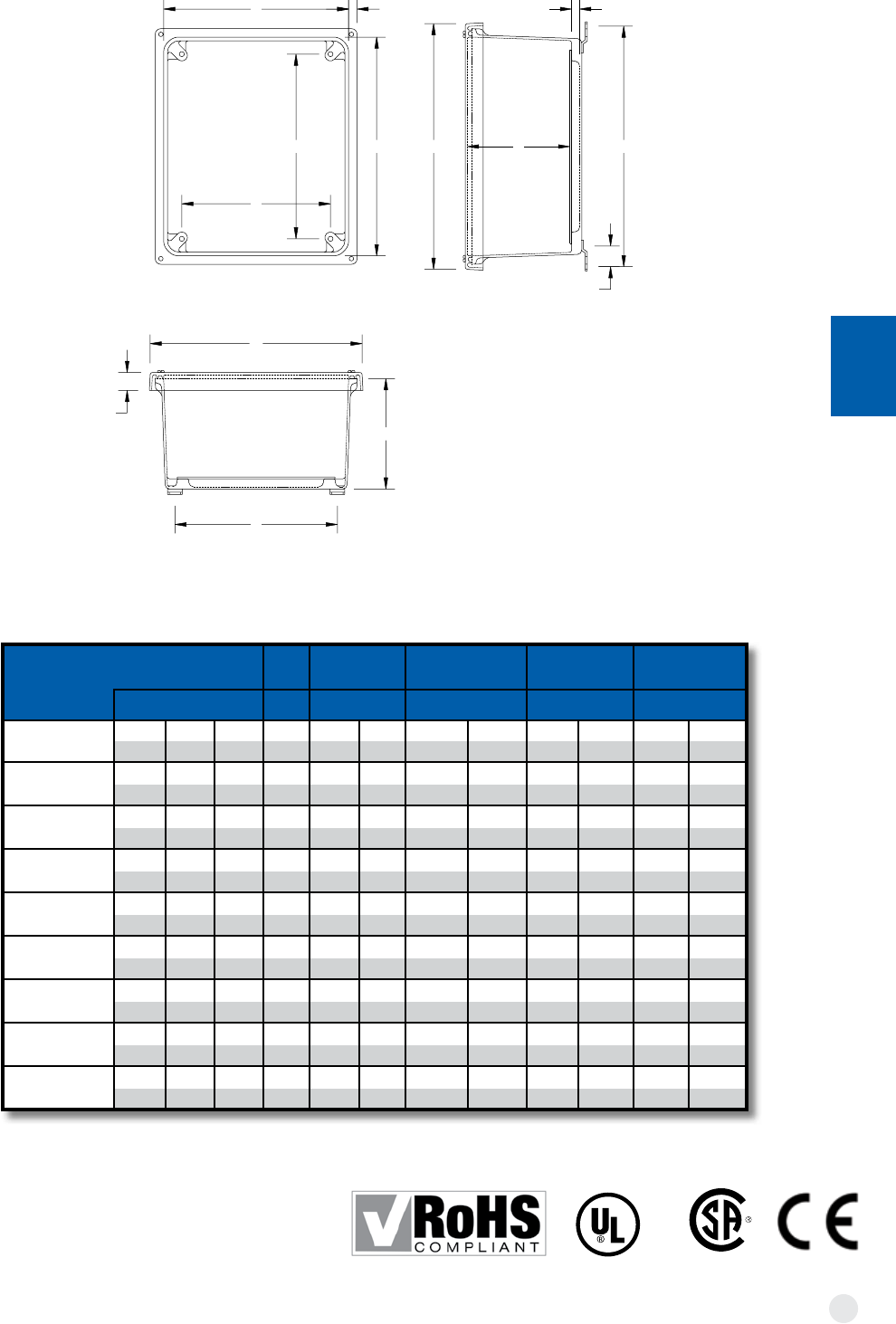

NOTE: COVER REMOVED FOR CLARITY
U M F
0.58
(15mm)
J
I
FLANGE MOUNT
0.57
(14mm)
0.87
(22mm)
W
K
C
FOOT MOUNT
H
L

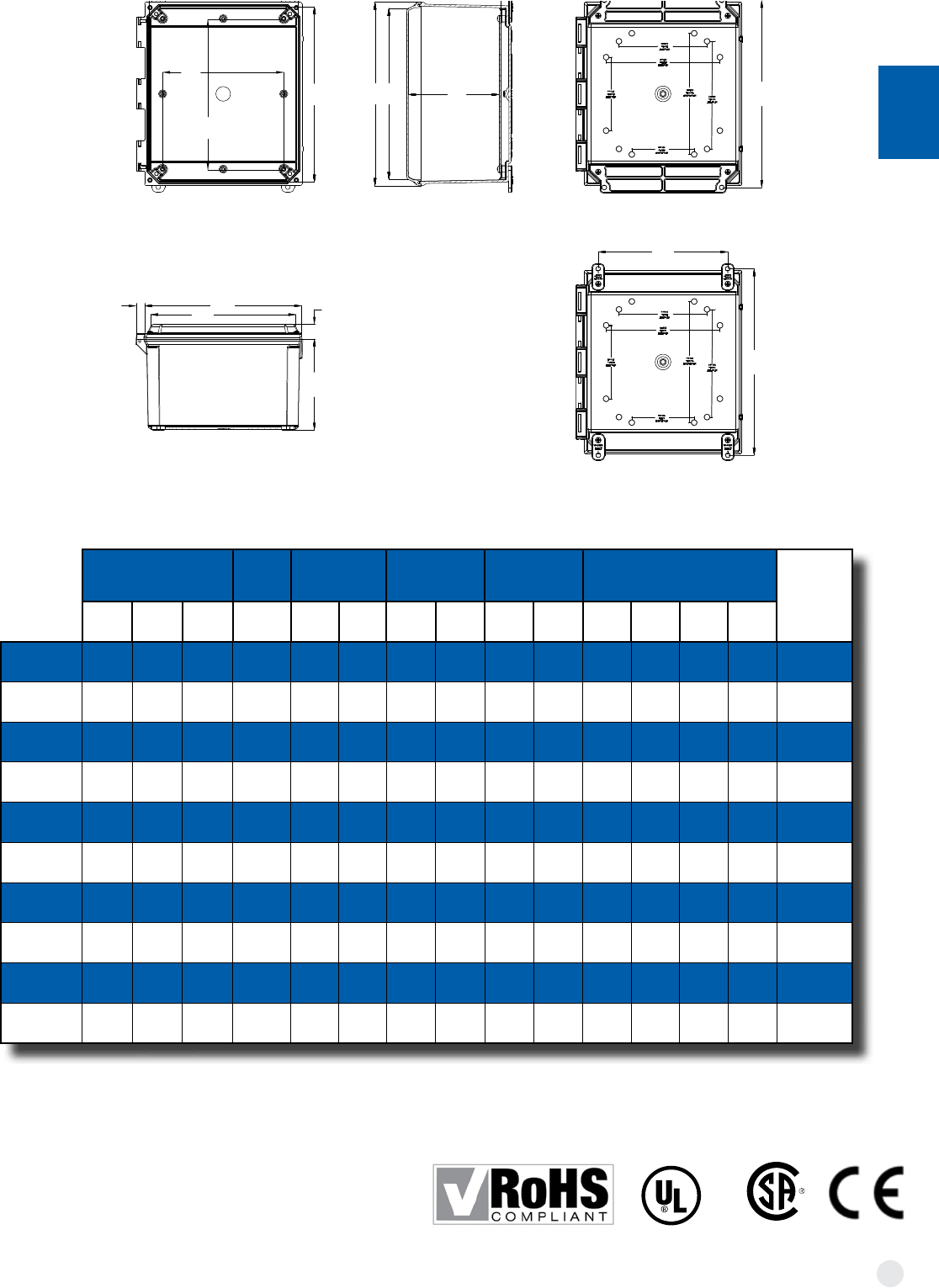

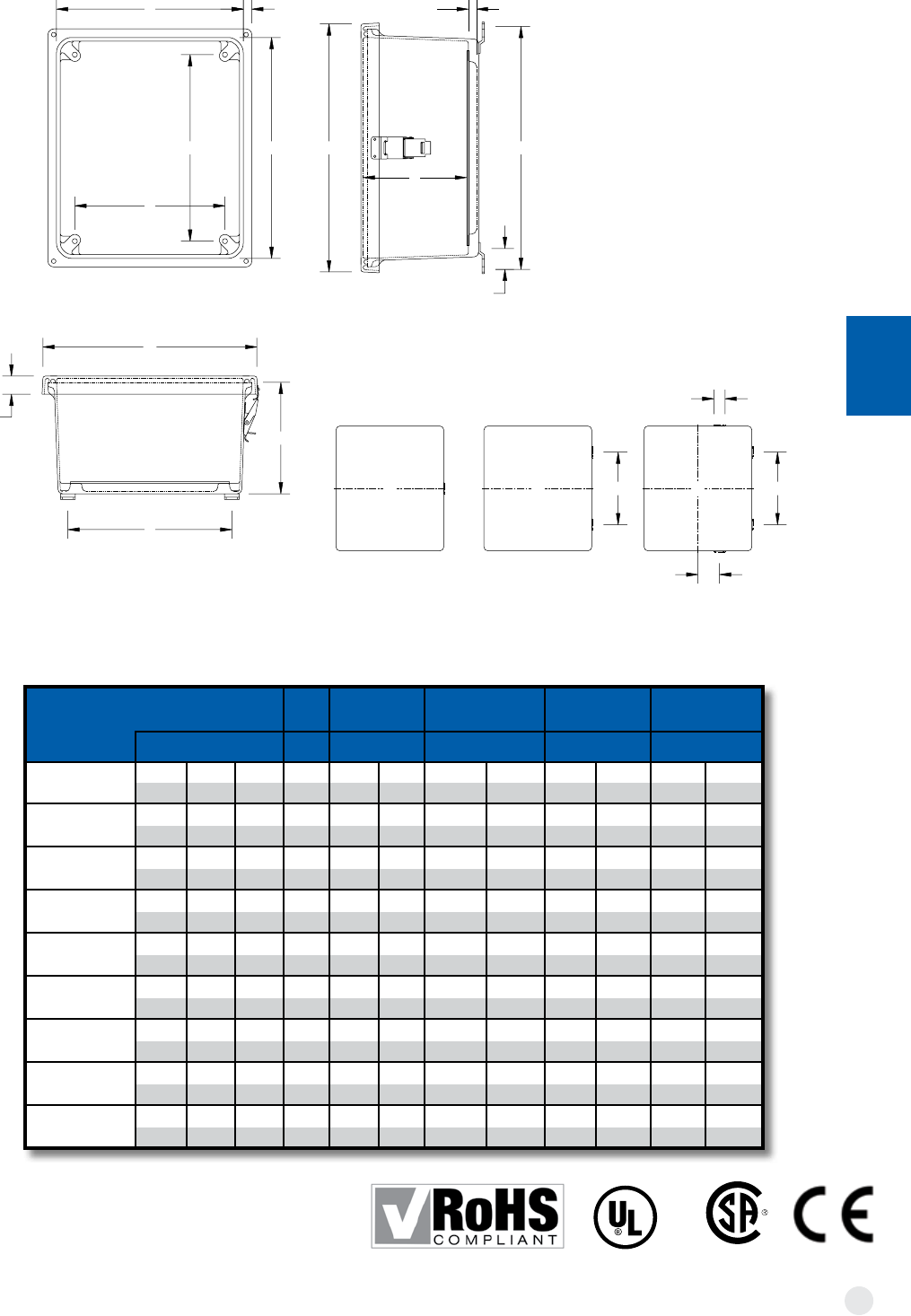

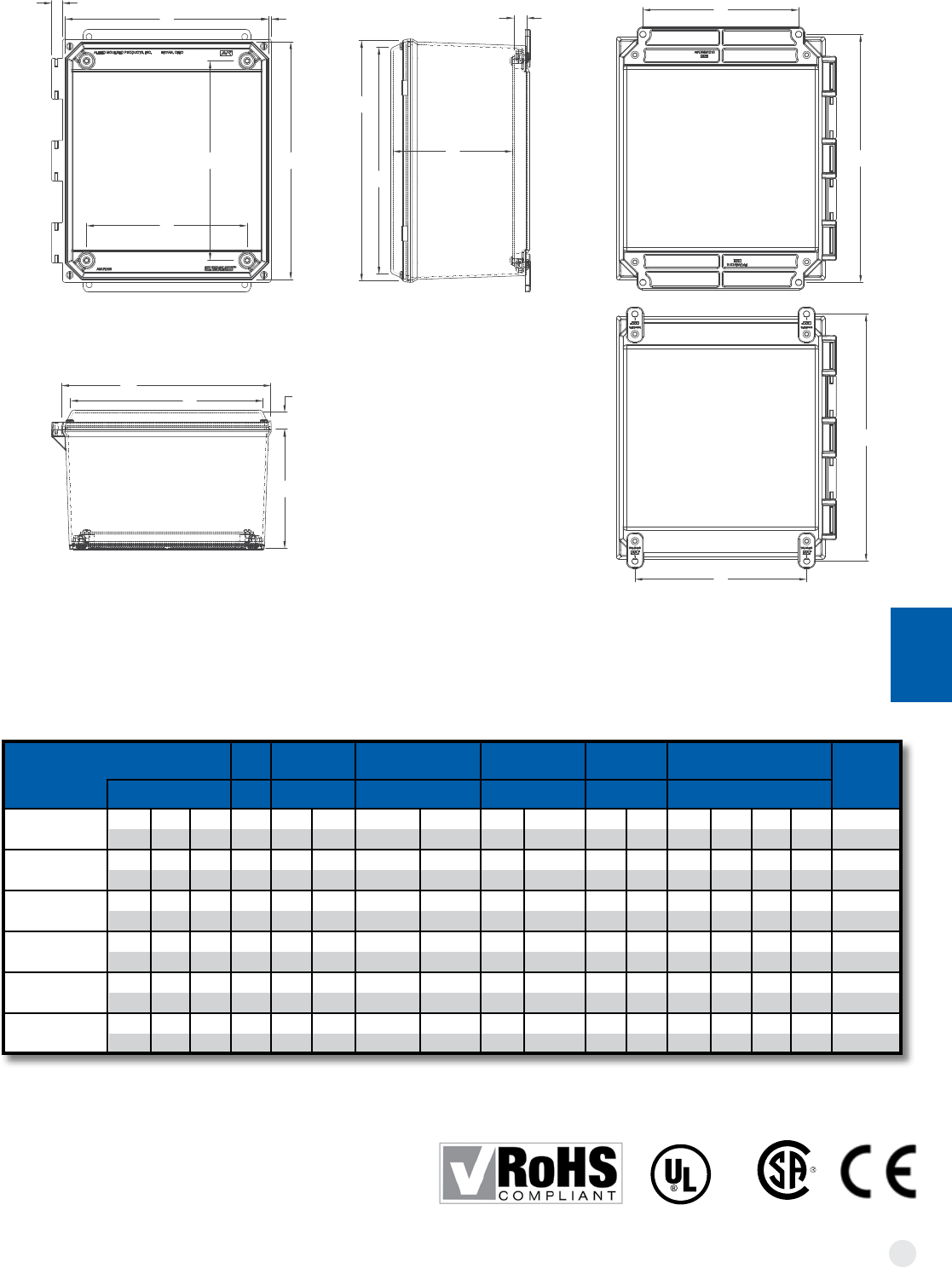

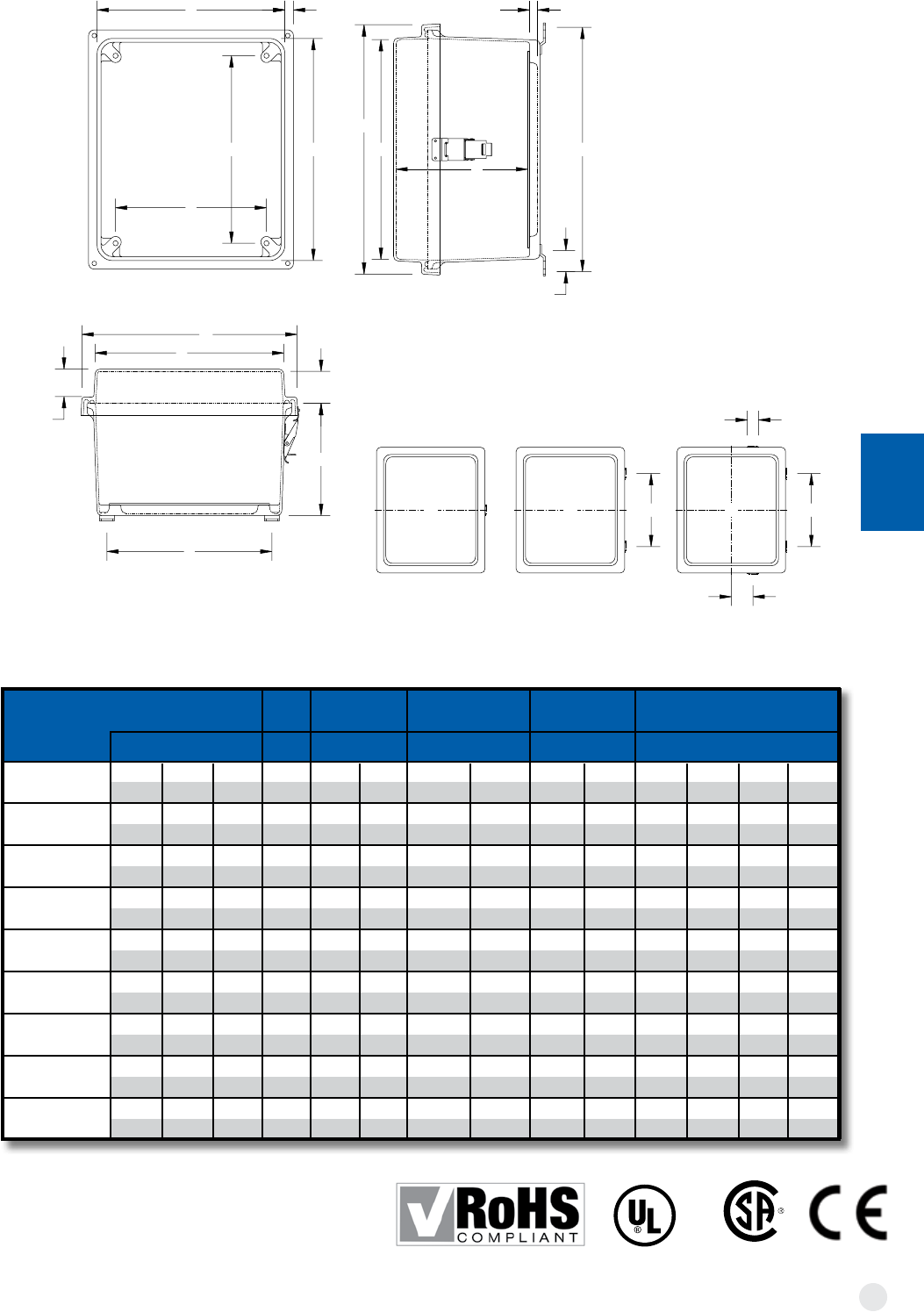

Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U

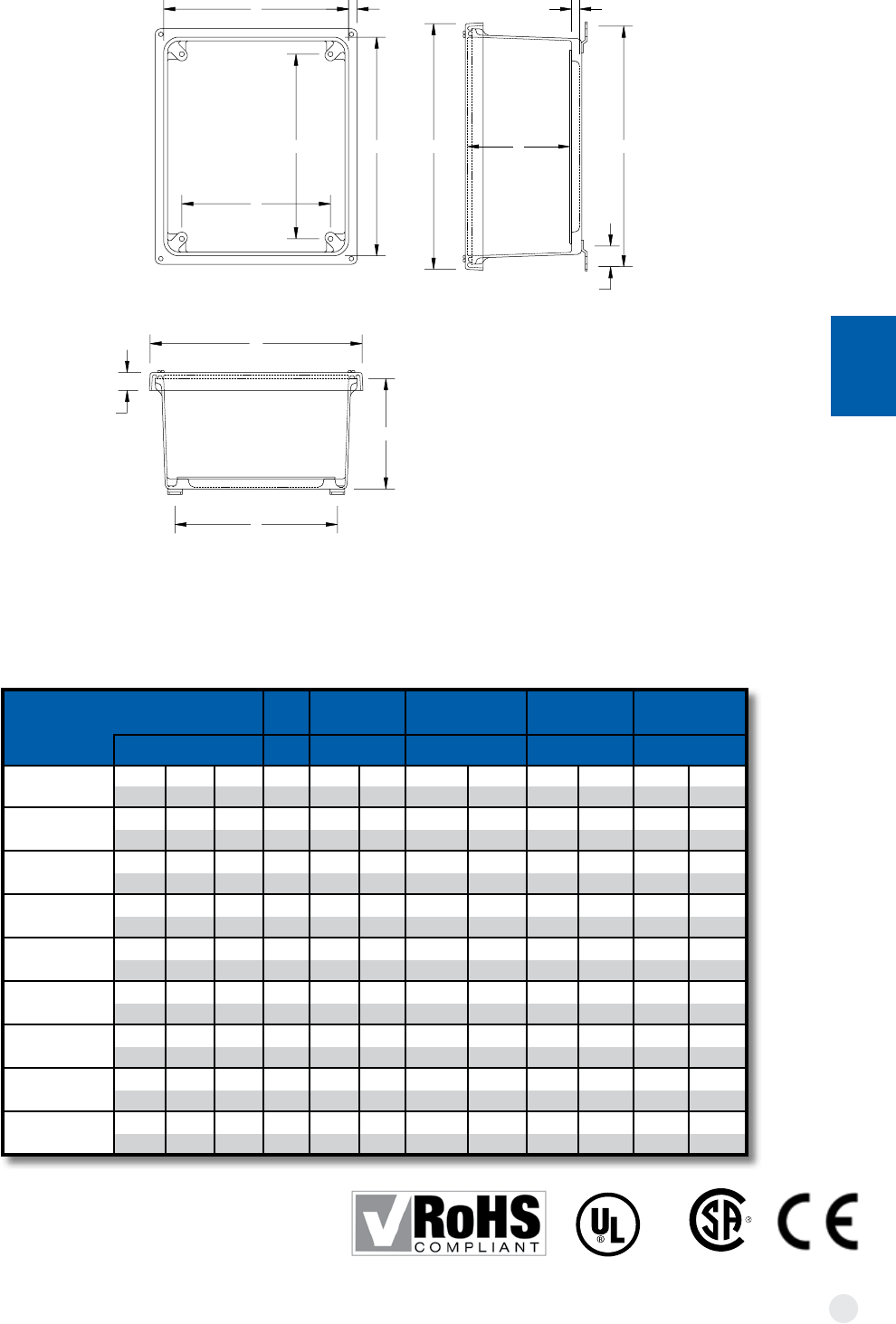

AMP664(F) 5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm 106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864(F) 7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm 106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084(F) 9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm 106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206(F) 11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm 157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426(F) 13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm 157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664)
Add “F” to the part number for factory installed flanges (ex. AMP664F)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
C
US
C
US
10

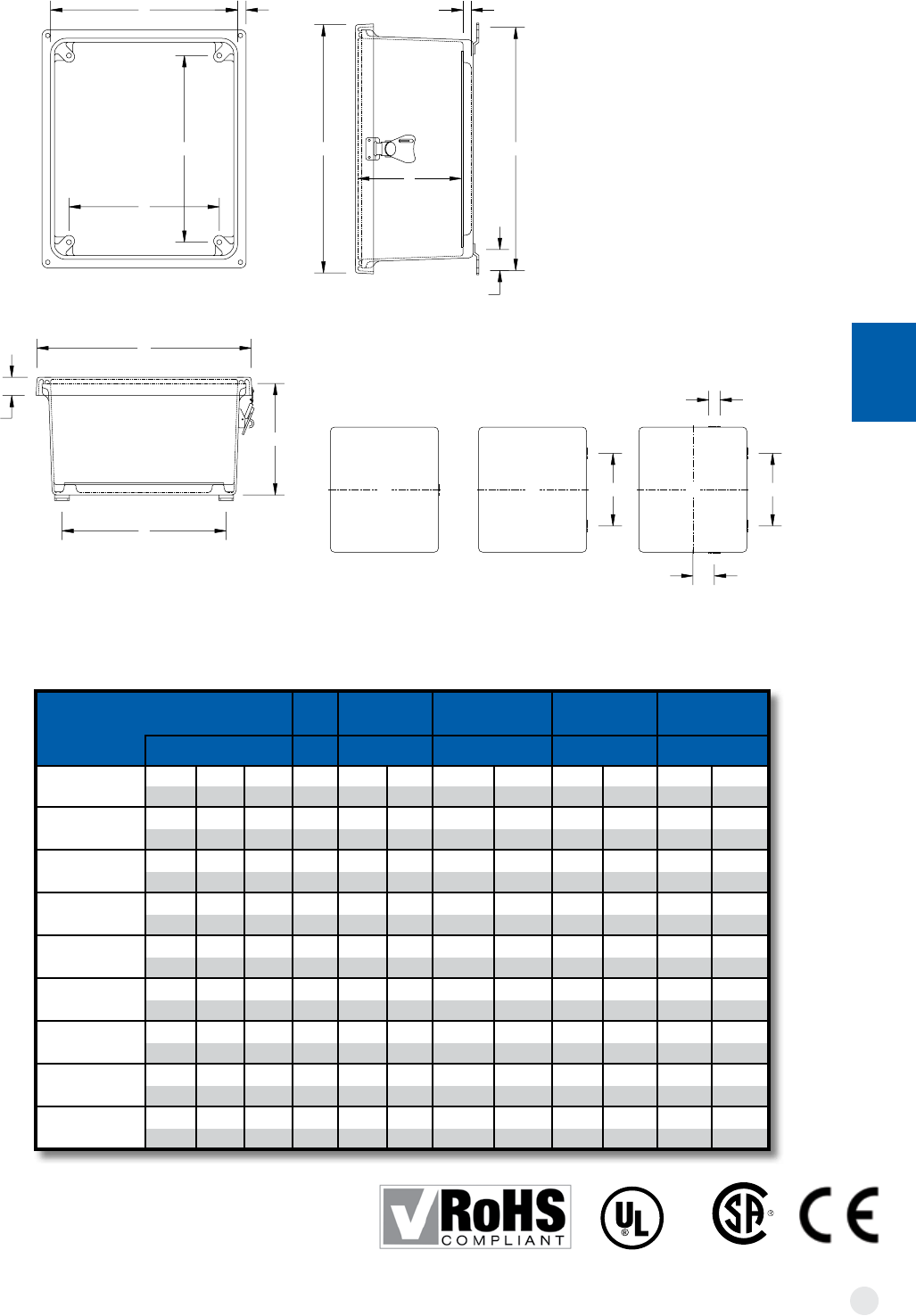

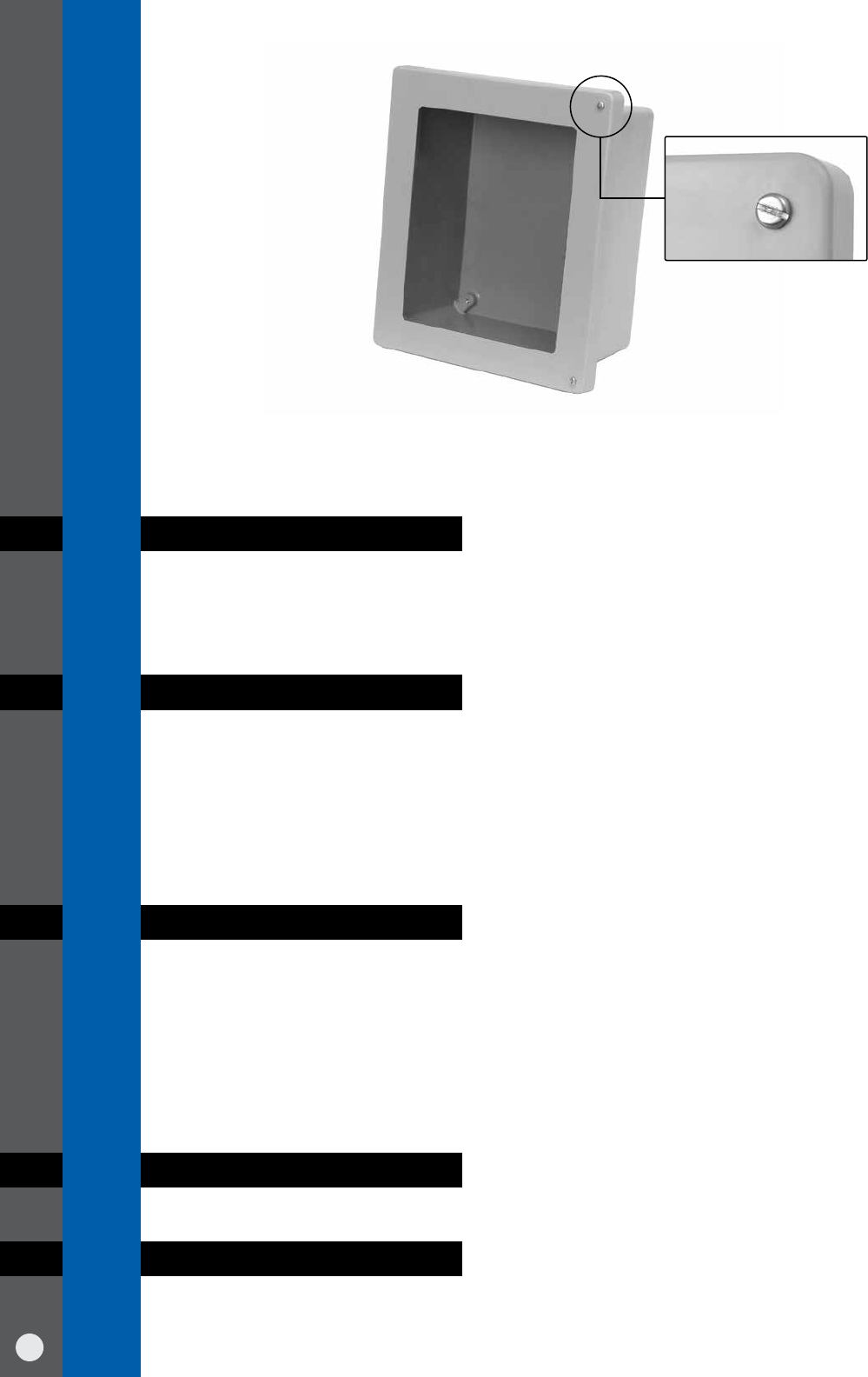

AMP Series POLYLINE® JIC Size Junction Boxes:
Lift-Off Screw Cover – Clear Polycarbonate
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
− IEC 60529 Type IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – clear cover, enclosure base, feet and flanges
• Enclosure base, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel captive cover screws and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
11

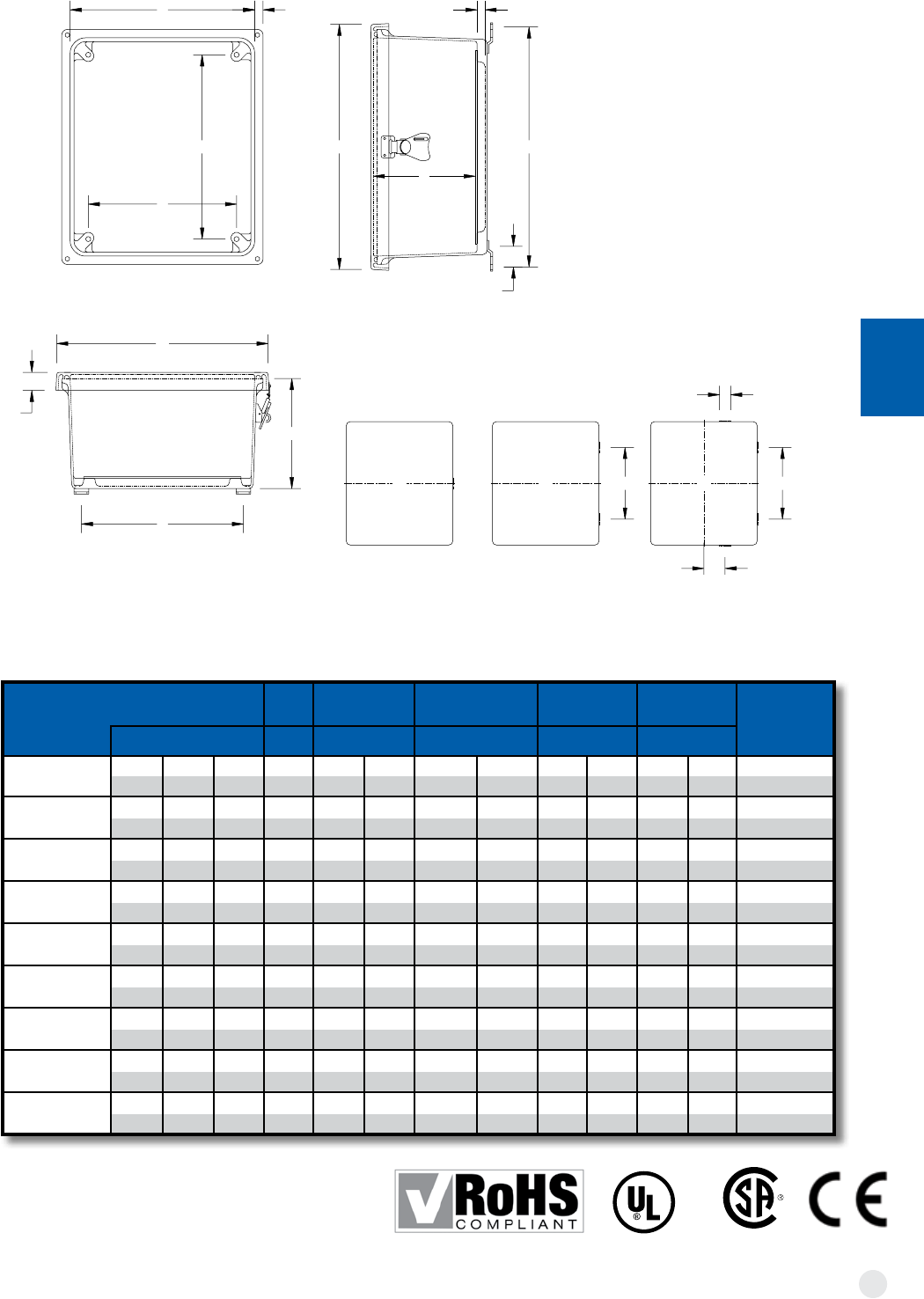

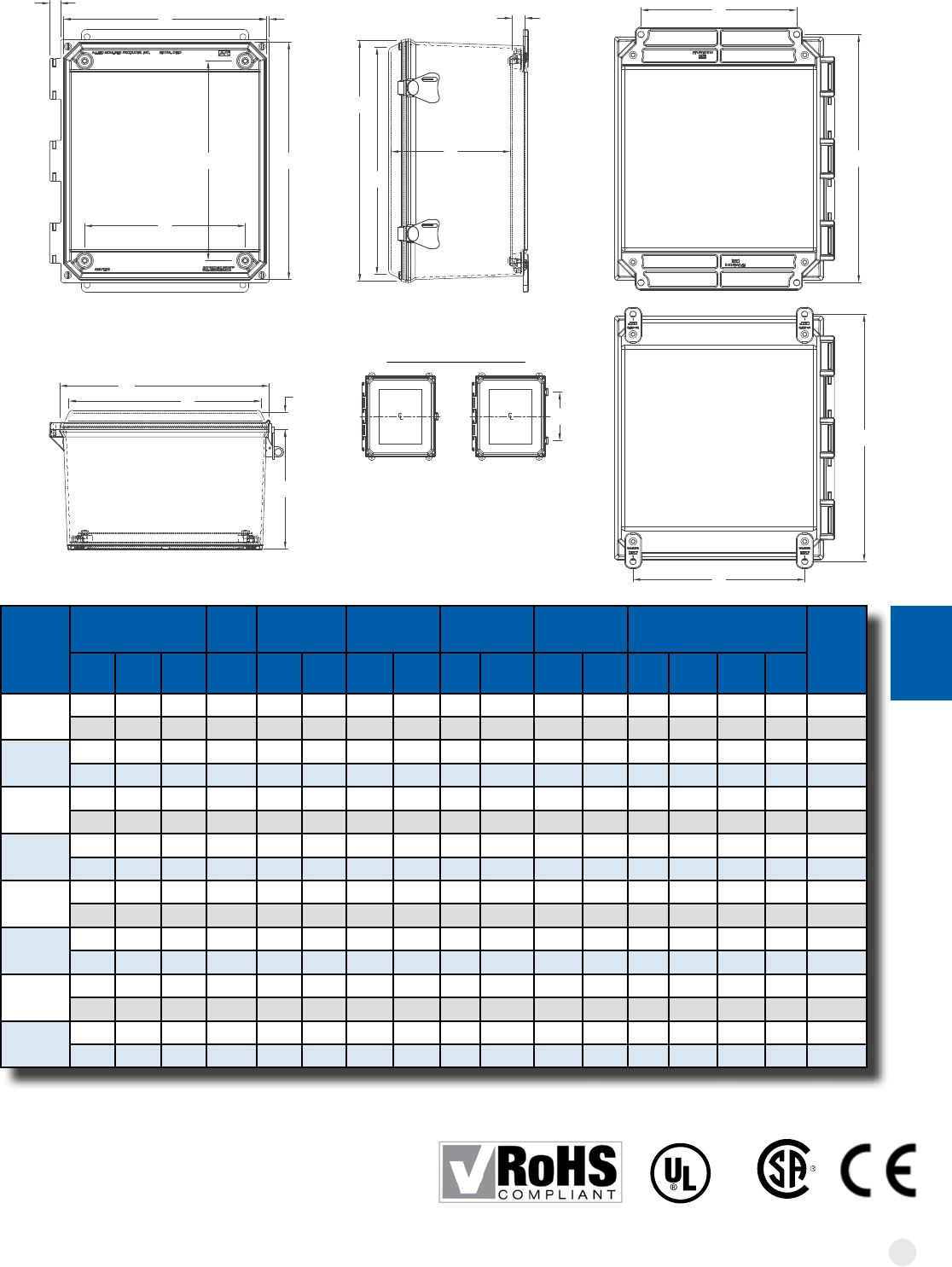

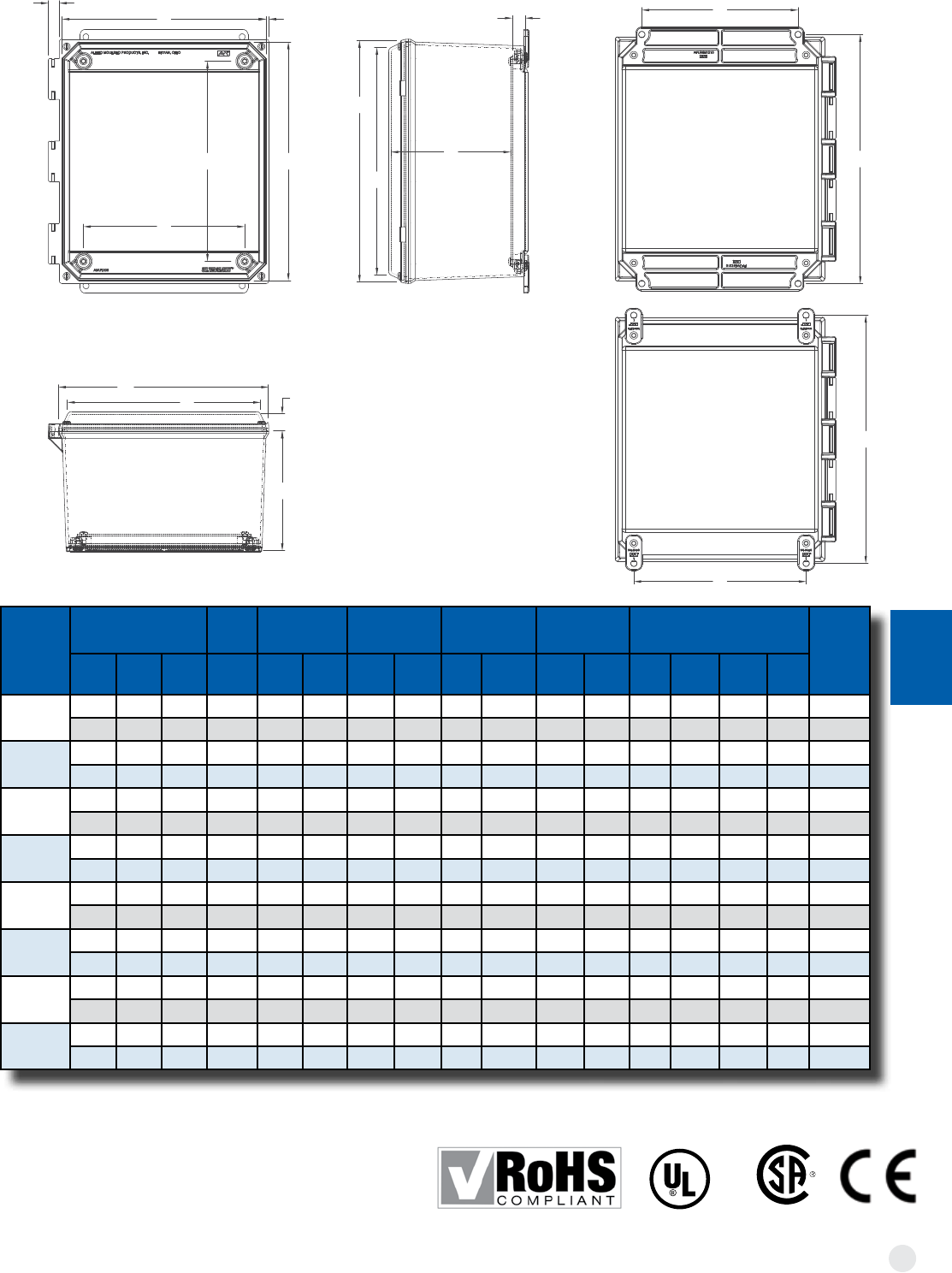

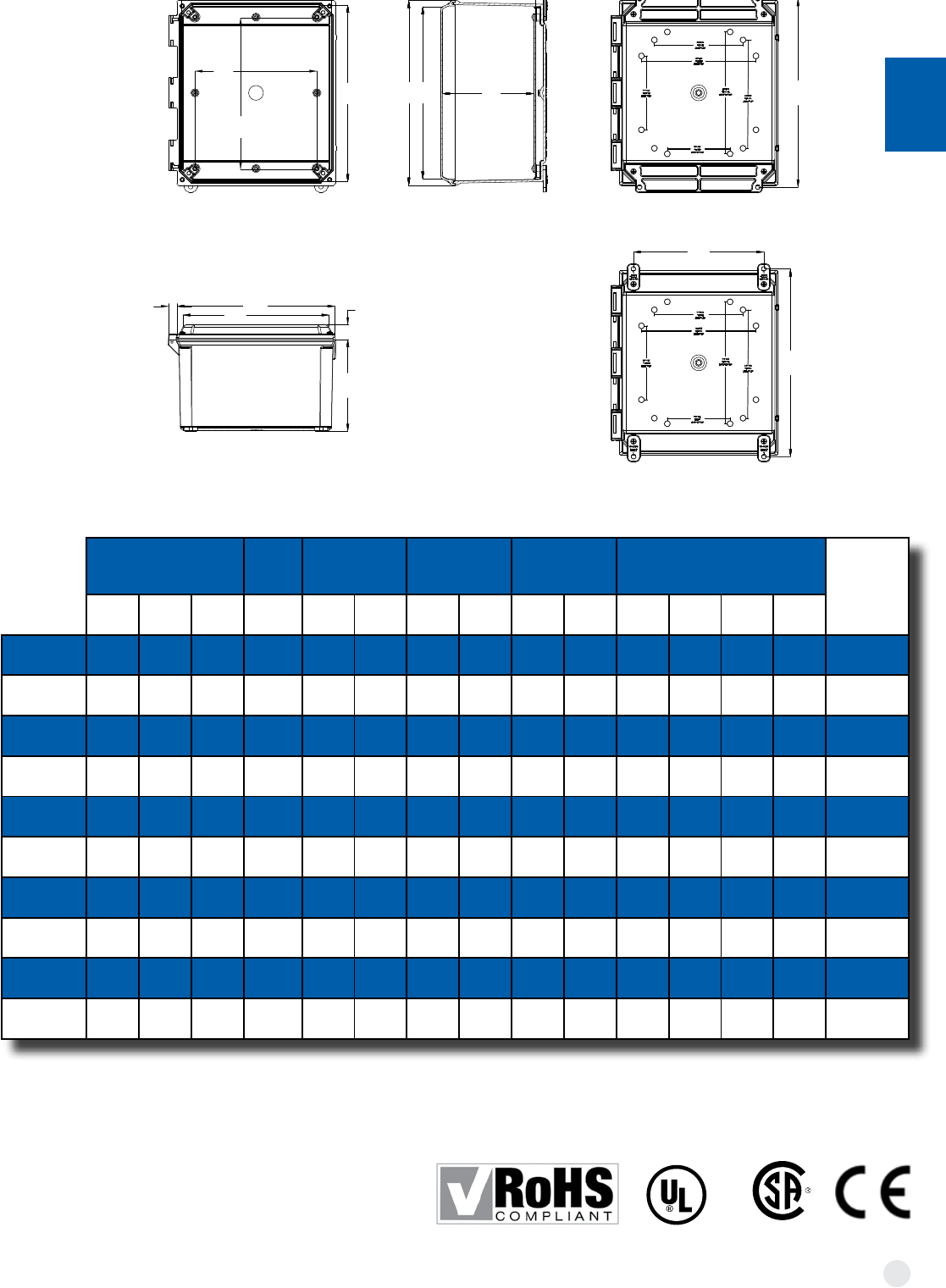

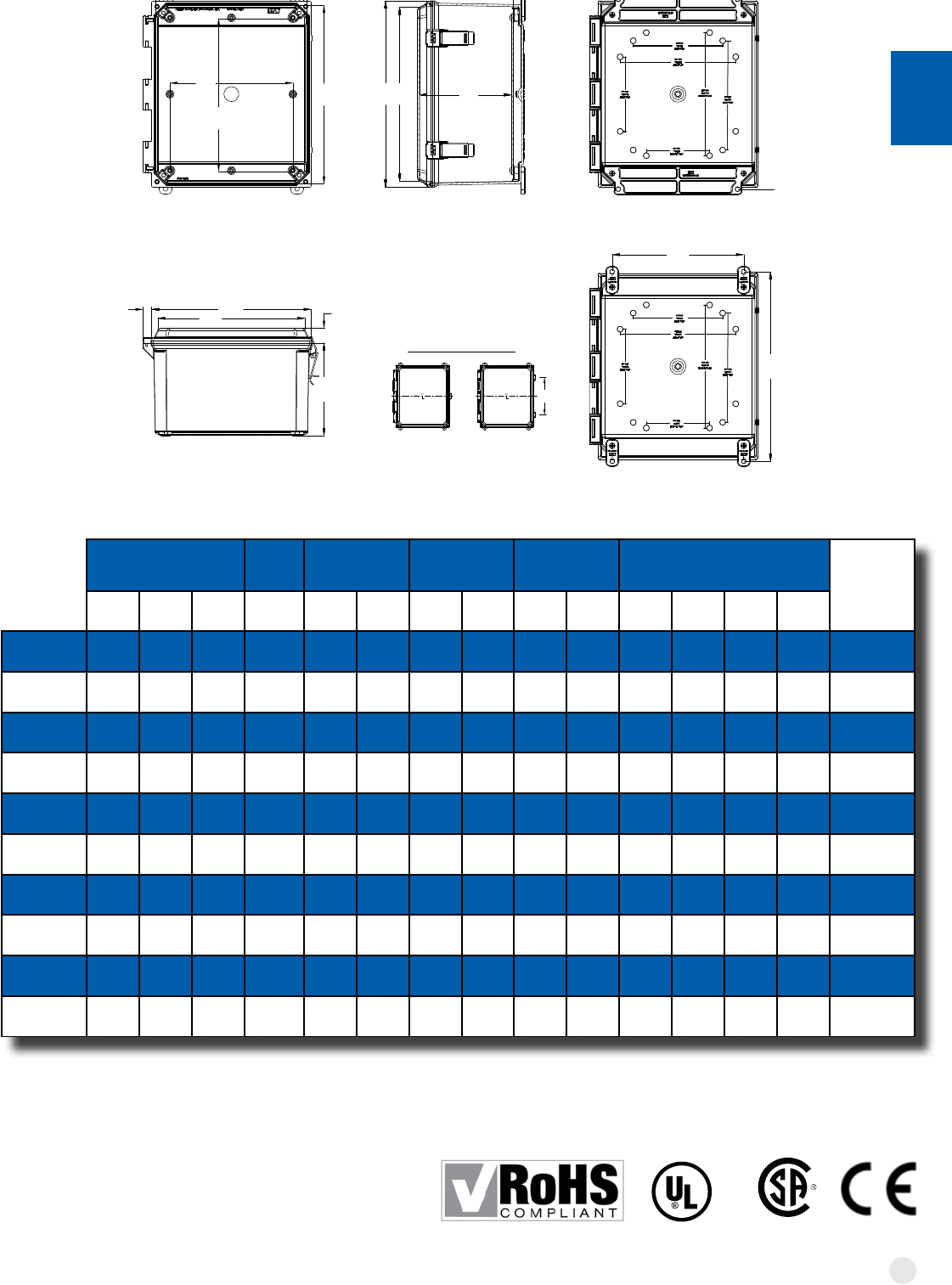

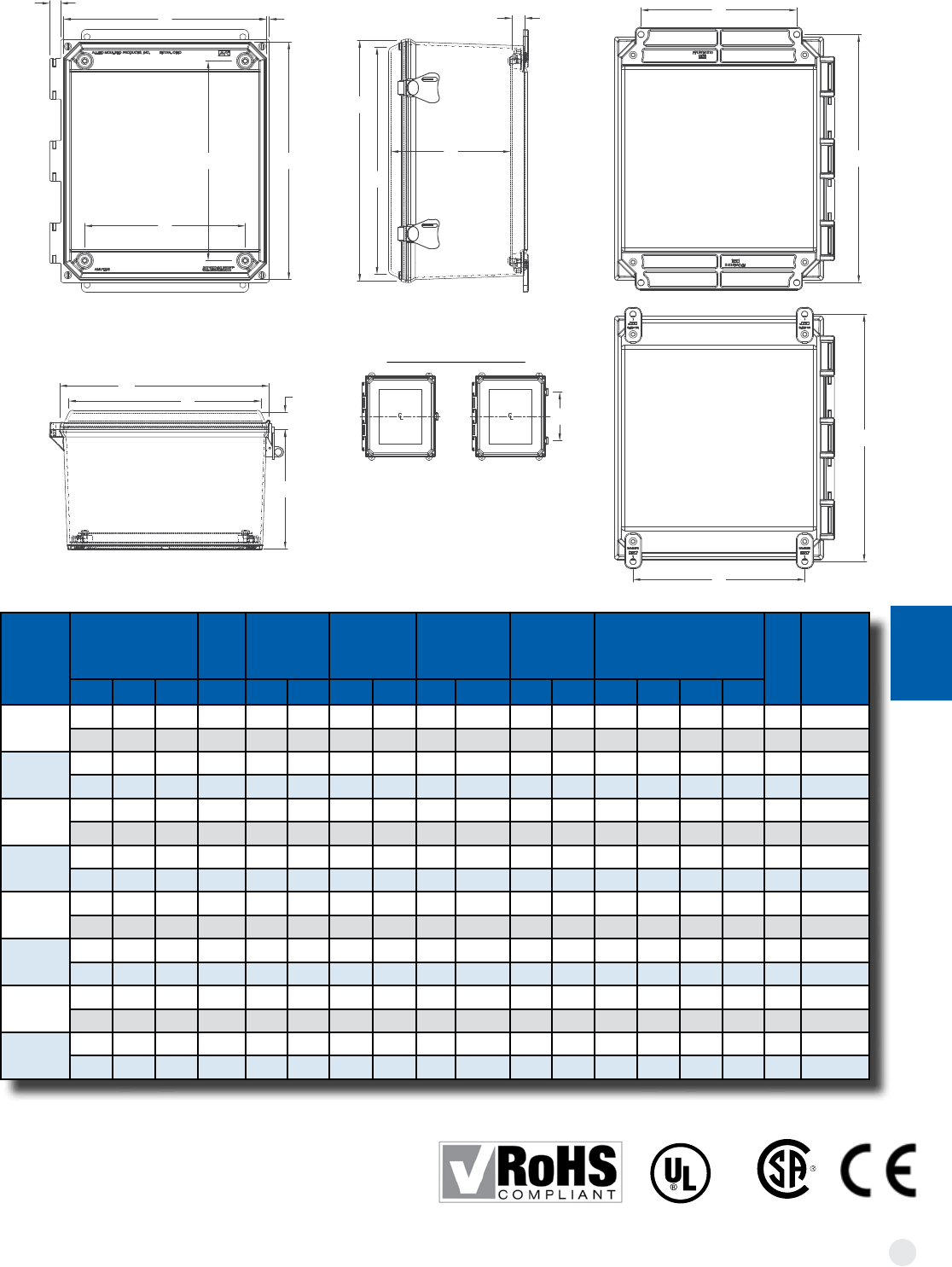

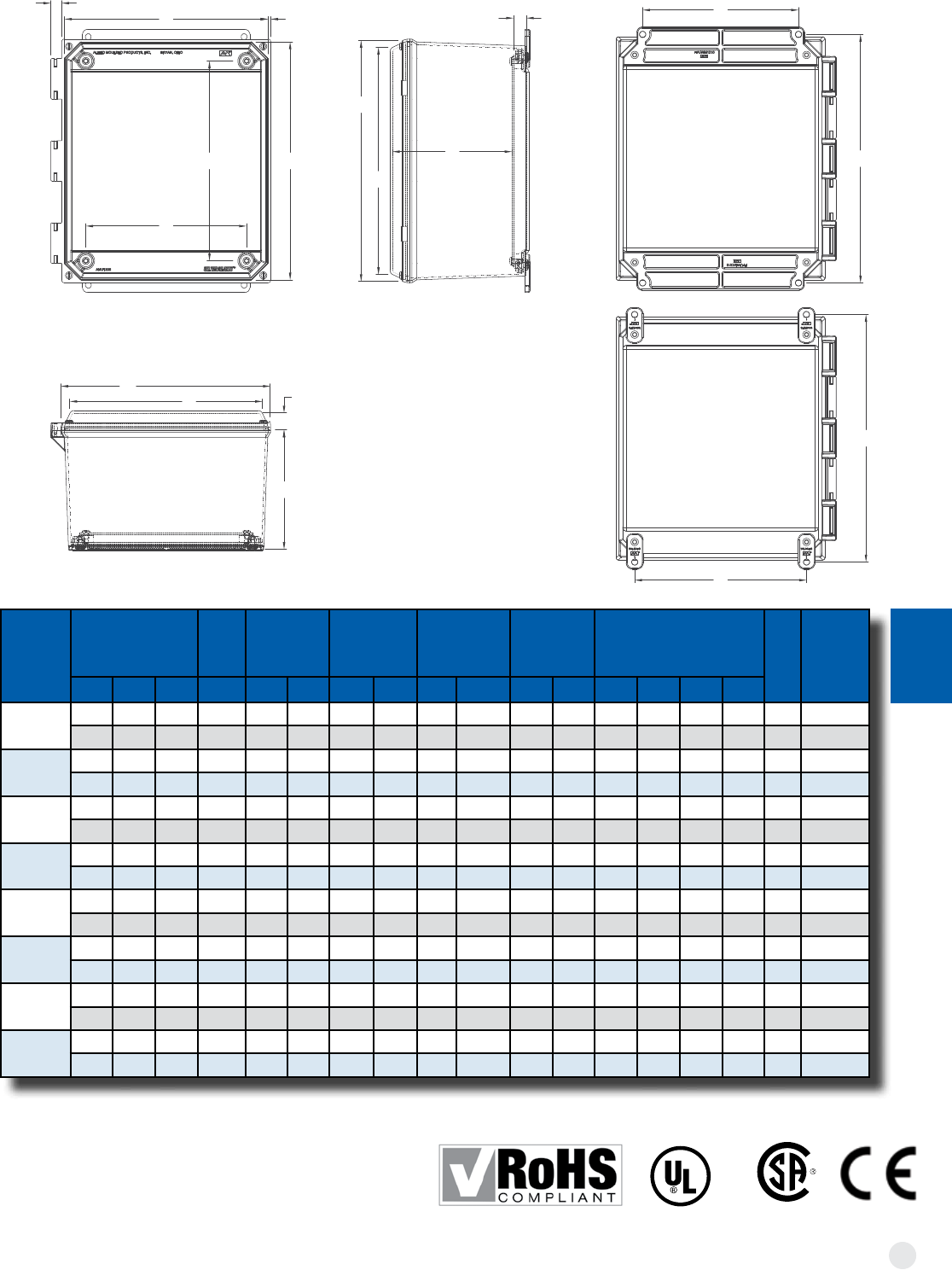

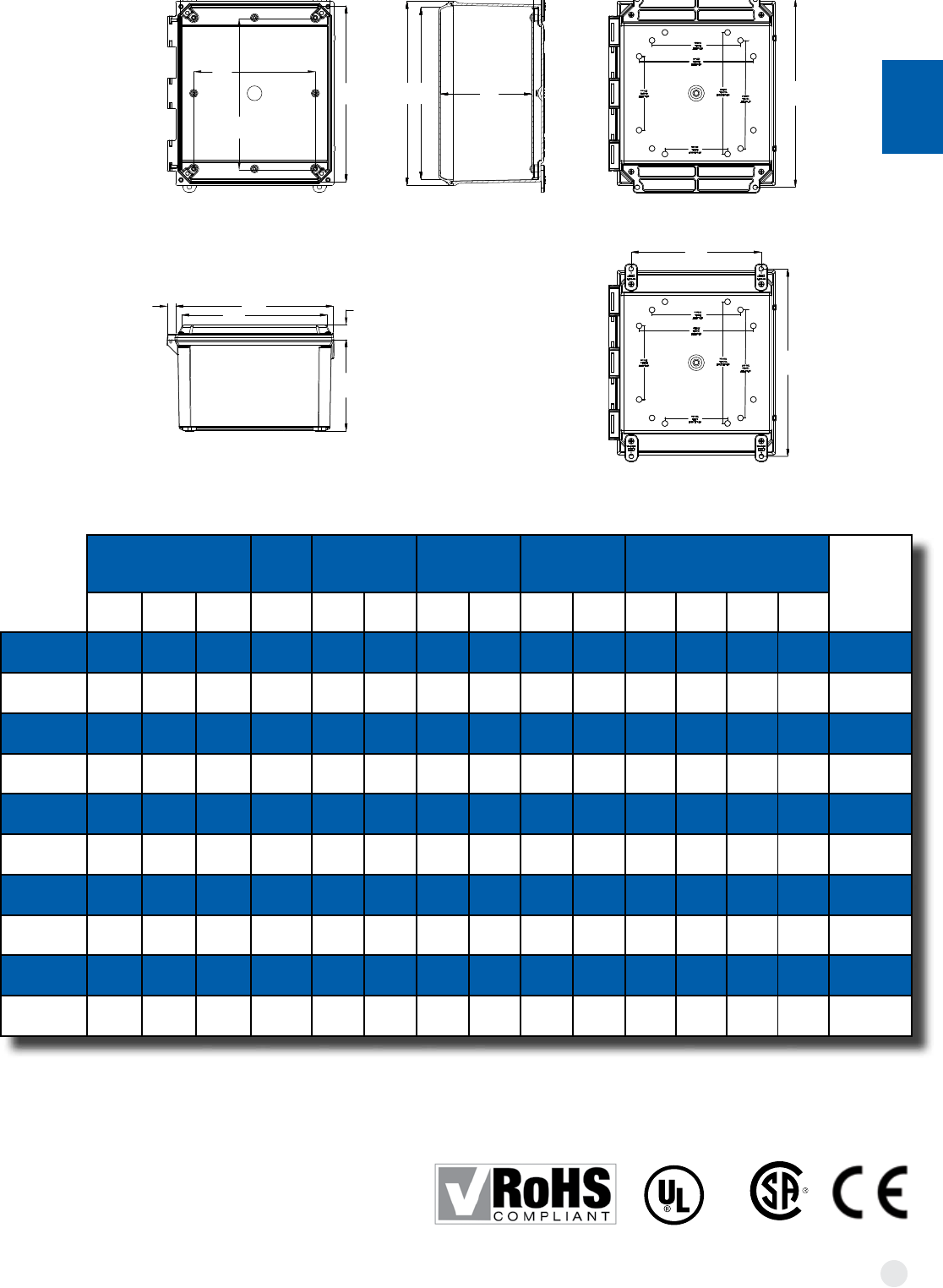

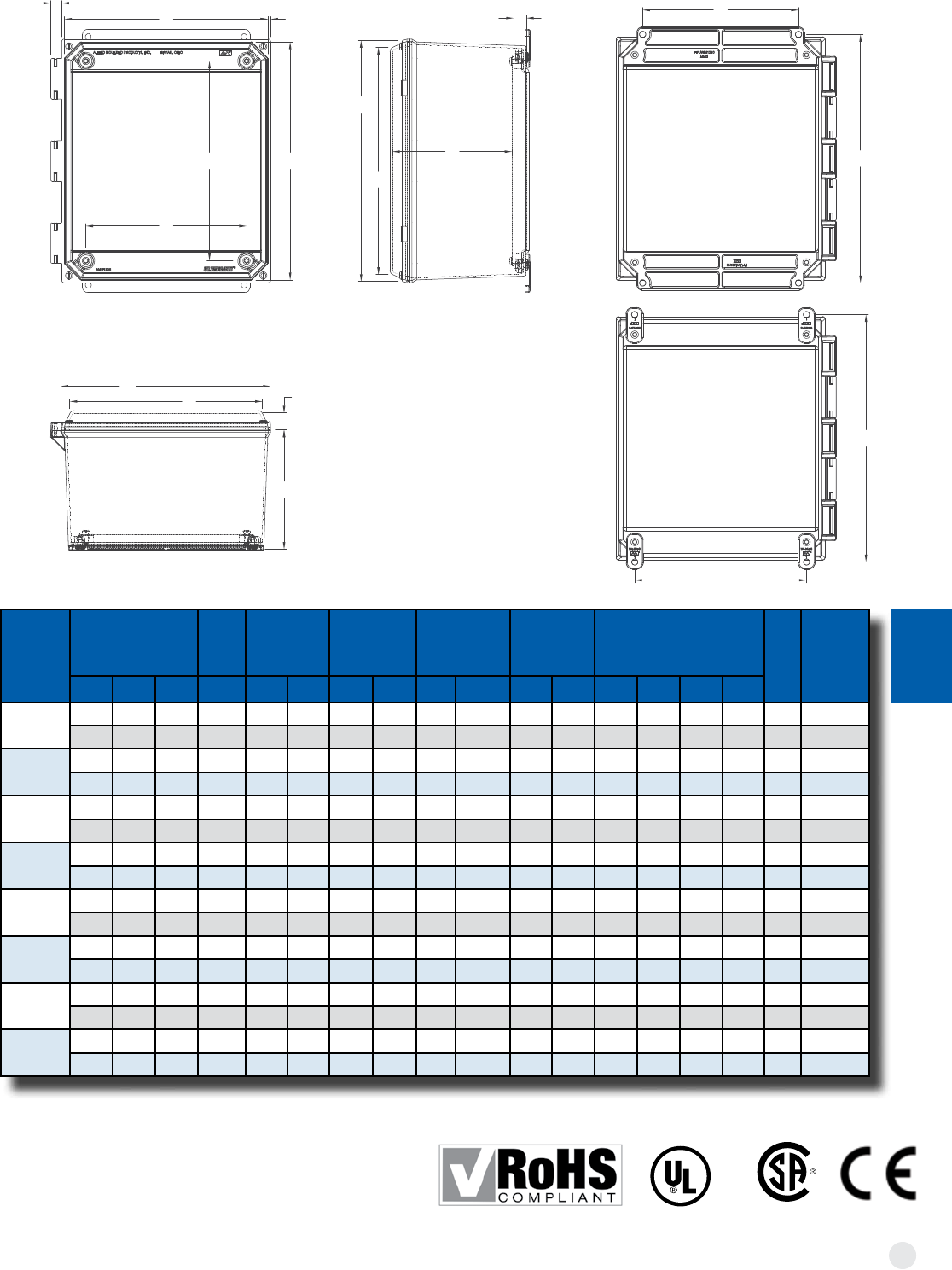

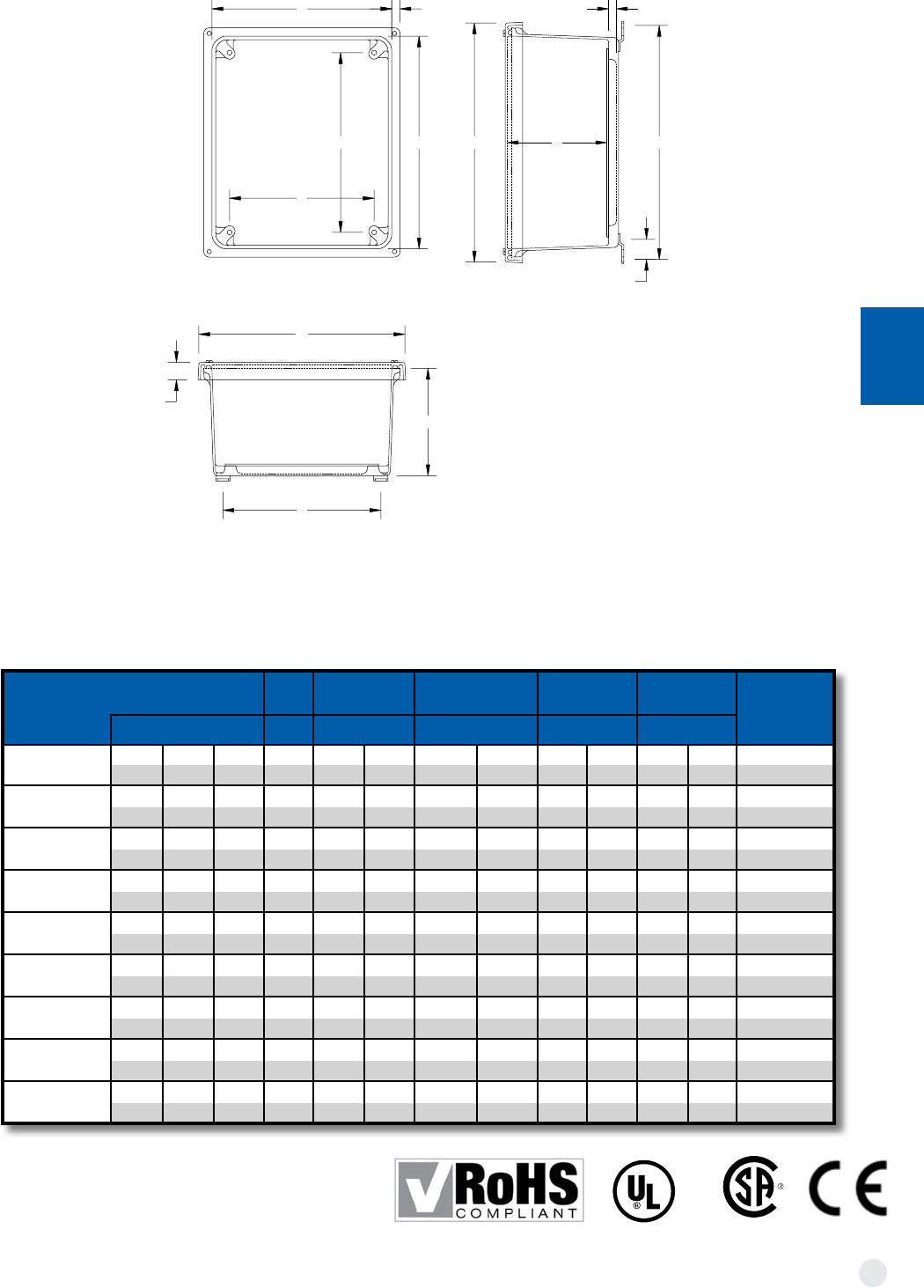

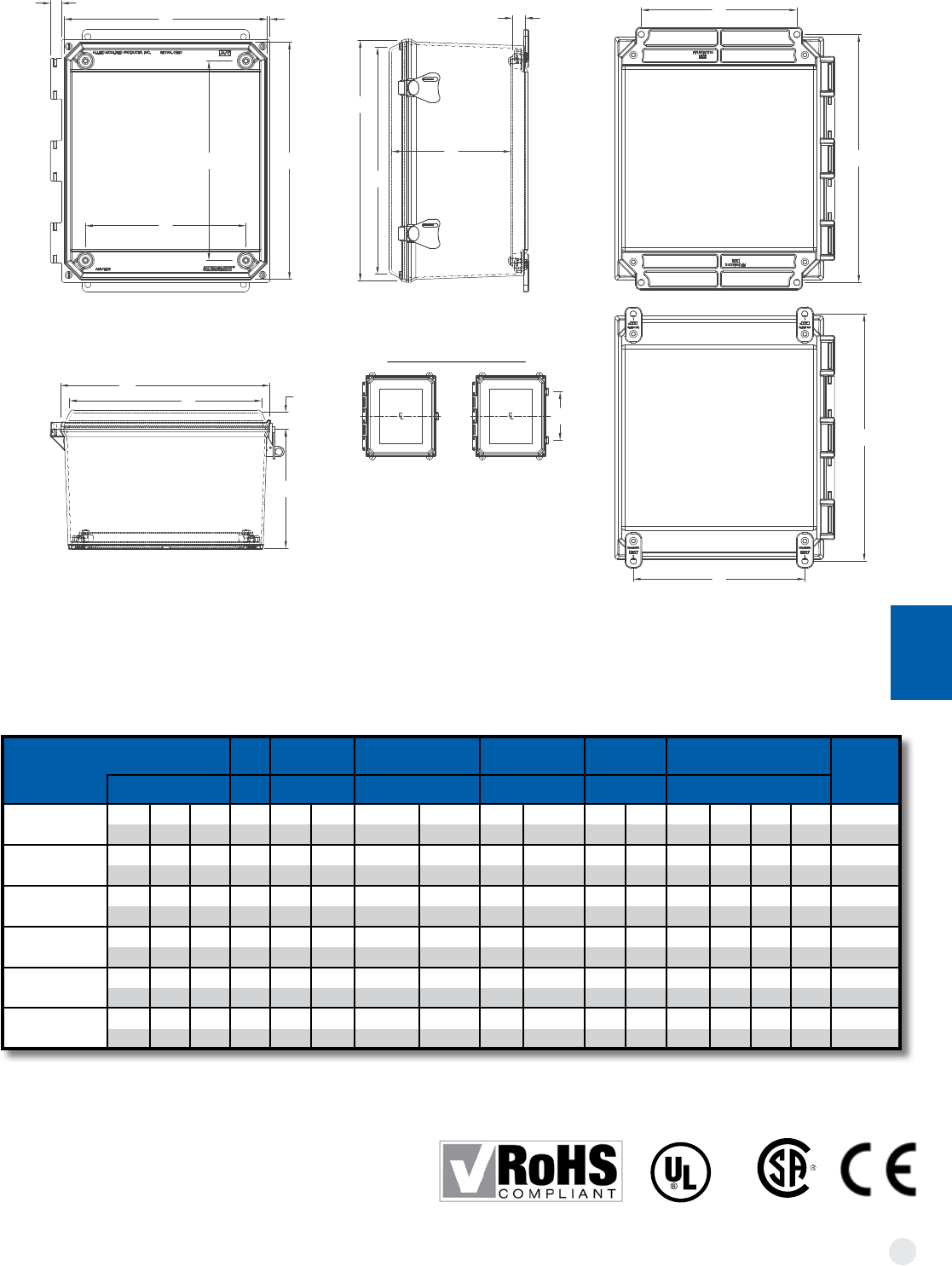

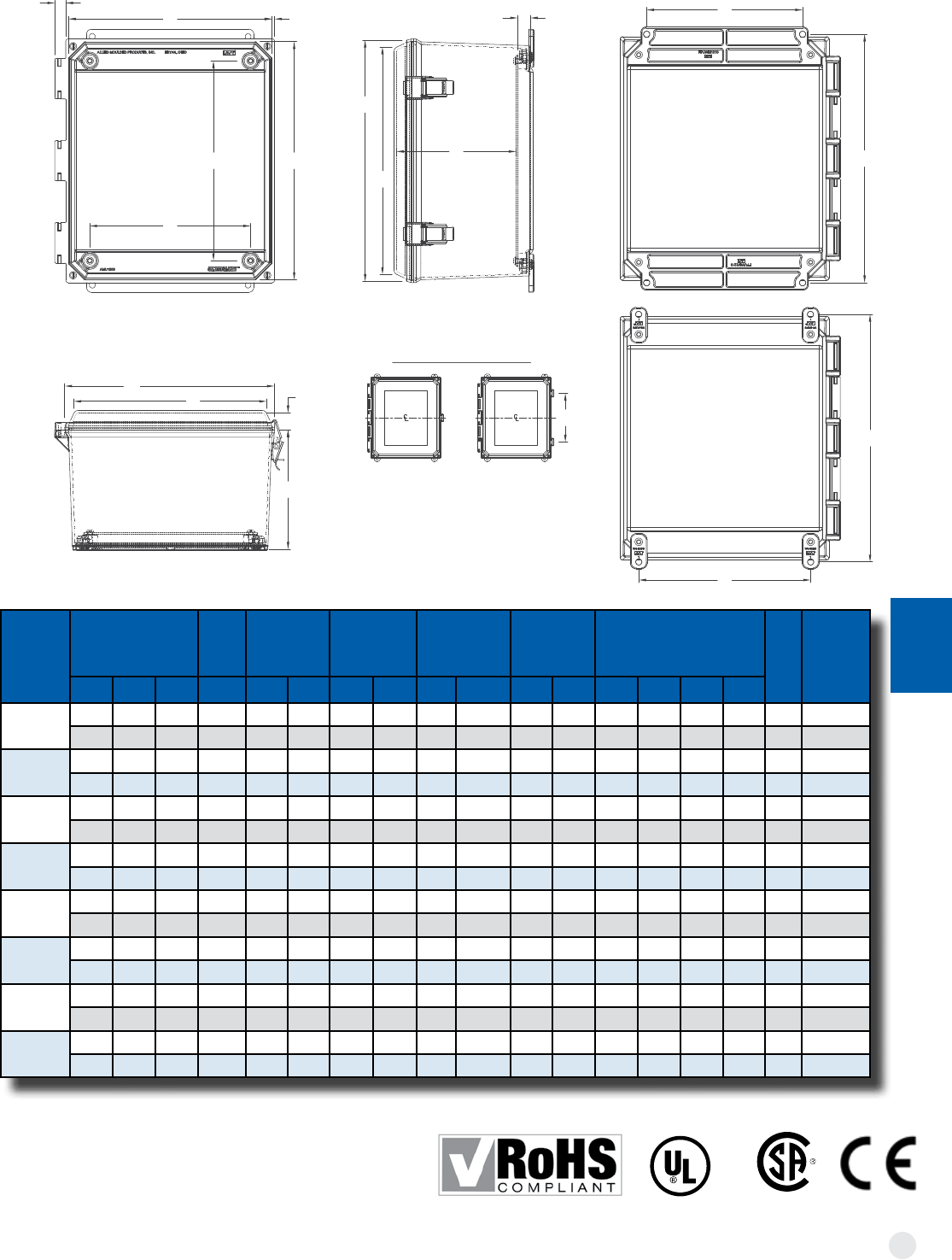

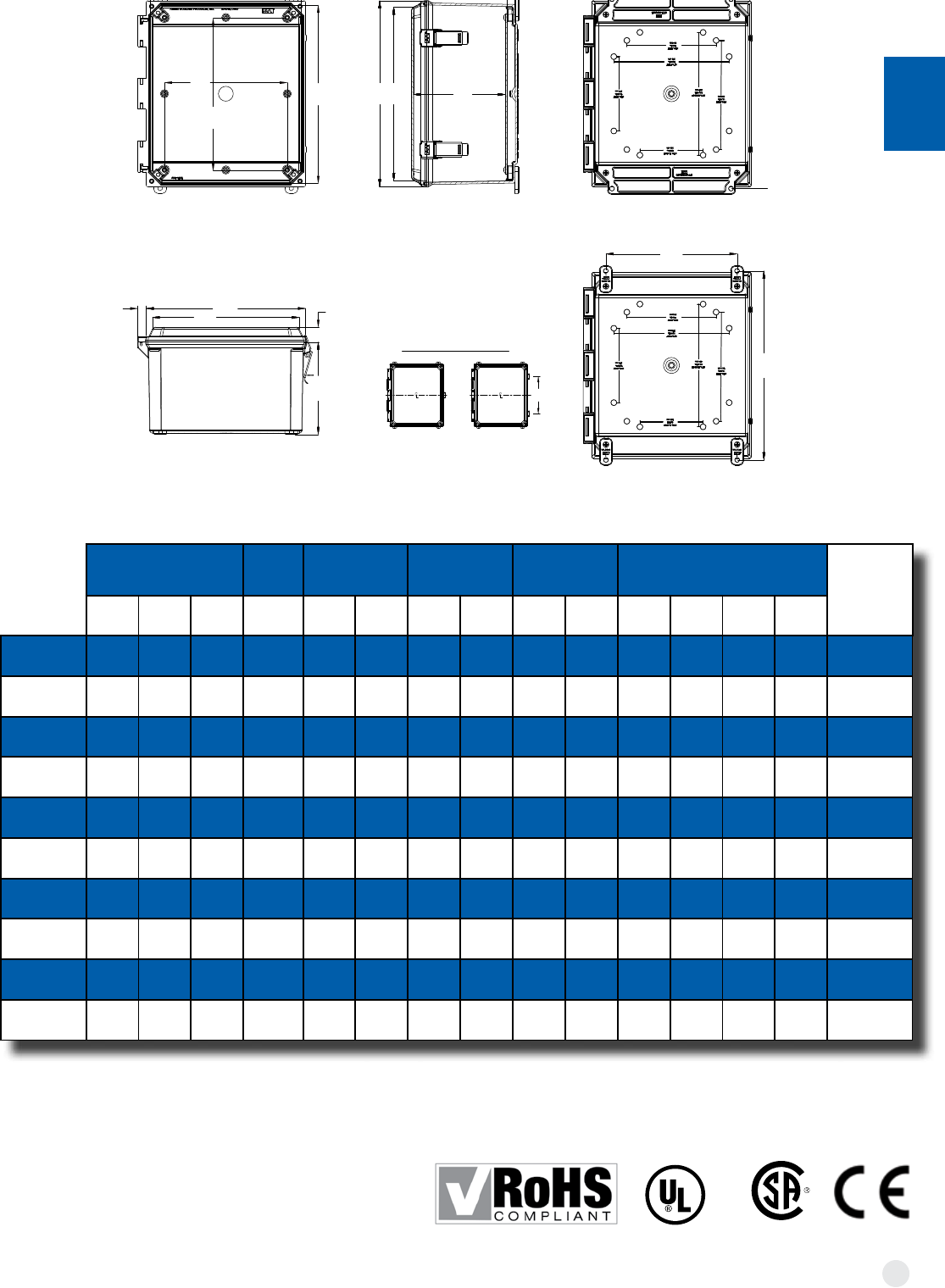

POLYLINE
Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U
AMP664CC(F) 5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm 106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864CC(F) 7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm 106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084CC(F) 9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm 106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206CC(F) 11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm 157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426CC(F) 13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm 157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664CC)
Add “F” to the part number for factory installed flanges (ex. AMP664CCF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
Z
S
A
NOTE: COVER REMOVED FOR CLARITY
U M F
0.58
(15mm)
J
I
FLANGE MOUNT
0.57
(14mm)
0.87
(22mm)
W
K
C
FOOT MOUNT
H
L
C
US
C
US
12

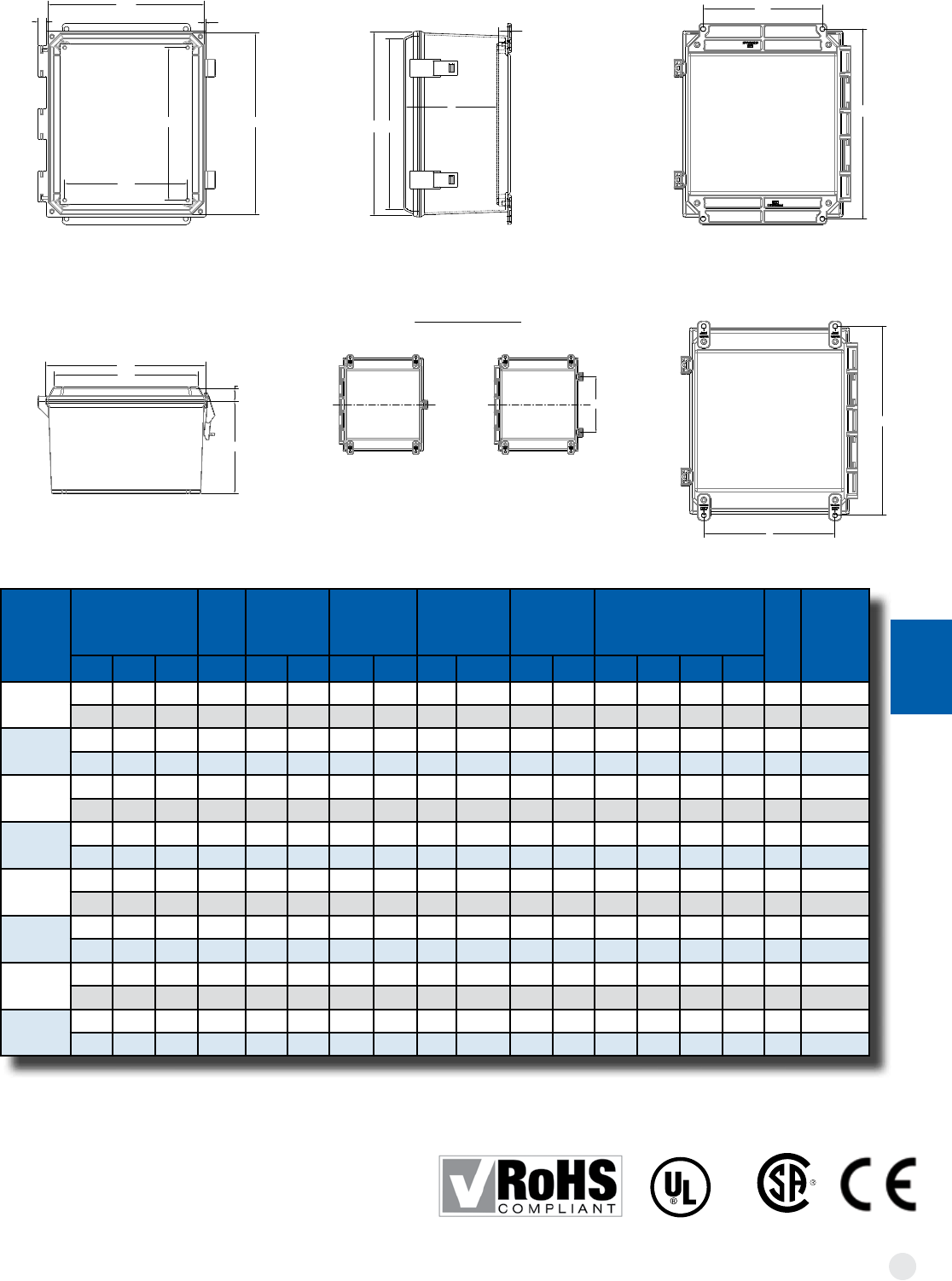

AMP Series POLYLINE® JIC Size Junction Boxes:
Hinged Screw Cover – Solid/Opaque
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
− IEC 60529 Type IP66
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – opaque cover, enclosure base, feet and flanges
• Opaque cover, base, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel captive cover screws, hinge pin and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
13
POLYLINE
Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U
AMP664H(F) 5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm
106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864H(F) 7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm
106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084H(F) 9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm
106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206H(F) 11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm
157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426H(F) 13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm
157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664H)
Add “F” to the part number for factory installed flanges (ex. AMP664HF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
Z
S
A
NOTE: COVER REMOVED FOR CLARITY
U M F
0.58
(15mm)
J
I
FLANGE MOUNT
0.57
(14mm)
0.87
(22mm)
W
K
C
FOOT MOUNT
H
L
C
US
C
US
14

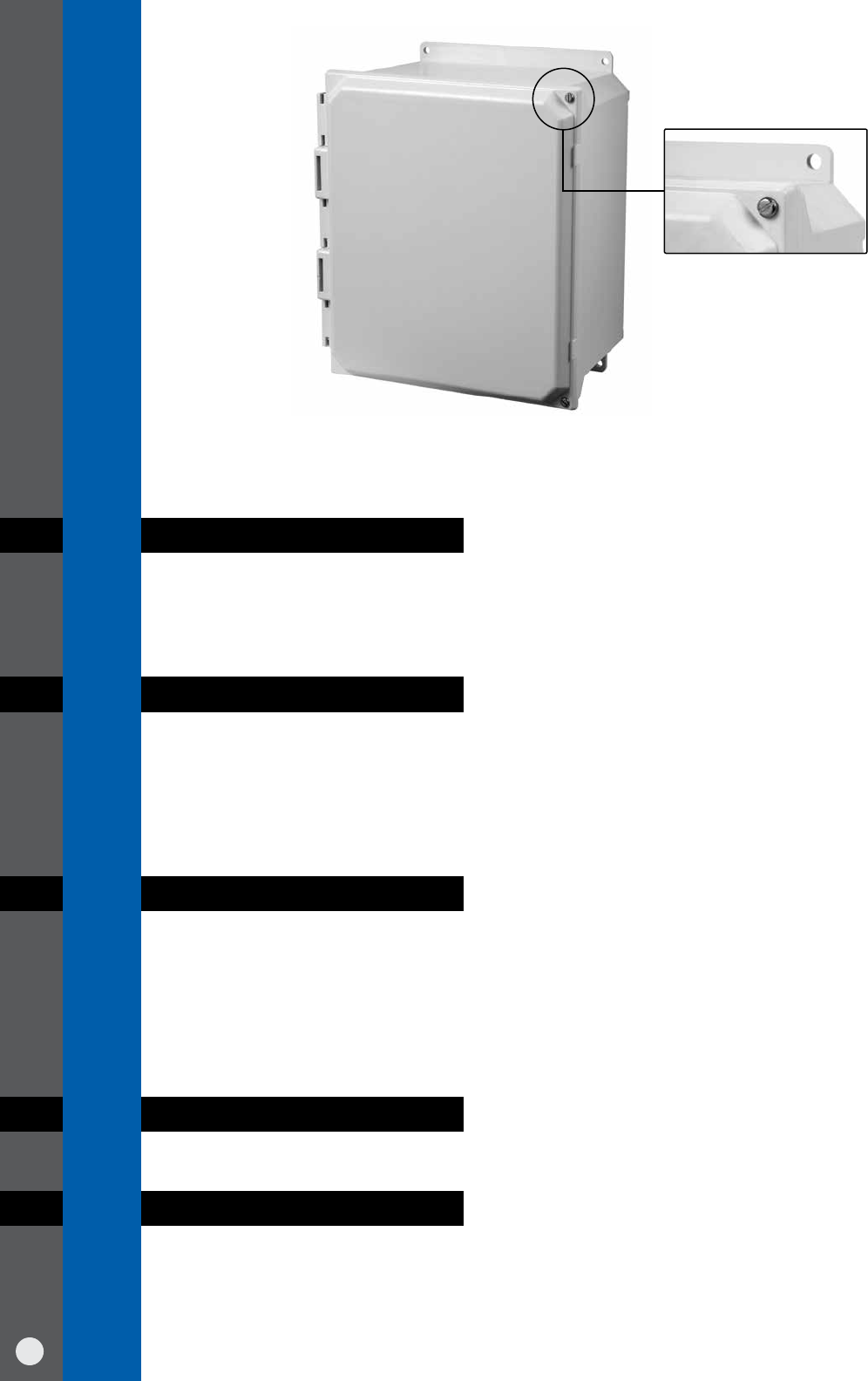

AMP Series POLYLINE® JIC Size Junction Boxes:
Hinged Screw Cover – Clear Polycarbonate
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
− IEC 60529 Type IP66
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – clear cover, enclosure base, feet and flanges
• Enclosure base, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel captive cover screws, hinge pin and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
15
POLYLINE
Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U
AMP664CCH(F)
5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm 106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864CCH(F)
7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm 106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084CCH(F)
9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm 106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206CCH(F)
11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm 157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426CCH(F)
13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm 157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664CCH)
Add “F” to the part number for factory installed flanges (ex. AMP664CCHF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
Z
S
A
NOTE: COVER REMOVED FOR CLARITY
U M F
0.58
(15mm)
J
I
FLANGE MOUNT
0.57
(14mm)
0.87
(22mm)
W
K
C
FOOT MOUNT
H
L
C
US
C
US
16
AMP Series POLYLINE® JIC Size Junction Boxes:
Nonmetal Snap Latch Hinged Cover – Solid/Opaque
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
− IEC 60529 Type IP66
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – opaque cover, enclosure base, snap latches, feet and flanges
• Opaque cover, base, padlockable snap latches, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel, hinge pin and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com

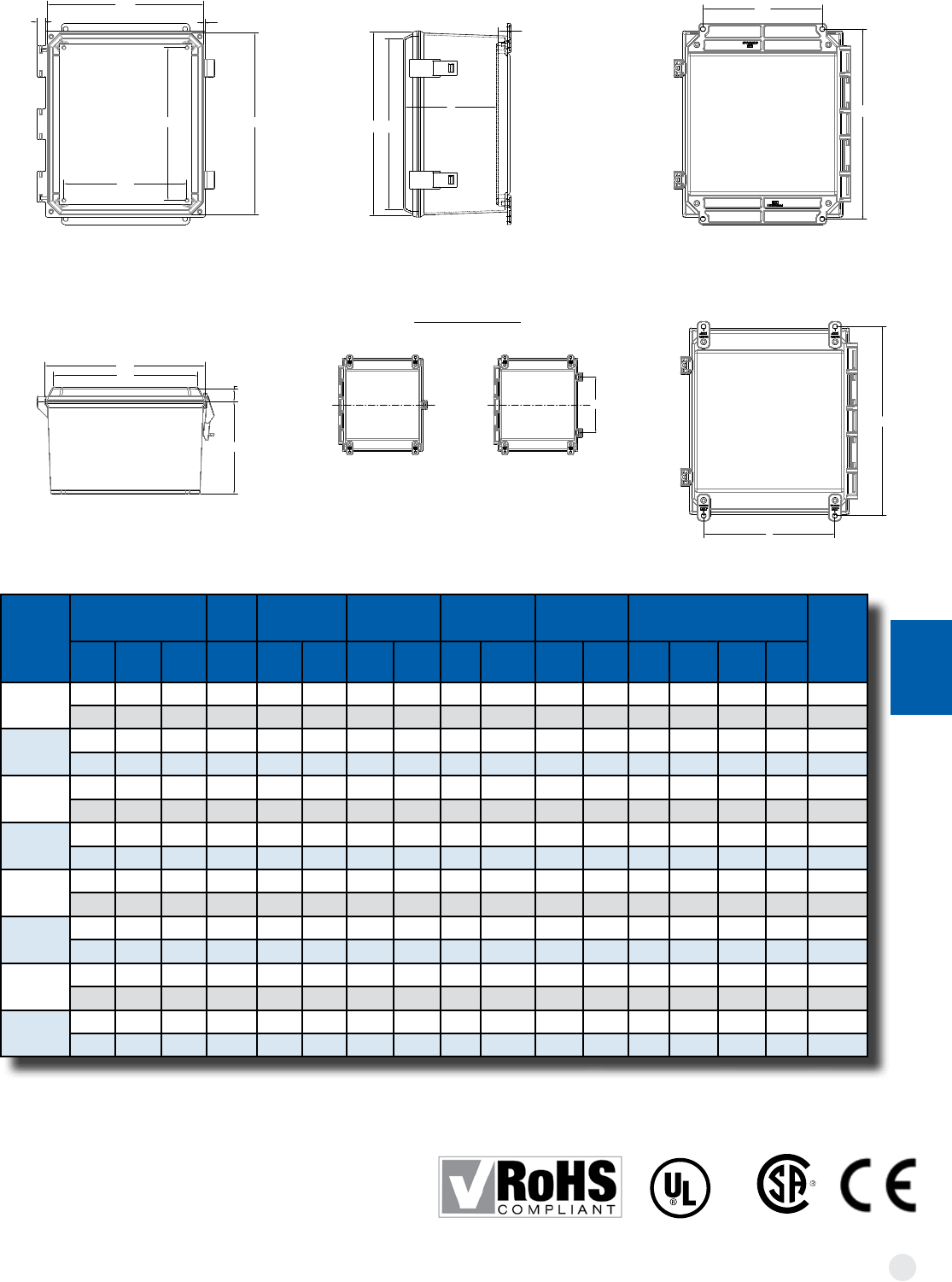

17

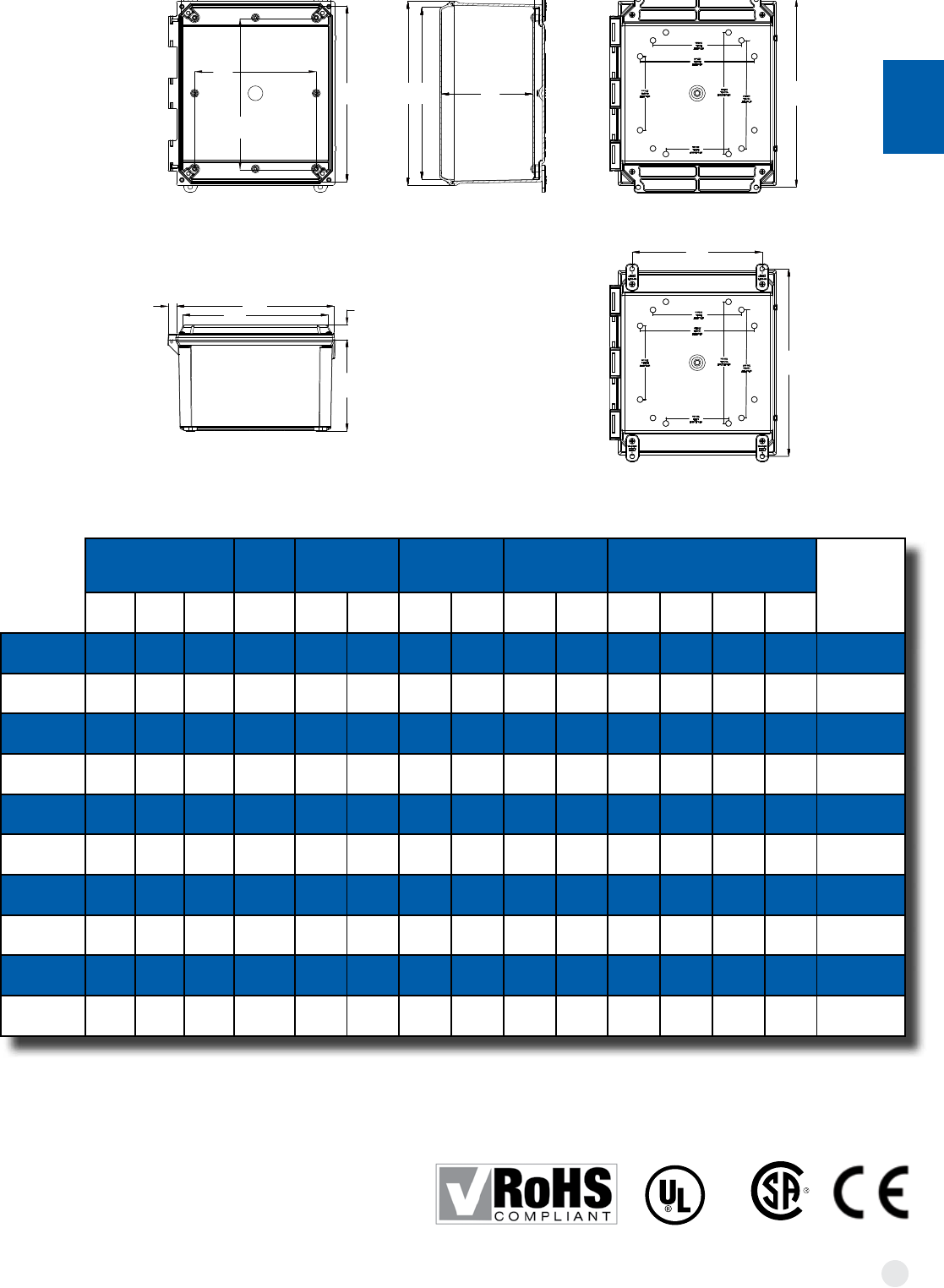

POLYLINE
Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U
AMP664NL(F) 5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm 106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864NL(F) 7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm 106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084NL(F)
9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm 106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206NL(F)
11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm 157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426NL(F)
13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm 157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664NL)
Add “F” to the part number for factory installed flanges (ex. AMP664NLF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted

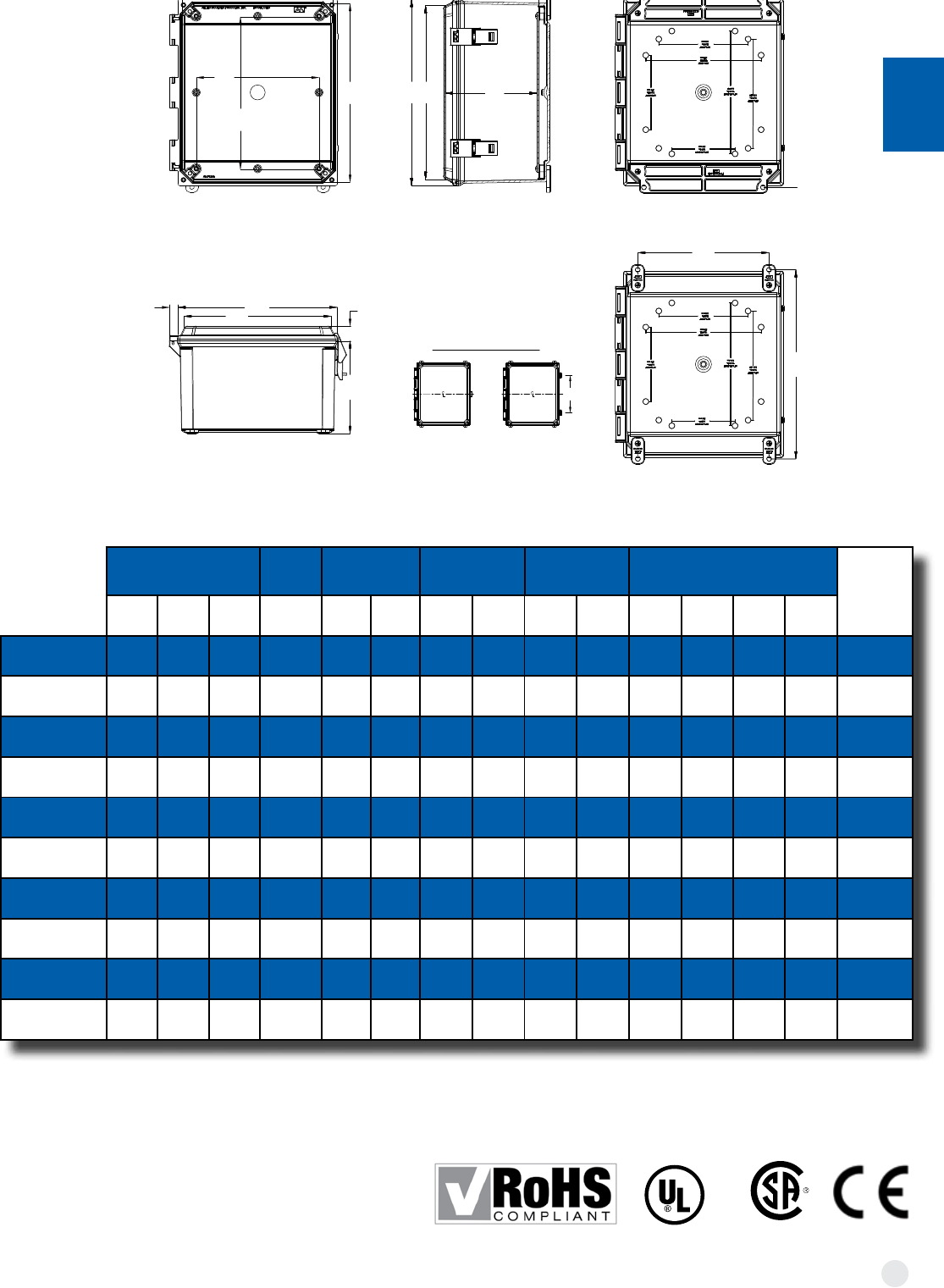

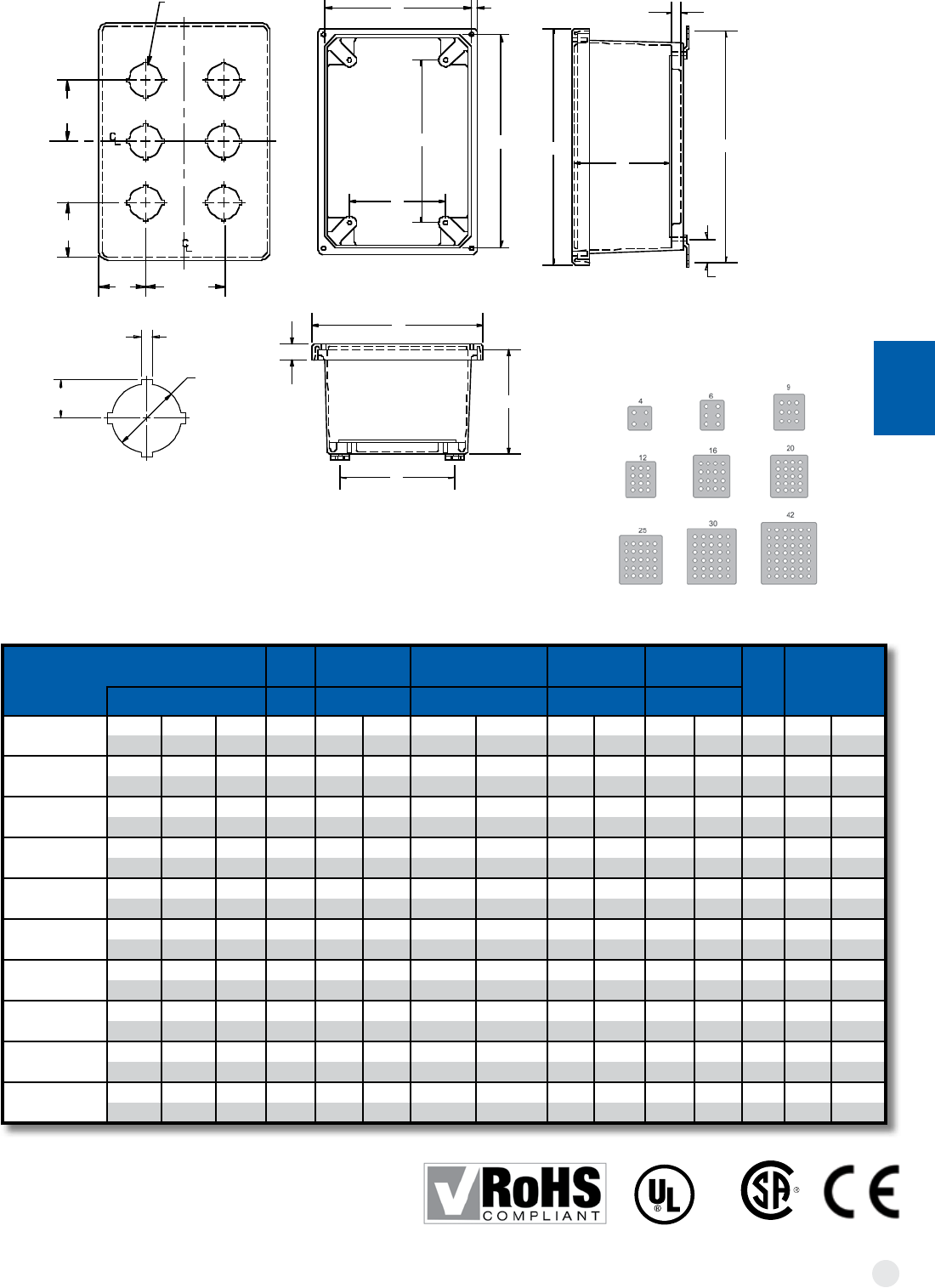

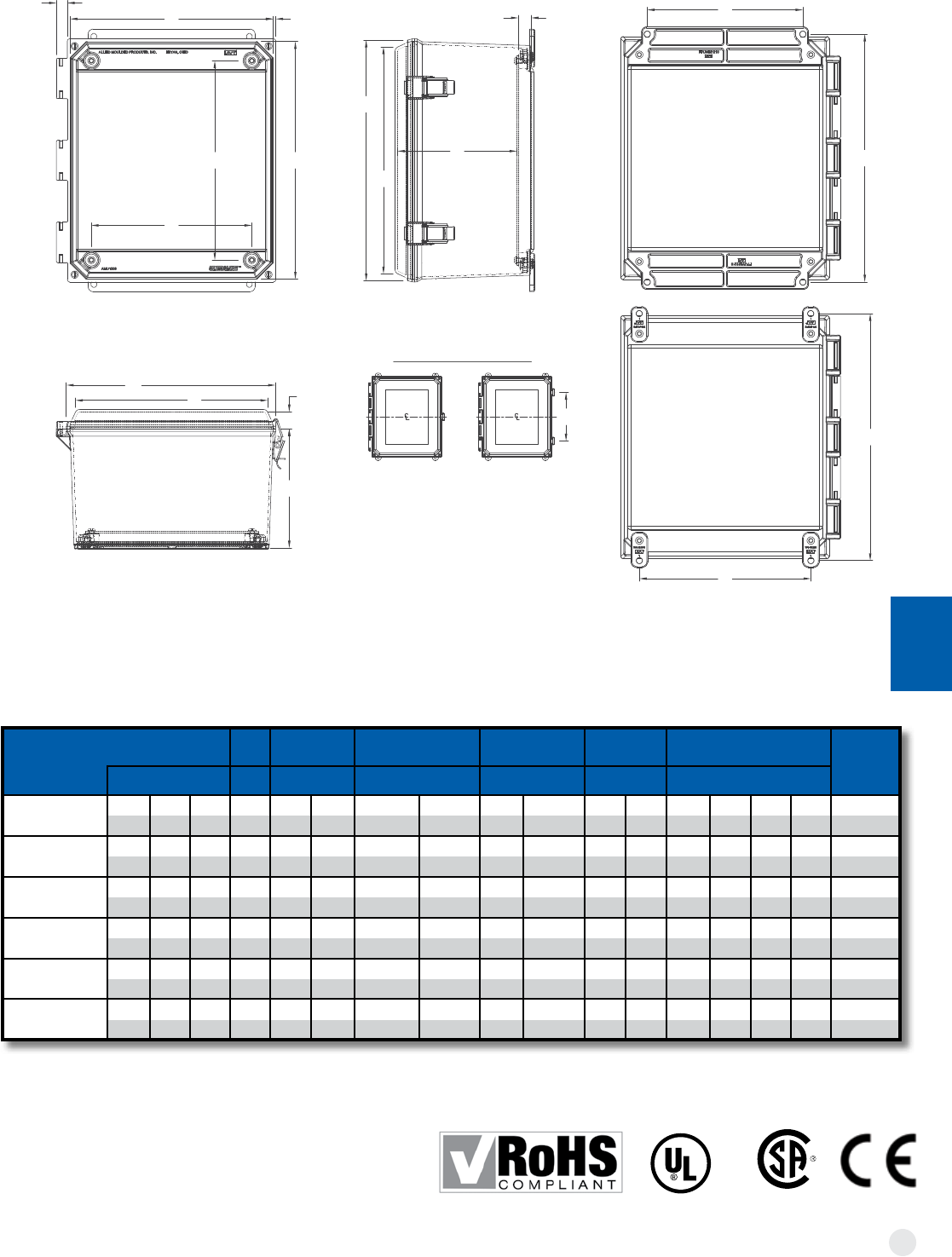

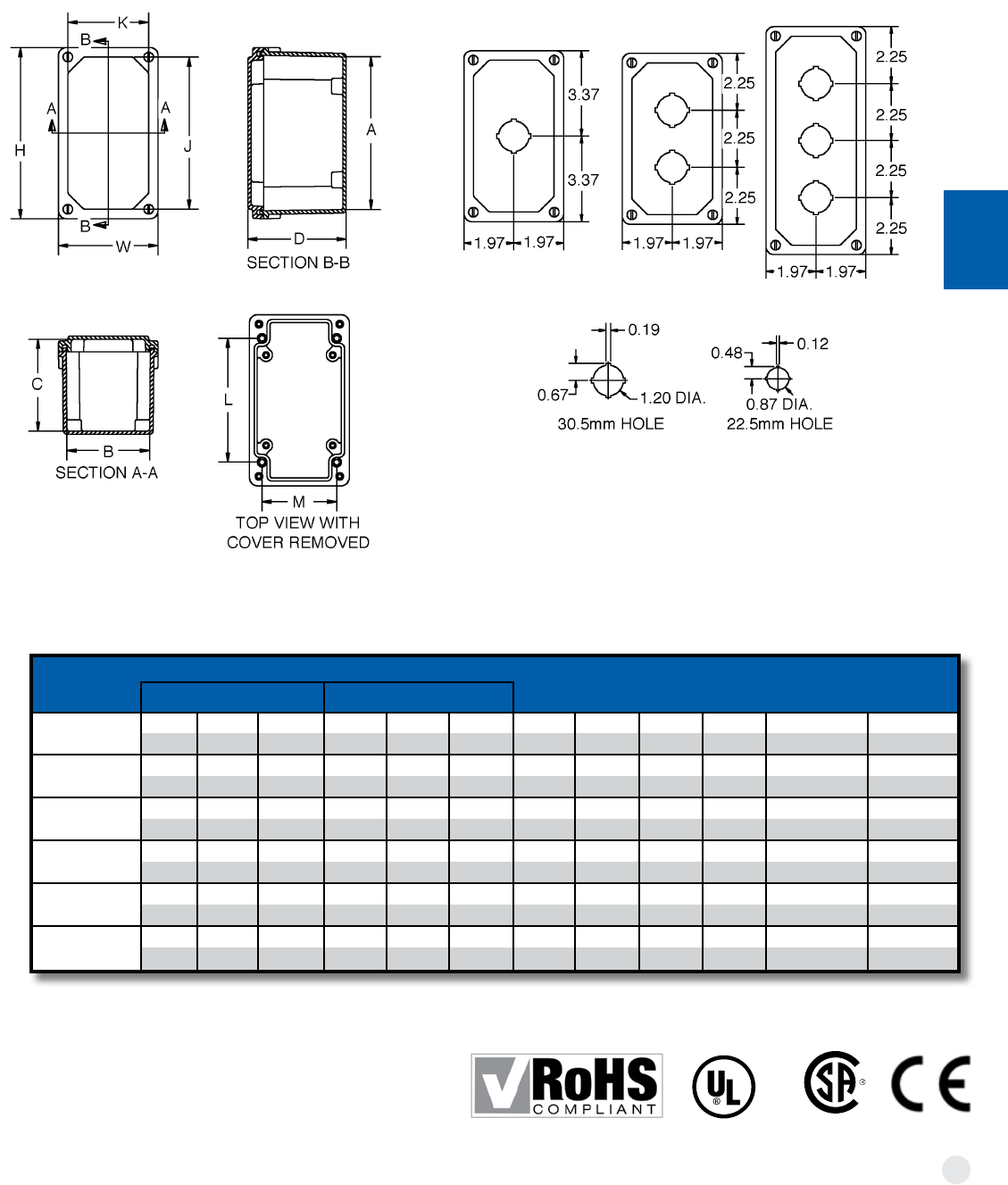

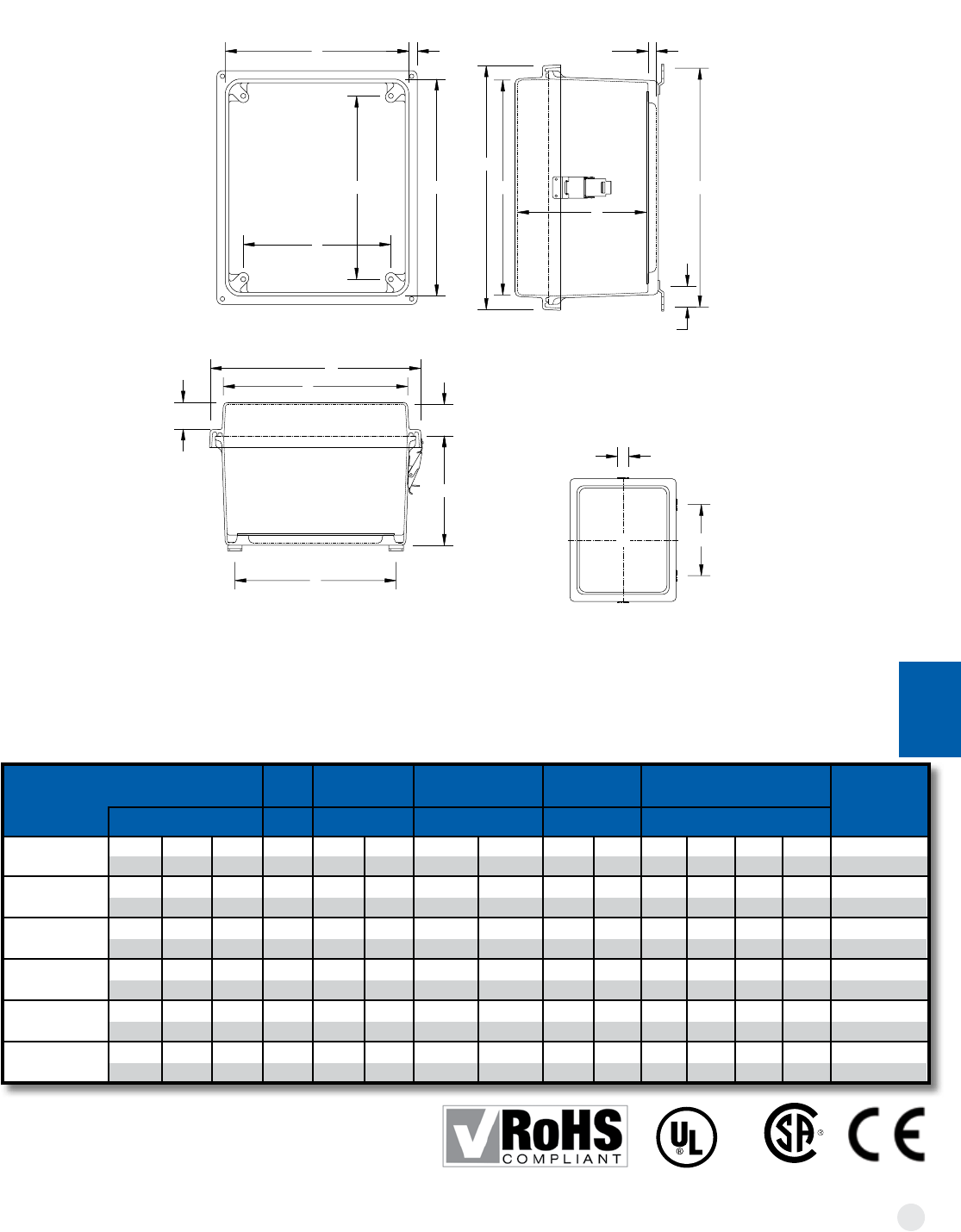

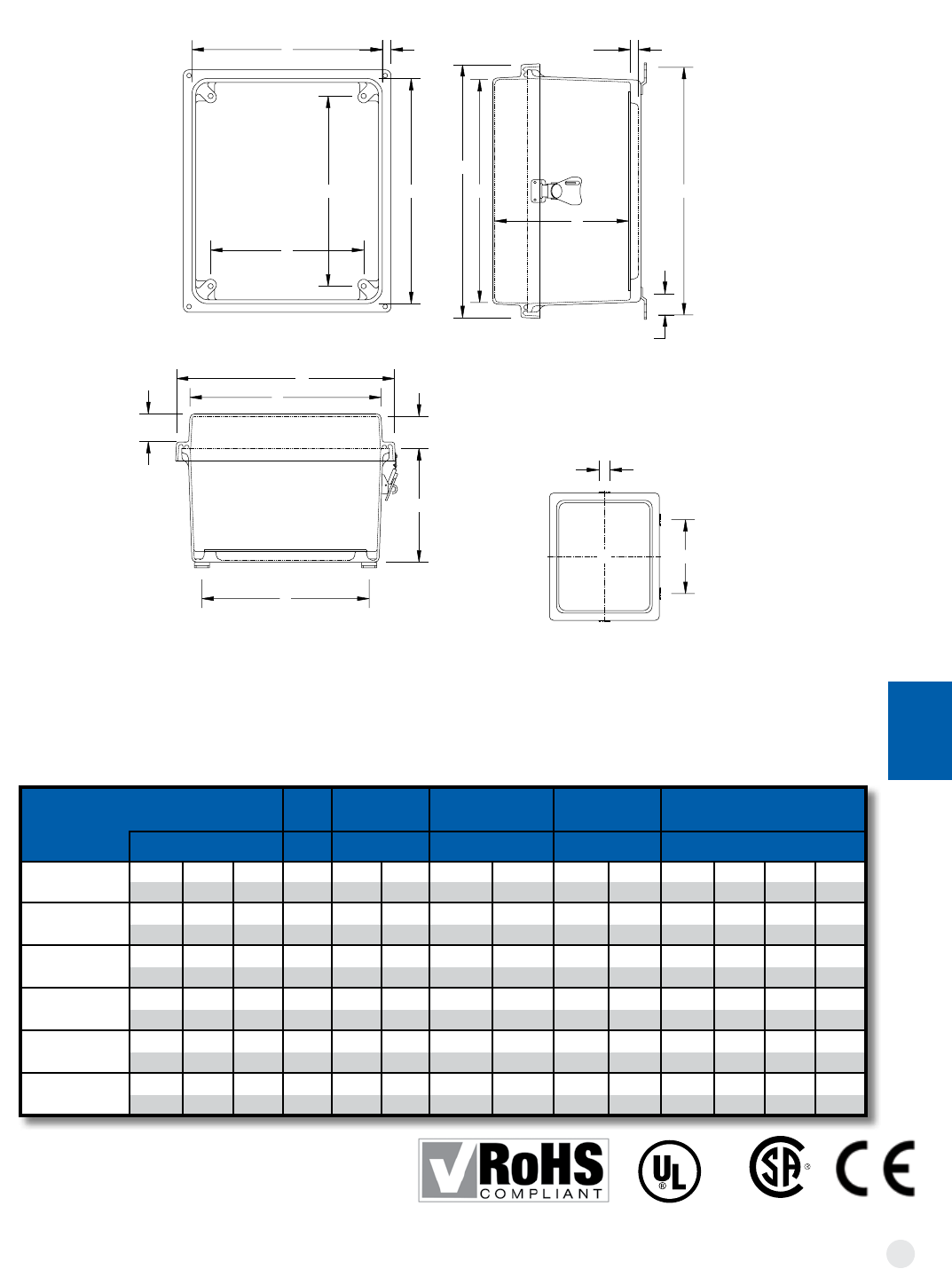

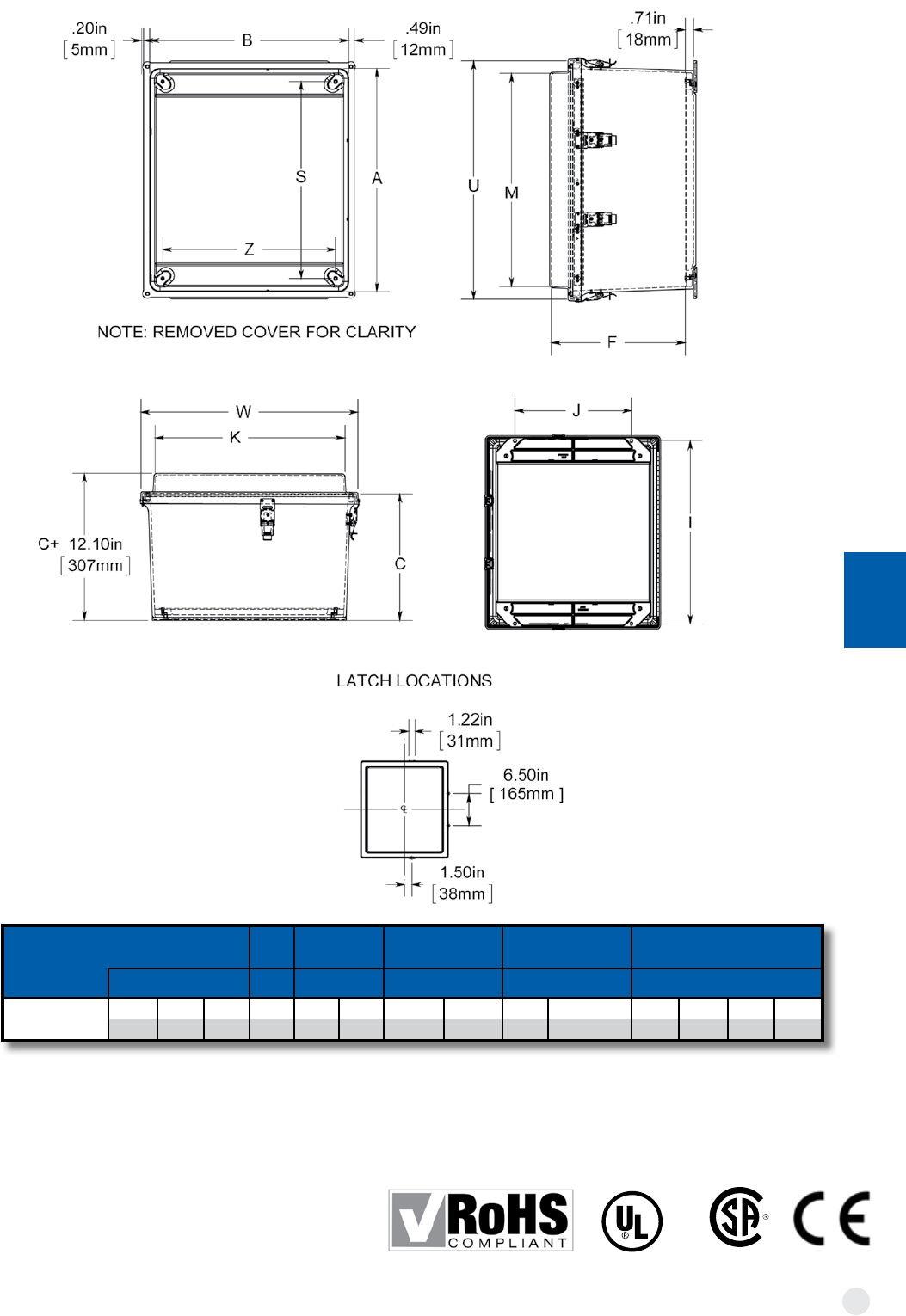

NOTE: COVER REMOVED FOR CLARITY FLANGE MOUNT
FOOT MOUNT
B
Z
A
S
UMF
0.58
(15mm)
0.87
(22mm)
0.57
(14mm)
W
K
CD
H
J
L
I
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.5 (191mm)
14x12x6 D=8.0 (203mm)
LATCH LOCATIONS
C
US
C
US
18

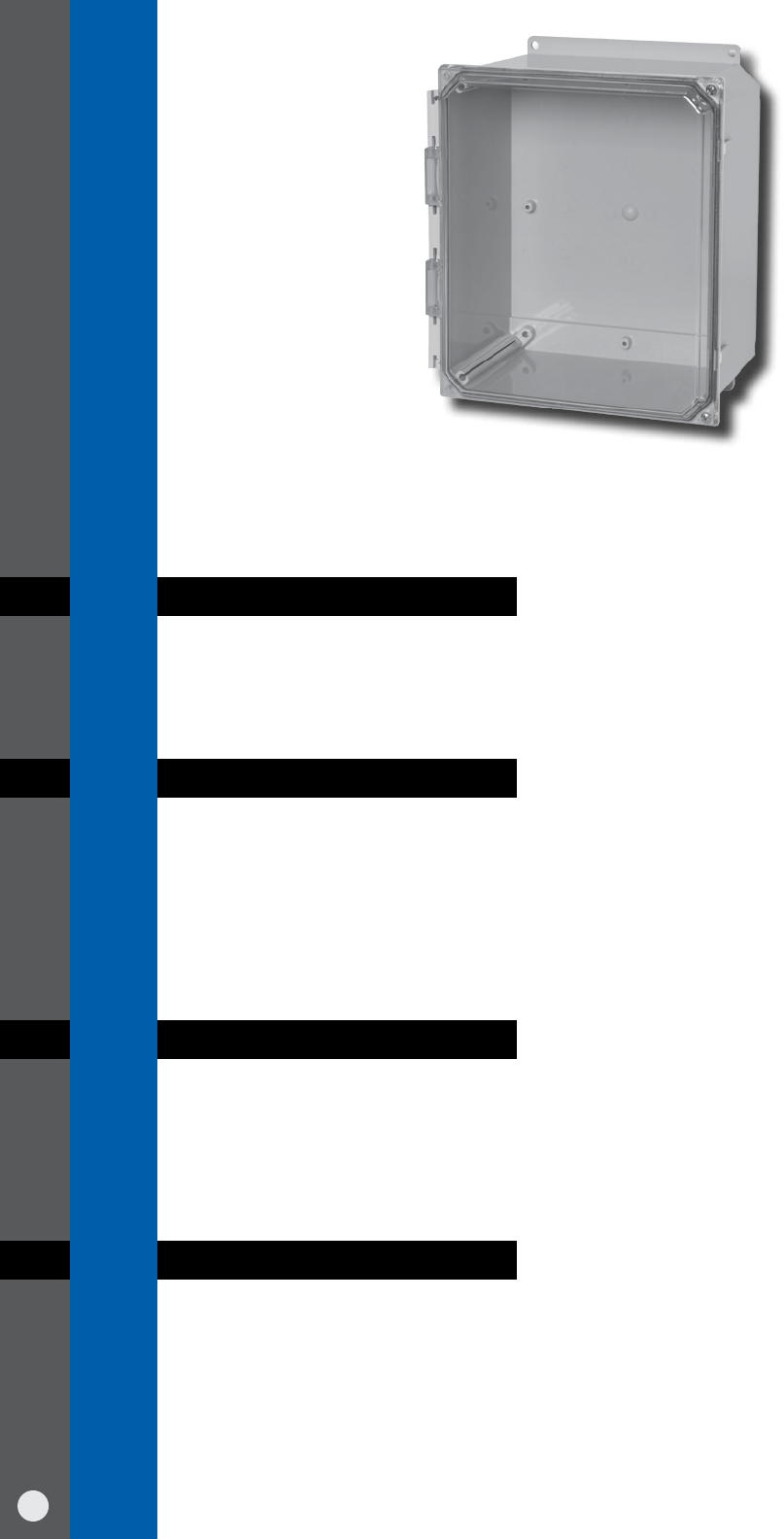

AMP Series POLYLINE® JIC Size Junction Boxes:
Nonmetal Snap Latch Hinged Cover – Clear Polycarbonate
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
− IEC 60529 Type IP66
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – clear cover, enclosure base, snap latches feet and flanges
• Enclosure base, padlockable snap latches, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel, hinge pin and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
19
POLYLINE
Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U
AMP664CCNL(F) 5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm 106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864CCNL(F) 7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm 106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084CCNL(F) 9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm 106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206CCNL(F) 11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm 157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426CCNL(F) 13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm 157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664CCNL)
Add “F” to the part number for factory installed flanges (ex. AMP664CCNLF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
NOTE: COVER REMOVED FOR CLARITY FLANGE MOUNT
FOOT MOUNT
B
Z
A
S
UMF
0.58
(15mm)
0.87
(22mm)
0.57
(14mm)
W
K
CD
H
J
L
I
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.5 (191mm)
14x12x6 D=8.0 (203mm)
LATCH LOCATIONS
C
US
C
US
20

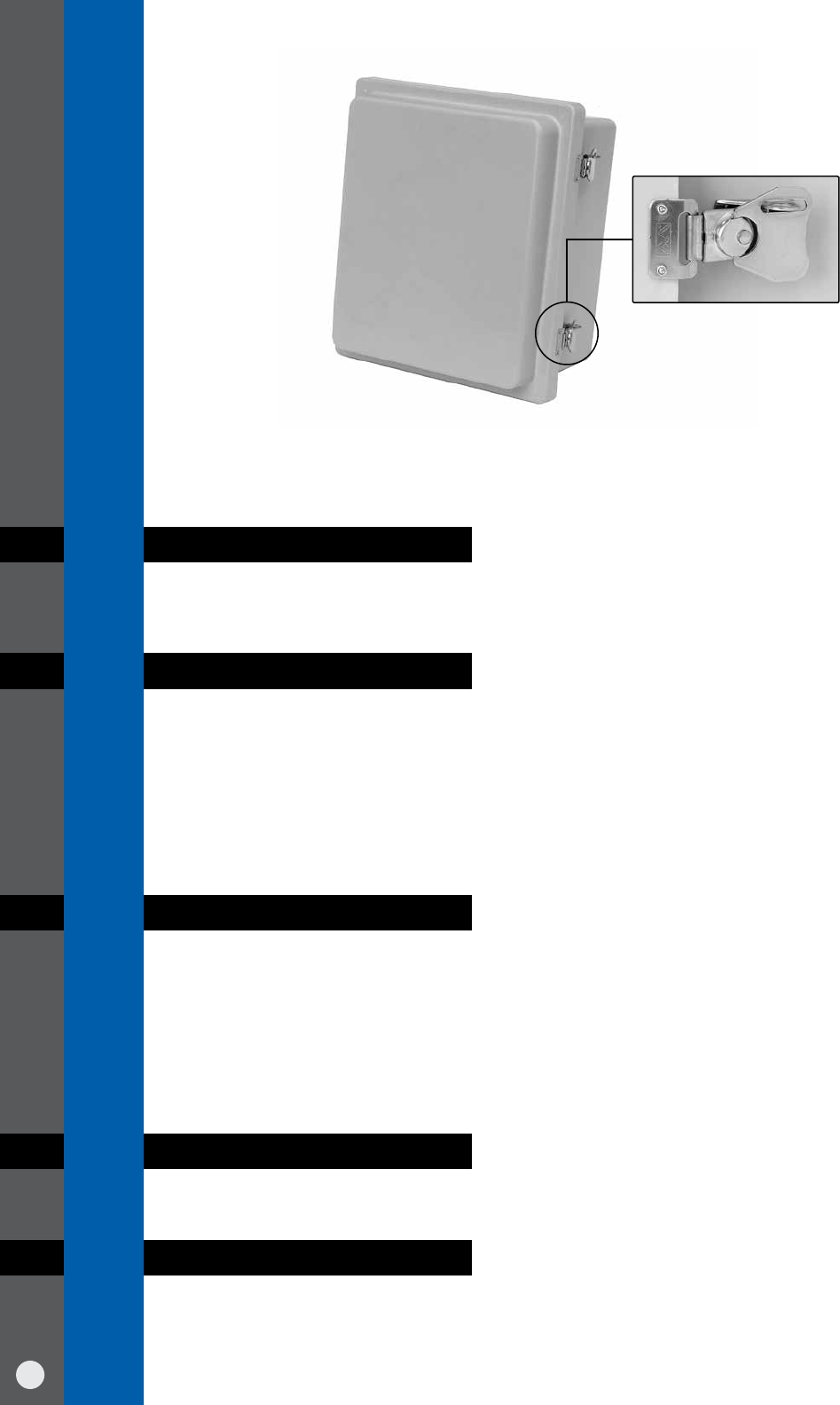

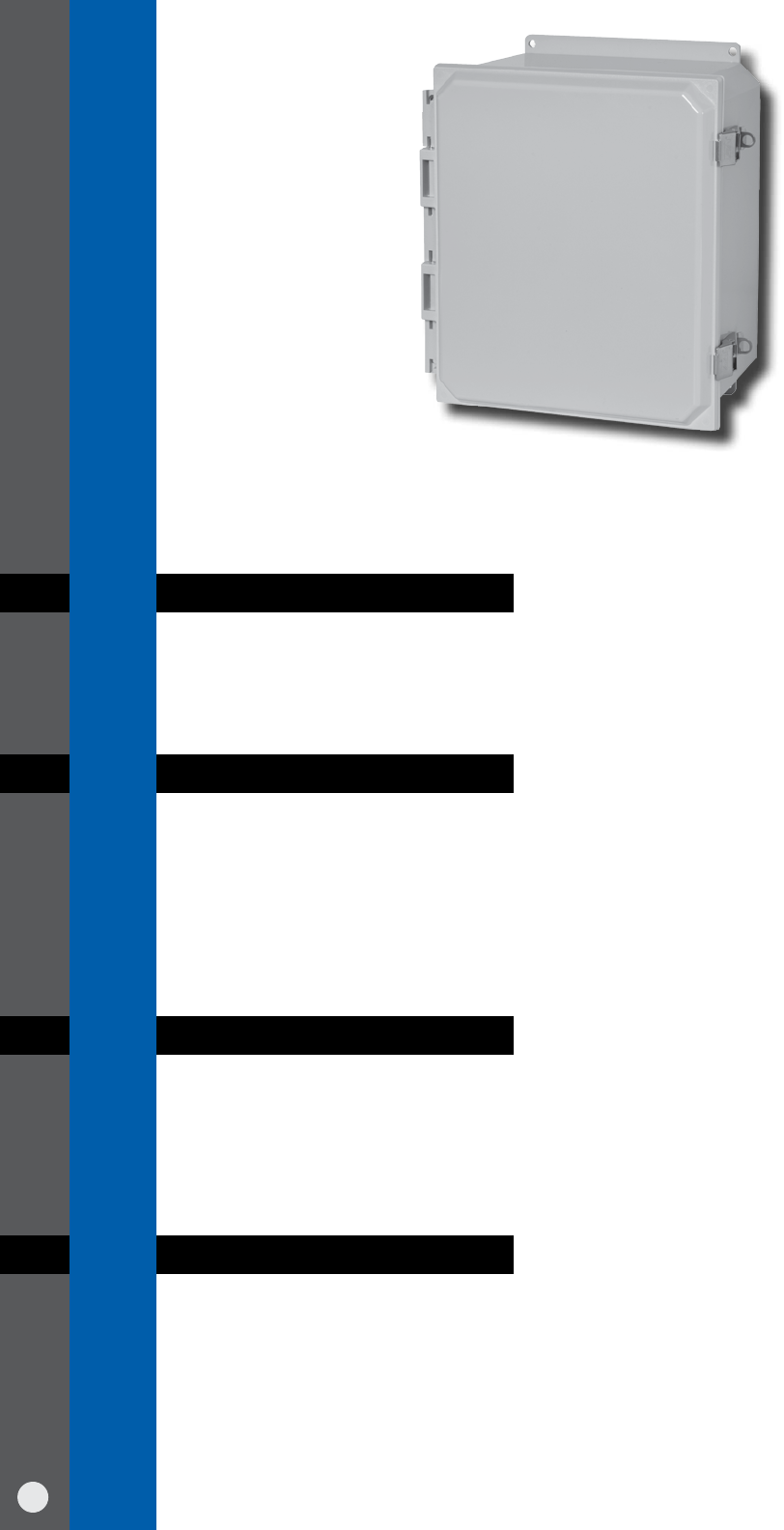

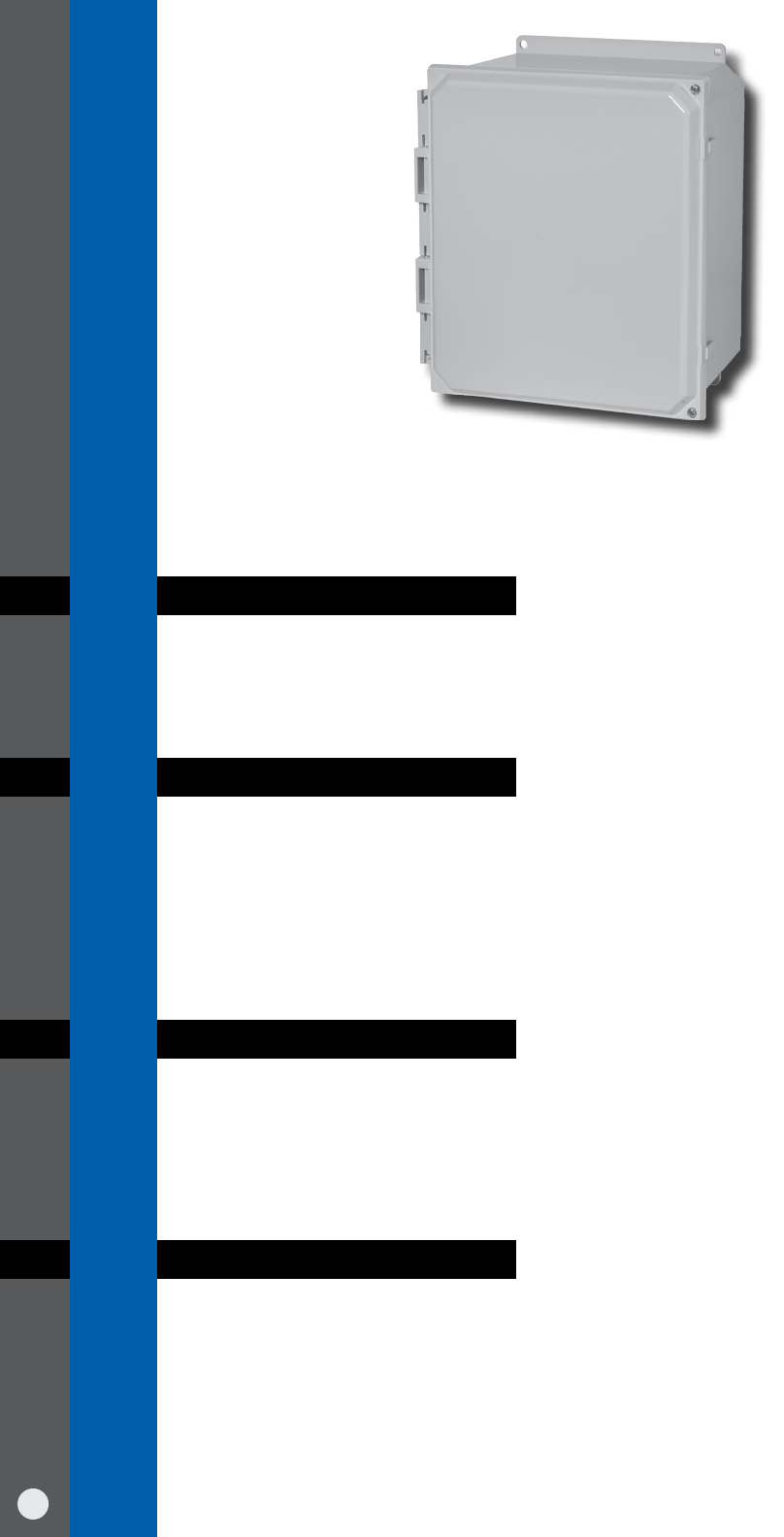

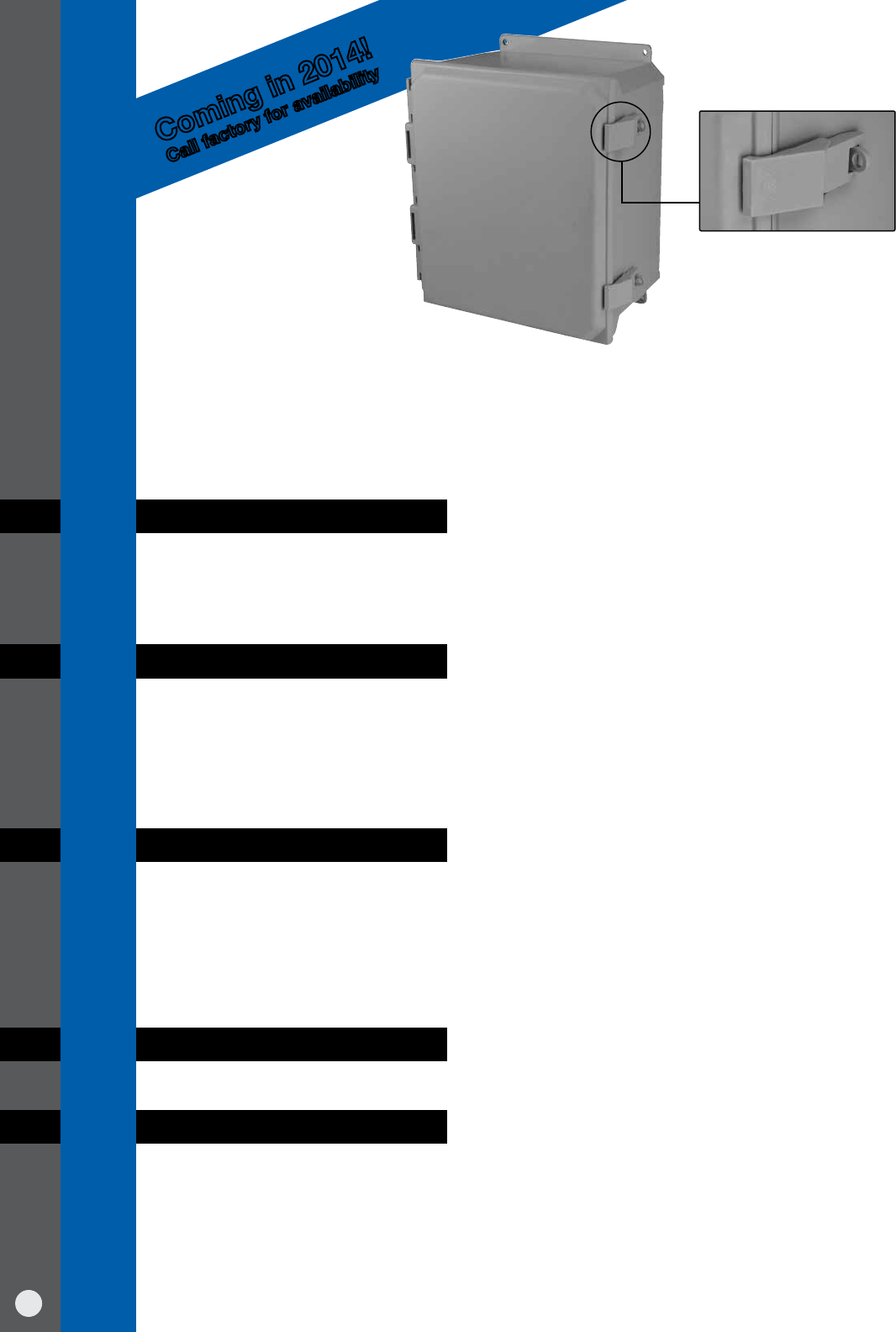

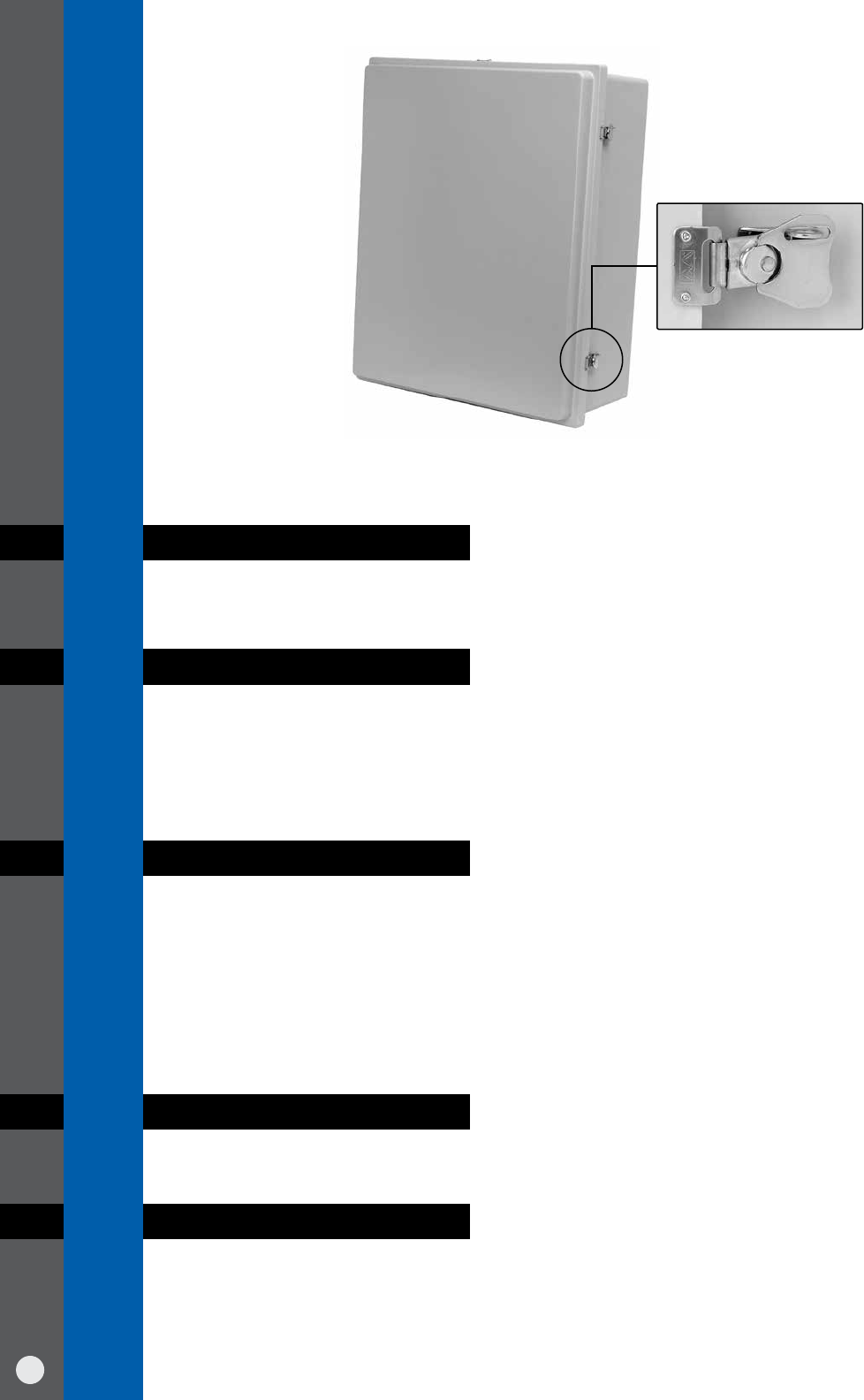

AMP Series POLYLINE® JIC Size Junction Boxes:
Metal Snap Latch Hinged Cover – Solid/Opaque
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
− IEC 60529 Type IP66
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – opaque cover, enclosure base, feet and flanges
• Opaque cover, base, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel padlockable snap latches, hinge pin and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
21

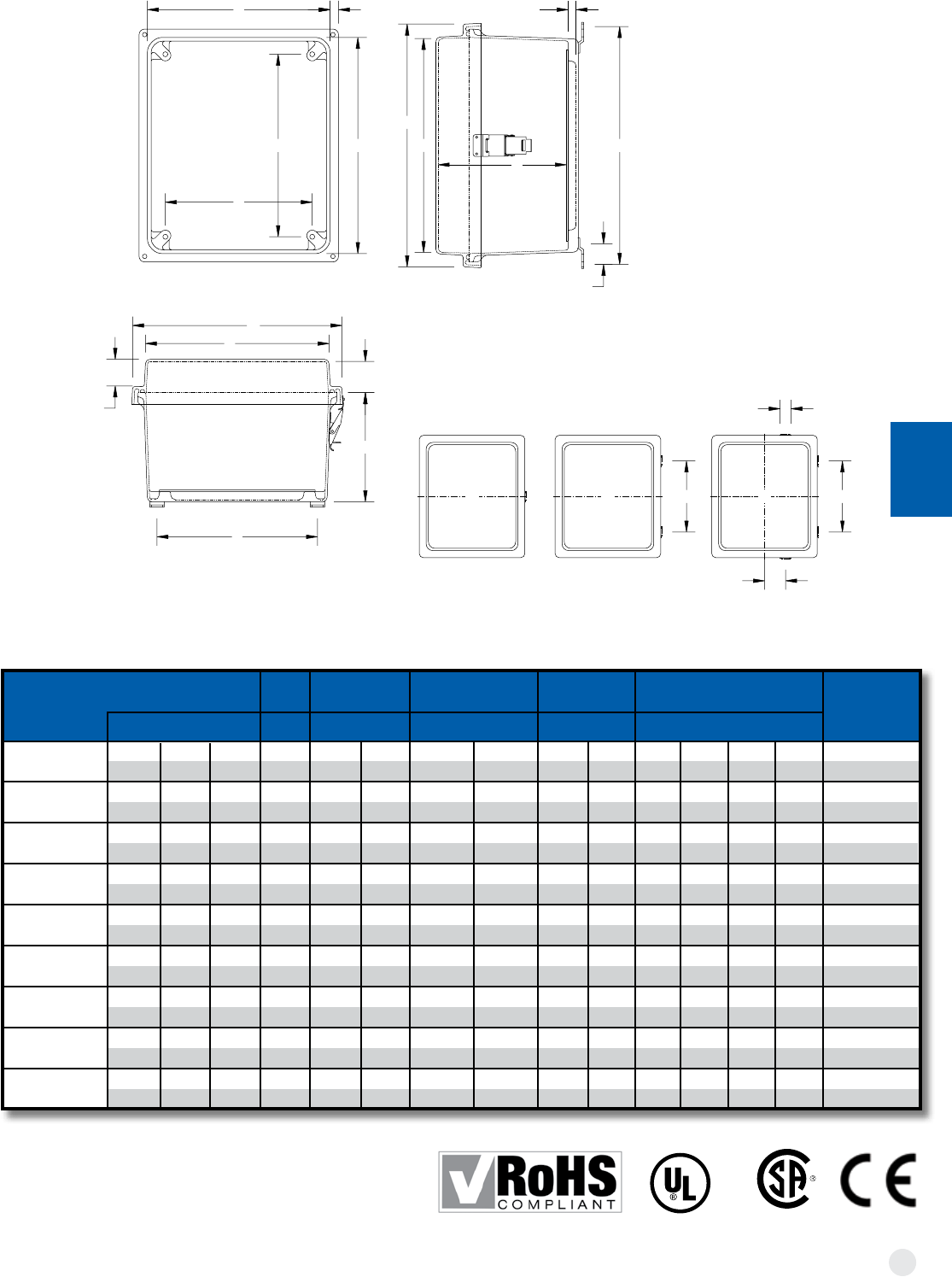

POLYLINE

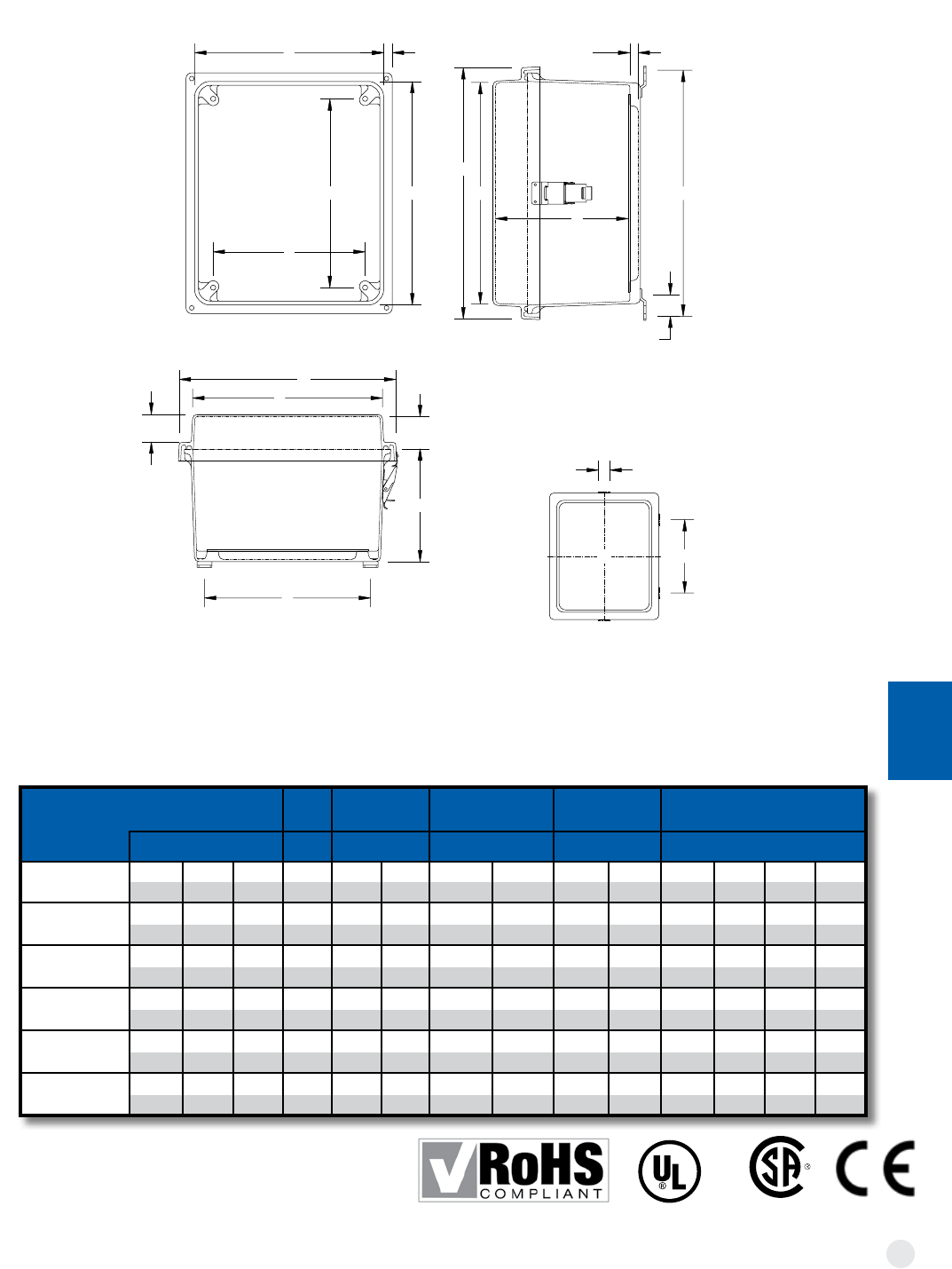

Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664L)
Add “F” to the part number for factory installed flanges (ex. AMP664LF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
NOTE: COVER REMOVED FOR CLARITY FLANGE MOUNT
FOOT MOUNT
B
Z
A
S
UMF
0.58
(15mm)
0.87
(22mm)
0.57
(14mm)
W
K
D
H
J
L
I
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.5 (191mm)
14x12x6 D=8.0 (203mm)
LATCH LOCATIONS
C
Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U
AMP664L(F) 5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm 106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864L(F) 7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm 106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084L(F) 9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm 106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206L(F) 11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm 157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426L(F) 13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm 157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
C
US
C
US
22

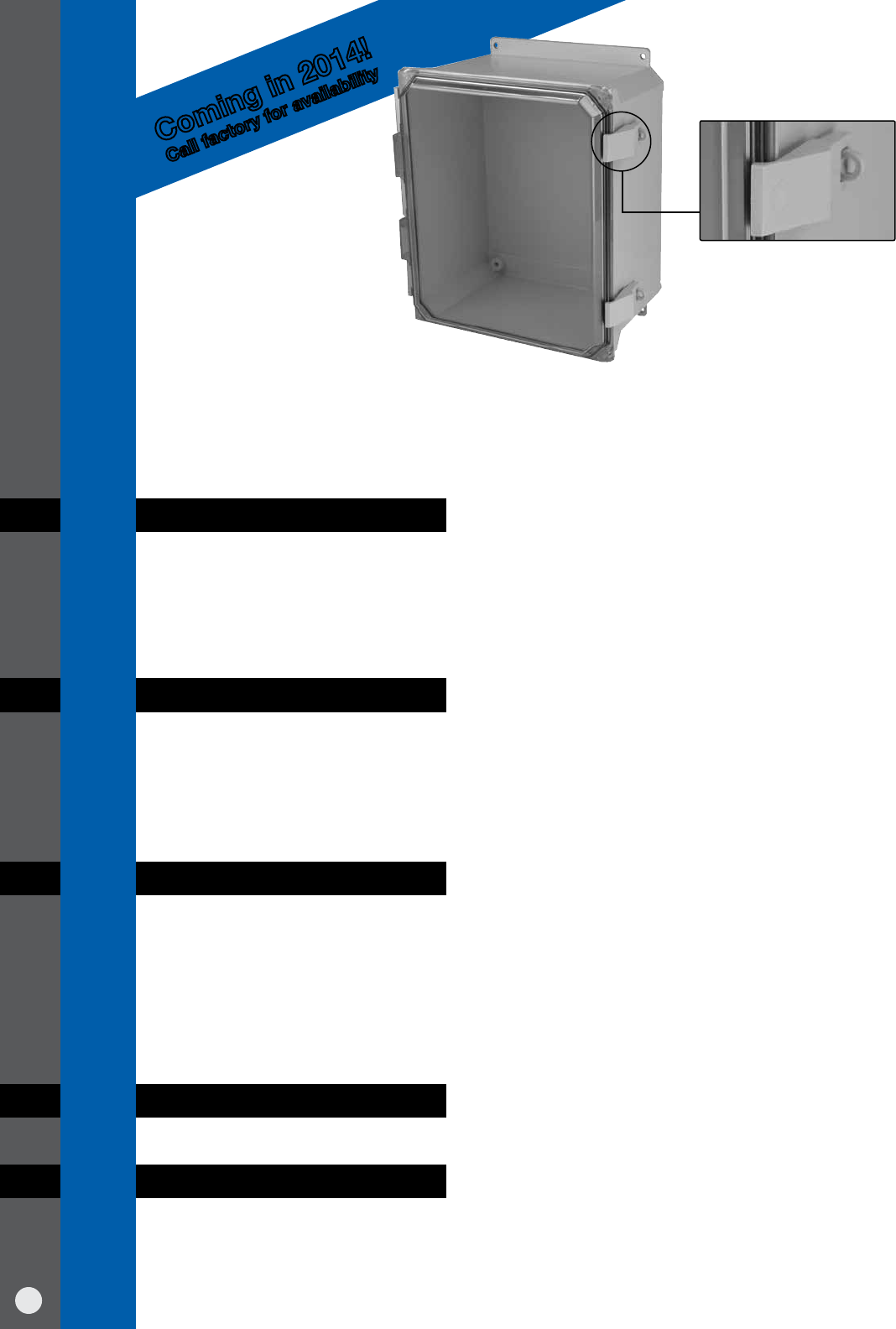

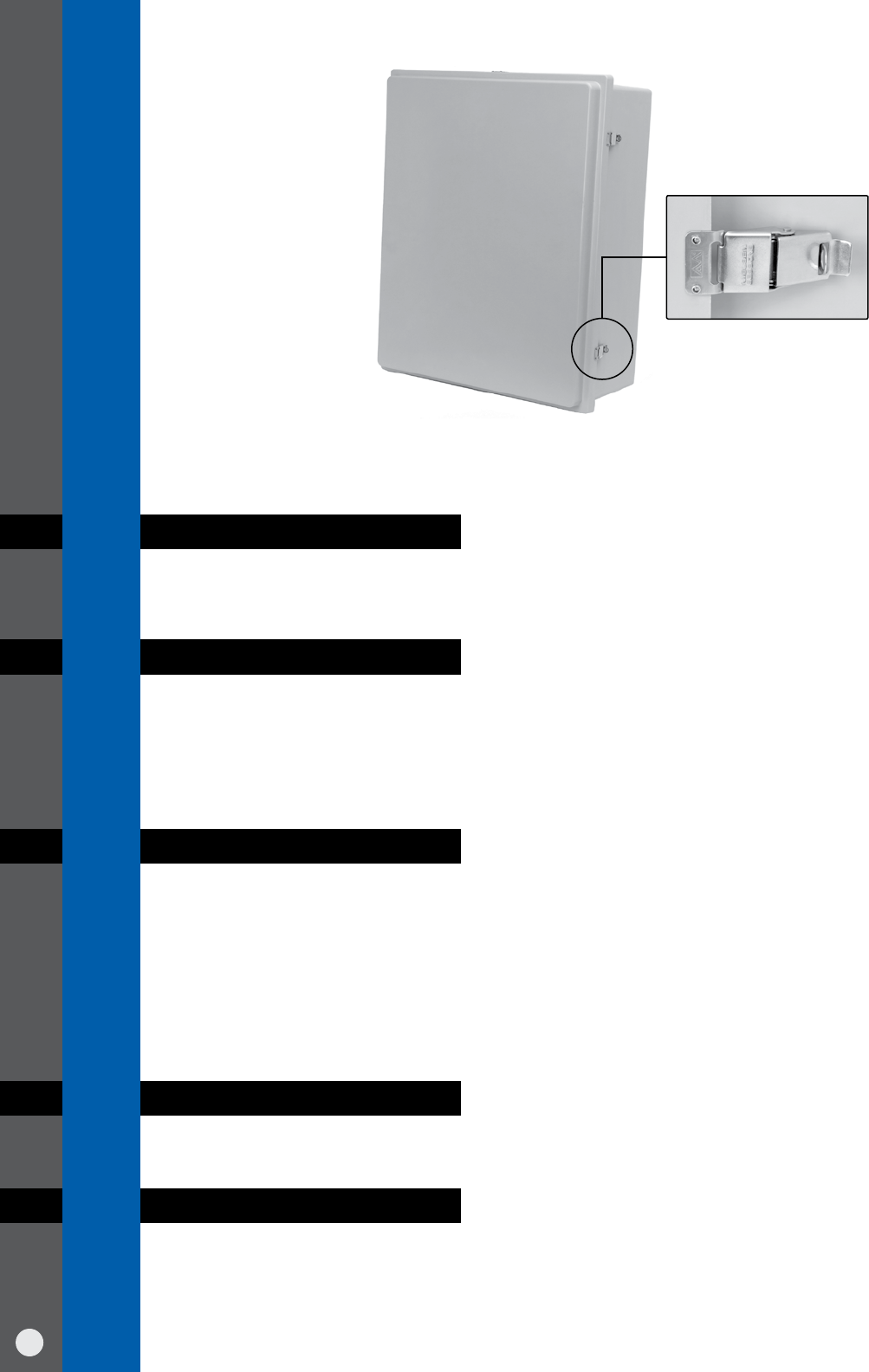

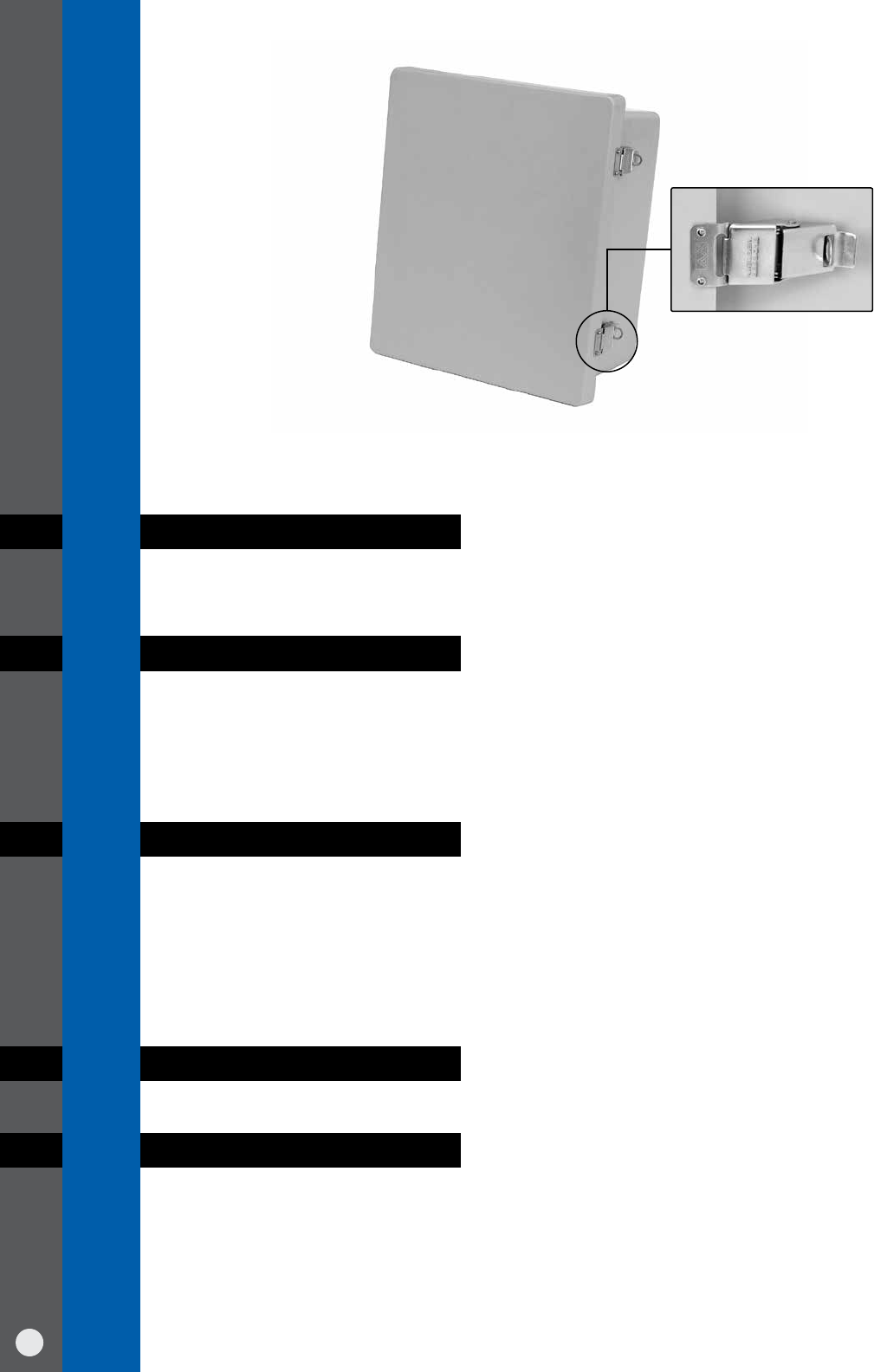

AMP Series POLYLINE® JIC Size Junction Boxes:
Metal Snap Latch Hinged Cover – Clear Polycarbonate
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
• Designed to insulate and protect controls and components in both indoor and outdoor applications often found in
industrial control panels, pump controls/waste water treatment, irrigation/water control, solar/wind, and chemical plants
• Light weight, impact resistant and good corrosion resistance for many industrial enclosure applications and a great
alternative to metallic enclosures
• Protects from dirt, dust, and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
− IEC 60529 Type IP66
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 6
• Injection molded polycarbonate thermoplastic – clear cover, enclosure base, feet and flanges
• Enclosure base, feet, and flanges – Light gray color (RAL 7035)
Note: flanged models are pre-assembled, foot models mounting hardware supplied in a bag
• Stainless steel padlockable snap latches, hinge pin and foot/flange mounting hardware
• Cover seal – closed cell neoprene cord encased in a continuous tongue and groove channel
• #10-32 threaded brass inserts are installed for optional back panel mounting
• Optional back panels (white painted steel and aluminum) and hinged front panels (aluminum)
• Optional mounting hardware based on model number – foot or flange mount
• Additional molded-in mounting bosses available for directly mounting DIN rails
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
23
POLYLINE
Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMP664CCL)
Add “F” to the part number for factory installed flanges (ex. AMP664CCLF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
NOTE: COVER REMOVED FOR CLARITY FLANGE MOUNT
FOOT MOUNT
B
Z
A
S
UMF
0.58
(15mm)
0.87
(22mm)
0.57
(14mm)
W
K
D
H
J
L
I
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.5 (191mm)
14x12x6 D=8.0 (203mm)
LATCH LOCATIONS
C
Box Size
Inside Dimensions
Usable
Depth
Panel Boss
Centers
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom. Wall
Thickness
A B C F S Z J I H L K M W U
AMP664CCL(F) 5.93 6.16 3.98 4.18 4.25 4.25 4.00 6.88
6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.14
151mm 156mm 101mm 106mm 108mm 108mm 102mm 175mm
171mm 125mm 171mm 150mm 144mm 171mm 165mm 3.7mm
AMP864CCL(F) 7.94 6.16 3.98 4.18 6.25 4.25 4.00 8.88
8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.14
202mm 156mm 101mm 106mm 159mm 108mm 102mm 226mm
222mm 125mm 222mm 150mm 195mm 171mm 216mm 3.7mm
AMP1084CCL(F) 9.93 8.15 3.98 4.18 8.25 6.25 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.14
252mm 207mm 101mm 106mm 210mm 159mm 152mm 273mm 175mm 273mm 200mm 246mm 221mm 267mm 3.7mm
AMP1206CCL(F) 11.92 10.15 5.98 6.18 10.25 8.25 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.14
303mm 258mm 152mm 157mm 260mm 210mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3.7mm
AMP1426CCL(F) 13.94 12.16 5.98 6.18 12.25 10.25 10.00 14.75
14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.14
354mm 309mm 152mm 157mm 311mm 260mm 254mm 375mm
371mm 275mm 373mm 302mm 347mm 323mm 368mm 3.7mm
C
US
C
US
24

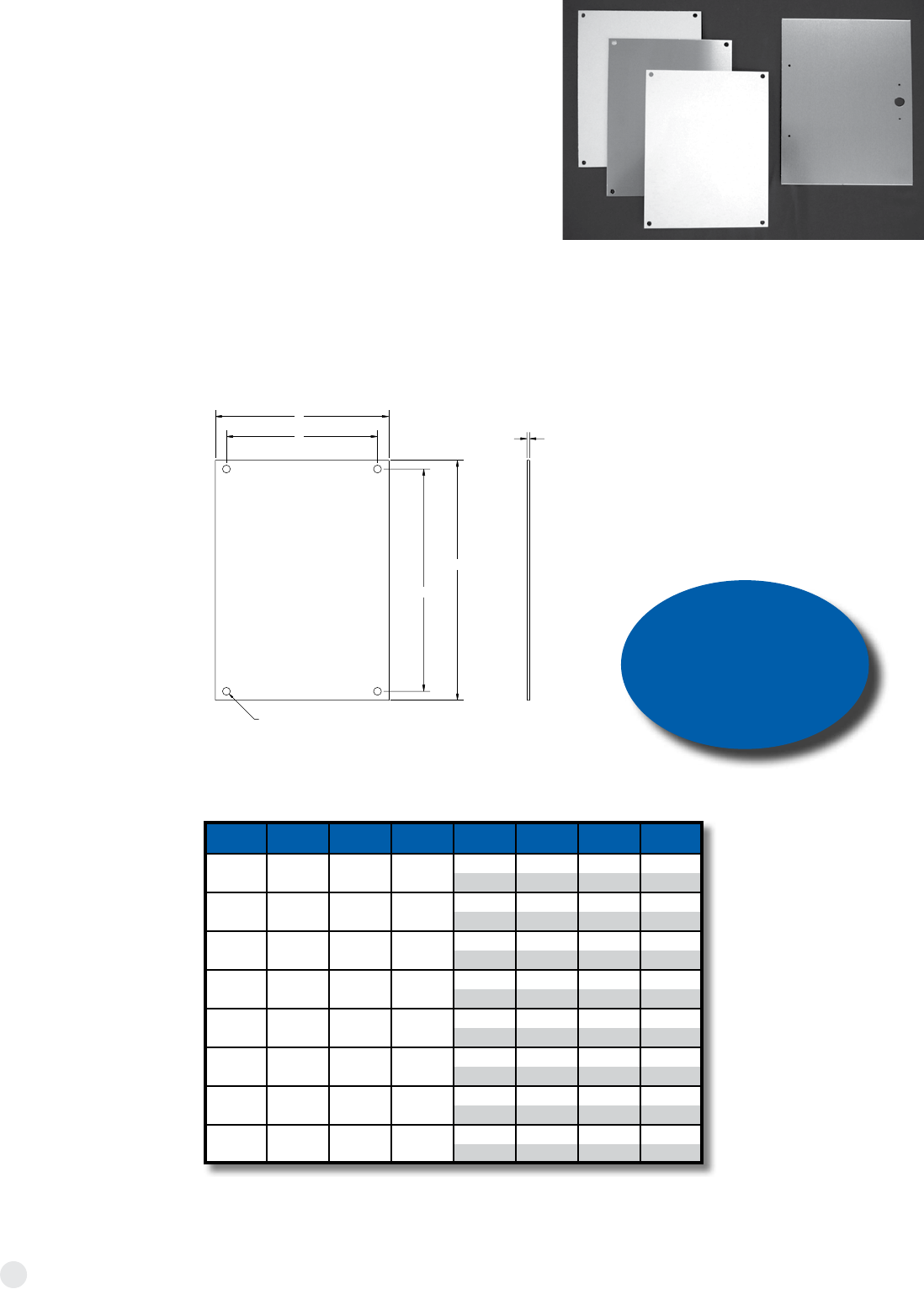

POLYLINE® Series Optional Back Panels:
“PL” Painted White Carbon Steel or “PLA” Aluminum
STEEL (P/N) ALUM (P/N) A B C D
PL66 PLA66 4.81
122 mm
4.81
122 mm
4.25
108 mm
4.25
108 mm
PL86 PLA86 6.75
171 mm
4.88
124 mm
6.25
159 mm
4.25
108 mm
PL108 PLA108 8.75
222 mm
6.88
175 mm
8.25
210 mm
6.25
159 mm
PL120 PLA120 10.75
273 mm
8.88
226 mm
10.25
260 mm
8.25
210 mm
PL142 PLA142 12.75
324 mm
10.88
276 mm
12.25
311 mm
10.25
260 mm
HFPP Kit (P/N) Enclosure Base (P/N) A B C D E
HFPP66 AMP664 5.44
138 mm
5.61
142 mm
2.64
67 mm
3.36
85 mm
4.19
106 mm
HFPP86 AMP864 7.44
189 mm
5.61
142 mm
4.64
118 mm
3.36
85 mm
6.19
157 mm
HFPP108 AMP1084 9.43
240 mm
7.63
194 mm
6.63
168 mm
5.38
137 mm
8.18
208 mm
HFPP120 AMP1206 11.55
293 mm
9.58
243 mm
8.63
219 mm
7.33
186 mm
10.13
257 mm
HFPP142 AMP1426 13.10
333 mm
11.25
286 mm
10.61
269 mm
9.00
229 mm
11.75
298 mm
All dimensions are in inches unless otherwise noted.
All dimensions are in inches unless otherwise noted.
B
D
Ø .25 (6.35mm) THRU
TYP. (4) PLACES
.13 (3.30mm) x 45 °CHAMFER
TYP. (4) PLACES
CA
.100 (2.54mm) ALUMINUM
.075 (1.91mm) STEEL
E
C
(BETWEEN
HINGES)
D
B
A
.09

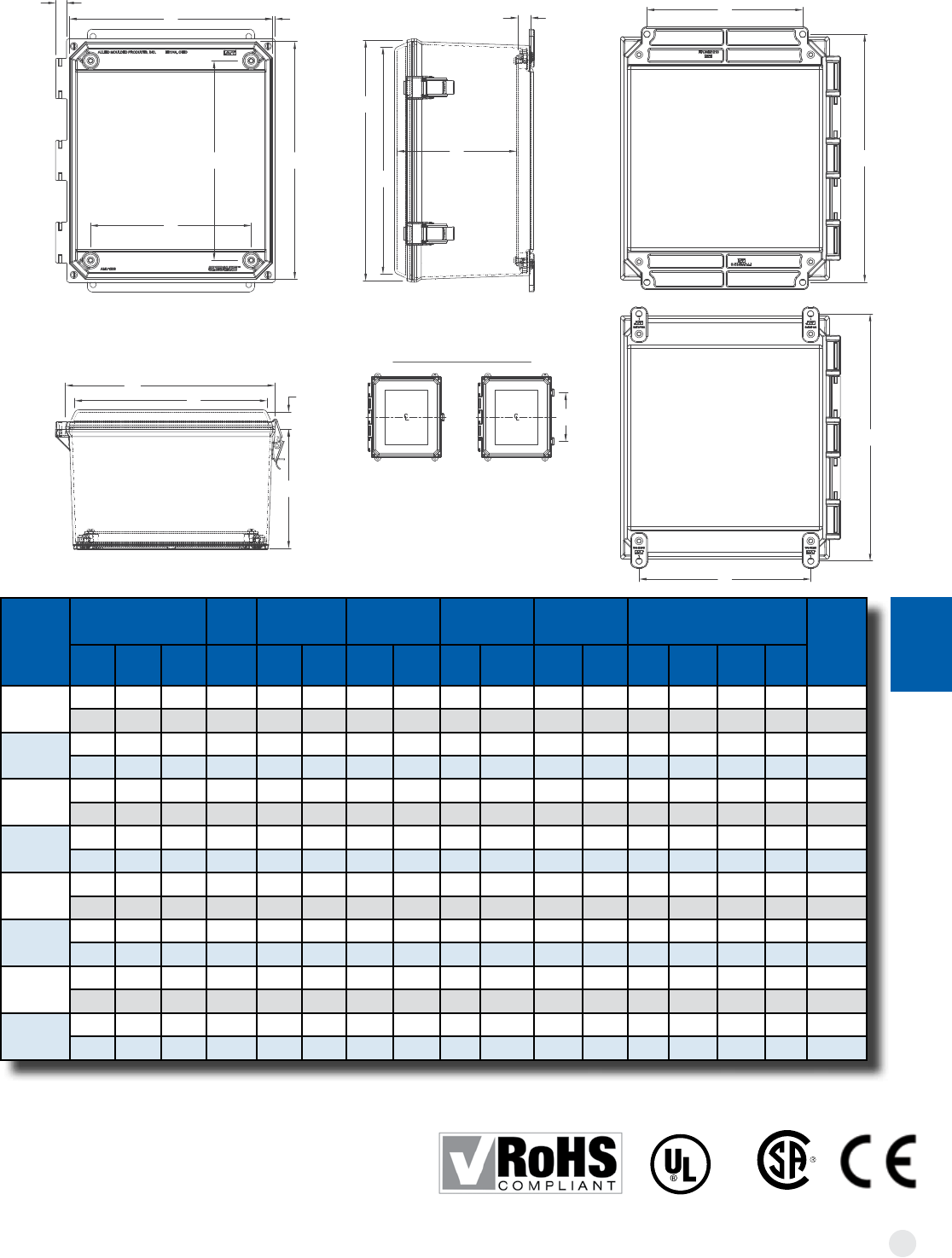

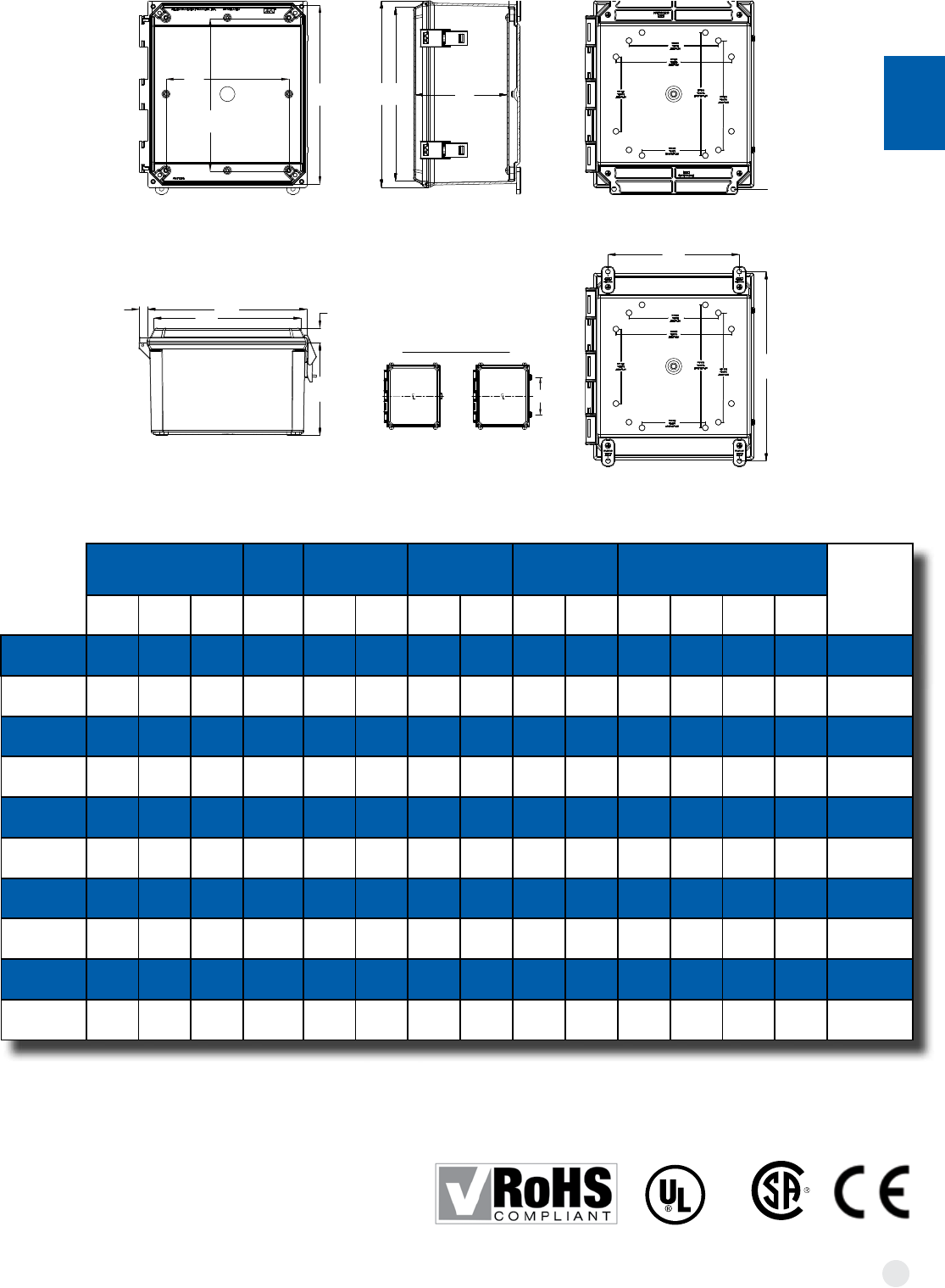

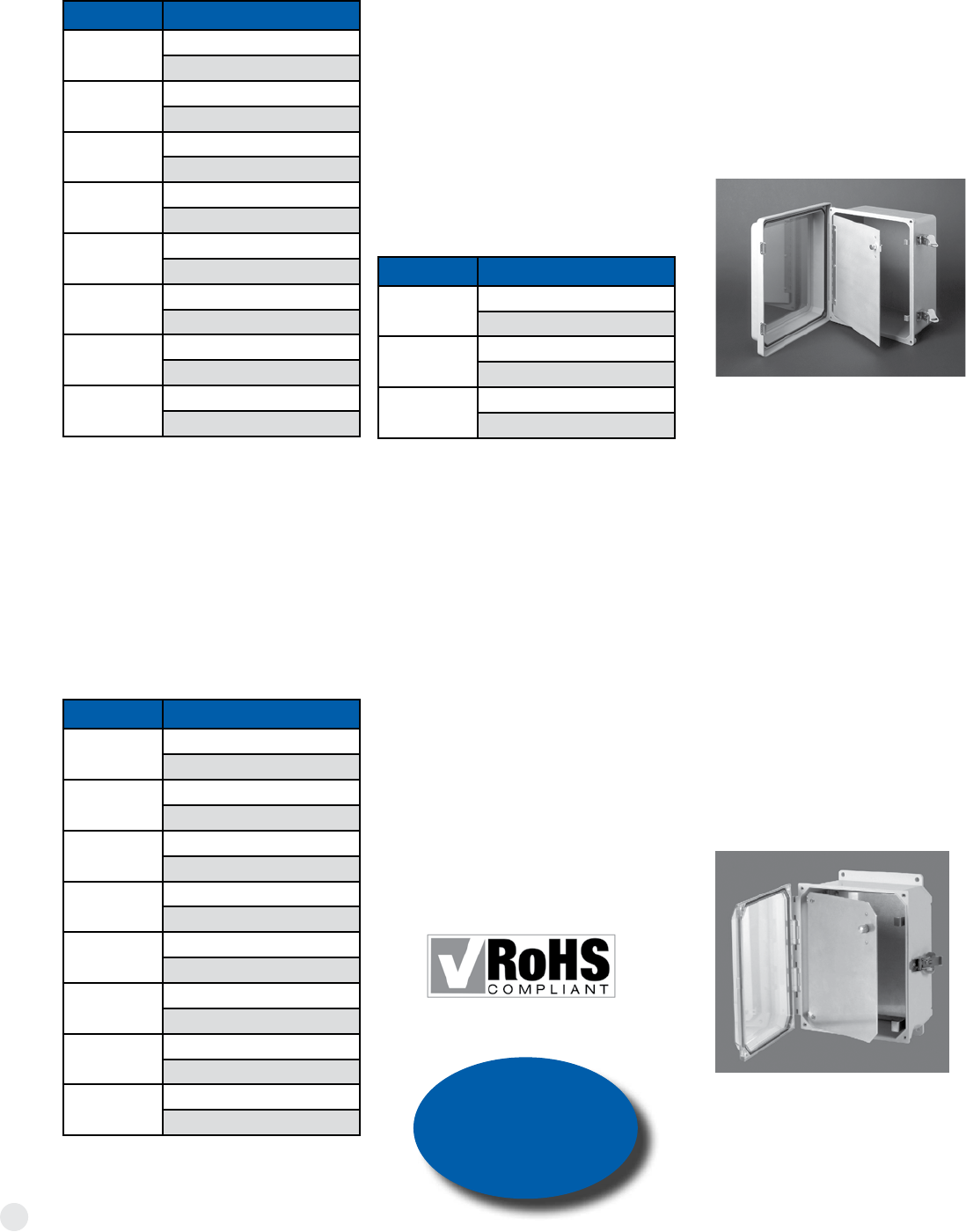

POLYLINE® Series Optional Hinged Front Panels:
“HFPP” Aluminum Panel Systems
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
25
POLYLINE
All dimensions are in inches unless otherwise noted.
D
AB
C
Enclosure
Used With
Optional
Aluminum
Back Panel
Optional
Aluminum
Back
Panel
Optional
Steel Back
Panel
Optional
Steel Back
Panel
Without
Optional
Back
Panel
Without
Optional
Back
Panel
C=BOTTOM
to
Panel Mount
Bosses
D=Hinged
Front
Panel to
Inside
Cover
D=Hinged
Front Panel
to Inside
Cover
HFPP Kit
(P/N) (base P/N) A (MAX.) A (MIN.) A(MAX.) A(MIN.) B(MAX.) B(MIN.) (MIN.) (MAX.)
HFPP66 AMP664 3.21
82 mm
1.71
43 mm
3.24
82 mm
1.74
44 mm
3.89
99 mm
2.39
61 mm
.58
15 mm
.88
22 mm
2.38
60 mm
HFPP86 AMP864 3.21
82 mm
1.71
43 mm
3.24
82 mm
1.74
44 mm
3.89
99 mm
2.39
61 mm
.58
15 mm
.88
22 mm
2.38
60 mm
HFPP108 AMP1084 3.21
82 mm
1.71
43 mm
3.24
82 mm
1.74
44 mm
3.89
99 mm
2.39
61 mm
.58
15 mm
.88
22 mm
2.38
60 mm
HFPP120 AMP1206 5.21
132 mm
3.71
94 mm
5.24
133 mm
3.74
95 mm
5.89
150 mm
4.39
112 mm
.58
15 mm
.88
22 mm
2.38
60 mm
HFPP142 AMP1426 5.21
132 mm
3.71
94 mm
5.24
133 mm
3.74
95 mm
5.89
150 mm
4.39
112 mm
.58
15 mm
.88
22 mm
2.38
60 mm

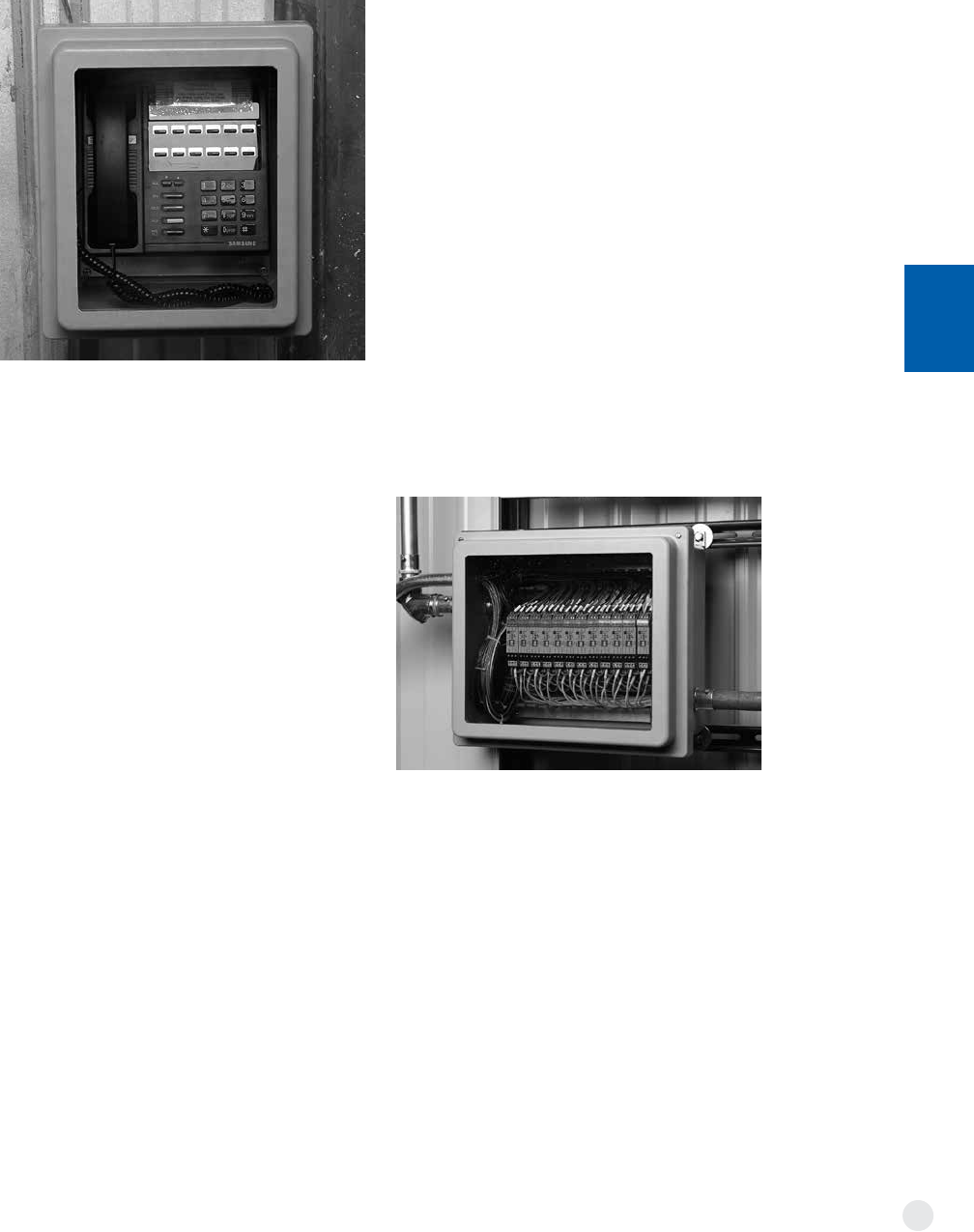

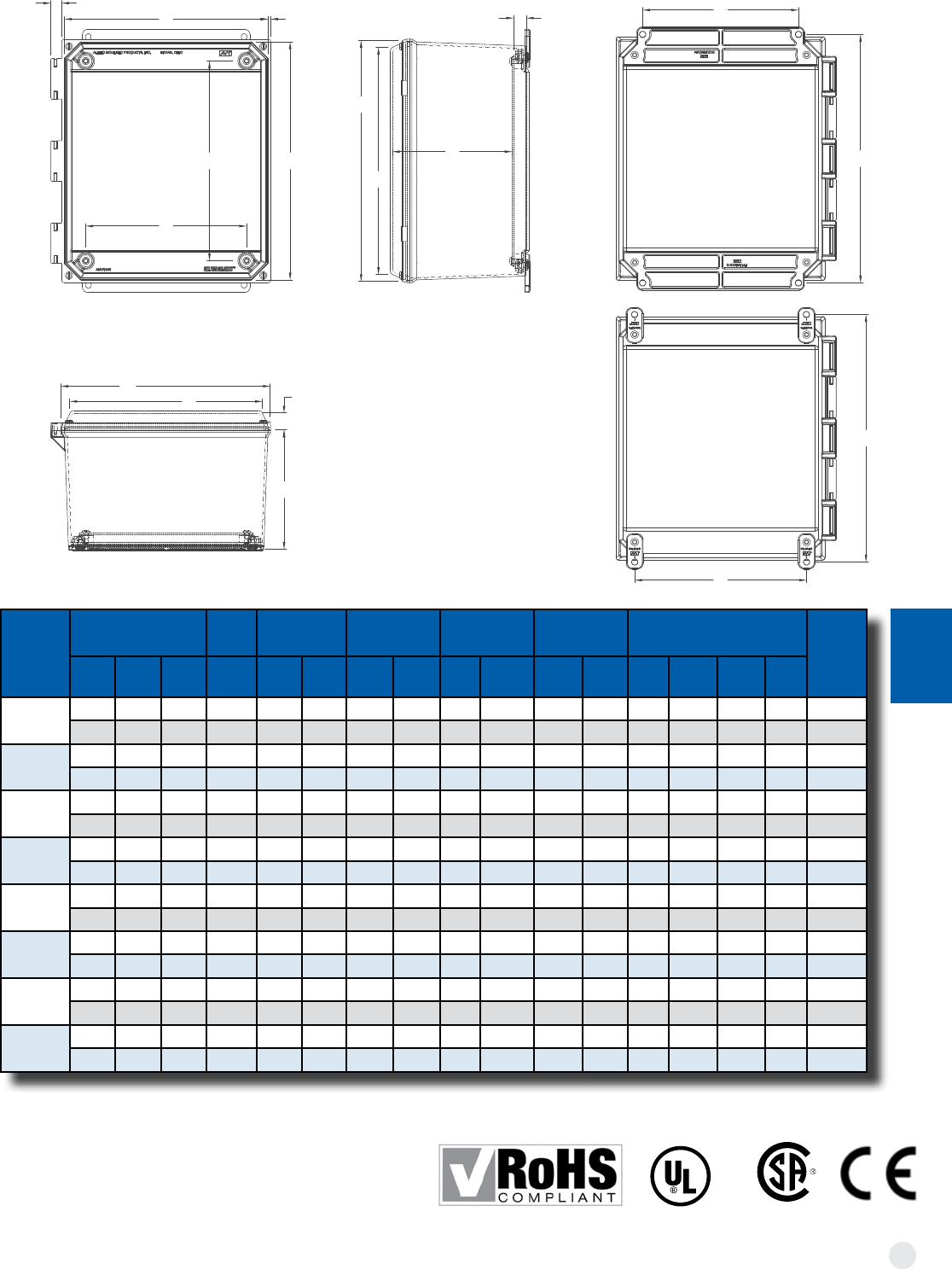

POLYLINE® Series Hinged Front Panels Installed:
To show the range of adjustability, kit & enclosure ordered separately
26

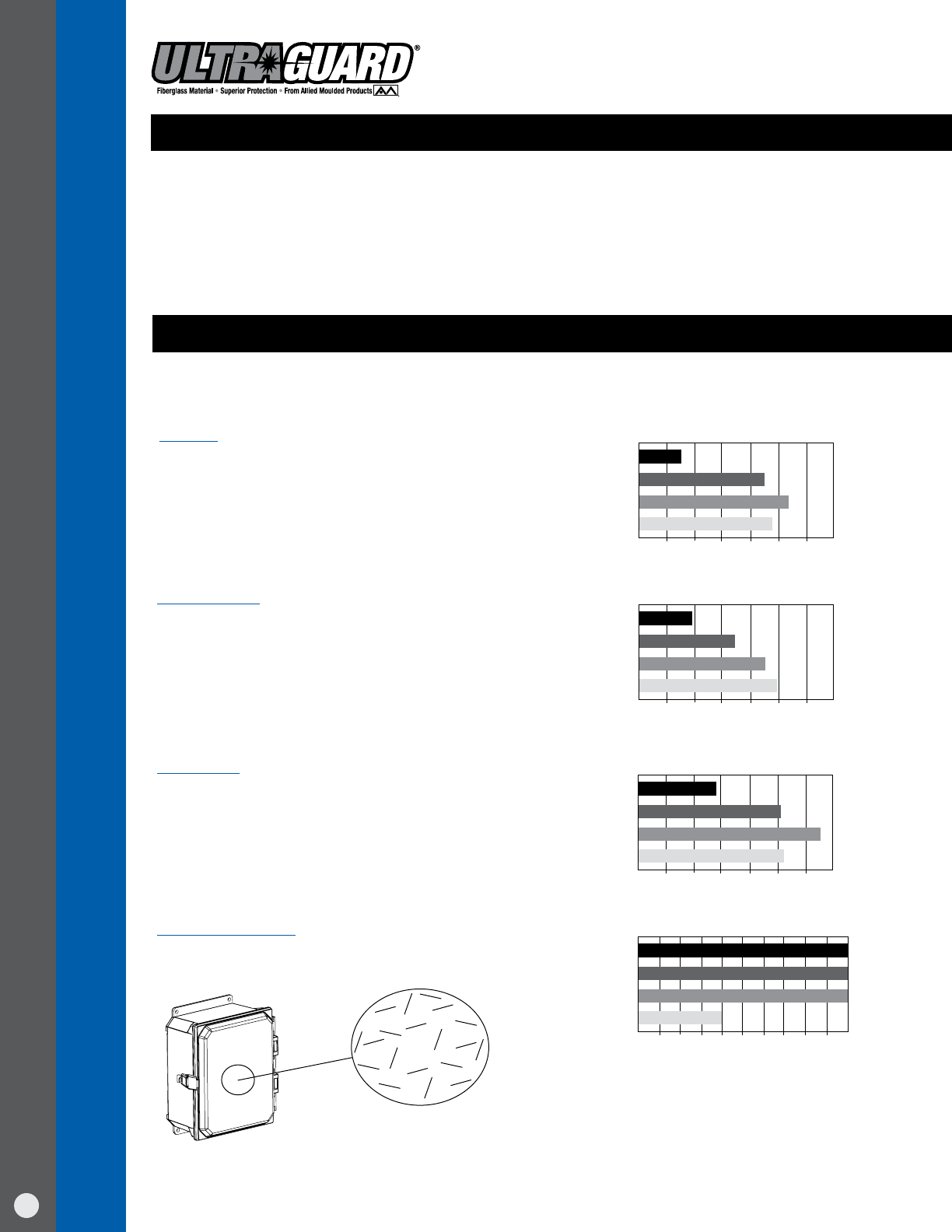

ULTRAGUARD® -- Allied Moulded’s new proprietary fiberglass reinforced polyester material formulation.
Allied’s Materials Research and Development laboratory successfully optimized ingredients to create a formulation
with the ability to resist the effects of UV degradation. The formulation was developed through the effective use of
UV absorbers that provide protection by physically absorbing light in specific ranges of wavelengths, HALS (Hindered
Amine Light Stabilizers), and antioxidants. Together, all three classes of stabilizers provide specific protection to
modes of failure associated with outdoor exposure.
ULTRAGUARD® VERSUS THE COMPETITION
Allied’s new ULTRAGUARD formulation out performed materials used by three leading fiberglass enclosure
manufacturers. The following four key areas were benchmarked, with ULTRAGUARD® easily coming out on top:
ULTRAGUARD® MATERIAL FORMULATION
Yellowing (Delta B-change from original)
65-70% improvement over leading competitive enclosure
manufacturers.
Change In Gloss (% change from original)
44-62% improvement over leading competitive enclosure
manufacturers.
Discoloration (Delta E-change from original)
44-57% improvement over leading competitive enclosure
manufacturers.
Fiberbloom resistance (change in aesthetics and texture)
60% improvement over one competitor.
Equivalent results compared to two remaining competitors.
Discoloration
A
B
C
0 2
13 4 5 6 7
Change In Gloss
A
B
C
0 20
10 30 40 50 60 70
Yellowing
Allied Moulded
ULTRAGUARD®
A
B
C
0 2
13 4 5 6 7
Fiberbloom Resistance
A
B
C
0 2
13 4 5 6 789 10
Allied Moulded
ULTRAGUARD®
Allied Moulded
ULTRAGUARD®
Allied Moulded
ULTRAGUARD®
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
27

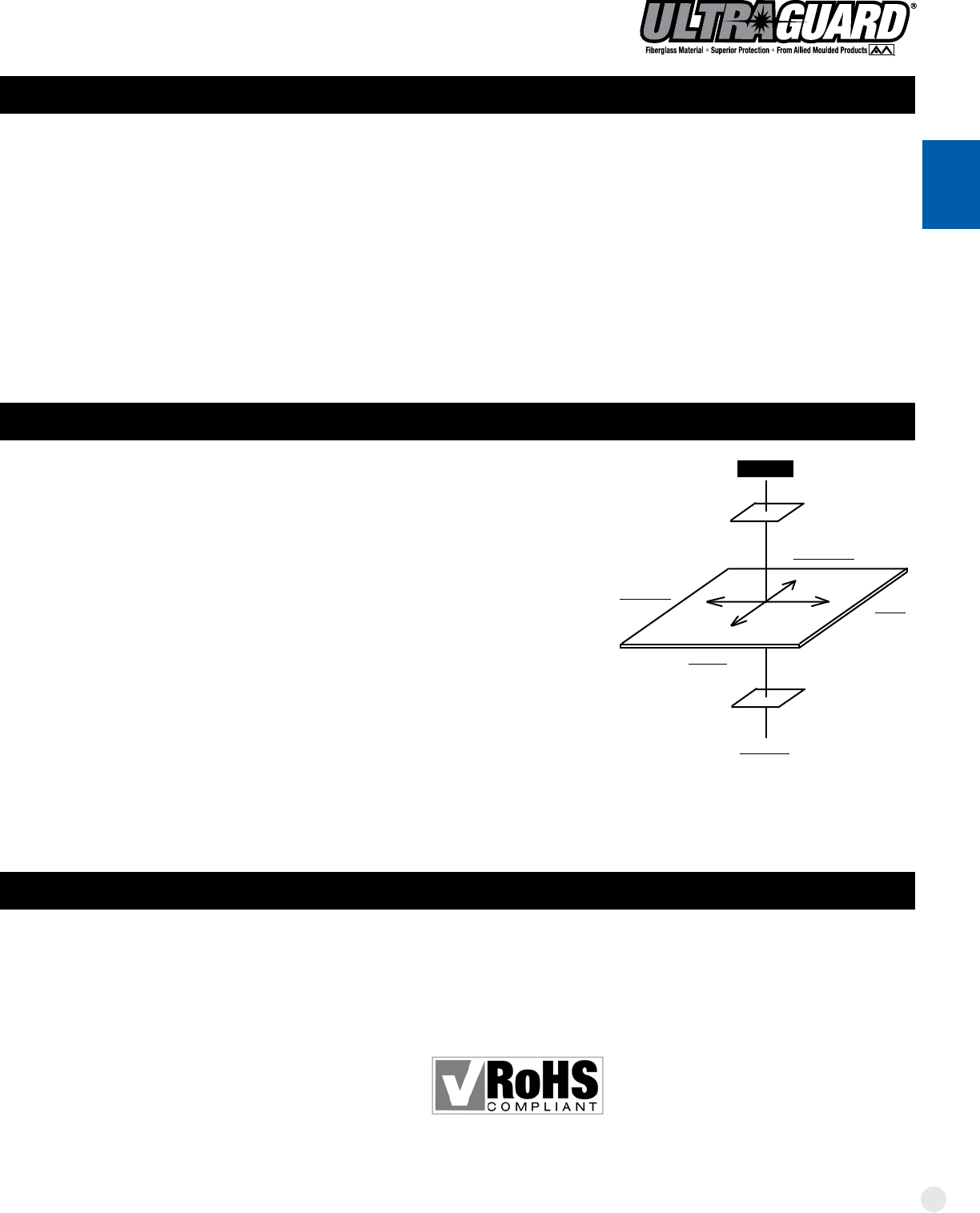

ULTRAGUARD®
ULTRAGUARD® MATERIAL FORMULATION
Allied Moulded’s new ULTRAGUARD formulation, while retaining its already robust structural integrity, now has an
enhanced surface finish with improved aesthetics. Based upon customer feedback, Allied Moulded recognized an
increased number of customer applications requiring outdoor capability and the related challenges to non-metallic
enclosure designs. This is why Allied Moulded chose to invest in continuous improvement of our material formulations.
Customer applications often require enclosures to be mounted on expensive systems where aesthetic appearance
is critical. Changes in enclosure color, texture, and gloss in these applications are not acceptable. Fiberbloom, for
example, not only is aesthetically unattractive, but can also be an issue if people come in physical contact with the
enclosure surface. Literally defined, fiberbloom is degradation of the polyester compound surface during long-term
outdoor exposure, resulting in the eventual exposure of glass fibers. Fiberbloom does not affect the structural integrity
or NEMA rating of the enclosures.
Allied Moulded’s Materials R&D lab team accepted the continuous
improvement project challenge of finding a synergistic combination
of compounds that would improve material resistance to color
change, gloss change, surface degradation, and exposure of
surface glass particles. They successfully met the challenge of
maintaining standard material characteristics: UL 94 5V flame
test standards and RoHS directive (Restriction of Hazardous
Substances). The new formulation also does not contain antimony
or halogens, which reduce the risk of smoke borne toxicity. Allied’s
research and development lab replaced subjective test results
found in normal field testing with objective test results that were
achieved with industry accepted lab equipment. Internal lab
tests and outsourced “Independent Lab” testing (Q-lab Weathers
Research Service) was conducted with a QUV accelerated
weathering tester. Gloss readings were recorded using a BYK
Micro Tri-Gloss machine and color data was recorded using a
Hunter Lab ColorQuest sphere instrument. All test results were
obtained and reported per ASTM & ISO standards.
While outdoor exposure appears to present problems for non-metal enclosures, there are many other reasons why
non-metal enclosures are strongly preferred and why they actually provide better solutions. Weight, corrosion, ease of
modification, resistance to dents and loss of seal integrity are all key issues that must be considered when choosing
between non-metal and steel enclosures. ULTRAGUARD FRP is the preferred alternative.
ULTRAGUARD® - HOW IT BENEFITS CUSTOMERS
ULTRAGUARD® - HOW THE RESULTS WERE PROVEN
ULTRAGUARD® VERSUS STEEL ENCLOSURES
L* a* b* Color Space - Instrumental color
readings utilize three numbers to describe a
color baseline.
WHITE
RED
GREEN
YELLOW
BLUE
BLACK
L*
+b*
-b*
+a*
-a*
28
CONSTRUCTION
ACCESSORIES
MODIFICATIONS

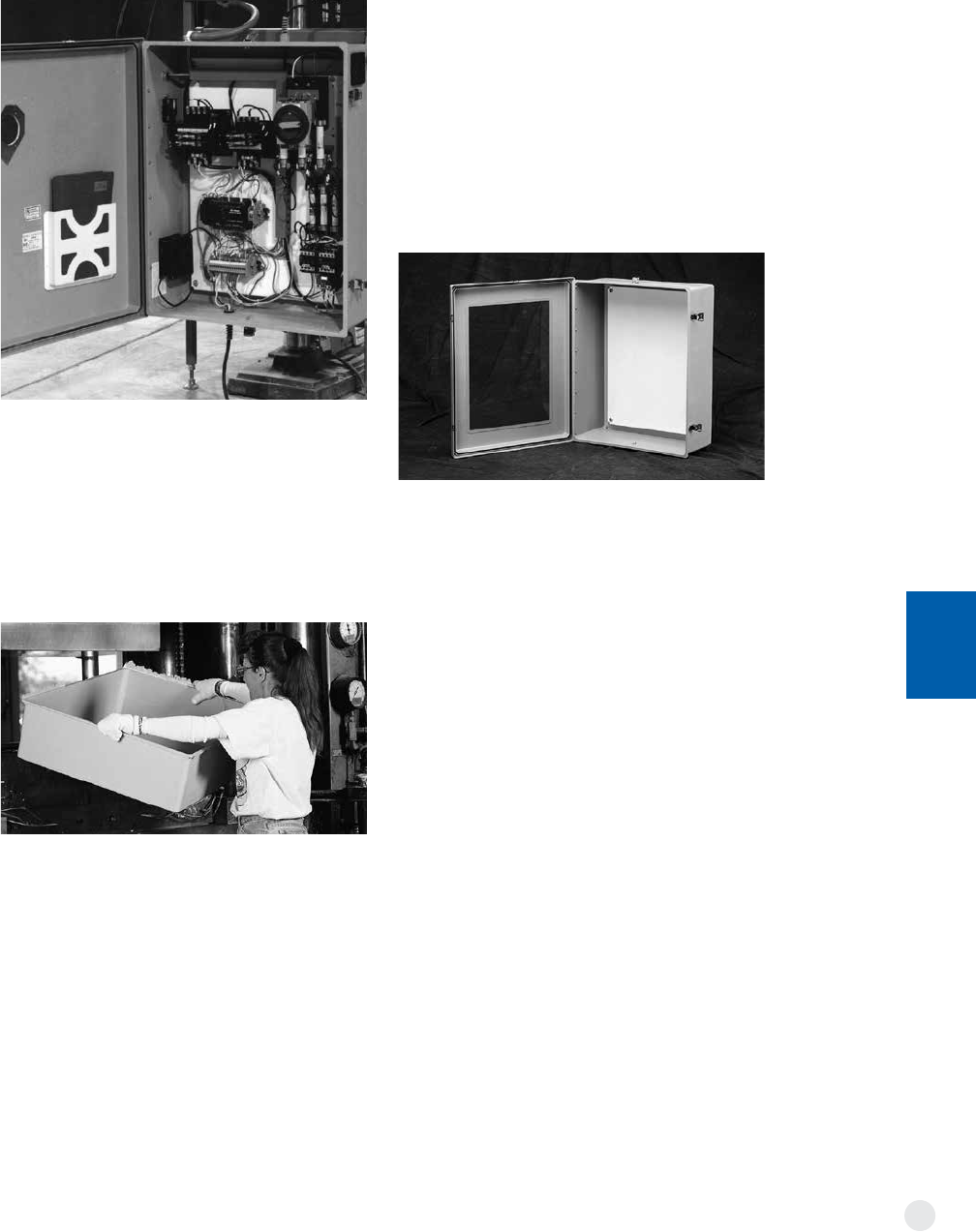

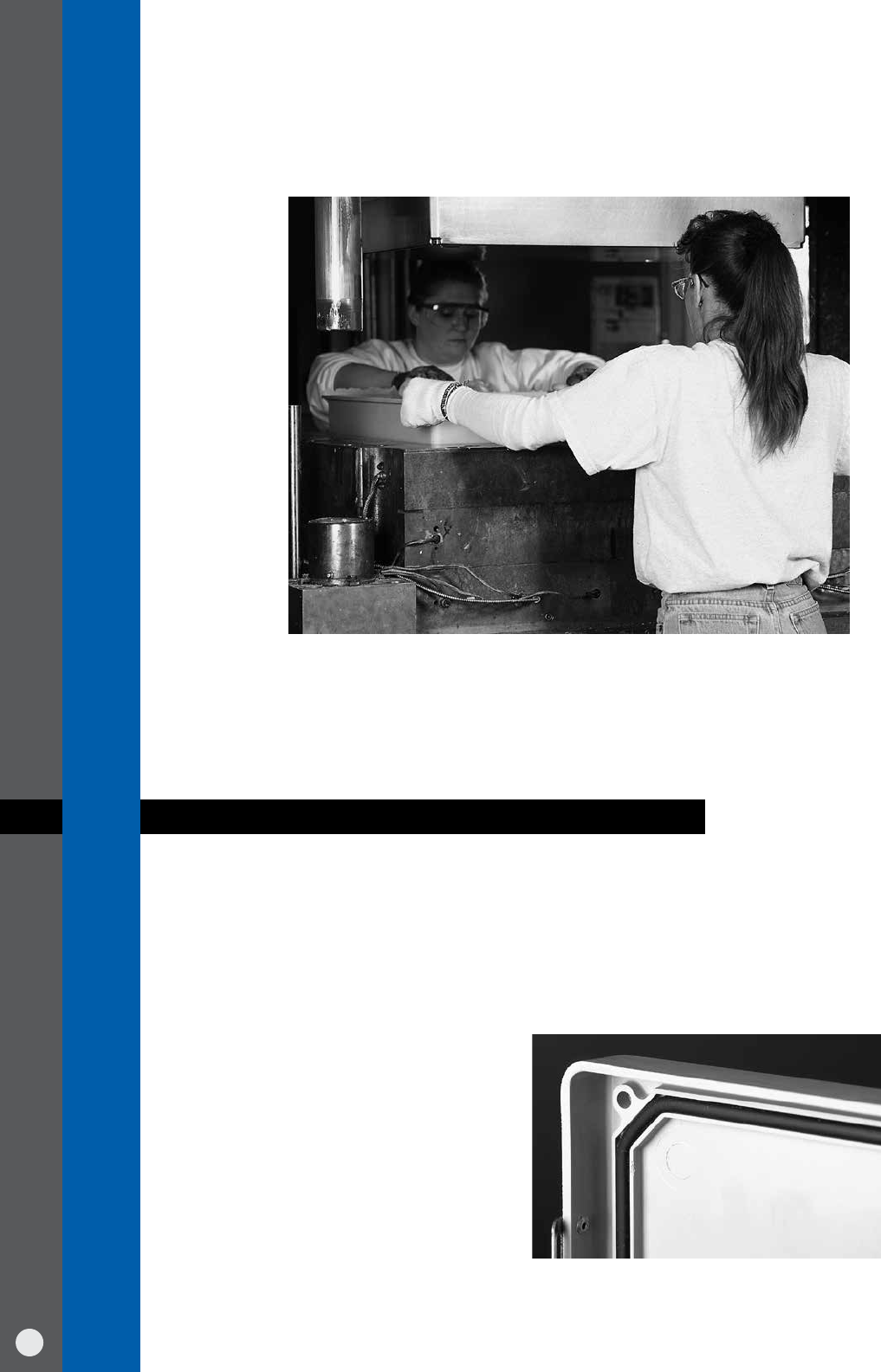

THE FIBERGLASS ADVANTAGE
Fiberglass—The Superior Enclosure Material
Allied Moulded fiberglass enclosures are fabricated from our own proprietary ULTRAGUARD®
formulation. This material provides superior performance and protective properties in a wide variety of
environments. Please make reference to our performance comparison chart of enclosure materials on
page 29.
Beyond Meeting Standards to
Exceeding Expectations
Of course, Allied Moulded fiberglass enclosures
are designed and regularly tested to meet
stringent UL® and CSA® specifications, but
we don’t stop there. Our full line of corrosion-
resistant, maintenance-free fiberglass enclosures
is designed to provide optimum protection in the
harshest environments, from water treatment
facilities and irrigation systems to oil refineries
and chemical processing plants.
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
29

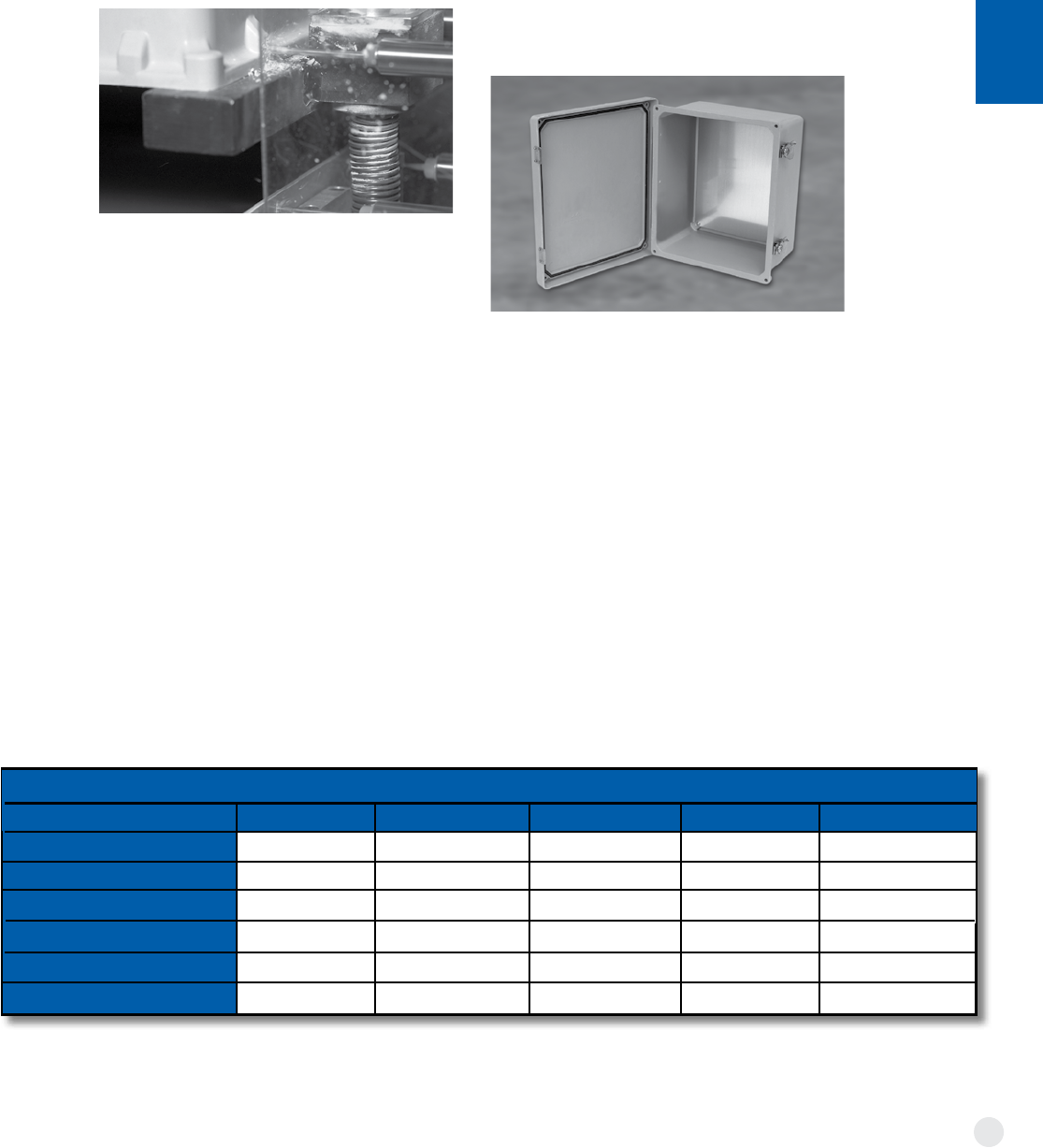

FIBERGLASS
Performance Comparison of Enclosure Materials
Fiberglass Stainless Steel Carbon Steel PVC Polycarbonate
Corrosive Resistance Excellent Excellent Poor Excellent Fair
Chemical Resistance Excellent Excellent Poor Very Good Good
Relative Cost Low High Low to Moderate Low Low to Moderate
Drilling, Punching & Cutting Very Easy Extremely Hard Hard Very Easy Easy
Dielectric Strength Electrical Insulator Electrical Conductor Electrical Conductor Electrical Insulator Electrical Insulator
Weight Light Heavy Heavy Light Light
Outperforming the Alternatives
Fiberglass reinforced polyester (FRP) offers
significant benefits over metal enclosures such
as carbon and stainless steel.
Compare them and you’ll discover that fiberglass
reinforced polyester enclosures are:
• Lighter and easier to handle
• Strong enough to hold up under
extreme conditions
• Equal to stainless steel in corrosion and
chemical resistance, and far better than
carbon steel
• Non-conductive—an electrical insulator
rather than electrical conductor
• Much easier to punch, drill or saw
• Less expensive to ship
Allied Moulded enclosures also outperform other
non-metallic alternatives in areas such as:
• Chemical resistance
• Protection against degradation due
to UV exposure
• Resistance to extreme temperatures
• Flame retardant properties
Take the time to compare the cost, quality
and performance of our fiberglass reinforced
polyester products and you’ll see why we say
Allied Moulded has the superior enclosure
solutions.
30

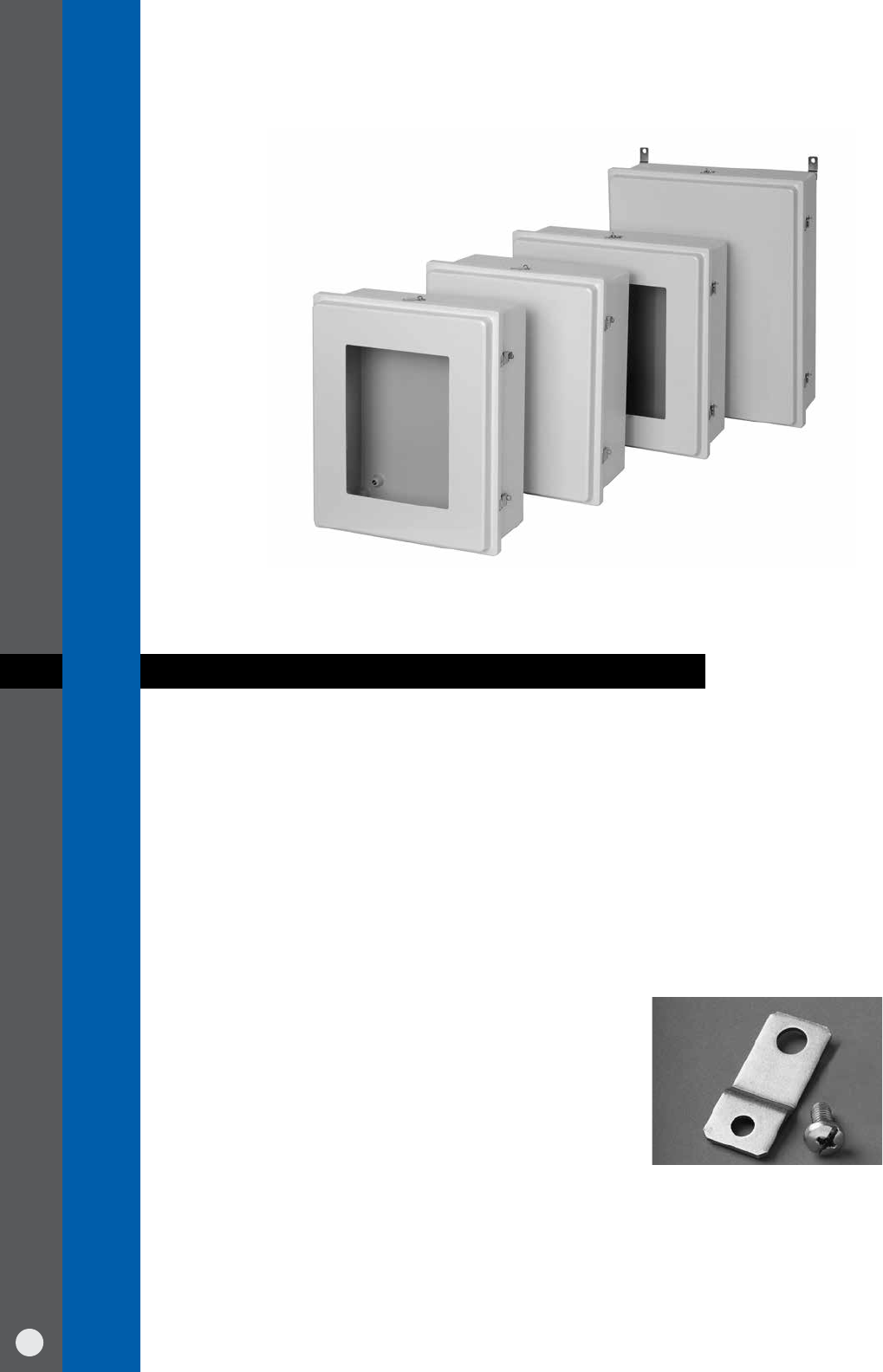

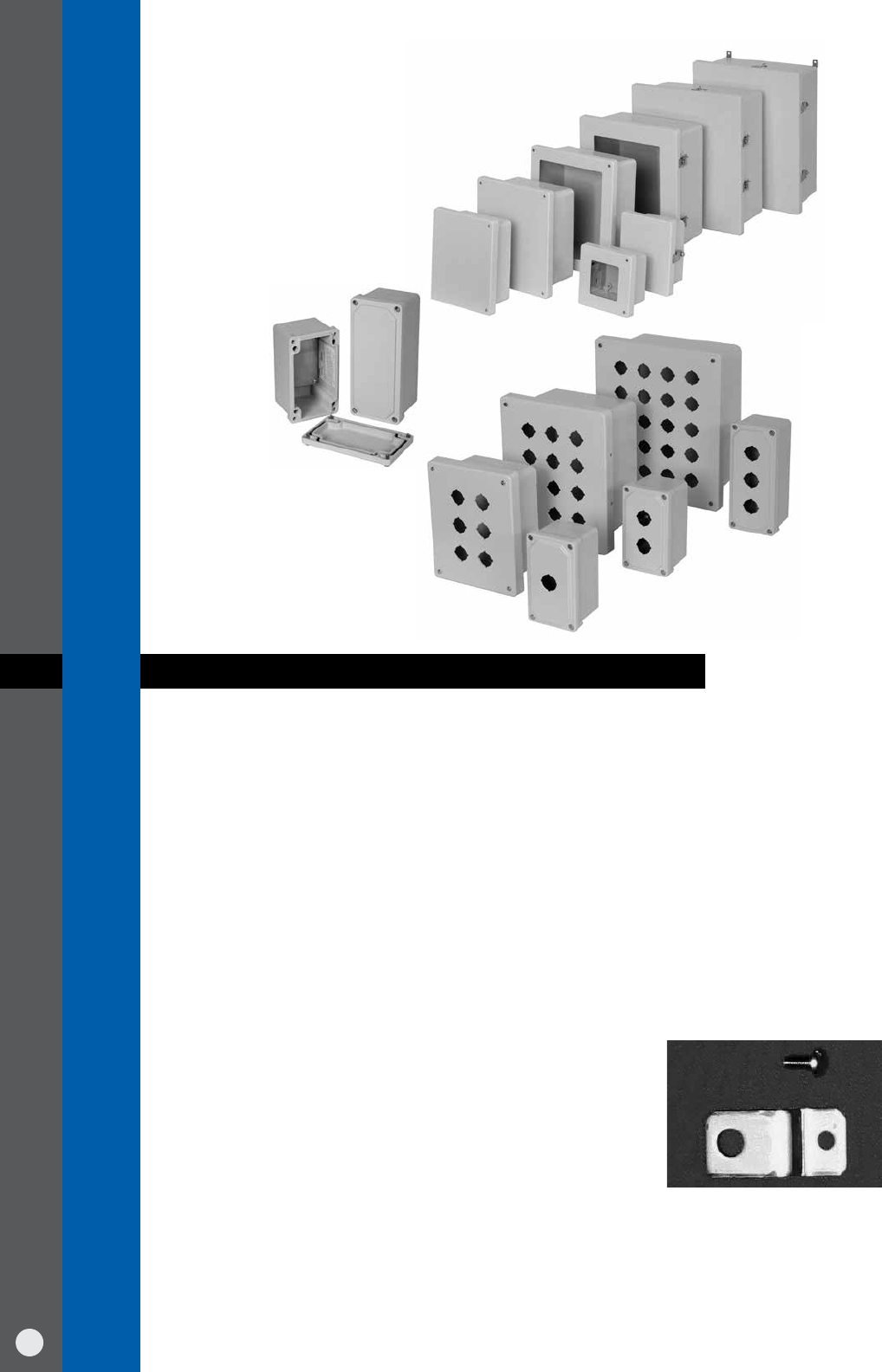

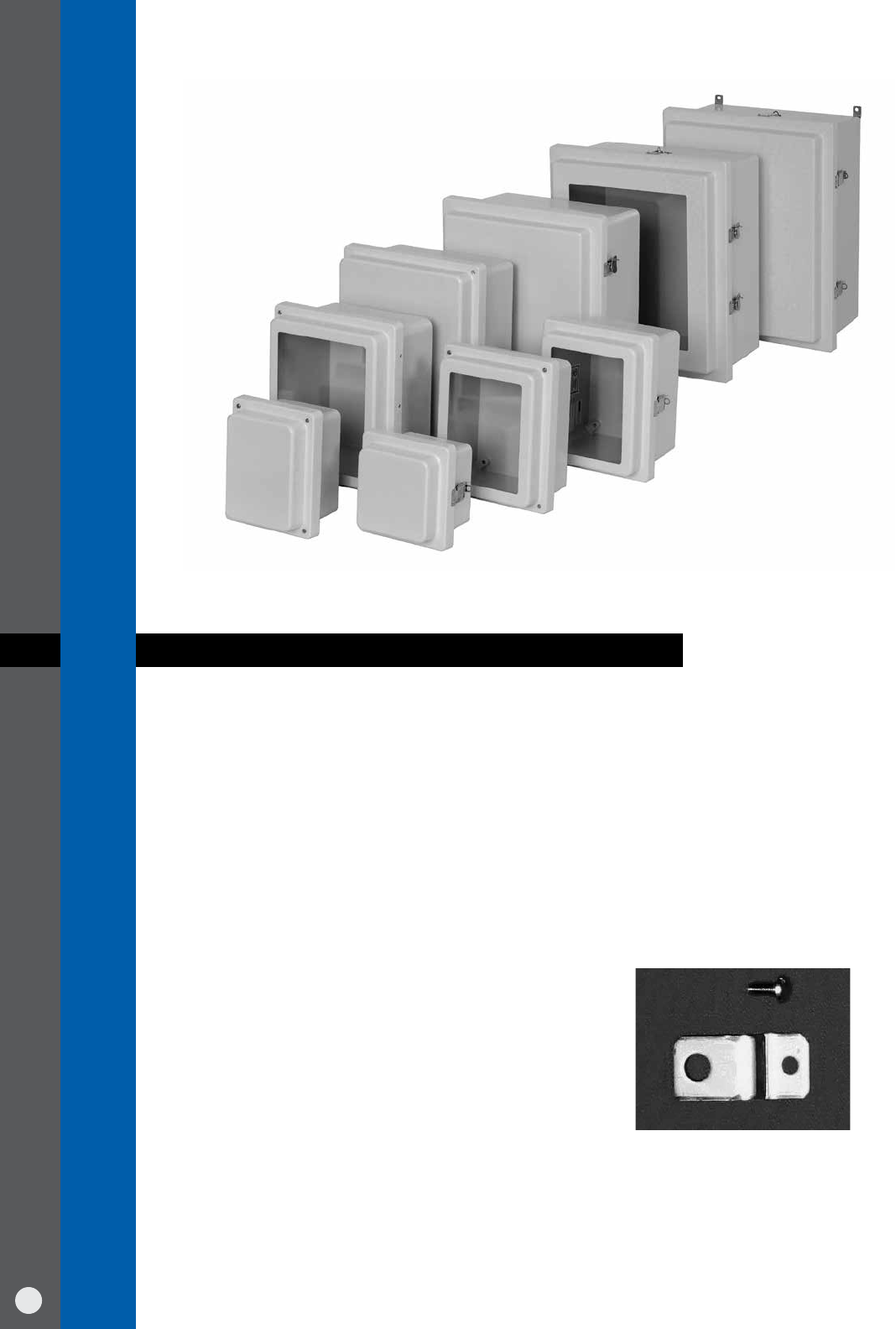

AM Series boxes are designed to insulate and protect controls and components in both
indoor and outdoor applications and are especially well suited for high temperature or
corrosive environments. They feature flat covers with a variety of latching options that
allow you to provide the level of security or ease of access needed for each application.
The AM Series offers a wide variety of sizes and configurations, including:
• Small junction boxes
• Inline pushbutton enclosures in one-, two-, or three-hole configurations and two hole sizes
• Standard JIC size enclosures
AM Series Features & Benefits
• Molded ULTRAGUARD® fiberglass reinforced polyester material construction for durability
• Continuous 300 series stainless steel hinge
• Closed-cell neoprene gasket encased in continuous channel
• Matching flat cover
• 300 series stainless steel hardware and mounting feet
• Mounting panel inserts for optional back panel
• UV stabilized for outdoor use
AM SERIES
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
31

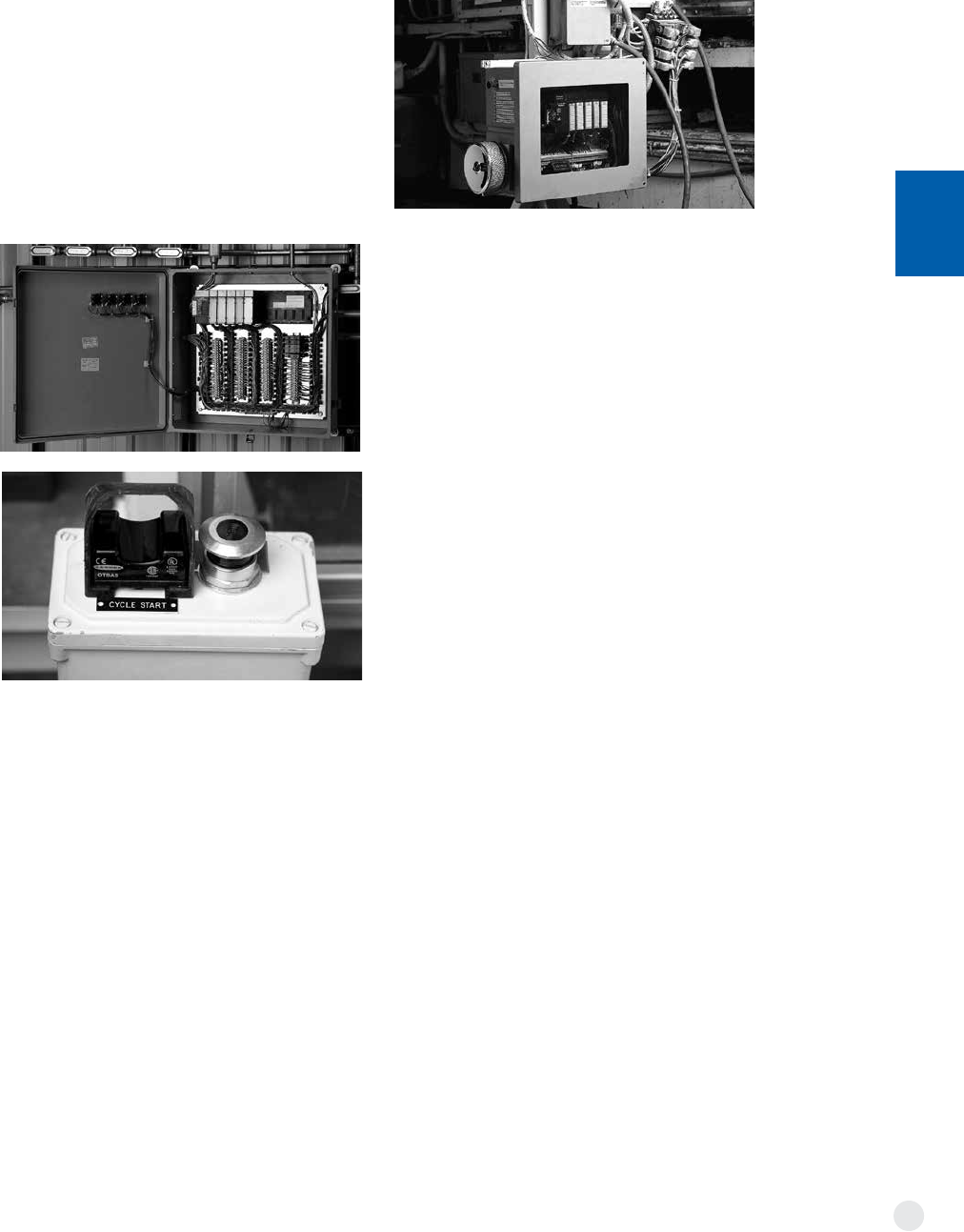

AM SERIES
Suitable Applications
• Electrical junctions
• Terminal wiring
• Electrical and electronic controls,
instruments, components
• Housing pushbuttons, switches and
other devices
• Other industrial control equipment
AM Series Specifications
• Non-corrosive
• Non-conductive
• Temperature-resistant
• Fire-resistant
• Rated NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• UL l iste d
• CSA cer tified
• Compliant with RoHS directive
Accessories
• Back panels available in painted
carbon steel, aluminum, fiberglass, or
galvannealed steel
• UV resistant polycarbonate viewing windows
• Thermal management products
Modifications
We are pleased to modify any of our standard
products to fit your needs. We have the low-
est volume requirements on custom work in the
industry, and quick turnaround time.
We can modify any of our AM Series
enclosures with:
• Custom holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
For complete details on factory
modifications including a modification
request form, see pages 136-138.
32

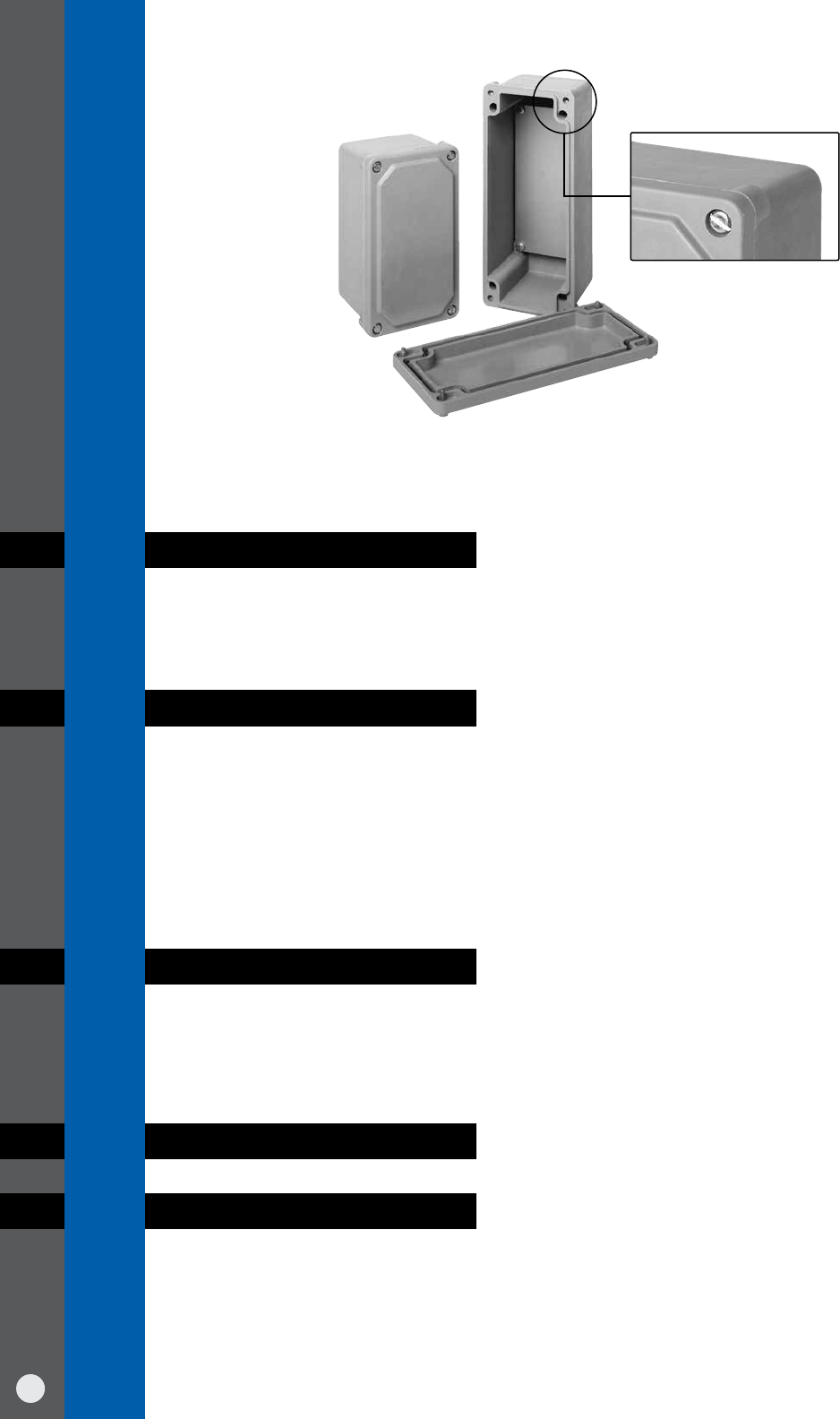

AM Series Small Junction Boxes:
Lift-Off Screw Cover
APPLICATION
• Designed for use as electrical junction boxes, terminal wiring boxes, instrumentation
housings and electrical control enclosures
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Rugged, molded ULTRAGUARD® fiberglass reinforced polyester material construction with reinforced corners
• Two standard sizes: 7” x 4” x 3” and 9” x 4” x 3”
• 300 series stainless steel captive cover screws and mounting feet
• “Tongue and groove” type closed-cell neoprene gasket
• Threaded inserts for optional back panel
• UV stabilized for outdoor use
• Optional back panels
• Custom holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
33
AM SERIES
Overall Inside
Part No. H W D A B C G J K L M P Q
AM743 6.74 3.93 3.88 6.01 3.26 3.63 3.08 6.13 3.31 4.88 2.94 3.56 2.63
171mm 100mm 99mm 153mm 83mm 92mm 78mm 156mm 84mm 124mm 75mm 90mm 67mm
AM743(SF*) 6.74 3.93 3.88 6.01 3.26 3.63 3.08 6.13 3.31 4.88 2.94 3.56 2.63
171mm 100mm 99mm 153mm 83mm 92mm 78mm 156mm 84mm 124mm 75mm 90mm 67mm
AM943 8.99 3.93 3.88 8.26 3.26 3.63 3.08 8.31 3.31 7.13 2.94 5.81 2.63
228mm 100mm 99mm 210mm 83mm 92mm 78mm 211mm 84mm 181mm 75mm 148mm 67mm
AM943(SF*) 8.99 3.93 3.88 8.26 3.26 3.63 3.08 8.31 3.31 7.13 2.94 5.81 2.63
228mm 100mm 99mm 210mm 83mm 92mm 78mm 211mm 84mm 181mm 75mm 148mm 67mm
All dimensions are in inches unless otherwise noted.
*Available with or without stainless steel mounting feet. Suffix “SF” denotes box without mounting feet.
All dimensions are in inches unless otherwise noted.
Thickness; “PA” (.100) “PF” (.125)
Optional Aluminum/Fiberglass Back Panel
Part No. Height Width
PA74, PF74 4.00 3.13
102mm 80mm
PA94, PF94 6.25 3.13
159mm 80mm
C
US
C
US
34

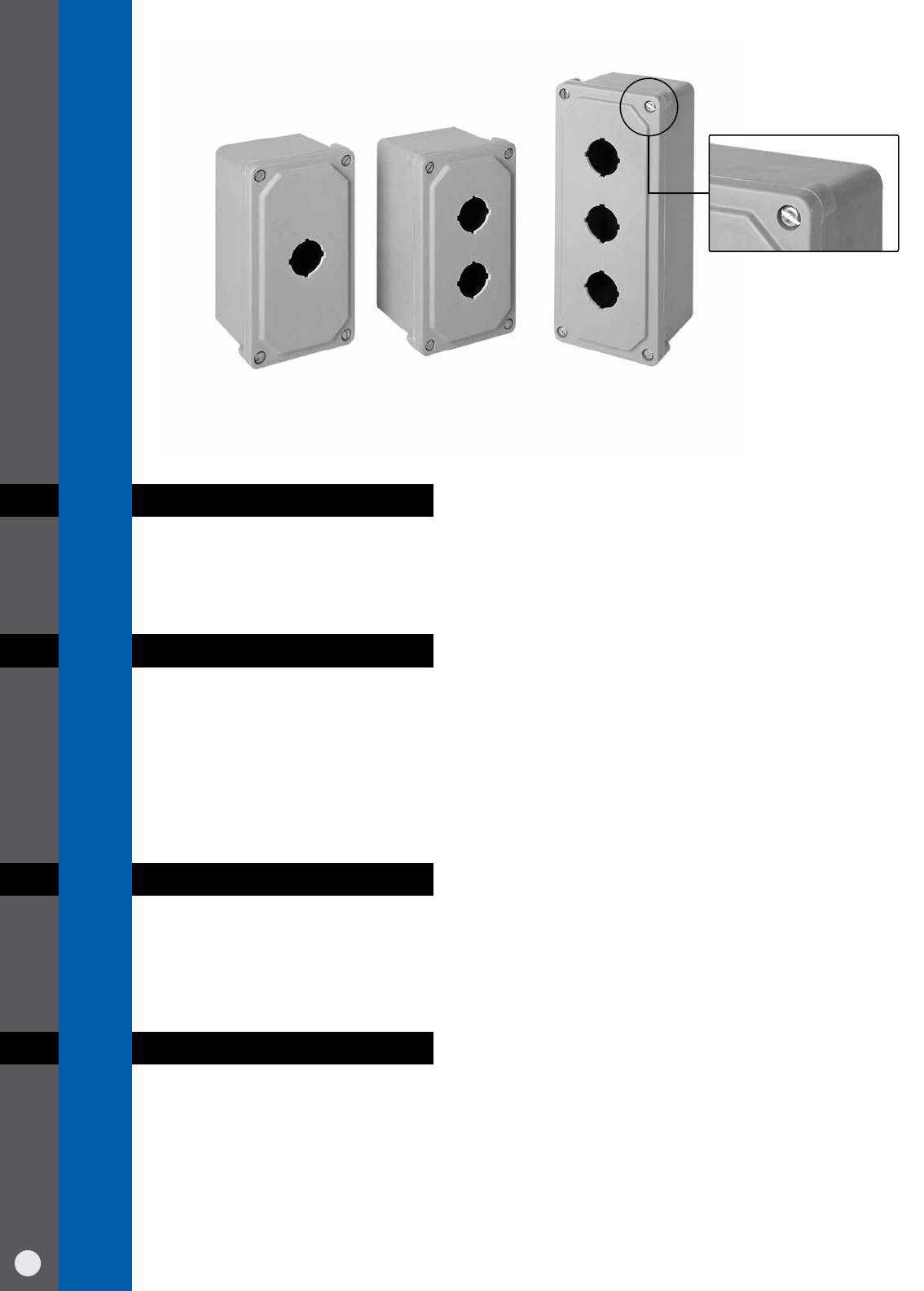

AM Series Pushbutton Enclosures:
Inline Lift-Off Screw Cover
APPLICATION
• Designed to insulate and house pushbuttons and switches in applications that require
a human-machine interface
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Rugged, molded ULTRAGUARD® fiberglass reinforced polyester material construction with reinforced corners
• Available with either 30.5mm or 22.5mm holes
• 300 series stainless steel captive cover screws
• “Tongue and groove” type closed-cell neoprene gasket
• Grounding strap included
• UV stabilized for outdoor use
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
35
AM SERIES
Overall Inside
Part No. H W D A B C J K L M Holes Size
AM1PB 6.74 3.93 3.88 6.01 3.26 3.63 6.13 3.31 4.88 2.94 1 1.20
171mm 100mm 99mm 153mm 83mm 92mm 156mm 84mm 124mm 75mm 1 30.5mm
AM1PB22 6.74 3.93 3.88 6.01 3.26 3.63 6.13 3.31 4.88 2.94 1 0.87
171mm 100mm 99mm 153mm 83mm 92mm 156mm 84mm 124mm 75mm 1 22.5mm
AM2PB 6.74 3.93 3.88 6.01 3.26 3.63 6.13 3.31 4.88 2.94 2 1.20
171mm 100mm 99mm 153mm 83mm 92mm 156mm 84mm 124mm 75mm 2 30.5mm
AM2PB22 6.74 3.93 3.88 6.01 3.26 3.63 6.13 3.31 4.88 2.94 2 0.87
171mm 100mm 99mm 153mm 83mm 92mm 156mm 84mm 124mm 75mm 2 22.5mm
AM3PB 8.99 3.93 3.88 8.26 3.26 3.63 8.31 3.31 7.13 2.94 3 1.20
228mm 100mm 99mm 210mm 83mm 92mm 211mm 84mm 181mm 75mm 3 30.5mm
AM3PB22 8.99 3.93 3.88 8.26 3.26 3.63 8.31 3.31 7.13 2.94 3 0.87
228mm 100mm 99mm 210mm 83mm 92mm 211mm 84mm 181mm 75mm 3 22.5mm
All dimensions are in inches unless otherwise noted.
Note: Mounting feet are not included as standard.
C
US
C
US
36

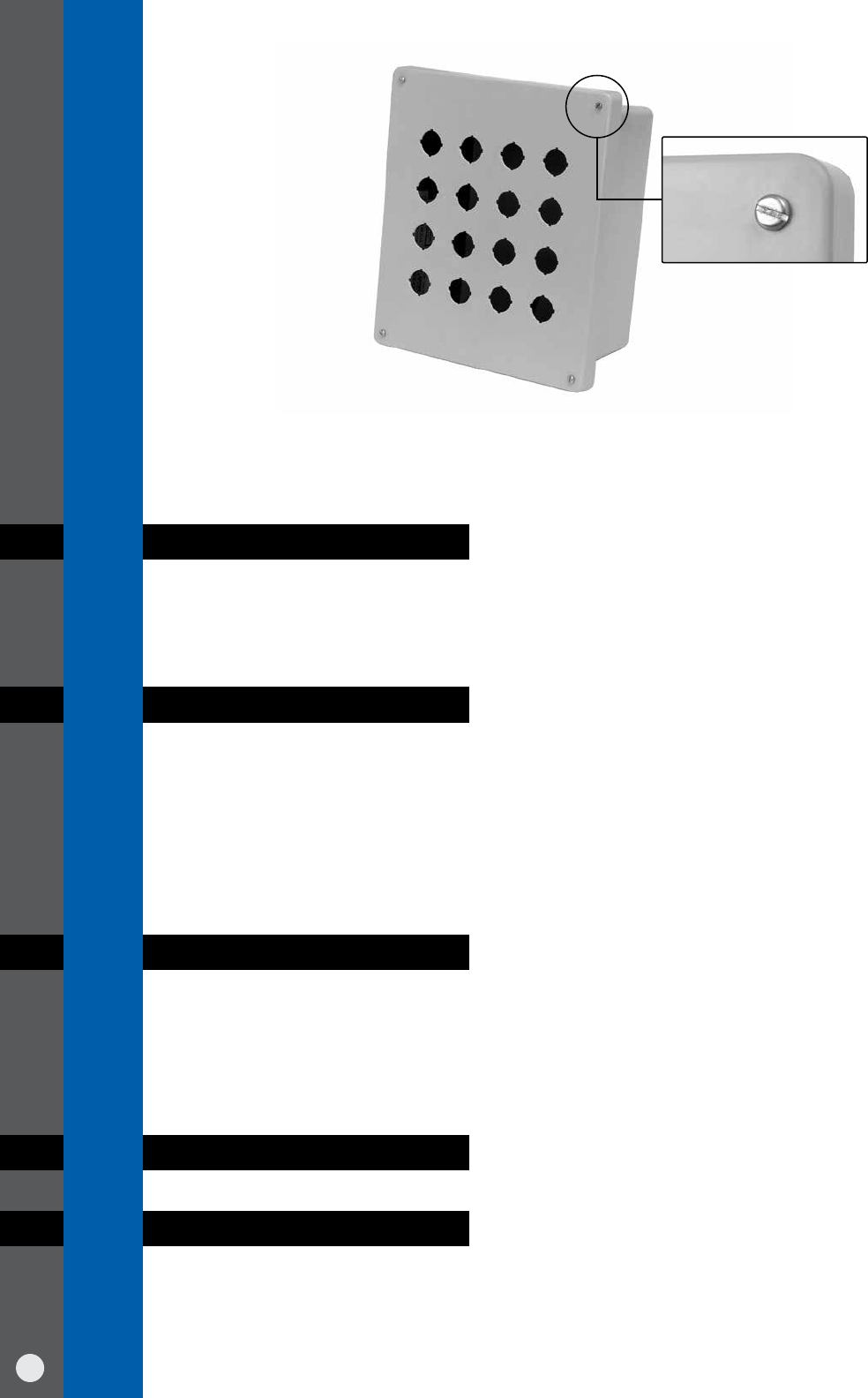

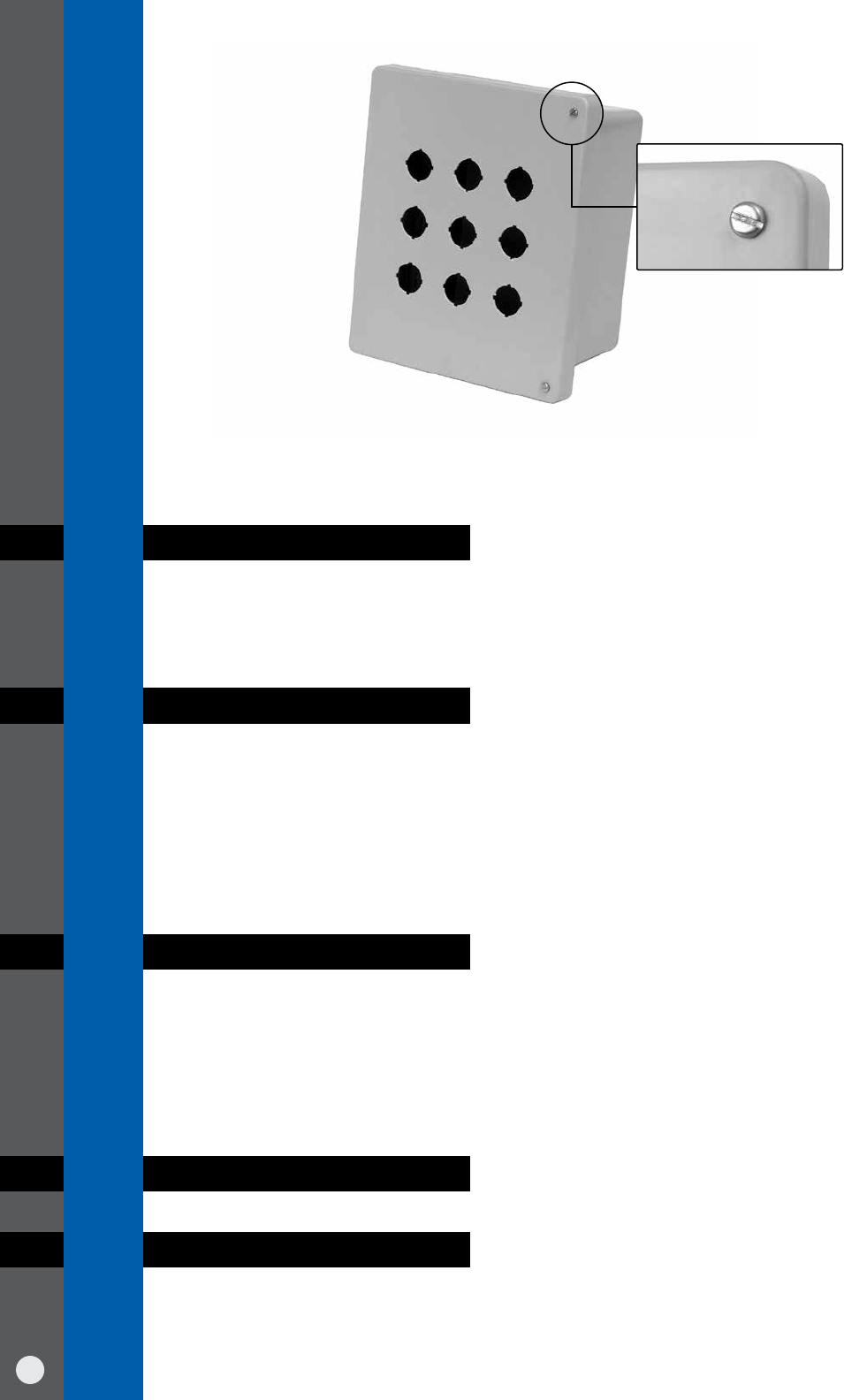

AM Series Pushbutton Enclosures:
Multi-Hole Lift-Off Screw Cover
• Designed to insulate and house pushbuttons and switches in applications that require
a human-machine interface
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Constructed to requirements of CSA Enc. 5 based on standard component cutout
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction
• 300 series stainless steel captive cover screws
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
• Optional 22.5mm holes (add “22” suffix to part number)
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
37

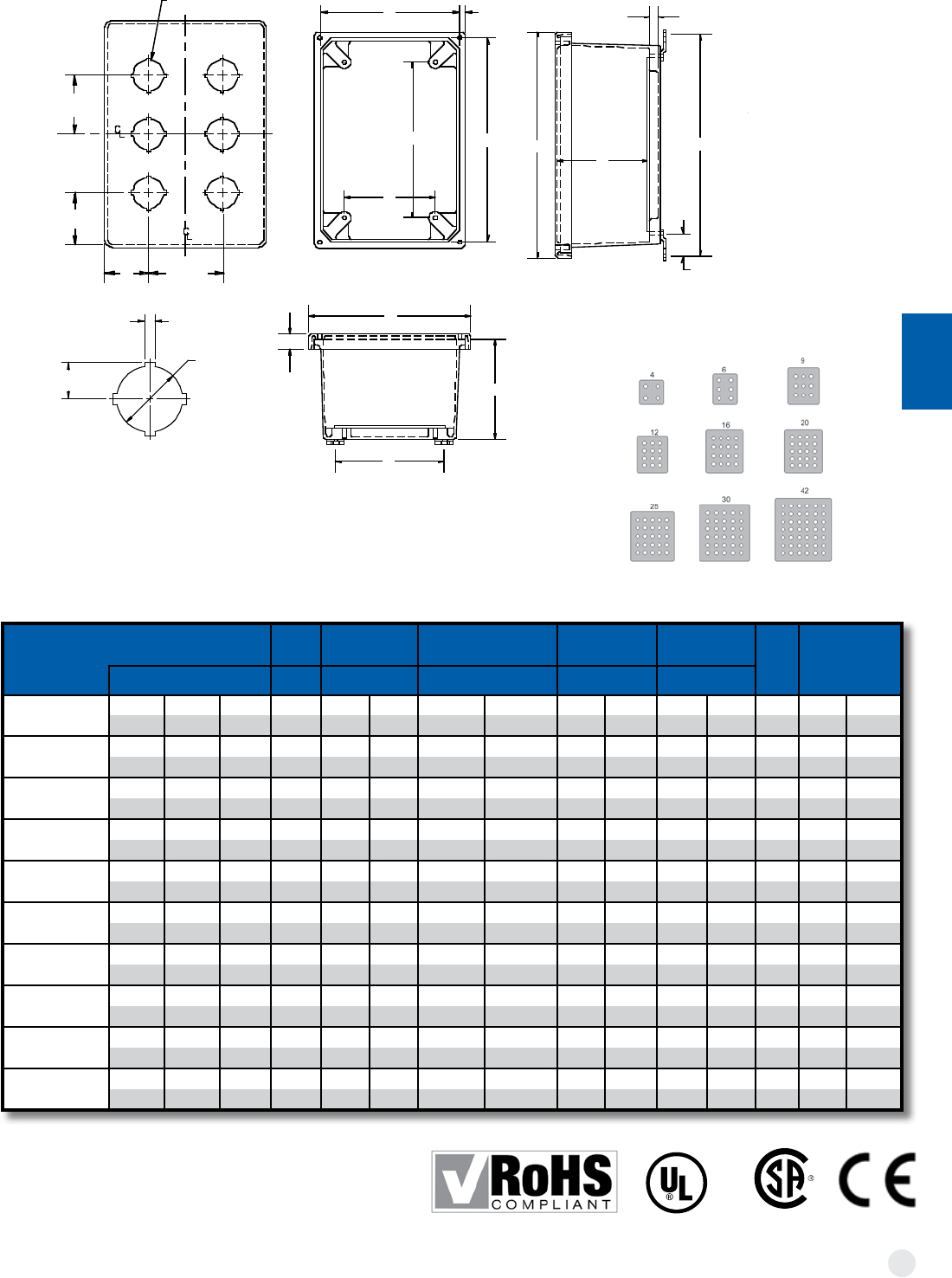

AM SERIES
Nominal 1/8" wall thickness
0.47 0.44
1.15
TYP.
Note: Cover removed for clarity
B
SAU
Z
W
1.20 DIA.
2.250
TYP.
Y
2.250
TYP.
X
0.19”
0.67”
1.20” ø
30.5mm HOLE DETAIL
STANDARD 4-WAY
(Optional 22.5mm holes available)
H
C
1.00
F
L
Part No. A B C F S Z Height Weight H L U W X Y
AM664P4 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69 4 2.72 2.72
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm 69mm 69mm
AM864P6 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71 6 2.72 2.55
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm 69mm 65mm
AM1084P9 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 9 2.68 3.62
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 68mm 92mm
AM1086P9 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 9 2.68 3.62
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 68mm 92mm
AM1086P12 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 12 2.68 2.49
258mm 210mm 156mm 144mm 210mm 159mm 273mm 226mm 178mm 284mm 298mm 250mm 68mm 63mm
AM1206P16 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 16 2.55 3.49
308mm 261mm 156mm 144mm 260mm 210mm 324mm 276mm 229mm 335mm 349mm 301mm 65mm 89mm
AM1206P20 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 20 2.55 2.37
308mm 261mm 156mm 144mm 260mm 210mm 375mm 327mm 229mm 335mm 349mm 301mm 65mm 60mm
AM1426P25 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85 25 2.43 3.37
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm 62mm 86mm
AM1648P30 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99 30 3.50 3.31
413mm 366mm 207mm 195mm 362mm 311mm 375mm 375mm 330mm 437mm 454mm 406mm 89mm 84mm
AM1868P42 18.4 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00 42 3.38 3.25
467mm 417mm 207mm 195mm 413mm 362mm 468mm 367mm 380mm 490mm 508mm 457mm 86mm 83mm
All dimensions are in inches unless otherwise noted.
Usable Panel Boss Foot Mount No. of
Box Size Depth Centers Panel Sizes Centers Cover Size Holes
Note: To order product with 22.5mm holes, please add “22” suffix to part
number (e.g., AM664P422) and contact customer service for lead times.
Pushbutton Arrangements
C
US
C
US
38
AM Series Pushbutton Enclosures:
Multi-Hole Hinged Screw Cover
• Designed to insulate and house pushbuttons and switches in applications that require
a human-machine interface
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Constructed to requirements of CSA Enc. 5 based on standard component cutout
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction
• 300 series stainless steel captive cover screws
• Continuous stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
• Optional 22.5mm holes (add “22” suffix to part number)
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
39
AM SERIES
All dimensions are in inches unless otherwise noted.
1.20 DIA.
2.250
TYP.
Y
X
2.250
TYP.
0.19”
1.20” Ø
0.67”
Nominal 1/8" wall thickness
30.5mm HOLE DETAIL
STANDARD 4-WAY
(Optional 22.5mm holes available)
1.00
W
C
Note: Cover removed for clarity
B0.47 0.44
A
S
H
Z
F
L
1.15
TYP.
Note: To order product with 22.5mm holes, please add “22” suffix to part
number (e.g., AM664HP422) and contact customer service for lead times.
Pushbutton Arrangements
Usable Panel Boss Foot Mount No. of
Box Size Depth Centers Panel Sizes Centers Cover Size Holes
Part No. A B C F S Z Height Weight H L U W X Y
AM664HP4 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69 4 2.72 2.72
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm 69mm 69mm
AM864HP6 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71 6 2.72 2.55
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm 69mm 65mm
AM1084HP9 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 9 2.68 3.62
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 68mm 92mm
AM1086HP9 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 9 2.68 3.62
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 68mm 92mm
AM1086HP12 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 12 2.68 2.49
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 68mm 63mm
AM1206HP16 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 16 2.55 3.49
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm 65mm 89mm
AM1206HP20 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 20 2.55 2.37
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm 65mm 60mm
AM1426HP25 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85 25 2.43 3.37
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm 62mm 86mm
AM1648HP30 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99 30 3.50 3.31
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm 89mm 84mm
AM1868HP42 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00 42 3.38 3.25
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm 86mm 83mm
C
US
C
US
40

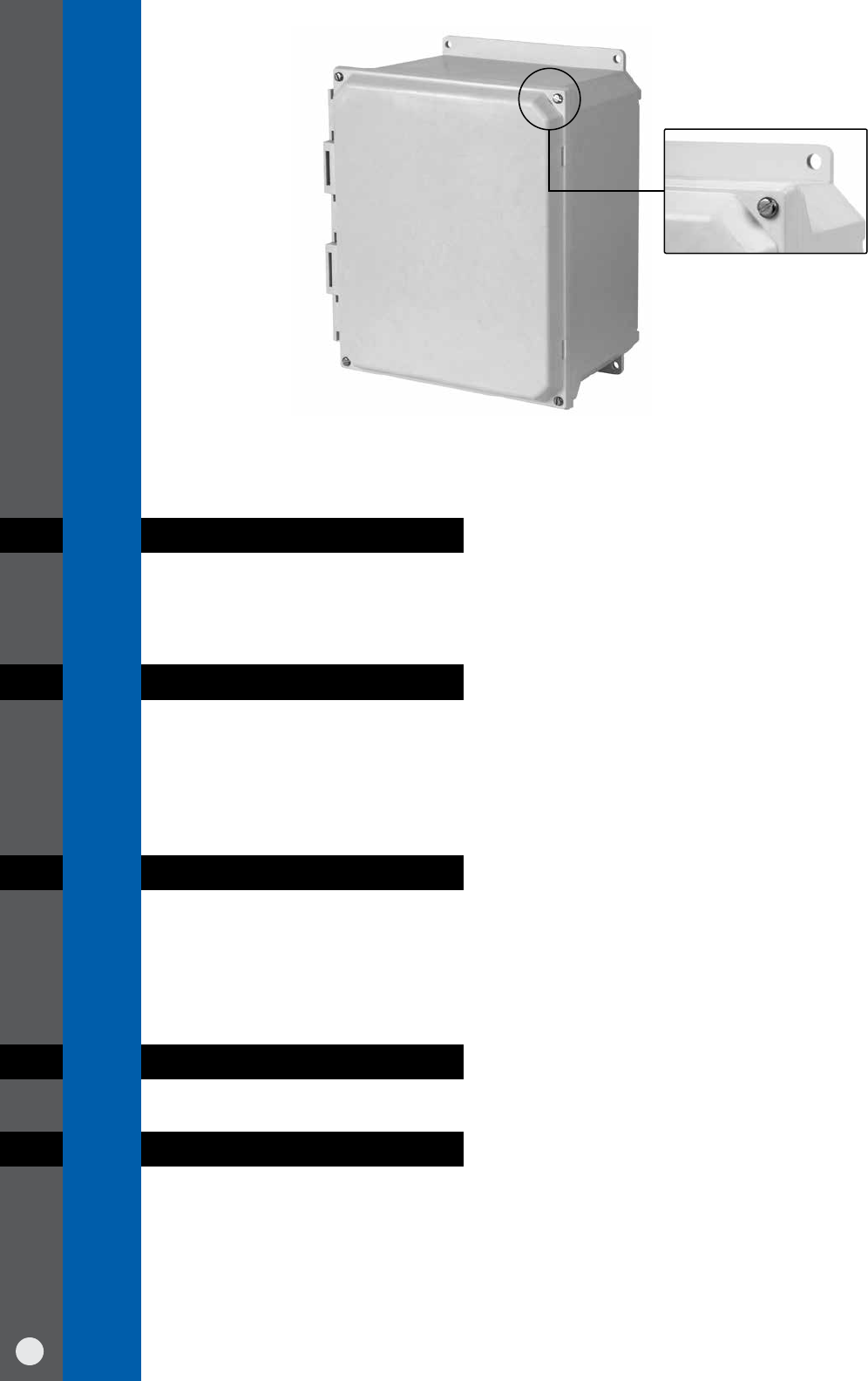

AM Series JIC Size Junction Boxes:
Lift-Off Screw Cover
• Designed to insulate and protect controls and components in both indoor
and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• For use with industrial control equipment in ordinary locations
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, (6P for sizes 6” x 6” up through 14” x 12”) 12, and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, (6P for sizes 6” x 6” up through 14” x 12”) 12 and 13
• Complies with
−NEMA Types 1, 2, 3, 3R, 4, 4X, (6P for sizes 6” x 6” up through 14” x 12”) 12 and 13
−IEC 60529 Type IP66 and units rated 6P are IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
−RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
• 300 series stainless steel captive cover screws
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional thermal management products (See pages 131-132)
• Custom holes and cutouts
• Custom size polycarbonate viewing windows
• Hinge installed on short side
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
41
AM SERIES
B
A
0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
Part No. A B C F S Z Height Width H L U W
AM664 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm
AM864 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm
AM1084 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1086 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1206 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm
AM1426 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm
AM1648 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm
AM1868 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm
AM2068 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm
All dimensions are in inches unless otherwise noted.
Sizes 6” x 6” x 4” up through 14” x 12” x 6” are rated 6P (IP68).
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
42
AM Series JIC Size Junction Boxes:
Lift-Off Screw Cover With Window
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
For use with industrial control equipment in ordinary locations
•
Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
•
UV resistant polycarbonate viewing window
•
300 series stainless steel captive cover screws
•
Gasket made of closed cell neoprene cord encased in a continuous channel
•
300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
•
#10-32 threaded inserts are installed for optional back panel
•
JI C sizing
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional thermal management products (See pages 131-132)
•
Custom holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
Hinge installed on short side
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
43
AM SERIES
Part No. A B C F S Z Height Width H L U W
AM664W 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm 108mm X 108mm
AM864W 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm 159mm X 108mm
AM1084W 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1086W 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1206W 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm 264mm X 216mm
AM1426W 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm 314mm X 267mm
AM1648W 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm 330mm X 279mm
AM1868W 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm 356mm X 305mm
AM2068W 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm 381mm X 279mm
All dimensions are in inches unless otherwise noted.
Window
Dimension
(height x width)
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
B
A
0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
C
US
C
US
44
AM Series JIC Size Junction Boxes:
Hinged Screw Cover
• Designed to insulate and house electrical and electronic controls, instruments or components for indoor and
outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
• 300 series stainless steel captive cover screws
• Continuous 300 series stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional thermal management products (See pages 131-132)
• Custom holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
45
AM SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
Part No. A B C F S Z Height Width H L U W
AM664H 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm
AM864H 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm
AM1084H 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1086H 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1206H 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm
AM1426H 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm
AM1648H 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm
AM1868H 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm
AM2068H 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
46

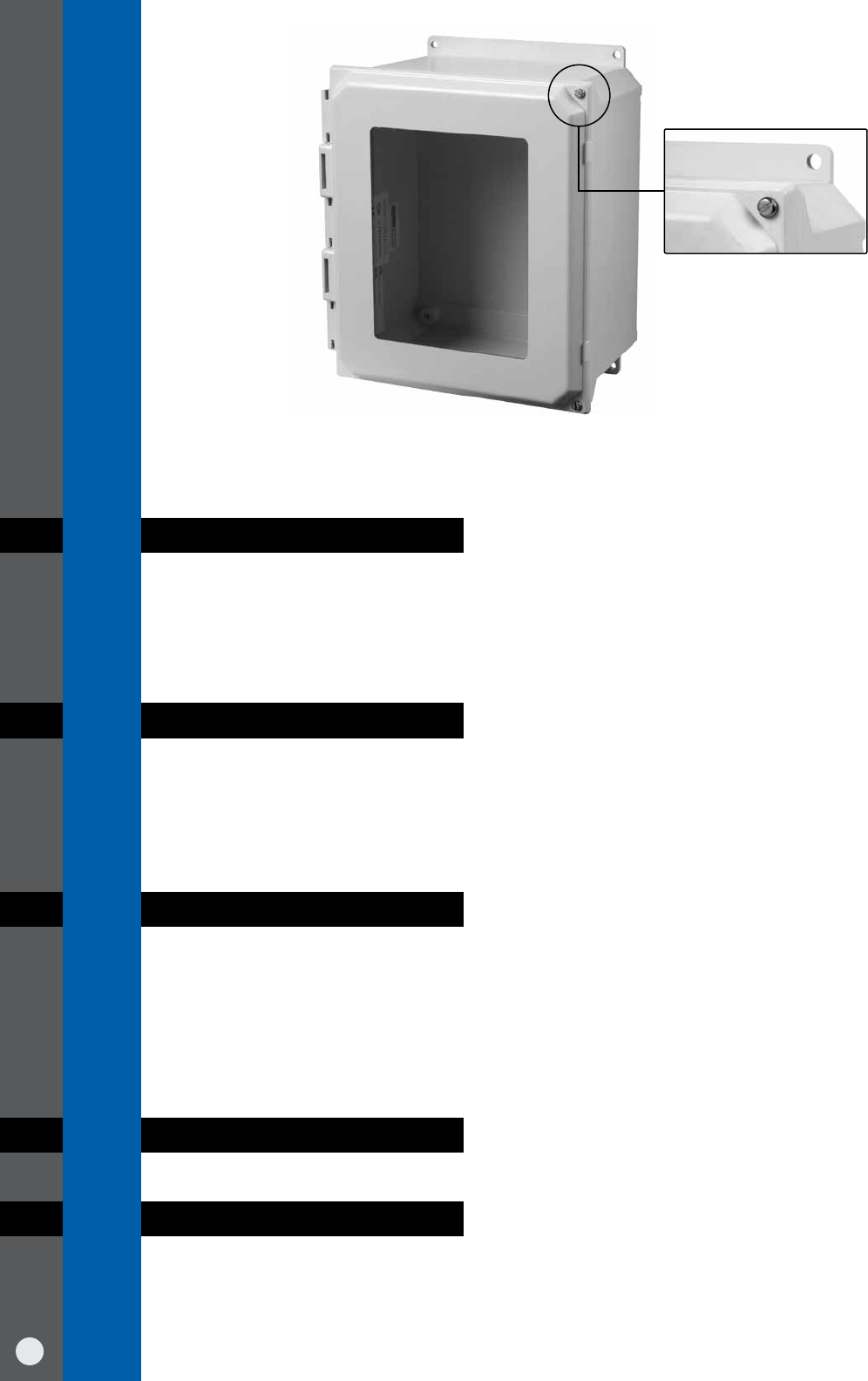

AM Series JIC Size Junction Boxes:
Hinged Screw Cover With Window
• Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel captive cover screws
• Continuous 300 series stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional thermal management products (See pages 131-132)
• Custom holes and cutouts
• Hinge installed on short side
• Molded-in color matches
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
• EMI/RFI shielding
• Factory-supplied silk screening
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
47
AM SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
Part No. A B C F S Z Height Width H L U W
AM664HW 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm 108mm X 108mm
AM864HW 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm 159mm X 108mm
AM1084HW 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1086HW 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1206HW 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm 264mm X 216mm
AM1426HW 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm 314mm X 267mm
AM1648HW 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm 330mm X 279mm
AM1868HW 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm 356mm X 305mm
AM2068HW 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm 381mm X 279mm
Window
Dimension
(height x width)
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
48
AM Series JIC Size Junction Boxes:
Snap Latch Hinged Cover
• Designed to insulate and house electrical and electronic controls, instruments or components for indoor and
outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
• 300 series stainless steel snap latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional thermal management products (See pages 131-132)
• Custom holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
49
AM SERIES
B
A
0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removedfor clarity
Nominal 1/8" (3mm) wallthickness
F
DD
1.19 TYP
(30mm)
1.50 TYP
(38mm)
C
L
LATCHLOCATIONS
For useon
6x6x4
8x6x4
10x8x4
For useon
12x10x6 D=8.00 (203mm)
14x12x6 D=8.54 (217mm)
16x14x8 D=8.54 (217mm)
For useon
18x16x8 D=6.50 (165mm)
20x16x8 D=10.52 (267mm)
C
L
10x8x6
C
L
All dimensions are in inches unless otherwise noted.
Part No. A B C F S Z Height Width H L U W
AM664L 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm
AM864L 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm
AM1084L 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1086L 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1206L 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm
AM1426L 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm
AM1648L 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm
AM1868L 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm
AM2068L 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
50

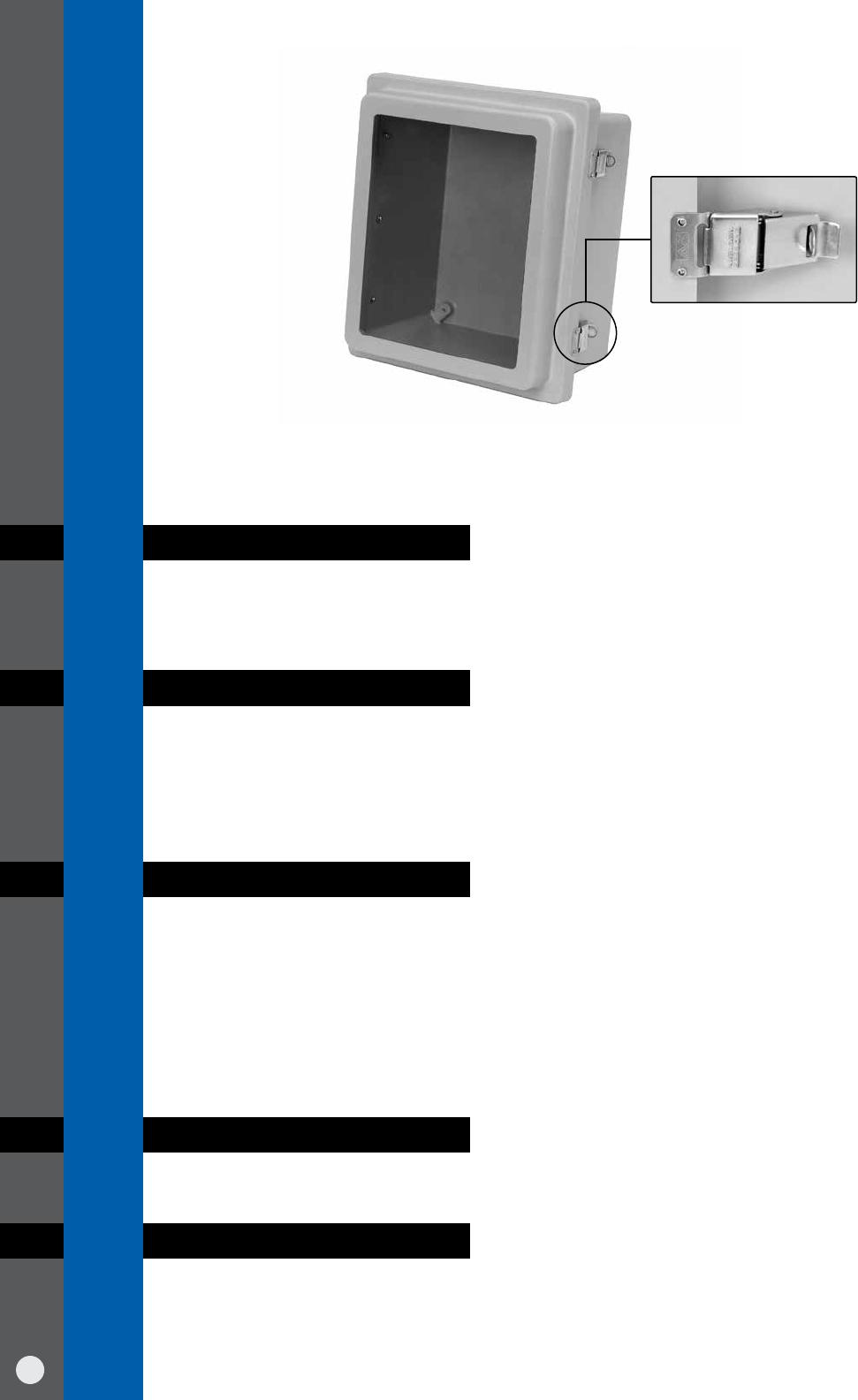

AM Series JIC Size Junction Boxes:
Snap Latch Hinged Cover With Window
• Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel snap latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional thermal management products (See pages 131-132)
• Custom holes and cutouts
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
51
AM SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removedfor clarity
Nominal 1/8" (3mm) wallthickness
F
DD
1.19 TYP
(30mm)
1.50 TYP
(38mm)
C
L
LATCHLOCATIONS
For useon
6x6x4
8x6x4
10x8x4
For useon
12x10x6 D=8.00 (203mm)
14x12x6 D=8.54 (217mm)
16x14x8 D=8.54 (217mm)
For useon
18x16x8 D=6.50 (165mm)
20x16x8 D=10.52 (267mm)
C
L
10x8x6
C
L
Part No. A B C F S Z Height Width H L U W
AM664LW 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm 108mm X 108mm
AM864LW 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm 159mm X 108mm
AM1084LW 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1086LW 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1206LW 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm 264mm X 216mm
AM1426LW 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm 314mm X 267mm
AM1648LW 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm 330mm X 279mm
AM1868LW 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm 356mm X 305mm
AM2068LW 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm 381mm X 279mm
Window
Dimension
(height x width)
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
52
AM Series JIC Size Junction Boxes:
Twist Latch Hinged Cover
• Designed to insulate and house electrical and electronic controls, instruments or components for indoor and
outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
• 300 series stainless steel twist latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional thermal management products (See pages 131-132)
• Custom holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
53
AM SERIES
B0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
DD
1.50 TYP
(38mm)
1.50
(38mm)
C
L
LATCH LOCATIONS
For use on
6x6x4
8x6x4
10x8x4
For useon
12x10x6D=8.00 (203mm)
14x12x6D=8.54 (217mm)
16x14x8D=8.54 (217mm)
Foruse on
18x16x8D=6.50 (165mm)
20x16x8D=10.52 (267mm)
10x8x6
C
LC
L
All dimensions are in inches unless otherwise noted.
Part No. A B C F S Z Height Width H L U W
AM664T 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69
155mm 155mm 106mm 96mm 108mm 108mm 122m 122mm 127mm 186mm 195mm 195mm
AM864T 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm
AM1084T 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1086T 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm
AM1206T 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm
AM1426T 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm
AM1648T 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm
AM1868T 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm
AM2068T 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
54
AM Series JIC Size Junction Boxes:
Twist Latch Hinged Cover With Window
• Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching flat cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel twist latches feature padlock hasp
• Continuous 300 series stainless steel hinge
• Gasket made of closed cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with 10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional thermal management products (See pages 131-132)
• Custom holes and cutouts
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
55
AM SERIES
B0.47 TYP
(12mm)
Z
S LU
1.15 TYP
(29mm)
0.44
(11mm)
H
W
1.00
(25mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
DD
1.50 TYP
(38mm)
1.50
(38mm)
C
L
LATCH LOCATIONS
For use on
6x6x4
8x6x4
10x8x4
For useon
12x10x6D=8.00 (203mm)
14x12x6D=8.54 (217mm)
16x14x8D=8.54 (217mm)
Foruse on
18x16x8D=6.50 (165mm)
20x16x8D=10.52 (267mm)
10x8x6
C
LC
L
All dimensions are in inches unless otherwise noted.
Part No. A B C F S Z Height Width H L U W
AM664TW 6.10 6.10 4.18 3.76 4.25 4.25 4.81 4.81 5.01 7.32 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 96mm 108mm 108mm 122mm 122mm 127mm 186mm 195mm 195mm 108mm X 108mm
AM864TW 8.00 6.13 4.13 3.68 6.25 4.25 6.75 4.88 5.01 9.19 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 93mm 159mm 108mm 171mm 124mm 127mm 233mm 244mm 196mm 159mm X 108mm
AM1084TW 10.14 8.26 4.13 3.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 93mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1086TW 10.14 8.26 6.13 5.68 8.25 6.25 8.75 6.88 7.01 11.19 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 144mm 210mm 159mm 222mm 175mm 178mm 284mm 298mm 250mm 213mm X 159mm
AM1206TW 12.14 10.26 6.13 5.68 10.25 8.25 10.75 8.88 9.01 13.19 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 144mm 260mm 210mm 273mm 226mm 229mm 335mm 349mm 301mm 264mm X 216mm
AM1426TW 14.13 12.26 6.13 5.68 12.25 10.25 12.75 10.88 11.01 15.19 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 144mm 311mm 260mm 324mm 276mm 280mm 386mm 400mm 352mm 314mm X 267mm
AM1648TW 16.27 14.40 8.13 7.68 14.25 12.25 14.75 12.88 13.01 17.19 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 195mm 362mm 311mm 375mm 327mm 330mm 437mm 454mm 406mm 330mm X 279mm
AM1868TW 18.40 16.40 8.13 7.68 16.25 14.25 16.88 14.88 14.97 19.28 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 195mm 413mm 362mm 429mm 378mm 380mm 490mm 508mm 457mm 356mm X 305mm
AM2068TW 20.00 16.00 8.13 7.68 17.81 13.81 18.44 14.44 14.54 20.84 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 195mm 452mm 351mm 468mm 367mm 369mm 529mm 548mm 447mm 381mm X 279mm
Window
Dimension
(height x width)
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
56
AM-R Series
The AM-R Series offers the same sizes and options as our AM series, with the added
feature of a raised cover. The cover adds an additional 1 3/4” of depth to accommodate
switches and other devices, and can be used with an optional hinged front panel for
maximum configuration flexibility within a single enclosure.
AM-R Series enclosures insulate and protect controls and components in both indoor and outdoor
applications, including high temperature and/or corrosive environments. Available in standard JIC sizes
with a variety of latching options for any application.
AM–R Series Features & Benefits
• Molded ULTRAGUARD® fiberglass reinforced polyester material construction for durability
• Continuous 300 series stainless steel hinge
• Closed-cell neoprene gasket encased in continuous channel
• Raised cover for additional depth
• 300 series stainless steel hardware and mounting feet
• Mounting panel inserts for optional back panel
• Optional Hinged Front Panels
• UV stabilized for outdoor use
• Continuous stainless steel hinge
AM-R SERIES
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
57
AM-R SERIES
Suitable Applications
• Electrical junctions
• Terminal wiring
• Electrical and electronic controls,
instruments, components
• Housing pushbuttons, switches
or other devices
• Other industrial control equipment
AM-R Series Specifications
• Non-corrosive
• Non-conductive
• Temperature-resistant
• Fire-resistant
• Rated NEMA 1, 2, 3, 3R, 4, 4X, 12, 13
• UL l iste d
• CSA cer tified
• Compliant with RoHS directive
Accessories
• Back panels available in painted
carbon steel, aluminum, fiberglass,
or galvannealed steel
• Aluminum hinged front panel for
configuration flexibility
• UV resistant polycarbonate viewing windows
• Thermal management products
Modifications
We are pleased to modify any of our standard
products to fit your needs. We have the low-
est volume requirements on custom work in the
industry, and quick turnaround time.
We can modify any of our AM-R Series enclo-
sures with:
• Custom size holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
For complete details on factory
modifications including a modification
request form, see pages 136-138.
58

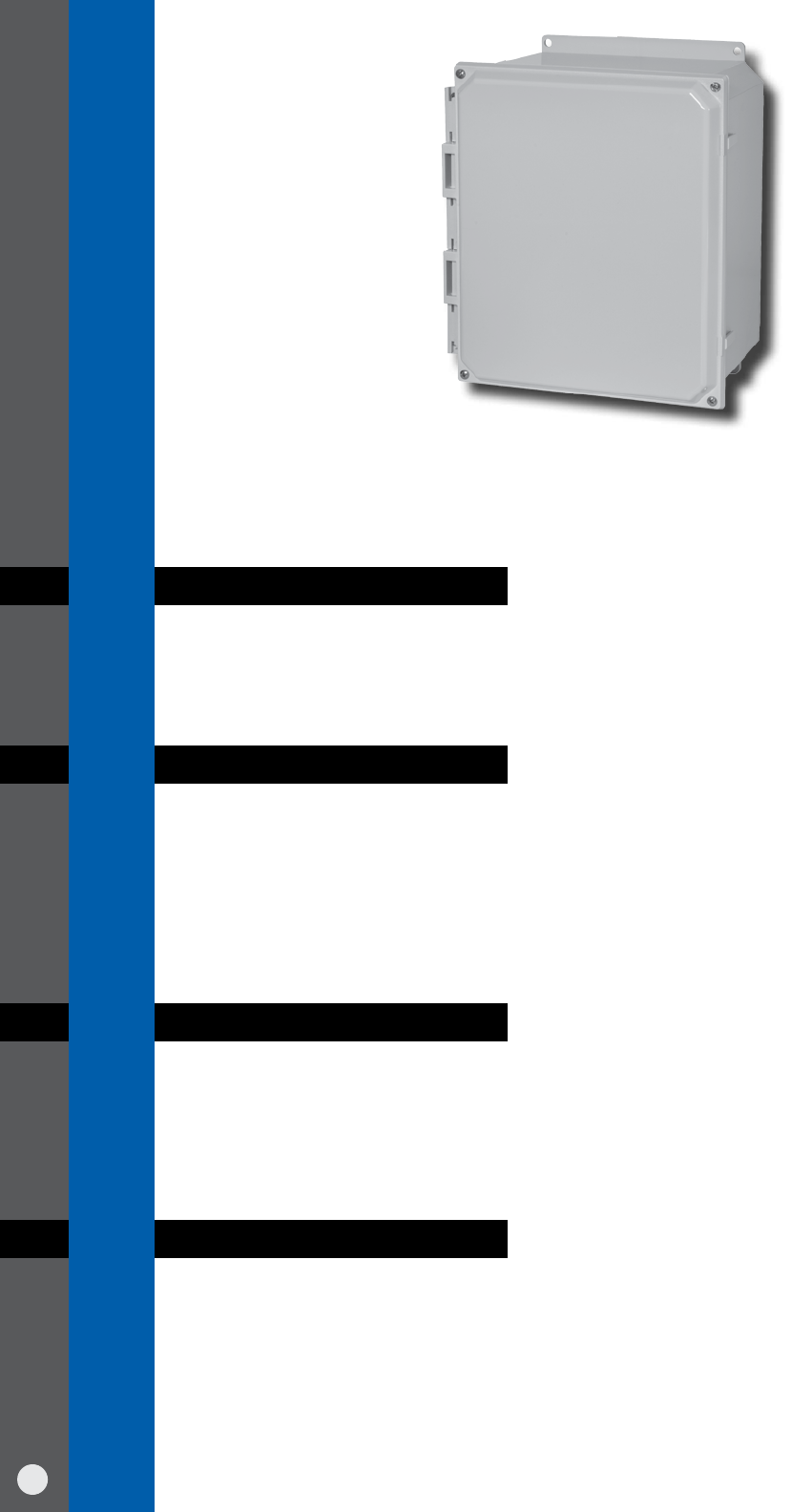

AM-R Series JIC Size Junction Boxes:
Lift-Off Screw Cover
• Designed to insulate and house electrical and electronic controls, instruments or components for indoor and
outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• UL 50 and U
L 50E Types 1, 2, 3, 3R, 4, 4X, 12, and 13 (6P for sizes 6” x 6” up through 14” x 12”)
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13 (6P for sizes 6” x 6” up through 14” x 12”)
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13 (6P for sizes 6” x 6” up through 14” x 12”)
−
IEC 60529 Type IP66 and units rated for 6P or IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
−
RoHS directive
•
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13 (6P for sizes 6” x 6” up through 14” x 12”)
•
IEC 60529 Type IP66 and units rated for 6P or IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
• 300 series stainless steel captive cover screws
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional hinged front panel (See table on page 130)
• Optional thermal management products (See pages 131-132)
• Custom size holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
59
AM-R SERIES
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
M
K
1.75
(44mm)
.44
(11mm)
Part No. A B C F S Z Height Width H L K M U W
AM664R 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm
AM864R 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm
AM1084R 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1086R 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1206R 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85
308mm 261mm 156mm 183mm 260mm 210mm 273mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm
AM1426R 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm
AM1648R 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm
AM1868R 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm
AM2068R 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm
All dimensions are in inches unless otherwise noted.
Sizes 6” x 6” up through 14” x 12” are rated 6P (IP68)
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
60
AM-R Series JIC Size Junction Boxes:
Lift-Off Screw Cover With Window
• Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel captive cover screws
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional hinged front panel (See table on page 130)
• Optional thermal management products (See pages 131-132)
• Custom size holes and cutouts
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
61
AM-R SERIES
Part No. A B C F S Z Height Width H L K M U W
AM664RW 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm 108mm X 108mm
AM864RW 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm 159mm X 108mm
AM1084RW 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1086RW 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1206RW 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 183mm 260mm 210mm 273mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm 264mm X 216mm
AM1426RW 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm 314mm X 267mm
AM1648RW 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm 330mm X 279mm
AM1868RW 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm 356mm X 305mm
AM2068RW 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm 381mm X 279mm
All dimensions are in inches unless otherwise noted.
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size Window
Dimension
(height x width)
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
M
K
1.75
(44mm)
.44
(11mm)
C
US
C
US
62
AM-R Series JIC Size Junction Boxes:
Hinged Screw Cover
• Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
• 300 series stainless steel captive cover screws
• Continuous 300 series stainless steel hinge
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional hinged front panel (See table on page 130)
• Optional thermal management products (See pages 131-132)
• Custom size holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
63
AM-R SERIES
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
M
K
1.75
(44mm)
.44
(11mm)
All dimensions are in inches unless otherwise noted.
Part No. A B C F S Z Height Width H L K M U W
AM664RH 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm
AM864RH 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm
AM1084RH 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1086RH 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1206RH 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85
308mm 261mm 156mm 183mm 260mm 210mm 273mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm
AM1426RH 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm
AM1648RH 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm
AM1868RH 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm
AM2068RH 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
64
AM-R Series JIC Size Junction Boxes:
Hinged Screw Cover With Window
•
Designed to insulate and house electrical and electronic controls, instruments or components for indoor and
outdoor applications
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil and water
• Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
• UV resistant polycarbonate viewing window
• 300 series stainless steel captive cover screws
• Continuous 300 series stainless steel hinge
• Gasket made of closed-cell neoprene cord encased in a continuous channel
• 300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
• #10-32 threaded inserts are installed for optional back panel
• JIC sizing
• ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
• UV stabilized for outdoor use
• Optional back panels (See table on pages 128-129)
• Optional hinged front panel (See table on page 130)
• Optional thermal management products (See pages 131-132)
• Custom size holes and cutouts
• Molded-in color matches
• Hinge installed on short side
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
• EMI/RFI shielding
• Factory-supplied silk screening
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
65
AM-R SERIES
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed for clarity
Nominal 1/8" (3mm) wall thickness
F
M
K
1.75
(44mm)
.44
(11mm)
All dimensions are in inches unless otherwise noted.
Part No. A B C F S Z Height Width H L K M U W
AM664RHW 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm 108mm X 108mm
AM864RHW 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm 159mm X 108mm
AM1084RHW 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1086RHW 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1206RHW 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 183mm 260mm 210mm 273mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm 264mm X 216mm
AM1426RHW 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm 314mm X 267mm
AM1648RHW 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm 330mm X 279mm
AM1868RHW 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm 356mm X 305mm
AM2068RHW 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm 381mm X 279mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size Window
Dimension
(height x width)
C
US
C
US
66
AM-R Series JIC Size Junction Boxes:
Snap Latch Hinged Cover
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
300 series stainless steel snap latches feature padlock hasp
•
Continuous 300 series stainless steel hinge
•
Gasket made of closed-cell neoprene cord encased in a continuous channel
•
300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
•
#10-32 threaded inserts are installed for optional back panel
•
JI C sizing
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
Hinge installed on short side
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
67
AM-R SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed forclarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
DD
1.19 TYP
(30mm)
1.50 TYP
(38mm)
C
L
LATCH LOCATIONS
For use on
6x6x4
8x6x4
10x8x4
For use on
12x10x6D=8.00(203mm)
14x12x6D=8.54(217mm)
16x14x8D=8.54(217mm)
For use on
18x16x8D=6.50(165mm)
20x16x8D=10.52 (267mm)
C
L
10x8x6
C
L
.44
(11mm)
Part No. A B C F S Z Height Width H L K M U W
AM664RL 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm
AM864RL 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm
AM1084RL 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1086RL 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1206RL 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85
308mm 261mm 156mm 183mm 260mm 210mm 273mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm
AM1426RL 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm
AM1648RL 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm
AM1868RL 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm
AM2068RL 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
68
AM-R Series JIC Size Junction Boxes:
Snap Latch Hinged Cover With Window
•
Designed to insulate and house electrical and electronic controls, instruments or components for indoor and
outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
UV resistant polycarbonate viewing window
•
300 series stainless steel snap latches feature padlock hasp
•
Continuous 300 series stainless steel hinge
•
Gasket made of closed-cell neoprene cord encased in a continuous channel
•
300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
•
#10-32 threaded inserts are installed for optional back panel
•
JI C sizing
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Molded-in color matches
•
Hinge installed on short side
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
69
AM-R SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed forclarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
DD
1.19 TYP
(30mm)
1.50 TYP
(38mm)
C
L
LATCH LOCATIONS
For use on
6x6x4
8x6x4
10x8x4
For use on
12x10x6D=8.00(203mm)
14x12x6D=8.54(217mm)
16x14x8D=8.54(217mm)
For use on
18x16x8D=6.50(165mm)
20x16x8D=10.52 (267mm)
C
L
10x8x6
C
L
.44
(11mm)
Part No. A B C F S Z Height Width H L K M U W
AM664RLW 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm 108mm X 108mm
AM864RLW 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm 159mm X 108mm
AM1084RLW 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1086RLW 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1206RLW 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 183mm 260mm 210mm 273mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm 264mm X 216mm
AM1426RLW 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm 314mm X 267mm
AM1648RLW 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm 330mm X 279mm
AM1868RLW 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm 356mm X 305mm
AM2068RLW 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm 381mm X 279mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size Window
Dimension
(height x width)
C
US
C
US
70
AM-R Series JIC Size Junction Boxes:
Twist Latch Hinged Cover
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
300 series stainless steel twist latches feature padlock hasp
•
Continuous 300 series stainless steel hinge
•
Gasket made of closed-cell neoprene cord encased in a continuous channel
•
300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
•
#10-32 threaded inserts are installed for optional back panel
•
JI C sizing
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Custom size polycarbonate viewing windows
• Molded-in color matches
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
• Hinge installed on short side
• EMI/RFI shielding
• Factory-supplied silk screening
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
71
AM-R SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed forclarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
DD
1.50 TYP
(38mm)
1.50 TYP
(38mm)
C
L
LATCH LOCATIONS
For use on
6x6x4
8x6x4
10x8x4
For use on
12x10x6 D=8.00 (203mm)
14x12x6 D=8.54 (217mm)
16x14x8 D=8.54 (217mm)
For use on
18x16x8 D=6.50 (165mm)
20x16x8 D=10.52(267mm)
C
L
10x8x6
C
L
.44
(11mm)
Part No. A B C F S Z Height Width H L K M U W
AM664RT 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm
AM864RT 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm
AM1084RT 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1086RT 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm
AM1206RT 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85
308mm 261mm 156mm 183mm 260mm 210mm 173mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm
AM1426RT 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm
AM1648RT 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm
AM1868RT 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm
AM2068RT 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
72
AM-R Series JIC Size Junction Boxes:
Twist Latch Hinged Cover With Window
•
Designed to insulate and house electrical and electronic controls, instruments or components for indoor and
outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
UV resistant polycarbonate viewing window
•
300 series stainless steel twist latches feature padlock hasp
•
Continuous 300 series stainless steel hinge
•
Gasket made of closed-cell neoprene cord encased in a continuous channel
•
300 series stainless steel wall mounting feet with #10-32 stainless steel screws included
•
#10-32 threaded inserts are installed for optional back panel
•
JI C sizing
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Molded-in color matches
•
Hinge installed on short side
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
73
AM-R SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
1.15 TYP
(29mm)
H
W
1.50
(38mm)
C
Note: Cover removed forclarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
DD
1.50 TYP
(38mm)
1.50 TYP
(38mm)
C
L
LATCH LOCATIONS
For use on
6x6x4
8x6x4
10x8x4
For use on
12x10x6 D=8.00 (203mm)
14x12x6 D=8.54 (217mm)
16x14x8 D=8.54 (217mm)
For use on
18x16x8 D=6.50 (165mm)
20x16x8 D=10.52(267mm)
C
L
10x8x6
C
L
.44
(11mm)
Part No. A B C F S Z Height Width H L K M U W
AM664RTW 6.10 6.10 4.18 5.26 4.25 4.25 4.81 4.81 5.01 7.32 6.08 6.08 7.69 7.69 4.25 X 4.25
155mm 155mm 106mm 134mm 108mm 108mm 122mm 122mm 127mm 186mm 154mm 154mm 195mm 195mm 108mm X 108mm
AM864RTW 8.00 6.13 4.13 5.21 6.25 4.25 6.75 4.88 5.01 9.19 6.11 7.98 9.59 7.71 6.25 X 4.25
203mm 156mm 105mm 132mm 159mm 108mm 171mm 124mm 127mm 233mm 155mm 203mm 244mm 196mm 159mm X 108mm
AM1084RTW 10.14 8.26 4.13 5.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 105mm 132mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1086RTW 10.14 8.26 6.13 7.21 8.25 6.25 8.75 6.88 7.01 11.19 8.44 10.32 11.73 9.85 8.38 X 6.50
258mm 210mm 156mm 183mm 210mm 159mm 222mm 175mm 178mm 284mm 214mm 262mm 298mm 250mm 213mm X 159mm
AM1206RTW 12.14 10.26 6.13 7.21 10.25 8.25 10.75 8.88 9.01 13.19 10.45 12.32 13.73 11.85 10.38 X 8.50
308mm 261mm 156mm 183mm 260mm 210mm 273mm 226mm 229mm 335mm 265mm 313mm 349mm 301mm 264mm X 216mm
AM1426RTW 14.13 12.26 6.13 7.21 12.25 10.25 12.75 10.88 11.01 15.19 12.45 14.32 15.73 13.85 12.38 X 10.50
359mm 311mm 156mm 183mm 311mm 260mm 324mm 276mm 280mm 386mm 316mm 364mm 400mm 352mm 314mm X 267mm
AM1648RTW 16.27 14.40 8.13 9.21 14.25 12.25 14.75 12.88 13.01 17.19 13.86 15.73 17.87 15.99 13.00 X 11.00
413mm 366mm 207mm 234mm 362mm 311mm 375mm 327mm 330mm 437mm 352mm 400mm 454mm 406mm 330mm X 279mm
AM1868RTW 18.40 16.40 8.13 9.21 16.25 14.25 16.88 14.88 14.97 19.28 15.86 17.86 20.00 18.00 14.00 X 12.00
467mm 417mm 207mm 234mm 413mm 362mm 429mm 378mm 380mm 490mm 403mm 454mm 508mm 457mm 356mm X 305mm
AM2068RTW 20.00 16.00 8.13 9.21 17.81 13.81 18.44 14.44 14.54 20.84 15.43 19.43 21.59 17.59 15.00 X 11.00
508mm 406mm 207mm 234mm 452mm 351mm 468mm 367mm 369mm 529mm 392mm 494mm 548mm 447mm 381mm X 279mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size Window
Dimension
(height x width)
C
US
C
US
74
AMHD-R Heavy Duty Solar Battery Box:
Snap Latch Hinged Cover
•
Designed to insulate and house solar storage batteries for various telemetry applications
in outdoor locations
•
Especially well suited for high temperature or corrosive environments
•
Protects from UV, dirt, dust, oil and water
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
− IEC 60529 Type IP66
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
300 series stainless steel snap latches feature padlock hasp
•
Continuous 300 series stainless steel hinge
•
Gasket made of closed-cell neoprene cord encased in a continuous channel
•
Polycarbonate flanges installed with (4) 300 series stainless steel screws
•
#10-32 threaded inserts are installed for optional back panel
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional thermal management products (See pages 131-132)
•
Optional pole mount kit (See page 133)
•
Custom size holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
Hinge installed on short side
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
75
AMHD-R SERIES
All dimensions are in inches unless otherwise noted.
Part No. A B C F S Z Height Width J I K M U W
AMHD1860RLF 18.24 16.24 10.13 11.01 16.25 14.25 16.88 14.88 12.00 18.88, 18.76 15.22 17.72 19.91 17.91
463mm 412mm 257mm 280mm 413mm 362mm 429mm 378mm 305mm 480mm, 477mm 387mm 450mm 506mm 455mm
Usable Panel Boss Flange Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
Nominal .200" (5mm) wall thickness
C
US
C
US
76

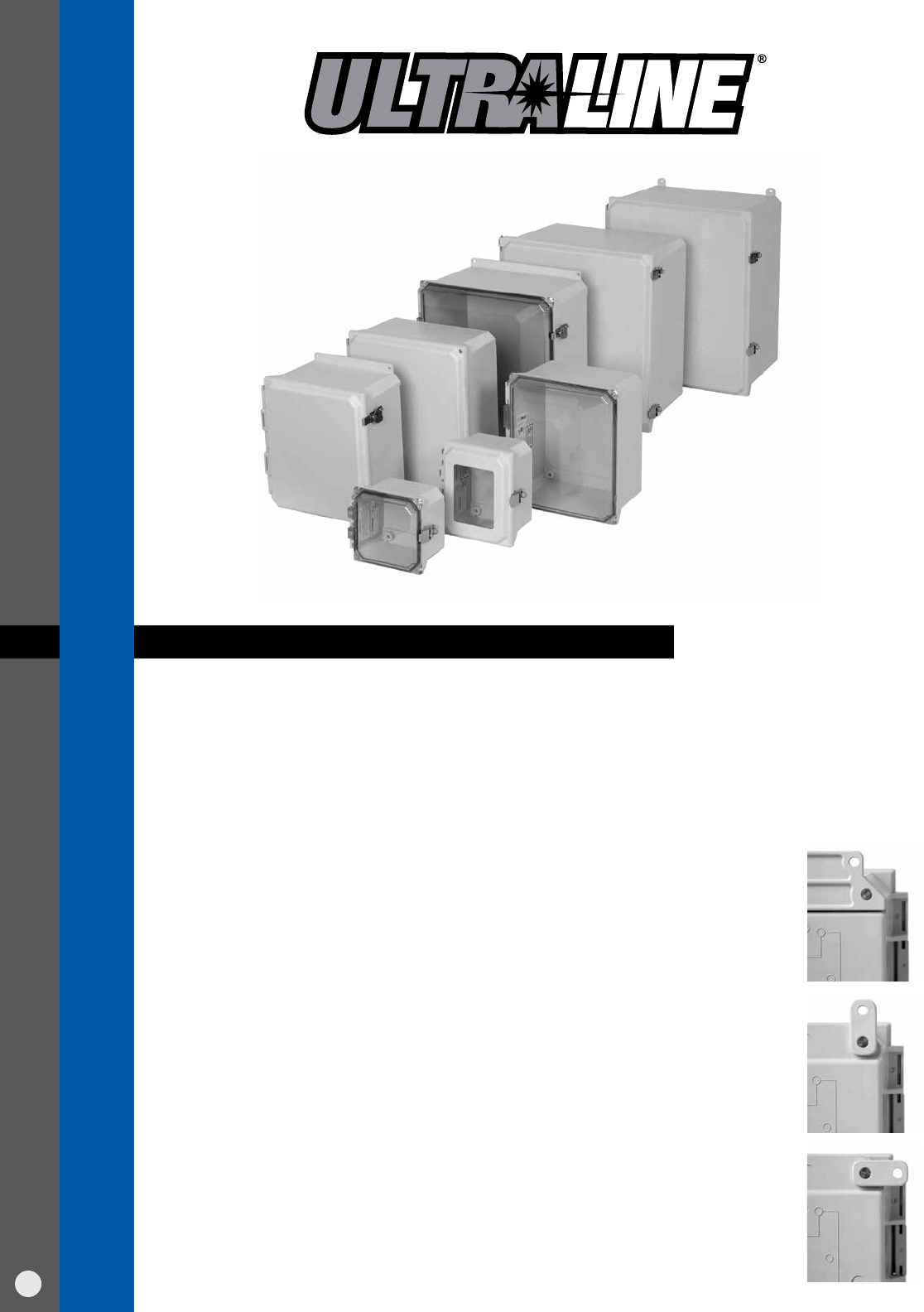

ULTRALINE
®
comes standard with “industry exclusive” mounting options including an
out of the box mounting flange or adjustable mounting feet to cover various mounting
configurations. Featuring molded latch keepers, a tongue and groove seal design, and a
flange design that can be retrofit to competition, ULTRALINE is the ultimate in fiberglass
enclosures. A clear polycarbonate cover option is also available for instrumentation
applications where critical electronic equipment must be visible and protected from
the elements.
AMU Series Features & Benefits
• Patented (US Pat #7,572,975) multi-mounting capability
• Out-of-the-box flange design – factory installed
• Flange mount hole pattern match “VJ”, “J”, and “A” series
competitive foot prints
• Optional foot mount brackets for multi-directional mounting
• Capable of mounting vertically or horizontally
• Mounting dimensions molded into the enclosure base
• Durable polycarbonate feet/flanges withstand cracking during wall mount assembly
• Feet and Flanges act as an enclosure pad on uneven surfaces without allowing it to
be drawn down and bind, or crack
• Feet and Flange pads also allow air space between the enclosure and a warm
machine or mounting wall
ULTRALINE® AMU SERIES
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
77
ULTRALINE
• Cover/Base design
• Flush, aesthetically pleasing,
modern architecture
• Clear polycarbonate instrumentation cover
where critical electronic equipment must be
visible and protected from the elements
• Solid/opaque covers come with a drill
point pattern inside for hole modifications
when required
• Molded hinge and latch keeper designs
eliminate wall penetrations
• Tongue and groove, closed cell neoprene seal
design for NEMA Type 4X rating
• Eight Sizes ranging from 6x6x4 through
20x16x10
• UL® listed and CSA certified
• Allied Moulded ULTRAGUARD® fiberglass
reinforced polyester material formulation
• Compliant with RoHS directive
(Restriction of Hazardous Substances)
78
AMU Series JIC Size Junction Boxes:
Lift-Off Screw Cover - Solid/Opaque
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
−
IEC 60529 Type IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, solid/opaque cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
300 series stainless steel captive cover screws
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) and mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
79
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664)
Add “F” to the part number for factory installed flanges (ex. AMU664F)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
All sizes 6” x 6” x 4” up through 20” x 16” x 10” are rated 6P (IP68)
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
0.87
(22mm)
0.66
(17mm)
FLANGE MOUNT
FOOT MOUNT
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel Boss
Centers Panel Sizes
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom.
Wall
Thick-
ness
A B C F S Z
Height Width
J I H L K M W U
AMU664(F*)
6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm
108mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU864(F*)
8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm
154mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU1084(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.391 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm
210mm 159mm
222mm 175mm
152mm
273mm
176mm 273mm
200mm
246mm 221mm
267mm
3mm
AMU1206(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm
260mm 210mm
273mm 226mm
203mm
324mm
224mm 323mm
251mm
296mm 272mm
318mm
3mm
AMU1426(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm
311mm 260mm
324mm 276mm
254mm
375, 371mm
275mm 373mm
302mm
347mm 323mm
368mm
3mm
AMU1648(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00
16.75
11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm
362mm 311mm
375mm 327mm
305mm
425mm
291mm 430mm
353mm
398mm 374mm
419mm
4mm
AMU1860(F*)
18.12 16.34 10.13 10.10 16.25 14.25 16.88 14.88 12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97 18.75 0.19
460mm 415mm 257mm 257mm
413mm
362mm 429mm
378mm
305mm
480, 477mm
348mm 487mm
410mm
455mm 431mm
476mm
5mm
AMU2060(F*)
19.87 16.09 10.13 10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
505mm 409mm 257mm 257mm
452mm
351mm 468mm
367mm
254mm
540mm
334mm 521mm
404mm
500mm 425mm
521mm
5mm
80
AMU Series JIC Size Junction Boxes:
Lift-Off Screw Cover with Window
•
Designed to insulate and protect controls and components in both indoor and outdoor applications often found in oil
refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, viewing window used in applications where critical electronic equipment
•
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, viewing window cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate viewing window
•
300 series stainless steel captive cover screws
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
81
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664W)
Add “F” to the part number for factory installed flanges (ex. AMU664WF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
0.87
(22mm)
0.66
(17mm)
FLANGE MOUNT
FOOT MOUNT
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel
Boss
Centers
Panel
Sizes
Flange
Mount
Centers
Foot
Mount
Centers Cover Size Nom.
Wall
Thick-
ness
Window
Dim.
(H x W)A B C F S Z
Height
Width
J I H L K M W U
AMU664W(F*) 6.05 6.27 4.13
4.11
4.25 4.25 4.81 4.81
4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72
6.50 0.13
3.50 x 3.50
154mm 159mm 105mm
104mm
108mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
90mm x 90mm
AMU864W(F*) 8.05 6.27 4.13
4.11
6.25 4.25 6.75 4.88
4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72
8.50 0.13
5.25 x 4.00
204mm 159mm 105mm
104mm
154mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
133mm x 102mm
AMU1084W(F*) 10.05 8.27 4.13
4.11
8.25 6.25 8.75 6.88
6.00
10.75
6.391 10.75 7.89 9.67 8.72
10.50 0.13
6.25 x 4.25
255mm 210mm 105mm
104mm
210mm 159mm 222mm 175mm
152mm
273mm
176mm 273mm 200mm 246mm 221mm
267mm
3mm
159mm x 108mm
AMU1206W(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
8.38 x 6.50
306mm 261mm 156mm
155mm
260mm 210mm 273mm 226mm
203mm
324mm
224mm 323mm 251mm 296mm 272mm
318mm
3mm
213mm x 165mm
AMU1426W(F*) 14.05 12.27 6.13
6.11
12.25 10.25 12.75 10.88
10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72
14.50 0.13
10.38 x 8.50
357mm 312mm 156mm
155mm
311mm 260mm 324mm 276mm
254mm
375, 371mm
275mm 373mm 302mm 347mm 323mm
368mm
3mm
264mm x 216mm
AMU1648W(F*) 16.05 14.27 8.13
8.11
14.25 12.25 14.75 12.88
12.00
16.75
11.47 16.91 13.89 15.67 14.72
16.50 0.14
12.38 x 10.50
408mm 362mm 207mm
206mm
362mm 311mm 375mm 327mm
305mm
425mm
291mm 430mm 353mm 398mm 374mm
419mm
4mm
314mm x 279mm
AMU1860W(F*) 18.12 16.34 10.13
10.10
16.25 14.25 16.88 14.88
12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97
18.75 0.19
13.00 x 11.00
460mm 415mm 257mm
257mm
413mm 362mm 429mm 378mm
305mm
480, 477mm
348mm 487mm 410mm 455mm 431mm
476mm
5mm
330mm x 279mm
AMU2060W(F*) 19.87 16.09 10.13
10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
14.00 x 12.00
505mm 409mm 257mm
257mm
452mm 351mm 468mm 367mm
254mm
540mm 334mm 521mm 404mm 500mm 425mm
521mm
5mm
356mm x 305mm
82
AMU Series JIC Size Junction Boxes:
Lift-Off Screw Cover - Clear Polycarbonate
•
Designed to insulate and protect controls and components in both indoor and outdoor applications often found in oil
refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, instrumentation cover used in applications where critical electronic equipment
•
must be visible and protected from the elements
• UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
• Complies with
− NEMA Types 1, 2, 3, 3R, 4, 4X, 6P, 12 and 13
− IEC 60529 Type IP68 submersible up to 24 hours at a depth of 6 feet (1.8 meters)
− RoHS directive
• For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, clear polycarbonate cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate instrumentation cover
•
300 series stainless steel captive cover screws
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
83
ULTRALINE
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
0.87
(22mm)
0.66
(17mm)
FLANGE MOUNT
FOOT MOUNT
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664CC)
Add “F” to the part number for factory installed flanges (ex. AMU664CCF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
All sizes 6” x 6” x 4” up through 16” x 14” x 8” are rated 6P (IP68)
Usable Panel Boss Flange Mount Foot Mount Nom. Wall
Box Size Depth Centers Panel Sizes Centers Centers Cover Size Thickness
Part No. A B C F S Z Height Width J I H L K M W U
AMU664CC(F*) 6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00 6.88, 6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm 108mm 108mm 122mm 122mm 102mm 175, 171mm 125mm 171mm 150mm 144mm 171mm 165mm 3mm
AMU864CC(F*) 8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00 8.88, 8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm 159mm 108mm 171mm 124mm 102mm 226, 222mm 125mm 222mm 150mm 195mm 171mm 216mm 3mm
AMU1084CC(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm 210mm 159mm 222mm 175mm 152mm 273mm 176mm 273mm 200mm 246mm 221mm 267mm 3mm
AMU1206CC(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm 260mm 210mm 273mm 226mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3mm
AMU1426CC(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00 14.75, 14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm 311mm 260mm 324mm 276mm 254mm 375, 371mm 275mm 373mm 302mm 347mm 323mm 368mm 3 mm
AMU1648CC(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00 16.75 11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm 362mm 311mm 375mm 327mm 305mm 425mm 291mm 430mm 353mm 398mm 374mm 419mm 4 mm
C
US
C
US
84
AMU Series JIC Size Junction Boxes:
Hinged Screw Cover - Solid/Opaque
• Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
• Especially well suited for high temperature or corrosive environments
• Protects from dirt, dust, oil, and water
• For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
• Compression molded fiberglass reinforced polyester construction with flush, solid/opaque cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
• Light gray color (RAL 7035)
• 300 series stainless steel captive cover screws, and hinge pin
• Partially molded hinge
• Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
• Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
• #10-32 threaded brass inserts are installed for back panel mounting
• Optional back panels and hinged front panels
• Optional thermal management products
• Custom holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
85
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664H)
Add “F” to the part number for factory installed flanges (ex. AMU664HF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
0.87
(22mm)
0.66
(17mm)
FLANGE MOUNT
FOOT MOUNT
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel Boss
Centers Panel Sizes
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom.
Wall
Thick-
ness
A B C F S Z
Height Width
J I H L K M W U
AMU664H(F*) 6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm
108mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU864H(F*) 8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm
154mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU1084H(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.391 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm
210mm 159mm
222mm 175mm
152mm
273mm
176mm 273mm
200mm
246mm 221mm
267mm
3mm
AMU1206H(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm
260mm 210mm
273mm 226mm
203mm
324mm
224mm 323mm
251mm
296mm 272mm
318mm
3mm
AMU1426H(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm
311mm 260mm
324mm 276mm
254mm
375, 371mm
275mm 373mm
302mm
347mm 323mm
368mm
3mm
AMU1648H(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00
16.75
11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm
362mm 311mm
375mm 327mm
305mm
425mm
291mm 430mm
353mm
398mm 374mm
419mm
4mm
AMU1860H(F*)
18.12 16.34 10.13 10.10 16.25 14.25 16.88 14.88 12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97 18.75 0.19
460mm 415mm 257mm 257mm
413mm
362mm 429mm
378mm
305mm
480, 477mm
348mm 487mm
410mm
455mm 431mm
476mm
5mm
AMU2060H(F*)
19.87 16.09 10.13 10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
505mm 409mm 257mm 257mm
452mm
351mm 468mm
367mm
254mm
540mm
334mm 521mm
404mm
500mm 425mm
521mm
5mm
86
AMU Series JIC Size Junction Boxes:
Hinged Screw Cover with Window
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, viewing window used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, viewing window cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate viewing window cover
•
300 series stainless steel captive cover screws and hinge pin
•
Partially molded hinge
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EMI/RFI shielding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
87
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664HW)
Add “F” to the part number for factory installed flanges (ex. AMU664HWF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
0.87
(22mm)
0.66
(17mm)
FLANGE MOUNT
FOOT MOUNT
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel
Boss
Centers
Panel
Sizes
Flange
Mount
Centers
Foot
Mount
Centers Cover Size Nom.
Wall
Thick-
ness
Window
Dim.
(H x W)A B C F S Z
Height
Width
J I H L K M W U
AMU664HW(F*)
6.05 6.27 4.13
4.11
4.25 4.25 4.81 4.81
4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72
6.50 0.13
3.50 x 3.50
154mm 159mm 105mm
104mm
108mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
90mm x 90mm
AMU864HW(F*)
8.05 6.27 4.13
4.11
6.25 4.25 6.75 4.88
4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72
8.50 0.13
5.25 x 4.00
204mm 159mm 105mm
104mm
154mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
133mm x 102mm
AMU1084HW(F*)
10.05 8.27 4.13
4.11
8.25 6.25 8.75 6.88
6.00
10.75
6.391 10.75 7.89 9.67 8.72
10.50 0.13
6.25 x 4.25
255mm 210mm 105mm
104mm
210mm 159mm 222mm 175mm
152mm
273mm
176mm 273mm 200mm 246mm 221mm
267mm
3mm
159mm x 108mm
AMU1206HW(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
8.38 x 6.50
306mm 261mm 156mm
155mm
260mm 210mm 273mm 226mm
203mm
324mm
224mm 323mm 251mm 296mm 272mm
318mm
3mm
213mm x 165mm
AMU1426HW(F*)
14.05 12.27 6.13
6.11
12.25 10.25 12.75 10.88
10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72
14.50 0.13
10.38 x 8.50
357mm 312mm 156mm
155mm
311mm 260mm 324mm 276mm
254mm
375, 371mm
275mm 373mm 302mm 347mm 323mm
368mm
3mm
264mm x 216mm
AMU1648HW(F*)
16.05 14.27 8.13
8.11
14.25 12.25 14.75 12.88
12.00
16.75
11.47 16.91 13.89 15.67 14.72
16.50 0.14
12.38 x 10.50
408mm 362mm 207mm
206mm
362mm 311mm 375mm 327mm
305mm
425mm
291mm 430mm 353mm 398mm 374mm
419mm
4mm
314mm x 279mm
AMU1860HW(F*)
18.12 16.34 10.13
10.10
16.25 14.25 16.88 14.88
12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97
18.75 0.19
13.00 x 11.00
460mm 415mm 257mm
257mm
413mm 362mm 429mm 378mm
305mm
480, 477mm
348mm 487mm 410mm 455mm 431mm
476mm
5mm
330mm x 279mm
AMU2060HW(F*)
19.87 16.09 10.13
10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
14.00 x 12.00
505mm 409mm 257mm
257mm
452mm 351mm 468mm 367mm
254mm
540mm 334mm 521mm 404mm 500mm 425mm
521mm
5mm
356mm x 305mm
88
AMU Series JIC Size Junction Boxes:
Hinged Screw Cover - Clear Polycarbonate
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, instrumentation cover used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, clear polycarbonate cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate instrumentation cover
•
300 series stainless steel captive cover screws and hinge pin
•
Partially molded hinge
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
89
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664CCH)
Add “F” to the part number for factory installed flanges (ex. AMU664CCHF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
0.87
(22mm)
0.66
(17mm)
FLANGE MOUNT
FOOT MOUNT
Usable Panel Boss Flange Mount Foot Mount Nom. Wall
Box Size Depth Centers Panel Sizes Centers Centers Cover Size Thickness
Part No. A B C F S Z Height Width J I H L K M W U
AMU664CCH(F*)
6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00 6.88, 6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm 108mm 108mm 122mm 122mm 102mm 175, 171mm 125mm 171mm 150mm 144mm 171mm 165mm 3mm
AMU864CCH(F*)
8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00 8.88, 8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm 159mm 108mm 171mm 124mm 102mm 226, 222mm 125mm 222mm 150mm 195mm 171mm 216mm 3mm
AMU1084CCH(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm 210mm 159mm 222mm 175mm 152mm 273mm 176mm 273mm 200mm 246mm 221mm 267mm 3mm
AMU1206CCH(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm 260mm 210mm 273mm 226mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3mm
AMU1426CCH(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00 14.75, 14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm 311mm 260mm 324mm 276mm 254mm 375, 371mm 275mm 373mm 302mm 347mm 323mm 368mm 3mm
AMU1648CCH(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00 16.75 11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm 362mm 311mm 375mm 327mm 305mm 425mm 291mm 430mm 353mm 398mm 374mm 419mm 4mm
C
US
C
US
90
AMU Series JIC Size Junction Boxes:
Metal Snap Latch Hinged Cover - Solid/Opaque
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, solid/opaque cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
300 series stainless steel lockable latches, and hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
91
ULTRALINE
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
FLANGE MOUNT
FOOT MOUNT
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
0.87
(22mm)
0.66
(17mm)
D
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.50 (191mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664L)
Add “F” to the part number for factory installed flanges (ex. AMU664LF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel Boss
Centers Panel Sizes
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom.
Wall
Thick-
ness
A B C F S Z
Height Width
J I H L K M W U
AMU664L(F*) 6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm
108mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU864L(F*) 8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm
154mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU1084L(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.391 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm
210mm 159mm
222mm 175mm
152mm
273mm
176mm 273mm
200mm
246mm 221mm
267mm
3mm
AMU1206L(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm
260mm 210mm
273mm 226mm
203mm
324mm
224mm 323mm
251mm
296mm 272mm
318mm
3mm
AMU1426L(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm
311mm 260mm
324mm 276mm
254mm
375, 371mm
275mm 373mm
302mm
347mm 323mm
368mm
3mm
AMU1648L(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00
16.75
11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm
362mm 311mm
375mm 327mm
305mm
425mm
291mm 430mm
353mm
398mm 374mm
419mm
4mm
AMU1860L(F*)
18.12 16.34 10.13 10.10 16.25 14.25 16.88 14.88 12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97 18.75 0.19
460mm 415mm 257mm 257mm
413mm
362mm 429mm
378mm
305mm
480, 477mm
348mm 487mm
410mm
455mm 431mm
476mm
5mm
AMU2060L(F*)
19.87 16.09 10.13 10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
505mm 409mm 257mm 257mm
452mm
351mm 468mm
367mm
254mm
540mm
334mm 521mm
404mm
500mm 425mm
521mm
5mm
92
AMU Series JIC Size Junction Boxes:
Metal Snap Latch Hinged Cover with Window
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, viewing window used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, viewing window cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate viewing window cover
•
300 series stainless steel lockable latches, and hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
93
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664LW)
Add “F” to the part number for factory installed flanges (ex. AMU664LWF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
FLANGE MOUNT
FOOT MOUNT
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
0.87
(22mm)
0.66
(17mm)
D
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.50 (191mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel
Boss
Centers
Panel
Sizes
Flange
Mount
Centers
Foot
Mount
Centers Cover Size Nom.
Wall
Thick-
ness
Window
Dim.
(H x W)A B C F S Z
Height
Width
J I H L K M W U
AMU664LW(F*)
6.05 6.27 4.13
4.11
4.25 4.25 4.81 4.81
4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72
6.50 0.13
3.50 x 3.50
154mm 159mm 105mm
104mm
108mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
90mm x 90mm
AMU864LW(F*)
8.05 6.27 4.13
4.11
6.25 4.25 6.75 4.88
4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72
8.50 0.13
5.25 x 4.00
204mm 159mm 105mm
104mm
154mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
133mm x 102mm
AMU1084LW(F*)
10.05 8.27 4.13
4.11
8.25 6.25 8.75 6.88
6.00
10.75
6.391 10.75 7.89 9.67 8.72
10.50 0.13
6.25 x 4.25
255mm 210mm 105mm
104mm
210mm 159mm 222mm 175mm
152mm
273mm
176mm 273mm 200mm 246mm 221mm
267mm
3mm
159mm x 108mm
AMU1206LW(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
8.38 x 6.50
306mm 261mm 156mm
155mm
260mm 210mm 273mm 226mm
203mm
324mm
224mm 323mm 251mm 296mm 272mm
318mm
3mm
213mm x 165mm
AMU1426LW(F*)
14.05 12.27 6.13
6.11
12.25 10.25 12.75 10.88
10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72
14.50 0.13
10.38 x 8.50
357mm 312mm 156mm
155mm
311mm 260mm 324mm 276mm
254mm
375, 371mm
275mm 373mm 302mm 347mm 323mm
368mm
3mm
264mm x 216mm
AMU1648LW(F*)
16.05 14.27 8.13
8.11
14.25 12.25 14.75 12.88
12.00
16.75
11.47 16.91 13.89 15.67 14.72
16.50 0.14
12.38 x 10.50
408mm 362mm 207mm
206mm
362mm 311mm 375mm 327mm
305mm
425mm
291mm 430mm 353mm 398mm 374mm
419mm
4mm
314mm x 279mm
AMU1860LW(F*)
18.12 16.34 10.13
10.10
16.25 14.25 16.88 14.88
12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97
18.75 0.19
13.00 x 11.00
460mm 415mm 257mm
257mm
413mm 362mm 429mm 378mm
305mm
480, 477mm
348mm 487mm 410mm 455mm 431mm
476mm
5mm
330mm x 279mm
AMU2060LW(F*)
19.87 16.09 10.13
10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
14.00 x 12.00
505mm 409mm 257mm
257mm
452mm 351mm 468mm 367mm
254mm
540mm 334mm 521mm 404mm 500mm 425mm
521mm
5mm
356mm x 305mm
94
AMU Series JIC Size Junction Boxes:
Metal Snap Latch Hinged Cover - Clear Polycarbonate
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, instrumentation cover used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, clear polycarbonate cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate instrumentation cover
•
300 series stainless steel lockable latches, and hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
95
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664CCL)
Add “F” to the part number for factory installed flanges (ex. AMU664CCLF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
FLANGE MOUNT
FOOT MOUNT
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
0.87
(22mm)
0.66
(17mm)
D
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.50 (191mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
Usable Panel Boss Flange Mount Foot Mount Nom. Wall
Box Size Depth Centers Panel Sizes Centers Centers Cover Size Thickness
Part No. A B C F S Z Height Width J I H L K M W U
AMU664CCL(F*)
6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00 6.88, 6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm 108mm 108mm 122mm 122mm 102mm 175, 171mm 125mm 171mm 150mm 144mm 171mm 165mm 3mm
AMU864CCL(F*)
8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00 8.88, 8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm 159mm 108mm 171mm 124mm 102mm 226, 222mm 125mm 222mm 150mm 195mm 171mm 216mm 3mm
AMU1084CCL(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm 210mm 159mm 222mm 175mm 152mm 273mm 176mm 273mm 200mm 246mm 221mm 267mm 3mm
AMU1206CCL(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm 260mm 210mm 273mm 226mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3mm
AMU1426CCL(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00 14.75, 14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm 311mm 260mm 324mm 276mm 254mm 375, 371mm 275mm 373mm 302mm 347mm 323mm 368mm 3mm
AMU1648CCL(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00 16.75 11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm 362mm 311mm 375mm 327mm 305mm 425mm 291mm 430mm 353mm 398mm 374mm 419mm 4mm
C
US
C
US
96
Coming in 2014!
Call factory for availability
AMU Series JIC Size Junction Boxes:
Nonmetal Snap Latch Hinged Cover - Solid/Opaque
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, solid/opaque cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Polycarbonate lockable latches and 300 series stainless steel hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
97
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664NL)
Add “F” to the part number for factory installed flanges (ex. AMU664NLF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
0.56
(14mm)
0.14
(4mm)
NOTE: COVER REMOVED FOR CLARITY
AS
Z
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x8x4
FOR USE ON
12x10x6 D=7.50 (199mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
W
K
C
0.87
(22mm)
D
H
L
I
J
0.66
(17mm)
F
UMFLANGE MOUNT
FOOT MOUNT
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel Boss
Centers Panel Sizes
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom.
Wall
Thick-
ness
A B C F S Z
Height Width
J I H L K M W U
AMU664NL(F*)
6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm
108mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU864NL(F*)
8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm
154mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU1084NL(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.391 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm
210mm 159mm
222mm 175mm
152mm
273mm
176mm 273mm
200mm
246mm 221mm
267mm
3mm
AMU1206NL(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm
260mm 210mm
273mm 226mm
203mm
324mm
224mm 323mm
251mm
296mm 272mm
318mm
3mm
AMU1426NL(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm
311mm 260mm
324mm 276mm
254mm
375, 371mm
275mm 373mm
302mm
347mm 323mm
368mm
3mm
AMU1648NL(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00
16.75
11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm
362mm 311mm
375mm 327mm
305mm
425mm
291mm 430mm
353mm
398mm 374mm
419mm
4mm
AMU1860NL(F*)
18.12 16.34 10.13 10.10 16.25 14.25 16.88 14.88 12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97 18.75 0.19
460mm 415mm 257mm 257mm
413mm
362mm 429mm
378mm
305mm
480, 477mm
348mm 487mm
410mm
455mm 431mm
476mm
5mm
AMU2060NL(F*)
19.87 16.09 10.13 10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
505mm 409mm 257mm 257mm
452mm
351mm 468mm
367mm
254mm
540mm
334mm 521mm
404mm
500mm 425mm
521mm
5mm
98
AMU Series JIC Size Junction Boxes:
Nonmetal Snap Latch Hinged Cover with Window
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, viewing window used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, viewing window cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate viewing window cover
•
Polycarbonate lockable latches and 300 series stainless steel hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Coming in 2014!
Call factory for availability
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
99
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664NLW)
Add “F” to the part number for factory installed flanges (ex. AMU664NLWF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
0.56
(14mm)
0.14
(4mm)
NOTE: COVER REMOVED FOR CLARITY
AS
Z
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x8x4
FOR USE ON
12x10x6 D=7.50 (199mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
W
K
C
0.87
(22mm)
D
H
L
I
J
0.66
(17mm)
F
UMFLANGE MOUNT
FOOT MOUNT
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel
Boss
Centers
Panel
Sizes
Flange
Mount
Centers
Foot
Mount
Centers Cover Size Nom.
Wall
Thick-
ness
Window
Dim.
(H x W)A B C F S Z
Height
Width
J I H L K M W U
AMU664NLW(F*)
6.05 6.27 4.13
4.11
4.25 4.25 4.81 4.81
4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72
6.50 0.13
3.50 x 3.50
154mm 159mm 105mm
104mm
108mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
90mm x 90mm
AMU864NLW(F*)
8.05 6.27 4.13
4.11
6.25 4.25 6.75 4.88
4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72
8.50 0.13
5.25 x 4.00
204mm 159mm 105mm
104mm
154mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
133mm x 102mm
AMU1084NLW(F*)
10.05 8.27 4.13
4.11
8.25 6.25 8.75 6.88
6.00
10.75
6.391 10.75 7.89 9.67 8.72
10.50 0.13
6.25 x 4.25
255mm 210mm 105mm
104mm
210mm 159mm 222mm 175mm
152mm
273mm
176mm 273mm 200mm 246mm 221mm
267mm
3mm
159mm x 108mm
AMU1206NLW(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
8.38 x 6.50
306mm 261mm 156mm
155mm
260mm 210mm 273mm 226mm
203mm
324mm
224mm 323mm 251mm 296mm 272mm
318mm
3mm
213mm x 165mm
AMU1426NLW(F*)
14.05 12.27 6.13
6.11
12.25 10.25 12.75 10.88
10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72
14.50 0.13
10.38 x 8.50
357mm 312mm 156mm
155mm
311mm 260mm 324mm 276mm
254mm
375, 371mm
275mm 373mm 302mm 347mm 323mm
368mm
3mm
264mm x 216mm
AMU1648NLW(F*)
16.05 14.27 8.13
8.11
14.25 12.25 14.75 12.88
12.00
16.75
11.47 16.91 13.89 15.67 14.72
16.50 0.14
12.38 x 10.50
408mm 362mm 207mm
206mm
362mm 311mm 375mm 327mm
305mm
425mm
291mm 430mm 353mm 398mm 374mm
419mm
4mm
314mm x 279mm
AMU1860NLW(F*)
18.12 16.34 10.13
10.10
16.25 14.25 16.88 14.88
12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97
18.75 0.19
13.00 x 11.00
460mm 415mm 257mm
257mm
413mm 362mm 429mm 378mm
305mm
480, 477mm
348mm 487mm 410mm 455mm 431mm
476mm
5mm
330mm x 279mm
AMU2060NLW(F*)
19.87 16.09 10.13
10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
14.00 x 12.00
505mm 409mm 257mm
257mm
452mm 351mm 468mm 367mm
254mm
540mm 334mm 521mm 404mm 500mm 425mm
521mm
5mm
356mm x 305mm
100
Coming in 2014!
Call factory for availability
AMU Series JIC Size Junction Boxes:
Nonmetal Snap Latch Hinged Cover - Clear Polycarbonate
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, instrumentation cover used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, clear polycarbonate cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate instrumentation cover
•
Polycarbonate lockable latches and 300 series stainless steel hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
101
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664CCNL)
Add “F” to the part number for factory installed flanges (ex. AMU664CCNLF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
Usable Panel Boss Flange Mount Foot Mount Nom. Wall
Box Size Depth Centers Panel Sizes Centers Centers Cover Size Thickness
Part No. A B C F S Z Height Width J I H L K M W U
AMU664CCNL(F*)
6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00 6.88, 6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm 108mm 108mm 122mm 122mm 102mm 175, 171mm 125mm 171mm 150mm 144mm 171mm 165mm 3mm
AMU864CCNL(F*)
8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00 8.88, 8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm 159mm 108mm 171mm 124mm 102mm 226, 222mm 125mm 222mm 150mm 195mm 171mm 216mm 3mm
AMU1084CCNL(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm 210mm 159mm 222mm 175mm 152mm 273mm 176mm 273mm 200mm 246mm 221mm 267mm 3mm
AMU1206CCNL(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm 260mm 210mm 273mm 226mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3mm
AMU1426CCNL(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00 14.75, 14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm 311mm 260mm 324mm 276mm 254mm 375, 371mm 275mm 373mm 302mm 347mm 323mm 368mm 3mm
AMU1648CCNL(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00 16.75 11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm 362mm 311mm 375mm 327mm 305mm 425mm 291mm 430mm 353mm 398mm 374mm 419mm 4mm
B
0.56
(14mm)
0.14
(4mm)
NOTE: COVER REMOVED FOR CLARITY
AS
Z
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x8x4
FOR USE ON
12x10x6 D=7.50 (199mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
W
K
C
0.87
(22mm)
D
H
L
I
J
0.66
(17mm)
F
UMFLANGE MOUNT
FOOT MOUNT
C
US
C
US
102
AMU Series JIC Size Junction Boxes:
Twist Latch Hinged Cover - Solid/Opaque
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, solid/opaque cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
300 series stainless steel lockable latches, and hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
103
ULTRALINE
Part No.
Box Size
Usable
Depth
Panel Boss
Centers Panel Sizes
Flange Mount
Centers
Foot Mount
Centers Cover Size
Nom.
Wall
Thick-
ness
A B C F S Z
Height Width
J I H L K M W U
AMU664T(F*) 6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm
108mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU864T(F*) 8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm
154mm 108mm
122mm 122mm
102mm
175, 171mm
125mm 171mm
150mm
144mm 171mm
165mm
3mm
AMU1084T(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.391 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm
210mm 159mm
222mm 175mm
152mm
273mm
176mm 273mm
200mm
246mm 221mm
267mm
3mm
AMU1206T(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm
260mm 210mm
273mm 226mm
203mm
324mm
224mm 323mm
251mm
296mm 272mm
318mm
3mm
AMU1426T(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm
311mm 260mm
324mm 276mm
254mm
375, 371mm
275mm 373mm
302mm
347mm 323mm
368mm
3mm
AMU1648T(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00
16.75
11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm
362mm 311mm
375mm 327mm
305mm
425mm
291mm 430mm
353mm
398mm 374mm
419mm
4mm
AMU1860T(F*)
18.12 16.34 10.13 10.10 16.25 14.25 16.88 14.88 12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97 18.75 0.19
460mm 415mm 257mm 257mm
413mm
362mm 429mm
378mm
305mm
480, 477mm
348mm 487mm
410mm
455mm 431mm
476mm
5mm
AMU2060T(F*)
19.87 16.09 10.13 10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
505mm 409mm 257mm 257mm
452mm
351mm 468mm
367mm
254mm
540mm
334mm 521mm
404mm
500mm 425mm
521mm
5mm
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
FLANGE MOUNT
FOOT MOUNT
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
0.87
(22mm)
0.66
(17mm)
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.50 (191mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
D
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664T)
Add “F” to the part number for factory installed flanges (ex. AMU664TF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
C
US
C
US
104
AMU Series JIC Size Junction Boxes:
Twist Latch Hinged Cover with Window
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, viewing window cover used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, viewing window cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate viewing window cover
•
300 series stainless steel lockable latches, and hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
105
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664TW)
Add “F” to the part number for factory installed flanges (ex. AMU664TWF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
FLANGE MOUNT
FOOT MOUNT
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
0.87
(22mm)
0.66
(17mm)
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.50 (191mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
D
C
US
C
US
Part No.
Box Size
Usable
Depth
Panel
Boss
Centers
Panel
Sizes
Flange
Mount
Centers
Foot
Mount
Centers Cover Size Nom.
Wall
Thick-
ness
Window
Dim.
(H x W)A B C F S Z
Height
Width
J I H L K M W U
AMU664TW(F*) 6.05 6.27 4.13
4.11
4.25 4.25 4.81 4.81
4.00
6.88, 6.75
4.91 6.75 5.89 5.67 6.72
6.50 0.13
3.50 x 3.50
154mm 159mm 105mm
104mm
108mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
90mm x 90mm
AMU864TW(F*) 8.05 6.27 4.13
4.11
6.25 4.25 6.75 4.88
4.00
8.88, 8.75
4.91 8.75 5.89 7.67 6.72
8.50 0.13
5.25 x 4.00
204mm 159mm 105mm
104mm
154mm 108mm 122mm 122mm
102mm
175, 171mm
125mm 171mm 150mm 144mm 171mm
165mm
3mm
133mm x 102mm
AMU1084TW(F*)
10.05 8.27 4.13
4.11
8.25 6.25 8.75 6.88
6.00
10.75
6.391 10.75 7.89 9.67 8.72
10.50 0.13
6.25 x 4.25
255mm 210mm 105mm
104mm
210mm 159mm 222mm 175mm
152mm
273mm
176mm 273mm 200mm 246mm 221mm
267mm
3mm
159mm x 108mm
AMU1206TW(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
8.38 x 6.50
306mm 261mm 156mm
155mm
260mm 210mm 273mm 226mm
203mm
324mm
224mm 323mm 251mm 296mm 272mm
318mm
3mm
213mm x 165mm
AMU1426TW(F*)
14.05 12.27 6.13
6.11
12.25 10.25 12.75 10.88
10.00
14.75, 14.62
10.82 14.70 11.89 13.67 12.72
14.50 0.13
10.38 x 8.50
357mm 312mm 156mm
155mm
311mm 260mm 324mm 276mm
254mm
375, 371mm
275mm 373mm 302mm 347mm 323mm
368mm
3mm
264mm x 216mm
AMU1648TW(F*)
16.05 14.27 8.13
8.11
14.25 12.25 14.75 12.88
12.00
16.75
11.47 16.91 13.89 15.67 14.72
16.50 0.14
12.38 x 10.50
408mm 362mm 207mm
206mm
362mm 311mm 375mm 327mm
305mm
425mm
291mm 430mm 353mm 398mm 374mm
419mm
4mm
314mm x 279mm
AMU1860TW(F*)
18.12 16.34 10.13
10.10
16.25 14.25 16.88 14.88
12.00
18.88, 18.76
13.72 19.16 16.14 17.92 16.97
18.75 0.19
13.00 x 11.00
460mm 415mm 257mm
257mm
413mm 362mm 429mm 378mm
305mm
480, 477mm
348mm 487mm 410mm 455mm 431mm
476mm
5mm
330mm x 279mm
AMU2060TW(F*)
19.87 16.09 10.13
10.10 17.81 13.81 18.44 14.44 10.00
21.25
13.16 20.53 15.89 19.67 16.72 20.50 0.19
14.00 x 12.00
505mm 409mm 257mm
257mm
452mm 351mm 468mm 367mm
254mm
540mm 334mm 521mm 404mm 500mm 425mm
521mm
5mm
356mm x 305mm
106
AMU Series JIC Size Junction Boxes:
Twist Latch Hinged Cover - Clear Polycarbonate
•
Designed to insulate and protect controls and components in both indoor and outdoor applications
often found in oil refineries, waste water treatment equipment, and chemical plants
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil, and water
•
For use with industrial control equipment in ordinary locations
•
Clear/polycarbonate, instrumentation cover used in applications where critical electronic equipment
must be visible and protected from the elements
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Compression molded fiberglass reinforced polyester construction with flush, clear polycarbonate cover
•
Allied Moulded ULTRAGUARD® fiberglass reinforced polyester material formulation - UV stabilized for outdoor use
•
Light gray color (RAL 7035)
•
Clear, polycarbonate instrumentation cover
•
300 series stainless steel lockable latches, and hinge pin
•
Partially molded hinge and molded latch keeper
•
Gasket made of closed cell neoprene cord encased in a continuous tongue and groove channel
•
Polycarbonate flanges (installed) or mounting feet (bagged) with four 300 series stainless steel screws
•
#10-32 threaded brass inserts are installed for back panel mounting
•
Optional back panels and hinged front panels
•
Optional thermal management products
•
Custom holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
113
CONTROL SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
2.05 TYP
(52mm)
H
W
1.50
(38mm)
C
Note: Cover removedfor clarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
D
1.19 TYP
(30mm)
LATCHLOCATIONS
For use on:
24x20x8 D=16.00 (406mm)
24x24x8 D=16.00 (406mm)
30x24x8 D=19.98 (507mm)
24x20x10 D=16.00 (406mm)
24x24x10 D=16.00 (406mm)
30x24x10 D=19.98 (507mm)
C
L
1.00
(25.4mm)
Part No. A B C F S Z Height Width H L K M U W
AM24208RLW 24.00 20.00 8.13 8.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59 16.00 X 12.00
610mm 508mm 207mm 217mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm 406mm X 305mm
AM24248RLW 24.00 24.00 8.13 8.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59 16.00 X 16.00
610mm 610mm 207mm 217mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm 406mm X 406mm
AM30248RLW 30.00 24.00 8.13 8.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59 23.00 X 17.00
762mm 610mm 207mm 217mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm 584mm X 432mm
AM24200RLW 24.00 20.00 10.13 10.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59 16.00 X 12.00
610mm 508mm 257mm 268mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm 406mm X 305mm
AM24240RLW 24.00 24.00 10.13 10.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59 16.00 X 16.00
610mm 610mm 257mm 268mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm 406mm X 406mm
AM30240RLW 30.00 24.00 10.13 10.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59 23.00 X 17.00
762mm 610mm 257mm 268mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm 584mm X 432mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size Window
Dimension
(height x width)
C
US
C
US
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
107
ULTRALINE
*Enclosure base part numbers come standard with 4 separately bagged feet (ex. AMU664CCT)
Add “F” to the part number for factory installed flanges (ex. AMU664CCTF)
“I” dimensions with multiple numbers indicate slotted holes
All dimensions are in inches unless otherwise noted
B
A
S
Z
W
K
C
U
M
F
J
I
L
H
FLANGE MOUNT
FOOT MOUNT
Note: Cover Removed for Clarity
0.56
(14mm) 0.14
(4mm)
0.87
(22mm)
0.66
(17mm)
LATCH LOCATIONS
FOR USE ON
6x6x4
8x6x4
10x6x4
FOR USE ON
12x10x6 D=7.50 (191mm)
14x12x6 D=8.00 (203mm)
16x14x8 D=9.00 (229mm)
18x16x10 D=14.56 (370mm)
20x16x10 D=16.81 (427mm)
D
Usable Panel Boss Flange Mount Foot Mount Nom. Wall
Box Size Depth Centers Panel Sizes Centers Centers Cover Size Thickness
Part No. A B C F S Z Height Width J I H L K M W U
AMU664CCT(F*)
6.05 6.27 4.13 4.11 4.25 4.25 4.81 4.81 4.00 6.88, 6.75 4.91 6.75 5.89 5.67 6.72 6.50 0.13
154mm 159mm 105mm 104mm 108mm 108mm 122mm 122mm 102mm 175, 171mm 125mm 171mm 150mm 144mm 171mm 165mm 3mm
AMU864CCT(F*)
8.05 6.27 4.13 4.11 6.25 4.25 6.75 4.88 4.00 8.88, 8.75 4.91 8.75 5.89 7.67 6.72 8.50 0.13
204mm 159mm 105mm 104mm 159mm 108mm 171mm 124mm 102mm 226, 222mm 125mm 222mm 150mm 195mm 171mm 216mm 3mm
AMU1084CCT(F*)
10.05 8.27 4.13 4.11 8.25 6.25 8.75 6.88 6.00 10.75 6.91 10.75 7.89 9.67 8.72 10.50 0.13
255mm 210mm 105mm 104mm 210mm 159mm 222mm 175mm 152mm 273mm 176mm 273mm 200mm 246mm 221mm 267mm 3mm
AMU1206CCT(F*)
12.05 10.27 6.13 6.11 10.25 8.25 10.75 8.88 8.00 12.75 8.82 12.70 9.89 11.67 10.72 12.50 0.13
306mm 261mm 156mm 155mm 260mm 210mm 273mm 226mm 203mm 324mm 224mm 323mm 251mm 296mm 272mm 318mm 3mm
AMU1426CCT(F*)
14.05 12.27 6.13 6.11 12.25 10.25 12.75 10.88 10.00 14.75, 14.62 10.82 14.70 11.89 13.67 12.72 14.50 0.13
357mm 312mm 156mm 155mm 311mm 260mm 324mm 276mm 254mm 375, 371mm 275mm 373mm 302mm 347mm 323mm 368mm 3mm
AMU1648CCT(F*)
16.05 14.27 8.13 8.11 14.25 12.25 14.75 12.88 12.00 16.75 11.47 16.91 13.89 15.67 14.72 16.50 0.14
408mm 362mm 207mm 206mm 362mm 311mm 375mm 327mm 305mm 425mm 291mm 430mm 353mm 398mm 374mm 419mm 4mm
C
US
C
US
108
The larger Control Series offers standard features as well as full-panel access and all
usable panel space. In addition, the standard grey cover is available with or without a
full-length polycarbonate viewing window. Other options include removable aluminum
hinged front panel and back panels.
Control Series enclosures insulate and protect controls and components against the
toughest elements in the harshest environments. Available in popular larger sizes and
depths and with standard stainless steel hinges and latches.
Control Series Features & Benefits
• Molded ULTRAGUARD® fiberglass reinforced polyester material construction for durability
• One-piece body construction provides added
dimensional stability
• Standards sizes from 24” x 20” x 9-3/4” to 30” x 24” x 11-3/4”
• Closed-cell neoprene gasket encased in a continuous channel
• Raised cover for additional depth
• 300 series stainless steel hardware and mounting feet
• Mounting panel inserts for optional back panel
• Optional Hinged Front Panel
• UV stabilized for outdoor use
CONTROL SERIES
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
109
CONTROL SERIES
Suitable Applications
• Electrical junctions
• Terminal wiring
• Electrical and electronic controls,
instruments, components
• Housing pushbuttons, switches or
other devices
• Other industrial control equipment
Control Series Specifications
•
Non-corrosive
• Non-conductive
• Temperature-resistant
• Fire-resistant
• Rated NEMA 1, 2, 3, 3R 4, 4X, 12, 13
• UL l iste d
• CSA cer tified
• Compliant with RoHS directive
Accessories
• Back panels available in painted carbon steel,
aluminum, fiberglass, or galvannealed steel
• Aluminum hinged front panel for
configuration flexibility
• UV resistant polycarbonate viewing windows
• Thermal management products
Modifications
We are pleased to modify any of our standard
products to fit your needs. We have the lowest
volume requirements on custom work in the
industry, and quick turnaround time.
We can modify any of our Control Series
enclosures with:
• Custom size holes and cutouts
• Custom size polycarbonate viewing windows
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
For complete details on factory
modifications including a modification
request form, see pages 136-138.
110
Control Series:
Snap Latch Hinged Cover
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
Full panel access
•
All usable panel space
•
300 series stainless steel snap latches feature padlock hasp
•
Two 300 series stainless steel hinges
•
Closed-cell neoprene gasket encased in a continuous channel
•
300 series stainless steel wall mounting feet with 3/8-16 stainless steel screws included
•
3/8-16 threaded inserts are installed for optional back panel
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
APPLICATION
STANDARDS
CONSTRUCTION
ACCESSORIES
MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
111
CONTROL SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
2.05 TYP
(52mm)
H
W
1.50
(38mm)
C
Note: Cover removedfor clarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
D
1.19 TYP
(30mm)
LATCHLOCATIONS
For use on:
24x20x8 D=16.00 (406mm)
24x24x8 D=16.00 (406mm)
30x24x8 D=19.98 (507mm)
24x20x10 D=16.00 (406mm)
24x24x10 D=16.00 (406mm)
30x24x10 D=19.98 (507mm)
C
L
1.00
(25.4mm)
Part No. A B C F S Z Height Width H L K M U W
AM24208RL 24.00 20.00 8.13 8.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59
610mm 508mm 207mm 217mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm
AM24248RL 24.00 24.00 8.13 8.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59
610mm 610mm 207mm 217mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm
AM30248RL 30.00 24.00 8.13 8.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59
762mm 610mm 207mm 217mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm
AM24200RL 24.00 20.00 10.13 10.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59
610mm 508mm 257mm 268mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm
AM24240RL 24.00 24.00 10.13 10.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59
610mm 610mm 257mm 268mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm
AM30240RL 30.00 24.00 10.13 10.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59
762mm 610mm 257mm 268mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
112
Control Series:
Snap Latch Hinged Cover With Window
•
Designed to insulate and house electrical and electronic controls, instruments or components for
indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
Full panel access
•
All usable panel space
•
UV resistant polycarbonate viewing window
•
300 series stainless steel snap latches feature padlock hasp
•
Two 300 series stainless steel hinges
•
Closed-cell neoprene gasket encased in a continuous channel
•
300 series stainless steel wall mounting feet with 3/8-16 stainless steel screws included
•
3/8-16 threaded inserts are installed for optional back panel
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
ACCESSORIES
MODIFICATIONS
APPLICATION
STANDARDS
CONSTRUCTION
114
Control Series:
Twist Latch Hinged Cover
•
Designed to insulate and house electrical and electronic controls, instruments or components for indoor and outdoor
applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
Full panel access
•
All usable panel space
•
300 series stainless steel twist latches feature padlock hasp
•
Two 300 series stainless steel hinges
•
Closed-cell neoprene gasket encased in a continuous channel
•
300 series stainless steel wall mounting feet with 3/8-16 stainless steel screws included
•
3/8-16 threaded inserts are installed for optional back panel
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Custom size polycarbonate viewing windows
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
ACCESSORIES
MODIFICATIONS
APPLICATION
STANDARDS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
115
CONTROL SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
2.05 TYP
(52mm)
H
W
1.50
(38mm)
C
Note: Cover removed forclarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
D
1.19 TYP
(30mm)
LATCHLOCATIONS
Foruse on:
24x20x8D=16.00 (406mm)
24x24x8D=16.00 (406mm)
30x24x8D=19.98 (507mm)
24x20x10 D=16.00 (406mm)
24x24x10 D=16.00 (406mm)
30x24x10 D=19.98 (507mm)
C
L
1.00
(25.4mm)
Part No. A B C F S Z Height Width H L K M U W
AM24208RT 24.00 20.00 8.13 8.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59
610mm 508mm 207mm 217mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm
AM24248RT 24.00 24.00 8.13 8.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59
610mm 610mm 207mm 217mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm
AM30248RT 30.00 24.00 8.13 8.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59
762mm 610mm 207mm 217mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm
AM24200RT 24.00 20.00 10.13 10.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59
610mm 508mm 257mm 268mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm
AM24240RT 24.00 24.00 10.13 10.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59
610mm 610mm 257mm 268mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm
AM30240RT 30.00 24.00 10.13 10.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59
762mm 610mm 257mm 268mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size
C
US
C
US
116
Control Series:
Twist Latch Hinged Cover With Window
•
Designed to insulate and house electrical and electronic controls, instruments or components
for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
Window unit provides viewing area for instrumentation or equipment
•
UL 50 and UL 50E Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
CSA C22.2 No. 94 Types 1, 2, 3, 3R, 4, 4X, 12 and 13
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
•
Strong, molded ULTRAGUARD® fiberglass reinforced polyester material construction with matching raised cover
•
Full panel access
•
All usable panel space
•
UV resistant polycarbonate viewing window
•
300 series stainless steel twist latches feature padlock hasp
•
Two 300 series stainless steel hinges
•
Closed-cell neoprene gasket encased in a continuous channel
•
300 series stainless steel wall mounting feet with 3/8-16 stainless steel screws included
•
3/8-16 threaded inserts are installed for optional back panel
•
ULTRAGUARD® fiberglass material is easily punched, drilled or sawed
•
UV stabilized for outdoor use
•
Optional back panels (See table on pages 128-129)
•
Optional hinged front panel (See table on page 130)
•
Optional thermal management products (See pages 131-132)
•
Custom size holes and cutouts
•
Molded-in color matches
•
EM I /R FI shie lding
•
Factory-supplied silk screening
ACCESSORIES
MODIFICATIONS
APPLICATION
STANDARDS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
117
CONTROL SERIES
All dimensions are in inches unless otherwise noted.
B
A
0.47 TYP
(12mm)
Z
S L
U
2.05 TYP
(52mm)
H
W
1.50
(38mm)
C
Note: Cover removed forclarity
Nominal 1/8" (3mm) wallthickness
F
M
K
1.75
(44mm)
D
1.19 TYP
(30mm)
LATCHLOCATIONS
Foruse on:
24x20x8D=16.00 (406mm)
24x24x8D=16.00 (406mm)
30x24x8D=19.98 (507mm)
24x20x10 D=16.00 (406mm)
24x24x10 D=16.00 (406mm)
30x24x10 D=19.98 (507mm)
C
L
1.00
(25.4mm)
Part No. A B C F S Z Height Width H L K M U W
AM24208RTW 24.00 20.00 8.13 8.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59 16.00 X 12.00
610mm 508mm 207mm 217mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm 406mm X 305mm
AM24248RTW 24.00 24.00 8.13 8.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59 16.00 X 16.00
610mm 610mm 207mm 217mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm 406mm X 406mm
AM30248RTW 30.00 24.00 8.13 8.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59 23.00 X 17.00
762mm 610mm 207mm 217mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm 584mm X 432mm
AM24200RTW 24.00 20.00 10.13 10.56 19.25 15.25 21.00 17.00 18.75 26.85 20.16 24.16 25.59 21.59 16.00 X 12.00
610mm 508mm 257mm 268mm 489mm 387mm 533mm 432mm 476mm 682mm 512mm 614mm 650mm 548mm 406mm X 305mm
AM24240RTW 24.00 24.00 10.13 10.56 19.25 19.25 21.00 21.00 22.75 26.85 24.16 24.16 25.59 25.59 16.00 X 16.00
610mm 610mm 257mm 268mm 489mm 489mm 533mm 533mm 578mm 682mm 614mm 614mm 650mm 650mm 406mm X 406mm
AM30240RTW 30.00 24.00 10.13 10.56 25.25 19.25 27.00 21.00 22.75 32.85 24.16 30.16 31.59 25.59 23.00 X 17.00
762mm 610mm 257mm 268mm 641mm 489mm 686mm 533mm 578mm 834mm 614mm 766mm 802mm 650mm 584mm X 432mm
Usable Panel Boss Foot Mount
Box Size Depth Centers Panel Sizes Centers Cover Size Window
Dimension
(height x width)
C
US
C
US
118
For your largest applications, turn to the Empire Series from Allied Moulded.
Fiberglass construction offers durability and strength without the excessive weight of a
comparable metal enclosure. Available in ten standard sizes, including eight wall mount
cabinets from 36” x 30” x 12” to 60” x 36” x 16” and two freestanding sizes up to
72” x 49” x 25”. A full range of modification services are also available on our
Empire Series enclosures.
Empire Series Features & Benefits
• ULTRAGUARD® fiberglass reinforced polyester material construction for durability
• Continuous stainless steel hinge
• Flexible, self-gripping gasket compresses over flange for tight seal
• Wall mount units come with two latching options to meet NEMA Type 4X requirements: (a) three 300 series
stainless steel twist latches with a padlock hasp or (b) padlockable 3-point latching handles
• Freestanding units have padlockable 3-point latching handles which meet NEMA Type 4 requirements
• Optional white painted carbon steel back panels are fully interchangeable with other specified enclosures
Suitable Applications
• Electrical junctions
• Terminal wiring
• Electrical and electronic controls, instruments, components
• Housing pushbuttons, switches or other devices
• Other industrial control equipment
EMPIRE SERIES
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
119
EMPIRE SERIES
Empire Series Specifications
• Non-corrosive
• Non-conductive
• Lightweight vs. stainless steel
• Temperature-resistant
• Fire-resistant
• Rated NEMA 1, 4, and 4X
• cUL lis ted
Accessories
• Optional white painted carbon steel back panels
• Optional thermal management products
• Optional print pocket
Modifications
We are pleased to modify any of our standard
products to fit your needs. We have the lowest
volume requirements on custom work in the industry,
and quick turnaround time.
We can modify any of our Empire Series
enclosures with:
• Custom holes and cutouts
• Viewing windows
• Molded-in color matches
• EMI/RFI shielding
• Factory-supplied silk screening
• Mounting strut
120
Empire Series: Wall Mount
Twist Latch Hinged Cover
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 4, and 4X
•
CSA C22.2 No. 94 Types 1, 4, and 4X
•
Complies with
−
NEMA Types 1, 4, and 4X
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Durable, corrosion resistant ULTRAGUARD® fiberglass material construction
•
Flexible, self-gripping gasket compresses over flange for tight seal and
needs only three closure twist latches to meet NEMA 4X requirements (AM6036 requires 4 latches)
•
Heavy-duty continuous 300 series stainless steel hinge
• 300 series stainless steel twist latches feature padlock hasp
•
ULTRAGUARD® fiberglass material has UV inhibitors which provide ideal protection from outdoor weathering
•
Optional painted carbon steel back panels (See page 129)
•
Optional thermal management products (See pages 131-132)
•
Optional print pocket (See page 131)
•
See page 136-138
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
121
EMPIRE SERIES
All dimensions are in inches unless otherwise noted.
Box Dim. Overall Usable
at Top Box Dim. Depth Flange Mount Opening Panel Studs Panel Size
Part No. A B C D E F H L Height Width
# of Studs
S Z Height Width
AM363012L 36.25 30.25 10.14 40.50 31.15 10.27 24.00 38.90 33.50 27.50 6 31.25 25.25 33.00 27.00
921mm 768mm 258mm 1,029mm 791mm 261mm 610mm 988mm 851mm 699mm 794mm 641mm 838mm 686mm
AM363016L 36.04 30.04 14.16 40.50 31.15 14.27 24.00 38.90 33.50 27.50 6 31.25 25.25 33.00 27.00
915mm 763mm 359mm 1,029mm 791mm 362mm 610mm 988mm 851mm 699mm 794mm 641mm 838mm 686mm
AM363612L 36.25 36.25 10.14 40.50 37.15 10.27 30.00 38.90 33.50 33.50 8 31.25 31.25 33.00 33.00
921mm 921mm 258mm 1,029mm 944mm 261mm 762mm 988mm 851mm 851mm 794mm 794mm 838mm 838mm
AM363616L 36.04 36.04 14.14 40.50 37.15 14.27 30.00 38.90 33.50 33.50 8 31.25 31.25 33.00 33.00
915mm 915mm 3659mm 1,029mm 944mm 362mm 762mm 988mm 851mm 851mm 794mm 794mm 838mm 838mm
AM483612L 48.25 36.25 10.14 52.50 37.15 10.27 30.00 50.90 45.50 33.50 8 43.25 31.25 45.00 33.00
1,226mm 921mm 258mm 1,334mm 944mm 261mm 762mm 1,293mm 1,156mm 851mm 1,099mm 794mm 1,143mm 838mm
AM483616L 48.04 36.04 14.164 52.50 37.15 14.27 30.00 50.90 45.50 33.50 8 43.25 31.25 45.00 33.00
1,220mm 915mm 359mm 1,334mm 944mm 362mm 762mm 1,293mm 1,156mm 851mm 1,099mm 794mm 1,143mm 838mm
AM603612L 60.25 36.25 10.14 64.50 37.15 10.27 30.00 62.90 57.50 33.50 8 55.25 31.25 57.00 33.00
1,530mm 921mm 258mm 1,638mm 944mm 261mm 762mm 1,598mm 1,461mm 851mm 1,403mm 794mm 1,448mm 838mm
AM603616L 60.04 36.04 14.14 64.50 37.15 14.27 30.00 62.90 57.50 33.50 8 55.25 31.25 57.00 33.00
1,525mm 915mm 360mm 1,638mm 944mm 362mm 762mm 1,598mm 1,461mm 851mm 1,403mm 794mm 1,448mm 838mm
C
US
C
US
122
Empire Series: Wall Mount
3-Point Latch Hinged Cover
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 4, and 4X
•
CSA C22.2 No. 94 Types 1, 4, and 4X
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Durable, corrosion resistant ULTRAGUARD® fiberglass material construction
•
Flexible, self-gripping gasket compresses over flange for tight seal and has one 3-point latching handle
with padlocking provision
•
Heavy-duty continuous 300 series stainless steel hinge
•
ULTRAGUARD® fiberglass material has UV inhibitors which provide ideal protection from outdoor weathering
•
Optional painted carbon steel back panels (See page 129)
•
Optional thermal management products (See pages 131-132)
•
Optional print pocket (See page 131)
•
See page 136-138
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
123
EMPIRE SERIES
All dimensions are in inches unless otherwise noted.
Box Dim. Overall Usable
at Top Box Dim. Depth Flange Mount Opening Panel Studs Panel Size
Part No. A B C D E F H L Height Width # of Studs S Z Height Width
AM363012L3PT
36.25 30.25 10.14 40.50 31.15 10.27 24.00 38.90 33.50 27.50 6 31.25 25.25 33.00 27.00
921mm 768mm 258mm 1,029mm 791mm 261mm 610mm 988mm 851mm 699mm 794mm 641mm 838mm 686mm
AM363016L3PT
36.04 30.04 14.16 40.50 31.15 14.27 24.00 38.90 33.50 27.50 6 31.25 25.25 33.00 27.00
915mm 763mm 359mm 1,029mm 791mm 362mm 610mm 988mm 851mm 699mm 794mm 641mm 838mm 686mm
AM363612L3PT
36.25 36.25 10.14 40.50 37.15 10.27 30.00 38.90 33.50 33.50 8 31.25 31.25 33.00 33.00
921mm 921mm 258mm 1,029mm 944mm 261mm 762mm 988mm 851mm 851mm 794mm 794mm 838mm 838mm
AM363616L3PT
36.04 36.04 14.14 40.50 37.15 14.27 30.00 38.90 33.50 33.50 8 31.25 31.25 33.00 33.00
915mm 915mm 3659mm 1,029mm 944mm 362mm 762mm 988mm 851mm 851mm 794mm 794mm 838mm 838mm
AM483612L3PT
48.25 36.25 10.14 52.50 37.15 10.27 30.00 50.90 45.50 33.50 8 43.25 31.25 45.00 33.00
1,226mm 921mm 258mm 1,334mm 944mm 261mm 762mm 1,293mm 1,156mm 851mm 1,099mm 794mm 1,143mm 838mm
AM483616L3PT
48.04 36.04 14.164 52.50 37.15 14.27 30.00 50.90 45.50 33.50 8 43.25 31.25 45.00 33.00
1,220mm 915mm 359mm 1,334mm 944mm 362mm 762mm 1,293mm 1,156mm 851mm 1,099mm 794mm 1,143mm 838mm
AM603612L3PT
60.25 36.25 10.14 64.50 37.15 10.27 30.00 62.90 57.50 33.50 8 55.25 31.25 57.00 33.00
1,530mm 921mm 258mm 1,638mm 944mm 261mm 762mm 1,598mm 1,461mm 851mm 1,403mm 794mm 1,448mm 838mm
AM603616L3PT
60.04 36.04 14.14 64.50 37.15 14.27 30.00 62.90 57.50 33.50 8 55.25 31.25 57.00 33.00
1,525mm 915mm 360mm 1,638mm 944mm 362mm 762mm 1,598mm 1,461mm 851mm 1,403mm 794mm 1,448mm 838mm
C
US
C
US
124
Empire Series:
Free Standing Single Door
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 4, and 4X
•
CSA C22.2 No. 94 Types 1, 4, and 4X
•
Complies with
−
NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13
−
IEC 60529 Type IP66
−
RoHS directive
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Durable, corrosion resistant ULTRAGUARD® fiberglass material construction
•
Soft, self-gripping gasket compresses over flange for tight seal
and has one 3 point latching handle with padlocking provision
•
Heavy-duty continuous 300 series stainless steel hinge
•
ULTRAGUARD® fiberglass material has UV inhibitors which provide ideal protection from outdoor weathering
•
Heavy duty lifting eyes
•
Molded-in drip shield
•
Optional painted carbon steel back panels
•
Optional thermal management products (See pages 131-132)
•
Optional print pocket (See page 131)
•
See page 136-138
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
125
EMPIRE SERIES
LTYP.
NTYP.
D
Q
J
OPENING
5.50
(139.7mm)
FRONT VIEW WITH DOOR
3 POINT STAINLESS
STEEL LATCH HANDLE
(PADLOCK PROVISIONED)
R
FRONT VIEW WITH DOOR REMOVED
K
OPENING
7.13
(181.1mm)
0.19 (4.8mm)
WALL THICKNESS
23.02
(584.7mm)
1.54
(39.1mm)
STAINLESS STEEL
CONTINUOUS HINGE
E
H
F
P
M
TYP.
(3)
NTYP.
1.00
(25.4mm)
STAINLESSSTEEL EYEBOLT
Part No. D E F H J K L M N P Q R
# PANEL MOUNT STUDS
AM722525FS 72.00 25.00 24.50 21.75 62.88 20.63 55.25 19.25 27.63 12.25 66.00 23.00 6
1829mm 635mm 622mm 552mm 1597mm 524mm 1403mm 489mm 702mm 311mm 1676mm 584mm
All dimensions are in inches unless otherwise noted.
Optional Carbon
Steel Back Panel
Part No. Height Width
P7225CS 57.00 21.00
1448mm 533mm
C
US
C
US
126
Empire Series:
Free Standing Double Door
•
Designed to insulate and house electrical and electronic controls, instruments
or components for indoor and outdoor applications
•
Especially well suited for high temperature or corrosive environments
•
Protects from dirt, dust, oil and water
•
UL 50 and UL 50E Types 1, 4, and 4X
•
CSA C22.2 No. 94 Types 1, 4, and 4X
•
Complies with
−
NEMA Types 1, 4, and 4X
−
IEC 60529 Type IP66
•
For additional physical properties per industry test standards, please refer to the chart on page 140
•
Durable, corrosion resistant ULTRAGUARD® fiberglass material construction
•
Flexible, self-gripping gasket compresses over flange for tight seal
and has two 3 point latching handles with padlocking provision
•
Heavy-duty continuous 300 stainless steel hinge
•
ULTRAGUARD® Fiberglass material has UV inhibitors which provide ideal protection from outdoor weathering
•
Heavy duty lifting eyes
•
Molded-in drip shield
•
Fiberglass mounting strut installed on side
•
Optional painted carbon steel back panels
•
Optional thermal management products (See pages 131-132)
•
Optional print pocket (See page 131)
•
See page 136-138
APPLICATION
STANDARDS
ACCESSORIES
MODIFICATIONS
CONSTRUCTION
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
127
EMPIRE SERIES
L
TYP.
N
TYP.
D
Q
TYP.
RTYP.
FRONTVIEW WITH DOORS
5.50
(127mm)
3POINTSTAINLESS
STEEL LATCHHANDLE
(PADLOCK PROVISIONED)
TYP.
3.38 (85.9mm)
CENTER POST
K TYP.
FRONTVIEW WITHDOORSREMOVED
N
TYP.
7.00 TYP.
(177.8mm)
H
E
F
STAINLESS STEEL
CONTINUOUS HINGE
TYP.
1.63
(41.4mm)
P
23.02
(584.7mm)
M
TYP.(6)
0.19 (4.8mm)
WALL THICKNESS
J
TYP.
10.00TYP.
(254mm)
39.13 TYP.
(994mm)
68.25 TYP.
(1,734mm)
STAINLESS STEEL
EYEBOLT TYP.
1.00
(25.4mm)
Part No. D E F H J K L M N P Q R
# PANEL MOUNT STUDS
AM724925FSDD
72.00 49.00 24.50 45.25 62.88 20.63 55.25 19.25 27.63 5.00 66.00 23.00 12
1829mm 1245mm 622mm 1149mm 1597mm 524mm 1403mm 489mm 702mm 127mm 1676mm 584mm
All dimensions are in inches unless otherwise noted.
Optional Carbon
Steel Back Panel
Part No. Height Width
P7249CS 57.00 21.00
1448mm 533mm
C
US
C
US
128
B
D
0.25 (6.35mm) DIA. THRU
TYP. (4) PLACES
A
C
0.075 (1.91mm) Steel, Galvanealed
0.10 (2.54mm) Aluminum
*Fiberglass (FRP)
*Fiberglass panel thickness: (0.125”) PF66, PF86, PF108; (0.187”) PF120, PF142, PF164; (0.250”) PF186, PF206
AM, AMHD, AMU, AM-R SERIES (JIC Sizes)
Steel
Alum FRP Galv
A B C D
P66 PA66 PF66 PG66 4.81 4.81 4.25 4.25
122mm 122mm 108mm 108mm
P86 PA86 PF86 PG86 6.75 4.88 6.25 4.25
171mm 124mm 159mm 108mm
P108 PA108 PF108 PG108 8.75 6.88 8.25 6.25
222mm 175mm 210mm 159mm
P120 PA120 PF120 PG120 10.75 8.88 10.25 8.25
273mm 226mm 260mm 210mm
P142 PA142 PF142 PG142 12.75 10.88 12.25 10.25
324mm 276mm 311mm 260mm
P164 PA164 PF164 PG164 14.75 12.88 14.25 12.25
375mm 327mm 362mm 311mm
P186 PA186 PF186 PG186 16.88 14.88 16.25 14.25
429mm 378mm 413mm 362mm
P206 PA206 PF206 PG206 18.44 14.44 17.81 13.81
468mm 367mm 452mm 351mm
AM / AMU / AM-R:
Optional Back Panels
“P” White Painted Carbon Steel
“PA” Aluminum
“PF” Fiberglass
“PG” Galvannealed
Other Product Line
Panels are found on:
Pages 24-25...POLYLINE
Page 33...AM Series Small
Junction Box
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
129
ACCESSORIES
Control Series / Empire Series:
Optional Back Panels
“P” White Painted Carbon Steel
“PA” Aluminum
“PF” Fiberglass
“PG” Galvannealed
D
0.50 (12.70mm)
TYP.
0.50 (12.70mm)
TYP.
Ø 0.50
(12.70mm)
R0.25 (6.35mm)
TYP. A
TYP
B
C
TYP
0.88 (22.23mm)
TYP.
0.88 (22.23mm)
TYP.
R0.13 (3.18mm)
TYP.
0.75 (19.05mm)
TYP.
CONTROL SERIES
Steel
Alum FRP Galv
A B C D
P2420 PA2420 PF2420 PG2420 19.25 21.00 15.25 17.00
489mm 533mm 387mm 432mm
P2424 PA2424 PF2424 PG2424 19.25 21.00 19.25 21.00
489mm 533mm 489mm 533mm
P3024 PA3024 PF3024 PG3024 25.25 27.00 19.25 21.00
641mm 686mm 489mm 533mm
Steel panel thickness: (0.1046”) P2420, P2424, P3024; Aluminum panel thickness: (0.1046”) PA2420, PA2424, PA3024
Fiberglass panel thickness: (0.250”) PF2420, PF2424, PF3024; Galvanized steel panel thickness: (0.1046”) PG2420, PG2424, PG3024
Note: Fiberglass is just a flat panel, no rolled edge.
Note: Empire panels are 0.1046” in thickness
EMPIRE SERIES
Steel A B C D
P3630CS
31.24 33.00 25.24 27.00
793mm 838mm 641mm 686mm
P3636CS
31.24 33.00 31.24 33.00
793mm 838mm 793mm 838mm
P4836CS
43.24 45.00 31.24 33.00
1,098mm 1,143mm 793mm 838mm
P6036CS
55.24 57.00 31.24 33.00
1,403mm 1,448mm 793mm 838mm
Other Product Line
Panels are found on:
Pages 125 & 127
EMPIRE Series Free
Standing units
130
AM-R Series: Aluminum Hinged Front Panels
HFP – Used with raised cover only
Features:
• Panels designed to offer both a professional instrumentation display and a protective
covering for electric wiring inside the enclosure
• Completely field-installable panel design with no required enclosure modifications
• Latch design secures panel in place with one-quarter turn
• One-half-inch adjustability up or down
• For use with raised cover enclosures from 6” x 6” through 30” x 24”
• Panel modifications available include: cut-in holes, and screen printing
• Compliant with RoHS directive
Features:
•
Panels designed to offer both a professional instrumentation display and a protective
covering for electric wiring inside the enclosure
•
Completely field-installable panel design. Installation instruction sheet included.
•
Latch design secures panel in place with one-quarter turn
•
For use with enclosures from 6” x 6” through 20” x 16”
•
Panel modifications available include: cut-in holes, and screen printing
•
Compliant with RoHS directive
AMU Series: Aluminum Hinged Front Panels
HFPU
AM-R CONTROL SERIES:
AMU JIC SERIES:
*Standard HFP186 doesn’t fit in AMHD product.
Note: Please refer to website
www.alliedmoulded.com for installed HFP
drawings and dimensional information.
Note: Please refer to website
www.alliedmoulded.com for installed HFPU
drawings and dimensional information.
Part No. Panel Dim. (H x W x D)
HFP66
5.60 x 5.60 x .09
142mm x 142mm x 2.3mm
HFP86
7.50 x 5.62 x .09
191mm x 143mm x 2.3mm
HFP108
9.50 x 7.50 x .09
241mm x 191mm x 2.3mm
HFP120
11.50 x 9.50 x .09
292mm x 241mm x 2.3mm
HFP142
13.50 x 11.50 x .09
343mm x 292mm x 2.3mm
HFP164
15.50 x 13.50 x .09
394mm x 343mm x 2.3mm
HFP186*
17.625 x 15.625 x .09
448mm x 397mm x 2.3mm
HFP206
19.25 x 15.25 x .09
489mm x 387mm x 2.3mm
Part No. Panel Dim. (H x W x D)
HFP2420
23.25 x 19.375 x .09
591mm x 492mm x 2.3mm
HFP2424
23.375 x 23.25 x .09
594mm x 591mm x 2.3mm
HFP3024
29.25 x 23.375 x .09
743mm x 594mm x 2.3mm
Part No. Panel Dim. (H x W x D)
HFPU66
5.87 x 5.64 x .09
149mm x 143mm x 2.3mm
HFPU86
7.73 x 5.91 x .09
196mm x 150mm x 2.3mm
HFPU108
9.64 x 7.87 x .09
245mm x 200mm x 2.3mm
HFPU120
11.64 x 9.86 x .09
296mm x 250mm x 2.3mm
HFPU142
13.64 x 11.86 x .09
346mm x 301mm x 2.3mm
HFPU164
15.64 x 13.86 x .09
397mm x 352mm x 2.3mm
HFPU186
17.90 x 15.99 x .09
455mm x 406mm x 2.3mm
HFPU206
19.65 x 15.55 x .09
499mm x 395mm x 2.3mm
AM-R JIC SERIES:
Other Product Line
Panels are found on:
Pages 24-25
POLYLINE Series
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
131
ACCESSORIES
ENCLOSURE PRINT POCKET
PART NO.: AMPRINTPOCKET
• Easy to install in the field
• Store prints or other important documents inside the enclosure
• Grey polystyrene print pocket for large JIC Series, Control Series,
and Empire Series enclosures
• Two-sided adhesive tape pre-applied to print pocket
• Size: 9.375 in (H) x 10.375 in (W) x 1.045 in (D)
238 mm (H) x 264 mm (W) x 27 mm (D)
ENCLOSURE VENTILATION KIT
PART NO.: AMVENTSM & AMVENTLG
• Grey polyamide material
• Use with JIC Series enclosures - Install two per enclosure
• Installation instruction sheet included
• Seal included in kit to ensure raintight enclosure protection
• Two vents per kit for field installation allows for sufficient air circulation
and prevents condensation and moisture
Overall Dimensions:
AMVENTSM; 1 in (25 mm) x 1.125 in (29 mm) and requires .75 in (19mm) through hole
AMVENTLG; 2 in (51 mm) x 2.675 in (68 mm) and requires 1.156 in (29 mm) through hole
PART NO.: AMPFA1000, AMPFA2000, and AMPFA3000
• Three sizes covering large JIC Series, Control Series, and Empire Series enclosures
• Non-metallic made from strong ABS-FR, self-extinguishing material (UL 94 VO)
• Snap-in design allows for hardware-free installation
• Gaskets included provide a NEMA 12 seal against the enclosure
• Filter cover comes standard in light grey RAL 7035 color
• Installation instruction sheet included
• Replaceable filter material provides for 73% filtration efficiency
• Filter density is standard 150 (g/m2)
EXHAUST FILTER KIT
Enclosure Accessories
Size Information:
• AMPFA1000; 4.133in (105mm) x 4.133in (105mm) x 0.39in (10mm)
• AMPFA2000; 5.905in (150mm) x 5.905in (150mm) x 1.06in (27mm)
• AMPFA3000; 9.842in (250mm) x 9.842in (250mm) x 1.18in (30mm)
Note: There are other thermal management accessories available upon request. These
include: Fans, replacement filters, heaters, air-conditioners, and thermostats. Please
contact factory for more information.
132
ENCLOSURE KEYLOCK KITS
PART NO.: AMKEYLOCKFC, AMKEYLOCKRC, and AMKEYLOCKRCHFP
• AMKEYLOCKFC keylock assembly kit for (F)flat (C)cover enclosures 6x6 through 20x16 (AM Series)
• AMKEYLOCLKRC keylock assembly kit for (R)raised (C)cover enclosures 6x6 through 30x24 (AM-R Series)
• AMKEYLOCKRCHFP keylock assembly kit for (R)raised (C)cover enclosures with a
(H)hinge (F)front (P)panel installed in enclosures 10x8 through 30x24 (AM-R Series)
• Kits include: Two keys, keylock assembly, cam, dust cover, lock bracket, and hardware
• Field installable while requiring only a round hole to be cut into the cover
• Keylocks are sold with a self locking nut for tight and secure assembly
• Just a 1/4 turn rotation is required to lock the enclosure cover
• Installed keylock assemblies have been tested and pass the NEMA 4X watertight test
• Manufactured components are RoHS compliant (Restriction of Hazardous Substances)
Enclosure Accessories
PART NO.: AMHDL001
• Handle: Glass fiber reinforced nylon
• Finish: Black matte
• Screws and lock washers included
Dimensions
A: 5.47 in (139 mm)
B: 4.61 in (117 mm)
C: 1.34 in (34 mm)
D: 1/4 - 20
E: 1.02 in (26 mm)
F: 1.61 in (41 mm)
H: 0.35 in (9 mm)
PULL TYPE HANDLE
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
133
ACCESSORIES
MATERIALS OF CONSTRUCTION
ENCLOSURE POLE MOUNT KITS ARE USED WITH:
• Nine sizes covering AM JIC, AMU JIC, AMP JIC, and Control Series enclosures
• Steel band design allows for adjustable mounting capability on
pole sizes up through 15 inches in diameter
• Allied pole mount kits have the capability to mount enclosures to
round, square, and rectangular pole shapes.
• Fewer parts are used so minimal assembly is required for
installation
• Pole mount kits offer corrosion protection for outdoor use
FEATURES & BENEFITS
Pole Mount Flange
• Galvannealed steel; 14 guage (.075 in.)
Pole Mount Band Clamp
• 300 series stainless steel (48 in.)
Flange Fasteners (screw, washer, and lock nut)
• 300 series stainless steel (#10-32)
AM Series Units1 AMU & AMP Flange Mount Units2
Kit Number Standard Mount Rotated 90 Degrees Standard Mount
AMPOLEMNT6 AM664, AM864 None AMU(P)664, AMU(P)864
AMPOLEMNT8 AM1084, AM1086 AM864 AMP884, AMU(P)1084
AMPOLEMNT10 AM1206 AM1084, AM1086 AMU(P)1206
AMPOLEMNT12 AM1426 AM1206 AMU(P)1426
AMPOLEMNT14 AM1648 AM1426 AMU1648
AMPOLEMNT16 AM1868, AM2068 AM1648 AMU1860, AMU2060
AMPOLEMNT20 AM2420 None None
AMPOLEMNT24 AM2424, AM3024 AM2420 None
AMPOLEMNTEMP AM363012, AMEC363012, AM363016, AM363612, AM363616, AM483612, AM483616, AM603612, AM603616
POLE MOUNT KITS
Enclosure Accessories
1Pole mount brackets are directly mounted to the back of the these enclosures.
2Enclosure flange is bolted through and attached to the pole mount bracket on these enclosures.
134
• Body: Polyamide 6
• Seal: Neoprene
• Lock Nut: 25% glass fiber reinforced Polyamide 6
• Color: Light Grey
• Maximum strain relief through clamping range
• IP68 achieved without seal rings
• Trapezoidal thread with high torque guarantees tight
and permanent fit of the dome nut
• Gas and water-tight
• CSA approved and UL listed
• Temp range: PA 6 -40 to 100 deg C (-40 to 212 deg F)
Neoprene -25 to 100 deg C (-13 to 212 deg F)
• Recommended enclosure hole size for external thread:
NPT 1/2” 21.8mm (.8594 in); NPT 3/4” 27.4mm (1.0781 in);
NPT 1” 34.1mm (1.3438 in)
CORD GRIP DIMENSIONS
LOCK NUT DIMENSIONS
CORD GRIPS
Enclosure Accessories
Locknut Thread for
Pressure Dome Seal Sleeve
External Thread Pressure
Fingers
Pressure
Dome
Thread Size
Part
Number
Clamping
Range (mm)
Package
Quantity H (mm) E (mm) L (mm)
Dia. C
(mm)
Dia. P
(mm)
Dia. NPT/M
(mm)
NPT ½” 5308901 5 to 12 50 24 14 44 12.5 12.5 21.2
NPT ¾” 5308902 9 to 18 50 33 15 54 18.5 18.5 26.7
NPT 1” 5308903 14 to 25 50 42 18 60 25.5 25.5 33.3
Thread Size Part Number
Package
Quantity
Thickness
E (mm) SW (mm)
NPT ½” 7211486-50 50 6 27
NPT ¾” 7211487 20 7 36
NPT 1” 7211488 20 7 41
C
o
r
d
G
r
i
p
I
n
s
t
a
l
l
e
d
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
135
ACCESSORIES
P/N General
Purpose
Polycarbonate
RAL 7035
Light Gray
P/N General
Purpose
Polycarbonate
ANSI 61
Dark Gray
Trade Size
Ref.
(nom. In.)
Plugged
Hole Dia.
Range
(In.)
Wall
Thickness
Range
(In.)
A
Plug
Diameter
(In.)
B
Plug Head
Height
(In.)
C
Nut
Diameter
(In.)
D
Nut
Height
(In.)
E
Across
Flats (In.)
AMHSPL-S AMHSPL-SGY Pilot Light (.500) .500-.624 .059-.250 1.120 0.235 1.060 0.500 0.545
AMHSPL AMHSPL-GY Pilot Light (.625) .625-.812 .059-.250 1.120 0.235 1.060 0.500 0.545
AMHS050
AMHS050-GY
1/2" Conduit (.875)
22mm PB (.886)
.812-.937 .059-.250 1.245 0.235 1.185 0.500 0.605
AMHS075 AMHS075-GY
3/4" Conduit (1.109)
30mm PB (1.210)
1.000-1.312 .059-.250 1.620 0.235 1.560 0.500 0.945
AMHS100 AMHS100-GY 1" Conduit (1.375) 1.375-1.625 .059-.250 1.923 0.235 1.873 0.500 0.945
AMHS125 AMHS125-GY 1-1/4" Conduit
(1.734) 1.687-1.875 .059-.250 2.183 0.235 2.123 0.500 1.195
AMHS150
AMHS150-GY
1-1/2" Conduit
(1.984) 2.000-2.187 .059-.250 2.495 0.235 2.435 0.500 1.195
AMHS200
AMHS200-GY
2" Conduit (2.469) 2.500-2.75 .059-.250 3.120 0.235 3.060 0.750 1.291
AMHS250
AMHS250-GY
2-1/2" Conduit
(2.969) 2.875-3.125 .059-.250 3.495 0.235 3.435 0.750 1.491
AMHS300
AMHS300-GY
3" Conduit (3.594) 3.500-3.750 .059-.250 4.120 0.235 4.060 0.750 1.491
AMHS350
AMHS350-GY
3-1/2" Conduit
(4.125) 4.000-4.250 .059-.250 4.620 0.235 4.560 0.750 1.491
AMHS400
AMHS400-GY
4" Conduit (4.641) 4.500-4.750 .059-.250 5.120 0.235 5.060 0.750 1.491
HOLE PLUG ASSEMBLIES FOR ENCLOSURES
Hole Plug Features:
•
Plug “Fins”: Self centering, anti-rotational design for fast & easy one person plug
assembly and no-tools tightening
•
Plug fits wide range of hole sizes without the use of restrictive hole centering spacers
•
Patent pending design
•
Recognized component for use with UL & CSA listed enclosure products
•
Molded material of construction for a wide range of chemical compatible applications
(polycarbonate with neoprene/EPDM gasket)
•
Assembly designed to maintain applicable NEMA/UL/CSA enclosure ratings
Note: For use on flat surface of a Type 1, 3R, 4, 4X and 12 enclosure
•
Designed for use with wall thicknesses from 16 gauge through 1/4”
•
Designed for use with all metallic and nonmetallic enclosure materials
•
Low profile interior nut and exterior plug saves valuable panel space
•
Capable of sealing unused holes ranging in size from 1/2” to 4-3/4”
Simple Install
1) Push/Plug
2) Twist-lock/Fins
3) Screw-tight/Nut
Scan for more information or visit
ultraplug.alliedmoulded.com
Note: For use on flat surface of Types 1, 3R, 4, 4X and 12 enclosures.
Polycarbonate (PC) can be used as a substitute for carbon steel plug applications plus many stainless steel and other nonmetallic plug applciations. Please check industry standard corrosion guides for additional application assistance.
™
136
Custom Modifications
Your source for fast, no-hassle modifications.
With Allied Moulded’s complete modification services, the need for inconvenient
secondary handling of your enclosure is eliminated, saving you time and money.
We are pleased to customize any of our standard products with the following modifications:
• Holes and cutouts
• Polycarbonate viewing windows
• EMI/RFI shielding
• Factory supplied silk screening
• Molded in color matches
Industry’s lowest volume requirements.
Because we are dedicated to providing you with outstanding service, we have the lowest volume
requirements on custom work in the industry and guarantee quick delivery, often in less than three
weeks from receipt of your order.
CUSTOM MODIFICATIONS
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
137
MODIFICATIONS
Computer-controlled CNC
We incorporate computer controlled
manufacturing equipment into our operation
which assures that modifications such as
specialty holes and cutouts are exact to your
specifications each time you order.
Custom holes and cutouts
Custom holes and cutouts allow for conduit entry
or device mounting to meet the needs of any
application.
EMI/RFI shielding
EMI/RFI shielding provides high-level protection
against electromagnetic and radio frequency
interference.
Silk Screen printing
Silk screen printing is a practical, professional
way to identify corporate identity or enclosure
function.
Custom colors
Custom color pigments result in a homogeneously
molded product.
Custom panels
Available custom metal work includes holes
and cutouts on either back and hinged
deadfront panels.
Yellow Red
Blue Green
Black Orange
White
138
SPECIALS/MODIFICATION REQUEST FORM
For modification orders, please photocopy and complete this form,
then return to Allied Moulded via mail or fax to 419-636-2450.
Date: ________Part Number: _____________________________Quantity: _______________________
Name: __________________________________ Company __________________________________
Address: __________________________________________________________________________
_________________________________________________________________________________
City: ______________________________________ State: ___________ Zip: _________________
Email: _______________________________________ Phone: ______________________________
Size
H ___________x W __________ x D __________
Cover
❍ Flush ❍ Raised ❍ Screw cover ❍ Hinged cover ❍ Hinged on short side
Latching Options
❍ Snap latch ❍ Twist latch ❍ 3-point
Panels
Back panel required: ❍ Yes ❍ No Size: H______ x W______
Back panel material: ❍ Carbon steel ❍ Aluminum ❍ Fiberglass ❍ Galvannealed
Hinge front panel required: ❍ Yes ❍ No
Side Panel required: ❍ Yes ❍ No Size: H______ x W______
Windows
Window required: ❍ Yes ❍ No Size: H______ x W______
General location of window: ___________________________________________
Molded-In Color
❍ Standard Grey ❍ White ❍ Orange
❍ Blue ❍ Black ❍ Red
❍ Yellow ❍ Green
Other (please specify): ___________________________
Other Modifications
❍ Holes/Cutouts ______Number; Location: ______________________________
❍ Silk Screening
❍ EMI/RFI Shielding
Additional Information/Notes
Submit request to: Allied Moulded Products, Inc. Fax to: 800-237-7269
For assistance or questions, call Allied Moulded at 800-722-2679 or visit www.alliedmoulded.com.
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
139
TECHNICAL
TECHNICAL SPECIFICATIONS
NEMA Type 4X fiberglass enclosures
SALTS
Ammonium sulfate ........................ A
Potassium ammonia sulfate ................. A
Ammonium bichromate 20% ................ B
Ammonium carbonate 10% ................. B
Ammonium chloride ....................... A
Ammonium nitrate ........................ B
Ammonium sulfate 10% .................... A
Ammonium acetate ....................... C
Aniline sulfate ............................ A
Carbonate of barium ....................... C
Chloride of barium ........................ A
Calcium chloride, saturated sol. .............. A
Calcium hypochlorite ...................... B
Calcium sulfate ........................... A
Copper (II) chloride ........................ A
Copper (lll) sulfate ........................ A
Iron (lll) chloride .......................... A
Iron (lll) nitrate ........................... A
Iron (lll) sulfate ........................... A
Iron (ll) chloride .......................... A
•
All fiberglass enclosures are listed under UL standard 508A, (CSA
standard 22.2 No. 14). This type of enclosure is suitable for both
indoor and outdoor use in corrosive environments and is resistant
to UV degradation. Fiberglass material shall meet UL 746C
requirements with halogen-free and self-extinguishing
characteristics.
•
Enclosure is constructed using a hot compression-
molded process and a fiberglass reinforced polyester resin
compound with a minimum of 20% fiberglass by weight.
A cold molded procedure may be used for larger cabinets.
Fiberglass reinforced polyester exhibits high impact resistance, a
superior range of temperature limits, excellent dimensional stability,
excellent electrical properties, and excellent moisture and overall
chemical resistance.
•
Standardizing enclosure performance is accomplished by use of
rating systems of various specifying organizations (NEMA, UL, CSA)
identifying an enclosure’s ability to resist external environmental
influences. These ratings have distinct differences even though they
are intended to provide information in order to make a safer and
informed product choice.
•
Any external metal parts shall be 300 series stainless steel. Any
internal metal parts shall be manufactured using corrosion resistant
materials. NEMA Type 4X enclosures are fabricated and rated
specifically for resistance to corrosive elements.
•
Fiberglass Reinforced Polyester is the material of choice in
applications where physical strength specifications are average
and excellent corrosion resistance is required.
•
Advantages of non-metallic enclosures:
(1) Unlike metals, fiberglass reinforced polyester is non-
corrosive.
(2) Enclosures are homogeneous, thus they require little
maintenance.
(3) Due to their light weight, non-metallic enclosures can be
very easily handled, installed and modified.
Chemical Resistance Table
•
See chart below for ratings for specific reagents.
•
In most applications, fiberglass reinforced polyester offers the best
all around performance in corrosive environments.
•
These environmental resistance ratings are based upon tests
where the specimens were placed in complete submergence in
the reagent listed. If there are any questions for specific suitability
in a given environment, prototype samples should be tested under
actual conditions.
An enclosure is a housing constructed to provide a degree of protection from accidental
contact with the enclosed equipment and external environmental conditions.
•
The prospective user must determine the application of our product
in an environment based upon individual characteristics. We offer
no guarantee or warranty as to the applicability of this chart for
any particular situation as actual conditions of use are beyond our
control. In many applications, several corrosive agents are present
and reactions among them are not always documented. Any
environment can be rather unique necessitating the identification
of all possible corrosive elements that may affect the intended
enclosure application.
CHEMICAL RESISTANCE RATINGS FOR FIBERGLASS
Iron (ll) sulfate ........................... A
Magnesium chloride ....................... A
Magnesium sulfate ........................ A
Mercuric (ll) chloride ....................... A
Nickel chloride ........................... A
Nickel nitrate ............................ A
Nickel sulfate ............................ A
Potassium carbonate ...................... B
Potassium chloride ........................ A
Potassium nitrate ......................... A
Potassium sulfate ......................... A
Nitrate of silver ........................... A
Sodium acetate .......................... A
Sodium bicarbonate 10% ................... A
Sodium carbonate 10% .................... B
Sodium chloride .......................... A
Sodium hypochlorite 5% .................... B
Sodium nitrate ........................... A
Zinc chloride ............................. A
Sulfate of zinc ........................... A
ACIDS
Acetic acid .............................. A
Benzoic acid ............................. A
Boric acid ............................... A
Chromic acid 30% ........................ C
Citric acid ............................... A
Formic acid 25% ......................... B
Hydrochloric acid 10% ..................... A
Conc. hydrochloric acid .................... B
Lactic acid 1% ........................... A
Nitric acid 5% ............................ B
Nitric acid 50%. . . . . . . . . . . . . . . . . . . . . . . . . . . C
Concentrated nitric acid .................... C
Phosphoric acid 25% ...................... B
Phosphoric acid 50% .................C
Sulfuric acid 25% ....................A
Sulfuric acid 50% ....................C
Tartaric acid ........................A
Oxalic acid, saturated solution ..........A
LIST OF CONVENTIONAL SYMBOLS
A = EXCELLENT | B = LIMITED | C = POOR
SALTS
140
TECHNICAL
SPECIFICATIONS
Specification for Allied Moulded fiberglass enclosures
Fiberglass enclosures will be UL listed to UL standard 508A,
CSA standard 22.2 No. 14. The resin system will be pigmented
gray, RAL 7035 unless otherwise approved. The resin system
will include a flame retardant agent in order to achieve a
flammability rating in accordance with UL 94. The enclosure
must be hot compression molded from FRP material containing
at least 20% fiberglass by weight. Cold molded hand lay up
and RTM light open molding process may also be used. The
enclosure body will be a one-piece construction and not
contain any glued parts (enclosure sizes up through 30” x 24”).
Junction and Control enclosures may have either screw, hinged
or latched covers. All cover screws and hardware;
including hinges, latches and mounting feet are constructed of
300 series stainless steel material. All internal metal parts are
fabricated using corrosion resistant materials. All gaskets are
seated in a molded channel and not glued or poured onto a flat
cover surface.
Cabinets and larger style enclosures are always provided with
hinged doors. The closure systems on these cabinets will either
be a three point latching system or a system of external stain-
less steel twist-turn type latches. Door closure systems using a
single external handle will also have three internal latch points.
This handle may be key lockable or pad lockable. When using
the alternative closure method of external stainless steel twist
turn latches, no more than four latches shall be required to
maintain NEMA 4X integrity. At least one latch must have a
padlock provision.
Physical Properties of non-metallic enclosures
Materials Typical Properties ASTM Test Compression Compression RTM Hand Lay-up
ASTM Test Molded Polyester Molded Polyester Molded Polyester Molded Polyester
Method Fiberglass (SMC) Fiberglass (BMC) Fiberglass Fiberglass
Impact Strength (ft-lb/in) D 256 15 4–7 30 30
Flexural Strength (psi) D 790 25,000 23,000 33,400 33,400
Tensile Strength (psi) D 638 14,000 8,000 22,000 22,000
Compressive Strength (psi) D 695 28,000 15,000 24,900 24,900
Water Absorption (%) D 570 0.15 0.20 0.25 0.25
Specific Gravity D 792 1.75 1.80 1.65 1.65
Shrinkage (in/in) D 955 0.0016 0.003 0.0015 0.0015
Hardness (Barcol-Rockwell M-Shore A) D 2583 60 55 62 62.5
Elongation (%) D 638 2.05 1.50 2.07 2.07
Dielectric Strength (kV/in)) D 149 400 375 380 380
Arc Resistance (sec) D 495 >180 >180 188 >200
Flammability UL 94 V-0 V-0 V-0 V-0
Heat Deflection (°F at 264 psi) D 648 >500 431 428 428
Service Temperature (°F) -40°F to 266°F -40°F to 266°F -40°F to 266°F -40°F to 266°F
K Factor, Thermal Conductivity (BTU/hr/ft2/°F) D 1269E 1.68 2.08 1.68 1.68
Thermal Expansion (10-6 in/in °F) D 696 20 15 14 12
UV Rating UL 746C (f1) (f1) (f1) (f1)
CHEMICAL RESISTANCE RATINGS CONTINUED
BASES
Ammonia 5% ........................B
Ammonia 25% .......................B
Barium hydroxide 10% .................C
Calcium hydroxide ....................C
Hydroxide of sodium 5% ................B
Hydroxide of sodium 20% ...............C
OILS AND GREASES
Fatty acids .......................... A
Oleic acid ........................... A
Stearic acid ......................... A
Lubricating oil ........................ A
ORGANIC SOLVENTS
Acetone ............................C
Amyl alcohol ......................... B
Methanol ...........................B
Ethyl alcohol ......................... B
Benzene ............................B
Butyl acetate ........................C
Carbon bisulfide ......................C
Gasoline ............................ A
Petroleum ...........................A
Naphtha ............................ A
Perchloroethylene ..................... B
Toluol ..............................B
Ethyl acetate. . . . . . . . . . . . . . . . . . . . . . . . . B
Dichlorethylene .......................B
Ether. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B
OTHER AGENTS
Ethylene glycol solution of 0 to 100% ...... A
Glycerine ........................... A
Chlordioxide (bleaching agent) ...........C
Saturated chlorinated water .............A
Formaldehyde 10 to 40% ............... A
Hydrogen peroxide 5 to 10% ............ A
Normal water ........................ A
Distilled water ....................... A
Sea-water. . . . . . . . . . . . . . . . . . . . . . . . . . . A
Phenol .............................B
Note: Visit www.alliedmoulded.com for
a more comprehensive corrosion
resistance guide.
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
141
TECHNICAL
EMI/RFI Specifications
• Standards governing electromagnetic compatibility
commonly refer to EMI/RFI, or electromagnetic
interference/radio frequency interference.
• Applicable standards used are based on MIL-STD-285 to
perform attenuation measurements of EMI/RFI shielded
enclosures. The applicable North American standards for
the overall assembly, including internal electronics, can
vary with the application in which the product is intended
to be installed.
• For a complete list of applicable standards, your local
testing authority (for example, UL, CSA) should be
contacted.
• Such interference is caused by stray voltages and/or
currents coupling between electronic systems creating
undesirable effects. These undesirable effects can vary
between a brief annoyance, to more serious situations, such
as a phone interfering with the controls of a machine
tool. With the increased emphasis on electronic technology,
electromagnetic interference/radio frequency interference
is a growing concern.
• Electromagnetic pulses (EMPS) may adversely affect
electronic and other control systems. These disturbances
may cause erratic operation, and either component failure
or a reduction in component life.
• Allied Moulded can provide custom EMI/RFI shielded
enclosures to meet many applications. Requests for EMI/RFI
shielded enclosures should be directed to the Allied
Moulded customer support group.
• Refer to AM specification sheet.
Properties
Shielding Material........................... Copper Conductive Coating
Attenuation ......................................................................... 75 dB
Sheet Resistance <.025 Ohms/Square @ 2 Mil Thick
The probes of an ohmmeter shall be placed on any area
of the surface and the measured resistance shall not
exceed .025 ohms.
Attenuation 75 dB
A measure of the shielding effectiveness shall be confirmed by
an EMI/RFI test. Actual test data confirmed an average attenu-
ation of 75 dB over the frequency range from .01 to 1000 Mhz.
MIL.SPEC>285
MIL.SPEC>285 is used as a general EMI/RFI test guide. A
transmitting antenna is placed inside the enclosure and a
receiving antenna is positioned outside. The attenuation is the
dB difference between the enclosure OPEN and CLOSE FR
power levels.
Weathering/UV Information
Allied Moulded Products’ FRP enclosures are hot compression
molded. All products of this type, regardless of manufacturer,
are exposed to erosion when used outdoors. Due to the com-
bined effects of environmental elements such as rain, wind and
UV rays, the polyester matrix is only superficially eroded and
as glass fibers become apparent, the degree of the erosion is
microscopic. Please note that this superficial erosion has no
effect on the physical characteristics of the enclosure whether
electrical, mechanical or chemical. The slight erosion can be
avoided if a surface coating such as varnish is applied.
Allied Moulded Products’ fiberglass enclosures have been
successfully used outdoors and tests on field samples support
above results. (F1 rated material—suitable for outdoor use)
Painting Information
Good surface preparation is critical in painting fiberglass enclo-
sures, since the mold release agents must be removed before
painting. It is recommend that the surface be roughed by lightly
rubbing with sandpaper before applying the proper primer.
Degreasing the surface with an organic solvent such as alcohol
or other domestic cleaning agent is required. The surface must
be clean and dry prior to applying the appropriate primer and top
coat (polyurethane or epoxy).
Allied Moulded has the capabilities to custom mold
color matches specific to your requirements.
Heat Dissipation
Information available upon request.
142
5308901 134
5308902 134
5308903 134
7211487 134
7211488 134
7211486-50 134
AM1084 40
AM1084H 45
AM1084HP9 39
AM1084HW 47
AM1084L 49
AM1084LW 51
AM1084P9 37
AM1084R 59
AM1084RH 63
AM1084RHW 65
AM1084RL 67
AM1084RLW 69
AM1084RT 71
AM1084RTW 73
AM1084RW 61
AM1084T 53
AM1084TW 55
AM1084W 43
AM1086 40
AM1086H 45
AM1086HP12 39
AM1086HP9 39
AM1086HW 47
AM1086L 49
AM1086LW 51
AM1086P12 37
AM1086P9 37
AM1086R 59
AM1086RH 63
AM1086RHW 65
AM1086RL 67
AM1086RLW 69
AM1086RT 71
AM1086RTW 73
AM1086RW 61
AM1086T 53
AM1086TW 55
AM1086W 43
AM1206 40
AM1206H 45
AM1206HP16 39
AM1206HP20 39
AM1206HW 47
AM1206L 49
AM1206LW 51
AM1206P16 37
AM1206P20 37
AM1206R 59
AM1206RH 63
AM1206RHW 65
AM1206RL 67
AM1206RLW 69
AM1206RT 71
AM1206RTW 73
AM1206RW 61
AM1206T 53
AM1206TW 55
AM1206W 43
AM1426 40
AM1426H 45
AM1426HP25 39
AM1426HW 47
AM1426L 49
AM1426LW 51
AM1426P25 37
AM1426R 59
AM1426RH 63
AM1426RHW 65
AM1426RL 67
AM1426RLW 69
AM1426RT 71
AM1426RTW 73
AM1426RW 61
AM1426T 53
AM1426TW 55
AM1426W 43
AM1648 40
AM1648H 45
AM1648HP30 39
AM1648HW 47
AM1648L 49
AM1648LW 51
AM1648P30 37
AM1648R 59
AM1648RH 63
AM1648RHW 65
AM1648RL 67
AM1648RLW 69
AM1648RT 71
AM1648RTW 73
AM1648RW 61
AM1648T 53
AM1648TW 55
AM1648W 43
AM1868 40
AM1868H 45
AM1868HP42 39
AM1868HW 47
AM1868L 49
AM1868LW 51
AM1868P42 37
AM1868R 59
AM1868RH 63
AM1868RHW 65
AM1868RL 67
AM1868RLW 69
AM1868RT 71
AM1868RTW 73
AM1868RW 61
AM1868T 53
AM1868TW 55
AM1868W 43
AM1PB 35
AM1PB22 35
AM2068 40
AM2068H 45
AM2068HW 47
AM2068L 49
AM2068LW 51
AM2068R 59
AM2068RH 63
AM2068RHW 65
AM2068RL 67
AM2068RLW 69
AM2068RT 71
AM2068RTW 73
AM2068RW 61
AM2068T 53
AM2068TW 55
AM2068W 43
AM24200RL 111
AM24200RLW 113
AM24200RT 115
AM24200RTW 117
AM24208RL 111
AM24208RLW 113
AM24208RT 115
AM24208RTW 117
AM24240RL 111
AM24240RLW 113
AM24240RT 115
AM24240RTW 117
AM24248RL 111
AM24248RLW 113
AM24248RT 115
AM24248RTW 117
AM2PB 35
AM2PB22 35
AM30240RL 111
AM30240RLW 113
AM30240RT 115
AM30240RTW 117
AM30248RL 111
AM30248RLW 113
AM30248RT 115
AM30248RTW 117
AM363012L 121
AM363012L3PT 123
AM363016L 121
AM363016L3PT 123
AM363612L 121
AM363612L3PT 123
AM363616L 121
AM363616L3PT 123
AM3PB 35
AM3PB22 35
AM483612L 121
AM483612L3PT 123
AM483616L 121
AM483616L3PT 123
AM603612L 121
AM603612L3PT 123
AM603616L 121
AM603616L3PT 123
AM664 40
AM664H 45
AM664HP4 39
AM664HW 47
AM664L 49
AM664LW 51
AM664P4 37
AM664R 59
AM664RH 63
AM664RHW 65
AM664RL 67
AM664RLW 69
AM664RT 71
AM664RTW 73
AM664RW 61
AM664T 53
AM664TW 55
AM664W 43
AM722525FS 125
AM724925FSDD 127
AM743 33
AM743SF 33
AM864 40
AM864H 45
AM864HP6 39
AM864HW 47
AM864L 49
AM864LW 51
AM864P6 37
AM864R 59
AM864RH 63
AM864RHW 65
AM864RL 67
AM864RLW 69
AM864RT 71
AM864RTW 73
AM864RW 61
AM864T 53
AM864TW 55
AM864W 43
Part Number Page Part Number Page Part Number Page Part Number Page
INDEX
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
143
INDEX
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
AM943 33
AM943SF 33
AMHD1860RLF 75
AMHDL001 132
AMHS050 135
AMHS050-GY 135
AMHS075 135
AMHS075-GY 135
AMHS100 135
AMHS100-GY 135
AMHS125 135
AMHS125-GY 135
AMHS150 135
AMHS150-GY 135
AMHS200 135
AMHS200-GY 135
AMHS250 135
AMHS250-GY 135
AMHS300 135
AMHS300-GY 135
AMHS350 135
AMHS350-GY 135
AMHS400 135
AMHS400-GY 135
AMHSPL 135
AMHSPL-GY 135
AMHSPL-S 135
AMHSPL-SGY 135
AMKEYLOCKFC 132
AMKEYLOCKRC 132
AMKEYLOCKRCHFP 132
AMP1084 9
AMP1084CC 11
AMP1084CCF 11
AMP1084CCH 15
AMP1084CCHF 15
AMP1084CCL 23
AMP1084CCLF 23
AMP1084CCNL 19
AMP1084CCNLF 19
AMP1084F 9
AMP1084H 13
AMP1084HF 13
AMP1084L 21
AMP1084LF 21
AMP1084NL 17
AMP1084NLF 17
AMP1206 9
AMP1206CC 11
AMP1206CCF 11
AMP1206CCH 15
AMP1206CCHF 15
AMP1206CCL 23
AMP1206CCLF 23
AMP1206CCNL 19
AMP1206CCNLF 19
AMP1206F 9
AMP1206H 13
AMP1206HF 13
AMP1206L 21
AMP1206LF 21
AMP1206NL 17
AMP1206NLF 17
AMP1426 9
AMP1426CC 11
AMP1426CCF 11
AMP1426CCH 15
AMP1426CCHF 15
AMP1426CCL 23
AMP1426CCLF 23
AMP1426CCNL 19
AMP1426CCNLF 19
AMP1426F 9
AMP1426H 13
AMP1426HF 13
AMP1426L 21
AMP1426LF 21
AMP1426NL 17
AMP1426NLF 17
AMP664 9
AMP664CC 11
AMP664CCF 11
AMP664CCH 15
AMP664CCHF 15
AMP664CCL 23
AMP664CCLF 23
AMP664CCNL 19
AMP664CCNLF 19
AMP664F 9
AMP664H 13
AMP664HF 13
AMP664L 21
AMP664LF 21
AMP664NL 17
AMP664NLF 17
AMP864 9
AMP864CC 11
AMP864CCF 11
AMP864CCH 15
AMP864CCHF 15
AMP864CCL 23
AMP864CCLF 23
AMP864CCNL 19
AMP864CCNLF 19
AMP864F 9
AMP864H 13
AMP864HF 13
AMP864L 21
AMP864LF 21
AMP864NL 17
AMP864NLF 17
AMPFA1000 131
AMPFA2000 131
AMPFA3000 131
AMPOLEMNT10 133
AMPOLEMNT12 133
AMPOLEMNT14 133
AMPOLEMNT16 133
AMPOLEMNT20 133
AMPOLEMNT24 133
AMPOLEMNT6 133
AMPOLEMNT8 133
AMPRINTPOCKET 131
AMU1084 79
AMU1084CC 83
AMU1084CCF 83
AMU1084CCH 89
AMU1084CCHF 89
AMU1084CCL 95
AMU1084CCLF 95
AMU1084CCNL 101
AMU1084CCNLF 101
AMU1084CCT 107
AMU1084CCTF 107
AMU1084F 79
AMU1084H 85
AMU1084HF 85
AMU1084HW 87
AMU1084HWF 87
AMU1084L 91
AMU1084LF 91
AMU1084LW 93
AMU1084LWF 93
AMU1084NL 97
AMU1084NLF 97
AMU1084NLW 99
AMU1084NLWF 99
AMU1084T 103
AMU1084TF 103
AMU1084TW 105
AMU1084TWF 105
AMU1084W 81
AMU1084WF 81
AMU1206 79
AMU1206CC 83
AMU1206CCF 83
AMU1206CCH 89
AMU1206CCHF 89
AMU1206CCL 95
AMU1206CCLF 95
AMU1206CCNL 101
AMU1206CCNLF 101
AMU1206CCT 107
AMU1206CCTF 107
AMU1206F 79
AMU1206H 85
AMU1206HF 85
AMU1206HW 87
AMU1206HWF 87
AMU1206L 91
AMU1206LF 91
AMU1206LW 93
AMU1206LWF 93
AMU1206NL 97
AMU1206NLF 97
AMU1206NLW 99
AMU1206NLWF 99
AMU1206T 103
AMU1206TF 103
AMU1206TW 105
AMU1206TWF 105
AMU1206W 81
AMU1206WF 81
AMU1426 79
AMU1426CC 83
AMU1426CCF 83
AMU1426CCH 89
AMU1426CCHF 89
AMU1426CCL 95
AMU1426CCLF 95
AMU1426CCNL 101
AMU1426CCNLF 101
AMU1426CCT 107
AMU1426CCTF 107
AMU1426F 79
AMU1426H 85
AMU1426HF 85
AMU1426HW 87
AMU1426HWF 87
AMU1426L 91
AMU1426LF 91
AMU1426LW 93
AMU1426LWF 93
AMU1426NL 97
AMU1426NLF 97
AMU1426NLW 99
AMU1426NLWF 99
AMU1426T 103
AMU1426TF 103
AMU1426TW 105
AMU1426TWF 105
AMU1426W 81
AMU1426WF 81
AMU1648 79
AMU1648CC 83
AMU1648CCF 83
AMU1648CCH 89
AMU1648CCHF 89
AMU1648CCL 95
AMU1648CCLF 95
INDEX
Part Number Page Part Number Page Part Number Page Part Number Page
144
AMU1648CCNL 101
AMU1648CCNLF 101
AMU1648CCT 107
AMU1648CCTF 107
AMU1648F 79
AMU1648H 85
AMU1648HF 85
AMU1648HW 87
AMU1648HWF 87
AMU1648L 91
AMU1648LF 91
AMU1648LW 93
AMU1648LWF 93
AMU1648NL 97
AMU1648NLF 97
AMU1648NLW 99
AMU1648NLWF 99
AMU1648T 103
AMU1648TF 103
AMU1648TW 105
AMU1648TWF 105
AMU1648W 81
AMU1648WF 81
AMU1860 79
AMU1860F 79
AMU1860H 85
AMU1860HF 85
AMU1860HW 87
AMU1860HWF 87
AMU1860L 91
AMU1860LF 91
AMU1860LW 93
AMU1860LWF 93
AMU1860NL 97
AMU1860NLF 97
AMU1860NLW 99
AMU1860NLWF 99
AMU1860T 103
AMU1860TF 103
AMU1860TW 105
AMU1860TWF 105
AMU1860W 81
AMU1860WF 81
AMU2060 79
AMU2060F 79
AMU2060H 85
AMU2060HF 85
AMU2060HW 87
AMU2060HWF 87
AMU2060L 91
AMU2060LF 91
AMU2060LW 93
AMU2060LWF 93
AMU2060NL 97
AMU2060NLF 97
AMU2060NLW 99
AMU2060NLWF 99
AMU2060T 103
AMU2060TF 103
AMU2060TW 105
AMU2060TWF 105
AMU2060W 81
AMU2060WF 81
AMU664 79
AMU664CC 83
AMU664CCF 83
AMU664CCH 89
AMU664CCHF 89
AMU664CCL 95
AMU664CCLF 95
AMU664CCNL 101
AMU664CCNLF 101
AMU664CCT 107
AMU664CCTF 107
AMU664F 79
AMU664H 85
AMU664HF 85
AMU664HW 87
AMU664HWF 87
AMU664L 91
AMU664LF 91
AMU664LW 93
AMU664LWF 93
AMU664NL 97
AMU664NLF 97
AMU664NLW 99
AMU664NLWF 99
AMU664T 103
AMU664TF 103
AMU664TW 105
AMU664TWF 105
AMU664W 81
AMU664WF 81
AMU864 79
AMU864CC 83
AMU864CCF 83
AMU864CCH 89
AMU864CCHF 89
AMU864CCL 95
AMU864CCLF 95
AMU864CCNL 101
AMU864CCNLF 101
AMU864CCT 107
AMU864CCTF 107
AMU864F 79
AMU864H 85
AMU864HF 85
AMU864HW 87
AMU864HWF 87
AMU864L 91
AMU864LF 91
AMU864LW 93
AMU864LWF 93
AMU864NL 97
AMU864NLF 97
AMU864T 103
AMU864TF 103
AMU864TW 105
AMU864TWF 105
AMU864W 81
AMU864WF 81
AMVENTLG 131
AMVENTSM 131
HFP108 130
HFP120 130
HFP142 130
HFP164 130
HFP186 130
HFP206 130
HFP2420 130
HFP2424 130
HFP3024 130
HFP66 130
HFP86 130
HFPP108 24
HFPP120 24
HFPP142 24
HFPP66 24
HFPP86 24
HFPU108 130
HFPU120 130
HFPU142 130
HFPU164 130
HFPU186 130
HFPU206 130
HFPU66 130
HFPU86 130
P108 128
P120 128
P142 128
P164 128
P186 128
P206 128
P2420 129
P2424 129
P3024 129
P3630CS 129
P3636CS 129
P4836CS 129
P6036CS 129
P66 128
P7225CS 125
P7249CS 127
P86 128
PA108 128
PA120 128
PA142 128
PA164 128
PA186 128
PA206 128
PA2420 129
PA2424 129
PA3024 129
PA66 128
PA74 33
PA86 128
PA94 33
PF108 128
PF120 128
PF142 128
PF164 128
PF186 128
PF206 128
PF2420 129
PF2424 129
PF3024 129
PF66 128
PF74 33
PF86 128
PF94 33
PG108 128
PG120 128
PG142 128
PG164 128
PG186 128
PG206 128
PG2420 129
PG2424 129
PG3024 129
PG66 128
PG86 128
PL108 24
PL120 24
PL142 24
PL66 24
PL86 24
PLA108 24
PLA120 24
PLA142 24
PLA66 24
PLA86 24
INDEX
Part Number Page Part Number Page Part Number Page Part Number Page
Order Today! Phone: 1-800-722-2679 Fax: 1-800-237-7269 Email: sales@alliedmoulded.com
We’re Committed.
Founded in 1958 and backed by more than 55 years of
knowledge and experience molding fiberglass reinforced
polyester materials and polycarbonate thermoplastic, Allied
Moulded Products is well established within the electrical
and enclosure industries. We have what it takes to prevent
damaging elements such as water, salt, chemicals and UV
from threatening your equipment. Our line of NEMA Type 4X,
IEC Type IP66 nonmetallic enclosures provides maximum
protection where you need it most.
Centrally located in the heart of the country, Allied Moulded is
unique among enclosure manufacturers as we are vertically
integrated from mold design and fabrication to product
delivery. With one of the newest production facilities in
the United States dedicated to manufacturing nonmetallic
enclosures, we formulate our own ULTRAGUARD®
fiberglass reinforced polyester material and assure the value
of our polycarbonate thermoplastics, which allows us to
control quality and costs. On-site molding, assembly and
warehousing enables us to produce a high quality product
while delivering quick turnaround on standard orders. We
can also provide timely delivery on complete modification
work, including holes, cutouts and special colors.
Together with our sales agents throughout the country, the
Allied Moulded inside sales and engineering team is readily
available to assist you with sales and technical support.
Whether you need standard or modified product, Allied
Moulded is truly a one-stop shop for your nonmetallic
enclosure and accessory needs.
Exceptional Customer Service.
Research and Development
Inventory
Innovative Design
Quality Standard Excellence
Customer Service
We’ll Work With You.
Our responsiveness to you goes beyond offering a quality product
line. Valuing the relationships we have built with each customer, we
work with you as partners to solve your protection requirements.
From product design to quick, on-time delivery, Allied Moulded
provides fast, efficient service to meet your specific needs.
EXPERIENCED MANUFACTURING
Allied Moulded Products . . .
we’ve got you covered!
Give us a try . . .
we’ll work with you!
NONMETALLIC ENCLOSURES SPECIFICATION CATALOG
Fiberglass Reinforced Polyester & Polycarbonate Enclosures
SUPERIOR UV PROTECTION
222 North Union St. • Bryan, OH 43506
Ph: 800.722.2679 • Fax: 800.237.7269
www.alliedmoulded.com
Available Through:
Allied Moulded Products, Inc. manufactures a complete line of corrosion
and UV resistant NEMA Type 4X nonmetallic (fiberglass and polycarbonate)
enclosures for indoor or outdoor industrial applications. The fiberglass
reinforced polyester enclosures are manufactured with ULTRAGUARD®,
a proprietary material formulation offering all the advantages of
nonmetallic materials including: UL® listed, RoHS compliance, increased
strength, reduced weight, corrosion resistance, non-conductivity, UV
resistance and ease of installation. The polycarbonate enclosures are
injection molded with polycarbonate thermoplastic, offering many of the
same great features as the fiberglass enclosures, with the option of a
clear cover.
Allied Moulded Brand Names: POLYLINE®, ULTRALINE®,
ULTRAGUARD®, ULTRAPLUG®
Enclosure Ratings: NEMA 4X, 6P, IP66, and IP68
Enclosure Series: JIC, AM, AMHD-R, AMP, AM-R, AMU, Control & Empire
2014
Allied Moulded Products, Inc. Nonmetallic Enclosures 2014
