BOGEN COMMUNICATIONS, INC. PRODUCT CATALOG 109

Bogen products have been used in numerous types of applications, each with its own unique requirements.

Whether simple or sophisticated, installations around the world benefit from Bogen products. Here is a small

sampling of case studies showing venues where our systems have been installed. Read more about each of

these and more online at: www.bogen.com/applications/casestudies

INSTALLATION CASE STUDIES

F.P.O.

Founded in 1932, Bogen’s dedication to

providing superior sound reinforcement

products has won the continued loyalty

of an ever-increasing network of distribu-

tors, dealers, contractors, and installers

worldwide.

What’s our secret? It’s not a secret, it’s

focus. Focus on our customer’s needs!

Focused salespeople, focused customer service and tech

nical

support reps, focused research and development engineers,

focused production and manufacturing teams – all dedicated

to improving and changing our products, support, and service to

meet the changing needs of customers. This is why Bogen is

the industry leader of communications equipment and technol-

ogy used in offices, commercial establishments, and schools.

Bogen's products include audio amplifiers and speakers;

related sound, intercom, and communications systems

equipment; and background and foreground music equipment.

Our objective is to provide installers with a high-quality sound

system that is easy to design, high-quality products that are

easy to install, dependable products that are reliable and

expandable with convenient features that are easy to under-

stand, operate, and which produce exceptional voice and

music reproduction when and where it is needed. We offer a full

line of products and are always adding new electronics equip-

ment to meet your technical requirements.

When you order from us, you can do so confidently, knowing

that Bogen’s experience and innovative technology will provide

your customers with products they

will appreciate and be pleased

with...well into the future.

Our goal is to satisfy you – by

providing

products that are easy

to design, easy to order, easy to

install, and easy to use.

•PCM2000 Configuration Guide

This system configuration guide will assist you in designing

zone paging applications. It illustrates many popular

applications for the PCM2000.

•Free Design Service Brochure

This publication describes Bogen’s Free Application Design

Service and includes a Design Request Form. Let Bogen assist

with the design of paging systems for your install project.

•Loudspeaker Installation Methods

and Connection Techniques

This pamphlet describes direct connections, power distribution

without transformers, line-power loss, 70V and 25V systems,

matching transformers, balanced and unbalanced line operation,

and speaker phasing.

•Paging Site Survey Sheet (see page 72)

Use this helpful checklist to determine the equipment needed

for paging systems installations.

ABOUT BOGEN

Bogen - Early 1950s

Bogen - 2010s

TABLE OF CONTENTS

ABOUT THIS CATALOG

The following materials are available at no charge* to help you with your installations. To order, visit www.bogen.com/litform

or fax your literature request on company letterhead to 201-934-9832. Most materials are also available online from our website.

OTHER MATERIALS AVAILABLE

CALL BOGEN

TOLL-FREE:

1-800-999-2809

•Customer Service/Orders

•Free Application Design Service

•Factory Service/Parts

•Sales Offices/Distributors

Fax Orders to: 1-800-999-9016 Fax for Tech Support: 201-934-6532

Corporate Headquarters Tel: 201-934-8500 Fax: 201-934-9832

Business hours are 8:30 a.m. to 5:00 p.m. (EST), Monday to Friday

Bogen Product Literature Online: www.bogen.com/documentindex

To Order Bogen Literature: By Fax: 201-934-9832

By E-Mail: literature@bogen.com

•Literature on Bogen Products

•Technical Support Assistance*

*Available 8:30 a.m. to 8:00 p.m. (EST), Monday to Friday.

www.bogen.com

ON THE

WEB:

CONTACT BOGEN

CALL BOGEN

TOLL-FREE:

1-800-999-2809

•Customer Service/Orders

•Free Application Design Service

•Factory Service/Parts

•Sales Offices/Distributors

Fax Orders to: 1-800-999-9016 Fax for Tech Support: 201-934-6532

Corporate Headquarters Tel: 201-934-8500 Fax: 201-934-9832

Business hours are 8:30 a.m. to 5:00 p.m. (EST), Monday to Friday

Bogen Product Literature Online: www.bogen.com/documentindex

To Order Bogen Literature: By Fax: 201-934-9832

By E-Mail: literature@bogen.com

•Literature on Bogen Products

•Technical Support Assistance*

*Available 8:30 a.m. to 8:00 p.m. (EST), Monday to Friday.

www.bogen.com

ON THE

WEB:

CONTACT BOGEN

Speakers & Accessories . . . . . . . . . . . . . . . pages 1–14

Easy Design/Easy Install Speakers . . . . . pages 15–21

Self-Amplified (24V) Systems . . . . . . . . . pages 22–29

Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . page 30

Paging Control . . . . . . . . . . . . . . . . . . . . . pages 31–36

Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . pages 37–47

Mixers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pages 48–50

Audio Processor/Messaging . . . . . . . . . . . . . . . page 51

Paging & Telephone Electronics . . . . . . . pages 52–54

Music & Input Sources, Microphones . . . pages 55–60

Office Communications . . . . . . . . . . . . . . . pages 61–62

System Design Guide . . . . . . . . . . . . . . . . pages 63–77

Charts (Amplifiers/Accessories) . . . . . . . pages 78–81

Information & Index . . . . . . . . . . . . . . . pages 82

–

}

This catalog provides information about Bogen’s products and services. In addition, it functions as a System Design & Buying Guide.

You will find answers to your questions about how a paging system works or how to set one up. Our Design Guide is filled with

helpful information and reference material. Each product has its features clearly highlighted and a list of accessories.

Say goodbye to guesswork and waiting. Now, you can have the answers you need when you want them.

Please be sure to visit our web site, www.bogen.com, for the latest product information, downloads, and updates.

In addition, technical specification sheets are available for the products shown in this catalog.

*Product literature sent by USPS First Class Mail or UPS Ground, at Bogenʼs option.

}

Product Features:

• 2-way Powered Speaker, Built-in

Amplifier

• 350-watt Bi-amp configuration:

Low 300W RMS, High 50W RMS

• DSP processing

• Combo XLR/ 1

/4” TRS MIC/LINE

Input

• LF EQ Presets (cut/hi-pass filter,

flat/no effect, boost/LF shelf)

•

Signal/Clip & Power indicator LED’s

•

Precision tuned by Apogee Sound

International Engineering in the U.S.

• Multi-angle, multi-purpose poly-

ethylene cabinet

• Pole cup for tripod mounting

• 6 Rigging points

• Listed to UL Standard 60065

for U.S. and Canada

• FCC Part 15 Class B Compliant

PRO AUDIO LOUDSPEAKERS

www.bogen.com

SPEAKERS

AMT-15

AMT-12

BP12DSP

BP15DSP

Product Features:

• Molded polypropylene construction

• Heavy gauge steel grilles with powder-

coated finish

•Large, high-sensitivity woofers

•Ferrofluid-cooled and damped,

high-output titanium alloy

compression drivers

•Up to 300W power handling capabil-

ity for AMT-15; 200W for AMT-12

•Rich, dynamic bass response

•Top-side sockets to receive

speaker feet for stacking

•Lightweight, with integral

carrying handle molded

into speaker housing

•Two combo input connectors:

1/4" Phone and SpeakonTM

•Smooth, precise passive

crossover

Model

AMT-15

AMT-12

Frequency

Response

Drivers Power

Handling

Sensitivity Dispersion Impedance Dimensions Product

Weight

15" Woofer;

45mm Compression

Driver

12" Woofer;

45mm Compression

Driver

Technical Specifications:

47 lb.

37 lb.

300 watts

200 watts

98 dB

(1W @ 1m)

96 dB

(1W @ 1m)

Horizontal:

65 degrees

Vertical:

65 degrees

50 Hz -

20 kHz

60 Hz -

20 kHz

8-ohm

19" W x 27" H x 15" D

16-1/4" W x 23" H x 13" D

Model

BP15DSP

BP12DSP

Horn

Coverage

Transducer Maximum

SPL (1m)

Frequency

Response

Crossover

Frequency Dimensions Product

Weight

Low: 15” Neodymium Woofer;

2.5” Voice Coil

High: 1” Compression Driver;

1.75” Voice Coil

Low: 12” Neodymium Woofer;

2.5” Voice Coil

High: 1” Compression Driver;

1.75” Voice Coil

Technical Specifications:

40.5 lb.

38.5 lb.

124 dB

123 dB

45 Hz to 20 kHz

with FLAT (-6 dB)

50 Hz to 20 kHz

with FLAT (-6 dB)

2.2 kHz-DSP

Processor

12 dB/oct

2.4 kHz-DSP

Processor

12 dB/oct

90˚H

45˚ V

15-1/2" W x 26-1/8" H

x 15-7/8" D

15-1/2" W x 26-1/8" H

x 14-1/4" D

Professional Loudspeakers

AMT-15, AMT-12

The AMT-15 and AMT-12 speakers are designed to deliver high-output

music and sound reinforcement in a cost-efficient package.

Accessories

See Page 80

Accessories

See Page 80

Powered Loudspeakers

BP15DSP, BP12DSP

The Bogen Pro BP15DSP and BP12DSP Powered Loudspeakers are

capable of high sound pressure levels and have been designed to give

you performance that is better than any loudspeaker in this range,

thanks to the quality of its transducers and built-in amplifier.

www.bogen.com

SPEAKERS

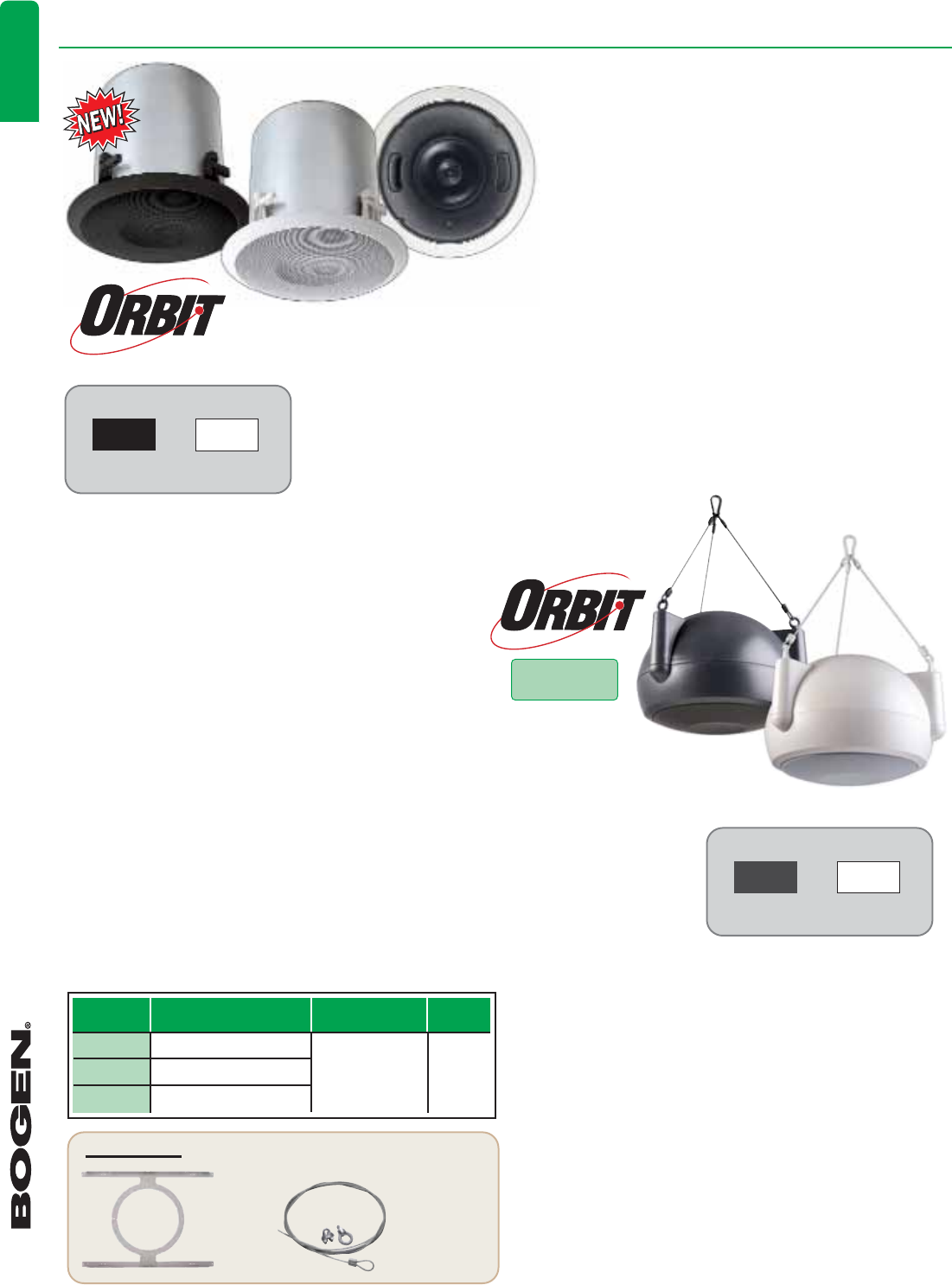

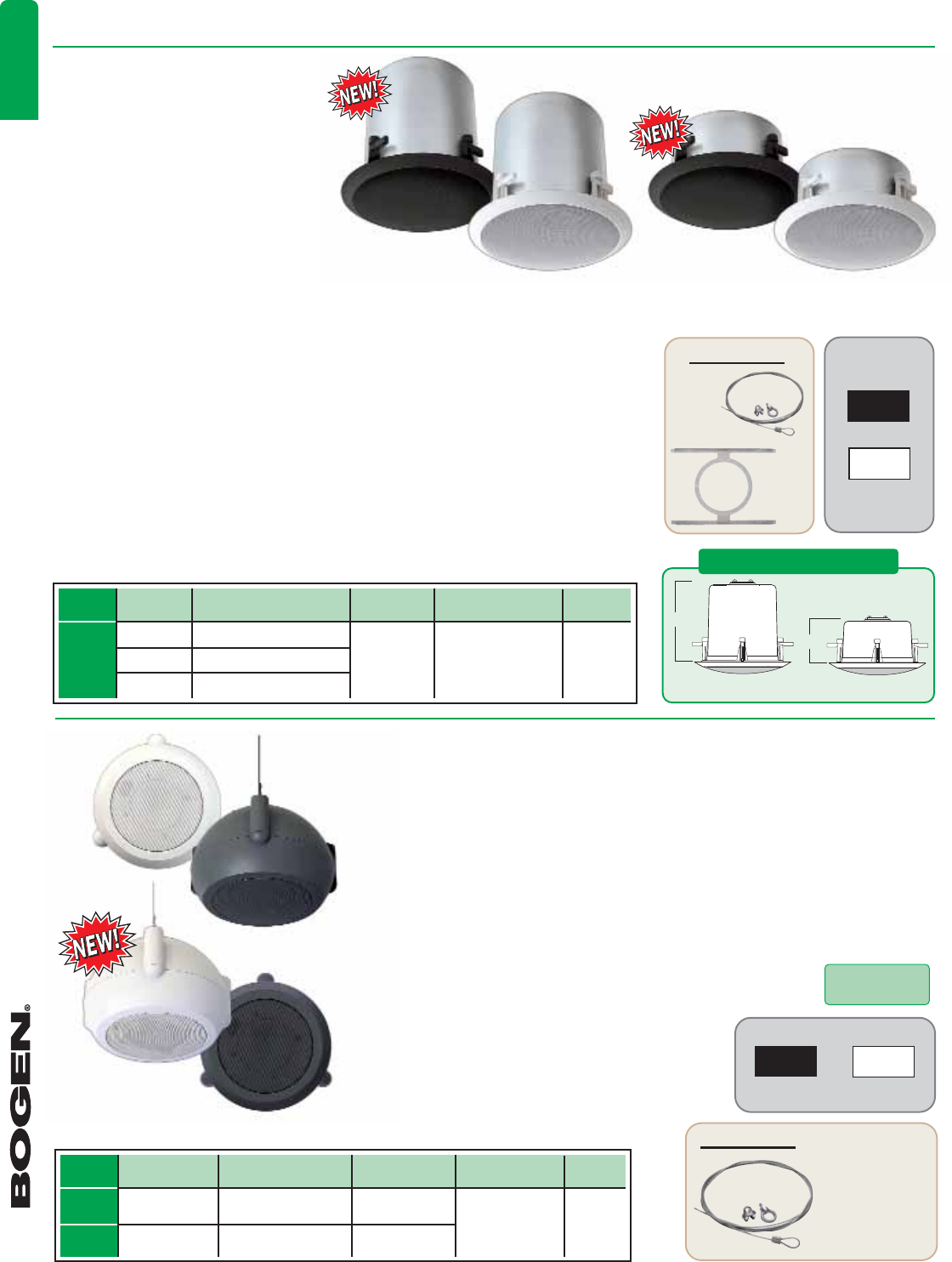

ORBIT Ceiling Speakers

OCS1W, OCS1B

Orbit Ceiling Speakers are the ideal choice for

installations where the quality of music and vocal

reinforcement are crucial.

Product Features for both OCS1 & OPS1:

•140-degree wide-dispersion coaxial driver for broad,

even coverage

•Stable, high-definition metal-alloy woofer cone

•6-1/2" MDT metal-alloy cone delivers detailed sound;

3/4" polycarbonate tweeter

•MLS voice coil centering system

•High-efficiency drivers deliver superior performance

•Extremely good off-axis response

•For 16-ohm, 70V, and 100V systems

•Frequency response: 45 Hz to 19 kHz

•Sensitivity: 89.5 dBspl

•Connector provides loop-through to next speaker

•Fire-rated (UL 94V0) ABS baffle

•Listed to UL Standard 60065 for US and Canada

OCS1 & OPS1 Technical Specifications:

Impedance Power Handling Dimensions Product

Weight

16 ohms 100W

70V 32, 16, 8, 4, 2, & 1 W taps

100V 32, 16, 8, 4, & 2 W taps

OCS1:

12-3/8" dia. x 12" D

OPS1:

14" dia. x 9-1/4" D

10 lb.

ORBIT SERIES SPEAKERS

OPS1 Product Features:

•Specially designed to provide full-range bass

in open space environments

•Easy-to-use cable suspension system includes

three suspension cables with attached forged

eyebolts

•Large cabinet volume and computer-matched

venting system for superior bass output

•Snap-lock input connector for easy wiring to

drop cables

•Low-resonance cabinet structure

•Threaded brass insert point for

optional safety cable eyebolt

•Color-matched suspension cables

and hardware

•Powder-coated, perforated sturdy

steel grille

•Available in Dark Gray and White

textured, paintable finish

Accessories

CK10B

(Black)

CK10W

(Off-white)

CK10

(Silver)

10 ft. Cable Kits

*Actual color may vary from these catalog samples.

DARK GRAY WHITE

2 COLOR CHOICES*:

OPS1W

OPS1B

OCS1B

TBCR

Tile Bridge

Support Ring

(OCS1 only)

OCS1 Product Features:

•Computer-matched venting system and large

back can provide exceptionally full bass output

•Easy wiring with snap-on connector

•Front-mounted tap selector under grille

•Attachment point for seismic (safety) cable

•Input terminal cover with knockouts provides

protection for connections

•Heavy-gauge steel back can

•Integral swing-out clamps secure

installation in the ceiling

•Attractive heavy-gauge steel grille

assembly with fine perforations

•Available in Black and White

textured, paintable finish

•Complies with UL-2043

ORBIT Pendant Speakers

OPS1W, OPS1B

Orbit Pendant Speakers provide an ideal sound solution

for open space environments that require clear, quality

sound evenly distributed throughout the area. These

speakers offer a pleasing industrial design and

mount from above.

*Actual color may vary from these catalog samples.

BLACK WHITE

2 COLOR CHOICES*:

OCS1W

Also available as

a smaller Pendant

(see page 6)

www.bogen.com

SPEAKERS

S4/S4T Product Features:

•Two models: S4 for 8 ohms; S4T for 70V & 8 ohms

• 75W at 8 ohms (S4 & S4T)

•70V Power settings: 16, 8, 4, 2, 1 watts (S4T Only)

•4-1/2” metal-alloy MDTTM mid/bass speaker cone

is extremely stable in all environments

S5/S5T Product Features:

•Two models: S5 for 8 ohms; S5T for 70V & 8 ohms

• 150W at 8 ohms (S5 & S5T)

•70V Power settings: 32, 16, 8, 4, 2, 1 watts (S5T Only)

•5-1/4” metal-alloy MDTTM mid/bass speaker cone

is extremely stable in all environments

•Professional Grade 1-1/2” diameter woofer voice coil

provides higher output level and ultra-low distortion

S4/S4T & S5/S5T Product Features:

•High sensitivity and exceptional power handling

• Hemispherical mounting system makes it simple to

mount, aim, and lock-in position of loudspeaker

•MLSTM Ferrofluid voice coil centering replaces

distortion-causing mechanical spider and

seals magnet gap

•Unique MDTTM provides an extremely stable cone

structure, fast transmission of sound, and efficiently

heat-sinks the voice coils

•Wide, even coverage over listening area

•Low-resonance cabinet structure

• Precisely designed low-frequency tuning for proper

balance

•Advanced polymer compound cone surrounds resist

UV rays, chemicals, and salt spray

•Aluminum-alloy & titanium cones, UV-protected ABS

cabinets, and powder-coated aluminum grilles and

mounting brackets assure long-term cosmetic

and sonic durability

•Pressure clamping input terminals for quick installation

•Color-matched mounting bracket included (see sidebar)

Technical Specifications:

SIGNATURE Series

High-Performance

Foreground Loudspeakers

S4/S4T &S5/S5T

SIGNATURE SERIES LOUDSPEAKERS

Power Handling

75W @ 8Ω or

16, 8, 4, 2, & 1W @ 70V

75W @ 8Ω5-1/4" W

8-1/4" H x 5-3/8" D

(without bracket)

5-1/4" W

8-1/4" H x 7-3/8" D

(with bracket)

6-7/8" W

9-3/4" H x 6-1/8" D

(without bracket)

6-7/8" W

9-3/4" H x 8-1/8" D

(with bracket)

Model**

S4T

S5T 150W @ 8Ω or

32, 16, 8, 4, 2, & 1W @ 70V

150W @ 8Ω

Product

Weight

58 Hz- 18 kHz

48 Hz- 17 kHz

Hor.: 150˚

Ver.: 120˚

Hor.: 130˚

Ver.: 110˚

86 dB SPL

89 dB SPL

Frequency

Response (-10dB)*

HF: 1'' Nominal Dia.

LF: 4-1/2'' Nominal Dia.

HF: 1'' Horn-Loaded

LF: 5-1/4'' Nominal Dia.

Drivers Sensitivity

(1W @ 1m)

Dimensions

Dispersion

5 lb.

6 lb.

8 lb.

9 lb.

* Half Space Response

** Colors specified by adding suffix to Model number: B (black) or W (white)

Signature Series S4 & S5 Loudspeakers are compact,

versatile, and feature unique driver tech-

nologies,

which produce impeccable sound quality. With their compact form factor, these speakers

are an excellent fit

for most indoor environments or protected outdoor locations.

Designed to both sound and look great, these speakers employ unique MDT and MLS technologies;

thick-walled, low-resonance ABS enclosures; scratch-

resistant, powder-coated aluminum grilles; and

compact, powder-coated cast

aluminum adjustable swivel mounts.

S5/S5T

Compact Swivel

Mounting Bracket

Assembly

The Signature Series hemispherical

swivel mount provides close-to-the-

wall mounting, in both a vertical and

horizontal orientation, while at the

same time offering a wide range of

movement for accurate aiming of

the loudspeaker.

MOUNTING CAP NUT

SPEAKER BRACKET

MOUNTING BRACKET BASE

(SIDE VIEW)

*Actual color may vary from these catalog samples.

BLACK OFF-WHITE

2 COLOR CHOICES*:

S4/S4T

www.bogen.com

SPEAKERS

Product Features:

•Maximum speaker power capacities of 100,

150, and 175 watts at 8 ohms; and 16, 32,

and 64 watts at 70V (T versions)

•Coaxial and 2-way

• High-precision, high-performance sound

•Long-term power handling for constant use

•Reduced distortion at all output levels

•Unsurpassed sound quality

•Completely weatherproof, fully-sealed

cabinet for indoor & outdoor applications

•Withstands harsh weather conditions

including sun, wind, rain, freezing

temperatures, ice, and snow without

affecting audio clarity or intelligibility

•Corrosion-resistant mounting hardware

•Special rubber surrounds

•Dual-layer aluminum voice coils, combined

with Ferrofluid, provide efficient heat-sinking

under long-term, high power situations

• Over-sized mounting knobs to secure

mounting easily

Accessories

Armadillo Speakers

Form follows function in the A-Series,

a.k.a., the “armadillo” line. Its unique

rounded ends and side corrugations,

which give the speakers their characteristic

“armadillo” shell look, are constructed of

mineral-filled polypropylene. This dense

molded material creates an extremely

durable cabinet with excellent acoustic

properties. Cabinet and components

are impervious to salt spray and dust.

Tough, Through and Through

The A-Series is made of premium material

components: die cast aluminum frames,

hard anodized aluminum cones,

anodized aluminum voice coil formers,

compound rubber cone surrounds, high-

temperature adhesives, UV-inhibited

mineral-filled polypropylene enclosure,

powder-coated aluminum, perforated PVC

plastic grilles, threaded brass inserts, and

gold-plated connectors. These are the most

durable materials used in any speaker

in the industry!

A-Series Loudspeakers set the standard for smooth, accurate sound, attractive appearance,

constant and reliable high performance, and rugged construction. Metal Diaphragm Tech-

nology (MDT) ensures speaker cone stability in all environmental conditions. Magnetic

Liquid Suspension (MLS) is a Ferrofuild seal around the magnet gap and voice coil that

provides protection from moisture and corrosion, as well as perfect voice coil alignment.

ASTB4

Terminal Block

Cover

(Protects wires and

connections from water

and effects of weather)

A2, A2T A6, A6T A8, A8T

*Actual color may vary from

these catalog samples.

BLACK WHITE

COLOR CHOICES*:

A-SERIES LOUDSPEAKERS

(For A2, A6, and A8 models) A-Series

Mounting

Bracket

• Slots allow for the speaker to slide in with

side knobs attached

• Color finish matches speaker cabinet

•

Heavy-gauge brackets

powder-coated to

resist chipping and scratching

* Colors specified by adding suffix to Model number: BLK (black) or WHT (white). ** (-10 dB)

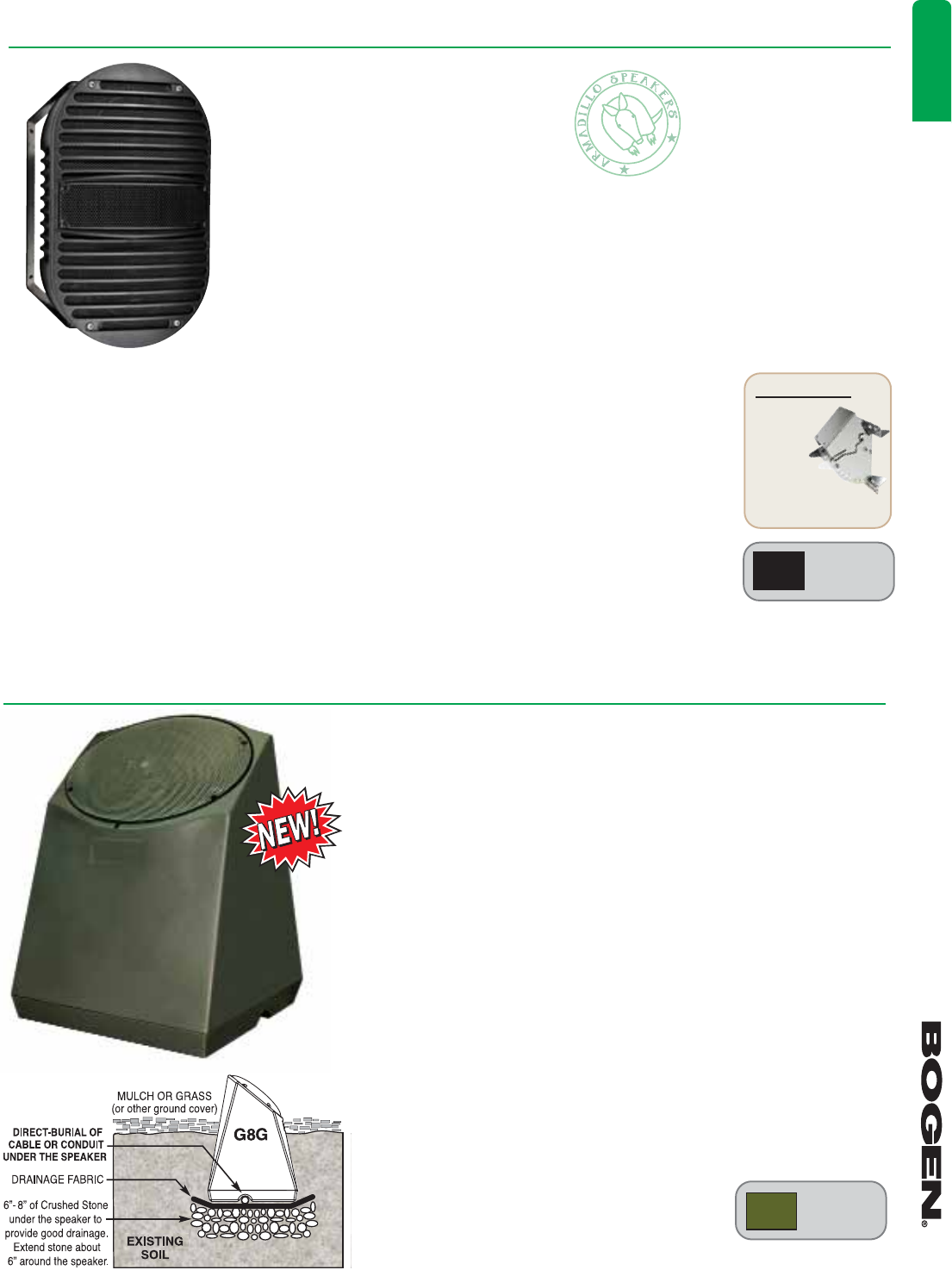

High-Output,

Long-Throw Loudspeaker

A12

Product Features:

•Dual 6-1/2'' LF driver with horn-loaded HF driver

•

One model for both 70V systems & low-impedance (16-ohm) systems

•Dual metal-alloy MDT™mid/bass speaker cones are extremely

stable in all environments

•MLS™Ferrofluid voice coil suspension replaces distortion-causing

mechanical spider

•Rigid MDT diaphragm design delivers clear sound & low distortion

•Dual-layer voice coil with separate inner and outer windings for

improved thermal path

•Horn-loaded compression driver features Mylar diaphragm for

long-term, consistent performance

•High sensitivity and power handling for unmatched sound coverage

•Vented cabinet with specially-designed

vent covers that resist water entry

•Improved compound rubber surrounds

resist UV rays, chemicals, and salt spray

•Corrosion-resistant woofer frames and

mounting hardware for long-lasting

“like new” appearance

•Attractive styling with “armadillo” ridges

improve durability as well as sound

•Gold-plated, rustproof input connectors

•Optional multi-angle tilting bracket

for pole/wall mounting

Product Features:

•Sloped cabinet panels ensure pull-out resistance of the speaker when buried

•8-ohm and 70V taps included

•Extremely stable, long-lasting Metal Diaphragm Technology (MDT) cone structure

•High efficiency and power handling for optimum performance

•Dual-layer voice coil with separate inner and outer windings for high output

and ultra-low distortion

•Magnetic Liquid Suspension (MLS) provides constant lubrication of the gap,

preventing oxidation when used outdoors

•Compound rubber surrounds resist UV rays, salt spray, and chemicals

•Stainless steel grille protects the driver elements

•Molded polyethylene enclosure resists chipping, scratching,

and damage from impact

•Corrosion-resistant driver frames

•Wide coverage angles produce broad, even sound field

•Available in green

www.bogen.com

SPEAKERS

BLACK

ONLY

GREEN

ONLY

The A12 High-Output, Long-Throw Loudspeaker provides deep, rich bass and smooth highs as a

complement to other A-Series loudspeakers.

The A12 is a high-powered speaker that projects well in far-field applications as well as in more intimate

settings. A built-in transformer means one speaker will work with 70V or 16-ohm systems. Dual metal-

alloy mid/bass drivers and a Mylar high-frequency compression driver combine to minimize distortion and

provide precise sound reproduction at any volume level.

The A12 is ideal for both music and voice reproduction, and its powerful, highly directional output and

weatherproof design make it the perfect speaker for sound reinforcement in outdoor venues.

A-SERIES LOUDSPEAKER

IN-GROUND LOUDSPEAKER

The G8G In-Ground, All-Weather Loudspeaker features superior sound and superior

weather durability. Its fully-sealed enclosure makes it ideal for outdoor commercial

and industrial applications.

In-Ground, All-Weather

Loudspeaker

G8G

Accessories

TMA812

Tilt

Mount

Adapter

(For A8 and A12 models)

Stainless

Steel

See G8G Technical Specifications in chart on page 4.

See A12 Technical Specifications in chart on page 4.

www.bogen.com

SPEAKERS

CEILING SPEAKERS

High-Fidelity

Ceiling Speakers

HFCS1

& HFCS1LP

Bogen’s coaxial and 2-way, High-Fidelity

Ceiling Speakers deliver unsurpassed

performance and value.

Product Features:

•Installs into a variety of ceiling environments

including suspended ceilings and hard-surfaced

ceilings

•Large steel back can for extended bass

response (HFCS1)

•Low-profile housing allows greater range of

installation depths (HFCS1LP)

•Computer-matched venting system for excellent

bass output

•Wide dispersion coaxial driver provides broad,

even coverage

•Good off-axis response with smooth contouring

•Easy-to-install mounting system for a variety

of ceiling types

•High power handling capability for

foreground sound

•Selectable power taps via front-mounted

rotary control under grille

•Easy wiring with 4-terminal snap-on input

connector (providing loop-through)

•3/4" durable polycarbonate tweeter cone

•6-1/2" highly stable polypropylene cone

•Sensitivity: 89 dBspl @ 1W/1m

•

Available in Black or White ABS baffle ring

and perforated steel grille (both paintable)

•Attachment point for seismic cable

•Fire-rated (94VO) ABS baffle

•Listed to UL Standard 60065 for US & Canada

Technical Specifications:

HFCS1W

HFCS1B

MPS1B

MPS1W

MPS2B

MPS2W

HFCS1LPW

HFCS1LPB

Impedance Power Handling Dimensions Product

Weight

16 ohms 75W

70V

32, 16, 8, 4, 2, & 1 W taps

100V

32, 16, 8, 4, & 2 W taps

HFCS1:

12-5/16" dia.

12" D

Model

HFCS1/

HFCS1LP HFCS1LP:

12-5/16" dia.

7-3/4" D

HFCS1:

65 Hz-19 kHz

HFCS1LP:

78 Hz-19 kHz

HFCS1:

9 lb.

HFCS1LP:

8 lb. HFCS1 HFCS1LP

6.75"

Frequency

Response

Technical Specifications:

Impedance Sensitivity (1W @ 1m) Dimensions Product

Weight

Low (16 ohms)/

High (70V)

Low (16 ohms)/

High (70V)

86 dB

(Avg. 100 Hz-10 kHz)

87 dB

(Avg. 100 Hz-15 kHz)

10" dia.

7-7/8" H

Model

MPS1

MPS2

50 Hz-14 kHz

50 Hz-22 kHz

4.5 lb.

Frequency

Response (-10 dB)

Product Features:

•Wide dispersion 4-1/2" driver for broad, even coverage; superb off-axis response

•

High-power handling capability for foreground sound/high-ambient noise environments

•Selectable power taps via rear-mounted control; 32, 16, 8, 4, 2, 1 watts @ 70V

•Low-resonance cabinet structure improves mid-range clarity

•Computer-matched venting system for extended bass output

•High-efficiency drivers deliver superior performance

•Central attachment point for suspension and

second point provided for safety cable

•For 70V and 16-ohm low-impedance systems

•Quick & Easy wiring with snap-on connector

•Simple single point suspension method

•Powder-coated perforated steel grille

•Available in Black or White

Mini Pendant Speakers

MPS1 & MPS2

The Bogen MPS1 and MPS2 Mini-Pendant Speakers are an excellent

choice for high ceiling and open space environments.

Accessories

CK10

10 ft.

Cable

Kit (Silver)

TBCR

Tile Bridge

Support

Ring

Accessories

CK10B

(Black)

CK10W

(Off-white)

CK10

(Silver)

10 ft. Cable Kits

*Actual color may vary from these catalog samples.

BLACK WHITE

2 COLOR CHOICES*:

OPENING DEPTH

*Actual color may vary from

these catalog samples.

BLACK

WHITE

2 COLOR

CHOICES*:

Also available as

a larger Pendant

(see page 2)

Product Features:

•Superior sound in a very compact enclosure

•Wide-dispersion coaxial driver for broad,

even coverage; superb off-axis response

•Small footprint, visually appealing

•Only 6-1/4" diameter ceiling opening required

•Installs in wide range of ceiling types

•For 70V and low-impedance systems

•Selectable power taps via control mounted under

grille; 16, 8, 4, 2, 1 watts at 70V

•16-ohm selector position for low-impedance systems

•Quick wiring with removable plug-in connector

providing loop-through terminals

•Attachment point for seismic safety cable

•Input terminal cover with conduit knockout

•Fire-rated (94VO) ABS baffle

•Compound rubber surround for

lasting performance year after year

•Integral mounting clamps tighten

quickly and firmly

•Tile bridge (TBSF) accessory recommended

for suspended ceiling installations

•Off-white, paintable finish

•Listed to UL Standard 60065

for US and Canada

Product Features:

•Flat bass response down to 40 Hz

•Computer-matched venting system for full bass output

•11" deep enclosure clearance

•Integral swing-out mounting clamps eliminate need

for tile bridge

•High power handling capability for foreground sound

•Selectable power taps via front-mounted control

•Power taps: 64, 32, 16, 8, 4, and 2 watts @ 70V

•8-ohm selector position for low-impedance systems

•Compound rubber surround for lasting performance

•Easy wiring with plug-in connector providing

loop-through terminals

•Fire-rated (94VO) ABS baffle

•Attachment point for seismic safety cable

•Input terminal cover with conduit knockout

•Attractive, contemporary, sturdy steel

grille assembly with fine perforations

•Off-white, paintable finish

•Listed to UL Standard 60065

for US and Canada

www.bogen.com

SPEAKERS

CEILING SPEAKERS

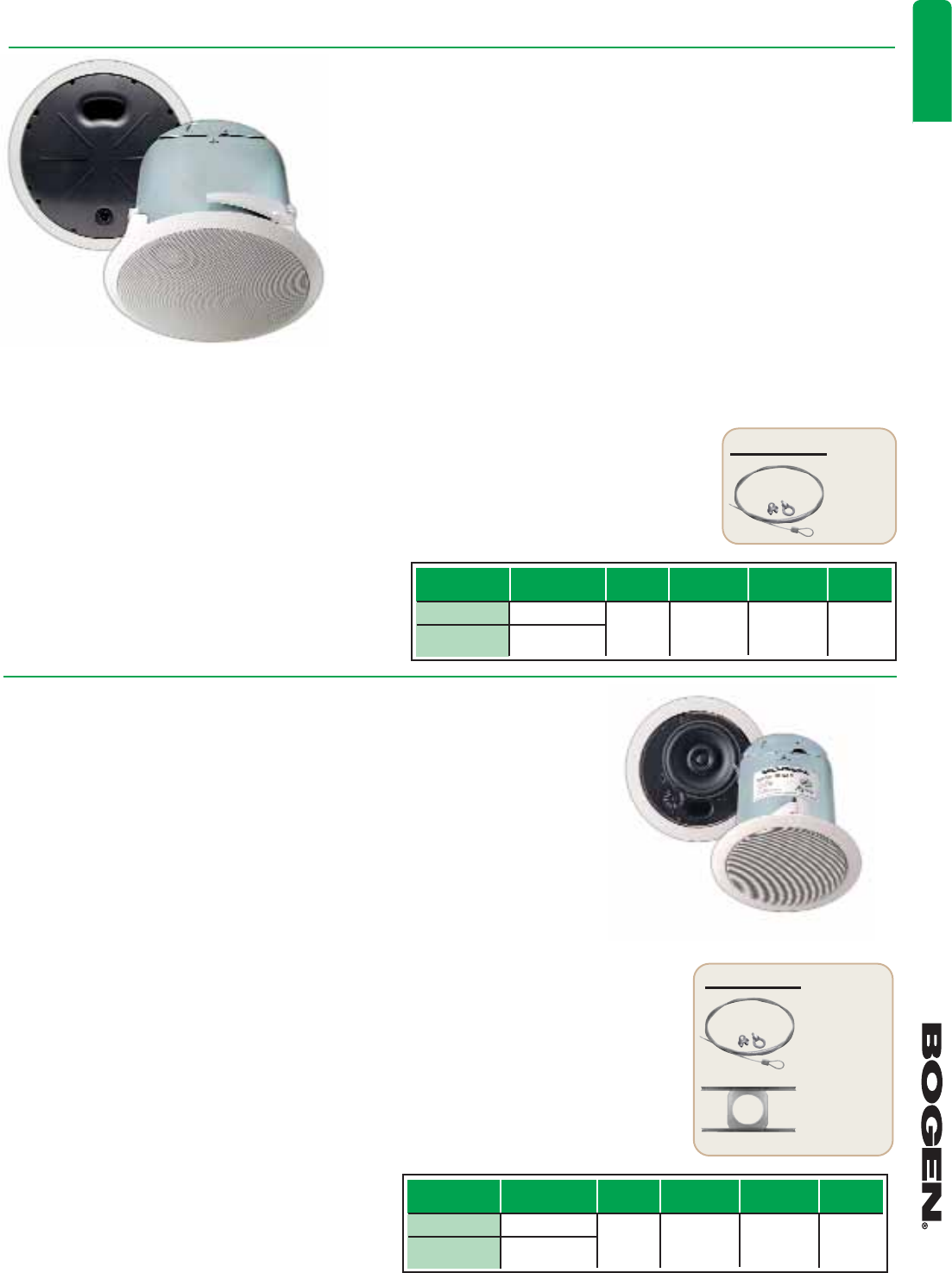

High-Fidelity Ceiling Subwoofer

CSUB

The Bogen CSUB Ceiling Subwoofer delivers outstanding bass response

in both suspended ceiling and hard-surfaced installations. The CSUB can

provide deep, rich bass response to any speaker system. Perfect accompa-

niments to the CSUB are the HFSF1, HFCS1/LP, and OCS1 ceiling loudspeakers.

The CSUB offers six levels of power output settings plus an 8-ohm position

controlled via a front-mounted, rotary tap selector switch (under grille). The low-

distortion speaker design, coupled with a computer-matched venting system,

delivers exceptional low-frequency response for music. The mechanical CSUB

design features four swing-out mounting clamps that eliminate the need for

a separate tile bridge when used in suspended ceiling applications.

High-Fidelity Ceiling Speaker

HFSF1

The Bogen HFSF1 High-Fidelity, Small-Footprint Ceiling Loudspeaker delivers

superior sound in a very compact enclosure. The speaker is unobtrusive at only

7-1/4" in diameter, and mounts easily in all types of ceilings including existing

hard-surface types and suspended ceilings.

The low-distortion, coaxial-design speaker, coupled with a computer-matched venting

system, delivers superb fidelity for music as well as high intelligibility for voice reinforce-

ment. Coupled with the Bogen CSUB Ceiling Subwoofer, it provides the perfect solution for

environments that require the highest-quality sound with minimal visual impact.

Accessories

CK10

10 ft.

Cable Kit

(Silver)

Technical Specifications:

Impedance Power Handling Sensitivity Frequency Dimensions Product

Response Weight

8 -ohm Nominal

70V Settings

150W (8-ohm)

64, 32, 16, 8, 4,

2W taps (70V)

40 Hz -125 Hz

91 dBspl

@ 1W/1m

15-1/2" dia.

12-1/2" D

20 lb.

Accessories

TBSF

Tile Bridge

Support Ring

CK10

10 ft. Cable Kit

(Silver)

Technical Specifications:

Impedance Power Handling Sensitivity Frequency Dimensions Product

Response Weight

16-ohm Nominal

70V Settings

50W (16-ohm)

16, 8, 4, 2,

1W taps (70V)

78 Hz -20 kHz

86 dBspl

@ 1W/1m

7-1/4" dia.

7-1/2" D

4.5 lb.

www.bogen.com

SPEAKERS

Dimensions

12-1/4" W x 5" H x 24" D 10 lb.

24" W x 4-7/8" H x 24" D 12 lb.

Model

CSD1X2/VR

CSD2X2/VR/L

Product

Weight

All Drop-In Ceiling Speakers Feature:

•Finely perforated grille over entire front of speaker

•Tile Support Rail crossbar (included) for use with

2' x 4' and 2' x 2' suspended tile ceilings

•Bright White ("U" versions)

or Off-white finish

•Seismic attachment points

•1ft. X 2ft. with back can enclosure

• 4-watt, 70V/25V transformer

•4, 2, 1, 1/2, & 1/4-watt tap settings;

selectable by rotary switch

•Fully enclosed, industrial grade steel construction

•8" main cone with secondary high-frequency

cone; 10 oz. magnet weight

•Plenum-rated — meets requirements

of UL standard 2043 for

smoke and heat release

•Front-mounted, recessed

volume control versions

available (VR)

•Listed to UL Standard

60065 for U.S. & Canada;

and UL Standard 1480

for U.S.

''VR'' Versions (with front-mounted recessed volume control)

DROP-IN CEILING SPEAKERS

NOTE: For Bright White versions, add "U" to end of model number.

Tile

Support Rail

(included)

Models CSD1X2(U), CSD1X2VR(U)

70V and 25V Operation

•2ft. X 2ft. with back can enclosure

• 4-watt, 70V/25V transformer

•4, 2, 1, 1/2, & 1/4-watt tap settings;

selectable by rotary switch

•Fully enclosed, industrial grade steel

construction

•8" main cone with secondary high-

frequency cone; 10 oz. magnet weight

•Plenum-rated — meets the

requirements of UL standard

2043 for smoke and heat

release

•Front-mounted, recessed

volume control versions

available (VR)

•Listed to UL Standard

60065 for U.S. & Canada;

and UL Standard 1480

for U.S.

Models CSD2X2(U), CSD2X2VR(U)

70V and 25V Operation

•2ft. X 2ft. with back can enclosure

•Low-impedance: 8-ohm speaker,

15W maximum power

•Fully enclosed, industrial grade steel

construction

•8" main cone with secondary high-

frequency cone; 10 oz. magnet weight

•Plenum-rated — meets the

requirements of UL standard

2043 for smoke and heat

release

•Listed to UL Standard

60065 for U.S. & Canada;

and UL Standard 1480

for U.S.

Models CSD2X2L(U)

Low-impedance (8-ohm) Operation

Bogen's Drop-In Ceiling Speakers are full-range loudspeakers that allow fast and simple installation, which saves time, effort, and

cost. Depending on whether your ceiling grid is 2' x 2' or 2' x 4', the speaker can be dropped directly into place or by simply making a

single cut to the ceiling tile, placing the tile support rail, and then inserting the speaker into position.

Now available in

Bright White & Off-white

•Fully Enclosed

Driver

Tile

Support Rail

(included)

•Fully Enclosed

Driver

Tile

Support Rail

(included)

•Fully Enclosed

Driver

Drop-In Ceiling Speakers

CSD1X2

CSD1X2U

CSD1X2VR

CSD1X2VRU

CSD2X2

CSD2X2U

CSD2X2VR

CSD2X2VRU

CSD2X2L

CSD2X2LU

Model

1 ft. x 2 ft.

2 ft. x 2 ft.

Off-white

Bright White (U)

70V/25V

(4W max.)

8-ohm (L)

(15W max.)

Speaker Back Can

Recessed Volume

Control (VR)

●

Speaker

Size

Grille

Color Impedance

Dimensions

5-3/4" W x 3-1/2" H x 6-3/4" D 2.5 lb.

11-7/8" W x 5/8" H x 23-3/4" D 2.5 lb.

23-3/4" W x 5/8" H x 23-3/4" D 4.5 lb.

Individual

Components

MCDMOD

MCD1X2UGRILLE

MCD2X2UGRILLE

Product

Weight

www.bogen.com

SPEAKERS

DROP-IN CEILING SPEAKERS

Module Features:

•Fully-enclosed speaker module

•4-1/2” full-range speaker with a

secondary high-frequency radiator

•120-degree wide dispersion angles

•Broad sound field for even coverage

throughout the listening area

•Rotary switch selects 4, 2, 1, 1

/2,

and 1

/4watt power tap settings

•Compatible with 70V/25V systems

•160 Hz to 10.5 kHz frequency response

•Sensitivity: 85 dB (1W/1m)

•Listed to UL Standard 60065 for U.S. and

Canada; and UL Standard 1480 for U.S.

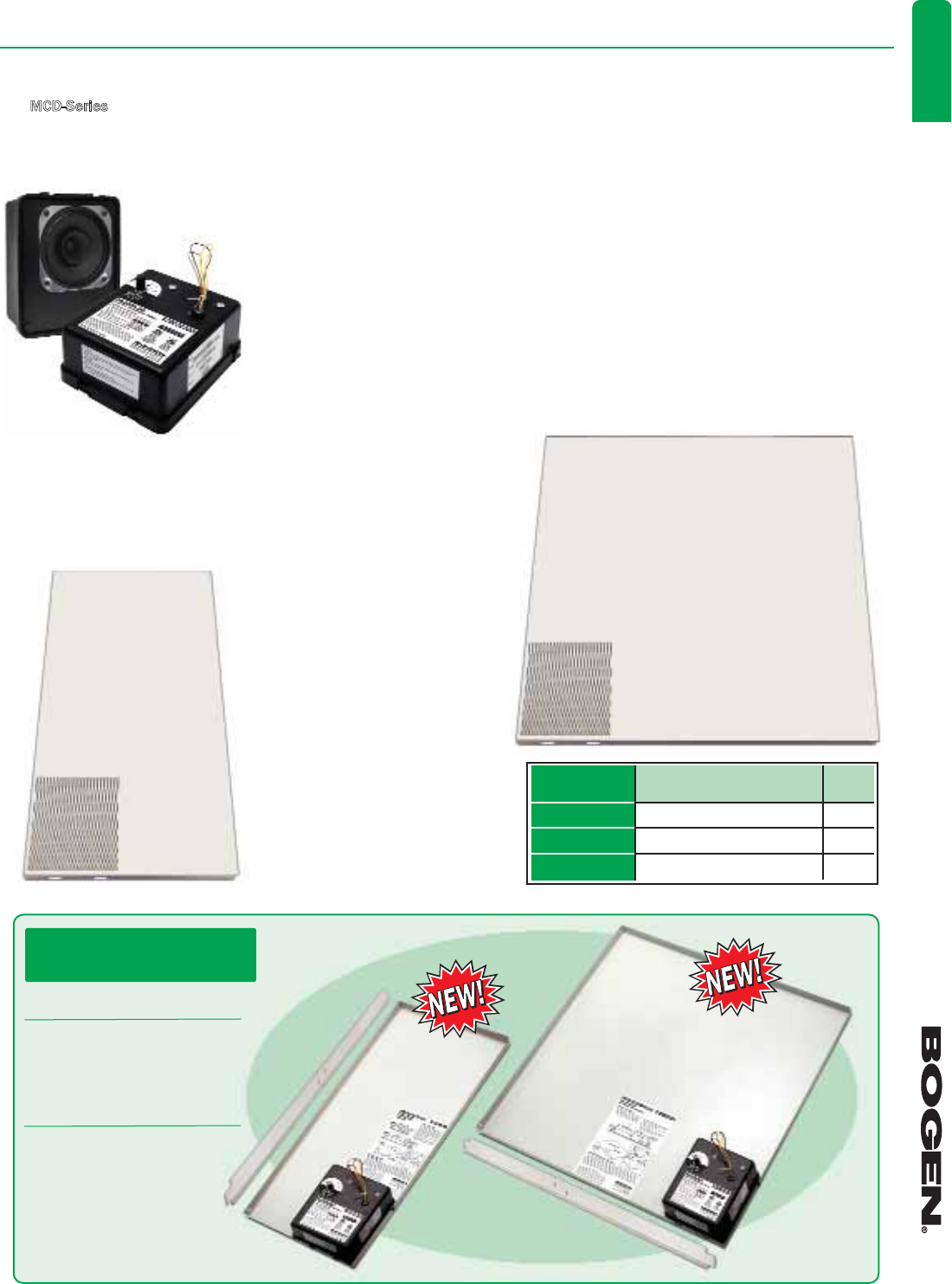

The MCD-Series Speakers offer installers a low-cost alternative to pre-assembled drop-in ceiling speakers. The speaker assembly

consists of the speaker module and a grille, which are easily assembled. The MCDMOD simply snaps securely onto a grille.

Since the module is not attached to the grille, it allows installers the option of making wire connections before or after grille

placement in the ceiling. The assemblies fit into 2’ x 2’ or 2’ x 4’ ceiling grids.

Modular Drop-In Ceiling Speakers

Ceiling Grilles: 1’ x 2’ or 2’ x 2’ Grilles

Depending on the application’s aesthetics or grid configuration, you may

select either the 1’ x 2’ MCD1X2UGRILLE or the 2’ x 2’ MCD2X2UGRILLE

to fit in 2’ x 2’ or 2’ x 4’ suspended ceilings.

MCD1X2UGRILLE Features:

•1’ x 2’ Grille, constructed of industrial

grade steel

•3 Seismic attachment points

•Bright White, powder-coated finish

•Tile Support Rail crossbar (included)

MCD2X2UGRILLE Features:

•2’ x 2’ Grille, constructed of industrial

grade steel

•3 Seismic attachment points

•Bright White, powder-coated finish

•Tile Support Rail crossbar (included)

MCD1X2UGRILLE

(Grille Only)

MCD2X2UGRILLE

(Grille Only)

MCDMOD

(Module Only)

MCD2X2U

MCD1X2U Kit

Consists of a MCDMOD Speaker

Module and a MCD1X2UGRILLE

1’ x 2’ Metal Grille

MCD2X2U Kit

Consists of a MCDMOD Speaker

Module and a MCD2X2UGRILLE

2’ x 2’ Metal Grille

Tile

Support Rail

(included)

Tile

Support Rail

(included)

Order Complete Kits

(Assembly Required)

(Complete 2’ x 2’ Assembly)

MCD1X2U

(Complete

1’ x 2’ Assembly)

Speaker Module

This compact speaker module is a component of your speaker assembly. Both the MCD1X2U

and MCD2X2U assemblies utilize the MCDMOD speaker module to reinforce sound.

METAL BOX SPEAKERS

www.bogen.com

SPEAKERS

Product Features:

•Rugged all-steel, surface-mounted, off-white painted enclosure

•Full-range 8" cone speaker for excellent intelligibility

•Compatible with 70V/25V amplifier systems

•4-watt maximum power

•6 power taps available (4, 2, 1, 1/2, 1/4, 1/8 watts)

•Mounting hardware included

•Wiremold®knockouts

•"

"versions include a recessed volume control

Product Features:

•4-watt capacity

• 6 power taps available (4, 2, 1, 1/2, 1/4, 1/8 watts)

• Simulated walnut finish

• Works with both 70V and 25V amplifier outputs

• Pre-assembled for faster installation

• 8" cone speaker for excellent

audio quality

•6 oz. or 10 oz. magnet weights

•Recessed volume control available

(V models only)

•Screw terminals available

(BR models only)

•Easy wall-mount installation

• Mounting hardware included

WBS8T725, WBS8T725V, WBS8T725BR,

WBS8T725BRV, WBS810T725

Metal Box Speakers

MB8TSL, MB8TSLVR,

MB8TSQ, MB8TSQVR

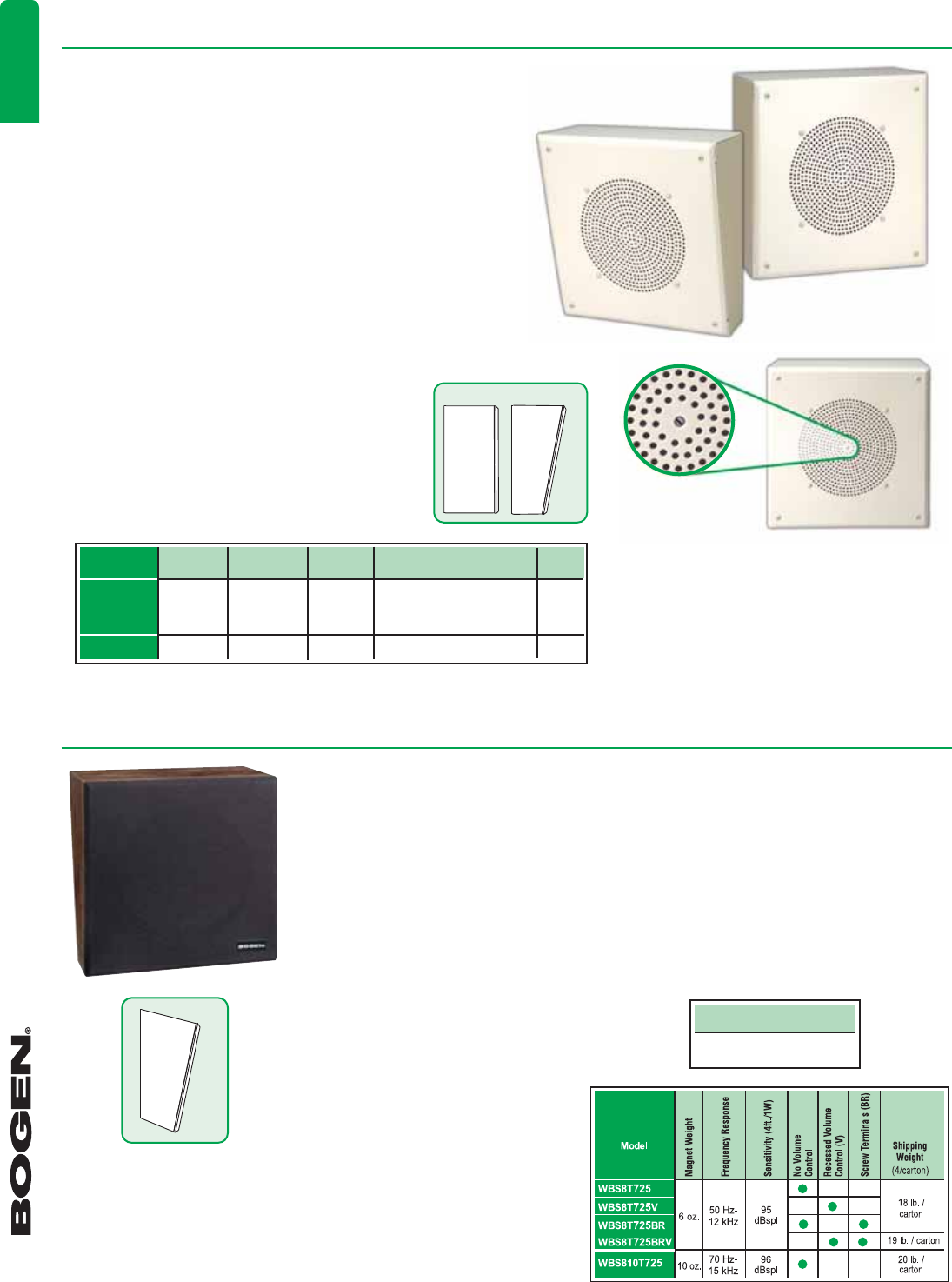

Bogen Wall Baffle Speakers consist of 8" cone speakers (S86 or S810) pre-assembled

into a simulated walnut-finished wooden enclosure with a black grille cloth on front.

These wall baffles are handsomely styled and ruggedly built with 3/8" particle board

reinforced at the corners. Designed for wall mounting, the face is angled downward

13.5 degrees. Recessed volume control and terminal strip are available options on

the WBS8T725 model.

Bogen’s Metal Box Speakers feature all-steel construction,

surface-mounted enclosure with an 8" cone loudspeaker

and 4-watt 70V/25V transformer. The MB8TSL is designed

primarily for wall mounting, and its face is angled downward

12.5 degrees. The MB8TSQ is suitable for ceiling or wall

mounting. “VR” versions include a recessed volume control.

Dimensions

9-1/2" W x 9-1/2" H x 5-1/ 4" D

(3-1/4" D @ bottom)

MB8TSL

MB8TSQ

WALL BAFFLE SPEAKERS

VR versions

(with recessed volume

control in center)

SIDE

VIEW

SIDE

VIEW

Dimensions

11-5/8" W x 11-3/8" H x 5-3/ 8" D

11-5/8" W x 11-3/8" H x 2-3/4" D

11-5/8" W x 11-5/8" H x 4-1/4" D

Front Panel

Design

Slant/Angle

Square/Flat

MB8TSL/VR

MB8TSQ/VR

Product

Weight

9 lb.

(Top Dimension)

(Bottom Dimension)

Models Sensitivity

(dBspl @ 1W)

Frequency

Response

110 Hz -15 kHz

Wiremold®is a registered

trademark of Wiremold/Legrand.

MB8TSQ MB8TSL

Product Features:

•4-watt capacity /4-watt transformer

•8" cone speaker (S86 & S810) and 4" cone speaker (SEC4T) provides

excellent audio quality

•6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8 W)

•Pre-assembled for faster installation

•S86/S810 available in Off-white (W) or Bright White (U) enamel over steel

grille; SEC4T available in Bright White only

•Works with both 70V and 25V amplifier outputs

•Some S86/S810 models available with recessed volume control knob

(see chart below)

•Screw terminals (BR models only)

www.bogen.com

SPEAKERS

•Recessed Volume Control –

S86/S810T725PG8WVR*

•Volume Control Knob –

S86/S810T725PG8WVK*

•Screw Terminal Strip –

S86T725PG8WBR*

REAR

VIEW

FRONT

VIEW

FRONT

VIEW

volume

control

knob

recessed

volume

control

screw

terminals

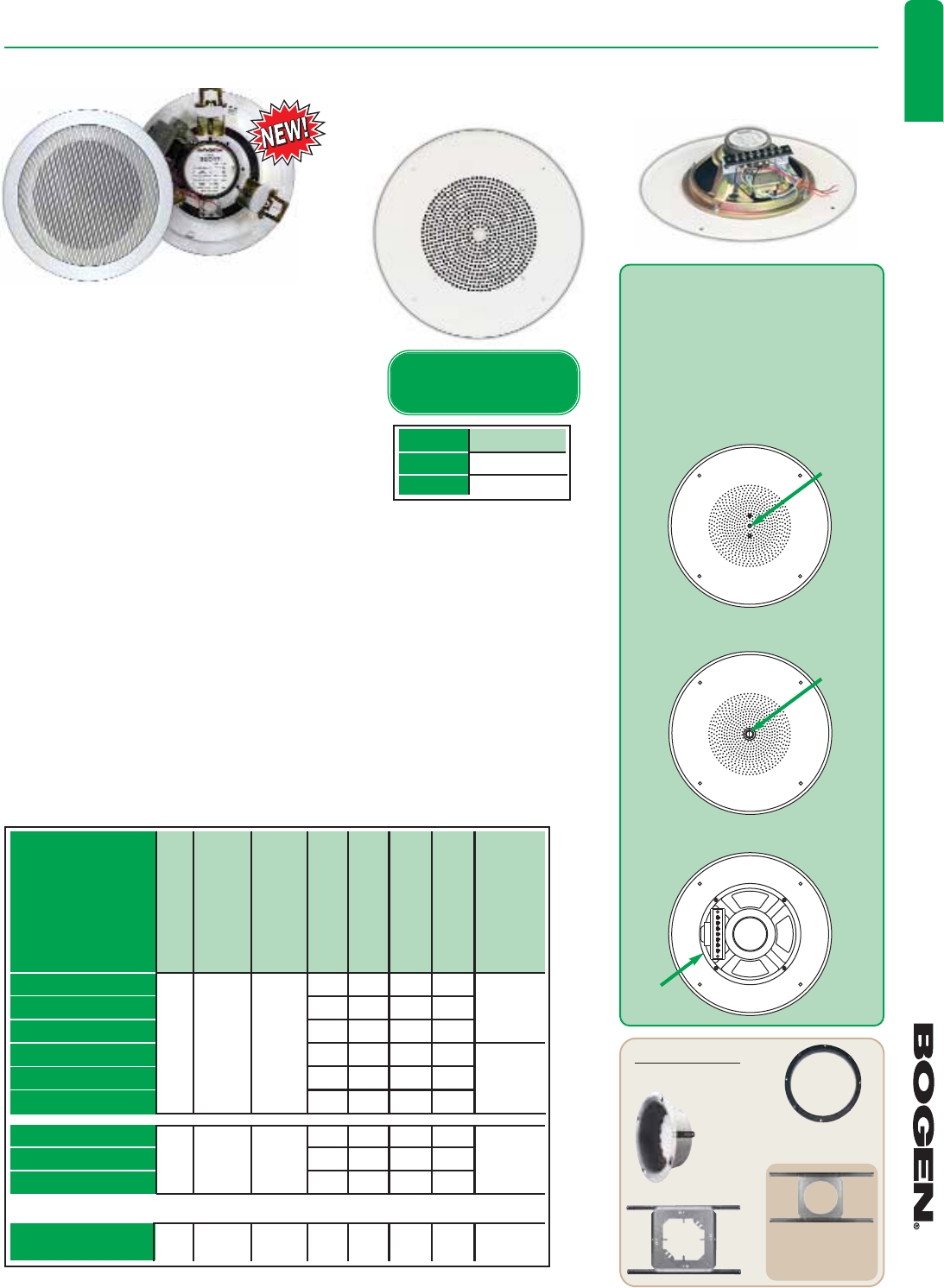

Ceiling Speaker Assembly Variations

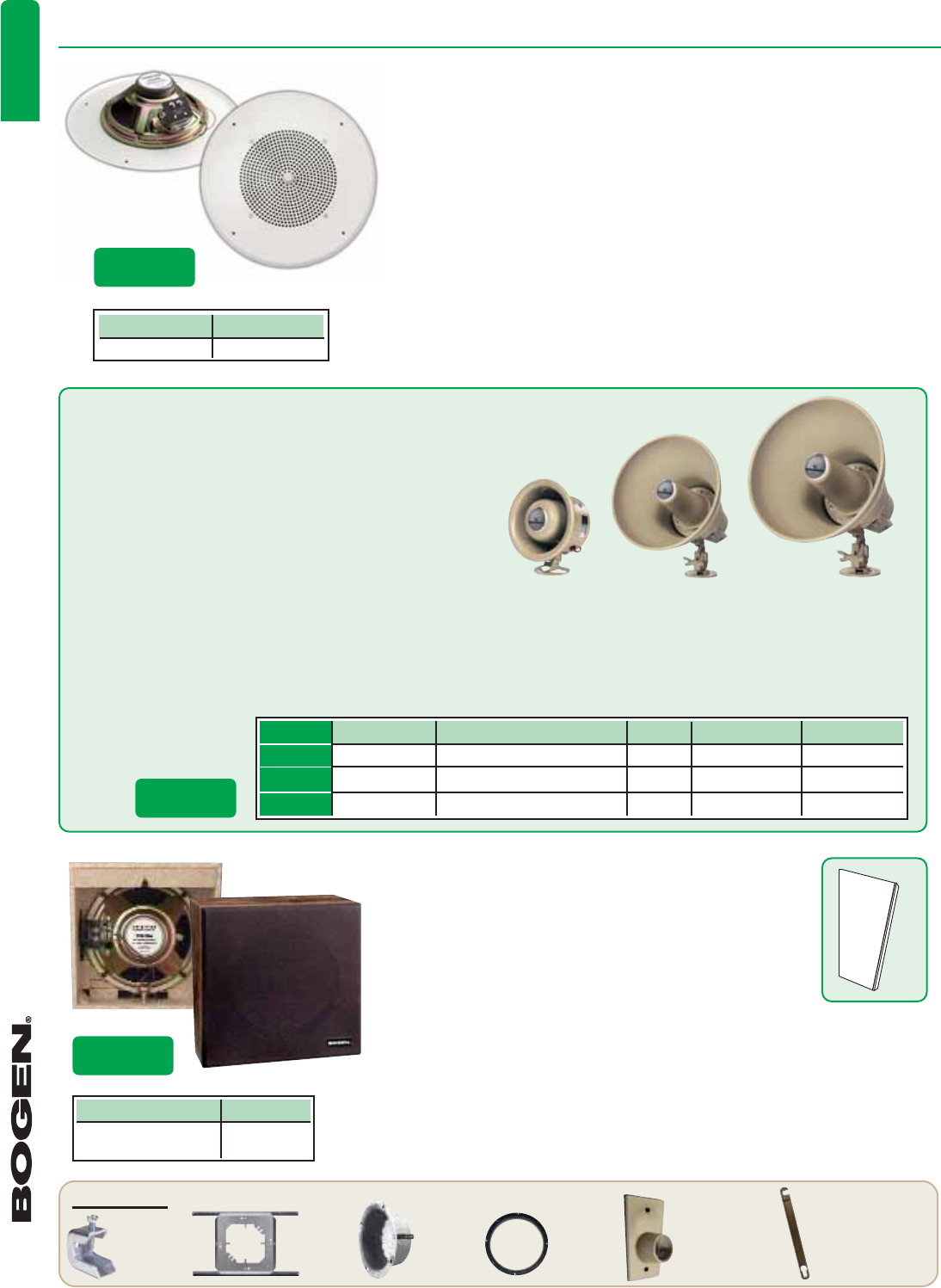

Bogen ceiling speaker assemblies consist of

an 8" cone speaker (S86 or S810) mounted in

an enamel, steel-finished ceiling grille

(PG8W or PG8U) with a transformer (T 725).

The assemblies are available in several

options, as outlined here:

Accessories

MR8

Mounting Ring

TB8

Tile

Bridge

RE84

Ceiling

Speaker

Enclosure

Bogen’s SEC4T Compact Ceiling Speaker Assembly

consists of a 4" Cone Speaker pre-assembled onto

a 7-1/4" steel ceiling grille, painted with bright-white

enamel finish.

Both the S86 & S810 Ceiling Speaker Assemblies

consist of an 8" Cone Speaker pre-assembled onto

a 13" steel ceiling grille painted with off-white

(PG8W) or bright white (PG8U) enamel. Options for

these assemblies are recessed volume control (VR),

volume control with knob (VK), and rear-mounted

screw terminal strip for power taps (BR).

13" dia. x 3-1/4" D

7-1/8" dia. x 3" D

Dimensions:

Shipping

Weight

(6/carton)

27 lb. /

carton

28 lb. /

carton

30 lb. /

carton

19 lb. /

10 per carton

Model

Magnet Weight

Frequency Response

Sensitivity (4ft./1W)

No Volume

Control

Recessed Volume

Control (VR)

Volume Control

w/Knob (VK)

Screw Terminals (BR)

●

● ●

●

6 oz.

50 Hz-

12 kHz

dBspl

10 oz.

4 oz.

70 Hz-

15 kHz

75 Hz-

20 kHz

dBspl

86 dBspl

(1W @ 1m)

CEILING SPEAKER ASSEMBLIES

S86T725PG8W(U)

& Variations

S810T725PG8W(U)

& Variations

SEC4T

●

S86 & S810 available in

Bright White (“U” versions)

& Off-white (“W” versions)

(for S86 & S810)

TBSF

Tile Bridge

(for SEC4T only)

Model

S86/S810

SEC4T

S86T725PG8W

S86T725PG8WVR

S86T725PG8WVK

S86T725PG8WBR

S86T725PG8WBRVR

S86T725PG8WBRVK

S810T725PG8W

S810T725PG8WVR

S810T725PG8WVK

SEC4T

For Bright White versions of the above models, replace the “ W” in each model number with a “ U”.

www.bogen.com

SPEAKERS

SCW20, SCW35

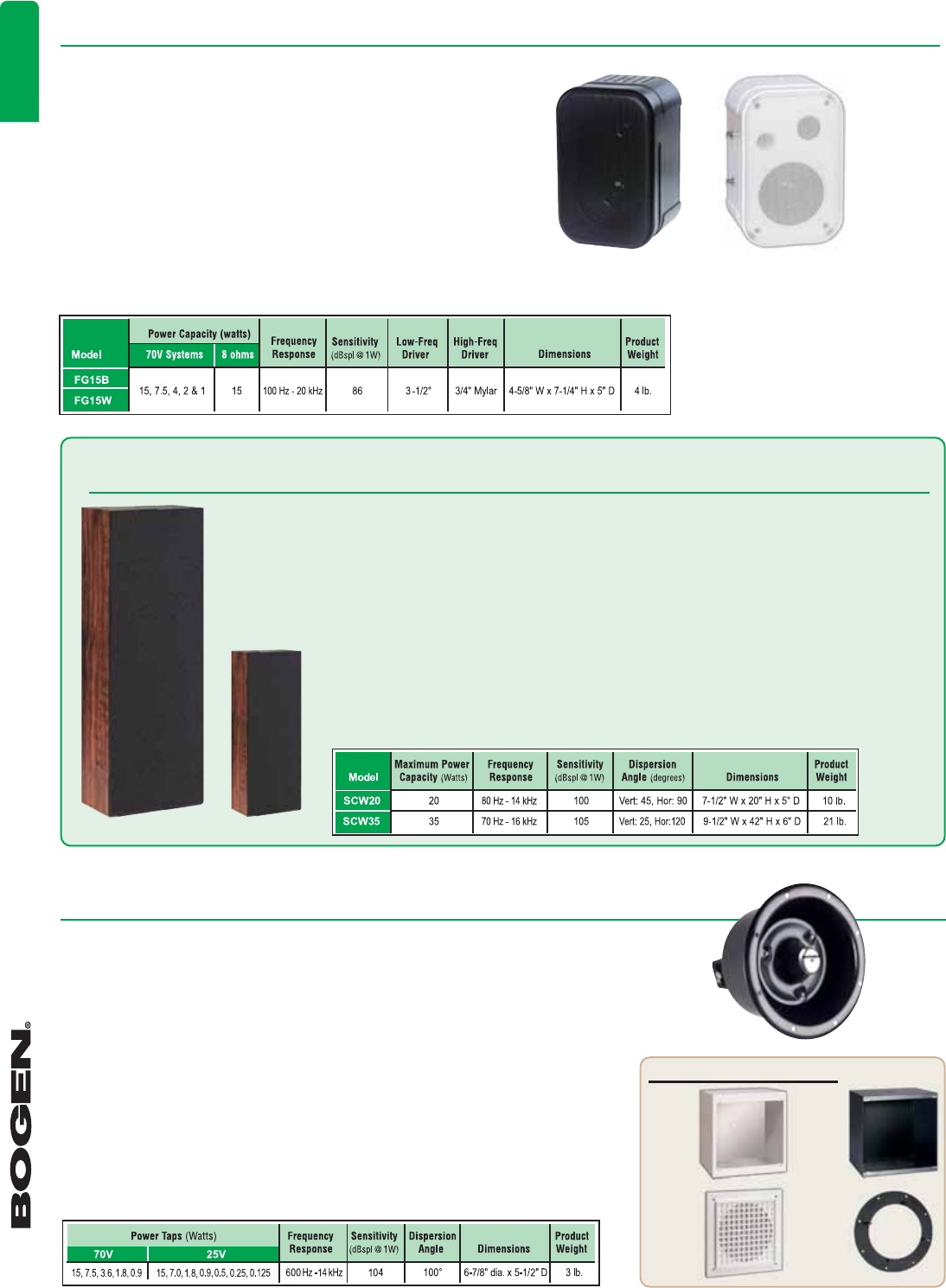

The FG-Series of 2-way speakers is designed to deliver high-quality,

wide frequency response audio in a compact cabinet. These speakers

are perfect for supplying foreground as well as background music.

Bogen's Sound Columns provide effective sound reinforcement for installations with large areas,

using a minimum number of speakers. Each column has a vertical array of speakers producing

a highly directed sound dispersion pattern for reduced reflection from the room's floor and ceiling.

SCW20

SCW35

Product Features:

•15-watt models

•Smooth, wide frequency response

•Compact and rugged plastic cabinets

•Works with both 70V and 8-ohm

speaker systems

• U-Mounting bracket included

•Rotary switch-selected power

rating for 70V systems

• Available in Black (B)

and Off-white (W)

Product Features:

•20- or 35-watt models

•Works with 8-ohm speaker systems

•Four 5" speakers (SCW20) or six

6" speakers (SCW35)

•Controlled sound projection

•Uniform sound level & reduced feedback

• Clear and intelligible speech reproduction

• Polarized screw terminals

•Acoustically lined, particle board

construction: 3/8" (SCW20), 1/2" (SCW35)

• Simulated oiled walnut, black grille

• Mounting hardware included

FG-Series Speakers

FOREGROUND SPEAKERS

The Bogen FMH15T is a flange-mounted, high-intelligibility, reentrant-type loudspeaker.

Its sturdy, weatherproof, vandal-resistant, all-metal construction is ideal for indoor and

outdoor use. It has a built-in tap selector switch for selecting the speaker power in

70V or 25V constant-voltage systems.

Product Features:

•

Excellent efficiency and voice intelligibility

•Weather-sealed tap selector switch

•15 watts max. @ 70V or 25V

•Select flush (BBFM6) or surface (BBSM6)

mount enclosure for installation (each

sold separately)

•Vandal-resistant accessory components

for hostile-environment applications

•Heavy-duty cast aluminum grille (SGHD8)

and adapter ring (FMHAR8) for installation

(each sold separately)

•All-metal with black enamel finish

FMH15T

FLANGE-MOUNTED HORN SPEAKER

SOUND COLUMNS

FG15B

(Black)FG15W

(Off-White)

Accessory Components

BBSM6

Surface-

Mount

Enclosure

SGHD8

Heavy-Duty

Grille

FMHAR8

Adapter

Ring

BBFM6

Flush-

Mount

Enclosure

(11" W x 11" H

x 6" D)

(9-7/8" W

x 9-7/8"H x 6"D)

(11" W x 11" H

x 1/2 "D)

www.bogen.com

SPEAKERS

Special Protection

The SPT15A, SPT30A, BDT30A and

KFLDS30T use a cast aluminum end

bell specially designed to make them

weatherproof. A rotary selector

switch

is used to set the specific

power tap for

the speaker. This switch’s entry into the

end bell is sealed by a special mount-

ing nut with an integral O-ring. A re-

movable plastic panel protects both

the rotary switch and the electrical

connections. This panel provides a

narrow opening for the speaker wires

to exit, reducing the chance of water

infiltration.

Tilt & Swivel Base

Bogen’s 15- and 30-watt horns include

a unique and easy-to-use tilt and

swivel mounting base that provides

nearly 180 degrees of tilt and a full 360

degrees of swivel. A single wing nut

locks in the angle of the speaker. Loos-

ening the wing nut frees the speaker

in each rotational axis, making it fast

and easy to precisely aim the speakers

where the sound is needed. The base

provides three holes for screw mount-

ing and a slot to allow strapping the

speakers to beams. The

actual mount-

ing base can easily

be removed so that

the base can be installed separately.

The speakers can then be attached to

the bases at a later time.

Accessories

3 6

1 2

BC1

Beam Clamp

TCSPT1

Terminal Cover

for Conduit

(For BDT30A, KFLDS30T,

SP158A, SP308A, SPT15A,

& SPT30A)

HSES10

Horn Speaker

Electrical Box Strap

(pack of 10)

(Not for SP58A & SPT5A)

Product Features:

•Maximum speaker power capacities of 7.5, 15, and 30 watts

•Rotary switch-selected power taps on transformer models

•Constant voltage (70V/25V) and 8-ohm versions

(KFLDS30T and BDT30A are 70V/25V only)

•Tilt & swivel base for easy positioning

•Sturdy, all-metal construction with mocha enamel finish

(KFLDS30T horn flare is constructed of polycarbonate)

•Weatherproof design

•Twin reentrant horns for bi-directional projection (BDT30A only)

•KFLDS30T provides wide-angle projection with a rotatable

horn flare

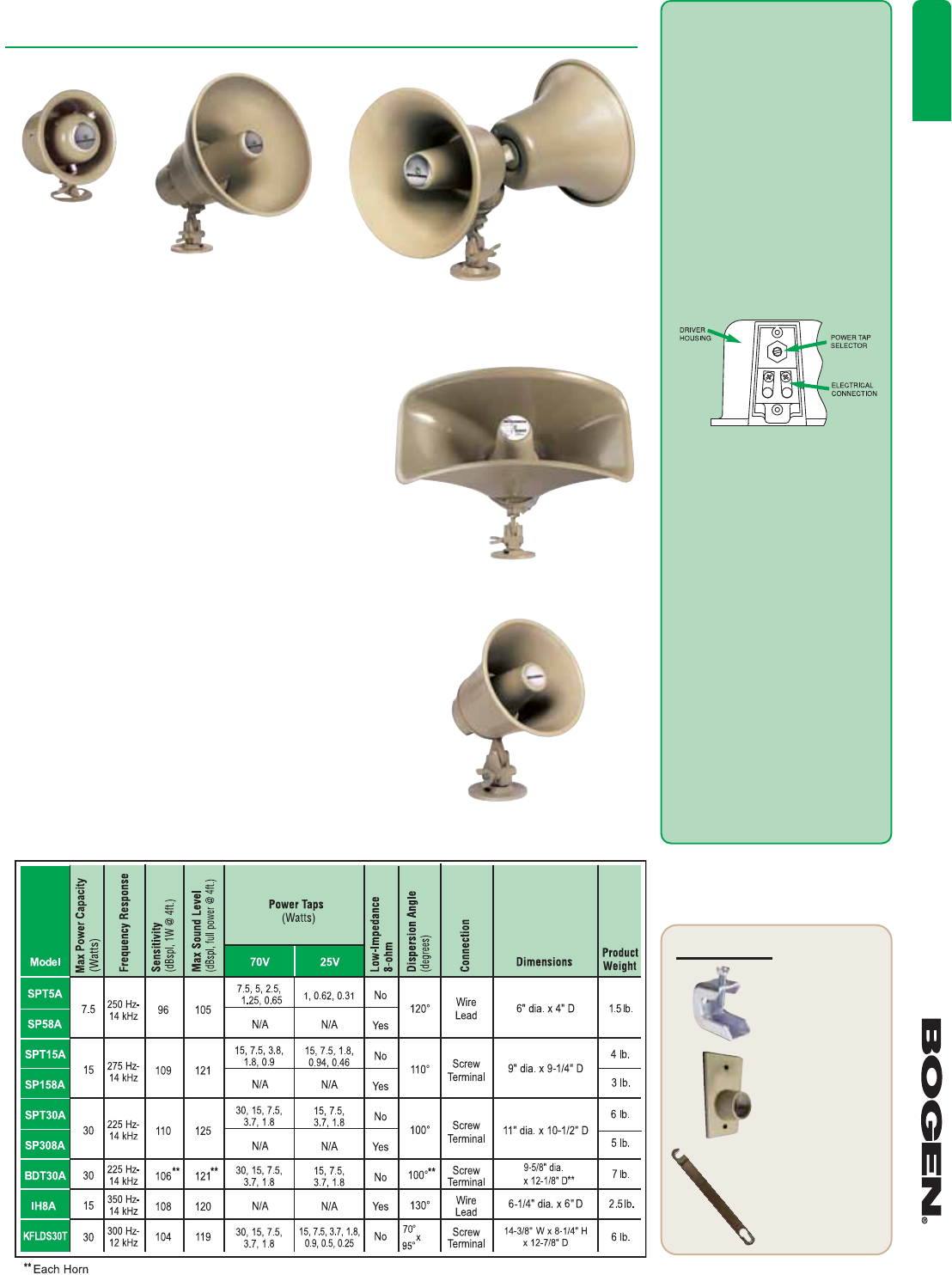

SPT15A, SP158A,

SPT30A+, SP308A+

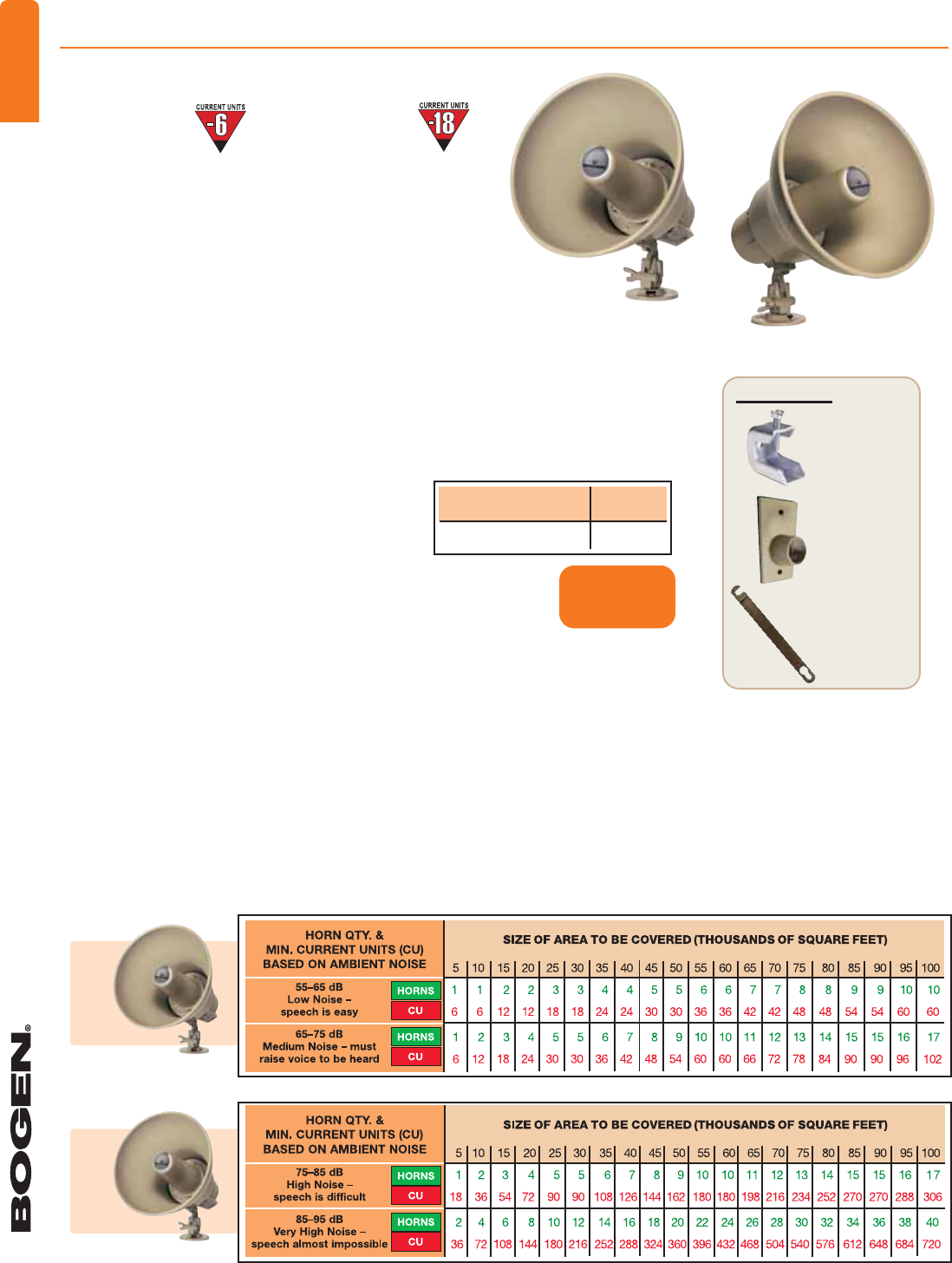

Bogen’s Horn Loudspeakers offer high efficiency

and excellent intelligibility. Rotary switch-selected

power taps make installation quick and easy.

SPT and BDT models are compatible with 70V and

25V paging systems, SP models are 8-ohm

versions. The KFLDS30T is a 70V/25V wide disper-

sion, high-intelligibility, reentrant type loudspeaker.

The IH8A is a paging horn.

BDT30A*

IH8A

KFLDS30T

SPT5A,

SP58A

+For style only, product is larger

*Some assembly required

(Vert.)

(Horiz.)

HORN LOUDSPEAKERS

www.bogen.com

SPEAKERS

ATP10

ATP35

Extreme Human Environments

It takes a specially-engineered speaker to

stand up to the extreme abuse of human

beings. The VRS-Series has been in-

stalled in some of the most demanding

applications, from high-crime area door-

answer systems to some of the most no-

torious correctional facilities.

What Tough Is (Exploded View)

The VRS-Series features an 11-gauge

stainless steel faceplate (#1). That’s a solid

1/8

of the hardest steel around.

Behind that, there’s a heavy-duty steel

barrier (#2) which is designed to let sound

out and nothing in. The barrier is baffled

so that knives, nails, paper clips, and any-

thing else that might fit into the grille

openings will not enter the speaker

nor

make contact with the speaker’s cone.

Then for further protection, a finely per-

forated metal grille (#3) covers the entire

speaker to intercept any object that might

snake its way through the baffles of the

steel barrier.

The VRS-Series not only keeps objects

out, but fluids also cannot damage the

speaker because the speaker’s cone is

made of weather-resistant plastic (#4).

Bypass Feature

In certain rooms such as training or con-

ference rooms where meetings or presen-

tations are held, paging announcements

are considered interruptions. To avoid or

eliminate such interruptions, speakers in-

stalled in these rooms may use attenuators

to set speaker volume low or off. In these

cases, emergency messages would not be

heard by individuals in these rooms.

To ensure critical messages are heard, the

ATP-Series Attenuators include a Bypass

Function that sets emergency messages to

full volume - to all speakers the attenuator

controls - even if the speakers’volume con-

trol knobs are set low or off.A trip voltage of

between 9V and 30V DC causes the attenu-

ator to bypass the volume control function

and provides full volume audio to the

speakers. This is a critical and ideal func-

tion in emergency situations when a mes-

sage must be sent to all individuals in a

building.

AT10A, AT35A

& ATP10, ATP35

Product Features:

•Adjusts loudspeaker output levels on 25V & 70V systems

•2 Models control up to 10-watt or 35-watt speaker systems

•Priority override of volume/Emergency Bypass feature

(ATP models)

•10 Attenuation steps and an off setting

•Mounts in standard electrical box; single (AT10A, ATP10)

or double (AT35A, ATP35)

•Simple connections

Both Attenuator Series (AT and ATP) allow the output

level of a group of loudspeakers to

be set from a wall-

mounted volume control,

without affecting overall

amplifier volume settings. The ATP-Series also has a

priority bypass function which overrides the volume

control knob to provide full volume audio to the speakers.

Model Power Dimensions* Product

Rating Weight

AT10A

10 watts Single 2-3/4" W x 4-1/2" H x 2-3/4" D 13 oz.

AT35A

35 watts Dual 4-5/8" W x 4-5/8" H x 3" D 14 oz.

ATP10

10 watts Single 2-3/4" W x 4-1/2" H x 2-5/8" D 13 oz.

ATP35

35 watts Dual 4-5/8" W x 4-5/8" H x 3" D 14 oz.

*Depth from front of plate

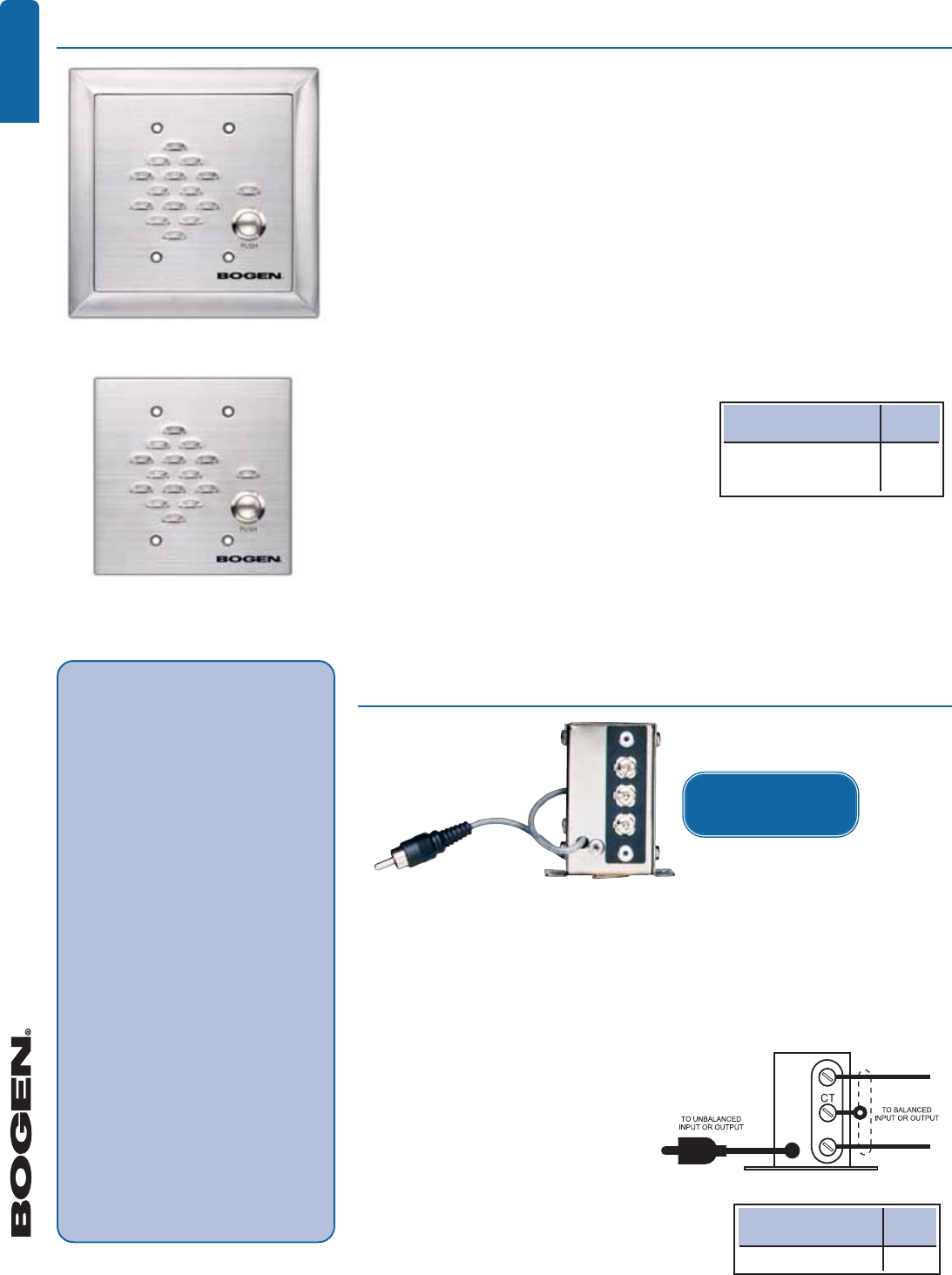

VRS1, VRS2

Product Features:

•Withstands attempts at vandalism in hostile environments

•Four layers of defense: ❶a heavy-duty 11-gauge stainless steel faceplate,❷a baffled

steel guard protects the speaker from puncture,❸a finely perforated screen stops

thin, flexible objects from damaging the moisture-resistant plastic speaker cone,

and ❹weather-resistant cone

•Grille openings are cross-positioned so that nothing can enter the speaker, not even

the smallest or sharpest objects

•Unbreakable metal call button (VRS1 only); VRS2 available without call button

•

Optional low-impedance, 8-ohm speaker operation

•Mounts with one-way security screws (included)

• 1/2-Watt speaker power on 25V speaker line

•3" Weather-resistant cone speaker

These Vandal-Resistant Speaker assemblies ensure

that sound communication gets through reliably, despite

being located in environments susceptible to damage

and destruction. The assembly includes a 3" plastic cone

speaker, securely located and protected behind steel

barriers. Available with or without call button.

❶

❷

❸

❹

EXPLODED VIEW

(see sidebar)

Dimensions

5-1/2" W x 7-3/4" H x 2.5" D

5-1/2" W x 7-3/4" H x 2" D

Product

Weight

2.5 lb.

2 lb.

AT10A

VRS1

VRS2

AT35A

ATTENUATORS

VANDAL-RESISTANT SPEAKERS

Gang Emergency

Box Bypass

●

Model

VRS1

VRS2

www.bogen.com

EASY INSTALL

/EASY DESIGNTM

EASY INSTALL

/EASY DESIGNTM SPEAKERS

The speaker’s two specially de-

signed mounting studs easily

pierce through the ceiling tile.

Wide-based wing nuts secure the

speaker assembly to the ceiling tile.

Two standard wire nuts connect

the speaker wires to the mount-

ing studs, making the electrical

connection. That’s all it takes!

Model Variations:

•SM1EZ is a one-watt, single tap

speaker.

•SM4T is a four-watt, multi-tap

speaker with settings of 4, 2, 1,

1/2, and 1/4 watts. Settings are

rotary switch selectable (there are

no transformer wires to deal with). :03

:24

:45

INSTALLS

IN SECONDS!

Accessories

SMTB

Tile Bridge

Surface-Mount Ceiling Speakers

SM1EZ, SM4T

Easy Install Speakers drastically cut system installation time because each

speaker can be completely installed — mounted in the ceiling, secured,

and connected — in less than a minute! This versatile speaker carries voice

messages with clarity anywhere dependable communication is required.

It can be installed in any suspended ceiling with ceiling tiles… quick, easy,

and trouble-free. Compatible with both 70V and 25V systems.

Product Features:

•Installs in Seconds. Each speaker assembly is

specially designed for immediate installation

as soon as you take it out of the box… complete

installation takes less than a minute.

•No-Tool Installation.No tools needed; everything

you need is right in the box.

•Contemporary, Low-Profile Design. Looks good

in any environment.

•No Clean-Up. Installation means piercing ceiling

tiles, NOT cutting them. So, there’s virtually no

mess and no ceiling tile pieces to clean up.

Complies with NFPA National code 160b

that allows speakers to be installed

in plenums and other air handling spaces.

Complies with UL-2043.

Dimensions: 9-1/2" diameter

Depth:

3" (from tile surface)

Frequency

Response:

125 Hz – 15 kHz

Sensitivity:

90 dBspl (1 watt @ 1 meter)

Product

Weight: 2 lb. each

Shipping

Weight: 15 lb./carton (5/carton)

Technical Specifications:

For System Design for SM1EZ,

see pages 17-21;

for SM4T, see pages 64-67.

www.bogen.com

EASY DESIGNTM

Bogen’s CS1EZ is a pre-assembled ceiling speaker comprised of an 8" cone

speaker and steel ceiling grille painted with enamel. The CS1EZ includes a volume

control knob and rear-mounted screw terminal board for easier electrical

connection.

Wall Baffle Speaker

WB1EZ

The WB1EZ comes pre-assembled with an 8" cone speaker

enclosed in a simulated walnut-finished wooden enclosure

with a black grille cloth on front and a recessed volume control.

Product Features:

•1-watt, single-tap design

•Screw terminal connections for fast

installation

•Designed for 70V amplifier output

•8" cone speaker for excellent audio

quality

•Heavy-duty, wire-wound volume

control with knob

•50 Hz-12 kHz frequency response

•95 dBspl @ 4 ft. /1W input

sensitivity

•Off-white finish

Product Features:

•1-watt, single-tap design

•Screw terminal connections for

fast installation

•Designed for 70V amplifier output

•8" cone speaker for excellent

audio quality

•Recessed volume control

•Designed for easy wall-mount

installation; face has 13.5 degree

downward angle

•50 Hz -12 kHz frequency response

•95 dBspl @ 4ft./1W input sensitivit

Dimensions Product Weight

13" dia. x 3-1/4" D 3 lb.

Dimensions Product Weight

9-1/2" W x 9-1/2" H x 5-1/4" D 4 lb.

(3-1/4" D @ bottom)

Horn Loudspeakers

HS7EZ, HS15EZ, HS30EZ

Bogen’s line of Easy Design Horn Loudspeakers are made of

weatherproof all-metal construction, thereby making them ideal

for both indoor and outdoor use in industrial plants, warehouses,

schools, construction sites, and recreational areas. All models

come with swivel and tilt mounting bases for greater flexibility

in setting the angle of projection.

Product Features:

•7.5-, 15-, and 30-watt models

•Single-tap design

•HS7EZ features 12" lead wire for

electrical connections

•HS15EZ and HS30EZ feature screw

terminal connections for fast installation

•Designed for 70V amplifier outputs

•Weatherproof design

•Stepped attenuator volume control

•Tilt and swivel mounting base for

flexibility in coverage

•Textured mocha enamel

Model

Frequency Response

Sensitivity Dispersion Dimensions

HS7EZ 250 Hz - 14 kHz 105 dBspl (4 ft./7.5W) input (@1 kHz) 120° 6" dia. x 4" D

HS15EZ 275 Hz - 14 kHz 121 dBspl (4 ft./15W) input (@1 kHz) 110° 9" dia. x 9-1/4" D

HS30EZ 225 Hz - 14 kHz 125 dBspl (4 ft./30W) input (@1 kHz) 100° 11" dia. x 10-1/2" D

HS7EZ HS15EZ HS30EZ

Product Weight

2 lb.

4 lb.

6 lb.

Accessories

BC1

Beam Clamp

(for HS-EZs)

TB8

Tile Bridge

(for CS1EZ)

RE84

Ceiling

Enclosure

(for CS1EZ)

MR8

Mounting

Ring

(for CS1EZ)

TCSPT1

Terminal Cover

for Conduit

(for HS15EZ and

HS30EZ )

HSES10

Horn Speaker

Electrical Box Strap

(Pack of 10)

(for HS15EZ and

HS30EZ )

EASY DESIGNTM SPEAKERS

Ceiling Speaker

CS1EZ

See pages 17-21

for Easy Design.

See pages 17-21

for Easy Design.

See pages 17-21

for Easy Design.

SIDE

VIEW

www.bogen.com

EASY DESIGNTM

•Determine the ambient noise

level and type of environment

in which the speakers will be

installed.

•Then select the speaker(s)

best suited for the area.

Example:

•The ambient noise level in a

machine shop in an industrial

area is 90 dB. By referring to

the chart, you will find that the

HS30EZ horn loudspeaker is

best suited for this environ-

ment.

What is Easy Design?

Armed with just 3 pieces of information, you can quickly create a

bill of material for speaker paging jobs. Bogen’s Easy Design line

of products was created specifically to make the design process

easier and less time consuming for the installer.

You supply some basic pieces of information – type of application,

dimensions of the area to be covered, ambient noise level, and

ceiling height*. Then, a few simple and direct charts will imme-

diately provide you with the best type of speaker to use, the number

of speakers needed, and the amplifier power required for the job.

Each speaker in the Easy Design line is designed with a single

power tap and a volume control. Any paging system you create

using the Easy Design products will be flexible, robust, and powerful.

If noise levels increase in the future, just turn up the volume con-

trols on the speakers – the amplifier will not overload!

You get all the benefits of a 70V central-amplified system – full

power capability, high-quality sound and performance,

2-wire installation, long speaker runs, flexibility in amplifier

location, no distributed power supplies – and now, super simple

system design (we’ve eliminated the multiple power taps).Easy

Design speakers have the high quality and reliability you expect

from Bogen.

Select the correct type

of speaker for the job

(see chart below)

Find the number of

speakers needed

(see charts on pages 18-20)

Select the amplifier

for the system

(see page 21)

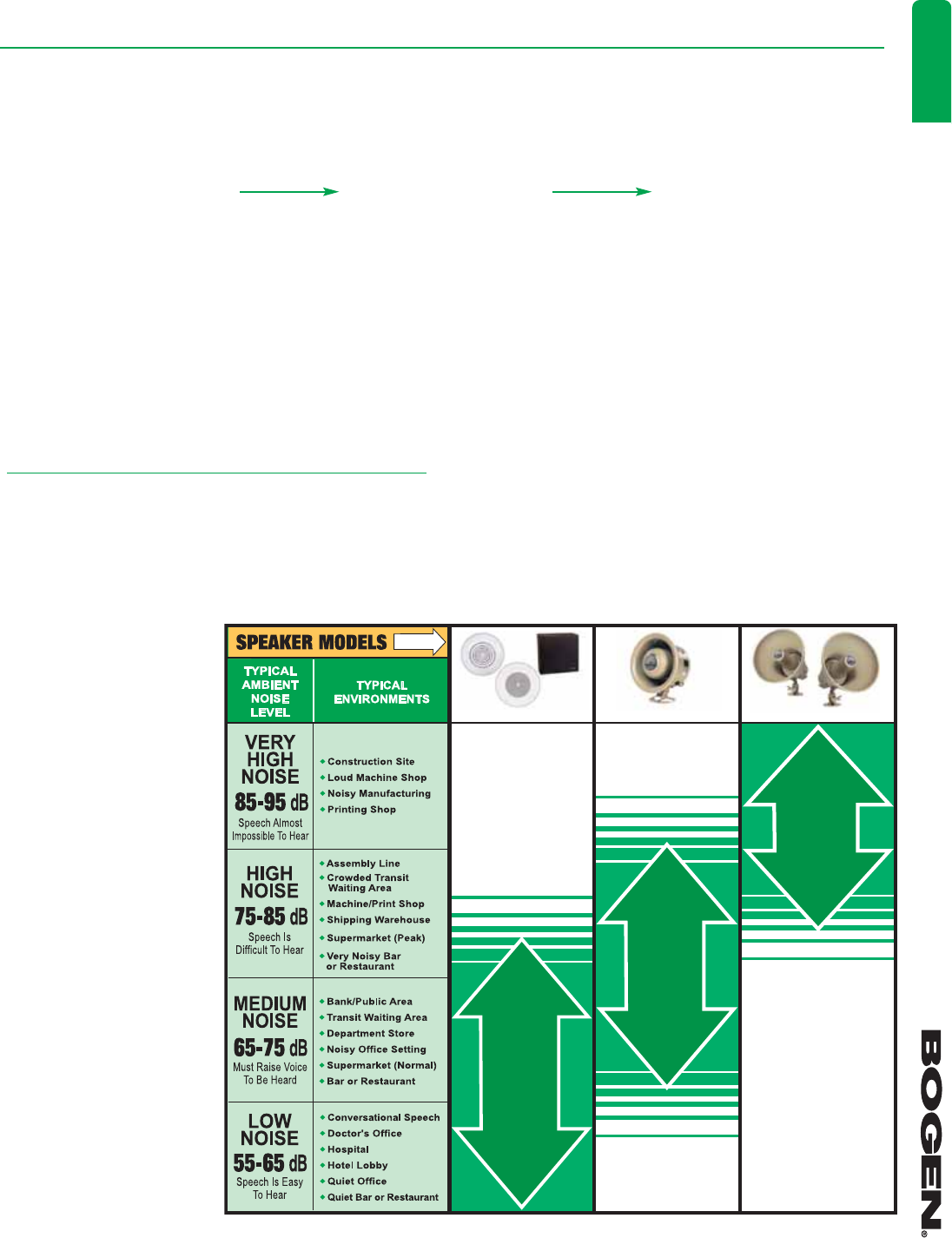

Select

Speaker

Type

* Not all dimensions needed for all speaker types. Refer to section 2 for specific dimensions needed for each speaker.

see chart on pages 4 & 6 see chart on page 19 see charts on page 19

SM1EZ

CS1EZ

WB1EZ HS7EZ

HS15EZ HS30EZ

*For applications over 100 dB, contact Bogen for assistance.

EASY DESIGNTM GUIDE

see charts on pages 18 & 20

For applications with mixed

noise levels, such as a location

with quiet waiting rooms,

medium noise level office

areas, and very noisy manu-

facturing, select an appropri-

ate speaker type for each

different area.

Once you have selected the

speaker type(s), the next step

is to determine how many

speakers you will need to

cover the area sufficiently.

NOW, TURN TO PAGE 18 TO DETERMINE

THE NUMBER OF SPEAKERS NEEDED.

www.bogen.com

EASY DESIGNTM

Ceiling Speakers

(CS1EZ, SM1EZ)

•Obtain the length, width, and ceiling

height of the area.

•Look up where the length and width of the

area meet on the chart.

•You will find three color-coded numbers. Use the

RED number for 8 ft. ceilings, BLUE for 10 ft. ceilings,

and GREEN for 12 ft. ceilings. The color-coded number

that corresponds to the area’s ceiling height is the

general number of speakers the installation requires.

The minimum amplifier power needed (in watts) is equal to the

total number of CS1EZ or SM1EZ speakers required in the area for

uniform coverage.

Amplifier Power (min.) = Number of CS1EZ or SM1EZ Speakers

Example:

An office area, using CS1EZ Ceiling Speakers (or SM1EZ Surface-Mount Ceiling

Speakers), is 100 feet long by 70 feet wide by 10 feet high. Crisscross the

length (100 feet) and width (70 feet) on the chart. You will find three color-

coded numbers: 27, 18, and 12. Since blue numbers are used for ceiling

heights of 10 feet, 18 is the recommended quantity of CS1EZ speakers

needed for this application. This number (18) is also the minimum

amplifier power needed (in watts) for this area.

RED for 8' Ceiling

BLUE for 10' Ceiling

GREEN for 12' Ceiling

Determine the Number

of Speakers Needed

NOW, TURN TO PAGE 21 TO SELECT AMPLIFIER.

CS1EZ SM1EZ

CS1EZ Ceiling Speaker

SM1EZ Surface-Mount Ceiling Speaker

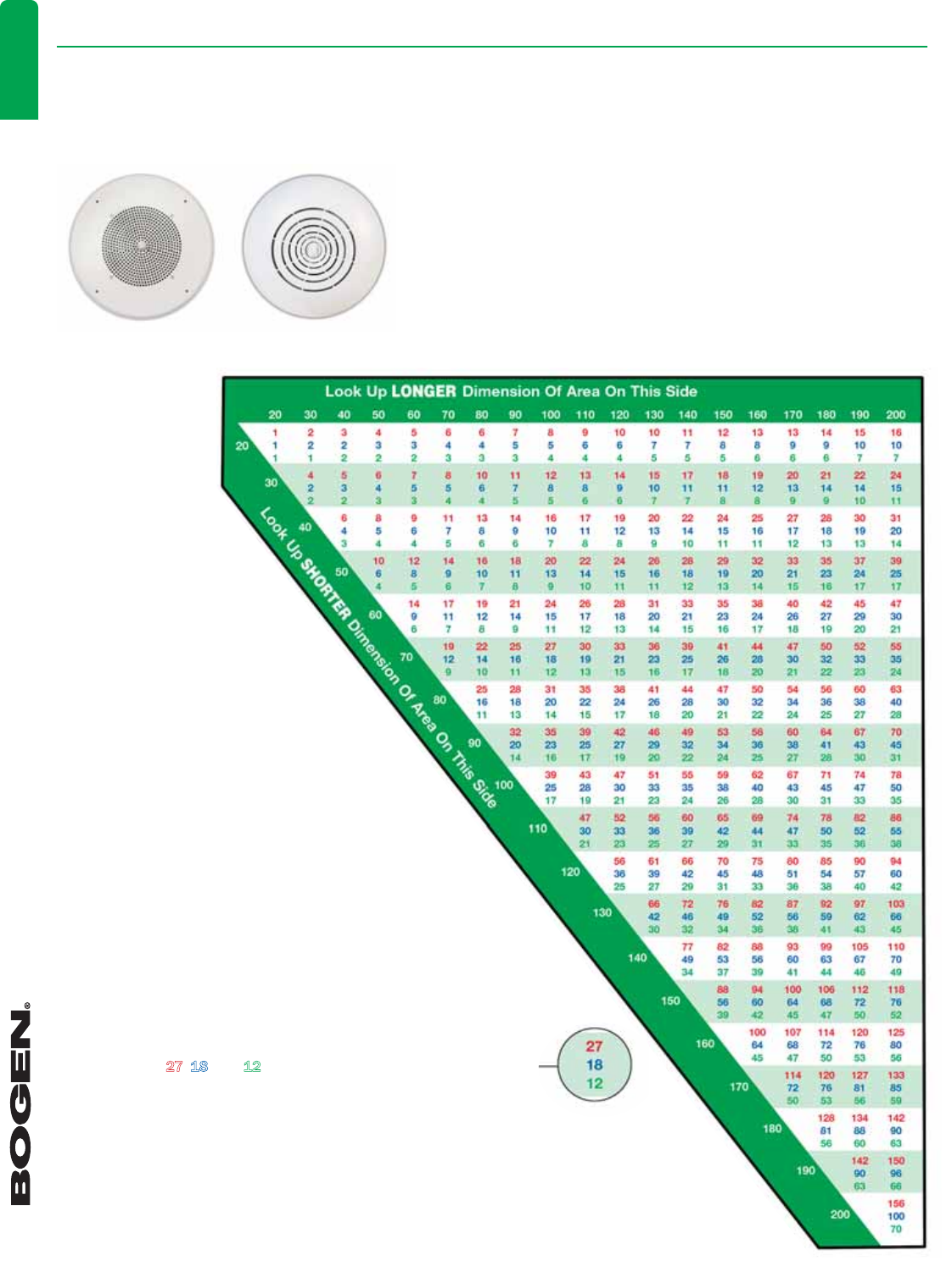

Use this chart to determine the number of CS1EZ Ceiling Speakers

and/or SM1EZ Surface-Mount Ceiling Speakers a particular installation

will require, based on the dimensions of the area and the ceiling height.

EASY DESIGNTM GUIDE (cont.)

www.bogen.com

EASY DESIGNTM

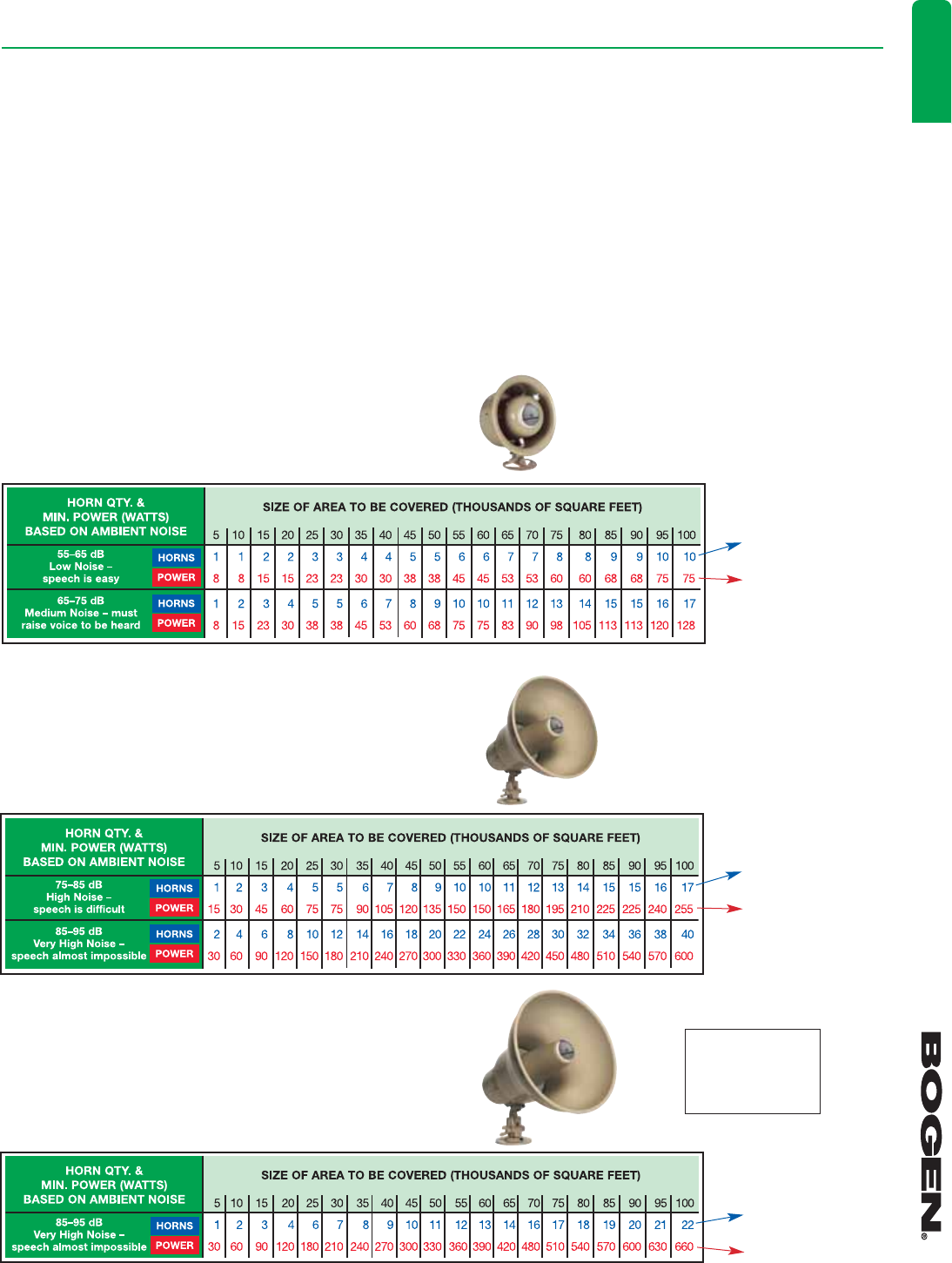

HS15EZ Horn Loudspeaker

Use this chart to determine the number of HS15EZ Horn Loudspeakers

a particular installation will require, based on the size of the area and the

ambient noise level of the environment.

HS30EZ Horn Loudspeaker

Use this chart to determine the number of HS30EZ Horn Loudspeakers

a particular installation will require, based on the size of the area and the

ambient noise level of the environment.

HS7EZ Horn Loudspeaker

Use this chart to determine the number of HS7EZ Horn Loudspeakers

a particular installation will require, based on the size of the area and the

ambient noise level of the environment.

Horn Loudspeakers (HS7EZ, HS15EZ, HS30EZ)

•Obtain the square footage of the area to be covered and its

ambient noise level.

•Where the area’s square footage intersects the area’s ambient

noise level, you will find two numbers.

The number in BLUE is the typical number of horn loudspeakers

the installation requires. Additional speakers may be needed

in areas that have obstructions, like shelving, that block sound

dispersion.

The number in RED is the minimum amplifier power needed

(in watts) for the installation.

Amplifier Power (min.) = Number in RED

The # in BLUE is the

# of speakers.

The # in RED is the minimum

amplifier power required.

The # in BLUE is

the # of speakers.

The # in RED is the minimum

amplifier power required.

The # in BLUE is

the # of speakers.

The # in RED is the minimum

amplifier power required.

For Applications

over 100 dB,

Contact Bogen

for Assistance.

NOW, TURN TO PAGE 21 TO SELECT AMPLIFIER.

Example:

A factory has 35,000 square feet of open area and an

average ambient noise level of 80 dB. Thus, it will require

HS15EZ Horn Loudspeakers. Using the chart for the

HS15EZ speaker, crisscross the square footage and the

ambient noise level. The number of horn loudspeakers

needed for an installation is shown in BLUE and the

minimum amplifier power for this number of speakers is

shown in RED. As you can see, 6 speakers are needed for

this application and the minimum amplifier power

needed is 90 watts.

EASY DESIGNTM GUIDE (cont.)

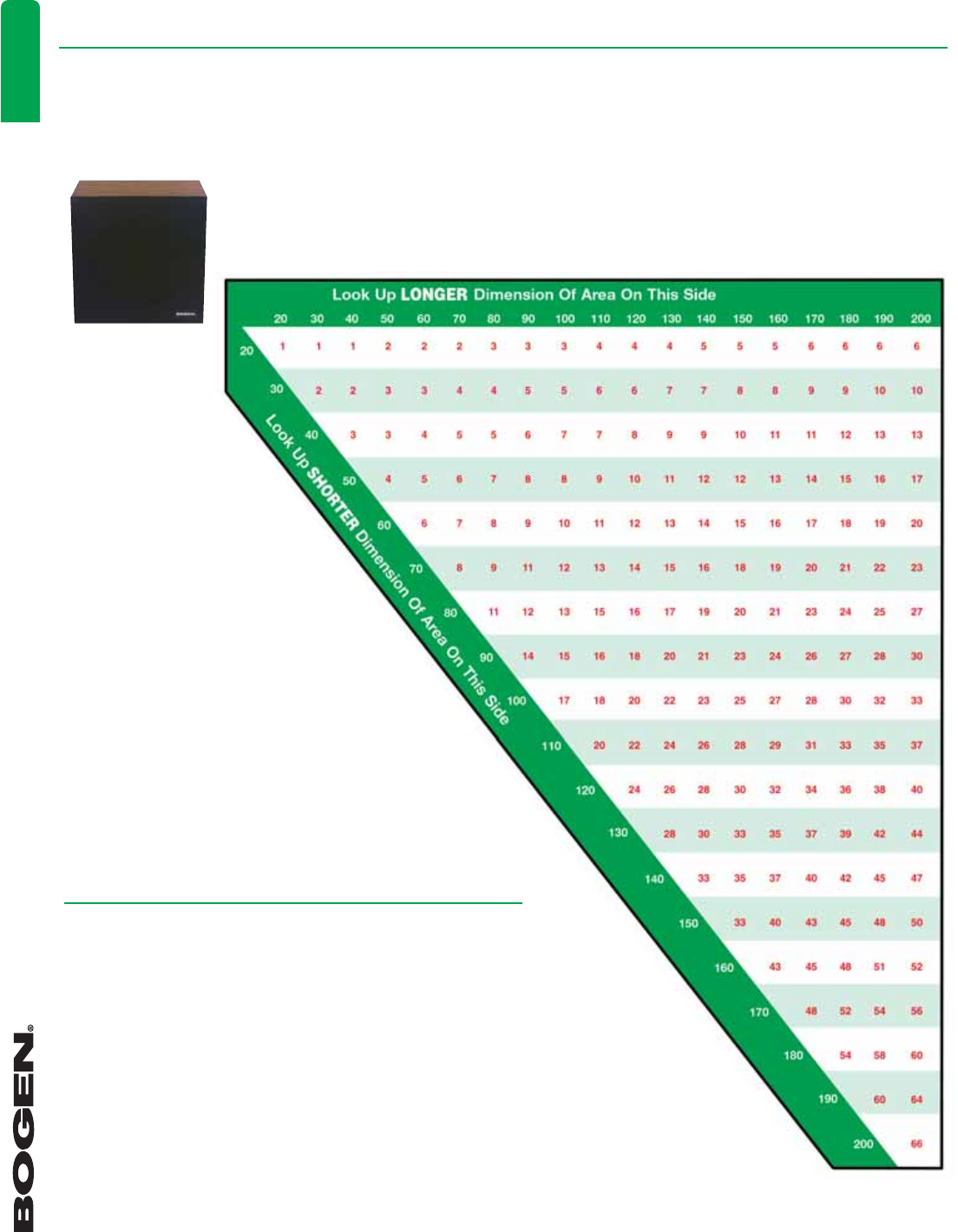

WB1EZ Wall Baffle Speaker

Wall Baffle

Speaker

(WB1EZ)

•Obtain the length and width

of the area.

•Where the length and width of the area

crisscross on the chart, you will find the

typical number of speakers that the

installation requires.

The minimum amplifier power needed (in watts)

is equal to the total number of WB1EZ speakers

required in the area for uniform coverage.

Mixed Speaker

Type Applications

For applications with more than one type of speaker:

• Determine the number of speakers and the minimum amplifier power needed for each

type of speaker separately.

• Add together the minimum amplifier power needed for each type of speaker to obtain

the minimum amplifier power needed for the entire application.

Example:

An application requires 10 SM1EZ Surface-Mount Ceiling Speakers (minimum amplifier power needed

is 10 watts), 5 HS15EZ Horn Loudspeakers (minimum amplifier power needed is 75 watts), and 10 WB1EZ

Wall Baffle Speakers (minimum amplifier power needed is 10 watts). Add together the minimum

amplifier power needed for each type of speaker: 10 watts + 75 watts + 10 watts. The sum is 95 watts.

This is the minimum amplifier power needed (in watts) for the entire application.

Use this chart to determine the number of WB1EZ speakers a particular installation

will require, based on the dimensions of the area.

Determine the Number

of Speakers Needed (cont.)

Example:

An area’s dimensions are 150 ft. long by 110 ft. wide. Crisscross these

two dimensions on the chart and you will find that 28 WB1EZ Wall Baffle

Speakers are needed for this application. This number (28) is also the

minimum amplifier power needed (in watts) for this area.

Amplifier Power (min.) = Number of WB1EZ Speakers

NOW, GO TO PAGE 21 TO SELECT AMPLIFIER.

www.bogen.com

EASY DESIGNTM

www.bogen.com

EASY DESIGNTM

Once you determine the number of speakers and the minimum

amplifier power for the installation, you are ready to select the

system amplifier. A 70V paging amplifier is very easy to select.

•Locate amplifiers on the chart on page 78 that have a wattage

equal to or higher than the minimum amplifier power of your

application. (Amplifiers with power capacities greater than this

number will not damage the speakers. The extra power available

is simply not used.)

•Determine the amplifier features needed for the application

(see the Site Survey Check List on page 72 and the Amplifier

Features Chart on page 78).

•Using the chart on page 78, find an amplifier that offers these

features. As long as the wattage of the selected amplifier is

equal to or higher than the minimum amplifier power, the

amplifier will work well for the application.

If you think the application’s system may need to expand in the future

(this is often the case with new constructions and relocating com-

panies), you may want to select an amplifier with a greater power

capacity now.

Example:

An application requiring 18 CS1EZ Ceiling Speakers requires

a minimum amplifier power of 18 watts, so an amplifier with a

power rating of 18 watts minimum is needed. Now, look at the chart

on page 78 to determine which amplifiers provide the necessary

wattage to drive the speakers as well as provide the amplifier

features that are most appropriate for the installation. Since the

minimum wattage needed is 18, the amplifier with the lowest power

usable for this installation is 20 watts (model C20). However, if the

C20 does not have the features required for the application, such

as bass and treble controls, you can select any amplifier of

greater wattage that offers the specific features. For instance, you

might select the TPU35B or C35. Both of these amplifiers have a

higher wattage than the application’s minimum amplifier power

needed and provide the desired features because they have bass

and treble controls. Either of these amplifiers will work well for

this application. Plus, there is room to expand the system on a 35W

or higher amplifier without the need to purchase an additional

amplifier in the future.

Easy Design™Is Easy!

That’s all it takes to design a robust, high-quality paging system with Bogen’s Easy Design line.

Select

An Amplifier

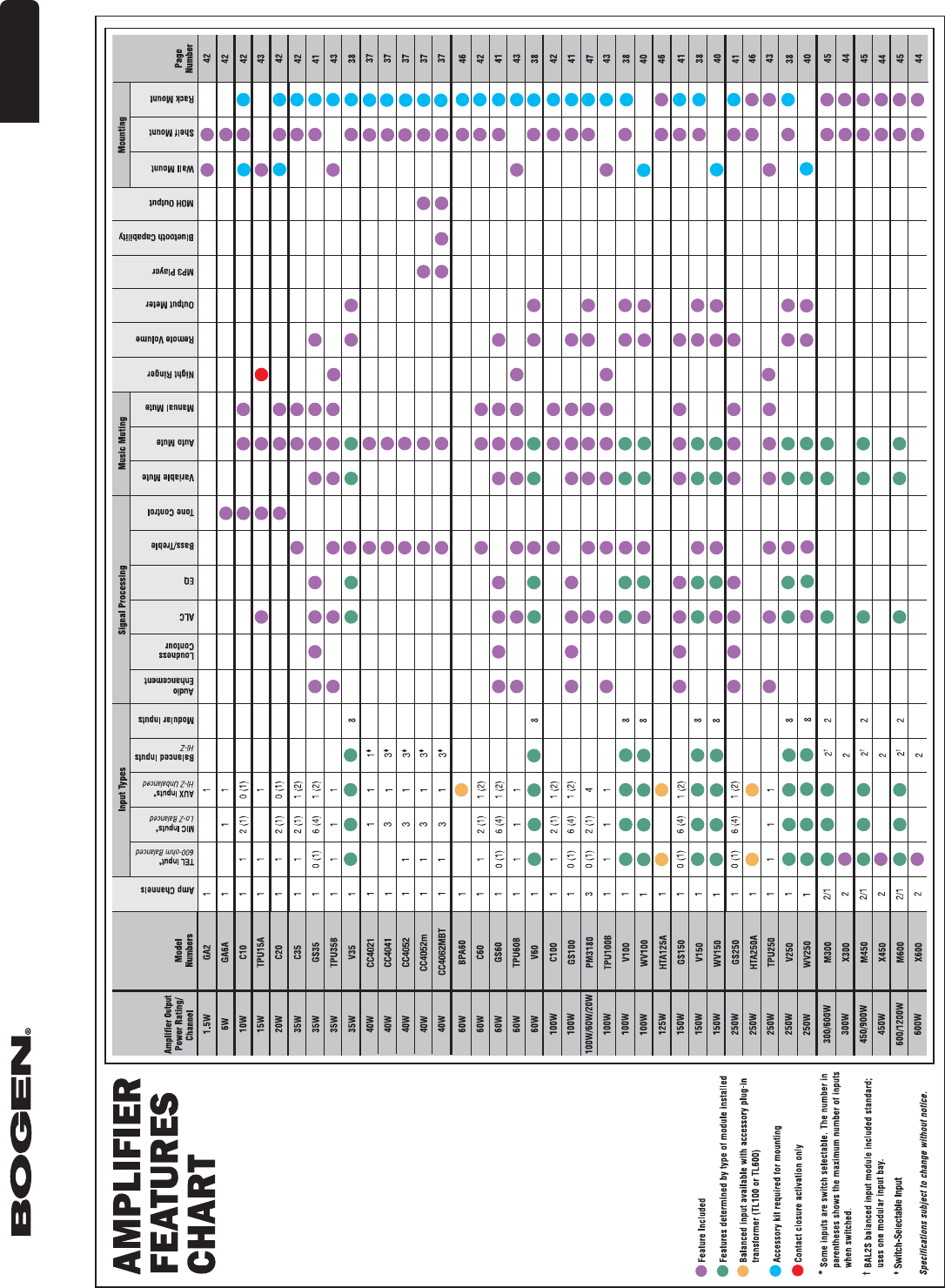

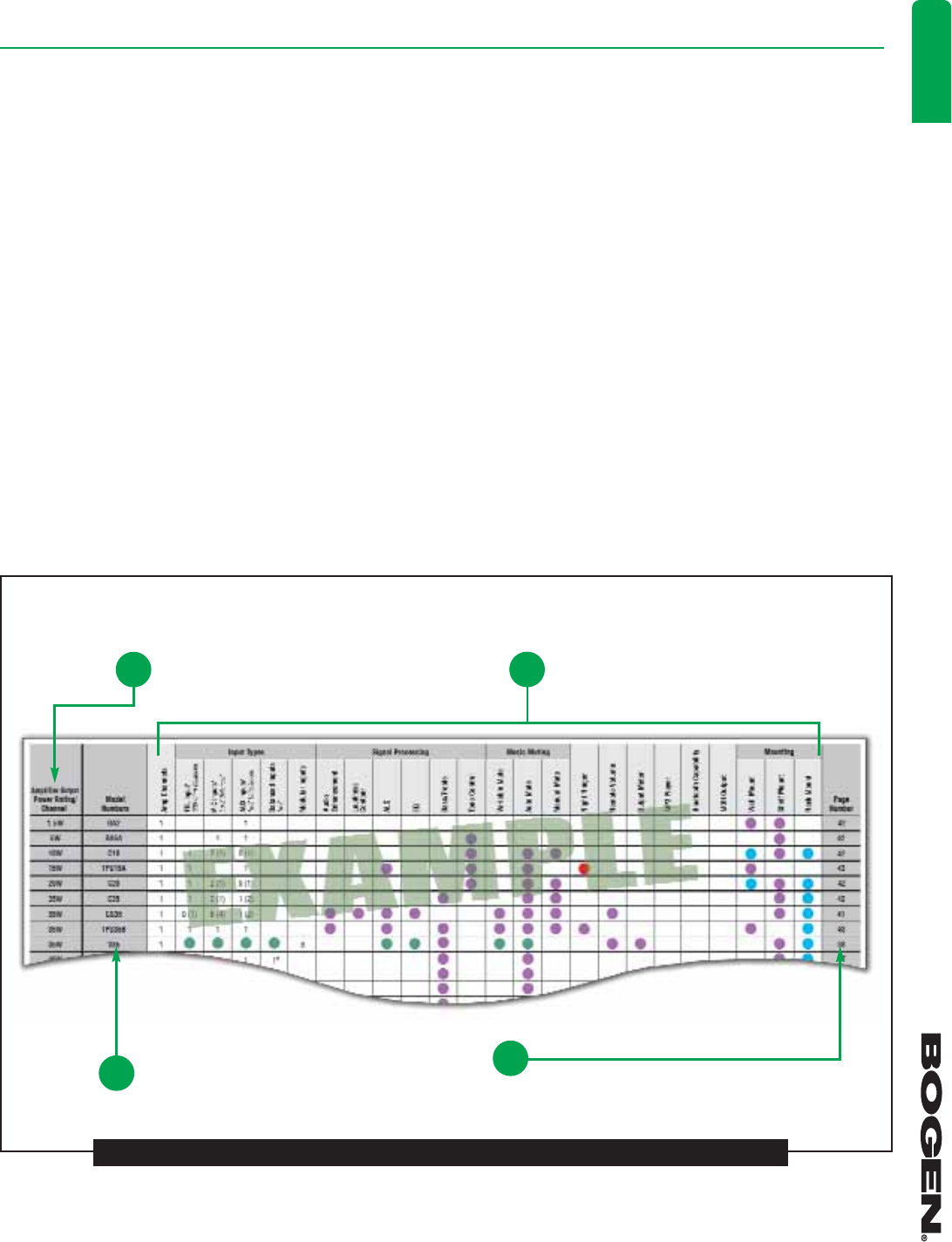

The Amplifier Features Chart outlines the features and power ratings of Bogen amplifiers

that can be used for a variety of application needs. For complete chart, see page 78.

POWER

Locate a power rating that is higher than the applica-

tion requires (allowing for future system expansion).

FEATURES

Find the amplifier features that the

application requires.

MODEL NUMBER

Select the amplifier model(s) best

suited for your application.

REFERENCE PAGE

Turn to the page number indicated for more

information about the product you need.

REFER TO CHART ON PAGE 78

EASY DESIGNTM GUIDE (cont.)

www.bogen.com

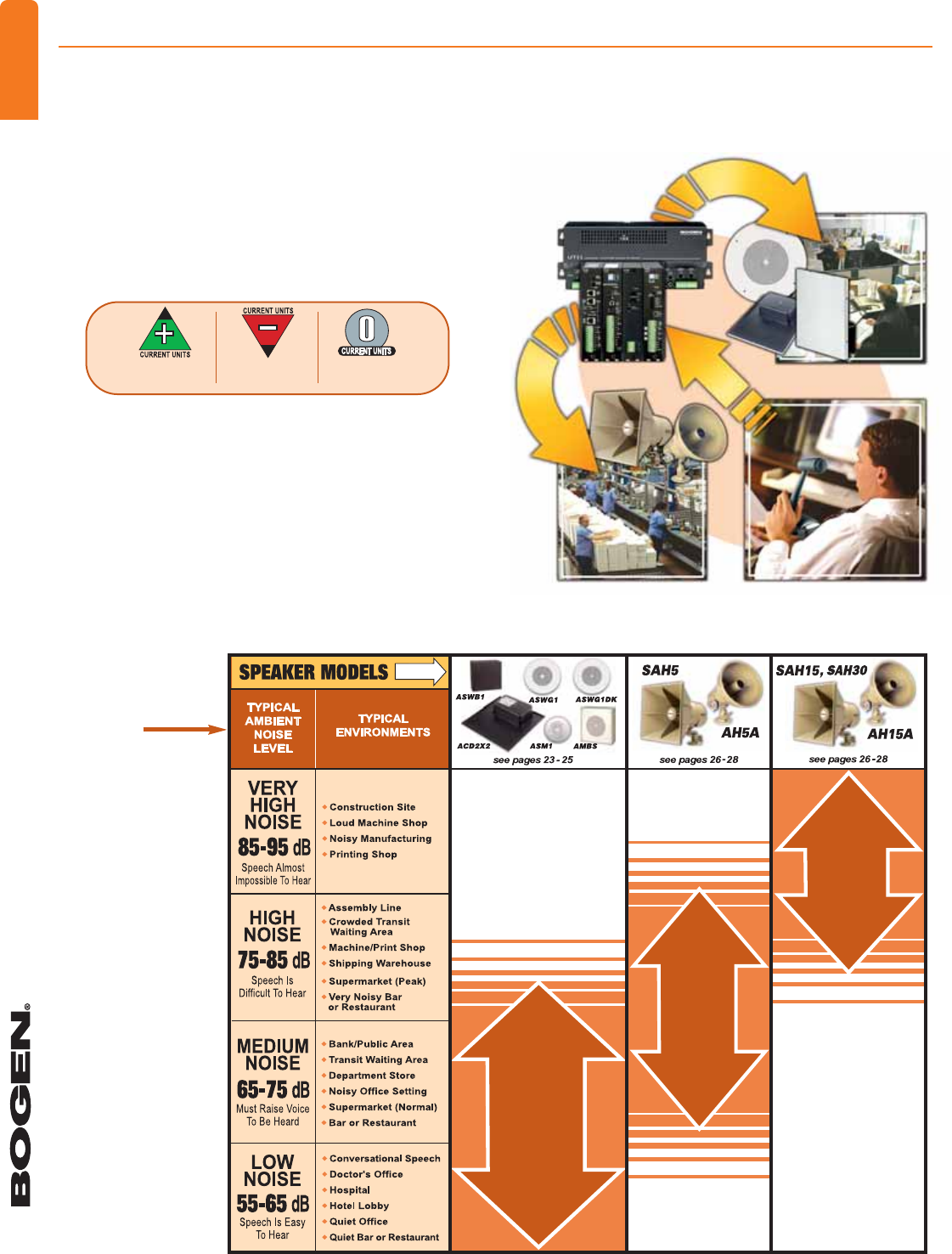

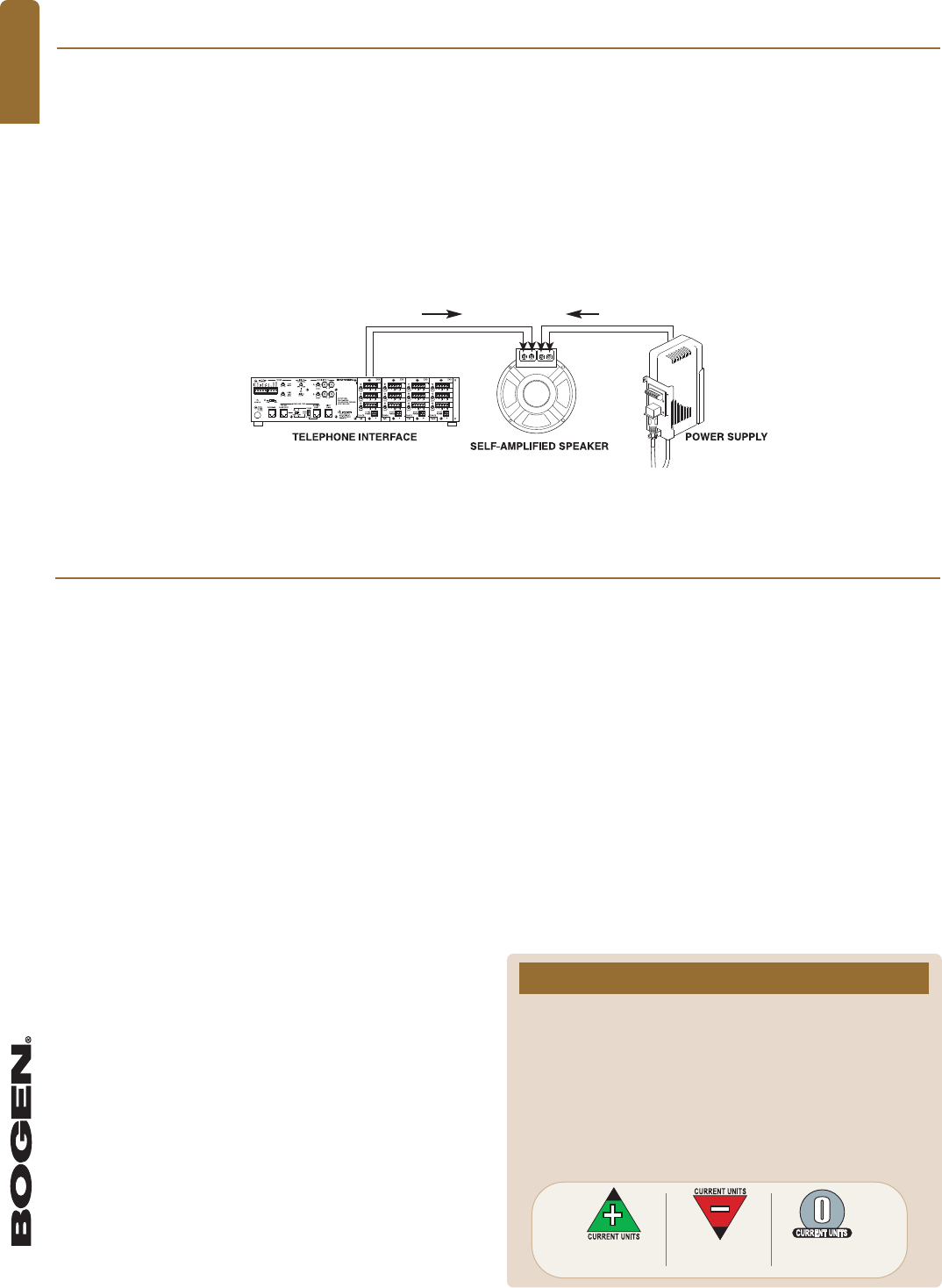

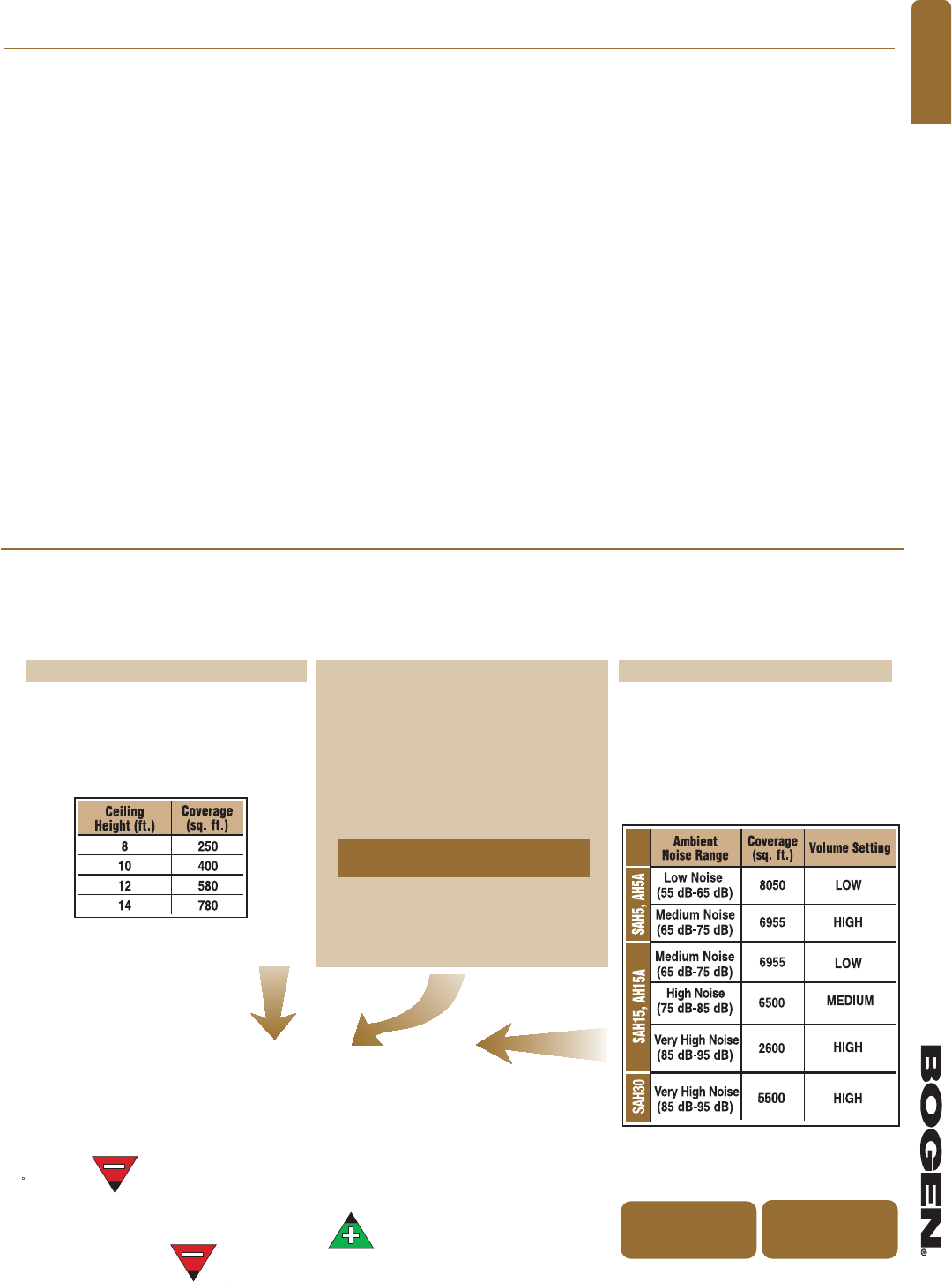

SELF-AMPLIFIED SYSTEMS

Provides

System Current

Consumes

System Current

No Draw

on the System

Bogen introduces the next generation in self-amplified (24V) paging equipment. Only Bogen offers high-efficiency

horn speakers that use digital switching amplifiers and constant dispersion horn technology; single- and multi-zone tele-

phone paging interfaces that provide a new level of features and flexibility with programmable AUX relay contacts and

installer programmable dialing codes; and an extensive line of 24V switching power supplies with secure mounting holsters

and pluggable screw terminal connectors on models above 1 amp.

Getting

Started

1. Select

Self-Amplified

Speaker Type

(Use this chart)

2. Select a

Telephone

Interface

(pages 31-33)

3. Select Power

Supplies

(page 30)

Other products such as telephone interfaces, buffered level

controls and 24V power supplies that are well suited for use

in self-amplified paging systems carry these same icons for

easy identification. Suitable products that neither provide

nor consume power are shown with the neutral GRAY icon

with a zero inside it.

For more information on understanding Current Units for your

system, see pages 68-69.

To locate Bogen's Self-Amplified (24V) Paging Products,

simply look for the upward-pointing GREEN triangles and

the downward-pointing RED triangles. The numbers inside

the triangles indicate "Current Units", which determine how

much power that product provides to or consumes from

the system.

SELF-AMPLIFIED (24V) SYSTEMS

www.bogen.com

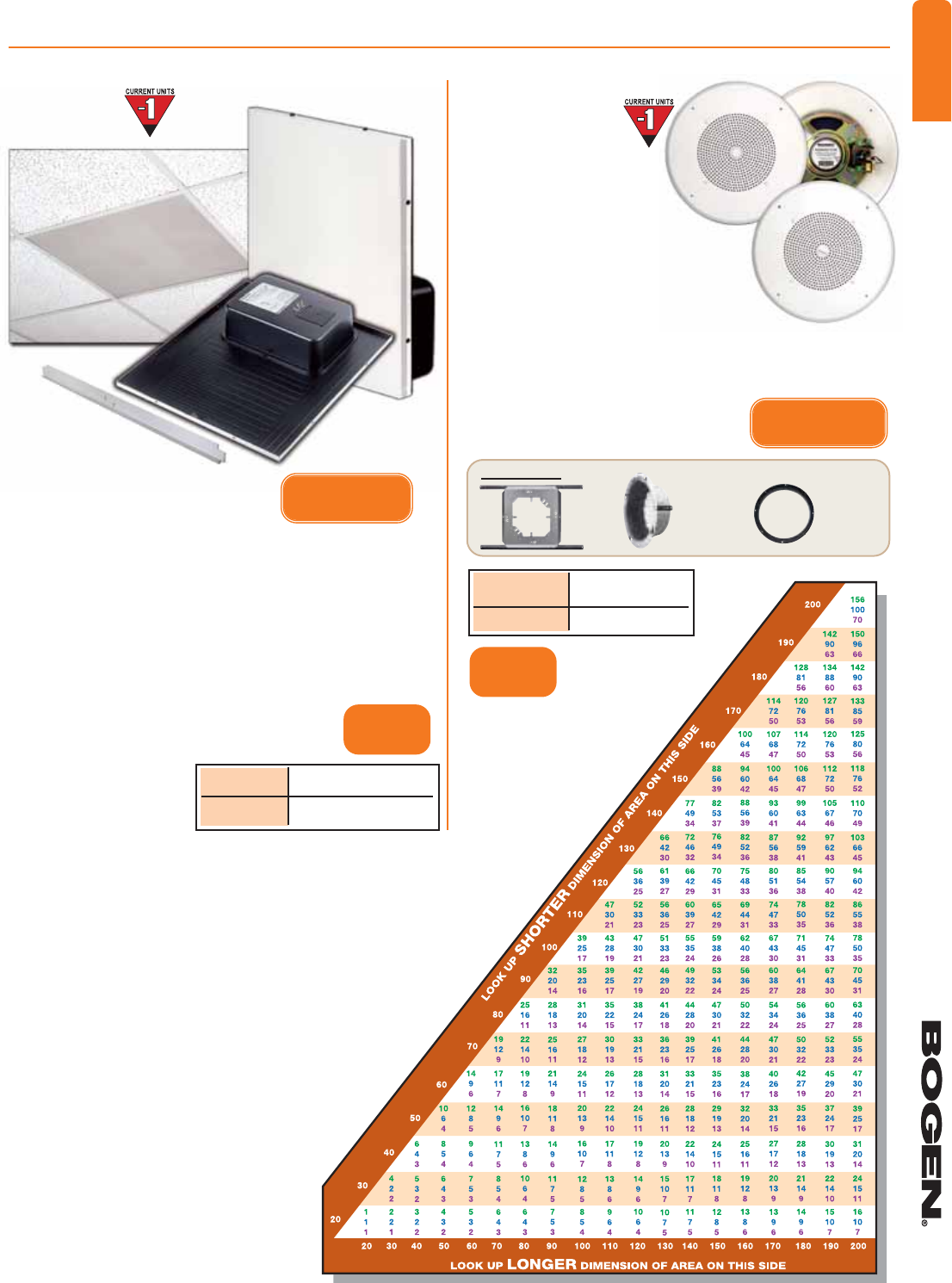

SELF-AMPLIFIED SYSTEMS

•2' x 2' design fits into 2' x 2' and 2' x 4' suspended ceiling

tile spaces (tile support rail included for 2' x 4' ceilings)

•Finely perforated grille covers entire front of speaker panel

•Fully enclosed, industrial-grade steel construction

•Front-mounted, recessed volume control

•Self-contained 1-watt amplifier

•8" main cone speaker, with secondary cone

•Non-reflective finish, off-white (ACD2X2) or

bright white (ACD2X2U)

•Listed to UL Standard

60065 for US & Canada

•Complies with UL-2043

Product Features:

The ACD2X2 full-range

speaker is quick and easy to

install. Simply wire it and drop it

into place. This saves installation

time, effort, and cost.

TB8

Tile

Bridge

RE84

Ceiling

Enclosure

MR8

Mounting

Ring

These traditional

style, recessed ceiling

speakers are available

with a fixed or detachable

volume control knob.

•8" cone speaker

•Front-mounted volume

control with knob (knob is

detachable on “DK” versions)

•Steel grille with enamel finish,

off-white (“W” versions) or bright white

(“U” versions)

•Self-contained 1-watt amplifier

•90°dispersion pattern

Product Features:

Accessories

ASWG1DK,

ASUG1DK

(w/detachable knob)

Using the chart:

1. Locate the dimensions of the room (length and width).

2. Where these two measurements meet will be the number of

speakers required. Use the number in GREEN for 8' ceilings;

BLUE for 10' ceilings; and PURPLE for 12' ceilings.

(You may need to increase the number of speakers in areas

where large objects or shelving project into the coverage

area, blocking sound.)

3. The number of Current Units needed is the same as

the number of speakers (1W models, ACD2X2(U),

ASWG1/DK, ASUG1/DK, ASM1, AMBSL/Q1).

Current Units (min.) =

Number of Ceiling Speakers

Determine Speaker Quantity

See page 30

to select a

Power Supply.

GREEN for 8 ft. Ceiling

BLUE for 10 ft. Ceiling

PURPLE for 12 ft. Ceiling

Dimensions: 23-7/8" W x 5" H x 23-7/8" D

Product Weight: 12 lb. each

Dimensions: 12-7/8" dia. x 3-1/4" D

Product Weight: 2.5 lb. each

See page 30

to select a

Power Supply.

SELF-AMPLIFIED CEILING SPEAKERS

Drop-In Ceiling Speakers

ACD2X2,

ACD2X2U

ASWG1,

ASUG1

Ceiling Speaker

Assemblies

Now available in

Bright White (“U” versions)

& Off-white (“W” versions)

Now available in

Bright White (“U” version)

& Off-white

Tile

Support Rail

(included)

(without knob)

Bogen's Self-Amplified Metal Box Speakers are available

in two models, AMBSQ1 and AMBSL1, and are suitable for

both ceiling and wall mounting.

Product Features:

•Rugged all-steel, surface-mounted, off-white painted enclosure

•Speaker front is available flat (AMBSQ1) or angled downward

by 12.5 degrees for wall mounting (AMBSL1)

•Full-range 8" cone loudspeaker for excellent intelligibility

•Built-in volume control with detachable knob

•Self-contained 1-watt amplifier

•Wiremold®knockouts

•Mounting hardware included

www.bogen.com

SELF-AMPLIFIED SYSTEMS

SELF-AMPLIFIED SURFACE-MOUNT SPEAKERS

Easy Install®

Ceiling Speakers

ASM1

Metal Box Speakers

AMBSQ1,

AMBSL1

Refer to Speaker

Quantity Chart

on page 23.

Refer to Speaker Quantity

Chart on pg. 23 for ceiling

mount or chart on pg. 25

for wall mount.

125 Hz - 15 kHz

90 3" from tile surface 9-1/2" diameter 2 lb.

Frequency Maximum Product

Response dBspl Depth Dimensions Weight

AMBSQ1

Shown with

Volume Knob

attached

Detachable

Volume Knob

AMBSL1

Shown with Volume

Knob detached

Dimensions

11-5/8" W x 11-3/8" H x 5-3/8" D

11-5/8" W x 11-3/8" H x 3-1/8" D

11-5/8" W x 11-5/8" H x 4-1/4" D

Front Panel

Design

Slant/Angle

Square/Flat

AMBSL1

AMBSQ1

Product

Weight

9 lb.

(Top Dimension)

(Bottom Dimension)

Models

Accessories

SMTB

Tile Bridge

Maximum

dBspl

Frequency

Response

110 Hz -15 kHz

Product Features:

•Installs in less than a minute

•No-tool installation eliminates

need to cut ceiling tiles

•Built-in 1-watt amplifier

•Direct and reflected sound paths

create wide dispersion angle

•Lightweight and durable, off-white

plastic shell with paintable finish

•Contemporary, low-profile design

•O-ring seal prevents whistling

and ensures smoother sound

without peaks

•Front-mounted volume control

•Complies with NFPA National

Code 160b for installation in

plenums and other air

handling spaces

•Complies with UL-2043

Bogen’s Self-Amplified Easy Install Speakers can be installed in a

ceiling tile in less than a minute in any drop ceiling with standard

ceiling tiles. Installation is a simple, three-step process that requires

no tools. Simply pierce the ceiling tile with the specially-designed

studs, use wing nuts to secure the speaker to the ceiling, and fasten

wire nuts to make the 24V DC power and audio connections.

Wiremold®is a registered

trademark of Wiremold/Legrand.

SIDE

VIEW

AMBSQ1 AMBSL1

www.bogen.com

SELF-AMPLIFIED SYSTEMS

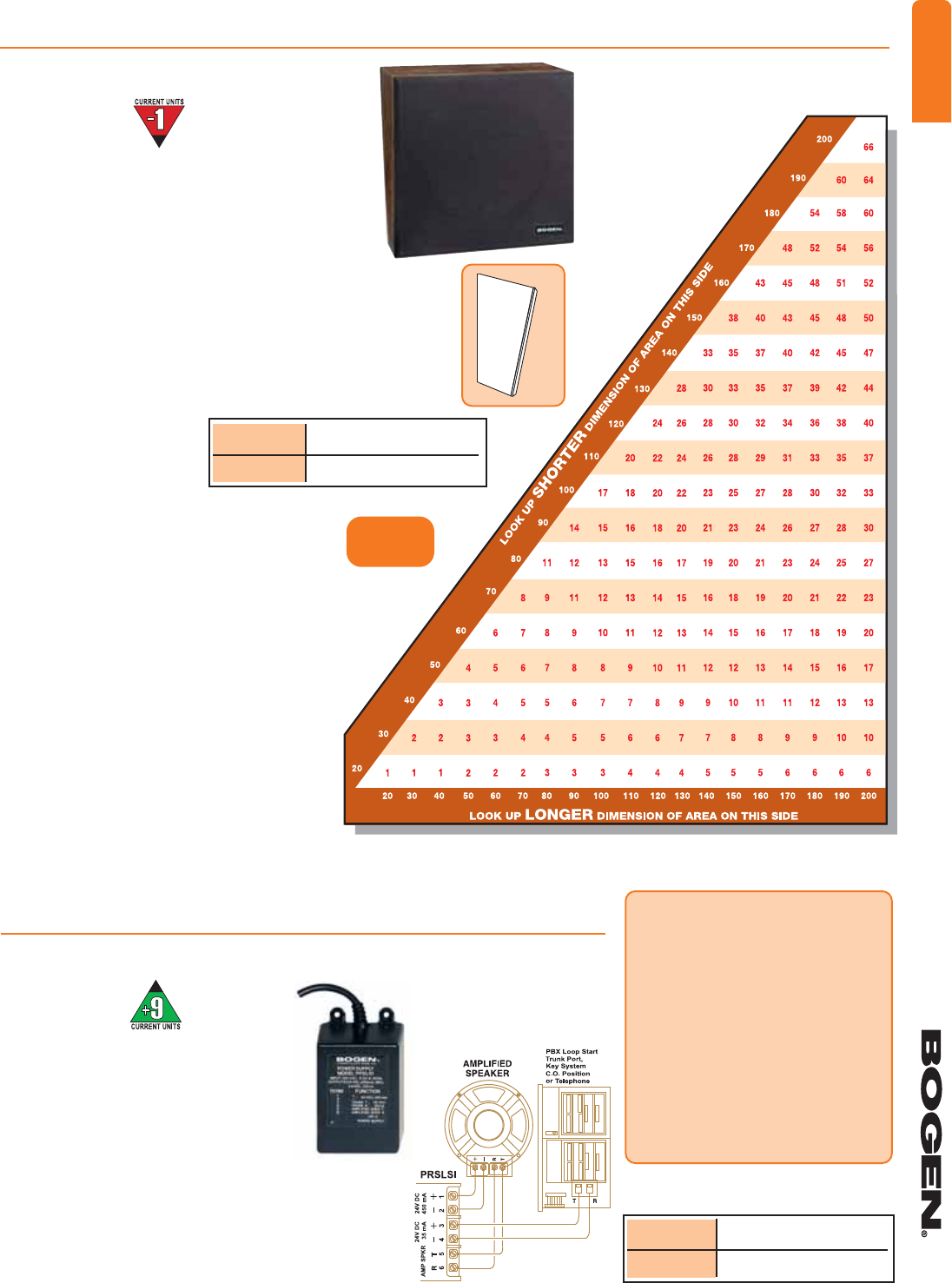

The ASWB1 Wall Baffle Speaker is an 8", cone-type

loudspeaker, complete with a built-in amplifier and

volume control, designed for telephone paging appli-

cations. It is engineered to provide excellent sound

quality and trouble-free operation.

•Self-contained 1-watt amplifier

•Simulated walnut finish with black grille cloth on front

•Sloping front panel (13.5 degrees) provides enhanced

downward dispersion

•Easy wall-mount installation (mounting hardware included)

•Built-in volume control

•8" main cone speaker

•90°dispersion pattern

Product Features:

The PRSLSI functions as both a 24V DC

power supply and a loop start interface

for small paging systems.

Dimensions:

2-3/4" W x 4-1/2" H x 2-1/2" D

Product Weight: 3

lb.

Dimensions:

9-1/2" W x 9-1/2" H x 5-1/4" D

Product Weight:

lb.

• 24V Talk battery supply for loop start ports

•Buffered audio output for up to 25 self-amplified speakers

•450 mA, 24V DC power supply for external equipment

•Integral flanges and rubber feet for wall or shelf mounting

•6-terminal barrier strip

•UL and C-UL listed

Product Features:

Loop Start Interface

Both the audio and power connec-

tions from self-amplified speakers

can be connected to the PRSLSI.

Connect the Tip and Ring terminals

of the PRSLSI to a loop start trunk

to provide paging access.

The

PRSLSI provides 9 CU (450 mA)

regulated 24V DC power for self-

amplified speakers and enough

audio capacity to drive 25 self-

amplified speaker inputs.

Loop Start Interface/Power Supply

PRSLSI

See page 30

to select a

Power Supply.

Wall Baffle Speakers

ASWB1

SELF-AMPLIFIED WALL BAFFLE SPEAKERS

PAGING INTERFACE

Using the chart:

1. Locate the dimensions of the room (length and width).

2. Where these two measurements meet will be the

number of speakers required.

(You may need to increase the number of speakers

in areas where large objects or shelving project

into the coverage area, blocking sound.)

3. The number of Current Units needed is the

same as the number of speakers.

Current Units (min.) =

Number of Wall Mount Speakers

Determine Speaker Quantity

SIDE

VIEW

•5-, 15-, and 30-watt models with built-in amplifiers

•All models operate from 24V DC power source

•Digital switching amplifier technology greatly reduces current

consumption when compared to conventional analog

self-amplified horn loudspeakers

•Low heat dissipation of the digital switching amplifier allows

units to operate with continuous background music and in higher

ambient temperatures than conventional analog amplifiers

•Excellent extended frequency response from 1.6'' diameter

voice coil and 90 mm, 12-ounce magnet structure (SAH5/15),

or 100mm, 16-ounce magnet structure (SAH30)

•Rotatable horn allows for the use of a wider (120°) vertical

or horizontal dispersion pattern

•Predictable dispersion pattern over the full frequency range

ensures excellent intelligibility and ease of layout

•

Removable access cover protects terminals and volume contro

•Weatherproof, UV-protected mocha finish plastic housing

•Simple, secure, cast aluminum swivel mount

•Screw terminal strip for easy wire connections

•Electrical box mounting strap included

www.bogen.com

SELF-AMPLIFIED SYSTEMS

High-Efficiency, Digital Switching,

Horn Loudspeakers

SAH5(5W) ,SAH15(15W) , SAH30(30W)

Using digital switching amplifier technology, these Self-Amplified Horn Loudspeakers

provide unprecedented low DC current draw and heat dissipation, allowing them to

use fewer power supplies, run on longer cable runs, and work at higher ambient

temperatures than conventional analog self-amplified horn speakers. The shape of the

horn’s flare provides a controlled dispersion of sound for better intelligibility. The horn

can be rotated on its axis, offering wide dispersion patterns, vertically or horizontally,

depending on its position. In addition, these weatherproof, plastic horns are extremely

durable and rugged. They can be used in any environment, indoors or outdoors,

without affecting sound quality.

Product Features:

Accessories

BC1

Beam Clamp

See page 30

to select a

Power Supply.

SELF-AMPLIFIED HORN SPEAKERS

Controlled Dispersion

Many horns in the market disperse sound frequencies in a wild and

uncontrolled manner. This reduces intelligibility and causes

inconsistent sound quality over the horn’s coverage angle. Bogen’s

SAH horns benefit from Bogen’s long history as a commercial and

pro audio company. Bogen’s SAH horns disperse the various

frequencies that make up the sound of a page in a very carefully

controlled manner. This means that the listener hears clean, crisp

intelligible pages over the full coverage area of the horn.

TIGHT CONTROL

OVER HOW SOUND

IS DISPERSED

POOR CONTROL

OVER HOW SOUND

IS DISPERSED

*4 kHz is a particularly important frequency for voice intelligibility

3 Ways To Position

SAH Speakers

Dimensions

10-5/8" W

12" H

11-1/2" D

Maximum

Power Level

5 watts

15 watts

30 watts

SAH5

SAH15

SAH30

Product

Weight

6 lb.

Models Maximum

dBspl

119

124

127

Frequency

Response

275 Hz -14 kHz

SAH5

SAH15

SAH30

www.bogen.com

SELF-AMPLIFIED SYSTEMS

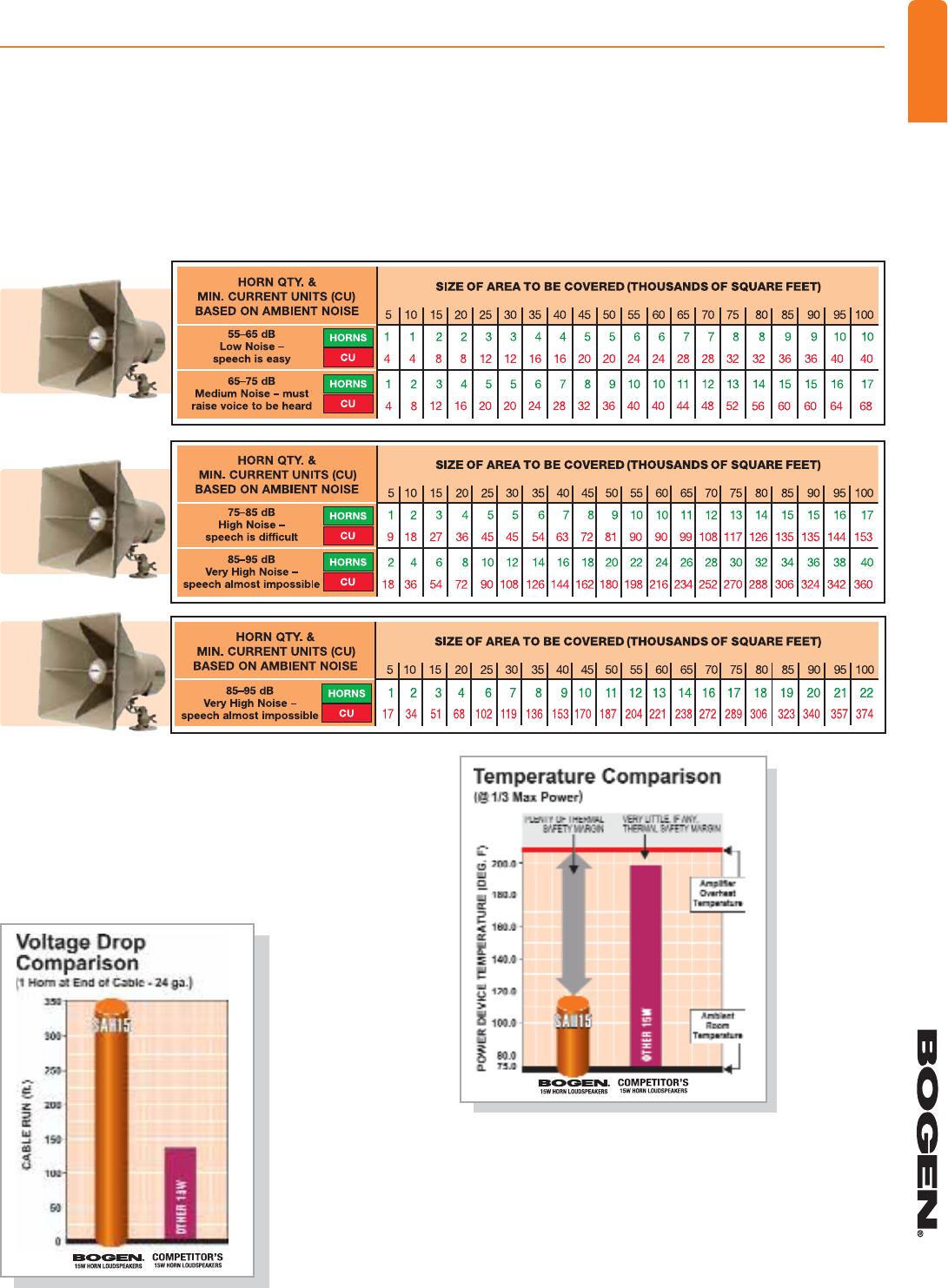

The SAH self-amplified horn speaker’s amplifier, by virtue of its

high-efficiency digital switching technology, produces very

little wasted heat. Lower amplifier operating temperatures

mean these horns can work harder in higher temperature

environments than conventional analog self-amplified horns.

Lower operating temperatures also mean less stress on critical

internal components and better reliability. Continuous back-

ground music is no sweat for these cool-running horns.

Thermally Rugged

Lower Currents = Lower Voltage Drops

Bogen’s SAH self-amplified horn speakers consume significantly

less current than equivalently sized conventional analog self-

amplified horns. Lower current draw means less voltage drop,

and longer cable runs than those allowed by conventional

analog self-amplified horns. This allows more flexibility as to

where you mount your power supplies and how many individual

power supplies need to be installed.

Use the chart for the speaker you will use (SAH5, SAH15 or SAH30):

1. Choose the level of ambient noise in the area to be covered.

2. Locate the area's square footage.

3. Where these two measurements meet are two numbers. The number in GREEN is the number of speakers required.

The number in RED is the number of Current Units (CU) needed for that many speakers. (You may need to increase

the number of speakers in areas where large objects or shelving project into the coverage area, blocking sound.)

Current Units (min.) = Number in RED

Determine Speaker Quantity

www.bogen.com

SELF-AMPLIFIED SYSTEMS

Traditional Metal Horn Speakers

AH5A(5W) , AH15A(15W)

•5- and 15-watt models with built-in amplifiers

•Screwdriver-adjustable volume controls

•Universal tilt-and-swivel mount

•Banding slots easily secure horns to beams

and pillars

•4-conductor, color-coded cable for quick

connections to audio and power sources

•Plastic cover protects volume control and

provides cable strain relief

•Self-aligning, field-replaceable diaphragm

•Weatherproof, all-aluminum housing

•Speaker and brackets have textured

mocha enamel finish

•110° dispersion pattern

Use the chart for the speaker you will use (AH5A or AH15A):

1. Choose the level of ambient noise in the area to be covered.

2. Locate the area's square footage.

3. Where these two measurements meet are two numbers. The number in GREEN is the number of speakers required.

The number in RED is the number of Current Units (CU) needed for that many speakers. (You may need to increase the

number of speakers in areas where large objects or shelving project into the coverage area, blocking sound.)

Current Units (min.) = Number in RED

Determine Speaker Quantity

The AH5A and AH15A Metal Horn Speakers are rugged,

self-contained amplified paging horn assemblies that can

be used for high noise paging areas indoors as well as for

outdoor use. Their sturdy, weatherproof, all-metal con-

struction allows them to withstand any environment while

continuing to provide excellent audio intelligibility for pag-

ing and background music.

Product Features:

AH5A

AH15A

SELF-AMPLIFIED METAL HORN SPEAKERS

See page 30

to select a

Power Supply.

AH5A

AH15A

Dimensions Product

Weight

9" dia. x 9-1/4" " D 4 lb. each

Accessories

BC1

Beam Clamp

TCSPT1

Terminal Cover

for Conduit

HSES10

Horn Speaker

Electrical Box

Strap

(Pack of 10)

Bypass Feature

Local volume controls allow people

working in an area to control the level

of paging and background music for

their needs. However, in paging sys-

tems where alert announcements are

made as well as general announce-

ments, local volume controls can be a

problem. When users set volume con-

trols for very low levels or off, the alert

announcements may not be heard.

When the BUFEX’s Bypass feature

is activated (by an external contact clo-

sure), it overrides the local level setting

of the BUFEX and allows important

messages to be heard.

In certain circumstances, full level

audio messages may be overpowering.

The BUFEX includes a Bypass Trim that

allows a maximum 12 dB of attenuation

to the alert message when the local

level is set to 0. As the local level is in-

creased, the Bypass Trim will track this

and increase the alert message level

proportionally.

•Local volume control for a group of speakers

•

Provides buffering for up to 150 self-amplified

speakers

•Allows self-amplified speakers to work with

100V/70V/25V systems, expanding existing

systems

•Continuously variable attenuator

•Rugged and attractive stainless steel

wall plate with engraved lettering

•Mounts in single gang wall box

•Easy and secure terminal strip connections

•Jumper selectable 100V, 70V, or 25V

speaker selections as well as T/R

•Bypass feature overrides local volume

setting for high importance messages

•Bypass trim allows a maximum 12 dB

attenuation over bypass announcements

Product Features:

Used with 24V systems, the BUFEX is a multi-purpose

device that can work as a

volume control for a network

of speakers, and as a buffer

that can drive up to 150

speakers. It also functions as a system expander when

connecting to 100V, 70V, and 25V speaker systems.

To address the needs of emergency announcements,

the BUFEX has a Bypass feature that allows emergency

announcements to be heard at high levels regardless

of the volume setting on the BUFEX. The BUFEX contains

a Bypass Trim feature that allows some adjustment to

the Bypass level.

Buffer/Expander/Volume Control

BUFEX

Dimensions Product

Weight

2-7/8" W x 4-5/8" H x 2-1/2" D 3 oz.

The SLC provides a simple and cost effective way to remotely control the volume

level of a network of up to 150 speakers. Simply wire in series with the audio

feed to the desired group of amplified speakers. For 24V systems.

Signal Level Control

SLC

•Continuously variable attenuator

•Rugged and attractive stainless steel

wall plate with engraved lettering

•Mounts in single gang wall box

•Easy and secure terminal strip

connections

•Passive (requires no DC power)

Product Features:

Dimensions Product

Weight

2-7/8" W x 4-5/8" H x 2" D 2 oz.

See page 30

to select a

Power Supply.

www.bogen.com

SELF-AMPLIFIED SYSTEMS

LEVEL CONTROLS

120V AC Output Product

Model Output Input Style Connections Dimensions Weight

PRS40C

12V DC @ 0.3A Plug-in Barrel 2" W x 2-3/8" H x 1-5/8" D 1 lb.

Connector

PRS48

48V DC @ 0.1A Plug-in Screw 2-1/2" W x 3" H x 2" D 1 lb.

Terminals

PCMPS2

12V DC @ 1.5A Plug-in Barrel 2

-1/4" W x 4" H x 1-3/8" D

1 lb.

Connector

Switch-Mode Power Supplies

The SPS versions of power supplies

use switching technology to provide

large current capacities in very small

packages. Unlike more conventional

linear power supplies that use large

and heavy transformers, switching

supplies gate energy directly to the

storage caps at the power supply out-

put. This is a highly efficient way to

convert voltages and because of this

the power supplies generate very little

heat.

Mounting Holsters

Most wall-mounted SPS versions of

power supplies come with special

mounting holsters for easy and secure

wall mounting. The holsters are fas-

tened to the wall and then the power

supply is slipped in. A broad spring

tang ensures the power supply remains

snug in the holster. A side-mounted

PCB provides a means of breaking out

the power supply’s cable connector into

multiple screw terminals. The screw ter-

minals are also pluggable for added

ease of installation.

SPS2466 SPS2425

SPS2410

SPS2406 PRS2403

Power Supplies

SPS2466

Model

SPS2425

+108 24V DC Holster Pluggable

2-7/8" W x 6-3/4" H x 1-5/8" D

@ 6.6A Terminal Strip

+50 24V DC Holster Pluggable 3" W x 5-3/4" H x 1-3/4" D

@ 2.50A Terminal Strip

CU Ratings Mounting Connections Dimensions Weight

SPS2410

+20 24V DC Holster Pluggable

2-1/2" W x 4-1/4" H x 1-1/4" D

@ 1.00A Terminal Strip

SPS2406

+12 24V DC Receptacle Wires, 2" W x 3-3/8" H x 1-1/4" D

@ 0.60A Barrel-Type

PRS2403 +6

24V DC Plug-In Wires, 2-1/4" W x 3-1/4" H x 2" D

@ 0.30A Barrel-Type

2 lb.

1 lb.

Product Features:

•Specially designed for use with

24V Bogen equipment

•Wide range of current outputs

•UL and C-UL listed

24V Switch-Mode and Linear Power Supplies

Product

www.bogen.com

POWER SUPPLIES

PRS40C PRS48 PCMPS2

These Power Supplies are designed to supply low voltage

DC requirements. Corded or outlet mounted.

Product Features:

•Specially designed for use with Bogen equipment

•Wide range of voltages and current outputs

•UL and C-UL listed

Actual Products may

differ in appearance

from those shown here.

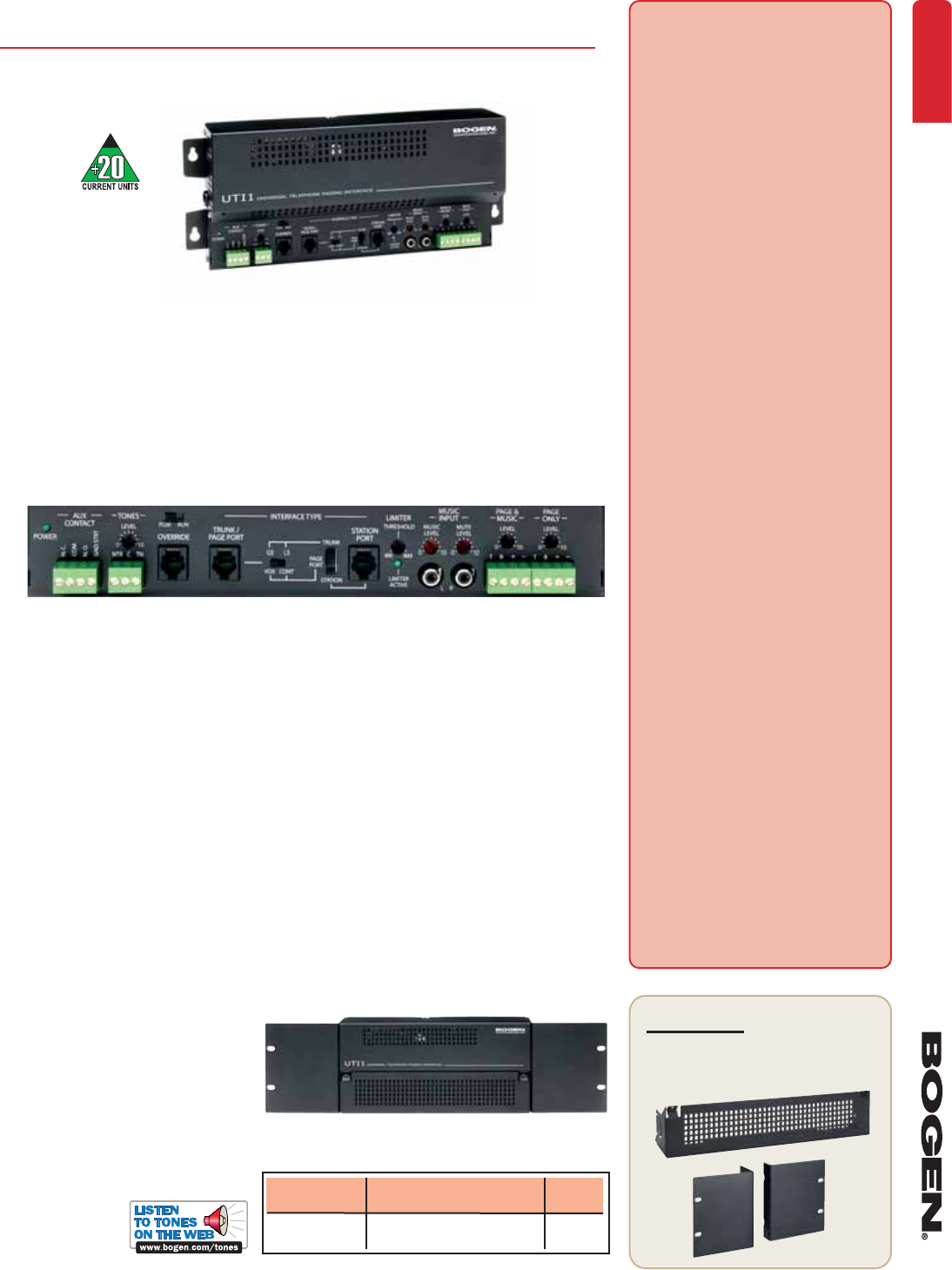

UTI1 shown with optional

rack mount / security cover kit

Programmable AUX Relay

The UTI1 provides a way for in-

stallers to decide how the AUX

relay contacts will trip based on

which inputs on the UTI1 are ac-

tive. The UTI1 has 4 inputs:

override, tone trigger, paging,

and night ring. The installer can

program the AUX relay to re-

spond to one or any combination

of these inputs. The UTI1 priori-

tizes these inputs (in the order

shown above) so that higher pri-

ority inputs preempt lower ones,

but the AUX relay contacts can be

programmed to work independ-

ently of this hierarchy.

For example, the AUX relay could

be programmed to respond only

to a night ring trigger independent

of anything else the UTI1 was

doing. The UTI1 would suppress

the night ring tone if a general

page were made; however with

the AUX relay programmed this

way, the AUX relay contacts

would remain active until the

night ring input stopped regard-

less of the other UTI1 inputs.

The AUX relay contacts can also

be programmed to operate after

the triggering event has finished.

In this case, the AUX relay contact

activates for 1 second and then

stops. This type of operation allows

external equipment to be triggered

after an event has occurred.

All this selectable functionality

allows the installer improved

ways to control external equip-

ment in conjunction with the

UTI1 operation. Programming is

accomplished through simple

DTMF programming codes.

Accessories

RPKUTI1

Security Cover & Rack Mount Kit

(sold as a set)

Single-Zone Universal Telephone

Interface

UTI1

Product Features:

Power Dimensions Product

Requirements Weight

120V AC,

12-1/4" W X 5-1/4" H X 2-1/2" D

5 lb.

0.5A (without rack mount kit)

Bogen’s UTI1 is a single-zone telephone interface that is compatible with all standard analog

port types. A background music (BGM) input with variable muting coordinates music and

page announcements. An additional audio output provides a “page only” function

(no BGM) for application flexibility. A built-in 24V DC, 1A power supply is provided for pow-

ering amplified speakers. Paging volume controls are provided for each of the outputs. An out-

put limiter function, with limiter active indicator, provides consistent page volume regardless

of loud or soft paging announcements. Contact-triggered tones and night ring signals, as

well as programmable AUX relay contacts, are all programmed using DTMF tones through the

dual-purpose override input. Plug-in terminal strips provide for easy installation. An optional

security cover/rack mount kit (RPKUTI1) is available.

•Emergency override & general paging

•One-way paging only

•Interfaces to Loop Start, Ground Start,

Analog Station, and Page Ports (with

or without contact closure activation)

•Simple 2-switch interface setup

•Background music (BGM) input with level

control and variable muting

•Separate Page & BGM and Page Only

(no BGM) outputs

•Level control for each output

•24V DC, 1A power supply

•

150 Speaker T/R drive capacity per output

•Page level limiter with active indicator

•Adjustable automatic level control

•Override input (loop start or page port)

•Contact-triggered Night Ring input

•Programmable AUX Relay

•Pre-announce/confirmation tone

•Tone burst (2 to 7 sec), chime,

and slow whoop tone selections

•Microcontroller operated, DTMF

programmable

•Night ring tone or chime selection

•Setup test tone

•Pluggable terminal strip connectors

•Programming through override jack

•Programmable timeout for station mode

•Programmable trunk port timeout

•Responds to CPC disconnect signal

•Wall-mount design

•

Rack-mountable with RPKUTI1 kit (optional)

•FCC Part 68 Registered

•Listed to UL Standard 60950

for US and Canada

UTI1 Control Panel

SINGLE-ZONE TELEPHONE INTERFACE

www.bogen.com

PAGING CONTROL

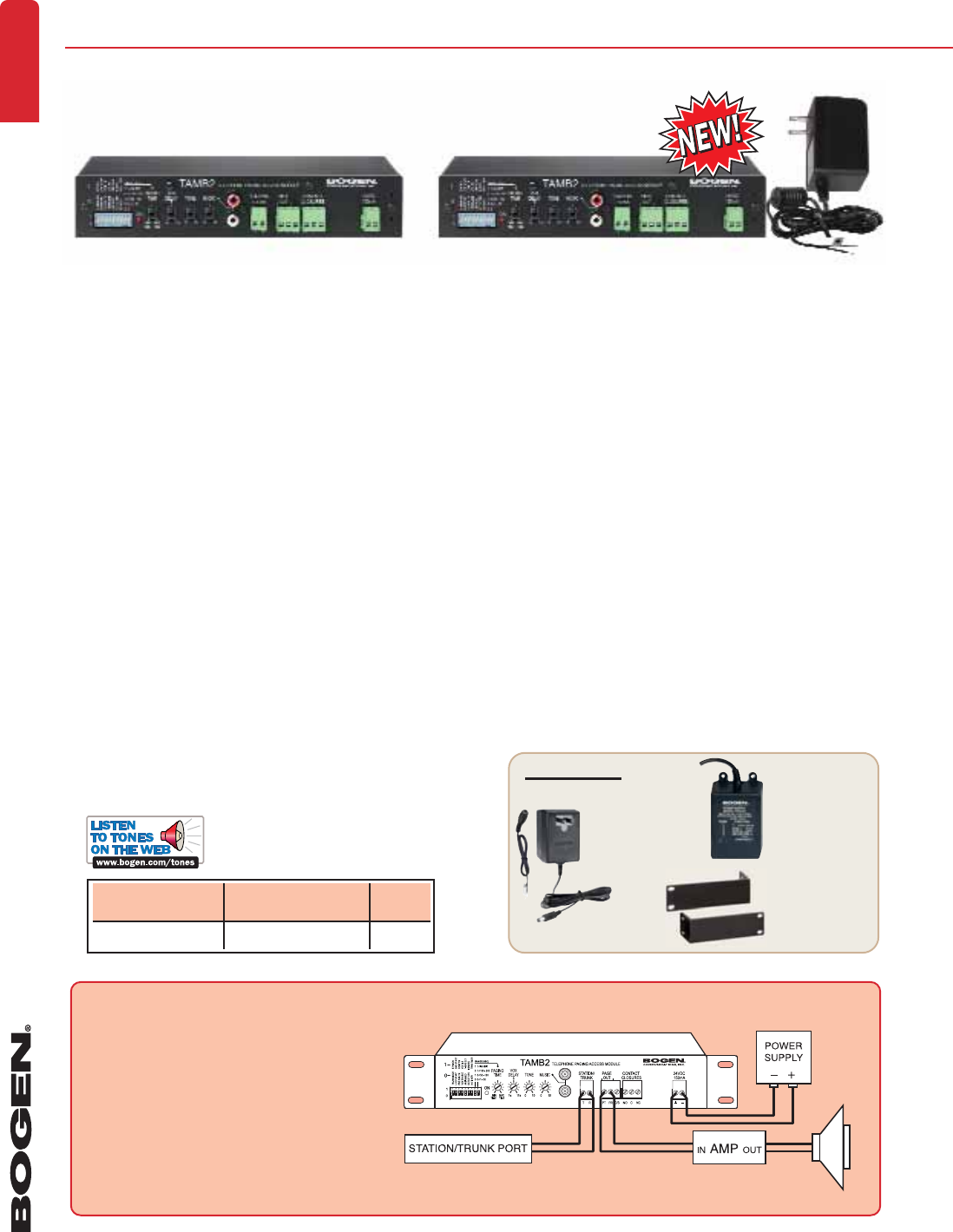

Product Features:

•Loop start, ground start, and station port

(90V ring up) compatibility

•600-ohm output

•Built-in confirmation tone indicating access

to paging system (defeatable)

•Built-in pre-announce tone produced over paging

system before announcement (defeatable)

•Adjustable tone volume

•Works with one-way and two-way (talk back)

zones

•Background music input with volume control

•Suppresses background music during paging

•Station access disconnect is dynamically

controlled using a combination of disconnect

timer, silence interval timer, and Calling Party

Control (CPC) signal detection

•Disconnect VOX timer is adjustable from 1 to 11

seconds (defeatable)

•Station Port maximum page times from 1 - 200

seconds

•VOX and default timers independently inhibitable

•Calling Party Control (CPC) signal from switch

immediately disconnects station port

•1 C-Form (N.O. and N.C.) contact pair available

for operating external equipment

•Trunk Timer feature helps prevent system

blockage

•24V Talk Battery

•24V DC @ 150mA power supply required

(included with TAMB2PS only)

•FCC Part 68 Registered

• Listed to UL Standard 60950

for US and Canada

Accessories

Product

Power Requirements* Dimensions Weight

24V DC @ 150mA 8-1/2" W x 1-3/4" H x 3" D

2 lb.

Multiple Interface Options

The problem with selecting a telephone line

interface device is knowing exactly what type

of line will be available at the site. Because

of mistakes in planning, a return trip to

the supply house is not that uncommon.

The TAMB2/PS was designed to eliminate

this problem.

The TAMB2/PS has the ability to interface to

ground start, loop start, and analog ring-up

lines.

PRS2403

Power Supply

(24V DC,

included with

TAMB2PS)

PRSLSI

Power Supply

(24V DC)

RPK91

Rack Mount

Kit

The TAMB2 interfaces a telephone system with a paging system allowing announcements to be made

through any telephone. Any of three types of analog ports can be connected using the TAMB2: loop start

trunk, ground start trunk, and station port (90V ring up). This wide range of port compatibility makes

the TAMB2 indispensable for any telephone paging application because it eliminates the possibility of

mismatching paging interfaces and port types. TAMB2PS includes power supply.

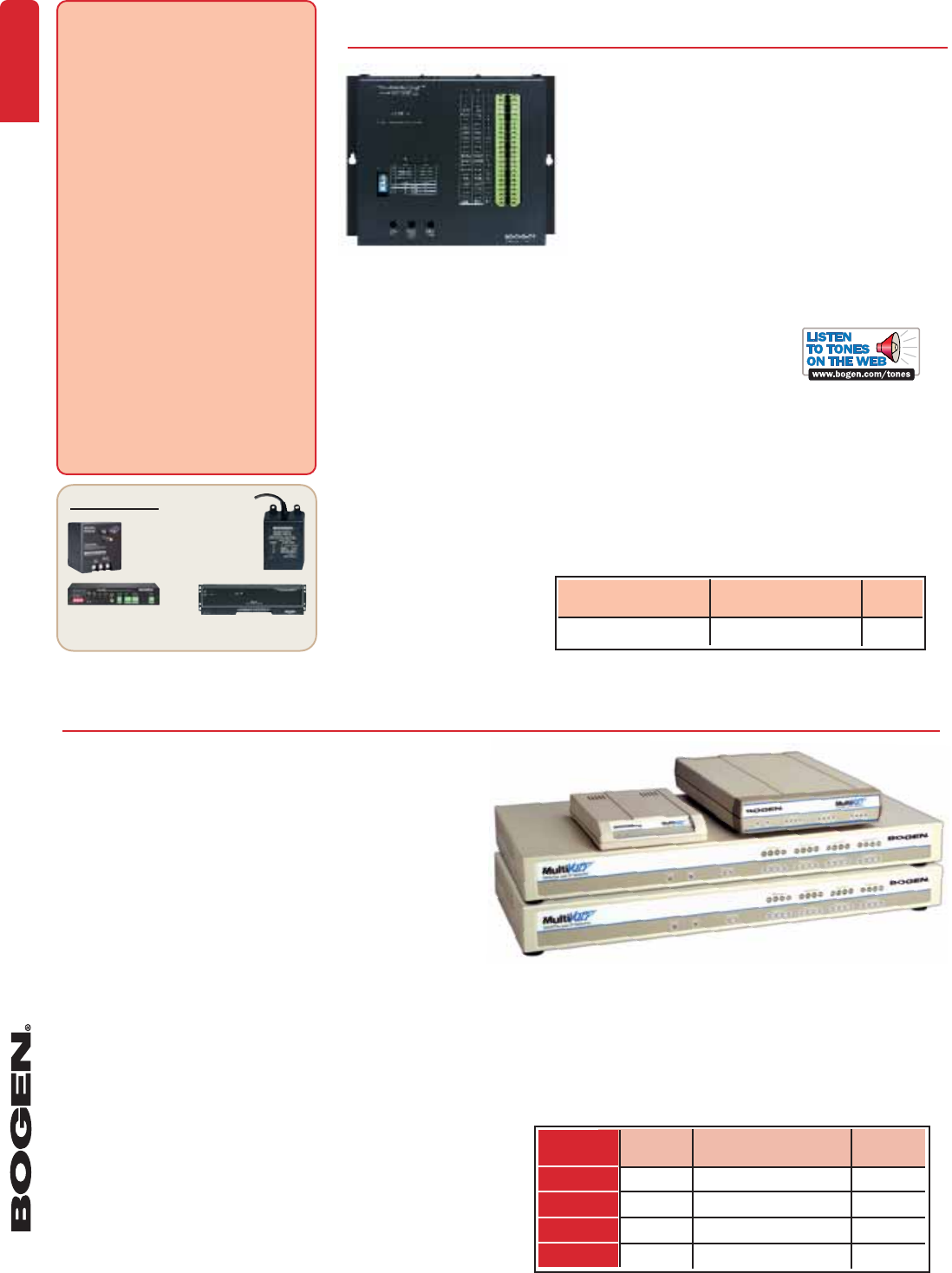

Telephone Access Module

TAMB2 TAMB2PS

www.bogen.com

PAGING CONTROL

TELEPHONE INTERFACE

* Included with TAMB2PS

•Expandable from 3 to 12 zones (in 3 zone

increments using ZX3 modules; one ZX3

module included)

•One-way paging only

•Interfaces to Loop Start, Ground Start,

Analog Station, and Page Ports (with or

without contact closure activation)

•Simple 2-switch interface setup

•2 Background music (BGM) inputs with

level controls

•BGM sources assignable per zone

•Level control for each zone output

•Zone active indicators

•C-form contact per zone

•150 Speaker T/R drive capacity per zone

•24V DC, 1A power supply

•Programmable AUX Relay

•Page level limiter with active indicator

•Adjustable automatic level control

•Override input (loop start or page port)

•Code calling capability

•2 Tone trigger inputs for tone burst,

chime, double chime, and slow whoop

tone selections

•Contact and 90V Night Ring inputs

•Pre-announce tone

•Confirmation tone

•Separate night ring and tone volume controls

•24 User-assignable zone groups

•Separate override, all-call, tone trigger,

night ring, and code call zone groups

•Auto select paging zone group

•2-, 3-, 4-, or 5-digit dialing plans

•

Microcontroller operated, DTMF programmable

•Night ring tone or chime selection

•Setup test tone

•Pluggable terminal strip connectors

•Programming through override jack

•Programmable timeout for station mode

•Programmable trunk port timeout

•Responds to CPC disconnect signal

•Includes wall or rack brackets

•FCC Part 68 Registered

•Listed to UL Standard 60950

for US and Canada

Accessories

Override Zone Group

The override input on the UTI312 has

the highest priority of all the inputs

but does not have to provide an All-

Call function. Since the override has a

zone group associated with it, the

installer can determine which zones

receive pages during an override.

For example, assume that in a 12-zone

system 11 zones are used to provide

audio to different parts of a building, but

one zone is not used for audio purposes.

The contact closure for this zone is used

to control a door latch. When this zone

is active, the latch is open. If the override

was predefined to activate all zones,

then the door latch would open during

override operation which may not be

desirable. By programming the override

zone group with all zones except the one

connected to the door latch, an override

can be made and the door will remain

locked.

Two Background Music Inputs

In a system with multiple zones, it is not

uncommon to find applications that

have different background music (BGM)

requirements in different zones. To

provide flexibility in these situations, the

UTI312 has 2 BGM inputs. Each zone,

through jumper assignments on the ZX3

module, can select one or the other BGM

source, or none at all.

Auto Select Paging

When using the auto select paging fea-

ture, there is no need to dial a zone or

zone group. Whenever the paging input

becomes active, the auto select paging

zone group, with user-assigned zones,

will determine what zones are active.

This may seem to be an unusual function

for a multi-zone paging application.

However, often the need for zoning is

determined not by voice paging needs,

but by the need to play tones in differ-

ent zones.

In these instances, a shift change tone

may need to be produced in the factory

areas but not in the office areas. So a

tone trigger zone group will be set up to

channel the tone just into the factory. In

this case, voice paging is done like an

All-Call, but the tones are zoned.

ZX3

3-Zone Plug-In

Expansion Module

(one included

with UTI312)

Bogen’s UTI312 is a multi-zone paging controller with universal telephone interface.

It is expandable from 3 to 12 zones in 3-zone increments using ZX3 expansion modules.

Each zone has its own buffered paging output (150 speaker drive capacity) with volume con-

trol, a C-form relay contact and “zone active” indicator. Each module includes a pluggable

24V DC power distribution terminal strip and pluggable terminal strips for each zone for

easy wiring. A built-in 24V DC, 1A power supply is provided for powering amplified speakers.

The UTI312’s universal telephone interface is identical to the UTI1 (page 31). Two back-

ground music (BGM) inputs, with volume controls, provide each zone with a choice of BGM

sources or no BGM. Two tone triggers are available as well as a 90V night ringer input.

Separate volume controls for the night ring and tone triggers, along with an adjustable

page level limiter, make it easy to set appropriate levels.

Powerful software features provide the UTI312 enormous flexibility for demanding appli-

cations. 2-, 3-, 4-, or 5-digit dialing plans allow the UTI312 to fit into any dialing structure.

Twenty-four zone groups, zone groups for each tone input and night ring as well as a zone

group for the override input, provide plenty of installer flexibility. A programmable AUX

relay contact, in addition to the zone relay contact, provides flexibility for controlling external

equipment based on the UTI312’s activity.

Product Features:

Power Dimensions Product

Requirements Weight

120V AC,

16-3/8" W x 3-1/2" H x 4-7/8" D

8 lb.

0.75A (without mounting flanges)

19" W (with mounting flanges)

www.bogen.com

PAGING CONTROL

MULTI-ZONE TELEPHONE INTERFACE

Multi-Zone Universal Telephone

Interface

UTI312

UTI312 shown with

3 optional ZX3 Modules;

one (1) ZX3 is included.

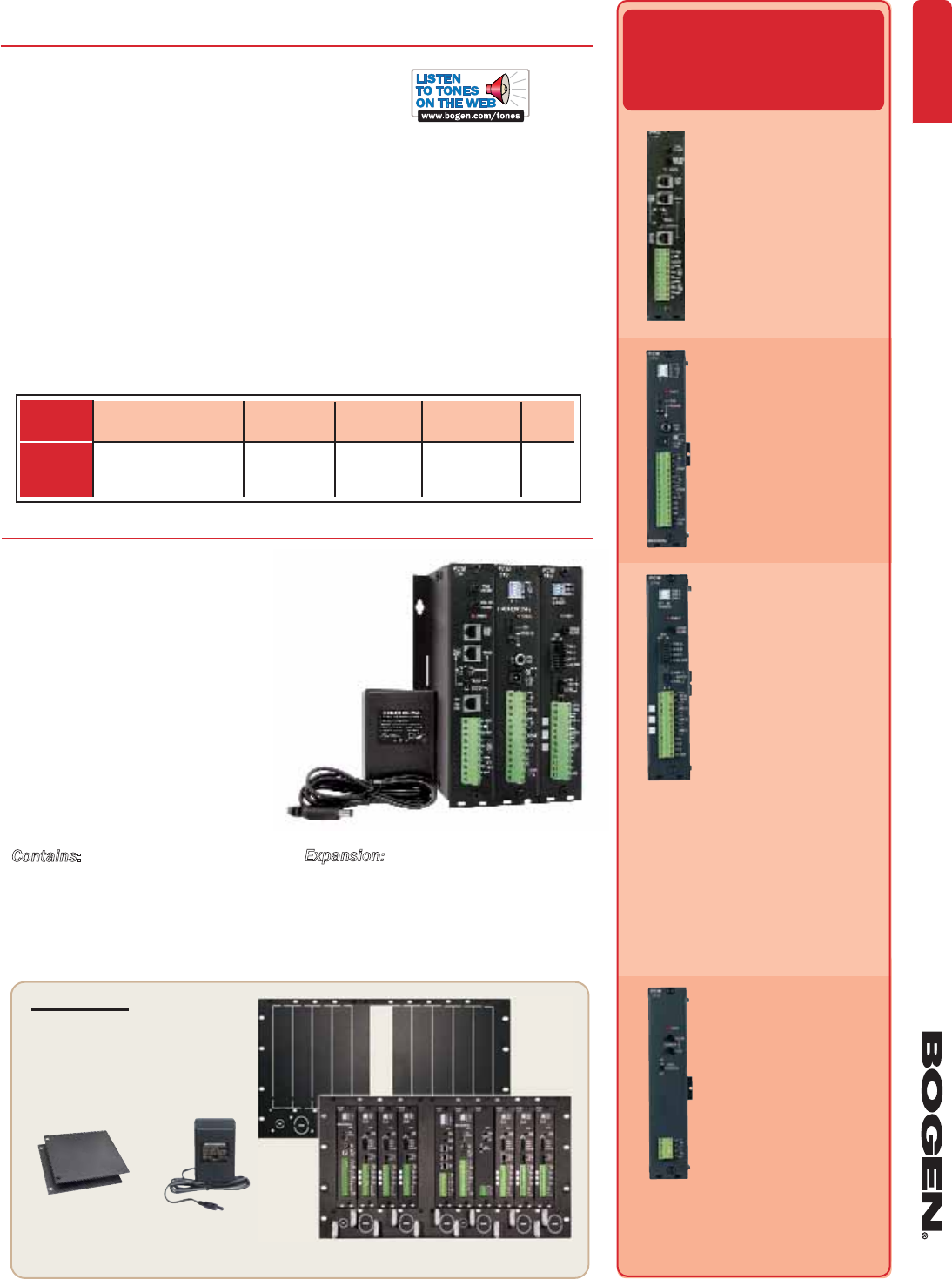

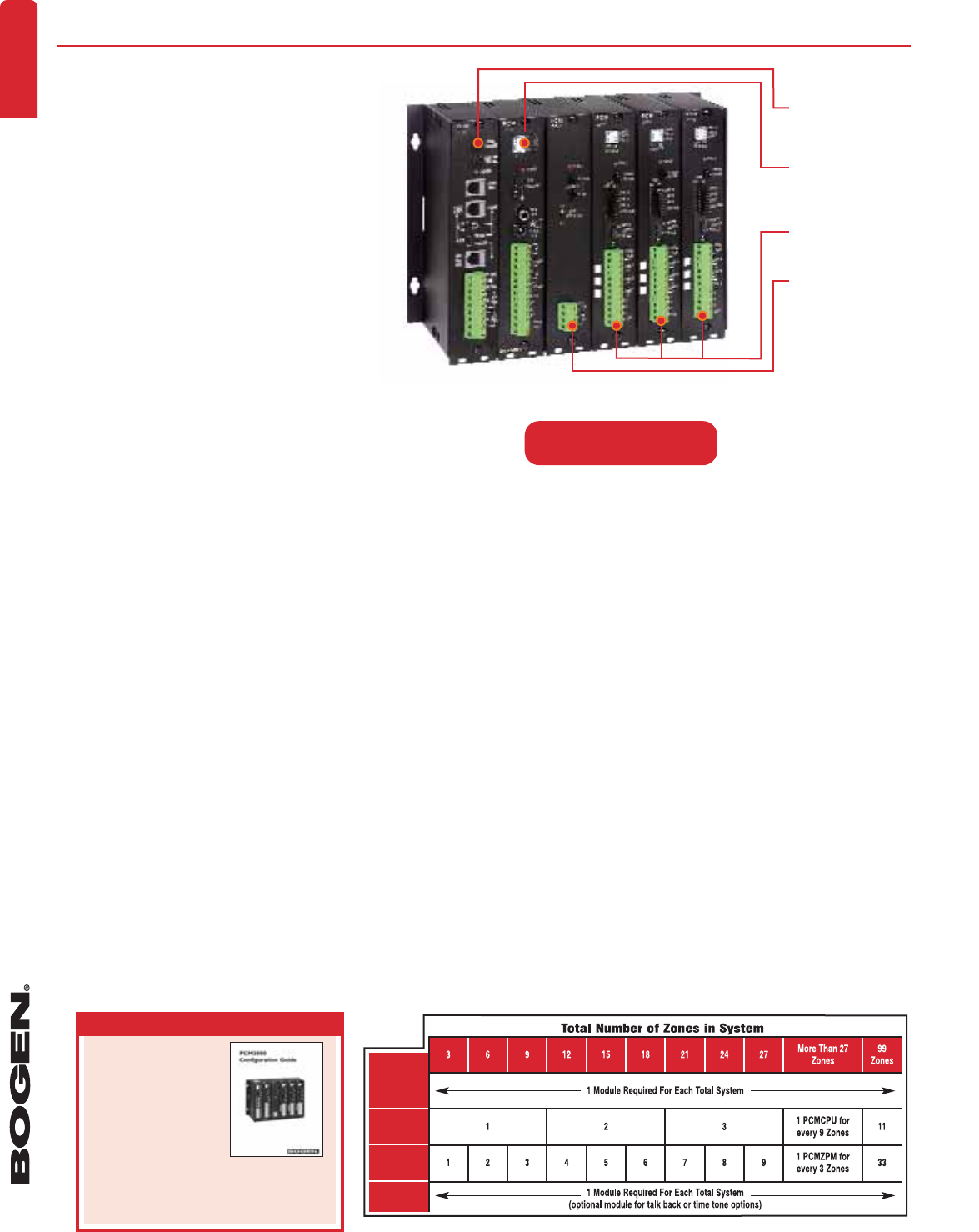

PCM2000

Zone Paging System

Product Features:

PCM2000

(shown with modules for a 9-Zone Paging System)

Number of Modules Required For Zone Paging Applications:

*Note: One PCMPS2 Power Supply (not included) is required for each PCMCPU Module.

PCMTIM

PCMCPU*

PCMZPM

PCMTBM

Night Ringer:

•Night Ring activated from 90V ring signal or contact

closure

•Night Ring tone can be selected as either simulated

ringer sound or chime

•Night Ring tone can be directed to a specific group

of zones

•RJ11 input connector

Code Calling:

•Code-Call capability using pleasant chime sound

•Code calling can be directed into a specific

group of zones

•Directly dial number of chimes produced or use

preset table of chime patterns

•1 or 2 automatic replays of the code call

Signal Tones:

•Contact closure input controlled tone annunciation

•Tone signaling can be directed into a specific

group of zones

•Tone can be selected as tone burst, chime,

or 4 quick beeps

•Tone can be selected to follow state of contact

closure input or preset burst length

The PCM2000 Zone Paging System provides

robust zone paging for applications requiring

1 to 99 zones, and up to 32 paging zone

groups. Its multi-function modules ensure

flexibility and future expansion with minimum

time and expense.

PCMTBM

Talk Back Module

PCMTIM

Telephone Interface

Module

PCMCPU

Central Processor

Module

PCMZPM

3- Zone Module

Paging Features:

•Allows for 1 to 99 paging zones, in 3-zone increments

•Up to 32 programmable paging zone groups

•Emergency All-Zone Override Paging input

•All-Call function can be disabled

•250-watt power handling capacity (separate amplifier required)

•Works with systems that are central- or self-amplified, or mixed

•Drives up to 40 self-amplified speakers per zone module

in low-power mode

Installation Features:

•Operates with 70V and self-amplified (24V) paging systems

•Future expandability up to 99 paging zones using 10 PCM2000

slave assemblies

•Universal Telephone Interface allows simple connection to loop

and ground start trunks, to PBX or KEY paging ports, and to

analog 90V station lines

•Easy connections using standard RJ11 and Euro-style

terminal blocks

•Relay driver outputs mirror the operation of each paging zone

to control external equipment

•Two C-form relay contacts change state when system is

activated to control external equipment

•A setup tone can be produced by the system to check system

operation and volume levels

•Easy programming of system features through the telephone

•System programming can be reset to factory defaults

•Wall-mountable (brackets included)

•FCC Part 68 Registered

•Listed to UL Standard 60950 for US and Canada

Background Music:

•No interruption of background music in zones

not being paged (two amplifiers required)

•Inhibit background music in any zone

•Zone modules can accept separate background

music sources

Works with both central-

and self-amplified systems.

www.bogen.com/documentindex

www.bogen.com

PAGING CONTROL

PAGING CONTROL MODULES

FREE DESIGN GUIDE

This system configuration

guide will assist you in

designing zone paging

applications.

It illustrates many popular applications for the

PCM2000. This valuable guide is available to

you at no cost. Download online at:

PCM2000

CONFIGURATION

GUIDE

Time Tones*:

•Built-in real-time clock

•Controls up to 8 time-triggered tone-signaled events

•Each time-triggered event’s tone can be directed to a specific group of zones

•Time-triggered tone burst length adjustable (2-8 seconds) or chime tone

•Simple programming of times and events through the telephone

•Master clock synchronization ability

Two-Way Communications*:

•Provides hands-free, 2-way talk back communications in 70V paging systems

(amplifier required)

•Zones can be individually selected to be talk back or one-way only

•“Privacy Beep” can be enabled in talk back zones to prevent eavesdropping

*Requires PCMTBM Module

Power Audio Power Operating

System Requirements Capability+Current Dimensions

PCM2000

12V DC@1.5A Power Supply 250W 1.5A max. 1-1/2" W x 7-1/2" H

(not included – (9-zone system) (9-zone system) x 4-1/4" D,

PCMPS2 recommended) each module

Product

Weight

1 lb.,

each

module

Separate Amplifier Required

Accessories

RPK84

Rack Mount Kit

RPK88

Rack Mount Kit

PCMPS2

Power Supply

(12V DC)

www.bogen.com

PAGING CONTROL

Technical Specifications for PCM2000:

Module housing for 10 modules

max., with 12 wiring saddles,

knockouts for wire access, and

8 mounting brackets.

2 panel adapter,

6 modules max.

Pre-Assembled Paging

System

PCMSYS3

The PCMSYS3 is a pre-assembled and tested

3-zone PCM system with a PCMPS2 power

supply. Use it right out of the box for 1 to 3

zone applications or expand it with other

PCM modules.

Contains:

1 PCMTIM - Telephone Interface module

1 PCMCPU - Central Processor module

1 PCMZPM - 3-Zone Paging module

1 PCMPS2 - System Power Supply

Ready-To-Go,

right out of the box.

Expansion:

•Add PCMZPM modules for up to 9 zones

•Add PCMTBM module for talk back and

realtime clock/tone applications

•Add satellite assemblies for up to 99 zones

PCMTIM

Telephone Interface Module

A universal interface connects

to any type of telephone port,

rapidly and trouble-free.

Provides input for night

ringer and emergency page

override. One required per

system.

PCMCPU

Central Processor Module

The PCMCPU controls system

operation and holds all pro-

grammed parameters. One

required for every 3 PCMZP

modules (9 paging zones).

PCMZPM

3-Zone Module

The 3-Zone module provides

3 paging zone outputs.

Increase system capacity by

adding additional modules,

up to 3 zones at a time. The

zone outputs can drive 70V or

self-amplified speaker sys-

tems. Relay driver outputs

mirror the state of each pag-

ing zone to control external

equipment. If desired, the sys-

tem-wide background music

can be disconnected and a sep-

arate music

source can be con-

nected to any PCMZPM mod-

ule. Background music can

also be inhibited in any zone.

One for every 3 paging zones.

PCMTBM

Talk Back Module (optional)

Allows 2-way, hands-free

talk back communications

throughout the paging system.

The built-in real-time clock

allows up to 8 user- scheduled

time tones to be emitted in

a specific group of zones.

The clock can be synchro-

nized with an external master

clock. Only one PCMTBM is

required for the entire sys-

tem, when needed.

To Order a PCM2000

System, select from the

following Modules:

Product Features:

•3-Zone paging plus All-Call; 3 easily programmable zone groups

(1-3 zones in each)

•One-way and two-way paging (talk back operation requires

TBA15 Talk Back Amplifier)

•Directly interfaces to paging ports (requires contact closures),

loop start, and ground start trunks

•Interfaces to station ports using TAMB2 Telephone Access Module

•Operates with central-amplified (70V) and self-amplified (24V) paging systems

•Pre-announce, confirmation tones, privacy beep, night ringer, selectable tones

•Separate volume controls for tones, night ring, and background music

•24V or 48V talk battery option (requires additional PRS48 power supply)

•100 watts total power handling capability

•Background music input

•FCC Part 68 Registered

Accessories

Zone Groups

One unique feature of the ZPM3 is its

ability to group together a number of

zones and page in to them at the same

time. However, the people you are trying

to contact may spend their time in more

than one zone area. By grouping zones,

you increase your chance of contacting

that person.

An example of a typical 3-zone facility is a

medium size location with an office area,

manufacturing area, and warehouse. Each

area is set up as an individual zone.

By grouping two zones and paging simul-

taneously into both, the chances of the page

being heard by the specific individual are

greatly improved.

For this same facility, the ZPM3 can also

produce a tone that will be heard only in

a specific group of areas. An external

contact closure from a master clock is

typically used to trigger the tones.

PRS48

Power Supply

(48V DC)

TBA15

Talk Back Amplifier

TAMB2

Telephone Access

Module

PRSLSI

Power

Supply

(24V DC)

3-Zone Paging Module

ZPM3

The ZPM3 allows for economical one- or two-way paging

(with TBA15 Talk Back Amplifier) to be directed to any

of up to 3 different paging areas. Zones can be grouped

together so that more than one zone is paged at the

same time. All areas can also be paged at once. Zone

selection can be made using DTMF tones or pulse dialing.

Power Product

Requirements Dimensions Weight

External 24V DC @ 350 mA 9" W x 7-1/4" H x 1-3/8" D 3 lb.

www.bogen.com

PAGING CONTROL

ZONE CONTROL MODULE

Product Features:

•Ethernet connectivity and full IP compatibility with

existing routers and WAN infrastructure

•Single- or multi-zone paging at any or all locations when

used with Bogen's Multi-Zone Universal Telephone Interface

(UTI312); 1-, 2-, 4-, and 8-port/zone models available

•Efficiently communicate company-wide emergency alerts

or general announcements, saving both time and money

while improving communication

•Connects directly to phones or PBX; compatible with

virtually any telephone port type

•One-port model supports FXS and FXO; multi-port models

support FXS, FXO, and E&M

•FXS/FXO connector on each port for direct analog conn-

ection to Bogen's telephone paging interfaces

•Multi-port models provide contact closure Receive

& Transmit in E&M mode capabilities

•Gateways are easily managed using a Windows®-based soft-

ware application or remotely with a web browser or SNMP

•Can also be used for toll-free voice and fax communication

when connected to phones, fax machines, key systems, PSTN

lines, or a PBX to provide real-time, toll-quality voice connec-

tions to any office on your VoIP network

•FCC Part 68 Registered/UL and C-UL listed

Bogen's Voice Over IP Gateways (VoIP) allow paging commu-

nications to be sent over the Internet or Intranet. Each gateway

connects directly to Bogen paging systems and equipment to

provide overhead paging to all locations in a facility or across a

campus without running new lines.

Dimensions

1 4-3/8" W x 1" H x 5-5/ 8" D 1 lb.

2 6-1/4" W x 1-1/2" H x 9" D 2 lb.

4 17-1/2" W x 3-7/8" H x 8" D 8 lb.

8 17-1/2" W x 3-7/8" H x 8" D 8 lb.

MVP130BG

MVP210BG

MVP410BG

MVP810BG

Product

Weight

Max. Port

Capacity

Network-Enabled Paging

MVP130BG, MVP210BG,

MVP410BG, MVP810BG

VOIP GATEWAYS FOR PAGING

Windows®is a registered trademark of Microsoft.

www.bogen.com

AMPLIFIERS

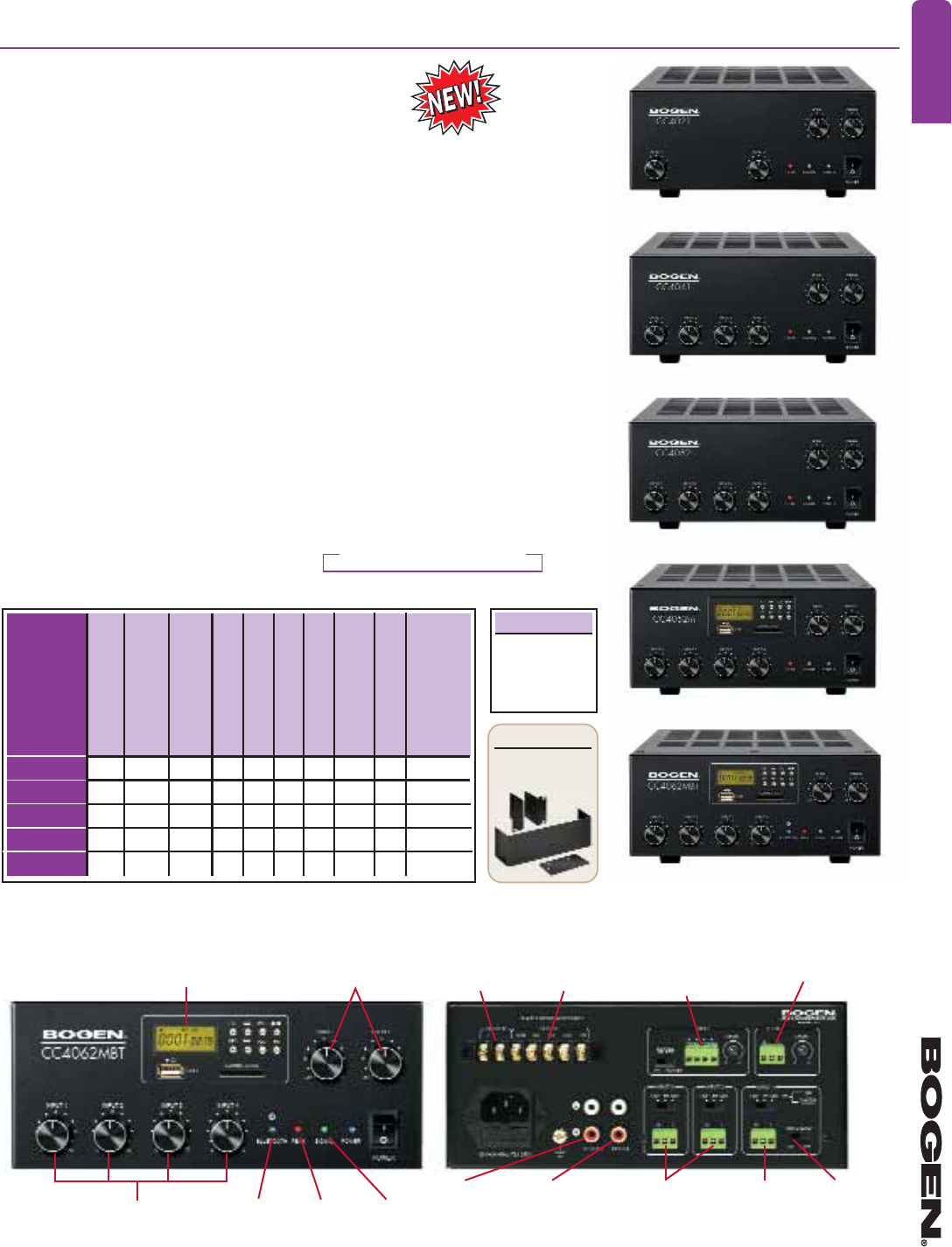

CC-Series

Compact Mixer-Amplifiers

COMPACT AMPLIFIER SERIES

The CC-Series consists of five compact mixer-amplifiers, each providing 40 watts of

output power. The features available and number of inputs vary per model (see chart

below). Each unit measures 2 rack spaces in height but only 8-1/4" wide,

allowing 2 units to be placed side-by-side without requiring additional rack spaces.

Product

Weight

Model

Total Number of Inputs

Number of MIC/Line

Inputs (balanced)

Number of AUX Inputs

(unbalanced)

TEL Input

Media Player Built-in

EQ for Media Player

Bluetooth Capability

Audio-activated Muting

Priority Levels

MOH Output

●

CC4021

CC4041

CC4052

CC4052M

CC4062MBT

2 1 1 1

4 3 1 1

5 3 1 1 2

6 3 1 1 1 2

7 3 1 1 1 2

11 lb.

•40 watts of output power

•Total Inputs: 2 to 5 for external equipment

(inputs vary per model, see chart below)

•6th Input for Media Player on CC4052M

and CC4062MBT

•7th Input for Bluetooth on CC4062MBT

•Individual volume control for each Input

•Individual phantom power for MIC inputs

•Media player accepts SD card and USB

thumb drive; button controls for playback,

volume, and EQ (Models CC4052M and

CC4062MBT)

•MOH output with 1W/8-ohm and 600-ohm

transformer-balanced outputs (Models

CC4052M and CC4062MBT only)

•MOH source selectable from Media Player

or Input 4

•2 levels of priority: TEL is 1st priority,

Input 1 is 2nd priority

•Audio-activated & Defeatable muting

•Bass and treble controls

•Compatible with 70V, 25V, 4-ohm,

and 8-ohm systems

•REC output

•Peak and signal indicators

•External 24V DC supply input

•Listed to UL Standard 60065 for

US and Canada

•Optional rack mount adapter (RPK93)

available for single and side-by-side

configurations (sold separately)

Product Features:

CC4021

CC4041

CC4052

CC4052m

Accessories

RPK93

Rack Mount Kit

CC4062MBT

Media Player

(4052m/4062MBT)

Plays MP3 files from

SD Card or

USB Memory Stick.

Bass & Treble

Controls

Separate controls

for Bass & Treble

adjustment.

Mute

Send

Enables/

disables

muting of

inputs by

Input 1.

Input 1,

Balanced

MIC/Line

(4041/4052/4052m/

4062MBT)

Select Line, MIC, or

MIC with Phantom

Power; mutable

by TEL Input.

Inputs 2 & 3,

Balanced MIC/Line

(4041/4052/4052m/

4062MBT)

Select Line, MIC, or MIC

with Phantom Power;

mutable by TEL Input,

or Input 1.

Input 4,

Unbalanced AUX

Provides a high-imped-

ance mono-summing

input; can be set as

program source for

MOH output; Mutable

by TEL Input or Input 1.

REC

Output

Line-level

output of the

same program

material to the

speakers.

External DC

Supply Input

Power unit from

external batteries

or power supply

connection.

Speaker

Outputs

Compatible

with 70V, 25V,

4-ohm/8-ohm

systems.

TEL Input

(4052/4052m/

4062MBT)

Mutes all other

inputs when active.

Music-On-Hold Output

(4052m/4062MBT)

1-watt/8-ohm or 1V/600-ohm

transformer-isolated output;

independent volume control

for MOH output level;

select program material from

Media Player or Input 4.

Input Level

Controls

Front-mounted,

provided for

each input.

Peak

Indicator

Illuminates

when peak

output level

is reached.

Signal

Indicator

Illuminates

when signal

is present at

any input.

CC-Series

Front & Rear

Panels

(CC4062MBT

shown here)

Bluetooth

(4062MBT)

Illuminates

when Bluetooth

connection

is achieved.

Dimensions

8-1/4” W

3-1/2” H

10-3/8” D

Technical Specifications, Dimensions,

and Weights can be found on Page 79

Accessories

Signal-Processing Modules

When signal-processing output modules are

installed into the Power Vector's last

two module bays, they automatically insert

themselves into the mix bus signal path lead-

ing to the power amplifier stage. When two of

these output modules are installed, their ef-

fects are cascaded with the second to last

bay's module, processing the signal first and

then passing it to the module in the last bay.

Two benefits are gained by this innovation: (1)

the effects insert jacks are still available for

use by external processing equipment, (2) the

signal-processing output modules act on the

raw mix bus signal before any other user con-

trols, like master volume, bass, and treble.

This then ensures that signal level dependent

processors, such as the CMP1R Compressor/

Limiter and the ANS1R Ambient

Noise

Sensor modules, perform as intended

regard-

less of front panel master control changes.

Remote Volume Control

The master volume control is motorized.

By using a motor to physically move the con-

trol knob, a new level of remote control

adjustability is achieved.

Regardless of where the master volume con-

trol is set on the amplifier, the remote can

move it up or down. Since the remote control

signal is now the drive signal to the motor,

noise on the remote control leads cannot mix

in with the amplifier signals. This gives the

Power Vector a fully functional and clean way

of remotely controlling overall system level.

Traditionally, remote volume control was ac-

complished by having the remote control

vary an analog control signal to an opto-

resistor in the amplifier. This opto-resistor

would further attenuate the signal level in the

amplifier, based on the remote control setting.

This approach has two drawbacks: (1) the

maximum volume that can be achieved by

changing the remote control was limited by

the master volume control setting on the

amplifier, or vice-versa depending on how

the amplifier was designed, the remote

could lower volume, but could not further in-

crease it; (2) the control signal, because it is

analog, is vulnerable to noise. If a 60 Hz

hum was picked up by the long remote

volume leads, it could cause the opto-

resistor to modulate the volume level at the

hum frequency.

PVSC

Power Vector

Security Cover

RVCP

Remote Volume

Control Panel

RPK87

Rack

Mounting Kit

PVMC

Module

Security

Cover

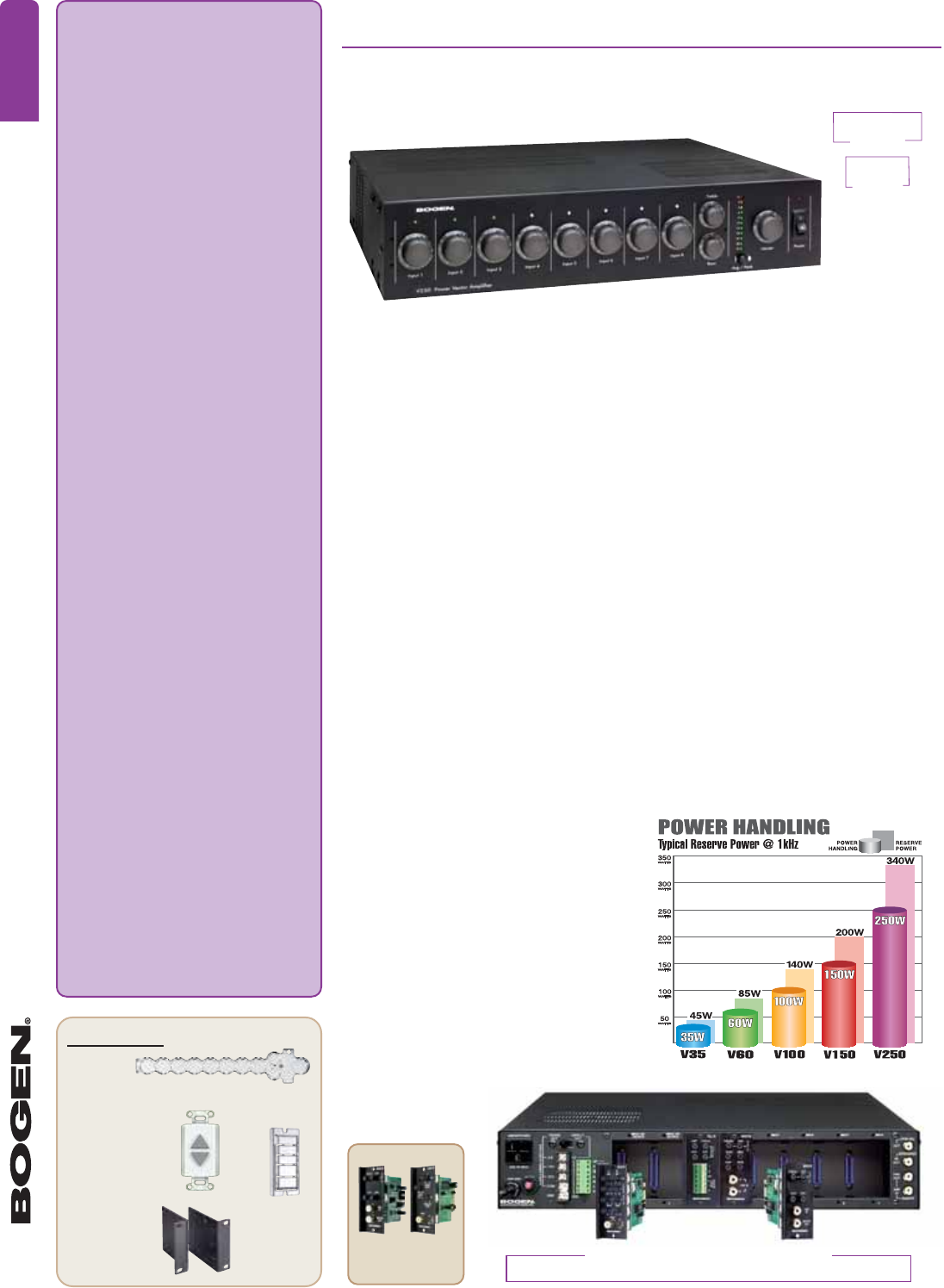

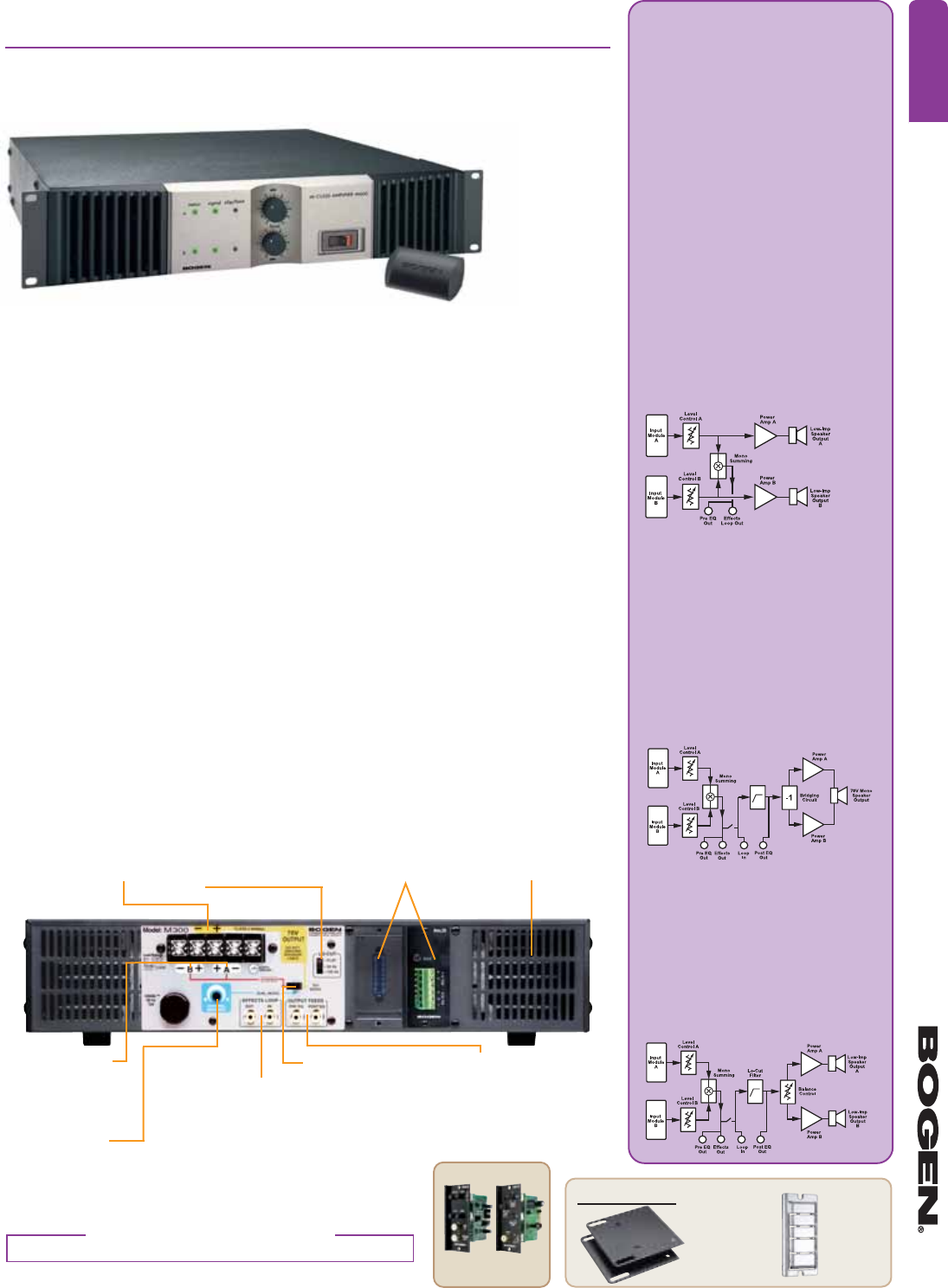

Power Vector Modular Amplifiers

V35, V60, V100, V150, V250

Bogen's Power Vector modular input amplifier series offers a wide range of

power levels from which to choose, with five models ranging from 35W to 250W.

The amplifiers are designed to work with both high- (70V/25V) and low- (4/8-ohm)

impedance speaker systems. Each model includes eight module bays for input

modules and allows up to four levels of priority between modules. Two module bays

are also capable of accepting signal-processing output modules. Each input channel

has an associated signal/clip LED for signal status. An 11-segment LED output meter

monitors output signal level, which can be controlled by the Remote Volume

Control Panel (RVCP, sold separately). Modules required, but sold separately.

WALL-MOUNTABLE

version

on Page 40

MIXER

version

on Page 48

Product Features:

•5 models ranging from 35W to 250W, each

with a large power reserve

•Capable of handling 70V, 25V, 8-ohm,

and 4-ohm speaker loads

•8 input module bays (modules sold

separately)

•Wide selection of advanced input modules

•

2 module bays capable of handling signal-

processing output modules

•4 levels of priority between modules

•11-segment LED output level meter with

Average/Peak switch

•Motorized master volume control that can

be remotely operated (requires RVCP)

•Bass and treble controls

•Two-color LED for each channel indicates

signal active/signal clipping

•Lockable switch permits user to select

either transformer-coupled outputs or

a direct low-impedance output

•Master mute control mutes all audio from

the mixer section of the amplifier

•Bass and treble control bypass switch

•125 Hz Low Cut feature

•2 rack spaces high (3-1/2")

•Listed to UL Standard 60065

for US and Canada

•Signal-processing insert jacks allow exter-

nal equipment to be inserted between the

pre-amp output and the power amp input

•Pre-EQ unbalanced buffer output signal

“post” all unit controls, but “pre” any exter-

nal signal-processing equipment connected

•Grounded, unswitched AC convenience

receptacle with a 500W maximum capacity

provided for external equipment

•Security cover to protect volume, bass, and

treble controls (PVSC, sold separately)

•Module security cover prevents tampering

with module controls (PVMC, 8 included)

•Rack mountable (mounting kit RPK87,

sold separately)

Technical Specifications, Dimensions,

and Weights can be found on Page 79

ALL MODULES

SOLD SEPARATELY

Input & Signal

Processing Modules-

See Pages 39 & 40

MODULES

www.bogen.com

AMPLIFIERS

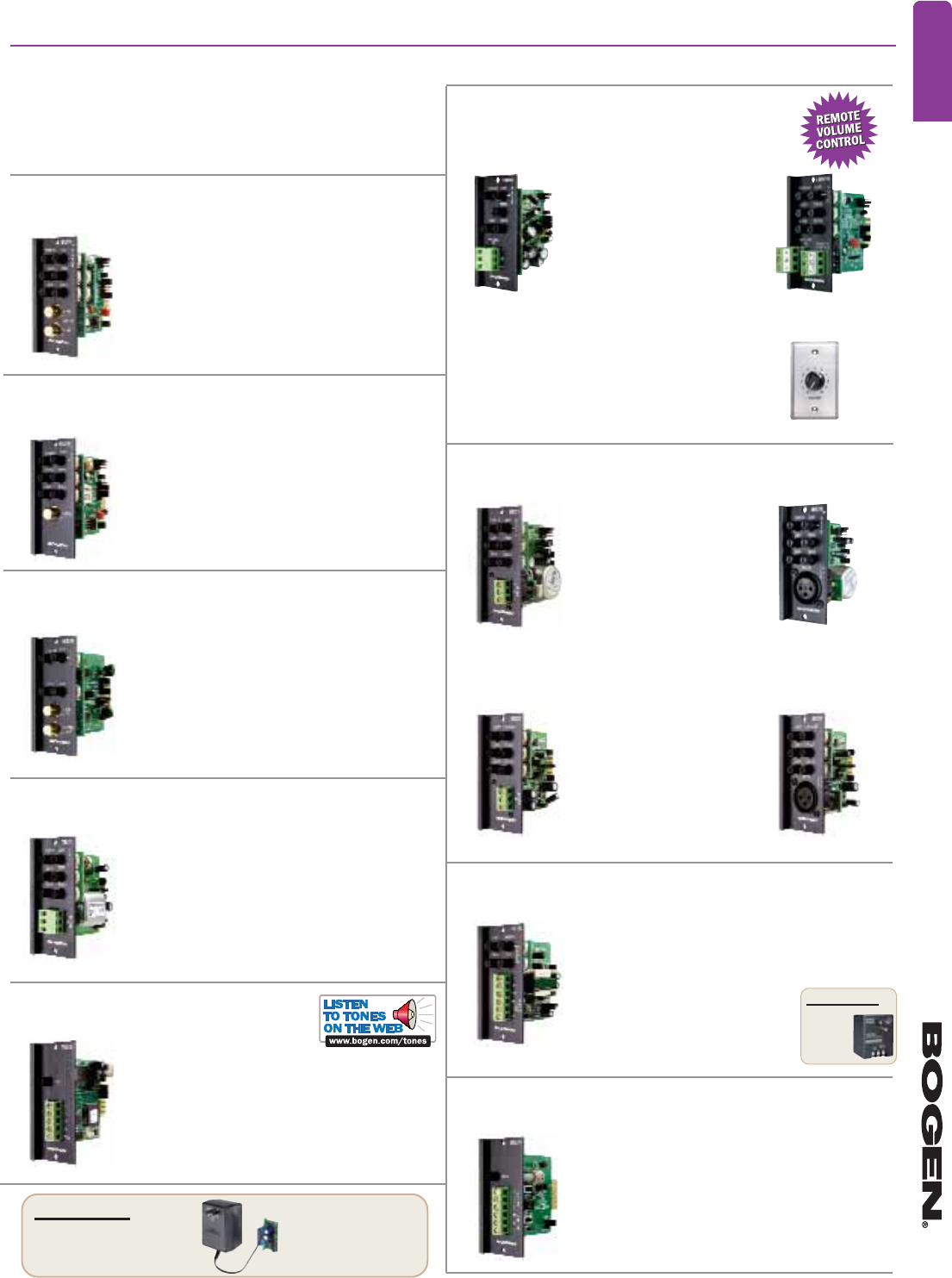

MODULAR AMPLIFIERS

Rear View

BRIDGING INPUT - BRG1R

Daisy Chain Multiple Amplifier Inputs

•Gain/Trim control

•Ground isolated input to eliminate ground loop

•Input signal available at buffered output

•Priority assignable

•Variable ducking level when muted

•Fade back from mute

•Buffered output not muted

•Bus assignable

•RCA input and output connector

MONO AUX INPUT - MAX1R

Unbalanced Mono Input

•Gain/Trim control

•Bass & Treble controls

•Gate feature mutes lower priority modules

•Mutable by higher priority modules

•Variable ducking level when muted

•Fade back from mute

•Bus assignable

•RCA connector

BALANCED INPUT - BAL2S

Stereo, Balanced Input

•Stereo, high-impedance, electronically balanced inputs

•Professional-quality, low noise performance

•Selectable gain of 0 or 18 dB

•Compatible with telephone system page ports

•Mutable by higher priority modules

•Variable ducking level when muted

•Fade back from mute

•Screw terminal connections

STEREO AUX INPUT - SAX1R

Unbalanced Stereo Input

•Gain/Trim control

•Bass & Treble controls

•Gate feature mutes lower priority modules

•Mutable by higher priority modules

•Variable ducking level when muted

•Fade back from mute

•Stereo-to-mono summing option

•Bus assignable

•RCA connectors

MICROPHONE INPUTS - MIC2S, MIC2X

Low-impedance, Electronic-balanced Microphone Inputs

•Gain/Trim control

•High Cut/Low Cut controls

•Enhance control

•Noise gate w/Threshold control

•Limiter w/Threshold control

•24V Phantom power

•Priority & Bus assignable

•Screw terminals (MIC2S);

XLR connector (MIC2X)

Bogen’s advanced plug-in input modules provide a wide

range of functions to support a variety of applications.

(Shipping weight: 1 lb. each)

Input Modules (Output Modules on Page 40)

MICROPHONE INPUTS - MIC1S, MIC1X

Low-impedance, Transformer-balanced Microphone Inputs

•Gain/Trim control

•Bass & Treble controls

•Noise gate w/Threshold

& Duration control

•Limiter w/Threshold control

•24V Phantom power

•Priority & Bus assignable

•Balanced, transformer-isolated

•Screw terminals (MIC1S);

XLR connector (MIC1X)

TRANSFORMER-BALANCED INPUT - TBL1S

Transformer-Balanced AUX Input

•Gain/Trim control

•Bass & Treble controls

•

Transformer-isolated, dual-impedance, line-level input

•Variable ducking level when muted

•Mute send & receive

•Fade back from mute

•Mute send threshold & duration adjustments

•Priority & Bus assignable

•Pluggable screw terminal connections

TONE GENERATOR - TNG1S

Multiple Tone Generator Input

•Level control

•Select 4 of 8 tones to trigger

•Burst/steady, slow whoop, siren, mechanical bell,

Klaxon, night ringer, double chime, & doorbell tones

•Momentary & continuous playback modes

•Microprocessor-controlled

•Priority assignable

•Mute send & receive

•Screw terminal trigger connections

LINE/MIC INPUTS - LMM1S, LMR1S

Actively Balanced Emulated Transformer Inputs

•Input level controlled

by remote panel or direct

voltage (LMR1S)

•Wall Plate Control included

(with LMR1S only)

•Limiter with LED activity

indicator (LMR1S)

•Line/MIC gain switch

•Gain/Trim control

•Bass & Treble controls

•Noise gate w/threshold control

•Fade back from mute

•24V phantom power

•Priority & bus assignments

•Screw terminal input

•Mutes lower priority modules

•Mutable by higher priority

modules

Accessories

MA3

Module

Adapter

Adapts Modules for use

with D-Series, WMA,

and DPA Amps

Accessories

PRS48

48V DC

Power

Supply

TELEPHONE INPUT - TEL1S

Interfaces to Telephone System's Loop Start/Ground Start Trunks or Paging

Ports

•Loop start or ground start trunk interfacing

•Dry loop interface to paging ports

•Audio-activated paging in dry loop

•Gain/Trim control; Noise gate & Limiter

•Mutes lower priority modules

•Mutable by higher priority modules

•Bus assignable & Transformer-isolated

•Screw terminal connections

www.bogen.com

AMPLIFIERS

ADVANCED INPUT MODULES

LMM1S

MIC1S MIC1X

MIC2S MIC2X

LMR1S

with Remote

Volume Control

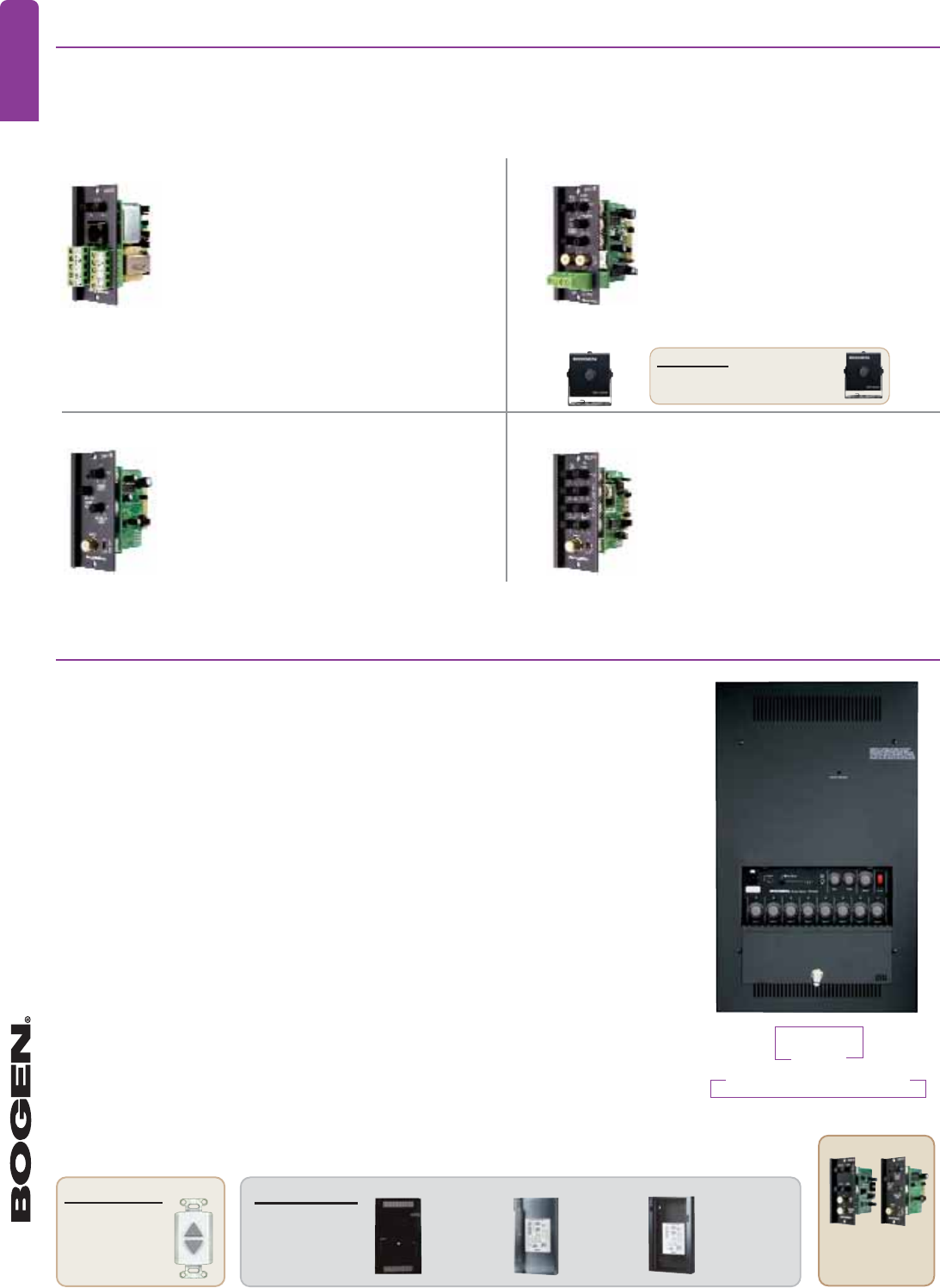

Accessories

RVCP

Remote Volume

Control Panel

Accessories

ANS500M

Sensor Microphone

(One included; additional available)

Components

BBF

Flush-Mount

Back Box

BBS

Surface-Mount

Back Box

WMAD

Front Cover/

Door

NOTE:

These items are

required for installation:

One WMAD, and either

one BBF or one BBS.

Input Modules-

See Page 39;

Output Modules-

See Above

MODULES

PARAMETRIC EQUALIZER - PEQ1R

•2 full parametric bands

•Frequency control

•‘Q’ bandwidth control

•Gain control

•Bass and Treble control

•Unbalanced input

•Bypass switch

•Mutable input (lowest priority only)

•Gradual fade back from mute

•RCA connector

COMPRESSOR/LIMITER - CMP1R

•Compressor Ratio control

•Threshold control

•Make-up Gain control

•Bypass switch

•Unbalanced input

•Gradual fade back from mute

•Mutable input (lowest priority only)

•RCA connector

RELAY INPUT/OUTPUT - RIO1S

•Transformer-isolated, balanced line-level input

•600-ohm or 10k jumper-selectable input impedance

•8-ohm, 750mW output

•Input and output level controls

•Relay responds to selectable priority level

•External control of priority muting

•N.O. or N.C. relay contacts

•Input can be muted from higher priority modules,

with signal fade back

•Output can gate with relay priority level

•Screw terminal strips

•RJ11 connection with line output and dedicated

N.O. relay contact

Signal-Processing Output Modules (Input Modules on Page 39)

Bogen’s plug-in signal-processing output modules automatically insert themselves into the mix bus

signal path leading to the power amplifier stage when installed. (Shipping weight: 1 lb. each.)

Wall-Mount Power Vector Amplifiers

WV100, WV150, WV250

The Wall-Mount Power Vector Series combines up to 8 modular inputs and signal-processing outputs

to meet various application requirements. The amplifier’s convenient and efficient wall-mount design

provides a protected and accessible audio system in a permanent and inconspicuous mounting.

Product Features:

•100-, 150-, and 250-watt models; each with large

power reserve

•8 module input bays, accepts up to 2 signal-

pro

cessing output modules and 8 input modules

•Wide selection of advanced input and signal-

processing output modules

•Four priority levels between modules

•4-ohm, 8-ohm, 25V, and 70V outputs

•Secure, permanent wall mounting (in-wall with

BBF or surface-mount with BBS)

•11-segment LED output level meter registers Peak

or Average output

•Adjustable output level limiter with active indicator

•Front-mounted tape output provides unbalanced

signal level output

•Independent volume controls for each input

•Motorized master volume control, with optional

accessory RVCP for remote operation

•External mute control

•Bass and treble controls with center detent

•125 Hz Low Cut switch

•Tone control bypass switch

•Optionally installable front-mounted input combo

jack with 1/4" stereo phone and female XLR

capabilities for connection to user-supplied

modules

•Thermal, short-circuit, and overload protection

•Thermally controlled 3-speed fan

•Listed to UL Standard 60065 for US and Canada

•Components required for installation:

Door (WMAD) and Back Box (BBF or BBS),

both sold separately

•Modules required, but sold separately

RACK-MOUNTABLE

version

on Page 38

AMBIENT NOISE SENSOR - ANS1R

•Maximum Gain control

•Ramp Speed control

•Activity Threshold control

•Ambient MIC input threshold control

•Stereo AUX input (summed mono)

•AUX level input control

•Gradual fade back from mute

•Connect up to 4 sensor mics (1 included)

•Mutable input (lowest priority only)

•RCA connectors

www.bogen.com

AMPLIFIERS

ADVANCED OUTPUT MODULES

MODULAR AMPLIFIERS

Technical Specifications, Dimensions,

and Weights can be found on Page 79

ANS1R

with Sensor

Microphone

Dual Band EQ

The unique dual-function equalizer can be

used for acoustic shaping or for feedback

control.

•Acoustic Shaping - Full range equaliza-

tion is provided for correcting general fre-

quency response issues that exist in the

application venue. The full audio spectrum

is covered on 1-octave centers with a

boost/cut of 12 dB. In this mode, the equal-

izer can be used to compensate for room

acoustics, or to satisfy the listening prefer-

ence of the user.

•Feedback Control - In this mode, the

equalizer’s control range is reduced to cover

only the lower half of the audio spectrum

(where feedback howls occur), but the indi-

vidual filters are now on closer 2/3-octave

spacing. This allows narrower bands of fre-

quencies to be controlled, which is particu-

larly useful to reduce feedback of live

sources that can increase the effective loud-

ness the system can achieve.

Variable Music Mute

This feature allows control over the level of

background music (fed though the AUX

inputs) heard during a telephone page

announcement. The convention used to be to

completely mute background music during

pages. The Gold Seal Series amplifiers pro-

vide full muting as well as no muting and in-

termediate attenuation levels of –10 dB and

–21 dB. After the telephone page has ended,

the background music smoothly fades back

to its original level for a very professional

sound.

Telephone Paging Control

Input 5 serves a dual function as either a

balanced MIC input or a 600-ohm balanced

telephone input. The TEL input includes

both voice-activated triggering for muting

the AUX inputs and automatic level control

for providing constant paging level. ALC

compensates for different voice levels and

speaking styles of the individuals using the

system. Controls are provided on the rear of

the amplifier to adjust trigger threshold of

the voice-activated muting so that it will not

falsely trigger from noise on the input. An

ALC adjustment is also provided to allow

control over the amount of compression ap-

plied to loud signals to keep them at a nom-

inal signal level.

Audio Enhancement

Crisp, clean, intelligible sound is the goal of

every paging system. The audio enhance-

ment circuit adds back the high frequency

harmonics that are lost through the hand-

sets and speakers. With one simple control,

you can adjust the amount of high fre-

quency content the audio enhancement

circuit adds back until optimum intelligibil-

ity is reached.

Product Features:

•35-, 60-, 100-, 150-, and 250-watt models

•7 inputs: 4 MIC (Lo-Z), 1 AUX (Hi-Z),

1 MIC/TEL, 1 MIC/AUX

•4-ohm, 8-ohm, 25V, 25VCT, and 70V outputs

•Dual-function, 10-band graphic equalizer

(acoustic EQ/feedback control)

•True loudness contour function

•

Audio enhancement circuitry

•Automatic level control

•Switchable phantom power supply (15V DC)

•Variable AUX input muting

•Remote master volume control capability

•Input muting via contact on all inputs

•Voice-activated AUX muting on TEL input

•AUX fade-back after TEL page

•Pre-amp out/power amp in connections

•Booster amp output connection

•Tape output connection

•Low Cut filter for MIC channels

•Thermal and overload protection

•3-speed cooling fan (GS250 only)

•Rack-mountable w/accessory mounting

kit (2 rack spaces)

•Listed to UL Standard 60065

for US and Canada

Gold Seal Series amplifiers were designed with the sound contractor in mind,

offering professional performance and installation convenience. Each Gold

Seal Series amplifier offers a unique combination of built-in features, ultra-high

reliability, and extensive input flexibility and input options.

Accessories

GSTRC

Tamper-Resistant Cover

GSRPK

Rack Panel

Mounting Kit

GSRVC

Remote Volume

Control

WMT1A

Line-Matching

Transformer

www.bogen.com

AMPLIFIERS

Gold Seal Series Amplifiers

GS35, GS60, GS100,

GS150, GS250

PUBLIC ADDRESS AMPLIFIERS

Technical Specifications, Dimensions,

and Weights can be found on Page 79

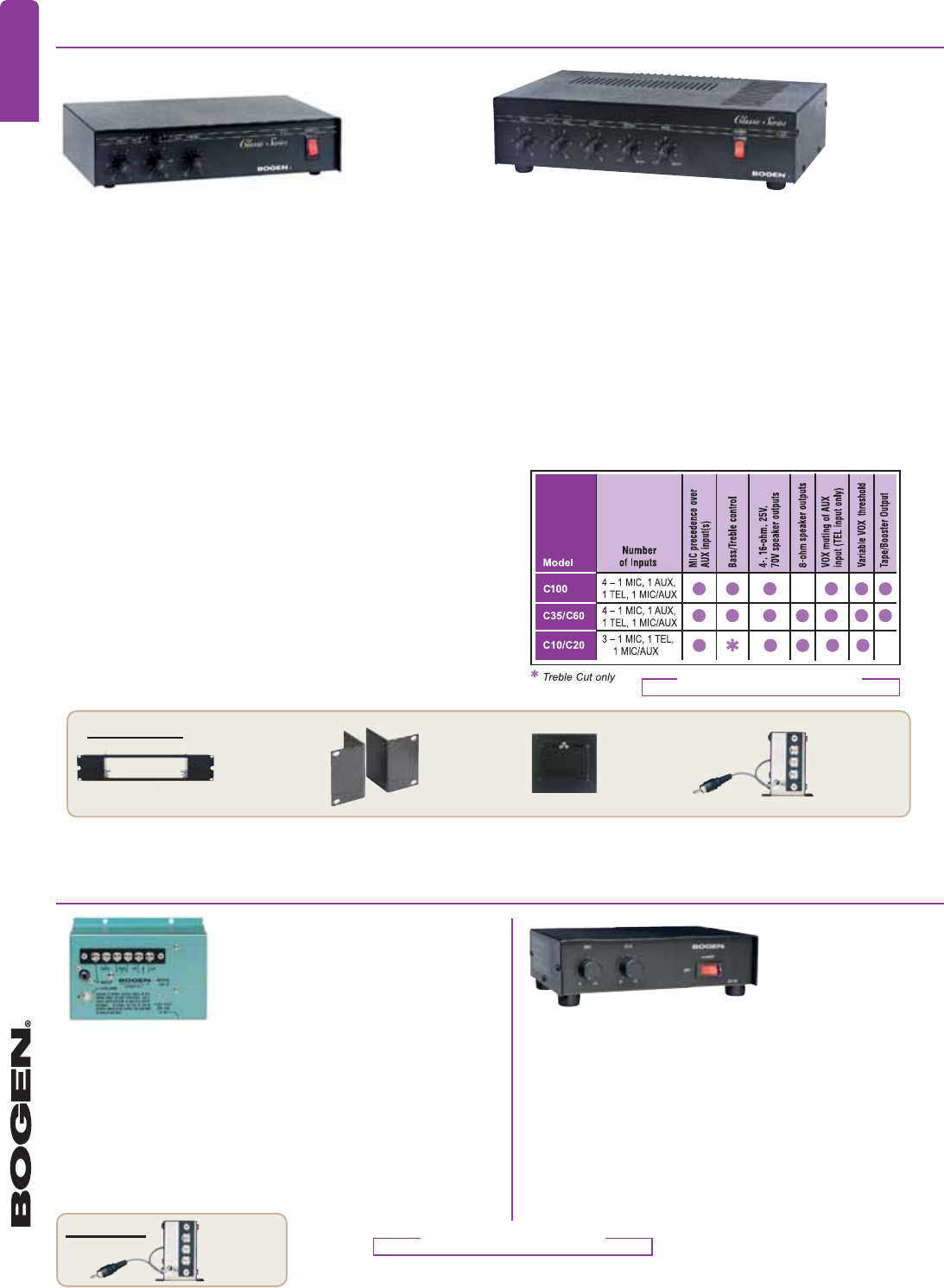

Utility

Amplifier

GA6A

Utility

Amplifier

GA2

Product Features:

•6-watt utility amplifier

•2 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z)

•8-ohm, 25V, or 70V outputs

•30 Hz - 12 kHz frequency response

•Sensitivity: 0.3 mV, MIC; 0.2V, AUX

•Adjustable tone control

•Thermal and over-current

circuit breakers

•16W power consumption

•Listed to UL Standard 60065

for US and Canada

The GA6A is a dual-input amplifier with a wide variety of smaller

applications including background music, relaying communication

from one room to another, or sound reinforcement.

Product Features:

•1.5-watt utility amplifier

• 1 input: AUX (Hi-Z)

•8-ohm or 600-ohm outputs

•200 Hz - 15 kHz frequency response

•50 mV sensitivity

•Volume control

•120V AC operation

•4W power consumption

•5-1/2 ft. AC power cord included

•Wall-mountable design

•Listed to UL Standard 60065

for US and Canada

The GA2 is a rugged, compact amplifier designed to meet the requirements

of continuous low-power audio applications, especially telephone line

"music-on-hold" amplification; to drive monitor speakers and headphones;

or as a line amplifier.

Accessories

WMT1A

Matching

Transformer

RPK35B

Rack Panel Kit

(for C10 and

C20 models)

Accessories

Product Features:

•35-, 60-, and 100-watt models as well as 10- and 20-watt models

•4 inputs (C35/60/100 models): 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL,

plus 1 selectable MIC or AUX

•3 inputs (all C10/C20 models): 1 MIC (Lo-Z), 1 TEL,

plus 1 selectable MIC or AUX

•AUX muting w/ external contact closure or automatic w/ TEL

•TEL input voice-activated (VOX) mute over AUX input

•Variable threshold for voice-activated AUX mute

•Separate volume controls for each input plus overall bass and

treble (C35/60/100 models) or tone (all C10/20 models)

•Outputs for 4-ohm, 8-ohm (not C100 model), 16-ohm, 25V,

and 70V speaker systems

•Screw terminal connection for microphones

•Input Sensitivity: 600 µV, MIC; 85 mV, AUX; 75 mV, TEL

•Thermal protection and electronic shutdown

•Record output jack (C35/60/100 models only)

•Easy-to-understand and easy-to-operate controls

•Rack-mountable w/ accessory mounting kit (2 rack spaces)

•Listed to UL Standard 60065 for US and Canada

C35, C60, C100C10, C20

The Classic Series mixer amplifiers provide mixing of microphones, telephone, and auxiliary sources.

Bogen’s Classic Series amplifiers offer high performance, flexibility, and reliability for most applications

requiring a variety of inputs.

RPK50

Rack Panel Kit

(for C35/60/100

models)

WMK1

In-Wall

Mounting Kit

(for C10 and

C20 models)

WMT1A

Matching

Transformer

Technical Specifications, Dimensions,

and Weights can be found on Page 79

Technical Specifications, Dimensions,

and Weights can be found on Page 79

Classic Series Amplifiers

www.bogen.com

AMPLIFIERS

PUBLIC ADDRESS AMPLIFIERS

UTILITY AMPLIFIERS

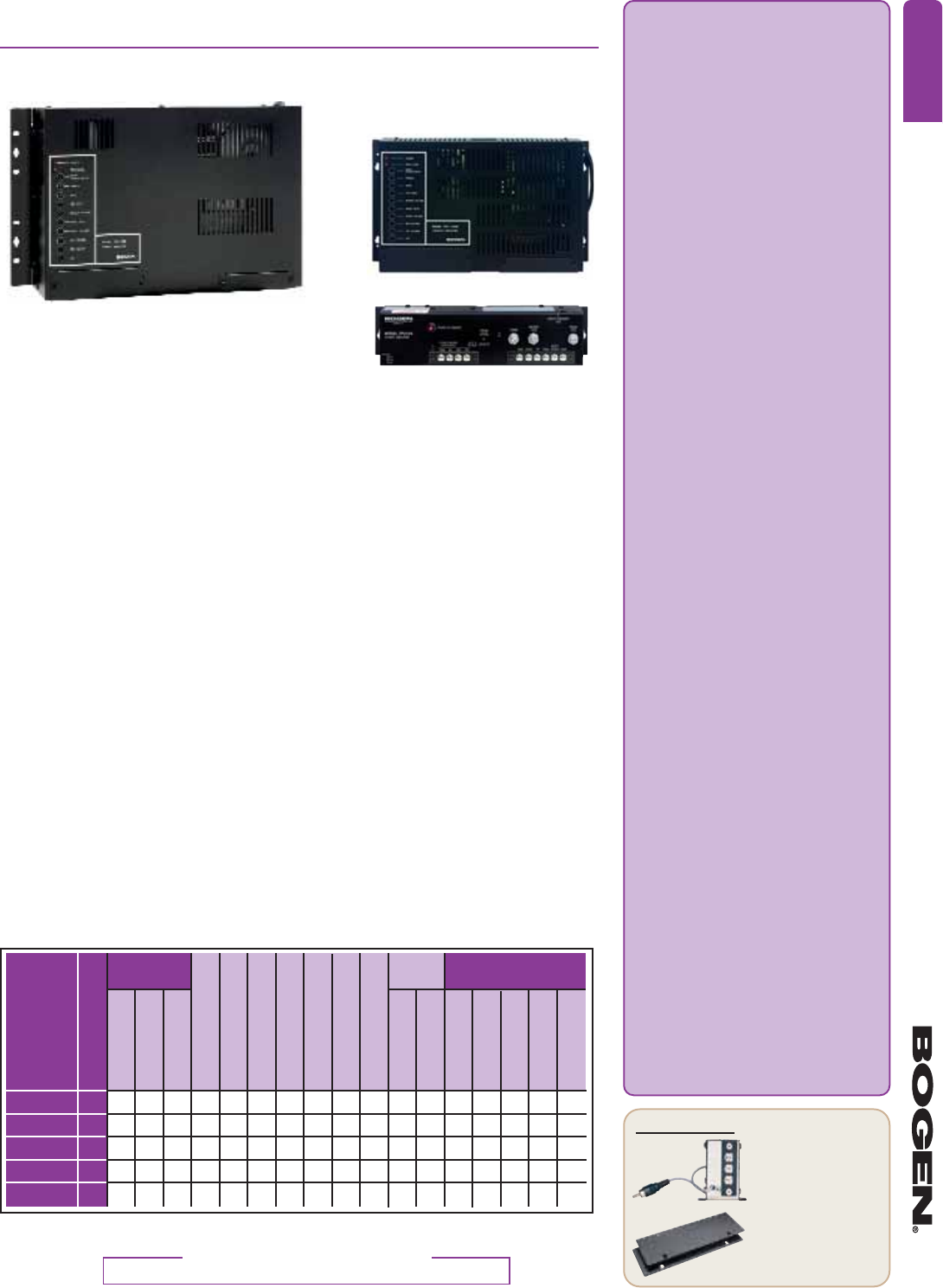

Accessories

Specialized Telephone Input

The TPU-Series’ 600-ohm transformer bal-

anced input is perfectly suited to connect to

paging ports and paging adapters such as

Bogen’s TAMB2. Here are a few specially

designed features:

• The background music will mute when-

ever paging activity is present on the

telephone input, even if control contacts

are not available. (Separate mute control

contacts are also available.)

• To avoid problems with noise on the lines

falsely muting the background music, a

built-in VOX threshold control (not on

TPU15A) lets you decide what’s a real

signal and what’s noise.

• Because not everyone speaks at the same

level, the Automatic Level Control

feature keeps loud voices from booming

out of the paging system’s speakers.

Audio Enhancement

Crisp, clean, intelligible sound is the goal of

every paging system. The audio enhance-

ment circuit adds back the high frequency

harmonics that are lost through the hand-

sets and speakers. With one simple control,

you can adjust the amount of high fre-

quency content the audio enhancement cir-

cuit adds back until optimum intelligibility

is reached.

Variable Music Mute

Add some polish to announcements by

using the TPU’s built-in variable mute fea-

ture. Variable mute allows you to control the

level of the music heard in the background

during a page. It’s fully adjustable from no

muting of music to full suppression of

music. The TPU also gracefully fades the

muted music back in after the page is fin-

ished for a smooth, professional sound (not

available on TPU15A).

Bridging

Bridging two TPU amplifiers permits them

to be used in tandem with one another to

increase the total output power of the sys-

tem, thereby permitting additional speak-

ers to be added. For example, when two

250-watt amplifiers are bridged, the total

output capacity of the system is 500 watts.

Also, both amplifiers will receive the same

input signal, amplify it, and deliver it to the

speaker loads connected to each

amplifier (not available on TPU15A).

RPK82

Rack Mounting Kit

(TPU-Bs only)

WMT1A

Line-Matching

Transformer

TPU250 TPU35B, TPU60B,

TPU100B

Bogen’s TPU-Series of amplifiers are the ideal choice within the telephone paging industry.

With five models to choose from, ranging in power from 15 watts to 250 watts, each model

provides signal-activated, automatic muting of background music during a telephone page,

and gradual return of music following a page.

Product Features:

•15-, 35-, 60-, 100- and 250-watt models

specially designed for telephone

paging systems

•3 inputs on TPU250 and TPU-B models:

1 TEL, 1 MIC (Lo-Z), 1 AUX (Hi-Z)

•2 inputs on TPU15A: 1 TEL, 1 AUX (Hi-Z)

•600-ohm balanced TEL input for direct

connection to page ports and adapters

•TEL input has Automatic Level Control

(ALC) for constant page announcement

level

•Separate MIC input for a low-impedance

push-to-talk microphone (excluding

TPU15A model)

•Audio enhancement circuitry (excluding

TPU15A model)

•Music input – mutable by external contact

closure (excluding TPU15A model) or

activity on TEL input

•Separate volume controls for mic, paging,

background music, and night ringer

•Built-in night ringer can be activated from

90V ring signal (excluding TPU15A model)

or external contact closure

•25V and 70V constant-voltage outputs,

balanced and unbalanced; also 8-ohm

on TPU15A

•Wall-mount design provides minimum

protrusion from backboard

•TPU-B models may be rack-mounted using

RPK82 rack mounting kit (sold separately)

•TPU15A & TPU250 designed to rack

mount directly, no kit necessary

•Easily accessible, recessed front-panel

controls (excluding TPU15A model)for

setting volume, muting, music, etc.

•RCA jacks provided to allow amplifier

bridging to double the number of amplifier

inputs and outputs (excluding TPU15A

model); a TPU250 can only be bridged

with one other TPU250

•Thermal and electronic overload protection

(excluding TPU15A model), resettable circuit

breaker (except TPU250), Slo-Blo fuse

on TPU250

•Listed to UL Standard 60065

for US and Canada

Model

TPU250 250 ●●●●●●●●●●●●●●

TPU100B 100 ●●●●●●●●●●●●●●● ●

TPU60B 60 ●●●●●●●●●●●●●●● ●

TPU35B 35 ●●●●●●●●●●●●●●● ●

TPU15A 15 ● ● ● ● ● ● ● ●

Output Power (Watts)

Telephone

Music

Microphone

Adjustable Mute Threshold

Automatic Level Control

Bass/Treble Controls

Peak Level LED

Adjustable Mute Level

Fade Back From Mute

Audio Enhancement

90V Activation

Contact Closure

70V

25V

25VCT

8 Ohms

16 Ohms

Inputs Night

Ringer Outputs

Technical Specifications, Dimensions,

and Weights can be found on Page 79

✱

✱Treble Cut only

TELEPHONE PAGING AMPLIFIERS

www.bogen.com

AMPLIFIERS

TPU100B shown

TPU15A

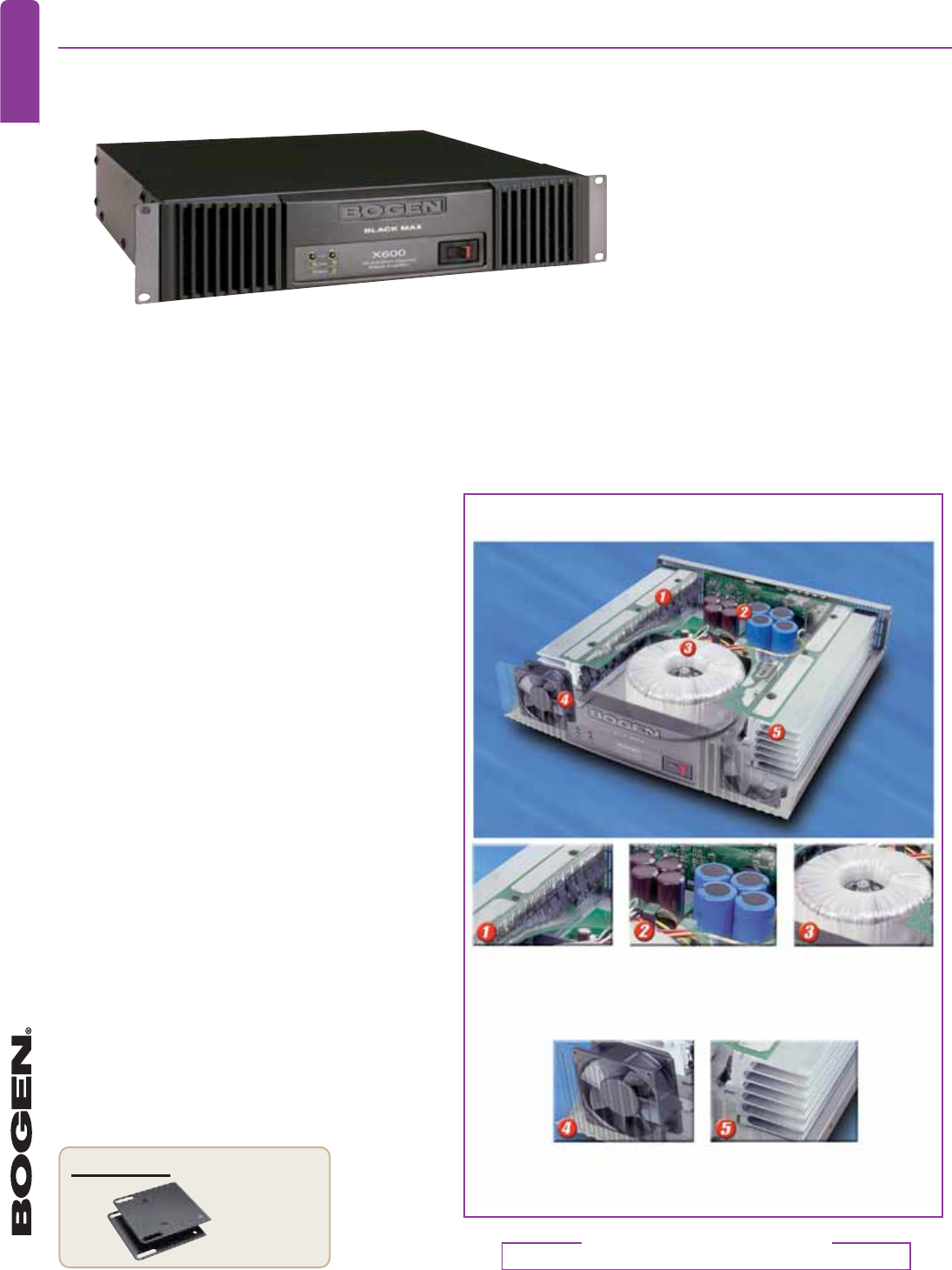

Product Features:

•Dual 70V amplifier channels

•300W, 450W, or 600W per channel for 70V

speaker systems

•Low noise, low distortion, and high slew rate

•High-efficiency class H amplifier design

•Transformerless direct drive outputs

•Electronically balanced high-impedance inputs

•Pluggable terminal strips for input connections

•Independent Low Cut filters for each channel

•Built-in power sequencing with other Black Max

amplifiers

•Pluggable terminal strip for sequencing wiring

•Rear panel power sequencing status indicator

•DC, overload, short circuit, and thermal

protection circuits

•Clip limiting circuits for speaker protection

•Power-saving sleep mode for intermittent

use applications

•Status, Signal, and Limit indicators

•Back-Slope AC voltage stabilization for dependable

performance over varying AC line voltages (±10%)

•Heavy-gauge steel chassis with cast aluminum

front panel

•Rear-mounted volume controls

•Mounts in 2 rack spaces (3-1/2") directly stackable

without need for extra space above or below

•2 independent, continuously variable cooling fans for

dependable and quiet operation

•Easily removable front fan grilles with filters

•Listed to UL Standard 60065 for US and Canada

Bogen's Black Max amplifiers are designed to provide maximum performance in constant voltage speaker systems. Dual 70V

transformerless outputs deliver exceptionally clean audio to speaker systems requiring two channels of audio up to 600W

per channel in a single package. High-efficiency class H amplifier design and the auto-sleep feature aid in reducing power

consumption on continuously-powered systems. Rear-mounted volume controls, independent low cut filters on each input,

and pluggable input terminal strips were specifically designed for the fixed install market. Built-in power sequencing for multiple

Black Max amplifiers combats current in-rush problems of large audio systems. Massive power toroid and heat sinks;

heavy 14-gauge chassis; patented Back-Slope™AC voltage stabilization; clip limiters; and DC voltage, over-current,

and thermal protection circuits make the Black Max both an efficient and reliable workhorse amplifier.

Black Max™Power Amplifiers

X300, X450, X600

Accessories

RPK86

Rear Rack

Mounting Kit

Inside the Black Max™X600

14 Large Output Transistors

Per Channel for

Extra Reliability

74,600µf of Capacitance

Creates Enormous Amounts

of Reserve Energy

Two Independent Variable

Speed Fans Provide for

Quiet Cooling

Two Custom Extruded Heat

Sinks Provide Heat Transfer

from Output Transistors

The Black Max™Transformer

Weighs in at 17 lb. with

2 kVA of Power

www.bogen.com

AMPLIFIERS

DUAL-CHANNEL POWER AMPLIFIERS

Technical Specifications, Dimensions,

and Weights can be found on Page 79

Modular Amplifier

The M-Class Series of amplifiers are mod-

ular amps that can accept up to two input

modules per unit. These modules offer a

cost effective and convenient way to add a

variety of features to a system. A balanced

line input module (BAL2S) is shipped with

each unit. See page 39.

Modes of Operation

Each model includes a 3-position switch

that can be set to one of three modes of

operation: Stereo mode, 70V Mono mode,

or Dual Mono mode.

• Stereo

In this mode, the amp supplies two inde-

pendent channels of low-impedance

amplification. These channels can be used

to supply left and right audio for stereo

installations of 2 separate zones of ampli-

fication with different audio programs.

• 70V Mono

In this mode, the amp supplies a single

channel of amplification. This mode also

mixes the signals from each input module

into a mono program. By assigning each

module to a different bus, a 2:1 mixer is

formed with the front-mounted level con-

trols adjusting the mix. In addition, one

module can be set to mute the other when

it is active, thereby providing an effective

paging system.

• Dual Mono

This mode is similar to the 70V Mono

mode except that in this mode the amp

supplies two channels of low-impedance

amplification. This mode still mixes the

input signal from the different modules

but a Channel Balance control is provided

to adjust the output levels of one channel

against the other.

Accessories

RPK86

Rear Rack

Mounting

Kit

Input Modules-

See Page 39

MODULES

M-Class Amplifiers

M300, M450, M600

Bogen's M-Class amplifiers provide professional sound installers with exactly what they

need from an amplifier: 3 modes of operation — stereo (4-ohm), 70V mono, dual mono

(4-ohm); 2 bays for a variety of input modules; up to 600W/ch stereo (4-ohm) or 1200W

of 70V mono power; massive power toroid and heat sinks; heavy 14-gauge chassis;

patented Back-Slope™AC voltage stabilization; clip limiters; and DC voltage, over-

current, and thermal protection circuits.

Product Features:

•3 Mono power levels: 600W, 900W,

or 1200W for 70V speaker systems

•3 Stereo power levels: 300W, 450W, or

600W per channel @ 4 ohms

•3 Modes of operation to choose from:

Stereo (4-ohm), Dual Mono (4-ohm),

or 70V Mono

•2 Module input bays for flexible modular

input capability

•Low noise, low distortion, and high slew rate

• Professional, high-impedance, balanced

stereo input module included (BAL2S)

•3 Selectable low-frequency roll-off choices

•2:1 Mixer function when in mono modes

•Insert connections for outboard equipment

(in mono modes)

•Post- and Pre-EQ Output Feeds (summed

mono out in stereo mode)

•DC, overload, short circuit, and thermal

protection circuits

•Clip limiting circuits for speaker protection

•Power-saving Sleep Mode for intermittent use

•Status, Signal, and Clip/Limit indicators

•Back-Slope AC voltage stabilization for

dependable performance over varying

AC line voltages

•Recessed volume control knobs

(behind cover)

•Mounts in 2 rack spaces (3-1/2") directly

stackable

•2 Independent, continuously variable

cooling fans

•Easily removable front fan grilles with filters

•Stable into 2-ohm loads

• Listed to UL Standard 60065

for US and Canada

Operational Mode Selector -

Choose one of three settings to meet

application needs: 70V Mono, Dual

Mono (4-ohm), or Stereo (4-ohm). See

the sidebar on this page for descrip-

tion of operating modes.

Channel Balance Control

(in Dual Mono operation mode) -

Allows the output level of one

channel to be lower than the other

channel’s output level.

Effects Loop - Provides insert

point for outboard signal-process-

ing equipment when the amplifier

is in either 70V Mono or Dual

Mono modes (modular inputs are

in a 2:1 mixer configuration).

Output Feeds -In mono modes, the

connectors provide output signal feeds

both before and after any outboard

signal-processing. In stereo mode,

the Pre-EQ connector provides mono

mix output of the stereo input signal.

Low-Impedance Outputs -

For 4- to 8-ohm speaker

loads. Unit is stable into

loads as low as 2 ohms.

Cooling Fans -Two independent,

variable-speed cooling fans respond

only as needed to keep the ampli-

fiers cool and reduce dust build-up.

70V Speaker Output -

For 70V constant voltage

speaker systems. Provides a

single channel of amplification.

Module Bays - The unit can accept one or

two Bogen input modules. Each amplifier

comes with a balanced, high-impedance

stereo input module.

Low Cut Filter Switch - Select a low-fre-

quency roll-off of 65 Hz or 125 Hz for

transformer-coupled and horn speakers.

Flat position allows full low-frequency

performance.

Rear Panel

PVMC

Module

Security

Cover

www.bogen.com

AMPLIFIERS

DUAL-CHANNEL POWER AMPLIFIERS

Technical Specifications, Dimensions,

and Weights can be found on Page 79

Product Features:

•125- and 250-watt models

•Convection-cooled

•Power MOSFET output circuitry

•Thermal protection and automatic

electronic overload protection

•Hi-Z unbalanced and Lo-Z balanced or

unbalanced input w/accessory trans-

former (TL600)

•Internal Low Cut filter switch

•90 dB signal-to-noise

•

4- and 8-ohm, 25V, 25VCT and 70V outputs

•Input sensitivity: Hi-Z, 500 mV; Lo-Z,

150 mV (HTA125A), 150 mV (HTA250A)

•Power Consumption: 260W (HTA125A);

520W (HTA250A)

•Line bridging (driving multiple amplifiers)

is possible w/ an accessory transformer

(TL100)

•19" rack-mount design (3 rack space

•Listed to UL Standard 60065

for US and Canada

Technical Specifications, Dimensions,

and Weights can be found on Page 79

Heavy-Duty Operation

The HTA line of amplifiers are designed to

be workhorses. Large heat sinks and huge

transformers allow these amplifiers to sup-

ply continuous, full (RMS) power to loads,

even at high ambient temperatures. The

HTA amplifiers are convection-cooled, so

they provide the ultimate in set-and-

forget operation.

More amazing than the heavy-duty capa-

bility of the HTA amplifiers is the quality of

the output. The frequency response will

remain within +/- 1 dB and have less than

0.5% distortion over the entire audio range

(20 Hz – 20 kHz). What is so special about

this? The output is transformer-coupled.

Few transformer-isolated amplifiers can

even come close to these specifications.

An enormous output transformer using

proprietary coil winding techniques is what

allows the HTA to reach this level of

performance.

A Power MOSFET output stage completes

the extremely reliable and durable per-

formance of these amplifiers. This type of

transistor does not suffer from many of the

failure modes of the more typical transis-

tors (bi-polar types). The result is an

amplifier that can operate reliably at full

power and supply transformer-isolated,

high-quality, full bandwidth (20 Hz –

20 kHz) audio.

HTA125A,

HTA250A

The HTA Series high-performance power amplifiers can safely drive loads continuously

at full (RMS) power. Overload protection includes an electronic shutdown circuit and

a thermal breaker.

Accessories

TL600

600-ohm

Impedance-Matching

Transformer

TL100

1:1 Bridging

Transformer

WMT1A

Matching

Transformer

www.bogen.com

AMPLIFIERS

MONO-CHANNEL POWER AMPLIFIERS

MONO-CHANNEL POWER AMPLIFIER

BPA60

Product Features:

•60 watts

•1 input: Hi-Z unbalanced

•Lo-Z balanced input with accessory

transformer

•Input level control and

Low Cut filter switch

•8-ohm/25V, 16-ohm, 25VCT, and

70V outputs

•Sensitivity: 300mV, Hi-Z; 75mV, Lo-Z

•Resettable circuit breaker and thermal

protection

•Operates with 25V and 70V systems

•120V AC, 60 Hz, 180W @ full rated

output

•Rack-mountable with accessory

mounting kit: RPK53 (2 rack spaces)

•Listed to UL Standard 60065

for US and Canada

Accessories

The BPA60 supplies 60 watts of power amplification for professional

and commercial sound systems requiring continuous high-quality sound.

TL600

600-ohm

Impedance-Matching

Transformer

TL100

1:1 Bridging

Transformer

RPK53

Rack

Panel Kit

Technical Specifications, Dimensions,

and Weights can be found on Page 79

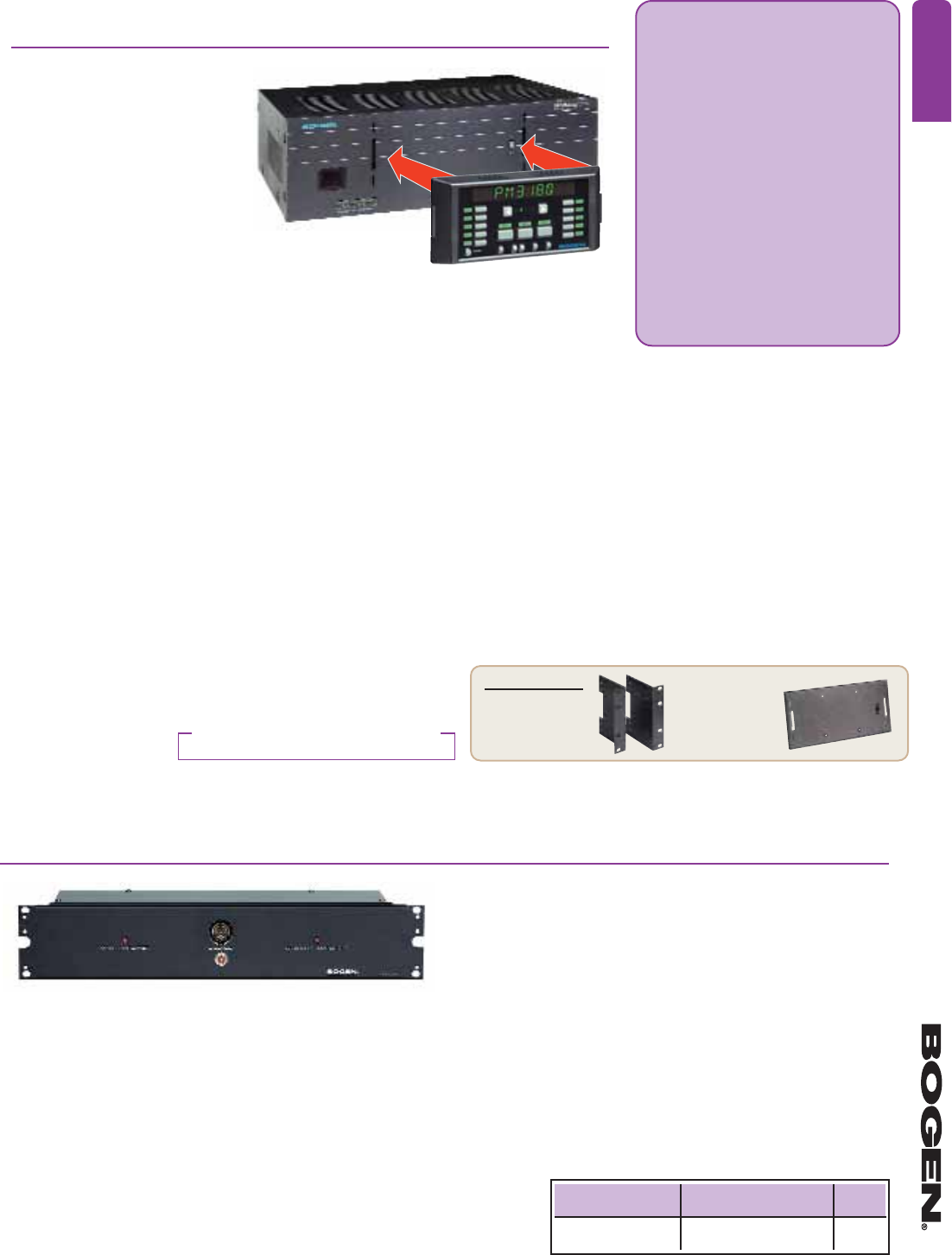

AMPLIFIER MONITOR

Product Features:

•Monitors both main and standby power amplifiers

•40 kHz Supervision frequency

•Automatically transfers operation to standby

power amplifier

•LEDs and fault alert tone notify user of a 2 dB (adjust-

able up to 12 dB) drop in either amplifier’s output

•Automatically restores operation to main power

amplifier when problem is corrected

•Operates with 25V or 70V systems

•Screw terminal or phono jack connections

•Rear-panel adjustable controls for oscillator

levels and detector sensitivities

•Rack-mountable

The AFDS2 continuously supervises the operation of any main power amplifier and its standby amplifier in a sound system. If a fault

is detected on the main amplifier causing a loss of as little as 2 dB, the AFDS2 automatically switches operation to the standby

amplifier. When the fault to the main amplifier is corrected, operation is automatically switched back to the main amplifier.

Accessories

What Does The Pro-Matrix Do?

The Pro-Matrix Amplifier is ideally suited

for restaurants and similar venues.

It provides 4 AUX and 2 MIC inputs that

can be distributed into 3 different zones.

The Pro-Matrix automatically switches the

different audio sources based on a preset,

user-programmed priority hierarchy. This

allows the correct audio to reach the correct

areas without any user intervention, mak-

ing operation ultra simple.

In addition to flexible priority assignment of

inputs, the Pro-Matrix has 10 different menus

that allow control of a host of system opera-

tions from applying phantom power to mics

to setting the muting level of music during

mic pages and much more.

RPK79

Rack Mount Kit

RMPWMK3

Remote Wall

Mounting Kit

for Removable

Front Panel

Digitally Matrixed

Amplifier

PM3180

Automatic Failure

Detector/Substitutor

AFDS2

The Pro-Matrix was developed expressly for the needs of restaurants, lounges, fitness

centers, and other venues that require numerous input sources but have areas with

distinctly different audio requirements. The Pro-Matrix amplifier provides 3 fully

independent audio channels that can use any of the 6 different inputs in vastly

different ways.

Product Features:

•3 Independent amplifier channels

•100-, 60-, and 20-watt amplifier channels

•8-ohm, 70V, and 25V transformer-coupled

outputs

•4-ohm direct output

•Audio inserts for connection to external

signal-processing equipment

•Auto-switching of inputs based on custom

assigned priorities and input audio activity

•4 High-impedance, unbalanced auxiliary

inputs

•2 Microphone inputs; one input can be

programmed to accept a telephone line

for paging

•Volume, bass, and treble controls for each

audio channel

•Wireless infrared remote control unit

•Detachable front panel can be mounted up

to 25 ft. away from main unit using included

accessory cable or up to 250 ft. with an

optional

mounting kit (RMPWMK3)

•Phantom power for microphones

(13V DC), selectable

•

Rack-mountable with accessory kit (RPK79)

•Listed to UL Standard 60065 for

US and Canada

Installer Programmable

Features:

•Large 10-character alphanumeric display

with prompted programming for quick setup

•Password-protected system settings for

consistent, foolproof operation

•6 user-assigned priority levels for inputs

•Each input can be assigned different priority

levels for each of the 3 output channels

•Volume and tone control lockout, independ-

ently on each audio channel

•Configure microphone input (ALC, phantom

power, VOX or contact triggered)

•Programmable variable music mute levels

during MIC or TEL page

•Preset bass and treble response of each

input for each audio channel

Removable front panel for

optional wall mounting

www.bogen.com

AMPLIFIERS

PRO-MATRIX AMPLIFIER

Technical Specifications, Dimensions,

and Weights can be found on Page 79

Product

Power Requirements Dimensions Weight

8 lb.

120V AC, 15W

or 12V DC @ 0.5A

19" W x 3-1/2” H x 7-1/2" D

ALL MODULES

SOLD SEPARATELY

Accessories

Flexible Output Levels

The VMIX was designed to make connec-

tions to other sound system components

easy as possible. Its transformer-

balanced output provides ground loop iso-

lation and high noise immunity when con-

nected to other balanced inputs of

downstream components. This output

can provide 3 distinct output voltage ranges

to accommodate just about any input type

from a microphone input at -50 dBµ to a

professional audio input requiring +4

dBµ, as well as a more common commer-

cial level of -10 dBµ. Setting the proper

output range is as easy as moving a slide

switch. The VMIX provides a separate un-

balanced RCA output, which makes sim-

ple equipment interconnects a snap.

Signal-Processing Modules

When signal-processing output modules are

installed into the Power Vector's last

two module bays, they automatically insert

themselves into the mix bus signal path lead-

ing to the output stage. When two of these

output modules are installed, their effects are

cascaded with the second to last bay's module

processing the signal first and then passing it

to the module in the last bay. Two benefits are

gained by this innovation: (1) the effects in-

sert jacks are still available for use by external

processing equipment, (2) the signal-pro-

cessing output modules act on the signal on

the raw mix bus signal before any other user

controls, like master volume, bass, and tre-

ble can affect it. This then ensures that sig-

nal level dependent processors, such as the

CMP1R Compressor/Limiter and the

ANS1R Ambient Noise Sensor modules,

perform as intended regardless of front

panel control changes.

PVMC

Module

Security Cover

PVSC

Power Vector

Security Cover

RVCP

Remote Volume

Control Panel

RPK87

Rack

Mounting Kit

Power Vector Mixer

VMIX

This 8-channel Power Vector mixer/pre-amplifier offers a wide variety of operational

features and functions for superior audio performance. Eight module bays accept

plug-in modules, allowing up to four levels of priority between modules. Security covers

for both the front and rear of the unit prevent tampering with settings. For large

applications, several Power Vector Mixers can be bridged together.

Product Features:

•Wide selection of plug-in modules

(sold separately)

•8 module bays

•

2 module bays capable of handling signal-

processing plug-in output modules

•4 levels of priority between modules

•8 inputs, with independent volume

controls for each

•LED signal/clip indicator for each channel

•Bass and treble controls

•11-segment LED output level meter

monitors the output level of the mixer

with Avg./Peak switch

•Balanced transformer-isolated output

•Balanced output signal level switch

(-50, -10, and +4 dBµ)

•Unbalanced signal output jack

•Join multiple Power Vector mixers

together using bridging jack and

mute terminals

•Motorized master volume control that

can be remotely operated (with RVCP

Remote Volume Control Panel,

sold separately)

•125 Hz Low Cut feature (switch located

in module bay 6)

•Tone control bypass switch (located in

module bay 6)

•Module security cover prevents tampering

with module controls (PVMC, 8 included)

•Resettable circuit breaker

•Grounded, unswitched AC convenience

receptacle with a 500W maximum

capacity provided for external

equipment

•Power indicator

•Rack mountable (rack mounting kit

RPK87, sold separately)

•Security cover to protect front controls

and allow access to installer selected

controls (PVSC, sold separately)

•Listed to UL Standard 60065

for US and Canada

Input & Signal-

Processing Modules-

See Pages 39 & 40

MODULES

AMPLIFIED

VERSIONS

Pages 38 & 40

www.bogen.com

MIXERS

MODULAR MIXER

Rear View

Signal-To-Noise

Ratio

-99 dB,

fundamental

Dimensions

17-1/4" W

3-7/8" H

14-3/4" D

Product

Weight

15 lb.

Output

Impedance

100 ohms, unbalanced;

50 ohms @ +4 dBμ,

600 ohms @ -10 dBμ,

5 ohms @ -50 dBμ,

balanced

Frequency

Response

±1 dB

(20 Hz-20 kHz)

balanced-out

Output Level

Meter

11 Segments

Technical Specifications:

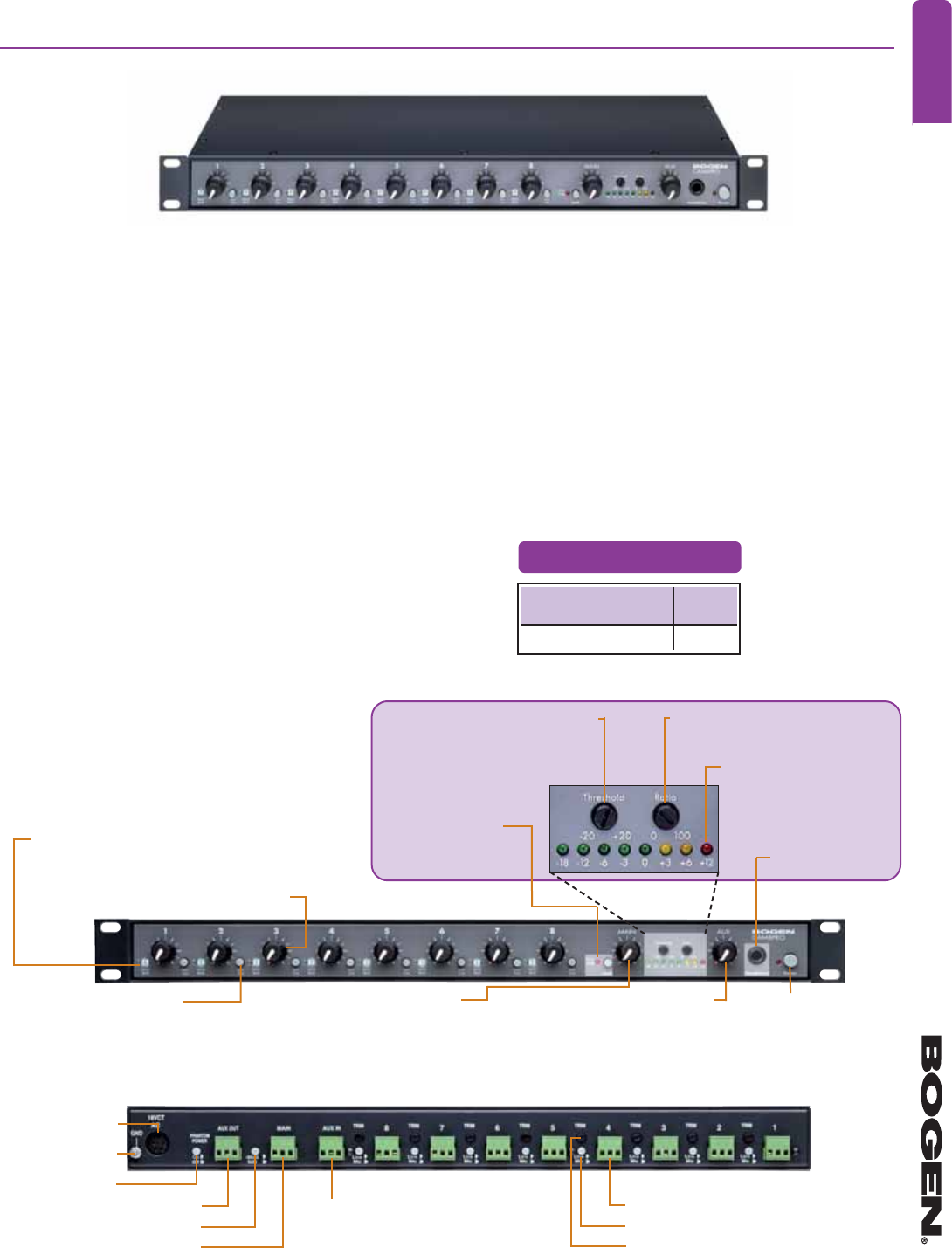

Product Features:

•8 independently assignable inputs

•Dual-bus design with Main/AUX output selector

for each input

•Pluggable terminal strip connections

•Separate Auxiliary input

•Balanced inputs and outputs

•Direct bus connection for cascading multiple mixers

•MIC/Line switch for each input and Main output

•Gain/Trim Control for each input

•Low Cut Filter for each input

•Switchable Phantom Power for condenser MIC inputs

•Input Level Control knob for each input

•Output Level Control knob for Main and AUX outputs

•Heavy-duty construction

•External power supply included

•Single-rack space design

•Compressor/Limiter (Main output)

•Compressor/Limiter Bypass switch

•Adjustable Threshold and Ratio Controls

•LED Bar Graph Output Meter (Peak or Average)

•Headphone Output

The Bogen CAM8PRO is an 8-input, dual-bus MIC/Line mixer that combines superb performance with a generous array of simple-to-

use features in a single rack space design. It features 8 independently assignable inputs switchable between MIC and Line. Each

input has a trim control, a switchable low cut filter, and a Main/Auxiliary bus output selector. Phantom Power can be universally

applied to all MIC-selected inputs for condenser microphones. The CAM8PRO also features a built-in Compressor/Limiter with

adjustable Threshold and Ratio Controls, a Bar Graph Output Meter that indicates input signal levels, and a headphone jack.

Front Panel

Rear Panel

AC Power Jack

Ground Connection

Phantom Power

Switch

Main/Auxiliary Bus Selector (one per channel)

Allows an input to be routed to Main, AUX, both, or neither.

Main Output Volume Control Knob

Controls the output signal volume of the Main

bus. The Compressor/Limiter only works on

Main bus.

Auxiliary Output Volume Control Knob

Controls the output signal volume of the AUX

bus and headphones.

Threshold Control

Sets signal level (-20 to +20 VU; factory setting 0 VU)

at which the Compressor/Limiter becomes active.

Headphone Jack

Ratio Control

Sets the amount of compression (0 to 100%; the factory

setting is 100%) of the signal above the threshold.

Compressor/Limiter

Switch & LED

Reduces clipping distortion at the

main output. The brighter the LED,

the more the signal is being

compressed.

LED Bar Graph Output Meter

Displays output level in dB, ranging

from -18 (green) to +12 (red). This

meter can be set to indicate average or

peak level of the Main or AUX bus.

Low Cut Switch (one per channel)

Helps eliminate low frequency noise.

Channel Volume Control Knob

(one per channel)

Power Button

& Indicator LED

Auxiliary Bus Output

Main Output MIC/Line Switch

Main Bus Output

Pluggable Terminal Strips Inputs

Input Pad MIC/Line Switch (one per channel)

Input Gain/Trim Control (one per channel)

Direct Mix Bus Input

Product

Dimensions Weight

19" W x 1-3/4" H x 7-1/2" D 7 lb.

www.bogen.com

MIXERS

MIC/LINE Mixer

CAM8PRO

MIXERS

See page 50 for

CAM Mixers Selection Chart.

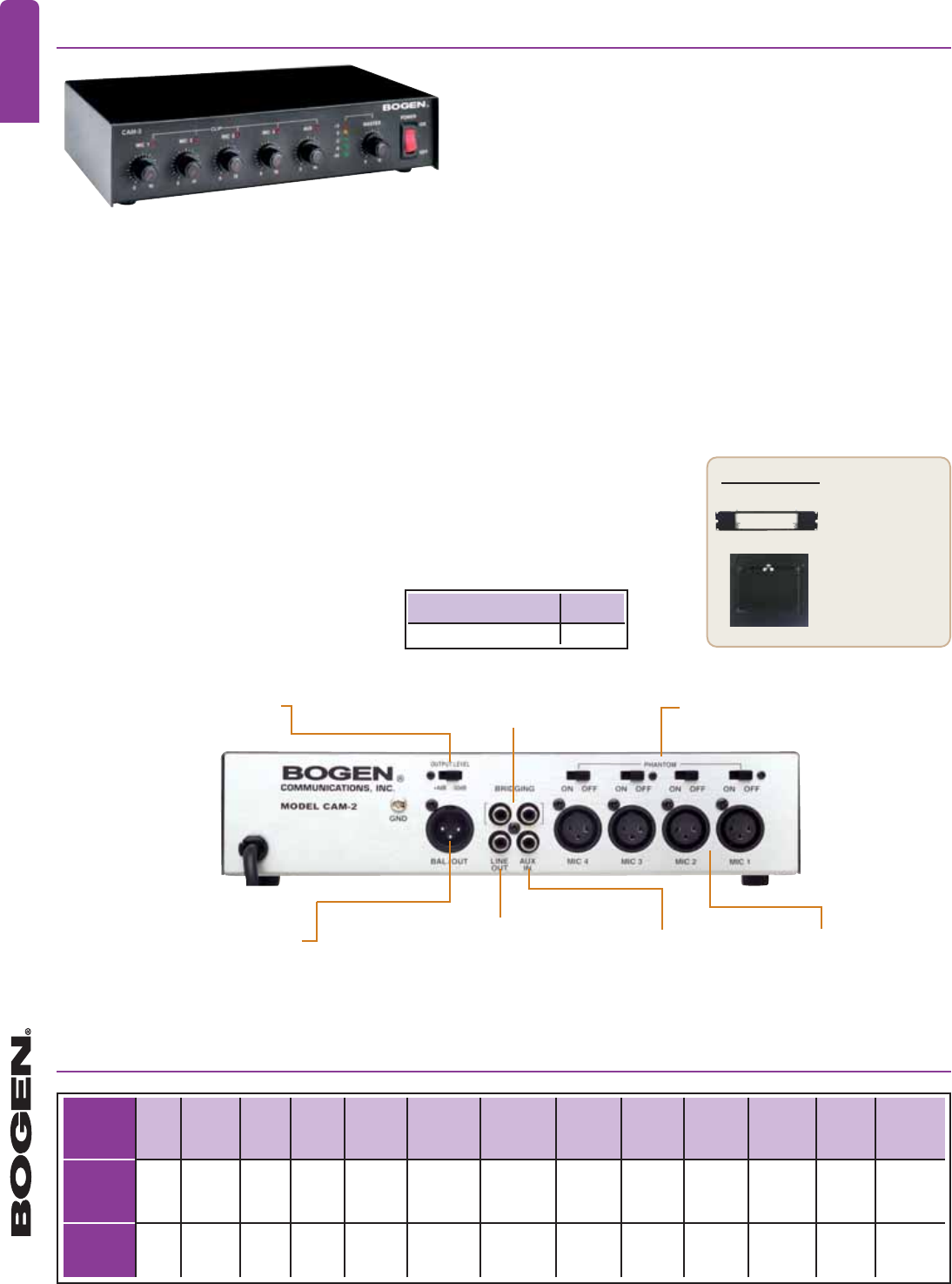

The CAM2 is a 5-input mixer/pre-amplifier suitable for a wide variety of applications, particularly for expanding the number

of inputs on Bogen or other public address amplifiers. The CAM2 provides four professional, low-impedance, balanced microphone

inputs through XLR connectors and one auxiliary input.

Individual phantom power switches for each input allow the use of both dynamic and condenser microphones on the

same unit. A bridging input permits simple interconnection of multiple CAM2 mixers for system expansion without the need

to sacrifice any mixer inputs. Clipping indicators for each input and an output level meter provide information to the system

operator about sound integrity. Wide frequency response, low distortion, low noise, and high channel crosstalk isolation ensure

superior sound quality. The CAM2’s balanced mixer output can be switched between line-level (+4 dBµ) or microphone-

level (-50 dBµ) for compatibility with a wide range of sound processing equipment.

Rear Panel

Output XLR Connector -

Provides a balanced output

compatible with most

professional equipment.

MIC Inputs -

Balanced MIC level

XLR inputs.

Output Level Switch -

Switch changes the nominal

signal level of the XLR output

from +4 dBµ to -50 dBµ.

Line Output Connector (Line Out) -

RCA jack provides unbalanced output signal

compatible with most amplifiers, recording

equipment, and other audio equipment.

Not affected by Output Level switch.

Bridging -

The bridging jacks facilitate the connecting to-

gether of mixers to obtain additional inputs

without using any of the CAM2’s inputs.

Auxiliary Input (AUX In) -

A dedicated unbalanced

auxiliary input for tuner,

CD player, etc.

Phantom Power -

The CAM2 provides power for electret

condenser microphones. The Phantom

ON/OFF switch controls the applications

of DC voltage to each MIC input.

Product Features:

•4 Microphone inputs

•Low-impedance, balanced MIC inputs

•1 High-impedance AUX input

•Low-noise, active mixing

•Master volume control

•Input clipping indicator for each channel

•5-Segment LED output level meter

•XLR microphone input connectors

•Phantom power selectable per MIC input

•Unbalanced line-level output

•Balanced XLR output

•Illuminated power switch

•Switchable output level (+4/-50 dBµ)

•Compact size

•Bridging input for connecting together

multiple CAM2 mixers

•Rack- or wall-mounted with RPK35B

or WMK1

•Listed to UL Standard 60065 for US & Canada

RPK35B

Rack Mounting

Kit

WMK1

In-Wall

Mounting Kit

Accessories

Mixer/Pre-Amplifier

CAM2

Product

Dimensions Weight

11-3/8" W x 2-5/8" H x 7-1/2" D 3 lb.

www.bogen.com

MIXERS

Model

CAM8PRO

CAM2

Inputs

(4 MIC,

1 AUX)

MIC Equiv.

Input

Noise

-129 dBV

-123 dBV

MIC/AUX

Input

Impedance

3.5k/15k

ohms

600/10k

ohms

Signal-To-

Noise

Ratio

90 dB

75 dB

Crosstalk

(adjacent

channels)

> -90 dB

For

Product

Info, See:

Page 49

Above

Output

Impedance

220-ohm

unbalanced,

440-ohm

balanced

140

ohms

Phantom

Power/

Voltage

Frequency

Response

±1 dB,

20 Hz-20 kHz

±1 dB,

20 Hz-20 kHz

Clipping

Indicator/

Channel

Compressor/

Limiter

Output Level

Meter

Bridging

Input

●

CAM MIXERS SELECTION CHART

(8 segments)

●

(5 segments)

30V DC

12V DC

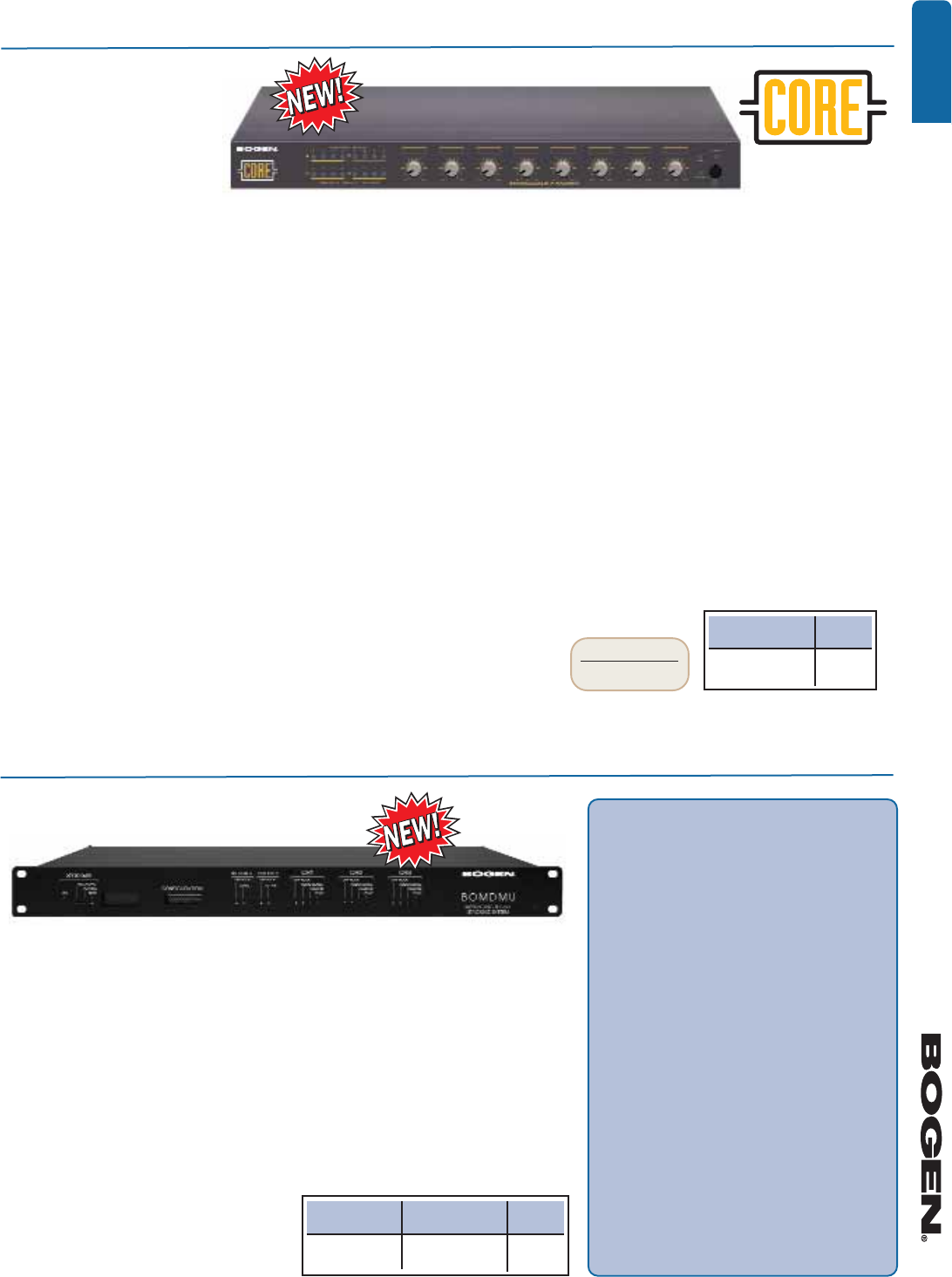

Universal Audio

Processor

CORE

www.bogen.com

AUDIO PROCESSOR / MESSAGING

Bogen’s BOMDMU is a comprehensive system that provides page stacking,

feedback elimination or pre-recorded messaging, and background music control

in a single device.

The Bogen CORE is a highly versatile digital mixer/processor designed for small to medium installations. Flexible hardware

configurations, in blocks of 4: for 4 in/12 out, 8 in/8 out, etc. The CORE’s PC-based software allows for design, download-

ing, reversal of in-box designs, and live monitoring, calibration, and routing. Three system hardware configurations are

available: CORE8X8 (8 inputs, 8 outputs), CORE4X12 ( 4 inputs, 12 outputs), and CORE12X4 (12 inputs, 4 outputs).

MESSAGING & CALL STACKING SYSTEM

Pre-record Messages for Use in Emergencies

It is imperative that directives communicated

using a public announcement system during an

emergency are clear, concise, and worded so as to

not cause panic or confusion. It is difficult to imag-

ine all these criteria being met at the time an

emergency is occurring. The individual making

the announcement may themselves be shaken,

confused, or not sure what to say.

Directive Announcements

The BOMDMU allows up to 99 messages (up to 8

minutes total in length) to be recorded in advance.

These directives can include vacate the building,

secure your location in the building, relocate to a

particular area, etc. in cases of fire, an intruder,

storm, etc. Since the individual who is aware of

the emergency (and the appropriate message con-

tent that needs to be announced) is likely required

to attend to the emergency situation rather than

making announcements, it is best that such an-

nouncements be recorded in advance and played

by an authorized individual. Messages can also

be recorded in multiple languages.

BOMDMU

Product Features:

•3-Channel page stacker

•Record and temporarily store up to 16 pages or 4 minutes of audio per channel

•Feedback elimination; opens loop between input microphone and speakers

•Priority input with immediate, real-time access to paging system; overrides

background music, stacking and messaging functions

•Record and Play up to 99 messages or 8 minutes or audio

•Message triggering via start input or host telephone system workstation

•Background music input

•Station or Dry Loop/Loop Start operation

•DTMF support for zoning

•19” Rack mount design (1 rack space)

•12V DC @ 1 Amp power supply included

Product Features:

•Configurable using PC/laptop software

•Programmable, scalable front panel knobs for analog

control functions

•Full DSP drag-and-drop component library

•Third-party control via RS-232 serial and Ethernet

•Stack up to 12 units to increase number of inputs and outputs

•Listed to CE and UL standards

Hardware Components:

•Main Frame: 4 slots for input/output cards, 16 TTL/Analog

Inputs, 8 TTL Outputs, RS485, RS232 Port, Ethernet Port

•Output Card: 4 channels with individual overload indicator,

mute, meter, signal present, level control, and adjustable

overload threshold

•Input Card: 4 balanced audio input channels with individual

bypass, mute, -66dB to 0dB sensitivity select, phantom power,

mute, RTO (route to output), VU meter, signal present, level

control, and adjustable overload threshold

Software Components:

•Auto Gate, Noise Sensing, Compressor, Comp-limiter,

Expander, and Ducker

•Equalizers: Mono & Stereo GEQ (1 Octave, 2/3 Octave,

1/3 Octave), Mono & Stereo PEQ (2, 4, 6, 8, 10, 16 bands)

•Dynamic Feedback Control

•Programmable Level Controls

•Stores up to 53 minutes of digital audio WAV file storage,

triggered via calendar-based schedule or dry contact;

2 separate messages can be simultaneously output to

independent zones

•Mixers: Auto, Matrix, Standard, and Room Combiner

•Noise Generators: White, Pink, Tone

•Page Control Module: for zone paging applications

•Create custom control interface screens via integral

monitor window

Power Product

Requirements Dimensions Weight

12V DC @ 1 A 19" W x 1-3/4" H x 7" D

(included) 5.5 lb.

Dimensions Weight

17-1/8" W x 1-3/4" H

x 11-5/8" D 8 lb.

AUDIO PROCESSOR

Accessories

See Page 81

Accessories

VAR1

PRS40C

12V DC Power

Supply

Power Product

Requirements Dimensions Weight

1 lb.

External 12V to

24V DC @ 100 mA

(not included)

5-3/8" W x 3-7/8" H

x 1-3/8" D

www.bogen.com

PAGING ELECTRONICS

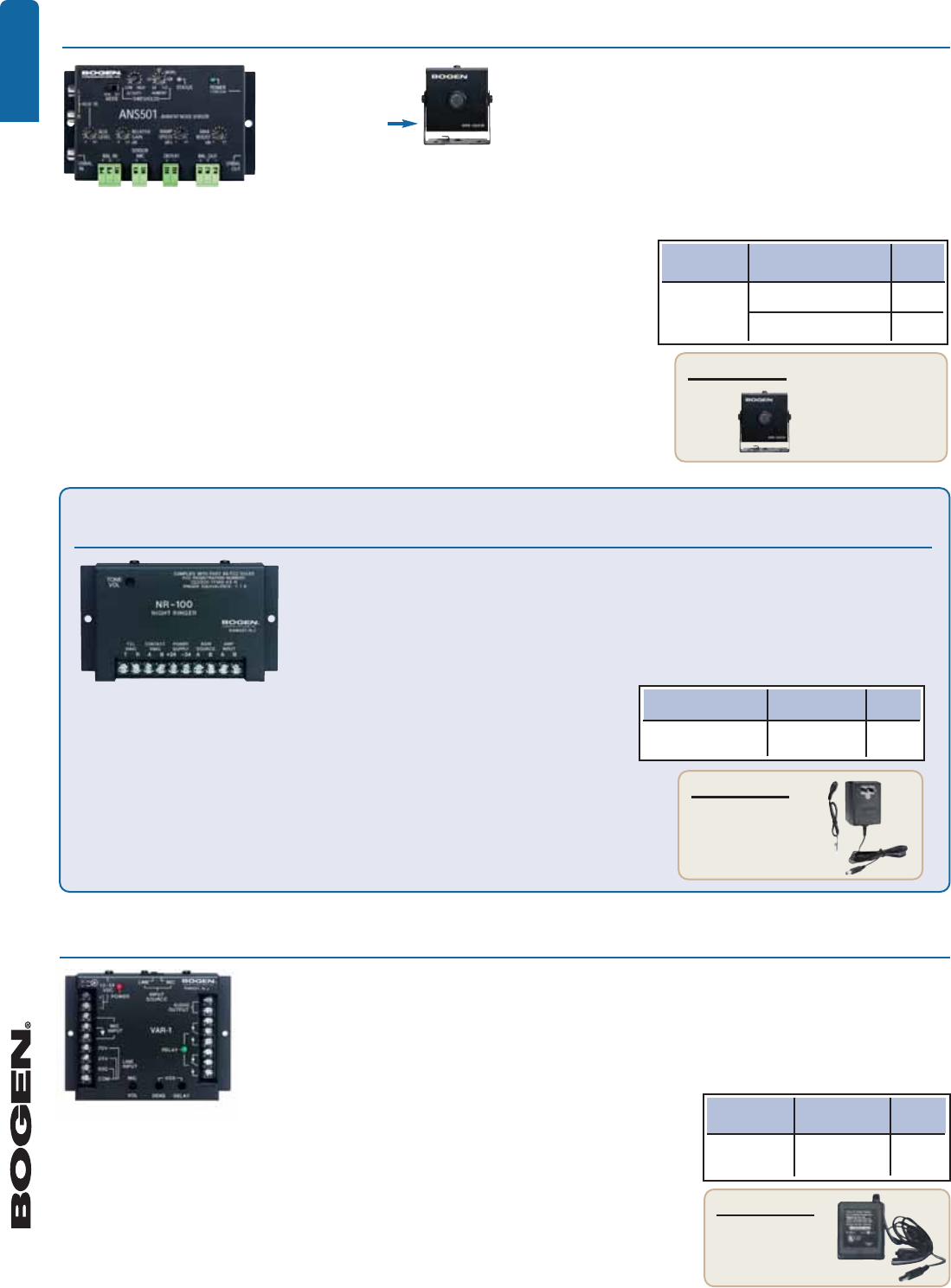

VOICE-ACTIVATED RELAY

The VAR1 is a relay device that monitors audio activity over a wide range of input voltages

and operates two

sets of C-Form relay contacts in response to detected activity. The VAR1 can be used to detect voltages as low

as signals directly from a microphone or as high as signals from 70V speaker systems. A low-level

output of the

detected audio, transformer-isolated from the input, is also available for use with other equipment.

The VAR1 can

also be used as a balanced, low-impedance MIC pre-amp.

Product Features:

•Automatically adjusts paging level as

ambient noise levels rise and fall

•Balanced and unbalanced input and output

•AUX inputs bypass gain control feature

•Unbalanced stereo AUX inputs (summed

mono)

•Supports up to 4 sensor microphones

(one ANS500M included) wired in parallel

for large areas

•Sensor microphones can be located up

to 2,000 feet from control unit

•Only 2 wires needed for connection

of sensor microphones

•Microphone module includes an

adjustable mounting bracket for

precise positioning

•Connects easily between pre-amp and

power amp or to amplifier insert jacks

•Sensitivity and max boost control

•Adjustable ramp speed

Accessories

Power Product

Requirements Dimensions Weight

1 lb.

4 oz.

ANS500M

Sensor Microphone

(one included w/system)

ANS501

with Sensor

Microphone

Bogen's Ambient Noise Sensor System electronically adjusts the level of a page or background music

in applications where ambient noise levels are continuously changing. The ANS501 ensures that page

announcements or background music are intelligible even during periods of high ambient noise levels.

The system includes a sensor microphone module (ANS500M) that monitors the ambient noise level,

and a 12V DC power supply.

12V DC

Power Supply

(included)

Control Unit:

5-1/4" W x 3" H x 1-1/4" D

Sensor Microphone:

2" W x 2-1/8" H x 7/8" D

AMBIENT NOISE SENSOR SYSTEM

Product Features:

•Two sets of C-Form (both N.O. and N.C.) relay

contacts respond to audio activity

•4 levels of input signals: microphone, 600-ohm

line, 25V, and 70V speaker systems

•Built-in balanced, low noise, high gain

microphone pre-amp

•A transformer-isolated, 600-ohm small signal

level output of detected audio available

•Works with self-amplified or central-

amplified paging systems

•Separate microphone pre-amp gain control

•Adjustable release delay – 0.25s to 25s

•Trigger threshold adjustment

•Relay active indicator light

NIGHT RINGER

Accessories

PRS2403

24V DC

Power Supply

Power Product

Requirements Dimensions Weight

External 24V DC @ 25 mA,

/4" W x 3-

/4" H

1 lb.

power supply (not included)

/4" D

NR100

The NR100 converts any paging system into an after-hours night bell alert system. The NR100

connects to the paging system’s amplifier and emits a ringer tone through the paging system’s

speakers, thus eliminating the need for loud old-fashioned bells positioned throughout a

facility. The NR100 is an efficient and easy way to alert security or personnel of incoming calls

during non-business hours.

Product Features:

•Responds to 90V ring signals or external

contact closures

•Produces dual-frequency electronic

ringer tone

•Easily connects to any paging system

•Automatically mutes background music

while ringing

•Ringer volume control

•Compact size

•Low current draw

•No maintenance

•FCC Part 68 Registered

Accessories

TBA15

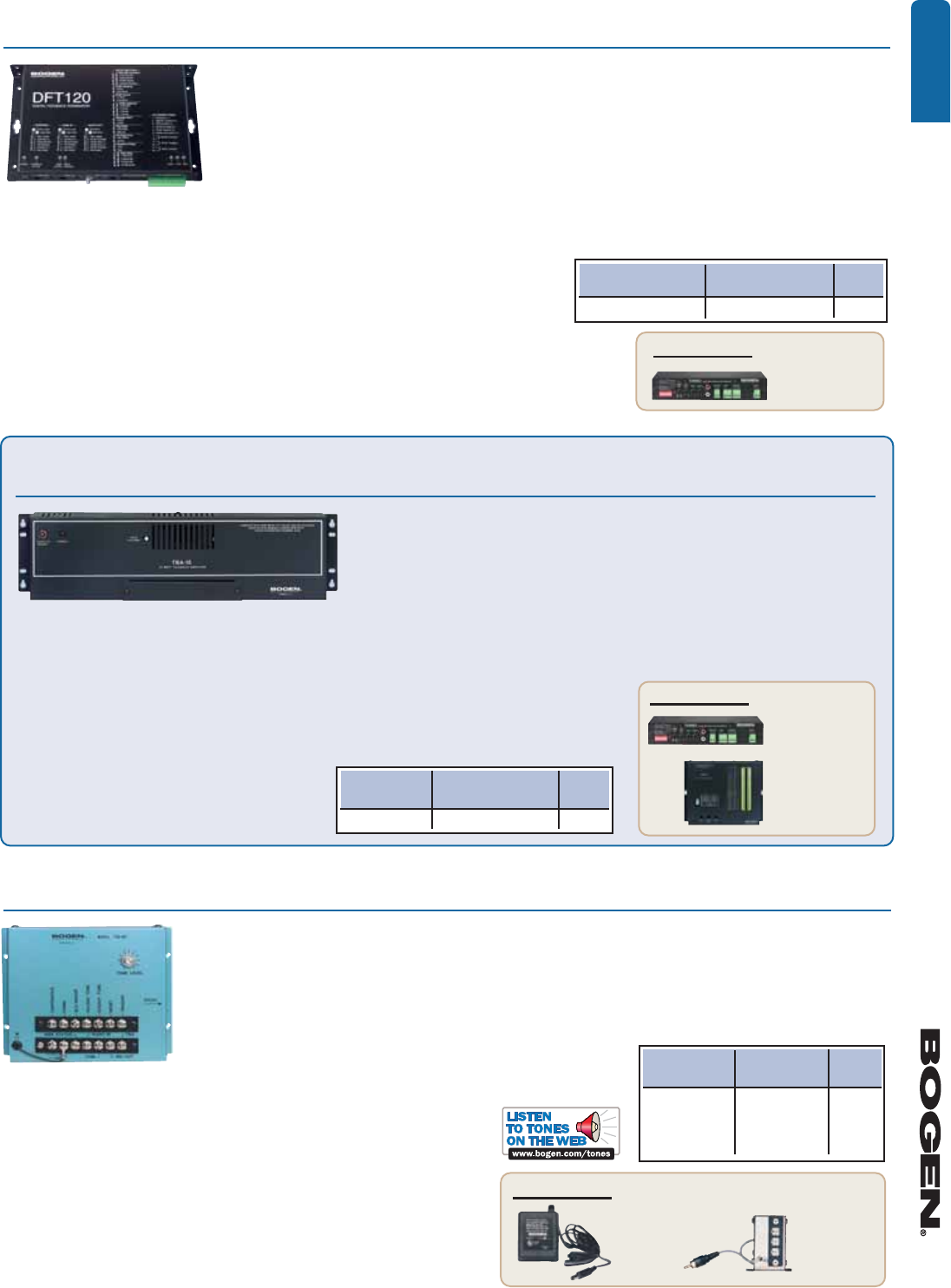

Product Features:

•Hands-free 2-way conversations through

the paging system

•15 watts of speaker power

•Works on 25V and 70V speaker systems

•Adjustable switching sensitivity control for

switching from listen to talk

•Adjustable switch-back delay prevents

chopping of pages and provides smooth

2-way conversations

•Talk Back and page volume controls

•Mute input forces amplifier into page mode

•Perfect accessory for zone paging

applications

•Resettable circuit breaker with

thermal protection

The TBA15 is a unique amplifier that permits loudspeakers

to be used as microphones to provide hands-free, two-way

conversations through the paging system*. In the idle state,

the TBA15 uses the attached speakers as microphones and

feeds this signal out to a telephone line. When the TBA15

senses a paging signal on the telephone line, it will switch

on its 15W amplifier and use the speakers conventionally.

TAMB2

Telephone

Access Module

ZPM3

Zone Paging

Module

Power Product

Requirements Dimensions Weight

120V AC 1

9" W x 5-

/4" H x 2-5/8" D

7 lb.

Accessories

Digital Feedback

Terminator

DFT120

Product Features:

• High sampling rate for excellent playback

quality

• Able to record a message while another

is being played

• Stacks up to 16 messages for playback

• 240 seconds of total audio memory

• Automatic or externally controlled unit

operation for recording, play, and stop

• Activates recording by loop start trunk,

4-wire dry loop, audio trigger, or DTMF

•Digital recording and playback of pages,

60-second maximum message length

•Adjustable delay between messages

•Message repeat, abort, stop,

and pre-page tone option

•8- or 600-ohm output impedances

•Zone control DTMF tones stripped

from message and regenerated

•Volume control

•Adapter included

TAMB2

Telephone

Access Module

Power Product

Requirements Dimensions Weight

12V Power Supply (included) 10" W x 6-3/4" H x 1-1/2" D 3 lb.

The DFT120 eliminates the acoustical feedback loop created by the

telephone handset and the paging speaker while providing high-

capacity,

high-quality recording and playback of audio pages.

Product Features:

•4 types of tones: slow whoop, steady, pulsed alarm, and chime

•Tones triggered by external contact closure (momentary

or long duration)

•Choice of continuous generation of tone or two-burst operation

(except for steady tone)

•External audio signal can pass through the TG4C

and is suppressed during tone generation

•Adjustable tone level & pitch

•600-ohm output

•Tone generation reset available

Accessories

Power Product

Requirements Dimensions Weight

2 lb.

Wide power

supply range, 12V

to 48V DC @ 30

mA (power supply

not included)

6-3/4" W

5-3/4” H

2" D

PRS40C

12V DC

Power

Supply

WMT1A

Matching

Transformer

TG4C

The TG4C is designed to produce four different types of tones for use as alarm or

announcement signals in paging systems. An audio signal can be routed through

the TG4C to allow easy installation in paging systems. During generation of the tones,

the routed audio will be suppressed.

www.bogen.com

PAGING ELECTRONICS

DIGITAL FEEDBACK ELIMINATION

TONE GENERATOR

TALK BACK AMPLIFIER

* Page port connection should be a duplex

line for talk back applications.

Analog Door Phone

ADP1

Product Features:

•Weather-resistant

•Vandal-resistant brushed stainless steel faceplate with

mounting gasket and heavy-duty call button

•Suitable for indoor or outdoor station, door, or gate communication

•Secure entry access to commercial, industrial, or residential locations

•Push button initiates the call at remote location

•Connect directly to an analog PABX/KSU station

programmed for ringdown operation

•Adjustable microphone and speaker volume

•Adjustable call timeout (15 seconds to 2 minutes)

•Call limit timer can be disabled

•Responds to CPC pulses

•Hands-free communications

•Auto-answer feature allows monitoring of remote location

•Powered by telephone line; no power supply needed

•Fits interior and exterior dual gang electrical boxes

(user supplied)

Bogen’s ADP1 Door Phone provides convenient remote, hands-free two-way

communication between two locations. Durable, weather-resistant, stainless

steel construction protects against vandals and varying weather conditions.

Dimensions Product

Weight

5" W x 5" H x 1-7/8" D;

2 lb.

6-3/8" W x 6-3/8" H x 1-7/8" D

(with bezel frame)

Product Features:

•Hi-Z, 10k-ohm primary impedance

•Lo-Z, 600-ohm secondary impedance,

balanced with center tap

•Matches high-to-low impedance

or low-to-high impedance

•Adapts line-level signals to

microphone inputs

•RCA connector for Hi-Z side

•Screw terminals for Lo-Z side

•Small steel enclosure w/ mounting ears

allows easy mounting anyplace

Product

Dimensions Weight

4 oz.

2" W x 2-3/8" H x 1-1/4" D

WMT1A,

WMT1AS

Models WMT1A and WMT1AS are general-purpose matching transformers that

allow proper connections between high (10k-ohm) and low (600-ohm) inputs and

outputs. Both models can be used to balance an unbalanced line or provide

isolation between two pieces of equipment. Both models can be configured to

produce a balanced, microphone level signal from a line-level signal such as that from

a pre-amp or music source. In addition, Model WMT1AS can adapt speaker level

signals (25V/70V systems) to a level suitable for the AUX input of an amplifier.

Connecting Amps to Other Equipment

When connecting amplifiers to other equip-

ment, these transformers are a “must have”

because they can solve a variety of problems.

• Where signal levels are insufficient to

drive an amplifier's AUX input to full

volume, installing either model on the

input will increase the voltage to the input

by about 5 times, providing plenty of level.

• Where input ground loops are causing a

hum problem, the isolation transformer on

either transformer can break the loop and

eliminate the hum.

• When unbalanced signals need to be sent

over long distances, either model can

balance them at both the send and receive

sides and reduce the possibility of noise

pickup.

• Both models allow a microphone input

to be used with an AUX-level signal input.

By moving a jumper, the attenuation is

changed on the high-impedance side to be

100 times less than the signal level on the

600-ohm side.

• The WMT1AS model can also convert 25V

and 70V speaker levels down to the

levels appropriate for AUX inputs on

amplifiers.

Shown with bezel frame (included)

Shown without bezel frame

www.bogen.com

TELEPHONE ELECTRONICS

DOOR PHONE

MATCHING TRANSFORMERS

WMT1AS adapts

speaker-level signals

to AUX level.

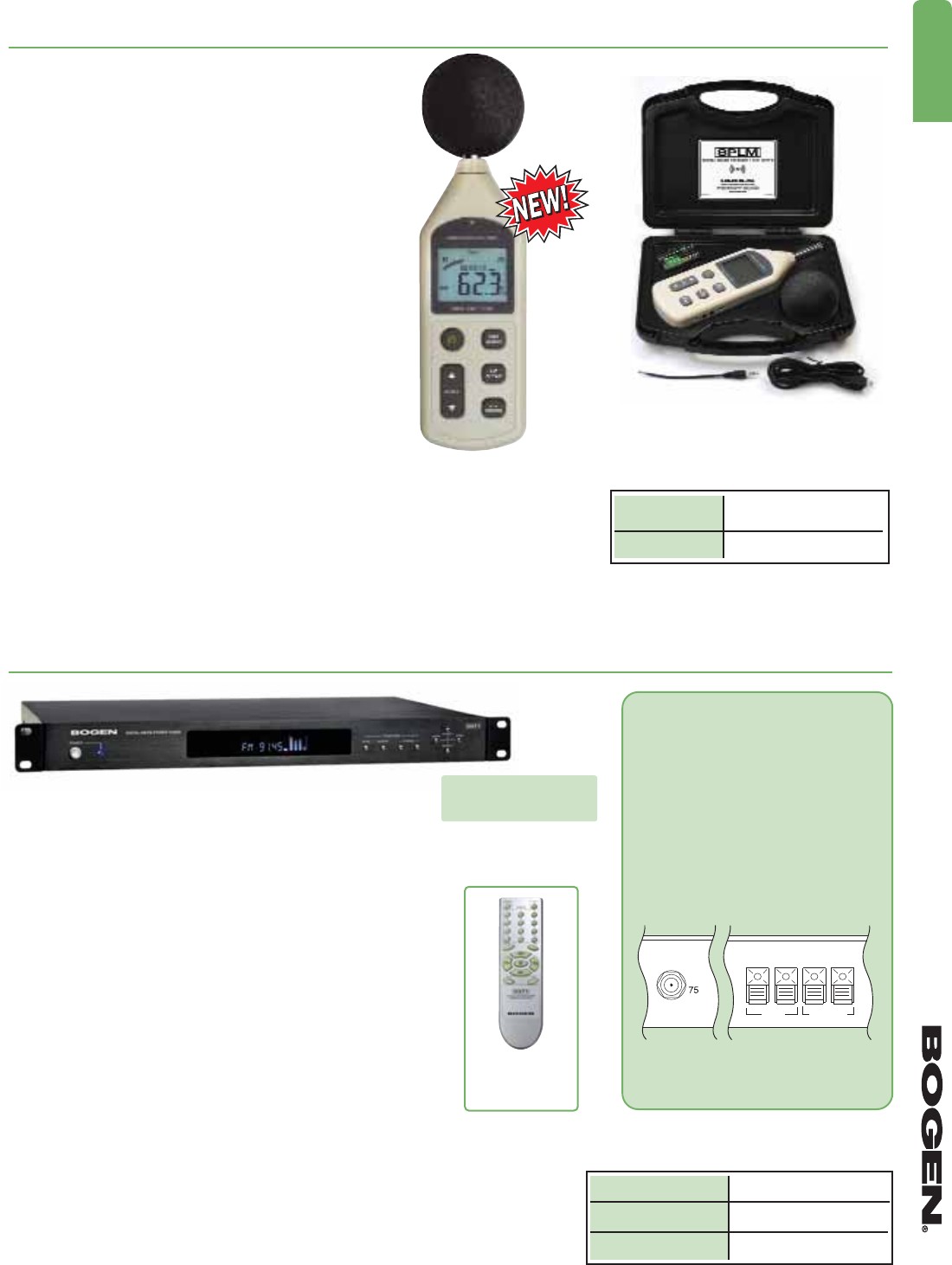

The Bogen SPLM is a digital sound pressure level meter

used to measure SPL in decibels (dB). It is portable and

easy to use. It is ideal for measuring and monitoring

noise and sound in any environment.

Product Features:

•1/2" Condenser microphone with removable

windscreen

•Large 2-1/8” LCD screen, 4-digit readout,

auto backlight

•Tripod fixed screw mount for field work

•Light sensor

•High accuracy: +/- 1.5 dB

•Wide measuring range: 30 to 130 dB

•AC analog signal output jack

•Fast/Slow time weighting selections

•A and C Frequency weighting

•Requires 4 AA batteries (included),

or 6V DC power supply

•Designed to IEC 651 Type2 and ANSI S1.4

Type2 standards

•USB jack for PC connection for data record

downloading, real-time data sampling

analysis, and printing graph and data

functions (requires software download

from Bogen website)

•On/Off power button, with auto off feature

SPLM

Power Requirements:

120V AC nominal @ 60Hz

Dimensions:

16-7/8" W x 1-3/4" H x 10" D

Product Weight:

5 lb.

The DST1 Digital Tuner incorporates a digital PLL-synthesized

tuner for precise reception of FM and AM signals. The DST1

features the ability to store up to 60 total presets (FM and AM).

It is designed for shelf- or rack-mounted installation and is one

rack space (1 RU) high. Removable rack ears are included with

the unit.

Product Features:

•PLL-synthesized tuning with digital readout

•60 Presets total (FM and AM), with scan feature

•Stereo and Mono outputs

•Volume control (rear panel-mounted)

•Connectors for 75-ohm FM, 300-ohm FM,

and AM loop antennas

•FM dipole and AM loop antennas included

•Bright alphanumeric, fluorescent display panel

•Operates from nominal 120V AC, 60 Hz

•Handheld remote control

•Stereo output cable

•Shelf- or rack-mounted installation, one rack space

high (1 RU, removable rack ears included)

•Listed to UL Standard 60065 for US and Canada

DST1

www.bogen.com

SPL METER / MUSIC & INPUT SOURCES

DIGITAL SOUND PRESSURE LEVEL METER

DIGITAL STEREO TUNER

Antenna Connections

Anyone who has installed a tuner inside

an industrial building knows that radio

signals don’t penetrate too far into these

steel-laced structures. Because the DST1

is designed for industrial installations, it

contains inputs for both external 300-

ohm (twin line) and 75-ohm (coaxial)

antenna feeds. The 75-ohm input uses

an “f” connector and can receive feeds

from antenna distribution systems or

cable systems.

Whether sitting on a shelf or mounted in

a rack, the DST1 is a great choice for an

industrial-grade tuner.

FM GND GND AM

AM LOOP

300Ω

Remote

Control

(included)

Actual Product may

differ slightly in appearance

from image shown here.

Dimensions:

2-3/4" W x 9-3/8" H x 1-3/8" D

(Handheld Unit)

Product Weight:

11 oz. (with batteries)

SPLM unit comes equipped

with sturdy carrying case

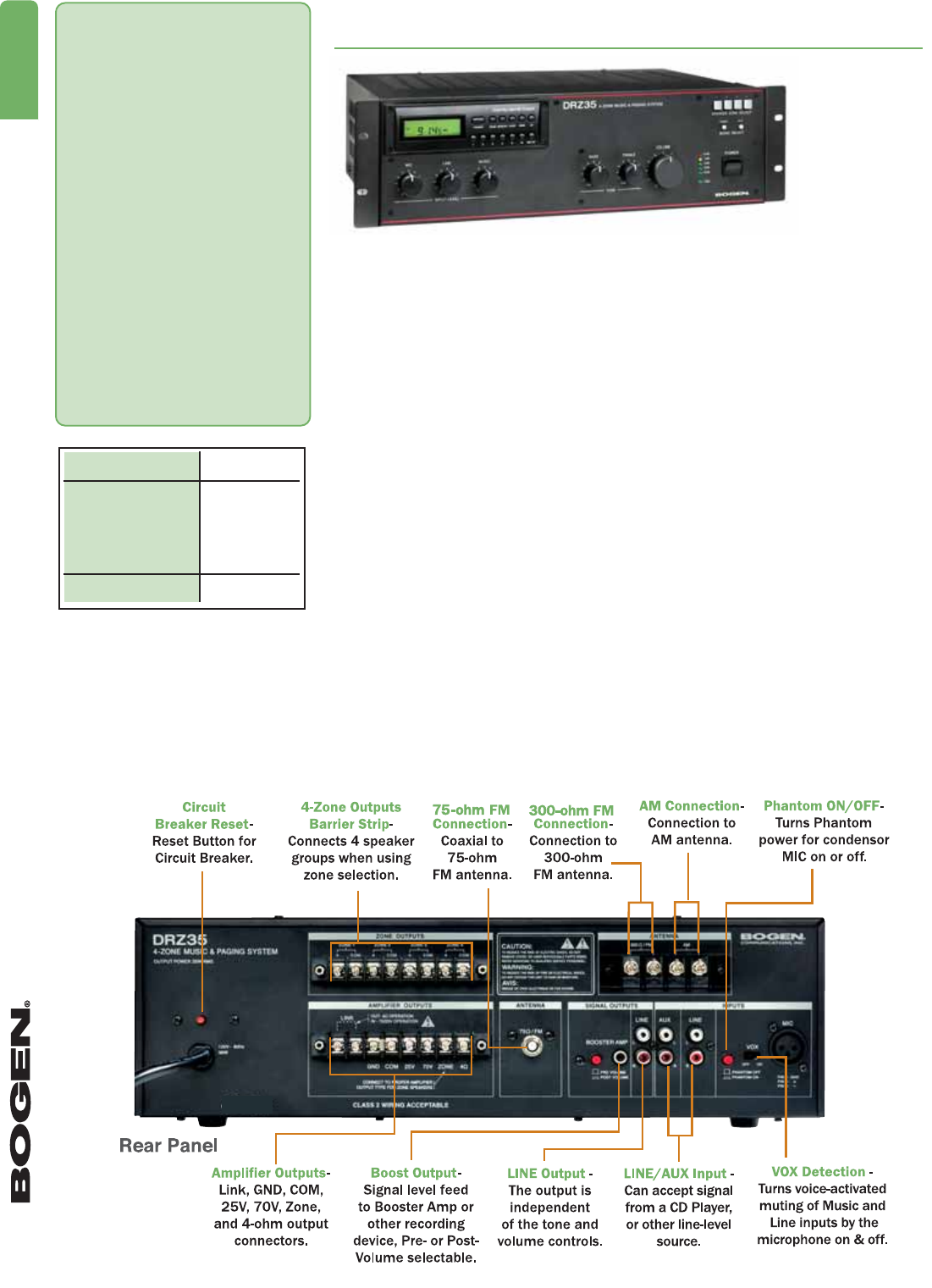

Paging Input Details

The DRZ35 has a full-featured micro-

phone paging input. The microphone

input is a low-impedance balanced input

that works with dynamic or condenser

microphones. Whenever a page is made,

the AUX or Tuner feed is muted via a VOX

detector. When the page is completed,

the other source smoothly fades back in.

By using a WMT1A matching transformer,

the MIC input can be connected to the

paging port of a telephone system.

Speaker Zones

Built into the DRZ35 is a convenient

4-zone selector switch group. These

push-on/push-off switches allow you

to control how paging is distributed

throughout a facility. Simply turn on and

off groups of speakers as needs

change.

The DRZ35 is a unique, self-contained 4-zone music and paging system for small-

to medium-sized applications. It has a digital AM/FM tuner, as well as MIC, LINE,

and AUX inputs. It has 35 watts of output power, and is capable of driving 4-ohm,

25- or 70-volt speaker systems.

The DRZ35 permits connection of up to four switch-selectable paging zones.

It also features Bass and Treble controls and a Master Volume control with

a 5-segment LED output meter. The built-in tuner uses a PLL synthesizer to provide

accurate frequency selection.

DRZ35

www.bogen.com

MUSIC & INPUT SOURCES

AM/FM 35-WATT RECEIVER

•Self-contained, 4-zone music and paging

system with Tuner

•35 watts of output power

•For use with 4-ohm, 25- or 70-volt

speaker systems

•Select 1-4 zones for music or paging

•3 external audio inputs: MIC, LINE, & AUX

•MIC input uses a standard XLR three-pin

connector for balanced Lo-Z microphone

•Phantom power (21V DC)

•Microphone paging priority with

VOX-activated music muting

•LINE and AUX stereo combining RCA inputs

•Built-in digital AM/FM Tuner, with PLL

synthesizer to provide accurate

frequency selection

•Auto station search and manual tuning

•Backlit tuner display, LCD

•10 FM and 10 AM station presets

•Tuner has sleep mode/auto shut-off feature

•FM 75-ohm coaxial (F-type), FM 300-ohm,

and AM Loop terminals antenna

•Large master volume control

•Bass and treble controls

•5-segment LED output level meter

•Booster amplifier output with Pre- or Post-

Volume selector

•Power on LED indicator

•Rack-mountable with included brackets

•FM dipole and AM loop antennas (included)

•FCC Compliant

•Listed to UL Standard 60065

for US and Canada

Product Features:

Power Requirements:

120V AC @ 60 Hz

Dimensions:

17" W

5-1/4" H

13-5/8" D

Product Weight:

20 lb.

Space Saving

The CDR1 incorporates a full-featured

AM/FM receiver and CD player in an

extremely compact size. When rack-

mounted using the optional mounting kit,

the CDR1 fits in 2 rack spaces.

Dual Outputs

A unique feature of the CDR1 is its dual

outputs. Since it is designed for paging

systems, a set of signal level RCA outputs

is available on the rear of the unit. These

outputs can feed the music or AUX inputs

of a paging system directly. But the CDR1

also contains a pair of 1-watt outputs that

can drive 8-ohm speakers directly. These

outputs provide a convenient way to

supply local speakers or to monitor the

receiver tuning, without the need to run

paging speakers into the equipment

room.

RK78

Rack

Mount Kit

Accessories

Product Features:

•Single Disc CD Player & AM/FM Receiver

•Stereo & Mono signal out

•1W minimum, @ 8-ohm stereo output

•Adjustable loudness contour

•12-hour time display

•AUX input via 1/8" stereo jack

•Pluggable screw terminal connector

for antenna & speaker wiring

•Rack-mountable (2 rack spaces)

w/accessory mounting kit

•External power supply (UL and C-UL listed) included

CD Player: •Plays CD, CD-R, and CD-RW discs (including MP3 files)

•Browse, Repeat, Random Play, and Pause functions

Receiver: •30 Station presets: 5 selectable bands (3 FM and 2 AM)

can be programmed with 6 stations each

•Manual Tuner, Auto Seek, and Preset Scan features

•Pluggable screw terminal inputs for AM loop and FM dipole antennas

•F-Type connector for coaxial 75-ohm antenna

Power Requirements:

12V DC / 3A

Dimensions:

7-1/4" W x 2-1/8" H x 9-1/4" D

Product Weight:

4 lb.

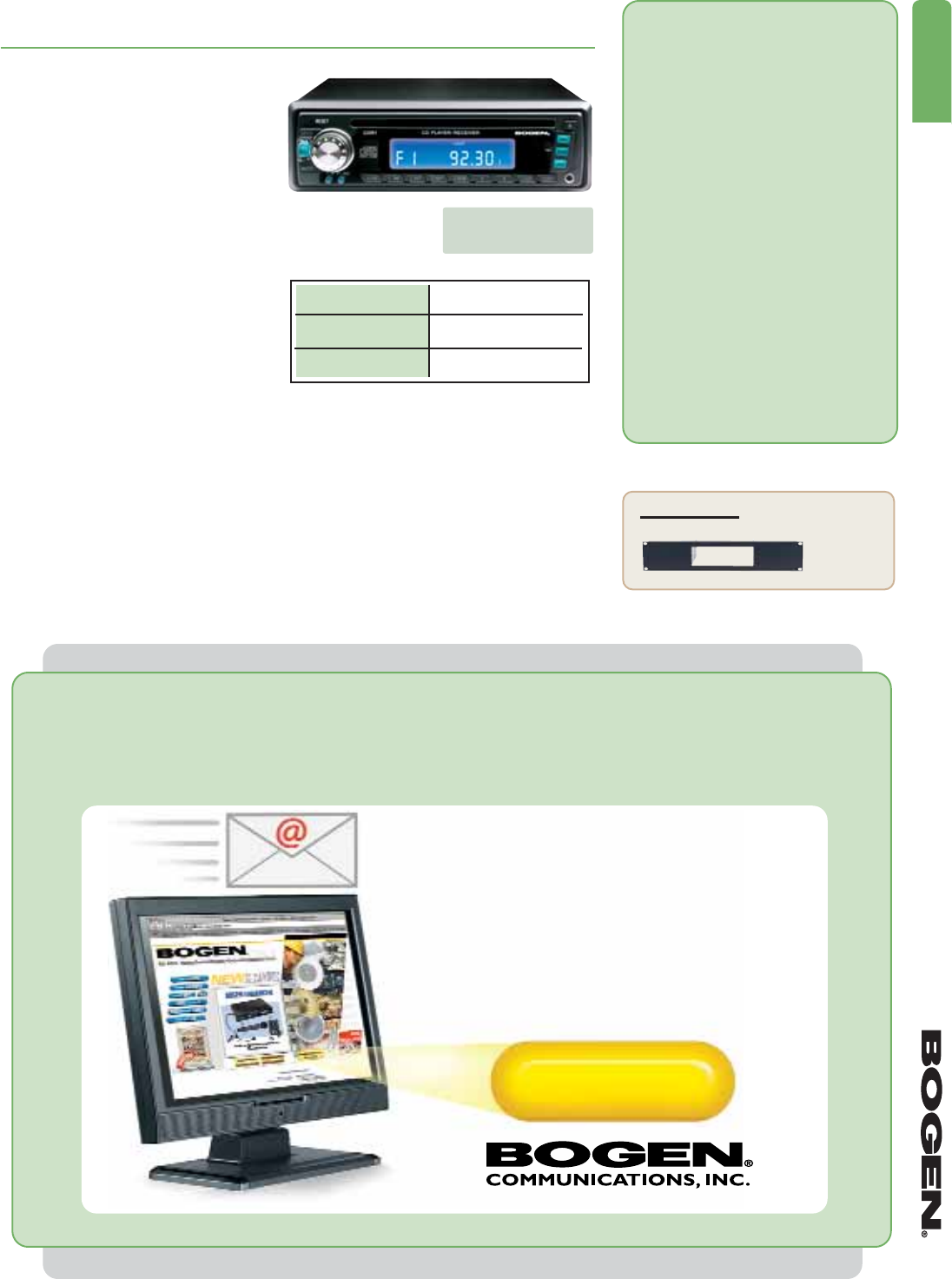

CDR1

The CDR1 is a combination

CD Player and AM/FM Receiver.

www.bogen.com

MUSIC & INPUT SOURCES

CD PLAYER & AM/FM RECEIVER

Actual Display may

differ in appearance from

image shown here.

Now You Can Receive Bogen

Product Updates... In Your E-mail.

Visit www.bogen.com,

click on the yellow button

located on our homepage,

fill out the simple form...

and that's it!

Product Updates

via e-mail

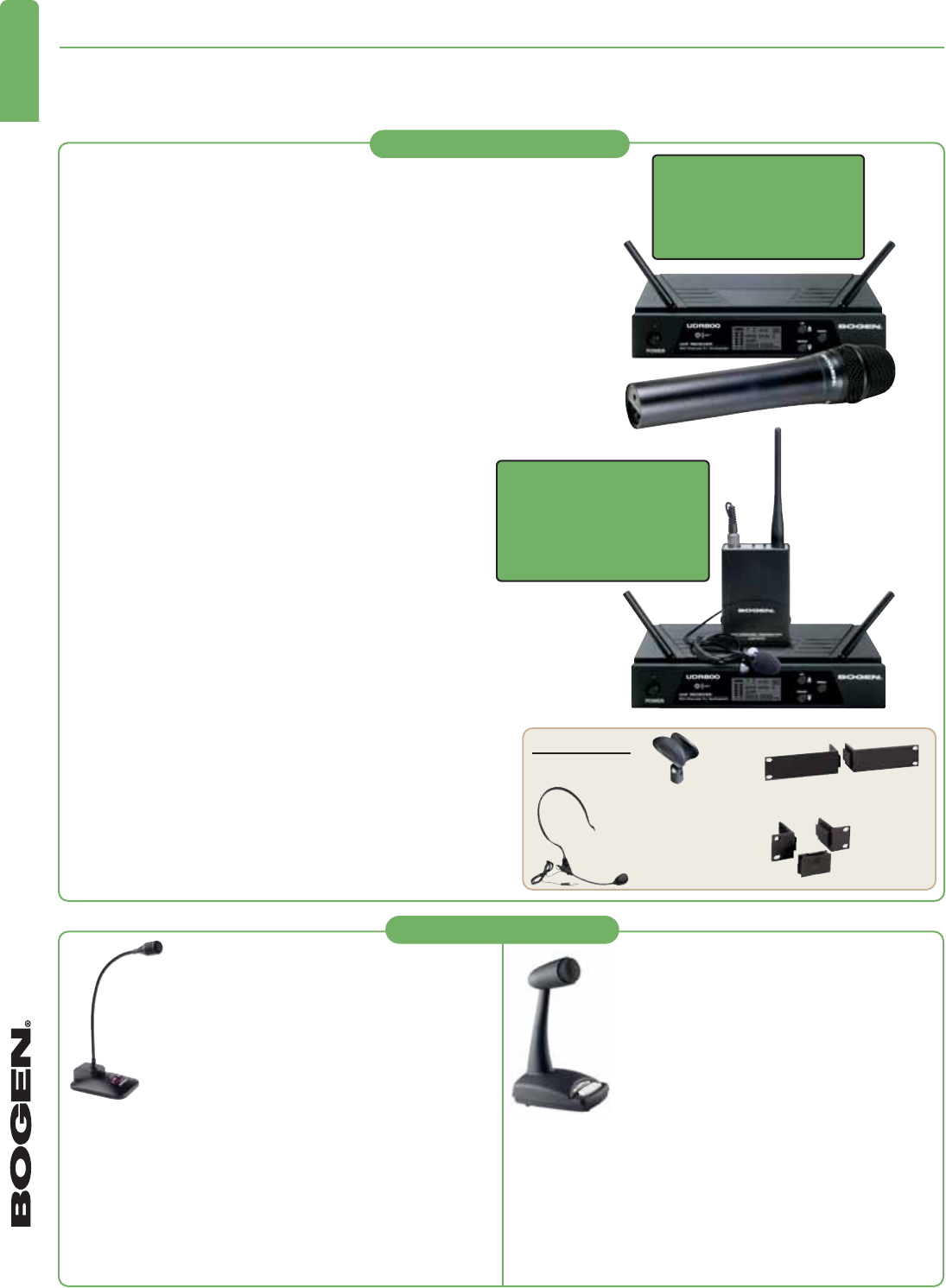

Bogen's microphone line includes a variety of types and styles (handheld, wireless handheld/lavaliere, desktop, gooseneck,

boundary, and overhead hanging) to meet your application needs, from paging systems to instrument and vocal reproduction.

These microphones provide clear, natural, intelligible sound reproduction with accurate response and dependable performance.

DESKTOPS

www.bogen.com

MICROPHONES

Dynamic Desktop Microphone

DDU250

The DDU250 is a high-quality, dynamic, gooseneck desktop

microphone ideal for any PA system. The gooseneck permits

the user to adjust the microphone’s angle and height to suit

the user’s needs. 4-1/4" W x 18-1/4" H x 6-1/4" D; 3.5 lb.

UHF Wireless Microphone Systems

UDMS800HH, UDMS800BP

These Wireless Microphone Systems offer users the freedom to move around

while speaking. System choices consist of a 800-channel PLL-synthesized

UHF Receiver with either a handheld microphone or lavaliere microphone

and body-pack transmitter. Headset microphone available.

•Cardioid pickup pattern

•Push-to-lock and push-to-talk switches

•Excellent speech intelligibility with low ambient noise

•Effective feedback control

•16" long, fully flexible gooseneck stalk shock-mounted to a heavy

zinc die cast base

•10-ft. cable with external contact closure outputs for the talk switches

•500-ohm Impedance

•Frequency response range of 100 Hz to 12 kHz

•Sensitivity of -76 dB +/- 3 dB

Desktop Paging Microphone

MBS1000A

•Cardioid pickup pattern

•Locking mechanism with push-to-talk bar for

long announcements

•Push-to-talk or lift-to-talk operation

•Impedance: Hi-Z, 50k ohms; Lo-Z, 500 ohms

•Frequency response range of 45 Hz to 15 kHz

•Sensitivity: Lo-Z: -72 dB +/- 3 dB; Hi-Z: -52 dB +/- 3 dB

•ABS plastic with rubberized black finish, and die cast base

•7-ft. long; 4-conductor, 2-shielded cable included

The MBS1000A is a dynamic, dual-impedance,

desktop microphone designed for all industrial and

commercial public address and paging applica-

tions. 4

-3/8

" W x 9

-3/8

" H x 5

-7/8

" D; 1.25 lb

WIRELESS SYSTEMS

UHT800

UDR800

UBP800

UDR800

•Sleek metal housing with internal antenna

for optimum aesthetics and durable long life

•Uni-directional neodymium dynamic cartridge

for optimum sound, maximum feedback rejection,

and minimal handling noise

•Audio mute switch allows convenient audio muting while

leaving the transmitter "ON"

•LED indicator: Unit "ON", and "Low Battery Alert"

•Convenient, economical operation with AA alkaline

or NiMH batteries (2x)

•

9-1/8" long x 2" dia.; 10 oz. (without batteries)

UHT800 Handheld Microphone

•Audio mute switch allows convenient audio muting while

leaving the transmitter "ON"

•LED indicator: Unit "ON", and "Low Battery Alert"

•Locking 3.5mm mini-jack provides secure connection for

removable microphone

•Convenient, economical operation with AAA alkaline

or NiMH batteries (2x)

•

2-1/4" W x 3-3/8" H x 1" D; 2.8 oz. (without batteries)

•Lavaliere Mic: 4 ft. long cord; 0.6 oz.

UBP800 Body-Pack w/Lavaliere Microphone

•Offers 800 user-selectable frequencies in UHF 470-490 MHz band;

120 dB dynamic range; operation up to 500 feet line-of-sight

•DigiTRU Diversity™ for maximum range and dropout protection,

full LED indicators, 1/4" unbalanced and XLR balanced outputs,

Tone Squelch™ for locking out potential interference, noiseless

transmitter ON/OFF switching, and level control for unbalanced output

•Half-rack receiver design with front panel dual antennas, powered

by wall power adapter (included)

•

8" W x 1-5/8" H x 5-1/8" D; antenna 2-3/4"; 1 lb.

UDR800 800-Channel PLL-Synthesized UHF Receiver

UDMS800HH

includes:

• UHT800 Handheld Mic

• UDR800 UHF Receiver

UDMS800BP

includes:

• UBP800 Body-Pack

& Lavaliere Mic

• UDR800 UHF Receiver

MC28 Microphone Clip

(for UHT800)

RPK89 Rack Mount

(Single Unit)

RPK90

Rack Mount

(Double Unit)

Accessories

BCHM

Headset Microphone

(UBP800 Body-Pack required)

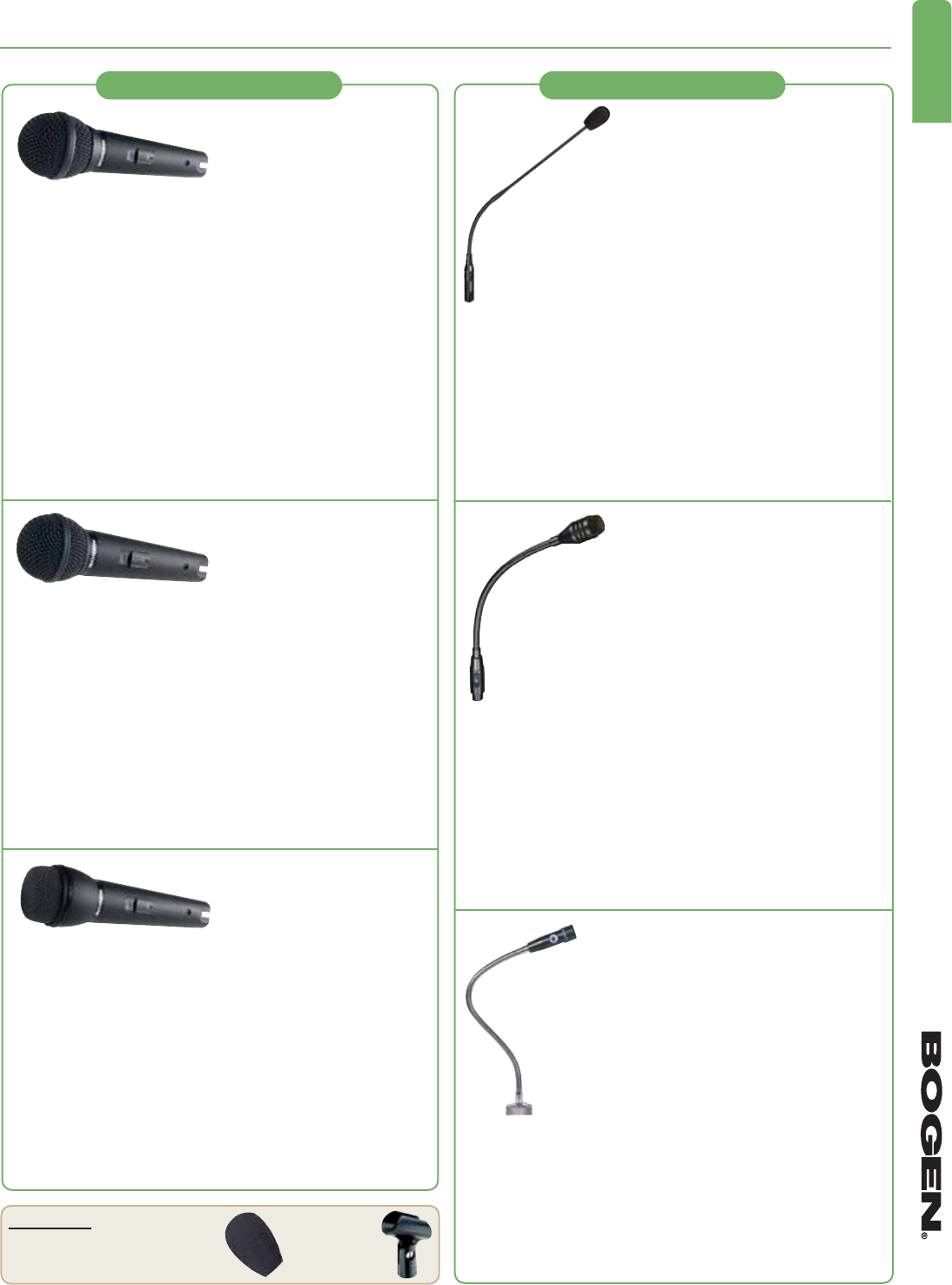

Dynamic Gooseneck

Microphone

GDU150

The GDU150

is a dynamic, gooseneck microphone that features

a durable all-metal case with a non-glare black finish. It has

a 10" long, fully flexible neck section with an integral XLR

mounting base. 16-3/4" Long; 11 oz.

•Cardioid pickup pattern

•Outstanding speech intelligibility, feedback rejection,

and user sound isolation

•High sound pressure capability and low sensitivity

to breath/pop noise

•Superior shock-mount system to reject handling

and cable noise

•Integral multi-layer breath/wind filter

•500-ohm Impedance

•Frequency response range of 100 Hz to 12 kHz

•Sensitivity of -75 dB +/- 3 dB

•Silent push-on/push-off talk switch on base

•Rugged, reliable construction

Condenser Gooseneck

Microphone

GCU250

The GCU250 is a high-performance, partially rigid, adjustable

gooseneck condenser microphone capable of meeting the strin-

gent demands of today's conference and PA systems. It is an in-

telligent choice for sound reinforcement applications. It has an

integral XLR male connector mounting base and requires a 9V-

52V DC phantom power source. Slim and compact, the GCU250

is designed to minimize intrusion between the user and the

audience. 18

-1/2

" Long; 4 oz.

•Cardioid pickup pattern

•Clean, accurate vocal reproduction with low ambient noise

•Integral breath/wind filter

•250-ohm Impedance

•Frequency response range of 50 Hz to 18 kHz

•Sensitivity of -65 dB +/- 3 dB

•Snap-on windscreen

•Durable all-metal case with non-glare black finish

•5-1/2" adjustable lower stalk, with 9-1/2" rigid upper section

Industrial Gooseneck

Microphone

MGN19

•Omni-directional pickup pattern

•Rugged, reliable design for quality, long-term use

under strenuous handling conditions

•400-ohm Impedance

•Frequency response range of 50 Hz to 12 kHz, w/ 2 kHz boost

•Sensitivity of -76 dB +/- 3 dB

•Push-to-talk switch on MIC housing

•

Chrome-plated screen & gooseneck with black plastic housing

•4-conductor, 2-shielded cable included

•19" flexible neck with mounting flange

The MGN19 is a dynamic, push-button activated micro-

phone designed for all industrial and commercial public

address and paging applications.

-1/2

" Long; 1.25 lb.

Accessories

www.bogen.com

MICROPHONES

Professional Handheld

Stage Microphone

HDU250

The HDU250 is a dynamic microphone that is ideal for acoustically

demanding environments. It features a heavy zinc die cast case

with a rigid, low noise cable-mount system and a lockable silent

reed switch. 7" D x 2 " dia.; 13 oz.

•Cardioid pickup pattern

•High-output design with excellent gain before feedback characteristics

•High sound pressure capability without distortion

•Low sensitivity to breath/pop noise

•Efficient shock-mount system prevents handling and

transmission noise

•High sensitivity Neodymium capsule

•250-ohm Low-impedance

•Frequency response range of 50 Hz to 18 kHz

•Sensitivity of -72 dB +/- 3 dB

•Integral multi-layer breath/wind filter; includes mic clip

•Rubberized black finish; rugged, reliable construction

Handheld Public

Address Microphone

HDO100

The HDO100 is an attractive, dynamic microphone perfectly suited for

public address applications and instrument sound reproduction.

-1/2

" D x 1

-1/2

" dia.; 13 oz.

•Omni-directional pickup pattern

•Clean, clear reproduction with minimal ambient sound

•Low sensitivity to handling noise and stage vibrations

•Lockable, silent on/off reed switch

•500-ohm Impedance

•Frequency response range of 70 Hz to 15 kHz

•Sensitivity of -72 dB +/- 3 dB

•Internal rubber shock isolation system

•Rugged, reliable construction; includes mic clip

•Rubberized black finish

Handheld Stage

Microphone

HDU150

The HDU150 is an attractive, dynamic, all-purpose microphone ideally

suited for a wide variety of vocal and sound reinforcement applications.

-1/2

" D x 1

-1/2

" dia.; 13 oz.

•Cardioid pickup pattern

•Wide dynamic range with high-end sparkle and minimum feedback

•Low sensitivity to breath and popping sounds

•Lockable, silent on/off reed switch

•500-ohm Impedance

•Frequency response range of 70 Hz to 15 kHz

•Sensitivity of -70 dB +/- 3 dB

•Rubber shock-mount system for attenuation of handling & cable noise

•Rigid, low-noise cable-mount system

•Rubberized black finish; durable ball-shaped design; includes mic clip

HANDHELDS GOOSENECKS

WSGCU250

Mic Windscreen

(for GCU250)

MC27

Mic Clip

(for HD Handhelds)

More Microphone

Accessories

on Page 60

XLR25 - Microphone Cable

•For use with models HDU250,

HDU150, & HDO100

•25' cable; Male XLR to female XLR,

2-conductor plus shield; 12 oz.

MSM - Shock-Isolated Microphone Base

•For use with models GCU250 & GDU150

•Provides superior mechanical noise

and vibration handling

•Lightweight ABS material housing

•XLR (female) connector

•Thick, shock-absorbing rubber cushion

•4-

3/4

" W x 1-

3/4

" H x 4" D; 6 oz.

OVERHEAD BOUNDARY

CABLES

MOUNTS

MAC - Microphone Cable Assembly

•For use with models HDU250,

HDU150, & HDO100

•25' cable; Female XLR to stripped and tinned

wires, 2-conductor plus shield; 1 lb. MAC

MSM

XLR25

www.bogen.com

MICROPHONES & ACCESSORIES

MICROPHONES

MICROPHONE ACCESSORIES

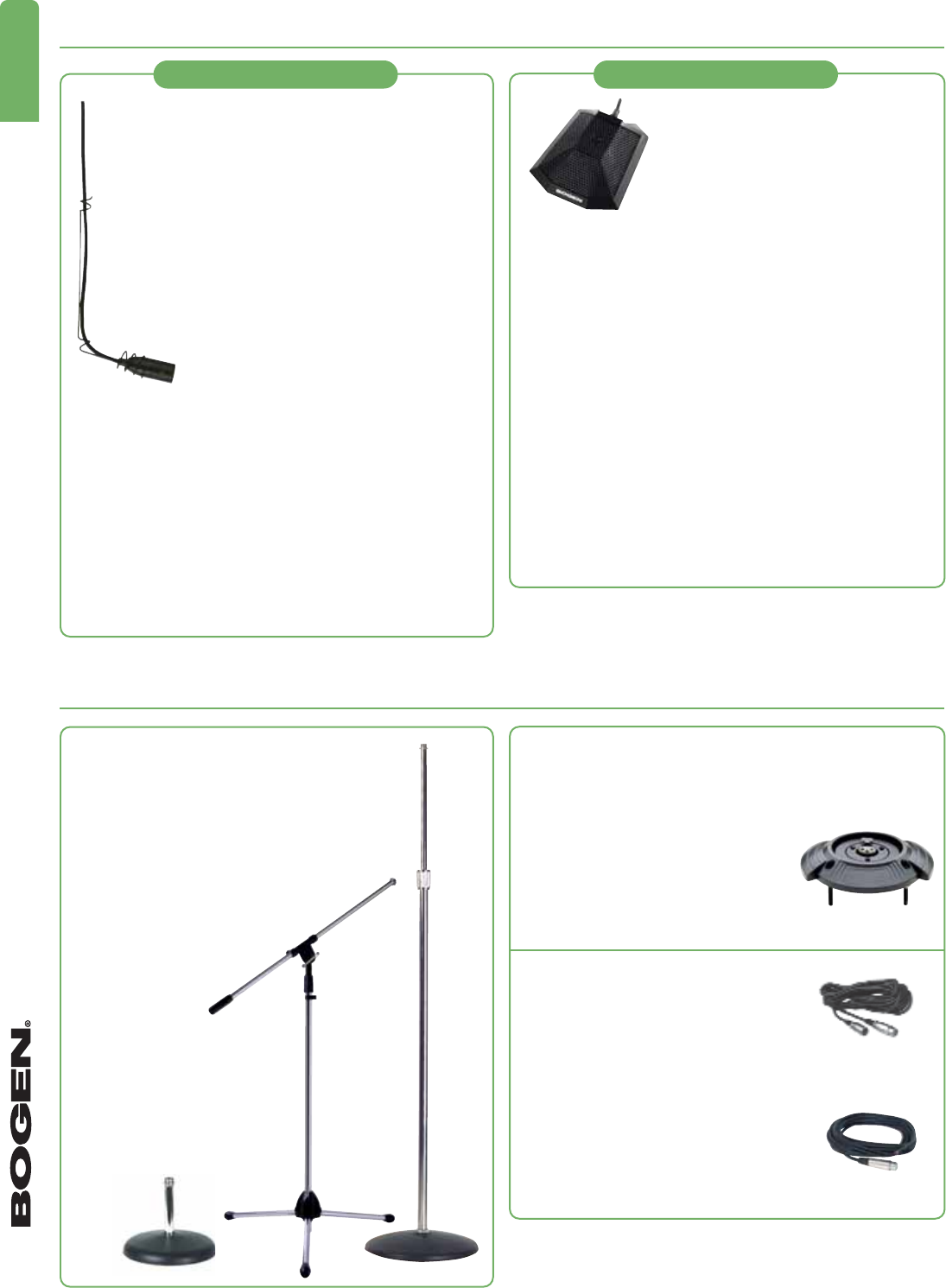

Professional Overhead

Hanging Microphone

WCU250

The overhead WCU250 is a back electret condenser, professional

microphone perfectly suited for picking up audio from large

groups. Because it can hang from the ceiling and is compact in

size, the WCU250 is very useful in minimizing visual distrac-

tion for the performers and the audience alike, and limits

intrusion into the working space.

The WCU250 cable is terminated by a mini-XLR (female).

A mini-XLR to standard XLR adapter (included) houses the pre-am-

plifier. It requires an external 9V to 52V DC phantom power supply.

-1/4

" D x

1/2

" dia.; 5 oz.

•Cardioid pickup pattern

•Clear, crisp sound with outstanding ambient noise isolation

•Utilizes a superior-quality, state-of-the-art transducer element

and circuitry

•Transformerless, direct-coupled design to ensure clear, transparent

reproduction of even the most delicate transients at the highest

output levels

•Phantom power operated

•250-ohm Impedance

•Frequency response range of 50 Hz to 18 kHz

•Sensitivity of -65 dB +/- 3 dB

•Integrated metal hanger; matte black finish; 20-ft. cable included

•Stainless steel, adjustable black hanger

Professional Boundary

Microphone

SCU250

•Cardioid pickup pattern

•Full, rich reproduction of voice and music

•Low sensitivity to stage vibration and thumping noise

•Well-suited in capturing the sound source and immediate surroundings

•Excellent user sound isolation with excellent feedback rejection

•Phantom power operated

•250-ohm Impedance

•Frequency response range of 20 Hz to 18 kHz

•Sensitivity of -58 dB +/- 3 dB

•Low-impedance balanced output

•Mounting keyways for hanging or for secure attachment to

the mounting surface

•Heavy-duty metal case; matte black finish

•Outputs for interfacing with auxiliary equipment

•26-ft. long Quad cable, attached

The SCU250 is an unobtrusive, surface-mount, boundary, condenser

microphone ideal for meeting rooms, conferences, and stage productions

where minimum visibility is ideal. It requires an external 9V to 52V DC

phantom power supply. 2

-3/4

" W x

3/4

" H x 3

-1/4

" D; 11 oz.

STANDS

SF4 - Floor Stand

•34" to 62" adjustable height

•Round 10" diameter die cast

base, 9 lb.

•Grip-action clutch and

chrome-plated tubing

SB6 - Floor Boom Stand

•Telescopic floor stand

•Sliding 30" boom arm

•34" to 62" adjustable

height, 6 lb.

•Chrome-plated tubing

•Tripod base

DS3 - Desk Stand

•3" chrome-finish tube;

4" high with base

•6" dia. cast iron base, 3 lb.

DS3

SB6 SF4

(other accessories listed on page 59)

www.bogen.com

INTERCOMS

Product Features:

•Communicate with 25 to 75 rooms or remote locations, using up to three

25-room capacity room selector panels (PI35A – 25-room maximum;

SI35A – expand to 75-room maximum)

•Distribute program material from microphones, CD player/tuner or other

background music sources, tone signals, and emergency announcements

to all or select locations

•5 inputs: 2 - MIC (1 built-in console mic), 1- AUX (Hi-Z) unbalanced,

1- TEL, 1- 25V booster amplifier

•Built-in 20W intercom amplifier and 35W program amplifier permit instant

communication with any location without interrupting the distribution of

program to other locations

•Built-in panel speaker to monitor program or listen to a station via

intercom channel

•Instant Emergency/All-Call paging with a single push button

•Push-to-talk switch to communicate with selected intercom stations

•Station call-in annunciated with tone and illuminated light

•Time signal tone activated from external contact closure

•Telephone paging capabilities

•25V balanced line output to drive a distributed speaker system

•Remote stations can be wall- or ceiling-mounted loudspeakers

or horn-type loudspeaker

•Call-in switch can be used where call initiation is desired

•Privacy beep generation available to prevent eavesdropping

•Easy to understand and operate; instructions for intercom, program,

and emergency page permanently printed on front panel

•External booster amplifier can be used when more than 35W is required

•15V DC Phantom power supply

•Color-coded controls for easy operation

•3-conductor, shielded 18, 20, or 22 AWG wire is recommended

•Sturdy desktop cabinet with simulated oak finish

PI35A

The SI35A and PI35A High-Powered Desktop Control Centers are dual-channel intercom

and program distribution systems for applications with numerous locations, requiring

maximum intelligibility of voice announcements and other sources.

SI35A

Power Requirements:

120V AC

Dimensions:

PI35A - 20-1/2" W x 8-1/2" H x 11" D

SI35A - 20-1/2" W x 12" H x 11" D

Product Weight:

PI35A - 24 lb.; SI35A - 29 lb.

INTERCOMS

Desktop

Intercoms

Targeted Communication

The PI35A and SI35A allow background

music to play, without interruption, in se-

lected areas while one or more rooms

communicate directly with the main unit.

This feature is useful in a number of ap-

plications, including:

Schools: A live news broadcast can be

played over the system into all rooms. If

an administrator needs a student, the call

for the student can be placed directly into

the classroom the student is in, without

interrupting the live news broadcast to all

the other classrooms.

Medical Center: If a nurse at the main

desk needs to communicate immediately

with one of the physicians, the nurse can

call directly into the exam room where

the physician is without interrupting the

background music being played in all pa-

tient areas. This keeps the physician’s de-

mand and schedule private, so patients

do not become concerned about the

length of their wait before they get to see

the physician.

Connects To Existing Phone Systems

With the WMT1A Line-Matching Trans-

former, a connection can be made to the

page port from the phone system. This

allows an All-Call/Emergency notice to be

made using the in-house phone system.

Accessories

Connector Kits:

2518 – 18-gauge

2520– 20-gauge

2522– 22-gauge

TL156

Insertion Tool

for connector kits

CA10A

Call-in Switch,

2-position

CA11A

Call Privacy Switch,

3-position

CA17

Call-in Switch,

push-button

(usew/SCR25A

)

CDR1

CD Player

& AM/FM Receiver

MBS1000A

Desktop Paging

Microphone

DDU250

Dynamic Desktop

Microphone

SBA225

25-Station Selector

Panel for SI35A

SCR25A

Call-in Module

for SBA225

TWK351

2-Wire Call-In

Adapter Kit

WMT1A

Line-Matching

Transformer

www.bogen.com

VOICE REINFORCEMENT

2Pre-packaged System Options Available:

ORATOR1

1 MIC/Transmitter (OMX1)

ORATOR2

2 MIC/Transmitters (OMX1)

The Bogen Orator is a dual-channel, infrared

(IR) wireless microphone/transmitter and mixer-

amplifier system that is designed to enhance a

presenter’s voice in all areas of the room. IR tech-

nology eliminates the interference and cross-talk

from adjacent rooms that occurs with FM-based

wireless products.

Voice Reinforcement

System

ORATOR

VOICE REINFORCEMENT

ORB35 Orator Base Unit Features:

•7-Input mixer/amplifier/receiver with 4 AUX inputs, 1 priority

paging (25V/70V/line), and 2 MIC/Transmitter inputs

•Dual front-mounted charging dock for MIC/Transmitter

•Amplifier output power: 35W

•Master Volume, plus separate volume controls for each input

•8-band EQ – front-mounted bass and treble controls,

plus 6-band rear-mounted graphic EQ

•Speaker impedances: 70V, 25V or 8-ohms

•Output feeds: booster amp, subwoofer

•Front-mounted AUX input

•Front-mounted system output (for assistive listening

devices, recording, etc.)

•Page input with VOX-triggered priority override function

•Rotating, lockable front cover for tamper protection and

secure storage of MIC/Transmitters and accessories

•Listed to UL Standard 60065 for US and Canada

OMX1 MIC/Transmitter Features:

•Can be used as a handheld microphone as well as worn

on a lanyard around the neck or as a body-pack with a

user-supplied external microphone

•Built-in microphone with volume control

•Adjustable lanyard with break-away clasp for neck-worn

applications

•Rugged, reliable, spring-wire belt clip

•Use built-in microphone or external microphone depending

on wear style

•AUX input for wireless connection of audio sources

(computers, MP3 players, etc.)

•Rechargeable, high-capacity Li-ion battery included

•Comprehensive battery/status indicator

ORS IR Sensor Features:

•

Remotely mounted sensor connects via standard coaxial cable

•Add multiple sensors to improve reception in trouble spots

•1 Receiver/Base Unit (ORB35)

•1 MIC/Transmitter (OMX1)

•1 Infrared Sensor (ORS)

•Security Cover Locking Keys (2)

•Rechargeable Lithium Battery

•Adjustable Microphone Lanyard

Orator System consists of:

COVER IN CLOSED

POSITION

RPK92

Rack Mount

Brackets

OXC1

External

Sync-Charger

OSC50PLENUM

50-ft. Plenum-

Rated Cable

Accessories

WMK2

Easy Mount

Wall Bracket

Specifically designed for easy 1-person mounting, special

support stops help to locate receiver unit while installing hard-

ware. The removal of 2 screws allows the ORB35 unit to rotate

downward into a service position, allowing for easy access to

rear controls and connections.

Easy Mount Wall Bracket

SERVICE

POSITION

OPERATIONAL

POSITION

www.bogen.com

SYSTEM DESIGN GUIDE

SYSTEM DESIGN

Bogen created the System Design Guide (pages 64-77) to help you to understand how a paging system works

and how to set one up. It is filled with helpful information and reference material that is sure to help answer

your questions about centralized 70V amplifier and 24V self-amplified systems and products, how and when

to use them, and how to correctly set them up.

Actually, all you need to design a proper paging system is a few simple measurements. Then follow the step-

by-step process to select the type and quantity of system components needed. At any point you can contact

Bogen’s toll-free Technical Support Department for assistance, or take advantage of Bogen’s Free Applica-

tion Design Service (see page 82).

INDEX:

Paging System Technology (Introduction) ................Page 64

70V Systems (Central Amplified) ........................Pages 64-67

•What is a 70V System? ....................................................Page 64

•Why Use 70V Outputs? ....................................................Page 64

•What Makes a 70V Speaker?..........................................Page 65

•Amplifier Output Types ....................................................Page 65

•Amplifier Input Types........................................................Page 66

•Designing 70V Systems ..................................................Page 67

•Amplifier Selection ..........................................................Page 67

24V Systems (Self-Amplified)................................Pages 68-69

•What is a Self-Amplified System?..................................Page 68

•Why Use Self-Amplified Technology? ............................Page 68

•What Makes a Self-Amplified Speaker?........................Page 69

•Designing Self-Amplified Systems ................................Page 69

Speaker Layout............................................................Pages 70-71

Site Survey............................................................................Page 72

Site Survey Check List......................................................Page 72

Speaker Wiring....................................................................Page 73

Speaker Phasing ................................................................Page 73

Wire Types ............................................................................Page 74

Wire-Related Losses ........................................................Page 75

Telephone Interfaces........................................................Page 76

Sound Pressure Levels Chart ........................................Page 77

Bogen System Design Guide

•Design Your Own Systems •Learn Design Principles

•Master the Basics of Paging System Technology

•Understand the Benefits of both 70V and 24V Systems

70V Paging Systems

consist of:

• A Centralized Amplifier which offers a variety of

features

to enhance voice and music reproduction

as well as easy system expansion.

• Speakers that connect with a simple 2-wire installation

because the audio power is supplied from the central-

ized amplifier.

• An Interface Device that connects the paging system to

the telephone system. (Depending on the telephone

system

and amplifier, an interface device may not be

needed.)

The aim of a paging system is to deliver important audio

announcements, at the proper level and with sufficient

clarity, to people working in a facility and to make those

announcements easily understood. The two most common

ways to accomplish this are to use either 70V central-

ized amplifiers with passive speakers or self-amplified

speakers operating from a 24V DC power supply.

Pages 64-67 explain 70V systems and pages 68-69

explain self-amplified systems. Speaker layout, wiring

methods, and phasing are the same for either technology

and are covered on pages 70-76.

Central-Amplified Systems - pages 64-67

Self-Amplified Systems - pages 68-69

Power Lost

In Wires

(Watts)

Resistance

of Wire

(Ohms)

Current Flowing

In Wire

(Amps)

P = I2*R

Current Flowing

In Wire

(Amps)

Amplifier

Output Voltage

(Volts)

Power Needed

By Load

(Watts)

I = P / V

www.bogen.com

SYSTEM DESIGN GUIDE

PAGING SYSTEM TECHNOLOGY

WHAT IS A 70V SYSTEM?

WHY USE 70V OUTPUTS?

Low Currents Allow Long Runs

Why do distributed sound systems use centralized ampli-

fiers with 70V output signals? Because 70V systems can

handle extremely long lengths of wire to connect the

speakers to the amplifier, and they can power a large

number of speakers in each system.

When sending power signals over long distances, it is im-

portant to minimize the amount of current flowing in the

wire. High currents allow too much power, or electrical en-

ergy, to be wasted in wires in the form of heat.

The power (P) lost in the wire is related to the square of the

current (I), so reducing the current in the wires a little

reduces the power lost in them considerably. In fact, reduc-

ing the current flowing in a wire by a factor of 2 will reduce

the power loss by a factor of 4.

However, the power the load demands and the output level

of the amplifier determine the amount of current that must

flow in the speaker wires (Ohm’s law in action).

So to lower the amount of power lost in the wires, the

voltage that the amplifier uses to drive the load is

increased. By doing this, the current in the wires can be

reduced while still supplying the same power to the load

(for the same power P, any increase in V will lower I).

Of course you cannot just change the voltage driving a load

from one level to another without also making the load

compatible with the new voltage level. To ensure compati-

bility, 70V systems use transformers on the speakers that

change the high 70V amplifier output levels to lower levels

that are compatible with typical 8-ohm speakers.

Easy To Control Speaker Power Draw

The output of a central paging amplifier is designed to

limit the maximum output voltage that can be supplied to

the speakers. This maximum output voltage remains the

same regardless of the amplifier’s power capacity. Because

the output voltage is limited, speaker manufacturers can

design products that consume a specific amount of power

from the amplifier. This is beneficial in two ways.

First, the speakers will not consume more power than

they are designed for; so, they cannot blow out from using

an amplifier that’s too powerful. Second, since each speaker’s

power consumption is known, the correct amplifier power

for the paging system is simply the total power consumed

by all the speakers.

70V Output

A 70V output is available on Bogen amplifiers and is the

primary type of output for paging systems. A step-up

output transformer in the amplifier provides the high

70V output signal. All speakers with step-down transform-

ers

(rated for 70V systems) are connected to this output.

Other Output Types

(25V, 16- and 8-ohm)

There are a number of other standard speaker imped-

ances that Bogen amplifiers can be connected to.

These outputs provide the correct speaker signal level

for different configurations of low-impedance speakers.

The lower voltage (25V) output is provided on many

Bogen amplifiers for use in paging installations that

require a speaker voltage of less than 70V to meet

building code requirements.

Direct Output

Direct outputs are used with low-impedance speakers.

These outputs have an exceptional low frequency (bass)

response, providing the fuller sound that low-imped-

ance speakers can reproduce. Certain Bogen amplifiers,

designed for general purpose sound reinforcement

applications, include this feature which allows the step-up

output transformer to be bypassed for direct connection

to the power amplifier’s output.

Step-Down Transformer

70V paging speakers have a step-down transformer,

which is used to convert the high-voltage/low-current

amplifier signal of the central paging amplifier to the low-

voltage/high-current signal that speakers use.

Taps

The primary side of the step-down transformer (the

side that connects to the amplifier) has a number of

connections (called taps or power taps) that can be

used to select the peak power the speaker will con-

sume from the amplifier.

Why Taps?

The selection of the power tap has an effect on both

the amplifier power needed for the system and the

volume of the speaker. The more power a speaker

consumes, the louder the sound from the speaker.

By tapping speakers for lower power in quiet areas and

for higher power in noisier areas, the sound level

of the paging system can be controlled and balanced.

It is important that speakers be tapped correctly for the

area that they will be used in. Setting all the speakers for

the same power regardless of the amount of noise in

different areas will cause balance problems. If the

amplifier is adjusted to produce adequate paging levels

in the noisy areas, the paging levels in the quiet areas

will be too loud or vice versa. Selecting the proper tap set-

ting is not difficult, but it does require knowing the level of

ambient noise in different areas. (See Sound Pressure Levels

Chart on page 77.) It is always better to use the next high-

est wattage tap if there is any doubt about the speaker

being sufficiently loud for the area.

Of course, the best way to determine how effectively a

system covers an area is to test it. Never install a paging

system and leave the site without testing it. Sound adjust-

ments or additional speakers may be needed. Some

paging equipment, such as Bogen’s PCM2000, UTI1,

and UTI312 paging interfaces include a test tone that is sent

to all speakers in the system so installers can check the

system installation. For other systems, the installer

can have pages made while the installer walks the area

to listen for appropriate sound levels and uniform coverage of

the system to find out if and where adjustments need

to be made, and to make sure that all speakers are

properly connected.

Easy Design™Without Taps

To make designing paging systems as easy as possible,

Bogen offers a line of Easy Design™speakers. These

speakers do not require tapping and allow for on-the-fly

adjustment of speaker paging levels. All the information that

is needed to design a complete system are the

dimensions of the different paging areas and the type of

environment. With this basic information, you can use the

Easy Design speaker line to quickly design a robust,

professional, and powerful paging system. (See pages

15-21 for more information.)

www.bogen.com

SYSTEM DESIGN GUIDE

WHAT MAKES A 70V SPEAKER?

AMPLIFIER OUTPUT TYPES

Auxiliary Input (AUX)

The Auxiliary input is the most common type of input

used in paging. This input is designed to connect to most

music sources, such as a CD player or tuner. Usually the

connector for such an input is a Phono jack (also called

an RCA jack). It connects to other equipment using stan-

dard audio cables.

The AUX input has an outer connection that is directly con-

nected to the equipment’s ground and a center connec-

tion that is the “hot” input. AUX inputs, sometimes

referred to as Hi-Z or high-impedance inputs, have a high

input impedance so that they won’t put too much of a load

on the source equipment’s output. This type of input is

“unbalanced”. You must use shielded cable with this type

of input in order to avoid getting noise induced into the

system.

Normally, connections between source equipment and the

amplifier’s AUX input should not be too long, about 6 feet.

The problem with long connections is that the cable acts

like an antenna, picking up any electrical noise in the area.

The longer the cable, the more noise that is picked up.

Telephone Input (TEL)

The TEL Input is so named because it was designed to be

compatible with page port outputs of telephone systems.

The TEL input is a 600-ohm transformer-coupled input that:

•

matches the impedance of the telephone port to provide

proper interfacing

•electrically isolates the amplifier from the PBX

or Key System

•provides a balanced input with a great deal of

noise immunity

Bogen’s TEL inputs do not have to be shielded, but it is al-

ways a good idea to provide more noise immunity (nor-

mally a ground terminal is available on the input for the

shield connection). Higher noise immunity allows the am-

plifier to be located much farther away from the source

equipment than what an unbalanced input will allow.

The input transformer is not designed to pass loop current

from a telephone line. Any time you want to connect to a

telephone station or trunk port, you will need to use a tele-

phone interface module like the TAMB2, which converts

the telephone signal into a “dry” audio signal compatible

with the amplifier’s TEL input.

Microphone Input (MIC)

The traditional paging amplifier input is the Microphone

input. MIC inputs were the primary announcement source

until connection to the telephone system became possible.

MIC inputs are still used in public address applications today.

When connected properly, a microphone can be hundreds

of feet away from the amplifier and still provide clear, quiet

audio.

MIC inputs are the most sensitive of all the amplifier in-

puts and tend to pick up the stray electrical noise in an

area. To combat the noise pickup problem, MIC inputs

are balanced. Just like TEL inputs, the balancing of the

input provides a high level of noise immunity. MIC inputs

are also made to have a fairly low input impedance,

which makes it difficult for electrical noise to get in-

duced. The low impedance effectively keeps down noise,

which makes its signal level smaller.

Microphone cable is always shielded. The input requires

three connections – two for the balanced signal and one for

the shield ground. You can reverse the balanced signal

leads and the system will still work properly. However, if you

mis-wire the ground connections, the amplifier can become

unstable and start to oscillate. When this occurs, the am-

plifier may heat up enough to cause its protection

circuits to shut it down or it may produce very distorted

sound.

Phono (RCA) Input Jacks

Telephone Input Screw Terminals

Balanced Microphone “XLR” Type Connector

Balanced Microphone Screw Terminals

- see page 82

www.bogen.com

SYSTEM DESIGN GUIDE

AMPLIFIER INPUT TYPES

# of

Speakers

Speaker

Coverage

Total Area

(Sq. ft.)

÷=

CEILING SPEAKERS

To determine the number of ceiling speakers

your installation requires, simply divide the

area’s total square footage by the speaker

coverage as indicated in this chart.

HORN LOUDSPEAKERS

To determine the number of horn loudspeakers

your installation requires, simply divide the

area’s total square footage by the speaker

coverage as indicated in the chart below.

To determine tap settings, use

the appropriate chart.

WALL BAFFLE SPEAKERS

To determine the number of wall baffle

speakers your installation requires, simply

divide the area’s total square footage by

600 square feet.

Coverage is 600 sq. ft. per speaker See chart below

Total

Speakers

Minimum

Amplifier Power

Tap

Wattage

# of

Speakers

600

Sq. ft.

Total Area

(Sq. ft.)

÷=

Recommended

Wall Baffle Tap Settings

Recommended Horn Tap Settings

Once you know the minimum amplifier power your system requires,

refer to the Amplifier Charts on pages 78-79.

Recommended

Ceiling Speaker Tap Settings

# of

Speakers

Speaker

Coverage

Total Area

(Sq. ft.)

÷=

Figuring out how many speakers you need for your application is simple. You only

need the dimensions of the area in which the paging system will be installed.

•For Bogen’s Easy Design™line speakers, refer to the charts on pages 18-20.

•For speakers with multiple tap settings, refer to this section for information.

Determining

Quantities

Determining

Taps

To determine the total power your

installation will require, simply

multiply the number of speakers

by the tap wattage.

Determining

Amplifier Power See page 75

for Wire Loss

Information

www.bogen.com

SYSTEM DESIGN GUIDE

DESIGNING 70V SYSTEMS

AMPLIFIER SELECTION

Self-Amplified Paging Systems

consist of:

• Self-Amplified Speakers each contain an individual, built-in,

miniature amplifier that drives the speaker directly. Each

speaker requires 4 wires. Two wires supply the raw 24V DC

voltage to power the speaker’s internal amplifier and another

2 wires supply the low-level audio paging signal to the ampli-

fier’s input. All amplified speakers contain volume controls to

adjust output level.

• A Power Supply or multiple power supplies provide the raw

24V DC voltage that will power the amplifier built in to each

self-amplified speaker. Several power supplies can be

located in convenient areas in the facility.

• An Interface Device that connects the paging system to back-

ground music sources and the telephone system and supplies

a telephone level audio paging signal to all the speakers in the

system. (Depending on the telephone system and number of

speakers in the system, an interface device may not be needed.)

A self-amplified system can be expanded by adding extra speak-

ers and power supplies as required. They are extremely scala-

ble due to the fact that each speaker is an amplifier unto

itself. It is also easy to connect additional power supplies

where needed to power the speakers. In some instances

there may not be sufficient audio signal level available for the

speaker’s input. In these instances, a small buffer can be in-

stalled inline to boost the signal level.

Self-amplified speakers can also be used to expand 70V paging

systems in cases where the added speakers would overload an

existing central 70V amplifier. The same buffer that is used to

boost signal level can be used to reduce the large 70V speaker

signal to a level that is compatible with the input of

self-ampli-

fied speakers. A suitable power supply can be located

near the

expansion speakers to power their internal amplifiers. This ap-

proach can be used instead of replacing the central 70V ampli-

fier with a larger one to handle the extra speakers.

Convenient System Expansion

Self-Amplified paging systems are made up of equipment

that consume or provide operating current. To operate

properly, the system needs to provide at least as much

24V current as it consumes.

Each product has a Current Units number. This number is

either positive, negative, or zero to indicate how much cur-

rent it provides to or consumes from the system.

Note: One Current Unit = 50 mA, 24V DC

Understanding Current Units

Low Signal Levels Prevent Crosstalk

In certain installations it may be desirable to use conductors

in an existing telecommunication cable to deliver paging to dif-

ferent floors or areas in a facility. 70V amplifier signals would

not be appropriate to run in the same cable with analog tele-

phone signals since their high level could cause crosstalk in

the other telephone circuits in the cable. Because the audio

signal levels supplied to the inputs of the amplified speakers

are similar in level to analog telephone levels, there will be no

crosstalk of the paging system in the telephone lines.

The raw 24V DC power needed by the self-amplified speaker

can also be carried in the telecom cable since it contains no

interfering signals, but care must be exercised to make sure

the length of cable will not cause too much voltage to be lost

in the cable. (See Page 75 for more information.)

Self-amplified speakers can be very cost effective in small

systems since they provide scalability in small increments.

The centralized amplifiers in 70V systems are typically avail-

able in set output power level steps that start at 6 or 10 watts

and increment by 10 watts or more from model to next higher

powered model. In small applications that require only a few

watts of paging, the extra power capability of the 70V ampli-

fiers may not be an advantage due to the higher cost associ-

ated with the amplifier’s extra power, especially if it will not be

used in the future.

Self-amplified systems can be designed with much smaller out-

put level power steps so that only the necessary audio power

is installed in the facility. This can result in a lower cost of

equipment especially where the desired power level is con-

siderably less than the smallest applicable 70V amplifier out-

put level.

Cost Effective for Small Installations

Provides

System Current

Consumes

System Current

No Draw

on the System

AUDIO DC POWER

www.bogen.com

SYSTEM DESIGN GUIDE

WHAT IS A SELF-AMPLIFIED SYSTEM?

WHY USE SELF-AMPLIFIED TECHNOLOGY?

Built-In Amplifier

As the name suggests, all self-amplified speakers contain their

own built-in, miniature amplifier. These amplifiers range in size

from 1 watt, which are used on cone speakers, up to 30 watts,

which are used on the SAH30 horn speakers.

Bogen’s latest line of self-amplified horns use a revolutionary digital

switching amplifier. Unlike conventional analog amplifiers, this

advanced technology produces very little heat when it operates.

It produces so little heat that all it needs to dissipate the waste

heat are the copper interconnecting traces on the printed circuit

board instead of the typical large aluminum heat sinks. Because

it produces so little heat, it also draws considerably less power

from the power supply. Why? Because it is not wasting half of the

power supply energy it consumes as heat.

More typical in the industry are speakers that employ analog

amplifiers, which produce considerable waste heat while oper-

ating. They typically release half the 24V power they consume

in the form of heat, and heat is a major contributor to the fail-

ure of an amplifier.

CEILING SPEAKERS

Self-Amplified

To determine the number of ceiling speakers

your installation requires, simply divide the

area’s total square footage by the speaker

coverage as indicated in this chart.

HORN LOUDSPEAKERS

Self-Amplified

To determine the number of horn loudspeakers

your installation requires, simply divide the

area’s total square footage by the speaker

coverage for the noise level in the area as

indicated in the chart below.

WALL BAFFLE SPEAKERS

Self-Amplified

To determine the number of wall baffle

speakers your installation requires, simply

divide the area’s total square footage by

600 square feet.

# of

Speakers

600

Sq. ft.

Total Area

(Sq. ft.)

÷=

# of

Speakers

Speaker

Coverage

Total Area

(Sq. ft.)

÷=

# of

Speakers

Speaker

Coverage

Total Area

(Sq. ft.)

÷=

Figuring out how many speakers you need for your application is simple.

•For Bogen’s Ceiling and Wall Baffle Speakers, you will need room dimensions.

•For Bogen’s Horn Speakers, you will need room dimensions and ambient noise levels.

Determining

Quantities

Determining

Power Supply Capacity

To determine total 24V DC Power Supply size

requirement, follow the steps below.

1. Add all the numbers of the Self-Amplified speakers for the system

and volume controls together.

2. Select a Power Supply (or power supplies) with a number(s) equal to

or greater than the total amount for the system.

See pages 22 and 68 for more information.

See page 30 for

Power Supply

Selection.

See page 75 for

Maximum

Wire Lengths.

www.bogen.com

SYSTEM DESIGN GUIDE

WHAT MAKES A SELF-AMPLIFIED SPEAKER?

DESIGNING SELF-AMPLIFIED SYSTEMS

The amplifiers in Bogen’s AH series of self-amplified horns are

analog but rid themselves of waste heat through their large cast

aluminum end bell that works as an excellent heat sink, quickly

and effectively removing excess heat. Competitive products using

plastic end bells don’t have this cooling advantage.

4 Wires

All self-amplified speakers require 4 wires to make the neces-

sary connections. Two of the connections are used to provide 24V

DC power to the built-in amplifier. The other connection pair to a

self-amplified speaker is for the audio signal input.

The general audio signal level is the same as what you would find

on any analog telephone line. The input is transformer balanced,

also similar to the inputs found on telephone systems. The bal-

anced nature of the input greatly reduces interference and noise

caused by equipment running in the facility. The use of an actual

transformer provides electrical isolation between the input leads

and the actual amplifier, which protects it from ground loops and

RF interference, and provides an all-around rugged input.

Coverage is 600 sq. ft. per speaker

Ceiling Speakers

Layout starts in one corner of the area. The first speaker should

be positioned from each wall a distance approximately equal to

the ceiling height of the room (dimension A).

The next speaker in row 1 should be spaced a distance

approximately equal to twice the height of the ceiling

(dimension B). Each additional speaker in the row should use

this same spacing.

Row 2 starts at twice the ceiling height distance (

from row 1

and twice the ceiling height (B) from the wall. The other speakers

in this row are also spaced at twice the ceiling height.

Row 3 is again spaced at twice the ceiling height (B) from the

previous row. The first speaker starting this row is positioned at

one ceiling height distance (A) from the wall (similar to row 1).

Continue this pattern of alternating rows until the room is covered.

The spacing of the speakers can be adjusted so that the speakers

are evenly spaced in a row and are more aesthetically pleasing.

Horn Loudspeakers

Desired mounting height, barring obstructions, is 15 to 20 feet,

with the speakers angled downward toward the listening area

and facing in the same direction. Follow the diagram for the

layout of the horn speakers while using the charts below to de-

fine the lettered dimensions for each specific speaker.

Begin in one corner of the area. The first speaker in Row 1 is

positioned a distance equivalent to (1/2 C). The next speaker

in Row 1 should be a distance equivalent to (C) from the first

speaker. Each additional speaker in the row should use this

same spacing. Row 2 starts at the indicated distance (D) from

Row 1. Using the diagram as a guide, fill in the remaining

rows in this same alternating pattern until the entire area is

appropriately covered.

For areas that include high shelving or corridors, speakers

should be installed so that they project down the aisles

between the shelves or down through the corridors.

The spacing of the speakers can be adjusted so that the

speakers

are evenly spaced in a row.

START

HORN SPEAKER

1/2 C

Row 1

Row 2

Row 3

Row 4

The layout of the speakers should be planned before installation begins. The spacing of the speakers can be

adjusted so that the speakers are evenly spaced in a row. Some adjustments may need to be made due to sound

obstructions that may be in the area such as high shelving, cubicle walls, etc.

NOTE: Each environment is unique. This layout plan is general in

nature and may not be applicable for every installation.

Ceiling Speaker Layout

Horn Speaker Layout

START

C = See charts below D = See charts below

A = Ceiling Height B = 2 x Ceiling Height

TOP-DOWN VIEW

www.bogen.com

SYSTEM DESIGN GUIDE

SPEAKER LAYOUT

20ʼ to 60ʼ

10ʼ

20ʼ

SPEAKER

WALL

START

B=20 feet

A=10 feet

SPEAKER

START

• Hallway/Room

Wall baffle speakers work well with rooms and

hallways that are 20' to 60' wide. Layout starts at

one end of the hallway or room. The first speaker

should be installed 10' from the end of the hallway

or room. The next speaker on that wall should be in-

stalled 20' from the first speaker, as should any

additional speakers required to cover the length

of the hallway or room.

The first speaker on the opposing wall should be

installed 20' from the end of the hallway or room,

thereby staggering the speakers. Each additional

speaker should also be installed 20' apart from

the previous one. (See Figure 1.)

• Open Area

The number of speakers needed to cover an open

area and the layout of those speakers is contingent

upon the availability of suitable mounting points in

the area to be covered.

Layout starts in one corner of the room. The first

speaker should be installed 10' from the corner of

the room with each additional speaker in the first

row installed in increments of 20' from the first.

Based on Figure 2, install the next row of speakers

30' from the first row and 20' from the wall with

increments of 20' between each speaker. The third

row would follow the example of the first and each

additional row would continue this pattern of

alternating rows until the whole area is covered. (See

Figure 2.)

Wall Baffle Speakers

The layout of the speakers should be planned prior to

installation. Because wall baffle speakers are designed

to project forward, it is best to aim them in the same

direction, as this provides for both greater coverage and

clarity. You can use the building’s roof pillars or other

available supports for mounting the wall baffles. In

some cases, it may be necessary to mount the wall

baffles on opposing walls. In these cases, the speakers

will project sound in opposing directions.

FIGURE 2

FIGURE 1

Ambient

Noise Range Tap Setting

Low Noise

(55 dB - 65 dB)

Medium Noise

(65 dB - 75 dB)

High Noise

(75 dB - 85 dB)

Very High Noise

(85 dB - 95 dB)

Ambient

Noise Range

Low Noise

(55 dB - 65 dB)

< 40 ft. Med

40 to 60 ft. High

Chart for

70V & 25V

passive

speakers

Chart for 24V

self-amplified

speakers

www.bogen.com

SYSTEM DESIGN GUIDE

SPEAKER LAYOUT

Facing Speaker

Distance

Volume

C=30 feet

www.bogen.com

SYSTEM DESIGN GUIDE

SITE SURVEY

This Site Survey Check List will help to determine the paging

system equipment needed for installations. Photocopy this page

and bring it with you when you visit installation sites. You may

need several copies of this chart for each installation.

Section I –SYSTEM NEEDS concerns the requirements of the entire installation.

Section II –SPECIFIC AREA NEEDS

concerns specific areas within the installation.

NOTE: Installations that contain areas with different style environments or

sound levels may require Section II to be filled out separately for each area.

Be sure to make enough photocopies of this page for this purpose.

I. SYSTEM NEEDS

a. What Type of Telephone Port Will Be Available for Connection

to the Paging System? (see page 76)

❑

Loop Start

❑

Ground Start

❑

Page Port

❑

Analog Station Port

❑

Other: ____________________

b. How Many MIC Inputs Needed? _______ (see page 66)

c. How Many AUX Inputs Needed? ______ (see page 66)

d. Is Zone Paging Required?

❑

Yes

❑

No (see pages 33-36)

If yes, how many zones: _________________

e. Is Talk Back Required?

❑

Yes

❑

No (see page 53)

If yes, in individual zones?

❑

Yes

❑

No (see pages 34-35)

If yes, system-wide (no zones)?

❑

Yes

❑

No (see page 53)

f. Is Group Paging Required?

❑

Yes

❑

No (see pages 33-36)

Are Time Tones Needed to Signal Shift Changes?

❑

Yes

❑

No (see pages 33-36)

h. How Can Headend Equipment Be Mounted?

❑

Rack

❑

Wall

❑

Shelf

i. System Features Needed:

❑

Automatic Level Control (ALC)

❑

Variable Loudness Contour Control

❑

Bass & Treble Controls

❑

Graphic Equalizer

❑

Automatic Mute

❑

Variable Mute

❑

MOH Output

❑

Manual Mute

❑

Audio Enhancement

❑

Night Ringer

Any Technology Preference?

❑

70V Central Amplifier

❑

Self-Amplified 24V Equipment

❑

II. SPECIFIC AREA NEEDS

a. Area Name/Description: _________________________

b. Area Dimensions:

Length __________________ ft. Width ___________________ ft.

Square Footage ___________ sq. ft. Ceiling Height ____________ ft.

c. Ambient Noise Level: ____________ dB

(to estimate, see chart on page 77)

d. Will There Be Large Changes in Ambient Noise Levels in

the Area?

❑

Yes

❑

No (see pages 40, 52)

If yes, note range: ____________ dB to ____________ dB

e. Environment:

❑

Office/Professional/Retail Store

❑

Factory/Industrial

❑

Institutional/Remote Public Area

❑

Warehouse

❑

Aisles created by high storage racks

❑

Hallways

❑

Cafeteria/Break Room

❑

Auditorium

❑

Loading Docks/Outdoor Areas

❑

Other: ________________

f. Where Will the Speakers Be Placed?

❑

Indoors

❑

Outdoors

g. How Can the Speakers Be Mounted?

❑

Suspended/Drop Ceiling*

❑

Wall**

❑

Beams, Columns, Other Structures

❑

Ground

* Make note of any changes in surfaces or positions for actual speaker mounting.

** Make note of any changes in wall angles, surfaces, or height.

h. Are Volume Controls Mounted on Each Speaker Needed?

❑

Yes

❑

i. Are Wall-Mounted Attenuators Needed for Area’s

Volume Control?

❑

Yes

❑

No (see pages 14, 29)

j. Is Feedback Elimination Equipment Needed?

❑

Yes

❑

(see page 53)

k. Is Background Music Needed?

❑

Yes

❑

If yes, BGM source: (see pages 55-57)

❑

Tuner

• Antenna available for tuners?

❑

Yes

❑

CD Player/Receiver

❑

Other: ___________________

Designing a system and determining an installation’s requirements are quite simple. After you set up your first system, the

steps will appear logical and soon the process will become routine.

However, before you begin designing or quoting a job you will

need some basic information regarding the site and the end-user’s needs.

Use the Site Survey Check List below to ensure that you collect all the information you will need to complete the design of the

paging system. When you have completed the check list, create a bill of material for the equipment you need for the instal-

lation’s sound system. Refer to the Easy Design™Guide (pages 17-21), page 67 for 70V systems, or page 69 for 24V systems.

Tools Needed (for Site Survey Check List below)

You will need to bring the following tools with you when you visit the installation site:

•measuring wheel/tape measure • sound pressure meter • calculator

•Bogen Products catalog •Photocopies of Site Survey Check List (this page)

Obtain a copy of the floor plan, or create sketches of any

areas that may require special design considerations (high shelving,

speaker mounting locations, exposed beams, amplifier location, etc.).

A successful paging system depends on more than just understanding the physical requirements of the installation site, it also

depends on knowing which special paging features the user will benefit from and use on a daily basis. These include zone paging,

tone controls, night ringer, feedback elimination, ambient noise sensors, multiple inputs, etc

SITE SURVEY CHECK LIST

❑

Subwoofer

To Use Bogen’s FREE DESIGN SERVICE, DO NOT Use This Checklist.

Use the Online Form at: www.bogen.com/requestform.pdf

Speaker Wiring Patterns

Because distributed paging systems involve a great

number of speakers and long distances, the manner in

which the speakers are wired is of interest. Deciding on

how to wire the speakers depends on whether separate

zones of speakers are needed, how many lines back

to the amplifier are reasonable, and how easy it will

be to troubleshoot the system in the future.

How you wire a speaker system may require some

tradeoffs. The simplest way is to parallel all the speakers

on one very long run of wire. This approach leads to

some problems. First, the amount of power lost in a

long run of wire may not allow the required amount of

70V speaker signal, or 24V DC voltage for self-

amplified paging systems, to get to the farthest

speakers. Second, if there should be a short on the

wire run, it would take down the entire run. In order

to locate it, you would need to disconnect each speaker

until the failed one is found.

Multiple Wire Runs

A more practical approach is to wire each row of speakers

in an area together and run a lead wire from this row

back to the amplifier. The objective is not to have so

many speakers daisy-chained together that it makes

troubleshooting impossible. Wire runs can be sepa-

rated to determine in which run the problem exists.

SPEAKER PHASING

As the voltage on a speaker changes from plus to minus,

the speaker cone moves from pushing out to pulling in.

If you reverse the polarity, the speaker responds in the

opposite manner.

If a speaker is pushing out and an adjacent speaker is

pulling in, some of the pressure caused by the speaker

pushing out will be absorbed by the speaker pulling in.

These two speakers are out of phase.

In a paging system, all the speakers should be in phase

so that they all push out at the same time. Out of phase

speakers operate perfectly well and will not cause any

harm to a paging system, but will tend to diminish the

bass response in the area around the out of phase

speaker.

The important thing is to wire all the same polarity (+ or -)

connections together. This will ensure that the speakers in

the system all work in unison. All paging speaker connec-

tions have a polarity indicator. It may be a color code, plus

(+) and minus (-) symbols, or a red dot.

Reversed Connections

in 70V System

www.bogen.com

SYSTEM DESIGN GUIDE

SPEAKER WIRING

NOT RECOMMENDED

Speaker Wire

The speaker wire best suited for paging systems is 2 con-

ductors in a jacket. The gauge of the conductors varies de-

pending on the installation. In many instances, a shielded

version of the speaker wire is used. The shield can be useful

to help protect the conductors from receiving electrical

interference from other electrical equipment in the area. The

shield is particularly useful when speakers are to be used as

microphones in talk back applications (see page 53 for more

information on talk back).

• Two-Conductor Shielded Cable

Two-conductor shielded cable is typically used with balanced

microphones. Two internal conductors are required for the

low-impedance balanced microphones used in paging sys-

tems. The shield is wrapped around these conductors and

provides the same protection against electrical interfer-

ence and noise as single-conductor cable. Balanced micro-

phone inputs provide a ground connection point for the

shield. Without the ground connection, the shield would be

ineffective. Some microphones with push-to-talk switches re-

quire two more conductors to carry the switch closure back

to the amplifier. In this cable, the conductors for the switch

closure are not wrapped in the shield but rather carried in

the cable jacket outside of the shield. The most popular

types of connectors for microphone cable are screw termi-

nals and XLR connectors.

Shielded Cable

Shielded cable refers to any conductor (or conductors)

wrapped in an electrically conductive shield. The two types

of cable most prevalent for audio installations are:

• Single-Conductor Shielded Cable

Single-conductor shielded cable is used to connect external

equipment to the unbalanced AUX inputs of amplifiers. The

center conductor carries the signal source and the shield

carries the ground between the amplifier and external equip-

ment. In addition to completing the ground return between

the electrical equipment, the cable provides a large amount

of noise and interference protection for the center conduc-

tor. The most common connector for this type of cable is

the Phono connector (a.k.a. the RCA connector). The con-

nector’s center pin connects to the internal conductor and

the skirt around the connector’s perimeter connects to the

shield of the cable.

Jacket

Shield (optional)

Shield

2 Conductors

Conductor

Drain Wire (optional)

SINGLE-CONDUCTOR SHIELDED CABLE

SHIELDED SPEAKER WIRE

Jacket

Shield

2 Conductors

TWO-CONDUCTOR SHIELDED CABLE

(BALANCED MIC CABLE)

UTP

Unshielded Twisted Pair (UTP) wire has many uses but is

most common in data and telecom installations. It uses

solid conductors, typically 24 gauge. It has insulation to

withstand voltages similar to speaker wire and can be used

in 70V and self-amplified applications, as long as the thin

gauge and

the associated higher resistance is accounted for.

Also because

there is no shield, the use of UTP in talk

back applications (where the speaker acts as a micro-

phone) may lead to higher electrical noise on the talk back

signal. There are normally several twisted pairs in a single

cable and these can be paralleled to approximate lower

gauge wires (see page 75).

Jacket

Twisted Pair

NON-SHIELDED UTP WIRE

LET US DESIGN IT FOR YOU...

FOR FREE!!!

—SEE PAGE 82 FOR DETAILS

www.bogen.com

SYSTEM DESIGN GUIDE

WIRE TYPES

Maximum Wire Run Cable Length (ft.)

Wire Loss In

Central Amplifier Systems

Once you have an idea of how many speakers are to be wired

together in a run, estimate how long the wire run will be from

the first to the last speaker in each run. Include the lead-in wire

length from the amplifier to the first speaker in each run in your

overall run length. For each run, sum up the speaker power

and cable lengths.

With that information, refer to the Wire Loss Chart to ensure

that the wire gauge is sufficient to support the power and cable

length for the run. It may be necessary to increase the wire

gauge, split the speaker loads, or shorten the wire run lengths

if they exceed the chart maximums.

Wire Loss Chart*

(10% of Power Lost in Wire)

Voltage Drop Chart

Wire

Gauge

10,000 7000 4600 2300 1400 700 350

9000 4500 2800 1400 830 415 205

5500 2700 1800 900 540 270 135

3400 1700 1100 550 330 115 60

2100 1000 700 350 210105 50

Load Power Per Wire Run (Watts)

51015 30 50 100 200

Wire is an important but often ignored component of a paging

system. Because all wire has resistance, some of the voltage

at the source is lost or dropped in the wire before it reaches

the target destination. The amount of voltage lost in the wires

is affected by the resistance or gauge of the wire and the cur-

rent flowing in the wire. This is classic Ohm’s law in action.

If the drops in the cables are not anticipated, the final vol-

ume level at the passive speaker may not meet the require-

ment or, for a self-amplified speaker, there may not be

enough DC voltage available to the speaker to allow the built-

in amplifier to operate cleanly, or at all.

There are different charts for centralized and self-amplified

speakers to determine the maximum cable lengths that

should be allowed. In the case of central amplifier systems,

try to keep the system power lost in the wires to 10% or less.

However, less power at the speaker is the only negative effect

larger losses have on the system. Clarity, intelligibility and

frequency response are unaffected by larger losses in the wiring

of centrally amplified systems.

Self-amplified systems are particularly sensitive to losses in

the wire, especially the amount of supply voltage that is lost

in the wires on the way to the self-amplified speaker. When

the drop in the wiring becomes too large, the speakers may

begin to distort or stop functioning altogether. For this reason

it is important to adhere to the maximums shown in the

tables below.

Voltage Drop In

Self-Amplified Systems

The most important wiring consideration with

self-amplified speakers is to ensure that there will

be enough voltage available at each device to

allow its internal amplifier to operate correctly. If

too much voltage is dropped in the wires leading

to a speaker, this may not be the case.

Once you have an idea of how many speakers are

to be wired together in a run, estimate how long

the wire run will be from the first to the last

speaker in each run. Include the lead-in wire

length from the power supply to the first

speaker in each run. Also sum up the CU ratings

of all the speakers on the run.

With that information, refer to the Voltage Drop

Chart to ensure that there are not too many

speakers loading the wire used in the run or

that the wire gauge is sufficient to support the

power and cable length desired. To stay within

the chart length limits, it may be necessary to

either create a shorter run containing less speak-

ers or double up on conductors in the cable to ef-

fectively lower the gauge of the supply wire.

The Reducing Gauge Chart can be used to de-

termine what effective gauge is achieved by

doubling or tripling up on pairs in the cable.

Wire

Gauge

(AWG)

Maximum Wire Run Cable Length (ft.)

www.bogen.com

SYSTEM DESIGN GUIDE

WIRE-RELATED LOSSES

*Use for 70V Speaker Systems Only

The most common way to make announcements over a paging system is through the telephone system. It is a convenient

and readily available live input source. However, audio and telephone technologies are different. This sometimes makes

it necessary to use an adapter to link the two systems together.

There are many types of telephone ports possible in telephone switches. The four types presented here – Page Port, Loop

Start trunk, Ground Start trunk, and Analog ring-up station – are the only ones Bogen recommends as interfaces to

telephone systems. Other port types and specifically digital station ports are not suitable for connection to amplifiers and

interface devices.

•The Loop Start, or CO port, is the most popular type of paging interface

to use when a page port is not available or suitable

•A Ground Start trunk uses loop current but employs a request and

acknowledgment handshake for making the initial connection

•An interface device is necessary when connecting a trunk to an amplifier

•When paging, an interface adapter detects the off-hook condition of

the trunk and connects the amplifier to the trunk port through

signal conditioning electronics

•When the trunk is released, the adapter detects the on-hook condition

and immediately disconnects the amplifier from the trunk

•A pop at the end of a page is typically present due to the large change

in telephone line voltage between on- and off-hook conditions

•An analog station allows interfacing when neither a paging port nor

a trunk port is available

•Analog ring-up interfacing requires a more sophisticated interface

than other methods

•The interface must detect a high-voltage ring signal and answer the call

to start the page

•To determine when to disconnect the page, typically two system timers are

used — one limits the maximum length of the page to ensure disconnection,

the other senses audio activity and disconnects after a preset length

of silence

•Many telephone switches now provide a calling party control (CPC) signal,

which indicates to the interface that the caller has disconnected;

Bogen interfaces disconnect immediately upon detecting a CPC signal

•Dedicated audio output available standard on most telephone systems

•Can be connected directly to the input of most amplifiers

•Traditionally, a 600-ohm dry audio signal and a normally open

control contact closure

•Control contacts, if available, activate during a page and typically

control the muting of background music

•Some page ports provide only an audio pair, which requires that audio

equipment have voice-activated (VOX) functions such as background

music muting

•Paging ports are not always bi-directional like telephone lines

(bi-directionality is necessary when including talk back capability

in a paging system)

•Not all paging ports will produce DTMF tones which are necessary

when using zone paging equipment

Page Ports

Loop And Ground Start

Analog Station

www.bogen.com

SYSTEM DESIGN GUIDE

TELEPHONE INTERFACES

www.bogen.com

SYSTEM DESIGN GUIDE

SOUND PRESSURE LEVELS CHART

Typical Ambient Noise Level Typical Environments

Very

High

Noise

High

Noise

Medium

Noise

Low

Noise

85-95 dB

75-85 dB

65-75 dB

55-65 dB

Speech

Almost Impossible

To Hear

Speech is Difficult

To Hear

Must Raise Voice

to be Heard

Speech is Easy

To Hear

95 dB

85 dB

75 dB

65 dB

55 dB

Construction Site

Loud Machine Shop

Noisy Manufacturing

Printing Shop

Assembly Line

Crowded Bus/Transit Waiting Area

Machine Shop

Shipping/Warehouse

Supermarket (Peak Time)

Very Noisy Restaurant/Bar

Bank/Public Area

Department Store

Noisy Office

Restaurant/Bar

Supermarket

Transportation Waiting Room

Conversational Speech

Doctorʼs Office

Hospital

Hotel Lobby

Quiet Office

Very Quiet Restaurant/Bar

DIGITAL SOUND PRESSURE

LEVEL METER

See Page 55

www.bogen.com

AMPLIFIER CHART

www.bogen.com

AMPLIFIER CHART

PRODUCT ACCESSORIES

Model # Accessory Associated Dimensions Prod. Page # Images

Description Model(s) Wt.

Model # Accessory Associated Dimensions Prod. Page # Images

Description Model(s) Wt.

BBS BC1

BBF

109-2140

108-2120

GSRPK

RK78 RMPWMK3

RPK35B

RPK50 RPK53

RPK79 RPK84

RPKUTI1

RPK86

TB8

SMTB

WMK1

TMA812

ATS70GB

RPK82

RPK87 RPK88

RPK89 RPK90

CK10 CK10B CK10W

MR8

RE84

HSES10

TBCR TBSF

TCSPT1

GSRVC

Remote Volume Control Gold Seal Series Amps 2-3/4" W x 4-1/2" H x 1-3/8" D 2 oz. 41

GSTRC

Gold Seal Series Security Cover Gold Seal Series Amps 14-3/4" W x 3-1/2" H x 1" D 5 oz. 41

MA3

Module Adapter D-Series, WMA, DPA Amps Works with advanced modules 1 lb. 39

PVMC

Power Vector Module Cover V-Series Amps, M-Class, VMIX 1-1/2" W x 3-1/8" H x 3/8" D 1 oz.

38, 45, 48

PVSC

Power Vector Security Cover V-Series Amps, VMIX 15-1/2" W x 3-1/8" H x 1/2" D 2 oz. 38, 48

RVCP

Remote Volume Control Panel V- & WV-Series Amps, VMIX 1-3/4" W x 4" H 2 oz.

38, 40, 48

TL100

1:1 Ratio Plug-In Transformer BPA60/HTA125A/HTA250A 1" dia. x 1-1/4" D 1 oz. 46

TL600

Plug-In: 600-ohm Transformer BPA60/HTA125A/HTA250A 1" dia. x 1-1/4" D 1 oz. 46

TL100/600

GSRVC

WMAD

PVSC

PVMC

GSTRC

RVCP

MA3

AMPLIFIERS

MOUNTING / RIGGING KITS

* Weight based on per carton. Check with Bogen for quantity per carton.

** Horn Speakers: AH5A, AH15A, BDT30A, HS15EZ, HS30EZ, IH8A, KFLDS30T, SP158A, SP308A, SPT15A, & SPT30A.

*** Horn Speakers: AH5A, AH15A, BDT30A, HS15EZ, HS30EZ, KFLDS30T, SP158A, SP308A, SPT15A, & SPT30A.

www.bogen.com

PRODUCT ACCESSORIES

108-2120

Yoke Assembly AMT-12 24-1/2" W x 12" H x 3" D 7 lb. 1

108-2150

Yoke Assembly AMT-15 27-1/4" W x 13" H x 3" D 8 lb. 1

109-2140

Rigging Beam Assembly AMT Series 22" W x 3" H x 2" D 15 lb. 1

109-2151

Rigging Kit AMT Series 10" W x 1-1/2" H x 1/4" D 2 lb. 1

ATS70GB

Tripod Speaker Stand AMT Series, BP-Series H: 50"-77"; Base dia.: 40" 6 lb. 1

BBF

Back Box for Flush Mounting WV-Series 14-1/2" W x 24-3/4" H x 3-7/8" D 12 lb. 40

BBS

Back Box for Surface Mounting WV-Series 16-1/4" W x 26-3/4" H x 3-7/8" D 16 lb. 40

BC1

Beam Clamp Horn Loudspeakers 2-1/8" W x 2" H x 3/4" D 6 oz.

13, 16, 26, 28

CK10

Cable Kit (Silver)

HFCS1/OCS1/OPS1/HFSF1/CSUB/MPS1/MPS2

10 feet long 4 oz.

2, 6, 7

CK10B

Cable Kit (Black) OPS1B/MPS1B/MPS2B 10 feet long 4 oz. 2, 6

CK10W

Cable Kit (Off-White) OPS1W/MPS1W/MPS2W 10 feet long 4 oz. 2, 6

GSRPK

Rack Kit Gold Seal Series Amps 1-1/4" W x 3-1/2" H x 10-1/4" D 2 lb. 41

HSES10

Horn Speaker Electrical Box Strap

Horn Speakers**

1/2" W x 5-1/2" long 3 oz.

13, 16, 28

MR8

Mounting Ring S86, S810, CS1EZ, ASWG1/DK 12" dia. x 3/4" D 15 lb.*

11, 16, 23

RE84

Round Enclosure S86, S810, CS1EZ, ASWG1/DK 12-1/4" dia. x 4-1/2" D 24 lb.*

11, 16, 23

RK78

Rack Panel Kit CDR1 19" W x 3-1/2" H x 7" D 3 lb. 57

RMPWMK3

Remote Panel Mounting Kit PM3180 9-1/8" W x 4-3/4" H x 3/4" D 2 lb. 47

RPK35B

Rack Panel Kit C10/C20/CAM2 19" W x 3-1/2" H x 6-1/2" D 3 lb. 42, 50

RPK50

Rack Mount Kit C35/C60/C100 2-1/2" W x 3-1/2" H x 2-1/8" D 10 oz. 42

RPK53

Rack Mount Kit BPA60 2" W x 3-1/2" H x 1" D 7 oz. 46

RPK79

Rack Mount Kit PM3180 1" W x 5-1/4" H x 3-1/2" D 14 oz. 47

RPK82

Rack Mount Kit TPU35B/60B/100B 3" W x 8-3/4" H 14 oz. 43

RPK84

Rack Mount Kit PCM2000 7" W x 8" H 2 lb. 35

RPK86

Rear Rack Support Brackets M-Class/Black Max Amplifiers 3-3/4" W x 3-1/2" H 7 oz. 44, 45

RPK87

ack Mount Kit V-Series, VMIX 1" W x 3-1/2" H x 3-3/4" D 1 lb. 38, 48

RPK88

Rack Mount Kit PCM2000 19" W x 10-1/2" H x 2" D 3 lb. 35

RPK89

ack Mount Kit (Single) UDR800 2 Pieces; 1 Rack Space 6 oz. 58

RPK90

Rack Mount Kit (Double) UDR800 3 Pieces; 1 Rack Space 4 oz. 58

RPK91

Rack Mount Kit TAMB2/TAMB2PS 2 Pieces; 1 Rack Space 7 oz. 32

RPK93

Rack Mount Kit CC-Series 1-1/4" W x 3-1/2" H x 8-1/4" D 2 lb. 37

RPKUTI1

Rack Mount Kit/Security Cover UTI1 19" W x 5-1/4" H x 2-3/8" D 2 lb. 31

SMTB

Tile Bridge for Easy Install Speakers ASM1, SM1EZ/SM4T 4-3/8" W x 1-1/4" H x 23-3/4" D 5 lb.* 15, 24

TB8

Tile Bridge S

86, S810, CS1EZ, ASWG1/DK

23-3/4" W x 3/4" H x 14-1/2" D 17 lb.*

11, 16, 23

TBCR

Tile Bridge Support Ring HFCS1/OCS1 17" W x 1-1/8" H x 24" D 2 lb. 2, 6

TBSF

Tile Bridge HFSF1, SEC4T 10" W x 1/2" H x 24" D 14 oz. 7, 11

TCSPT1

Terminal Cover for Conduit Horn Speakers*** 1-3/4" W x 3" H x 1-1/4" D 2 oz.

13, 16, 28

TMA812

ilt Mount Adapter A12 & A8 7" W x 4-3/4" H x 4-1/2" D 2 lb.

WMAD

oor for WV-Series Amps WV-Series 16-1/4" W x 26-3/4" H x 1" D 9 lb. 40

WMK1

Wall Mounting Kit C10/C20/CAM2 14-1/2" W x 16" H x 4" D 10 lb. 42, 50

109-2151

RPK91

RPK93

108-2150

PPMIT5

PPM8 (shown with 2-PPMKEYPAD units)

Model # Accessory Associated Dimensions Prod. Page # Images

Description Model(s) Wt.

RPK92

OCS50PLENUM

ASTB4

Electrical Cover A2/T, A6/T, A8/T 2-7/8" W x 1-7/8" H x 2-3/16" D 2 oz. 4

BCHM

Headset Microphone UDMS800HH/BP 5" W x 6-1/2" H x 2" D (5-ft. cable) 1.1 oz. 58

SRCA6

Stereo 6 ft. RCA Cable Music & Input Sources 6 feet long 5 oz. --

T725

Transformer, Speaker Matching 8-ohm Speakers 2-1/2" W x 1-1/4" H x 1-3/8" D 6 oz. --

4-watt (Taps: 4, 2, 1, 1/2, 1/4, 1/8)

T72510

Transformer, Speaker Matching 8-ohm Speakers 3" W x 1-1/2" H x 1-1/2" D 10 oz. --

10-watt (Taps: 10, 5, 2-1/2, 1-1/4, 5/8)

XLR25

Microphone Cable BP-Series, Mics 25 feet long 12 oz. 1, 60

ASTB4

SRCA6 T725

T72510 XLR25

Model # Accessory Associated Dimensions Prod. Page # Images

Description Model(s) Wt.

2518

8-Gauge Connector PI35A/SI35A 5/8" W x 1/4" H x 3/4" D 2 oz./30 61

2520

20-Gauge Connector PI35A/SI35A 5/8" W x 1/4" H x 3/4" D 2 oz./30 61

2522

22-Gauge Connector PI35A/SI35A 5/8" W x 1/4" H x 3/4" D 2 oz./30 61

CA10A

Call-In Switch PI35A/SI35A 2-3/4" W x 4-1/2" H x 2" D 2 oz. 61

CA11A

Call Privacy Switch PI35A/SI35A 2-3/4" W x 4-1/2" H x 1-3/4" D 2 oz. 61

CA17

Call-In Switch PI35A/SI35A 2-3/4" W x 4-1/2" H x 1" D 1 oz. 61

PCMPS2

12V DC/1.5A Power Supply PCM2000 2-1/4" W x 4" H x 1-3/8" D 1 lb.

30, 35

SBA225

25-Key Station Panel Selector SI35A 19" W x 1-3/4" H x 1-1/4" D 2 lb. 61

SCR25A

Call-In Module SBA225/SI35A 17" W x 1-1/4" H x 4" D 2 lb.

TL156

Insertion Tool PI35A/SI35A 2" W x 3-1/4" H x 1" D 1 oz. 61

TWK351

2-Wire Call-In Adapter Kit P

35A/S

35A 5-1/2" W x 4" H x 2-1/4" D 2 lb. 61

CA10A CA11A CA17

SBA225

TWK351

2518, 2520,

2522, TL156

PCMPS2

PAGING/INTERCOM

SCR25A

www.bogen.com

PRODUCT ACCESSORIES

PRODUCT ACCESSORIES (cont.)

DISCLAIMER

Bogen endeavors to provide correct and current product information in this catalog. However, product information changes from time to time. Contact

Bogen to confirm current product specifications and information. Bogen is not responsible for any claims arising from the improper use of products,

even if incorrect information is included in this catalog.

URC200

Model # Accessory Associated Dimensions Prod. Page # Images

Description Model(s) Wt.

DSM2000

Desktop Paging Microphone CORE N/A 2 lb. 51

Junction Box CORE 3” W x 3-3/8” H x 1” D 0.1 lb. 51

NSM

Noise Sensing Microphone CORE 2-1/2” dia. x 3-3/4” H 0.1 lb. 51

PPM8

8-Button Paging Microphone CORE 4-1/4” W x 8” H x 13 ¼ D 1.4 lb 51

PPM8SP

8-Button Paging MIC w/Stack Paging CORE 4-1/4” W x 8” H x 2” D 1.4 lb 51

PPM8WJB

8-Button Paging MIC with JB CORE 4-1/4” W x 8” H x 2” D 1.4 lb. 51

PPM8WJBSP

PPM8WJBSP w/Page Stacking Chip CORE 4-1/4” W x 8” H x 2” D 1.4 lb. 51

PPMIT5

IP Touchscreen Paging Station CORE 9-7/8” W x 13-3/4” H x 5-5/8” D 2.4 lb 51

PPMKEYPAD

Additional Keypad PPM8 4-1/4” W x 8” H x 2” D 1.4 lb 81

RAC5

Remote Analog Controller (5 sources) CORE 2” W x 4-1/2” H x 2-3/4” D 0.1 lb. 51

RAC8

Remote Analog Controller (8 sources) CORE 2” W x 4-1/2” H x 2-3/4” D 0.1 lb. 51

URC

Programmable Remote Controller CORE 3-1/2” W x 3-1/2” H x 2” D 0.1 lb. 51

URC200

IP-Based Remote Controller CORE 5 1/2” W x 4-1/2” H x 1-1/2” D 0.8 lb. 51

URC

RAC5 RAC8

NSM PPMKEYPAD

Model # Accessory Associated Dimensions Prod. Page # Images

Description Model(s) Wt.

OSC50PLENUM

50 ft. Plenum-Rated Cable Orator 50 feet long 2 lb. 62

OXC1

External Sync-Charger Orator 8" W x 5" H x 3" D 3 lb. 62

RPK92

Rack Mount Brackets Orator 1" W x 3-1/2" H x 3-3/4" D 10 oz. 62

WMK2

Easy Wall Mount Bracket Kit Orator 16" W x 9" H x 7-7/8" D 2 lb. 62

WMK2

ORATOR

CORE AUDIO PROCESSOR

OXC1

MISC.

BCHM

www.bogen.com

FREE APPLICATION DESIGN SERVICE

Bogen’s Application Design Service was created to assist with the design of paging systems for any

and every project encountered. It’s fast, comprehensive, and

FREE.

So let us design it for you!

How the Application Design Service works:

•Speaker Placement Design

•Complete Bill of Material – This includes product

description, model number, and quantity. We can

even fax it to the distributor of your choice for

pricing, if you wish.

•Connectivity Drawings

•Scope of Work

•Detailed Assumptions

•Red-lined Blueprints

(blueprints must be supplied;

AutoCAD®accepted*)

The Application Design Service provides:

No application is too big, small,

simple, or complex for

Bogen Paging Products.

Call 1-800-999-2809

for more information or to send in a project for us to work on right now.

FREE APPLICATION DESIGN SERVICE

*AutoCAD®is a registered trademark of Autodesk, Inc.

www.bogen.com/requestform.pdf

1.You provide the information about your project

(see the Design Request Form on our website:

www.bogen.com/requestform.pdf).

For any large or complex applications, your local

Bogen Field Sales Manager can visit the site for

exact specifications.

Bogen will provide you with a working technical

bid response document... and then all you have

to do is deliver it.

Then a copy of the bid will also be sent to your local

Bogen Field Sales Manager for immediate follow-up,

and to see if you have any questions or need addi-

tional assistance.

Put Bogen’s

Resources and Expertise

to Work for You.

www.bogen.com

INDEX

CATEGORY INDEX

Accessories, Product* . . . . . . . . . . . . . . . . . . . . . . . .80-81

Ambient Noise Sensor Output Module . . . . . . . . . . . . . .40

Ambient Noise Sensor Systems . . . . . . . . . . . . . . . . . . .52

Amplifier Features Chart . . . . . . . . . . . . . . . . . . . . . . . .78

Amplifier Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

Amplifier Specs Chart . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-47, 53

Amplifiers, Black Max Power . . . . . . . . . . . . . . . . . . . . .44

Amplifiers, CC-Series Compact . . . . . . . . . . . . . . . . . . .37

Amplifiers, Classic Series . . . . . . . . . . . . . . . . . . . . . . . .42

Amplifiers, Dual-Channel . . . . . . . . . . . . . . . . . . . . .44-45

Amplifiers, GA-Series . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Amplifiers, Gold Seal Series . . . . . . . . . . . . . . . . . . . . . .41

Amplifiers, HTA-Series . . . . . . . . . . . . . . . . . . . . . . . . . .46

Amplifiers, M-Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Amplifiers, Modular . . . . . . . . . . . . . . . . . . . . . . . . . .38, 40

Amplifiers, Power . . . . . . . . . . . . . . . . . . . . . . . . . . .44-46

Amplifiers, Power Vector Series . . . . . . . . . . . . . . . .38, 40

Amplifiers, Pro-Matrix Digital . . . . . . . . . . . . . . . . . . . . . .47

Amplifiers, Public Address . . . . . . . . . . . . . . . . . . . . .41-42

Amplifiers, Talk Back . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Amplifiers, Telephone Paging . . . . . . . . . . . . . . . . . . . . . 43

Amplifiers, TPU-Series . . . . . . . . . . . . . . . . . . . . . . . . . .43

Amplifiers, Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Amplifiers, Wall-Mount . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Analog Door Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Apogee Sound Intl Speakers . . . . . . . . . . . . . . . . . . . . . .1

Application Design Service, Free . . . . . . . . . . . . . . . . . .82

Armadillo Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

A-Series Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Attenuators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14, 29

Audio Enhancement Systems . . . . . . . . . . . . . . . . . . . . .62

Audio Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Automatic Failure Detector Substitutor . . . . . . . . . . . . . .47

Balanced Input Module . . . . . . . . . . . . . . . . . . . . . . . . . .39

Beam Clamp . . . . . . . . . . . . . . . . . . . . .13, 16, 26, 28, 80

Bi-Directional Horn Speaker . . . . . . . . . . . . . . . . . . . . . .13

Black Max Power Amplifiers . . . . . . . . . . . . . . . . . . . . . . 44

Bogen Signature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Bridging Input Module . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Buffer/Expander/Volume Control, 24V Systems . . . . . . 29

Call Stacking / Messaging . . . . . . . . . . . . . . . . . . . . . . .51

Call-In Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 81

CD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Ceiling Speakers . . . . . . . . . . . . . . . . . . . .2, 6-9, 11, 15-16

Ceiling Speakers, Self-Amplified (24V) . . . . . . . . . . .23-24

Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77-81

Classic Series Amplifiers . . . . . . . . . . . . . . . . . . . . . . . .42

Compressor/Limiter Module . . . . . . . . . . . . . . . . . . . . . .40

Cone Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connector Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 81

Current Units (24V Systems) . . . . . . . . . . . . . . . . . .22, 68

Digital Feedback Elimination . . . . . . . . . . . . . . . . . . . . . .53

Digital Stereo Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Door Phone, Analog . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Drop-In Ceiling Speakers . . . . . . . . . . . . . . . . . . . . . . .8-9

Drop-In Ceiling Speakers, Self-Amplified (24V) . . . . . . .23

Easy Design Speaker Guide . . . . . . . . . . . . . . . . . . .17-21

Easy Design Speakers . . . . . . . . . . . . . . . . . . . . . . .15-16

Easy Install Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Easy Install Speakers, Self-Amplified (24V) . . . . . . . . . .24

Emergency Bypass Function . . . . . . . . . . . . . . . . . .14, 29

Expander/Buffer/Volume Control, 24V Systems . . . . . . .29

EZ-Series, Speakers . . . . . . . . . . . . . . . . . . . . . . . . .15-16

Feedback Elimination, Digital . . . . . . . . . . . . . . . . . . . . .53

Foreground Speakers . . . . . . . . . . . . . . . . . . . . . . . . .3, 12

Free Application Design Service . . . . . . . . . . . . . . . . . . 82

Gold Seal Series Amplifiers . . . . . . . . . . . . . . . . . . . . . .41

High-Fidelity Ceiling Speakers . . . . . . . . . . . . . . . . . . . 6-7

Horn Speakers . . . . . . . . . . . . . . . . . . . . . . . . . .12-13, 16

Horn Speakers, Self-Amplified (24V) . . . . . . . . . . . . .26-28

In-ground Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Input Modules, Advanced . . . . . . . . . . . . . . . . . . . . . . . .39

Insertion Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Intercoms, Desktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Interfaces, Telephone . . . . . . . . . . . . . . . . . . . . . . . .31-33

Level Controls, 24V Systems . . . . . . . . . . . . . . . . . . . . 29

Line/MIC Input Modules . . . . . . . . . . . . . . . . . . . . . . . . .39

Loop Start Interface/Power Supply . . . . . . . . . . . . . . . . .25

Matching Transformers . . . . . . . . . . . . . . . . . . . . . . . .54

M-Class Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Messaging & Call Stacking System . . . . . . . . . . . . . . . .51

Metal Box Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Metal Box Speakers, Self-Amplified (24V) . . . . . . . . . . .24

MIC Input Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Microphones & Accessories . . . . . . . . . . . . . . . . . . . 58-60

Microphones, Boundary . . . . . . . . . . . . . . . . . . . . . . . . . 60

Microphones, Desktop . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Microphones, Gooseneck . . . . . . . . . . . . . . . . . . . . . . . .59

Microphones, Handheld . . . . . . . . . . . . . . . . . . . . . . . . .59

Microphones, Overhead . . . . . . . . . . . . . . . . . . . . . . . . .60

Microphones, Wireless . . . . . . . . . . . . . . . . . . . . . . . . . .58

Mini Pendant Speakers . . . . . . . . . . . . . . . . . . . . . . . . . .6

Mixers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48-51

Module Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39, 80

Modules, Advanced Input/Output . . . . . . . . . . . . . . .39-40

Mono AUX Input Module . . . . . . . . . . . . . . . . . . . . . . . . .39

Mounting Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Music & Input Sources . . . . . . . . . . . . . . . . . . . . . . . 55-57

Night Ringer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Noise Sensor Systems, Ambient . . . . . . . . . . . . . . . 40, 52

Office Communications . . . . . . . . . . . . . . . . . . . . . . 61-62

Orator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Orbit Ceiling Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Orbit Pendant Speakers . . . . . . . . . . . . . . . . . . . . . . . . . .2

Outdoor Loudspeakers . . . . . . . . . . . . . . . . 4-5, 12-13, 16

Outdoor Loudspeakers, Self-Amplified (24V) . . . . . .26-28

Output Modules, Advanced . . . . . . . . . . . . . . . . . . . . . . 40

Paging Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . 31-36

Paging Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . 51-53

Paging Horn Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Parametric Equalizer Module . . . . . . . . . . . . . . . . . . . . .40

Pendant Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2, 6

Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 30

Power Supply/Loop Start Interface . . . . . . . . . . . . . . . . .25

Power Vector Amplifiers . . . . . . . . . . . . . . . . . . . . . .38, 40

Power Vector Mixer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Powered Loudspeakers . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Pre-Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48-50

Pro Audio Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Professional Loudspeakers . . . . . . . . . . . . . . . . . . . . . . .1

Pro-Matrix Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Receivers, AM/FM . . . . . . . . . . . . . . . . . . . . . . . . . . .56-57

Relay Input/Output Module . . . . . . . . . . . . . . . . . . . . . . .40

Rigging Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

Safety Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 6, 7, 80

Self-Amplified (24V) Systems . . . . . . . . . . . . . . . . . .22-30

Signal Level Control, 24V Systems . . . . . . . . . . . . . . . . .29

Signal-Processing Output Modules . . . . . . . . . . . . . . . .40

Signature Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Site Survey Check List . . . . . . . . . . . . . . . . . . . . . . . . . .72

Sound Column Speakers . . . . . . . . . . . . . . . . . . . . . . . 12

Sound Pressure Level Meter . . . . . . . . . . . . . . . . . . . . . 55

Sound Pressure Levels Chart . . . . . . . . . . . . . . . . . . . .77

Speakers & Accessories . . . . . . . . . . . . . . . . . . . . . . .1-29

Speakers, A-Series . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Speakers, Ceiling . . . . . . . . . . . . . . . . . . . 2, 6-9, 11, 15-16

Speakers, Ceiling, Self-Amplified (24V) . . . . . . . . . . 23-24

Speakers, Cone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Speakers, Drop-In Ceiling . . . . . . . . . . . . . . . . . . . . . . 8-9

Speakers, Drop-In Ceiling, Self-Amplified (24V) . . . . . . .23

Speakers, Easy Design . . . . . . . . . . . . . . . . . . . . . . .15-16

Speakers, Easy Install . . . . . . . . . . . . . . . . . . . . . . . . . .15

Speakers, Easy Install, Self-Amplified (24V) . . . . . . . . .24

Speakers, Foreground . . . . . . . . . . . . . . . . . . . . . . . . 3, 12

Speakers, Horn . . . . . . . . . . . . . . . . . . . . . . . . . .12-13, 16

Speakers, Horn, Self-Amplified (24V) . . . . . . . . . . . .26-28

Speakers, In-ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Speakers, Metal Box . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Speakers, Metal Box, Self-Amplified (24V) . . . . . . . . . . .24

Speakers, Outdoor . . . . . . . . . . . . . . . . . . . 4-5, 12-13, 16

Speakers, Outdoor, Self-Amplified (24V) . . . . . . . . . 26-28

Speakers, Passive . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-16

Speakers, Pendant . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 6

Speakers, Powered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Speakers, Self-Amplified (24V) . . . . . . . . . . . . . . . . .22-29

Speakers, Sound Columns . . . . . . . . . . . . . . . . . . . . . .12

Speakers, Surface-Mount Ceiling . . . . . . . . . . . . . . . . .15

Speakers, Surface-Mount Ceiling (24V) . . . . . . . . . . . . .24

Speakers, Vandal-Resistant . . . . . . . . . . . . . . . . . . .12, 14

Speakers, Wall-Mount . . . . . . . . . . . . . . . . . . 3, 10, 12, 16

Speakers, Wall-Mount, Self-Amplified (24V) . . . . . . .24-25

Speakers, Weatherproof . . . . . . . . . . . . . . . . . . 4-5, 12-13

Speakers, Weatherproof, Self-Amplified (24V) . . . . . 26-28

SPL Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Stereo AUX Input Module . . . . . . . . . . . . . . . . . . . . . . . . 39

Stereo Tuner, Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Subwoofer, Ceiling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Surface-Mount Ceiling Speakers . . . . . . . . . . . . . . . . . .15

Surface-Mount Ceiling Speakers, Self-Amplified (24V

) . . .24

System Design Guide . . . . . . . . . . . . . . . . . . . . . . . .63-77

System Design, Free Service . . . . . . . . . . . . . . . . . . . . .82

System Guide, Easy Design . . . . . . . . . . . . . . . . . . .17-21

Talk Back Amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Telephone Access Module . . . . . . . . . . . . . . . . . . . . . . .32

Telephone Electronics . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Telephone Input Module . . . . . . . . . . . . . . . . . . . . . . . . . 39

Telephone Interfaces . . . . . . . . . . . . . . . . . . . . . . . . .31-33

Telephone Paging Amplifiers . . . . . . . . . . . . . . . . . . . . . 43

Tile Bridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Tone Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Tone Generator Input Module . . . . . . . . . . . . . . . . . . . . .39

Transformer-Balanced Input Module . . . . . . . . . . . . . . . .39

Transformers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 80

Tuners, AM/FM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Universal Audio Processor . . . . . . . . . . . . . . . . . . . . . . . 51

Utility Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Vandal-Resistant Speakers . . . . . . . . . . . . . . . . . . .12, 14

Voice Reinforcement System . . . . . . . . . . . . . . . . . . . . 62

Voice-Activated Relay . . . . . . . . . . . . . . . . . . . . . . . . . . 52

VoIP Gateways for Paging . . . . . . . . . . . . . . . . . . . . . . .36

Volume Control/Buffer/Expander, 24V Systems . . . . . . .29

Wall Baffle Speakers . . . . . . . . . . . . . . . . . . . . . . . . .10, 16

Wall Baffle Speakers, Self-Amplified (24V) . . . . . . . . . . .25

Wall-Mount Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Weatherproof Speakers . . . . . . . . . . . . . . . . 4-5, 12-13, 16

Weatherproof Speakers, Self-Amplified (24V) . . . . . 26-28

Wide-Angle Horn Speaker . . . . . . . . . . . . . . . . . . . . . . .13

Zone Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33-36

Model Index on Page 84

*Accessories also shown on product pages.

www.bogen.com

INDEX

Category Index on Page 83

MODEL INDEX

108-2120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

108-2150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

109-2140 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

109-2151 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

2518/2520/2522 . . . . . . . . . . . . . . . . . . . . . . . . .61, 81

A2/T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

A6/T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

A8/T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

A12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ACD2X2/U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ADP1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

AFDS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

AH5/15A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

AMBSL/Q1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

AMT-12/15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

ANS1R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

ANS500M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40, 52

ANS501 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

ASM1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

ASTB4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 81

ASUG1/DK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ASWB1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ASWG1/DK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

AT10/35A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ATP10/35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ATS70GB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80

BAL2S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

BBF/S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40, 80

BBFM6/BBSM6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

BC1 . . . . . . . . . . . . . . . . . . . . . . . . . .13, 16, 26, 28, 80

BCHM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58, 81

BDT30A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

BOMDMU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

BPA60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

BP12DSP, BP15DSP . . . . . . . . . . . . . . . . . . . . . . . . .1

BRG1R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

BUFEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

C10, C20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

C35/60/100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

CA10A/11A/17 . . . . . . . . . . . . . . . . . . . . . . . . . . .61, 81

CAM2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

CAM8PRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

CC4021/41/52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

CC4052M, CC4062MBT . . . . . . . . . . . . . . . . . . . . . .37

CDR1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57, 61

CK10/B/W . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 6, 7, 80

CMP1R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

CORE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

CS1EZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

CSD1X2/VR(U) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

CSD2X2L(U) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

CSD2X2/VR(U) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

CSUB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

DDU250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58, 61

DFT120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

DRZ35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

DS3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

DSM2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

DST1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

FG15B/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

FMH15T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

FMHAR8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

G8G . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

GA2/GA6A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

GCU250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

GDU150 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

GS35/60/100/150/250 . . . . . . . . . . . . . . . . . . . . . . . .41

GSRPK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41, 80

GSRVC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41, 80

GSTRC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41, 80

HDO100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

HDU150/250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

HFCS1/LP (B/W) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HFSF1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HSES10 . . . . . . . . . . . . . . . . . . . . . . . . .13, 16, 28, 80

HS7/15/30EZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

HTA125/250A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

IH8A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

JB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

KFLDS30T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

LMM/R1S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

M300/450/600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

MA3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39, 80

MAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

MAX1R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

MB8TSL/VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MB8TSQ/VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MBS1000A . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58, 61

MC27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

MC28 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

MCD1X2/2X2U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MCD1X2/2X2UGRILLE . . . . . . . . . . . . . . . . . . . . . . . .9

MCDMOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MGN19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

MIC1S/X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

MIC2S/X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

MPS1/2 (B/W) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

MR8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 16, 23, 80

MSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

MVP130/210/410/810BG . . . . . . . . . . . . . . . . . . . . .36

NR100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

NSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

OCS1B/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

OPS1B/W . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

ORATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

OSC50PLENUM . . . . . . . . . . . . . . . . . . . . . . . . .62, 81

OXC1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62, 81

PCM2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34-35

PCMCPU/TBM/TIM/ZPM . . . . . . . . . . . . . . . . . . .34-35

PCMPS2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 35, 81

PCMSYS3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

PEQ1R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

PI35A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

PM3180 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

PPM8/SP/WJB/WJBSP . . . . . . . . . . . . . . . . . . . . . .81

PPMIT5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

PPMKEYPAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

PRS2403 . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 32, 52

PRS40C . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 52, 53

PRS48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30, 36, 39

PRSLSI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25, 32, 36

PVMC . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 45, 48, 80

PVSC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 48, 80

RAC5/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

RE84 . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 16, 23, 80

RIO1S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

RK78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57, 80

RMPWMK3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47, 80

RPK35B . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 50, 80

RPK50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 80

RPK53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46, 80

RPK79 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47, 80

RPK82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43, 80

RPK84 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35, 80

RPK86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44, 45, 80

RPK87 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 48, 80

RPK88 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35, 80

RPK89 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58, 80

RPK90 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58, 80

RPK91 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 80

RPK92 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62, 81

RPK93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37, 80

RPKUTI1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31, 80

RVCP . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 40, 48, 80

S4/T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

S5/T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

S86T725PG8U/W . . . . . . . . . . . . . . . . . . . . . . . . . . .11

S86T725PG8U/WBR . . . . . . . . . . . . . . . . . . . . . . . .11

S86T725PG8U/WBRVK . . . . . . . . . . . . . . . . . . . . . .11

S86T725PG8U/WBRVR . . . . . . . . . . . . . . . . . . . . . .11

S86T725PG8U/WVK . . . . . . . . . . . . . . . . . . . . . . . . .11

S86T725PG8U/WVR . . . . . . . . . . . . . . . . . . . . . . . .11

S810T725PG8U/W . . . . . . . . . . . . . . . . . . . . . . . . . .11

S810T725PG8U/WVK . . . . . . . . . . . . . . . . . . . . . . . .11

S810T725PG8U/WVR . . . . . . . . . . . . . . . . . . . . . . .11

SAH5/15/30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

SAX1R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

SB6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

SBA225 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 81

SCR25A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61, 81

SCU250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

SCW20/35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

SEC4T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

SF4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

SGHD8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

SI35A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

SLC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

SM1EZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

SM4T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

SMTB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15, 24, 80

SP58A/158A/308A . . . . . . . . . . . . . . . . . . . . . . . . . .13

SPS2406/10/25/66 . . . . . . . . . . . . . . . . . . . . . . . . . .30

SPLM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

SPT5/15/30A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

SRCA6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

T725/10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

TAMB2/PS . . . . . . . . . . . . . . . . . . . . . . . . . . .32, 36, 53

TB8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 16, 23, 80

TBA15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36, 53

TBCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2, 6, 80

TBL1S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

TBSF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 11, 80

TCSPT1 . . . . . . . . . . . . . . . . . . . . . . . . .13, 16, 28, 80

TEL1S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

TG4C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

TL100/600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46, 80

TL156 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 81

TMA812 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 80

TNG1S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

TPU15A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

TPU35/60/100B . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

TPU250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

TWK351 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61, 81

UBP800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

UDMS800BP/HH . . . . . . . . . . . . . . . . . . . . . . . . . . .58

UDR800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

UHT800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

URC/200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

UTI1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

UTI312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

V35/60/100/150/250 . . . . . . . . . . . . . . . . . . . . . . . . .38

VAR1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

VMIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

VRS1/2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

WB1EZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

WBS8T725/BR/BRV/V . . . . . . . . . . . . . . . . . . . . . . .10

WBS810T725 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

WCU250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

WMAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40, 80

WMK1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42, 50, 80

WMK2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62, 81

WMT1A . . . . . . . . . . . . . . . .41, 42, 43, 46, 53, 54, 61

WMT1AS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

WSGCU250 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

WV100/150/250 . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

X300/450/600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

XLR25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60, 81

ZPM3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36, 53

ZX3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

NOTE: Products are featured on pages

which are listed in boldface type.

Founded in 1932, Bogen’s dedication to

providing superior sound reinforcement

products has won the continued loyalty

of an ever-increasing network of distribu-

tors, dealers, contractors, and installers

worldwide.

What’s our secret? It’s not a secret, it’s

focus. Focus on our customer’s needs!

Focused salespeople, focused customer service and tech

nical

support reps, focused research and development engineers,

focused production and manufacturing teams – all dedicated

to improving and changing our products, support, and service to

meet the changing needs of customers. This is why Bogen is

the industry leader of communications equipment and technol-

ogy used in offices, commercial establishments, and schools.

Bogen's products include audio amplifiers and speakers;

related sound, intercom, and communications systems

equipment; and background and foreground music equipment.

Our objective is to provide installers with a high-quality sound

system that is easy to design, high-quality products that are

easy to install, dependable products that are reliable and

expandable with convenient features that are easy to under-

stand, operate, and which produce exceptional voice and

music reproduction when and where it is needed. We offer a full

line of products and are always adding new electronics equip-

ment to meet your technical requirements.

When you order from us, you can do so confidently, knowing

that Bogen’s experience and innovative technology will provide

your customers with products they

will appreciate and be pleased

with...well into the future.

Our goal is to satisfy you – by

providing

products that are easy

to design, easy to order, easy to

install, and easy to use.

•PCM2000 Configuration Guide

This system configuration guide will assist you in designing

zone paging applications. It illustrates many popular

applications for the PCM2000.

•Free Design Service Brochure

This publication describes Bogen’s Free Application Design

Service and includes a Design Request Form. Let Bogen assist

with the design of paging systems for your install project.

•Loudspeaker Installation Methods

and Connection Techniques

This pamphlet describes direct connections, power distribution

without transformers, line-power loss, 70V and 25V systems,

matching transformers, balanced and unbalanced line operation,

and speaker phasing.

•Paging Site Survey Sheet (see page 72)

Use this helpful checklist to determine the equipment needed

for paging systems installations.

ABOUT BOGEN

Bogen - Early 1950s

Bogen - 2010s

TABLE OF CONTENTS

ABOUT THIS CATALOG

The following materials are available at no charge* to help you with your installations. To order, visit www.bogen.com/litform

or fax your literature request on company letterhead to 201-934-9832. Most materials are also available online from our website.

OTHER MATERIALS AVAILABLE

CALL BOGEN

TOLL-FREE:

1-800-999-2809

•Customer Service/Orders

•Free Application Design Service

•Factory Service/Parts

•Sales Offices/Distributors

Fax Orders to: 1-800-999-9016 Fax for Tech Support: 201-934-6532

Corporate Headquarters Tel: 201-934-8500 Fax: 201-934-9832

Business hours are 8:30 a.m. to 5:00 p.m. (EST), Monday to Friday

Bogen Product Literature Online: www.bogen.com/documentindex

To Order Bogen Literature: By Fax: 201-934-9832

By E-Mail: literature@bogen.com

•Literature on Bogen Products

•Technical Support Assistance*

*Available 8:30 a.m. to 8:00 p.m. (EST), Monday to Friday.

www.bogen.com

ON THE

WEB:

CONTACT BOGEN

CALL BOGEN

TOLL-FREE:

1-800-999-2809

•Customer Service/Orders

•Free Application Design Service

•Factory Service/Parts

•Sales Offices/Distributors

Fax Orders to: 1-800-999-9016 Fax for Tech Support: 201-934-6532

Corporate Headquarters Tel: 201-934-8500 Fax: 201-934-9832

Business hours are 8:30 a.m. to 5:00 p.m. (EST), Monday to Friday

Bogen Product Literature Online: www.bogen.com/documentindex

To Order Bogen Literature: By Fax: 201-934-9832

By E-Mail: literature@bogen.com

•Literature on Bogen Products

•Technical Support Assistance*

*Available 8:30 a.m. to 8:00 p.m. (EST), Monday to Friday.

www.bogen.com

ON THE

WEB:

CONTACT BOGEN

Speakers & Accessories . . . . . . . . . . . . . . . pages 1–14

Easy Design/Easy Install Speakers . . . . . pages 15–21

Self-Amplified (24V) Systems . . . . . . . . . pages 22–29

Power Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . page 30

Paging Control . . . . . . . . . . . . . . . . . . . . . pages 31–36

Amplifiers . . . . . . . . . . . . . . . . . . . . . . . . . . pages 37–47

Mixers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pages 48–50

Audio Processor/Messaging . . . . . . . . . . . . . . . page 51

Paging & Telephone Electronics . . . . . . . pages 52–54

Music & Input Sources, Microphones . . . pages 55–60

Office Communications . . . . . . . . . . . . . . . pages 61–62

System Design Guide . . . . . . . . . . . . . . . . pages 63–77

Charts (Amplifiers/Accessories) . . . . . . . pages 78–81

Information & Index . . . . . . . . . . . . . . . pages 82

–

}

This catalog provides information about Bogen’s products and services. In addition, it functions as a System Design & Buying Guide.

You will find answers to your questions about how a paging system works or how to set one up. Our Design Guide is filled with

helpful information and reference material. Each product has its features clearly highlighted and a list of accessories.

Say goodbye to guesswork and waiting. Now, you can have the answers you need when you want them.

Please be sure to visit our web site, www.bogen.com, for the latest product information, downloads, and updates.

In addition, technical specification sheets are available for the products shown in this catalog.

*Product literature sent by USPS First Class Mail or UPS Ground, at Bogenʼs option.

}

NewJersey •Tennessee •Florida

1-800-999-2809

www.bogen.com

54-9215-01J 1409

Specifications are subject to change

without notice.

BOGEN COMMUNICATIONS, INC. PRODUCT CATALOG 109

Bogen products have been used in numerous types of applications, each with its own unique requirements.

Whether simple or sophisticated, installations around the world benefit from Bogen products. Here is a small

sampling of case studies showing venues where our systems have been installed. Read more about each of

these and more online at: www.bogen.com/applications/casestudies

INSTALLATION CASE STUDIES

F.P.O.

1000474693 Catalog

AMT-12 catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
