Switching and
Controlling Products
Price List
With effect from December 21, 2015
schneider-electric.co.in
EasyPact TVS
EasyPact TVS Power Contactors (3 Pole) .................5
EasyPact TVS Power Contactors (4 Pole) .................6
EasyPact TVS Control Relays ..........................6
EasyPact TVS Thermal Overload Relay ..................7
EasyPact TVS Contactor Accessories ...................7
EasyPact TVS Motor Protection Circuit Breaker ............8
TeSys K
TeSys K Control Relays ..............................11
TeSys K Power Contactors ...........................11
TeSys K Reversing Contactors ........................11
TeSys K Accessories for Contactors ...................12
TeSys K Thermal Overload Relays .....................12
TeSys D
TeSys D Control Relays ..............................13
TeSys D Power Contactors (3 Pole) .....................13
TeSys D Low Consumption Contactors ..................13
TeSys D Power Contactors (4 Pole) .....................14
TeSys D Capacitor Duty Contactors ....................14
TeSys D - Accessories ..............................15
TeSys D Spare Coils AC/DC ..........................16
TeSys D Thermal/Electronic Overload Relays .............18
TeSys F
TeSys F Power Contactors ...........................20
TeSys Vacuum Contactors ...........................21
TeSys F - Accessories ...............................21
TeSys F Spare Coils AC/DC ..........................22
TeSys F Electronic Overload Relays ....................22
TeSys MPCB
TeSys Motor Circuit Breakers .........................25
TeSys Motor Circuit Breakers Accessories ...............26
TeSys Switches
TeSys Vario Switch Disconnectors and Accessories .......27
TeSys Intelligent products
TeSys T and TeSys U Motor Management System .........30
Starters
TE Start & TeSys Motor Starters .......................33
Starters Spares. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Selection Chart
Selection Chart for EasyPact TVS DOL
(Type 2 Co-ordination with Fuse) ......................35
Selection Chart for EasyPact TVS Star Delta
(Type 2 Co-ordination with Fuse) ......................35
Selection Chart for TeSys Standard DOL Motor Starters
(Type 1 Co-ordination with MPCB at 415 V) ..............36
Selection Chart for TeSys High Performance DOL Motor
Starters (Type 2 Co-ordination with MPCB at 415 V) ........37
Price List Contents
schneider-electric.co.in 4

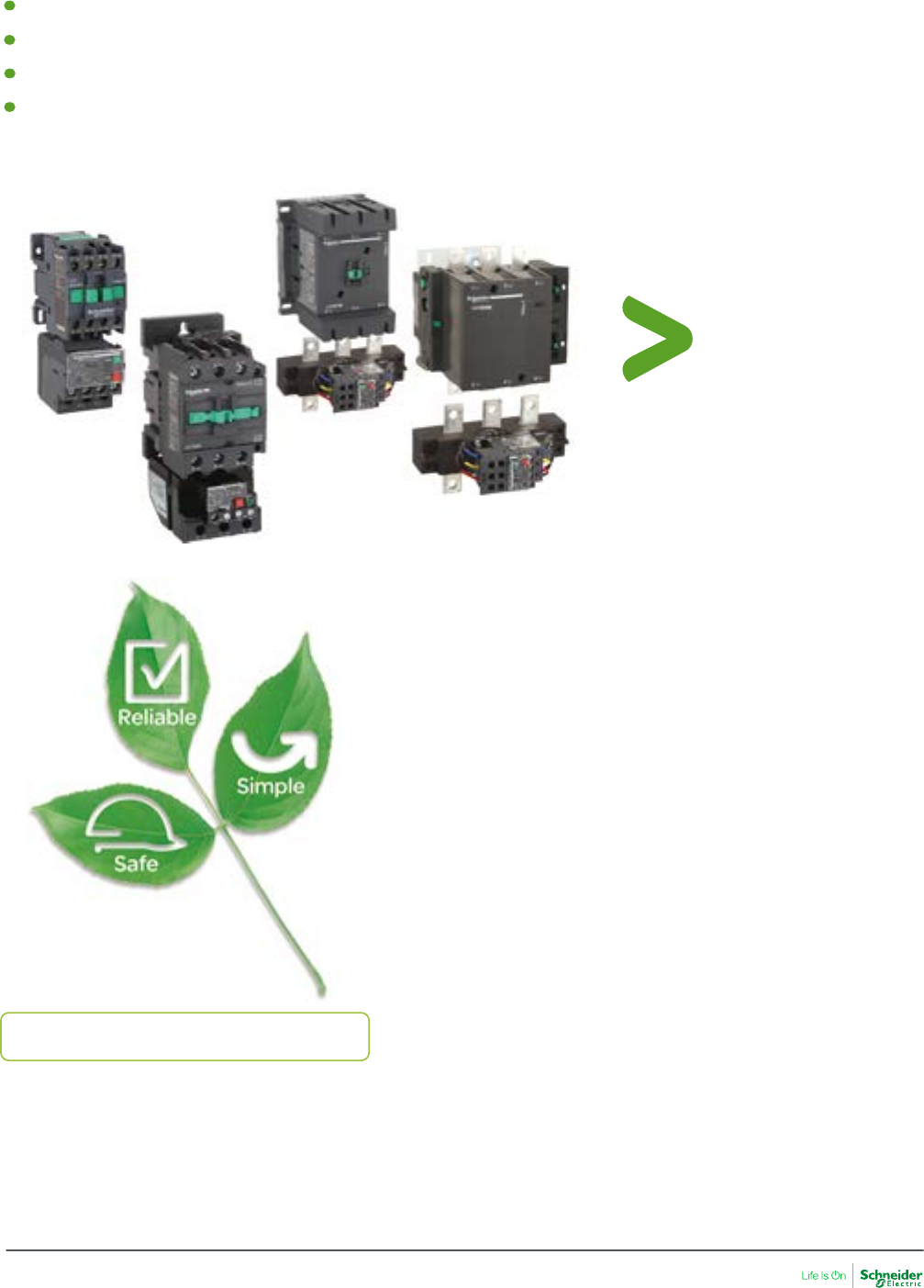

EasyPact TVS
The Easy choice for simplicity and flexibility
3 Pole and 4 Pole Power Contactor
Thermal Overload Relay
Motor Protection Circuit Breaker
Accessories
Launch of
Power Connuity
Please contact Customer Care Center for Stockable and Non stockable status of references.
While ordering a contactor, please specify reference and coil voltage
* VOLTAGE 24 110 220 415
LC1E06…..LC1E300 B5 F5 M5 N5
LC1E400….LC1E630 B7 F7 M7 N7
LC1E06…..LC1E38 - - M5WB N5WB
Non Standard Voltage/code: 48 VAC/E5, 380 VAC/Q5, 440 VAC/R5
Please add ` 110/- while ordering Contactors with Non Standard Voltages .
Please add ` 110/- for wide band coil contactor from 6A -18A (65% Uc 120%) & ` 110/- for 25A to 38A ( 70% Uc 120%)

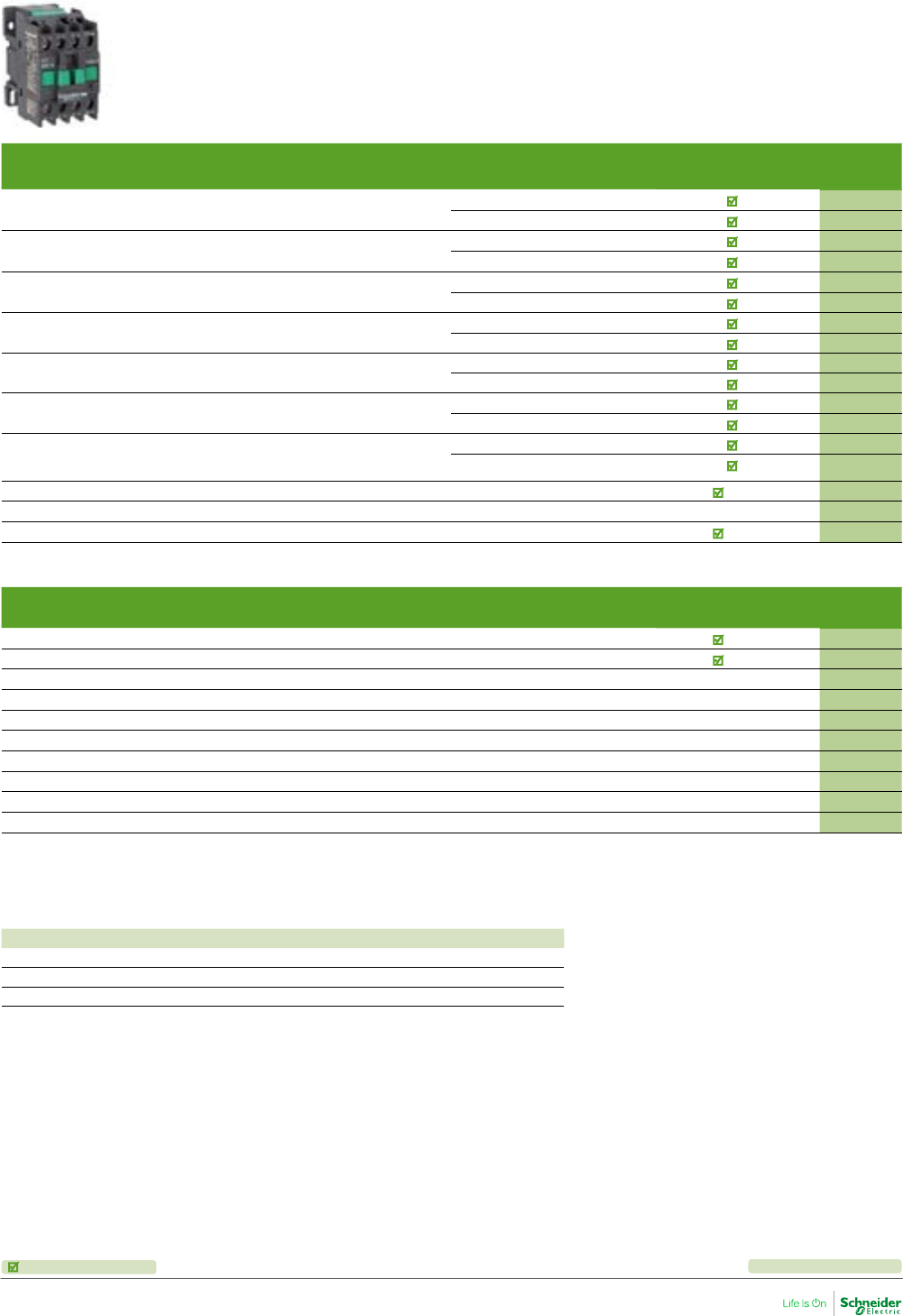

EasyPact TVS
Power Contactors LC1E (3 Pole AC Control)
Conformance to IEC 60947-4-1, CE Marking
Current Rating: 6A to 630A
Safety & Reliability
Type 2 co-ordination chart available with Fuse, MPCB and MCCB.
Ambient Temperature upto 60oC.
[Ie] Rated Operational Current Motor Power at 415 V, 3Ph, 50Hz Auxiliary Contacts Reference Unit MRP
[`]
AC-1 AC-3 hp kW NO NC
20 A 6 A 3 2.2 - 1 LC1E0601* 855
1 - LC1E0610* 855
25 A 9 A 5.5 4 - 1 LC1E0901* 870
1 - LC1E0910* 870
25 A 12 A 7.5 5.5 - 1 LC1E1201* 965
1 - LC1E1210* 965
32 A 18 A 12 9 - 1 LC1E1801* 1130
1 - LC1E1810* 1130
36A 25 A 15 11 - 1 LC1E2501* 1560
1 - LC1E2510* 1560
50 A 32 A 20 15 - 1 LC1E3201* 3180
1 - LC1E3210* 3180
50 A 38 A 25 18.5
- 1 LC1E3801* 3990
1 - LC1E3810* 3990
60 A 40 A 29 22 1 1 LC1E40* 5250
70 A 50 A 34 25/30 1 1 LC1E50* 6385
80 A 65 A 50 37 1 1 LC1E65* 8490
[Ie] Rated Operational Current Motor Power at 415 V, 3Ph, 50Hz Auxiliary Contacts Reference Unit LP [`]
AC-1 AC-3 hp kW NO NC
110A 80 A 60 45 1 1 LC1E80* 10600
120 A 95 A 60 45 1 1 LC1E95* 12290
150 A 120 A 75 55 1 1 LC1E120* 15535
200 A 160 A 120 90 1 1 LC1E160* 20410
250 A 200 A 150 110 - - LC1E200* 28695
300 A 250A 175 132 - - LC1E250* 34000
320 A 300 A 215 160 - - LC1E300* 40710
500 A 400 295 220 - - LC1E400* 51750
700 A 500 375 280 - - LC1E500* 72895
1000 A 630 500 375 - - LC1E630* 103495
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 5
Please contact Customer Care Center for Stockable and Non stockable status of references.

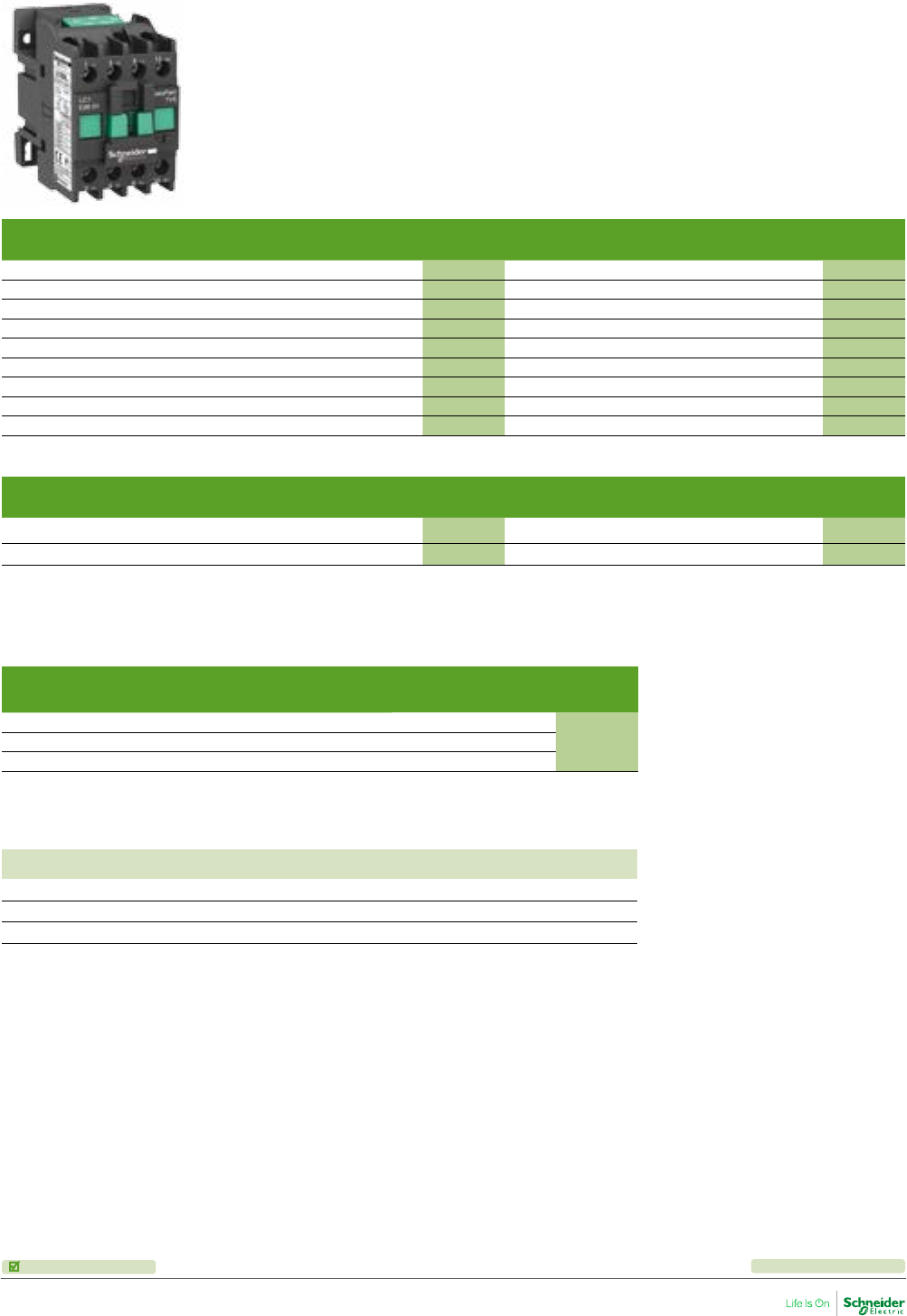

EasyPact TVS
AC-1 Rating
@ 60°C Power Poles
Reference Unit MRP
[`]
Power Poles
Reference Unit MRP
[`]
16 4NO LC1E06004* 1100 2NO + 2NC LC1E06008* 1220
20 4NO LC1E09004* 1115 2NO + 2NC LC1E09008* 1280
25 4NO LC1E12004* 1230 2NO + 2NC LC1E12008* 1405
32 4NO LC1E18004* 1290 2NO + 2NC LC1E18008* 1550
40 4NO LC1E25004* 2040 2NO + 2NC LC1E25008* 2550
45 4NO LC1E32004* 3400 2NO + 2NC LC1E32008* 3955
50 4NO LC1E38004* 4020 2NO + 2NC LC1E38008* 4995
60 4NO LC1E40004* 6335 2NO + 2NC LC1E40008* 7700
80 4NO LC1E65004* 8605 2NO + 2NC LC1E65008* 9295
* Reference to be completed by adding coil voltage code
4 Pole contactors from 16 to 125A AC-1 duty
Available with 4NO and 2NO+2NC combination power contacts
Global offer, Conformity to IEC 60947-4-1 & CE marking
Wide band Coil for all ratings in 220V and 415V - 70% to 120% Uc
High operational ambient temperature: upto 60°C
High electrical and mechanical life
* Voltage 2
4 110 220 240 415
LC1E0600*…9500* 50/60 Hz B7 F7 - - -
LC1E0600*…9500* 50 Hz/ Wide Band
- -
M5WB
-
N5WB
Control relay CAE B5 F5 M5 U5 N5
Note:
• 4P power contactor also available at 48Vac E7 and 380Vac Q7
Add `110 while ordering non-standard voltages
Control Relays CAE
Auxiliary Contacts Reference Unit MRP
[`]
NO NC
4 0 CAE40*
9103 1 CAE31*
2 2 CAE22*
Power Contactors LC1E(4 Pole AC Control)
While ordering contactor and control relays, please specify reference and coil voltage
AC-1 Rating
@ 60°C Power Poles
Reference Unit LP [`]
Power Poles
Reference Unit LP [`]
100 4NO LC1E80004* 10715 2NO + 2NC LC1E80008* 13755
125 4NO LC1E95004* 12415 2NO + 2NC LC1E95008* 16485
* Reference to be completed by adding coil voltage code
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 6
Please contact Customer Care Center for Stockable and Non stockable status of references.
Accessories
For Use with
Type LC1E
Control Circuit
Voltage Reference Unit LP [`]
Surge Suppressors (3 and 4 pole)
LC1E06...E95 24..48 V AC LAERCE
725
LC1E06...E95 50..127 V AC LAERCG
LC1E06...E95
110..240 V AC
LAERCU
LC1E06...E95
380..415 V AC
LAERCN
EasyPact TVS
Conformance to IEC 60947-4-1
CE Marking
Trip Class: 10A
110 220 415
LC1E06-LC1E300 F5 M5 N5
LC1E400-LC1E630 F7 M7 N7
LC1E0600*-LCIE9500* - M5WB N5WB
Spare Coils
Contactor Reference Unit LP [`]
CAE, LC1E06…E18 LAEX1** 740
LC1E25 LAEX12**
LC1E32/E38 LAEX2** 910
LC1E40/E65 LAEX3** 1350
LC1E80/E95 LAEX4** 1695
LC1E120/E160 LAEX5** 1890
LC1E200/E250 LAEX6** 2640
LC1E300 LAEX7** 2875
LC1E0600*…. LC1E1800* LAEX1T** 850
LC1E2500*…. LC1E3800* LAEX2T** 1020
LC1E4000*…..LC1E9500* LAEX4T** 1805

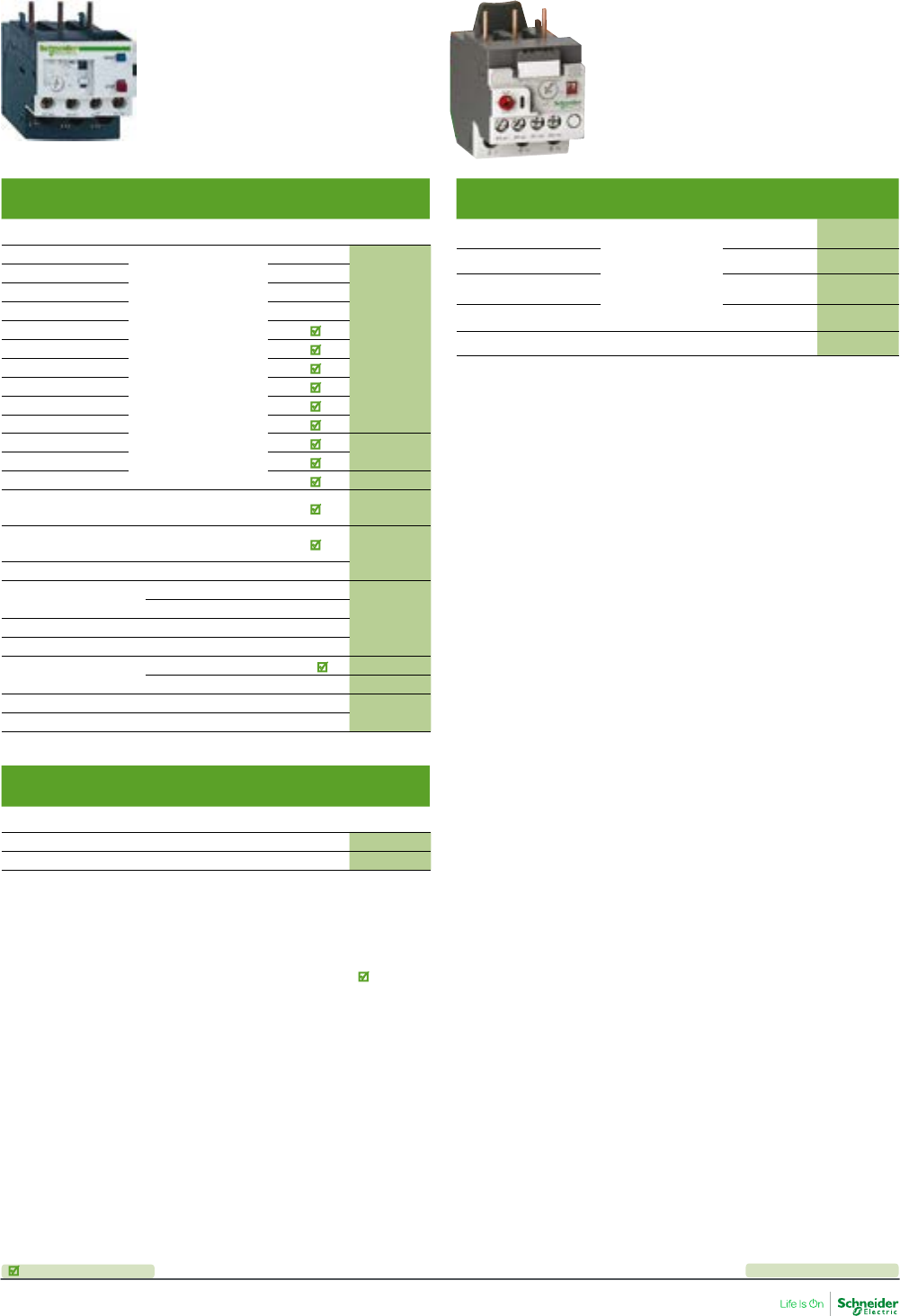

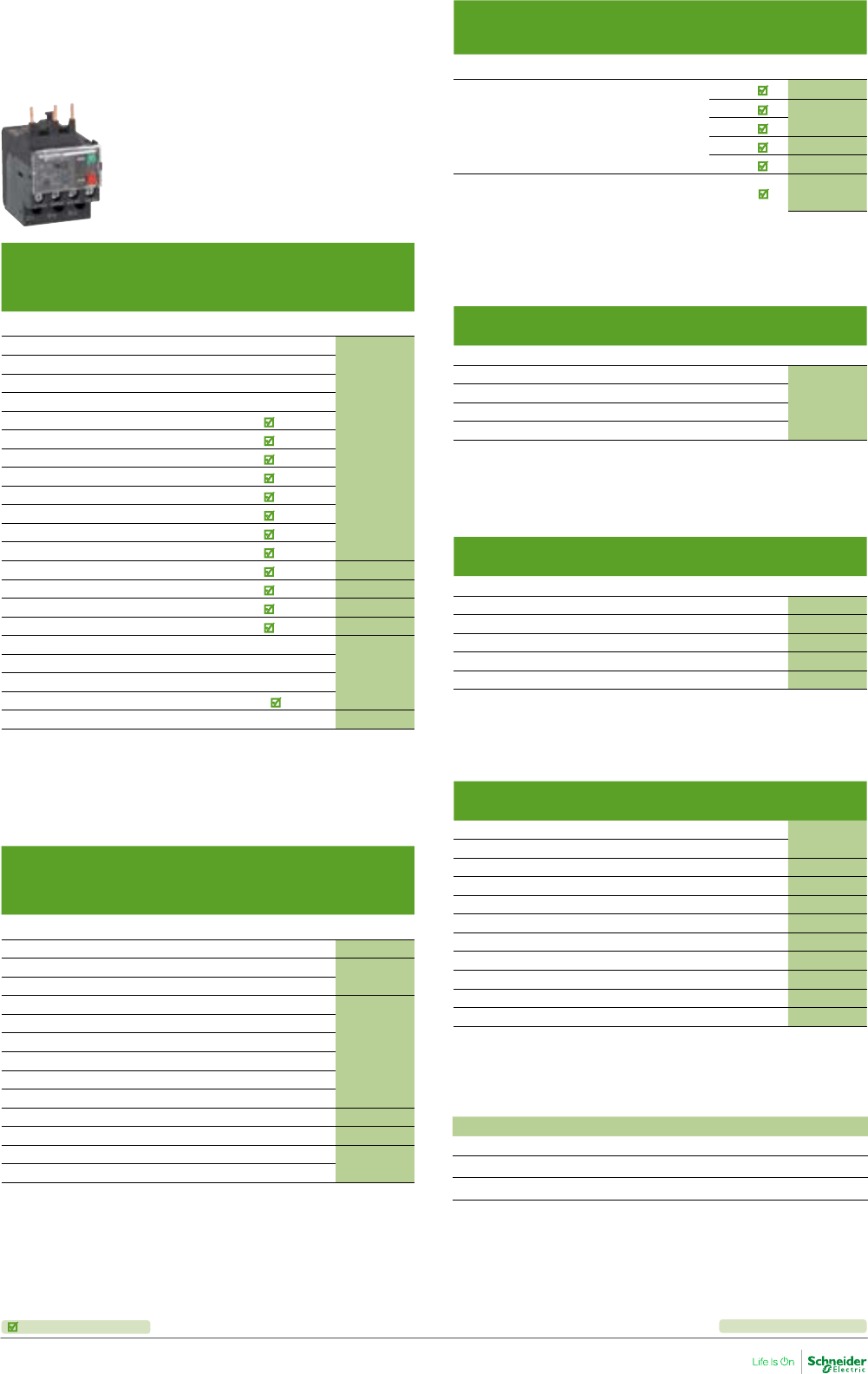

Thermal overload relay
Thermal
Protection
Adjustment
Range
For Use with
Contactor Reference Unit MRP
[`]
LRE
0.1...0.16 A E06...E38 LRE01
1315
0.16...0.25 A E06...E38 LRE02
0.25...0.4 A E06...E38 LRE03
0.4...0.63 A E06...E38 LRE04
0.63...1 A E06...E38 LRE05
1...1.6 A E06...E38 LRE06
1.6...2.5 A E06...E38 LRE07
2.5...4 A E06...E38 LRE08
4...6 A E06...E38 LRE10
5.5...8 A E09...E38 LRE12
7...10 A E09...E38 LRE14
9...13 A E12...E38 LRE16
12...18 A E18...E38 LRE21 1550
16...24 A E25...E38 LRE22 1785
23...32 A E25...E38 LRE32 2350
30...38 A E38 LRE35 2670
17...25 A E40...E95 LRE322
3015
23...32 A E40...E95 LRE353
30...40 A E40...E95 LRE355
37...50 A E50...E95 LRE357
48...65 A E65...E95 LRE359 3980
Thermal
Protection
Adjustment
Range
For Use with
Contactor Reference Unit LP [`]
LRE
55...70 A E80...E95 LRE361 4305
63...80 A E80...E95 LRE363 4345
80...104 A E95 LRE365
51...81 A E120...E300 LRE480
8500
62...99 A E120...E300 LRE481
84...135 A E120...E300 LRE482
124...198 A E160...E300 LRE483
146...234 A E200...E300 LRE484
174...279 A E250...E300 LRE485
208...333 A E300 LRE486 9300
258…414 A E300…E400 LRE487 11000
321…513 A E500 LRE488 13000
394…630 A E630 LRE489
Note: For separate mounting block, for LRE
For LRE01…LRE35 – terminal block for clip-on Mounting LAEB1 Unit LP:
`
490
For LRE322…LRE365 – terminal block for clip-on Mounting LAEB3 Unit LP:
`
1460
Note:
Add ` 110 while ordering non-standard voltages
Note: For separate mounting block, for LRE
For LRE01…LRE35 – terminal block for clip-on Mounting LAEB1 Unit LP:
`
490
For LRE322…LRE365 – terminal block for clip-on Mounting LAEB3 Unit LP:
`
1460
For Use with
Type LC1E
Control Circuit
Voltage Reference Unit MRP
[`]
Mechanical Interlock Blocks (3 and 4 pole)
LC1E06..E65 & LC1E0600*..E3800* LAEM1 465
LC1E80/E95 & LC1E4000*…LC1E9500* LAEM4 1550
LC1E120..E160 LAEM5 2900
LC1E200/E250 LAEM6 2955
LC1E300 LAEM7 3755
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 7
Accessories
For Use
With
Type LC1E
Control
Circuit
Voltage
Mounting Reference Unit MRP
[`]
Add-on Blocks and Star Delta Timer Blocks
LC1E06...E300
LC1E0600*...LC1E9500*
Front
LAEN11 245
LAEN20 245
LAEN02
LAEN22 435
LAEN40 435
LC1E25..E300
LC1E2500*..LC1E9500*
LAETSD 1990
Please contact Customer Care Center for Stockable and Non stockable status of references.
NORMAL STOCK ITEMS W.E.F. December 21, 2015
Montage Type
Tension Reference Unit LP [`]
Side
Undervoltage trip
110…115 V 50 Hz GZ1 AU115 2150
(1 block on RH
side of
circuit -breaker)
220…240 V 50 Hz GZ1 AU225 2150
380…400 V 50 Hz GZ1 AU385 2905
Shunt trip 110…115 V 50 Hz GZ1 AS115 2175
220…240 V 50 Hz GZ1 AS225 2175
schneider-electric.co.in 8
Conforming to IEC 60947-2-3-4
CE Marking
Breaking Capacity up to 100 kA
Breaking
Capacity at
415 V
50 Hz
Motor
Power
AC3**
Thermal Protection Ad-
justment Range
Reference Unit MRP
[`]
KW hP

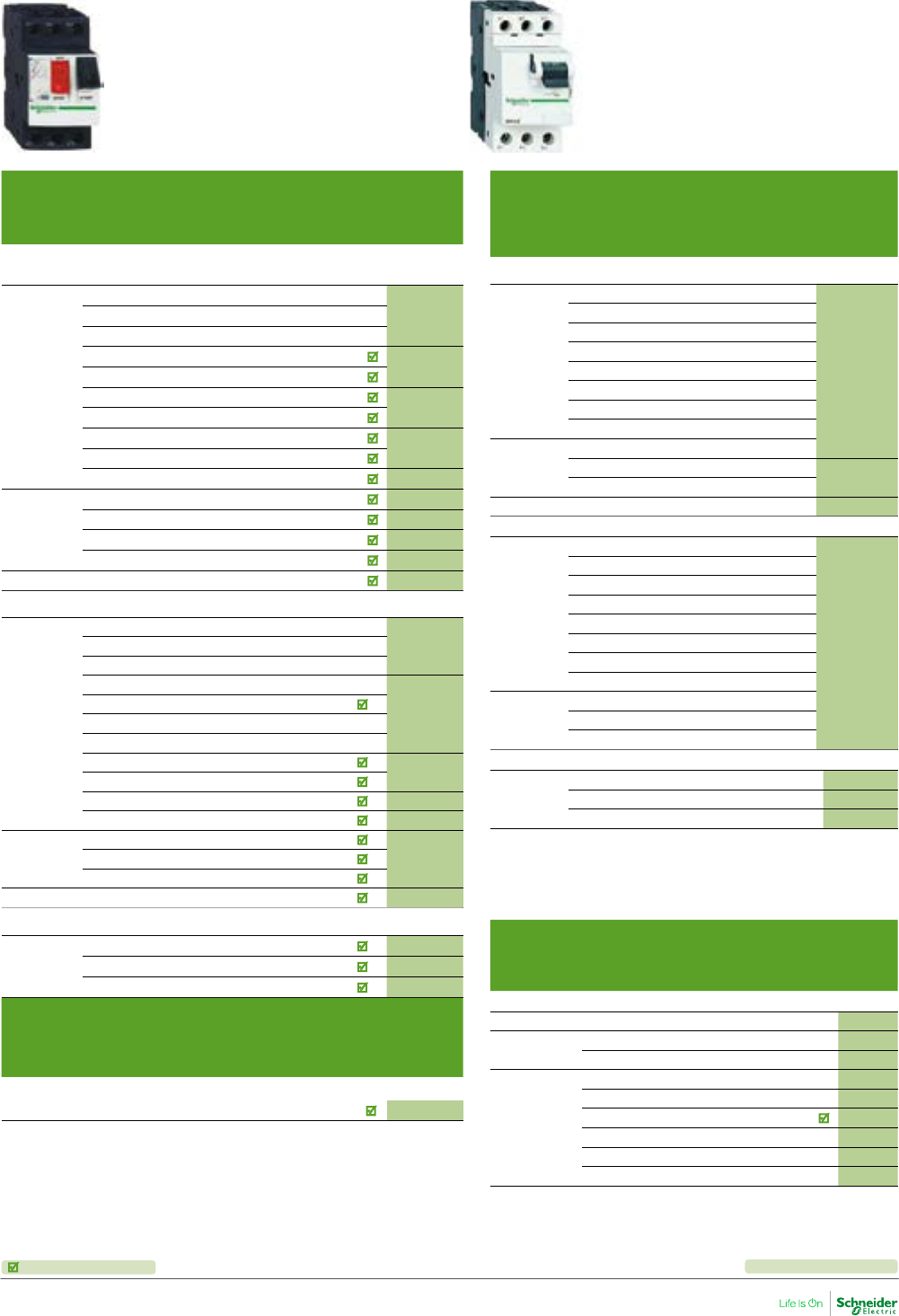

GZ1-E Thermal Magnetic- With Pushbutton control
100 kA
- - 0.1 - 0.16 GZ1E01
2545
0.06 - 0.16 - 0.25 GZ1E02
0.09 - 0.25 - 0.40 GZ1E03
0.18 - 0.40 - 0.63 GZ1E04 2865
0.37 0.5 0.63 – 1.0 GZ1E05
0.55 0.75 1.0 – 1.6 GZ1E06 2875
0.75 1 1.6 – 2.5 GZ1E07
1.1 2 2.5 – 4 GZ1E08 2975
2.2 3 4 – 6.3 GZ1E10 2975
3 5.5 6 – 10 GZ1E14 3075
10 kA
5.5 7.5 9 – 14 GZ1E16 3465
7.5 10 13 – 18 GZ1E20 3725
9 12.5 17 – 23 GZ1E21 4120
11 15 20 – 25 GZ1E22 4330
15 20 24 - 32 GZ1E32 7855

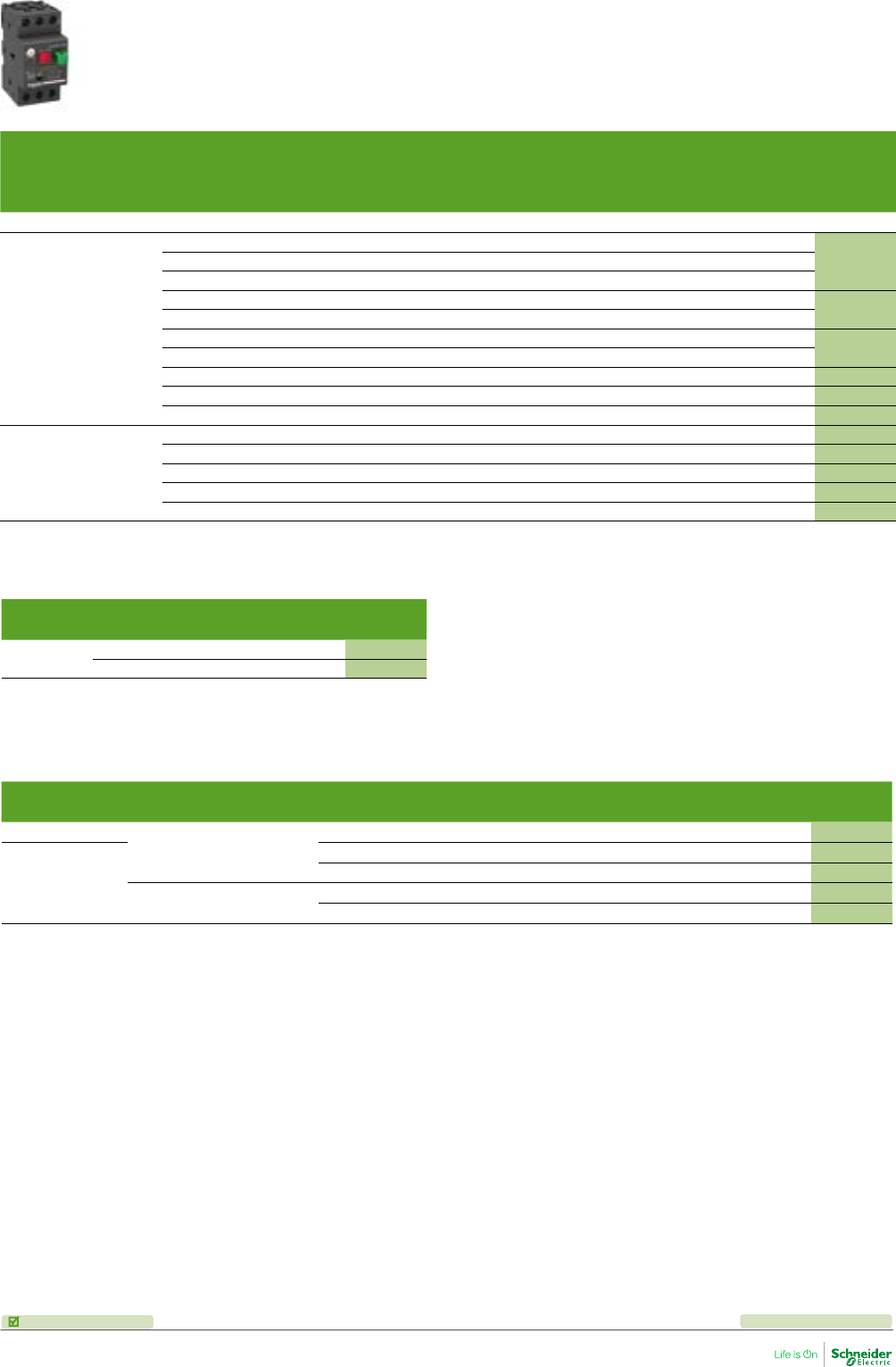

EasyPact TVS Motor Protection Circuit Breaker
Description Reference Unit MRP
[`]
Side Contact NO+NC GZ1AN11 775
NO+NO GZ1AN20 965
Accessories for Motor Protection Circuit Breaker
Electric trips
schneider-electric.co.in 9
We believe the obligatory transition to IE3 premium efficiency
motors is good news for businesses and the environment.
In fact, our TeSysTM motor starter range is already compliant
with IE3, as confirmed in a laboratory environment.
That means safe, highly reliable Te Sys products - including
contactors, circuit breakers, and thermal relays - help you
ensure regulatory compliance as well as energy efficiency.
As the global specialist in energy management,
energy efficiency is part of Schneider Electric’s DNA.
We are committed to helping you reduce energy
costs and increase efficiency in your operations.
Your business is ready for
premium-efficiency motors
Tested and proven for IE3 motors, the TeSys motor starter range provides
best-in-class features for protection, monitoring, and control in motor applications
YEARS
of innovation
in motor control
90+
IE3
FULLY
COMPLIANT
schneider-electric.co.in 10
Efficient power for your business
According to new regulations coming into force in the EU, from 1 January 2015 motors
from 7.5 kW to 375 kW must be IE3 compliant. By implementing IE3 motors now,
you are preparing for the future.
With the TeSys range, you know that your operations are ready for premium-efficiency
motors. You also benefit directly from lower energy and life-cycle costs as well as a reduced
environmental impact.
With TeSys you can introduce premium-
-efficiency motors to your machinery
with peace of mind. Tested for magnetic,
thermal, and electrical endurance,
the TeSys range has proven fully
compatible with IE3 motors and ready
for a higher peak inrush current.
Best-in-class TeSys products include:
• A complete range of equipment,
including contactors, circuit breakers,
thermal relays
• Energy efficiency and reduced CO
2
emissions thanks to a low
consumption coil
• A high level of safety and reliability
thanks to a robust, quality design
• Ease of selection, installation, and
maintenance with no need for derating
• Worldwide availability and support
All TeSys products are certified with the Green
Premium eco-mark, a standard implemented
by Schneider Electric to provide comprehensive
information on the environmental impact
of a product.
The Green Premium mark assures compliance
with the most up-to-date environmental
regulations, including RoHS and REACh.
With TeSys you can develop an effective
environmental policy, as the range offers technical
support and advice for eco-design projects.
Best-in-class solutions
for motors
Go greener with TeSys
CONTACTOR
POWER
CONSUMPTION
-50%
Please contact Customer Care Center for Stockable and Non stockable status of references.
NORMAL STOCK ITEMS W.E.F. December 21, 2015
TeSys

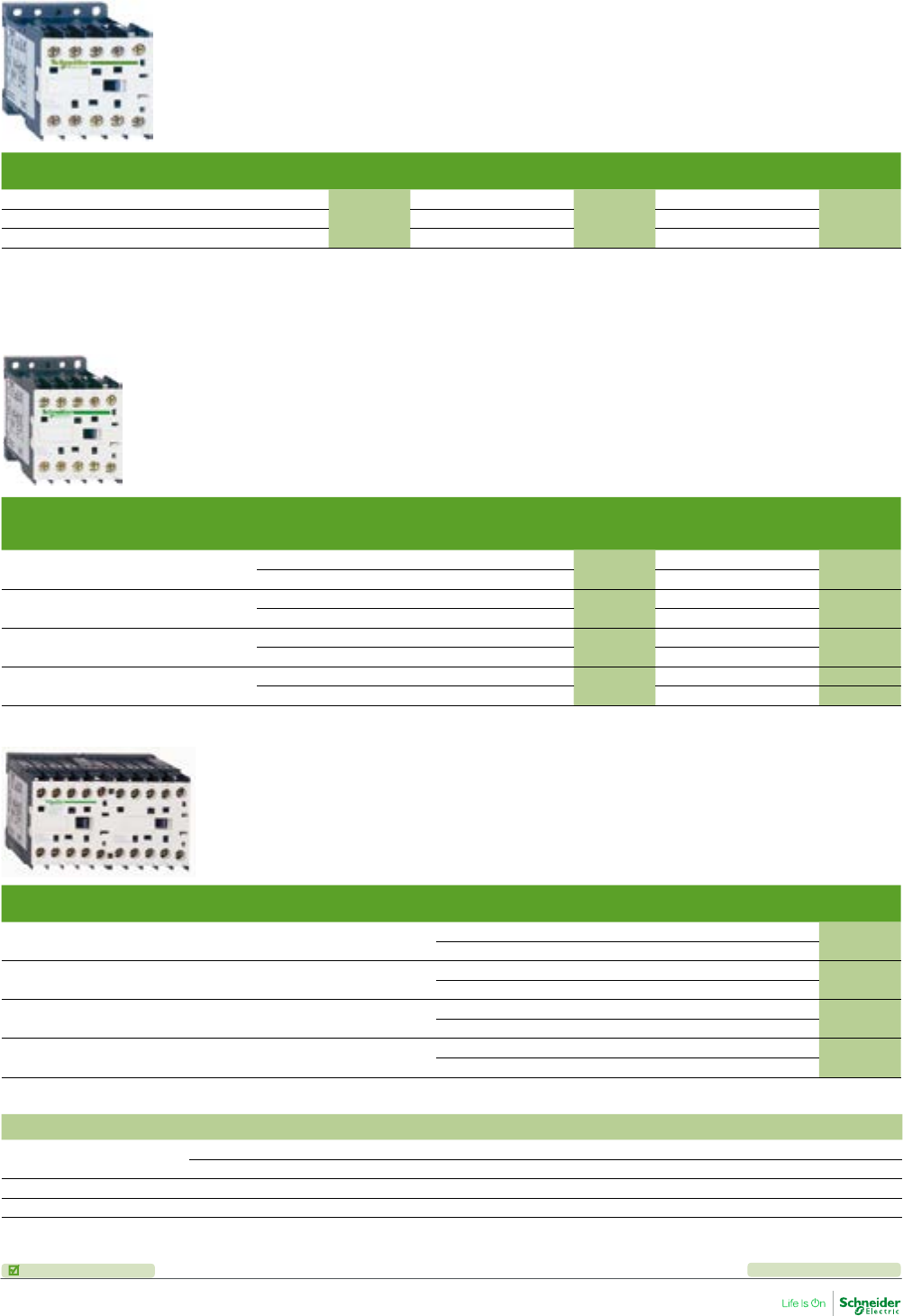

Control Relays - K model (AC & DC Control)
No of Poles AC Control
Reference Unit LP [`]DC Control
Reference Unit LP [`]DC low consumption
Reference (1) (2) (3) Unit LP [`]
2NO + 2NC CA2KN22*
1150
CA3KN22**
1555
CA4KN22***
18203NO + 1NC CA2KN31* CA3KN31** CA4KN31***
4NO + 0NC CA2KN40* CA4KN40***
(1) Compatible with PLC outputs
(2) Wide range coil (0.7...1.25Uc), suppressor fitted as standard
(3) 2 pole auxiliary contact block can be mounted additionally
Conformity to International Standards – IEC, UL, CSA
Inbuilt 4 auxiliary contacts
10A thermal rating , AC/DC and DC low consumption coils available
schneider-electric.co.in 11
Reversing Contactors - K model
[Ie] Rated Operational
Current (A) Motor Power (kW) Auxiliary Contacts AC Control
Reference Unit LP [`]
6 3 1 NC LC2K0601* 2965
1 NO LC2K0610*
9 5.5 1 NC LC2K0901* 3125
1 NO LC2K0910*
12 7.5 1 NC LC2K1201* 3225
1 NO LC2K1210*
16 10 1 NC LC2K1601* 3610
1 NO LC2K1610*
Conformity to International Standards – IEC, UL, CSA
Reversing contactors from 6 to 16 Amps in AC-3 duty , 3 pole versions
AC/DC coils
1NO or 1NC inbuilt auxiliary contact
Power Contactors - K model (3 Pole AC & DC Control)
[Ie] Rated
Operational
Current (A)
Motor Power
(kW)
Auxiliary
Contacts
AC Control
Reference Unit LP [`]DC Control
Reference Unit LP [`]
6 3 1 NC LC1K0601* 955 LP1K0601** 1440
1 NO LC1K0610* LP1K0610**
9 5.5 1 NC LC1K0901* 1010 LP1K0901** 1650
1 NO LC1K0910* LP1K0910**
12 7.5 1 NC LC1K1201* 1130 LP1K1201** 1740
1 NO LC1K1210* LP1K1210**
16 10 1 NC LC1K1601* 1320 - -
1 NO LC1K1610* -
Conformity to International Standards – IEC, UL, CSA
Power contactors from 6 to 16 Amps in AC-3 duty, AC/DC coils
1NO or 1NC inbuilt auxiliary contact
Coil Voltage Code
Type Voltage 24 48 72 110 220 415
AC* CA2KN, LC1-K06 to K16, 50/60Hz B7 - - F7 M7 N7
LC2-K06 to K16 , 50/60Hz - - - F7 M7 N7
DC** CA3KN, LP1-K06 to K12 BD - - FD MD -
DC low consumption*** CA4KN BW3 EW3 SW3 - - -
Note: For ordering contactors with other coil voltages & frequencies,
please add ` 185/- to the unit Price of the standard contactor of the same rating.
Please contact Customer Care Center for Stockable and Non stockable status of references.
TeSys
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 12
Accessories - K Model
Description Contacts Reference Unit LP [`]
Add On Blocks
Control Relays/Contactors
Auxiliary contact block TeSys
0 NO + 2 NC LA1KN02
3151 NO + 1 NC LA1KN11
2 NO + 0 NC LA1KN20
0 NO + 4 NC LA1KN04
500
1 NO + 3 NC LA1KN13
2 NO + 2 NC LA1KN22
3 NO + 1 NC LA1KN31
4 NO + 0 NC LA1KN40
On Delay Electronic timers - 24...48 V AC/DC, 1...30 s LA2KT2E (1)
1670
On Delay Electronic timers - 110...240 V AC, 1...30 s LA2KT2UA(1)
Suppressor module - RC circuit - 220..250 V AC LA4KA1U*
505Suppressor module - varistor - 130..250 V AC/DC LA4KE1UG*
Suppressor module - varistor - 50..129 V AC/DC LA4KE1FC*
* Lot Size 5
(1) Front mounted with common point changeover contact.

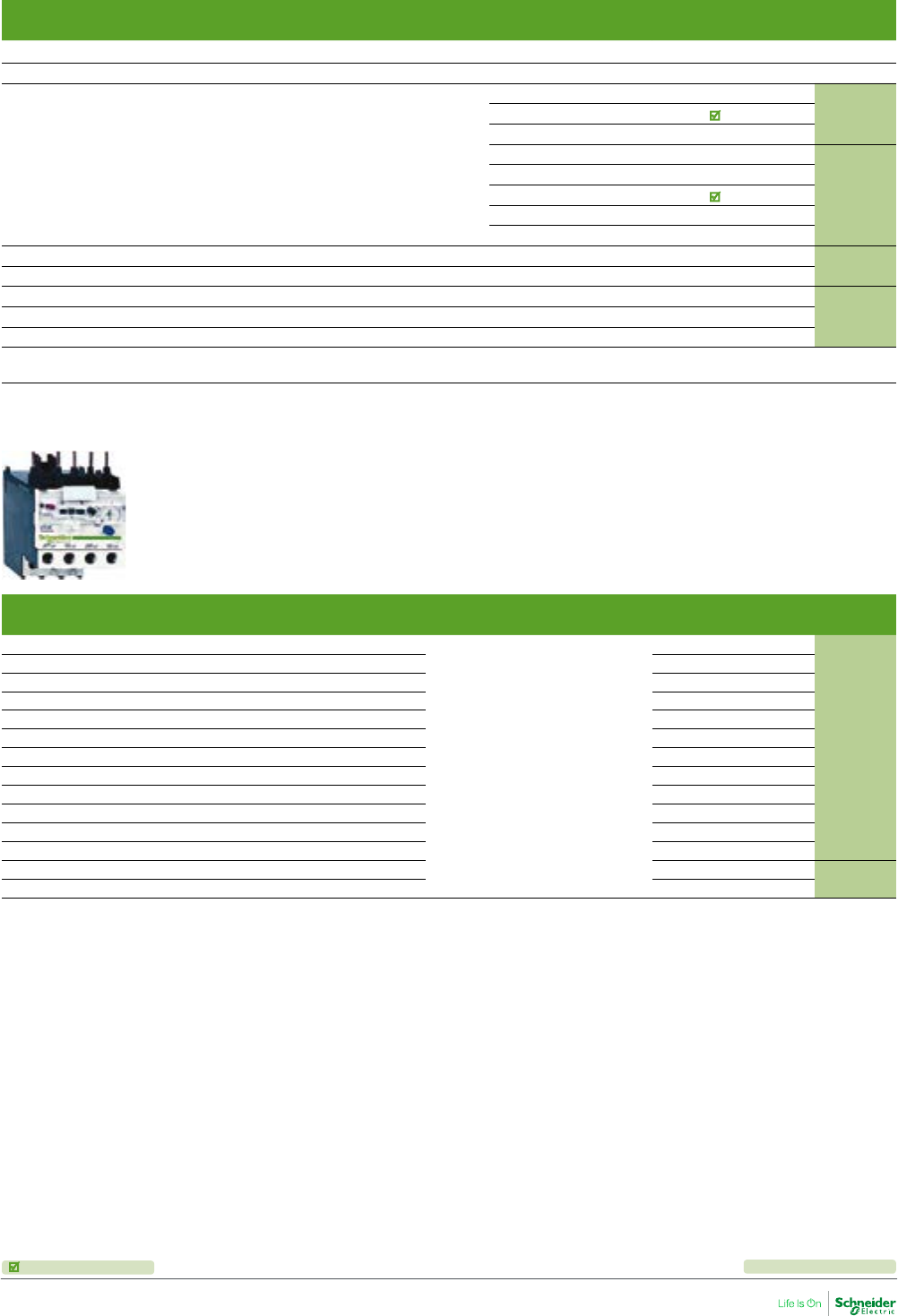

Thermal Overload Relays - LR2-K Model (Direct Mounting)
Thermal Protection
Adjustment Range For Use With Reference* Unit LP [`]
0.11...0.16 A
LC1K, LP1K, LP4K, LP2K, LC2K
LR2K0301
1500
0.16...0.23 A LR2K0302
0.23...0.36 A LR2K0303
0.36...0.54 A LR2K0304
0.54...0.8 A LR2K0305
0.8...1.2 A LR2K0306
1.2...1.8 A LR2K0307
1.8...2.6 A LR2K0308
2.6...3.7 A LR2K0310
3.7...5.5 A LR2K0312
5.5...8 A LR2K0314
8...11.5 A LR2K0316
10...14 A LR2K0321 1600
12...16 A LR2K0322
* Note: Terminal Block for Clip-on Mounting LA7K0064 Unit LP ` 545/-
Conformity to International Standards – IEC, UL, CSA
Range available - upto 0.1A to 16A
Direct mounting on contactors is possible upto 16A
Please contact Customer Care Center for Stockable and Non stockable status of references.
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 13
TeSys

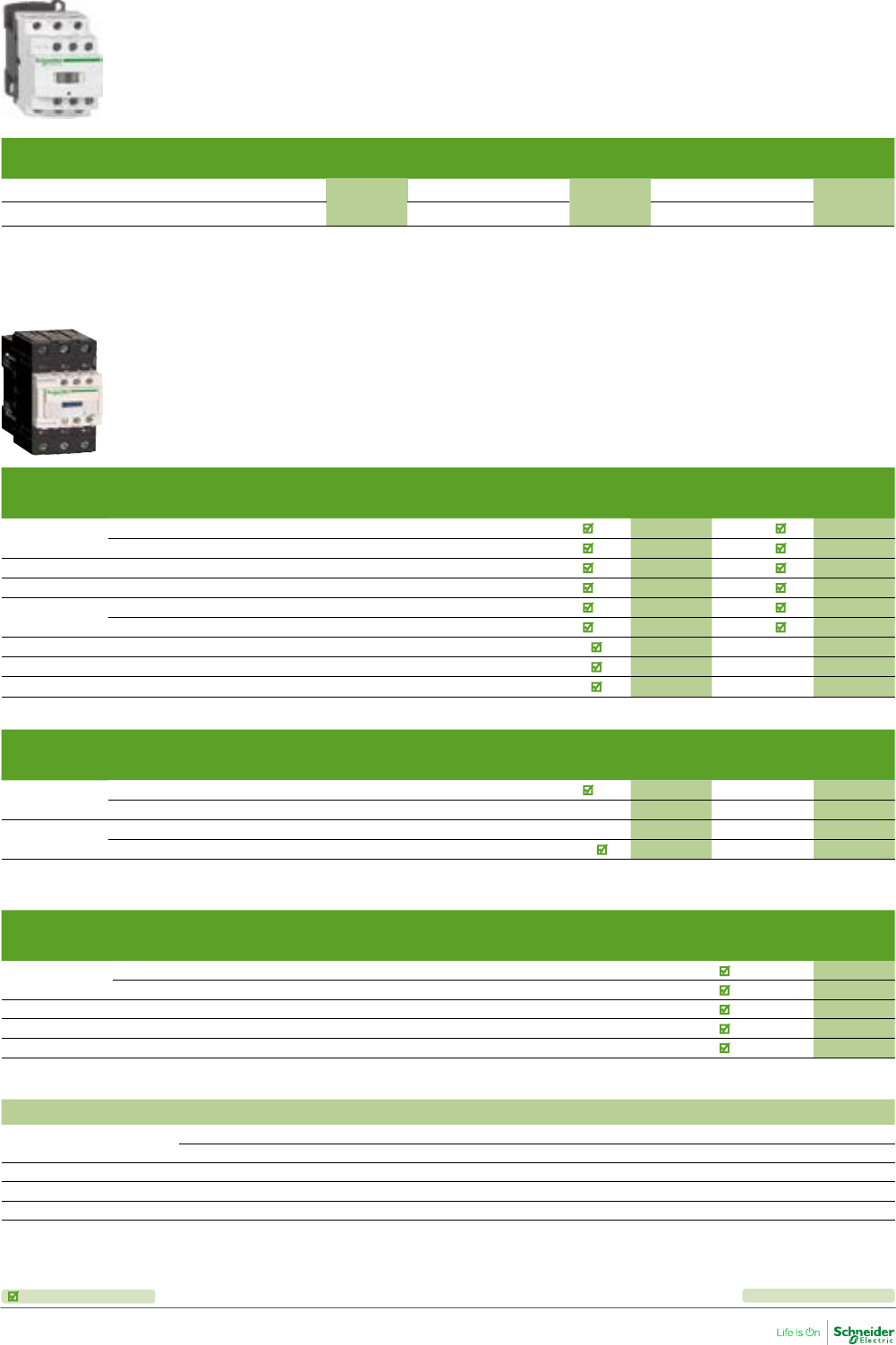

DC Low Consumption Contactors (3 Pole)
[Ie] Rated
Operational
Current AC1
Motor Power (Long Life) AC3 Motor Power (Normal Life) AC3
KW hP A
Auxiliary
Contacts Reference Unit LP [`]
kW hP A
25
4 5.5 9 5.5 7.5 12 1 NO + 1 NC LC1D09**** 2325
5.5 7.5 12 9 12.5 18 1 NO + 1 NC LC1D12**** 2425
32 9 12.5 18 11 15 25 1 NO + 1 NC LC1D18**** 2810
40 11 15 25 15 20 32 1 NO + 1 NC LC1D25**** 4780
50 15 20 32 22 30 40 1 NO + 1 NC LC1D32**** 7955
No of Poles AC Control
Reference Unit LP [`]DC Control
Reference (2) Unit LP [`]DC low consumption
Reference (1) (2) (3) Unit LP [`]
3NO+2NC CAD32* 1200 CAD32** 1800 CAD32*** 2090
5NO+0NC CAD50* CAD50** CAD50***
(1) Compatible with PLC outputs
(2) Wide range coil (0.7...1.25Uc), suppressor fitted as standard
(3) 2 pole auxiliary contact block can be mou
[Ie] Rated
Operational
Current AC1
AC3 Duty (Long Life) AC3 Duty (Normal Life) Auxiliary
Contacts
AC Control
Reference Unit LP [`]DC Control
Reference (1) Unit LP [`]
kW hP A kW hP A
125 45 60 80 55 75 105 1 NO + 1 NC LC1D80* 12720 LC1D80** 15100
45 60 95 55 75 110 1 NO + 1 NC LC1D95* 15400 LC1D95** 18880
250 59 80 115 - - - 1 NO + 1 NC LC1D1156* 18650 LC1D1156** 19000
80 110 150 - - - 1 NO + 1 NC LC1D1506* 24600 LC1D1506** 25100
(1) Wide Range Coil (0.7.....1.25Uc) with suppressor fitted as standard up to 65A.
Coil Voltage Code
Type Voltage 24 48 72 110 220 415
AC* CAD, LC1-D09..to D38, D40A, 50A ,65A & D150 50/60Hz B7 - - F7 M7 N7
LC1-D80..to D95 & D115 50Hz B5 - - F5 M5 N5
DC**
CAD, LC1-D09..to D38, D40A, 50A , 65A, 80 , 95, 115 &
D150
BD - - FD MD -
DC Low Consumption*** CAD BL - - FL ML -
DC Low Consumption**** LC1D09...D32 BL EL SL - - -
For ordering contactors with other coil voltages & frequencies, please add ` 185/- to the unit Price of the Standard Contactor for the same rating.
For additional auxiliary block, timers & other accessories, please see page 15 and page 16
Conformity to International standards - IEC, UL, CSA, CE
Up to 5 inbuilt auxiliary contacts
High temperature limits.
Conformity to International Standards – IEC, UL, CSA, CE
9-150 Amps, 3 and 4 pole versions, AC/DC coils
High temperature limits
Different levels of power and control contacts
Inbuilt 1 NO + 1 NC auxiliary contacts
High electrical life
Fuse-less Type 2 Coordination Charts available
Power Contactors - D Model (3 Pole AC & DC Control)
[Ie] Rated
Operational
Current AC1
AC3 Duty (Long Life) AC3 Duty (Normal Life) Auxiliary
Contacts
AC Control
Reference
Unit MRP
[`]
DC Control
Reference (1)
Unit MRP
[`]
kW hP A kW hP A
25 4 5.5 9 5.5 7.5 12 1 NO + 1 NC LC1D09* 1200 LC1D09** 1850
5.5 7.5 12 9 12.5 18 1 NO + 1 NC LC1D12* 1350 LC1D12** 1995
32 9 12.5 18 11 15 25 1 NO + 1 NC LC1D18* 1490 LC1D18** 2600
40 11 15 25 15 20 32 1 NO + 1 NC LC1D25* 1885 LC1D25** 3250
50 15 20 32 22 30 40 1 NO + 1 NC LC1D32* 3885 LC1D32** 6900
18.5 25 38 - - - 1 NO + 1 NC LC1D38* 5700 LC1D38** 8000
60 22 30 40 - - - 1 NO + 1 NC LC1D40A* 6100 LC1D40A** 8950
80 25 35 50 - - - 1 NO + 1 NC LC1D50A* 7250 LC1D50A** 11200
80 37 50 65 - - - 1 NO + 1 NC LC1D65A* 10050 LC1D65A** 12800
(1) Wide Range Coil (0.7.....1.25Uc) with suppressor fitted as standard up to 65A.
TeSys D Control Relays
Please contact Customer Care Center for Stockable and Non stockable status of references.
TeSys
[Ie] Rated
Operational Current AC1 Poles Composotion AC control
Reference Unit LP [`]DC control
Reference Unit LP [`]
80 4NO - - LC1DT80A** 13815
2NO+2NC - - LP1D65008** 16645
125 4NO - - LP1D80004** 18390
2NO+2NC - - LP1D80008** 20770
250 4NO LC1D1150046 23935 LC1D1150046** 26775
Nominal Reactive Power 440 V Auxiliary Contacts Reference Unit MRP
[`]
LC1-DK - with Damping Resistors & Block of Early Make poles
12.5 KVAR 1 NO + 1 NC LC1DFK* 2600
16.7 KVAR 1 NO + 1 NC LC1DGK11*C 3680
20 KVAR 1 NO + 1 NC LC1DLK* 4285
25 KVAR 1 NO + 1 NC LC1DMK11*C 4770
33.3 KVAR 1 NO + 2 NC LC1DPK*C 10150
40 KVAR 1 NO + 2 NC LC1DTK*C 14100
60 KVAR 1 NO + 2 NC LC1DWK*C 16200
* Coil Voltage Code
VOLTAGE 110 220
LC1DFK....DWK, 50/60Hz F7 M7
Note:
For ordering contactors with other coil voltages & frequencies, please add
`
185/- to the unit price of the standard contactor of the same rating.
Special Contactors designed for switching 3Phase capacitors
Conformity to IEC Standards
Current limitation by the inbuilt damping resistors
1NO + 1NC inbuilt auxiliary contact
Conformity to International Standards – IEC, UL, CSA, CE
20A to 250A AC1 Rating
In-built 1NO+1NC auxiliary contact, up to 40A
High Temparature limits
Coil Voltage Code
VOLTAGE 24 110 220 415
LC1D115 50Hz - F5 M5 N5
DC**
LC1DT20...DT40, LC1-DT60A & DT80A & LC1D09...D80, D115 and LP1D650 -- LP1D800
BD FD MD -
Note: Please contact CCC for 4 Pole Ac coil contactor details
For ordering contactors with other coil voltages & frequencies, please add
`
185/- to the unit price of the standard contactor of the same rating.
Power Contactors - D Model (4 Pole AC & DC Control)
Capacitor Duty Contactors (AC Control)
[Ie] Rated
Operational Current AC1 Poles Composotion AC control
Reference
Unit MRP
[`]
DC control
Reference
Unit MRP
[`]
20 4NO - - LC1DT20** 1960
2NO+2NC - - LC1D098** 2300
25 4NO - - LC1DT25** 2495
2NO+2NC - - LC1D128** 3295
32 4NO - - LC1DT32** 2960
2NO+2NC - - LC1D188** 3860
40 4NO - - LC1DT40** 4650
2NO+2NC - - LC1D258** 6125
60 4NO - - LC1DT60A** 9775
2NO+2NC - - LP1D40008** 11545
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 14
Please contact Customer Care Center for Stockable and Non stockable status of references.
Description Time Delay Range Timer Type Reference Unit LP [`]
On delay timer (1) (2) 15...30 s On delay LA4DT2U
2570On delay timer (1) (2) 0.1...2 s On delay LA4DT0U
On delay timer (1) (2) 25...500 s On delay LA4DT4U
Relay interface module - 24V DC (1) (2) - - LA4DFB 2370
(1)
For LC1 D09...38A (3P, AC coils only) add mounting adaptor LAD4BB = ` 540/- and for LC1 D40A...65A (3P, AC coils only), add mounting adaptor
LAD4BB3 = ` 455/-.
(2) For LC1D80...150 (3P), direct mounting, for 100-250 V AC Coils only.
Description Contacts Reference Unit LP [`]
Add On Blocks
Additional instantaneous auxiliary
contact blocks
Side
Mounted (1)
1 NO+1NC LAD8N11 860
2 NO LAD8N20
Pneumatic
timer blocks
front mounted
ON delay
1 NO+1NC 0.1..3s LADT0
21351 NO+1NC 0.1..30s LADT2
1 NO+1NC 10..180s LADT4
1 NO+1NC 1..30s (2) LADS2 2280
OFF delay
1 NO+1NC 0.1 ..3s LADR0
21351 NO+1NC 0.1 ..30s LADR2
1 NO+1NC 10..180s LADR4
Set of shins to be used with 4 pole contactors LA9D511 835
(1) Suitable for mounting on D Model range AC Coil Contactors and Control Relays only
(2) With Switching time of 40 ms between opening of the NC contact and closing of the NO contact recommended for Star - Delta Starters
* Suitable for 80 Amps, 95A & Model F Contactors only
TeSys
Mounting Location For Use With Contactor Reference Unit LP [`]
For D Model Mechanical Latch Blocks
Front, Clip-on
LC1 D09...D38 (a or c)
LC1 DT20...DT40 (a or c)
LC1 D40A...D65A (3P a or c)
LC1DT60A AND DT80A (4P a or c)
LAD6K10* 3095
LC1 D80...D150 (3P a)
LC1 D80 AND D115 (3 P c)
LC1 D80 (4 P a)
LC1 D80 AND D115 (4 P a)
LP1 D80 AND LC1 D115 (4 P c)
LA6DK20* 3235
* Replace by Voltage Code (AC 50/60 Hz / DC)
Note: For ordering Mechanical Latch Block with other coil voltages, please add ` 185/- to the unit price of the standard reference
*Coil Voltage Code
VOLTAGE (AC/DC) 24 42/48 110/127 220/240 380/415
Code B E F M Q
Accessories - For D Model Contactors
Description Contacts Reference Unit MRP
[`]
Add On Blocks
Additional instantaneous auxiliary
contact blocks
Front
Mounted
1 NO LADN10* 185
1 NC LADN01*
1 NO+1NC LADN11 350
2 NO LADN20
350
2 NC LADN02
2 NO+2NC LADN22 585
4 NC LADN04
585
4 NO LADN40
1 NO+3NC LADN13
3 NO+1NC LADN31
NORMAL STOCK ITEMS W.E.F. December 19, 2014
schneider-electric.co.in 15
Please contact Customer Care Center for Stockable and Non stockable status of references.
NORMAL STOCK ITEMS W.E.F. December 21, 2015
Accessories - D Model
For use with contactor Reference Unit LP [`]
Mechnical interlock
LC1D09..D38 , LC1DT20..DT40 LAD9V2 (1) 485
LP1D 40..65, LC1D80..95 LA9D4002 2145
LP1D 80 LA9D8002 3235
LC1D115.. 150 LA9D11502 3275
Ready made reversing kit
LC1D09..D38 LAD9R1 (2) 690
LAD9R1V (3) 960
(1) Reference only of mechanical interlock (For mechanical strength use
mounting clip LAD9V17, when using only mechanical interlock.
Price available on request)
(2) Set of power connections with mechanical interlock.
(3) Set to power connections with mechanical and electrical interlock.
Description For Use With Reference Unit LP [`]
For Contactor D115/150
Arc chamber - 3P LC1D1156 LA5D11550 3850
Arc chamber - 3P LC1D1506 LA5D15050 3850
Contacts set - 3P LC1D1156 LA5D1158031 10170
Contacts set - 3P LC1D1506 LA5D150803 10545
Contacts set - 4P LC1D1150046 LA5D115804 14030
TeSys
Description Fixing Reference Unit LP [`]
For Contactors (D40A, 50A, 65A , DT60A & DT80A)
Mechnical Interlock
Clip - On
LAD4CM 980
Varistor (24...48 V) LAD4V3E
830
Varistor (110...240 V)
LAD4V3U
RDOL kit LAD9R3 2230
RC circuit
(110...240 V) Clip - On LAD4RC3U 485
Spare coils D model
Product Compatibility Reference Unit MRP
[`]
AC Coils
CAD, LC1-D09...D38,
DT20..40 LXD1* 790
LC1D40A, D50A, D65A &
LC1DT60A, DT80A LXD3* 2145
D80 & D95 (3P & 4P) LX1D6* 2270
LC1-D115,D150 LX1D8* 3515
DC Coils
LC1-D80-D95 LX4D7** 6755
LC1-D115, D150 LX4D8** 7430
Note: For ordering coils with other voltages and frequencies, please add ` 185/-
to the unit price of the respective standard coil.
Coil Voltage Code
TYPE VOLTAGE (V) 24 110 220 415
AC*
CAD, LC1-D09...D38, DT20..40,LC1
- D150,LC1D40A, D50A, D65A &
LC1DT60A, DT80A, LC1D150
B7 F7 M7 N7
D80 & D95 (3P & 4P), LC1 - D115 B5 F5 M5 N5
DC** LC1-D80, LC1-D115, D150 BD FD MD -
Product Compatibility Fixing Control Circuit
Voltage Suppressor Type Reference Unit LP [`]
Coil Suppressor Modules
LC1-D12...D25 (4P)
Clip-on
24...48 V AC RC Circuit AC LA4DA1E
780
LC1-D12...D25 (4P) 110...240 V AC RC Circuit AC LA4DA1U
LC1-D12 & D25 (4P) 12...250 V DC Diode DC LA4DC1U
LC1-D12...D25 (4P) 24...48 V AC/DC Varistor AC/DC LA4DE1E
- 110...250 V AC/DC Varistor AC/DC LA4DE1U
LC1D09...D38, LC2D09...D38,
LC1DT20...DT40, LC2DT20...DT40 (3P)
24...48 V AC Varistor AC/DC LAD4VE 755
24...48 V AC 400 Hz RC Circuit AC LAD4RCE
50...127 V AC 200 Hz RC Circuit AC LAD4RCG 680
110...240 V AC 100 Hz RC Circuit AC LAD4RCU
755
110...250 V AC Varistor AC/DC LAD4VU
LC1D80, LC1D95, LC2D80, LC2D95 (3P)
LC2D80 (4P), LC1D40008, LC1D65008
Screw
24...250 V DC Diode DC LA4DC3U 780
LC1D80...D115, LC2D80...D115 (3P)
LC1D80...D115, LC2D80...D115 (4P)
24...48 V AC Varistor AC/DC LA4DE2E
745110...250 V AC Varistor AC/DC LA4DE2U
24...48 V AC 400 Hz RC Circuit AC LA4DA2E
50...127 V AC 200 Hz RC Circuit AC LA4DA2G 1185
110...240 V AC 100 Hz RC Circuit AC LA4DA2U 780
380...415 V AC 150 Hz RC Circuit AC LA4DA2N 1185
24...48 V DC Varistor AC/DC LA4DE3E 780
110...250 V DC Varistor AC/DC LA4DE3U 745
schneider-electric.co.in 16
New TeSys LR9D electronic overload relays
provide motor safety tailored to your needs
schneider-electric.com/TeSys
Advanced motor
protection for a wide
range of applications
schneider-electric.co.in 17
Please contact Customer Care Center for Stockable and Non stockable status of references.
NORMAL STOCK ITEMS W.E.F. December 21, 2015
TeSys
Thermal Protection
Adjustment Range For Use With Reference* Unit MRP
[`]
LRD Model (Direct Mounting)
0.1...0.16 A
GV2L03, LE03,
LC1D09...LC1D38
LRD01
1690
0.16...0.25 A LRD02
0.25...0.4 A LRD03
0.4...0.63 A LRD04
0.63...1 A LRD05
1...1.6 A LRD06
1.6...2.5 A LRD07
2.5...4 A LRD08
4...6 A LRD10
5.5...8 A LRD12
7...10 A LRD14 1710
9...13 A LRD16
12...18 A LRD21 1790
16...24 A GV2L22,
LC1D25...D38 LRD22 1790
23...32 A LC1D25...LC1D38,
LC1D32 LRD32
3100
30...38 A LC1D32, LC1D38 LRD35
23...32 A LC1D40A...D65A LRD332
3200
LC1D80...LC1D95 LRD3353
30...40 A LC1D40A...D65A LRD340
30...40 A LC1D80...LC1D95 LRD3355
37...50 A LC1D40A...D65A LRD350 4200
LC1D80...LC1D95 LRD3357 5035
48...65 A LC1D40A...D65A LRD365 5350
48...65 A LC1D80...LC1D95 LRD3359
Current Range For Use With Reference* Unit MRP
[`]
0.1....0.5A
LC1D09 - 38A
Direct Mounting
LR9D01 7,165
0.4....2.0A LR9D02 7,490
1.6....8.0A LR9D08 7,490
6.4....32A LR9D32 8595
22....110A Seperate Mounting LR9D110S 13,140
Conformity to International
Standards – IEC, UL, CSA
Range available - 0.1A to 104 A
Direct mounting on contactors is
possible upto 95A
Higher operating temperature
Tripping class 10A & 20A available
Confirmly to International Standards -
IEC, UL, CSA
Range Available - 0.1A to 110A
Higher Operating Temperature
Tripping class, 10, 20 & 30 Selectable
5:1 Adjustment range Available
Type 1 & type 2 Coordination chart
available.
Electronic Relays - D ModelThermal Overload Relays - D Model
Thermal Protection
Adjustment Range For Use With Reference* Unit LP [`]
LRD Model (Direct Mounting)
63...80 A LC1D65...LC1D95 LRD3363 5745
80...104 A LC1D80, LC1D95 LRD3365 7300
Note:
*For LRD01...LRD35 - Terminal Block for clip-on Mounting LAD7B106
Unit LP: ` 505/-
*For LRD33** - Terminal Block for clip-on Mounting LA7D3064
Unit LP: ` 1515/-
For LRD332, LRD340, LRD350 & LRD365 - Connection block for separate
mounting LAD96560 Unit LP: ` 1255/-
The LRD relays can be used for AC or DC current up to 104 Amps
For long starting, Class 20 relays are available on request.
Device for remote tripping and electrical reset is available on request.
Note: For LR9D01 to LR9D32 - Terminal Block for Clip on Mounting
LAD7B205. Unit LP `. 635
schneider-electric.co.in 18
A perfect fit for
power switching
TeSys F 1250 to 2600 A
Designed for demanding power switching applications.
The complete, robust TeSys F range keeps pace with
demanding AC1 applications in wind power, solar and more.
• Optimised size for reduced panel space
• Proven reliability & high electrical durability
• Wide operating temperature range: up to 60°C
• Type 1 & 2 coordination with Masterpact™ ACB
• Shared accessories with entire TeSys F range
• Drawer-mounted coils allow easy maintenance
schneider-electric.co.in 19
Please contact Customer Care Center for Stockable and Non stockable status of references.
Power Contactors - F Model (2 Pole & 4 Pole AC/DC Control)
[Ie] Rated Operational Current AC1 Power Pole Composition Reference Unit LP [`]
200 A 4 NO LC1F1154 25600
250 A 4 NO LC1F1504 31140
275 A 4 NO LC1F1854 38830
315 A 4 NO LC1F2254 45820
350 A 4 NO LC1F2654 51185
400 A 4 NO LC1F3304 60835
500 A 2 NO LC1F4002 43125
500 A 4 NO LC1F4004 71760
700 A 2 NO LC1F5002 63465
700 A 4 NO LC1F5004 104785
1000 A 2 NO LC1F6302 103055
1000 A 4 NO LC1F6304 152305
1600 A 4 NO LC1F7804 325025
Note:
Contactor reference does not include coil. Contactor coil & aux. contacts to be ordered separately.(Coil includes 1 NO contact)
For additional auxiliary block, timers & other accessories please see page 13
Power terminals may be protected by the addition of shrouds, to be ordered separately.
TeSys
Power Contactors - F Model (3 Pole AC/DC Control)
Conformity to International Standards – IEC, UL, CSA, CE
High electrical life
115-800 Amps, AC/DC coils
Type 2 Coordination Charts available
Common accessories as Model D
[Ie] Rated Operational
Current AC1
Motor Power (Long Life) AC3
kW hP A
Motor Power (Normal Life) AC3
kW hP A Reference Unit LP [`]
200 59 80 115 80 110 150 LC1F115 15500
250 80 110 150 100 135 185 LC1F150 21700
275 100 135 185 110 150 205 LC1F185 24950
315 110 150 225 140 190 265 LC1F225 28000
350 140 190 265 160 220 300 LC1F265 32900
400 180 245 330 220 300 400 LC1F330 39100
500 220 300 400 250 340 450 LC1F400 45200
700 280 380 500 375 500 630 LC1F500 62700
1000 375 500 630 450 610 800 LC1F630 112750
1000 450 610 800 - - - LC1F800 175000
Note:
Contactor reference does not include coil. Contactor coil & aux. contacts to be ordered separately.(Coil includes 1 NO contact)
Please select coils from below table separately.
For additional auxiliary block and other accessories please see page 21
3 Pole, 1000A, AC3 duty contactors are available on request. Please contact Customer care centre for more details.
Conformity to International Standards – IEC, UL, CSA
2 and 4 pole versions available
240-1600 Amps in AC-1 duty , AC/DC coils
Common accessories same as Model D
High electrical life
Coils F Model
Product
compatibility
AC Coil
Reference
Unit LP
[`]
DC Coil
Reference (2)
Unit LP
[`]
LC1F115, LC1F150 LX1FF* 3200 LX4FF** 7300
LC1F185, LC1F225 LX1FG* 4500 LX4FG** 9600
LC1F265, LC1F330 LX1FH* 5600 LX4FH** 11900
LC1F400 LX1FJ* 11900 LX4FJ** 18300
LC1F500 LX1FK* 14000 LX4FK** 19000
LC1F630 LX1FL* 15800 LX4FL** 19700
LC1F780 LX1FX* (3) 34905 LX4FX** (3) 36665
LC1F800 (1) - LX4F8** 26500
Coil Voltage Code
Type Voltage (V) 24 110 220 415
AC*
LC1F115--F225,
LC1F400 -- 780 - 110 220 415
LC1F265, LC1F330 1102 2202 3802
DC**
LC1F115--F330 024 110 220 -
LC1F400--F780 - 110 220
LC1F800 - FW MW
Please replace ( * ) with the Corresponding Control Voltage.
(1) Use rectifier with required DC coil (Ref: DR5TE4U) LP ` 7825/-
(2) Coil with suppressor fitted as standard.
(3) Set of two coils to be connected in series.
Note: For ordering coils with other voltages and frequencies, please add
` 185/- to the unit Price of the respective standard coil.
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 20
Please contact Customer Care Center for Stockable and Non stockable status of references.
TeSys
Description Contacts Reference Unit MRP
[`]
Add On Blocks
Additional
instantaneous
auxiliary
contact
blocks
Front
Mounted
1 NO LADN10* 185
1 NC LADN01*
1 NO+1NC LADN11
350
2 NO LADN20
2 NC LADN02
2 NO+2NC LADN22 585
4 NC LADN04
585
4 NO LADN40
1 NO+3NC LADN13
3 NO+1NC LADN31
Description Contacts Reference Unit LP [`]
Add On Blocks
Additional instantaneous
auxiliary contact blocks
Side
Mounted (1)
1 NO+1NC LAD8N11
860
2 NO LAD8N20
Pneumatic
timer blocks
front mounted
ON delay
1 NO+1NC 0.1..3s LADT0
2135
1 NO+1NC 0.1..30s LADT2
1 NO+1NC 10..180s LADT4
1 NO+1NC 1..30s (2) LADS2 2280
OFF delay
1 NO+1NC 0.1 ..3s LADR0
2135
1 NO+1NC 0.1 ..30s LADR2
1 NO+1NC 10..180s LADR4
For Use With Contactor Reference Unit LP [`]
Mechanical Interlocks (1) - Horizontally Mounted
LC1F115, LC1F150, LC1F1154, LC1F1504 LA9FF970 2825
LC1F185, LC1F1854, LC1F225, LC1F2254 LA9FG970 3275
LC1F265, LC1F330, LC1F400, LC1F500 , LC1F2654, LC1F3304, LC1F4004, LC1F5004 LA9FJ970 3670
LC1F630, LC1F6304, LC1F800 LA9FL970 4075
(1) For assembly of 3/4 pole 2 contactors of identical rating. To obtain electrical interlocking, please order 2 contact blocks LADN11
All power connections are to be made by the user.
Main Contact Sets*
LC1F115, LC1F150 LA5FF431 15040
LC1F185, LC1F225 LA5FG431 21745
LC1F265 LA5FH431 28640
LC1F330, LC1F400 LA5F400803 34725
LC1F500 LA5F500803 44675
LC1F630 LA5F630803 71055
LC1F800 LA5F800803 89230
* For 3 Pole contactor (per pole: 2 fixed contacts and 1 moving contact, 2 deflectors, 1 backplate, fixing screws & washers.)
Vacuum Contactors (3 Pole AC Control)
[Ie] Rated Operational Current Motor Power Auxiliary
Contacts Reference Unit LP [`]
AC1 AC3 kW hP
160 A 160 A 75 100
2 NO + 1 NC
LC1V160*
89350
320 A 320 A 160 213
1 NO + 1 NC
LC1V320*
119980
630 A 610 A 300 400
1 NO + 1 NC
LC1V610*
215205
* Coil Voltage Code
VOLTAGE 110-120 220-240 380-415 440-480 550-600
Code FE7 P7 V7 R7 X7
Note: Accessories for Vacuum Contactors available on request, please contact our Sales Office.
Description For use with 110 V
Reference
220 V
Reference Unit LP [`]
Suppressor Blocks
suppressor module clip on All AC ratings LA4FRCF LA4FRCP 3810
suppressor bracket For all LA4F LA9D09981 390
Accessories - D and F Model
(1) Suitable for mounting on D Model range AC Coil Contactors and Control Relays only
(2) With Switching time of 40 ms between opening of the NC contact and closing of the NO contact recommended for Star - Delta Starters
* Suitable for 80 Amps, 95A & Model F Contactors only
NORMAL STOCK ITEMS W.E.F. December 19, 2014
schneider-electric.co.in 21
Please contact Customer Care Center for Stockable and Non stockable status of references.
TeSys
Product
compatibility
110V
Reference
220/230V
Reference
415/440V
Reference
Unit LP
[`]
Hoisting Applications - AC Coils
LC1F265,
LC1F330 LX9FH1102 LX9FH2202 - 14935
LC1F400 LX9FJ925 LX9FJ931 LX9FJ937 18445
LC1F500 LX9FK925 LX9FK931 LX9FK937 21510
LC1F630 LX9FL924 LX9FL931 LX9FL936 22660
Note: Rectifier is a must with the coil. Ref no. DR5TE4U for 110..230V &
DR5TE4S* for 415..440V , LP ` 8220/- needs to be added extra with coil.
Product
compat-
ibility
48V
Reference
110V
Reference
220V
Reference
440/460 V
Reference
Unit LP
[`]
Hoisting Applications - DC Coils
LC1F400 LX9FJ918 LX9FJ926 LX9FJ932 LX9FJ938 22075
LC1F500 LX9FK918 LX9FK926 LX9FK932 LX9FK938 23610
LC1F630 LX9FL918 LX9FL926 LX9FL931 LX9FL937 23740
Note:
Resistor is a must with every coil as per the quantity mentioned.
• Economy Resistor to be selected from below table as per coil voltage code
Coil Voltage Code
Type Voltage (V) 24 110 220 415
AC* LC1F115--F225, LC1F400 -- 780 - 110 220 415
LC1F265, LC1F330 1102 2202 3802
DC**
LC1F115--F330 024 110 220 -
LC1F400--F780 - 110 220
LC1F800 - FW MW
Please replace ( * ) with the Corresponding Control Voltage.
(1) Use rectifier with required DC coil (Ref: DR5TE4U) LP ` 8220/-
(2) Coil with suppressor fitted as standard.
(3) Set of two coils to be connected in series.
Note: For ordering coils with other voltages and frequencies, please add ` 185/-
to the unit price of the respective standard coil.
Contactor
110 V
Reference
220 V
Reference
440/460 V
Reference
Unit LP
[`]
Economy Resistor
To be used with hoisting application DC coil
LC1F400 1 x DR2SC0047 1 x DR2SC1200 1 x DR2SC4700
2835
LC1F500 1 x DR2SC0039 1 x DR2SC1000 1 x DR2SC3300
LC1F630 2 x DR2SC0047 2 x DR2SC0047 2 x DR2SC3900
Electronic Relays
Thermal Protection
Adjustment Range Reference Unit LP [`]
LR9-F Electronic Protection Relays
90...150 A LR9F5369 9410
132...220 A LR9F5371 11540
200...330 A LR9F7375 11605
300...500 A LR9F7379 15035
380...630 A LR9F7381 16130
Accessories
Description For
Use With
Relay
Type Reference Unit LP [`]
For LR9 - F Relay
Mounting plate
LA7F
LR9-F5369,
LR9-F5371 LA7F901 2660
LR9-F7375,
LR9-F7379,
LR9-F7381
LA7F902 3585
Connection Accessories
LA7F busbar
LC1F115 LR9-F5369 LA7F401 1795
LC1F225/265 LR9-F5371 LA7F403 2590
LC1F225-400
LR9-F7375,
LR9-F7379,
LR9-F7381
LA7F404 2765
LC1F500 LR9F7381 LA7F405 3275
LC1F630/800 LR9-F7381 LA7F406 3500
Conformity to International
Standards – IEC, UL, CSA
Direct mounting on contactors is
possible upto 630A
Higher operating temperature
Tripping class 10
Coils F Model
Product
compatibility
AC Coil
Reference
Unit MRP
[`]
DC Coil
Reference
(2)
Unit LP
[`]
LC1F115, LC1F150 LX1FF* 3200 LX4FF** 7300
LC1F185, LC1F225 LX1FG* 4500 LX4FG** 9600
LC1F265, LC1F330 LX1FH* 5600 LX4FH** 11900
LC1F400 LX1FJ* 11900 LX4FJ** 18300
LC1F500 LX1FK* 14000 LX4FK** 20260
LC1F630 LX1FL* 15800 LX4FL** 19700
LC1F780 LX1FX* (3) 33240 LX4FX** (3) 36665
LC1F800 (1) - LX4F8** 26500
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 22
Now, think Linergy !
To discover the TeSys range, connect on:
www.schneider-electric.com/tesys
schneider-electric.co.in 23

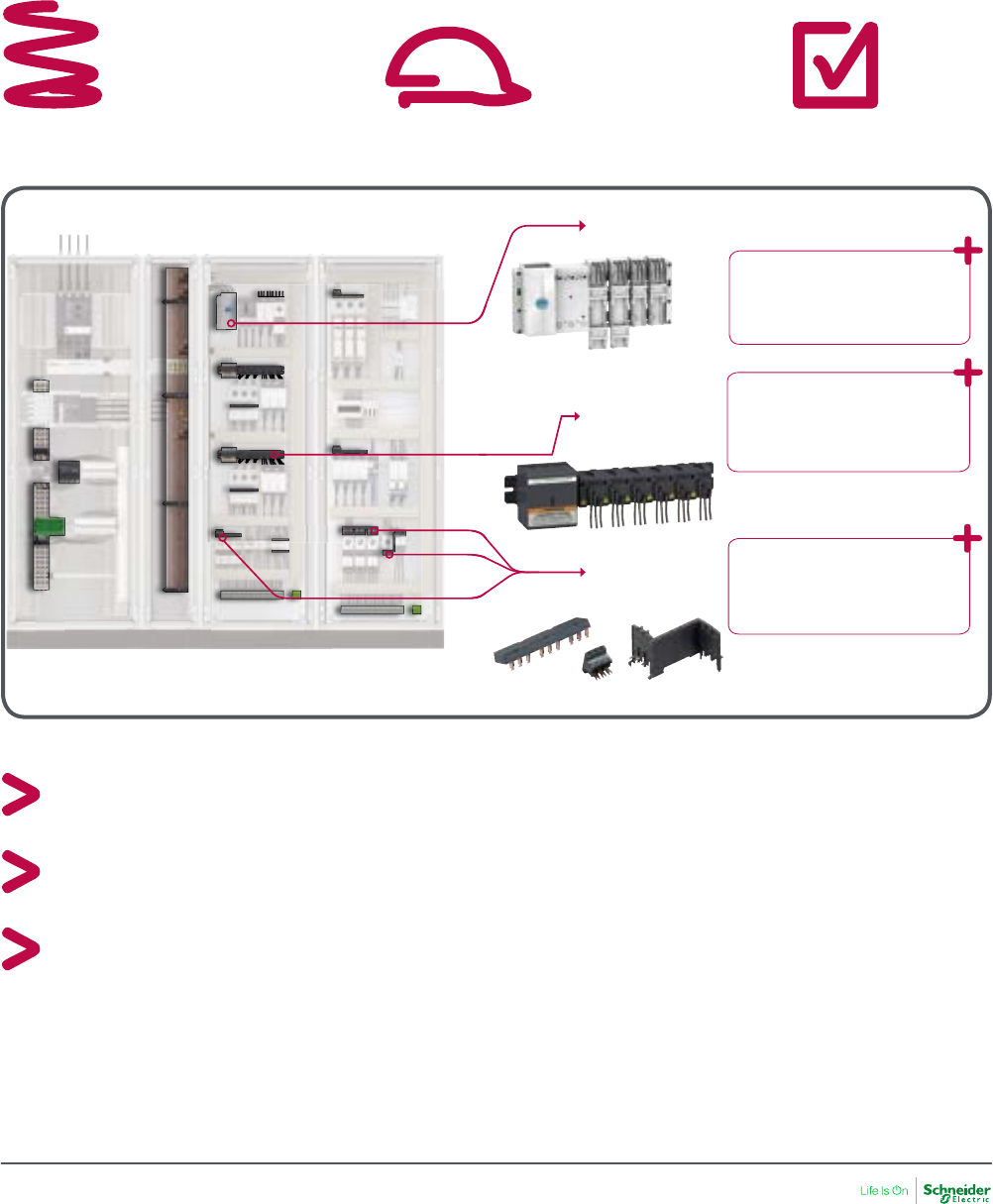

Linergy
Linergy is tailored for your flexible panel
needs (changes right up to the last minute)
Because Linergy is:
Flexible Safer Reliable
10
Linergy.indb 10 10/09/2013 09:42:50
Linergy FT
Device Feeders
Optimised productivity and
efficiency of your control panel
Easy to install
High reliability
Quick connection plates for
Compact and TeSys offers
>
>
>
>
>
>
>
Multi-standard offering up to
630 A
Linergy BZ
Power Busbars
Linergy HK
"Hot Plug" Distribution
Panel easily upgradeable
Reliable "hot plug" modification
or upgrade
Multi-standard system of up to
160 A
Quick Installation
Multi Standard Offer
Intuitive Solution
schneider-electric.co.in 24
Please contact Customer Care Center for Stockable and Non stockable status of references.
Reliable
TeSys
Breaking
Capacity at
415 V 50 Hz
Motor Power
AC3** Thermal Protection
Adjustment Range Reference Unit MRP
[`]
kW hP
GV2-M Model Thermal Magnetic - With Push button Control
(Economy)
100 kA
- - 0.1 - 0.16 GV2ME01
30150.06 - 0.16 - 0.25 GV2ME02
0.09 - 0.25 - 0.40 GV2ME03
0.18 - 0.40 - 0.63 GV2ME04
3500
0.37 0.5 0.63 - 1.0 GV2ME05
0.55 0.75 1.0 - 1.6 GV2ME06
3525
0.75 1 1.6 - 2.5 GV2ME07
1.1 2 2.5 - 4 GV2ME08
3600
2.2 3 4 - 6.3 GV2ME10
3 5.5 6 - 10 GV2ME14 3630
15 kA (1)
5.5 7.5 9 - 14 GV2ME16 4200
7.5 10 13 - 18 GV2ME20 4500
9 12.5 17 - 23 GV2ME21 4950
11 15 20 - 25 GV2ME22 4980
10 kA (1) 15 20 24 - 32 GV2ME32 8100
GV2-P Model Thermal Magnetic - With Rotary Handle Control
100 kA
- - 0.1 - 0.16 GV2P01
36100.06 - 0.16 - 0.25 GV2P02
0.09 - 0.25 - 0.40 GV2P03
0.18 - 0.40 - 0.63 GV2P04
3915
0.37 0.5 0.63 - 1.0 GV2P05
0.55 0.75 1.0 - 1.6 GV2P06
0.75 1.0 1.6 - 2.5 GV2P07
1.1 2 2.5 - 4 GV2P08
4060
2.2 3 4 - 6.3 GV2P10
3 5.5 6 - 10 GV2P14 4375
5.5 7.5 9 - 14 GV2P16 4960
50 kA (2)
7.5 10 13 - 18 GV2P20
61009 12.5 17 - 23 GV2P21
11 15 20 - 25 GV2P22
35 kA (2) 15 20 24 - 32 GV2P32 10245
GV3-P Range Thermal Magnetic - With Rotary Handle Control
50 kA
18.5 30...40 A GV3P40 12100
22 37...50 A GV3P50 14800
30 48...65 A GV3P65 15500
Breaking
Capacity at
415 V 50 Hz
Motor Power
AC3** Thermal
Protection
Adjustment Range
Reference Unit LP [`]
kW hP
GV3-M Range Thermal Magnetic - Pushbutton Control
15 kA 37 - 56...80 A GV3ME80 13830
Motor Circuit Breakers
Breaking
Capacity at
415 V
50 Hz
Motor Power
AC3** Magnetic
Protection
Rating (A)
Reference Unit MRP
[`]
kW hP
GV2-LE Model Magnetic - With Rocker Lever Control (Economy) *
100 kA
0.09 - 0.4 GV2LE03
3100
0.18 - 0.63 GV2LE04
0.37 0.5 1 GV2LE05
0.55 - 1.6 GV2LE06
1.1 1.5 2.5 GV2LE07
1.5 2 4 GV2LE08
2.2 3 6.3 GV2LE10
3 5.5 10 GV2LE14
15 kA
5.5 7.5 14 GV2LE16
7.5 10 18 GV2LE20 3555
11 15 25 GV2LE22
10 kA 15 20 32 GV2LE32 6105
GV2-L Model Magnetic- With Rotary Handle Control *
100 kA
0.09 - 0.4 GV2L03
4095
0.18 - 0.63 GV2L04
0.37 0.5 1 GV2L05
0.55 - 1.6 GV2L06
1.1 1.5 2.5 GV2L07
1.1 2 4 GV2L08
2.2 3 6.3 GV2L10
4 5.5 10 GV2L14
50 kA
5.5 7.5 14 GV2L16
7.5 10 18 GV2L20
11 15 25 GV2L22
GV3-L Range Magnetic - With Rotary Handle Control
50 kA
18.5 40 GV3L40 9875
22 50 GV3L50 10090
30 65 GV3L65 10430
* Conforming to IEC 60947-2-3-4
** 50/60Hz - 415 V
GV2-L with the D Model contactor and LRD overload relay provides
Type 2 Coordination
Conforming to IEC 60947-2-3-4
Thermal magnetic circuit breakers rage
from 0.1-220 Amps
High Breaking capacity up to 100 kA
Conformity to International Standards
- UL, CSA, CE
Wide range of accessories
S-shaped busbar for side-by-side
connection with 40 - 65A Contactor
Conforming to IEC 60947-2-3-4
Magnetic circuit breakers rage from
0.1-80A Amps
High Breaking capacity up to 100kA
Conformity to International Standards -
IEC, UL, CSA, CE
Wide range of accessories
Breaking Ca-
pacity at 415
V 50 Hz*
Motor
Power
AC3** kW
Thermal
Protection
Adjustment
Range
Reference Unit LP
[`]
GV7-R Range Thermal Magnetic (220A, AC3)
36 kA 45 60 - 100 GV7RE100 21555
35 kA 75 90 - 150 GV7RE150 29590
110 132 - 220 GV7RE220 36375
70 kA
18.5 25 - 40 GV7RS40 23320
22 30 - 50 GV7RS50 23320
37 48 - 80 GV7RS80 24950
45 60 -100 GV7RS100 24950
75 90 -150 GV7RS150 33530
110 132 - 220 GV7RS220 41115
* Conforming to IEC 60947-2 for Type 2 coordination
** 50/60Hz - 415 V.
Motor Circuit Breakers
** 50/60Hz - 415 V
(1) With GV1-L3 current limiter, breaking capacity can be increased to 100 kA
Combination of the GV2-M with the D Model provides Type 2 coordination.
(2) With GV1-L3 current limiter, breaking capacity can be increased to 100 kA.
Combination of the GV2-P with the D Model providesType 2 coordination.
NORMAL STOCK ITEMS W.E.F. December 19, 2014
schneider-electric.co.in 25
Please contact Customer Care Center for Stockable and Non stockable status of references.
TeSys
Accessories for Motor Circuit Breakers
Description Reference Unit LP [`]
For GV2
Front contact NO or NC (1) GVAE1 615
Front contact NO + NC GVAE11
830
GVAE20
Side contact NO + NC GVAN11 915
GVAN20 915
Fault signalling contact +1 NO contact (2) GVAD1010 1185
Fault signalling contact +1 NC contact (2) GVAD1001 1185
Short circuit signalling contact block 1 C/O GVAM11 1135
Undervoltage
trip :
110 ... 115V 50Hz GVAU115 2185
220 ... 240V 50Hz GVAU225 2185
380 ... 400V 50Hz GVAU385 2185
Shunt trip :
110 ... 115V 50Hz GVAS115 2185
220 ... 240V 50Hz GVAS225 2185
380 ... 400V 50Hz GVAS385 2185
Additive limiter for increasing breaking
capacity to100kA for GV2ME and GV2P. GV1L3 3525
Connection block - GV2 with contactor
LC1-D09..D38 GV2AF3 420
Connection block - LS1 D32 or GV2 with
contactor LC1-K or LP1-K GV2AF01 450
Empty enclosure for GV2ME - plastic GV2MP02 1575
GV2MC02 1730
(1) Choice of NC or NO contact operation depending on which way round
the reversible block is mounted.
(2) The GV-AD is always mounted next to the circuit breaker.
Description Operating
Voltage Reference Unit LP [`]
For GV7
Accessory for direct
rotary handle mount on
door (2)
- GV7AP05 1445
Auxiliary contact - 1 OC - GV7AE11 1405
Clip-on connector - upto
150 A - 1.5..95 mm2- GV7AC021 570
Clip-on connector- upto
220 A - 1.5..185 mm2- GV7AC022 545
Fault discrimination
Device
24...72V DC/
24...48V AC GV7AD111 4155
110 ... 240V AC/
DC GV7AD112 4155
Front rotary handle
GV7AP GV7R - black
handle (2)
-
GV7AP03 2440
GV7AP01 4255
Padlocking device - 1..3
padlocks Ø 5..8mm shank
(3)
- GV7V01 665
Phase barriers - GV7AC04 735
Terminal shields IP405 (1) - GV7AC01 1500
For GV7
Shunt release
110...130 V AC
50/60 Hz GV7AS107
3230
200...240 V AC
50/60 Hz GV7AS207
380...440 V AC
50/60 Hz GV7AS387
Under Voltage release
110...130 V AC
50/60 Hz GV7AU107
3460
200...240 V AC
50/60 Hz GV7AU207
380...440 V AC
50/60 Hz GV7AU387
3-pole spreader - for
Motor circuit breaker GV7
45 mm pitch
GV7AC03 960
(1) Terminal shields cannot be used together with spreaders.
(2) For mounting direct rotary handle on enclosure door.
This accessory makes it possible to open the door If the device is closed and
prevents the device from being closed if the door is open.
(3) For Circuit breaker not fitted with a rotary handle
Accessories for Motor Circuit Breakers
Description Reference Unit LP [`]
For GV3-M
Auxiliary contact - 1 NO + 1 NC early-breakGV3A01 1000
Auxiliary contact - 2 NO early-break GV3A02
Under voltage release - 110 V AC 50Hz GV3B11
3420Under voltage release - 220 V AC 50Hz GV3B22
Under voltage release - 380 V AC 50Hz GV3B38
Shunt release - 110 V AC 50Hz GV3D11
3420Shunt release - 220 V AC 50Hz GV3D22
Shunt release - 380 V AC 50Hz GV3D38
Busbars
Connection Pitch No. of
Tapoff Points Reference Unit LP [`]
For GV2 Breakers
45 mm 2 GV2G245 925
4 GV2G445 1460
54 mm
2 GV2G254 1085
3 GV2G354 1230
4 GV2G454 1545
5 GV2G554 1665
72 mm 2 GV2G272 1355
4 GV2G472 1875
Description Reference Unit LP [`]
Accessories for Busbars
Terminal block - to supply one or more
3-pole busbar GV2 GV2G05 2355
Protective end covers for unused busbar
outlets GV1G10 405
Terminal block for connection from top GV1G09 1240
Accessories for Motor Circuit Breakers
Description Reference Unit LP [`]
For GV2-P/GV2-L
External operator - IP54, Black GV2APN01 2190
External operator - IP54, Yellow/Red GV2APN02 4045
Visible isolation block - for motor circuit
breaker GV2 GV2AK00 1835
For GV3P/GV3L
Auxiliary Contacts
Front contact: 1 NO (fault) + 1 NC (Auxiliary)
GVAED011 785
Front contact: 1 NO (fault) + 1 NO (Auxiliary)
GVAED101 865
Busbar
3-pole, 3 tap, 64 mm pitch GV3G364 905
S-shape bus bar GV3S 660
External Operator
IP54, Black GV3APN01 2610
IP54, Yellow/Red GV3APN02
Note: All other accessories are same as of GV2
NORMAL STOCK ITEMS W.E.F. December 21, 2015
schneider-electric.co.in 26
Please contact Customer Care Center for Stockable and Non stockable status of references.
Vario Switch Disconnectors
[Ith] Conventional
Thermal Current
Poles
Description Reference Unit LP [`]
Complete Switch with Padlockable Operator
Suitable for Front Mounting or Base Mounting
12 A 3P VCF02 1350
20 A 3P VCF01 1465
25 A 3P VCF0 1715
32 A 3P VCF1 1795
40 A 3P VCF2 2230
63 A 3P VCF3 3500
80 A 3P VCF4 3780
125 A 3P VCF5 8685
175 A 3P VCF6 10535
Switch Bodies
12 A V02 870
20 A V01 1010
25 A V0 1210
32 A V1 1460
40 A V2 1795
63 A V3 2510
80 A V4 3300
125 A V5 6700
175 A V6 8545
TeSys
Accessories
Description For Use with
Switch Bodies
Rating
Pole
Pole
Composition
Earth
Contact
Auxiliary
Contacts Reference Unit LP [`]
Vario Add-on Modules (1)
Main Pole Module
V02/VCF02 12 A 1P - - VZ02 620
V0/1/VCF01 20 A 1P - - VZ01 640
V0/VCF0 25 A 1P - - VZ0 670
V1/VCF1 32 A 1P - - VZ1 660
V2/VCF2 40 A 1P - - VZ2 710
V3/VCF3 63 A 1P - - VZ3 920
V4/VCF4 80 A 1P - VZ4 920
Neutral Pole Module (2)
V02 / VCF02 to V2 / VCF2 - 1N - - VZ11 760
V3 / VCF3 to V4 / VCF4 - 1N - - VZ12 1020
V5 / VCZ5 to V6 / VCZ6 - 1N - - VZ13 2115
Earthing Module
V02 / VCF02 to V2 / VCF20 - - - - VZ14 745
V3 / VCF3 to V4 / VCF4 - - 1 - VZ15 880
V5 / VCZ5 to V6 / VCZ6 - - 1 - VZ16 1385
Auxiliary Contact
Block Module
V02/ VCF02 to V6 / VCZ6 - - - 1 NO + 1 NC VZ7 780
V2/ VCF02 to V6 / VCZ6 - - - 2 NO VZ20 780
(1) For mounting option of modules, please refer to the technical catalogue.
(2) With early make and late break contacts
Description For Use With Reference Unit LP [`]
Components for Door Interlocking
Shaft extension - for Mini-VARIO and VARIO - V02..V2 V02...V2 VZ17 745
VZ30 880
Shaft extension - for Mini-VARIO and VARIO - V3 V4 V5 V6 V3, V4, V5, V6 VZ18 880
VZ31 1015
Door interlock plate VZ17 / VZ30 KZ32 185
VZ18/31 KZ74 335
Input Terminal Protection Shrouds
Terminal Shrouds
V02 - V2 VZ8 245
V3 - V4 VZ26 205
VZ9 260
V5 - V6 VZ27 205
VZ10 335
V02 - V6 VZ28 370
VZ29 245
Vario Switch Disconnectors
[Ithe]
Conventional
Thermal
Current**
Poles
Description
Rated
Operational
Power
(AC 23)*
Reference Unit LP [`]
Complete Enclosed Switches
Range 12 to 175 A, IP 65 Sealable and Lockable
10 A 3P 4 kW VCF02GE 2150
16 A 3P 5.5 kW VCF01GE 2340
20 A 3P 7.5 kW VCF0GE 2845
25 A 3P 11 kW VCF1GE 3055
32 A 3P 15 kW VCF2GE 3580
50 A 3P 22 kW VCF3GE 5545
63 A 3P 30 kW VCF4GE 6490
* Rated Power at 415 V
** Ith in enclosure
For Switch
Type
(Amps)
Mounting
Arrangement Ingress Reference Unit LP [`]
Operators (Padlockable)
12 - 40 A 4 Screw Fixing IP65 KCF1PZ 460
63 - 80 A 4 Screw Fixing IP65 KCF2PZ 490
125 - 175 A 4 Screw Fixing IP40 KCF3PZ 2030
NORMAL STOCK ITEMS W.E.F. December 19, 2014
schneider-electric.co.in 27

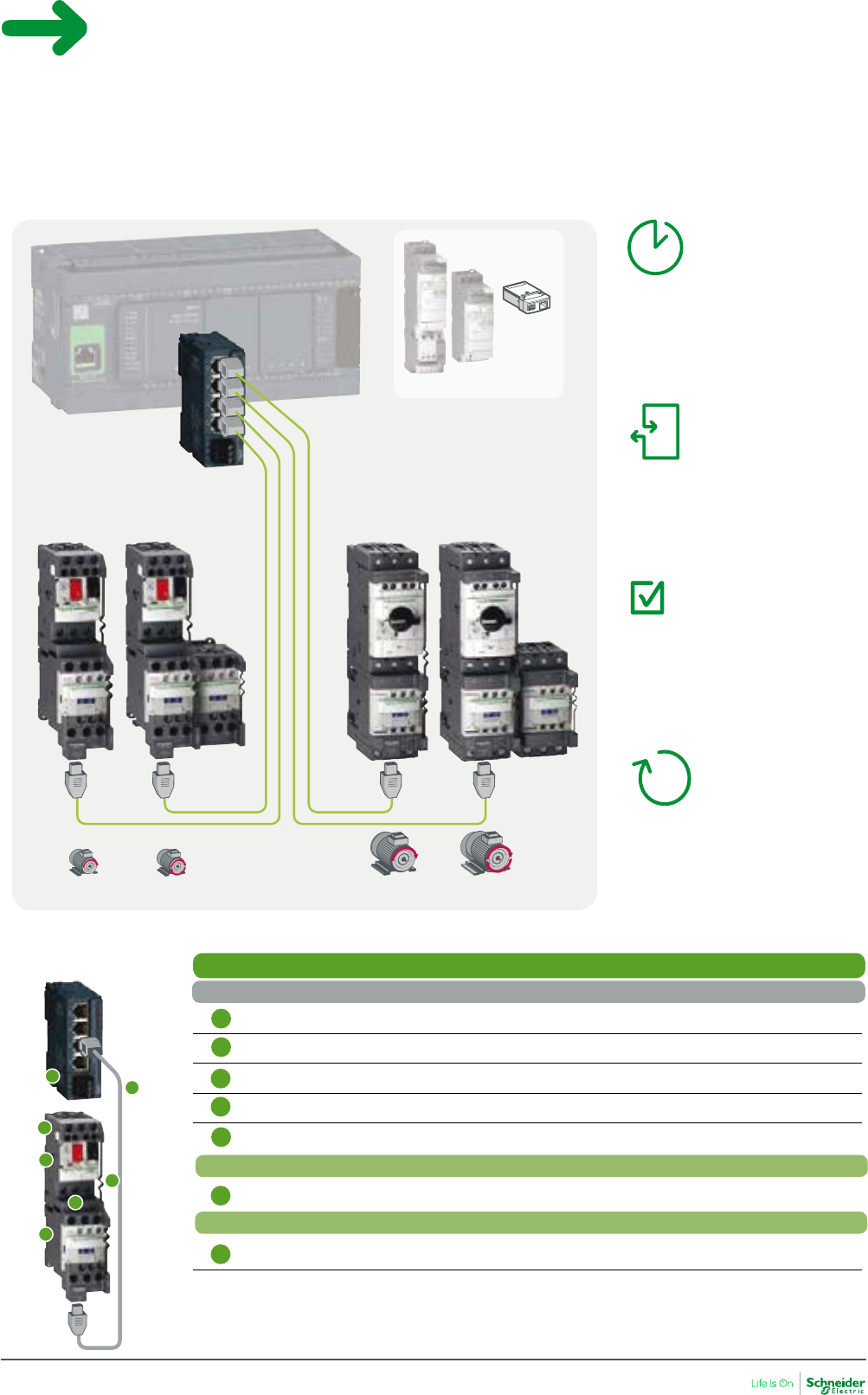

Let TeSys SoLink be your drive!
[
TeSys SoLink ]
Integration system for motor starters
up to 30 kW/400 V in automation environment
20 times
faster for control
circuit wiring
Simple and fast wiring
100%
upgradable
Plug & Play solutions
100%
availability during
machine life cycles
Software & Hardware
integrated
0%
Chance of
connection errors
Intuitive connection
Logic Controller
M221/241/251
Adaptor
LAD5C11
Adaptor
LAD5C31
RJ45 cables
LU9R••
Adaptor
LAD5C12
Adaptor
LAD5C32
IO module
TeSys TM3
GV2ME•• + LC1D•••• GV3P•• + LC1D••••
Medium power motor up to 15 kW
Non reversing
control Reversing
High power motor up to 30 kW
Non reversing
control Reversing
TeSys U motor starters + LUFC00
Also compatible with:
TM3 provides the 24 V DC control voltage to the motor starter coil.
7
6
5
1
2
3
4
Direct or Reversing
TeSys D Upto 15kW From 18.5kW to 30kW
1Motor Circuit Breaker GV2ME** OR GV2P** GV3P**
2Contactor 24V DC LC1D**B* or LC2D**B* LC1D**BD or LC2D**BD
3Combination Block GV2AF3 -
4Auxiliary Contact GVAE20 GVAE20
5Connection Module LAD5C11(DOL), LAD5C12(RDOL) LAD5C31(DOL), LAD5C32(RDOL)
Connection Cable
6Connection Cable** LU9R**
IO Module
7IO Module TM3XTYS4
Note:
** Choose your correct length.
Similar configurations available for TeSys U also.
1
2
3
4
5
6
7
schneider-electric.co.in 28
TeSys Intelligence
100%
reliable
Schneider Electric puts reliability at the
heart of its strategy of innovation and, with
TeSys, offers a wide range of solutions for
the Power Control and Protection that covers
all your needs, from basic to advanced.
Your requirements
Switching and Controlling is now SMART
with TeSys Intelligence
Tesys UTesys T
Ethernet
Ready
Intelligent
Motor
Control
TeSys Intelligence
100%
reliable
Schneider Electric puts reliability at the
heart of its strategy of innovation and, with
TeSys, offers a wide range of solutions for
the Power Control and Protection that covers
all your needs, from basic to advanced.
Your requirements
Switching and Controlling is now SMART
with TeSys Intelligence
Tesys UTesys T
Ethernet
Ready
Intelligent
Motor
Control
TeSys Intelligence
100%
reliable
Schneider Electric puts reliability at the
heart of its strategy of innovation and, with
TeSys, offers a wide range of solutions for
the Power Control and Protection that covers
all your needs, from basic to advanced.
Your requirements
Switching and Controlling is now SMART
with TeSys Intelligence
Tesys UTesys T
Ethernet
Ready
Intelligent
Motor
Control
schneider-electric.co.in 29
Please contact Customer Care Center for Stockable and Non stockable status of references.
NORMAL STOCK ITEMS W.E.F. December 21, 2015

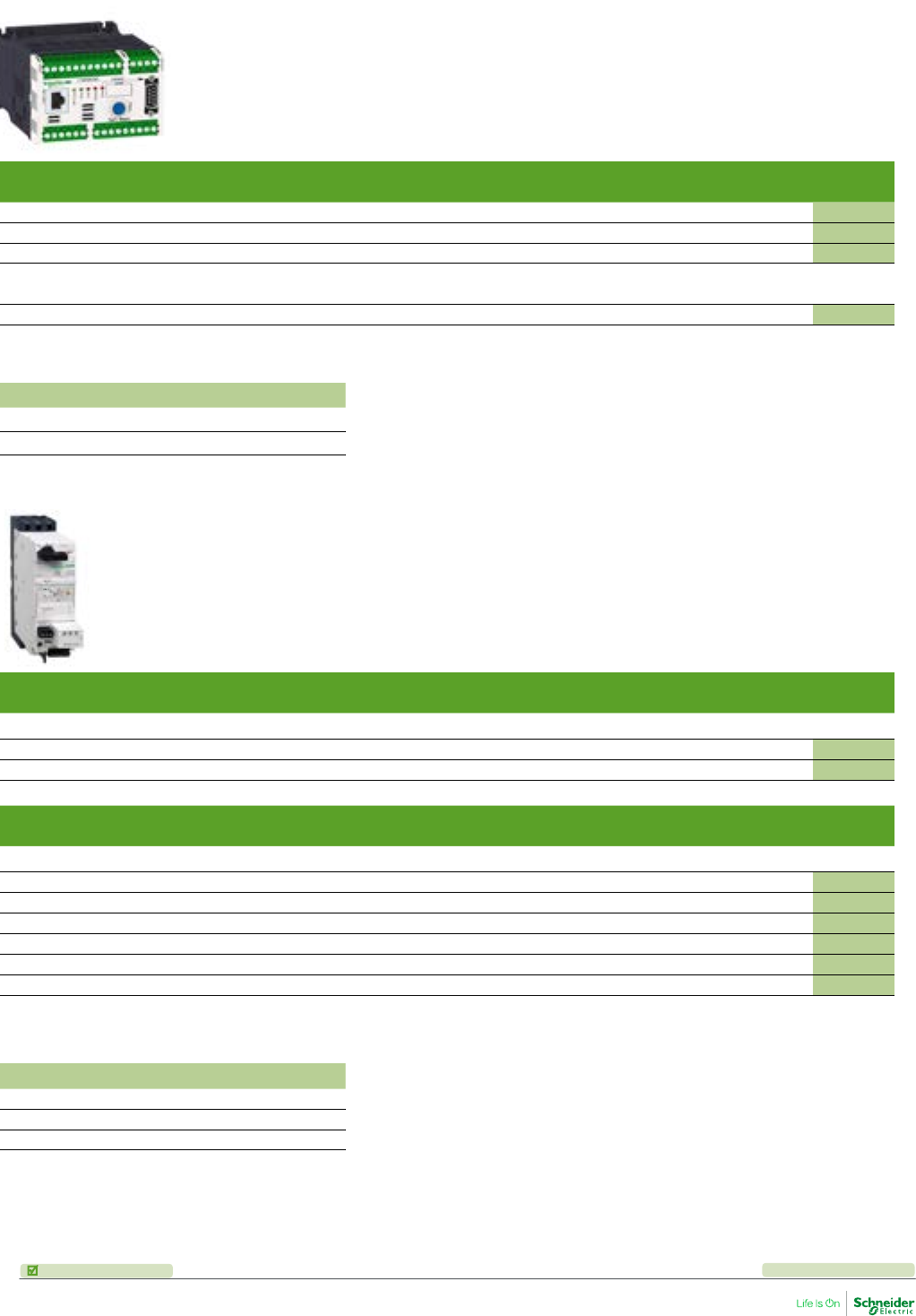

TeSys T Motor Management System - Controllers
Description Modbus
Reference
Profibus
Reference Unit LP [`]
0.4 to 8A LTMR08M** LTMR08P** On Request
1.35 to 27A LTMR27M** LTMR27P** On Request
5 to 100A LTMR100M** LTMR100P** On Request
Note: Above 100 Amps external CT required.
Extention modules LTMEV40** On Request
Note: For other communication protocols, please contact our nearest Sales Ofce.
TeSys U Starter-Controllers
TeSys
** Coil Voltage Code
VOLTAGE
24 DC BD
110 VAC FM
Description Rating at
440 V kW Reference Unit LP [`]
Power Bases for Non-Reversing D.O.L. Starter
12 A Upto 5.5 LUB12 On Request
32 A Upto 15 LUB32 On Request
Description Rating at
440 V kW
Standard
Reference
Advanced
Reference
Multifunction
Reference Unit LP [`]
Control Units
0.15…0.6 A 0.09 LUCAX6** LUCBX6** LUCMX6BL On Request
0.35…1.4 A 0.25 LUCA1X** LUCB1X** LUCM1XBL On Request
1.25…5 A 1.5 LUCA05** LUCB05** LUCM05BL On Request
3…12 A 5.5 LUCA12** LUCB12** LUCM12BL On Request
4.5…18 A 7.5 LUCA18** LUCB18** LUCM18BL On Request
8…32 A 15 LUCA32** LUCB32** LUCM32BL On Request
Note: To make the complete unit you need to order base and any of the control units
** Coil Voltage Code
VOLTAGE 24 48...72 100...240
DC BL (1) (2) - -
AC B - -
AC/DC - ES (3) FU (4)
(1) Voltage code to be used for a starter-controller with communication module.
(2) DC voltage with maximum ripple of ± 10 %.
(3) DC: 48…72 V, AC: 48 V.
(4) DC: 110…220 V, AC: 110...240 V.
0.4-810 Amps with inbuilt CTs up to 100 Amps.
24V DC and 110 VAC Control Voltages available
6 DI and 4 DO with main module and extendable further using expansion module
Modbus/Profibus/CanOpen/DeviceNet/Ethernet IP/Modbus TCP/IP.
Integrated Protection and Measurement with full functions
Quick interface with PC/PLC
Dedicated HMI-LTMCU
Saves Engineering and Commissioning Time
Reduces Process Downtime and Maintenance Cost
Total coordinated starter solution with 3 functions in 1 device
Compact size for DOL/RDOL starter up to 15 kW, 32A (AC-3)
Direct Connectivity to Modbus/Profibus/CanOpen/DeviceNet
Complete current-based Protection and Measurement in 1 device
High Operational Temperature (-40oC to +60oC)
Wide range of Coil Voltages
50 kA Breaking Capacity
Direct Connectivity to Modbus/Profibus/CanOpen/DeviceNet
schneider-electric.co.in 30
Safety
Protection
Reliable
®
be your drive
Energy efficiency
Connected
Let Available
Compliant
Flexible
Smart
TeSys, innovative and intuitive solutions
to protect, monitor and control
> Suitable for motor and power applications
> Best in class features
> Adapts to any situation
TeSys range: TeSys GV, TeSys GK, TeSys GS, TeSys DF, TeSys K, TeSys D, TeSys F,
TeSys B, TeSys LR, TeSys LT, TeSys T, TeSys Vario, TeSys U, TeSys LE, TeSys LG
To discover the TeSys range, connect on:
www.schneider-electric.com/tesys
schneider-electric.co.in 31
TE Start - Lifeline of Motors
TDL TSD/A TRS
schneider-electric.co.in 32
Please contact Customer Care Center for Stockable and Non stockable status of references.

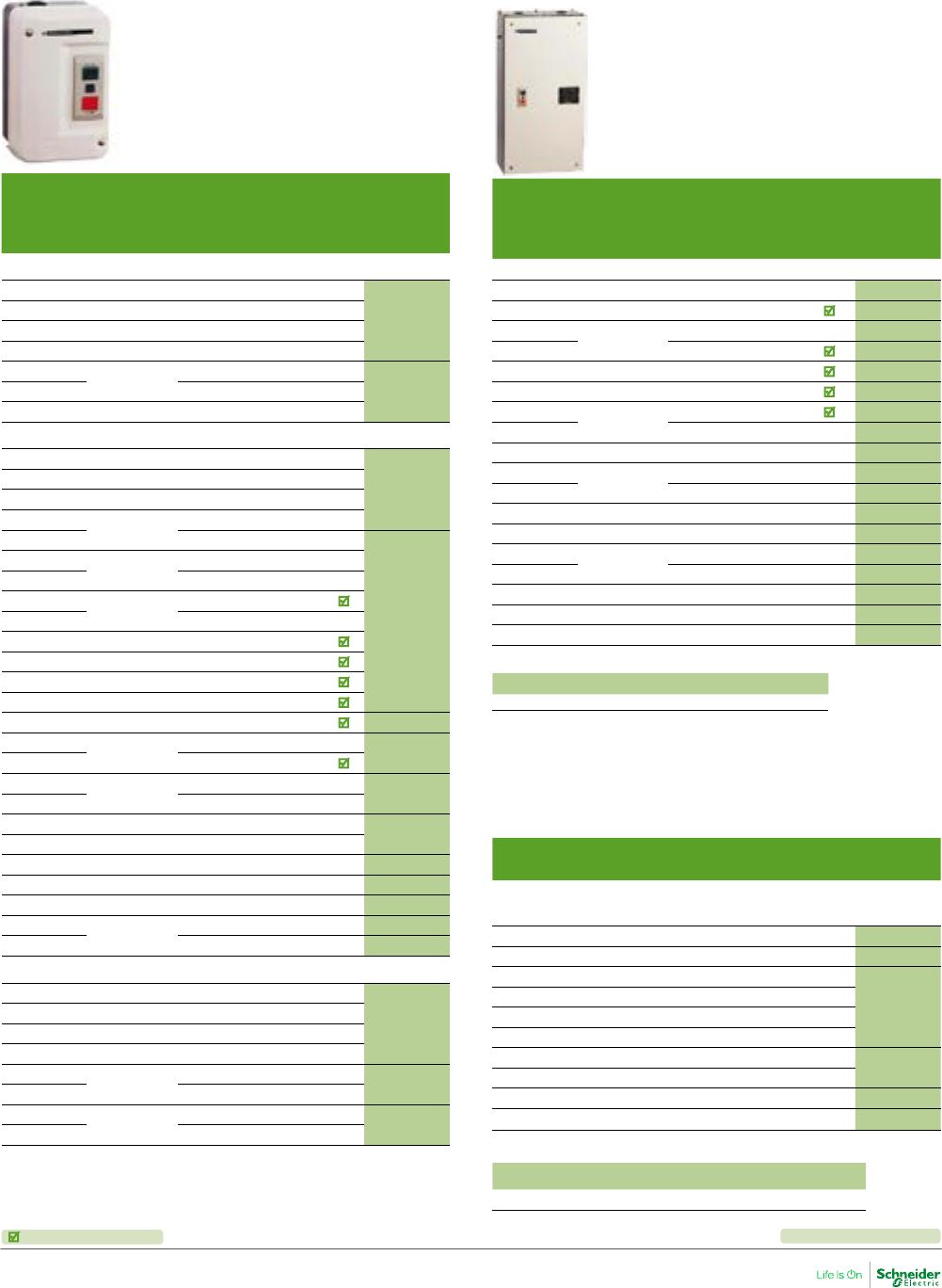

TE Start & TeSys Motor Starters
Star Delta Starters
Motor
Power
HP
Thermal
Protection
Adjustment
Range
Device
Short
Name
Reference Unit MRP
[`]
TSD/A, Automatic 3 Phase (7.5 - 400 HP)
7.5 5.5...8 A 15TSDA MS23AI15* 7875
10 7...10 A 15TSDA MS23AI16* 7875
12.5 9...13 A 15TSDA MS23AI17* 7990
15 15TSDA MS23AI18* 7990
20 12...18 A 30TSDA MS23AI20* 9080
25 16...24 A 30TSDA MS23AI21* 10310
30 23...32 A 30TSDA MS23AI22* 11920
35 40TSDA MS23AI23* 19130
40 30...38 A 40TSDA MS23AI24* 21070
50 37...50 A 50TSDA MS23AI26* 25580
60 75TSDA MS23AI27* 44385
75 45...65 A 75TSDA MS23AI28* 47390
100 62...99 A 100TSDA MS23AI29* 61675
125 84...135 A 125TSDA MS23AI30* 64050
150 150TSDA MS23AI31* 79715
200 124...198 A 200TSDA MS23AI32* 95795
250 174...279 A 250TSDA MS23AI33* 120895
400 259...414 A 400TSDA MS23AI34* 145090
*Coil Voltage Code
VOLTAGE 220 415
AC 50 Hz M5 N5
Note:- For Three and Single Phase, the standard Stockable Coil
Voltages are 415V and 220V respectively.
Note:- Submersible Star-Delta Starter Panel Starters are available on
request. Please consult our local Sales Office.
DOL Starters
Motor
Power
HP
Thermal
Protection
Adjustment
Range
Device
Short
Name
Reference Unit MRP
[`]
TDL, Automatic 1 Phase (0.17 - 3 HP)
0.17 1.1...1.7 A 5TDL MS11AC04*
2420
0.33 2.5...4 A 5TDL MS11AC06*
0.5 4...6 A 5TDL MS11AC07*
1 5.5...8 A 5TDL MS11AC09*
1.5 9...13 A 10TDL MS11AC10*
27102 10TDL MS11AC11*
3 12...18 A 10TDL MS11AC13*
TDL, Automatic 3 Phase (0.05 - 125 HP)
0.05 0.16...0.25 A 5TDL MS13AC01*
2315
0.125 0.24...0.4 A 5TDL MS13AC03*
0.17 0.4...0.63 A 5TDL MS13AC04*
0.25 0.63...1 A 5TDL MS13AC05*
0.33 5TDL MS13AC06*
2400
0.5 1...1.7 A 5TDL MS13AC07*
0.75 5TDL MS13AC08*
11.6...2.5 A 5TDL MS13AC09*
1.5 5TDL MS13AC10*
2 2.5...4 A 5TDL MS13AC11*
3 4...6 A 5TDL MS13AC12*
5 5.5...8 A 5TDL MS13AC14*
7.5 9...13 A 10TDL MS13AC15*
10 12...18 A 10TDL MS13AC16* 2680
12.5 16...24 A 15TDL MS13AC17* 4540
15 15TDL MS13AC18*
17.5 23...32 A 20TDL MS13AC19* 7400
20 20TDL MS13AC20*
25 30...40 A 30TDL MS13AC21* 11660
30 37...50 A 30TDL MS13AC22*
40 48...65 A 40TDL MS13AC24* 15300
50 63...80 A 50TDL MS13AC26* 17535
75 84...135 A 75TDL MS13AC28* 27080
100 124...198 A 100TDL MS13AC29* 35220
125 125TDL MS13AC30* 40430
TRS, Automatic Reversing 3 Phase (3 - 20 HP)
3 4...6 A 10TRS MS13RJ12*
6600
5 5.5...8 A 10TRS MS13RJ14*
7.5 9...13 A 10TRS MS13RJ15*
10 12...18 A 10TRS MS13RJ16*
12.5 16...24 A 20TRS MS13RJ17* 10815
15 20TRS MS13RJ18*
17.5 23...32 A 20TRS MS13RJ19* 11405
20 20TRS MS13RJ20*
TeSys Starters D.O.L
Thermal protection
Adjustment Range Motor Power kW Reference Unit MRP
[`]
LE1-M Model Enclosed
Conforming to IEC 947-4-1 for motors upto 7.5 kW
0.54...0.8 A 0.25 LE1M35**05 3470
0.8...1.2 A 0.37 LE1M35**06 3670
1.2...1.8 A 0.55 LE1M35**07
3855
1.8...2.6 A 0.75 LE1M35**08
2.6...3.7 A 1.50 LE1M35**10
3.7...5.5 A 2.20 LE1M35**12
5.5...8 A 3 LE1M35**14 3855
8...11.5 A 4 LE1M35**16
10...14 A 5.50 LE1M35**21 4095
12...16 A 7.50 LE1M35**22 4095
** Coil Voltage Code
VOLTAGE 220/230 380/400 400/415
Code M7 Q7 N7
Exhaustive Range of industrial starters consisting of DOL, Reversing, Automatic star delta starters
Better aesthetic & Assured performance
Test to trip facility
Built in single phasing protection
NORMAL STOCK ITEMS W.E.F. December 19, 2014
schneider-electric.co.in 33
Please contact Customer Care Center for Stockable and Non stockable status of references.
NORMAL STOCK ITEMS W.E.F. December 21, 2015
Spare Parts
Description Lot
Order Quantity Reference Unit MRP
[`]
For TDL, TRS & TSD/A Starters
Pushbutton Actuator Assembly for 10/40/50/75/100/125 TDL 10 MSMC02 185
Pushbutton Switch Assembly for 10 TDL 10 MSMC03 380
Start Pushbutton Assembly for
40 - 400 TSDA 10 MSMI01
245
Stop Pushbutton Assembly for
40 - 400 TSDA 10 MSMI02
9 Way Terminal Block for 15 TSDA 10 MSMl03 360
9 Way Terminal Block for 30 TSDA 10 MSMl04
9 Way Terminal Block for 40 - 75 TSDA 10 MSMl05 875
Electronic Timer for 15 - 400 TSDA 10 MSMl06 1715
Pushbutton Actuator Assembly
for 15/20/30 TDL,
10/20 TRS &15/30 TSDA 10 MSMK01 410
Note:- For Spare coil, contactor, O/L relay and accessories,
please see Activa pricelist separately.
Starters Spares
schneider-electric.co.in 34
W.E.F. December 21, 2015
Selection Chart:
Motor Output FLC SDF (NX Range) Contactor Thermal Overload
Relay
KW HP I Line
(A)
I phase
(A) Type Fuse Type Fuse
Rating (A)
Star
Contactor AC3- A
Main /
Delta Con-
tactor
AC3- A Type Range
(A)
1.5 2 4 2.3 NX32 10NHC00G 10 LC1E09 9 LC1E09 9 LRE07 1.6-2.5
2.2 3 5 3 NX32 16NHC00G 16 LC1E09 9 LC1E09 9 LRE08 2.5-4
3 4 7 4 NX32 16NHC00G 16 LC1E09 9 LC1E09 9 LRE08 2.5-4
4 5.3 9 5 NX32 20NHC00G 20 LC1E09 9 LC1E09 9 LRE10 4-6
5.5 7.5 10 6 NX32 20NHC00G 20 LC1E09 9 LC1E09 9 LRE12 5.5-8
7.5 10 16 9 NX32 32NHC00G 32 LC1E09 9 LC1E09 9 LRE14 7-10
9 12 17 10 NX32 32NHC00G 32 LC1E09 9 LC1E12 9 LRE14 7-10
11 15 21 12 NX63 50NHC00G 50 LC1E12 12 LC1E12 12 LRE16 9-13
15 20 28 16 NX63 63NHC00G 63 LC1E18 18 LC1E18 18 LRE21 12-18
22 30 42 24 NX80 80NHC00G 80 LC1E25 25 LC1E25 25 LRE32 23-32
30 40 57 33 NX125 100NHG00B 100 LC1E40 40 LC1E40 40 LRE355 30-40
45 60 81 47 NX125 125NHG00B 125 LC1E40 40 LC1E50 50 LRE357 37-50
55 75 100 58 NX125 125NHG00B 125 LC1E40 40 LC1E65 65 LRE359 48-65
80 107 139 80 NX200 200NHG1B 200 LC1E80 80 LC1E80 80 LRE363 63-80
110 150 196 113 NX315 315NHG2B 315 LC1E300 300 LC1E300 300 LRE482 84~135
160 215 286 165 NX400 355NHG2B 355 LC1E300 300 LC1E300 300 LRE483 124~198
EasyPact TVS Star Delta (Type 2 Co-ordination with Fuse)
Standard: IEC 60947-4-1
Fuses: Cooper Bussmann
Iq (A): 50KA
Ue: 415Vac / 50Hz
Contactor Coil: Type M5 (220 Vac/ 50 Hz)
Motor Output FLC SDF (NX Range) Contactor Thermal Overload Relay
KW HP I(A) Type Fuse Type Fuse Rating
(A) Type AC3 (A) Type Range (A)
0.37 0.5 1 NX32 6NHG000B 6 LC1E09 9 LRE06 1.0 - 1.6
0.55 0.75 1.5 NX32 6NHG000B 6 LC1E09 9 LRE06 1.0 - 1.6
0.75 1 2 NX32 6NHG000B 6 LC1E09 9 LRE07 1.6 - 2.5
1.5 2 3.5 NX32 16NHG000B 16 LC1E09 9 LRE08 2.5 - 4.0
2.2 3 5 NX32 16NHG000B 16 LC1E09 9 LRE10 4.0 - 6.0
3 4 6.8 NX32 20NHG000B 20 LC1E09 9 LRE12 5.5 - 8.0
4 5.5 8.4 NX32 20NHG000B 20 LC1E09 9 LRE14 7.0 - 10
5.5 7.5 11.2 NX32 25NHG000B 25 LC1E12 12 LRE16 9.0 - 13
7.5 10 14 NX63 40NHG000B 40 LC1E18 25 LRE21 12.0 - 18
9 12 18 NX63 50NHG000B 50 LC1E25 25 LRE22 16 - 24
11 15 21 NX63 50NHG000B 50 LC1E32 32 LRE22 16 - 24
15 20 28.5 NX63 63NHG000B 63 LC1E32 40 LRE32 23 - 32
18.5 25 34 NX80 80NHG000B 80 LC1E40 40 LRE355 30 - 40
22 30 42 NX80 80NHG000B 80 LC1E50 50 LRE357 37 - 50
30 40 57 NX100 100NHG000B 100 LC1E65 65 LRE359 48- 65
37 50 70 NX125 125NHG00B 125 LC1E80 80 LRE363 63- 80
45 60 81 NX160 160NHG00B 160 LC1E95 95 LRE365 80- 104
56 75 100 NX160 160NHG00B 160 LC1E120 115 LRE482 84- 135
80 107 138 NX250 250NHG1B 250 LC1E160 150 LRE483 124- 198
90 120 165 NX250 250NHG1B 250 LC1E160 160 LRE483 124- 198
100 135 182 NX315 315NHG2B 315 LC1E200 200 LRE483 124- 198
110 150 196 NX315 315NHG2B 315 LC1E200 200 LRE483 124- 198
132 177 240 NX400 355NHG2B 355 LC1E250 250 LRE485 174- 279
160 215 285 NX400 400NHG2B 400 LC1E300 300 LRE486 208- 333
EasyPact TVS DOL (Type 2 Co-ordination with Fuse)
Standard: IEC 60947-4-1
Fuses: Cooper Bussmann
Iq (A): 50KA
Ue: 415Vac / 50Hz
Contactor Coil: Type M5 (220 Vac/ 50 Hz)
schneider-electric.co.in 35
Selection Chart:
TeSys Standard DOL Motor Starters (Type 1 Co-ordination with MPCB at 415 V)
Fault indication features possible
Chance of single phasing reduced
No replacement of fuses
More reliability
No running cost
Motor Rating
kW
Operational
Current in A
Iq*
kA
Motor Circuit
Breaker Thermal Range Contactor
0.37 1.0 50 GV2ME05 0.63-1 LC1K06
0.55 1.5 50 GV2ME06 1-1.6 LC1K06
0.75 2.0 50 GV2ME07 1.6-2.5 LC1K06
1.1 2.5 50 GV2ME08 2.5-4 LC1K06
1.5 3.5 50 GV2ME08 2.5-4 LC1K06
2.2 5.0 50 GV2ME10 4-6.3 LC1K06
3.0 6.5 50 GV2ME14 6-10 LC1K09
4.0 8.4 50 GV2ME14 6-10 LC1K09
5.5 11.0 15 GV2ME16 9-14 LC1K12
7.5 14.8 15 GV2ME20 13-18 LC1D18
9.0 18.1 15 GV2ME21 17-23 LC1D25
11.0 21.0 15 GV2 ME22 20-25 LC1D25
15.0 28.5 10 GV2ME32 24-32 LC1D32
18.5 35.0 50 GV3P40 30-40 LC1D40A
22.0 42.0 50 GV3P50 37-50 LC1D50A
30.0 57.0 50 GV3P65 48-65 LC1D65A
37.0 69.0 15 GV3ME80 56-80 LC1D80
45.0 81.0 25 GV7RE100 60-100 LC1D95
55.0 100.0 25 GV7RE150 90-150 LC1D115
75.0 135.0 35 GV7RE150 90-150 LC1D150
90.0 165.0 35 GV7RE220 132-220 LC1F185
110.0 200.0 35 GV7RE220 132-220 LC1F225
Iq* - Rated conditional short circuit at operational voltage 415/440V
W.E.F. December 21, 2015
schneider-electric.co.in 36
* TeSys High Performance DOL Motor Starters (Type 2 Co-ordination with MPCB at 415 V)
No down time
Fault indication features possible
Chance of single phasing reduced
No replacement of HRC fuses
More reliability
No running cost
Motor Rating
kW
Operational
Current in A
Iq*
kA
Motor Circuit
Breaker Thermal Range Contactor
0.37 1 130 GV2ME05 0.63-1 LC1D09
0.55 1.5 130 GV2ME06 1-1.6 LC1D09
0.75 2 130 GV2ME07 1.6-2.5 LC1D09
1.1 2.5 130 GV2ME08 2.5-4 LC1D09
1.5 3.5 130 GV2ME08 2.5-4 LC1D09
2.2 5 130 GV2ME10 4-6.3 LC1D09
3.0 6.5 130 GV2ME14 6-10 LC1D09
4.0 8.4 130 GV2ME14 6-10 LC1D09
5.5 11 130 GV2ME16 9-14 LC1D25
7.5 14.8 50 GV2P20 13-18 LC1D25
9.0 18.1 50 GV2P21 17-23 LC1D25
11.0 21 50 GV2P22 20-25 LC1D25
15.0 28.5 35 GV2P32 25-32 LC1D32
18.5 35 50 GV3P40 30-40 LC1D40A
22.0 42 50 GV3P50 37-50 LC1D50A
30.0 57 50 GV3P65 48-65 LC1D65A
37.0 69 70 GV7RS80 48-80 LC1D80
45.0 81 70 GV7RS100 60-100 LC1D115
55.0 100 70 GV7RS150 90-150 LC1D150
75.0 135 70 GV7RS150 90-150 LC1D150
90.0 165 70 GV7RS220 132-220 LC1F185
110.0 200 70 GV7RS220 132-220 LC1F225
Iq* Rated conditional short circuit at operational voltage 415/440 V
* Breaking Capacity of Circuit Breakers can be increased by using current limiter type GV1L3
For star- delta Co-ordination chart please contact regional sales office..
TeSys is IE3 ready!
W.E.F. December 21, 2015
schneider-electric.co.in 37
For more information, visit our website at: www.schneider-electric.co.in
Distributor
All Prices are in Indian Rupees.
Prices are subject to change without notice.
Prices charged will be as prevailing on the date of dispatch.
Maximum Retail Price (MRP) is inclusive of all taxes.
Customer Care Centre
Monday-Saturday, 9 a.m. to 8 p.m.
Toll-free numbers: 1800 425 4272, 1800 103 0011
Email: customercare.in@schneider-electric.com
Schneider Electric India Pvt. Ltd.
Corporate Office: 9th Floor, DLF Building No. 10, Tower C, DLF Cyber City, Phase II, Gurgaon 122002 Haryana
Tel.: ++91 124 3940400 Fax: ++91 124 4222036/ 037
Ahmedabad
Schneider Electric India (P) Ltd.
42 A, 4th Floor, Space House,
Opp. Sri Krishna Centre,
Mithakali Six Roads,
Ahmedabad- 380009
Tel.: 079-3940400
Coimbatore
Schneider Electric India (P) Ltd.
No. -104, Classic Tower, 3rd Floor,
Trichy Road, Coimbatore- 641018
Tel.: 0422-3940400
Ludhiana
Schneider Electric India (P) Ltd.
Office No. - 3, 5th Floor, Novelty Plaza
Bhaiwala Chowk
Ludhiana- 140001
Tel.: 0161- 4656672-75
Secunderabad
D.No. 1-8-271, # 401, Ashoka Bhoopal
Chambers, SP Road,
Secunderabad - 500003
Tel.: 04039404000
Fax.: 040-39131313
Bangalore
Schneider Electric India (P) Ltd.
4th floor, Electra, Wing A,
Exora Business Parks, Marathahalli
Sarjapur Outer Ring Road,
Bangalore- 560103
Tel.: 080 4333 3333
Jaipur
Schneider Electric India (P) Ltd.
Jaipur Business Centre 309, 3rd
Floor,
Sangam Tower 190, Church Road,
Jaipur-302001
Tel.: 0141-3912903
Mumbai
Schneider Electric India (P)( Ltd)
Marwah House, 2nd Floor
Krishanlal Marwah Marg,
Andheri (East), Mumbai - 400072
Tel.: 91-22-30263300
Vadodara
Schneider Electric India (P) Ltd.
Ground Floor, Vanijya BhavanRace Cource
Circle
Alkapuri,
Vadodara - 390007
Tel.: 0265-3940400
Chandigarh
Schneider Electric India (P) Ltd.
2nd Floor of Tower A
Bestech Business Tower
Sector-66
Mohali- 160059
Tel.: 0172-3324500
Kolkata
Schneider Electric (I)Pvt.Ltd,
BP-4, Sector-V
Technopolis
3rd floor, Salt Lake City
Kolkata- 700 091
Tel.: 033-333640100-101
Nagpur
Schneider Electric India (P) Ltd.
Fortune Business Centre, 6,
Basant Vihar, W.H.C Road
Shankar Nagar, Nagpur- 440010
Tel.: 0712-2558581
Vishakhapatnam
Schneider Electric India (P) Ltd.
Ratnam’s Business Centre,
D.N.10-1-43, 1st Floor
Siripuram Fort,C.B.M.Compound,
Visakhapatnam- 530016
Tel.: 0891 - 2508990
Chennai
Schneider Electric India (P) Ltd.
172, Punamallee Byepass Road
Chennai- 600056.
Tel.: 91-44-30962300
Lucknow
Schneider Electric India (P) Ltd.
1st Floor, Asha Bhawan 27 / II -A,
Gokhale Marg, Lucknow- 226001
Tel.: 0522-4006010
Pune
Schneider Electric India (P) Ltd.
1st Floor, R.B. Business Centre
Above Dass Electronics
Sanghvi Nagar, Aundh, Pune- 411007
Tel.: 020-39404000
Cochin
Schneider Electric India (P) Ltd.
41 / 406- D1,3rd Floor, Beejay Towers,
Rajaji Road Cochin- 682035
Tel.: 0484-3048401

Navigation menu
