Evolution* Series E9000
Motor Control Center
Renewal Parts Bulletin
2Evolution Series E9000 Motor Control Center Renewal Parts Bulletin
Table of Contents
Introduction ...................................................................................................................................................................................................................... 2
Ordering Instructions ................................................................................................................................................................................................... 3
Structural Parts .............................................................................................................................................................................................................. 4
Vertical & Main Bus Parts ........................................................................................................................................................................................... 6
Unit Parts ........................................................................................................................................................................................................................... 10
Handle/Handle Assembly ............................................................................................................................................................................. 10
Fusible Disconnect Switch ........................................................................................................................................................................... 11
Control Power Transformer ......................................................................................................................................................................... 12
Terminal Boards ................................................................................................................................................................................................ 12
Overload Reset Assembly ............................................................................................................................................................................ 13
Power Stab Harnesses ................................................................................................................................................................................... 13
Miscellaneous ..................................................................................................................................................................................................... 13
Torque Table ........................................................................................................................................................................................................ 14
Introduction
The E9000-Line motor control center, a quality product of the General Electric Company, has been designed and
manufactured to give long and satisfactory service. This Renewal Parts Bulletin contains items which, through normal
use, may require periodic maintenance and replacement. Other items may never need service or replacement during
the useful life of the equipment.
We feel that you are in the best position to determine your investment in Renewal Parts, taking into consideration
the total amount of E9000-Line motor control centers at your facility, your proximity to General Electric franchised
distributors, and the importance of minimizing equipment downtime.
For identifying and ordering replacement parts not included in this publication, refer to the “Spares Recommendation”
and “Parts List” section of the renewal parts quotation for your motor control center. If this is not available, identify
the equipment as follows before contacting your local distributor or General Electric sales office:
1. Equipment GE Evolution Series E9000 motor control center.
2. Complete vertical section nameplate information (for structural and bus parts)
3. Complete plug-in unit nameplate information (for individual unit parts)
Evolution Series E9000 Motor Control Center Renewal Parts Bulletin 3
Ordering Instructions
The ordering of renewal parts or complete unit replacements will
be simplified by referencing the data provided on the E9000 motor
control center section nameplate and, if required, unit nameplate.
Section Nameplate (located on the front of each UL listed
section, near the upper right-hand corner):
†CAT. NO.: The General Electric, Mebane, N.C., factory
catalog number
†DIAGRAM NO.: The outline summary sheet (often
referred to as “record drawings”) for this section
AMPS-SUPPLY: The main (i.e. horizontal) bus rating
AMPS-SECTION: The vertical bus rating
When ordering replacement parts not identified in this bulletin,
both the “CAT. NO.” and “DIAGRAM NO.” must be referenced,
accompanied by a complete description of the replacement
part(s) desired.
†This information must be included in the order form.
Unit Nameplate (plug-in units; located on the right-hand vertical
side barrier; bolt-in units; located in close proximity to the branch
circuit overcurrent protective device):
MODEL: Type of motor control center design
VOLTS TYPE: Unit power supply voltage unit function (as
listed on outline summary sheet)
†CONT. VOLTS UNIT NO.: Unit control voltage. The factory
catalog number; this identifies the section and unit location
within that section.
DIAGRAM: The outline summary sheet and page number
which contains the wiring elementary diagram for this unit
SIZE AMPS/HP: The NEMA size rating of the starter. The
ampere rating of the circuit breaker or fusible switch (for
feeder unit), or horsepower rating (for combination starter
units).
When ordering a complete replacement unit or replacement
parts not identified in this bulletin, the “MODEL”, “UNIT NO.”, and
“DIAGRAM” must be referenced, accompanied by a complete
description of the replacement part(s) desired.
4Evolution Series E9000 Motor Control Center Renewal Parts Bulletin

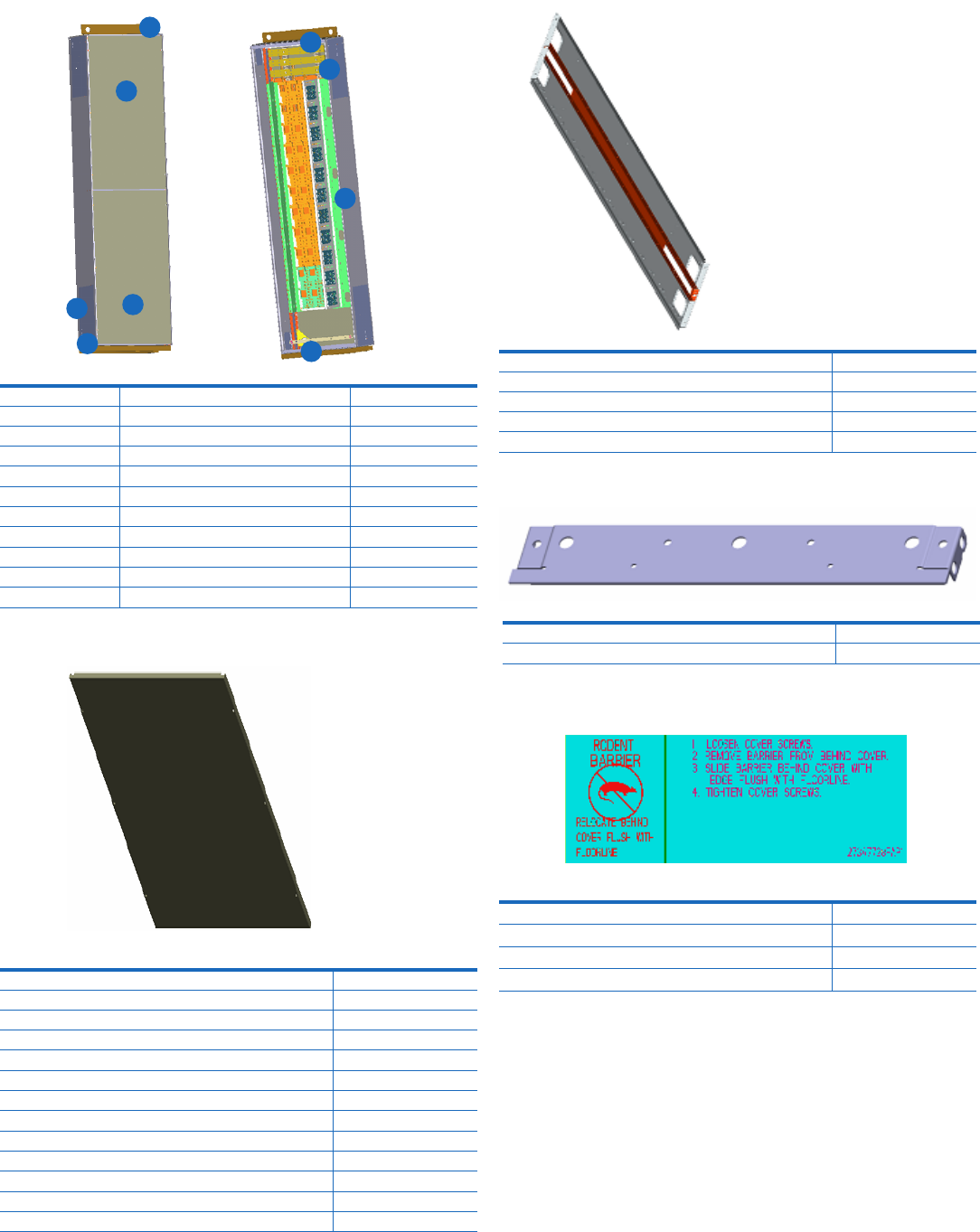

Item 1 - Rear Cover
Item 2 - Side Case Assembly
Item 4 - Rodent Barrier
Item 3 - Case Sills
33 x 20 190B1007P1
33 x 24 190B1007P2
33 x 30 190B1007P3
33 x 36 190B1007P4
39 x 20 190B1007P5
39 x 24 190B1007P6
39 x 30 190B1007P7
39 x 36 190B1007P8
45 x 20 190B1007P9
45 x 24 190B1007P10
45 x 30 190B1007P11
45 x 36 190B1007P12
24 x 20 190B1007P13
Screw, Steel T-Roll 10-24 X 3/4 (6)
Enclosure side With Channel 90 x 20 x 3 201D1001G1
Enclosure side With Channel 90 x 22 x 5 201D1001G4
Enclosure side With Channel 90 x 30 x 5 Rear Aligned 201D1001G10
Enclosure side BTB With Channel 90 x 25 x 3 201D1034G1
Enclosure side BTB With Channel 90 x 25 x 5 201D1034G2
Case Sill 20 IN 190B1009P1
Case Sill 24 IN 190B1009P2
BARRIER, RODENT 13D 3IN 190B2177G1
BARRIER, RODENT 20D 3IN 190B2177G2
BARRIER, RODENT 22D 5IN 190B2177G3
BARRIER, RODENT 30D 3IN 190B2177G4
Screw, Steel T-Roll 1/4-20 X 3/8 (1)
Figure 1
Figure 3
Figure 4
Figure 2
Item Number Part Description Page Number
1 Rear Cover 4
2 Side Case Assembly 4
3 Case Sill (See Figure 3) 4
4 Rodent Barrier 4
5 Front Top Cover Plate 4
6 Floor Plate 5
7 Mullions, Wireway (See Figure 7) 5
8 Full Width Mullions (See Figure 8) 5
9 Side Enclosure Cover 5
10 Lifting Angle 6
1
1
9
4
10 5
9
2
6
Structural Parts
Evolution Series E9000 Motor Control Center Renewal Parts Bulletin 5

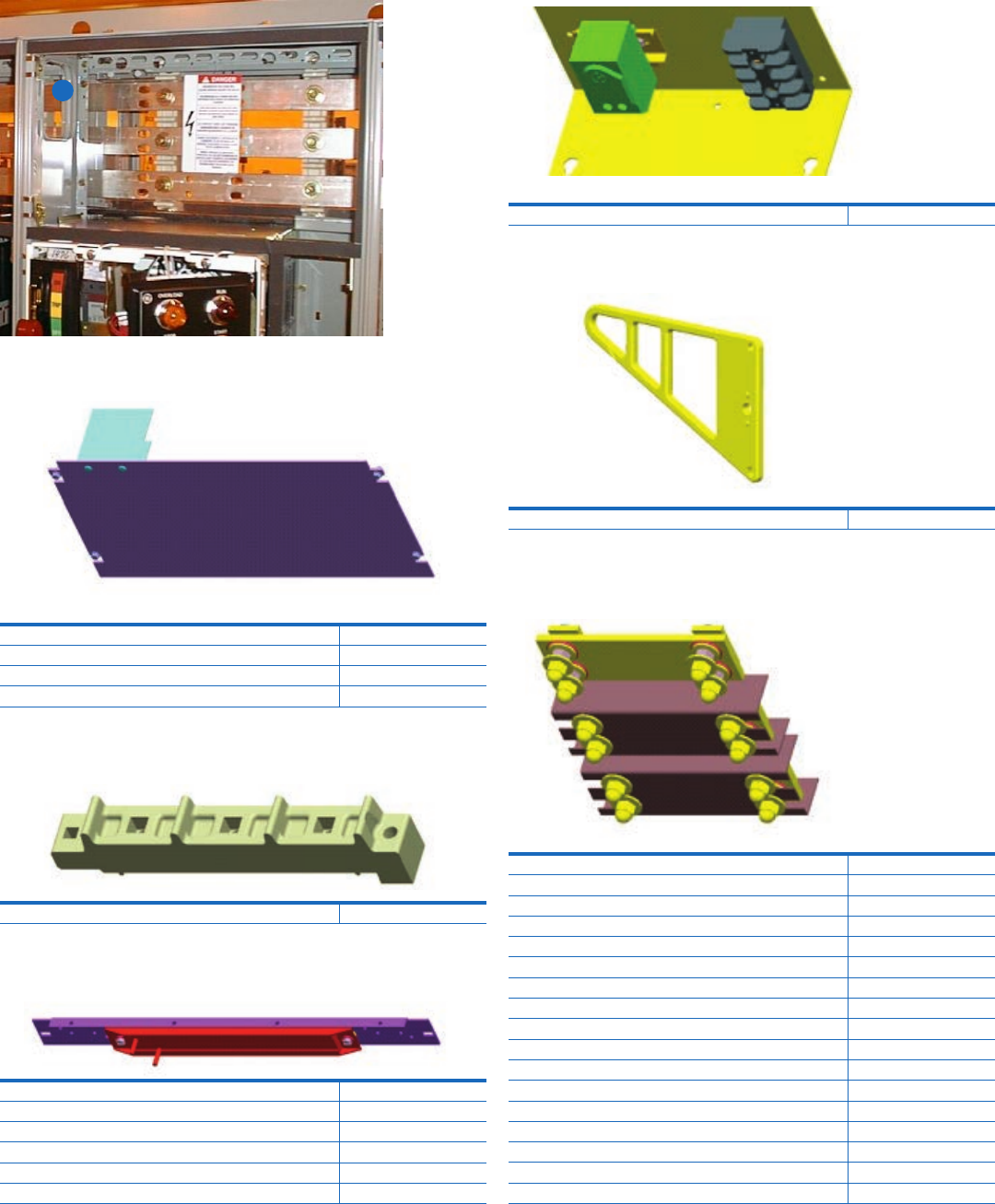

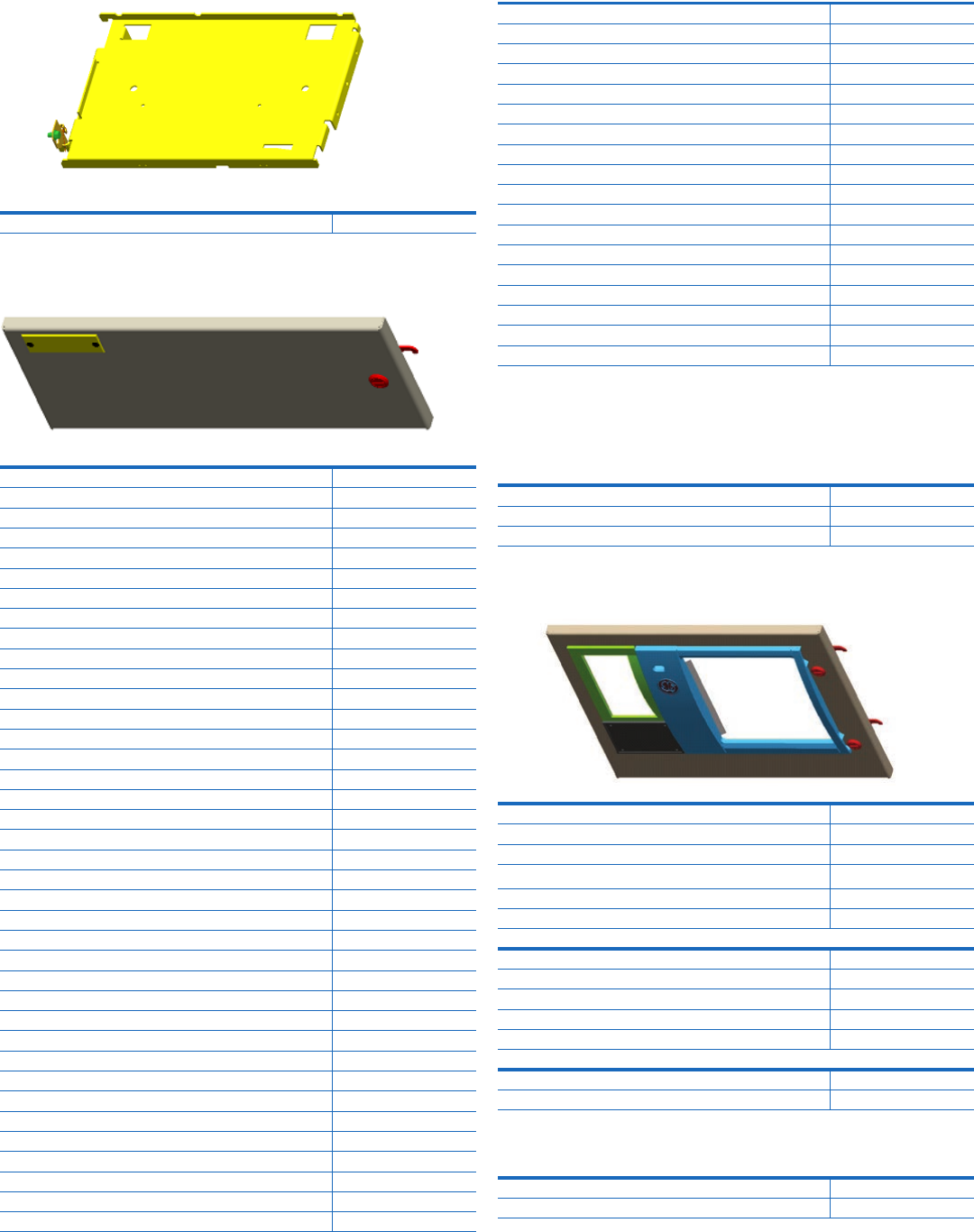

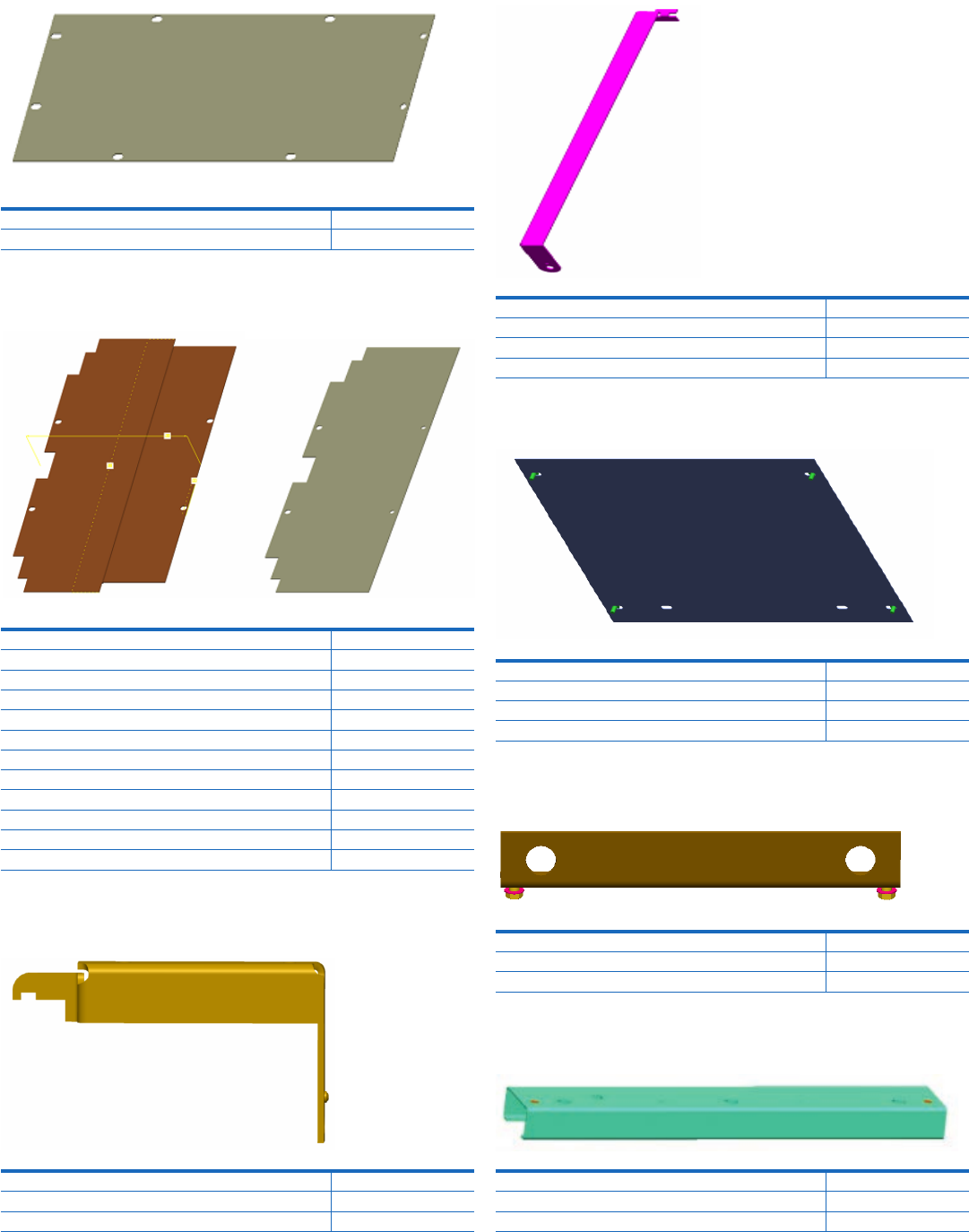

Item 7 - Mullions, Wireway (See also Page 6)
Item 6 - Floor Plate
Item 9 - Side Covers
Item 8 - Full Width Mullions
Item 5 - Front Top Cover Plate
20 x 8 190B1060P1
24 x 8 190B1060P2
Screw, Steel T-Roll 1/4-20 X 3/8 (8)
Cover, Side Enclosure 20/30 IN 3IN Vert 110C1029G1
Cover, Side Enclosure 22/30 IN 5IN Vert 110C1029G2
Cover, Side Enclosure 13 IN 3IN Vert 110C1029G3
Cover, Side Enclosure 25IN BTB 110C1029G11
Screw, Steel T-Roll 1/4-20 X 1/2 (4)
4 IN Case Width 20 IN 190B1255P1
9 IN Case Width 24 IN 190B1255P2
15 IN Case Width 30 IN 190B1255P3
Top 20W 190B1238P1
Top 24W 190B1238P2
Top 30W 190B1238P3
Top 36W 190B1238P4
Figure 6A (Front) Figure 6B (Rear)
Figure 5
Front 20 x 20/30 110C1030P1
Front 20 x 22 110C1030P2
Front 24 x 20/30 110C1030P3
Front 24 x 22 110C1030P4
Front 20 x 25 110C1030P10
Front 24 x 25 110C1030P11
Rear 20 x 20 110C1060P1
Rear 20 x 22 110C1060P2
Rear 24 x 20 110C1060P4
Rear 24 x 22 110C1060P5
Rear 20 x 25 110C1060P1
Rear 24 x 25 110C1060P4
Screw, Steel T-Roll 1/4 –20 X 5/8 (4)
Figure 7
Figure 8
Figure 9
Floor Sill

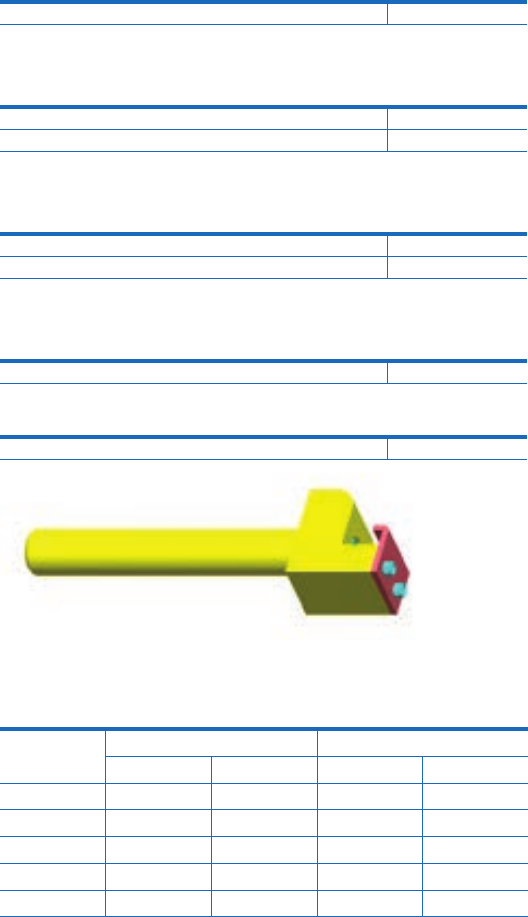

Item 10 - Lifting Angle
Angle, Lifting ASM 20 110C1044G1
Angle, Lifting ASM 20 x 20 110C1044G2
Angle, Lifting ASM 20 x 20 x 20 110C1044G5
Includes Bolting Hardware
Figure 10
Floor Sill - 20" 110C1043G1
Floor Sill - 20" - 20" 110C1043G2
Floor Sill - 20" - 20" - 20" 110C1043G6
6Evolution Series E9000 Motor Control Center Renewal Parts Bulletin
Item 11 - Top Wireway Door
Item 12 - Bottom Wireway Door

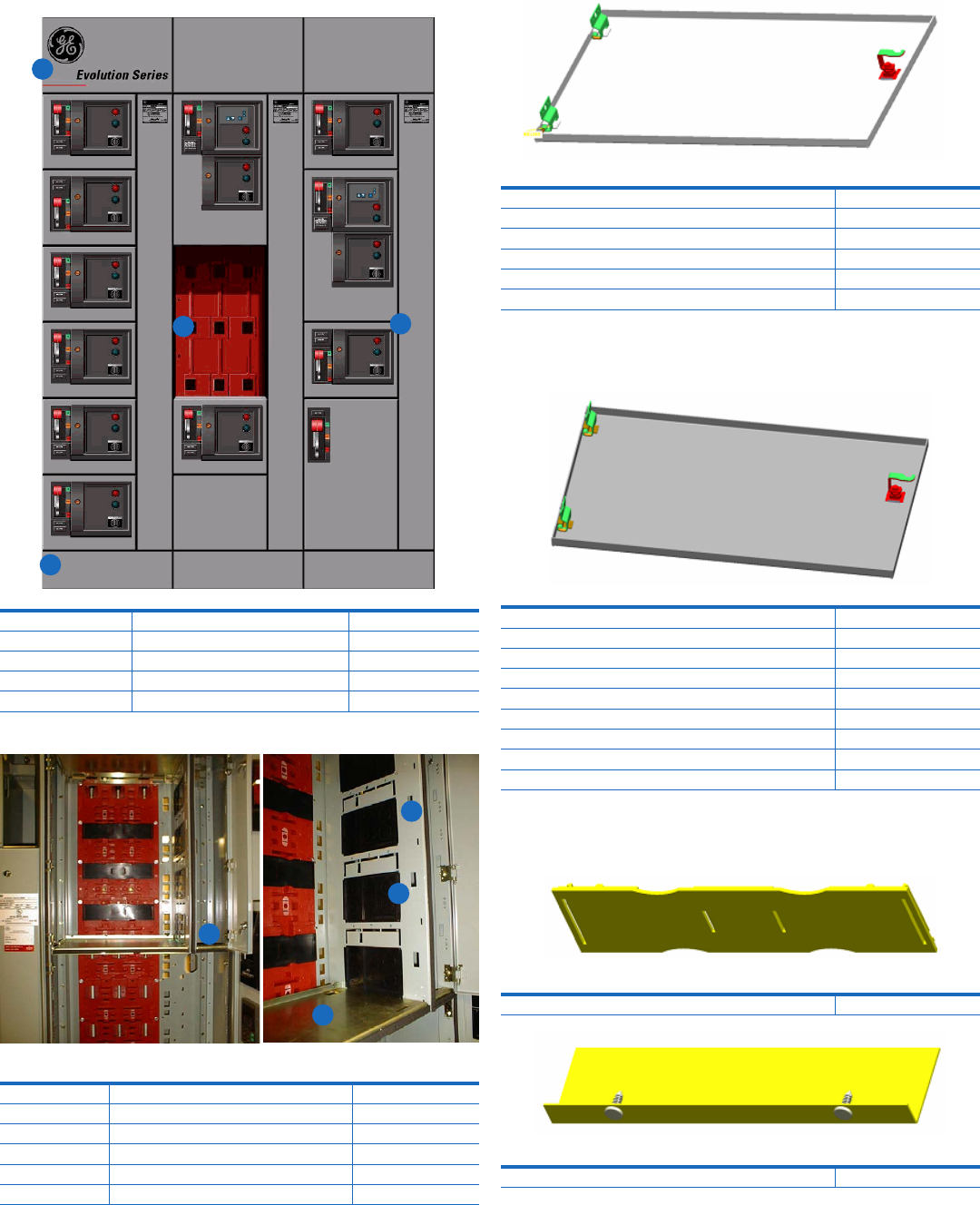

Item 13 - Vertical Bus Accessories
Item Number Part Description Page Number
11 Top Wireway Door 7
12 Bottom Wireway Door 7
13 Vertical Bus Accessories 7
14 Vertical Wire Way Door Assembly 8
Item Number Part Description Page Number
15 Ladder Assembly 8
16 Ladder Assembly Cut Out 8
17 Shelf Assembly 9
18 Blank Unit Door Assembly (See Figure 18) 9
19 Filler Kits (Not Shown) 10
DOOR, ASSEMBLY, TOP WIRE WAY, 20 X 12 110C1440G1
DOOR, ASSEMBLY, TOP WIRE WAY, 20 X 18 110C1440G2
DOOR, ASSEMBLY, TOP WIRE WAY, 24 X 12 110C1440G6
DOOR, ASSEMBLY, TOP WIRE WAY, 24 X 18 110C1440G7
DOOR, ASSEMBLY, TOP WIRE WAY, 30 X 12 110C1440G14
DOOR, ASSEMBLY, TOP WIRE WAY, 30 X 18 110C1440G15
Includes Door Hinges, Latch Assembly, Case Side Hinges, Door Pin, and Split Pin
DOOR, ASSEMBLY, BOTTOM WIREWAY, 20 X 12 110C1450G1
DOOR, ASSEMBLY, BOTTOM WIREWAY, 20 X 18 110C1450G2
DOOR, ASSEMBLY, BOTTOM WIREWAY, 24 X 12 110C1450G6
DOOR, ASSEMBLY, BOTTOM WIREWAY, 24 X 18 110C1450G7
DOOR, ASSEMBLY, BOTTOM WIREWAY, 20 X 6 110C1450G11
DOOR, ASSEMBLY, BOTTOM WIREWAY, 24 X 6 110C1450G12
DOOR, ASSEMBLY, BOTTOM WIREWAY, 30 X 12 110C1450G16
DOOR, ASSEMBLY, BOTTOM WIREWAY, 30 X 6 110C1450G54
DOOR, ASSEMBLY, BOTTOM WIREWAY, 30 X 18 110C1450G59
Includes Door Hinges, Latch Assembly, Case Side Hinges, Door Pin, and Split Pin
Reference
11
13
12
14
7
15
16
17
Figure 11
Figure 12
Figure 13A
Figure 13B
Stab Opening Cover 190B1215P1
Bottom Vertical Bus Barrier 190B1549G1
Vertical & Main Bus Parts
Evolution Series E9000 Motor Control Center Renewal Parts Bulletin 7
Item 13 - Vertical Bus Accessories (continued)
Vertical Bus Shutter ASM At Top Most 110C1783G1
Vertical Bus Shutter ASM At Middle 110C1783G2
Vertical Bus Shutter ASM At Bottom Most 110C1783G3
Gasket 3245A1888P7
(.13” x 1/2”) 25’ Roll, Closed Cellular black neoprene, UL recognized (JMST2) with
pressure sensitive adhesive and removable backing.
N3R Door Filter 75C143964P102
Aluminum Framed Uni-Foam Media 4.75” x 17.5” (Qty-2 per door)
Figure 13C
Item 14 - Vertical Wireway Door Assembly
Item 14 - Vertical Wireway Door Assembly (continued)
20” Wide Section
5W 6H 110C1163G1
5W 12H 110C1163G2
5W 18H 110C1163G3
5W 24H 110C1163G4
5W 30H 110C1163G5
5W 36H 110C1163G6
5W 42H 110C1163G7
5W 48H 110C1163G8
5W 54H 110C1163G9
5W 60H 110C1163G10
5W 66H 110C1163G11
5W 72H 110C1163G12
24” Wide Section
9W 6H 110C1163G13
9W 12H 110C1163G14
9W 18H 110C1163G15
9W 24H 110C1163G16
9W 30H 110C1163G17
9W 36H 110C1163G18
9W 42H 110C1163G19
9W 48H 110C1163G20
9W 54H 110C1163G21
9W 60H 110C1163G22
9W 66H 110C1163G23
9W 72H 110C1163G24
Figure 14
Item 16 - Wireway Knockout Plate
Item 15 - Ladder Assembly
36 IN 110C1010P1
30 IN 110C1010P2
24 IN 110C1010P3
18 IN 110C1010P4
12 IN 110C1010P5
42 IN 110C1010P6
48 IN 110C1010P7
54 IN 110C1010P8
60 IN 110C1010P9
66 IN 110C1010P10
72 IN 110C1010P11
6 IN 110C1010P12
Wireway knockout plate 190B1014P1
1 used every 6”
Figure 16
Figure 15
8Evolution Series E9000 Motor Control Center Renewal Parts Bulletin

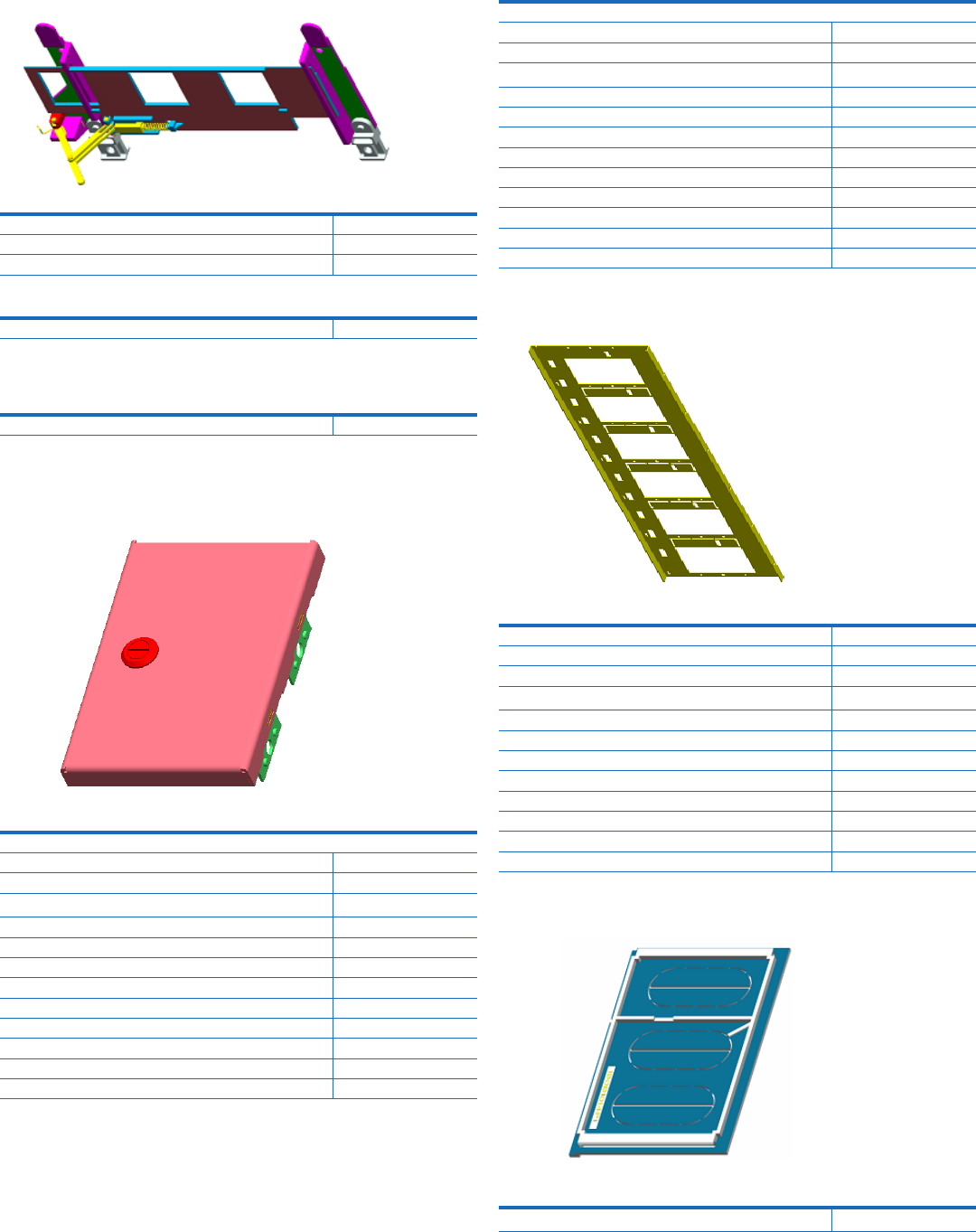

Item 17 - Shelf Assembly
Item 18 - Blank Unit Door Assembly
Item 18 - Blank Unit Door Assembly (continued)
Shelf and Bracket Assembly 110C1850P1
15 x 6 110C1240KKG1
15 x 12 110C1240KKG2
15 x 18 110C1240KKG3
15 x 24 110C1240KKG4
15 x 30 110C1240KKG5
15 x 36 110C1240KKG6
15 x 42 110C1240KKG7
15 x 48 110C1240KKG8
20 x 6 110C1240KKG9
20 x 12 110C1240KKG10
20 x 18 110C1240KKG11
20 x 24 110C1240KKG12
20 x 30 110C1240KKG13
20 x 36 110C1240KKG14
20 x 42 110C1240KKG15
20 x 48 110C1240KKG16
20 x 54 110C1240KKG17
20 x 60 110C1240KKG18
20 x 66 FOR 90 CASE HEIGHT 110C1240KKG19
20 x 72 110C1240KKG20
24 x 6 110C1240KKG21
24 x 12 110C1240KKG22
24 x 18 110C1240KKG23
24 x 24 110C1240KKG24
24 x 30 110C1240KKG25
24 x 36 110C1240KKG26
24 x 42 110C1240KKG27
24 x 48 110C1240KKG28
24 x 54 110C1240KKG29
24 x 60 110C1240KKG30
24 x 66 FOR 90 CASE HEIGHT 110C1240KKG31
24 x 72 110C1240KKG32
30 x 6 110C1240KKG33
30 x 12 110C1240KKG34
30 x 18 110C1240KKG35
30 x 24 110C1240KKG36
30 x 30 110C1240KKG37
30 x 36 110C1240KKG38
30 x 42 110C1240KKG39
30 x 48 110C1240KKG40
30 x 54 110C1240KKG41
30 x 60 110C1240KKG42
30 x 66 FOR 90 CASE HEIGHT 110C1240KKG43
30 x 72 110C1240KKG44
36 x 60 110C1240KKG45
36 x 66 FOR 90 CASE HEIGHT 110C1240KKG46
20 x 90 110C1240KKG47
24 x 90 110C1240KKG48
20 x 24 (PULL BOX) 110C1240KKG49
20 x 30 (PULL BOX) 110C1240KKG50
24 x 24 (PULL BOX) 110C1240KKG51
24 x 30 (PULL BOX) 110C1240KKG52
15 x 54 110C1240KKG53
15 x 60 110C1240KKG54
15 x 66 110C1240KKG55
15 x 72 110C1240KKG56
Includes Door Hinges, Latch Assembly, Case Side Hinges, Door Pins, Nameplate,
and Canoe Clips
Figure 18
Figure 17
Item 19 - Filler Kits
Common Doors
Door Hinge
Door - Sz 1 - 6" 110C1540BAG1
Door - Sz 1 & 2 w/ P/B cutout - 12" 110C1540AAG11
Door - Sz 3 w/ P/B cutout - 18" 110C1540AAG12
Door - Sz 4 w/ P/B cutout - 24" 110C1540AZG13
Door - Sz 4 w/ P/B cutout - 30" 110C1540AZG14
Door - Sz 4 w/ P/B cutout - 36" 110C1540AZG15
Door - Sz 1 & 2 w/o P/B cutout - 12" 110C1540AAG1
Door - Sz 3 w/o P/B cutout - 18" 110C1540ABG2
Door - Sz 4 w/o P/B cutout - 24" 110C1540AZG3
Door - Sz 4 w/o P/B cutout - 30" 110C1540AZG4
Door - Sz 4 w/o P/B cutout - 36" 110C1540AZG5
6" Feeder Door 110C1540DAG2
12" Feeder Door 110C1540AAG41
Cabinet Side Hinge 190B1013P1
Hinge Pin 190B1080P1
Description Catalog Number
6" Filler kit EK06
12" Filler kit EK12
Evolution Series E9000 Motor Control Center Renewal Parts Bulletin 9
Main Bus Structural Parts
Item 20 - Clear Horizontal Bus BarriersItem 20 - Clear Horizontal Bus Barriers
Main Bus Support
Space Heater Assembly
Thermostat Assembly
2” HORZ MAIN BUS BARRIER ASM, 20 110C1147G1
2” HORZ MAIN BUS BARRIER ASM, 24 110C1147G2
2” HORZ MAIN BUS BARRIER ASM, 30 110C1147G3
2” HORZ MAIN BUS BARRIER ASM, 36 110C1147G4
20
Main Bus Support - 2" Bus 190B1059P1
Thermostat Assembly 190B2375G1
Space Htr Asm - 12" Bottom - 20" 190B2643G1
Space Htr Asm - 12" Bottom - 24" 190B2643G2
Space Htr Asm - 12" Bottom - 30" 190B2643G3
Space Htr Asm - 6" Bottom - 20" 190B2643G9
Space Htr Asm - 6" Bottom - 24" 190B2643G10
Space Htr Asm - 6" Bottom - 30" 190B2643G11
Figure 20 Main Bus Splice Kit
Cable Support
E9000 to E9000 Splice Kit - 3 phase
600A - 2" - Tin plated 110C1735G1SM
600A - 2" - Silver plated 110C1735G1KT
800A - 2" - Tin plated 110C1735G4SM
800A - 2" - Silver plated 110C1735G4KT
1000/1200A - 2" - Tin plated 110C1735G7SM
1000/1200A - 2" - Silver plated 110C1735G7KT
1600A - 4" - Tin plated 110C1735G10SM
1600A - 4" - Silver plated 110C1735G10KT
2500A - 2" - Tin Plated 110C1735G13SM
2500A - 2" - Silver Plated 110C1735G13KT
600A - 2" - Tin plated - for NEMA 3 110C1735G14SM
600A - 2" - Silver plated - for NEMA 3 110C1735G14KT
800A - 2" - Tin plated - for NEMA 3 110C1735G15SM
800A - 2" - Silver plated - for NEMA 3 110C1735G15KT
1000/1200A - 2" - Tin plated - for NEMA 3 110C1735G16SM
1000/1200A - 2" - Silver plated - for NEMA 3 110C1735G16KT
Cable Support 204B4135P1
10 Evolution Series E9000 Motor Control Center Renewal Parts Bulletin

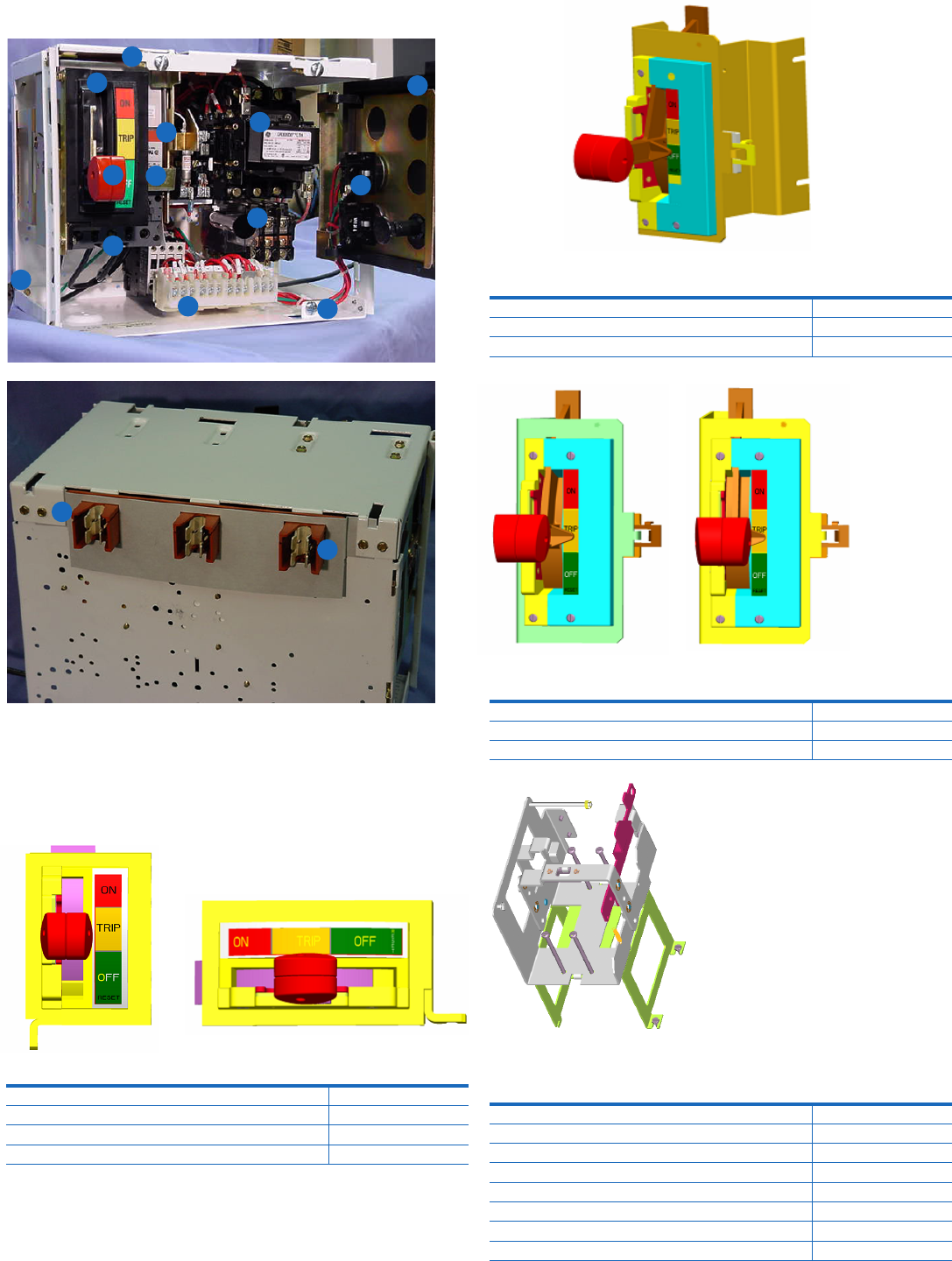

Item 1 - Handles for combination starter units, "Handle (Only)"
includes plastic handle with egg shaped knob; "Handle assembly"
includes handle, egg shaped knob, escutcheon, and steel linkage to
mount on unit.
Unit Parts
Handle Assemblies Catalog Number
Escutcheon ASM, SZ1-4, SE, SF 190B1704G1
Escutcheon ASM, SZ1-4, ½ XSE 190B1704G2
Escutcheon ASM, 30/60/100 A QMW 190B1704G5
8
2
3
1
12
19
18
5
14
68
11
13
4
10
Figure 19A
190B1704G1 & G5
Figure 19B
190B1704G2
Handle Assemblies Catalog Number
G-Frame Handle Assembly – Sz 5 Starter 110C1130G1
QMW, 200A Handle Assembly 110C1130G2
Handle Assemblies Catalog Number
K-Frame Handle Assembly – Sz 6 Starter 110C1725G1
K-Frame Handle Assembly – Feeder / Main 110C1734G1
Handle Actuator Assembly Catalog Number
SE-BREAKER OPERATOR SUB-ASM 110C1032G1
E-BREAKER OPERATOR SUB-ASM 110C1032G2
1/2X SE-BREAKER STARTER/FEEDER SUB-ASM 110C1032G3
1/2X E-BREAKER STARTER/FEEDER SUB-ASM 110C1032G4
DUAL FEEDER SUB-ASM 110C1032G5
DUAL FEEDER SUB-ASM WITH LOCK PROVISION 110C1032G6
F-FRAME ACTUATOR 110C1034G1
Figure 19C
G-Frame Assembly
Item 2 - Handle Actuator Assembly includes metal actuator,
top hat, and door defeater as shown below.
Figure 19D
110C1725G1
Figure 19E
110C1734G1
Figure 20
Handle Actuator Assembly
Evolution Series E9000 Motor Control Center Renewal Parts Bulletin 11
NEMA
Size
Reference
Figure
Switch
Rating
(Amperes)
Fuse Clips QMW Switch
Catalog Number
Type Rating
(Amperes)
121A 30 R 0-30 110C1718G9M
21A J 0-30 110C1718G1M
221A 60 R 31-60 110C1718G11M
21A J 31-60 110C1718G4M
3‡
21B
100
R 61-100 110C1719G5M
21B R (Bottom
Mount) 61-100 110C1719G13M
21B J 61-100 110C1719G1M
21B J (Bottom
Mount) 61-100 110C1719G9M
421C 200 R 101-200 110C1720G7M
21D J 101-200 110C1720G2M
‡ For 24 inch high unit, refer to Spare Recommendations before ordering.
Figure 21A
110C1718G9M
Figure 21B
110C1719G5M
Figure 21C
110C1720G9M
Figure 21D
110C1720G10M
Item 3 - Branch Over-current Protective Device
Circuit Breaker: E9000-Line motor control centers utilize General
Electric circuit breakers in combination starters, feeder tap units,
and main disconnect units. Replacement circuit breakers may be
purchased through General Electric Mebane, NC 27302. Order by
the catalog number as it appears on the devices itself.
Fusible Disconnect: Modified versions of QMR and QMW
switches are utilized in E9000-Line construction. When selecting
the proper replacement switch, consideration must be given to the
following:
1. Type of switch (QMR or QMW);
2. Size of starter, feeder tap, or main;
3. Fuse amperage and type of clip;
4: Power supply voltage
Complete fusible disconnect switches consists of switch
assembly, fuse clip base or base (as required), plus other factory
modifications. Order by complete catalog number as listed in the
tables on the following pages.
Does Not Include Fuses

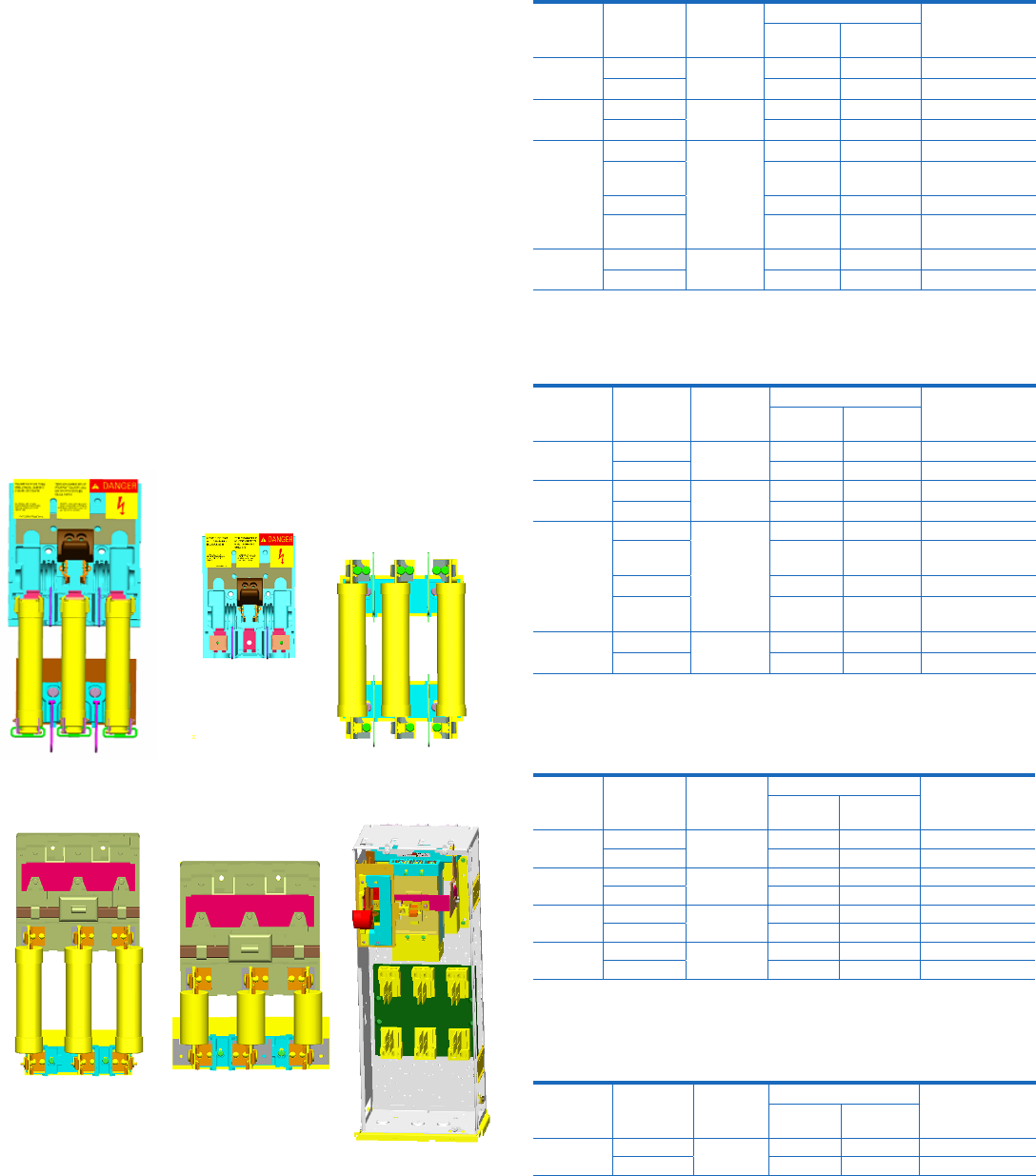

Item 3 - Fusible Disconnect Switches for Starter Units
(All functions except part winding.)
Figure 21E
110C1040GVG14
Item 3 - Fusible Disconnect Switches for Main Switches
(See Notes below)
Item 3 - Fusible Disconnect Switches for Part Winding Starter
Units Only (See Notes below)
Item 3 - Fusible Disconnect Switches for for Feeder Units.
Switch
Size
(Amperes)
Reference
Figure
Unit Door
Height
(inches)
Fuse Clips QMW Switch
Catalog Number
Type Rating
(Amperes)
30 21A 12 R 0-30 110C1718G13M
21A J 0-30 110C1718G1M
60 21A 12 R 31-60 110C1718G15M
21A J 31-60 110C1718G4M
100
21B
12
R 61-100 110C1719G5M
21B R (Bottom
Mount) 61-100 110C1719G13M
21B J 61-100 110C1719G1M
21B J (Bottom
Mount) 61-100 110C1719G9M
20 21C 24 R 101-200 110C1720G9M
21D J 101-200 110C1720G10M
Switch
Size
(Amperes)
Reference
Figure
Unit Door
Height
(inches)
Fuse Clips QMW Switch
Catalog Number
Type Rating
(Amperes)
200 21C 30 R 101-200 110C1720G9M
21D J 101-200 110C1720G10M
Notes: For Item 3 (Fusible Disconnect Switch)
1. All switches listed are rated for 600 volts; for 250 volt applications, refer to Spare
Recommendations.
NEMA
Size
Reference
Figure
Switch
Rating
(Amperes)
Fuse Clips QMW Switch
Catalog Number
Type Rating
(Amperes)
121A 30 R 0-30 110C1718G9M
21A J 0-30 110C1718G1M
1 or 2 21A 60 R 31-60 110C1718G11M
21A J 31-60 110C1718G4M
321B 100 R 61-100 110C1719G5M
21B J 61-100 110C1719G1M
3 or 4 21C 200 R 101-200 110C1720G7M
21D J 101-200 110C1720G2M
12 Evolution Series E9000 Motor Control Center Renewal Parts Bulletin
Item 6 - Terminal Boards
Control Terminal Boards
Power Terminal Boards

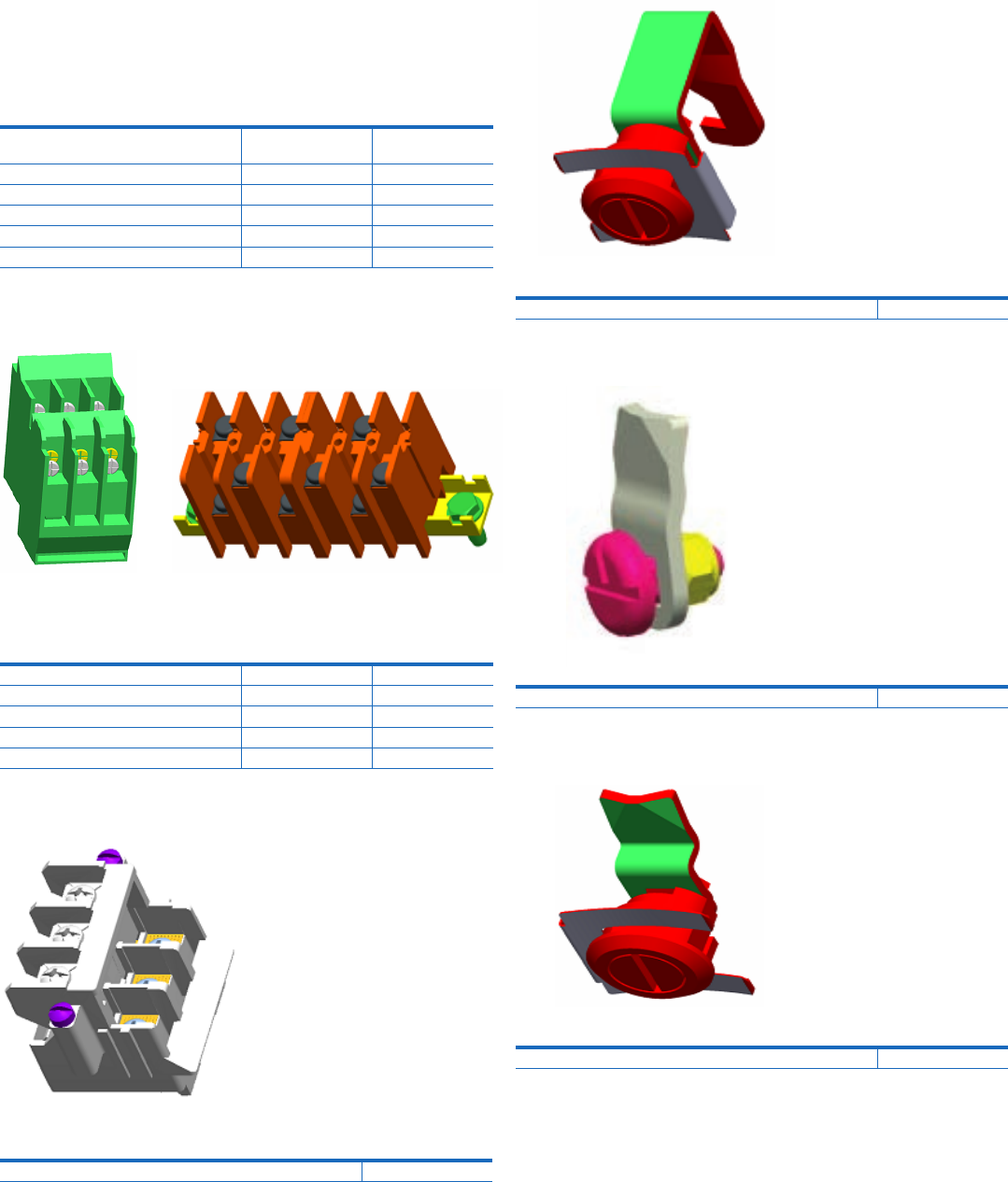

Item 6A - Power Terminal Block
Item 5 - Control Power Transformer - (120 Volt Secondary 60 Hz)
Item 7 - Door Latch Assembly (1/4 turn)
Item 8 - Unit Frame Latch Assembly (1/4 turn)
Item 9 - WireTrough Door Latch Assembly (1/4-turn)
Control Power Transformer 480 Volt Primary
Catalog Number
600 Volt Primary
Catalog Number
Size 1 FVNR/FVR (Standard) 60 VA 30213600YDP1 30213600YDP25
Size 2 FVNR/FVR (Standard) 150 VA 30213600YDP300 30213600YDP301
Size 3 FVNR/FVR (Standard) 300 VA 30213600YDP7 30213600YDP30
Size 4 FVNR/FVR (Standard) 300VA 30213600YDP7 30213600YDP30
1/2X Sz 1 Micron Transformer MIC#B100-2989-5 -
Pullapart HD 3PT 190B1692G1
Stationary Single 3 point T/B 190B1627P1
Stationary HD 6PT 190B1631G1
Stationary HD 12PT 190B1631G2
Stationary HD 18PT 190B1631G3
Catalog Number 190B1691G1
Catalog Number 190B1511P1
Catalog Number 110C1572G1
Catalog Number 190B1512P1
Figure 22A
190B1692G1
Figure 23
Figure 22B
190B1631G1
Figure 24
Figure 25
Item 4 - Starter/Contactor - Refer to Spare Recommendations
and Parts List for your motor control center. If none is available,
refer to catalog number as it appears on the device itself before
ordering replacement parts.
Figure 22C
Evolution Series E9000 Motor Control Center Renewal Parts Bulletin 13

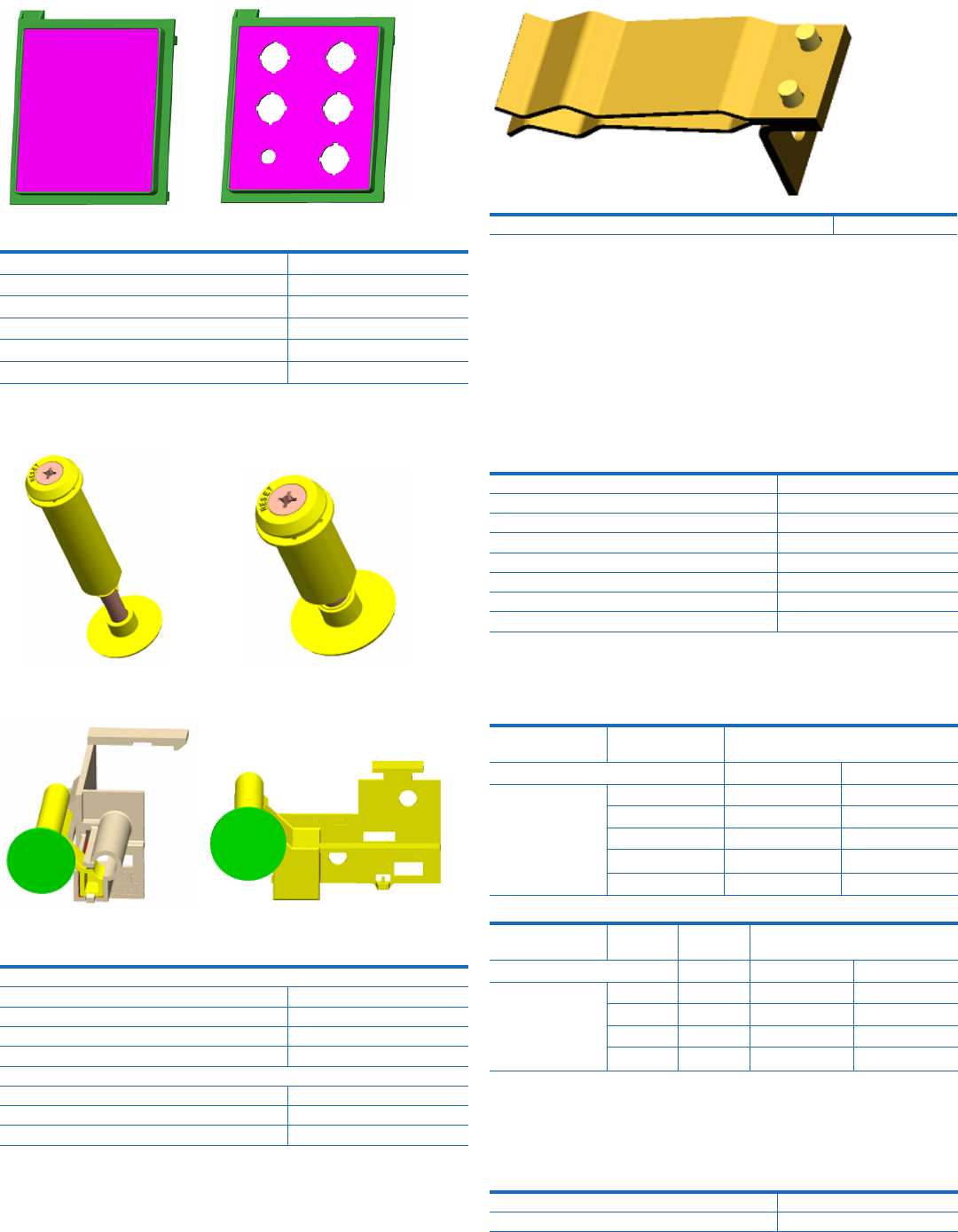

Item 10 - Pilot Device Bracket Escutcheon
Item 11 - Overload Reset Assembly
Item 13 - Pilot Device (Type CR104P)
Refer to Spare Recommendations furnished with your motor
control center.
Type CR104P Standard
Type C2000 for 1/2X starters
Common Screws
Item 14 - Fuse Block
Item 18 - Stab Power Harness (includes harness and stab fingers)
Combination Starter Units:
Item 12 - Vertical Ground Bus Stab Finger
Catalog Number 270A1032G1
Figure 26A Blank
Figure 27A
190B1048G1
Figure 27C
190B1421G1
Figure 26B 6-Hole
Figure 27B
190B1048G2
Figure 27D
190B1418G1
Pilot Device Catalog Number
Blank (No Holes) 110C1039P100
6 hole 110C1039P1
Plug Button Assembly (Black) 272A5650UWG2 (Not Pictured)
Plug Button Assembly (Gray) 272A5650UWG4 (Not Pictured)
Mounting Bracket 190B1512P1 (Not Pictured)
1-Pole In Line CSC#FEC-11-11
1-Pole Midget CSC#30311
1-Pole CC CSC#30311R
2-Pole Class CC CSC#30312R
3-Pole Class CC CSC#30313R
1-Pole CC Pull Out Din Rail Mtg CSC#23302-G
2-Pole CC Pull Out Din Rail Mtg CSC#23312-G
3-Pole CC Pull Out Din Rail Mtg CSC#23314-G
¼ - 20 Thread Rolling screws – pack of 5 204B4139AAG11
10-32 Thread Rolling screws – pack of 5 204B4139AAG15
Function NEMA Size Catalog Number
(For Circuit Breaker)
Tin Silver
FVNR,
FVR, and
2S1W or 2S2W
1 E9000L8G2 E9000L8G4
2 E9000L8G2 E9000L8G4
3 E9000L4G2 E9000L4G8
4 E9000L4G15 E9000L4G16
4 (F-Frame) E9000L4G10 E9000L4G4
Function NEMA
Size Amperes Catalog Number
(For Fusible Disconnect)
Tin Silver
FVNR,
FVR, and
2S1W or 2S2W
1 30 E9000L8G7 E9000L8G8
2 60 E9000L8G7 E9000L8G8
3 100 E9000L4G17 E9000L4G18
3 & 4 200 E9000L4G10 E9000L4G4
NOTE: Above harnesses utilize standard GE type THW (flamenol) wire/cable. Do not
order above catalog numbers if your motor control center was ordered with special type
power wire/cable.
Door Mounted Reset
Reset Button Assembly Bimetal Sz 1, 3, & 4 190B1048G1
Reset Button Assembly Bimetal Sz 2 & 5 190B1048G2
Reset Button Assembly Electronic Sz 1 190B1048G1
Reset Button Assembly Electronic Sz 2, 3, 4, & 5 190B1048G2
Clear Plastic OL Adapter
OLR Reset Button Adapter Bimetal Sz 1, 2, & 5 190B1421G1
OLR Reset Button Adapter Bimetal Sz 3 & 4 190B1421G2
OLR Reset Button Adapter Electronic Sz 1 thru 5 190B1418G1
Figure 28
14 Evolution Series E9000 Motor Control Center Renewal Parts Bulletin
Torque Table Values
Blank Nameplate – Small – 6" Bucket 1" x 3"
Blank Nameplate – Large – 12” Bucket & Larger .5” x 2.3”
Joint Compound
Bolt Size Copper Joint Aluminum Joint
lb-ft N-m lb-ft N-m
5/16 - 18 5 - 9 7 - 12 6.5 - 9 9 - 12
3/8 - 16 12 - 16 16 - 22 10 - 15 14 - 20
1/2 - 13 30 - 39 41 - 53 25 - 35 34 - 47
5/8 - 11 65 - 80 88 - 108 35 - 45 47 - 61
3/4 - 10 125 - 150 169 - 203 50 - 75 68 - 102
Note: When assembling or connecting aluminum bus, apply a suitable joint
compound between the contacting surfaces.
Plastic Nameplate rivets – pack of 6 204B4139AAG5
Black face 273A7916P3FC
White Face 273A7916P3EC
Black face 273A7916P3F3.5/2.3
White Face 273A7916P3E3.5/2.3
4oz. Tube 302A3747P3
Bucket Removal Tool 270A1581G1
Evolution Series E9000 Motor Control Center Renewal Parts Bulletin 15
*Trademark of the General Electric Company and/or its subsidiaries.
Information provided is subject to change without notice. Please verify all details with GE. All values are
design or typical values when measured under laboratory conditions, and GE makes no warranty or
guarantee, express or implied, that such performance will be obtained under end-use conditions.
4.15 DEG-001
GE
Industrial Solutions
41 Woodford Avenue
Plainville, CT 06062
www.geindustrial.com

Navigation menu
