VerifEye™

Submetering Solutions

Smart Solutions for Energy Monitoring and Tenant Billing

2

VerifEye™ Smart Submetering Solutions

SMARTer Metering. SMARTer Control. REAL Savings.

THE BENEFITS OF SUBMETERING

VerifEye™ delivers a comprehensive line of leading-edge submeters, communication products and software solutions as the

key building blocks to help you better manage costs and conserve energy.

Develop your strategic energy management plan using revenue grade real-time energy usage information to measure, monitor

and manage operations to improve your bottom line. From tenant billing to energy measurement & verification (M&V) software

solutions, VerifEye oers cost eective scalability and integration to provide you with the solution you need today that can be

expanded in the future.

For additional energy savings, combine VerifEye with Leviton lighting controls for a complete energy management solution from

a single source.

VerifEye delivers accurate information for:

• Tenant billing/cost allocation

• Load profiling & benchmarking

• Measurement & verification (M&V)

• Energy conservation programs

• LEED projects

• Government mandates

• AMR/BMS/EMS integration

• Renewable and bi-directional applications

• Compliance with green building initiatives

www.leviton.com/les 3

VerifEye™ Smart Submetering Solutions

EXCELLENCE COMES STANDARD

• Open architecture design provides easy integration with third party building management system (BMS) platforms

• UL 916 Listed or recognized for Energy Monitoring Equipment and UL 61010 Electrical Equipment for Measurement and Control

• Installer friendly, reverse phase and power and load indicators provide installation diagnostics by visually confirming that the

product is properly installed and functioning

• Leviton Series 1000, 2000 and 3500 meters are available in an indoor steel or outdoor NEMA 4X enclosure at the same low price

• Leviton Series 4000 and 4100 meters are available in an indoor DIN Rail Mount or outdoor NEMA 4X enclosure

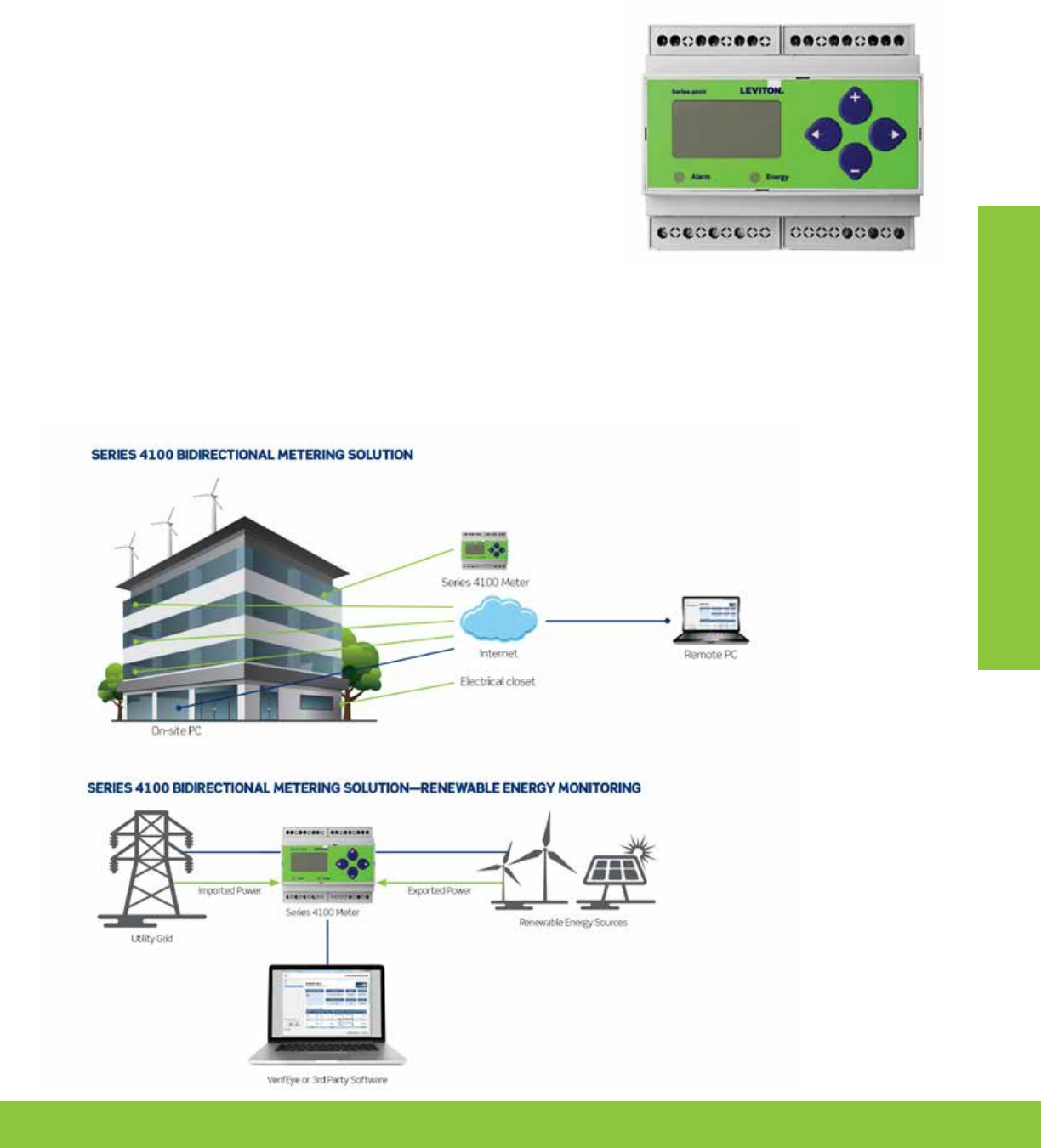

• Leviton Series 4100 Bi-Directional ModBus RTU and BACnet MS/TP Meter allows for measurement of power imported from

the utility grid as well as power exported from renewable energy sources

• VerifEye oerings include a wide range of meters to meet the needs of any application. Automated data collection solutions

and energy reporting and analysis software to easily and intelligently manage energy consumption

• Solutions are confidently backed by a best in the industry 5 year warranty

LEVITON METERING PHILOSOPHY

Consultative Approach - Each project is tailored to each customer’s needs - from a basic meter hardware system to an

advanced communication system that includes BAS/BMS integration

Scalable System - Options for future upgrades and additions are available with Leviton’s flexible solution—no need to

purchase an entire new system

Open Protocol - Ease of communication with the use of Leviton AMR and Automated Metering (AMR) and Data Acquisition

Hub (DAS) equipment

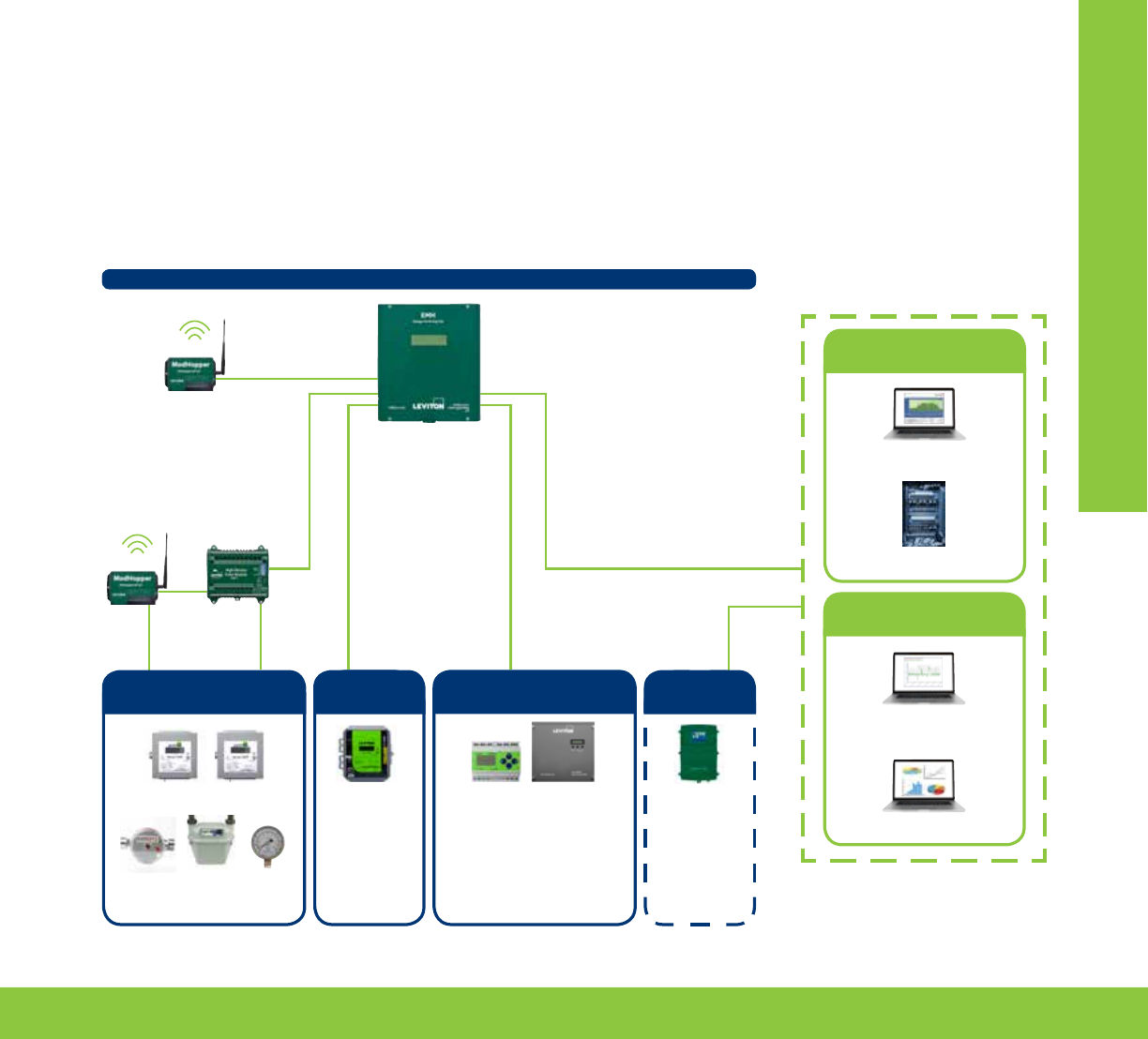

Pulse Only Meters Ethernet

Meter

Series 1000

Water Gas Steam

Series 2000 Series 3500

Protocols:

- ModBus RTU

- ModBus TCP/IP

- BACNet IP

HD Pulse

Module

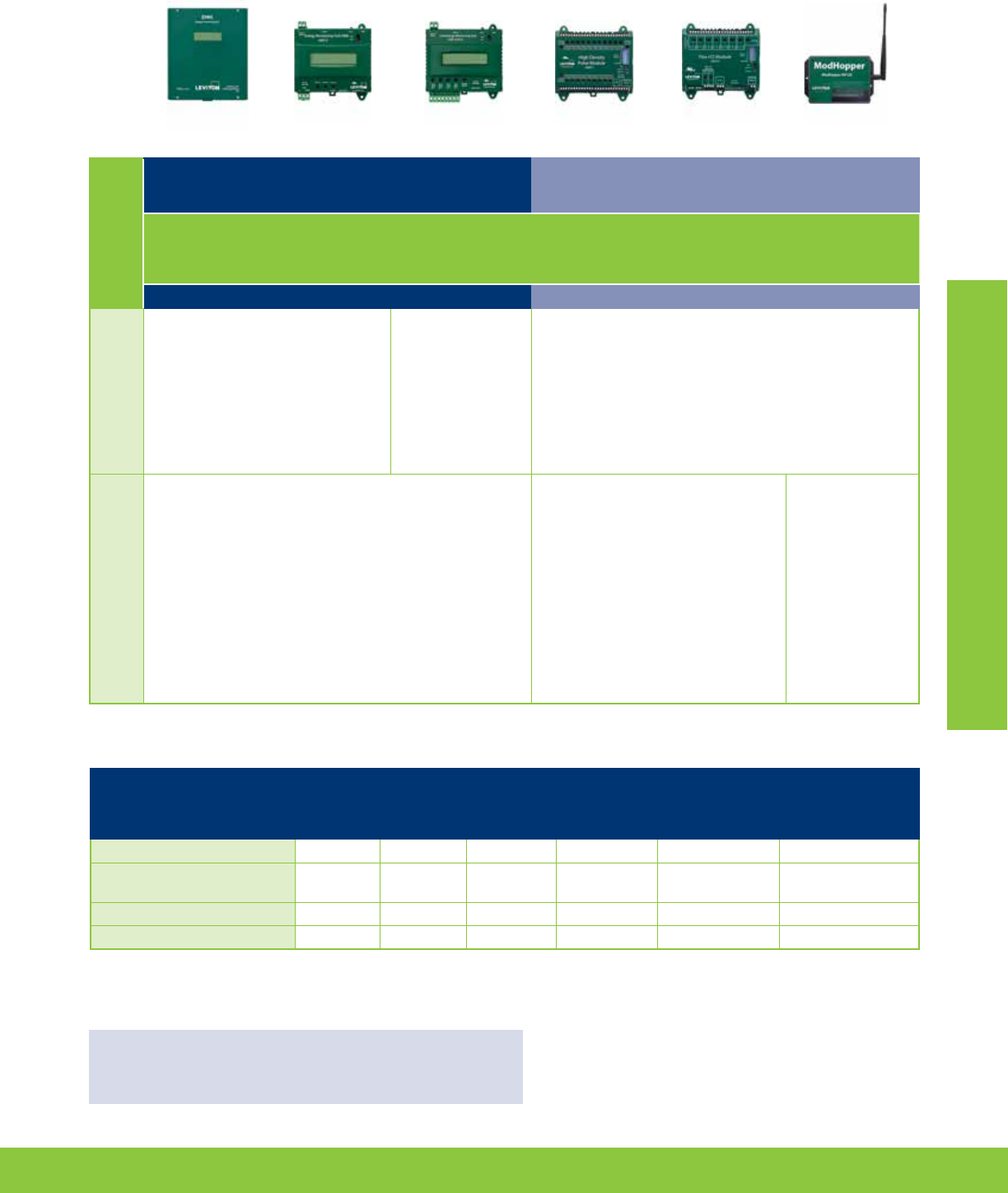

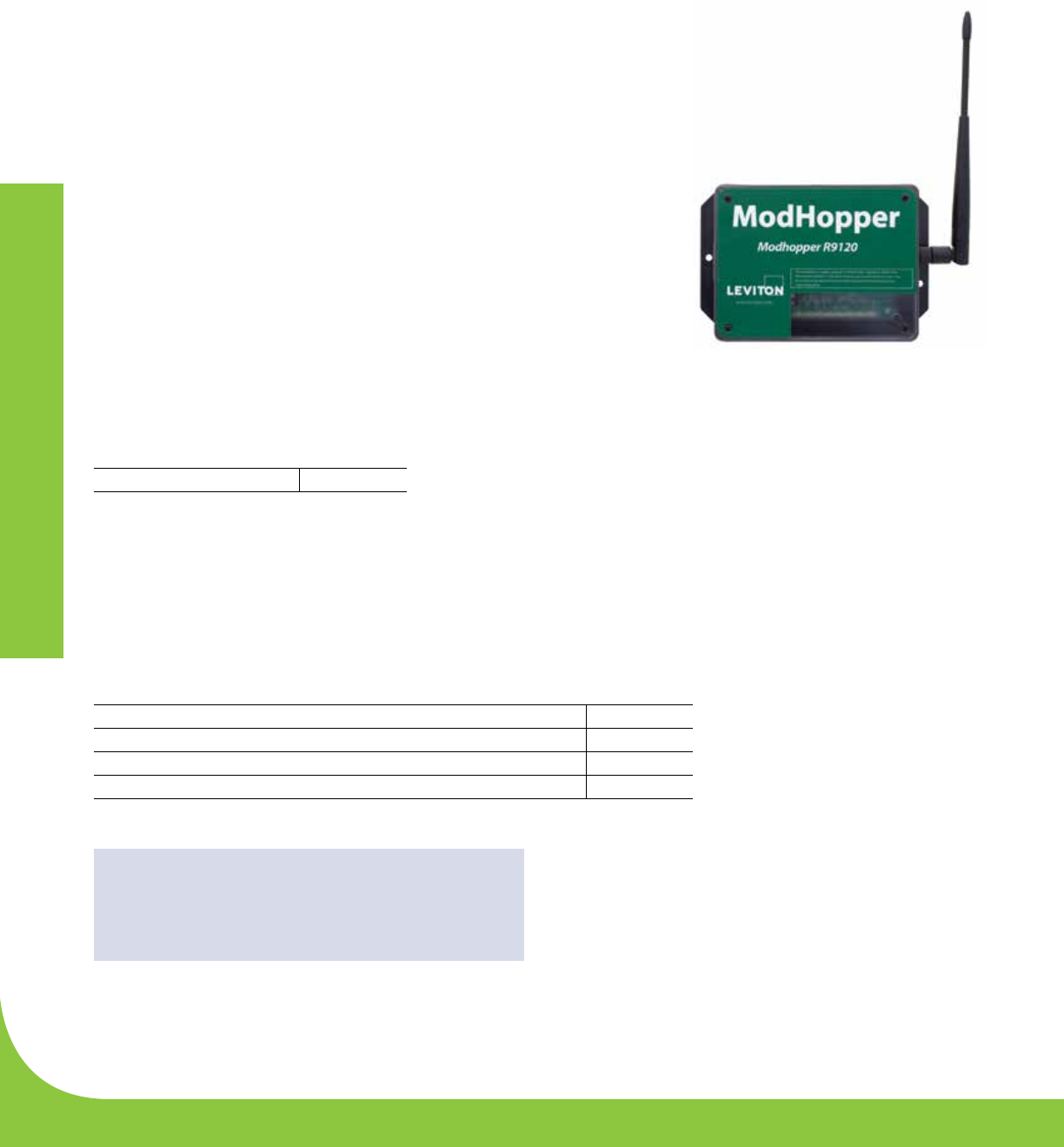

ModHopper

Add to any VerifEye system

for wireless metering

Automated Data Collection

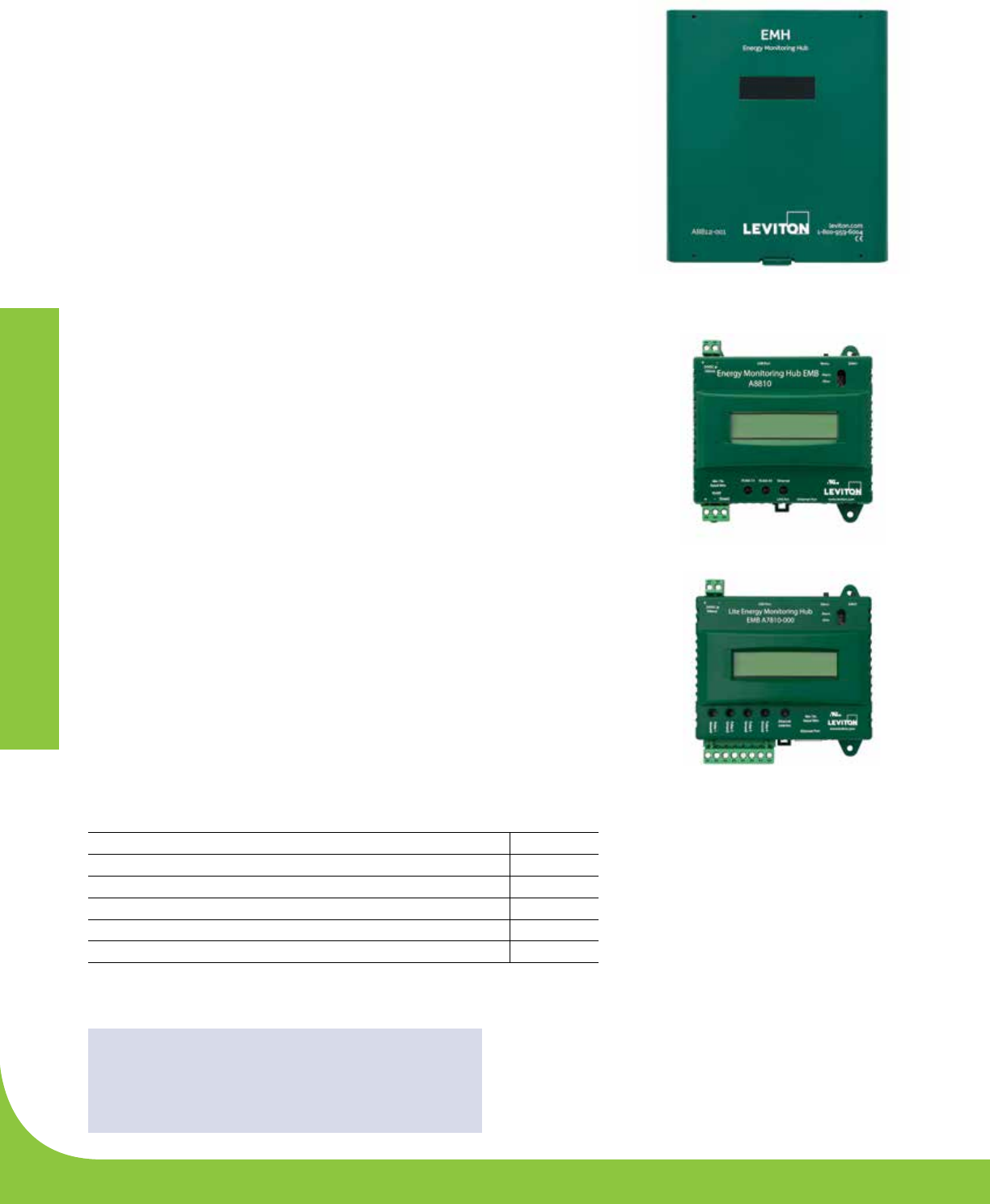

EMH

Energy Monitoring Hub*

Advanced Communication

Meters

Series 4000/

Series 4100

Series 8000

Protocols:

- ModBus RTU

- ModBus TCP/IP

- BACNet IP

All-in-One

Meter & Hub

EMH+ All-in-One

Meter & Hub*

Protocols:

- ModBus RTU

- ModBus TCP/IP

- Optional BACNet IP

Energy Manager and BMO 2.0*

*BMO 2.0 is free with purchase of a VerifEye Hub

3rd Party

18/2 Wire

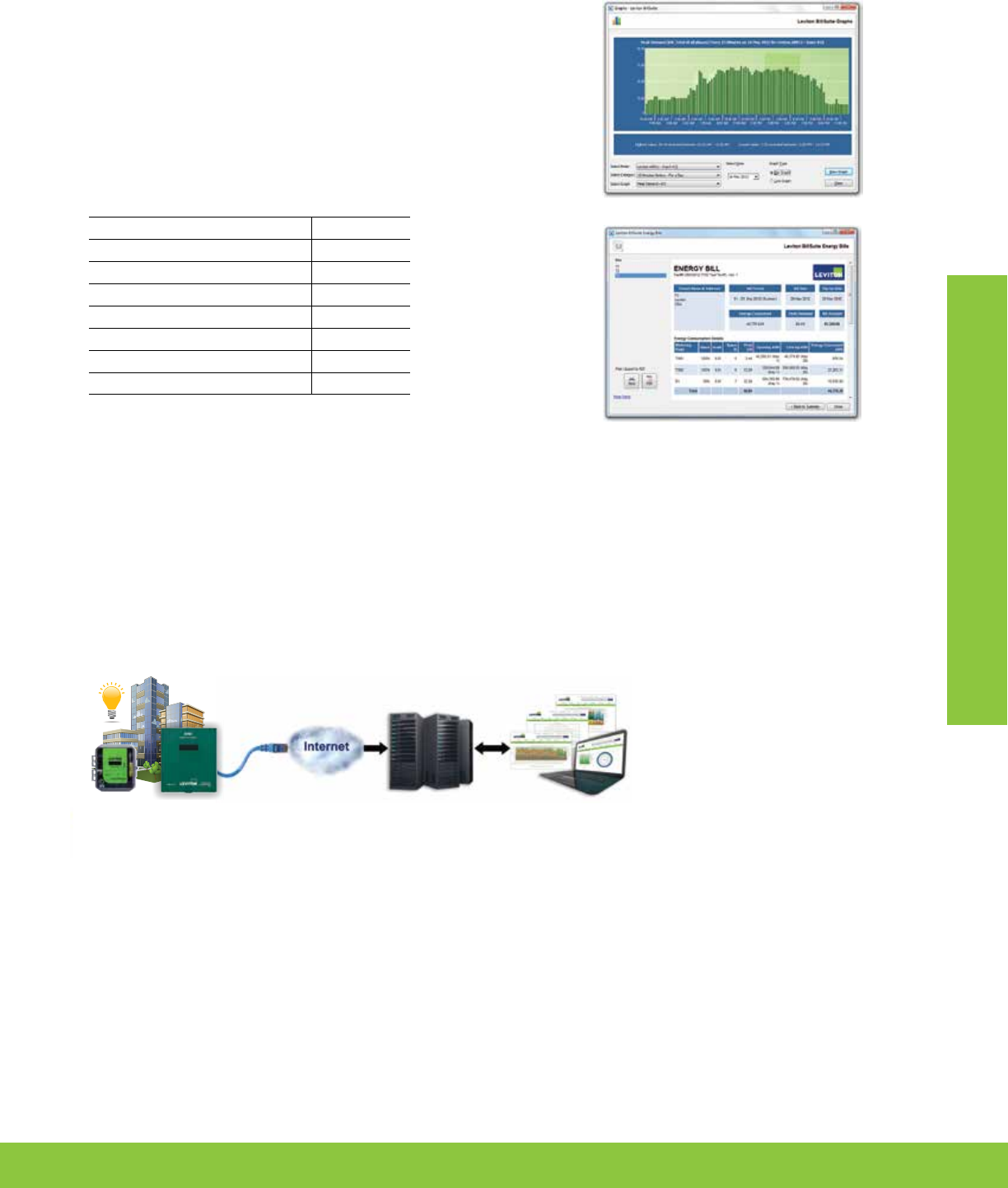

BillSuite

Building Management System

CAT5 CAT5

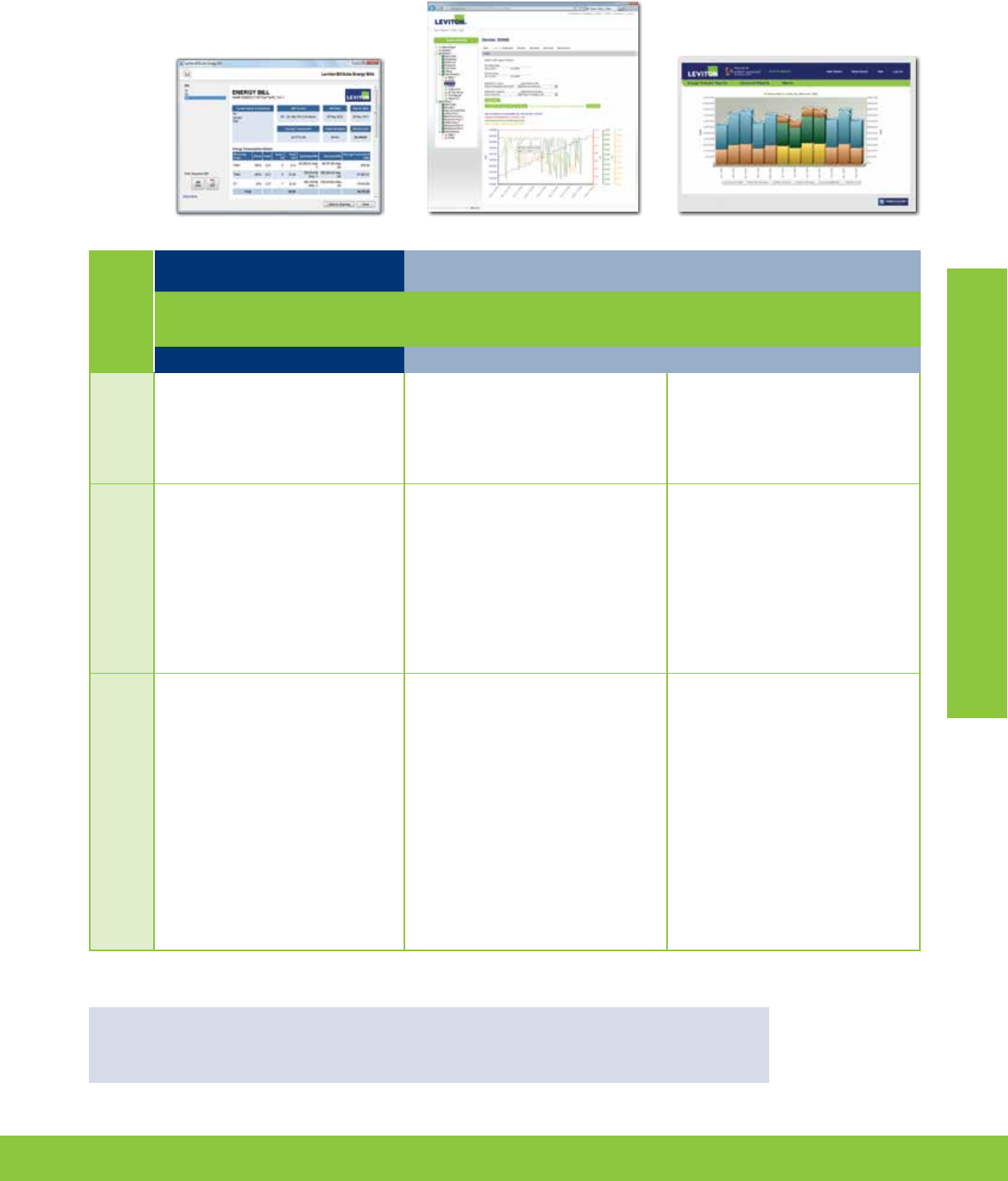

On-Site Software

Web-Based Software

*BMO 2.0 is FREE with purchase of a VerifEye hub

4

VerifEye™ Smart Submetering Solutions

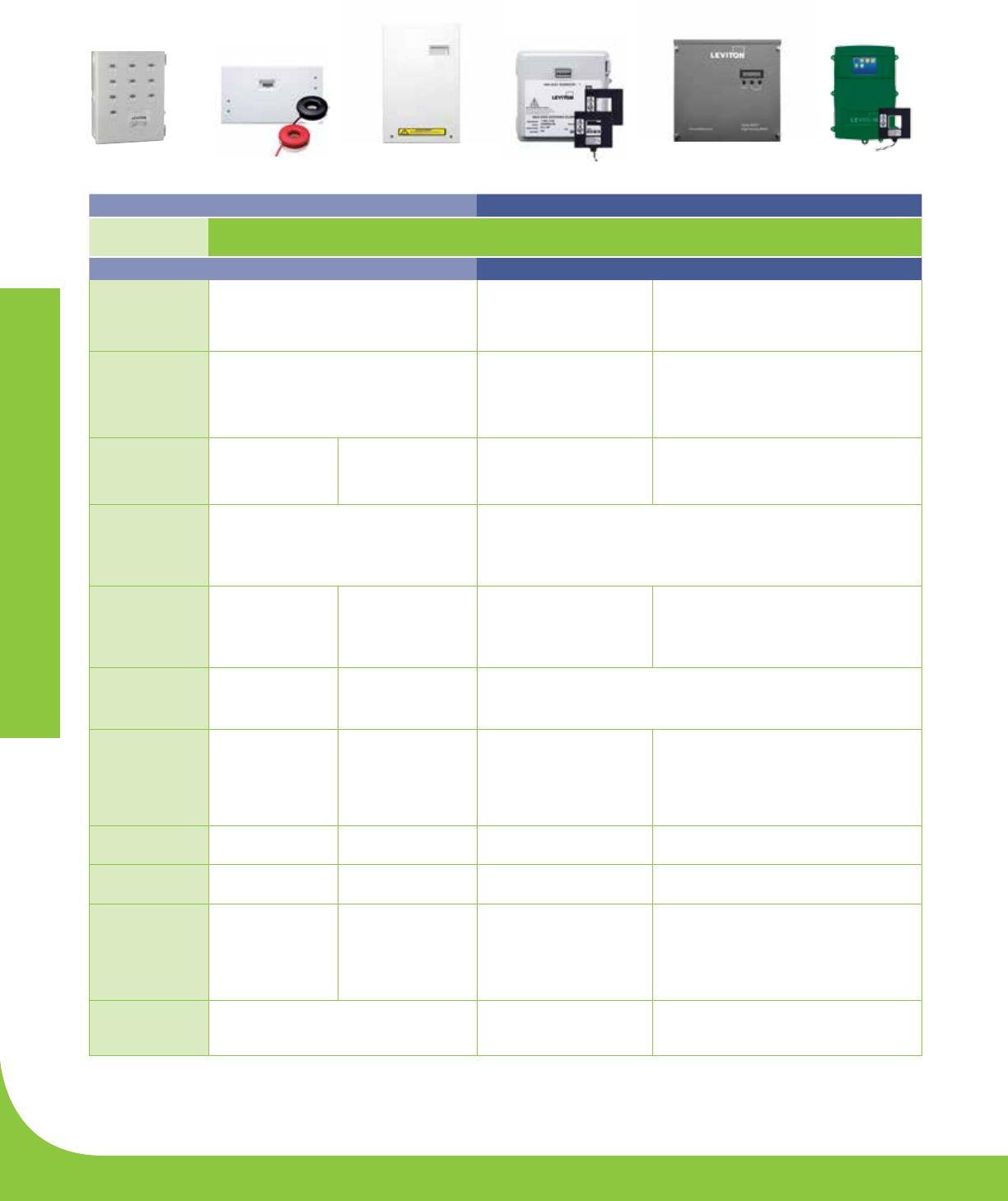

VERIFEYE METERS

Residential Residential/Commerical

Specifications Mini Meter™ Kits

0.5% Mini Meter

Kits

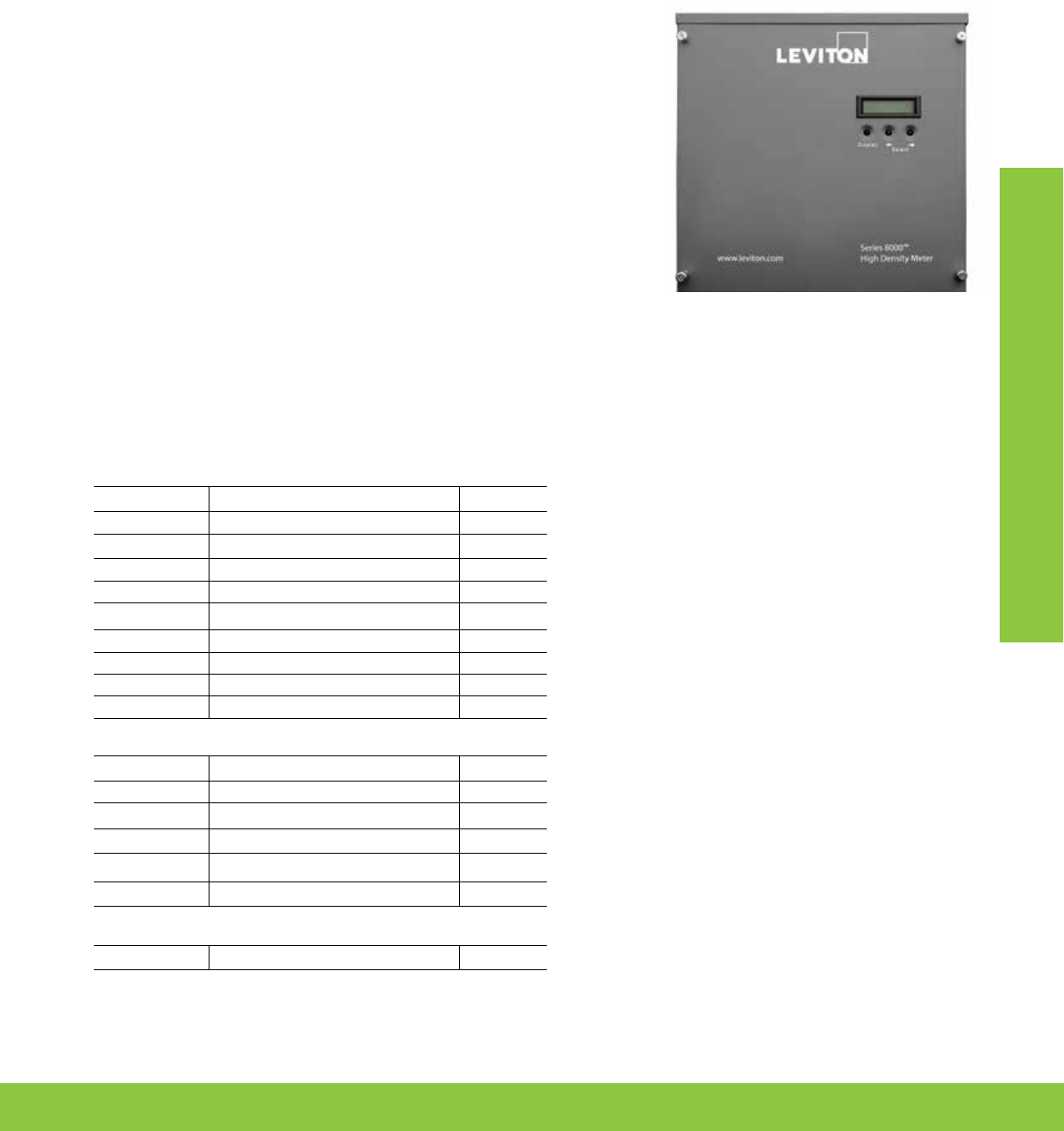

Series 8000 Multiple Point

High Density Meter EMH+ All-In-One Meter & Hub**

kWh Meter kWh Meter

Phase/Wiring

1PH 3W

1PH 2W

1PH 3W WYE

3PH 3W Delta

3PH 4W WYE

3PH 3W Delta

3PH 3W WYE

1PH 2W

3PH 4W WYE

Voltage

Configurations

120/208/240

120/208

120/240

240/416

277/480

480*

208-480

120, 240, 277

Amperages

100-200A 200A 100-5000A 100-5000A

Measuring

Parameters

kWh

Meter Totals: kWh, kVARh, kW, kVAR, kVA, Voltage L-L, L-N,

Current, Power Factor Frequency Per Phase:

Voltage L-L, L-N, Current, Power, Power Factor

Communications

Protocol

(Standard)

Isolated

Pulse Output

Embedded line

powered AMR

equipment,

wireless network

ModBus TCP

ModBus RTU (RS-485)

BACnet IP

ModBus/RTU, ModBus/TCP, TCP/IP, PPP,

HTTP/HTML, FTP, NTP, XML, SNMP-Trap.

Optional BACnet/IP

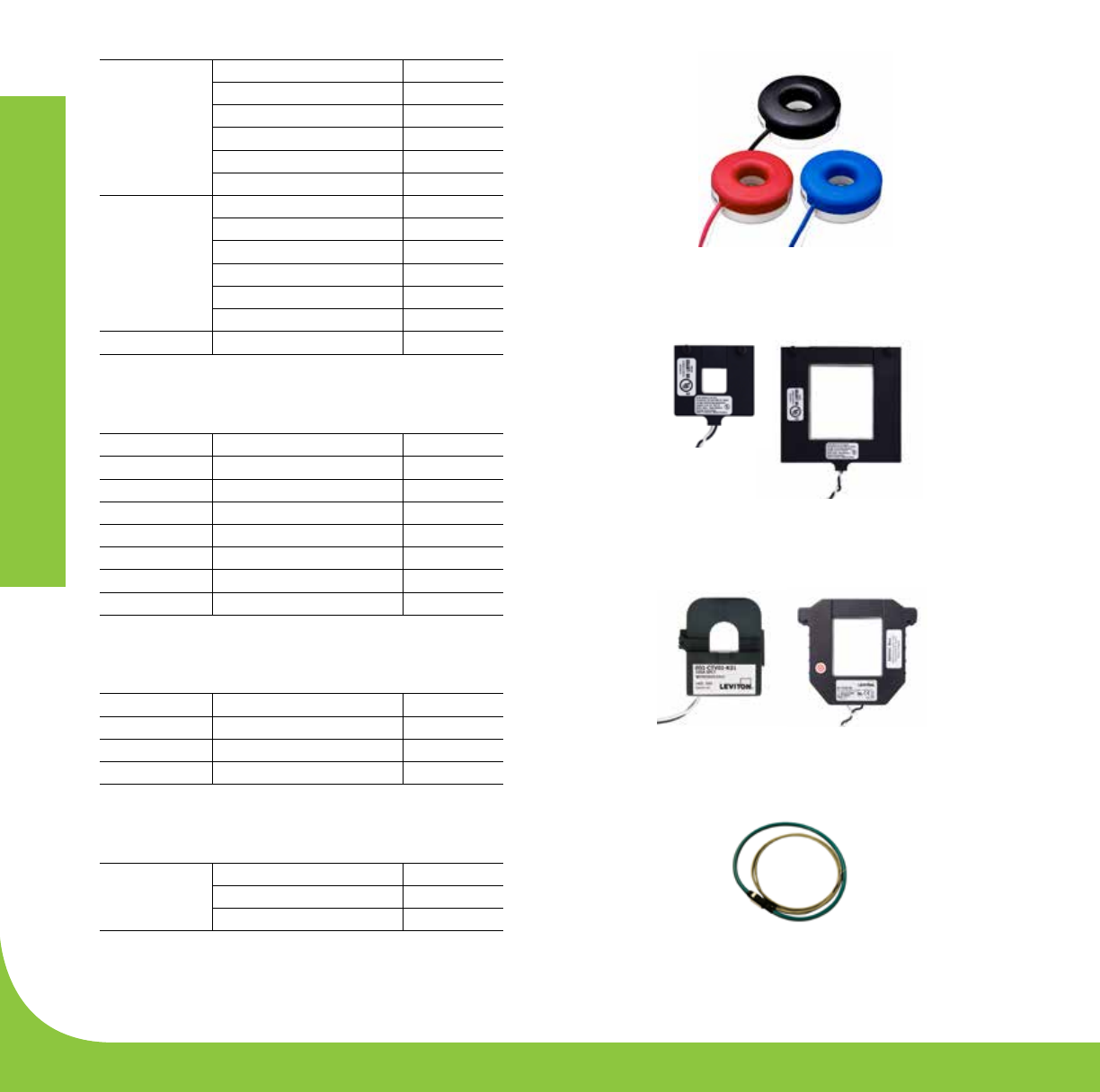

Current

Transformers

Options

Split Core

Solid Core Solid Core Split Core

Solid Core

Enclosure

Options

OEM Module

Indoor Plastic

Flush Mount NEMA 1

Outdoor NEMA 4X

MMU NEMA 4X

Indoor Flush Mount

Indoor Surface Mount Indoor JIC Steel NEMA1 Indoor Plastic Surface Mount

Display Type

LCD or Mechanical

Counter LCD Local LCD, Scroll LCD

Accuracy C12.10 +/- 0.5%

with paired CTs

C12.20 0.5%

with paired CTs C12.20 +/- 0.5% C12.1 1% +/- 0.5% from 2% to 100% of full

scale

Multiple Meter

Unit (MMU)

Configurations

Medium, 2-4 Meters

Large, 5-8 Meters

Extra-Large, 9-19

Meters

—

3PH, 8 points

2PH, 12 points

1PH, 24 points

—

Data Storage

Last Reading - Cumulative Last Reading - Cumulative

Data in 15 min Intervals

Last reading - 1 to 60 min,

User Selectable

(default 15 min)

* With potential transformer - consult factory for availability.

**VerifEye BMO 2.0 software is included at no cost with purchase of any VerifEye Data Acquisition Hub

MMU Mini Meter Flush Mount 0.5% Mini Meter Mini Meter Outdoor Series 8000 EMH+ All-In-One

Meter & Hub**

www.leviton.com/les 5

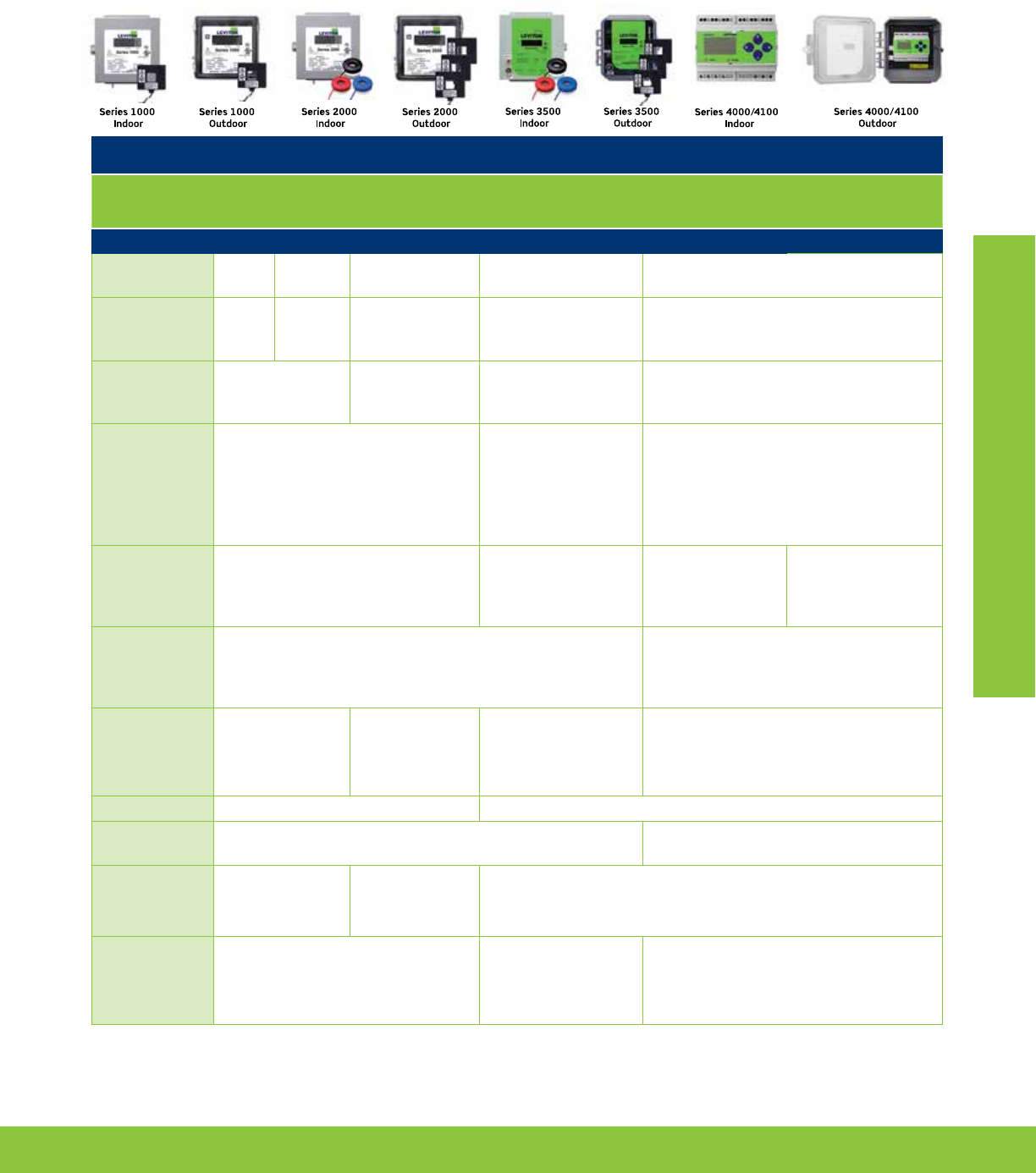

VerifEye™ Smart Submetering Solutions

Commercial Commercial and

Industrial

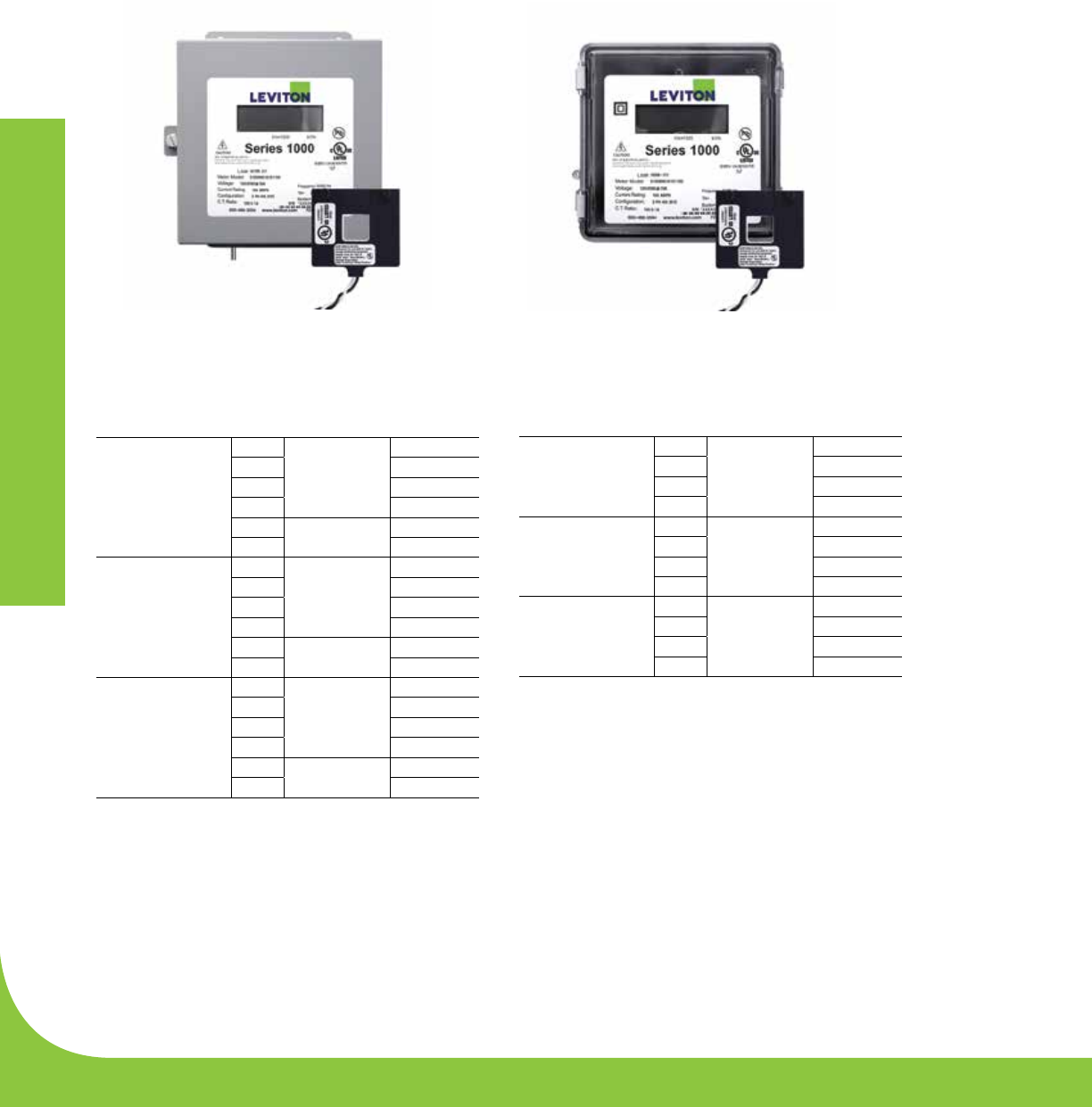

Series 1000

Single Phase

Meter Kits

Series 2000

Three Phase

Meter Kits

Series 3500

Multi-Function

Ethernet Meter Kits

Series 4000

Industrial ModBus

Meter Kits

Series 4100

Industrial ModBus RTU

Meter Kits

kWh Meter with Optional Demand Advanced kWh Meter with Communication

Phase/Wiring 1PH 2W 1PH 3W 3PH 4W WYE 3PH 3W Delta

3PH 4W WYE 3PH 3W/4W

Voltage

Configurations

120

277

120/208

120/240

277/480

120/208

277/480

Universal Voltage

(120-480)

Universal Voltage

(90-600)

Amperages 100-800A 100-1200A 100-5000A Split Core: 100, 200, 400, 800A

Rogowski: 20-5000A

Measuring

Parameters

kWh

Optional kW

(peak demand reset)

kWh

kW (peak demand reset)

Meter Totals: kVAR, kVA,

Power Factor & kW

By Phase: Volts, Watts,

Amps, Power Factor,

Interval Data

Meter Totals:kVARh, kW, kVAR, kVA,

Voltage L-L, L-N, Current, Power Factor,

Frequency

Communications

Protocol

(Standard)

Isolated Pulse Output

Isolated Pulse Output

Ethernet

ModBus TCP/IP

BACnet IP

ModBus/RTU

Isolated Pulse Output

ModBus/RTU and

BACnet MS/TP

Current

Transformers

Options

Split Core

Solid Core

0.333V secondary output only

Split Core

Rogowski Coil: lengths available in 12”, 18” and

24”

Enclosure

Options

Indoor JIC Steel

NEMA 1

Outdoor NEMA 4X

Indoor JIC Steel

NEMA 1

Outdoor NEMA 4X

MMU JIC Steel

NEMA 1

Indoor JIC Steel NEMA 1

Outdoor NEMA 4X

Indoor DIN Rail Mount

Outdoor NEMA 4X

Display Type Local LCD Local LCD, Scroll

Accuracy +/- 0.5% C12.20 / 0.5%

Multiple Meter

Unit (MMU)

Configurations

—

Medium, 2-4 Meters

Large, 5-8 Meters

Extra-Large, 9-16

Meters

—

Data Storage

Last Reading -

Cumulative Peak Demand with Key Reset

(optional)

Last Reading -

Cumulative Peak Demand

with Key Reset Data in

15 min Intervals

Last Reading -

Present and Peak Demand for kW and kVAR

6

VerifEye™ Smart Submetering Solutions

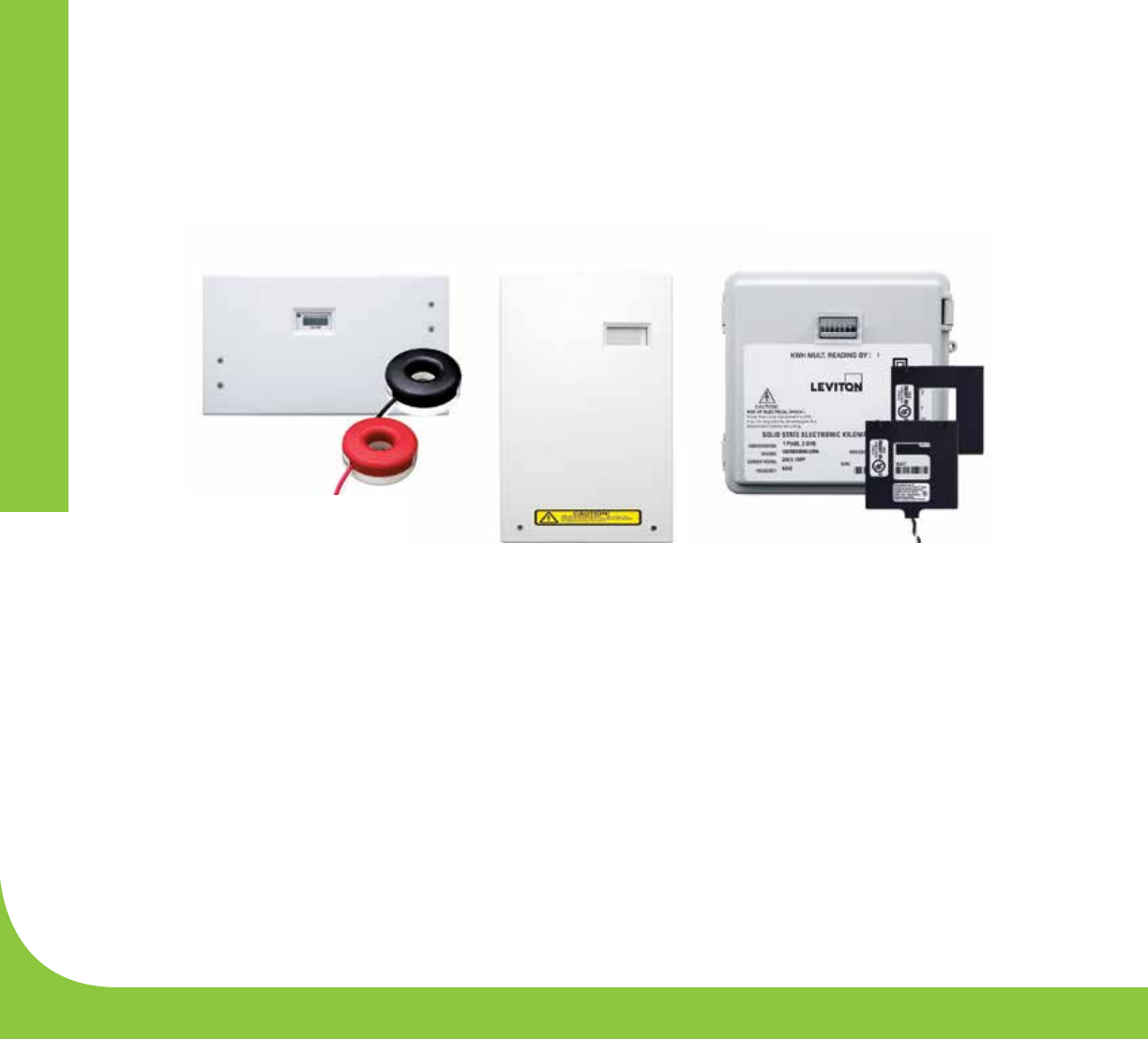

Outdoor

Mini Meter

Indoor Surface Mount

Mini Meter

Indoor Flush Mount

Mini Meter

MINI METER™

EQUITABLE TENANT BILLING

Some multi-tenant residential properties include energy costs in rental fees and generally charge tenants for energy based

on the square footage occupied. To be truly equitable, tenants should pay only for what they actually use. With Leviton Mini

Meters, building managers can easily track and allocate energy usage costs fairly to multiple tenants, as well as recoup energy

expenses from common-use areas (parking lots, hall lighting, etc.). Tenants benefit by paying only for the energy they use; and

when they focus on conserving energy, they can see direct financial benefits from their eorts.

• kWh Meter

• 120V 1PH 2W and 120/208/240V 1PH 3W

• 100-200 Amps

• Pulse Output - standard feature

• Available in indoor flush mount or surface mount enclosure

• Available in NEMA 4X indoor/outdoor individual meter enclosures and Multiple Meter Units (MMUs) from 2 to 19 meters

• Select surface mount and flush mount models include built in tamper-proof switch or built-in wireless AMR and temperature

sensing capabilities

• Revenue grade accuracy: 0.5% accuracy class

• Use with split core or solid core CTs

• Up to three sets of CTs per phase can be paralleled per meter with no multipliers

• Components of Mini Meter Kits are UL/cUL Listed Energy Usage Monitor per CCN FTRZ

www.leviton.com/les 7

VerifEye™ Smart Submetering Solutions

0.5% MINI METER KITS - INDOOR FLUSH MOUNT ENCLOSURE*

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208/240V 1PH 3W

200A 2 SOLID CTs

6P201-C02

120/208/240V 1PH 3W with AMR (includes Time of Use (TOU) Enabled

kWh Transceiver and Tamper Proof Switch) 6W201-C02

120/208/240V 1PH 3W with AMR (includes Time of Use (TOU) and

Temperature Enabled kWh Transceiver and Tamper Proof Switch)

6W201-D02

120/208/240V 1PH 3W (includes Time of Use (TOU) and Delta Temperature

Enabled kWh Transceiver and Tamper Proof Switch)

6W201-E02

120/208/240V 1PH 3W (OEM Module Kit) 7H201-S02

0.5% MINI METER KITS - INDOOR SURFACE MOUNT ENCLOSURE*

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208/240V 1PH 3W with AMR

200A 2 SOLID CTs

6PSMT-C02

120/240V 1PH 3W (includes Time of Use [TOU] enabled kWh Transceiver

and Tamper Proof Switch) MMSMT-C02

120/240V 1PH 3W with AMR (includes Time of Use [TOU] and Temperature

enabled kWh Transceiver and Tamper Proof Switch) MMSMT-D02

120/240V 1PH 3W with AMR (includes Time of Use [TOU] and Temperature

enabled kWh Transceiver and Tamper Proof Switch) MMSMT-E02

MINI METER KITS - INDOOR FLUSH MOUNT ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208V 3W or 120/240V 1PH 3W (Split Phase) 100A 2 SOLID CTs MK240-1SW

200A MK240-2SW

MINI METER KITS - OUTDOOR ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208V 3W or 120/240V 1PH 3W (Split Phase) 100A 2 SOLID CTs MO240-1SW

200A MO240-2SW

120/208V 2PH 3W or 120/240V 1PH 3W (Split Phase) 100A 2 Split CTs MO240-01W

200A MO240-02W

*For a complete wireless Automatic Meter Reading (AMR) system, data transceivers and other wireless network components (DCAPs

and Repeaters) are required as dictated by building construction.

TOU = Time of Use, providing 15-minute time-stamped kWh interval data

**All DCAPs and Gateways shipped with 6VDC, minimum 1.5 Amp power supply, Ethernet cable and USB cable

WIRELESS REPEATER

DESCRIPTION CAT. NO.

Repeater, 5V, includes 5VDC 1A plug-in power supply and internal backup battery T101R-05V

WIRELESS DATA CONCENTRATING ACCESS POINTS (DCAPS)**

DESCRIPTION CAT. NO.

Data Concentrating Access Point (DCAP), Low Capacity (150 meter points max), built-in radio receiver T201E-151

DCAP, High Capacity (1000 meter points max), built-in radio receiver T201E-102

MINI METER KITS

Note: Kits include meter, specified enclosure and required current transformers

8

VerifEye™ Smart Submetering Solutions

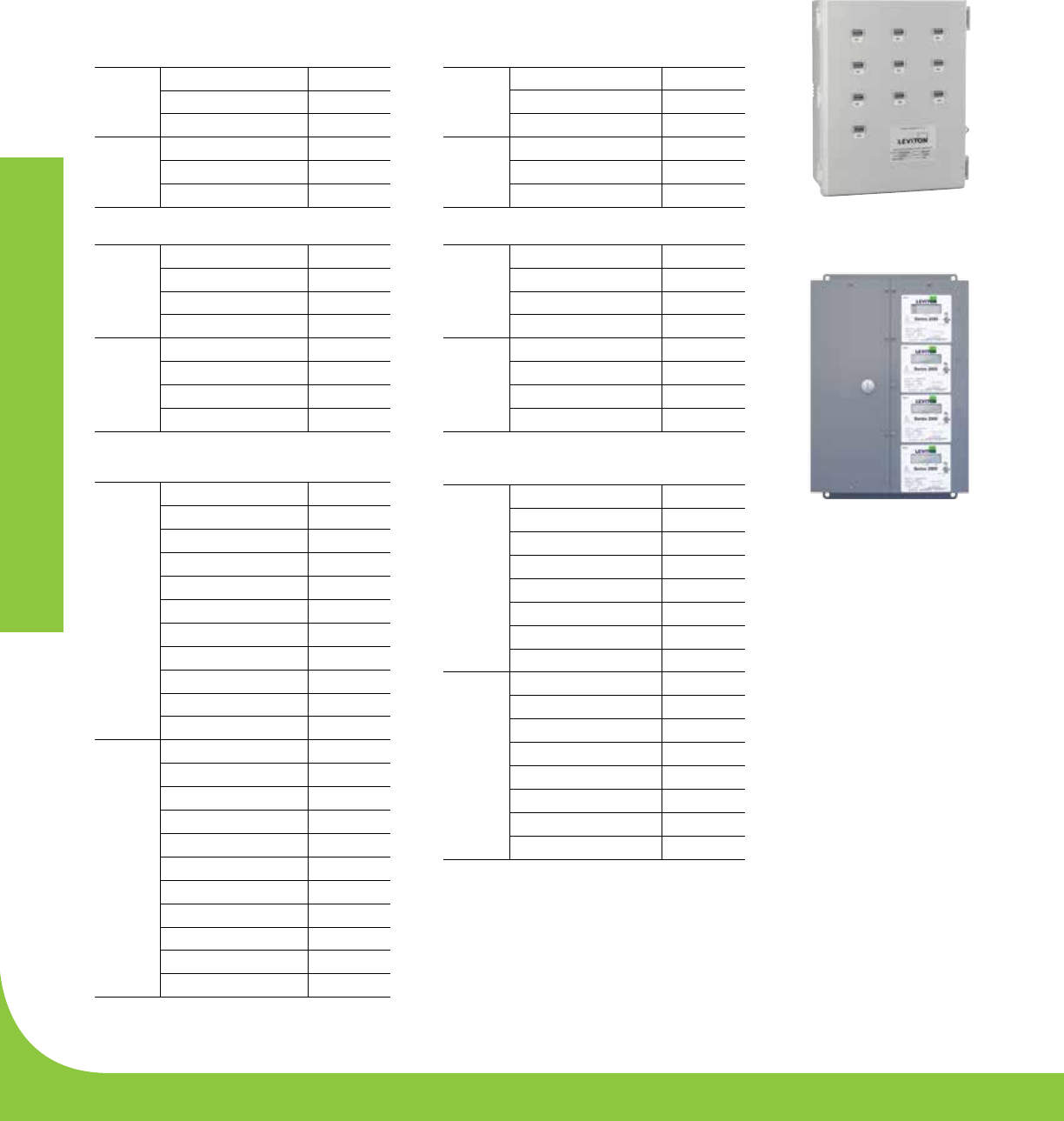

MULTIPLE METER UNITS (MMUS)

Leviton Multiple Meter Units (MMUs) come pre-wired per project configuration sheets with clearly labeled connections,

minimizing the electrical installation time. All VerifEye MMUs are UL listed assemblies. Choose from an indoor steel model in

4/8/16 unit single- or three-phase configurations utilizing Series 2000 meters or a weatherproof outdoor enclosure in 4/8/19

unit single-phase configurations utilizing Mini Meters. All MMUs are customizable and field upgradable for individual projects.

Each meter order requires submittal of a Configuration Form. Go to leviton.com/verifeye for more information.

Mini Meter

Multiple Meter Unit (MMU)

Series 2000

Multiple Meter Unit (MMU)

MINI METER MMUS

VOLTAGE DESCRIPTION CAT. NO.

MEDIUM MINI METER MMU, 2-4 METERS

120/240V

1PH 3W

2 Dual Element Meters 6M202-CFG

3 Dual Element Meters 6M203-CFG

4 Dual Element Meters 6M204-CFG

120/208V

3PH 4W

2 Dual Element Meters 6M302-CFG

3 Dual Element Meters 6M303-CFG

4 Dual Element Meters 6M304-CFG

LARGE MINI METER MMU, 5-8 METERS

120/240V

1PH 3W

5 Dual Element Meters 6L205-CFG

6 Dual Element Meters 6L206-CFG

7 Dual Element Meters 6L207-CFG

8 Dual Element Meters 6L208-CFG

120/208V

3PH 4W

5 Dual Element Meters 6L305-CFG

6 Dual Element Meters 6L306-CFG

7 Dual Element Meters 6L307-CFG

8 Dual Element Meters 6L308-CFG

EXTRA-LARGE MINI METER MMU, 9-19 METERS,

NEMA 4X ENCLOSURE

120/240V

1PH 3W

9 Dual Element Meters 6X209-CFG

10 Dual Element Meters 6X210-CFG

11 Dual Element Meters 6X211-CFG

12 Dual Element Meters 6X212-CFG

13 Dual Element Meters 6X213-CFG

14 Dual Element Meters 6X214-CFG

15 Dual Element Meters 6X215-CFG

16 Dual Element Meters 6X216-CFG

17 Dual Element Meters 6X217-CFG

18 Dual Element Meters 6X218-CFG

19 Dual Element Meters 6X219-CFG

120/208V

3PH 4W

9 Dual Element Meters 6X309-CFG

10 Dual Element Meters 6X310-CFG

11 Dual Element Meters 6X311-CFG

12 Dual Element Meters 6X312-CFG

13 Dual Element Meters 6X313-CFG

14 Dual Element Meters 6X314-CFG

15 Dual Element Meters 6X315-CFG

16 Dual Element Meters 6X316-CFG

17 Dual Element Meters 6X317-CFG

18 Dual Element Meters 6X318-CFG

19 Dual Element Meters 6X319-CFG

SERIES 2000 MMUS

VOLTAGE DESCRIPTION CAT. NO.

MEDIUM SERIES 2000 MMU, 2-4 METERS

120/208V

3PH 4W

2 Three Element Meters 2M202-CFG

3 Three Element Meters 2M203-CFG

4 Three Element Meters 2M204-CFG

277/480V

3PH 4W

2 Three Element Meters 2M402-CFG

3 Three Element Meters 2M403-CFG

4 Three Element Meters 2M404-CFG

LARGE SERIES 2000 MMU, 5-8 METERS

120/208V

3PH 4W

5 Three Element Meters 2L205-CFG

6 Three Element Meters 2L206-CFG

7 Three Element Meters 2L207-CFG

8 Three Element Meters 2L208-CFG

277/480V

3PH 4W

5 Three Element Meters 2L405-CFG

6 Three Element Meters 2L406-CFG

7 Three Element Meters 2L407-CFG

8 Three Element Meters 2L408-CFG

EXTRA-LARGE SERIES 2000 MMU, 9-16 METERS,

NEMA 4X ENCLOSURE

120/208V

3PH 4W

9 Three Element Meters 2X209-CFG

10 Three Element Meters 2X210-CFG

11 Three Element Meters 2X211-CFG

12 Three Element Meters 2X212-CFG

13 Three Element Meters 2X213-CFG

14 Three Element Meters 2X214-CFG

15 Three Element Meters 2X215-CFG

16 Three Element Meters 2X216-CFG

277/480V

3PH 4W

9 Three Element Meters 2X409-CFG

10 Three Element Meters 2X410-CFG

11 Three Element Meters 2X411-CFG

12 Three Element Meters 2X412-CFG

13 Three Element Meters 2X413-CFG

14 Three Element Meters 2X414-CFG

15 Three Element Meters 2X415-CFG

16 Three Element Meters 2X416-CFG

www.leviton.com/les 9

VerifEye™ Smart Submetering Solutions

SERIES 8000 MULTI-POINT HIGH DENSITY METERS

The Series 8000 Multi-Point High Density Meters are designed to meter high density appli cations such as multi-tenant oce and

residential build ings, medium-sized retail stores, institutional facilities and branch circuit monitoring. For easy data accessibility,

the Series 8000 design is based on an open protocol network to transmit data over ModBus and BACnet. Combining revenue-

grade electrical submetering with building automation communications technology, the Series 8000 complies with all regulatory

electric safety and communications requirements and meets stringent ANSI 0.5 % Accuracy Class standards.

• Allows for revenue grade metering of up to 24 individual circuits in

one device

• Monitors up to 24 current transformers:

- 8 circuits, 3 phase loads

- 12 circuits, 2 phase loads

- 24 circuits, 1 phase loads

• Branch circuit monitoring

• 100-5,000 Amp current transformers

• Native communications protocol—ModBus TCP, ModBus RTU (RS-485)

and BACnet IP standard

• Measures kW hours, kW demand, volts, amps

• Interval and net metering

• Configurable via Ethernet or ModBus RTU network to BMS or VerifEye

software solutions for tenant billing or measurement & verification (M&V)

SERIES 8000 MULTI-POINT HIGH DENSITY METERS CHOOSING BETWEEN A WIRING HARNESS AND

TERMINAL STRIPS

•Wiring harnesses oer a less labor intensive

solution when all CTs are located in one

panel like in a multi-family high rise project. This

eliminates the need to extend CT wires out of

the panel.

•Terminal strips are ideal for installers who

prefer to land each wire and not use a

color-coded wiring harness. For CTs located

in dierent panels or dierent locations with

a switchboard, terminal strips oer an easier

solution with the ability to extend the current

transformer wiring back to the meter location

for termination. Terminal strip models also carry

a slightly higher cost and should be considered

with the project budget.

VOLTAGE DESCRIPTION CAT. NO.

RESIDENTIAL

120/208/240V Phase Config 3x2 with Wiring Harness S8120-032

120/208/240V Phase Config 6x2 with Wiring Harness S8120-062

120/208/240V Phase Config 9x2 with Wiring Harness S8120-092

120/208/240V Phase Config 12x2 with Wiring Harness S8120-122

120/208V Phase Config 8x3 with Terminal Strips S8UTS-083

120/208V Phase Config 12x2 with Terminal Strips S8UTS-122

120/208V Phase Config 24x1 with Terminal Strips S8UTS-241

120/208V Phase Config 8x3 with Wiring Harness S8UWH-083

120/208V Phase Config 12x2 with Wiring Harness S8UWH-122

120/208V Phase Config 24x1 with Wiring Harness S8UWH-241

COMMERCIAL & INDUSTRIAL

277/480V Phase Config 8x3 with Terminal Strips 277TS-083

277/480V Phase Config 12x2 with Terminal Strips 277TS-122

277/480V Phase Config 24x1 with Terminal Strips 277TS-241

277/480V Phase Config 8x3 with Wiring Harness 277WH-083

277/480V Phase Config 12x2 with Wiring Harness 277WH-122

277/480V Phase Config 24x1 with Wiring Harness 277WH-241

POTENTIAL TRANSFORMER (OPTIONAL)

480V Delta Delta PTs with Enclosure S480V-011

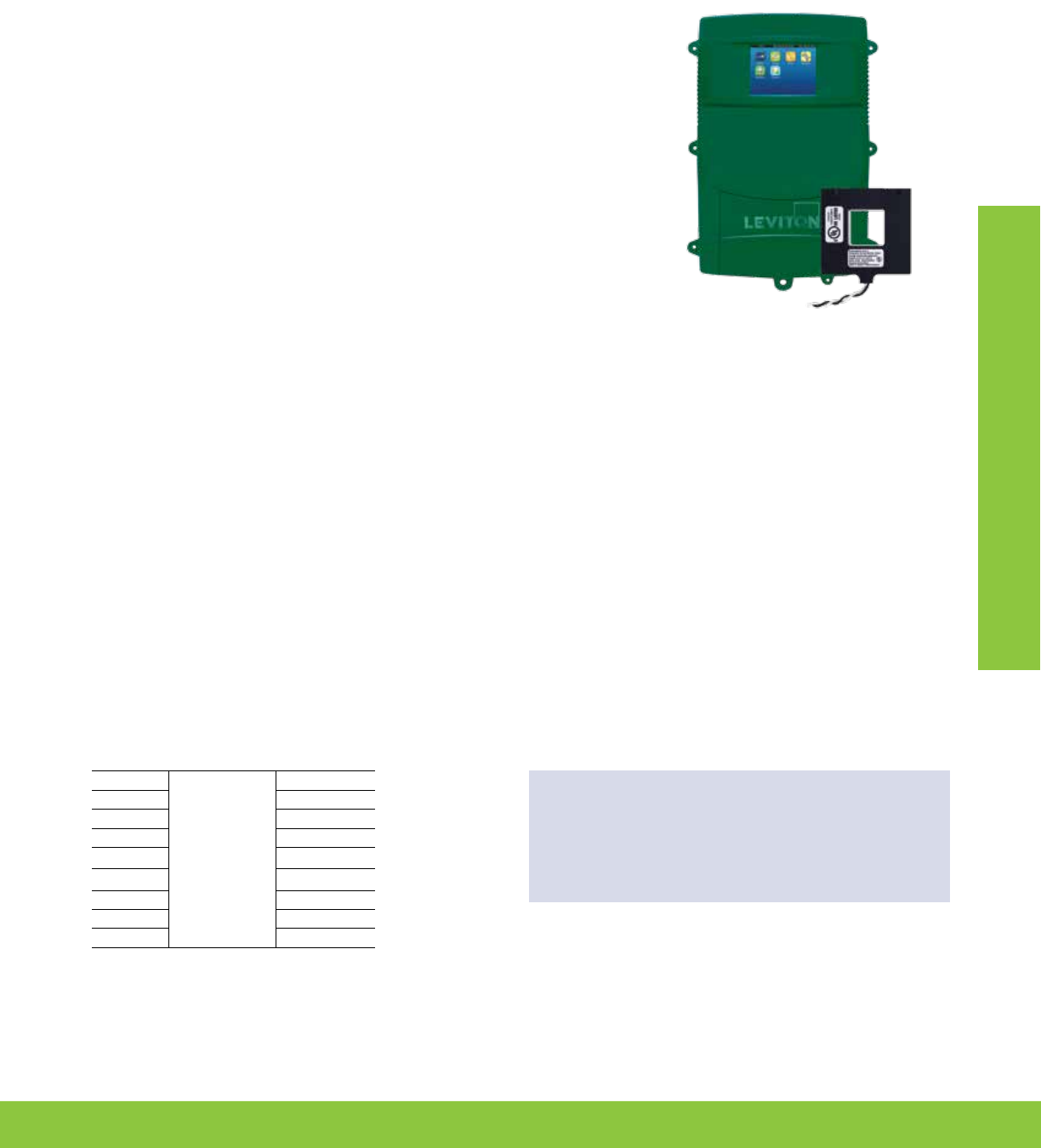

Series 8000 Meter

10

VerifEye™ Smart Submetering Solutions

SERIES 1000 SINGLE PHASE METERS

• kWh meter with optional Peak Demand functionality (includes Reset Key)

• 100 - 800 Amps

• Isolated Pulse output - standard feature

• Large LCD Display

• Revenue grade accuracy: 0.5% accuracy class

• Use with split core or solid core CTs

INDOOR ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120V 1PH 2W

100

1 Split CT

1K120-01W

200 1K120-02W

400 1K120-04W

800 1K120-08W

100 1 SOLID CT 1K120-1SW

200 1K120-2SW

120/208V 1PH 3W or

120/240V 1PH 3W

(Split Phase)

100

2 Split CTs

1K240-01W

200 1K240-02W

400 1K240-04W

800 1K240-08W

100 2 SOLID CTs 1K240-1SW

200 1K240-2SW

277V 1PH 2W

100

1 Split CT

1K277-01W

200 1K277-02W

400 1K277-04W

800 1K277-08W

100 1 SOLID CT 1K277-1SW

200 1K277-2SW

OUTDOOR ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120V 1PH 2W

100

1 Split CT

1O120-01W

200 1O120-02W

400 1O120-04W

800 1O120-08W

120/208V 1PH 3W or

120/240V 1PH 3W

(Split Phase)

100

2 Split CTs

1O240-01W

200 1O240-02W

400 1O240-04W

800 1O240-08W

277V 1PH 2W

100

1 Split CT

1O277-01W

200 1O277-02W

400 1O277-04W

800 1O277-08W

SERIES 1000 SINGLE PHASE METER KITS

Note: Kits include meter, specified enclosure and required current transformers

www.leviton.com/les 11

VerifEye™ Smart Submetering Solutions

SERIES 2000 THREE PHASE METERS

• kWh meter with optional Peak Demand functionality (includes Reset Key)

• 120/208V or 277/480V 3PH 4W WYE only

• 100 - 1200 Amps

• Isolated Pulse output—standard feature

• Large LCD Display

• Revenue grade accuracy: 0.5% accuracy class

• Use with split core or solid core CTs

SERIES 2000 THREE PHASE METER KITS

Note: Kits include meter, specified enclosure and required current transformers

INDOOR ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208V 3PH 4W

WYE kWh Meter

100

3 Split CTs

2K208-01W

200 2K208-02W

400 2K208-04W

800 2K208-08W

1200 2K208-12W

100 3 SOLID CTs 2K208-1SW

200 2K208-2SW

277/480V 3PH 4W

WYE kWh Meter

100

3 Split CTs

2K480-01W

200 2K480-02W

400 2K480-04W

800 2K480-08W

1200 2K480-12W

100 3 SOLID CTs 2K480-1SW

200 2K480-2SW

120/208V 3PH 4W

WYE Demand Meter

100

3 Split CTs

2K208-01D

200 2K208-02D

400 2K208-04D

800 2K208-08D

1200 2K208-12D

277/480V 3PH 4W

WYE Demand Meter

100 2K480-01D

200 2K480-02D

400 2K480-04D

800 2K480-08D

1200 2K480-12D

OUTDOOR ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

120/208V 3PH 4W

WYE kWh Meter

100

3 Split CTs

2O208-01W

200 2O208-02W

400 2O208-04W

800 2O208-08W

1200 2O208-12W

277/480V 3PH 4W

WYE kWh Meter

100 2O480-01W

200 2O480-02W

400 2O480-04W

800 2O480-08W

1200 2O480-12W

12

VerifEye™ Smart Submetering Solutions

SERIES 3500 MULTI-FUNCTION ETHERNET METERS

• Communications Protocol

- ModBus TCP/IP or BACnet IP

- Isolated pulse output

- Ethernet

• Universal voltage for 120-480V

• Measured Parameters

- Total Meter:

- kWh/kW

- kVAh

- kVA and kVAR

- Power Factor

- Line Frequency

• Large LCD display with scroll feature

• Revenue grade accuracy: 0.5% accuracy class

• Installation diagnostics

• Low voltage detection

• Real time clock with battery backup for TOU reading

• Use with split core or solid core CTs

• Indoor JIC steel and outdoor (NEMA 4X) enclosure options

• UL/cUL Listed Energy Usage Monitor per CCN FTRZ

- Per Phase:

- Voltage L-N

- Current

- Watts

- VA, VAR

- Power Factor

- Voltage L-L

SERIES 3500 METER KITS

VOLTAGE AMPS CTS INCLUDED CAT. NO.

208-480V AC

3P 3W/4W

ModBus TCP/

BACnet IP

100

3 Split CTs

3KUMT-01M

200 3KUMT-02M

400 3KUMT-04M

800 3KUMT-08M

1600 3KUMT-16M

3000 3KUMT-30M

5000 3KUMT-50M

100

3 SOLID CTs

3KUMT-1SM

200 3KUMT-2SM

400 3KUMT-4SM

INDOOR ENCLOSURE

VOLTAGE AMPS CTS INCLUDED CAT. NO.

208-480V AC

3P 3W/4W

(with BACnet)

100

3 Split CTs

3OUMT-01M

200 3OUMT-02M

400 3OUMT-04M

800 3OUMT-08M

1600 3OUMT-16M

3000 3OUMT-30M

5000 3OUMT-50M

100

3 Solid CTs

3OUMT-1SM

200 3OUMT-2SM

400 3OUMT-4SM

OUTDOOR ENCLOSURE

NOTE: Kits include meter, specified enclosure and required current transformers

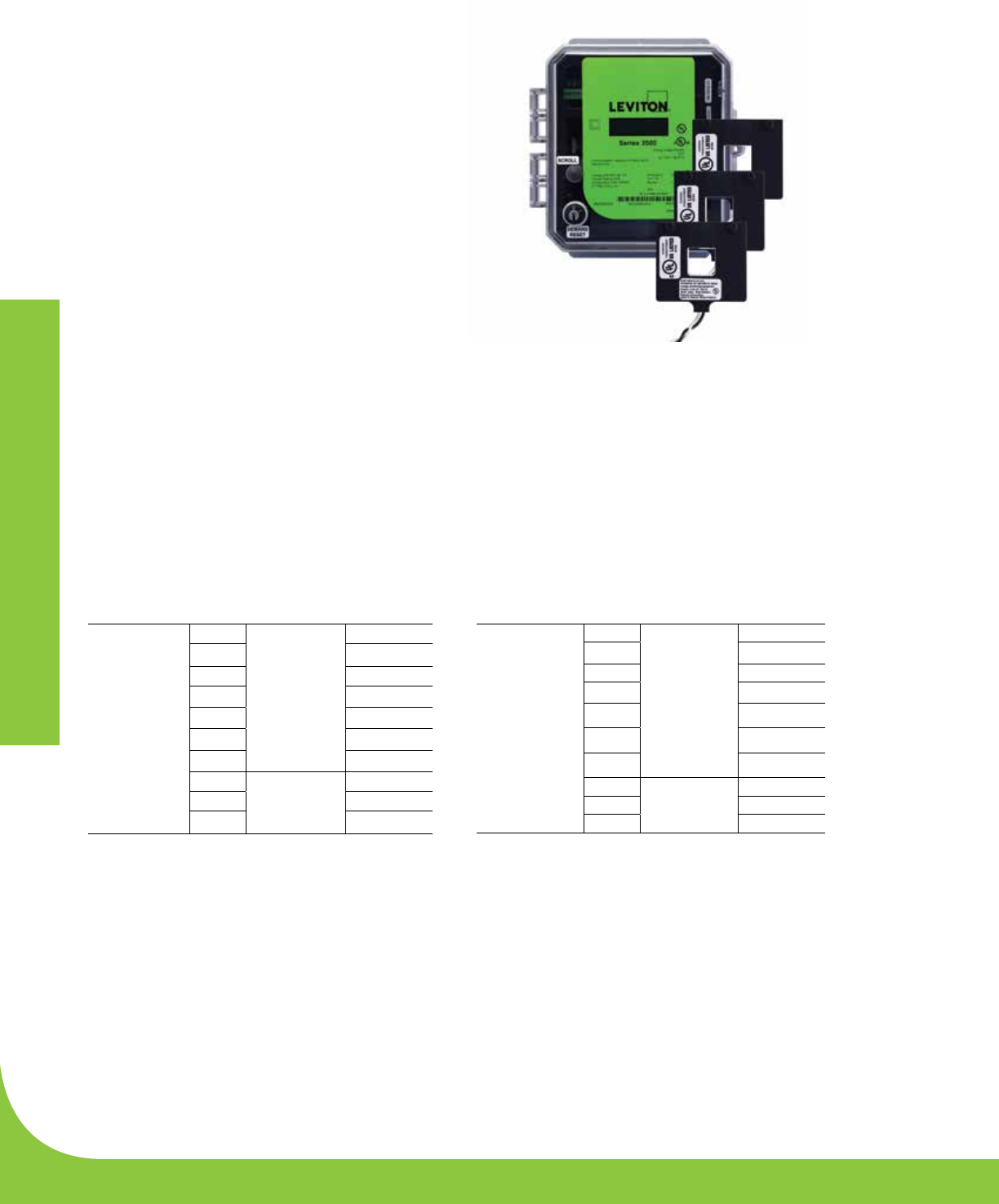

Series 3500

Outdoor Meter

www.leviton.com/les 13

VerifEye™ Smart Submetering Solutions

SERIES 4000 INDUSTRIAL MODBUS METER KITS

Series 4000 Industrial ModBus Meter Kits are revenue-grade (ANSI C12.20 Class 0.5%) kWh electrical meters. The Series 4000

Kits include a DIN rail mount, 3-phase, advanced communication meter with split core or flexible rope-style Rogowski CTs for

compact or irregular shaped conductors. Combinations of serial communication, pulse output and phase alarms are provided

to suit a wide variety of applications.

• Industrial Temperature Range of -22-158°F (30-70°C)

• Energy monitoring for AMR/BAS/BMS/EMS systems

• DIN Rail mount for easy installation

• Options for 100, 200, 400 and 800A Split Core CTs and Rogowski CTs (20-5000A)

• ANSI 12.20 0.2% accuracy, IEC 62053-22 Class 0.2S

• Real energy output and phase loss alarm output

• One device serves multiple locations

• User-enabled password protection to protect meter from tampering

• Bright, backlit LCD for installation in dark areas and viewing real time data

• System integration via ModBus RTU- RS-485 2-wire with shield

• 90-600VAC (50/60Hz) versatility including 347V (L-N) and 600V (L-L)

with fewer models to stock

Series 4000 DIN Rail Mount

Series 4000 Outdoor NEMA Enclosure

14

VerifEye™ Smart Submetering Solutions

INDOOR DIN RAIL MOUNT

VOLTAGE AMPS CTS INCLUDED CAT. NO.

Universal 3PH 3W/4W

100

Split Core CTs

4KUMR-01M

200 4KUMR-02M

400 4KUMR-04M

800 4KUMR-08M

20-5000 12” Rogowski Coil CTs 4KUMR-R12

20-5000 18” Rogowski Coil CTs 4KUMR-R18

20-5000 24” Rogowski Coil CTs 4KUMR-R24

STANDALONE METERS ONLY

Universal 3PH 3W/4W 100, 200,

400, 800 Split Core CTs Only 4KUMR-00M

Universal 3PH 3W/4W 20-5000 Rogowski Coil CTs Only 4KUMR-00R

OUTDOOR NEMA ENCLOSURE

Universal 3PH 3W/4W

100

Split Core CTs

4OUMR-01M

200 4OUMR-02M

400 4OUMR-04M

800 4OUMR-08M

20-5000 12” Rogowski Coil CTs 4OUMR-R12

20-5000 18” Rogowski Coil CTs 4OUMR-R18

20-5000 24” Rogowski Coil CTs 4OUMR-R24

COMPONENTS

AMPS DESCRIPTION CAT. NO.

100

Split Core CTs

CTV01-K21

200 CTV02-K21

400 CTV04-K40

800 CTV08-K40

— Fuse Pack, 1/2A, 600VAC, slow blow CTV00-FK3

20-5000

12” Rogowski Coil CTs CRV50-K62

18” Rogowski Coil CTs CRV50-K93

24” Rogowski Coil CTs CRV50-KC2

SERIES 4000 MODBUS METER KITS

www.leviton.com/les 15

VerifEye™ Smart Submetering Solutions

SERIES 4100 BIDIRECTIONAL MODBUS RTU AND BACNET MS/TP METER KITS

The VerifEye Series 4100 Bidirectional ModBus RTU and BACnet MS/TP Meter Kits feature bidirectional monitoring specifically

designed for renewable energy applications. The Series 4100 Meter Kits measure power imported from the utility grid and

power exported from renewable energy source like solar panels. The Series 4100 Meter Kits are available in a standalone DIN

rail mount or NEMA 4X enclosures and come with either split core or flexible rope-style Rogowski Current Transformers (CTs).

• Bidirectional monitoring

• Industrial temperature range: -22-158°F (-30-70°C)

• 50/60 Hz

• Options for 100, 200, 400, and 800A Split Core CTs and Rogowski CTs

(20-5000A)

• DIN rail mount for easy installation

• One device serves multiple locations

• User-enabled password protection to protect meter from tampering

• Bright, backlit LCD for installation in dark areas and viewing real time data

• Energy monitoring for AMR/BAS/BMS/EMS systems

• Renewable energy applications

• System integration via ModBus RTU or BACnet MS/TP

- RS-485 Serial

• CSI approval for California Solar Initiative

• 90-600V versatility including 347V with fewer models to stock

Series 4100 DIN Rail Mount

16

VerifEye™ Smart Submetering Solutions

INDOOR DIN RAIL MOUNT MODBUS METER KITS

VOLTAGE AMPS CTS INCLUDED CAT. NO.

Universal 3PH 3W/4W

ModBus RTU

100

Split Core CTs

4DUMR-01M

200 4DUMR-02M

400 4DUMR-04M

800 4DUMR-08M

20-5,000 12” Rogowski Coil CTs 4DUMR-12R

20-5,000 18” Rogowski Coil CTs 4DUMR-18R

20-5,000 24” Rogowski Coil CTs 4DUMR-24R

INDOOR DIN RAIL MOUNT BACNET MS/TP METER KITS

Universal 3PH 3W/4W

BACnet MS/TP

100

Split Core CTs

4DUBM-01B

200 4DUBM-02B

400 4DUBM-04B

800 4DUBM-08B

20-5,000 12” Rogowski Coil CTs 4DUBM-12R

20-5,000 18” Rogowski Coil CTs 4DUBM-18R

20-5,000 24” Rogowski Coil CTs 4DUBM-24R

OUTDOOR NEMA ENCLOSURE - MODBUS METER KITS

Universal 3PH 3W/4W

ModBus RTU

100

Split Core CTs

41OUM-01M

200 41OUM-02M

400 41OUM-04M

800 41OUM-08M

20-5,000 12” Rogowski Coil CTs 41OUM-12R

20-5,000 18” Rogowski Coil CTs 41OUM-18R

20-5,000 24” Rogowski Coil CTs 41OUM-24R

OUTDOOR NEMA ENCLOSURE - BACNET MS/TP METER KITS

Universal 3PH 3W/4W

BACnet MS/TP

100

Split Core CTs

41OUB-01B

200 41OUB-02B

400 41OUB-04B

800 41OUB-08B

20-5,000 12” Rogowski Coil CTs 41OUB-12R

20-5,000 18” Rogowski Coil CTs 41OUB-18R

20-5,000 24” Rogowski Coil CTs 41OUB-24R

SERIES 4100 BIDIRECTIONAL MODBUS RTU AND BACNET MS/TP METER KITS

www.leviton.com/les 17

VerifEye™ Smart Submetering Solutions

EMH+ ALL-IN-ONE METER AND ENERGY MONITORING HUB*

The EMH+ All-In-One Meter and Energy Monitoring Hub combines an onboard revenue-grade power meter and Leviton Data

Acquisition Hub in a flexible all-in-one package. This simple and eective energy solution can be used to meet energy codes

and mandates and is ideal for new construction and commercial buildings.

•Simplicity—A complete metering system for any application

•Easy to Install—Reduces installation time and cost with integrated

meter and data acquisition capabilities

•More Features, Lower Cost—Costs up to 30% less than other bundled

meter and data acquisition devices

•Scalable—Employs other VerifEye solutions for future upgrades

•Free Web-Based Software—Uses free online energy data visualization

BMO 2.0 software*

• Data Collection

- Logs and collects data on user selected intervals

- Non-volatile memory stores data until the next scheduled upload or

manual download

• Compatible with VerifEye BMO 2.0 online software,* allowing users to

quickly access energy consumption information from a web-based platform

• Tracks real-time energy usage for demand response programs

• Meter data can be transferred to energy dashboards, kiosks and software

applications

• Up to 32 ModBus meters can be added downstream

• Supports BACnet IP and other protocols on one device

• Seamlessly integrates with BMS and BAS systems

• Monitors performance of critical systems such as lighting and HVAC

• Set alarms notifications for targeted levels and view graphical and

historical data

LCD TOUCH SCREEN FEATURES

• Similar SmartPhone layout

• System set up from touch screen

• View live data from the EMH+ and other associated meters

EMH+ INTEGRATED METER & ENERGY MONITORING HUB*

AMPS CTS INCLUDED CAT. NO.

100A

3 Split CTs

A8814-1S3

200A A8814-2S3

300A A8814-3S3

400A A8814-4S3

600A A8814-6S3

800A A8814-8S3

1600A A8814-163

3000A A8814-303

5000A A8814-503

EMH+ All-in-One Meter and Hub*

*VerifEye BMO 2.0 software is included at no cost

with the purchase of VerifEye EMH+ All-In-One

Meter and Hub

18

VerifEye™ Smart Submetering Solutions

*Consult factory for availability.

System Accuracy: ±1% of reading from 10% to 100% of the rated current of the CTs,

accomplished by matching the CTs with electronics and calibrating them as a system.

CURRENT TRANSFORMERS

The better the equipment, the better the measurement. Leviton meters utilize highly accurate current transformers for

revenue-grade performance certified to ANSI standards. Competing products use current sensors that do not provide the same

level of performance. Leviton Meter Kits include Split Core, Rogowski, or Solid Core Current Transformers (CTs) for high-quality,

long-term accuracy and reliability. For added safety, all Leviton current transformers come with built-in voltage suppression

devices that prevent hazardous voltages from developing on CT secondaries should they become disconnected from a meter

with load current present.

Compact and cost-eective solid core CTs slip over power lines to measure the electrical current flowing through the line.

For solid core CT installation, power must be de-energized and the circuit opened, in order to slip the CT over the power line.

Solid Core Current Transformers

100A, 200A, 400A available

Split Core Current Transformers

100A-800A available

Split Core Current Transformers

100A-5,000A available

Rogowski Coil Current Transformer

20A-5,000A available

SOLID CORE—FOR USE WITH SERIES 8000 METERS,

MINI METERS AND MMUS ONLY

AMP DESCRIPTION CAT. NO.

100:0.1A

Solid Core, 0.67”, Black CDE01-K11

Solid Core, 0.67”, Blue CDE01-L11

Solid Core, 0.67”, Red CDE01-R11

Solid Core, 0.72”, Black CDA01-K12

Solid Core, 0.72”, Blue CDA01-L12

Solid Core, 0.72”, Red CDA01-R12

200:0.1A

Solid Core, 0.67”, Black CDE02-K11

Solid Core, 0.67”, Blue CDE02-L11

Solid Core, 0.67”, Red CDE02-R11

Solid Core, 0.72”, Black CDA02-K12

Solid Core, 0.72”, Blue CDA02-L12

Solid Core, 0.72”, Red CDA02-R12

400:0.1A Solid Core, 1.5”, Black CDF04-K24

SPLIT CORE—FOR USE WITH SERIES 1000, 2000,

3500, 8000 METERS AND SERIES 2000 (MMUS) ONLY

AMP DESCRIPTION CAT. NO.

100:0.1A Split Core, .75” x .75” CTD01-K16

200:0.1A Split Core, 1” x 1” CTD02-K16

400:0.1A Split Core, 1.5”, x 1.5” CTD04-K23

800:0.1A Split Core, 3” x 3.5” CTC08-K46

1200:0.1A Split Core, 4” x 6” CTC12-K46

1600:0.1A Split Core, 4” x 6” CTC16-K96

3000:0.1A Split Core, 5” x 7” CTC30-57B**

5000:0.1A Split Core, 5” x 7” CTC50-57B**

SPLIT CORE—FOR USE WITH SERIES 4000 INDUSTRIAL

MODBUS METER KITS ONLY

AMP DESCRIPTION CAT. NO.

100:0.333V Split Core, 1.6” x 2.1” CTV01-K21

200:0.333V Split Core, 2.2” x 2.8” CTV02-K21

400:0.333V Split Core, 6” x 5.2” CTV04-K40

800:0.333V Split Core, 6” x 5.2” CTV08-K40

ROGOWSKI COIL—FOR USE WITH SERIES 4000

INDUSTRIAL MODBUS METER KITS ONLY

AMP DESCRIPTION CAT. NO.

20-5000A

Rogowski Coil, 12” CRV50-K62

Rogowski Coil, 18” CRV50-K93

Rogowski Coil, 24” CRV50-KC2

www.leviton.com/les 19

VerifEye™ Smart Submetering Solutions

Specifications

Data Acquisition Hubs Input/Output Module Wired ModBus/

Pulse Transceiver

Energy

Monitoring

Hub (EMH)*

EMB

Hub*

EMB

HubLite*

High

Density Pulse

Module*

Flex I/O

Module* ModHopper*

A8812 A8810 A7810 A8911 A8332 R9120

Protocols

ModBus RTU

ModBus TCP

TCP/IP

PPP

HTTP/HTML

FTP

NTP

XML

SNMP-Trap

BACnet IP

ModBus TCP

TCP/IP

PPP

HTTP/HTML

FTP

NTP

XML

SNMP-Trap

BACnet IP

ModBus RTU

Applications

Use with an Ethernet (LAN) connection to push-or-pull data via

HTTP, XML, FTP, or any custom protocol

Connect to web-based (IP-based) software dashboards, energy

information management systems and demand response

systems

Use with EMH to take advantage of

plug-in communication

Use with ModHopper for wireless

communication

Push-or-pull meter data to

VerifEye kiosks

and software

applications

Designed specifically

for wireless

submetering

Collect meter

data

from multiple

buildings

over long

distances

“Self-managed”

mesh network

keeps system

functioning with

high reliability

VERIFEYE COMMUNICATION PRODUCTS

Energy Monitoring EMB Hub EMB HubLite High Density Flex I/O Module ModHopper

Hub (EMH) Pulse Module

HOW TO SELECT THE APPROPRIATE DATA ACQUISITION HUB

ModBus

TCP

ModBus

RTU

4 Pulse

Inputs

Onboard

8 Flex

Inputs

On Board*

Configured

for Leviton

Energy

Manager

Requires

Separately Ordered

Power Supply

A8812-001 EMH X X - X X -

A8812-000 EMH

(non-configured) X X - X - -

A8810-000 EMB Hub X X - - - X

A7810-000 EMB HubLite X - X - - X

* Pulse, analog, status and resistive.

*VerifEye BMO 2.0 is free with purchase of a VerifEye Hub.

20

VerifEye™ Smart Submetering Solutions

METERING COMMUNICATIONS SYSTEMS

To create a data network between Leviton submeters and stakeholders

(BAS, third party billing, Leviton Energy Manager software, etc.), Leviton oers

Metering Communication Systems. These solutions transmit data from meters

to end systems, creating a seamless transition between data collection and

data display. Leviton Metering Communications Systems also enable facilities

to create metering systems that can easily share data through open protocols

such as ModBus, and IP-based data transfer through HTTP/FTP of .csv or XML

files. The results are robust and reliable networks scalable to accommodate

future expansion, with data made accessible from any internal or external

location.

DATA ACQUISITION HUBS

ENERGY MONITORING HUBS*

Data Acquisition Hubs, including the Energy Monitoring Hub (EMH), EMB and

EMB HubLite are intelligent, flexible data acquisition servers allowing users to

collect energy data from meters and environmental sensors. As an additional

advantage, VerifEye BMO 2.0 online software is included at no cost with

purchase of any VerifEye Data Acquisition Hub. Designed to connect to IP-based

applications such as enterprise energy management, demand response and

smart grid programs, Hub servers allow you to connect thousands of energy

points, benchmark energy usage and reduce energy costs.

• Collects and logs data from connected wired or wireless devices based on

user-set intervals

• Pushes or pulls data via HTTP, XML, FTP or any custom protocol using an

Ethernet (LAN) connection

•

No software required—information can be accessed through any web browser

in any location

• Plug and play connectivity

• Compatible with nearly any front-end software platform allowing customers

to use a variety of reporting tools

• Push or pull meter data to energy dashboards, kiosks and software

applications

• Monitor performance of critical systems (lighting, HVAC, PDUs, inverters, etc.)

Energy Monitoring Hub*

DATA ACQUISITION HUBS*

DESCRIPTION CAT. NO.

Energy Monitoring Hub—Configured for Leviton Energy Manager A8812-001

Energy Monitoring Hub—Non-Configured A8812-000

EMB Hub A8810-000

EMB HubLite A7810-000

Power Supply for EMB Hub and EMB HubLite YBM05-010

Replacement power supply YBM07-001

EMB Hub*

EMB HubLite*

Refer to page 17 for the EMH+ Integrated Meter and Energy Monitoring Hub

*VerifEye BMO 2.0 is included at no cost with the

purchase of any VerifEye Data Acquisition Hub.

www.leviton.com/les 21

VerifEye™ Smart Submetering Solutions

High Density Pulse Module

INPUT/OUTPUT MODULES

HIGH DENSITY PULSE MODULE

The High Density Pulse Module provides a convenient way to expand a VerifEye metering system by connecting the HD Pulse

Module to an Energy Monitoring Hub (EMH) and/or ModHopper for system expansion. The HD Pulse Module accepts up to 23

standard pulse sensors and can function as a slave device with any ModBus master. This data can easily be integrated to a

network of other critical energy sensors to provide a comprehensive energy monitoring solution. The HD Pulse Module is ideal

for applications with a high density of pulse output devices, giving users access to meters that would previously require

multiple modules.

• External communications handled via shielded twisted pair 18-22 gauge wire

allowing communication up to 4,000 ft and pulse input communications up to

200 ft using 18-24 gauge control wire

• DIN or wall mounting make installations quick and easy

• Device verification—LED indicators for each pulse input allow for fast indication

and verification of pulses to reduce installation and troubleshooting time

• Non-volatile memory retains configuration and pulse count totals during power

failures for reliable data collection and retention

• Easily add pulse meters to ModBus network for a scalable, open protocol solution

• Field upgradable firmware for user-friendly future upgrades and expansion

FLEX I/O MODULE

The Flex I/O Module is a cost-eective way to collect data from meters or sensors

and bring the information into a ModBus network or energy monitoring system.

As a stand-alone or bundled package, the Flex I/O Module can be incorporated with

data acquisition and metering devices to provide a cost-eective energy monitoring

solution. The Flex I/O Module is compatible with virtually any ModBus master,

allowing customers the flexibility to use it in existing ModBus networks. Use with

the VerifEye Energy Monitoring Hub (EMH).

• Easily add meters and sensors to the ModBus network

• 8x user selectable inputs

• 2X output relays for manual controls or pulse replication

• Non-volatile memory

• Industrial temperature range of -22-158°F (-30-70°C)

• LEDs for visual verification/status reduce installation and troubleshooting time

• Din or wall mount for easy installation

• Field upgradable firmware for user-friendly future upgrades and expansion

Flex I/O Module

INPUT/OUTPUT MODULES

DESCRIPTION CAT. NO.

High Density Pulse Module, 23 Inputs A8911-000

Flex I/O Module, 8 User Selectable Inputs, 2 Relay Outputs A8332-000

22

VerifEye™ Smart Submetering Solutions

ModHopper

WIRELESS MODBUS/PULSE TRANSCEIVER

DESCRIPTION CAT. NO.

ModHopper and Power Supply R9120-500

WIRELESS MODBUS/PULSE TRANSCEIVER

MODHOPPER

The ModHopper is designed with breakthrough mesh technology that makes connecting ModBus RTU (RS-485) and pulse

devices simple and cost eective. VerifEye BMO 2.0 is included at no cost with the purchase of any VerifEye Data Acquisition

Hub as an additional advantage. Our “smart” ModHopper transceivers eliminate the need for costly wiring runs allowing users to

wirelessly capture meter data in the most challenging retrofit and campus environments. Collect meter points in existing

buildings with minimum down-time or disruption of day-to-day operations.

• Designed specifically for wireless metering and VerifEye submetering

solutions for guaranteed compatibility

• No software or programming required and devices automatically

configure when powered, reducing labor costs and installation time

• Wireless “mesh” network—self-healing, self-optimizing for ease of

installation and maintenance

• Connect up to 32 ModBus and 2 pulse devices per ModHopper for the

ultimate expandable solution

• Long distance communication (3,000 ft indoor/14 miles LOS Outdoors)

for flexibility of placement and easier future expansion

• Multiple independent network capability

• Reliable, constant two-way communication and packet verification

• Point to multi-point communication

• Field upgradable firmware for user-friendly future upgrades and expansion

NEMA COMMUNICATION BUNDLES

NEMA Communication Bundles combine VerifEye’s Data Acquisition Products into one enclosure for a VerifEye-exclusive,

all-in-one-bundled communication solution for indoor use. All VerifEye NEMA communication bundles have one part number

and are factory pre-assembled for ease of ordering eliminating the need for field assembly.

ORDERING INFORMATION

DESCRIPTION CAT. NO.

Energy Monitoring EMB Hub with Line Voltage Power Supply, NEMA 4X Enclosure A8810-PS1

Energy Monitoring EMB HubLite with Line Voltage Power Supply, NEMA 4X Enclosure A7810-PS1

HD Pulse Module with Line Voltage Power Supply, NEMA 4X Enclosure A8911-PS1

Flex I/O Module with Line Voltage Power Supply, NEMA 4X Enclosure A8332-PS1

VerifEye BMO 2.0 is included at no cost with the

purchase of any VerifEye Data Acquisition Hub.

www.leviton.com/les 23

VerifEye™ Smart Submetering Solutions

Specifications

Tenant Billing Software Measurement & Verification (M&V) Software

BillSuite Building Manager

Online 2.0 (BMO 2.0)* Energy Manager

LBSSW BMOSW LEMS8

Primary

Functions

Automates the tenant billing process by

eliminating manual meter readings

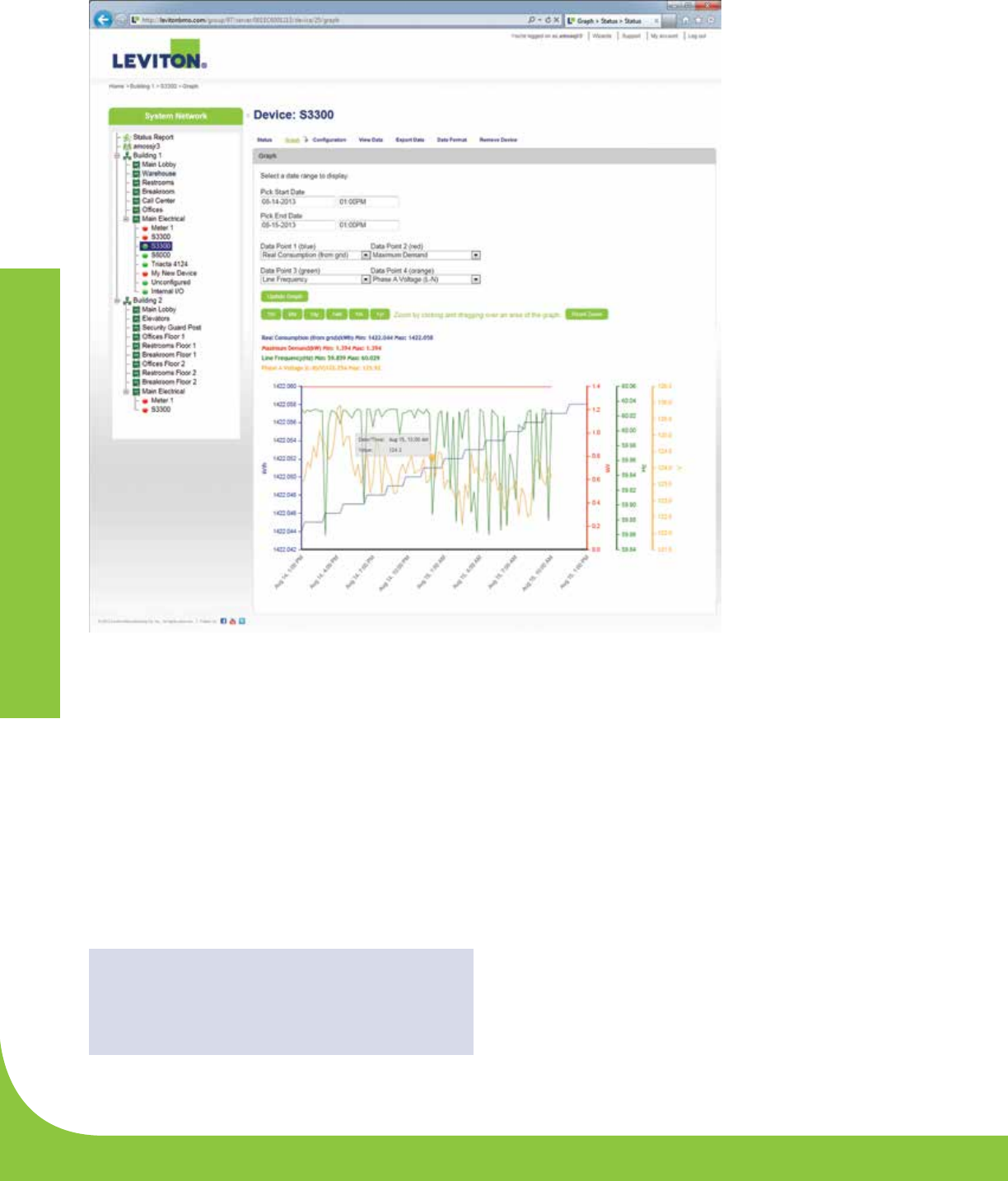

Allows users to quickly access energy

consumption information via a web-based

platform

Plot charts and view data quickly without

any custom software installed on a PC—

simply log on to the BMO website

Analyzes, formats and reports data

gathered from VerifEye Submetering

Solutions

Users log in to Energy Manager website

and access data and reports in real-time

Key Features

Monitor energy consumption of each

tenant or whole building on a 24/7 basis

Meters can be in a basement, wire

closet or individual unit

Generate bills from any PC—

requires Windows 7 or better

Monthly and periodic billing reports for

any or all VerifEye submeters

Energy profile to identify peak demand

and energy waste

Delivers simple graphical interface

for

plotting energy information and identifying

anomalies and peak demand in

near real

time

Uploads 15 min interval data and displays

raw data in a line graph

Illustrates information in real time

Includes an automatic reporting system

and an instant alarm notification system

Produces customized reports to suit

precise requirements

Collects information from 1 to 60 min

intervals for in-depth tracking

Reporting based on 15 min intervals

Key Benefits

Generate monthly electricity bills for

each tenant, which reflect actual energy

usage

Improve cash flow and increase net

operating income

Eliminate uncertainty of variable utility

costs

Delegate energy usage accountability

to tenants

Improve tenant satisfaction, retention

and property values

Identify and fix energy waste, reducing

overall costs

Investigate potential building problems

and alarms easily

Select date ranges to display

information in intervals from one year

to as little as an hour

Export your 15 min interval data to .csv

files

Configure VerifEye HUB communication

products remotely

Add or change the data recording

interval, alarm thresholds, even the device

name

Graph up to 4 dierent parameters for

trending patterns

Identify cost saving measures that

can

lead to greater profitability

Discover energy ineciencies that may

be dicult to see

Establish baselines, budgets and

allocation of energy use and cost within

an enterprise to track and analyze goals

and performance

Develop responsible environmental

goals

and conservation measures while

measuring and managing facility’s

carbon footprint

Provide outstanding communication

and support, enabling facilities to have

the most advanced and intuitive energy

management reporting in the industry

VERIFEYE SOFTWARE PRODUCTS

BillSuite Building Manager Online (BMO) 2.0 Energy Manager

*VerifEye BMO 2.0 is included at no cost with the purchase of any VerifEye Data Acquisition Hub.

24

VerifEye™ Smart Submetering Solutions

VERIFEYE SOFTWARE

SAVE ENERGY, REDUCE COSTS, BE SUSTAINABLE

VerifEye software solutions provide simple, eective, turn-key solutions to monitor energy in real time. Designed to seamlessly

integrate with VerifEye submetering hardware and communication systems, VerifEye software allows facilities to introduce

smarter energy management strategies, saving money and resources.

VERIFEYE SOFTWARE INCLUDES:

• Tenant Billing

- BillSuite—provides individual tenant billing capabilities to ensure accurate and complete recovery of tenant energy costs

• Measurement & Verification (M&V)

- Building Manager Online (BMO 2.0)—web-based interval data collection software platform

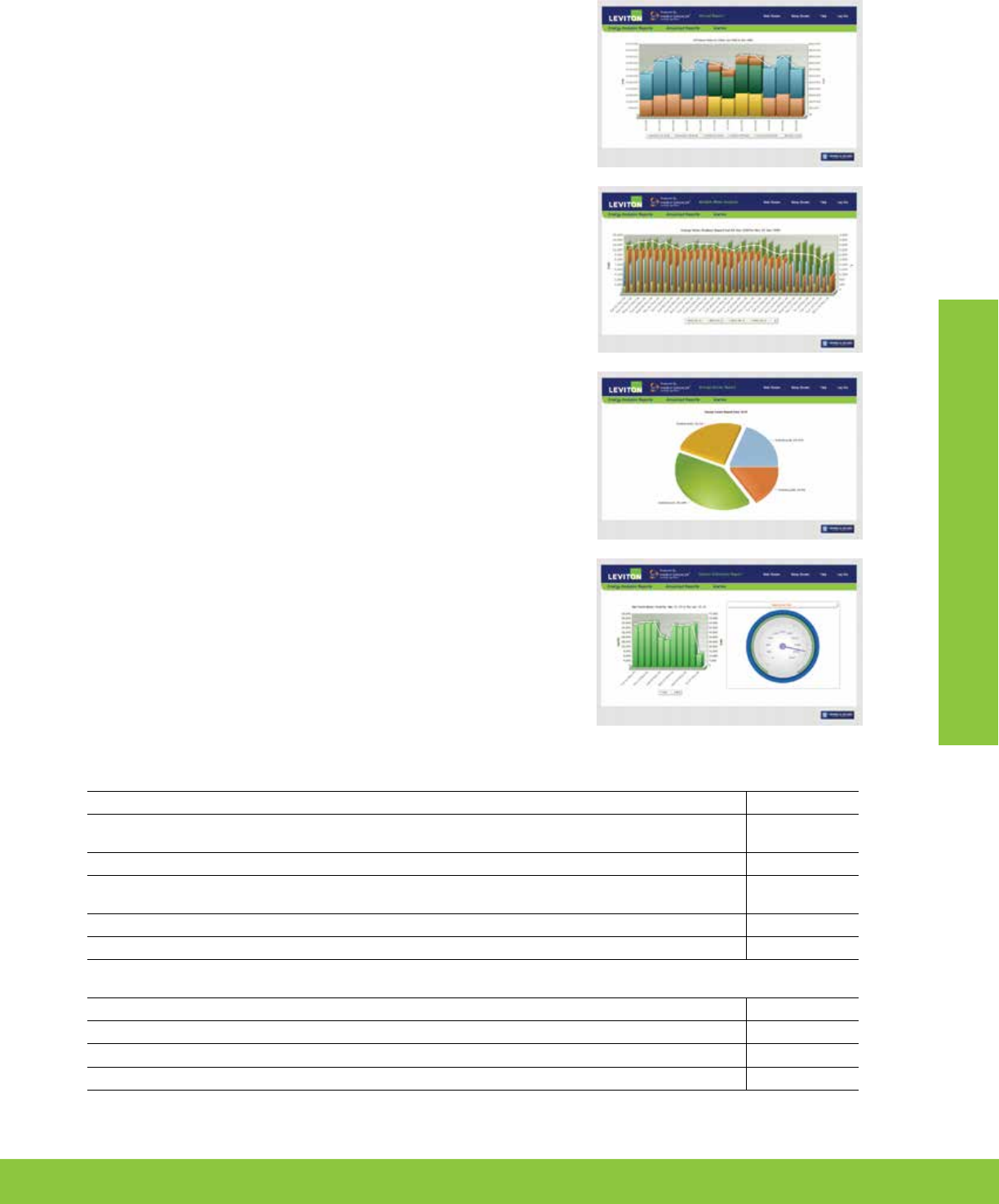

- Energy Manager—energy monitoring platform which interprets submeter data and exports real-time

reports in selected

time increments, stretching from hour-by-hour to year-by-year

TENANT BILLING SOFTWARE

MEASURE. MONITOR. MANAGE. BILL.

Generate billing based on actual tenant consumption. BillSuite is a PC based software program that provides individual tenant

billing capabilities to ensure accurate and complete recovery of tenant energy costs. This software solution automates the

tenant billing process by eliminating manual meter readings for simplified, more accurate measure ment and verification.

BillSuite collects energy consumption data from all meters on a periodic basis and generates energy bills, billing reports, energy

profiles as well as graphs. Other submeters such as gas, water, BTU, etc. can be added to the tenant bill.

HOW VERIFEYE BILLSUITE TENANT BILLING SOFTWARE WORKS

SIMPLE, EFFECTIVE, TURN KEY SOLUTION TO MONITOR & BILL ENERGY USAGE

•Meters record real-time kWh and kW consumption data

•Energy Monitoring Hub (EMH) receives meter data and pushes it to BillSuite

•BillSuite collects data, generates individual tenant bills using customizable utility rates, and provides graphing and trending

capabilities

•User logs into BillSuite and accesses billings and reports

*VerifEye BMO 2.0 is included at no cost with the purchase of any VerifEye Data Acquisition Hub.

Leviton

Submeters

Energy

Monitoring

Hub (EMH)*

BillSuite

(Data collection, monitoring,

billing & reporting)

www.leviton.com/les 25

VerifEye™ Smart Submetering Solutions

BILLSUITE SOFTWARE

DESCRIPTION CAT. NO.

BillSuite Software 1 - 50 Meters LBSSW-01L

BillSuite Software 51 - 100 Meters LBSSW-02L

BillSuite Software 101 - 200 Meters LBSSW-03L

BillSuite Software 201 - 300 Meters LBSSW-04L

BillSuite Software 301 - 400 Meters LBSSW-05L

BillSuite Software 401 - 550 Meters LBSSW-06L

BillSuite Software 551 - 750 Meters LBSSW-07L

BillSuite Software 751 - 1000 Meters LBSSW-08L

15 min Interval Data

Tenant Energy Bill

Energy

Monitoring

Hub (EMH)*

Leviton

Submeters

Leviton

Energy Manager

Data Center

User Interface

BMO 2.0 or

Energy Manager

Software

MEASUREMENT & VERIFICATION (M&V) SOFTWARE

Energy monitoring and reporting is the key to measuring and managing energy eciency and cost.

Decision-makers everywhere are turning to VerifEye Solutions to get the information they need to make smart energy choices.

An advanced web based platform that provides real time data for your entire enterprise, VerifEye BMO 2.0 and Energy Manager

deliver the most sophisticated tools to drive energy eciencies, reduce operating costs and create more sustainable,

environmentally sound facilities.

HOW VERIFEYE MEASUREMENT & VERIFICATION (M&V) SOFTWARE WORKS

SIMPLE, EFFECTIVE, TURN KEY SOLUTION TO MONITOR ENERGY IN REAL TIME

•Meters record real time consumption data

•Energy Monitoring Hub (EMH) receives meter data and pushes it to Energy Manager data center

•Data Center stores, manages and reports data in real time

•Energy Manager software analyzes, formats and reports the data

•User logs into Energy Manager website and accesses data and reports

*VerifEye BMO 2.0 is included at no cost with the purchase of any VerifEye Data Acquisition Hub.

VERIFEYE BILLSUITE FEATURES

• Monitor energy consumption of each tenant or whole building

on a 24x7 basis

• Meters can be in a basement, wire closet or individual unit

• Billing of each tenant from the convenience of your PC

• Monthly and periodic billing reports for any or all meters

• Energy profile to identify peak demand and energy waste

26

VerifEye™ Smart Submetering Solutions

VERIFEYE BUILDING MANAGER ONLINE (BMO 2.0)

• Leviton hosted software application—no software installation required

• Set alarms and view graphical and historical data in intervals ranging from one hour to one year

• Provides a daily view summary of load profiles to help identify high and low consumption days and visual daily trending patterns

• Shows the eects of energy conservation measures by tracking load profiles over a given time period

• Quickly view any building or end-user for a summary of operating parameters

• Export data to spreadsheets for analysis (.csv files)

• Plot charts to show trends and provide analytical charts with demand profiling

• Select date ranges to display information

• Copy and paste graphs into your own reports with BMO’s convenient legends

VerifEye BMO 2.0 is included at no cost with

purchase of any VerifEye Data Acquisition Hub.

www.leviton.com/les 27

VerifEye™ Smart Submetering Solutions

ENERGY MANAGER SOFTWARE

• Simplified, easy to use with intuitive drilldown functionality

• Identify cost saving measures that can lead to greater profitability

• Discover energy inefficiencies that may be difficult to see

• Establish baselines, budgets and allocation of energy use & costs

within an enterprise

• Measure and monitor the enterprise’s carbon footprint

• Enhance LEED certification ratings with credits for measuring,

monitoring and verification

• Adopt best business practices for efficient energy use

• Track and trend consumption and site performance

versus goals

• Highlight maintenance issues - identify sites and equipment that

need immediate attention

• Trend, compare and validate utility bills

• Provide outstanding communication and support enabling your

operations and management personnel

to have the most advanced,

intuitive energy management reporting at their fingertips in just 3

clicks!

- Real-time Report - Daily Report

- Weekly Report - Weekly Profile Report

- Monthly Report - Monthly Profile Report

- Annual Report - Comparison Report

- Carbon Emissions Report - Energy Center Report

ENERGY MANAGER SOFTWARE

YEAR ONE

Energy Manager Software - Base License Program - includes (8) control points and (1) user account LEMSB-000

Energy Manager Software - Base License Program - includes EMH (ModBus/RS-485, Ethernet, No Modem),

(8) Flex Inputs, (8) control points and (1) user account

LEMS8-812

Energy Manager Software - Specifier Version - includes (8) control points and (1) user account LEMSS-000

Energy Manager Software - Specifier Version - includes EMH (ModBus/RS-485, Ethernet, No Modem),

(8) Flex Inputs, (8) control points and (1) user account

LEMS9-812

Energy Manager Software - Additional User Account LEMSU-000

Energy Manager Software - Additional Points License - includes (8) control points LEMSP-000

ANNUAL RENEWAL

Energy Manager Software - Base License Program Renewal – includes (8) control points and (1) user account LEMSB-R00

Energy Manager Software – Specifier Version Renewal – includes (8) control points and (1) user account LEMSS-R00

Energy Manager Software – Additional User Account Renewal LEMSU-R00

Energy Manager Software - Additional Points License Renewal – includes (8) control points LEMSP-R00

Annual Report

Multiple Meter Analysis Report

Energy Center Report

Carbon Emissions Report

Leviton Manufacturing Co., Inc. Global Headquarters

201 N. Service Rd. Melville, NY 11747-3138 tech line 1-800-824-3005 fax 1-800-832-9538

Leviton Manufacturing Co., Inc. Lighting & Energy Solutions

20497 SW Teton Avenue, Tualatin, OR 97062 tel 1-800-736-6682 fax 503-404-5594

tech line (6:00AM-4:00PM P.S.T. Monday-Friday): 1-800-959-6004

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9 tel 1-800-469-7890 fax 1-800-563-1853

Leviton S. de R.L. de C.V.

Lago Tana 43, Mexico DF, Mexico CP 11290 tel (+52) 55-5082-1040 www.leviton.com.mx

Visit our Website at www.leviton.com/les

© 2015 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

G-8505G/H15-ak

REV AUG 2015

©2015 Leviton Manufacturing Co., Inc. All rights reserved. Subject to change without notice.

‘USGBC’ and related logo is a trademark owned by the U.S. Green Building Council and is used by permission

The American Recovery And Reinvestment Act of 2009 (“ARRA”) provides federal grants and loans for projects throughout the country. Section 1605 of the Act, named the “Buy American” provision, requires

that certain materials and manufactured products used in projects funded by the Act be manufactured in the United States. The appearance of the Recovery Act Logo in relation to a Leviton product is only

intended to reflect that such product may be used in an ARRA funded project. It does not mean that such product or Leviton is sponsored or endorsed by, or that Leviton receives funds from, the federal

government or the Recovery Accountability and Transparency Board. Nothing in Leviton’s use of the logo is intended to suggest anything regarding the requirements for funding under ARRA.

Visit our Website at: www.leviton.com/les

facebook.com/leviton twitter.com/leviton youtube.com/levitonmfg
