Product range catalog for variable speed starters, variable frequency drives, soft starters, Rapid Link
Product Range Catalog
Efficient Engineering for
Starting and Controlling Motors
At Eaton, we’re energized by the challenge of powering a world
that demands more. With over 100 years experience in electrical
power management, we have the expertise to see beyond today.
From groundbreaking products to turnkey design and engineering
services, critical industries around the globe count on Eaton.
We power businesses with reliable, efficient and safe electrical
power management solutions. Combined with our personal
service, support and bold thinking, we are answering tomorrow’s
needs today. Follow the charge with Eaton.
Visit eaton.com/electrical.
CA04020001Z-DE-INT_Umschlag.indd 4-6CA04020001Z-DE-INT_Umschlag.indd 4-6 22.05.15 11:0722.05.15 11:07
You can find comprehensive up-to-date product information at http://ecat.moeller.net
Lookup
You can search by keywords, product names, article numbers,
technical data: The search understands everything and takes
you straight to the product you’re looking for.
Graphical navigation
Graphical representation of the fields of application and
product groups.
Selection aids
Tailored to the typical expert’s approach, this search aid helps
you quickly find the product you need.
Data sheets
For every article the catalog can generate a technical data
sheet, which you can convert to a PDF file for printing or
saving with a single click.
Parts lists
From your search results you can create a parts list that you
can then send to your Eaton sales partner as a query.
You can find comprehensive up-to-date
information about Eaton’s automation
products and switchgear in our Online
Catalog.

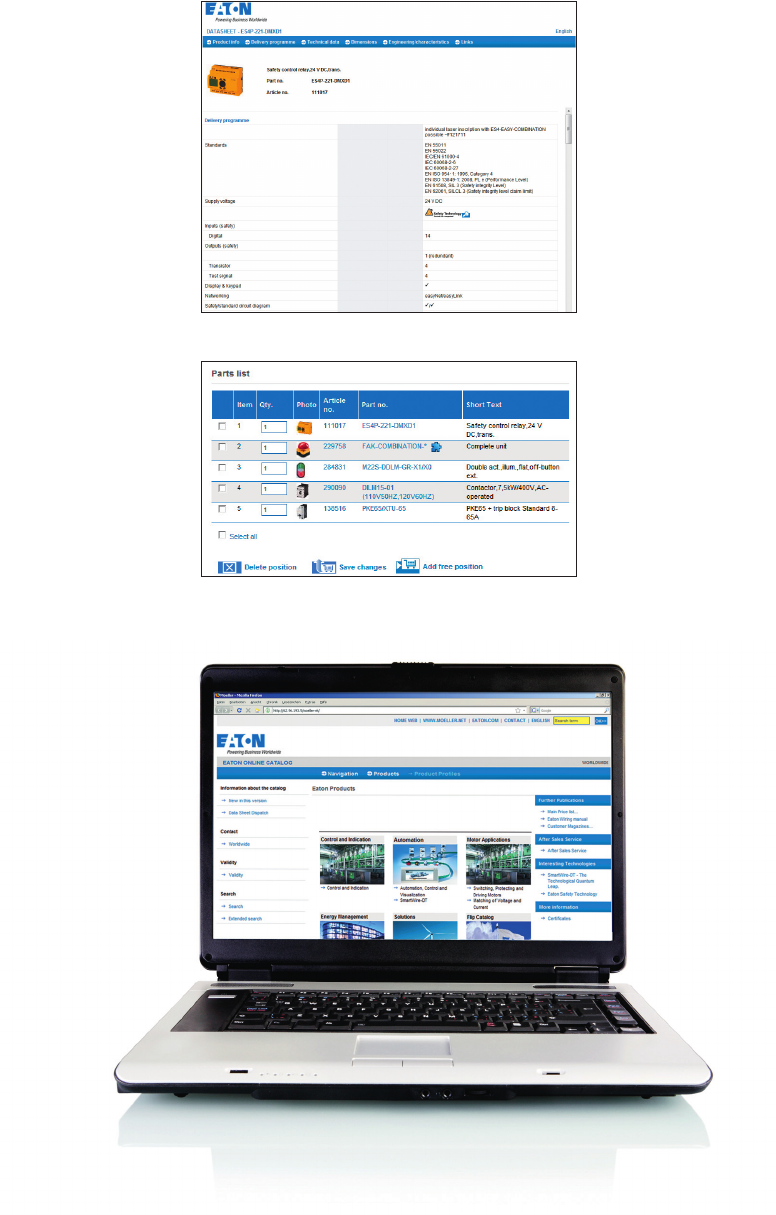

Eaton Online Catalog – find product
details quickly and efficiently!
HTML data sheet; can be saved as PDF file.
Parts list, e.g. for queries to Eaton Sales.
E
at
o
n.c
o
m
E
aton has been serving the power management needs of
our customers for more than a century. Over the years,
w
e have expanded our expertise and portfolio of products
a
nd services by uniting some of the world’s most respected
names with Eaton’s strong heritage o
f
innovation.
Our goal is simple; to provide unique solutions across a
w
ide range of markets that keep businesses on the leading
edge of change. That’s the power of One Eaton
.
CA04020001Z-DE-INT_Umschlag.indd 7-9CA04020001Z-DE-INT_Umschlag.indd 7-9 22.05.15 11:0722.05.15 11:07
DE1DC1DA1DG1SVX/SPXS801+/S811+SmartWire-DT Accessories and
Engineering
DS7Rapid LinkAppendix
CA04020001Z-EN-INT www.eaton.eu
Contents
Technical overview Page 4
PowerXL™ variable frequency drives
DE1 variable speed starter
Drives Economy (VSS)
Page 6
DC1 variable frequency drive
Drives Compact
Page 14
DA1 variable frequency drives
Drives Advanced
Page 28
DG1 variable frequency drives
Drives General Purpose
Page 42

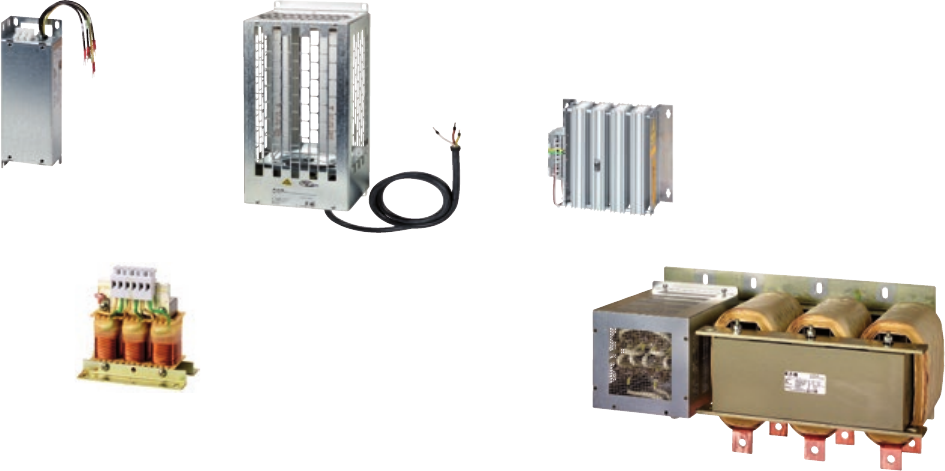

Accessories and Engineering
(reactor, sine filter, braking resistance)
Page 52
Variable frequency drive 9000X
SVX/SPX variable frequency drives
(Standard-/variable frequency drives)
Page 74

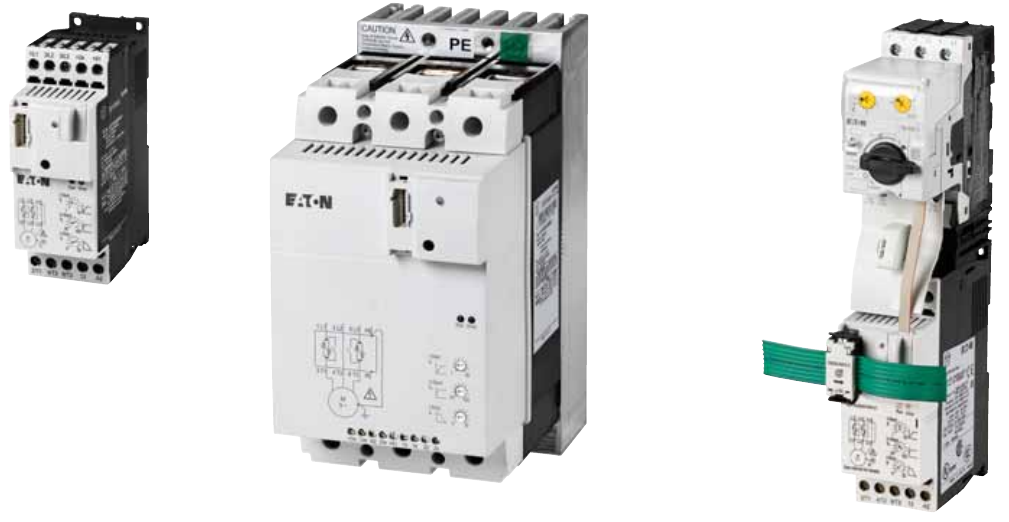

Soft starters
DS7 soft starters
(two-phase controlled)
Page 96
Soft starter S801+/S811+
(three-phase controlled)
Page 116

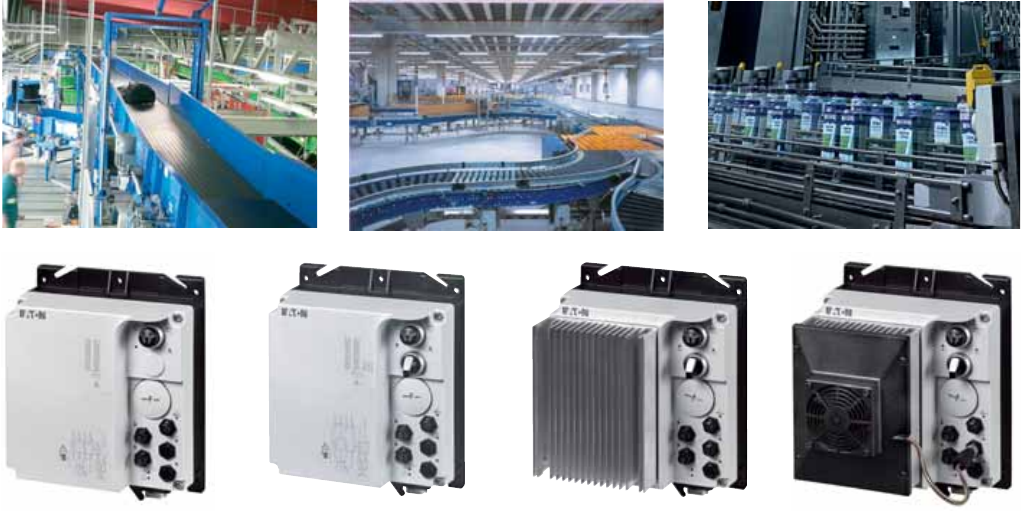

Rapid Link
Rapid Link 4.0 distributed, electronic drive
system
Page 126
SmartWire-DT
SWD communication system
(accessories)
Page 144
Appendix
Motor data, motor information
(General Information, service)
Page 150
Energizing a world
that demands more.
Powering business worldwide
As a global power management company, we help
customers worldwide manage the power needed
for buildings, aircraft, trucks, cars, machinery
and businesses.
Eaton’s innovative technologies help customers manage
electrical, hydraulic and mechanical power more reliably,
effi ciently, safely and sustainably.
Discover today’s Eaton.
Eaton’s electrical business
Eaton is a global leader with expertise in:
• Power distribution and circuit protection
• Backup power protection
• Solutions for harsh and hazardous environments
• Lighting and security
• Structural solutions and wiring devices
• Control and automation
• Engineering services
Eaton is positioned through its global solutions to answer
today’s most critical electrical power management challenges.
With 100 years of electrical experience behind us, we’re
energized by the challenge of powering up a world that
demands twice as much energy as today. We’re anticipating
needs, engineering products and creating solutions to energize
our markets today and in the future.
We are dedicated to ensuring that reliable, efficient and safe
power is available when it’s needed most.
Eaton.com
We provide integrated
solutions that help make
energy, in all its forms,
more practical and
accessible.
With 2014 sales of
$22.6 billion, Eaton
has approximately
100,000 employees
around the world and
sells products in more
than 175 countries.
We deliver:
• Electrical solutions that use less energy, improve power reliability
and make the places we live and work safer and more comfortable
• Hydraulic and electrical solutions that enable machines
to deliver more productivity without wasting power
• Aerospace solutions that make aircraft lighter, safer and less
costly to operate, and help airports operate more efficiently
• Vehicle drivetrain and powertrain solutions that deliver
more power to cars, trucks and buses, while reducing fuel consumption
and emissions
Catalog_Insert_A4_Spread_English.indd All Pages 2/9/15 10:36 AM
Energizing a world
that demands more.
Powering business worldwide
As a global power management company, we help
customers worldwide manage the power needed
for buildings, aircraft, trucks, cars, machinery
and businesses.
Eaton’s innovative technologies help customers manage
electrical, hydraulic and mechanical power more reliably,
effi ciently, safely and sustainably.
Discover today’s Eaton.
Eaton’s electrical business
Eaton is a global leader with expertise in:
• Power distribution and circuit protection
• Backup power protection
• Solutions for harsh and hazardous environments
• Lighting and security
• Structural solutions and wiring devices
• Control and automation
• Engineering services
Eaton is positioned through its global solutions to answer
today’s most critical electrical power management challenges.
With 100 years of electrical experience behind us, we’re
energized by the challenge of powering up a world that
demands twice as much energy as today. We’re anticipating
needs, engineering products and creating solutions to energize
our markets today and in the future.
We are dedicated to ensuring that reliable, efficient and safe
power is available when it’s needed most.
Eaton.com
We provide integrated
solutions that help make
energy, in all its forms,
more practical and
accessible.
With 2014 sales of
$22.6 billion, Eaton
has approximately
100,000 employees
around the world and
sells products in more
than 175 countries.
We deliver:
• Electrical solutions that use less energy, improve power reliability
and make the places we live and work safer and more comfortable
• Hydraulic and electrical solutions that enable machines
to deliver more productivity without wasting power
• Aerospace solutions that make aircraft lighter, safer and less
costly to operate, and help airports operate more efficiently
• Vehicle drivetrain and powertrain solutions that deliver
more power to cars, trucks and buses, while reducing fuel consumption
and emissions
Catalog_Insert_A4_Spread_English.indd All Pages 2/9/15 10:36 AM
4 Variable frequency drives
DE1, DC1, DA1, DL1, DG1, SVX, SPX
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
Variable frequency drives
DE1, DC1, DA1, DL1, DG1, SVX, SPX
DE1, DC1, DA1, DL1 , DG1, SVX, SPX

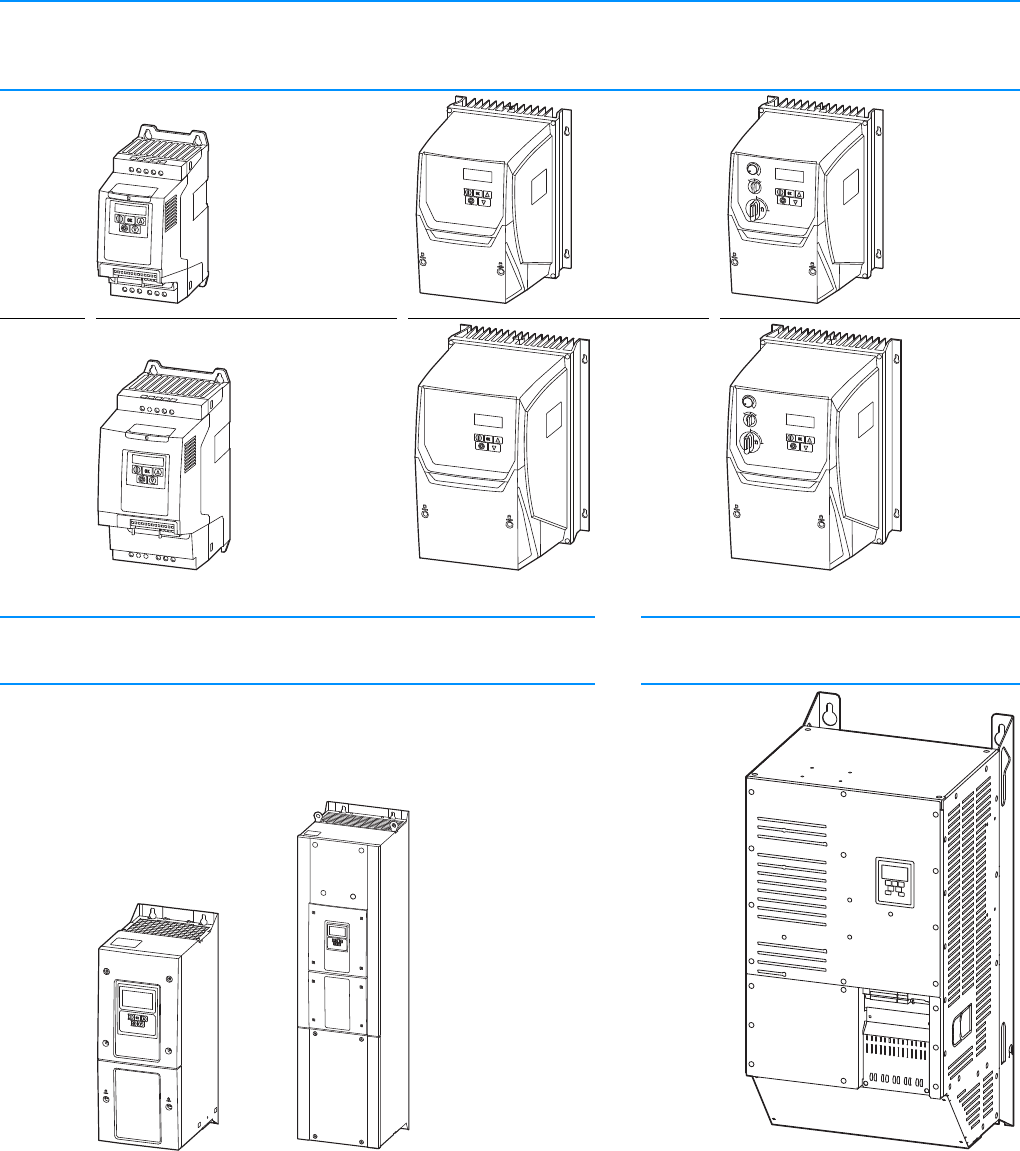

PowerXL 9000X
DE1 DC1 DA1 DL1 DG1 SVX SPX
Mains voltage (50/60Hz)
Ue = 115 V AC, single-phase ULN V - 110 (-10%) - 115 (+10%) - - - - -
Ue = 230 V AC, 1-phase ULN V200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) - - - -
Ue = 230 V AC, 3-phase ULN V - 200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) -208 (-15%) - 240 (+10%) - -
Ue = 400 V AC, 3-phase ULN V380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-15%) - 480 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%)
Ue = 500 V AC, 3-phase ULN V - - 500 (-10%) - 600 (+10%) - - - -
Ue = 690 V AC, 3-phase ULN V - - - - - 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%)
Rated operational current
U2 = 115 V AC, single-phase IeA - 7 - 10.5 - - - - -
U2 = 230 V AC, single-phase IeA - 4.3 - 10.5 - - - - -
U2 = 230 V AC, 3-phase IeA1.3 - 9.6 2.3 - 18 4.3 - 248 -3.7 - 170 - -
U2 = 400 V AC, 3-phase IeA1.3 - 16 2.2 - 24 2.2 - 450 9.5 - 72 2.2 - 170 2.2 - 245 2.2 - 1940
U2 = 500 V AC, 3-phase IeA - - 2.1 - 150 - - - -
U2 = 690 V AC, 3-phase IeA - - - - - 3.2 - 170 3.2 - 1900
Overload current at IL (low overload)/Overload current at IH (High overload) IL/IH%-/150 -/150 -/150 -/150 110/150 110/150 110/150
Overload cycle for 60 s every 600 s
max. starting current (High Overload)
for 2 seconds every 20 seconds % -175 - - 200 - -
for 1.875 seconds every 600 seconds % 200 - - - - - -
for 4 seconds every 40 seconds % - - 200 200 - - -
Operation Mode
U/f control ✓ ✓ ✓ ✓ ✓ ✓ ✓
Speed control with slip compensation ✓ ✓ ✓ ✓ ✓ - -
sensorless vector control (SLV) - - ✓ ✓ ✓ ✓ ✓
optional: Vector control with feedback (CLV) - - ✓✓✓-✓
CT = Constant torque /VT = Variable torque ✓/- ✓/- ✓/✓ ✓/✓ ✓ at IH/✓ at IL✓ at IH/✓ at IL✓ at IH/✓ at IL
Assigned motor rating
at 115 V, 50 Hz P kW -0.37 - 0.55 - - - - -
at 230 V, 50 Hz P kW -0.37 - 1.1 - - - - -
at 230 V, 50 Hz P kW 0.25 - 2.2 0.37 - 4 0.75 - 75 -0.75 - 45 - -
at 400 V, 50 Hz P kW 0.37 - 7.5 0.75 - 11 0.75 - 250 4 - 37 0.75 - 90 0.75 - 132 0.75 - 900
at 500 V, 50 Hz P kW - - 1.1 - 90 - - - -
at 690 V, 50 Hz P kW - - - - - 2.2 - 160 2.2 - 1800
Output Frequency f2Hz 0 - 50/60 (max. 300) 0 - 50/60 (max. 500) 0 - 50/60 (max. 500) 0 - 50/60 (max. 500) 0 - 50/60 (max. 400) 0 - 50/60 (max. 320) 0 - 50/60 (max. 320)
Switching frequency fPWM kHz adjustable 4 - 32 (audible) adjustable 4 - 32 (audible) adjustable 4 - 32 (audible) adjustable 4 - 32 (audible) adjustable 1 - 12 (real) adjustable 1 - 16 (real) adjustable 1 - 16 (real)
Degree of Protection IP20/NEMA 0 IP20/NEMA 0, IP66/NEMA4X IP20/NEMA 0, IP55, IP55/NEMA 3,
IP66/NEMA4X
IP20/NEMA 0, IP55/NEMA 3 IP21, IP54 IP21, IP54 IP00, IP21, IP54
Ambient temperature at IL/IH (operation)
IP00 ϑ°C - - - - - - -10 - +40
IP20/IP21 ϑ°C -10 - +50 (max. +60) -10 - +50 -10 - +50 -10 - +50 -10 - +40/-10 - +50 -10 - +40/-10 - +50 -10 - +40/-10 - +50
IP54/IP55 ϑ°C - - -10 - +40 -10 - +40 -10 - +40/-10 - +50 -10 - +40/-10 - +50 -10 - +40/-10 - +50
IP66 ϑ°C - -10 - +40 -10 - +40 - - - -
Fitted with
Radio interference suppression filter -/✓-/✓ ✓ ✓ ✓ ✓ ✓
Brake chopper --/✓-/✓ ✓ ✓ -/✓-/✓
DC link choke - - ✓ (FS5 - FS7) ✓ (FS 5 - FS7) ✓-/✓-/✓
Additional PCB protection (coated board) - - ✓-/✓ ✓ -/Option -/Option
7-digital display assembly -✓ ✓ ✓ - - -
OLED display - - ✓- - ✓ ✓
Multi-line graphic display - - - - ✓- -
Safety function STO (Safe Torque Off) - - ✓✓✓- -
Interface/field bus (built-in)
OP-Bus (RS485)/Modbus RTU ✓- - - - - -
OP-Bus (RS485)/Modbus RTU, CANopen® -✓ ✓ ✓ - - -
Modbus RTU, Modbus TCP, BACnet MS/TP, Ethernet IP - - - - ✓- -
Fieldbus connection (optional) - - Ethernet IP, DeviceNet, PROFIBUS, PROFINET, Modbus-TCP,
EtherCAT, BACnet/IP
PROFIBUS PROFIBUS-DP, LonWorks, CANopen®, DeviceNet,
Modbus-TCP, BACnet/IP
Connection to SmartWire-DT optional optional optional optional - - -
Analog inputs 1 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA)
Analog outputs - - 1/2 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA) 1 (0/4 - 20 mA) 1 (0/4 - 20 mA)
Digital inputs (24 V) 3/4 3/4 4/5 4/5 8 6 6
Digital outputs (24 V) --/1 1/2 1/2 1 1 1
Relay outputs 1 (N/O) 1 (N/O) 2 (1 x N/O, 1 x changeover contact) 2 (1 x N/O, 1 x changeover contact) 3 (2 x N/O, 1 x changeover contact) 2 (N/O) 2 (N/O)
Standards IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5 IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5
Certifications CE, UL, cUL, c-Tick CE, cUL, UL, c-Tick, Ukr Sepro, EAC CE, cUL, UL, c-Tick, Ukr Sepro, EAC CE, UL, cUL, c-Tick CE, UL, cUL, c-Tick CE, UL, cUL, c-Tick
Approvals - - DNV - - DNV DNV
5
4 Variable frequency drives
DE1, DC1, DA1, DL1, DG1, SVX, SPX
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
Variable frequency drives
DE1, DC1, DA1, DL1, DG1, SVX, SPX
DE1, DC1, DA1, DL1 , DG1, SVX, SPX

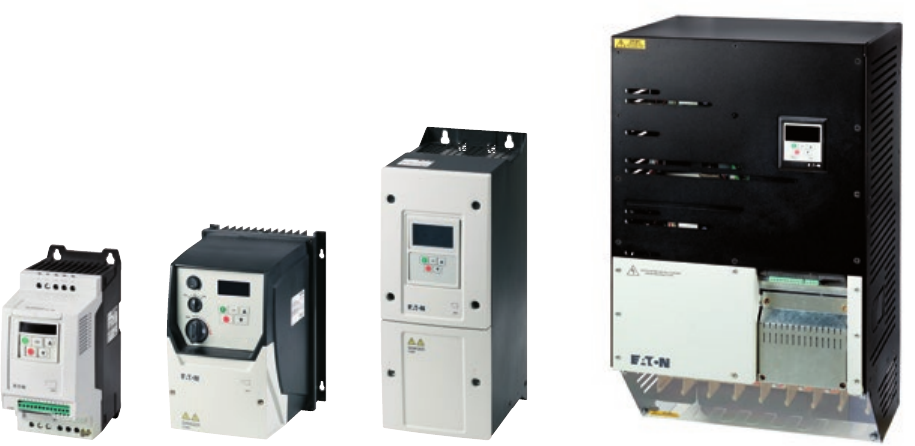

PowerXL 9000X
DE1 DC1 DA1 DL1 DG1 SVX SPX
Mains voltage (50/60Hz)
Ue = 115 V AC, single-phase ULN V - 110 (-10%) - 115 (+10%) - - - - -
Ue = 230 V AC, 1-phase ULN V200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) - - - -
Ue = 230 V AC, 3-phase ULN V - 200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) -208 (-15%) - 240 (+10%) - -
Ue = 400 V AC, 3-phase ULN V380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-15%) - 480 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%)
Ue = 500 V AC, 3-phase ULN V - - 500 (-10%) - 600 (+10%) - - - -
Ue = 690 V AC, 3-phase ULN V - - - - - 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%)
Rated operational current
U2 = 115 V AC, single-phase IeA - 7 - 10.5 - - - - -
U2 = 230 V AC, single-phase IeA - 4.3 - 10.5 - - - - -
U2 = 230 V AC, 3-phase IeA1.3 - 9.6 2.3 - 18 4.3 - 248 -3.7 - 170 - -
U2 = 400 V AC, 3-phase IeA1.3 - 16 2.2 - 24 2.2 - 450 9.5 - 72 2.2 - 170 2.2 - 245 2.2 - 1940
U2 = 500 V AC, 3-phase IeA - - 2.1 - 150 - - - -
U2 = 690 V AC, 3-phase IeA - - - - - 3.2 - 170 3.2 - 1900
Overload current at IL (low overload)/Overload current at IH (High overload) IL/IH%-/150 -/150 -/150 -/150 110/150 110/150 110/150
Overload cycle for 60 s every 600 s
max. starting current (High Overload)
for 2 seconds every 20 seconds % -175 - - 200 - -
for 1.875 seconds every 600 seconds % 200 - - - - - -
for 4 seconds every 40 seconds % - - 200 200 - - -
Operation Mode
U/f control ✓ ✓ ✓ ✓ ✓ ✓ ✓
Speed control with slip compensation ✓ ✓ ✓ ✓ ✓ - -
sensorless vector control (SLV) - - ✓ ✓ ✓ ✓ ✓
optional: Vector control with feedback (CLV) - - ✓✓✓-✓
CT = Constant torque /VT = Variable torque ✓/- ✓/- ✓/✓ ✓/✓ ✓ at IH/✓ at IL✓ at IH/✓ at IL✓ at IH/✓ at IL
Assigned motor rating
at 115 V, 50 Hz P kW -0.37 - 0.55 - - - - -
at 230 V, 50 Hz P kW -0.37 - 1.1 - - - - -
at 230 V, 50 Hz P kW 0.25 - 2.2 0.37 - 4 0.75 - 75 -0.75 - 45 - -
at 400 V, 50 Hz P kW 0.37 - 7.5 0.75 - 11 0.75 - 250 4 - 37 0.75 - 90 0.75 - 132 0.75 - 900
at 500 V, 50 Hz P kW - - 1.1 - 90 - - - -
at 690 V, 50 Hz P kW - - - - - 2.2 - 160 2.2 - 1800
Output Frequency f2Hz 0 - 50/60 (max. 300) 0 - 50/60 (max. 500) 0 - 50/60 (max. 500) 0 - 50/60 (max. 500) 0 - 50/60 (max. 400) 0 - 50/60 (max. 320) 0 - 50/60 (max. 320)
Switching frequency fPWM kHz adjustable 4 - 32 (audible) adjustable 4 - 32 (audible) adjustable 4 - 32 (audible) adjustable 4 - 32 (audible) adjustable 1 - 12 (real) adjustable 1 - 16 (real) adjustable 1 - 16 (real)
Degree of Protection IP20/NEMA 0 IP20/NEMA 0, IP66/NEMA4X IP20/NEMA 0, IP55, IP55/NEMA 3,
IP66/NEMA4X
IP20/NEMA 0, IP55/NEMA 3 IP21, IP54 IP21, IP54 IP00, IP21, IP54
Ambient temperature at IL/IH (operation)
IP00 ϑ°C - - - - - - -10 - +40
IP20/IP21 ϑ°C -10 - +50 (max. +60) -10 - +50 -10 - +50 -10 - +50 -10 - +40/-10 - +50 -10 - +40/-10 - +50 -10 - +40/-10 - +50
IP54/IP55 ϑ°C - - -10 - +40 -10 - +40 -10 - +40/-10 - +50 -10 - +40/-10 - +50 -10 - +40/-10 - +50
IP66 ϑ°C - -10 - +40 -10 - +40 - - - -
Fitted with
Radio interference suppression filter -/✓-/✓ ✓ ✓ ✓ ✓ ✓
Brake chopper --/✓-/✓ ✓ ✓ -/✓-/✓
DC link choke - - ✓ (FS5 - FS7) ✓ (FS 5 - FS7) ✓-/✓-/✓
Additional PCB protection (coated board) - - ✓-/✓ ✓ -/Option -/Option
7-digital display assembly -✓ ✓ ✓ - - -
OLED display - - ✓- - ✓ ✓
Multi-line graphic display - - - - ✓- -
Safety function STO (Safe Torque Off) - - ✓✓✓- -
Interface/field bus (built-in)
OP-Bus (RS485)/Modbus RTU ✓- - - - - -
OP-Bus (RS485)/Modbus RTU, CANopen® -✓ ✓ ✓ - - -
Modbus RTU, Modbus TCP, BACnet MS/TP, Ethernet IP - - - - ✓- -
Fieldbus connection (optional) - - Ethernet IP, DeviceNet, PROFIBUS, PROFINET, Modbus-TCP,
EtherCAT, BACnet/IP
PROFIBUS PROFIBUS-DP, LonWorks, CANopen®, DeviceNet,
Modbus-TCP, BACnet/IP
Connection to SmartWire-DT optional optional optional optional - - -
Analog inputs 1 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA)
Analog outputs - - 1/2 (0 - 10 V, 0/4 - 20 mA) 1/2 (0 - 10 V, 0/4 - 20 mA) 2 (0 - 10 V, 0/4 - 20 mA) 1 (0/4 - 20 mA) 1 (0/4 - 20 mA)
Digital inputs (24 V) 3/4 3/4 4/5 4/5 8 6 6
Digital outputs (24 V) --/1 1/2 1/2 1 1 1
Relay outputs 1 (N/O) 1 (N/O) 2 (1 x N/O, 1 x changeover contact) 2 (1 x N/O, 1 x changeover contact) 3 (2 x N/O, 1 x changeover contact) 2 (N/O) 2 (N/O)
Standards IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5 IEC/EN 61800-2, IEC/EN 61800-3, IEC/EN 61800-5
Certifications CE, UL, cUL, c-Tick CE, cUL, UL, c-Tick, Ukr Sepro, EAC CE, cUL, UL, c-Tick, Ukr Sepro, EAC CE, UL, cUL, c-Tick CE, UL, cUL, c-Tick CE, UL, cUL, c-Tick
Approvals - - DNV - - DNV DNV
5
CA04020001Z-EN-INT www.eaton.eu
The new PowerXL™ DE1 variable speed starter combines ease of use and maximum
reliability with variable motor speeds and improved machine energy efficiency. This
new category of devices is the first to close the gap between conventional motor
starters and variable frequency drives and combine all the advantages in a single unit.
PowerXL™ DE1 Variable Speed Starters
Performance range:
• 0.25 … 2.2 kW (Ue: 1~ 230 V, U2: 3~ 230 V)
• 0.37 … 7.5 kW (Ue: 3~ 400 V, U2: 3~ 400 V)
Features:
Compact: 45-mm width
Out-of-the-box commissioning without
parameterization
• No special drives engineering skills or
knowledge required
• Screwdriver parameterization can be
set with an optional configuration module
(DXE-EXT-SET)
• Trip-free-design ensures maximum machine
availability
• Suitable for use in ambient temperatures of
up to 60 °C
• International standards
(CE, UL, cUL, cTick, RoHS)
Accessories:
• Plug-in configuration module
• SmartWire-DT connection
• External LED keypad
• Mains chokes
• Motor chokes
• Sine filters
• drivesConnect parameter configuration
software
• Parameter Copy Stick
• External EMC filter
Applications:
• Fans, pumps
• Simple Machines
• Retrofits in machines and systems in
order to replace conventional motor
starters or contactors for motor control

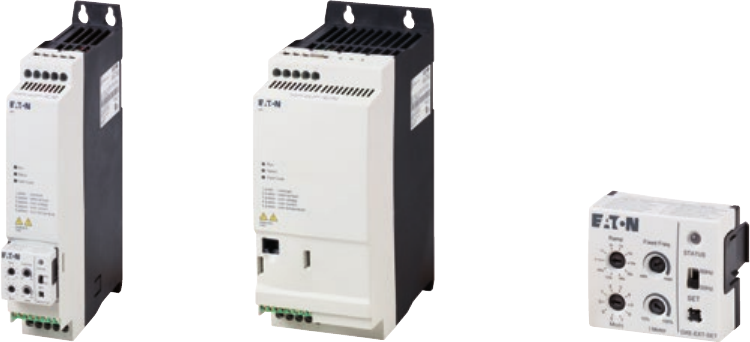

PowerXL™ variable speed starter
DE1
CA04020001Z-EN-INT www.eaton.eu
7
DE1
System overview 8
Key to type references 9
Sizes and degree of protection 9
UL/CSA 9
Ordering
Variable speed starter DE1 10
Accessories 11
8 PowerXL™ variable speed starter

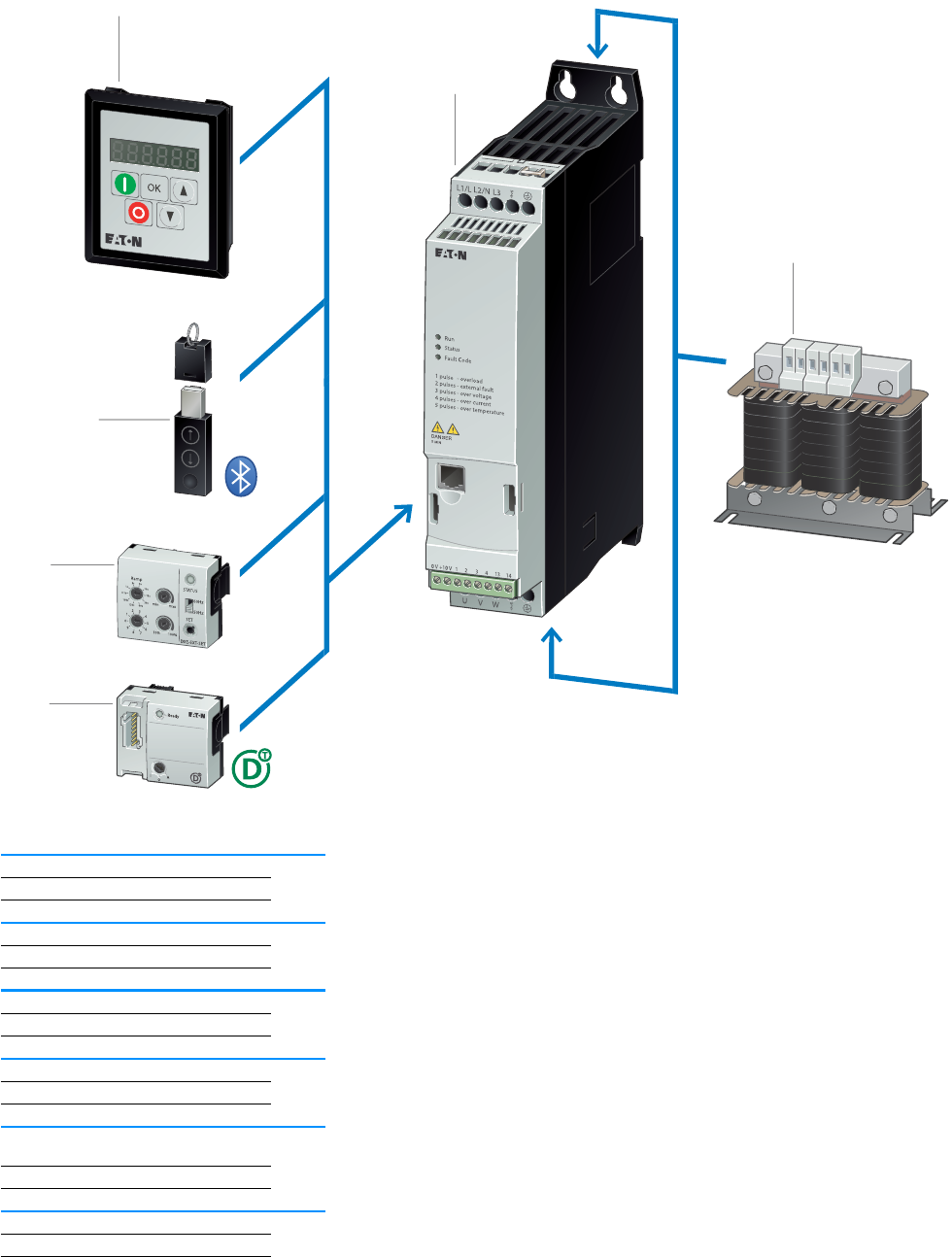

System overview
CA04020001Z-EN-INT www.eaton.eu
System overview
DE1, frame size 1
DE1 variable speed starter 1
￫ page 10

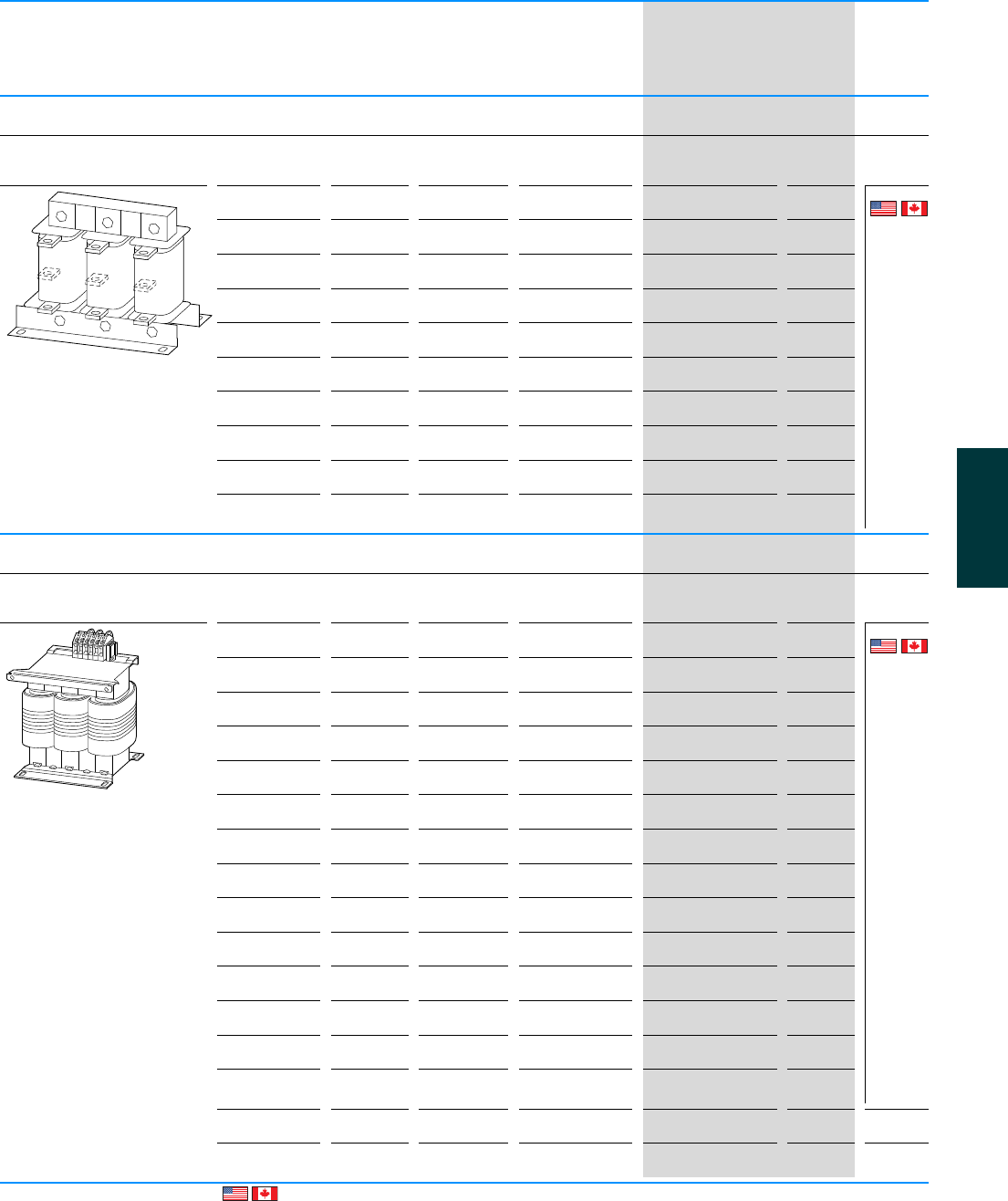

Mains choke, motor choke, sine filter 2
￫ page 60, ￫ page 61
SmartWire-DT module 3
￫ page 11
Configuration module 4
￫ page 11
Memory and Bluetooth communication
stick
5
￫ page 11
External keypad 6
￫ page 11
I Motor
Mode
Fixed Freq.
DE1
2
5
4
3
1
6
PowerXL™ variable speed starter
DE1
CA04020001Z-EN-INT www.eaton.eu
9
DE1
DE1

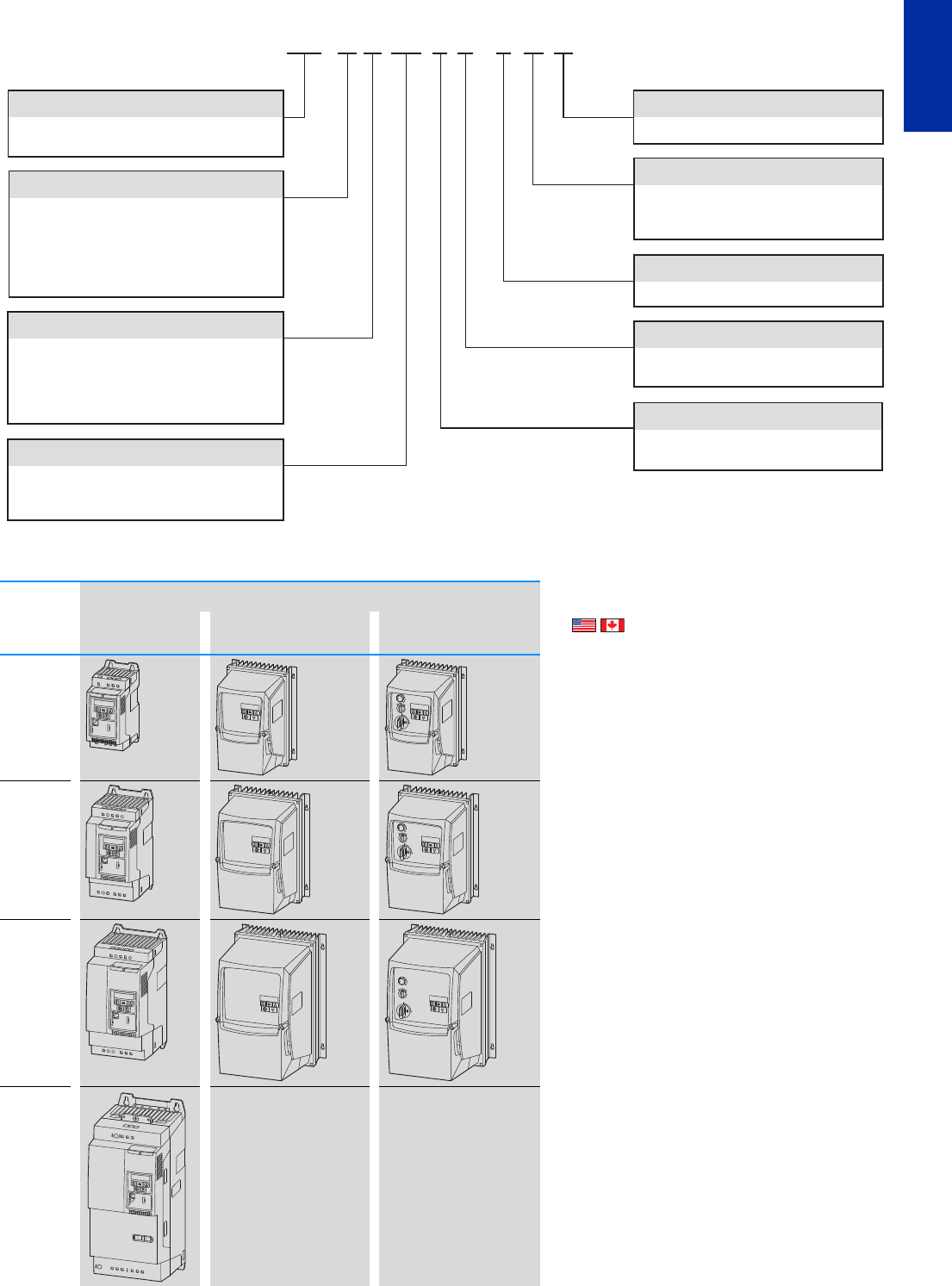

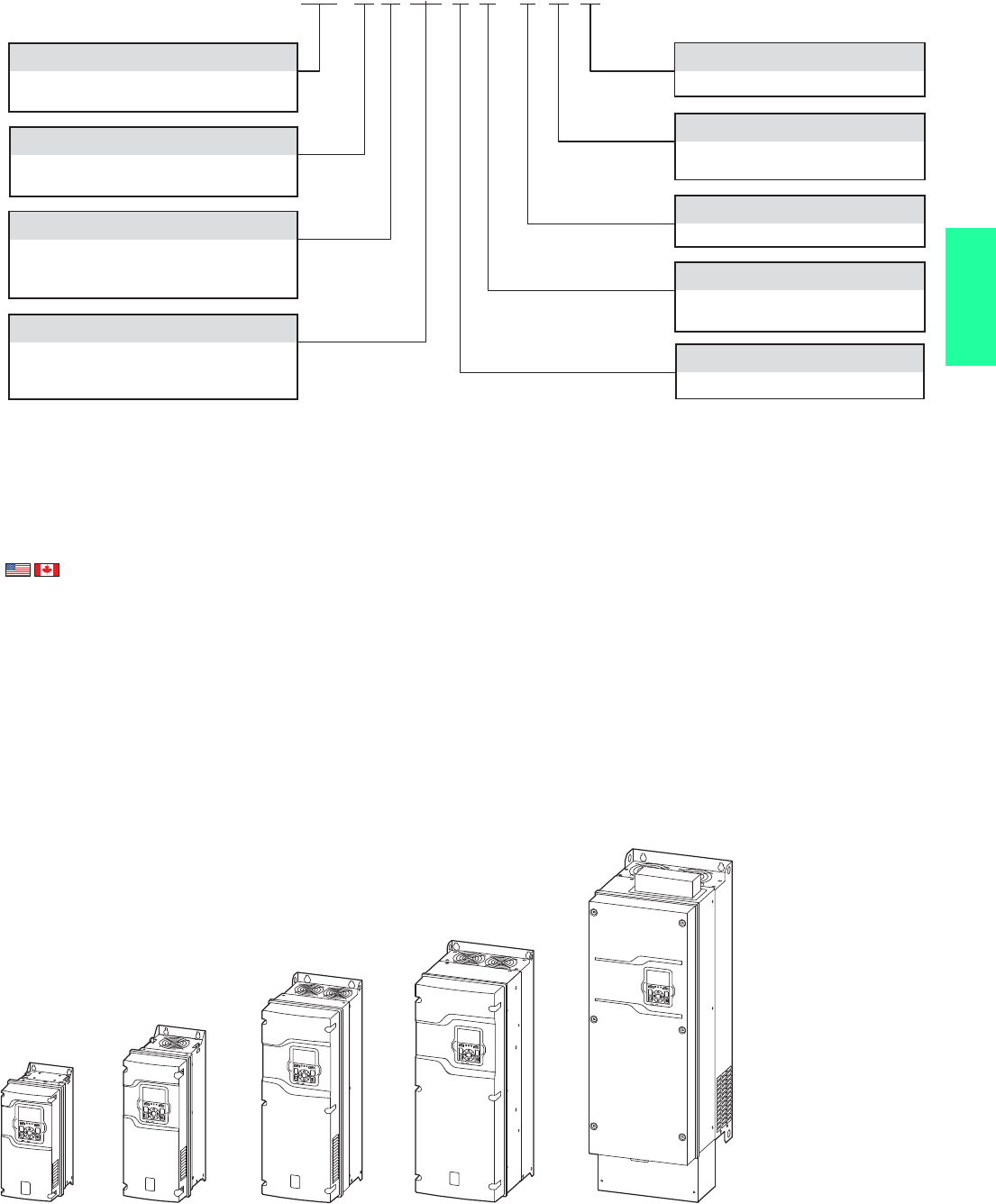

Key to type references
Sizes and degree of protection UL/CSA
Frame size Degree of Protection Information relevant for export to North America
IP20/NEMA 0
FS1
FS2
DE1 - 3 4 3D6 F N - N 20 N
2 = 230 V (200 - 240 V ± 10 %)
4 = 400 V (380 - 480 V ± 10 %)
20 = IP20/NEMA 0
1D4 = 1.4 A
9D6 = 9.6 A
016 = 16 A
Connection in power section
1 = single-phase mains connection/
three-phase motor connection
3 = three-phase mains connection/
three-phase motor connection
Mains voltage category
Device series
DE1 = variable speed starter, economical series 1
(D = Drives, E = Economy, 1 = Series 1) VSS
B = Brake chopper
N = no internal brake chopper
Display unit (display)
N = no Display
Degree of protection
Type
N = Standard basic device
N = no internal RFI filter
F = Internal RFI filter
EMC (radio interference suppression filter)
Rated operational current (examples)
Product Standards UL 508C; CSA-C22.2 No. 14;
IEC/EN61800-3; IEC/EN61800-5;
CE marking
UL File No. E172143
UL Category Control No. NMMS, NMMS7
CSA File No. UL report applies to both US and
Canada
North America Certification UL listed, certified by UL for use in
Canada
Suitable for Branch circuits
Max. Voltage Rating 1~ 240 V AC IEC: TN-S UL/CSA: "Y"
(Solidly Grounded Wey)
3~ 480 V AC IEC: TN-S UL/CSA: "Y"
(Solidly Grounded Wey)
Degree of Protection IEC: IP20
10 PowerXL™ variable speed starter
DE1, for three-phase motors 230 V/400 V, IP20
CA04020001Z-EN-INT www.eaton.eu
DE1, for three-phase motors 230 V/400 V, IP20
Rated operational
current1), 2)
Assigned motor rating2), 3), 4) Radio interference
suppression filter
Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
IePP
AkWHP
PowerXL™ DE1 Speed Starters
Ue 230 V AC, 1-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
1.4 0.25 0.33 - FS1 IP20/NEMA 0 DE1-121D4NN-N20N
177359
1off
✓DE1-121D4FN-N20N
174327
2.3 0.37 0.5 - DE1-122D3NN-N20N
177360
✓DE1-122D3FN-N20N
174328
2.7 0.55 - DE1-122D7NN-N20N
177361
✓DE1-122D7FN-N20N
174329
4.3 0.75 1 - DE1-124D3NN-N20N
177362
✓DE1-124D3FN-N20N
174330
71.52- DE1-127D0NN-N20N
177363
✓DE1-127D0FN-N20N
174331
9.6 2.2 3 - FS2 DE1-129D6NN-N20N
177364
✓DE1-129D6FN-N20N
174332
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
1.3 0.37 0.5 - FS1 IP20/NEMA 0 DE1-341D3NN-N20N
177365
1off
✓DE1-341D3FN-N20N
174333
2.1 0.75 1 - DE1-342D1NN-N20N
177366
✓DE1-342D1FN-N20N
174334
3.6 1.5 2 - DE1-343D6NN-N20N
177367
✓DE1-343D6FN-N20N
174335
52.23-FS2 DE1-345D0NN-N20N
177368
✓DE1-345D0FN-N20N
174336
6.6 3 - DE1-346D6NN-N20N
177369
✓DE1-346D6FN-N20N
174337
8.5 4 5 - DE1-348D5NN-N20N
177370
✓DE1-348D5FN-N20N
174338
11.3 5.5 7.5 - DE1-34011NN-N20N
177371
✓DE1-34011FN-N20N
174339
16 7.5 10 - DE1-34016NN-N20N
177372
✓DE1-34016FN-N20N
174340
Notes 1) Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50°C
2) Overload cycle: 150 % for 60 s every 600 s
3) DE1-12…: at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
DE1-34…: at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
4) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
Information relevant for export to North America ￫ Page 9
PowerXL™ variable speed starter
Accessories
CA04020001Z-EN-INT www.eaton.eu
11
DE1

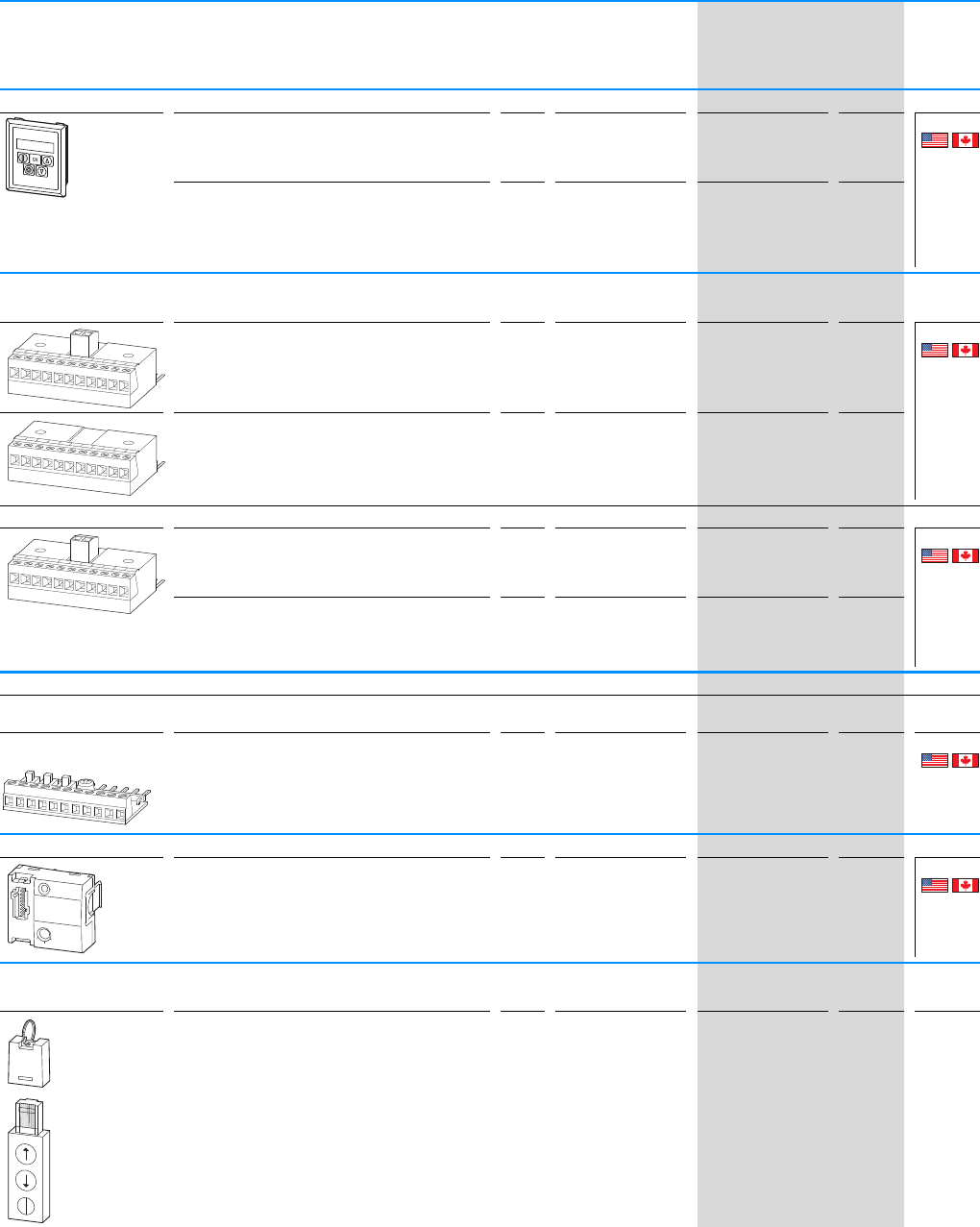

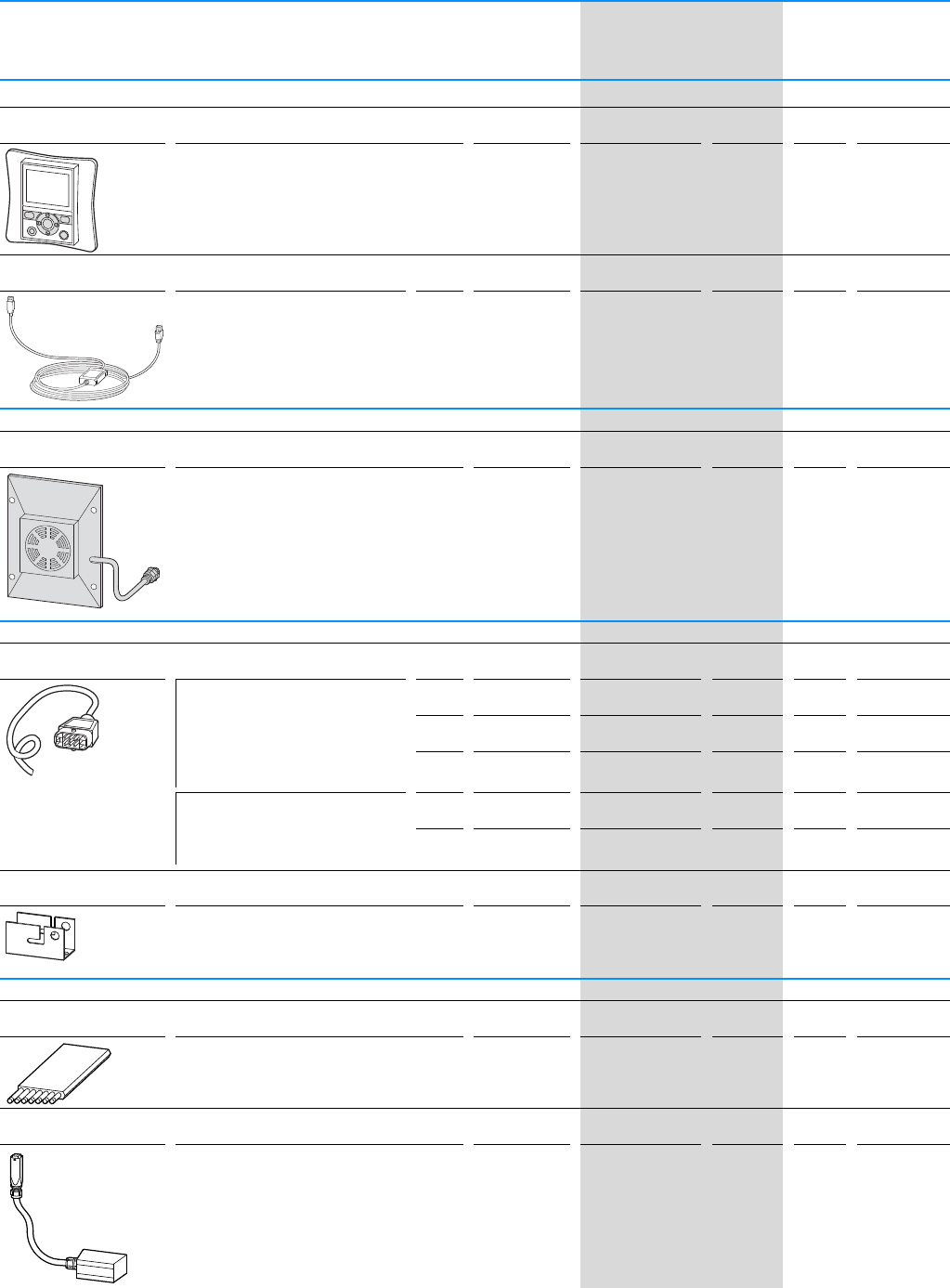

Accessories
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack

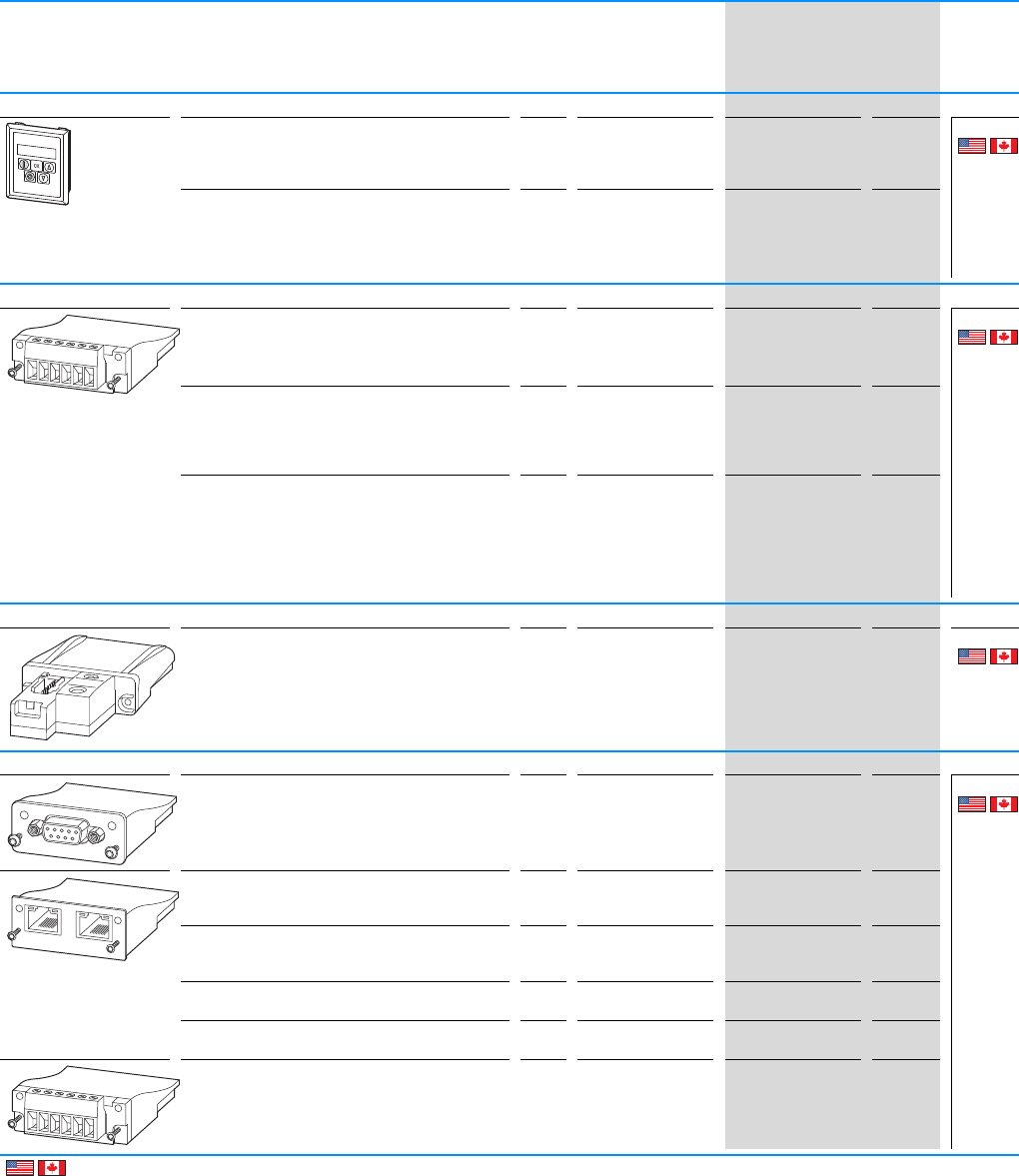

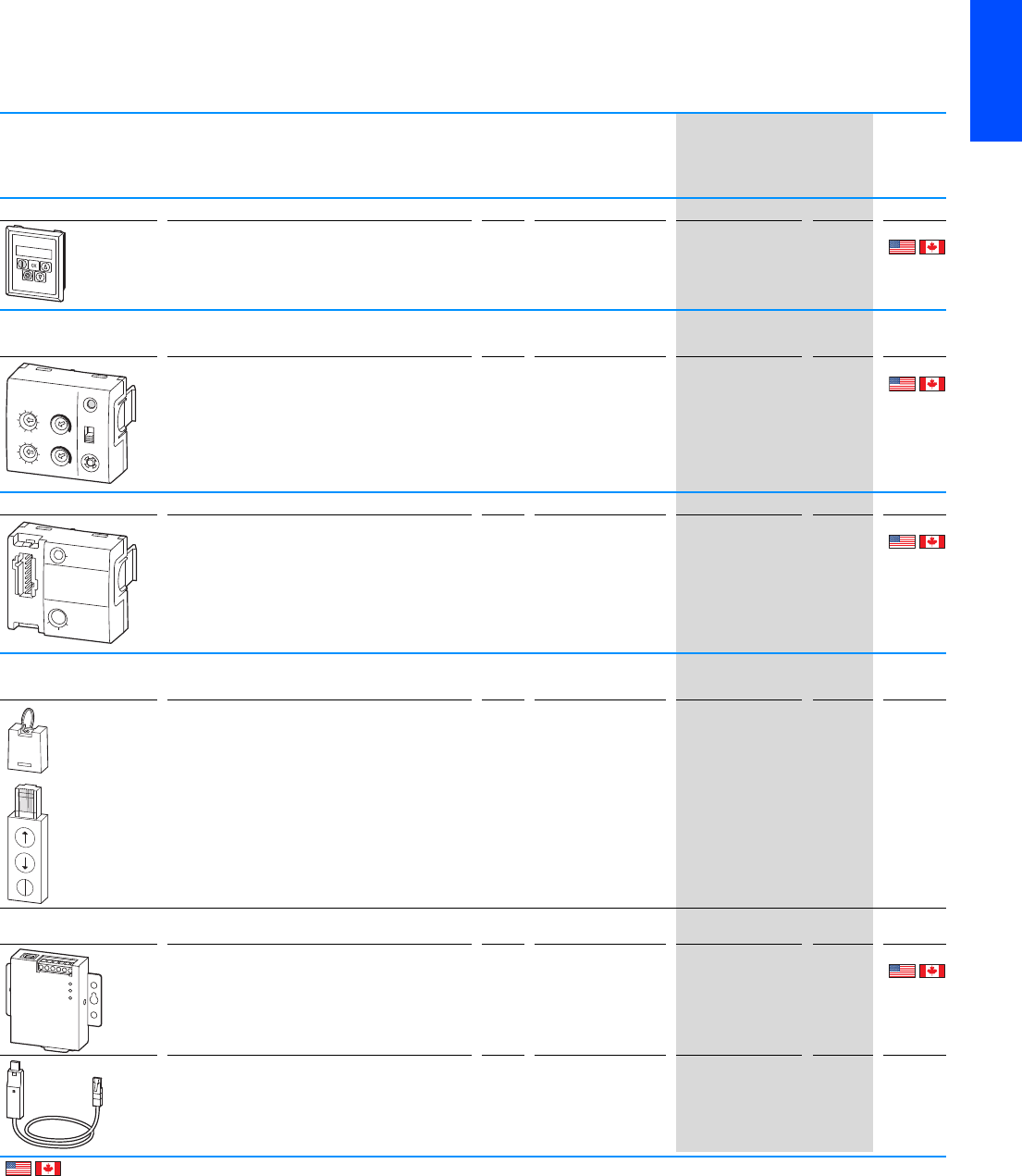

External keypad
With 7-digital display assembly
Front IP54
With approx. 3 m-long, plug-in connection cable (RJ45,
8-pin)
3 DE1, DC1, DA1, DL1 DX-KEY-LED
169132
1off
Configuration module
Plug-in module (front)
With selector switch for ramp time and operating
mode
With potentiometer for motor protection and fixed
frequency
-DE1 DXE-EXT-SET
174621
1off
SmartWire-DT Modules
Plug-in module (front) with slot for SWD4-8SF2-5
external device plug
- DE1, DC1 (IP20) DX-NET-SWD3
169131
1off
PC communication
Parameter storage unit and Bluetooth communication stick
For storage, copying parameters, and/or transferring
parameters to a PC with the drivesConnect software
via Bluetooth
With 2 function keys for uploading and downloading
parameters
with configuration memory
- DE1, DC1, DA1, DL1 DX-COM-STICK
169134
1off

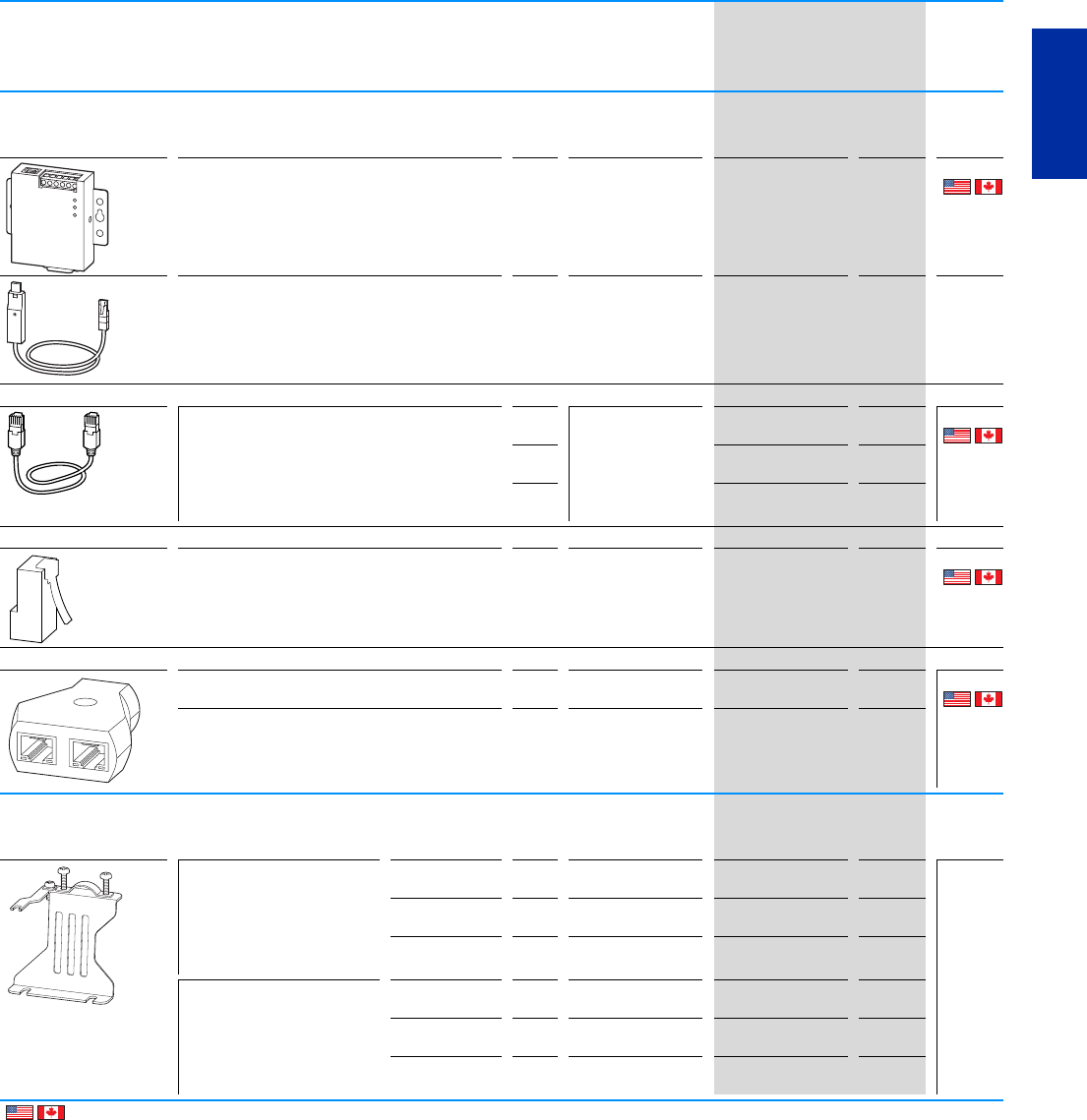

Interface converter
For directly connecting the variable-frequency drive to a computer with drivesConnect software
Interface converter USB/RS485 with connection cable,
RJ45, 8 pole
electrically isolated
1 × SUB-D plug, 9-pole
Terminal strip, 5-terminal
Status-LED
- DE1, DC1, DA1, DL1 DX-COM-PCKIT
169135
1off
Interface converter USB/RS485 with connection cable,
RJ45, 8 pole
electrically isolated
- DE1, DC1, DA1, DL1 DX-CBL-PC-1M5
171018
1off
Information relevant for export to North America
Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3;
IEC/EN61800-5; CE marking
DXE-EXT-SET: UL 508C; CSA-C22.2 No. 274;
IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No. E172143
UL Category Control No. NMMS, NMMS7
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
STATUS
SET
DXE-EXT-SET
50Hz
60Hz
min max
25%
0
987
6
5
4
180s
3
2
1
I Motor
Mode
Fixed Freq.
Ramp
100%
1s
0.1s
3s 5s
10s
15s
30s
60s
120s
Ready
I
O
A
PWR
USB
RxD
TxD
12 PowerXL™ variable speed starter
Accessories
CA04020001Z-EN-INT www.eaton.eu

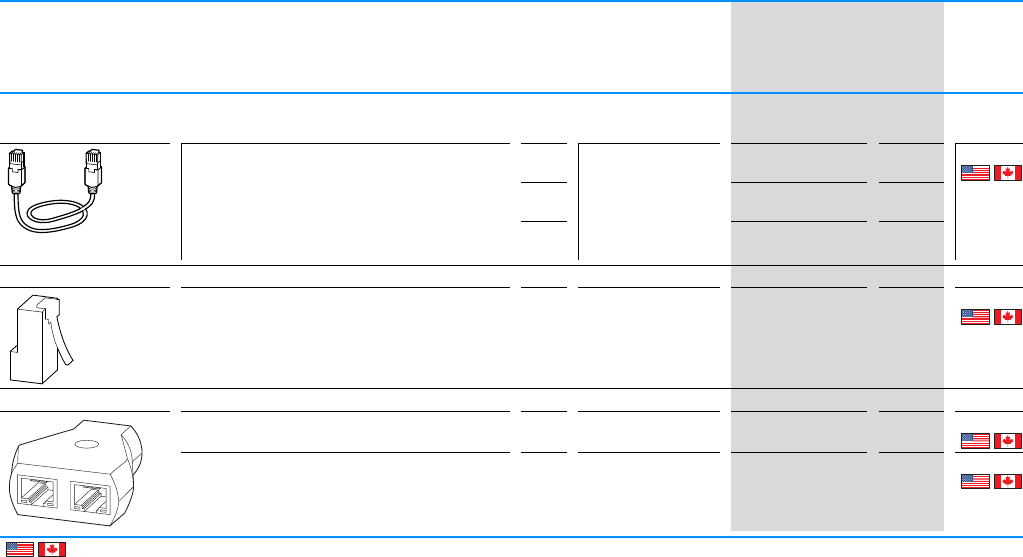

PC communication
Connecting cable
Patch cord with RJ45 plugs, 8 pole 0.5 DE1, DC1, DA1, DL1 DX-CBL-RJ45-0M5
169137
1off
1DX-CBL-RJ45-1M0
169138
3DX-CBL-RJ45-3M0
169139
Bus terminating resistor
RJ45
8 pole
Connection to CANopen® (pin 1/2, 124 Ω) or to Modbus
RTU (pin 7/8, 120 Ω)
- easyNet
DX-SPL-RJ45-2SL-1PL
EASY-NT-R
256281
2off
Splitter
RJ45, 8-pin, 3 sockets - DX-CBL-RJ45… DX-SPL-RJ45-3SL
169141
1off
RJ45, 8-pin, 2 sockets/1 plug - DX-CBL-RJ45… DX-SPL-RJ45-2SL1PL
169142
1off
Information relevant for export to North America EASY-NT-R:
Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3;
IEC/EN61800-5; CE marking
DXE-EXT-SET: UL 508C; CSA-C22.2 No. 274;
IEC/EN61800-3; IEC/EN61800-5; CE marking
Product Standards IEC/EN see Technical Data; UL 508;
CSA C22.2 No. 142-M1987;
CSA C22.2 No. 213-M1987;
CE marking
UL File No. E172143 UL File No. E135462
UL Category Control No. NMMS, NMMS7 UL Category Control No. NRAQ
CSA File No. UL report applies to both US and Canada CSA File No. 012528
North America Certification UL listed, certified by UL for use in Canada CSA Class No. 2258-02
Suitable for Branch circuits North America
Certification
UL listed, CSA certified
Degree of Protection IEC: IP20, UL/CSA Type: -
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
PowerXL™ variable speed starter
Notes
CA04020001Z-EN-INT www.eaton.eu
13
DE1
NotesNotes
CA04020001Z-EN-INT www.eaton.eu
The compact PowerXL™ DC1 variable frequency drive is particularly well-suited
for use with simple pump, fan, and conveyor belt systems. It can be quickly and easily
configured and commissioned, resulting in tangible savings.

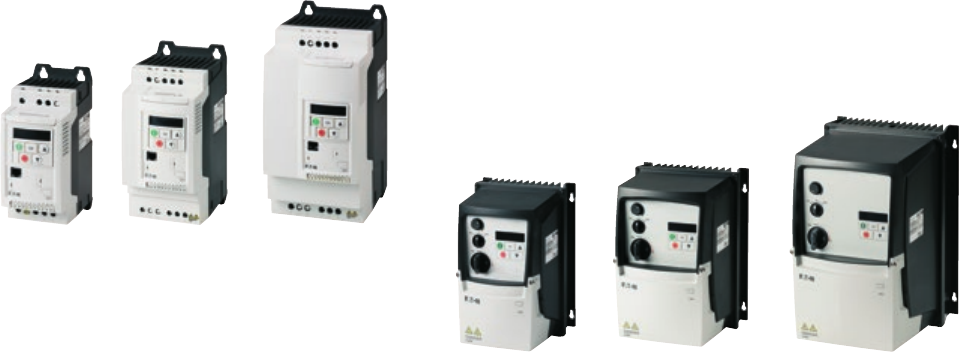

PowerXL™ Variable Frequency Drives DC1
Compact Machinery Drive
Performance range:
• 0.37 … 0.55 kW (Ue: 1~ 115 V, U2: 1~ 115 V)
• 0.37 … 1.1 kW (Ue: 1~ 115 V, U2: 3~ 230 V)
• 0.37 … 1.1 kW (Ue: 1~ 230 V, U2: 1~ 230 V)
• 0.37 … 4 kW (Ue: 1~ 230 V, U2: 3~ 230 V)
• 0.37 … 4 kW (Ue: 3~ 230 V, U2: 3~ 230 V)
• 0.75 … 11 kW (Ue: 3~ 400 V, U2: 3~ 400 V)
Features:
• Fast commissioning with 14 basic parameters
• Large overload capability: 150% for
60 seconds, 175% for 2 seconds
• Ambient air temperature up to 50 °C without
derating
• Integrated CANopen and Modbus RTU
• Degrees of protection IP20 and IP66
• Integrated EMC filter
• Integrated braking transistor
• Integrated PI controller
• V/F control
• Voltage boost
• DC braking
• Detachable control signal terminal strip
• International standards (CE, UL, cUL, c-Tick,
RoHS, Gost-R, UkrSEPRO)
Accessories:
• SmartWire-DT connection
• I/O expansions
• External keypad
• Mains chokes
• Motor chokes
• Sine filters
• Braking resistances
• drivesConnect parameter configuration
software
• External EMC filter
Applications:
• Pumps, fans
• Machines
• Coating systems
• Conveyor belts
• Filling machines
• Distributed applications (IP66)
• Applications with single-phase motors
PowerXL™ variable frequency drives
DC1
CA04020001Z-EN-INT www.eaton.eu
15
DC1
16
17
17
UL/CSA 17
System overview 16
Key to type references 17
Sizes and degree of protection 17
UL/CSA 17
Ordering
Variable frequency drives DC1, IP20 18
Variable frequency drives DC1, IP66 22
Accessories 26
16 PowerXL™ variable frequency drives
DC1
CA04020001Z-EN-INT www.eaton.eu
DC1

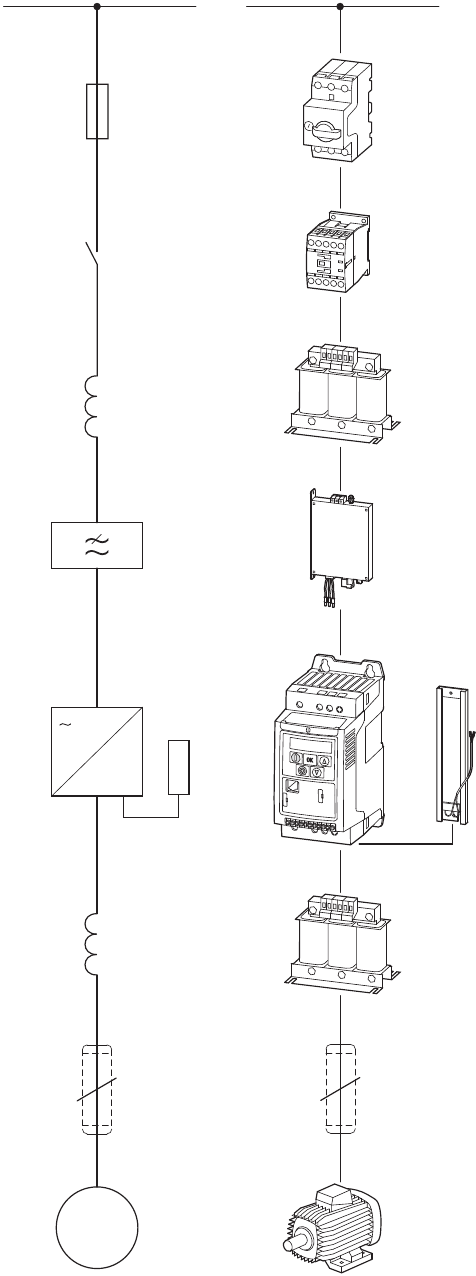

System overview
DC1 with IP20 degree of protection
2
3
6
4
5
1
7
DC1 variable frequency drives 1
￫ page 18
Mains choke, motor choke, sine filter 2
￫ page 60, ￫ page 61
Braking resistance 3
￫ page 56
Expansion modules 4
￫ page 26
SmartWire-DT module 5
￫ page 26
Memory and Bluetooth communication
stick
6
￫ page 26
External keypad 7
￫ page 26
PowerXL™ variable frequency drives
DC1
CA04020001Z-EN-INT www.eaton.eu
17
DC1
DC1
Key to type references
DC1
Sizes and degree of protection UL/CSA
Frame size Degree of Protection Information relevant for export to North America
IP20/NEMA 0 IP66/NEMA 4X IP66/NEMA 4X
Local controls
FS1
FS2
FS3
FS4
DC1 - 1 2 4D1 F N - A 20 N
20 = IP20/NEMA 0
66 = IP66/NEMA 4X
2D2 = 2.2 A
4D1 = 4.1 A
024 = 24 A
1 = 110 V (110 - 115 V ± 10 %)
2 = 230 V (200 - 240 V ± 10 %)
4 = 400 V (380 - 480 V ± 10 %)
Connection in power section
1 = single-phase mains connection/
three-phase motor connection
3 = three-phase mains connection/
three-phase motor connection
S = single-phase mains connection/
single-phase motor connection
Mains voltage category
D = 110 V input/230 V output
(voltage doubler)
Device series
DC1 = variable frequency drive, compact, series 1
(D = Drives, C = Compact, 1 = Series 1)
B = Brake chopper
N = no internal brake chopper
B = Brake chopper
Display unit (display)
A = LED display
Degree of protection
6S = IP66 with switch/NEMA 4X, switched
Type
N = Standard basic device
N = no internal RFI filter
F = Internal RFI filter
EMC (radio interference suppression filter)
Rated operational current (examples)
L1/L L2/N L3
UVW
123456789
10
11
PWROFF
ON
REV FWD
0
Product Standards UL 508C; CSA-C22.2 No. 14;
IEC/EN61800-3; IEC/EN61800-5;
CE marking
UL File No. E172143
UL Category Control
No.
NMMS, NMMS7
CSA File No. UL report applies to both US and
Canada
North America
Certification
UL listed, certified by UL for use in
Canada
Suitable for Branch circuits
Max. Voltage Rating 1~ 120 V AC IEC: TN-S UL/CSA: "Y"
(Solidly Grounded Wey)
1~ 240 V AC IEC: TN-S UL/CSA: "Y"
(Solidly Grounded Wey)
3~ 240 V AC IEC: TN-S UL/CSA: "Y"
(Solidly Grounded Wey)
3~ 480 V AC IEC: TN-S UL/CSA: "Y"
(Solidly Grounded Wey)
L1/L L2/N L3
DC-
U
DC+ BR VW
123456789
10
11
PWROFF
ON
REV FWD
0
U
DC+BRVW
L1/L L2/N L3
DC-
123456789
10
11
PWROFF
ON
REV FWD
0
123456789
10
11
U
DC+
EMCBRDC-VW
L1
EMC L2L3
18 PowerXL™ variable frequency drives
DC1, for AC motors, 115 V/230 V, IP20
CA04020001Z-EN-INT www.eaton.eu
DC1, for AC motors, 115 V/230 V, IP20
Rated operational current1), 4) Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Radio interference
suppression filter
Brake chopper
7-digital display
assembly
IePP
AkWHP
PowerXL™ DC1 variable frequency drives
Ue 115 V AC, single-phase / U2 115 V AC, single-phase
Mains voltage (50/60Hz) ULN 110 (-10%) - 115 (+10%) V
7 0.37 0.5 - - ✓FS1 IP20/NEMA 0 DC1-S17D0NN-A20N
169497
1off
10.5 0.55 0.75 - ✓✓ FS2 DC1-S1011NB-A20N
169500
Ue 230 V AC, 1-phase / U2 230 V AC, single-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
4.3 0.37 0.5 - - ✓FS1 IP20/NEMA 0 DC1-S24D3NN-A20N
169512
1off
✓-✓DC1-S24D3FN-A20N
169521
70.751--✓DC1-S27D0NN-A20N
169515
✓-✓DC1-S27D0FN-A20N
169524
10.5 1.1 1.5 - ✓✓ FS2 DC1-S2011NB-A20N
169518
✓✓✓ DC1-S2011FB-A20N
169527
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) DC1-S1…: at 115 V, 50 Hz/at 110 - 120 V, 60 Hz
DE1-34…:DC1-S2…: at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
3) For AC motors with internal and external ventilation with 50/60 Hz without additional start capacitor
4) Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50°C
Information relevant for export to North America ￫ Page 17
PowerXL™ variable frequency drives
DC1, for three-phase motors 230 V, IP20
CA04020001Z-EN-INT www.eaton.eu
19
DC1
DC1, for three-phase motors 23 0 V, IP20
Rated operational current1), 4) Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Radio interference
suppression filter
Brake chopper
7-digital display
assembly
IePP
AkWHP
PowerXL™ DC1 variable frequency drives
Ue 115 V AC, single-phase / U2 230 V AC, 3-phase
The mains voltage of 115V is raised to 230V (output voltage) through an internal voltage double connection.
Mains voltage (50/60Hz) ULN 110 (-10%) - 115 (+10%) V
2.3 0.37 0.5 - - ✓FS1 IP20/NEMA 0 DC1-1D2D3NN-A20N
169503
1off
4.3 0.75 1 - - ✓DC1-1D4D3NN-A20N
169506
5.8 1.1 1.5 - ✓✓ FS2 DC1-1D5D8NB-A20N
169509
Ue 230 V AC, 1-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
2.3 0.37 0.5 - - ✓FS1 IP20/NEMA 0 DC1-122D3NN-A20N
169222
1off
✓-✓DC1-122D3FN-A20N
169240
4.3 0.75 1 - - ✓DC1-124D3NN-A20N
169225
✓-✓DC1-124D3FN-A20N
169243
71.52--✓DC1-127D0NN-A20N
169228
✓-✓DC1-127D0FN-A20N
169246
-✓✓ FS2 DC1-127D0NB-A20N
169231
✓✓✓ DC1-127D0FB-A20N
169249
10.5 2.2 3 - ✓✓ DC1-12011NB-A20N
169234
✓✓✓ DC1-12011FB-A20N
169252
155) 45-✓✓ FS3 DC1-12015NB-A20N
169237
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50°C
5) Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +50°C
Information relevant for export to North America ￫ Page 17
20 PowerXL™ variable frequency drives
DC1, for three-phase motors 230 V/400 V, IP20
CA04020001Z-EN-INT www.eaton.eu
DC1, for three-phase motors 23 0 V/400 V, IP20
Rated operational current1), 4) Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Radio interference
suppression filter
Brake chopper
7-digital display
assembly
IePP
AkWHP
PowerXL™ DC1 variable frequency drives
Ue 230 V AC, 3-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
2.3 0.37 0.5 - - ✓FS1 IP20/NEMA 0 DC1-322D3NN-A20N
169255
1off
4.3 0.75 1 - - ✓DC1-324D3NN-A20N
169258
71.52--✓DC1-327D0NN-A20N
169261
-✓✓ FS2 DC1-327D0NB-A20N
169264
✓✓✓ DC1-327D0FB-A20N
169444
10.5 2.2 3 - ✓✓ DC1-32011NB-A20N
169438
✓✓✓ DC1-32011FB-A20N
169447
18 45-✓✓ FS3 DC1-32018NB-A20N
169441
✓✓✓ DC1-32018FB-A20N
169450
24 5.5 7.5 - ✓✓ DC1-32024NB-A20N
180458
✓✓✓ DC1-32024FB-A20N
180455
30 7.5 10 - ✓✓ FS4 DC1-32030NB-A20N
180459
✓✓✓ DC1-32030FB-A20N
180456
46 11 15 - ✓✓ DC1-32046NB-A20N
180460
✓✓✓ DC1-32046FB-A20N
180457
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
2.2 0.75 1 - - ✓FS1 IP20/NEMA 0 DC1-342D2NN-A20N
169453
1off
✓-✓DC1-342D2FN-A20N
169475
4.1 1.5 2 - - ✓DC1-344D1NN-A20N
169456
✓-✓DC1-344D1FN-A20N
169478
-✓✓ FS2 DC1-344D1NB-A20N
169459
✓✓✓ DC1-344D1FB-A20N
169481
5.8 2.2 3 - ✓✓ DC1-345D8NB-A20N
169462
✓✓✓ DC1-345D8FB-A20N
169484
9.5 45-✓✓ DC1-349D5NB-A20N
169465
✓✓✓ DC1-349D5FB-A20N
169487
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) DC1-32…: at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
DC1-34…: at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50°C
5) Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +50°C
PowerXL™ variable frequency drives
DC1, for three-phase motors 400 V, IP20
CA04020001Z-EN-INT www.eaton.eu
21
DC1
DC1, for three-phase motors 40 0 V, IP20
Rated operational current1), 4) Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Radio interference
suppression filter
Brake chopper
7-digital display
assembly
IePP
AkWHP
PowerXL™ DC1 variable frequency drives
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
144) 5.5 10 - ✓✓ FS3 IP20/NEMA 0 DC1-34014NB-A20N
169468
1off
✓✓✓ DC1-34014FB-A20N
169490
184) 7.5 - ✓✓ DC1-34018NB-A20N
169471
✓✓✓ DC1-34018FB-A20N
169493
244) 11 15 - ✓✓ DC1-34024NB-A20N
169474
✓✓✓ DC1-34024FB-A20N
169496
30 15 20 - ✓✓ FS4 DC1-34030NB-A20N
180464
✓✓✓ DC1-34030FB-A20N
180461
39 18.5 25 - ✓✓ DC1-34039NB-A20N
180465
✓✓✓ DC1-34039FB-A20N
180462
46 22 30 - ✓✓ DC1-34046NB-A20N
180466
✓✓✓ DC1-34046FB-A20N
180463
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) DC1-34…: at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +50°C
22 PowerXL™ variable frequency drives
DC1, for AC motors, 115 V/230 V, IP66
CA04020001Z-EN-INT www.eaton.eu
DC1, for AC motors, 115 V/230 V, IP66
Rated operational
current1), 4)
Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio
interference
Brake chopper
7-digital display
assembly
Local controls
PowerXL™ DC1 variable frequency drives
Ue 115 V AC, single-phase / U2 115 V AC, single-phase
Mains voltage (50/60Hz) ULN 110 (-10%) - 115 (+10%) V
70.370.5--✓- FS1 IP66/NEMA 4X DC1-S17D0NN-A66N
169498
1off
--✓✓ DC1-S17D0NN-A6SN
169499
10.5 0.55 0.75 - ✓✓ -FS2 DC1-S1011NB-A66N
169501
-✓✓ ✓ DC1-S1011NB-A6SN
169502
Ue 230 V AC, 1-phase / U2 230 V AC, single-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
4.3 0.37 0.5 - - ✓- FS1 IP66/NEMA 4X DC1-S24D3NN-A66N
169513
1off
--✓✓ DC1-S24D3NN-A6SN
169514
✓-✓-DC1-S24D3FN-A66N
169522
✓-✓✓ DC1-S24D3FN-A6SN
169523
70.751--✓-DC1-S27D0NN-A66N
169516
--✓✓ DC1-S27D0NN-A6SN
169517
✓-✓-DC1-S27D0FN-A66N
169525
✓-✓✓ DC1-S27D0FN-A6SN
169526
10.5 1.1 1.5 - ✓✓ -FS2 DC1-S2011NB-A66N
169519
-✓✓ ✓ DC1-S2011NB-A6SN
169520
✓✓✓ -DC1-S2011FB-A66N
169528
✓✓✓ ✓ DC1-S2011FB-A6SN
169529
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) DC1-S1…: at 115 V, 50 Hz/at 110 - 120 V, 60 Hz
DE1-34…:DC1-S2…: at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
3) For AC motors with internal and external ventilation with 50/60 Hz without additional start capacitor
4) Rated operational current at a switching frequency of 16 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 17
PowerXL™ variable frequency drives
DC1, for three-phase motors 230 V, IP66
CA04020001Z-EN-INT www.eaton.eu
23
DC1
DC1, for three-phase motors 23 0 V, IP66
Rated operational
current1), 4)
Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio
interference
Brake chopper
7-digital display
assembly
Local controls
PowerXL™ DC1 variable frequency drives
Ue 115 V AC, single-phase / U2 230 V AC, 3-phase
The mains voltage of 115V is raised to 230V (output voltage) through an internal voltage double connection.
Mains voltage (50/60Hz) ULN 110 (-10%) - 115 (+10%) V
2.3 0.37 0.5 - - ✓- FS1 IP66/NEMA 4X DC1-1D2D3NN-A66N
169504
1off
--✓✓ DC1-1D2D3NN-A6SN
169505
4.3 0.75 1 - - ✓-DC1-1D4D3NN-A66N
169507
--✓✓ DC1-1D4D3NN-A6SN
169508
5.8 1.1 1.5 - ✓✓ -FS2 DC1-1D5D8NB-A66N
169510
-✓✓ ✓ DC1-1D5D8NB-A6SN
169511
Ue 230 V AC, 1-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
2.3 0.37 0.5 - - ✓- FS1 IP66/NEMA 4X DC1-122D3NN-A66N
169223
1off
--✓✓ DC1-122D3NN-A6SN
169224
✓-✓-DC1-122D3FN-A66N
169241
✓-✓✓ DC1-122D3FN-A6SN
169242
4.3 0.75 1 - - ✓-DC1-124D3NN-A66N
169226
--✓✓ DC1-124D3NN-A6SN
169227
✓-✓-DC1-124D3FN-A66N
169244
✓-✓✓ DC1-124D3FN-A6SN
169245
71.52--✓-DC1-127D0NN-A66N
169229
--✓✓ DC1-127D0NN-A6SN
169230
✓-✓-DC1-127D0FN-A66N
169247
✓-✓✓ DC1-127D0FN-A6SN
169248
-✓✓ -FS2 DC1-127D0NB-A66N
169232
-✓✓ ✓ DC1-127D0NB-A6SN
169233
✓✓✓ -DC1-127D0FB-A66N
169250
✓✓✓ ✓ DC1-127D0FB-A6SN
169251
10.5 2.2 3 - ✓✓ -DC1-12011NB-A66N
169235
-✓✓ ✓ DC1-12011NB-A6SN
169236
✓✓✓ -DC1-12011FB-A66N
169253
✓✓✓ ✓ DC1-12011FB-A6SN
169254
155) 45-✓✓ -FS3 DC1-12015NB-A66N
169238
-✓✓ ✓ DC1-12015NB-A6SN
169239
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
4) Rated operational current at a switching frequency of 16 kHz and an ambient air temperature of +40°C
5) Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 17
24 PowerXL™ variable frequency drives
DC1, for three-phase motors 230 V, IP66
CA04020001Z-EN-INT www.eaton.eu
PowerXL™ DC1 variable frequency drives
Ue 230 V AC, 3-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
2.3 0.37 0.5 - - ✓- FS1 IP66/NEMA 4X DC1-322D3NN-A66N
169256
1off
--✓✓ DC1-322D3NN-A6SN
169257
4.3 0.75 1 - - ✓-DC1-324D3NN-A66N
169259
--✓✓ DC1-324D3NN-A6SN
169260
71.52--✓-DC1-327D0NN-A66N
169262
--✓✓ DC1-327D0NN-A6SN
169263
-✓✓ -FS2 DC1-327D0NB-A66N
169436
-✓✓ ✓ DC1-327D0NB-A6SN
169437
✓✓✓ -DC1-327D0FB-A66N
169445
✓✓✓ ✓ DC1-327D0FB-A6SN
169446
10.5 2.2 3 - ✓✓ -DC1-32011NB-A66N
169439
-✓✓ ✓ DC1-32011NB-A6SN
169440
✓✓✓ -DC1-32011FB-A66N
169448
✓✓✓ ✓ DC1-32011FB-A6SN
169449
185) 45-✓✓ -FS3 DC1-32018NB-A66N
169442
-✓✓ ✓ DC1-32018NB-A6SN
169443
✓✓✓ -DC1-32018FB-A66N
169451
✓✓✓ ✓ DC1-32018FB-A6SN
169452
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
4) Rated operational current at a switching frequency of 16 kHz and an ambient air temperature of +40°C
5) Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 17
Rated operational
current1), 4)
Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio
interference
Brake chopper
7-digital display
assembly
Local controls
PowerXL™ variable frequency drives
DC1, for three-phase motors 400 V, IP66
CA04020001Z-EN-INT www.eaton.eu
25
DC1
DC1, for three-phase motors 40 0 V, IP66
Rated operational
current1), 4)
Assigned motor rating1), 2), 3) Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio
interference
Brake chopper
7-digital display
assembly
Local controls
PowerXL™ DC1 variable frequency drives
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
2.2 0.75 1 - - ✓- FS1 IP66/NEMA 4X DC1-342D2NN-A66N
169454
1off
--✓✓ DC1-342D2NN-A6SN
169455
✓-✓-DC1-342D2FN-A66N
169476
✓-✓✓ DC1-342D2FN-A6SN
169477
4.1 1.5 2 - - ✓-DC1-344D1NN-A66N
169457
--✓✓ DC1-344D1NN-A6SN
169458
✓-✓-DC1-344D1FN-A66N
169479
✓-✓✓ DC1-344D1FN-A6SN
169480
-✓✓ -FS2 DC1-344D1NB-A66N
169460
-✓✓ ✓ DC1-344D1NB-A6SN
169461
✓✓✓ -DC1-344D1FB-A66N
169482
✓✓✓ ✓ DC1-344D1FB-A6SN
169483
5.8 2.2 3 - ✓✓ -DC1-345D8NB-A66N
169463
-✓✓ ✓ DC1-345D8NB-A6SN
169464
✓✓✓ -DC1-345D8FB-A66N
169485
✓✓✓ ✓ DC1-345D8FB-A6SN
169486
9.5 45-✓✓ -DC1-349D5NB-A66N
169466
-✓✓ ✓ DC1-349D5NB-A6SN
169467
✓✓✓ -DC1-349D5FB-A66N
169488
✓✓✓ ✓ DC1-349D5FB-A6SN
169489
145) 5.5 10 - ✓✓ -FS3 DC1-34014NB-A66N
169469
-✓✓ ✓ DC1-34014NB-A6SN
169470
✓✓✓ -DC1-34014FB-A66N
169491
✓✓✓ ✓ DC1-34014FB-A6SN
169492
185) 7.5 10 - ✓✓ -DC1-34018NB-A66N
169472
-✓✓ ✓ DC1-34018NB-A6SN
169473
✓✓✓ -DC1-34018FB-A66N
169494
✓✓✓ ✓ DC1-34018FB-A6SN
169495
Notes 1) Overload cycle: 150 % for 60 s every 600 s
2) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
4) Rated operational current at a switching frequency of 16 kHz and an ambient air temperature of +40°C
5) Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 17
26 PowerXL™ variable frequency drives
Accessories
CA04020001Z-EN-INT www.eaton.eu
Accessories
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
External keypad
With 7-digital display assembly
Front IP54
With approx. 3 m-long, plug-in connection cable
(RJ45, 8-pin)
3 DE1, DC1, DA1, DL1 DX-KEY-LED
169132
1off
with OLED display
Front IP54
Multilingual
With approx. 3 m-long, plug-in connection cable
(RJ45, 8-pin)
3 DC1, DA1, DL1 DX-KEY-OLED
169133
Expansion modules
Output expansion
2 relay outputs (N/O, 250 V AC/220 V DC, max. 1 A)
1 analog output (0 - +10 V, max. 20 mA)
For connecting to the control signal terminals on the
DC1
-DC1 DXC-EXT-2RO1AO
169030
1off
2 relay outputs (N/O, 250 V AC/220 V DC, max. 1 A)
For connecting to the control signal terminals on the
DC1
-DC1 DXC-EXT-2RO
169031
Coupling module
115-V-AC input (electrically isolated)
for 4 digital inputs
For connecting to the control signal terminals on the
DC1
-DC1 DXC-EXT-IO110
169032
1off
230-V-AC input (electrically isolated)
for 4 digital inputs
For connecting to the control signal terminals on the
DC1
-DC1 DXC-EXT-IO230
169033
Demo case and simulator
Control signal terminal
simulator
Commissioning and testing
simulator
3 digital inputs (+24 V)
1 relay output (max. 30 V DC)
3 microswitches
1 reference value potentiometer (0 - +10 V / = 0 - fmax)
For connecting to the control signal terminals on the
DC1
-DC1 DXC-EXT-LOCSIM
169034
1off
SmartWire-DT Modules
Plug-in module (front) with slot for SWD4-8SF2-5
external device plug
- DE1, DC1 (IP20) DX-NET-SWD3
169131
1off
PC communication
Parameter storage unit and Bluetooth communication stick
For storage, copying parameters, and/or transferring
parameters to a PC with the drivesConnect software
via Bluetooth
With 2 function keys for uploading and downloading
parameters
with configuration memory
- DE1, DC1, DA1, DL1 DX-COM-STICK
169134
1off
1 2 3 4 5 6 7 8 9 10 11
1 2 3 4 5 6 7 8 9 10 11
1 2 3 4 5 6 7 8 9 10 11
1 2 3 4 5 6 7 8 9 10 11
Ready
I
O
A
PowerXL™ variable frequency drives
Accessories
CA04020001Z-EN-INT www.eaton.eu
27
DC1
PC communication
Interface converter
For directly connecting the variable-frequency drive to a computer with drivesConnect software
Interface converter USB/RS485 with connection cable,
RJ45, 8 pole
electrically isolated
1 × SUB-D plug, 9-pole
Terminal strip, 5-terminal
Status-LED
- DE1, DC1, DA1, DL1 DX-COM-PCKIT
169135
1off
Interface converter USB/RS485 with connection cable,
RJ45, 8 pole
electrically isolated
- DE1, DC1, DA1, DL1 DX-CBL-PC-1M5
171018
1off
Connecting cable
Patch cord with RJ45 plugs, 8 pole 0.5 DE1, DC1, DA1, DL1 DX-CBL-RJ45-0M5
169137
1off
1DX-CBL-RJ45-1M0
169138
3DX-CBL-RJ45-3M0
169139
Bus terminating resistor
RJ45
8 pole
Connection to CANopen® (pin 1/2, 124 Ω) or to Modbus
RTU (pin 7/8, 120 Ω)
- easyNet
DX-SPL-RJ45-2SL-
1PL
EASY-NT-R
256281
2off
Splitter
- RJ45, 8-pin, 3 sockets - DX-CBL-RJ45… DX-SPL-RJ45-3SL
169141
1off
RJ45, 8-pin, 2 sockets/1 plug - DX-CBL-RJ45… DX-SPL-RJ45-2SL1PL
169142
mounting accessories
mounting adapter
With gland plates
For installing the connection
cables on the mains side
Size FS1 - DC1 DX-EMC-MNT-1N
172925
1off
Size FS2 - DC1, DA1, DL1 DX-EMC-MNT-2N
172927
Size FS3 - DC1, DA1, DL1 DX-EMC-MNT-3N
172929
For installing the connection
cables on the motor side
Size FS1 - DC1 DX-EMC-MNT-1M
172926
Size FS2 - DC1, DA1, DL1 DX-EMC-MNT-2M
172928
Size FS3 - DC1, DA1, DL1 DX-EMC-MNT-3M
172930
Information relevant for export to North America EASY-NT-R:
Product Standards UL 508C; CSA-C22.2 No. 14;
IEC/EN61800-3;
IEC/EN61800-5;
CE marking
Product Standards IEC/EN see Technical Data; UL 508;
CSA C22.2 No. 142-M1987;
CSA C22.2 No. 213-M1987;
CE marking
UL File No. E172143 UL File No. E135462
UL Category Control No. NMMS, NMMS7 UL Category Control No. NRAQ
CSA File No. UL report applies to both US and Canada CSA File No. 012528
North America Certification UL listed, certified by UL for use in Canada CSA Class No. 2258-02
Suitable for Branch circuits North America
Certification
UL listed, CSA certified
Degree of Protection IEC: IP20, UL/CSA Type: -
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
PWR
USB
RxD
TxD
CA04020001Z-EN-INT www.eaton.eu

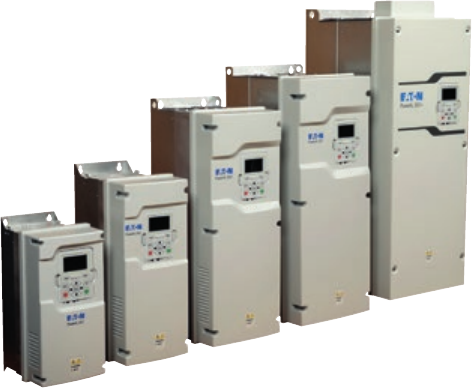

The PowerXL™ DA1 variable frequency drive, designed for the machine and system
building industry, is characterized by its enormous flexibility in terms of communications
protocols, a function block editor (PLC) that makes it possible to configure the drive
as necessary for specific applications, and a powerful vector control mode for highly
dynamic applications.
PowerXL™ Variable Frequency Drive DA1
Advanced Machinery Drive
Performance range:
• 0.75 … 2.2 kW (Ue: 1~ 230 V, U2: 3~ 230 V)
• 0.75 … 75 kW (Ue: 3~ 230 V, U2: 3~ 230 V)
• 0.75 … 250 kW (Ue: 3~ 400 V, U2: 3~ 400 V)
• 0.75 … 110 kW (Ue: 3~ 575 V, U2: 3~ 575 V)
Features:
• Large overload capability: 150% for
60 seconds, 200% for 4 seconds
• Integrated Modbus RTU and CANopen
• Ambient air temperature up to 50 °C without
derating
• Integrated EMC filter
• Integrated braking transistor
• Various I/O expansions
• V/F control, vector SL and CL, PM motor,
BLDC motor, SynRel motor
• Optional field bus connections
• Safe Torque Off (STO, SIL 2/Pl d)
• Optional high-resolution OLED display
• International standards (CE, UL, cUL, c-Tick,
RoHS, Gost-R, UkrSEPRO, DNV (754–757))
Accessories:
• SmartWire-DT connection
• Communication modules (PROFIBUS,
PROFINET, Ethernet/IP, EtherCAT,
DeviceNet, etc.)
• I/O expansions
• External keypad
• Mains chokes
• Motor chokes
• Sine filters
• Braking resistances
• drivesConnect parameter configuration
software
• External EMC filter
Applications:
• Winding machines
• Respooler machines
• Coating systems
• Compressors
• Mills, roller mills, shredders
• Extruders
• Cranes and lifting systems
• Marine
• Distributed applications (IP66)
PowerXL™ variable frequency drives
DA1
CA04020001Z-EN-INT www.eaton.eu
29
DA1
System overview 30
Key to type references 31
UL/CSA 31
Sizes and degree of protection 32
Ordering
Variable frequency drives DA1, IP20/IP55 33
Variable frequency drives DA1, IP66 36
Accessories 38
30 PowerXL™ variable frequency drives
DA1
CA04020001Z-EN-INT www.eaton.eu
DA1
System overview
DA1 with IP20 degree of protection
DA1 variable frequency drives 1
￫ page 33
Mains choke, motor choke, sine filter 2
￫ page 60, ￫ page 61
Braking resistance 3
￫ page 56
SmartWire-DT module 4
￫ page 38
2
3
6
4
7
1
5
Communication modules, expansion
modules
5
￫ page 38
Memory and Bluetooth communication
stick
6
￫ page 39
External keypad 7
￫ page 38
PowerXL™ variable frequency drives
DA1
CA04020001Z-EN-INT www.eaton.eu
31
DA1
DA1
Key to type references
UL/CSA
Information relevant for export to North America
Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No. E172143
UL Category Control No. NMMS, NMMS7
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
Max. Voltage Rating 3~ 240 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)
3~ 480 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)
DA1 - 1 2 4D3 F B - A 20 C
2 = 230 V (200 - 240 V ± 10 %)
4 = 400 V (380 - 480 V ± 10 %)
5 = 575 V (500 - 600 V ± 10 %)
20 = IP20/NEMA 0
55 = IP55/NEMA 12
66 = IP66/NEMA 4X
4D3 = 4.3 A
024 = 24 A
450 = 450 A
Connection in power section
1 = single-phase mains connection/
three-phase motor connection
3 = three-phase mains connection/
three-phase motor connection
Mains voltage category
Device series
DA1 = variable frequency drive, compact, series 1
(D = Drives, A = Advanced, 1 = Series 1)
Brake chopper
B = Brake chopper
Display unit (display)
A = LED display
B = OLED display
Degree of protection
6S = IP66 with switch/NEMA 4X, switched
Degree of protection
Type
C = coated printed circuit boards
N = no internal RFI filter
F = Internal RFI filter
EMC (radio interference suppression filter)
Rated operational current (examples)
32 PowerXL™ variable frequency drives
DA1
CA04020001Z-EN-INT www.eaton.eu
DA1
Sizes and degree of protection
Frame size Degree of Protection
IP20/NEMA 0 IP66/NEMA 4X IP66/NEMA 4X
Local controls
FS2
FS3
Frame size Degree of Protection Frame size Degree of Protection
IP55/NEMA 12 IP20/NEMA 0
FS4-FS7
…
FS8
FS4 FS7
Note: Figures are not true to scale
L1/L L2/NL3
DC-
U
DC+ BR
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18
COM
VW
PWROFF
ON
REVFWD
0
L1/LL2/NL3
DC-
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18
COM
U
DC+ BR
VW
PWROFF
ON
REV FWD
0
PowerXL™ variable frequency drives
DA1, for three-phase motors 230 V, IP20/IP55
CA04020001Z-EN-INT www.eaton.eu
33
DA1
DA1, for th ree-phase motors 23 0 V, IP20/IP55
Rated operational current1), 4) Assigned
motor
rating1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio interference
Brake chopper
DC link choke
7-digital display
assembly
OLED display
Additional PCB
protection
Local controls
PowerXL™ DA1 variable frequency drives
Ue 230 V AC, 1-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
4.3 0.75 1 ✓✓-✓-✓- FS2 IP20/NEMA 0 DA1-124D3FB-A20C
169078
1off
71.52✓✓-✓-✓-DA1-127D0FB-A20C
169081
10.5 2.2 3 ✓✓-✓-✓-DA1-12011FB-A20C
169084
Ue 230 V AC, 3-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
4.3 0.75 1 ✓✓-✓-✓- FS2 IP20/NEMA 0 DA1-324D3FB-A20C
169087
1off
71.52✓✓-✓-✓-DA1-327D0FB-A20C
169090
10.5 2.2 3 ✓✓-✓-✓-DA1-32011FB-A20C
169093
18 4 5 ✓✓-✓-✓-FS3 DA1-32018FB-A20C
169096
24 5.5 7.5 ✓✓-✓-✓-DA1-32024FB-A20C
169099
245) ✓✓--✓✓ - FS4 IP55/NEMA 12 DA1-32024FB-B55C
169361
30 7.5 10 ✓✓--✓✓ -DA1-32030FB-B55C
169362
46 11 15 ✓✓--✓✓ -DA1-32046FB-B55C
169363
61 15 20 ✓✓✓ -✓✓ -FS5 DA1-32061FB-B55C
169364
72 22 25 ✓✓✓ -✓✓ -DA1-32072FB-B55C
169365
905) 22 30 ✓✓✓ -✓✓ -FS6 DA1-32090FB-B55C
169367
1105) 30 40 ✓✓✓ -✓✓ -DA1-32110FB-B55C
169369
1505) 45 50 ✓✓✓ -✓✓ -DA1-32150FB-B55C
169371
1805) 55 60 ✓✓✓ -✓✓ -DA1-32180FB-B55C
169373
2025) 75 ✓✓✓ -✓✓ -FS7 DA1-32202FB-B55C
169375
2485) 75 100 ✓✓✓ -✓✓ -DA1-32248FB-B55C
169377
Notes 1) Overload cycle for 60 s every 600 s
2) at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) IP20/NEMA 0: Rated operational current at an operating frequency of 16 kHz and an ambient air temperature of +50°C
IP55/NEMA 12: Rated operational current at a switching frequency of 16 kHz and an ambient air temperature of +40°C
5) IP20/NEMA 0: Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +50°C
IP55/NEMA 12: Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 31
34 PowerXL™ variable frequency drives
DA1, for three-phase motors 400 V, IP20/IP55
CA04020001Z-EN-INT www.eaton.eu
DA1, for th ree-phase motors 40 0 V, IP20/IP55
Rated operational current1), 4) Assigned
motor
rating1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio interference
Brake chopper
DC link choke
7-digital display
assembly
OLED display
Additional PCB
protection
Local controls
PowerXL™ DA1 variable frequency drives
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
2.2 0.75 1 ✓✓-✓-✓- FS2 IP20/NEMA 0 DA1-342D2FB-A20C
169117
1off
4.1 1.5 2 ✓✓-✓-✓-DA1-344D1FB-A20C
169120
5.8 2.2 3 ✓✓-✓-✓-DA1-345D8FB-A20C
169051
9.5 4 5 ✓✓-✓-✓-DA1-349D5FB-A20C
169054
14 5.5 10 ✓✓-✓-✓-FS3 DA1-34014FB-A20C
169057
18 7.5 10 ✓✓-✓-✓-DA1-34018FB-A20C
169060
24 11 15 ✓✓-✓-✓-DA1-34024FB-A20C
169063
✓✓--✓✓ - FS4 IP55/NEMA 12 DA1-34024FB-B55C
169390
30 15 20 ✓✓--✓✓ -DA1-34030FB-B55C
169391
39 18.5 25 ✓✓--✓✓ -DA1-34039FB-B55C
169392
46 22 30 ✓✓--✓✓ -DA1-34046FB-B55C
169393
61 30 40 ✓✓✓ -✓✓ -FS5 DA1-34061FB-B55C
169394
72 37 50 ✓✓✓ -✓✓ -DA1-34072FB-B55C
169395
905) 45 60 ✓✓✓ -✓✓ -FS6 DA1-34090FB-B55C
169397
1105) 55 75 ✓✓✓ -✓✓ -DA1-34110FB-B55C
169399
1505) 75 100 ✓✓✓ -✓✓ -DA1-34150FB-B55C
169401
1805) 90 150 ✓✓✓ -✓✓ -DA1-34180FB-B55C
169403
2025) 110 ✓✓✓ -✓✓ -FS7 DA1-34202FB-B55C
169405
2405) 132 200 ✓✓✓ -✓✓ -DA1-34240FB-B55C
169407
3025) 160 250 ✓✓✓ -✓✓ -DA1-34302FB-B55C
169217
3705) 200 300 ✓✓--✓✓ - FS8 IP20/NEMA 0 DA1-34370FB-B20C
169219
4505) 250 350 ✓✓--✓✓ -DA1-34450FB-B20C
169221
Notes 1) Overload cycle for 60 s every 600 s
2) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) IP20/NEMA 0: Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +50°C
IP55/NEMA 12: Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40°C
5) IP20/NEMA 0: Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C
IP55/NEMA 12: Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 31
PowerXL™ variable frequency drives
DA1, for three-phase motors 500 V, IP20/IP55
CA04020001Z-EN-INT www.eaton.eu
35
DA1
DA1, for th ree-phase motors 50 0 V, IP20/IP55
Notes
Rated operational current1), 4) Assigned
motor
rating1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio interference
Brake chopper
DC link choke
7-digital display
assembly
OLED display
Additional PCB
protection
Local controls
PowerXL™ DA1 variable frequency drives
Ue 500 V AC, 3-phase / U2 500 V AC, 3-phase
Mains voltage (50/60Hz) ULN 500 (-10%) - 600 (+10%) V
2.1 0.75 1.5 - ✓-✓-✓- FS2 IP20/NEMA 0 DA1-352D1NB-A20C
177034
1off
3.1 1.5 2 - ✓-✓-✓-DA1-353D1NB-A20C
177035
4.1 2.2 3 - ✓-✓-✓-DA1-354D1NB-A20C
177036
6.5 4 5 - ✓-✓-✓-DA1-356D5NB-A20C
177037
95.57.5-✓-✓-✓-DA1-359D0NB-A20C
177038
12 7.5 10 - ✓-✓-✓-FS3 DA1-35012NB-A20C
177039
17 11 15 - ✓-✓-✓-DA1-35017NB-A20C
177040
22 15 20 - ✓-✓-✓-DA1-35022NB-A20C
177041
-✓--✓✓ - FS4 IP55/NEMA 12 DA1-35022NB-B55C
176965
28 18.5 25 - ✓--✓✓ -DA1-35028NB-B55C
176966
34 22 30 - ✓--✓✓ -DA1-35034NB-B55C
176967
43 30 40 - ✓✓ -✓✓ -FS5 DA1-35043NB-B55C
176968
54 37 50 - ✓✓ -✓✓ -DA1-35054NB-B55C
176969
65 45 60 - ✓✓ -✓✓ -DA1-35065NB-B55C
176970
785) 55 75 - ✓✓ -✓✓ -FS6 DA1-35078NB-B55C
176971
1055) 75 100 - ✓✓ -✓✓ -DA1-35105NB-B55C
176972
1305) 90 125 - ✓✓ -✓✓ -DA1-35130NB-B55C
176973
1505) 110 150 - ✓✓ -✓✓ -DA1-35150NB-B55C
176974
Notes 1) Overload cycle for 60 s every 600 s
2) at 500 V, 50 Hz/at 550 - 600 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) IP20/NEMA 0: Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +50°C
IP55/NEMA 12: Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40°C
5) IP20/NEMA 0: Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C
IP55/NEMA 12: Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 31
36 PowerXL™ variable frequency drives
DA1, for three-phase motors 230 V, IP66
CA04020001Z-EN-INT www.eaton.eu
DA1, for three-phase motors 230 V, IP66
Rated operational current1), 4) Assigned
motor
rating1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio interference
Brake chopper
DC link choke
7-digital display
assembly
OLED display
Additional PCB
protection
Local controls
PowerXL™ DA1 variable frequency drives
Ue 230 V AC, 1-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
4.3 0.75 1 ✓✓--✓✓ - FS2 IP66/NEMA 4X DA1-124D3FB-B66C
169347
1off
✓✓--✓✓ ✓ DA1-124D3FB-B6SC
169348
71.52✓✓--✓✓ -DA1-127D0FB-B66C
169349
✓✓--✓✓ ✓ DA1-127D0FB-B6SC
169350
10.5 2.2 3 ✓✓--✓✓ -DA1-12011FB-B66C
169351
✓✓--✓✓ ✓ DA1-12011FB-B6SC
169352
Ue 230 V AC, 3-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN 200 (-10%) - 240 (+10%) V
4.3 0.75 1 ✓✓--✓✓ - FS2 IP66/NEMA 4X DA1-324D3FB-B66C
169353
1off
✓✓--✓✓ ✓ DA1-324D3FB-B6SC
169354
71.52✓✓--✓✓ -DA1-327D0FB-B66C
169355
✓✓--✓✓ ✓ DA1-327D0FB-B6SC
169356
10.5 2.2 3 ✓✓--✓✓ -DA1-32011FB-B66C
169357
✓✓--✓✓ ✓ DA1-32011FB-B6SC
169358
18 4 5 ✓✓--✓✓ -FS3 DA1-32018FB-B66C
169359
✓✓--✓✓ ✓ DA1-32018FB-B6SC
169360
Notes 1) Overload cycle for 60 s every 600 s
2) at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) Rated operational current at a switching frequency of 16 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 31
PowerXL™ variable frequency drives
DA1, for three-phase motors 400 V/500 V, IP66
CA04020001Z-EN-INT www.eaton.eu
37
DA1
DA1, for three-phase motors 400 V/500 V, IP66
Rated operational current1), 4) Assigned
motor
rating1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Ie
A
P
kW
P
HP
Radio interference
Brake chopper
DC link choke
7-digital display
assembly
OLED display
Additional PCB
protection
Local controls
PowerXL™ DA1 variable frequency drives
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
2.2 0.75 1 ✓✓--✓✓ - FS2 IP66/NEMA 4X DA1-342D2FB-B66C
169378
1off
✓✓--✓✓ ✓ DA1-342D2FB-B6SC
169379
4.1 1.5 2 ✓✓--✓✓ -DA1-344D1FB-B66C
169380
✓✓--✓✓ ✓ DA1-344D1FB-B6SC
169381
5.8 2.2 3 ✓✓--✓✓ -DA1-345D8FB-B66C
169382
✓✓--✓✓ ✓ DA1-345D8FB-B6SC
169383
9.5 4 5 ✓✓--✓✓ -DA1-349D5FB-B66C
169384
✓✓--✓✓ ✓ DA1-349D5FB-B6SC
169385
14 5.5 10 ✓✓--✓✓ -FS3 DA1-34014FB-B66C
169386
✓✓--✓✓ ✓ DA1-34014FB-B6SC
169387
18 7.5 10 ✓✓--✓✓ -DA1-34018FB-B66C
169388
✓✓--✓✓ ✓ DA1-34018FB-B6SC
169389
Ue 500 V AC, 3-phase / U2 500 V AC, 3-phase
Mains voltage (50/60Hz) ULN 500 (-10%) - 600 (+10%) V
2.1 0.75 1.5 - ✓--✓✓ - FS2 IP66/NEMA 4X DA1-352D1NB-B66C
176984
1off
-✓--✓✓ ✓ DA1-352D1NB-B6SC
177012
3.1 1.5 2 - ✓--✓✓ -DA1-353D1NB-B66C
176985
-✓--✓✓ ✓ DA1-353D1NB-B6SC
177013
4.1 2.2 3 - ✓--✓✓ -DA1-354D1NB-B66C
176986
-✓--✓✓ ✓ DA1-354D1NB-B6SC
177014
6.5 4 5 - ✓--✓✓ -DA1-356D5NB-B66C
176987
-✓--✓✓ ✓ DA1-356D5NB-B6SC
177015
95.57.5-✓--✓✓ -DA1-359D0NB-B66C
176988
-✓--✓✓ ✓ DA1-359D0NB-B6SC
177016
12 7.5 10 - ✓--✓✓ -FS3 DA1-35012NB-B66C
176989
-✓--✓✓ ✓ DA1-35012NB-B6SC
177017
17 11 15 - ✓--✓✓ -DA1-35017NB-B66C
176990
-✓--✓✓ ✓ DA1-35017NB-B6SC
177018
Notes 1) Overload cycle for 60 s every 600 s
2) DA1-34…: at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
DA1-35…: at 500 V, 50 Hz/at 550 - 600 V, 60 Hz
3) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
4) Rated operational current at a switching frequency of 8 kHz and an ambient air temperature of +40°C
Information relevant for export to North America ￫ Page 31
38 PowerXL™ variable frequency drives
Accessories
CA04020001Z-EN-INT www.eaton.eu
Accessories
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
External keypad
With 7-digital display assembly
Front IP54
With approx. 3 m-long, plug-in connection cable
(RJ45, 8-pin)
3 DE1, DC1, DA1, DL1 DX-KEY-LED
169132
1off
with OLED display
Front IP54
Multilingual
With approx. 3 m-long, plug-in connection cable
(RJ45, 8-pin)
3 DC1, DA1, DL1 DX-KEY-OLED
169133

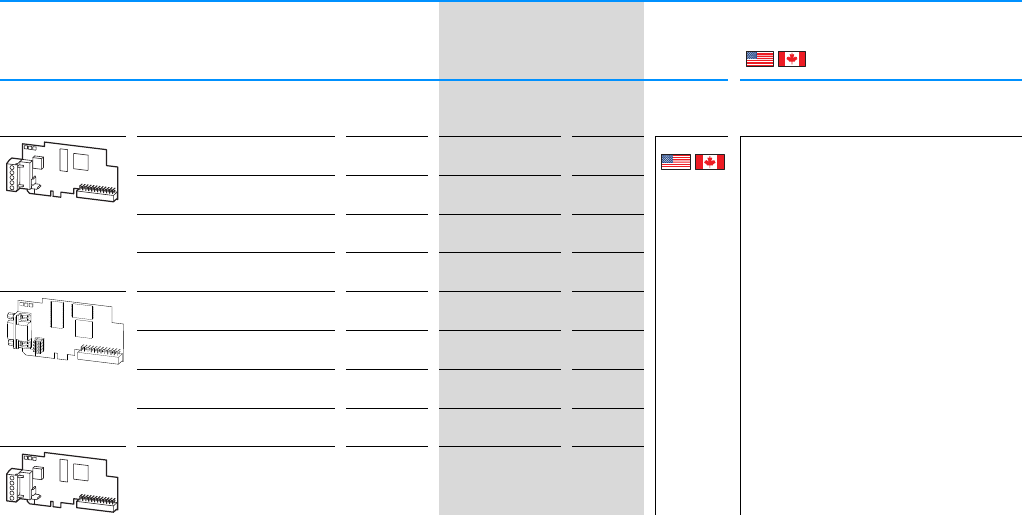

Expansion modules
Output expansion
Plug-in module with plug-in terminal block, 5 pole
3 relay outputs (N/O, 250 V AC, max. 6 A/ 30 V DC,
max. 5 A)
- DA1, DL1 DXA-EXT-3RO
169121
1off
I/O expansion
Plug-in module with plug-in terminal blocks, 6 pole
3 digital inputs (+24 V)
1 relay output (N/O, 250 V AC, max. 6 A/ 30 V DC,
max. 5 A)
- DA1, DL1 DXA-EXT-3DI1RO
169036
Encoder module
Plug-in module with plug-in terminal block, 5 pole
2-channel
max. 500 kHz
5 V TTL, A & B, /A & /B, 5 V DC, max. 200 mA
24 V HTL, A & B, /A & /B, 24 V DC, external power
supply required, max. 30 V DC
- DA1, DL1 DXA-EXT-ENCOD
169035
SmartWire-DT Modules
Plug-in module with slot for SWD4-8SF2-5 external
device plug
- DA1 (IP20, IP55) DX-NET-SWD1
169129
1off
Fieldbus modules
PROFIBUS-DP
SUB-D socket, 9-pole
- DA1, DL1 DX-NET-PROFIBUS
169124
1off
PROFINET
2 x RJ45, 8 pole
Plug-in module
- DA1, DL1 DX-NET-PROFINET-2
169125
Modbus-TCP
2 x RJ45, 8 pole
- DA1, DL1 DX-NET-
MODBUSTCP-2
169126
EtherNet/IP
2 x RJ45, 8 pole
- DA1, DL1 DX-NET-ETHERNET-2
169122
EtherCAT
2 x RJ45, 8 pole
- DA1, DL1 DX-NET-ETHERCAT-2
169127
DeviceNet - DA1, DL1 DX-NET-DEVICENET
169123
Information relevant for export to North America
Product Standards UL 508C; CSA-C22.2 No. 14;
IEC/EN61800-3;
IEC/EN61800-5;
CE marking
UL File No. E172143
UL Category Control No. NMMS, NMMS7
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
AB
Ready
OP ST
PROFIBUS DP-V1
IN OUT
AB
PowerXL™ variable frequency drives
Accessories
CA04020001Z-EN-INT www.eaton.eu
39
DA1
PC communication
Parameter storage unit and Bluetooth communication stick
For storage, copying parameters, and/or transferring
parameters to a PC with the drivesConnect software
via Bluetooth
With 2 function keys for uploading and downloading
parameters
with configuration memory
- DE1, DC1, DA1, DL1 DX-COM-STICK
169134
1off
Interface converter
For directly connecting the variable-frequency drive to a computer with drivesConnect software
Interface converter USB/RS485 with connection cable,
RJ45, 8 pole
electrically isolated
1 × SUB-D plug, 9-pole
Terminal strip, 5-terminal
Status-LED
- DE1, DC1, DA1, DL1 DX-COM-PCKIT
169135
1off
Interface converter USB/RS485 with connection cable,
RJ45, 8 pole
electrically isolated
- DE1, DC1, DA1, DL1 DX-CBL-PC-1M5
171018
1off
License Keys
to activate the function block editor in the DrivesConnect software
USB flash drive - DA1, DL1 DX-COM-SOFT
169136
Connecting cable
Patch cord with RJ45 plugs, 8 pole 0.5 DE1, DC1, DA1, DL1 DX-CBL-RJ45-0M5
169137
1off
1DX-CBL-RJ45-1M0
169138
3DX-CBL-RJ45-3M0
169139
Bus terminating resistor
RJ45
8 pole
Connection to CANopen® (pin 1/2, 124 Ω) or to Modbus
RTU (pin 7/8, 120 Ω)
- easyNet
DX-SPL-RJ45-2SL-
1PL
EASY-NT-R
256281
2off
Splitter
RJ45, 8-pin, 3 sockets - DX-CBL-RJ45… DX-SPL-RJ45-3SL
169141
1off
RJ45, 8-pin, 2 sockets/1 plug - DX-CBL-RJ45… DX-SPL-RJ45-2SL1PL
169142
Information relevant for export to North America EASY-NT-R:
Product Standards UL 508C; CSA-C22.2 No. 14;
IEC/EN61800-3;
IEC/EN61800-5;
CE marking
Product Standards IEC/EN see Technical Data; UL 508;
CSA C22.2 No. 142-M1987;
CSA C22.2 No. 213-M1987;
CE marking
UL File No. E172143 UL File No. E135462
UL Category Control No. NMMS, NMMS7 UL Category Control No. NRAQ
CSA File No. UL report applies to both US and Canada CSA File No. 012528
North America Certification UL listed, certified by UL for use in Canada CSA Class No. 2258-02
Suitable for Branch circuits North America
Certification
UL listed, CSA certified
Degree of Protection IEC: IP20, UL/CSA Type: -
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
PWR
USB
RxD
TxD
569764
40 PowerXL™ variable frequency drives
Accessories
CA04020001Z-EN-INT www.eaton.eu
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
mounting accessories
mounting adapter with gland plates
For installing the connection
cables on the mains side
Size FS2 - DC1, DA1, DL1 DX-EMC-MNT-2N
172927
1off
Size FS3 - DC1, DA1, DL1 DX-EMC-MNT-3N
172929
For installing the connection
cables on the motor side
Size FS2 - DC1, DA1, DL1 DX-EMC-MNT-2M
172928
Size FS3 - DC1, DA1, DL1 DX-EMC-MNT-3M
172930
Information relevant for export to North America
Product Standards UL 508C; CSA-C22.2 No. 14;
IEC/EN61800-3;
IEC/EN61800-5;
CE marking
UL File No. E172143
UL Category Control No. NMMS, NMMS7
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
PowerXL™ variable speed starter
Notes
CA04020001Z-EN-INT www.eaton.eu
41
DA1
Notes
CA04020001Z-EN-INT www.eaton.eu
PowerXL™ DG1 general-purpose drives are variable frequency drives in Eaton's
"Next-Generation" PowerXL™ series. They are specifically designed for modern,
sophisticated applications:
In fact, energy-saving algorithms, high short-circuit values, and a heavy-duty design all
enable them to provide maximum efficiency, safety, and reliability.
PowerXL™ Variable Frequency Drive DG1
General Purpose Drive
Performance range:
• 0.75 … 90 kW (Ue: 3~ 230 V, U2: 3~ 230 V)
• 0.75 … 160 kW (Ue: 3~ 400 V, U2: 3~ 400 V)
Features:
• Ease of use: Startup Wizard, inControl PC Tool
software, four built-in applications,
diagnostics, local/remote button, removable
keypad with copy/paste functionality.
• Communicative: Modbus RTU, Modubs TCP,
Ethernet IP and BacNet MS/TP Standard on
each device. In addition to that extensive I/O
above the standard in this device class
• Efficiency: Active energy control algorithm,
5% DC choke, input surge protection,
EMC filter built-in
• Rugged and reliable: Dual rating with high (CT)
and low (VT) overload capability, conformal
coated boards, brake chopper circuit, durable
metal power section, 50°C rating (60°C
de-rating), removable keypad rated IP54
• Global acceptance: UL®, CE, cUL®, RoHS,
C-Tick
Accessories:
• Communication modules (PROFIBUS,
PROFINET, DeviceNet, etc.)
• I/O expansions
• External keypad
• Motor chokes
• Sine filters
• Braking resistances
• Power Xpert inControl operating
software
Applications:
• Multi-pump applications
• HVAC
• Roller and chain conveyors
• Compressors, mills
• Production machines
• Centrifuges and extruders
• Traction drives, conveyor belts
• Sawing, drilling, dosing unit drives
• Chemical and primary industries
• Water jet cutting, crushers
PowerXL™ variable frequency drives
DG1
CA04020001Z-EN-INT www.eaton.eu
43
DG1
System overview 44
Key to type references 45
Sizes and degree of protection 45
UL/CSA 45
Ordering
Variable frequency drives DG1, IP21 46
Variable frequency drives DG1, IP54 48
Accessories 50
44 PowerXL™ variable frequency drives
DG1
CA04020001Z-EN-INT www.eaton.eu
DG1

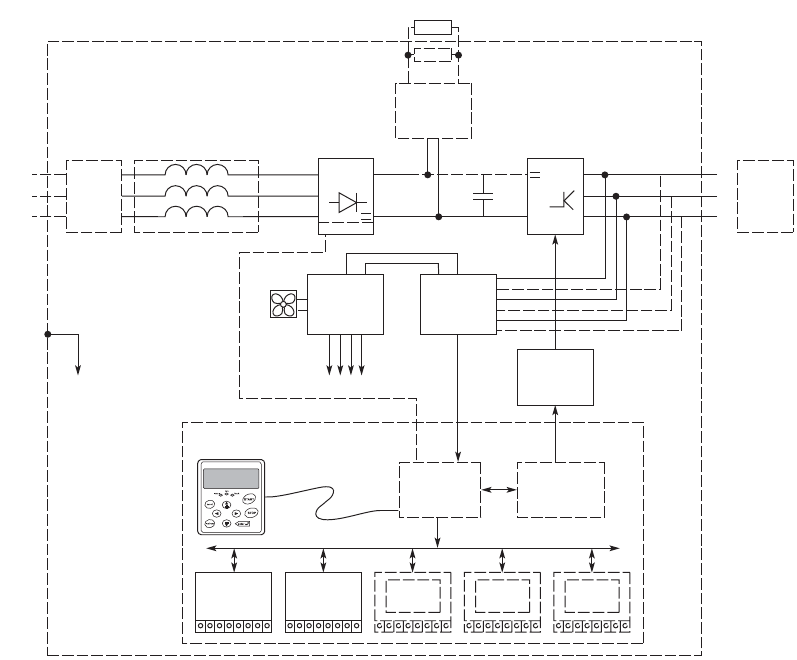

System overview
DG1, frame size FR1
DG1 variable frequency drives 1
￫ page 46
Braking resistance 2
￫ page 56
Mains choke, motor choke, sine filter 3
￫ page 60
Communication modules,
expansion modules
4
￫ page 56
3
4
12
PowerXL™ variable frequency drives
DG1
CA04020001Z-EN-INT www.eaton.eu
45
DG1
DG1
Key to type references
UL/CSA
Information relevant for export to North America
Product Standards UL508C, CSA-C22.2 No. 274-13; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No. E134360
UL Category Control No. NMMS, NMMS7
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
Max. Voltage Rating 3~ 240 V AC IEC: TN-S UL/CSA: 'Y' (Solidly Grounded Wey)
3~ 500 V AC IEC: TN-S UL/CSA: 'Y' (Solidly Grounded Wey)
Sizes
FS1 FS2 FS3 FS4 FS5
DG1 - 3 4 2D2 F B - C 21 C
2D2 = 2.2 A
012 = 12 A
261 = 261 A
2 = 230 V (208 - 240 V, -15 %, ± 10 %)
4 = 400 V (380 - 500 V, -15 %, ± 10 %)
5 = 575 V (525 - 600 V, -15 %, ± 10 %)
21 = IP21/NEMA 1
54 = IP54/NEMA 12
Connection in power section
3 = three-phase mains connection/
three-phase motor connection
Mains voltage category
Device series
DG1 = variable frequency drive, universal, series 1
(D = Drives, G = General purpose, 1 = Series 1)
Brake chopper
N = no internal brake chopper
B = Brake chopper
Display unit (display)
C = LCD (graphic)
Degree of protection
Type
C = Additional PCB protection
F = Internal RFI filter
EMC (radio interference suppression filter)
Rated operational current (examples)
46 PowerXL™ variable frequency drives
DG1, for three-phase motors 230 V, IP21
CA04020001Z-EN-INT www.eaton.eu
DG1, for three-phas e motors 230 V, IP21
Ordering
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame
size
Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Radio interference
Brake chopper
DC link choke
Multi-line graphic display
Additional PCB protection
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePP IePP
AkWHPAkWHP
Ue 230 V AC, 3-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 208 (-15%) - 240 (+10%) V
3.7 0.75 0.75 4.8 1.1 1 ✓✓✓✓✓ FS1 IP21 DG1-323D7FB-C21C
9701-1002-00P
1off
4.8 1.1 1 6.6 1.5 1.5 ✓✓✓✓✓ DG1-324D8FB-C21C
9701-1004-00P
6.6 1.5 1.5 7.8 2 ✓✓✓✓✓ DG1-326D6FB-C21C
9701-1006-00P
7.8 2 11 2.2 3 ✓✓✓✓✓ DG1-327D8FB-C21C
9701-1008-00P
11 2.2 3 12.5 3 ✓✓✓✓✓ DG1-32011FB-C21C
9701-1001-00P
12.5 3 17.5 4 5 ✓✓✓✓✓ FS2 DG1-32012FB-C21C
9701-2002-00P
17.5 4 5 25 5.5 7.5 ✓✓✓✓✓ DG1-32017FB-C21C
9701-2004-00P
25 5.5 7.5 31 7.5 10 ✓✓✓✓✓ DG1-32025FB-C21C
9701-2001-00P
31 7.5 10 48 11 15 ✓✓✓✓✓ FS3 DG1-32031FB-C21C
9701-3002-00P
48 11 15 61 15 20 ✓✓✓✓✓ DG1-32048FB-C21C
9701-3001-00P
61 15 20 75 22 25 ✓-✓✓✓ FS4 DG1-32061FN-C21C
9701-4004-00P
✓✓✓✓✓ DG1-32061FB-C21C
9701-4002-00P
75 22 25 88 22 30 ✓✓✓✓✓ DG1-32075FN-C21C
9701-4008-00P
✓✓✓✓✓ DG1-32075FB-C21C
9701-4006-00P
88 30 114 30 40 ✓✓✓✓✓ DG1-32088FN-C21C
9701-4001-00P
✓✓✓✓✓ DG1-32088FB-C21C
9701-4010-00P
114 30 40 143 45 50 ✓✓✓✓✓ DG1-32114FN-C21C
9701-5004-00P
✓✓✓✓✓ DG1-32114FB-C21C
9701-5002-00P
143 45 50 170 60 ✓✓✓✓✓ FS5 DG1-32143FN-C21C
9701-5008-00P
✓✓✓✓✓ DG1-32143FB-C21C
9701-5006-00P
170 60 211 55 75 ✓-✓✓✓ DG1-32170FN-C21C
9701-5001-00P
✓✓✓✓✓ DG1-32170FB-C21C
9701-5010-00P
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
Information relevant for export to North America ￫ Page 45
PowerXL™ variable frequency drives
DG1, for three-phase motors 400 V , IP21
CA04020001Z-EN-INT www.eaton.eu
47
DG1
DG1, for three-pha se motors 400 V , IP21
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame
size
Degree of
Protection
Part no.
Article no.
Price
see price
list
Std. pack
Radio interference
Brake chopper
DC link choke
Multi-line graphic display
Additional PCB protection
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePP IePP
AkWHPAkWHP
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 380 (-15%) - 500 (+10%) V
2.2 0.75 1 3.3 1.1 1.5 ✓✓✓✓✓ FS1 IP21 DG1-342D2FB-C21C
9702-1002-00P
1off
3.3 1.1 1.5 4.3 1.5 2 ✓✓✓✓✓ DG1-343D3FB-C21C
9702-1004-00P
4.3 1.5 2 5.6 2.2 3 ✓✓✓✓✓ DG1-344D3FB-C21C
9702-1006-00P
5.6 2.2 3 7.6 3 ✓✓✓✓✓ DG1-345D6FB-C21C
9702-1008-00P
7.6 3 945✓✓✓✓✓ DG1-347D6FB-C21C
9702-1001-00P
945 12 5.5 7.5 ✓✓✓✓✓ DG1-349D0FB-C21C
9702-1011-00P
12 5.5 7.5 16 7.5 10 ✓✓✓✓✓ FS2 DG1-34012FB-C21C
9702-2002-00P
16 7.5 10 23 11 15 ✓✓✓✓✓ DG1-34016FB-C21C
9702-2004-00P
23 11 15 31 15 20 ✓✓✓✓✓ DG1-34023FB-C21C
9702-2001-00P
31 15 20 38 18.5 25 ✓✓✓✓✓ FS3 DG1-34031FB-C21C
9702-3002-00P
38 18.5 25 46 22 30 ✓✓✓✓✓ DG1-34038FB-C21C
9702-3004-00P
46 22 30 61 30 40 ✓✓✓✓✓ DG1-34046FB-C21C
9702-3001-00P
61 30 40 72 37 50 ✓✓✓✓✓ FS4 DG1-34061FB-C21C
9702-4002-00P
72 37 50 87 45 60 ✓-✓✓✓ DG1-34072FN-C21C
9702-4008-00P
✓✓✓✓✓ DG1-34072FB-C21C
9702-4006-00P
87 45 60 105 55 75 ✓-✓✓✓ DG1-34087FN-C21C
9702-4001-00P
✓✓✓✓✓ DG1-34087FB-C21C
9702-4010-00P
105 55 75 140 75 100 ✓-✓✓✓ FS5 DG1-34105FN-C21C
9702-5004-00P
✓✓✓✓✓ DG1-34105FB-C21C
9702-5002-00P
140 75 100 170 90 125 ✓-✓✓✓ DG1-34140FN-C21C
9702-5008-00P
✓✓✓✓✓ DG1-34140FB-C21C
9702-5006-00P
170 90 125 205 110 150 ✓-✓✓✓ DG1-34170FN-C21C
9702-5001-00P
✓✓✓✓✓ DG1-34170FB-C21C
9702-5010-00P
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
Information relevant for export to North America ￫ Page 45
48 PowerXL™ variable frequency drives
DG1, for three-phase motors 230 V, IP54
CA04020001Z-EN-INT www.eaton.eu
DG1, for three-phas e motors 230 V, IP54
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame
size
Degree of
Protection
Part no.
Article no.
Price
see
price
list
Std. pack
Radio interference
suppression filter
Brake chopper
DC link choke
Multi-line graphic display
Additional PCB protection
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 230 V AC, 3-phase / U2 230 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 208 (-15%) - 240 (+10%) V
3.7 0.75 0.75 4.8 1.1 1 ✓ ✓✓✓✓ FS1 IP54 DG1-323D7FB-C54C
9701-1101-00P
1off
4.8 1.1 1 6.6 1.5 1.5 ✓ ✓✓✓✓ DG1-324D8FB-C54C
9701-1103-00P
6.6 1.5 1.5 7.8 2 ✓ ✓✓✓✓ DG1-326D6FB-C54C
9701-1105-00P
7.8 1.5 2 11 2.2 3 ✓ ✓✓✓✓ DG1-327D8FB-C54C
9701-1107-00P
11 2.2 3 12.5 3 ✓ ✓✓✓✓ DG1-32011FB-C54C
9701-1109-00P
12.5 3 17.5 4 5 ✓ ✓✓✓✓ FS2 DG1-32012FB-C54C
9701-2101-00P
17.5 4 5 25 5.5 7.5 ✓ ✓✓✓✓ DG1-32017FB-C54C
9701-2103-00P
25 5.5 7.5 31 7.5 10 ✓ ✓✓✓✓ DG1-32025FB-C54C
9701-2105-00P
31 7.5 10 48 11 15 ✓ ✓✓✓✓ FS3 DG1-32031FB-C54C
9701-3101-00P
48 11 15 61 15 20 ✓ ✓✓✓✓ DG1-32048FB-C54C
9701-3103-00P
61 15 20 75 22 25 ✓-✓✓✓ FS4 DG1-32061FN-C54C
9701-4103-00P
✓ ✓✓✓✓ DG1-32061FB-C54C
9701-4101-00P
75 22 25 88 30 ✓-✓✓✓ DG1-32075FN-C54C
9701-4107-00P
✓-✓✓✓ DG1-32075FB-C54C
9701-4105-00P
88 30 114 30 40 ✓-✓✓✓ DG1-32088FN-C54C
9701-4111-00P
✓-✓✓✓ DG1-32088FB-C54C
9701-4109-00P
114 30 40 143 45 50 ✓-✓✓✓ DG1-32114FN-C54C
9701-5103-00P
✓-✓✓✓ DG1-32114FB-C54C
9701-5101-00P
143 45 50 170 60 ✓-✓✓✓ FS5 DG1-32143FN-C54C
9701-5107-00P
✓-✓✓✓ DG1-32143FB-C54C
9701-5105-00P
170 60 211 55 75 ✓-✓✓✓ DG1-32170FN-C54C
9701-5111-00P
✓ ✓✓✓✓ DG1-32170FB-C54C
9701-5109-00P
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 230 V, 50 Hz/at 220 - 240 V, 60 Hz
Information relevant for export to North America ￫ Page 45
PowerXL™ variable frequency drives
DG1, for three-phase motors 400 V, IP54
CA04020001Z-EN-INT www.eaton.eu
49
DG1
DG1, for three-phas e motors 400 V, IP54
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame
size
Degree of
Protection
Part no.
Article no.
Price
see
price
list
Std. pack
Radio interference
suppression filter
Brake chopper
DC link choke
Multi-line graphic display
Additional PCB protection
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePP IePP
AkWHPAkWHP
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 380 (-15%) - 500 (+10%) V
2.2 0.75 1 3.3 1.1 1.5 ✓ ✓✓✓✓ FS1 IP54 DG1-342D2FB-C54C
9702-1101-00P
1off
3.3 1.1 1.5 4.3 1.5 2 ✓ ✓✓✓✓ DG1-343D3FB-C54C
9702-1103-00P
4.3 1.5 2 5.6 2.2 3 ✓ ✓✓✓✓ DG1-344D3FB-C54C
9702-1105-00P
5.6 2.2 3 7.6 3 ✓ ✓✓✓✓ DG1-345D6FB-C54C
9702-1107-00P
7.6 3 945✓ ✓✓✓✓ DG1-347D6FB-C54C
9702-1109-00P
945 12 5.5 7.5 ✓ ✓✓✓✓ DG1-349D0FB-C54C
9702-1111-00P
12 5.5 7.5 16 7.5 10 ✓ ✓✓✓✓ FS2 DG1-34012FB-C54C
9702-2101-00P
16 7.5 10 23 11 15 ✓ ✓✓✓✓ DG1-34016FB-C54C
9702-2103-00P
23 11 15 31 15 20 ✓ ✓✓✓✓ DG1-34023FB-C54C
9702-2105-00P
31 15 20 38 18.5 25 ✓ ✓✓✓✓ FS3 DG1-34031FB-C54C
9702-3101-00P
38 18.5 25 46 22 30 ✓ ✓✓✓✓ DG1-34038FB-C54C
9702-3103-00P
46 22 30 61 30 40 ✓ ✓✓✓✓ DG1-34046FB-C54C
9702-3105-00P
61 30 40 72 37 50 ✓ ✓✓✓✓ FS4 DG1-34061FB-C54C
9702-4101-00P
✓-✓✓✓ DG1-34061FN-C54C
9702-4103-00P
72 37 50 87 45 60 ✓-✓✓✓ DG1-34072FN-C54C
9702-4107-00P
✓ ✓✓✓✓ DG1-34072FB-C54C
9702-4105-00P
87 45 60 105 55 75 ✓-✓✓✓ DG1-34087FN-C54C
9702-4111-00P
✓ ✓✓✓✓ DG1-34087FB-C54C
9702-4109-00P
105 55 75 140 75 100 ✓-✓✓✓ FS5 DG1-34105FN-C54C
9702-5103-00P
✓ ✓✓✓✓ DG1-34105FB-C54C
9702-5101-00P
140 75 100 170 90 125 ✓-✓✓✓ DG1-34140FN-C54C
9702-5107-00P
✓ ✓✓✓✓ DG1-34140FB-C54C
9702-5105-00P
170 90 125 205 110 150 ✓-✓✓✓ DG1-34170FN-C54C
9702-5111-00P
✓ ✓✓✓✓ DG1-34170FB-C54C
9702-5109-00P
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
Information relevant for export to North America ￫ Page 45
50 PowerXL™ variable frequency drives
Accessories
CA04020001Z-EN-INT www.eaton.eu
Accessories
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
External keypad
with OLED display
Front IP54
Multilingual
- DG1 DXG-KEY-LCD
730-32047-00P
1off
Mounting frame
with approx. 0.5 m-long, plug-in connection cable
0.5 DXG-KEY-LCD DXG-KEY-RMTKIT
730-32033-00P
Mounting frame - DXG-KEY-HOLDER
730-32032-00P
Cover for RJ45 interface - DXG-KEY-N12PLUG
730-32038-00P
Expansion modules
Output expansion
3 relay outputs
- DG1 DXG-EXT-3RO
744-A2614-00P
1off
I/O expansion
3 digital inputs
3 Digital outputs
1 Thermistor input
- DG1 DXG-EXT-3DI3DO1T
744-A2612-00P
I/O expansion
1 Analog input
2 Analog outputs
- DG1 DXG-EXT-1AI2AO
744-A2613-00P
Input expansion
Thermistor input
- DG1 DXG-EXT-THER1
744-A2615-00P
Input expansion
240-V-AC input (electrically isolated)
for 6 digital inputs
- DG1 DXG-EXT-6DI
744-A2616-00P
Fieldbus modules
PROFIBUS-DP
SUB-D socket, 9-pole
- DG1 DXG-NET-PROFIBUS
744-A2617-00P
1off
Interface converter from 9-pin SUB-D plug to 3-pin
control signal terminal
- DXG-NET-PROFIBUS DXG-MNT-PROFIBUS
744-A2618-00P
PowerXL™ variable frequency drives
Accessories
CA04020001Z-EN-INT www.eaton.eu
51
DG1

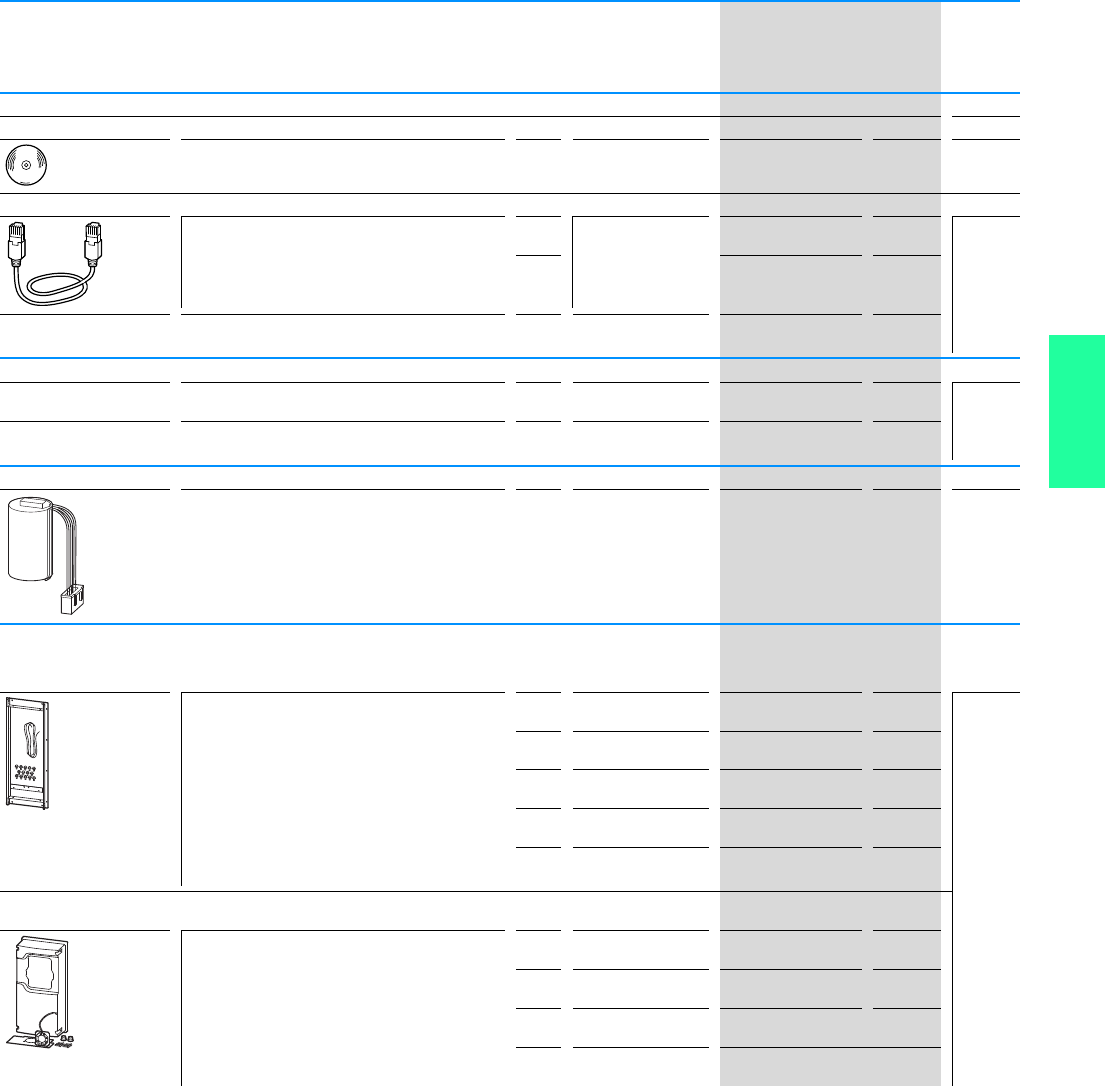

PC communication
parameter software
- - DG1 DXG-ACC-SOFTWARE
730-32036-00P
1off
Connecting cable
Patch cord with RJ45 plugs, 8 pole 1 DG1 DXG-CBL-1M0
730-32034-00P
1off
3DXG-CBL-3M0
730-32035-00P
PC programming cable RJ45/USB, with CD - DG1 DXG-CBL-PCCABLE
730-32037-00P
Demo case and simulator
- DG1 simulator (control section) - - DG1-DEMO1
178125
1off
- DG1 simulator - - DG1-DEMO2-230
178126
Battery
Battery for real-time clock - - DXG-ACC-RTBATT
730-32039-00P
1off
mounting accessories
mounting frame
For the power section's push-through installation outside the control panel
Frame parts and fixing screws - DG1 (frame size FS1) DXG-ACC-FR1N12FK
730-32022-00P
1off
- DG1 (frame size FS2) DXG-ACC-FR2N12FK
730-32023-00P
- DG1 (frame size FS3) DXG-ACC-FR3N12FK
730-32024-00P
- DG1 (frame size FS4) DXG-ACC-FR4N12FK
730-32025-00P
- DG1 (frame size FS5) DXG-ACC-FR5N12FK
730-32026-00P
Mounting set
For increasing the degree of protection from IP21/NEMA 1 to IP54/NEMA 12
Enclosure cover with seals and extra fan - DG1-34... (frame size
FS1, 400/480 V)
DXG-ACC-4FR1N12KIT
730-32029-00P
- DG1 (frame size FS2) DXG-ACC-FR2N12KIT
730-32030-00P
- DG1 (frame size FS3) DXG-ACC-FR3N12KIT
730-32031-00P
- DG1-32... (frame size
FS1, 230 V)
DXG-ACC-2FR1N12KIT
744-A2815-00P
Description Length For use with Part no.
Article no.
Price
see price
list
Std. pack
CA04020001Z-EN-INT www.eaton.eu

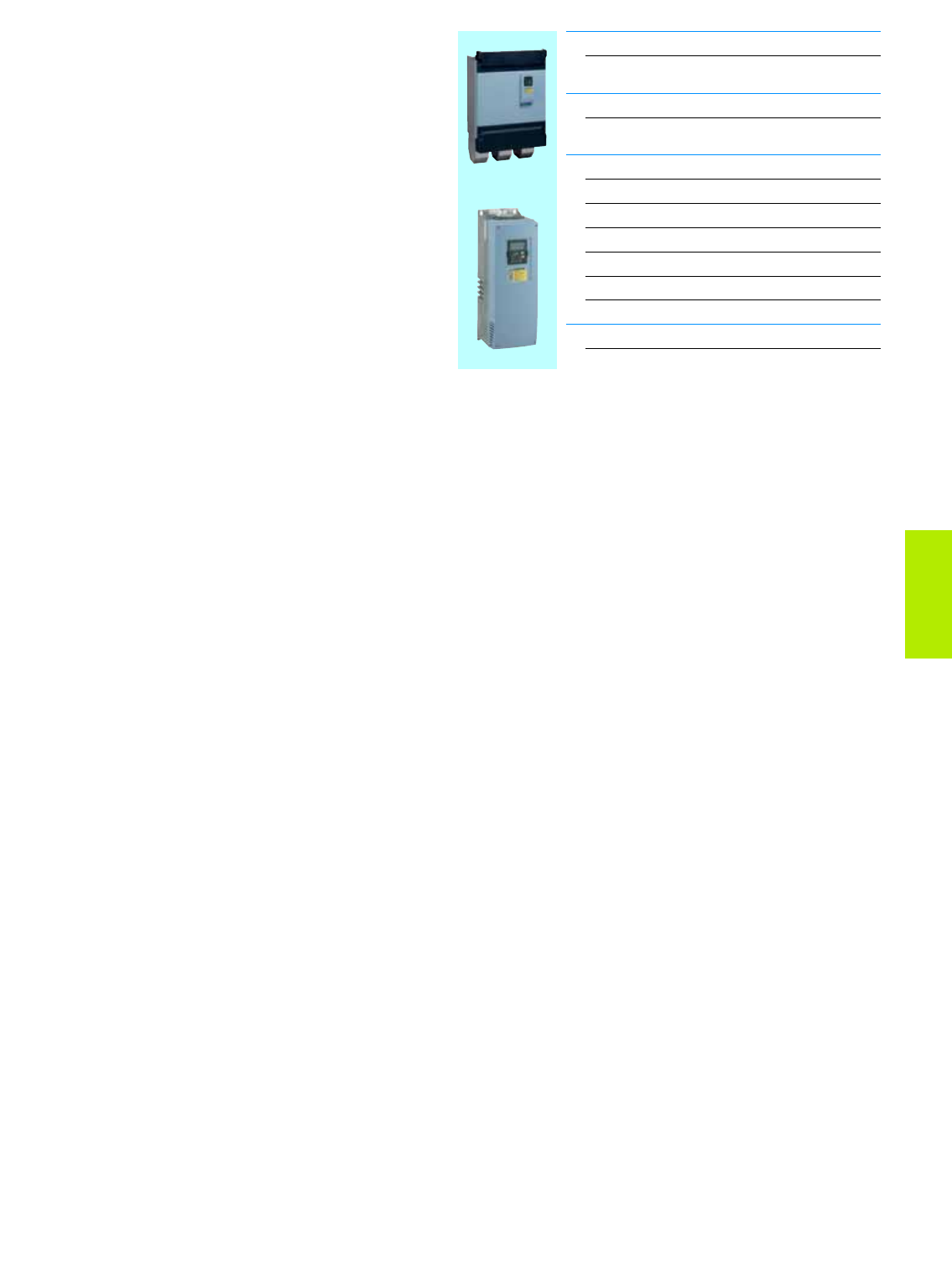

With PowerXL variable speed starters and PowerXL and 9000X variable frequency drives,
you can rest assured knowing that your variable-speed power drive system (PDS) needs
will be well taken care of. These units are known for their compact design and wide
applicability, making them the ideal choice for most applications on the global market.
But that's not all: Additional options such as mains chokes, motor chokes, sine filters, and
braking resistors make it possible not only to expand the devices' range of applications,
but also to adapt to a variety of EMC environments and mains-side operating conditions.
DX-LN… mains chokes
DX-LN1…: single phase, max. 260 V, 50/60 Hz, 6 - 32 A
DX-LN3…: 3-phase max. 550 V, 50/60 Hz, 4 - 450 A
Motor choke DX-LM3…
DX-LM3…: 3-phase, max. 750 V, 0 - 400 Hz, 5 - 450 A
Radio interference suppression filter DX-EMC…
Calibrated and assigned radio interference suppression filter for Series DA1, DC1 and DL1
DX-EMC12…: single phase, with prefabricated connection cables, base-mounted filter
DX-EMC34…: 3-phase, with prefabricated connection cables, base-mounted filter, low leakage
current
DX-EMC34…: 3-phase, 100 – 750 A, low leakage current
Sine filter DX-SIN3…
DX-SIN3…: 3-phase, 0 – 520 V, 0 - 150 Hz, 4 - 480 A
Sine filters used with variable frequency drives require the frequency to be set to a fixed value
within a range of 4 – 8 kHz.
DX-BR… braking resistance
- with prefabricated connection cables for installation in DA1, DC1, and DL1 devices
- with 1-m long connection cable, temperature monitoring switch, 75 – 400 ohms, 0.4 – 1.6 kW
- with temperature monitoring switch, 2 – 100 Ohm, 0.2 – 102.4 kW
Accessories and Engineering
PowerXL™ variable frequency drives
DG1
CA04020001Z-EN-INT www.eaton.eu
53
Accessories and
Engineering
Ordering
Radio interference suppression filters 54
Braking resistances 56
Mains chokes 60
Motor chokes 60
Sine filter 61
Engineering
Components of the Power Drives Systems (PDS) 62
General information on Engineering 63
Connection examples 65
Assigned switching and protective elements 66
54 PowerXL™ variable frequency drives
Radio interference suppression filters
CA04020001Z-EN-INT www.eaton.eu

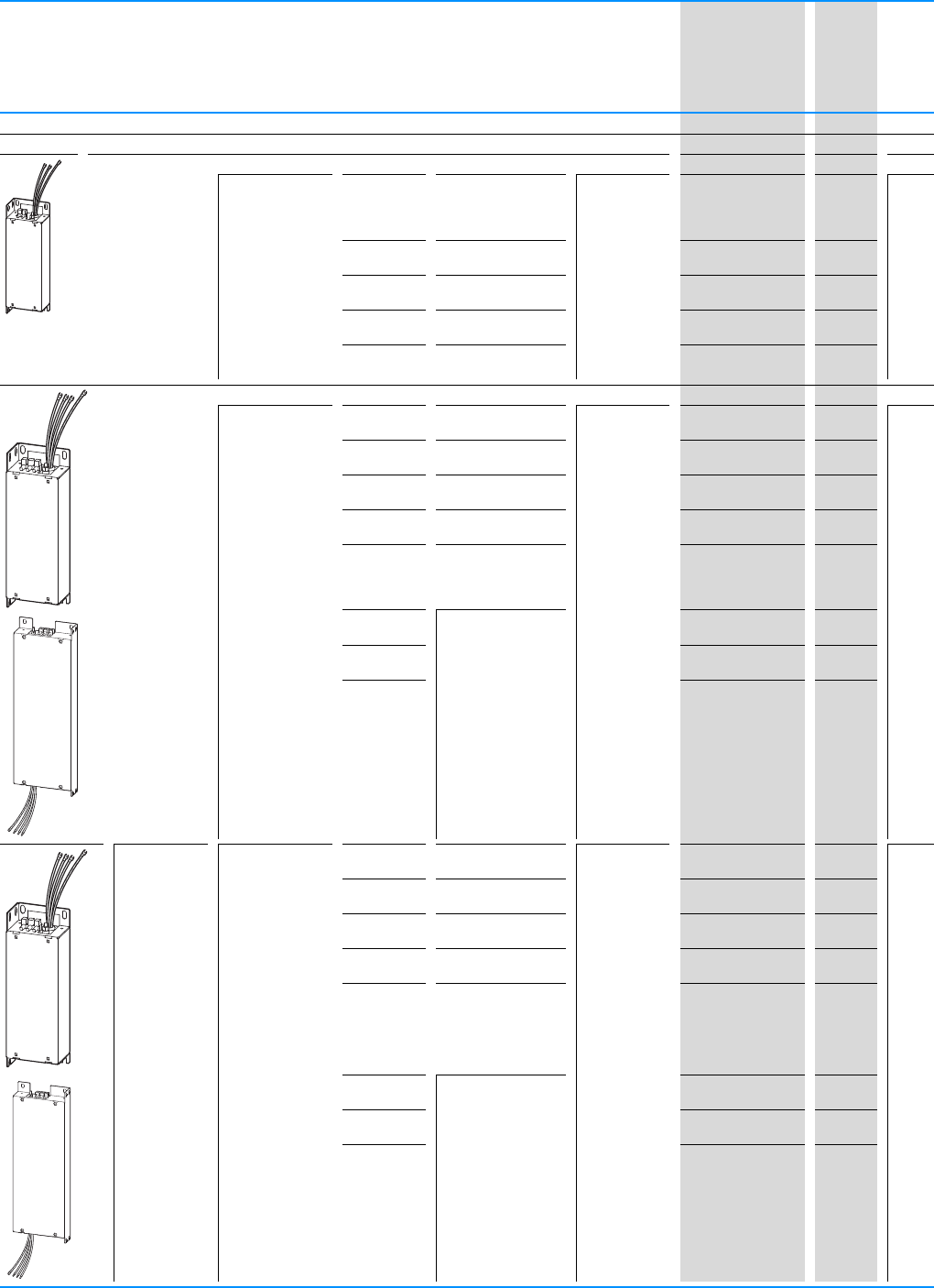

Radio interference suppression filters
Connection type Rated
operational
current
For use with1) Degree of
Protection
Part no.
Article no.
Price
see price
list
Std.
pack
Ie
A
Radio interference suppression filters
Base-mounted filter, side-mounting filter
Single-phase, Mains voltage (50/60Hz) ULN [V] max. 250 + 10%
Connection
terminal, PE stud,
prefabricated
cables
14 DC1 IP00
IP20 when
connected
DX-EMC12-014-FS1
172273
1off
14 DC1, DA1 DX-EMC12-014-FS2
172275
19 DE1 DX-EMC12-019-FS1
172274
25 DE1, DC1 DX-EMC12-025-FS2
172276
31 DC1 DX-EMC12-031-FS3
172277
three-phase, Mains voltage (50/60Hz) ULN [V] max. 520 + 10%
Connection
terminal, PE stud,
prefabricated
cables
8 DE1, DC1 IP00
IP20 when
connected
DX-EMC34-008-FS1
172278
1off
11 DC1, DA1 DX-EMC34-011-FS2
172279
15 DC1, DA1, DL1 DX-EMC34-015-FS3
172280
19 DE1, DC1, DA1, DL1 DX-EMC34-019-FS3
179611
25 DC1, DA1 DX-EMC34-025-FS3
172281
31 DA1, DL1 DX-EMC34-031-FS4
172282
48 DX-EMC34-048-FS4
172283
75 DX-EMC34-075-FS5
172284
low leakage
current
Connection
terminal, PE stud,
prefabricated
cables
8 DE1, DC1 IP00
IP20 when
connected
DX-EMC34-008-FS1-L
174604
1off
11 DC1, DA1 DX-EMC34-011-FS2-L
174605
15 DC1, DA1, DL1 DX-EMC34-015-FS3-L
174606
19 DE1, DC1, DA1, DL1 DX-EMC34-019-FS3-L
179612
25 DC1, DA1 DX-EMC34-025-FS3-L
174607
31 DA1, DL1 DX-EMC34-031-FS4-L
174608
48 DX-EMC34-048-FS4-L
174609
75 DX-EMC34-075-FS5-L
174610
Notes 1) See assigned switching and protective elements for an article-specific selection
PowerXL™ variable frequency drives
Radio interference suppression filters
CA04020001Z-EN-INT www.eaton.eu
55
Accessories and
Engineering
Radio interference suppression filters
Separate mounting
three-phase, Mains voltage (50/60Hz) ULN [V] max. 520 + 10%
Screw terminal,
PE stud
100 DA1 IP20 DX-EMC34-100
172285
1off
130 DX-EMC34-130
172286
180 DX-EMC34-180
172287
250 DX-EMC34-250
172288
Flat copper bar,
PE stud
400 DA1 IP00 DX-EMC34-400
172289
1off
750 DX-EMC34-750
177636
low leakage
current
Screw terminal,
PE stud
100 DA1 IP20 DX-EMC34-100-L
174611
1off
130 DX-EMC34-130-L
174612
180 DX-EMC34-180-L
174613
250 DX-EMC34-250-L
174614
Flat copper bar,
PE stud
400 DA1 IP00 DX-EMC34-400-L
174615
1off
750 DX-EMC34-750-L
177637
Notes 1) See assigned switching and protective elements for an article-specific selection
Connection type Rated
operational
current
For use with1) Degree of
Protection
Part no.
Article no.
Price
see price
list
Std.
pack
Ie
A
56 PowerXL™ variable frequency drives
Braking resistances
CA04020001Z-EN-INT www.eaton.eu

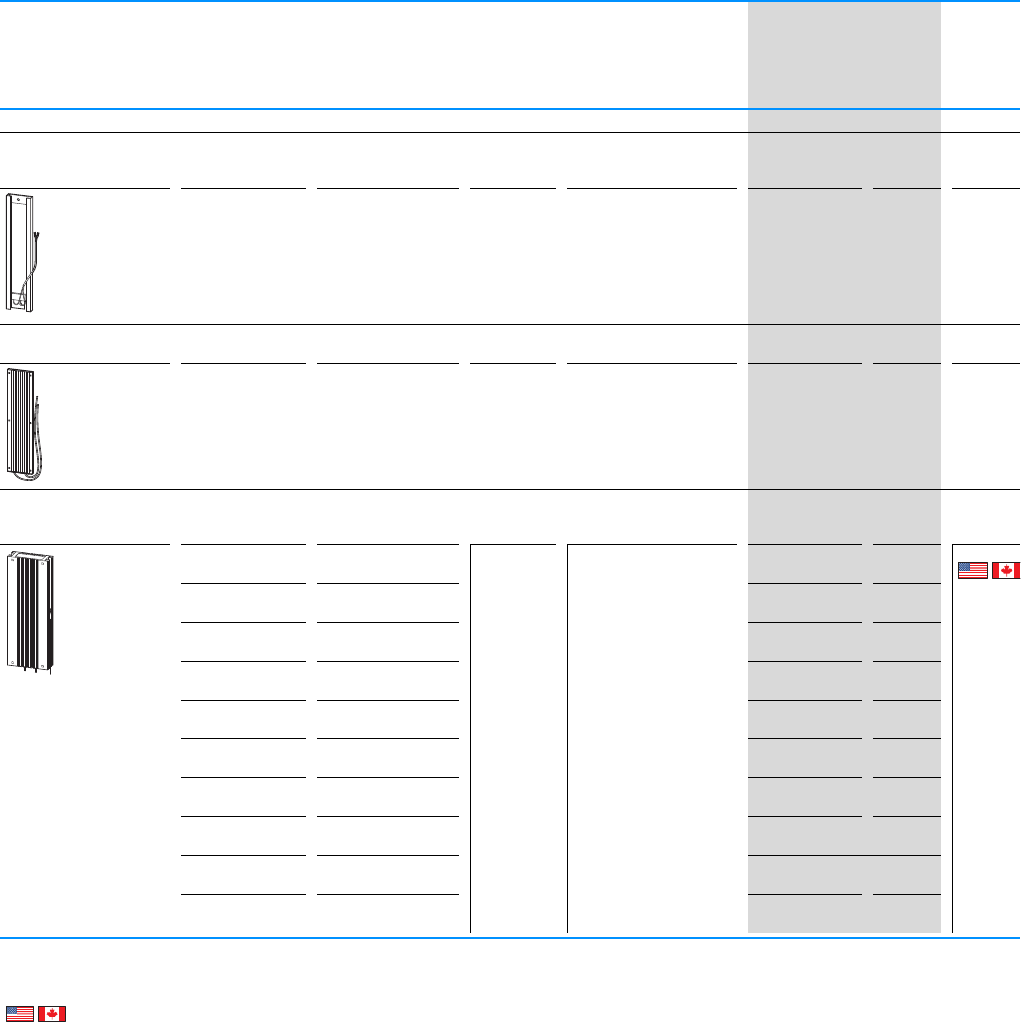

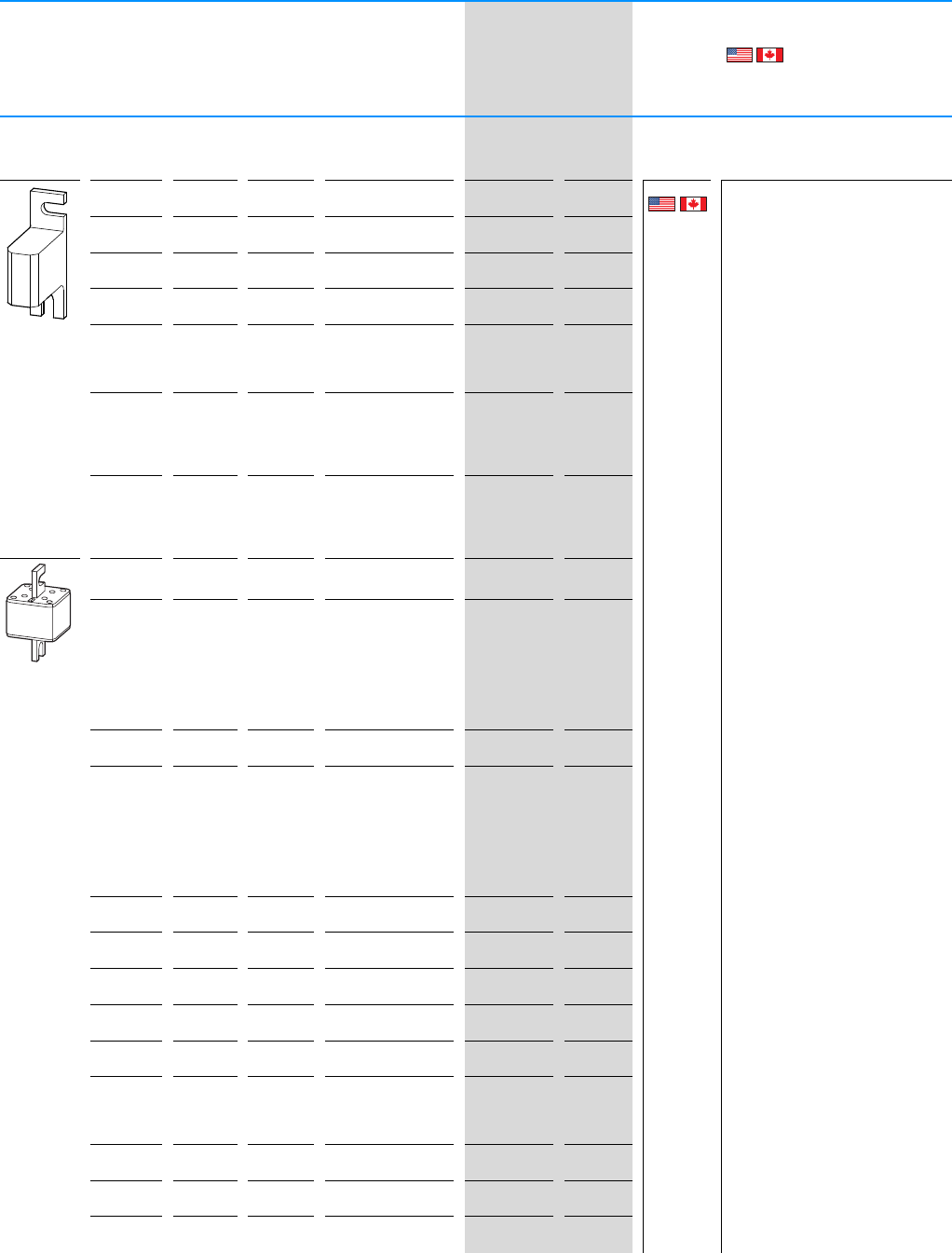

Braking resistances
Resistance value Continuous braking
rating
Degree of
Protection
For use with1) Part no.
Article no.
Price
see price
list
Std. pack
RP
DB
ΩkW
Braking resistances
Wire wound resistor in aluminum case
for direct installation in frequency inverter enclosure of frame sizes FS2 und FS3
With prefabricated connection cable
100 0.2 IP54 DC1, DA1, DL1 DX-BR3-100
169150
1off
Wire wound resistor in ceramic potting compound inside aluminum case
for direct installation in frequency inverter enclosure of frame sizes FS4 und FS5
33 0.5 IP54 DA1, DL1 DX-BR5-033
169151
1off
Wire wound resistor in ceramic potting compound inside aluminum case
with temperature monitoring switch
with connection cables (approx. 0.5 m long)
27 0.24 IP65 DC1, DA1, DL1, DG1, SPX DX-BR027-240
174243
1off
40 0.2 DX-BR040-200
174242
47 0.24 DX-BR047-240
174236
50 0.2 DX-BR050-200
174235
100 0.1 DX-BR100-100
174241
100 0.2 DX-BR100-200
174237
100 0.24 DX-BR100-240
174238
150 0.2 DX-BR150-200
174248
210 0.2 DX-BR210-200
174247
430 0.1 DX-BR430-100
174246
Notes 1) See assigned switching and protective elements for an article-specific selection
Information relevant for export to North America
Product Standards UL508; C22.2
UL File No. E300273
UL Category Control No. NMTR2, NMTR8
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
Max. Voltage Rating 1000
Degree of Protection IEC: IP00
PowerXL™ variable frequency drives
Braking resistances
CA04020001Z-EN-INT www.eaton.eu
57
Accessories and
Engineering
Braking resistances
Resistor combination (size 1)
with temperature monitoring switch
with connection terminals
20 0.96 IP20 DC1, DA1, DL1, DG1, SPX DX-BR020-960
174257
1off
24 0.4 DX-BR024-400
174244
24 0.6 DX-BR024-600
174267
24 0.72 DX-BR024-720
174245
42 0.72 DX-BR042-720
174266
50 0.4 DX-BR050-400
174239
50 0.6 DX-BR050-600
174240
50 0.72 DX-BR050-720
174265
50 0.96 DX-BR050-960
174250
75 0.4 DX-BR075-400
174249
100 0.6 DX-BR100-600
174251
100 0.72 DX-BR100-720
174252
100 0.96 DX-BR100-960
174253
150 0.8 DX-BR150-800
174262
216 0.6 DX-BR216-600
174268
400 0.4 DX-BR400-400
174261
Resistor combination (size 2)
with temperature monitoring switch
with connection terminals
25 1.44 IP20 DC1, DA1, DL1, DG1, SPX DX-BR025-1440
174258
1off
25 1.92 DX-BR025-1920
174259
27 2.88 DX-BR027-2880
174260
50 1.44 DX-BR050-1440
174254
50 1.92 DX-BR050-1920
174255
50 2.88 DX-BR050-2880
174264
54 2.88 DX-BR054-2880
174256
84 1.44 DX-BR084-1440
174263
Notes 1) See assigned switching and protective elements for an article-specific selection
Resistance value Continuous braking
rating
Degree of
Protection
For use with1) Part no.
Article no.
Price
see price
list
Std. pack
RP
DB
ΩkW
1
2
T1 T2
1
2
T1
T2
58 PowerXL™ variable frequency drives
Braking resistances
CA04020001Z-EN-INT www.eaton.eu
Braking resistances
Wire wound resistor in ceramic potting compound inside aluminum case, combined
Installed in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and a 1-meter
connection cable
75 1.1 IP20 DA1, DL1, DG1, SVX, SPX DX-BR075-1K1
171917
1off
100 1.1 IP20 DX-BR100-1K1
171896
100 0.8 IP20 DX-BR100-0K8
171907
100 1.6 IP20 DX-BR100-1K6
171924
150 0.5 IP20 DX-BR150-0K5
171916
150 1.1 IP20 DX-BR150-1K1
171895
200 0.8 IP20 DX-BR200-0K8
171894
200 0.4 IP20 DX-BR200-0K4
171915
400 0.4 IP20 DX-BR400-0K4
171914
Wire wound resistor in ceramic potting compound inside aluminum case, combined
Installed in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and internal
connecting terminals
35 1.1 IP20 DA1, DL1, DG1, SVX, SPX DX-BR035-1K1
171927
1off
50 0.4 IP20 DX-BR050-0K4
171906
50 9.8 IP20 DX-BR050-0K8
171910
100 0.2 IP20 DX-BR100-0K2
171909
100 0.4 IP20 DX-BR100-0K4
171926
Notes 1) See assigned switching and protective elements for an article-specific selection
Information relevant for export to North America
Product Standards UL508; C22.2
UL File No. E300273
UL Category Control No. NMTR2, NMTR8
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
Max. Voltage Rating 600
Degree of Protection IEC: IP00
Resistance value Continuous braking
rating
Degree of
Protection
For use with1) Part no.
Article no.
Price
see price
list
Std. pack
RP
DB
ΩkW
PowerXL™ variable frequency drives
Braking resistances
CA04020001Z-EN-INT www.eaton.eu
59
Accessories and
Engineering

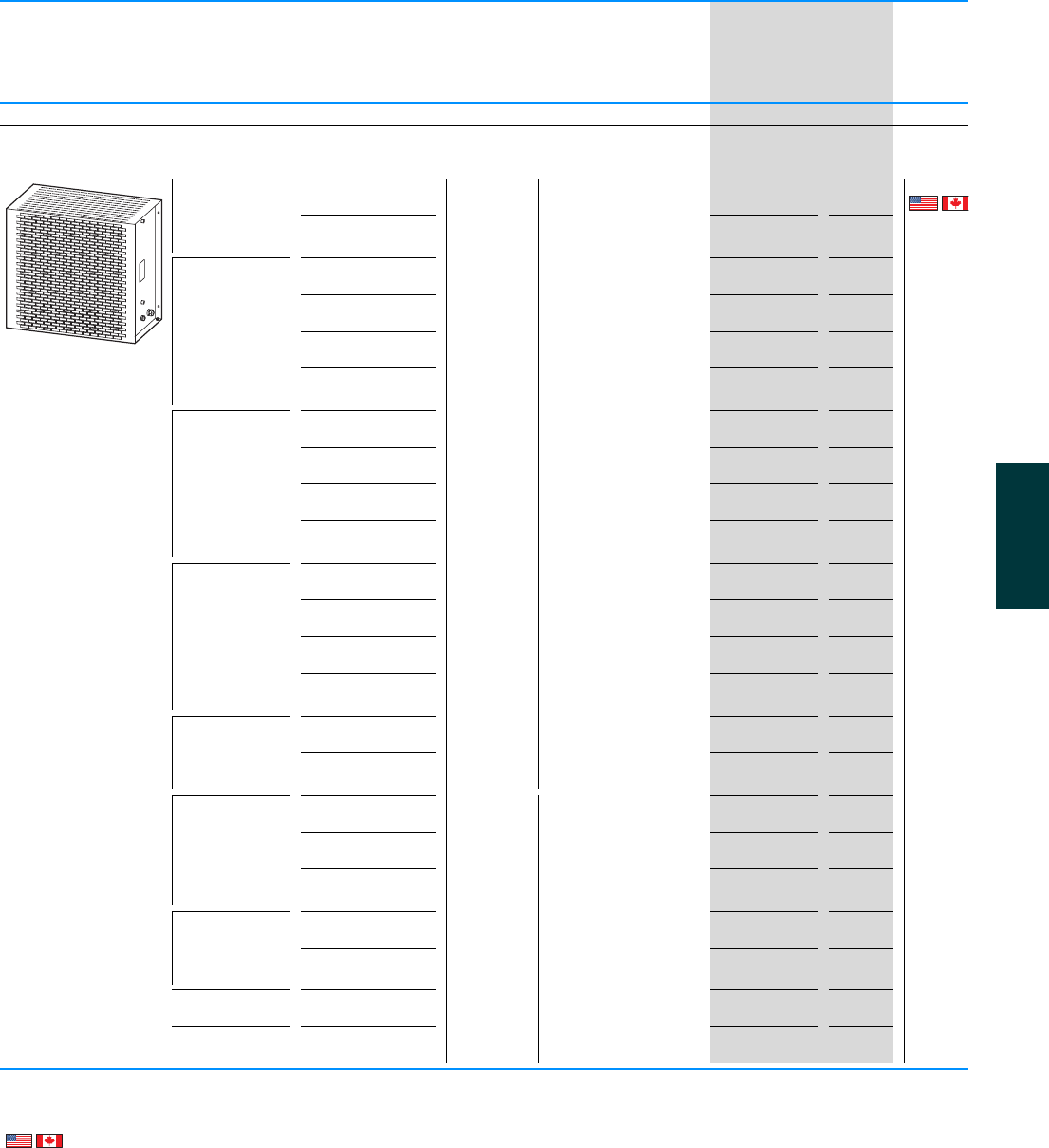

Braking resistances
Steel grid resistor, combined
Installed in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and internal
connection terminals/terminal bolts
2 54.3 IP20 DC1, DA1, DL1, DG1, SVX,
SPX
DX-BR002-54K3
171923
1off
102.4 DX-BR002-102K4
171903
65.1 DX-BR006-5K1
171913
9.2 DX-BR006-9K2
171893
18.1 DX-BR006-18K1
171922
33.3 DX-BR006-33K3
171902
12 3.1 DX-BR012-3K1
171912
5.1 DX-BR012-5K1
171929
9.2 DX-BR012-9K2
171921
18.1 DX-BR012-18K1
171901
22 1.4 DX-BR022-1K4
171911
3.1 DX-BR022-3K1
171928
5.1 DX-BR022-5K1
171920
9.2 DX-BR022-9K2
171900
40 3.1 DX-BR040-3K1
171919
5.1 DX-BR040-5K1
171899
47 3.1 DX-BR047-3K1
171908
5.1 DX-BR047-5K1
171925
9.2 DX-BR047-9K2
171905
50 3.1 DX-BR050-3K1
171918
5.1 DX-BR050-5K1
171898
75 5.1 DX-BR075-5K1
171897
100 6.2 DX-BR100-6K2
171904
Notes 1) See assigned switching and protective elements for an article-specific selection
Information relevant for export to North America
Product Standards UL508; C22.2
UL File No. E300273
UL Category Control No. NMTR2, NMTR8
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
Max. Voltage Rating 1000
Degree of Protection IEC: IP00
Resistance value Continuous braking
rating
Degree of
Protection
For use with1) Part no.
Article no.
Price
see price
list
Std. pack
RP
DB
ΩkW
60 PowerXL™ variable frequency drives
Mains chokes, motor chokes
CA04020001Z-EN-INT www.eaton.eu

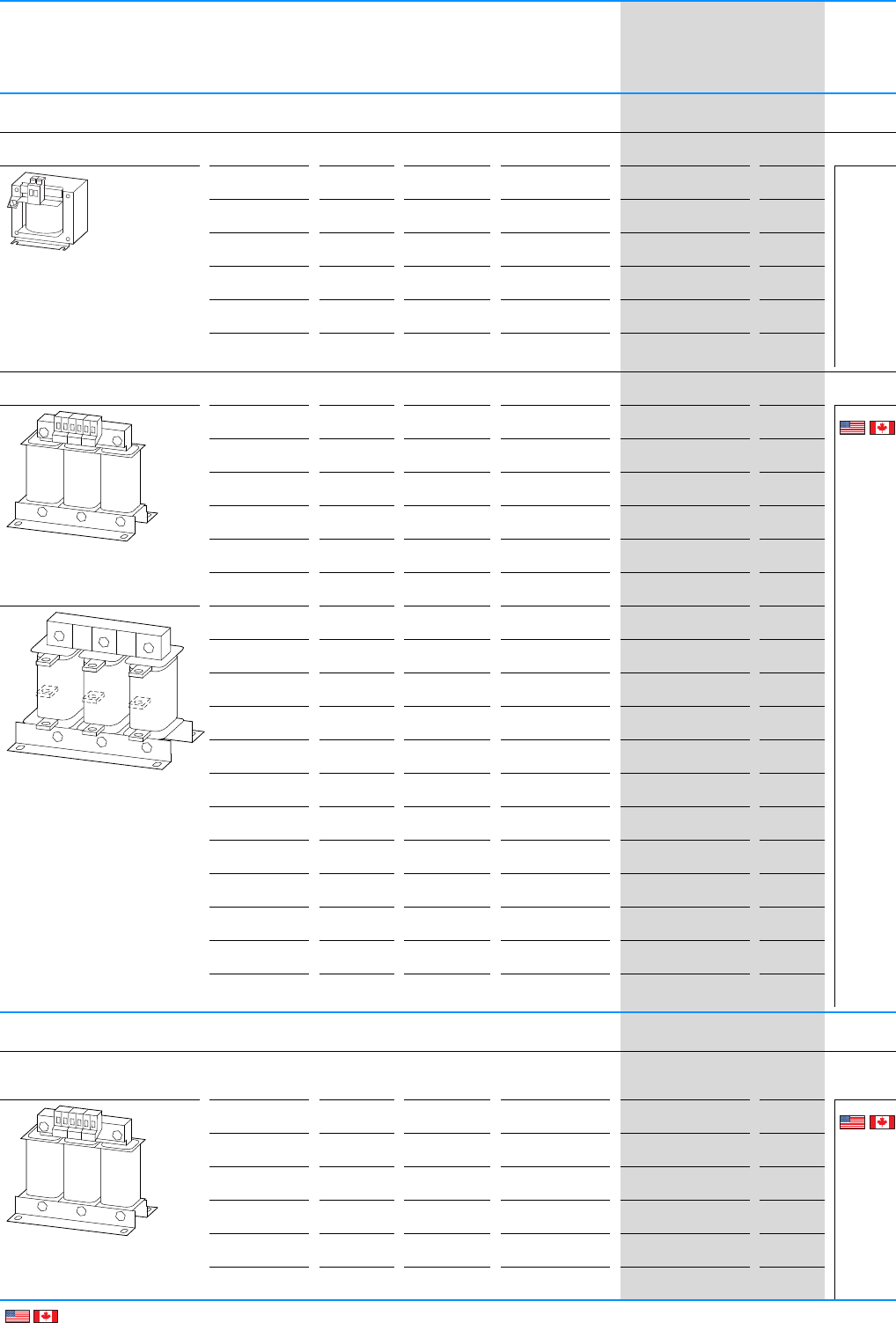

Mains chokes, motor chokes
Rated operational
current
Inductance Maximum heat
dissipation
For use with Part no.
Article no.
Price
see price
list
Std. pack
IeLP
v
AmHW
Mains chokes
Ambient air temperature: + 40 °C, max. 70 °C with derating
Single-phase
Max. permissible connection voltage V AC: 260 V + 0% (50/60 Hz)
5.8 5.05 9 DE1, DC1 DX-LN1-006
269490
1off
8.6 3.41 11 DE1, DC1 DX-LN1-009
269495
13 2.25 12 DE1, DC1, DA1 DX-LN1-013
269496
18 1.63 17 DE1, DC1, DA1 DX-LN1-018
269497
24 1.22 20 DE1, DC1, DA1 DX-LN1-024
269498
32 0.92 24 DC1 DX-LN1-032
169791
three-phase
Max. permissible connection voltage V AC: 550 V + 0% (50/60 Hz)
3.9 7.51 17 DE1, DC1, DA1, SVX,
SPX
DX-LN3-004
269500
1off
6 4.9 19 DE1, DC1, DA1, SVX,
SPX
DX-LN3-006
269501
10 2.94 33 DE1, DC1, DA1, DL1,
SVX, SPX
DX-LN3-010
269502
16 1.84 44 DE1, DC1, DA1, DL1,
SVX, SPX
DX-LN3-016
269503
25 1.18 57 DC1, DA1, DL1, SVX,
SPX
DX-LN3-025
269504
40 0.64 59 DA1, DL1, SVX, SPX DX-LN3-040
269505
50 0.37 58 DA1, DL1, SVX, SPX DX-LN3-050
269506
60 0.31 60 DA1, DL1, SVX, SPX DX-LN3-060
269507
80 0.23 86 DA1, DL1, SVX, SPX DX-LN3-080
269508
100 0.18 101 DA1, SVX, SPX DX-LN3-100
269509
120 0.15 100 DA1, SVX, SPX DX-LN3-120
269510
160 0.11 140 DA1, SVX, SPX DX-LN3-160
269511
200 0.09 154 DA1, SVX, SPX DX-LN3-200
269512
250 0.07 155 DA1, SVX, SPX DX-LN3-250
269513
300 0.06 196 DA1, SVX, SPX DX-LN3-300
269514
303 0.06 230 DA1, SVX, SPX DX-LN3-303
169143
370 0.05 290 DA1 DX-LN3-370
169144
450 0.04 300 DA1 DX-LN3-450
169145
Motor chokes
Ambient air temperature: + 40 °C, max. 70 °C with derating
three-phase
Max. permissible connection voltage V AC: 750 V + 0% (0 - 400 Hz)
Max. permissible pulse frequency: fPWM ≤ 12 kHz (rms)
5 2 24 DE1, DC1, DA1, DG1,
SVX, SPX
DX-LM3-005
269538
1off
8 4.1 54 DE1, DC1, DA1, DG1,
SVX, SPX
DX-LM3-008
269539
11 3 71 DE1, DC1, DA1, DL1,
DG1, SVX, SPX
DX-LM3-011
269541
16 1.5 78 DE1, DC1, DA1, DL1,
DG1, SVX, SPX
DX-LM3-016
269542
35 1 116 DC1, DA1, DL1, DG1,
SVX, SPX
DX-LM3-035
269543
50 0.6 168 DA1, DL1, DG1, SVX,
SPX
DX-LM3-050
269544
Information relevant for export to North America ￫ Page 61
PowerXL™ variable frequency drives
Motor chokes, sine filters
CA04020001Z-EN-INT www.eaton.eu
61
Accessories and
Engineering
Motor chokes, sine filters
Rated operational
current
Inductance Maximum heat
dissipation
For use with Part no.
Article no.
Price
see price
list
Std. pack
IeLP
v
AmHW
Motor chokes
Ambient air temperature: + 40 °C, max. 70 °C with derating
three-phase
Max. permissible connection voltage V AC: 750 V + 0% (0 - 400 Hz)
Max. permissible pulse frequency: fPWM ≤ 12 kHz (rms)
63 0.5 193 DA1, DL1, DG1, SVX,
SPX
DX-LM3-063
269545
1off
80 0.5 206 DA1, DL1, DG1, SVX,
SPX
DX-LM3-080
269546
100 0.45 294 DA1, DG1, SVX, SPX DX-LM3-100
269547
150 0.35 424 DA1, DG1, SVX, SPX DX-LM3-150
269548
180 0.3 439 DA1, DG1, SVX, SPX DX-LM3-180
269549
220 0.2 517 DA1, SVX, SPX DX-LM3-220
269560
260 0.15 520 DA1, SVX, SPX DX-LM3-260
269561
303 0.15 - DA1, SPX DX-LM3-303
169146
370 0.12 - DA1 DX-LM3-370
169147
450 0.1 - DA1, SPX DX-LM3-450
169148
Sine filter
Ambient air temperature: + 40 °C, max. 50 °C with derating
three-phase
Max. permissible connection voltage V AC: 520 V + 0% (0 - 150 Hz)
Max. permissible pulse frequency: fPWM = Constant 4 - 8 kHz (rms).
4 11 50 DC1, DA1, DG1,
SVX, SPX
DX-SIN3-004
271538
1off
10 5.1 100 DC1, DA1, DL1, DG1,
SVX, SPX
DX-SIN3-010
271590
16.5 3.07 70 DC1, DA1, DL1, DG1,
SVX, SPX
DX-SIN3-016
271591
23.5 2.5 125 DC1, DA1, DL1, DG1,
SVX, SPX
DX-SIN3-023
271593
32 2 100 DA1, DL1, DG1, SVX,
SPX
DX-SIN3-032
271594
37 1.7 100 DG1 DX-SIN3-037
271595
48 1.2 240 DA1, DL1, DG1, SVX,
SPX
DX-SIN3-048
271597
61 1 280 DA1, DL1, SVX, SPX DX-SIN3-061
271599
72 0.95 300 DA1, DG1, SVX, SPX DX-SIN3-072
271600
90 0.8 290 DA1, DL1, DG1, SVX,
SPX
DX-SIN3-090
271601
115 0 460 DA1, DG1, SVX, SPX DX-SIN3-115
271602
150 0.5 530 DA1, DG1, SVX, SPX DX-SIN3-150
271603
180 0.4 500 DA1, DG1, SVX, SPX DX-SIN3-180
271604
250 0.35 550 DA1, SVX, SPX DX-SIN3-250
271605
440 0.14 650 DA1, SPX DX-SIN3-440
271606
1off
480 0.14 1550 DA1 DX-SIN3-480
169149
1off

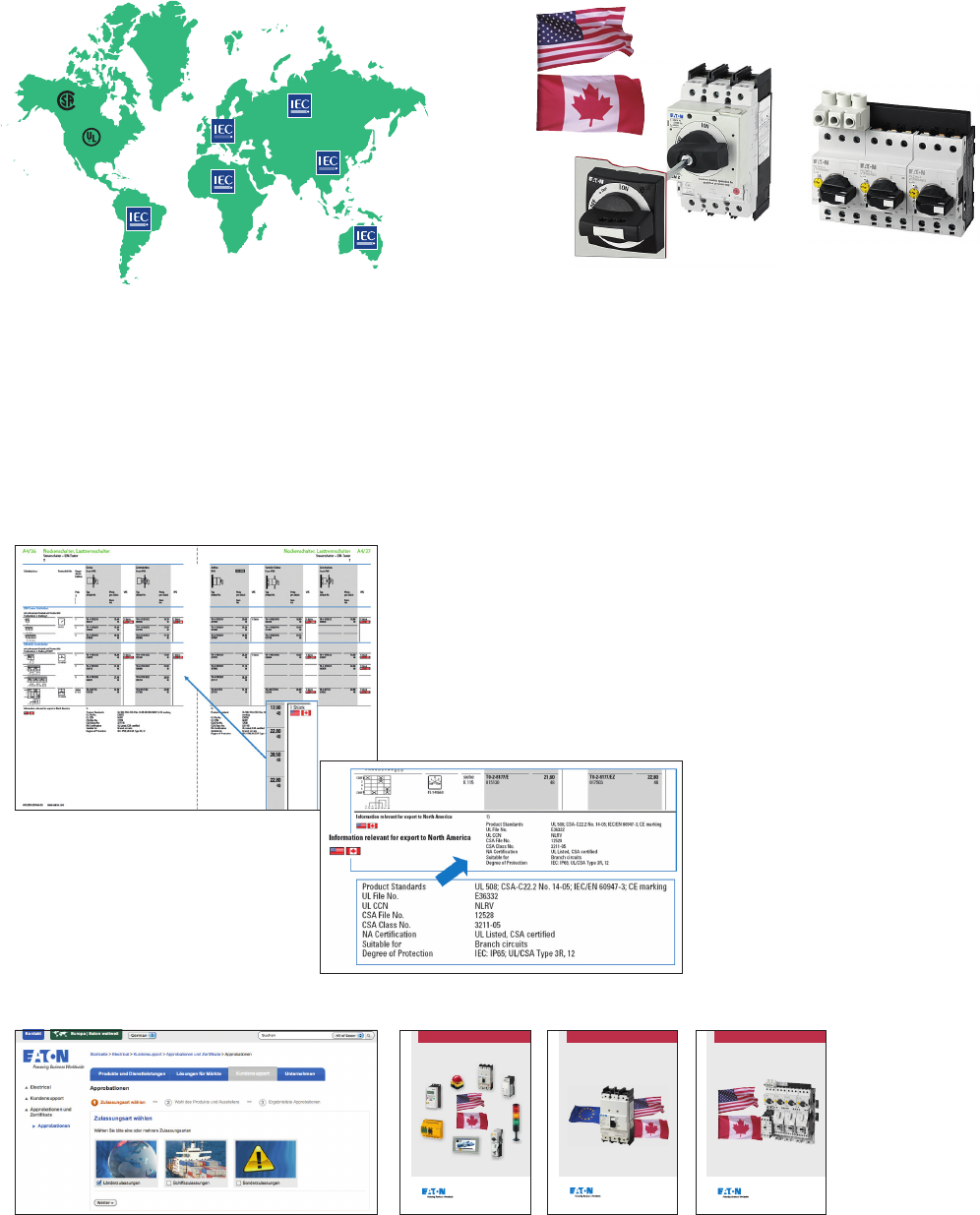

Information relevant for export to North America
Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No. DX-LN3…/DX-LM3…: E167225
DX-SIN…: E300273
UL Category Control No. DX-LN3…/DX-LM3…: XPTQ2, XPTQ8
DX-SIN…: NMTR2, NMTR8
CSA File No. UL report applies to both US and Canada
North America Certification UL listed, certified by UL for use in Canada
Suitable for Branch circuits
Max. Voltage Rating 1~ 240 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey), 3~ 240 V AC IEC: TN-
62 PowerXL™ variable frequency drives
Components of the Power Drives System (PDS)
CA04020001Z-EN-INT www.eaton.eu
Components of the Power Drives System (PDS)
Engineering
AC supply system: variable-frequency drives can be connected without
restriction to AC supply systems with an earthed star point (TN/TT grounding
systems). Directly connecting them to and running them on unbalanced or B
phase-grounded systems (e.g., USA) is not permissible.
Fuses (circuit-breakers) enable you to protect wiring and electrical devices and
appliances. For personal protection, additional AC/DC sensitive residual current
circuit-breakers (RCD type B) are required.
Contactors serve to engage and disengage mains voltage.
Mains chokes damp any harmonic distortion (THD) that occurs as well as
current spikes and limit inrush currents (the link capacitor's charging current).In
addition, they protect the mains rectifier from voltage peaks coming from the
supply mains.
Radio interference suppression filters damp high-frequency electromagnetic
emissions from devices and appliances. They ensure that the EMC limit values
for conducted interference specified in the applicable product standards are
complied with (variable-frequency drives).
Note: External radio interference suppression filters (option) permit longer
motor cables and have low leakage currents. Normally, they should only be used
with variable-frequency drives that do not feature an internal radio interference
suppression filter.
Exception: directly assigned variable-frequency drives with internal filters
(calibrated combination)
Variable frequency drives permit the infinitely variable speed control of three-
phase motors. To do this, the variable-frequency drive converts the voltage of
the AC supply system with a constant voltage and a constant frequency to a new
AC voltage with a variable amplitude and a variable frequency.
A braking resistance converts the generator braking energy of the variable
frequency drive into heat. The variable frequency drive must be equipped with a
brake chopper, which connects the braking resistance parallel to the internal
DC link.
Motor chokes
• Compensate the capacitive capacitive currents,
• Reduce current ripple and the motor’s current change noise,
• Attenuate the retroaction on parallel connection of several motors.
Sine filter
• Smoothen the output voltage sinusoidally,
• reduce motor noise through du/dt reduction, and thereby increase the motor
insulation’s lifespan,
• Reduce the leakage currents to allow better motor performance at improved
EMC values.
Screened motor cables attenuate emitted and conducted high-frequency
emissions within the limit values specified in the applicable product standard
(EMC). They must be connected to the earth potential on both sides across a
large area (PES).
A three-phase asynchronous motor (standard motor) converts electrical power
(P ~ U × I) into mechanical power (P ~ M × n).
Equipment code
F = fuses and circuit-breakers
Q = controlled switching within energy flow (contactors, circuit-breakers)
R = limitation (reactors, resistors)
K = radio interference suppression filters
T = variable-frequency drives
M = motors
M
3~
3~
F
Q
R
R
K
T
M
3
R
3
L1/L L2/N L3
UVW
123456789
10
11
PowerXL™ variable frequency drives
General information on Engineering
CA04020001Z-EN-INT www.eaton.eu
63
Accessories and
Engineering
General information on EngineeringGeneral information on Engineering

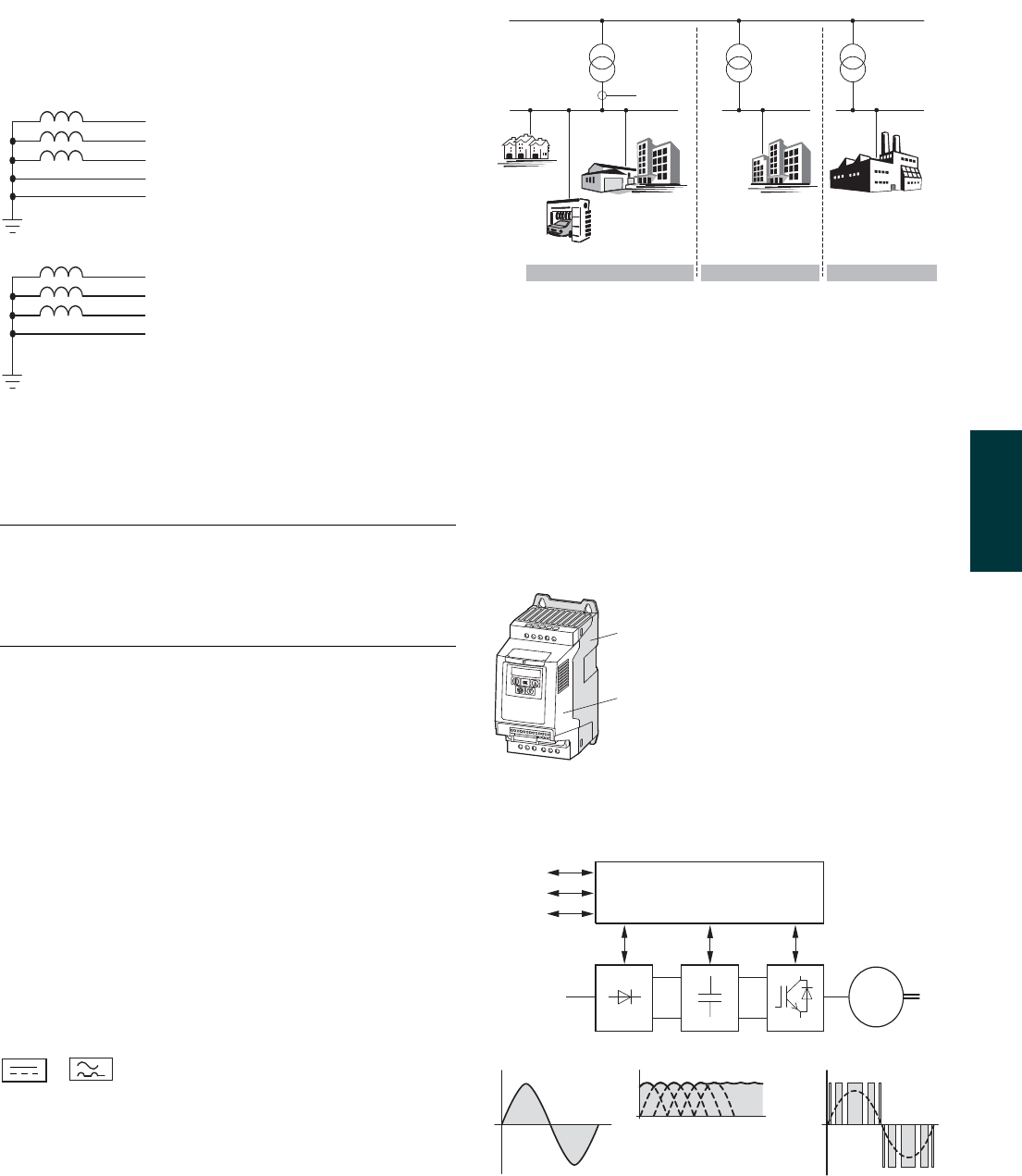

Electrical mains connection
Variable frequency drives can be
connected and operated without
restriction on star-point-grounded AC
supply systems (according to
IEC 60364).
Connecting them to and operating
them on asymmetrically earthed
networks, such as phase-earthed
delta networks (grounded delta, USA)
or non-earthed or high-resistance
earthed (> 30 Ω) IT networks is
permitted with limitations. In these
networks, only variable frequency
drives without internal radio
interference suppression filters (EMC)
may be used. On devices with internal
radio interference suppression, the
ground connection of the filter must be
disconnected.
The standardized rated operating
voltages of the power supply (EVU)
assure the following conditions at the
transfer point to the consumer:
• maximum deviation from the rated
value for the voltage (ULN): ±10 %
• Maximum deviation in the voltage
symmetry: ±3 %
• Maximum deviation from the rated
frequency value: ±4 %
In reference to the lower voltage value
(ULN -10 %) the supply voltage is
allowed to experience a further
voltage drop of up to 4% in the
consumer networks.
In ring-shaped powered network
systems (e.g. in the EU), the
standardized consumer voltages (230
V / 400 V / 690 V) are identical to the
power supply levels of the utility
companies. In star networks (for
example in North America/USA), the
stated consumer voltages take the
voltage drop from the utility company’s
infeed point to the last consumer into
account.
Safety and switching
With a variable frequency drive the
assignment of components on the
mains side in accordance with the
rated operational current at the
input end ILN and the utilization
category AC-1.
Fuses, circuit-breakers and conductor
cross-sections must meet the national
and regional requirements and the
required approvals at the point of
operation.
To prevent fires and to protect people
and farm animals from unacceptably
high contact voltages, residual current
devices (RCD) must be used
in conjunction with a three-phase
variable frequency drive, only AC/DC
sensitive residual current devices
(RCD, Type B) can be used.
Designation of residual current device
for AC/DC-sensitive RCDs: Type B:
Earth leakage currents will be
produced when using frequency-
controlled drives due to the nature of
the system. The main reasons for this
consist of external capacitances
between the phases of the motor
cable, the motor cable's screening,
star capacitors in the variable
frequency drive, and radio
interference suppression filters, as
well as earthing measures at the
motor's site of operation. These
leakage currents can exceed 3.5 mA
(AC) and/or greater than 10 mA (DC)
can require improved PDS earthing as
per EN 50178 (earth cable cross-
section ≥ 10 mm (cable cross-section
of earthing wire ≥10 mm2).
EMC compliance
Variable frequency drives work with
fast electronic switches (IGBT) in the
inverter. This can cause radio
interference in a magnet system,
which, in turn, can adversely affect
nearby electronic equipment. To
provide protection from these high-
frequency interference sources, these
should be spatially separated and
screened from frequency-controlled
drives.
In Europe, compliance with the EMC
directive is mandatory, and is an
essential requirement for CE marking.
The EMC conditions for drive systems
(PDS) are described in standard IEC/
EN 61800-3. This product standard
considers the complete magnet
system from mains-side power supply
right through to the motor.
The Eaton variable frequency drive
and speed starter with internal/
external radio interference suppressor
satisfy the requirements of the EMC
product standard for the sensitive
residential sector (first environment)
and therefore also the higher limit
values in the industrial sector (second
environment).
L2
N
L1
L3
PE
L2
PEN
L1
L3
Table: North American voltage level
Supply voltage ULN of the
utility company
Motor voltage according
to UL 508 C
Consumer voltage, rated
value for the motors
120 V 110 - 120 V 115 V
240 V 220 - 240 V 230 V
400 V 440 - 480 V 460 V
600 V 550 - 600 V 575 V
Variable frequency drives
A variable frequency drive is an
electronic apparatus used for the
variable-speed control of three-phase
motors. It is intended for installation in
a machine or for assembly with other
components to a machine or plant. The
main components of a compact design
of modern variable frequency drive are
a power section ① and a control
section ②.
Functional actuation of the variable
frequency drive and the output
parameters in the power section (e.g.
frequency, voltage and current) can be
adjusted through:
• Control signal terminals (I/O) with
analog and digital (binary) inputs,
• A keypad with function keys and
display units,
• Serial interfaces (BUS) with
RS485 (Modbus RTU) and optional
fieldbus connections (CANopen,
PROFIBUS-DP etc.) and an optional
PC connection.
Internal open and closed-loop control
circuits monitor all variable values in
the variable frequency drive and
automatically switch the process off if
a value reaches a dangerous level.
1. Environment
Public medium-voltage system
PCC
Category C1
Category C2
Category C1 / C2 Category C1 / C2
Category C3 / C4
Category C3 / C4
1.or 2. environment 2. Environment
Public
low-voltage system
Private
mains
Industrial
mains
L1/L L2/N L3
DC-
U
DC+ BR
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18
COM
VW
①
②
①Power section with:
A = Rectifier
B = DC link
C = Inverter module (IGBT)
②Control section with:
I/O = analog and binary inputs
and outputs
KEYPAD = keypad with display
unit
BUS = serial interfaces (RS485,
fieldbus, PC interface)
ULN = Phase voltage
from supplying AC
mains
UDC = DC link voltage
UDC = 1.41 x ULN
Output voltage =
switched DC link
voltage with sinusoidal
pulse width modula-
tion (PWM)
Block diagram with main components of a variable frequency drive
CPU
ABC
BUS
M
3 ∼
KEYPAD
I/O
64 PowerXL™ variable frequency drives
General information on Engineering
CA04020001Z-EN-INT www.eaton.eu
General information on Engineering
Control methods
The IGBTs in the inverter of the
variable frequency drive are
controlled with sinusoidal pulse-width
modulation (PWM). In real-life
applications, the industry draws a
distinction between the following
control methods:
• Voltage frequency control
(U/f control),
• V/Hz control with slip compensation
• Sensorless vector control (speed
control)
• Vector control (closed-loop), speed
control.
The voltage-frequency control section
is the best known and most frequently
used process. A simple characteristic
curve (linear or quadratic) defines the
motor’s rotating field frequency and
the corresponding three-phase line-
to-line motor voltage is selected such
that the motor is neither over nor
under-magnetized.
The main applications of the U/f
control section are:
• pump and fan drives,
• horizontal conveying and
transportation systems,
• multiple motor drives (parallel
operation of several motors at the
variable frequency drive’s output).
With the U/f control section with slip
compensation the load-dependent
speed change of individual drives can
be compensated for (without sensors).
With sensor-less vector control the
magnetic fields of rotor and stator are
opposed to one another. With
asynchronous motors the magnetic
flux in the rotor must be mapped in an
electronic model of the motor. This
requires the input of the physical
parameters of the rating plate on the
motor.
In vector operation, the variable
frequency drive can only control one
motor at the output end. A parallel
operation of several motors is not
possible here. The exact calculation of
the phase voltages at the variable
frequency drive’s output, however,
improves the motor’s operational
behavior. The motor also heats up less
in the lower speed range. The field-
oriented vector control results in a
significant improvement in the drive
dynamics as well as optimizing
performance; it also increases the
range of possible applications.
The main applications of
sensorlessvector control are:
• Material machining and processing
equipment
• Condensors (compressor),
• Heavy starting duty (extruder,
agitators, mixer),
• Lifting mechanisms and lifting gear
(vertical movement, crane, lift).
With the vector feedback control the
output current of the variable
frequency drive acts serves a
controlled variable. This makes it
possible to perfectly adjust the three-
phase motor in line with the
corresponding torque boost. The
motor speed can be controlled in
connection with an rpm sensor
(tachometer, pulse generator) (closed
loop).
Motor model
Regardless of the control method
used, a variable frequency drive uses
the measured voltage and current
values on the stator winding (u1, i1) to
calculate the required manipulated
variable for flux-generating
component iμ and the torque-forming
magnitude in rotor iw. The motor's load
dependent slip is represented as
resistor R‘2/s. During no-load
operation, this value approaches
infinity (iw → 0). On the other hand, the
value approaches zero as the load
increases. The current in the rotor
grows at this point.
Explanation:
EMC = Electromagnetic compatibility
EVU = Utility company
IGBT = Insulated gate bipolar
transistor
PDS = Power drives system
RCD = Residual current device
① Stator winding
② Air gap
③ transformed rotor winding

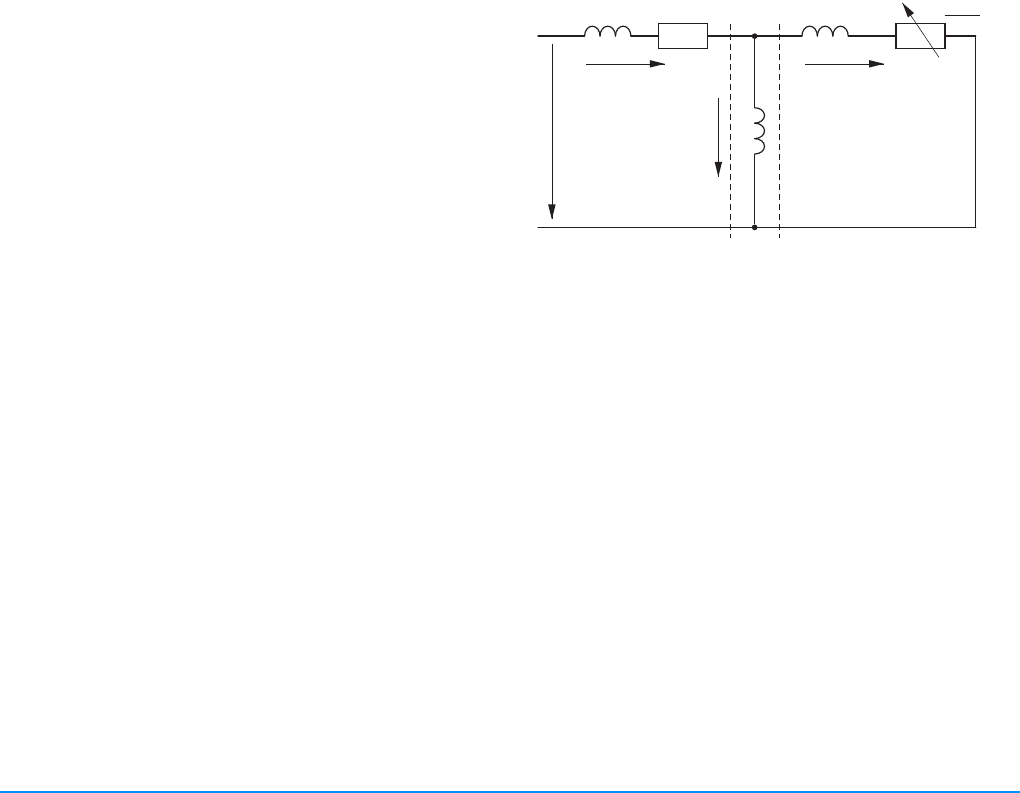

Simplified equivalent circuit diagram of a three-phase motor
R1
①③②
X'2
X1
i1iw
u1Xh
iμ
R'2
s
Energy-efficient drive control technology (ErP directive)
The need for energy efficiency in a PDS and legislative specifications (EC 640/2009)
has been redefined by the minimum efficiency ratings of motors. From 1 January
2017, all new motors entering service with a performance range of 0.75 to 315 kW
shall not be less efficient than the IE3 efficiency level or shall meet the IE2 efficiency
level and be equipped with an electronic speed control (variable frequency drive,
variable speed starter). Under these conditions, the following versions of three-
phase motor predominate at the present time:
• Three-phase asynchronous motor (DASM),
• Permanent magnet motor (PM),
• Synchronous reluctance motor (SynRM)
Within the same efficiency class, these three motor technologies have a
comparable efficiency rating at their nominal operating point. However, there are
significant differences in terms of startup behavior, in part-load operation, in
respect of acquisition costs and in terms of size.
The asynchronous motor functions in accordance with the familiar principle
whereby the creation of magnetic fields in stator and rotor give rise to repulsion
and, in response to that, to rotational movement. This motor can be started directly
off the mains supply.
PM motor are synchronous motors, i.e. there is no slip between the rotational fields
of rotor and stator. The magnets assure magnetization of the rotor. That reduces
losses in the rotor and increases the efficiency rating, especially at low speed. For
starting and operational purposes, the PM motor needs to have a variable
frequency drive (DA1).
With the SynRM motor, the rotor plates have specific cut sections. These guide the
magnetic lines into the interior of the rotor and generate what is known as a
reluctance torque. This results in a change of magnetic resistance and is
characterized from about 11 kW by a very good efficiency rating at reduced speeds
that changes under load. Here too, operation without friction and optimum speed
control are only assured through the use of variable frequency drives (DA1).
In principle, all three variants operate using what is known as the U/f
characteristics curve but the efficiency benefits of individual technologies are only
guaranteed by feedback control algorithms adapted to suit the prevailing motor
technology. With algorithms of this kind, motor operation can be optimized at every
operating point, even with alternating loads.
PowerXL™ variable frequency drives
Connection example for DC1
CA04020001Z-EN-INT www.eaton.eu
65
Accessories and
Engineering
Connection example for DC1

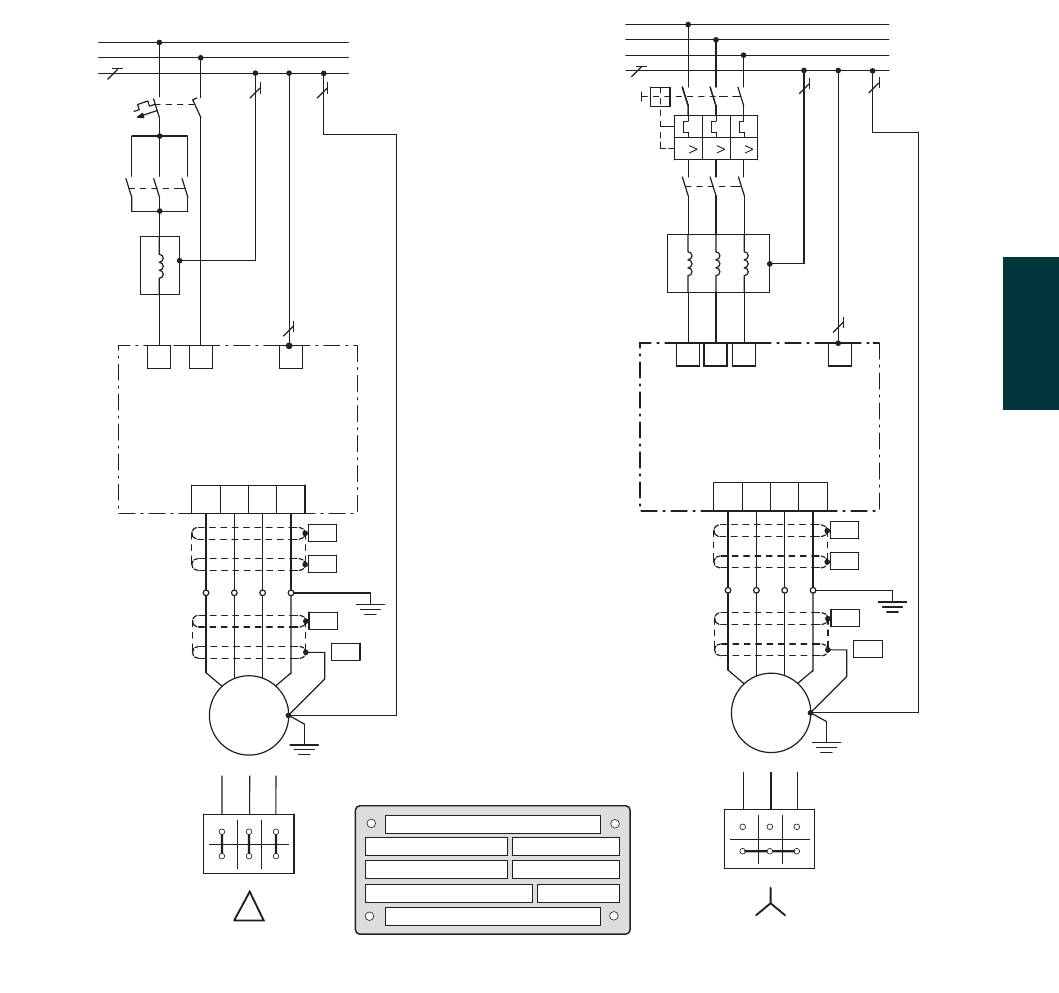

Connection example for a 0.75 kW motor
Motor: P = 0.75 kW
Supply system: 3/N/PE 400 V 50/60 Hz
Connection examples meeting EMC requirements: Power section (see figure below)
Variant A:
Motor connected in a „delta circuit“
DC1… variable frequency drive with single-phase supply conductors (230 V)
① An optional connection option for single-phase connection
The 0.75 kW motor listed above can be connected up using a delta connection to a
single-phase 230V mains supply (variant A) or in a star circuit on a 400V mains
circuit (variant B).
Taking due account of the selected mains voltage, the choice of variable frequency
drive can either be 230V for 1 AC (DC1-124D3...) or 400V for 3 AC (MMX34AA2D4) and
type-specific accessories.
Variant B:
Motor with 'star' circuit topology
variable frequency drive DC1… with three-phase mains supply conductors (400 V)
PE
L
N
PE
2
1
R1
①
PE
1 ∼ 230 V, 50/60 Hz
L1
T1
Q1
UVWPE
PES
PES
PES
PES
M
M1
X1
3 ~
F1FAZ-B10/1N
DX-LN1-009
DC1-124D3…
(4.3 A)
230 V
3.2 A
0.75 kW
DILM7
(+DILM12-XP1)
U1 V1 W1
W2 U2 V2
L2/N
3 ∼ 400 V, 50/60 Hz
W2
L1
L2/N
L3 PE
L1
L2
L3
PE
Q11
Q1
V2U2
W1V1U1
R1
PE
III
U1 V1 W1
W2 U2 V2
T1 UVWPE
PES
PES
PES
PES
M
M1
X1
3 ~
PKM0-6,3
DX-LN3-004
DC1-342D2…
(2.2 A)
400 V
1.9 A
0.75 kW
DILEM-10
1410 min
230/400 V 3.2/1.9 A
50 Hz
-1
0,75 KW cos ϕ 0.79
△ 
66 PowerXL™ variable speed starter and variable frequency drive
Assigned switching and protective elements for DE1 and DC1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable speed starter and variable frequency drive
Assigned switching and protective elements for DE1 and DC1
Accessories and
Engineering
Assigned switching and protective elements for DE1 and DC1
Part no. Motor Frequency inverters Power Wiring Power Wiring DC link connection Motor feeder
Assigned
motor
rating1), 2)
Rated
operational
current1)
Input current Safety device (fuse or miniature
circuit-breaker)
Mains contactor Main choke Radio interference
suppression filter
(external)3)
Braking resistance motor choke Sine filter
IH = 150 % IH = 150 % IH = 150 % IEC (Typ B, gG) UL (Class CC
or J)
IH = 150 %
(CT/IH, at 50 °C)
IH = 150 % 10 % duty factor (DF) 20 % duty factor (DF) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
PI
eILN
kW A A A
PowerXL™ DE1 variable speed starters
230 V AC, 1-phase/230 V AC, 3-phase
DE1-121D4… 0.25 1.4 3.6 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-006 DX-EMC12-019-FS1 - - DX-LM3-005 DX-SIN3-004
DE1-122D3… 0.37 2.3 6.2 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-006 DX-EMC12-019-FS1 - - DX-LM3-005 DX-SIN3-004
DE1-122D7… 0.55 2.7 7.3 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-009 DX-EMC12-019-FS1 - - DX-LM3-005 DX-SIN3-004
DE1-124D3… 0.75 4.3 11.3 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 DX-EMC12-019-FS1 - - DX-LM3-005 DX-SIN3-010
DE1-127D0… 1.5 7 17.4 FAZ-B20/1N 20 DILEM-… + P1DILEM DX-LN1-018 DX-EMC12-019-FS1 - - DX-LM3-008 DX-SIN3-010
DE1-129D6… 2.2 9.6 23.2 FAZ-B32/1N 35 DILM7-… + DILM12-XP1 DX-LN1-024 DX-EMC12-025-FS2 - - DX-LM3-011 DX-SIN3-010
400 V AC, 3-phase/400 V AC, 3-phase
DE1-341D3… 0.37 1.3 1.7 FAZ-B6/3 6DILEM-… DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-004
DE1-342D1… 0.75 2.1 3.1 FAZ-B6/3 6DILEM-… DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-004
DE1-343D6… 1.5 3.6 4.9 FAZ-B6/3 6DILEM-… DX-LN3-006 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-004
DE1-345D0… 2.2 5 7 FAZ-B16/3 15 DILEM-… DX-LN3-010 DX-EMC34-019-FS3… - - DX-LM3-005 DX-SIN3-010
DE1-346D6… 36.68.5FAZ-B16/3 15 DILEM-… DX-LN3-010 DX-EMC34-019-FS3… - - DX-LM3-008 DX-SIN3-010
DE1-348D5… 48.510FAZ-B16/3 15 DILEM-… DX-LN3-010 DX-EMC34-019-FS3… - - DX-LM3-011 DX-SIN3-010
DE1-34011… 5.5 11.3 12 FAZ-B16/3 15 DILEM-… DX-LN3-016 DX-EMC34-019-FS3… - - DX-LM3-011 DX-SIN3-016
DE1-34016… 7.5 16 16.5 FAZ-B25/3 25 DILEM-… DX-LN3-016 DX-EMC34-019-FS3… - - DX-LM3-016 DX-SIN3-016
PowerXL™ variable frequency drives DC1
115 V AC, single-phase/115 V AC, single-phase
DC1-S17D0… 0.37 7 12.4 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 - - - - -
DC1-S1011… 0.55 10.5 16.1 FAZ-B25/1N 25 DILM7-… + DILM12-XP1 DX-LN1-018 - - - - -
230 V AC, 1-phase/230 V AC, single-phase
DC1-S24D3… 0.37 4.3 6.8 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-009 - - - - -
DC1-S27D0… 0.75 7 12.8 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 - - - - -
DC1-S2011… 1.1 10.5 16.2 FAZ-B25/1N 25 DILM7-… + DILM12-XP1 DX-LN1-018 - - - - -
115 V AC, single-phase/230 V AC, 3-phase
DC1-1D2D3… 0.37 2.3 11 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 - - - DX-LM3-005 DX-SIN3-004
DC1-1D4D3… 0.75 4.3 19 FAZ-B25/1N 25 DILM7-… + DILM12-XP1 DX-LN1-024 - - - DX-LM3-005 DX-SIN3-010
DC1-1D5D8… 1.1 5.8 25 FAZ-B32/1N 35 DILM7-… + DILM12-XP1 - - - - DX-LM3-008 DX-SIN3-010
230 V AC, 1-phase/230 V AC, 3-phase
DC1-122D3… 0.37 2.3 5 FAZ-B10/1N 10 DILM7 DX-LN1-006 DX-EMC12-014-FS1 - - DX-LM3-005 DX-SIN3-004
DC1-124D3… 0.75 4.3 8.5 FAZ-B10/1N 10 DILM7 DX-LN1-009 DX-EMC12-014-FS1 - - DX-LM3-005 DX-SIN3-010
DC1-127D0… 1.5 7 13.9 FAZ-B16/1N 15 DILM7 DX-LN1-018 DX-EMC12-014-FS1 - - DX-LM3-008 DX-SIN3-010
DC1-12011… 2.2 10.5 19.5 FAZ-B25/1N 25 DILM7 DX-LN1-024 DX-EMC12-025-FS2 DX-BR050-0K4 DX-BR050-0K8 DX-LM3-011 DX-SIN3-016
DC1-12015… 41530.5FAZ-B40/1N 50 DILM7 DX-LN1-032 DX-EMC12-031-FS3 DX-BR050-0K4 DX-BR050-0K8 DX-LM3-016 DX-SIN3-016
230 V AC, 3-phase/230 V AC, 3-phase
DC1-322D3… 0.37 2.3 3 FAZ-B6/3 6DILM7 DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-004
DC1-324D3… 0.75 4.3 4.5 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-010
DC1-327D0… 1.5 7 7.3 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-008-FS1… - - DX-LM3-008 DX-SIN3-010
DC1-32011… 2.2 10.5 11 FAZ-B16/3 15 DILM7 DX-LN3-016 DX-EMC34-011-FS2… DX-BR050-0K4 DX-BR050-0K8 DX-LM3-011 DX-SIN3-016
DC1-32018… 41818.8FAZ-B20/3 20 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR050-0K4 DX-BR050-0K8 DX-LM3-035 DX-SIN3-023
400 V AC, 3-phase/400 V AC, 3-phase
DC1-342D2… 0.75 2.2 2.4 FAZ-B6/3 6DILM7 DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-004
DC1-344D1… 1.5 4.1 4.3 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-010
DC1-345D8… 2.2 5.8 6.1 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR100-0K8 DX-BR100-1K6 DX-LM3-008 DX-SIN3-010
DC1-349D5… 49.59.8FAZ-B16/3 15 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR100-0K8 DX-BR100-1K6 DX-LM3-011 DX-SIN3-010
DC1-34014… 5.5 14 14.6 FAZ-B20/3 20 DILM7 DX-LN3-016 DX-EMC34-015-FS3… DX-BR047-3K1 DX-BR047-5K1 DX-LM3-016 DX-SIN3-016
DC1-34018… 7.5 18 18.1 FAZ-B25/3 25 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR047-3K1 DX-BR047-5K1 DX-LM3-035 DX-SIN3-023
DC1-34024… 11 24 24.7 FAZ-B32/3 35 DILM17 DX-LN3-025 DX-EMC34-025-FS3… DX-BR047-3K1 DX-BR047-5K1 DX-LM3-035 DX-SIN3-023
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
67
66 PowerXL™ variable speed starter and variable frequency drive
Assigned switching and protective elements for DE1 and DC1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable speed starter and variable frequency drive
Assigned switching and protective elements for DE1 and DC1
Accessories and
Engineering
Assigned switching and protective elements for DE1 and DC1
Part no. Motor Frequency inverters Power Wiring Power Wiring DC link connection Motor feeder
Assigned
motor
rating1), 2)
Rated
operational
current1)
Input current Safety device (fuse or miniature
circuit-breaker)
Mains contactor Main choke Radio interference
suppression filter
(external)3)
Braking resistance motor choke Sine filter
IH = 150 % IH = 150 % IH = 150 % IEC (Typ B, gG) UL (Class CC
or J)
IH = 150 %
(CT/IH, at 50 °C)
IH = 150 % 10 % duty factor (DF) 20 % duty factor (DF) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
PI
eILN
kW A A A
PowerXL™ DE1 variable speed starters
230 V AC, 1-phase/230 V AC, 3-phase
DE1-121D4… 0.25 1.4 3.6 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-006 DX-EMC12-019-FS1 - - DX-LM3-005 -
DE1-122D3… 0.37 2.3 6.2 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-006 DX-EMC12-019-FS1 - - DX-LM3-005 -
DE1-122D7… 0.55 2.7 7.3 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-009 DX-EMC12-019-FS1 - - DX-LM3-005 -
DE1-124D3… 0.75 4.3 11.3 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 DX-EMC12-019-FS1 - - DX-LM3-005 -
DE1-127D0… 1.5 7 17.4 FAZ-B20/1N 20 DILEM-… + P1DILEM DX-LN1-018 DX-EMC12-019-FS1 - - DX-LM3-008 -
DE1-129D6… 2.2 9.6 23.2 FAZ-B32/1N 35 DILM7-… + DILM12-XP1 DX-LN1-024 DX-EMC12-025-FS2 - - DX-LM3-011 -
400 V AC, 3-phase/400 V AC, 3-phase
DE1-341D3… 0.37 1.3 1.7 FAZ-B6/3 6DILEM-… DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 -
DE1-342D1… 0.75 2.1 3.1 FAZ-B6/3 6DILEM-… DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 -
DE1-343D6… 1.5 3.6 4.9 FAZ-B6/3 6DILEM-… DX-LN3-006 DX-EMC34-008-FS1… - - DX-LM3-005 -
DE1-345D0… 2.2 5 7 FAZ-B16/3 15 DILEM-… DX-LN3-010 DX-EMC34-019-FS3… - - DX-LM3-005 -
DE1-346D6… 36.68.5FAZ-B16/3 15 DILEM-… DX-LN3-010 DX-EMC34-019-FS3… - - DX-LM3-008 -
DE1-348D5… 48.510FAZ-B16/3 15 DILEM-… DX-LN3-010 DX-EMC34-019-FS3… - - DX-LM3-011 -
DE1-34011… 5.5 11.3 12 FAZ-B16/3 15 DILEM-… DX-LN3-016 DX-EMC34-019-FS3… - - DX-LM3-011 -
DE1-34016… 7.5 16 16.5 FAZ-B25/3 25 DILEM-… DX-LN3-016 DX-EMC34-019-FS3… - - DX-LM3-016 -
PowerXL™ variable frequency drives DC1
115 V AC, single-phase/115 V AC, single-phase
DC1-S17D0… 0.37 7 12.4 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 - - - - -
DC1-S1011… 0.55 10.5 16.1 FAZ-B25/1N 25 DILM7-… + DILM12-XP1 DX-LN1-018 - - - - -
230 V AC, 1-phase/230 V AC, single-phase
DC1-S24D3… 0.37 4.3 6.8 FAZ-B10/1N 10 DILEM-… + P1DILEM DX-LN1-009 - - - - -
DC1-S27D0… 0.75 7 12.8 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 - - - - -
DC1-S2011… 1.1 10.5 16.2 FAZ-B25/1N 25 DILM7-… + DILM12-XP1 DX-LN1-018 - - - - -
115 V AC, single-phase/230 V AC, 3-phase
DC1-1D2D3… 0.37 2.3 11 FAZ-B16/1N 15 DILEM-… + P1DILEM DX-LN1-013 - - - DX-LM3-005 DX-SIN3-004
DC1-1D4D3… 0.75 4.3 19 FAZ-B25/1N 25 DILM7-… + DILM12-XP1 DX-LN1-024 - - - DX-LM3-005 DX-SIN3-010
DC1-1D5D8… 1.1 5.8 25 FAZ-B32/1N 35 DILM7-… + DILM12-XP1 - - - - DX-LM3-008 DX-SIN3-010
230 V AC, 1-phase/230 V AC, 3-phase
DC1-122D3… 0.37 2.3 5 FAZ-B10/1N 10 DILM7 DX-LN1-006 DX-EMC12-014-FS1 - - DX-LM3-005 DX-SIN3-004
DC1-124D3… 0.75 4.3 8.5 FAZ-B10/1N 10 DILM7 DX-LN1-009 DX-EMC12-014-FS1 - - DX-LM3-005 DX-SIN3-010
DC1-127D0… 1.5 7 13.9 FAZ-B16/1N 15 DILM7 DX-LN1-018 DX-EMC12-014-FS1 - - DX-LM3-008 DX-SIN3-010
DC1-12011… 2.2 10.5 19.5 FAZ-B25/1N 25 DILM7 DX-LN1-024 DX-EMC12-025-FS2 DX-BR050-0K4 DX-BR050-0K8 DX-LM3-011 DX-SIN3-016
DC1-12015… 41530.5FAZ-B40/1N 50 DILM7 DX-LN1-032 DX-EMC12-031-FS3 DX-BR050-0K4 DX-BR050-0K8 DX-LM3-016 DX-SIN3-016
230 V AC, 3-phase/230 V AC, 3-phase
DC1-322D3… 0.37 2.3 3 FAZ-B6/3 6DILM7 DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-004
DC1-324D3… 0.75 4.3 4.5 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-010
DC1-327D0… 1.5 7 7.3 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-008-FS1… - - DX-LM3-008 DX-SIN3-010
DC1-32011… 2.2 10.5 11 FAZ-B16/3 15 DILM7 DX-LN3-016 DX-EMC34-011-FS2… DX-BR050-0K4 DX-BR050-0K8 DX-LM3-011 DX-SIN3-016
DC1-32018… 41818.8FAZ-B20/3 20 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR050-0K4 DX-BR050-0K8 DX-LM3-035 DX-SIN3-023
400 V AC, 3-phase/400 V AC, 3-phase
DC1-342D2… 0.75 2.2 2.4 FAZ-B6/3 6DILM7 DX-LN3-004 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-004
DC1-344D1… 1.5 4.1 4.3 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-008-FS1… - - DX-LM3-005 DX-SIN3-010
DC1-345D8… 2.2 5.8 6.1 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR100-0K8 DX-BR100-1K6 DX-LM3-008 DX-SIN3-010
DC1-349D5… 49.59.8FAZ-B16/3 15 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR100-0K8 DX-BR100-1K6 DX-LM3-011 DX-SIN3-010
DC1-34014… 5.5 14 14.6 FAZ-B20/3 20 DILM7 DX-LN3-016 DX-EMC34-015-FS3… DX-BR047-3K1 DX-BR047-5K1 DX-LM3-016 DX-SIN3-016
DC1-34018… 7.5 18 18.1 FAZ-B25/3 25 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR047-3K1 DX-BR047-5K1 DX-LM3-035 DX-SIN3-023
DC1-34024… 11 24 24.7 FAZ-B32/3 35 DILM17 DX-LN3-025 DX-EMC34-025-FS3… DX-BR047-3K1 DX-BR047-5K1 DX-LM3-035 DX-SIN3-023
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
67
68 PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
Accessories and
Engineering
Assigned switching and protective elements for DA1
Part no. Motor Frequency inverters Power Wiring Power Wiring DC link connection Motor feeder
Assigned motor
rating1), 2)
Rated operational
current1)
Input current Safety device (fuse or miniature
circuit-breaker)
Mains contactor Main choke Braking resistance motor choke Sine filter
IH = 150 % IH = 150 % IH = 150 % IEC (Typ B, gG) UL (Class CC
or J)
IH = 150 %
(CT/IH, at 50 °C)
IH = 150 % Radio interference
suppression filter (external)5)
10 % duty factor (DF) 20 % duty factor (DF) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
PI
eILN
kW A A A
PowerXL™ variable frequency drives DA1
230 V AC, 1-phase/230 V AC, 3-phase
DA1-124D3… 0.75 4.3 8.5 FAZ-B16/1N 16 DILM7 DX-LN1-013 -DX-BR100-0K2 DX-BR100-0K4 DX-LM3-005 DX-SIN3-010
DA1-127D0… 1.5 7 13.9 FAZ-B20/1N 20 DILM7 DX-LN1-018 -DX-BR050-0K4 DX-BR050-0K8 DX-LM3-008 DX-SIN3-010
DA1-12011… 2.2 10.5 19.5 FAZ-B25/1N 25 DILM7 DX-LN1-024 -DX-BR050-0K8 DX-BR035-1K1 DX-LM3-011 DX-SIN3-016
230 V AC, 3-phase/230 V AC, 3-phase
DA1-324D3… 0.75 4.3 4.5 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-011-FS2… DX-BR100-0K2 DX-BR100-0K4 DX-LM3-005 DX-SIN3-010
DA1-327D0… 1.5 7 7.3 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR050-0K4 DX-BR050-0K8 DX-LM3-008 DX-SIN3-010
DA1-32011… 2.2 10.5 11 FAZ-B16/3 15 DILM7 DX-LN3-016 DX-EMC34-011-FS2… DX-BR050-0K8 DX-BR035-1K1 DX-LM3-011 DX-SIN3-016
DA1-32018… 41818.8FAZ-B20/3 20 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR022-1K4 DX-BR022-3K1 DX-LM3-035 DX-SIN3-023
DA1-32024… 5.5 24 24.8 FAZ-B32/3 35 DILM17 DX-LN3-025 DX-EMC34-025-FS3… DX-BR022-1K4 DX-BR022-3K1 DX-LM3-035 DX-SIN3-032
DA1-32030… 7.5 30 40 FAZ-B50/3 50 DILM17 DX-LN3-040 DX-EMC34-048-FS4… DX-BR022-1K4 DX-BR022-3K1 DX-LM3-035 DX-SIN3-032
DA1-32046… 11 46 47.1 FAZ-B63/3 63 DILM40 DX-LN3-050 -DX-BR022-1K4 DX-BR022-3K1 DX-LM3-050 DX-SIN3-048
DA1-32061… 15 61 62.4 NZMC1-S80 80 DILM50 DX-LN3-080 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-063 DX-SIN3-061
DA1-32072… 22 72 74.1 NZMC1-S80 80 DILM65 DX-LN3-0803) DX-EMC34-075-FS5… DX-BR012-3K1 DX-BR012-5K1 DX-LM3-080 DX-SIN3-072
DA1-32090… 22 90 92.3 NZMC2-S100 100 DILM80 DX-LN3-1003) DX-EMC34-100… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-100 DX-SIN3-090
DA1-32110… 30 110 112.7 NZMC2-S125 125 DILM95 DX-LN3-1203) DX-EMC34-130… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-150 DX-SIN3-115
DA1-32150… 45 150 153.5 NZMC2-S160 160 DILM150 DX-LN3-1603) DX-EMC34-180… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-150 DX-SIN3-150
DA1-32180… 55 180 183.8 NZMC2-S200 200 DILM170 DX-LN3-2003) DX-EMC34-180… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-180 DX-SIN3-180
DA1-32202… 55 202 206.2 NZMC3-S250 250 DILM185A DX-LN3-2503) DX-EMC34-250… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-220 DX-SIN3-250
DA1-32248… 75 248 252.8 NZMC3-S320 320 DILM185A DX-LN3-3003) DX-EMC34-250… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-260 DX-SIN3-250
400 V AC, 3-phase/400 V AC, 3-phase
DA1-342D2… 0.75 2.2 2.4 FAZ-B6/3 6DILM7 DX-LN3-004 DX-EMC34-011-FS2… DX-BR400-0K4 DX-BR400-0K4 DX-LM3-005 DX-SIN3-004
DA1-344D1… 1.5 4.1 4.3 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-011-FS2… DX-BR200-0K4 DX-BR200-0K8 DX-LM3-005 DX-SIN3-010
DA1-345D8… 2.2 5.8 6.1 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR150-0K5 DX-BR150-1K4 DX-LM3-008 DX-SIN3-010
DA1-349D5… 49.59.8FAZ-B16/3 15 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR100-0K8 DX-BR100-1K4 DX-LM3-011 DX-SIN3-010
DA1-34014… 5.5 14 14.6 FAZ-B20/3 20 DILM7 DX-LN3-016 DX-EMC34-015-FS3… DX-BR075-1K4 DX-BR075-5K1 DX-LM3-016 DX-SIN3-016
DA1-34018… 7.5 18 18.1 FAZ-B25/3 25 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR050-3K1 DX-BR050-5K1 DX-LM3-035 DX-SIN3-023
DA1-34024… 11 24 24.7 FAZ-B32/3 35 DILM17 DX-LN3-025 DX-EMC34-025-FS3… DX-BR040-3K1 DX-BR040-5K1 DX-LM3-035 DX-SIN3-023
DA1-34030… 15 30 30.8 FAZ-B40/3 40 DILM17 DX-LN3-040 DX-EMC34-031-FS4… DX-BR022-5K1 DX-BR022-9K2 DX-LM3-035 DX-SIN3-032
DA1-34039… 18.5 39 40 FAZ-B50/3 50 DILM25 DX-LN3-040 DX-EMC34-048-FS4… DX-BR022-5K1 DX-BR022-9K2 DX-LM3-050 DX-SIN3-048
DA1-34046… 22 46 47.1 FAZ-B63/3 63 DILM40 DX-LN3-050 -DX-BR022-5K1 DX-BR022-9K2 DX-LM3-050 DX-SIN3-048
DA1-34061… 30 61 62.8 NZMC1-S80 80 DILM50 DX-LN3-0803) -DX-BR012-9K2 DX-BR012-18K1 DX-LM3-063 DX-SIN3-061
DA1-34072… 37 72 73.8 NZMC1-S80 80 DILM65 DX-LN3-0803) DX-EMC34-075-FS5… DX-BR012-9K2 DX-BR012-18K1 DX-LM3-080 DX-SIN3-090
DA1-34090… 45 90 92.2 NZMC1-S100 100 DILM80 DX-LN3-1003) DX-EMC34-100… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-100 DX-SIN3-090
DA1-34110… 55 110 112.5 NZMC2-S125 125 DILM95 DX-LN3-1203) DX-EMC34-130… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-150 DX-SIN3-115
DA1-34150… 75 150 153.2 NZMC2-S160 160 DILM150 DX-LN3-1603) DX-EMC34-180… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-150 DX-SIN3-150
DA1-34180… 90 180 183.7 NZMC2-S200 200 DILM170 DX-LN3-2003) DX-EMC34-180… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-180 DX-SIN3-180
DA1-34202… 110 202 205.9 NZMC3-S250 250 DILM185A DX-LN3-2503) DX-EMC34-250… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-220 DX-SIN3-250
DA1-34240… 132 240 244.5 NZMC3-S320 320 DILM185A DX-LN3-2503) DX-EMC34-250… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-260 DX-SIN3-250
DA1-34302… 160 302 307.8 NZMC3-S400 400 DILM225A DX-LN3-3703) DX-EMC34-400… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-303 DX-SIN3-440
DA1-34370… 200 370 359 NZMC3-S400 400 DILM400 DX-LN3-3704) DX-EMC34-400… DX-BR002-54K3 DX-BR002-102K4 DX-LM3-370 DX-SIN3-440
DA1-34450… 250 450 437 NZMC3-S500 500 DILM400 DX-LN3-4504) DX-EMC34-750… DX-BR002-54K3 DX-BR002-102K4 DX-LM3-450 DX-SIN3-480
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) Mains choke recommended only if the power quality is poor. Current harmonics (THD) are attenuated by internal DC link chokes.
4) A mains choke (Uk = 1 - 4%) must be used for operation.
5) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
69
68 PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
Accessories and
Engineering
Assigned switching and protective elements for DA1
Part no. Motor Frequency inverters Power Wiring Power Wiring DC link connection Motor feeder
Assigned motor
rating1), 2)
Rated operational
current1)
Input current Safety device (fuse or miniature
circuit-breaker)
Mains contactor Main choke Braking resistance motor choke Sine filter
IH = 150 % IH = 150 % IH = 150 % IEC (Typ B, gG) UL (Class CC
or J)
IH = 150 %
(CT/IH, at 50 °C)
IH = 150 % Radio interference
suppression filter (external)5)
10 % duty factor (DF) 20 % duty factor (DF) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
PI
eILN
kW A A A
PowerXL™ variable frequency drives DA1
230 V AC, 1-phase/230 V AC, 3-phase
DA1-124D3… 0.75 4.3 8.5 FAZ-B16/1N 16 DILM7 DX-LN1-013 -DX-BR100-0K2 DX-BR100-0K4 DX-LM3-005 DX-SIN3-010
DA1-127D0… 1.5 7 13.9 FAZ-B20/1N 20 DILM7 DX-LN1-018 -DX-BR050-0K4 DX-BR050-0K8 DX-LM3-008 DX-SIN3-010
DA1-12011… 2.2 10.5 19.5 FAZ-B25/1N 25 DILM7 DX-LN1-024 -DX-BR050-0K8 DX-BR035-1K1 DX-LM3-011 DX-SIN3-016
230 V AC, 3-phase/230 V AC, 3-phase
DA1-324D3… 0.75 4.3 4.5 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-011-FS2… DX-BR100-0K2 DX-BR100-0K4 DX-LM3-005 DX-SIN3-010
DA1-327D0… 1.5 7 7.3 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR050-0K4 DX-BR050-0K8 DX-LM3-008 DX-SIN3-010
DA1-32011… 2.2 10.5 11 FAZ-B16/3 15 DILM7 DX-LN3-016 DX-EMC34-011-FS2… DX-BR050-0K8 DX-BR035-1K1 DX-LM3-011 DX-SIN3-016
DA1-32018… 41818.8FAZ-B20/3 20 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR022-1K4 DX-BR022-3K1 DX-LM3-035 DX-SIN3-023
DA1-32024… 5.5 24 24.8 FAZ-B32/3 35 DILM17 DX-LN3-025 DX-EMC34-025-FS3… DX-BR022-1K4 DX-BR022-3K1 DX-LM3-035 DX-SIN3-032
DA1-32030… 7.5 30 40 FAZ-B50/3 50 DILM17 DX-LN3-040 DX-EMC34-048-FS4… DX-BR022-1K4 DX-BR022-3K1 DX-LM3-035 DX-SIN3-032
DA1-32046… 11 46 47.1 FAZ-B63/3 63 DILM40 DX-LN3-050 -DX-BR022-1K4 DX-BR022-3K1 DX-LM3-050 DX-SIN3-048
DA1-32061… 15 61 62.4 NZMC1-S80 80 DILM50 DX-LN3-080 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-063 DX-SIN3-061
DA1-32072… 22 72 74.1 NZMC1-S80 80 DILM65 DX-LN3-0803) DX-EMC34-075-FS5… DX-BR012-3K1 DX-BR012-5K1 DX-LM3-080 DX-SIN3-072
DA1-32090… 22 90 92.3 NZMC2-S100 100 DILM80 DX-LN3-1003) DX-EMC34-100… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-100 DX-SIN3-090
DA1-32110… 30 110 112.7 NZMC2-S125 125 DILM95 DX-LN3-1203) DX-EMC34-130… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-150 DX-SIN3-115
DA1-32150… 45 150 153.5 NZMC2-S160 160 DILM150 DX-LN3-1603) DX-EMC34-180… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-150 DX-SIN3-150
DA1-32180… 55 180 183.8 NZMC2-S200 200 DILM170 DX-LN3-2003) DX-EMC34-180… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-180 DX-SIN3-180
DA1-32202… 55 202 206.2 NZMC3-S250 250 DILM185A DX-LN3-2503) DX-EMC34-250… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-220 DX-SIN3-250
DA1-32248… 75 248 252.8 NZMC3-S320 320 DILM185A DX-LN3-3003) DX-EMC34-250… DX-BR006-5K1 DX-BR006-9K2 DX-LM3-260 DX-SIN3-250
400 V AC, 3-phase/400 V AC, 3-phase
DA1-342D2… 0.75 2.2 2.4 FAZ-B6/3 6DILM7 DX-LN3-004 DX-EMC34-011-FS2… DX-BR400-0K4 DX-BR400-0K4 DX-LM3-005 DX-SIN3-004
DA1-344D1… 1.5 4.1 4.3 FAZ-B6/3 6DILM7 DX-LN3-006 DX-EMC34-011-FS2… DX-BR200-0K4 DX-BR200-0K8 DX-LM3-005 DX-SIN3-010
DA1-345D8… 2.2 5.8 6.1 FAZ-B10/3 10 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR150-0K5 DX-BR150-1K4 DX-LM3-008 DX-SIN3-010
DA1-349D5… 49.59.8FAZ-B16/3 15 DILM7 DX-LN3-010 DX-EMC34-011-FS2… DX-BR100-0K8 DX-BR100-1K4 DX-LM3-011 DX-SIN3-010
DA1-34014… 5.5 14 14.6 FAZ-B20/3 20 DILM7 DX-LN3-016 DX-EMC34-015-FS3… DX-BR075-1K4 DX-BR075-5K1 DX-LM3-016 DX-SIN3-016
DA1-34018… 7.5 18 18.1 FAZ-B25/3 25 DILM7 DX-LN3-025 DX-EMC34-019-FS3… DX-BR050-3K1 DX-BR050-5K1 DX-LM3-035 DX-SIN3-023
DA1-34024… 11 24 24.7 FAZ-B32/3 35 DILM17 DX-LN3-025 DX-EMC34-025-FS3… DX-BR040-3K1 DX-BR040-5K1 DX-LM3-035 DX-SIN3-023
DA1-34030… 15 30 30.8 FAZ-B40/3 40 DILM17 DX-LN3-040 DX-EMC34-031-FS4… DX-BR022-5K1 DX-BR022-9K2 DX-LM3-035 DX-SIN3-032
DA1-34039… 18.5 39 40 FAZ-B50/3 50 DILM25 DX-LN3-040 DX-EMC34-048-FS4… DX-BR022-5K1 DX-BR022-9K2 DX-LM3-050 DX-SIN3-048
DA1-34046… 22 46 47.1 FAZ-B63/3 63 DILM40 DX-LN3-050 -DX-BR022-5K1 DX-BR022-9K2 DX-LM3-050 DX-SIN3-048
DA1-34061… 30 61 62.8 NZMC1-S80 80 DILM50 DX-LN3-0803) -DX-BR012-9K2 DX-BR012-18K1 DX-LM3-063 DX-SIN3-061
DA1-34072… 37 72 73.8 NZMC1-S80 80 DILM65 DX-LN3-0803) DX-EMC34-075-FS5… DX-BR012-9K2 DX-BR012-18K1 DX-LM3-080 DX-SIN3-090
DA1-34090… 45 90 92.2 NZMC1-S100 100 DILM80 DX-LN3-1003) DX-EMC34-100… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-100 DX-SIN3-090
DA1-34110… 55 110 112.5 NZMC2-S125 125 DILM95 DX-LN3-1203) DX-EMC34-130… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-150 DX-SIN3-115
DA1-34150… 75 150 153.2 NZMC2-S160 160 DILM150 DX-LN3-1603) DX-EMC34-180… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-150 DX-SIN3-150
DA1-34180… 90 180 183.7 NZMC2-S200 200 DILM170 DX-LN3-2003) DX-EMC34-180… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-180 DX-SIN3-180
DA1-34202… 110 202 205.9 NZMC3-S250 250 DILM185A DX-LN3-2503) DX-EMC34-250… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-220 DX-SIN3-250
DA1-34240… 132 240 244.5 NZMC3-S320 320 DILM185A DX-LN3-2503) DX-EMC34-250… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-260 DX-SIN3-250
DA1-34302… 160 302 307.8 NZMC3-S400 400 DILM225A DX-LN3-3703) DX-EMC34-400… DX-BR006-18K1 DX-BR006-33K3 DX-LM3-303 DX-SIN3-440
DA1-34370… 200 370 359 NZMC3-S400 400 DILM400 DX-LN3-3704) DX-EMC34-400… DX-BR002-54K3 DX-BR002-102K4 DX-LM3-370 DX-SIN3-440
DA1-34450… 250 450 437 NZMC3-S500 500 DILM400 DX-LN3-4504) DX-EMC34-750… DX-BR002-54K3 DX-BR002-102K4 DX-LM3-450 DX-SIN3-480
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) Mains choke recommended only if the power quality is poor. Current harmonics (THD) are attenuated by internal DC link chokes.
4) A mains choke (Uk = 1 - 4%) must be used for operation.
5) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
69
70 PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
Accessories and
Engineering
Assigned switching and protective elements for DA1
Part no. Motor Frequency inverters Power Wiring Power Wiring DC link connection Motor feeder
Assigned motor
rating1), 2)
Rated operational
current1)
Input current Safety device (fuse or miniature
circuit-breaker)
Mains contactor Main choke Braking resistance motor choke Sine filter
IH = 150 % IH = 150 % IH = 150 % IEC (Typ B, gG)3) UL (Class CC or J)4) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 % Radio interference
suppression filter (external)5)
10 % duty factor (DF) 20 % duty factor (DF) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
PI
eILN
kW A A A
PowerXL™ variable frequency drives DA1
500 V AC, 3-phase/500 V AC, 3-phase
DA1-352D1… 1.1 2.1 2.5 6NHG000B LPJ-6SP DILM7 DX-LN3-004 ---DX-LM3-005 SIN-0005-6-0-P
DA1-353D1… 1.5 3.1 3.7 6NHG000B LPJ-6SP DILM7 DX-LN3-004 -DX-BR400-0K4 -DX-LM3-005 SIN-0005-6-0-P
DA1-354D1… 2.2 4.1 4.9 10NHG000B LPJ-10SP DILM7 DX-LN3-006 -DX-BR200-0K4 DX-BR200-0K8 DX-LM3-005 SIN-0005-6-0-P
DA1-356D5… 36.57.810NHG000B LPJ-10SP DILM7 DX-LN3-010 -DX-BR150-0K5 DX-BR150-1K4 DX-LM3-008 SIN-0008-6-0-P
DA1-359D0… 4910.816NHG000B LPJ-15SP DILM7 DX-LN3-016 -DX-BR100-0K8 DX-BR100-1K4 DX-LM3-011 SIN-0014-6-0-P
DA1-35012… 5.5 12 14.4 20NHG000B LPJ-20SP DILM7 DX-LN3-016 -DX-BR100-0K8 DX-BR100-1K6 DX-LM3-016 SIN-0014-6-0-P
DA1-35017… 7.5 17 20.6 32NHG000B LPJ-30SP DILM17 DX-LN3-025 -DX-BR050-3K1 DX-BR050-5K1 DX-LM3-035 SIN-0023-6-0-P
DA1-35022… 11 22 26.7 40NHG000B LPJ-35SP DILM17 DX-LN3-040 -DX-BR040-3K1 DX-BR040-5K1 DX-LM3-035 SIN-0035-6-0-P
DA1-35028… 15 28 34 50NHG000B LPJ-45SP DILM17 DX-LN3-040 -DX-BR040-3K1 DX-BR040-5K1 DX-LM3-035 SIN-0035-6-0-P
DA1-35034… 18.5 34 41.2 63NHG000B LPJ-60SP DILM25 DX-LN3-050 -DX-BR022-3K1 DX-BR022-5K1 DX-LM3-035 SIN-0052-6-0-P
DA1-35043… 22 43 49.5 63NHG000B LPJ-70SP DILM40 DX-LN3-050 -DX-BR022-3K1 DX-BR022-5K1 DX-LM3-050 SIN-0052-6-0-P
DA1-35054… 30 54 62.2 80NHG000B
NZMC1-S80
LPJ-80SP DILM50 DX-LN3-080 -DX-BR022-3K1 DX-BR022-5K1 DX-LM3-063 SIN-0085-6-0-P
DA1-35065… 37 65 75.8 100NHG000B
NZMC1-S100
LPJ-100SP DILM80 DX-LN3-080 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-080 SIN-0085-6-0-P
DA1-35078… 45 78 90.9 125NHG00B
NZMC2-S125
LPJ-125SP DILM95 DX-LN3-100 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-080 SIN-0085-6-0-P
DA1-35105… 55 105 108.2 160NHG00B
NZMC2-S160
LPJ-150SP DILM95 DX-LN3-120 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-150 SIN-0122-6-0-P
DA1-35130… 75 130 127.7 160NHG00B
NZMC2-S160
LPJ-175SP DILM115 DX-LN3-160 -DX-BR012-3K1 DX-BR012-9K2 DX-LM3-150 SIN-0185-6-0-P
DA1-35150… 90 150 134.8 200NHG1B
NZMC2-S200
LPJ-175SP DILM150 DX-LN3-160 -DX-BR012-3K1 DX-BR012-18K1 DX-LM3-150 SIN-0185-6-0-P
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) NH fuse used together with TB00-D fuse base
4) LPJ fuse used together with J60060-3 fuse base
5) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
71
70 PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable frequency drives
Assigned switching and protective elements for DA1
Accessories and
Engineering
Assigned switching and protective elements for DA1
Part no. Motor Frequency inverters Power Wiring Power Wiring DC link connection Motor feeder
Assigned motor
rating1), 2)
Rated operational
current1)
Input current Safety device (fuse or miniature
circuit-breaker)
Mains contactor Main choke Braking resistance motor choke Sine filter
IH = 150 % IH = 150 % IH = 150 % IEC (Typ B, gG)3) UL (Class CC or J)4) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 % Radio interference
suppression filter (external)5)
10 % duty factor (DF) 20 % duty factor (DF) IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
PI
eILN
kW A A A
PowerXL™ variable frequency drives DA1
500 V AC, 3-phase/500 V AC, 3-phase
DA1-352D1… 1.1 2.1 2.5 6NHG000B LPJ-6SP DILM7 DX-LN3-004 ---DX-LM3-005 SIN-0005-6-0-P
DA1-353D1… 1.5 3.1 3.7 6NHG000B LPJ-6SP DILM7 DX-LN3-004 -DX-BR400-0K4 -DX-LM3-005 SIN-0005-6-0-P
DA1-354D1… 2.2 4.1 4.9 10NHG000B LPJ-10SP DILM7 DX-LN3-006 -DX-BR200-0K4 DX-BR200-0K8 DX-LM3-005 SIN-0005-6-0-P
DA1-356D5… 36.57.810NHG000B LPJ-10SP DILM7 DX-LN3-010 -DX-BR150-0K5 DX-BR150-1K4 DX-LM3-008 SIN-0008-6-0-P
DA1-359D0… 4910.816NHG000B LPJ-15SP DILM7 DX-LN3-016 -DX-BR100-0K8 DX-BR100-1K4 DX-LM3-011 SIN-0014-6-0-P
DA1-35012… 5.5 12 14.4 20NHG000B LPJ-20SP DILM7 DX-LN3-016 -DX-BR100-0K8 DX-BR100-1K6 DX-LM3-016 SIN-0014-6-0-P
DA1-35017… 7.5 17 20.6 32NHG000B LPJ-30SP DILM17 DX-LN3-025 -DX-BR050-3K1 DX-BR050-5K1 DX-LM3-035 SIN-0023-6-0-P
DA1-35022… 11 22 26.7 40NHG000B LPJ-35SP DILM17 DX-LN3-040 -DX-BR040-3K1 DX-BR040-5K1 DX-LM3-035 SIN-0035-6-0-P
DA1-35028… 15 28 34 50NHG000B LPJ-45SP DILM17 DX-LN3-040 -DX-BR040-3K1 DX-BR040-5K1 DX-LM3-035 SIN-0035-6-0-P
DA1-35034… 18.5 34 41.2 63NHG000B LPJ-60SP DILM25 DX-LN3-050 -DX-BR022-3K1 DX-BR022-5K1 DX-LM3-035 SIN-0052-6-0-P
DA1-35043… 22 43 49.5 63NHG000B LPJ-70SP DILM40 DX-LN3-050 -DX-BR022-3K1 DX-BR022-5K1 DX-LM3-050 SIN-0052-6-0-P
DA1-35054… 30 54 62.2 80NHG000B
NZMC1-S80
LPJ-80SP DILM50 DX-LN3-080 -DX-BR022-3K1 DX-BR022-5K1 DX-LM3-063 SIN-0085-6-0-P
DA1-35065… 37 65 75.8 100NHG000B
NZMC1-S100
LPJ-100SP DILM80 DX-LN3-080 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-080 SIN-0085-6-0-P
DA1-35078… 45 78 90.9 125NHG00B
NZMC2-S125
LPJ-125SP DILM95 DX-LN3-100 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-080 SIN-0085-6-0-P
DA1-35105… 55 105 108.2 160NHG00B
NZMC2-S160
LPJ-150SP DILM95 DX-LN3-120 -DX-BR012-3K1 DX-BR012-5K1 DX-LM3-150 SIN-0122-6-0-P
DA1-35130… 75 130 127.7 160NHG00B
NZMC2-S160
LPJ-175SP DILM115 DX-LN3-160 -DX-BR012-3K1 DX-BR012-9K2 DX-LM3-150 SIN-0185-6-0-P
DA1-35150… 90 150 134.8 200NHG1B
NZMC2-S200
LPJ-175SP DILM150 DX-LN3-160 -DX-BR012-3K1 DX-BR012-18K1 DX-LM3-150 SIN-0185-6-0-P
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) NH fuse used together with TB00-D fuse base
4) LPJ fuse used together with J60060-3 fuse base
5) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
71
72 PowerXL™ variable frequency drives
Assigned switching and protective elements for DG1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable frequency drives
Assigned switching and protective elements for DG1
Accessories and
Engineering
Assigned switching and protective elements for DG1
Part no. Motor Frequency inverters Power Wiring DC link connection Motor feeder
Assigned motor
rating1), 2)
Rated operational current1) Input current Safety device (fuse or
miniature circuit-breaker)
Mains contactor Braking resistance motor choke Sine filter
IH = 150 % IL = 110 % IH = 150 % IL = 110 % IH = 150 % IL = 110 % IEC
(Typ B, gG)
UL (Class
CC or J)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
10 % duty factor
(DF)
20 % duty factor
(DF)
40 % duty factor
(DF)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
PPI
eIeILN ILN
kW kW A A A T A
PowerXL™ variable frequency drive DG1
230 V AC, 3-phase/230 V AC, 3-phase
DG1-323D7… 0.75 1.1 3.7 4.8 3.2 4.4 FAZ-B6/3 6DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-010
DG1-324D8… 1.1 1.5 4.8 6.6 4.4 6.1 FAZ-B10/3 10 DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-005 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
DG1-326D6… 1.5 1.5 6.6 7.8 6.1 7.2 FAZ-B16/3 15 DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-008 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
DG1-32011… 2.2 3 11 12.5 10.2 11.6 FAZ-B16/3 15 DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-016 DX-LM3-011 DX-SIN3-016 DX-SIN3-016
DG1-32012… 3 4 12.5 17.5 10.2 16.3 FAZ-B20/3 20 DILEM DILM7 DX-BR012-3K1 DX-BR012-5K1 DX-BR012-9K2 DX-LM3-016 -DX-SIN3-016 DX-SIN3-023
DG1-32017… 4 5.5 17.5 25 16.2 23.2 FAZ-B32/3 35 DILEM DILM17 DX-BR012-3K1 DX-BR012-5K1 DX-BR012-9K2 DX-LM3-035 -DX-SIN3-023 DX-SIN3-032
DG1-32025… 5.5 7.5 25 31 23.1 29 FAZ-B40/3 40 DILM17 DILM17 DX-BR012-3K1 DX-BR012-5K1 DX-BR012-9K2 DX-LM3-035 -DX-SIN3-032 DX-SIN3-032
DG1-32031… 7.5 11 31 48 28.7 44.2 FAZ-B50/3 50 DILM17 DILM40 DX-BR012-3K1 DX-BR012-9K2 DX-BR012-18K1 DX-LM3-035 -DX-SIN3-032 DX-SIN3-061
DG1-32048… 11 15 48 61 44.4 56 FAZ-B63/3 63 DILM40 DILM50 DX-BR012-3K1 DX-BR012-9K2 DX-BR012-18K1 DX-LM3-050 -DX-SIN3-048 DX-SIN3-072
DG1-32061… 15 22 61 75 56.4 64.4 NZMC1-S80 80 DILM50 DILM50 - - - DX-LM3-063 DX-LM3-080 DX-SIN3-072 DX-SIN3-072
DG1-32075… 22 22 75 88 69.4 78 NZMC2-S100 100 DILM72 DILM72 - - - DX-LM3-080 DX-LM3-100 DX-SIN3-090 DX-SIN3-090
DG1-32114… 30 45 114 143 105.5 129 NZMC2-S160 160 DILM95 DILM115 - - - DX-LM3-150 DX-LM3-150 DX-SIN3-115 DX-SIN3-150
DG1-32143… 45 45 143 170 132.3 157 NZMC2-S200 200 DILM150 DILM150 - - - DX-LM3-150 DX-LM3-180 DX-SIN3-150 DX-SIN3-180
400 V AC, 3-phase/400 V AC, 3-phase
DG1-342D2… 0.75 1.1 2.2 3.3 2 3.1 FAZ-B6/3 6DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-004
DG1-343D3… 1.1 1.5 3.3 4.3 3.1 4 FAZ-B6/3 6DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-010
DG1-344D3… 1.5 2.2 4.3 5.6 4.1 5.2 FAZ-B10/3 10 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-005 DX-LM3-005 DX-SIN3-010 DX-SIN3-010
DG1-345D6… 2.2 3 5.6 7.6 5.2 7.1 FAZ-B16/3 15 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-008 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
DG1-347D6… 347.69 7.18.4FAZ-B16/3 15 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-008 DX-LM3-011 DX-SIN3-010 DX-SIN3-010
DG1-349D0… 4 5.5 9 12 8.4 11.2 FAZ-B16/3 15 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-011 DX-LM3-016 DX-SIN3-010 DX-SIN3-016
DG1-34012… 5.5 7.5 12 16 11.2 15 FAZ-B20/3 20 DILEM DILEM DX-BR022-5K1 DX-BR022-9K2 2 x DX-BR047-9K2 DX-LM3-016 DX-LM3-016 DX-SIN3-016 DX-SIN3-016
DG1-34016… 7.5 11 16 23 14.9 21.5 FAZ-B25/3 25 DILEM DILM17 DX-BR022-5K1 DX-BR022-9K2 2 x DX-BR047-9K2 DX-LM3-016 DX-LM3-035 DX-SIN3-016 DX-SIN3-023
DG1-34023… 11 15 23 31 21.4 29 FAZ-B32/3 35 DILM17 DILM17 DX-BR022-5K1 DX-BR022-9K2 2 x DX-BR047-9K2 DX-LM3-035 DX-LM3-035 DX-SIN3-023 DX-SIN3-032
DG1-34031… 15 18.5 31 38 28.8 35.2 FAZ-B40/3 40 DILM17 DILM17 DX-BR022-9K2 2 x DX-BR047-9K2 -DX-LM3-035 DX-LM3-050 DX-SIN3-032 DX-SIN3-037
DG1-34038… 18.5 22 38 46 35.3 42.6 FAZ-B50/3 50 DILM17 DILM40 DX-BR022-9K2 2 x DX-BR047-9K2 -DX-LM3-050 DX-LM3-050 DX-SIN3-037 DX-SIN3-048
DG1-34046… 22 30 46 61 42.8 55.7 FAZ-B63/3 63 DILM40 DILM50 DX-BR022-9K2 2 x DX-BR047-9K2 -DX-LM3-050 DX-LM3-063 DX-SIN3-048 DX-SIN3-072
DG1-34061… 30 37 61 72 56.7 65.7 NZMC1-S80 80 DILM50 DILM50 2 x DX-BR006-18K1 2 x DX-BR006-33K3 -DX-LM3-063 DX-LM3-080 DX-SIN3-072 DX-SIN3-072
DG1-34072… 37 45 72 87 66.9 79.4 NZMC2-S100 100 DILM65 DILM65 - - - DX-LM3-080 DX-LM3-100 DX-SIN3-072 DX-SIN3-090
DG1-34087… 45 55 87 105 80.9 97 NZMC2-S125 125 DILM65 DILM95 - - - DX-LM3-100 DX-LM3-150 DX-SIN3-090 DX-SIN3-115
DG1-34105… 55 75 105 140 97.6 129 NZMC2-S160 160 DILM95 DILM115 - - - DX-LM3-150 DX-LM3-150 DX-SIN3-115 DX-SIN3-150
DG1-34140… 75 90 140 170 130.1 157 NZMC2-S200 200 DILM115 DILM150 - - - DX-LM3-150 DX-LM3-180 DX-SIN3-150 DX-SIN3-180
DG1-34170… 90 110 170 205 158 189 NZMC3-S250 250 DILM150 DILM250 - - - DX-LM3-180 DX-LM3-260 DX-SIN3-180 DX-SIN3-250
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
73
72 PowerXL™ variable frequency drives
Assigned switching and protective elements for DG1
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
PowerXL™ variable frequency drives
Assigned switching and protective elements for DG1
Accessories and
Engineering
Assigned switching and protective elements for DG1
Part no. Motor Frequency inverters Power Wiring DC link connection Motor feeder
Assigned motor
rating1), 2)
Rated operational current1) Input current Safety device (fuse or
miniature circuit-breaker)
Mains contactor Braking resistance motor choke Sine filter
IH = 150 % IL = 110 % IH = 150 % IL = 110 % IH = 150 % IL = 110 % IEC (gG/gL) UL
(Class T)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
10 % duty factor
(DF)
20 % duty factor
(DF)
40 % duty factor
(DF)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
PPI
eIeILN ILN
kW kW A A A T A
PowerXL™ variable frequency drive DG1
230 V AC, 3-phase/230 V AC, 3-phase
DG1-323D7… 0.75 1.1 3.7 4.8 3.2 4.4 FAZ-B6/3 6DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-010
DG1-324D8… 1.1 1.5 4.8 6.6 4.4 6.1 FAZ-B10/3 10 DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-005 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
DG1-326D6… 1.5 1.5 6.6 7.8 6.1 7.2 FAZ-B16/3 15 DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-008 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
DG1-32011… 2.2 3 11 12.5 10.2 11.6 FAZ-B16/3 15 DILEM DILEM 2 x DX-BR035-1K1 DX-BR022-3K1 DX-BR022-5K1 DX-LM3-016 DX-LM3-011 DX-SIN3-016 DX-SIN3-016
DG1-32012… 3 4 12.5 17.5 10.2 16.3 FAZ-B20/3 20 DILEM DILM7 DX-BR012-3K1 DX-BR012-5K1 DX-BR012-9K2 DX-LM3-016 -DX-SIN3-016 DX-SIN3-023
DG1-32017… 4 5.5 17.5 25 16.2 23.2 FAZ-B32/3 35 DILEM DILM17 DX-BR012-3K1 DX-BR012-5K1 DX-BR012-9K2 DX-LM3-035 -DX-SIN3-023 DX-SIN3-032
DG1-32025… 5.5 7.5 25 31 23.1 29 FAZ-B40/3 40 DILM17 DILM17 DX-BR012-3K1 DX-BR012-5K1 DX-BR012-9K2 DX-LM3-035 -DX-SIN3-032 DX-SIN3-032
DG1-32031… 7.5 11 31 48 28.7 44.2 FAZ-B50/3 50 DILM17 DILM40 DX-BR012-3K1 DX-BR012-9K2 DX-BR012-18K1 DX-LM3-035 -DX-SIN3-032 DX-SIN3-061
DG1-32048… 11 15 48 61 44.4 56 FAZ-B63/3 63 DILM40 DILM50 DX-BR012-3K1 DX-BR012-9K2 DX-BR012-18K1 DX-LM3-050 -DX-SIN3-048 DX-SIN3-072
DG1-32061… 15 22 61 75 56.4 64.4 NZMC1-S80 80 DILM50 DILM50 - - - DX-LM3-063 DX-LM3-080 DX-SIN3-072 DX-SIN3-072
DG1-32075… 22 22 75 88 69.4 78 NZMC2-S100 100 DILM72 DILM72 - - - DX-LM3-080 DX-LM3-100 DX-SIN3-090 DX-SIN3-090
DG1-32114… 30 45 114 143 105.5 129 NZMC2-S160 160 DILM95 DILM115 - - - DX-LM3-150 DX-LM3-150 DX-SIN3-115 DX-SIN3-150
DG1-32143… 45 45 143 170 132.3 157 NZMC2-S200 200 DILM150 DILM150 - - - DX-LM3-150 DX-LM3-180 DX-SIN3-150 DX-SIN3-180
400 V AC, 3-phase/400 V AC, 3-phase
DG1-342D2… 0.75 1.1 2.2 3.3 2 3.1 FAZ-B6/3 6DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-004
DG1-343D3… 1.1 1.5 3.3 4.3 3.1 4 FAZ-B6/3 6DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-010
DG1-344D3… 1.5 2.2 4.3 5.6 4.1 5.2 FAZ-B10/3 10 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-005 DX-LM3-005 DX-SIN3-010 DX-SIN3-010
DG1-345D6… 2.2 3 5.6 7.6 5.2 7.1 FAZ-B16/3 15 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-008 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
DG1-347D6… 347.69 7.18.4FAZ-B16/3 15 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-008 DX-LM3-011 DX-SIN3-010 DX-SIN3-010
DG1-349D0… 4 5.5 9 12 8.4 11.2 FAZ-B16/3 15 DILEM DILEM DX-BR040-3K1 DX-BR040-5K1 DX-BR047-9K2 DX-LM3-011 DX-LM3-016 DX-SIN3-010 DX-SIN3-016
DG1-34012… 5.5 7.5 12 16 11.2 15 FAZ-B20/3 20 DILEM DILEM DX-BR022-5K1 DX-BR022-9K2 2 x DX-BR047-9K2 DX-LM3-016 DX-LM3-016 DX-SIN3-016 DX-SIN3-016
DG1-34016… 7.5 11 16 23 14.9 21.5 FAZ-B25/3 25 DILEM DILM17 DX-BR022-5K1 DX-BR022-9K2 2 x DX-BR047-9K2 DX-LM3-016 DX-LM3-035 DX-SIN3-016 DX-SIN3-023
DG1-34023… 11 15 23 31 21.4 29 FAZ-B32/3 35 DILM17 DILM17 DX-BR022-5K1 DX-BR022-9K2 2 x DX-BR047-9K2 DX-LM3-035 DX-LM3-035 DX-SIN3-023 DX-SIN3-032
DG1-34031… 15 18.5 31 38 28.8 35.2 FAZ-B40/3 40 DILM17 DILM17 DX-BR022-9K2 2 x DX-BR047-9K2 -DX-LM3-035 DX-LM3-050 DX-SIN3-032 DX-SIN3-037
DG1-34038… 18.5 22 38 46 35.3 42.6 FAZ-B50/3 50 DILM17 DILM40 DX-BR022-9K2 2 x DX-BR047-9K2 -DX-LM3-050 DX-LM3-050 DX-SIN3-037 DX-SIN3-048
DG1-34046… 22 30 46 61 42.8 55.7 FAZ-B63/3 63 DILM40 DILM50 DX-BR022-9K2 2 x DX-BR047-9K2 -DX-LM3-050 DX-LM3-063 DX-SIN3-048 DX-SIN3-072
DG1-34061… 30 37 61 72 56.7 65.7 NZMC1-S80 80 DILM50 DILM50 2 x DX-BR006-18K1 2 x DX-BR006-33K3 -DX-LM3-063 DX-LM3-080 DX-SIN3-072 DX-SIN3-072
DG1-34072… 37 45 72 87 66.9 79.4 NZMC2-S100 100 DILM65 DILM65 - - - DX-LM3-080 DX-LM3-100 DX-SIN3-072 DX-SIN3-090
DG1-34087… 45 55 87 105 80.9 97 NZMC2-S125 125 DILM65 DILM95 - - - DX-LM3-100 DX-LM3-150 DX-SIN3-090 DX-SIN3-115
DG1-34105… 55 75 105 140 97.6 129 NZMC2-S160 160 DILM95 DILM115 - - - DX-LM3-150 DX-LM3-150 DX-SIN3-115 DX-SIN3-150
DG1-34140… 75 90 140 170 130.1 157 NZMC2-S200 200 DILM115 DILM150 - - - DX-LM3-150 DX-LM3-180 DX-SIN3-150 DX-SIN3-180
DG1-34170… 90 110 170 205 158 189 NZMC3-S250 250 DILM150 DILM250 - - - DX-LM3-180 DX-LM3-260 DX-SIN3-180 DX-SIN3-250
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) Optional external radio interference suppression filter for longer motor cable lengths and for use in different EMC environments
73
CA04020001Z-EN-INT www.eaton.eu
9000X variable frequency drives are perfect for applications that require only the
best. The SVX series of standard variable frequency drives is designed to easily meet
the needs of simple and complex motor controllers in the industrial machine-building
industry, while the SPX series of special-purpose variable frequency drives is ideal for
sophisticated, high-performance applications. Whether run in open-loop or closed-loop
mode, their vector control ensures reliable and dynamically responsive motor control for
three-phase induction and PM motors.
SVX variable frequency drive
Variable frequency drives for operation with two overload profiles: 150% or 110%. The
compact enclosures are available in IP21 (NEMA 1) and IP54 (NEMA 12) versions and feature
an integrated radio interference suppression filter. A braking chopper is always integrated in
frame sizes of up to FR6, and there are two types available.
SVX…-4A…: UIN 3~400 V/UOUT 3~400 V, allocated motor outputs 0.75 – 132 kW
SVX…-5A…: UIN 3~690 V/UOUT 3~690 V, allocated motor outputs 2.2 – 160 kW
SPX variable frequency drive
Variable frequency drives for operation with two overload profiles of 150% and 110%. The
enclosures for these compact devices are available in versions with an IP21 (NEMA 1) or IP54
(NEMA 12) degree of protection and feature an integrated radio interference suppression filter.
A braking chopper is always integrated in frame sizes of up to FR6, and there are two types
available.
SPX…-4A…: UIN 3~400 V/UOUT 3~400 V, allocated motor outputs 0.75 – 1200 kW
SPX…-5A…: UIN 3~690 V/UOUT 3~690 V, allocated motor outputs 2.2 – 2000 kW
9000X SVX, SPX variable frequency drive
Variable frequency drive 9000X
CA04020001Z-EN-INT www.eaton.eu
75
SVX/SPX
Description
Variable frequency drive SVX, SPX 76
Key to type references, UL/CSA
Variable frequency drive SVX, SPX 77
Ordering
Variable frequency drive SVX, IP21 78
Variable frequency drive SVX, IP54 81
Variable frequency drive SPX, IP00/IP21 84
Variable frequency drive SPX, IP54 88
Accessories 91
Mains chokes, Motor chokes, Sine filter 60
Engineering
Assigned switching and protective elements 94
76 Variable frequency drive 9000X
SVX, SPX
CA04020001Z-EN-INT www.eaton.eu
SVX, SPX
Description
SVX variable frequency drive SPX variable frequency drive
SVX units are heavy-duty, all-purpose standard variable frequency drives.
Featuring a variety of application settings, they can be configured to meet
virtually any challenge that arises when used to control induction motors,
including applications involving multiple motors or multiple pumps run in
parallel. SVX variable frequency drives are suitable for all standard
applications in machines, buildings, and industrial projects. One of the factors
contributing to this is their sturdy design, which features integrated chokes
and EMC filters and provides effective protection against interference from
the grid. In addition, their sophisticated motor control design and effective
protection features for both motor and variable frequency drive guarantee
reliable operation.
SPX variable frequency drives are the perfect choice when it comes to
demanding applications in which reliability, a highly dynamic response,
precision, and power are a must. Popular applications include lifting
equipment and conveyances (cranes, winches, elevators, lifts), compressors
and oil pumps, chippers, crushers, mixers, extruders, take-up and pay-off
units, and tunnel boring machines. Multi-purpose SPX variable frequency
drives are designed to cover a wide variety of applications while keeping
things simple. In fact, with their excellent flexibility, they make it easy to adapt
to additional process requirements for custom and complex applications used
to control induction and permanent magnet motors. On top of this, their sturdy
design, which features integrated chokes and EMC filters, provides effective
protection against interference from the grid. Finally, their sophisticated motor
control design and effective protection features for both motor and variable
frequency drive guarantee reliable operation.
Essential features Essential features
• Performance range:
– 0.75 - 132 kW (UIN: 3~ 400 V / UOUT: 3~ 400 V)
– 2.2 - 160 kW (UIN: 3~ 690 V / UOUT: 3~ 690 V)
• High load capacity:
– H = 2x rated operational current (2 seconds/20 seconds) and 150%
overload (60 seconds/600 seconds)
– L = 2x rated operational current (2 seconds/20 seconds) and 110%
overload (60 seconds/600 seconds)
• Ambient air temperature: -10 °C up to +50 °C without derating
• Degree of protection with compact design: IP21 (NEMA1) and IP54
(NEMA12)
• I/O expansion with plug-in modules (5 slots)
• Optional fieldbus connection (CANopen, PROFIBUS-DP, DeviceNet),
LonWorks
• PID control and power factor correction (PFC) for 1 to 5 pumps
• Programmable start and application wizard for an easy parameter
configuration process
• Multiple display (multi-monitoring) for monitoring up to 3 different readings
at the same time
• V/Hz control with boost and slip compensation
• Dynamic open-loop and closed-loop vector control
• Internal braking chopper available in sizes of up to FR9 (compact design)
• Performance range:
– 0.75 - 132 kW (UIN: 3~ 400 V / UOUT: 3~ 400 V)
– 2.2 - 160 kW (UIN: 3~ 690 V / UOUT: 3~ 690 V)
• Expanded performance range with distributed design (IP00). Please enquire:
– up to 1100 kW (UIN: 3~ 400 V / UOUT: 3~ 400 V)
– up to 2000 kW (UIN: 3~ 690 V / UOUT: 3~ 690 V)
• High load capacity:
– H = 2x rated operational current (2 seconds/20 seconds) and 150%
overload (60 seconds/600 seconds)
– L = 2x rated operational current (2 seconds/20 seconds) and 110%
overload (60 seconds/600 seconds)
• Ambient air temperature: -10 °C up to +50 °C without derating
• Degree of protection with compact design: Up to 132/160 kW: IP21 (NEMA1)
and IP54 (NEMA12)
• I/O expansion with plug-in modules (5 slots)
• Optional fieldbus connection (CANopen, PROFIBUS-DP, DeviceNet),
LonWorks
• PID control and power factor correction (PFC)
• Direct and parallel circuit solutions, even for PM motors with high outputs
• Programmable start and application wizard for an easy parameter
configuration process
• Multiple display (multi-monitoring) for monitoring up to 3 different readings
at the same time
• V/Hz control with boost and slip compensation
• Dynamic open-loop and closed-loop vector control
• Internal braking chopper available in sizes up to FR9
Charg Res
3~
3~ W
V
U
L3
L2
L1
PE
RS232
Output
Measure-
ments
Motor
IGBT
Inverter Current
Sensors
Voltage
Sensors
Utility
EMC
Rectifier
Brake
Chopper
Brake Resistor
Gate
Drivers
Power
Module
Control
Module
Control
Keypad
Power
Supply
Input
EMC
Fan
AC Choke
Motor
Control
ASIC
Motor and
App lication
Control
Control
I/O
Control
I/O
Control
I/O
Control
I/O
Control
I/O
Variable frequency drive 9000X
SVX, SPX
CA04020001Z-EN-INT www.eaton.eu
77
SVX/SPX
SVX, SPX
Key to type references
Information relevant for export to North America
Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking
UL File No. E134360
UL Category Control No. NMMS, NMMS2, NMMS7. NMMS8
CSA File No. UL report applies to both US and Canada
CSA Class No. 3211-06
North America Certification UL listed, certified by UL for use in Canada
Specially designed for North
America
No
Suitable for Branch circuits
Max. Voltage Rating
SVX/SPX…-4… 3~ 480 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)
SVX/SPX…-5… 3~ 690 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)
Degree of Protection
SPX…A0… IEC: IP00
SVX/SPX…A1… IEC: IP21
SVX/SPX…A2… IEC: IP54
SVX 007 A 1 - 4 A 1 B 1...
0 = IP00/open chassis
1 = IP21/NEMA 1
2 = IP54/NEMA 12
F07 = 0.75 HP = 0.55 kW
001 = 1 HP = 0.75 kW
...
007 = 7.5 HP = 5.5 kW
...
H20 = 2000 HP = 1800 kW
4 = 380 V (-15 %) - 500 V (+10 %)
5 = 525 V (-15 %) - 690 V (+10 %)
2 = 208 V (-15 %) - 240 V (+10 %)
Assigned motor rating according to
mains voltage category 4, 5
Device series
SVX = Standard frequency drive
SPX = Performance frequency drive
Type
1 = Standard basic device
On request:
2 = Additional PCB protection
U = 12-pulse supply
V = 12-pulse supply with DC coupling
Brake Chopper
N = no internal brake chopper
B = internal brake chopper
Mains voltage category
Display
A = alpha numeric
Radio interference suppression filters
1 = C2 class in 1
st
and 2
nd
environments
2 = no internal RFI filter
4 = C3 class in 2
nd
environment
AFD software series
A = Standard version
Degree of protection
On request:
UL/CSA
78 Variable frequency drive 9000X
SVX, for three-phase motors 400 V AC, IP21
CA04020001Z-EN-INT www.eaton.eu
SVX, for three-phase motors 400 V AC, IP21
Ordering
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 380 (-15%) - 500 (+10%) V
2.2 0.75 1 3.3 1.1 1.5 ✓✓ FR4 IP21 SVX001A1-4A1B1
125676
1off
3.3 1.1 1.5 4.3 1.5 2 ✓✓ SVXF15A1-4A1B1
125707
4.3 1.5 2 5.6 2.2 3 ✓✓ SVX002A1-4A1B1
125748
5.6 2.2 3 7.6 3 5 ✓✓ SVX003A1-4A1B1
125679
7.6 3 5 9 46✓✓ SVX005A1-4A1B1
125749
94612 5.5 7.5 ✓✓ SVX006A1-4A1B1
125682
12 5.5 7.5 16 7.5 10 ✓✓ FR5 SVX007A1-4A1B1
125684
16 7.5 10 23 11 15 ✓✓ SVX010A1-4A1B1
125686
23 11 15 31 15 20 ✓✓ SVX015A1-4A1B1
125688
31 15 20 38 18.5 25 ✓✓ FR6 SVX020A1-4A1B1
125690
38 18.5 25 46 22 30 ✓✓ SVX025A1-4A1B1
125691
46 22 30 61 30 40 ✓✓ SVX030A1-4A1B1
125693
61 30 40 72 37 50 ✓- FR7 SVX040A1-4A1N1
125695
✓✓ SVX040A1-4A1B1
132656
72 37 50 87 45 60 ✓✓ SVX050A1-4A1B1
138430
✓-SVX050A1-4A1N1
125750
87 45 60 105 55 75 ✓✓ SVX060A1-4A1B1
138431
✓-SVX060A1-4A1N1
125751
105 55 75 140 75 100 ✓- FR8 SVX075A1-4A1N1
125699
✓✓ SVX075A1-4A1B1
132657
140 75 100 170 90 125 ✓-SVX100A1-4A1N1
125701
✓✓ SVX100A1-4A1B1
132658
170 90 125 205 110 150 ✓-SVX125A1-4A1N1
125702
✓✓ SVX125A1-4A1B1
135242
205 110 150 261 132 200 ✓- FR9 SVX150A1-4A1N1
125704
✓✓ SVX150A1-4A1B1
138432
245 132 200 300 160 250 ✓-SVX200A1-4A1N1
125752
✓✓ SVX200A1-4A1B1
132900
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Variable frequency drive 9000X
SVX, for three-phase motors 690 V AC, IP21
CA04020001Z-EN-INT www.eaton.eu
79
SVX/SPX
SVX, for three-phase motors 690 V AC, IP21
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
3.2 2.2 2 4.5 3 3 ✓- FR6 IP21 SVX002A1-5A4N1
125756
1off
✓✓ SVX002A1-5A4B1
138480
4.5 3 3 5.5 4 5 ✓-SVX003A1-5A4N1
125757
✓✓ SVX003A1-5A4B1
138481
5.5 4 5 7.5 5.5 5 ✓-SVX004A1-5A4N1
125758
✓✓ SVX004A1-5A4B1
138482
7.5 5.5 5 10 7.5 7.5 ✓-SVX005A1-5A4N1
125759
✓✓ SVX005A1-5A4B1
138483
10 7.5 7.5 13.5 11 10 ✓-SVX007A1-5A4N1
125760
✓✓ SVX007A1-5A4B1
138484
13.5 11 10 18 15 15 ✓-SVX010A1-5A4N1
125761
✓✓ SVX010A1-5A4B1
138485
18 15 15 22 18.5 20 ✓-SVX015A1-5A4N1
125762
✓✓ SVX015A1-5A4B1
138486
22 18.5 20 27 22 25 ✓-SVX020A1-5A4N1
125763
✓✓ SVX020A1-5A4B1
138487
27 22 25 34 30 30 ✓-SVX025A1-5A4N1
125764
✓✓ SVX025A1-5A4B1
138488
34 30 30 41 37 40 ✓- FR7 SVX030A1-5A4N1
125765
✓✓ SVX030A1-5A4B1
138489
41 37 40 52 45 50 ✓-SVX040A1-5A4N1
125766
✓✓ SVX040A1-5A4B1
138490
52 45 50 62 55 60 ✓- FR8 SVX050A1-5A4N1
125767
✓✓ SVX050A1-5A4B1
138491
62 55 60 80 75 75 ✓-SVX060A1-5A4N1
125768
✓✓ SVX060A1-5A4B1
138492
80 75 75 100 90 100 ✓-SVX075A1-5A4N1
125769
✓✓ SVX075A1-5A4B1
138493
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
80 Variable frequency drive 9000X
SVX, for three-phase motors 690 V AC, IP21
CA04020001Z-EN-INT www.eaton.eu
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
100 90 100 125 110 125 ✓- FR9 IP21 SVX100A1-5A4N1
125770
1off
✓✓ SVX100A1-5A4B1
138494
125 110 125 144 132 150 ✓-SVX125A1-5A4N1
125771
✓✓ SVX125A1-5A4B1
138495
144 132 150 170 160 200 ✓-SVX150A1-5A4N1
125772
✓✓ SVX150A1-5A4B1
138496
170 160 200 208 200 200 ✓-SVX175A1-5A4N1
125773
✓✓ SVX175A1-5A4B1
138497
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Variable frequency drive 9000X
SVX, for three-phase motors 400 V AC, IP54
CA04020001Z-EN-INT www.eaton.eu
81
SVX/SPX
SVX, for three-phase motors 400 V AC, IP54
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 380 (-15%) - 500 (+10%) V
2.2 0.75 1 3.3 1.1 1.5 ✓✓ FR4 IP54 SVX001A2-4A1B1
125677
1off
3.3 1.1 1.5 4.3 1.5 2 ✓✓ SVXF15A2-4A1B1
125708
4.3 1.5 2 5.6 2.2 3 ✓✓ SVX002A2-4A1B1
125678
5.6 2.2 3 7.6 3 5 ✓✓ SVX003A2-4A1B1
125680
7.6 3 5 9 46✓✓ SVX005A2-4A1B1
125753
94612 5.5 7.5 ✓✓ SVX006A2-4A1B1
125683
12 5.5 7.5 16 7.5 10 ✓✓ FR5 SVX007A2-4A1B1
125685
16 7.5 10 23 11 15 ✓✓ SVX010A2-4A1B1
125687
23 11 15 31 15 20 ✓✓ SVX015A2-4A1B1
125689
31 15 20 38 18.5 25 ✓✓ FR6 SVX020A2-4A1B1
125754
38 18.5 25 46 22 30 ✓✓ SVX025A2-4A1B1
125692
46 22 30 61 30 40 ✓✓ SVX030A2-4A1B1
125694
61 30 40 72 37 50 ✓- FR7 SVX040A2-4A1N1
125696
✓✓ SVX040A2-4A1B1
138452
72 37 50 87 45 60 ✓-SVX050A2-4A1N1
125697
✓✓ SVX050A2-4A1B1
138453
87 45 60 105 55 75 ✓-SVX060A2-4A1N1
125698
✓✓ SVX060A2-4A1B1
138454
105 55 75 140 75 100 ✓- FR8 SVX075A2-4A1N1
125700
✓✓ SVX075A2-4A1B1
138455
140 75 100 170 90 125 ✓-SVX100A2-4A1N1
125755
✓✓ SVX100A2-4A1B1
138456
170 90 125 205 110 150 ✓-SVX125A2-4A1N1
125703
✓✓ SVX125A2-4A1B1
138457
205 110 150 261 132 200 ✓- FR9 SVX150A2-4A1N1
125705
✓✓ SVX150A2-4A1B1
138458
245 132 200 300
300
160 250 ✓-SVX200A2-4A1N1
125706
✓✓ SVX200A2-4A1B1
138459
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
Information relevant for export to North America ￫ Page 77
82 Variable frequency drive 9000X
SVX, for three-phase motors 690 V AC, IP54
CA04020001Z-EN-INT www.eaton.eu
SVX, for three-phase motors 690 V AC, IP54
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
3.2 2.2 2 4.5 3 3 ✓- FR6 IP54 SVX002A2-5A4N1
125774
1off
✓✓ SVX002A2-5A4B1
138498
4.5 3 3 5.5 4 5 ✓-SVX003A2-5A4N1
125775
✓✓ SVX003A2-5A4B1
138499
5.5 4 5 7.5 5.5 ✓-SVX004A2-5A4N1
125776
✓✓ SVX004A2-5A4B1
138500
7.5 5.5 10 7.5 7.5 ✓-SVX005A2-5A4N1
125777
✓✓ SVX005A2-5A4B1
138501
10 7.5 7.5 13.5 11 10 ✓-SVX007A2-5A4N1
125778
✓✓ SVX007A2-5A4B1
138502
13.5 11 10 18 15 15 ✓-SVX010A2-5A4N1
125779
✓✓ SVX010A2-5A4B1
138503
18 15 15 22 18.5 20 ✓-SVX015A2-5A4N1
125780
✓✓ SVX015A2-5A4B1
138504
22 18.5 20 27 22 25 ✓-SVX020A2-5A4N1
125781
✓✓ SVX020A2-5A4B1
138505
27 22 25 34 30 30 ✓-SVX025A2-5A4N1
125782
✓✓ SVX025A2-5A4B1
138506
34 30 30 41 37 40 ✓- FR7 SVX030A2-5A4N1
125783
✓✓ SVX030A2-5A4B1
138507
41 37 40 52 45 50 ✓-SVX040A2-5A4N1
125784
✓✓ SVX040A2-5A4B1
138508
52 45 50 62 55 60 ✓- FR8 SVX050A2-5A4N1
125785
✓✓ SVX050A2-5A4B1
138509
62 55 60 80 75 75 ✓-SVX060A2-5A4N1
125786
✓✓ SVX060A2-5A4B1
138510
80 75 75 100 90 100 ✓-SVX075A2-5A4N1
125787
✓✓ SVX075A2-5A4B1
138511
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Variable frequency drive 9000X
SVX, for three-phase motors 690 V AC, IP54
CA04020001Z-EN-INT www.eaton.eu
83
SVX/SPX
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
100 90 100 125 110 125 ✓- FR9 IP54 SVX100A2-5A4N1
125788
1off
✓✓ SVX100A2-5A4B1
138512
125 110 125 144 132 150 ✓-SVX125A2-5A4N1
125789
✓✓ SVX125A2-5A4B1
138513
144 132 150 170 160 200 ✓-SVX150A2-5A4N1
125790
✓✓ SVX150A2-5A4B1
138514
170 160 200 208 200 200 ✓-SVX175A2-5A4N1
125791
✓✓ SVX175A2-5A4B1
138515
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
84 Variable frequency drive 9000X
SPX, for three-phase motors 400 V AC, IP00/IP21
CA04020001Z-EN-INT www.eaton.eu
SPX, for three-phase motors 400 V AC, IP00/IP21
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 380 (-15%) - 500 (+10%) V
2.2 0.75 1 3.3 1.1 1.5 ✓✓ FR4 IP21 SPX001A1-4A1B1
125203
1off
3.3 1.1 1.5 4.3 1.5 2 ✓✓ SPXF15A1-4A1B1
125675
4.3 1.5 2 5.6 2.2 3 ✓✓ SPX002A1-4A1B1
125657
5.6 2.2 3 7.6 3 5 ✓✓ SPX003A1-4A1B1
125658
7.6 3 5 9 46✓✓ SPX005A1-4A1B1
125659
94612 5.5 7.5 ✓✓ SPX006A1-4A1B1
125249
12 5.5 7.5 16 7.5 10 ✓✓ FR5 SPX007A1-4A1B1
125660
16 7.5 10 23 11 15 ✓✓ SPX010A1-4A1B1
125661
23 11 15 31 15 20 ✓✓ SPX015A1-4A1B1
125663
31 15 20 38 18.5 25 ✓✓ FR6 SPX020A1-4A1B1
125665
38 18.5 25 46 22 30 ✓✓ SPX025A1-4A1B1
125666
46 22 30 61 30 40 ✓✓ SPX030A1-4A1B1
125667
61 30 40 72 37 50 ✓- FR7 SPX040A1-4A1N1
125319
✓✓ SPX040A1-4A1B1
134844
72 37 50 87 45 60 ✓-SPX050A1-4A1N1
125331
✓✓ SPX050A1-4A1B1
138606
87 45 60 105 55 75 ✓-SPX060A1-4A1N1
125668
✓✓ SPX060A1-4A1B1
138607
105 55 75 140 75 100 ✓- FR8 SPX075A1-4A1N1
125354
✓✓ SPX075A1-4A1B1
138608
140 75 100 170 90 125 ✓-SPX100A1-4A1N1
125365
✓✓ SPX100A1-4A1B1
131744
170 90 125 205 110 150 ✓-SPX125A1-4A1N1
125669
✓✓ SPX125A1-4A1B1
134489
205 110 150 261 132 200 ✓- FR9 SPX150A1-4A1N1
125381
✓✓ SPX150A1-4A1B1
129701
245 132 200 300 160 250 ✓-SPX200A1-4A1N1
125670
✓✓ SPX200A1-4A1B1
134845
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Variable frequency drive 9000X
SPX, for three-phase motors 400 V AC, IP00/IP21
CA04020001Z-EN-INT www.eaton.eu
85
SVX/SPX
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 380 (-15%) - 500 (+10%) V
300 160 250 385 200 300 ✓✓ FR10 IP21 SPX250A1-4A4B1
133131
1off
✓-SPX250A1-4A4N1
125671
385 200 300 460 250 350 ✓-SPX300A1-4A4N1
125673
460 250 350 520 ✓-SPX350A1-4A4N1
125424
520 250 400 590 315 500 ✓- FR11 SPX400A1-4A4N1
125432
590 315 500 650 355 550 ✓-SPX500A1-4A4N1
125444
650 355 550 730 400 600 ✓-SPX550A1-4A4N1
125451
300 160 250 385 200 300 - ✓FR10 IP00 SPX250A0-4A2B1
133130
-- SPX250A0-4A2N1
125402
385 200 300 460 250 350 - ✓SPX300A0-4A2B1
138617
-- SPX300A0-4A2N1
125412
460 250 350 520 - ✓SPX350A0-4A2B1
129686
-- SPX350A0-4A2N1
125711
520 400 590 315 500 - ✓FR11 SPX400A0-4A2B1
138618
-- SPX400A0-4A2N1
125428
590 315 500 650 355 550 - ✓SPX500A0-4A2B1
138619
-- SPX500A0-4A2N1
125440
650 355 550 730 400 600 - ✓SPX550A0-4A2B1
138620
-- SPX550A0-4A2N1
125674
730 400 600 820 450 650 - ✓FR12 SPX600A0-4A2B1
129687
-- SPX600A0-4A2N1
125453
820 450 650 920 500 700 - - SPX650A0-4A2N1
125457
920 500 700 1030 560 800 - - SPX700A0-4A2N1
125459
1030 560 800 1150 630 900 - - FR13 SPX800A0-4A2N1
125463
1150 630 900 1300 710 1000 - - SPX900A0-4A2N1
125467
1300 710 1000 1450 800 1200 - - SPXH10A0-4A2N1
125482
1600 900 1200 1770 1000 1600 - - FR14 SPXH12A0-4A2N1
125486
1940 1100 1600 2150 1200 2000 - - SPXH16A0-4A2N1
125492
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
86 Variable frequency drive 9000X
SPX, for three-phase motors 690 V AC, IP00/IP21
CA04020001Z-EN-INT www.eaton.eu
SPX, for three-phase motors 690 V AC, IP00/IP21
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
3.2 2.2 2 4.5 3 3 ✓- FR6 IP21 SPX002A1-5A4N1
125212
1off
✓✓ SPX002A1-5A4B1
138638
4.5 3 3 5.5 4 5 ✓-SPX003A1-5A4N1
125222
✓✓ SPX003A1-5A4B1
138639
5.5 4 5 7.5 5.5 ✓-SPX004A1-5A4N1
125232
✓✓ SPX004A1-5A4B1
138640
7.5 5.5 10 7.5 7.5 ✓-SPX005A1-5A4N1
125241
✓✓ SPX005A1-5A4B1
138641
10 7.5 7.5 13.5 11 10 ✓-SPX007A1-5A4N1
125256
✓✓ SPX007A1-5A4B1
138642
13.5 11 10 18 15 15 ✓-SPX010A1-5A4N1
125267
✓✓ SPX010A1-5A4B1
138643
18 15 15 22 18.5 20 ✓-SPX015A1-5A4N1
125277
✓✓ SPX015A1-5A4B1
138644
22 18.5 20 27 22 25 ✓-SPX020A1-5A4N1
125287
✓✓ SPX020A1-5A4B1
138645
27 22 25 34 30 30 ✓-SPX025A1-5A4N1
125298
✓✓ SPX025A1-5A4B1
138646
34 30 30 41 37 40 ✓- FR7 SPX030A1-5A4N1
125309
✓✓ SPX030A1-5A4B1
138647
41 37 40 52 45 50 ✓-SPX040A1-5A4N1
125321
✓✓ SPX040A1-5A4B1
138648
52 45 50 62 55 60 ✓- FR8 SPX050A1-5A4N1
125333
✓✓ SPX050A1-5A4B1
138649
62 55 60 80 75 75 ✓-SPX060A1-5A4N1
125344
✓✓ SPX060A1-5A4B1
138650
80 75 75 100 90 100 ✓-SPX075A1-5A4N1
125356
✓✓ SPX075A1-5A4B1
138651
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Variable frequency drive 9000X
SPX, for three-phase motors 690 V AC, IP00/IP21
CA04020001Z-EN-INT www.eaton.eu
87
SVX/SPX
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
100 90 100 125 110 125 ✓- FR9 IP21 SPX100A1-5A4N1
125367
1off
✓✓ SPX100A1-5A4B1
138652
125 110 125 144 132 150 ✓-SPX125A1-5A4N1
125375
✓✓ SPX125A1-5A4B1
138653
144 132 150 170 160 200 ✓-SPX150A1-5A4N1
125383
✓✓ SPX150A1-5A4B1
138654
170 160 200 208 200 ✓-SPX175A1-5A4N1
125389
✓✓ SPX175A1-5A4B1
138655
208 200 261 250 300 ✓- FR10 SPX200A1-5A4N1
125396
261 250 250 325 315 ✓-SPX250A1-5A4N1
125407
325 315 300 385 355 400 ✓-SPX300A1-5A4N1
125417
385 355 400 460 450 450 ✓- FR11 SPX400A1-5A4N1
125434
460 450 450 502 500 500 ✓-SPX450A1-5A4N1
125438
502 500 500 590 560 600 ✓-SPX500A1-5A4N1
125446
208 200 200 261 250 300 - - FR10 IP00 SPX200A0-5A2N1
129600
1off
261 250 250 325 315 - - SPX250A0-5A2N1
129602
325 315 300 385 355 400 - - SPX300A0-5A2N1
129604
385 355 400 460 450 450 - - FR11 SPX400A0-5A2N1
129607
460 450 450 502 500 500 - - SPX450A0-5A2N1
129608
502 500 500 590 560 600 - - SPX500A0-5A2N1
129610
590 560 600 650 630 750 - - FR12 SPX550A0-5A2N1
129612
650 630 750 710 850 - - SPX600A0-5A2N1
129614
750 710 850 820 800 - - SPX700A0-5A2N1
129617
820 800 920 900 1100 - - FR13 SPX800A0-5A2N1
129618
920 900 1100 1030 1000 - - SPX900A0-5A2N1
129619
1030 1000 1180 1150 1300 - - SPXH10A0-5A2N1
129620
1300 1300 1300 1500 1500 - - FR14 SPXH13A0-5A2N1
129621
1500 1500 1900 1800 - - SPXH15A0-5A2N1
129622
1900 1800 2250 2000 - - SPXH20A0-5A2N1
129623
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
88 Variable frequency drive 9000X
SPX, for three-phase motors 400 V AC, IP54
CA04020001Z-EN-INT www.eaton.eu
SPX, for three-phase motors 400 V AC, IP54
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 400 V AC, 3-phase / U2 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 380 (-15%) - 500 (+10%) V
2.2 0.75 1 3.3 1.1 1.5 ✓✓ FR4 IP54 SPX001A2-4A1B1
125207
1off
3.3 1.1 1.5 4.3 1.5 2 ✓✓ SPXF15A2-4A1B1
125480
4.3 1.5 2 5.6 2.2 3 ✓✓ SPX002A2-4A1B1
125216
5.6 2.2 3 7.6 3 5 ✓✓ SPX003A2-4A1B1
125226
7.6 3 5 9 46✓✓ SPX005A2-4A1B1
125245
94612 5.5 7.5 ✓✓ SPX006A2-4A1B1
125251
12 5.5 7.5 16 7.5 10 ✓✓ FR5 SPX007A2-4A1B1
125260
16 7.5 10 23 11 15 ✓✓ SPX010A2-4A1B1
125662
23 11 15 31 15 20 ✓✓ SPX015A2-4A1B1
125664
31 15 20 38 18.5 25 ✓✓ FR6 SPX020A2-4A1B1
125291
38 18.5 25 46 22 30 ✓✓ SPX025A2-4A1B1
125302
46 22 30 61 30 40 ✓✓ SPX030A2-4A1B1
125313
61 30 40 72 37 50 ✓- FR7 SPX040A2-4A1N1
125325
✓✓ SPX040A2-4A1B1
138609
72 37 50 87 45 60 ✓-SPX050A2-4A1N1
125337
✓✓ SPX050A2-4A1B1
138610
87 45 60 105 55 75 ✓-SPX060A2-4A1N1
125348
✓✓ SPX060A2-4A1B1
138611
105 55 75 140 75 100 ✓- FR8 SPX075A2-4A1N1
125359
✓✓ SPX075A2-4A1B1
138612
140 75 100 170 90 125 ✓-SPX100A2-4A1N1
125370
✓✓ SPX100A2-4A1B1
138613
170 90 125 205 110 150 ✓-SPX125A2-4A1N1
125377
✓✓ SPX125A2-4A1B1
138614
205 110 150 261
261
132 200 ✓- FR9 SPX150A2-4A1N1
125385
✓✓ SPX150A2-4A1B1
138615
245 132 200 300 160 250 ✓-SPX200A2-4A1N1
125398
✓✓ SPX200A2-4A1B1
138616
300 160 250 385 200 300 ✓- FR10 SPX250A2-4A4N1
125672
385 200 300 460 250 350 ✓-SPX300A2-4A4N1
125419
460 250 350 520 ✓-SPX350A2-4A4N1
125426
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 400 V, 50 Hz/at 440 - 480 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Variable frequency drive 9000X
SPX, for three-phase motors 690 V AC, IP54
CA04020001Z-EN-INT www.eaton.eu
89
SVX/SPX
SPX, for three-phase motors 690 V AC, IP54
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
3.2 2.2 2 4.5 3 3 ✓- FR6 IP54 SPX002A2-5A4N1
125218
1off
✓✓ SPX002A2-5A4B1
129582
4.5 3 3 5.5 4 5 ✓-SPX003A2-5A4N1
125228
✓✓ SPX003A2-5A4B1
129583
5.5 4 5 7.5 5.5 ✓✓ SPX004A2-5A4B1
129584
✓-SPX004A2-5A4N1
125236
7.5 5.5 10 7.5 7.5 ✓-SPX005A2-5A4N1
125247
✓✓ SPX005A2-5A4B1
129585
10 7.5 7.5 13.5 11 10 ✓-SPX007A2-5A4N1
125262
✓✓ SPX007A2-5A4B1
129586
13.5 11 10 18 15 15 ✓-SPX010A2-5A4N1
125272
✓✓ SPX010A2-5A4B1
129587
18 15 15 22 18.5 20 ✓-SPX015A2-5A4N1
125282
✓✓ SPX015A2-5A4B1
129588
22 18.5 20 27 22 25 ✓-SPX020A2-5A4N1
125293
✓✓ SPX020A2-5A4B1
129589
27 22 25 34 30 30 ✓-SPX025A2-5A4N1
125304
✓✓ SPX025A2-5A4B1
129590
34 30 30 41 37 40 ✓- FR7 SPX030A2-5A4N1
125315
✓✓ SPX030A2-5A4B1
129591
41 37 40 52 45 50 ✓-SPX040A2-5A4N1
125327
✓✓ SPX040A2-5A4B1
129592
52 45 50 62 55 60 ✓- FR8 SPX050A2-5A4N1
125339
✓✓ SPX050A2-5A4B1
129593
62 55 60 80 75 75 ✓-SPX060A2-5A4N1
125350
✓✓ SPX060A2-5A4B1
129594
80 75 75 100 90 100 ✓-SPX075A2-5A4N1
125361
✓✓ SPX075A2-5A4B1
129595
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
90 Variable frequency drive 9000X
SPX, for three-phase motors 690 V AC, IP54
CA04020001Z-EN-INT www.eaton.eu
Ue 690 V AC, 3-phase / U2 690 V AC, 3-phase
Mains voltage (50/60Hz) ULN: 525 (-15%) - 690 (±10%) V
100 90 100 125 110 125 ✓- FR9 IP54 SPX100A2-5A4N1
125372
1off
✓✓ SPX100A2-5A4B1
129596
125 110 125 144 132 150 ✓-SPX125A2-5A4N1
125379
✓✓ SPX125A2-5A4B1
129597
144 132 150 170 160 200 ✓-SPX150A2-5A4N1
125387
✓✓ SPX150A2-5A4B1
129598
170 160 200 208 200 ✓-SPX175A2-5A4N1
125391
✓✓ SPX175A2-5A4B1
129599
208 200 261 250 300 ✓- FR10 SPX200A2-5A4N1
125400
261 250 250 325 315 ✓-SPX250A2-5A4N1
125410
325 315 300 385 355 400 ✓-SPX300A2-5A4N1
125421
Notes 1) Overload cycle for 60 s every 600 s
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1 at 60 Hz
3) at 690 V, 50 Hz/at 690 V, 60 Hz
Information relevant for export to North America ￫ Page 77
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Rated
operational
current1)
Assigned motor
rating 1), 2), 3)
Fitted with Frame size Degree of
Protection
Part no.
Article no.
Price
see
price list
Std. pack
Radio interference
suppression filter
Brake chopper
IH = 150 % IH = 150 % IH = 150 % IL = 110 % IL = 110 % IL = 110 %
IePPIePP
AkWHPAkWHP
Variable frequency drive 9000X
Accessories
CA04020001Z-EN-INT www.eaton.eu
91
SVX/SPX
Accessories

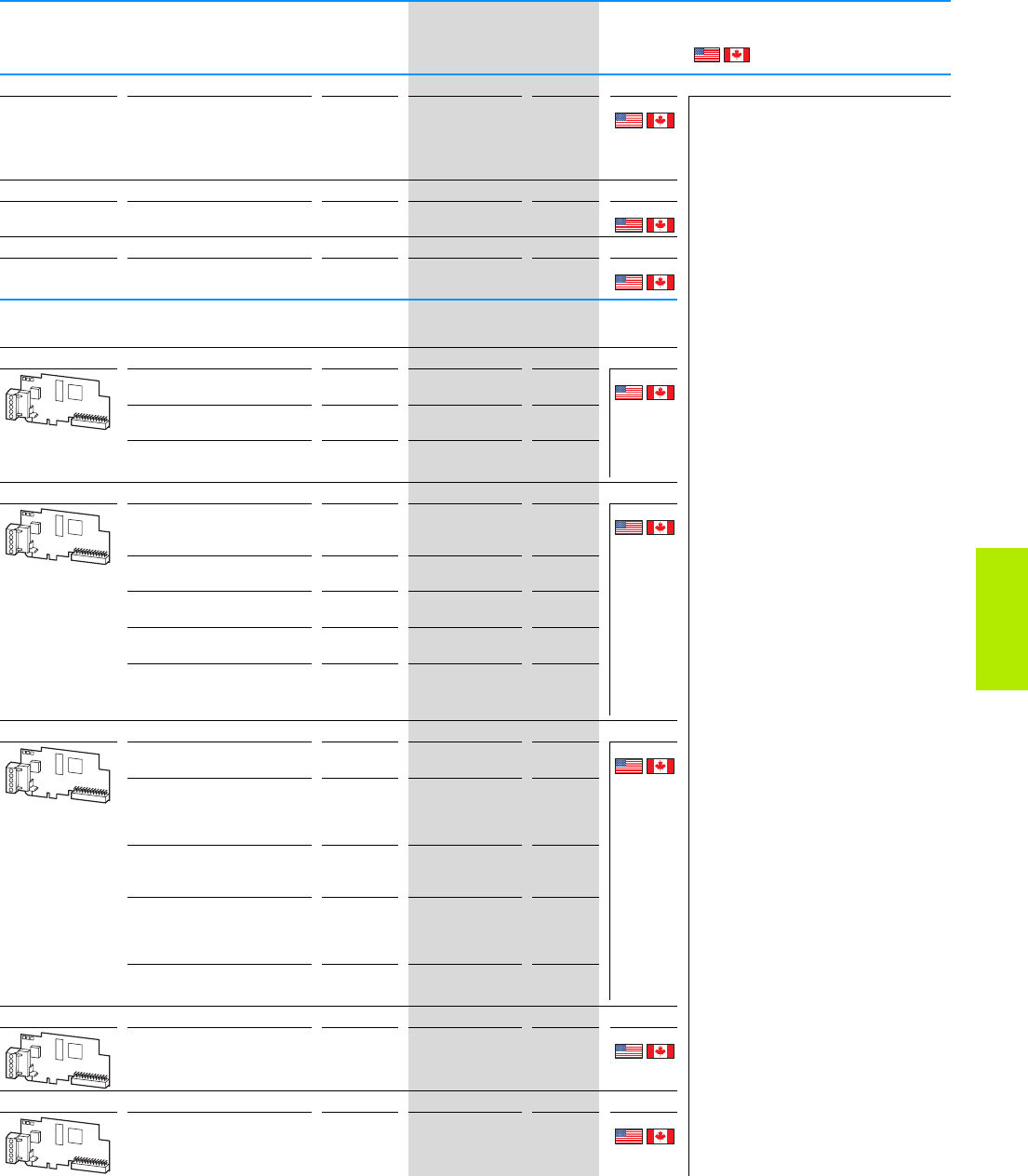

Accessories
Description For use with Part no.
Article no.
Price
see price
list
Std. pack Information relevant for export to North
America
External keypad
With illuminated LCD display
Plain text, multi-line
With control buttons and
function keys
Front IP54
SVX, SPX KEYPAD-LOC/REM
139787
1off Product Standards UL 508C; CSA-C22.2
No. 14; IEC/EN61800-3;
IEC/EN61800-5;
CE marking
UL File No. E134360
UL Category
Control No. NMMS, NMMS2,
NMMS7. NMMS8
CSA File No. UL report applies to
both US and Canada
North America
Certification UL listed, certified by
UL for use in Canada
Suitable for Branch circuits
External keypad
Mounting frame for control
panel door 2 m
KEYPAD-
LOC/REM
OPTRMT-KIT
126868
1off
Connection cable
Connection between variable
frequency drive and PC 1.5 m
SVX, SPX SVDRIVECABLE
129001
1off
Expansion modules
The expansion module is plugged into the variable-frequency drive.
Adapters
System bus adapter SPX OPTD1
125077
1off
System bus adapter with
CANopen® interface
SPX OPTD2
125078
RS232 adapter SPX OPTD3
125079
Output expansion
1 relay output (NO/NC)
1 relay output (NC)
1 Thermistor input
SPX OPTA3
125050
1off
2 relay outputs (NO/NC) SVX, SPX OPTA2
125049
1 relay output (NO)
5 digital inputs (42 - 240 V AC)
SVX, SPX OPTB9
125064
3 relay outputs (NO) SVX, SPX OPTB5
125062
1 relay output (NO/NC)
1 relay output (NO)
1 Thermistor input
SVX, SPX OPTB2
125060
I/O expansion
6 digital inputs
External 24 V supply
SVX, SPX OPTB1
125059
1off
6 digital inputs
1 digital output
2 analog inputs (mA/V)
1 analog output
SVX, SPX OPTA9
125055
3 digital inputs
1 relay output (NO/NC)
1 digital output
SVX, SPX OPTAA
125056
6 digital inputs
1 digital output
2 analog inputs (mA/V)
1 analog output
SPX OPTA8
125054
1 analog input (mA, isolated)
2 analog outputs (mA, isolated)
SVX, SPX OPTB4
125061
Encoder module
HTL (+15 V/24 V)
Master / Slave capability
SPX OPTA7
125053
1off
Temperature sensor expansion
3 Pt100
External 24 V supply
SVX, SPX OPTB8
125063
1off
92 Variable frequency drive 9000X
Accessories
CA04020001Z-EN-INT www.eaton.eu
Fieldbus modules
The field bus module is plugged into the variable-frequency drive.
Modbus RS485
Screw terminals
SVX, SPX OPTC2
125067
1off Product Standards UL 508C; CSA-C22.2
No. 14; IEC/EN61800-3;
IEC/EN61800-5;
CE marking
UL File No. E134360
UL Category
Control No. NMMS, NMMS2,
NMMS7. NMMS8
CSA File No. UL report applies to
both US and Canada
North America
Certification UL listed, certified by
UL for use in Canada
Suitable for Branch circuits
PROFIBUS-DP
Screw terminals
SVX, SPX OPTC3
125068
LonWorks
Screw terminals
SVX, SPX OPTC4
125069
CANopen®
Screw terminals
SVX, SPX OPTC6
125710
PROFIBUS-DP
SUB-D 9 pole, socket
SVX, SPX OPTC5
125070
DeviceNet
SUB-D 9 pole, socket
SVX, SPX OPTC7
125071
Modbus RS485
SUB-D 9 pole, socket
SVX, SPX OPTC8
125072
Modbus-TCP
RJ45, 8-pole
SVX, SPX OPTCI
125075
BACnet/IP
RJ45, 8-pole
SVX, SPX OPTCJ
125076
Description For use with Part no.
Article no.
Price
see price
list
Std. pack Information relevant for export to North
America
Variable frequency drive 9000X
Notes
CA04020001Z-EN-INT www.eaton.eu
93
SVX/SPX
Notes
94 Variable frequency drive 9000X
Assigned switching and protective elements for SVX, SPX
CA04020001Z-EN-INT www.eaton.eu
Assigned switching and protective elements for SVX, SPX
Part no. Motor Frequency inverters Power Wiring Motor feeder
Assigned motor rating Rated operational
current
Main choke motor choke Sine filter
IH = 150 % IL = 110 % IH = 150 % IL = 110 % IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
PPI
eIe
kW kW A A
SVX variable frequency drive
400 V AC, 3-phase/400 V AC, 3-phase
SVX001A1-4… 0.75 1.1 2.2 3.3 DX-LN3-004 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-004
SVXF15A1-4… 1.1 1.5 3.3 4.3 DX-LN3-006 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-010
SVX002A1-4… 1.5 2.2 4.3 5.6 DX-LN3-006 DX-LM3-005 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
SVX003A1-4… 2.2 3 5.6 7.6 DX-LN3-010 DX-LM3-008 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
SVX005A1-4… 347.69 DX-LN3-010 DX-LM3-008 DX-LM3-011 DX-SIN3-010 DX-SIN3-010
SVX006A1-4… 45.59 12DX-LN3-016 DX-LM3-011 DX-LM3-016 DX-SIN3-010 DX-SIN3-016
SVX007A1-4… 5.5 7.5 12 16 DX-LN3-016 DX-LM3-016 DX-LM3-016 DX-SIN3-016 DX-SIN3-016
SVX010A1-4… 7.5 11 16 23 DX-LN3-025 DX-LM3-016 DX-LM3-035 DX-SIN3-016 DX-SIN3-023
SVX015A1-4… 11 15 23 31 DX-LN3-040 DX-LM3-035 DX-LM3-035 DX-SIN3-023 DX-SIN3-032
SVX020A1-4… 15 18.5 31 38 DX-LN3-040 DX-LM3-035 DX-LM3-050 DX-SIN3-032 DX-SIN3-048
SVX025A1-4… 18.5 22 38 46 DX-LN3-050 DX-LM3-050 DX-LM3-050 DX-SIN3-048 DX-SIN3-048
SVX030A1-4… 22 30 46 61 DX-LN3-080 DX-LM3-050 DX-LM3-063 DX-SIN3-048 DX-SIN3-061
SVX040A1-4… 30 37 61 72 DX-LN3-080 DX-LM3-063 DX-LM3-080 DX-SIN3-061 DX-SIN3-072
SVX050A1-4… 37 45 72 87 DX-LN3-100 DX-LM3-080 DX-LM3-100 DX-SIN3-072 DX-SIN3-090
SVX060A1-4… 45 55 87 105 DX-LN3-120 DX-LM3-100 DX-LM3-150 DX-SIN3-090 DX-SIN3-115
SVX075A1-4… 55 75 105 140 DX-LN3-160 DX-LM3-150 DX-LM3-150 DX-SIN3-115 DX-SIN3-150
SVX100A1-4… 75 90 140 170 DX-LN3-200 DX-LM3-150 DX-LM3-180 DX-SIN3-150 DX-SIN3-180
SVX125A1-4… 90 110 170 205 DX-LN3-250 DX-LM3-180 DX-LM3-220 DX-SIN3-180 DX-SIN3-250
SVX150A1-4… 110 132 205 261 DX-LN3-300 DX-LM3-220 DX-LM3-260 DX-SIN3-250 DX-SIN3-440
SVX200A1-4… 132 160 245 300 DX-LN3-300 DX-LM3-260 DX-LM3-303 DX-SIN3-250 DX-SIN3-440
690 V AC, 3-phase/690 V AC, 3-phase
SVX002A1-5… 2.2 3 3.2 4.5 DX-LN3-006 DX-LM3-005 DX-LM3-005 SIN-0005-6-0-P SIN-0005-6-0-P
SVX003A1-5… 344.55.5DX-LN3-006 DX-LM3-005 DX-LM3-008 SIN-0008-6-0-P SIN-0008-6-0-P
SVX004A1-5… 4 5.5 5.5 7.5 DX-LN3-010 DX-LM3-008 DX-LM3-008 SIN-0008-6-0-P SIN-0008-6-0-P
SVX005A1-5… 5.5 7.5 7.5 10 DX-LN3-010 DX-LM3-008 DX-LM3-011 SIN-0014-6-0-P SIN-0014-6-0-P
SVX007A1-5… 7.5 11 10 13.5 DX-LN3-016 DX-LM3-011 DX-LM3-016 SIN-0014-6-0-P SIN-0014-6-0-P
SVX010A1-5… 11 15 13.5 18 DX-LN3-025 DX-LM3-016 DX-LM3-035 SIN-0023-6-0-P SIN-0023-6-0-P
SVX015A1-5… 15 18.5 18 22 DX-LN3-025 DX-LM3-035 DX-LM3-035 SIN-0023-6-0-P SIN-0023-6-0-P
SVX020A1-5… 18.5 22 22 27 DX-LN3-040 DX-LM3-035 DX-LM3-035 SIN-0035-6-0-P SIN-0035-6-0-P
SVX025A1-5… 22 30 27 34 DX-LN3-040 DX-LM3-035 DX-LM3-035 SIN-0035-6-0-P SIN-0035-6-0-P
SVX030A1-5… 30 37 34 41 DX-LN3-050 DX-LM3-035 DX-LM3-050 SIN-0052-6-0-P SIN-0052-6-0-P
SVX040A1-5… 37 45 41 52 DX-LN3-080 DX-LM3-050 DX-LM3-063 SIN-0052-6-0-P SIN-0052-6-0-P
SVX050A1-5… 45 55 52 62 DX-LN3-080 DX-LM3-063 DX-LM3-063 SIN-0085-6-0-P SIN-0085-6-0-P
SVX060A1-5… 55 75 62 80 DX-LN3-080 DX-LM3-063 DX-LM3-080 SIN-0085-6-0-P SIN-0085-6-0-P
SVX075A1-5… 75 90 80 100 DX-LN3-100 DX-LM3-080 DX-LM3-100 SIN-0122-6-0-P SIN-0122-6-0-P
SVX100A1-5… 90 110 100 125 DX-LN3-160 DX-LM3-100 DX-LM3-150 SIN-0122-6-0-P SIN-0185-6-0-P
SVX125A1-5… 110 132 125 144 DX-LN3-160 DX-LM3-150 DX-LM3-150 SIN-0185-6-0-P SIN-0185-6-0-P
SVX150A1-5… 132 160 144 170 DX-LN3-200 DX-LM3-150 DX-LM3-180 SIN-0185-6-0-P SIN-0185-6-0-P
SVX175A1-5… 160 200 170 208 DX-LN3-250 DX-LM3-180 DX-LM3-220 SIN-0287-6-0-P SIN-0287-6-0-P
SPX variable frequency drive
400 V AC, 3-phase/400 V AC, 3-phase
SPX001A1-4… 0.75 1.1 2.2 3.3 DX-LN3-004 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-004
SPXF15A1-4… 1.1 1.5 3.3 4.3 DX-LN3-006 DX-LM3-005 DX-LM3-005 DX-SIN3-004 DX-SIN3-010
SPX002A1-4… 1.5 2.2 4.3 5.6 DX-LN3-006 DX-LM3-005 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
SPX003A1-4… 2.2 3 5.6 7.6 DX-LN3-010 DX-LM3-008 DX-LM3-008 DX-SIN3-010 DX-SIN3-010
SPX005A1-4… 347.69 DX-LN3-010 DX-LM3-008 DX-LM3-011 DX-SIN3-010 DX-SIN3-010
SPX006A1-4… 45.59 12DX-LN3-016 DX-LM3-011 DX-LM3-016 DX-SIN3-010 DX-SIN3-016
SPX007A1-4… 5.5 7.5 12 16 DX-LN3-016 DX-LM3-016 DX-LM3-016 DX-SIN3-016 DX-SIN3-016
SPX010A1-4… 7.5 11 16 23 DX-LN3-025 DX-LM3-016 DX-LM3-035 DX-SIN3-016 DX-SIN3-023
SPX015A1-4… 11 15 23 31 DX-LN3-040 DX-LM3-035 DX-LM3-035 DX-SIN3-023 DX-SIN3-032
SPX020A1-4… 15 18.5 31 38 DX-LN3-040 DX-LM3-035 DX-LM3-050 DX-SIN3-032 DX-SIN3-048
SPX025A1-4… 18.5 22 38 46 DX-LN3-050 DX-LM3-050 DX-LM3-050 DX-SIN3-048 DX-SIN3-048
SPX030A1-4… 22 30 46 61 DX-LN3-080 DX-LM3-050 DX-LM3-063 DX-SIN3-048 DX-SIN3-061
SPX040A1-4… 30 37 61 72 DX-LN3-080 DX-LM3-063 DX-LM3-080 DX-SIN3-061 DX-SIN3-072
SPX050A1-4… 37 45 72 87 DX-LN3-100 DX-LM3-080 DX-LM3-100 DX-SIN3-072 DX-SIN3-090
Variable frequency drive 9000X
Assigned switching and protective elements for SVX, SPX
CA04020001Z-EN-INT www.eaton.eu
95
SVX/SPX
SPX060A1-4… 45 55 87 105 DX-LN3-120 DX-LM3-100 DX-LM3-150 DX-SIN3-090 DX-SIN3-115
SPX075A1-4… 55 75 105 140 DX-LN3-160 DX-LM3-150 DX-LM3-150 DX-SIN3-115 DX-SIN3-150
SPX100A1-4… 75 90 140 170 DX-LN3-200 DX-LM3-150 DX-LM3-180 DX-SIN3-150 DX-SIN3-180
SPX125A1-4… 90 110 170 205 DX-LN3-250 DX-LM3-180 DX-LM3-220 DX-SIN3-180 DX-SIN3-250
SPX150A1-4… 110 132 205 261 DX-LN3-300 DX-LM3-220 DX-LM3-260 DX-SIN3-250 DX-SIN3-440
SPX200A1-4… 132 160 245 300 DX-LN3-300 DX-LM3-260 DX-LM3-303 DX-SIN3-250 DX-SIN3-440
SPX250A0-4… 160 200 300 385 -DX-LM3-303 DX-LM3-450 DX-SIN3-440 DX-SIN3-440
SPX300A0-4… 200 250 385 460 -DX-LM3-450 DUT-0590-6-0-S DX-SIN3-440 DX-SIN3-480
SPX350A0-4… 250 250 460 520 -DUT-0590-6-0-S DUT-0590-6-0-S SIN-0600-5-0-P SIN-0600-5-0-P
SPX400A0-4… 250 315 520 590 -DUT-0590-6-0-S DUT-0590-6-0-S SIN-0600-5-0-P SIN-0600-5-0-P
SPX500A0-4… 315 355 590 650 -DUT-0820-6-0-S DUT-0820-6-0-S SIN-0600-5-0-P SIN-0840-5-0-P
SPX550A0-4… 355 400 650 730 -DUT-0820-6-0-S DUT-1100-6-0-S SIN-0840-5-0-P SIN-0840-5-0-P
SPX600A0-4… 400 450 730 820 -DUT-1250-6-0-S DUT-1100-6-0-S SIN-0840-5-0-P SIN-0840-5-0-P
SPX650A0-4… 450 500 820 920 -DUT-1250-6-0-S DUT-1100-6-0-S SIN-1160-5-0-P SIN-1160-5-0-P
SPX700A0-4… 500 560 920 1030 -DUT-1250-6-0-S DUT-1100-6-0-S SIN-1160-5-0-P SIN-1160-5-0-P
SPX800A0-4… 560 630 1030 1150 -DUT-1250-6-0-S DUT-1250-6-0-S SIN-1480-5-0-P SIN-1160-5-0-P
SPX900A0-4… 630 710 1150 1300 -DUT-1600-6-0-S DUT-1600-6-0-S SIN-1480-5-0-P SIN-1480-5-0-P
SPXH10A0-4… 710 800 1300 1450 -DUT-1600-6-0-S DUT-1600-6-0-S SIN-1480-5-0-P SIN-1480-5-0-P
SPXH12A0-4… 900 1000 1600 1770 -----
SPXH16A0-4… 1100 1200 1940 2150 -----
690 V AC, 3-phase/690 V AC, 3-phase
SPX002A1-5… 2.2 3 3.2 4.5 DX-LN3-006 DX-LM3-005 DX-LM3-005 SIN-0005-6-0-P SIN-0005-6-0-P
SPX003A1-5… 344.55.5DX-LN3-006 DX-LM3-008 DX-LM3-008 SIN-0008-6-0-P SIN-0008-6-0-P
SPX004A1-5… 4 5.5 5.5 7.5 DX-LN3-010 DX-LM3-008 DX-LM3-008 SIN-0008-6-0-P SIN-0008-6-0-P
SPX005A1-5… 5.5 7.5 7.5 10 DX-LN3-010 DX-LM3-011 DX-LM3-011 SIN-0014-6-0-P SIN-0014-6-0-P
SPX007A1-5… 7.5 11 10 13.5 DX-LN3-016 DX-LM3-016 DX-LM3-016 SIN-0014-6-0-P SIN-0014-6-0-P
SPX010A1-5… 11 15 13.5 18 DX-LN3-025 DX-LM3-035 DX-LM3-035 SIN-0023-6-0-P SIN-0023-6-0-P
SPX015A1-5… 15 18.5 18 22 DX-LN3-025 DX-LM3-035 DX-LM3-035 SIN-0023-6-0-P SIN-0023-6-0-P
SPX020A1-5… 18.5 22 22 27 DX-LN3-040 DX-LM3-035 DX-LM3-035 SIN-0035-6-0-P SIN-0035-6-0-P
SPX025A1-5… 22 30 27 34 DX-LN3-040 DX-LM3-035 DX-LM3-035 SIN-0035-6-0-P SIN-0035-6-0-P
SPX030A1-5… 30 37 34 41 DX-LN3-050 DX-LM3-035 DX-LM3-050 SIN-0052-6-0-P SIN-0052-6-0-P
SPX040A1-5… 37 45 41 52 DX-LN3-080 DX-LM3-050 DX-LM3-063 SIN-0052-6-0-P SIN-0052-6-0-P
SPX050A1-5… 45 55 52 62 DX-LN3-080 DX-LM3-063 DX-LM3-063 SIN-0085-6-0-P SIN-0085-6-0-P
SPX060A1-5… 55 75 62 80 DX-LN3-080 DX-LM3-063 DX-LM3-080 SIN-0085-6-0-P SIN-0085-6-0-P
SPX075A1-5… 75 90 80 100 DX-LN3-100 DX-LM3-080 DX-LM3-100 SIN-0122-6-0-P SIN-0122-6-0-P
SPX100A1-5… 90 110 100 125 DX-LN3-160 DX-LM3-100 DX-LM3-150 SIN-0122-6-0-P SIN-0185-6-0-P
SPX125A1-5… 110 132 125 144 DX-LN3-160 DX-LM3-150 DX-LM3-150 SIN-0185-6-0-P SIN-0185-6-0-P
SPX150A1-5… 132 160 144 170 DX-LN3-200 DX-LM3-150 DX-LM3-180 SIN-0185-6-0-P SIN-0185-6-0-P
SPX175A1-5… 160 200 170 208 DX-LN3-250 DX-LM3-180 DX-LM3-220 SIN-0287-6-0-P SIN-0287-6-0-P
SPX200A0-5… 200 250 208 261 DX-LN3-300 DX-LM3-220 DX-LM3-303 SIN-0287-6-0-P SIN-0287-6-0-P
SPX250A0-5… 250 315 261 325 -DX-LM3-260 DX-LM3-450 SIN-0390-6-0-P SIN-0390-6-0-P
SPX300A0-5… 315 355 325 385 -DX-LM3-450 DX-LM3-450 SIN-0390-6-0-P SIN-0390-6-0-P
SPX400A0-5… 355 450 385 460 -DX-LM3-450 DUT-0590-6-0-S SIN-0460-6-0-P SIN-0460-6-0-P
SPX450A0-5… 450 500 460 502 -DUT-0590-6-0-S DUT-0590-6-0-S SIN-0460-6-0-P SIN-0620-6-0-P
SPX500A0-5… 500 560 502 590 -DUT-0590-6-0-S DUT-0590-6-0-S SIN-0620-6-0-P SIN-0620-6-0-P
SPX550A0-5… 560 630 590 650 -DUT-0820-6-0-S DUT-0820-6-0-S SIN-0780-6-0-P SIN-0780-6-0-P
SPX600A0-5… 630 710 650 750 -DUT-0820-6-0-S DUT-0820-6-0-S SIN-0780-6-0-P SIN-0780-6-0-P
SPX700A0-5… 710 800 750 820 -DUT-1250-6-0-S DUT-0820-6-0-S SIN-0920-6-0-P SIN-0920-6-0-P
SPX800A0-5… 800 900 820 920 -DUT-1250-6-0-S DUT-1250-6-0-S SIN-1180-6-0-P SIN-0920-6-0-P
SPX900A0-5… 900 1000 920 1030 -DUT-1250-6-0-S DUT-1250-6-0-S SIN-1180-6-0-P SIN-1180-6-0-P
SPXH10A0-5… 1000 1150 1030 1180 -DUT-1250-6-0-S DUT-1250-6-0-S SIN-1180-6-0-P SIN-1180-6-0-P
SPXH13A0-5… 1300 1500 1300 1500 -DUT-1600-6-0-S DUT-1600-6-0-S - -
SPXH15A0-5… 1500 1800 1500 1900 -----
SPXH20A0-5… 1800 2000 1900 2250 -----
Part no. Motor Frequency inverters Power Wiring Motor feeder
Assigned motor rating Rated operational
current
Main choke motor choke Sine filter
IH = 150 % IL = 110 % IH = 150 % IL = 110 % IH = 150 %
(CT/IH, at 50 °C)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
IH = 150 %
(CT/IH, at 50 °C)
IL = 110 %
(VT/IL, at 40 °C)
PPI
eIe
kW kW A A
CA04020001Z-EN-INT www.eaton.eu
Soft starters have become a well-established alternative to the star-delta starter. This
is where the DS7, featuring two-phase control and designed to work seamlessly with
DILM and PKZ switchgear, comes in. The DS7 can be flexibly combined with other
units and adds the ability to "start motors softly" to the switching, protection, and starting
functions common to control panels. A patented method ensures that motor run-ups
will be exceptionally soft while providing a higher torque than other available solutions.
Longer service intervals and reduced operating costs are welcome side effects of this.
Designed for normal applications such as pumps, fans and small conveyors, the compact
DS7 is ideal. The DS7 is also available with a SmartWire-DT connection to simplify
wiring and enhance functionality as an automation solution.
Soft Starter DS7 of System xStart –
Soft at the Start, High on Torque
DS7 soft starter
CA04020001Z-EN-INT www.eaton.eu
97
DS7
System overview
DS7 soft starter < 32 A 98
DS7 soft starter > 32 A 100
Key to type references
DS7 soft starter 101
Description
DS7 soft starter 102
Ordering
DS7 soft starter 103
Accessories DS7 104
Engineering
General informationen on Engineering 108
Design with different load cycles 110
Connection examples 112
Assigned switching and protective elements DS7 114
98 DS7 soft starters
DS7 < 32 A
CA04020001Z-EN-INT www.eaton.eu
DS7 < 32 A

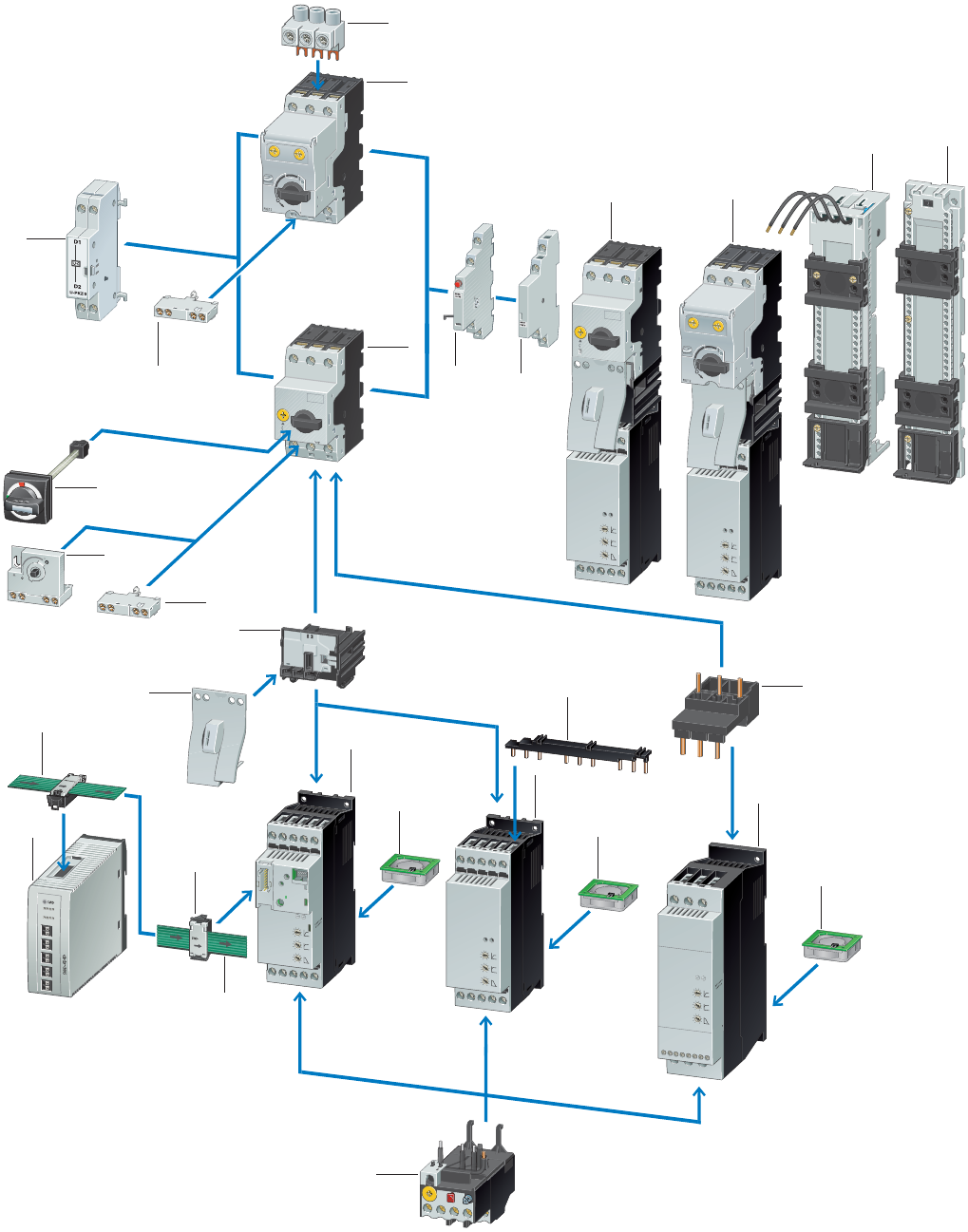

System overview
19
15
13
11
14
9
10
8
3
1
5
6
7
4
4
2
12
13
17
18
16
23
24 25
22
7
21
20
4
DS7 soft starters
DS7 < 32 A
CA04020001Z-EN-INT www.eaton.eu
99
DS7
Soft starter DS7 with SmartWire-DT 1
￫ page 103
DS7 soft starters in construction size 1 for assigned motor
current up to 12 A
2
￫ page 103
DS7 soft starters in construction size 2 for assigned motor
current up to 32 A
3
￫ page 103
DS7-FAN-32 device fan 4
￫ page 107
SmartWire-DT gateway 5
￫ page 148
SmartWire-DT external device plug 6
￫ page 148
SmartWire-DT flat band conductor 7
￫ page 148
Overload relays 8
￫Industrial Switchgear catalog
PKZM0-XDM wiring set in tool-less plug connection 9, 10
￫ page 105
PKZM0-XM wiring set 11
￫ page 105
three-phase commoning link 12
￫ page 106
standard auxiliary contact 13
￫Industrial Switchgear catalog
Early-make auxiliary contact 14
￫Industrial Switchgear catalog
Door coupling handle 15
￫Industrial Switchgear catalog
PKZM0 motor-protective circuit-breakers 16
￫Industrial Switchgear catalog
PKE motor-protective circuit-breakers 17
￫Industrial Switchgear catalog
Connection clamp 18
￫Industrial Switchgear catalog
voltage release 19
￫Industrial Switchgear catalog
Indicator switch 20
￫Industrial Switchgear catalog
standard auxiliary contact 21
￫Industrial Switchgear catalog
Motor-starter combination with PKZ 22
￫Industrial Switchgear catalog
Motor-starter combination with PKE 23
￫Industrial Switchgear catalog
busbar adapter 24
￫ page 105
top-hat rail adapter 25
￫ page 105
100 DS7 soft starters
DS7 > 32 A
CA04020001Z-EN-INT www.eaton.eu
DS7 > 32 A
22
23
19
13
12
11
15
10
14
21 20
6
18
4
3
9
8
16
17
7
1
10
2
5
7
DS7 soft starters
DS7 > 32 A
CA04020001Z-EN-INT www.eaton.eu
101
DS7
DS7 > 32 A
Key to type references
DS7 with SmartWire-DT 1
￫ page 103
DS7 size 4 up to 200 A 2
￫ page 103
DS7 size 3 up to 100 A 3
￫ page 103
Device fan 4
￫ page 107
Superfast semiconductor fuses 5
￫ page 104
Fuse bases for superfast semiconductor fuses 6
￫ page 105
IP2X protection against contact with a finger 7
￫ page 107
Overload relays 8
￫Industrial Switchgear catalog
Gateways for SmartWire-DT 9
￫ page 148
SmartWire-DT external device plug 10
￫ page 148
NZM circuit-breaker 11
￫Industrial Switchgear catalog
Spacer 12
￫Industrial Switchgear catalog
Standard auxiliary contact/Trip-indicating auxiliary switch 13
￫Industrial Switchgear catalog
NZM communication module for SmartWire-DT 14
￫Industrial Switchgear catalog
Data management interface (DMI module) 15
￫Industrial Switchgear catalog
Voltage release/Early-make auxiliary contact 16
￫Industrial Switchgear catalog13
Terminal cover for terminals 17
￫ page 106
IP2X protection against contact with a finger 18
￫ page 107
Terminal cover for cable lugs 19
￫ page 106
Connection width extension 20
￫Industrial Switchgear catalog
Control circuit terminal 21
￫Industrial Switchgear catalog
Box terminals 22
￫Industrial Switchgear catalog
Tunnel terminals for Al and Cu cable 23
￫Industrial Switchgear catalog
DS7 - 3
4 0 SX 004
N
0 -
N
004 = 4 A
:
200 = 200 A
Device series
Radio interference suppression filters
Control voltage supply
SX = Standard soft starters
with internal bypass
Protection type
Rated operational current
N = No internal radio interference
suppression filter
0 = IP20
Options
Number of phases
3 = Three-phase mains
supply voltage
Voltage class
4 = 400 V (380 V - 15 % to
480 V + 10 %)
Generation 7
Device version
0 = 24 V AC/DC
2 = 110/230 V AC
D = 24 V DC SmartWire-DT
N = No option
D = SmartWire-DT
L = Expanded temperature range down to -40 °C
102 DS7 soft starters
System
CA04020001Z-EN-INT www.eaton.eu
System
Description
Application
The DS7 series soft starters are two-
phased controlled soft starters used
for soft starting three-phase AC
motors for applications with a normal
operating frequency and a
performance range of 3 to 200 A (1.1 to
110 kW with a 400 V mains voltage).
Closing transients and DC components
during startup are effectively
suppressed and guarantee even motor
starting.
The special actuation method
(asymmetrical trigger phase control)
for the soft starter function avoids the
DC components (Eaton patent) that
would normally occur in two-phase-
controlled soft starters. This
suppresses the generation of an
elliptical rotating field, which would
cause uneven motor starting and
increase the motor's acceleration. The
true run behavior of the DS7 is
therefore comparable with that of a
three-phase controlled soft starter.
Functions
Typical fields of application for Series
DS7 soft starters are:
• Pump drives: pressure surges are
prevented through soft starting. The
mechanical load on the whole plant
is reduced and its service life
increases.
• Fan drives: soft starting keeps fan
belts from slipping, preventing
premature wear. This lowers
operating costs and extends the
system's lifespan.
• Conveyor belts: conveyor belts start
running smoothly, instead of starting
with a jolt. This ensures that any
goods being conveyed do not topple
over. Mechanical damage to the
belt itself is avoided, making it more
durable.
Features
• The ramp time can be adjusted by
potentiometer within a range of 1 to
30 s (for starting) or 0 to 30 s (for
stopping) with a potentiometer
• The start voltage (or start torque)
can be adjusted within a range
of 30 to 100 percent of the mains
voltage with a potentiometer
• Significant reduction in switch-on
current, achieved with a short soft
start ramp time (min. 1 s) for lamp
and heating loads
• Internal bypass relay: switches on
automatically after the end of the
ramp, bypassing the internal
thyristors.
• This makes it possible to comply
with radio interference level B
without any additional measures.
• The motor's thermal load is smaller
than it would be without asymmetric
ignition control.
• Designed specifically for long
cables
Documentation
Surface mounting and standard
mounting procedures are described in
the corresponding mounting
instructions and in the manual.
Instructional leaflets:
IL03902003Z: for size 1 devices
(up to 12 A motor output)
IL03902004Z: for size 2 devices
(up to 32 A motor output)
IL03902005Z: for size 3, 4 devices
(up to 200 A motor output)
Manual:
MN03901001Z
You can download the documentation
for the DS7 soft starters from the
Internet
at: www.moeller.net/support
Communication interface
SmartWire-DT
Our SmartWire-DT interface
completely eliminates the need for
conventional control wiring. This has
several advantages:
• No incorrect wiring
•Faster wiring
• Cost saving
The interface can be used to send
control commands to the DS7-SWD
and change and diagnose its
parameter configuration; in addition,
the control electronics can be
powered via the SmartWire-DT cable.
The device is controlled with one of
three selectable profiles:
• A "start/stop" profile, which should
already be familiar from the PKE
motor-protective circuit-breaker
and contactor combination
• An 8 bit-wide profile for the soft
starter, which is provided the same
way for the variable frequency drive
and features more options
• A control profile comparable to a
PROFIdrive profile, just like the one
available for the variable frequency
drive.
Regardless of the profile chosen, the
DS7-SWD's parameters can be read
and written to at any time by using
acyclic services.
DS7-SWD makes it possible to read
and write to all device parameters. The
mechanisms of the parameter channel
that is described for the drives in the
PROFIdrive profile are used for this
purpose. This profile provides a
standardized parameter access
method for variable frequency drives
and soft starters.
It is also possible to overwrite the
potentiometer settings on the
DS7-SWD, which can come in handy,
for instance, when a change made to
the machine needs to be undone.
The DS7-SWD comes with a detailed
diagnostic system with options that
extend far beyond those of wired
devices. In addition to having an error
log, the DS7-SWD can detect and
report nine different device faults. A
warning parameter reports any
present alarm messages. Moreover,
the response to each individual fault
can be customized. Finally, there are
35 additional messages for
communication errors. Using the DS7
in connection with the PKE opens up
new functionalities that were
previously thought impossible to
implement with a low-cost soft starter
and that were reserved to significantly
more expensive devices. Combining a
PKE unit and a DS7-SWD makes it
possible to completely protect the
DS7-SWD device against overloads. In
addition, it provides a current limiting
function and can report thermal
capacity utilization levels to higher
level controllers.
Expanded temperature range
DS7-340SX…-L soft starters can
operate at temperatures as low
as -40 °C.
DS7 soft starters
Basic devices
CA04020001Z-EN-INT www.eaton.eu
103
DS7
Basic devices
Ordering
Rated
operational
current
Assigned motor rating Part no. Article no. Price
see price
list
Part no. Article no. Price
see price
list
Std. pack
Device
(AC-53)
at 400 V, 50 Hz at 460 V, 60 Hz
IePP
AkW HP UC 24 V AC/DC
Us 24 V AC/DC
Standard temperature range
UC 24 V AC/DC
Us 24 V AC/DC
Expanded temperature range down to -40 °C
Soft starters
Soft starters for three-phase loads
Mains supply voltage (50/60 Hz)
ULN 200 - 480 V AC
41.5 2 DS7-340SX004N0-N 134847 DS7-340SX004N0-L 171740 1off
73 5 DS7-340SX007N0-N 134849 DS7-340SX007N0-L 171741
94 5 DS7-340SX009N0-N 134910 DS7-340SX009N0-L 171742
12 5.5 10 DS7-340SX012N0-N 134911 DS7-340SX012N0-L 171743
16 7.5 10 DS7-340SX016N0-N 134912 DS7-340SX016N0-L 171744
24 11 15 DS7-340SX024N0-N 134913 DS7-340SX024N0-L 171745
32 15 25 DS7-340SX032N0-N 134914 DS7-340SX032N0-L 171746
41 22 30 DS7-340SX041N0-N 134916 DS7-340SX041N0-L 171747
55 30 40 DS7-340SX055N0-N 134917 DS7-340SX055N0-L 171748
70 37 50 DS7-340SX070N0-N 134918 DS7-340SX070N0-L 171749
81 45 60 DS7-340SX081N0-N 134919 DS7-340SX081N0-L 171750
100 55 75 DS7-340SX100N0-N 134920 DS7-340SX100N0-L 171751
135 75 100 DS7-340SX135N0-N 134921 DS7-340SX135N0-L 171752
160 90 125 DS7-340SX160N0-N 134922 DS7-340SX160N0-L 171753
200 110 150 DS7-340SX200N0-N 134923 DS7-340SX200N0-L 171754
UC 110 - 230 V AC
Us 110 - 230 V AC
UC 24 V DC
Us 24 V DC
41.5 2 DS7-342SX004N0-N 134925 DS7-34DSX004N0-D 134943 1off
73 5 DS7-342SX007N0-N 134927 DS7-34DSX007N0-D 134945
94 5 DS7-342SX009N0-N 134928 DS7-34DSX009N0-D 134946
12 5.5 10 DS7-342SX012N0-N 134929 DS7-34DSX012N0-D 134947
16 7.5 10 DS7-342SX016N0-N 134930 DS7-34DSX016N0-D 134948
24 11 15 DS7-342SX024N0-N 134931 DS7-34DSX024N0-D 134949
32 15 25 DS7-342SX032N0-N 134932 DS7-34DSX032N0-D 134950
41 22 30 DS7-342SX041N0-N 134934 DS7-34DSX041N0-D 134952
55 30 40 DS7-342SX055N0-N 134935 DS7-34DSX055N0-D 134953
70 37 50 DS7-342SX070N0-N 134936 DS7-34DSX070N0-D 134954
81 45 60 DS7-342SX081N0-N 134937 DS7-34DSX081N0-D 134955
100 55 75 DS7-342SX100N0-N 134938 DS7-34DSX100N0-D 134956
135 75 100 DS7-342SX135N0-N 134939 DS7-34DSX135N0-D 134957
160 90 125 DS7-342SX160N0-N 134940 DS7-34DSX160N0-D 134958
200 110 150 DS7-342SX200N0-N 134941 DS7-34DSX200N0-D 134959
Notes Information relevant for export to North America
UL/CSA applies only for DS7…-N
Product Standards IEC/EN 60947-4-2; GB 14048.6; UL 508;
CSA-C22.2 No 0-M91;
CSA-C22.2 No 14-05 CE marking
UL File No. E251034
CSA File No. 2511305
CSA Class No. 321106
Suitable for Branch circuits
Max. Voltage Rating 480 V
Degree of Protection IP20; UL/CSA Type 1
4 - 12 A 16 - 32 A 41 - 100 A 135 - 200 A
104 DS7 soft starters
Accessories
CA04020001Z-EN-INT www.eaton.eu
Accessories
Rated
device
current
Maximum
power
loss
Frame size For use with Part no.
Article no.
Price
see price
list
Std. pack Information relevant for export to North
America
Pv
AW
Superfast semiconductor fuses
DIN 43653, 690/700 V (IEC/UL)
Inside micrometer 80 mm
16 5.5 000 DS7-34…SX004N0-… 170M1359
171968
10off Product Standards IEC/EN 60269-4;
UL 248-1;
CSA-C22.2
No. 248.14;
CE marking
UL File No. E125085
UL Category
Control No. JFHR2
CSA File No. 053787_C_000
CSA Class No. 1422-30
North America
Certification UL recognized,
CSA certified
Suitable for semiconductor
protection
25 9 000 DS7-34…SX007N0-… 170M1361
171969
32 10 000 DS7-34…SX009N0-…
DS7-34…SX012N0-…
170M1362
171970
40 12 000 DM4-340-7K5 170M1363
171971
50 15 000 DS4-340-2K2-M
DS4-340-2K2-MR
DS4-340-2K2-M-DC
DS7-34…SX016N0-…
170M1364
171972
63 16 000 DS4-340-4K0-M
DS4-340-4K0-MR
DS4-340-7K5-MX
DS4-340-7K5-MXR
DS7-34…SX024N0-…
170M1365
171973
80 19 000 DS4-340-5K5-M
DS4-340-5K5-MR
DS4-340-11K-MX
DS4-340-11K-MXR
DS7-34…SX032N0-…
170M1366
171974
100 21 S1* DS6-340-22K-MX 170M3012
171976
125 26 S1* DS4-340-7K5-M
DS4-340-7K5-MR
DS4-340-15K-MX
DS4-340-15K-MXR
DM4-340-22K
DM4-340-30K
DS7-34…SX041N0-…
DS7-34…SX055N0-…
170M3013
173799
160 30 S1* DS4-340-11K-M
DS4-340-11K-MR
170M3014
171977
200 45 S1 DM4-340-37K
DM4-340-45K
DS6-340-37K-MX
DS6-340-45K-MX
DS6-340-55K-MX
DS7-34…SX070N0-…
DS7-34…SX081N0-…
DS7-34…SX100N0-…
170M4008
171978
315 58 S1 DS6-340-75K-MX
DS7-34…SX135N0-…
170M4010
171979
350 60 S1 DM4-340-55K
DM4-340-75K
170M4011
171980
400 65 S2 DS6-340-90K-MX
DS7-34…SX160N0-…
170M5008
171984
450 70 S1 DM4-340-90K
DM4-340-110K
170M4013
171981
500 72 S1 DM4-340-132K
DM4-340-160K
170M4014
171982
500 95 S3 DS6-340-110K-MX
DS7-34…SX200N0-…
DM4-340-132K
DM4-340-160K
170M6008
171985
630 80 S1 DM4-340-200K 170M4016
171983
900 120 S3 DM4-340-250K
DM4-340-315K
170M6013
171986
1250 140 S3 DM4-340-400K
DM4-340-500K
170M6016
171987
DS7 soft starters
Accessories
CA04020001Z-EN-INT www.eaton.eu
105
DS7
Accessories
For use with Part no.
Article no.
Price
see price
list
Std. pack Information relevant for export to North America
Fuse Bases
Dimensions
(W x H x D)
mm
145 x 43 x 50
000, 00 170H1007
171988
3off Product Standards IEC/EN 60269-1; UL 512;
CE marking
UL File No. E14853
UL Category Control No. IZLT2
North America Certification UL listed
Suitable for DIN 43653 fuses
205 x 88 x 80 S1*, S1, S2, S3 170H3004
171989
Overload relays
DS7-34…SX004… ZB12-4
278438
1off Product Standards UL 508; CSA-C22.2 No. 14;
IEC/EN 60947-4-1;
IEC/EN 60947-5-1;
CE marking
UL File No. E29184
UL Category Control No. NKCR
CSA File No. 12528
CSA Class No. 3211-03
North America Certification UL listed, CSA certified
Suitable for Branch circuits
Max. Voltage Rating 600 V AC
Degree of Protection IEC: IP20, UL/CSA Type: -
DS7-34…SX007…
DS7-34…SX009…
ZB12-10
278440
DS7-34…SX012… ZB12-12
278441
DS7-34…SX016… ZB32-16
278452
DS7-34…SX024… ZB32-24
278453
DS7-34…SX032… ZB32-32
278454
Wiring set
For DOL Starter
DS7-34…SX004…
DS7-34…SX007…
DS7-34…SX009…
DS7-34…SX012…
PKZM0-XDM12
283149
1off Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1;
CE marking
UL File No. E36332
UL Category Control No. NLRV
CSA File No. 165628
CSA Class No. 3211-05
North America Certification UL listed, CSA certified
Electric contact module
DS7-34…SX016…
DS7-34…SX024…
DS7-34…SX032…
PKZM0-XM32DE
239349
5off Product Standards UL 508; CSA-C22.2 No. 14;
IEC60947-4-1;
CE marking
UL File No. E36332
UL Category Control No. NLRV
CSA File No. 165628
CSA Class No. 3211-05
North America Certification UL listed, CSA certified
Busbar adapters
PKZM0, PKE + DS7...004N...
PKZM0, PKE + DS7...007N...
PKZM0, PKE + DS7...009N...
PKZM0, PKE + DS7...012N...
BBA0L-25
142526
1off
PKZM0, PKE + DS7...016N...
PKZM0, PKE + DS7...024N...
PKZM0, PKE + DS7...032N...
BBA0L-32
142527
1off
Top-hat rail adapter
45mm wide adapter plate
PKZM0, PKE + DS7...004N...
PKZM0, PKE + DS7...007N...
PKZM0, PKE + DS7...009N...
PKZM0, PKE + DS7...012N...
PKZM0-XC45L
142529
1off
PKZM0, PKE + DS7...016N...
PKZM0, PKE + DS7...024N...
PKZM0, PKE + DS7...032N...
PKZM0-XC45L/2
142570
1off
106 DS7 soft starters
Accessories
CA04020001Z-EN-INT www.eaton.eu
Accessories
For use with Part no.
Article no.
Price
see price
list
Std. pack Notes Information relevant for export to North
America
Three-phase commoning links
protected against accidental contact,
short-circuit proof, Ue = 690 V, Iu = 35 A
can be extended by rotating installation
(∑ Iu ≦ 35 A)
DS7-34…SX004…
DS7-34…SX007…
DS7-34…SX009…
DS7-34…SX012…
DILM12-XDSB0/3
240084
5off For the primary side of DS7
Suitable for 3 DS7 soft starters
Length 112 mm
Product
Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL Category
Control No. NLRV
CSA File No. 012528
CSA Class No. 2411-03
North America
Certification UL listed, CSA
certified
DILM12-XDSB0/4
240085
For the primary side of DS7
Suitable for 4 DS7 soft starters
Length 157 mm
DILM12-XDSB0/5
240086
For the primary side of DS7
Suitable for 5 DS7 soft starters
Length 202 mm
Incoming connection block
DS7-34…SX004…
DS7-34…SX007…
DS7-34…SX009…
DS7-34…SX012…
DILM12-XEK
240083
5off For three-phase commoning
link, protected against
accidental contact, Ue = 690 V,
Iu = 35 A.
Connection cross section:
Stranded 2.5…16 mm2
Flexible with ferrule
2.5…16 mm2
AWG14…8
Product
Standards IEC/EN 60947-4-1;
UL 508; CSA-C22.2
No. 14-05;
CE marking
UL File No. E36332
UL Category
Control No. NLRV
CSA File No. 012528
CSA Class No. 2411-03
North America
Certification UL listed, CSA
certified
Terminal cover
Type contains parts for a terminal located at top
or bottom for 3 pole circuit-breakers.
knockout
For box terminal
DS7-34…SX041…
DS7-34…SX055…
DS7-34…SX070…
DS7-34…SX081…
DS7-34…SX100…
NZM1-XKSFA
100780
1off Enhancement of the busbar
tag shroud (simple protection
against contact with a finger).
Cannot be combined with
NZM-XSTK control circuit
terminal.
UL/CSA certification not required
knockout DS7-34…SX135…
DS7-34…SX160…
DS7-34…SX200…
NZM2-XKSFA
104640
1off Enhancement of the busbar
tag shroud (simple protection
against contact with a finger).
Protection when reaching into
the cable connection area
with the connection of cables
in the box terminal.
With 2 conductors max cross
section 22 mm2 or AWG4.
Cannot be combined with
NZM-XSTK control circuit
terminal.
UL/CSA certification not required
DS7-34…SX135…
DS7-34…SX160…
DS7-34…SX200…
NZM2-XKSA
260038
1off Busbar tag shroud where
cable lugs, busbars or tunnel
terminals are used.
When using insulated
conductor material to IP1X.
Product
Standards UL489; CSA-C22.2
No. 5-09; IEC60947,
CE marking
UL File No. E31593
UL Category
Control No. DIHS
CSA File No. 22086
CSA Class No. 1432-01
North America
Certification UL listed, CSA
certified
Suitable for Refer to main
component
information
2T1 4T2 6T3
1L3 3 L2 5 L1
DS7 soft starters
Accessories
CA04020001Z-EN-INT www.eaton.eu
107
DS7
Accessories
For use with Part no.
Article no.
Price
see price
list
Std. pack Notes Information relevant for export to
North America
IP2X protection against contact with a
finger
Type contains parts for a terminal located at top or
bottom for 3 pole circuit-breakers.
Enhancement of the busbar tag shroud to IP2X.
For box terminal NZM2, PN2, N2 NZM2-XIPK
266773
1off Protection when reaching into
the cable connection area
with the connection of cables
in the box terminal.
With 2 conductors max cross
section 25 mm2 or AWG4.
Cannot be combined with
NZM-XSTK control circuit
terminal.
UL/CSA certification not required
for cover NZM2-XKSA or
NZM2 or NZM2...(C)NA
und N(S)2...NA
NZM2, PN2, N(S)2 NZM2-XIPA
266777
1off When mounting NZM2-..-
(C)NA or NZM...-NA the
following applies:
with 2 conductors max cross
section 25 mm2 or AWG4.
UL/CSA certification not required
Mounting kit
when using covers NZM1-XKSFA and
NZM2-XKSA
DS7-34xSX041N0-x
DS7-34xSX055N0-x
DS7-34xSX070N0-x
DS7-34xSX081N0-x
DS7-34xSX100N0-x
DS7-34xSX135N0-x
DS7-34xSX160N0-x
DS7-34xSX200N0-x
DE6-MNT-NZM
107323
1off -
Device fans
flush-mounted fan
DS7-34…SX004…
DS7-34…SX007…
DS7-34…SX009…
DS7-34…SX012…
DS7-34…SX016…
DS7-34…SX024…
DS7-34…SX032…
DS7-FAN-032
135553
1off flush-mounted fan UL/CSA certification not required
DS7-34…SX041…
DS7-34…SX055…
DS7-34…SX070…
DS7-34…SX081…
DS7-34…SX100…
DS7-FAN-100
169021
Bottom fans
DS7-34…SX135…
DS7-34…SX160…
DS7-34…SX200…
DS7-FAN-200
169022
PKE communications cable
6-Pole
Prefabricated with two plugs
For connecting the PKE to DS7-SWD
DS7…SWD PKE32-COM
168970
1off
Switched-mode power supply units
easyPOW
1-phase
Nominal input voltage 100 - 240 V AC
Rated output voltage 24 V DC (± 3%)
Rated output current 1.25 A
EASY400-POW
212319
1off
Power
CA04020001Z-EN-INT www.eaton.eu
108 DS7 soft starters
General information on Engineering
General information on Engineering
Engineering
Generalized phase control of motor voltage
By means of generalized phase control, the soft starter adjusts the grid's voltage
(ULNsmoothly from an adjustable start value to 100 % of the rated value ULN .
ULN:Mains supply voltage
U-Start: start voltage
t-Start: Ramp time of the voltage change at start
TOR (Top of Ramp): Signals the end of the set "t-Start" ramp time (output voltage U2
= Mains supply voltage ULN). The internal bypass contacts are closed after this.
This voltage control enables the inrush current of a three-phase asynchronous
motor to be limited and its starting torque to be reduced. This enables a smooth and
jerk-free increase in torque, adjusted in line with the machine's load behavior. This
has a positive effect on the lifespan, operating behavior, and operating processes
of the mechanical equipment and prevents negative effects such as:
• Impacting of cog edges in the gearbox
• Pressure surge in pipe systems (water impact),
• Slipping of V belts or
• Jitter with conveyor systems.
TOR
U
LN
t
U-Start
t-Start
In DS7 and S801+/S811+ series soft starters, generalized phase control is achieved
with anti-parallel thyristors that are bypassed for continuous operation by using
bypass contacts (TOR = Top Of Ramp) after the time for a time-triggered voltage
change (t-Start) has elapsed. The transition resistance of these bypass contacts is
considerably lower than the transition resistance of the power semiconductors.
This reduces the heat dissipation in the soft starter and extends the lifespan of the
power semiconductors.
As well as the time-controlled startup of a motor, the soft starter also enables a
time-controlled reduction of the motor voltage and thus a controlled stopping of the
motor.
The output voltage of a soft starter determines the torque of the motor (M ~ U2).
Because of this, it is necessary to make sure that, when a machine starts up, the
selected U-Start start voltage is not too low and the t-Start ramp time for the linear
voltage change is set to be as short as possible.
Please note:
• Long ramp times (t-Start) will produce a soft startup behavior, but will also result
in a higher thermal load on the thyristors
• A high start voltage (U-Start) will produce a higher torque and a high starting
current
• Set the lowest possible start voltage and the shortest possible start ramps.
The following pages include application and setting configuration examples for DS7
soft starters.
If controlled deceleration is required, t-Stop must be set to a longer time than would
be necessary for the machine to coast freely based on the load. For the thyristors,
the controlled deceleration constitutes a load comparable to that produced during
startup. If, for example, the deceleration ramp is activated on a soft starter with a
maximum of 10 permissible starts per hour, the number of permissible starts will be
reduced to five per hour (plus five stops within that hour).
U-Start
U
t-Start t-Stop
t
CA04020001Z-EN-INT www.eaton.eu
DS7 soft starters
General information on Engineering
109
DS7
Selection criteria
Soft starters ③ are selected based on the supply voltage of the corresponding grid
① (ULN) and the rated operational current of the assigned motor ②. The motor's
circuit configuration (Δ/Y) must be selected in such a way that it matches the supply
voltage. In addition, the soft starter's rated operational current (Ie) must be at least
equal to that of the motor.
Additional selection criteria include:
• Ambient air temperature (rated value +40 °C)
• The number of starts per hour (< 10 starts, take stops into account)
• Load torque (quadratic, linear)
• Starting torque
Centrifugal pumps, centrifugal fans, simple and smooth-running conveyor belts and
traction drives, and circular saws and ribbon saws are some of the typical applications
for which soft starters are used. Reciprocating compressors, mixers, mills, crushers,
and lifting gear are instead categorized as heavy starting duty machines. In this case,
the soft starter must be oversized in terms of its overload capacity.
In the case of applications that are typical for a soft starter, such as water pumps
(centrifugal pumps), and that feature comparable operational data (operating
frequency, run-up time, and/or inrush currents) a soft starter can be assigned
directly to the motor on the basis of the rated operational current.
Example:
• 15 kW Pump motor
• 400 V
• Rated operational current 29 A
• About three times the starting current (ILRP = 87 A),
• A maximum of 10 starts per hour
• 5-second start-up time
• ambient air temperature 40 °C.
=> DS7-34…032… (Ie = 32 A)
230 / 400 V ∆ /  4.6 / 2.6
1.1 kW 0.81
min
-1
1430 50 Hz
A
②
③
①
U, I, f
cos ϕ
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
32 A 64 A 96 A 128 A 160 A
When different operating frequencies, run-up times and/or starting currents are
involved, the thermal capacity of the DS7 soft starter must be taken into account in
the design. This can be done by using the following diagrams or by calculating the
I2t values. These I2t values define the corresponding load capacity and overload
cycle and are defined in product standard IEC/EN 60947-4-2.
DS7-34…SX032…soft starter:
• 32A: AC-53a: 3-5: 75-10
• Rated operational current (Ie) 32 A
• Load cycle AC-53a
• 300% overcurrent for 5 seconds
• 75% duty factor with 10 starts per hour
The resulting I2t value is: (3 x 32 A)2 x 5 s = 46.080 A2s
The maximum I2t value of the connected motor load must be smaller:
(3 x 29 A)2 x 5 s = 37.845 A2s
Soft starter DS7-34…SX032… is the right choice for this application.
If the motor had a higher inrush current, e.g., 5 times the starting current, a more
powerful soft starter would have to be selected:
• Motor inrush current: ILRP = 5 x 29 = 145 A, I2t value = (5 x 29 A)2 x 5 s = 105.125 A2s
• DS7-34…SX041…: 41A:
AC-53a: 3-5: 75-10
=> (3 x 41 A)2 x 5 s = 75.645 A2s
Soft starter DS7-34…SX041… cannot meet the required startup and load conditions
required in this case.
DS7-34…SX055…:
55A: AC-53a: 3-5: 75-10
=> (3 x 55 A)2 x 5 s = 136.125 A2s
Soft starter DS7-34…SX055…, however, does meet the required startup and load
conditions.
Note: As the following diagram shows, the DS7-34…SX055… unit can handle even
more demanding startup and load requirements, e.g., up to 20 starts per hour and
longer start-up times (up to 10 seconds).
SX041 10/h
SX041 1/h
SX041 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
60 A
70 A
80 A
90 A
100 A
110 A
120 A
130 A
140 A
150 A
SX055 10/h
SX055 1/h
SX055 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
80 A 100 A 120 A 140 A 180 A160 A 200 A
110 DS7 soft starters
Design with different load cycles
CA04020001Z-EN-INT www.eaton.eu
Design with different load cy cles
DS7-34...SX004...
DS7-34...SX007... DS7-34...SX009...
DS7-34...SX012... DS7-34...SX016...
DS7-34...SX024... DS7-34...SX032E...
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
4 A 8 A 12 A 16 A 20 A
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
7 A 14 A 21 A 28 A 35 A
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
9 A 18 A 27 A 36 A 45 A
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
12 A 24 A 36 A 48 A 60 A
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
16 A 32 A 48 A 64 A 80 A
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
24 A 48 A 72 A 96 A 120 A
10/h
1/h
20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
32 A 64 A 96 A 128 A 160 A
DS7 soft starters
Design with different load cycles
CA04020001Z-EN-INT www.eaton.eu
111
DS7
DS7-34...SX041N0-... DS7-34...SX055N0-...
DS7-34...SX070N0-... DS7-34...SX081N0-...
DS7-34...SX100N0-... DS7-34...SX135N0-...
DS7-34...SX160N0-... DS7-34...SX200N0-...
22K 10/h
22K 1/h
22K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
60 A
70 A
80 A
90 A
100 A
110 A
120 A
130 A
140 A
150 A
30K 10/h
30K 1/h
30K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
80 A 100 A 120 A 140 A 180 A160 A 200 A
37K 10/h
37K 1/h
37K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
100 A 125 A 150 A 175 A 225 A200 A 250 A
45K 10/h
45K 1/h
45K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
100 A 125 A 175 A150 A 200 A 275 A250 A225 A 300 A
55K 10/h
55K 1/h
55K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
175 A150 A 200 A 275 A250 A225 A 300 A 325 A 350 A
75K 10/h
75K 1/h
75K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
125 A
150 A
175 A
200 A
225 A
250 A 300 A
275 A 325 A
350 A
375 A
400 A
425 A
450 A
475 A
500 A 550 A
525 A
90K 10/h
90K 1/h
90K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
150 A
200 A
250 A
300 A
350 A
400 A
450 A
500 A
550 A
600 A
650 A
110K 10/h
110K 1/h
110K 20/h
s
5 s
10 s
15 s
20 s
25 s
30 s
200 A
250 A
300 A
350 A
400 A
450 A 550 A
600 A500 A
650 A
700 A
750 A
800 A
112 DS7 soft starters
Connection examples
CA04020001Z-EN-INT www.eaton.eu
Connection examples
Standard connection
up to 12 A
Standard connection
up to 32 A
M
3 ~
1L1
3L2
5L3
+ Us
TOR
- A2 + A1 13
2T1
4T2
6T3
L1
L2
L3
PE
Q1
Q21
F3
M1
I > I > I >
Q1
(+) U
s
24 V AC/DC, 120/230 V AC
(–) U
s
M
3 ~
RUN
- U
s
+ U
s
1L1
3L2
5L3
TOR
- A2 + A1 13 14 2423
2T1
4T2
6T3
L1
L2
L3
PE
Q1
Q1
S3
Q21
F3
M1
I > I > I >
(+) U
s
24 V AC/DC, 120/230 V AC
(–) U
s
DS7 soft starters
Connection examples
CA04020001Z-EN-INT www.eaton.eu
113
DS7
Standard connection
41 - 200 A
With Emergency switching off function according to IEC/EN 60 204-1 and VDE 0113 Part 1
= EMERGENCY SWITCHING OFF
Q 1 = Cable and motor protection (NZM
(NZM1, NZM2)
Q21 = Soft starter DS7
M1 = Motor
F3 = superfast semiconductor fuse,
optional for type 2 coordination
(in addition to Q1)
①Control circuit terminal
②Undervoltage release with
early-make auxiliary contact
M
3 ~
1L1
3L2
5L3
PE
PE
D2
D1 3.13
3.14
TOR
- A2 EN + A1 13 14 2423
2T1
4T2
6T3
L1
L2
L3
PE
Q1
Q1
S3
Q21
F3
M1
I >
U>
I > I >
RUN
- U
s
+ U
s
(+) U
s
24 V AC/DC, 110/230 V AC
(–) U
s
①
②
114 DS7 soft starters
Assigned switching and protective elements
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
DS7 soft starters
Assigned switching and protective elements
DS7
Assigned switching and protective elements
assigned Rated operational current1) Part no. Soft starter function Soft starter function with soft stop in case of overload Mains contactor Semiconductor contactor (optional, in addition to the
protective devices for type 1 coordination, required for type 2
coordination)5)
Motor output at Soft starters
(device to be selected)
400 V 480 V Motor Soft starters Cable protection2) Cable protection2) overload relay3) optional4) Fuses Fuse holders
PPI
eIeType “1” coordination Type “1” coordination
kW HP A A Number x Part no. Number x Part no.
Soft starters for three-phase mains connection,
low operating frequency (5 s, 3 x Ie, 10 starts/h)
1.5 2 3.6 4 DS7-34xSX004N0-x PKZM0-4 (+ CL-PKZ0) PKM0-4 (+ CL-PKZ0) ZB12-4 DILM7 3 × 170M1359 3 x 170H1007
336.67DS7-34xSX007N0-x PKZM0-10 (+ CL-PKZ0) PKM0-10 (+ CL-PKZ0) ZB12-10 DILM9 3 × 170M1361 3 x 170H1007
458.59DS7-34xSX009N0-x PKZM0-10 (+ CL-PKZ0) PKM0-10 (+ CL-PKZ0) ZB12-10 DILM9 3 × 170M1362 3 x 170H1007
5.5 7.5 11.3 12 DS7-34xSX012N0-x PKZM0-12 (+ CL-PKZ0) PKM0-12 (+ CL-PKZ0) ZB12-12 DILM12 3 × 170M1362 3 x 170H1007
7.5 10 15.2 16 DS7-34xSX016N0-x PKZM0-16 (+ CL-PKZ0) PZM0-16 (+ CL-PKZ0) ZB32-16 DILM17 3 × 170M1364 3 x 170H1007
11 15 21.7 24 DS7-34xSX024N0-x PKZM0-25 (+ CL-PKZ0) PZM0-25 (+ CL-PKZ0) ZB32-24 DILM25 3 × 170M1365 3 x 170H1007
15 20 29.3 32 DS7-34xSX032N0-x PKZM0-32 (+ CL-PKZ0) PZM0-32 (+ CL-PKZ0) ZB32-32 DILM32 3 × 170M1366 3 x 170H1007
22 25 41 41 DS7-34xSX041N0-x NZMN1-M50 / PKZM4-50 NZMN1-M50 / PKZM4-50 ZB65-40+ZB65-XEZ DILM50 3 × 170M1366 3 x 170H1007
30 30 55 55 DS7-34xSX055N0-x NZMN1-M63 / PKZM4-58 NZMN1-M63 / PKZM4-58 ZB65-57+ZB65-XEZ DILM65 3 × 170M2615 3 x 170H1007
37 40 68 70 DS7-34xSX070N0-x NZMN1-M80 NZMN1-M80 ZB150-70/KK DILM80 3 × 170M4008 3 x 170H3004
45 50 81 81 DS7-34xSX081N0-x NZMN1-M100 NZMN1-M100 ZB150-100/KK DILM95 3 × 170M4008 3 x 170H3004
55 60 99 100 DS7-34xSX100N0-x NZMN1-M100 NZMN1-M100 ZB150-100/KK DILM115 3 × 170M4008 3 x 170H3004
75 75 134 135 DS7-34xSX135N0-x NZMN2-M160 NZMN2-M160 ZB150-150/KK DILM150 3 × 170M4011 3 x 170H3004
90 100 160 160 DS7-34xSX160N0-x NZMN2-M200 NZMN2-M200 Z5-160/FF250 DILM185 3 × 170M5008 3 x 170H3004
110 125 196 200 DS7-34xSX200N0-x NZMN2-M200 NZMN2-M200 Z5-220/FF250 DILM225 3 × 170M6008 3 x 170H3004
Notes 1) Rated operational current based on the load cycle specified here.
2) Used to specify the circuit-breaker required for the specified load cycle. At different duty cycles (operating frequency, overcurrent, overcurrent
time, duty factor), this value changes and must then be adapted accordingly.
3) An external overload relay is required if the main contacts should not be disconnected in the event of an overload and a controlled soft stop is
desired instead.
4) A mains contactor is not required. Disconnection characteristics in accordance with VDE can only be ensured with the specified circuit-breaker.
5) The superfast semiconductor fuses protect the soft starter from short circuits on the motor side. This can not, however, prevent damage caused
by voltage peaks, for example through lightning strike.
115
114 DS7 soft starters
Assigned switching and protective elements
CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu
DS7 soft starters
Assigned switching and protective elements
DS7
Assigned switching and protective elements
assigned Rated operational current1) Part no. Soft starter function Soft starter function with soft stop in case of overload Mains contactor Semiconductor contactor (optional, in addition to the
protective devices for type 1 coordination, required for type 2
coordination)5)
Motor output at Soft starters
(device to be selected)
400 V 480 V Motor Soft starters Cable protection2) Cable protection2) overload relay3) optional4) Fuses Fuse holders
PPI
eIeType “1” coordination Type “1” coordination
kW HP A A Number x Part no. Number x Part no.
Soft starters for three-phase mains connection,
low operating frequency (5 s, 3 x Ie, 10 starts/h)
1.5 2 3.6 4 DS7-34xSX004N0-x PKZM0-4 (+ CL-PKZ0) PKM0-4 (+ CL-PKZ0) ZB12-4 DILM7 3 × 170M1359 3 x 170H1007
336.67DS7-34xSX007N0-x PKZM0-10 (+ CL-PKZ0) PKM0-10 (+ CL-PKZ0) ZB12-10 DILM9 3 × 170M1361 3 x 170H1007
458.59DS7-34xSX009N0-x PKZM0-10 (+ CL-PKZ0) PKM0-10 (+ CL-PKZ0) ZB12-10 DILM9 3 × 170M1362 3 x 170H1007
5.5 7.5 11.3 12 DS7-34xSX012N0-x PKZM0-12 (+ CL-PKZ0) PKM0-12 (+ CL-PKZ0) ZB12-12 DILM12 3 × 170M1362 3 x 170H1007
7.5 10 15.2 16 DS7-34xSX016N0-x PKZM0-16 (+ CL-PKZ0) PZM0-16 (+ CL-PKZ0) ZB32-16 DILM17 3 × 170M1364 3 x 170H1007
11 15 21.7 24 DS7-34xSX024N0-x PKZM0-25 (+ CL-PKZ0) PZM0-25 (+ CL-PKZ0) ZB32-24 DILM25 3 × 170M1365 3 x 170H1007
15 20 29.3 32 DS7-34xSX032N0-x PKZM0-32 (+ CL-PKZ0) PZM0-32 (+ CL-PKZ0) ZB32-32 DILM32 3 × 170M1366 3 x 170H1007
22 25 41 41 DS7-34xSX041N0-x NZMN1-M50 / PKZM4-50 NZMN1-M50 / PKZM4-50 ZB65-40+ZB65-XEZ DILM50 3 × 170M1366 3 x 170H1007
30 30 55 55 DS7-34xSX055N0-x NZMN1-M63 / PKZM4-58 NZMN1-M63 / PKZM4-58 ZB65-57+ZB65-XEZ DILM65 3 × 170M2615 3 x 170H1007
37 40 68 70 DS7-34xSX070N0-x NZMN1-M80 NZMN1-M80 ZB150-70/KK DILM80 3 × 170M4008 3 x 170H3004
45 50 81 81 DS7-34xSX081N0-x NZMN1-M100 NZMN1-M100 ZB150-100/KK DILM95 3 × 170M4008 3 x 170H3004
55 60 99 100 DS7-34xSX100N0-x NZMN1-M100 NZMN1-M100 ZB150-100/KK DILM115 3 × 170M4008 3 x 170H3004
75 75 134 135 DS7-34xSX135N0-x NZMN2-M160 NZMN2-M160 ZB150-150/KK DILM150 3 × 170M4011 3 x 170H3004
90 100 160 160 DS7-34xSX160N0-x NZMN2-M200 NZMN2-M200 Z5-160/FF250 DILM185 3 × 170M5008 3 x 170H3004
110 125 196 200 DS7-34xSX200N0-x NZMN2-M200 NZMN2-M200 Z5-220/FF250 DILM225 3 × 170M6008 3 x 170H3004
Notes 1) Rated operational current based on the load cycle specified here.
2) Used to specify the circuit-breaker required for the specified load cycle. At different duty cycles (operating frequency, overcurrent, overcurrent
time, duty factor), this value changes and must then be adapted accordingly.
3) An external overload relay is required if the main contacts should not be disconnected in the event of an overload and a controlled soft stop is
desired instead.
4) A mains contactor is not required. Disconnection characteristics in accordance with VDE can only be ensured with the specified circuit-breaker.
5) The superfast semiconductor fuses protect the soft starter from short circuits on the motor side. This can not, however, prevent damage caused
by voltage peaks, for example through lightning strike.
115
CA04020001Z-EN-INT www.eaton.eu
The unparalleled performance and features behind S801+ and S811+ soft starters
build upon the proven capabilities of our soft starter series. With only five frame sizes
and rated operational currents of 37 A to 1000 A for supply voltages of 200 V
to 690 V, S801+ and S811+ units are some of the world's smallest compact soft
starters.
These three-phase-controlled soft starters, which feature an internal bypass and
comprehensive monitoring and protection mechanisms, provide a soft start and ensure
that three-phase motors can remain in continuous operation safely and reliably even in
applications with large load torques.
S801+ soft starters are designed with standard applications in mind and make a
strong case with their ease of use, while S811+ devices feature a digital control and
display unit that provides access to advanced functions for sophisticated applications.
In addition, S811+ units can be used not only in a standard line (outside the delta)
configuration, but also with an inside-the-delta configuration.
S801+/S811+ Soft Starters –
a Powerful Presence in a Small Design
Soft starter S801+, S811+
CA04020001Z-EN-INT www.eaton.eu
117
S801+/S811+
System overview
Soft starter S801+, S811+ 118
Description
Soft starter S801+, S811+ 119
Key to type references, UL/CSA
Soft starter S801+, S811+ 120
Ordering
Soft starter S801+, S811+ 121
Accessories 123
Engineering
Connection examples S811+...N3S 125
118 Soft starter S801+, S811+
CA04020001Z-EN-INT www.eaton.eu
System overview
S801+ / S811+ 1EtherNet/IP - Modbus/TCP adapter 4
￫ page 121 ￫ page 123
Superfast semiconductor fuses 2External keypad 5
￫ page 104 ￫ page 123
Terminal blocks 3
￫ page 123
2
5
4
1
3
Soft starter S801+, S811+
CA04020001Z-EN-INT www.eaton.eu
119
S801+/S811+
Description
The soft starters in series S801+ assure reliable operation even under tough
and challenging ambient conditions. This series makes a compelling case as
a result of its ease of use and is the perfect choice for standard applications
such as pumps, fans, compressors, and conveyor belts.
S801+ soft starters have three-phase control and are equipped with internal
bypass contacts for continuous operation.With their comprehensive
protection and monitoring functions, S801+ soft starters ensure a soft startup,
as well as safe and reliable continuous operation, for three-phase motors with
rated operational currents of 11 A to 1,000 A when working with mains voltages
of 200 V to 600 V. For example, when used in pump applications, they prevent
water impact by using controlled deceleration (soft stop control) and torque
monitoring, significantly reducing the mechanical loads exerted on pump
systems in the process.
Essential features S801+ / S811+
• Rated operational current: 37 - 1000 A
• Parameterizable overload settings: 31–100%
• Adjustable overload classes: class 5, 10, 20, 30
• Base setting: 15 s start ramp, 4 starts per hour, 300% starting current at 40 °C
ambient temperature
• Allocated motor outputs for in-line connection:
– 7.5 - 250 kW (3~ 230 V)
– 18.5 - 560 kW (3~ 400 V)
• Ambient air temperature: -30 °C to +50 °C
• any required mounting position
• Degree of protection with compact design (IP20 optional)
• 5 compact designs
• Adjustable torque control
• Adjustable kick start
• Efficient use of power achieved with internal bypass contacts during
continuous operation
• 24-V control voltage:
– External supply required
– 1 A continuous current
– 10 A Inrush current (peak value for 150 ms)
S801+ specific characteristics
• Microswitches and potentiometers make it easy to configure these soft
starters
S811+ series soft starters provide all the features and characteristics of S801+
soft starters, plus expanded functionality and an operating unit (DIM = digital
interface module).
With the S811+, motors can be connected using the standard line
configuration or using the delta circuit (inside-the-delta configuration / six-
wire connection). Using an inside-the-delta configuration will reduce the
current flowing through the soft starter by approximately 42%. This way, a 58 A
soft starter can be used to start and run a motor with a rated operational
current of 100 A, for example.
Important operating unit characteristics (S811+)
• Language-neutral LCD display with backlight
• Easy to use and configure with function keys
• System parameter configuration
• Diagnostic and monitoring options
• Reading display (e.g., L1, L2, L3 phase currents)
• Error Display
• Offset placement (mounted on door), connection via plug-in patch cord with
RJ11 plug
• Front IP54
S811+ specific characteristics
• Mains voltage up to 690 V
• Allocated motor outputs for in-line connection:
– 7.5 - 250 kW (3~ 230 V)
– 18.5 - 560 kW (3~ 400 V)
– 160 - 710 kW (3~ 690 V)
• Special pump control algorithm with prolonged soft stop ramp
• In-delta connection, see "Engineering, connecting examples"
• RS485 Modbus Connection
• EtherNet-IP/Modbus-TCP with option C441 (communication adapter).
PREV
Monitoring
ONLN SS OXFDO1 H STOP
ENTERNEXT
120 Soft starter S801+, S811+
CA04020001Z-EN-INT www.eaton.eu
Key to type references
UL/CSA
Information relevant for export to North America
S801+N…, S801+R…, S801+T… (600 V) S801+U…, S801+V... bis 850 A (600 V)
S811+N…, S811+R…, S811+T… (600 V) S811+U…, S811+V... bis 850 A (600 V)
Product Standards IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking
UL File No. E202571 E202571
UL CCN NMFT NMFT
CSA File No. LR 353 LR 353
CSA Class No. 3211-06, 2411-01 3211-06
NA Certification UL Listed, CSA Certified UL Listed, CSA Certified
Conditions of Acceptability None None
Suitable for Branch Circuits, not as BCPD Branch Circuits, not as BCPD
Max. Voltage Rating 600 Vac 600 Vac
Degree of Protection IP20 with kit IP20 with kit
S801+V…, 1000 A (600 V)
S811+V…, 1000 A (600 V) S811+…V3S (690 V)
Product Standards IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking IEC/EN 60947-4-2; UL 508; CE marking
UL File No. E202571 E202571
UL CCN NMFT2 NMFT
CSA File No. LR 353
CSA Class No. 3211-06
NA Certification UL Recognized, CSA Certified UL Listed
Conditions of Acceptability 98-115 CFM fan and 4" x 4" vent req'd None
Suitable for Branch Circuits, not as BCPD Branch Circuits, not as BCPD
Max. Voltage Rating 600 Vac 690 Vac
Degree of Protection IP20 with kit IP20 with kit
S
801+
N
66
N
3
S
N = 65 mm
R = 110 mm
T = 200 mm
U = 200 mm
V = 290 mm
37 = 37 A
66 = 66 A
10 = 105 A
13 = 135 A
18 = 180 A
24 = 240 A
30 = 304 A
36 = 361 A
42 = 420 A
50 = 500 A
65 = 650 A
72 = 720 A
85 = 850 A
10 = 1000 A
Version
S = soft starters
Fitted with
Rated operational current I
e
Number of poles
N = Basic device (S801+/S811+)
P = Pump control (S811+)
V = 690 V rated (S811+)
3 = Three-pole device
S = Standard version
801+ = with adjustable elements
811+ = with keypad
Frame size
Soft starter S801+, S811+
Basic devices
CA04020001Z-EN-INT www.eaton.eu
121
S801+/S811+
Basic devices
Ordering
Frame size Rated operational current Assigned motor rating Part no. Article no. Price
see price list
Std. pack
AC-53
at 230 V, 50 Hz
kW
at 230 V, 60 Hz
HP
at 400 V, 50 Hz
kW
at 460 V, 60 Hz
HP
Ie
A
Soft starters
Supply voltage Us: 24 V DC
Control voltage UC: 24 V DC
With internal bypass contacts
Terminal blocks for the terminals are required for frame sizes T, U, and V -> Accessories
Soft starters for three-phase loads
Mains supply voltage (50/60 Hz) ULN: 200 - 600 V AC
In-line configuration
N 37 7.5 10 18.5 25 S801+N37N3S 169852 1off
66 18.5 20 30 50 S801+N66N3S 169853
R 105 30 40 55 75 S801+R10N3S 169854
135 375075100S801+R13N3S 169855
T 180 55 60 90 150 S801+T18N3S 169856
240 75 75 132 200 S801+T24N3S 169857
304 90 100 160 250 S801+T30N3S 169858
U 361 110 125 200 300 S801+U36N3S 169859
420 132 150 200 350 S801+U42N3S 169860
V 361 110 125 200 300 S801+V36N3S 169863
420 132 150 200 350 S801+V42N3S 169864
500 160 200 250 400 S801+V50N3S 169865
650 200 250 315 500 S801+V65N3S 169866
720 250 - 400 600 S801+V72N3S 169867
850 - - 450 600 S801+V85N3S 169868
1000 - - 560 750 S801+V10N3S 169862
Soft starter for three-phase loads, with control unit
Mains supply voltage (50/60 Hz) ULN: 200 - 600 V AC
In-line configuration/In-delta configuration
N 37 7.5 10 18.5 25 S811+N37N3S 168976 1off
66 18.5 20 30 50 S811+N66N3S 168978
R 105 30 40 55 75 S811+R10N3S 168980
135 375075100S811+R13N3S 168982
T 180 55 60 90 150 S811+T18N3S 168984
240 75 75 132 200 S811+T24N3S 168987
304 90 100 160 250 S811+T30N3S 168990
U 361 110 125 200 300 S811+U36N3S 169869
420 132 150 200 350 S811+U42N3S 169870
V 361 110 125 200 300 S811+V36N3S 168993
420 132 150 200 350 S811+V42N3S 168996
500 160 200 250 400 S811+V50N3S 168999
650 200 250 315 500 S811+V65N3S 169002
720 250 - 400 600 S811+V72N3S 169005
850 - - 450 600 S811+V85N3S 169008
1000 - - 560 750 S811+V10N3S 169011
Notes Information relevant for export to North America ￫ Page 120
122 Soft starter S801+, S811+
Basic devices
CA04020001Z-EN-INT www.eaton.eu
Frame size Rated
operational
current
AC-53
Assigned motor rating Part no. Article no. Price
see price list
Std. pack
at 230 V, 50 Hz
kW
at 230 V, 60 Hz
HP
at 400 V, 50 Hz
kW
at 460 V, 60 Hz
HP
at 690 V, 50 Hz
kW
Ie
A
Soft starters
Supply voltage Us: 24 V DC
Control voltage UC: 24 V DC
With internal bypass contacts
Terminal blocks for the terminals are required for frame sizes T, U, and V -> Accessories
Soft starter for three-phase loads, with control unit and pump algorithm
Mains supply voltage (50/60 Hz) ULN: 200 - 600 V AC
In-line configuration/In-delta configuration
N 37 7.5 10 18.5 25 - S811+N37P3S 168977 1off
66 18.5 20 30 50 - S811+N66P3S 168979
R 105 30 40 55 75 - S811+R10P3S 168981
135 375075100- S811+R13P3S 168983
T 180 55 60 90 150 - S811+T18P3S 168985
240 7575132200- S811+T24P3S 168988
304 90 100 160 250 - S811+T30P3S 168991
U 361 110 125 200 300 - S811+U36P3S 169872
420 132 150 200 350 - S811+U42P3S 169873
V 361 110 125 200 300 - S811+V36P3S 168994
420 132 150 200 350 - S811+V42P3S 168997
500 160 200 250 400 - S811+V50P3S 169000
650 200 250 315 500 - S811+V65P3S 169003
720 250 - 400 600 - S811+V72P3S 169006
850 - - 450 600 - S811+V85P3S 169009
1000 - - 560 750 - S811+V10P3S 169012
Soft starter for three-phase loads, with control unit and pump algorithm, for 690-V grids
Mains supply voltage (50/60 Hz) ULN: 200 - 690 V AC
In-line configuration
T 180 55 60 90 150 160 S811+T18V3S 168986 1off
240 7575132200200S811+T24V3S 168989
304 90 100 160 250 250 S811+T30V3S 168992
V 361 110 150 200 300 315 S811+V36V3S 168995
420 132 150 200 350 400 S811+V42V3S 168998
500 160 200 250 400 500 S811+V50V3S 169001
650 200 250 315 500 630 S811+V65V3S 169004
720 250 - 400 600 630 S811+V72V3S 169007
850 - - 450 600 710 S811+V85V3S 169010
Sizes S801+, S811+
NR T U V
Information relevant for export to North America ￫ Page 120
L
1
L
2
L
3
135
1
L1 L2 3L3 5
Soft starter S801+, S811+
Accessories
CA04020001Z-EN-INT www.eaton.eu
123
S801+/S811+
Accessories
Description For use with Part no.
Article no.
Price
see price
list
Std. pack Information relevant for export to North America
Control unit
With adjusting elements (potentiometer,
microswitch)
S801+ EMA71
144346
1off Product Standards IEC/EN 60947-4-2; UL 508;
CSA C22.2 No. 14;
CE marking
UL File No. E202571
CSA File No. LR 353
Conditions of Acceptability UL unlisted component, CSA
Investigated Component
With illuminated LCD display
With control buttons and function keys
Front IP54
RJ11 plug, 6-pin
S811+ EMA91
144570
Cover
Protection for installation space in
S811+ if the control unit is set up
externally.
S801+ EMA68
144556
1off
Mounting frame
For mounting the EMA91 control unit externally with surface
mounting (e.g., installation in control panel door).
with connection cable RJ11,
6 pole
1 m EMA91 EMA69A
144557
1off Product Standards IEC/EN 60947-4-2; UL 508;
CSA C22.2 No. 14;
CE marking
UL File No. E202571
UL Category Control No. NMFT2
CSA File No. LR 353
CSA Class No. 3211-06
North America Certification UL listed, CSA certified
1.5 m EMA91 EMA69B
144558
2 m EMA91 EMA69C
144559
3 m EMA91 EMA69D
144560
EtherNet/IP - Modbus/TCP adapter
S811+ C441V
172306
1off Product Standards IEC/EN 60947-4-1; UL 508;
CSA C22.2 No. 14;
CE marking
UL File No. E1230
UL Category Control No. NKCR
CSA File No. LR 353
CSA Class No. 3211-03
Max. Voltage Rating 240 Vac (auxiliary contacts)
Control terminal strip
Spare part S801+, S811+ EMA75
144561
1off
Terminal blocks
Tools with dimensions in inches required
1 set required for each connection side.
Terminal capacities
2 x 4-1/0MCM, 2 x 25-50 mm² S801+, S811+, frame
sizes T and U
EML22
127661
1off Product Standards UL 1059
UL File No. E60693
UL Category Control No. NMFT
CSA File No. LR 353
CSA Class No. 6223-02
North America Certification UL listed, CSA certified
Conditions of Acceptability 10A min, Use group C or D,
30 to 12 AWG solid/stranded
Max. Voltage Rating 300 Vac
4/0-500 MCM, 120-240 mm²
S801+, S811+, frame sizes T and U
EML23
127662
Product Standards UL508, CSA C22.2 No. 65
UL File No. E202571
UL Category Control No. NMFT
CSA File No. LR 353
CSA Class No. 6223-02
North America Certification UL listed, CSA certified
2 x 4/0-500 MCM, 2 x 120-240 mm²
S801+, S811+, frame sizes T and U
EML24
127663
1 x 2/0-300 MCM, 1 x 70-150 mm²
S801+, S811+, frame sizes T and U
EML25
127664
2 x 2/0-300 MCM, 2 x 70-150 mm²
S801+, S811+, frame sizes T and U
EML26
127665
2 x 4/0-500 MCM, 2 x 120-240 mm²
S801+, S811+, frame size V
S801+, S811+, frame
sizes T and U
EML28
127666
4 x 4/0-500 MCM, 4 x 120-240 mm²
S801+, S811+, frame size V
EML30
127667
6 x 4/0-500 MCM, 6 x 120-240 mm²
S801+, S811+, frame size V
EML32
127668
4 x 2/0-300 MCM, 4 x 70-150 mm²
S801+, S811+, frame size V
EML33
127669
124 Soft starter S801+, S811+
Accessories
CA04020001Z-EN-INT www.eaton.eu
Accessories
Description For use with Part no.
Article no.
Price
see price
list
Std. pack Information relevant for export to North
America
terminal shroud
For increasing the degree of
protection to IP20
1 set required for each connection
side.
S801+, S811+, frame
size N
SS-IP20-N
171990
1off
S801+, S811+, frame
size R
SS-IP20-R
171991
S801+, S811+, frame
sizes T und U
SS-IP20-TU
171992
S801+, S811+, frame
size V
SS-IP20-V
158650
TVSS
SMD metal-oxide varistors
(MOVs) with connection cables
for the grid and motor connection
sides
S801+, S811+, up to
600 V
EMS39
127671
1off Product Standards UL 508; CSA C22.2
No. 14
UL File No. E202571
CSA File No. LR 353
Conditions
of Acceptability UL and CSA
Investigated
Component
Max. Voltage Rating 1000 Vac 3 ph
S811+, up to 690 V EMS41
127672
1off
Power supplies PSG
Rated output voltage 24 V DC (± 2%)
Rated output current 10 A
Nominal input voltage
100 - 240 V AC
125 – 250 V DC_x
1-phase
PSG240E24RM
172893
Nominal input voltage
3 x 400 - 500 V AC
3-phase
PSG240F24RM
172884
Soft starter S801+, S811+
Connection examples
CA04020001Z-EN-INT www.eaton.eu
125
S801+/S811+
Connection examples
Engineering
Connection examples for S811+…N3S
Standard connection (in-line connection)
Delta circuit (inside-the-delta circuit)
① Snap-on ferrite core, included as standard
② External control voltage (24 VDC) required, IS 1 A, IPeak = 10 A for 150 ms when bypass contacts are switched
Short-circuit and cable protection: Q1 circuit-breakers or F1 fuses.
Motor IEC NEMA
U1-V1-W1 T1-T2-T3
U2-V2-W2 T4-T5-T6
M
3 ~
PE L1 L2 L3
TOR
Enable
Start
Jog
Hand/Auto
Fault/Reset
P12
6T34T22T1
5L33L21L1
+–
(+) U
s
(–) U
s
34 13 14 95 96 98
Q21
M1
Ready/Fault
(+) U
s
24 V DC
(–) U
s
b
a
M
3 ~
TOR
Enable
Start
Jog
Hand/Auto
Fault/Reset
P12
6T34T22T1
5L33L21L1
34 13 14 95 96 98
Q21
M1
Ready/Fault
(+) U
s
24 V DC
(–) U
s
L1
L2
L3
PE
Q11
F2
Q1
I > I > I >
F1
V1 W1U1
V2 W2U2
+–
(+) U
s
(–) U
s
②
①
CA04020001Z-EN-INT www.eaton.eu
Standardized installation procedures, the ability to directly and locally configure
parameters with a plug and play configuration, and networked communications –
these are the needs of material handling system applications today when it comes to
state-of-the-art drive engineering and the systems it produces.
Eaton delivers a modern answer with the Rapid Link 4.0 distributed drive system. With
its flexible power spectrum, its simple handling and its intelligent programming options,
this new motor starter and variable frequency drives generation is the first choice for all
kinds of conveying engineering applications.
RAMO electronic motor starters
Electronic DOL and reversing starters with a lifespan of more than 10 million operations,
degree of protection IP65
Rated operational current, adjustable between 0.3 – 6.6 A when using a three-phase mains
connection with 400 V – 480 V, for rated motor outputs of up to 3.0 kW (400 V) / 3 HP (460 V)
RAMO-D…: DOL starter
RAMO-W…: reversing starter
RASP speed controllers
Frequency-controlled motor starters with Volts-per-Hertz control (V/Hz control) and slip
compensation or vector control, as well as an integrated radio interference suppression filter
(EMC); IP65 degree of protection.
RASP-2…: Rated operational current of 0.48 – 2.4 A with three-phase mains connection
of 400 V – 480 V, allocated motor output of up to 0.75 kW (400 V) / 1 HP (460 V)
RASP-3…: Rated operational current of 0.66 – 3.3 A with three-phase mains connection
of 400 V – 480 V, allocated motor output of up to 1.1 kW (400 V) / 1.5 HP (460 V)
RASP-4…: Rated operational current of 0.86 – 4.3 A with three-phase mains connection
of 400 V – 480 V, allocated motor output of up to 1.5 kW (400 V) / 2 HP (460 V)
RASP-5…: Rated operational current of 1.12 – 5.6 A with three-phase mains connection
of 400 V – 480 V, allocated motor output of up to 2.2 kW (400 V) / 3 HP (460 V)
Distributed Drive System Rapid Link 4.0
Rapid Link 4.0
CA04020001Z-EN-INT www.eaton.eu
127
Rapid Link
System overview 128
Description
Application and function, features 130
Key to type references 131
Ordering
Motor starter RAMO 132
RASP speed controllers 133
Accessories 134
Engineering
General information on Engineering 138
Block diagram DOL starter RAMO-D 140
Block diagram RAMO-W reversing starter 141
Block diagram RASP with 230V brake 142
Block diagram RASP with 400V brake 143
128 Rapid Link 4.0
Rapid Link 4.0
CA04020001Z-EN-INT www.eaton.eu
Rapid L ink 4.0
System overview
3 AC, (N), PE
50/60 Hz
M
3
M
3
18
21
5
10
15
6
1
7
2
3
4
8
9
11 12
12 10
11
13
14
17
20 22
16
19
Rapid Link 4.0
Rapid Link 4.0
CA04020001Z-EN-INT www.eaton.eu
129
Rapid Link
Function modules Motor feeder Power and data bus
Motor starter (Motor Control Unit) 1
Three-phase electronic DOL starter or
reversing starter
￫ page 132
Speed controller RASP (Speed Control
Unit)
2
Three phase frequency-controlled motor
starter (fixed speeds, two rotational
directions, adjustable acceleration and
deceleration ramps)
￫ page 133
Operating unit 3
for parameter setting
￫ page 134
Fans 4
for operation at high temperatures without
derating
￫ page 134
Unscreened motor cable 5
￫ page 134
Screened motor supply cable (EMC) 6
￫ page 134
Energy supply (3 AC 400 V) via circuit-
breaker for overload and short-circuit
protection
7
for protection against short-circuit and
overload
AS-Interface® supply 8
AS-Interface® flat cable 9
AS-Interface® connection cable 10
￫ page 137
AS-Interface® junction 11
￫ page 137
Sensor connection 12
￫ page 137
End-piece for flat cable 13
￫ page 136
Distribution module 14
for 400-V-AC incoming unit of the flat cable
￫ page 135
Power connection cable 15
to flexible busbar junction
￫ page 134
flexible busbar junction 16
￫ page 135
Ribbon cable for 400 V AC 17
￫ page 134
Power connection cable 18
to round cable junction
￫ page 136
Round cable junction 19
￫ page 136
Round cable for 400 V AC 20
Power connection cable 21
to round cable junction
￫ page 136
Round cable junction 22
￫ page 136
CA04020001Z-EN-INT www.eaton.eu
130 Rapid Link 4.0
System
System
Overview of features
Rapid Link 4.0 is a modern, efficient drive and PLC. It is the competent further
development of the Rapid Link 2.1/3.0 device series, suitable for simple and
complex tasks in all aspects of material handling. For example in airports,
industrial production and logistics centers.
The Rapid Link system consists of the RAMO electronic motor starters and the
RASP frequency controlled motor starters.
The RAMO and RASP motor starters are designed with IP65 protection and
can be installed in direct proximity to the drive. Their versions and mounting
depend on the required specifications and the local conditions.
The RAMO and RASP are connected with standard plug connectors to the
energy and databus systems predominantly used in material handling systems
(AS-Interface). Connection can be implemented without interrupting the
required location. This simplifies installation and reduces the wiring
requirement.
RAMO 4.0 electronic motor starters Frequency controlled motor starter RASP 4.0
Application and function Application and function
The RAMO motor starters enable the electronic DOL or reversing starting of
three-phase motors in automatic or manual mode. The electronic overload
protection for motor ratings from 90 W to 3 kW at 400 V (50/60 Hz) is configured
with DIP switches. Full motor protection is ensured when used in connection
with temperature sensors.
The operating mode is set via the AUTO - OFF/RESET – MANUAL key switch
and can be combined with the 'Quick stop' and 'Interlocked manual operation'
via the two sensor inputs (M12 sockets). Operating states are diagnosed and
error messages (Reset) acknowledged on the device or via the AS-Interface.
RAMO is available in different versions:
• with actuator output (24 V DC) for a direct actuation of external switching
devices, e.g. solenoid valves.
• with electronic actuation for mechanical motor brakes.
• with lockable repair switch for diagnostic and maintenance work, making it
possible to safely de-energize the device locally.
Essential features
• Standard size in square enclosure. The bottom section with the two power
terminals (power plug, motor feeder socket) and the repair and maintenance
switch can be turned 90° clockwise and counterclockwise.
• Long lifespan up to 10 million switching operations and up to 3,000 switch
cycles per hour at 2.2 kW.
• Rated operational current 6.6 A.
• Operating and ambient temperature from -10 to +55 °C, without derating.
• Monitoring of thermistor and motor cable.
• Maximum motor cable length: 10 m.
The RASP motor starter enables the infinitely variable speed control of three-
phase motors in the range from zero to 320 Hz . The standard size for 400 V
(50/60 Hz) is assigned four motor ratings: 0.75 kW, 1.1 kW, 1.5 kW and 2.2 kW.
Full motor protection is ensured by the adjustable current limitation
(I2t controller).
The operating mode is set via the AUTO - OFF/RESET – MANUAL key switch
and can be combined with the 'Quick stop' and 'Interlocked manual operation'
via the two sensor inputs (M12 sockets). Settable fixed frequencies and
cyclical program sequences extend the application range and relieve the load
on the higher-level head-end controller (PLC). Operating states are diagnosed
and error messages (Reset) acknowledged on the device or via the
AS-Interface. A hand-held programmer and a PC interface are available for
the parameterization of the variable frequency drive module.
RASP is available in different versions:
• with integrated brake chopper with braking resistance for dynamic braking.
• with electronic actuation for mechanical motor brakes.
• with lockable repair switch for diagnostic and maintenance work, making it
possible to safely de-energize the device locally.
Essential features
• Standard size in square enclosure. The bottom section with the two power
terminals (power plug, motor feeder socket) and the repair and maintenance
switch can be turned 90° clockwise and counterclockwise.
• Monitoring of thermistor and motor cable.
• Operating and ambient temperatures from 0 to +40 °C without derating, with
optional fan in the performance range up to 1.5 kW max. +55 °C.
• Rated operational current: 2.4 A, 3.3 A, 4.3 A, 5.6 A
• EMC class C3 in 2nd environment
• Maximum motor cable length: 5 m.
CA04020001Z-EN-INT www.eaton.eu
Rapid Link 4.0
Key to type references
131
Rapid Link
Key to type referenc es
Electronic motor starters RAMO
Frequency controlled motor starter RASP
RAMO - D A 2 AI1 S - C32 R S1
RAMO
AS-Interface®
2 = 230 V AC
4 = 400 V AC
S = Standard (-10 - 55 °C)
AI1 = S-7.4
AI2 = S-7.A.E.
Type
Option
Breaking resistance
Power connections
Version
S1 = Standard
0 = no option
R = manual override switch
C32 = pluggable at bottom
Ambient temperature
during operation
Starters
D=DOL starter
W=Reversing starter
Output
0 = no output
A = Actuator output
0 = no breaking voltage
RASP - 2 0 2 AI1 S 0 - C32 R S1
RASP
AS-Interface®
2 = 2.4 A
3 = 3.3 A
4 = 4.3 A
5 = 5.6 A
2 = 230 V AC
4 = 400 V AC
S = Standard (0 - 40 °C)
AI1 = S-7.4
Rated operational current
Type
Option
Breaking resistance
Breaking voltage
Connection
Version
Fan
S1 = Standard
0 = no option
R = manual override switch
C32 = pluggable at bottom
0 = no fan
L = fan (only 2.2 kW)
Ambient temperature
during operation
0 = no breaking resistance
1 = integrated
0 = no breaking voltage
132 Rapid Link 4.0
Motor starter RAMO
CA04020001Z-EN-INT www.eaton.eu
Motor starte r RAMO
Ordering
Rated
operational
current1)
assigned motor
rating P2), 3)
Control voltage
external brake
(50/60 Hz)4)
Actuator
output5)
AS-Interface
profile cable
Part no.
Article no.
Price
see price
list
Std. pack
IePP
S-7.4 for
31 modules
S-7.A.E. for
62 modules
A kW HP V AC Number
Motor starter RAMO
Rated operational voltage 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
DOL starters
6.6 0,09 - 3 0,125 - 3 - - ✓-RAMO-D00AI1S-C320S1
150150
1off
230 - ✓-RAMO-D02AI1S-C320S1
150152
230 - - ✓RAMO-D02AI2S-C320S1
171776
230 1 ✓-RAMO-DA2AI1S-C320S1
164321
400 - ✓-RAMO-D04AI1S-C320S1
169799
400 - - ✓RAMO-D04AI2S-C320S1
171778
400 1 ✓-RAMO-DA4AI1S-C320S1
169800
with manual override switch
6.6 0,09 - 3 0,125 - 3 - - ✓-RAMO-D00AI1S-C32RS1
150158
1off
230 - ✓-RAMO-D02AI1S-C32RS1
150160
230 - - ✓RAMO-D02AI2S-C32RS1
171782
400 - ✓-RAMO-D04AI1S-C32RS1
169801
400 - - ✓RAMO-D04AI2S-C32RS1
171784
Reversing starter
with selector switch REV - OFF - FWD
6.6 0,09 - 3 0,125 - 3 - - ✓-RAMO-W00AI1S-C320S1
150151
1off
230 - ✓-RAMO-W02AI1S-C320S1
150153
230 - - ✓RAMO-W02AI2S-C320S1
171777
230 1 ✓-RAMO-WA2AI1S-C320S1
164322
230 1 - ✓RAMO-WA2AI2S-C320S1
174473
400 - ✓-RAMO-W04AI1S-C320S1
169802
400 - - ✓RAMO-W04AI2S-C320S1
171779
400 1 ✓-RAMO-WA4AI1S-C320S1
169803
with manual override switch
6.6 0,09 - 3 0,125 - 3 - - ✓-RAMO-W00AI1S-C32RS1
150159
1off
230 - ✓-RAMO-W02AI1S-C32RS1
150161
230 - - ✓RAMO-W02AI2S-C32RS1
171783
400 - ✓-RAMO-W04AI1S-C32RS1
169804
400 - - ✓RAMO-W04AI2S-C32RS1
171785
Instructions 1) 0.3 - 6.6 adjustable
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
3) at 400 V, 50 Hz
at 440 - 480 V, 60 Hz
4) for actuation of motors with mechanical brake
5) Operation with external 24V DC supply
Rapid Link 4.0
RASP speed controllers
CA04020001Z-EN-INT www.eaton.eu
133
Rapid Link
RASP speed controllers
Rated
operationa
l current1)
assigned motor
rating P3)
Control
voltage
external
brake
(50/60 Hz)3)
with braking resistance4)
Part no.
Article no.
Price
see price
list
Part no.
Article no.
Price
see price
list
Std. pack
IePP
AkWHPV AC
RASP speed controllers
Rated operational voltage 400 V AC, 3-phase
Mains voltage (50/60Hz) ULN 380 (-10%) - 480 (+10%) V
AS-Interface profile cable S-7.4 for 31 modules
2.4 0.75 1 - RASP-200AI1S0-C320S1
150168
RASP-210AI1S0-C320S1
150172
1off
230 RASP-202AI1S0-C320S1
150176
RASP-212AI1S0-C320S1
150180
400 RASP-204AI1S0-C320S1
169805
RASP-214AI1S0-C320S1
169809
3.3 1.1 1.5 - RASP-300AI1S0-C320S1
150169
RASP-310AI1S0-C320S1
150173
230 RASP-302AI1S0-C320S1
150177
RASP-312AI1S0-C320S1
150181
400 RASP-304AI1S0-C320S1
169806
RASP-314AI1S0-C320S1
169810
4.3 1.5 2 - RASP-400AI1S0-C320S1
150170
RASP-410AI1S0-C320S1
150174
230 RASP-402AI1S0-C320S1
150178
RASP-412AI1S0-C320S1
150182
400 RASP-404AI1S0-C320S1
169807
RASP-414AI1S0-C320S1
169811
5.6 2.2 3 - RASP-500AI1SL-C320S1
150171
RASP-510AI1SL-C320S1
150175
230 RASP-502AI1SL-C320S1
150179
RASP-512AI1SL-C320S1
150183
400 RASP-504AI1SL-C320S1
169808
RASP-514AI1SL-C320S1
169812
with manual override switch
2.4 0.75 1 - RASP-200AI1S0-C32RS1
150200
RASP-210AI1S0-C32RS1
150204
1off
230 RASP-202AI1S0-C32RS1
150208
RASP-212AI1S0-C32RS1
150212
400 RASP-204AI1S0-C32RS1
169813
RASP-214AI1S0-C32RS1
169817
3.3 1.1 1.5 - RASP-300AI1S0-C32RS1
150201
RASP-310AI1S0-C32RS1
150205
230 RASP-302AI1S0-C32RS1
150209
RASP-312AI1S0-C32RS1
150213
400 RASP-304AI1S0-C32RS1
169814
RASP-314AI1S0-C32RS1
169818
4.3 1.5 2 - RASP-400AI1S0-C32RS1
150202
RASP-410AI1S0-C32RS1
150206
230 RASP-402AI1S0-C32RS1
150210
RASP-412AI1S0-C32RS1
150214
400 RASP-404AI1S0-C32RS1
169815
RASP-414AI1S0-C32RS1
169819
5.6 2.2 3 - RASP-500AI1SL-C32RS1
150203
RASP-510AI1SL-C32RS1
150207
230 RASP-502AI1SL-C32RS1
150211
RASP-512AI1SL-C32RS1
150215
400 RASP-504AI1SL-C32RS1
169816
RASP-514AI1SL-C32RS1
169820
Instructions 1) Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +40°C
2) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm-1 at 50 Hz or 1800 min-1
at 60 Hz
3) at 400 V, 50 Hz
at 440 - 480 V, 60 Hz
4) for actuation of motors with mechanical brake
5) integrated brake chopper with braking resistance for dynamic braking
134 Rapid Link 4.0
Accessories
CA04020001Z-EN-INT www.eaton.eu
Accessories
Description For use with Part no.
Article no.
Price
see price
list
Std.
pack
Instructions
Communications
Operating unit
for setting the device parameters
with non-volatile parameter memory for copying
parameter sets
Equipment supplied: including 1 m connection
cable with RJ45 connectors
RASP RASP-KEY-S1
156644
1off -
Programming cable
for connecting the device to the PC
For configuring the device's parameters
with the MaxConnect computer program
with RJ 45 plug and USB plug
Length
3.4 m
RASP XMX-CBL-3M4-USB
153448
1off -
Device fans
RASP device fan
for operation at high temperatures without derating
Power supply and control via RASP through M12
plug connector
Enhanced cooling for ambient temperatures of up
to +55 °C for RASP-2…, RASP-3…., and RASP-4...
Spare part for RASP-5...
RASP RASP-FAN-S1
156643
1off -
Motor feeder
Motor cable
for connecting the motor starter to the motor
Length
m
halogen free, 8 x 1.5 mm2, plastic plug 2 RAMO RAMO-CM1-2M0
164282
1off -
5RAMO RAMO-CM1-5M0
164283
1off -
10 RAMO RAMO-CM1-10M
164284
1off -
halogen free, screened, 4 x 1.5 mm2 + 2 x
(2 x 0.75 mm2), plastic plug
2RASP RASP-CM1-2M0
164285
1off -
5RASP RASP-CM1-5M0
164286
1off -
Locking brackets
for the safe isolation of the motor cables from power
For motor cables and motor plugs, disconnection
device to EN 60204-1
RAMO-CM1…
RASP-CM1…
SET-M-LOCK
272085
1off For padlocks
with hasp
thickness up to
8 mm
Power supply at flat cable RA-C1
Flat cable
for 400 V AC/24 V DC decentralized power supply or AS-Interface
halogen free, 7 x 4 mm2RA-C1… RA-C1-7X4HF
230860
100
runn. m
Paint film
contaminant/
silicon-free
Power connection cable
for connecting the device with the 400 V AC flexible busbar junction
with power plug and plug for flexible busbar
junction, halogen-free, 5 x 1.5 mm2
RAMO
RASP
RA-C1-PLF
RA-C3/C1-1,5HF
290210
1off -
I
OK
BACK
RESET
LOC
REM
USB
RJ 45
Rapid Link 4.0
Accessories
CA04020001Z-EN-INT www.eaton.eu
135
Rapid Link
Description For use with Part no.
Article no.
Price
see price list
Std. pack Instructions
Power supply at flat cable RA-C1
Flexible busbar junction 400 V AC/24 V DC
Connection socket for power connection cable
Insulation piercing terminals, terminal
socket with lock mechanism
RA-C1-7X4HF
RA-C3/C1-1,5HF
RA-C1-PLF
290188
5off -
Protection cover
for protecting the 400 V AC/24 V DC flexible busbar junction
- RA-C1-PLF RA-C1-COV
254693
10off -
Plug connector for 400 V AC/24 V DC flexible busbar junction
Plug insert with hood RA-C1-PLF RA-C1-VP-PLM
231574
5off Order cable gland
V-M25 separately.
Distributor module
for feeding the 400-V-AC/24-V-DC of the ribbon cable with a round cable
Termination with piercing screws, 2 x V-
M25 and 2 x V-M20 knockout plates,
connection module with spring-loaded
terminals, connection of round cables up
to 4 mm2.
RA-C1-7X4HF RA-C1-AM-7
290214
5off Order cable gland
V-M25 or V-M20
separately.
Power/AS-Interface connection cable
for connecting the device with the 400 V AC AS-Interface flexible busbar junction
Double cable with outgoer plug (flexible
busbar end) and M12 plug and power
plug (device end)
RAMO
RASP
RA-C1-PLF1
RA-C1-PLM/C3-1M5
112624
1off Can be used when
AS‐Interface
implemented in flat
cable.
400 V AC/AS-Interface flexible busbar junction
Connection socket for power/AS-Interface cable
Insulation piercing terminals, terminal
socket with lock mechanism
RA-C1-7X4HF
RA-C1-PLM/C3-
1M5
RA-C1-PLF1
116904
1off Can be used when
AS‐Interface
implemented in flat
cable.
Power/AS-Interface connection cable
For connecting the device with 400 V AC/24 V DC/AS-Interface flexible busbar
Double cable with connection module
(flexible busbar end) and M12 plug as
well as power plug (device end),
termination with piercing screws,
knockouts
Length 1.5 m
RAMO
RASP
RA-C1-7X4HF
RA-C1-AM/C3-1M5
112625
1off Can be used when
AS‐Interface
implemented in flat
cable.
Distributor module
for the 400V AC feeding to the ribbon cable with a round cable
With 3 flexible busbar inputs and 2 round
cable inputs
Connection of round cables 4 mm2
RA-C1-7X4HF RA-C1-VM-7
264244
2off Order V-M25/V-M20
cable gland and
RA-C1-DF bushing
separately.
Flexible busbar bushing
for bushing for flat cable in distributor module or control cabinet
-RA-C1-VM-7RA-C1-DF
264243
10off -
Distributor module
24 V DC control voltage is taken from the ribbon cable
Termination with piercing screws,
connection sockets with screw contacts
RA-C1-7X4HF RA-C1-VP-AM-2
264315
5off Order cable gland
V-M20 separately
Flexible busbars
for fastening the ribbon cable
- RA-C1-7X4HF RA-C1-FIX
272086
100off One set with 100 clips.
136 Rapid Link 4.0
Accessories
CA04020001Z-EN-INT www.eaton.eu
Description Length For use with Part no.
Article no.
Price
see price
list
Std.
pack
Instructions
m
Power supply at flat cable RA-C1
End-piece
for terminating the ribbon cable
- RA-C1-7X4HF RA-C1-END1
290189
10off -
Tools
For cutting flat cable RA-C1-7X4HF RA-C1-CUT
254690
1off -
for removing casing at the ends of the
flat cable
RA-C1-7X4HF RA-C1-AZ-4
272087
1off A standard
engineer's pliers is
required.
Power supply at round cable RA-C2
Power connection cable
for connecting the device with the round cable junction
with power plug and plug for round
cable junction, halogen-free,
5 x 1.5 mm2
1.5 RAMO
RASP
RA-C2-S1-4
RA-C3/C2-1,5HF
290211
1off -
Round cable junction
Connection socket for power connection cable
for 7 x 2.5/4 mm2, 400 V AC and 24 V DC,
termination with insulation piercing
technology, cable fixing with metal
screws, pre-wired socket insert,
suitable for cable outer diameters
10 - 13 mm.
RA-C3/C2-1,5HF RA-C2-S1-4
257830
1off Equipment supplied:
1 pairs of gaskets
for these cable
diameters, 1 lock
mechanism.
Blanking plug
for closing the last round cable junction in the power line
- RA-C2-S1-4 RA-C2-SBL
265357
10off One set with 10
blanking plugs.
Power supply at round cable RA-C4
Round cable junction
Connection socket for power cables from 2.5 - 6 mm2
T junction via spring-cage terminal, 1.5
to 6 mm2 and/or plug connection of 0.5 -
4 mm2, Enclosure IP65
RA-C4-PPB/C3-
1M5
RA-C4-X/C3-
1M5
RA-C4-PB65
116905
1off Tools required:
Stripping tool AM16
from Weidmüller or
similar.
Enclosure
continuous seals
must be ordered
separately.
Gasket
Slotted enclosure bushing seal
for Ø 11 - 13 mm EPDM round cable,
silicon free and halogen free, IP65
RA-C4-PB65 RA-C4-D13
116907
10off -
for Ø 13 - 15 mm EPDM round cable,
silicon free and halogen free, IP65
RA-C4-PB65 RA-C4-D15
116908
10off -
for Ø 15 - 17 mm EPDM round cable,
silicon free and halogen free, IP65
RA-C4-PB65 RA-C4-D17
116909
10off -
Blanking plug
for closing off unused housing openings
Enclosure seal, closed, EPDM, silicon
free and halogen free, IP65
RA-C4-PB65 RA-C4-D0
116960
10off One set with 10
blanking plugs.
Power connection cable
for connecting the device with the round cable junction
Cable 5 x 1.5 mm2, halogen-free, with
RA-C4-PPB plug for round cable
junction, power plug and gasket IP65
1.5 RAMO
RASP
RA-C4-PB65
RA-C4-PPB/C3-1M5
116962
1off -
Rapid Link 4.0
Accessories
CA04020001Z-EN-INT www.eaton.eu
137
Rapid Link
Power connection cable for user assembly
for connecting the device with the round cable junction
Cable 5 x 1.5 mm2 halogen free, with
ferrules, power plug and IP65 gasket
1.5 RAMO
RASP
RA-C4-PB65
RA-C4-X/C3-1M5
116961
1off -
AS-Interface connection and sensors
Connection clip for AS-Interface flat cable
to AS-Interface incomer/outgoer for connection modules
with integrated AS‐Interface
overvoltage protection, protection
against interference on switch
operations or short-circuit, cable
termination with insulation
displacement
RA-C1-AM-7
RA-C1-AM/C3-
1M5
RA-C1-VP-AM-2
RA-C1-AZPG
112978
1off -
AS-Interface link
M12 connection socket for AS-Interface connection cable
IDC termination RAMO
RASP
ZB2-100-AZ1
082667
1off -
24V/AS-Interface connection cable
for supplying the device with 24 V/AS-Interface
with M12 socket and double outgoer for
AS-Interface and 24 V, cable
termination with insulation
displacement
1RAMO
RASP
RA-XAZ2-1M
292253
1off -
AS-Interface connection cable
for connecting the device with AS-Interface junction
with M12 socket and M12 plug, 3-pole 1 RAMO
RASP
RA-XM12-1M
272057
1off Pins 1, 3, 4 are
assigned
Y connector
For connecting up to 2 sensors per M12 socket
-RASPRA-XM12-Y
290424
1off -
Spare keys
for AUTO - OFF/RESET - HAND key-switches
Lock mechanism MS1 RAMO
RASP
M22-ES-MS1
216416
5off -
Description Length For use with Part no.
Article no.
Price
see price
list
Std.
pack
Instructions
m
138 Rapid Link 4.0
General information on Engineering
CA04020001Z-EN-INT www.eaton.eu
Motor starter selection
All motor starters (RAMO, RASP) can
provide electronic motor protection
and the additional connection of
temperature sensors (thermistor,
ThermoClick, PTC). The motor starters
are available in the following variants,
with or without a lockable repair
switch (mains transfer switch):
• RAMO-D, electronic DOL starter for
one operating direction.
• RAMO-W, electronic reversing
starter (two operating directions).
• RASP, frequency-controlled motor
starter with several speeds for two
operating direction in assigned
ratings.
Electrical mains connection
The motor starters can be connected
to and operated on 400 V three-phase,
star point-earthed AC supply systems
(in accordance with IEC 60364)
without any restriction. The neutral
conductor must be connected for
motor starter variants that actuate a
230 V motor brake.
Safety and protective device
The power bus must have short-
circuit protection. The length of the
power bus depends on the upstream
group protection. Calculations for
design examples are provided in the
Rapid Link manual (MN03406003Z):
• PKZM0-25 motor-protective circuit-
breaker, max. approx. 40 m.
• FAZ C25/3 miniature circuit-breaker,
max. approx. 60 m.
• PKE32/XTU-32 system protective
circuit-breaker, 50 m to 220 m.
The group protective devices listed
here protect:
• the power bus from overloads and
short-circuits.
• the spur lines to the motor starter
(RAMO, RASP) from overloads and
short-circuits.
• the motor feeder of the RAMO
On the RASP frequency-controlled
motor starter, the motor feeder is
protected by the internal variable
frequency drive.
When using residual current devices,
a Type B AC/DC sensitive residual
current circuit-breaker must be used
with the RASP frequency-controlled
motor starter.
EMC compliance
All motor starters observe the
required EMC limit values when
connected as specified. The RASP
frequency-controlled motor starter
must be provided with a shielded
motor cable (RASP-CM1-…) and
installed with the specified EMC
measures. The internal RFI filter
then allows operation in accordance
with category C3 in the second
environment.
The Rapid Link 4.0 electronic drive system enables remote and flexible installation
in the direct proximity of the drive unit. The entire system is designed with protection
to IP65. All electrical connections (mains voltage, motor feeder, sensors) are
implemented simply with the standard connectors that are primarily used in
materials handling applications.
aSensor (light barriers)
bRAMO
cMotor connection cable
dMains connection on power bus
eAS-Interface
①
②
③
④
⑤
Rapid Link 4.0
General information on Engineering
CA04020001Z-EN-INT www.eaton.eu
139
Rapid Link
Terminal Models
The electrical connection in the
power section (mains voltage, motor
feeder) is implemented with plug-in
terminals in the base.
a5-pole power connector for
connecting the 3 AC 400 V mains
voltage, (N), PE.
b8-pole motor feeder socket as per
DESINA specification.
By rotating the base 90 degrees,
connection is also possible from the
right or left. This makes it possible to
keep the operating and connection
area and the heat sink on the RASP in
the preferred vertical position.
Example RASP:
Connection from below (standard)
Connection from the right (90 degree
rotation of the base to the left)
Three installation systems are
available for connecting the power
plug to the mains:
RA-C1, flat cable system
RA-C2, round cable system with plug
connectors
RA-C4, round cable system with
contact connectors
Device variants with a repair switch
(RAMO-…-C32R…, RASP-….-
C32R…) ensure that the drive can be
isolated locally from the power supply
for repair or maintenance work, even
when it is still connected. A padlock
can be used to secure the repair
switch.
The 8-pole motor feeder can be used
to connect:
• a three-phase AC motor
(U1, V1, W1, PE),
• a motor brake (B1, B2) with a
control voltage of 230 V AC or
400 V AC,
• a thermistor or temperature switch
(ThermoClick). These connection
cables (T1, T2) can at the same time
be used to monitor the motor cable
and the connection of the motor
feeder plug.
Example: Motor feeder with shielded
motor cable on the RASP
Control level
The control level features a selector
switch (key switch) for selecting
automatic mode and manual mode
locally. The RAMO-W and RASP motor
starters are also provided with a
selector switch for reversing the
motor direction in manual mode.
The automatic mode and the
control voltage power supply are
implemented via the AS-Interface.
All connections in the control level
(AS-i, sensors etc.) are implemented
with M12 plug connectors. For this the
M12 connectors just have to be fitted
on [1] and rotated to secure them [2]
(see illustration below).
The sensor inputs (I3, I4) enable
the Rapid Link motor starters to
execute sensor-controlled functions
immediately and independently of PLC
and bus cycle times:
• Interlocked manual operation,
• Quick Stop,
• Rotation direction change (on
RAMO-W and RASP),
• Controlled speeds (only RASP)
On the RAMO-DA… and RAMO-WA…
a 24 V DC output (max. 1 A, O3)
also makes it possible to control
external actuators (valves, couplings,
indicator lights) directly.
The functions are selected directly on
the motor starter via microswitches.
On the RASP additional settings
(variable frequency drives) can be
made from a hand-held terminal or
from the parameter software.
①②
3 AC, (N), PE
50/60 Hz
3 AC, (N), PE
50/60 Hz
3 AC, (N), PE
50/60 Hz
581 73PE
T1 T2
M 3 ∼
ϑ
UVWPE
46
B2 B1
PES
≦ 10 m (≦ 32.8 ft)
0
I
II
OFF/RESET
OFF
REV FWD
I3
I4
UV
≦ 20 m
(≦ 65.6 ft)
1
2
M
3 ~
140 Rapid Link 4.0
Connection examples
CA04020001Z-EN-INT www.eaton.eu
Connection examples
Engineering
Block diagram DOL starter RAMO-D
Optional versions:
① Repair and maintenance switch RAMO-D…-C32R…
② Activation of external brake: 230/277 V at RAMO-Dx2… or 400/480 V at RAMO-Dx4…
③ actuator output, RAMO-DA…
123
L1 L2 L3 PE
1234
54
N
1
UVW
T1T2
73PE
PE
12
+24 V
< 160 m A I3 I4
O3
0 V
3
64
B1 B2
58 1234 4
M 3 ∼
ϑ
2
134
(4)
①
②
③
146
358
PE 7
1(2)
3
+24 V
≤ 1 A
2
453
1
ASi+ ASi-(0 V) (+24 V)
3
1
434
Rapid Link 4.0
Connection examples
CA04020001Z-EN-INT www.eaton.eu
141
Rapid Link
Block diagram RAMO-W reversing starter
Optional versions:
① Repair and maintenance switch RAMO-W…-C32R…
② Actuation of external brake: 230/277 V on RAMO-Dx2… or 400/480 V on RAMO-Dx4…
③ actuator output, RAMO-WA…
123
L1 L2 L3 PE
1234
54
N
1
UVW
T1T2
73PE
PE
12
+24 V
< 160 m A I3 I4
O3
0 V
3
64
B1 B2
58 1234 4
M 3 ∼
ϑ
2
134
①
②
③
146
358
PE 7
1
3
(2)
(4)
+24 V
≤ 1 A
2
453
1
ASi+ ASi-(0 V) (+24 V)
3
1
434
(400 V)
(230 V)
142 Rapid Link 4.0
Connection examples
CA04020001Z-EN-INT www.eaton.eu
Block diagram RASP with 230V brake
Optional versions:
① Repair and maintenance switch, RASP-…C32R…
② Activation of external brake (230 V), RASP-…xx2…
③ Device fan, RASP-…L-C32…
④ internal braking resistance, RASP-x1…
Notes:
Y connector RA-XM12-Y is required in order to connect 4 sensors
(I3a, I3b/I4a, I4b) (￫ accessory)
+24 V
RJ 45
0 V
M
123
L1 L2 L3 PE
1234
ASi+ ASi-(0 V) (+24 V)
54
N
1
UVW
T1T2
73PE
PE
12
+24 V
< 160 m A I3aI3(b) I4aI4(b)
F
+24 V
≤ 100 mA
0 V
3
64
B1 B2
58 1234 4
M 3 ∼
ϑ
1234
3
2
(b)
1
(4)
(2)
4
(a)
3
4
①
②
④
③
146
358
PE 7
1
3
2
453
1
=
~
Rapid Link 4.0
Connection examples
CA04020001Z-EN-INT www.eaton.eu
143
Rapid Link
Block diagram RASP with 400V brake
Optional versions:
① Repair and maintenance switches, RASP-…C32R…
② Activation of external brake (400 V), RASP-…xx4…
③ Device fan, RASP-…L-C32…
④ internal braking resistance, RASP-x1…
Notes:
Y connector RA-XM12-Y is required in order to connect 4 sensors
(I3a, I3b/I4a, I4b) (￫ accessory)
+24 V
RJ 45
0 V
M
123
L1 L2 L3 PE
1234
ASi+ ASi-(0 V) (+24 V)
54
1
UVW
T1T2
73PE
PE
12
+24 V
< 160 m A I3aI3(b) I4aI4(b)
F
+24 V
≤ 100 mA
0 V
3
64
B1 B2
58 1234 4
M 3 ∼
ϑ
1234
3
2
(b)
1
(4)
(2)
4
(a)
3
4
①
②
④
③
146
358
PE 7
1
3
2
453
1
CA04020001Z-EN-INT www.eaton.eu
Manufacturers of machines and systems strive to achieve a balance between
the maximum level of functionality and cost optimization. SmartWire-DT is a
communication system for industrial switchgear based on the concept of continued
development in the control panel and peripherals: from control through to protection
and switching, and extending to driving, operation and monitoring. One technology
from which you will profit, now and in the future.
Drives and soft starters – communicate with SmartWire-DT®
Being able to use a controller to directly access all the parameters in soft starters, variable
speed starters, and variable frequency drives via SmartWire-DT® is the epitome of ease of
operation. For example, this enables users to easily read and overwrite setpoints, as well as to
retrieve extended status, error, and diagnostic messages directly and establish absolute data
transparency. Moreover, easy-to-use SmartWire-DT® plug-in units make installation fast and
error-free, with the resulting connection including the control current supply for DS7 soft
starters.
PowerXL™ DE1, DC1, and DA1 devices can be easily expanded with plug-in modules and
connected to SmartWire-DT®, with function blocks enabling simple communication with Eaton
controllers (PLCs, HMIs). Moreover, more advanced communication is also possible based on
the PROFIdrive profile and other profiles as well. This not only makes it possible to configure
all drive parameters, but also provides advanced diagnostic options.
SmartWire-DT® – Cost-optimized
Communication for Switchgear
Contactors Operation &
monitoring
Taxes
Switching Driving
SmartWire-DT™
CA04020001Z-EN-INT www.eaton.eu
145
SmartWire-DT
SmartWire-DT
System overview 146
Ordering
SmartWire-DT Gateways 148
SmartWire-DT accessories 148
146 SmartWire-DT®
CA04020001Z-EN-INT www.eaton.eu
Moeller® series
System overview
4
20
1
55
21
14
15
16
17
18
23
6
19
8
4
5
6
6
6
6
6
2
4
2
3
4
5
5
513
DE1
10
11
9
7
7
6
6
6
622
7
11
12
8
12
4
7
DE1
10
7
SmartWire-DT®
System overview
CA04020001Z-EN-INT www.eaton.eu
147
Moeller® series
SmartWire-DT
System overview
SmartWire-DT HMI-PLC 1
￫ Industrial Switchgear catalog
Data plug Sub-D 9 pole 2
￫ Industrial Switchgear catalog
SmartWire-DT gateways 3
￫ page 148
SmartWire-DT blade terminal 8 pole 4
￫ page 148
SmartWire-DT flat ribbon cable 8 pole 5
￫ page 148
SmartWire-DT external device plug
8 pole
6
￫ page 148
SmartWire-DT module 7, 8
￫ page 11
Soft starter DS7 with electronic motor
protection from PKE
9
￫ Industrial Switchgear catalog
DE1 variable speed starter 10
￫ page 10
DC1 variable frequency drive 11
￫ page 18
DA1 variable frequency drive 12
￫ page 33
SmartWire-DT universal module, front
mount
13
￫ page 149
SmartWire-DT control panel cable
entry for flat to round cable
14
￫ page 149
SmartWire-DT plug connector 15
￫ page 149
RMQ-Titan surface-mounting
enclosure with RMQ-Titan elements
16
￫ Industrial Switchgear catalog
SmartWire-DT plug connector 17
￫ page 149
SmartWire-DT round cable, 8-pole 18
￫ page 149
SmartWire-DT adapter for flat/round
cable for top-hat rail mounting
19
￫ page 149
Soft starter DS7 < 32 A 20
￫ page 103
Soft starter DS7 > 32 A 21
￫ page 103
SmartWire-DT bus termination resistor
for 8-pole flat band conductor
22
￫ page 149
SmartWire-DT planning and ordering
aid, SWD-Assist
23
Note: You can find the entire SmartWire-DT range of products by consulting our industrial main catalog or our online catalog at http://ecat.moeller.net
Features
SmartWire-DT HMI-PLC
• with SmartWire-DT master
interface and PLC function
• Compact design with light plastic
enclosures
• Wide selection of onboard
interfaces
• 3.5” , 5.7” or 7” TFT-LCD screen
SmartWire-DT Gateways
• Connection of SmartWire-DT to
field bus.
• Field bus address setting with dip
switches
• Automatic baud rate detection
• Feeding the supply voltage for the
SmartWire-DT modules
• Supplies the control voltage for the
motor starter or contactor
• Configuration button for automatic
addressing of the SmartWire-DT
slaves.
• Support of up to 99 SmartWire-DT
modules.
SmartWire-DT module
• Function element for connecting to
RMQ-Titan pilot devices.
• Function element for connecting to
DLM contactors
• Function element for connecting to
PKZ/PKE motor-protective circuit-
breakers
• Function module for connecting to
NZM2,3,4 circuit-breakers
• Connection of digital and analog
input/output modules
• DS7 Soft starter connection
• Function element for connecting to
PowerXL™ DC1, DA1 variable
frequency drives and DE1 variable
speed starter
SmartWire-DT Assist (SWD-Assist)
• Easy creation of SmartWire-DT
networks
• Integrated validity check
• Generation of ordering lists.
• Online-Functionality
– Simple pre-commissioning
– Configuration check and
comparison
– Display of parameters and
diagnostics
– easy diagnostics of SmartWire-
DT slave
• Free download under:
http://downloadcenter.moeller.net
148 SmartWire-DT®
Gateways, accessories
CA04020001Z-EN-INT www.eaton.eu
Moeller® series
Gateways, accessories
Ordering
Description Baud Rates Number of
SmartWire-DT
slaves
Part no.
Article no.
Price
see price
list
Std. pack
SmartWire-DT Gateways
supply of the SmartWire-DT modules and switchgear
For connection to PROFIBUS-DP field bus
field bus connection through 9-pin SUB-D socket
Separate RS232 diagnostics interface (RJ45)
up to 12 MBit/s Max. 58 EU5C-SWD-DP
116308
1off
For connection to CANopen® field bus
Field bus connection through 9-pin SUB-D plug
Separate RS232 diagnostics interface (RJ45)
up to 1 MBit/s Max. 99 EU5C-SWD-CAN
116307
For connection to the Ethernet-IP/MODBUS-TCP field bus
Field bus connection via Ethernet Switch
Separate RS232 diagnostics interface (RJ45)
10/100 MBit/s Max. 99 EU5C-SWD-EIP-MODTCP
153163
for connection to field bus PROFINET as PROFINET
IO-Device
Field bus connection via Ethernet Switch
Separate USB diagnostics interface (Mini-USB)
100 MBit/s Max. 99 EU5C-SWD-PROFINET
170124
1off
Flat band conductor, 8 pole
For connecting the SmartWire-DT modules within the control panel
8 pole
not ready-assembled Length 100 m SWD4-100LF8-24
116026
1off
prefabricated with two blade terminals SWD4-8MF2 Length 3 m SWD4-3LF8-24-2S
116027
Length 5 m SWD4-5LF8-24-2S
116028
Length 10 m SWD4-10LF8-24-2S
116029
External device plugs
For connecting the ribbon cable to SmartWire-DT modules in the control panel SWD4-8SF2-5
116022
10off
Link
For bridging open mounting locations for external device plugs
Front fixing
SWD4-SEL8-10
116021
5off
Blade terminal
For connecting the ribbon cable to the gateway, power feeder module, coupling,
SWD4-RC8-10 bus termination resistor
SWD4-8MF2
116023
10off
Coupling
via SWD4 8MF2- blade terminal to connect ribbon cable SWD4-8SFF2-5
116024
1off
Notes Information relevant for export to North America ￫ Page 149
SWD4-8SF2
SWD4-8SF2 SWD4-8S
+ 15V
SWD4-8SFF2-5
SmartWire-DT®
Accessories
CA04020001Z-EN-INT www.eaton.eu
149
Moeller® series
SmartWire-DT
Accessories
Description Part no.
Article no.
Price
see price
list
Std. pack
Network terminator
For the SmartWire-DT bus termination resistor on the SmartWire-DT ribbon cable SWD4-RC8-10
116020
1off
Cable adapters
SWD cable adapters SWD4-8FRF-10
121377
1off
Switch cabinet bushing
For transition from SWD ribbon cable to SWD round cable
Connection of ribbon cable with blade terminal SWD4-8MF2
8 pole
double conductor run pluggable
Additional control voltage feeder for the motor starter and contactors.
Connection round cable via socket SWD4-SFL8-20
121380
1off
Connection round cable via plug SWD4-SML8-20
121381
Round conductor
For laying the SmartWire-DT network outside of the control panel.
For connecting pilot devices in Cl surface mounting enclosures
8 pole
HK-S0-Li2YY, 8 mm diameter
Length 50 m
SWD4-50LR8-24
116030
1off
Connectors for SWD round conductors
8 pole socket
Straight
SWD4-SF8-67
116033
1off
8-pinplug connector
Straight
SWD4-SM8-67
116034
8 pole socket
90° angled
SWD4-SF8-67W
116035
8-pinplug connector
90° angled
SWD4-SM8-67W
116036
Tools for plugs
Pliers for connecting external device plug and ribbon cable SWD4-CRP-1
116025
1off
Pliers for making contacts with blade terminals and ribbon cables SWD4-CRP-2
116699
Universal slave
for configured but not yet installed SmartWire-DT slaves
Front mount
Configuration M22-SWD-NOP
147637
20off
Notes Information relevant for export to North America
UL File No. E29184
UL Category
Control No. NKCR
CSA File No. 2324643
CSA Class No. 3211-07
North America
Certification UL listed, CSA certified
EU5C-SWD-PROFINET
UL File No. E221530
UL Category
Control No. NRQA
CSA File No. UL report applies to both US and Canada
North America
Certification UL listed, CSA certified
+ 15V
SWD4-RC8-10
1 2 3 4 5 6 7 8
+ 15 V
1
4
3
6
2
5
150 Full-load motor-running currents in amperes
corresponding to various AC horsepower ratings
CA04020001Z-EN-INT www.eaton.eu
HP 110 - 120 V 220 - 240 Va,b 360 - 380 V 440 - 480 V 550 - 600 V
Single
phase
Two
phase
Three
phase
Single
phase
Two
phase
Three
phase
Single
phase
Three
phase
Single
phase
Two
phase
Three
phase
Single
phase
Two
phase
Three
phase
1/10 3.0 - - 1.5 - - 1.0 - - - - - - -
1/8 3.8 - - 1.9 - - 1.2 - - - - - - -
1/6 4.4 - - 2.2 - - 1.4 - - - - - - -
1/4 5.8 - - 2.9 - - 1.8 - - - - - - -
1/3 7.2 - - 3.6 - - 2.3 - - - - - - -
1/2 9.8 4.0 4.4 4.9 2.0 2.2 3.2 1.3 2.5 1.0 1.1 2.0 0.8 0.9
3/4 13.8 4.8 6.4 6.9 2.4 3.2 4.5 1.8 3.5 1.2 1.6 2.8 1.0 1.3
1 16.0 6.4 8.4 8.0 3.2 4.2 5.1 2.3 4.0 1.6 2.1 3.2 1.3 1.7
1-1/2 20.0 9.0 12.0 10.0 4.5 6.0 6.4 3.3 5.0 2.3 3.0 4.0 1.8 2.4
2 24.0 11.8 13.6 12.0 5.9 6.8 7.7 4.3 6.0 3.0 3.4 4.8 2.4 2.7
3 34.0 16.6 19.2 17.0 8.3 9.6 10.9 6.1 8.5 4.2 4.8 6.8 3.3 3.9
5 56.0 26.4 30.4 28.0 13.2 15.2 17.9 9.7 14.0 6.6 7.6 11.2 5.3 6.1
7-1/2 80.0 38.0 44.0 40.0 19.0 22.0 27.0 14.0 21.0 9.0 11.0 16.0 8.0 9.0
10 100 48.0 56.0 50.0 24.0 28.0 33.0 18.0 26.0 12.0 14.0 20.0 10.0 11.0
15 135 72.0 84.0 68.0 36.0 42.0 44.0 27.0 34.0 18.0 21.0 27.0 14.0 17.0
20 -94.0 108 88.0 47.0 54.0 56.0 34.0 44.0 23.0 27.0 35.0 19.0 22.0
25 -118 136 110 59.0 68.0 70.0 44.0 55.0 29.0 34.0 44.0 24.0 27.0
30 -138 160 136 69.0 80.0 87.0 51.0 68.0 35.0 40.0 54.0 28.0 32.0
40 -180 208 176 90.0 104 112 66.0 88.0 45.0 52.0 70.0 36.0 41.0
50 -226 260 216 113 130 139 83.0 108 56.0 65.0 86.0 45.0 52.0
60 - - - - 133 154 -103 -67.0 77.0 -53.0 62.0
75 - - - - 166 192 -128 -83.0 96.0 -66.0 77.0
100 - - - - 218 248 -165 -109 124 -87.0 99.0
125 - - - - - 312 -208 -135 156 -108 125
150 - - - - - 360 -240 -156 180 -125 144
200 - - - - - 480 -320 -208 240 -167 192
250 - - - - - 602 -403 --302 - - 242
300 - - - - - - - 482 --361 - - 289
350 - - - - - - - 560 --414 - - 336
400 - - - - - - - 636 --477 - - 382
500 - - - - - - - 786 --590 - - 472
a)To obtain full-load currents for 200 and 208 V motors, increase corresponding 220 - 240 V ratings by 15 and 10 percent, respectively.
b)To obtain full-load currents for 265 and 277 V motors, decrease corresponding 220 - 240 V ratings by 13 and 17 percent, respectively.
Zitiert aus "Power Conversion Equipment - UL 508C, May 3, 2002".
Reproduced from UL 508 C, Power Conversion Equipment, 3rd edition (May 2, 2002) with permission of Underwriters Laboratories Inc.
CA04020001Z-EN-INT www.eaton.eu
Full-load motor-running currents in amperes
corresponding to various AC horsepower ratings
151
Appendix
Minimum fuse sizes for short-circuit protection of three-phase motors
The maximum value depends on the switching device or the overload relay.
Motor power 230 V 400 V 440 V 500 V 690 V
Motor
rated
opera-
tional
current
Fuse Motor
rated
opera-
tional
current
Fuse Motor
rated
opera-
tional
current
Fuse Motor
rated
opera-
tional
current
Fuse Motor
rated
opera-
tional
current
Fuse
Starting Starting Starting Starting Starting
DOL Y/DOL Y/DOL Y/DOL Y/DOL Y/
kWh p.f. (%) A A A A A A A A A A A A A A A
0.06 0.7 58 0.37 2 – 0.21 2 – 0.19 2 – 0.17 2 – 0.12 2 –
0.09 0.7 60 0.54 2 – 0.31 2 – 0.28 2 – 0.25 2 – 0.18 2 –
0.12 0.7 60 0.72 4 2 0.41 2 – 0.37 2 – 0.33 2 – 0.24 2 –
0.18 0.7 62 1.04 4 2 0.6 2 – 0.54 2 – 0.48 2 – 0.35 2 –
0.25 0.7 62 1.4 4 2 0.8 4 2 0.76 2 – 0.7 2 – 0.5 2 –
0.37 0.72 66 264 1.1 4 2 1 4 2 0.9 2 2 0.7 2 –
0.55 0.75 69 2.7 10 41.5 4 2 1.4 4 2 1.2 4 2 0.9 4 2
0.75 0.79 74 3.2 10 41.9 6 4 1.7 4 2 1.5 4 2 1.1 4 2
1.1 0.81 74 4.6 10 62.6 6 4 2.4 4 2 2.1 6 4 1.5 4 2
1.5 0.81 74 6.3 16 10 3.6 6 4 3.3 6 4 2.9 6 4 2.1 6 4
2.2 0.81 78 8.7 20 10 510 64.6 10 6 4 10 42.9 10 4
30.8280 11.5 25 16 6.6 16 10 616 10 5.3 16 63.8 10 4
40.8283 14.8 32 16 8.5 20 10 7.7 16 10 6.8 16 10 4.9 16 6
5.5 0.82 86 19.6 32 25 11.3 25 16 10.2 20 10 920 16 6.5 16 10
7.5 0.82 87 26.4 50 32 15.2 32 16 13.8 25 16 12.1 25 16 8.8 20 10
11 0.84 87 38 80 40 21.7 40 25 19.8 32 25 17.4 32 20 12.6 25 16
15 0.84 88 51 100 63 29.3 63 32 26.6 50 32 23.4 50 25 17 32 20
18.5 0.84 88 63 125 80 36 63 40 32.8 63 32 28.9 50 32 20.9 32 25
22 0.84 92 71 125 80 41 80 50 37 80 40 33 63 32 23.8 50 25
30 0.85 92 96 200 100 55 100 63 50 100 63 44 80 50 32 63 32
37 0.86 92 117 200 125 68 125 80 61 125 80 54 100 63 39 80 50
45 0.86 93 141 250 160 81 160 100 74 125 100 65 125 80 47 80 63
55 0.86 93 173 250 200 99 200 125 90 125 100 79 160 80 58 100 63
75 0.86 94 233 315 250 134 200 160 122 160 125 107 200 125 78 160 100
90 0.86 94 279 400 315 161 250 200 146 200 160 129 200 160 93 160 100
110 0.86 94 342 500 400 196 315 200 179 250 200 157 250 160 114 200 125
132 0.87 95 401 630 500 231 400 250 210 250 250 184 250 200 134 250 160
160 0.87 95 486 630 630 279 400 315 254 315 250 224 315 250 162 250 200
200 0.87 95 607 800 630 349 500 400 318 400 315 279 400 315 202 315 250
250 0.87 95 ––– 437 630 500 397 630 400 349 500 400 253 400 315
315 0.87 96 ––– 544 800 630 495 630 630 436 630 500 316 500 400
400 0.88 96 ––– 683 1000 800 621 800 800 547 800 630 396 630 400
450 0.88 96 ––– 769 1000 800 699 800 800 615 800 630 446 630 630
500 0.88 97 – – – – – – – – – – – – 491 630 630
560 0.88 97 – – – – – – – – – – – – 550 800 630
630 0.88 97 – – – – – – – – – – – – 618 800 630
Instructions The rated motor currents apply to normal internally and surface-
cooled three-phase motors with 1500 rpm.
DOL starting: Starting current max. 6 × rated motor current.
Starting time max. 5 s.
Y/-start: Starting current max. 2 × motor rated current.
Starting time max. 15 s.
Set overload relay in line to 0.58 × motor rated current.
Fuse ratings at Y/ starting apply also to three-phase slipring motors.
For higher rated currents, starting currents and/or longer starting times, larger
fuses will be required. Table applies for time delay and gL fuses (VDE 0636)
For LV h.b.c. fuse with aM characteristics
the fuse should be equal to the rated operational current.
CA04020001Z-EN-INT www.eaton.eu
152 Motor lore
Drives egineering selection
criteria
Each drive task requires a drive motor.
The speed, torque and controllability
of each motor must fulfill the
requirements of the task. The following
generally applies:
the application determines the drive.
The drive motor most frequently used
worldwide in industrial plants and
large buildings is the 3-phase
asynchronous motor. Its robust and
simple construction as well as its high
degrees of protection and standard
types are the main features of this
inexpensive electric motor.
Motor connection
When connecting a 3-phase motor to
the mains supply, the data on the
rating plate of the motor must
correspond to the mains voltage and
frequency.
The standard connection is
implemented via six screw terminals in
the terminal box of the motor and with
two types of circuit, the star
connection and the delta circuit,
depending on the mains voltage.
The rotation direction of a motor is
always determined by directly looking
at the drive shaft of the motor (from the
drive end). On motors with two shaft
ends, the driving end is denoted with
D (= Drive), the non-driving end with
N (= No drive).
Regardless of the circuit type and the
type of three-phase asynchronous
motor, the connections must be
labeled, so that their alphabetical
sequence (e.g. U1, V1, W1)
corresponds with the order of the
mains voltage phase sequence
(L1, L2, L3) and causes the motor to
rotate clockwise.
On the three-phase asynchronous
motor, three windings are arranged
offset from each other by 120°/p
(p = number of pole pairs). To generate
a rotating field in the motor, an
alternating voltage is applied to each
phase in turn at a time delay of 120 °.
The effect of inductance causes the
rotation field and torque to be formed
in the rotor winding. The speed of the
motor thus depends on the number of
pole pairs and the frequency of the
supply voltage. The operating
direction can be reversed by swapping
over two of the supply phases.
Information on the rating plate
The electrical and mechanical rating
data of the motor must be stated on its
rating plate (IEC 34-1, VDE 0530). The
data on the rating plate describes the
stationary operation of the motor in the
area of its operating point (MN, e.g. at
400 V and 50 Hz). The operational data
is unstable in the motor start phase.
The following examples show the
rating plates for two motors with a
motor shaft output of 4 kW and the
respective connection circuits on a
3-phase AC network with 400 V and
50 Hz.
U1 V1 W1
W2 U2 V2
90°
0
L1
L
2
L
3
360°
L
120° 120° 120°
180°
270°
Clockwise
(FWD)
Anticlockwise operation
(REV)
FWD = forward run (clockwise
rotation field)
REV = reverse run (anticlockwise
rotation field)
L1 L2 L3
U1 V2
W3
L1 L2 L3
U1 V2
W3
Star circuit Delta circuit
, ,
• With the specified 230/400 V voltage,
this motor must be connected to the
3-phase system (ULN = 400 V) in a
star-connected circuit.
• With the specified 400/690 V voltage,
this motor must be connected to the
3-phase system (ULN = 400 V) in a
delta circuit.
• The voltage of each motor winding is
designed for 230 V. The windings
must therefore be connected in
sequence to the phase voltage (400 V).
• Each motor winding is designed here
for the maximum phase voltage of
400 V and can be connected directly.
• The three winding phases
(W2-U2-V2) are configured in the
terminal box to the so-called star
point. The voltage of the individual
phases to the star point is 230 V
(= UW).
• The three winding phases (U1 – W2,
V1 – U2, W1 – V2) are combined in
the terminal box and connected
directly to the individual phases.
1410 min-1
230 / 400 V 14.5 / 8.5 A
50 Hz
IP 54 Iso. KI F
4.0 KWS1 cos ϕ 0.82
△ / 
1410 min-1
400 / 690 V 8.5 / 4.9 A
50 Hz
IP 54 Iso. KI F
4.0 KWS1 cos ϕ 0.82
△ / 
L1 L3L2
V1
V2
U1 W1
W2
U2
U
LN
I
LN
L1 L3L2
U1
W1
V1
V2
W2
U2
ULN
ILN
ULN 3U
W
=
LN IW
=
ULN UW
=
LN 3I
W
=
U1 V1 W1
W2 U2 V2
U1 V1 W1
W2 U2 V2
Startup characteristics
The following figure shows the
characteristic startup curves of a
3-phase asynchronous motor.
IA: Starting current
IN: Rated operational current at the
operating point
MA: Starting torque
MB: Accelerating torque (MM > ML)
MK: Breakdown torque
ML: Load torque
MM: Motor torque
MN: Rated load torque, (stable operating
point, intersection point of the
3-phase speed torque characteristic
with the load characteristic)
MS: Pull-up torque
n: Speed (actual value)
nN: Rated speed at the operating point
nS: Synchronous speed
(nS - nN = slip speed s)
Synchronous speed:
Slip speed in %:
3-phase asynchronous motor speed:
f Frequency of voltage in Hz (= s-1)
n: Speed in r.p.m.
p Number of pole pairs
s: Slip speed in r.p.m.
Electric power:
P1: Electrical power in W
U: Rated operating voltage in V
I: Rated operational current in A
cos ϕ: Power factor
Motor output (power equation):
P2: Mechanical shaft output power in kW
MN: Rated torque in Nm
n: Speed in r.p.m.
Efficiency:
M
N
n
N
n
n
S
M
A
M
M
M
B
M
K
M
L
M
S
I
A
I
N
M, I
0
ns
f
p
---=
snsn–
ns
--------------100%=
nf
p
---1s–=
P1UI 3 cos=
P2
MNn
9550
-----------------=
P2
P1
-----=
CA04020001Z-DE-INT.indd 196 27.06.13 08:31
Eaton is providing its customers with CAD data
to offer optimum support during planning. Both
electrical and mechanical design data can be called
up quickly and conveniently from the Internet
at any time. This reduces processing times,
minimizes errors and thus reduces costs already in
the engineering phase of control panels, systems
and machinery.
eCAD: Eaton has product data and macros available for EPLAN Electric P8.
After downloading the small EPLANSelection program, you will not only be
able to select the items you need from a database containing more than
10,800 products, but will also be able to export them and import them into
your own EPLAN item database.
mCAD: Eaton makes 2D and 3D data available for more than 11,000 products.
Over 80 different neutral and native formats guarantee compatibility with the
project engineering systems of the customer. The models can either be inte-
grated directly into the planning software from the Partcommunity Portal on
the Internet or via the CADENAS Partsolution software.
Planning safety and process
optimization – CAD data at the
click of a mouse!
• 10,800 article data items
and macros
• Convenient selection tool
• Version P8
• Models for approx.
11,000 products
• 80 different neutral &
native formats
URL
www.eaton.eu/cad
Werbeseiten_DE_EN.indd 1Werbeseiten_DE_EN.indd 1 02.06.15 13:0002.06.15 13:00
Worldwide export of machines
and plants
European machine and system building and worldwide exports are
closely related. Even if you don't export your machines at present,
you should be prepared for it in the future. Eaton provides switchgear
and protective devices with all the essential approvals and certificates
for machine and system building. In most countries around the world,
conformity with international standards is the sole requirement for
successful exports. This is because components in these locations
are governed by compliance with well known and established IEC
standards. In this respect, the European CE mark is not only the
passport for exports within Europe but also far beyond its borders.
World market equipment for machine building
Nearly all the switchgear and protective devices of Eaton's Moeller®
series are world market devices. Each product line thus carries all the
approvals and certification marks required for worldwide use.
These product lines include those for
• Pilot devices, limit switches
• Contactors and various timing and special relays
• Motor-protective circuit-breakers and relays
• Electronic components and systems.
With circuit-breakers and switch-disconnectors, Eaton offers IEC
devices for use in most countries in the world and NA devices with
virtually the same dimensions and the same accessories for the North
American market. This considerably simplifies device selection since
the North American standards often involve the need for considerably
different technical specifications.
Werbeseiten_DE_EN.indd 2Werbeseiten_DE_EN.indd 2 22.05.15 11:1622.05.15 11:16
Electrical engineering products and their applications are not harmonized
internationally.
The greatest differences to the IEC world are in North Ame-
rica, i.e. the USA and Canada. For many newcomers to the
export business, it is initially surprising to experience the very
different approaches and solutions.
Special components, such as handles for main switches
that can only be operated by the intentional switching of an
additional handle when the control panel door is opened, may
sometimes be required for export to North America. Like-
wise, the European motor-protective circuit-breaker is only
accepted with an upstream protective device or with larger
air and creepage distances at the incoming terminals. Eaton
is the competent partner of choice for export-related issues
here.
Qualified information is a critical key to success
The Eaton Main Catalogue for Moeller® series products provides reliable
information for machine and panel builders on the approval of components
deployed for North American market. Each selection page provides informa-
tion such as the relevant product standard, the E-File Number, the Category
Control Number or the CSA Class Number. Many customers incorporate this
information in their parts lists in order to be well prepared for the acceptance
procedures.
Anyone wishing to avoid unfortunate experiences, should make use before-
hand of the large number of publications that Eaton is offering on the issue
of exports to North America. They contain the implementation of the codes &
standards and a description of different practices.
These technical articles can be accessed via
http://www.eaton.eu/Europe/OurCompany/News/Publications/index.htm
They can be downloaded free of charge.
The link http://applications.eaton.eu shows
the relevant approvals or permits for each
component type. This therefore enables you
to view the certificates provided or, depen-
ding on the test authority, also the product
report. The information given is the same
as what is provided in the databases of the
authorities.
Up to 13 data items are listed here for
each product, such as the suitability
for use in feeders or branch circuits,
the maximum operating voltage, or the
North American degree of protection,
such as UL / CSA Type 4X. The Main
Catalogue also contains a glossary with
explanations of the American terms.
Technical Paper
Dipl.-Ing. Wolfgang Esser
Second, supplemented edition 2010
Special considerations governing the
application of Manual Motor Controllers
and Motor Starters in North America
Motor Starters for USA and Canada
Moeller® series www.eaton.com/moellerproducts
P
acka
g
i
n
g
M
a
chi
n
e
SAFETY
GATE
4
OPEN
Product selection for
North American exports
made easy
Technical Paper
Dipl.-Ing. Wolfgang Esser
SUSA and Canada
Moeller® series www.eaton.com/moellerproducts
witchgear for
Technical Paper
Dipl.-Ing. Wolfgang Esser
Safe Isolation of Main Circuits
with Switch-Disconnectors
N
or
with Molded Case Switches
NS
USA and Canada
Moeller® series www.eaton.com/moellerproducts
Main Switch for
Werbeseiten_DE_EN.indd 3Werbeseiten_DE_EN.indd 3 22.05.15 11:1622.05.15 11:16
At Eaton, we believe that building and maintaining strong relationships with our customers is something
that deserves our undivided attention.
This is why you can rest assured knowing that you will be able to count on us for every project from the
very start. To find out whom to contact for your needs, please visit our website:
In just a few steps, we will get you the contact information for
the person or team in charge of support for your specific industry
in your region.
To find the right contact person:
To find the right contact person
anywhere in the world, visit:
www.eaton.eu/contact
Werbeseiten_DE_EN.indd 4Werbeseiten_DE_EN.indd 4 22.05.15 11:1622.05.15 11:16
Support and Service for UPS Systems and
Hydraulic System Solutions
Questions regarding uninterrupted power supplies (UPS)?
Our Technical Service staff will be more than glad to assist
you if you are experiencing any difficulties with an Eaton
UPS, DC power supply system, or any other Power Quality
product.
Our Technical Support staff is there to answer any
questions you may have regarding our products.
To find the right contact person anywhere in the world,
please visit
www.eaton.eu/contact
Questions regarding hydraulic system solutions?
Simply contact our customer service head office in
Baden-Baden and our staff will be glad to put you in
contact with a local contact person.
Customer Service:
Eaton Hydraulics Group
Dr.-Reckeweg-Straße 1
D-76532 Baden-Baden
Germany
Phone: +49 (0)7221 682 - 0
Fax: +49 (0)7221 682 - 788
E-mail: customersupportemea@eaton.com
Eaton is known for its unparalleled after-sales support for all
low-voltage switchgear, switchgear systems, and services.
For more detailed information, as well as to view our terms
and conditions, please visit
www.eaton.eu/aftersales
Europe, Middle East, Africa24/7
Hotline
For immediate support please call +49 (0) 180 5 223822*
(24/7). You will receive competent and fast, round the clock
assistance, with unplanned machine and system stand stills,
system malfunctions and device failures.
(* 0,14 Euro per minute from the Deutsche Telekom network
AG)
Building a strong relationship with you is of utmost
importance to us. This is why you can count on us to quickly
get your questions, requests, and suggestions to the relevant
specialists. After all, your challenges are our challenges.
Eatons After Sales Service
Helpdesk
Eaton specialists: +49 (0) 228 602 3640 (Monday – Friday from
08:00 – 16:00 CET) or contact your local Eaton representative.
We offer extensive support from commissioning to
application queries as well as in the area of fault analysis,
which can also include remote diagnostics.
We can also offer you an individual consulting service
contract which is tailor-made to suit your requirements.
If you would like to communicate your service queries in
writing, please use the following e-mail address:
AfterSalesEGBonn@eaton.com
Werbeseiten_DE_EN.indd 5Werbeseiten_DE_EN.indd 5 22.05.15 11:1622.05.15 11:16
You can find comprehensive up-to-date product information at http://ecat.moeller.net
Lookup
You can search by keywords, product names, article numbers,
technical data: The search understands everything and takes
you straight to the product you’re looking for.
Graphical navigation
Graphical representation of the fields of application and
product groups.
Selection aids
Tailored to the typical expert’s approach, this search aid helps
you quickly find the product you need.
Data sheets
For every article the catalog can generate a technical data
sheet, which you can convert to a PDF file for printing or
saving with a single click.
Parts lists
From your search results you can create a parts list that you
can then send to your Eaton sales partner as a query.
You can find comprehensive up-to-date
information about Eaton’s automation
products and switchgear in our Online
Catalog.
Eaton Online Catalog – find product
details quickly and efficiently!
HTML data sheet; can be saved as PDF file.
Parts list, e.g. for queries to Eaton Sales.
E
at
o
n.c
o
m
E
aton has been serving the power management needs of
our customers for more than a century. Over the years,
w
e have expanded our expertise and portfolio of products
a
nd services by uniting some of the world’s most respected
names with Eaton’s strong heritage o
f
innovation.
Our goal is simple; to provide unique solutions across a
w
ide range of markets that keep businesses on the leading
edge of change. That’s the power of One Eaton
.
18741833 1911 19141893 198319621961 1989198419771908190618991897 1963 19671934
BRAND
INCEPTION
DATES:
CA04020001Z-DE-INT_Umschlag.indd 7-9CA04020001Z-DE-INT_Umschlag.indd 7-9 22.05.15 11:0722.05.15 11:07
Changes to the products, to the information contained in this document, and to prices
are reserved; so are errors and omissions. Only order confirmations and technical documenta-
tion by Eaton is binding. Photos and pictures also do not warrant a specific layout or function-
ality. Their use in whatever form is subject to prior approval by Eaton. The same applies to
Trademarks (especially Eaton, Moeller, Cutler-Hammer). The Terms and Conditions of Eaton
apply, as referenced on Eaton internet pages and Eaton order confirmations.
DE1 variable speed starters DC1, DA1, DG1 and SVX/SPX variable frequency drives
DS7 and S801+/S811+ soft starters Rapid Link 4.0 distributed, electronic drive system
Eaton Industries GmbH
Hein-Moeller-Str. 7–11
D-53115 Bonn / Germany
© 2014 by Eaton Corporation
All rights reserved
Printed in Germany 06/15
Publication No.: CA04020001Z-EN-INT
Doku/DHW/ip/MP 05/15
Article No.: 170504
Eaton is a registered trademark of Eaton
Corporation
All other trademarks are property of their
respective owners.
SmartWire-DT® is a registered trademark of
Eaton Corporation.
Product range catalog for variable speed starters, variable frequency drives, soft starters, Rapid Link
Product Range Catalog
Efficient Engineering for
Starting and Controlling Motors
At Eaton, we’re energized by the challenge of powering a world
that demands more. With over 100 years experience in electrical
power management, we have the expertise to see beyond today.
From groundbreaking products to turnkey design and engineering
services, critical industries around the globe count on Eaton.
We power businesses with reliable, efficient and safe electrical
power management solutions. Combined with our personal
service, support and bold thinking, we are answering tomorrow’s
needs today. Follow the charge with Eaton.
Visit eaton.com/electrical.
CA04020001Z-DE-INT_Umschlag.indd 4-6CA04020001Z-DE-INT_Umschlag.indd 4-6 22.05.15 11:0722.05.15 11:07
(pages 35 and 37 corrected in 12/2015)

Navigation menu
