Application Selection Guide
Electrical Products
TRANSFORMERS CONTACTORS SWITCHES REGULATORSTHERMOSTATS RELAYS TIMERS THERMOMETERSHEAT SEQUENCERS CONTROLLERS
Connect to more electric heat opportunities with

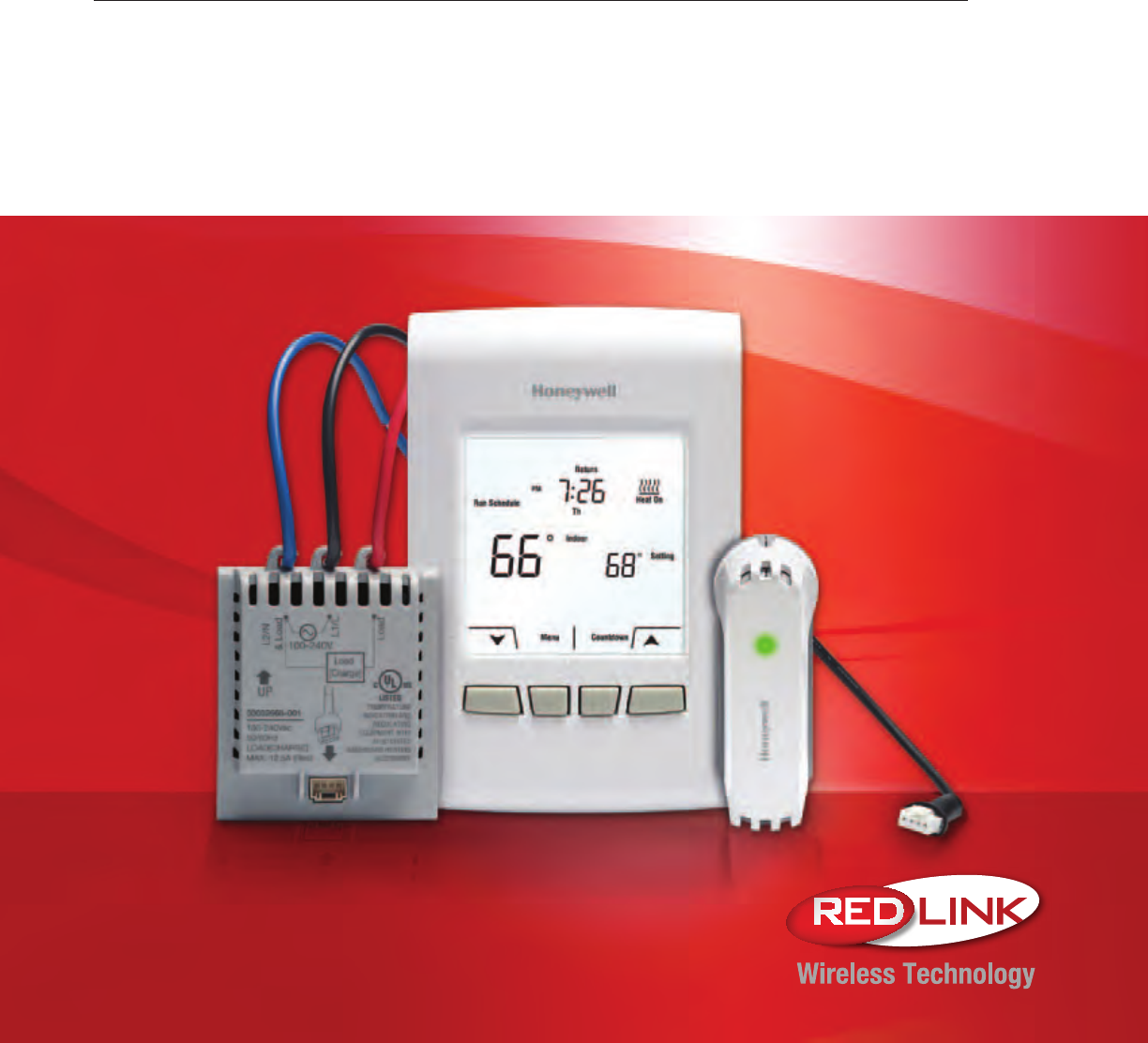

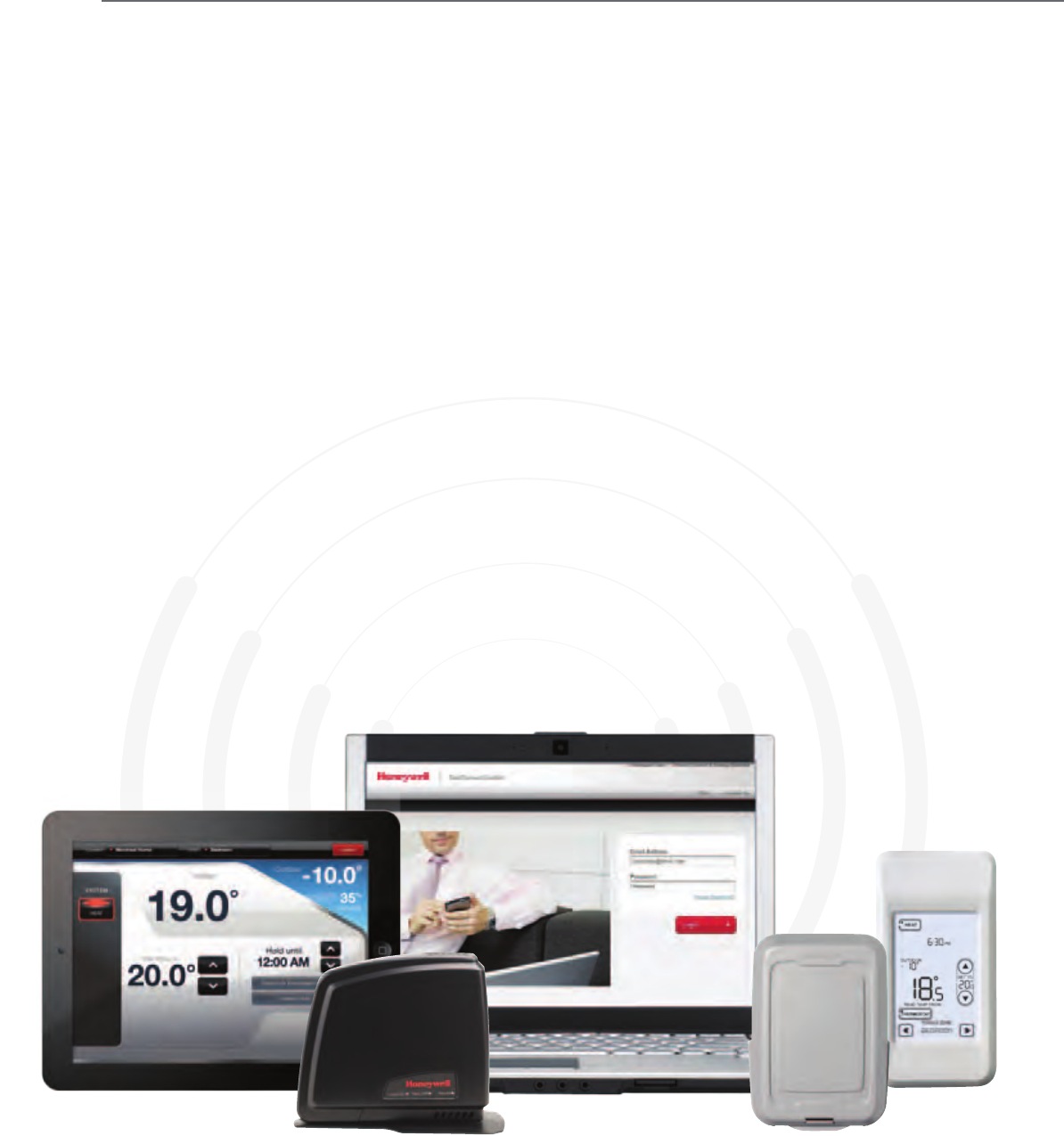

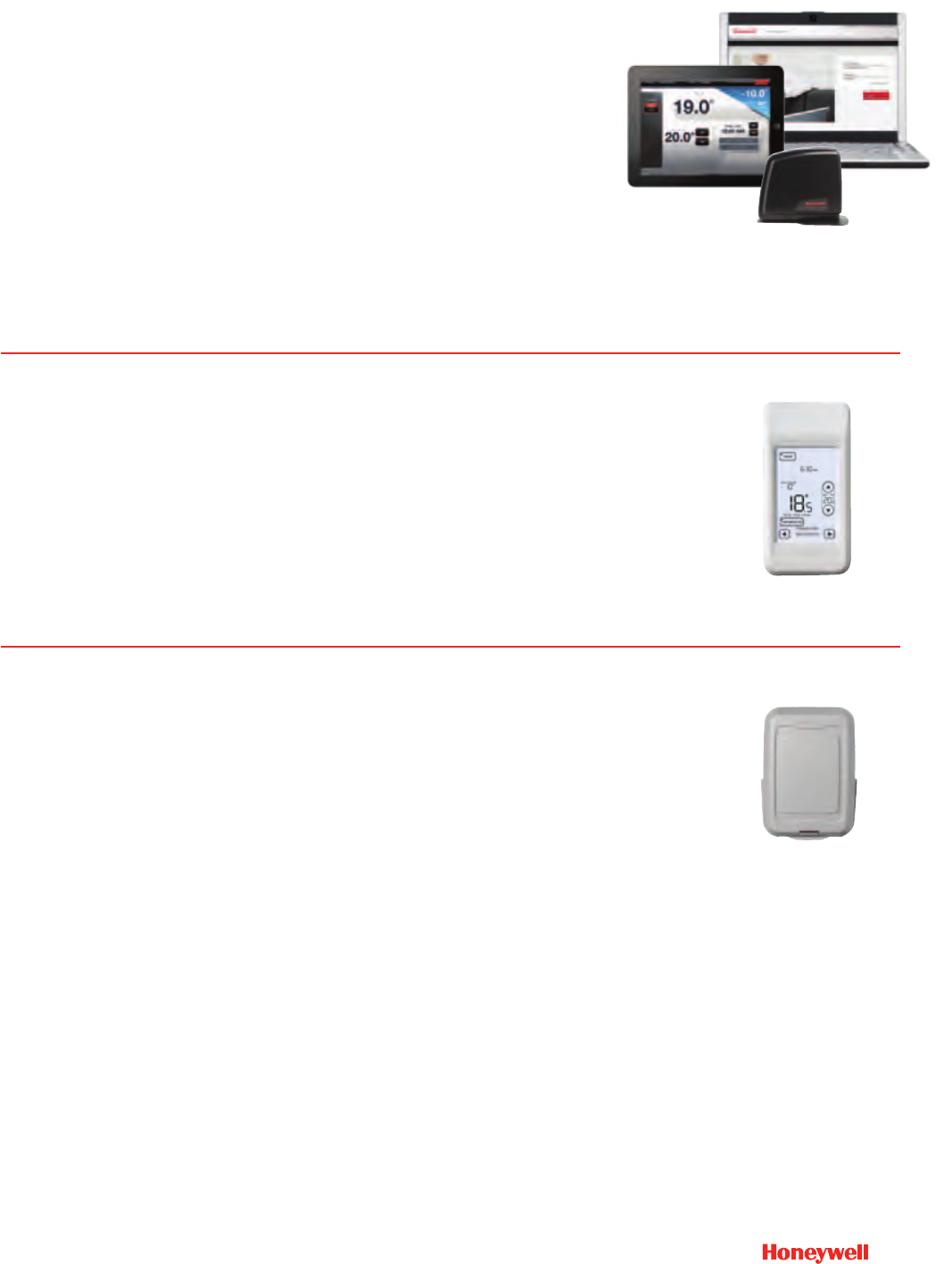

EConnect™ Wireless Comfort Control Systems For Electric Heat
• Wireless thermostat can be placed anywhere to maximize sensing and comfort control
• Compatible for direct mounting on most baseboards with knockouts
• Can be mounted on a remote junction box for baseboard, convector and fan-forced heater applications
• Simple, plain-language user interface for easy thermostat setup & programming
• Can be configured as programmable or non-programmable
Model Description
YTL9160AR1000 Thermostat and Equipment Interface Module Kit
TLM1110R1000 Equipment Interface Module Only
TM
Powered by RedLINK™ - the first wireless technology engineered specifically for HVAC
applications is now also available for the electrical industry.
3
Table of Contents
SECTION PAGE
Thermostats – Line volt .....................................6
RedLINKTM Accessories ...................................16

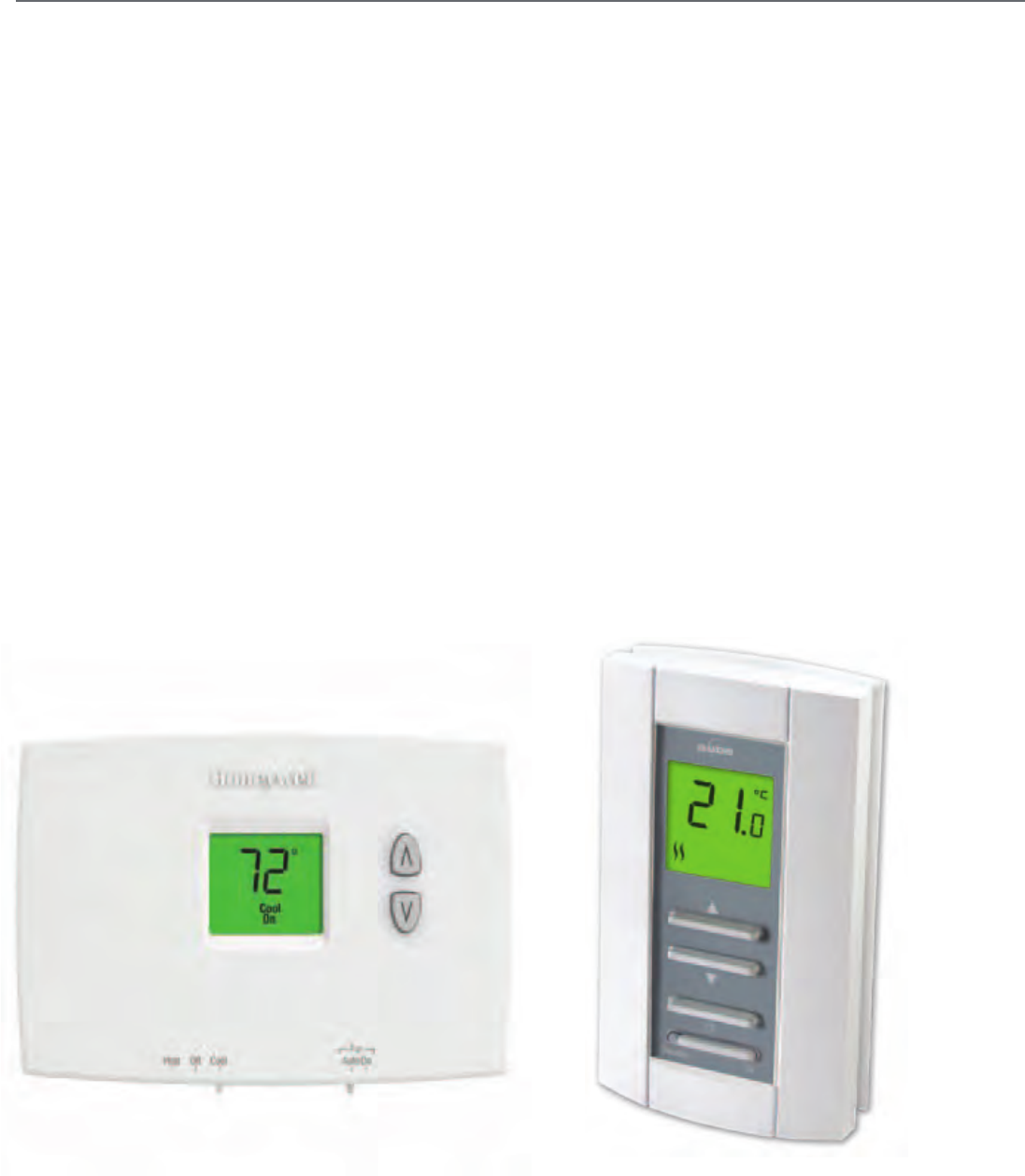

Thermostats – Low volt ...................................18

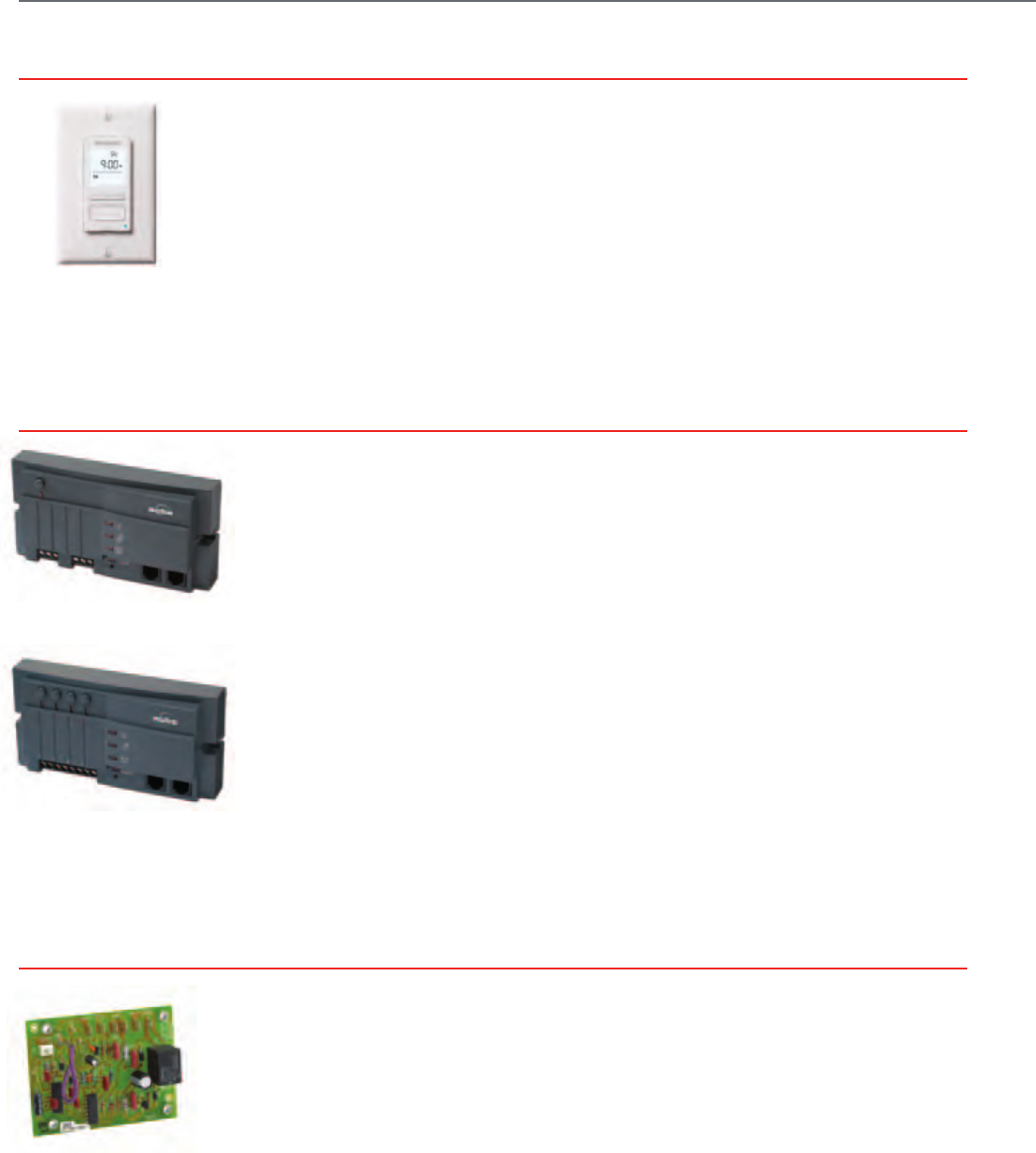

Switches and Timers ......................................26

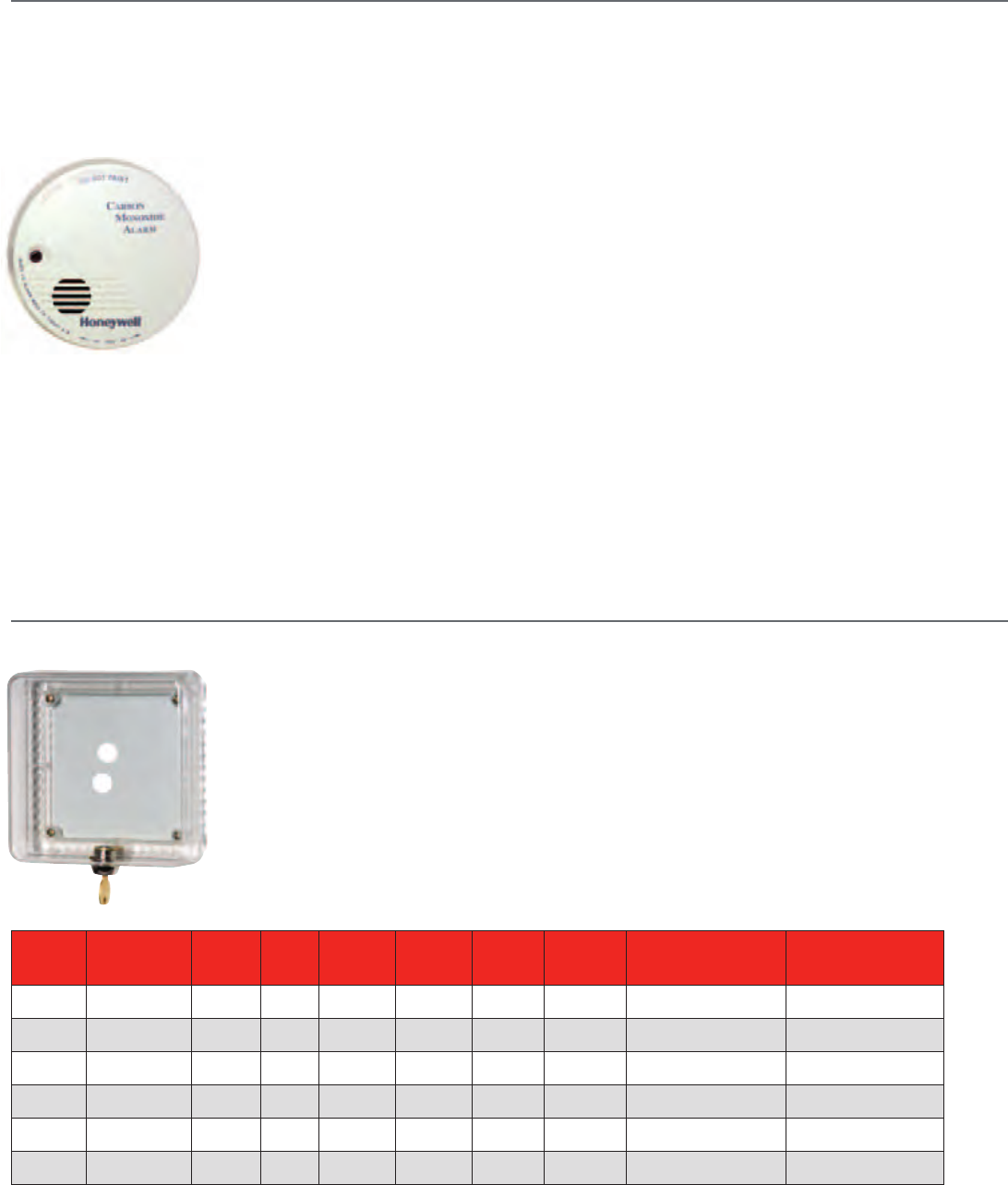

CO Detectors ..................................................30
Thermostat Guards ..........................................30

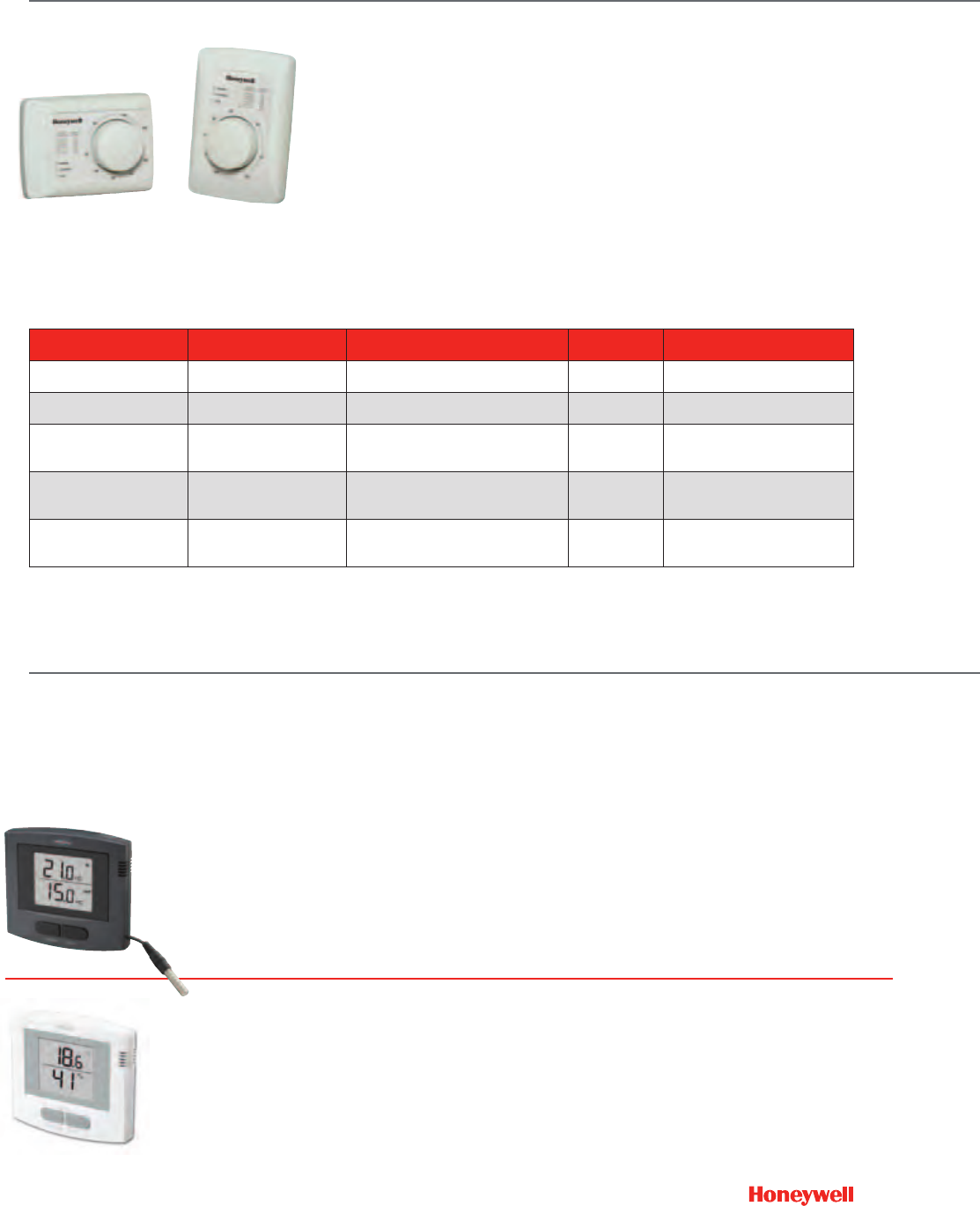

Humidistats & Thermometers ..........................31

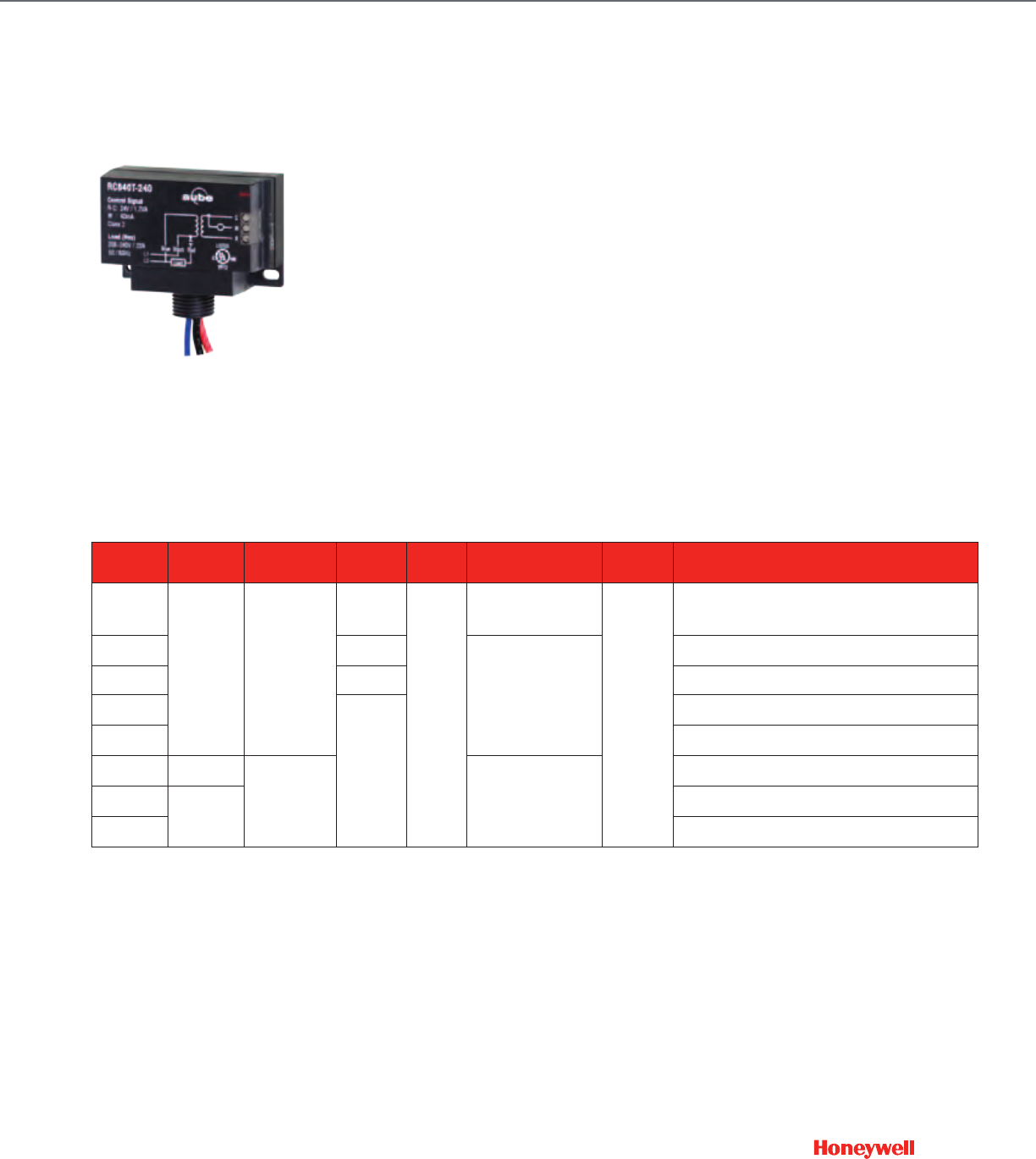

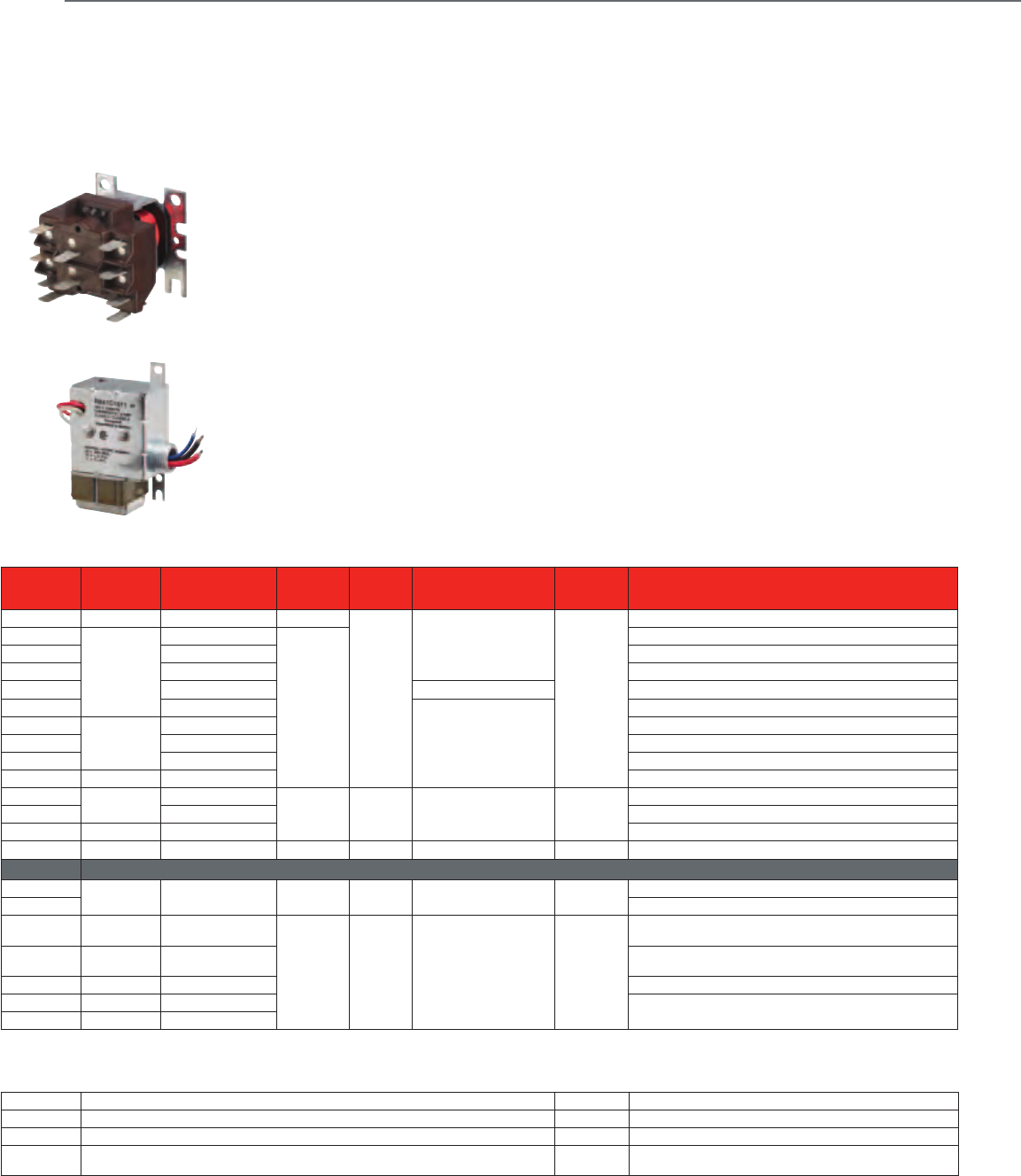

Relays .............................................................32

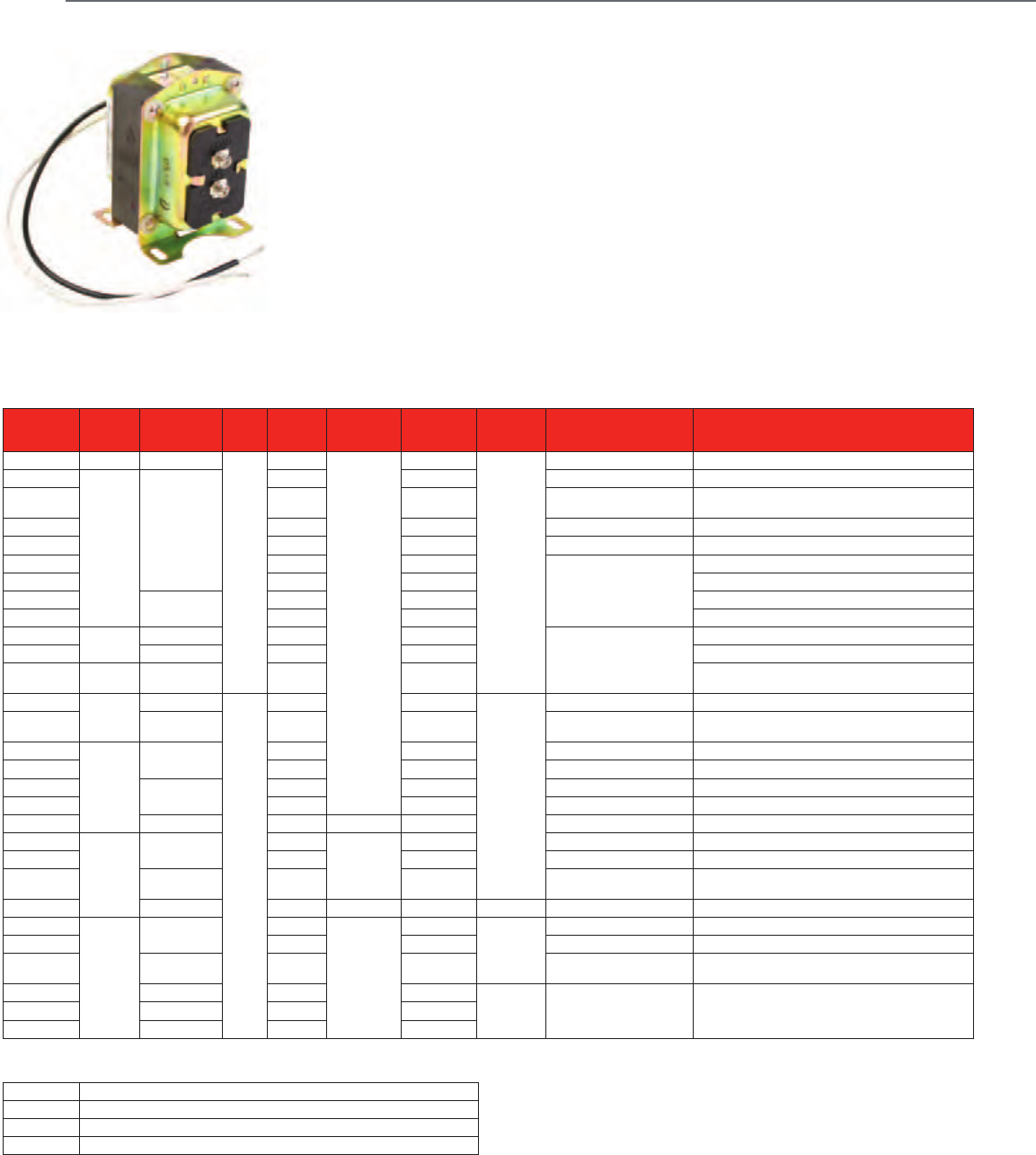

Transformers ...................................................34

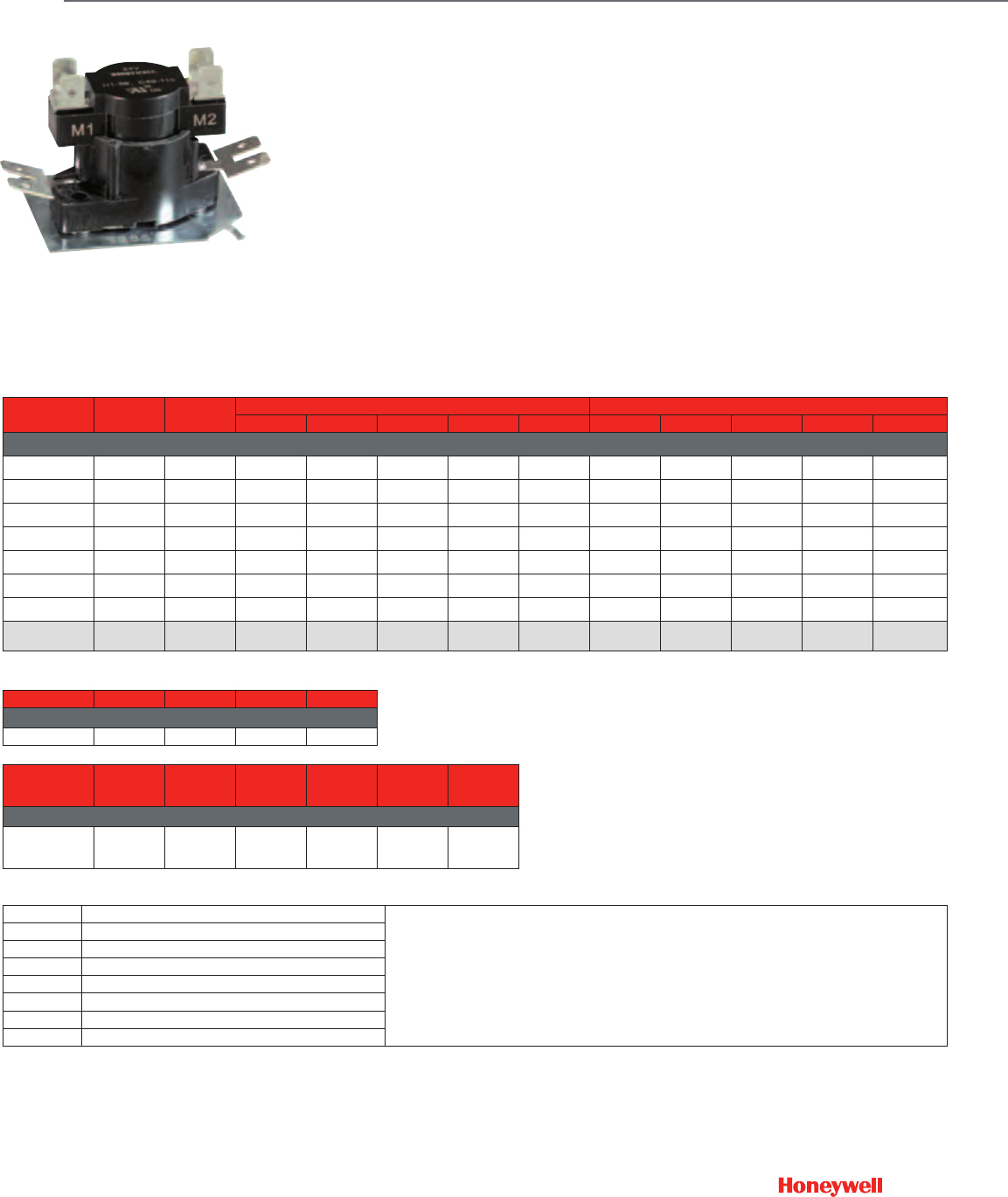

Heat sequencers .............................................35

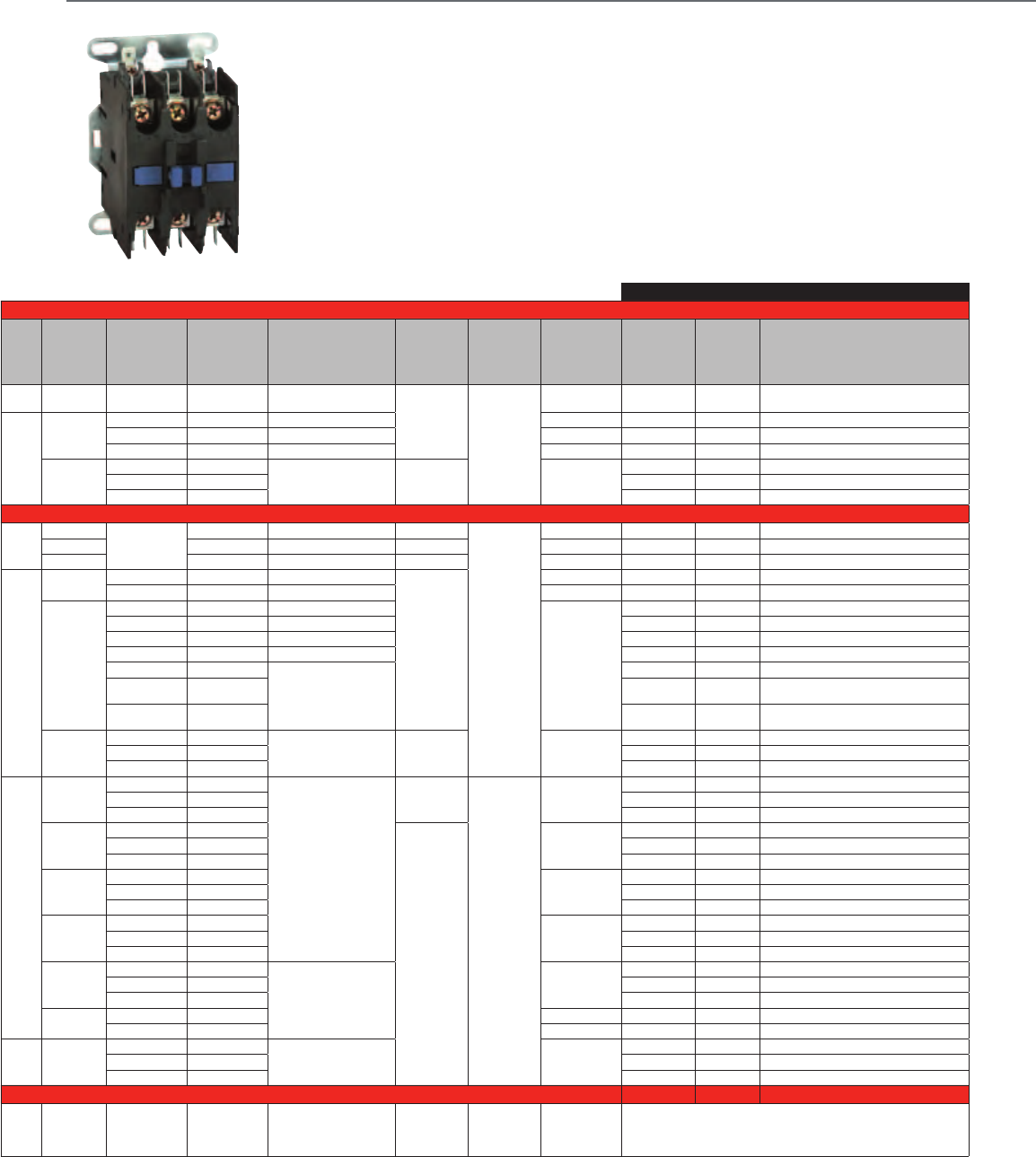

Contactors ......................................................36

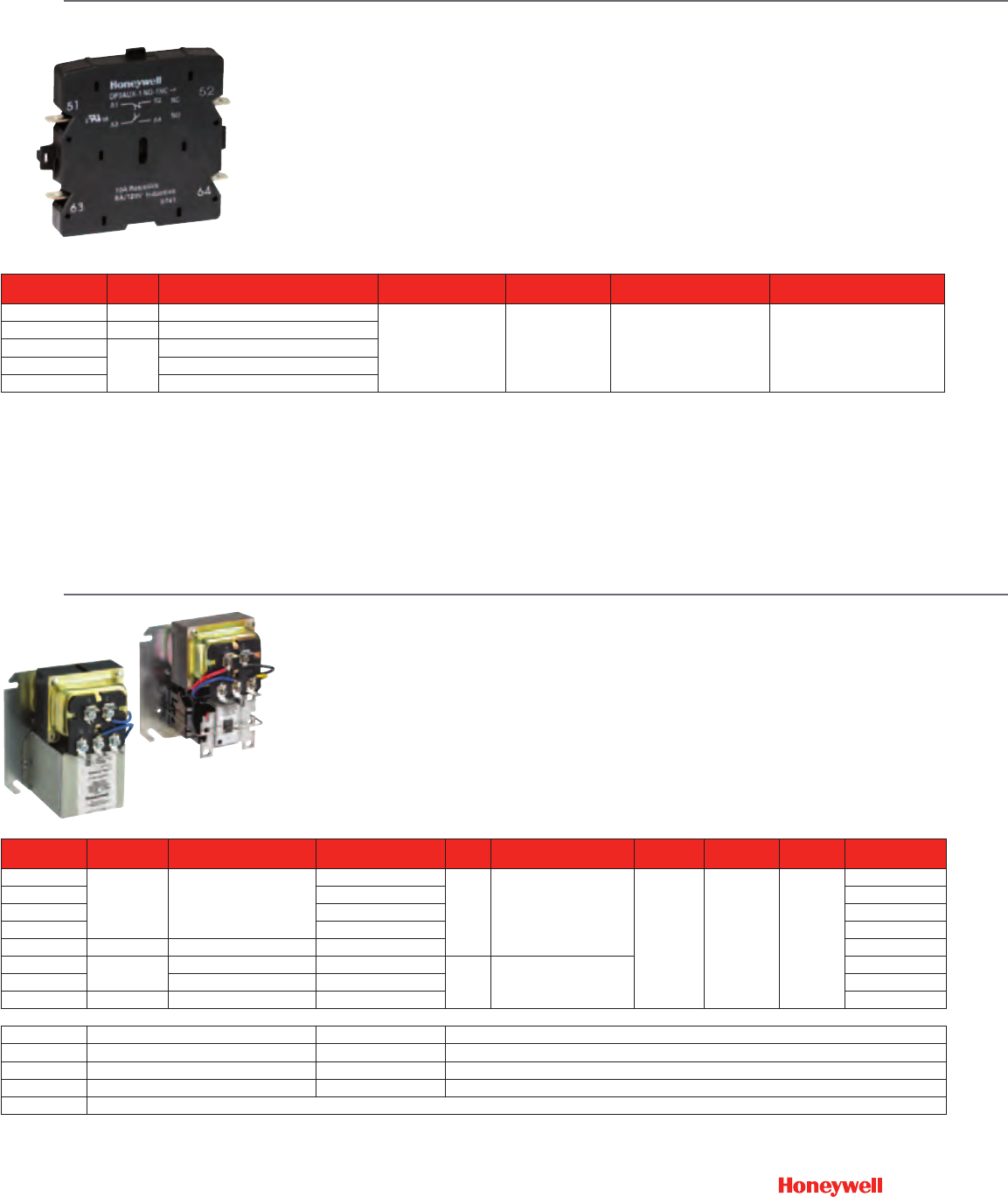

Auxiliary Switches ............................................37
Fan Centers .....................................................37

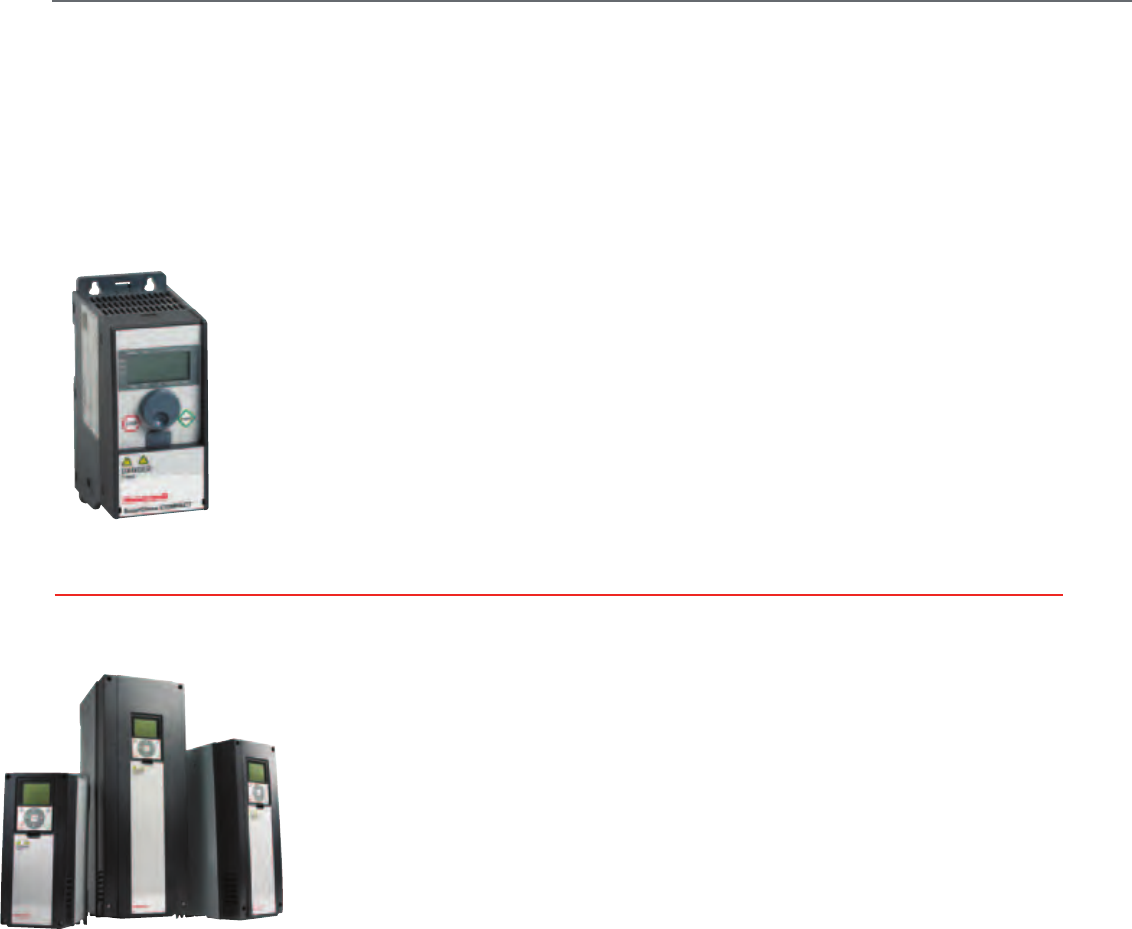

VFDs ...............................................................38

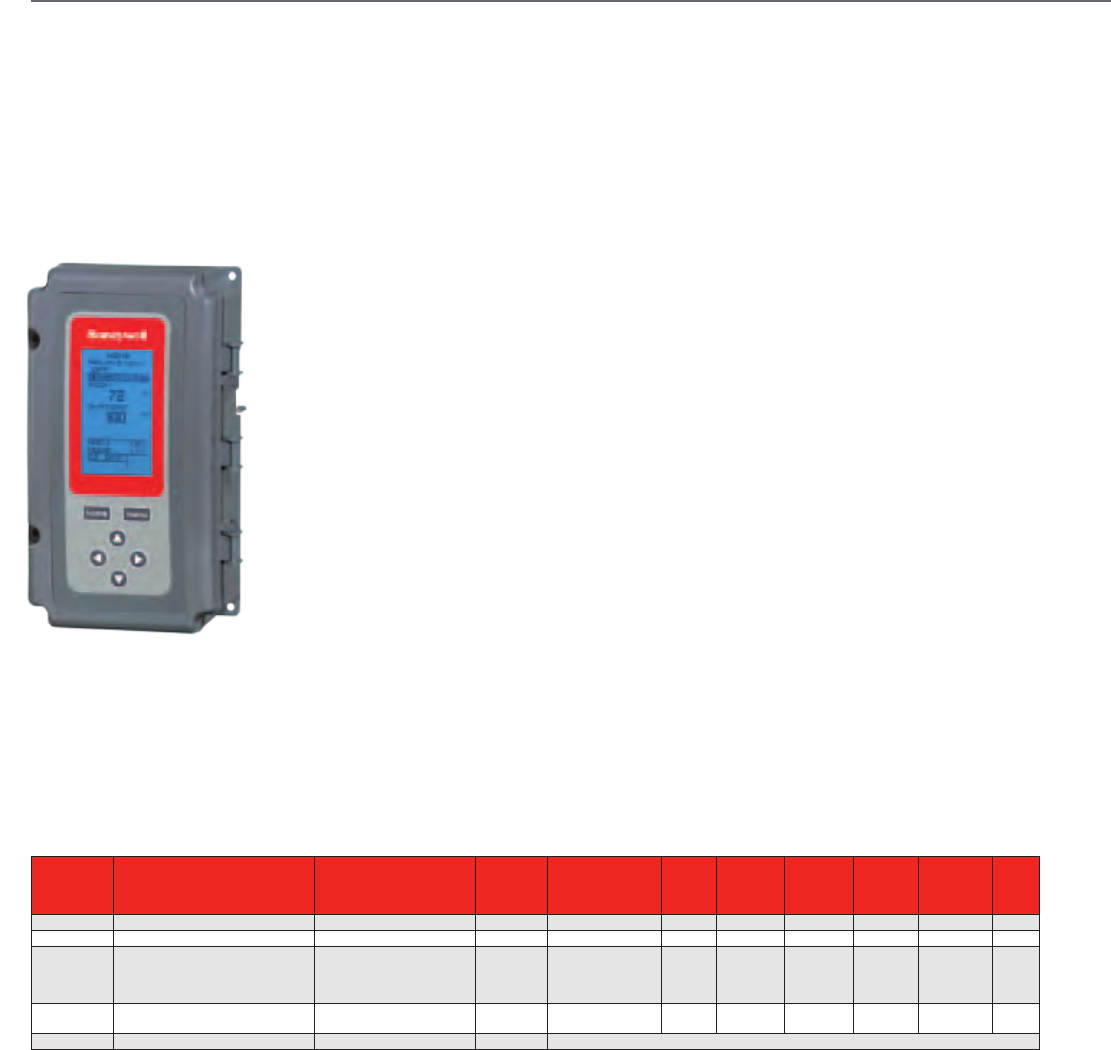

T775................................................................42

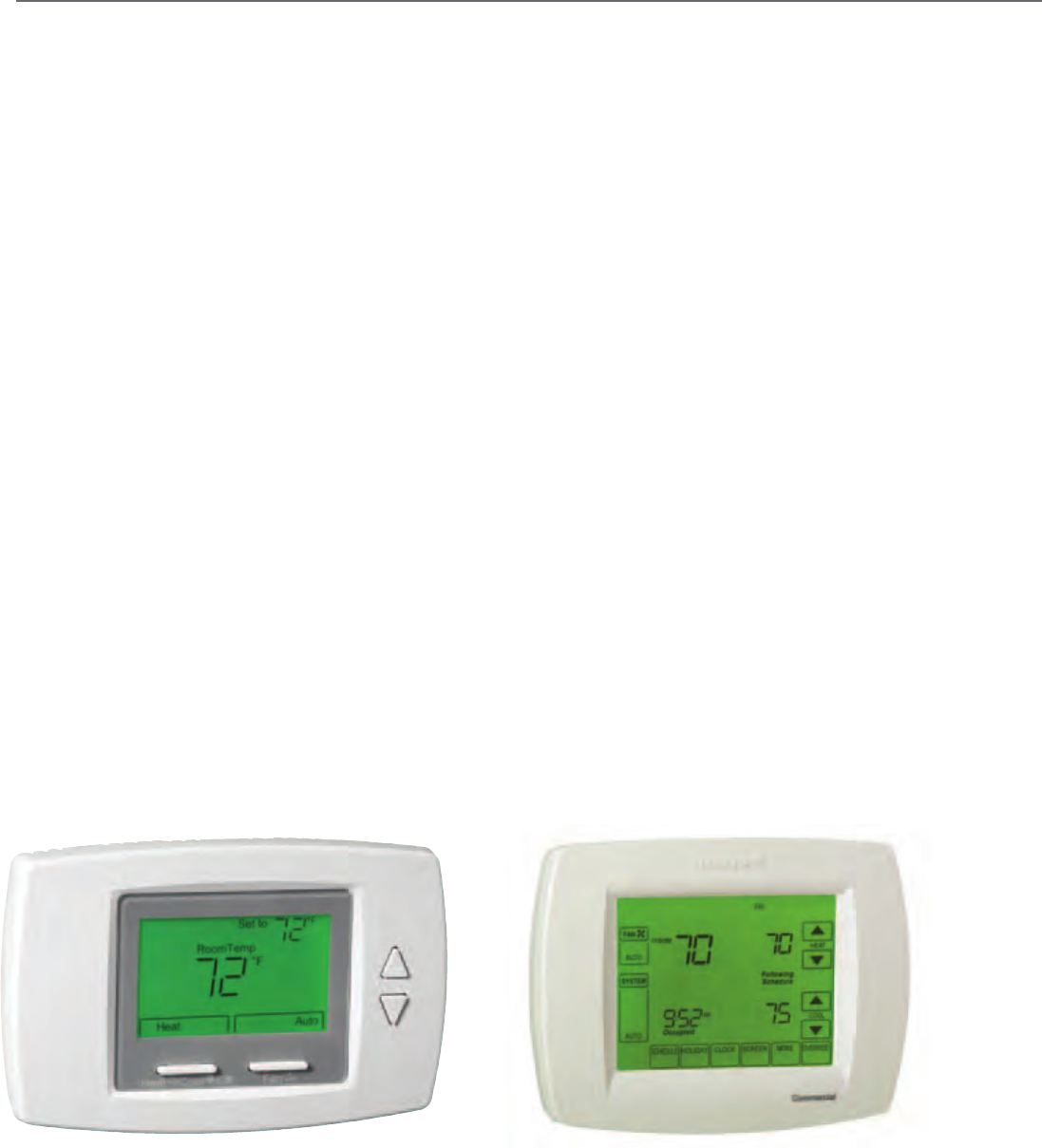

Commercial Remote Controllers ......................44
Heavy-Duty Line Volt Fan-coil Thermostats ......45
Residential Controllers .....................................46
Contractor PRO ...............................................47
Merchandising and Display Items ....................48
• Wireless thermostat can be placed anywhere to maximize sensing and comfort control
• Compatible for direct mounting on most baseboards with knockouts
• Can be mounted on a remote junction box for baseboard, convector and fan-forced heater applications
• Simple, plain-language user interface for easy thermostat setup & programming
• Can be configured as programmable or non-programmable
Model Description
YTL9160AR1000 Thermostat and Equipment Interface Module Kit
TLM1110R1000 Equipment Interface Module Only
4

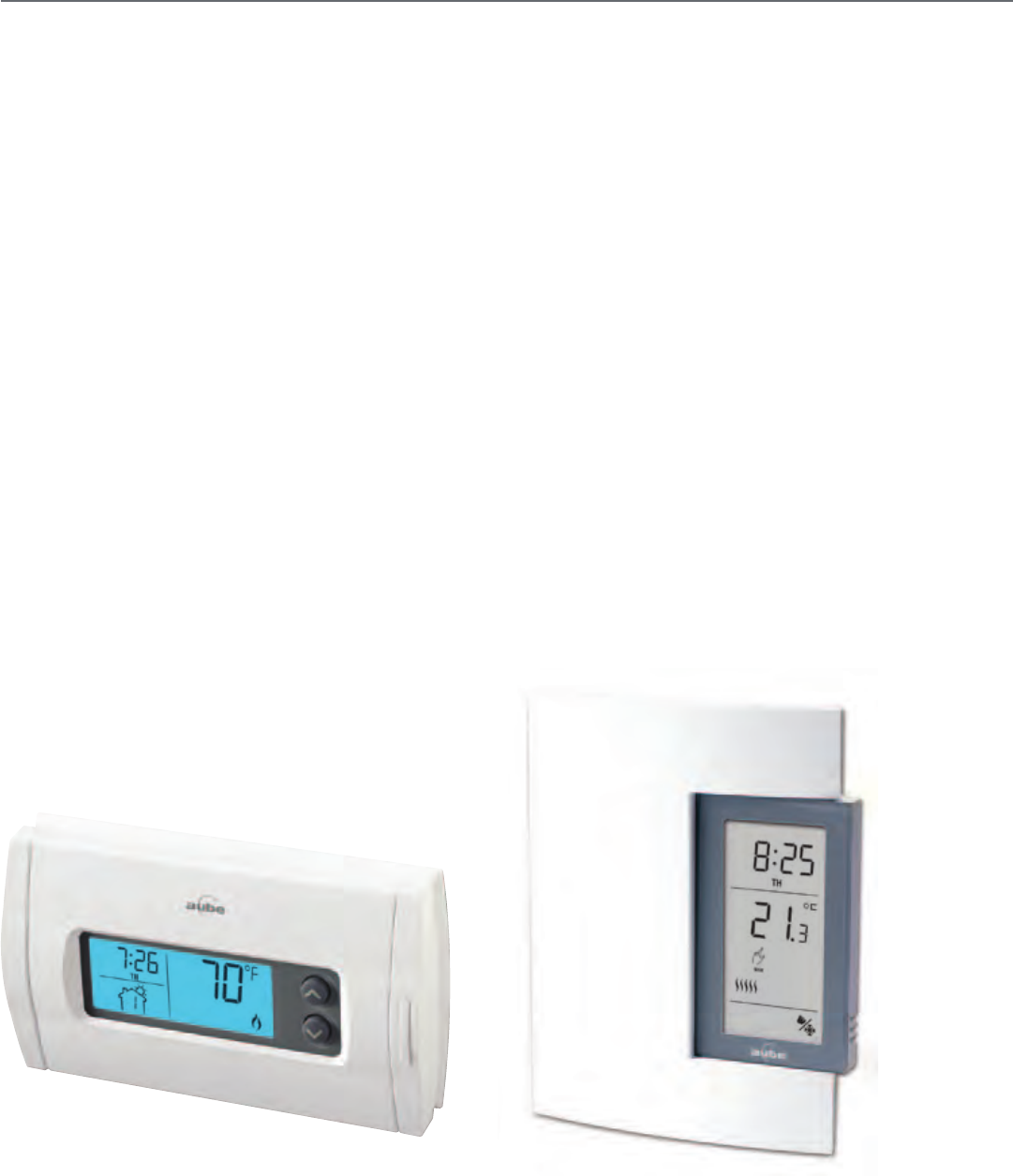

Introducing Aube
Why Honeywell?
Products
Quality Engineering
Honeywell’s unwavering commitment to our customers
includes an intense focus on the measurement of
product quality to deliver products with the newest
available features at the right price.
Exclusive Features and Warranties
Honeywell products feature exclusives you won’t find with other brands as well as the
industry’s best warranties — up to 5 years.
Brand
Preference
The Honeywell brand is known, trusted and preferred by
millions of professional contractors and the customers they serve.
Honeywell is the #1 choice of homeowners, and has
strong brand recognition.
Complete Portfolio
From wireless comfort systems to thermostats and indoor air quality, water to
combustion controls, only Honeywell provides you with the leading portfolio of
residential control products to meet your needs for every application, budget
and customer.
Since 1991, the Aube brand has been a symbol of quality, precision
and trust. In September 2004, it became part of Honeywell.
The Aube line includes thermostats but also programmable switches,
relays, electronic timers, digital thermometers and hygrometers. No
matter what your energy management needs are, there is an Aube
product to answer them.
5
Designed in Canada, Aube products – thanks to their
exceptional precision – consistently provide unsurpassed
comfort and energy savings.
Comfort. Quality. Precision. Unique design. Aube.
Support
Customer Service
Honeywell provides toll-free access to product
application, installation and support experts.
Customer Service: 1-800-468-1502
Aube Branded Products Technical Support: 1-800-831-2823
Online Tools
Find everything you need to be successful in selling
Honeywell products online. Product information,
cross-references, demos and more are available at cus-
tomer.honeywell.com.
Training
Honeywell offers a variety of on-site and online training options
at customer.honeywell.com.
Rewards
Honeywell’s Contractor PRO™ Rewards program gives
contractors reward points ($) back on all Honeywell pur-
chases year round at contractorpro.com.
Free Sales Literature
With Honeywell, you’ll have access to sales materials that you can use to
help grow your business. Visit literature.honeywell.com.
6

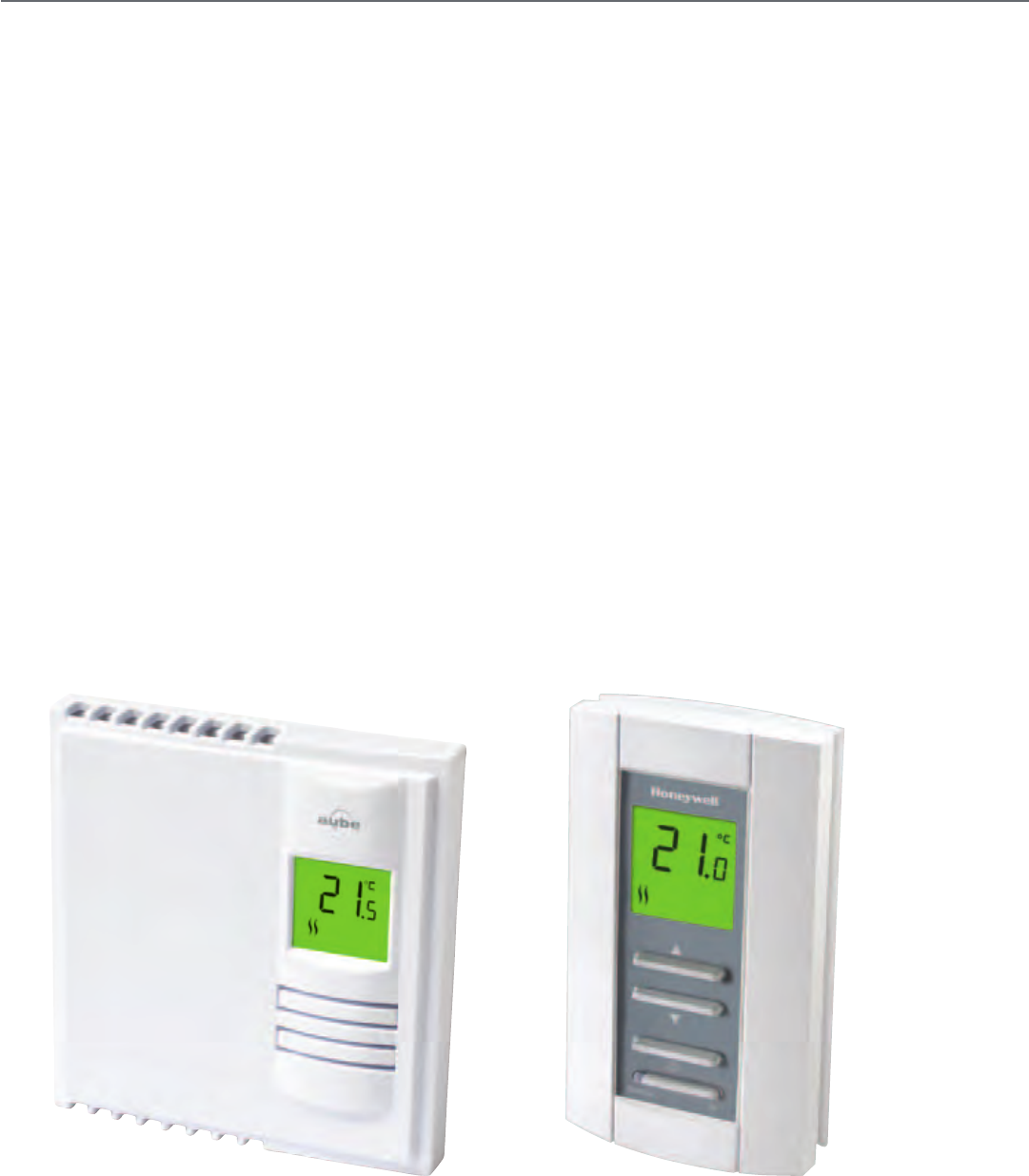

Line Volt Non-Programmable Thermostats
When it comes to thermostats, Honeywell is the name on everyone’s mind, and that includes its
line volt non-programmable thermostats. Thanks to their great precision, exceptional accuracy
and silent functioning, these thermostats are the preferred choices on the market. And with a
name like Honeywell, you can be sure to find the perfect solution to any application. Line volt non-
programmable electronic thermostats are easy to use and greatly improve comfort.
7

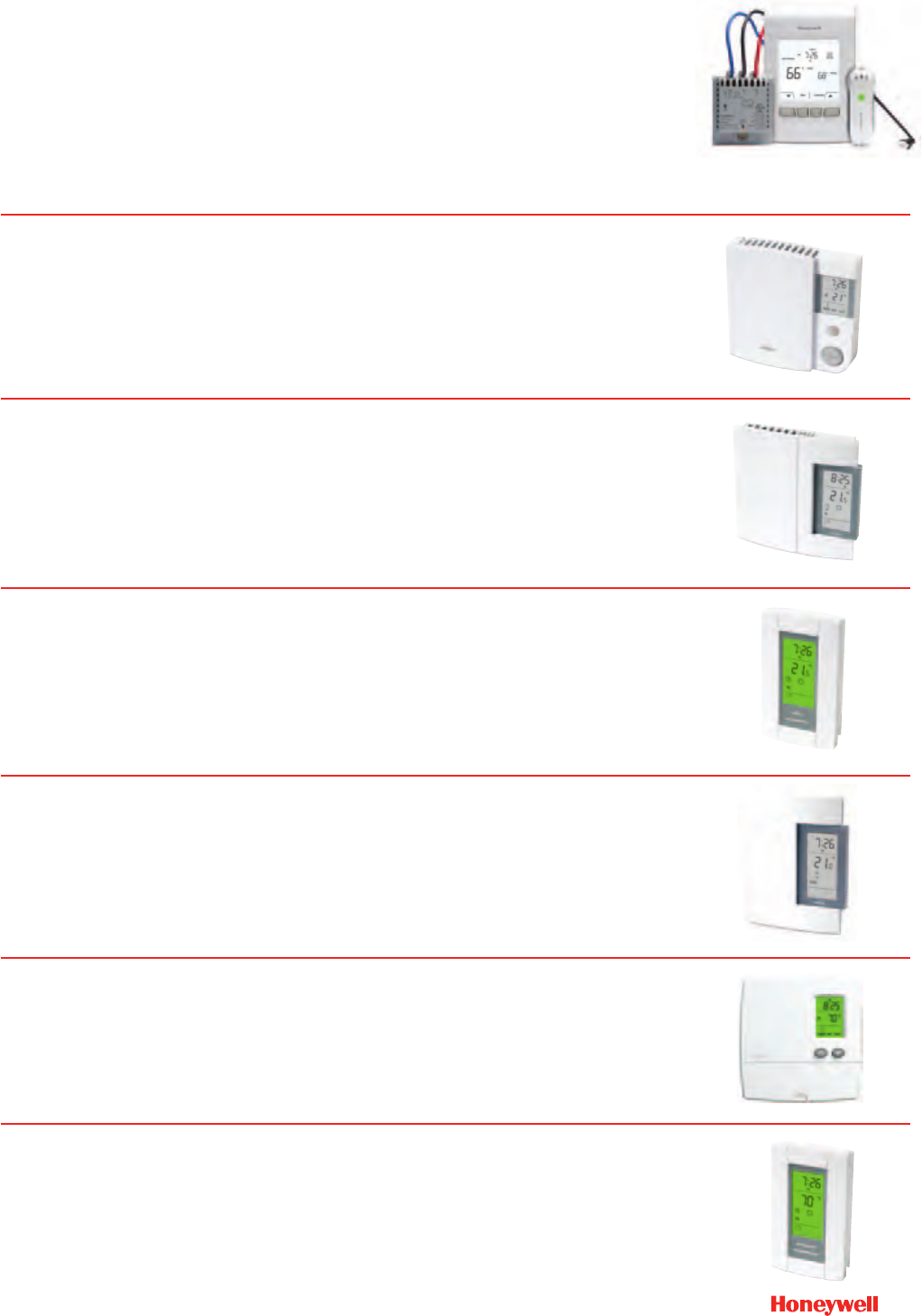

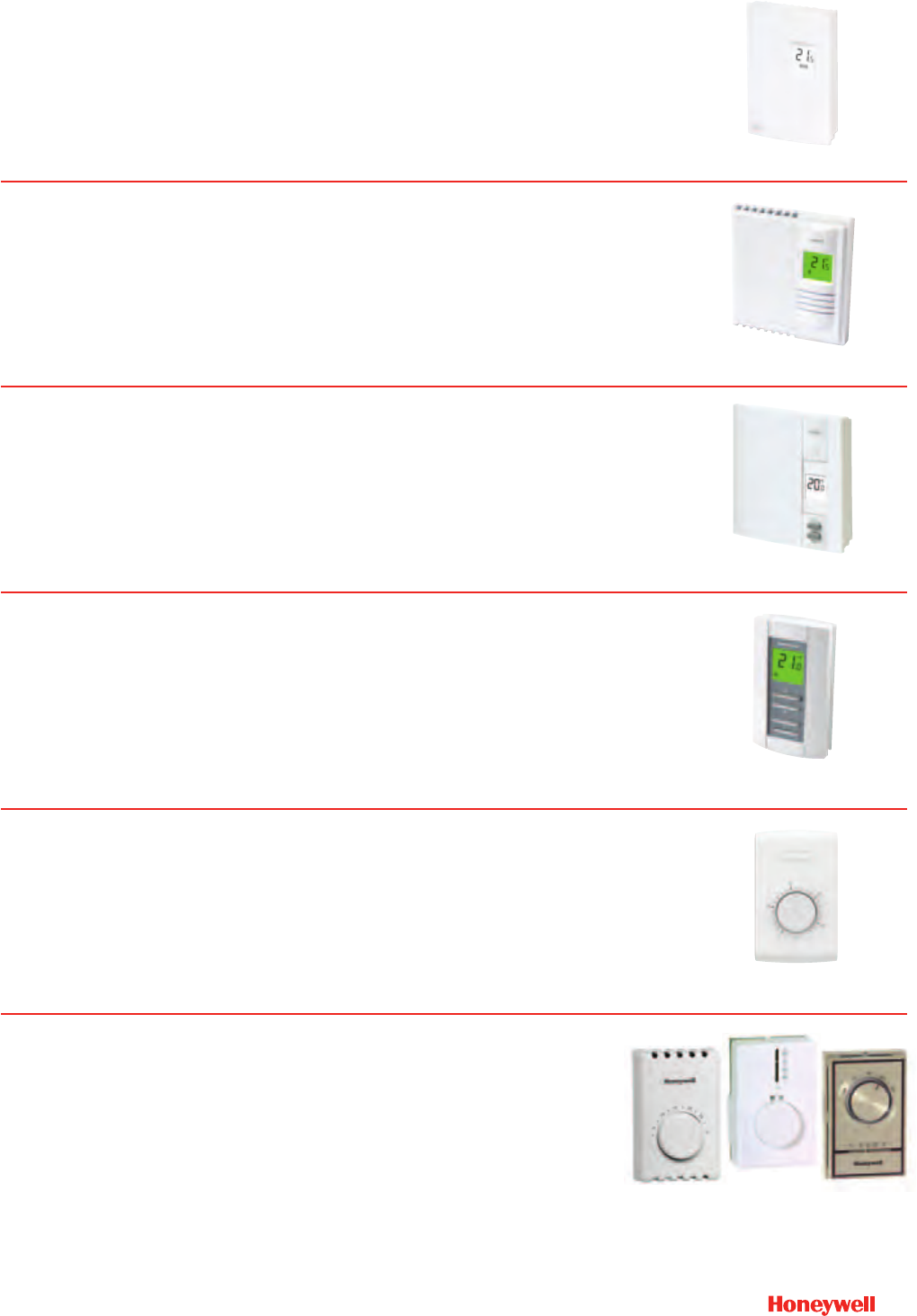

TH401
•Forbaseboards,convectorsandfan-forcedheaters
•TRIAC switching offers exceptional ±0.15°C / ±0.27°F accuracy and silent operation
•Temperaturelocklimitsminimumandmaximumsetpoints
•Whitebacklight
TH108PLUS Series
•TRIACswitchingoffersexceptional±0.15°C/±0.27°Faccuracyandsilentoperation
•Temperaturelocklimitsminimumandmaximumsetpoints
•Backlitdisplay
•Stylishandeasy-to-usedesign
TH450
•Supportsthewidestpowerrange(300-4000W)foruniversalapplications
•Temperaturelocklimitsminimumandmaximumsetpoints
•TRIACswitchingoffersexceptional±0.15°C/±0.27°Faccuracyandsilentoperation
•Stylishandeasy-to-usedesign
TL116A
•Compatiblewithbaseboardheaters,convectors,andfan-forcedheaters
•Maxloadof3000W
•CSAC828compliant
Mechanical Thermostats
T410 / T4398 / T498
•Includelong-lastingMicroSwitch™mechanism
•Integratedthermometerindicatesroomtemperature(onsomemodels)
•Budgetprice
•Bimetallictemperaturesensor(onsomemodels)
•Manymorepracticalfeatures
TH114 / TL7000 Series
•Easy-to-readbacklitdisplay
•Precisetemperaturecontrol:±0.5°C/0.9°Faccuracy
•Modelsavailableforfloorheatingsystems(includebuilt-inGroundFaultprotectiondevice)
•Inputforremotetemperaturesetbackavailableonsomemodels(idealforcottages),
CT24 Series telephone controller required
8
Model Specifications
Schedule Option
User interface
Temperature Scale
(Mechanical only)
Thermometer
(Mechanical only)
Color
Switching
Switching method
Maximum Load
Minimum Load
Built-in Ground Fault
(For electric
underfloor)
TH450 Non Prog. Soft Keys White SPST TRIAC 2000 W @ 120 V
4000 W @ 240 V
150 W @ 120 V
300 W @ 240 V
TH401 Non Prog. Soft Keys White SPST TRIAC 2500 W @ 240 V
1250 W @ 120 V
200 W @ 240 V
100 W @ 120 V
TH401-P10 Non Prog. Soft Keys White SPST TRIAC 2500 W @ 240 V
1250 W @ 120 V
200 W @ 240 V
100 W @ 120 V
TH108PLUS Non Prog. Soft Keys White SPST TRIAC 3000 W @ 240 V 500 W @ 240V
TH108PLUS-P10 Non Prog. Soft Keys White SPST TRIAC 3000 W @ 240 V 500 W @ 240V
TH108-A-347S3 Non Prog. Soft Keys White SPST TRIAC 4335 W @ 347 V 700 W @ 347 V
TH114-A-120S Non Prog. Soft Keys White SPST Relay 2000 W @ 120 V
TH114-A-240S-B Non Prog. Soft Keys White SPST Relay 4000 W @ 240 V
TH114-A-240D-B Non Prog. Soft Keys White DPST Relay 3600 W @ 240 V
TH114-AF-GA Non Prog. Soft Keys White DPST Relay 1800 W @ 120 V
3600 W @ 240 V 5 mA GFCI
TH114-AF-GB Non Prog. Soft Keys White DPST Relay 1800 W @ 120 V
3600 W @ 240 V 15 mA EGFPD
TL5110A1018 Non Prog. Soft Keys White SPST TRIAC 3000 W @ 240 V
1500 W @ 120 V
500 W @ 240 V
250 W @ 120 V
TL7135A1005 Non Prog. Soft Keys White SPST Relay 4000 W @ 240 V
3470 W @ 208 V
TL7235A1003 Non Prog. Soft Keys White DPST Relay 3600 W @ 240V
3120 W @ 208 V
TL116A1008 Non Prog. Dial °C White SPST Snap-Acting Switch 3000 W @ 240 V
1500 W @ 120 V
300 W @ 240 V
150 W @ 120 V
TL116A1016 Non Prog. Dial °F White SPST Snap-Acting Switch 3000 W @ 240 V
1500 W @ 120 V
300 W @ 240 V
150 W @ 120 V
T410A1013 Bi-metallic Dial °F Premier White SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T410A1021 Bi-metallic Dial °C Premier White SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T410A1047 Bi-metallic Dial °C Beige SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T410B1004 Bi-metallic Dial °F Premier White DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T410B1129 Bi-metallic Dial °C Premier White DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T4398A1005 Diaphragm Dial °C • Premier White SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T4398A1021 Diaphragm Dial °F •Premier White SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T4398B1003 Diaphragm Dial °C •Premier White DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T4398B1029 Diaphragm Dial °F •Premier White DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498A1778 Bi-metallic Dial °F •Premier White SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498A1786 Bi-metallic Dial °C Brush Gold SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498A1810 Bi-metallic Dial °F Brush Gold SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498A1927 Bi-metallic Dial °C Premier White SPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498B1512 Bi-metallic Dial °F •Brush Gold DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498B1553 Bi-metallic Dial °F Brush Gold DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498B1678 Bi-metallic Dial °C Premier White DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V
T498B1686 Bi-metallic Dial °C •Premier White DPST Snap-Acting Switch 22 A @ 120/208/240 V
19 A @ 277 V

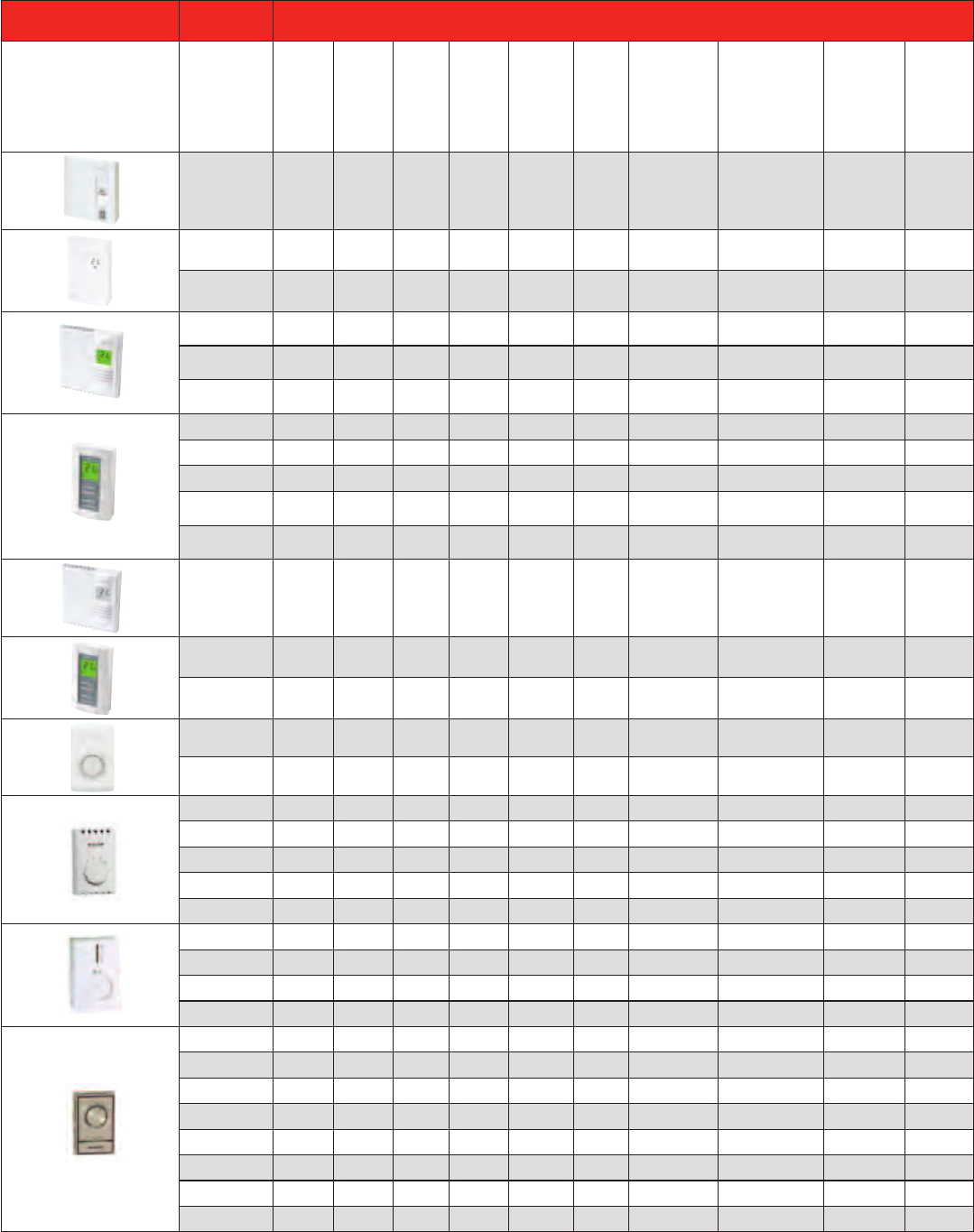

Line Volt Non-Programmable Thermostats Selection Guide
9
Line Volt Non-Programmable Thermostats Selection Guide
Applications Power
Method Features and Functions Display Information Limited
Warranty
Wiring
Terminals
Baseboard
Convector
Fan Forced Heater
Radiant Ceiling
Electric Underfloor
Permanent Memory
retention
Temperature Limits
Temperature range
stop
& locking cover
Unoccupied input
(Req. CT240 or
CT241)
15’ Floor Temperature
Sensor
Display Size
(Viewable)
On Demand
Backlighting
•••• Hardwire • • 1 sq.in. •3 Year 2 Wire
•••• Hardwire • • 0.98 sq. in. •3 Year 2 Wire
•••• Hardwire • • 0.98 sq. in. •3 Year 2 Wire
•••• Hardwire • • 1.23 sq. in. •3 Year 2 Wire
•••• Hardwire • • 1.23 sq. in. •3 Year 2 Wire
• • • Hardwire • • 1.23 sq. in. 3 Year 2 Wire
•••• Hardwire • • 1.45 sq. in. •3 Year 4 Wire
•••• Hardwire • • 1.45 sq. in. •3 Year 4 Wire
•••• Hardwire • • 1.45 sq. in. •3 Year 4 Wire
•Hardwire • • • • 1.45 sq. in. •3 Year 4 Wire
•Hardwire • • • • 1.45 sq. in. •3 Year 4 Wire
• • • Hardwire •1.23 sq. in. 5 Year 2 Wire
•••• Hardwire •1.45 sq. in. •5 Year 4 Wire
•••• Hardwire •1.45 sq. in. •5 Year 4 Wire
••• Hardwire •3 Year 2 Wire
••• Hardwire •3 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 4 Wire
•••• Hardwire Requires 272804A 1 Year 4 Wire
•••• Hardwire Requires 272804A 1 Year 2 Wire
•••• Hardwire •1 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 4 Wire
•••• Hardwire •1 Year 4 Wire
•••• Hardwire •1 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 2 Wire
•••• Hardwire Requires 272804A 1 Year 2 Wire
•••• Hardwire •1 Year 4 Wire
•••• Hardwire Requires 272804A 1 Year 4 Wire
•••• Hardwire Requires 272804A 1 Year 4 Wire
•••• Hardwire •1 Year 4 Wire
10
Commercial Non-Programmable Thermostats
For more than a century, Honeywell has been on the leading edge of product development for energy-
efficient HVAC and building automation products. Contractors and building owners count on Honeywell
commercial thermostats for the latest technology, ease-of-use and energy savings. As part of this
category of commercial controls, the SuitePROTM is a family of Digital Fan Coil thermostats for residential
and commercial applications such as hotels, condominiums, and classrooms.
11
Suite PRO
•Simple,intuitiveuserinterface
•Pre-installedleadwiresforfastinstallation(TB6575A,TB6575BandTB6575Cmodelsonly)
•Fourbuttonsallowmanualcontrolofsystemoperation,fanspeed,andtemperaturesetpoint
adjustment.
•Digitaldisplayofambienttemperature,setpoint,heatingorcoolingmode,fanstatus,and
remote setback
•ProportionalplusIntegral(P+I)controlalgorithmforprecisiontemperatureregulation.
•SingleSetpointandHeat/Coolsetpointmethodsfor4-pipeautochangeover.
•Adjustablemaximumheatingandminimumcoolingsetpointlimitsusingrangestops.
•Selectable°Cor°FdisplayviaSetupbuttononthermostat.
Model Applications Features
Heat / Cool / Auto
Pipes
LDC Display
Voltage
Number of pipes
Temperature range
Energy savings input
System switch
position
Fan switch position
Manual / Auto
changeover
TB6575A1000 All 2 or 4 Yes 120 or 240 Vac 550°F to 90°F
(10°C to 30°C) Yes Off-Heat-Cool-Auto Hi-Med-Low-Auto-Off Yes
TB6575B1000 Heat or Cool 2 Yes 120 or 240 Vac 450°F to 90°F
(10°C to 30°C) Yes Off-Heat-Cool-Auto Hi-Med-Low-Auto-Off Yes
TB8575A1000 All 2 or 4 Yes 24 Vac 550°F to 90°F
(10°C to 30°C) Yes Off-Heat-Cool-Auto Hi-Med-Low-Auto-Off Yes
12
Line Volt Programmable Thermostats
Honeywell line volt programmable thermostats are the best choice on the market for electric heating
systems and personalized temperature control. They provide outstanding temperature accuracy and
control, are easy to read and stylish to fit every decor.
13

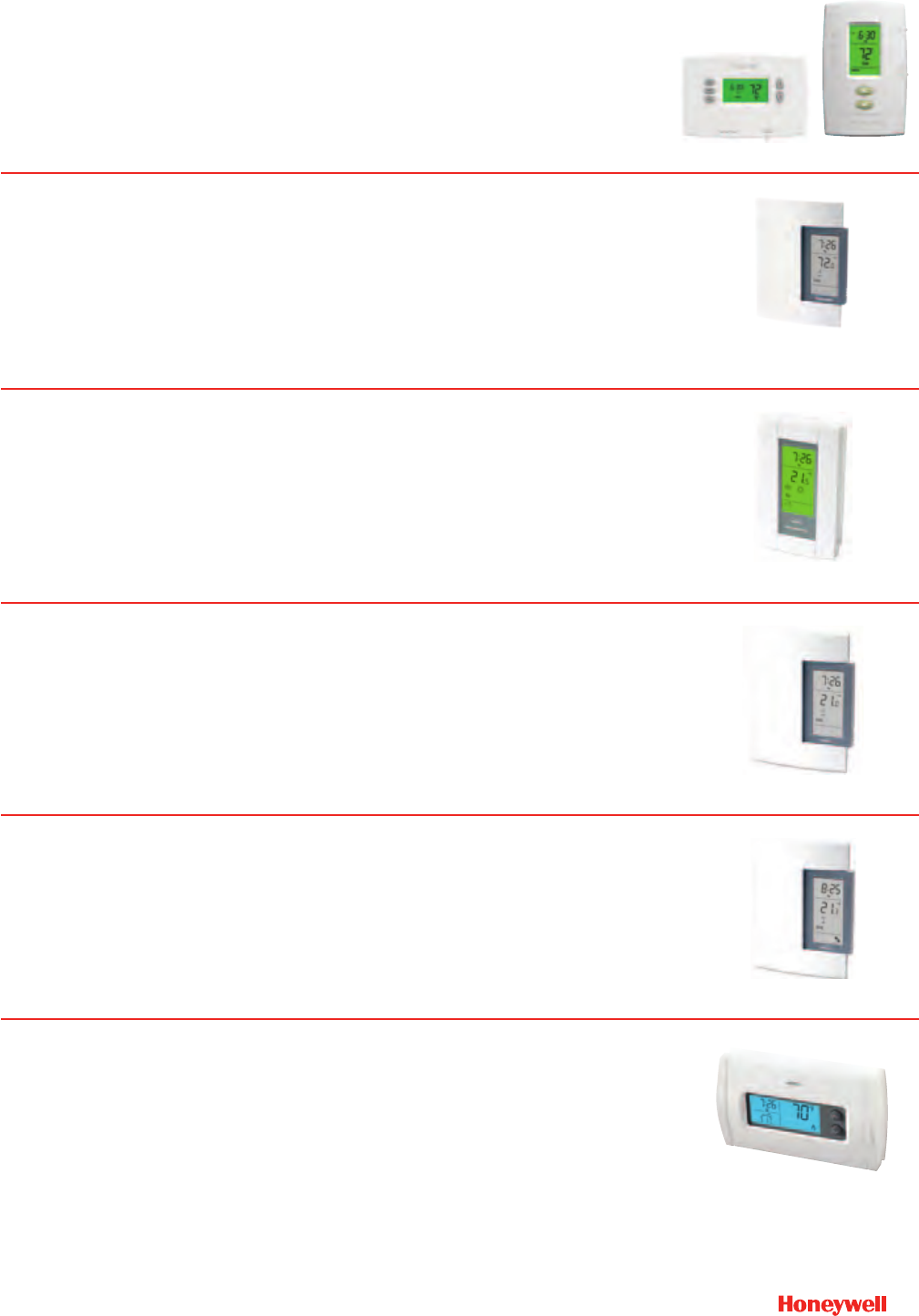

TH104 Series
•Forelectricheating(baseboard,convectors,fan-forcedheaters,radiantceilings)
•TRIAC switching offers exceptional ±0.15°C / ±0.27°F accuracy and silent operation
•Simple5-2programming
EConnect TM
•Wirelessthermostatcanbeplacedanywheretomaximizesensingandcontrol
•Compatiblefordirectmountingonmostbaseboardswithknockouts
•Canbemountedonaremotejunctionboxforbaseboard,convectorand
fan-forced heater applications
•Simple,plain-languageuserinterfaceforeasythermostatsetup&programming
•CommunicateswithcompatibleRedLINK-enabledaccessories
•Canbeconfiguredasprogrammableornon-programmablebasedonneeds
TH106 Series
•Forelectricheating(baseboard,convectors,fan-forcedheaters,radiantceilings)
•High-capacity
•TRIAC switching offers exceptional ±0.15°C / ±0.27°F accuracy and silent operation
•7-Dayprogrammable
•Keypadlock
TL8000
•Forelectricheating(baseboard,convectors,fan-forcedheaters,radiantceilings)
•LargebacklitLCDdisplayavailable
•7-Dayprogrammable
TH140/TL8100*
•Versatile:Forelectricheatingwithrelay,centralorhydronicheating
•Workswithlineorlowvoltageloads
•7-Dayprogrammable
TL6120
•Forelectricheating(baseboards,radiantceiling,convector,fan-forcedheating)
•Pre-programmedforeasierinstallation;simple5-2programming
•TRIAC switching offers exceptional ±0.15°C / ±0.27°F accuracy and silent operation
•BacklitLDCdisplay
TH115 Series*
•Forelectricheating(baseboard,convectors,fan-forcedheaters,radiantceilings)
•Modelsavailableforfloorheatingsystems(includebuilt-inGroundFaultprotectiondevice)
•7-Dayprogrammable
* Input for remote temperature setback available on some models (ideal for cottages), CT24 Series telephone controller required
14

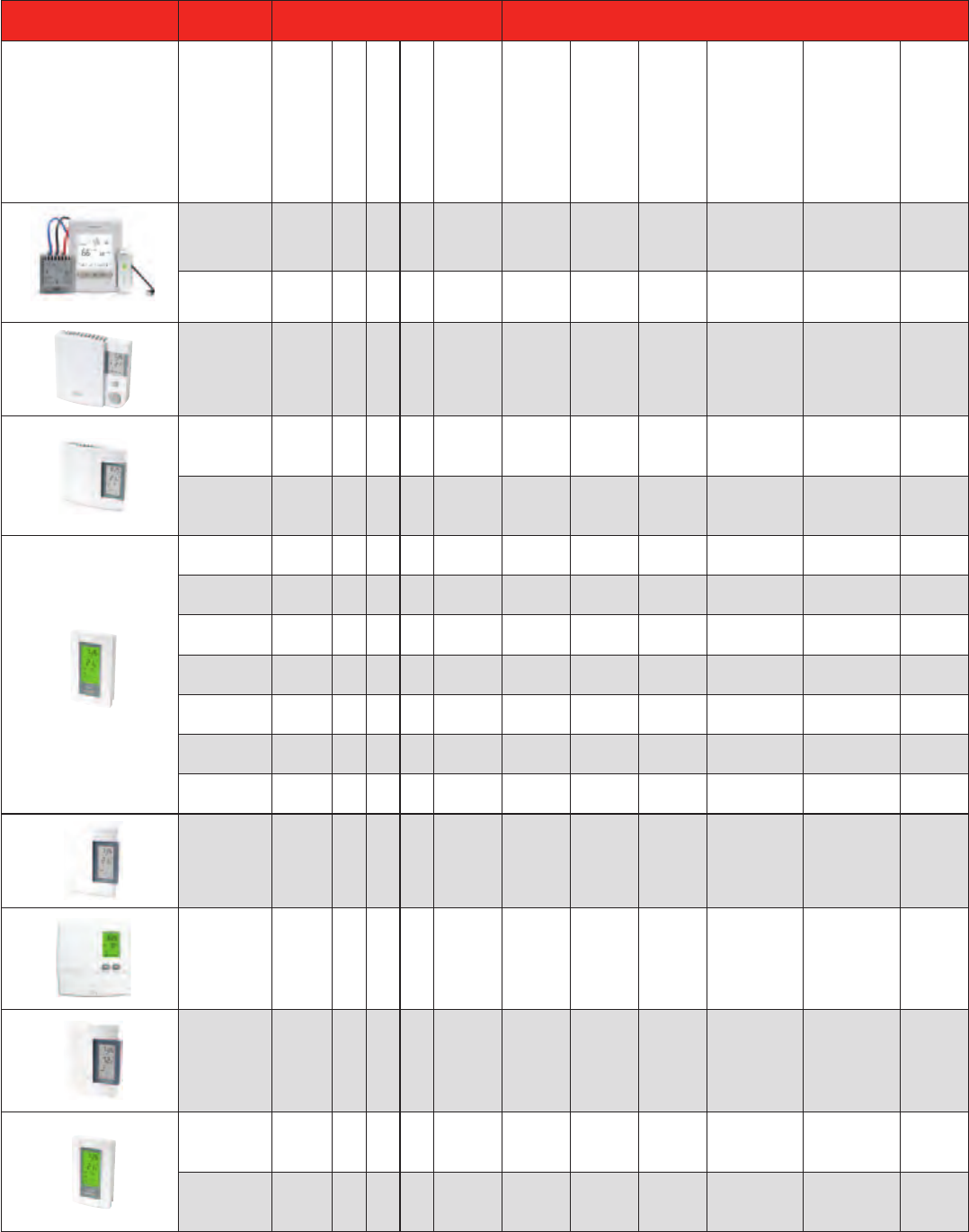

Line Volt Programmable Thermostats Selection Guide
Model Schedule Options User
Interface Specifications
Program Options
Energy Aware
Temporary Override
Permanent Hold
Color
Switching
Switching method
Maximum Load
Minimum Load
Built-in Ground Fault
(For electric underfloor)

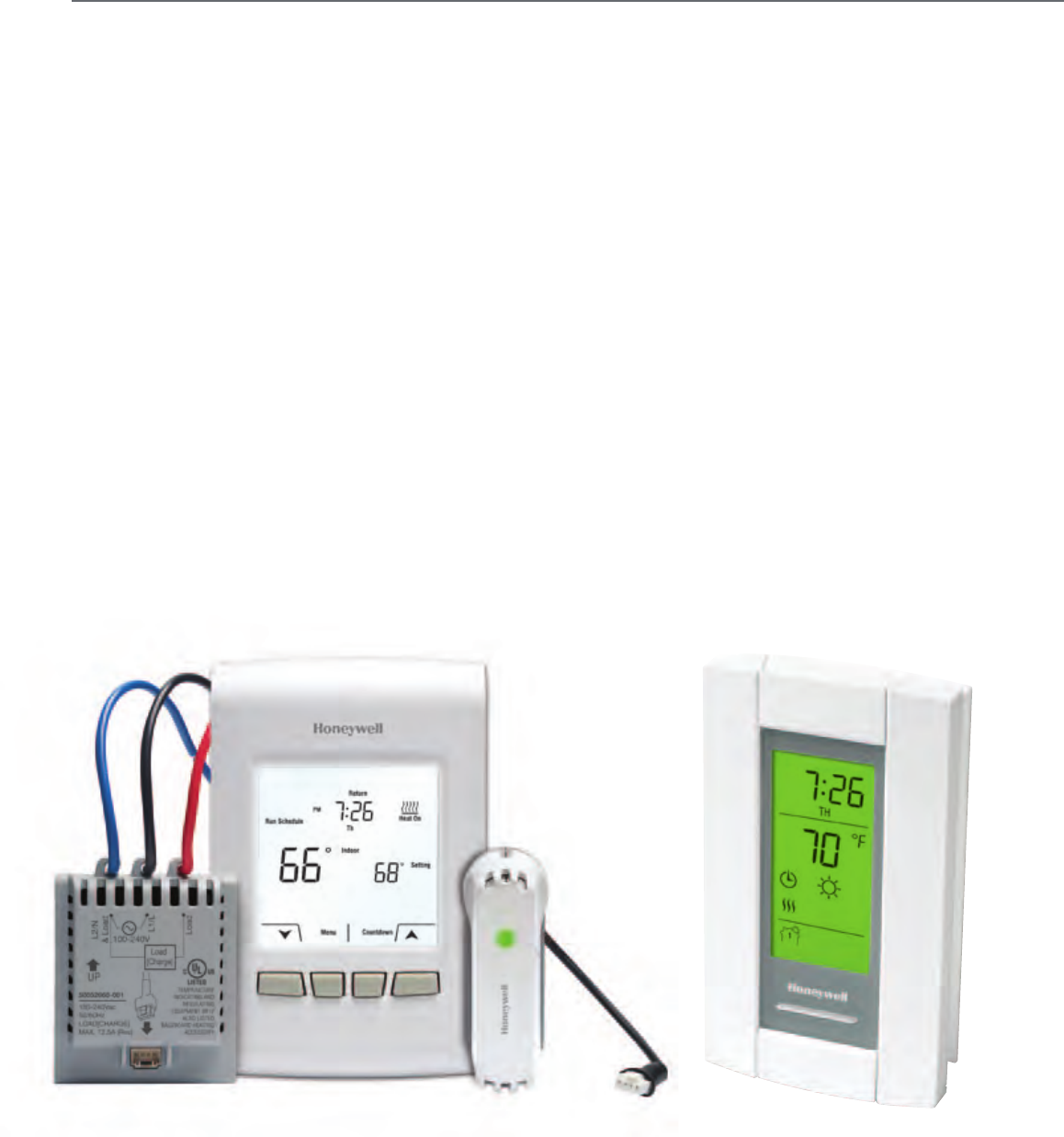

YTL9160AR1000
(Thermostat
and EIM Kit)
7-Day
5 +2
1-Day
Non-Prog
•••
Soft Keys
English display
ONLY
Thermostat:
White
EIM: comes with
White and Light
Almond covers
SPST Relay 1500 W @ 120 V
3000 W @ 240 V
50 W @ 120 V
100 W @ 240 V
TLM1110R1000
(EIM only)
White and Light
Almond covers
(included)
1500 W @ 120 V
3000 W @ 240 V
50 W @ 120 V
100 W @ 240 V
TH104 5-2 • • Soft Keys White SPST TRIAC 1750 W @ 120 V
3500 W @ 240 V
250 W @ 120 V
500 W @ 240 V
TH106 7-Day • • Soft Keys White SPST TRIAC 2000 W @ 120 V
4000 W @ 240 V
250 W @ 120 V
500 W @ 120 V
TH106-A-347S4 7-Day • • Soft Keys White SPST TRIAC 5800 W @ 347 V 700 W @ 347 V
TH115-A-120S 7-Day • • Soft Keys White SPST Relay 2000 W @ 120 V
TH115-A-240S-B 7-Day • • Soft Keys White SPST Relay 4000 W @ 240 V
TH115-A-240D-B 7-Day • • Soft Keys White DPST Relay 3600 W @ 240 V
TH115-AF-240S 7-Day • • Soft Keys White SPST Relay 4000 W @ 240 V
TH115-AF-240D 7-Day • • Soft Keys White DPST Relay 3600 W @ 240 V
TH115-AF-GA 7-Day • • Soft Keys White DPST Relay 1800 W @ 120 V
3600 W @ 240 V 5 mA GFCI
TH115-AF-GB 7-Day • • Soft Keys White DPST Relay 1800 W @ 120 V
3600 W @ 240 V 15 mA EGFPD
TH140-28-01-B 7-Day • • Soft Keys White SPDT Relay 5 A Res, 2 A Ind. @
24, 120, 208, 240 V
TL6120A1016 5-2 ••• Soft Keys White SPST TRIAC 3000 W @ 240 V 500 W @ 240 V
TL8100A1008 7-Day • • Soft Keys White SPDT Relay 5 A Res, 2 A Ind.
24, 120, 208, 240 V
TL8130A1005 7-Day ••• Soft Keys Premier White SPST Relay 4000 W @ 240 V
TL8230A1003 7-Day ••• Soft Keys Premier White DPST Relay 3600 W @ 240 V
15
Line Volt Programmable Thermostats Selection Guide
Applications Power
Method Features and Functions Display
Information
Limited
Warranty
Wiring
Terminals
Baseboard
Convector
Fan Forced Heater
Radiant Ceiling
Electric Underfloor
120 V Inductive load
(Valve, pump, contactor)
Permanent Memory
Early Start
Temperature Limits
Unoccupied input
(Req. CT240 or CT241)
15’ Floor Temperature
Sensor
Display Size (Viewable)
On Demand Backlighting
•••
Thermostat:
2 AA batteries
EIM: Hardwire
••• 4.53 sq. in. •3 Year EIM:
3 Wire
••• Hardwire 3 Year 3 Wire
•••• Hardwire •1.5 sq. in. 3 Year 2 Wire
•••• Hardwire • • 3.49 sq. in. 3 Year 2 Wire
•••• Hardwire • • 3.49 sq. in. 3 Year 2 Wire
•••• Hardwire • • • 3.42 sq. in. •3 Year 4 Wire
•••• Hardwire • • • 3.42 sq. in. •3 Year 4 Wire
•••• Hardwire • • • 3.42 sq. in. •3 Year 4 Wire
••••• Hardwire •••••3.42 sq. in. •3 Year 4 Wire
••••• Hardwire •••••3.42 sq. in. •3 Year 4 Wire
•Hardwire •••••3.42 sq. in. •3 Year 4 Wire
•Hardwire •••••3.42 sq. in. •3 Year 4 Wire
•••• •Battery •3 sq. in. 3 Year Com, NO, NC
•••• Hardwire •1.85 sq. in. •5 Year 2 Wire
•••• •Battery •3 sq. in. 5 Year Com, NO, NC
•••• Hardwire • • 3.42 sq. in. •5 Year 4 wire
•••• Hardwire • • 3.42 sq. in. •5 Year 4 wire
16
RedLINK Accessories - The Power of Connection
Honeywell’s exclusive RedLINK Wireless Technology and our wireless-enabled EConnect comfort
system for electric heat help you better meet your customers’ comfort needs and connects you to
expanded business opportunities. RedLINK accessory add-ons offer the comfort, convenience and
connection your customers are willing to pay for. Automatic alerts increase the contact that you have
with your customers. And the ease of wireless installation means no added labor costs and optimized
profitability for you.
17
RedLINK™ Internet Gateway / Total
Connect™ Comfort Portal & Apps
•ConnectsanyRedLINK™ComfortSystemtotheInternettoprovideyour 
customers with remote access from their PC, smart phone or tablet* using
Honeywell’s RedLINK Internet Gateway
•Works with Prestige IAQ/Prestige, Wireless FocusPRO and EConnect™
•Allows users to view / change system settings and access multiple
systems / zones remotely
•Provides alerts via email when temperature or humidity limits are surpassed
•Upgrades automatically as new features become available
•Part#THM6000R1002
Portable Comfort Control
•Controltemperaturefromanyroom
•Change the temperature in any room from one device
•Works with the Wireless Outdoor Sensor to display outdoor temperature
and humidity
•Part#REM5000R1001
Wireless Outdoor Sensor
•Installswithtwosimplemountingscrewsandatouchofabutton
•Includes2lithiumbatteriesforreliableperformanceinanyclimate
•Wirelesslysendssignaltodisplayoutdoortemperatureandhumidity**
on all RedLINK-enabled devices
•Part#C7089R1013
* Free apps are available for Apple iPhone, iPad and iPod touch devices at time of release.
Check www.mytotalconnect.com for more mobile applications coming soon
** Humidity information not displayed on the EConnect thermostat.
18
Low Volt Non-Programmable Thermostats
Honeywell thermostats give you one brand for every application, every budget and every customer. For
customers who prefer manually-controlled settings, Honeywell’s full-line of low volt non-programmable
thermostats are not only easy to use, but also deliver the reliable, consistent comfort control that is
synonymous with the Honeywell name.
19

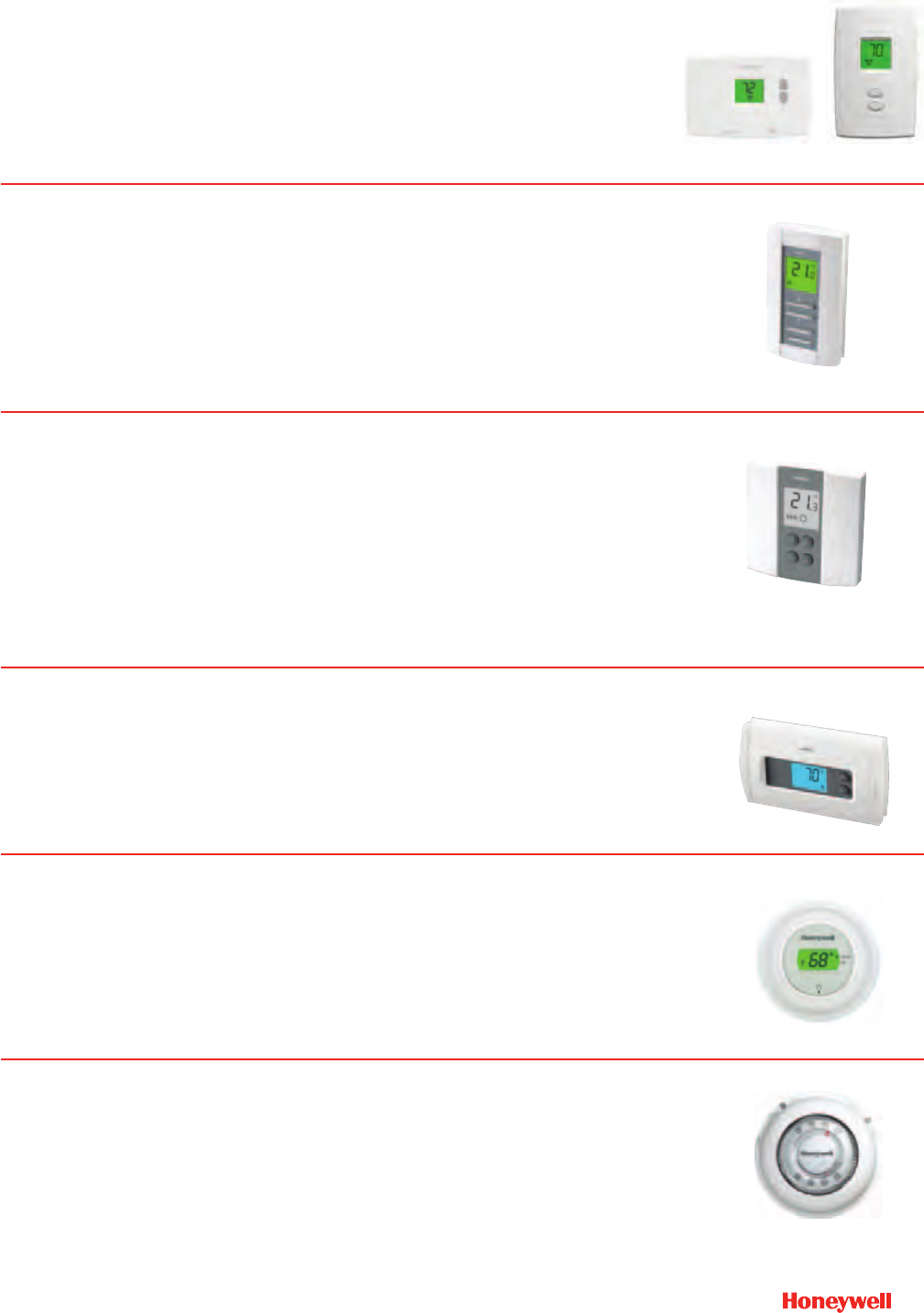

PRO 1000
•Horizontalandverticalmodelsavailable
•Forcentralheatingandcooling
•Heat-onlymodelavailable
•Budgetprice
•Backlitdisplay
•Dual-poweredwithbatteryand/orhardwire
TH135
•Versatile:forelectricheatingwithrelay,centralorhydronicheating
•Easytouse
•Saves3temperaturesettings
•Featurespumpprotection
•Inputforremotetemperaturesetbackavailableonsomemodels(idealforcottages),CT24
Series telephone controller required
TH147
•Forcentralheatingandcooling
•Offersoutstandingtemperaturecontrol
•Easy-to-useanddistinctivedesign
The Digital Round™
•Digitaldisplay
•One-touchbacklight
•Familiartwist-to-setoperation
•AvailableinHeat/CoolandHeatOnlymodels
The Round™
•World’smost-popularthermostat
•AvailableinHeat/CoolandHeatOnlymodels
•Nowmercuryfree
TH114 Series
•Forelectricheatingwithrelay(baseboard,convectors,fan-forcedheaters,radiantceilings)or
hydronic heating
•DifferentmodelsavailabletocontrolelectromechanicalorTRIAClinevoltagerelays
•Easy-to-readbacklitdisplay
•Precisetemperaturecontrol
20

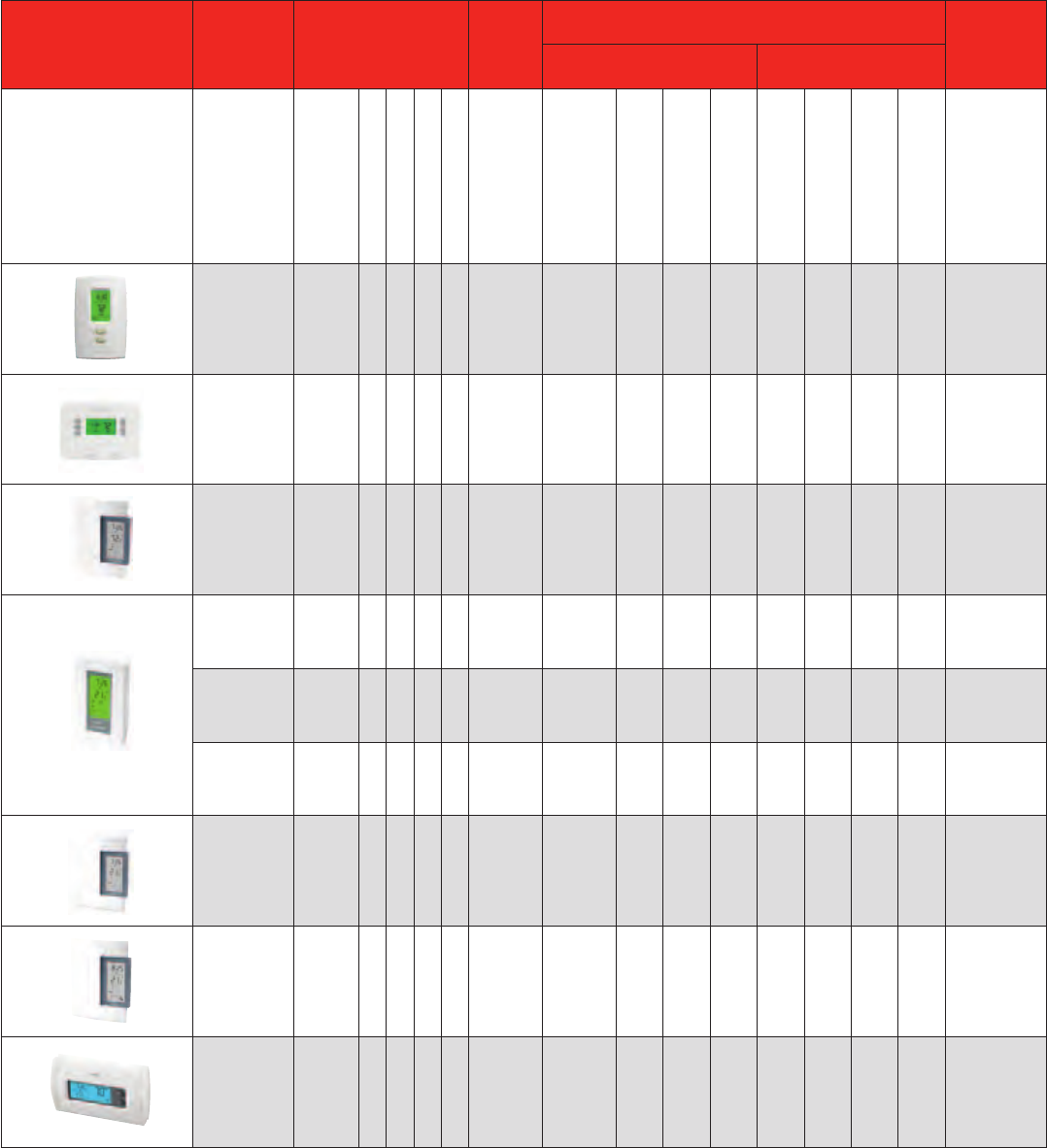

Model Schedule Options User
Interface
Application
Power Method
Central Heating Line Volt
(Relay Req.)
Program Options
Energy Aware
Temporary Override
Permanent Hold
Vacation Hold
Stages
Gas, Oil or Electric
Heat Pump
Millivolt
Electric Baseboard
Convector
Fan-Forced
Electric Heater
Radiant Ceiling
TH1110D1000 Non-Prog Slide Switches 1 Heat/1 Cool • • Dual Powered
(Battery and Hardwire)
TH1100D1001 Non-Prog Slide Switches 1 Heat • • Dual Powered
(Battery and Hardwire)
TH1110DH1003 Non-Prog Slide Switches 1 Heat/1 Cool • • Dual Powered
(Battery and Hardwire)
TH1110DH1004 Non-Prog Slide Switches 1 Heat • • Dual Powered
(Battery and Hardwire)
TH114-A-024T-15S Non-Prog Soft Keys 1 Heat • • • Hardwire
TH114-A-024T Non-Prog Soft Keys 1 Heat •••• Hardwire
TH114-AF-024T Non-Prog Soft Keys 1 Heat •••• Hardwire
TH135-01-B Non-Prog Soft Keys 1 Heat • ••••• Battery
TH147 Non-Prog Slide Switches 1 Heat/1 Cool • • Battery
T8775A1009 Non-Prog Dial 1 Heat •* Power Stealing
T8775C1005 Non-Prog Dial 1 Heat/1 Cool • • Power Stealing
T87K1007 Non-Prog Dial 1 Heat •* Battery Assisted
Power Stealing
T87N1000 Non-Prog Dial 1 Heat/1 Cool • • Battery Assisted
Power Stealing
T87N1026 Non-Prog Easy-To-See™ 1 Heat/1 Cool • • Battery Assisted
Power Stealing
† AC112-01 temperature sensor must be ordered separately to have minimum and maximum oor temperature limits * Gas or oil heat only
Low Volt Non-Programmable Thermostats Selection Guide
21
Features and Functions Display Information Service Reminders Limited
Warranty
Wiring
Terminals
Real Time Clock (Automatically
Updates Daylight Savings)
Permanent Memory Retention
Selectable Auto or Manual
Changeover
Comfort, Economy or
Vacation Mode
Adaptive Intelligent Recovery™
/ Early Start
Temperature Limits
Keypad Lockout
Unoccupied input
(Req. CT240 or CT241)
Display Size (Viewable)
On-Demand Backlighting
Continuous Backlighting
Simultaneous Display of Room
and Set Temperatures
Filter Reminder
Humidifier Pad Replacement
Reminder
UV Lamp Replacement
Reminder
•Manual 1.0 sq. in. •2 Year R, C, W, O/B, Y, G
•Manual 1.0 sq. in. •2 Year R, C, W
•Manual 1.0 sq. in. •2 Year R, Rc, C, W, O/B, Y, G
•Manual 1.0 sq. in. •2 Year R, C, W
•† 1.45 sq. in. •3 Year R, C, W
•1.45 sq. in. •3 Year R, C, W
• • 1.45 sq. in. •3 Year R, C, W
• • 1.23 sq. in. 3 Year R, W
•Manual 1.34 sq. in. •3 Year Rh, Rc, W, Y, G
•.75 sq. in. •R, W
•Manual .75 sq. in. •R, Rc, W, O, B, Y, G
50010944-001 •5 Year R, W
Manual 50010944-001 •5 Year R, Rc, W, Y, G, O, B
Manual 50010944-001 •5 Year R, Rc, W, Y, G, O, B
22
Low Volt Programmable Thermostats
Honeywell programmable thermostats are the #1 choice of both homeowners and contractors. Homeowners
appreciate the ease-of-use and accurate temperature control. Contractors appreciate the reliability, easy
installation and universal compatibility that lets them meet every need with just a few thermostats on the truck.
And both homeowners and installers trust the Honeywell name, the most recognized thermostat brand in the
world.
23
PRO 2000
•Horizontalandverticalmodelsavailable
•Forcentralheatingandcooling
•Budgetprice
•Dual-poweredwithbatteryand/orhardwire
•Simple5-2programming
•Adaptiveintelligencerecovery
TL8100
•Versatile:forelectricheatingwithrelay,centralorhydronicheating
•Precisecomfortcontrol:±1C/1Faccuracy
•Easy7-dayprogramming
TH115 Series
•Forelectricheatingwithrelay(baseboard,convectors,fan-forcedheaters,radiantceilings)
or hydronic
•DifferentmodelsavailabletocontrolelectromechanicalorTRIAC line voltage relays
•7-Dayprogrammable
TH140*
•Versatile:forelectricheatingwithrelay,centralorhydronicheating
•Workswithlineorlowvoltageloads
•7-Dayprogrammable
TH141*
•Forcentralheatingandcooling
•Offersautomaticchangeoverbetweenheatingandcooling
•7-Dayprogrammable
TH147-P
•Forcentralheatingandcooling
•Offersoutstandingtemperaturecontrol
•Easysetupwithpre-programmedschedule
•7-Dayprogrammable
* Input for remote temperature setback available on some models (ideal for cottages), CT24 Series telephone controller required
24
Low Volt Programmable Thermostats Selection Guide
Model Schedule Options User
Interface
Application
Power Method
Central Heating Line Volt
(Relay Req.)
Program Options
Energy Aware
Temporary Override
Permanent Hold
Vacation Hold
Stages
Gas, Oil or Electric
Heat Pump
Millivolt
Electric Baseboard
Convector
Fan-Forced
Electric Heater
Radiant Ceiling
TH2110D1009 5-2 ••• Slide Switches 1 Heat/1 Cool • • Dual Powered
(Battery and Hardwire)
TH2110DH1002 5-2 ••• Slide Switches 1 Heat/1 Cool • • Dual Powered
(Battery and Hardwire)
TL8100A1008 7-Day ••• Soft Keys 1 Heat • ••••• Battery
TH115-A-024T-15S 7-Day ••• Soft Keys 1 Heat • • • Hardwire
TH115-A-024T 7-Day ••• Soft Keys 1 Heat •••• Hardwire
TH115-AF-024T 7-Day ••• Soft Keys 1 Heat •••• Hardwire
TH140-28-01-B 7-Day ••• Soft Keys 1 Heat • ••••• Battery
TH141HC-28-B 7-Day ••• Soft Keys 1 Heat / 1 Cool •Battery
TH147-P 7-Day ••• Slide Switches 1 Heat / 1 Cool • • Battery
† AC112-01 temperature sensor must be ordered separately to have minimum and maximum floor temperature limits
25
Features and Functions Display Information Service Reminders Limited
Warranty
Wiring
Terminals
Real Time Clock (Automatically
Updates Daylight Savings)
Permanent Memory Retention
Selectable Auto or Manual
Changeover
Comfort, Economy or
Vacation Mode
Adaptive Intelligent Recovery™
/ Early Start
Temperature Limits
Keypad Lockout
Unoccupied input
(Req. CT240 or CT241)
Display Size (Viewable)
On-Demand Backlighting
Continuous Backlighting
Simultaneous Display of Room
and Set Temperatures
Filter Reminder
Humidifier Pad Replacement
Reminder
UV Lamp Replacement
Reminder
•Manual •1.73 sq. in. •2 Year R, C, W, O/B, Y, G
•Manual •1.73 sq. in. •2 Year R, Rc, C, W, Y, G, O, B
• • 3 sq. in. 3 Year Com, NO, NC
• • • † 3.42 sq. in. •3 Year R, C, W
• • • † 3.42 sq. in. •3 Year R, C, W
• • • • 3.42 sq. in. •3 Year R, C, W
• • 3 sq. in. 3 Year Com, NO, NC
Auto • • 3 sq. in. 3 Year Rh, Rc, W, Y, G
•Manual •2.08 sq. in. • • 3 Year Rh, Rc, W, Y, G
26
Switches and Timers
Whether in need of a discreet device or a heavy-duty one, Honeywell’s line of Switches and Timers is complete
with one option for every situation. When it comes to automatically controlling outdoor or indoor lights, pool
pumps or fans, their ease of use and sleek design make them much appreciated by homeowners while
contractors enjoy their easy installation. Honeywell’s line of Switches and Timers are synonymous with reliability
and convenience while enabling energy savings and providing security to homeowners.
27

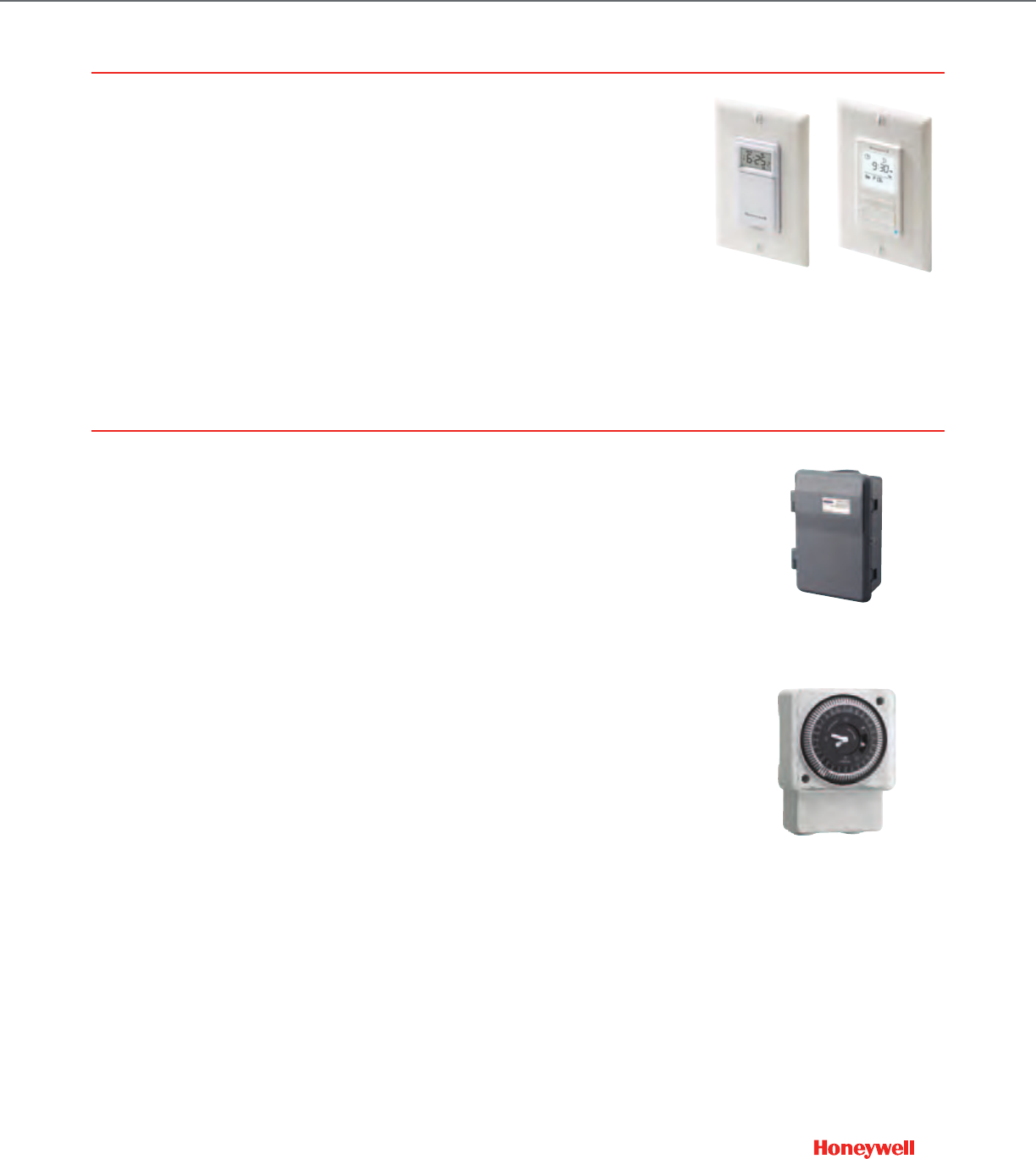

Switches

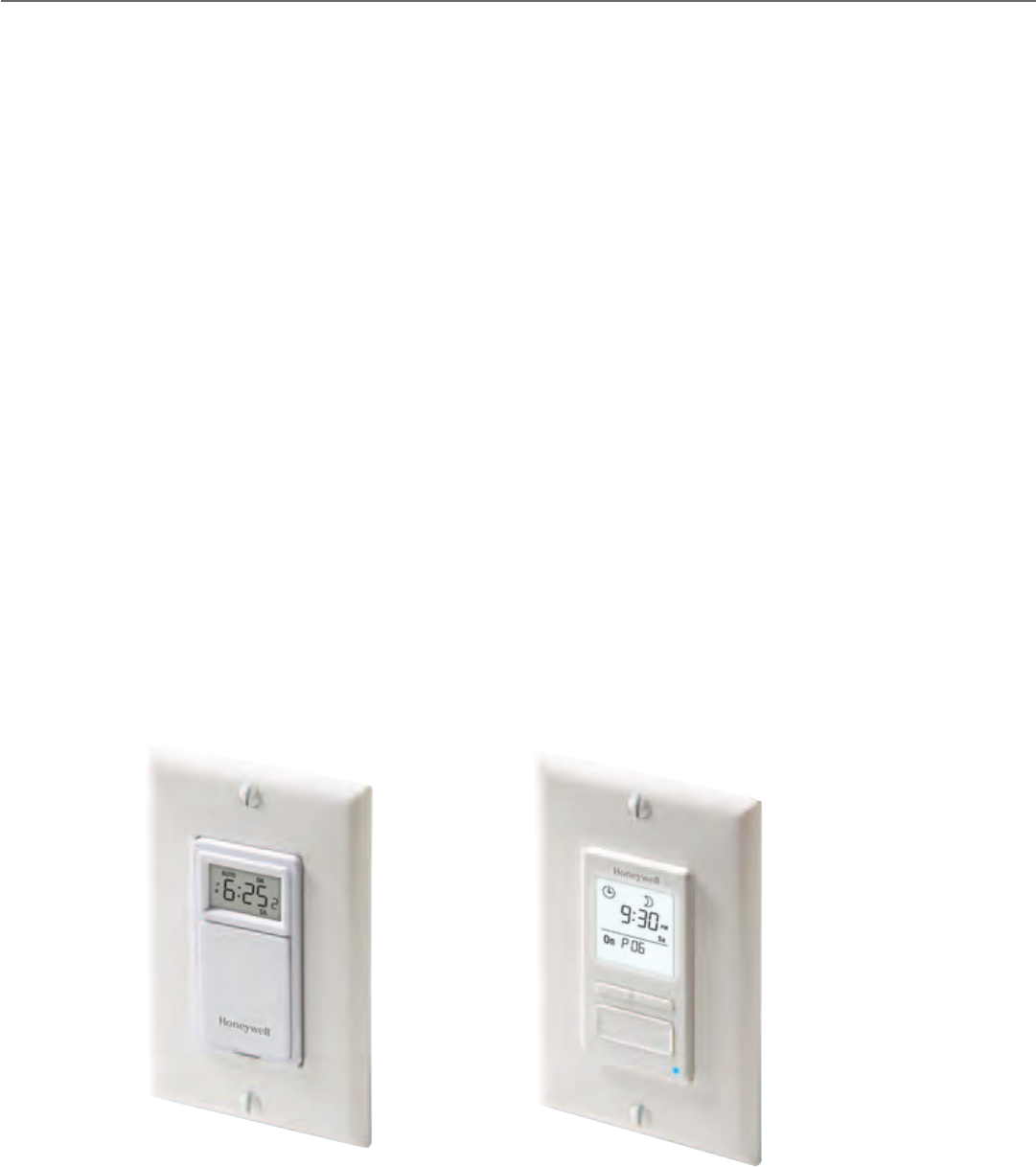

PLS Series
•Easy-to-useinterface
•RandomModeforimprovedhousesecurity
•Forlighting,fan,pumps,andmotorsinstallations
•Solartimetableprogrammingavailableonsomemodels
TI04 Series
•Powerful–foranytypeoflightingandmotors
•Programmable
•Workswith120or240V
•Heady-dutyNEMA3Renclosurewithlockablecover
•Solartimetableactivationavailableonsomemodels
ST6008A1006
•Reliable with battery backup for the quartz drive
•Easyto install on surface or DIN rail mounting
•Three-way override for maximum security and protection
•24-hour or 7-Day program dial and a SPDT switch
•Greatforcommercialapplications
Timers
28

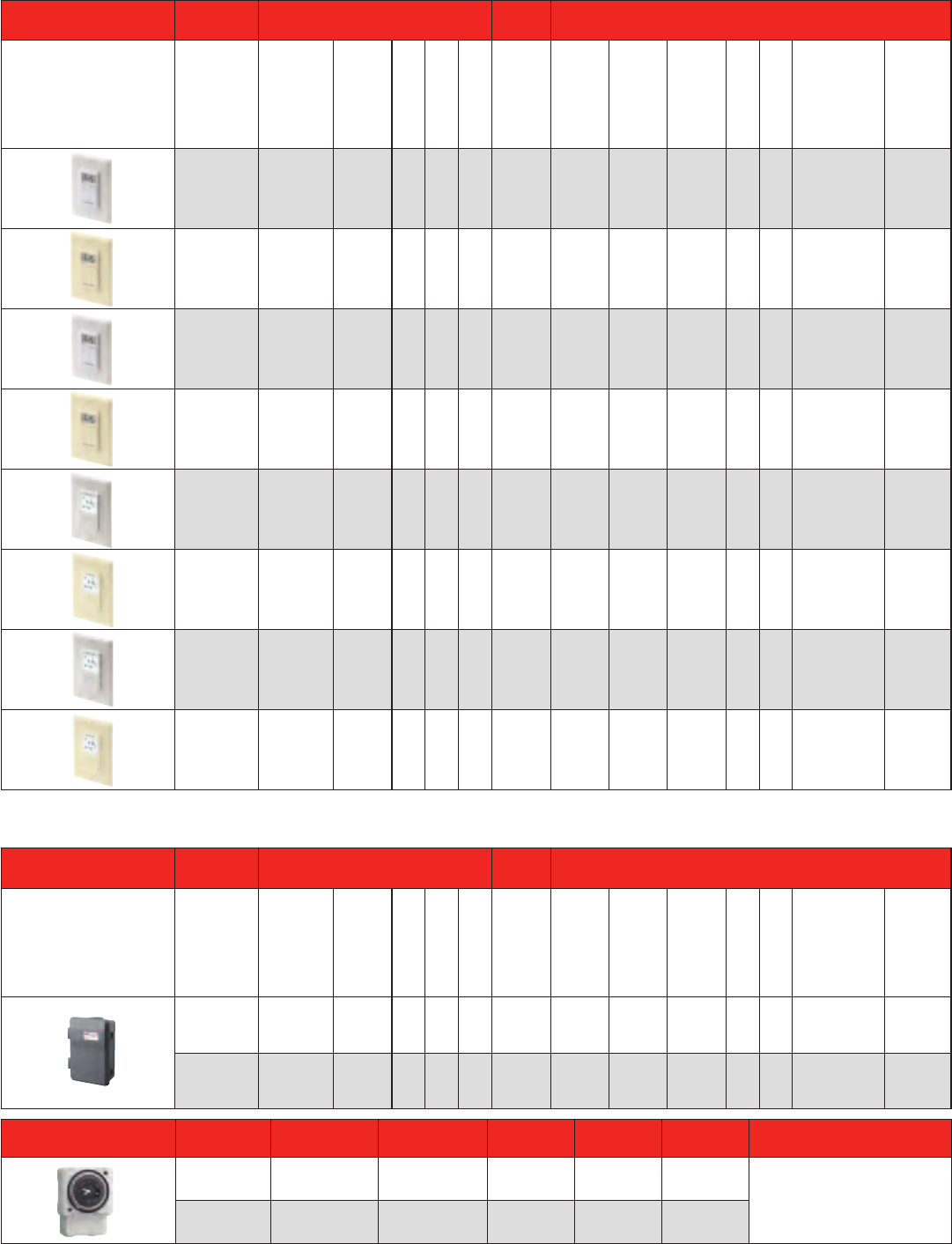

Switches Selection Guide
Model Schedule Options User
Interface Specifications
Program Options
Events
Temporary Override
Permanent Hold
Random mode
Main interface
Color
Switching
Switching method
Three-Way
Compatible
Neutral Required
Maximum Load
Minimum Load
PLS530A1008 7-Day 7 ON
7 OFF • • Soft Keys White SPST TRIAC •500 W @ 120 V 40 W @ 120V
PLS531A1006 7-Day 7 ON
7 OFF • • Soft Keys Light Almond SPST TRIAC •500 W @ 120 V 40 W @ 120V
PLS730B1003 7-Day 7 ON
7 OFF • • Soft Keys White SPST Relay •2400 W @ 120V
1 HP @ 120 V
PLS731B1001 7-Day 7 ON
7 OFF • • Soft Keys Light Almond SPST Relay •2400 W @ 120V
1 HP @ 120 V
PLS750C1000 7-Day
Solar Timetable
21 ON
21 OFF •••Soft Keys White SPST Relay • • 1800 W @ 120 V
1 HP @ 120 V
PLS751C1008 7-Day
Solar Timetable
21 ON
21 OFF •••Soft Keys Light Almond SPST Relay • • 1800 W @ 120 V
1 HP @ 120 V
PLS550A1006 7-Day
Solar Timetable
21 ON
21 OFF •••Soft Keys White SPST TRIAC •500 W @ 120 V 40 W @ 120V
PLS551A1004 7-Day
Solar Timetable
21 ON
21 OFF •••Soft Keys Light Almond SPST TRIAC •500 W @ 120 V 40 W @ 120V
Schedule Options User
Interface Specifications
Program Options
Events
Temporary Override
Permanent Hold
Random mode
Main interface
Color
Switching
Switching method
Three-Way
Compatible
Neutral Required
Maximum Load
Minimum Load
7-Day 7 ON
7 OFF • • Soft Keys Grey DPST Relay •
30 A Res. @ 120/240 V
10 A Ind. @ 120/240 V
1.5 HP @ 120 V
2.0 HP @ 240 V
24 h
Solar Timetable
2 ON
2 OFF • • Soft Keys Grey 2 Outputs
SPST Relay •
30 A Res. @ 120 V
10 A Ind. @ 120 V
1.5 HP @ 120 V
Model Type Minimum On/Off
Time
Input
Voltage
Battery
Reserve
Relay
Output Switch Rating
ST6008A1006 24-hour synchronous 15 min. 120V, 60 Hz N/A 1 SPDT 21A/250 VAC resistive 1350 W Tungsten
1HP @ 120 VAC
2 HP @ 240 VAC
16 FLA, 96 LRA, 120VAC ind.
12FLA, 72 LRA, 240 VAC ind.
ST6008C1004 7-Day quartz 2 hrs 120V, 50/60 Hz 7-Day 1 SPDT
Timers Selection Guide
29
Applications Features and Functions Display information Limited
Warranty
Wiring
Terminals
Incandescent
Lighting
Halogen Lighting
Fluorescent Lighting
CFL (Compact
fluorescent light)
Motors & Fans
2 Outputs
Permanent memory
retention with 4
hour clock backup
30 Days memory
and clock retention
Improved 3 button
programming
Remote Override
Sunset/sunrise
time offset
Display Size
(Viewable)
12h/24h Display
On-demand
backlighting
Continuous
backlighting
Dual backlighting
intensity
• • • • 0.46 sq. in. •3 Year 2 Wire (Single pole)
3 Wire (Three-Way)
• • • • 0.46 sq. in. •3 Year 2 Wire (Single pole)
3 Wire (Three-Way)
• • • • • • 0.46 sq. in. •3 Year 3 Wire
• • • • • • 0.46 sq. in. •3 Year 3 Wire
• • • • • • • • 1.09 sq. in. •••• 3 Year 3 Wire (Single pole)
4 Wire (Three-Way)
• • • • • • • • 1.09 sq. in. •••• 3 Year 3 Wire (Single pole)
4 Wire (Three-Way)
• • • • • • 1.09 sq. in. •••• 3 Year 2 Wire (Single pole)
3 Wire (Three-Way)
• • • • • • 1.09 sq. in. •••• 3 Year 2 Wire (Single pole)
3 Wire (Three-Way)
Applications Features and Functions Display information Limited
Warranty
Wiring
Terminals
Incandescent
Lighting
Halogen Lighting
Fluorescent Lighting
CFL (Compact
fluorescent light)
Motors & Fans
2 Outputs
Permanent memory
retention with 4
hour clock backup
30 Days memory
and clock retention
Improved 3 button
programming
Remote Override
Sunset/sunrise
time offset
Display Size
(Viewable)
12h/24h Display
On-demand
backlighting
Continuous
backlighting
Dual backlighting
intensity
• • • • • • • 2 sq. in. •3 Year Screw terminals
• • • • • • • • 2 sq. in. •3 Year Screw terminals
30
Carbon Monoxide Monitor and Alarm
Honeywell’s C8600 CO Monitor and Alarm is the only biotechnology-based infrared-gas sensor that mimics the
human response to CO. A reliable detection tool from a trusted name in home comfort.
Thermostat Guards
Honeywell’s Universal Thermostat Guards cover wall thermostats of all sizes and
protect against tampering, damage and unauthorized adjustment of thermostat
settings.
Model Description Tradeline Size Cover Ring Base Wallplate Honeywell
Logo
Part #203128A for Easy
Use in Exposed “J” Box
Mounting Applications
Fits Thermostats
TG510A1001 Universal Thermostat
Guard •Small Clear Clear Opaque T87, RS TX400, and others
TG510D1005 Universal Thermostat
Guard Small Painted Steel
(Beige) Opaque Opaque • •
TG511A1000 Universal Thermostat
Guard •Medium Clear Clear Opaque T822, T834, T8034, T84, T874/
Q674, WR1F46, and others
TG511D1004 Universal Thermostat
Guard Medium Painted Steel
(Beige) Opaque Opaque
TG512A1009 Universal Thermostat
Guard •Large Clear Clear Opaque T8082/T8085, T8600, and Most
Electronic Thermostats
TG512D1003 Universal Thermostat
Guard Large Painted Steel
(Beige) Opaque Opaque • •
C8600A1000
•Loud85-decibel-horn
•Maintenance-freecircuitdesign,microprocessorandsoftware
•Self-testsevery10minutes
•Warning“beeps”incaseofmechanicalfailure
•Low-batterywarning
•Energy-savingdesignthatextendsbatterylife(undernormaluse)
•Installsquicklyonwallorceiling
31
Honeywell’s H8908 of low-voltage humidistat and dehumidistat
provide accurate control of whole house humidifiers, dehumidifiers,
and ventilators while the H46 family of line volt humidistats and
dehumidistat provide automatic control of a humidifier or dehumidifier
for dehumidification in air conditioning systems. All have a snap-acting,
dust-proof SPST switch and can be mounted to a duct or wall.
Thermometers
Like any Aube products, our Aube-branded thermometers and thermo-hygrometers are stylish to blend in with your
home decor. And their large clear LCD screen makes them easy to read.
TE503
•Displaysindoorandoutdoortemperaturesin°Cor°F
•Minimumandmaximumtemperaturesstoredinmemory
•AvailableinWhite(TE503)andCharcoal(TE503-7)
TE513
•Displayindoortemperaturein°Cor°Fandrelativehumidity
•Minimumandmaximumrelativehumiditystoredinmemory
•AvailableinWhite(TE513)andCharcoal(TE513-7)
Humidistats & Dehumidistats
Product Number Electrical Ratings Operating Humidity Range (%RH) Color Application
H8908ASPST 50 VA at 24 Vac 10% to 60% RH White Humidification
H8908DSPST 50 VA at 24 Vac 20% to 80% RH White Dehumidification
H46C1166 24/120/240 Vac 20% to 80% RH White
Dehumidification
Top of Form
Bottom of Form
H46D1214 120/240 Vac 10% to 60% RH White
Dehumidification
Top of Form
Bottom of Form
H46E1013 24/120 Vac 20% to 80% RH Beige Dehumidification
Model Description Tradeline Size Cover Ring Base Wallplate Honeywell
Logo
Part #203128A for Easy
Use in Exposed “J” Box
Mounting Applications
Fits Thermostats
TG510A1001 Universal Thermostat
Guard •Small Clear Clear Opaque T87, RS TX400, and others
TG510D1005 Universal Thermostat
Guard Small Painted Steel
(Beige) Opaque Opaque • •
TG511A1000 Universal Thermostat
Guard •Medium Clear Clear Opaque T822, T834, T8034, T84, T874/
Q674, WR1F46, and others
TG511D1004 Universal Thermostat
Guard Medium Painted Steel
(Beige) Opaque Opaque
TG512A1009 Universal Thermostat
Guard •Large Clear Clear Opaque T8082/T8085, T8600, and Most
Electronic Thermostats
TG512D1003 Universal Thermostat
Guard Large Painted Steel
(Beige) Opaque Opaque • •
32
Relays
Honeywell’s switching relays are available in multiple configurations for various applications. For whatever you need —
general purpose relays or electric heat relays — Honeywell has you covered.
R4222, R8222, R4228 and R8228
General Purpose and Heavy-Duty Switching Relays
• Foruseinrefrigerationandair-conditioningequipment,appliancesandvendingmachines
ST82 Time Delay Relay
• CombinestheelectronictimedelayboardandR8222relayforuseincompressor-runairconditioning
andheatpumpsystems;thisproductfeaturesanelectronictimerthatdelaysblowershutoffafterthe
compressor has shut off
R4225 and R8225 Fully Enclosed Line and Low-Voltage Relays
• Forcontroloflinevoltagefanmotorsandauxiliarycircuits
Product
Number
Input Voltage/
Coil Voltage Switching Full Load
Amp Rating Frequency Dimensions (in.)
H x W X D
Electrical
Connections
(main)
Special Features
R8228D1018 24 Vac DPST N.O. 5.5
A
1 7/8 x 2 5/32 x 2 3/8
Q
R8222V1003
24 Vac
DPDT (1 P & 1 P Duty)
12
R8222N1011 DPDT — Pilot Duty Pilot duty
R8222D1014 DPDT
ST82D1004 DPDT 2 7/32 x 2 1/16 x 2 9/16 80 sec shut off delay
R8222B1067 SPDT
1 7/8 x 2 5/32 x 2 3/8
R4222N1002
120 Vac
DPDT — Pilot Duty
R4222D1013 DPDT
R4222B1082 SPDT
R4222D1021 208/240 Vac DPDT
R8225A1017 24 Vac SPDT
14 B2 11/16 x 2 1/2 x 3 7/16 LR8225D1003 DPST N.O.
R4225A1008 120 Vac SPDT, 1 N.O., 1 N.C.
R8228B1012 24 Vac SPDT 18 A1 7/8 x 2 5/32 x 2 3/8 Q
Electric Heat Relays
R8229A1005 24 Vac DPST 7 B 2 3/16 x 2 3/32 x 2 1/4 CHS
R8229A1021 Extra mounting hardware
R841D1036 24 Vac SPST
14 A3 7/8 x 2 13/16 x 1 1/2 L
18 A resistive @ 120/208/240 Vac; Requires
transformer; Canada — replaces R841D1028
R841C1169 208/240 Vac SPST 18 A resistive @ 120/208/240 Vac; Integral
transformer; Canada — replaces R841C1029
R841E1068 240 Vac SPST 22 A resistive @120/208/240 Vac; Dual load/integral transformer
R841C1144 347 Vac SPST 18 A resistive @120/208/240 Vac; Integral transformer; Canada
R841C1151 600 Vac SPST
Frequency: A — 60 Hz/50 Hz; B — 60 Hz, C — 50 Hz SPST: Single Pole Single Throw
Approvals: UL, CSA DPST: Double Pole Single Throw
Temp Rating: -20˚ F to +150˚ F; 115˚ F max for R8225 DPDT Double Pole Double Throw
Connectors: CHS — Combination Head Screw; L — Leadwires; Q — Quick connect;
T — Terminals SPDT: Single Pole Double Throw
33
Product
Number
Input Voltage/
Coil Voltage Switching Full Load
Amp Rating Frequency Dimensions (in.)
H x W X D
Electrical
Connections
(main)
Special Features
RC840
24 Vac SPST
16 @ 120 Vac
13 @ 208 Vac
12 @ 240 Vac
B
2 11/16 x 3 21/64 x 1 27/64
L
22 A Resistive @ 120/208/240 Vac
19 A Resistive @ 277 Vac
18 A Resistive @ 347 Vac
Requires transformer
RC840T-120 16 @ 120Vac
2 45/64 x 3 11/32 x 1 27/64
22 A Resistive @ 120 Vac: Integrated transformer
RC840T-240 13 @ 208 Vac
12 @ 240 Vac 22 A Resistive @ 208/240 Vac: Integrated transformer
RC840T-277
N/A
19 A Resistive @ 277 Vac: Integrated transformer
RC840T-347 18 A Resistive @ 347 Vac: Integrated transformer
RT850 24 Vac
4-32 Vdc
SPST
(Solid state relay) 4 13/64 x 4 11/64 x 1 57/64
23 A Resistive @ 120/208/277/347 Vac
Guaranteed OFF signal: 5 Vac, 2 Vdc
RT850T-240
24 Vac
23 A Resistive @ 208/240 Vac: Integrated transformer
Guaranteed OFF signal: 5 Vac
RT850T-347 23 A @ 347 Vac: Integrated transformer
Guaranteed OFF signal: 5 Vac
RC840 Electromechanical relays for conventional 24 V thermostats
• Forusewithtwo-orthree-wirethermostatstocontrolbaseboards,convectors,
radiant ceilings and duct heaters
• Immediaterelayactivation,improvedtemperaturecontrolandcomfort,
no 90-second on/off delays as with thermal relays
• Epoxysoundproofing,quietoperation
• Terminalboardconnection,easierinstallationuseslessspace
RT850 TRIAC relay for pulsed output thermostats
• Forusewithtwo-orthree-wirethermostatstocontrolbaseboards,convectors,
radiant ceilings and duct heaters
• Superiortemperaturecontrolwhenusedwithfastcyclingthermostats
• 100%silentsolidstaterelayswitching
34
Transformers
Honeywell offers NEMA — National Electrical Manufacturers Association — standard
DC20-1992 and general purpose transformers. These transformers are available with
single or multiple input voltages and with foot, conduit and plate mounting options.
Transformers with circuit breakers that can be manually reset by pressing a button
are also available. Honeywell also designs transformers for specific environmental
requirements and with specialized termination options.
Product
Number
Electrical
Ratings
(VA)
Electrical
Ratings
(Input Voltage)
NEMA
Rated Mounting Main
Connections
Secondary
Connections Frequency Dimensions (in.)
H x W X D Special Features
AT20A1123 19 VA 120 Vac
Yes
F
L
L
A
2 x 2 1/4 x 1 7/8
AT40A1162
40 VA
120 Vac
F L 2 3/32 x 2 5/8 x 2 3/16
AT72D1006 P S 3 7/32 x 2 7/32 x (1 1/16 into x
2 in. above plate)
AT72D1089 F S 3 7/32 x 2 7/32 x 3 1/16
AT72D1188 P L 3 7/32 x 2 7/32 x 2 15/16
AT72D1683 M S
3 7/32 x 2 7/32 x 3 1/16
AT72D1956 M L Canada
AT72D1691 208/240 Vac M S
AT72D1733 M S Canada
AT87A1189 48 VA 277 Vac F L
2 15/16 x 2 7/32 x 2 1/4
Energy limiting overload protection
AT87A1155 480 Vac F L Energy limiting overload protection
AT87A1106 50 VA 120/208/
240 Vac M S Built-in protection; Primary winding burnout
AT120B1028
20 VA
120 Vac
No
F L
B
1 11/16 x 3 3/16 x 1 3/4 Metal end bells
AT120A1004 120/208/
240 Vac M S 2 7/8 x 1 7/8 x 2 15/16 Metal end bells
AT140A1000
40 VA
120 Vac M S 3 3/16 x 2 3/8 x 3 1/8 Metal end bells
AT140B1206 F L 1 11/16 x 3 1/2 x 1 3/4 Plastic end caps
AT140A1018 120/208/
240 Vac
M S 3 3/16 x 2 3/8 x 3 1/8 Metal end bells
AT140B1214 F L 1 11/16 x 3 1/2 x 1 3/4 Plastic end caps
AT140B1024 208/240 Vac FL, Q L1 11/16 x 3 1/2 x 1 3/4
AT150A1007
50 VA
120/208/
240 Vac
M
L
S1 11/16 x 3 3/16 x 1 3/4 Metal end bells
AT150F1022 M L 3 3/16 x 2 3/16 x 3 5/8 Button for resetting circuit breaker & metal end bells
AT150F1030 208/277/
480 Vac M L 3 3/16 x 2 3/16 x 3 5/8 Button for resetting circuit breaker & metal end bells
AT150B1252 277 Vac FL, Q L, Q A1 11/16 x 3 1/2 x 1 3/4 Plastic end caps
AT175A1008
75 VA
120/208/
240 Vac
M
L
S
B
3 3/16 x 2 3/8 x 3 5/8 Metal end bells
AT175F1023 M L 3 3/16 x 2 3/16 x 3 15/16 Button for resetting circuit breaker & metal end bells
AT175F1031 208/277/
480 Vac M L 3 3/16 x 2 3/16 x 3 15/16 Button for resetting circuit breaker & metal end bells
AT88A1005 120 Vac F L
A2 15/16 x 2 3/16 x 3 5/16 Internally fused secondary for overload protectionAT88A1021 208/240 Vac F L
AT88A1047 480 Vac F L
Frequency: A - 60Hz/50Hz; B - 60 Hz
Mounting; C - Conduit ; F - Foot; P - Plate; M - Foot, Conduit, Plate ( not on F models)
Connections: L - Leadwires ( 9 in. to 13 in. ); Q - Quick Connects; S - Screw Terminals
Approval: UL, CSA
35
Heat Sequencers
The positive temperature coefficient (PTC) heater element provides voltage
compression over a wide voltage range without danger of over-heating at high
voltage. It is self-current limiting, and assures device actuation under low-voltage
conditions. The PTC has the unique feature of always stabilizing at a specific
temperature, regardless of ambient temperature or voltage. This will allow the use
of a common device over a wide voltage range.
Product # Switches Timings Timings — ON Timings — OFF
M1-M2 M3-M4 M5-M6 M7-M8 M9-M10 M1-M2 M3-M4 M5-M6 M7-M8 M9-M10
Electric Heat Sequencers
R24AA1008 1 1 1-20 40-110
R24AA3004 1 1 30-90 1-30
R24BA1006 2 1 1-20 1-20 40-110 40-110
R24BA3002 2 1 30-90 30-90 1-30 1-30
R24CB4007 3 2 1-110 1-110 1-110 1-110 1-110 1-110
R24DB4005 4 2 1-110 1-110 1-110 1-110 1-110 1-110 1-110 1-110
R24ED5007 5 4 1-160 1-160 1-160 1-160 1-160 1-160 1-160 1-160 1-160 1-160
R24AA3429
Canada 1 1 15-35 25-55
Model # Switches Timings Heat Cool
Heat Pump — Air Handler Model
R24AA2006 1 1 1-60 75-95
Product
Number
Input
Voltage/
Coil Voltage
Switching Full Load
Amp Rating Frequency
Dimensions
(in.)
H x W X D
Electrical
Connections
(main)
Electric Furnace Sequencer
R8330D1039 24 Vac 7.2 B
3 1/16 x
4 13/16 x
2 11/32
T
Temperature: -50˚ F to 165˚ F
Table Notes:
• M1-M2 and M3-M4 are always first switches to turn ON and last to turn OFF.
All other switches are random ON and random OFF.
• R24ED5007 Switch contacts designated F1-F2 instead of M1-M2.
• R24AA2006 is a Single Pole Double Throw model for Heat Pump Applications.
• These contacts switch simultaneously.
ON Time: Elapsed time (min. to max.) to make contact after heater is energized.
OFF Time: Elapsed time (min. to max.) to break contact after heater is de energized.
Terminations: Solder or screw type 1/4” quick connect
Ratings: Estimate — 25 A resistive and 14 A inductive at 120 Vac
SPST: Single Pole Single Throw
DPST: Double Pole Single Throw
SPDT: Single Pole Double Throw
DPDT: Double Pole Double Throw
Agency: UL/CSA
36
Contactors
Honeywell offers definite-purpose contactors for heating, cooling and refrigeration.
• Availablein1-,2-,3-and4-poleconfigurations
• Multipleinputvoltagerangefrom24/120/208/240configurations
• Availablein25,30,40,50,60,75and90Ampconfigurations
• MeetsARI780andUL/CSA/CURstandards
• Quickconnectsforcoiltermination
• Hexscrewandquickconnectsonunitsupto30A;lugsonunitsratedat40Aandabove
Cross Reference Information
Economy Contactors
Poles
Contact
Ratings (AFL
@ 240, 277,
480, 600
Vac)
Input Voltage/
Coil Voltage
Product
Number
Dimensions (in.)
H x W x D
Main
Connections
Coil
Connections
Contact Ratings
(Resistive @ 240,
277, 480, 600
Vac)
Cutler
Hammer Furnas Mars
1 with
shunt 30 24 Vac DP1030A1000 2 7/32 x 2 1/2 x 3 5/16
CHS
Q
48 A C25CNB130T 45EG10AJA 91320, 17311
2
30
24 Vac DP2030A1003 3 1/4 x 3 5/8 x 3 7/8 48 A C25BNB230T 45EG2OAJ 61354, 17321
120 Vac DP2030B1002 2 7/32 x 3 5/16 x 2 5/32 40 A C25BNB230A 45EG2OAF 61346, 17322
208/240 Vac DP2030C1001 2 7/32 x 2 1/2 x 3 5/16 40 A C25BNB230B 45EG2OAG 61347, 17323
40
24 Vac DP2040A1002
2 3/8 x 3 5/16 x 2 LC 50 A
C25BNB240T 45GG20AJ 61355, 17421
120 Vac DP2040B1001 C25BNB240A 45GG20AF 61356, 17422
208/240 Vac DP2040C1000 C25BNB240B 45GG20AG 61357, 17423
PowerPRO Contactors — ARI 780/790 Rated
1 with
shunt
25
24 Vac
DP1025A5005 2 7/32 x 2 1/2 x 3 5/16 CHS
Q
30 A Not Available 45DG10AJA 61315
30 DP1030A5013 2 7/32 x 2 1/2 x 3 5/16 CHS 48 A Not Available 45EG10AJA 13101, 61320, 61720
40 DP1040A5004 2 23/64 x 2 1/2 x 3 5/16 LC 50 A Not Available 45GG10AJA 61330
2
20 24 Vac DP2020A5021 2 7/32 x 2 1/2 x 3 5/16
CHS
30 A Not Available 45CG20AJ 61310
120 Vac DP2020B5038 2 7/32 x 2 1/2 x 3 5/16 30 A Not Available 45CG20AF 61336, 14122
30
24 Vac DP2030A5004 3 1/4 x 2 5/8 x 3 3/4
48 A
C25DND230T 45EG2OAJ 61345, 13104, 91321, 60510
24 Vac DP2030A5012 3 1/4 x 2 5/8 x 3 3/4 60510
120 Vac DP2030B5003 2 7/32 x 3 5/16 x 2 5/32 C25DND230A 45EG2OAF 61346, 13105,
120 Vac DP2030B5011 2 5/16 x 3 5/16 x 2 5/32 Not Available 60031
208/240 Vac DP2030C5002
2 7/32 x 2 1/2 x 3 5/16
C25DND230B 45EG2OAG 61347, 13106, 60512, 60032
208/240 Vac DP2030C5010 Not Available Not
Available 6,051,291,323
277 Vac DP2030D5001 Not Available Not
Available 60153,
40
24 Vac DP2040A5003
2 23/64 x 3 3/16 x 1 15/16 LC 50 A
C25DNF240T 45GG20AJ 13107 91421, 61355, 61755, 60525,
120 Vac DP2040B5002 C25DNF240A 45GG20AF 13108, 91422, 61356, 61756,
208/240 Vac DP2040C5001 C25DNF240B 45GG20AG 13109, 91423, 61357, 61757, 60527, 14423
3
30
24 Vac DP3030A5003
3 7/64 x 3 5/8 x 2 13/32
CHS
Q, S
40 A
C25DND330T 42BF35AJ 61430, 13113, 60515, 13007, 91331
120 Vac DP3030B5002 C25DND330A 42BF35AF 61431, 13114, 91332
208/240 Vac DP3030C5001 C25DND330B 42BF35AG 61432, 13115, 91333, 60517, 13009
40
24 Vac DP3040A5002
LC
50 A
C25DNF340T 42CF35AJ 60530, 14423, 61445, 13013 91431
120 Vac DP3040B5001 C25DNF340A 42CF35AF 61446
208/240 Vac DP3040C5000 C25DNF340B 42CF35AG 60532, 60182, 61447, 13015, 91433
50
24 Vac DP3050A5001
63 A
C25DNJ350T 42DF35AJ 61460, 13619, 91531
120 Vac DP3050B5000 C25DNJ350A 42DF35AF 61461
208/240 Vac DP3050C5009 C25DNJ350B 42DF35AG 60217, 60202, 61462, 13621, 91533
60
24 Vac DP3060A5000
75 A
C25FNF360T 42EF35AJ 61470 13625 91631
120 Vac DP3060B5009 C25FNF360A 42EF35AF 61471
208/240 Vac DP3060C5008 C25FNF360B 42EF35AG 60227, 60207, 61472, 13627, 91633
75
24 Vac DP3075A5016 4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
4 7/16 x 5 x 3 3/4
95 A
C25FNF375T 42FE35AJ 60235, 61475, 13240, 91731
120 Vac DP3075B5015 C25FNF375A 42FE35AF 60237, 61476
208/240 Vac DP3075C5014 C25FNF375B 42FE35AG 60245, 61477, 13242, 91733
90 120 Vac DP3090B5006 120 A C25GNF390A 42GE35AF 61491
208/240 Vac DP3090C5005 120 A C25GNF390B 42GE35AG 60247, 61492, 13262
440
24 Vac DP4040A5001
2 5/8 x 3 3/4 x 3 7/64 50 A
C25ENF440T 42CF25AJ 61450, 13016
120 Vac DP4040B5000 C25ENF440A 42CF25AF 61451
208/240 Vac DP4040C5009 C25ENF440B 42CF25AG 61452
Electric Heat Contactor
230 24 Vac R8246A1038 2 3/16 x 2 5/16 x 3 5/16 Q, S TCS, Q 48 A @ 240 Vac,
277 Vac
SPECIAL FEATURES:
First pole resistive only, second pole resistive/
inductive combined;
ARI 780/790 rated
37
Product Number Circuits Configuration Dimensions (in.)
H x W x D
Contact Ratings
(Resistive)
Maximum (inrush) Current
at 120/240/480/600 V Use With
DP3AUX-1NO 1 Normally Open snap-on
2 26/32 x 2 17/32 x 7/16 10 A 60/30/15/12 Amps DP3030 – DP3090 Contactors
DP3AUX-1NC 1 Normally Closed snap-on
DP3AUX-1NO-1NC
2
Normally Closed/Normally Open snap-on
DP3AUX-2NO Normally Open snap-on
DP3AUX-2NC Normally Closed snap-on
Honeywell Auxiliary Switches work with Honeywell models of 3-pole contactors.
Auxiliary Switches
Product Number Electrical
Ratings (VA)
Electrical Ratings
(Input Voltage) Switching NEMA
Rated Dimensions (in.) H x W X D Main
Connections
Secondary
Connections Frequency Special Features
R8239B1043
40 VA 120 Vac
DPDT
Yes 4 1/2 x 4 3/16 x 3 3/32
L L A
Super Tradeline*
R8239D1007 DPST
R8239D1015 DPST (1 Power, 1 Pilot) Tradeline
R8239A1052 SPDT Tradeline
R8239B1076 50 VA 120/208/240 Vac DPDT Super Tradeline
R8285A1048 40 VA 120 Vac SPDT
No 4 3/16 x 4 1/2 x 2 13/16
Tradeline
R8285B1053 120/208/240 Vac DPDT Tradeline
R8285D5001 50 VA 120 Vac DPDT
Frequency: A — 60 Hz/50 Hz; B — 60 Hz SPST: Single Pole Single Throw
Approvals: UL, CSA DPST: Double Pole Single Throw
Temp Rating: -20˚ F to +105˚ F DPDT: Double Pole Double Throw
Connectors: L — Leadwires SPDT: Single Pole Double Throw
Mounting: Standard 4 x 4 in. junction box
* Super Tradeline models include extra hardware.
Fan Centers
Fan centers (combines a relay and a transformer), R8285 and R8239 NEMA-rated
units offer low-voltage control of line-voltage fan motors and auxiliary circuits in heating,
cooling or air-conditioning systems.
38
SmartVFD Compact
•TruecustomizedmicroVFD
– Three interface options
– Optional EMC filter
– Open chassis (IP20) or NEMA 1 (IP21)
– Full or Limited I/O
•DINrail,bookshelfmounting
•PIControl
•Modbusstandard
Variable Frequency Drives (VFDs)
SmartVFD HVAC
•Easycommunications
•Start-upWizards/PCSoftwareWizards
•Easy-to-usekeypadandInterface
•Built-In-BACnet,N2,andModbusCommunications
•Built-inProtection
– DC Choke
– RFI Filter
– Bypass Options
•SmartSoftware
– Real-Time Clock
– Fire Mode
– Motor Switch Ride Through
– Hand-Off-Auto built in keypad
– Plenum rated
– 100 KA Short Circuit Current Rating (SCCR) rated
Honeywell VFDs offer you intuitive interface for fast and effective commissioning, communication protocols for reliable
integration, PC software wizards for easy commissioning, monitoring, and troubleshooting, protections for EMC and
harmonics, bypass options for critical applications.
39
Easy To Select Model Numbers
Honeywell SmartVFD COMPACT model numbers
follow the same conventions. Use the figure below to
select the appropriate drive for your application.
SmartVFD Compact Selection Guide
Frame Size: MI1 Dimensions: 6.2" H x 2.6" W x 3.9" D
Nominal
Voltage
Nom. HP
(Nom. Current)
EMC
Filter
Full IO
(6DI, 2AI, 1AO, 1DO, 3RO)
Modbus
Limited IO
(3DI, 1AI, 2RO, Modbus)
460
3~in 3~out
0.5 HP
(1.3 A)
No HVFDCD3C0005F00 HVFDCD3C0005L00
EMC HVFDCD3C0005F01 HVFDCD3C0005L01
0.75 HP
(1.9 A)
No HVFDCD3C0007F00 HVFDCD3C0007L00
EMC HVFDCD3C0007F01 HVFDCD3C0007L01
1 HP
(2.4 A)
No HVFDCD3C0010F00 HVFDCD3C0010L00
EMC HVFDCD3C0010F01 HVFDCD3C0010L01
1.5 HP
(3.3 A)
No HVFDCD3C0015F00 HVFDCD3C0015L00
EMC HVFDCD3C0015F01 HVFDCD3C0015L01
208/230
1~in 3~out
0.25 HP
(1.7 A)
No HVFDCD1B0003F00 HVFDCD1B0003L00
EMC HVFDCD1B0003F01 HVFDCD1B0003L01
0.5 HP
(2.4 A)
No HVFDCD1B0005F00 HVFDCD1B0005L00
EMC HVFDCD1B0005F01 HVFDCD1B0005L01
0.75 HP
(2.8 A)
No HVFDCD1B0007F00 HVFDCD1B0007L00
EMC HVFDCD1B0007F01 HVFDCD1B0007L01
1 HP
(3.7A)
No HVFDCD1B0010F00 HVFDCD1B0010L00
EMC HVFDCD1B0010F01 HVFDCD1B0010L01
208/230
3~in 3~out
0.25 HP (1.7 A) No HVFDCD3B0003F00 HVFDCD3B0003L00
0.5 HP (2.4 A) No HVFDCD3B0005F00 HVFDCD3B0005L00
1 HP (3.7A) No HVFDCD3B0010F00 HVFDCD3B0010L00
Frame Size: MI2 Dimensions: 7.7" H x 3.5" W x 4.0" D
Nominal
Voltage
Nom. HP
(Nom. Current)
EMC
Filter
Full IO
(6DI, 2AI, 1AO, 1DO, 3RO)
Modbus
Limited IO
(3DI, 1AI, 2RO, Modbus)
460
3~in 3~out
2 HP
(4.3 A)
No HVFDCD3C0020F00 HVFDCD3C0020L00
EMC HVFDCD3C0020F01 HVFDCD3C0020L01
3 HP
(5.6 A)
No HVFDCD3C0030F00 HVFDCD3C0030L00
EMC HVFDCD3C0030F01 HVFDCD3C0030L01
208/230
1~in 3~out
1.5 HP
(4.8 A)
No HVFDCD1B0015F00 HVFDCD1B0015L00
EMC HVFDCD1B0015F01 HVFDCD1B0015L01
2 HP
(7 A)
No HVFDCD1B0020F00 HVFDCD1B0020L00
EMC HVFDCD1B0020F01 HVFDCD1B0020L01
208/230
3~in 3~out
2 HP
(7 A) No HVFDCD3B0020F00 HVFDCD3B0020L00
115V/230V
1~in 3~out
0.25 HP (1.7 A) No HVFDCD1A0003F00 HVFDCD1A0003L00
0.5 HP (2.4 A) No HVFDCD1A0005F00 HVFDCD1A0005L00
1 HP (3.7A) No HVFDCD1A0010F00 HVFDCD1A0010L00
Frame Size: MI3 Dimensions: 10.2" H x 3.9" W x 4.3" D
Nominal
Voltage
Nom. HP
(Nom. Current)
EMC
Filter
Full IO
(6DI, 2AI, 1AO, 1DO, 3RO)
Modbus
Limited IO
(3DI, 1AI, 2RO, Modbus)
460
3~in 3~out
4 HP
(7.6 A)
No HVFDCD3C0040F00 HVFDCD3C0040L00
EMC HVFDCD3C0040F01 HVFDCD3C0040L01
5 HP
(9 A)
No HVFDCD3C0050F00 HVFDCD3C0050L00
EMC HVFDCD3C0050F01 HVFDCD3C0050L01
7.5 HP
(12 A)
No HVFDCD3C0075F00 HVFDCD3C0075L00
EMC HVFDCD3C0075F01 HVFDCD3C0075L01
208/230
1~in 3~out
3 HP
(11 A)
No HVFDCD1B0030F00 HVFDCD1B0030L00
EMC HVFDCD1B0030F01 HVFDCD1B0030L01
208/230
3~in 3~out
3 HP
(11 A) No HVFDCD3B0030F00 HVFDCD3B0030L00
115V/230V
1~in 3~out
1.5 HP
(4.8 A) No HVFDCD1A0015F00 HVFDCD1A0015L00
575V
3~in 3~out
1 HP (2 A) No HVFDCD3D0010F00 HVFDCD3D0010L00
2 HP (3.6 A) No HVFDCD3D0020F00 HVFDCD3D0020L00
3 HP (5 A) No HVFDCD3D0030F00 HVFDCD3D0030L00
5 HP (7.6 A) No HVFDCD3D0050F00 HVFDCD3D0050L00
7.5 HP (10.4 A) No HVFDCD3D0075F00 HVFDCD3D0075L00
SmartVFD COMPACT Accessories
Model Number Description
HVFDCABLE COMPACT VFD COMMISSIONING CABLE AND USB ADAPTOR
HVFDCDMCA COMPACT VFD COMMISSIONING DEVICE
HVFDCDMCAKIT COMPACT VFD COMMISIONING KIT
HVFDCDNEMA1FR1 COMPACT VFD NEMA 1 KIT FRAME SIZE1
HVFDCDNEMA1FR2 COMPACT VFD NEMA 1 KIT FRAME SIZE2
HVFDCDNEMA1FR3 COMPACT VFD NEMA 1 KIT FRAME SIZE3
HVFDCDTRAINER COMPACT VFD TRAINING DEMONSTRATION KIT
HVFDCD 3 C 0000 F 0 0
EMC Filter
0 = No Filter
1 = Filter included
Enclosure
0 = Open Chassis (IP20)
Control IO
F = Full IO (6DI, 1A2, 3DO, 1AO)
L = Limited IO (3DI, 1AI, 1DO)
Nominal Horsepower
0007 = .75 HP
0010 = 1HP
0100 = 10HP
Nominal Voltage
A = 115v
B = 208v-230v
C = 480v
D = 575v
Phases
1 = Single Phase (1~in, 3~out)
3 = Triple Phase (3~in, 3~out)
Product Family
HVFDCD = SmartVFD COMPACT
40
SmartVFD HVAC Selection Guide
Product Family
HVFDSD = Honeywell SmartVFD HVAC
HVFDSB = Honeywell SmartVFD BYPASS
Input Phase
3 = Three Phase (3~in, 3~out)
Nominal Voltage
A= 208/230 Vac Drive Alone, 208 Vac Bypass
B = 230 Vac Bypass
C = 480 Vac
D = 575 Vac
Nominal Horsepower
0007 = .75 Horse Power
0010 = 1 Horse Power
0100 = 10 Horse Power
Options
0 = Drive Only or No Special Options
1 = Auto-Bypass
Contactors
0 = Drive Only
1 = Disconnect Only
2 = Two Contactor Bypass
3 = Three Contactor Bypass
Enclosure Type
1 = NEMA 1
2 = NEMA 12
3 = NEMA 3R
Interface
T = Text KeyPad
G = Graphic KeyPad
HVFDSD 3 C 0100 G 1 0 0
PICK THE RIGHT VFD FOR THE APPLICATION
•Drivesaretypicallysizedtomatchthehorsepowerratingofthemotor,whichwillbeaccurate95percentofthe
time. But for the greatest accuracy, drives should be sized based upon the Full Load Amps or current draw of
the motor. The VFD must have a slightly larger current rating maximum.
•Theenvironmentthedrivewilloperateiniscriticalforselection.HoneywelloffersNEMA1,NEMA12(fordusty,
dirtier environment) and NEMA 3R enclosures (for falling water or rain situations).
•BecauseofthecomplexityofVFDs,aclean,conditionedspacewithtemperaturesbetween14°Fand
140°F provides an environment for ideal operation. Heaters are an option in order to keep your VFD at its
recommended temperature.
•HoneywellSmartVFDHVAChasamodelrangefrom1.5-75HPfor460Vac,0.75-40HPfor208/230Vac.
41
SmartVFD HVAC Drive Alone
HP AMPS Frame NEMA 1 Drive Alone NEMA 12 Drive Alone NEMA 3R Drive Alone
460 Vac
1.5 3.4 4 HVFDSD3C0015G100 HVFDSD3C0015G200 HVFDSD3C0015G300
2 4.8 4 HVFDSD3C0020G100 HVFDSD3C0020G200 HVFDSD3C0020G300
3 5.6 4 HVFDSD3C0030G100 HVFDSD3C0030G200 HVFDSD3C0030G300
4 8 4 HVFDSD3C0040G100 HVFDSD3C0040G200 HVFDSD3C0040G300
5 9.6 4 HVFDSD3C0050G100 HVFDSD3C0050G200 HVFDSD3C0050G300
7.5 12 4 HVFDSD3C0075G100 HVFDSD3C0075G200 HVFDSD3C0075G300
10 16 5 HVFDSD3C0100G100 HVFDSD3C0100G200 HVFDSD3C0100G300
15 23 5 HVFDSD3C0150G100 HVFDSD3C0150G200 HVFDSD3C0150G300
20 31 5 HVFDSD3C0200G100 HVFDSD3C0200G200 HVFDSD3C0200G300
25 38 6 HVFDSD3C0250G100 HVFDSD3C0250G200 HVFDSD3C0250G300
30 46 6 HVFDSD3C0300G100 HVFDSD3C0300G200 HVFDSD3C0300G300
40 61 6 HVFDSD3C0400G100 HVFDSD3C0400G200 HVFDSD3C0400G300
50 72 7 HVFDSD3C0500G100 HVFDSD3C0500G200 HVFDSD3C0500G300
60 87 7 HVFDSD3C0600G100 HVFDSD3C0600G200 HVFDSD3C0600G300
75 105 7 HVFDSD3C0750G100 HVFDSD3C0750G200 HVFDSD3C0750G300
100 140 8HVFDSD3C1000G100 HVFDSD3C1000G200 HVFDSD3C1000G300
125 170 8HVFDSD3C1250G100 HVFDSD3C1250G200 HVFDSD3C1250G300
150 205 8HVFDSD3C1500G100 HVFDSD3C1500G200 HVFDSD3C1500G300
200 261 9HVFDSD3C2000G100 HVFDSD3C2000G200 -
250 310 9HVFDSD3C2500G100 HVFDSD3C2500G200 -
HP AMPS Frame NEMA 1 Drive Alone NEMA 12 Drive Alone NEMA 3R Drive Alone
208/
230 Vac
.75 3.7 4 HVFDSD3A0007G100 HVFDSD3A0007G200 HVFDSD3A0007G300
1 4.8 4 HVFDSD3A0010G100 HVFDSD3A0010G200 HVFDSD3A0010G300
1.5 6.6 4 HVFDSD3A0015G100 HVFDSD3A0015G200 HVFDSD3A0015G300
2 8 4 HVFDSD3A0020G100 HVFDSD3A0020G200 HVFDSD3A0020G300
3 11 4 HVFDSD3A0030G100 HVFDSD3A0030G200 HVFDSD3A0030G300
5 18 5 HVFDSD3A0050G100 HVFDSD3A0050G200 HVFDSD3A0050G300
7.5 24 5 HVFDSD3A0075G100 HVFDSD3A0075G200 HVFDSD3A0075G300
10 31 5 HVFDSD3A0100G100 HVFDSD3A0100G200 HVFDSD3A0100G300
15 48 6 HVFDSD3A0150G100 HVFDSD3A0150G200 HVFDSD3A0150G300
20 62 6 HVFDSD3A0200G100 HVFDSD3A0200G200 HVFDSD3A0200G300
25 75 7 HVFDSD3A0250G100 HVFDSD3A0250G200 HVFDSD3A0250G300
30 88 7 HVFDSD3A0300G100 HVFDSD3A0300G200 HVFDSD3A0300G300
40 105 7 HVFDSD3A0400G100 HVFDSD3A0400G200 HVFDSD3A0400G300
50 140 8HVFDSD3A0500G100 HVFDSD3A0500G200 HVFDSD3A0500G300
60 170 8HVFDSD3A0600G100 HVFDSD3A0600G200 HVFDSD3A0600G300
75 205 8HVFDSD3A0750G100 HVFDSD3A0750G200 HVFDSD3A0750G300
100 261 9HVFDSD3A1000G100 HVFDSD3A1000G200 -
125 310 9HVFDSD3A1250G100 HVFDSD3A1250G200 -
42
•Easy-To-UseGraphicalInterface(Standard)—Savestime
•InternalTimeClockScheduler(Standard)—Helpssaveenergywithoutanyadd-
on needed
•UpToTwoIndependentModulatingOutputs(Standard)—Onedevicecan
handle many field requirements allowing for faster and easier control selection on
each job
•ConfigurableIntegralAndDerivativeTimes(Standard)—Enablescustom
adjustments of reaction times and behavior
•ResetModelsWithSimplifiedSetup(Standard)—Requiresonlytoenterhighand
low control temperatures and corresponding high and low outdoor temperatures.
•NEMA4XEnclosure(Optional)—Protectsthecontrollerfromwaterandcorrosion
•ModulatingHighOrLowLimitControl(Optional)—Allowstemperaturecontrolat
sensor A to protect equipment at sensor B for consistent control while protecting
the equipment
T775 Electronic Standalone Controller
The Honeywell T775 Electronic Standalone Controller puts an end to add-on costs. All the features you need for a
variety of applications are built right into the T775, including the LCD display. There is no need to worry about having
the right modules in stock or needing to piece them together. The T775 has it all.
Models for Special Applications
Product
Number Description Replaces Relay
Outputs
Analog Outputs
4-20 mA,
0-10 Vdc, 2-10 Vdc,
& Series 90
Digital
Output
Dedicated
Pump
Output
Sensor
Inputs
Available
# Sensors
Included Expandable1Output
Reset
T775P20032Special boiler with reset 4 SPDT 1 •3 3 • •
T775L2007 Stage sequencer with reset option 4 SPDT32 1 • •
T775U2006 Universal — humidity, pressure, etc.
H775A1006, H775A1022,
H775A1048, H775A1063,
H775B1005, H775C1004,
H775D1003, H775E1002
2 SPDT 2 24•
T775U2016 Universal - Control to sensor A (universal
input) and Sensor B (temp) independently. 2 SPDT 2 24•
T775S2008 Relay expansion module 4 SPDT Use with T77P or T775L
1 4 or 8 more relays possible with T775S2008 relay expansion module(s).
2 Includes dedicated pump output, equal run time, pump pre-purge and post-purge, WWSD and more.
3 Up to 2 independent non-sequenced relays are also available.
4 First input configurable for temperature 0-5Vdc, 0-10 Vdc, or 4-20 mA; second input is configurable for temperature only.
Special Models
Several T775 models are designed to ensure your control needs can still be met with a single unit for special applications.
•UniversalModeltocontrolpressure,humidityortemperature
•SpecialSequencingModelforstagingupto12relayswithuptotwosetpoints
•SpecialBoilerModel
43
Models for Standard Applications
Product
Number Description Replaces Relay Outputs
Analog Outputs
4-20 mA, 0-10 Vdc, 2-10 Vdc,
& Series 90
Floating
Output1Sensor
Inputs Available # Sensors Included 2
T775A2009 Standard T775A1001 1 SPDT 1 1
T775B2016 Standard-NEMA 4X 2 SPDT 1 2 1
T775B2032 Standard T775A1019, T775B1000 2 SPDT 1 2 1
T775B2024 Standard-NEMA 4X T775C1009, T775D1008 4 SPDT 2 2 1
T775B2040 Standard T775A1027, T775A1035, T775B1018, T775B1026,
T775B1040 4 SPDT 2 2 1
T775M2006 Modulating None 2 2 1
T775M2022 Modulating-NEMA 4X 2 SPDT 2 2 1
T775M2048 Modulating T775E1015, T775E1023, T775E1056, T775E1064,
T775E1098 2 SPDT 2 2 1
T775M2014 Modulating-NEMA 4X T775G1005, T775G1013, T775G1021, T775G1039 4 SPDT 2 2 1
T775M2030 Modulating T775E1114, T775F1022, T775F1055, T775F1089 4 SPDT 2 2 1
T775R2035 Reset option T775J1001, T775J1076 2 SPDT 1 2 2
T775R2043 Reset option T775J1019, T775J1027, T775J1035 None 2 2 2
T775R2027 Reset option T775J1043, T775J1050, T775J1068 2 SPDT 2 2 2
T775R2001 Reset option 4 SPDT 2 2 2
T775R2019 Reset option 4 SPDT 2 2 2
1 One floating output eliminates two relay outputs.
2 50021579-001 included with non-NEMA 4X models, and T775-SENS-WR included with NEMA 4X models.
Compatible Components
Part Number Description Application Use With
Temperature
50021579-001 Standard temperature sensor
for indoor applications Monitoring temperature of return air,
discharge air and mixed air
All T775 Series
2000 models
T775-SENS-WR Water-resistant sensor with 5-ft. leads
T775-SENS-WT Water-tight sensor with 6-ft. leads
T775-SENS-OAT Outdoor air temperature sensor Outdoor air for reset
C7031D2003 5-in. immersion sensor (comes with immersion well, 50001774-001) Hot or chilled water
C7031J2009 12-in. duct averaging sensor with four elements Duct discharge air
C7046D1008 8-in. duct probe with mounting flange Duct discharge air mounts on
flat duct or plenum surface
C7100D1001 12-in. fast response, duct averaging sensor with flange Averaging duct discharge air for
use in troubleshooting
C7130B1009 Room mount sensor Wall mount air temperature sensor
Humidity
H7625A/B Humidity transmitter, 2% RH accuracy, wall mount or duct mount
Humidity
T775U2006,
T775U2016
H7635A/B/C Humidity transmitter, 3% RH accuracy, wall mount, duct mount or outdoor mounting
H7655A Humidity transmitter, 5% RH accuracy, wall mount
H7655B Humidity transmitter, 5% RH accuracy, duct mount
Pressure
P7640A Differential pressure transmitter, 0-1.0, 0-0.5, 0-0.25, or 0-0.1
in. w.c., uni- or bi-directional, panel mount, with display
Duct, room and building static pressure,
clean rooms, hospitals, fume hoods
and computer rooms
P7640U Differential pressure transmitter, 0-10, 0-5, 0-2.5, 0-1, 0-0.5, 0-0.25, or 0-0.1
in. w.c., uni- or bi-directional, panel or duct mount, with and without display
CO2
C7232
Non-Dispersive Infrared (NDIR) carbon dioxide sensor, 0-2,000 ppm
adjustable, 0/2-10 Vdc or 0/4 to 20 mA adjustable, one adjustable SPST
relay output, wall or duct mount, LCD option and Honeywell logo option Ventilation and air conditioning
systems to control the amount of fresh
outdoor air supplied to maintain
acceptable levels of CO2 in the space
(demand control ventilation)
C7632 Non-Dispersive Infrared (NDIR) carbon dioxide sensor, fixed 0-2,000 ppm,
fixed 0-10 Vdc output, wall or duct mount and Honeywell logo option
44

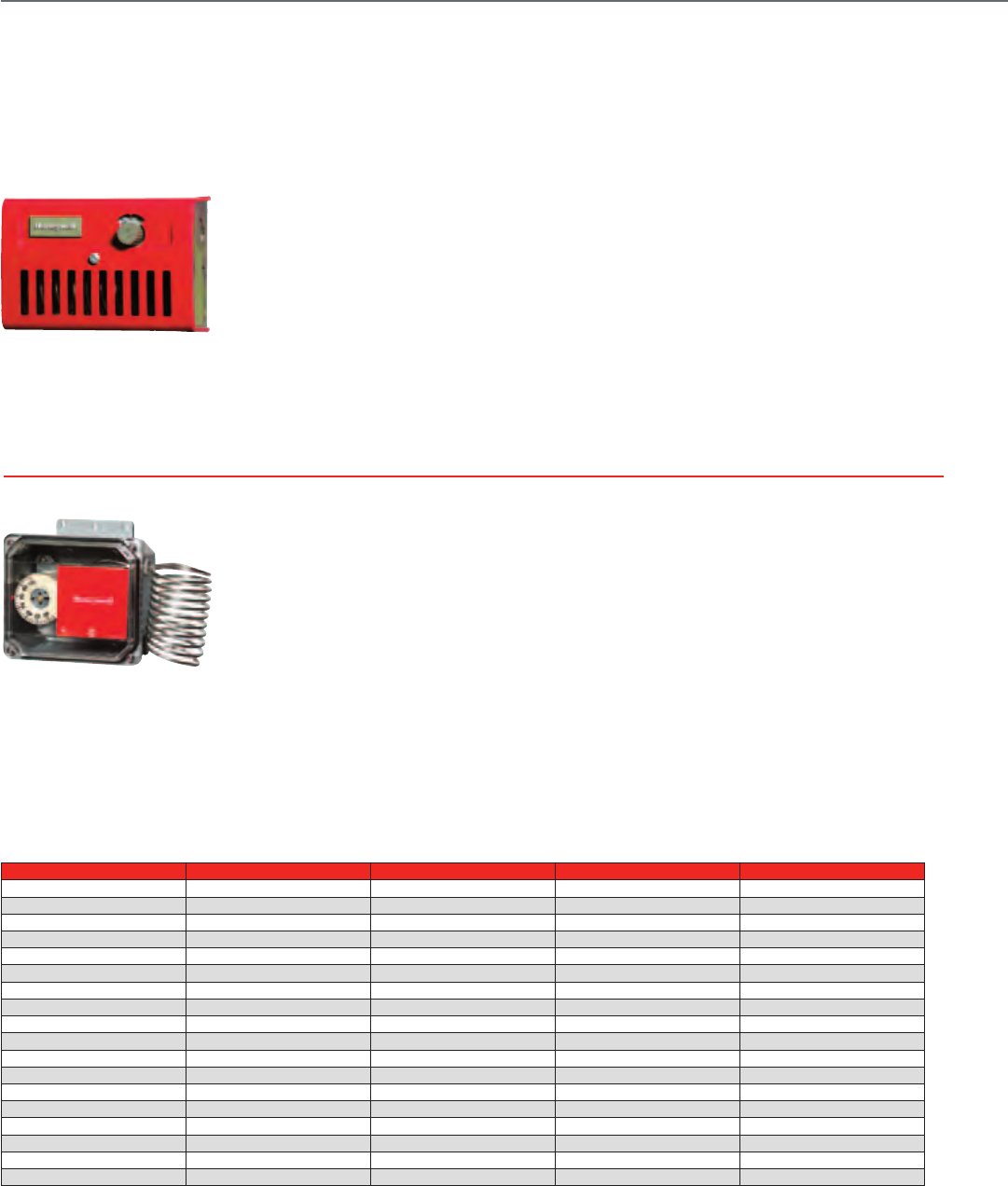

T631 Farm Controllers
•Useinbarns,poultryhouses,hogbarns,pumphouses,milkhousesandcrop
storage houses
•Treatedtoresistcorrosion
•Slotsinfrontandbottomofcaseprovidemaximumaircirculationoverthe
coiled sensing element
•SPDTsnapswitchespermanentlysealedagainstcorrosion
•Easymountingusingscrewsthroughholesinbackofcase
T631 Commercial Remote Controllers
T631F, G NEMA-IV Controllers
•Useinbarns,brooderhouses,poultryhouses,hogbarns,pumphouses,milk 
houses, crop storage houses and industrial environments
•NEMA4Xenclosureprotectsthermostatandwiringconnectionsfromoil,water,dust,
and corrosion
•Clearplasticcoverrevealssetpoint,discouragestampering
•Sensingelementexternallymountedforfastresponseandtinplatedtoresistcorrosion
•Reliablesnapswitchessealedagainstcontamination
•Insulatedcasehasinternalgroundingscrewforsafety
•MeetNationalElectricalCodeArticle547-4requirements
•Easymountingwithscrewsthroughholesinflangesoncase
For line voltage control of heating, cooling and ventilating systems in farm buildings, storage areas and other industrial
environments, the heavy-duty and easy-to-install T631 Remote Controllers from Honeywell are the perfect choice.
Part Number Setpoint Temperature Relay Outputs Differential Comments
T631A1006 35˚ F to 100˚ F 1 SPDT 2.0˚ F Red Finish
T631A1022 70˚ F to 140˚ F 1 SPDT 2.0˚ F Red Finish
T631A1030 0˚ F to 70˚ F 1 SPDT 3.0˚ F Red Finish
T631A1063 -10˚ F to +100˚ F 1 SPDT 3.0˚ F Red Finish
T631A1113 35˚ F to 100˚ F 1 SPDT 3.5˚ F Red Finish
T631A1154 0˚ C to 40˚ C 1 SPDT 1.1˚ C Scale in Celsius
T631B1005 35˚ F to 100˚ F 2 SPDT (1 hp ) 2.0˚ F Red Finish
T631B1054 35˚ F to 100˚ F 2 SPDT (1 hp ) 2.0˚ F Red Finish
T631C1012 20˚ F to 90˚ F 1 SPDT 3.0˚ F Gray Finish
T631C1020 70˚ F to 140˚ F 1 SPDT 2.0˚ F Gray Finish
T631C1038 -10˚ C to +30˚ C 1 SPDT 1.7˚ C Scale in Celsius
T631C1046 20˚ C to 60˚ C 1 SPDT 1.1˚ C Scale in Celsius
T631C1053 35˚ F to 100˚ F 1 SPDT 2.0˚ F Gray Finish
T631C1103 -30˚ F to +100˚ F 1 SPDT 5.0˚ F Gray Finish
T631F1068 35˚ F to 100˚ F 1 SPDT 2.0˚ F NEMA 4X Housing
T631F1084 35˚ F to 100˚ F 1 SPDT 2.0˚ F NEMA 4X Housing
T631F1092 35˚ F to 100˚ F 1 SPDT 2.0˚ F NEMA 4X Housing
T631G1059 35˚ F to 100˚ F 2 SPDT (1 hp ) 2.0˚ F NEMA 4X Housing
45

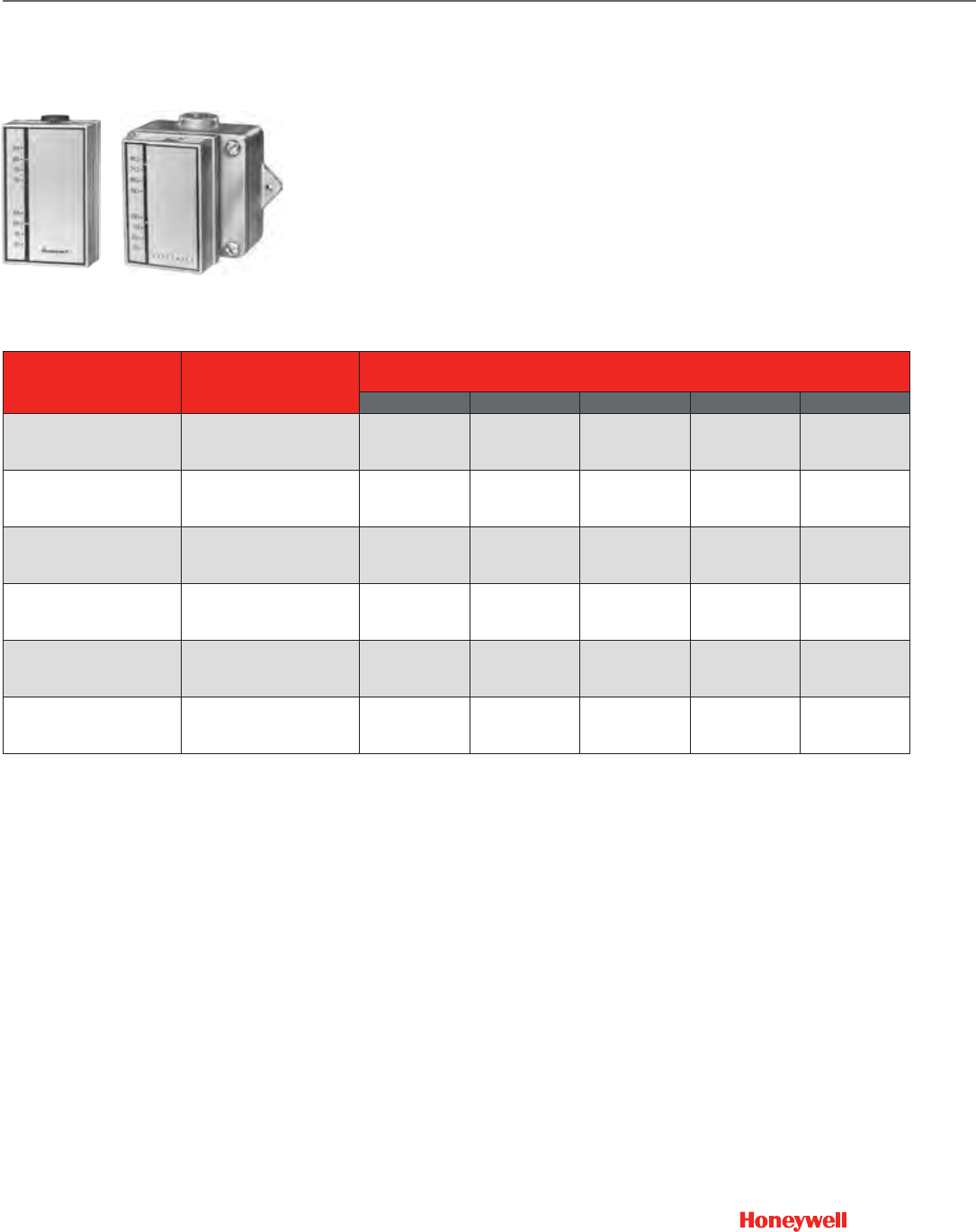

Model Application
Features
LDCD Display Temperature Range Differential Temperature Switch Position Switching Action
T6051A1016 Heating and Cooling No 46 ˚F to 84 ˚F 1 ˚F N/A SPDT
T6051A1057 Heating and Cooling Explosion-proof. No 8 ˚C to 29 ˚C 0.6 ˚C N/A SPDT
T6051B1006 Heating and Cooling No 46 ˚F to 84 ˚F 1 ˚F N/A SPDT
T6052A1015 2 Heat / 2 Cool No 46 ˚F to 84 ˚F 2 H / 1 C - 3.2 ˚F
1 H / 2 C - 2.5 ˚F 2 H or 2 C 2 SPDT
Switches
T6052A1023 2 Heat / 2 Cool No 8 ˚C to 29 ˚C 2 H / 1 C - 1.8 ˚C
1 H / 2 C - 1.4 ˚C 2 H or 2 C 2 SPDT
Switches
T6052B1013 Heating and Cooling. Auto changeover No 46 ˚F to 84 ˚F 2 C - 3.2 ˚F
1 H - 2.5 ˚F 1 H / C 2 SPDT
Switches
•UsewithQ651A,Bsubbasesforsystemandfanswitching
•Removablesetpointknoblockssetpointandpreventstampering
•Withlockingcover
Heavy-Duty Line Voltage Fan-coil Thermostats
Control fan coils, fans, motor starters, valves, contactors, and circulator motors in heating and/or cooling systems.
46
Digital Bath Fan Control
HVC0001
•MeetsASHRAE62.2VentilationStandard
•Easytoinstall
•Simpleprogramming
•Canrunintimermodeupto60minutesin5-minuteincrements
•Easy-to-seebacklitdisplay
•AlsoavailableinBiscuit(HVC0002)
Residential Controllers
Telephone Controller
CT240-01
•Twosimultaneousoutputs:onelowvoltageoutputforthermostat,oneuniversaloutput(10A
max. @ 30 V) for household device
•Ifinstalledinsideelectricalbox:10Amax.@240V,0.5HP@120V/1HP@240V
•Recommendedforallremote-equippedthermostatsinthiscatalog
CT241-01
•Fouruniversaloutputs(10Amax.@30V)forthermostatsorhouseholddevices
•Eachoutputoperatesindependently
•Ifinstalledinsideelectricalbox:10Amax.@240V,0.5HP@120V/1HP@240V
•Recommendedforcontrollingmultiplehouseholddevices
Defrost Controller
ST74A1053
•Low-voltagetime/temperaturedefrostcontrollerforheatpumps
•Resetsthedefrostcyclebyremotecontactclosure
•Mountsinoutdoorsectionofheatpump
•Utilizesspecialmoisturebarriertoprotectcircuitry
47
PRO
Your business counts and you can count on Honeywell to help it grow.
With a variety of options available for redeeming your points, it’s easy to see how you
can turn your points into profits.
Points for Product
(Best Profit Opportunity!)
Get the most from your Contractor PRO
points when you redeem them for FREE
product. Turn your points into a Points
for Product Certificate that can be used to
purchase qualifying Honeywell products
at the participating Honeywell Distributor
of your choice.
Points for Promoting Your Business
Grow your business by promoting or
advertising your company and the
Honeywell products sell. Honeywell
also encourages you to use your points
as co-op marketing dollars, and
reimbursement is offered at 50 percent
on all eligible activities.
Points for Professional Development
Use your points towards a wide range of
training opportunities for yourself and
your staff, including exclusive Honeywell
and other industry training programs. Visit
the Professional Development/Training
page on www.contractorpro.com to
learn more.
Points for Personal or Employee Perks
Choose from a full catalog of perk
items such as electronics, sporting
goods and trips to reward yourself,
employees, family or friends. Perk items
are a great way to reward employees
for their achievements or to use as
incentives for special promotions.
Points for Promoting Your Business:
“In our business, points are used to fund
seasonal promotions for Honeywell accessories.
With the sales results we’ve had, this has been
the best payback to our business.”
Managing Your Points:
Points expire 12 months from the date of purchase, so make
sure that you are using them to your full advantage. To help,
each month Honeywell will send you an email statement
covering points earned, account balance, and expiration
dates. You can also check your account information
anytime at www.contractorpro.com.
Points for Promotional Merchandise
Contractor PRO members can
use their earned rewards points
to purchase Honeywell and
Honeywell Contractor PRO
branded shirts, hats and other
accessories from our online
promo collection catalog.
It Pays to be a Part of Honeywell’s
Contractor PRO Program
Becoming a Honeywell Contractor PRO
member is easy, and it’s FREE.
Go to www.contractorpro.com for
more details and to join today!
48
Honeywell creates the best consumer and builder sales
literature in the business. Now you can customize and
order product sell sheets and brochures, build direct mail
campaigns, download ad slicks and take advantage of limited
number of FREE literature available to you as a Honeywell
Contractor or Distributor at Honeywell’s online literature web
site: www.literature.honeywell.com
Take advantage of this great resource today!
Honeywell Literature Web Site
Honeywell Merchandise and Display Items
Maximize your Sales with Honeywell’s
Merchandising and Display Items!
Honeywell offers a complete selection of merchandising and
display items for distributors, contractors and builders to use in
enhancing their showrooms or branches.
Merchandising and display items can help sales. Studies show
that the majority of purchase decisions are made at the point
of sale. Maximize your sales with Honeywell point of purchase
items. Go to www.literature.honeywell.com to order your copy
of our Merchandise and Display Catalog (#50-9847).
49
Notes
50
51
Learn More
Call toll-free 1-800-328-5111,
e-mail info@honeywell.com
or visit customer.honeywell.com.
Automation and Control Solutions
In the U.S.:
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422-3992
In Canada:
Honeywell Limited
35 Dynamic Drive
Toronto, Ontario M1V 4Z9
www.honeywell.com
67-7301 GK
August 2011
© 2011 Honeywell International Inc.

Navigation menu
