PSS-1602A3R
15kV
200A Loadbreak Feed-Thru Insert
1602A3R
Note: Red PBT Interface Shield available soon
1602A3R
Loadbreak
Feed-Thru Insert
Applications:
The Elastimold® 1602A3R bushing insert is fully
rated with two 15kV class, 200 Amp load break
bushing interfaces. The feed-thru bushing insert fits
a standard ANSI bushing well interface and provides
the capability of creating a tap position in an existing
apparatus installation and transforming a radial-feed
transformer into a loop-feed unit. It may be used as
the bushing interface for connecting shielded cable
to the following:
Sub-surface transformers
Generators
Pad mounted transformers
Switchgear
Regulators
Reclosers
Designed for use as an apparatus bushing interface
and provide extra tap connection, the 1602A3R is
easily installed in an Elastimold® universal bushing
well and mated with an appropriate Elastimold®
product.
Ratings:
Meets ANSI/IEEE Standard 386, Latest Revision
For 15kV Voltage Class:
8.3kV Max Phase-to-Ground – Operating Voltage
14.4kV Max Phase-to-Phase
95kV BIL – Impulse Withstand (1.2 x 50
microsecond wave)
34kV AC – One minute withstand
53kV DC – 15 minutes withstand
11kV AC – Corona Extinction @ 3pC sensitivity
200 Amp – Continuous and Loadbreak
10kA Sym – 10 Cycles Momentary & Fault Close
Features:
15kV, 200 Amp Loadbreak Rated
Transform radial feed transformer into loop-feed unit
Provide extra tap for elbow arrester connection
Peroxide-cured insulation and jacket
Provision for groundwire connection
Includes bail assembly
Full 360° positioning
Issue Date:
10/11/2012
Page:
2 of 2
File:
PSS-1602A3R

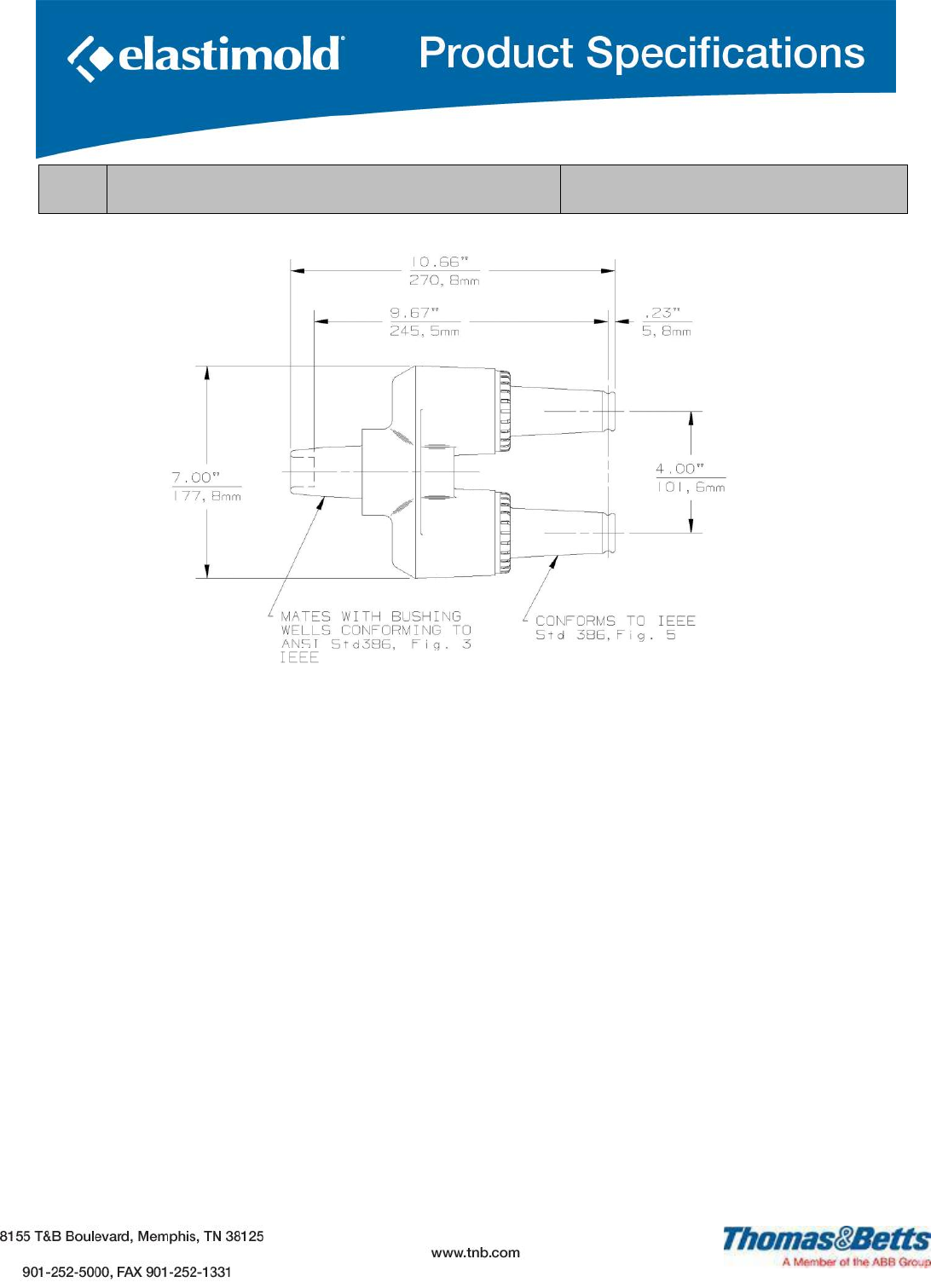

15kV
200A Loadbreak Feed-Thru Insert
1602A3R

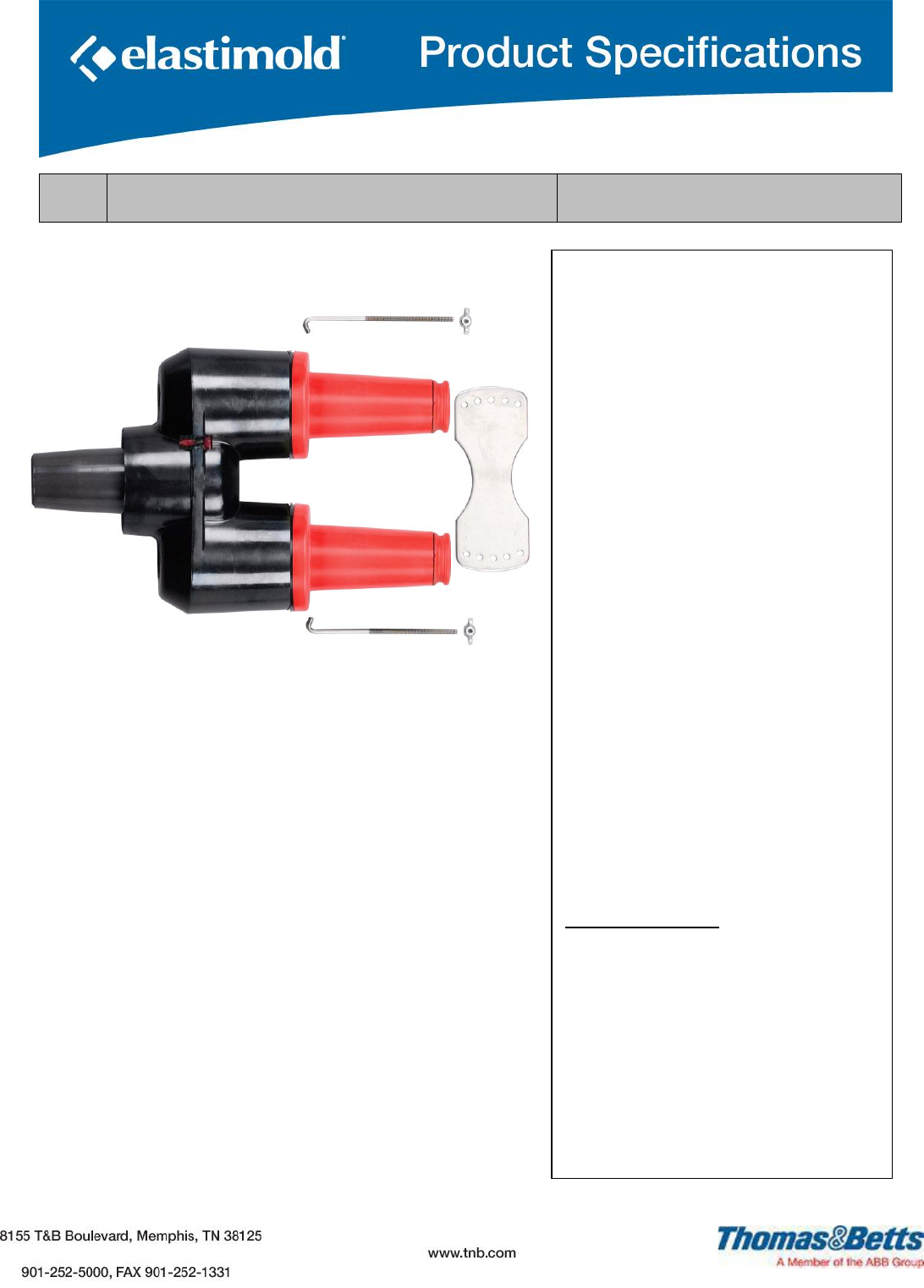

Each kit contains the following:
Notes:
Full 360° positioning. Includes bail assembly to secure feed-thru insert to bushing well.
To order, specify number 1602A3R bushing
insert.
1
Bushing Insert
1602A3R
2
Protective shipping cap
1601-APC-1
3
Lubricant
82-08
1
Installation Instruction
IS-0063
1
Bail assembly
2702-16
Ordering Instructions:
