5-1

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

Table of Contents

Section 5

Lighting Control And Integrated Home Systems

C-Bus Controls, page 5-4

Dual Tech Ceiling Mount, page 5-21

Powerlink Lighting Control Panelboards, page 5-24

Relay Panel Family, page 5-28

Lighting Control Product Overview

One Line Overview 5-2, 5-3

C-Bus™ Keypads, Touch Screens and Accessories

Neo Keypads 5-4

Saturn Keypads 5-5

DLT Keypads 5-5

Decorator Keypads 5-6

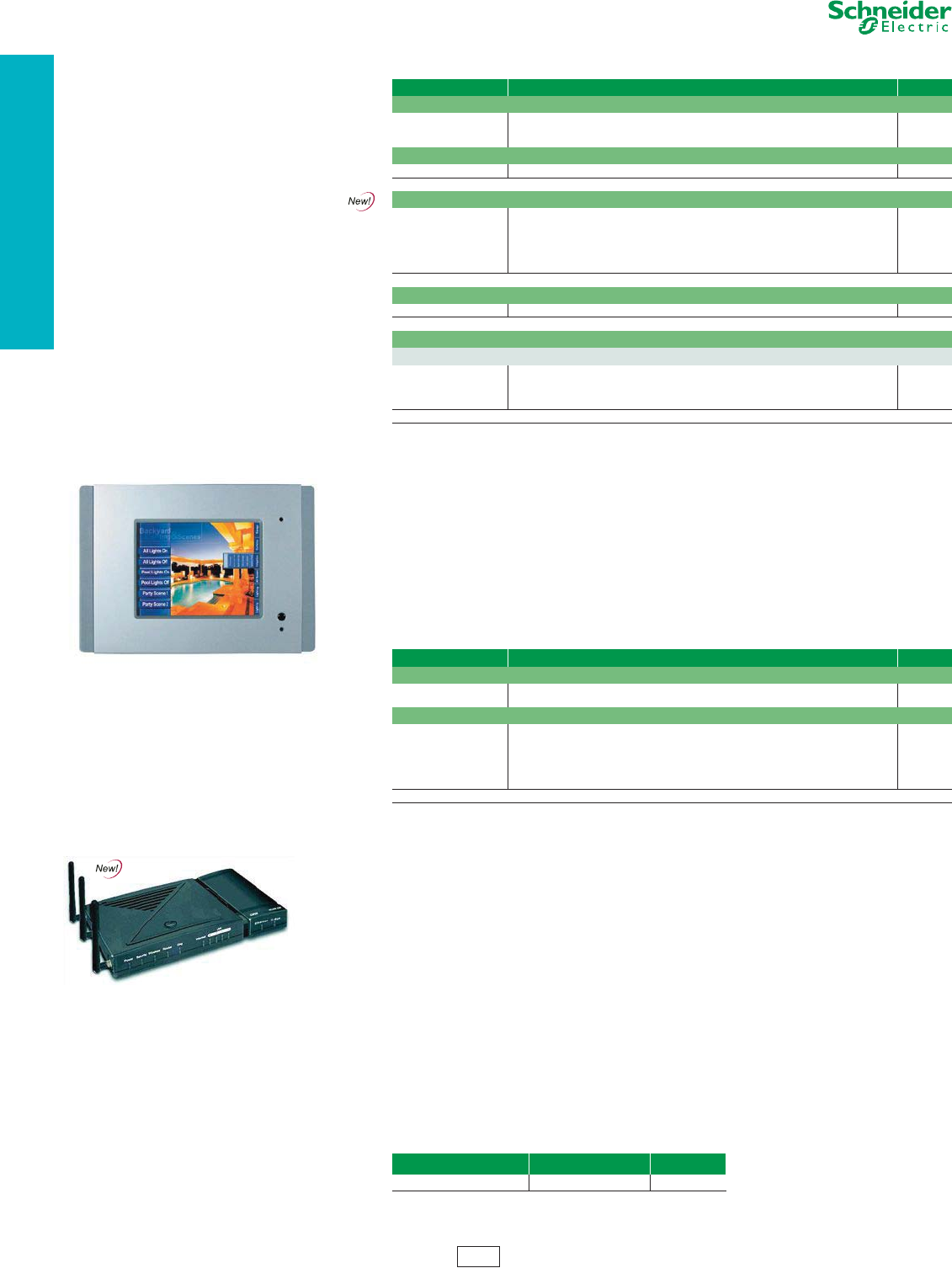

Touch Screens 5-7

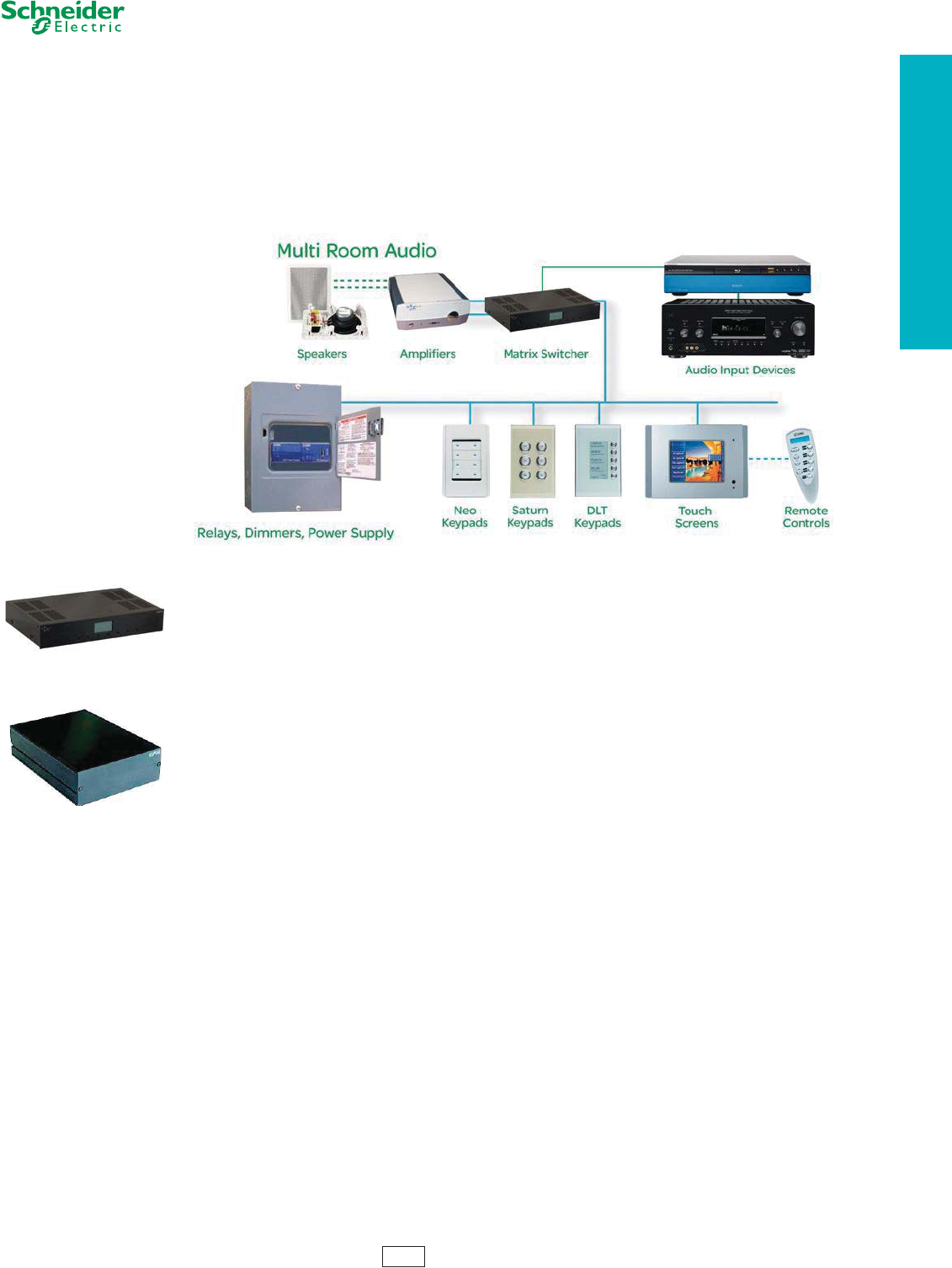

Multi Room Audio 5-9

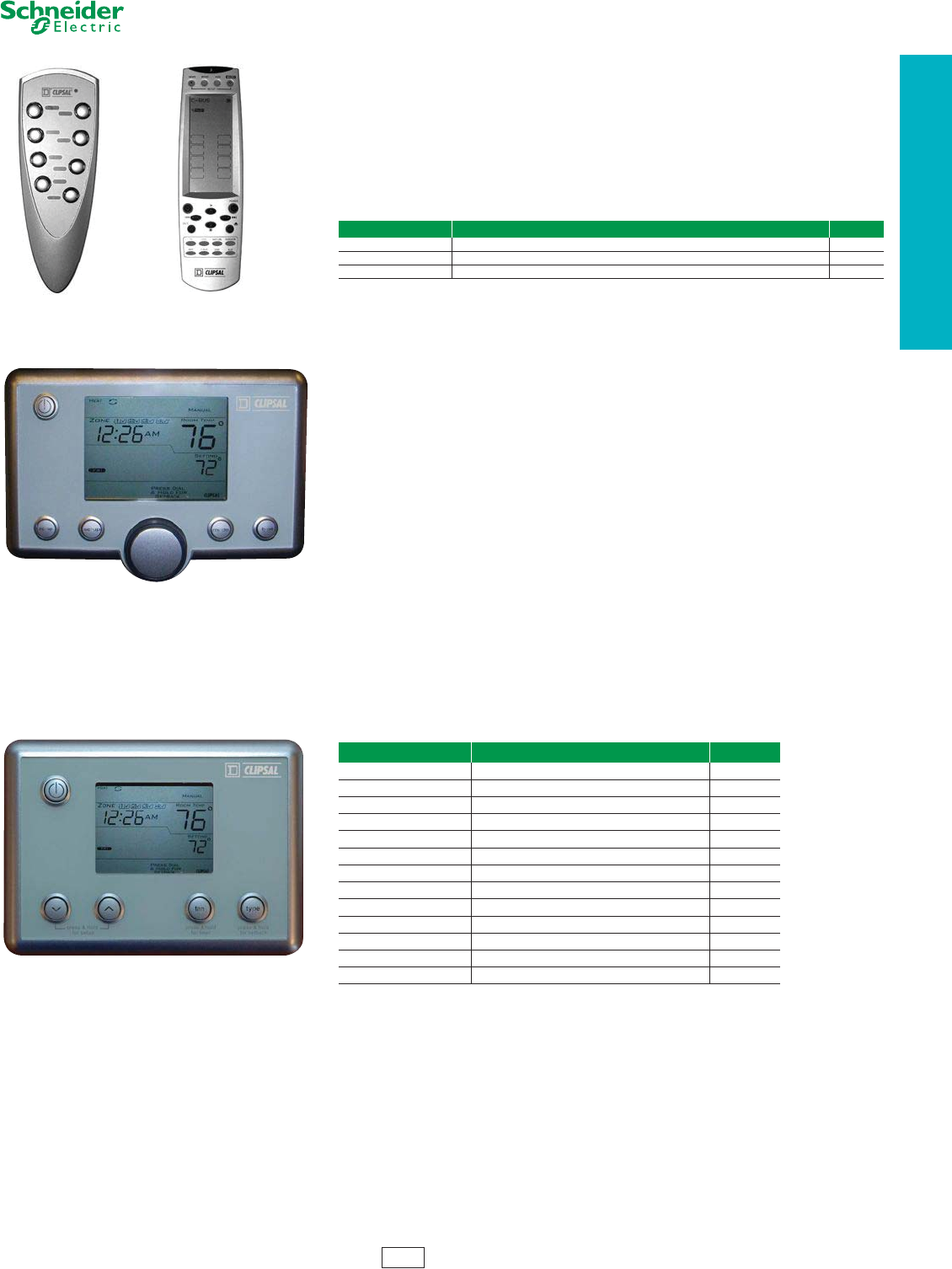

Hand Held Remote Controls 5-11

Thermostats 5-11

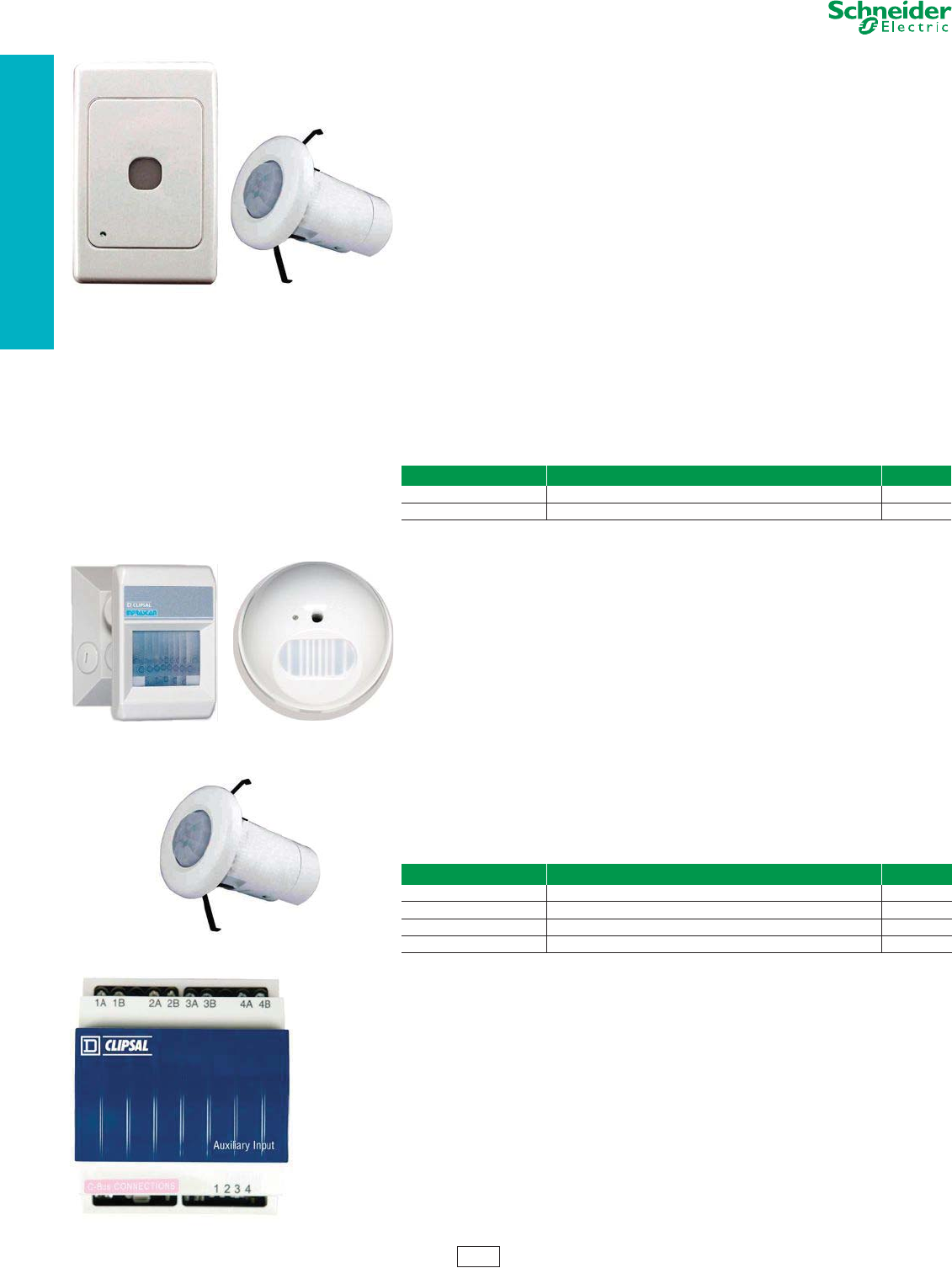

Sensors 5-12

Input Units 5-12

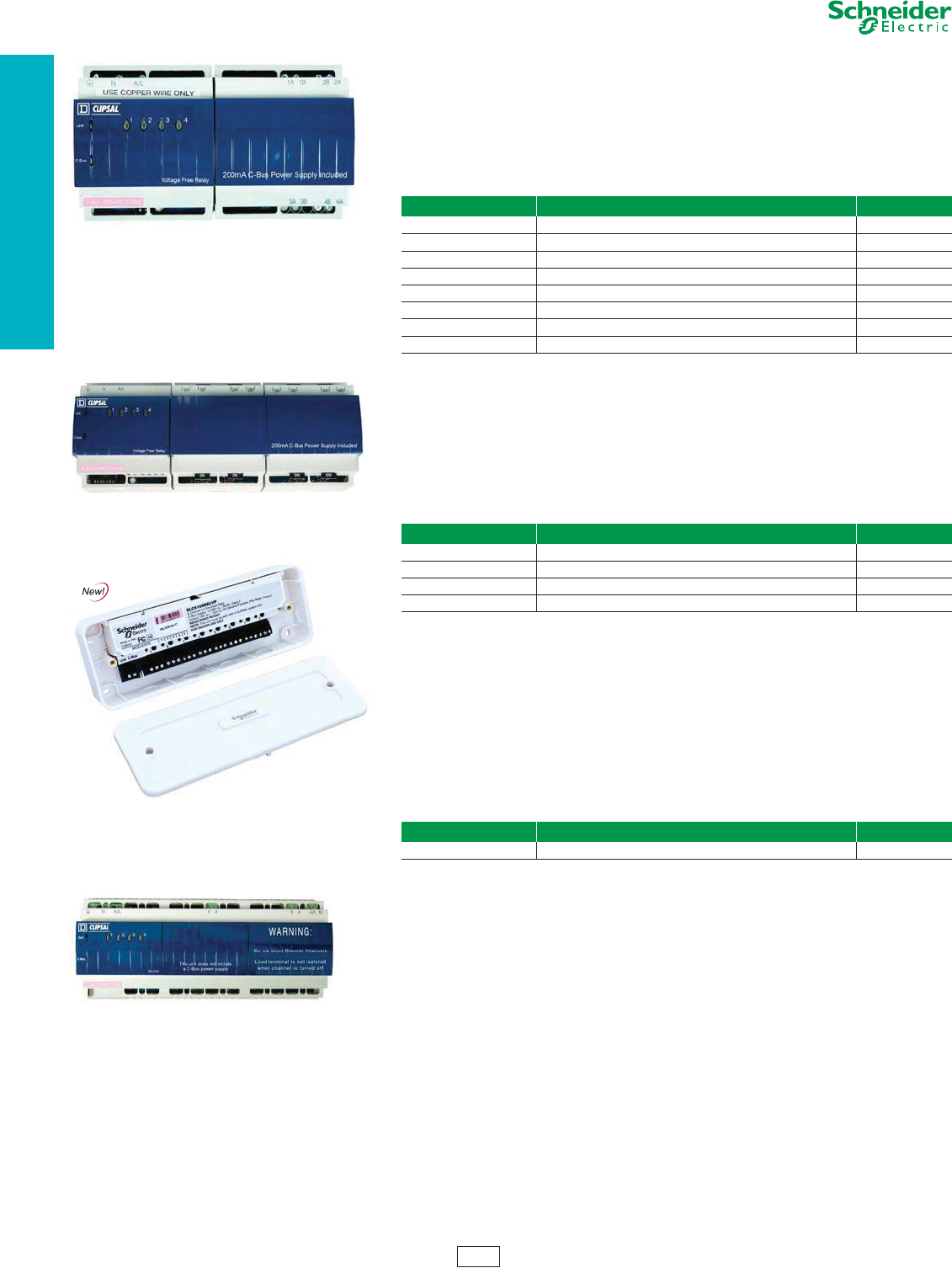

Relays 5-13

Dimmers 5-14

System Units 5-15

Enclosures 5-17

Area Lighting Panels 5-18

Software 5-19

Occupancy Sensors

Wall Switch Occupancy Sensors 5-20

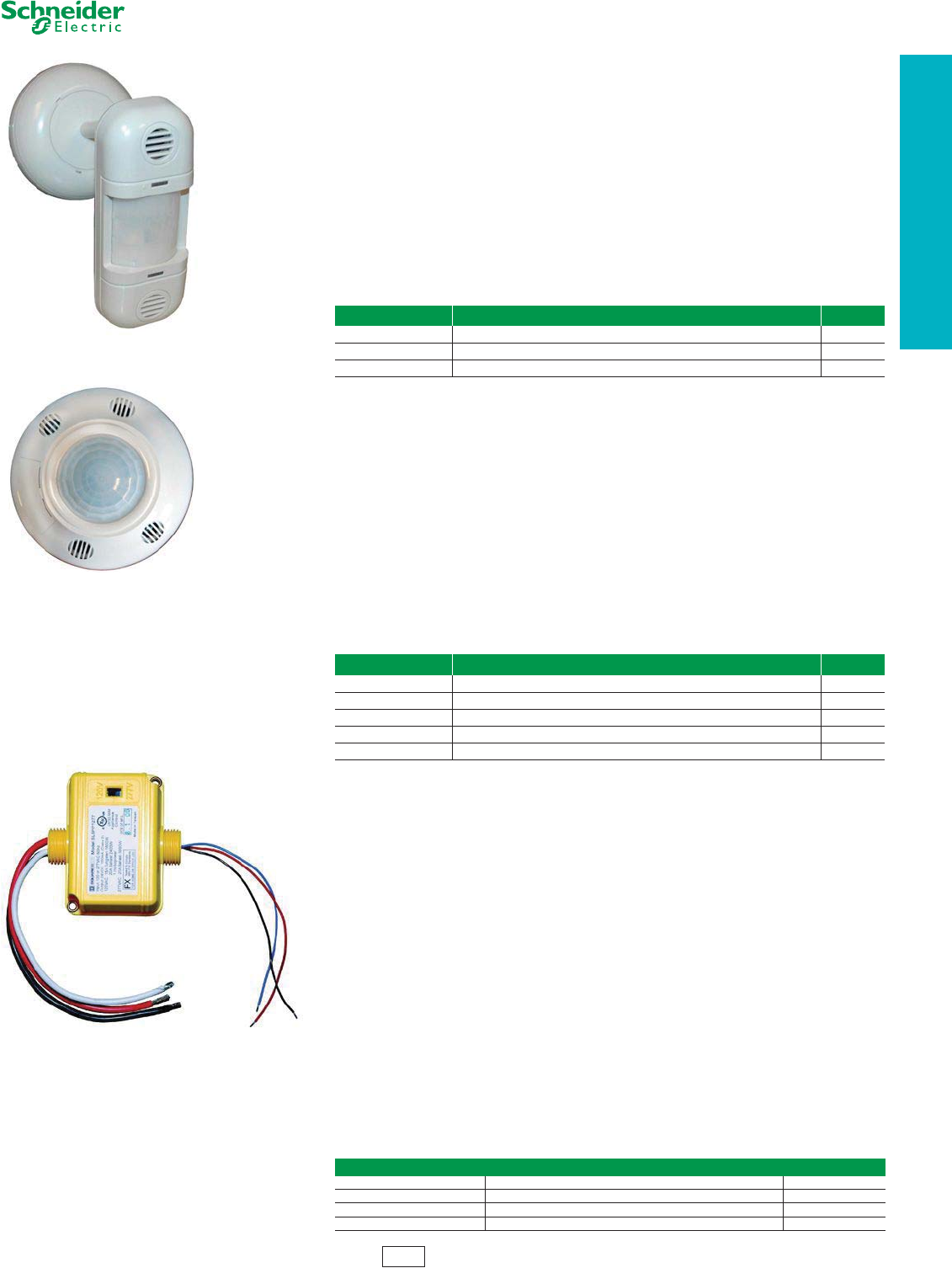

Ceiling Mount Occupancy Sensors 5-21

Wall Mount Occupancy Sensors 5-21

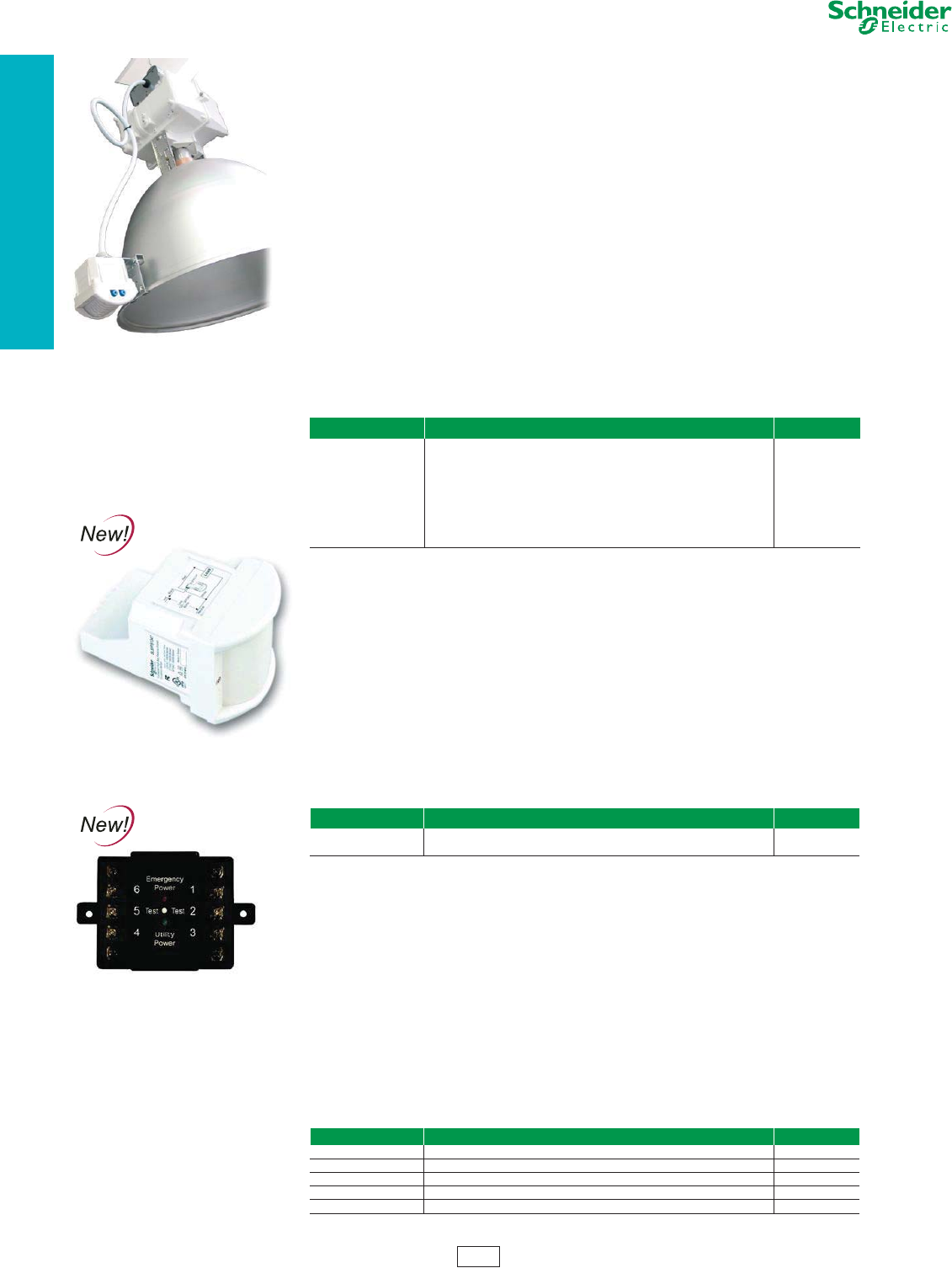

Fixture Mounted Sensors and Controls 5-22

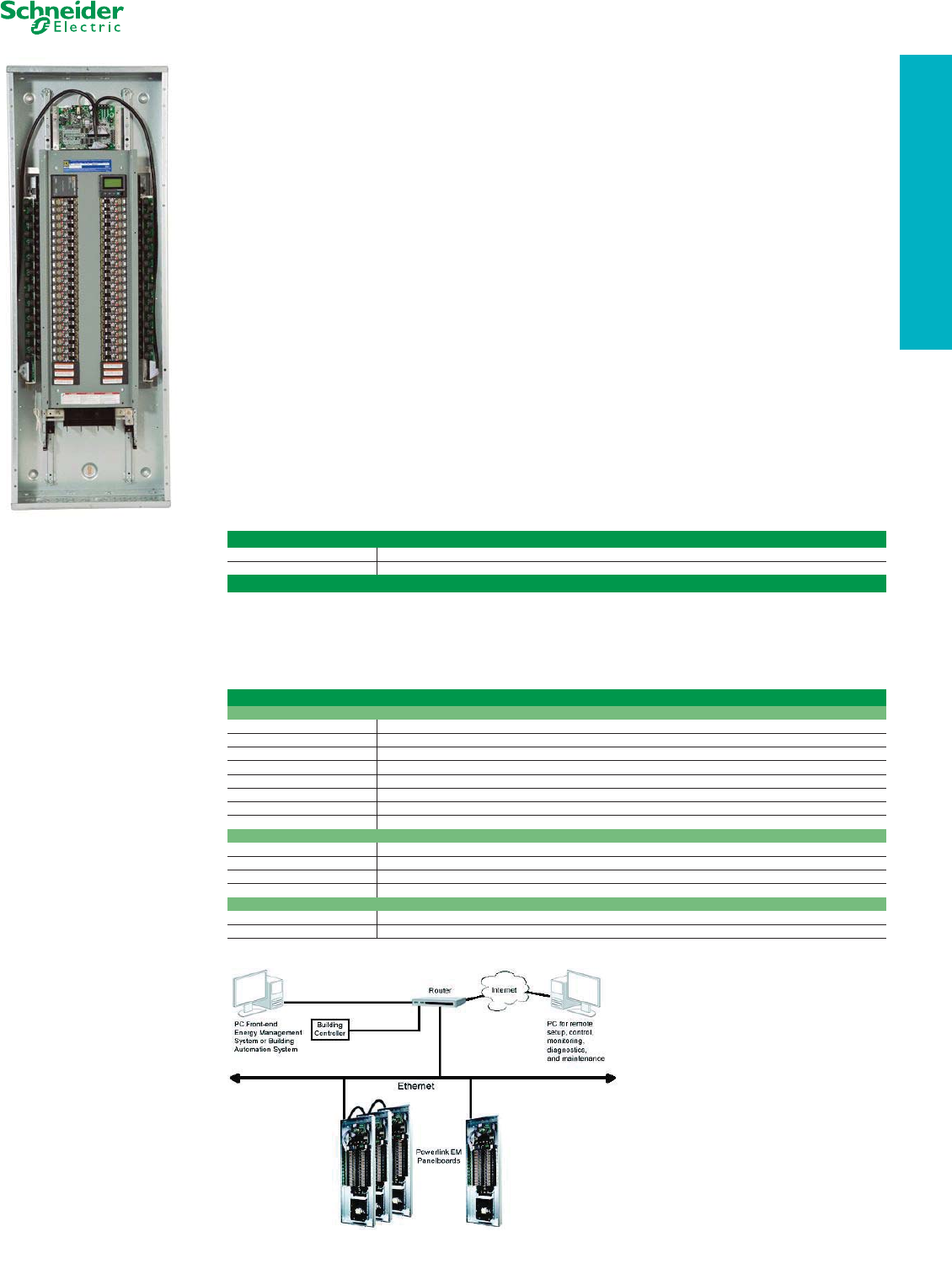

Powerlink Integrated Control Systems

Overview 5-23

Components 5-24

Device Power Supply 5-25

Device Router 5-25

Factory Assembled Panels 5-26

Powerlink Energy Management

5-27

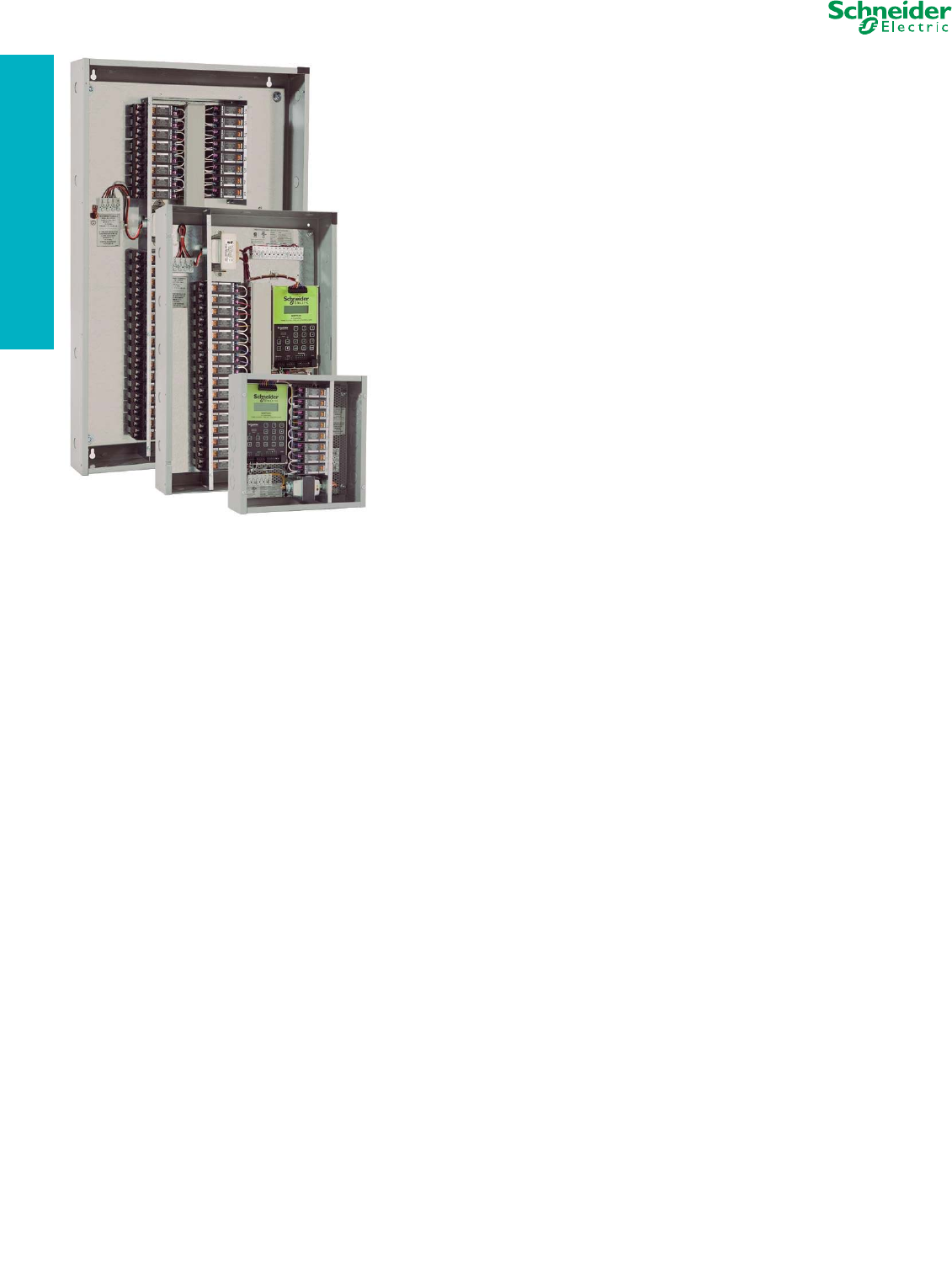

Relay Panels

5-28

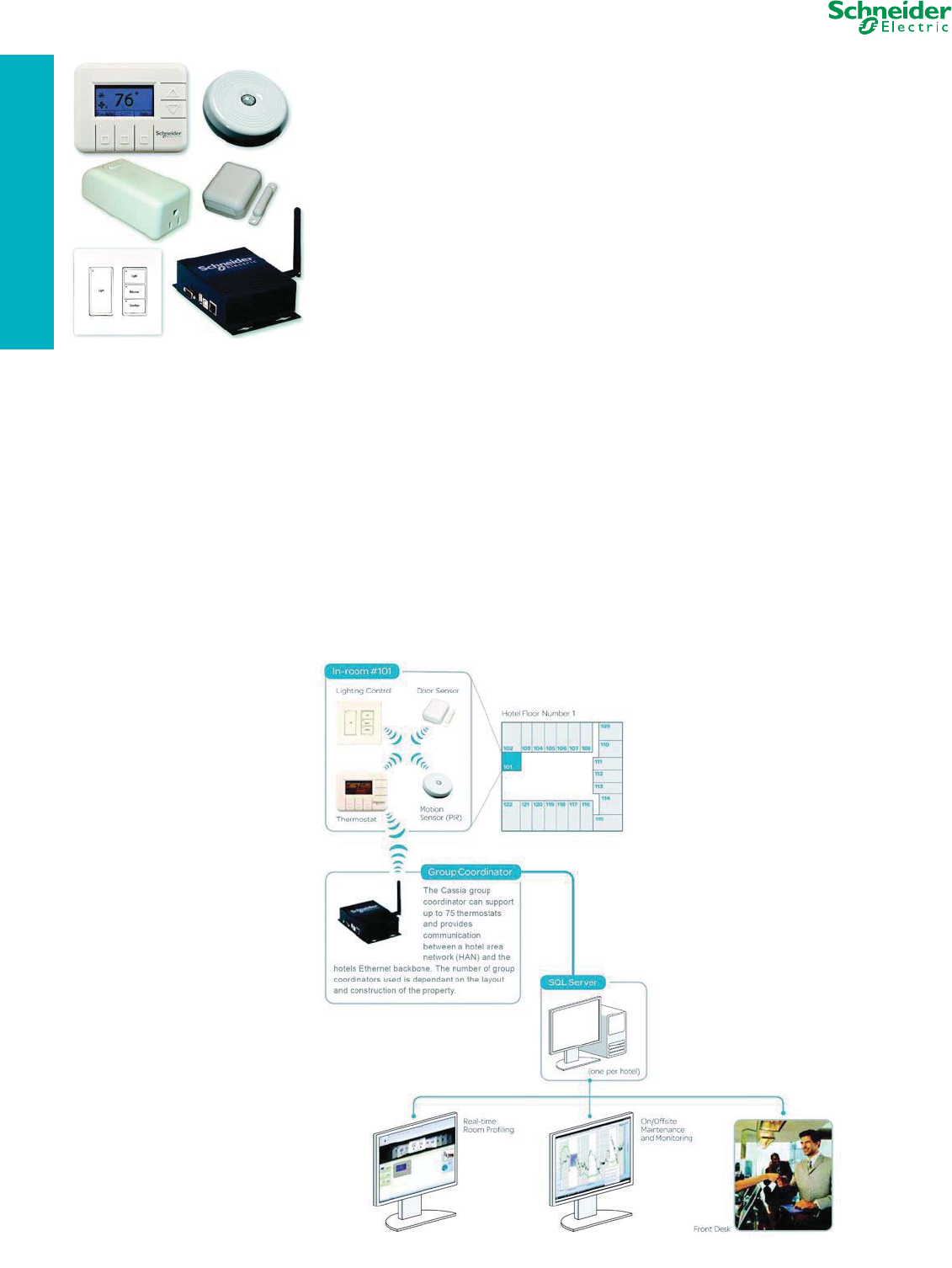

Cassia Energy Management System

5-30

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5-2

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.schneider-electric.us

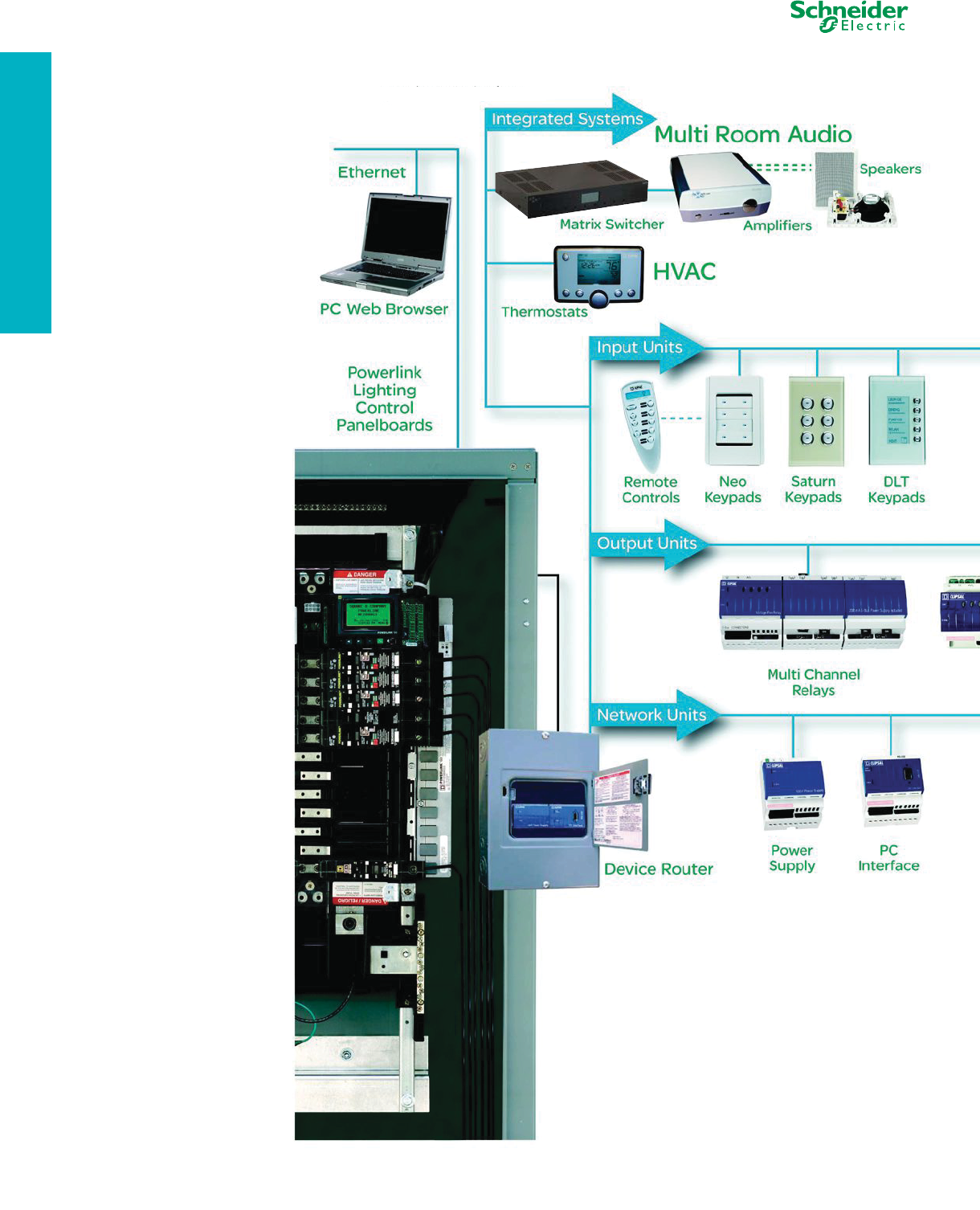

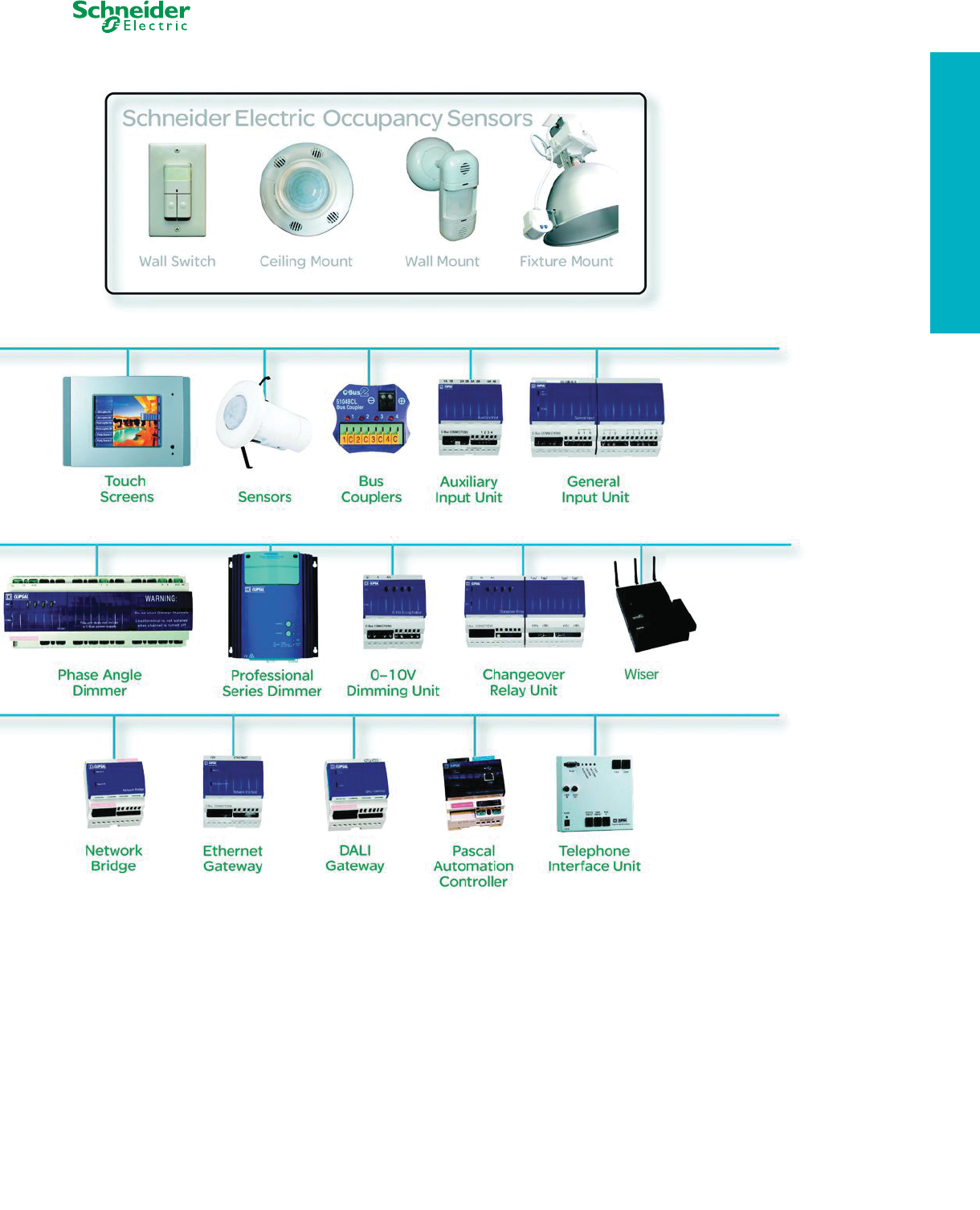

Overview Lighting Control

Schneider Electric Occupancy Sensors, Powerlink and C-Bus™ control systems can be used independently or

combined to provide the optimal lighting control solution for your home or business

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-3

www.schneider-electric.us

Overview Lighting Control

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5-4

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.schneider-electric.us

C-Bus™ Lighting Control

Class 1250

Neo

™

Keypads

Neo Keypads offer localized finger-tip control of lighting and other electrical devices. With over 1,000 custom color

combinations available, these elegant keypads compliment any decor. Requires plaster mud ring or single gang box

with minimum internal width of 2.05”.

•

Button configurations include multi-point switching and dimming, master ON/OFF switching, and scene settings

•

Scene control includes up to forty group addresses per keypad. Larger scenes are possible by sharing memory among multiple keypads

•

Independent timers available for each button

•

Standard built-in infrared receiver permits keypad control at a distance with an optional infrared handheld remote

•

Dual-color LED windows on each button can glow in cool blue, orange, or combinations of both, indicating when a controlled device

is ON or OFF

•

Auto “fallback” can dim button LEDs at a set time after the last key press

•

Locator LEDs can illuminate the top and bottom of the button area in cool blue, helping a user find the keypad in dim light or help the

installer find the correct keypad when commissioning

•

Clean-lined low-profile keypads are wall mounted without external fittings

•

Optional button covers have ID windows, enabling quick identification of lighting scenes or controlled devices

•

Distinctively designed multi-layer cover plate consists of button covers, an outer surround, and an inner surround

•

Color schemes are easily customized and modified to suit personal taste or the décor

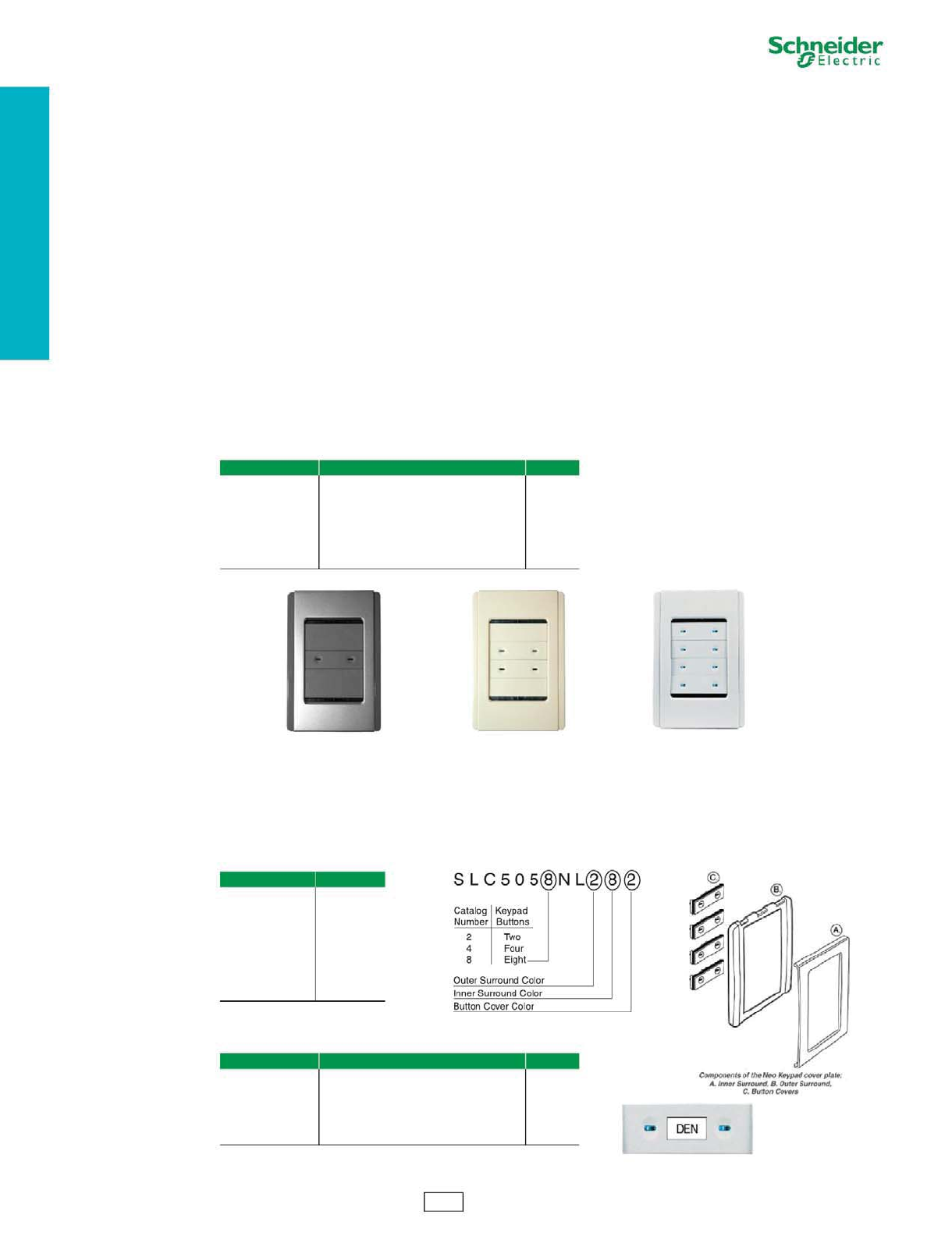

Standard Neo Keypads

Includes keypad, button covers, inner and outer surrounds.

White: SLC505( )NLWE

Cream: SLC505( )NLCM

Brushed Aluminum w/Slate: SLC505( )NLGB

( ) designates space for button configuration

Custom Neo Keypad Assemblies

To order custom Neo Keypad assemblies indicate the number of buttons desired on the keypad and the color of each

customizable component (inner surround, outer surround, and botton cover).

For example, in the diagram below, SLC505(8)NL(2)(8)(2) represents a Neo Keypad with eight buttons, a white (#2)

outer surround, a brushed aluminum (#8) inner surround, and white (#2) button covers.

aOnly the inner surround is available

in Brushed Aluminum and Gold.

Note: Accessories have unique catalog numbers. To specify colors for them,

(see Table 5.1) add the color number to the end of the catalog number

(Table 5.3). For example, SLC5052NR2 is the catalog number for a white button cover.

Table 5.1: Standard Neo Keypad Assemblies

Catalog No. Catalog Description $ Price

SLC5052NLGB Neo, 2 button key input brushed aluminum 460.00

SLC5052NLWE Neo, 2 button key input solid white 460.00

SLC5052NLCM Neo, 2 button key input solid cream 460.00

SLC5054NLGB Neo, 4 button key input brushed aluminum 500.00

SLC5054NLWE Neo, 4 button key input solid white 500.00

SLC5054NLCM Neo, 4 button key input solid cream 500.00

SLC5058NLGB Neo, 8 button key input brushed aluminum 560.00

SLC5058NLWE Neo, 8 button key input solid white 560.00

SLC5058NLCM Neo, 8 button key input solid cream 560.00

2 Button Keypad

Brushed Aluminum w/Slate: SLC505(2)NLGB

4 Button Keypad

Cream: SLC505(4)NLCM

8 Button Keypad

White: SLC505(8)NLWE

Table 5.2: Color Chart

Name Color Number

Slate 1

White 2

Cream 3

Soft Gray 4

Desert Sand 5

Black 6

Brown 7

Brushed Aluminuma8

Golda9

Table 5.3: Neo Keypad Accessories

Catalog No. Catalog Description $ Price

SLC5050IS( ) Neo, inner surround, (5pk) 152.00

SLC5050OS( ) Neo, outer surround, (5pk) 46.00

SLC5052NRP( ) Neo, button covers, 5052L, (5pk) 60.00

SLC5054NRP( ) Neo, button covers, 5054L, (5pk) 60.00

SLC5058NRP( ) Neo, button covers, 5058L, (5pk) 60.00

SLC5052NRI( ) Neo, button covers, with ID window, (10pk) 82.00

Neo button cover with

ID window

DE-8 Discount

Shedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-5

www.schneider-electric.us

C-Bus™ Keypads, Touchscreens and Accessories

Class 1250

Saturn

™

Keypads

Saturn Keypads incorporate a unique glass cover plate that creates a distinctive appearance. By virtue of the

variety of button configurations available, one compact Saturn keypad can take the place of many single

operation switches, ON/OFF toggles, dimmers, and timers. Available in two-, four-, or six-button keypads,

Saturn’s modern style is complemented by orange and blue LEDs that can instantly show the status of controlled

devices. Requires plaster mud ring or single gang box with minimum internal width of 2.05”.

•

Button configurations include multi-point switching and dimming, master ON/OFF switching, and scene settings

•

Scene control includes up to forty group addresses per keypad. Larger scenes are possible by sharing memory among multiple

keypads

•

Independent timers available for each button

•

Dual-color LED windows on each button can glow in cool blue, orange, or combinations of both,

indicating when a controlled device is ON or OFF

•

Auto “fallback” can dim button LEDs at a set time after the last button press

•

Locator LED can illuminate the keypad, helping a user find it in dim light

•

Clean-lined keypads are wall mounted without external fittings

•

Low-profile design extends only 0.5 in. out from the wall

•

Optional button covers with labels, enabling quick identification of lighting

scenes or controlled devices

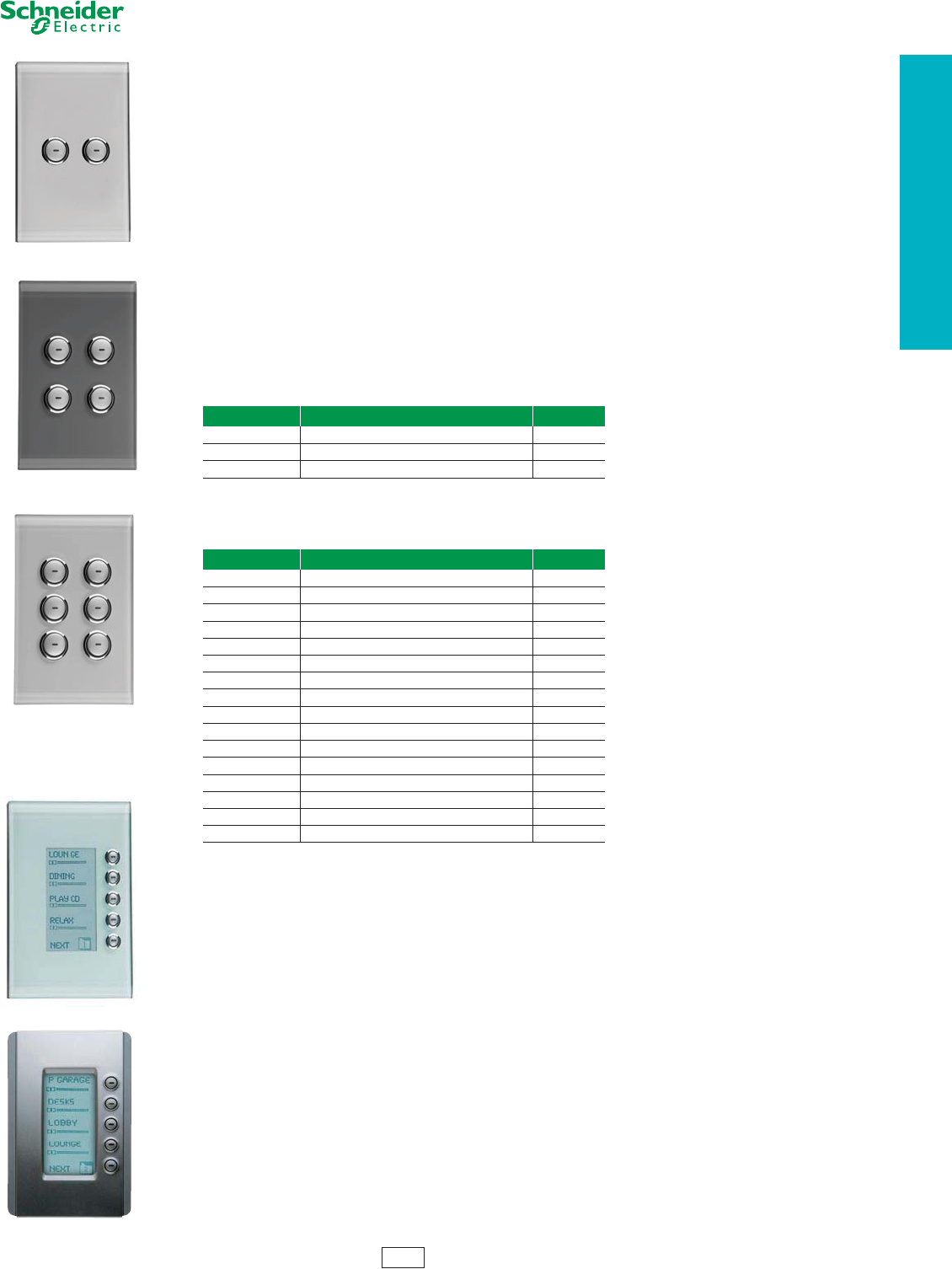

Saturn Keypads

Note: Color codes are: White (WE), Black (BK), Mocha (BR), Cream (CM). The catalog

number for a two-button keypad in mocha would be SLC5082NLBR

Note: Color options for faceplates: Pure White (PW).

DLT Keypads

Saturn™ Dynamic Labeling Technology™ (DLT) Keypads combine a programmable keypad button, and easily

customized labels on a backlit LCD screen that eliminates the need for custom labels. By virtue of the variety of

button configurations available, one compact DLT keypad can take the place of many single-operation switches,

ON/OFF toggles, dimmers, and timers. The five keypad buttons incorporate blue LEDs which complements the

keypad’s sleek lines while showing the status of controlled devices.

•

Button configurations include multi-point switching and dimming, master ON/OFF switching, and scene settings

•

Keypads have five physical buttons—four control buttons, and one scroll/page

button—combined with two screens of labels, for a total of eight control buttons and two scroll/page buttons

•

Scene control includes up to forty addresses per keypad. Larger scenes are possible by sharing memory among multiple

keypads.

•

Independent timers available for each button

•

Button LEDs can be used as locator lights in the dark

•

64 x 128 pixel LCD screen with a white backlight

•

Editable LCD labels, available for each button or control group, can display text, symbols, and graphics.

•

Dynamic graphic displays, such as bar graphs, can be enabled or disabled

•

Bitmaps can be downloaded for each group address or scene

•

Low-profile design, wall mounted without external fittings

Table 5.4: Complete Saturn Keypads

Catalog No. Catalog Description $ Price

SLC5082NL( ) Saturn Full Plate, 2 button 634.00

SLC5084NL( ) Saturn Full Plate, 4 button 668.00

SLC5086NL( ) Saturn Full Plate, 6 button 700.00

Table 5.5: Saturn Keypad Accessories

Catalog No. Catalog Description $ Price

SLC5080LC8 Saturn Button Labels 74.00

SLC5082NLFSS Saturn Cover Plate Stainless Steel, 2 button 96.00

SLC5084NLFSS Saturn Cover Plate Stainless Steel, 4 button 112.00

SLC5086NLFSS Saturn Cover Plate Stainless Steel, 6 button 128.00

SLC5082FGF Saturn Cover Plate White, 2 button 96.00

SLC5084FGF Saturn Cover Plate White, 4 button 112.00

SLC5086FGF Saturn Cover Plate White, 6 button 128.00

SLC5082F30 Saturn Cover Plate Cream, 2 button 96.00

SLC5084F30 Saturn Cover Plate Cream, 4 button 112.00

SLC5086F30 Saturn Cover Plate Cream, 6 button 128.00

SLC5082F60 Saturn Cover Plate Black, 2 button 96.00

SLC5084F60 Saturn Cover Plate Black, 4 button 112.00

SLC5086F60 Saturn Cover Plate Black, 6 button 128.00

SLC5082F70 Saturn Cover Plate Brown, 2 button 96.00

SLC5084F70 Saturn Cover Plate Brown, 4 button 112.00

SLC5086F70 Saturn Cover Plate Brown, 6 button 128.00

Saturn 2 Button Keypad

Saturn 4 Button Keypad

Saturn 6 Button Keypad

Saturn Style Keypad

Neo Style Keypad

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5-6

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.schneider-electric.us

C-Bus™ Keypads, Touchscreens and Accessories

Class 1250

Note: Color options for faceplates: Pure White (PW).

Neo™ Decorator Keypads

Neo Style Decorator Keypads provide the same features of a standard C-Bus keypad in a format designed to

conserve horizontal wall space.

•

Button configurations include multi-point switching, dimming, and scene control

•

LED indicator reflects status of each button

•

Built-in infrared receiver to allow operation from C-Bus handheld remote control

•

Distinctive Neo styling designed to match standard Neo keypads and touchscreens

•

Custom color combinations available on request

•

Meets NEMA Standards WD-1, WD-6

Note: Designate colors (XX), when placing order for Neo style decorator keypads.

GB – Brushed, WE – White, CM – Cream, SG – Soft Grey, DS – Desert Sand, BK – Black, BR – Brown, LA – Light Almond, VY – Ivory.

Saturn™ Decorator Keypads

Saturn Style Decorator Keypads provide the same features of a standard C-Bus keypad in a format designed to

conserve horizontal wall space.

•

Button configurations include multi-point switching, dimming, and scene control

•

LED indicator reflect status of each button

•

Built-in infrared receiver to allow operation from C-Bus remote controllers

•

Distinctive Saturn styling designed to match standard Saturn keypads and touchscreens

•

Meets NEMA Standards WD-1, WD-6

Note: Designate colors (XX), when placing order for Saturn style decorator keypads.

WE – White, PW – Pure White, CM – Cream, BK – Black, BR – Brown.

Table 5.6: Saturn and Neo Style DLT Keypads

Catalog No. Catalog Description $ Price

SLC5085DLWE Saturn DLT White 966.00

SLC5085DLBK Saturn DLT Black 966.00

SLC5085DLCM Saturn DLT Cream 966.00

SLC5085DLBR Saturn DLT Mocha 966.00

SLC5055DLGB Neo DLT Brushed Aluminum 898.00

SLC5055DLWE Neo DLT White 898.00

SLC5055DLBK Neo DLT Black 898.00

SLC5055DLSG Neo DLT Soft Grey 898.00

SLC5055DLCM Neo DLT Cream 898.00

SLC5055DLDS Neo DLT Desert Sand 898.00

Table 5.7: DLT Keypad Accessories

Catalog No. Catalog Description $ Price

SLC5085DLFSS Saturn DLT cover plate, Stainless Steel 110.00

SLC5085DLFCM Saturn DLT cover plate, Cream 110.00

SLC5085DLFBK Saturn DLT cover plate, Black 110.00

SLC5085DLFBR Saturn DLT cover plate, Mocha 110.00

SLC5085DLFWE Saturn DLT cover plate, White 110.00

SLC5055DLFGB Neo DLT cover plate, Brushed Aluminum and Slate 12.00

SLC5055DLFBR Neo DLT cover plate, Brown 12.00

SLC5055DLFCM Neo DLT cover plate, Cream 12.00

SLC5055DLFBK Neo DLT cover plate, Black 12.00

SLC5055DLFSG Neo DLT cover plate, Soft Gray 12.00

SLC5055DLFDS Neo DLT cover plate, Desert Sand 12.00

SLC5055DLFWE Neo DLT cover plate, White 12.00

Table 5.8: Neo Decorator Keypad Assembly (order face plates separately)

Catalog No. Description $ Price

Neo Decorator 1 button keypad (XX) Designates Color. (order cover plate separately)

SLC5051NLM(XX) 1 button decorator keypad 386.00

Neo Decorator 2 button keypad (order cover plate separately)

SLC5052NLM(XX) 2 button decorator keypad brushed aluminum 408.00

Neo Decorator 3 button keypad (order cover plate separately)

SLC5053NLM(XX) 3 button decorator keypad brushed aluminum 430.00

Neo Decorator 4 button keypad (order cover plate separately)

SLC5054NLM(XX) 4 button decorator keypad brushed aluminum 452.00

Neo Decorator Blanking Plate (order cover plate separately)

SLC5850BP(XX) Neo blanking plate 14.00

Table 5.9: Saturn Decorator Keypad Assembly (order face plates separately)

Catalog No. Description $ Price

Saturn Decorator 1 button keypad (XX) Designates Color. (order cover plate separately)

SLC5081NLM(XX) 1 button deco Saturn keypad, White 526.00

Saturn Decorator 2 button keypad (XX) Designates Color. (order cover plate separately)

SLC5082NLM(XX) 2 button deco Saturn keypad, White 538.00

Saturn Decorator 3 button keypad (XX) Designates Color. (order cover plate separately)

SLC5083NLM(XX) 3 button deco Saturn keypad, White 548.00

Saturn Decorator 4 button keypad (XX) Designates Color. (order cover plate separately)

SLC5084NLM(XX) 4 button deco Saturn keypad, White 556.00

Blanking Plates

SLC5880BPPG(XX) Saturn Blanking Plate 24.00

Neo Decorator Keypad

Saturn Decorator Keypad

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-7

www.schneider-electric.us

C-Bus™ Keypads, Touchscreens and Accessories

Class 1250

Neo and Saturn Style Decorator Face Plates

C-Bus decorator style wall plates add a touch of flair to any décor. Available in either Neo or

Saturn styling.

•

Sleek, smooth contemporary architectural styling enhances fine decor

•

Screwless design for easy placement

•

Two piece kit allows easy retrofit

•

Meets NEMA Standards WD-1, WD-6

aCover plate assembly includes inner and outer surrounds. Wall plate ordering (Order keypads separately). Order numbers

for the Neo decorator style wall plates indicate the gang number desired on the wall plate and the color of the wall plate

itself. Color codes are: Slate (1), White (2), Cream (3), Soft gray (4), Desert sand (5), Black (6),

Brown (7), Brushed aluminum (8), and Gold (9). For example, SLC505(1)GA(51) represents an order fo a Neo decorator

style wall plate in one gang configuration, with a Desert sand outer surround and a slate inner surround.

bTo specify color, add corresponding alpha codes. Black = BK, White = WE, Cream = CM, Mocha = BR.

Example SLC5081GAPG(WE) = Saturn Decorator 1 gang, White

Touch screens

C-Bus Touch screens are unified wall-mounted panels for controlling lighting systems and

accessories with the touch of a finger. They come in both monochromatic (Mark II) and color

screen versions. Compact yet powerful, touch screens offer an attractive alternative to multiple

single operation switches, ON/OFF toggles, dimmers, and timers which can clutter up even the

nicest wall.

Mark II Black and White and Spectrum Color touch screen

•

Control screens support multi-point switching and dimming, master ON/OFF switching, scheduling, and

scenes with multiple loads.

•

Preset scenes and functions automate the task of adjusting lighting levels to different lamps and fixtures.

•

RS-232 port for third party device integration through the built in Logic Engine

•

Standard real-time and astronomical clock permits time scheduling of lighting and other tasks

•

Variable dimming fade rates can be configured according to load or lighting zone

•

Locator option can be configured to help users find the screen in dim light

•

Clean-lined low-profile touch screen can be wall-mounted without external fittings

•

Infrared receiver for remote control

•

Stores up to 250 scenes with 100 group addresses each. Scenes can be triggered directly from the touch

screen or any other device on C-Bus

Mark II Black and White and Spectrum Color touch screen (desktop model)

•

Screen swivels and pivots for optimal viewing

•

Control screens support multi-point switching and dimming, master ON/OFF switching, scheduling, and

scenes wtih multiple loads.

•

Preset screens and functions automate the task of adjusting lighting levels to different lamps and fixtures.

•

Standard real-time and astronomical clock permits time scheduling of lighting and other tasks

•

Variable dimming fade rates can be configured according to load or lighting zone

•

Locator option can be configured to help users find the screen in dim light

•

Infrared receiver for remote control

Table 5.10: Neo Decorator Style Cover Plates (order keypad assemblies separately)

Catalog No. Description $ Price

Neo Decorator Cover Plate 1 ganga

SLC5051GA(XX) 1 gang wallplate 14.00

Neo Decorator Cover Plate 2 ganga

SLC5052GA(XX) 2 gang wallplate 18.00

Neo Decorator Cover Plate 3 ganga

SLC5053GA(XX) 3 gang wallplate 22.00

Neo Decorator Cover Plate 4 ganga

SLC5054GA(XX) 4 gang wallplate 26.00

Table 5.11: Saturn Decorator Style Cover Plates (order keypad assemblies separately)

Catalog No. Description $ Price

Saturn Decorator Cover Plate 1 gangb

SLC5081GAPG(XX) 1 gang wallplate 24.00

Saturn Decorator Cover Plate 2 gangb

SLC5082GAPG(XX) 2 gang wallplate 28.00

Saturn Decorator Cover Plate 3 gangb

SLC5083GAPG(XX) 3 gang wallplate 38.00

Saturn Decorator Cover Plate 4 gangb

SLC5084GAPG(XX) 4 gang wallplate 45.00

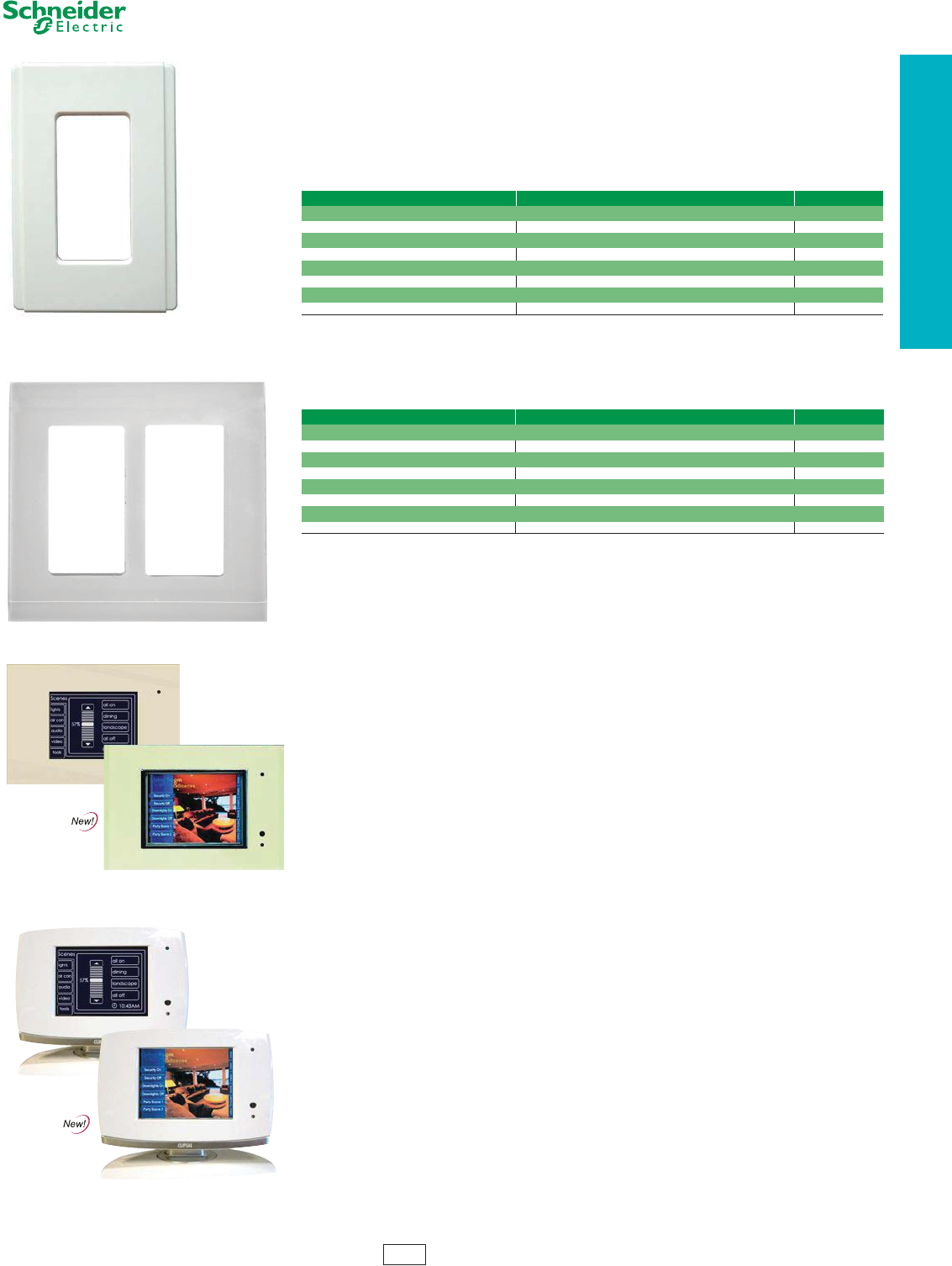

Neo Decorator Style Cover Plate

2 Gang Saturn Decorator Style Cover Plate

Mark II Black and White and Spectrum Color

touch screen with Cream Saturn style cover plate

Mark II Black and White and Spectrum Color

touch screen desktop model

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-8

www.schneider-electric.us

C-Bus™ Lighting Control

Class 1250

aNeo only.

bSaturn only.

Color touch screen

•

Built-in RJ-45 Ethernet and C-Bus network, RS-232, and USB terminals

•

Touch sensitive 6.4 inch (640 x 480) color LCD panel

•

Control screens support multi-point switching

•

Standard real-time and astronomical clock permits time scheduling of lighting and other tasks

•

Variable dimming fade rates can be configured according to load or lighting zone

•

Locator option can be configured to help users find the screen in dim light

•

Clean-lined low-profile touch screen can be wall-mounted without external fittings

•

Infrared receiver for remote control

aNeo only.

bSaturn only.

Wiser™ Home Controller

The Wiser Home Controller is the missing piece of the smart home puzzle, enhancing the

capabilities and connectivity of the C-Bus network. Its easy-to-use graphical user interface (GUI)

provides access to the home C-Bus network and all of your electrical, multimedia, and

telecommunication needs. This same GUI can be installed across multiple control devices, such

as mobile phones, TVs with Microsoft® Windows® Media® Center, personal computers, and web

tablets, in addition to the C-Bus range of touch screens and keypads. No matter where you are,

the Wiser Home Controller allows you to monitor and control your home environment locally or

remotely over the internet.

Features

•

Ethernet and Wi-Fi based controller for your C-Bus system

•

Built-in Ethernet router and Wi-Fi access point

•

Support for lighting, air-conditioning, multi-room audio, alarms, cameras, and other equipment

•

Built-in scene, scheduling, and logic programming modules

•

Allows remote reprogramming from outside the home/building by installers

•

Common, intuitive interface for all devices

•

Mobile phone and web-enabled device control

Table 5.12:

Catalog No. Catalog Description $ Price

Mark II B/W Touch Screen

SLC5050CTL2xx Mark II w/Neo Style Cover Plate 2439.00

SLC5080CTL2xx Mark II w/Saturn Style Cover Plate 2499.00

SLC5000CTL2SS Mark II w/Stainless Steel Cover Plate 2499.00

Mark II Touch Screen Desktop Model

SLC5000CTD2xx Mark II Desktop Touch Screen 1920.00

xx = color code / WE–White, BK–Black

Spectrum Touch Screen

SLC5000CTCL2 Spectrum Base Unit Only 2106.47

SLC5000CTCL2xx Spectrum w/non-stylized plastic Cover Plate 2374.45

SLC5050CTCL2xx Spectrum w/Neo Style Cover Plate 2341.17

SLC5080CTCL2xx Spectrum w/Saturn Style Cover Plate 2386.69

SLCBS5000CTCL2 Spectrum w/Stainless Steel Cover Plate 2232.47

SLCBB5000CTCL2 Spectrum w/Brass Cover Plate 2265.22

xx = color code / GB – Brushed Aluminum and Slatea, WE – White, BK – Black, CM – Cream, BR – Mochab, PW – Pure Whiteb.

Spectrum Desktop Model

SLC5000CTCD2xx Spectrum Desktop Touch Screen 2365.61

xx = color code / WE–White, BK–Black

Accessories

Mark II / Spectrum Accessories

SLC5000CT2WB Wall box for Mark II / Spectrum Touch Screen 68.00

SLC5080CT2Fxx Replacement Cover Plate, Saturn style 280.22

SLC5000CT2FSS Replacement Cover Plate, Stainless Steel 126.00

SLC5050CT2Fxx Replacement Cover Plate, Neo style 187.76

xx = color code / GB – Brushed Aluminum and Slatea, WE – White, BK – Black, CM – Cream, BR – Mochab, PW – Pure Whiteb.

Table 5.13:

Catalog No. Catalog Description $ Price

Color Touch Screen

SLC5050CTCxx Color touch screen w/Neo style Cover Plate 8480.00

SLC5080CTC2xx Color Touch Screen w/Saturn style Cover Plate 8480.00

Color Touch Screen Accessories

SLC5000CTCRM Plasterboard Bracket for Color Touch Screen 90.00

SLC5000CTCNA Nail Bracket for Color Touch Screen 60.00

SLC5000CTCWB Wall box for Color Touch Screen 68.00

SLC5000CTCPS Power supply for Color Touch Screen 263.00

SLC5080CTCFxx Replacement Cover Plate, Saturn style 356.00

SLC5050CTCFxx Replacement Cover Plate, Neo style 29.00

xx = color code / GB – Brushed Aluminum and Slatea, WE – White, BK – Black, CM – Cream, BR – Mochab.

Table 5.14: Order Information

Description Catalog Number $ Price

Wiser Home Controller WHC-5918 1505.00

Color touchscreen in Neo style Brushed

Aluminum and Slate

Wiser Home Controller

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-9

www.schneider-electric.us

C-Bus™ Multi Room Audio

Class 1250

C-Bus Multi Room Audio

Extend the capabilities of a C-Bus system by incorporating award winning multi-room audio into your next project.

Multi-room audio augments a C-Bus lighting control system, providing high quality sound throughout a home or

business.

C-Bus multi-room audio readily integrates with other C-Bus controls, providing a single source for audio and lighting

from a single keypad or touch screen. Sound is distributed throughout the home through the Matrix Switcher and

routed to local amplifiers.

A typical C-Bus Multi Room Audio system distributes up to four analog audio inputs, five if an Audio Distribution Unit

is used, and one optical input. These inputs are distributed up to 8 zones, each consisting of one or more amplifier.

Additionally, each amplifier is capable of accepting a local analog audio input, providing up to six stereo audio

channels for each amplifier.

Matrix Switcher

The C-Bus™ Audio Matrix Switcher provides a revolutionary means for distributing audio throughout a home. This Matrix

Switcher provides up to eight zones of audio output from four source inputs. The C-Bus Matrix Switcher allows you to

send streaming audio programs to the audio zones from a variety of sources, including a local area network (LAN), or a

USB memory stick (Model: SLC5608842E). In addition, it will also allow connection of a portable music player directly to

the Matrix Switcher’s front audio panel. Audio sources can be selected from the front panel or by any C-Bus™ input

device such as touch screens or keypads. The Matrix Switcher is ideally suited for multi-room audio and structured wiring

systems. Keypads and other C-Bus™ devices connect to the Matrix Switcher via CAT-5 modular jacks. Outputs to

remote and desktop amplifiers are made with low voltage wiring. In addition to the six source inputs, two mono broadcast

annunciation inputs are provided for connection to intercoms or other systems. Broadcast annunciation input can be

given priority over other source inputs and features fully adjustment volume and over-stepping mute features.

•

Suitable for 19” Rack Mount with rack mount ears provided.

•

Each Matrix Switcher can distribute digital audio to up to 8 MRA amplifiers. You can install up to 3 Matrix Switchers on a C-Bus

network.

•

The Matrix Switcher can provide power for the attached amplifiers via the Digital Audio cables. You can connect an external power

supply to an amplifier to increase its audio power output.

•

The choice of the audio program for an amplifier can be made at the Matrix Switcher or in the audio zone. You can use C-Bus input

devices to choose the source and to adjust volume, tone and muting.

•

The Dual AM/FM tuners inside the Matrix Switcher can distribute preset station choices to any of the audio zones.

•

Distributes streaming audio from several sources using the C-Bus Ripple software application running on a networked PC.

•

You can connect up to 4 stereo analogue line-level inputs to the Matrix Switcher. If you need to add another source input, you can

install an MRA Distribution Unit and power supply.

•

Compatible with C-Bus devices.

Matrix Switcher

Low Power Amplifier

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-10

www.schneider-electric.us

C-Bus™ Multi Room Audio

Class 1250

Remote Amplifiers

C-Bus Multi Room Amplifiers provide efficient, high fidelity audio to individual rooms. Available in either desktop or

remote mount versions, these amplifiers are specifically designed to operate on the C-Bus network as an extension of

a lighting control system, without third party gateways or custom integration. This means the ability to control amplifiers

with the same keypad or touch screen used to control lighting levels.

When combined with the C-Bus Matrix Switcher, these amplifiers deliver excellent stereo sound. Connections are

provided for up to two sets of 8 ohm speakers. Both desktop and remote amplifiers provide a local input connection for

attaching to CD or mp3 players, etc. In addition, the desktop amplifier will accept remote commands via its infrared

receiver. Infrared remote included.

•

10 Watt digital efficient stereo amplifier, 25 Watts when connected to local power supply (optional)

•

Super quiet design

•

On board 8 ohm loudspeaker connections

•

Local source input — RCA jack

•

C-Bus connection (connects with CAT-5 cable)

•

Volume control (desktop model)

•

On-board IR receiver (desktop model)

•

Stereo headphone connection (desktop model)

•

Infrared remote included (desktop model only)

Audio Distribution Unit

The C-Bus Audio Distribution Unit is an optional device that can be used in conjunction with the C-Bus Multi Room

Audio System to further enhance C-Bus enabled audio product family.

The C-Bus Audio Distribution Unit distributes a single digitized stereo audio input source to multiple locations via

amplifiers wired in a parallel format. Functions such as Volume, Bass, Treble and Balance can be adjusted from a

C-Bus input device at any of the audio output locations. The C-Bus Audio Distribution Unit converts a single analog

stereo audio input to a digital audio output. That output can then be connected to the Matrix Switcher as an additional

input or to the C-Bus Desktop or Remote Amplifier as a stand-alone configuration.

•

Distributes a single stereo audio source to C-Bus Audio Amplifiers via a digitized signal over Cat-5 cable

•

Does not require any C-Bus programming (hardware only)

•

One stereo analog audio source input (2 X RCA)

•

One digital audio output

•

Output can be looped between C-Bus Audio Amplifiers

•

IR emitter port

Audio Speakers

C-Bus Audio Speakers are available as indoor or outdoor models and are designed to be used with home theater,

multi-room, and outdoor audio applications.

The indoor speakers come in wall or ceiling mount versions that are installed with the front of the speaker flush with the

mounting surface.

The indoor/outdoor speakers are available in black or white and can be placed on a shelf or hung on a surface by using

the included bracket.

•

Flush-mount, shelf-mount, and surface-mount models

•

Indoor and outdoor models

•

High-impact plastic components and powder coated metal grills produce a long-lasting unit suitable for indoor and outdoor use

•

8 ohm impedance

•

Available with Kevlar™ (indoor units only) or polypropylene drivers (indoor and outdoor units) for high-quality sound in all

applications

•

All models are off the floor, saving floor space

•

Indoor/Outdoor Speakers have a pre-installed, removable mounting bracket

•

Indoor/Outdoor Speakers can be placed on a shelf or hung from a surface by their bracket (included)

•

Tracing/painting template included

Table 5.15: C-Bus Multi Room Audio Components

Catalog No. Catalog Description $ Price

SLC560110R Low Power Amplifier, rack mountable TBD

SLC5608842 Matrix Switcher w/4 stereo analog inputs, 2 internal AM/FM tuners, IR input and target connections. Up to 8 MRA Zones. 4599.00

SLC5608842E Matrix Switcher w/4 stereo analog inputs, 2 internal AM/FM tuners, IR input and target connections. Audio streaming using a LAN or

USB source. Up to 8 MRA Zones. 4274.10

SLC560125D Desktop Amplifier 1908.15

SLC560125R Remote Amplifier 1609.79

SLC560011 Audio Distribution Unit 790.41

SLC5600P24500S Amp External Power Supply (only needed if Audio distribution unit is used to provide an additional digital input for the Matrix Switcher) 53.22

Accessories

SLC5600P241250 Low Power Amplifier Power Supply TBD

SLC560110E Low Power Amplifier Enclosure (used for linking up to 4 amplifiers/enclosures together for mounting in a 19” rack) TBD

SLC560110MB Low Power Amplifier Wall Mounting Bracket TBD

SLC5600P243750T Audio Amplifier Power Supply 445.93

SLC560125MB Remote Amplifier Mounting Bracket 42.24

Table 5.16: Multi-Room Audio Speakers

Catalog No. Catalog Description $ Price

SLC5600IWP In-Wall Polypropylene speakers 429.58

SLC5600IWK In-Wall Kevlar speakers 560.00

SLC5600ICP In-Ceiling Polypropylene speakers 408.53

SLC5600ICK In-Ceiling Kevlar speakers 521.09

SLC5600ODPBK Outdoor Black speakers 468.30

SLC5600ODPWE Outdoor White speakers 468.30

Desktop Amplifier

Audio Distribution Unit

Indoor Ceiling Mount

Speakers

Indoor Wall Mount

Speakers

Indoor/Outdoor Speakers

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-11

www.schneider-electric.us

C-Bus™ Multi Room Audio and Thermostats

Class 1250

Hand Held Remote Controls

C-Bus remote controls are designed for use with C-Bus keypads, multi-sensors, and touch

screens. available in both four and eight button versions, these remotes have a range up to

50 feet (line of sight).

The universal remote control unit allows a single remote control unit to replace various

other remotes including VCRs, CD players, DVRs, and TVs. Up to sixteen remote control

codes are supported.

Single and 4 Zone Network Thermostats

C-Bus Thermostats are used to regulate the air temperature of zones by controlling

heating-ventilation-air conditioning (HVAC) equipment. The air temperature is monitored

by the unit’s temperature sensor or optionally via an external C-Bus temperature sensor.

C-Bus single and programmable 4 Zone Thermostats may operate as stand alone devices,

or be controlled via other C-Bus devices such as wall switches or touch screens.

Programmable 4 Zone Thermostats can schedule up to four set points during a day, and

unique schedules can be programmed for each day of the week.

Both models include setback mode, (saves power by using a wider acceptable

temperature range within which heating or cooling is not performed) and temperature

guard, (ensures the temperature is maintained within a specified temperature range).

•

Easy to read, large LCD display

•

Control by keypads and other devices on the C-Bus network

•

Available in black, white and stainless steel fascias

•

Setback mode

•

Temperature guard mode

•

Internal Timer

•

Daily schedule set points (4 Zone model)

•

Display temperature in Celsius or Fahrenheit

•

RWG interface (relay models only)

•

Easily configured by using the Clipsal Toolkit software program

Table 5.17: Handheld Remote Controls

Catalog No. Catalog Description $ Price

SLC5084TX Handheld infrared remote 4 button 200.00

SLC5088TX Handheld infrared remote 8 button 400.00

SLC5030URC Handheld universal remote control 440.00

Table 5.18: Single and 4 Zone Network Thermostats

Catalog No. Catalog Description $ Price

SLC5070THBWE Single Zone, White, no relay 649.00

SLC5070THPWE 4 Zone, White, no relay 799.00

SLC5070THBBK Single Zone, Black, no relay 649.00

SLC5070THPBK 4 Zone, Black, no relay 799.00

SLC5070THBSS Single Zone, Stainless, no relay 649.00

SLC5070THPSS 4 Zone, Stainless, no relay 799.00

SLC5070THBRWE Single Zone w/relay, White 724.00

SLC5070THPRWE 4 Zone w/relay, White 899.00

SLC5070THBRBK Single Zone w/relay, Black 724.00

SLC5070THPRBK 4 Zone w/relay, Black 899.00

SLC5070THBRSS Single Zone w/relay, Stainless 724.00

SLC5070THPRSS 4 Zone w/relay, Stainless 899.00

SLC5031RDTSL Remote Temperature Sensor 298.00

8 button

remote control

Universal

remote control

4 Zone Thermostat

Single Zone Thermostat

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5-12

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.schneider-electric.us

C-Bus™ Sensors

Class 1250

Light Level Sensor

The C-Bus Light-Level Sensor measures ambient light levels and automatically issues ON,

OFF, or ramp commands over a C-Bus network. The light-level sensor can control relays,

dimmers, or remotely operated circuit breakers, changing their status according to pre-set

ambient lighting targets. The C-Bus light-level sensor has a dynamic range between 5-150

foot candles, and compensates for noise and rapid light intensity fluctuations.

Outdoor Light Level Sensor

C-Bus Outdoor Light-Level Sensor measures ambient light levels and automatically issues

ON/OFF or ramp commands over a C-Bus network to maintain outdoor lighting levels.

Primarily designed for outdoor use, this light-level sensor is also suitable for indoor setting

in which a water resistant casing is desirable.

The light-level sensor can control up to two C-Bus group addresses: one address controls

ON/OFF switching of a lamp circuit according to a pre-determined ambient light level, while

the other is used to continuously regulate the light-level output of any number of lampsl

The target light level, the margin, and other sensor options are easily configured by using

the C-Bus Toolkit software.

•

Outdoor use, wall- and ceiling-mounted low-profile unit

•

Can maintain a constant illumination level of 5-150 footcandles

•

Adjustable lumin setpoint

•

Control of up two C-Bus group addresses

•

Sensors receive data and power over a single C-Bus twisted-pair cable, so they do not require

power packs or line-voltage connections

•

180° field of view

Occupancy Sensors

C-Bus occupancy sensors are available for both indoor and outdoor applications. All C-Bus

sensors incorporate reliable passive infrared detection (PIR) circuits for occupancy

detection along with integral light level sensors to prevent switching of lights if sufficient

ambient light is present. Sensors feature programmable adjustments for sensitivity and

time delay, walk test LED for commissioning and optical bandpass filtering with dual

element detectors to minimize false triggering.

•

90° Indoor sensors are intended for wall or ceiling mounting. These sensors have a continuous

detection field of 400 square feet and a 90° field of view.

•

360° Indoor sensors are intended for flush mounting in drop ceilings. They have a minor motion

detection field of 800 square feet making them ideal for use in offices, copier rooms, closets, and

restrooms where it can be mounted in the center of the detection area.

•

360° Multi-Sensors combine a passive infrared receiver (PIR) for occupancy sensing, a light-level

sensor, and an infrared remote receiver into a small, highly versatile unit. The multi-sensor’s 2.8 inch

face diameter makes it unobtrusive and ideally suited for flush mounting on the ceiling with effective

IR coverage up to 800 square feet. The built-in IR receiver accepts commands from an optional

handheld remote controller, making the sensor ideal for classrooms and conference room areas.

•

Outdoor PIR Motion Sensor combines reliable thermal-radiation-based control of lighting with

rugged construction suitable for outdoor requirements. The unit’s advanced circuits and flat multi-

segmented lens provide coverage of up to 3000 square feet in a 110° field of view.

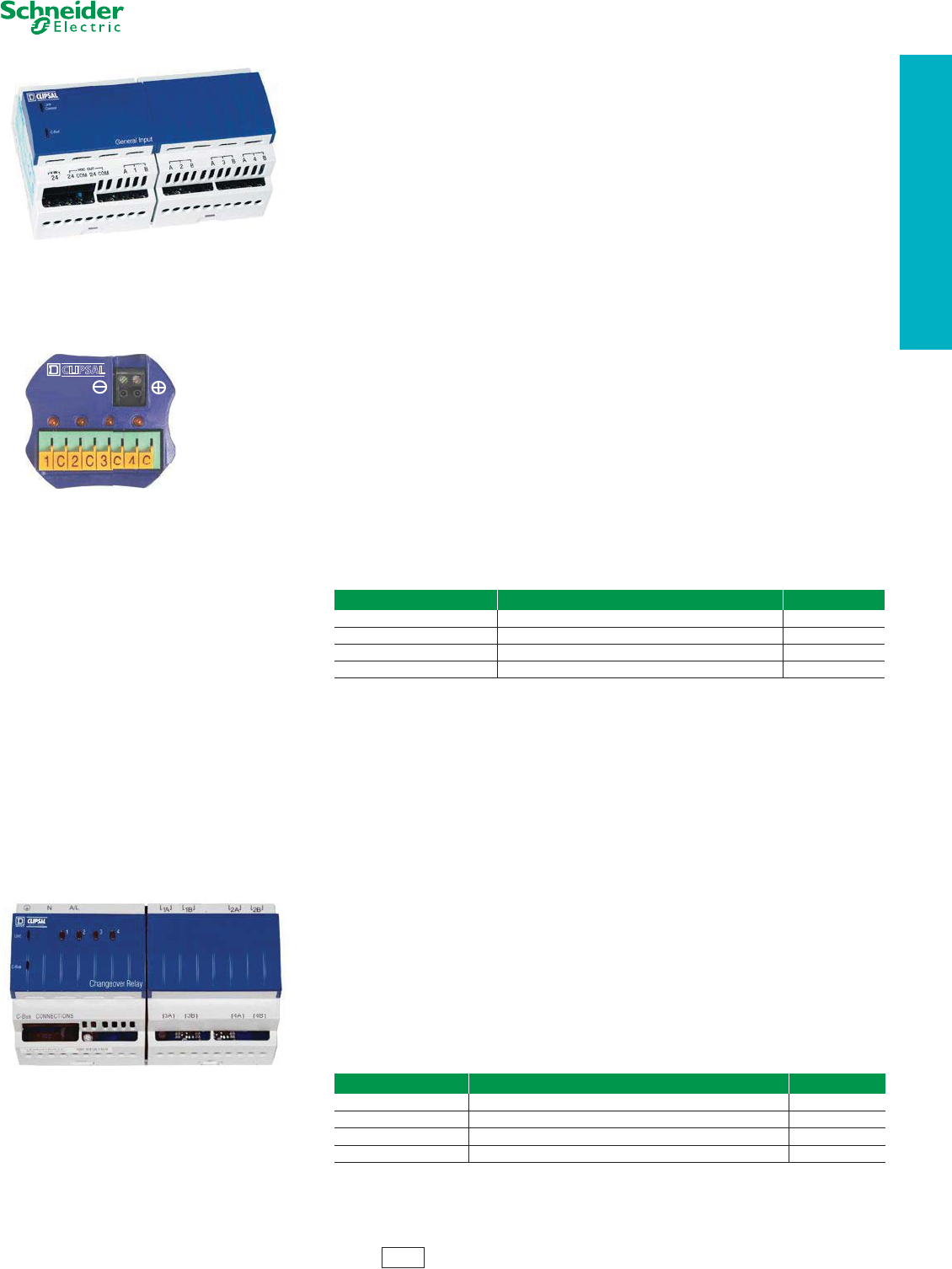

Auxiliary Input Unit

C-Bus Four-Channel Auxiliary Input Units increase the versatility of the C-Bus network by

facilitating remote access with any dry-contact switch mechanism. DIN-rail mounted for

quick installation, the auxiliary unit can be configured with standard C-Bus control functions

such as remote scene triggering, ON/OFF, toggle, dimmer, or timer.

•

Provides four isolated inputs for external voltage-free mechanical switches

•

Control options include remote scene triggering, ON/OFF, toggle, dimmer, or timer operations

•

LEDs indicate operational status of each channel

•

Standard built-in C-Bus network connectors: (2) RJ-45

•

Non-volatile memory stores operating status for recovery from a power outage

•

DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

•

Compatible with all Clipsal devices and the Square D Powerlink™ NF3000G3C controller

Table 5.19: C-Bus Light Level Sensor

Catalog No. Catalog Description $ Price

SLC5031PE Light level sensor, 0–150 Foot-candles, Indoor 208.00

SLC5031PEWP Light Level Sensor, 5–150 Foot-candles, Outdoor 278.00

Table 5.20: C-Bus Occupancy Sensors

Catalog No. Catalog Description $ Price

SLC5750WPL Occupancy sensor, multi, outdoor, 110 deg 283.00

SLC5751L Occupancy sensor, PIR, indoor, 90 deg 227.00

SLC5753L Occupancy sensor, PIR, indoor, 360 deg 213.00

SLC5753PEIRL Occupancy sensor, multi, indoor, 360 deg 268.00

360

Indoor PIR Sensor

Light Level Sensor

Outdoor PIR Sensor 90

Indoor PIR Sensor

360

PIR Multi Sensor

Four-Channel Auxiliary Input unit

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-13

www.schneider-electric.us

C-Bus™ Input Units and Relays

Class 1250

General Input Unit

Four-Channel General Input Units measure TTL digital and real-world analog quantities and

generate messages about the measurements to the C-Bus network. By acting as an

interface with various external sensors, the general input unit enables integration of the

C-Bus network with a variety of system types, such as those for HVAC and for power

monitoring. Configuration options include selectable input types, eight adjustable decision

thresholds per channel, definable actions, selectable filtering, broadcast rates, and a

separate hysteresis value per channel.

•

Measures TTL digital quantities including voltage, current, or resistance from external sensors such

as light level, pressure, and temperature

•

Four channels of input, each with an adjustable hysteresis value, eight decision thresholds, and a

software-selectable input value transformation in the form y =ax +b

•

Input channels are compatible with a range of third-party sensors

•

Control functions include load switching, dimming, trigger applications, enable control applications,

and measurement applications

•

Includes 120 V/24 Vdc power pack

•

Dimensions: 5.67 in. (144mm) wide x 2.60 in. (66mm) deep x 3.35 in. (85mm) tall

•

Compatible with all Clipsal devices and the Square D Powerlink NF3000G3C controller

Bus Couplers

Bus Couplers provide an interface between dry-contact mechanical switches and the C-Bus

network. Available in two-and four-channel models, the bus coupler is small enough to be

used in restricted spaces such as wall boxes with existing switches. Configuration options

include standard control functions such as ON/OFF, toggle, dimmers, and timers.

•

Provides two or four non-isolated inputs for external voltage-free mechanical switches. Two-channel

units feature independent remote LED outputs

•

Two-way removable terminal block for the C-Bus connection

•

Receives data and power over a network, so it does not require power packs or line voltage

connections

•

Scene capabilities

•

2.2”(L) x 1.9”(W) x 0.7”(H)

•

Compatible with all Clipsal devices and the Square D Powerlink NF3000G3C controller

Relays

C-Bus Relay Units are intended for switching resistive, inductive, fluorescent and

incandescent low-voltage loads. Relay units are designed to be mounted in suitable DIN

style enclosures. Relay units feature:

•

Local toggle buttons to allow individual channels to be toggled

•

Remote ON and OFF facilities permitting all channels to be turned ON or OFF without C-Bus

Network communications

•

Two (2) Convenient built-in C-Bus network connectors (RJ-45)

•

LED Indicators to show the status of the network and the unit

•

Units available both with and without a 200ma power supply on-board.

•

Compatible with all Clipsal devices and the Square D Powerlink™ NF3000G3C controller

Changeover Relay

C-Bus 2A Changeover Relays are designed to operate three-speed motors and two-way

motor control devices. Some of their most common applications include operating

motorized blinds, shutters, curtains and skylights (open/closed) where they provide a much

simpler alternative to traditional and obtrusive relay interlocking systems.

•

Four (4) isolated independently operating relay channels

•

120 Vac and 277 Vac units

•

2A motor rating

•

Dimensions: 5.67 in. (144mm) wide x 2.60 in. (66mm) deep x 3.35 in. (85mm) tall

Table 5.21: Input Units

Catalog No. Catalog Description $ Price

SLCLE5504AUX 4 Channel auxiliary input unit 544.00

SLCE5504TGI 4 Channel general input unit 1194.00

SLC5102BCLEDL 2 Channel bus coupler 212.00

SLC5104BCL 4 Channel bus coupler 243.00

Table 5.22: Changeover Relays

Catalog No. Catalog Description $ Price

SLC5504TRVFC 4 Channel Changeover Relay, 125 V, with power supply 1100.00

SLC5504TRVFCP 4 Channel Changeover Relay, 125 V, without power supply 1010.00

SLC5504HRVFC 4 Channel Changeover Relay, 277 V, with power supply 1100.00

SLC5504HRVFCP 4 Channel Changeover Relay, 277 V, without power supply 1010.00

General Input unit

5104BCL

Bus Coupler

124

CLIPSAL

Four-Channel Bus Coupler

Changeover Relay

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-14

www.schneider-electric.us

C-Bus™ Relay Units and Dimmers

Class 1250

10 Amp Relay

C-Bus 10A Relays feature a zero crossing magnetically latching relay designed for

switching the harsh electrical loads associated with today’s high efficiency lighting systems.

•

Four (4) or twelve (12) independently operating voltage free relay contacts

•

120 Vac and 277 Vac units

•

10 A rating

•

Dimensions: 5.67 in. (144 mm) wide x 2.60 in. (66 mm) deep x 3.35 in. (85 mm) tall

20 Amp Relay

C-Bus 20 A Relays feature a zero crossing magnetically latching relay designed for

switching the harsh electrical loads associated with today’s high efficiency lighting systems.

•

Four (4) independently operating voltage free relay contacts

•

120 Vac and 277 Vac units

•

20 A rating

•

Dimensions: 8.46 in. (215 mm) wide x 2.60 in. (66 mm) deep x 3.35 in. (85 mm) tall

8-Channel Low Voltage Relay

The C-Bus 8-Channel Low Voltage Relay is a C-Bus output device that controls up to eight

low voltage relay channels. The unit is powered from C-Bus and requires no other power

source. The 8-Channel Low Voltage Relay can be used in many low voltage applications

including controlling irrigation solenoids and low voltage damper solenoids for HVAC

control. The unit can also be used in integrating 3rd party equipment through pulse signal

controls.

•

8 channels of 2 A switched loads @ 30 Vac/dc

•

8 channels are all isolated change over relays

•

Control of 3rd party products

Phase Angle Dimmers

C-Bus Phase Angle Dimmers are intended for controlling incandescent and compatible low-

voltage and florescent lighting. Each of the unit’s channels can independently control loads

to create dynamic lighting scenes. These dimmer units automatically compensate for

voltage and frequency fluctuations and employ advanced phase-control techniques to

reduce flicker and increase lamp life.

•

Four (4) independent channels supporting up to 4 A continuous load per channel, eight (8)

independent channels supporting up to 2 A continuous load per channel

•

Units available both with and without a 200 mA power supply on-board.

•

120 Vac

•

Dimensions: 8.46 in. (215 mm) wide x 2.60 in. (66 mm) deep x 3.35 in. (85 mm) tall

Table 5.23: 10 Amp Relay

Catalog No. Catalog Description $ Price

SLC5512TRVF 12 Channel Relay, 120 V, 10 A with power supply 2168.00

SLC5512TRVFP 12 Channel Relay, 120 V, 10 A without power supply 1973.00

SLC5504TRVF 4 Channel Relay, 120 V,10 A with power supply 1043.00

SLC5504TRVFP 4 Channel Relay, 120 V, 10 A without power supply 843.00

SLC5512HRVF 12 Channel Relay, 277 V, 10 A with power supply 2168.00

SLC5512HRVFP 12 Channel Relay, 277 V, 10 A without power supply 1973.00

SLC5504HRVF 4 Channel Relay, 277 V,10 A with power supply 1043.00

SLC5504HRVFP 4 Channel Relay, 277 V, 10 A without power supply 843.00

Table 5.24: 20 Amp Relay

Catalog No. Catalog Description $ Price

SLC5504TRVF20 4 Channel Relay, 120 V, 20 A with power supply 1320.00

SLC5504TRVF20P 4 Channel Relay, 120 V, 20 A without power supply 1142.00

SLC5504HRVF20 4 Channel Relay, 277 V, 20 A with power supply 1320.00

SLC5504HRVF20P 4 Channel Relay, 277 V, 20 A without power supply 1142.00

Table 5.25: 8-Channel Low Voltage Relay

Catalog No. Catalog Description $ Price

SLC5108RELVP 8-Channel Low Voltage Relay 298.00

4-Channel 10 A Relay

4-Channel 20 A Relay

8-Channel Low Voltage Relay

Phase Angle Dimmer

with Power Supply

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-15

www.schneider-electric.us

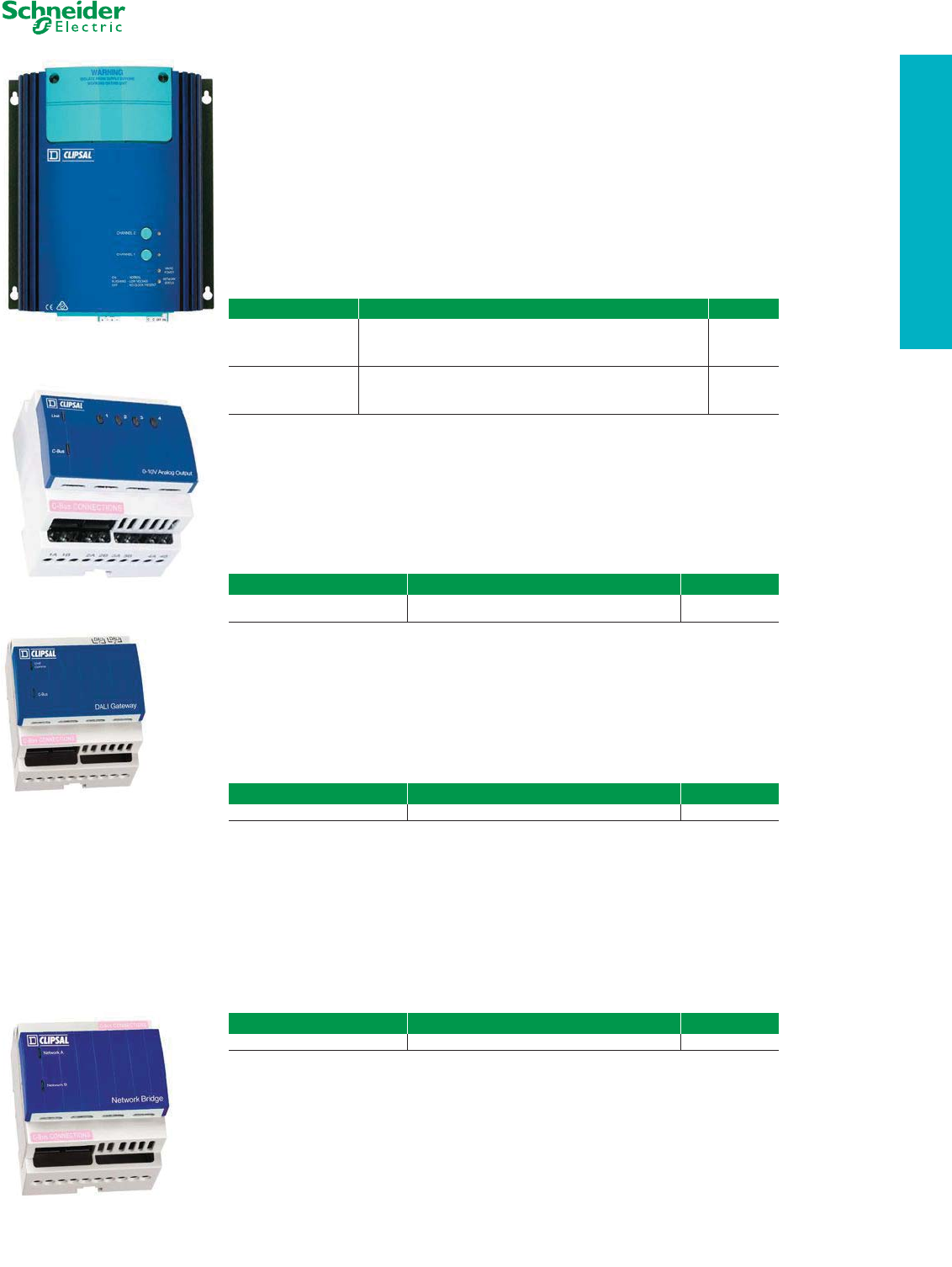

C-Bus™ Dimmer Units and System Units

Class 1250

Professional Dimmer

C-Bus Professional Dimmers can control incandescent and compatible low-voltage and florescent lighting. These

dimmers are ideal for larger heavily loaded circuits. Each channel provides independent dimming and incorporates

thermal overload and over-current protection. These dimmer units automatically compensate for voltage and

frequency fluctuations and employ advanced phase-control techniques to reduce flicker and increase lamp life.

An optional terminal box is available for conduit connections. Configuration options include network monitoring of

the channel load and network voltages, adjustable delays for dimming levels, and master override.

•

Specialized dimming modes—soft turn on/off and linear brightness control

•

Built-in power supply sources 60 mA to the C-Bus network

•

Individual channels can be turned On/Off at the unit or via C-Bus commands

•

LEDs indicate the status of the network at the unit and the status of the unit’s load and power

•

Optional terminal box for connecting conduit

•

120 Vac

•

Dimensions: 7.5 in. (190 mm) wide x 3.0 in. (75 mm) deep x 7.7 in. (195 mm) tall

0–10 V Dimming Unit

The C-Bus Analog Output Unit provides four channels of analog 0–10 Vdc for controlling electronically

dimmable fluorescent lighting ballasts.

•

Produces four independently controllable channels of 0–10 Vdc for controlling dimmable flourescent lighting ballasts, or

other 0–10 V controllable loads

•

Individual channels can be turned ON/OFF at unit, via C-Bus commands, and through a remote override option

•

120 V or 277 Vac models available

•

DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

DALI Gateway

The C-Bus Digital Addressable Lighting Interface (DALI) Gateway provides an isolated two-way

communications path between a C-Bus network and two DALI networks, making it possible to use C-Bus

devices to control DALI ballasts.

•

Provides two-way communications between C-Bus and DALI networks, routing selected messages from one to the other

•

Unit is transparent and invisible to DALI ballasts

•

Receives data and power over the network, so the unit does not require power packs or line-voltage connections

•

DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

DMX Gateway

The C-Bus DMX Gateway is a DIN rail mounted unit that maps C-Bus Group Addresses and levels to a DMX-

512 A interface.

The C-Bus DMX Gateway is a one way device. It permits C-Bus input devices such as keypads, DLTs and

PIRs to control lighting devices with DMX interface capabilities. These include many manufacturers of LED

fixtures and theatrical lighting equipment.

•

Includes DMX interface (bootlace connnectors to 5-pin female XLR)

•

DMX Master device

•

Receives data and power over the C-Bus network, so the unit does not require a line voltage connection

•

DIN style construction 4M wide: 3.4” (L) x 2.8” (W) x 2.6” (H)

Network Bridge

The C-Bus Network Bridge provides a communication channel between C-Bus units on separate networks,

expanding the total number of units that can be configured, controlled, and monitored.

•

Increases transmission distances by acting as a repeater station for data transmission

•

Expands the total number of C-Bus devices that can operate on the system by isolating devices to individual networks

•

Indicates each network’s status level

•

Uses built-in connectors to connect to a C-Bus network

•

Compatible with Powerlink G3 3000C controller and all C-Bus components, including keypads, sensors, and dimmers

•

DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

Table 5.26: C-Bus Dimmers

Catalog No. Catalog Description $ Price

SLC5504TD4A 4 x 4 A dimmer, incan/mag,125 V, 4 A, with power supply 1024.00

SLC5504TD4AP 4 x 4 A dimmer, incan/mag,125 V, 4 A, without power supply 800.00

SLC5508TD2A 8 x 2 A dimmer, incan/mag,125 V, 2 A, with power supply 1024.00

SLC5508TD2AP 8 x 2 A dimmer, incan/mag,125 V, 2 A, without power supply 800.00

SLC5104TD5 4 x 5 A dimmer, incan/mag,125 V, with power supply 1926.00

SLC5102TD10 2 x 10 A dimmer, incan/mag,125 V, with power supply 1926.00

SLC5101TD20 1 x 20 A dimmer, incan/mag,125 V, with power supply 1926.00

SLCU5100TB Termination box for SLCLU510X Series dimmer units 78.00

Table 5.27:

Catalog No. Catalog Description $ Price

SLCLE5504TAMP 4 Channel 0–10 V Output, 120 V 624.00

SLCLE5504HAMP 4 Channel 0–10 V Output, 277 V 624.00

Table 5.28:

Catalog No. Catalog Description $ Price

SLC5502DAL 2 Channel DALI Gateway 1014.00

Table 5.29:

Catalog No. Catalog Description $ Price

SLC5500DMX C-Bus to DMX Gateway 936.00

Professional Dimmer

4 Channel

0–10 V Dimmer Unit

DALI Gateway

Network Bridge

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-16

www.schneider-electric.us

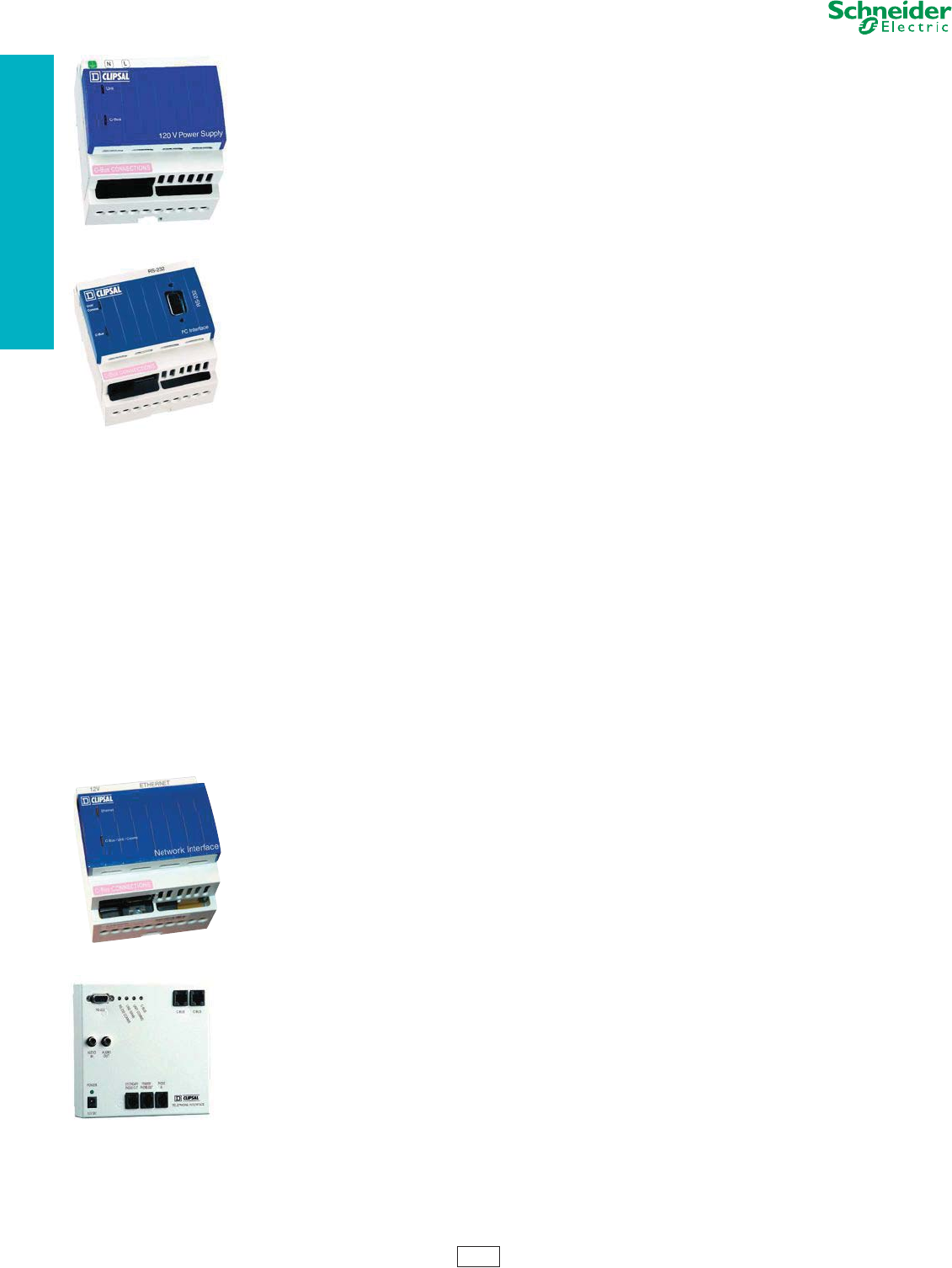

C-Bus™ System Units

Class 1250

Power Supply

The C-Bus Power Supply is specifically designed to operate with the C-Bus network as a power source for passive

C-Bus devices. Up to five power supplies can be connected to a single C-Bus network.

•

Available in 120 and 277 Vac models

•

Regulating power supply compensates for line voltage and frequency variations, so there is constant output

•

Sources up to 350 mA to the C-Bus network

•

UL listed to operate in parallel with other Clipsal power supplies, up to five on a single C-Bus network

•

Incorporates short circuit and reverse polarity protection

•

DIN style construction 4M wide: 3.4”(L) x 2.8”(W) x 2.6”(H)

PC Interface

The C-Bus PC Interface (PCI) expands options for configuring, controlling, and monitoring C-Bus networks by providing

an interface between the network and a personal computer (PC). The C-Bus PCI module easily mounts to a DIN rail

and connects to the C-Bus network. Power to the unit is provided through the C-Bus network.

Serial

•

Unit/Comms LED shows the status of the unit’s power and of any data transmissions

•

Three RS-232 serial connectors for connecting to a PC or to external devices: (1) 9-pin D-type serial connector (female) and

(2) 8-pin RJ-45 connectors

•

Two C-Bus network connector ports: RJ-45 sockets

•

Data cable for connecting PCI and personal computer, including DB9 connectors

USB

•

Unit/Comms LED shows the status of the unit’s power and of any data transmissions

•

Two C-Bus network connector ports: RJ-45 sockets

•

USB PC connection

•

Data cable for connecting PCI and personal computer

Pascal Automation Controller

C-Bus Pascal Automation Controller (PAC) provides extended conditional and real-time event programming to C-Bus

systems. The PAC supports a full range of programming commands including conditional logic, flow control variables

and scheduling.

Systems integrators will appreciate the built-in scheduling tools, scene tools, and wizards for creating basic logic

programs. Full programming capabilities can be achieved utilizing the free-form script editor based off the pascal

programming language.

•

Connects directly to C-Bus network

•

Powered from the C-Bus network

•

USB port for connection to personal computer

•

(2) RS232 ports for third party device control

•

Real time, astronomical and C-Bus system clock included with 24 hour internal capacitor backup and external 12 Vdc battery

terminals

Programming capabilities including: i.e. Conditional logic (if, then, and, or, not, etc.), Flow Control (for, repeat, while),

Variables (integer, real, Boolean, character, string), Control and monitoring of group addresses, Control and monitoring

of scenes.

Ethernet Network Interface

The C-Bus Ethernet Network Interface unit is a C-Bus system device designed to provide an isolated communications

path between an Ethernet 10Base-T Network and a C-Bus Network. This allows high-speed control and monitoring of a

C-Bus installation via the TCP/IP protocols used in computer networks and by the Internet. System integrators and

installers will also benefit from having remote access to the system. With the C-Bus Ethernet Network Interface unit,

access to a single or multiple networks can be as close as the nearest Ethernet connection.

•

Remote access to Clipsal systems

•

Bridge multiple C-Bus networks together over LAN or WAN

•

Fully supports all Clipsal commands

•

Small size, mounts in standard DIN enclosure (4M wide)

•

Includes 12 Vdc power supply

Telephone Interface Unit

C-Bus Telephone Interface Unit offers a dial-in and dial-out capability for control of a C-Bus system. Remote location

override, monitoring, diagnostics and configuration of a C-Bus system is possible with this unit. The C-Bus Telephone

Interface Unit is programmed using a connection to a PC running TICA (Telephone Interface Commissioning

Application) configuration software. The interface can also act as a C-Bus PC Interface. The Telephone Interface Unit

can be installed in a C-Bus 36 or 60M enclosure or as a wall mountable stand-alone item with connection to C-Bus.

•

Remote location override

•

Voice prompts and confirmation

•

Password protected

•

32 supported devices

•

Automatic dial out on present conditions

•

Local or remote site access to C-Bus system

•

Audio Out

Power Supply

PC Interface

Telephone Interface Unit

Ethernet Network Interface

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-17

www.schneider-electric.us

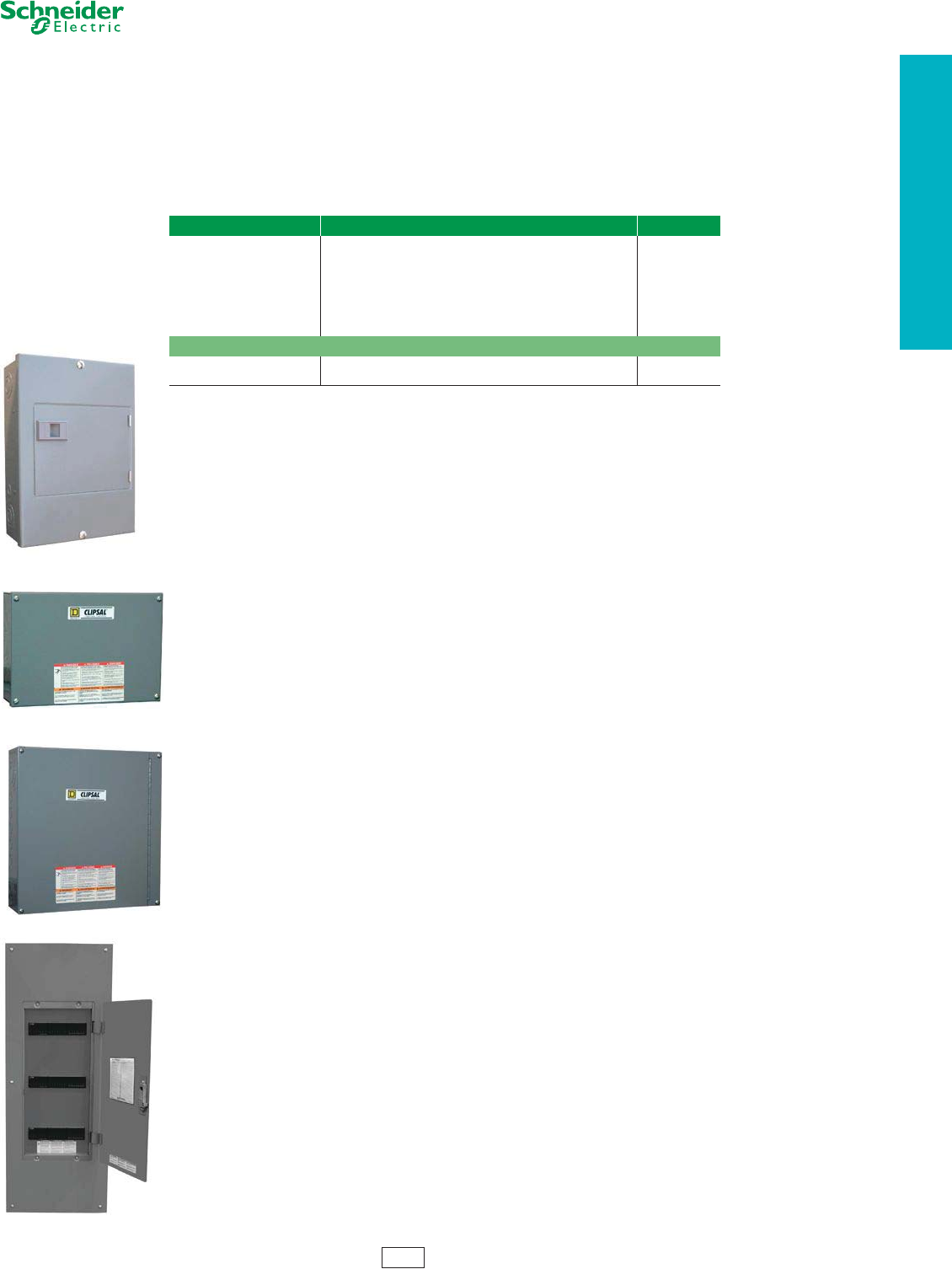

C-Bus™ System Units and Enclosures

Class 1250

Bar Code Reader

The C-Bus Bar Code Reader allows installers and integrators to quickly scan C-Bus devices with serial numbers and

import them into C-Bus Toolkit software. Using a USB connection to a PC, users can easily identify and track C-Bus

Unit locations on a floorplan/network.

Network Analyzer

The C-Bus Analyzer is a C-Bus device designed to help an installer quickly analyze, detect, and troubleshoot potential

problems on a C-Bus network. The device analyzes the network parameters and prompts the user for appropriate

actions via its front LED (Light Emitting Diode) indicators.

8M Enclosure

The 8M enclosure is specifically designed for distributed applications. Suitable for surface mounting, the 8M enclosure

consists of a box with a cover and a DIN rail for mounting one 8M or two 4M C-Bus units. The enclosure also has

provisions for mounting neutral and ground bars.

•

Surface-mount NEMA 1 enclosure

•

Welded sheet steel with knockouts

•

Gray baked enamel, electrodeposited over cleaned, phosphatized steel

•

Triple-lead cover screws for fast installation of cover

•

DIN rail, suitable for mounting one 8M or two 4M C-Bus DIN modules

12M Enclosure

The 12M enclosure is specifically designed for distributed applications that require physical proximity between DIN

units and keypads, sensors or controlled loads. Suitable for surface mounting, the 12M enclosure consists of a box with

a cover and a DIN rail for mounting three 4M C-Bus units, one 8M unit plus one 4M unit or one 12M unit. The enclosure

also has factory mounted neutral and ground bars.

•

Surface-mount NEMA 1 enclosure

•

Welded sheet steel with knockouts

•

Gray baked enamel, electrodeposited over cleaned, phosphatized steel

•

Triple-lead cover screws for fast installation of cover

•

DIN rail, suitable for mounting one 12M or three 4M C-Bus DIN modules

24M Enclosure

The 24M enclosure is specifically designed for distributed applications that require physical proximity between DIN

units and keypads, sensors or controlled loads. Suitable for surface mounting, the 24M enclosure consists of a box with

a cover and two rows for mounting C-Bus DIN-mounted C-Bus units. Each row can hold one 12M unit, one 8M unit plus

one 4M unit, or three 4M untis. The enclosure also has provisions for additional neutral and ground bars.

•

Surface-mount NEMA 1 enclosure

•

Welded sheet steel with knockouts

•

Gray baked enamel, electrodeposited over cleaned, phosphatized steel

•

Triple-lead cover screws for fast installation of cover

•

DIN rail, suitable for mounting Clipsal DIN-mounted C-Bus units. Each row can hold one 12M unit, one 8M unit plus one 4M unit, or

three 4M units

36M and 36MS Enclosure

The 36M and 36MS enclosures provide a multi-purpose means for housing various C-Bus DIN-mounted devices.

Suitable for flush or surface mounting, the enclosure consists of a mounting pan assembly, and a cover assembly. The

box is to be ordered separately, allowing for its installation with the rough-in of field wiring. Enclosures feature:

•

NEMA 1 enclosure suitable for flush or surface mounting

•

Welded sheet steel with knockouts

•

Gray baked enamel paint, electrodeposited over cleaned, phosphatized steel

•

Triple-lead cover screws for fast installation of cover

•

3 DIN mounting rails, each accommodating up to one 12M unit, one 8M unit with one 4M unit, or three 4M units

•

Complete with barriers for separation of Class 2 circuits from line voltage (36M only)

•

The 36MS offers a reduced footprint than the 36M

Table 5.30: System Units

Catalog No. Catalog Description $ Price

SLC5500NB Network bridge 663.00

SLC5500TPS 120 V Power supply, 350 mA 500.00

SLC5500HPS 277 V Power supply, 350 mA 500.00

SLC5500PC RS-232 PC Interface 488.00

SLC5500PCU USB PC Interface 488.00

SLC5500PACA Pascal Automation Controller 586.00

SLC5500CN Ethernet Network Interface 664.00

SLC5100TUS Telephone Interface Unit 898.00

Accessories

SLC5100BCS Bar Code Reader 604.00

SLC5100NA C-Bus Network Analyzer 328.00

8M Enclosure

12M Enclosure

24M Enclosure

36M Enclosure

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5-18

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.schneider-electric.us

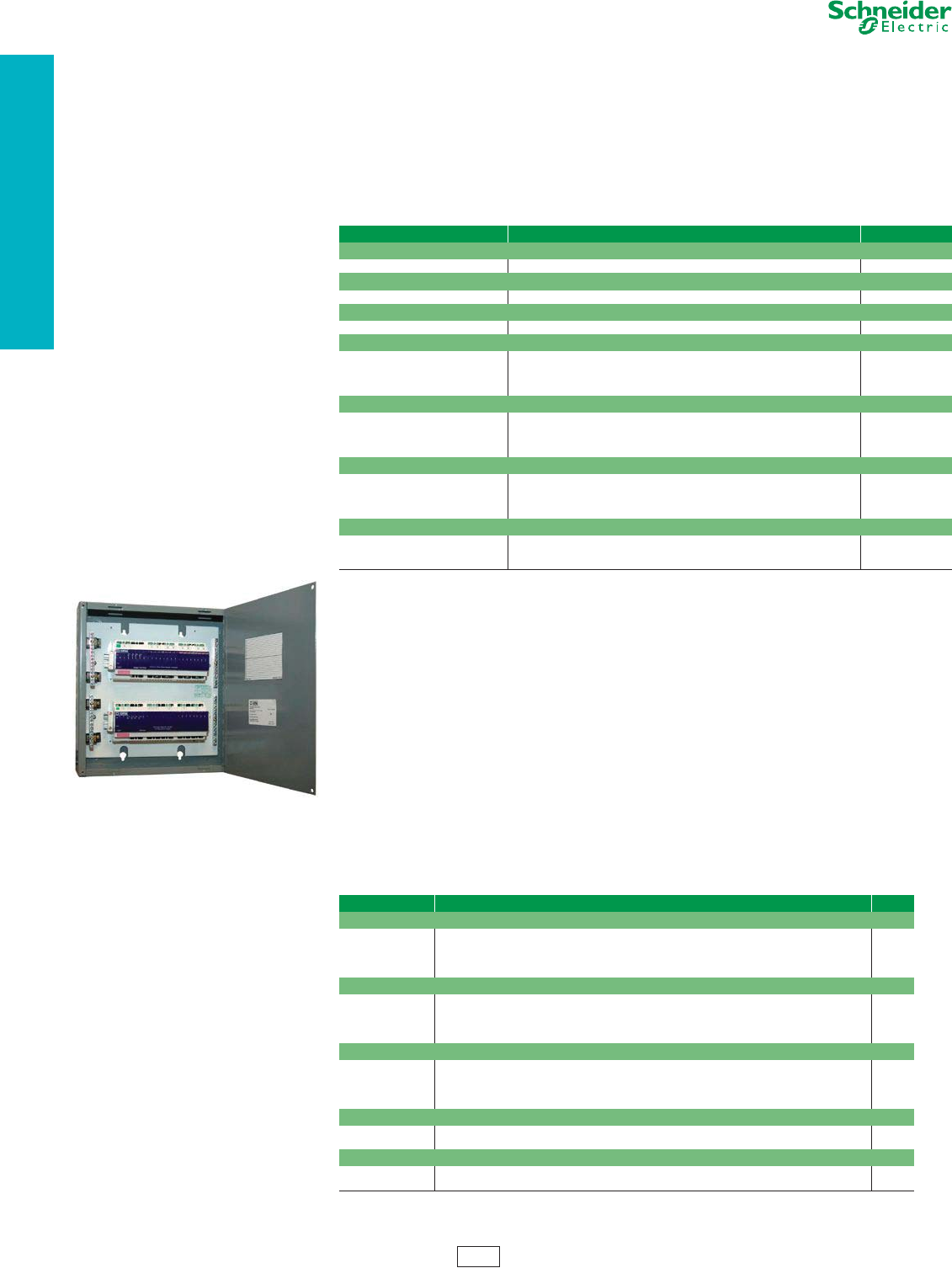

C-Bus™ Enclosures and System Devices

60M Enclosure

The 60M enclosure provides a means for housing DIN style relays and dimmers. Suitable for flush or

surface mounting, the enclosure consists of a mounting pan assembly, and a cover assembly. The box is

to be ordered separately, allowing for its installation with the rough-in of field wiring. Enclosures feature:

•

NEMA 1 enclosure suitable for flush or surface mounting

•

Welded sheet steel with knockouts

•

Gray baked enamel paint, electrodeposited over cleaned, phosphatized steel

•

Triple-lead cover screws for fast installation of cover

•

5 DIN mounting rails, each accommodating up to one 12M unit, one 8M unit with one 4M unit, or three 4M units

•

Complete with barriers for separation of Class 2 circuits from line voltage

Area Lighting Panels

C-Bus Area lighting Panels are ideally suited to meet lighting control energy code requirements in

classrooms, offices and other small spaces. Area Lighting Panels are designed to be used with C-Bus

input units, including: keypads, sensors (occupancy and light level detection) and touch screens. A

simple CAT-5 cable is all that is required for connecting of these devices.

C-Bus Area Lighting Panels provide on/off switching, stepped dimming or continuous dimming. All relays

feature rugged 20 A rated contacts for switching electronic ballast loads. Models with continuous dimming

capabilities are available with phase angle or 0–10 V control. C-Bus Area Lighting Panels can operate

independently or as part of an entire facility wide lighting control system. Enclosures can easily be mounted

in electrical closets or in ceiling spaces. They include all necessary connections and are UL® Listed. Area

Lighting Panels can also be used in conjunction with Powerlink™ panels.

•

Relay models: Four (4) or Eight (8) channel relay outputs, rated 20 A

•

Phase Angle Dimmer Model: Four (4) channels of 4 A outputs for incandescent lighting loads.

•

0–10 V outputs available for control of compatible 0–10 V dimmable fluorescent ballasts, or LED drivers

•

Integral neutral and ground bar terminal strips

•

Meets NEC 300.22 requirements to be installed above ceilings and other spaces that handle environmental air

•

Bypass mode to facilitate quick start up

•

Meets NEC Article 409

•

UL Listed 508 A

aFor stand-alone applications order unit with power supply.

Table 5.31: Enclosures and Accessories

Catalog No. Catalog Description $ Price

8M Enclosure

SLC8M C-Bus single row enclosure, surface mount 110.00

12M Enclosure

SLC12MSG C-Bus single row enclosure, surface mount 120.00

24M Enclosure

SLC24MSG C-Bus dual row enclosure, surface mount 240.00

36MS Enclosure

SLC36SC C-Bus box for small three row interior 120.00

SLC36MSFG C-Bus small three row interior with flush gray cover 690.00

SLC36MSFW C-Bus small three row interior with flush white cover 690.00

SLC36MSSG C-Bus small three row interior surface mount gray cover 690.00

36M Enclosure

SLC36C C-Bus box for three and five row interiors 136.00

SLC36MFG C-Bus three row interior with gray cover, flush mount 740.00

SLC36MFW C-Bus three row interior with white cover, flush mount 740.00

SLC36MSG C-Bus three row interior surface gray 740.00

60M Enclosure

SLC36C C-Bus box for three and five row interiors 136.00

SLC60MFG C-Bus five row interior with gray cover, flush mount 1233.00

SLC60MFW C-Bus five row interior with white cover, flush mount 1233.00

SLC60MSG C-Bus five row interior surface gray 1233.00

Accessories

PK7GTA Ground/Neutral Bar 7.80

PKGTAB Neutral Insulator Kit 29.20

SLC4CSF8 Filler Plate, 4M 18.00

Table 5.32: C-Bus Area Lighting Panels

Catalog No. Description $ Price

4 Channel 20 A Relay Models

SLCZ042000T 4 Channel 20 A Relay @ 120 V with power supplya1769.00

SLCZ042000H 4 Channel 20 A Relay @ 277 V with power supplya1769.00

SLCZ042000TP 4 Channel 20 A Relay @ 120 V without power supply 1675.00

SLCZ042000HP 4 Channel 20 A Relay @ 277 V without power supply 1675.00

8 Channel 20 A Relay Models

SLCZ082000T 8 Channel 20 A Relay @ 120 V with power supplya2646.00

SLCZ082000H 8 Channel 20 A Relay @ 277 V with power supplya2646.00

SLCZ082000TP 8 Channel 20 A Relay @ 120 V without power supply 2462.00

SLCZ082000HP 8 Channel 20 A Relay @ 277 V without power supply 2462.00

4 Channel 20 A Relay Models with 0-10 V Output Units

SLCZ04204AT 4 Channel 20 A Relay @ 120 V with power supply and 4 Channel 0–10 V Output Unita2492.00

SLCZ04204AH 4 Channel 20 A Relay @ 277 V with power supply and 4 Channel 0–10 V Output Unita2492.00

SLCZ04204ATP 4 Channel 20 A Relay @ 120 V without power supply and 4 Channel 0–10 V Output Unit 2308.00

SLCZ04204AHP 4 Channel 20 A Relay @ 277 V without power supply and 4 Channel 0–10 V Output Unit 2308.00

4 Channel 20 A Phase Angle Dimmer Models

SLCZ00004DT 4 Channel 20 A Phase Angle Dimmer @ 120 V with C-Bus power supplya1144.00

SLCZ00004DTP 4 Channel 20 A Phase Angle Dimmer @ 120 V without C-Bus power supply 920.00

4 Channel 20 A Relay Models with Phase Angle Dimmer Units

SLCZ04204DT 4 Channel 20 A Relay @ 120 V with C-Bus power supply and 4 Ch. Phase Angle Dimmer Unita2630.00

SLCZ04204DTP 4 Channel 20 A Relay @ 120 V without C-Bus power supply and 4 Ch. Phase Angle Dimmer Unit 2182.00

Area Lighting Panel

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-19

www.schneider-electric.us

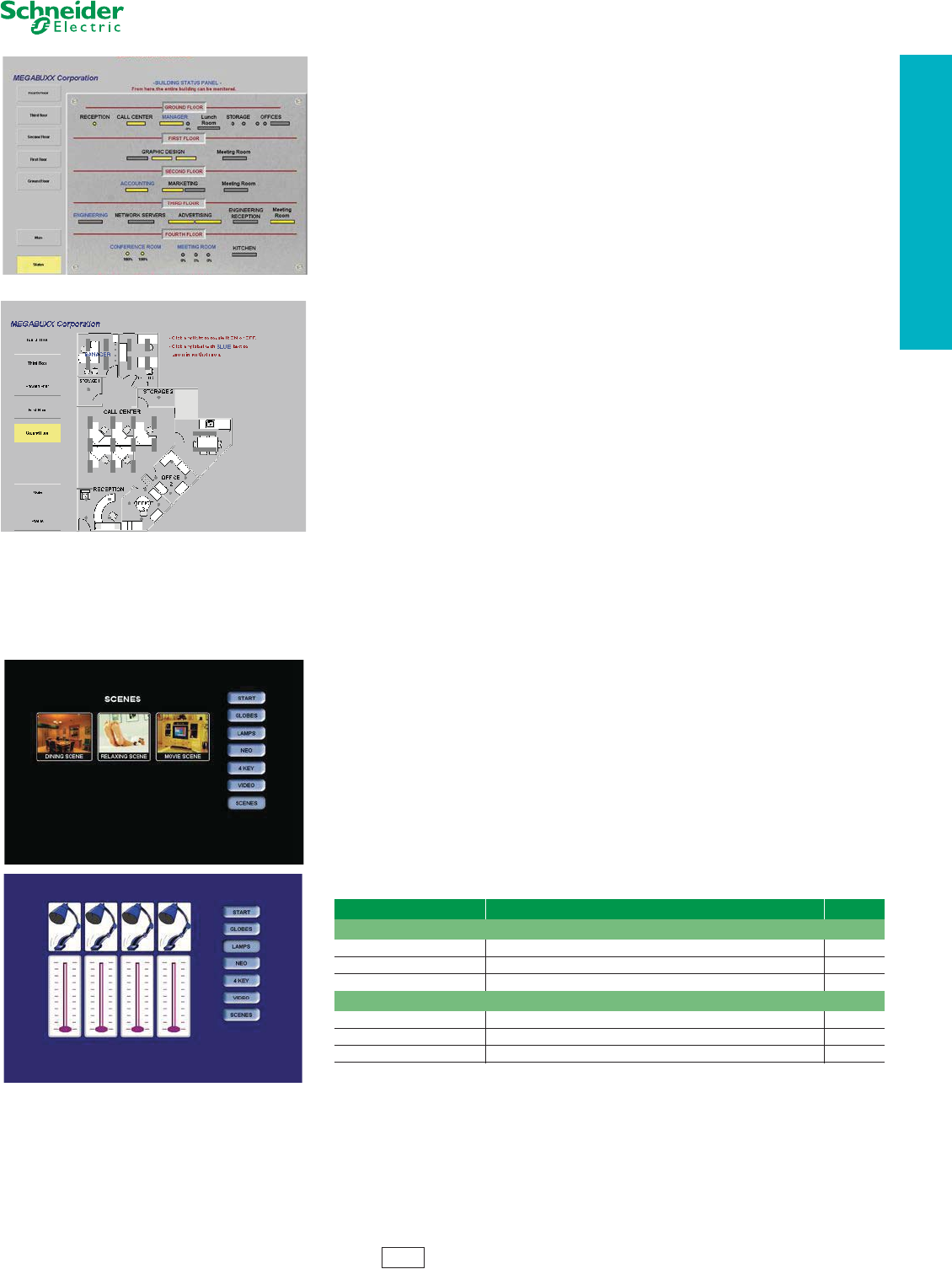

C-Bus™ Software Packages

Class 1250

C-Bus Toolkit Software

The C-Bus Toolkit Software includes the C-Bus Installation and programming Software,

Project Manager, and C-Bus Calculator. The software works under Windows™ 98, ME,

2000 and XP and supports a unique barcode scanning feature. This allows the installer to

scan the C-Bus packaging of each new unit to add the unit to the database. The software

prints adhesive labels that can be affixed to building plans. These labels include the Unit

Address and the physical location that the unit is to be installed. Labels are duplicated so

that one label can be affixed to the unit and one to the electrical plan for the installation. The

labels have barcodes on them so that units can be easily re-identified if required.

NOTE: C-Bus Toolkit Software is a free download from

http://www.schneider-electric.us/solutions/lighting-and-whole-home-control/

Schedule Plus Software V.4

C-Bus Schedule Plus Version 4 includes a number of major features, including enhanced

scheduling features, support for monitoring load run times, load power and energy

consumed, support for fully customizable multilevel, password protected, access level

control, support for sunrise and sunset times, support for daylight saving times, support for

128 bit encrypted secure Internet connectivity allowing control and monitoring via any Web

Browser. The software also includes a graphic display as well as a fully featured

programmable logic engine. The USB Code Key works under Windows XP Home, XP

Professional, Server 2003, Vista Ultimate, Vista Business and Vista Enterprise.

NOTE: An evaluation version of Schedule Plus is available

for download by going to http://www.schneider-electric.us/solutions/lighting-

and-whole-home-control/ and clicking Software Downloads in the far-left

column.

HomeGate Software V.4

Residential application PC control of a C-Bus Control System. C-Bus HomeGate Version 4

includes a number of major features, including support for 128 bit encrypted secure Internet

connectivity allowing control and monitoring via any Web Browser, irrigation system control

feature, enhanced scheduling features, support for sunrise and sunset times, support for

daylight saving times. The software also includes a fully featured programmable logic

engine. The C-Bus USB Key works under Windows XP Home, XP Professional, Server

2003, Vista Ultimate, Vista Business and Vista Enterprise.

NOTE: An evaluation version of HomeGate is available

for download by going to http://www.schneider-electric.us/solutions/lighting-

and-whole-home-control/ and clicking Software Downloads in the far-left

column.

Installer License Key

The C-Bus Software Installer License Key is a valuable tool for installers to

create/commission projects using C-Bus Version 4 Schedule Plus & HomeGate software.

This code key is time restricted and allows the software to operate in ‘normal’ mode for

anywhere between 48 to 72 hours per use (the software then returns to evaluation/demo

mode).

NOTE: The installer code key will also be compatible with future software releases.

Table 5.33:

Catalog No. Catalog Description $ Price

Schedule PlusV. 4

SLC5000SDSP24 License Key for 2 Networks 792.00

SLC5000SDSP104 License Key for 10 Networks 1680.00

SLC5000SDSPU4 License Key for Unlimited Networks 2665.00

HomeGate V. 4

SLC5000SDHG24 License Key for 2 Networks 352.00

SLC5000SDHG104 License Key for 10 Networks 680.00

SLC5000SDSP24 Installer key for Schedule Plus or Homegate (unlimited networks) 389.00

Schedule Plus Software Screen Captures

HomeGate Software Screen Captures

DE-8 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5-20

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

www.schneider-electric.us

Occupancy Sensors Lighting Control

Class 1200

Basic Wall Switch Occupancy Sensors

Wall Switch Occupancy Sensors are ideally used in

commercial buildings to save energy that would otherwise

be wasted to light unoccupied rooms or spaces. These

Wall Switch Occupancy Sensors employ the latest in

passive infrared (PIR) sensing technology to accurately

sense when a room or space is occupied, then turn lights

on. When the room is unoccupied, the sensor turns lights

off after a time delay of up to 30 minutes as determined by

the user. Auto-ON and Manual-ON models available with

decorator wall plate in White, Ivory or Light Almond.

Simply mount the sensor in place of existing single gang

switch — no neutral connection required. Special multi-

segmented lens creates a coverage pattern that

accurately detects major motion in rooms up to 1000 sq. ft.

•

Input: 120/277 Vac 60 Hz

•

Output: 1000W Max. Load @ 120 V (1000 VA@120 V

1800 VA@277 V)

•

1/4 HP Max. Motor Load

•

UL and cUL Listed

•

For use with electronic and magnetic ballasts

•

CEC Title 24 Certified

Commercial Grade Wall Switch Occupancy

Sensors

Maximum energy savings in a format that will complement

any decor. Low profile sensors are available in white,

ivory, gray, light almond and black with color-matched

segmented lens.

Light Level Sensor Mode: Each sensor includes an

adjusatble light level sensor to hold off artificial lighting

when adequate natural light is present.

Walk-Through Mode: To maximize energy savings, the

sensor detects when areas are briefly occupied as a result

of a person walking through and turns off lighting based

on a shorter time delay. Walk-Through Mode is available

on single and dual circuit units.

Lamp Saver Mode: When the lamp saver feature is

enabled, the sensor automatically alternates which load

responds to motion. The result is more predictable lamp

life and reduced maintenance. (Dual circuit only)

Adaptive Technology: Commercial Grade dual

technology and ultrasonic wall switch occupancy sensors

feature a patented adaptive technology that significantly

reduces the learning period typically associated with

adaptive sensors. Adaptive Sensors from Schneider

Electric reduce the occurrence of nuisance on and

nuisance off while at the same time extending lamp life

and reducing maintenance.

•

Available in white, ivory, gray, light almond and black with

matching cover plate (included)

•

Color matching multi-segmented lens

•

Audible alert

•

Selectable auto-on and manual-on modes

•

Red LED motion indicator

•

For use with electronic and magnetic ballasts

•

1000 VA@120 V, 1800 VA@277 V

•

User adjustable light level, time delay, and sensitivity

•

30 second grace period in the manual-on mode

Residential Wall Switch Vacancy Sensors

The Residential Vacancy Sensor directly replaces standard

light switches in bathrooms, garages, laundry rooms and

utility rooms in accordance with Title 24 2005 requirements

for residential lighting (Sections 119(d) and 150 (k)).

Vacancy Sensors from Schneider Electric operate just like a

standard light switch, requiring a button press to turn lights

on. Lights may be turned off with a button press or the

sensor will turn off lighting automatically when the area is

unoccupied.

•

No user time delay and sensitivity adjustments necessary

•

Available in White, Ivory or Light Almond

•

Furnished with cover plate

•

Manual On/Manual Off or Automatic Off operation

•

No neutral or minimum load required

•

Rated for both 120 V incandescent and fluorescent lighting

•

Title 24 2005 Residential Lighting requirements, Sec. 150(k)

•

No override on

•

Manual-on only (no auto-on mode)

•

30 minute time delay

Wall Switch

Occupancy

Sensor

Commercial Grade

Wall Switch

Blank Cover Plate

with decorator style opening

Toggle Cover Plate

with decorator style opening

Table 5.34:

Catalog No. Catalog Description $ Price

Basic Wall Switch Occupancy Sensors

Auto-ON/Auto-OFF

SLSPWS1277AL Light Almond Wall Switch Occupancy Sensor 81.00

SLSPWS1277AW White Wall Switch Occupancy Sensor 81.00

SLSPWS1277AI Ivory Wall Switch Occupancy Sensor 81.00

Manual-ON/Auto-OFF

SLSPWS1277ML Light Almond Wall Switch Occupancy Sensor 62.00

SLSPWS1277MW White Wall Switch Occupancy Sensor 62.00

SLSPWS1277MI Ivory Wall Switch Occupancy Sensor 62.00

Residential Vacancy Sensor

SLSPWS120VL Wall switch vacancy sensor, light almond 42.00

SLSPWS120VI Wall switch vacancy sensor, ivory 42.00

SLSPWS120VW Wall switch vacancy sensor, white 42.00

Commercial Grade Wall Switch Occupancy Sensors

Single Circuit PIR

SLSPWS1277UW White 90.00

SLSPWS1277UI Ivory 90.00

SLSPWS1277UG Gray 90.00

SLSPWS1277UL Light Almond 90.00

SLSPWS1277UB Black 90.00

Dual Circuit PIR

SLSPWD1277UW White 117.00

SLSPWD1277UI Ivory 117.00

SLSPWD1277UG Gray 117.00

SLSPWD1277UL Light Almond 117.00

SLSPWD1277UB Black 117.00

Single Circuit Ultrasonic

SLSUWS1277UW White 142.00

SLSUWS1277UI Ivory 142.00

SLSUWS1277UG Gray 142.00

SLSUWS1277UL Light Almond 142.00

SLSUWS1277UB Black 142.00

Dual Circuit Ultrasonic

SLSUWD1277UW White 165.00

SLSUWD1277UI Ivory 165.00

SLSUWD1277UG Gray 165.00

SLSUWD1277UL Light Almond 165.00

SLSUWD1277UB Black 165.00

Single Circuit Dual Technology

SLSDWS1277UW White 187.00

SLSDWS1277UI Ivory 187.00

SLSDWS1277UG Gray 187.00

SLSDWS1277UL Light Almond 187.00

SLSDWS1277UB Black 187.00

Dual Circuit Dual Technology

SLSDWD1277UW White 210.00

SLSDWD1277UI Ivory 210.00

SLSDWD1277UG Gray 210.00

SLSDWD1277UL Light Almond 210.00

SLSDWD1277UB Black 210.00

Blank Cover Plates

SLSWP2DBW White 7.50

SLSWP2DBI Ivory 7.50

SLSWP2DBG Gray 7.50

SLSWP2DBL Light Almond 7.50

SLSWP2DBB Black 7.50

Toggle Cover Plates

SLSWP2DTW White 7.50

SLSWP2DTI Ivory 7.50

SLSWP2DTG Gray 7.50

SLSWP2DTL Light Almond 7.50

SLSWP2DTB Black 7.50

Buttonless Cover Plates

SLSBCW Buttonless Adjustment Access Covers, White 15.00

SLSBCI Buttonless Adjustment Access Covers, Ivory 15.00

SLSBCG Buttonless Adjustment Access Covers, Gray 15.00

SLSBCL Buttonless Adjustment Access Covers, Light Almond 15.00

SLSBCB Buttonless Adjustment Access Covers, Black 15.00

DE-8A Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-21

www.schneider-electric.us

Occupancy Sensors Lighting Control

Class 1200

Wall Mount Occupancy Sensors

Wall Mount Occupancy Sensors from Schneider Electric accurately detect occupancy and

automatically switch lighting on and off as needed. These sensors are wall or ceiling

mounted for superior motion detection. Sensors employ Passive Infrared (PIR) and

Ultrasonic technology. Dual Technology model features combined PIR and Ultrasonic

detection for the ultimate performance. The PIR Occupancy Sensor has 3 interchangeable

lenses for custom coverage patterns. Wide Angle, Long Range and High Bay. Wall mount

sensors also incorporate an integral light level sensor, and features an isolated relay for use

with building automation, security and HVAC systems.

•

Adjustable Sensitivity

•

Adjustable time delay

•

UL and cUL Listed

•

CEC Title 24 Certified

•

FCC Part 15, Class B

•

ASHRAE/IES 90.1

Ceiling Mount Occupancy Sensors

Ceiling Mount Occupancy Sensors are ideal for offices, conference rooms, class rooms and

other shared areas to automatically turn lights on and off based on occupancy. Sensors

employ Passive Infrared (PIR) and Ultrasonic technology. Dual Technology model features

combined PIR and Ultrasonic detection for the ultimate performance. Requires power pack.

Set of normally closed and normally opened auxiliary contacts for use with building

automation and security systems.

•

Input: 24 Vdc

•

Output: +24 Vdc

•

Adjustable Sensitivity

•

Low Profile Housing

•

Adjustable Light Level Sensor

•

UL and cUL Listed

•

CEC Title 24 Certified

•

FCC Part 15, Class B

•

ASHRAE/IES 90.1

Power Pack

For use with wall and ceiling mount sensors to supply power to sensor and switch the load

when the sensor detects occupancy. May supply power to multiple sensors and auxiliary

relays up to 100 mA nominal load.

•

Input: 120/277 Vac 50/60 Hz

•

Output: 24 Vdc/100 mA Nom.

•

Relay rating: 20 A Max. Ballast Load at 120 Vac (20 A Max. at 277 V)

•

UL cUL Listed

In Canada:

•

Input: 347 Vac60 Hz

•

Output: 24 Vdc/150 mA Nominal

•

Relay rating: 15 A Max. Ballast Load at 347 Vac (15 A Max. at 5200 watts)

•

UL cUL Listed

Auxiliary Relay

For use with wall and ceiling mount sensors to turn lights on when an area is occupied or off

when it is not. Requires power pack to supply input power to operate relay.

•

Input: 24 Vdc/36 mA Nom.

•

Relay rating: 20 A Max. Ballast Load at 120 Vac (20 A Max. at 277 V)

•

UL cUL Listed

In Canada:

•

Input: 24 Vdc/2 mA Nominal

•

Relay rating: 15 A Max. Ballast Load at 347 Vac

Table 5.35: Wall Mount Occupancy Sensors

Catalog No. Catalog Description $ Price

SLSWPS1500 PIR occupancy sensor 161.00

SLSWUS1500 Ultrasonic occupancy sensor 191.00

SLSWDS1500 Dual Technology occupancy sensor 221.00

Table 5.36: Ceiling Mount Occupancy Sensors

Catalog No. Catalog Description $ Price

SLSCPS1000 PIR occupancy sensor 134.00

SLSCUS2000 Ultrasonic occupancy sensor 197.00

SLSCDS2000 Dual Technology occupancy sensor 231.00

SLSCUS800 180 Degree Ultrasonic sensor 129.54

SLSCDS800 180 Degree Dual Technology Sensor (PIR and Ultrasonic Sensors combined) 141.76

Table 5.37: Power Pack and Auxiliary Relay

Catalog No. Catalog Description $ Price

SLSPP1277 120–277 Vac Power Pack 46.50

SLSSP24 120–277 Vac Auxiliary Relay 36.00

SLSPP1347 347 Vac Power Pack 47.50

SLSSP24347 347 Vac Auxiliary Relay 36.00

Dual Technology Wall Mount

Dual Technology Ceiling Mount

Power Pack

DE-8A Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-22

www.schneider-electric.us

Occupancy Sensors Lighting Control

Class 1200

Fixture Mounted Sensors and Controls

Schneider Electric extends its occupancy-sensing capability with a range of line voltage sensors based on

passive infrared (PIR) technology. These sensors feature rugged housings that resist moisture and dust typical

of manufacturing and shipping dock areas. Sensors incorporate universal power supply, relay and PIR element

in a single housing ready for direct attachment to popular high-bay and low-bay luminaires.

Sensors are available either as stand alone sensor-per-fixture devices or equipped with connectors for low-cost

plastic optical fiber cable. Plastic optical fiber connectivity between sensors allows implementation of control

zones within aisles and work areas without back-pulling signaling wire in conduit. Each sensor acts as a

network repeater, allowing 200 foot spacing between sensors. Plastic fiber can be cut and terminated without

special tools or installer training.

•

All sensors feature oversized Fresnel lenses and premium, low-noise pyroelectric elements for reliable PIR sensing at

mounting heights up to 45 feet.

•

Both area- and aisle-sensing Fresnel lenses ship with each sensor. Color-coded snap-out lenses can be swapped in the

field.

•

Switch packs open and close based on fiber optic commands from fiber sensors

•

Universal power supply design adapts to 120–480 Vac, 50/60 Hz without jumpers or taps.

•

Single-pole/close-on-motion relays sized for switching dry contact, magnetic HID or electronic ballast loads.

•

Mounts directly to reflector with included pinch bracket or to ballast housing with ” NPT threaded pipe nipple.

•

Built-in manual override test switch and diagnostic LED to assist in installation. Diagnostic LED can be seen at distance to

assist in walk test.

•

Fifteen minute power ON warm-up timer assures rated lamp life even if the fiber network is broken.

•

User adjustable sensitivity and delay time settings (0–15 minutes)

Fluorescent High Bay Sensors

The SLSFPS1347 and SLSFPS1480 Occupancy Sensors are Class 1, fixture mounted, 360° high bay

occupancy sensors. They are designed to operate directly with T5 and T8 fluorescent fixtures that use

single or multiple electronic ballasts. Motion is detected using passive infrared technology (PIR). The

operation voltage range for the SLSFPS1347 Sensor is 120–347 V. The SLSFPS1480 Sensor operates at

480 V.

Features

•

Includes a user-adjustable time dial to set the length of time the luminaires stay on from 15 seconds to 30 minutes.

•

Includes a user-adjustable range dial to customize PIR sensitivity.

•

Includes a user-adjustable time dial to set the length of time the luminaires stay on from 15 seconds to 30 minutes.

•

Includes a user-adjustable range dial to customize PIR sensitivity.

•

90 degree rotating lens for a variety of aisle-way applications.

•

High bay area, low bay area, and high bay aisle lenses provided.

•

18 minutes time-out preset for maximum energy to lamp life savings.

UL 924 Emergency Control Devices

Schneider Electric UL 924 Emergency Lighting Control Devices provide the ability to use and control standard

fixtures for emergency and standard lighting. The use of UL 924 emergency lighting control device, under

normal operating power the devices turn on and off emergency lighting along with standard lighting in an area.

In the event of normal power loss the UL 924 emergency lighting control devices detect the power loss, and will

automatically transfer emergency power to the fixtures. This provides emergency lighting through standard

fixtures. Schneider Electric provides a wide selection of UL 924 emergency lighting control devices that work

with occupancy and dimming based lighting control.

Features

•

Saves energy by controlling Emergency Lighting

•

Multiple mounting methods

•

Convenient test switch

•

Works with occupancy or dimmer controls

•

Visible Power LED

•

Easy to install

Table 5.38: Table Line Voltage Occupancy Sensors

Catalog No. Catalog Description $ Price

SLSPIP210 Occupancy sensor, indoor PIR, no fiber connectivity 141.00

SLSPIP210CT Occupancy sensor, indoor PIR, no fiber, cold temperature 174.00

SLSPIP210EB Occupancy sensor, indoor PIR, no fiber, electronic ballast 141.00

SLSPIP210EBCT Occupancy sensor, indoor PIR, no fiber, electronic ballast cold temperature 174.00

SLSPIP211 Occupancy sensor, indoor PIR, one fiber input, one fiber output 166.00

SLSPIP212 Occupancy sensor, indoor PIR, two fiber inputs 166.00

SLSPSP101 Fiber optic switch pack, indoor, one fiber in, one fiber output 141.00

SLSPSP102 Fiber optic switch pack, indoor, two fiber inputs 141.00

SLSPCW001 Fixture-mounted counterweight for HID 13.00

SLSPIPBRACKET Bracket for off-fixture mounting 11.00

Table 5.39: Specificiations

Catalog No. Catalog Description $ Price

SLSFPS1347 120–347 Vac High bay Occupancy Sensor 78.00

SLSFPS1480 480 Vac High Bay Occupancy Sensor 89.00

Table 5.40: Specificiations

Catalog No. Catalog Description $ Price

SLSEDC120 UL 924 Emergency Lighting Dimmer Control 120 Vac 700.00

SLSEDC277 UL 924 Emergency Lighting Dimmer Control 277 Vac 700.00

SLSEPMC120 UL 924 Emergency Lighting Control Relay Panel Mount 120 Vac 300.00

SLSEPMC277 UL 924 Emergency Lighting Control Relay Panel Mount 277 Vac 300.00

SLSERC1277 UL 924 Emergency Lighting Control Relay 120/277 Vac 300.00

Indoor Occupancy Sensor

Fluorescent High Bay Sensor

UL 924 Emergency Control Device

DE-8A Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-23

www.schneider-electric.us

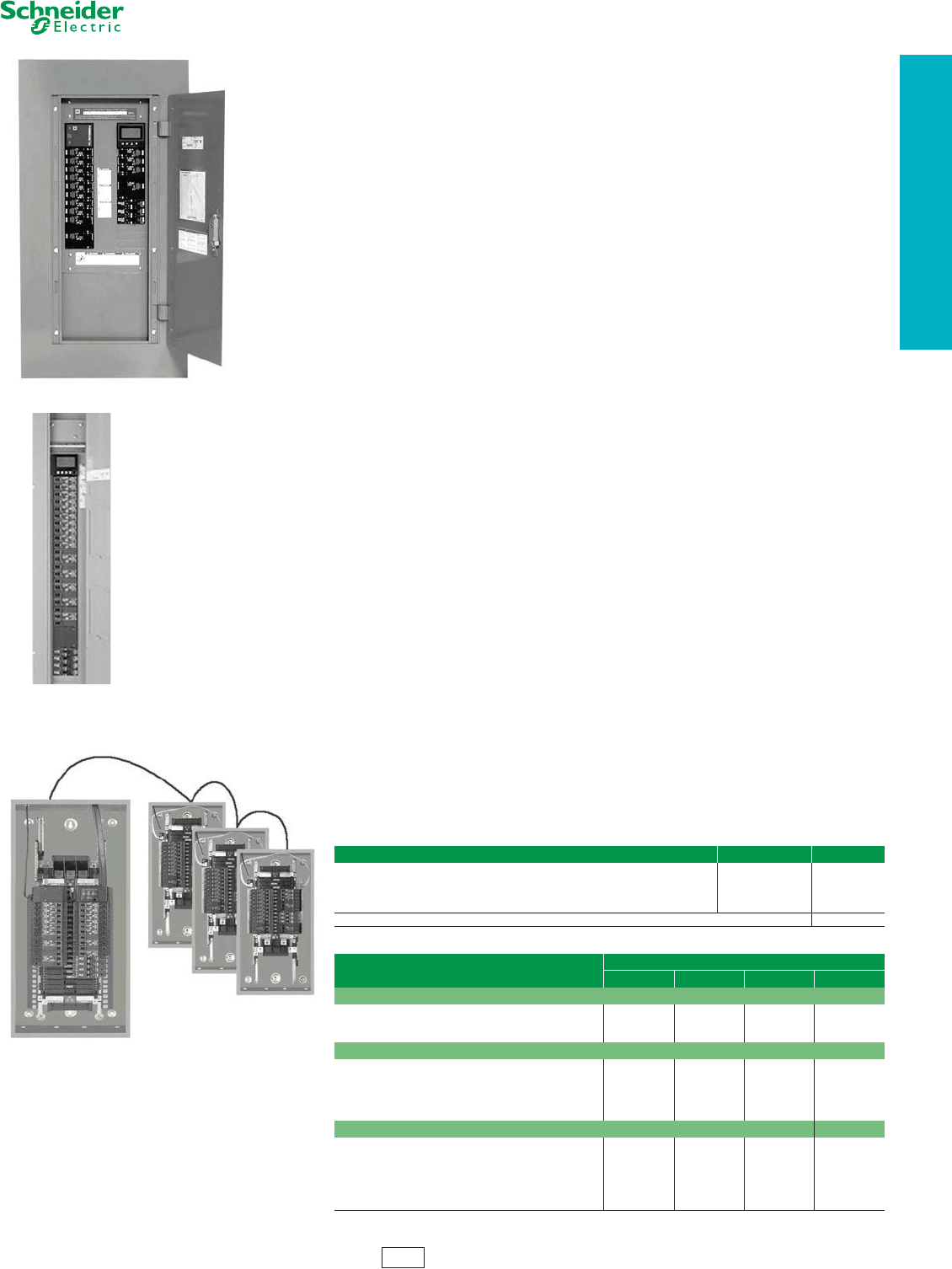

Powerlink™

Lighting

Control Systems

Gen 3 Products

Class 1210

Powerlink G3 systems are ideally suited for controlling lighting and other loads in

commercial, institutional, and industrial facilities. Such systems are typically used to lower

utility cost by switching branch circuits OFF during non-occupied periods when lighting is

unnecessary or during peak demand periods when a partial reduction in load can save

significant money.

These systems utilize remotely operated circuit breakers to switch branch circuits ON and

OFF via a time schedule or by an externally generated signal (typically a low voltage wall

switch, photocell, access system, fire alarm or building management system). All Powerlink

components mount inside a standard lighting panelboard to provide a compact, space

saving installation.

Powerlink G3 systems feature a powerful microprocessor based controller that provides

system intelligence for 168 remotely operated branch circuits. Master panelboards contain

the control electronics, power supply, and control bus strips for up to 42 branch circuit

breakers. Slave panels extend the capability of the system by allowing remotely operated

branch circuit breakers to be operated from the master controller via a simple, 4-wire,

sub-net connection.

All Powerlink G3 systems have the capability of being networked together and operated

from a central workstation or via a remote modem connection. Powerlink software allows

users to remotely configure the system, change time schedules, monitor circuit breaker or

input status, and override zones and breakers.

BACnet Capability

The Building Automation and Control network (BACnet) communication protocol is

incorporated into the Powerlink™ G3 controller design. The addition of the BACnet protocol

allows Powerlink panels to be easily integrated into a Building Automation System (BAS)

employing this open communication standard without the need for communication bridges

or gateways.

Controller Models

The following Powerlink G3 controller models support ‘native’ BACnet communications:

•

NF2000G3 — Ethernet communications, shared remote inputs, network time synchronization

•

NF3000G3 — Email upon alarm, onboard web pages for status/control/configuration

•

NF3000G3C — C-Bus communications (ability to interface with a Clipsal™ lighting control network)

Factory Assembled System

The following factory engineered pricing procedure may be used to price either 240 V or

480Y/277 V Powerlink G3 systems:

•

Select system type and interior size from Table 5.43 on 5-24. All Powerlink G3 panels are furnished

with either 1 or 2 control bus strips.

•

Select panelboard base price from Table 5.44. All Powerlink G3 panels use NF type panelboard

interiors, boxes, and trims and are suitable for either 240 V or 480Y/277 V systems.

•

Select branch circuit breaker requirements from Table 5.45. Powerlink G3 panels can accommodate

both ECB-G3 remotely operated circuit breakers and EDB, EGB and EJB standard branch circuit

breakers.

•

Refer to panelboard section for additional panelboard accessories.

•

For complete price, order by description.

•

Apply appropriate discount schedule.

240 V Factory Assembled System Example:

500 level system with 225 A MLO panelboard rated for 208Y/120 V, 3Ø4W, 10kAIR,

Type 1, surface mount with ground bar and (12) 20 A 1-pole bolt-on remote operated circuit

breakers.

aSpecify N2 suffix

bSpecify C suffix

Table 5.41:

Item Page No. $ Price

System Type: 500 controller with 12 ckt bus 5-24 5074.00

Panel type: 250 A MLO 5-26 864.00

Branch circuit breakers: (12) 20 A 1-pole 5-26 2628.00

Ground bar 5-26 28.50

Total price 8594.50

Table 5.42:

Feature System Level

500 1000 2000 3000

Inputs

2 - wire 8 16 16 16

2 - wire with status feedback 8 8 8 8

3 - wire 8 8 8 8

Time Scheduler

7 day, each configurable — 16 16 16

Daily on/off periods — 24 24 24

Holiday events — 32 32 32

Automatic daylight savings — X X X

Sunrise/sunset tracking — X X X

Networking

Modbus™ ASCII/RTU XXXX

Modbus TCP — — X X

Johnson Controls N2 — X

——

DMX —XXX

C-Bus — — — Xb

BACnet MSTP/IP — — X X

Powerlink available in

column width design

Up to eight panels can

be controlled from a single

controller.

DE-8A Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-24

www.schneider-electric.us

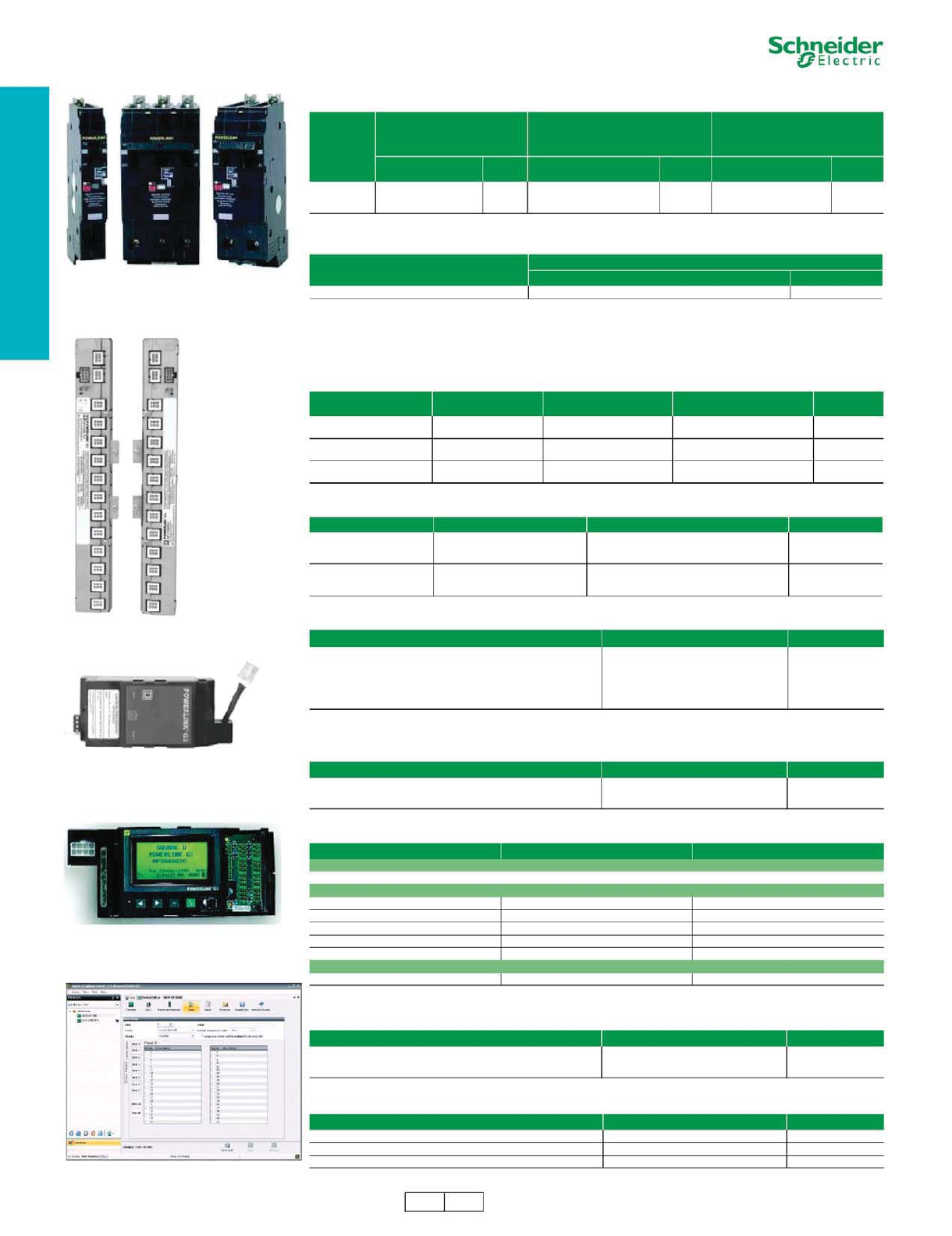

Powerlink™ Lighting

Control Systems

Gen 3 Products

Class 1210

Note: All are listed as HACR type for use with air conditioning, heating and refrigeration equipment having motor group combinations and

marked for use with HACR type circuit breakers. UL listed as HID rated for use with high intensity discharge lighting systems.

(1) #12–8 Al or (1) #10–8 Cu. Suitable for use with 75°C conductors.

cUL listed as SWD (switching duty) rated.

dRated for 240 Vac only – 42,000 AIR

eOne slave address selector required for each slave panel.

fDE2 Discount

gN2 supported controllers. All other controllers use LCSAdvanced or LCSBasic.

Table 5.43: ECB-G3 Circuit Breakers Bolt-On Remotely Operated

Ampere

Rating

One-Pole

27 7 Vac – 14,000 AIR

120 Vac – 65,000 AIR

Two-Pole

480Y/277 Vac – 14,000 AIR

120/240 Vac – 65,000 AIR

240 Vac – 14,000 AIR Ground B Phase

Three-Pole

480Y/277 Vac – 14,000 AIR

240 Vac – 42,000 AIR

Catalog

Number $ Price Catalog

Number $ Price

15 ECB14015G3c

237.00

ECB24015G3c

558.00

ECB34015G3c

890.0020 ECB14020G3cECB24020G3cECB34020G3c

30 ECB14030G3 ECB24030G3 ECB32030G3d

Table 5.44: ECB-G3 Circuit Breakers for Emergency Lighting

(requires 2-pole spaces)

Ampere Rating One-Pole 480 Y/277 – 14,000 AIR 240 V – 65,000 AIR

Catalog No. $ Price

20 ECB142020G3EL 558.00

Table 5.45: Control Bus

Max. No. of Control

Circuits

Required

Interior Size Panel Orientation Catalog No. $ Price

12 30 Left NF12SBLG3 851.00

12 30 Right NF12SBRG3

18 42 Left NF18SBLG3 1065.00

18 42 Right NF18SBRG3

21 54 Left NF21SBLG3 1163.00

21 54 Right NF21SBRG3

Table 5.46: Power Supply

Voltage Primary Source Catalog No. $ Price

120 V Panel Bus NF120PSG3

791.00240 V Panel Bus NF240PSG3

277 V Panel Bus NF277PSG3

120 V External NF120PSG3L

899.00240 V External NF240PSG3L

277 V External NF277PSG3L

Table 5.47: Controller

Description Catalog No. $ Price

500 NF500G3 1946.00

1000 NF1000G3 3968.00

1000N2 (N2 protocol) NF1000G3N2 8288.00

2000 NF2000G3 7107.00

3000 NF3000G3 9741.00

3000C (C-bus NF3000G3C 9741.00

Table 5.48: Remote Source Controller (for additional inputs)—

Includes NEMA 1 enclosure, source controller and power supply

Voltage Catalog No. $ Price

120 V RSC16G3120 3045.00

240 V RSC16G3240 3045.00

277 V RSC16G3277 3045.00

Table 5.49: Cables & Accessories

Description Catalog No. $ Price

Control bus cables

Harness standard panel NF2HG3 89.00

Sub-net accessories & cables

Slave address selectoreNFSELG3 173.00

6’ sub-net cable NFSN06 75.00

10’ sub-net cable NFSN10 105.00

25’ sub-net cable NFSN25 234.00

50’ sub-net cable NFSN50 405.00

Serial cables

Controller front panel cable NFFPCG3 102.00

Table 5.50: Miscellaneous Hardware

Description Catalog No. $ Price

Circuit Breaker Handle Padlock (Lock On or Off) HPAFD f25.50

Fixed Barrier NFASBKG3 177.00

Remote Mounting Adapter NFADAPTERG3 102.00

Table 5.51: Software

Description Catalog No. $ Price

LCSAdvanced Software LCSADVANCED 4000.00

LCSBasic Software LCSBasic 1500.00

Powerlink Controller SoftwaregPCS101 1523.00

ECB-G3 Circuit Breaker

Control Bus

Power Supply

NF3000G3 Controller

Powerlink Software

DE-8A DE2 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-25

www.schneider-electric.us

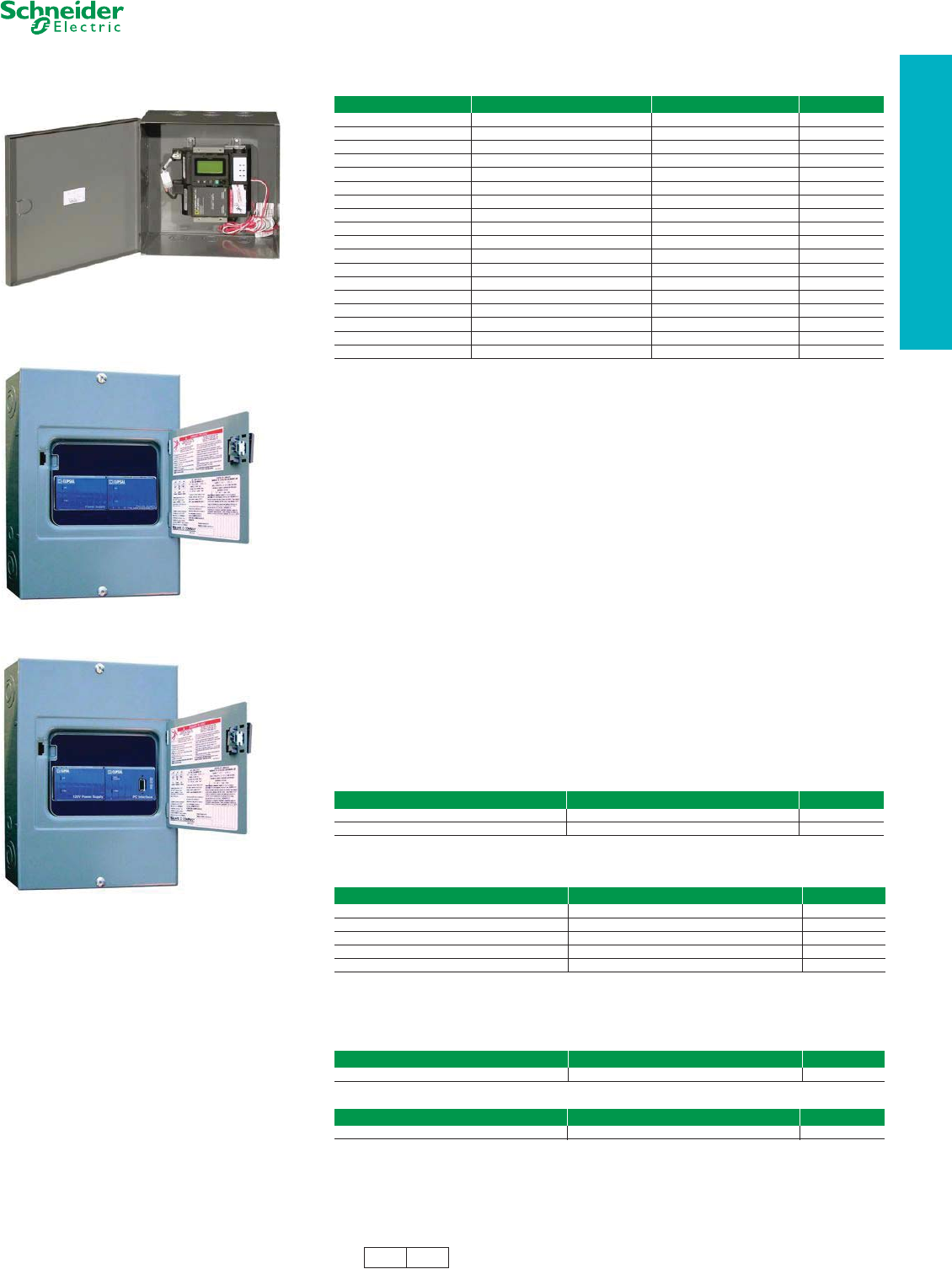

Powerlink™ Lighting

Control Systems

Gen 3 Products

Class 1210

Device Power Supply

The Powerlink Device Power Supply is used to distribute power on a C-Bus™ network.

Placed at critical points on the network, device power supplies will provide the current

necessary for operating a variety of passive C-Bus devices. A Powerlink Device

Power Supply consists of an 8M enclosure containing one or two 4M Power Supplies

(120 or 277 Vac).

•

Surface-mount NEMA 1 enclosure, with cover

•

Unit and C-Bus LEDs indicate the status of the line voltage and the network

•

Sources up to 700 mA (dual power supplies) to the C-Bus network

•

120 V or 277 Vac models available

•

Dimensions: 8.9 in. (226mm) wide x 3.8 in. (97mm) deep x 12.57 (319mm) tall

Device Router

The Powerlink Device Router allows the exchange of data between a Powerlink

NF3000G3C controller and C-Bus devices. This device router receives data from C-Bus

input devices such as keypads and touchscreens and sends data to the Powerlink system

and isa versa. The device router consists of a C-Bus 8M enclosure containing a C-Bus PC

Interface and a C-Bus Power Supply (120 Vac or 277 Vac). Communication between the

device router and the NF3000G3C controller is made with the included 50-foot serial cable.

•

Surface-mount NEMA 1 enclosure, with cover

•

Unit, Unit/Comms, and C-Bus LEDs indicate the status of data transmission and power to the unit

and the network

•

System network clock for synchronizing communications data

•

Network power source, supplying up to 350 mA

•

120 Vac or 277 Vac models available

•

Dimensions: 8.9 in. (226mm) wide x 3.8 in. (97mm) deep x 12.57 in. (319mm) tall

aRequired for interface to Clipsal units.

bDE-8 Discount.

cExtends C-Bus power to Clipsal devices.

dDE-8 Discount.

Powerlink Network Accessories

eRequires 2000 and 3000 controller and either Analog or Ethernet modem connection to each master panel.

Table 5.52: Remote Mount Controller (for externally mounted electronics

Includes NEMA 1 enclosure, controller, and power supply

Voltage Catalog No. Controller Type $ Price

120 V RMC500G3120 NF500G3 4272.00

240 V RMC500G3240 NF500G3 4272.00

277 V RMC500G3277 NF500G3 4272.00

120 V RMC1000N2G3120 NF1000N2G3 10615.00

240 V RMC1000N2G3240 NF1000N2G3 10615.00

277 V RMC1000N2G3277 NF1000N2G3 10615.00

120 V RMC1000G3120 NF1000G3 6990.00

240 V RMC1000G3240 NF1000G3 6990.00

277 V RMC1000G3277 NF1000G3 6990.00

120 V RMC2000G3120 NF2000G3 9860.00

240 V RMC2000G3240 NF2000G3 9860.00

277 V RMC2000G3277 NF2000G3 9860.00

120 V RMC3000G3120 NF3000G3 12680.00

240 V RMC3000G3240 NF3000G3 12680.00

277 V RMC3000G3277 NF3000G3 12680.00

120 V RMC3000G3C120 NF3000G3C 12680.00

240 V RMC3000G3C240 NF3000G3C 12680.00

277 V RMC3000G3C277 NF3000G3C 12680.00

Table 5.53: Powerlink Device Routersa

Description Catalog No. $ Price

120 V Device Router NFDR120G3Cb1632.00

277 V Device Router NFDR277G3Cb1632.00

Table 5.54: Powerlink Device Power Suppliesc

Description Catalog No. $ Price

Single Supply 120 V NFDP1120G3Cd900.00

Dual Supply 120 V NFDP2120G3Cd1650.00

Single Supply 277 V NFDP1277G3Cd900.00

Dual Supply 277 V NFDP2277G3Cd1650.00

Filler Plate SLC4CSF8 27.00

Table 5.55: Powerlink Network Accessories

Description Catalog No. $ Price

RS232/485 Converter 6382RS485G3KIT 526.50

Table 5.56: Powerlink Remote Modem Supporte

Description Catalog No. $ Price

Modem Kit (for G3 Controllers) 6382G3MODEM 876.00

Remote Mount Controller

Powerlink Device Router

Device Power Supply

DE-8 DE-8A Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-26

www.schneider-electric.us

Powerlink™ Lighting

Control Systems

Class 1210

G3 NF Panelboards 240 V and 480 Y/277 V Factory

Assembled Systems

Maximum Voltage 480 Y/277 Vac

NOTE: Powerlink EM option BCPM list price adder.

aHL and JL frame circuit breakers are also available as main circuit breakers.

bBackfed Main Circuit Breaker—54 circuit only.

cCopper Bus Only.

dFor N2 protocol, add $3819.

eContact your nearest Square D/Schneider Electric sales office for MICROLOGIC™ trip

main circuit breakers

Note: All EC, ED, EG and EJ branch circuit breakers are UL Listed as HACR type.

Sub-Feed Circuit Breaker

•

Available on 1

or 3

, 125

–

800 A main lugs or 125

–

600 A main circuit breaker

interiors

•

One sub-feed JD, JG, JJ or JL circuit breaker per 250 A panelboard

•

Two sub-feed JD, JG, JJ or JL circuit breakers per 400 A panelboardf

fLC and JJ may not be combined.

gJJ and LC sub-feed circuit breakers cannot be used together.

hDimensions also for 400 A LC/LI main circuit breaker panels.

i600 A main lug panelboards require an 8" deep, 26” wide box.

j600 A main lug panelboards require an 8.75" deep box.

k800 A main lug panelboards require an 8.75” deep, 26” wide box.

To obtain pricing for the following Special Features please refer to the

Supplemental Digest.

•

PowerLogic™ metering

•

Customer equipment space

•

Increased box depth

•

Box extensions top, bottom and side

•

Drip hoods

•

Non-standard paint

•

NEMA 1 gasketed

•

NEMA 4 Stainless steel enclosure

•

NEMA 4X Fiberglass enclosure (NQOD and NF)

•

Stainless steel trim front (NQOD, NF and I-LINE)

•

Padlockable hasp

•

Special locks (Corbin, Yale, Best)

•

Equal height boxes

•

Common trip to cover two equal height boxes

•

Panelboard skirthides conduits feeding a panelboard

•

Panelboard wireway for terminating conduit in wireway endwall

•

Panelboard interiors and special fronts to fit existing boxes

Table 5.57: Powerlink G3 System Price

List

System Type

30 ckt Interior 42 ckt Interior 54 ckt Interior

12 ckt

bus

24 ckt

bus

18 ckt

bus

36 ckt

bus

21 ckt

bus

42 ckt

bus

Slave Panel 1650.00 3450.00 2025.00 4200.00 2370.00 4890.00

NF500G3 6753.00 8553.00 7128.00 9303.00 7473.00 10143.00

NF1000G3d10728.00 12528.00 11103.00 13278.00 11448.00 14118.00

NF2000G3 17298.00 19098.00 17673.00 19848.00 18018.00 20688.00

NF3000G3 21072.00 22872.00 21447.00 23622.00 21792.00 24462.00

Table 5.58: Panelboard Base Price (including solid neutral)

Mains

Rating Main Lugs

Main Circuit Breaker (Circuit Breaker Interrupting Rating—6-2 through 6-8)ae

Standard IC HIC Extra HIC I-Limiter™

2-pole 3-pole Circuit

Bkr. 2-pole 3-pole Circuit

Bkr. 2-pole 3-pole

100 A — — EDb2454.00 2823.00 EGb3150.00 3624.00 HJ 4872.00 5397.00 FI 6375.00 7326.00

125 A 1269.00 1458.00 EDb5058.00 5643.00 EGb6486.00 7464.00 ——— ———

150 A — — HD 4905.00 5430.00 HG 6072.00 6597.00 HJ 6105.00 6630.00 ———

225 A — — JD 6180.00 6570.00 JG 7605.00 8100.00 JJ 9930.00 10995.00 KI 10899.00 12528.00

250 A 1503.00 1728.00 JD 6750.00 7710.00 JG 8985.00 9270.00 JJ 10785.00 12675.00 KI 13731.00 15783.00

400 A 1989.00 2286.00 LA 7995.00 9189.00 LH 11568.00 13296.00 LC 12759.00 14664.00 LI 14025.00 16119.00

600 Ac3549.00 3933.00 ——————LC 14331.00 16326.00 LI 20460.00 23517.00

800 Ac5325.00 5850.00 —————— ——————

Table 5.59: Branch Circuit Breaker – Price Per Circuit Breaker

Powerlink G3—ECB Bolt-On

65 kA AIR@240 Vac,

14 kA AIR@480 Y/277

Standard Breakers—EDB Bolt-On

18 kA AIR 1-pole,

25 kA AIR 2 & 3-pole @ 240 V,

18 kA AIR@480 Y/277

Standard Breakers HIC—EGB Bolt-On

65 kA AIR@240 Vac,

35 kA AIR@480 Y/277

Standard Breakers Extra HIC—EJB Bolt-On

100 kA AIR@240 Vac,

65 kA AIR@480 Y/277

Voltage Ampere

Rating 1-pole 2-pole 3-pole Voltage Ampere

Rating 1-pole 2-pole 3-pole

240

Vac

15–20 438. 1215. 1929.

480Y/

277

Vac

15–60 288. 663. 1122.

480Y/

277

Vac

15–60 486. 1119. 1896.

480Y/

277

Vac

15–60 777. 1767. 3036.

30 438. 1215. 1929. 70 513. 1308. 1569. 70 867. 2211. 2565. 70 1386. 3540. 4245.

480Y/277

Vac

15–20 438. 1215. 1929. 80–100 — 1308. 1569. 80–100 — 2211. 2655. 80–100 — 3540. 4245.

30 438. 1215. — 110–125 — 3825. 4845. 110–125 — 6171. 7131. 110–125 — 7950. 9450.

Space Only 63. 126. 189. Space Only 63.126.189. Space Only 63. 126. 189. Space Only 63. 126. 189.

Table 5.60: Sub-Feed Circuit Breaker (150

–

400 A)

No. of Poles JD JG JJgJL LA LH LCgSpace

22265.00 3165.00 3844.50 4230.00 2985.00 4150.50 6475.50 619.50

32527.50 3825.00 4665.00 5296.50 3687.00 4882.50 7617.00 619.50

Table 5.61: Sub-Feed Breaker Cabinet Data

Max. No. of

Branch Spaces (Does

not include sub-feed

breaker spaces)

Box Height (20" W x 5.75" D)

250 A 400 A LA/LH 600 A 800 A

Main

Lugs

Main

Circuit

Breaker

Main

Lugs

Main

Circuit

Breaker

Main

Lugsj

Main

Circuit

Breaker

Main

Lugsk

30 56 68 68 80 68 80h68

42 62 74 74 86 74 86h74

54 68 80 80 92 80 92h80

PE-1 Discount

Schedule

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-27

www.schneider-electric.us

Powerlink™ Energy

Management (EM)

Lighting Control System, Relay Panels, and Switches

Class 1210

The Powerlink Energy Management (EM) Lighting Control System incorporates the same features found in the

Powerlink G3 3000 level system, in addition to integral branch circuit and optional main metering for energy

monitoring and verification of the lighting system. Integral metering is accomplished using the PowerLogic™

Branch Circuit Power Meter (BCPM), which is a highly accurate, full-featured multi-branch circuit power meter that

provides unrivalled low-current monitoring.

The Powerlink G3 system reduces electrical energy consumption associated with lighting and other loads by

automatically switching loads off during non-occupied periods. The Powerlink G3 system is often ideal for reducing

th epeak demand by switching unnecessary lights off in response to an automated response signal or when high

time-of-day energy tariffs occur.

Features

•

Integral individual and optional mains metering to provide utmost flexibility in assurng a sustainable metering and

verification program

•

Monitors current, voltage, energy consumption, demand, and power factor for complete energy profiling

•

Accumulated metering information transmitted via Modbus communications interface

•

Data updates occurring within seconds to provide timely preventative maintenance information

•

Optional EGX web interface for storing and reporting data via standard web browser (suggested for applications without

Energy Management System [EMS] software)

•

Alarm indication when parameters approach user-configured thresholds

•

16 hard-wired inputs available for connection to devices with physical dry-contacts

•

64 communication inputs available for network connection

•

16 independent time schedules, each can be configured into 24 distinct periods

•

7-day repeating clock with changeable automatic daylight savings time

•

Automatic sunrise/sunset tracking with offsets

•

32 special event periods

•

32 remote sources for sharing input status, time schedules, or zone status between controllers

•

Full custom logic capabilities, including full Boolean functions and synchronization services

•

RS232 and RS485

•

Serial communications using Modbus ASCII/RTU, BACnet MS/TP and DMX512 protocols (metering Modbus only)

•

Ethernet 10BaseT communications using Modbus TCP and BACnet/IP protocols

aRecommended for application where EMS software monitoring is not provided.

Table 5.62:

Characteristics

Operating Temperature -5° to 40°C (23° to 104°F) (95%RH, non-condensing)

Storage Temperature -20° to 85°C (-4° to 185°F) (<95%RH, non-condensing)

Regulatory/Standards Compliance

•

UL Listed 916, Energy Management Equip

•

FCC Part 15, Class A

•

NEC Class 1 and Class 2 Control Circuits

•

ESD Immunity: IEC 1000, level 4

•

RF Susceptibility: IEC 1000, level 3

•

Electrical Fast Transient Susceptibility: IEC 1000, level 3

•

Electrical Surge Susceptibility: IEC 1000, level 4 (power line)

•

Electrical Fast Transient Susceptibility: IEC 1000, level 3 (interconnection lines)

BCPM Specifications

General

Control Power 90–277 Vac

Frequency 50/60 Hz

Sampling Frequency 2560 Hz

Update Rate 1.6 seconds per panelboard

Overload Capability 10 kAIC

Ribbon Cable Support Up to 20 ft.

Operating Temperature 0° to 60°C (32°C to 122°F) (<95%RH, non-condensing)

Storage Temperature -40° to 70°C (-40° to 158°F)

Accurancy

Current Monitoring 0.25 A to 100A: 3% of reading from 0.25 A to 2 A; 2% of reading from 2 A to 100 A

Auxiliary Inputs 2% of reading from 1% to 10% of rated current; 1% of reading from 10% to 100% of rated current (0 to 0.333 Vac)

Voltage Input 90–277 Vac; 1% of reading from 90–277 L-N (models BCPMA and BCPMB only)

Power 4% of reading from 0.25 A to 2 A; 3% of reading 2 A to 100 Aa (models BCPMA and BCPM only)

Network Communications

Serial Modbus™ RTU

Ethernet TCP/IP

Powerlink Energy Management

(EM) Lighting Control System

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-28

www.schneider-electric.us

Relay Panels LPS, LPB, LPL

Class 1210

Schneider Electric LPS Lighting Control Relay Panels offer a practical design for meeting

energy codes requirements in smaller commercial spaces. Panels are available pre-

assembled with 8, 16, or 32 relays. They consist of relays, time scheduler, panel controller,

power supply, and NEMA 1 cabinet and cover.

Schneider Electric LPS Lighting Control Relay Panels offer a practical design for meeting

energy codes requirements in smaller commercial spaces. Panels are available pre-

assembled with 8, 16, or 32 relays. They consist of relays, time scheduler, panel controller,

power supply, and NEMA 1 cabinet and cover.

LPS-Standalone Relay Panel

LPS reduces energy use by automatically shutting off lights in response to a scheduled time

event from its built-in time controller or in response to an external control device, such as a

keypad switch, occupancy sensor, or photocell. These panels are ideal for use in smaller

commercial applications, such as small strip retail and office spaces, where a centralized

building management system is not practical.

Features

•

Stand-alone lighting control system meets ASHRAE90.1 and CA Title 24

•

Individual heavy duty, mechanically latching, 20A relays

•

Built-in time controller supports 8 independent zones

•

Time retained during power outages for up to 30 days; nonvolatile program memory

•

Two universal switch inputs

•

Individual relay overrides can directly control each relay

•

Easy to program interface

•

2-wire relay used for monitoring and control

•

Manual operation lever with ON/OFF indicator built-in for easy maintenance

•

Screw terminals on load and control sides

•

UL 916 listed

•

Full 365-day, 7-day repeating clock with event priorities

•

Multi-group relay assignment

•

Inegral power supply (120 / 277 / 347 Vac)

•

Standard sizes: (LPS) 8, 16, 32; (LPB/LPL) 8, 16, 32, 48, or 64

LPB Additional Features

•

Application controller with the BACnet protocol

•

Heavy duty plug-in relays and electronic cards

•

Movable protection plate between high and low voltage sections

LPL Additional Features

•

Application controller with the LonWorks protocol

Available options include:

•

Multi-voltage separator (120/277/347 VAC)

Software provides a graphic interface that is simple and intuitive, providing the

following:

•

System configuration, programming, and operation: Scheduler and Data logger

LPB-Bacnet Protocol

The Schneider Electric LPB Lighting Control Relay Panel with Native BACnet Protocol offers

cost effective and code compliant lighting control. Panels are pre-packaged for ease of

ordering and installation. Standard configurations are available with 8, 16, 32, 48, or 64

relays.

Relays come in a heavy duty, high intensity discharge (HID) version that carries up to 20A

full load and are rated for over 120,000 mechanical operations. Heavy duty relays are

recommended for high inrush loads or where higher short circuit current ratings are required.

LPBs are designed to operate on a BACnet network where control intelligence is provided

through a BACnet building automation system. These panels are ideal for smaller

commercial or retail spaces where a low cost way to achieve automatic shut-off is required.

These simple to install and commission panels include full feature schedule control. Switch

overrides and photocells are easily added for complete control.

LPL-LonWorks Protocol

The Schneider Electric LPL Lighting Control Relay Panel with LonWorks® Protocol offers cost

effective and code compliant lighting control. The LPL is pre-packaged for ease of ordering and

installation. Standard configurations are available with 8, 16, 32, or 64 relays.

Whether from a stand-alone system, a soft-wired networked panels system, or a fully

programmable network system, the LPL offers engineers and facilities managers all the flexibility

they need to meet their lighting control requirements. LPL software scheduling and event

programming capabilities easily support all common sequences encountered in lighting control.

The LPL was developed using open LonWorks technology from the Echelon® Corporation. By

adopting LonTalk® communication protocols and incorporating Neuron® microprocessors, the

LPL panel complies with LonMark(tm) Interoperability Guidelines and is ready to interoperate in

highly functional, flexible, and open building systems.

The Schneider Electric Lighting Control Relay Switches provide manual ON/OFF operation of

lighting in zones. The switches are equipped with a switch based device using reversible polarity

pulse technology. The switches are fully compatible with Lighting Control Relay Panels by

Schneider Electric.

Relay Panels Family

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-29

www.schneider-electric.us

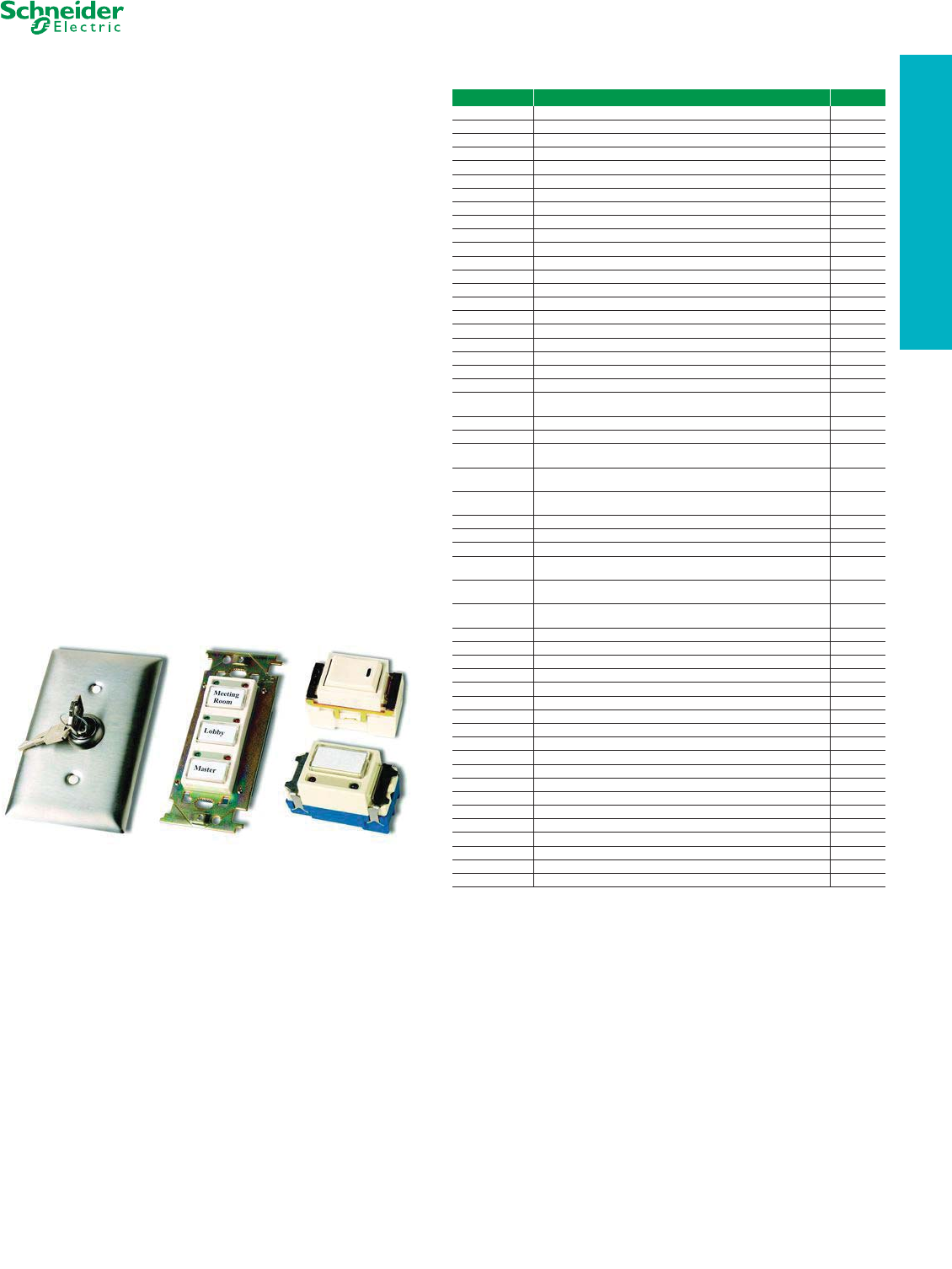

Relay Panels Switches

Class 1210

Key Switch (SERPKWS)

•

Wall mountable to any standard wall box

•

Key operated (ON—turn right; OFF—turn left)

•

Operates up to 4 relays per switch

•

6 switches per relay

•

3 Amp, 24 Vdc, Reversible polarity Impulse

Rocker Switch (SERPRWS)

•

Wall mountable to any standard wall box (1-gang requires mounting bracket

(SERPWSMB)

•

LED ON/OFF indication

•

Operates up to 8 relays per switch

•

6 LED switches per relay

•

Optional filler plate (SERPWSFP)

•

3 Amp, 24 Vdc, Reversible polarity Impulse

Push Button Switch (SERPWS) (Individual switch)

•

Wall mountable to any standard wall box (1-gang requires mounting bracket

SERPWSMB; 3-gang comes ready to mount)

•

Switch input from common terminal

•

LED ON/OFF indication

•

Clear plastic labeling cap

•

Operates up to 4 relays per switch

•

6 LED switches per relay

•

Optional filler plate (SERPWSFP) may be required

•

1.5 Amp, 24 Vdc, Reversible polarity Impulse

Push Button Switch (SERPWS)

(Assembled switch)

•

Factory assembled

•

Includes mounting bracket, switch(es), cover plate

•

LED ON/OFF indication

•

Clear plastic labeling cap

•

Operates up to 4 relays per switch

•

6 LED switches per relay

NOTE: Refer to 1290HO1101 Relay Switches handout for cover

plate dimension

Relay Switches

SERPKWS, SERPWS, SERPRWS, SERPWS

Table 5.63: Relay Panels, Switches and Plates

Cat. No. Description Price

SERP8NHS SE SERIES RELAY PANEL 8 NON-HID RELAYS 1556.13

SERP16NHS SE SERIES RELAY PANEL 16 NON-HID RELAYS 3334.58

SERP32NHS SE SERIES RELAY PANEL 32 NON-HID RELAYS 6545.67

SERP8HS SE SERIES RELAY PANEL 8 HID RELAYS 2726.58

SERP16HS SE SERIES RELAY PANEL 16 HID RELAYS 4829.59

SERP32HS SE SERIES RELAY PANEL 32 HID RELAYS 8385.48

SERPB8HS SE SERIES BACnet RELAY PANEL 8 HID RELAYS 4559.36

SERPB16HS SE SERIES BACnet RELAY PANEL 16 HID RELAYS 5322.60

SERPB32HS SE SERIES BACnet RELAY PANEL 32 HID RELAYS 9521.71

SERPB48HS SE SERIES BACnet RELAY PANEL 48 HID RELAYS 13078.59

SERPB64HS SE SERIES BACnet RELAY PANEL 64 HID RELAYS 16684.88

SERPL8HS SE SERIES LonWorks RELAY PANEL 8 HID RELAYS 3555.23

SERPL16HS SE SERIES LonWorks RELAY PANEL 16 HID RELAYS 4897.76

SERPL32HS SE SERIES LonWorks RELAY PANEL 32 HID RELAYS 8785.62

SERPL48HS SE SERIES LonWorks RELAY PANEL 48 HID RELAYS 11932.49

SERPL64HS SE SERIES LonWorks RELAY PANEL 64 HID RELAYS 15800.60

SERPFLC16 SE SERIES FLUSH COVER FOR 16 RELAY PANELS 239.00

SERPFLC32 SE SERIES FLUSH COVER FOR 32 RELAY PANELS 325.00

SERPFLC48 SE SERIES FLUSH COVER FOR 48 AND 64 RELAY PANELS 415.00

SERPR1 SE SERIES 1 POLE 20A HID RELAY 120–347 V 255.95

SERPR2 SE SERIES 2 POLE 20A HID RELAY 208–480 V 389.00

SERPTC411 SE SERIES RELAY PANEL TIME CLOCK CONTROLLER

MODULE 1037.42

SERPRC401 SE SERIES RELAY PANEL SEQUENCER MODULE 1025.08

SERPBC601 SE SERIES RELAY PANEL BACnet Controller 1051.16

SERPTC811 SE SERIES RELAY PANEL TIME CLOCK CONTROLLER

LonWorks MODULE 730.00

SERPLIC SE SERIES RELAY PANEL INPUT CONTROLLER LonWorks

MODULE 645.00

SERPLOC SE SERIES RELAY PANEL OUTPUT CONTROLLER LonWorks

MODULE 957.00

SERPLUSB SE SERIES FT—10 NETWORK INTERFACE USB 950.00

SERPLS SE SERIES Lon SOFTWARE 1050.00

SERPPBWS SE SERIES RELAY PANEL WALL SWITCH WITH BRACKET 85.90

SERPKWS SE SERIES RELAY PANEL LOW VOLTAGE KEY OPERATED

SWITCH 85.57

SERPRWS SE SERIES RELAY PANEL LOW VOLTAGE ROCKER WALL

SWITCH 50.40

SERPWSMB SE SERIES RELAY PANEL WALL SWITCH MOUNTING

BRACKET 9.69

SERPWS1G1B SE SERIES RELAY PANEL WALL SWITCH 1 GANG 1 BUTTON 95.57

SERPWS1G2B SE SERIES RELAY PANEL WALL SWITCH 1 GANG 2 BUTTON 149.88

SERPWS1G3B SE SERIES RELAY PANEL WALL SWITCH 1 GANG 3 BUTTON 194.29

SERPWS2G4B SE SERIES RELAY PANEL WALL SWITCH 2 GANG 4 BUTTON 259.14

SERPWS2G6B SE SERIES RELAY PANEL WALL SWITCH 2 GANG 6 BUTTON 367.97

SERPWS3G9B SE SERIES RELAY PANEL WALL SWITCH 3 GANG 9 BUTTON 531.64

SERPWS3G12B SE SERIES RELAY PANEL WALL SWITCH 4 GANG 12 BUTTON 695.31

SERPWS5G15B SE SERIES RELAY PANEL WALL SWITCH 5 GANG 15 BUTTON 859.42

SERPWS6G18B SE SERIES RELAY PANEL WALL SWITCH 6 GANG 18 BUTTON 1003.53

SERPWSFP SE SERIES RELAY PANEL WALL SWITCH FILER PLATE 8.07

SERPWP1G1B SE SERIES RELAY PANEL WALL PLATE 1 GANG 1 BUTTON 30.00

SERPWP1G2B SE SERIES RELAY PANEL WALL PLATE 1 GANG 2 BUTTON 30.00

SERPWP1G3B SE SERIES RELAY PANEL WALL PLATE 1 GANG 3 BUTTON 30.00

SERPWP2G4B SE SERIES RELAY PANEL WALL PLATE 2 GANG 4 BUTTON 45.00

SERPWP2G6B SE SERIES RELAY PANEL WALL PLATE 2 GANG 6 BUTTON 45.00

SERPWP3G9B SE SERIES RELAY PANEL WALL PLATE 3 GANG 9 BUTTON 60.00

SERPWP3G12B SE SERIES RELAY PANEL WALL PLATE 4 GANG 12 BUTTON 70.00

SERPWP5G15B SE SERIES RELAY PANEL WALL PLATE 5 GANG 15 BUTTON 80.00

SERPWP6G18B SE SERIES RELAY PANEL WALL GANG 6 GANG 18 BUTTON 90.00

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

5LIGHTING CONTROL AND

INTEGRATED HOME SYSTEMS

5-30

www.schneider-electric.us

Cassia™ Energy Management System

Class 1210

The Cassia energy management system (EMS) from Schneider Electric is a revolutionary wireless in-room

solution that can have a dramatic impact on all key aspects contributing to your bottom line, from delighting

your guests and reducing your carbon footprint, to enjoying a rapid return on investment and helping to

maximize energy savings.

Thermostat

The Cassia thermostat controls heating and cooling equipment in guest rooms. Each thermostat uses two

independent Zigbee radios for the local Room Area Network (RAN) within the room and the Hotel Area

Network (HAN).

Motion Sensor (PIR)

The Cassia wireless motion sensor uses a Passive Infrared (PIR) sensor to detect heat patterns in the room.

Motion will be signaled to the thermostat if the heat pattern changes.

Door Sensor

The Cassia wireless door sensor consists of a base and magnet. It sends a signal to the RAN indicating

when the door is opened or closed.

Lighting Control

The Cassia Lighting Control System, including switches (1000 W), dimmers (800 W), and plug modules

(Leading Edge Dimmer and Relay types), uses ZigBee wireless technology that provides dimming and/or

on/off functions.

Wall switches and dimmers are available in black, white, cream or light almond, with one and three button

options.

Plug Modules

Leading Edge Dimmer and Relay Plug Modules are designed to work as part of a Cassia EMS network

installation and can be controlled by other devices on a Cassia EMS network. The modules may be placed

into any standard 120 V wall outlet.

Plug modules are available in white.

Group Coordinator (GC)

The Cassia EMS Group Coordinator is a Zigbee® wireless gateway that can support up to 75 thermostats

and provides communication between a Room Area Network (RAN) Hotel Area Network (HAN) as well as a

Property Management System (PMS).

Server

The EMS Server receives temperature, door events, motion events, and other data from the rooms. Data

flows across the Ethernet network between the Thermostats, Group Coordinators and the EMS server.

Contact your Schneider Electric representative for more information about the Cassia Energy

Management System.

Cassia System Components

This document provided by Barr-Thorp Electric Co., Inc. 800-473-9123 www.barr-thorp.com

84624.7 Brochure

Navigation menu

Versions of this User Manual:

Views

Navigation
