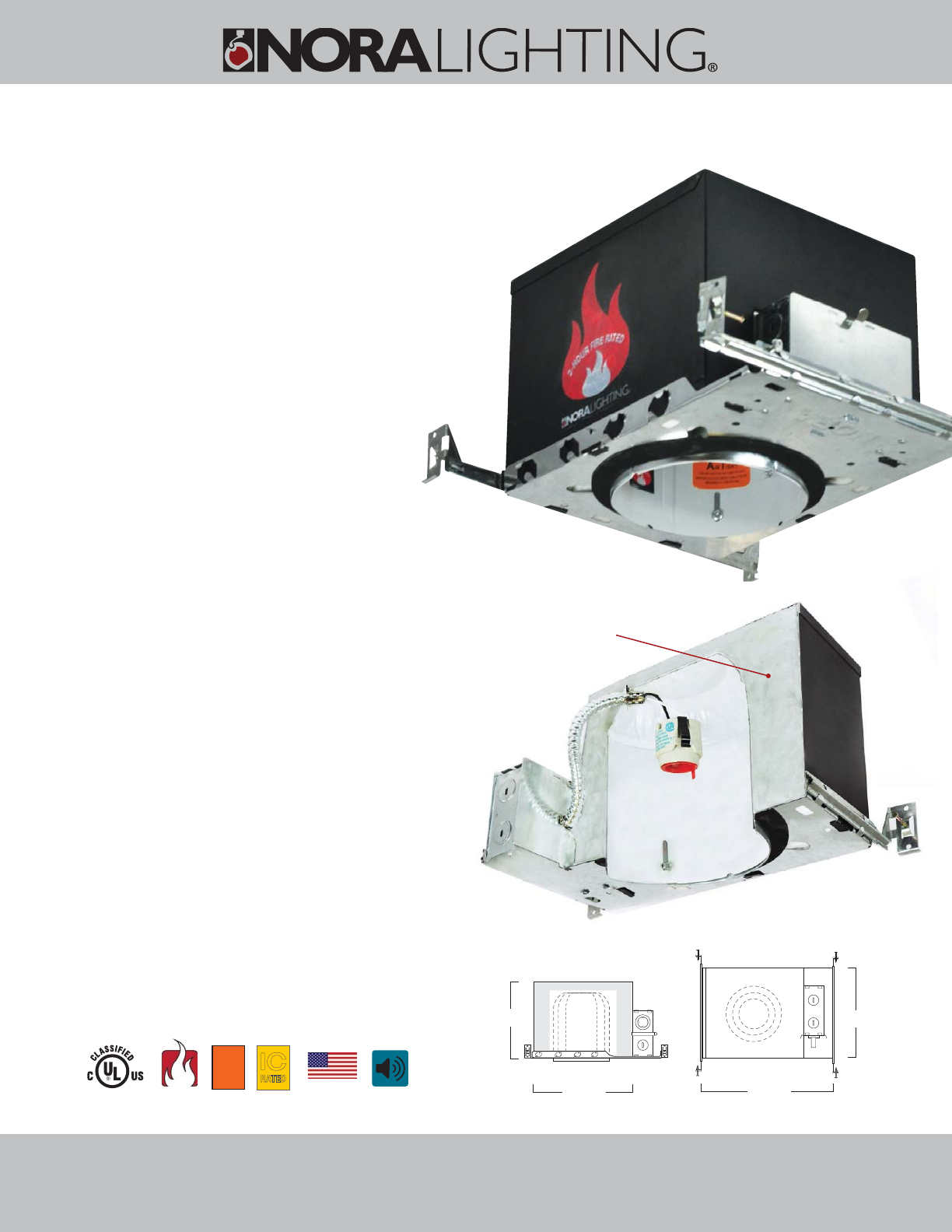

Fire Box
2-Hour Fire Rated Enclosure
Nora Lighting's new specification-grade, fire-rated, new construction
recessed downlight was designed to meet strict fire safety codes in
commercial, multi-family and residential applications. The cULus listed
double wall fixture incorporates a non-combustible fiber insulation to
prevent the passage of flames, toxic gases, and ignitable
gasses into ceiling plenums and is rated for a minimum of 2
hours protection. In addition, the non-combustible fiber fill
acts as sound-deadening material, eliminating the transfer
of sound between floors, excellent for use in home theaters.
FEATURES
· UL Classified 2-hour fire-rated enclosure
· Air Tight and IC rated
· Available in 4", 5" and 6" apertures
· Uses standard Nora reflectors, trims and LED retrofits
· Available for incandescent, CFL and LED sources;
consult factory for GU24 socket housings
·Quick connect provided
·24-1/2" Bar hangers with captive nails and alignment foot
·Accommodates 1-1/4" maximum ceiling thickness
(Consult factory for increased ceiling thickness)
· Fire tested
· Can be used in standard applications as a sound canceling
housing between floors
LABELS AND LISTINGS
UL Classified Two Hour Fire Rating
cULus Listed for Damp Location with Feed Through
cULus Wet Listed (Only with designated trims)
Meets or exceeds ASTM-283 Air-Tight Requirements
ANSI/UL 263
ANSI/UL 1598
NEW PRODUCT ANNOUNCEMENT
Illuminating the future…since 1989
TEL. 800.686.6672 | FAX 800.500.9955 | WWW.NORALIGHTING.COM
AIR
TIGHT
IC
RATED X
Assembled in USA
7-3/4"
12-1/2"
9"
10-1/4 "
Non-Combustible
Fiber Insulation
DIAMOND LED Fire Box (Require dedicated Diamond LED Re ectors)
Economical LED downlights for commercial and residential applications. Available in 4",
4" Square, 5", 6" and 6" adjustable apertures; 630, 650 and 1000 Lumen units. 90+ CRI.
MODEL NUMBER DESCRIPTION
NFBIC-4LMRAT 4" LED Diamond 2-Hour Fire Rated IC/Non-IC Air-Tight Housing
NFBIC-5LMRAT 5" LED Diamond 2-Hour Fire Rated IC/Non-IC Air-Tight Housing
NFBIC-6LMRAT 6" LED Diamond 2-Hour Fire Rated IC/Non-IC Air-Tight Housing
tel. 800.686.6672 www.noralighting.com
MARQUISE LED FIRE BOX (Require dedicated Marquise LED Re ectors)
High Performance LED downlights for light commercial and high-end residential applications
utilize high- ef ciency Cree® TrueWhiteTM LED Integrated package. Offered in four Kelvin
temperatures and Comfort Dim option that color tunes the light from 2700K to 1800K.
Available in 4", 5", 6" and 6" adjustable apertures; 850, 1250 Lumens and Comfort Dim.
MODEL NUMBER DESCRIPTION
NFBIC-4L85AT 4" 850 Lumen LED Marquise 2-Hour Fire Rated IC/AT Housing
NFBIC-4L12AT 4" 1250 Lumen LED Marquise 2-Hour Fire Rated IC/AT Housing
NFBIC-5L85AT 5" 850 Lumen LED Marquise 2-Hour Fire Rated IC/AT Housing
NFBIC-6L85AT 6" 850 Lumen LED Marquise 2-Hour Fire Rated IC/AT Housing
NFBIC-6L12AT 6" 1250 Lumen LED Marquise 2-Hour Fire Rated IC/AT Housing
LED Fire Rated Housings
6"
6"
5"
5"
4"
4"
TRIMS FOR MARQUISE LED FIRE BOX
REFLECTOR TYPE SOURCE LUMEN COLOR TEMP FINISH
NRM-411 4" Open Re ector
NRM-412 4" Baf e
NRM-413
4" Square Round Re
.
NRM-418 4" Decorative Glass*
L LED 85 850
12 1250
27 2700K
30 3000K
35 3500K
40 4000K
CD Comfort
Dim
BW
BZ
CO
CW
DW
HZW
NN
WW
Not all
nishes
available
on all
trims
NRM-511 5" Open Re ector
NRM-512 5" Baf e
NRM-518 5" Decorative Glass*
NRM-611 6" Open Re ector
NRM-612 6" Baf e
NRM-614 6" Surface Adjustable
NRM-617 6" Adj Regress Baf e
NRM-618 6" Decorative Glass*
NRM-619 6" Adj Regress Re
Example: NFBIC-4L12AT / NRM-411L1230BW - 4" Marquise 1250 Lumen Fire Box and
Open Reflector, LED, 1250 Lumen, 3000K, Black Specular Reflector, White Self-Flange
TRIMS FOR DIAMOND LED FIRE BOX
REFLECTOR TYPE LUMEN COLOR TEMP FINISH
NLEDC-4219 4" Open Re ector
NLEDC-4229 4" Baf e
NLEDC-4239
4" Square, Round Re
ector
NLEDC-4259
4" Square, Square 2" Pinhole
NLEDC-4269
4" Square, Sq 2.75" Regress
NLEDC-4289 4" Re ector for Deco Glass*
630 27 2700K
30 3000K
40 4000K
BB
BW
BZ
CO
CW
DW
HZW
NN
WW
Not all
nishes
available
on all
trims
NLEDC-5219 5" Open Re ector
NLEDC-5229 5" Baf e
NLEDC-5289 5" Re ector for Deco Glass*
650
NLEDC-581 5" Open Re ector
NLEDC-591 5" Open Re ector, Wet Label
NLEDC-582 5" Baf e
NLEDC-592 5" Baf e, Wet Label
NLEDC-588 5"
Re ector for Decorative Glass*
NLEDC-598 5"
Re ector for Deco Glass*, Wet
1000
NLEDC-6219 6" Open Re ector
NLEDC-6229 6" Baf e
NLEDC-6249 6" Surface Flush Adjustable
NLEDC-6279 6" Adjustable Regressed Baf e
NLEDC-6289 6" Re ector for Deco Glass*
NLEDC-6299 6" Adjustable Regress Re ector
650
NLEDC-681 6" Open Re ector
NLEDC-691 6" Open Re ector, Wet Label
NLEDC-682 6" Baf e
NLEDC-692 6" Baf e, Wet Label
NLEDC-688 6"
Re ector for Decorative Glass*
NLEDC-698 6"
Re ector for Deco Glass*, Wet
1000
Example: NFBIC-6LMRAT /NLEDC-621930WW - 6" Dedicated Fire Box and 6" Diamond II,
90+ CRI, 3000K, White Reflector, White Flange
LED TRIM FINISHES (Not all nishes available on all trims)
BB Specular Black with Black Flange
BW Specular Black with White Flange
BZ Bronze with Bronze Flange
CO Copper with Copper Flange
CW Specular Clear with White Flange
DW Diffused Clear with White Flange
HZW Haze with White Flange
NN Natural Metal with Natural Metal Flange
WW White with White Flange
DECORATIVE GLASS OPTIONS (Glass sold seperately)
NTG-(4, 5, 6)/80 4", 5", or 6" Tempered Blue Glass with 3-1/8" Open Center
NTG-6B/120 6" Tempered Blue Glass with 4-3/4" Open Center
NTG-(4, 5, 6)CF 4", 5", or 6" Tempered Clear Glass with Frosted Center
NTG-(4, 5, 6)FC 4", 5", or 6" Tempered Frosted Glass with Clear Center
NTG-(4, 5, 6)HC 4", 5", or 6"
Tempered Clear Glass w/ Frosted Center and 3-1/8" Open Center
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
WET
4" TRIMS for Incandescent Fire Box
MODEL # DESCRIPTION
NS-12 4" Surface Adjustable Gimbal Ring BZ, CO, N, W
NS-18 4" Eyeball Trim B, BZ, CO, N, (W)
NS-19 4" Eyeball Trim C, G
NS-40 4" Stepped Baf e, Metal Ring BZBZ, C, CO, G, N, (W)
NS-40A 4" White Adjust Stepped Baf e, Metal Ring
NS-41 4" Black Stepped Baf e, Metal Ring Ring: B, C, G, N, (W)
NS-41A 4" Black Adjustable Stepped Baf e, White Metal Ring
NS-42 4" Specular Gold Re ector, Metal Ring
Ring: G, (W)
NS-42A 4" Adjustable Specular Gold Re ector, White Metal Ring
NS-43 4" Specular Black Re ector, Metal Ring
Ring: B, (W)
NS-43A 4" Adjust Specular Black Re ector, White Metal Ring
NS-44 4" Specular Clear Re ector, Metal Ring
Ring: C, N, (W)
NS-44A 4" Adjustable Specular Clear Re ector, White Metal Ring
NS-44HZ
4" Specular Haze Re ector, White Metal Ring
NS-46
4" Specular White Re ector, White Metal Ring
NS-46A 4" Adjustable Specular White Re ector, White Metal Ring
NS-4910 4" Square Trim with Stepped Baf e B, BZ, CO, N, W
NS-4912 4" Square Trim with Surface Gimbal BZ, CO, N, W
NS-4914 4" Square Trim with Round Re ector BB, BW, BZBZ, CB, CC, CG,
COCO, CW, GW, HZW, NN, WW
NS-52 4" Natural Metal Re ., Natural Metal Ring
NS-53 4" Copper Re ector, Copper Ring
NS-53BZ 4" Bronze Re ector, Bronze Ring
NS-76 4" Air-Tight Baf e Lensless Shower, Flange B (W Flange), BZ, CO, N, W
5" TRIMS for Incandescent Fire Box
MODEL # DESCRIPTION
NT-5000 Splay Trim, Self Flange BZ, CO, N, W
NT-5001 Baf e Splay, Self Flange (MW 50W Max) B, BZ, CO, N, W, MW
NT-5002 Shallow Airtight Cone Re ector with Ring B, BZ, C, CO, G, HZ, N, W
NT-5010 Baf e Splay with Ring B, BZ, CO, N, W
NT-5012 Deep Phenolic Baf e with Ring B, BZ, CO, N, W
NT-5014 Airtight Cone Re ector with Ring B, BZ, C, CO, G, HZ, N, W
NT-5020 Specular Re ector with Ring B, C, G, W
NT-5021 Cone Re ector with Metal Ring B, BZ, C, CO, G, HZ, N, W
NT-5030 Open Trim B, BZ, CO, N, W
NT-5048 Metal Baf e with Regressed Eyeball, Ring B, N, W
NT-5060 PAR30 Adjustable Gimbal Ring B, BZ, CO, N, W
NT-5061 Baf e with Regressed Adjustable Gimbal, Metal Flange B, BZ, CO, N, W
NT-5070 PAR30 Eyeball Trim B, BZ, CO, N, W
NT-5071 PAR20 Eyeball Trim B, BZ, CO, N, W
NTM-513 Airtight Baf e Cone, Self Flange (MW 50W Max) B, W, MW
NTM-526 Airtight Cone Baf e Lensless Shower Trim B, BZ, CO, N, W
6" TRIMS for Incandescent Fire Box
MODEL # DESCRIPTION
NT-28 Eyeball PAR30 Metal Trim B, BZ, CO, N, (W)
NT-29 Eyeball PAR30 Metal Trim C, G
NTA-730 Airtight Specular Re ector with Baf e, PAR30/38 Metal Flange B, W
NTM-38 White Eyeball PAR30, Stepped Black Baf e
NTM-39 White Eyeball PAR30, Stepped White Baff e
NTM-48 Regressed Eyeball PAR30 with Baf e (BW), BB
NTM-49 Regressed Eyeball PAR30 with Baf e (WW), BZ, CO, N
NTM-50 Regressed Eyeball PAR30 with Black Baf e C, G
NTM-52 PAR30 Adjustable Open Gimbal, Metal Ring B, BZ, C, CO, G, N, W
NTM-53 PAR38 Adjustable Open Gimbal, Metal Ring B, BZ, CO, G, N, W
NTM-54 Baf e with Regressed PAR30 Adjustable Gimbal, Ring B, BZ, CO, N, W
NTM-55 Baf e with Regressed PAR38 Adj Gimbal, Ring B, BZ, CO, N, W
NTM-56 Re ector w/ Regressed PAR30 Adj Gimbal, Ring B, BG, C, G, W
NTM-57 Re ector w/ Regressed PAR38 Adj Gimbal, Ring B, C, G, W
NTM-300 PAR30 Open Trim with Bracket B, BZ, CO, N, W
NTM-713 Airtight Aluminum Baf e Cone PAR30/38 BAL, WAL
NTM-716 Airtight Aluminum Shallow Baf e ConePAR30 BZ, N, WAL
NTM-726 Airtight Cone Baf e Lensless Shower Trim PAR30/38 B, BZ, CO, N, W
NTS-49 Re ector with Regressed Eyeball PAR30 B, C, G, W
NTS-714 Airtight Specular Cone Re ector, Ring PAR30/38 B, C, G, W

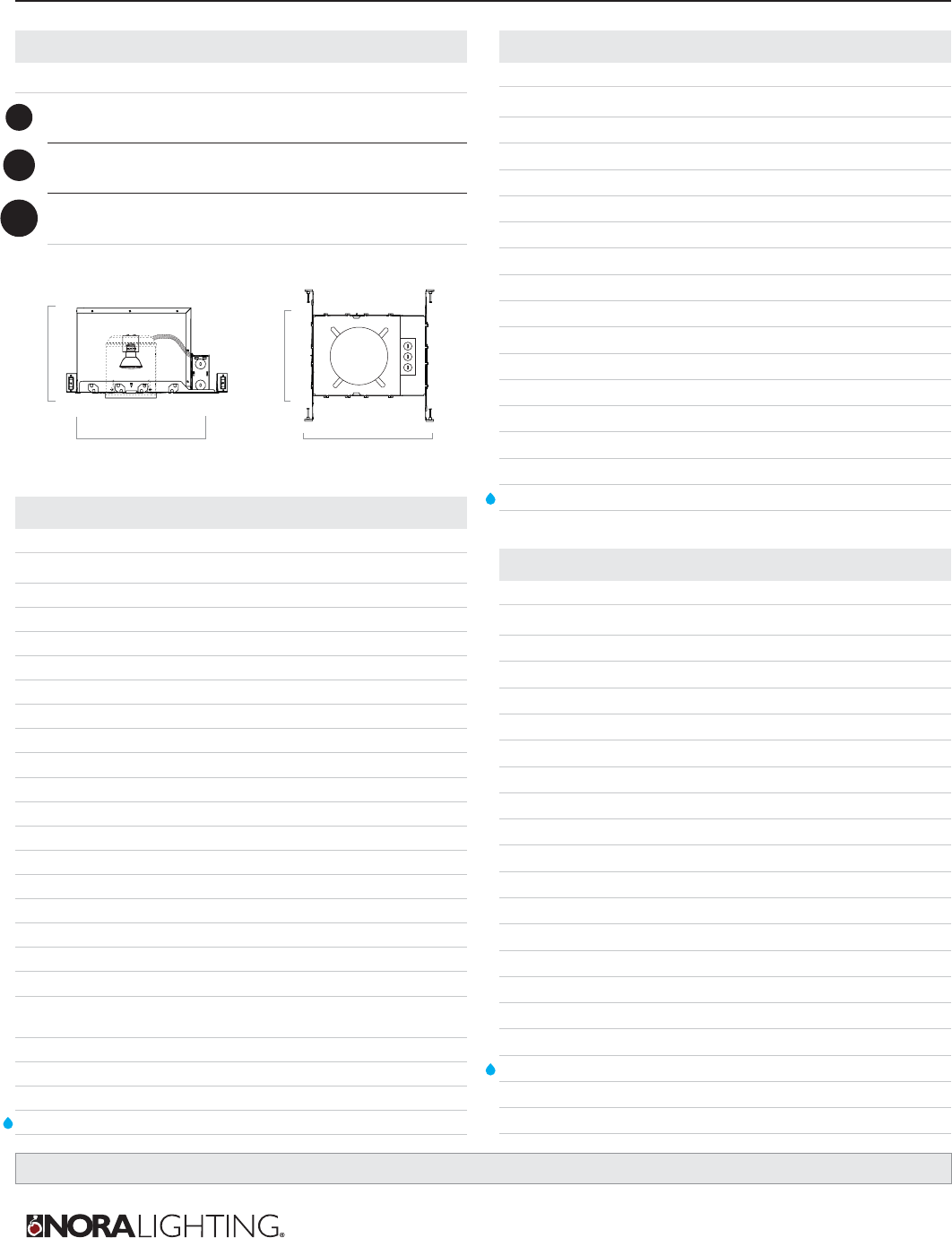

INCANDESCENT Fire Box Housing
MODEL NUMBER DESCRIPTION
NFBIC-4INC 4" Line Voltage 2-Hour Fire Rated IC/Non-IC Air-Tight Housing
35W PAR20 Max. (Varies with trim)
NFBIC-5INC 5" Line Voltage 2-Hour Fire Rated IC/Non-IC Air-Tight Housing
75W PAR30 Max. (Varies with trim)
NFBIC-6INC 6" Line Voltage 2-Hour Fire Rated IC/Non-IC Air-Tight Housing
75W PAR30, 90W PAR38 Max. (Varies with trim)
tel. 800.686.6672 www.noralighting.com
12.5"10.25"
9"7.8"
Incandescent Fire Rated Housings
6"
5"
4"
B - Black, BAL - Black, BG - Black/Gold, BZ - Bronze, C - Chrome/Clear, CO - Copper, G - Gold, HZ - Haze, MW - White, N - Natural Metal, W - White, WAL - White
WET
WET
WET
tel. 800.686.6672 www.noralighting.com 5M ML-FIREBOX1014

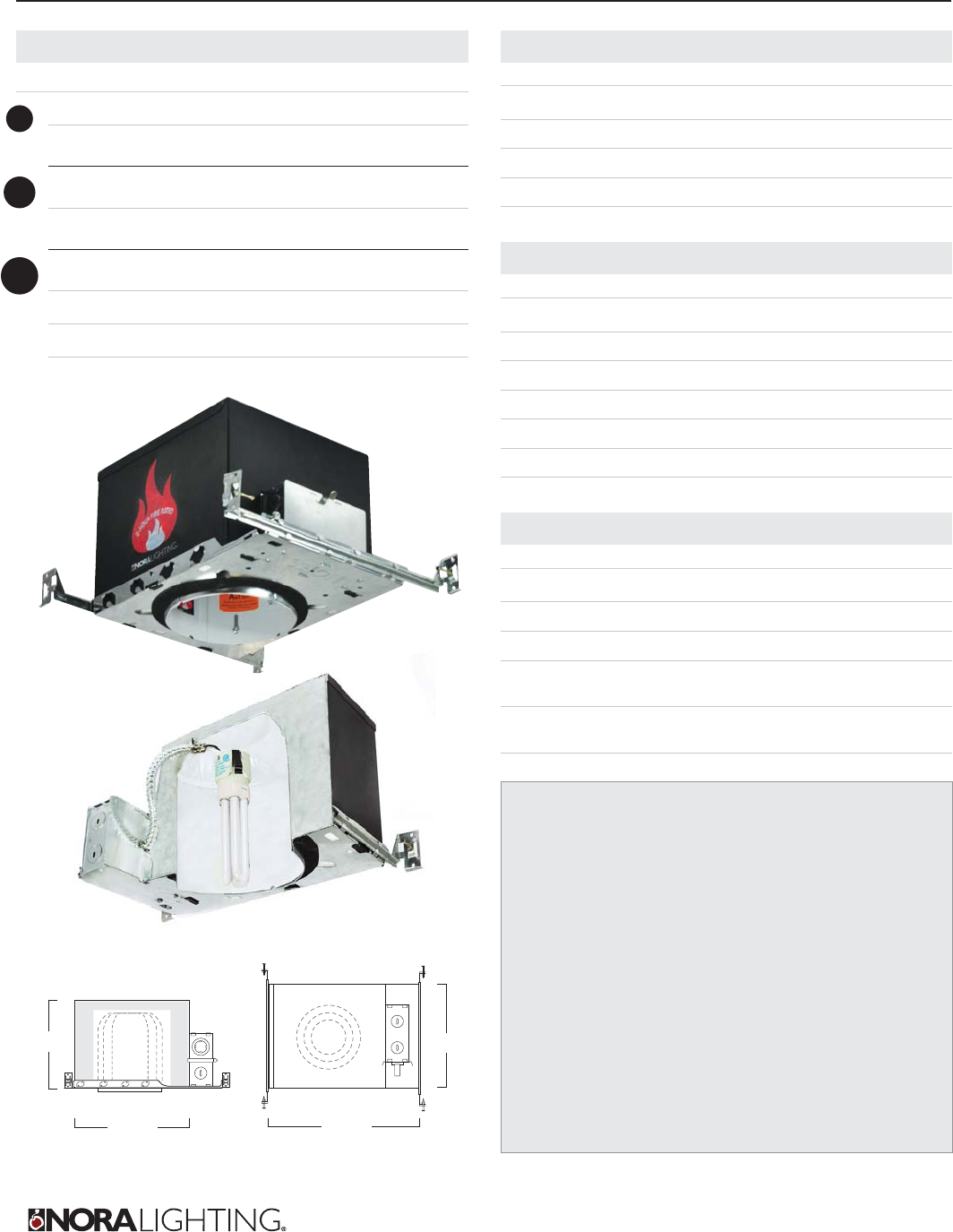

COMPACT FLUORESCENT Fire Box Housing
MODEL NUMBER DESCRIPTION
NFBPIC-413ELAT 4" 13W Electronic, IC, Air-Tight CFL 2-Hour Fire Rated Housing
NFBPIC-418ELAT 4" 18W Electronic, IC, Air-Tight CFL 2-Hour Fire Rated Housing
NFBPIC-513ELAT 5" 13W Electronic, IC, Air-Tight CFL 2-Hour Fire Rated Housing
NFBPIC-518ELAT 5" 18W Electronic, IC, Air-Tight CFL 2-Hour Fire Rated Housing
NFBPIC-613ELAT 6" 13W Electronic, IC, Air-Tight CFL 2-Hour Fire Rated Housing
NFBPIC-618ELAT 6" 18W Electronic, IC, Air-Tight CFL 2-Hour Fire Rated Housing
NFBPIC-626ELAT 6" 26W Electronic, IC, Air-Tight CFL 2-Hour Fire Rated Housing
Compact Fluorescent Fire Rated Housings
4" TRIMS for CFL Fire Box
MODEL # DESCRIPTION
NTS-4230 Cone Reector with Bafe, Ring BB, BW, BZBZ, COCO, NN, WW
NTS-4231 Cone Reector, Ring BW, CW, GW, HZW, WW
NTS-4930 Square Trim with Bafed Cone Reector BB, BW, BZBZ, COCO, NN, WW
NTS-4931 White Square Trim with Cone Reector BW, CW, GW, HZW, WW
5" TRIMS for CFL Fire Box
MODEL # DESCRIPTION
NT-5001 Bafe Splay, Self Flange B, BZ, CO, N, W, MW
NT-5002 Shallow Airtight Cone Reector with Ring B, BZ, C, CO, G, HZ, N, W
NT-5014 Airtight Cone Reector with Ring B, BZ, C, CO, G, HZ, N, W
NTM-513 Airtight Bafe Cone, Self Flange B, W, MW
NTS-5230 Specular Cone Reector with Bafe, Flange BZ, CO, N, W
NTS-5231 Specular Cone Reector, Ring B, BZ, C, CO, G, N, W
6" TRIMS for CFL Fire Box
MODEL # DESCRIPTION
NTA-730 Airtight Specular Reector with Bafe, Metal Flange B/PL, W/PL
NTM-713 Airtight Cone Bafe BAL, WAL, B/PL, W/PL
NTM-716 Airtight Aluminum Shallow Bafe Cone BAL, WAL
NTS-6230 Cone Reector with Bafe BB, BW, BZBZ, BZW, CC, CW, COCO,
COW, GG, GW, HZW, NN, NW, WW
NTS-6231 Cone Reector BB, BW, BZBZ, BZW, CC, CW, COCO,
COW, GG, GW, HZW, NN, NW, WW
6"
5"
4"
COMPACT FLUORESCENT TRIM FINISHES (Not all nishes available on all trims)
BB Black Reector / Bafe, Black Flange
BW, B, B/PL, BAL Black Reector / Bafe, White Flange
BZBZ, BZ Bronze Reector / Bafe, Bronze Flange
BZW Bronze Reector / Bafe, White Flange
CC Clear/Chrome Reector, Chrome Flange
CW, C Clear/Chrome Reector, White Flange
COCO, CO Copper Reector / Bafe, Copper Flange
COW Copper Reector / Bafe, White Flange
GG Gold Reector, Gold Flange
GW Gold Reector, White Flange
HZW Haze Reector, White Flange
NN, N Natural Metal Reector / Bafe, Natural Metal Flange
NW Natural Metal Reector / Bafe, White Flange
WW, W, W/PL, WAL, MW White Reector / Bafe, White Flange
7-3/4"
12-1/2"
9"
10-1/4 "
