Industrial

Product

Catalogue

• Process Piping Systems

• Double Containment Systems

• Acid Waste Piping Systems

• Compressed Air Systems

• Thermoplastic Valves

• Specialty Products

We build tough products for tough environments®

ISSUE DATE: JUNE 2014

www.ipexamerica.com

As one of the world’s leading supplier of thermoplastic pipe,

valves, fittings and related products for plumbing and

mechanical applications, IPEX USA LLC offers a

comprehensive range of integrated solutions to meet the

needs of engineers and contractors in commercial,

institutional, industrial and residential construction.

Committed

to EXCELLENCE

114

Contents

PROCESS PIPING SYSTEMS

Xirtec PVC & Corzan CPVC

Clear-Guard High Pressure Clear PVC Pipe

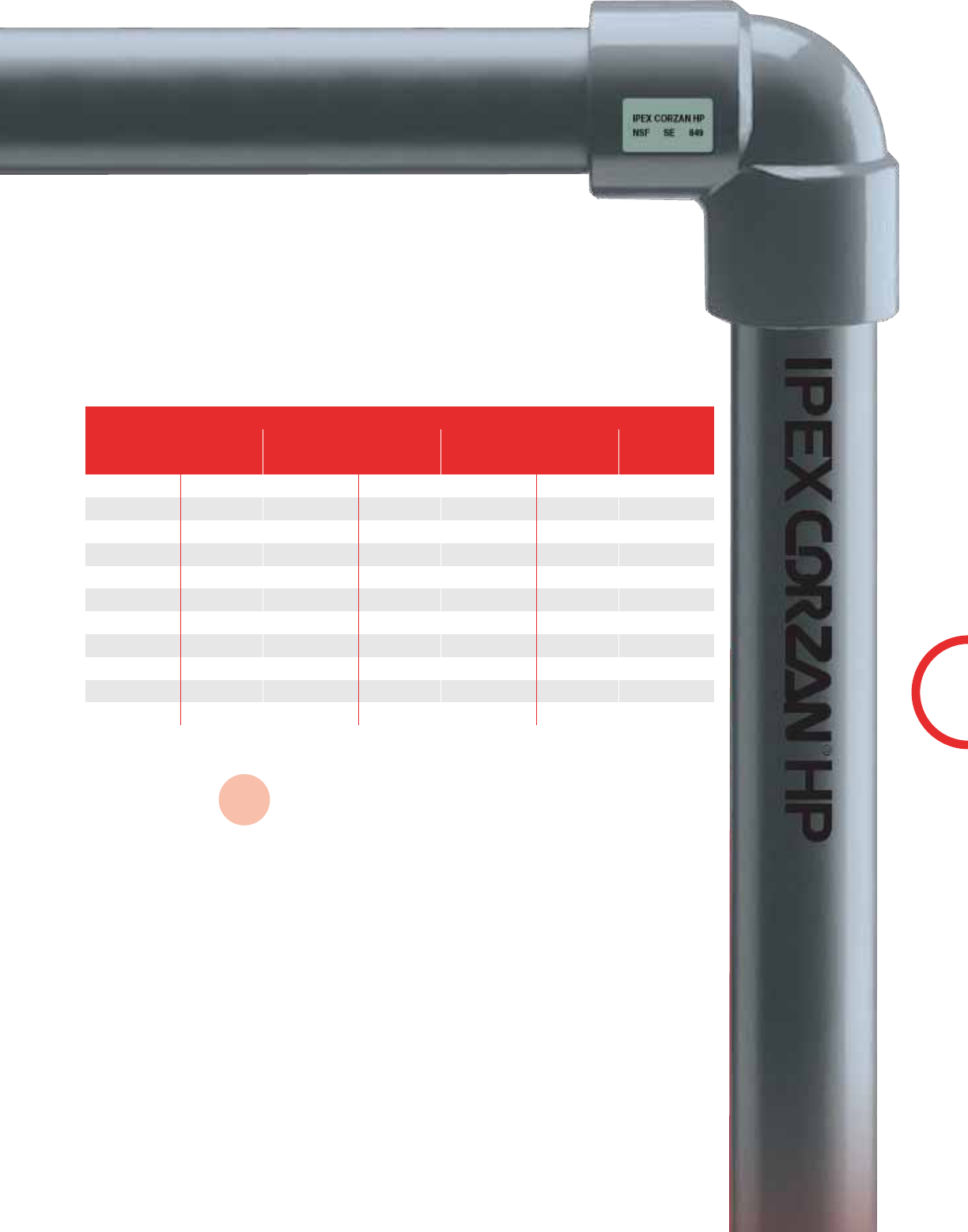

Corzan HP

Enpure High Purity

Duraplus ABS Industrial

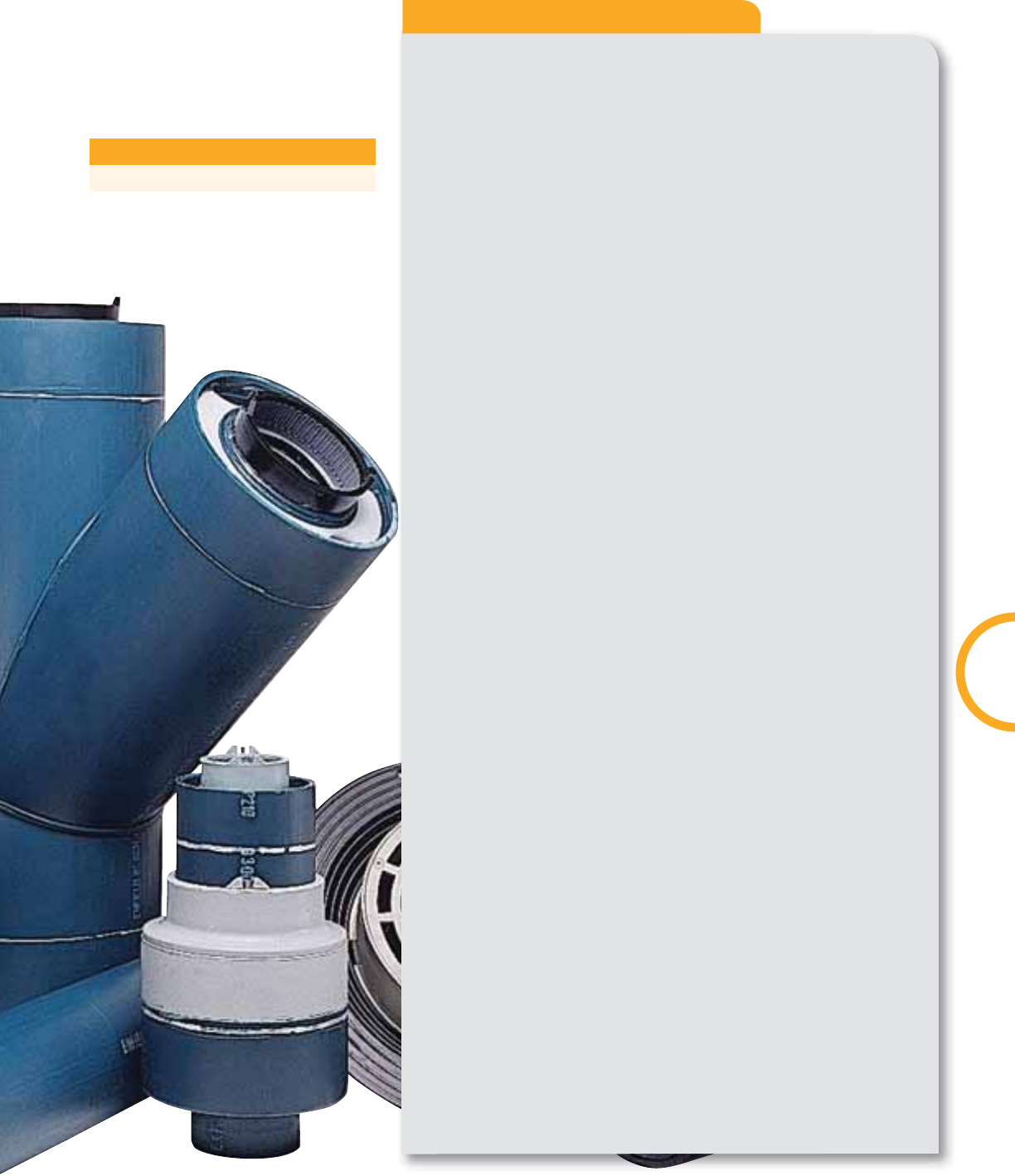

DOUBLE CONTAINMENT SYSTEMS

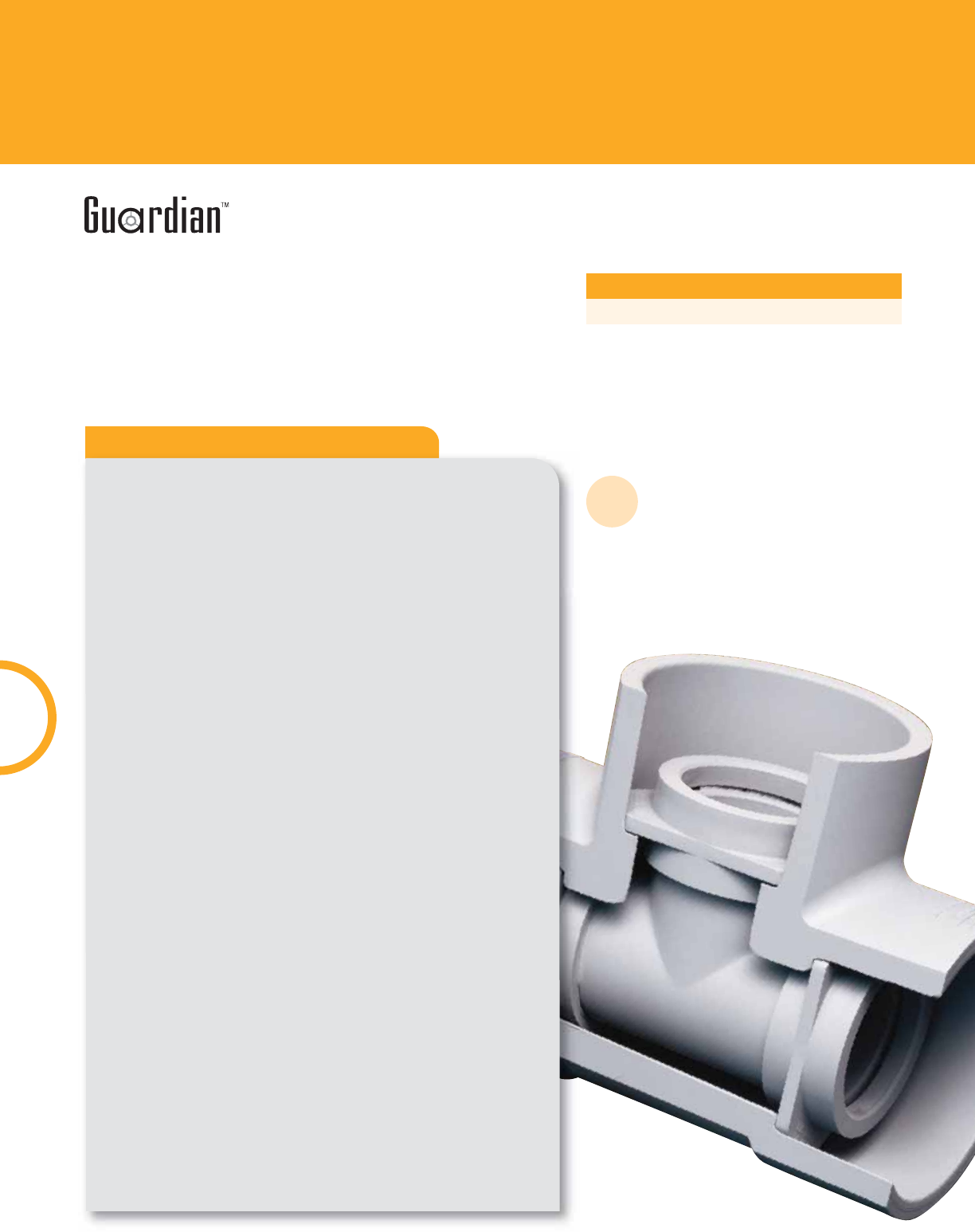

Guardian Vinyl Double Containment

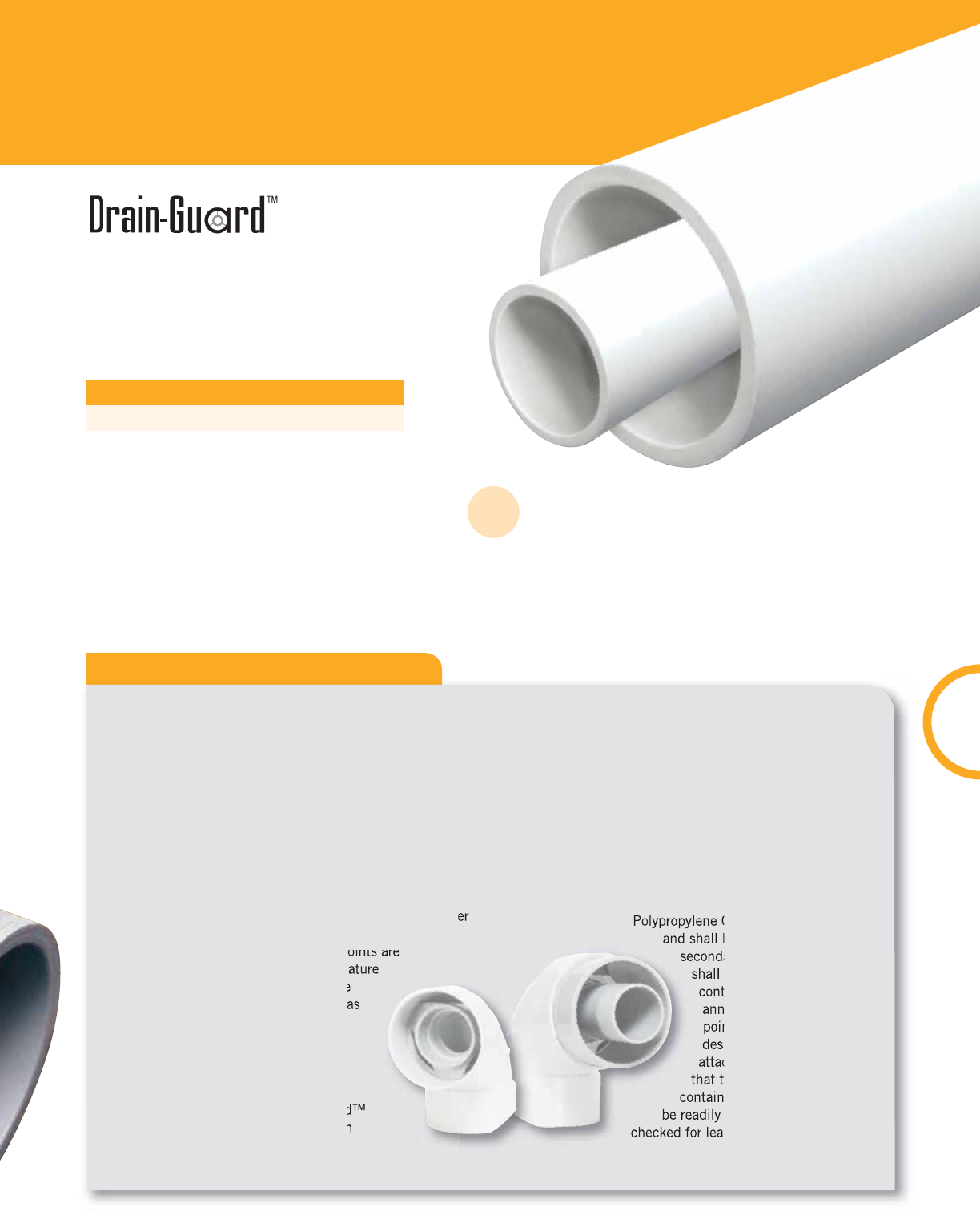

Drain-Guard

Clear-Guard

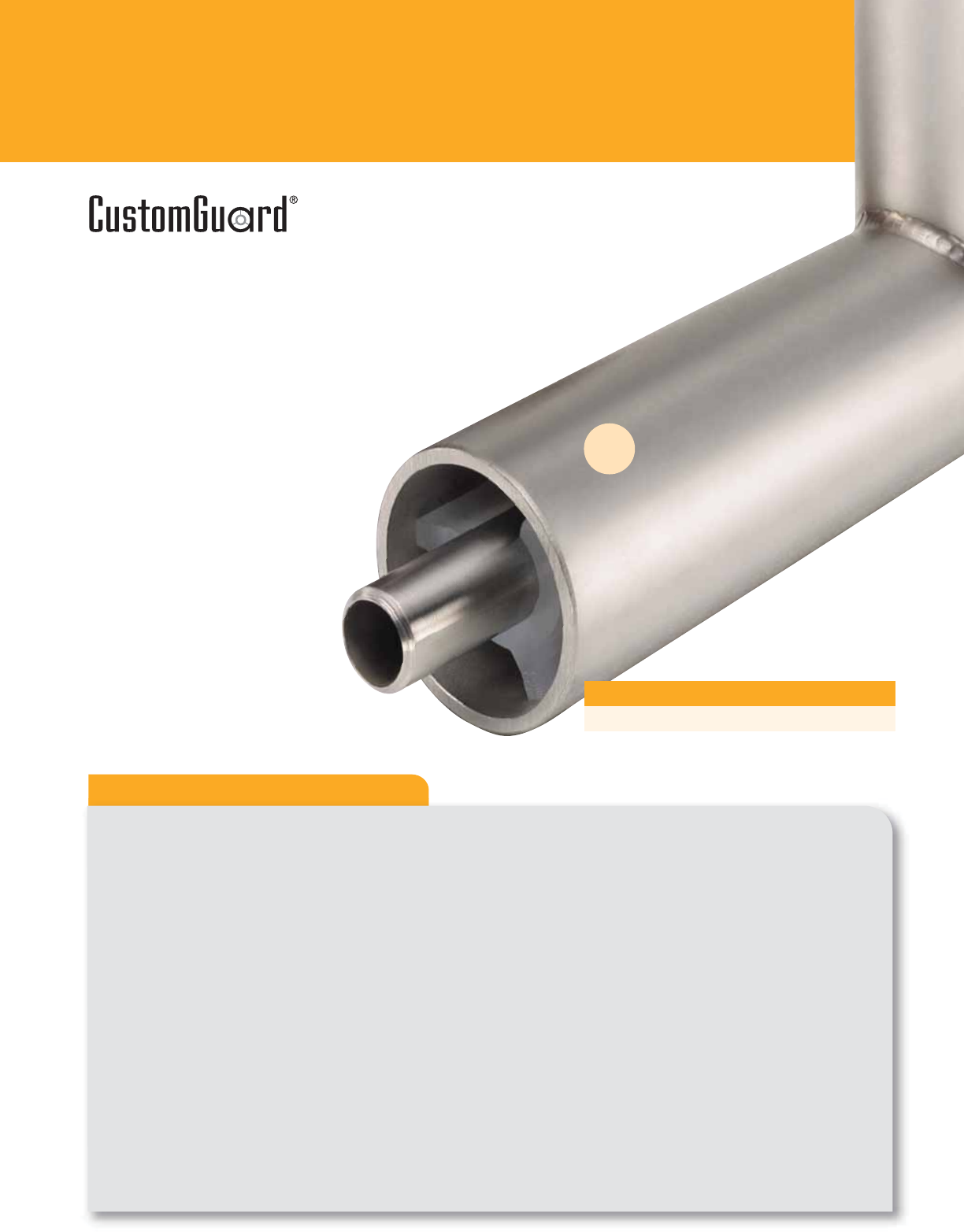

CustomGuard

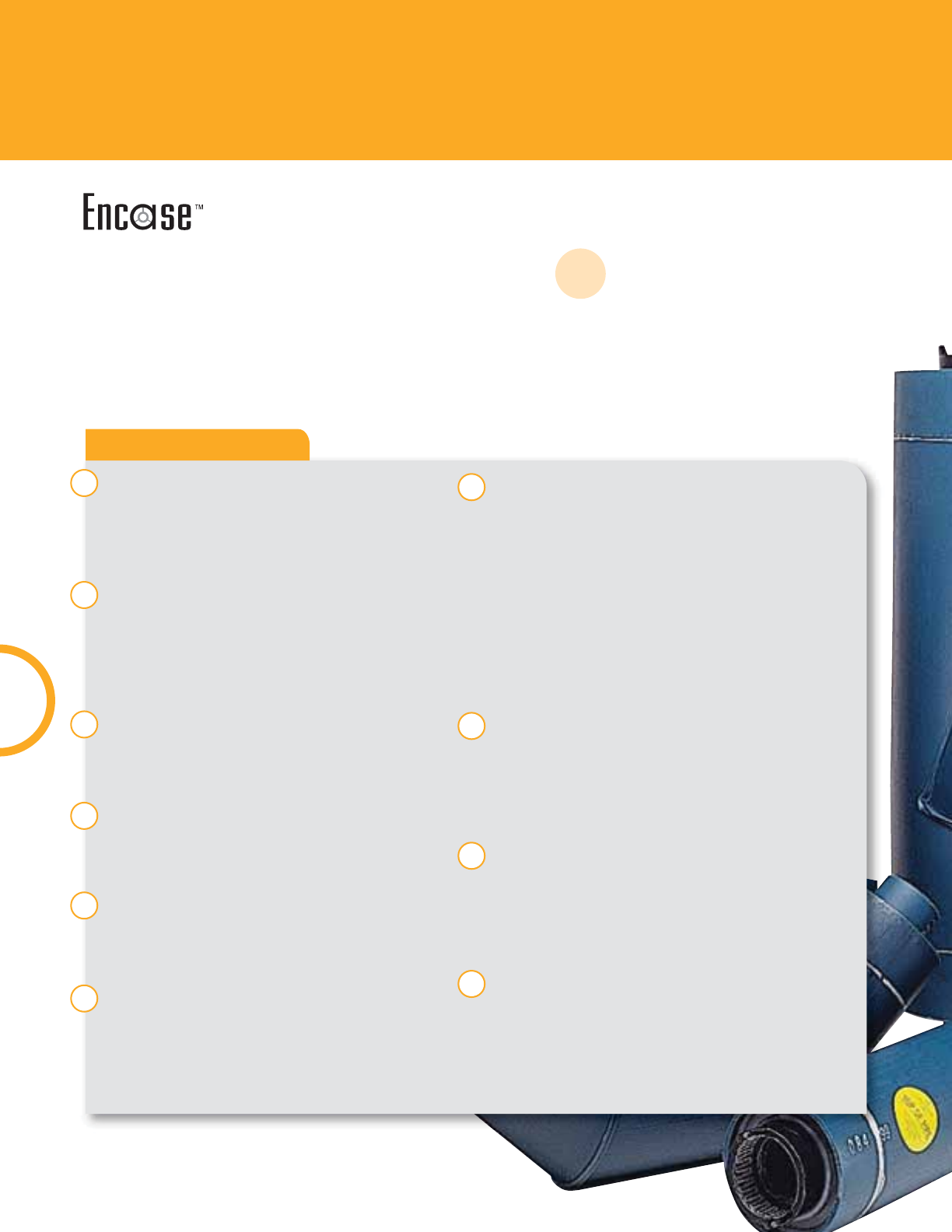

Encase Acid Waste PP Double Containment

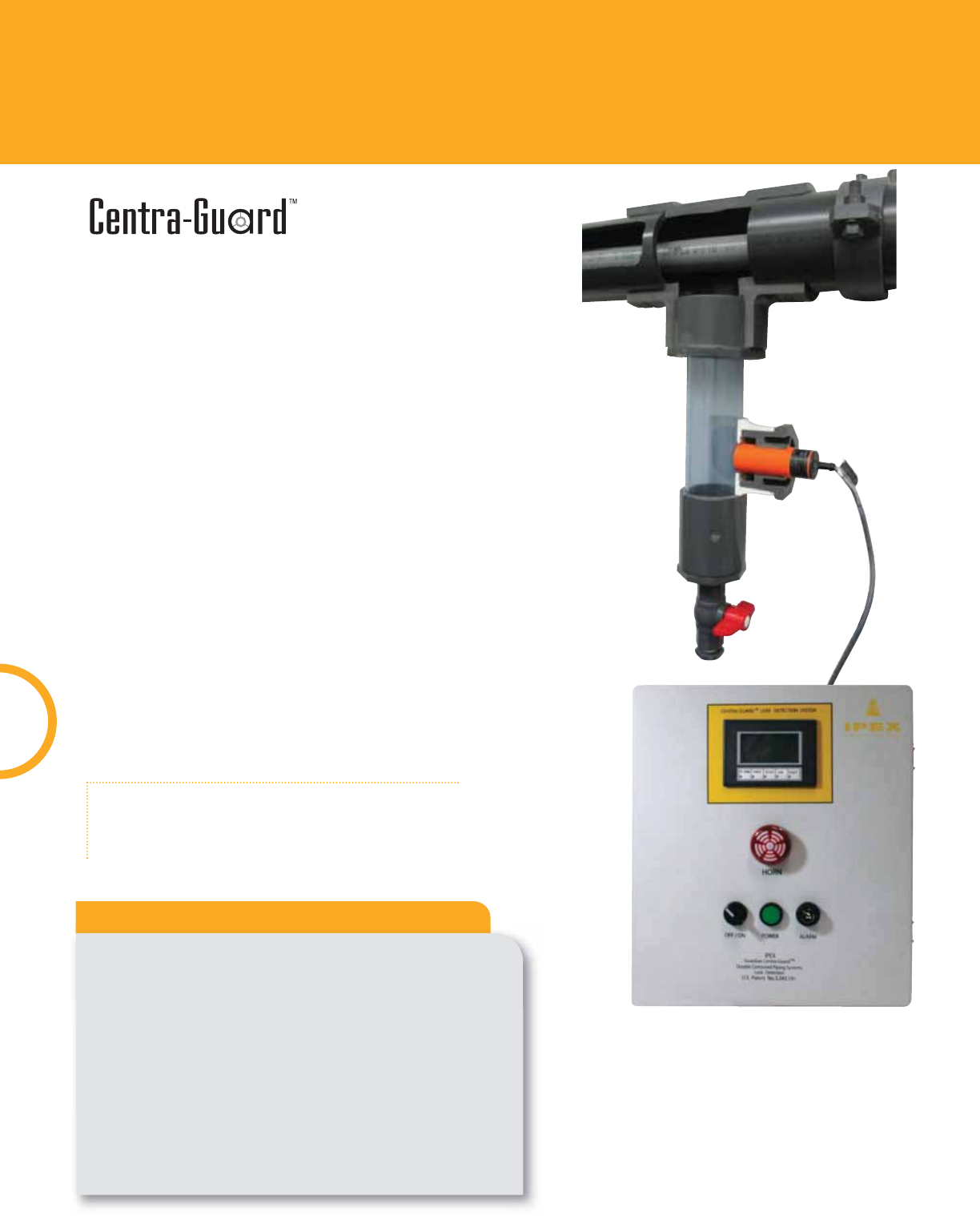

Centra-Guard

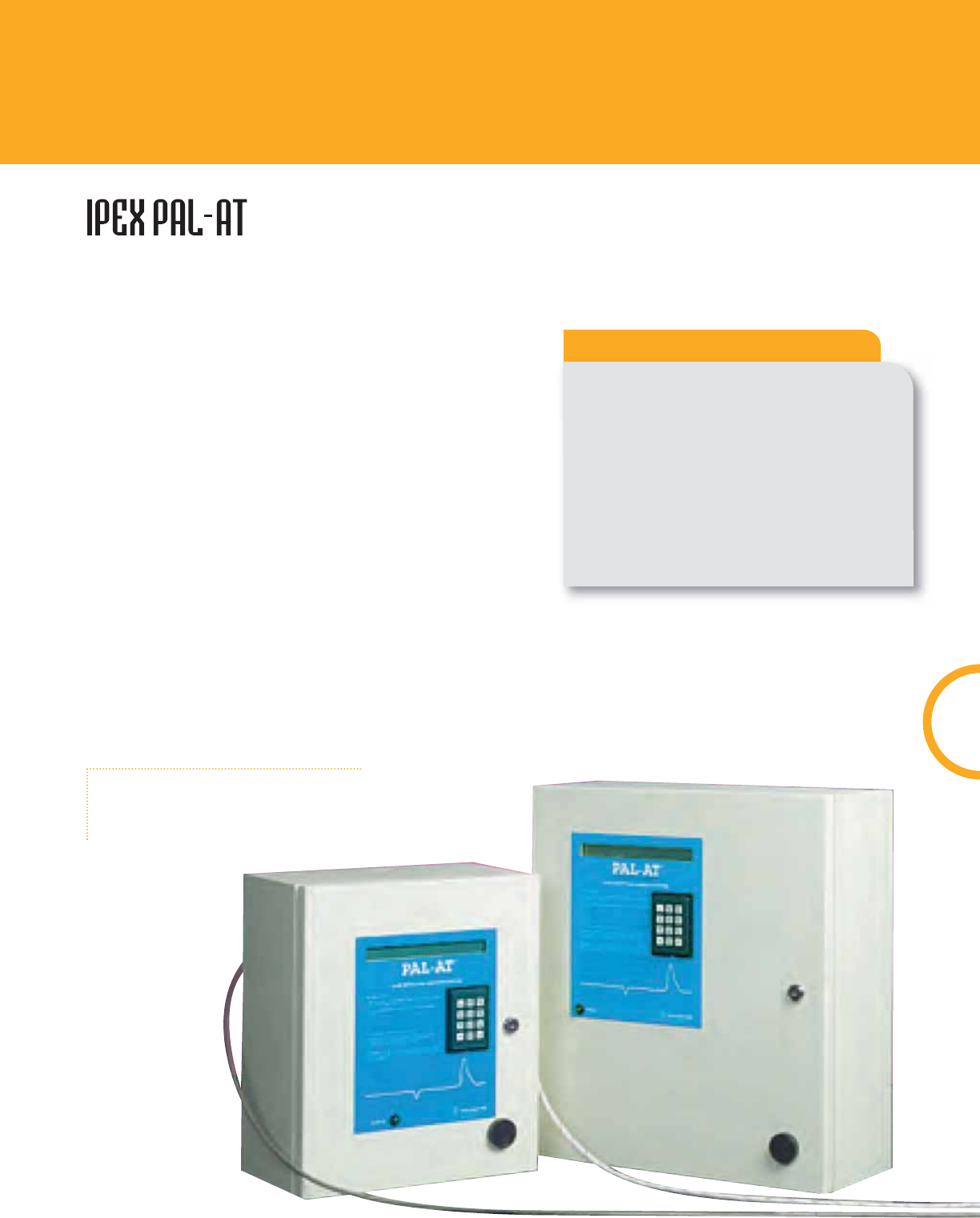

IPEX PAL-AT

ACID WASTE PIPING SYSTEMS

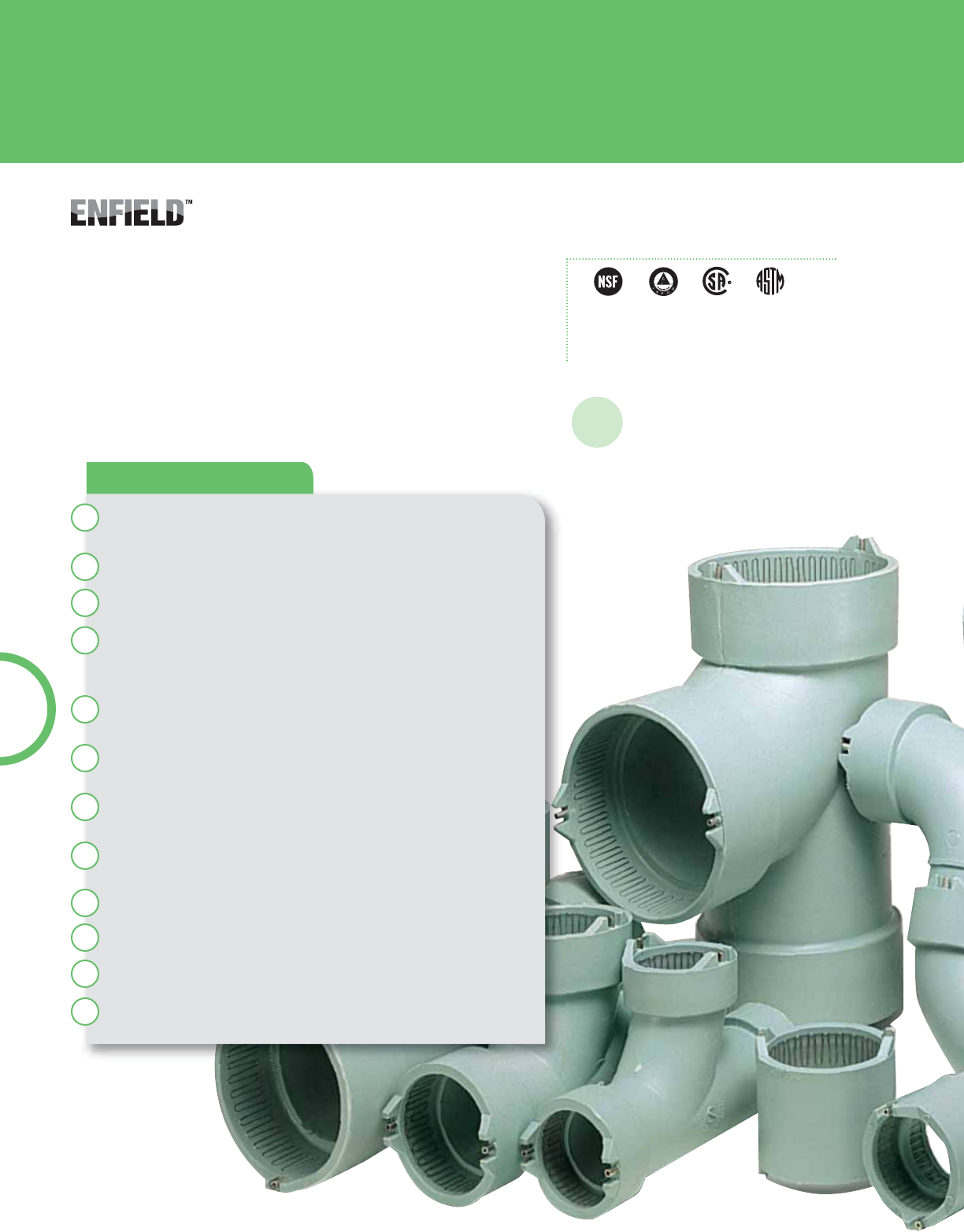

Enfield Electrofusion Acid Waste System

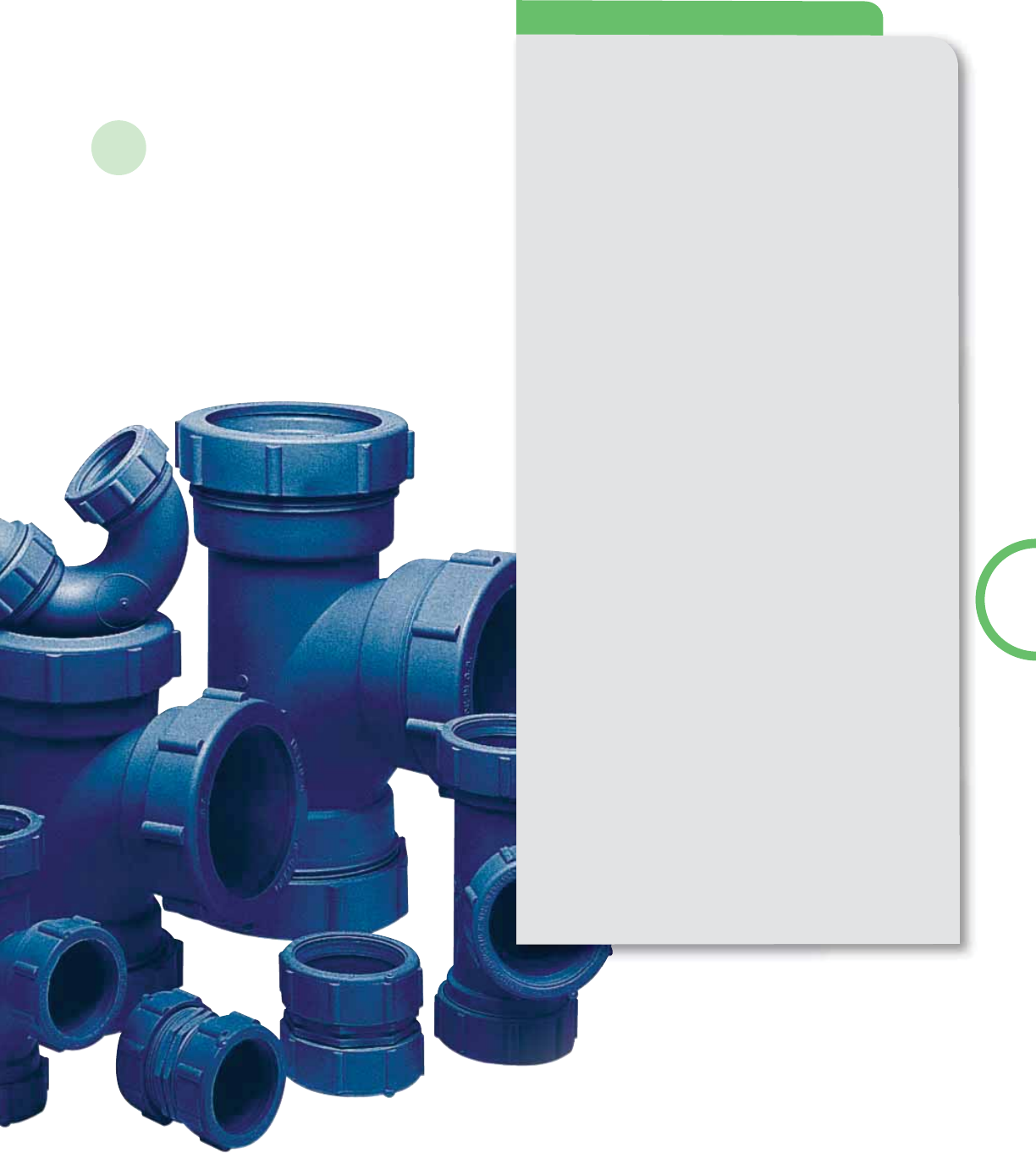

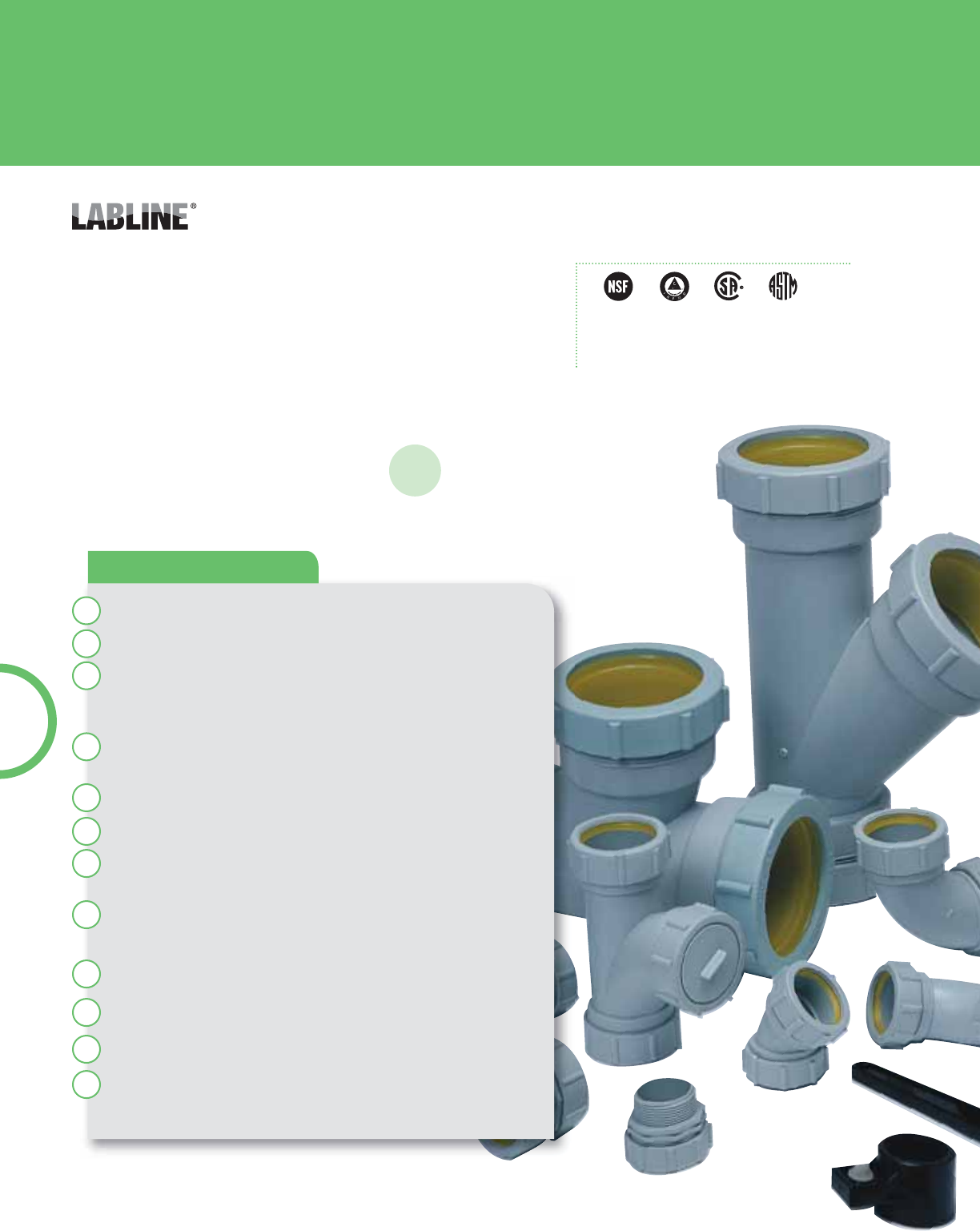

Labline Mechanical Joint Acid Waste System

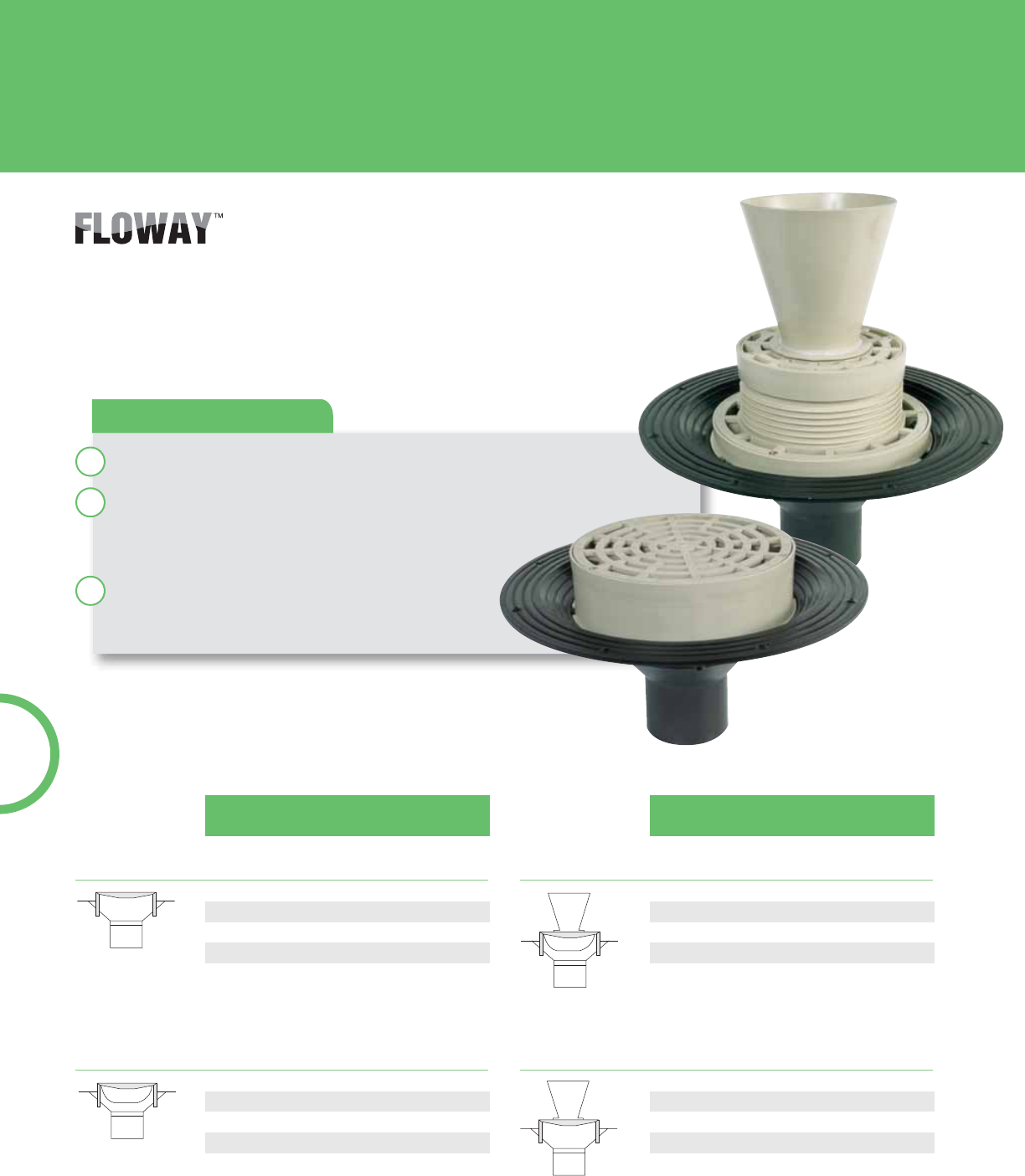

Floway Polypropylene Floor Drains

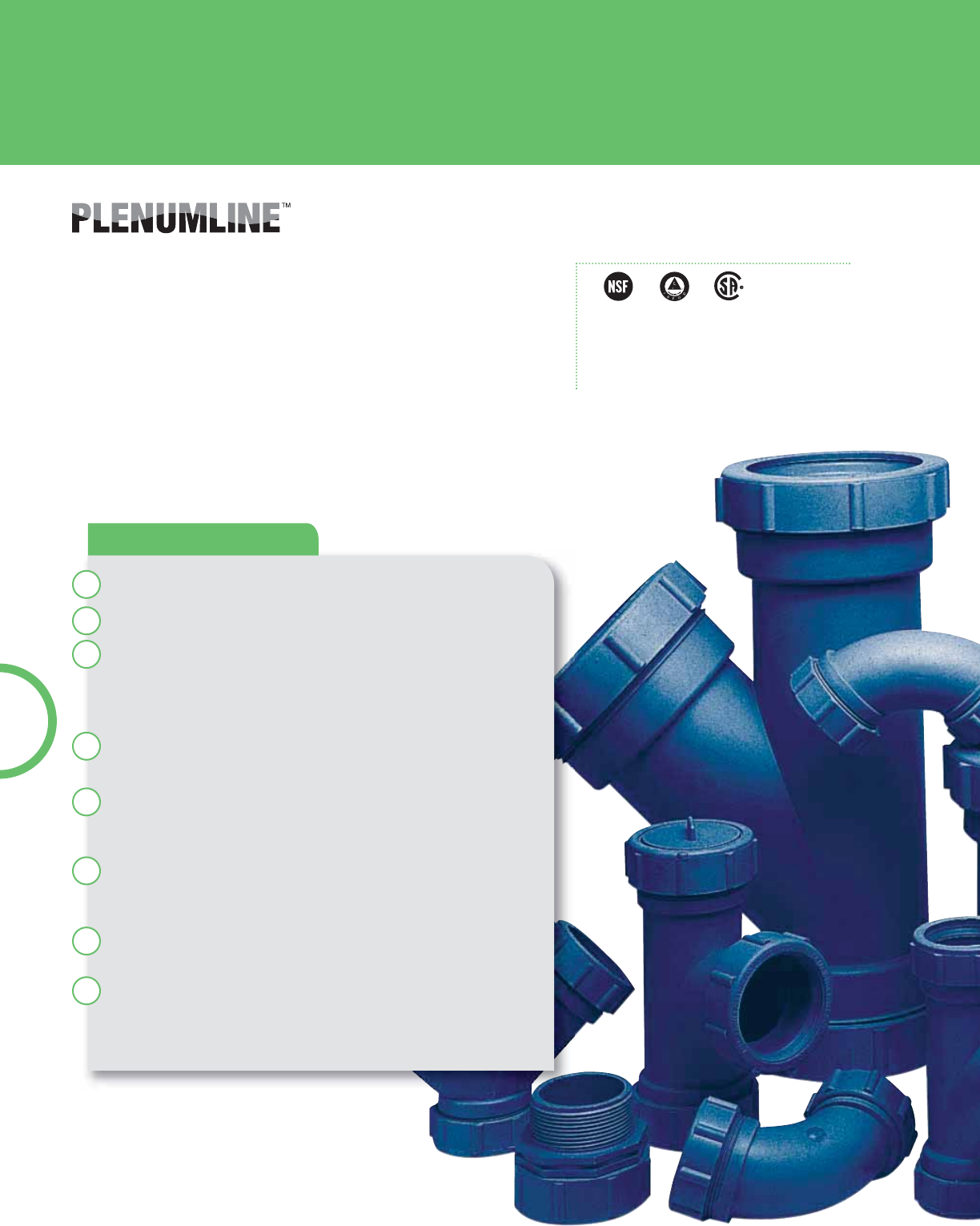

Plenumline Mechanical Joint Acid Waste System

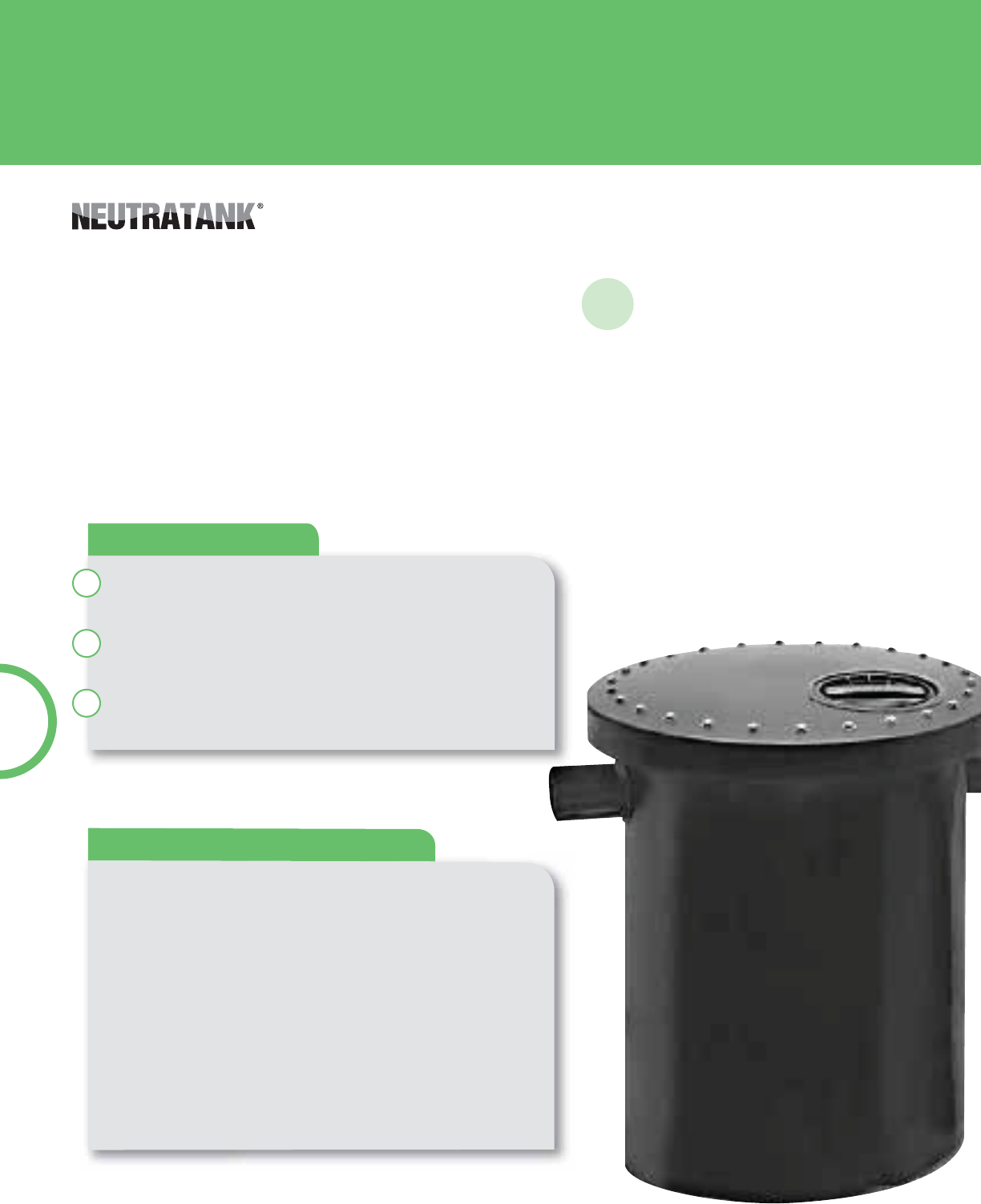

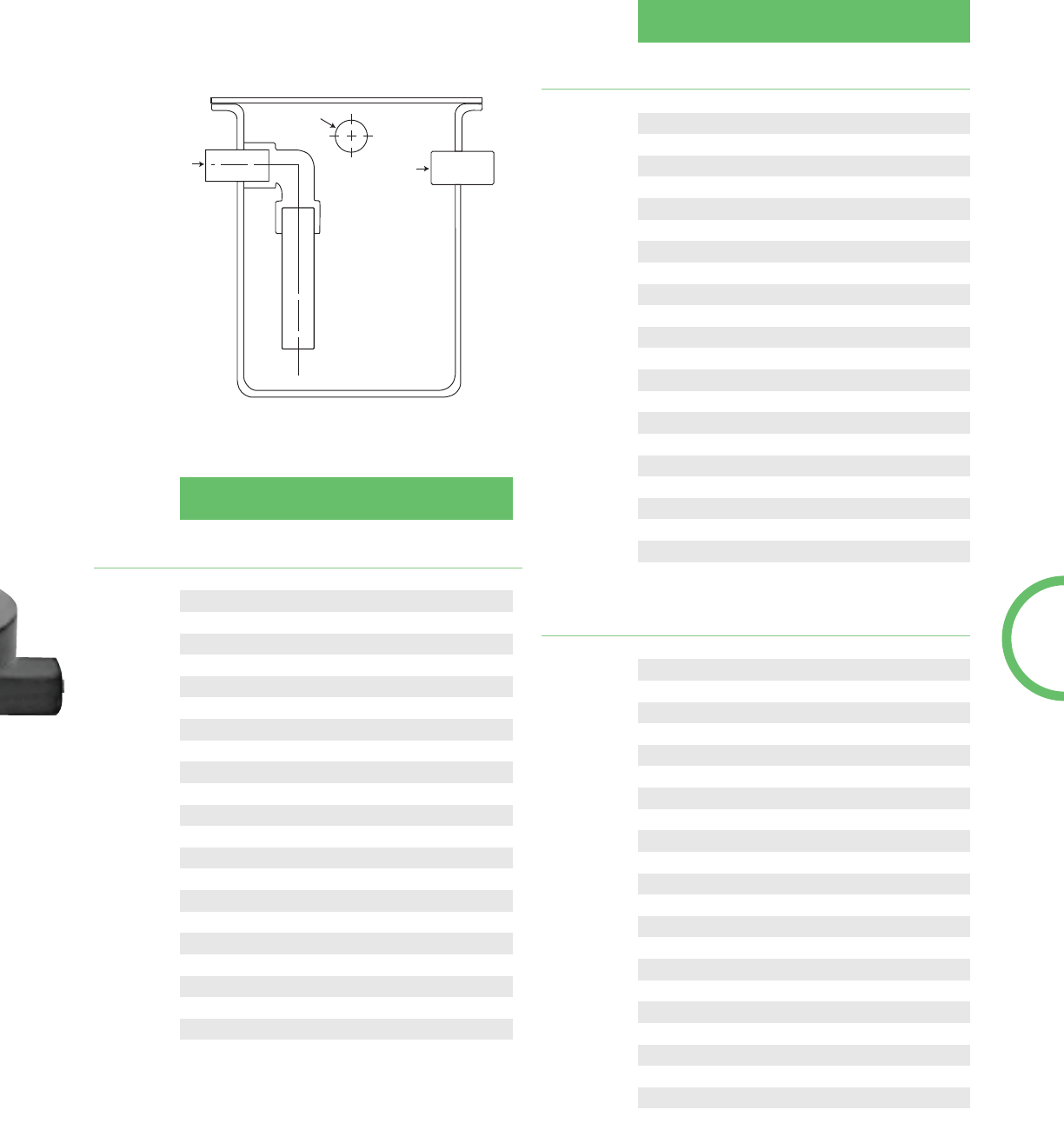

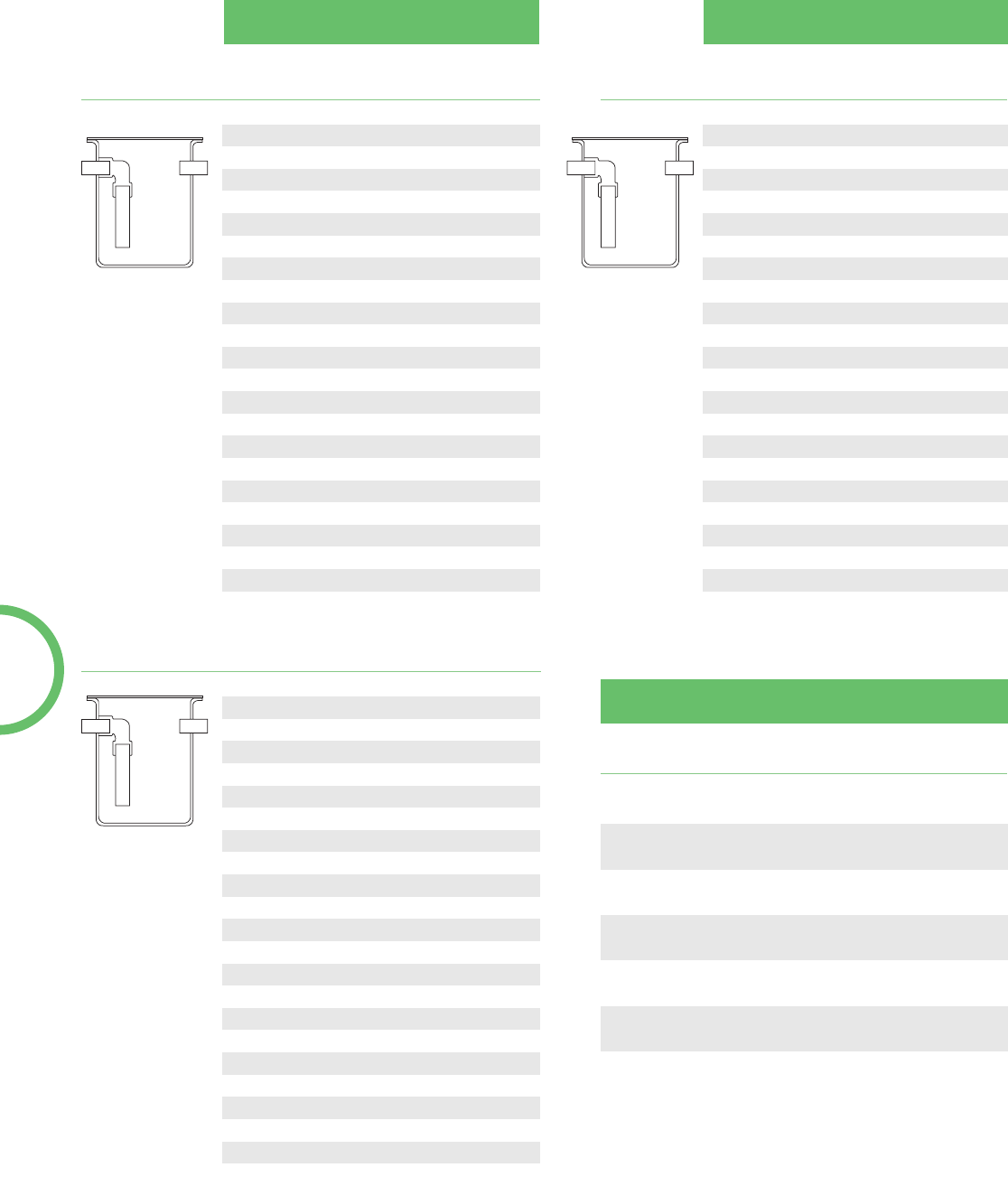

Neutratank Neutralization Tanks

Neutrasystems2 pH Monitoring System

COMPRESSED AIR SYSTEMS

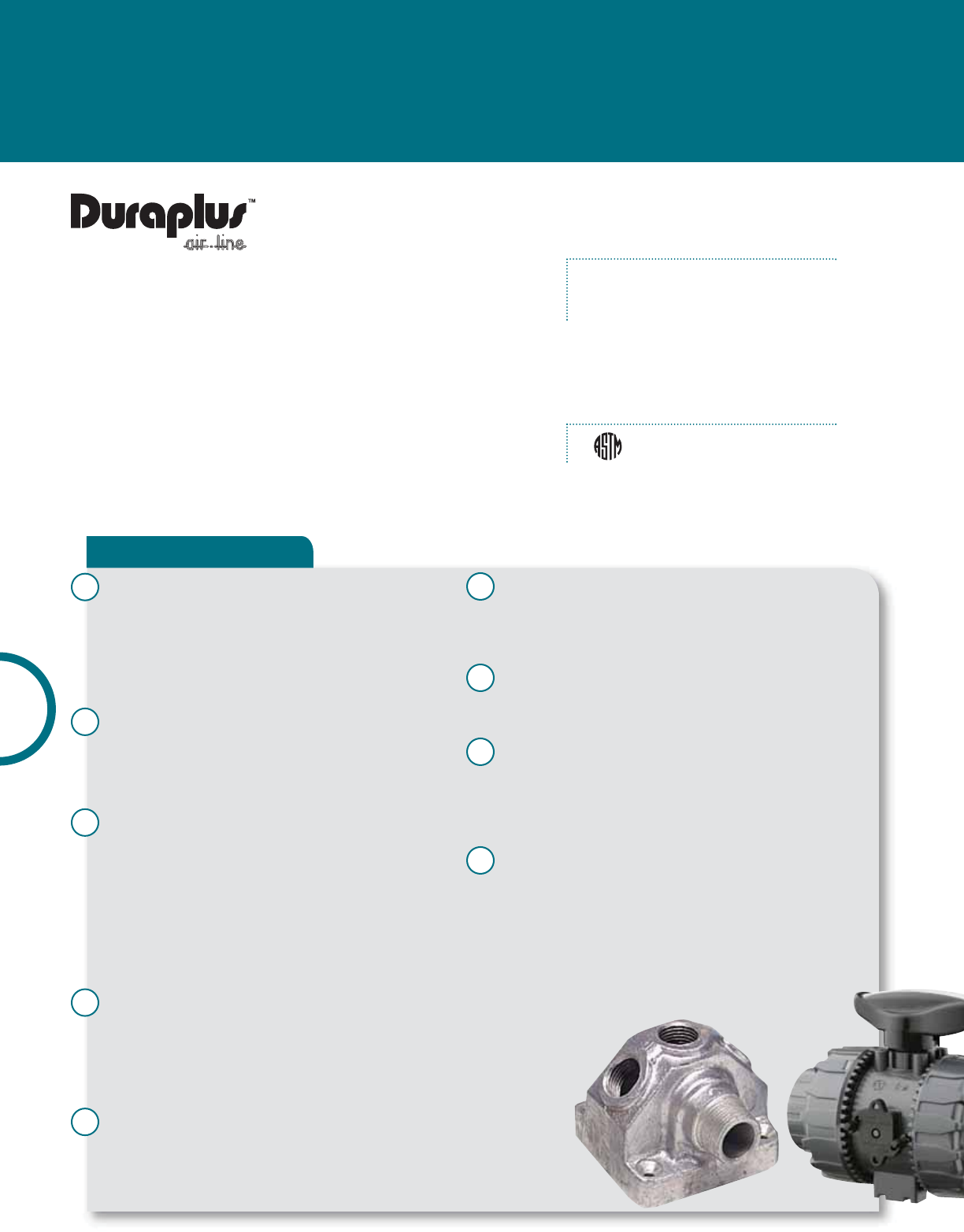

Duraplus Airline

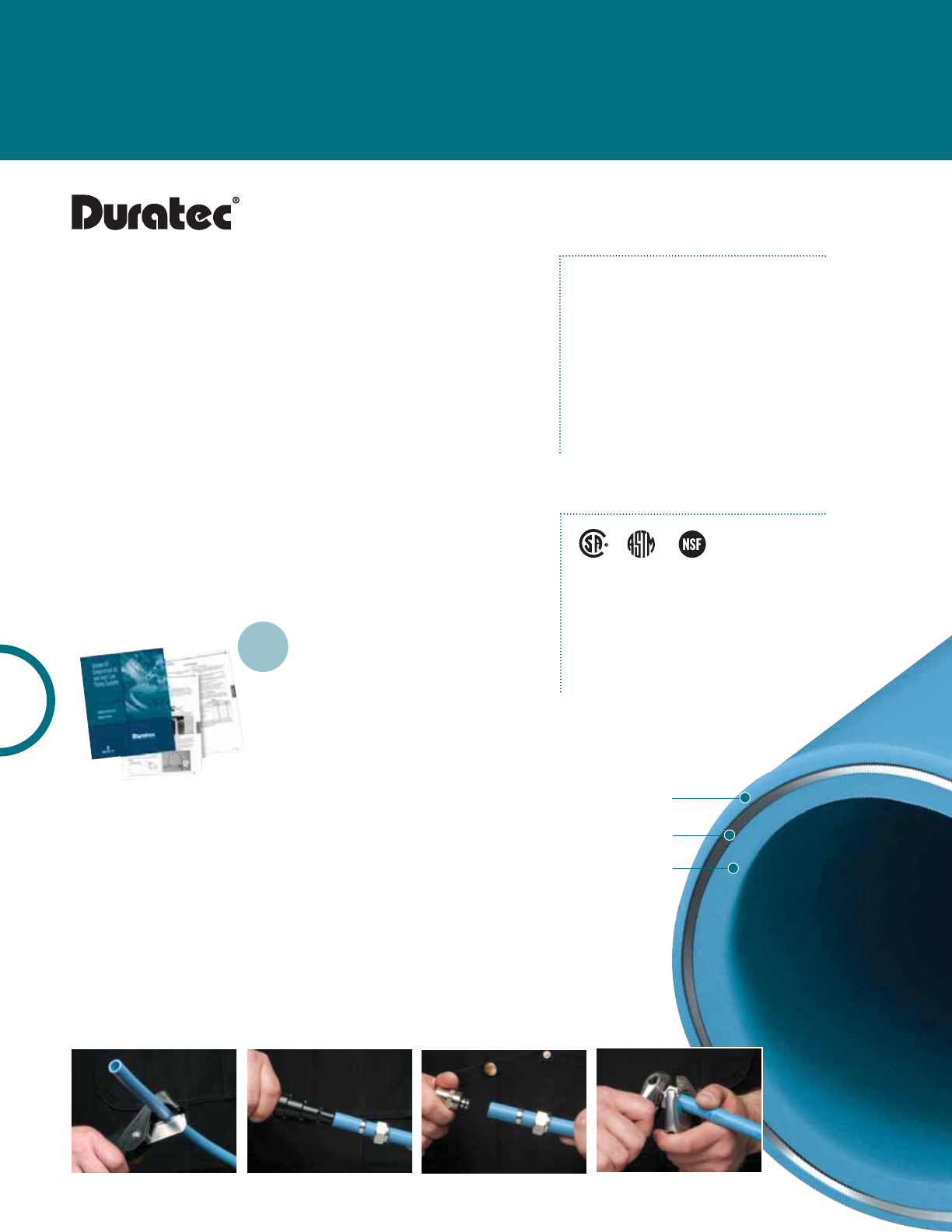

Duratec Airline

107

119

SPECIALTY PRODUCTS

Ventilation Duct

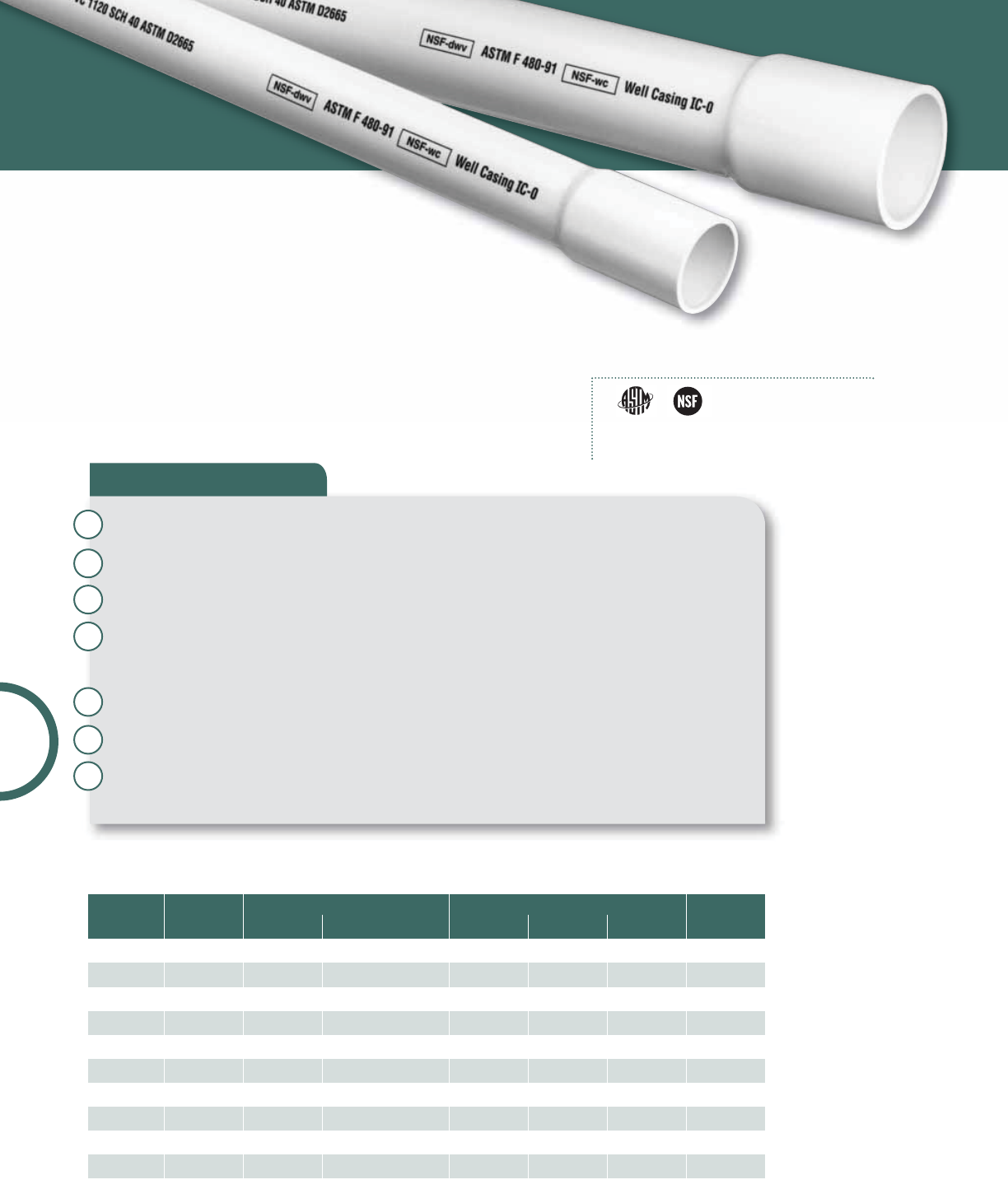

Well Casings

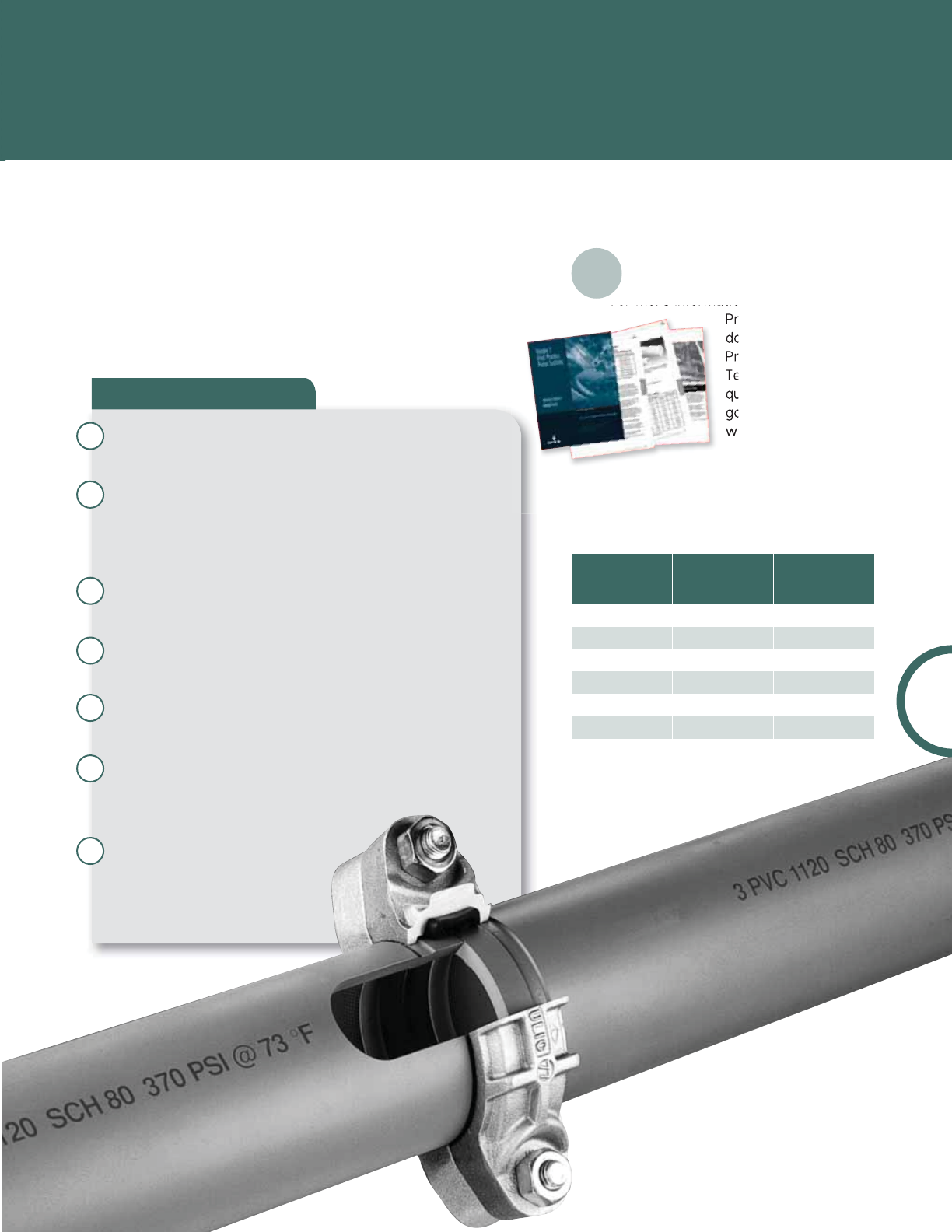

Grooved PVC Pipe

169

MUNICIPAL PRODUCT LINE SHEET

175

MECHANICAL PRODUCT LINE SHEET

177

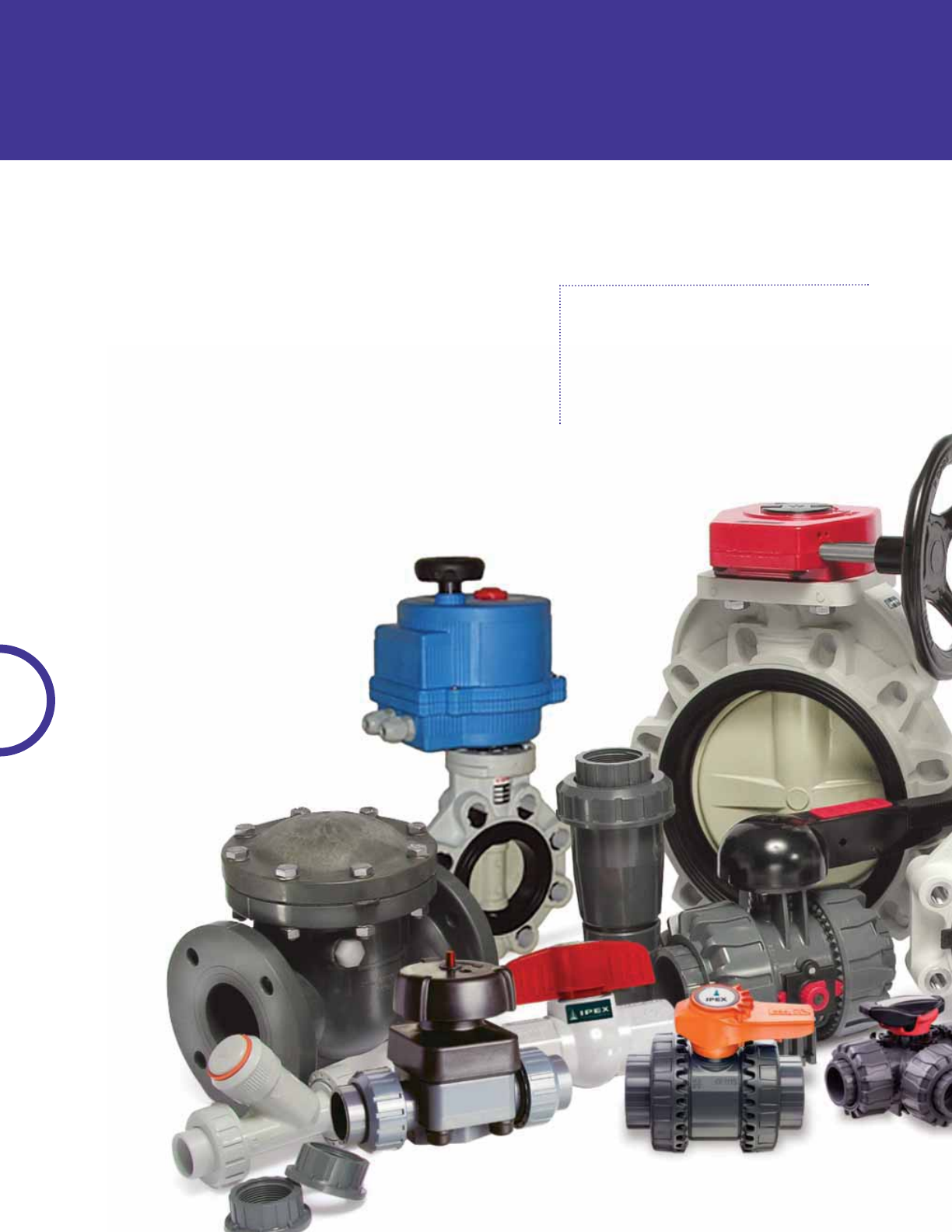

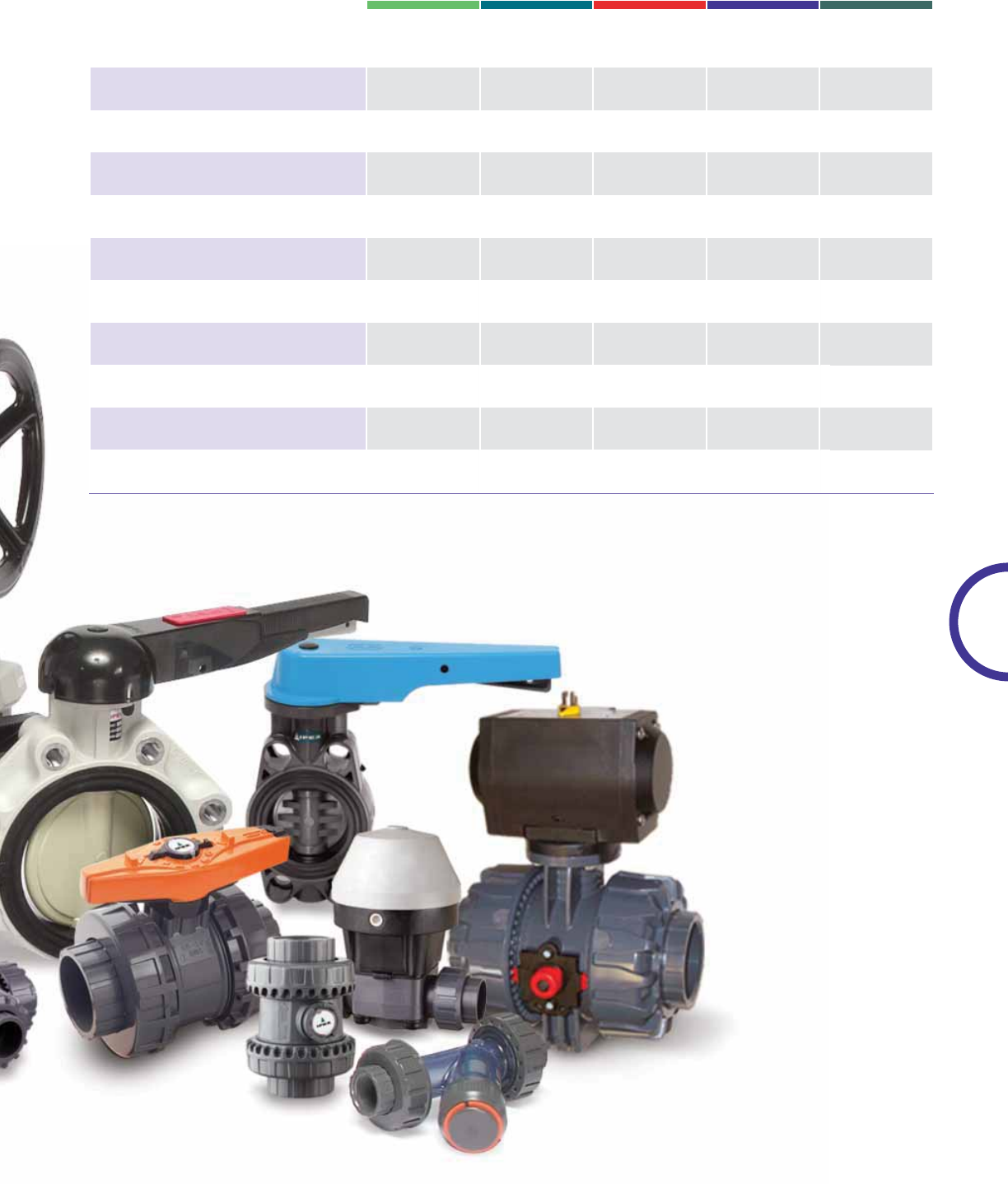

THERMOPLASTIC VALVES

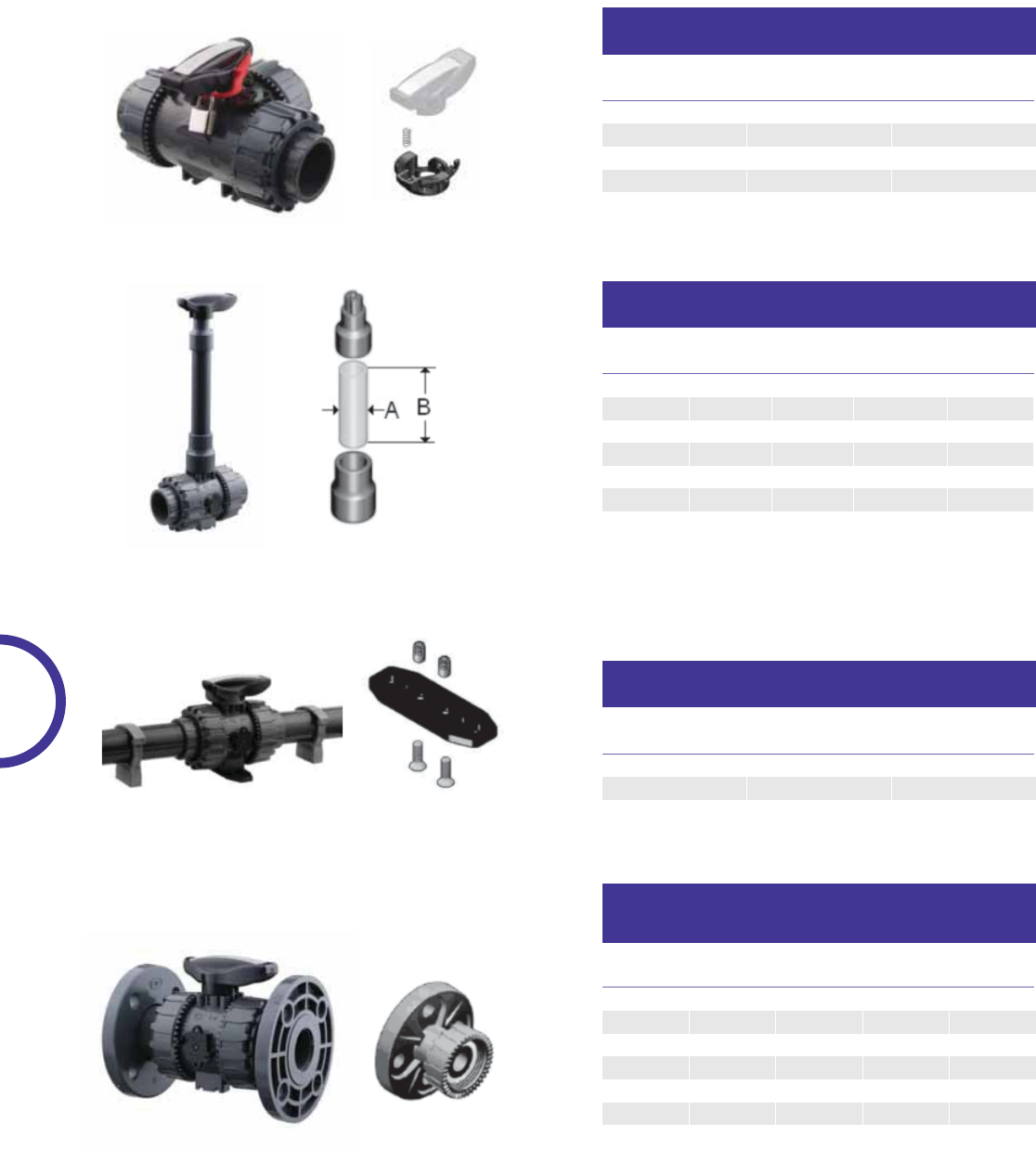

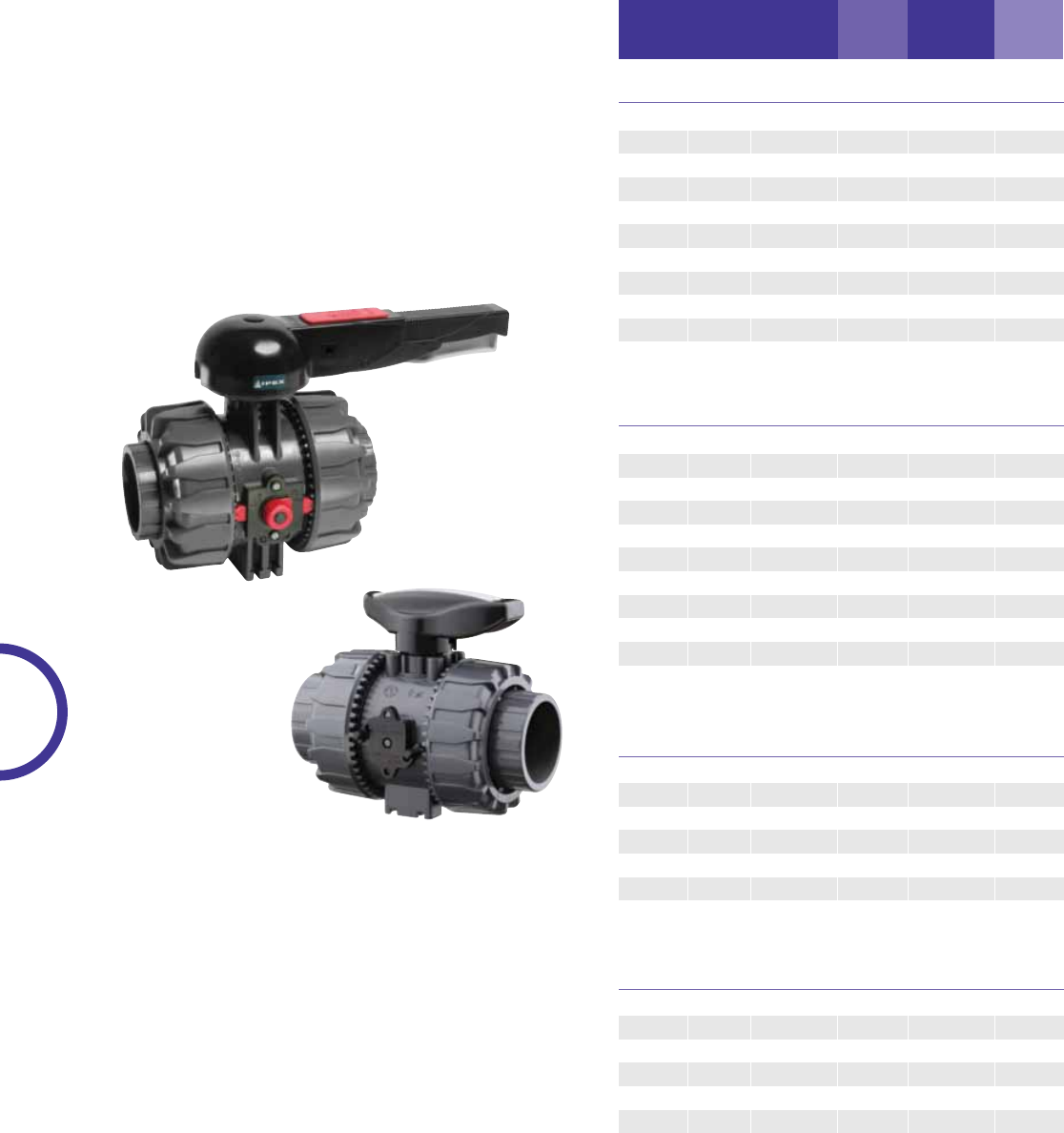

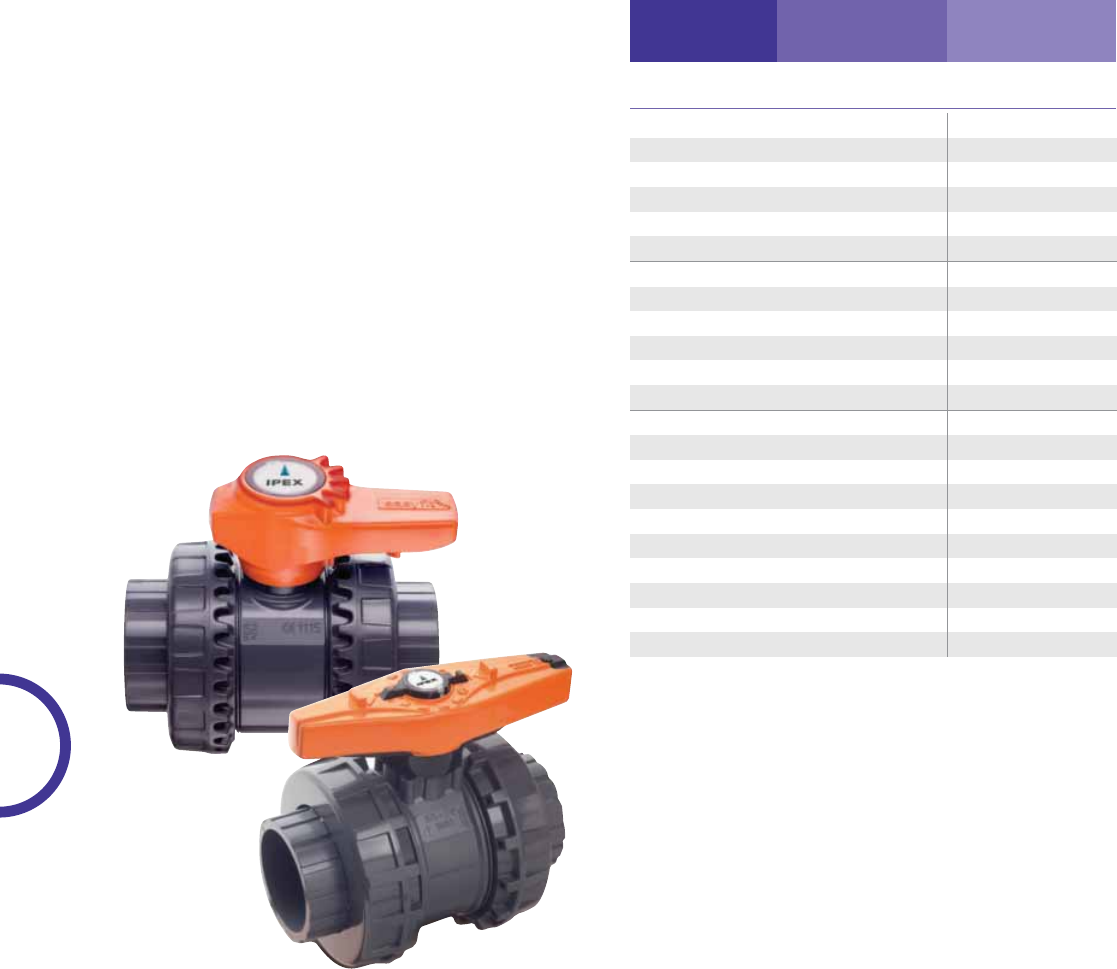

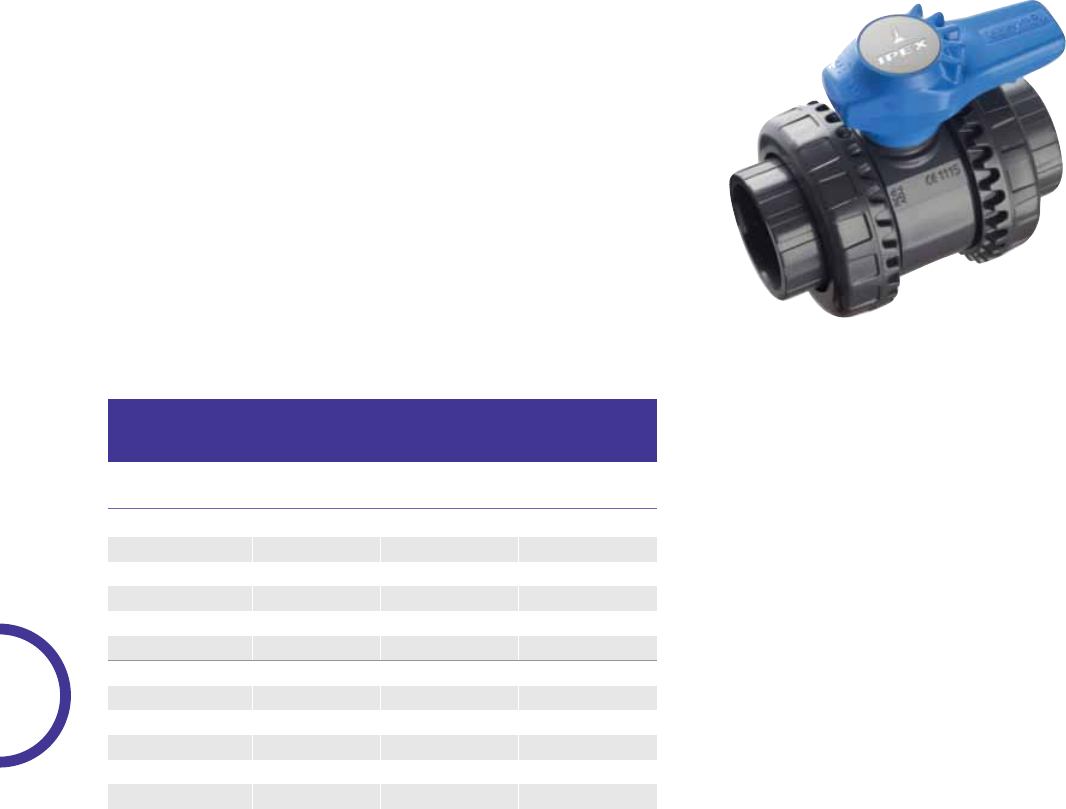

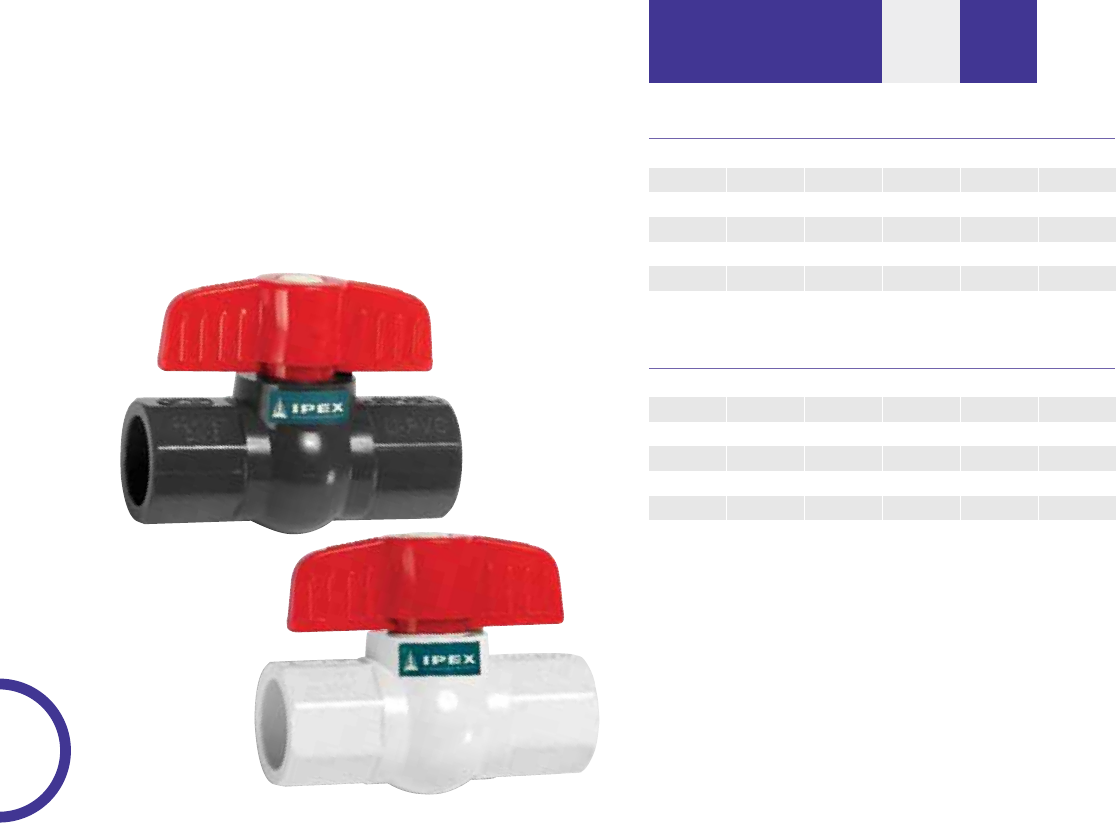

Ball Valves

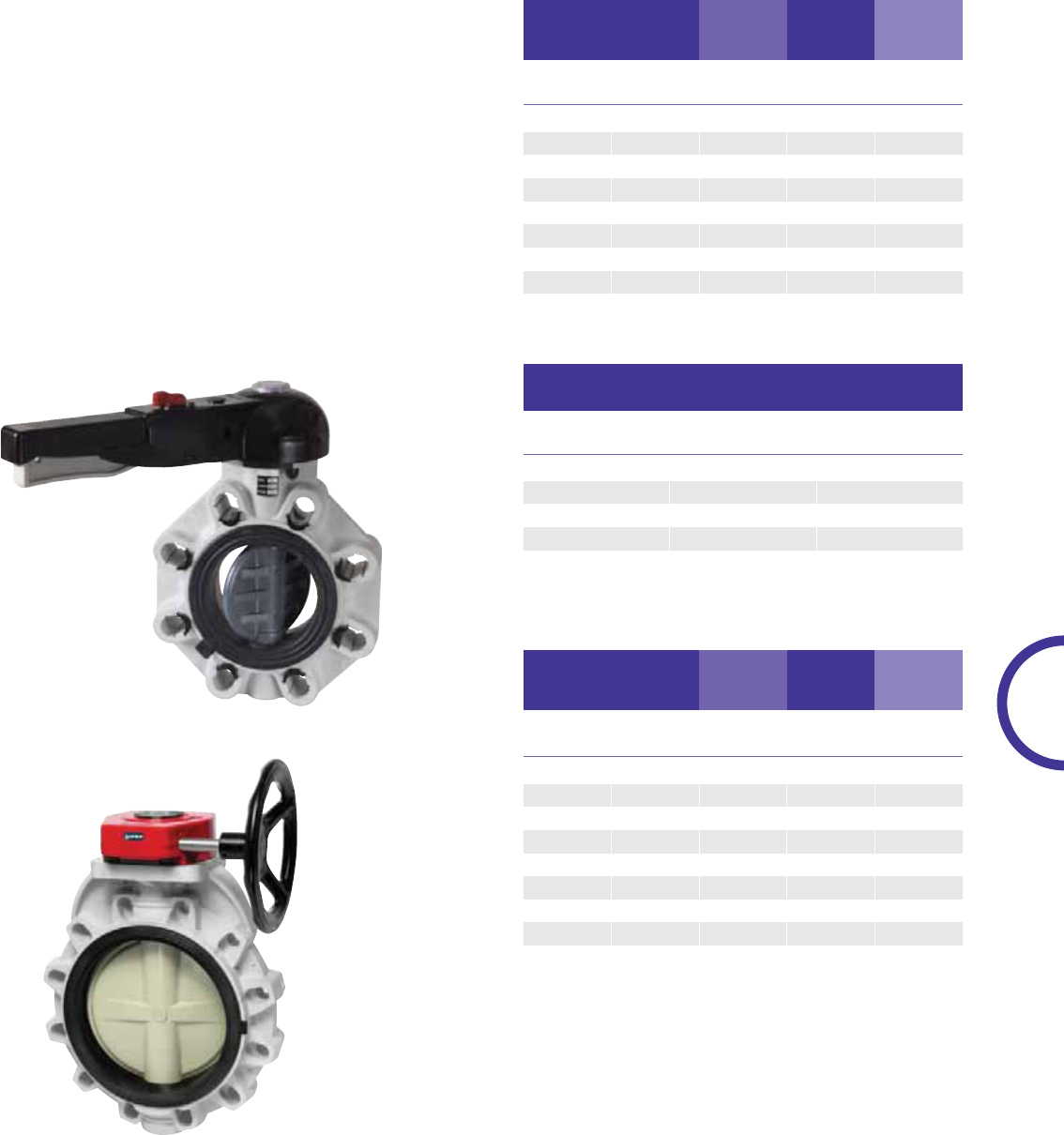

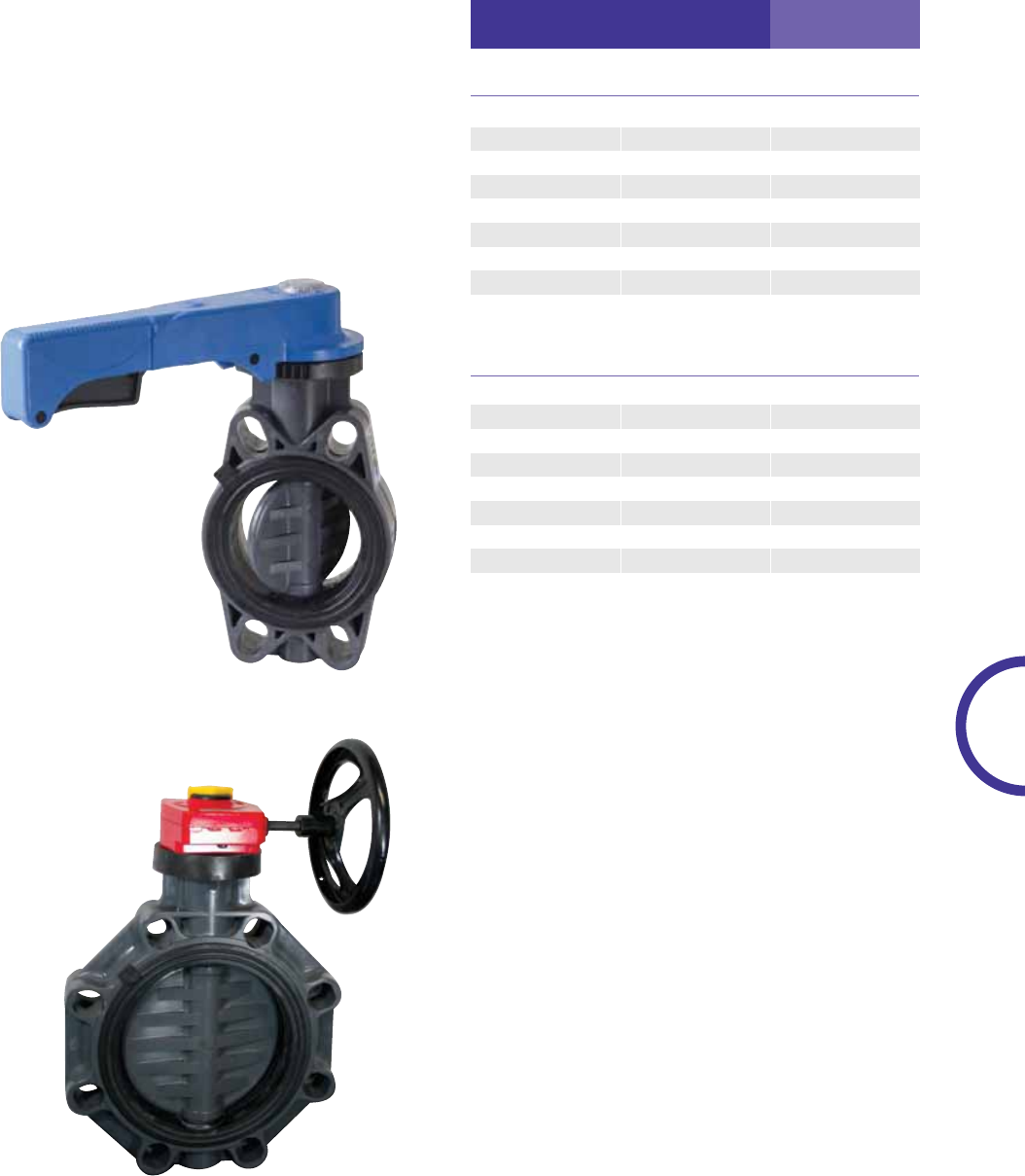

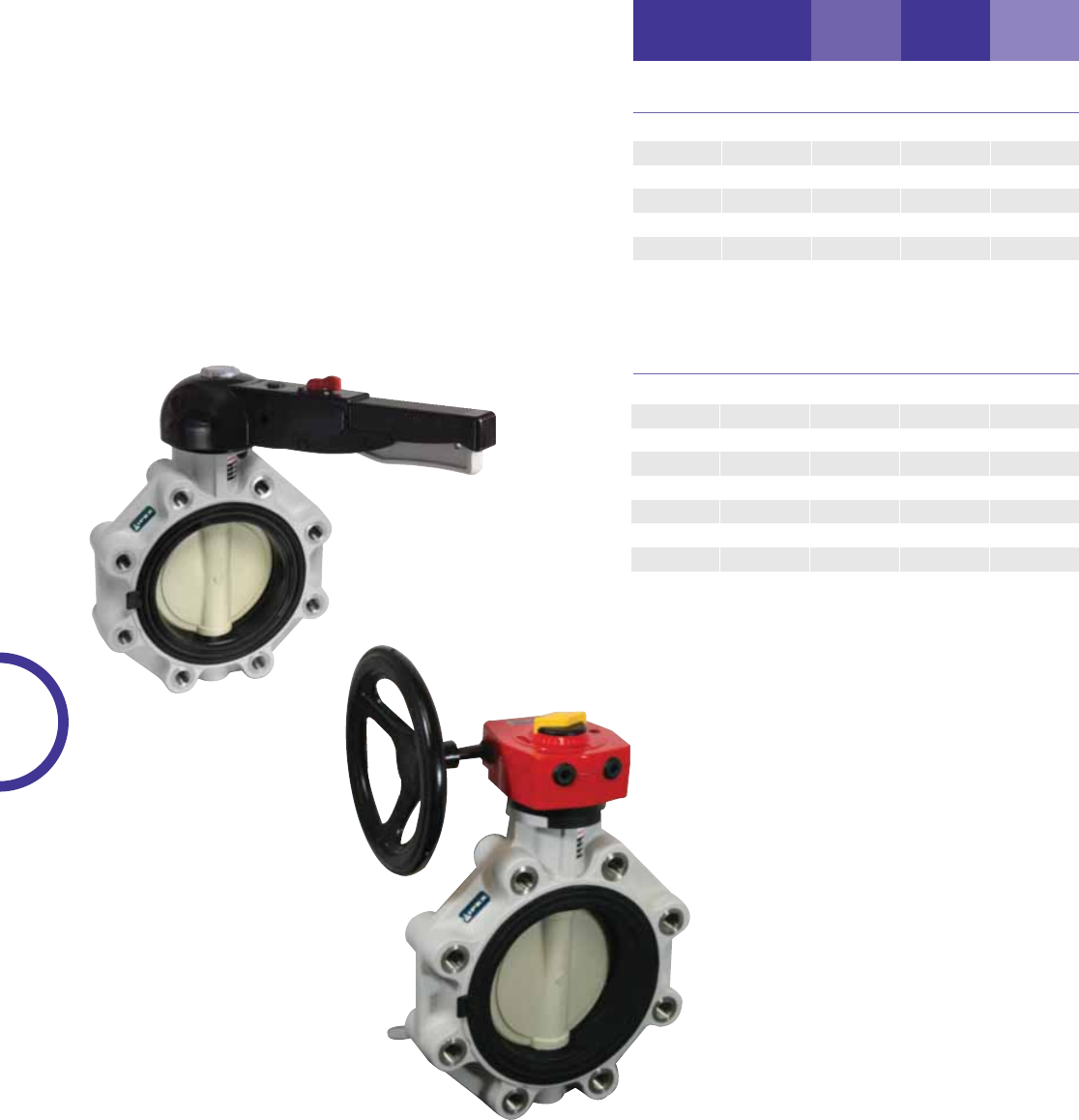

Butterfly Valves

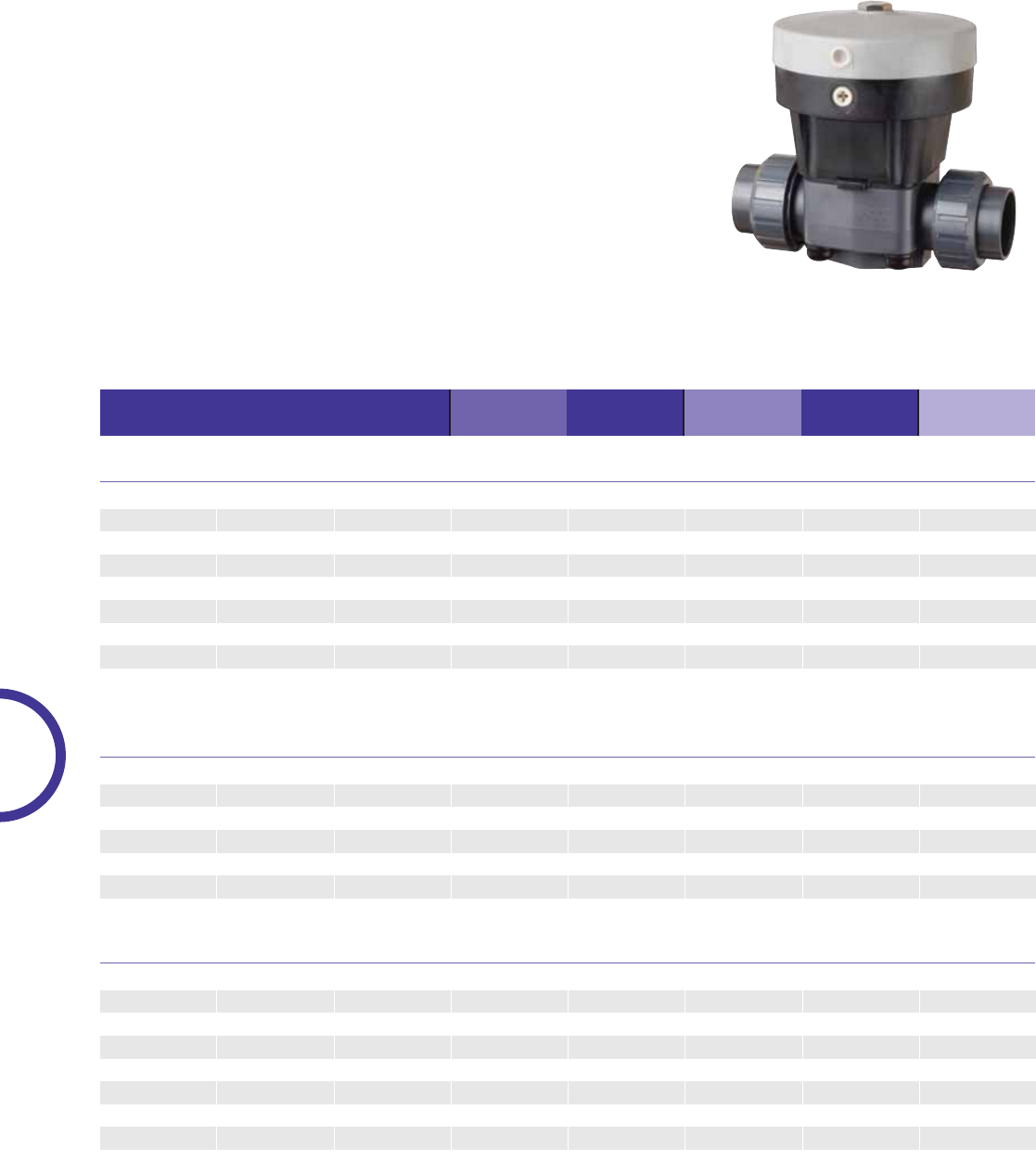

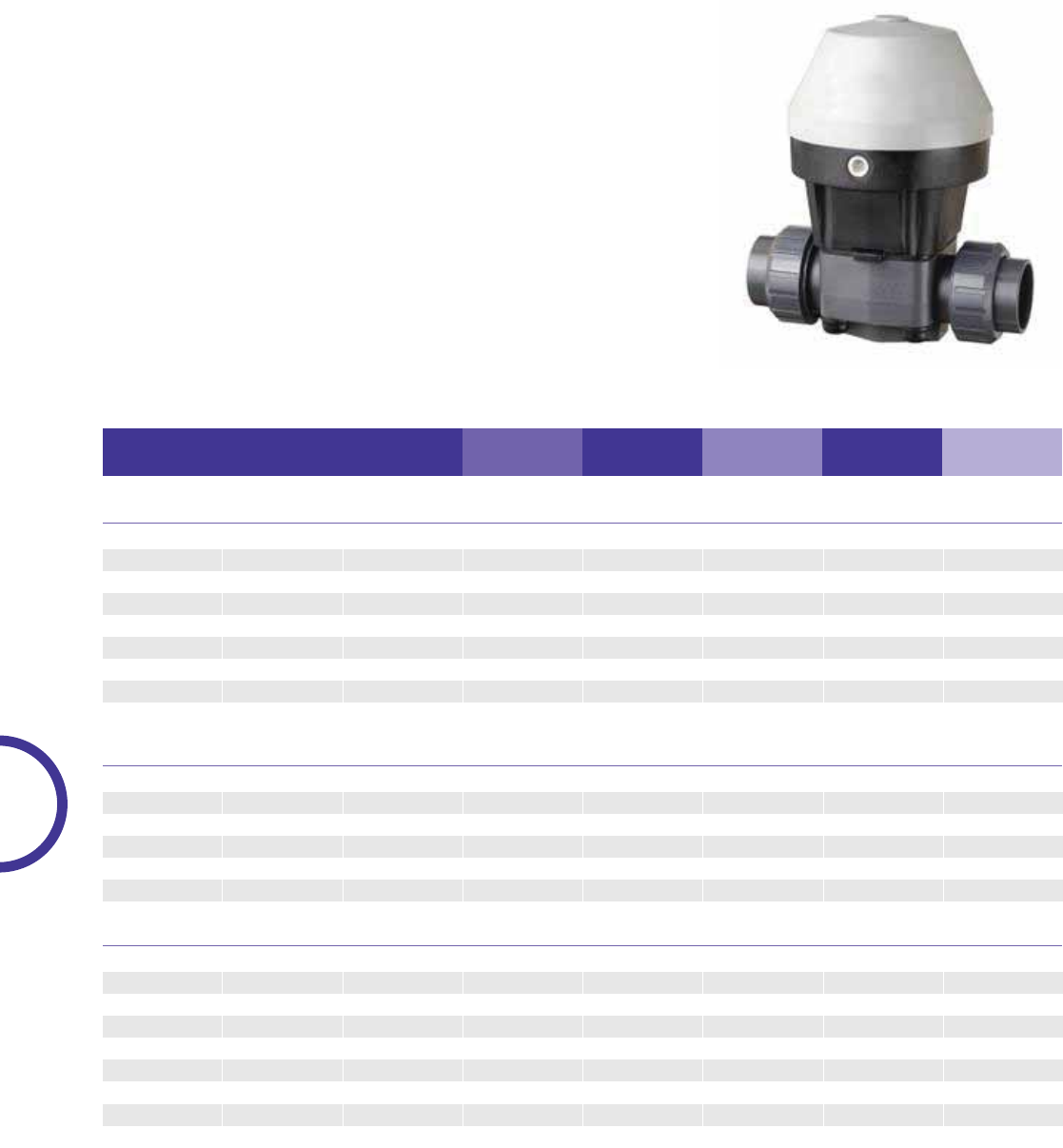

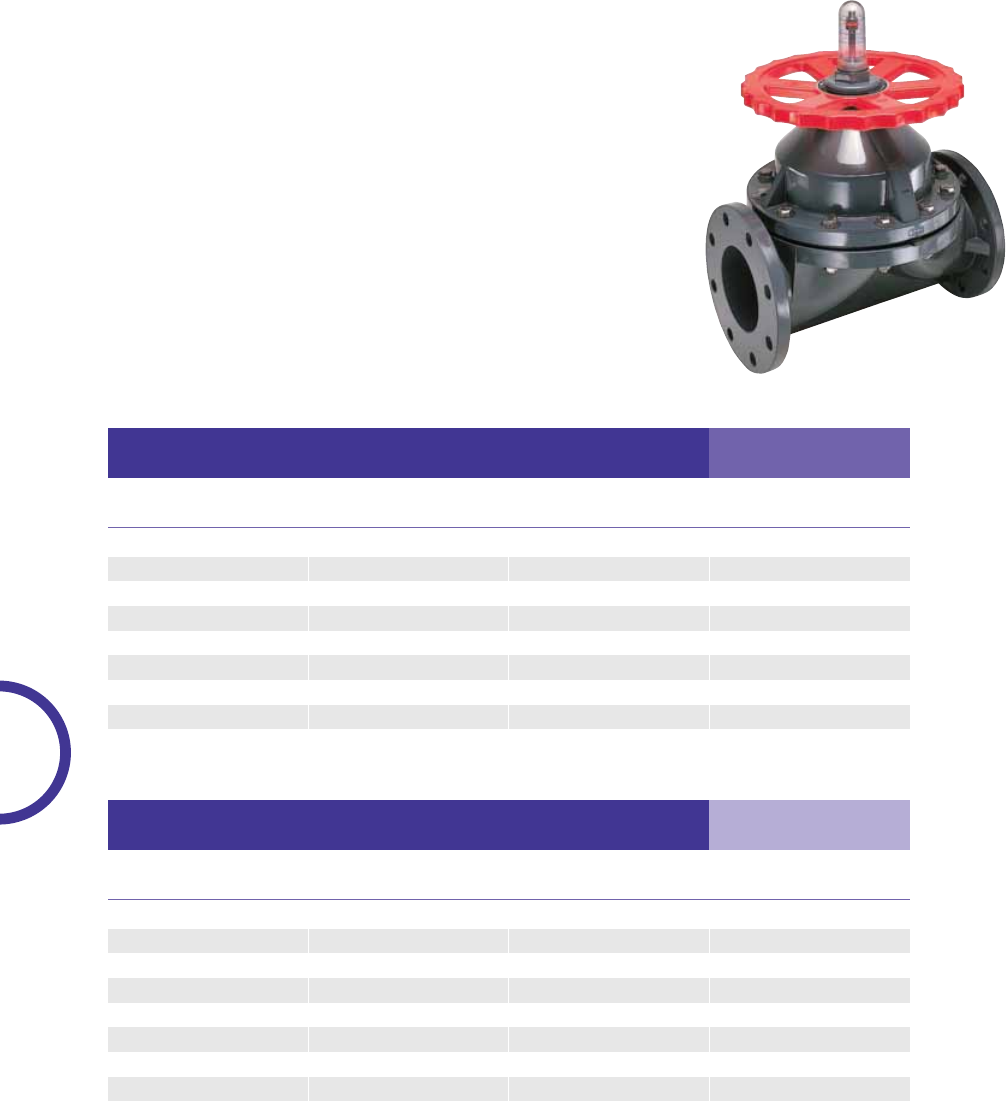

Diaphragm Valves

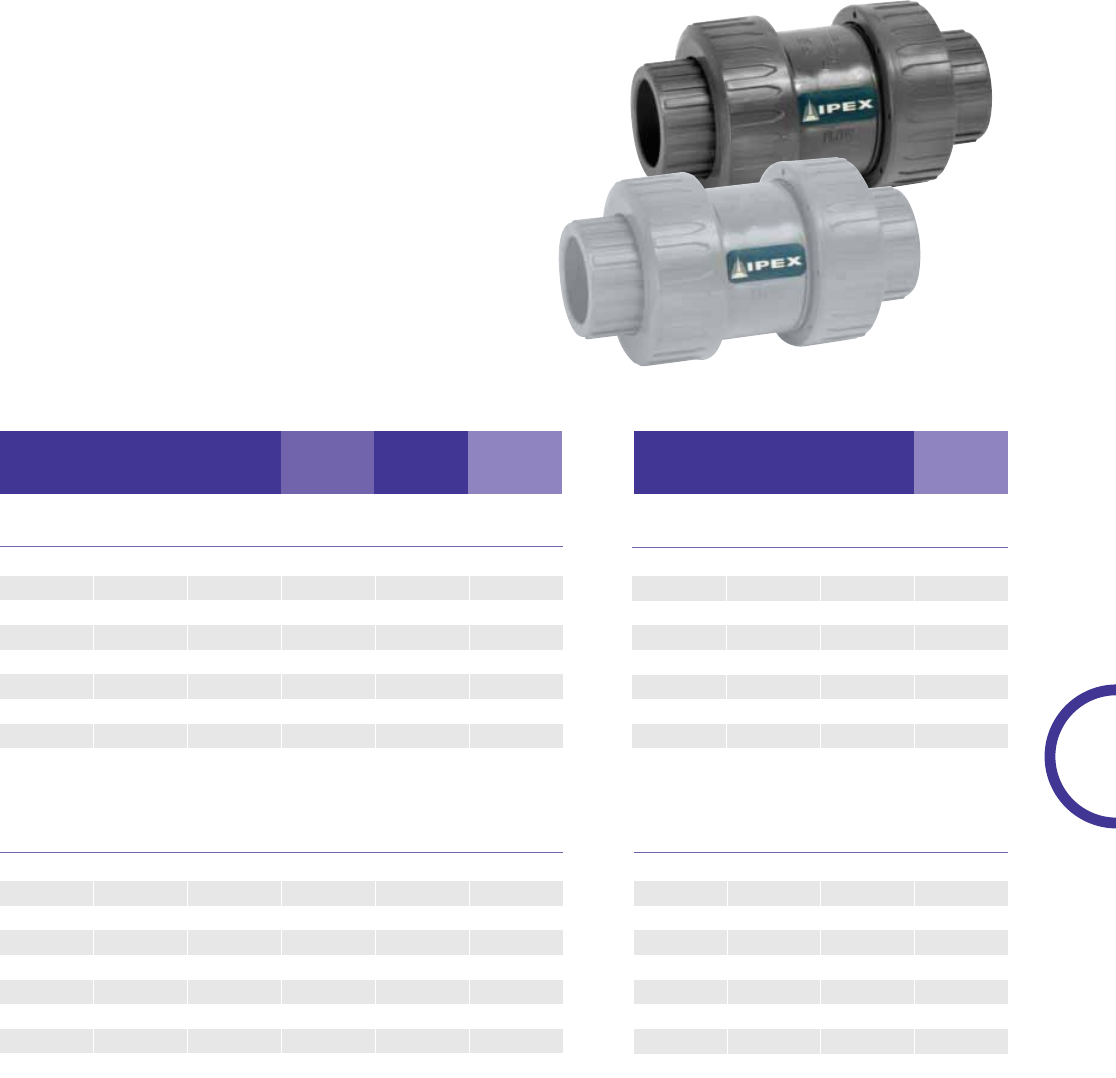

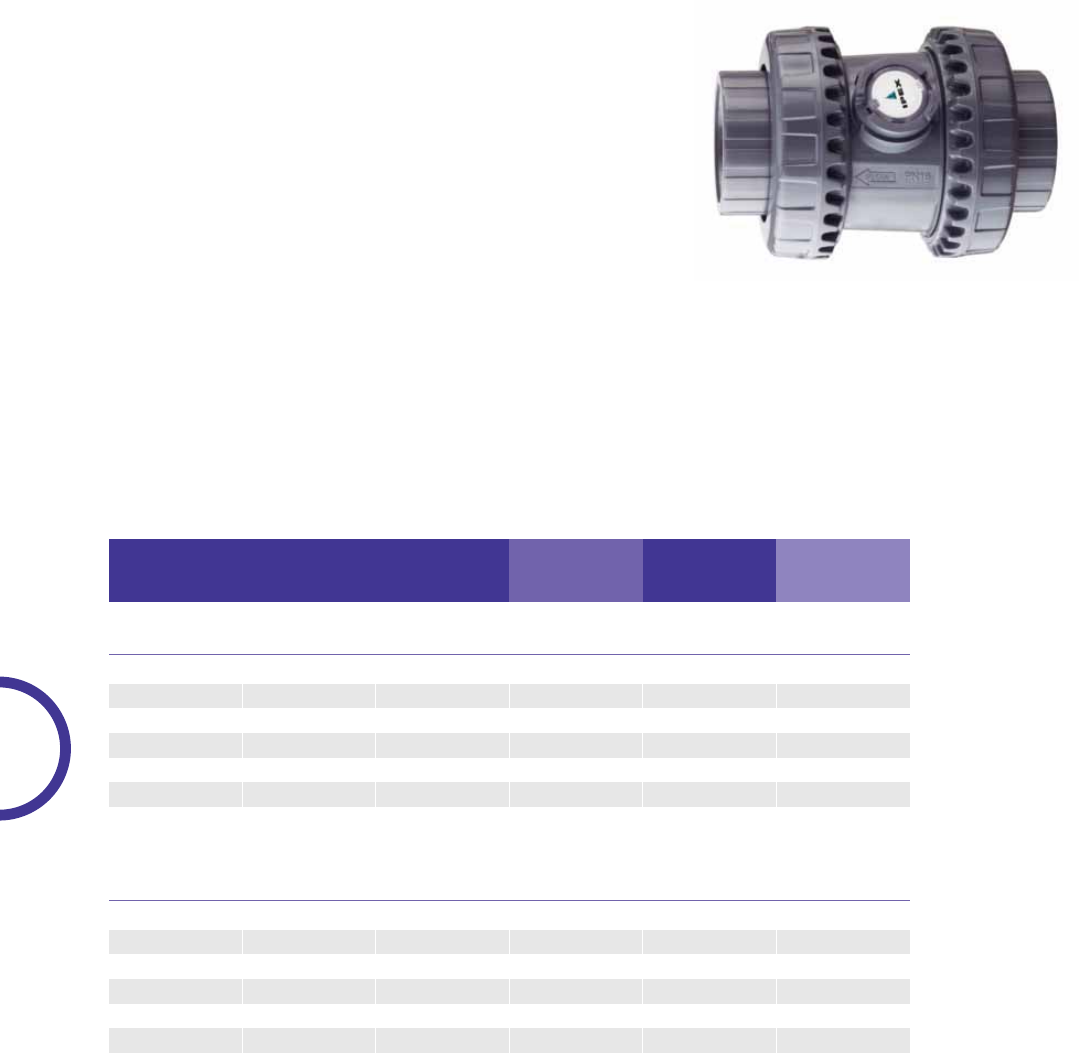

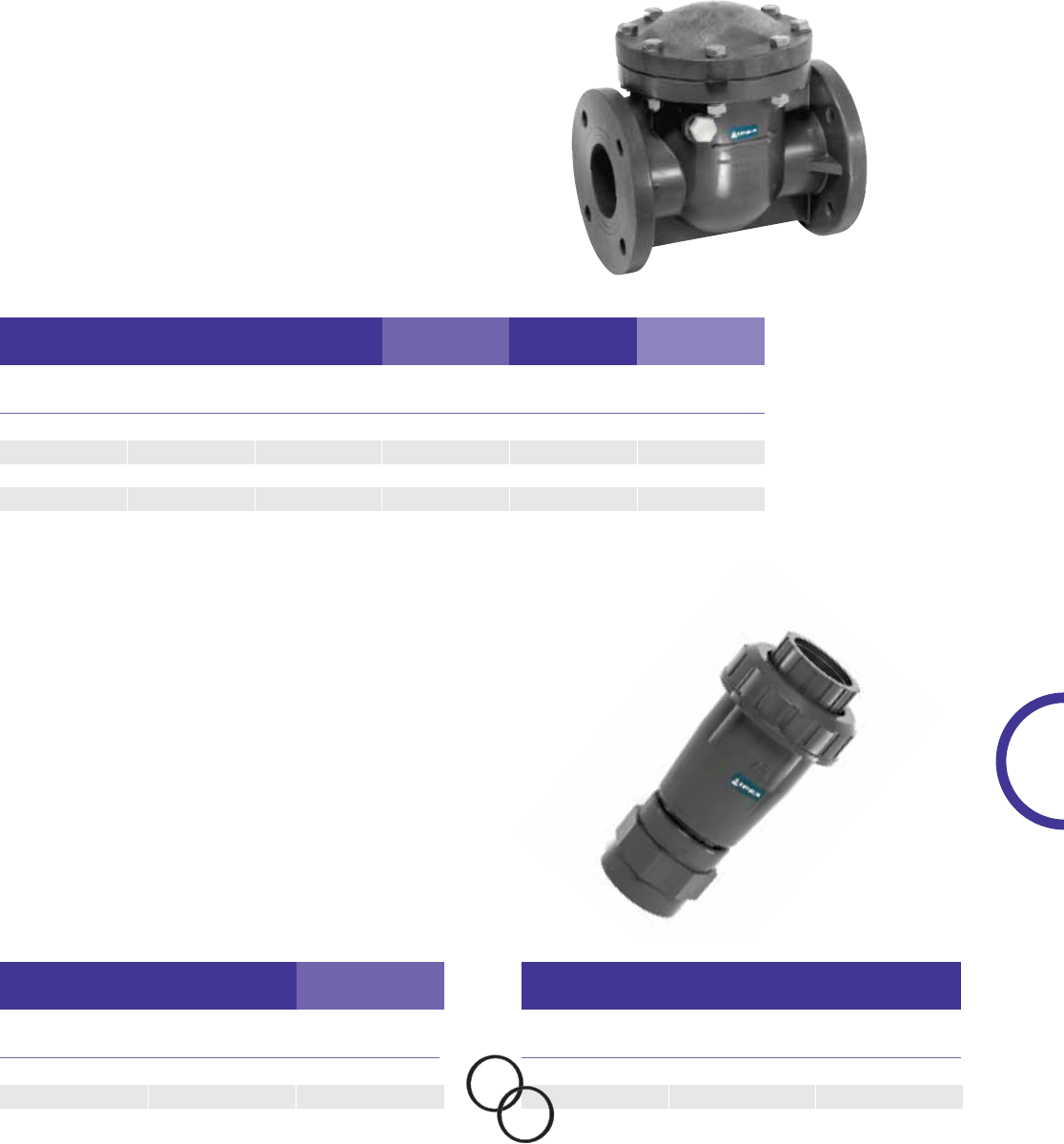

Check & Vent Valves

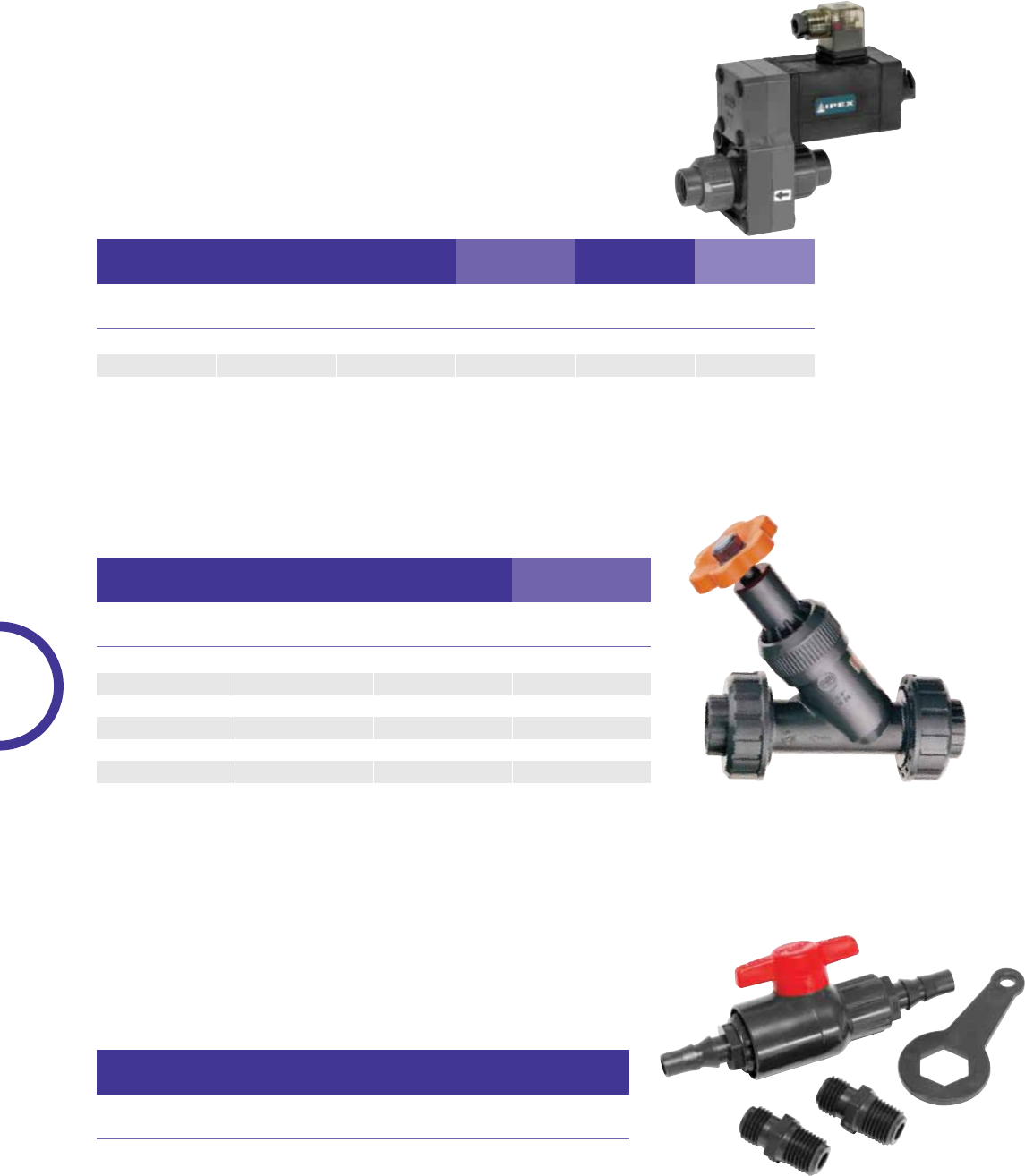

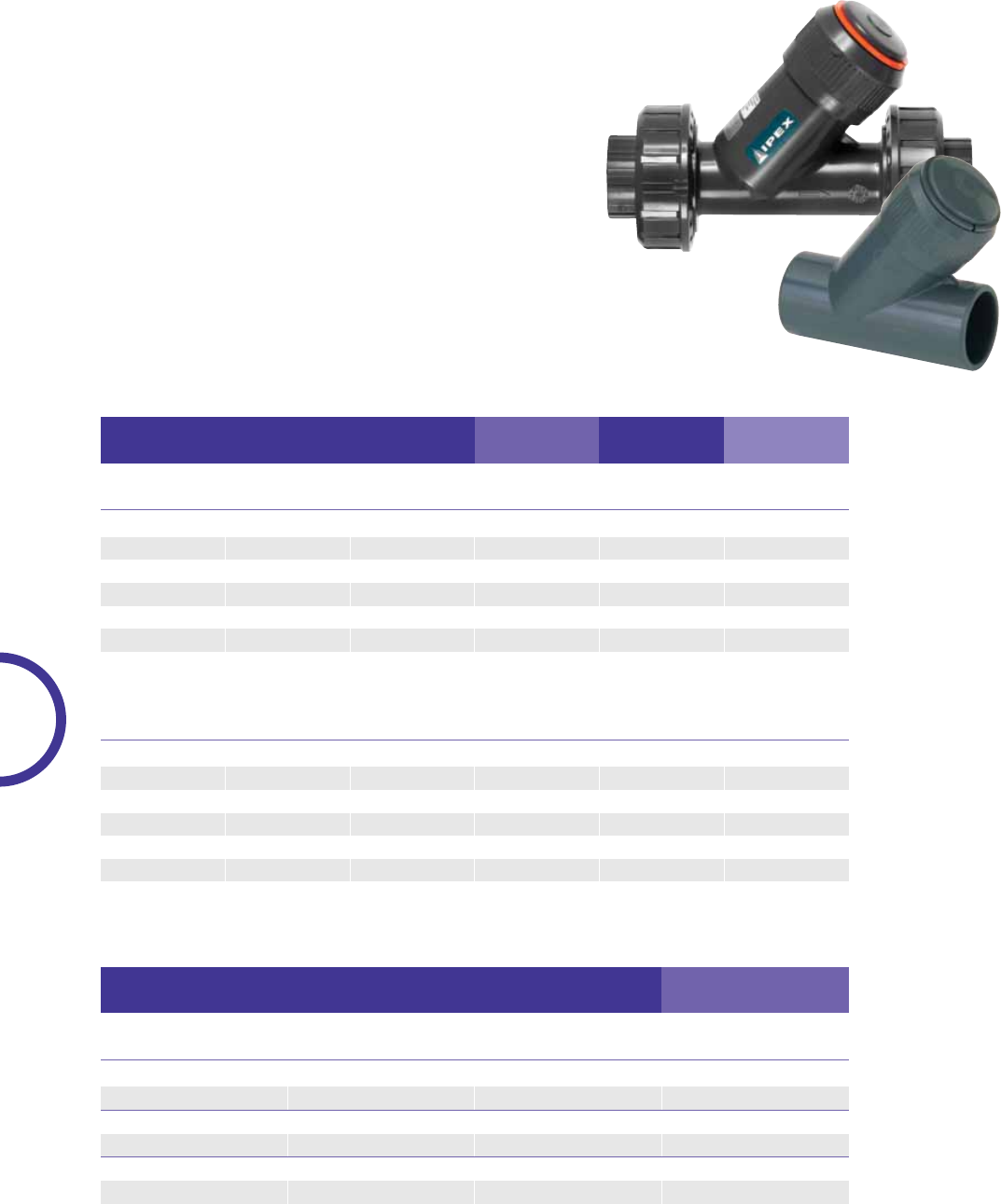

Specialty Valves

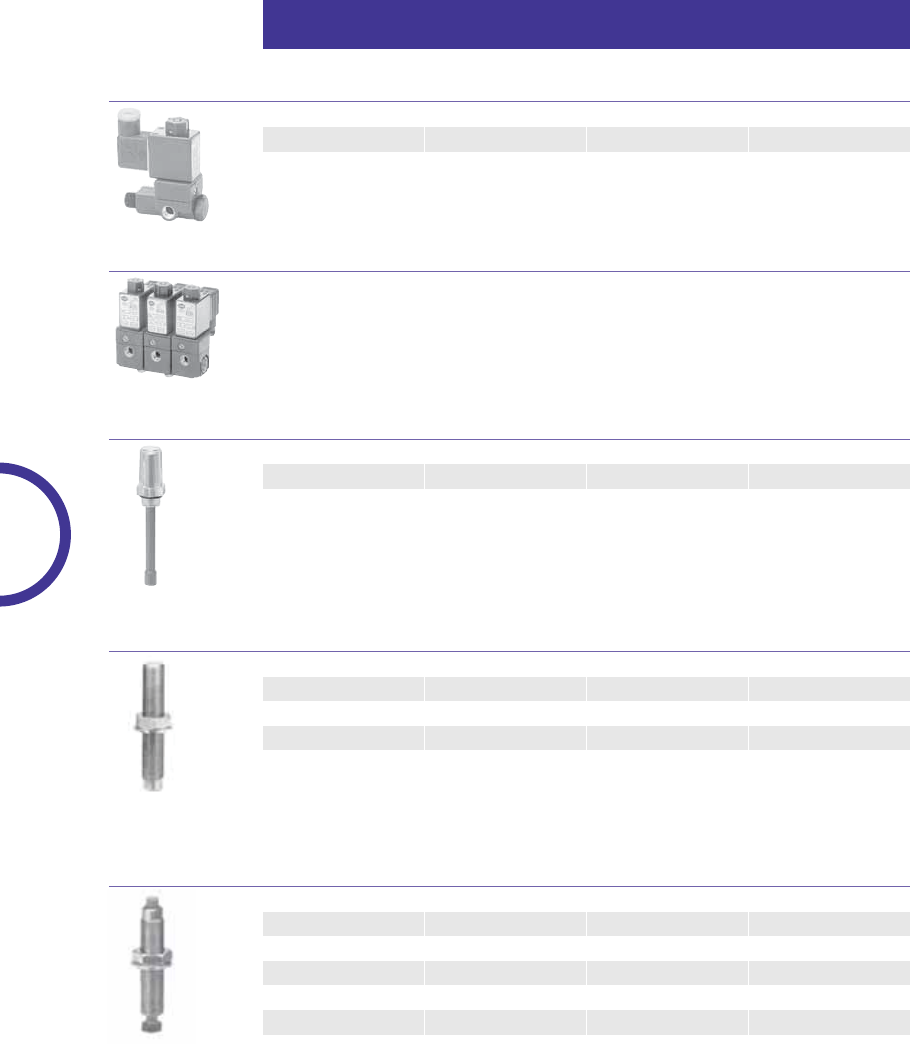

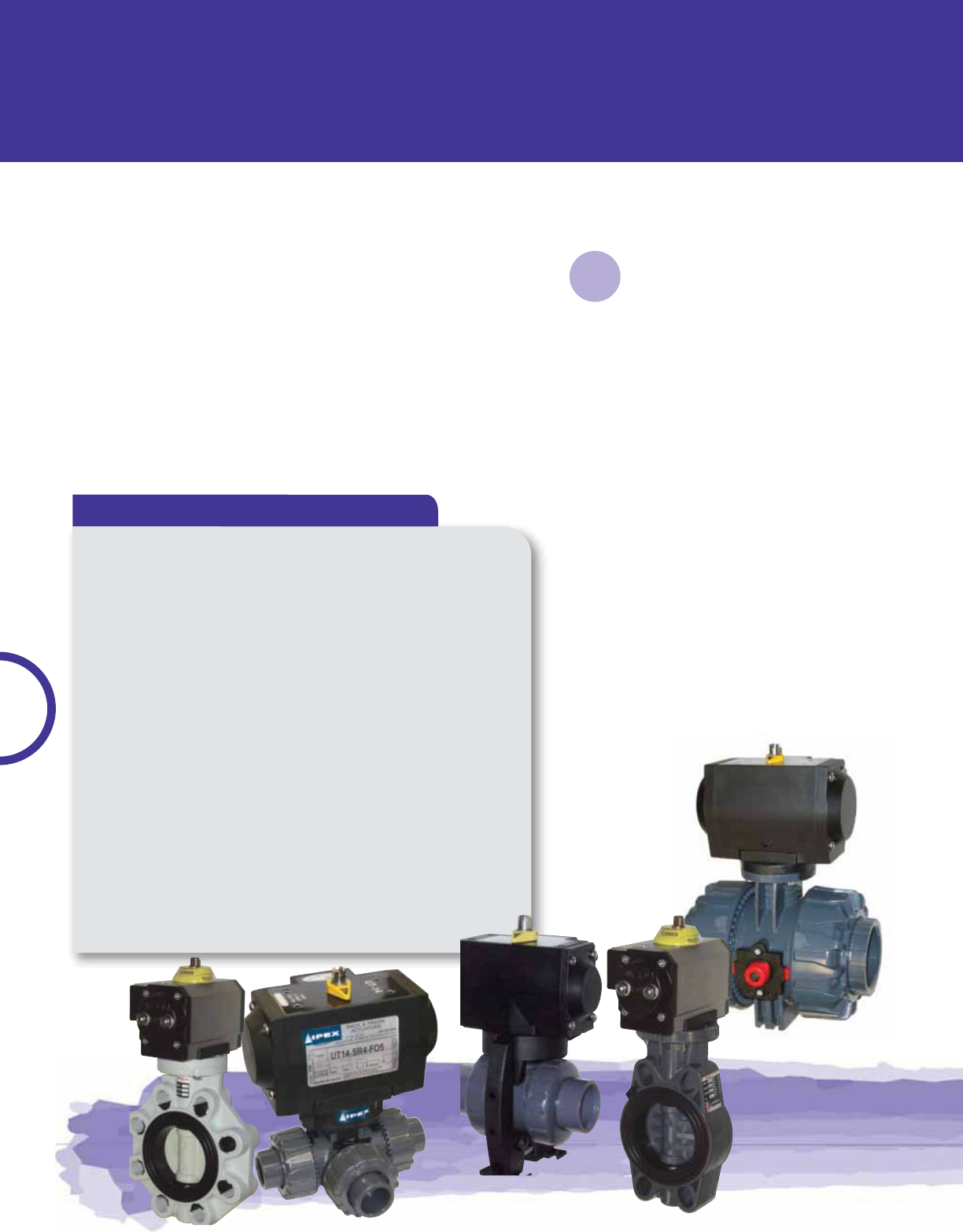

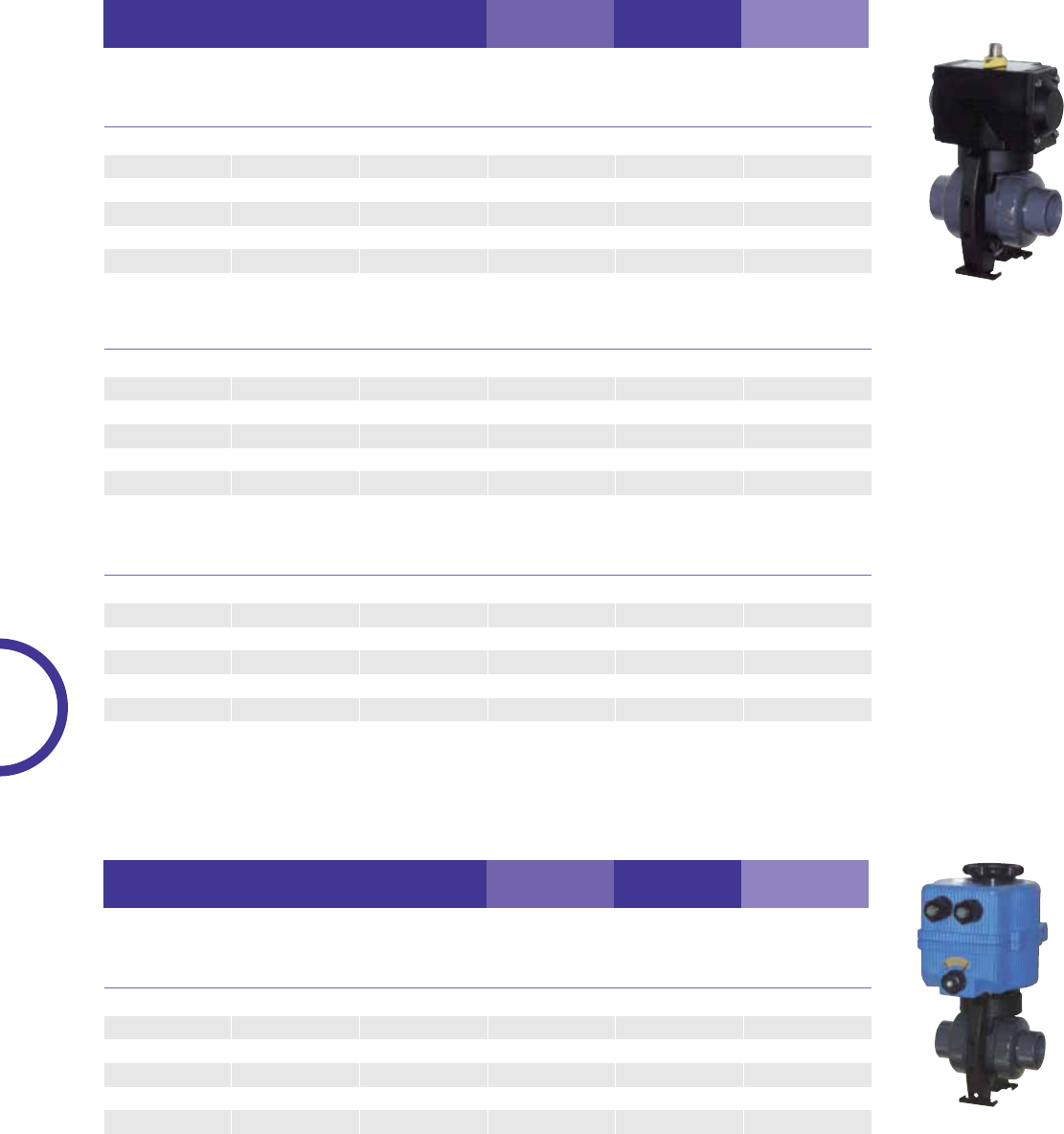

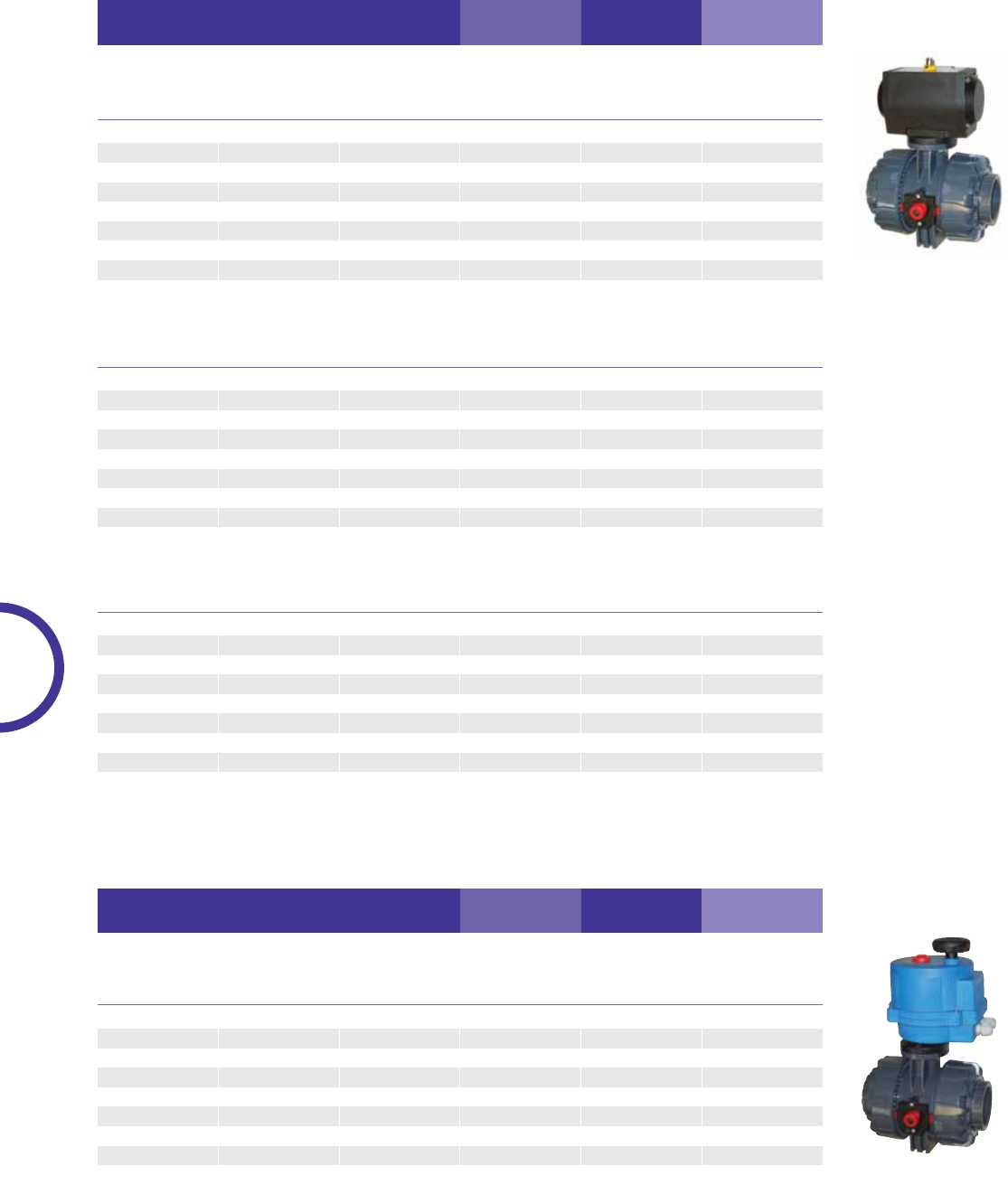

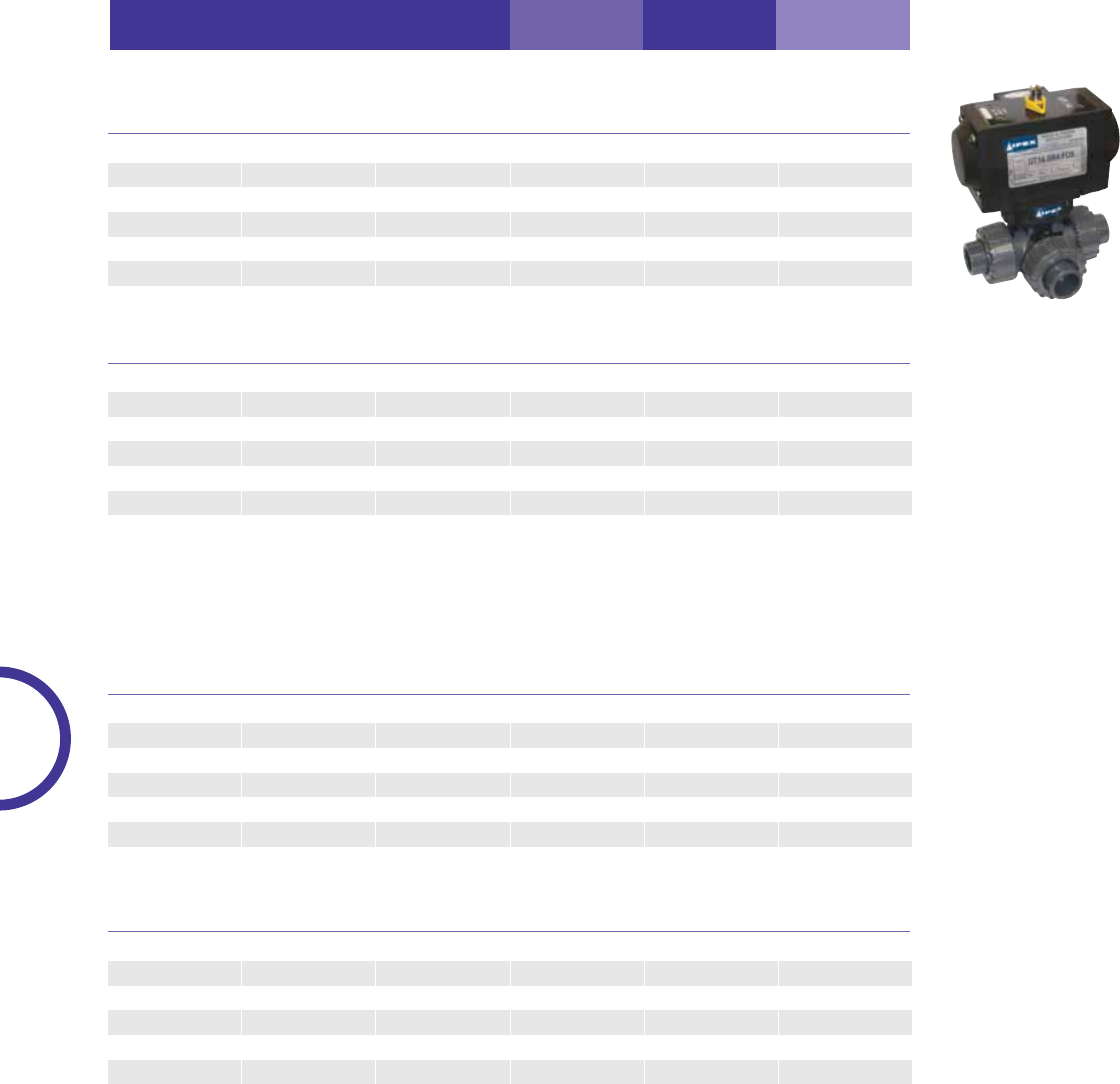

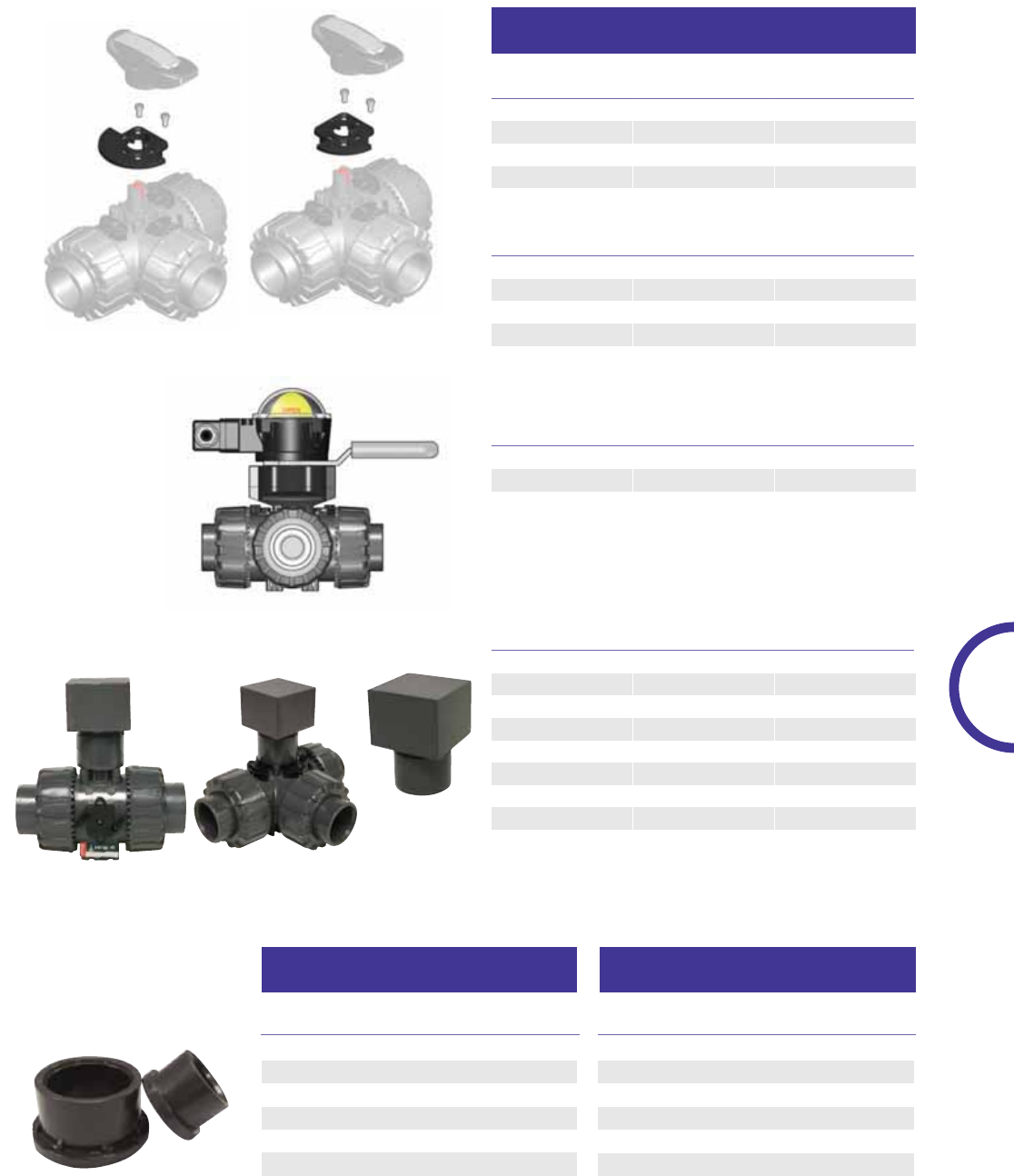

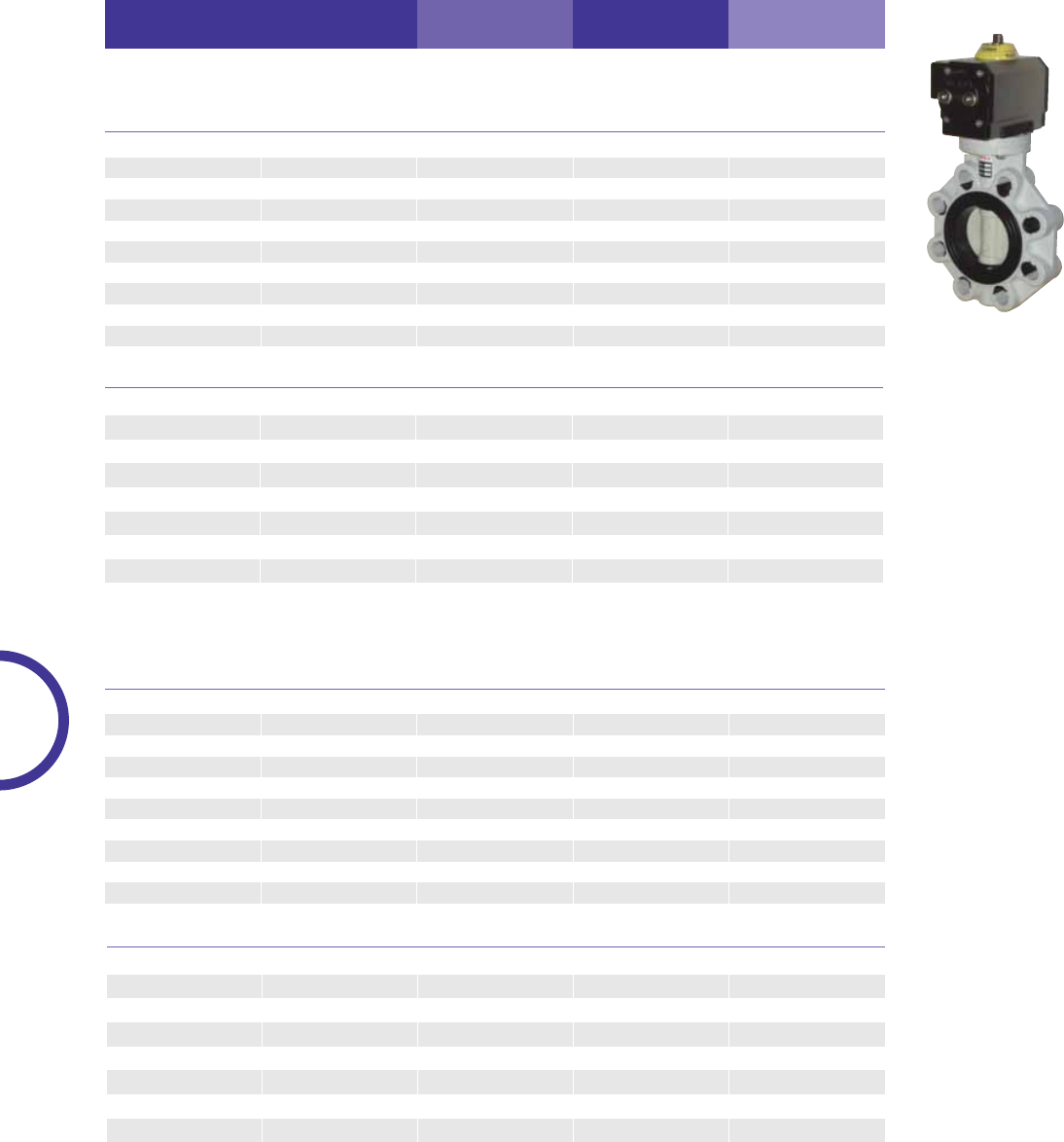

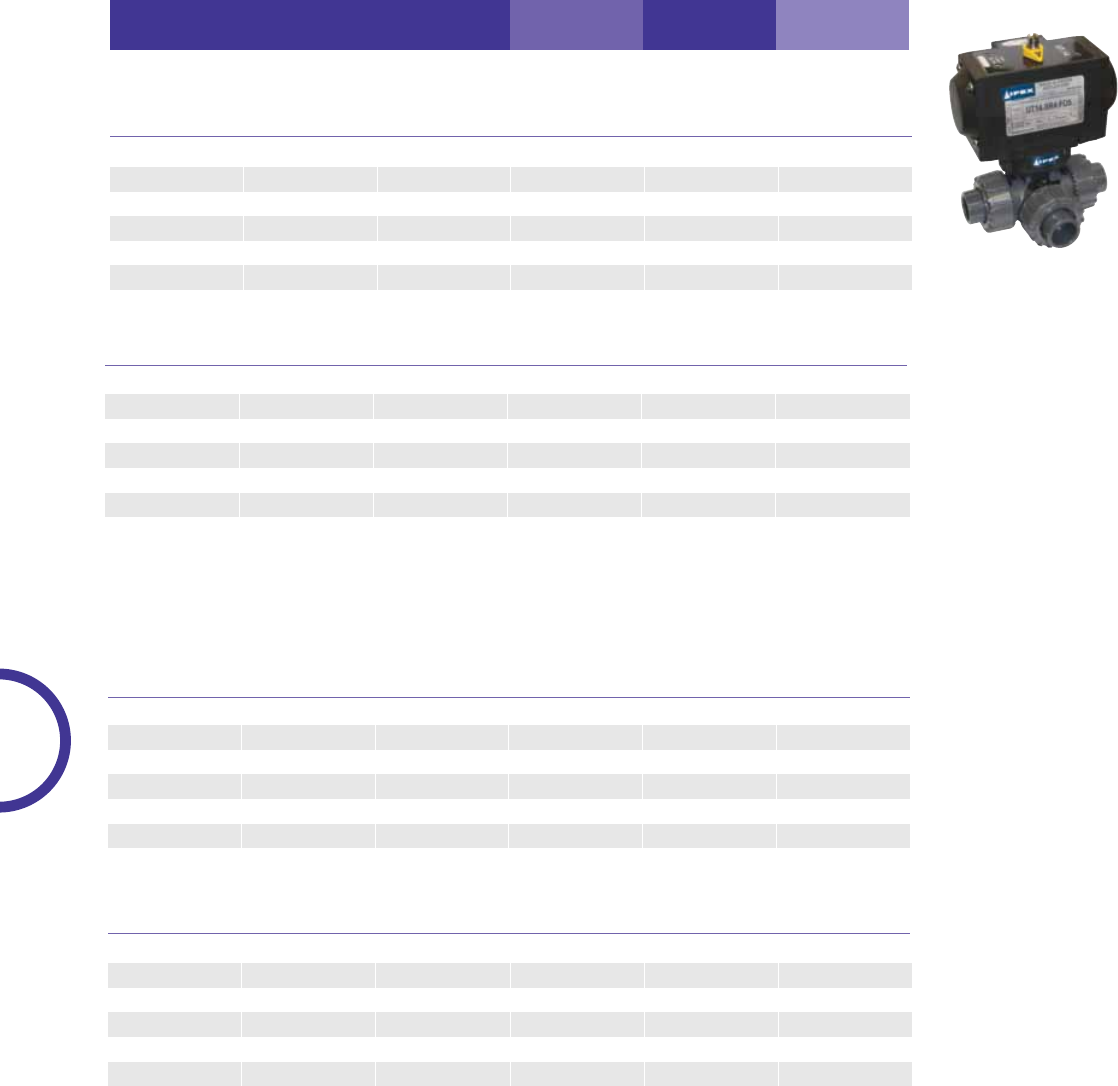

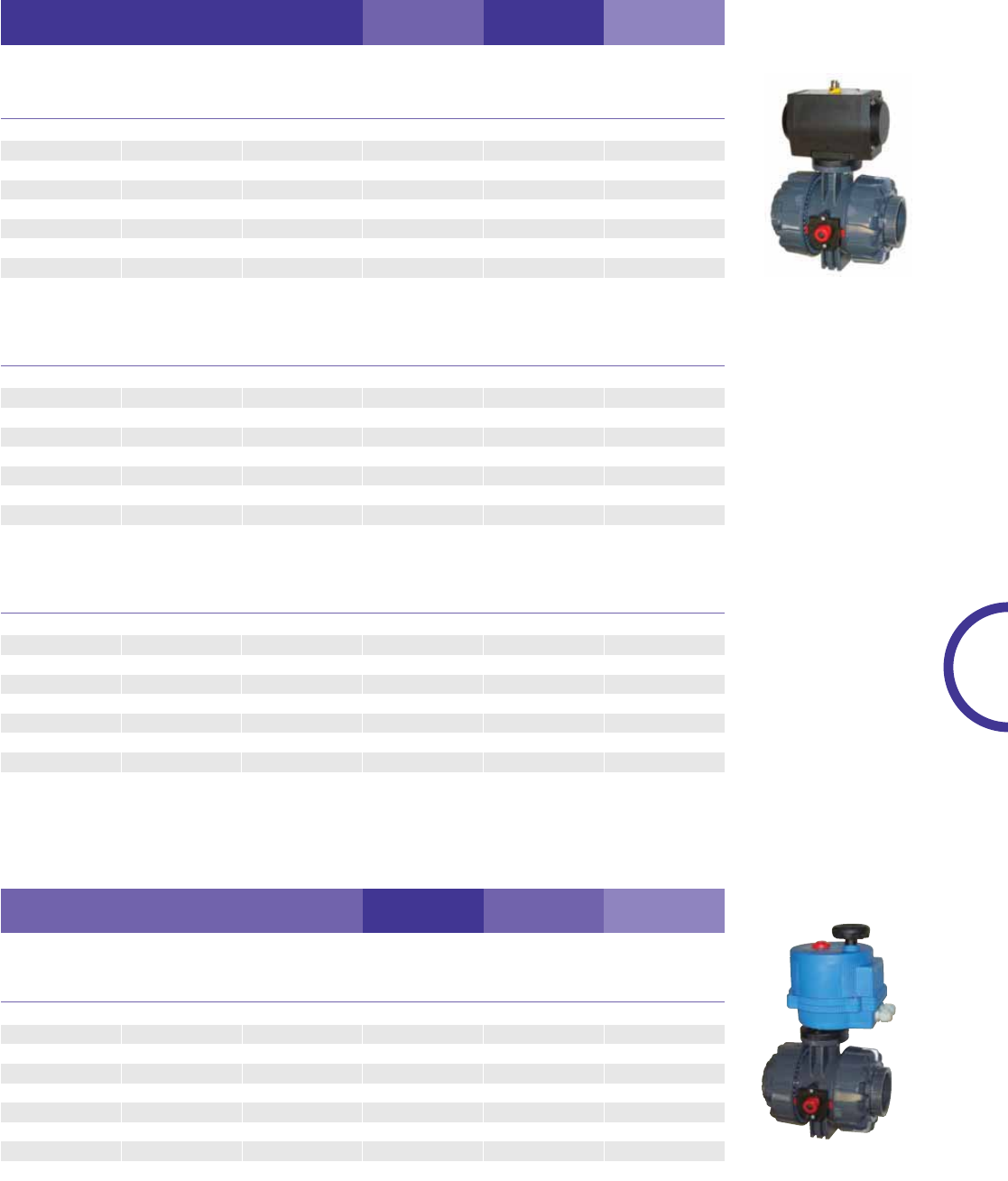

Quarter Turn Automation

PHYSICAL PROPERTIES

PVC (POLYVINYL CHLORIDE) CPVC (CHLORINATED POLYVINYL CHLORIDE)

* The properties listed in this table represent general material properties and should be used as a guideline only.

PROPERTIES

MATERIALS

PVC CPVC

(STANDARD) CORZAN CPVC

(HIGH IMPACT) STANDARDS

Cell classification 12454 23447 24448 ASTM D1784

Specific gravity 1.42 1.50 1.51 ASTM D792

Tensile strength, psi at 73°F 7,000 7,500 7,320 ASTM D638

Modulus of elasticity tensile, psi at 73°F 400,000 380,000 423,000 ASTM D638

Flexural strength, psi 14,500 11,400 13,200 ASTM D790

Izod impact, ft.lbs./in. at 73°F, notched 0.65 2.0 10.0 ASTM D256

Compressive strength, psi 9,000 10,100 10,100 ASTM D695

Poisson’s ratio 0.38 0.33 0.33

Working stress, psi at 73°F 2,000 2,000 2,000

Coefficient of thermal expansion in./in./°F (x 10-5)3.0 3.8 3.4 ASTM D696

Linear expansion, in./10°F per 100' of pipe 0.36 0.44 - 0.46 0.41

Maximum operating temperature under pressure 140°F (60°C) 200°F (93°C) 200°F (93°C)

Deflection temperature under load, °F at 66 psi 173 n/a n/a ASTM D648

Deflection temperature under load, °F at 264 psi 160 212 239 ASTM D648

Thermal conductivity, BTU.in./hr.ft2.°F 1.2 0.95 0.95 ASTM C177

Burning rate Self extinguish Self extinguish Self extinguish ASTM D635

Burning class V-0 V-0 V-0 UL-94

Flash ignition, °F 730 900 900

Limited oxygen index (%) 43 60 60 ASTM D2863-70

Water absorption, %, (24 hrs. at 73°F) 0.05 0.03 0.03 ASTM D570

IPEX offers a comprehensive range of integrated process piping systems –

pipe, fittings and valves in PVC, CPVC, polypropylene and ABS – designed

to meet the temperature, pressure and size requirements of a wide range of

chemical processing and similar industrial applications.

In addition to costing less than common and exotic metal systems, IPEX

thermoplastic process piping systems are lightweight, as well as easy to

handle, store, cut and join, so transportation and installation cost are

substantially lower.

When you specify a high-performance process piping system from IPEX, you

get the added benefits of a complete piping solution that is engineered for

total integration, and backed by comprehensive, coast-to-coast support –

all from one reliable source.

Xirtec PVC & Corzan CPVC

Clear-Guard Clear PVC Pipe

Corzan HP

Enpure High Purity

Duraplus ABS Industrial

PROCESS PIPING

SYSTEMS

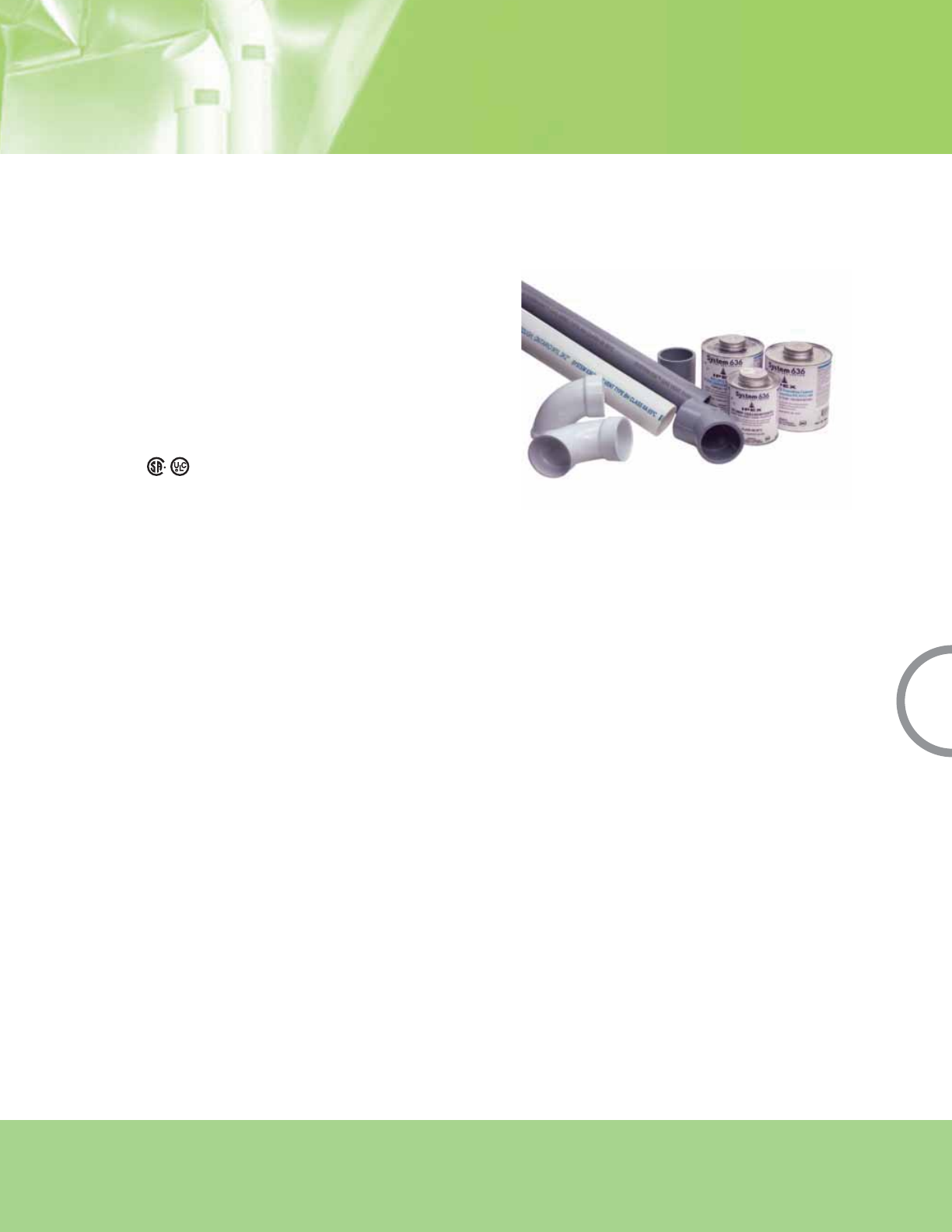

XIRTEC PVC AND CORZAN CPVC

APPLICATIONS

•Plant chemical distribution lines

•Water and wastewater

•Acid systems for refineries, pickling

lines and plating shops

•Chlorine injection, chlorine dioxide and

chloralkali plant piping

•Steel wire plants

•Battery manufacturing

•Bleach lines in textile and paper mills

•Alum and caustic handling systems

•Circuit board manufacturing

•Semiconductor

•Pharmaceutical

•Cooling water and cooling tower systems

•Tailing and slurry lines

•Washwater recovery systems

•Plant water supply

•Brine and seawater systems

•Fish farming

•Waterworks

•Aquariums and swimming pools

•Irrigation systems in golf courses,

greenhouses, etc.

APPLICATIONS

XIRTEC PVC &

CORZAN CPVC

PVC Sch 40 – 1/2" - 24"

PVC Sch 80 – 1/4" - 24"

CPVC Sch 40 – 1/2" - 16"

CPVC Sch 80 – 1/2" - 16"

STANDARDS

THE IPEX SYSTEM ADVANTAGE

IPEX vinyl process piping systems; a complete line of pipe, fittings and

valves to meet all your process system requirements.

IPEX developed the Xirtec®140 (PVC) and Corzan®(CPVC) systems to

meet industry demands for a complete Pipe, Valves and Fittings (PVF)

package that is designed, produced and backed by a single manufacturer.

These systems are engineered and manufactured to IPEX’s strict quality,

performance and dimensional standards, and therefore eliminate the

problems inherent in purchasing and installing piping system

components manufactured by several different companies.

IPEX high-performance vinyl systems are designed to meet the

temperature, pressure and size requirements of piping systems used in

chemical processes and other industrial applications. They feature

outstanding resistance to photodegradation, creep stress and immunity

to oxidation, and are exceptionally suited for use with a wide range of

acids, alcohols, salts and halogens. The perfect extended service,

low maintenance alternative to common and exotic metal systems.

Xirtec140 pipe and fittings and Corzan pipe are available in Schedule 40

and 80, IPS. Corzan fittings are available in Schedule 80.

XIRTEC140 CORZAN

Caution: Do not use or test PVC or CPVC with compressed air or other gases including air-over-water boosters.

XIRTEC PVC AND CORZAN CPVC

DID YOU KNOW?

One of the outstanding characteristics

of PVC is its resistance to ignition. This

is demonstrated by its flash point of

730ºF, compared to 400ºF for wood

chips.

CPVC offers an even greater fire

safety profile than PVC. CPVC’s ignition

resistance is demonstrated by its flash

point of 900ºF, with a low flame spread

as well.

ADVANTAGES

Lower Installation Costs, Easy Handling

In addition to a lower material cost, Xirtec & Corzan pipe

can significantly reduce labor and transportation costs on

a typical installation. The reason? They are lightweight,

easily handled, stored, cut and joined.

Extended Life

Xirtec PVC and Corzan CPVC provide years of maintenance

free service. Our materials will not rust, pit, scale or corrode

on either interior or exterior surfaces. Thermoplastic piping

systems in a variety of demanding industrial applications

have operated successfully for over 45 years.

Superior Underground Performance

Xirtec and Corzan CPVC are immune to damage from

naturally corrosive soil conditions as well as

electrochemical and galvanic corrosion. This is particularly

advantageous in underground installations where galvanic

reaction often causes damage to metal piping products.

Exceptional Chemical Resistance

The IPEX vinyl systems, including pipe, valves and

fittings, provide outstanding resistance to a wide range of

chemicals such as most acids, alcohols, alkalies, salt

solutions, halogens and more.

Improved Flow

Xirtec and Corzan have a substantially lower Roughness

Factor than metal and other materials, and since they do

not rust, pit, scale or corrode, the interior walls remain

smooth in virtually any service.

Potable Water Approved

Xirtec140 polyvinyl chloride (PVC) and Corzan chlorinated

polyvinyl chloride (CPVC) are suitable for use with potable

water as listed with the National Sanitation Foundation

(NSF) and CSA International.

Exceptional Temperature Range

IPEX vinyl systems are designed to meet a broad range of

service temperatures. Xirtec has a recommended

maximum service temperature of 140°F (60°C) in

pressure, with occasional exposure to boiling water

(212°F / 100°C) in drainage; Corzan has a maximum

service temperature of 200°F.

Lower Thermal Conductivity

With a low thermal conductivity factor, IPEX vinyl systems

have less heat loss or gain, thus sustaining service

temperature more efficiently than metal piping. As a

result, pipe insulation is often not required.

Environmentally Responsible

With energy conservation a prime concern, you can rely on

the fact that IPEX’s manufacturing process for Xirtec and

Corzan piping materials requires less than half the energy

needed to produce the equivalent size of carbon steel or

steel alloy materials.

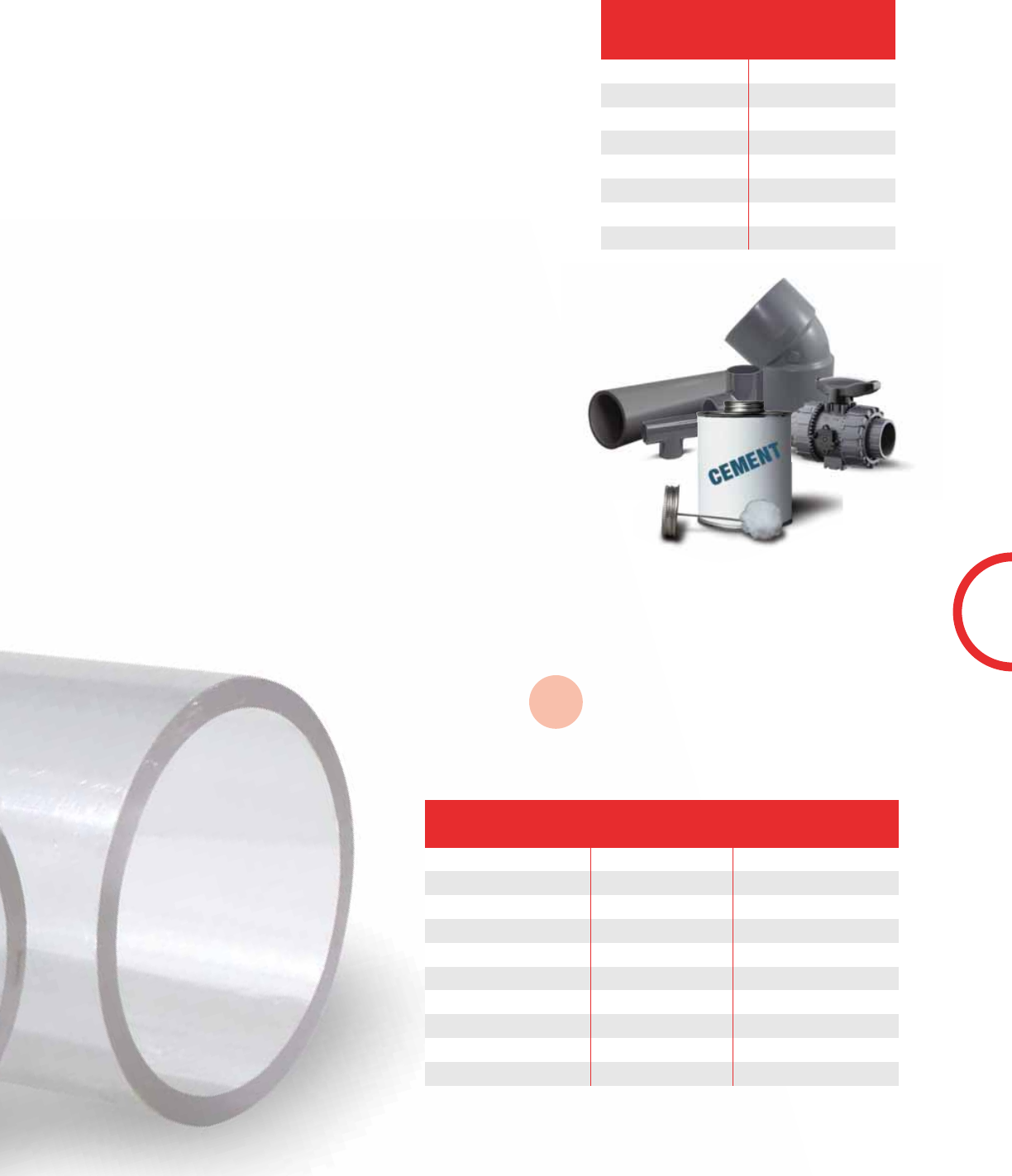

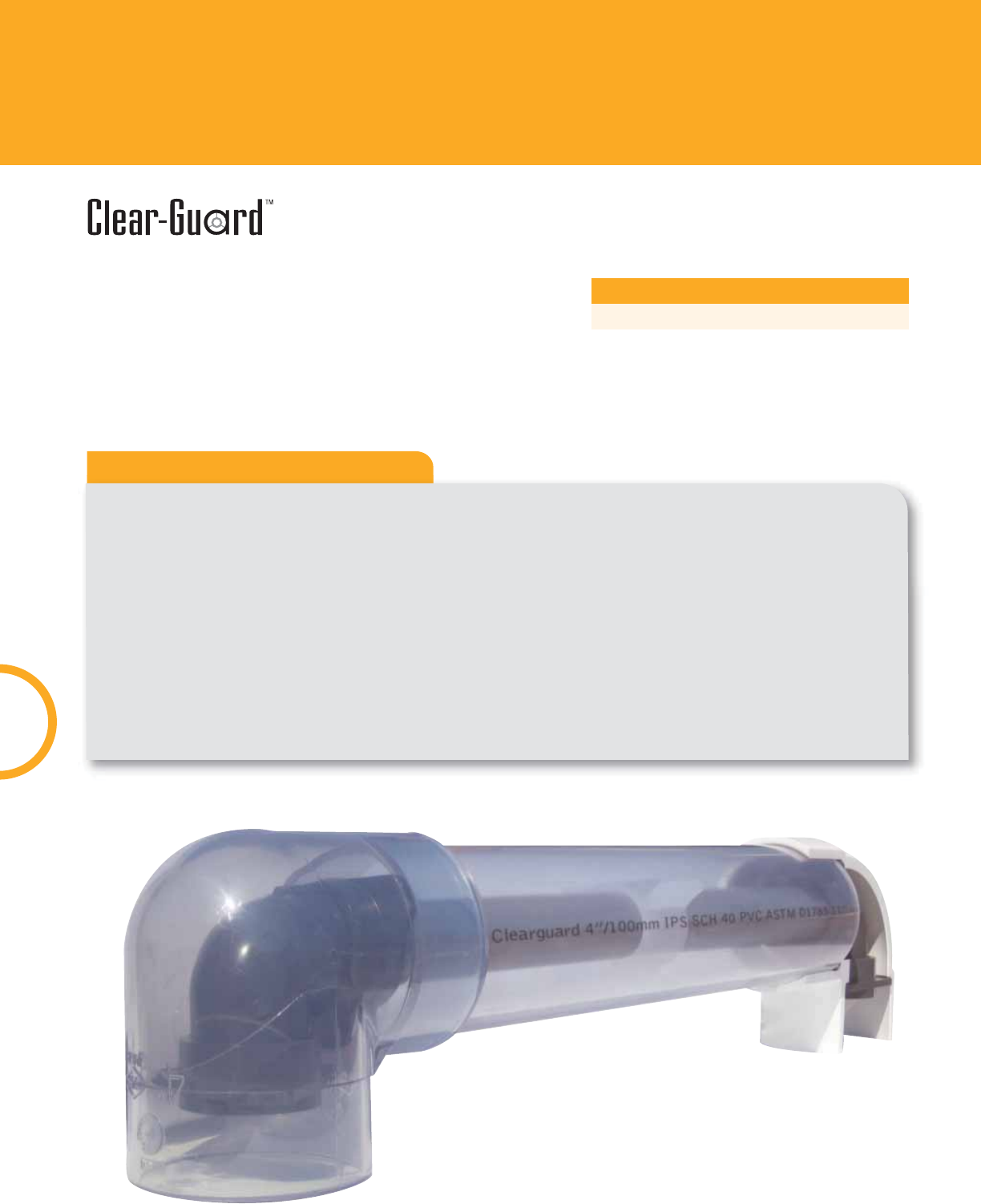

HIGH PRESSURE CLEAR-GUARD

CLEAR PVC PIPE 1/2" - 8"

CLEAR-GUARD CLEAR PVC PIPE

STANDARDS

IPEX Clear-GuardTM Clear PVC pipe provides a cost-effective

multipurpose solution for many different piping applications. The

benefits of rigid Xirtec®140 PVC piping are well documented including

light weight, flexibility, durability and exceptional corrosion resistance.

These benefits with the addition of clarity, are now available in our

Clear-Guard Clear PVC pipe product. Our clarity provides 360º visibility

for several applications including dual-containment, clean room and site

glass applications.

With IPEX’s new high pressure clear PVC pipe you can specify Schedule

40 clear pipe for applications where previously only Schedule 80 clear

pipe would suffice. Our high pressure formulation, with a long-term

hydrostatic design basis of 3,150 psi allows for better clarity and more

versatility for various applications.

ADVANTAGES

Sizes range from 1/2" to 8" Schedule 40 pipe

Standard 10 foot lengths

20 foot lengths available by special order

Certified to NSF-61

3,150 psi HDB – tested in accordance with

ASTM D2837

Pressure and Vacuum service

APPLICATIONS

•Clear-Guard Dual-Containment

Systems

•Dual-Containment for High Purity

Tubing

•Leak Detection Systems

•Agricultural & Aquacultural

Applications

•Chemical Processing/Blending

•Healthcare/Hospital Use

•Laboratory Applications

•Environmental Applications

•Sight Gauge Assemblies

•Displays/Exhibits

•Food & Beverage Processing

•and more ...

APPLICATIONS

Clear-GuardTM Clear PVC pipe is designed for indoor applications where there is no significant exposure to ultraviolet sources or to direct sunlight.

CLEAR-GUARD CLEAR PVC PIPE

DID YOU KNOW?

Clear-GuardTM has a higher Pressure Rating

when compared to the competition

COMPATIBILITY & PRESSURE RATING

IPEX Clear-Guard Clear PVC pipe is produced from a rigid,

virgin Polyvinyl Chloride (PVC) compound with a Cell

Classification of 15334 per ASTM D1784. This material also

enables Clear-Guard Clear PVC piping to carry a maximum

service temperature of 140ºF when appropriate

temperature/pressure de-rating factors are applied.

As with our Xirtec140 PVC piping system our pressure ratings

are dependent on the pipe diameter and the operating

temperature of the system. As temperatures increase,the

pressure rating of the system decreases. Refer to the table for

de-rating factors on our Clear-Guard pressure ratings.

This material is compatible with Xirtec140 PVC pipe, fittings

and valves, and can be joined into existing PVC systems using

the appropriate solvent cement joining process.

JOINING TECHNIQUES

IPEX Clear-Guard Clear PVC pipe is easily joined by the solvent

cementing process, providing a quick, strong, leak-tight seal for

pressure applications.

To maintain the system’s clarity, IPEX recommends the use of a

clear, mediumbodied, fast-setting cement in conjunction with a

clear primer for optimum joint integrity. As an added advantage

due to the product’s transparency, joint integrity is readily

identified during the solvent cement joining process.

Details on proper solvent cementing techniques are available and

must be reviewed for proper assembly and joint integrity.

Operating

Temperature (ºF)

Operating Pressure

De-rating Factor

73 1.00

80 0.88

90 0.75

100 0.62

110 0.51

120 0.40

130 0.31

140 0.22

IPEX Clear-Guard PVC 3150 = HDB* @ 73ºF

Size Product Code Sch 40 Pressure Rating

1/2" 22003 480

3/4" 22009 390

1" 22014 360

1-1/4" 22026 290

1-1/2" 22031 260

2" 22036 220

3" 22045 210

4" 22053 180

6" 22057 140

8" 22198 120

* HDB = Hydrostatic Design Basis – the established stress value for a

compound at a specific temperatuere

CORZAN HP 1/2" - 8"

CORZAN HP

APPLICATIONS

•Chemical processing

•Semiconductor and electronics

•Water treatment

•Industrial manufacturing

•Mining

•Power generation

APPLICATIONS

•Potable water

•Deck wash system – supply and

drainage

•Desalinization and chemical waste

treatment

•Black Water

•Brine

•Ballast treatment piping

MARINE & OFFSHORE APPLICATIONS

STANDARDS

The IPEX CORZAN®HP CPVC system has been specially developed with

greater pressure and high temperature performance. IPEX CORZAN HP

has a 25% higher pressure rating than the equivalent sized CPVC at

180ºF. Both schedule 80 pipe and fittings are certified to NSF SE

8459. This specification requires CPVC pipe to meet or exceed a 24448

cell class and have an HDB of 4000psi at 72ºF and 1250psi at 180ºF.

It also requires the CPVC fitting compound to have an HDB of 4000psi

at 72ºF and 1000psi at 180ºF. This makes IPEX CORZAN HP the only

CPVC system with pressure rated pipe AND fittings.

HPHP

IPEX CORZAN HP meets or exceeds the

requirements of:

- ASTM F441 and NSF SE 8459 for Sch80 pipe

- ASTM F439 and NSF SE 8459 for Sch80 fittings

- NSF 61

ADVANTAGES

IPEX Corzan HP pipe possesses a 24448 cell

class. That means that the impact strength and heat

deflection temperature of our HP CPVC is superior

compared to generic 23447 CPVC compounds.

IPEX Corzan HP material is the only CPVC that has

been approved by the US Coast Guard for use on US

flagged ships.

IPEX Corzan HP utilizes the same solvent cement

installation method as CORZAN CPVC and can be

joined using CORZAN grade solvent cements and

primers that meet or exceed the requirements of

ASTM F656. Expansion coefficients, support spacing,

and chemical resistance remain identical to IPEX

CORZAN CPVC eliminating the for additional installer

training.

Operating Temp. 70ºF 120ºF 180ºF

Pipe / Fitting Corzan CPVC IPEX Corzan HP Corzan CPVC IPEX Corzan HP Corzan CPVC IPEX Corzan HP

Size psi psi psi psi psi psi

1/2" 850 850 553 595 213 264

3/4" 690 690 449 483 173 214

1" 630 630 410 441 158 195

1-1/4" 520 520 338 364 130 161

1-1/2" 470 470 306 329 118 146

2" 400 400 260 280 100 124

2-1/2" 420 420 273 294 105 130

3" 370 370 241 259 93 115

4" 320 320 208 224 80 100

6" 280 280 182 196 70 87

8" 250 250 163 175 63 78

CORZAN VS CORZAN HP PRESSURE RATINGS

DID YOU KNOW?

Corzan®HP pipe and fittings is available

up to 8” diameter, and boasts a 25

percent higher pressure rating than

standard CPVC at 180°F (82°C). It is also

the only fully pressure-rated schedule

40/80 piping system on the market today.

PRODUCT SELECTION CHART

Sizes IPEX schedule 40 PVC IPEX Schedule 80 PVC

Diameter O.D. Wall

Thickness I.D. *Max. Pressure

73°F

Wall

Thickness I.D. *Max. Pressure

73°F

(in.) (in.) (in.) (in.) (psi) (in.) (in.) (psi)

1/4 .540 –––.119 .302 1,130

3/8 .675 –––.126 .423 920

1/2 .840 .109 .602 600 .147 .526 850

3/4 1.050 .113 .804 480 .154 .722 690

11.315 .133 1.029 450 .179 .936 630

1-1/4 1.660 .141 1.360 370 .191 1.255 520

1-1/2 1.900 .145 1.590 330 .200 1.476 470

22.375 .154 2.047 280 .218 1.913 400

2-1/2 2.875 .203 2.445 300 .276 2.290 420

33.500 .216 3.042 260 .300 2.864 370

44.500 .237 3.998 220 .337 3.786 320

66.625 .280 6.031 180 .432 5.709 280

88.625 .322 7.941 160 .500 7.565 250

10 10.750 .365 9.976 140 .593 9.493 230

12 12.750 .406 11.888 130 .687 11.294 230

14 14.000 .438 13.072 130 .750 12.412 220

16 16.000 .500 14.936 130 .843 14.224 220

18 18.000 .562 16.809 130 .937 16.014 220

20 20.000 .593 18.743 120 1.031 17.814 220

24 24.000 .687 22.544 120 1.218 21.418 210

PVC PIPE PRESSURE RATINGS

Sizes IPEX Schedule 40 CPVC IPEX Schedule 80 CPVC IPEX Schedule 80 HP CPVC

Diameter O.D. Wall

Thickness I.D.

*Max.

Pressure

73°F

Wall

Thickness I.D.

*Max.

Pressure

73°F

*Max.

Pressure

180°F

Wall

Thickness I.D.

*Max.

Pressure

73°F

*Max.

Pressure

180°F

(in.) (in.) (in.) (in.) (psi) (in.) (in.) (psi) (psi) (in.) (in.) (psi) (psi)

1/2 .840 .109 .602 600 .147 .526 850 213 .147 .526 850 264

3/4 1.050 .113 .804 480 .154 .722 690 173 .154 .722 690 214

11.315 .133 1.029 450 .179 .936 630 158 .179 .936 630 195

1-1/4 1.660 .141 1.360 370 .191 1.255 520 130 .191 1.255 520 161

1-1/2 1.900 .145 1.590 330 .200 1.476 470 118 .200 1.476 470 146

22.375 .154 2.047 280 .218 1.913 400 100 .218 1.913 400 124

2-1/2 2.875 .203 2.445 300 .276 2.290 420 105 .300 2.864 370 115

33.500 .216 3.042 260 .300 2.864 370 93 .337 3.786 320 100

44.500 .237 3.998 220 .337 3.786 320 80 .430 5.709 280 87

66.625 .280 6.031 180 .432 5.709 280 70 .500 7.565 250 78

88.625 .322 7.941 160 .500 7.565 250 63 – – – –

10 10.750 .365 9.976 140 .593 9.493 230 58 – – – –

12 12.750 .406 11.888 130 .687 11.294 230 58 – – – –

14 14.000 .438 13.072 130 .750 12.412 220 55 – – – –

16 16.000 .500 14.936 130 .843 14.224 220 55 – – – –

CPVC PIPE PRESSURE RATINGS

XIRTEC PVC AND CORZAN CPVC

PVC AND CPVC PRESSURE PIPE

XIRTEC PVC AND CORZAN CPVC

Dimension

inches

PRODUCT CODE

PVC Sch 40

White

Plain End

PVC Sch 40

White

Bell End

PVC Sch 40

Grey

Bell End

PVC Sch 80

Grey

Plain End

PVC Sch 80

Grey

Bell End

CPVC Sch 40

Plain End

CPVC Sch 80

Plain End

CPVC Sch 80

Solvent

Bell End

HP CPVC

Sch 80

Plain End

1/2 x 10' 022600 022603 022004 – 085106 – – –

3/4 x 10' 022633 022604 022011 –085111 – – –

1 x 10' 022612 022611 022016 – 085114 – – –

1-1/4 x 10' 022608 022674 022027 –085119 – – –

1-1/2 x 10' 022614 022616 022032 –––––

2 x 10' 022618 022619 022037 – – – – –

2-1/2 x 10' 022621 – 022042 –––––

3 x 10' 022637 022624 022046 – – – – –

4 x 10' 022626 022628 – 085138 – – – –

5 x 10' – – – - – – – –

6 x 10' 022666 022659 – 085143 – – – –

1/4 x 20' – – – 085103 – – – –

3/8 x 20' – – – 085104 – – – –

1/2 x 20' 022602 022601 –085101 085108 019300 019203 –019035

3/4 x 20' 022677 022607 – 085107 085112 019301 019205 – 019036

1 x 20' 022606 022610 –085110 085116 019302 019207 –019037

1-1/4 x 20' 022678 022617 – 085117 085122 019303 019209 – 019038

1-1/2 x 20' 022675 022615 –085115 085127 019304 019211 019031 019039

2 x 20' 022679 022620 – 085120 085132 019305 019213 019032 019040

2-1/2 x 20' 022646 022625 –085125 085134 019306 019216 –019041

3" x 20' 022623 022630 – 085130 085137 019307 019217 019033 019042

4 x 20' 022627 022640 022040 085140 085139 019308 019219 019256 019043

5 x 20' 022651 022650 – 085150 – – – – –

6 x 20' 022665 022660 022060 085160 085162 019309 019220 019218 019044

8 x 20' 022681 022680 022058 085180 085147 019310 019221 019255 019045

10 x 20' 022691 222690 022061 085190 085192 019013 019222 – –

12 x 20' 022693 022692 022064 085195 085151 019016 019223 – –

14 x 20' 022682 022694 –085158 085152 –019228 – –

16 x 20' 022683 022696 – 085153 085155 019226 019229 – –

18 x 20' 022687 022697 –085159 – – – – –

20 x 20' 022702 022698 – – 085170 – – – –

24 x 20' 022704 022699 – – 085171 – – – –

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

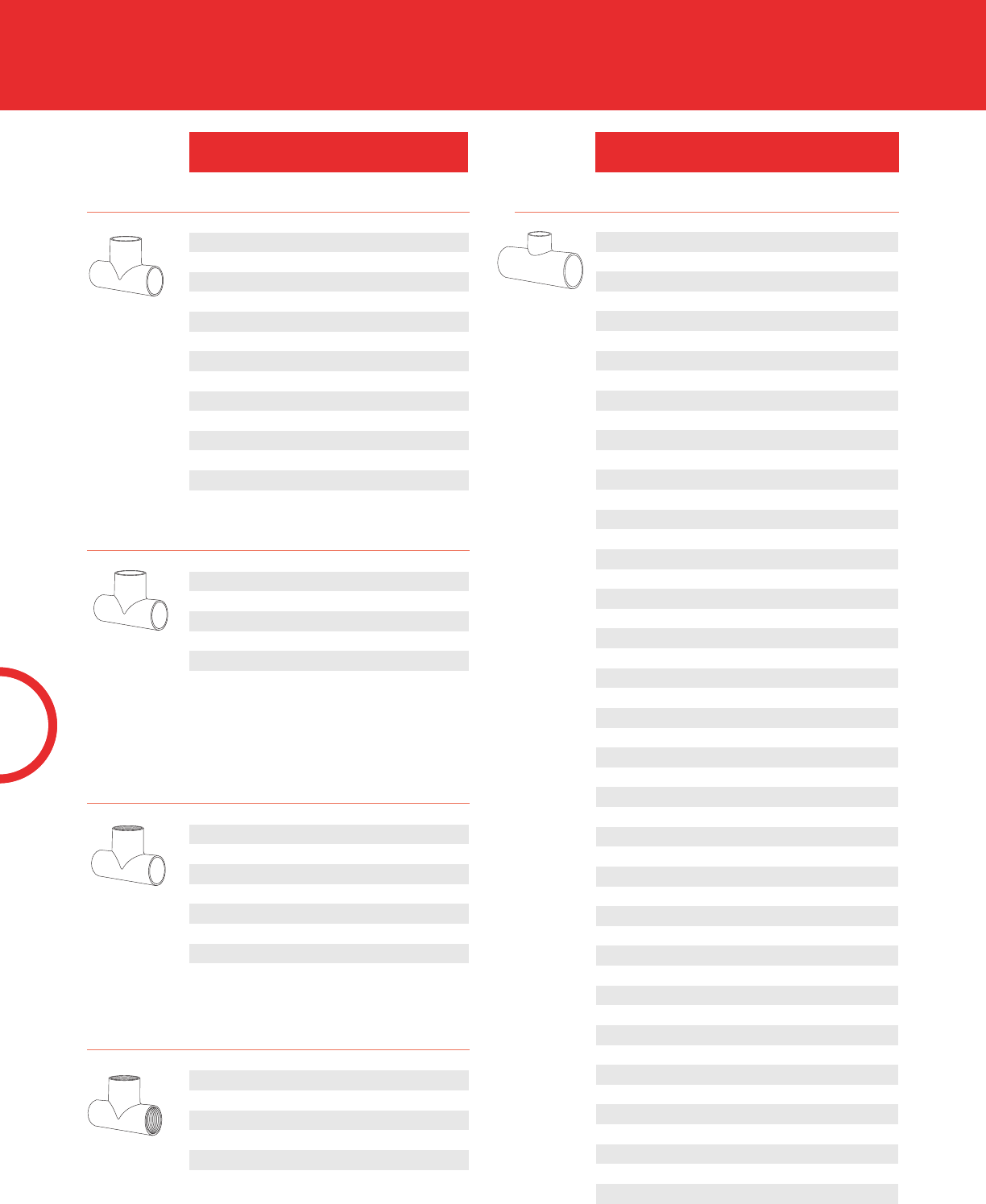

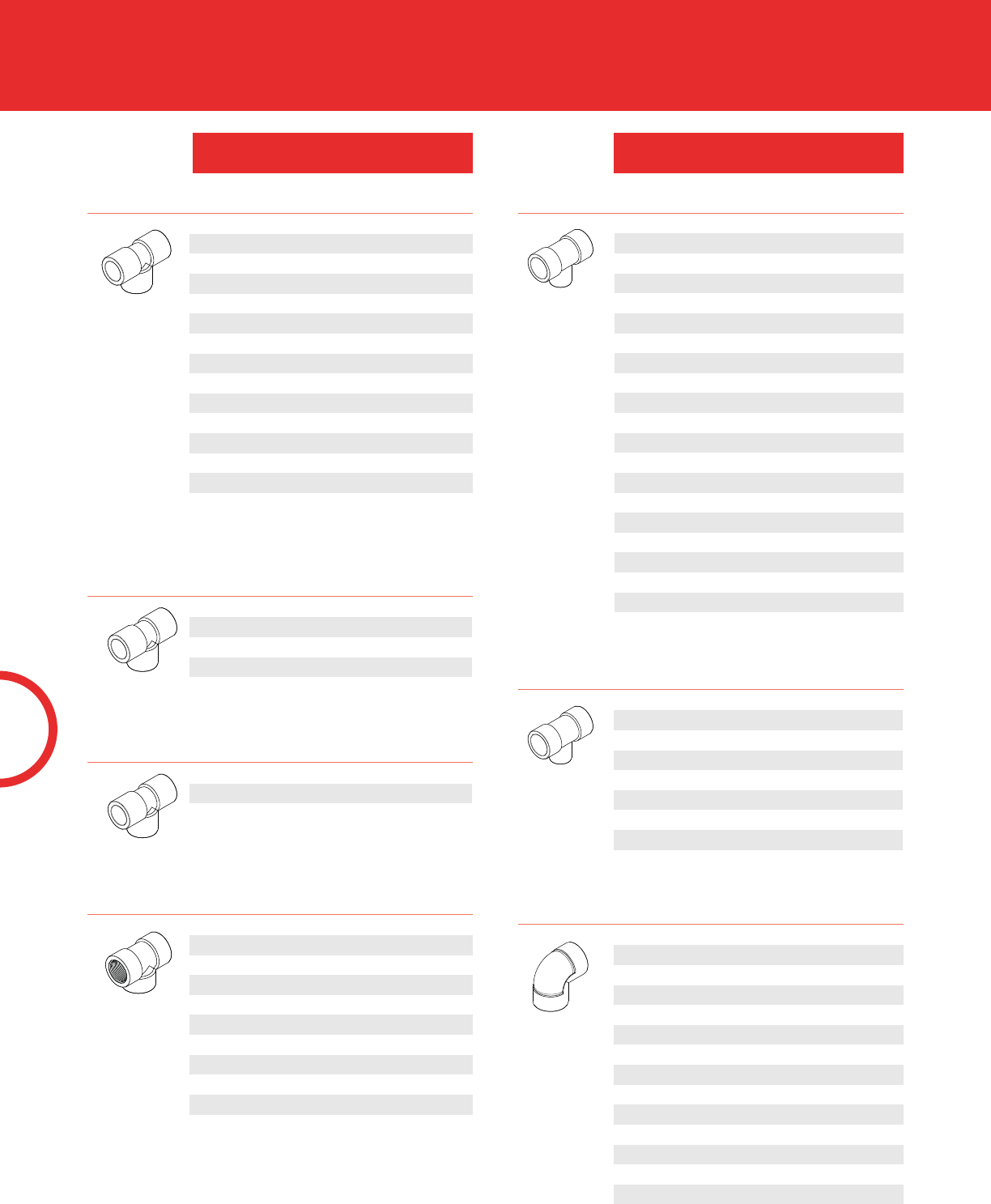

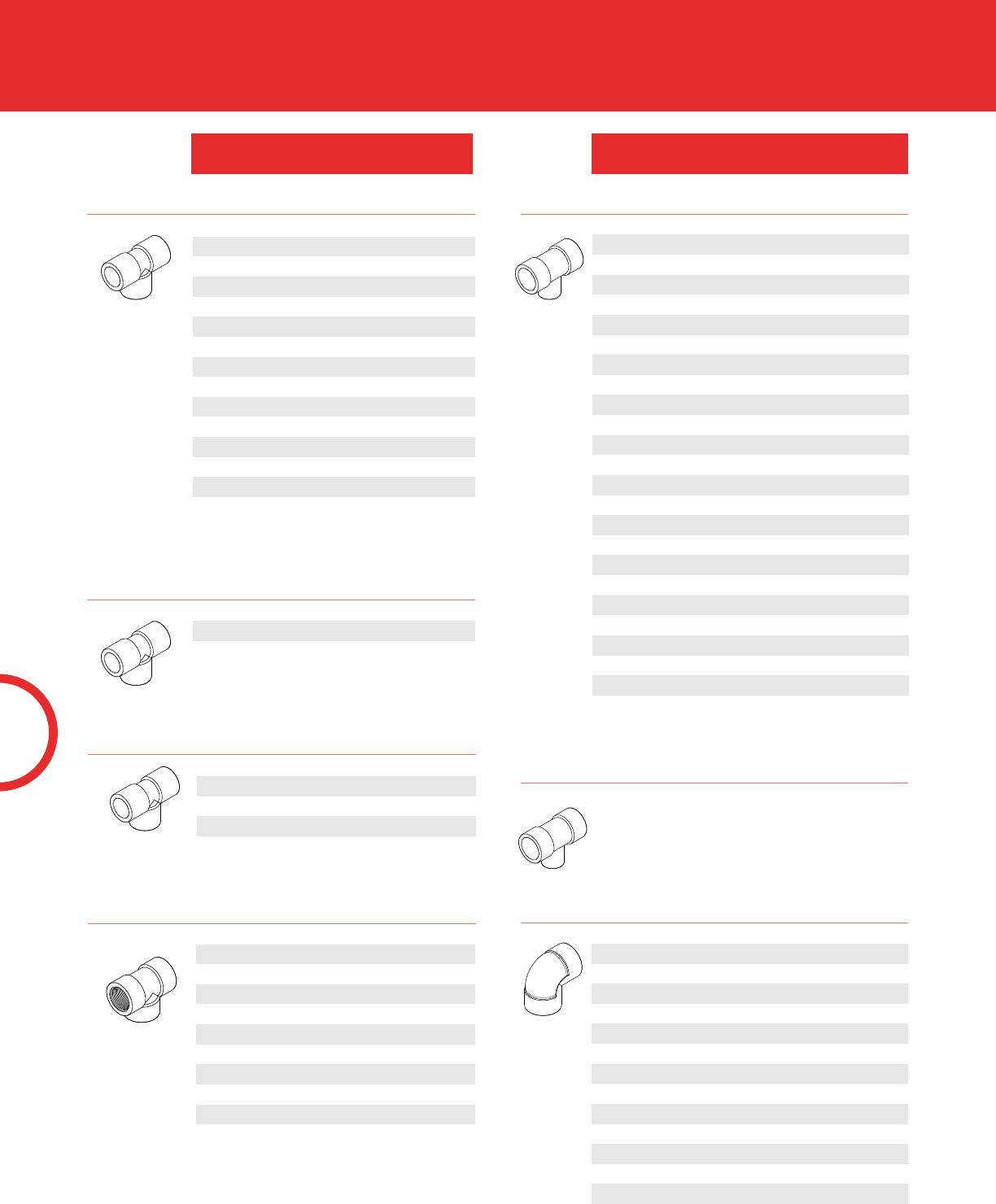

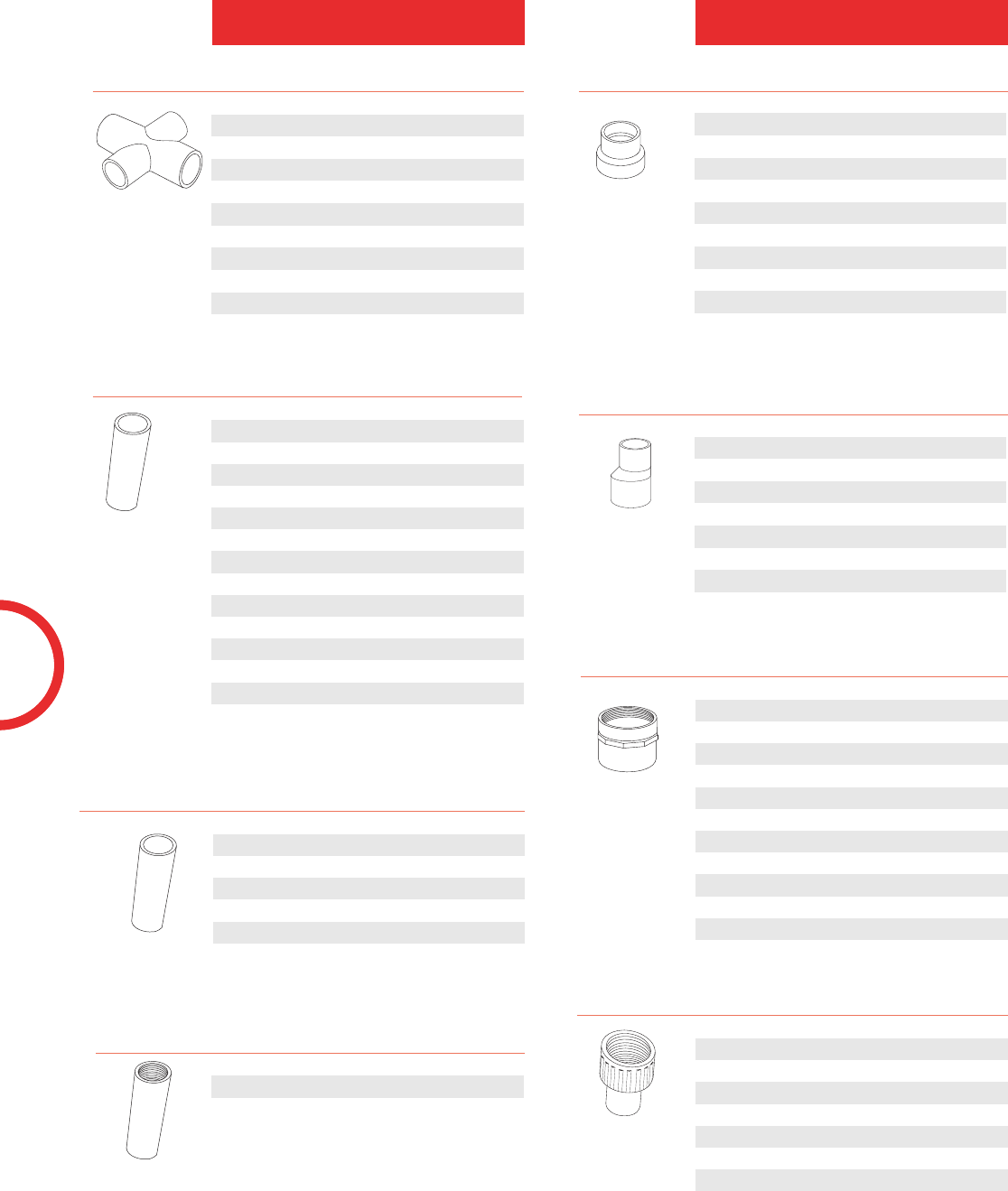

Tee Soc x Soc x Soc

1/2 401005 035775

3/4 401007 035776

1 401010 035777

1-1/4 401012 035778

1-1/2 401015 035779

2401020 035780

2-1/2 401025 035781

3401030 035782

4 401040 035783

5401050 035784

6 401060 035785

8401080 035786

10 401100 035930

12 401120 035931

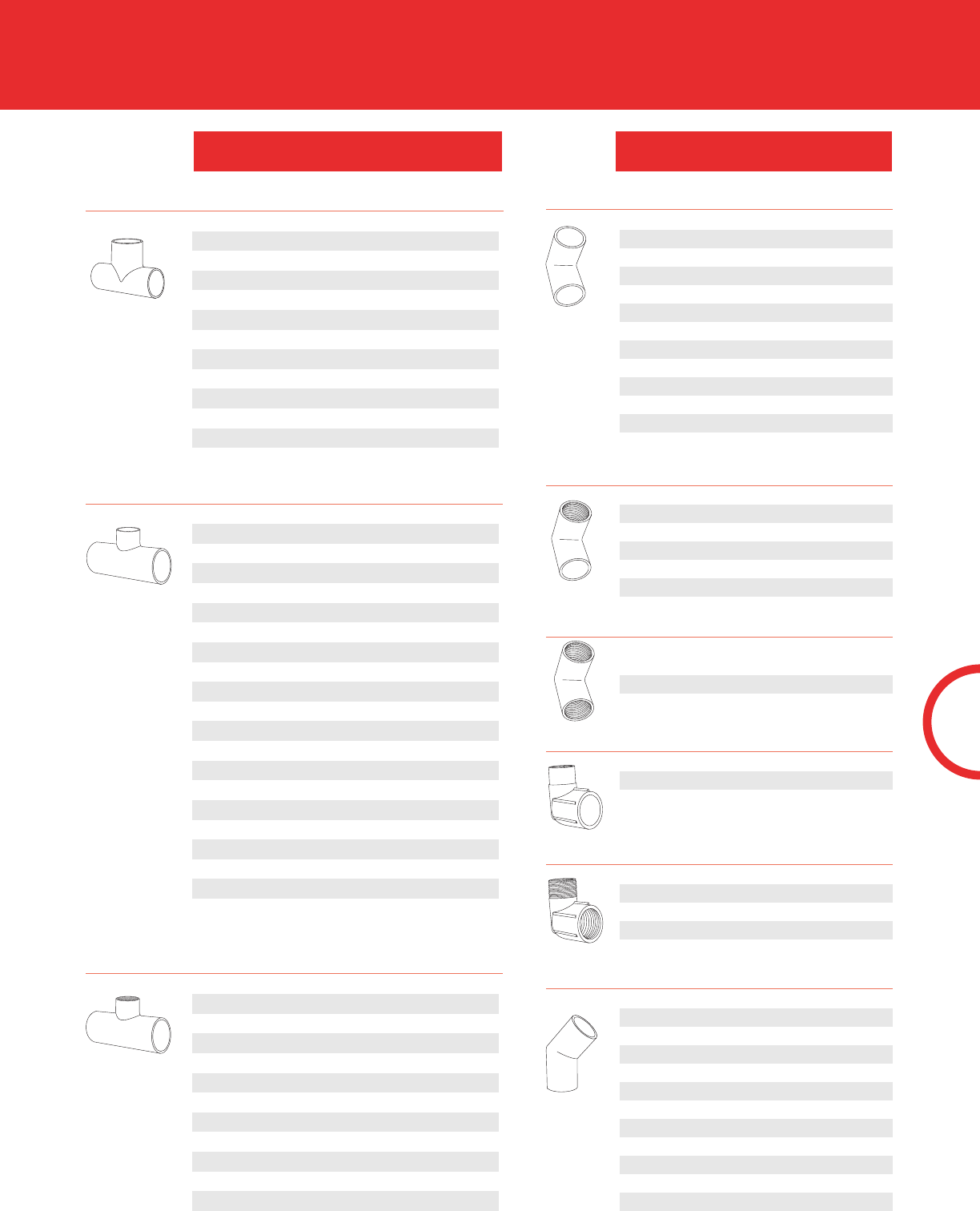

Reducing Tee Soc x Soc x Soc

Tee Soc x Soc x Fpt

1/2 402005 035851

3/4 402007 035852

1 402010 035853

1-1/4 402012 035854

1-1/2 402015 035855

2402020 035856

2-1/2 402025 035857

3402030 035858

4 402040 035859

1/2 405005 035844

3/4 405007 035845

1 405010 035846

1-1/4 405012 035847

1-1/2 405015 035848

2405020 035849

1/2 x 1/2 x 3/4 401074 035789

1/2 x 1/2 x 1 401075 035354

3/4 x 1/2 x 1/2 401094 035790

3/4 x 1/2 x 3/4 401095 235007

3/4 x 3/4 x 1/2 401101 035792

3/4 x 3/4 x 1 401102 035791

1 x 1/2 x 1 401122 235008

1 x 3/4 x 1/2 401124 235009

1 x 3/4 x 3/4 401125 035994

1 x 3/4 x 1 401126 035962

1 x 1 x 1/2 401130 035794

1 x 1 x 3/4 401131 035795

1 x 1 x 1-1/4 401132 035989

1 x 1 x 1-1/2 401133 035793

1-1/4 x 1 x 1/2 401156 235010

1-1/4 x 1 x 3/4 401157 035796

1-1/4 x 1 x 1 401158 235011

1-1/4 x 1-1/4 x 1/2 401166 035797

1-1/4 x 1-1/4 x 3/4 401167 035798

1-1/4 x 1-1/4 x 1 401168 035799

1-1/4 x 1-1/4 x 1-1/2 401169 235012

1-1/4 x 1-1/4 x 2 401170 235013

1-1/2 x 1-1/4 x 1/2 401199 235014

1-1/2 x 1-1/4 x 3/4 401201 235015

1-1/2 x 1-1/4 x 1 401202 035959

1-1/2 x 1-1/2 x 1/2 401209 035800

1-1/2 x 1-1/2 x 3/4 401210 035801

1-1/2 x 1-1/2 x 1 401211 035802

1-1/2 x 1-1/2 x 1-1/4 401212 035803

1-1/2 x 1-1/2 x 2 401213 035082

1-1/2 x 1-1/2 x 2-1/2 401214 235016

2 x 1-1/2 x 3/4 401238 235017

2 x 1-1/2 x 1 401239 035804

2 x 1-1/2 x 1-1/2 401241 035805

2 x 2 x 1/2 401247 035806

2 x 2 x 3/4 401248 035807

2 x 2 x 1 401249 035808

2 x 2 x 1-1/4 401250 035809

2 x 2 x 1-1/2 401251 035810

2-1/2 x 2-1/2 x 1/2 401287 035811

2-1/2 x 2-1/2 x 3/4 401288 035812

2-1/2 x 2-1/2 x 1 401289 035813

2-1/2 x 2-1/2 x 1-1/4 401290 035814

2-1/2 x 2-1/2 x 1-1/2 401291 035815

2-1/2 x 2-1/2 x 2 401292 035816

3 x 3 x 1/2 035817 401333

3 x 3 x 3/4 035818 401334

3 x 3 x 1 035819 401335

3 x 3 x 1-1/4 035820 401336

3 x 3 x 1-1/2 035821 401337

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

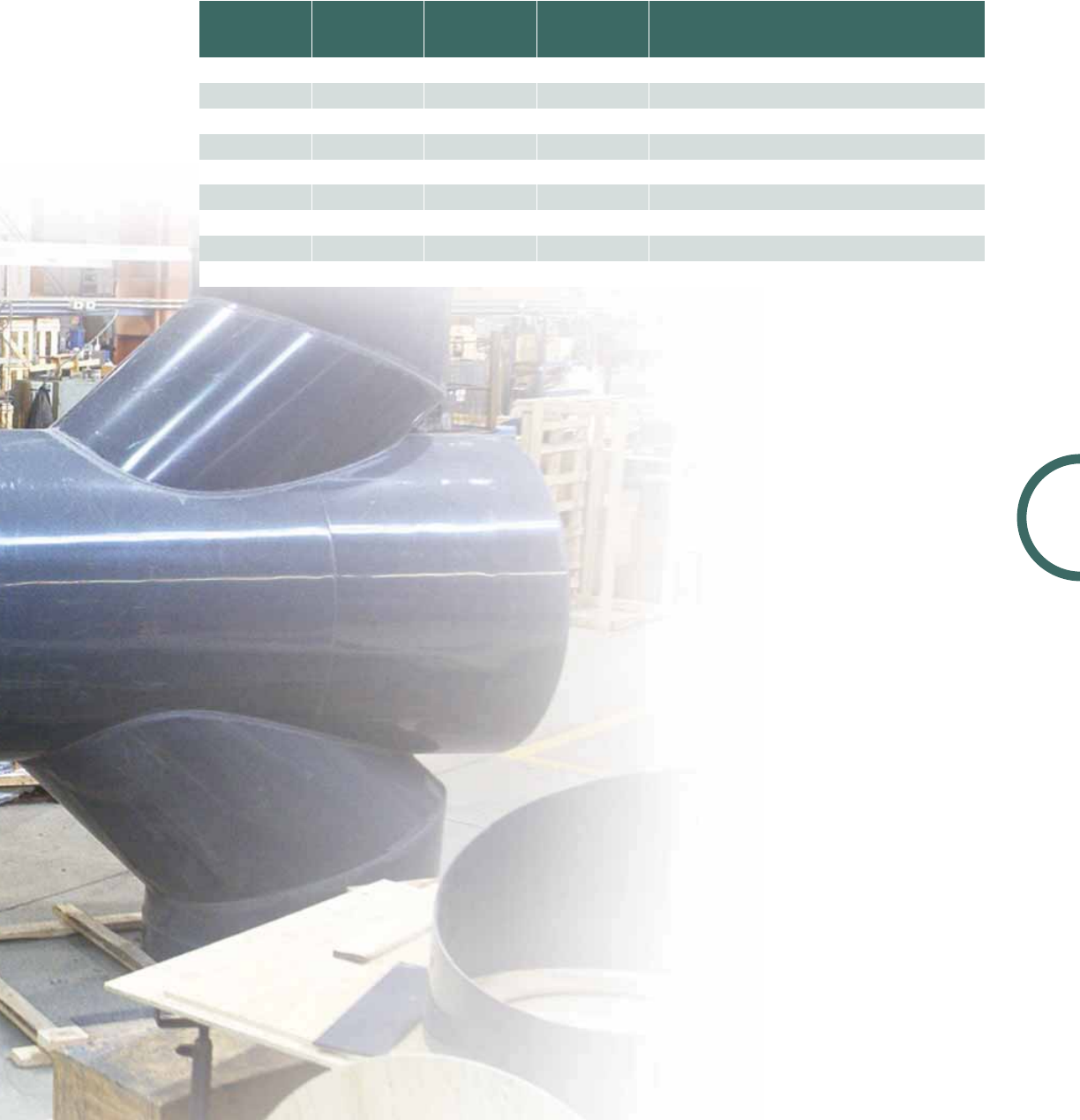

Fabricated Tee Soc x Soc x Soc - 130 psi

10 401100F 135835

12 401120F 135836

14 401140F 135837

16 401160F 135838

* 18 401180F 135839

** 20 401200F 135840

** 24 401240F 135841

Tee Fpt x Fpt x Fpt

1010

XIRTEC PVC SCHEDULE 40 WHITE

* 18" Tee – 100 psi maximum internal pressure.

** 20" & 24" Tee – 50 psi maximum internal pressure.

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Reducing Tee Soc x Soc x Soc (cont’d)

3 x 3 x 2 401338 035822

3 x 3 x 2-1/2 401339 035823

3 x 3 x 4 401342 235018

4 x 4 x 3/4 401416 035824

4 x 4 x 1 401417 035825

4 x 4 x 1-1/4 401418 035826

4 x 4 x 1-1/2 401419 035827

4 x 4 x 2 401420 035828

4 x 4 x 3 401422 035829

5 x 5 x 2 401486 035956

5 x 5 x 3 401488 035830

5 x 5 x 4 401490 035831

6 x 6 x 2 401528 035832

6 x 6 x 3 401530 035833

6 x 6 x 4 401532 035834

8 x 8 x 3 401580 035835

8 x 8 x 4 401582 035836

8 x 8 x 6 401585 035837

10 x 10 x 4 401624 235842

10 x 10 x 6 401626 235843

10 x 10 x 8 401628 235844

12 x 12 x 4 401664 235845

12 x 12 x 6 401666 235846

12 x 12 x 8 401668 235847

1/2 x 1/2 x 3/4 402074 035860

3/4 x 1/2 x 1/2 402094 035862

3/4 x 1/2 x 3/4 402095 235019

3/4 x 3/4 x 1/2 402101 035863

1 x 3/4 x 1/2 402124 035867

1 x 1 x 1/2 402130 035865

1 x 1 x 3/4 402131 035866

1-1/4 x 1 x 1/2 402156 035868

1-1/4 x 1 x 1 402158 235020

1-1/4 x 1-1/4 x 1/2 402166 035869

1-1/4 x 1-1/4 x 3/4 402167 035870

1-1/4 x 1-1/4 x 1 402168 035871

1-1/2 x 1-1/4 x 1/2 402199 235021

1-1/2 x 1-1/4 x 3/4 402201 035872

1-1/2 x 1-1/4 x 1 402202 235022

1-1/2 x 1-1/2 x 1/2 402209 035873

1-1/2 x 1-1/2 x 3/4 402210 035874

1-1/2 x 1-1/2 x 1 402211 035875

1-1/2 x 1-1/2 x 1-1/4 402212 035876

2 x 1-1/2 x 3/4 402238 235023

2 x 1-1/2 x 1 402239 235024

2 x 2 x 1/2 402247 035877

2 x 2 x 3/4 402248 035878

2 x 2 x 1 402249 035879

2 x 2 x 1-1/4 402250 035880

2 x 2 x 1-1/2 402251 035881

2-1/2 x 2-1/2 x 1/2 402287 235025

2-1/2 x 2-1/2 x 3/4 402288 035592

2-1/2 x 2-1/2 x 1 402289 035882

2-1/2 x 2-1/2 x 1-1/4 402290 035883

2-1/2 x 2-1/2 x 1-1/2 402291 035884

3 x 3 x 1/2 402333 035885

3 x 3 x 3/4 402334 035886

3 x 3 x 1 402335 035887

3 x 3 x 1-1/4 402336 035888

3 x 3 x 1-1/2 402337 035889

3 x 3 x 2 402338 035890

4 x 4 x 1 402417 035891

4 x 4 x 1-1/2 402419 035893

4 x 4 x 2 402420 035894

4 x 4 x 3 402422 035895

5 x 5 x 4 402490 235026

6 x 6 x 2 402528 035896

6 x 6 x 3 402530 235027

6 x 6 x 4 402532 035897

8 x 8 x 3 402580 235028

8 x 8 x 4 402582 035898

Reducing Tee Soc x Soc x Fpt

Fabricated Reducing Tee Soc x Soc x Soc - 130 psi

10 x 10 x 4 401624F 135842

10 x 10 x 6 401626F 135843

10 x 10 x 8 401628F 135844

12 x 12 x 4 401664F 135845

12 x 12 x 6 401666F 135846

12 x 12 x 8 401668F 135847

12 x 12 x 10 401670F 135848

14 x 14 x 6 401696F 135849

14 x 14 x 8 401698F 135850

14 x 14 x 10 401700F 135851

14 x 14 x 12 401702F 135852

16 x 16 x 8 401758F 135853

16 x 16 x 10 401760F 135854

16 x 16 x 12 401762F 135855

16 x 16 x 14 401764F 135856

*18 x 18 x8 401788F 135857

* 18 x 18 x 10 401790F 135858

*18 x 18 x 12 401792F 135859

* 18 x 18 x 14 401794F 135860

*18 x 18 x 16 401796F 135861

** 20 x 20 x 16 401826F 135862

** 20 x 20 x 18 401828F 135863

** 24 x 24 x 18 401918F 135864

** 24 x 24 x 20 401920F 135865

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

XIRTEC PVC SCHEDULE 40 WHITE

* 18" Reducing

Tees – 100 psi

maximum

internal pressure.

** 20" & 24"

Reducing Tees –

50 psi maximum

internal pressure.

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

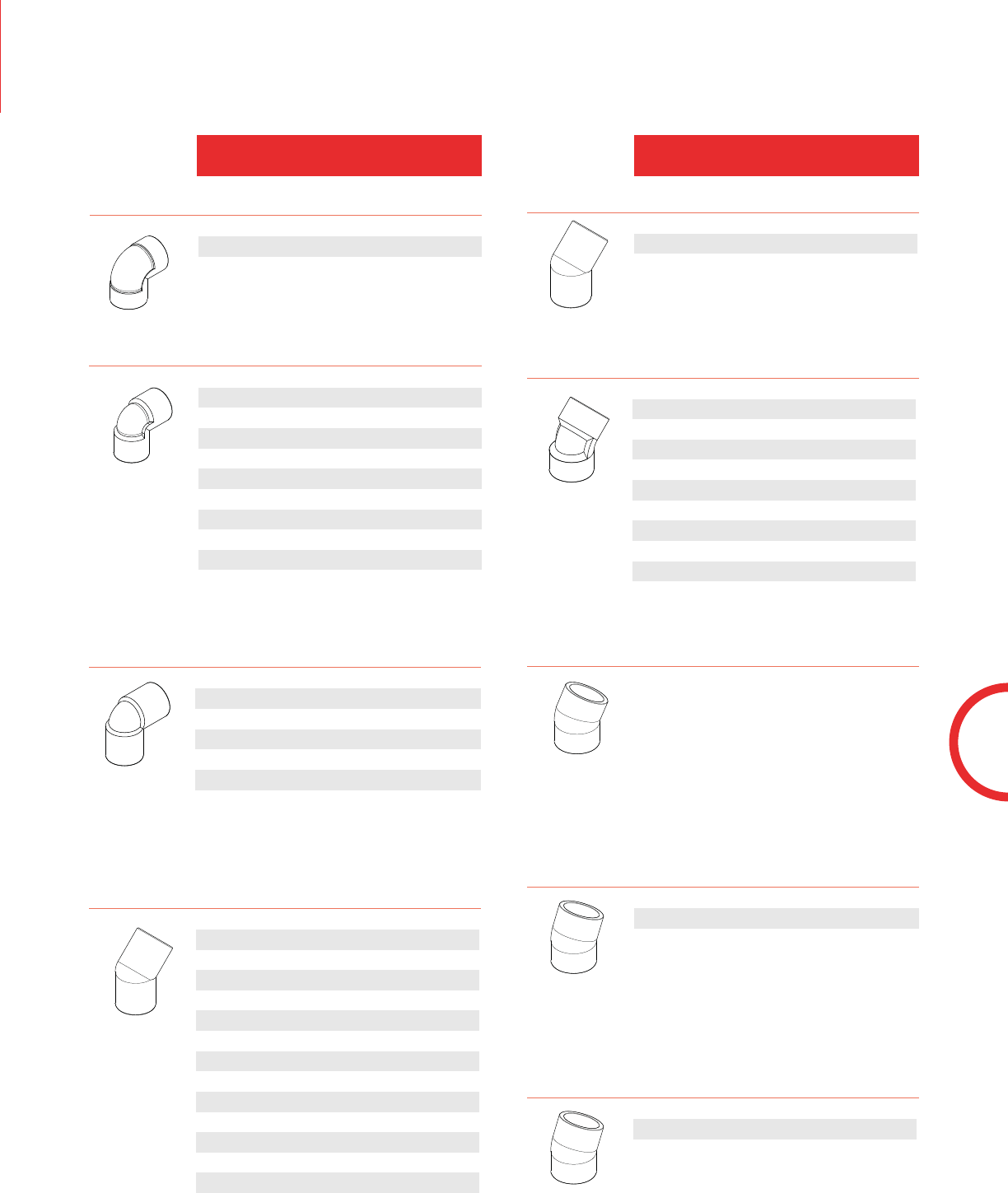

90º Elbow Soc x Soc

1/2 406005 035519

3/4 406007 035520

1 406010 035521

1-1/4 406012 035522

1-1/2 406015 035523

2406020 035524

2-1/2 406025 035525

3406030 035526

4 406040 035527

5406050 035528

6 406060 035529

8406080 035530

10 406100 035928

12 406120 035929

90º Elbow Soc x Fpt

1/2 407005 035506

3/4 407007 035507

1 407010 035508

1-1/4 407012 035509

1-1/2 407015 035510

2407020 035511

2-1/2 407025 035512

3407030 035589

4 407040 035513

90º Elbow Fpt x Fpt

1/2 408005 035538

3/4 408007 035539

1 408010 035540

1-1/4 408012 035541

1-1/2 408015 035542

2408020 035543

90º Street Elbow Mpt x Soc

1/2 410005 035500

3/4 410007 035501

1 410010 035502

1-1/4 410012 035503

1-1/2 410015 035504

2410020 035505

90º Street Elbow Spig x Soc

1/2 409005 035544

3/4 409007 035545

1 409010 035546

1-1/4 409012 035547

1-1/2 409015 035548

2409020 035549

90º Street Elbow Mpt x Fpt

1/2 412005 035552

3/4 412007 035553

1 412010 035554

1-1/4 412012 035555

1-1/2 412015 035556

2412020 035557

90º Reducing Elbow Soc x Soc

3/4 x 1/2 406101 035535

1 x 1/2 406130 035536

1 x 3/4 406131 035978

1-1/4 x 1/2 406166 235029

1-1/4 x 3/4 406167 235030

1-1/4 x 1 406168 035991

1-1/2 x 1/2 406209 235031

1-1/2 x 1 406211 235032

2 x 1-1/2 406251 035537

90º Reducing Elbow Soc x Fpt

1/2 x 3/4 407074 035514

3/4 x 1/2 407101 035515

1 x 1/2 407130 035516

1 x 3/4 407131 035517

1-1/4 x 1 407168 051007

1-1/2 x 1 407211 035594

2 x 1-1/2 407251 035518

90º Elbow Soc x Sp

10 409100 235928

12 409120 235929

Fabricated 90º Elbow Soc x Soc - 130 psi

10 406100F 135871

12 406120F 135872

14 406140F 135873

16 406160F 135874

* 18 406180F 135875

1212

XIRTEC PVC SCHEDULE 40 WHITE

*18" 90° Elbow – 100 psi maximum internal

pressure

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

45º Elbow Soc x Soc

1/2 417005 035481

3/4 417007 035482

1 417010 035483

1-1/4 417012 035484

1-1/2 417015 035485

2417020 035486

2-1/2 417025 035487

3417030 035488

4 417040 035489

5417050 035490

6 417060 035491

8417080 035492

10 417100 035926

12 417120 035927

Hose Adapter Insert x IPS Soc

1/2 474005 035596

3/4 474007 035597

1 474010 035598

1-1/4 474012 035599

1-1/2 474015 035600

2474020 035601

3 474030 235037

4474040 235038

Hose Adapter (grey) Insert x Mpt

1/2 1436005 035157

3/4 1436007 035158

1 1436010 035159

1-1/4 1436012 035160

1-1/2 1436015 035161

21436020 035162

2-1/2 1436025 035163

31436030 035164

4 1436040 035165

ASTM D2609 – Plastic Insert fitting for polyethylene

Fabricated 45º Elbow Soc x Soc - 130 psi

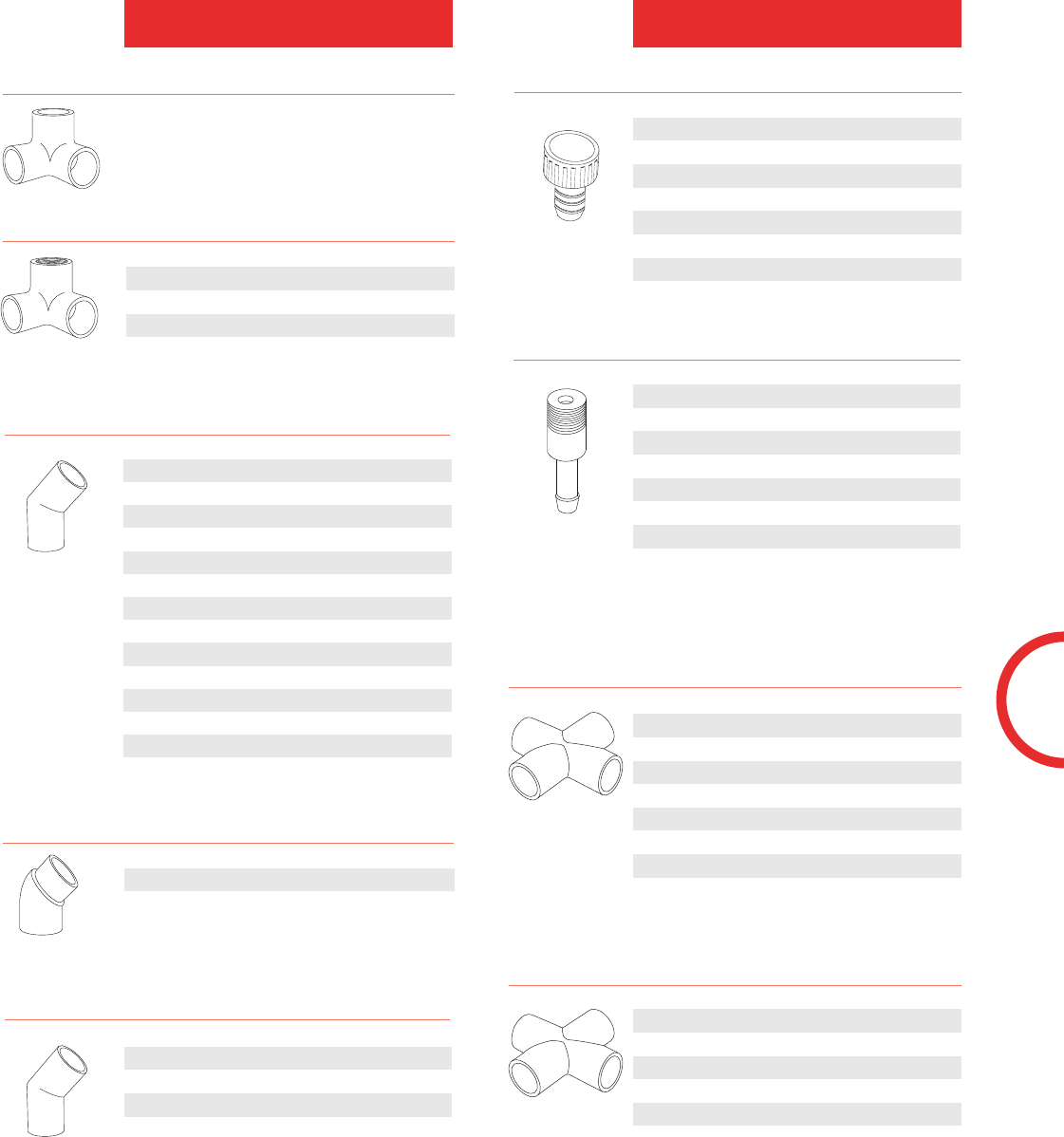

Side Outlet Elbow Soc x Soc x Soc

1/2 413005 035498

Side Outlet Elbow Soc x Soc x Fpt

1/2 414005 235033

3/4 414007 235034

3/4 x 3/4 x 1/2 414101 235035

1 x 1 x 1/2 414130 235036

45º Elbow Soc x Sp

10 423100 235876

12 423120 235877

XIRTEC PVC SCHEDULE 40 WHITE

10 417100F 135876

12 417120F 135877

14 417140F 135878

16 417160F 135879

* 18 417180F 135880

*18" 45° Elbow – 100 psi maximum internal pressure

Cross Soc x Soc x Soc x Soc

1/2 420005 035469

3/4 420007 035470

1 420010 035471

1-1/4 420012 035472

1-1/2 420015 035473

2420020 035474

2-1/2 420025 035475

3420030 035476

4 420040 035477

Fabricated Cross Soc x Soc x Soc x Soc - 130 psi

6 420060F 035478

8420080F 135881

10 420100F 135882

12 420120F 135883

14 420140F 135884

16 420160F 135885

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Coupling Fpt x Fpt

1/2 430005 035466

3/4 430007 035467

1 430010 035468

Reducing Coupling Soc x Soc

3/4 x 1/2 429101 035759

1 x 3/4 429131 035760

1-1/4 x 1 429168 035761

1-1/2 x 1-1/4 429212 035762

2 x 1-1/2 429251 035764

4 x 3 429422 035765

6 x 4 429532 035766

10 x 6 429626 235898

10 x 8 429628 235899

12 x 8 429668 235900

12 x 10 429670 235901

Female Adapter Soc x Fpt

1/2 435005 035559

3/4 435007 035560

1 435010 035561

1-1/4 435012 035562

1-1/2 435015 035563

2435020 035564

2-1/2 435025 035565

3435030 035566

4 435040 035567

5435050 035568

6 435060 035569

8435080 035570

Female Adapter Spig x Fpt

1/2 478005 035578

3/4 478007 035579

1 478010 035580

1-1/4 478012 035581

1-1/2 478015 035582

2478020 035583

3 478030 035585

4478040 035586

Fabricated Eccentric Reducing Coupling Soc x Soc - 130 psi

8 x 4 429582FE 135896

8 x 6 429585FE 135897

10 x 4 429624FE 035479

10 x 6 429626FE 135898

10 x 8 429628FE 135899

12 x 6 429666FE 035480

12 x 8 429668FE 135900

12 x 10 429670FE 135901

1414

XIRTEC PVC SCHEDULE 40 WHITE

Fabricated Coupling Soc x Soc

10 429100F 035460

12 429120F 035461

14 429140F 035462

16 429160F 035463

18 429180F 035434

20 429200F 035464

24 429240F 035465

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

Fabricated Reducing Cross Soc x Soc x Soc x Soc - 130 psi

8 x 4 420582F 135886

8 x 6 420585F 135887

10 x 6 420626F 135888

10 x 8 420628F 135889

12 x 8 420668F 135890

12 x 10 420670F 135891

14 x 10 420700F 135892

14 x 12 420702F 135893

16 x 12 420762F 135894

16 x 14 420764F 135895

Coupling Soc x Soc

3/8 429003 035447

1/2 429005 035448

3/4 429007 035449

1429010 035450

1-1/4 429012 035451

1-1/2 429015 035452

2 429020 035453

2-1/2 429025 035454

3 429030 035455

4429040 035456

5 429050 035457

6429060 035458

8 429080 035459

10 429100 235460

12 429120 235461

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

XIRTEC PVC SCHEDULE 40 WHITE

IPS to PIP Adapter Spig x Soc

6 431060 235045

8431080 235046

Riser Extension Fpt x Mpt

1/2 434005 035591

3/4 434007 035944

1 434010 035947

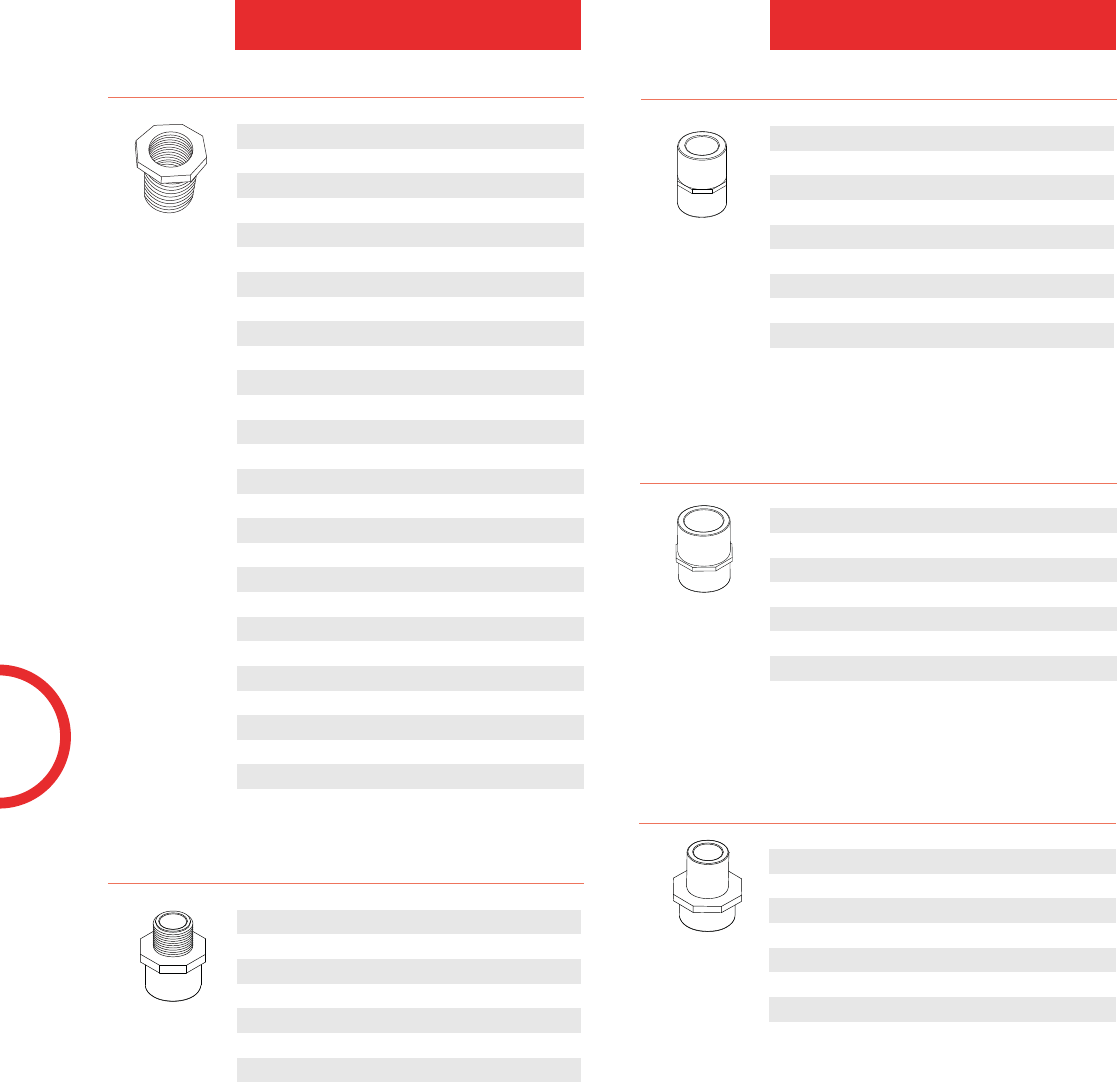

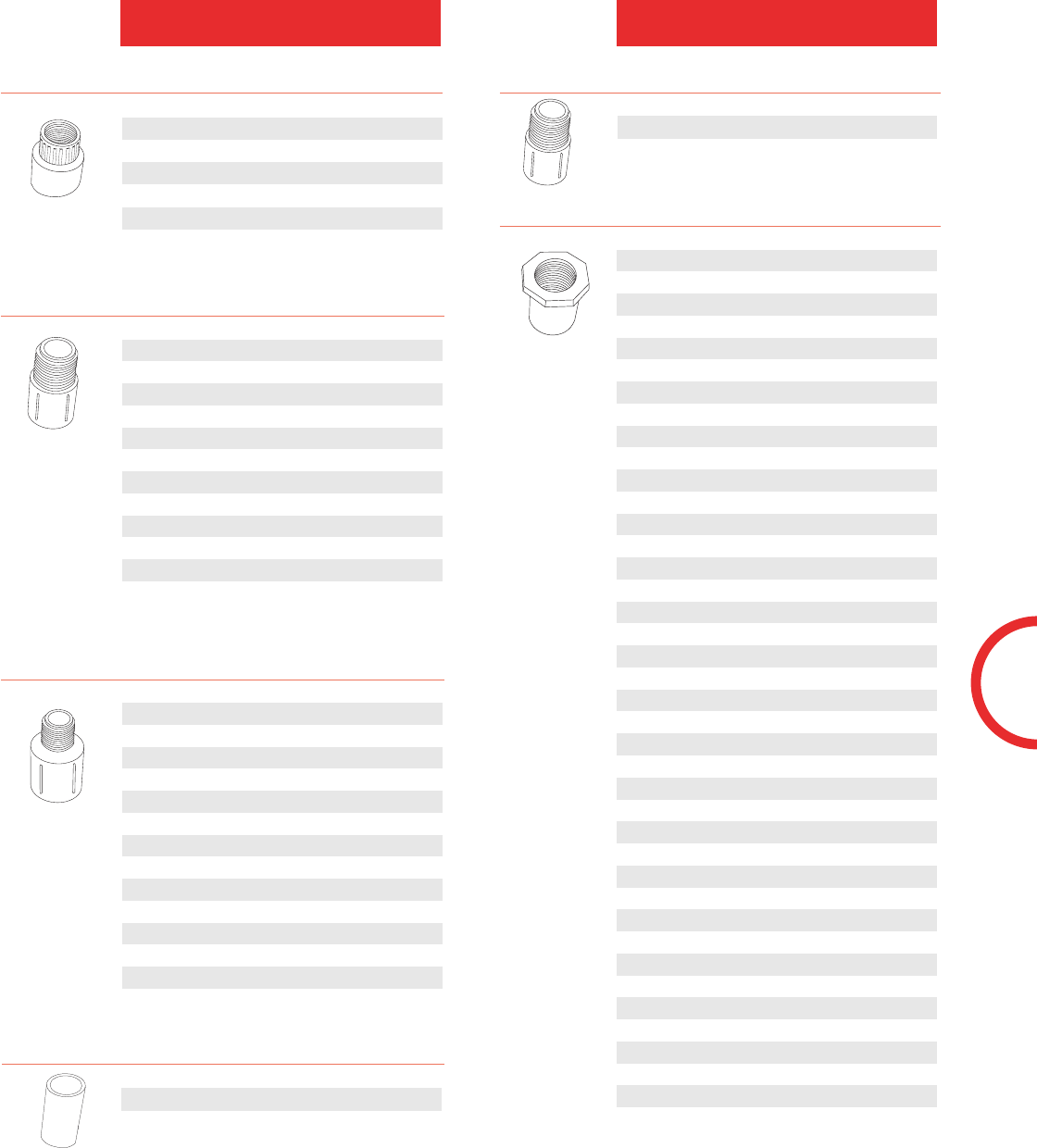

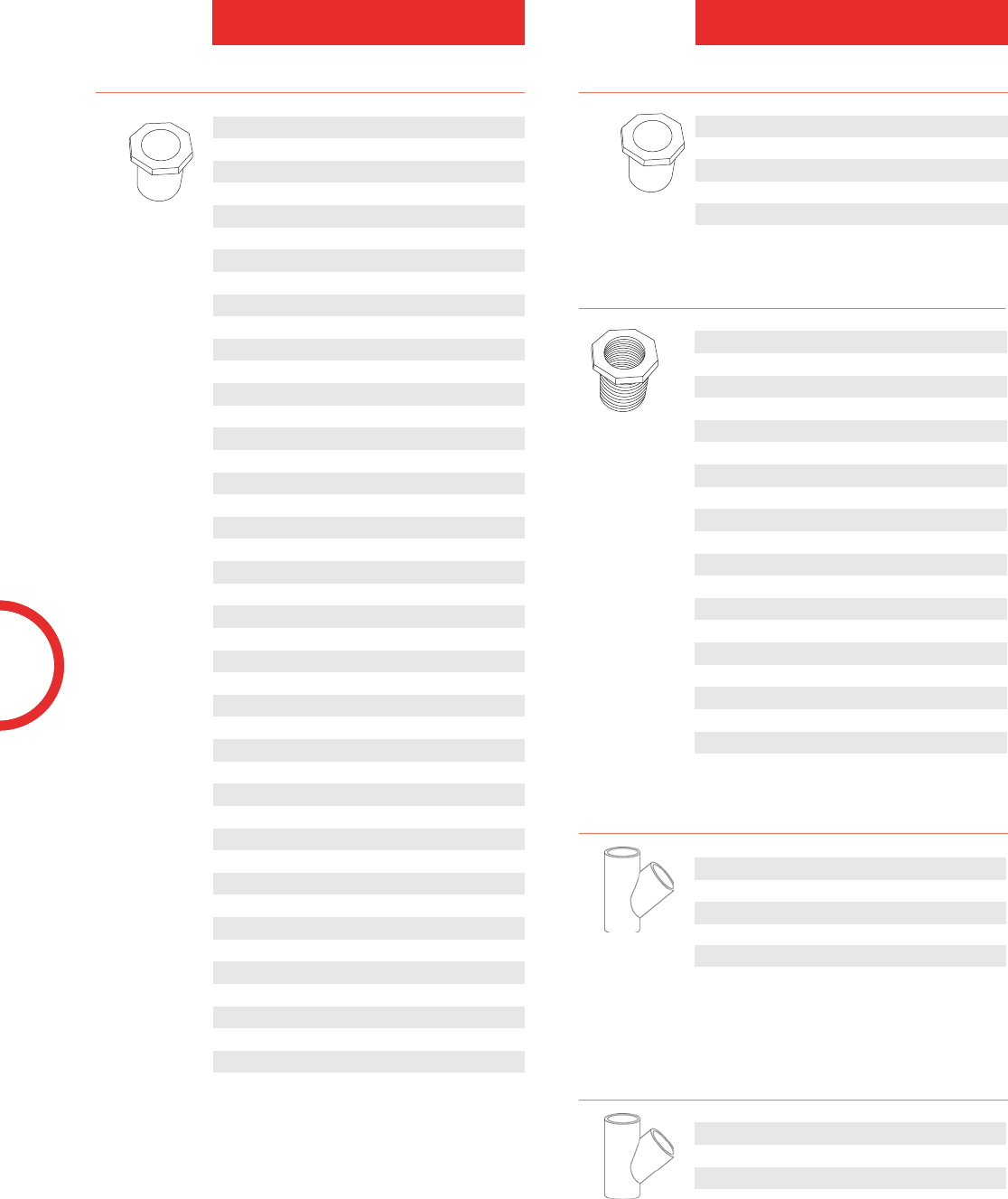

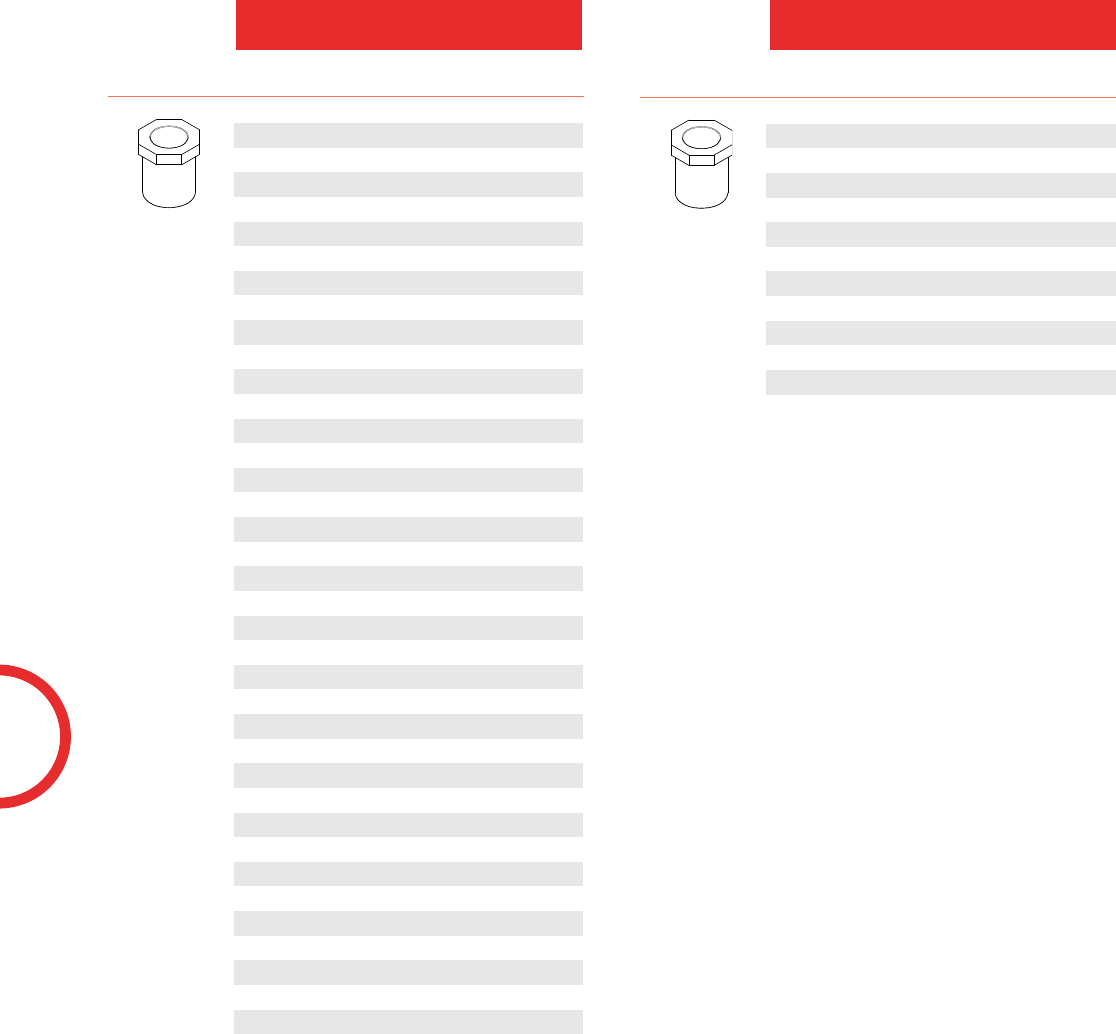

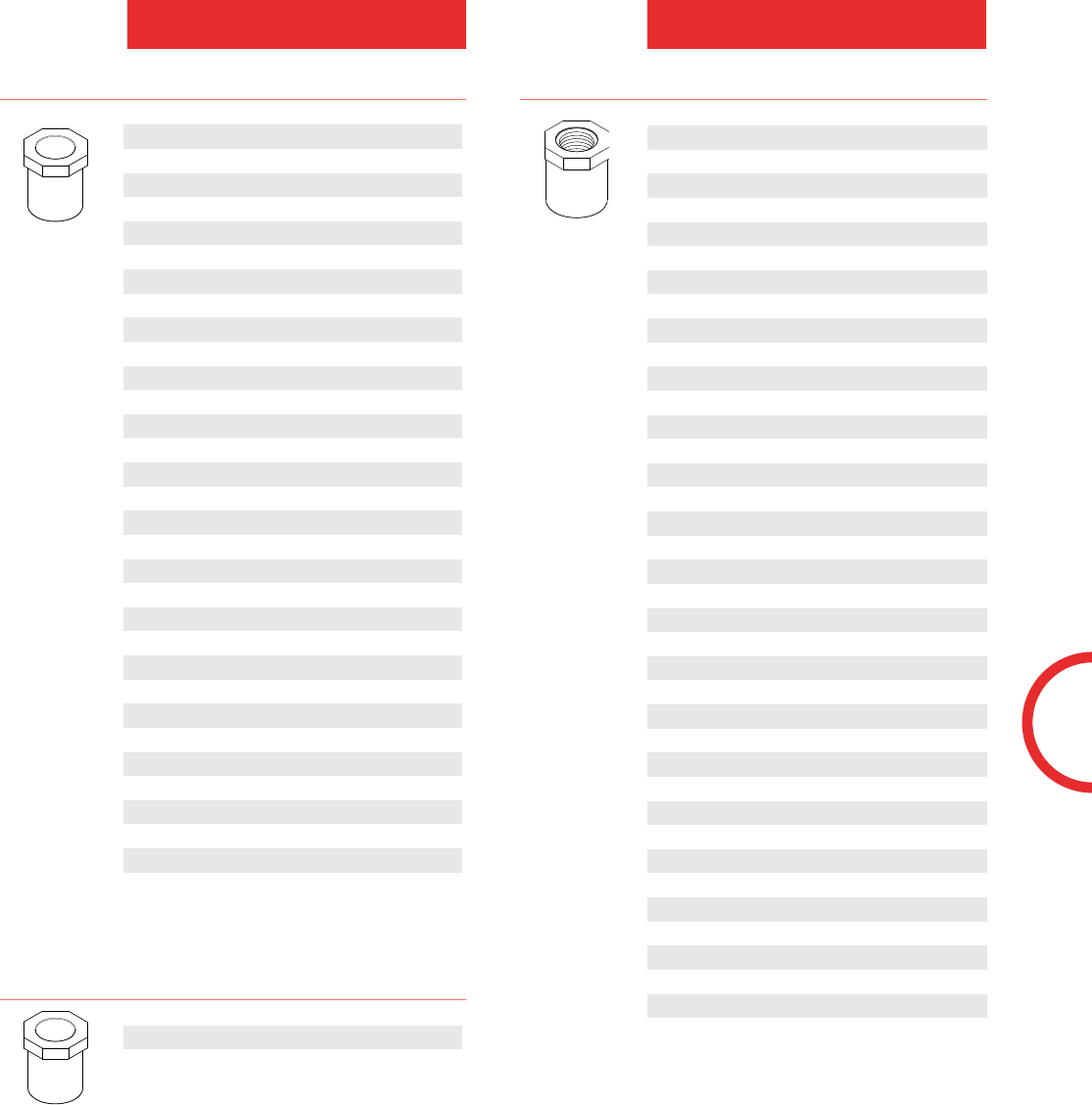

Reducer Bushing Spig x Fpt

1/2 x 1/8 438071 035717

1/2 x 1/4 438072 035718

1/2 x 3/8 438073 035719

3/4 x 1/4 438098 035720

3/4 x 1/2 438101 035722

1 x 3/8 438129 035723

1 x 1/2 438130 035724

1 x 3/4 438131 035725

1-1/4 x 1/2 438166 035726

1-1/4 x 3/4 438167 035727

1-1/4 x 1 438168 035728

1-1/2 x 1/2 438209 035729

1-1/2 x 3/4 438210 035730

1-1/2 x 1 438211 035731

1-1/2 x 1-1/4 438212 035732

2 x 1/2 438247 035733

2 x 3/4 438248 035734

2 x 1 438249 035735

2 x 1-1/4 438250 035736

2 x 1-1/2 438251 035737

2-1/2 x 1/2 438287 035738

2-1/2 x 3/4 438288 035739

2-1/2 x 1 438289 035740

2-1/2 x 1-1/4 438290 035741

2-1/2 x 1-1/2 438291 035742

2-1/2 x 2 438292 035743

3 x 3/4 438334 035744

3 x 1 438335 035745

3 x 1-1/4 438336 035746

3 x 1-1/2 438337 035747

3 x 2 438338 035748

3 x 2-1/2 438339 035749

4 x 2 438420 035750

4 x 2-1/2 438421 035751

4 x 3 438422 035752

5 x 3 438488 035753

5 x 4 438490 035754

6 x 2 438528 035755

6 x 3 438530 035756

6 x 4 438532 035757

6 x 5 438534 035758

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

Male Adapter Soc x Mpt

3/8 436003 035934

1/2 436005 035602

3/4 436007 035603

1436010 035604

1-1/4 436012 035605

1-1/2 436015 035606

2 436020 035607

2-1/2 436025 035608

3 436030 035609

4436040 035610

5 436050 035611

6436060 035612

8 436080 035613

Reducing Male Adapter Mpt x Soc

1/2 X 3/4 436074 035614

3/4 x 1/2 436101 035615

1 x 3/4 436102 035616

3/4 x 1 436131 035617

1 x 1-1/4 436132 035618

1-1/4 x 1 436168 035380

1-1/4 X 1-1/2 436169 035593

1-1/2 x 1-1/4 436212 035619

1-1/2 x 2 436213 035620

2 x 1-1/2 436251 035973

2-1/2 x 2 436252 235041

3 x 2-1/2 436294 235042

4 x 2-1/2 436296 235043

4 x 3 436342 235044

Reducing Female Adapter Soc x Fpt

1/2 x 1/4 435072 035571

1/2 x 3/8 435073 035951

1/2 x 3/4 435074 035572

3/4 x 1/2 435101 035992

3/4 x 1 435102 035990

1 x 3/4 435131 035958

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

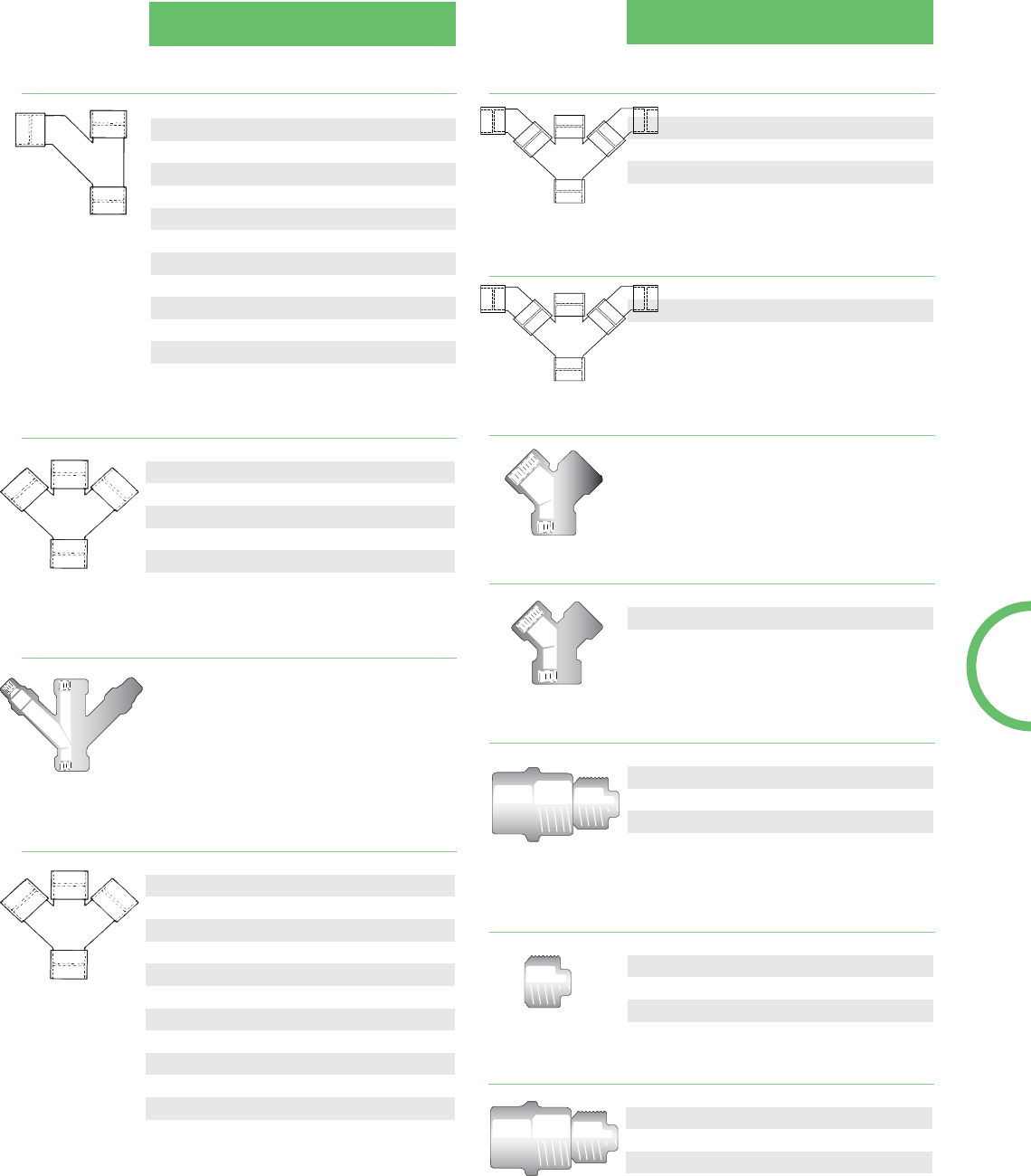

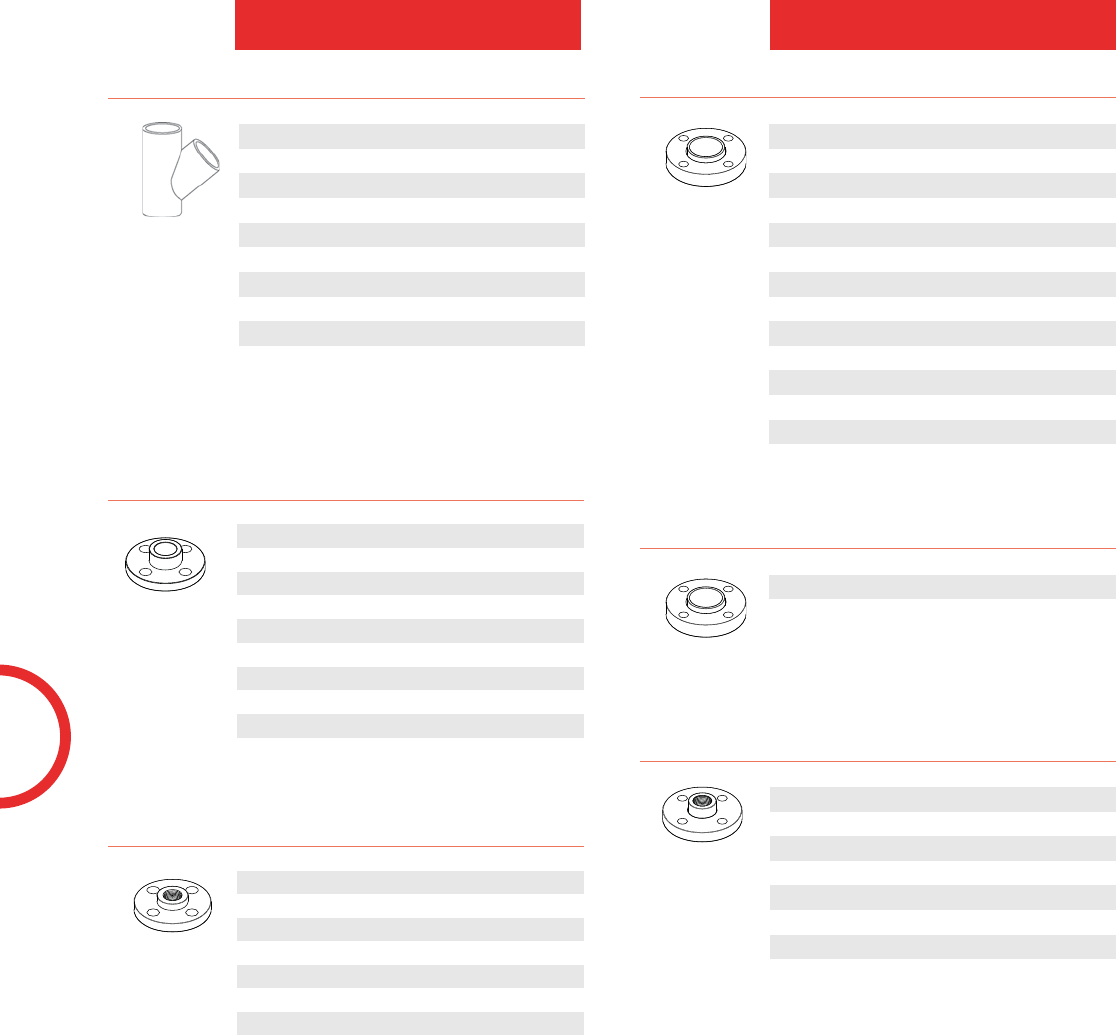

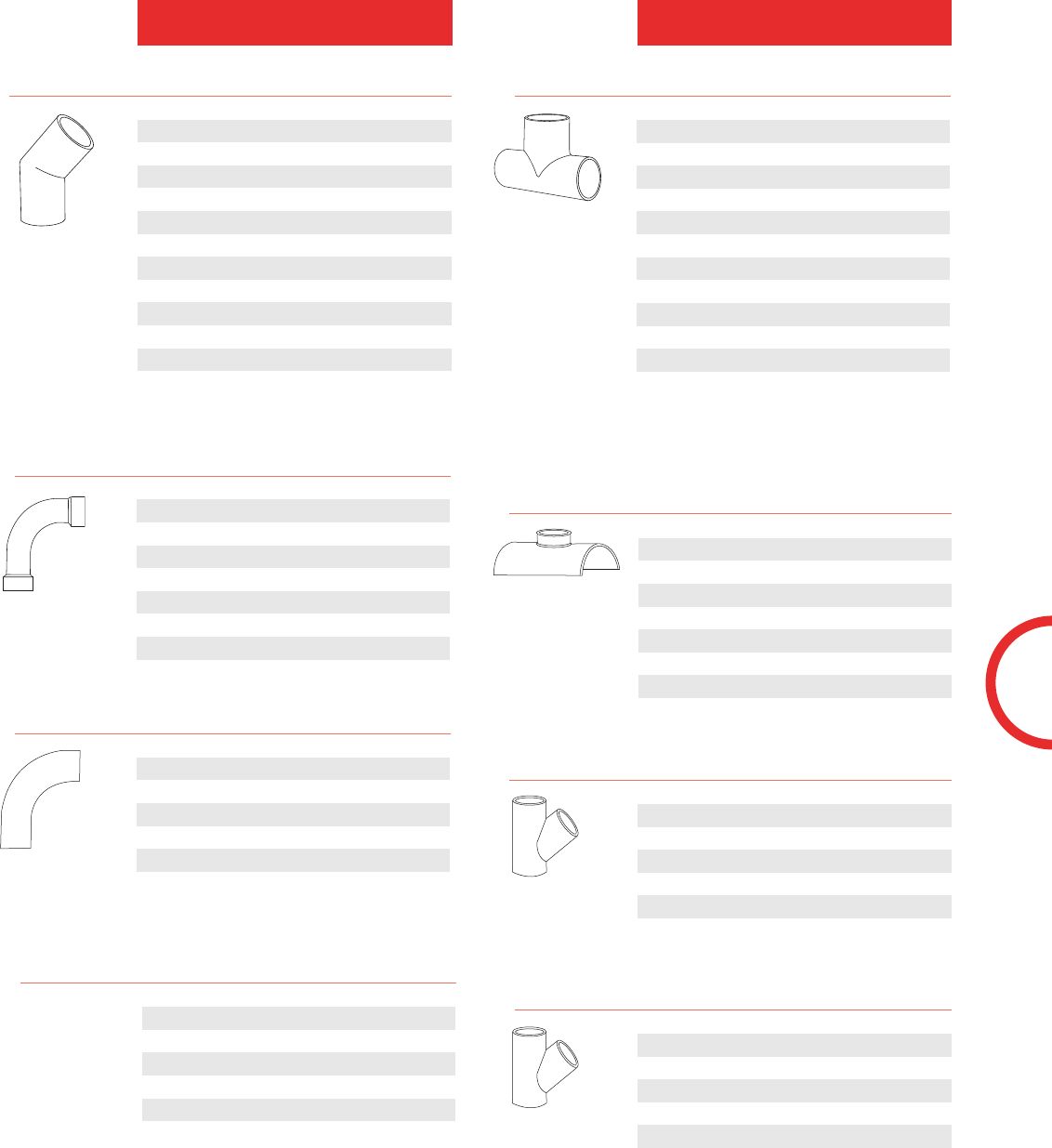

45º Wye Soc x Soc x Soc

1-1/2 475015 035912

2475020 035913

3 475030 035915

4475040 035916

6 475060 035917

6 x 6 x 4 475532 035922

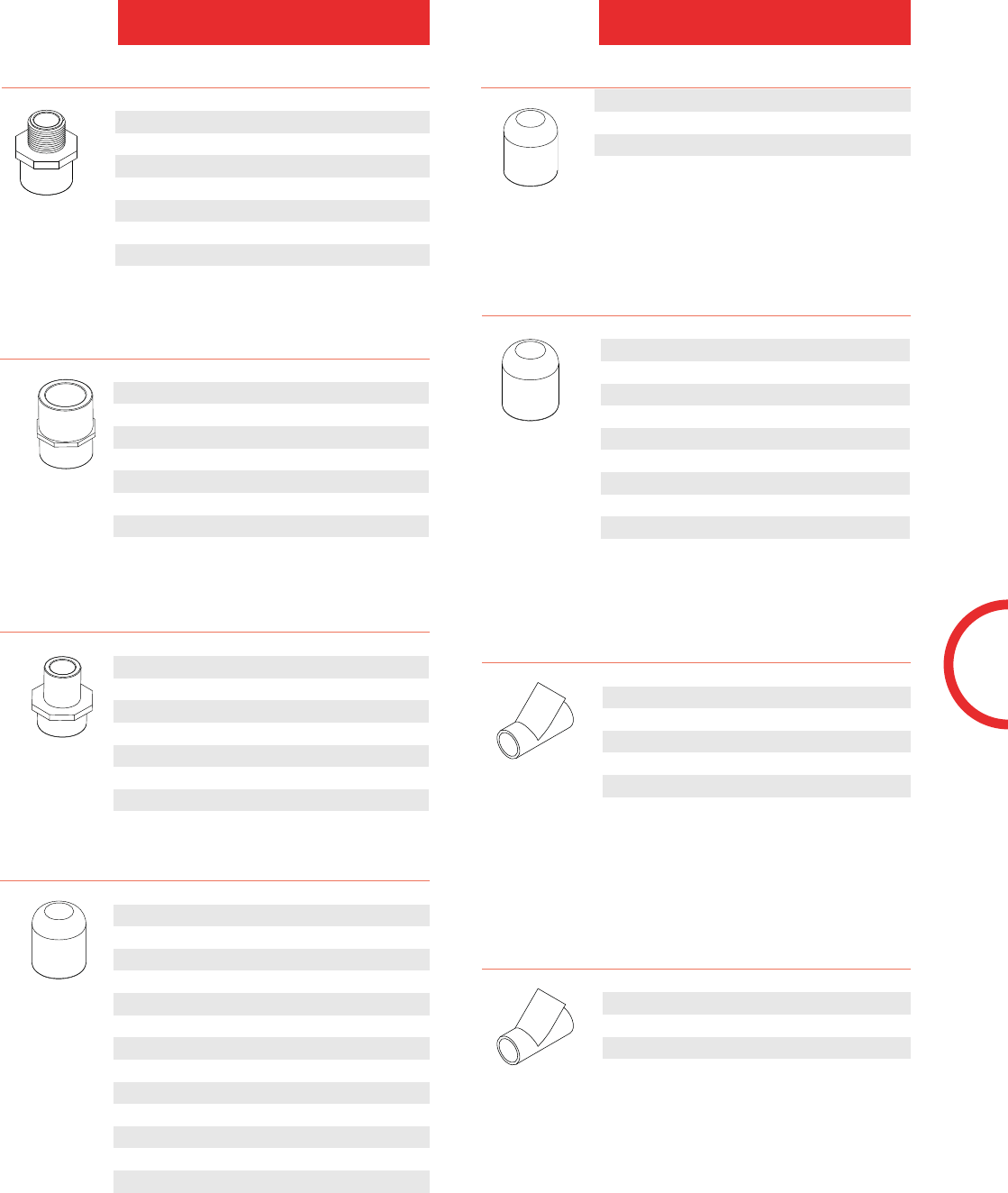

T.T. Bushing Mpt x FPT

3/8 x 1/4 439052 035696

1/2 x 1/4 439072 035697

1/2 x 3/8 439073 035698

3/4 x 1/4 439098 035699

3/4 x 3/8 439099 035968

3/4 x 1/2 439101 035700

1 x 1/2 439130 035701

1 x 3/4 439131 035702

1-1/4 x 1/2 439166 035703

1-1/4 x 3/4 439167 035704

1-1/4 x 1 439168 035705

1-1/2 x 1/2 439209 035706

1-1/2 x 3/4 439210 035707

1-1/2 x 1 439211 035708

1-1/2 x 1-1/4 439212 035709

2 x 1 439249 035711

2 x 1-1/4 439250 035712

2 x 1-1/2 439251 035713

2-1/2 x 2 439292 035714

3 x 2 439338 035715

3 x 2-1/2 439339 035716

1616

XIRTEC PVC SCHEDULE 40 WHITE

1-1/2" – 2" Wye – 235 psi maximum

internal pressure @ 73ºF

3" - 6 x 6 x 4 Wye – 150 psi maximum

internal pressure @ 73ºF

Fabricated 45º Wye Soc x Soc x Soc - 100 psi

8 475080F 135866

10 475100F 135867

12 475120F 135868

14 475140F 135869

16 475160F 135870

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

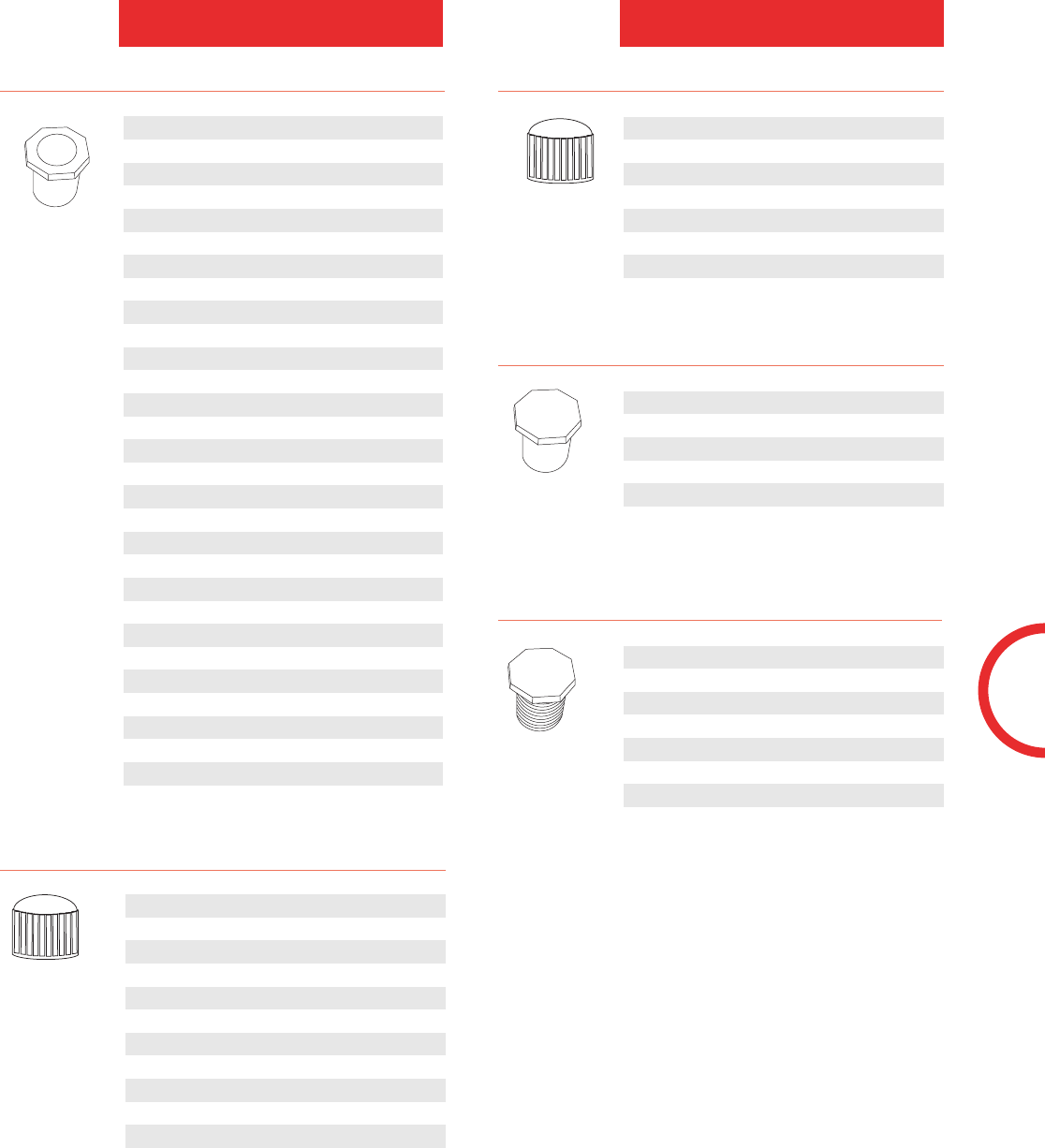

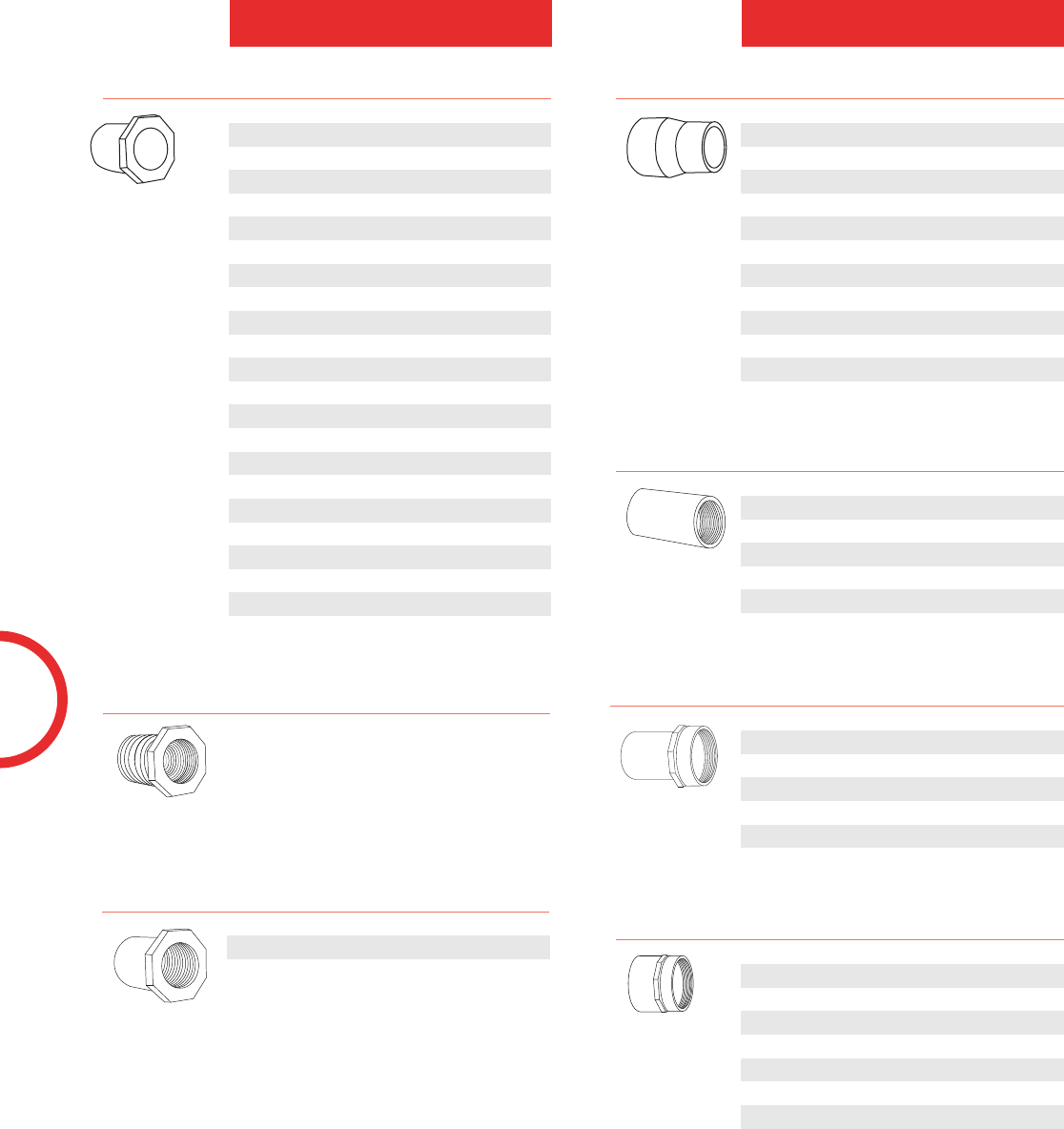

Reducer Bushing Spig x Soc

1/2 x 1/4 437072 035643

1/2 x 3/8 437073 035644

3/4 x 1/2 437101 035646

1 x 1/2 437130 035648

1 x 3/4 437131 035649

1-1/4 x 1/2 437166 035650

1-1/4 x 3/4 437167 035651

1-1/4 x 1 437168 035652

1-1/2 x 1/2 437209 035653

1-1/2 x 3/4 437210 035654

1-1/2 x 1 437211 035655

1-1/2 x 1-1/4 437212 035656

2 x 1/2 437247 035657

2 x 3/4 437248 035658

2 x 1 437249 035659

2 x 1-1/4 437250 035660

2 x 1-1/2 437251 035661

2-1/2 x 1/2 437287 035662

2-1/2 x 3/4 437288 035663

2-1/2 x 1 437289 035664

2-1/2 x 1-1/4 437290 035665

2-1/2 x 1-1/2 437291 035666

2-1/2 x 2 437292 035667

3 x 3/4 437334 035668

3 x 1 437335 035669

3 x 1-1/4 437336 035670

3 x 1-1/2 437337 035671

3 x 2 437338 035672

3 x 2-1/2 437339 035673

4 x 2 437420 035677

4 x 2-1/2 437421 035678

4 x 3 437422 035679

5 x 2 437486 035680

5 x 3 437488 035681

5 x 4 437490 035682

6 x 2 437528 035683

6 x 3 437530 035684

6 x 4 437532 035685

6 x 5 437534 035686

8 x 4 437582 035687

8 x 6 437585 035688

10 x 6 437626 235690

10 x 8 437628 035691

12 x 8 437668 235693

12 x 10 437670 235694

Fabricated Reducer Bushing Spig x Soc - 130 psi

10 x 4 437624F 035689

10 x 6 437626F 035690

12 x 4 437664F 035041

12 x 6 437666F 035692

12 x 8 437668F 035693

12 x 10 437670F 035694

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

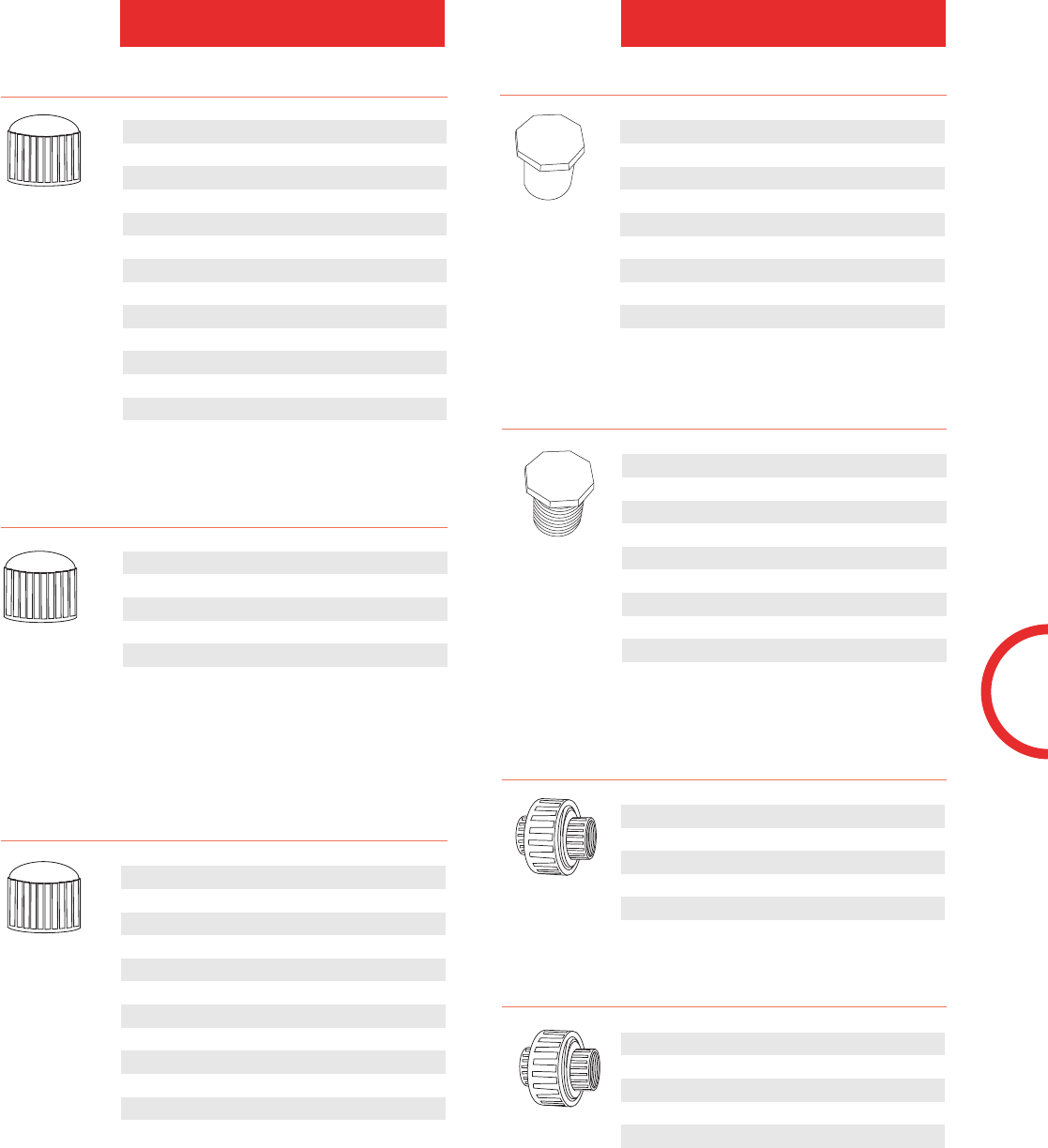

XIRTEC PVC SCHEDULE 40 WHITE

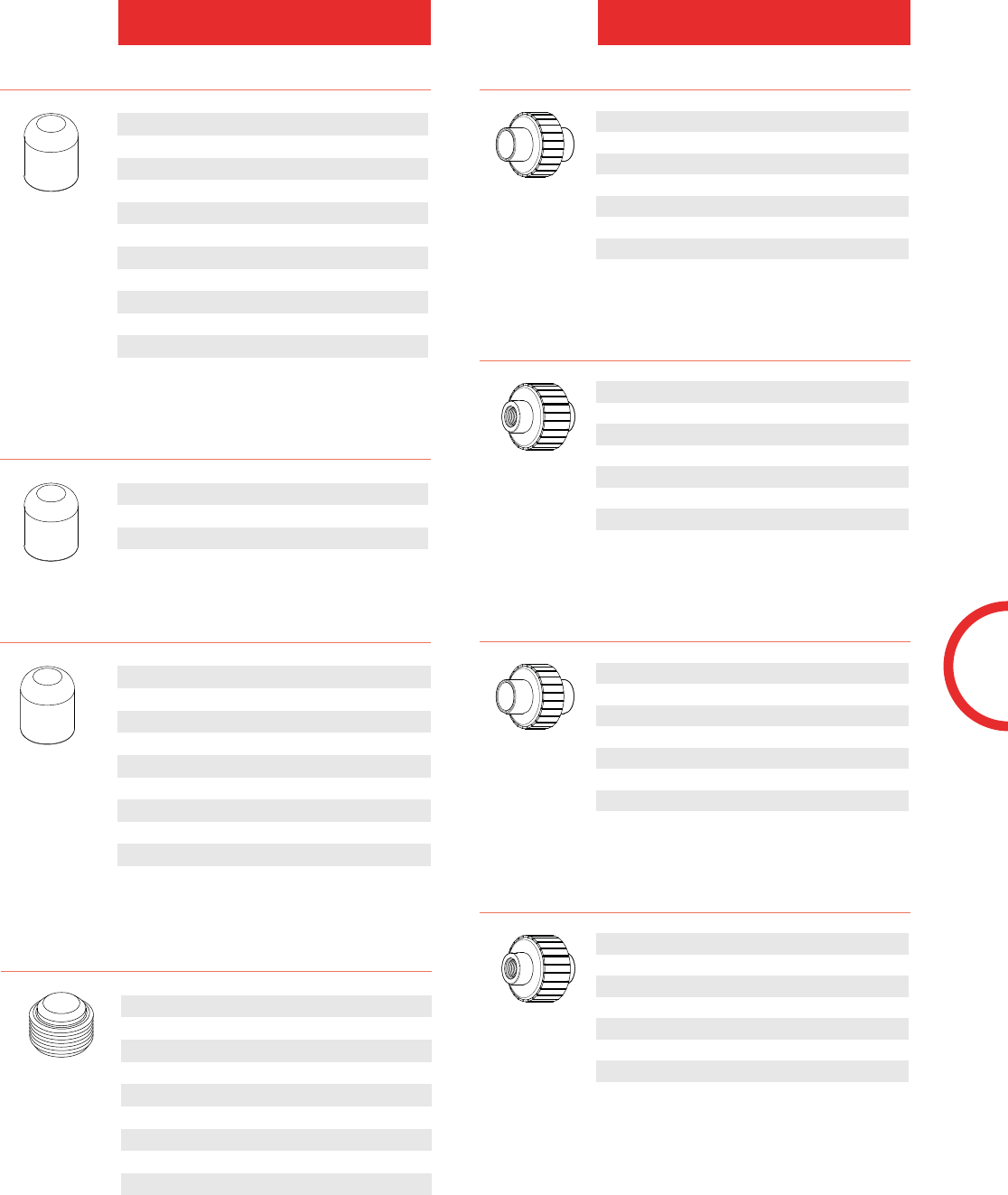

Plug Spig

3/8 449003 035946

1/2 449005 035631

3/4 449007 035632

1449010 035633

1-1/4 449012 035634

1-1/2 449015 035635

2 449020 035636

2-1/2 449025 035637

3 449030 035638

4449040 035639

Plug Mpt

3/8 450003 035621

1/2 450005 035622

3/4 450007 035623

1450010 035624

1-1/4 450012 035625

1-1/2 450015 035626

2 450020 035627

2-1/2 450025 035628

3 450030 035629

4450040 035630

6 450060 235047

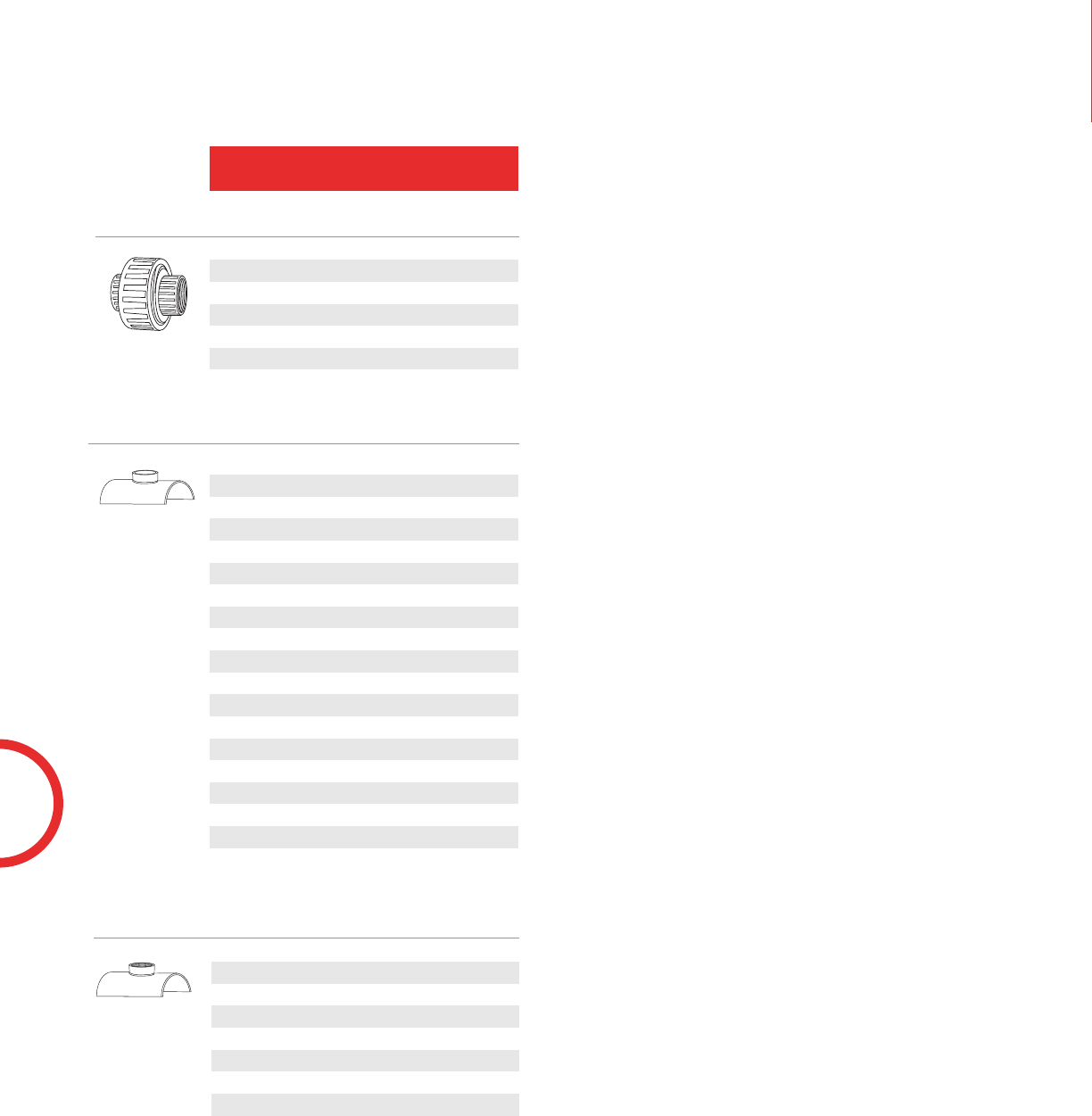

Union Soc x Soc Buna O-ring Seal (Nitrile)

1/2 457005 035900

3/4 457007 035901

1 457010 035902

1-1/4 457012 035903

1-1/2 457015 035904

2457020 035905

Union Soc x Soc EPDM O-ring Seal

1/2 497005 235001

3/4 497007 235002

1 497010 235003

1-1/4 497012 235004

1-1/2 497015 235005

2497020 235006

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

3/8 447003 035406

1/2 447005 035407

3/4 447007 035408

1447010 035409

1-1/4 447012 035410

1-1/2 447015 035411

2 447020 035412

2-1/2 447025 035413

3 447030 035414

4447040 035415

5 447050 035416

6447060 035417

8 447080 035418

10 447100 235902

12 447120 235903

Cap Soc

10 447100F 135902

12 447120F 135903

14 447140F 135904

16 447160F 135905

* 18 447180F 135906

** 20 447200F 135907

** 24 447240F 135908

Fabricated Cap Soc - 130 psi

* 18" Cap - 100 psi maximum

internal pressure

** 20" & 24" Cap - 50 psi maximum

internal pressure

Cap Fpt

3/8 448003 035948

1/2 448005 035423

3/4 448007 035424

1448010 035425

1-1/4 448012 035426

1-1/2 448015 035427

2 448020 035428

2-1/2 448025 035429

3 448030 035430

4448040 035431

5 448050 035432

6448060 035433

XIRTEC PVC SCHEDULE 40 WHITE

Dimension

inches

Universal

Number

Sch 40 WHITE

Product Code

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 WHITE

Saddles Pipe OD x Soc (Rated for 80 psi Open-Ended)

2-1/2 x 3/4 463288 235048

*3 x 1-1/4 463336 035996

3 x 1-1/2 463337 235049

*3 x 2 463338 035995

*4 x 1-1/4 463418 035767

4 x 1-1/2 463419 035768

*4 x 2 463420 035769

*5 x 1-1/2 463485 235050

5 x 2 463486 035955

*6 x 1-1/4 463526 235051

6 x 1-1/2 463527 035588

*6 x 2 463528 035942

6 x 4 463532 035770

*8 x 1-1/4 463576 235052

8 x 1-1/2 463577 235053

*8 x 2 463578 235054

8 x 4 463582 035976

10 x 4 463624 035771

Saddles Pipe OD x Fpt (Rated for 80 psi Open-Ended)

2-1/2 x 3/4 464288 235055

3 x 1-1/2 464337 035993

4 x 1-1/2 464419 035772

5 x 2 464486 035943

6 x 1-1/2 464527 035587

6 x 4 464532 235056

8 x 1-1/2 464577 235057

8 x 4 464582 035774

10 x 4 464624 235058

*These sizes are bushed.

Union Fpt x Fpt Buna O-ring Seal (Nitrile)

NOTE: When assembling Saddles to PVC pipe, IPEX recommends

Industrial Polychemical Service (IPS) #719 cement, or equivalent.

Although good connections may be accomplished without Saddle

Straps, IPEX recommends the use of a clamp or strap device during

the assembly step to insure good compression between the pipe and

fitting surfaces as the solvent cures.

For further details contact the factory.

1/2 458005 035906

3/4 458007 035907

1 458010 035908

1-1/4 458012 035909

1-1/2 458015 035910

2458020 035911

XIRTEC PVC SCHEDULE 40 GREY

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

Tee Soc x Soc x Soc

1/2 401005G 035290

3/4 401007G 035291

1 401010G 035292

1-1/4 401012G 035293

1-1/2 401015G 035294

2401020G 035295

2-1/2 401025G 035296

3401030G 035297

4 401040G 035298

5401050G 035299

6 401060G 035300

8401080G 035301

Reducing Tee Soc x Soc x Soc

3/4 x 3/4 x 1/2 401101G 035305

1 x 1 x 1/2 401130G 035307

1 x 1 x 3/4 401131G 035308

1-1/4 x 1-1/4 x 1/2 401166G 035311

1-1/4 x 1-1/4 x 3/4 401167G 035312

1-1/4 x 1-1/4 x 1 401168G 035313

1-1/2 x 1-1/2 x 1/2 401209G 035315

1-1/2 x 1-1/2 x 3/4 401210G 035316

1-1/2 x 1-1/2 x 1 401211G 035317

1-1/2 x 1-1/2 x 1-1/4 401212G 035318

2 x 2 x 1/2 401247G 035319

2 x 2 x 3/4 401248G 035320

2 x 2 x 1 401249G 035321

2 x 2 x 1-1/2 401251G 035322

3 x 3 x 1-1/2 401337G 035327

3 x 3 x 2 401338G 035328

3 x 3 x 2-1/2 401339G 035329

4 x 4 x 2 401420G 035331

4 x 4 x 3 401422G 035332

6 x 6 x 3 401530G 035334

6 x 6 x 4 401532G 035335

3/4 x 3/4 x 1/2 402101G 035348

1 x 1 x 1/2 402130G 235059

1 x 1 x 3/4 402131G 035349

1-1/4 x 1-1/4 x 1/2 402166G 035350

1-1/4 x 1-1/4 x 3/4 402167G 035977

1-1/4 x 1-1/4 x 1 402168G 235060

1-1/2 x 1-1/2 x 1/2 402209G 035351

1-1/2 x 1-1/2 x 3/4 402210G 035352

1-1/2 x 1-1/2 x 1 402211G 035353

2 x 2 x 3/4 402248G 035355

2 x 2 x 1 402249G 035356

2 x 2 x 1-1/2 402251G 235061

Reducing Tee Soc x Soc x Fpt

90º Elbow Soc x Soc

3/8 406003G 035108

1/2 406005G 035109

3/4 406007G 035110

1406010G 035111

1-1/4 406012G 035112

1-1/2 406015G 035113

2 406020G 035114

2-1/2 406025G 035115

3 406030G 035116

4406040G 035117

5 406050G 035118

6406060G 035119

8 406080G 035120

90º Elbow Soc x Fpt

1/2 407005G 035101

3/4 407007G 035102

1 407010G 035103

1-1/4 407012G 035104

1-1/2 407015G 035105

2407020G 035106

90º Elbow Fpt x Fpt

1/2 408005G 035125

3/4 408007G 035126

1408010G 035127

90º Street Elbow Spig x Soc

1 409010G 035128

1-1/2 409015G 035129

2 409020G 035130

90º Street Elbow Mpt x Fpt

1/2 412005G 035132

3/4 412007G 035133

1 412010G 035134

1-1/2 412015G 035135

45º Elbow Soc x Soc

1/2 417005G 035083

3/4 417007G 035084

1 417010G 035085

1-1/4 417012G 035086

1-1/2 417015G 035087

2417020G 035088

2-1/2 417025G 035089

3417030G 035090

4 417040G 035091

5417050G 035092

6 417060G 035093

8417080G 035094

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 GREY

XIRTEC PVC SCHEDULE 40 GREY

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

Hose Adapter (grey) Insert x Mpt

1/2 1436005G 035157

3/4 1436007G 035158

1 1436010G 035159

1-1/4 1436012G 035160

1-1/2 1436015G 035161

21436020G 035162

2-1/2 1436025G 035163

31436030G 035164

4 1436040G 035165

ASTM D2609 - Plastic Insert fitting for

polyethylene

Cross Soc x Soc x Soc x Soc

1/2 420005G 035068

3/4 420007G 035069

1 420010G 035070

1-1/4 420012G 035071

1-1/2 420015G 035072

2420020G 035073

2-1/2 420025G 035074

3420030G 035075

4 420040G 035076

Coupling Soc x Soc

1/2 429005G 035052

3/4 429007G 035053

1429010G 035054

1-1/4 429012G 035055

1-1/2 429015G 035056

2 429020G 035057

2-1/2 429025G 035058

3 429030G 035059

4429040G 035060

5 429050G 035061

6429060G 035062

8 429080G 035063

Male Adapter Soc x Mpt

1/2 436005G 035167

3/4 436007G 035168

1436010G 035169

1-1/4 436012G 035170

1-1/2 436015G 035171

2 436020G 035172

2-1/2 436025G 035173

3 436030G 035174

4436040G 035175

5 436050G 035176

6436060G 035177

Female Adapter Soc x Fpt

1/2 435005G 035136

3/4 435007G 035137

1 435010G 035138

1-1/4 435012G 035139

1-1/2 435015G 035140

2435020G 035141

2-1/2 435025G 035142

3435030G 035143

4 435040G 035144

5435050G 035145

6 435060G 035146

Female Adapter Spig x Fpt

1/2 478005G 035148

3/4 478007G 035149

1 478010G 035150

1-1/4 478012G 035151

1-1/2 478015G 035152

2478020G 035153

3 478030G 035155

4478040G 035156

1/2 x 1/4 438072G 035258

1/2 x 3/8 438073G 035259

3/4 x 1/2 438101G 035260

1 x 1/2 438130G 035262

1 x 3/4 438131G 035263

1-1/4 x 1/2 438166G 035264

1-1/4 x 3/4 438167G 035265

1-1/4 x 1 438168G 035266

1-1/2 x 1/2 438209G 035267

1-1/2 x 3/4 438210G 035268

1-1/2 x 1 438211G 035269

1-1/2 x 1-1/4 438212G 035270

2 x 1/2 438247G 035271

2 x 3/4 438248G 035272

2 x 1 438249G 035273

2 x 1-1/4 438250G 035274

2 x 1-1/2 438251G 035275

2-1/2 x 1-1/2 438291G 035277

2-1/2 x 2 438292G 035278

3 x 2 438338G 035283

4 x 2 438420G 035285

4 x 3 438422G 035286

5 x 4 438490G 235062

6 x 4 438532G 035287

Reducer Bushing Spig x Fpt

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 GREY

XIRTEC PVC SCHEDULE 40 GREY

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

3/4 x 1/2 437101G 035209

1 x 1/2 437130G 035211

1 x 3/4 437131G 035212

1-1/4 x 1/2 437166G 035213

1-1/4 x 3/4 437167G 035214

1-1/4 x 1 437168G 035215

1-1/2 x 1/2 437209G 035216

1-1/2 x 3/4 437210G 035217

1-1/2 x 1 437211G 035218

1-1/2 x 1-1/4 437212G 035219

2 x 1/2 437247G 035220

2 x 3/4 437248G 035221

2 x 1 437249G 035222

2 x 1-1/4 437250G 035223

2 x 1-1/2 437251G 035224

2-1/2 x 1 437289G 035226

2-1/2 x 1-1/4 437290G 035227

2-1/2 x 1-1/2 437291G 035228

2-1/2 x 2 437292G 035229

3 x 1 437335G 035231

3 x 1-1/4 437336G 035232

3 x 1-1/2 437337G 035233

3 x 2 437338G 035234

3 x 2-1/2 437339G 035235

4 x 2 437420G 035238

4 x 2-1/2 437421G 035239

4 x 3 437422G 035240

5 x 4 437490G 035241

6 x 4 437532G 035244

8 x 6 437585G 035246

Reducer Bushing Spig x Soc

3/8 447003G 035590

1/2 447005G 035017

3/4 447007G 035018

1447010G 035019

1-1/4 447012G 035020

1-1/2 447015G 035021

2 447020G 035022

2-1/2 447025G 035023

3 447030G 035024

4447040G 035025

5 447050G 035026

6447060G 035027

8 447080G 035028

Cap Soc

Cap Fpt

1/2 448005G 035032

3/4 448007G 035033

1 448010G 035034

1-1/4 448012G 035035

1-1/2 448015G 035036

2448020G 035037

3 448030G 035038

4448040G 035039

Plug Spig

1/2 449005G 035197

3/4 449007G 035198

1 449010G 035199

1-1/4 449012G 035200

1-1/2 449015G 035201

2449020G 035202

3 449030G 035204

Plug Mpt

1/2 450005G 035188

3/4 450007G 035189

1 450010G 035190

1-1/4 450012G 035191

1-1/2 450015G 035192

2450020G 035193

2-1/2 450025G 035194

3450030G 035195

4 450040G 035196

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 40 GREY

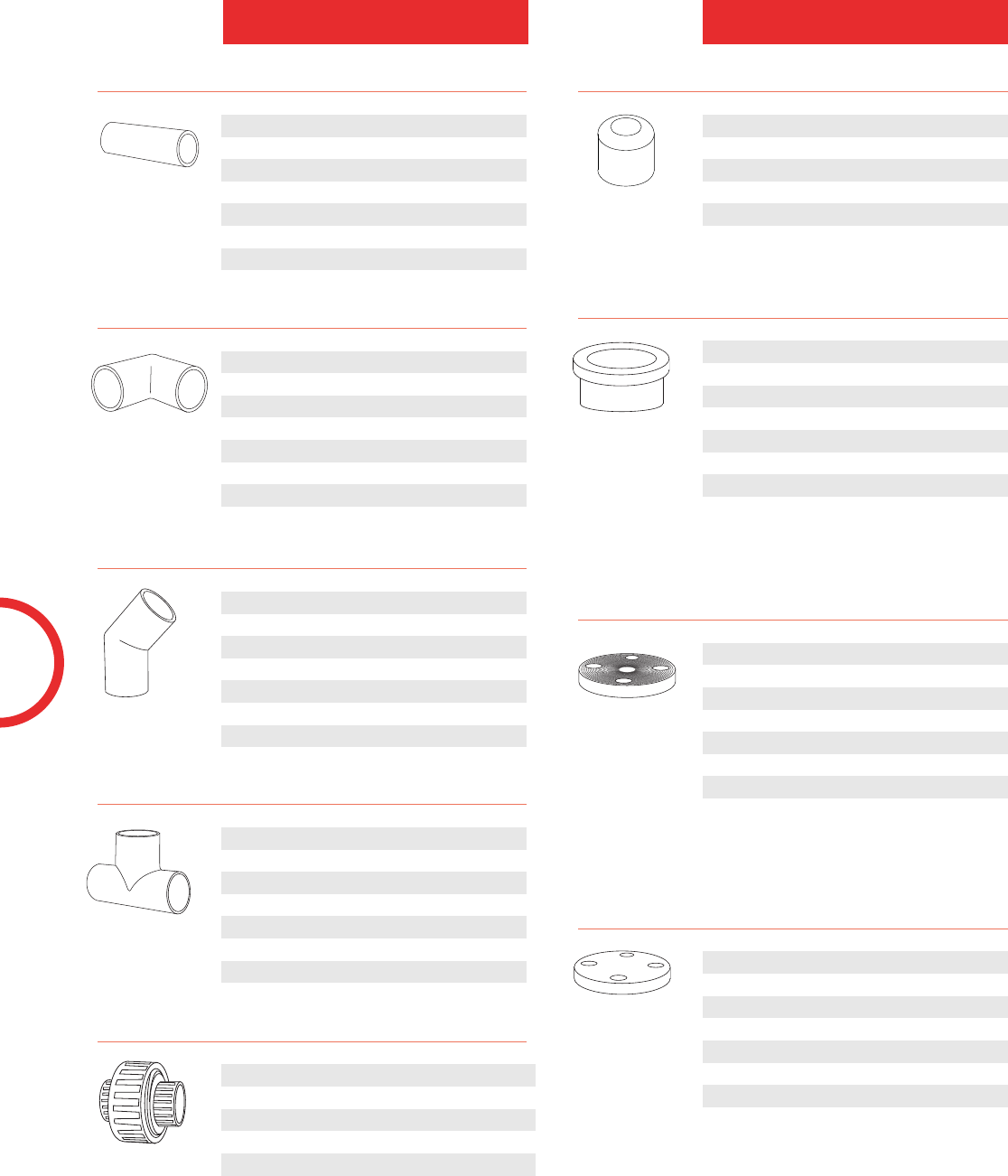

XIRTEC PVC SCHEDULE 80

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

Dimension

inches

Universal

Number

Sch 40 GREY

Product Code

Tee Soc x Soc x Soc

1/4 801002 036768

3/8 801003 036769

1/2 801005 036770

3/4 801007 036771

1 801010 036772

1-1/4 801012 036773

1-1/2 801015 036774

2801020 036775

2-1/2 801025 036776

3801030 036777

4 801040 036778

6801060 036780

8 801080 036781

10 801100 036866

12 801120 036876

Tee Soc x Soc x Fpt

1/2 802005 036828

3/4 802007 036829

1 802010 036830

Tee Fpt x Fpt x Fpt

1/4 805002 036817

3/8 805003 036818

1/2 805005 036819

3/4 805007 036820

1 805010 036821

1-1/4 805012 036822

1-1/2 805015 036823

2805020 036824

2-1/2 805025 036825

3805030 036826

4 805040 036827

Reducing Tee Soc x Soc x Soc

3/4 x 3/4 x 1/2 801101 036786

1 x 3/4 x 3/4 801102 036790

1 x 3/4 x 1 801126 036791

1 x 1 x 1/2 801130 036788

1 x 1 x 3/4 801131 036789

1-1/4 x 1 x 3/4 801157 036792

1-1/4 x 1-1/4 x 3/4 801167 036793

1-1/4 x 1-1/4 x 1 801168 036794

1-1/2 x 1-1/2 x 3/4 801210 036795

1-1/2 x 1-1/2 x 1 801211 036796

2 x 2 x 1/2 801247 036797

2 x 2 x 3/4 801248 036798

2 x 2 x 1 801249 036799

2 x 2 x 1-1/2 801251 036800

3 x 3 x 2 801338 036802

3 x 3 x 2-1/2 801339 036803

4 x 4 x 2 801420 036804

4 x 4 x 3 801422 036805

6 x 6 x 3 801530 036807

6 x 6 x 4 801532 036808

8 x 8 x 6 801585 036810

90º Elbow Soc x Soc

1/4 806002 036179

3/8 806003 036180

1/2 806005 036181

3/4 806007 036182

1 806010 036183

1-1/4 806012 036184

1-1/2 806015 036185

2806020 036186

2-1/2 806025 036187

3806030 036188

4 806040 036189

6806060 036191

8 806080 036192

10 806100 036864

12 806120 036865

Fabricated Tee Soc x Soc x Soc - 130 psi

10 801100F 036407

12 801120F 036430

14 801140F 036431

16 801160F 036432 Fabricated Reducing Tee Soc x Soc x Soc - 130 psi

8 x 8 x 4 801582F 036433

10 x 10 x 6 801626F 036465

10 x 10 x 8 801628F 036594

12 x 12 x 8 801668F 036755

12 x 12 x 10 801670F 036756

14 x 14 x 10 801700F 036757

14 x 14 x 12 801702F 036806

16 x 16 x 12 801762F 036811

16 x 16 x 14 801764F 036831

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

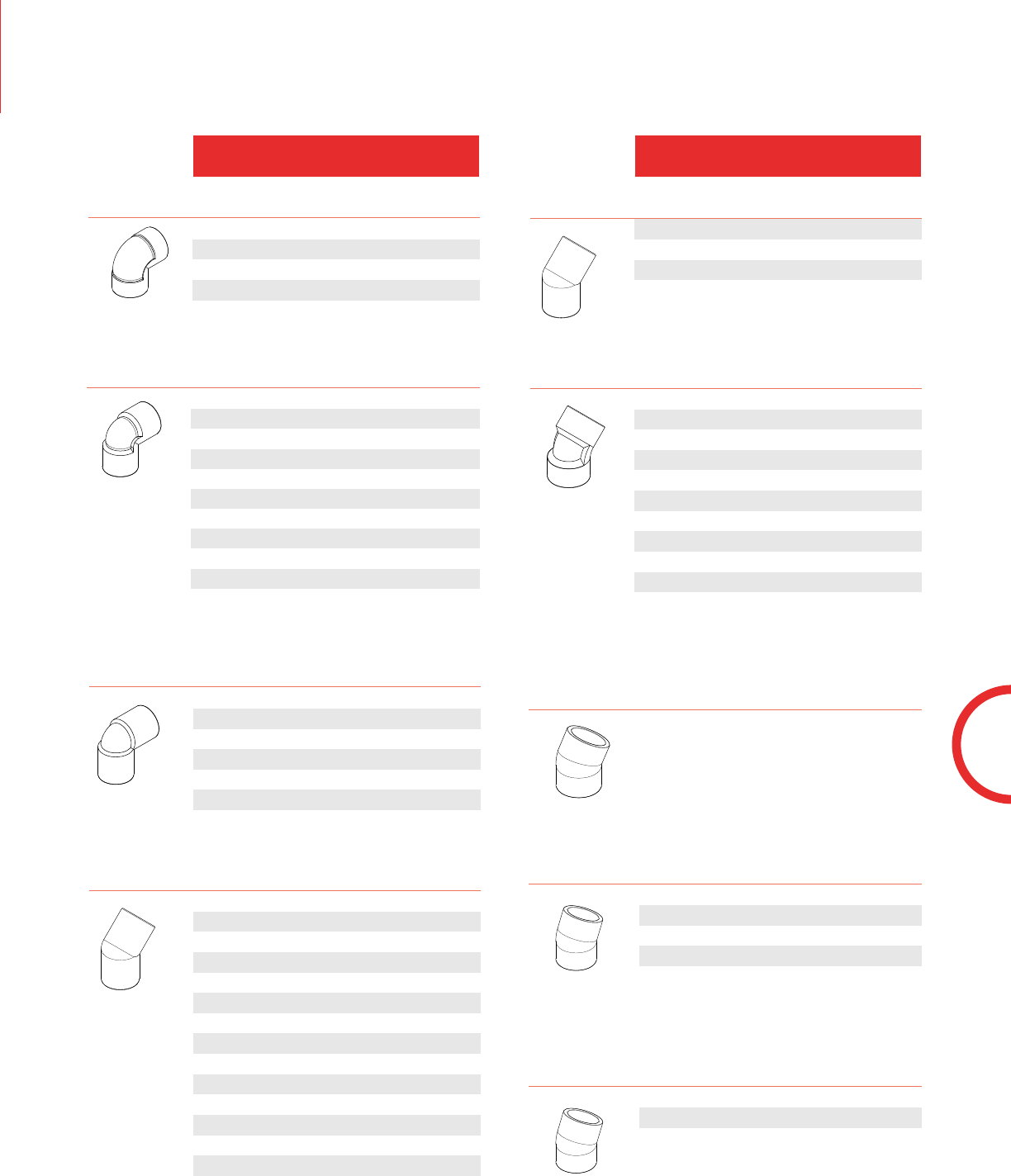

XIRTEC PVC SCHEDULE 80

45º Elbow Soc x Soc

1/4 817002 036142

3/8 817003 036143

1/2 817005 036144

3/4 817007 036145

1 817010 036146

1-1/4 817012 036147

1-1/2 817015 036148

2817020 036149

2-1/2 817025 036150

3817030 036151

4 817040 036152

6817060 036154

8 817080 036155

10 817100 036862

12 817120 036863

45º Elbow Fpt x Fpt

1/4 819002 036160

3/8 819003 036161

1/2 819005 036162

3/4 819007 036163

1 819010 036164

1-1/4 819012 036165

1-1/2 819015 036166

2819020 036167

2-1/2 819025 036168

3819030 036169

4 819040 036170

22-1/2º Elbow Soc x Soc

2 816020 036134

3816030 036135

4 816040 036136

6816060 036137

Fabricated 22-1/2º Elbow Soc x Soc - 130 psi

8 816080F 036888

10 816100F 036890

Fabricated 45º Elbow Soc x Soc - 130 psi

10 817100F 036880

12 817120F 036881

14 817140F 036882

16 817160F 036885

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Fabricated 90º Elbow Soc x Soc - 130 psi

10 806100F 036860

12 806120F 036877

14 806140F 036878

16 806160F 036879

90º Elbow Fpt x Fpt

1/4 808002 036197

3/8 808003 036198

1/2 808005 036199

3/4 808007 036200

1 808010 036201

1-1/4 808012 036202

1-1/2 808015 036203

2808020 036204

2-1/2 808025 036205

3808030 036206

4 808040 036207

90º Elbow Soc x Fpt

1/2 807005 036172

3/4 807007 036173

1 807010 036174

1-1/4 807012 036175

1-1/2 807015 036176

2807020 036177

30º Elbow Soc x Soc

6 815060 236003

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

XIRTEC PVC SCHEDULE 80

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Coupling Soc x Soc

1/4 829002 036088

3/8 829003 036089

1/2 829005 036090

3/4 829007 036091

1 829010 036092

1-1/4 829012 036093

1-1/2 829015 036094

2829020 036095

2-1/2 829025 036096

3829030 036097

4 829040 036098

6829060 036099

8 829080 036100

10 829100 236021

12 829120 236022

Fabricated Coupling Soc x Soc

10 829100F 036101

12 829120F 036102

14 829140F 036103

16 829160F 036889

Coupling Fpt x Fpt

1/4 830002 036104

3/8 830003 036105

1/2 830005 036106

3/4 830007 036107

1 830010 036108

1-1/4 830012 036109

1-1/2 830015 036110

2830020 036111

2-1/2 830025 036112

3830030 036113

4 830040 036114

Reducer Coupling Fpt x Fpt

1/2 x 1/4 830072 036746

3/4 x 1/2 830101 036748

1 x 1/2 830130 036749

1 x 3/4 830131 036750

1-1/4 x 3/4 830167 036751

1-1/2 x 1 830211 036754

2 x 1-1/2 830251 036758

3/4 x 1/2 829101 036719

1 x 1/2 829130 036720

1 x 3/4 829131 036721

1-1/4 x 3/4 829167 036723

1-1/4 x 1 829168 036724

1-1/2 x 1/2 829209 036725

1-1/2 x 3/4 829210 036726

1-1/2 x 1 829211 036727

1-1/2 x 1-1/4 829212 036728

2 x 1/2 829247 036897

2 x 1 829249 036729

2 x 1-1/2 829251 036731

3 x 2 829338 036735

4 x 2 829420 036736

4 x 3 829422 036738

6 x 4 829532 036740

8 x 6 829585 036743

Reducer Coupling Soc x Soc

8 x 4 829582F 136167

10 x 4 829624F 136168

10 x 6 829626F 136169

10 x 8 829628F 136170

12 x 6 829666F 136171

12 x 8 829668F 136172

12 x 10 829670F 136173

14 x 8 829698F 136174

14 x 10 829700F 136175

14 x 12 829702F 136176

16 x 10 829760F 136177

16 x 12 829762F 136178

16 x 14 829764F 136179

Fabricated Reducer Coupling Soc x Soc - 130 psi

Female Adapter Soc x Fpt

1/4 835002 036209

3/8 835003 036210

1/2 835005 036211

3/4 835007 036212

1 835010 036213

1-1/4 835012 036214

1-1/2 835015 036215

2835020 036216

2-1/2 835025 036217

3835030 036218

4 835040 036219

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

XIRTEC PVC SCHEDULE 80

Male Adapter Soc x Mpt

1/2 836005 036420

3/4 836007 036421

1 836010 036422

1-1/4 836012 036423

1-1/2 836015 036424

2836020 036425

2-1/2 836025 036426

3836030 036427

4 836040 036428

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

1/2" - 2" Wye – 235 psi maximum internal pressure rating @ 73ºF

3" - 6 x 6 x 4" Wye – 150 psi maximum internal pressure rating @ 73ºF

Wye Soc x Soc x Soc

1-1/2 875015 036854

2875020 036855

3 875030 036856

4875040 036857

6 875060 036858

6 x 4 875532 036861

Fabricated Wye Soc x Soc x Soc - 130 psi

8 875080F 036895

10 875100F 036896

12 875120F 036898

14 875140F 036899

Female Adapter Soc x Fpt (SS reinforced)

1/2 835005SR 036971

3/4 835007SR 036972

1 835010SR 036973

1-1/4 835012SR 036974

1-1/2 835015SR 036975

2835020SR 036976

2-1/2 835025SR 036977

3835030SR 036978

4 835040SR 036979

Female Adapter Spig x Fpt (SS reinforced)

1/2 878005SR 036965

3/4 878007SR 036966

1 878010SR 036967

1-1/4 878012SR 036968

1-1/2 878015SR 036969

2878020SR 036970

3 878030SR 236000

4878040SR 236001

Cap Soc

1/4 847002 036056

3/8 847003 036057

1/2 847005 036058

3/4 847007 036059

1 847010 036060

1-1/4 847012 036061

1-1/2 847015 036062

2847020 036063

2-1/2 847025 036064

3847030 036065

4 847040 036066

6847060 036067

8 847080 036068

10 847100 236023

12 847120 236024

Fabricated Cap Soc - 130 psi

*10 847100F 036891

12 847120F 036892

14 847140F 036893

16 847160F 036894

* 10" - 140 psi

Cap Fpt

1/4 848002 036072

3/8 848003 036073

1/2 848005 036074

3/4 848007 036075

1 848010 036076

1-1/4 848012 036077

1-1/2 848015 036078

2848020 036079

2-1/2 848025 036080

3848030 036081

4 848040 036082

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

XIRTEC PVC SCHEDULE 80

Reducer Bushing Spig x Soc (flushstyle)

3/8 x 1/4 837052 036599

1/2 x 1/4 837072 036600

1/2 x 3/8 837073 036601

3/4 x 1/2 837101 036604

1 x 1/2 837130 036605

1 x 3/4 837131 036606

1-1/4 x 1/2 837166 036607

1-1/4 x 3/4 837167 036608

1-1/4 x 1 837168 036609

1- 1/2 x 1/2 837209 036610

1- 1/2 x 3/4 837210 036611

1-1/2 x 1 837211 036612

1-1/2 x 1-1/4 837212 036613

2 x 1/2 837247 036614

2 x 3/4 837248 036615

2 x 1 837249 036616

2 x 1-1/4 837250 036617

2 x 1-1/2 837251 036618

2 -1/2 x 1-1/4 837290 036620

2-1/2 x 1-1/2 837291 036621

2-1/2 x 2 837292 036622

3 x 1 837335 036623

3 x 1-1/4 837336 036269

3 x 1-1/2 837337 036624

3 x 2 837338 036625

3 x 2-1/2 837339 036626

4 x 2 837420 036628

4 x 2-1/2 837421 036629

4 x 3 837422 036630

6 x 2 837528 036632

6 x 3 837530 036633

6 x 4 837532 036634

8 x 4 837582 136155

8 x 6 837585 036638

10 x 6 837626 236025

10 x 8 837628 036026

12 x 8 837668 236027

12 x 10 837670 236028

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Fabricated Reducer Bushing Spig x Soc

10 x 4 837624F 136156

10 x 6 837626F 136157

12 x 6 837666F 136158

12 x 8 837668F 136159

12 x 10 837670F 036208

14 x 8 837698F 136162

14 x 10 837700F 136160

14 x 12 837702F 136161

16 x 8 837758F 136163

16 x 10 837760F 136164

16 x 12 837762F 136165

16 x 14 837764F 136166

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

XIRTEC PVC SCHEDULE 80

Plug Mpt

1/4 850002 036568

3/8 850003 036569

1/2 850005 036570

3/4 850007 036571

1 850010 036572

1-1/4 850012 036573

1-1/2 850015 036574

2850020 036575

2-1/2 850025 036576

3850030 036577

4 850040 036578

6850060 036579

Plug Spig

2 849020 036585

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Reducer Bushing Mpt x Fpt (flushstyle)

3/8 x 1/4 839052 036647

1/2 x 1/4 839072 036648

1/2 x 3/8 839073 036649

3/4 x 1/4 839098 036651

3/4 x 3/8 839099 036652

3/4 x 1/2 839101 036653

1 x 1/4 839128 036654

1 x 3/8 839129 036655

1 x 1/2 839130 036656

1 x 3/4 839131 036657

1-1/4 x 1/2 839166 036658

1-1/4 x 3/4 839167 036659

1-1/4 x 1 839168 036660

1-1/2 x 1/2 839209 036661

1-1/2 x 3/4 839210 036662

1-1/2 x 1 839211 036663

1-1/2 x 1-1/4 839212 036664

2 x 1/2 839247 036665

2 x 3/4 839248 036666

2 x 1 839249 036667

2 x 1-1/4 839250 036668

2 x 1-1/2 839251 036669

2-1/2 x 2 839292 036672

3 x 1-1/2 839337 036673

3 x 2 839338 036674

3 x 2-1/2 839339 036675

4 x 2 839420 036676

4 x 3 839422 036677

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

Reducer Bushing Spig x Fpt (flushstyle)

3/8 x 1/4 838052 036679

1/2 x 1/4 838072 036681

1/2 x 3/8 838073 036682

3/4 x 1/4 838098 036683

3/4 x 1/2 838101 036684

1 x 3/8 838129 036685

1 x 1/2 838130 036686

1 x 3/4 838131 036687

1-1/4 x 1/2 838166 036688

1-1/4 x 3/4 838167 036689

1-1/4 x 1 838168 036690

1-1/2 x 1/2 838209 036691

1-1/2 x 3/4 838210 036692

1-1/2 x 1 838211 036693

1-1/2 x 1-1/4 838212 036694

2 x 1/2 838247 036695

2 x 3/4 838248 036696

2 x 1 838249 036697

2 x 1-1/4 838250 036698

2 x 1-1/2 838251 036699

2-1/2 x 1/2 838287 236002

2-1/2 x 3/4 838288 036700

2-1/2 x 1 838289 036701

2-1/2 x 1-1/4 838290 036702

2-1/2 x 1-1/2 838291 036703

2-1/2 x 2 838292 036704

3 x 3/4 838334 036705

3 x 1 838335 036706

3 x 1-1/4 838336 036707

3 x 1-1/2 838337 036708

3 x 2 838338 036709

3 x 2-1/2 838339 036710

4 x 2 838420 036711

4 x 2-1/2 838421 036712

4 x 3 838422 036713

6 x 2 838528 036714

6 x 3 838530 036715

6 x 4 838532 036716

Union Fpt x Fpt (Viton®O-ring Seal)

1/4 858002 036844

3/8 858003 036845

1/2 858005 036846

3/4 858007 036847

1 858010 036848

1-1/4 858012 036849

1-1/2 858015 036850

2858020 036851

3 858030 036852

4858040 036853

Union Soc x Fpt (Viton®O-ring Seal)

1/2 859005 036410

3/4 859007 036411

1 859010 036412

1-1/4 859012 036413

1-1/2 859015 036414

2859020 036415

3 859030 236010

4859040 236011

One Piece Flange Soc (solid style)

1/2 851005 036223

3/4 851007 036224

1 851010 036225

1-1/4 851012 036226

1-1/2 851015 036227

2851020 036228

2-1/2 851025 036229

3851030 036230

4 851040 036231

5851050 036232

6 851060 036233

8851080 036234

Fabricated One Piece Flange Soc - 150 psi

10 851100F 036235

12 851120F 036236

14 851140F 036237

16 851160F 036238

All Molded Flanges are rated at 150 psi at 73ºF., non-shock. Standard 150 lb. bolting pattern.

CAUTION: When thermoplastic flanges are used with butterfly valves or other equipment, where a full face continuous support does not exist, a

back-up ring or fiberglass reinforcement should be used to prevent cracking of the flange face.

Note: Lower pressure rated large diameter one

piece fabricated flanges are available.

XIRTEC PVC SCHEDULE 80

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

Cross Soc x Soc x Soc x Soc

1/2 820005 036116

3/4 820007 036117

1 820010 036118

1-1/4 820012 036119

1-1/2 820015 036120

2820020 036121

2-1/2 820025 036122

3820030 036123

4 820040 036124

Union Soc x Soc (EPDM O-ring Seal)

1/4 897002 236004

3/8 897003 236005

1/2 897005 036956

3/4 897007 036964

1 897010 036980

1-1/4 897012 036981

1-1/2 897015 036982

2897020 036983

3 897030 036984

4897040 236006

Union Fpt x Fpt (EPDM O-ring Seal)

1/4 898002 236007

3/8 898003 236008

1/2 898005 036985

3/4 898007 036986

1 898010 036987

1-1/4 898012 036988

1-1/2 898015 036989

2898020 036990

3 898030 036993

4898040 236009

Union Soc x Soc (Viton®O-ring Seal)

1/4 857002 036833

3/8 857003 036834

1/2 857005 036835

3/4 857007 036836

1 857010 036837

1-1/4 857012 036838

1-1/2 857015 036839

2857020 036840

3 857030 036842

4857040 036843

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

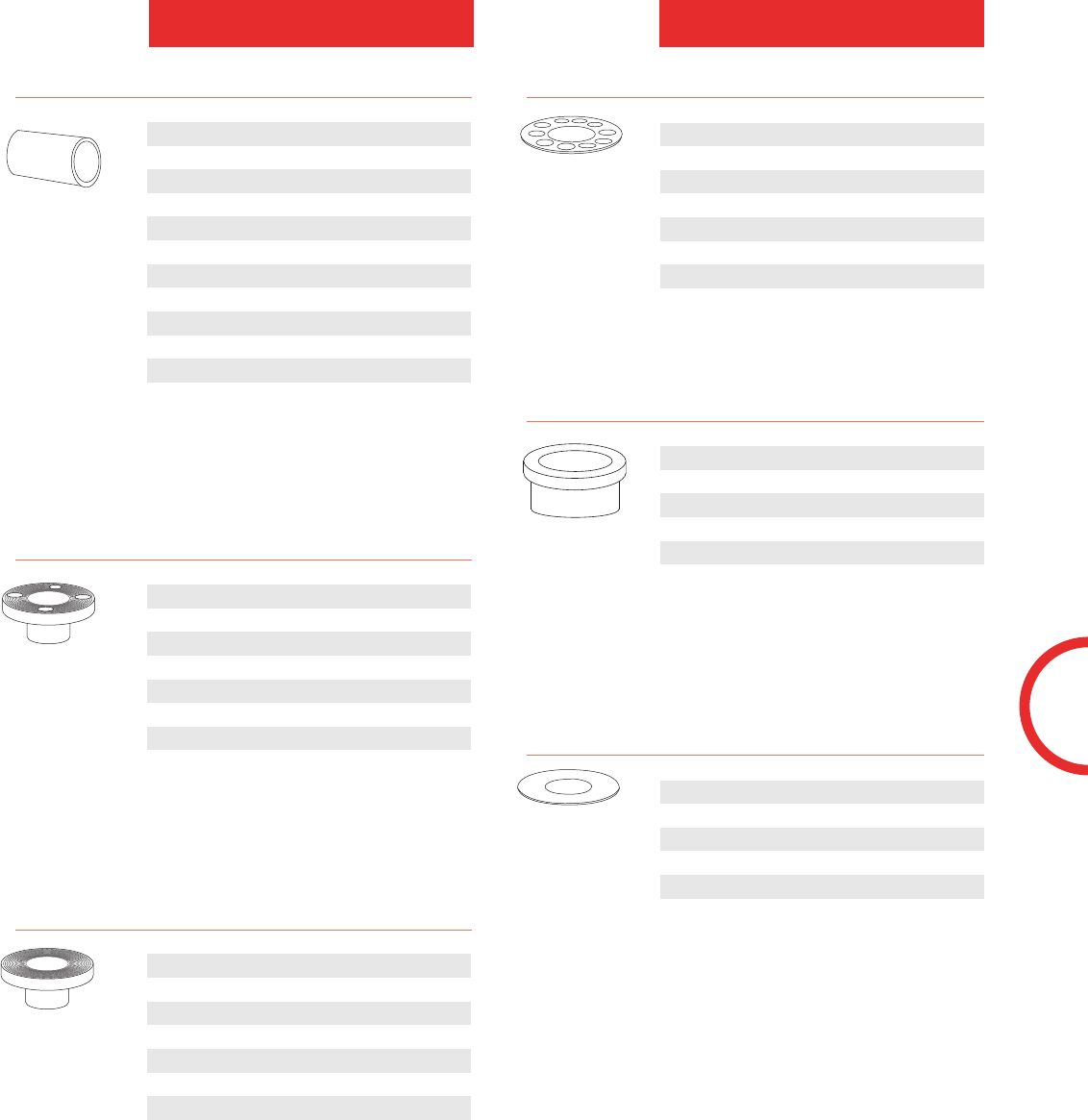

XIRTEC PVC SCHEDULE 80

All Molded Flanges are rated at 150 psi at 73ºF., non-shock. Standard 150 lb. bolting pattern.

CAUTION: When thermoplastic flanges are used with butterfly valves or other equipment, where a full face continuous support does not exist, a

back-up ring or fiberglass reinforcement should be used to prevent cracking of the flange face.

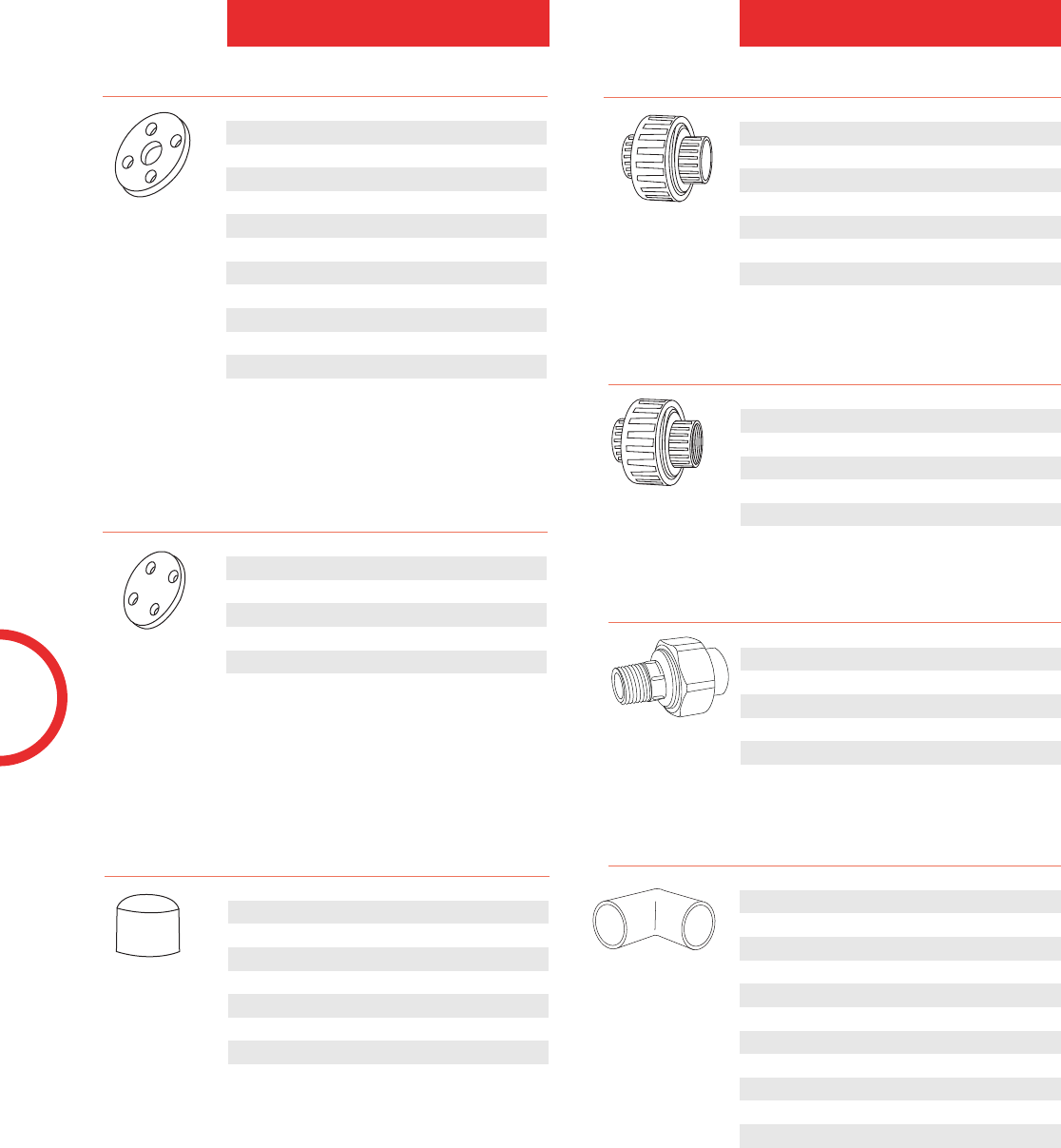

One Piece Flange Fpt (solid style)

1/2 852005 036240

3/4 852007 036241

1 852010 036242

1-1/4 852012 036243

1-1/2 852015 036244

2852020 036245

2-1/2 852025 036246

3852030 036247

4 852040 036248

6852060 036249

Blind Flange

1/2 853005 036250

3/4 853007 036251

1 853010 036252

1-1/4 853012 036253

1-1/2 853015 036254

2853020 036255

2-1/2 853025 036256

3853030 036257

4 853040 036258

6853060 036259

8 853080 036260

Fabricated Blind Flange – 150 psi

10 853100F 036261

12 853120F 036262

14 853140F 036263

16 853160F 036264

Heavy Duty Vanstone Flange Spig w Fibre-Loc Ring

3856030 036381

4 856040 036382

6856060 036383

8 856080 036384

Note: Lower pressure rated large diameter one

piece fabricated flanges are available.

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

Heavy Duty Vanstone Flange Soc w Fibre-Loc Ring

1-1/2 854015HD 036323

2854020HD 036324

3 854030HD 036326

4854040HD 036416

6 854060HD 036417

8854080HD 036418

10 854100HD 036419

12 854120HD 036429

*14 854140HD 036358

*16 854160HD 036359

Vanstone Flange Soc w PVC Ring

1/2 854005 036344

3/4 854007 036345

1 854010 036346

1-1/4 854012 036347

1-1/2 854015 036348

2854020 036349

2-1/2 854025 036350

3854030 036351

4 854040 036352

5854050 036353

6 854060 036354

8854080 036355

10 854100 036356

12 854120 036357

Vanstone Flange Spig w PVC Ring

1/2 856005 036374

3/4 856007 036375

1 856010 036376

1-1/4 856012 036377

1-1/2 856015 036378

2856020 036379

2-1/2 856025 036380

3 - 036902

4 - 036905

6 - 036906

8 - 036907

10 -036995

12 - 036996

* 14" & 16" complete with coated metal rings.

Fabricated No-Leak/Waterstop Flange Spig x Spig

1/2 - 036331

3/4 -036332

1 - 036923

1-1/4 -036333

1-1/2 - 036334

2 - 036335

2-1/2 - 036336

3 - 036337

4 - 036338

6 - 036339

8 - 036340

10 -036341

12 - 036342

14 -036915

16 - 036343

18 -036874

Fabricated Vanstone Flange Soc w PVC Ring - 75 psi

18 854180F 036947

*20 854200F 036913

*24 854240F 036914

* 20" - 24" flanges are rated at 50 psi at 73ºF.

Vanstone Flange Fpt

1/2 855005 036385

3/4 855007 036386

1 855010 036387

1-1/4 855012 036388

1-1/2 855015 036389

2855020 036390

2-1/2 855025 036391

3855030 036392

4 855040 036393

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

XIRTEC PVC SCHEDULE 80

1/8" Flange Gasket Neoprene

1/2 - 036296

3/4 -036297

1 - 036298

1-1/4 -036299

1-1/2 - 036300

2 - 036301

2-1/2 - 036302

3 - 036303

4 - 036304

5 - 036305

6 - 036306

8 - 036307

10 - 036308

12 -036309

14 - 036310

16 -036311

18 - 036312

20 -036313

24 - 036314

All Molded Flanges are rated at 150 psi at 73ºF., non-shock. Standard 150 lb. bolting pattern.

CAUTION: When thermoplastic flanges are used with butterfly valves or other equipment, where a full face continuous support does not exist,

a back-up ring or fiberglass reinforcement should be used to prevent cracking of the flange face.

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

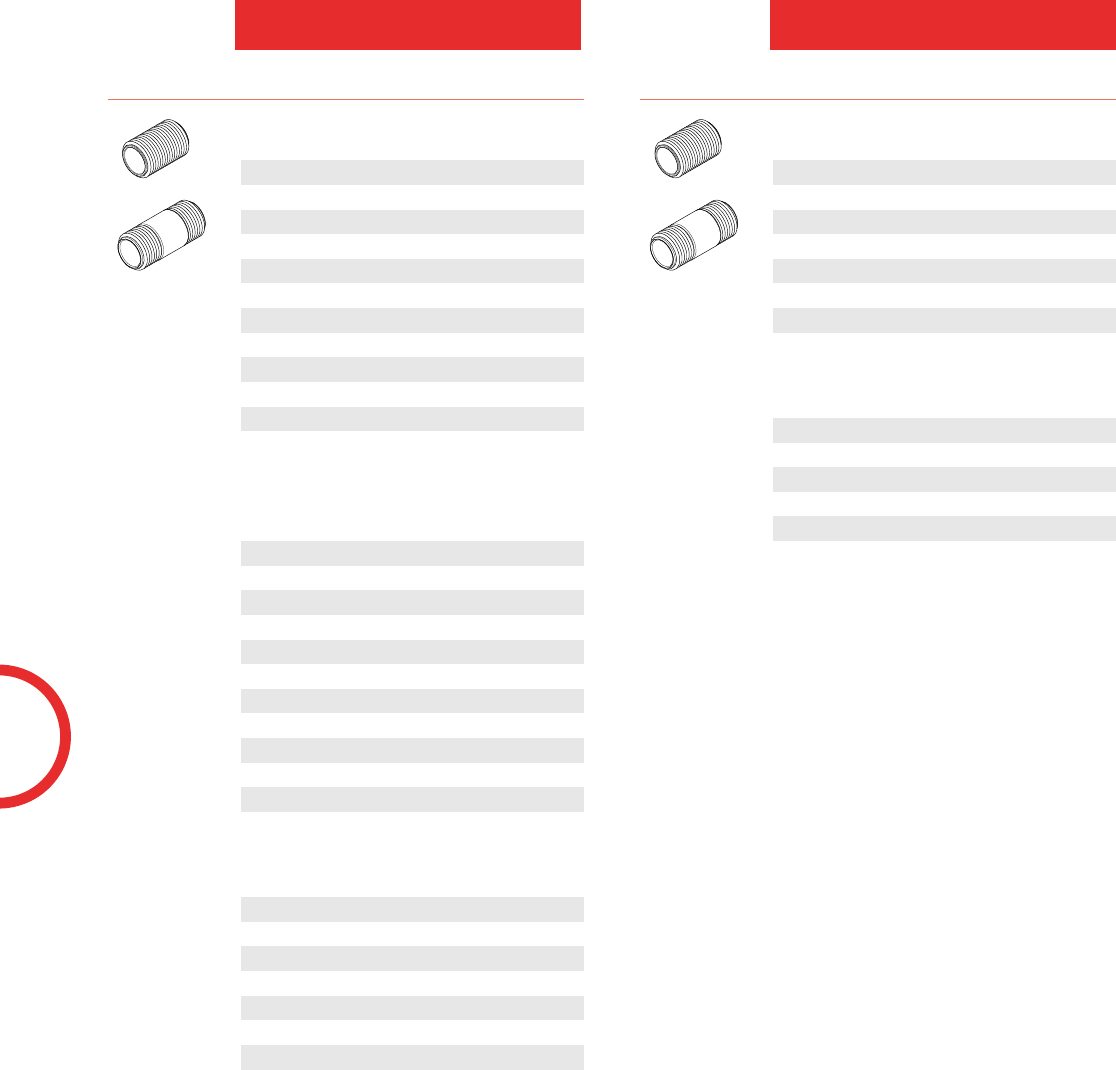

XIRTEC PVC SCHEDULE 80

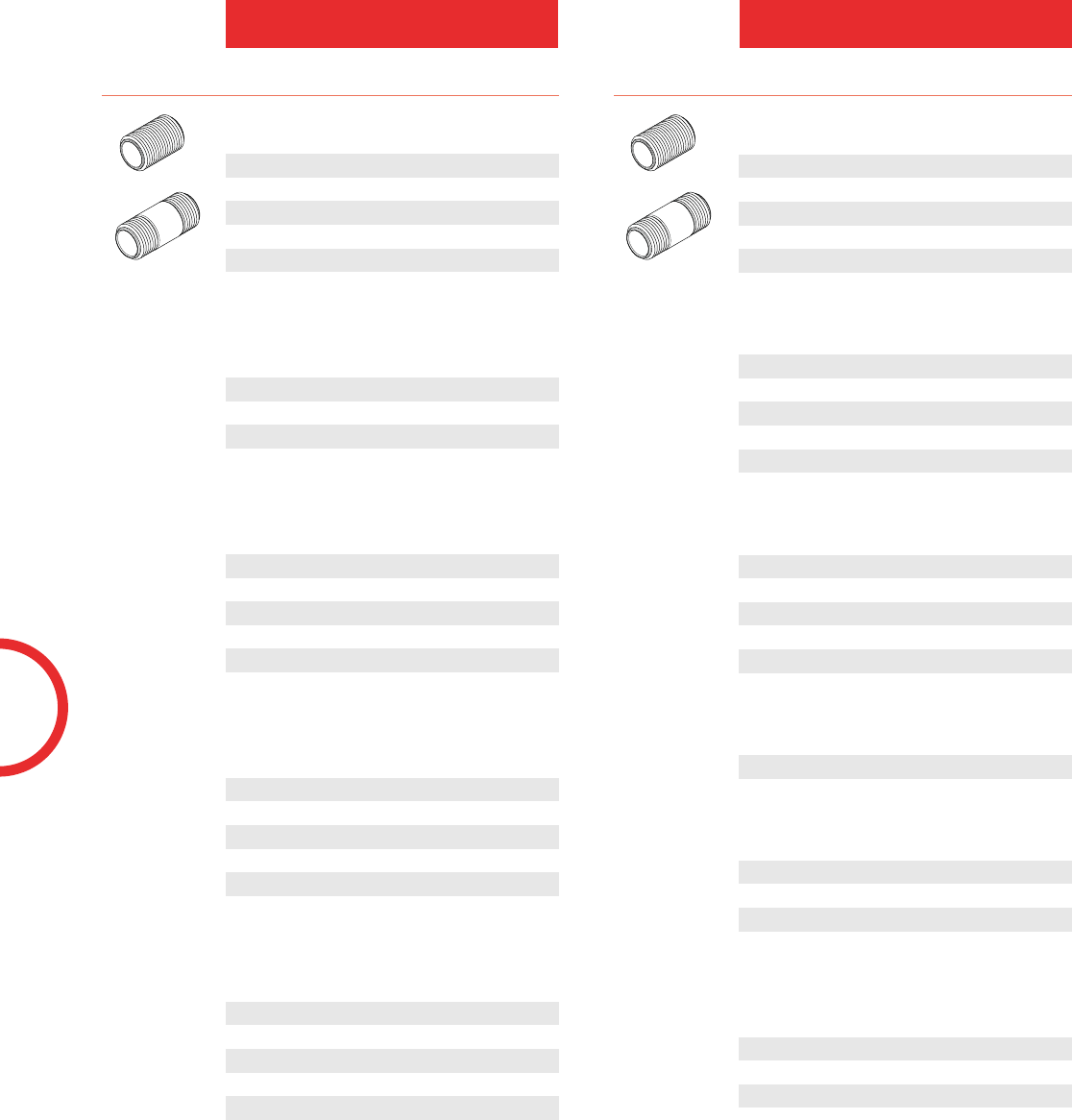

Nipples

1/4" diameter

7/8 close 880005 036434

1-1/2 880015 036445

2 880020 036456

2-1/2 880025 036457

3 880030 036458

3 1/2 880035 036459

4 880040 036460

4-1/2 880045 036461

5 880050 036462

6880060 036463

8 880080 036464

10 880100 236012

12 880120 236013

3/8" diameter

1 close 881005 036435

1-1/2 881015 036446

2 881020 036466

2-1/2 881025 036467

3 881030 036468

3-1/2 881035 036469

4 881040 036470

4-1/2 881045 036471

5 881050 036472

6881060 036473

8 881080 036474

1/2" diameter

1-1/8 close 882005 036436

1-1/2 882015 036447

2 882020 036475

2-1/2 882025 036476

3 882030 036477

3-1/2 882035 036478

4 882040 036479

4-1/2 882045 036480

5 882050 036481

5-1/2 882055 036482

6 882060 036483

8882080 036484

10 882100 036485

12 882120 036486

Nipples

3/4" diameter

1-3/8 close 883005 036437

1-1/2 883015 036448

2 883020 036490

2-1/2 883025 036491

3 883030 036492

3-1/2 883035 036493

4 883040 036494

4-1/2 883045 036495

5 883050 036496

5-1/2 883055 036497

6 883060 036498

8883080 036500

10 883100 036501

12 883120 036502

1" diameter

1-1/2 close 884005 036438

2884020 036449

2-1/2 884025 036504

3884030 036505

3-1/2 884035 036506

4884040 036507

4-1/2 884045 036508

5884050 036509

5-1/2 884055 036510

6884060 036511

8 884080 036512

10 884100 036514

12 884120 036515

1-1/4" diameter

1-5/8 close 885005 036439

2885020 036450

2-1/2 885025 036516

3885030 036517

3-1/2 885035 036518

4885040 036519

4-1/2 885045 036520

5885050 036521

6 885060 036522

8885080 036523

10 885100 036524

12 885120 036525

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

standard

Nipples

1-1/2" diameter

1-3/4 close 886015 036440

2886020 036451

2-1/2 886025 036526

3886030 036527

3-1/2 886035 036528

4886040 036529

4-1/2 886045 036530

5886050 036531

5-1/2 886055 036532

6886060 036533

8 886080 036534

10 886100 036535

12 886120 036536

2" diameter

2 close 887005 036441

2-1/2 887025 036452

3 887030 036539

3-1/2 887035 036540

4 887040 036541

4-1/2 887045 036542

5 887050 036543

5-1/2 887055 036544

6 887060 036545

8887080 036546

10 887100 036547

12 887120 036548

2-1/2" diameter

2-1/2 close 888005 036442

3888030 036549

4 888040 036550

5888050 036272

6 888060 036551

8888080 036552

10 888100 036276

12 888120 036553

Nipples

3" diameter

2-5/8 close 889005 036443

3889030 036554

4 889040 036555

5889050 036556

6 889060 036557

8889080 036558

10 889100 036559

12 889120 036560

4" diameter

2-7/8 close 890005 036444

4890040 036562

5 890050 036563

6890060 036564

8 890080 036565

10 890100 036566

12 890120 036567

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

XIRTEC PVC SCHEDULE 80

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

standard

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

XIRTEC PVC SCHEDULE 80

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

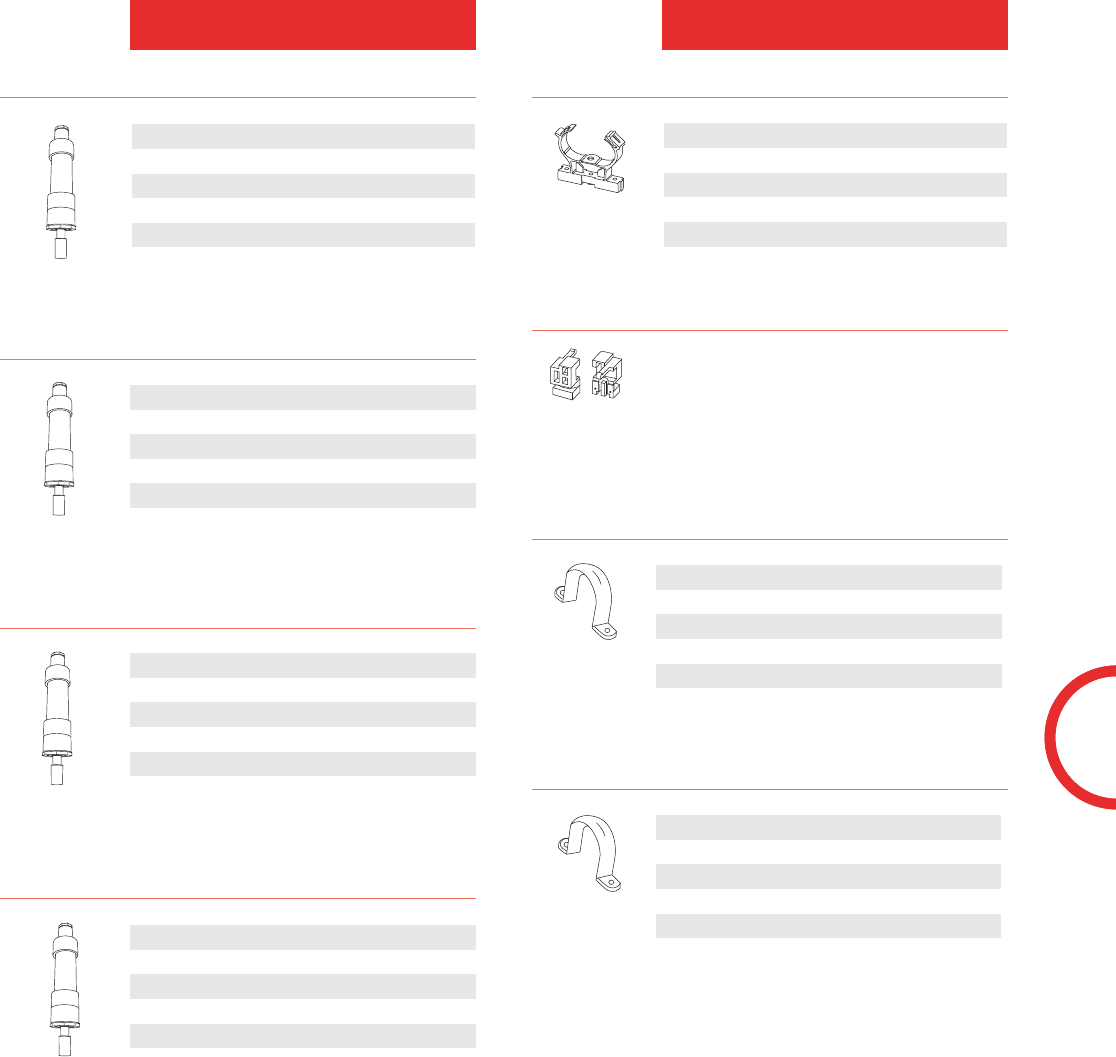

Expansion Joint 6" Travel EPDM

1/2 826005X6E 136115

3/4 826007X6E 136117

1 826010X6E 136119

1-1/2 826015X6E 136121

2 826020X6E 136123

3826030X6E 136125

4 826040X6E 136127

Expansion Joint 12" Travel EPDM

1/2 826005X12E 136116

3/4 826007X12E 136118

1 826010X12E 136120

1-1/2 826015X12E 136122

2 826020X12E 136124

3826030X12E 136126

4 826040X12E 136128

Expansion Joint 6" Travel FPM

1/2 826005X6 136101

3/4 826007X6 136103

1 826010X6 136105

1-1/2 826015X6 136107

2 826020X6 136109

3826030X6 136111

4 826040X6 136113

Expansion Joint 12" Travel FPM

1/2 826005X12 136102

3/4 826009X12 136104

1 826010X12 136106

1-1/2 826015X12 136108

2 826020X12 136110

3826030X12 136112

4 826040X12 136114

Pipe Clamps

1/2 CCS10 035180

3/4 CCS15 035181

1 CCS20 035182

1-1/4 CCS25 035183

1-1/2 CCS30 035184

2CCS35 035185

PVC Strut Base

- 035186

Note: Strut Bases are sold individually, two Strut

Bases are required to create one Strut Base Unit.

Example: If you require 10 complete Strut Base

Units you must order 20 strut bases.

Pipe Straps 2 holes

1/2 PS05 036000

3/4 PS07 036001

1 PS10 036002

1-1/4 PS12 036003

1-1/2 PS15 036004

2PS20 036005

Pipe Straps PVC Coated Steel 2 holes

2-1/2 PSC25 036006

3PSC30 036007

3-1/2 PSC35 036008

4PSC40 036009

5 PSC50 036010

6PSC60 036011

PRODUCT SELECTION CHART – XIRTEC 140 PVC SCH. 80

Tee Soc x Soc x Soc

1/4 9801002 059479

3/8 9801003 059480

1/2 9801005 059481

3/4 9801007 059482

1 9801010 059483

1-1/4 9801012 059484

1-1/2 9801015 059485

29801020 059486

2-1/2 9801025 059487

39801030 059488

4 9801040 059489

69801060 059490

8 9801080 059491

10 9801100 059062

12 9801120 059084

Tee Soc x Soc x Fpt

1/2 9802005 059942

3/4 9802007 059943

1 9802010 059518

29802020 059089

Tee Fpt x Fpt x Fpt

1/4 9805002 059507

3/8 9805003 059508

1/2 9805005 059509

3/4 9805007 059510

1 9805010 059511

1-1/4 9805012 059512

1-1/2 9805015 059513

29805020 059514

2-1/2 9805025 059515

39805030 059516

4 9805040 059517

Reducing Tee Soc x Soc x Soc

3/4 x 3/4 x 1/2 9801101 059492

1 x 1 x 1/2 9801130 059493

1 x 1 x 3/4 9801131 059494

1-1/4 x 1 x 1 9801158 059601

1-1/4 x 1 9801168 059602

1-1/4 x 1 x 1-1/4 9801159 059495

1-1/2 x 1-1/4 x 1 9801202 059603

1-1/2 x 1-1/2 x 3/4 9801210 059496

1-1/2 x 1-1/2 x 1 9801211 059497

2 x 2 x 1/2 9801247 059498

2 x 2 x 3/4 9801248 059499

2 x 2 x 1 9801249 059500

2 x 2 x 1-1/2 9801251 059501

2-1/2 x 1 9801289 059604

2-1/2 x 1-1/4 9801290 059605

2-1/2 x 2-1/2 x 1-1/2 9801291 059606

2-1/2 x 2 9801292 059607

3 x 3 x 2 9801338 059502

3 x 2-1/2 9801339 059608

4 x 4 x 2 9801420 059504

4 x 4 x 3 9801422 059505

6 x 6 x 3 9801530 059609

6 x 6 x 4 9801532 059506

8 x 8 x 6 9801585 059567

10 x 6 9801626 059610

90º Elbow Soc x Soc

1/4 9806002 059192

3/8 9806003 059193

1/2 9806005 059194

3/4 9806007 059195

1 9806010 059196

1-1/4 9806012 059197

1-1/2 9806015 059198

29806020 059199

2-1/2 9806025 059200

39806030 059201

4 9806040 059202

69806060 059203

8 9806080 059204

10 9806100 059085

12 9806120 059086

Fabricated Tee Soc x Soc x Soc – 130 psi

14 9801140F 059012

16 9801160F 059030

Fabricated Reducing Tee Soc x Soc x Soc

12 x 8 9801668 059611

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

Dimension

inches

Universal

Number

PVC Sch 80

Product Code

CORZAN CPVC SCHEDULE 80

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

90º Elbow Fpt x Fpt

1/4 9808002 059206

3/8 9808003 059207

1/2 9808005 059208

3/4 9808007 059209

1 9808010 059210

1-1/4 9808012 059211

1-1/2 9808015 059212

29808020 059213

2-1/2 9808025 059214

39808030 059215

4 9808040 059216

Fabricated 90º Elbow Soc x Soc – 130 psi

14 9806140F 059047

16 9806160F 059050

CORZAN CPVC SCHEDULE 80

90º Elbow Soc x Fpt

1/4 9807002 059612

1/2 9807005 059187

3/4 9807007 059941

19807010 059188

1-1/4 9807012 059189

1-1/2 9807015 059190

2 9807020 059191

45º Elbow Soc x Soc

1/4 9817002 059162

3/8 9817003 059163

1/2 9817005 059164

3/4 9817007 059165

1 9817010 059166

1-1/4 9817012 059167

1-1/2 9817015 059168

29817020 059169

2-1/2 9817025 059170

39817030 059171

4 9817040 059172

69817060 059173

8 9817080 059174

10 9817100 059087

12 9817120 059088

Fabricated 45º Elbow Soc x Soc – 130 psi

14 9817140F 059051

16 9817160F 059055

45º Elbow Fpt x Fpt

1/4 9819002 059176

3/8 9819003 059177

1/2 9819005 059178

3/4 9819007 059179

1 9819010 059180

1-1/4 9819012 059181

1-1/2 9819015 059182

29819020 059183

2-1/2 9819025 059184

49819040 059186

30º Elbow Soc x Soc

6 9815060 059022

22-1/2º Elbow Soc x Soc

2 9816020 059614

39816030 059615

4 9816040 059616

11-1/4º Elbow Soc x Soc

2 9811020 059617

39811030 059618

4 9811040 059619

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

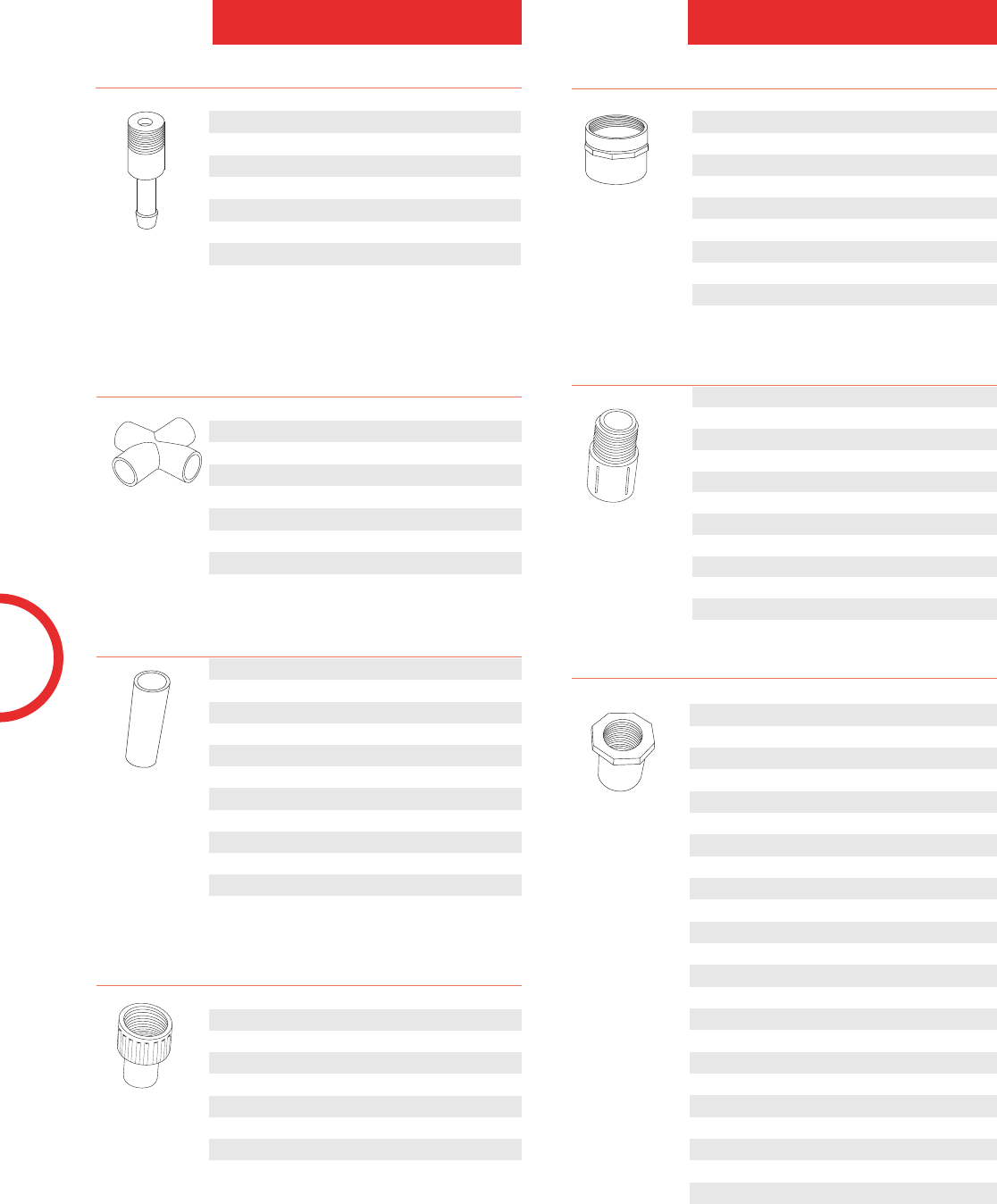

Reducer Coupling Soc x Soc

3/4 x 1/2 9829101 059460

1 x 1/2 9829130 059461

1 x 3/4 9829131 059462

1-1/4 x 1/2 9829166 059621

1-1/4 x 3/4 9829167 059622

1-1/4 x 1 9829168 059463

1-1/2 x 1/2 9829209 059623

1-1/2 x 3/4 9829210 059464

1-1/2 x 1 9829211 059465

1-1/2 x 1-1/4 9829212 059466

2 x 3/4 9829248 059624

2 x 1 9829249 059467

2 x 1-1/4 9829250 059625

2 x 1-1/2 9829251 059458

2-1/2 x 2 9829292 059626

3 x 2 9829338 059470

4 x 2 9829420 059459

4 x 3 9829422 059472

6 x 4 9829532 059471

8 x 6 9829585 059473

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Coupling Fpt x Fpt

1/4 9830002 059143

3/8 9830003 059144

1/2 9830005 059145

3/4 9830007 059146

1 9830010 059147

1-1/4 9830012 059148

1-1/2 9830015 059149

29830020 059150

2-1/2 9830025 059151

39830030 059152

4 9830040 059153

Coupling Soc x Soc

1/4 9829002 059130

3/8 9829003 059131

1/2 9829005 059132

3/4 9829007 059133

1 9829010 059134

1-1/4 9829012 059135

1-1/2 9829015 059136

29829020 059137

2-1/2 9829025 059138

39829030 059139

4 9829040 059140

69829060 059141

8 9829080 059142

Cross Soc x Soc x Soc x Soc

3/4 9820007 059155

19820010 059156

1-1/4 9820012 059157

1-1/2 9820015 059158

2 9820020 059159

2-1/2 9820025 059018

3 9820030 059160

49820040 059161

Fabricated Coupling Soc x Soc

10 9829100F 059033

12 9829120F 059043

14 9829140F 059060

16 9829160F 059090

CORZAN CPVC SCHEDULE 80

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Reducer Bushing Spig x Soc

3/8 x 1/4 9837052 059627

1/2 x 1/4 9837072 059373

1/2 x 3/8 9837073 059374

3/4 x 1/2 9837101 059375

1 x 1/2 9837130 059376

1 x 3/4 9837131 059377

1-1/4 x 1/2 9837166 059378

1-1/4 x 3/4 9837167 059379

1-1/4 x 1 9837168 059380

1-1/2 x 1/2 9837209 059381

1-1/2 x 3/4 9837210 059382

1-1/2 x 1 9837211 059383

1-1/2 x 1-1/4 9837212 059384

2 x 1/2 9837247 059385

2 x 3/4 9837248 059386

2 x 1 9837249 059387

2 x 1-1/4 9837250 059388

2 x 1-1/2 9837251 059389

2-1/2 x 1-1/4 9837290 059628

2-1/2 x 1-1/2 9837291 059629

2-1/2 x 2 9837292 059392

3 x 1 9837335 059568

3 x 1-1/4 9837336 059630

3 x 1-1/2 9837337 059393

3 x 2 9837338 059394

3 x 2-1/2 9837339 059395

4 x 2 9837420 059396

4 x 3 9837422 059397

6 x 2 9837528 059398

6 x 3 9837530 059399

6 x 4 9837532 059400

8 x 6 9837585 059401

10 x 8 9837628 059036

Fabricated Reducer Bushing Spig x Soc – 130 psi

10 x 6 9837626F 059631

12 x 8 9837668F 059632

12 x 10 9837670F 059633

CORZAN CPVC SCHEDULE 80

Reducer Bushing Spig x Fpt

3/8 x 1/4 9838052 059634

1/2 x 1/8 9838071 059635

1/2 x 1/4 9838072 059428

1/2 x 3/8 9838073 059429

3/4 x 1/4 9838098 059430

3/4 x 1/2 9838101 059431

1 x 3/8 9838129 059636

1 x 1/2 9838130 059432

1 x 3/4 9838131 059433

1-1/4 x 1/2 9838166 059434

1-1/4 x 3/4 9838167 059435

1-1/4 x 1 9838168 059436

1-1/2 x 1/2 9838209 059437

1-1/2 x 3/4 9838210 059438

1-1/2 x 1 9838211 059439

1-1/2 x 1-1/4 9838212 059440

2 x 1/2 9838247 059441

2 x 3/4 9838248 059442

2 x 1 9838249 059443

2 x 1-1/4 9838250 059444

2 x 1-1/2 9838251 059445

2-1/2 x 1/2 9838287 059637

2-1/2 x 3/4 9838288 059446

2-1/2 x 1 9838289 059447

2-1/2 x 1-1/4 9838290 059448

2-1/2 x 1-1/2 9838291 059449

2-1/2 x 2 9838292 059450

3 x 3/4 9838334 059638

3 x 1 9838335 059547

3 x 1-1/4 9838336 059639

3 x 1-1/2 9838337 059451

3 x 2 9838338 059452

3 x 2-1/2 9838339 059453

4 x 2 9838420 059454

4 x 2-1/2 9838421 059640

4 x 3 9838422 059455

6 x 3 9838530 059641

6 x 4 9838532 059456

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

Female Adapter Spig x Fpt (SS reinforced)

1/2 9878005SR 059945

3/4 9878007SR 059946

1 9878010SR 059947

1-1/4 9878012SR 059948

1-1/2 9878015SR 059949

29878020SR 059950

3 9878030SR 059647

49878040SR 059648

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Female Adapter Soc x Fpt (SS reinforced)

1/2 9835005SR 059951

3/4 9835007SR 059952

1 9835010SR 059953

1-1/4 9835012SR 059954

1-1/2 9835015SR 059955

29835020SR 059956

2-1/2 9835025SR 059646

39835030SR 059957

4 9835040SR 059958

Female Adapter Soc x Fpt

1/4 9835002 059217

3/8 9835003 059218

1/2 9835005 059219

3/4 9835007 059220

1 9835010 059221

1-1/4 9835012 059222

1-1/2 9835015 059223

29835020 059224

2-1/2 9835025 059225

39835030 059226

4 9835040 059227

CORZAN CPVC SCHEDULE 80

Male Adapter Soc x Mpt

1/2 9836005 059286

3/4 9836007 059287

1 9836010 059288

1-1/4 9836012 059289

1-1/2 9836015 059290

29836020 059291

2-1/2 9836025 059292

39836030 059293

4 9836040 059294

Reducer Bushing Mpt x Fpt

3/8 x 1/4 9839052 059402

1/2 x 1/4 9839072 059403

1/2 x 3/8 9839073 059404

3/4 x 1/4 9839098 059405

3/4 x 3/8 9839099 059406

3/4 x 1/2 9839101 059407

1 x 3/8 9839129 059642

1 x 1/4 9839128 059643

1 x 1/2 9839130 059408

1 x 3/4 9839131 059409

1-1/4 x 1/2 9839166 059410

1-1/4 x 3/4 9839167 059411

1-1/4 x 1 9839168 059412

1-1/2 x 1/2 9839209 059413

1-1/2 x 3/4 9839210 059414

1-1/2 x 1 9839211 059415

1-1/2 x 1-1/4 9839212 059416

2 x 1/2 9839247 059417

2 x 3/4 9839248 059418

2 x 1 9839249 059419

2 x 1-1/4 9839250 059420

2 x 1-1/2 9839251 059421

2-1/2 x 2 9839292 059422

3 x 1-1/2 9839337 059423

3 x 2 9839338 059424

3 x 2-1/2 9839339 059425

4 x 2 9839420 059426

4 x 3 9839422 059427

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

Plug Mpt

1/4 9850002 059361

3/8 9850003 059362

1/2 9850005 059363

3/4 9850007 059364

1 9850010 059365

1-1/4 9850012 059366

1-1/2 9850015 059367

29850020 059368

2-1/2 9850025 059369

39850030 059370

4 9850040 059371

CORZAN CPVC SCHEDULE 80

Union Soc x Soc (EPDM O-ring Seal)

1/2 9897005 059571

3/4 9897007 059572

1 9897010 059573

1-1/4 9897012 059574

1-1/2 9897015 059575

29897020 059576

3 9897030 059577

49897040 059649

Union Fpt x Fpt (EPDM O-ring Seal)

1/2 9898005 059584

3/4 9898007 059578

1 9898010 059579

1-1/4 9898012 059580

1-1/2 9898015 059581

29898020 059582

3 9898030 059583

49898040 059650

Union Soc x Soc (Viton®O-ring Seal)

1/4 9857002 059519

1/2 9857005 059520

3/4 9857007 059521

19857010 059522

1-1/4 9857012 059523

1-1/2 9857015 059524

2 9857020 059525

39857030 059526

4 9857040 059550

Union Fpt x Fpt (Viton®O-ring Seal)

1/4 9858002 059527

1/2 9858005 059529

3/4 9858007 059530

19858010 059531

1-1/4 9858012 059532

1-1/2 9858015 059533

2 9858020 059534

39858030 059535

4 9858040 059651

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Cap Soc

1/4 9847002 059107

3/8 9847003 059108

1/2 9847005 059109

3/4 9847007 059110

1 9847010 059111

1-1/4 9847012 059112

1-1/2 9847015 059113

29847020 059114

2-1/2 9847025 059115

39847030 059116

4 9847040 059117

69847060 059118

8 9847080 059029

Fabricated Cap Soc - 130 psi

10 9847100F 059070

12 9847120F 059071

14 9847140F 059080

16 9847160F 059081

Cap Fpt

1/4 9848002 059119

3/8 9848003 059120

1/2 9848005 059121

3/4 9848007 059122

1 9848010 059123

1-1/4 9848012 059124

1-1/2 9848015 059125

29848020 059126

2-1/2 9848025 059127

39848030 059128

4 9848040 059129

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

CORZAN CPVC SCHEDULE 80

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

45º Wye Soc x Soc x Soc

1/2 9875005 059652

3/4 9875007 059653

1 9875010 059654

1-1/4 9875012 059655

1-1/2 9875015 059553

29875020 059536

3 9875030 059537

49875040 059538

6 9875060 059539

6 x 6 x 4 9875532 059541

One Piece Flange Soc

1/2 9851005 059228

3/4 9851007 059229

1 9851010 059230

1-1/4 9851012 059231

1-1/2 9851015 059232

29851020 059233

2-1/2 9851025 059234

39851030 059235

4 9851040 059236

69851060 059238

8 9851080 059239

One Piece Flange Fpt

1/2 9852005 059240

3/4 9852007 059241

1 9852010 059242

1-1/4 9852012 059243

1-1/2 9852015 059244

29852020 059245

2-1/2 9852025 059246

39852030 059247

4 9852040 059248

1/2" - 2" Wye – 235 psi maximum internal pressure rating @ 73ºF

3" - 6 x 6 x 4" Wye – 150 psi maximum internal pressure rating @ 73ºF

Heavy Duty Vanstone Flange Soc

1/2 9854005 059262

3/4 9854007 059263

1 9854010 059264

1-1/4 9854012 059265

1-1/2 9854015 059266

29854020 059267

2-1/2 9854025 059268

39854030 059269

4 9854040 059270

69854060 059271

8 9854080 059272

10 9854100 059273

12 9854120 059569

16 9854160 059360

Fabricated Heavy Duty Vanstone Flange Soc

14 9854140F 059295

16 9854160F 059315

All Molded Flanges are rated at 150 psi at 73ºF., non-shock. Standard 150 lb. bolting pattern.

CAUTION: When thermoplastic flanges are used with butterfly valves or other equipment, where a full face continuous support does not exist,

a back-up ring or fiberglass reinforcement should be used to prevent cracking of the flange face.

Vanstone Flange Fpt

1/2 9855005 059656

19855010 059658

1-1/4 9855012 059284

1-1/2 9855015 059659

2 9855020 059660

2-1/2 9855025 059661

3 9855030 059285

49855040 059662

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

Note: Lower pressure rated fabricated Vanstone

flanges are available. Please consult with the

factory for special prices.

CORZAN CPVC SCHEDULE 80

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Blind Flange

1/2 9853005 059250

3/4 9853007 059251

1 9853010 059252

1-1/4 9853012 059253

1-1/2 9853015 059254

29853020 059255

2-1/2 9853025 059256

39853030 059257

4 9853040 059258

69853060 059259

8 9853080 059260

10 9853100 059665

12 9853120 059666

Full Pressure Flange Kit

2-1/2 059469

3059477

4 059358

6059359

All Molded Flanges are rated at 150 psi at 73ºF., non-shock. Standard 150 lb. bolting pattern.

CAUTION: When thermoplastic flanges are used with butterfly valves or other equipment, where a full face continuous support does not exist,

a back-up ring or fiberglass reinforcement should be used to prevent cracking of the flange face.

Vanstone Flange Spig

1/2 9856005 059274

3/4 9856007 059275

1 9856010 059276

1-1/4 9856012 059277

1-1/2 9856015 059278

29856020 059279

2-1/2 9856025 059280

39856030 059281

4 9856040 059282

69856060 059283

8 9856080 059570

10 9856100 059663

12 9856120 059664

Expansion Joint 6" Travel EPDM

1/2 9826005X6E 059973

3/4 9826007X6E 059975

1 9826010X6E 059977

1-1/2 9826015X6E 059979

2 9826020X6E 059981

39826030X6E 059983

4 9826040X6E 059985

Expansion Joint 12" Travel EPDM

1/2 9826005X12E 059974

3/4 9826007X12E 059976

1 9826010X12E 059978

1-1/2 9826015X12E 059980

2 9826020X12E 059982

39826030X12E 059984

4 9826040X12E 059986

Expansion Joint 6" Travel FPM

1/2 9826005X6 059959

3/4 9826007X6 059961

1 9826010X6 059963

1-1/2 9826015X6 059965

2 9826020X6 059967

39826030X6 059969

4 9826040X6 059971

Expansion Joint 12" Travel FPM

1/2 9826005X12 059960

3/4 9826009X12 059962

1 9826010X12 059964

1-1/2 9826015X12 059966

2 9826020X12 059968

39826030X12 059970

4 9826040X12 059972

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

Nipples

1-1/4" diameter

1-5/8 close 9885005 059300

29885020 059311

3 9885030 059338

49885040 059339

5 9885050 059340

69885060 059341

1-1/2" diameter

1-3/4 close 9886005 059301

29886020 059312

3 9886030 059342

49886040 059343

5 9886050 059344

69886060 059345

2" diameter

2 close 9887005 059302

2-1/2 9887025 059313

3 9887030 059346

49887040 059347

5 9887050 059348

69887060 059349

2-1/2" diameter

2-1/2 close 9888005 059303

69888060 059352

3" diameter

2-5/8 close 9889005 059304

39889030 059353

4 9889040 059354

59889050 059355

6 9889060 059356

4" diameter

2-7/8 close 9890005 059305

49890040 059314

5 9890050 059039

69890060 059357

CORZAN CPVC SCHEDULE 80

Nipples

1/4" diameter

7/8 close 9880005 059296

1-1/2 9880015 059306

2 9880020 059316

39880030 059317

4 9880040 059318

59880050 059319

6 9880060 059320

3/8" diameter

1 close 9881005 059551

1-1/2 9881015 059307

2 9881020 059552

39881030 059939

4 9881040 059554

1/2" diameter

1-1/8 close 9882005 059297

1-1/2 9882015 059308

2 9882020 059322

39882030 059321

4 9882040 059324

59882050 059325

6 9882060 059326

3/4" diameter

1-3/8 close 9883005 059298

1-1/2 9883015 059309

29883020 059327

39883030 059328

49883040 059329

59883050 059331

69883060 059332

1" diameter

1-1/2 close 9884005 059299

29884020 059310

39884030 059333

49884040 059334

59884050 059335

69884060 059336

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

Dimension

inches

Universal

Number

CPVC Sch 80

Product Code

PRODUCT SELECTION CHART – CORZAN CPVC SCH. 80

standard

IPEX Industrial

CADonDemand Center

• Complete dimensions of

Schedule 40 and

Schedule 80, Xirtec

PVC and Corzan CPVC

fittings

• 2D & 3D CAD drawing

formats available

• 2D & 3D Valve CAD

drawings available soon

• BIM coming soon

4" - 16" (100mm - 300mm)

PAGE TITLE ENTER HERE

APPLICATIONS

•Food processing •Laboratories

•Hospitals •Universities

•Research facilities •Biotechnology

•Chemical manufacturing

•Photographic chemical processing

•Effluent treatment plants

•Water treatment plants

•Pharmaceutical manufacturing

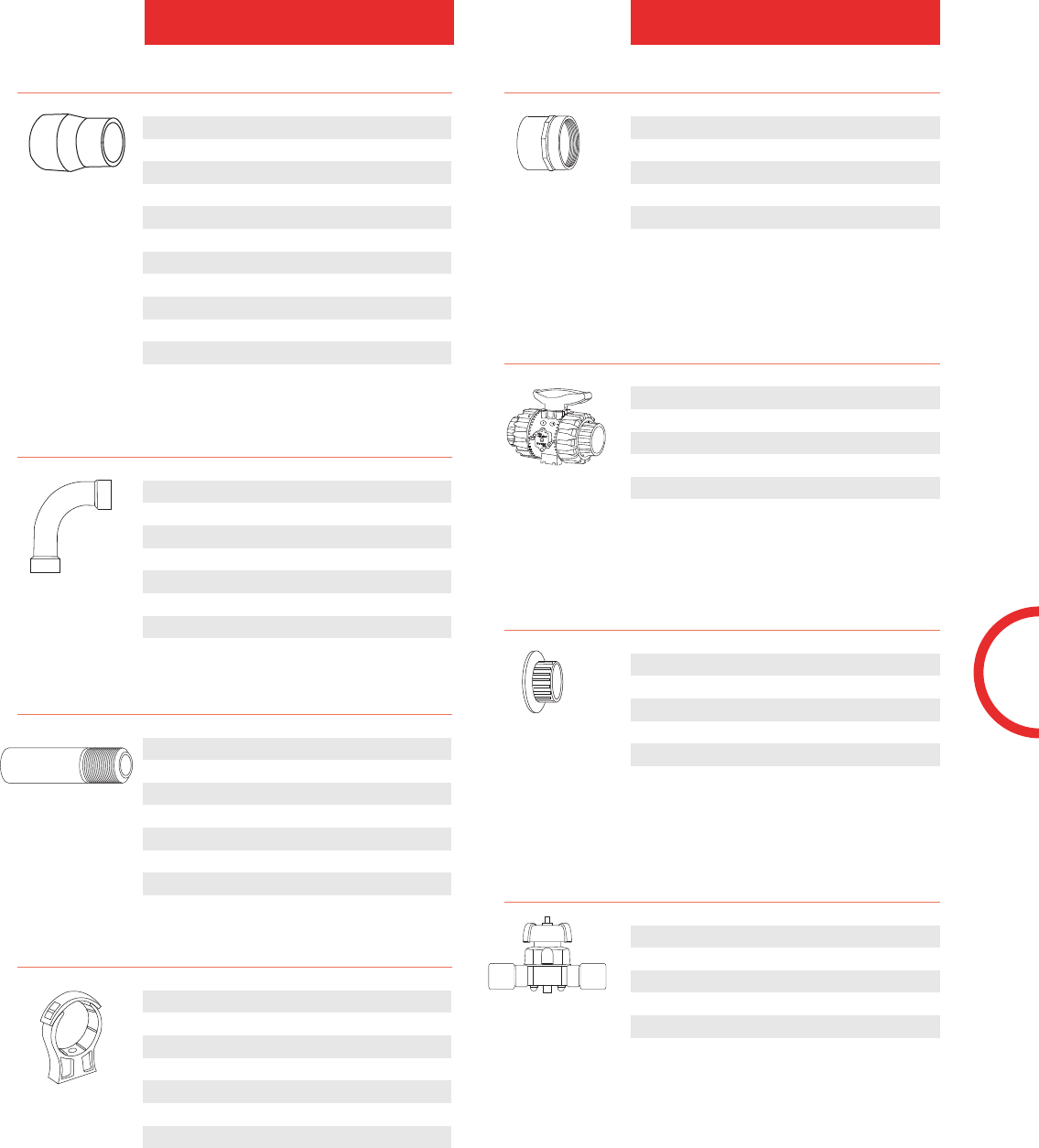

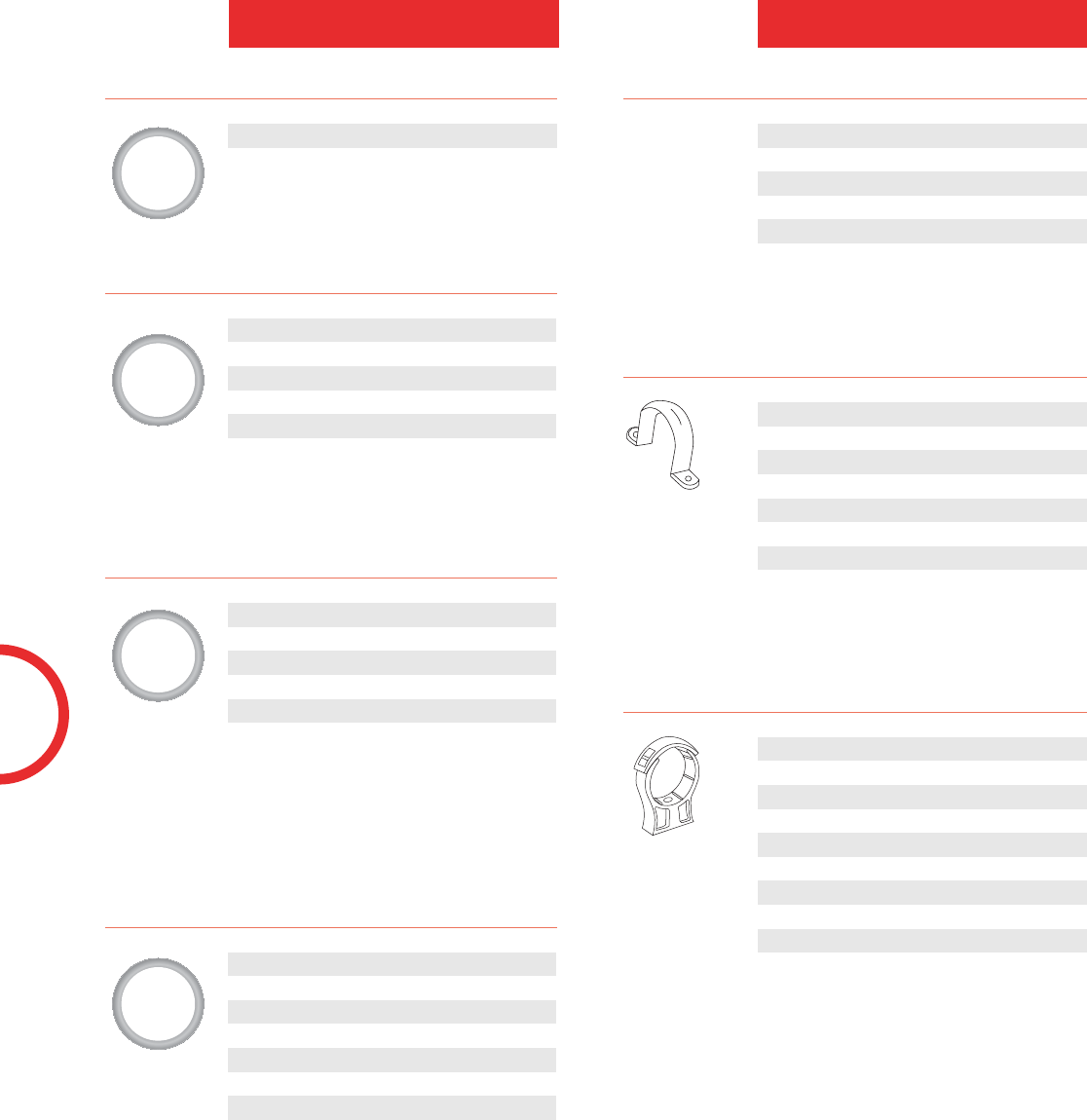

ENPURE HIGH PURITY

Enpure®proves itself as the superior high purity system manufacturing

industries and research facilities are increasingly requiring high purity

water systems that will meet the stringent requirements of their

operations. Whether the application is for ultra pure water or for

transporting chemically pure agents of foodstuffs, water purification

technologies such as distillation, de-ionization, reverse osmosis and

filtration eliminate a variety of impurities such as bacteria, particulates

and both organic and inorganic contaminants.

The purity of a system depends on the leach ability of the material and

joining method used to assemble the system.

Traditional materials used for handling high purity water have been

metal and glass piping. The issue is that metals can exhibit problems

with trace metal contamination; and elements such as sodium, boron,

silica, lead and arsenic can be leached out of glass piping.

Over the past twenty years, advances in thermoplastic technology have

enabled the effective use of plastics for high-purity water distribution

systems, even in aggressive ultra high purity applications.

FDA Code of Federal Regulations

CFR Title 21-177.1520 2002

STANDARDS

DID YOU KNOW?

Enpure is manufactured from special high purity natural polypropylene

materials. No regrind material or pigment is used in the production of pipe

or fittings. Using virgin un-pigmented material ensures purity. To avoid

contamination during manufacturing, the pipe is capped and boxed

immediately after production. Enpure is a low-cost solution with a high

resistance to chemicals, corrosion, and abrasion. It also has improved flow

characteristics compared to traditional purity systems.

•Plant chemical distribution lines

•Water and wastewater

ENPURE HIGH PURITY

VALVE SELECTION

As is the case with other thermoplastic components in a

processing system, a valve must be selected based on the

characteristics of the fluid medium, the system's operating

parameters, and its intended function for a particular

application. Certain valve types are more suitable than

others for on/off service, throttling or modulating,

automation, back flow prevention, etc. The following table

summarizes the valves offered as part of the Enpure system.

Some other considerations that may be important when

selecting a valve include: physical space requirements or

constraints, connection style, manual or remote operation,

as well as position indication or feedback.

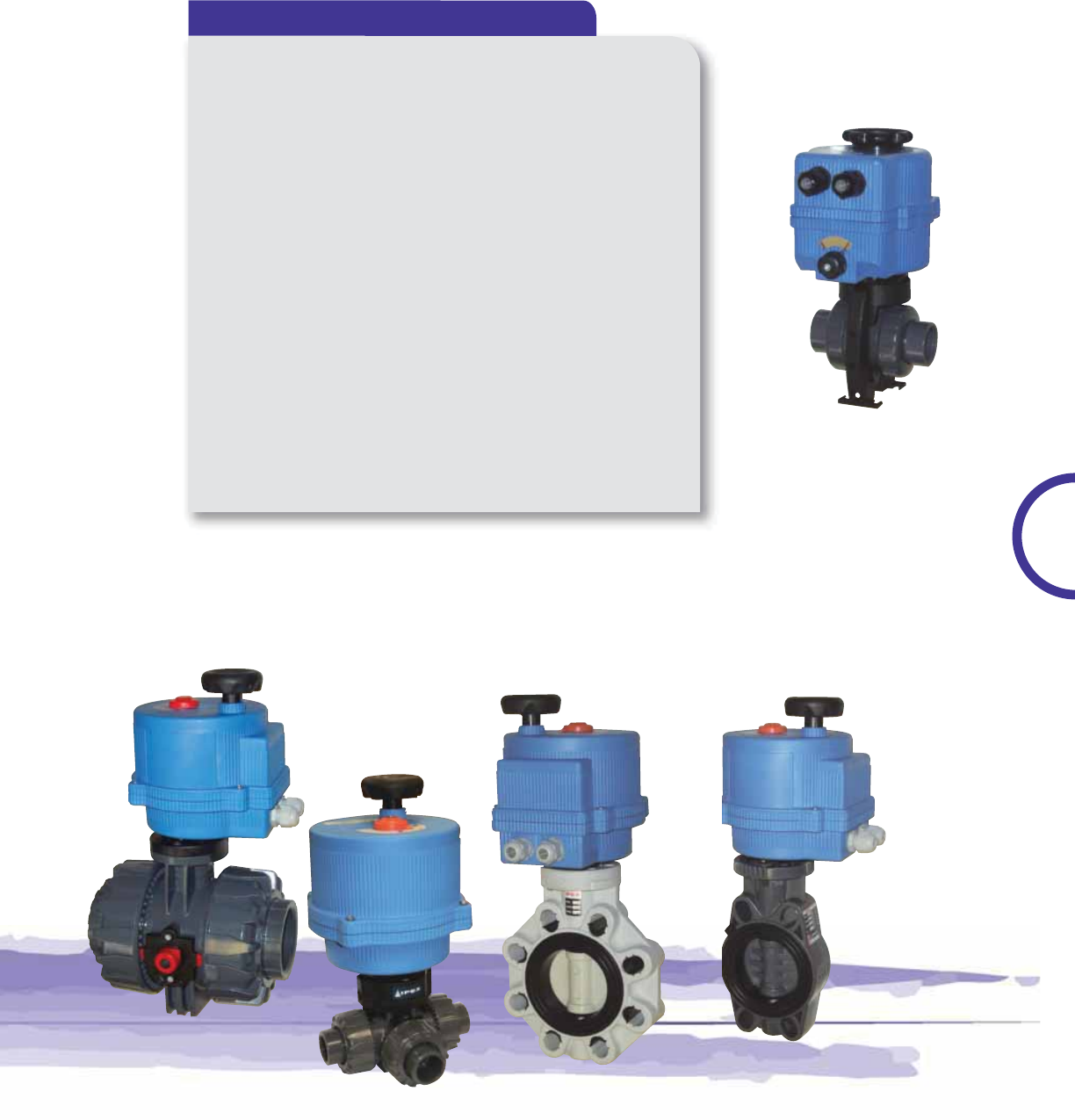

AUTOMATED VALVES

IPEX can provide quarter turn pneumatic or electric actuators

and mounting assemblies for Enpure ball valves. Pneumatic

actuator bonnets are also available for Enpure diaphragm

valves. A wide selection of accessories such as pilot solenoid

valves, position indicators, and microswitches, allow various

control and feedback options. Please refer to the

Thermoplastic Valves and Quarter Turn Automation literature

or contact IPEX for further details regarding availability.

Valve Type Sizes Materials Connections/

Style

Pressure

Rating (psi)

at 73ºF

VKD Series

Ball Valves 1/2 - 2 Natural

Socket,

Flange 150

VM Series

Diaphragm Valves 1/2 - 2 Natural

Socket,

Flange 150

SR Series

Ball Check Valves 1/2 - 2 Natural

Socket,

Flange 150

ADVANTAGES

Virgin Material

Enpure is manufactured from special high purity

virgin polypropylene materials. No regrind material is used

in the manufacturing process, thereby avoiding

contamination by colorants or other materials and potential

loss of physical properties due to the incorporation of heat

stressed materials.

Abrasion Resistance

The inherent abrasion resistance of natural PP allows

substantial increases in life expectancy compared to other

materials. In many applications, natural polypropylene out-

performs other materials such as metals.

Improved Flow

IPEX piping is smooth and has a substantially lower

roughness factor than metal and other materials, and

since thermoplastics do not rust, pit, scale or corrode,

the interior walls remain smooth in virtually any service.

Biological Resistance

Enpure natural PP piping is resistant to fungi and

bacterial growth. The smoothness of the interior walls

inhibits bacterial growth by eliminating sites where

bacteria can adhere.

Chemical Resistance

Enpure natural PP offers a complete high purity system

including pipe, fittings and valves with outstanding

resistance to most organic and inorganic chemicals in

common use. It is potentially vulnerable to strong

oxidizing acids, certain organic solvents and

chlorinated hydrocarbons.

Corrosion Resistance

Our thermoplastic materials are immune to damage

from naturally corrosive soil conditions as well as

electrochemical or galvanic corrosion. These non-

corroding properties extend service life and lower

maintenance costs even in below-grade applications

Extended Life

Once properly selected for the application and correctly

installed, Enpure products provide years of maintenance

free service.

Lower Costs

IPEX Enpure natural PP has lower material and

installation costs than other comparable materials such

as stainless steel or PVDF.

Service Temperature

IPEX Enpure line of pipe, fittings and valves are designed

to meet the highest purity standards. It is because of this

that there are no additives in the virgin polypropylene

material. Additives such as antioxidants and UV

stabilizers help thermoplastic materials with oxidation

resistance. Since Enpure does not contain these

additives, it is pressure rated at 73ºF (23ºC) and will

experience lower pressure capabilities and a shortened

service life if operated at elevated temperatures.

Standards and Approvals

IPEX manufactures the widest range of thermoplastic

piping systems available. All products are produced to

the strictest internal quality control specifications and

meet or exceed applicable regulatory standards.

ENPURE NATURAL PP VALVES

ENPURE HIGH PURITY

SHORT FORM SPECIFICATIONS

SCOPE

All high-purity water piping as shown on drawings shall

be socket-fused, virgin natural polypropylene (containing

no regrind material) as manufactured by IPEX. The

complete system of piping, valves, fittings, faucets, pipe

supports and fusion equipment shall be supplied and

warranted by a single manufacturer.

DIMENSIONS

Physical dimensions of Enpure PP pipe and fittings

shall meet or exceed Schedule 40 and Schedule 80

requirements.

PIPING

Piping shall be manufactured in 10' or 20' (3 m or 6.1 m)

lengths to Schedule 40 and Schedule 80 dimensions from

virgin, unpigmented, Type 2 high-impact copolymer

polypropylene conforming to

ASTM D 4101, using no

antioxidants or plasticizers.

Piping shall be capped at each

end and boxed for protection and

cleanliness at the point of manufacturing.

FITTINGS

Fittings shall be manufactured from virgin, unpigmented,

Type 2 high-impact copolymer polypropylene conforming

to ASTM D 4101, using no antioxidants or plasticizers.

Fittings shall be designed for socket fusion utilizing IPEX

socket fusion tools and shall have a working design

pressure of 150 psi at 73°F

(1,000 kPa @ 23°C). All fittings

shall be packaged in polybags at

the point of manufacturing to

preserve fitting cleanliness.

FAUCETS

All metal faucets shall be polyster powered lacquer coated

and have non-pigmented polypropylene wetted parts.

Faucets shall be recirculating- style to ensure the

elimination of static water pockets and shall be rated at

150 psi @ 73ºF (1,000 kPa @ 23ºC). All faucets shall be

fully compatible with all other natural polypropylene piping

components in terms of dimensions, quality and purity.

VALVES

All valves shall be manufactured from

virgin, unpigmented type 1

Homopolymer polypropylene

conforming to

ASTM D 4101, using no

antioxidants or plasticizers that

could compromise water quality. Valves

shall be designed for socket fusion utilizing

IPEX socket fusion tools and shall have a working design

pressure of 150 psi @ 73°F (1,000 kPa @ 23°C).

•All ball valves shall be double-blocking type with

o-ring cushions under the PTFE seats, in-line micro

adjustment capability and incorporate a spanner

wrench in the handle.

•All diaphragm valves shall be weir-style featuring

smooth (non-drilled) GRF bonnets with integrated

fasteners (for cleanliness) and rising position indicator.

•All valves with EPDM diaphragms shall feature

concentric ridges on valve body and smooth

diaphragms.

•All valves with PTFE diaphragm shall feature

machined (smooth) bodies and rigid PTFE diaphragms

for positive seal and longer cycle life.

•All ball check valves shall be single union design

with micro adjustable locking seat carrier.

SUPPORTS

All piping supports shall incorporate IPEX Cobra clips

manufactured from U.V. stabilized polypropylene and

designed to allow free axial pipe movement during

expansion and contraction of a pipe system. Support

spacings shall be to the manufacturer's recommendations

for the design temperature of the system.

INSTALLATION

Installation shall be in accordance with the contract

drawings, the manufacturer's recommendations and the

local building codes. The entire system shall be installed

stress-free and in proper alignment, with due allowance

for expansion and contraction.

TESTING

The water-testing requirements on any complete piping

system vary dramatically depending on the operating

pressure, temperature, installation conditions, jointing

method and the proposed service medium. If the testing

is not determined by the engineer or governed by

regulatory code, the manufacturer should be contacted.

Air or compressed gas shall never be used for pressure

testing rigid thermoplastic piping systems.

ENPURE HIGH PURITY

Note: 20' Enpure pipe lengths are non-stock

items available upon special request.

JOINING METHODS

Joining methods should also be considered when reviewing

sources of potential contamination. Not all joining methods are

equal. Some joining methods can introduce contaminants into

the system that are not introduced by the pipe material itself.

Below is a breakdown of the most common joining methods

and their potential affects on purity. To ensure a

contamination-free system, Enpure utilizes a socket fusion

joining method.

Purity Level Joining Methods Description

•Threaded

Metal Joints

Threaded metal components may cause leaching of contained metals, local stagnation of fluid

flow and may produce potential sites for bacterial growth when used with high purity water.

•• Soldered

Metal Joints

Oxidation at welded, braised or soldered metal joints can cause contamination when exposed

to the high purity water.

••• Solvent

Welded Joints

Solvent welded plastic joints, unless carefully made and cured, can contribute contamination

to high purity water.

•••• Socket Fusion

Socket fusion is a simple process of melting and fusing components together resulting in a clean

homogeneous joint. As no compounds are used in the process, sources of material contamination

are eliminated. For these types of applications, socket fusion is the joining method of choice.

Schedule 40 Pipe 10' Lengths

PRODUCT SELECTION CHART

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

1/2 U1002 546000

3/4 U1003 546001

1U1004 546002

1-1/4 U1005 546003

1-1/2 U1006 546004

2U1007 546005

3U1008 546006

4U1009 546007

Schedule 40 Pipe 20' Lengths

1/2 U1002-20 546020

3/4 U1003-20 546021

1U1004-20 546022

1-1/4 U1005-20 546023

1-1/2 U1006-20 546024

2U1007-20 546025

3U1008-20 546026

4U1009-20 546027

Note: 20' Enpure pipe lengths are non-stock

items available upon special request.

Schedule 80 Pipe 10' Lengths

1/2 U1102 546008

3/4 U1103 546009

1U1104 546010

1-1/4 U1105 546011

1-1/2 U1106 546012

2U1107 546013

3U1108 546014

4U1109 546015

Schedule 80 Pipe 20' Lengths

1/2 U1102-20 546028

3/4 U1103-20 546029

1U1104-20 546030

1-1/4 U1105-20 546031

1-1/2 U1106-20 546032

2U1107-20 546033

3U1108-20 546034

4U1109-20 546035

IPEX components are dimensionally matched; do not install Enpure system components with components of other brands.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

1/2 U1402 537142

3/4 U1403 537143

1U1404 537144

1-1/4 U1405 537145

1-1/2 U1406 537146

2U1407 537147

3U1408 537148

4U1409 537149

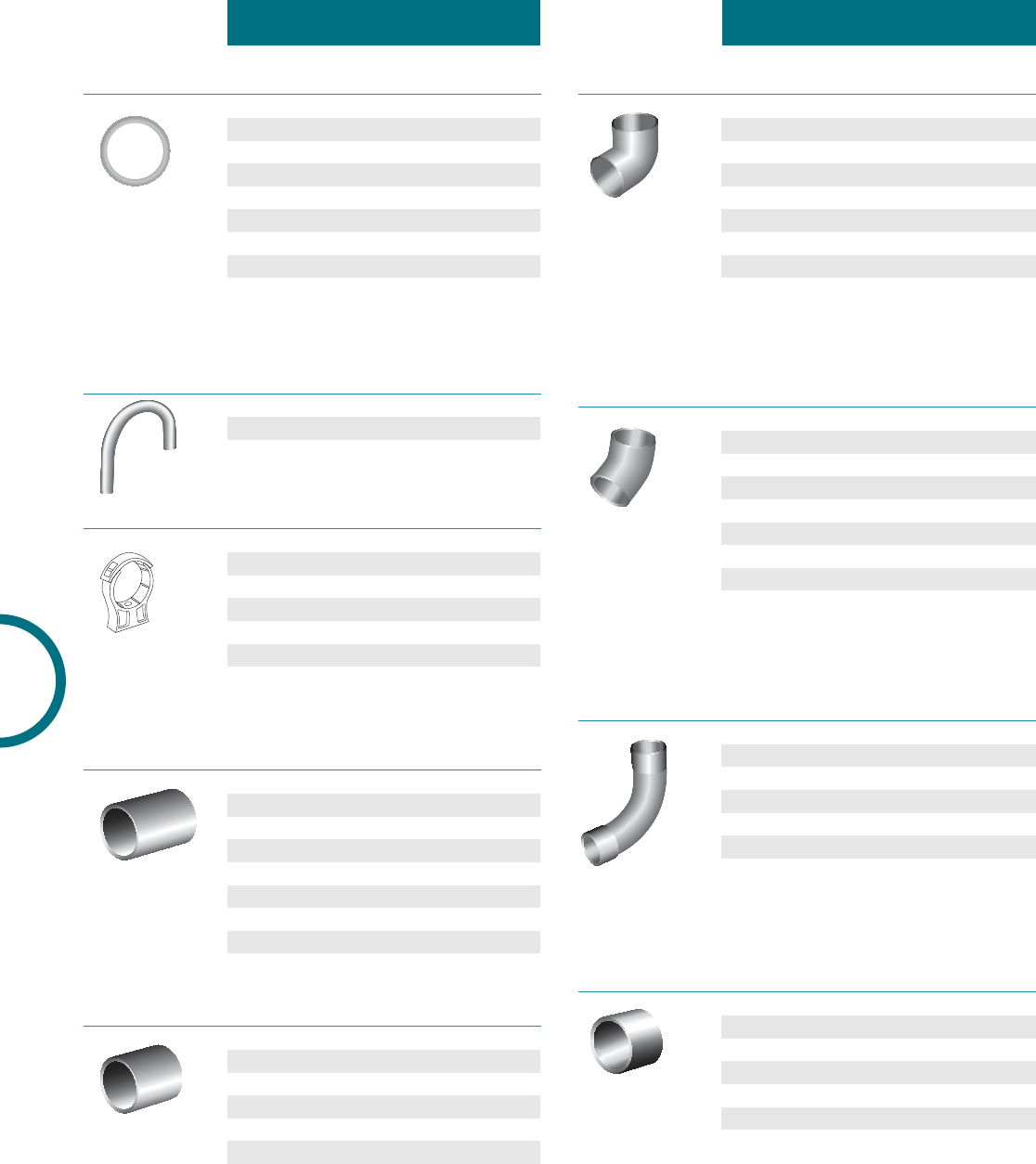

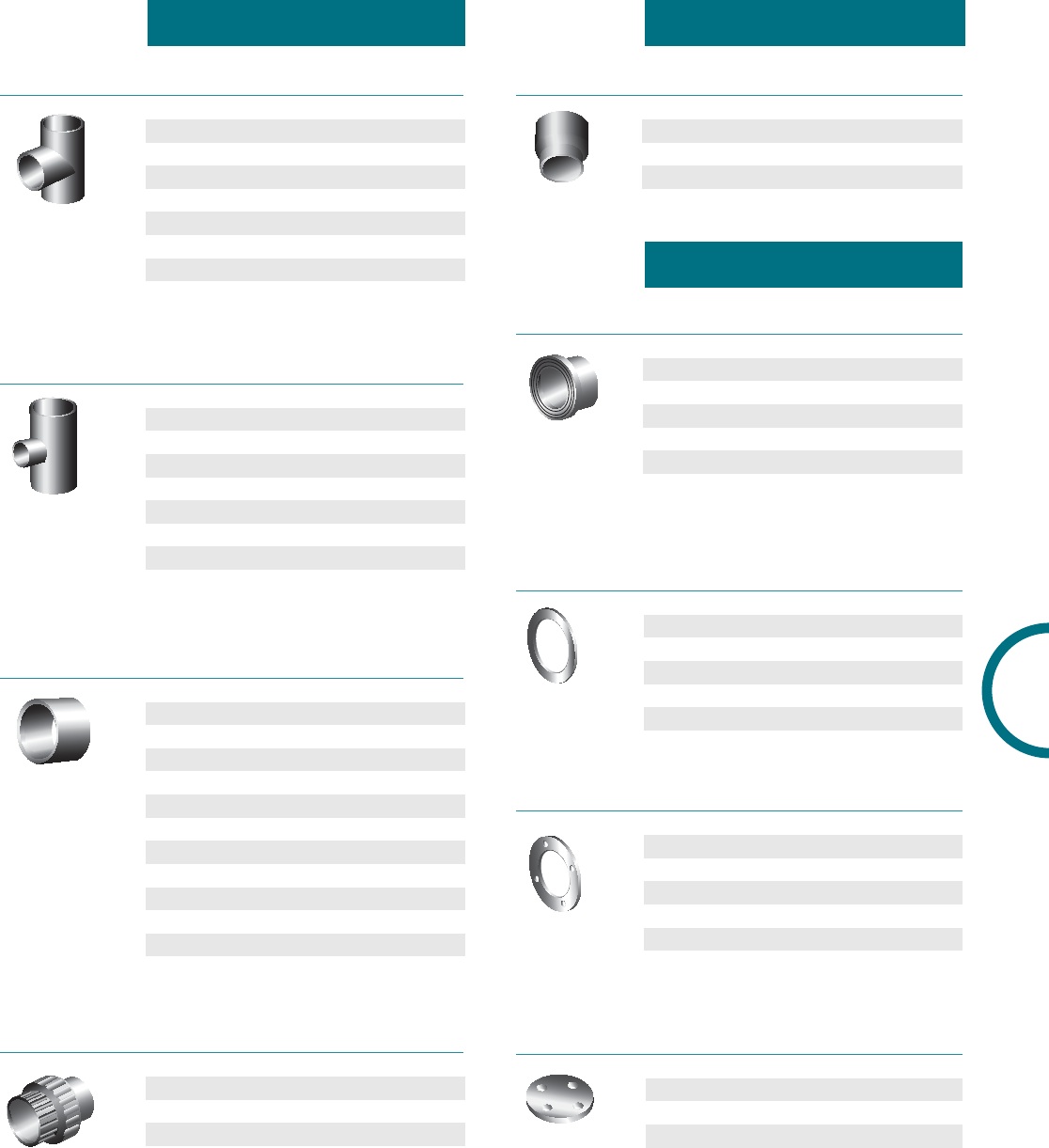

ENPURE HIGH PURITY

90º Elbow Soc

PRODUCT SELECTION CHART – ENPURE

1/2 U1202 537122

3/4 U1203 537123

1U1204 537124

1-1/4 U1205 537125

1-1/2 U1206 537126

2U1207 53717

3U1208 537128

4U1209 537129

Coupling Soc

1/2 U1502 537152

3/4 U1503 537153

1U1504 537154

1-1/4 U1505 537155

1-1/2 U1506 537156

2U1507 537157

3U1508 537158

4U1509 537159

45º Elbow Soc

1/2 U1902 537192

3/4 U1903 537193

1U1904 537194

1-1/4 U1905 537195

1-1/2 U1906 537196

2U1907 537197

3U1908 537198

4U1909 537099

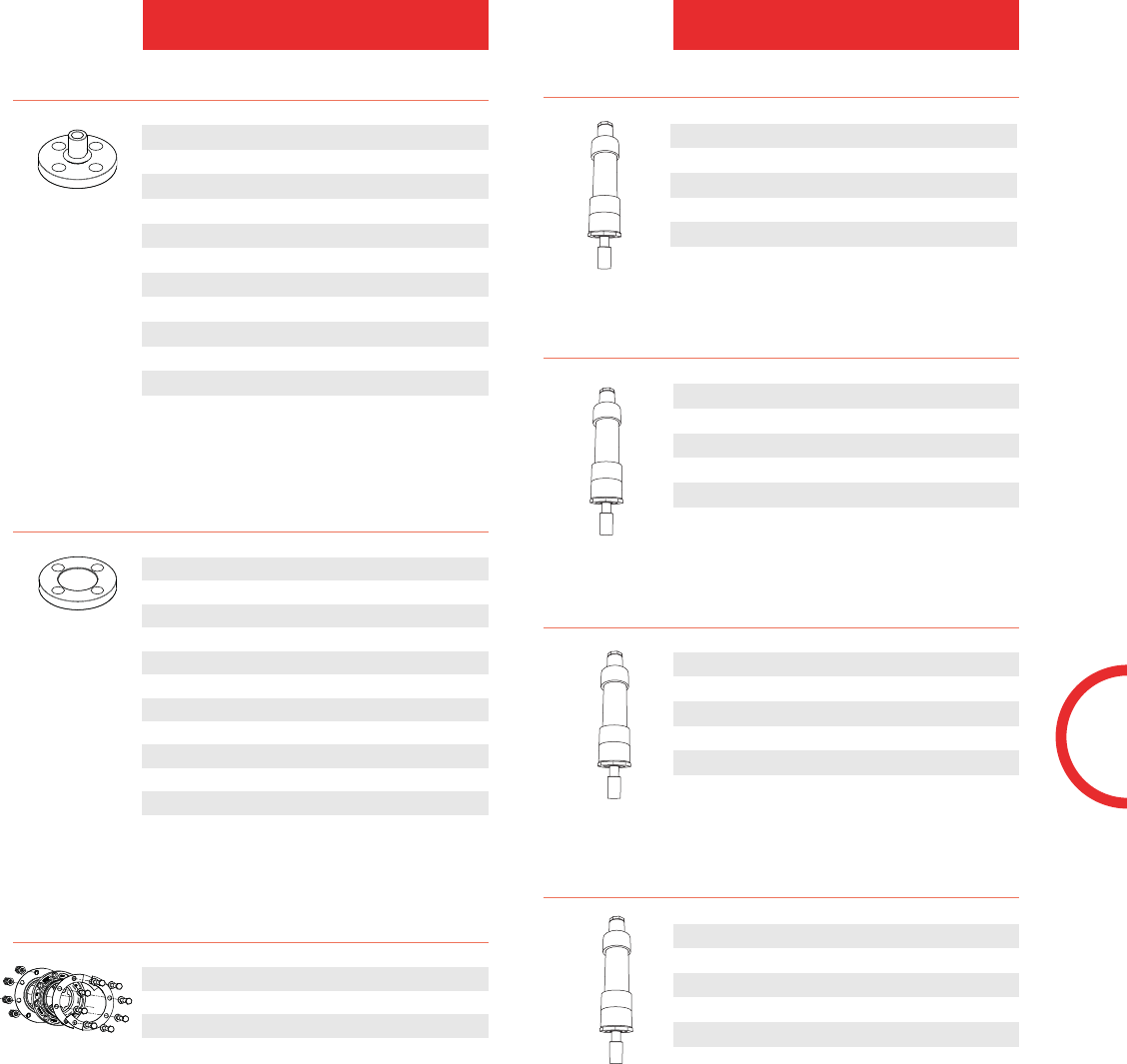

Stub Flange Soc

1/2 U1602 537162

3/4 U1603 537163

1U1604 537164

1-1/4 U1605 537165

1-1/2 U1606 537166

2U1607 537167

3U1608 537168

4U1609 537169

Tee Soc

1/2 U2112 537222

3/4 U2113 537223

1U2114 537224

1-1/4 U2115 537225

1-1/2 U2116 537226

2U2117 537227

3U2118 537228

4U2119 537229

Steel Backing Flange – ASA 150 Drilling

1/2 U1702 537172

3/4 U1703 537173

1U1704 537174

1-1/4 U1705 537175

1-1/2 U1706 537176

2U1707 537177

Union w/ Viton®Seals Soc

1/2 U1802 537182

3/4 U1803 537183

1U1804 537184

1-1/4 U1805 537185

1-1/2 U1806 537186

2U1807 537187

3U1808 537188

Cap Soc

Note: One stub flange and one steel backing

flange are required for complete flange system.

Note: One stub flange and one steel backing

flange are required for complete flange system.

1/2 U2102 537212

3/4 U2103 537213

1U2104 537214

1-1/4 U2105 537215

1-1/2 U2106 537216

2U2107 537217

3U2108 537218

4U2109 537219

Blind Flange – ASA 150 Drilling

IPEX components are dimensionally matched; do not install Enpure system components with components of other brands.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

ENPURE HIGH PURITY

3/4 x 1/2 U2232 537241

1 x 1/2 U2242 537242

1 x 3/4 U2243 537243

1-1/4 x 1 U2254 537244

1-1/2 x 1 U2264 537245

1-1/2 x 1-1/4 U2265 537246

2 x 1 U2274 537247

2 x 1-1/4 U2275 537248

2 x 1-1/2 U2276 537249

3 X 1-1/2 U2286 537250

3 x 2 U2287 537251

4 x 2 U2297 537252

4 x 3 U2298 537253

Reducer Bushing Soc

PRODUCT SELECTION CHART – ENPURE

1/2 U2302 537272

3/4 U2303 537273

1 U2304 537304

1-1/4 U2305 537305

1-1/2 U2306 537306

2U2307 537307

3 U2308 537308

4U2309 537309

90º Bend Soc

1/2 U3112 537031

3/4 U3113 537032

1 U3114 537033

1-1/4 U3115 537034

1-1/2 U3116 537035

2U3117 537036

VKD True Union Ball Valve w/ Viton®Seals Soc

1/2 U3102EC 537014

3/4 U3103EC 537015

1 U3104EC 537016

1-1/4 U3105EC 537017

1-1/2 U3106EC 537018

2U3107EC 537019

End Connectors for True Union Ball Valves Soc

1/2 U3502 537451

3/4 U3503 537453

1 U3504 537455

1-1/4 U3505 537456

1-1/2 U3506 537457

2U3507 537458

UPP Diaphragm Valve – PTFE Diaphragm Soc

1/2 U2402 537322

3/4 U2403 537323

1 U2404 537324

1-1/4 U2405 537325

1-1/2 U2406 537326

2U2407 537327

3 U2408 537328

4U2409 537329

Nipple – 6" Long Sp x MPT

1/2 434306 437341

3/4 434307 437342

1 434308 437343

1-1/4 434309 437344

1-1/2 434310 437345

2434311 437346

3 434313 437348

4434314 437349

Cobra Pipe Clip –PP

1/2 x 1/2 U2702 537362

1/2 x 1/4 U2720 537370

1/2 x 3/8 U2721 537371

3/4 x 3/4 U2703 537363

1 x 1 U2704 537364

1-1/4 x 1-1/4 U2705 537365

Female Adapter Soc x FPT

Note: 1/2" and 3/4" pipe clips are supplied

without retaining bands.

IPEX components are dimensionally matched; do not install Enpure system components with components of other brands.

ENPURE HIGH PURITY

1/2 U3602 537469

3/4 U3603 537470

1U3604 537471

1-1/4 U3605 537472

1-1/2 U3606 537473

2U3607 537474

UPP Diaphragm Valve – EPDM Diaphragm Soc

PRODUCT SELECTION CHART – ENPURE

1/2 to 2 U2827 537401

1/2 to 4 U2829 537404

Socket Fusion Joining Kit c/w Full Set of Heater Bushings

U2850 (488º) 537406

U2851 (575º) 537407

Tempilstiks

1/2 U4000 537039

Recirculating Faucet Sp

1/2 to 2 -537403

1/2 to 4 -537400

Socket Fusion Joining Tool - Paddle Only

1/2 to 4 U2890 537410

Bench Fusion Joining Kit c/w Full Set of Heater Bushings

1/2 U3702 537784

3/4 U3703 537785

1U3704 537786

1-1/4 U3705 537787

1-1/2 U3706 537788

2U3707 537189

Single Union Ball Check Valve w/ Viton®Seats & Seals Soc

1/2 U2812 537382

3/4 U2813 537383

1U2814 537384

1-1/4 U2815 537385

1-1/2 U2816 537386

2U2817 537387

3U2818 537388

4U2819 537389

Heater Bushing Set- PTFE Coated (1 x Soc, 1 x Sp)

IPEX components are dimensionally matched; do not install Enpure system components with components of other brands.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

WHAT YOU CAN DO

Shortcut to specific chapters

from Table of Contents

Search document

for key words

Save and email clippings

for ultimate convenience

Download pages as

PDFs

Zoom to specific

paragraph/chart for

easy reading

Environmentally

Friendly!

IPEX TECHNICAL MANUALS

available at www.ipexamerica.com

Obtaining the

most up-to-date

technical information

has never been easier

with our innovative

ON-LINE DIGITAL

MANUALS

Visit www.ipexamerica.com

& check it out!

4" - 16" (100mm - 300mm)

DURAPLUS ABS INDUSTRIAL

APPLICATIONS

STANDARDS

The Duraplus®Industrial Piping System by IPEX offers a complete range

of ABS pressure pipe, valves and fittings that are ideal for demanding

applications ranging from abrasive slurries and separation reagents to

caustic processes and low temperature glycol systems. These rugged

Duraplus components operate over a wide range of temperatures while

delivering excellent material properties including:

• Exceptional Toughness

• Non-Toxicity

• Corrosion Resistance

This design and installation manual provides the most up-to-date

comprehensive information about IPEX’s Duraplus ABS Industrial Piping

System. By combining IPEX’s laboratory test results with over 65 years

of field experience, we have produced a manual suited to engineers,

contractors and distributors alike. All aspects of Duraplus are described

here – from basic raw material properties through to installation

procedures of the finished product.

IPEX offers matched Duraplus pipes, fittings and valves in IPS sizes

ranging from 3/8" to 12" nominal diameter, suitable for pressures up to

230 psi at 73°F (depending on the size).

ADVANTAGES

Lightweight

Duraplus Industrial ABS material is 1/8 the weight

of steel and 1/5 the weight of copper.

Simple, reliable joining method

Solvent cemented joints can be made quickly and

easily without expensive equipment or certifications.

Flanging and threaded joints are also possible.

Grooved joints

Allow quick assembly and disassembly, pipe rotation

for even wear and cleaning of individual pipe sections.

Wide range of pressure and temperature

capabilities

Operating pressures from drainage up to 230 psi and

temperature range from -40°F to 176°F make this product

suitable for the harshest environments.

Lower installation costs

Duraplus Industrial ABS is less expensive to

install because of its simple joining methods

– its lightweight and ease of handling.

Lower maintenance costs

Duraplus Industrial ABS has excellent

chemical resistance, corrosion resistance

and impact resistance resulting in a piping

system that lasts longer.

No heat, no sparks, no open flames

Pipe can be joined to fitting without the necessity of heat.

Abrasion resistance

The rubber-like poly-butadiene phase gives Duraplus

Industrial ABS exceptionally good abrasion resistance to

slurries and other abrasive media.

The ABS compound used in the

manufacturing of Duraplus ABS Industrial

Pipe complies with the material requirements of ASTM

D3965, “Standard Specification for Rigid

Acrylonitrile-Butadiene-Styrene (ABS) Materials for

Pipe and Fittings”.

DURAPLUS

ABS INDUSTRIAL

DURAPLUS®FEATURES:

• High impact strength

• Outstanding ductility

• Wide chemical resistance

• Competitive installed cost

• Operating range from -40°F to +158°F

• Long term UV resistance

• Multiple proven and easy joining methods

•Chilled water / HVAC

Chilled Water Lines

Condensate Drain

Lines

Cooling Tower Pipes

Humidification Supply

Lines

•Off Shore Applications

“Mud” Systems

Topside (low pressure)

Operations

Vacuum Systems (Drill

Cuttings Transport)

Deck Wash System –

Supply & Drainage

Deluge Systems

(Emergency Showers/Eye

Baths)

Chilled Water (Air

Conditioning)

Potable Water

Black Water Drainage

•Mining

Slurries

Water Lines

Vent Piping

Chemical Treatment

Tailing Lines

•Secondary Loop Refrigeration

Glycol Chilled Lines

•Plant chemical distribution lines

•Water and wastewater

DURAPLUS ABS INDUSTRIAL

DID YOU KNOW?

Duraplus Industrial ABS is an extremely

versatile process piping system that

combines ruggedness, chemical

resistance, light weight and ease of

installation.

The most common applications for

Duraplus Industrial ABS utilizes its

outstanding impact resistance, ductility

and abrasion resistance at both low

and high temperatures.

SHORT FORM SPECIFICATIONS

GENERAL

Duraplus ABS is designed for industrial pressure pipe applications

where the extremely high-impact resistance and ductility of the

material offers some insurance against internal and external shock

loadings and site abuse conditions. It’s unique combination of ABS

properties – non-toxicity, purity, corrosion- and chemical-resistance,

toughness, low-hydraulic resistance, and the ability to perform over a

wide temperature range (-40ºF to +158ºF) ensures excellent

in-service performance and system life.

MATERIAL SPECIFICATION

Pipe and fittings shall be manufactured from a copolymeric material

– Acrylonitrile Butadiene Styrene (ABS) – conforming to a 43232

cell classification in accordance with ASTM D3965.

Material for both pipe and fittings shall have a design stress of not less

than 2,000 psi, and shall be designed with a 2 to 1 safety factor for a

50 year lifespan when operated under continuous pressure.

The material shall have an izod impact resistance value of not less than

6 ft./lb. at 73ºF and 3 ft./lb. at -22ºF, when tested in accordance with

ASTM D256, method ‘A’.

PIPE

Pipes shall be manufactured by IPEX and designed on a Standard

Dimension Ratio (SDR) basis to give various pressure ratings as

described below:

FITTINGS

Fittings shall be of the socket type, designed for solvent welding as

supplied by IPEX.

Fittings shall be designed and manufactured so that they withstand

the continuous pressures applicable to the maximum pressure native

of the pipe.

SOLVENT CEMENT

All joints shall be made with Gray Duraplus ABS solvent cement as

supplied by IPEX.

The solvent cement shall be designed to withstand continuous

applied pressures up to 230 psi at 73ºF.

DESIGN AND INSTALLATION

The design and installation of ABS pressure systems shall be

performed in accordance with the recommendations detailed in the

Handling and Installation section of this manual, local and national

regulations where applicable.

To ensure the full integrity of the completed system, all components

shall be supplied by IPEX.

Pipe Class Equivalent DR Continuous Pressure

Rating at 73°F (23°C) Size Range

Class B 90 psi DR 24.0 90 psi 10" & 12"

Class C 145 psi DR 15.5 145 psi 1" to 8"

Class D 180 psi DR 12.5 180 psi 1" to 6"

Class E 230 psi DR 10.0 230 psi 3/8" to 4"

Class T 230 psi 180 psi 3/8" to 2"

Note: 3/8" 1/2", 3/4" and 1" pipe clips are

supplied without retaining bands.

DURAPLUS ABS INDUSTRIAL

10 542114 346034

12 542115 346035

Pipe – 90 psi at 73º F

PRODUCT SELECTION CHART – DURAPLUS

3/8 514101 346033

1/2 514102 346027

3/4 514103 346028

1514104 346029

1-1/4 514105 346030

1-1/2 514106 346031

2514107 346032

Class "T" – Suitable for Threading

3/8 513101 346018

1/2 513102 346019

3/4 513103 346020

1513104 346021

1-1/4 513105 346022

1-1/2 513106 346023

2513107 346024

3513109 346025

4 513110 346026

Pipe – 230 psi at 73º F

3/8 455101 337453

1/2 455102 337454

3/4 455103 337455

1455104 337456

1-1/4 455105 337457

1-1/2 455106 337458

2455107 337459

3455109 337460

4 455110 337461

Saddle Clip – Polypropylene

3/8 434305 437340

1/2 434306 437341

3/4 434307 437342

1434308 437343

1-1/4 434309 437344

1-1/2 434310 437345

2434311 437346

2-1/2 434312 437347

3 434313 437348

4434314 437349

6 434317 437432

Cobra Pipe Clip – Polypropylene

1512104 346013

1-1/4 512105 346014

1-1/2 512106 346015

2512107 346011

3512109 346016

4512110 346017

6512112 346012

Pipe – 180 psi at 73º F

Standard length of pipe is 20 feet.

Note: 180 psi pipe is a non-stock item

available upon special request.

Minimum runs are required.

1511104 346003

1-1/2 511106 346004

2511107 346005

3511109 346007

4511110 346008

6511112 346009

8511113 346010

Pipe – 145 psi at 73º F

All Threads are BSP tapered unless otherwise noted ***.

Systems using plastic threaded components are restricted to 180 psi. The use of PTFE sealing tape is recommended.

Only the correct Duraplus®cement will provide a compatible joint. All warranties void if other cement used.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

The standard pipe length for 3/8" and 1/2" pipe

is 10 feet. The standard length for all other

sizes is 20 feet.

1/2 426102 337439

3/4 426103 337440

1 426104 337441

1-1/4 426105 337442

1-1/2 426106 337443

2426107 337444

3 426109 337445

4426110 337446

6 426112 337447

3/8 100101 337021

1/2 100102 337022

3/4 100103 337023

1100104 337024

1-1/4 100105 337025

1-1/2 100106 337026

2 100107 337027

3100109 337028

4 100110 337029

6100112 337030

8 100113 337031

*10 100114 337032

*12 100115 337033

Coupling Soc

PRODUCT SELECTION CHART – DURAPLUS

1/2 322102 337353

3/4 322103 337354

1 322104 337355

1-1/4 322105 337356

1-1/2 322106 337357

2322107 337358

3 322109 337359

4322110 337360

6 322112 337361

Flange – Full Face, Drilled ASA 150 Soc

Gasket – Full Face, Drilled ASA 150, Neoprene

2 135107 337235

3135109 337236

4 135110 337237

6135112 337238

8 135113 337239

10 139114 337243

12 139115 337244

Flange – Stub Soc

DURAPLUS ABS INDUSTRIAL

Note: A metal backing ring must be used with

this flange.

*Fabricated - 90 psi max

1/2 129102 337226

3/4 129103 337227

1 129104 337228

1-1/4 129105 337229

1-1/2 129106 337230

2129107 337231

3 129109 337232

4129110 337233

6 129112 337234

Flange – Full Face, Undrilled Soc

Note: A metal backing ring must be used with

this flange.

Note: A metal backing ring must be used with

this flange.

2 431107 337448

3431109 337449

4 431110 337450

6431112 337451

8 431113 337452

10 411114 337422

12 411115 337423

Gasket – Stub Flange, Neoprene

Note: It is essential that steel backing rings are

used with all types of stub, full face and blind

flanges.

All Threads are BSP tapered unless otherwise noted ***.

Systems using plastic threaded components are restricted to 180 psi. The use of PTFE sealing tape is recommended.

Only the correct Duraplus®cement will provide a compatible joint. All warranties void if other cement used.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

1/2 212102 337280

3/4 212103 337281

1 212104 337282

1-1/4 212105 337000

1-1/2 212106 337283

2212107 337284

1/2 425102 337426

3/4 425103 337427

1 425104 337428

1-1/4 425105 337429

1-1/2 425106 337430

2425107 337431

3 425109 337433

4425110 337434

6 425112 337435

8425113 337436

10 425114 337437

12 425115 337438

Backing Ring – Galv, M.S. Drilled ASA 150

PRODUCT SELECTION CHART – DURAPLUS

Union ABS Soc x Brass Female Thread

1/2 217102 337103

3/4 217103 337104

1 214104 337109

1-1/4 217105 337191

1-1/2 217106 337192

2217107 337193

Transition Union ABS Soc x Brass Male Thread

Note: For use with flanges.

3/8 115101 337132

1/2 115102 337133

3/4 115103 337134

1115104 337135

1-1/4 115105 337136

1-1/2 115106 337137

2 115107 337138

3115109 337139

4 115110 337140

6115112 337141

8 115113 337142

*10 115114 337011

* 12 115115 337012

90º Elbow Soc

* Only available in spigot x spigot.

3/8 140101 337245

1/2 140102 337246

3/4 140103 337247

1140104 337248

1-1/4 140105 337249

1-1/2 140106 337250

2 140107 337251

3140109 337252

4 140110 337253

Cap Soc

3/8 205101 337270

1/2 205102 337271

3/4 205103 337272

1205104 337273

1-1/4 205105 337274

1-1/2 205106 337275

2 205107 337276

3205109 337277

4 205110 337278

Union – EPDM Seal Soc

3 325109 337364

4325110 337365

6 325112 337366

8325113 337367

10 325114 337368

12 325115 337383

Blind Flange – Drilled ASA 150

Note: A metal backing ring must be used with

this flange.

Undrilled flanges are available at the same

price as drilled. Order code 131.

DURAPLUS ABS INDUSTRIAL

All Threads are BSP tapered unless otherwise noted ***.

Systems using plastic threaded components are restricted to 180 psi. The use of PTFE sealing tape is recommended.

Only the correct Duraplus®cement will provide a compatible joint. All warranties void if other cement used.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

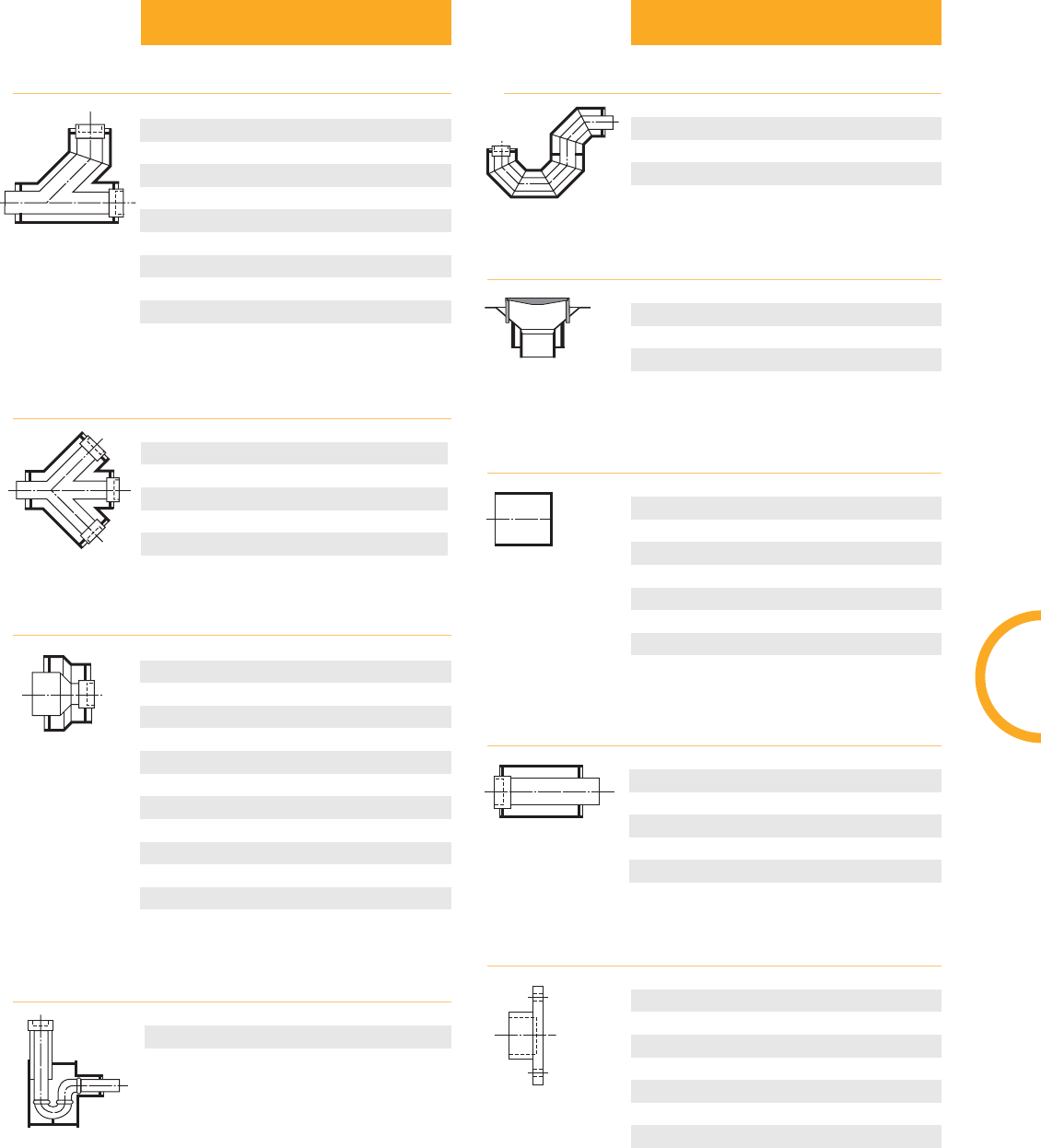

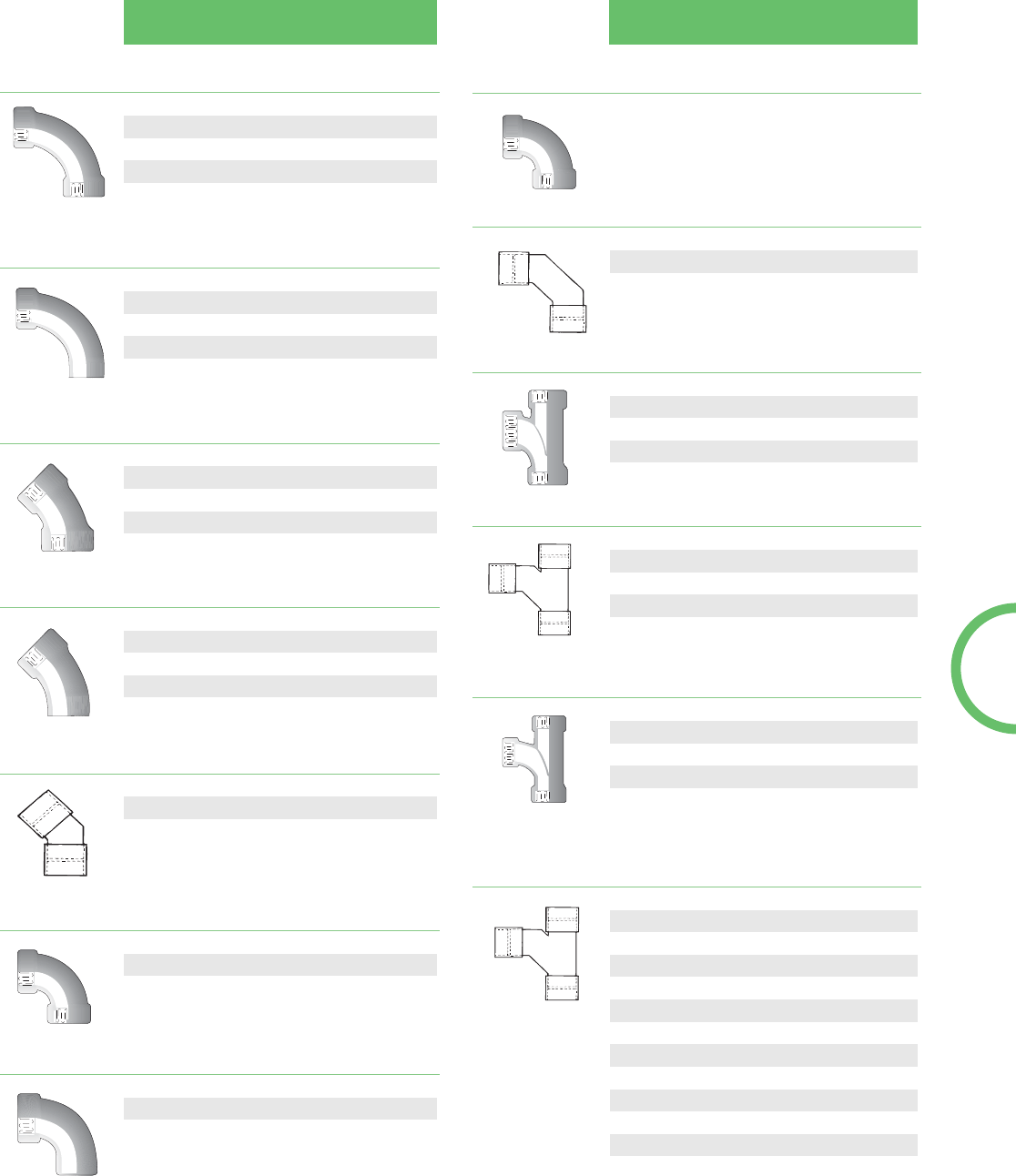

2 x 1-1/4 126129 337205

3 x 1 126132 337207

3 x 1-1/2 126134 337208

4 x 1 126137 337209

4 x 2 126140 337210

6 x 1 126143 337211

6 x 1-1/2 126145 337212

6 x 2 126146 337213

1/2 118102 337148

3/4 118103 337149

1 118104 337150

1-1/4 118105 337151

1-1/2 118106 337152

2118107 337153

3 118109 337154

4118110 337155

90º Bend – Short Radius Soc

PRODUCT SELECTION CHART – DURAPLUS

Saddle Soc

3/8 122101 337170

1/2 122102 337171

3/4 122103 337172

1122104 337173

1-1/4 122105 337174

1-1/2 122106 337175

2 122107 337176

3122109 337177

4 122110 337178

6122112 337179

8 122113 337180

*10 122114 337015

* 12 122115 337016

Tee Soc

* Only available in spigot tees.

3 309109 337320

4309110 337321

6 309112 337322

8309113 337323

* 10 309114 337384

*12 309115 337385

90º Bend – Long Radius Sp (Center Line Radius = 4xD)

* Please note center line radius of 10" & 12"

varies from 4xD

1/2 128102 337214

3/4 128103 337215

1 128104 337216

1-1/4 128105 337217

1-1/2 128106 337218

2128107 337219

45º Wye Soc

3 310109 337330

4310110 337331

6 310112 337332

8310113 337333

* 10 310114 337386

*12 310115 337387

45º Bend – Long Radius Sp (Center Line Radius = 4xD)

* Please note center line radius of 10" & 12"

varies from 4xD

DURAPLUS ABS INDUSTRIAL

All Threads are BSP tapered unless otherwise noted ***.

Systems using plastic threaded components are restricted to 180 psi. The use of PTFE sealing tape is recommended.

Only the correct Duraplus®cement will provide a compatible joint. All warranties void if other cement used.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

3/8 119101 337156

1/2 119102 337157

3/4 119103 337158

1119104 337159

1-1/4 119105 337160

1-1/2 119106 337161

2 119107 337162

3119109 337163

4 119110 337164

6119112 337165

8 119113 337166

*10 119114 337013

* 12 119115 337014

45º Elbow Soc

* Only available in spigot x spigot.

3 128109 337220

4128110 337221

6 128112 337222

8128113 337223

10 128114 337224

12 128115 337225

45º Wye – Fabricated Sp x Sp

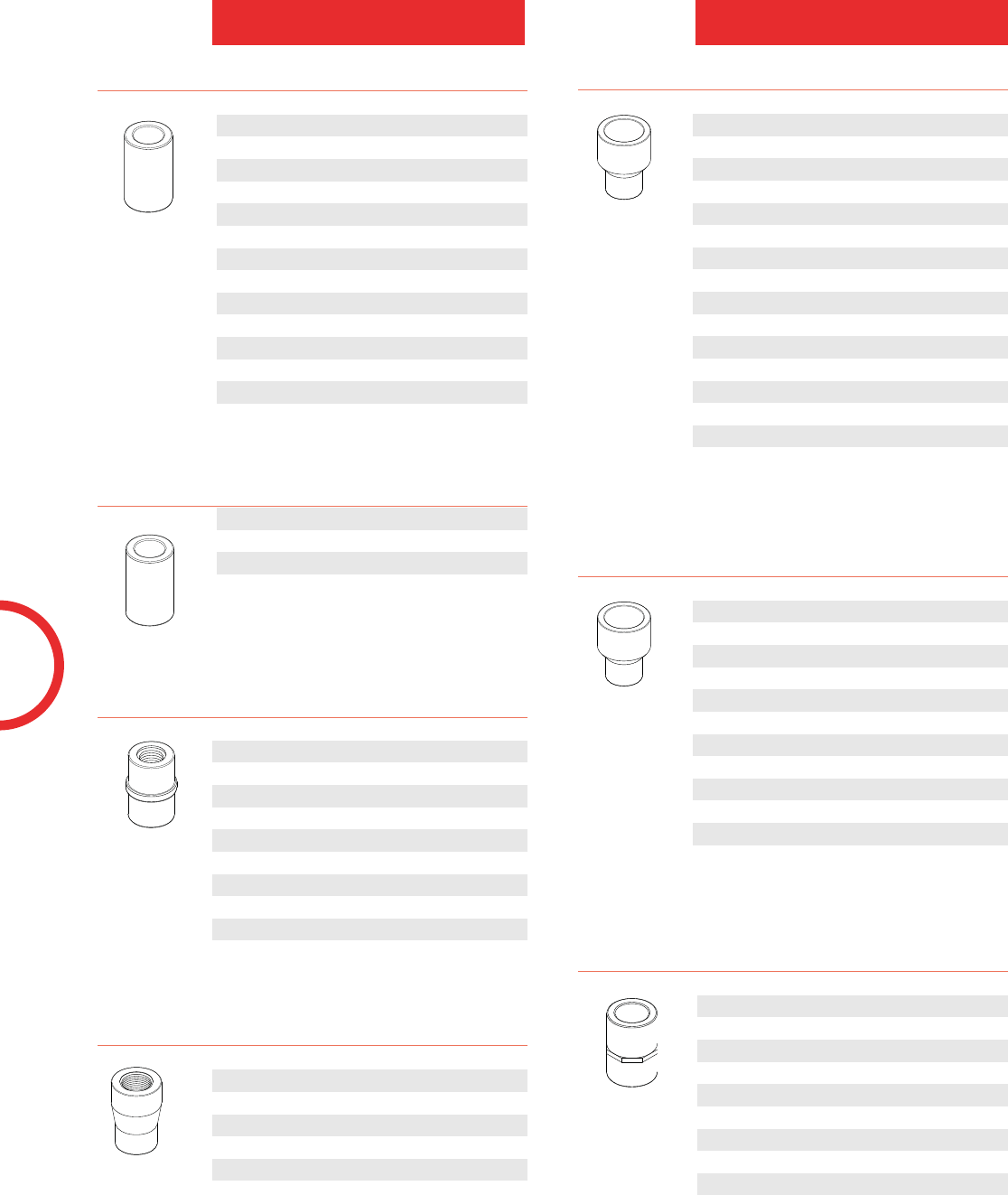

1/2 102102 337094

3/4 102103 337095

1 102104 337096

1-1/4 102105 337097

1-1/2 102106 337098

2102107 337099

3 102108 337100

4102109 337101

Female Adapter Soc x FPT

** Discontinued when stock is depleted

** 3/4 x 1/2 113122 337076

Reducer Bushing Male Thread x Female Thread

PRODUCT SELECTION CHART – DURAPLUS

** Discontinued when stock is depleted

** 1/2 x 3/8 111121 337072

** 3/4 x 1/2 111122 337073

** 1 x 3/4 111124 337074

Reducer Bushing Sp x Female Thread

1/2 x 3/8 114121 337120

3/4 x 1/2 114122 337121

1 x 3/4 114124 337122

1-1/4 x 1 114125 337123

1-1/2 x 1-1/4 114127 337124

2 x 1-1/2 114130 337125

3 x 2 114135 337126

4 x 3 114141 337127

6 x 4 114147 337128

8 x 6 114152 337129

10 x 8 114157 337130

12 x 10 114162 337131

Reducer Coupler Soc

1/2 101102 337037

3/4 101103 337038

1 101104 337039

1-1/4 101105 337040

1-1/2 101106 337098

2101107 337099

Adapter Coupling Soc x Female Thread

DURAPLUS ABS INDUSTRIAL

1/2 153102 337257

3/4 153103 337258

1 153104 337259

1-1/4 153105 337260

1-1/2 153106 337261

2153107 337262

Female Adapter Sp x Female Thread

All Threads are BSP tapered unless otherwise noted ***.

Systems using plastic threaded components are restricted to 180 psi. The use of PTFE sealing tape is recommended.

Only the correct Duraplus®cement will provide a compatible joint. All warranties void if other cement used.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

1/2 x 3/8 109121 337050

3/4 x 1/2 109122 337051

1 x 1/2 109123 337052

1 x 3/4 109124 337053

1-1/4 x 1/2 109116 337045

1-1/4 x 3/4 109117 337046

1-1/4 x 1 109125 337054

1-1/2 x 1/2 109118 337047

1-1/2 x 3/4 109119 337048

1-1/2 x 1 109126 337055

1-1/2 x 1-1/4 109127 337056

2 x 3/4 109120 337049

2 x 1 109128 337057

2 x 1-1/4 109129 337058

2 x 1-1/2 109130 337059

3 x 1-1/2 109134 337061

3 x 2 109135 337062

4 x 3 109141 337064

6 x 4 109147 337065

8 x 6 109152 337066

10 x 8 109157 337067

12 x 10 109162 337068

Reducer Bushing Sp x Soc

3/8 902101 337801

1/2 902102 337802

3/4 902103 337803

1902104 337804

1-1/4 902105 337805

1-1/2 902106 337806

2 902107 337807

3902109 337808

4 902110 337809

VKD True Union Ball Valve – EPDM Seals Soc

PRODUCT SELECTION CHART – DURAPLUS

1/2 902111 337810

3/4 902112 337811

1 902113 337812

1-1/4 902114 337813

1-1/2 902115 337814

2902116 337816

VXE True Union Ball Valve – EPDM Seals Soc

** 3/8 836101 337727

** 1/2 836102 337728

** 3/4 836103 337729

** 1 836104 337730

** 1-1/4 836105 337731

** 1-1/2 836106 337732

** 2 836107 337733

** 3 836109 337734

Single Union Ball Check Valve – EPDM Soc

1/2 837102 337185

3/4 837103 337186

1 837104 337187

1-1/4 837105 337188

1-1/2 837106 337189

2837107 337190

True (Double) Union Ball Check Valve – EPDM Soc

DURAPLUS ABS INDUSTRIAL

All Threads are BSP tapered unless otherwise noted ***.

Systems using plastic threaded components are restricted to 180 psi. The use of PTFE sealing tape is recommended.

Only the correct Duraplus®cement will provide a compatible joint. All warranties void if other cement used.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

3/8 314101 337340

1/2 314102 337341

3/4 314103 337342

1314104 337343

1-1/4 314105 337344

1-1/2 314106 337345

2 314107 337346

3314109 337347

4 314110 337348

Nipple Sp x NPT

1/2 155102 337264

3/4 155103 337265

1 155104 337266

1-1/4 155105 337267

1-1/2 155106 337268

2155107 337269

Plug Male Thread

** 1/2 624102 337643

** 3/4 624103 337644

** 1 624104 337645

** 1-1/4 624105 337646

** 1-1/2 624106 337647

** 2 624107 337648

VM Manual Diaphragm Valve – EPDM Diaphragm Sp

1/2 103102 337086

3/4 103103 337087

1 103104 337088

1-1/4 103105 337089

1-1/2 103106 337090

2103107 337091

3 103108 337092

4103109 337093

Male Adapter Soc x MPT

** Discontinued when stock is depleted

◆3" & 4" are spigot ended

Note: Other diaphragm materials available on request

1/2 H0UMA102 337110

3/4 H0UMA103 337111

1 H0UMA104 337112

1-1/4 H0UMA105 337113

1-1/2 H0UMA106 337114

2H0UMA107 337115

◆3 H0VMA209 337649

◆4H0VMA210 337116

VM Manual Diaphragm Valve – EPDM Diaphragm T/U Soc

DURAPLUS ABS INDUSTRIAL

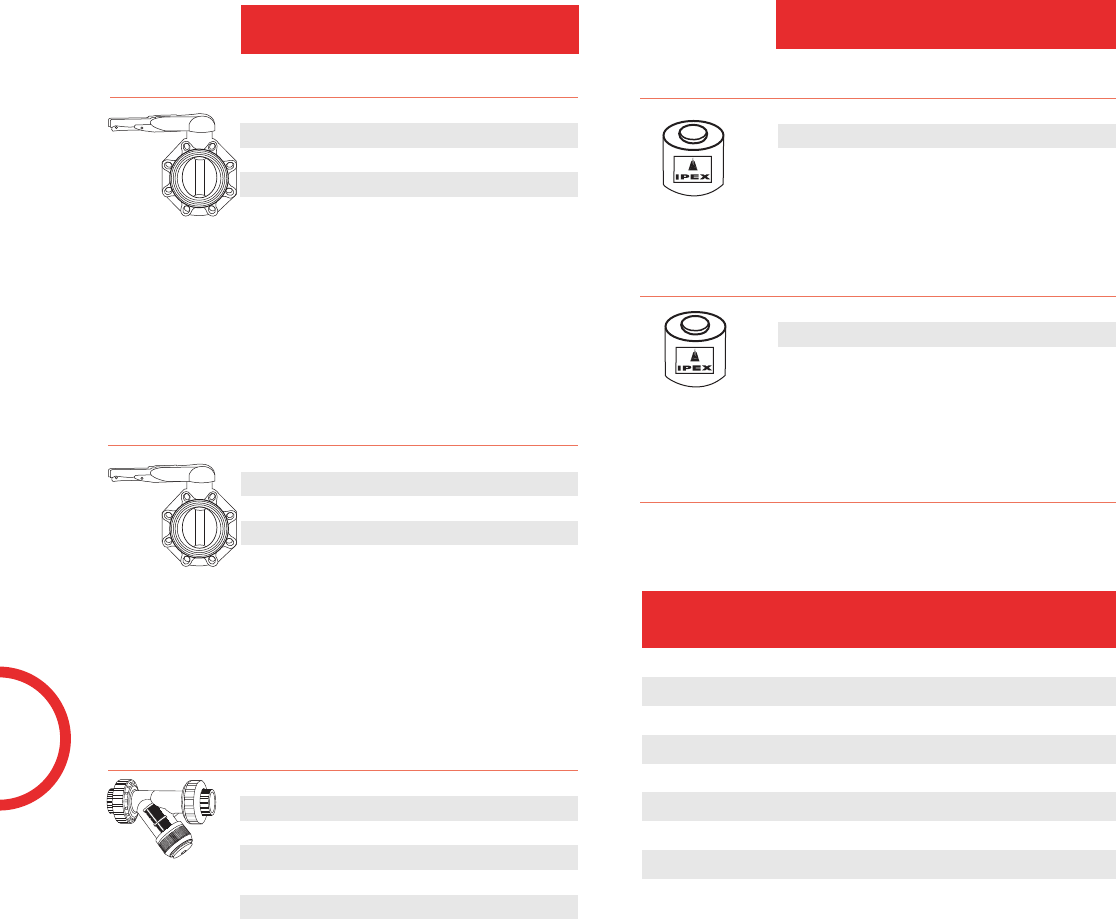

2 681107 337656

3681109 337657

4 681110 337658

6681112 337659

8 681113 337660

1/2 846102 337739

3/4 846103 337740

1 846104 337741

1-1/4 846105 337742

1-1/2 846106 337743

2846107 337744

RV Y-Strainer EPDM Seals Soc

1 pint 461392 337466

1 quart 461393 337467

Solvent Cement

1 pint 461397 337468

1 quart 461398 337469

MEK Cleaner

Joints

Liquid

Quantity

Significant

Number

Product

Code

FK, Viton®Seals – Glass filled PP body

Chemical duty (CD) - incorporating more

chemically resistant components, this valve can

be used with a wide range of organic or

inorganic chemicals even at elevated

temperatures.

An indication of the number of joints likely to be made per quart of

Duraplus®cement is as follows (it is recommended that MEK Cleaner

order equals one-half the quantity of solvent cement required):

Pipe Size Number of Joints

inches

3/8 – 1 290

1-1/4 – 2 144

348

432

616

810

10 4

12 4

PRODUCT SELECTION CHART – DURAPLUS

Dimension Significant

Number

Product

Code

inches

2 680107 337651

3680109 337652

4 680110 337653

6680112 337654

8 680113 337655

FK, EPDM Seals – Glass filled PP Body

General service (GS) - offered primarily for use

with water, but suitable for a wide range of

diluted chemicals, swimming pools, irrigation,

potable water, etc. The GS valve is also suitable

for compressed air and gases.

All Threads are BSP tapered unless otherwise noted ***.

Systems using plastic threaded components are restricted to 180 psi. The use of PTFE sealing tape is recommended.

Only the correct Duraplus®cement will provide a compatible joint. All warranties void if other cement used.

Safety and environmental concerns are top priorities on today’s industrial agenda.

Reduction of emissions, energy conservation and prevention of ground water

contamination are some of the areas where regulations are increasingly defining

an important line between utilization and exploitation of our planet’s resources.

For most common chemical-waste or process applications, IPEX offers systems

that are both simple yet highly advanced state-of-the-art technologies.

These systems utilize pre-assembled components that guarantee reliability,

ease of installation, fewer joints (up to 40% less) and quick delivery.

Certain environments demand fail-safe systems. No leaks. No risk.

The professionals at IPEX understand the complexity of design and installation

for demanding double containment applications.

Guardian

Drain-Guard

Clear-Guard

CustomGuard

Encase

Centra-Guard

IPEX PAL-AT

DOUBLE CONTAINMENT

SYSTEMS

Larger sizes are available on request.

FOR PRICING CONTACT YOUR

IPEX REPRESENTATIVE.

Material Carrier Containment

Xirtec140 PVC 1/2" - 12" 2" - 18"

Corzan CPVC 1/2" - 12" 2" - 18"

GUARDIAN

VINYL DOUBLE CONTAINMENT SYSTEMS

For more than 25 years, Guardian systems have been the benchmark

in pressure and drainage double containment. Guardian systems are

available in tough industrial grade PVC and even tougher high

temperature CPVC. For instant leak detection of overhead piping,

Clear-Guard clear PVC containment pipe is also available. Guardian’s

patented Centra-Lock design reduces the required joints by 40 - 60%

compared to conventional double containment systems.

SPECIFICATIONS

Material Selection

Xirtec®140 PVC and Corzan®CPVC are the chosen materials for the

Guardian systems. IPEX controls not only the design and fabrication of the

systems, but also the blending of the PVC resin, the extrusion and

injection molding of most components. This unparalleled consistency of

quality and resin as well as dimensional compatibility results in superior

systems that are unmatched in the industry. Clear-Guard utilizes a fail-

safe, fully pressure rated clear PVC that uses a solvent cement jointing

method identical to traditional vinyl pressure pipe. This eliminates the

need for expensive caulking guns and epoxy adhesive for assembly. Clear-

Guard can be used in conjunction with both Schedule 40 and 80

Xirtec140 PVC or Corzan CPVC primary pipe.

Design

Guardian and Clear-Guard systems offer a complete selection of pretested

modular components which are extremely easy to install. Our Centra-lokTM

patented design allows IPEX to offer vinyl systems which average up to

60% fewer overall joints and up to 10% fewer field joints. Since joints are

always the most common source of premature failures and leaks, it is easy

to realize the immense impact the Centra-lok design has on maintenance,

repair and installation costs. The patented ingenuity and simplicity of the

Centra-lok design also reduces the purchase cost of IPEX systems, making

Guardian and Clear-Guard the industry’s most cost-effective vinyl system.

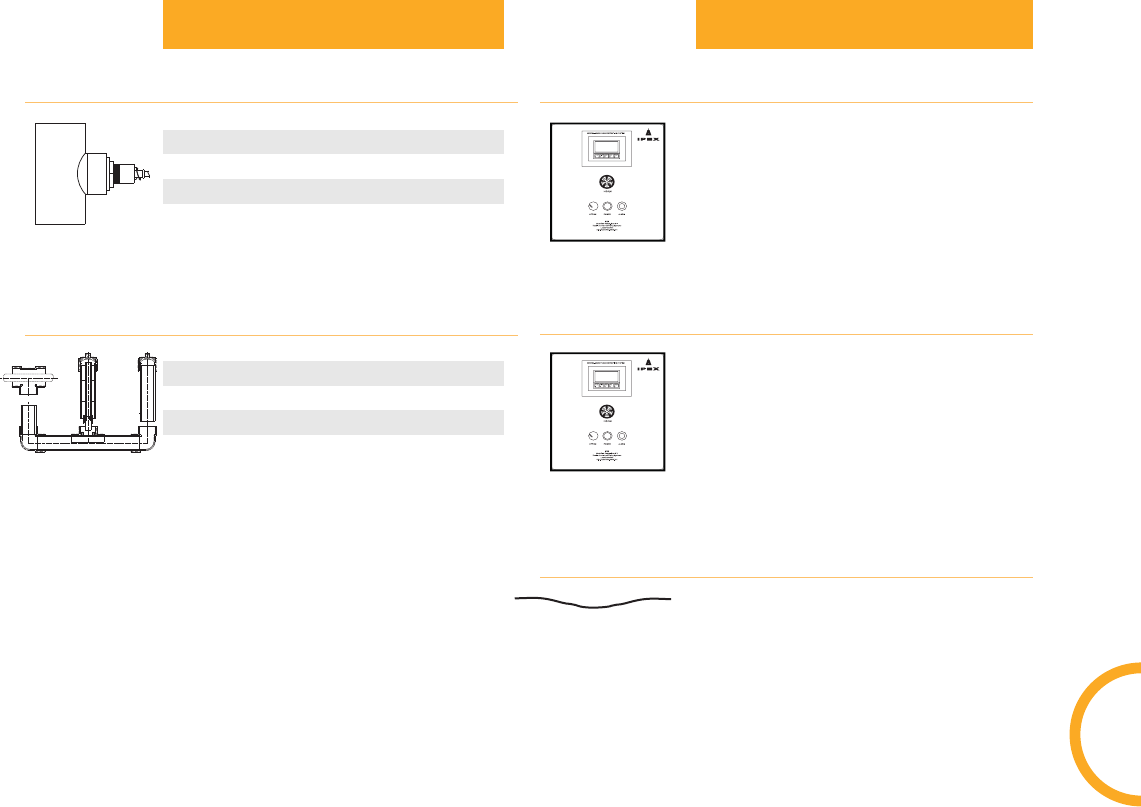

As with all our containment systems, the IPEX patented Centra-Guard™

point-of-collection or cable leak detection systems are also available.

General

Each contained piping system shall consist of Xirtec®140 PVC primary

piping system supported within a Xirtec®140 PVC secondary containment

housing. Carrier fitting sizes 1/2" through 4" will use Centra-Lok [U.S.

Patent No. 5,398,973] molded supports minimizing the number of field

(factory assembled) fitting joints. Carrier sizes 6" and larger will use IPEX

standard polypropylene fitting discs to support and centralize. Each

system shall be provided with suitable drains and vents and be designed

to provide complete drainage of both the primary and secondary

containment piping. Interstitial supporting devices shall be made from

Polypropylene Centra-Guide supports and shall be provided within the

secondary containment pipe, and shall be designed to allow continuous

drainage in the annular space to the drain points. Drain fittings shall be

designed to allow a valve attachment to be made so that the secondary

containment compartment may be readily drained and manually checked

for leaks.

DID YOU KNOW?

Made from PVC and Corzan®CPVC,

these systems offer a complete

selection of pre-tested modular

components that are considered

unmatched in the industry.

GUARDIAN

Larger sizes are available on request.

FOR PRICING CONTACT YOUR

IPEX REPRESENTATIVE.

Material Carrier Containment

Xirtec140 PVC 1-1/2" - 12" 4" - 16"

Material Selection

Xirtec®140 PVC is the chosen material for the Drain-Guard

system. IPEX controls not only the design and fabrication of

the systems, but also the blending of the PVC resin, the

extrusion and injection molding of most components. This

unparalleled consistency of quality and resin as well as

dimensional compatibility results in superior systems that are

unmatched in the industry.

Design

The Drain-Guard system offer a complete selection of

pretested modular components which are extremely easy to

install. Our Centra-lokTM patented design allows IPEX to offer

vinyl systems which average up to 60% fewer overall joints

and up to 10% fewer field joints. Since joints are

always the most common source of premature

failures and leaks, it is easy to realize the

immense impact the Centra-lok design has

on maintenance, repair and installation

costs. The patented ingenuity and

simplicity of the Centra-lok design also

reduces the purchase cost of IPEX

systems. As with all our containment

systems, the IPEX patented Centra-Guard™

point-of-collection or cable leak detection

systems are also available.

General

Each contained piping system shall consist of Xirtec®140 PVC

primary piping system supported within a Xirtec®140 PVC

secondary containment housing. Carrier fitting sizes 1-1/2"

through 4" will use Centra-Lok [U.S. Patent No. 5,398,973]

molded supports minimizing the number of field (factory

assembled) fitting joints. Carrier sizes 6" and larger will use

IPEX standard polypropylene fitting discs to support and

centralize. Each system shall be provided with suitable drains

and vents and be designed to provide complete drainage of

both the primary and secondary containment piping.

Interstitial supporting devices shall be made from

Polypropylene Centra-Guide supports

and shall be provided within the

secondary containment pipe, and

shall be designed to allow

continuous drainage in the

annular space to the drain

points. Drain fittings shall be

designed to allow a valve

attachment to be made so

that the secondary

containment compartment may

be readily drained and manually

checked for leaks.

DRAIN-GUARD

SPECIFICATIONS

The Drain-GuardTM system is available in tough industrial

grade PVC enabling safety and reliability in Drain, Waste

and Vent (DWV) applications. The patented Centra-LokTM

design reduces the required joints by 40-60% compared

to conventional double containment systems.

DID YOU KNOW?

Our Drain-Guard system provides safe

transport of sanitary or storm drainage

in a variety of buildings, including

hospitals, museums, historical sites,

libraries, art galleries, theaters, data

centers, restaurants, and arenas.

DRAIN-GUARD VINYL DOUBLE

CONTAINMENT SYSTEM

CLEAR-GUARD

Material Carrier Containment

Clear-Guard PVC -2" - 8"

FOR PRICING CONTACT YOUR

IPEX REPRESENTATIVE.

Clear-Guard's fail-safe, fully pressure rated clear containment system

allows for easy detection of leaks and eliminates the risks associated

with piping aggressive chemicals overhead. Clear-Guard utilizes

Guardian's patented Centra-Lok fitting design, which reduces the

required joints by 40-60% compared to conventional double

containment systems. Fittings are available in clear or opaque

containment fittings.

SPECIFICATIONS

THE CLEAR-GUARD

OPTION

General

Each contained piping system shall consist of Xirtec 140

PVC or Corzan CPVC primary piping system supported

within a Clear-Guard Schedule 40 clear PVC secondary

containment housing. Carrier fitting sizes 1/2" through 4"

will use Centra-Lok [U.S.Patent No. 5,398,973] molded

supports minimizing the number of field (factory

assembled) fitting joints. Each system shall be provided

with suitable drains and vents and be designed to provide

complete drainage of both the primary and secondary

containment piping. Interstitial supporting devices shall

be made from Polypropylene Centra-Guide supports and

shall be provided within the secondary containment pipe,

and shall be designed to allow continuous drainage in the

annular space to the drain points. Drain fittings shall be

designed to allow a valve attachment to be made so that

the secondary containment compartment maybe readily

drained and manually checked for leaks.

Custom-designed and fabricated double contain ment systems including dissimilar material

systems, CustomGuard is unlike other systems that try to run everything through the same

material. Our specialists will recommend and provide the absolute best system for

each individual application, looking not only at chemical compatibility but also

at cost (material and installation), life expectancy and turn around time.

For applications with more demanding mechanical, chemical

and/or thermal requirements, IPEX has developed our

CustomGuard offering. CustomGuard includes a

variety of different system choices ranging from

Fluoropolymers (e.g. PVDF), Thermosets

(FRP); and carbon and stainless steel to

hybrid combinations. Applications that

require such materials are obviously

complex, each demanding expertise and

specialized knowledge to design an

effective system. The CustomGuard

option includes material selection,

design, specification support (if

needed) and fabrication of pre-

assembled spooled pieces to minimize

installation time and field joints. Material Carrier Containment

FRP/Metals/Dissimilar 1/2" - 20" 2" - 26"

SPECIFICATIONS

DID YOU KNOW?

Together with Encase and Guardian,

Custom Guard sets IPEX apart from any

other double containment system.

Custom Guard is available in several

different materials. Unlike other

manufacturers, IPEX is not constrained

by a limited material selection. This

variety enables IPEX to provide

customers with the best solution for

their double containment needs.

THE CUSTOMGUARD

OPTION

FOR PRICING CONTACT YOUR

IPEX REPRESENTATIVE.

Material Selection

Carbon and stainless steel, copper, fiberglass (polyester and

vinylester resins), PVDF, PP and dissimilar materials, are all

available in CustomGuard®systems. This comprehensive

offering, unmatched by any one company, gives IPEX the

unique ability to examine just about any double

containment requirement and truly offer the best suited,

most cost-effective system. While other manufacturers have

vested interests in recommending their one and only

material/system, IPEX isn’t confined by that limitation.

Design

Drawing on more than 25 years of experience in double

containment, IPEX has developed a variety of product-

specific designs to maximize efficiency and reduce

installation costs. As with all our containment systems,

our own patented Centra-Guard™ point-of-collection or

cable leak detection systems are also available.

General

Each contained piping system shall consist of Schedule 40

A-53 Carbon Steel primary piping system supported within a

UL FRP secondary containment housing. Each system shall

be provided with suitable drains and vents and be designed to

provide complete drainage of both the primary and secondary

containment piping. Interstitial supporting devices shall be

made from Polypropylene Centra-Guide supports and shall be

provided within the secondary containment pipe, and shall be

designed to allow continuous drainage in the annular space to

the drain points. Drain fittings shall be designed to allow a

valve attachment to be made so that the secondary

containment compartment may be readily drained and

manually checked for leaks.

CUSTOMGUARD

ENCASE ACID WASTE PP DOUBLE CONTAINMENT

ENCASE ACID WASTE

PP DOUBLE CONTAINMENT 1-1/2" - 12"

At the heart of our patented Encase polypro system is its electrofusion

fitting with a groundbreaking heavy-gauge resistance wire molded into

the socket. The result is a premier system that offers considerable

reduction of installation time and the highest quality bubble-tight

joints available.

ADVANTAGES

Polypropylene Material

- 30 years of success in chemical waste applications

- High corrosion resistance

- Wide temperature range

- Excellent chemical resistance

Same Material Inside and Out

- Eliminates differential expansion problems

- Chemical resistance is the same for the entire piping

system

- System integrity is maintained in the event of a

primary pipe leak

Restrained System

- Expansion anchor plates are installed on each fitting

to control expansion

- No expansion loops necessary

Full Product Range

- 1-1/2" to 8" primary sizes available

- Manufactured in both non-flame retardant as well as

flame retardant material for above ground installation

Drainage Pattern Fittings

- Ensures smooth chemical flow.

- Enfield piping has been used for chemical waste for

over 23 years

Modular Design

- Components are factory fabricated. The only site

joining necessary is the fusion of couplings to pipes

and fittings

- Reduces labor costs

Fast Joining Method

- All site joints are made by electrofusion using an

Enfusion Hand Held Unit.

- Quick and simple to make without the need for costly

and cumbersome butt fusion machines

- Proven technology

- Narrower trench widths than for butt fusion, resulting

in quicker and cheaper installation

- Joints can be made in the trench which reduces

installation time

- Automatic microprocessor-controlled Enfusion unit

ensures joint repeatability

Easy System Testing

- The primary pipe can be inspected and tested prior to

closing the secondary joint (impossible with butt-

welded systems)

- Any suspect primary joints can be re-fused prior to

final closure of the secondary pipe

Leak Detection Compatible

- Encase is compatible with all common types of leak

detection systems

- Upon request, pipe is furnished with knot-free twine to

allow insertion of a pull rope for leak detection cable

installation minimizing installation time.

Full Product Backup

- Expert personnel are available to assist in every facet

of the Encase product

DID YOU KNOW?

Encase is a polypropylene piping

system that uses proven Enfusion

joining methods to provide an easy-

to-install, safe, reliable and cost-

effective method to convey chemical

waste under gravity-flow conditions.

•Plant chemical distribution lines

•Water and wastewater

ENCASE ACID WASTE PP DOUBLE CONTAINMENT

Material Carrier Containment

PP 1-1/2" - 8" 4" - 12"

SHORT FORM SPECIFICATIONS

GENERAL

Acid waste double containment drain lines shall be Encase, manufactured

by IPEX, with no substitutions. Pipe and fittings shall be manufactured

from Schedule 40 polypropylene and joined by the Enfusion method.

MATERIAL

Pipe, fittings, internal pipe supports and anchor plates shall be

manufactured from Type 1 homopolymer or Type 2 copolymer

polypropylene material as described in ASTM D4101.

PIPE AND FITTINGS – CONSTRUCTION

All pipe fittings shall be factory assembled and of unitized construction,

with the primary and secondary components integrally anchored together

to prevent movement of the primary pipe/fitting with in the containment

pipe/fitting. All piping components shall be manufactured to Schedule 40

dimensions. The primary pipe shall be adequately supported by means of

support plates welded to the primary pipe. Anchor plates shall be provided

at each end of the pipe/fitting section to restrain pipe expansion. All

anchor plates must be mechanically located in a machined recess on the

inside of each secondary pipe/fitting and welded to both the primary and

secondary pipe/fitting sections.

FACTORY WELDED JOINTS

All factory joints shall be made either by butt fusion or Enfusion. Joining

by means of fillet welding is expressly forbidden.

SITE JOINTS

All site joints shall be made using Enfusion couplings, manufactured from

polypropylene with a nickel/chrome resistance wire, molded in place.

Components with copper wire elements are prohibited. Solvent, butt-

welded or fillet-welded site joints are also prohibited.

INSTALLATION

Installation shall be in accordance with the contract drawings, the

manufacturer’s recommendations and the local plumbing code. The entire

installation shall be installed in proper alignment and free of stress.

TESTING

The system shall be tested in accordance with the manufacturer’s

recommendations and the local plumbing code. The primary pipe shall be

tested prior to making the secondary joints. If Secondary pipe cannot be

hydro-tested, as determined by the engineer or authority having

jurisdiction, then the use of nitrogen or air at a MAXIMUM 5 psi (gauge)

shall be allowed. It is imperative that a working-pressure regulator be used

during the pneumatic test to ensure that over-pressurization of the PVC,

beyond 5 psi, cannot occur. The following must also be noted: Air or

nitrogen under pressure is compressed and therefore poses a potential

hazard. If a failure of the pipe or fitting occurs during such test, the air

exits at the failure point and expands rapidly. This increase in velocity can

cause the system to fail in a catastrophic mode. Therefore during such air

test all personnel involved in the test or present in the test surrounding

area must be aware of such a possibility and take all necessary

precautions. Precautions include, but are not limited to, taking extreme

care not to impact or damage the system in any way. Such procedure is a

limited exception to IPEX standard policy which forbids the use of its rigid

systems with any compressed gases.

1-1/2 4 044150 231134

2 4 044200 231135

3 6 046300 231136

4 8 048400 231137

6 10 041060 231132

812 041280 231133

1/4 Bend Soc x Sp

1-1/2 4 064150 231141

2 4 064200 231142

3 6 066300 231143

4 8 068400 231144

6 10 061060 231139

812 061280 231140

ENCASE ACID WASTE PP DOUBLE CONTAINMENT

Dimension inches significant

Number

Product

Code

Primary Secondary

Dimension inches significant

Number

Product

Code

Primary Secondary

1-1/2 4 264150 246040

2 4 264200 246050

3 6 266300 246060

4 8 268400 246070

6 10 261060 246020

812 261280 246030

Schedule 40 Pipe Soc x Sp (20' Nominal Lengths)

PRODUCT SELECTION CHART – ENCASE

1-1/2 4 314150 231313

2 4 314200 231314

3 6 316300 231315

4 8 318400 231316

6 10 311060 231311

812 311280 231312

Schedule 40 Pipe Spool Soc x Soc (5' Nominal Lengths)

1-1/2 - L161 257141

2 - L162B 257147

3 - L163B 257150

4 - L164B 257154

6 - L166B 257158

8 - L168B 257161

Primary Coupling Soc

- 4 014000 231004

- 6 016000 231006

- 8 018000 231008

-10 011000 231010

- 12 011200 231009

Secondary Repair Coupling Soc

- 4 024000 231114

- 6 026000 231116

- 6 028000 231118

-10 021000 231110

- 12 021200 231112

Secondary Coupling Soc

1/8 Bend Soc x Sp

1-1/2 4 124150 231153

2 4 124200 231154

3 6 126300 231155

4 8 128400 231156

6 10 121060 231151

812 121280 231152

45º Wye Soc x Sp x Soc

1-1/2 4 174150 231203

2 4 174200 231204

3 6 176300 231205

4 8 178400 231206

6 10 171060 231201

812 171280 231202

Combination Wye & 1/8 Bend Soc x Sp x Soc

2 x 1-1/2 4 x 4 154215 231187

3 x 1-1/2 6 x 4 156315 231188

3 x 2 6 x 4 156320 231189

4 x 2 8 x 4 158420 231190

4 x 3 8 x 6 158430 231191

6 x 2 10 x 4 151062 231181

6 x 3 10 x 6 151063 231182

6 x 4 10 x 8 151064 231183

8 x 3 12 x 6 151283 231184

8 x 4 12 x 8 151284 231185

8 x 6 12 x 10 151286 231186

Reducing Wye Soc x Sp x Soc

Encase components should only be joined using IPEX Control Units.

NFRPP is the standard material of construction for all Encase components. FRPP is available on request.

2 x 1-1/2 4 x 4 204215 231227

3 x 1-1/2 6 x 4 206315 231228

3 x 2 6 x 4 206320 231229

4 x 2 8 x 4 208420 231230

4 x 3 8 x 6 208430 231231

6 x 2 10 x 4 201062 231221

6 x 3 10 x 6 201063 231222

6 x 4 10 x 8 201064 231223

8 x 3 12 x 6 201283 231224

8 x 4 12 x 8 201284 231225

8 x 6 12 x 10 201286 231226

ENCASE ACID WASTE PP DOUBLE CONTAINMENT

Dimension inches significant

Number

Product

Code

Primary Secondary

Dimension inches significant

Number

Product

Code

Primary Secondary

Reducing Combination Wye & 1/8 Bend Soc x Sp x Soc

PRODUCT SELECTION CHART – ENCASE

2 x 1-1/2 4 x 4 344215 231347

3 x 1-1/2 6 x 4 346315 231348

3 x 2 6 x 4 346320 231349

4 x 1-1/2 8 x 4 348415 231324

4 x 2 8 x 4 348420 231350

4 x 3 8 x 6 348430 231351

6 x 1-1/2 10 x 4 341061 231352

6 x 2 10 x 4 341062 231341

6 x 3 10 x 6 341063 231342

6 x 4 10 x 8 341064 231343

8 x 3 12 x 6 341283 231344

8 x 4 12 x 8 341284 231345

8 x 6 12 x 10 341286 231346

Reducing Coupling Soc x Sp

3 6 376300 231373

4 8 378400 231374

6 10 371060 231371

812 371280 231375

P-Trap Soc x Sp

1-1/2 4 224150 231243

2 4 224200 231244

3 6 226300 231245

4 8 228400 231246

6 10 221060 231241

812 221280 231242

Double Wye Soc x Sp

1-1/2 - 641500 231462

2 - 642000 231463

3 - 643000 231464

4 - 644000 231465

6 - 646000 231466

8 - 648000 231467

10 - 641000 231832

12 -641200 231833

End Cap Soc

1-1/2 4 374150 231361

2 4 374200 231372

P-Trap Soc x Sp

1-1/2 4 514150 231400

2 4 514200 231402

3 6 516300 231403

4 8 518400 231404

6 10 511060 231401

Floor Drain Sp

1-1/2 4 664150 231483

2 4 664200 231484

3 6 666300 231485

4 8 668400 231486

6 10 661060 231481

812 661280 231482

End Seal Soc x Sp

1-1/2 - L361 257361

2 - L362 257365

3 - L363 257366

4 - L364 257367

6 - L366 257368

8 - L368 257369

10 - L3610 257362

12 -L3612 257363

Flange - ASA 150 Soc

Encase components should only be joined using IPEX Control Units.

NFRPP is the standard material of construction for all Encase components. FRPP is available on request

PRODUCT SELECTION CHART – ENCASE

1-1/2 4 484150 231383

2 4 484200 231384

3 6 486300 231385

4 8 488400 231386

6 10 481060 231381

812 481280 231382

Cleanout Assembly Soc

2 ft. EZ 4 L26260 257268

5 ft. EZ 6L26261 257269

10 ft. EZ 8 L26262 257270

15 ft. EZ 10 L26263 257271

Link Cable c/w EZ Connector

- 4 L26104 257258

- 6 606000 231444

- 8 608000 231445

-10 601000 231441

- 12 601200 231442

Secondary Hub Clamp

- - EHHL2600 257279

IPEX Control Unit (Current Style)

1-1/2 - L26101P 231741

2 - L26102P 231742

* 3 - 523000 231411

4 - L26104P 231743

6 - L26106P 231744

8 - L26108P 231745

Primary Hub Clamp c/w Brass Nut

- - 50801 231301

Connector Cable Current Style Machine

5 ft. - 50805 257124

Encase Link Cable c/w Link Lead

- - 50802 231302

Connector Cable Old Style Machine – Complete Kit

1-1/2 - 621500 231453

2 - 622000 231454

3 - 623000 231455

4 - 624000 231456

6 - 626000 231457

8 - 628000 231458

10 - 621000 231451

12 -621200 231452

Blind Flange - ASA 150

Kit includes hub clamps, 1-1/2" thru 6",

connector cable & 5' link cable.

* Designed to be left on.

ENCASE ACID WASTE PP DOUBLE CONTAINMENT

1-1/2 4 544150 231425

2 4 544200 231426

3 6 x 4 540643 231421

48 x 4 540844 231422

6 10 x 4 541046 231423

812 x 4 541248 231424

Access Tee Soc x Sp x Sp

1-1/2 - L241 257232

2 - L242 257235

3 - L243 257238

4 - L244 257241

6 - L246 257244

Cleanout Sp

Encase components should only be joined using IPEX Control Units.

NFRPP is the standard material of construction for all Encase components. FRPP is available on request.

Dimension inches significant

Number

Product

Code

Primary Secondary

Dimension inches significant

Number

Product

Code

Primary Secondary

4 - 231838 231838

6 - 231839 231839

8 - 231840 231840

10 -231841 231841

12 - 231842 231842

Below Ground Leak Detection Station with Sensor

PRODUCT SELECTION CHART – ENCASE

- - - 631249

16 Zone Micro Processor Panel

- - 631188 631248

8 Zone Micro Processor Panel

- - - 631186

Leak Detection Jumper Cable

4 - 231834 231834

6 - 231835 231835

8 - 231836 231836

10 -231837 231837

Above Ground Leak Detection Station with Sensor

ENCASE ACID WASTE PP DOUBLE CONTAINMENT

Encase components should only be joined using IPEX Control Units.

NFRPP is the standard material of construction for all Encase components. FRPP is available on request

Dimension inches significant

Number

Product

Code

Primary Secondary

Dimension inches significant

Number

Product

Code

Primary Secondary

FOR PRICING

CONTACT YOUR IPEX

REPRESENTATIVE.

In many situations double containment protection by itself may not be

enough. In these applications it is critical that a leak is immediately

detected and located.

Although many different leak detection systems are available on the

market today, only the Centra-GuardTM patented electronic low point leak-

detection system offers a combination of advanced features:

KEY FEATURES

• No cables to string during installation

• No false alarms due to condensation

• Non-intrusive, re-usable capacitive proximity sensors with sensitivity adjustment

• NEMA 4X enclosed microprocessor control panel with audible and visual alarms

• LCD screen continuously reads system status and reports alarms

• HMI push buttons allow for history, status, and test screens to be accessed

• Multi-level password protection

• Standard output relay for direct communication with plant control systems

Centra-Guard electronic low point leak detection offers versatility, customization, and

lower material, installation and maintenance costs when compared to cable leak

detection.

OVERVIEW

The basic concept behind electronic low point leak detection is

that a Double contained piping system is designed with leak

detection zones. Leak detection zones are essentially a drip leg

in the containment piping. Each zone is monitored by a sensor

that raises an alarm to warn operators that a leak has been

detected.The IPEX Centra-Guard leak detection system will

identify the type of alarm (i.e. leak or cable break), zone, and

time and record it in non-volatile memory as well as relay the

signal to a plant control system. This allows operators to quickly

rectify the situation. Centra-Guard is the only non-intrusive leak

detection system available on the market today. The sensor never

comes in contact with the liquid media.

APPLICATIONS

•Above-ground suspended pipeline applications, with

sensors housed in a saddle-type clamp, as well as

underground pipeline systems with drip leg assembly.

ELECTRONIC LOW POINT

LEAK DETECTION

CENTRA-GUARD LEAK DETECTION

OVERVIEW

The basic concept behind cable leak detection is

that a monitor detects any changes in the

electrical properties of the cable caused by

contact with a liquid. The cable is pulled through

the interstitial space of the containment piping.

The monitor then raises an alarm in the plant to

warn operators that a leak has been detected.

The IPEX PAL-AT detection system will pinpoint

the leak and report its location. This allows

operators to quickly rectify the situation.

APPLICATIONS

•Underground pipeline systems

that require exact leak location

detection.

FOR PRICING

CONTACT YOUR IPEX

REPRESENTATIVE.

IPEX PAL-AT cable leak detection is a microprocessor based

system that offers continuous cable leak detection. The system

is fully automated and ideal for buried double containment

piping applications that require exact leak location.

The IPEX PAL-AT continuous cable leak detection system

compliments our Centra-Guard electronic low point leak

detection system and adds extra versatility to our extensive

double containment offering.

KEY FEATURES

• Coaxial Sensing Cable with adjustable sensitivity

• Microprocessor based monitoring unit capable of monitoring

2000, 5000, or 7500ft of cable per sensor string

• Panel will identify the type of alarm (leak/break/short/probe)

as well as location within 5 feet of the source

• Backlit LCD providing constant system data

• Continuous monitoring even after a leak is detected

PAL-AT LEAK DETECTION

CABLE

LEAK DETECTION

CHOOSE FROM A WIDE RANGE OF SYSTEM OPTIONS

IPEX offers an extremely wide array of materials and sizes. You can specify virtually any piping material to create a system

that contains whatever corrosive or hazardous substance your application handles. If you don’t see what you need listed

here, call us! Other systems or sizes may be available, or we may have suggestions for substitutions.

SYSTEM Carrier SIZE

Carrier Containment inches

PVC 80 PVC 80 1/2 - 12

PVC 80 PVC 40 1/2 - 12

PVC 40 PVC 40 1/2 - 12

PVC DWV PVC DWV 1-1/2 - 12

PVC 80 CS SCH 10 1/2 - 12

CPVC 80 CPVC 80 1/2 - 8

CPVC 80 PVC 80 1/2 - 12

CPVC 80 PVC 40 1/2 - 12

CPVC 80 CS SCH 10 1/2 - 12

NAT PP 80 PVC 80 1/2 - 2

NAT PP 80 PVC 40 1/2 - 2

RED PVDF 80 CPVC 80 1/2 - 2

RED PVDF 80 PVC 80 1/2 - 2

NAT PVDF 80 PVC 80 1/2 - 2

ENFUSION PP PVC DWV 1/2 - 6

S40 A53B CS BW PVC 80 1/2 - 8

S40 A106B CS BW PVC 80 1/2 - 8

S80 A106B CS SW PVC 80 1/2 - 8

S40 A53B CS BW FRP 1/2 - 12

S40 A106B CS BW FRP 1/2 - 12

S80 A106B CS SW FRP 1/2 - 2

S40 A53B THRD PVC 40 1/2 - 2

S40 A106 SMLS BW PVC 40 1/2 - 8

S40 A53 BLK BS PVC 40 1/2 - 8

S80 A53 BLK SW PVC 80 1/2 - 2

S80 A53 BLK SW FRP 1/2 - 2

S40 A53 BLK SW S40 A53 BLK 1/2 - 2

S40 A106B CS SW PVC 80 1/2 - 8

S80 A53B CS BW PVC 80 1/2 - 8

S80 A106B CS SW PVC 80 1/2 - 8

S40 A106 CS SW FRP 1/2 - 2

S80 A53B CS BW FRP 1/2 - 12

S80 A106B CS BW FRP 1/2 - 2

S40 A53B THRD FRP 1/2 - 2

S40 A53 BLK CS S40 A53 BLK CS 1/2 - 12

S40 A53 BLK SW PVC 40 1/2 - 2

SYSTEM Carrier SIZE

Carrier Containment inches

S40 A53 BLK SW FRP 1/2 - 2

S40 A53 BLK SW PVC 80 1/2 - 2

S80 A53B CS SW PVC 80 1/2 - 2

S10 T304L SS BW PVC 80 1/2 - 8

S10 T304L SS BW PVC 40 1/2 - 8

S10 TO304L SS BW CPVC 80 1/2 - 8

S10 T304L SS BW FRP 1/2 - 12

S10 T304L SS BW S10 T304L 1/2 - 12

S40 T316L SS BW PVC 80 1/2 - 8

S40 T316L SS BW CPVC 80 1/2 - 8

S40 T316L SS BW FRP 1/2 - 12

S40 T304L SS SW PVC 80 1/2 - 2

S40 T304L SS SW PVC 40 1/2 - 2

S40 T304L SS SW CPVC 80 1/2 - 2

S40 T304L SS SW FRP 1/2 - 2

S10 T316L SS SW PVC 80 1/2 - 2

S10 T316L SS SW CPVC 80 1/2 - 2

S10 T316L SS SW FRP 1/2 - 2

S40 T304L SS BW PVC 80 1/2 - 8

S40 T304L SS BW CPVC 80 1/2 - 8

S40 T304L SS BW FRP 1/2 - 12

S10 T316L SS BW PVC 80 1/2 - 8

S10 T316L SS BW CPVC 80 1/2 - 8

S10 T316L SS BW FRP 1/2 - 12

S10 T304L SS SW PVC 80 1/2 - 2

S10 T304L SS SW PVC 40 1/2 - 2

S10 T304L SS SW CPVC 80 1/2 - 2

S10 T304L SS SW FRP 1/2 - 2

S10 T304L SS SW S10 T304L 1/2 - 2

S40 T316L SS SW PVC 80 1/2 - 2

S40 T316L SS SW CPVC 80 1/2 - 2

S40 T316L SS SW FRP 1/2 - 2

HARD COPPER PVC 40 1/2 - 4

HARD COPPER 3000 FRP 1/2 - 4

DOUBLE CONTAINMENT SYSTEMS

For more than 35 years, IPEX has been supplying industrial, commercial, school and hospital

laboratories throughout North America with high-quality, easy-to-install acid waste systems

designed to handle a wide variety of chemicals and pH levels. Our comprehensive line of

dedicated acid waste conveyance, neutralization and monitoring systems offers innovative

features not available with any other system. In fact, IPEX EnfieldTM electrofusion and Labline®

mechanical joint systems have long been recognized as the industry benchmark for performance

and reliability, and are among the most widely specified systems in North America.

Also available through IPEX is the next generation, E-84 compliant PlenumlineTM system,

made of flame retardant PVDF for extremely demanding applications such as return-air

plenums. The complete range of IPEX integrated total solutions for acid waste applications

also includes our Neutratank®neutralization tanks, Neutrasystem2TM pH monitoring system,

FlowayTM drains, and EncaseTM double containment systems.

ACID WASTE

PIPING SYSTEMS

Enfield Electrofusion Acid Waste

Systems FRPP & NRPP

Labline Mechanical-Joint Acid Waste

System FRPP

Floway Polypropylene Floor Drains

Plenumline Mechanical Joint Acid

Waste System FR-PVDF

Neutratank Neutralization Tank

HDPE & PP

Neutrasystem 2TM pH Monitoring

System

100

105

STANDARDS

PRODUCT TITLE

PRODUCT TITLE 4" - 16" (100mm - 300mm)

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

Enfield electrofusion fittings are molded with an integral resistance wire in

the socket, with jointing completed by energizing the resistance wire via a

microprocessor controlled Enfusion Control Unit. The result of these

innovations is an unparalleled level of joint reliability and repeatability.

Enfield has proven over time that it produces the optimum level of

performance where it matters most - at the joint interface. It offers

unprecedented control of jointing - controlled fit, controlled temperature

and controlled time.

ADVANTAGES

Positive reliable joints made in 2 minutes - installation time is

reduced

Several joints can be made at one time

Proven reliability for over a decade

Enfield is manufactured from polypropylene which has an

operating temperature range from -10ºF to 212ºF. *This allows

systems to be flushed with boiling water

Heavy gauge resistance wire molded into sockets –

no loose components, controlled fusion of joints

Easy connecting heavy duty socket terminal posts complete

with protection ears

Microprocessor controlled Enfusion unit ensures secure

joints and joint repeatability

Matched system – high quality pipe and fittings are matched to

give ease of installation and long term reliability

Easy to install – even in difficult areas

Installed cost 50% less than glass

Breakage factor eliminated

Maintenance free

ENFIELD ELECTROFUSION

ACID WASTE SYSTEMS

NSF-approved

IAPMO-listed & CSA-certified

Meets ASTM F1412, D4101 and CSA B181.3

DID YOU KNOW?

Enfield®offers polypro fittings,

constructed with a heavy gauge

resistance wire that is integrally

molded into the socket. These are

considered to be the premier fittings

on the market.

1-1/2" - 12"

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

SHORT FORM SPECIFICATIONS

GENERAL

Acid waste drain and vent system, as shown on drawings,

shall be NSF listed and CSA certified Schedule 40,

polypropylene as manufactured by IPEX. System to

include pipe supplied in 10 ft. lengths (or 20 ft lengths

if NFRPP is specified), fittings, traps and neutralization

tanks from the same manufacturer. It shall also include

recommended adapters to connect to other piping

materials, where applicable.

MATERIAL

Pipe shall be made from NSF listed Type 110 or 210,

flame retardant polypropylene conforming to ASTM D4101,

with a maximum average flame spread of zero seconds and

a maximum extent of burning of 13 mm, in accordance

with ASTM D635. Matched fittings shall be made from

NSF listed flame retardant polypropylene with average

maximum burn time of 80 seconds and maximum extent of

burning of 20 mm in accordance with ASTM D635.

If NFRPP pipe is specified, it shall be made from

NSF 14 listed and CSA certified Schedule 40 PP as

manufactured by IPEX. Pipe shall comply with ASTM

F1412 and material used shall comply with the material

requirements of ASTM D4101.

FITTINGS

Fittings shall be NSF listed and have an integral heavy

gauge, nickel/chrome electrical resistance wire molded in

place in the fitting body. Copper wire elements, loose wire

or other loose joint components, are prohibited. Fittings

shall be Enfield or approved equal.

JOINTS

Connections between polypropylene pipe and fittings

shall be made using the Enfield joint. All joints shall

have a fusion cycle controlled by a microprocessor

operated, waterproof, Enfusion control unit equipped

with input and output voltage sensors, ambient

temperature sensors to automatically adjust fusion time

and audible alarms to indicate cycle interruptions and

completion of the joining process. The unit shall be

capable of fusing multiple joints and with a minimum

capability of eight 2" joints with the same fusion time

as a single joint.

Connections between polypropylene and other piping

materials shall be made using Enfield adapters

according to manufacturer’s (IPEX) recommendations.

All electrofusion machines shall be third party certified

by UL and CSA.

INSTALLATION AND TESTING

Installation and testing shall be in accordance with the

contract drawings, the manufacturer’s recommendations

and the local plumbing codes. Testing with compressed

air is prohibited. The entire system shall be installed

free of stress and in proper alignment. Horizontal

supports shall provide a wide bearing area and be free

of burrs or sharp edges. Support spacings shall be in

accordance with the manufacturer’s recommendations

and local plumbing codes. Vertical piping shall have

riser clamps at each floor. Pipe supports should be

installed so that horizontal piping is in uniform

alignment and with a uniform slope of at least 1/8".

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

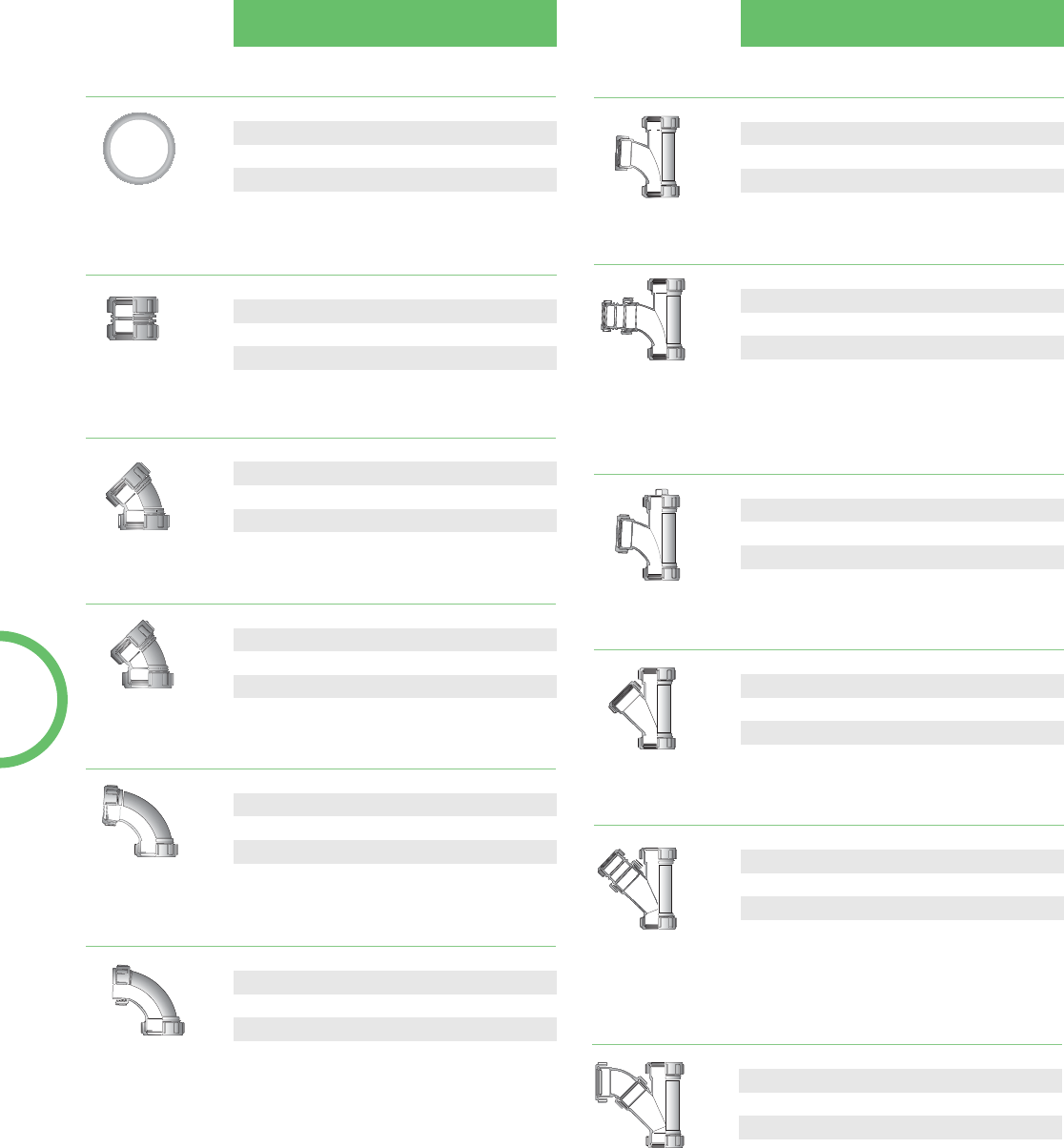

1-1/2 W001 146001

2W002 146002

3W003 146003

4W004 146004

6W006 146006

8W008 146008

10 W010 146010

12 W012 146012

AW Polypropylene Pipe Flame Retardant Sch 40

PRODUCT SELECTION CHART – ENFIELD

10' Lengths

1-1/2 W001-20 146031

2W002-20 146032

3W003-20 146033

4W004-20 146034

6W006-20 146036

8W008-20 146038

10 W010-20 146040

12 W012-20 146042

AW Polypropylene Pipe Flame Retardant Sch 40

2L162R 257148

3L163R 257152

4L164R 257156

6L166R 257159

8L168R 257295

Fabricated Repair Coupling EJ

20' Lengths

Note: 20' Schedule 40 FR pipe is a non-stock

item available upon special request.

1-1/2 WB1106 146201

2WB1107 146202

3WB1108 146203

4WB1109 146204

6WB1110 146206

8WB1111 146208

10 WB1112 146210

12 WB1113 146211

AW Polypropylene Pipe Black Non-Flame Retardant Sch 80

20' Lengths

1-1/2 L161 257141

2L162 257146

3L163 257149

4L164 257153

6L166 257157

8L168 257160

10 L1610 257142

12 L1612 257144

Coupling EJ

1-1/2 WT001-20 146022

2WT002-20 146023

3WT003-20 146024

4WT004-20 146025

AW Polypropylene Pipe Flame Retardant Sch 80

20' Lengths

Note: 20' Schedule 80 FR pipe is a non-stock

item available upon special request.

1-1/2 WB01 146101

2WB02 146102

3WB03 146103

4WB04 146104

6WB06 146106

8WB08 146108

10 WB10 146110

12 WB12 146212

AW Polypropylene Pipe Black Non-Flame Retardant Sch 40

2L162B 257147

3L163B 257150

4L164B 257154

6L166B 257158

8L168B 257161

10 L1610B 257143

12 L1612B 257145

Black Non-Flame Retardant Enfield Coupling

20' Lengths

1-1/2 WT001 146013

2WT002 146014

3WT003 146015

4WT004 146016

AW Polypropylene Pipe Flame Retardant Sch 80

10' Lengths

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

1-1/2 L171 257171

2L172 257172

3L173 257173

4L174 257174

6L176 257175

90º Sweep EJ

PRODUCT SELECTION CHART – ENFIELD

1-1/2 L281 257281

2L282 257282

3L283 257283

4L284 257284

6L286 257286

90º Sweep EJ x Sp

1-1/2 L191 257191

2L192 257194

3L193 257195

4L194 257196

6L196 257197

1/8 Bend EJ

1-1/2 L291 257291

2L292 257293

1/4 Bend (90°) EJ x Sp

8 L188 257185

10 L1810 257182

12 L1812 257183

Fabricated 1/4 Bend (90°) EJ

1-1/2 L181 257181

2L182 257184

1/4 Bend (90°) EJ

1-1/2 L211 257221

2L212 257222

3L213 257223

4L214 257224

6L216 257225

1/8 Bend EJ x Sp

2 x 1-1/2 L2021 257207

*3 x 1-1/2 L2031 257209

* 3 x 2 L2032 257210

4 x 2 L2042 257212

* 4 x 3 L2043 257213

Reducing Sanitary Tee EJ

1-1/2 L201 257201

2L202 257206

3 L203 257208

4L204 257211

Sanitary Tee EJ

6 L206 257214

8L208 257217

10 L2010 257202

12 L2012 257205

Fabricated Sanitary Tee EJ

8L198 257198

10 L1910 257192

12 L1912 257193

Fabricated 1/8 Bend EJ

* Assembled

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

6 x 2 L2062 257215

6 x 4 L2064 257216

8 x 3 L2083 257163

8 x 4 L2084 257218

8 x 6 L2086 257219

10 x 3 L20103 257164

10 x 4 L20104 257203

10 x 6 L20106 257204

10 x 8 L20108 257165

12 x 4 L20124 257166

12 x 6 L20126 257167

12 x 8 L20128 257168

12 x 10 L201210 257169

Fabricated Reducing Sanitary Tee EJ

1-1/2 L291 A 257292

1/4 Bend EJ x LN

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

PRODUCT SELECTION CHART – ENFIELD

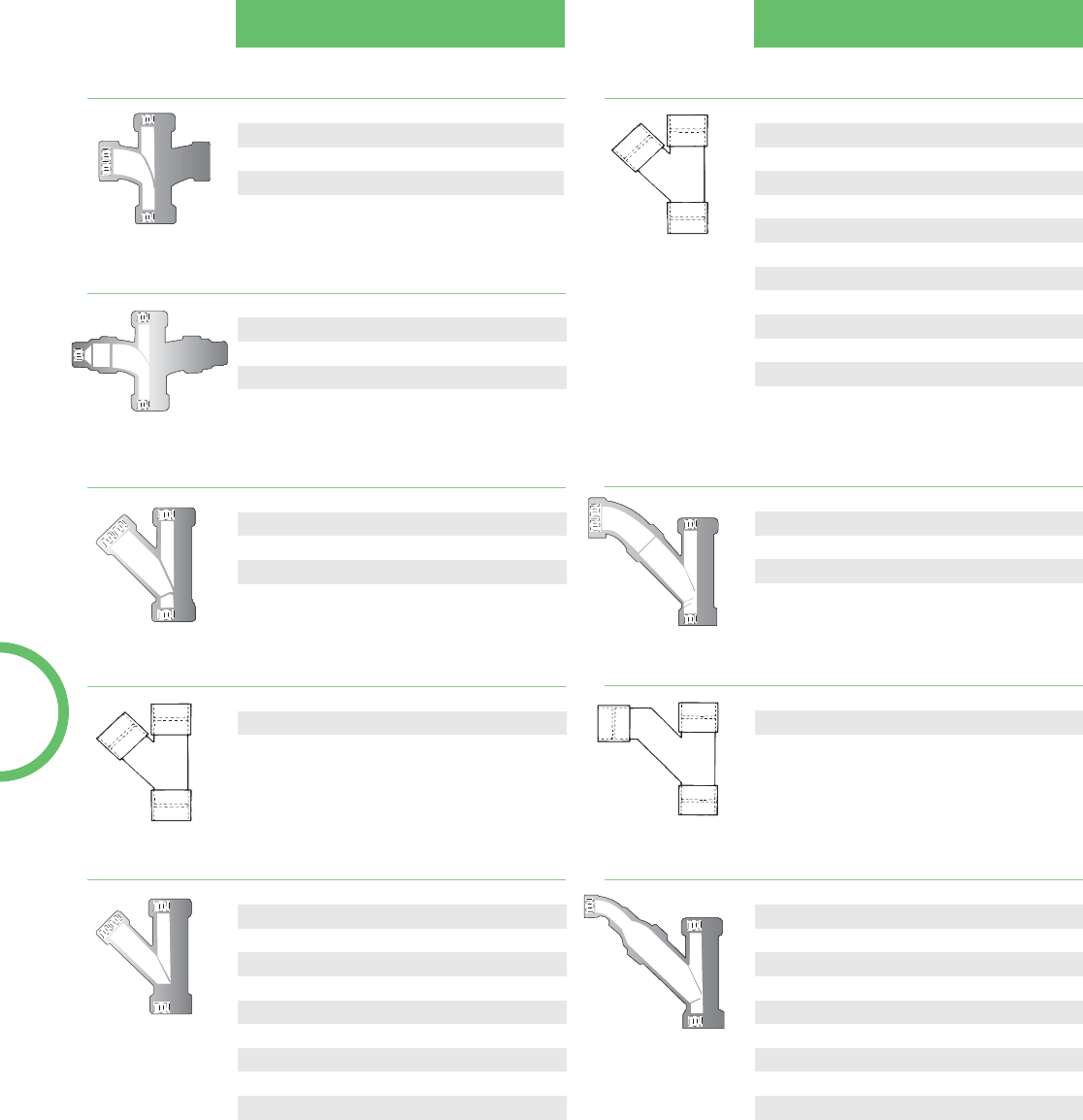

8 x 2 L3782 257427

8 x 3 L3783 257415

8 x 4 L3784 257416

8 x 6 L3786 257421

10 x 3 L37103 257428

10 x 4 L37104 257373

10 x 6 L37106 257379

10 x 8 L37108 257380

12 x 3 L37123 257429

12 x 4 L37124 257383

12 x 6 L37126 257387

12 x 8 L37128 257388

12 x 10 L371210 257430

Fabricated Reducing Wye EJ

2 x 1-1/2 L3721 257391

*3 x 1-1/2 L3731 257395

3 x 2 L3732 257396

*4 x 1-1/2 L3741 257425

4 x 2 L3742 257401

*4 x 3 L3743 257402

* 6 x 1-1/2 L3761 257426

*6 x 2 L3762 257407

* 6 x 3 L3763 257408

6 x 4 L3764 257409

Reducing Wye EJ

* 2 x 1-1/2 L37251 257393

*3 x 1-1/2 L37351 257398

* 3 x 2 L37352 257399

*4 x 1-1/2 L37451 257431

* 4 x 2 L37452 257404

*4 x 3 L37453 257405

* 6 x 1-1/2 L37651 257432

*6 x 2 L37652 257411

* 6 x 3 L37653 257412

*6 x 4 L37654 257413

Reducing Combination Wye & 1/8 Bend EJ

* 2 x 1-1/2 L3521 257353

*3 x 1-1/2 L3531 257355

4 x 2 L3542 257358

*4 x 3 L3543 257359

Reducing Double Sanitary Tee EJ

8 L378 257414

10 L3710 257372

12 L3712 257381

Fabricated 45º Wye EJ

8 L3785 257417

10 L37105 257374

12 L37125 257384

Fabricated Combination Wye & 1/8 Bend EJ

1-1/2 L371 257371

2L372 257390

3 L373 257394

4L374 257400

6 L376 257406

45º Wye EJ

* 1-1/2 L3715 257389

* 2 L3725 257392

* 3 L3735 257397

* 4 L3745 257403

* 6 L3765 257410

Combination Wye & 1/8 Bend (Long Turn Wye) EJ

✝1-1/2 L351 257351

2L352 257352

3 L353 257354

4L354 257357

Double Sanitary Tee EJ

✝Fabricated

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

* Assembled

2 L382 257445

3L383 257448

4 L384 257452

6L386 257457

8 L388 257460

10 L3810 257442

12 L3812 257462

Fabricated Double 45º Wye EJ

PRODUCT SELECTION CHART – ENFIELD

1-1/2 L241 257232

2L242 257235

3 L243 257238

4L244 257241

✝6 L246 257244

Cleanout P w/ Plug Sp

2 L3825 257447

3L3835 257450

4 L3845 257455

6L3865 257459

Fabricated Double Combination Wye & 1/8 Bend EJ

3 x 2 L38352 257451

4 x 2 L38452 257456

Fabricated Reducing Double Combination Wye & 1/8 Bend EJ

1-1/2 ** L341 257341

True Wye EJ

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

2 x 1-1/2 L3821 257446

3 x 2 L3832 257449

4 x 2 L3842 257453

4 x 3 L3843 257454

8 x 6 L3886 257461

10 x 4 L38104 257443

10 x 6 L38106 257463

10 x 8 L38108 257444

12 x 4 L38124 257464

12 x 6 L38126 257465

12 x 8 L38128 257466

12 x 10 L381210 257467

Fabricated Reducing Double 45º Wye EJ

8 x 3 L37853 257418

8 x 4 L37854 257419

8 x 6 L37856 257420

10 x 3 L371053 257375

10 x 4 L371054 257376

10 x 6 L371056 257377

10 x 8 L371058 257378

12 x 3 L371253 257433

12 x 4 L371254 257434

12 x 6 L371256 257435

12 x 8 L371258 257386

12 x 10 L3712510 257385

Fabricated Reducing Combination Wye & 1/8 Bend EJ

* 6 x 4 L3864 257458

Reducing Double 45º Wye EJ

* Assembled

** While quantities last. Obsolete when stock

depleted.

** While quantities last. Obsolete when stock

depleted.

✝ Fabricated

2 x 1-1/2 ** L3421 257343

3 x 2 ** L3432 257344

Reducing True Wye EJ

1-1/2 L241A 257233

2L242A 257236

3 L243A 257239

4L244A 257242

Cleanout Plug Male Thread

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

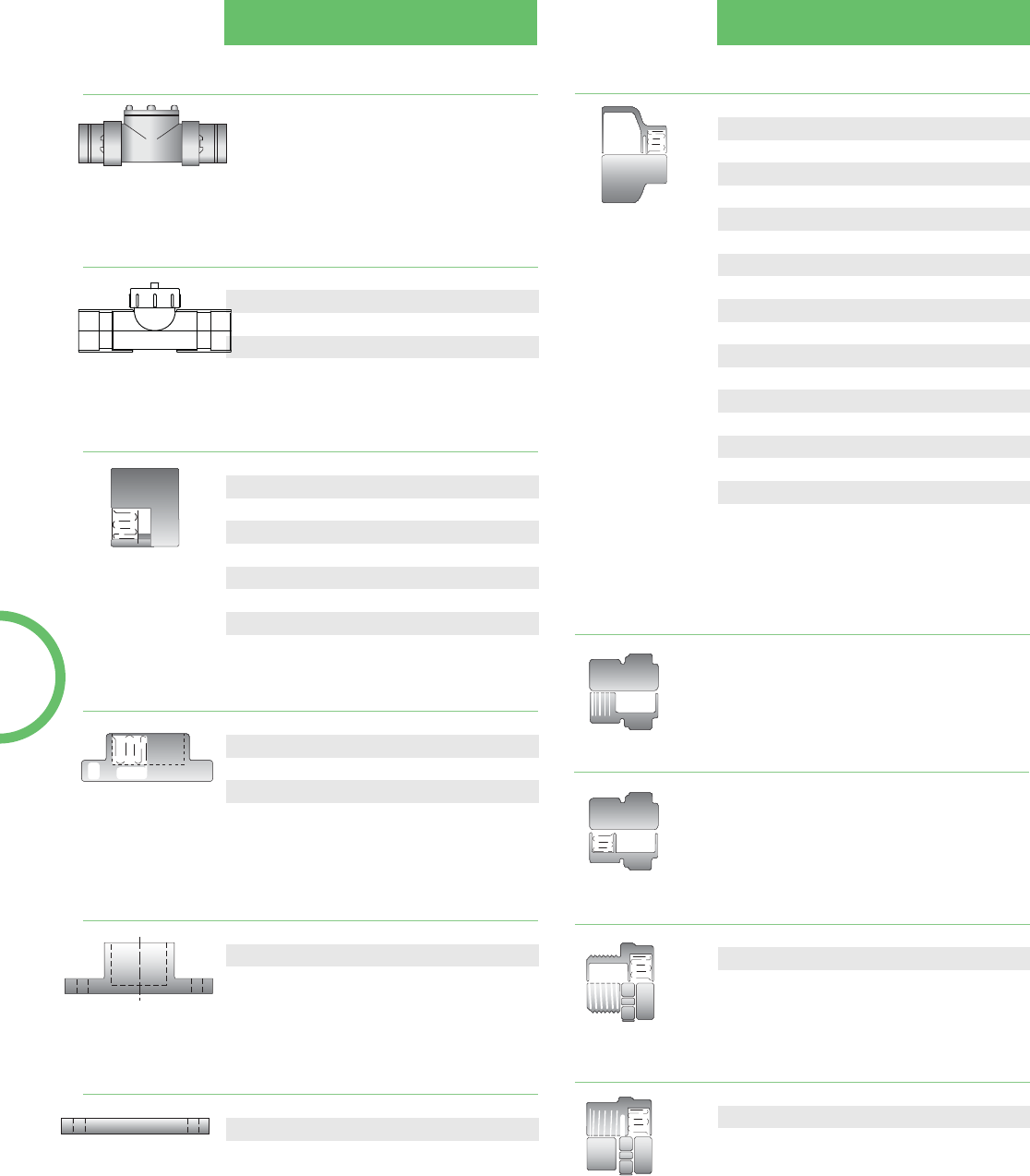

1-1/2 L2401 257246

2L2402 257231

3 L2403 257247

4L2404 257248

Cleanout w/ Brass Plug Sp

PRODUCT SELECTION CHART – ENFIELD

8 L3688 257370

10 L361010 257360

12 L361212 257364

Fabricated Blind Flange - ASA 150

1-1/2 L141 257121

2L142 257122

Male Adapter EJ x Male Thread

1-1/2 L151 257131

2L152 257132

Female Adapter EJ x Female Thread

1-1/2 L901 257551

2L902 257552

3 L903 257553

4L904 257554

6 L906 257555

Fabricated Cleanout Tee EJ

1-1/2 L361 257361

2L362 257365

3 L363 257366

4L364 257367

6 L366 257368

Flange - ASA 150 EJ

8 L368 257369

10 L3610 257362

12 L3612 257363

Fabricated Flange - ASA 150 EJ

* Assembled

✝Fabricated

** Discontinued when stock is depleted

2 x 1-1/2 L3912 257472

3 x 1-1/2 L3913 257473

3 x 2 L3923 257476

*4 x 1-1/2 L3914 257474

4 x 2 L3924 257477

4 x 3 L3934 257479

6 x 1-1/2 L3916 257475

*6 x 3 L3936 257480

6 x 4 L3946 257483

*8 x 3 ** L3938 257481

* 8 x 4 L3948 257484

8 x 6 L3968 257486

* 10 x 4 L39410 257482

*10 x 6 L39610 257485

10 x 8 L39810 257487

✝12 x 4 L39412 257489

✝12 x 6 L39612 257490

✝12 x 8 L39812 257488

✝12 x 10 L391012 257471

Reducing Bushing Sp x EJ

1-1/2 L111 257111

Adapter EJ x LN

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

1-1/2 L641 257541

2L642 257543

3 L643 257544

4L644 257545

6 L646 257546

8L648 257547

10 L6410 257542

12 L6412 257548

Fabricated Cap EJ

2 L902M 257176

Molded Cleanout Tee EJ

1-1/2 L101 257101

Adapter Female Thread x LN

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

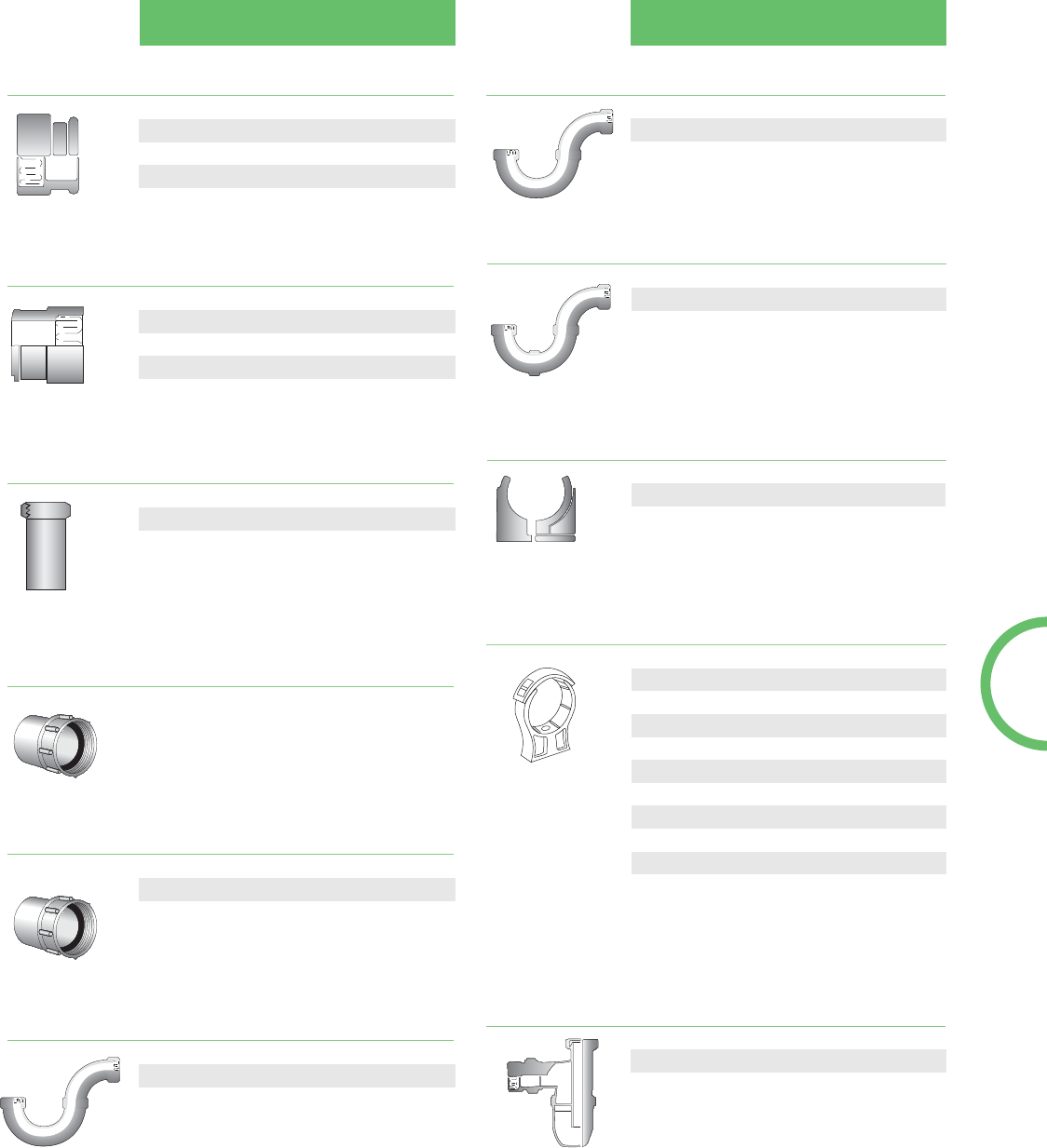

1-1/2 L451 257501

2L452 257502

3 L453 257503

4L454 257504

Glass Adapter EJ x Bead

PRODUCT SELECTION CHART – ENFIELD

3 LT13 257563

4LT14 257564

6 LT16 257565

P Trap - 3 piece EJ

1-1/2 L1021 257104

2L1022 257105

P Trap - 2 piece EJ

1-1/2 L461 257511

✝2L462 257512

✝3 L463 257513

✝4L464 257514

No Hub Adapter EJ x Sp

Shipped as 2 pieces

8LT18 257566

10 LT110 257562

Fabricated P Trap - 2 piece EJ

Shipped as 2 pieces

* 1-1/2 W251 156251

* 2 W252 156252

Pipe Clip

1-1/2 W551 257093

* 1-1/2 W551G 156450

FRPP Swivel Sink Strainer Adapter Spg x Female Thread

1-1/2 L501 257521

1-1/2 L5011 257522

Universal Trap - Solid Base, P Type EJ x Female Thread

1-1/2 x 3 W303 257133

1-1/2 x 12 W3012 257134

3"/12" FRPP Tail Piece Adapter

c/w Spig x Brass Compression Ring

1-1/2 x 12 W5512 257090

c/w Viton®Gasket

*Pregrooved for Labline. Nut and Olive are extra.

Shipped as 3 pieces

* Obsolete when stock depleted

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

✝ Fabricated

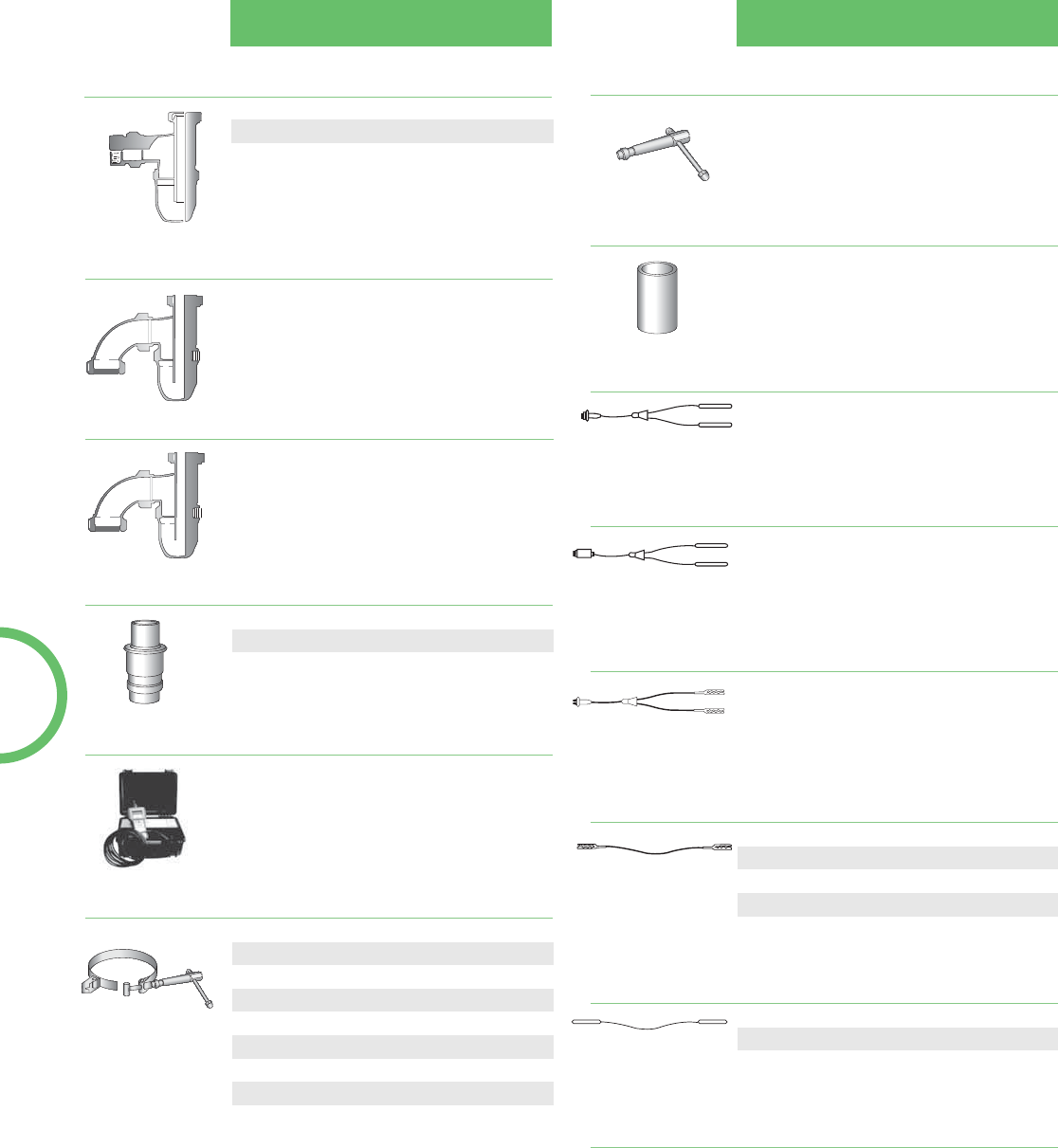

1-1/2" x 12" FRPP Swivel Sink Strainer Adapter Spg x Female Thread

Note: 3/8" 1/2", 3/4" and 1" pipe clips are

supplied without retaining bands.

3/8 434305 437340

1/2 434306 437341

3/4 434307 437342

1434308 437343

1-1/4 434309 437344

1-1/2 434310 437345

2434311 437346

2-1/2 434312 437347

3 434313 437348

4434314 437349

6 434317 437432

Cobra Pipe Clip – Polypropylene

Kit includes hub clamps, 1 1/2" thru 6",

connector cable & 5' link cable.

PRODUCT SELECTION CHART – ENFIELD

1-1/2 to 12 L2610T 257125

Stainless Steel T Handle for Hub Clamps

1-1/2 to 12 L2610B 257094

Oil Impregnated Brass Bushings for Clamps

- EHHL2600 257279

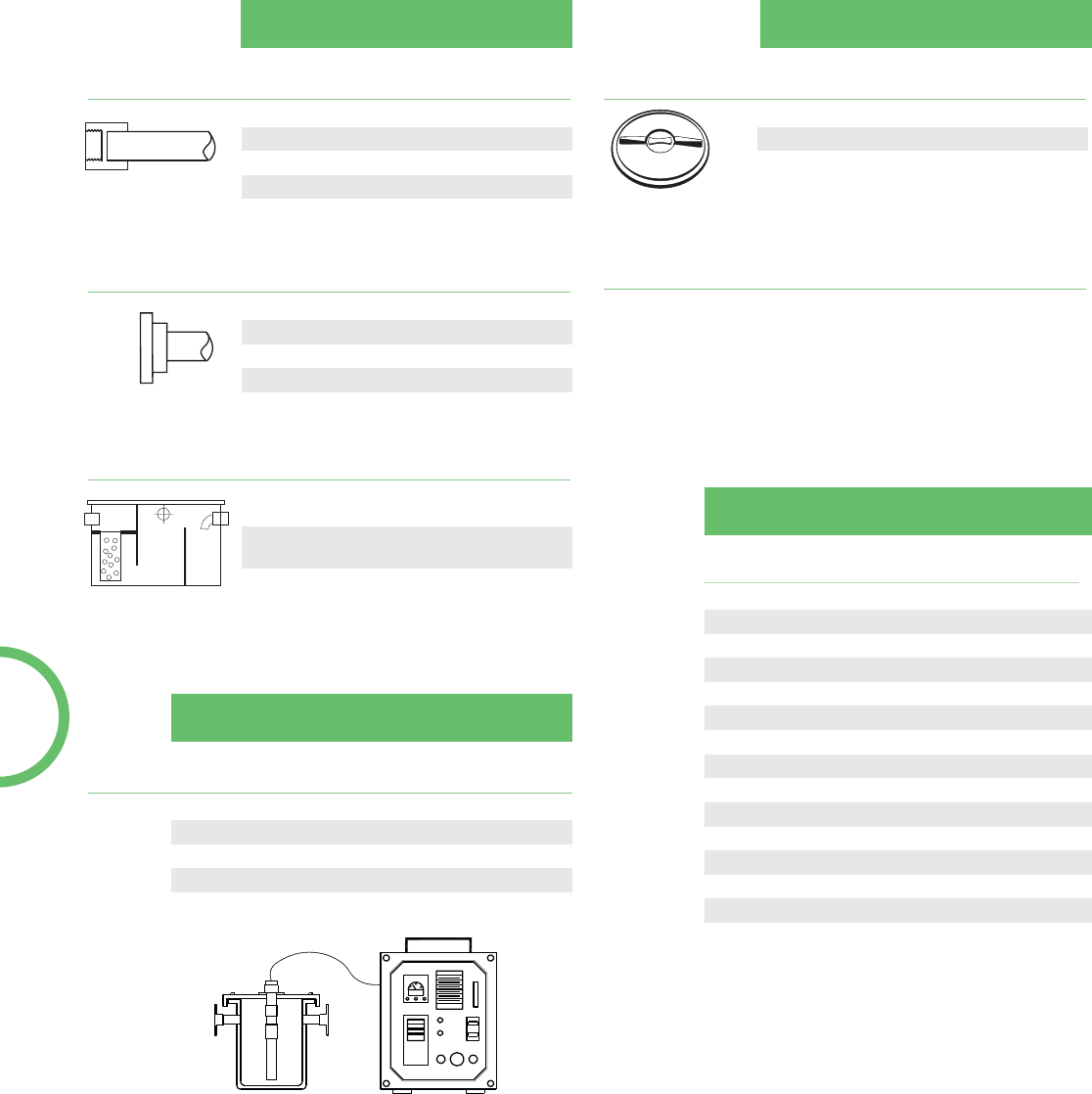

Enfusion Control Unit - Complete Kit

- L26801 257278

Connector Cable - Current Style Machine

- L26201 257263

Connector Cable - Old Style Machine

- L26901 257294

Connector Cable - EZ Connector Cable

2 ft. EZ L26260 257268

5 ft. EZ L26261 257269

10 ft. EZ L26262 257270

15 ft. EZ L26263 257271

Link Cable c/w EZ Connector

16 AMP P52690 257801

Fuses

5 ft. L26251 257265

10 ft. L26252 257266

15 ft. L26253 257267

Link Cable c/w Link Lead

3 L803 257107

4L804 257108

6 L806 257109

Fabricated Expansion Joint

ENFIELD ELECTROFUSION ACID WASTE SYSTEMS

1-1/2 L26101 257254

2L26102 257256

3 L26103 257257

4L26104 257258

6 L26106 257259

8L26108 257260

10 L261010 257255

12 L261212 257262

Enfusion Hub Clamp - New T Bar Handle & Bushing

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

1-1/2 L5115 257533

Universal Trap - Clear Base, S Type EJ

1-1/2 L5015 257523

Universal Trap - Solid Base, S Type EJ

1-1/2 L511 257531

1-1/2 L5111 257532

Universal Trap - Clear Base, P Type EJ x Female Thread

You get more than just purity with EnpureTM. You get peace

of mind. Enpure is one of the most complete and

dependable pure-water thermoplastic piping

systems available today. From the

manufacturing of cosmetics to

solutions for medical use, from pure-

water lab applications to dialysis

machines, Enpure is designed to

meet all challenges. Manufactured

with FDA approved materials,

Enpure natural polypropylene

pipe, valves and fittings eliminate

the potential of contamination to your

pure process.

And, unlike conventional systems, Enpure is

designed as a socket fusion system. No hazardous

chemicals are used for joining. Connections are as “clean”

as any other components in the system.

For more than 35 years IPEX has provided laboratories

throughout North America with complete acid waste

systems designed to take a variety of

chemicals. Pour it, flush it or dump it – from

school labs to industrial labs, EnfieldTM

FRPP & NRFPP, Labline®polypro, and

PlenumlineTM FR-PVDF acid waste

systems are built to handle it.

Enfield electrofusion along with

Labline & Plenumline mechanical

joints have revolutionized the

industry – and they continue to be

regarded as state-of-the-art. Labline

and Plenumline also feature a new no-

heat Elastolive for quicker installation and

higher performance.

Backed by IPEX’s 65 years of experience, Enpure, Enfield,

Labline and Plenumline are built to our strict quality,

performance and dimensional standards.

Products are manufactured by IPEX Inc. EnpureTM, EnfieldTM, LablineTM and

PlenumlineTM are trademarks of IPEX Branding Inc.

Acid Waste Systems

We build tough products for tough environments®

At IPEX you get more than products. You get our knowledge.

Health Care

Systems

Call 1-800-463-9572 or visit www.ipexamerica.com

PRODUCT TITLE

PRODUCT TITLE 4" - 16" (100mm - 300mm)

DID YOU KNOW?

Both Labline®and PlenumlineTM contain

no-heat ElastolivesTM for quick

installation and high performance.

LABLINE MECHANICAL JOINT

ADVANTAGES

30 second jointing – save on installation time

Proven reliability for over 30 years

Labline is manufactured from polypropylene which has

an operating temperature range from -10ºF to 212ºF.

*This allows systems to be flushed with boiling water

All plastic construction –

no galvanic action, electrolysis or corrosion in the joint

Simple, inexpensive, non-temperamental tools

Easy to install, even in difficult areas

Mastered by plumbers in minutes.

No pre-heating required to install olive

System changes during installation can be done without

spoiling fittings

Can be disassembled and re-used

Ideal for modular systems

Ideal for remodeling

Matched system – high quality pipe and fittings are matched to

give ease of installation and long term reliability

LABLINE MECHANICAL JOINT

ACID WASTE SYSTEMS

STANDARDS

Labline (Mechanical Joint) has displaced the more expensive and

difficult to install glass and metal systems. Gone is the need for fusing,

caulking or welding of joints. Joining of the Labline System is complete

in just 30 seconds and once the nut is locked into place, the end-user

is assured of many years of trouble-free service. Yet, because it is a

mechanical joint, the system can be easily dismantled and re-used,

making it ideal for modular designs and for systems that may require

re-modeling in the future.

NSF-approved

IAPMO-listed & CSA-certified

Meets ASTM F1412, D4101 and CSA B181.3

1-1/2" - 4"

SHORT FORM SPECIFICATIONS

GENERAL

Acid waste drain and vent system, as shown on drawings,

shall be NSF listed, Schedule 40, polypropylene as

manufactured by IPEX to include pipe supplied in

10 ft. lengths (or 20 ft lengths if NFRPP is specified),

and matched fittings, traps and neutralization tanks

from the same manufacturer. It shall also include

recommended adapters to connect to other piping

materials, where applicable.

MATERIAL

Pipe shall be made from NSF listed Type 110 or 210,

flame retardant polypropylene conforming to ASTM

D4101, with a maximum average flame spread of zero

seconds and a maximum extent of burning of 13 mm, in

accordance with ASTM D635. Matched fittings shall be

made from NSF listed flame retardant

polypropylene with average maximum

burn time of 80 seconds and maximum

extent of burning of 20 mm in

accordance with ASTM D635.

If NFRPP pipe is specified, it shall be made from

NSF 14 listed and CSA certified Schedule 40 PP as

manufactured by IPEX. Pipe shall comply with ASTM

F1412 and material used shall comply with the material

requirements of ASTM D4101.

FITTINGS

Fittings shall be NSF listed, be of all plastic construction

and be designed to lock into a machined groove on the

mating piping. All fittings shall have integrally molded

union connections. No metallic grab rings or clamps shall

be allowed. Fittings containing EVA (ethylene vinyl

acetate) are strictly prohibited. Couplings shall not be

added to make mechanical joint fittings. Fittings shall be

Labline or approved equivalent.

JOINTS

Connections between polypropylene pipe and matched

fittings shall be made using the Labline Joint.

INSTALLATION AND TESTING

Installation and testing shall be in accordance with the

contract drawings, the manufacturer’s recommendations

and the local plumbing codes. Testing with compressed

air is prohibited. The entire system shall be installed free

of stress and in proper alignment. Horizontal supports

shall provide a wide bearing area and be free of burrs or

sharp edges. Support spacings shall be in accordance

with the manufacturer’s recommendations and local

plumbing codes. Vertical piping shall have riser clamps at

each floor. Pipe supports shall be installed so that

horizontal piping is in uniform alignment and with a

uniform slope of at least 1/8" per foot, or in accordance

with the local plumbing codes.

LABLINE MECHANICAL JOINT

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

PRODUCT SELECTION CHART – LABLINE

1-1/2 W181 156181

2W182 156182

3 W183 156183

4W184 156184

1/4 Bend (90°)

1-1/2 W191 156191

2W192 156192

3 W193 156193

4W194 156194

1/8 Bend (45°)

* 2 x 1-1/2 W2021 156204

*3 x 1-1/2 W2031 156207

* 3 x 2 W2032 156208

*4 x 1-1/2 W2041 156211

* 4 x 2 W2042 156212

*4 x 3 W2043 156213

Reducing Sanitary Tee

1-1/2 W161 156161

2W162 156162

3 W163 156163

4W164 156164

Coupling

1-1/2 W211 156216

2W212 156217

3 W213 156218

4W214 156219

Loose Nut 1/8 Bend (45°) MJ x LN

* 2 x 1-1/2 W3721 156364

*3 x 1-1/2 W3731 156368

* 3 x 2 W3732 156369

*4 x 1-1/2 W3741 156374

* 4 x 2 W3742 156375

*4 x 3 W3743 156376

Reducing 45º Wye

1-1/2 W201 156201

2W202 156203

3 W203 156206

4W204 156210

Sanitary Tee

1-1/2 W2015 156202

2W2025 156205

3 W2035 156209

4W2045 156214

Cleanout Tee

LABLINE MECHANICAL JOINT

1-1/2 W291 156291

2W292 156292

3 W293 156293

4W294 156294

Loose Nut 1/4 Bend (90º) MJ x LN

1-1/2 W371 156361

2W372 156363

3 W373 156367

4W374 156373

45º Wye

* 1-1/2 W3715 156362

* 2 W3725 156365

* 3 W3735 156370

* 4 W3745 156377

Combination Wye & 1/8 Bend

All Labline fittings are furnished assembled with Olives and Union Nuts. IPEX components are dimensionally matched;

do not install system of mixed brands without our expressed written consent.

* Assembled

1-1/2 x 1-1/4 W121 156121

1-1/2 x 1-1/2 W131 156131

Threaded Adapter Male Thread x Female Thread

1-1/2 W151 156151

2W152 156152

Female Adapter MJ x Female Thread

PRODUCT SELECTION CHART – LABLINE

* 2 x 1-1/2 W37251 156366

*3 x 1-1/2 W37351 156371

* 3 x 2 W37352 156372

*4 x 1-1/2 W37451 156380

* 4 x 2 W37452 156378

*4 x 3 W37453 156379

Reducing Combination Wye & 1/8 Bend

1-1/2 W381 156381

2W382 156383

3 W383 156387

4W384 156392

Double Wye

* 2 x 1-1/2 W3821 156384

*3 x 1-1/2 W3831 156388

* 3 x 2 W3832 156389

*4 x 1-1/2 W3841 156405

* 4 x 2 W3842 156393

*4 x 3 W3843 156394

Reducing Double Wye

* 2 x 1-1/2 W38251 156386

*3 x 1-1/2 W38351 156406

* 3 x 2 W38352 156391

*4 x 1-1/2 W38451 156407

* 4 x 2 W38452 156396

*4 x 3 W38453 156408

Reducing Double Wye & 1/8 Bend

* 1-1/2 W3815 156382

* 2 W3825 156385

* 3 W3835 156390

* 4 W3845 156395

Double Wye & 1/8 Bend

2 x 1-1/2 W3921 156397

3 x 1-1/2 W3931* 156398

3 x 2 W3932* 156400

4 x 1-1/2 W3941* 156399

4 x 2 W3942* 156401

4 x 3 W3943 156402

Reducing Coupling LN x MJ

1-1/2 W141T 156141

2W142 156142

3 W143 156143

4W144 156144

Male Adapter MJ x Male Thread

1-1/2 W451 156451

2W452 156452

3 W453 156453

4W454 156454

Glass Adapter MJ x Bead

1-1/2 W461 156461

2W462 156462

3 W463 156463

4W464 156464

No Hub Adapter MJ x Spigot

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

All Labline fittings are furnished assembled with Olives and Union Nuts. IPEX components are dimensionally matched;

do not install system of mixed brands without our expressed written consent

LABLINE MECHANICAL JOINT

* Loose nut not furnished

* Assembled

PRODUCT SELECTION CHART – LABLINE

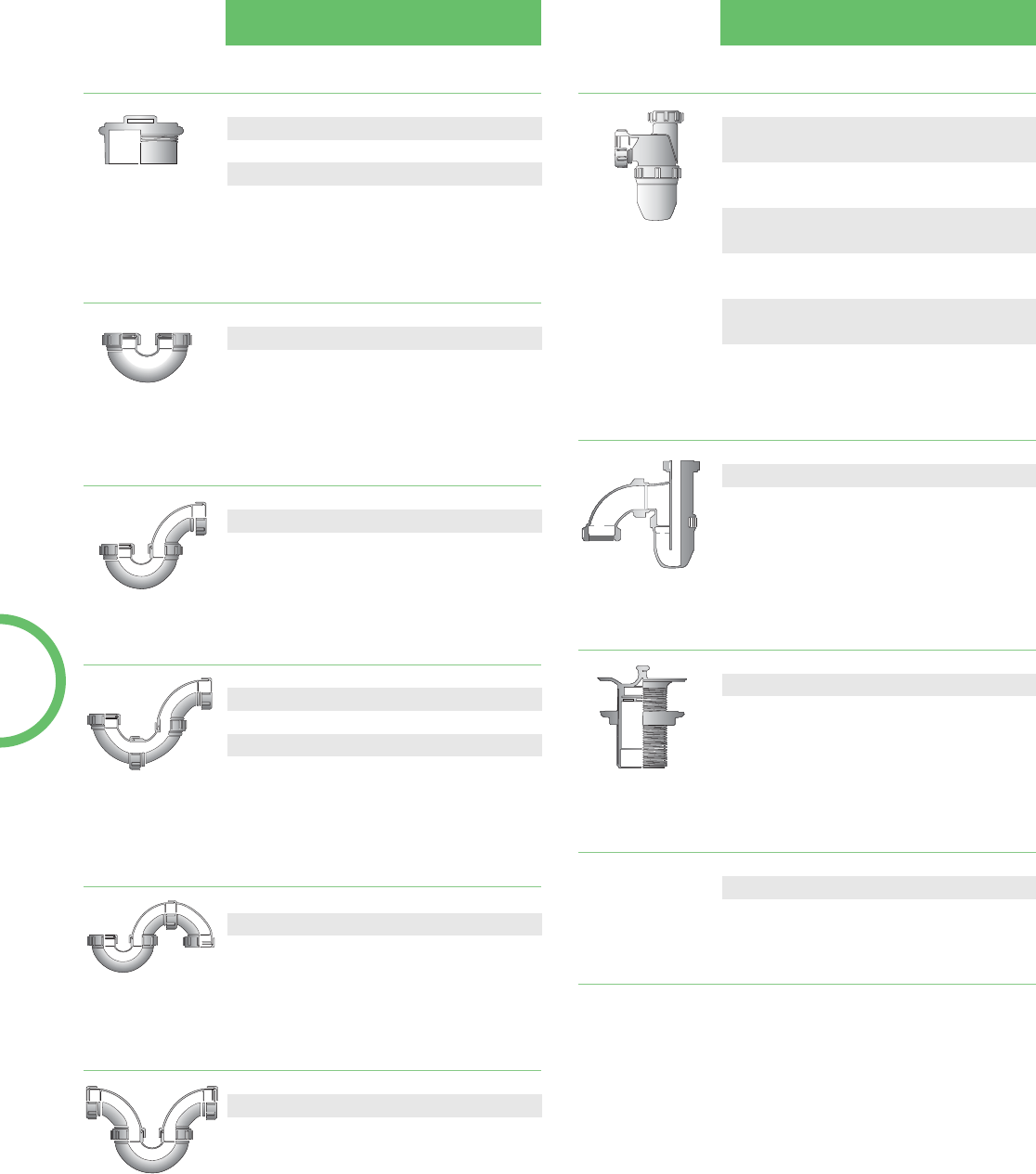

1-1/2 W501 156501

*1-1/2 W511 156511

*Transparent Base

- W5112 156512

PP Base Only

-W5113 156513

Clear Base Only

- W5114 156514

O-ring Gasket Only

-W5116 156516

Top Assembly For W501 & W511

Universal Trap Female Thread x MJ

1-1/2 W5015 156502

* 1-1/2 W5115 156515

Universal Trap, S-Type Female Thread x MJ

W3011B (Black) 156301

W3011W (White) 156305

Sink Outlet Plug

* Transparent Base

LABLINE MECHANICAL JOINT

1-1/2 – 3-3/8 W301B (Black) 156303

1-1/2 – 2-7/8 W311B (Black) 156311

– W3012B 156302

Sink Outlet w/ Plug

1-1/2 W321B (Black) 156321

Sink Overflow

1-1/2 W241 156241

2W242 156242

3 W243 156243

4W244 156244

Cleanout Plug

1-1/2 W1011 156101

2W1012 156102

Vent Loop U Bend

1-1/2 W1021 156103

2W1022 156104

P Trap - 2 Piece

1-1/2 W1031 156105

2W1032 156106

S Trap - 3 Piece

1-1/2 WT11 156711

2WT12 156712

3 WT13 156713

4WT14 156714

P Trap - 3 piece Long Radius

1-1/2 W1041 156107

2W1042 156108

Running Trap - 3 Piece

All Labline fittings are furnished assembled with Olives and Union Nuts. IPEX components are dimensionally matched;

do not install system of mixed brands without our expressed written consent.

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

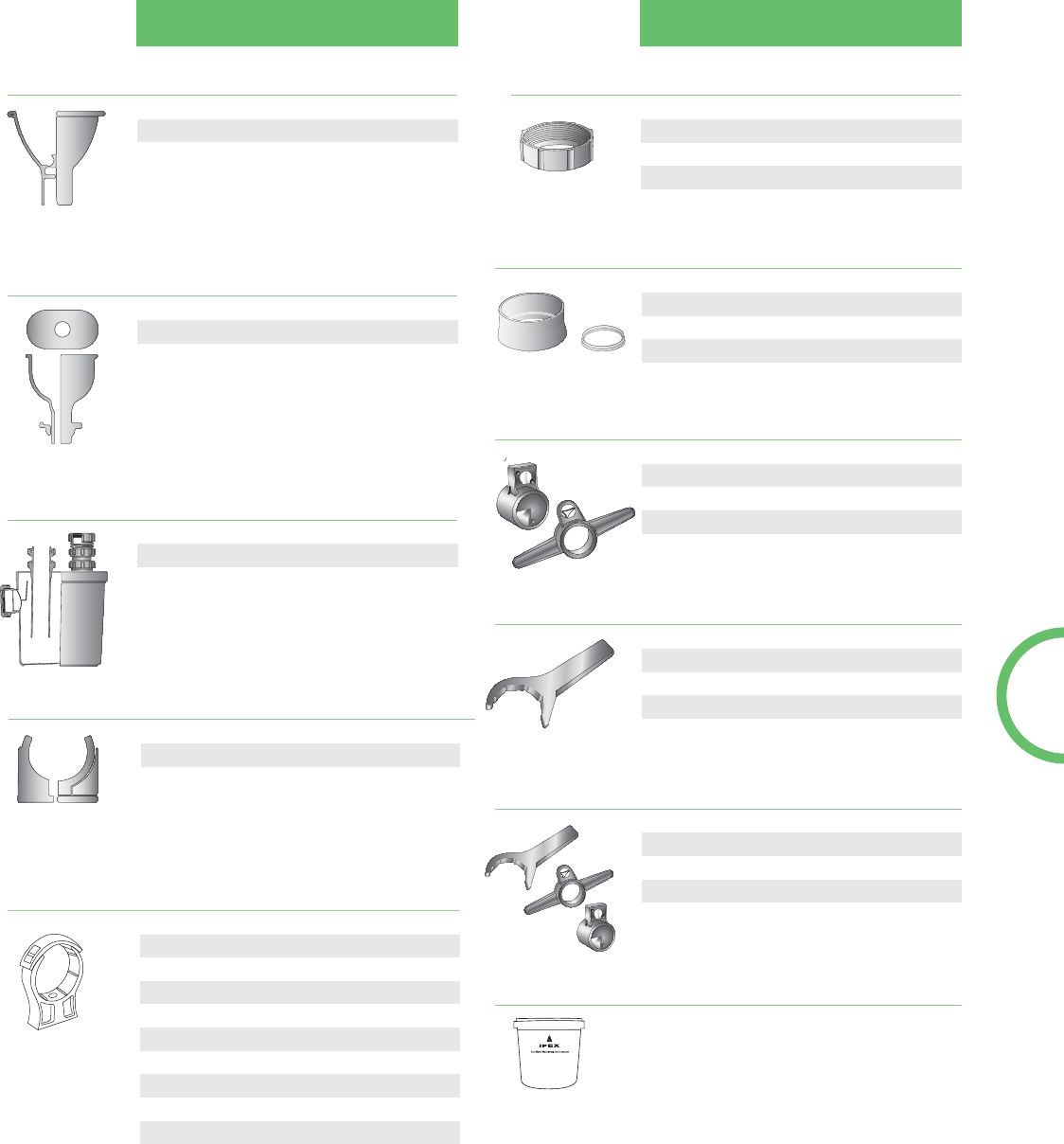

(Lock Nut For W301B)

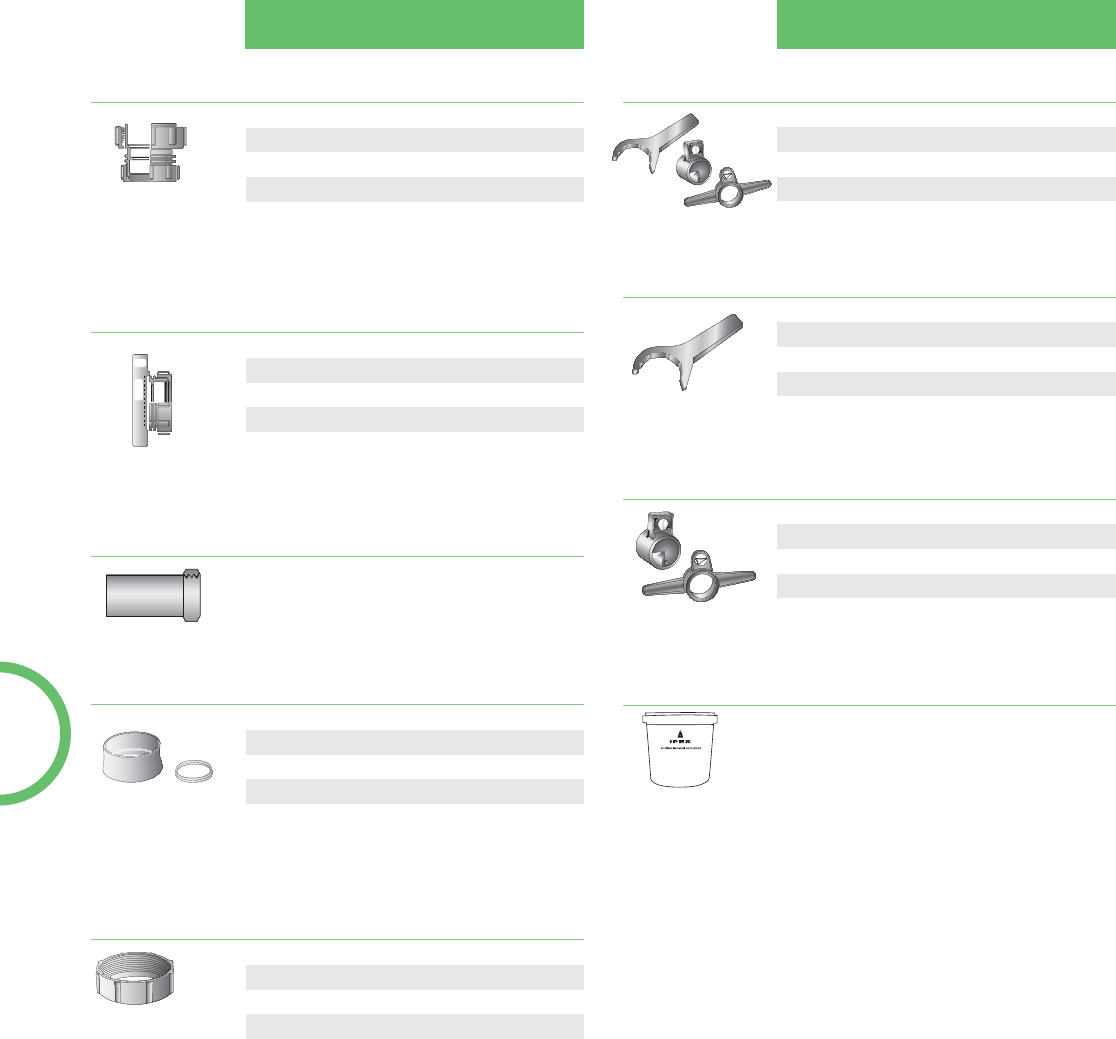

1-1/2 W2611 156264

2W2622 156266

3 W2633 156268

4W2644 156270

Spanner

6 x 4 Deep W401B 156403

4 x 4 Deep W402 156404

plug W4011B 156409

Cup Sink Round

PRODUCT SELECTION CHART – LABLINE

6 x 3 W497 156491

9 x 3 W498 156493

nut W4971 156492

Cup Sink Oval

1-1/2 W601 156601

* 1-1/2 W611 156611

Dilution Trap

* Transparent Base

1-1/2 W221NH 156222

2W222NH 156113

3 W223NH 156114

4W224NH 156115

No Heat Elastolive Yellow

1-1/2 W261CS 156263

2W262CS 156265

3 W263CS 156267

4W264CS 156269

Grooving Tool & Spanner Combination Set

1 kg – 156715

Mechanical Joint Lubricant

1-1/2 W261 156109

2W262 156110

3 W263 156111

4W264 156112

Grooving Tool

1-1/2 W231 156231

2W232 156232

3 W233 156233

4W234 156234

Union Nut

All Labline fittings are furnished assembled with Olives and Union Nuts. IPEX components are dimensionally matched;

do not install system of mixed brands without our expressed written consent

Dimension Significant

Number

Product

Code

inches

Dimension Significant

Number

Product

Code

inches

(Plug for W401B)

(Nut for W497)

LABLINE MECHANICAL JOINT

* 1-1/2 W251 156251

* 2 W252 156252

Pipe Clip

* Obsolete when stock depleted

Note: 3/8" 1/2", 3/4" and 1" pipe clips are

supplied without retaining bands.

3/8 434305 437340

1/2 434306 437341

3/4 434307 437342

1434308 437343

1-1/4 434309 437344

1-1/2 434310 437345

2434311 437346

2-1/2 434312 437347

3 434313 437348

4434314 437349

Cobra Pipe Clip – Polypropylene

ADVANTAGES

Rated for pedestrian traffic and available in sizes from 2" to 6".

FlowayTM drains can be optionally configured with

adjustable strainers, round funnels, sediment

baskets and plain end or threaded outlets.

Adjustable feature allows easy leveling

after pouring of finished floors

FLOWAY POLYPROPYLENE

FLOOR DRAINS

FLOWAY POLYPROPYLENE FLOOR DRAINS

For efficiently managing chemical spills, our FlowayTM adjustable and

non-adjustable polypropylene drain ports are specially designed to feed

into IPEX acid waste systems.

Dimension Significant

Number

Product

Code

Inches

Dimension Significant

Number

Product

Code

Inches

Enfield 2 F1201L 237001

Labline 2 F1201W 237075

3 F1301P 237011

4F1401P 237021

6 F1601P 237031

F1000 Series Adjustable Floor Drain

PRODUCT SELECTION CHART

Enfield 2 F1202L 237002

Labline 2 F1202W 237076

3 F1302P 237012

4F1402P 237022

6 F1602P 237033

F1000 Series Adjustable Floor Drain

Enfield 2 F1203L 237003

Labline 2 F1203W 237077

3 F1303P 237013

4F1403P 237023

6 F1603P 237034

F1000 Series Adjustable Floor Drain

Enfield 2 F1204L 237004

Labline 2 F1204W 237078

3 F1304P 237014

4F1404P 237024

6 F1604P 237032

F1000 Series Adjustable Floor Drain

w/ Sediment Basket and 6" Round Funnel

w/ 6" Round Funnel Only

w/ Sediment Basket

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent.

2" - 6"

Dimension Significant

Number

Product

Code

Inches

Dimension Significant

Number

Product

Code

Inches

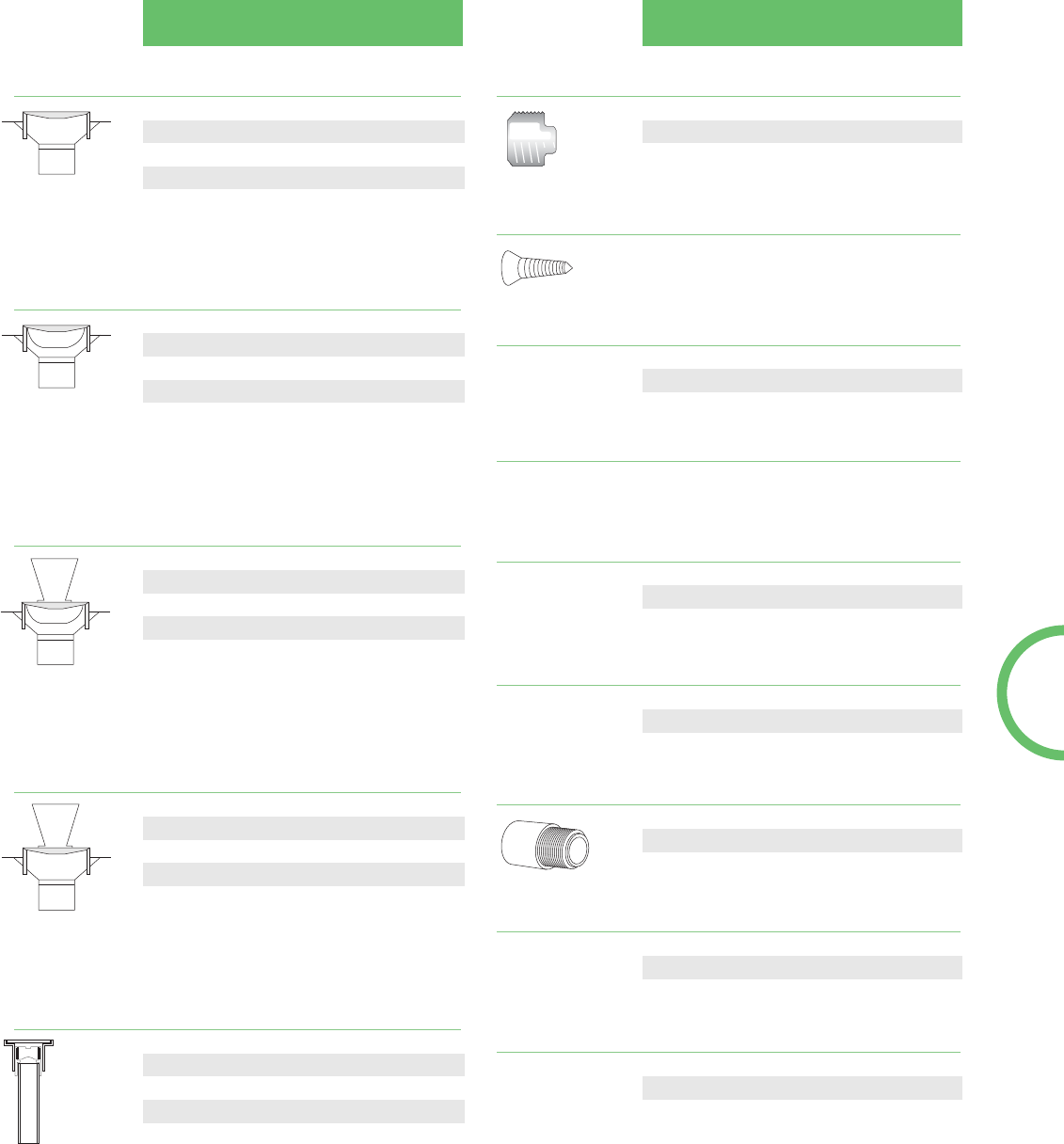

FLOWAY POLYPROPYLENE FLOOR DRAINS

Enfield 2 F4201L 237041

Labline 2 F4201W 237079

3 F4301P 237051

4F4401P 237061

6 F4601P 237071

F4000 Series Non-Adjustable Floor Drain

PRODUCT SELECTION CHART – FLOWAY

Enfield 2 F4202L 237042

Labline 2 F4202W 237080

3 F4302P 237052

4F4402P 237062

6 F4602P 237072

F4000 Series Non-Adjustable Floor Drain

3 P20036 237815

4P20037 237816

6 P20038 237817

Gas Tight Plug

F1000 Series P20034 237814

F4000 Series P20033 237813

Blank Cover for F Series Drains

F1000 Series P20016 237809

F4000 Series P20015 237808

Sediment Basket Strainer for F Series Drains

F1000 Series P20013 237807

F4000 Series P20011 237806

Grid Strainers for F Series Drains

3 - 257091

4 - 257092

Male Iron Pipe Threaded Outlet

3/8 - 237430

1/2 -237429

FPT Tap for Priming Drain Assembly

2 - 257126

3 - 257127

4 - 257128

Trap Primer 12" Length w/FPT

Set of 3 screws P20035 237045

Allenhead Vandalproof Screws

6 P20017 237810

Round Funnel

w/ Sediment Basket

Enfield 2 F4203L 237044

Labline 2 F4203W 237081

3 F4303P 237053

4F4403P 237063

6 F4603P 237073

F4000 Series Non-Adjustable Floor Drain

w/ Sediment Basket & 6" Round Funnel

Enfield 2 F4204L 237043

Labline 2 F4204W 237082

3 F4304P 237054

4F4404P 237064

6 F4604P 237074

F4000 Series Non-Adjustable Floor Drain

w/ 6" Round Funnel Only

2 F2COB 237173

3F3COB 237174

4 F4COB 237175

6F6COB 237177

Floor Cleanout w/Nickel-Bronze Cover (adj Cleanout) Sp

IPEX components are dimensionally matched; do not install system of mixed brands without our expressed written consent

1-1/2" - 4"

PLENUMLINE MECHANICAL

JOINT ACID WASTE SYSTEM

PLENUMLINE MECHANICAL JOINT

Plenumline mechanical joint acid waste systems easily displace costly

and difficult-to-install glass and metal systems. With Plenumline,

time-consuming methods associated with conventional heavy and

brittle systems are replaced by a time proven mechanical joint that

takes only 30 seconds to complete. Once the Plenumline nut is

locked in place, the end-user is assured of many years of trouble-free

service. In addition, mechanical joint systems can easily be

dismantled and re-used, making Plenumline ideal for modular designs

and future expansions.

ADVANTAGES

Ideally suited to plenum applications

30-second joints shorten installation time

Manufactured from Flame Retardant PVDF, which has an

operating temperature range from -40°F (-40°C) to 285°F (140°C).

With this high upper limit, Plenumline systems can be flushed

with boiling water.

All-plastic construction eliminates galvanic action,

electrolysis and corrosion in the joint.

Easy to install, even in tight areas, by using simple, inexpensive

tools. Mechanical joints are mastered by plumbers in minutes; no

pre-heating is required to install the new blue elastolive.

Modularized design means Plenumline components can be

disassembled and re-used. In addition, system modifications

during installation can be performed without damaging fittings.

High-quality pipe and fittings are matched to simplify

installation and extend long-term reliability.

Flame Retardant PVDF material exhibits a flame spread index

of 5 and smoke development index of 35 as tested in accordance

with ASTM E84 and UL723.

STANDARDS

IAPMO-listed

Meets ASTM F1673

Standard specification for Polyvinylidene Fluoride

(PVDF) Corrosive Waste Drainage Systems.

PLENUMLINE MECHANICAL JOINT

SHORT FORM SPECIFICATIONS

GENERAL

Acid waste drain and vent system, as shown on

drawings, shall be IAPMO listed, Schedule 40, FR-PVDF

as manufactured by IPEX to include pipe supplied in

10 ft. lengths and matched fittings, traps and

neutralization tanks from the same manufacturer. It

shall also include recommended adapters to connect to

other piping materials, where applicable.

MATERIAL

Pipe and fittings shall be made from Kynar 740-02,

flame retardant PVDF conforming to ASTM F 1673, with

a limiting oxygen index (LOI) of 60, Resin must have a

vertical burn rating of 94 V-0. Kynar 740-02 resin based

on testing to ASTM E84 (UL 723) must have surface

burning characteristics greater than or equal to a flame

spread 5 and smoke development 35.

FITTINGS

Fittings shall be third party certified to ASTM F 1673

and ASTM E84, and IAPMO approved, be of all plastic

construction and a tapered elastic retaining ring shall

be designed to lock into a machined groove on the

mating piping. All fittings shall have integrally molded

union connections. No metallic grab rings or clamps

shall be allowed. Fittings shall be Plenumline™ or

approved equal.

INSTALLATION AND TESTING

Installation and testing shall be in accordance with the

contract drawings, the manufacturer's recommendations

and the local plumbing codes. Testing with compressed

air including air booster over water is prohibited. The

entire system shall be installed free of stress and in

proper alignment. Horizontal supports shall provide a

wide bearing area and be free of burrs or sharp edges.

Support spacings shall be in accordance with the

manufacturer's recommendations and local plumbing

codes. Vertical piping shall have riser clamps at each

floor. Pipe supports shall be installed so that horizontal

piping is in uniform alignment and with a uniform slope

of at least 1/8" per foot, or in accordance with the local

plumbing code requirements.

DID YOU KNOW?

IPEX Plenumline is a robust acid waste

system, made from flame-retardant PVDF

thermoplastic, designed for challenging

conditions, including highly restrictive return

air plenum applications and high-temperature

corrosive chemical waste situations.

Dimension Product

Code

Inches

1-1/2 W001P 147045

2W002P 147046

3 W003P 147047

4W004P 147048

6 W006P 147049

Pipe

PRODUCT SELECTION CHART – PLENUMLINE

1-1/2 W2015P 157061

2W2025P 157062

3 W2035P 157063

4W2045P 157064

Cleanout Tee

1-1/2 W371P 157036

2W372P 157037

3 W373P 157038

4W374P 157039

45º Wye

* 1-1/2 W3715P 157074

* 2 W3725P 157075

* 3 W3735P 157076

* 4 W3745P 157077

Combination Wye & 1/8 Bend

* 2 x 1-1/2 W3721P 157069

*3 x 1/12 W3731P 157073

* 3 x 2 W3732P 157070

*4 x 2 W3742P 157071

* 4 x 3 W3743P 157072

Reducing 45º Wye

Dimension Product

Code

Inches

1-1/2 W181P 157010

2W182P 157011

3 W183P 157012

4W184P 157013

1/4 Bend

1-1/2 W291P 157032

2W292P 157033

3 W293P 157034

4W294P 157035

Loose Nut 1/4 Bend LN x MJ

1-1/2 W191P 157014

2W192P 157015

3 W193P 157016

4W194P 157017

1/8 Bend

1-1/2 W211P 157024

2W212P 157025

3 W213P 157026

4W214P 157027

Loose Nut 1/8 Bend LN x MJ

1-1/2 W201P 157018

2W202P 157019

3 W203P 157020

4W204P 157021

Sanitary Tee

* 2 x 1-1/2 W2021P 157022

*3 x 1/12 W2031P 157065

* 3 x 2 W2032P 157023

*4 x 2 W2042P 157067

* 4 x 3 W2043P 157068

Reducing Sanitary Tee

PLENUMLINE MECHANICAL JOINT

1-1/2 W161P 157006

2W162P 157007

3 W163P 157008

4W164P 157009

Coupling

All fittings are furnished assembled with Olives and Union Nuts. IPEX components are dimensionally matched;

do not install system of mixed brands without our expressed written consent.

* Assembled

Dimension Product

Code

Inches

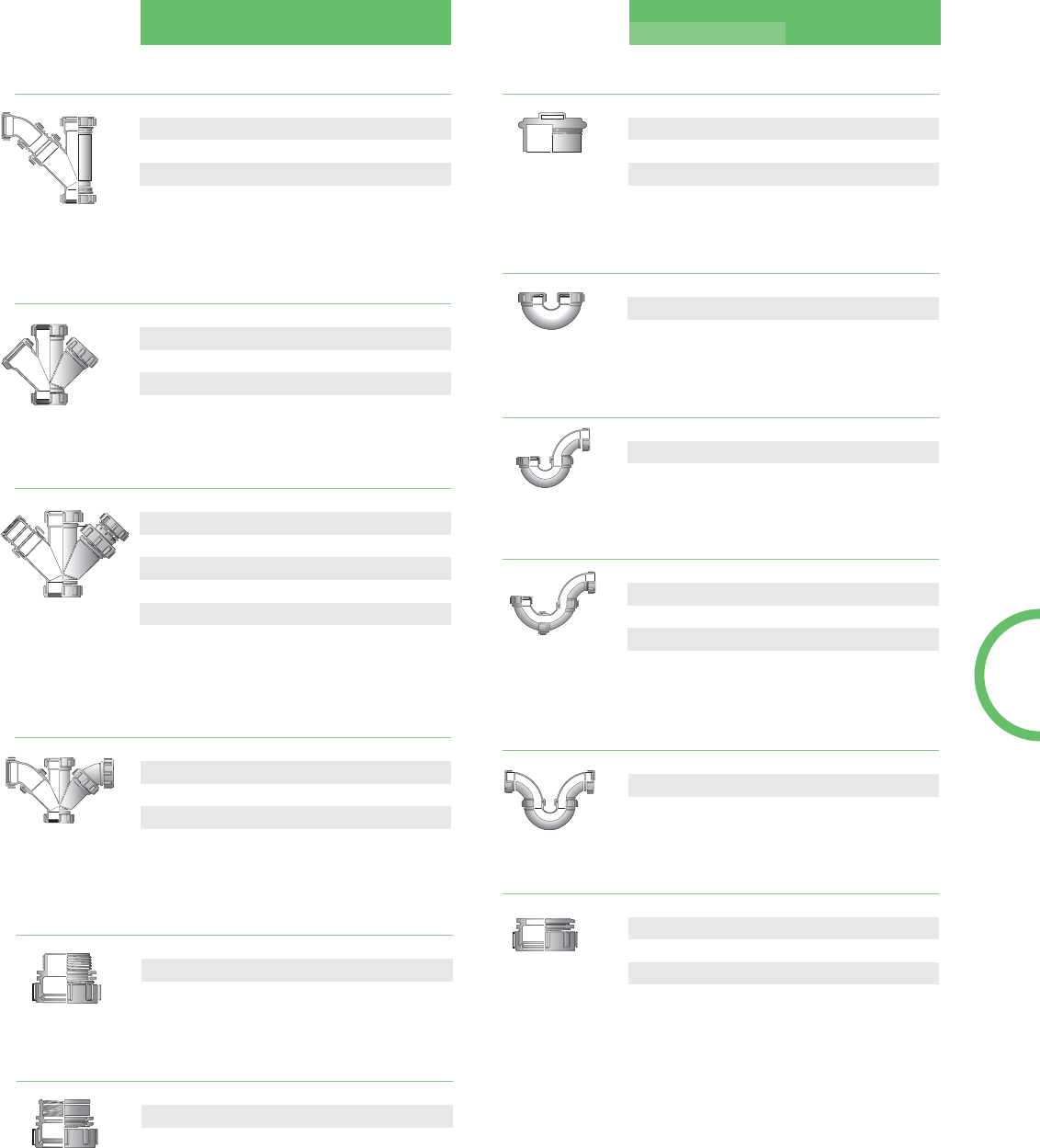

PRODUCT SELECTION CHART – PLENUMLINE

Dimension Product

Code

Inches

* 1-1/2 W3815P 157100

* 2 W3825P 157101

* 3 W3835P 157102

* 4 W3845P 157103

Double Wye & 1/8 Bend

1-1/2 W241P 157028

2W242P 157029

3 W243P 157030

4W244P 157031

Cleanout Plug

1-1/2 W141P 157002

2W142P 157003

Male Adapter MJ x Male Thread

1-1/2 W151P 157004

2W152P 157005

Female Adapter MJ x Female Thread

1-1/2 WT11P 157085

2WT12P 157086

3 WT13P 157087

4WT14P 157088

P-Trap Long Radius 3 piece

1-1/2 W1011P 157000

2W1012P 157001

U Bend for P-Trap

1-1/2 W1021P 157083

2W1022P 157084

P-Trap 2 piece

1-1/2 W1041P 157089

2W1042P 157090

Running Trap

1-1/2 W641P 157053

2W642P 157054

3 W643P 157055

4W644P 157056

Fabricated Cap

All fittings are furnished assembled with Olives and Union Nuts. IPEX components are dimensionally matched;

do not install system of mixed brands without our expressed written consent

PLENUMLINE MECHANICAL JOINT

1-1/2 W381P 157049

2W382P 157050

3 W383P 157051

4W384P 157052

Double 45º Wye (Fabricated)

* 2 x 1-1/2 W37251P 157078

*3 x 1/12 W37351P 157079

* 3 x 2 W37352P 157080

*4 x 2 W37452P 157081

* 4 x 3 W37453P 157082

Reducing combination Wye & 1/8 Bend

* 2 x 1-1/2 W3821P 157096

*3 x 1/12 W3831P 157104

* 3 x 2 W3832P 157097

*4 x 1-1/2 W38841P 157091

* 4 x 2 W3842P 157098

*4 x 3 W3843P 157099

Reducing Double Wye

* Assembled

PLENUMLINE MECHANICAL JOINT

Dimension Product

Code

Inches

PRODUCT SELECTION CHART – PLENUMLINE

Dimension Product

Code

Inches

1-1/2 W221NHP 157066

2W222NHP 157106

3 W223NHP 157107

4W224NHP 157108

No Heat Elastolive Blue

1-1/2 W231P 157109

2W232P 157110

3 W233P 157111

4W234P 157112

Union Nut

1-1/2 W261CS 156263

2W262CS 156265

3 W263CS 156267

4W264CS 156269

Grooving Tool & Spanner Combination Set

1-1/2 W2611 156264

2W2622 156266

3 W2633 156268

4W2644 156270

Spanner

1-1/2 W261 156109

2W262 156110

3 W263 156111

4W264 156112

Grooving Tool

1-1/2 x 12 W3012P 157105

Tail Piece Adapter Sp x Brass Compression Ring

1-1/2 W361P 157057

2W362P 157058

* 3 W363P 157059

4W364P 157060

Flanges (Fabricated)

*While quantities last, Obsolete when stock

depleted

Note: Blue olive nut is not interchangeable with

the FRPP Yellow olive nut.

2 x 1-1/2 W3921P 157040

3 x 1/12 W3931P 157041

3 x 2 W3932P 157042

4 x 2 W3942P 157043

4 x 3 W3943P 157044

Loose Nut - Reducing Coupling LN x MJ

Note: Loose Nut and Olive not furnished.

1 kg – 156715

Mechanical Joint Lubricant

Certain environments demand fail-safe systems. No leaks.

No risk. IPEX understands the complexity of design and

installation for demanding DOUBLE CONTAINMENT

APPLICATIONS. And, unlike other

manufacturers, our specialists are part of

a division of IPEX dedicated solely

to the design, production and

installation of state-of-the-art

double containment systems.

With more than 20 years of

experience and success, we are

the proven experts.

The IPEX family of double containment

systems includes: GuardianTM PVC and

CPVC, and Clear-GuardTM PVC pressure and

drainage systems, EncaseTM PolyPro drainage systems,

CustomGuard®FRP and metal pressure systems and

Centra-GuardTM leak detection systems.

Safety and environmental concerns are top

priorities on today’s industrial agenda.

Reduction of emissions, energy

conservation and prevention of

ground water contamination are

some of the areas where

regulations are increasingly

defining an important line

between utilization and

exploitation of our planet’s

resources.

For most common chemical-waste or

process applications, IPEX offers systems that

are both simple yet highly advanced technologies.

Products are manufactured by IPEX Inc.

GuardianTM, Clear-GuardTM, EncaseTM, CustomGuard®, and Centra-GuardTM are trademarks of IPEX Branding Inc.

Double Containment Systems

We build tough products for tough environments®

IPEX Protects Your Investment

A Safe Place to Grow

Call 1-866-473-9462 or visit www.ipexinc.com

1-1/2" - 6"

100

HDPE & POLYPROPYLENE

NEUTRALIZATION TANKS

IPEX offers a complete range of Neutratank®neutralization tanks which

are made of high-density polyethylene or polypropylene material with a

one-piece rotationally molded, seamless construction, a bolt-down

flanged top and combination Access cover. Neutratanks are available in

sizes from 5 gallons to 2,000 gallons to suit most potential design

conditions.

DID YOU KNOW?

Neutratanks are used for limestone

neutralization of chemical waste prior

to discharge into the sewer.

ADVANTAGES

Cylindrical and rectangular limestone neutralization

tanks from 5 to 2000 gallons are available.

A variety of lids, inlets, outlets and accessories

are offered.

Dilution tanks are available in 1, 2 and 5-gallon sizes.

SHORT FORM SPECIFICATIONS

Contractor shall furnish and install HDPE (Polypropylene)

Neutralization Tank. Tank shall be rotationally molded, seamless

construction with flanged top and welded or bolt down cover, as

supplied by IPEX. Tank shall be Neutratank No. CT0100, having

100-gallon capacity complete with 3" inlet and outlet, and 11/2"

vent connection. Tank to be 32" diameter x 42" high. Tank shall be

installed in accordance with manufacturer’s recommendations.

Contractor shall furnish and fill the tank prior to installation with

limestone chips, as supplied by IPEX, to a level just below the

tank outlet. Water should be added to the tank prior to placement

of the limestone chips.equal to a flame spread 5 and smoke

development 35.

101

51-1/2 HDF005A 237183

5 2 HDF005B 237184

15 2HDF015A 237185

15 3HDF015B 237186

30 2HDF030A 237187

30 3HDF030B 237188

30 4HDF030C 237189

55 3HDF055A 237190

55 4HDF055B 237191

100 3HDF100A 237192

100 4HDF100B 237193

150 3HDF150A 237194

150 4HDF150B 237195

200 3HDF200A 237196

200 4HDF200B 237197

275 3HDF275A 237198

275 4HDF275B 237199

360 3HDF360A 237200

360 4HDF360B 237201

360 6HDF360C 237202

500 3HDF500A 237203

500 4HDF500B 237204

500 6HDF500C 237205

Gallons Inlet/Outlet

Inches

Significant

Number

Product

Code

Gallons Inlet/Outlet

Inches

Significant

Number

Product

Code

PRODUCT SELECTION CHART – NEUTRALIZATION TANKS

HDPE HD Bolted Flat Plain End

51-1/2 SP005A 237501

5 2 SP005B 237502

15 2SP015A 237503

15 3SP015B 237504

30 2SP030A 237505

30 3SP030B 237506

30 4SP030C 237507

55 3SP055A 237508

55 4SP055B 237509

100 3SP100A 237510

100 4SP100B 237511

150 3SP150A 237512

150 4SP150B 237513

200 3SP200A 237514

200 4SP200B 237515

275 3SP275A 237516

275 4SP275B 237517

360 3SP360A 237518

360 4SP360B 237519

360 6SP360C 237520

500 3SP500A 237521

500 4SP500B 237522

500 6SP500C 237526

HDPE Steel Pedestrian Plain End

51-1/2 T0005A 237211

5 2 T0005B 237212

15 2T0015B 237222

15 3T0015C 237223

30 2T0030B 237232

30 3T0030C 237233

30 4T0030D 237234

55 3T0055C 237243

55 4T0055D 237244

100 3T0100C 237252

100 4T0100D 237253

150 3T0150C 237281

150 4T0150D 237282

200 3T0200C 237411

200 4T0200D 237412

275 3T0275C 237130

275 4T0275D 237124

360 3T0360C 237125

360 4T0360D 237126

360 6T0360E 237497

500 3T0500C 237135

500 4T0500D 237136

500 6T0500E 237498

HDPE Standard Domed Plain End

Standard Domed & HD Flat covers are not suitable for pedestrian traffic. Always use steel pedestrian covers. Neutratanks are not rated for H20

live loading. In areas requiring H20 loading, position the tank below a Department of Transportation approved manhole cover.

Regular tanks and 700 to 2000 gallon cylindrical tanks are available on request.

NEUTRALIZATION TANKS

Inlet

Optional Vent

Outlet

102

NEUTRALIZATION TANKS

PRODUCT SELECTION CHART – NEUTRALIZATION TANKS

71-1/2 PPT005A 237059

7 2 PPT005B 237065

15 2PPT015A 237066

15 3PPT015B 237067

30 2PPT030A 237068

30 3PPT030B 237069

30 4PPT030C 237070

55 3PPT055A 237093

55 4PPT055B 237094

100 3PPT100A 237095

100 4PPT100B 237096

150 3PPT150A 237097

150 4PPT150B 237098

200 3PPT200A 237099

200 4PPT200B 237100

275 3PPT275A 237101

275 4PPT275B 237102

360 3PPT360A 237103

360 4PPT360B 237104

360 6PPT360C 237105

500 3PPT500A 237106

500 4PPT500B 237107

500 6PPT500C 237108

Polypro Standard Domed Plain End

71-1/2 PPSP005A 237524

7 2 PPSP005B 237525

15 2PPSP015A 237526

15 3PPSP015B 237527

30 2PPSP030A 237528

30 3PPSP030B 237529

30 4PPSP030C 237530

55 3PPSP055A 237531

55 4PPSP055B 237532

100 3PPSP100A 237533

100 4PPSP100B 237534

150 3PPSP150A 237535

150 4PPSP150B 237536

200 3PPSP200A 237537

200 4PPSP200B 237538

275 3PPSP275A 237539

275 4PPSP275B 237540

360 3PPSP360A 237541

360 4PPSP360B 237542

360 6PPSP360C 237543

500 3PPSP500A 237544

500 4PPSP500B 237545

500 6PPSP500C 237546

Polypro Steel Pedestrian Plain End

71-1/2 PPHDF005A 237206

7 2 PPHDF005B 237207

15 2PPHDF015A 237208

15 3PPHDF015B 237209

30 2PPHDF030A 237210

30 3PPHDF030B 237213

30 4PPHDF030C 237214

55 3PPHDF055A 237215

55 4PPHDF055B 237216

100 3PPHDF100A 237218

100 4PPHDF100B 237220

150 3PPHDF150A 237224

150 4PPHDF150B 237225

200 3PPHDF200A 237226

200 4PPHDF200B 237228

275 3PPHDF275A 237230

275 4PPHDF275B 237235

360 3PPHDF360A 237236

360 4PPHDF360B 237238

360 6PPHDF360C 237239

500 3PPHDF500A 237240

500 4PPHDF500B 237245

500 6PPHDF500C 237246

Polypro HD Bolted Flat Plain End

1-1/2" Plain End

MPT, FPT, Flanged 5 gal to 55 gal

2" Plain End

MPT, FPT, Flanged 5 gal to 150 gal

3" Plain End

MPT, FPT, Flanged 15 gal to 500 gal

3" Flanged 30 gal to 500 gal

4" Plain End

MPT, FPT, Flanged 30 gal to 2000 gal

6" Flanged 360 gal to 2000 gal

Inlet / Outlet Tank Size

Inlet / Outlet Tank Sizes & Connection Options

Standard Domed & HD Flat covers are not suitable for pedestrian traffic. Always use steel pedestrian covers. Neutratanks are not rated for H20

live loading. In areas requiring H20 loading, position the tank below a Department of Transportation approved manhole cover.

Regular tanks and 700 to 2000 gallon cylindrical tanks are available on request.

Gallons Inlet/Outlet

Inches

Significant

Number

Product

Code Gallons Inlet/Outlet

Inches

Significant

Number

Product

Code

103

Polypro Non-Adjustable extensions are available

upon request.

Gallons Ext Length

Inches

Significant

Number

Product

Code

PRODUCT SELECTION CHART – NEUTRALIZATION TANKS

5/7 6 to 36 ADEXT005 237454

15 6 to 36 ADEXT015 237455

30 6 to 36 ADEXT030 237456

55 6 to 36 ADEXT055 237457

100 6 to 36 ADEXT100 237458

150 6 to 36 ADEXT150 237459

200 6 to 36 ADEXT200 237460

275 6 to 36 ADEXT275 237461

360 6 to 36 ADEXT360 -

500 6 to 36 ADEXT500 -

Variable Extension (2"of Vertical Adjustment)

5/7 -FRPO005 237440

15 -FRPO015 237441

30 -FRPO030 237442

55 -FRPO055 237443

100 -FRPO100 237444

150 -FRPO150 237445

200 -FRPO200 237446

275 -FRPO275 237447

360 -FRPO360 237448

500 -FRPO500 237449

FRP Overwrap

Inlet/Outlet

Inches

Significant

Number

Product

Code

56 to 9 PEEXT005 237462

15 6 to 14 PEEXT015 237463

30 6 to 24 PEEXT030 237464

55 6 to 31 PEEXT055 237465

100 6 to 35 PEEXT100 237466

150 6 to 43 PEEXT150 237467

200 6 to 43 PEEXT200 237468

275 6 to 42 PEEXT275 237469

360 6 to 42 PEEXT360 237470

500 6 to 54 PEEXT500 237471

HDPE Non-Adjustable Extension

FRP Overwrap is for tanks without extensions

Please contact IPEX for FRP overwrap pricing

on tanks with non-adjustable extensions .

1-1/2 PEV150 237401

2PEV200 237402

3 PEV300 237403

4PEV400 237404

HDPE Plain End Vent

1-1/2 MPTC150 237421

2MPTC200 237422

3 MPTC300 237423

4MPTC400 237424

HDPE MPT Connection

1-1/2 PEPP150 237109

2PEPP200 237110

3 PEPP300 237113

4PEPP400 237114

PolyPro Plain End Vent

1-1/2 MPTPP150 237156

2MPTPP200 237157

3 MPTPP300 237158

4MPTPP400 237159

PolyPro MPT Connection

1-1/2 FPTC150 237431

2FPTC200 237432

3 FPTC300 237433

4FPTC400 237434

HDPE FPT Connection

1-1/2 FLC150 237121

2FLC200 237131

3 FLC300 237141

4FLC400 237142

6 FLC600 237500

HDPE Flange Connection

Standard Domed & HD Flat covers are not suitable for pedestrian traffic. Always use steel pedestrian covers. Neutratanks are not rated for H20

live loading. In areas requiring H20 loading, position the tank below a Department of Transportation approved manhole cover.

Regular tanks and 700 to 2000 gallon cylindrical tanks are available on request.

NEUTRALIZATION TANKS

104

Inlet/Outlet

Inches

Significant

Number

Product

Code

Inlet/Outlet

Inches

Significant

Number

Product

Code

NEUTRALIZATION TANKS

PRODUCT SELECTION CHART – NEUTRALIZATION TANKS

PolyPro FPT Connection

1-1/2 FPTPP150 237139

2FPTPP200 237140

3 FPTPP300 237148

4FPTPP400 237149

Diameter Inches Significant

Number

Product

Code

Neutralizing Agent Limestone Bags

50 lbs TC50 237321

PolyPro Flange Connection

1-1/2 FLPP150 237116

2FLPP200 237118

3 FLPP300 237120

4FLPP400 237138

Threaded Manway

8 TMW008 237450

16 TMW016 237451

22 TMW022 237452

Neutrasystem pH Monitoring & Recording System

pH Monitor w/ Tank & Alarm TPH501 237371

pH Monitor w/ Tank & Alarm & Chart TPH502 237331

pH Monitor w/ Alarm TPH503 237341

pH Monitor w/ Alarm & Chart TPH504 237351

NOTE: F.O.B.- Shipping Location

Limestone Loading Guide for Neutralization

Tank Size Loading

(lbs.)

550

15 125

30 250

55 500

100 1000

150 1500

200 2000

275 2500

360 3500

500 5250

700 8000

1000 10000

1250 12000

2000 18000

Solids Interceptor Tanks

12 x 24 x 24

(14 Gallons) SI14 -

18 x 24 x 24

(44 Gallons) SI44 -

24 x 24 x 30

(75 Gallons) SI75 -

Standard Domed & HD Flat covers are not suitable for pedestrian traffic. Always use steel pedestrian covers. Neutratanks are not rated for H20

live loading. In areas requiring H20 loading, position the tank below a Department of Transportation approved manhole cover.

Regular tanks and 700 to 2000 gallon cylindrical tanks are available on request.

NEUTRASYSTEM 2TM

PH MONITORING SYSTEM

Neutrasystem 2 ensures that discharges into the sewer are maintained within

acceptable pH parameters by neutralizing the acidic waste with limestone

chips. The system continuously samples the downstream flow while keeping

an accurate, permanent record of pH discharge levels. The monitoring device

will warn maintenance personnel, (visually and audibly), when pH discharges

outside acceptable parameters are sensed. Once alerted, maintenance

personnel can quickly and easily recharge the main IPEX Neutratank with

limestone chips through the access cover incorporated into the tank’s design.

The system incorporates the following features:

• UL 508 listed, NEMA 4X enclosure with hinged clear

front cover for easy reading and access.

• 110/120 VAC input power supply with GFI power

cord protection and 24V DC operating voltage __

provides stabilized operating current for panel

instrumentation and allows the use of low voltage

cable for quick, easy installation in the field.

• Control power circuit breaker, re-set protection (no

fuses).

• Continuous soft internal alarm horn, (sonalert type),

and alarm silencing button. The alarm horn is

activated when the probe senses a pH above or below

the set parameters, and will remain on until the

alarm silence button is pressed.

• 31-day strip chart and single pen recorder __

maintains a permanent record of pH levels.

• “Power On” yellow light indicates that incoming

110/120 VAC power and the 24V DC system are

functional.

• “pH Alarm” red light indicates when the measured

pH is outside acceptable parameters. The light will

remain illuminated until the fault is cleared and the

“System OK” green light is re-illuminated.

• “System OK” green light indicates that the system is

on-line and not in a default condition.

• 0-14 pH pH PHCN micro-processor based pH

controller with digital LED display.

• Series 6510 submersible, pH electrode with

chemically resistant CPVC body, viton O-rings and

twist-lock connection providing easy maintenance.

• 5-gallon high density polyethylene, one-piece

construction, rotationally molded sample tank.

PH MONITORING, RECORDING AND ALARM SYSTEM

DID YOU KNOW?

For detailed Operating, Maintenance

and Calibration Procedures for

Neutrasystem 2, please contact IPEX.

105

NEUTRASYSTEM 2 PH MONITORING SYSTEM

106

IPEX NEUTRASYSTEM 2 uses a CPVC submersible electrode (sensor) with

automatic temperature compensation. The sensor has a flat surface junction

to minimize fouling. The reference is sealed to minimize dryout and eliminate

refilling solution. The sensor is connected to a preamplifier by a 1/4 turn

quick disconnect. The preamplifier has an attached cable for connection to

the pH Controller in the NEUTRASYSTEM 2 panel. The cable has a BNC

connector for the sensor signal and 3 spade terminals for automatic

temperature compensation.

PH ELECTRODE

Storage

The pH electrode is shipped in a soaker bottle containing a

solution of pH 4 buffer and potassium chloride. The

electrode should remain in the bottle until it is ready to

use. If the electrode is used infrequently, the cap, bottle

and solution should be saved and the electrode stored in

it. Store the pH electrode in a pH 4 buffer solution if the

soaking solution is discarded. Do not use distilled or

deionized water as this will drastically reduce the electrode

lifespan. Remove the cap and o-ring on the soaker bottle

before use.

Maintenance

pH electrodes have a thin glass surface. Care should be

taken so that the glass does not become scratched or

broken. After exposure to a sample, buffer or rinse

solution, carryover can be minimized by blotting – never by

wiping – the electrode with a clean, non-abrasive paper or

a clean cloth towel. Do not use a brush on pH glass. As a

rinse solution, use a part of the next sample or buffer

which is to be measured. This action will also minimize

contamination from carryover.

Replacement

All pH electrodes age with time. Aging is characterized by

shortened span and slower speed of response. Electrodes

should be replaced when their readings cannot be

corrected by the meter's controls and/or when their speed

of response is too slow for the application for which they

are being used. The frequency of electrode replacement is

a function of the application; electrodes operating in hot

liquids at very high or very low pH values will have shorter

lives than those operating at neutral pH and ambient

temperature. Coatings on an electrode's surface prevent

new liquids from contacting an electrode's measuring

surface and can mimic the effects of electrode aging.

Before concluding that an electrode needs replacing,

check its surface for coatings.

Calibration

The frequency of calibration is solely the responsibility of

the user. At a new installation, calibration might be

checked every few hours or shift, with the calibration

changes noted in a log. As a pattern of longer stability is

found, the time between calibration checks can be

increased to once a day or once a week. Once a week is

the longest recommended interval between calibrations.

• The pH electrode and pH controller should always be

calibrated as a system.

• Only buffer solutions of 4, 7 and 10 are acceptable.

• Before placing the electrode in a new buffer, use an

absorbent paper towel or clean absorbent cloth to

blot – not wipe – off any liquid that clings to the

electrode. This action will minimize carryover that

could contaminate the buffer.

• Always use fresh buffers. Safely dispose of the

buffers after they have been used for calibration. Do

not return them to their bottles. This action could

contaminate the buffers.

• Stir the electrode in the buffer to make sure that the

fresh buffer quickly reaches the electrode’s

measuring surface.

• Allow time for the reading to stabilize. In general,

with new electrodes, stable readings in the buffer

solution are obtained in 10-15 seconds.

Cleaning

Coating of an electrode’s measuring surface can lead to

incorrect readings, including shortened span and slower

response times. The type of coating determines the type of

cleaning technique. When using chemicals or solvents,

care should be taken and appropriate eye, face, hand

and/or respiratory protection should be used.

Soft Coatings can be removed by vigorous stirring, by use

of a squirt bottle or, very carefully, by gently wiping with a

soft, clean non-abrasive paper or cloth. Do not use any

brush or abrasive cleaner on pH glass.

Hard Coatings should be chemically removed. The

chemical used to remove the coating should be the least

harsh chemical that dissolves the coating in one or two

minutes and does not attack the electrode’s material of

construction.

Oily or Organic Coatings are best removed with detergents

or an appropriate solvent that does not attack the

electrode’s material of construction.

IPEX offers two compressed air systems designed to meet the

requirements of a wide range of applications.

When you specify a high-performance piping systems from IPEX, you

get the added benefits of a complete piping solution that is engineered

for total integration, and backed by comprehensive, coast-to-coast

support – all from one reliable source.

COMPRESSED AIR

SYSTEMS

Duraplus Airline

Duratec Airline

108

114

APPLICATIONS

DID YOU KNOW?

108

DURAPLUS

AIR-LINE SYSTEM 1/2" - 8"

STANDARDS

Compressed air, a major source of industrial energy, is being used

increasingly in both the manufacturing and processing industries. There,

its distinct advantages of cleanliness, flexibility, safety and economy of

use (compared with other energy sources) are fully exploited.

Modern process equipment, pneumatic controls and instrumentation

demand a supply of clean, uncontaminated air and this has prompted the

development in recent years of more advanced designs of compressors and

ancillary equipment.

Duraplus Air-Line is manufactured from a specially formulated Acrylonitrile

Butadiene Styrene (ABS) blend that has a high performance co-extruded

liner which greatly enhances its mechanical and chemical properties.

Duraplus fittings are manufactured using an alloy blend of ABS and the

liner material, ensuring high performance of the whole system.

ADVANTAGES

Safety

The Butadiene component of Duraplus Air-Line

contributes resistance to accidental damage and prevents

material fracture should the pipe be subjected to severe

impact. Duraplus has been designed and tested to

withstand impact for a large range of temperatures and

has a design life of 30 years with a factor of safety of 2:1.

Wide Range of Applications

The advanced liner and ABS material combination

protects against stray chemicals which may sometimes

cause problems for ordinary systems. Duraplus Air-Line

is now compatible with even more compressor lubricants.

Low Installation Costs

Duraplus Air-Line pipe reduces costs on a typical

installation not only for materials but also for labor

and transportation costs when compared to traditional

materials. The reason? Its lightweight construction and

simple assembly procedures. Like all thermoplastics,

Duraplus is easily handled, stored,cut, joined and

installed. As a result, project costs for installed Duraplus

systems are significantly lower. Requirements for heavy

installation equipment are also eliminated.

Clean

Duraplus products are packaged to protect the surface

finish of the pipe and fittings and to prevent

contamination before use. The smooth liner of Duraplus

Air-Line cannot rust, corrode or form loose scale, ensuring

air remains clean throughout the life of the system.

Smooth Interior

Less friction means lower pressure drops and higher flow

rates allowing for smaller pipe diameters to be used in

some cases.

Ease of Use

Duraplus Air-Line is one sixth the weight of steel and can

be joined by solvent welding for easy on-site modifications

and repairs without requiring special training or equipment.

Leak Free System

Correctly made solvent welded joints are leak free and

can greatly reduce running costs.

Metric Sized & Color Coded

Duraplus Air-Line is metric sized to prevent mixing with

I.P.S. sized PVC and CPVC pipe. Also the Duraplus Airline

is color coded blue to comply with the ISO standards for

compressed air products.

Proven

From manufacturing to the marketplace, Durplus Air-Line

is supported by the technical experience gained through

over 30 years of thermoplastic pressure piping production.

Both raw material and finished Air-Line products are

subjected to rigorous tests, including aging, weathering

and stressed environmental tests, to ensure complete

system integrity over the

designed

operating life.

•Plant air •Ventilation

•Valve actuation

ASTM D2282

DURAPLUS AIR-LINE SYSTEM

109

SHORT FORM SPECIFICATIONS

GENERAL

Duraplus ABS Air-Line is designed for industrial

compressed air pipe applications where the extremely

high-impact resistance and ductility of the material

offers some insurance against internal and external

shock loadings and site abuse conditions. Its unique

combination of ABS properties –non-toxicity, purity,

corrosion- and chemical-resistance, toughness, low-

hydraulic resistance, and the ability to perform over a

wide temperature range 40°F – 120°F (4°C – 49°C),

ensures excellent in-service performance and system life.

MATERIAL SPECIFICATIONS

Pipe shall be manufactured from an Acrylonitrile

Butadiene Styrene (ABS) blend, with a co-extruded liner.

Fitting shall be manufactured from an ABS blend.

Material for both pipe and fittings shall be designed with

a 2 to 1 safety factor for a 30 year lifespan when operated

under continuous pressure. Pipe and fittings are capable

of withstanding a continuous working pressure of 185 psi

at 73°F (1275 kPa at 23°C) in accordance with ASTM

D2282 and carry a DIN 4102-B2 fire rating.

The material shall have an izod impact resistance value

of no less than 8.5 ft.lb/in at 73°F when tested in

accordance with ASTM D256, method 'A'. Pipe bore

contains a co-extruded liner and fittings are manufactured

using an alloy blend of ABS and the liner material.

PIPE

Pipes shall be manufactured by IPEX and designed in

metric sizes that comply with the dimensional

requirements of DIN 8062,

and ISO 161/1.

FITTINGS

Fittings shall be of the socket type, designed for solvent

welding as supplied by IPEX.

Fittings shall be designed and manufactured to withstand

the continuous pressures applicable to the maximum

pressure rating of the pipe. The sockets and fittings shall

have a 0°30 taper, the diameter decreasing from the

mouth to the root.

BALL VALVES – VKD

The valve body, stem, ball and unions shall be made of

Duraplus®ABS compound which shall meet or exceed the

requirements of cell classification 43234 according to

ASTM D3965.

Ball valves shall be double-blocking type with 0-ring

cushions under the PTFE seats, in-line micro adjustment

capability and incorporate a spanner wrench in the handle.

BUTTERFLY VALVES – FK

The valve body shall be made of glass reinforced

polypropylene (GRPP) obtained from homopolymer

polypropylene (PPH).

The valve disc shall be made of ABS compound.

All butterfly valves shall have non wetted stainless steel

shafts and a wafer or lug design with ANSI 150 flange

connections. The liner shall completely isolate the valve

body from the process flow and act as a flange gasket on

both sides of the valve.

SOLVENT CEMENT

All joints shall be made with Blue Duraplus Air-Line ABS

solvent cement as supplied by IPEX. The solvent cement

shall be designed to withstand continuous applied

pressures up to 185 psi at 73°F.

DESIGN AND INSTALLATION

The design and installation of ABS

pressure systems shall be performed in

accordance with the recommendations

detailed in the Handling and

Installation section of this manual

and in local and national

regulations where applicable. To

ensure the full integrity of the

completed system, all

components shall be supplied

by IPEX.

DID YOU KNOW?

Duraplus Air-Line is corrosion-resistant and features metal-to-ABS special adapter fittings, single and multi-port

wall brackets, high-efficiency dropper bends and blue color-coding for easy identification.

DURAPLUS AIR-LINE SYSTEM

110

Note: * 1/2" and 3/4" pipe clips are supplied

without retaining

Dimension Significant

Number

Product

Code

inches mm

Dimension Significant

Number

Product

Code

inches mm

1/2 20 553306 446000

3/4 25 553307 446001

1 32 553308 446002

1-1/2 50 553310 446003

2 63 553311 446004

390 553313 446005

4 110 553314 446006

6 – 512112 346012

8 – 511113 346010

Pipe

PRODUCT SELECTION CHART – DURAPLUS AIRLINE

1/2 20 115306 437111

3/4 25 115307 437112

1 32 115308 437113

1-1/2 50 115310 437114

2 63 115311 437115

390 115313 437117

4 110 115314 437118

6 – 115112 337141

8 – 115113 337142

90º Elbow Soc

1/2 20 119306 437128

3/4 25 119307 437129

1 32 119308 437130

1-1/2 50 119310 437131

2 63 119311 437132

390 119313 437134

4 110 119314 437135

6 – 119112 337165

8 – 119113 337166

45º Elbow Soc

3/4 25 118307 437120

132 118308 437121

1-1/2 50 118310 437122

263 118311 437123

3 90 118313 437125

4110 118314 437126

90º Bend Soc

1/2 1/2 149306 437192

3/4 3/4 149307 437193

1 1 149308 437194

1-1/2 1-1/2 149310 437195

2 2 149311 437196

3 3 149313 437198

4 4 149314 337001

Cap Soc

1/2 20 100306 437026

3/4 25 100307 437027

1 32 100308 437028

1-1/2 50 100310 437029

2 63 100311 437030

390 100313 437032

4 110 100314 437033

6 – 100112 337030

8 – 100113 337031

Coupling Soc

1/2 20 434306 437341

3/4 25 434307 437342

1 32 434308 437343

1-1/2 50 434310 437345

2 63 434311 437346

390 434313 437348

4 110 434314 437349

Cobra Pipe Clip

1/2 20 312306 437259

3/4 25 312307 437260

1 32 312308 437261

Dropper Bend Sp

20-110mm pipe in 19 ft. lengths.

6" & 8" pipe in 20 ft. lengths

Priced per foot

1/2 x 20 345102 337371

3/4 x 25 345103 337372

1 x 32 345104 337373

1-1/2 x 50 345106 337374

2 x 63 345107 337375

3 x 90 345109 337376

4 x 110 345110 337377

Imperial/Metric Socket Adapter Soc x Soc

Certain compressor and lubricant oils will damage your Duraplus Air-Line installation.

Before using any oils in the system contact IPEX to obtain a list of recommended oils or to confirm individual oil suitability.

DURAPLUS AIR-LINE SYSTEM

111

1/2 20 122306 437151

3/4 25 122307 437152

1 32 122308 437153

1-1/2 50 122310 437154

2 63 122311 437155

390 122313 437157

4 110 122314 437158

6 – 122112 337179

8 – 122113 337180

Tee – Equal Soc

PRODUCT SELECTION CHART – DURAPLUS AIRLINE

1 32 135308 437181

1-1/2 50 135310 437182

2 63 135311 437183

390 135313 437185

4 110 135314 437186

6 – 135112 337238

8 – 135113 337239

Flange Stub Soc

1/2 32 411308 437325

1-1/2 50 411310 437326

2 63 411311 437327

390 411313 437329

4 110 411314 437330

6 – 431112 337451

8 – 431113 337452

Gasket Soc (flat neoprene)

1 32 416308 437331

1-1/2 50 425106 337430

2 63 425107 337431

390 425109 337433

4 110 425110 337434

6 – 425112 337435

8 – 425113 337436

Backing Ring (Galv. M.S.)

3 90 325109 337364

4110 325110 337365

6 – 325112 337366

8 – 325113 337367

Flange - Blind (gray ABS)

1 x 3/4 x 1/2 32 x 25 x 20 114415 437103

1-1/2 x 1-1/4 x 1 50 x 40 x 32 114423 437105

3 x 2-1/2 x 2 90 x 75 x 63 114438 437108

8 x 6 –114152 337129

Reducer Coupling Sp/ Soc x Soc

1/2 20 205306 437234

3/4 25 205307 437235

1 32 205308 437236

1-1/2 50 205310 437237

2 63 205311 437238

Socket Union

3/4 x 1/2 25 x 20 124415 437161

1 x 1/2 32 x 20 124418 437163

1 x 3/4 32 x 25 124419 437164

1-1/2 x 1/2 50 x 20 124424 437166

1-1/2 x 3/4 50 x 25 124425 437167

1-1/2 x 1 50 x 32 124426 437168

2 x 3/4 63 x 25 124429 437169

2 x 1 63 x 32 124430 437170

2 x 1-1/2 63 x 50 124432 437171

Tee – Reducer Soc

3/4 x 1/2 25 x 20 109415 437051

1 x 3/4 32 x 25 109419 437053

1-1/2 x 1/2 50 x 20 109424 437055

1-1/2 x 3/4 50 x 25 109425 437056

1-1/2 x 1 50 x 32 109426 437057

2 x 3/4 63 x 25 109429 437059

2 x 1 63 x 32 109430 437060

2 x 1-1/2 63 x 50 109432 437061

3 x 1-1/2 90 x 50 109442 437062

3 x 2 90 x 63 109443 437063

4 x 2 110 x 63 109449 437065

4 x 3 110 x 90 109451 437066

8 x 6 – 109152 337066

Reducer Bushing Soc

Note: A metal backing ring must be used with

this flange.

Note: For use with flanges

Note: A backing ring must be used with this

flange.

Certain compressor and lubricant oils will damage your Duraplus Air-Line installation.

Before using any oils in the system contact IPEX to obtain a list of recommended oils or to confirm individual oil suitability

DURAPLUS AIR-LINE SYSTEM

Dimension Significant

Number

Product

Code

inches mm

Dimension Significant

Number

Product

Code

inches mm

Dimension Significant

Number

Product

Code

inches mm

112

Inlet – 3/4" male thread.

Outlet – 1/2" female

1/2 x 1/2 20 x 1/2 101306 437034

3/4 x 3/4 25 x 3/4 101307 437035

1 x 1 32 x 1 101308 437036

Female Adapter Soc x Female Thread

PRODUCT SELECTION CHART – DURAPLUS AIRLINE

1/2 x 1/2 20 x 1/2 217306 437247

3/4 x 3/4 25 x 3/4 217307 437248

1 x 1 32 x 1 217308 437249

1-1/2 x 1-1/2 50 x 1-1/2 217310 437250

2 x 2 63 x 2 217311 437251

Composite Union Soc x MPT (Air-line to Brass)

1/2 x 1/2 20 x 1/2 422327 437335

3/4 x 1/2 25 x 1/2 422328 437336

3/4 x 3/4 25 x 3/4 422329 437337

Wall Bracket Soc x Female Thread (Brass body)

3/4 x 1/2 – 429122 437338

Wall Bracket Multiport

1-1/2 x 1-1/2 50 x 1-1/2 153341 437231

2 x 2 63 x 2 153343 437232

Female Adapter Sp x Female Thread

1/2 – 155102 337264

3/4 –155103 337265

Plug Male Thread

*Valves are supplied in Grey ABS

2 – 680107 337651

3 – 680109 337652

4 – 680110 337653

6 – 680112 337654

8 – 680113 337665

Butterfly Valve - FK Manual, EPDM Seals - Glass filled PP Body

Quantity Significant

Number

Product

Code

* 1/2 20 882306 437451

* 3/4 25 882307 437452

* 1 32 882308 437453

* 1-1/2 50 882310 437454

* 2 63 882311 437455

True Union Ball Valve Soc 230psi at 73ºF EPDM Seals

1/2 20 882312 437446

3/4 25 882313 437447

1 32 882314 437448

1-1/2 50 882315 437449

2 63 882316 437450

End Connectors

1 pint 461390 437354

1 quart 461391 437355

Air-Line Solvent Cement

1 pint 461397 337468

1 quart 461398 337469

MEK Cleaner

Joints

An indication of the number of joints likely to be made per quart of

Duraplus®cement is as follows (it is recommended that MEK cleaner

orders equals one-half the quantity of solvent cement required).

Pipe Size Number of Joints

inches mm

3/8 - 1 20 - 32 290

1-1/4 - 2 50 - 63 144

375 - 90 48

4110 32

6 - 16

8 - 10

Certain compressor and lubricant oils will damage your Duraplus Air-Line installation.

Before using any oils in the system contact IPEX to obtain a list of recommended oils or to confirm individual oil suitability.

DURAPLUS AIR-LINE SYSTEM

Dimension Significant

Number

Product

Code

inches mm

Dimension Significant

Number

Product

Code

inches mm

Compressed Air

When your plant’s compressed air system leaks, more

than just air is getting out. You’re losing money in

the form of wasted energy, wear and tear

on your compressors and increased

operating and maintenance

costs. Duratec®Airline, a

unique time and money-

saving piping system, is

designed to reduce leaks and

costs.

A tough piping system that meets

ASME codes and OSHA safety

requirements, Duratec Airline requires less

time, labor and money to install and maintain than

traditional systems. Its long, lightweight coils cut down on

the number of potential leak points in your system.

Duratec fittings are quick and easy to install

and feature double O-ring seals that

ensure maximum joint integrity.

Duratec requires no special tools or

installation training and eliminates

the need for soldering and

threading. And because Duratec is

so quickly and easily installed,

modified, and adapted to existing metal

systems, it can reduce your plant’s

downtime. So stop your compressed air system’s

problems before they become big news — Install Duratec.

Call 1-800-463-9572 or visit www.ipexamerica.com

Products are manufactured by IPEX Inc.

Duratec®is a trademark of IPEX Branding Inc.

We build tough products for tough environments®

Your Compressed Air System for the 21st Century

Compressed Air Systems

COMPRESSED AIR SYSTEMS

APPLICATIONS

114

STANDARDS

CSA B51, B137.9 ASTM F1974

ASME B31.3, B31.9 FDA Compliant

NSI / ASTM F1282

National CRN OA02020.2C

Certified to OSHA Safety Regulations

DURATEC AIRLINE

SYSTEMS 3/8" - 1"

Duratec is an innovative compressed air and inert gas distribution

system designed to be absolutely leak-proof, installed quickly and

easily, and maintained cost-effectively. As a result, Duratec saves you

time and money.

Traditional metallic compressed air systems are a main cause of

unnecessary energy use, excessive wear and tear on compressors and

high consumption of compressor oils and filters. The culprits? Corrosion

and leakage at pipe joints and fitting connections which often go

undetected until they’re discovered during a detailed compressed air

system audit.

Duratec pipe comes in long 100 foot or 300 foot coils, which significantly

reduces the number of joints in your system. Duratec fittings feature

unique double o-ring seals to ensure long-term joint integrity. And the

entire Duratec system can be easily and quickly installed, modified or

expanded without the need for specialized equipment.

DID YOU KNOW?

To make designing, sizing and installing

a Duratec compressed air system easy,

IPEX offers comprehensive reference

tools, such as our Duratec Technical

Manual. To download this manual visit

our website at www.ipexamerica.com.

QUICK INSTALLATION

1234

Cutting and joining Duratec is fast and simple.

1. Cut pipe square using plastic pipe cutter.

2. Slide nut and split ring over pipe and bevel the inside of the pipe by inserting then

rotating the beveling tool.

3. Push the fitting into the pipe.

4. Turn the nut finger tight plus one full turn with a wrench.

HDPE

Aluminum

HDPE

•Plant air •Inert gas distribution

•Manufacturing hand tool operation

•Manual and automated welding operations

•Semi-conductor tool hook up

•Valve actuation – control systems

•Microbulk inert gas delivery systems

•Robotic installations

115

COMPRESSED AIR SYSTEMS

•Plant chemical distribution lines

•Water and wastewater

ADVANTAGES

Low Installation Costs

Duratec reduces costs on a typical installation not only

for materials but also for labour and transportation costs

when compared to traditional materials. How? Duratec’s

lightweight construction and simple assembly

procedures.

Ease of Handling

Duratec is 75% lighter than the equivalent diameter

of copper and SCH 40 carbon steel.

Quick Removable Connections

Threading is not required. All joints have double o-ring

seals and can be quickly assembled or disassembled.

Easy on-site modifications and repairs can be made.

Quick Installation

No special training or equipment is required to

complete a Duratec system.

Clean

All Duratec pipe is packaged in cardboard boxes

preventing contamination before use. The smooth HDPE

inner layer cannot rust, corrode or form loose scale. Clean

air remains clean throughout the life of the system.

Flexible Yet Rigid

Due to its composite structure, Duratec pipe can be

easily bent by hand and will maintain its desired shape.

This unique feature allows for straight, professional

looking installation and eliminates sagging.

Lower Operating Costs

Due to Duratec’s advantages over metal systems, it

costs you less time, labour and money to keep a

Duratec system in optimal condition.

Pressure loss means money loss

Metal systems can lose pressure due to pin-hole leaks

and leakage at connections, all of which result

in increased energy costs. Duratec’s high-quality

construction, on the other hand, guarantees consistent

pressure for years to come.

Smooth Interior

Less friction means lower pressure drops and higher flow

rates. This may allow for smaller pipe sizes to be used.

Extended Life

Duratec is designed not to rust, scale or pit. Once

properly selected for the application and correctly

installed, Duratec Airline Systems will provide years

of maintenance-free service.

Corrosion Resistant

Duratec’s tough outer HDPE layer protects it against

corrosion and deterioration and ensures long service life

even in the most aggressive manufacturing

environments. Its inner HDPE layer is unaffected by

inert gases and commonly-used compressor oils.

Combined with its industrial nickel-plated Duratec

fittings, the system provides long-term performance

superior to metal piping systems.

Fewer Fittings

Duratec pipe comes in convenient 100 ft. and 300 ft.

coils eliminating several joints and the need for

threading, or soldering.

Safe

Duratec’s unique composite construction means that

accidental impact or puncture of the pipe results in a

safe, ductile mode of failure. Duratec pipe has been

third-party tested and certified to stringent OSHA safety

requirements for compressed air systems, standards that

guarantee safety comes first.

Performance

IPEX engineered Duratec pipe and fittings to provide

top-notch performance. Rated for long term continuous

operating pressures of 200psi at 73ºF and 160psi at

140ºF, Duratec pipe and fitting assemblies are also

capable of sustaining quick burst pressures in excess of

800psi. This built-in safety factor ensures system

performance and provides peace of mind for designers

and facility managers.

SHORT FORM SPECIFICATIONS

All compressed air and inert gas pipe in sizes 1" and

smaller shall be PE-AL-PE composite pipe made with

high density polyethylene and aluminum conforming to

ASTM F1282 and CSA B137.9. PE-AL-PE pipe shall

meet the health and safety requirements of OSHA.

All compressed air and inert gas fittings in sizes 1" and

smaller shall be nickel plated brass or 316 stainless

steel and shall conform to the dimensional and physical

requirements of ASTM F1974 and CSA B137.9.

All pipe, fittings and accessories shall be Duratec

Air-Line as manufactured by IPEX.

COMPRESSED AIR SYSTEMS

116

Dimension

inches

Product

Code

Coil Length

feet

Dimension

inches

Product

Code

Dimension

inches

Product

Code

3/8 D1 x 1/4 MPT 438081

3/8 D1 x 3/8 MPT 438000

3/8 D1 x 1/2 MPT 438001

1/2 D1 x 1/2 MPT 438002

3/4 D1 x 3/4 MPT 438003

1 D1 x 1 MPT 438004

Duratec x Male Thread Adapter

PRODUCT SELECTION CHART – DURATEC AIRLINE

1/2 x 1/2 x 3/8 438034

3/4 x 1/2 x 1/2 438013

3/4 x 3/4 x 1/2 438014

3/4 x 1/2 x 3/4 438015

1 x 1 x 1/2 438016

1 x 3/4 x 3/4 438017

1 x 1 x 3/4 438018

A x B x C

Duratec x Duratec x Duratec Reducing Tee

1/2 D1 x 1/2 FPT 438009

Duratec x Female Thread Wing Back (or Drop-Ear) 90º Elbow

3/8 D1 x 1/4 MPT 438041

3/8 D1 x 3/8 MPT 438042

1/2 D1 x 1/2 MPT 438043

3/4 D1 x 3/4 MPT 438044

1 D1 x 1 MPT 438045

Duratec Airline x Tubing Adapter

3/8 D1 x 1/2 FPT 438005

1/2 D1 x 1/2 FPT 438006

3/4 D1 x 3/4 FPT 438007

1 D1 x 1 FPT 438008

Duratec x Female Thread Adapter

3/8 438033

1/2 438010

3/4 438011

1438012

Duratec x Duratec x Duratec Tee

3/8 D1 x 3/8 D1 438079

1/2 D1 x 1/2 D1 438080

3/4 D1 x 3/4 D1 438067

1 D1 x 1 D1 438068

Duratec x Duratec 90° Elbow

3/8 D1 x 3/8 MPT SS 438029

1/2 D1 x 1/2 MPT SS 438030

3/4 D1 x 3/4 MPT SS 438031

1 D1 x 1 MPT SS 438032

Duratec x Male Thread Adapter Stainless SteelHDPE-AL-HDPE 200 psi @ 73ºF, 160 psi @ 2140º F, ASTM F1282

3/4 x 1/2 437338

Inlet - 3/4 MPT

Outlet - 1/2 FPT

Wall Bracket Multiport

3/8 446024 100

3/8 446025 300

1/2 446026 100

1/2 446027 300

3/4 446030 100

3/4 446031 300

1446032 100

1446033 300

COMPRESSED AIR SYSTEMS

117

Dimension

inches

Product

Code

Dimension

inches

Product

Code

1/2 D1 x 1/2 D1 x 1/2 FPT 438019

3/4 D1 x 3/4 D1 x 1/2 FPT 438078

Duratec x Duratec x Female Thread Tee

PRODUCT SELECTION CHART – DURATEC AIRLINE

1/2", 3/4", 1"

Bending Tool Kit 438057

Composite Pipe Bending Tool Kit up to 1"

4" Heatshrink Sleeve

for 3/4", 1" Fittings 438061

4" Heatshrink Sleeve

for 1/2", 3/8" Fittings 438062

Protective Heat Shrink Sleeve

3/8 438037

1/2 438038

3/4 438039

1438040

Duratec Airline Ball Valve

3/8 438053

1/2 438054

3/4 438055

1438056

Duratec Airline Replacement O-Ring

1/2 438058

3/4 438059

1 438060

Composite Pipe Bending Spring

3/8 438063

1/2 438064

3/4 438065

1438066

Duratec Pipe Clip

3/8 Split Ring D1 438046

1/2 Split Ring D1 438047

3/4 Split Ring D1 438048

1 Split Ring D1 438049

Replacement Split Ring

3/8" to 1" Pipe Cutter 438051

Plastic Pipe Cutter

- 438052

Plastic Pipe Cutter Replacement SS Blade

1/2 x 3/8 438035

3/4 x 1/2 438024

1 x 3/4 438025

Duratec Reducing Coupling

3/8 438020

1/2 438021

3/4 438022

1438023

Duratec Coupling

3/8 438036

1/2 438026

3/4 438027

1438028

Duratec x Cap

3/8" to 1" Beveling Tool 438050

5-in-1 Bevelling Tool

Our Strength:

An all-star line-up of thermoplastic pipe, valves and fittings, designed and

built to work together in any process piping application.

The IPEX Advantage:

Only IPEX offers a complete system of pipe, valves and fittings

engineered and manufactured to IPEX’s strict quality, performance and

dimensional standards. With Xirtec®140 (industrial grade PVC) and

Corzan®(CPVC), you can be confident that all the material you need is

designed, manufactured and backed by the same company.

Join the IPEX Winning Tradition

Industrial Systems

Corzan®is a registered trademark of Lubrizol Corp.

Tough Products for Tough Environments®

www.ipexamerica.com Toll Free: 1-800-463-9572

Ball Valves

Butterfly Valves

Diaphragm Valves

Check and Vent Valves

Specialty Valves

Quarter Turn Automation

IPEX offers one of the most comprehensive ranges of high quality, high

performance thermoplastic valves and actuation products available

today. With more than 65 years of design and manufacturing

experience, our lightweight, long life, maintenance free valves will save

you time and money. Our high-tech automated manufacturing and

testing facility ensures unparalleled reliability for each and every valve.

THERMOPLASTIC

VALVES

122

131

134

146

149

154

•Industrial Processes •Irrigation

•Chemical Production •Aquatic Life

•Water Treatment •Pool and Spa

•General Plumbing

•Water and Waste

THERMOPLASTIC VALVES

120

APPLICATIONS

THERMOPLASTIC

VALVES

IPEX offers one of the most comprehensive ranges of high quality, high

performance thermoplastic valves and actuation products available

today. With more than 50 years of design and manufacturing

experience, our lightweight, long life, maintenance free valves will save

you time and money.

Material options such as PVC, CPVC, PP, PVDF, and ABS make our

corrosion resistant valves ideal for use in a wide variety of applications.

Quarter turn pneumatic and electric actuation, pneumatically actuated

diaphragm valves, and many options and accessories allow for fully

automated control. Whether a valve is required for isolation, diversion,

control, or throttling, IPEX has a solution to meet your needs.

Manual & Actuated Thermoplastic Valves

121

BALL VALVES

Ball

Valves

Butterfly

Valves

Diaphragm

Valves

Check & Vent

Valves

Specialty

Valves

On/Off Service ✓✓

High Capacity ✓✓

Throttling ✓✓✓

Quick & Frequent Cycling ✓✓

Slurries/Dirty Fluids ✓✓

Filtering ✓

Back Flow Prevention ✓

Air & Gas Release ✓

Electro-Mechanical Control ✓

Actuation ✓✓✓

WHAT TYPE OF VALVE TO USE

122

BALL VALVES

VKD SERIES BALL VALVES – TRUE UNION

The next generation industrial valve features the patented Dual

Block®system which allows locking of the union nuts in a

preset position, assuring seal integrity under severe service

conditions. A patented seat stop carrier, high quality stem and

ball support system, integral mounting flange and bracketing,

and a multifunctional locking handle (standard on sizes 2-1/2"

to 4") set this valve apart from the rest. The VKD is available in

PVC, CPVC, PP, and ABS with PTFE seats and either EPDM or

FPM seals.

Pressure: up to 232 psi at 73°F depending on the material

Sizes: 3/8" – 4"

PVC, w/ PTFE Seats

End

Conn.

Size

inches

Significant

Number

EPDM

Product

Code

Significant

Number

FPM

Product

Code

S/T 3/8 VKDBV102 253067 VKDBV202 253068

S/T 1/2 VKDBV103 053461 VKDBV203 053467

S/T 3/4 VKDBV104 053462 VKDBV204 053468

S/T 1VKDBV105 053463 VKDBV205 053469

S/T 1-1/4 VKDBV106 053464 VKDBV206 053470

S/T 1-1/2 VKDBV107 053465 VKDBV207 053471

S/T 2VKDBV108 053466 VKDBV208 053472

Socket 2-1/2 VKDAV109 053539 VKDAV209 053542

Socket 3 VKDAV110 053540 VKDAV210 053543

Socket 4 VKDAV111 053541 VKDAV211 053544

Corzan®CPVC, w/ PTFE Seats

S/T 3/8 VKDBC102 253069 VKDBC202 253070

S/T 1/2 VKDBC103 053473 VKDBC203 253008

S/T 3/4 VKDBC104 053474 VKDBC204 253009

S/T 1VKDBC105 053475 VKDBC205 253010

S/T 1-1/4 VKDBC106 053476 VKDBC206 253011

S/T 1-1/2 VKDBC107 053477 VKDBC207 253012

S/T 2VKDBC108 053478 VKDBC208 253013

Socket 2-1/2 VKDAC109 053545 VKDAC209 053548

Socket 3 VKDAC110 053546 VKDAC210 053549

Socket 4 VKDAC111 053547 VKDAC211 053550

PP, w/ PTFE Seats

Threaded 1/2 VKDFM103 053525 VKDFM203 253002

Threaded 3/4 VKDFM104 053526 VKDFM204 253003

Threaded 1VKDFM105 053527 VKDFM205 253004

Threaded 1-1/4 VKDFM106 053528 VKDFM206 253005

Threaded 1-1/2 VKDFM107 053529 VKDFM207 253006

Threaded 2VKDFM108 053530 VKDFM208 253007

PP, w/ PTFE Seats

Socket 20mm VKDIM103 053513 VKDIM203 053519

Socket 25mm VKDIM104 053514 VKDIM204 053520

Socket 32mm VKDIM105 053515 VKDIM205 053521

Socket 40mm VKDIM106 053516 VKDIM206 053522

Socket 50mm VKDIM107 053517 VKDIM207 053523

Socket 63mm VKDIM108 053518 VKDIM208 053524

123

BALL VALVES

TKD SERIES 3-WAY BALL VALVES – TRUE UNION

The TKD offers a host of advanced features that set it apart

from other multi-port valves. The patented seat stop carrier

allows for in-line micro-adjustment of the ball seating, and

features o-ring cushioning to minimize wear and prevent

seizing. Integral mounting flange and bracketing allows for

direct actuation and simple support, while a locking handle

can prevent improper positioning. The TKD is available in PVC

& CPVC with PTFE seats and either EPDM or FPM seals. Other

materials are available upon request.

Pressure: 232 psi at 73°F

Sizes: 1/2" – 2"

PVC, w/ PTFE Seats, L-Port

S/T 1/2 TKDLBV103 253844 TKDLBV203 253856

S/T 3/4 TKDLBV104 253845 TKDLBV204 253857

S/T 1TKDLBV105 253846 TKDLBV205 253858

S/T 1-1/4 TKDLBV106 253847 TKDLBV206 253859

S/T 1-1/2 TKDLBV107 253848 TKDLBV207 253860

S/T 2TKDLBV108 253849 TKDLBV208 253861

PVC, w/ PTFE Seats, T-Port

S/T 1/2 TKDTBV103 253850 TKDTBV203 253862

S/T 3/4 TKDTBV104 253851 TKDTBV204 253863

S/T 1TKDTBV105 253852 TKDTBV205 253864

S/T 1-1/4 TKDTBV106 253853 TKDTBV206 253865

S/T 1-1/2 TKDTBV107 253854 TKDTBV207 253866

S/T 2TKDTBV108 253855 TKDTBV208 253867

CPVC, w/ PTFE Seats, L-Port

S/T 1/2 TKDLBC103 253893 TKDLBC203 253905

S/T 3/4 TKDLBC104 253894 TKDLBC204 253922

S/T 1TKDLBC105 253895 TKDLBC205 253906

S/T 1-1/4 TKDLBC106 253896 TKDLBC206 253923

S/T 1-1/2 TKDLBC107 253897 TKDLBC207 253924

S/T 2TKDLBC108 253898 TKDLBC208 253925

CPVC, w/ PTFE Seats, T-Port

S/T 1/2 TKDTBC103 253899 TKDTBC203 253907

S/T 3/4 TKDTBC104 253900 TKDTBC204 253908

S/T 1TKDTBC105 253901 TKDTBC205 253909

S/T 1-1/4 TKDTBC106 253902 TKDTBC206 253910

S/T 1-1/2 TKDTBC107 253903 TKDTBC207 253911

S/T 2TKDTBC108 253904 TKDTBC208 253912

Ball valves are generally used for on/off service, but can range

from simple molded-in-place construction to high-end industrial

designs with many features and benefits. Multi-port ball valves

allow for mixing, diverting, and bypassing flow. Extensive material

options provide for complete chemical compatibility in highly

corrosive processes. Many ball valves feature full port flow,

blocking true union ends, and compact ergonomic designs

allowing for simple installation and maintenance.

End

Conn.

Size

inches

Significant

Number

EPDM

Product

Code

Significant

Number

FPM

Product

Code

BALL VALVES

124

Size

inches

Significant

Number

Product

Code

VKD AND TKD BALL VALVE ACCESSORIES

Size

inches

Significant

Number

Product

Code

3/8 & 1/2 2KTSHKDEF 253014

3/4 & 1 2KTSHKDGH 253015

1-1/4 & 1-1/2 2KTSHKDIJ 253016

22KTSHKDLL 253017

Locking Handle Kit - VKD & TKD

Note: The locking attachment fits on the standard handle

3/8 thru 1 2KTPMKD01 154322

1-1/4 thru 2 2KTPMKD02 154323

Wall / Panel Mounting Kit - VKD only

Note: The kit includes the mounting plate, 2 brass inserts and 2

screws

Size

inches

Dimensions Significant

Number

Product

Code

AB (min)

3/8 & 1/2 25mm 2" 2KTPSKDEF 154062

3/4 25mm 2" 2KTPSKDGG 154063

1 25mm 2" 2KTPSKDHH 154064

1-1/4 32mm 2" 2KTPSKDII 154065

1-1/2 32mm 2" 2KTPSKDJJ 154066

232mm 2" 2KTPSKDLL 154067

Stem Extension Kit - VKD & TKD

Note: The kit includes top and bottom PVC components, as well as

a 6" length of extension pipe that must be solvent welded together

to achieve the desired extension length. The minimum length to

which the extension pipe can be cut is shown in the adjacent

table. For longer extensions, contact IPEX Customer Service.

Size

inches

Significant

Number

PVC Kit

Product

Code

Significant

Number

CPVC Kit

Product

Code

3/8 & 1/2 2BFFF1FV 154324 2BFFF1FC 154330

3/4 2BFFF1GV 154325 2BFFF1GC 154331

1 2BFFF1HV 154326 2BFFF1HC 154332

1-1/4 2BFFF1IV 154327 2BFFF1IC 154333

1-1/2 2BFFF1JV 154328 2BFFF1JC 154334

22BFFF1LV 154329 2BFFF1LC 154335

ANSI 150 Flanging Kit - VKD & TKD

PVC Kit includes: 1 PVC Flange & Nut, 1 PVDF locking ring

and 1 True union nut.

CPVC Kit includes: 1 CPVC Flange & Nut, 1 PVDF locking ring

and 1 True union nut.

This is a NON-STOCKING item. For OEM business, please contact

Customer Service for pricing and stocking options.

THERMOPLASTIC VALVES

125

VKD AND TKD BALL VALVE ACCESSORIES

Rotational Stroke Limiter 90º - TKD

Note: The locking attachment fits on the standard handle

Size

inches

Significant

Number

Product

Code

3/4 - 1/2 LTKD090020 253820

3/4 - 1 LTKD090032 253821

1-1/4 - 1-1/2 LTKD090050 253822

2LTKD090063 253823

2" Square Operating Nut for VKD & TKD Ball Valves

Note: 1/2" thru 2" operating nuts used on VLD & TKD ball valves

2-1/2" thru 4" operating nuts used on VKD ball valves

1/2 – 253075

3/4 –253076

1 – 253077

1-1/4 –253078

1-1/2 – 253079

2 – 253080

2-1/2 – 253150

3 – 253151

4 – 253152

Rotational Stroke Limiter 180º - TKD

Note: The locking attachment fits on the standard handle

3/4 - 1/2 LTKD180020 253824

3/4 - 1 LTKD180032 253825

1-1/4 - 1-1/2 LTKD180050 253826

2LTKD180063 253827

Electro-Mechanical Limit Switch - Manual VKD & TKD

End Connector CPVC (Soc)

Note: VKD mounting kit required

Note: For 90º rotation TKD only

* This is a NON-STOCKING item. For OEM business, please

contact IPEX customer service for stocking options.

* 1/2 - 1 MSKD1M 253940

*1-1/4 - 2 MSKD2M 253941

20 253981 1/2"

25 253982 3/4"

32 253983 1"

40 253984 1-1/4"

50 253985 1-1/2"

63 253986 2"

Connector Size

(mm) Part Number Valve Size

(in)

End Connector PVC (Soc)

20 253975 1/2"

25 253976 3/4"

32 253977 1"

40 253978 1-1/4"

50 253979 1-1/2"

63 253980 2"

Connector Size

(mm) Part Number Valve Size

(in)

Compatible with VKD, TKD, VXE, VEE, SXE, RV

End

Conn.

Size

inches

EPDM FPM

Significant

Number

Product

Code

Significant

Number

Product

Code

126

VXE/VX SERIES BALL VALVES – TRUE UNION

These ultra-compact valves feature a full-port, bi-directional

double block design. The true union style allows the valve to

be easily removed from the piping system and fully serviced.

A threaded seat stop carrier provides improved seal integrity

under tough service conditions while the removable handle

also functions as a tool for ball seat adjustment.

The EasyFit VXE Series True Union Ball Valves represent the

latest innovation in thermoplastic ball valve manufacturing

technology. The VXE Series is designed for industrial,

general purpose and O.E.M applications. This valve features

an ultra-compact double block design, and full port

bi-directional operation. The true union design allows the

valve to be easily removed from the piping system and fully

serviced. A threaded seat stop carrier provides improved seal

integrity under tough service conditions while the EASYFIT

multifunction handle doubles as a tool for ball seat

adjustment, and for tightening union nuts precisely.

PVC, w/ PTFE Seats (EPDM)

S/T 1/2 VXEBV103 353001 VXEBV203 353002

S/T 3/4 VXEBV104 353003 VXEBV204 353004

S/T 1 VXEBV105 353005 VXEBV205 353006

S/T 1-1/4 VXEBV106 353007 VXEBV206 353008

S/T 1-1/2 VXEBV107 353009 VXEBV207 353010

S/T 2VXEBV108 353011 VXEBV208 353012

Socket 2-1/2 VXEAV109 353623 VXEAV209 353624

Socket 3 VXEAV110 353013 VXEAV210 353014

Socket 4 VXEAV111 353015 VXEAV211 353016

Threaded 3VXEFV110 353017 VXEFV210 353018

Threaded 4 VXEFV111 353019 VXEFV211 353020

* Socket 6VXEAV113 353625 VXEAV213 353626

Flanged 1/2 VXEOV103 353627 VXEOV203 353637

Flanged 3/4 VXEOV104 353628 VXEOV204 353638

Flanged 1 VXEOV105 353629 VXEOV205 353639

Flanged 1-1/4 VXEOV106 353630 VXEOV206 353640

Flanged 1-1/2 VXEOV107 353631 VXEOV207 353641

Flanged 2VXEOV108 353632 VXEOV208 353642

Flanged 2-1/2 VXEOV109 353633 VXEOV209 353643

Flanged 3VXEOV110 353634 VXEOV210 353644

Flanged 4 VXEOV111 353635 VXEOV211 353645

* Flanged 6VXEOV113 353636 VXEOV213 353646

* Note: The 6" valve is a 4" with Venturied ends.

BALL VALVES

Pressure: up to 232 psi at 73°F depending on the size

Sizes 1/2" - 6"

VXE

End

Conn.

Size

inches

EPDM FPM

Significant

Number

Product

Code

Significant

Number

Product

Code

127

BALL VALVES

Corzan®CPVC, w/ PTFE Seats

S/T 1/2 VXEBC103 353041 VXEBC203 353042

S/T 3/4 VXEBC104 353043 VXEBC204 353044

S/T 1 VXEBC105 353045 VXEBC205 353046

S/T 1-1/4 VXEBC106 353047 VXEBC206 353048

S/T 1-1/2 VXEBC107 353049 VXEBC207 353050

S/T 2VXEBC108 353051 VXEBC208 353052

Socket 2-1/2 VXEAC109 353647 VXEAC209 353648

Socket 3 VXEAC110 353053 VXEAC210 353054

Socket 4 VXEAC111 353055 VXEAC211 353056

Threaded 3VXEFC110 353057 VXEFC210 353058

Threaded 4 VXEFC111 353059 VXEFC211 353060

* Socket 6VXEAC113 353649 VXEAC213 353650

Flanged 1/2 VXEOC103 353651 VXEOC203 353661

Flanged 3/4 VXEOC104 353652 VXEOC204 353662

Flanged 1 VXEOC105 353653 VXEOC205 353663

Flanged 1-1/4 VXEOC106 353654 VXEOC206 353664

Flanged 1-1/2 VXEOC107 353655 VXEOC207 353665

Flanged 2VXEOC108 353656 VXEOC208 353666

Flanged 2-1/2 VXEOC109 353657 VXEOC209 353667

Flanged 3VXEOC110 353658 VXEOC210 353668

Flanged 4 VXEOC111 353659 VXEOC211 353669

* Flanged 6VXEOC113 353660 VXEOC213 353670

* Note: The 6" valve is a 4" with Venturied ends.

✓Plant water supply and distribution

✓Wash-water and recovery systems

✓Acid Products Handling for Refineries, Metal Works, etc.

✓Alum and Ferric Chloride Handling

✓Pulp and Chemical Recovery Systems

✓Deionized Water

✓Water treatment

✓Swimming pools

✓Chlorine Injection Systems Bleach, Dye and Acid Lines

✓Aquariums

✓Irrigation

EXAMPLE APPLICATIONS

BALL VALVES

128

VEE SERIES BALL VALVES – TRUE UNION

The VEE is ideal for light industrial and water applications.

The VEE shares many features with the VXE such as the ultra-

compact double block design, and full port bi-directional

operation. A threaded seat stop carrier provides improved seal

integrity under tough service conditions while the removable

handle also functions as a tool for ball seat adjustment. The

VEE also features the EASYFIT multifunction handle which

doubles as a tool for ball seat adjustment and for tightening

union nuts precisely. The VEE is also available exclusively in

PVC with EPDM seals and either socket or threaded end

connections.

Pressure: 232 psi at 73°F

Sizes: 1/2" – 2"

PVC, EPDM w/ PTFE-HDPE Seats

End

Connection

Size

inches

Significant

Number

VEE Product

Code

Socket 1/2 VEEAV103 353373

Socket 3/4 VEEAV104 353124

Socket 1 VEEAV105 353125

Socket 1-1/4 VEEAV106 353126

Socket 1-1/2 VEEAV107 353127

Socket 2 VEEAV108 353128

Threaded 1/2 VEEFV203 353374

Threaded 3/4 VEEFV204 353215

Threaded 1 VEEFV205 353217

Threaded 1-1/4 VEEFV206 353219

Threaded 1-1/2 VEEFV207 353220

Threaded 2VEEFV208 353221

VEE

✓Swimming pools

✓Aquariums

✓Light dury industrial

EXAMPLE APPLICATIONS

BALL VALVES

129

EASYFIT VALVE ACCESSORIES

The Easytorque kit is the new innovative tool designed by IPEX

for optimal tightening of all threaded components on our

EASYFIT valves.

The kit has been developed to precisely adjust the tightening

torque of the VKD, VXE and VEE ball seat carrier, SXE main

seal safe blocked carrier, and all EASYFIT valve union nuts by

applying the proper torque as specified by the manufacturer.

The use of the Easytorque kit is recommended to minimize

mechanical stresses on thermoplastic threads caused by

overtightening. This tool will help prevent fluid leakage,

optimize ball valve operation and minimize the wear on the

elastomeric seals. The use of the EASYFIT torque wrench also

reduces the risk of using metal wrenches or channel locks,

thus causing accidental damage to the union nuts.

EASYFIT LABELLING SYSTEM

It is often necessary to customize a valve by labelling or

tagging it in order to mark and identify it according to specific

needs or service. The EasyFit Labelling System is a complete

product line developed to customize individual valves, and

includes all the necessary tools: LCE Module, LSE Set and the

EasyFit software. Available for the VXE, VEE and SXE.

EasyTorque Kit

Size

inches

Significant

Number

Product

Code

Size

inches

Significant

Number

Product

Code

1/2 - 2 EASYTORQUE 253926

LCE Module (Clear PVC plug w PVC label holder)

1/2 LCE020 253927

3/4 LCE025 253928

1LCE032 253930

1-1/4 LCE040 253931

1-1/2 LCE050 253932

2LCE063 253933

LSE Labels - Adhesive, Die Cut Labels

1/2 LSE020 253929

3/4 LSE025 253934

1LSE032 253935

1-1/4 LSE040 253936

1-1/2 LSE050 253937

2LSE063 253938

EasyFit Multi-Functional Handle

1/2 HSVXE020 253875

3/4 HSVXE025 253876

1HSVXE032 253877

1-1/4 HSVXE040 253878

1-1/2 HSVXE050 253879

2HSVXE063 253880

EasyTorque Kit includes:

Torque Wrench, 6 Union

Nut Inserts and 6 Seat

Carrier Inserts.

Can be used for union nut rotational control and ball seat

carrier adjustment of VEE, VXE and SXE.

Kit includes handle body, transparent cap and tag holder.

BALL VALVES

130

MP SERIES COMPACT BALL VALVES

Available in both Schedule 80 grey PVC and Schedule 40

white PVC, with either socket or threaded connections. EPDM

seals and PTFE seats make this valve ideally suited to all kinds

of plumbing and industrial applications where a compact,

inexpensive on/off valve is required.

Pressure: 150 psi at 73°F

Sizes: 1/2" – 2"

PVC, EPDM w/ PTFE

Socket 1/2 MPAV103 052000 MPAW103 052277

Socket 3/4 MPAV104 052006 MPAW104 052278

Socket 1 MPAV105 052007 MPAW105 052279

Socket 1-1/4 MPAV106 052009 MPAW106 052280

Socket 1-1/2 MPAV107 052019 MPAW107 052281

Socket 2 MPAV108 052024 MPAW108 052282

PVC, EPDM w/ PTFE

Threaded 1/2 052026 052026 MPFW103 052283

Threaded 3/4 052029 052029 MPFW104 052284

Threaded 1052107 052107 MPFW105 052285

Threaded 1-1/4 052108 052108 MPFW106 052286

Threaded 1-1/2 052109 052109 MPFW107 052287

Threaded 2052144 052144 MPFW108 052288

End

Conn.

Size

inches

Significant

Number

Sch 80

Grey

Product

Code

Significant

Number

Sch 40

White

Product

Code

BUTTERFLY VALVES

131

FK SERIES BUTTERFLY VALVES

The FK offers superior strength as well as excellent chemical

resistance needed to operate in the corrosive environments

often found near flanged connections. The special trapezoid

shape of the liner and a serrated body cavity guarantee a

bubble tight seal while keeping break-away torque at an

absolute minimum. Double self-lubricating seals (available in

either EPDM or FPM), direct actuator mount capability, and

choice of a lever handle or mounted gear box are just a few

more features of this technologically advanced valve. The body

is made of standard glass-filled PP while discs are available in

PP, PVC, CPVC, PVDF, and ABS.

Pressure: up to 150 psi at 73°F depending on the size

Sizes: 1-1/2" – 12"

PP Disc, Wafer Style

Size

inches

Significant

Number

EPDM

Product

Code

Significant

Number

FPM

Product

Code

Size

inches

Significant

Number

Product

Code

1-1/2 FKOM107 053198 FKOM207 053200

2FKOM108 053199 FKOM208 053201

2-1/2 FKOM109 052145 FKOM209 052147

3FKOM110 053105 FKOM210 053153

4FKOM111 053106 FKOM211 053154

5FKOM112 052146 FKOM212 052148

6 FKOM113 053107 FKOM213 053155

8FKOM114 053108 FKOM214 053156

PP Disc, Wafer Style, Gear Box

Size

inches

Significant

Number

EPDM

Product

Code

Significant

Number

FPM

Product

Code

2-1/2 FKOM109G 253145 FKOM209G 253147

3FKOM110G 253105 FKOM210G 253153

4FKOM111G 253106 FKOM211G 253154

5FKOM112G 253146 FKOM212G 253148

6FKOM113G 253107 FKOM213G 253155

8FKOM114G 253108 FKOM214G 253156

10 FKOM115 153014 FKOM215 153016

12 FKOM116 153015 FKOM216 153017

1-1/2 & 2 2KTFKRF0IP 154173

2-1/2 2KTFKRF1IP 153968

3 & 4 2KTFKRF2IP 153969

5 & 6 2KTFKRF3IP 153970

82KTFKRF4IP 153971

Infinite Adjustable Handle Kit

EASYFIT

HANDLE

WITH MOUNTED

GEAR BOX

BUTTERFLY VALVES

132

FK SERIES LUGGED BUTTERFLY VALVES

This FK version features the world's first integral lug design.

Unlike other plastic butterfly valves, these valves feature

stainless steel lugs permanently anchored in the body of the

valve. This unique design provides for full bi-directional

operation, and allows disassembly and assembly of the

downstream flange connection without weakening the integrity

of the upstream connection to the pressurized line. The same

body, disc, and seal material options as the normal FK are

available for the lugged version.

Pressure: up to 150 psi at 73°F depending on the size

Sizes: 2-1/2" – 12"

Size

inches

Significant

Number

EPDM

Product

Code

Significant

Number

FPM

Product

Code

2-1/2 FKLM109 053133 FKLM209 053139

3FKLM110 053134 FKLM210 053140

4FKLM111 053135 FKLM211 053141

5FKLM112 053105 FKLM212 053142

6FKLM113 053136 FKLM213 053143

8FKLM114 053138 FKLM214 053144

PP Disc, SS Lugs

EASYFIT HANDLE

2-1/2 FKLM109G 253133 FKLM209G 253139

3FKLM110G 253134 FKLM210G 253140

4FKLM111G 253135 FKLM211G 253141

5FKLM112G 253136 FKLM212G 253142

6FKLM113G 253137 FKLM213G 253143

8FKLM114G 253138 FKLM214G 253144

10 FKLM115G 053328 FKLM215G 053330

12 FKLM116G 053329 FKLM216G 053331

PP Disc, SS Lugs, Gear Box

WITH MOUNTED

GEAR BOX

Note: PVC, CPVC, ABS, and PVDF discs are available on request.

Note: PVC, CPVC, ABS, and PVDF discs are available upon

request. 14" – 24" butterfly valves are available on request.

Gear operated valves are made-to-order.

BUTTERFLY VALVES

133

Size

inches

Significant

Number

EPDM

Product Code

1-1/2 FEOV107 053202

2FEOV108 053203

2-1/2 FEOV109 053842

3FEOV110 053081

4FEOV111 053082

5FEOV112 053843

6FEOV113 053083

8FEOV114 053084

PVC Body & Disc, Wafer Style

2-1/2 FEOV109G 253842

3FEOV110G 253081

4FEOV111G 253082

5FEOV112G 253843

6FEOV113G 253083

8FEOV114G 253084

10 FEOV115G 052264

12 FEOV116G 052265

PVC Body & Disc, Wafer Style, Gear Box

The FE incorporates many of the features and benefits of our

industrial FK valve yet is one of the most competitively priced

thermoplastic butterfly valves available today. The all PVC

construction with EPDM liner makes this valve the perfect

choice for applications ranging from swimming pools to

chemical processes. The FE can be operated by either a lever

handle or mounted gear box.

Pressure: up to 150 psi at 73°F depending on the size

Sizes: 1-1/2" – 12"

EASYFIT

HANDLE

NBR and Viton®lined valves are available upon request.

These highly versatile valves can be used for simple on/off

service but also for processes requiring precise throttling.

End-of-line installation of a lugged version allows for

downstream piping disassembly with the upstream system

still under pressure. The extensive size range and material

availability make them suitable for a wide range of

applications. With simple, direct mounting for actuation,

automated process control can be easily achieved.

WITH MOUNTED

GEAR BOX

FE SERIES BUTTERFLY VALVESFE SERIES BUTTERFLY VALVES

DIAPHRAGM VALVES

134

VM SERIES DIAPHRAGM VALVES – MANUAL HAND WHEEL

The VM series weir-style diaphragm valves are available in

PVC, CPVC, PP, or PVDF, four body styles, and three choices of

diaphragms (EPDM, FPM, or PTFE). Able to be mounted in any

position, the VM is ideal for either very clean or abrasive slurry

applications. A unique and proprietary PTFE diaphragm

design, available automation, and multiple accessories make

this one of the most advanced and versatile lines in the industry.

Pressure: up to 150 psi at 73°F depending on the size

Size: 2-1/2" – 4"

PVC Body

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

Spigot 1/2 VMYV103 054175 VMYV203 054184 VMYV303 054193

Spigot 3/4 VMYV104 054176 VMYV204 054185 VMYV304 054194

Spigot 1VMYV105 054177 VMYV205 054186 VMYV305 054195

Spigot 1-1/4 VMYV106 054178 VMYV206 054187 VMYV306 054196

Spigot 1-1/2 VMYV107 054179 VMYV207 054188 VMYV307 054197

Spigot 2VMYV108 054180 VMYV208 054189 VMYV308 054198

Spigot 2-1/2 VMYV109 054181 VMYV209 054190 VMYV309 054199

Spigot 3VMYV110 054182 VMYV210 054191 VMYV310 054200

Spigot 4 VMYV111 054183 VMYV211 054192 VMYV311 054201

PVC Body

Flanged 1/2 VMOV103 054220 VMOV203 054229 VMOV303 054238

Flanged 3/4 VMOV104 054221 VMOV204 054230 VMOV304 054239

Flanged 1VMOV105 054222 VMOV205 054231 VMOV305 054240

Flanged 1-1/4 VMOV106 054223 VMOV206 054232 VMOV306 054241

Flanged 1-1/2 VMOV107 054224 VMOV207 054233 VMOV307 054242

Flanged 2VMOV108 054225 VMOV208 054234 VMOV308 054243

Flanged 2-1/2 VMOV109 054226 VMOV209 054235 VMOV309 054244

Flanged 3VMOV110 054227 VMOV210 054236 VMOV310 054245

Flanged 4 VMOV111 054228 VMOV211 054237 VMOV311 054246

PVC Body

T/U 1/2 VMUV103 054202 VMUV203 054214 VMUV303 054208

T/U 3/4 VMUV104 054203 VMUV204 054215 VMUV304 054209

T/U 1VMUV105 054204 VMUV205 054216 VMUV305 054210

T/U 1-1/4 VMUV106 054205 VMUV206 054217 VMUV306 054211

T/U 1-1/2 VMUV107 054206 VMUV207 054218 VMUV307 054212

T/U 2VMUV108 054207 VMUV208 054219 VMUV308 054213

DIAPHRAGM VALVES

135

Corzan®CPVC Body

End

Connection

Size

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

PP Body

Spigot 20mm VMDM103 054319 VMDM203 054328 VMDM303 054337

Spigot 25mm VMDM104 054320 VMDM204 054329 VMDM304 054338

Spigot 32mm VMDM105 054321 VMDM205 054330 VMDM305 054339

Spigot 40mm VMDM106 054322 VMDM206 054331 VMDM306 054340

Spigot 50mm VMDM107 054323 VMDM207 054332 VMDM307 054341

Spigot 63mm VMDM108 054324 VMDM208 054333 VMDM308 054342

Spigot 75mm VMDM109 054325 VMDM209 054334 VMDM309 054343

Spigot 90mm VMDM110 054326 VMDM210 054335 VMDM310 054344

Spigot 110mm VMDM111 054327 VMDM211 054336 VMDM311 054345

PP Body

T/U 20mm VMUM103 054346 VMUM203 054352 VMUM303 054358

T/U 25mm VMUM104 054347 VMUM204 054353 VMUM304 054359

T/U 32mm VMUM105 054348 VMUM205 054354 VMUM305 054360

T/U 40mm VMUM106 054349 VMUM206 054355 VMUM306 054361

T/U 50mm VMUM107 054350 VMUM207 054356 VMUM307 054362

T/U 63mm VMUM108 054351 VMUM208 054357 VMUM308 054363

Spigot 1/2 VMYC103 054247 VMYC203 054256 VMYC303 054265

Spigot 3/4 VMYC104 054248 VMYC204 054257 VMYC304 054266

Spigot 1VMYC105 054249 VMYC205 054258 VMYC305 054267

Spigot 1-1/4 VMYC106 054250 VMYC206 054259 VMYC306 054268

Spigot 1-1/2 VMYC107 054251 VMYC207 054260 VMYC307 054269

Spigot 2VMYC108 054252 VMYC208 054261 VMYC308 054270

Spigot 2-1/2 VMYC109 054253 VMYC209 054262 VMYC309 054271

Spigot 3VMYC110 054254 VMYC210 054263 VMYC310 054272

Spigot 4 VMYC111 054255 VMYC211 054264 VMYC311 054273

Corzan®CPVC Body

Flanged 1/2 VMOC103 054292 VMOC203 054301 VMOC303 054310

Flanged 3/4 VMOC104 054293 VMOC204 054302 VMOC304 054311

Flanged 1VMOC105 054294 VMOC205 054303 VMOC305 054312

Flanged 1-1/4 VMOC106 054295 VMOC206 054304 VMOC306 054313

Flanged 1-1/2 VMOC107 054296 VMOC207 054305 VMOC307 054314

Flanged 2VMOC108 054297 VMOC208 054306 VMOC308 054315

Flanged 2-1/2 VMOC109 054298 VMOC209 054307 VMOC309 054316

Flanged 3VMOC110 054299 VMOC210 054308 VMOC310 054317

Flanged 4 VMOC111 054300 VMOC211 054309 VMOC311 054318

Corzan®CPVC Body

T/U 1/2 VMUC103 054274 VMUC203 054280 VMUC303 054286

T/U 3/4 VMUC104 054275 VMUC204 054281 VMUC304 054287

T/U 1VMUC105 054276 VMUC205 054282 VMUC305 054288

T/U 1-1/4 VMUC106 054277 VMUC206 054283 VMUC306 054289

T/U 1-1/2 VMUC107 054278 VMUC207 054284 VMUC307 054290

T/U 2VMUC108 054279 VMUC208 054285 VMUC308 054291

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

Note: EPDM diaphragms have EPDM o-rings, Viton®and PTFE diaphragms have Viton®o-rings. For ABS and u-PP VM diaphragm valves, please

refer to the Duraplus ABS Industrial and Enpure. Other options are available on request. VM Series Diaphragm valves are made-to-order.

VM SERIES DIAPHRAGM VALVES – MANUAL HAND WHEEL

DIAPHRAGM VALVES

136

VM SERIES PNEUMATIC DIAPHRAGM VALVES –

NORMALLY OPEN (AIR TO AIR) PNEUMATIC

Pressure: up to 150 psi at 73°F depending on the size

Size: 1/2" – 4"

PVC Body

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

Spigot 1/2 VMYV103-NO 054410 VMYV203-NO 054419 VMYV303-NO 054428

Spigot 3/4 VMYV104-NO 054411 VMYV204-NO 054420 VMYV304-NO 054429

Spigot 1VMYV105-NO 054412 VMYV205-NO 054421 VMYV305-NO 054430

Spigot 1-1/4 VMYV106-NO 054413 VMYV206-NO 054422 VMYV306-NO 054431

Spigot 1-1/2 VMYV107-NO 054414 VMYV207-NO 054423 VMYV307-NO 054432

Spigot 2VMYV108-NO 054415 VMYV208-NO 054424 VMYV308-NO 054433

Spigot 2-1/2 VMYV109-NO 054416 VMYV209-NO 054425 VMYV309-NO 054434

Spigot 3VMYV110-NO 054417 VMYV210-NO 054426 VMYV310-NO 054435

Spigot 4 VMYV111-NO 054418 VMYV211-NO 054427 VMYV311-NO 054436

PVC Body

Flanged 1/2 VMOV103-NO 054455 VMOV203-NO 054464 VMOV303-NO 054473

Flanged 3/4 VMOV104-NO 054456 VMOV204-NO 054465 VMOV304-NO 054474

Flanged 1VMOV105-NO 054457 VMOV205-NO 054466 VMOV305-NO 054475

Flanged 1-1/4 VMOV106-NO 054458 VMOV206-NO 054467 VMOV306-NO 054476

Flanged 1-1/2 VMOV107-NO 054459 VMOV207-NO 054468 VMOV307-NO 054477

Flanged 2VMOV108-NO 054460 VMOV208-NO 054469 VMOV308-NO 054478

Flanged 2-1/2 VMOV109-NO 054461 VMOV209-NO 054470 VMOV309-NO 054479

Flanged 3VMOV110-NO 054462 VMOV210-NO 054471 VMOV310-NO 054480

Flanged 4 VMOV111-NO 054463 VMOV211-NO 054472 VMOV311-NO 054481

PVC Body

T/U 1/2 VMUV103-NO 054437 VMUV203-NO 054443 VMUV303-NO 054449

T/U 3/4 VMUV104-NO 054438 VMUV204-NO 054444 VMUV304-NO 054450

T/U 1VMUV105-NO 054439 VMUV205-NO 054445 VMUV305-NO 054451

T/U 1-1/4 VMUV106-NO 054440 VMUV206-NO 054446 VMUV306-NO 054452

T/U 1-1/2 VMUV107-NO 054441 VMUV207-NO 054447 VMUV307-NO 054453

T/U 2VMUV108-NO 054442 VMUV208-NO 054448 VMUV308-NO 054454

DIAPHRAGM VALVES

137

End

Connection

Size

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

PP Body

Spigot 20mm VMDM103-NO 054554 VMDM203-NO 054563 VMDM303-NO 054572

Spigot 25mm VMDM104-NO 054555 VMDM204-NO 054564 VMDM304-NO 054573

Spigot 32mm VMDM105-NO 054556 VMDM205-NO 054565 VMDM305-NO 054574

Spigot 40mm VMDM106-NO 054557 VMDM206-NO 054566 VMDM306-NO 054575

Spigot 50mm VMDM107-NO 054558 VMDM207-NO 054567 VMDM307-NO 054576

Spigot 63mm VMDM108-NO 054559 VMDM208-NO 054568 VMDM308-NO 054577

Spigot 75mm VMDM109-NO 054560 VMDM209-NO 054569 VMDM309-NO 054578

Spigot 90mm VMDM110-NO 054561 VMDM210-NO 054570 VMDM310-NO 054579

Spigot 110mm VMDM111-NO 054562 VMDM211-NO 054571 VMDM311-NO 054580

PP Body

T/U 20mm VMUM103-NO 054581 VMUM203-NO 054587 VMUM303-NO 054593

T/U 25mm VMUM104-NO 054582 VMUM204-NO 054588 VMUM304-NO 054594

T/U 32mm VMUM105-NO 054583 VMUM205-NO 054589 VMUM305-NO 054595

T/U 40mm VMUM106-NO 054584 VMUM206-NO 054590 VMUM306-NO 054596

T/U 50mm VMUM107-NO 054585 VMUM207-NO 054591 VMUM307-NO 054597

T/U 63mm VMUM108-NO 054586 VMUM208-NO 054592 VMUM308-NO 054598

Corzan®CPVC Body

Spigot 1/2 VMYC103-NO 054482 VMYC203-NO 054491 VMYC303-NO 054500

Spigot 3/4 VMYC104-NO 054483 VMYC204-NO 054492 VMYC304-NO 054501

Spigot 1VMYC105-NO 054484 VMYC205-NO 054493 VMYC305-NO 054502

Spigot 1-1/4 VMYC106-NO 054485 VMYC206-NO 054494 VMYC306-NO 054503

Spigot 1-1/2 VMYC107-NO 054486 VMYC207-NO 054495 VMYC307-NO 054504

Spigot 2VMYC108-NO 054487 VMYC208-NO 054496 VMYC308-NO 054505

Spigot 2-1/2 VMYC109-NO 054488 VMYC209-NO 054497 VMYC309-NO 054506

Spigot 3VMYC110-NO 054489 VMYC210-NO 054498 VMYC310-NO 054507

Spigot 4 VMYC111-NO 054490 VMYC211-NO 054499 VMYC311-NO 054508

Corzan®CPVC Body

Flanged 1/2 VMOC103-NO 054527 VMOC203-NO 054536 VMOC303-NO 054545

Flanged 3/4 VMOC104-NO 054528 VMOC204-NO 054537 VMOC304-NO 054546

Flanged 1VMOC105-NO 054529 VMOC205-NO 054538 VMOC305-NO 054547

Flanged 1-1/4 VMOC106-NO 054530 VMOC206-NO 054539 VMOC306-NO 054548

Flanged 1-1/2 VMOC107-NO 054531 VMOC207-NO 054540 VMOC307-NO 054549

Flanged 2VMOC108-NO 054532 VMOC208-NO 054541 VMOC308-NO 054550

Flanged 2-1/2 VMOC109-NO 054533 VMOC209-NO 054542 VMOC309-NO 054551

Flanged 3VMOC110-NO 054534 VMOC210-NO 054543 VMOC310-NO 054552

Flanged 4 VMOC111-NO 054535 VMOC211-NO 054544 VMOC311-NO 054553

Corzan®CPVC Body

T/U 1/2 VMUC103-NO 054509 VMUC203-NO 054515 VMUC303-NO 054521

T/U 3/4 VMUC104-NO 054510 VMUC204-NO 054516 VMUC304-NO 054522

T/U 1VMUC105-NO 054511 VMUC205-NO 054517 VMUC305-NO 054523

T/U 1-1/4 VMUC106-NO 054512 VMUC206-NO 054518 VMUC306-NO 054524

T/U 1-1/2 VMUC107-NO 054513 VMUC207-NO 054519 VMUC307-NO 054525

T/U 2VMUC108-NO 054514 VMUC208-NO 054520 VMUC308-NO 054526

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

VM SERIES PNEUMATIC DIAPHRAGM VALVES – NORMALLY OPEN (AIR TO AIR) PNEUMATIC

Note: EPDM diaphragms have EPDM o-rings, Viton®and PTFE diaphragms have Viton®o-rings. For ABS and u-PP VM diaphragm valves, please

refer to the Duraplus ABS Industrial and Enpure. Other options are available on request. VM Series Diaphragm valves are made-to-order.

DIAPHRAGM VALVES

138

VM SERIES PNEUMATIC DIAPHRAGM VALVES –

NORMALLY CLOSED PNEUMATIC

Pressure: up to 150 psi at 73°F depending on the size

Size: 1/2" – 4"

PVC Body

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

Spigot 1/2 VMYV103-NC 054644 VMYV203-NC 054653 VMYV303-NC 054662

Spigot 3/4 VMYV104-NC 054645 VMYV204-NC 054654 VMYV304-NC 054663

Spigot 1VMYV105-NC 054646 VMYV205-NC 054655 VMYV305-NC 054664

Spigot 1-1/4 VMYV106-NC 054647 VMYV206-NC 054656 VMYV306-NC 054665

Spigot 1-1/2 VMYV107-NC 054648 VMYV207-NC 054657 VMYV307-NC 054666

Spigot 2VMYV108-NC 054649 VMYV208-NC 054658 VMYV308-NC 054667

Spigot 2-1/2 VMYV109-NC 054650 VMYV209-NC 054659 VMYV309-NC 054668

Spigot 3VMYV110-NC 054651 VMYV210-NC 054660 VMYV310-NC 054669

Spigot 4 VMYV111-NC 054652 VMYV211-NC 054661 VMYV311-NC 054670

PVC Body

Flanged 1/2 VMOV103-NC 054689 VMOV203-NC 054698 VMOV303-NC 054707

Flanged 3/4 VMOV104-NC 054690 VMOV204-NC 054699 VMOV304-NC 054708

Flanged 1VMOV105-NC 054691 VMOV205-NC 054700 VMOV305-NC 054709

Flanged 1-1/4 VMOV106-NC 054692 VMOV206-NC 054701 VMOV306-NC 054710

Flanged 1-1/2 VMOV107-NC 054693 VMOV207-NC 054702 VMOV307-NC 054711

Flanged 2VMOV108-NC 054694 VMOV208-NC 054703 VMOV308-NC 054712

Flanged 2-1/2 VMOV109-NC 054695 VMOV209-NC 054704 VMOV309-NC 054713

Flanged 3VMOV110-NC 054696 VMOV210-NC 054705 VMOV310-NC 054714

Flanged 4 VMOV111-NC 054697 VMOV211-NC 054706 VMOV311-NC 054715

PVC Body

T/U 1/2 VMUV103-NC 054671 VMUV203-NC 054677 VMUV303-NC 054683

T/U 3/4 VMUV104-NC 054672 VMUV204-NC 054678 VMUV304-NC 054684

T/U 1VMUV105-NC 054673 VMUV205-NC 054679 VMUV305-NC 054685

T/U 1-1/4 VMUV106-NC 054674 VMUV206-NC 054680 VMUV306-NC 054686

T/U 1-1/2 VMUV107-NC 054675 VMUV207-NC 054681 VMUV307-NC 054687

T/U 2VMUV108-NC 054676 VMUV208-NC 054682 VMUV308-NC 054688

DIAPHRAGM VALVES

139

End

Connection

Size

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

PP Body

Spigot 20mm VMDM103-NC 054789 VMDM203-NC 054798 VMDM303-NC 054807

Spigot 25mm VMDM104-NC 054790 VMDM204-NC 054799 VMDM304-NC 054808

Spigot 32mm VMDM105-NC 054791 VMDM205-NC 054800 VMDM305-NC 054809

Spigot 40mm VMDM106-NC 054792 VMDM206-NC 054801 VMDM306-NC 054810

Spigot 50mm VMDM107-NC 054793 VMDM207-NC 054802 VMDM307-NC 054811

Spigot 63mm VMDM108-NC 054794 VMDM208-NC 054803 VMDM308-NC 054812

Spigot 75mm VMDM109-NC 054795 VMDM209-NC 054804 VMDM309-NC 054813

Spigot 90mm VMDM110-NC 054796 VMDM210-NC 054805 VMDM310-NC 054814

Spigot 110mm VMDM111-NC 054797 VMDM211-NC 054806 VMDM311-NC 054815

PP Body

T/U 20mm VMUM103-NC 054816 VMUM203-NC 054824 VMUM303-NC 054830

T/U 25mm VMUM104-NC 054819 VMUM204-NC 054825 VMUM304-NC 054831

T/U 32mm VMUM105-NC 054820 VMUM205-NC 054826 VMUM305-NC 054832

T/U 40mm VMUM106-NC 054821 VMUM206-NC 054827 VMUM306-NC 054833

T/U 50mm VMUM107-NC 054822 VMUM207-NC 054828 VMUM307-NC 054834

T/U 63mm VMUM108-NC 054823 VMUM208-NC 054829 VMUM308-NC 054835

Corzan®CPVC Body

Spigot 1/2 VMYC103-NC 054716 VMYC203-NC 054725 VMYC303-NC 054734

Spigot 3/4 VMYC104-NC 054717 VMYC204-NC 054726 VMYC304-NC 054735

Spigot 1VMYC105-NC 054718 VMYC205-NC 054727 VMYC305-NC 054736

Spigot 1-1/4 VMYC106-NC 054719 VMYC206-NC 054728 VMYC306-NC 054737

Spigot 1-1/2 VMYC107-NC 054720 VMYC207-NC 054729 VMYC307-NC 054738

Spigot 2VMYC108-NC 054721 VMYC208-NC 054730 VMYC308-NC 054739

Spigot 2-1/2 VMYC109-NC 054722 VMYC209-NC 054731 VMYC309-NC 054740

Spigot 3VMYC110-NC 054723 VMYC210-NC 054732 VMYC310-NC 054741

Spigot 4 VMYC111-NC 054724 VMYC211-NC 054733 VMYC311-NC 054742

Corzan®CPVC Body

Flanged 1/2 VMOC103-NC 054761 VMOC203-NC 054770 VMOC303-NC 054780

Flanged 3/4 VMOC104-NC 054762 VMOC204-NC 054771 VMOC304-NC 054781

Flanged 1VMOC105-NC 054763 VMOC205-NC 054772 VMOC305-NC 054782

Flanged 1-1/4 VMOC106-NC 054764 VMOC206-NC 054773 VMOC306-NC 054783

Flanged 1-1/2 VMOC107-NC 054765 VMOC207-NC 054774 VMOC307-NC 054784

Flanged 2VMOC108-NC 054766 VMOC208-NC 054775 VMOC308-NC 054785

Flanged 2-1/2 VMOC109-NC 054767 VMOC209-NC 054776 VMOC309-NC 054786

Flanged 3VMOC110-NC 054768 VMOC210-NC 054778 VMOC310-NC 054787

Flanged 4 VMOC111-NC 054769 VMOC211-NC 054779 VMOC311-NC 054788

Corzan®CPVC Body

T/U 1/2 VMUC103-NC 054743 VMUC203-NC 054749 VMUC303-NC 054755

T/U 3/4 VMUC104-NC 054744 VMUC204-NC 054750 VMUC304-NC 054756

T/U 1VMUC105-NC 054745 VMUC205-NC 054751 VMUC305-NC 054757

T/U 1-1/4 VMUC106-NC 054746 VMUC206-NC 054752 VMUC306-NC 054758

T/U 1-1/2 VMUC107-NC 054747 VMUC207-NC 054753 VMUC307-NC 054759

T/U 2VMUC108-NC 054748 VMUC208-NC 054754 VMUC308-NC 054760

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

Note: EPDM diaphragms have EPDM o-rings, Viton®and PTFE diaphragms have Viton®o-rings.

Other options are available on request. VM Series Diaphragm valves are made-to-order.

VM SERIES PNEUMATIC DIAPHRAGM VALVES – NORMALLY CLOSED PNEUMATIC

DIAPHRAGM VALVES

140

DV SERIES DIAPHRAGM VALVES – MANUAL HANDWHEEL

The DV is a rugged industrial product ideal for throttling or use

in abrasive slurry lines. The raising position indicator also

functions as an adjustable travel stop. This feature can be

used to avoid over-compression of the EPDM or PTFE

diaphragm, or as a travel limiter allowing different settings for

the "closed" position. The molded flanged body eliminates

potentially leaky joints while featuring end-to-end dimensions

identical to most plastic lined metal diaphragm valves,

allowing for direct replacement.

Pressure: up to 150 psi at 73°F depending on the size

Sizes: 1/2" – 6"

PVC Body

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Flanged 1/2 DVOV103 052196

Flanged 3/4 DVOV104 052197

Flanged 1DVOV105 052198

Flanged 1-1/2 DVOV107 052207

Flanged 2DVOV108 052208

Flanged 3DVOV109 052209

Flanged 4 DVOV110 052217

Flanged 6DVOV111 052218

PVC Body

End

Connection

Size

inches

Significant

Number

PTFE

Product Code

Flanged 1/2 DVOV303 052296

Flanged 3/4 DVOV304 052297

Flanged 1DVOV305 052298

Flanged 1-1/2 DVOV307 052299

Flanged 2DVOV308 052354

Flanged 3DVOV309 052355

Flanged 4 DVOV310 052356

Flanged 6DVOV311 052357

DIAPHRAGM VALVES

141

CM SERIES COMPACT DIAPHRAGM VALVES

The CM is a compact design with true union ends, available in

PVC, CPVC, PP, or PVDF. With three diaphragm options

(EPDM, FPM, or PTFE), these manually operated or

pneumatically actuated valves are ideal for OEMs. A standard

position indicator and integrated mounting bushings complete

the long list of features.

Pressure: up to 90 psi at 73°F

Size: 1/2" in PVC and CPVC,

16 mm – 20 mm in PP and PVDF

PVC Body

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

End

Connection

Size

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

T/U S/T 3/8 CMBV102 253071 - - CMBV302 253072

T/U S/T 1/2 CMBV103 253073 - - CMBV303 253074

T/U Socket 1/2 CMUV103 054127 CMUV203 054129 CMUV303 054131

PP Body

Socket 16mm CMIM102 054133 CMIM202 054136 CMIM302 054139

Spigot 20mm CMDM103 054134 CMDM203 054137 CMDM303 054140

T/U Socket 20mm CMUM103 054135 CMUM203 054138 CMUM303 054141

PVDF Body

Socket 16mm CMIF102 054142 CMIF202 054145 CMIF302 054148

Spigot 20mm CMDF103 054143 CMDF203 054146 CMDF303 054149

T/U Socket 20mm CMUF103 054144 CMUF203 054147 CMUF303 054150

Corzan®CPVC Body

T/U Socket 1/2 CMUC103 054128 CMUC203 054130 CMUC303 054132

DIAPHRAGM VALVES

142

CM SERIES COMPACT DIAPHRAGM VALVES –

NORMALLY CLOSED PNEUMATIC

Pressure: up to 90 psi at 73°F

Size: 1/2" in PVC and CPVC,

16 mm – 20 mm in PP and PVDF

PVC Body

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

End

Connection

Size

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Significant

Number

PTFE

Product Code

T/U Socket 1/2 CMUV103-NC 054151 CMUV203-NC 054152 CMUV303-NC 054153

PP Body

Socket 16mm CMIM102-NC 054157 CMIM202-NC 054160 CMIM302-NC 054163

Spigot 20mm CMDM103-NC 054158 CMDM203-NC 054161 CMDM303-NC 054164

T/U Socket 20mm CMUM103-NC 054159 CMUM203-NC 054162 CMUM303-NC 054165

PVDF Body

Socket 16mm CMIF102-NC 054166 CMIF202-NC 054169 CMIF302-NC 054172

Spigot 20mm CMDF103-NC 054167 CMDF203-NC 054170 CMDF303-NC 054173

T/U Socket 20mm CMUF103-NC 054168 CMUF203-NC 054171 CMUF303-NC 054174

Corzan®CPVC Body

T/U Socket 1/2 CMUC103-NC 054154 CMUC203-NC 054155 CMUC303-NC 054156

Note: EPDM diaphragms have EPDM o-rings Viton®and PTFE diaphragms have Viton®o-rings.

DIAPHRAGM VALVES

143

DM SERIES DIAPHRAGM VALVES – DIRECT ACTING PNEUMATIC

Available in both PVC and CPVC, and with either an EPDM or

FPM diaphragm, its rugged construction allows the

ultra-compact DM to handle even extremely aggressive media.

The direct operation of the diaphragm does not require a

closing spring, which makes the small DM particularly suitable

when space is at a premium.

Pressure: up to 115 psi at 73°F depending upon the

available control pressure

Sizes: 1/2" – 2"

PVC Body

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Spigot 1/2 DMYV103 054880 DMYV203 054886

Spigot 3/4 DMYV104 054881 DMYV204 054887

Spigot 1DMYV105 054882 DMYV205 054888

Spigot 1-1/4 DMYV106 054883 DMYV206 054889

Spigot 1-1/2 DMYV107 054884 DMYV207 054890

Spigot 2DMYV108 054885 DMYV208 054891

PVC Body

True Union 1/2 DMUV103 054892 DMUV203 054898

True Union 3/4 DMUV104 054893 DMUV204 054899

True Union 1DMUV105 054894 DMUV205 054900

True Union 1-1/4 DMUV106 054895 DMUV206 054901

True Union 1-1/2 DMUV107 054896 DMUV207 054902

True Union 2DMUV108 054897 DMUV208 054903

PVC Body

Flanged 1/2 DMOV103 054904 DMOV203 054910

Flanged 3/4 DMOV104 054905 DMOV204 054911

Flanged 1DMOV105 054906 DMOV205 054912

Flanged 1-1/4 DMOV106 054907 DMOV206 054913

Flanged 1-1/2 DMOV107 054908 DMOV207 054914

Flanged 2DMOV108 054909 DMOV208 054915

DIAPHRAGM VALVES

144

IPEX diaphragm valves can be pneumatically actuated providing precise control of critical

applications. The normally closed (fail close), normally open (fail open), and double acting VM

valves make up of one of the most extensive ranges in the industry. The actuated CM provides a

compact solution to automated needs while the DM employs an efficient direct acting design. All

pneumatic diaphragm valves can be outfitted with many options and accessories such as: stroke

limiters, optical and electric position indicators, electro-pneumatic positioners, pilot valves, and

various combinations thereof.

DIAPHRAGM VALVES – AUTOMATION & ACCESSORIES

Valve Series Size

inches

Significant

Number

Product

Code

VM 1/4 ZSPFF9DD0A4NC 053074

CM 1/8 ZSPFF9CC0A4NC 053075

Pilot Solenoid Valve – Direct Mount, NBR Seals, 110 VAC

VM / NC 1/2 - 1-1/2 ZLP2411002 054991

VM / NC 2ZLP2411003 054992

*VM / NC 2-1/2 - 4 ZLP2411010 054993

VM / NO - DA 1/2 - 2 ZLP2411004 054994

VM / NO - DA 2-1/2 - 4 ZLP2411008 054995

Stroke Limiter

VM / NC - NO - DA 1/2 - 2 ZIN2410002 054997

VM / NC - NO - DA 2-1/2 - 4 ZIN2410015 054998

Optical Position Indicator

N/A 1/4 ZSBFF9CC0A4NC 053076

Pilot Solenoid Valve – Remote (or Gang) Mount, NBR Seals, 110 VAC

Note: Other voltages are available upon request.

Protection cap included, see assembly instructions.

Protection cap included for VM.

*Actuator must have the metal cap.

Protection cap included for VM.

*Actuator must have the metal cap.

VM / NC 1/2 - 1 ZLI2412002 054999

VM / NC 1-1/4 - 1-1/2 ZLI2412001 053063

VM / NC 2 ZLI2412003 053064

*VM / NC 2-1/2 - 4 ZLI2412006 053065

VM / NO - DA 1/2 - 2 ZLI2412005 053066

VM / NO - DA 2-1/2 - 4 ZLI2412008 053067

Stroke Limiter w/ Optical Position Indicator

DIAPHRAGM VALVES

145

Valve Series Size

inches

Significant

Number

Product

Code

CM / NC 1/2 ZMS2490001 054952

VM / NC 1/2 - 1 ZMS2490002 054953

VM / NC 1-1/4 - 1-1/2 ZMS2490003 054954

VM / NC 2ZMS2490004 054955

VM / NC 2-1/2 - 4 ZMS2490005 054956

* VM Manual 1/2 - 1 ZMS2490017 054962

* VM Manual 1-1/4 - 1-1/2 ZMS2490018 054963

* VM Manual 2ZMS2490019 054964

* VM Manual 2-1/2 - 3 ZMS2490020 054965

* VM Manual 4ZMS2490021 054966

Electrical Position Indicator – 1 Mechanical Switch

VM / NC 1/2 - 1 ZLI2413001 053069

VM / NC 1-1/4 - 2 ZLI2413002 053071

VM / NO - DA 1/2 - 1 ZLI2413003 053072

VM / NO - DA 1-1/4 - 2 ZLI2413007 053073

Stroke Limiter w/ Optical Position Indicator & Manual Override

Protection cap included for VM.

VM / NC 1/2 - 1-1/2 ZMS2485001 054967

VM / NC 2 - 4 ZMS2485002 054968

VM / NO 1/2 - 4 ZMS2485003 054969

Microswitch Box – 2 Electromechanical Switches

VM / NC 1/2 - 1-1/2 ZMS2486001 054970

VM / NC 2 - 4 ZMS2486002 054971

VM / NO 1/2 - 4 ZMS2486003 054972

Microswitch Box – 2 Inductive Switches

* Special machining needed for the valve bonnet and compressor.

VM / NC 1/2 - 1 ZMS2491002 054973

VM / NC 1-1/4 - 1-1/2 ZMS2491003 054974

VM / NC 2 ZMS2491004 054975

VM / NO 1/2 - 1 ZMS2491012 054976

VM / NO 1-1/4 - 1-1/2 ZMS2491013 054977

VM / NO 2ZMS2491014 054978

CM / NC - NO 1/2 ZMS2491001 054979

Compact Microswitch Box – 2 Electromechanical Switches

VM / NC 1/2 - 1 ZMS2492002 054980

VM / NC 1-1/4 - 1-1/2 ZMS2492003 054981

VM / NC 2 ZMS2492004 054982

VM / NO 1/2 - 1 ZMS2492012 054983

VM / NO 1-1/4 - 1-1/2 ZMS2492013 054984

VM / NO 2ZMS2492014 054985

CM / NC - NO 1/2 ZMS2492001 054986

Compact Microswitch Box – 2 Inductive Switches

DIAPHRAGM VALVES

146

SXE SERIES BALL CHECK VALVES – TRUE UNION

The IPEX EASYFIT SXE Series True Union Ball Check Valves

represent the latest innovation in thermoplastic valve

manufacturing technology. The SXE is a complement to

the VXE and VEE ball valve product lines, with many of the

same features. SXE introduces an advanced method of

installation, providing trouble free service for industrial, OEM

and water service applications.

It is designed to work with just a few psi of back pressure for

positive shutoff in both vertical and horizontal installations.

Pressure: 232 psi at 73°F

Sizes: 1/2" – 2"

Check valves should be used whenever there is a need to prevent back-flow of process media. This may

be when two incompatible fluids cannot be allowed to mix, or when reverse flow would cause undesirable

drainage of a system line or tank. Many styles exist including: simple ball checks, heavy duty swing

checks, and highly efficient piston checks. These valves are typically gravity operated and require very

little back pressure to seal. Air release valves safely allow any entrapped air or gas to escape, avoiding

damage to the piping system.

PVC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

S/T 1/2 SXEBV103 052013 SXEBV203 052022

S/T 3/4 SXEBV104 052014 SXEBV204 052023

S/T 1SXEBV105 052015 SXEBV205 052027

S/T 1-1/4 SXEBV106 052016 SXEBV206 052028

S/T 1-1/2 SXEBV107 052017 SXEBV207 052030

S/T 2SXEBV108 052018 SXEBV208 052120

CPVC

S/T 1/2 SXEBC103 052121 SXEBC203 052127

S/T 3/4 SXEBC104 052122 SXEBC204 052128

S/T 1SXEBC105 052123 SXEBC205 052133

S/T 1-1/4 SXEBC106 052124 SXEBC206 052134

S/T 1-1/2 SXEBC107 052125 SXEBC207 052135

S/T 2SXEBC108 052126 SXEBC208 052136

With optimized fluid dynamics design the SXE has an improved Cv value. The seat stop carrier is a

threaded design for safe disconnection upstream. The ball is machined smooth for optimal service and

prolonged life. The SXE also utilizes the EASYFIT torque wrench to tighten union nuts with defined

torque and the EASYFIT LCE labelling system for custom identification.

Note: See page 125 for EasyFit Accessories

CHECK AND VENT VALVES

147

VB SERIES BALL CHECK VALVES – TRUE UNION

As one of the most requested styles of check valves for smaller

diameter plastic piping systems, these valves feature a true

union design for simple maintenance. Full length guide ribs

allow for maximum flow and minimum turbulence, preventing

ball sticking and chatter. Very low back pressure is needed for

positive shut off. The VB is available in PVC with either EPDM

or Viton®seals, and CPVC with FPM seals.

Pressure: 150 psi at 73°F

Sizes: 1/2" – 4"

PVC

End

Connection

Size

inches

Significant

Number

EPDM

Product

Code

Significant

Number

Viton®

Product

Code

End

Connection

Size

inches

Significant

Number

Viton®

Product

Code

S/T 1/2 VBBV103 052231 VBBV203 052241

S/T 3/4 VBBV104 052232 VBBV204 052242

S/T 1VBBV105 052233 VBBV205 052243

S/T 1-1/4 VBBV106 052234 VBBV206 052244

S/T 1-1/2 VBBV107 052235 VBBV207 052245

S/T 2VBBV108 052236 VBBV208 052246

Socket 2-1/2 VBAV109 053848 VBAV209 052247

Socket 3 VBAV110 052237 VBAV210 052248

Socket 4 VBAV111 052238 VBAV211 052249

PVC

Flanged 1/2 VBOV103 053849 VBOV203 053858

Flanged 3/4 VBOV104 053850 VBOV204 053859

Flanged 1VBOV105 053851 VBOV205 053860

Flanged 1-1/4 VBOV106 053852 VBOV206 053861

Flanged 1-1/2 VBOV107 053853 VBOV207 053862

Flanged 2VBOV108 053854 VBOV208 053863

Flanged 2-1/2 VBOV109 053855 VBOV209 053864

Flanged 3VBOV110 053856 VBOV210 052382

Flanged 4VBOV111 053857 VBOV211 052384

CPVC

S/T 1/2 VBBC203 052251

S/T 3/4 VBBC204 052252

S/T 1VBBC205 052253

S/T 1-1/4 VBBC206 052254

S/T 1-1/2 VBBC207 052255

S/T 2VBBC208 052256

Socket 2-1/2 VBAC209 053865

Socket 3 VBAC210 052257

Socket 4 VBAC211 052219

CPVC

Flanged 1/2 VBOC203 053867

Flanged 3/4 VBOC204 053868

Flanged 1VBOC205 053869

Flanged 1-1/4 VBOC206 053870

Flanged 1-1/2 VBOC207 053871

Flanged 2VBOC208 053872

Flanged 2-1/2 VBOC209 053873

Flanged 3VBOC210 052383

Flanged 4VBOC211 053874

Check valves should be used whenever there is a need to prevent back-flow of process media. This may

be when two incompatible fluids cannot be allowed to mix, or when reverse flow would cause undesirable

drainage of a system line or tank. Many styles exist including: simple ball checks, heavy duty swing

checks, and highly efficient piston checks. These valves are typically gravity operated and require very

little back pressure to seal. Air release valves safely allow any entrapped air or gas to escape, avoiding

damage to the piping system.

VR SERIES PISTON CHECK VALVES – TRUE UNION, Y-PATTERN

The VR features an all PVC construction of high performance

components. This Y-pattern valve will perform equally as well

in both vertical and horizontal orientations. With an increased

flow rate yet low-return pressure positive seal, and top-entry

maintenance, our VR piston check valve far exceeds the limited

performance of other popular check valves. Both EPDM and

FPM seals are available.

Pressure: up to 232 psi depending on the size

Sizes: 1/2" – 4"

PVC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

S/T 1/2 VRUV103 053346 VRUV203 053289

S/T 3/4 VRUV104 053347 VRUV204 053290

S/T 1VRUV105 053348 VRUV205 053291

S/T 1-1/4 VRUV106 053349 VRUV206 053292

S/T 1-1/2 VRUV107 053350 VRUV207 053293

S/T 2VRUV108 053351 VRUV208 053294

PVC, NOT True Union

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Threaded 3VRFV110 053352

Threaded 4VRFV111 053353

Socket 3 VRAV110 053295

Socket 4 VRAV111 053296

Flanged 3VROV110 053925

Flanged 4VROV111 053926

PVC

Flanged 1/2 VRQV103 053879 VRQV203 053885

Flanged 3/4 VRQV104 053880 VRQV204 053886

Flanged 1VRQV105 053881 VRQV205 053887

Flanged 1-1/4 VRQV106 053882 VRQV206 053888

Flanged 1-1/2 VRQV107 053883 VRQV207 053889

Flanged 2VRQV108 053884 VRQV208 053890

CHECK AND VENT VALVES

148

149

CHECK AND VENT VALVES

SC SERIES SWING CHECK VALVES

VA SERIES AIR RELEASE VALVES – SINGLE UNION

The VA is one of only two such plastic valves in the industry,

and the only one controlled by media and not pressure.

Designed for tanks, slurries, or start-ups, the VA valve will

economically and efficiently eliminate air or gas pockets as

well as break potentially dangerous vacuums. This no-spill

valve is offered in PVC with EPDM seals. FPM sealing kits are

also available.

Pressure: 232 psi

Sizes: 3/4", 1-1/4" and 2"

PVC, Single Union

Size

inches

Significant

Number

EPDM

Product Code

3/4 VAFV104 053559

1-1/4 VAFV106 053560

2VAFV108 053561

Viton®O-ring Set

Size

inches

Significant

Number Product Code

3/4 OVA204 153845

1-1/4 OVA206 153846

2OVA208 153847

The SC combines superior flow rate with maximum versatility.

With stainless wetted parts and hardware, top entry design,

and extremely low back pressure requirements, these flanged

valves are the perfect choice for back-flow prevention in large

diameter lines, both vertical and horizontal. The SC is

available in PVC with either EPDM or FPM seals.

Pressure: up to 100 psi at 73°F depending on the size

Sizes: 3" – 8"

PVC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

Viton®

Product Code

Flanged 3SCOV110 052289 SCOV210 053875

Flanged 4SCOV111 052290 SCOV211 053876

Flanged 6SCOV113 052291 SCOV213 053877

Flanged 8SCOV114 052292 SCOV214 053878

Note: Valves supplied with dual (socket & threaded) end

connectors for the exhaust port

150

RV SERIES SEDIMENT STRAINERS – TRUE UNION – Y PATTERN

The RV Y-pattern strainer protects critical pipeline components

by removing solids and suspended impurities. Clear PVC

construction allows for inspection of the screen while in

service, whereas the bottom-entry design permits maintenance

on the valve while in-line. The RV is available with either

EPDM or FPM seals, as well as in Corzan®CPVC.

Pressure: up to 232 psi depending on the size

Sizes: 1/2" – 4"

Clear PVC True Union, w/PVC 35 Mesh Screen

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

S/T 1/2 RVUT103 053261 RVUT203 053233

S/T 3/4 RVUT104 053262 RVUT204 053234

S/T 1RVUT105 053263 RVUT205 053235

S/T 1-1/4 RVUT106 053264 RVUT206 053236

S/T 1-1/2 RVUT107 053265 RVUT207 053237

S/T 2RVUT108 053266 RVUT208 053238

CPVC True Union, w/PP 20 Mesh Screen

End

Connection

Size

inches

Significant

Number

FPM

Product Code

S/T 1/2 RVUC203 053334

S/T 3/4 RVUC204 053335

S/T 1RVUC205 053336

S/T 1-1/4 RVUC206 053337

S/T 1-1/2 RVUC207 053338

S/T 2RVUC208 053339

Clear PVC True Union, w/PVC 35 Mesh Screen

Flanged 1/2 RVOT103 053935 RVOT203 053941

Flanged 3/4 RVOT104 053936 RVOT204 053942

Flanged 1RVOT105 053937 RVOT205 053943

Flanged 1-1/4 RVOT106 053938 RVOT206 053944

Flanged 1-1/2 RVOT107 053939 RVOT207 053945

Flanged 2RVOT108 053940 RVOT208 053946

SPECIALTY VALVES

151

SPECIALTY VALVES

RV Series Sediment Strainer Replacement Screens

PVC 18 Mesh

Size

Inches

Significant

Number

Product

Code

1/2 4RT13FV 053947

3/4 4RT13GV 053948

1 4RT13HV 053949

1-1/4 4RT13IV 053950

1-1/2 4RT13JV 053951

24RT13LV 053952

3 4RT13PV 053953

44RT13QV 053954

PVC 30 Mesh

Size

Inches

Significant

Number

Product

Code

1/2 4RT15FV 053955

3/4 4RT15GV 053956

1 4RT15HV 053957

1-1/4 4RT15IV 053958

1-1/2 4RT15JV 053959

24RT15LV 053960

3 4RT15PV 053961

44RT15QV 053962

PVC 35 Mesh

1/2 4RT19FV 053963

3/4 4RT19GV 053964

1 4RT19HV 053965

1-1/4 4RT19IV 053966

1-1/2 4RT19JV 053967

24RT19LV 053968

3 4RT19PV 053969

44RT19QV 053970

PVC 50 Mesh

1/2 4RT30FV 053971

3/4 4RT30GV 053972

1 4RT30HV 053973

1-1/4 4RT30IV 053974

1-1/2 4RT30JV 053975

24RT30LV 053976

3 4RT30PV 053977

44RT30QV 053978

SS 35 Mesh

1/2 4RT19FSS 053979

3/4 4RT19GSS 053980

1 4RT19HSS 053981

1-1/4 4RT19ISS 053982

1-1/2 4RT19JSS 053983

24RT19LSS 053984

3 4RT19PSS 053985

44RT19QSS 053986

PP 20 Mesh

1/2 4RT30FPP 053332

3/4 4RT30GPP 053340

1 4RT30HPP 053341

1-1/4 4RT30IPP 053342

1-1/2 4RT30JPP 053343

24RT30LPP 053344

3- -

4 - -

Sizes

ASTM Mesh

Hole Pitch

inches Holes / in2Hole Dia

Microns / µm

Availability

PVC SS PP

18 Mesh 0.098 226 1000 X – –

20 Mesh 0.059 271 850 – – X

30 Mesh 0.079 387 600 X – –

35 Mesh 0.059 645 500 X – –

50 Mesh 0.039 1226 300 X – –

35 Mesh 0.028 1548 500 – X –

Clear PVC NOT True Union, w/PVC 35 Mesh Screen

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Threaded 3RVFT110 053267 RVFT210 053239

Threaded 4RVFT111 053268 RVFT211 053240

Socket 3 RVAT110 053211 RVAT210 054012

Socket 4 RVAT111 053212 RVAT211 054013

Flanged 3RVOT110 054020 RVOT210 054028

Flanged 4RVOT111 054021 RVOT211 054029

152

SF SERIES 2-WAY SOLENOID VALVES – TRUE UNION, NORMALLY CLOSED, 110 VAC

The SF is a 100% duty cycle solenoid valve, and is available in

PVC with EPDM or FPM seals. Remote operation and a quick

cycle time allow for precise control of media in automated

applications. With their "shutter" design, standard manual

override, and position indicator, these valves will outlast and

outperform more conventional diaphragm-style solenoid valves.

Pressure: up to 60 psi depending on the size

Sizes: 1/4" and 1/2"

PVC, True Union, Normally Closed, FNPT Threaded

Orifice

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

0.23 1/4 SFFV101-06N 053615 SFFV201-06N 053616

0.31 1/4 SFFV101-08N 053617 SFFV201-08N 053618

0.39 1/2 SFFV103-10N 053619 SFFV203-10N 053620

Note: 3-way valves and other voltages are available on request.

The LV is an ingenious PVC quarter turn product supplied with

an assortment of connections that match up with many kinds

of pipe or hose.

Pressure: 150 psi at 73°F

Sizes: 1/4"

Sizes: 1/2" – 2"

LV Series Lab Valve w FNPT, MNPT & Hose Connectors

Size

inches

Significant

Number

Product

Code

1/4 LVKV101 052308

PVC, True Union w/ PTFE Gland Packing

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

S/T 1/2 VVBV103 253869

S/T 3/4 VVBV104 253870

S/T 1VVBV105 253871

S/T 1-1/4 VVBV106 253872

S/T 1-1/2 VVBV107 253873

S/T 2VVBV108 253874

Note: Viton®sealing sets are available on request, please contact customer service.

VV ANGLE SEAT VALVE - TRUE UNION, Y-PATTERN

LV SERIES LAB VALVES WITH FNPT, MNPT AND HOSE CONNECTORS

SPECIALTY VALVES

There are pipe and fittings...

IPEX offers one of the most comprehensive ranges of

high quality, high performance thermoplastic valves and

actuation products available today. With more than

65 years of design and manufacturing

experience, our lightweight,

long life, maintenance free

valves will save you time

and money.

IPEX thermoplastic valves

are part of our complete

systems of pipe, fittings and

valves engineered and

manufactured to IPEX’s strict quality,

performance and dimensional standards. With

Xirtec®140 (industrial grade PVC) and Corzan®(CPVC),

you can be confident that all the material you need is

designed, manufactured and backed by the same company.

Xirtec®140 and Corzan®high-performance systems

feature outstanding resistance to

photodegradation, creep stress and

immunity to oxidation and are

exceptionally suited for use with

a wide range of acids, alcohols,

salts and halogens. The perfect

long service/low maintenance

alternative to common and exotic

metal systems.

Also, our network of manufacturing and customer

service facilities across North America ensures fast, reliable

service and expert technical support.

Call 1-800-463-9572 or visit www.ipexamerica.com

Products are manufactured by IPEX Inc. and distributed in

the United States by IPEX USA LLC.

We build tough products for tough environments®

and then there are valves

Thermoplastic Valves

DID YOU KNOW?

The three basic control functions

available through quarter turn

automation are:

1. Double Acting – This requires

external power for each stroke. For

example, power to open the valve, then

power to close the valve.

2. Normally Closed – Also referred to

as “fail safe closed”, the default

position is closed and the actuator

requires power to open the valve.

3. Normally Open – Also referred to as

“fail safe open”, the default position is

open and the actuator requires power

to close the valve.

154

QUARTER TURN AUTOMATION

QUARTER TURN

AUTOMATION

Automation is an ideal solution for precise control of many valves in a

system, when valves are remotely located, or when the process requires

constant monitoring and adjustment. Pneumatic and electric actuators

can be easily fitted on our ball, multi-port, and butterfly valves. Some

features and functions include normally closed, normally open, or

double-acting operation; corrosion resistant aluminum bodies, pre-loaded

springs, and adjustable cams. Many accessories such as visual position

indicators, limit switches, 3 and 4-way solenoids, and positioners are

also available. For further information, please refer to the IPEX

Industrial

Technical Manual Volume IX entitled

, "Quarter Turn Automation".

PNEUMATIC ACTUATORS OVERVIEW

Pneumatic actuators are the most common choice for quarter turn

plastic valves in process applications. Compressed air systems are

readily available in any plant, and the cost of the actuator itself is

generally lower than that of an electric unit with a comparable

torque output. Typical quarter turn automation seldom requires

positioning (something achieved more easily with an electric

actuator), therefore the cycle life of a pneumatic unit will be

substantially greater, and will be intrinsically safer than an electric

actuator in volatile environments. While there are many different

kinds of pneumatic actuators, a rack and pinion style is the

preferred choice within the plastic piping industry. This type of

actuator is quite tough and rugged, and has a high cycle life. They

generally have a compact, simple construction, and certain models

can be quite light in weight. The design also allows the same basic

actuator to be used as a double acting or (with minor

additions) a spring return unit.

Quarter Turn Automation – Pneumatic / Electric

155

QUARTER TURN AUTOMATION

ELECTRICAL ACTUATORS OVERVIEW

Although slightly more expensive than pneumatics, electric

actuators have certain desirable benefits. They are the preferred

choice when cycle time is an issue, as a quick closing

pneumatically actuated valve could cause a damaging pressure

surge condition (water hammer). The use of an electric actuator may

also be preferred when the distance from the power source is

considerable. The friction losses in long runs of compressed air line

may result in reduced efficiency and/or additional compressor

stations. In addition, electric actuators are the preferred (if not the

only) choice when a quarterturn valve like a multi-port is used. In

this case, it is possible that the travel required is not just 0° to 90°

but 0° to 90° to 180°. A rack and pinion actuator would need four

separate pistons and a multiplicity of related air chambers, whereas

this is easily accomplished with an electric unit. Most electric

actuators have a cam/limit switch arrangement which allows the unit

to be set up for a variety of rotations. The two standard limit

switches can be used to provide a remote location with an open or

closed signal. A multitude of voltages both for AC and DC current

are also typically available.

PVC w PTFE Seats

S/T 1/2 VKDBV103-NO 253368 253377 253377

S/T 3/4 VKDBV104-NO 253369 253378 253378

S/T 1VKDBV105-NO 253370 253379 253379

S/T 1-1/4 VKDBV106-NO 253371 253380 253380

S/T 1-1/2 VKDBV107-NO 253372 253381 253381

S/T 2VKDBV108-NO 253373 253382 253382

Socket 2-1/2 VKDAV109-NO 253374 253383 253383

Socket 3 VKDAV110-NO 253375 253384 253384

Socket 4 VKDAV111-NO 253376 253385 253385

Pneumatic – SPRING RETURN, NORMALLY OPEN

QUARTER TURN AUTOMATION

156

VKD SERIES PVC BALL VALVE – TRUE UNION, PNEUMATIC

PVC w PTFE Seats

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

S/T 1/2 VKDBV103-DA 253296 VKDBV203-DA 253305

S/T 3/4 VKDBV104-DA 253297 VKDBV204-DA 253306

S/T 1VKDBV105-DA 253298 VKDBV205-DA 253307

S/T 1-1/4 VKDBV106-DA 253299 VKDBV206-DA 253308

S/T 1-1/2 VKDBV107-DA 253300 VKDBV207-DA 253309

S/T 2VKDBV108-DA 253301 VKDBV208-DA 253310

Socket 2-1/2 VKDAV109-DA 253302 VKDAV209-DA 253311

Socket 3 VKDAV110-DA 253303 VKDAV210-DA 253312

Socket 4 VKDAV111-DA 253304 VKDAV211-DA 253313

PVC w PTFE Seats

S/T 1/2 VKDBV103-NC 253332 253341 253341

S/T 3/4 VKDBV104-NC 253333 253342 253342

S/T 1VKDBV105-NC 253334 253343 253343

S/T 1-1/4 VKDBV106-NC 253335 253344 253344

S/T 1-1/2 VKDBV107-NC 253336 253345 253345

S/T 2VKDBV108-NC 253337 253346 253346

Socket 2-1/2 VKDAV109-NC 253338 253347 253347

Socket 3 VKDAV110-NC 253339 253348 253348

Socket 4 VKDAV111-NC 253340 253349 253349

Pneumatic – SPRING RETURN, NORMALLY CLOSED

PVC w PTFE Seats

S/T 1/2 VKDBV103-EL 253404 VKDBV203-EL 253413

S/T 3/4 VKDBV104-EL 253405 VKDBV204-EL 253414

S/T 1VKDBV105-EL 253406 VKDBV205-EL 253415

S/T 1-1/4 VKDBV106-EL 253407 VKDBV206-EL 253416

S/T 1-1/2 VKDBV107-EL 253408 VKDBV207-EL 253417

S/T 2VKDBV108-EL 253409 VKDBV208-EL 253418

Socket 2-1/2 VKDAV109-EL 253410 VKDAV209-EL 253419

Socket 3 VKDAV110-EL 253411 VKDAV210-EL 253420

Socket 4 VKDAV111-EL 253412 VKDAV211-EL 253421

VKD SERIES PVC BALL VALVE, ELECTRIC - 100-240 VAC

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Pneumatic – DOUBLE ACTING

Electric – DOUBLE ACTING

QUARTER TURN AUTOMATION

157

VKD SERIES CPVC BALL VALVE – TRUE UNION, PNEUMATIC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

S/T 1/2 VKDBC103-DA 253314 VKDBC203-DA 253323

S/T 3/4 VKDBC104-DA 253315 VKDBC204-DA 253324

S/T 1VKDBC105-DA 253316 VKDBC205-DA 253325

S/T 1-1/4 VKDBC106-DA 253317 VKDBC206-DA 253326

S/T 1-1/2 VKDBC107-DA 253318 VKDBC207-DA 253327

S/T 2VKDBC108-DA 253319 VKDBC208-DA 253328

Socket 2-1/2 VKDAC109-DA 253320 VKDAC209-DA 253329

Socket 3 VKDAC110-DA 253321 VKDAC210-DA 253330

Socket 4 VKDAC111-DA 253322 VKDAC211-DA 253331

Corzan®CPVC w PTFE Seats

S/T 1/2 VKDBC103-NC 253350 VKDBC203-NC 253359

S/T 3/4 VKDBC104-NC 253351 VKDBC204-NC 253360

S/T 1VKDBC105-NC 253352 VKDBC205-NC 253361

S/T 1-1/4 VKDBC106-NC 253353 VKDBC206-NC 253362

S/T 1-1/2 VKDBC107-NC 253354 VKDBC207-NC 253363

S/T 2VKDBC108-NC 253355 VKDBC208-NC 253364

Socket 2-1/2 VKDAC109-NC 253356 VKDAC209-NC 253365

Socket 3 VKDAC110-NC 253357 VKDAC210-NC 253366

Socket 4 VKDAC111-NC 253358 VKDAC211-NC 253367

Corzan®CPVC w PTFE Seats

Pneumatic – SPRING RETURN, NORMALLY CLOSED

S/T 1/2 VKDBC103-NO 253386 VKDBC203-NO 253395

S/T 3/4 VKDBC104-NO 253387 VKDBC204-NO 253396

S/T 1VKDBC105-NO 253388 VKDBC205-NO 253397

S/T 1-1/4 VKDBC106-NO 253389 VKDBC206-NO 253398

S/T 1-1/2 VKDBC107-NO 253390 VKDBC207-NO 253399

S/T 2VKDBC108-NO 253391 VKDBC208-NO 253400

Socket 2-1/2 VKDAC109-NO 253392 VKDAC209-NO 253401

Socket 3 VKDAC110-NO 253393 VKDAC210-NO 253402

Socket 4 VKDAC111-NO 253394 VKDAC211-NO 253403

Corzan®CPVC w PTFE Seats

Pneumatic – SPRING RETURN, NORMALLY OPEN

S/T 1/2 VKDBC103-EL 253422 VKDBC203-EL 253431

S/T 3/4 VKDBC104-EL 253423 VKDBC204-EL 253432

S/T 1VKDBC105-EL 253424 VKDBC205-EL 253433

S/T 1-1/4 VKDBC106-EL 253425 VKDBC206-EL 253434

S/T 1-1/2 VKDBC107-EL 253426 VKDBC207-EL 253435

S/T 2VKDBC108-EL 253427 VKDBC208-EL 253436

Socket 2-1/2 VKDAC109-EL 253428 VKDAC209-EL 253437

Socket 3 VKDAC110-EL 253429 VKDAC210-EL 253438

Socket 4 VKDAC111-EL 253430 VKDAC211-EL 253439

Corzan®CPVC w PTFE Seats

VKD SERIES CPVC BALL VALVE, ELECTRIC – 100-240 VAC

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Pneumatic – DOUBLE ACTING

Electric – DOUBLE ACTING

QUARTER TURN AUTOMATION

158

TKD SERIES PVC 3-WAY BALL VALVE – TRUE UNION, PNEUMATIC

PVC w PTFE Seats, L-Port

S/T 1/2 TKDLBV103-DA 253791 TKDLBV203-DA 253797

S/T 3/4 TKDLBV104-DA 253792 TKDLBV204-DA 253798

S/T 1TKDLBV105-DA 253793 TKDLBV205-DA 253799

S/T 1-1/4 TKDLBV106-DA 253794 TKDLBV206-DA 253800

S/T 1-1/2 TKDLBV107-DA 253795 TKDLBV207-DA 253801

S/T 2TKDLBV108-DA 253796 TKDLBV208-DA 253802

PVC w PTFE Seats, T-Port

S/T 1/2 TKDTBV103-DA 253803 TKDTBV203-DA 253809

S/T 3/4 TKDTBV104-DA 253804 TKDTBV204-DA 253810

S/T 1TKDTBV105-DA 253805 TKDTBV205-DA 253811

S/T 1-1/4 TKDTBV106-DA 253806 TKDTBV206-DA 253812

S/T 1-1/2 TKDTBV107-DA 253807 TKDTBV207-DA 253813

S/T 2TKDTBV108-DA 253808 TKDTBV208-DA 253814

PVC w PTFE Seats, L-Port

S/T 1/2 TKDLBV103-NC 253767 TKDLBV203-NC 253773

S/T 3/4 TKDLBV104-NC 253768 TKDLBV204-NC 253774

S/T 1TKDLBV105-NC 253769 TKDLBV205-NC 253775

S/T 1-1/4 TKDLBV106-NC 253770 TKDLBV206-NC 253776

S/T 1-1/2 TKDLBV107-NC 253771 TKDLBV207-NC 253777

S/T 2TKDLBV108-NC 253772 TKDLBV208-NC 253778

PVC w PTFE Seats, T-Port

S/T 1/2 TKDTBV103-NC 253779 TKDTBV203-NC 253785

S/T 3/4 TKDTBV104-NC 253780 TKDTBV204-NC 253786

S/T 1TKDTBV105-NC 253781 TKDTBV205-NC 253787

S/T 1-1/4 TKDTBV106-NC 253782 TKDTBV206-NC 253788

S/T 1-1/2 TKDTBV107-NC 253783 TKDTBV207-NC 253789

S/T 2TKDTBV108-NC 253784 TKDTBV208-NC 253790

Pneumatic – SPRING RETURN, NORMALLY CLOSED

Pneumatic – DOUBLE ACTING

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

QUARTER TURN AUTOMATION

159

TKD SERIES PVC 3-WAY BALL VALVE, ELECTRIC – 100-240 VAC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

PVC w PTFE Seats, L-Port

S/T 1/2 TKDLBV103-EL 253720 TKDLBV203-EL 253726

S/T 3/4 TKDLBV104-EL 253721 TKDLBV204-EL 253727

S/T 1TKDLBV105-EL 253722 TKDLBV205-EL 253728

S/T 1-1/4 TKDLBV106-EL 253723 TKDLBV206-EL 253729

S/T 1-1/2 TKDLBV107-EL 253724 TKDLBV207-EL 253730

S/T 2TKDLBV108-EL 253725 TKDLBV208-EL 253731

PVC w PTFE Seats, T-Port

S/T 1/2 TKDTBV103-EL 253732 TKDTBV203-EL 253738

S/T 3/4 TKDTBV104-EL 253733 TKDTBV204-EL 253739

S/T 1TKDTBV105-EL 253734 TKDTBV205-EL 253740

S/T 1-1/4 TKDTBV106-EL 253735 TKDTBV206-EL 253741

S/T 1-1/2 TKDTBV107-EL 253736 TKDTBV207-EL 253742

S/T 2TKDTBV108-EL 253737 TKDTBV208-EL 253743

Note: Customer must specify “open” and “closed” positions for 3-way actuated valves. See technical manual for

details. Electric actuators can be configured for either 90° or 180° operation.

TKD SERIES PVC 3-WAY BALL VALVE – TRUE UNION, PNEUMATIC

PVC w PTFE Seats, L-Port

S/T 1/2 TKDLBV103-NO 253744 TKDLBV203-NO 253750

S/T 3/4 TKDLBV104-NO 253745 TKDLBV204-NO 253751

S/T 1TKDLBV105-NO 253746 TKDLBV205-NO 253752

S/T 1-1/4 TKDLBV106-NO 253747 TKDLBV206-NO 253753

S/T 1-1/2 TKDLBV107-NO 253748 TKDLBV207-NO 253754

S/T 2TKDLBV108-NO 253749 TKDLBV208-NO 253755

PVC w PTFE Seats, T-Port

S/T 1/2 TKDTBV103-NO 253756 TKDTBV203-NO 253762

S/T 3/4 TKDTBV104-NO 253757 TKDTBV204-NO 253763

S/T 1TKDTBV105-NO 253758 TKDTBV205-NO 253764

S/T 1-1/4 TKDTBV106-NO 253759 TKDTBV206-NO 253765

S/T 1-1/2 TKDTBV107-NO 253760 TKDTBV207-NO 253766

S/T 2TKDTBV108-NO 253761 TKDTBV208-NO 253815

Pneumatic – SPRING RETURN, NORMALLY OPEN

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Electric – DOUBLE ACTING

QUARTER TURN AUTOMATION

160

TKD SERIES CPVC 3-WAY BALL VALVE – TRUE UNION, PNEUMATIC

S/T 1/2 TKDLBC103-DA 254071 TKDLBC203-DA 254001

S/T 3/4 TKDLBC104-DA 254049 TKDLBC204-DA 254002

S/T 1TKDLBC105-DA 254051 TKDLBC205-DA 254003

S/T 1-1/4 TKDLBC106-DA 254052 TKDLBC206-DA 254004

S/T 1-1/2 TKDLBC107-DA 254053 TKDLBC207-DA 254005

S/T 2TKDLBC108-DA 254060 TKDLBC208-DA 254006

Corzan®CPVC w PTFE Seats, L-Port

S/T 1/2 TKDLBC103-NC 254061 TKDLBC203-NC 254013

S/T 3/4 TKDLBC104-NC 254062 TKDLBC204-NC 254014

S/T 1TKDLBC105-NC 254063 TKDLBC205-NC 254015

S/T 1-1/4 TKDLBC106-NC 254064 TKDLBC206-NC 254016

S/T 1-1/2 TKDLBC107-NC 254065 TKDLBC207-NC 254017

S/T 2TKDLBC108-NC 254066 TKDLBC208-NC 254018

Corzan®CPVC w PTFE Seats, L-Port

Pneumatic - SPRING RETURN, NORMALLY CLOSED

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Corzan®CPVC w PTFE Seats, T-Port

S/T 1/2 TKDTBC103-DA 254055 TKDTBC203-DA 254007

S/T 3/4 TKDTBC104-DA 254056 TKDTBC204-DA 254008

S/T 1TKDTBC105-DA 254057 TKDTBC205-DA 254009

S/T 1-1/4 TKDTBC106-DA 254058 TKDTBC206-DA 254010

S/T 1-1/2 TKDTBC107-DA 254059 TKDTBC207-DA 254011

S/T 2TKDTBC108-DA 254054 TKDTBC208-DA 254012

Corzan®CPVC w PTFE Seats, T-Port

S/T 1/2 TKDTBC103-NC 254067 TKDTBC203-NC 254019

S/T 3/4 TKDTBC104-NC 254068 TKDTBC204-NC 254020

S/T 1TKDTBC105-NC 254069 TKDTBC205-NC 254021

S/T 1-1/4 TKDTBC106-NC 254070 TKDTBC206-NC 254022

S/T 1-1/2 TKDTBC107-NC 254050 TKDTBC207-NC 254023

S/T 2TKDTBC108-NC 254072 TKDTBC208-NC 254024

Pneumatic – DOUBLE ACTING

QUARTER TURN AUTOMATION

161

S/T 1/2 TKDLBV103-NO 253828 TKDLBC203-NO 254025

S/T 3/4 TKDLBV104-NO 253829 TKDLBC204-NO 254026

S/T 1TKDLBV105-NO 253830 TKDLBC205-NO 254027

S/T 1-1/4 TKDLBV106-NO 253831 TKDLBC206-NO 254028

S/T 1-1/2 TKDLBV107-NO 253832 TKDLBC207-NO 254029

S/T 2TKDLBV108-NO 253833 TKDLBC208-NO 254030

Corzan®CPVC w PTFE Seats, L-Port

Pneumatic - SPRING RETURN, NORMALLY OPEN

S/T 1/2 TKDLBV103-EL 253840 TKDLBC203-EL 254037

S/T 3/4 TKDLBV104-EL 253841 TKDLBC204-EL 254038

S/T 1TKDLBV105-EL 253991 TKDLBC205-EL 254039

S/T 1-1/4 TKDLBV106-EL 253992 TKDLBC206-EL 254040

S/T 1-1/2 TKDLBV107-EL 253993 TKDLBC207-EL 254041

S/T 2TKDLBV108-EL 253994 TKDLBC208-EL 254043

Corzan®CPVC w PTFE Seats, L-Port

Note: Customer must specify “open” and “closed” positions for 3-way actuated valves. See technical manual for

details. Electric actuators can be configured for either 90° or 180° operation.

TKD SERIES PVC 3-WAY BALL VALVE, ELECTRIC – 100-240 VAC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Corzan®CPVC w PTFE Seats, T-Port

S/T 1/2 TKDTBC103-EL 253995 TKDTBC203-EL 254044

S/T 3/4 TKDTBC104-EL 253996 TKDTBC204-EL 254045

S/T 1TKDTBC105-EL 253997 TKDTBC205-EL 254046

S/T 1-1/4 TKDTBC106-EL 253998 TKDTBC206-EL 254047

S/T 1-1/2 TKDTBC107-EL 253999 TKDTBC207-EL 254048

S/T 2TKDTBC108-EL 254000 TKDTBC208-EL 254042

TKD SERIES CPVC 3-WAY BALL VALVE – TRUE UNION, PNEUMATIC

Corzan®CPVC w PTFE Seats, T-Port

S/T 1/2 TKDTBC103-NO 253834 TKDTBC203-NO 254031

S/T 3/4 TKDTBC104-NO 253835 TKDTBC204-NO 254032

S/T 1TKDTBC105-NO 283836 TKDTBC205-NO 254033

S/T 1-1/4 TKDTBC106-NO 253837 TKDTBC206-NO 254034

S/T 1-1/2 TKDTBC107-NO 253838 TKDTBC207-NO 254035

S/T 2TKDTBC108-NO 253839 TKDTBC208-NO 254036

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

Electric – DOUBLE ACTING

162

QUARTER TURN AUTOMATION

PVC w PTFE Seats

S/T 1/2 VXBV103-DA 253200 VXBV203-DA 253206

S/T 3/4 VXBV104-DA 253201 VXBV204-DA 253207

S/T 1VXBV105-DA 253202 VXBV205-DA 253208

S/T 1-1/4 VXBV106-DA 253203 VXBV206-DA 253209

S/T 1-1/2 VXBV107-DA 253204 VXBV207-DA 253210

S/T 2VXBV108-DA 253205 VXBV208-DA 253211

PVC w PTFE Seats

S/T 1/2 VXBV103-NC 253224 VXBV203-NC 253230

S/T 3/4 VXBV104-NC 253225 VXBV204-NC 253231

S/T 1VXBV105-NC 253226 VXBV205-NC 253232

S/T 1-1/4 VXBV106-NC 253227 VXBV206-NC 253233

S/T 1-1/2 VXBV107-NC 253228 VXBV207-NC 253234

S/T 2VXBV108-NC 253229 VXBV208-NC 253235

Pneumatic - SPRING RETURN, NORMALLY CLOSED

PVC w PTFE Seats

S/T 1/2 VXBV103-NO 253248 VXBV203-NO 253254

S/T 3/4 VXBV104-NO 253249 VXBV204-NO 253255

S/T 1VXBV105-NO 253250 VXBV205-NO 253256

S/T 1-1/4 VXBV106-NO 253251 VXBV206-NO 253257

S/T 1-1/2 VXBV107-NO 253252 VXBV207-NO 253258

S/T 2VXBV108-NO 253253 VXBV208-NO 253259

Pneumatic - SPRING RETURN, NORMALLY OPEN

VXE SERIES PVC BALL VALVE – TRUE UNION, PNEUMATIC

VXE SERIES PVC BALL VALVE, ELECTRIC – 100-240 VAC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

PVC w PTFE Seats

S/T 1/2 VXBV103-EL 253272 VXBV203-EL 253278

S/T 3/4 VXBV104-EL 253273 VXBV204-EL 253279

S/T 1VXBV105-EL 253274 VXBV205-EL 253280

S/T 1-1/4 VXBV106-EL 253275 VXBV206-EL 253281

S/T 1-1/2 VXBV107-EL 253276 VXBV207-EL 253282

S/T 2VXBV108-EL 253277 VXBV208-EL 253283

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Pneumatic – DOUBLE ACTING

Electric – DOUBLE ACTING

163

QUARTER TURN AUTOMATION

S/T 1/2 VXBC103-DA 253212 VXBC203-DA 253218

S/T 3/4 VXBC104-DA 253213 VXBC204-DA 253219

S/T 1VXBC105-DA 253214 VXBC205-DA 253220

S/T 1-1/4 VXBC106-DA 253215 VXBC206-DA 253221

S/T 1-1/2 VXBC107-DA 253216 VXBC207-DA 253222

S/T 2VXBC108-DA 253217 VXBC208-DA 253223

Corzan®CPVC w PTFE Seats

S/T 1/2 VXBC103-NC 253236 VXBC203-NC 253242

S/T 3/4 VXBC104-NC 253237 VXBC204-NC 253243

S/T 1VXBC105-NC 253238 VXBC205-NC 253244

S/T 1-1/4 VXBC106-NC 253239 VXBC206-NC 253245

S/T 1-1/2 VXBC107-NC 253240 VXBC207-NC 253246

S/T 2VXBC108-NC 253241 VXBC208-NC 253247

Corzan®CPVC w PTFE Seats

Pneumatic - SPRING RETURN, NORMALLY CLOSED

S/T 1/2 VXBC103-NO 253260 VXBC203-NO 253266

S/T 3/4 VXBC104-NO 253261 VXBC204-NO 253267

S/T 1VXBC105-NO 253262 VXBC205-NO 253268

S/T 1-1/4 VXBC106-NO 253263 VXBC206-NO 253269

S/T 1-1/2 VXBC107-NO 253264 VXBC207-NO 253270

S/T 2VXBC108-NO 253265 VXBC208-NO 253271

Corzan®CPVC w PTFE Seats

Pneumatic - SPRING RETURN, NORMALLY OPEN

VXE SERIES CPVC BALL VALVE – TRUE UNION, PNEUMATIC

VXE SERIES CPVC BALL VALVE, ELECTRIC – 100-240 VAC

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

End

Connection

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

S/T 1/2 VXBC103-EL 253284 VXBC203-EL 253290

S/T 3/4 VXBC104-EL 253285 VXBC204-EL 253291

S/T 1VXBC105-EL 253286 VXBC205-EL 253292

S/T 1-1/4 VXBC106-EL 253287 VXBC206-EL 253293

S/T 1-1/2 VXBC107-EL 253288 VXBC207-EL 253294

S/T 2VXBC108-EL 253289 VXBC208-EL 253295

Corzan®CPVC w PTFE Seats

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Pneumatic – DOUBLE ACTING

Electric – DOUBLE ACTING

164

2-1/2 FKLM109-DA 253556 FKLM209-DA 253564

3FKLM110-DA 253557 FKLM210-DA 253565

4FKLM111-DA 253558 FKLM211-DA 253566

5FKLM112-DA 253559 FKLM212-DA 253567

6FKLM113-DA 253560 FKLM213-DA 253568

8FKLM114-DA 253561 FKLM214-DA 253569

10 FKLM115-DA 253562 FKLM215-DA 253570

12 FKLM116-DA 253563 FKLM216-DA 253571

PP Disc, SS Lugs

2-1/2 FKLM109-NC 253592 FKLM209-NC 253600

3FKLM110-NC 253593 FKLM210-NC 253601

4FKLM111-NC 253594 FKLM211-NC 253602

5FKLM112-NC 253595 FKLM212-NC 253603

6FKLM113-NC 253596 FKLM213-NC 253604

8FKLM114-NC 253597 FKLM214-NC 253605

10 FKLM115-NC 253598 FKLM215-NC 253606

12 FKLM116-NC 253599 FKLM216-NC 253607

PP Disc, SS Lugs

QUARTER TURN AUTOMATION

PP Disc, Wafer Style

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

1-1/2 FKOM107-DA 253536 253546 253546

2FKOM108-DA 253537 253547 253547

2-1/2 FKOM109-DA 253538 253548 253548

3FKOM110-DA 253539 253549 253549

4FKOM111-DA 253540 253550 253550

5FKOM112-DA 253541 253551 253551

6 FKOM113-DA 253542 253552 253552

8FKOM114-DA 253543 253553 253553

10 FKOM115-DA 253544 253554 253554

12 FKOM116-DA 253545 253555 253555

PP Disc, Wafer Style

1-1/2 FKOM107-NC 253572 FKOM207-NC 253582

2FKOM108-NC 253573 FKOM208-NC 253583

2-1/2 FKOM109-NC 253574 FKOM209-NC 253584

3FKOM110-NC 253575 FKOM210-NC 253585

4FKOM111-NC 253576 FKOM211-NC 253586

5FKOM112-NC 253577 FKOM212-NC 253587

6 FKOM113-NC 253578 FKOM213-NC 253588

8FKOM114-NC 253579 FKOM214-NC 253589

10 FKOM115-NC 253580 FKOM215-NC 253590

12 FKOM116-NC 253581 FKOM216-NC 253591

Pneumatic - SPRING RETURN, NORMALLY CLOSED

FK SERIES BUTTERFLY VALVE, PNEUMATIC

Note: PVC, CPVC, ABS, and PVDF discs are available on request. 10" and 12" electrically actuated butterfly valves are available on request.

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Pneumatic – DOUBLE ACTING

165

QUARTER TURN AUTOMATION

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

2-1/2 FKLM109-NO 253628 FKLM209-NO 253636

3FKLM110-NO 253629 FKLM210-NO 253637

4FKLM111-NO 253630 FKLM211-NO 253638

5FKLM112-NO 253631 FKLM212-NO 253639

6FKLM113-NO 253632 FKLM213-NO 253640

8FKLM114-NO 253633 FKLM214-NO 253641

10 FKLM115-NO 253634 FKLM215-NO 253642

12 FKLM116-NO 253635 FKLM216-NO 253643

PP Disc, SS Lugs

FK SERIES BUTTERFLY VALVE PNEUMATIC

2-1/2 FKLM109-EL 253664 FKLM209-EL 253672

3FKLM110-EL 253665 FKLM210-EL 253673

4FKLM111-EL 253666 FKLM211-EL 253674

5FKLM112-EL 253667 FKLM212-EL 253675

6FKLM113-EL 253668 FKLM213-EL 253676

8FKLM114-EL 253669 FKLM214-EL 253677

PP Disc, SS Lugs

Note: PVC, CPVC, ABS, and PVDF discs are available on request

10" and 12" electrically actuated butterfly valves are available on request.

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Size

inches

Significant

Number

EPDM

Product Code

Significant

Number

FPM

Product Code

FK SERIES BUTTERFLY VALVE, ELECTRIC – 100-240 VAC

PP Disc, Wafer Style

1-1/2 FKOM107-EL 253644 FKOM207-EL 253654

2FKOM108-EL 253645 FKOM208-EL 253655

2-1/2 FKOM109-EL 253646 FKOM209-EL 253656

3FKOM110-EL 253647 FKOM210-EL 253657

4FKOM111-EL 253648 FKOM211-EL 253658

5FKOM112-EL 253649 FKOM212-EL 253659

6 FKOM113-EL 253650 FKOM213-EL 253660

8FKOM114-EL 253651 FKOM214-EL 253661

PP Disc, Wafer Style

1-1/2 FKOM107-NO 253608 FKOM207-NO 253618

2FKOM108-NO 253609 FKOM208-NO 253619

2-1/2 FKOM109-NO 253610 FKOM209-NO 253620

3FKOM110-NO 253611 FKOM210-NO 253621

4FKOM111-NO 253612 FKOM211-NO 253622

5FKOM112-NO 253613 FKOM212-NO 253623

6 FKOM113-NO 253614 FKOM213-NO 253624

8FKOM114-NO 253615 FKOM214-NO 253625

10 FKOM115-NO 253616 FKOM215-NO 253626

12 FKOM116-NO 253617 FKOM216-NO 253627

Pneumatic - SPRING RETURN, NORMALLY OPEN

Electric– DOUBLE ACTING

166

QUARTER TURN AUTOMATION

FE SERIES BUTTERFLY VALVE PNEUMATIC

FE SERIES BUTTERFLY VALVE, ELECTRIC – 100-240 VAC

PVC Body & Disc, Wafer Style

Size

inches

Significant

Number

EPDM

Product Code

Size

inches

Significant

Number

EPDM

Product Code

Size

inches

Significant

Number

EPDM

Product Code

1-1/2 FEOV107-DA 253680

2FEOV108-DA 253681

2-1/2 FEOV109-DA 253682

3FEOV110-DA 253683

4FEOV111-DA 253684

5FEOV112-DA 253685

6 FEOV113-DA 253686

8FEOV114-DA 253687

10 FEOV115-DA 253688

12 FEOV116-DA 253689

PVC Body & Disc, Wafer Style

1-1/2 FEOV107-NC 253690

2FEOV108-NC 253691

2-1/2 FEOV109-NC 253692

3FEOV110-NC 253693

4FEOV111-NC 253694

5FEOV112-NC 253695

6 FEOV113-NC 253696

8FEOV114-NC 253697

10 FEOV115-NC 253698

12 FEOV116-NC 253699

Pneumatic – SPRING RETURN, NORMALLY CLOSED

PVC Body & Disc, Wafer Style

1-1/2 FEOV107-NO 253700

2FEOV108-NO 253701

2-1/2 FEOV109-NO 253702

3FEOV110-NO 253703

4FEOV111-NO 253704

5FEOV112-NO 253705

6 FEOV113-NO 253706

8FEOV114-NO 253707

10 FEOV115-NO 253708

12 FEOV116-NO 253709

Pneumatic – SPRING RETURN, NORMALLY OPEN

Note: NBR and Viton®lined valves are available on

request

PVC Body & Disc, Wafer Style

1-1/2 FEOV107-EL 253710

2FEOV108-EL 253711

2-1/2 FEOV109-EL 253712

3FEOV110-EL 253713

4FEOV111-EL 253714

5FEOV112-EL 253715

6 FEOV113-EL 253716

8FEOV114-EL 253717

10" and 12" electrically actuated butterfly valves are

available upon request.

Note: 24 VDC, 4-20 mA Positioner, Fail Safe Battery Backup available. Consult IPEX Corrosion Resistant Thermoplastic Valves Price List or

IPEX Representative

Pneumatic – DOUBLE ACTING

167

QUARTER TURN AUTOMATION

ACCESSORIES – PNEUMATIC ACTUATOR

Component

Style

Significant

Number

Product

Code

NEMA 4/4X SV61CSA110VAC 253055

NEMA 7/9 SV91 253056

Mechanical MS41-2 253057

Proximity PS41-2AL 253058

Pilot Solenoids – 110 VAC, 3/4-Way

Limit Switches – NEMA 4/4X

Pilot solenoids meet NAMUR mounting specifications.

NEMA 4/4X SV61CSA24VDC 253088

Pilot Solenoids – 24 VDC, 3/4-Way

Pilot solenoids meet NAMUR mounting specifications.

Manual Overide

Limit switches include universal mounting brackets (ISO 5211)

3-15 psi PNY01 253061

4 - 20 mA PEY01 253059

4 - 20 mA, w/ limit switch

(LS) PEY02 253816

4 – 20 mA, w/ position

transmitter (PT) PEY03 253817

4 - 20 mA, w/ LS & PT PEY04 253818

4 - 20 mA, I-safe PEI01 253062

Muffler - Brass/Bronze MUFF-NPT 253065

Speed Control - Brass/Bronze SPEED-NPT 253066

L-Port Actuator Beacon Kit BEACON-3W-L 253089

T-Port Actuator Beacon Kit BEACON-3W-T 253090

Sandwich Declutch.

Gearbox ISO 5211 PV01-GOJ26 253819

Positioners

Other

All positioners include universal mounting brackets (ISO 5211) and gages.

Several other positioners available, including Intrinsically Safe, Explosion proof,

Smart, Stainless Steel and High Vibration models, with limit switch and position

transmitter options. Please contact IPEX for more information.

Declutchable gearbox has MAXIMUM torque rating of 2600 in-lbs. For higher torque

values, please contact IPEX for larger size gearbox models.

Customer must specify at time of order if accessories are to be factory assembled

with the actuated valves.

168

QUARTER TURN AUTOMATION

ACCESSORIES – MOUNTING

Size

Inches

Mounting

Detail

Significant

Number

Product

Code

1/2 F03 / F04 / 11mm 2KTPQCPEF 154048

3/4 F04 / 11mm 2KTPQCPGGF04 154049

3/4 F03 / F05 / 11mm 2KTPQCPGG 154050

1F04 / 11mm 2KTPQCPHHF04 154051

1 F03 / F05 / 11mm 2KTPQCPHH 154052

1-1/4 F05 / F07 / 11mm 2KTPQCPII11 154182

1-1/4 F05 / F07 / 14mm 2KTPQCPII 154053

1-1/2 F05 / F07 / 11mm 2KTPQCPJJ11 154183

1-1/2 F05 / F07 / 14mm 2KTPQCPJJ 154054

2F05 / F07 / 11mm 2KTPQPLL11 154174

2 F05 / F07 / 14mm 2KTPQPLL 154055

2-1/2 - 4 (VKD) F05 / F07 1PIA08TM 153001

VKD & TKD Series Ball Valve Mounting Kit

1/2 F03 / F04 / 11mm 2KT00200 154056

3/4 F04 / 11mm 2KT0020111 154175

3/4 F03 / F05 / 11mm 2KT00201 154057

1F04 / 11mm 2KT0020211 154176

1 F03 / F05 / 11mm 2KT00202 154058

1-1/4 F05 / F07 / 11mm 2KTF5F7II11 154177

1-1/4 F05 / F07 / 14mm 2KT5FII 154059

1-1/2 F05 / F07 / 11mm 2KTF5F7JJ11 154178

1-1/2 F05 / F07 / 14mm 2KTF5F7JJ 154060

2F05 / F07 / 11mm 2KTF5F7LL11 154179

2 F05 / F07 / 14mm 2KTF5F7LL 154061

TK Series 3-Way Ball Valve Mounting Kit

0.43 x 0.35 11mm x 9mm 11X9SSA 253048

0.55 x 0.43 14mm x 11mm 14X11SSA 253049

0.67 x 0.43 17mm x 11mm 17X11SSA 253050

0.67 x 0.55 17mm x 14mm 17X14SSA 253051

0.87 x 0.67 22mm x 17mm 22X17SSA 253052

1.06 x 0.87 27mm x 22mm 27X22SSA 253053

1.42 x 1.06 36mm x 27mm 36X27SSA 253054

Square Stem Adapter

1/2 F04 / F05 / 11mm PK0006F04 154042

3/4 F04 / F05 / 11mm PK0007F04 154043

1 F04 / F05 / 11mm PK0008F04 154044

1-1/4 F04 / F05 / 11mm PK0009F04 154045

1-1/2 F05 / F07 / 14mm PK0010F05 154046

2F05 / F07 / 14mm PK0011F05 154047

VX & VXE Series Ball Valve Mounting Kit

1-1/2 - 6 F05 / F07 1PIA08TM 153001

8F10 1PIA08VM 153002

Spacer Plate for FK Series Butterfly Valves

Ventilation Duct

Well Casings

Grooved PVC Pipe

SPECIALTY

PRODUCTS

1) IPEX’s highly chemically resistant PVC and CPVC ventilation duct

systems feature seamless pipe for greater flow rates. Their light

weight allows for easier handling on the job, which means lower

installation costs.

2) For applications where quick assembly is required under adverse

conditions, IPEX offers factory-grooved PVC pipe designed to mate

easily with mechanical grooved couplings.

3) And, IPEX well casings offer corrosion-resistant, maintenance-free

protection for well-drop-pipe and submersible pumps.

170

172

170

STANDARDS

SPECIALTY PRODUCTS

VENTILATION DUCT

PVC & CPVC Exhaust System Ducting

IPEX PVC & CPVC exhaust system ducting provides effective solutions

for industrial ventilation systems, protecting workers and the

environment from contaminated air.

PVC ADVANTAGES

PVC cell class 12454 as per ASTM D1784

Extruded seamless PVC duct in all

standard diameters 6" through 24"

For use in industrial and institutional fume

handling systems requiring high

resistance to corrosive vapors

Ideal for plating, metal finishing and

laboratory installations

Low installed cost as compared to

noncorrosive metallics

Light weight allows longer runs and

speeds installation with simple tools and

piping techniques

Low maintenance requirements over

extended service periods

Low flame spread rating of 10 as per

CAN/ULC S102.2

Ventilation Duct

ASTM D1784

CAN/ULC S102.2

CPVC ADVANTAGES

Extruded seamless CPVC duct in all

standard diameters 6" through 16"

CPVC withstands exhaust temperatures up

to 200°F

CPVC cell class 23447 as per ASTM 1784

CPVC is inert to most mineral acids, bases,

salts, and aliphatic hydrocarbons, and

compares favorably to other non-metals in

corrosive chemical environments.

Ideal for chemical processing, semi-

conductor fabrication, metal plating &

finishing, pulp & paper, waste water

treatment plants, and laboratory

installations

Low installed cost as compared to non-

corrosive exotic metal systems and PVDF

Light weight allows for ease of handling

and installation and reduces transportation

and labor costs

Low maintenance requirements over

extended service periods

Low flame spread rating of 10 and smoke

development classification of 25 as per

CAN/ULC S102.2

Corzan®CPVC compound meets and is

listed FM 4910 “Clean Room Materials

Flammability Test Protocol” approval

standard

171

VENTILATION DUCT

CPVC Duct is only available up to 16" diameter.

Duct Dimensions

Duct Size

Diameter

(in)

Product

Code

Average O.D.

(in.)

Average I.D.

(in.)

Average Wall

Thickness (in.) PVC

Weight (lbs/ft) CPVC

Weight (lbs/ft)

6 x 20 046700 6.625 6.251 0.187 2.319 2.519

8 x 20 046702 8.625 8.251 0.187 3.040 3.301

10 x 20 046704 10.750 10.376 0.187 3.805 4.133

12 x 20 046706 12.750 12.376 0.187 4.528 4.916

14 x 20 046707 14.000 13.626 0.187 4.978 5.405

16 x 20 046708 16.000 15.626 0.187 5.697 6.188

18 x 20 046709 18.000 17.626 0.187 6.420 –

20 x 20 046711 20.000 19.500 0.250 9.515 –

24 x 20 046713 24.000 23.500 0.250 11.442 –

172

PVC WELL CASING

ADVANTAGES

Meets ASTM D1784, D1785, D2665 (Sch 40 pipe only) and F480 specifications.

Third-party certified by NSF.

Solvent weld joints are strong and water tight.

Installation can be accomplished with lighter setting equipment than is required

for metallic piping.

Electrically non-conductive which reduces job site work hazards.

Non-toxic and non-leaching with excellent chemical resistance.

Available in bell end 2" - 16" or plain end for threading 2" - 12".

Dimensions for Xirtec140 PVC Well Casing Pipe – ASTM F480

Pipe Size

(in.)

Product

Code

Outside Diameter (in.) Minimum Wall Thickness (in.) Bell Length

(in.)

Average Tolerance on Avg SDR21 Sch 40 Sch 80

2022620 2.375 ±0.006 0.113 0.154 0.218 4.000

2-1/2 022625 2.875 ±0.007 0.137 0.203 0.276 5.000

3022630 3.500 ±0.008 0.167 0.216 0.300 5.500

4022640 4.500 ±0.009 0.214 0.237 0.337 6.500

5022650 5.563 ±0.010 0.265 0.258 0.375 6.000

6022660 6.625 ±0.011 0.316 0.280 0.432 8.000

8022680 8.625 ±0.015 0.410 0.322 0.500 7.000

10 022690 10.750 ±0.015 0.511 0.365 0.593 7.500

12 022692 12.750 ±0.015 0.606 0.406 0.687 8.500

14 022694 14.000 ±0.020 0.667 0.437 0.750 9.000

16 022696 16.000 ±0.020 0.762 0.500 0.843 10.000

IPEX bell end PVC well casing provides corrosion-resistant,

maintenance-free protection for well drop-pipe and submersible pumps.

Its light weight facilitates installation with conventional tools and piping

techniques. It is manufactured to ASTM standards and is available

throughout North America from IPEX’s fully stocked service centers.

PVC Well Casing

STANDARDS

ASTM D1784, ASTM D1785, ASTM F480

ASTM D2665 - Sch 40 pipe only

IPEX PVC pipe can be roll or cut-grooved at each end for quick

connection using mechanical couplings specifically designed for PVC

pipe. This method can be used in any application where PVC pipe is

acceptable and where it is desirable to have a means for quick

assembly under adverse conditions.

ADVANTAGES

Completely re-usable pressure system that does not

require threading, solvent welding, or flanging.

Joints are mechanically locked to produce a secure,

leak-tight connection under pressure or vacuum.

(See coupling manufacturer’s product information for details

on pressure capabilities.)

A union at every joint allows for speed and ease of

assembly and field maintenance.

In abrasive applications, pipe can easily be rotated

to distribute wear evenly.

Flexible system permits laying on rough or uneven

terrain.

When using a gasket-type coupler, each joint will

absorb some expansion and contraction due to

temperature changes.

Grooved systems facilitate

fast add-ons, modifications

or re-location of the pipe.

Roll Grooved PVC Pipe

DID YOU KNOW?

For more information on our Specialty

Products, you can

download our Vinyl

Process Piping Systems

Technical Manual

quickly and easily. Just

go to our website:

www.ipexamerica.com.

Recommended Piping

for Roll Grooved Joints

Consult an IPEX representative for detailed

design considerations

Piping Material

PVC Sch 40

Pipe Size

(inches)

Piping Material

PVC Sch 80

22686 285194

22688 385200

22706 485201

22712 685202

22714 885203

22730 10 85204

22716 12 85205

173

GROOVED PVC PIPE

NOTES

____________________________________________________

175

IPEX USA LLC MUNICIPAL

PRODUCT OVERVIEW

PRESSURE

PIPING SYSTEMS

Blue Brute®CIOD

4" - 12" (100mm - 300mm)

AWWA C900 pressure pipe

and fittings Cycle Tough®

1/2" - 24" (12mm - 600mm)

IPSOD PVC pressure pipe and fittings

for irrigation, rural & force main applications.

BIONAX®

4" - 12" (100mm - 300mm)

AWWA C909

molecularly-enhanced PVC pipe

designed for watermains, sewage

forcemains, irrigation lines and

industrial process piping. Made

from biaxially-oriented PVC.

TerraBrute®CR

4" - 12" (100mm - 300mm)

Nonmetallic AWWA C900

PVC pressure pipe system

for HDD applications which

withstands up to 120,000 lbs

of pull force.

IPEX Centurion®

14" - 48" (350mm - 1200mm)

AWWA C905 large diameter

pressure pipe and fittings.

Q-Line®

3/4" - 1" (20mm - 25mm)

AWWA C903 composite

water service tubing.

WATER SERVICE

SYSTEMS

Philmac®3GTM Valves & Fittings

1/2" - 2" (12mm - 50mm)

Water line compression fittings

in CTS OD and ID Series sizes.

SEWER PIPING

SYSTEMS

Enviro-Tite®

4" - 15" (100mm - 375mm)

SDR35 and SDR28 sewer pipes

made from 50% recycled material.

Ring-Tite®

4" - 42" (100mm - 1050mm)

SDR35 and SDR28

sewer pipe and fittings.

SPECIALTY

PRODUCTS

Tempest®Storm Sewer

Inlet Controls

6" sewer outlet pipe and larger

Cost-effective Inlet Control Devices that

work together across a series of catch

basins to limit the amount of storm

water runoff that can enter a combine

sewer system during a storm event. Vortex FlowTM Insert

Custom designed, the Vortex Flow

Insert eliminates odorous emissions

and minimizes corrosion in vertical

sewer drops.

Products manufactured by IPEX Inc and distributed in the United States by IPEX USA LLC..

Bionax®, IPEX Centurion®, TerraBrute®CR, Cycle Tough®, Q-Line®, Philmac®3GTM, Ultra-Rib®,

Enviro-Tite®, Vortex FlowTM and TempestTM, are trademarks of IPEX Branding Inc.

Ultra-Rib®

8" - 24" (200mm - 600mm)

Open-profile sewer pipe and

fittings.

Perforated Building

Sewer Pipe

4" (100mm) and 6" (150mm)

DR35 Building sewer pipe for the

collection of domestic waste and

stormwater (New England Pattern).

177

IPEX USA LLC

PLUMBING & MECHANICAL

PRODUCT OVERVIEW

GAS VENTING

System 636®Flue Gas Venting

1-1/2" – 8" (40mm – 200mm)

PVC-FGV Type BH Class II A vent pipe and

fittings and CPVC-FGV Type BH Class II B vent.

Products manufactured by IPEX Inc and distributed in the United States by IPEX USA LLC. .

System 636®is a trademark of IPEX Branding Inc.

NOTES

____________________________________________________

Bookmark Our Website

www.ipexamerica.com

OUR TECHNICAL MANUALS INCLUDE:

•Standards •Pressure Ratings

•Specifications •Design Calculations

• Dimensions •and much more ...

PRODUCT INFO,

TECHNICAL

DOCUMENTS,

ONLINE TRAINING

& MUCH MORE ...

available at www.ipexamerica.com

About the IPEX Group of Companies

As leading suppliers of thermoplastic piping systems, the IPEX Group of

Companies provides our customers with some of the world’s largest and most

comprehensive product lines. All IPEX products are backed by more than 50 years

of experience. With state-of-the-art manufacturing facilities and distribution centers

across North America, we have established a reputation for product innovation,

quality, end-user focus and performance.

Markets served by IPEX group products are:

•Industrial process piping systems

•Double containment systems

•Acid waste systems

•High purity systems

•Compressed air and inert gas piping system

•Manual and actuated thermoplastic valves

•Industrial, plumbing and electrical cements

•Electrical systems

•Telecommunications and utility piping systems

•Industrial process piping systems

•Municipal pressure and gravity piping systems

•Plumbing and mechanical piping systems

•PE Electrofusion systems for gas and water

•Irrigation systems

•PVC, CPVC, PP, PVCO, ABS, PEX, FR-PVDF, NFRPP, FRPP, HDPE, PVDF and

PE pipe and fittings (1./2” – 48”)

SALES AND CUSTOMER SERVICE

www.ipexamerica.com

Call IPEX USA LLC

Toll Free: (800) 463-9572

This literature is published in good faith and is believed to be reliable. However, it

does not represent and/or warrant in any manner the information and suggestions

contained in this brochure. Data presented is the result of laboratory tests and field

experience.

A policy of ongoing product improvement is maintained. This may result in

modifications of features and/or specifications without notice.

Products are manufactured by IPEX Inc. and distributed in the United States by IPEX USA LLC.

Valves are manufactured by FIP S.P.A. and distributed in the United States by IPEX USA LLC.

Centra-GuardTM, Centra-LokTM, Clear-GuardTM, CustomGuard®, Duraplus®, Duratec®, EncaseTM,

Enfield®, EnpureTM, FlowayTM, GuardianTM, Labline®, Neutratank®, Neutrasystem2TM, PlenumlineTM

and Xirtec®140 are trademarks of IPEX Branding Inc.

Corzan®is a registered trademark of the Lubrizol Corp.

1000507064 Catalog

Navigation menu

Versions of this User Manual:

Views

Navigation
