GE Energy
Industrial Solutions
imagination at work
Load Centers
page 1

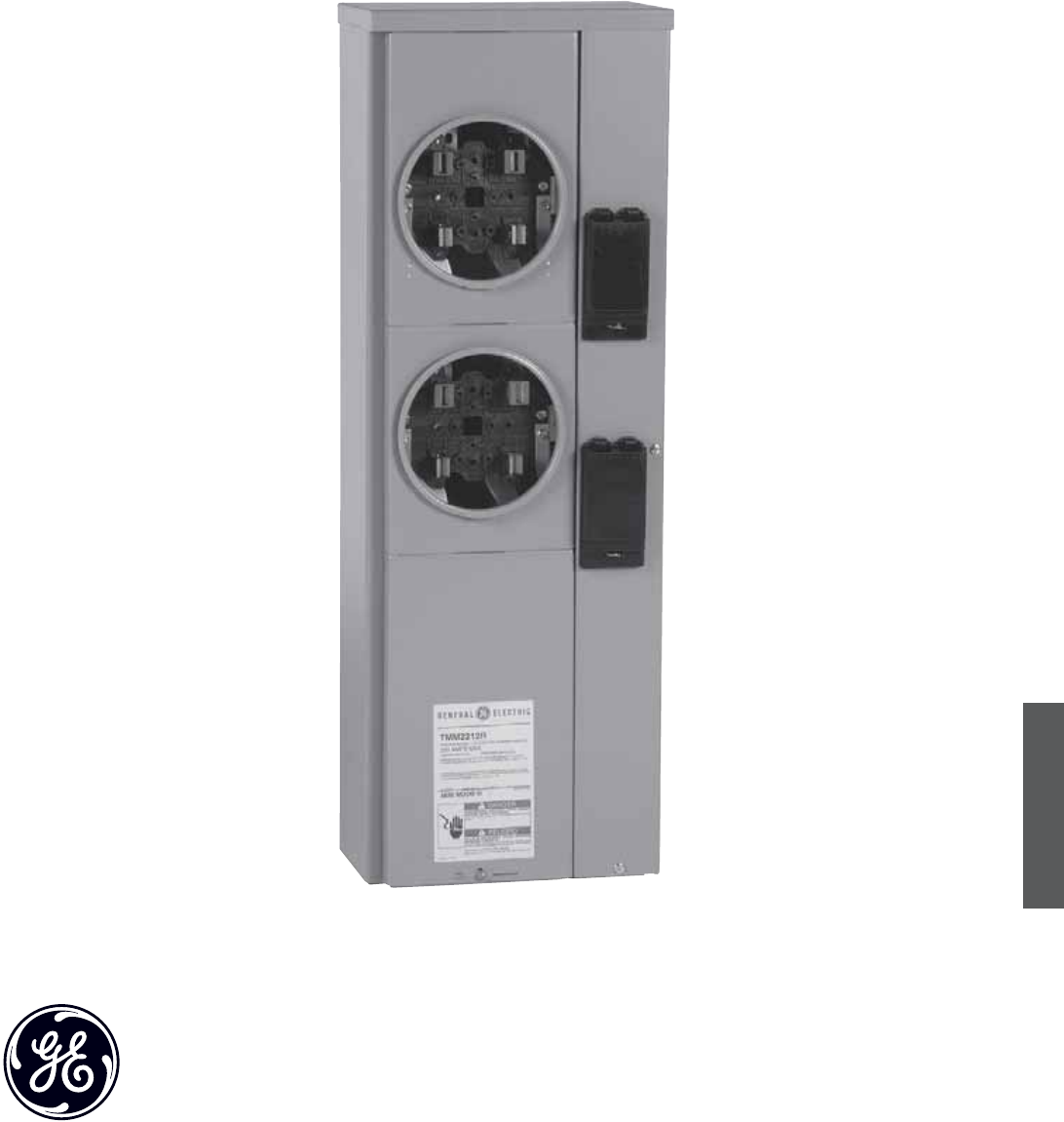

Mini Mod®III
Modular Metering
page 33

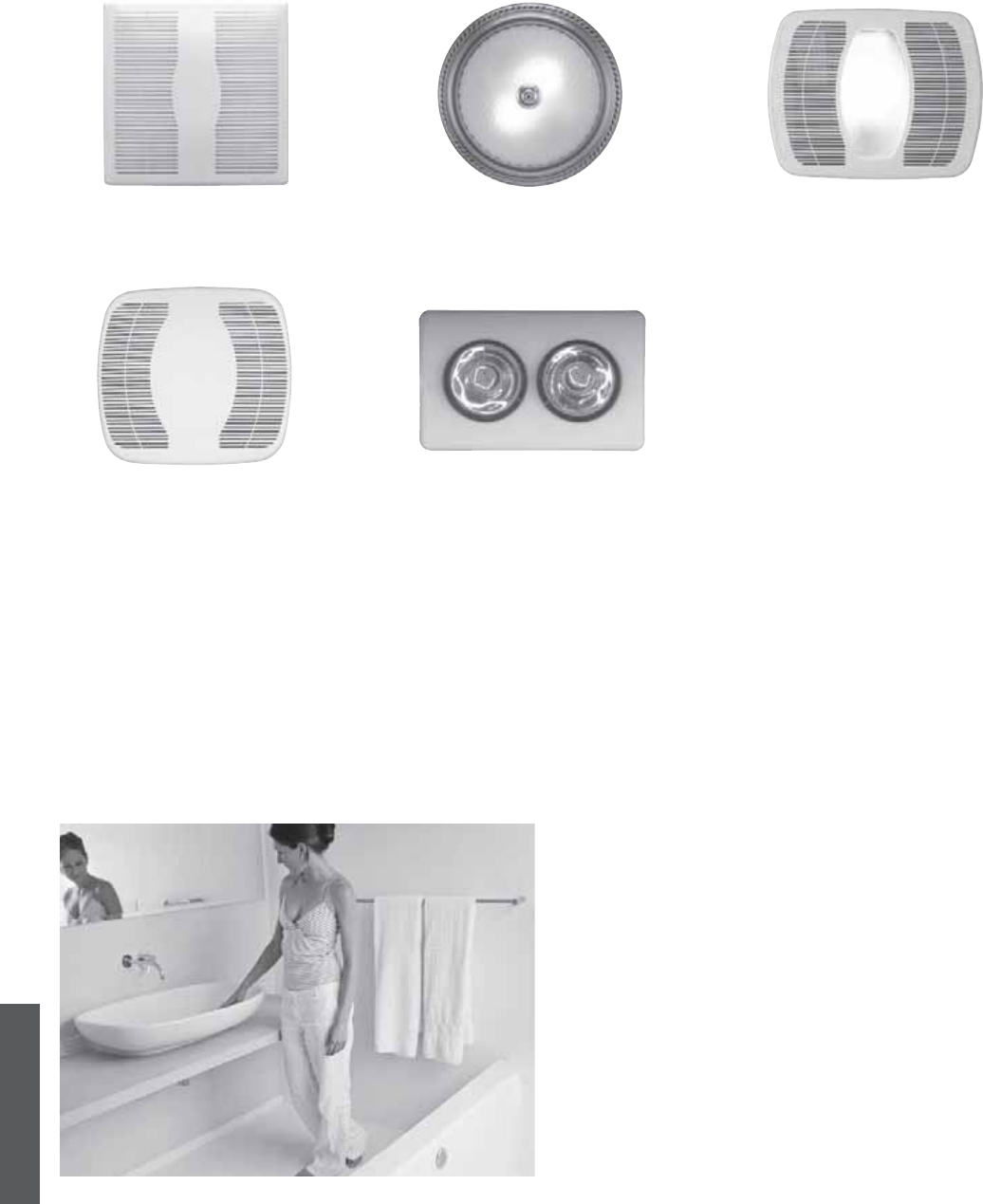

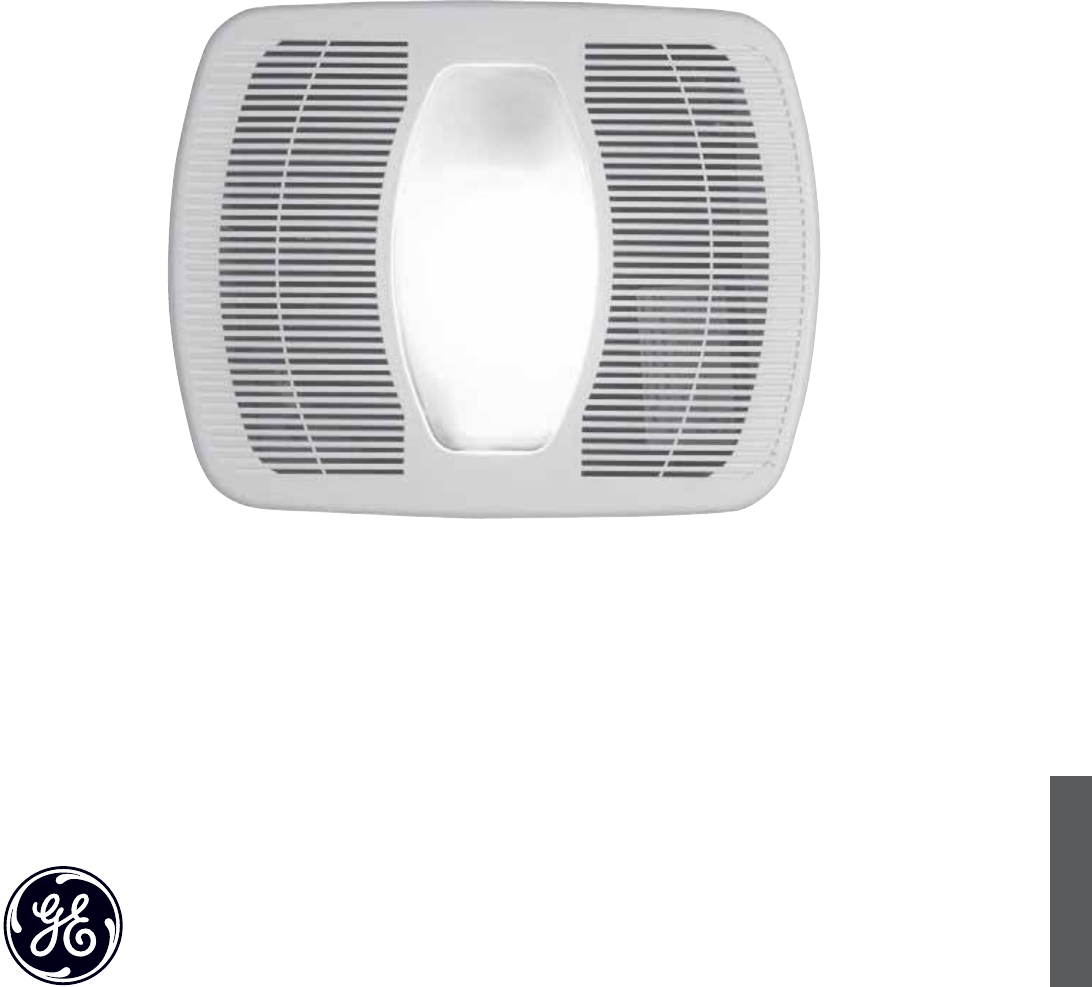

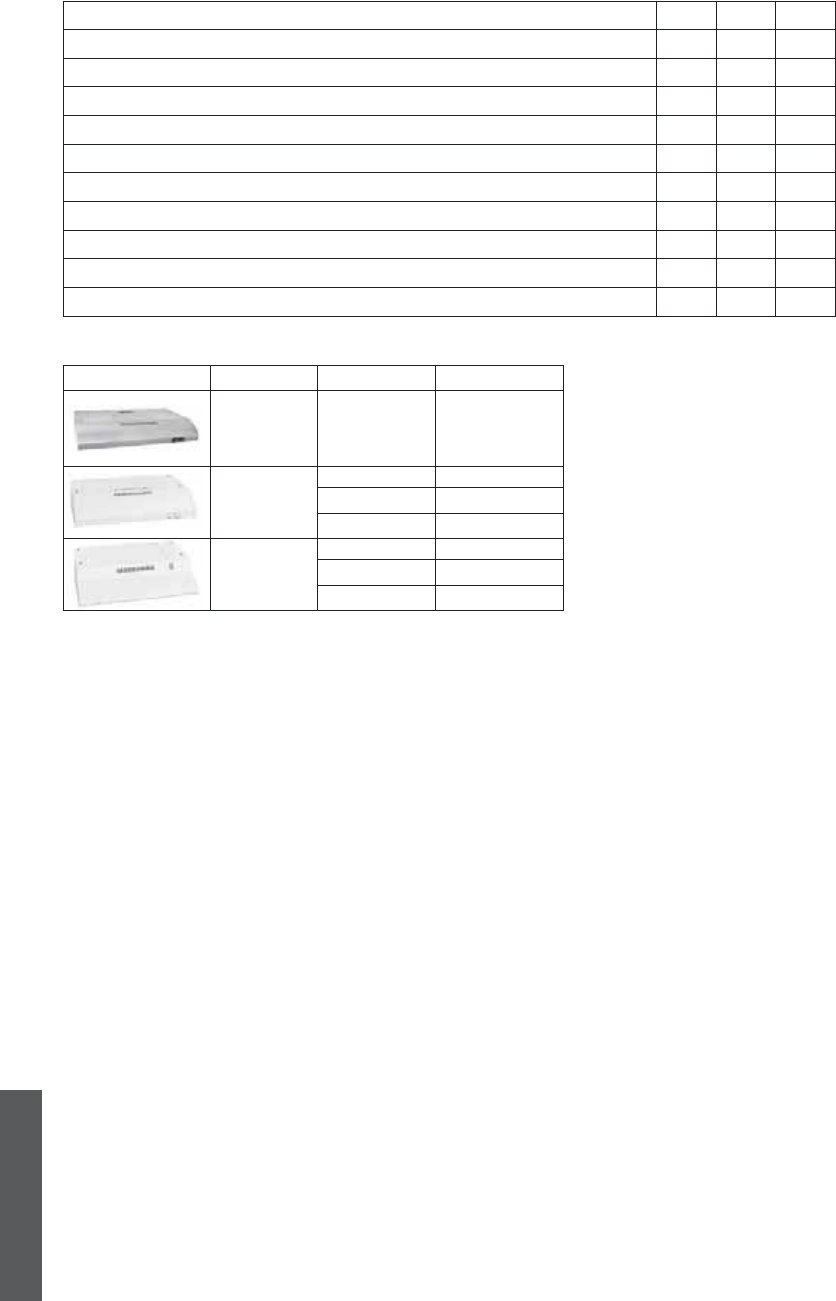

Bath Fans &
Range Hoods
page 37

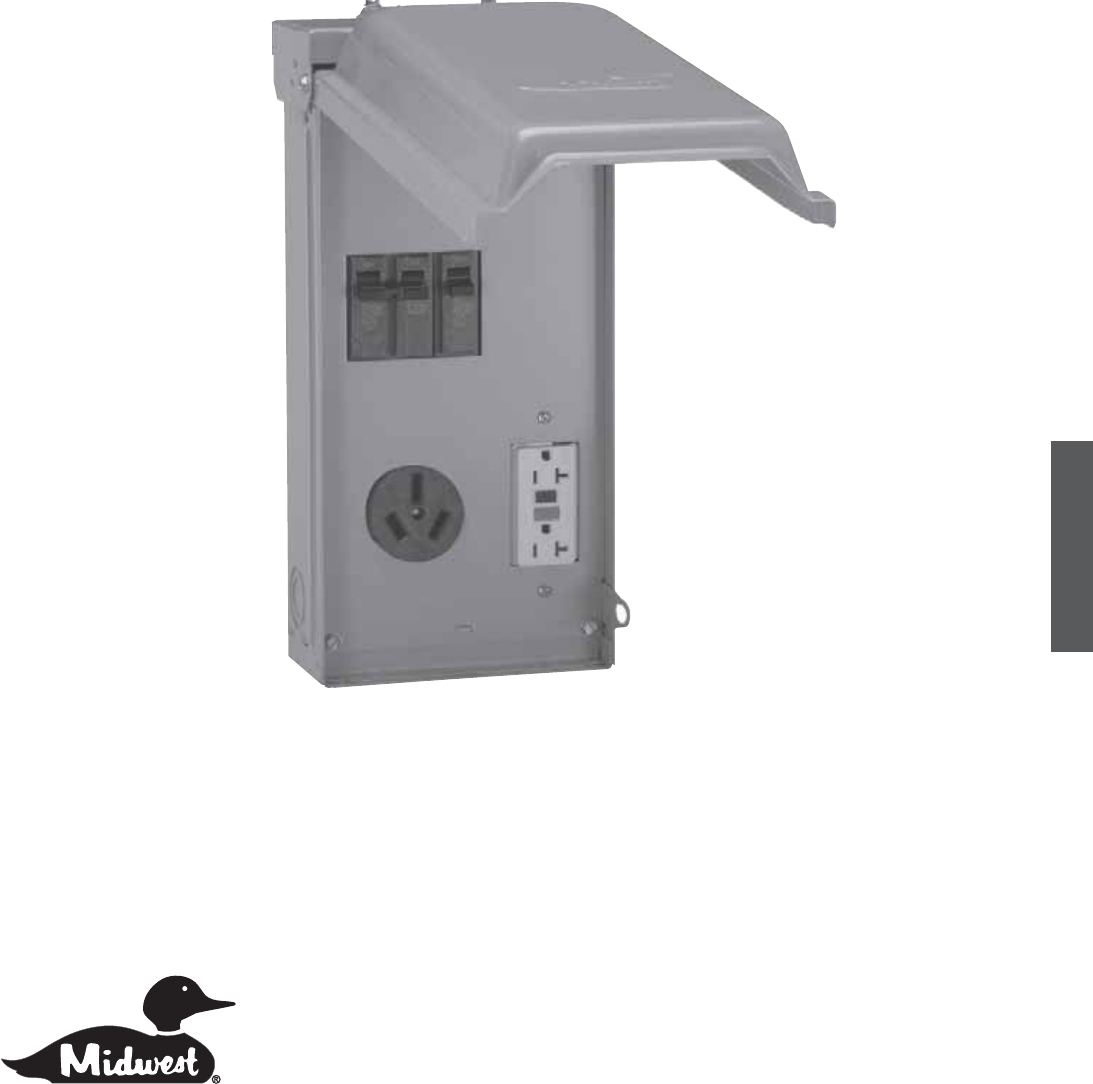

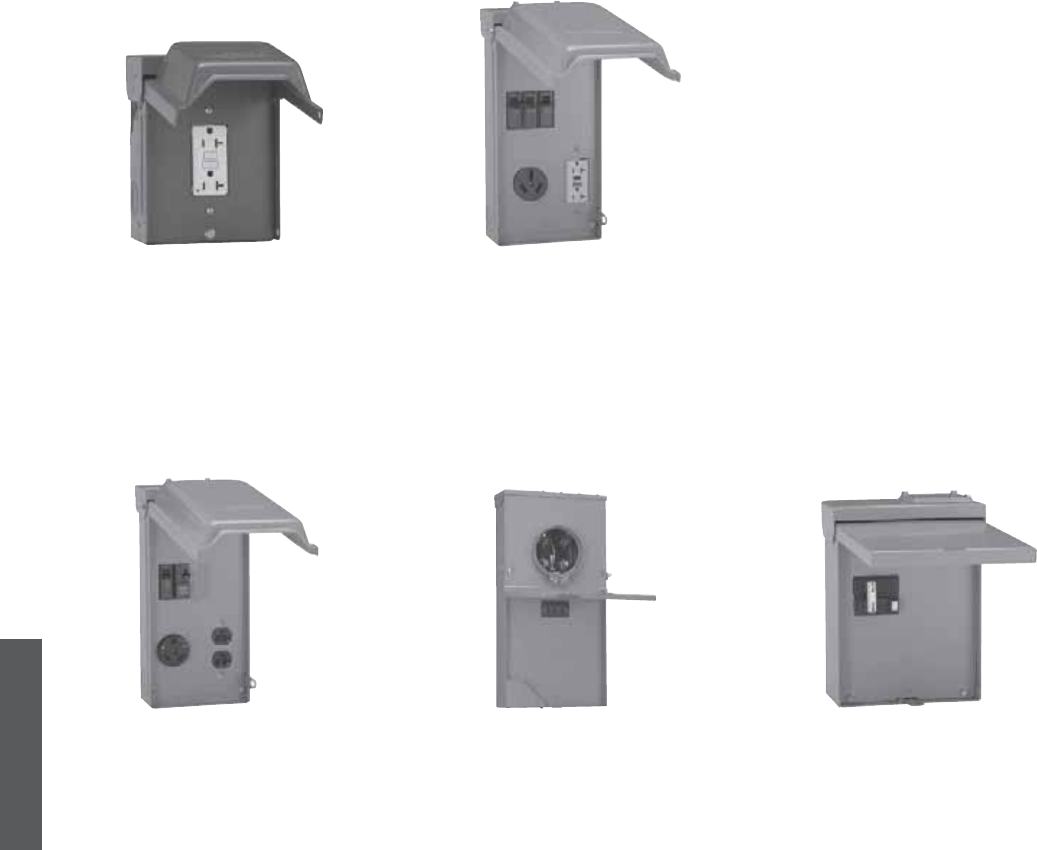

Outdoor Power
Products by Midwest
page 27

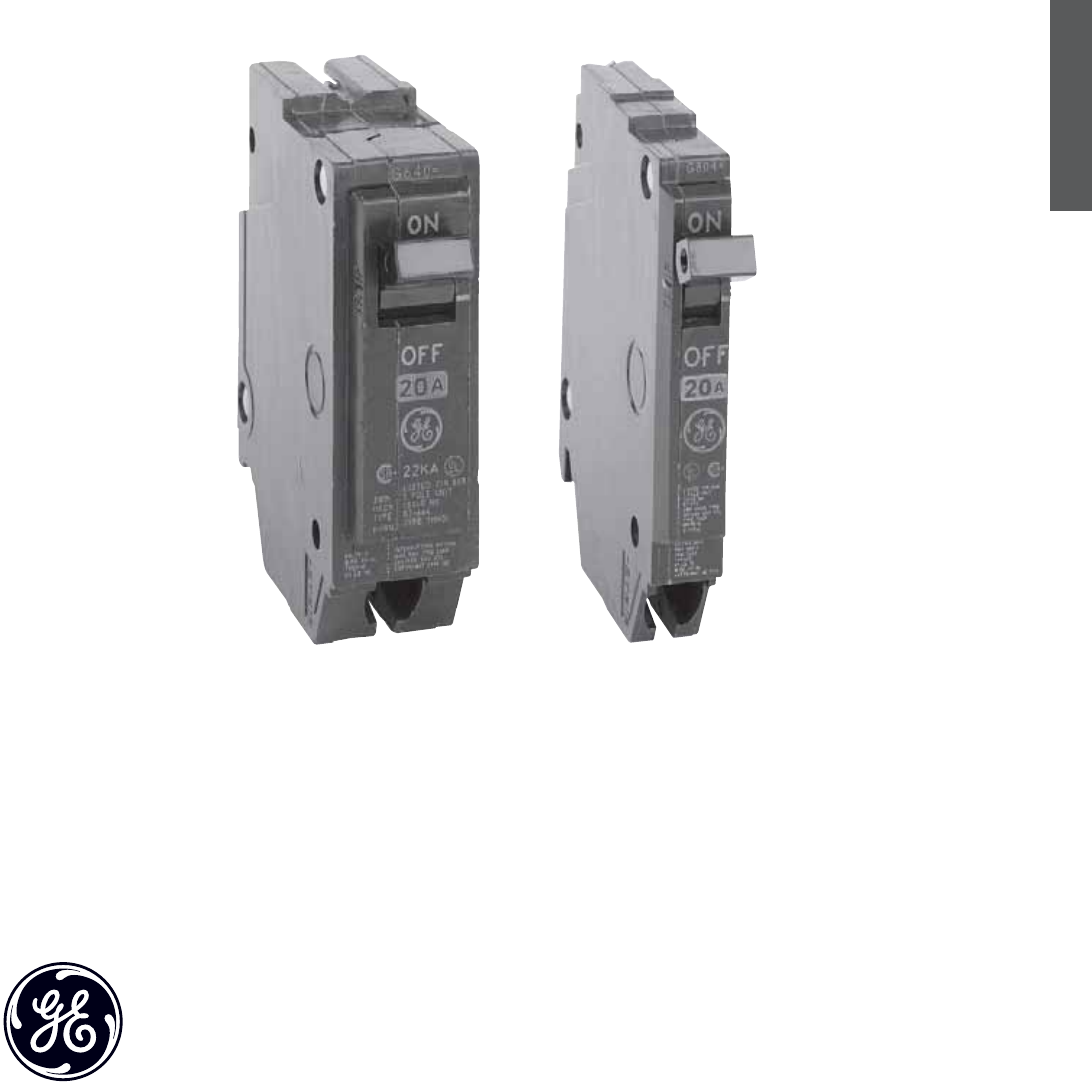

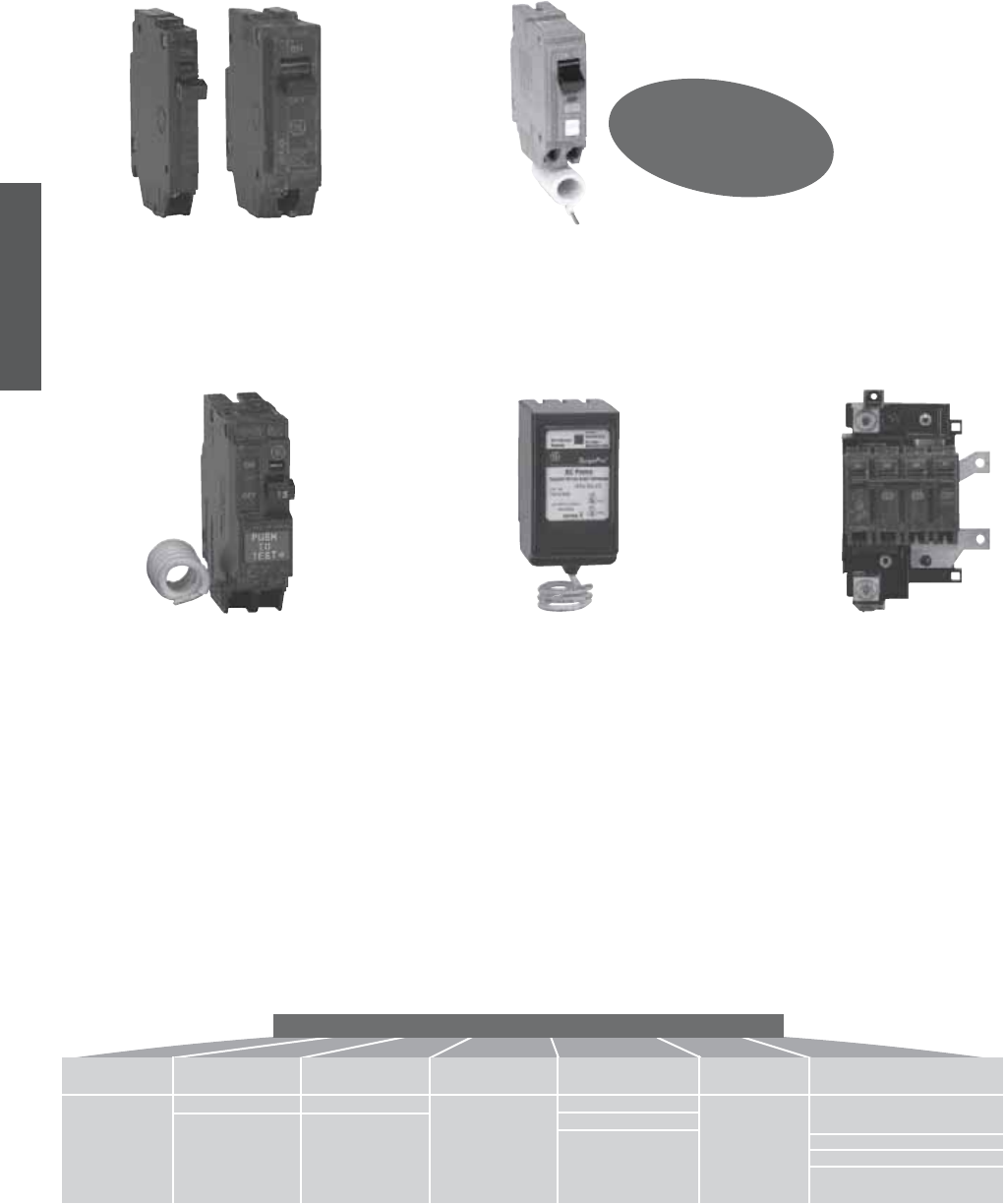

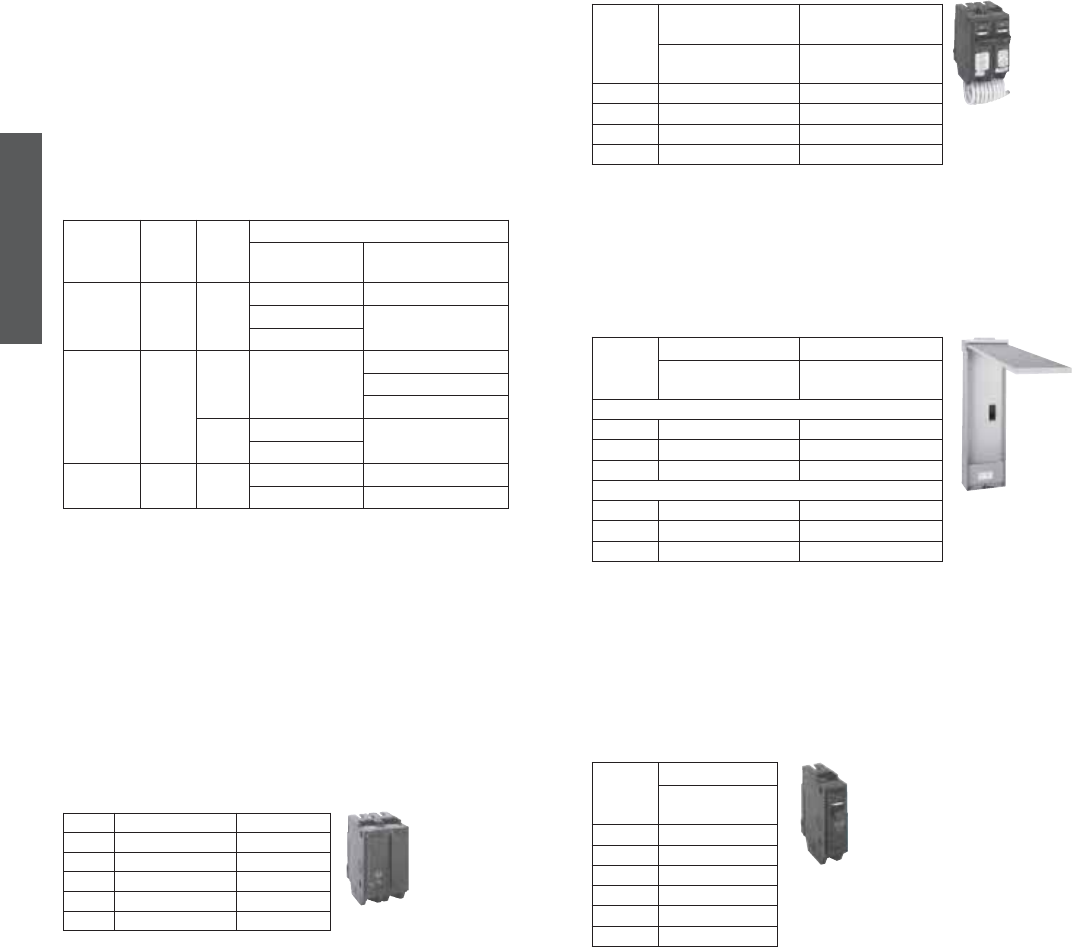

Circuit Breakers
page 11

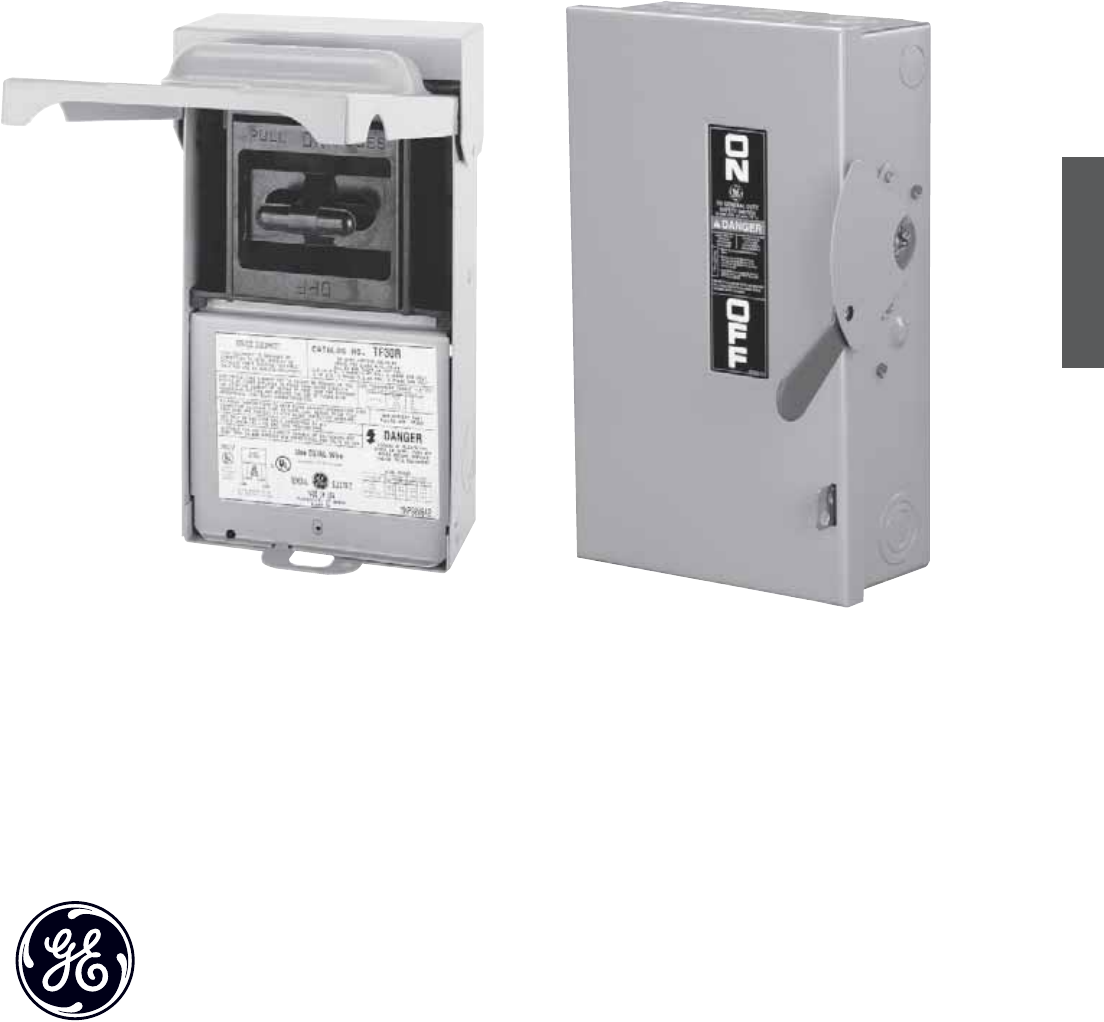

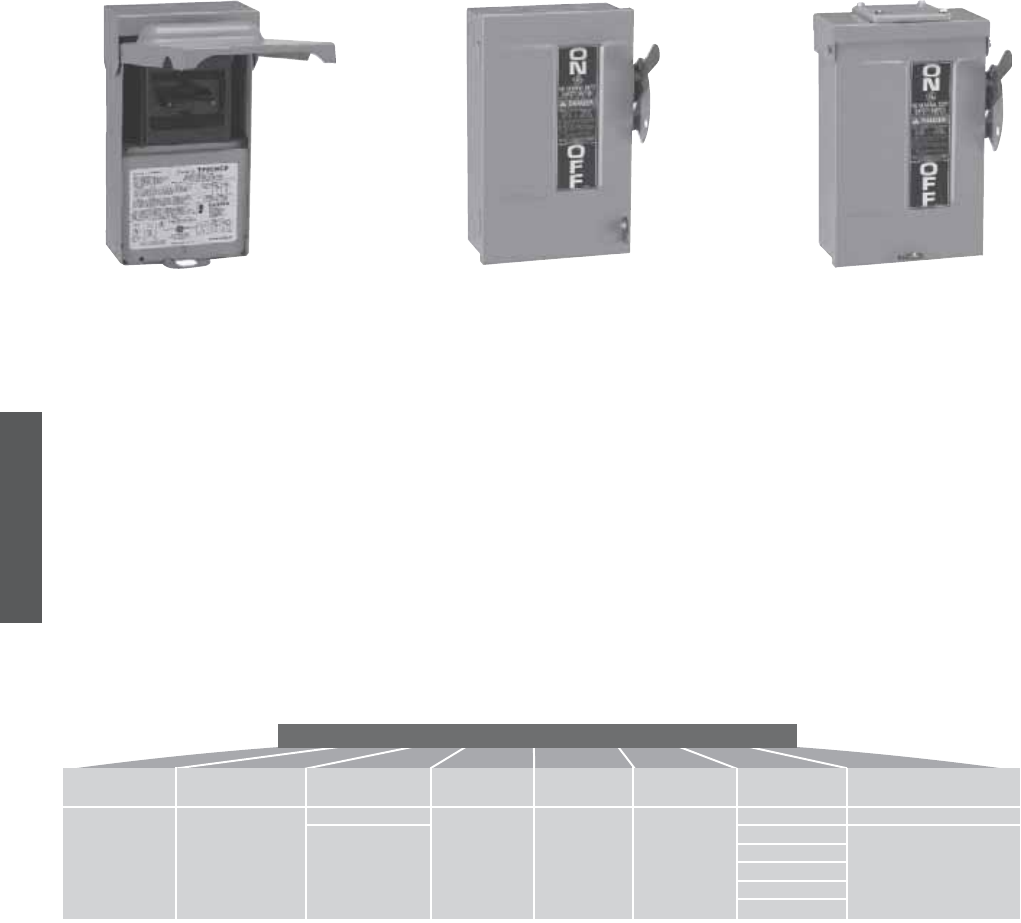

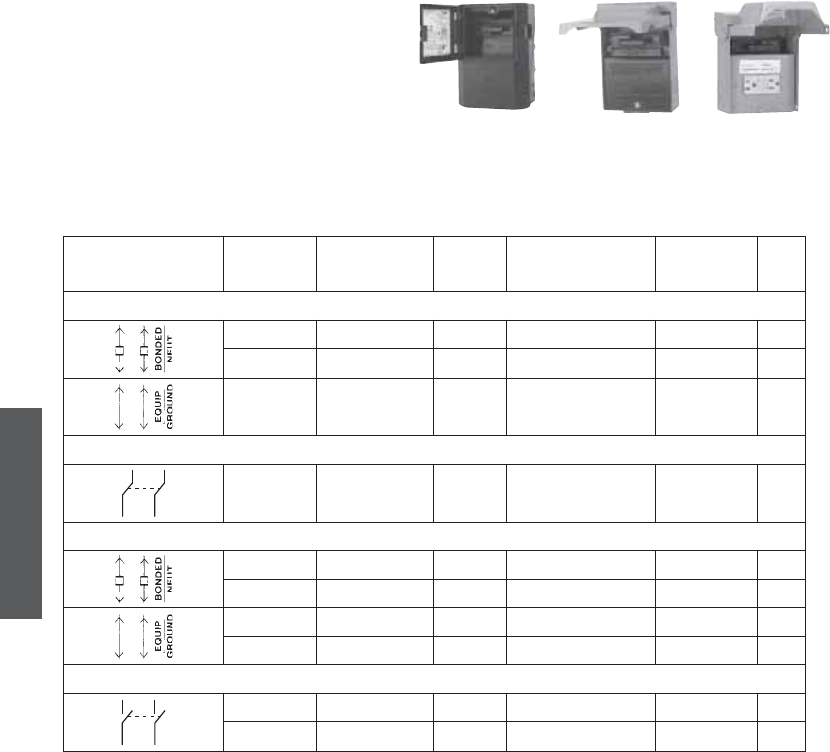

AC Disconnects &
Safety Switches
page 19
GE Electrical Products
Residential
1

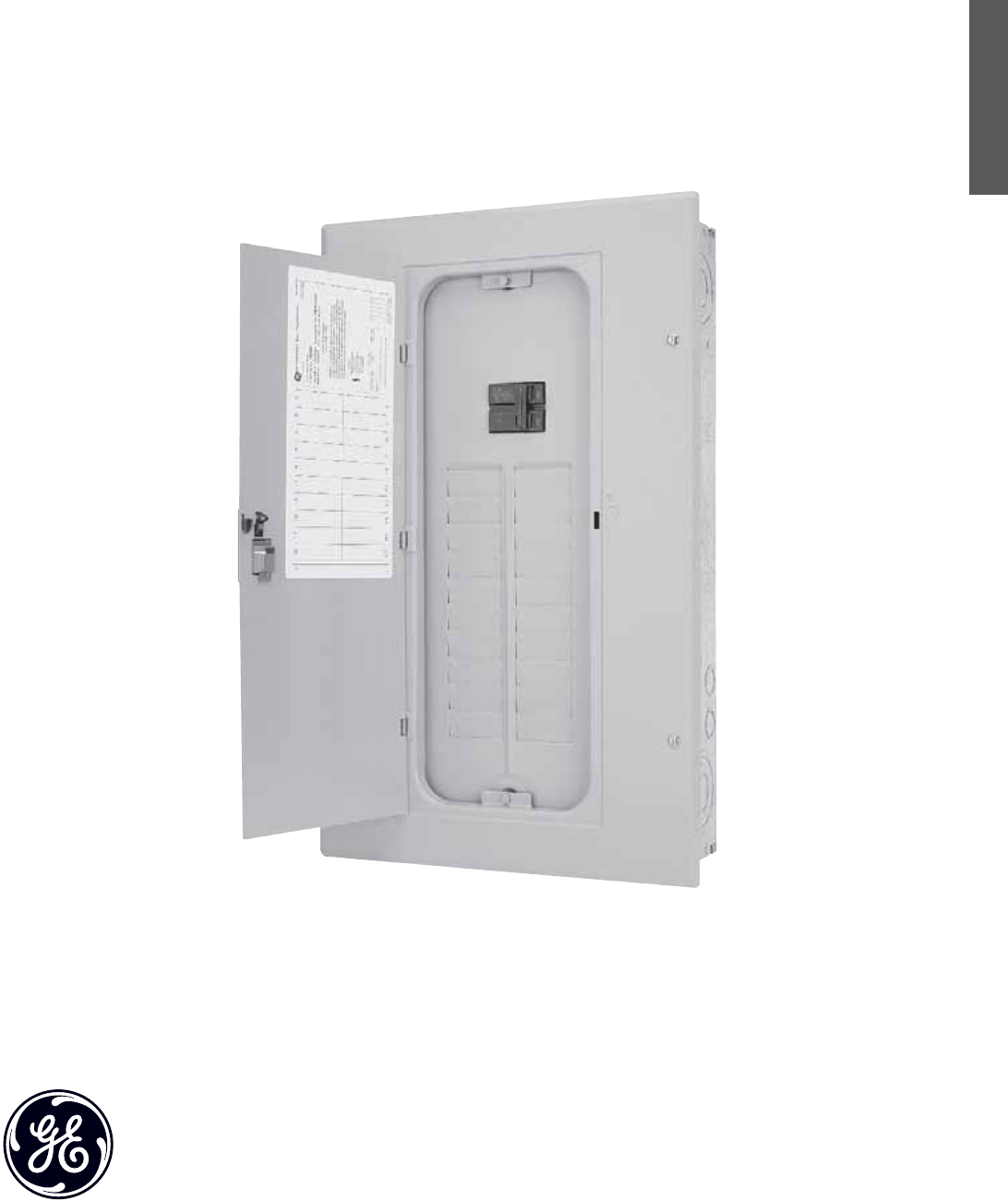

Load Centers
GE Load Centers
imagination at work
2
Load Centers
GE Load Centers
GE load centers deliver the highest quality and convenience.
GE load centers lower your costs by making installation faster and easier and by increasing application flexibility.
At the same time, they deliver obvious and significant advances in design, function and quality.
• Exclusive GE limited lifetime warranty
• UL Listed (Panelboards No. 67)
• Suitable for Use as Service Entrance Equipment when installed in accordance with National Electrical Code
• 60°C/75°C conductor rating
• Single phase, 40-225A, 4-42 circuits
• Main lug models field convertible to main breaker
• Main breaker 22kAIC standard - factory installed
• All load centers top or bottom feed
• Indoor and outdoor rated enclosures
• Indoor fronts combination surface/flush
• Copper bus standard
• Split neutrals extend the full length of the interior for ease of wiring
• Main lug line converts easily to main breaker
• Combination surface/flush front with spring-reinforced pan
• Front packed in inner carton for added protection
• Field installable feed-through lugs up to 200A
• Straight-through main wiring
• Main breaker is clearly marked and circuit numbers are stamped on front
• Isolated ground bar is available
• Compact box maintains optimum wire-bending space

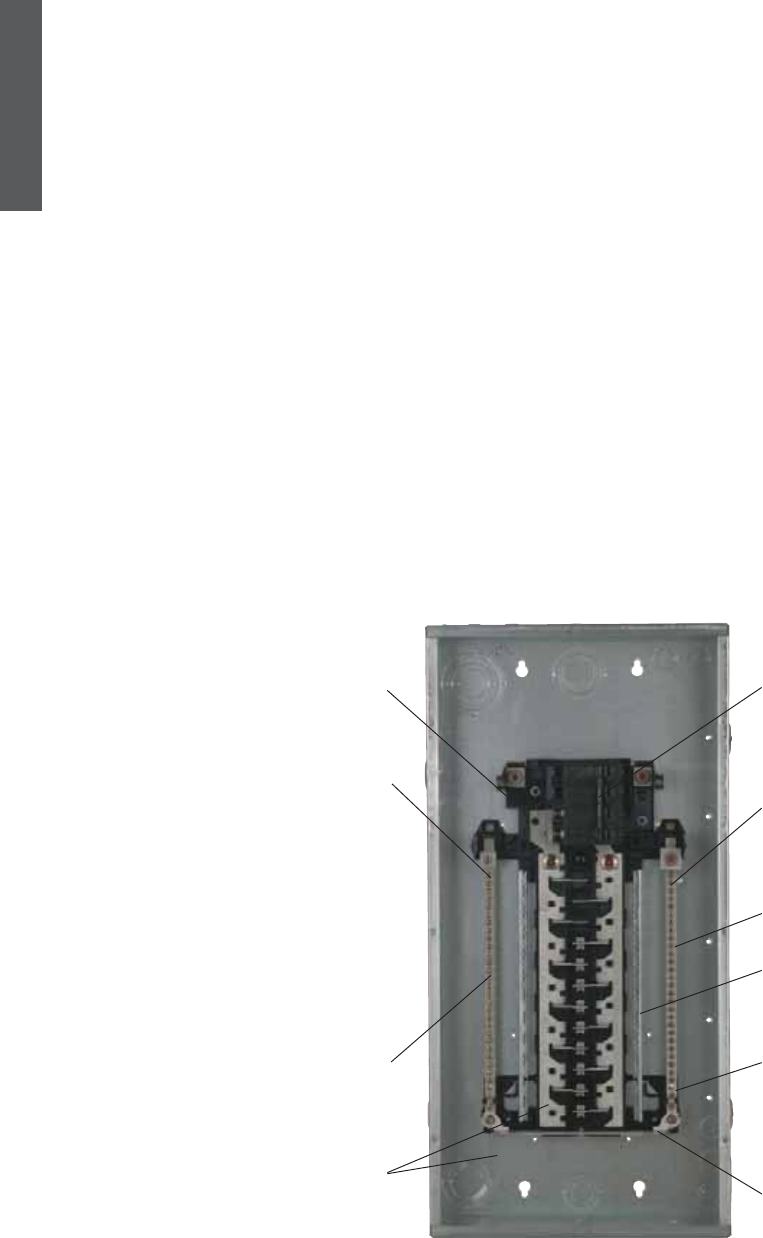

Main breaker
configuration allows
top or bottom feed
without modification
One-piece interior
removes and
reinstalls easily
Full-length neutrals
are easier to wire,
reducing installation
time and cost
Minimum 100%
neutral terminations
Sturdy copper bus
and galvanized box
increase durability
and reliability
Tie bar may be
removed to split
neutral/ground
Steel (not plastic)
breaker mounting
rail
All holes rated for
14-4 wire
Combination
slotted/Robertson
square-drive speeds
screw wiring
100% rated split
neutral on each side
Accepts GE Q-Line branch breakers, including
GE’s exclusive 1/2" THQPs
3
Load Centers
GE Load Centers
Choose your load center from among the full range of products offered by GE.
All GE Load Centers are designed and built for fast installation
and dependable performance.
• One-piece interior removes and re-installs easily.
• Full-length neutrals are easier to wire, reducing installation time and cost.
• Minimum 100% neutral terminations.
• Sturdy copper bus and galvanized box increase durability and reliability.
• Combination slotted/Robertson screws speed wiring.
• All holes are rated for 14-4 wire.
• 100% rated split neutrals on each side.
• Accept Q Line circuit breakers, including GE’s exclusive 1/2” THQPs.

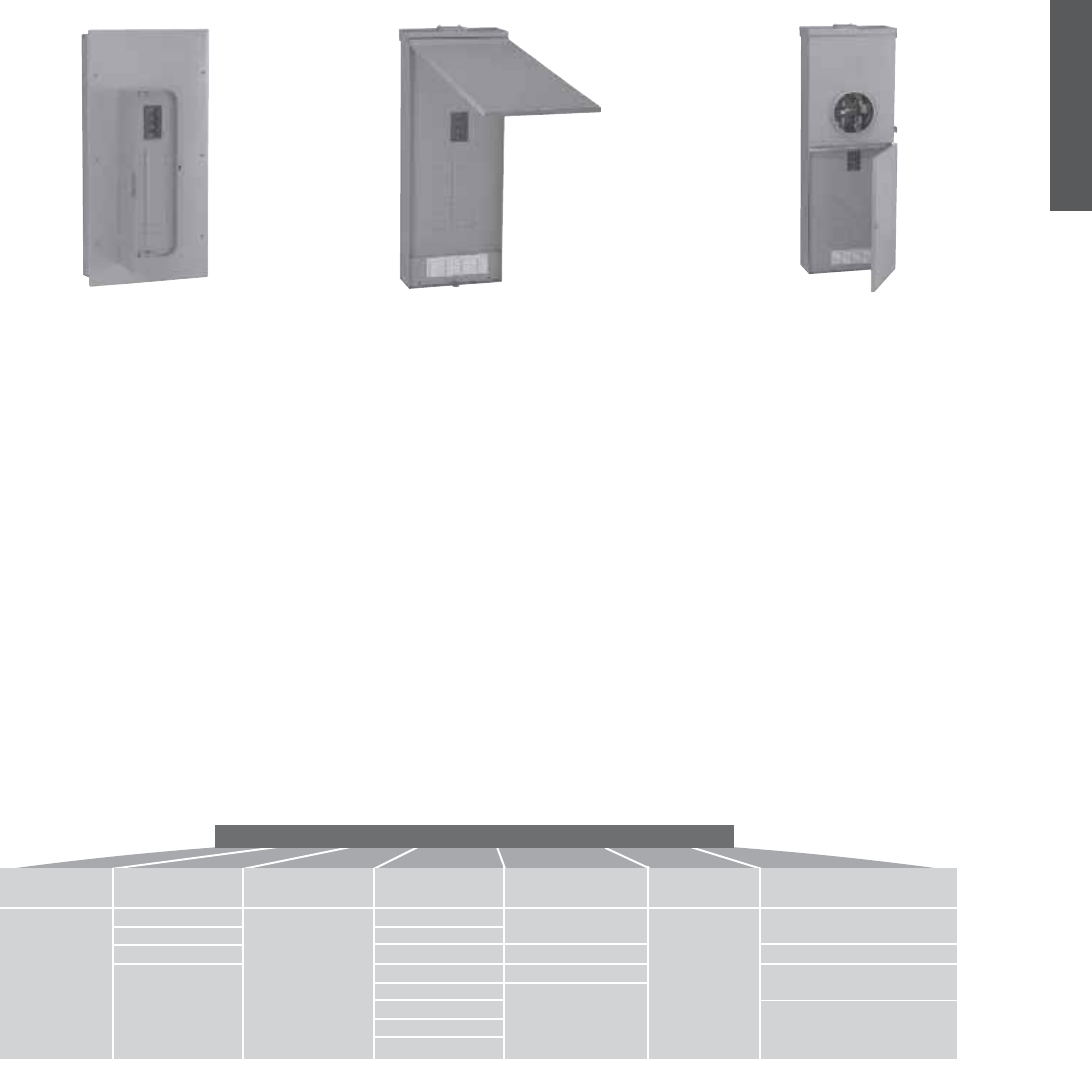

Catalog Number System
For illustrative purposes only.
Indoor load centers feature NEMA
Type 1 enclosures and come with a
main breaker or main lugs.
Outdoor load centers feature NEMA
Type 3R rain-tight enclosures and
come with a main breaker or main lugs.

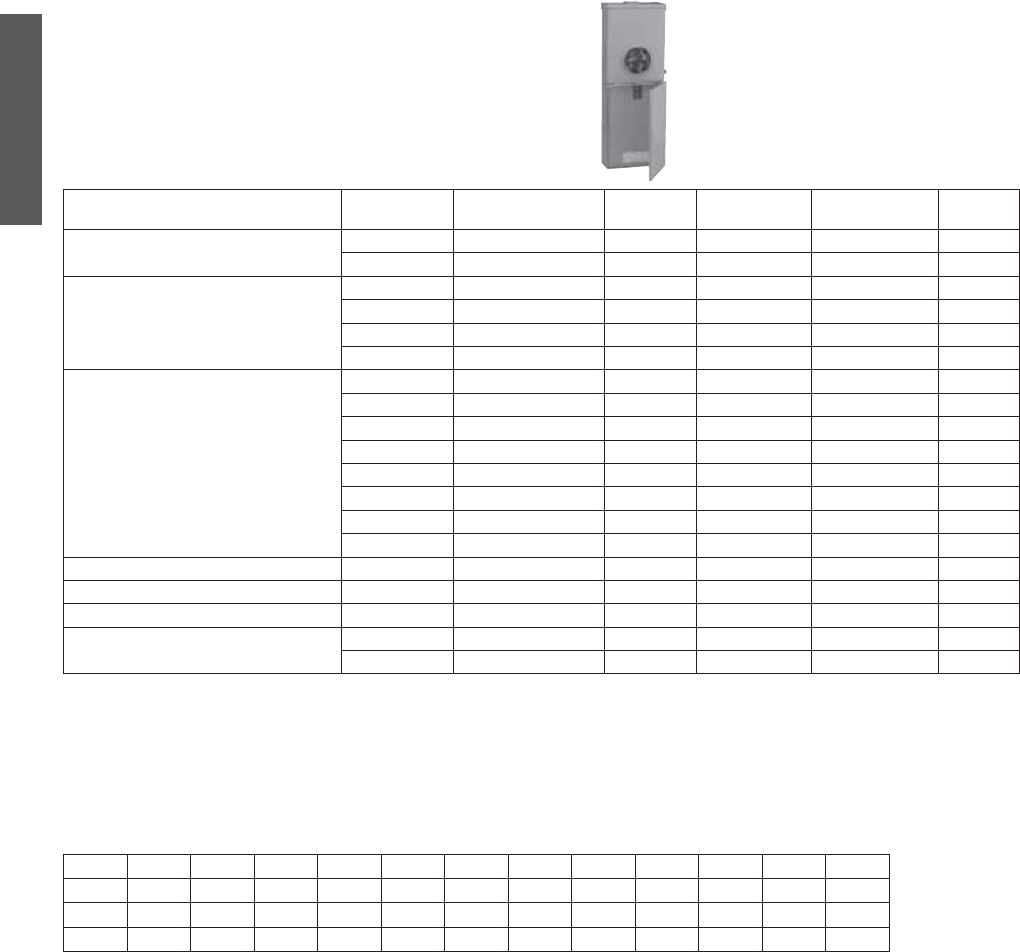

Meter socket load centers accept
electric meters and are always in
outdoor enclosures.
TM 42 20 C CU B
GE Identification Type Maximum Number Bus Ampere Rating Enclosure Type Bus Type Insert for Specials
of 1” Spaces
TM= Main Breaker 4 - 42 10 = 100A C= Combination Flush CU = Copper Bus G or T = Factory Installed
L= Main Lug 12 = 125A and Surface, Indoor Ground Bar
LM = Convertible 15 = 150A F= Flush B= Bottom Feed Main Breaker
PL = Main Lug, 20 = 200A S= Surface FL = Factory installed
Thermoplastic 22 = 225A R= Outdoor Feed-thru Lugs
Enclosure 40 = 40A D= Optional door for 6-8
60 = 60A circuit indoor panels. (Doors
70 = 70A are standard on all other units.)
4
Load Centers
GE Load Centers

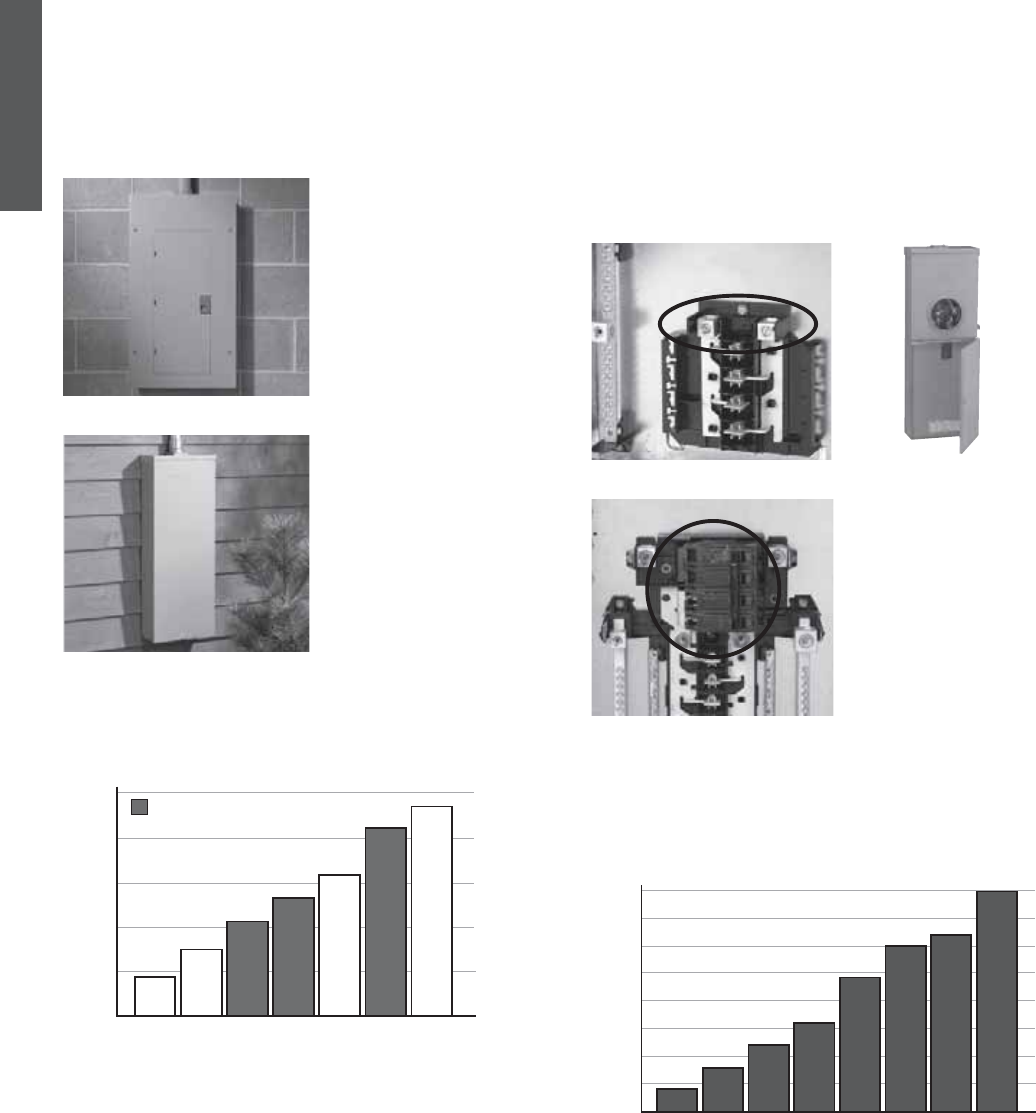

1. Where will it be used?
If it will be installed in your basement, garage or the living area
of your home, choose an indoor load center from page 5.
For installations where it will be exposed to the weather,
choose an outdoor load center from page 6.
Indoor
Outdoor
2. What is the main ampere rating?
Older homes typically include a 100-amp load center, while
newer homes often call for a 200-amp model to meet
today’s needs.
Subpanels may range from 40-125 amps, depending on the
number of connected circuits.
Ratings for GE load centers range from 40 to 225 amps.
Meter socket load centers are available in 125 to 600 amps.
3. How will it be used?
If it will be a subpanel connected to a main breaker in
another location, main lugs are the right choice.
If it will be your primary service entrance load center,
choose main breaker.
If this will accept your meter and act as your service
entrance, select a meter socket load center.
Main lugs Meter socket load center
Main breaker
4. How many 1-pole spaces / 1/2" circuits
are required?
Older homes typically require 12-20 spaces, while newer
homes generally call for 20 or more.
Subpanels are usually smaller, and may need only 4-8 spaces.
The number of spaces depends on the number of circuits
that will be connected.
250
200
150
100
50
0
Most common
Ampere Rating
Load Center Choices
40
35
30
25
20
15
10
5
02/4
4/8
6/12
8/16
12/24
20/30 16/32
20/40
1-pole Spaces/
1/2” circuits
Load Center Choices
What to consider when choosing a load center
5
Load Centers
GE Load Centers

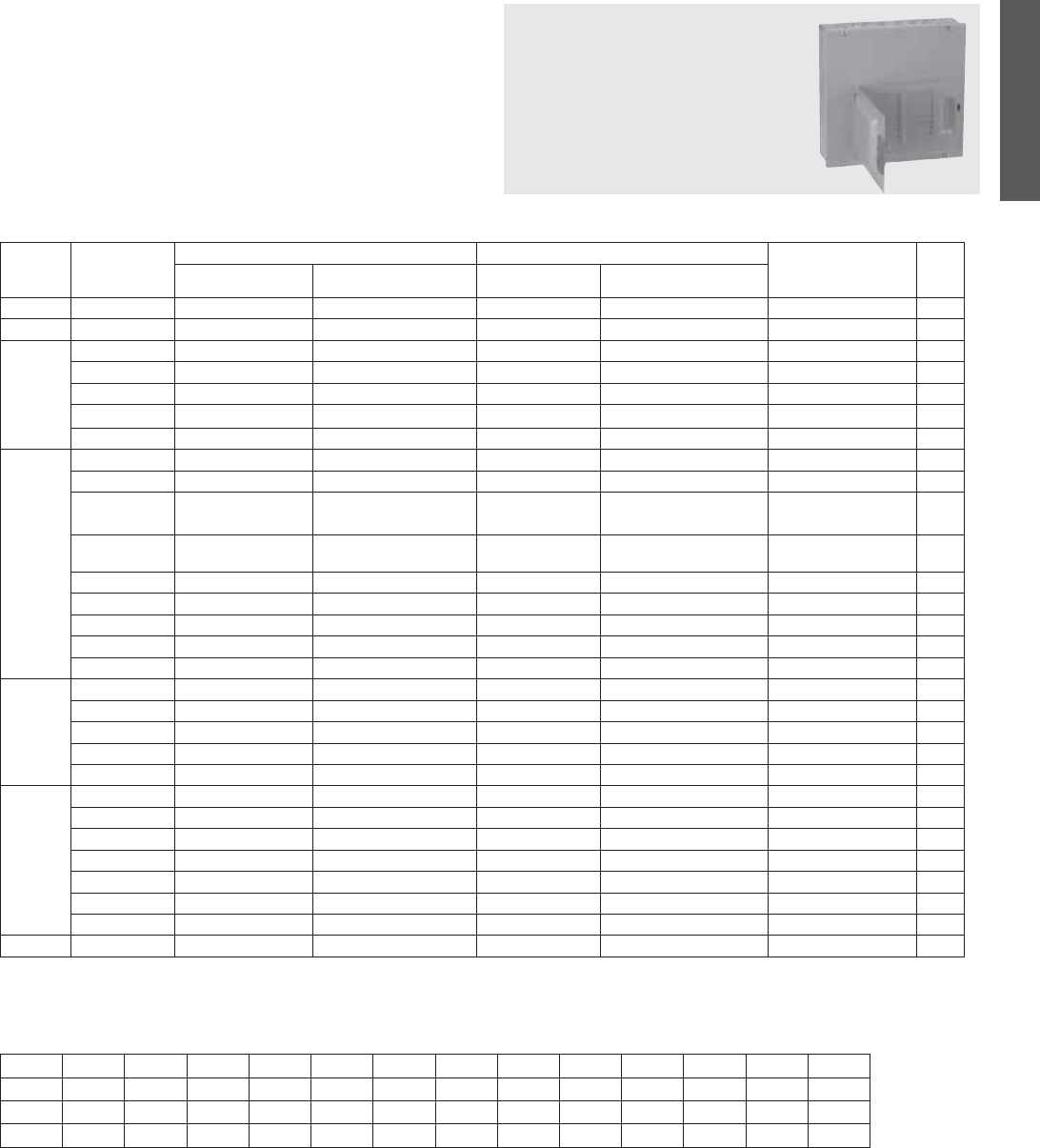

Indoor Load Centers
Type 1 Enclosure
• NEMA Type 1 enclosure
• UL Listed (Panelboards No. 67)
• 60°C/75°C conductor rating
• Combination surface/flush fronts
• Suitable for use as service entrance equipment when
installed in accordance with the National Electrical Code
*Ground bars factory installed on load centers with catalog numbers ending in “G.” For others, see page 9.
For circuit breakers, see page 11.
For ground bars and other accessories you’ll need, see page 9.
**Box dimensions (in inches)
Box 1A 22A 3A 4 6 7 8 9 11 13 14 18
Width 5 11/16 7 1/2 7 1/4 11 9/16 14 14 14 14 14 14 14 14 14
Height 10 1/4 9 7/32 911 3/8 19 23 24 11/16 26 7/16 28 7/16 33 3/16 39 3/16 43 7/16 16
Depth 3 3/8 3 5/16 33 3/8 3 3/4 3 3/4 3 3/4 3 3/4 3 3/4 3 3/4 3 3/4 3 3/4 3 3/8
Main
Ampere
Rating
Total 1-Pole
Spaces / 1/2"
Circuits
Main Lug & Convertible Main Breaker Equipment Ground
Kit Cat. No.*
Box
No**
Cat. No. Main Wire Size Cat. No. Main Wire Size
40 2/4 TL240SCUP 14-4 - - TGK4 1A
70 2/4 TL270SCUP 6-3 - - TGK4 1A
100
12/22 - - TM1210CCU(G) 4-1/0 TGK2, TGL 20 18
12/24 - - TM1210C24(G) 4-1/0 TGK12, TGK24 4
20/20 - - TM2010CCU 4-1/0 TGK24 6
24/24 - - TM2410CCU 1-2/0 TGK24, TGK32, TLK20 7
32/32 - - TM3210CCUP 4-1/0 TGK32 11
125
4/8 TL412C(T)P 1-2/0 - - TGL1 2A
4/8 TPL412C(T)P 1-2/0 - - TGL1 2
6/12 TLM612FCU(D)(G)P,
SCU(D)(G)P 6-1 - - TGK12 3A
8/16 TLM812FCU(D)(G)P,
SCU(D)(G)P 6-1 - - TGK12 3A
14/24 TLM1212CCU(G)P 6-2/0 - - TGK12, TGK24 18
12/22 - - TM1212CCU(G) 1-2/0 TGK2, TGL20 18
12/24 TLM1212C24(G) 6-/20 TM1212C24(G) 1-2/0 TGK12, TGK24 4
12/24 TLM1612CCUP 6-2/0 TM1612CCU(G) 1-2/0 TGK12, TGK24 4
24/24 TLM2412CCUP 6-2/0 - - TGK24, TGK32 7
150
16/32 - - TM1615CCU(G) 1-3/0 (Cu) 2-3/0 (Al) TGK24. TGK32 7
20/30 TLM2015CCU 1-3/0 (Cu) 2-3/0 (Al) TM2015CCU 1-3/0 (Cu) 2-3/0 (Al) TGK32 8
24/42 - - TM2415C42 1-3/0 (Cu) 2-3/0 (Al) TGK24, TGK32 9
32/42 - - TM3215C42 1-3/0 (Cu) 2-3/0 (Al) TGK32, TLK20 11
32/32 - - TM3215CCU 1-3/0 (Cu) 2-3/0 (Al) TGK32 11
200
16/32 TLM1620CCU(G) 6-250 TM1620CCU(G) 1-250 (Cu) 2/0-250 (Al) TGK32 7, 8
18/40 TLM2020CCU(G)P 6-250 TM2020CCU(G)P 1-250 (Cu) 2/0-250 (Al) TGK24, TGK42 8
24/42 TLM2420C42 1-3/0 (Cu) 2-3/0 (Al) TM2420C42 1-3/0 (Cu) 2-3/0 (Al) TGK24, TGK32 9
32/40 TLM3220CCU 6-250 TM3220CCU 1-250 (Cu) 2/0-250 (Al) TGK32 11
32/42 TLM3220C42 1-250 (Cu) 2/0-250 (Al) TM3220C42 1-250 (Cu) 2/0-250 (Al) TGK32+TLK20 11
40/40 TLM4020CCU 6-250 TM4020CCUP 1-250 (Cu) 2/0-250 (Al) TGK42 13
42/42 TLM4220CCU 1-300 (Cu) 2/0-300 (Al) TM4220CCU 1-300 (Cu) 2/0-300 (Al) TGK42 14
225 42/42 TLM4222CCU 1-300 (Cu) 2/0-300 (Al) TM4222CCU 1-300 (Cu) 2/0-300 (Al) TGK42 14
New! Indoor GE load centers feature:
• Greater breaker capacity
• Improved safety features
• Easier installation: simpler knockout
layout, adjustable depth mounting
holes, centered key holes
6
Load Centers
GE Load Centers
Outdoor Load Centers
Type 3R Enclosure
• NEMA Type 3R enclosure
• UL Listed (Panelboards No. 67)
• 60°C/75°C conductor rating
• Suitable for use as service entrance equipment when
installed in accordance with the National Electrical Code
*For ground bars, see page 9.
For circuit breakers, see page 11.
For hubs, ground bars and other accessories you’ll need, see page 9.
**Box dimensions (in inches)
Box R1 R1A R1B R2A R3 R4 R5 R6 R7 R8 R39
Width 7 1/2 7 1/4 7 3/8 11 1/4 12 1/2 14 12 1/2 14 14 14 14
Height 9 7/32 10 13 11 1/8 21 3/16 33 3/16 28 11/16 35 7/16 39 3/16 43 11/16 31 11/16
Depth 3 5/16 3 3/4 3 3/4 3 1/4 4 5/8 4 5/8 4 5/8 4 5/8 4 5/8 5 3/4 4 5/8
Main
Ampere
Rating
Total 1-Pole
Spaces / 1/2"
Circuits
Main Lug & Convertible Main Breaker Equipment Ground
Kit Cat. No.*
Box
No.**
Cat. No. Main Wire Size Cat. No. Main Wire Size
40 2/4 TL240RCUP 14-4 - - TGK4 R1A
70 2/4 TL270RCUP 6-3 - - TGK4 R1A
100 12/24 - - TM1210RCU 4-/10 TGK12, TGK24 R3
20/30 - - TM2010CCU 4-/10 TGK24 R4
125
4/8 TL412R(T)1P, R2 1-2/0 - - TGL1 R1A, R1B
4/8 TPL412R(T)P 1-2/0 - - TGL1 R1
4/12 TLM612RCUP 6-1 - - TGK12 R2A
8/16 TLM812RCU(2)P 6-1 - - TGK12 R2A
12/24 TLM1212RCUP 6/20 TM1212RCU 1-2/0 TGK12, TGK24 R4
24/24 TLM2412RCU 6-2/0 TM2412CCU 1-2/0 TGK24, TGK32 R4
150
8/16 - - TM815RCUFLP 1-250 (Cu) 2/0-250 (Al) TGK24 R5
16/32 - - TM1615RCU 1-3/0 (Cu) 2-3/0 (Al) TGK24, TGK32 R5
24/30 TLM2415RCU 1-3/0 (Cu) 2-3/0 (Al) TM2415RCU 1-3/0 (Cu) 2-3/0 (Al) TGK24, TGK32 R6
24/42 - - TM2415R42 1-250 (Cu) 2/0-250 (Al) TGK24 R39
32/32 - - TM3215RCU 1-250 (Cu) 2/0-250 (Al) TGK32 R7
200
8/16 - - TM820RCUFLP 1-250 (Cu) 2/0-250 (Al) TGK32 R5
12/24 TLM1220RCUP 6-250 - - TGK24 R5
16/32 TLM1620RCU 6-250 - - TGK32 R5
20/40 TLM2020RCU 6-250 TM2020RCUP 1-250 (Cu) 2/0-250 (Al) TGK24, TGK42 R6
24/42 TLM2420R42 1-250 (Cu) 2/0-250 (Al) TM2420R42 1-250 (Cu) 2/0-250 (Al) TGK24 R39
32/40 TLM3220RCU 1-250 (Cu) 2/0-250 (Al) TM3220RCU 1-250 (Cu) 2/0-250 (Al) TGK32 R7
40/40 TLM4020RCU 1-250 (Cu) 2/0-250 (Al) TM4020RCU 1-250 (Cu) 2/0-250 (Al) TGK42 R8
225 8/16 - - TM822RCUFL 1-250 (Cu) 2/0-250 (Al) TGK24 R5
42/42 TLM4222RCU 1-300 (Cu) 2/0-300 (Al) TM4222RCU 1-300 (Cu) 2/0-300 (Al) TGK42 R8
7
Load Centers
GE Load Centers

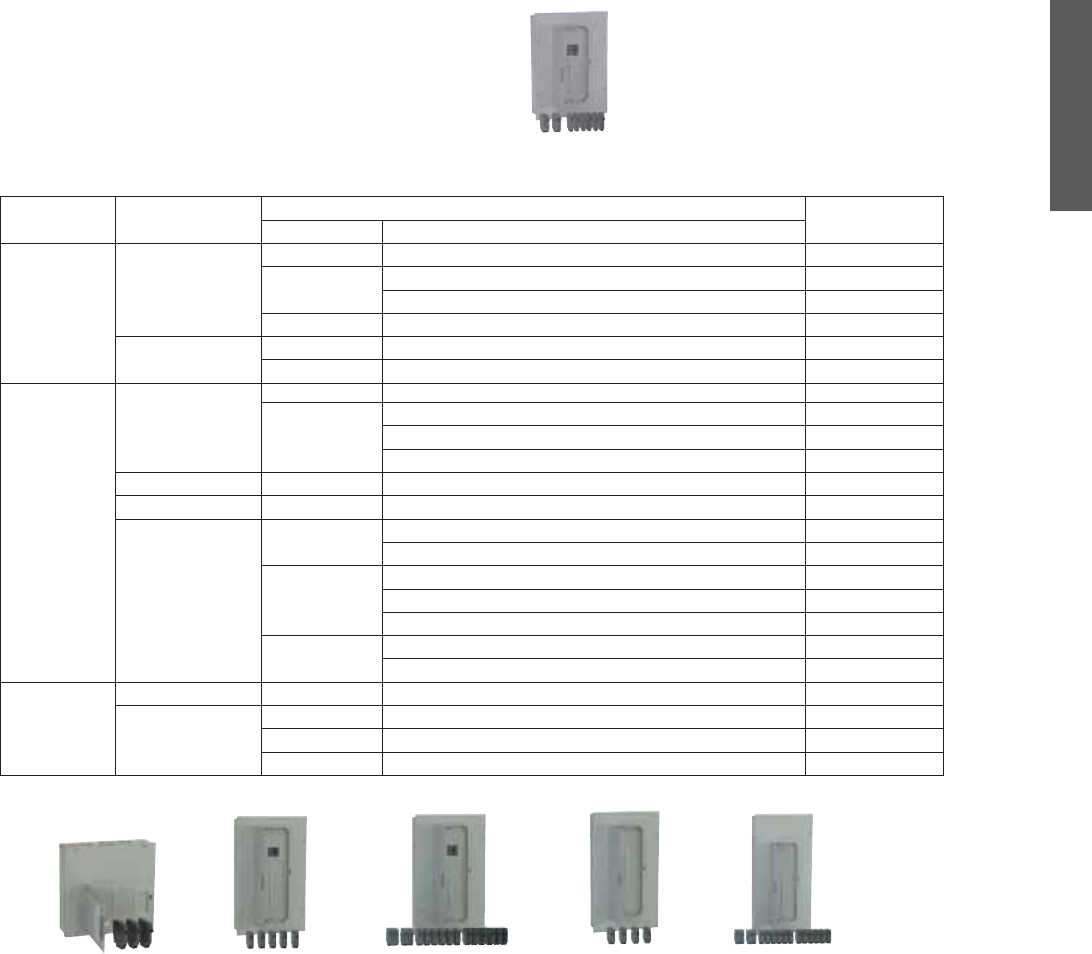

Value Packs
Value Packs consist of a load center plus a selection
of popular circuit breakers in one convenient kit.
Please refer to the appropriate tables for load center
and circuit breaker details. See pages 5-6, 14.
Load Center
Type
Load Center Main
Ampere Rating
Value Pack Includes Value Pack
Cat. No
Load Center Circuit Breakers
Main Lugs,
Indoor
125
TLM812SCUDP (3) THQP115 TLM812SCUD1K
TLM1212CCUP (4) THQP120 TLM1212CCU2K
(6) THQP120, (1) THQP230, (1) THQP250 TLM1212CCUPL8
TLM2412CCU (4) THQL1120 + ground bar TLM2412CCUG1K
200 TLM2020CCUP (6) THQL1115, (6) THQL1120, (1) THQL2130, (1) THQL2150 TLM2020CCUPL9
TLM3220CCU (10) THQL1120, (1) THQL2130, (1) THQL2150 TLM3220CCU1K
Main Breaker,
Indoor
100
TM1210CCU (3) THQL1120 + ground bar TM1210CCUG2K
TM2010CCU
(5) THQL1120 TM2010CCU2K
(6) THQL1115, (6) THQL1120, (1) THQL2130, (1) THQL2150 TM2010CCUPL4
(3) THQL1115, (3) THQL1120 TM2010CCUPL12
125 TM1212CCU (6) THQP120, (1) THQP230, (1) THQP250 TM1212CCU2K
150 TM3215CCU (6) THQL1120, (1) THQL2130, (1) THQL2150 TM3215CCU1K
200
TM2020CCU (12) THQP120, (1) THQP230, (1) THQP250 TM2020CCUPL2
(6) THQL1120, (1) THQL2130, (1) THQL2150 TM2020CCUPL5
TM3220CCU
(6) THQL1120, (1) THQL2130 TM3220CCPL13
(10) THQL1120, (1) THQL2130, (1) THQL2150 TM3220CCU2K
(5) THQL1115, (1) THQL2130, (1) THQL2150 TM3220CCU4K
TM4020CCU (6) THQL1120 TM4020CCU1K
(12) THQL1120 + ground bar TM4020CCUG2K
Main Breaker,
Outdoor
125 TM1212RCU (6) THQP120, (1) THQP230, (1) THQP250 TM1212RCU1K
200
TM2020RCU (12) THQP120, (1) THQP230, (1) THQP250 TM2020RCUPL3
TM3220RCU (10) THQL1120, (1) THQL2130, (1) THQL2150 TM3220RCU3K
TM3220RCU (6) THQL1115AF2, (1) THQL2130, (1) THQL2150 TM3220RCUAF1K
8
Load Centers
GE Load Centers
Meter Socket Load Centers
(All-in-Ones)
• 120/240 Volt, 1 Phase, 3 Wire
• Overhead or Underground Incoming Power
• UL Listed
*Agency Certifications
APS Arizona Public Service
EUSERC Electric Utility Service Equipment Requirements Committee
FMG Florida Metering Group
PSCC Public Service Company of Colorado / XCEL
SRP Salt River Project
UL Underwriters Laboratories
**Box dimensions (in inches)
Type Main Ampere
Rating
Total 1-Pole Space
/ 1/2" Circuits
Enclosure
Type
Agency
Certification* Cat. No. Box No.**
Ring Type, Main Lugs 125 4/8 Semi-Flush UL TSL412CSCU A
200 4/8 Semi-Flush UL TSL420CSCU B
Ring Type, Feed-thru Lugs,
Main Breaker
150 4/8 Surface UL TSM415CSCU C
200 4/8 Surface UL TSM420CSCUP C
200 4/8 Surface UL, FMG TSMF420CSFLP C
200 8/16 Surface UL TSM820CSFLP D
Ring Type Narrow, Main Breaker
100 16/32 Semi-Flush UL, EUSERC TSM1610CFCUP E
100 16/32 Surface UL, EUSERC TSM1610CSCUP F
125 12/24 Semi-Flush UL, EUSERC TSM1212CFCU E
125 12/24 Surface UL, EUSERC TSM1212CSCU F
125 16/32 Semi-Flush UL, EUSERC TSM1612CFCU E
200 20/40 Semi-Flush UL, EUSERC TSM2020CFCU G
200 20/40 Surface UL, EUSERC TSM2020CSCUP H
200 24/40 Surface UL, EUSERC TSM2420UF42 G
Ring Type Farm Panel, Main Breaker 200 4/8 Surface UL, EUSERC TSF420CSCU I
Ring Type Wide, Main Breaker 200 40/40 Surface ARS, SRP TSM4020UWCU J
Ringless, Main Lugs, Horn Bypass 200 4/8 Surface UL, PSCC TSLR420CSCU K
Ringless, Main Breaker, Horn Bypass 200 4/8 Surface UL, PSCC TSMR420CSCU K
200 20/40 Surface UL, PSCC TSMR2020CSCU L
Box A B C D E F G H I J K L
Width 14 14 14 14 16 3/4 14 3/4 16 3/4 14 3/4 16 3/4 22 1/2 14 9/16 14 9/16
Height 23 1/2 30 3/4 28 1/2 31 3/4 28 1/2 27 5/16 34 1/4 33 33 34 7/8 33 9/16 40 1/2
Depth 4 7/8 5 3/4 4 1/2 4 1/2 7 5/16 7 5/16 7 5/16 6 5/16 6 3/16 6 1/4 6 3/16 6 3/16
9
Load Centers
GE Load Centers

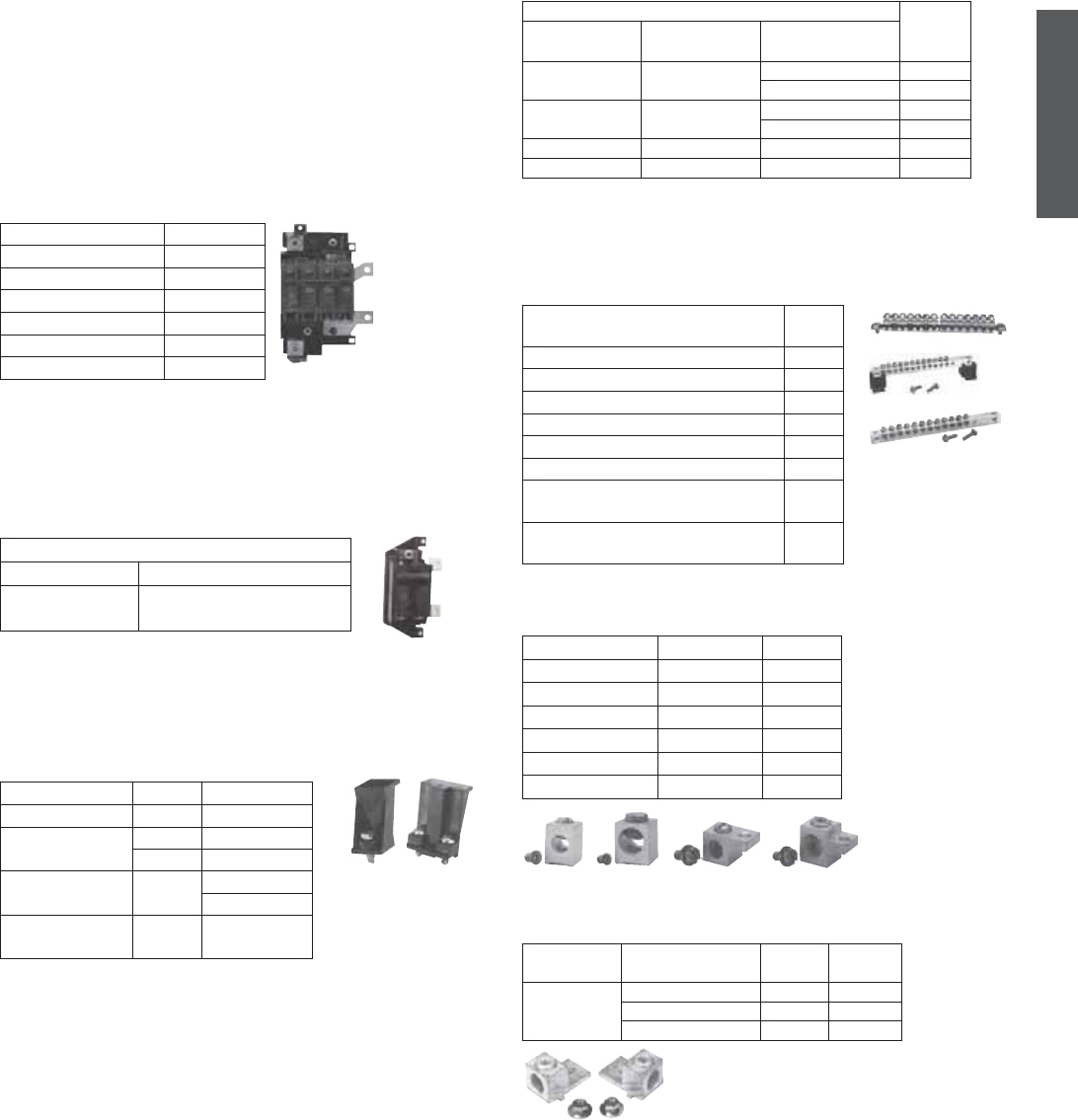

GE Load Center Accessories
Choose the accessories needed for your
load center
Main Circuit Breakers Kits
• For use with 150A-225A load centers
• 22kAIC RMS symmetrical
• Includes mounting base
• For use with 125A load centers
• 22kAIC RMS symmetrical
• Includes mounting base
• For bottom feed, also purchase TRL22 door handle
10 kAIC
Main Breaker Retainers
For Main Lug Load Centers Utilizing a Back Fed Branch
Breaker as a Main
For 6 or 8 circuit load centers

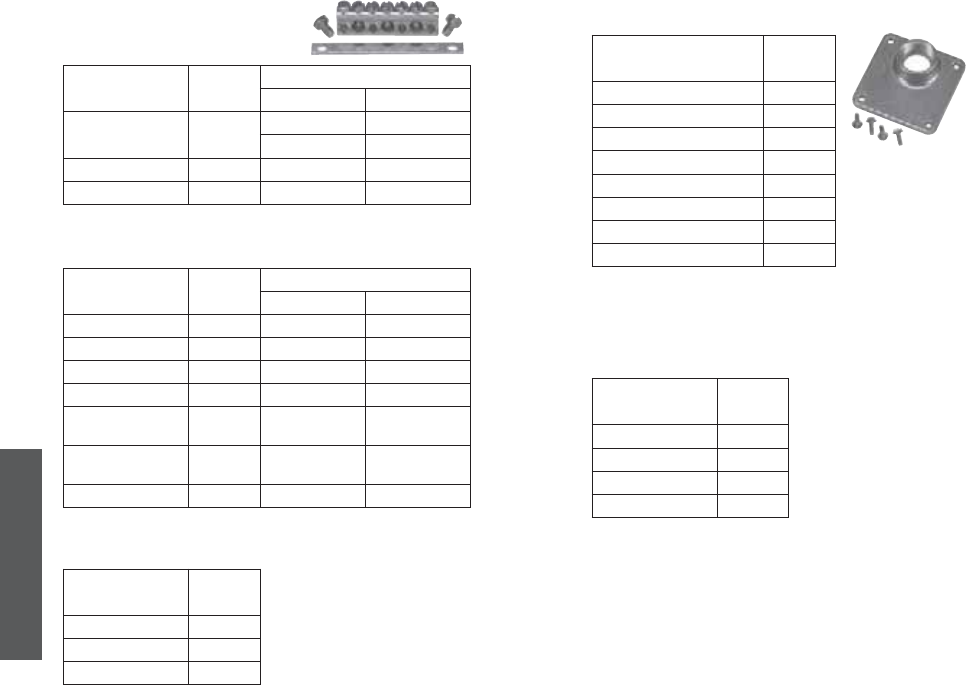

Equipment Ground Kits
TGL1 and TGL3 mount interchangeably.
TGL2, TGL4 and TGL8 mount interchangeably.
Add-on equipment ground lug (for use on any TGL kit).
Ground & Isolated Ground Bus Bar
Neutral and Neutral Ground Kits
Main Lug Kits
Main Breaker Rating Cat. No.
100A THQMV100D
125A THQMV125D
150A THQMV150D
175A THQMV175D
200A THQMV200D
225A THQMV225D
Cat. No.
Main Breaker Kit Description
THQMH000 Order appropriate THQLor
THHQL breakers separately
Load Center Breaker Cat. No.
Travel Trailer THQP THQPSBK
TL (225A max.) THQL THQLRK
TQDL TQDLRK
PowerMark Gold THQL THQLRK1
THQLRK2CP
TM/TLM1212CCU
Mod 2 THQL THQLRK3CP
Number of Terminals
Cat. No.
Small 14-8 Cu,
12-8 Al
Large 14-4 Cu,
12-4 Al
Other
AWG/kcmil Cu/Al
4 3 TGL1P
TGL3P
8 6 TGL2P
TGL4
10 2(1) 14-2 TGL8
— — (1) 6-2/0 TGL20
Description (4-14 CU/10-12 Al Wire
Ranges Per Hole, Solid or Stranded)
Cat.
No.
4-hole Ground TGK4
12-hole Ground TGK12P
16-hole Ground/1 Neutral TGK8
24-hole Ground TGK24P
32-hole Ground TGK32P
42-hole Ground TGK42P
Isolated Ground Bus Bar Kit (Order
with TGK Equipment Ground Kits) TGKIS
Isolated Ground Bar Feet
(Order with TGK8) TGKIS2
Description Wire Size Cat. No.
Neutral 6-1 Cu/Al TNLK12
Neutral 6-2/0 Cu/Al TNLK20
Neutral 6-250 Cu/Al TNLK250
Neutral/Ground 6-2/0 Cu/Al TLK20
Neutral/Ground 6-250 Cu/Al TLK250
Neutral/Ground 6-300 Cu/Al TLK300
Load Center
Type
Wire Size
AWG/kcmil Cu/Al
Ampere
Rating Cat. No.
PowerMark
Gold
6-2/0 125 TMLK125
6-250 200 TMLK200
6-300 225 TMLK225
10
Load Centers
GE Load Centers

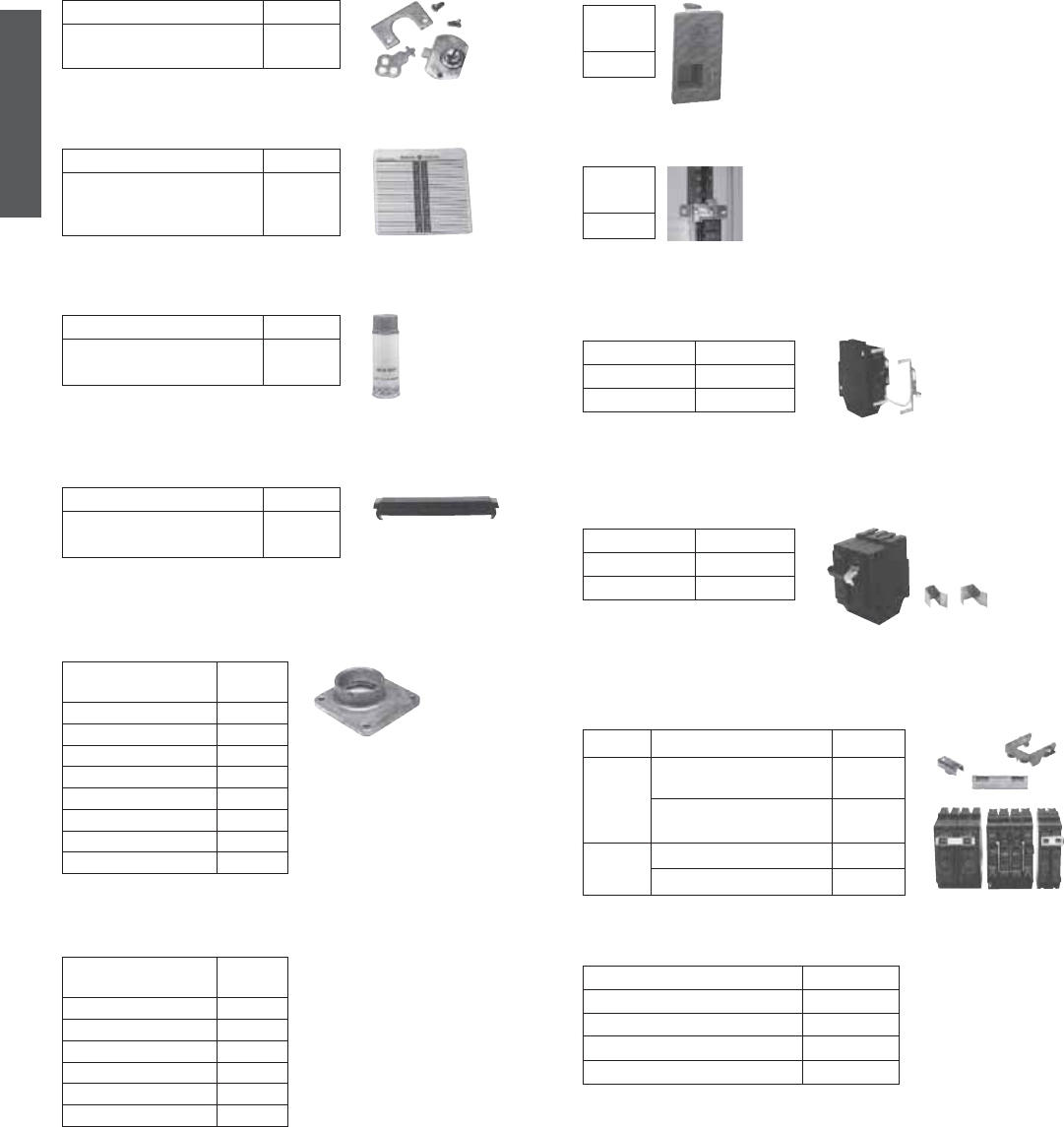

Door Lock
Circuit Directory
Touch-up Paint
Front Filler Plates
(to cover rectangular breaker knockouts)
Universal Raintight Hubs (Aluminum)
For Outdoor Enclosures with Removable Closing Caps
4" Base Universal Hubs
*For 40 and 42 circuit units in R8 boxes only.
Door Handles
Load Center Generator Interlock Kit
Handle Locks (Padlocking)
ON or OFF, Snap-on, Padlock not included
Handle Locks (Non-Padlocking)
ON or OFF, Snap-on
Handle Ties
For Two Single-pole Breakers
(all multi-pole breakers have internal common trip)
Load Center Hardware & Hardware Kits
Nominal Conduit
Diameter in Inches Cat. No.
3/4 TC75
1TC100
1 1/4 TC125
1 1/2 TC150
2TC200
2 1/2 TC250
3TC300
Closing Cap TCCP
Breaker Cat. No.
THQP TQPPLCP
THQL THP100CP
Breaker Cat. No.
THQP TQPLCP
THQL THL103CP
Breaker Description Cat. No.
THQP
Solid Snap-on
Trip Indicating THT1
For 2 THQPs separated
by 2 side-by-side THQPs THT2
THQL Solid Snap-on THT104
Trip Indicating TQHT1
Description Cat. No.
One bond screw 100-200A TBS
Bond screw 225A TBS22
20 front mounting screws THDWRKIT
10 interior mounting screws THDWRKIT2
Description Cat. No.
For all indoor load centers
except TPL412 TDL106
Description Cat. No.
Card and holder with
pressure-sensitive backing
mounts inside door
TD42
Description Cat. No.
12.75-oz. spray can of
light gray enamel TSP61
Description Cat. No.
Includes (2) 1/2" and (2) 1"
filler plates THFILLER
Cat. No.
TRL22
Cat. No.
THQLLX1
Nominal Conduit
Diameter in Inches Cat. No.
2TCU27
2 1/2 TCU28
3TCU30
3 1/2 TCU35
4* TCU40
4" Cover Plate TCUP
11
Circuit Breakers
GE Circuit Breakers
imagination at work
12
Circuit Breakers
GE Circuit Breakers
GE circuit breakers provide every kind of protection.
Catalog Number System
For standard circuit breakers. For illustrative purposes only.
Standard circuit breakers
The most common type, standard circuit
breakers meet the needs of many
circuits in the home, including lighting,
outlets and appliances. See page 14.

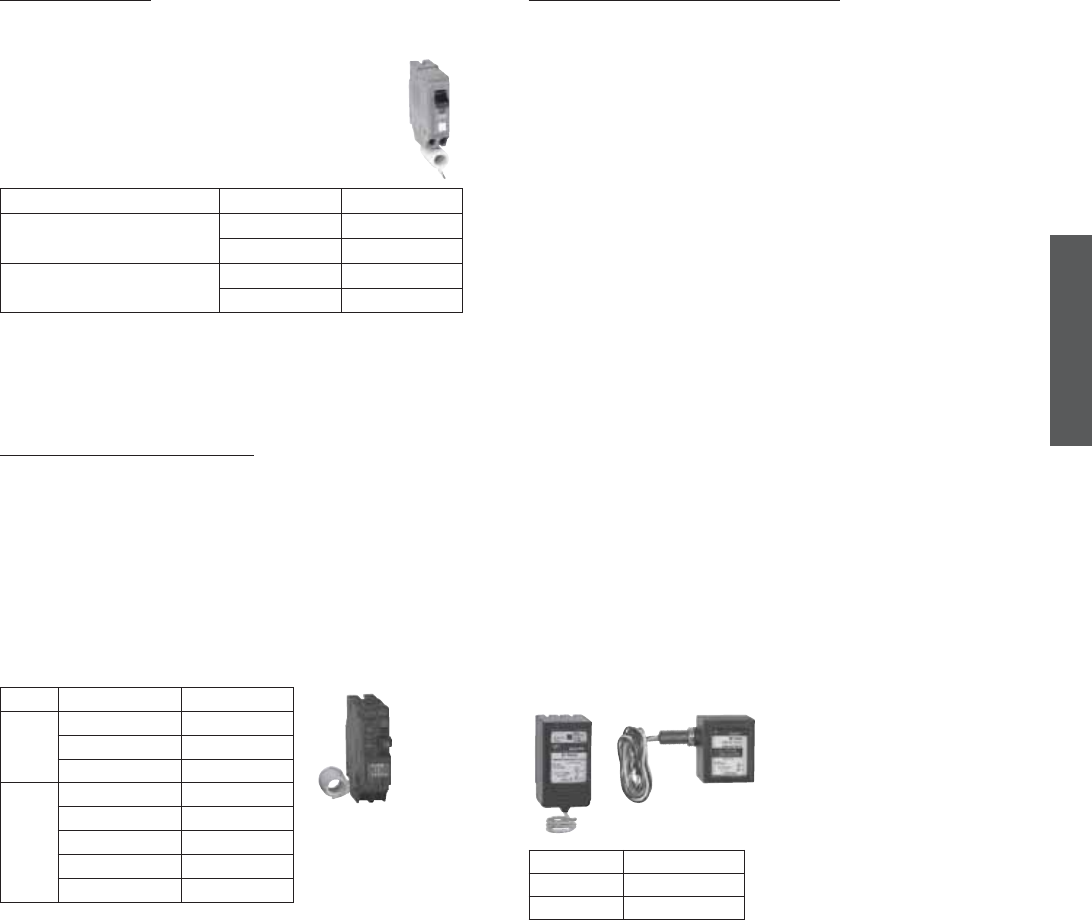

Arc fault circuit interrupters (AFCIs)
GE’s combination AFCIs help prevent all-too-common electrical fires
by detecting and interrupting arcing caused by damaged wire insula-
tion or electrical cords. The 2008 National Electrical Code requires AFCI
protection for all dwelling areas in residential units. See page 15.
Ground fault circuit interrupters (GFCIs)
Outdoors and in garages, bathrooms
and spa areas, GFCIs eliminate the
need for separate GFCI receptacles. In
addition to providing the protection of
standard circuit breakers, they help
protect against electrical shock.
See page 15.
Surge arresters
Whole-house surge arresters stop elec-
trical surges at the load center, before
they damage downstream equipment.
They install easily and work with GE and
other brands of load centers. They come
with a limited warranty that covers
damage for a minimum of 3 years and
$25,000 on connected equipment. See
limited warranty and page 15 for details
and limitations.
Special purpose circuit breakers
In the special purpose category, we
offer main circuit breakers and related
kits, circuit breaker enclosures and
circuit breakers designed for specific
needs. See page 16.
TH QL 1 1 15
GE Identification Interrupting Type Poles Voltage Ampere Rating Insert for Specials
Rating
TH= 10kAIC QL = 1" Plug-in 1, 2, 3 1 = 120/240Vac 15-200 GF = 1 pole GFCI
QP = 1/2" Plug-in 2 = 240Vac
Omit for THQP breakers GF1 = 2 pole GFCI
(all 120/240Vac) AF = AFCI (Series rated)
AF2 = Combination AFCI
(Series & parallel rated)
Check with your
local building inspector
about AFCI requirements for
local electrical codes.
13
Circuit Breakers
GE Circuit Breakers
1. 1/2" or 1"?
At 1/2” wide, GE’s exclusive THQP breakers are half the width
of THQL breakers, so you can save money and space by
using a smaller load center. They feature the same high-per-
formance design and meet the same stringent standards.
The 1” THQL will remain the breaker of choice for many con-
tractors. When space and cost are not critical, they’re an
excellent choice.
When size and money are driving considerations, THQP
breakers are the smart choice.
THQP THQL
2. 1-pole or 2-pole?
Most circuits require only a 1-pole circuit breaker. That
includes lighting, standard outlets and most other applications.
For 240-volt applications – clothes dryers, electric ranges,
hot tubs and larger air conditioners, for example – you’ll
need a 2-pole breaker.
1-pole 2-pole
3. What amp rating is required?
A circuit breaker protects the circuit (or wire) between the
breaker and the electrical load. It uses a magnetic element
(instantaneous unit) to protect against short circuits and a
thermal element (bimetal strip) to protect against overloads.
It also provides a way to turn a circuit off.
When designing an electrical circuit, the wire is sized to the
load it will feed, and the circuit breaker is sized to protect the
wire (see table below). Generally, this means that lighting
and outlets will call for 15 or 20 amp breakers. Larger
motors and air conditioners, clothes dryers and hot water
heaters will typically require a 30 amp breaker, while an
electric range may need a 50 amp breaker.
50
45
40
35
30
25
20
15
10
5
0
Amperes
Lights, Outlets
Water Heaters,
AC, Dryers
Electric Range
Circuit Breaker Rating
15
20
25
30
35
40
45
50
Circuit Breaker
Amp Rating
Wire Size
Copper Aluminum or
Copper-clad Aluminum
15 No. 14 No. 12
20 No. 12 No. 10
30 No. 10 No. 8
40 No. 8 No. 8
50 No. 6 No. 4
60 No. 6 No. 4
70 No. 4 No. 3
80 No. 3 No. 2
90 No. 2 No. 1
100 No. 1 1/0
110 No. 1 1/0
125 1/0 2/0
150 1/0 3/0
175 2/0 4/0
200 3/0 250 MCM
What to consider when selecting a circuit breaker
14
Circuit Breakers
GE Circuit Breakers

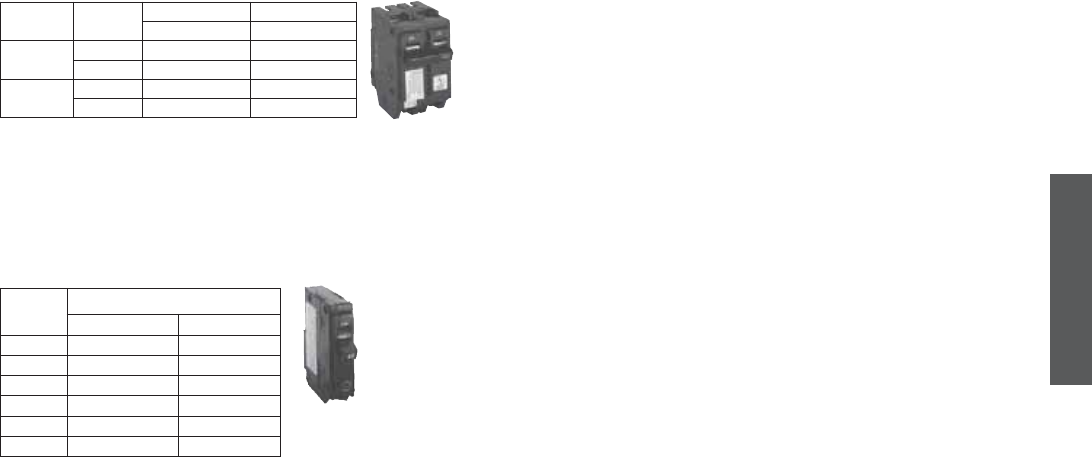

Standard circuit breakers
• UL Listed (Molded Case Circuit Breakers No. 489)
• Federal Government Specification Qualified (WC-375B)
• 60°C/75°C conductor rating
• Quick-make, Quick-break
• Box Type terminals
UL Listed as HACR (heating, air conditioning and refrigeration).
UL Listed as SWD (switching duty). Suitable for 120 volts ac fluorescent lighting loads.
15-100 Amp UL Listed as HACR (heating, air conditioning and refrigeration).
Requires four one-inch spaces.
Ampere
Rating
10,000AIC
Type THQP 1/2" Module Type THQL 1" Module
120/240V ac 120/240V ac 240V ac
Cat No. Cat No. Cat No.
Single-pole
15THQP115 THQL1115
20THQP120 THQL1120
25 THQP125 THQL1125
30 THQP130 THQL1130
35 THQP135 THQL1135
40 THQP140 THQL1140
45 THQP145 THQL1145
50 THQP150 THQL1150
Two-pole:Incorporates Internal Common Trip Bar
15 THQP215 THQL2115 THQL22015
20 THQP220 THQL2120 THQL22020
25 THQP225 THQL2125 THQL22025
30 THQP230 THQL2130 THQL22030
35 THQP235 THQL2135 THQL22035
40 THQP240 THQL2140 THQL22040
45 THQP245 THQL2145 THQL22045
50 THQP250 THQL2150 THQL22050
60 THQL2160 THQL22060
70 THQL2170 THQL22070
80 THQL2180 THQL22080
90 THQL2190 THQL22090
100 THQL21100 THQL22100
110 THQL21110
125 THQL21125
125 TQDL21125
150 TQDL21150
175 TQDL21175
200 TQDL21200
Three-pole:Incorporates Internal Common Trip Bar
15 THQL32015
20 THQL32020
25 THQL32025
30 THQL32030
35 THQL32035
40 THQL32040
45 THQL32045
50 THQL32050
60 THQL32060
70 THQL32070
80 THQL32080
90 THQL32090
100 THQL32100
Breaker
Type
Ampere
Rating
Wire Size AWG/kcmil
Cu Al
THQP 15-25 14-8 12-8
30-50 8-4 8-2
THQL
THHQL
TXQL
15-30 14-8 12-8
35-60 8-3 8-2
70-100 6-1/0 4-1/0
110-125 2-2/0 2-2/0
TQDL
THQDL 125-200 1/0-250 1/0-250
15
Circuit Breakers
GE Circuit Breakers
Fire protection
Arc fault circuit interrupters (AFCIs)
• UL Listed (Molded Case Circuit Breakers
No. 489 and Arc Fault Circuit Interrupters
No. 1699)
• 120/240 volt
* Series Rated AFCIs protect against arcing caused by contact between two wires
with opposite polarity, such as in damaged extension cords
** Series & Parallel Rated AFCIs – called combination AFCIs or CAFCIs also protect
against arcing across a single conductor, such as a cable pierced by a nail from
a wall hanger
Electric shock protection
Ground fault circuit interrupters
(GFCIs)
• UL Listed (Molded Case Circuit Breakers No. 489 and
Ground Fault Circuit Interrupters No. 943)
• Class A (.005 ampere ground fault trip level)
• 120/240 volt
Whole-house surge protection
SurgeProsurge arresters
THQLSURGE
• Plugs into your GE load center (the best location for
protecting all AC circuits in the home)
• Protects computers, televisions, appliances and all
other sensitive electronic equipment from destructive
power surges
• Meets UL 1449 surge protection requirements
• Rated up to 25,000 amps peak surge current
• 3 year limited warranty up to $25,000 on connected
equipment. See limited warranty for details and
limitations.
THSASURGE60
• Installs at the service entrance to any brand of load
center (the best location for protecting all AC circuits
in the home)
• Protects computers, televisions, appliances and all
other sensitive electronic equipment from destructive
power surges
• Meets UL 1449 surge protection requirements
• Rated up to 60,000 amps peak surge current
• 3 year limited warranty up to $25,000 on connected
equipment. See limited warranty for details and
limitations.
Type Ampere Rating Cat. No.
Series Rated, 2002 National
Electrical Code*
15 THQL1115AFP
20 THQL1120AFP
Series & Parallel Rated, 2008
National Electrical Code**
15 THQL1115AF2P
20 THQL1120AF2P
Type Cat. No.
GE Plug-in THQLSURGE
Universal THSASURGE60
Poles Ampere Rating Cat. No.
1
15 THQL1115GF
20 THQL1120GF
30 THQL1130GF
2
15 THQL2115GF
20 THQL2120GF
30 THQL2130GF
40 THQL2140GF
50 THQL2150GF
16
Circuit Breakers
GE Circuit Breakers
Special Purpose Circuit Breakers and Kits
• 60°C/75°C conductor rating
• Quick-make, Quick-break
• Multi-pole breakers incorporate internal common trip
• Box Type terminals
Residential Circuit Breaker Enclosures
• UL Listed
• Suitable for use as service entrance
• Short circuit ratings equal to the installed breaker
• Steel enclosures
F - flush, S - surface, C - combination.
100-250 amp devices have removable closing caps.
Larger amp devices require field cut openings.
Order hubs separately (see page 8).
100 amp circuit breaker factory installed.
Suitable only for 2-pole breaker.
150 and 200 amp circuit breaker factory installed.
Sub-feed and Feed-thru Lugs
• UL Listed
• For use in load centers to economically supply power
to subpanel
• Includes mounting base
For use with PowerMark Gold load centers only.
Switching Neutral
UL Listed (Molded Case Circuit Breakers No. 489)
10kAIC RMS symmetrical
Standard one- or two-pole automatic breaker plus one
fully-rated non-automatic pole
“HID” Lighting
UL Listed (Molded Case Circuit Breakers No. 489)
• HID breakers have been designed to handle the current and
voltage spikes that result when gaseous discharge lamps,
including fluorescent and HID lamps, are switched on and off
UL Listed as SWD (switching duty).
Suitable for 120 volts ac fluorescent lighting loads.
High Magnetic
UL Listed (Molded Case Circuit Breakers No. 489)
10kAIC RMS symmetrical
High short-circuit setting suitable for circuits with inherent
high-inrush load currents
Breaker
Type
Max.
Amp
Rating
Poles
Cat. No.
Type 1 Indoor
Enclosure
Type 3R Outdoor
Enclosure
THQL,
THQL-GF,
TXQL
100 1, 2, 3
TQL100REP
TQL100F TQL100R
TQL100S
TQD,
THQD 225
2 —
TQD225NR
TQD150NRE
TQD200NREP
2, 3 TQD225F TQD225R
TQD225S
THQMV 200 2THMQMV150NRE
THMQMV200NRE
Poles Ampere Rating Cat. No.
2125 THLK2125
3125 THLK3125
2150 THLK2150
2200 THLK2200
3225 THLK3225
Ampere
Rating
1-pole plus
Switching Neutral
2-pole plus
Switching Neutral
120/240 Volts ac
Cat. No.
120/240 Volts ac
Cat. No.
15 THQL21WY15 THQL31WY15
20 THQL21WY20 THQL31WY20
25 THQL21WY25 THQL31WY25
30 THQL21WY30 THQL31WY30
Ampere
Rating
1-pole
120 Volts ac
Cat. No.
15 THQL1115HM
20 THQL1120HM
25 THQL1125HM
30 THQL1130HM
40 THQL1140HM
50 THQL1150HM
Ampere
Rating
1-pole 2-pole
120/240 Volts ac
Cat. No.
120/240 Volts ac
Cat. No.
10,000 AIC
15 THQL1115HIDTHQL2115HID
20 THQL1120HIDTHQL2120HID
30 THQL1130HID THQL2130HID
22,000 AIC
15 THHQL1115HIDTHHQL2115HID
20 THHQL1120HIDTHHQL2120HID
30 THHQL1130HID THHQL2130HID
17
Circuit Breakers
GE Circuit Breakers
Molded Case Switches
UL Listed (Molded Case Switches No. 1087)
Without overload or short circuit protection
TQ Circuit Breakers
• 3/4"
10kAIC RMS symmetrical
UL Classified
For use in Square D QO®load centers
Ampere
Rating
Cat. No.
1-pole 2-pole
15 TQ1115 TQ2115
20 TQ1120 TQ2120
30 TQ1130 TQ2130
40 TQ1140 TQ2140
50 TQ1150 TQ2150
60 TQ2160
Volts ac Ampere
Rating
2-pole 3-pole
Cat. No. Cat. No.
120/240 60 TQL21Y60
100 TQL21Y100
240 60 TQL22Y60 TQL32Y60
100 TQL22Y100 TQL32Y100
18
Circuit Breakers
Notes
19
Disconnects & Switches
GE AC Disconnects & Safety Switches
imagination at work
20
Disconnects & Switches
GE AC Disconnects & Safety Switches
Choose from among these options.
GE AC disconnects and safety switches feature rugged designs
for proven performance.
• Direct-drive, quick-make, quick-break mechanisms ensure long-life
• Removable interior and ample space simplify installation and wiring
• Straight-through wiring and multiple knockouts speed installation
• Spring-reinforced fuse clips assure reliable contact and cool operation
• Padlockable for added security
Catalog Number System
General duty safety switches. For illustrative purposes only.
TG N3 2 2 1 R
GE Identification Type Fusing Number Number Max. AC Ampere Enclosure
of Wires of Poles Voltage Rating
TG= General Duty Blank = Fused 3, 4 2, 3 2 = 240V 1 = 30A Blank = NEMA 1 Indoor
N= No Fuse 2 = 60A R= NEMA 3R Outdoor
3 = 100A
4 = 200A
5 = 400A
6 = 600A
Indoor safety switches come with
NEMA Type 1 enclosures.
See page 23.
Outdoor safety switches feature
NEMA 3R rain-tight enclosures.
See page 23.
Air conditioner disconnects are available
with thermoplastic or steel enclosures.
See page 22.
21
Disconnects & Switches
GE AC Disconnects & Safety Switches
What to consider when choosing a safety switch
1. Where will it be used?
If it will be the switch for your outdoor central air conditioning
unit, choose an AC disconnect.
If it will be installed in your basement, workshop or other
area inside your home or inside an outbuilding, choose an
indoor safety switch.
For installations where it will be exposed to the weather,
choose an outdoor safety switch.
As an air conditioner disconnect
Indoor
Outdoor
2. What is the ampere rating?
Air conditioner disconnects are rated at either 30 or 60
amperes. General duty safety switches are rated from 30 to
600 amperes. The ampere rating should match the load and
the sizing requirements of the National Electrical Code (NEC).
3. What type of fusing and wiring is required?
Be sure that your system’s available short circuit current
does not exceed what the safety switch can withstand.
General duty non-fused safety switches have a rating of
10,000 amps at 240Vac. Fusible general duty safety switch
ratings go up to 100,000 amps at 240Vac with Class R fuses
(see page 24).
Single phase 120/240V residential systems typically use 2 pole
disconnects. Most loads on 120/240V residential electrical
systems typically require a neutral. If the switch you select
does not include a neutral, see page 24 for available kits.

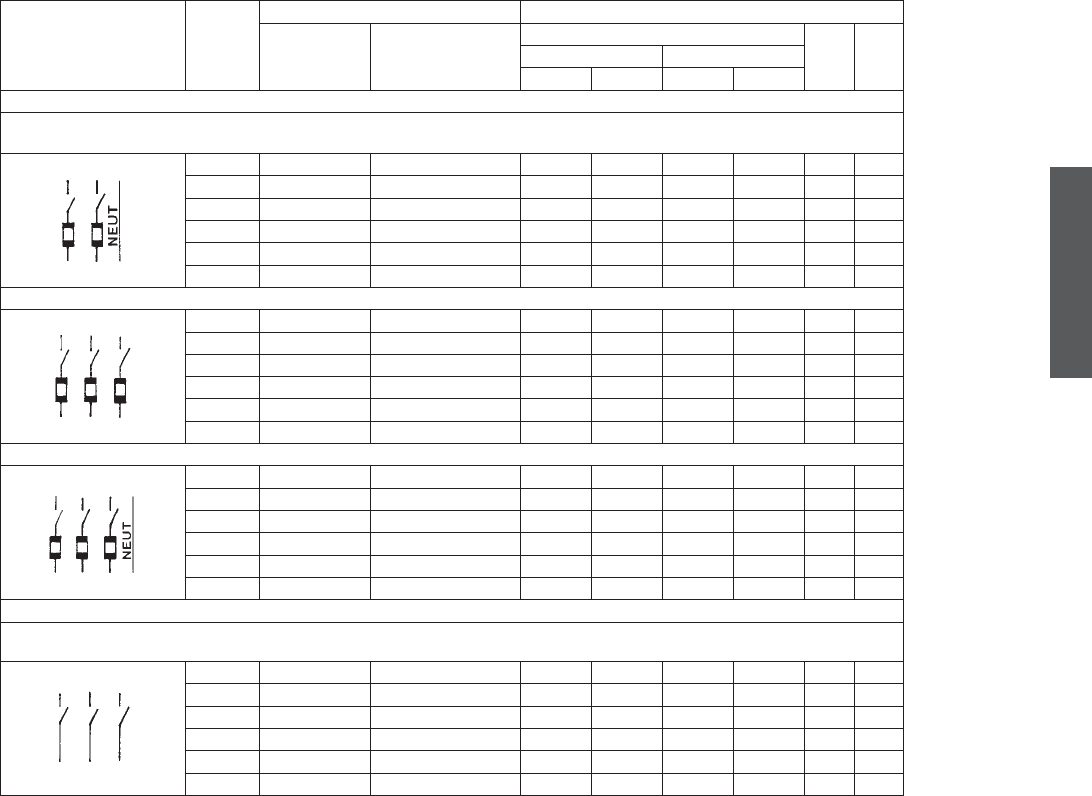

Three-wire SN, Three-pole
240 volts ac 240 volts ac
Four-wire SN, Three-pole 240 volts ac
208/120 and 240 or two-pole with
volts ac switching neutral
600
550
500
450
400
350
300
250
200
150
100
50
0
Amperes
Safety Switch Rating
30 60 100
200
400
600
22
Disconnects & Switches
GE AC Disconnects & Safety Switches
GE Air Conditioner Disconnects
• Compact size
• Plastic and metal enclosures
• Easy installation
• Puller and non-automatic switches
• Fusible and non-fusible types
• GFCI outlet types
• UL Listed (869 fusible, 1429 non-fusible)
Devices do not have removable closing cap.
Includes GFCI outlet.
Schematic Diagram Puller Type Maximum
Ampere Rating Volts Outdoor, Type 3R
Cat. No.
Horsepower
Rating
Lug
Wire
Thermoplastic-Enclosures – Puller Type
Fusible 30 120/240 TPF30R 314-3
Fusible 60 120/240 TPF60R 10 14-3
No Fuse 60 240 TPN60R1 10 14-3
Thermoplastic-Enclosures – Non-Automatic
No Fuse 60 240 TPNA60R1 10 14-3
Steel Enclosures – Puller Type
Fusible 30 120/240 TF30R 314-3
Fusible 60 120/240 TF60R 10 14-3
No Fuse 60 240 TFN60RCP 10 14-3
No Fuse 60 240 TFN60RGFP10 14-3
Steel Enclosures – Non-automatic
No Fuse 60 240 TNA60R1 10 14-3
No Fuse 60 240 TNA60RGFP10 14-3
23
Disconnects & Switches
GE AC Disconnects & Safety Switches
General Duty Safety Switches
• Designed For Residential Or Light Commercial Application Where Duty Is Not Severe
• UL Listed (Enclosed Switches No. 98)
• Meet Or Exceed NEMA Enclosed Switch Standard KS1-1983 For Type GD
• CSA Certified
• 60°C/75°C Conductor Rating
• Feature Quick-make, Quick-break Mechanisms (30-200 Amps)
• Suitable For Use As Service Entrance Equipment When Installed In Accordance With National Electrical Code
• 30-200 Amp Fusible Switches Are Rated 100,000 Rms Amps, Sym IC When Used With Class R Fuses
200-600 Amp devices available factory reversed for bottom feed. Add "B" suffix to Catalog Number (e.g. TG3224B). UL Listed.
30-200 Amp devices have removable closing cap. Larger ampere devices require field cut openings. Order hubs separately, see page 24.
Not suitable for use as service equipment. Solid neutral not available.
Schematic Diagram
Max.
Ampere
Rating
Cat. No. Horsepower Ratings
Indoor, Type 1
Enclosure
Outdoor, Type 3R
Enclosure
240 Volts 125
Volts
dc
250
Volts
dc
NEC Standard Time Delay
1-ph 3-ph 1-ph 3-ph
Fusible
Two-pole, 120/240 and 240 volts ac; 250 volts dc (30-100 Amps only)
Three-wire SN, 240 volts ac
30 TG3221 TG3221R 1.5 3 3 7.5 2 5
60 TG3222 TG3222R 37.5 10 15 310
100 TG3223 TG3223R 7.5 15 15 30 20
200 TG3224 TG3224R 15 25 15 50 — —
400 TG3225 TG3225R 50 100 — —
600 TG3226 TG3226R 75 100 — —
Three-pole, 240 volts ac
30 TG4321 TG4321R 1.5 3 3 7.5 — 5
60 TG4322 TG4322R 37.5 10 15 310
100 TG4323 TG4323R 7.5 15 15 30 20
200 TG4324 TG4324R 15 25 15 50 — —
400 TG3325 TG3325R 50 100 — —
600 TG3326 TG3326R 75 100 — —
Four-wire SN, 208/120 and 240 volts ac
30 TG4321 TG4321R 1.5 3 3 7.5 — 5
60 TG4322 TG4322R 37.5 10 15 310
100 TG4323 TG4323R 7.5 15 15 30 20
200 TG4324 TG4324R 15 25 15 50 — —
400 TG4325 TG3325R + TNI65 50 100 — —
600 TG4326 TG3326R + TNI66 75 100 — —
No Fuse
Two-pole, 240 volts ac (use three-pole switch for two-pole application); 250 volts dc (30-100 Amps only)
Three-pole, 240 volts ac or two-pole with switching neutral
30 TGN3321 TGN3321R 37.5 37.5 — 5
60 TGN3322TGN3322R10 15 10 15 310
100 TGN3323TGN3323R15 30 15 30 20
200 TGN3324 TGN3324R 15 50 15 50 — —
400 TGN3325 100 100 — —
600 TGN3326 100 100 — —
24
Disconnects & Switches
GE AC Disconnects & Safety Switches
Accessories
Equipment Ground Kits
Neutral Kits — Insulated, Groundable and Bondable
Semi-dust-tight Door Gasket Kits
Aluminum Universal Raintight Hubs
For outdoor enclosures with removable closing caps
Class R Fusing Kit
For rejecting fuses other than Class R on 2- and 3-pole TG Type 1
and 3R safety switches. Field installable. UL Listed.
Switch Ampere
Rating Cat. No. Lug Wire Size (AWG/kcmil)
Copper Aluminum
30-60 TGL1 (4) 14-8 (4) 14-8
(3) 14-4 (3) 6-4
100-200 TNG3 (3) 10/1/0 (3) 10/1/0
400-600 TGL6 (3) 2-250 (3) 2-250
Ampere Rating Cat. No. Lug Wire Size (AWG/kcmil)
Copper Aluminum
30 TNI21
60 TNIA62 12-2 12-2
100 TNIA63 10-1/0 10-1/0
200 TNIA64 2-250 2-250
400 TNI65 (1) 2-600 or
(2) 1/0-250
(1) 2-600 or
(2) 1/0-250
400 TNI65A (1) 2-600 or
(2) 1/0-250
(1) 2-600 or
(2) 1/0-250
600 TNI66 (2) 4-500 (2) 4-500
Switch Ampere
Rating Cat. No.
30-100 THG106
200 THG107
400-600 THG108
Switch Ampere
Rating Cat. No.
30 TGRK12
60 TGRK22
100 TGRK32
200 TGRK42
Nominal Conduit
(Diameters in Inches) Cat. No.
3/4 TC75
1TC100
1 1/4 TC125
1 1/2 TC150
2TC200
2 1/2 TC250
3TC300
Closing Cap TCCP
25
Disconnects & Switches
GE AC Disconnects & Safety Switches

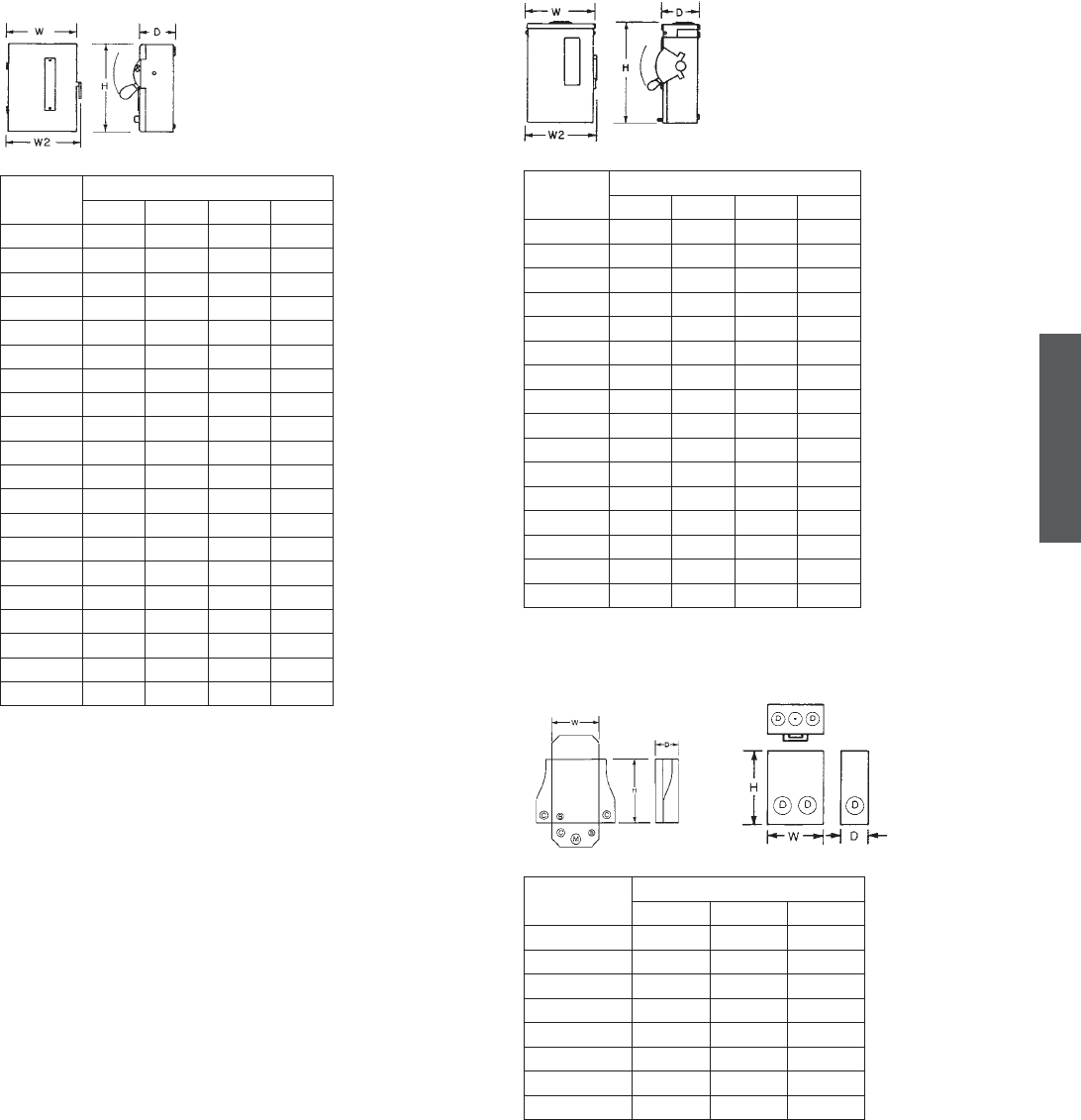

Dimensions
Safety Switches
Type 1 Enclosures
Type 3R Enclosures
Air Conditioner Disconnects
Cat. No. Approx. Dimensions in Inches
W H D W2
TG3221 6 1/2 10 5/8 3 5/16 7
TG3222 8 1/2 13 7/8 4 9
TG3223 9 1/2 21 3/8 510
TG3224 13 3/4 29 1/4 5 1/2 14
TG3225 22 49 1/2 923
TG3226 23 1/4 50 9 1/4 23 3/4
TG3325 22 49 1/2 923
TG3326 23 1/4 50 9 1/4 23 3/4
TG4321 6 1/2 10 5/8 3 5/16 7
TG4322 8 1/2 13 7/8 4 9
TG4323 9 1/2 21 3/8 510
TG4324 13 3/4 29 1/4 5 1/2 14
TG4325 22 49 1/2 923
TG4326 23 1/4 50 9 1/4 23 3/4
TGN3321 6 1/2 10 5/8 3 5/16 7
TGN3322 8 1/2 13 7/8 4 9
TGN3323 9 1/2 21 3/8 510
TGN3324 13 3/4 29 1/4 5 1/2 14
TGN3325 22 49 1/2 923
TGN3326 23 1/4 50 9 1/4 23 3/4
Cat. No. Approx. Dimensions in Inches
W H D W2
TG3221R 6 7/8 9 7/8 3 5/16 7 1/4
TG3222R 8 3/4 13 3/4 49 1/4
TG3223R 9 7/8 21 1/4 510
TG3224R 14 29 5 3/8 14 1/4
TG3225R 22 1/4 49 1/2 922 1/2
TG3226R 23 5/8 50 9 1/4 23 3/4
TG3325R 22 1/4 49 1/2 922 1/2
TG3326R 23 5/8 50 9 1/4 23 3/4
TG4321R 6 7/8 9 7/8 3 5/16 7 1/4
TG4322R 8 3/4 13 3/4 49 1/4
TG4323R 9 7/8 21 1/4 510
TG4324R 14 29 5 3/8 14 1/4
TGN3321R 6 7/8 9 7/8 3 5/16 7 1/4
TGN3322R 8 3/4 13 3/4 49 1/4
TGN3323R 9 7/8 21 1/4 510
TGN3324R 14 29 5 3/8 14 1/4
Cat. No. Approx. Dimensions in Inches
W H D
TPF30R 5 3/4 83 1/8
TPF60R 5 3/4 83 1/8
TPN60R1 5 7 1/4 2 1/8
TPNA60R1 57 1/4 2 1/8
TF30R 4 3/4 7 1/2 2
TF60R 6 1/2 93 1/4
TFN60R 4 3/4 7 1/2 2
TFNA60RGFR 5 3/4 7 1/8 5 3/16
26
Disconnects & Switches
Notes
27
Outdoor Power Products
Outdoor Power Products by Midwest
28
Outdoor Power Products
Outdoor Power Products by Midwest
Midwest supplies the finest quality weatherproof electrical equipment.
All Midwest Electric products:
• Are made from G90 galvanized (zinc-coated) steel or thermoplastic
enclosures for maximum corrosion protection
• Feature the highest quality electrical components
• Are designed and manufactured with user protection in mind
Power outlets
Power outlets provide one or more
receptacles, with or without overcurrent
protection, in a single enclosure. They
eliminate the need for several separately
mounted components while providing
maximum protection against the weather
and normal field use. See page 29.
Temporary power/power outlets
Temporary power equipment combines
all the required components to supply
power to the various construction
trades. This may include receptacles,
overcurrent protection, a meter socket
and GFCIs, all designed for outdoor
installation. See page 30.
RV power outlets
For use in recreational vehicle parks,
RV power outlets provide user safety,
rugged construction, weather protection,
receptacle versatility and attractive looks.
Both metallic and thermoplastic enclo-
sures are available, and options include
metering, TV/telephone and lighting.
See page 31.
Service equipment
Midwest offers a range of service
equipment for single family residences
and mobile homes that meet NEC and
UL requirements. They are factory
assembled and wired with loop feed
lugs to speed installation time.
See page 31.
Spa panels
Spa panels offer a low-cost means
to meet NEC requirements for a GFCI
disconnect for spas, hot tubs and
swimming pools. See page 31.
29
Outdoor Power Products
Outdoor Power Products by Midwest

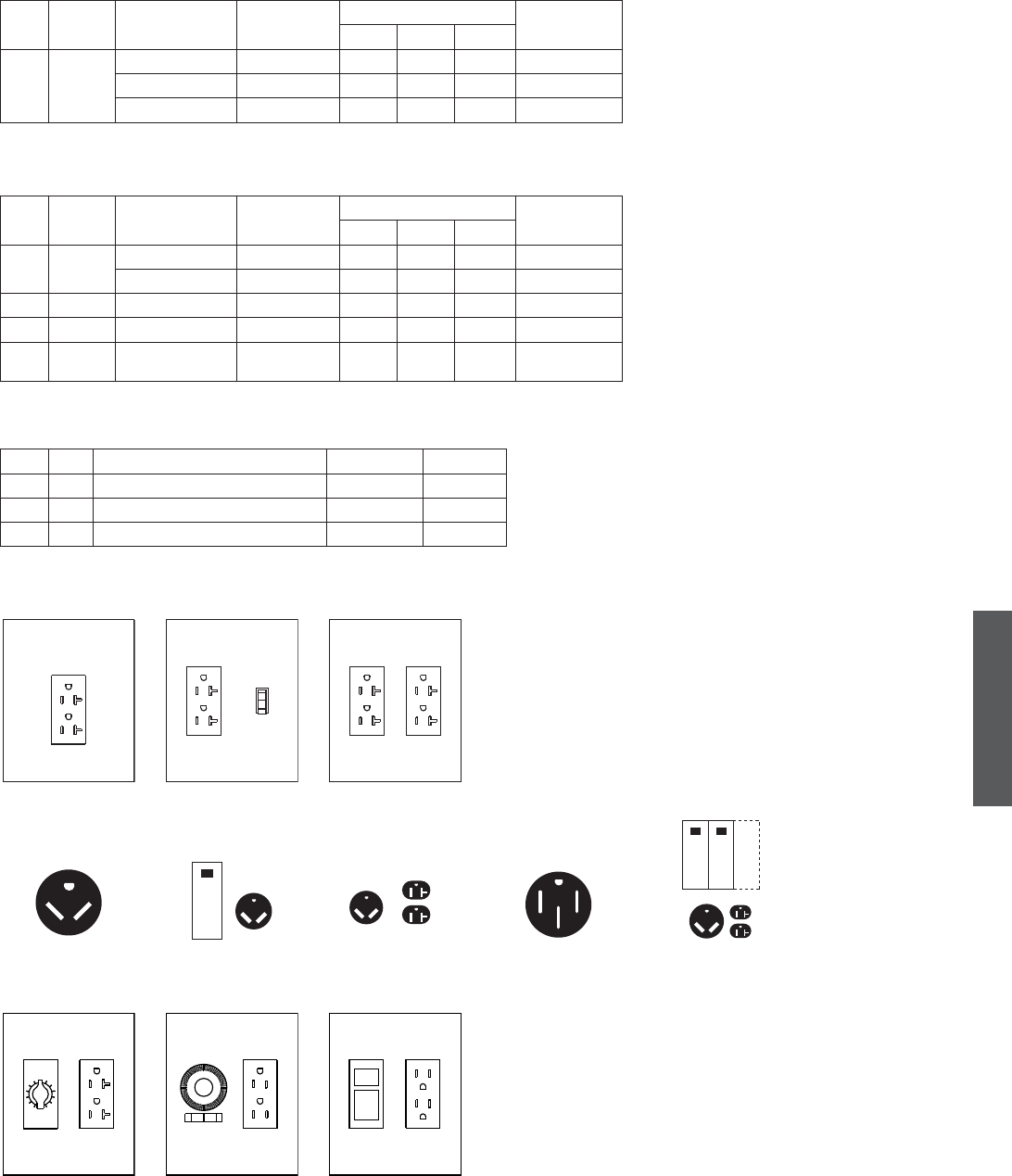

Back yard power outlets (green enclosures)
RV power outlets (gray enclosures)
Power outlets with timers (green enclosures)
Amps Volts Circuit
Protection Receptacles Dimensions Cat. No.
H W D
20 120
-5-20RGFI 7 1/8 5 3/4 5 3/16 U010010GRP
SPST Switch 5-20RGFI 7 1/8 5 3/4 5 3/16 U010S010GRP
-(2) 5-20RGFI 7 1/8 5 3/4 5 3/16 U012010GRP
Amps Volts Circuit
Protection Receptacles Dimensions Cat. No.
H W D
30 120 -R32U 7 1/8 5 3/4 5 3/16 U013P
CB130 R32U 9 1/8 5 3/4 5 3/16 U013CP
30 120/240 -R32U, 5-20R2 9 1/8 5 3/4 5 3/16 U041P
50 120 -14-50R 7 1/8 5 3/4 5 3/16 U054P
70 120/130 CB120, CBN130,
Space, CB120 R32U, 20R2 14 3/8 7 1/4 5 3/16 U041CP
Amps Volts Receptacles Cabinet Size Cat. No.
20 125 5-20R2GFCI + 12-hour timer 5" x 7" T3010GRP
15 125 5-20R2GFCI + 24-hour timer 5" x 7" T4010GRP
15 120 5-20R2GFCI + 7-day digital timer 5" x 7" T5010GRP
30
30 20
S
P
A
C
E
U010010GRP U010S010GRP
T3010GRP T4010GRP T5010GRP
U012010GRP
U013P U013CP U041PU054PU041CP
30
Outdoor Power Products
Outdoor Power Products by Midwest

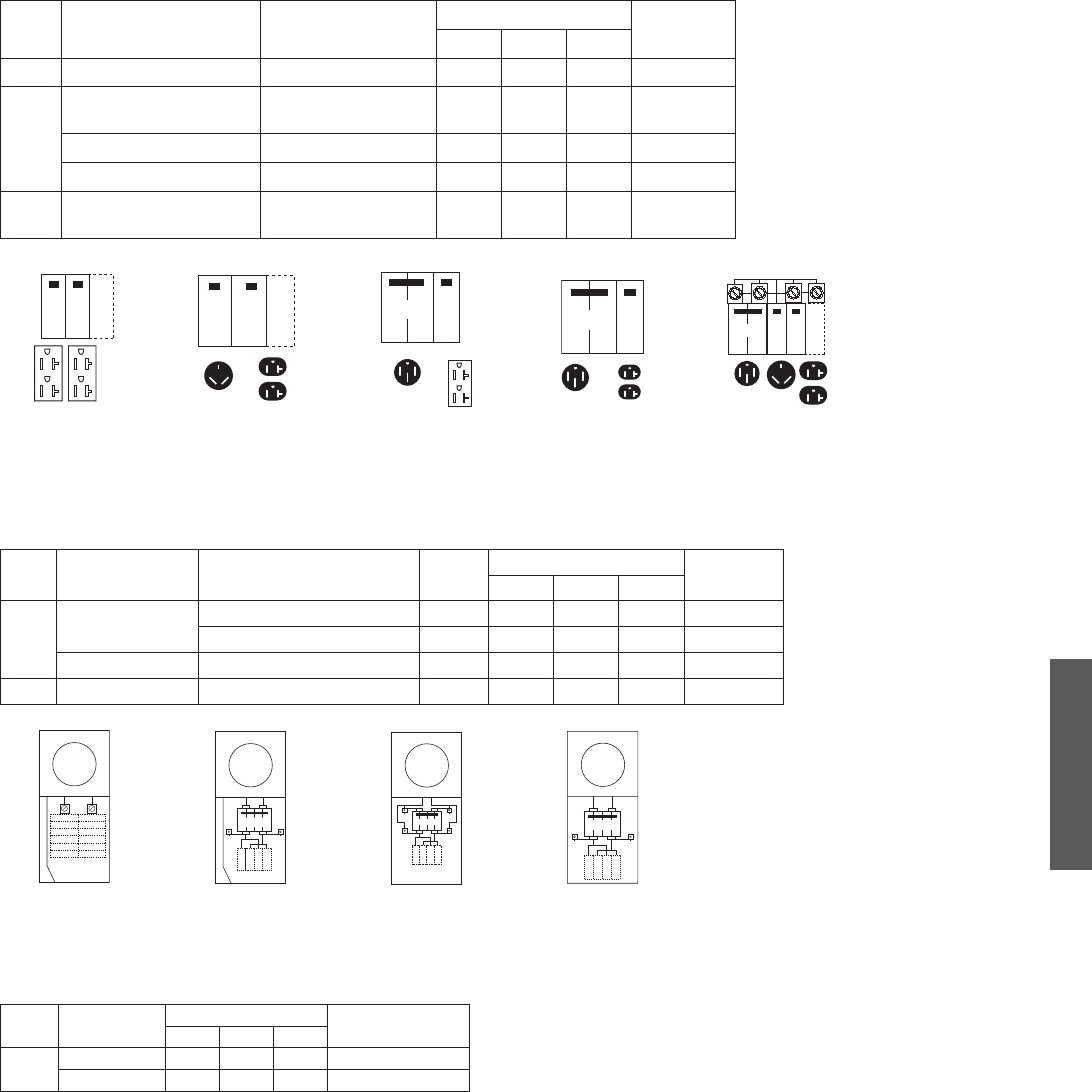

Temporary power/power outlets, 120/240V
Type Amps Circuit Protection Receptacles Dimensions Cat. No.
H W D
Unmetered
40 (2) CB120, Space, CB120 (2) 5-20R2GFI 14 3/8 6 3/4 5 3/16 U011C010P
CB220, CB120 6-20R, 5-20R2GFI 14 3/8 6 3/4 5 3/16 U036C010P
60 CB220, (2) CB120 6-20R, 5-20R2GFI 14 3/8 6 3/4 5 3/16 U038C010
70
CB250, CB120 10-50R, 5-20R2GFI 17 3/8 9 3/4 5 3/16 U051C010P
CB250, CB120 14-50R, 5-20R2GFI 14 3/8 6 3/4 5 3/16 U055C010P
GFI250, CB120 14-50R, 5-20R2GFI 14 3/8 6 3/4 5 3/16 U055C033P
CB250, GFI120 14-50R, 5-20R2 14 3/8 6 3/4 5 3/16 U055GP
Ring Type
Meter Socket 70 CB250, CB120 14-50R, 5-20R2GFI 30 9 3/4 5 3/16 M055C010
GFI250, CB120 14-50R, 5-20R2GFI 30 9 3/4 5 3/16 M055C033
Ringless
Meter Socket
40 (2) CB120, Space, CB120 (2) 5-20R2GFI 30 9 3/4 5 3/16 R011C010
(2) CB120, Space, CB120 (2) 5-20R2GFI 30 9 3/4 5 3/16 R011C010U
70 CB250, CB120 14-50R, 5-20R2GFI 30 9 3/4 5 3/16 R055C010
GFI250, CB120 14-50R, 5-20R2GFI 30 9 3/4 5 3/16 R055C033
2020
S
P
A
C
E
2020 2020 50 20 50 20
U011C010PU036C010P U038C010U051C010P U055C010P
20
50
GFI 50 20
GFI 50 20 50
GFI 20
20 20
S
P
A
C
E
U055C033P U055GPM055C010 M055C033R011C010U
50 20 50
GFI 20
R055C010 R055C033
31
Outdoor Power Products
Outdoor Power Products by Midwest
RV power outlets, 120/240V
Service equipment
Metered, 120/240V, 1-phase 3-wire, overhead or underground feed
Spa panels, 120/240V, green enclosure
Amps Circuit Protection Receptacles Dimensions Cat. No.
H W D
40 2 (CB120), Space, CB120 (2) 5-20R2GFI 14 3/8 6 3/4 5 3/16 U011C010P
70
CB130, GFI120, Space,
CB120 R32U, 5-20R2 14 3/8 7 1/4 5 3/16 U041GP
CB250, CB120 14-50R, 5-20R2GFI 14 3/8 6 3/4 5 3/16 U055C010P
CB250, GFI120 14-50R, 5-20R2 14 3/8 6 3/4 5 3/16 U055GP
100 CB250, CB120, GFI120,
Space, CB120 14-50R, BR32U, 5-20R 17 3/8 9 3/4 5 3/16 U075GTL
Amps Type Main Spaces Dimensions Cat. No.
H W D
20 Ringless Main Lugs 12 26 1/4 14 3/4 4 9/16 R256EB1A
200A Main Breaker Installed 428 5/8 14 3/4 4 9/16 R281CB1
Ring Type 200A Main Breaker Installed 428 5/8 14 3/4 4 9/16 M282CB1
20 Pedestal, Ringless 200A Main Breaker Installed 430 1/4 9 5/16 4 3/4 R281C1P6H
2020
S
P
A
C
E
30 20
GFI
S
P
A
C
E
50 20 50 20
GFI 50 30
GFI
20
GFI
S
P
A
C
E
U011C010P U041GP U055C010PU055GP U075GTL
BARRIER
SPACE
SPACE
SPACE
SPACE
SPACE
SPACE
SPACE
SPACE
SPACE
SPACE
SPACE
SPACE
BARRIER
S
P
A
C
E
S
P
A
C
E
S
P
A
C
E
S
P
A
C
E
LOAD LOAD
200
MAIN
S
P
A
C
E
S
P
A
C
E
S
P
A
C
E
S
P
A
C
E
LOAD LOAD
200
S
P
A
C
E
S
P
A
C
E
S
P
A
C
E
S
P
A
C
E
LOADLOAD
200
200
MAIN
R256EB1A R281CB1M282CB1R281C1P6H
Amps Circuit
Protection
Dimensions Cat. No.
H W D
125 GFI250 10 7 1/2 4UG412RMW250P
GFI260 10 7 1/2 4UG412RMW260P
32
Outdoor Power Products
Outdoor Power Products by Midwest

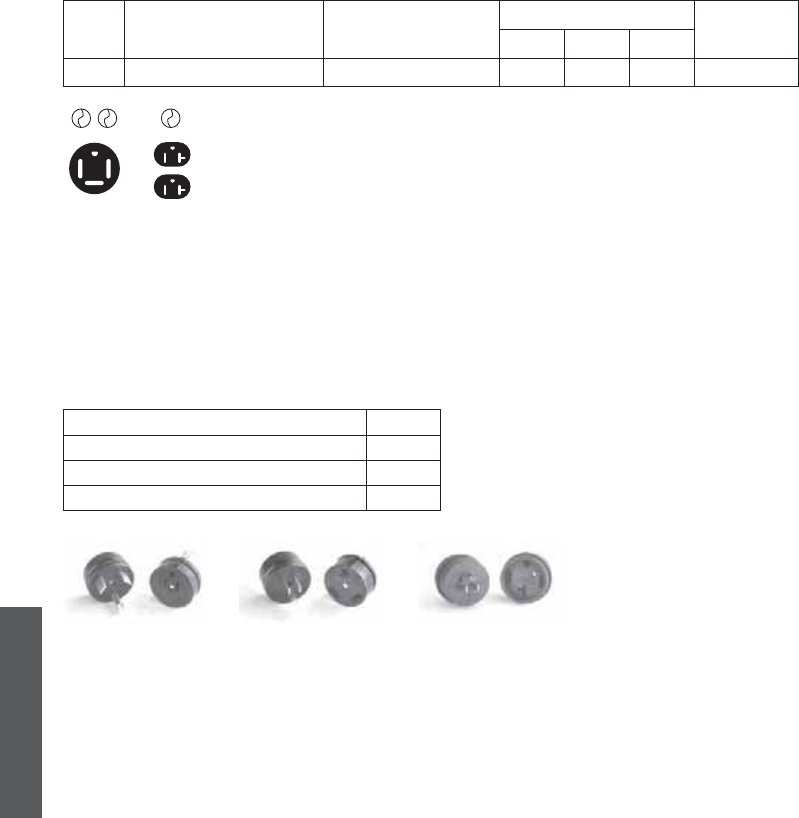

Swamp Cooler Power Outlet, 120/240V
Evaporative cooler application require both fusing and switching or
receptacle functions, depending on equipment type and local codes.
Temporary Adapters
Not UL Listed
Amps Circuit Protection Receptacles Dimensions Cat. No.
H W D
125 (3) FH1 Fuses 14-20R, 5-20R2 10 7 1/2 4U261F
14-20R 5-20R2
U261F
Description Cat. No.
30 Amp 125 Volt, 15 Amp 125 Volt AD2020
30 Amp 125 Volt, 15 Amp 125 Volt AD3020
50 Amp 125/250 Volt, 15 Amp 125 Volt AD5020
AD2020AD3020AD5020
33
Modular Metering
Mini Mod®III Modular Metering
imagination at work
34
Modular Metering
Mini Mod®III Modular Metering
Mini Mod III offers flexibility and ease of installation.
Mini Mod III is a self-contained single-phase modular metering system for multi-family or tenant dwellings,
complete with main lugs and up to six meter sockets. All enclosures are are combination indoor/outdoor to
maximize installation flexibility. Removable knockout backplates and endwall knockouts make service cable
threading easy and fast. And all components are UL Listed, with short circuit ratings up to 100kAIC.
Catalog Number System
For illustrative purposes only.
TMM4 4 20R
GE Identification Type Horizontal Bus Socket Positions Socket Rating Enclosure
Rating
TMM= Mini Mod 2 = 200A 1-6 12 = 125A R= Type 3R
ring type 4 = 400A 20 = 200A Rainproof
MMR = Mini Mod 6 = 600A
ringless
35
Modular Metering
Mini Mod®III Modular Metering
• 1-phase/3-wire
• 120/240 and 208Y/120 (Network) Volts ac
• UL Listed (Panelboards No. 67)
• Indoor/Outdoor Construction
• Ring-Type and Ringless Meter Sockets
• Bondable Neutral, Strap Included
• 11-inch Mounting Z Rail Included
• Swingaway Mounting Feet Factory Installed
1. Basic Devices
One snap-type, aluminum sealing ring (TSR5) per socket included.
Includes factory installed fifth jaw. Available with factory installed
horn-type by-pass. Add “HBEB” suffix to catalog number.
(2) 250-500 kcmil lugs provided.
Mini Mod Lug Wire Sizes
(AWG/kcmil) (Cu/Al)
Short Circuit Current Rating —UL Listed
All Mini Mod IIIs are UL Listed for the short circuit rating
at 240V ac maximum in rms symmetrical Amperes of
the tenant breaker installed, selected from the following
table. The short circuit rating is limited to the lowest
interrupting rating of any tenant breaker installed.
Replacement breakers shall be of the same manufacturer
and type and shall have an interrupting rating equal or
greater to the interrupting rating of any tenant breaker
presently installed in this device.
GE breakers rated 10,000 AIC or greater when installed on the load side
of Mini Mod III are protected for the interrupting rating per the UL Listing
marked on the tenant breaker.
2. Tenant Main Circuit Breaker
For 125 Amp Sockets
For 200 Amp Sockets
Tenant Main Lug Wire Sizes (AWG/kcmil)
Number
of Meters
Main Ampere
Ratings
Ring-Type Sockets
Cat. No.
Ringless Sockets
Cat. No.
125 Amp Sockets
2 200 TMM2212R TMMR2212R
3 400 TMM4312R TMMR4312R
4 400 TMM4412R TMMR4412R
5 600 TMM6512R TMMR6512R
6 600 TMM6612R TMMR6612R
200 Amp Sockets
2 400 TMM4220RTMMR4220R
3 600 TMM6320R TMMR6320R
4 600 TMM6420R TMMR6420R
5 600 TMM6520R TMMR6520R
6 600 TMM6620R TMMR6620R
Ampere
Rating Main Lug Service
Ground
Equipment
Ground
200 (1) 6-300 6-2/0 14-4
400 (1) 6-600 or (2) 2/0-250 4-300 14-4
600 (2) 250-500 4-300 14-4
Tenant Main Breaker
Frame
UL Listed
AIC Rating
TMQD 100,000
TMQL 42,000
THQD 22,000
THHQL 22,000
TQD 10,000
THQL 10,000
Ampere Rating 10,000 AIC
Cat. No.
22,000 AIC
Cat. No.
42,000 AIC
Cat. No.
60 THQL2160 THHQL2160 TMQL2160
70 THQL2170 THHQL2170 TMQL2170
80 THQL2180 THHQL2180 TMQL2180
90 THQL2190 THHQL2190 TMQL2190
100 THQL21100 THHQL21100 TMQL21100
110 THQL21110 THHQL21110
125 THQL21125 THHQL21125 TMQL21125
125,sub-feed lug kit, no
over-current protection TMQL21125SF — —
Ampere Rating 10,000 AIC
Cat. No.
22,000 AIC
Cat. No.
100,000 AIC
Cat. No.
60 — — TMQD22060
70 — — TMQD22070
80 — — TMQD22080
90 — — TMQD22090
100 TQD22100 THQD22100 TMQD22100
125 TQD22125 THQD22125 TMQD22125
150 TQD22150 THQD22150 TMQD22150
175 TQD22175 THQD22175 TMQD22175
200 TQD22200 THQD22200 TMQD22200
Type Ampere Rating Copper Aluminum
THQL, THHQL
60 8-3 8-2
70-100 6-1/0 4-1/0
110-125 2-2/0 2-2/0
TMQL 60-125 10-1/0 10-1/0
TMQD
60-90 6-1/0 6-1/0
100-150 6-4/0 6-4/0
175-225 1/0-300 1/0-300
TQD, THQD 100-200 1-300 1-300
Mini Mod®III Modular Metering
36
Modular Metering
3. Accessories – Field Installed
100 Amps continuous.
200 Amps continuous.
Not UL Listed.
Description Cat. No.
Semi-Flush Kits
125A Sockets
2 gang TMM12SF2
3 and 4 gang TMM12SF4
5 and 6 gang TMM12SF6
200A Sockets 3 and 4 gang TMM20SF4
5 and 6 gang TMM20SF6
Compression Lug
Landing Kit - 600 Amp
Includes 3 pads each with 2 threaded stud connections (and hardware) for compression or
mechanical lugs with NEMA 2-hole bolt configuration (lugs not furnished). Not suitable for 2-gang. TMM6CLL
By-pass Kits
Manual Slider-Type (Ring Type Only)
125 Amp top socket for 3, 5 and 6 gang TMBPM12TA
125 Amp for all other sockets TMBPM12A
200 Amp for all sockets TMBPM20A
Jumper Straps Type - fits all (Ring Type Only) (use with TMCG) TMBPJ20
Cover Including Jumper Strap Type - fits all (Ring Type Only)TMBPC20
Horn-Type fits all (Ringless Only)TMBPH20A
Totalizing Jumper Type125 Amp TMBPT10
200 Amp TMBPT20
Fifth Jaw Kits Bused; 3, 6 or 9 o’clock mounting: Order two for fifth and sixth jaw. Not suitable for 2-gang. TM5JA
Isolated; 3 or 9 o’clock mounting TM5JUA
Sealing Rings
Screw-Type, Aluminum TSR1
Clamp-Type, Stainless Steel TSR2
Snap-Type, Stainless Steel TSR3
Screw and Lock-Type, Aluminum TSR4
Snap-Type, Aluminum (Standard) TSR5
Steel Meter Socket
Covers
Blank (fits bottom position only) 125 Amp TMCB12B
200 Amp TMCB20B
Ringless
(Field-converts ring-type to ringless)
125 Amp top socket for 3, 5 and 6 gang TMCR12T
125 Amp for all other sockets TMCR12
200 Amp for all sockets TMCR20
Glass Meter Socket Cover Plate TMCG
Lexan Meter Socket Cover Plate TMCP
Equipment Ground Bar, (6) 6-2/0 TMEG
Individual Meter Socket Barrier Kit (includes 6) TMBR
Mounting Z Rail, 4-foot TMZR
Lug Kit for (3) 4/0 cable TMPAL40
Mini Mod®III Modular Metering
37
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods
imagination at work
38
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods
Choose the bath fan style and size that’s right for you.
GE bath fans offer more than just ventilation.
With our wide variety of bathroom fan designs, it’s easy to get the perfect GE model to meet your needs.
Whether your bathroom is small or large, there’s a GE bath fan to match your desired air movement, sound
level and budget. Plus, GE bathroom fans are available with a variety of convenient and stylish features.
• Choose from a selection of lights, nightlights, heaters and decorative finishes for your room’s exact needs.
• Easy-mount, do-it-yourself models simplify installation.
• Energy Star®rated bathroom fans deliver superior performance while consuming less energy.
• High quality GE performance backed by a 5-year limited warranty – the longest in the industry.
Bath fans with lights come in a range
of styles, including decorative models.
Easy mount bath fans are the easiest
fans to install.
Basic fans offer a great value in
basic ventilation.
Energy Star®-rated bath fans are
recognized for their superior energy
efficiency.
Bathroom heaters combine ventilation
with lights and heaters
39
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods
1. How large is the room?
For proper ventilation, choose the GE bath fan that has
specifications equal to, or greater than, the room’s square
footage. Calculate your room’s square footage by multiplying
its length by its width in feet.
Another way to consider this is the volume of air the fan is
able to move. This is reported as CFM, or cubic feet per
minute. For more air movement, choose a fan with a higher
CFM number.
2. What is the right sound level?
The sound level of our fans range from standard to ultra quiet.
Loudness is measured in sones, which reflects a combination
of laboratory decibel readings and the way people sense
sound. For a quieter fan, choose one with a lower sone number.
For comparison purposes:
1 sone = 25% of normal conversation level
2 sones = 50% of normal conversation level
4 sones = normal conversation level
3. Do you need a light and/or heater?
Do you want a basic unit, with only a fan, or would you
prefer one with a light, nightlight, even a heater? GE offers
them all.
4. Do you want an Energy Star®fan?
Energy Star is a rating given by the US Environmental
Protection Agency and US Department of Energy to products
that demonstrate superior energy efficiency. GE offers
several bath fans that use high-efficiency motors and can
reduce energy consumption by as much as 65% without
sacrificing performance. For an Energy Star bath fan, look
for this symbol in the following pages and on the packaging:
5. Do you want a fan that’s easy to install?
For do-it-yourselfers, GE makes Easy Mount bath fans that
install as easily as 1-2-3. See the Easy Mount section on
page 41 for available selections.
6. Do you want a designer bath fan?
If you are looking for a bath fan that will complement or
enhance your décor, choose from among our many designer
models.
Room = 8 feet x 10 feet
Example: 8 feet x 10 feet =
80 square feet
40
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods
Basic Bath Fans
BF60CPA
The BF60CPA is GE’s most economic
fan for the small-sized bathroom.
• Ventilates rooms up to 60 sq. ft.
• 3" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
Bathroom Size: Small; up to 60 sq. ft.
Overall Housing: 7.375" x 7.625" x 3.75"
Grill Size: 10" x 10"
BF85A
The BF85A is GE’s best value fan with
high air volume for the medium-sized
bathroom.
• Ventilates rooms up to 85 sq. ft.
• 3" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 7.375" x 7.625" x 3.75"
Grill Size: 10" x 10"
BF150A
The BF150A is GE’s best value fan
with the highest air volume for the
large-sized bathroom.
• Ventilates rooms up to 150 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
Bathroom Size: Large; up to 150 sq. ft.
Overall Housing: 9.125" x 9" x 5.875"
Grill Size: 10.5" x 10.5"
BF80UQ
The BF80UQ is an ultra-quiet fan for
the medium-sized bathroom.
• Ventilates room up to 80 sq. ft.
• 4” duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
Bathroom Size: Medium; up to 80 sq. ft.
Overall Housing: 10.75" x 9.25" x 7.88"
Grill Size: 11" x 13.75"
BF125UQ
The BF125UQ is a high air-volume
fan with the lowest noise level for
the large-sized bathroom.
• Ventilates room up to 80 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
Bathroom Size: Large; up to 125 sq. ft.
Overall Housing: 10.75" x 9.25" x 7.88"
Grill Size: 11" x 13.75"
WF180
The WF180 is GE’s bath fan for
efficient ventilation, and is vertically
ducted with adjustable housing.
• Ventilates rooms up to 210 sq. ft.
• 8" duct connection
Bathroom Size: Large; up to 210 sq. ft.
Overall Housing: 8" x 12" x 2.5" cap.
Grill Size: 11.5" x 11.5"
High
Low
High
Low
180
CFM
6.5
Sones
High
Low
High
Low
120
CFM
4.0
Sones
High
Low
High
Low
110
CFM
2.0
Sones
High
Low
High
Low
70
CFM
5.0
Sones
High
Low
High
Low
80
CFM
1.5
Sones
High
Low
High
Low
80
CFM
1.0
Sones
41
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods

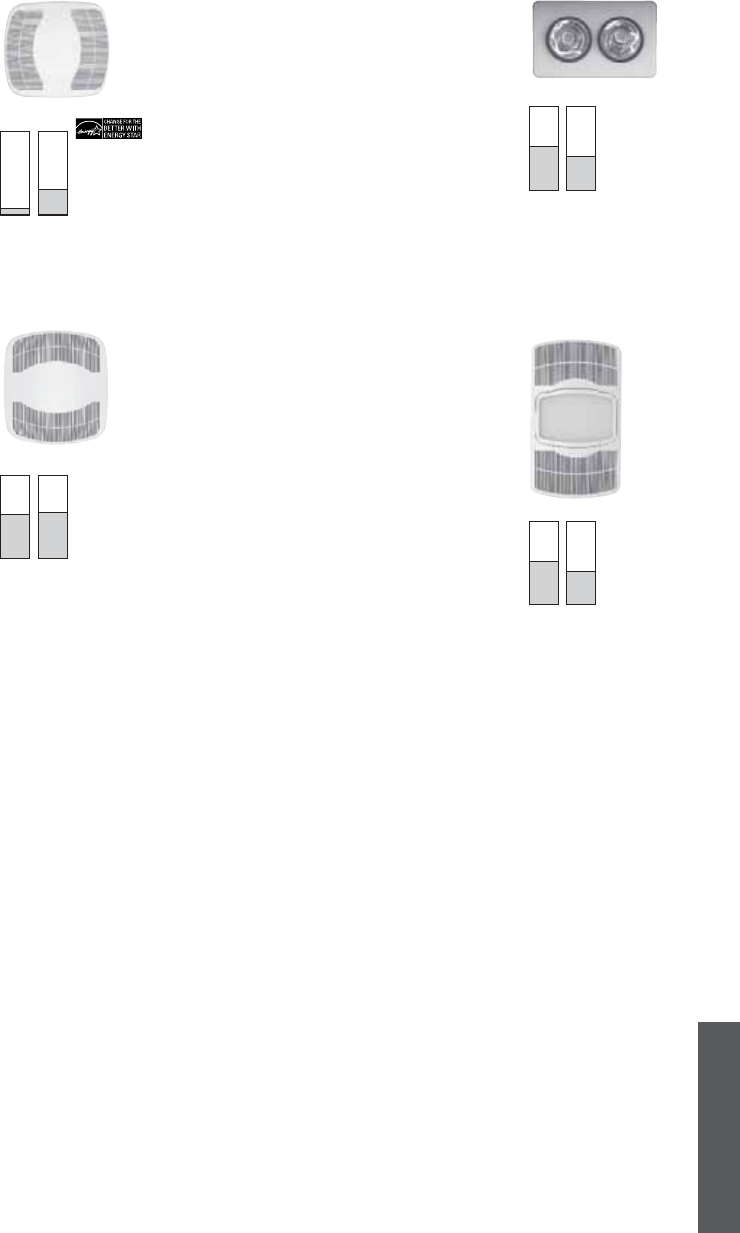

Easy Mount Bath Fans
BF50EM
The BF50EM is GE’s easiest fan to
install for the small-sized bathroom.
• Ventilates rooms up to 60 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
Bathroom Size: Small; up to 60 sq. ft.
Overall Housing: 9" x 8.50" x 4.75"
Grill Size: 11.67" x 10.75"
BF125EM
The BF125EM is GE’s easiest fan to
install for the large-sized bathroom.
• Ventilates room up to 125 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
Bathroom Size: Large; up to 125 sq. ft.
Overall Housing: 9" x 8.5" x 4.75"
Grill Size: 11.66" x 10.75"
Bathroom Heater
BH85DB
The BH85DB is GE’s fan with a dual
bulb heater for the medium-sized
bathroom.
• Ventilates and heats room up to
85 sq. ft.
• 4" duct connection
• 2 x 250 watt max., Type R40
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 7.875" x 14.5" x 5.875"
Grill Size: 15.75" x 10"
BFLH85L
The BFLH85L is GE’s fan with a
Moonstone lamp and heater for the
medium-sized bathroom.
• Ventilates and heats room up to
85 sq. ft.
• 4" duct connection
• 1 x 100 watt max., Type A19
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 9" x 15.375" x 6.5"
Grill Size: 17.25" x 9.75"
High
Low
High
Low
70
CFM
3.5
Sones
High
Low
High
Low
70
CFM
3.5
Sones
High
Low
High
Low
100
CFM
3.5
Sones
High
Low
High
Low
50
CFM
0.5
Sones
42
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods

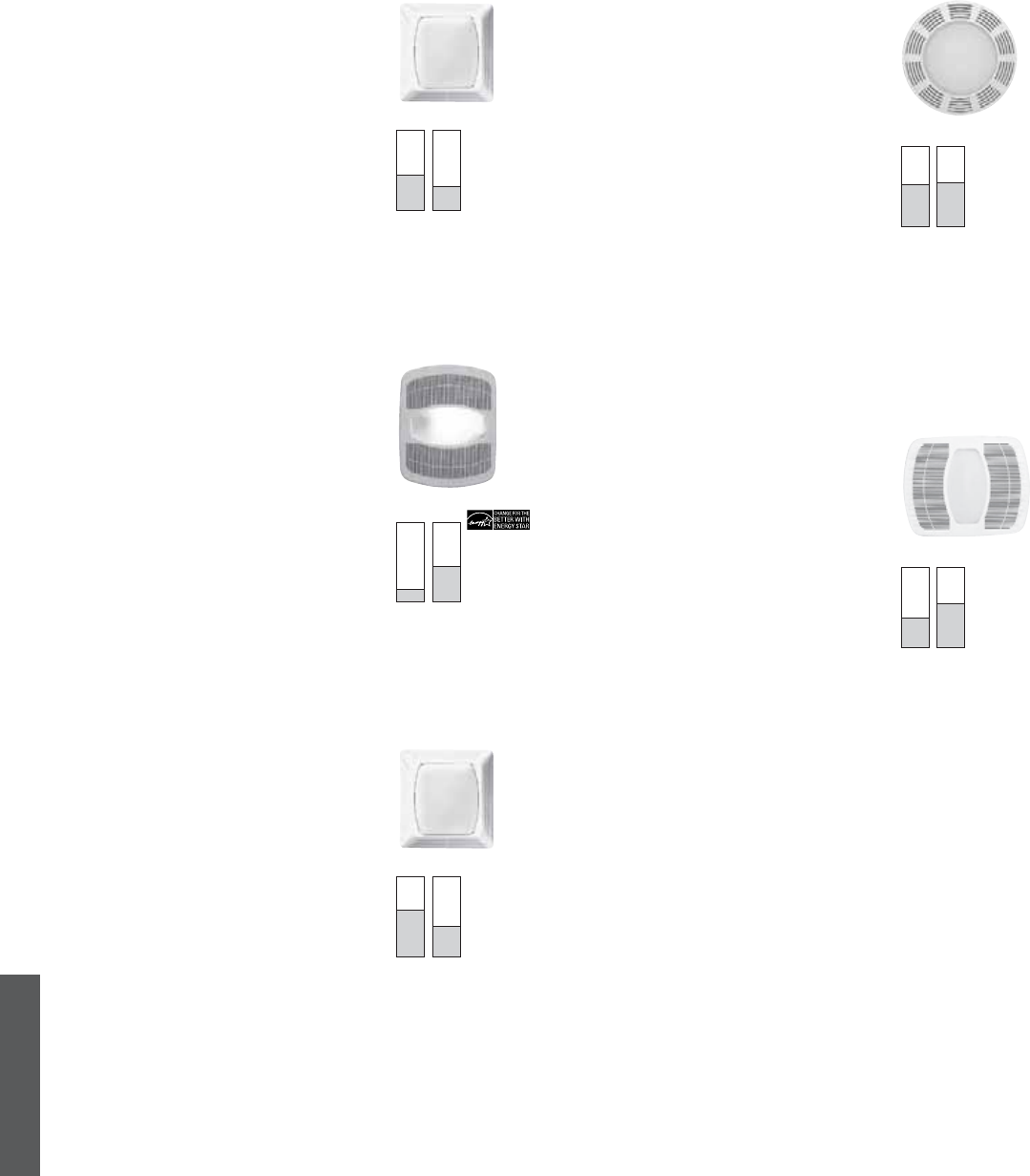

Bath Fans with Light
BFL60UQ
The BFL60UQ is GE’s low noise level
fan with a light for the small-sized
bathroom.
• Ventilates rooms up to 60 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 1 x 100 watt max, type A19
Bathroom Size: Small; up to 60 sq. ft.
Overall Housing: 7.375" x 7.625" x 5.875"
Grill Size: 10.5" x 11"
BFL80UQ
The BFL80UQ is an ultra-quiet fan,
with light and nightlight, for the
medium-sized bathroom.
• Ventilates room up to 80 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 26 watt CFL and 4 watt Type E12
lamps included
Bathroom Size: Medium; up to 80 sq. ft.
Overall Housing: 10.75" x 9.25" x 7.88"
Grill Size: 11" x 13.75"
BFL85
The BFL85 is GE’s fan with a Lexan
light for the medium-sized bathroom.
• Ventilates rooms up to 85 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 1 x 100 watt max, type A19
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 7.375" x 7.625" x 5.875"
Grill Size: 10.5" x 11"
BFL125RNL
The BFL125RNL is GE’s fan with a
round light and nightlight for the
large-sized bathroom.
• Ventilates rooms up to 125 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 1 x 100 watt max, type A19
(Round Light)
• 7 watt max, type C7 Candelabra
(Night Light)
Bathroom Size: Large; up to 125 sq. ft.
Overall Housing: 9.25" x 9.125" x 5.875"
Grill Size: 13.75" diameter
BFL125UQ
The BFL125UQ is GE’s low noise level
fan with a light and nightlight for the
large-sized bathroom.
• Ventilates rooms up to 125 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 1 x 100 watt max, type A19
• 7 watt max, type C7 Candelabra
(Night Light)
Bathroom Size: Large; up to 125 sq. ft.
Overall Housing: 10.75" x 9.25" x 7.875"
Grill Size: 11" x 13.75"
High
Low
High
Low
100
CFM
3.5
Sones
High
Low
High
Low
100
CFM
2.5
Sones
High
Low
High
Low
70
CFM
4.0
Sones
High
Low
High
Low
50
CFM
3.0
Sones
High
Low
High
Low
80
CFM
1.0
Sones
43
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods

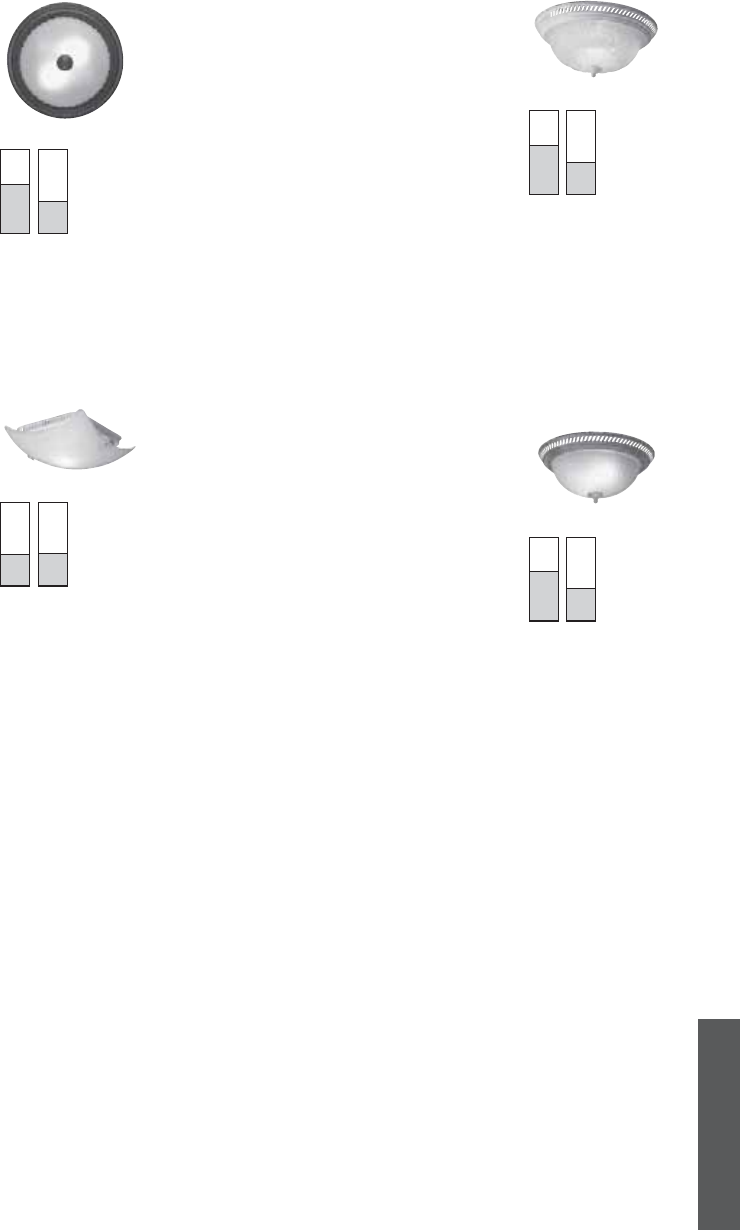

Decorative Bath Fans with Light
BFL85DRRB
The BFL85DRRB is GE’s fan light with
an oil rubbed bronze finish and
frosted, ribbed glass lens
for the medium-sized bathroom.
• Ventilates rooms up to 85 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 2 x 60 watt max, type A19
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 7.375" x 7.625" x 5.875"
Grill Size: 13.5" diameter
BFL85ADW
The BFL85ADW is a GE designer fan
light with a subtle linen finish on the
glass, hidden vent design and an
ultra-quiet operation.
• Ventilates rooms up to 85 sq. ft.
• 4" duct connection
• 1 x 100 watt max, type A19
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 7.375" x 7.625" x 5.875"
Grill Size: 9" x 9"
BFL85DRWAF
The BFL85DRWAF is GE’s fan light
with a round, decorative white base
and alabaster glass lens with an
etched fern design for the medium-
sized bathroom.
• Ventilates rooms up to 85 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 2 x 60 watt max, type A19
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 7.375" x 7.625" x 5.875"
Grill Size: 13.5" diameter
BFL85DRN
The BFL85DRN is GE’s fan with a
round, decorative nickel-plated light
for the medium-sized bathroom.
• Ventilates rooms up to 85 sq. ft.
• 4" duct connection
• UL Listed for installation over a tub
or shower on a GFCI circuit
• 2 x 60 watt max, type A19
Bathroom Size: Medium; up to 85 sq. ft.
Overall Housing: 7.375" x 7.625" x 5.875"
Grill Size: 13.5" diameter
High
Low
High
Low
70
CFM
2.5
Sones
High
Low
High
Low
70
CFM
4.0
Sones
High
Low
High
Low
70
CFM
4.0
Sones
High
Low
High
Low
70
CFM
4.0
Sones
44
Bath Fans & Range Hoods
GE Bath Fans & Range Hoods
GE 30" range hoods give you a variety of options
Feature Best Better Good
Convertible venting accommodates various installation requirements ✓ ✓
Non-vented design filters smoke and vapors through hood filtration system
Vertical and rear exhaust allows duct connection to either rear or top of hood ✓ ✓
Variable 3 speed fan control ✓ ✓
2 speed fan control
Cooktop light illuminates cooking surface ✓✓✓
Removable grease filter for easy cleaning and maintenance ✓✓✓
Fits either standard round or rectangular duct work ✓ ✓
Stainless steel finish matches today’s high-end appliances
Painted finish in black, bisque or white matches range and stove finishes ✓ ✓
Range hood Finish Cat. No.
Best Stainless steel GE-JV348LSS
Better
White GE-JV347HWW
Bisque GE-JV347HCC
Black GE-JV347HBB
Good
White GE-JN327WW
Bisque GE-JN327CC
Black GE-JN327BB
45
Notes
46
Notes
47
Notes
48
Notes
GE
41 Woodford Avenue, Plainville, CT 06062
www.geelectrical.com
© 2010 General Electric Company
DET-728 (05/10)
For more details and up-to-the minute data, please visit www.geelectrical.com
and download the auto-updating BuyLog® from the Smart Catalog section.
Information provided is subject to change without notice. Please verify all details with GE. All values are design or
typical values when measured under laboratory conditions, and GE makes no warranty or guarantee, express or
implied, that such performance will be obtained under end-use conditions.
imagination at work

Navigation menu
