5
Marking Systems
Tools
Mounting Material
2015 / 2016
Also discover the Phoenix Contact catalog app
interactively on your tablet.
Marking systems, tools, and
mounting material
Terminal blocks
• Terminal blocks
Sensor/actuator cabling and
industrial connectors
• Sensor/actuator cabling
• Cables and lines
• Connectors
Surge protection and
power supplies
• Surge protection and interference
suppression filters
• Power supplies and UPS
• Protective devices
Interface technology and switching devices
• Electronic switching devices and motor control
• Measurement and control technology
• Monitoring
• Relay modules
• System cabling for controllers
Control technology, I/O systems, and
automation infrastructure
• Lighting and signaling
• Fieldbus components and systems
• Functional Safety
• HMIs and industrial PCs
• I/O systems
• Industrial Ethernet
• Industrial communication technology
• Software
• Controllers
• Wireless data communication
PCB connection technology and
electronics housing 2013/14
• PCB terminal blocks and PCB connectors
• Electronics housing
Connection technology for fi eld devices
2013/14
• Connectors
• Cables and lines
Information on these products can be found in the electronic
product catalogs for 2013/14.
Or get the latest on all the new products and additional
information directly in the product area of our website:
phoenixcontact.net/products
Find out more
with the web code
On some of the catalog pages, you can find our web
codes: a number sign followed by a four-digit number
combination.
Web code: #1234 (example)
This allows you to reach information on our website
quickly.
It couldn't be simpler:
1. Go to the Phoenix Contact website
2. Enter # and the number combination
in the search field
3. Receive more information and product versions
Search
Or use the direct link:
phoenixcontact.net/webcode/#1234
Table of contents
Product range overview in pictures
Access the desired product directly from here
4
Marking and labeling
MARKING system
CLIP PROJECT Planning and Marking software
Customer-specific printing service
MARKING system app
15
Marking systems 25
Terminal marking 53
Conductor and cable marking 153
Device marking 223
System marking 307

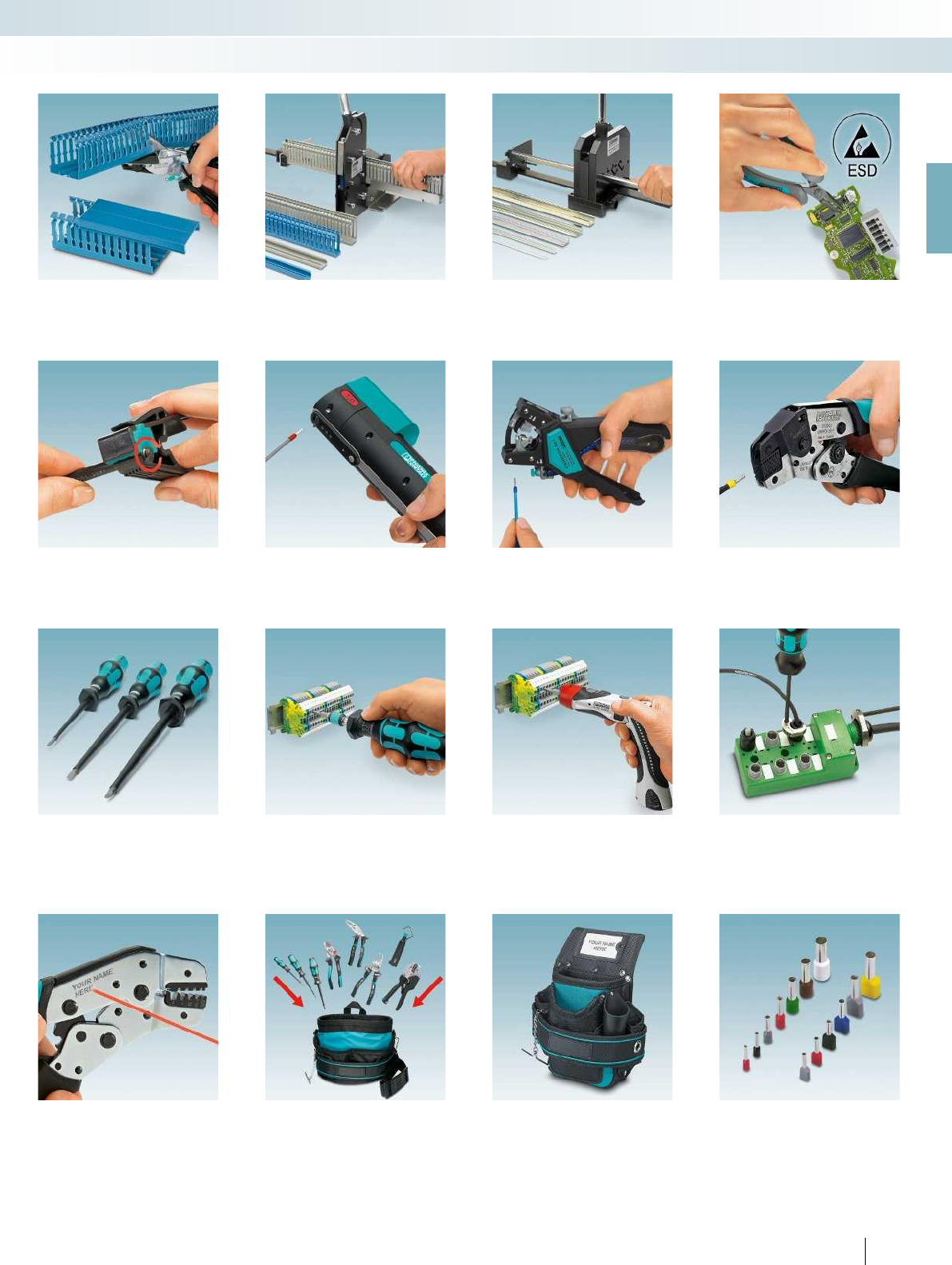

To o l s
TOOL fox
Hand tools 357
Automatic devices 467
Installation and
mounting material
CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes
and empty housings, CLIPSAFE ABS
terminal boxes, component mounting,
shielding, cable management
483
Technical information 598
Index 612
Planning and marking
software

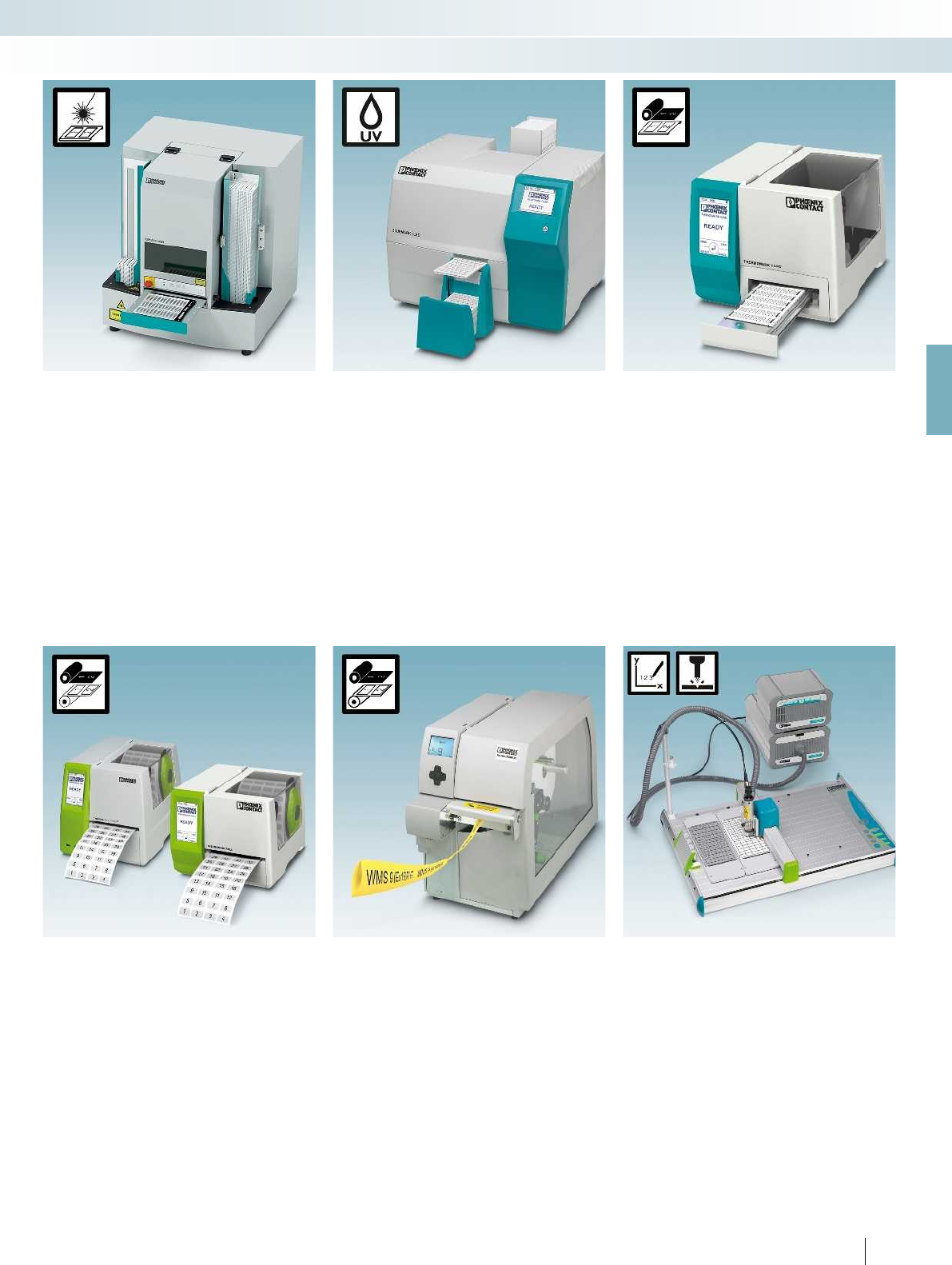

Marking systems - MARKING system
CLIP PROJECT
Planning and marking software Page 16
Customer-specific printing Page 20
MARKING system app Page 22
TOPMARK LASER for industrial marking
TOPMARKLASER Page 28
TOPMARK LASER set Page 29 BLUEMARKCLED for printing UniCard
materials - as easy as printing on paper
BLUEMARK CLED Page 31
Thermal transfer printer sets
MARKING BOX Page 38
Thermal transfer printer for roll material
THERMOMARK X1.2 Page 40
Thermal transfer printer for shrink sleeves
(double-sided printing possible)
THERMOMARK W2 Page 41
Plotter
CMS-P1-PLOTTER Page 42

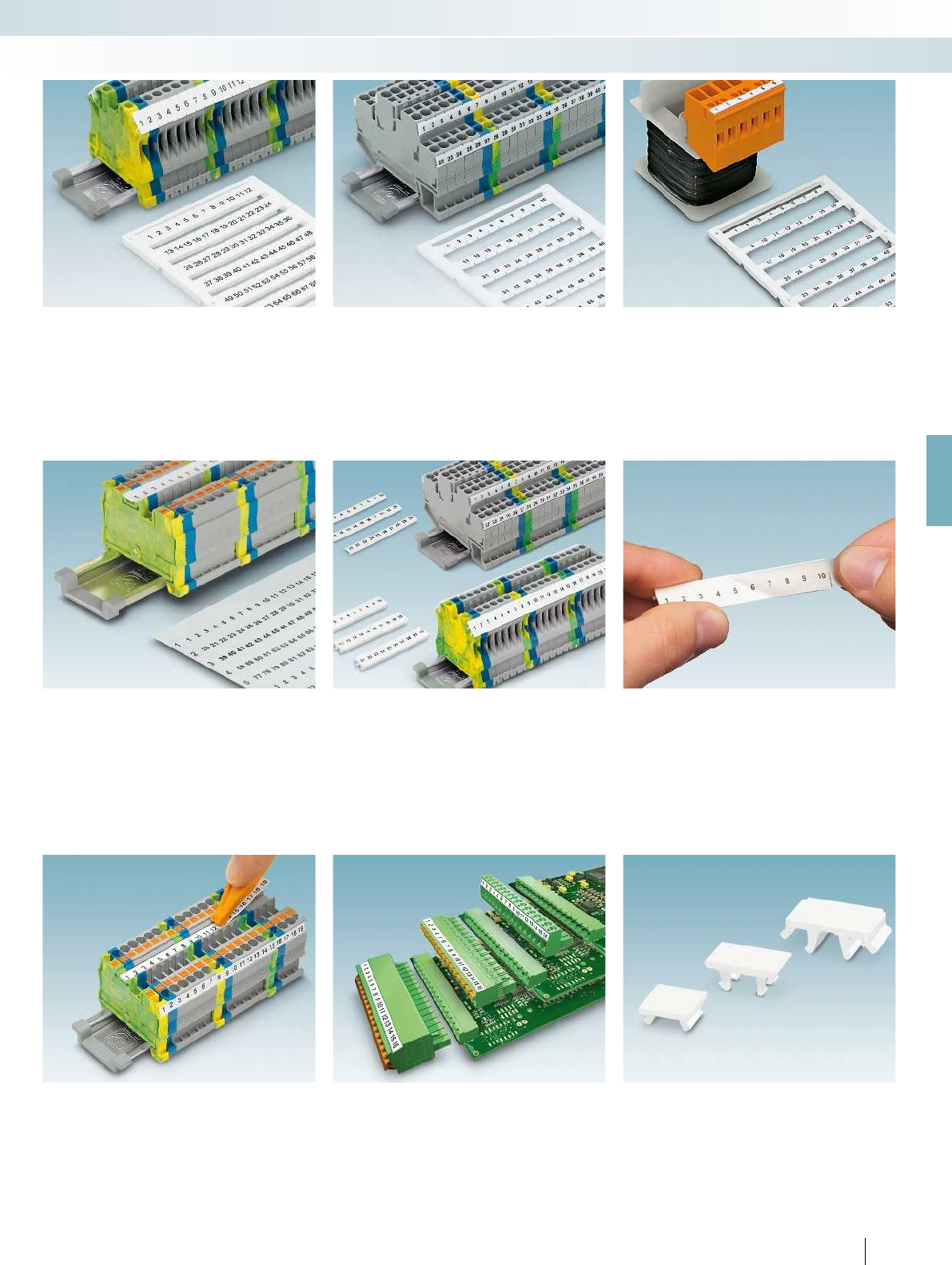

Zack marker strip terminal marking for a tall
marker groove, for printing with plotter
ZB... Page 62
Zack marker strip terminal marking for a tall
and flat marker groove, for printing with
plotter
ZB... Page 62
UniCard terminal marking for a tall marker
groove, for printing with TOPMARK LASER,
BLUEMARK, and THERMOMARK CARD
UCT-TM... Page 76
UniCard terminal marking for a tall and flat
marker groove, for printing with TOPMARK
LASER, BLUEMARK, and THERMOMARK
CARD
UCT-TM... Page 76
Conductor and cable marking - MARKING system
Self-adhesive marker strips for terminal
blocks without a marker groove, for printing
with THERMOMARK ROLL
TML... Page 90
SK.... Page 92
Group marking Page 96 UniCard marking for terminal blocks from
other manufacturers, for printing with
BLUEMARK, TOPMARK LASER, and
THERMOMARK CARD Page 106
Stainless steel or aluminum laser cable
marking for marking with TOPMARK LASER
LS-WMTB... Page 157
4
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
For further information and full technical data, visit phoenixcontact.net/products
Printer set
BLUEMARKCLEDSET Page 31
Thermal transfer printer for printing plastic
material in UCT and US format
THERMOMARKCARD Page 32
Thermal transfer printer for roll material
THERMOMARK ROLL Page 36
Thermal transfer printer for roll material
THERMOMARKROLL X1 Page 37
Terminal marking - MARKING system
Plotter with engraving unit
P1 ENGRAVINGUNIT Page 43
UniCard terminal marking for a tall marker
groove, for printing with BLUEMARK
UC-TM... Page 56
UniCard terminal marking for tall and flat
marker groove, for printing with BLUEMARK
UC-TM... Page 56
UniCard terminal marking for marking stud
holders, for printing with BLUEMARK
UC-TMN... Page 60
UniSheet terminal marking for a universal
marker groove, for printing with
THERMOMARK CARD
US-TM... Page 80
UniSheet terminal marking for a tall and flat
marker groove, for printing with
THERMOMARK CARD
US-TMF... Page 81
UCT1... UCT5-TM... Page 111
Self-adhesive marker strips for terminal
blocks without a marker groove, for printing
with THERMOMARK ROLL
US-TML... Page 82
Marker strips for terminal marking, for a tall
and flat marker groove, for printing with
THERMOMARK ROLL
TMT... Page 84
Conductor and cable marking - MARKING system
Aluminum cable marking for assembly with
cable binders, for printing with
BLUEMARKCLED
WMTB-AL... Page 160
UniCard clip-on conductor marking, for
printing with BLUEMARK
UC-WMC... Page 162
UniCard conductor marking for threading, for
printing with BLUEMARK
UC-WMCO... Page 166
Conductor marking with ferrules that can be
marked, for printing with BLUEMARK
AI-WM... Page 169
5
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
UniCard conductor marking for marking
collars, for printing with BLUEMARK
UC-WMT... Page 170
UniCard cable marking for assembly with
cable binders, for printing with BLUEMARK
UC-WMTB... Page 172
UC-WMTBA... Page 173
UniCard conductor marking for marking with
TOPMARK LASER, BLUEMARK, and
THERMOMARK CARD
UCT-WMT... Page 174
UniCard clip-on conductor marking, for
printing with TOPMARK LASER,
BLUEMARK, and THERMOMARK CARD
UCT-WMS... Page 176
UniSheet cable marking for assembly with
cable binders, for printing with
THERMOMARK CARD
US-WMTB... Page 182
Self-adhesive conductor marking with
transparent protective foil, for printing with
THERMOMARK ROLL
WML... Page 185
WML-HF... Page 186
Self-adhesive conductor marking as a flag
WML-FLAG... Page 187
Pre-assembled shrink sleeves, for printing
with THERMOMARK ROLL
WMS-2HF... Page 188
WMS... Page 189
Cable markers for marking cables and
conductors with larger cross sections
SD-WMTBS... Page 211
Plastic cable markers for insert labels
KMK... Page 200
Stainless steel cable marking
SD-WMTBS...VA Page 212
Marking collars for insert labels
PATG... Page 214
PATO... Page 215
PATG-HF... Page 216
UniCard stick-on device marking with high
adhesive strength, for printing with
BLUEMARK
UC-EMLP... Page 240
UniCard stick-on device marking, for
marking with BLUEMARK
UC-EMLP...EX Page 241
UniCard device marking for screwing or
riveting, for printing with BLUEMARK
UC-EMSP... Page 242
Marker carriers for UC–EMP.../US–
EMP...snap-in labels, for printing with
BLUEMARK Page 286
6
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
For further information and full technical data, visit phoenixcontact.net/products
UniCard conductor marking for marking with
TOPMARK LASER, BLUEMARK, and
THERMOMARK CARD
UCT-WMCO... Page 177
UniCard conductor marking for marking with
TOPMARK LASER, BLUEMARK, and
THERMOMARK CARD
UCT-WMTBA... Page 178
UniCard conductor marking for marking with
TOPMARK LASER, BLUEMARK, and
THERMOMARK CARD
UCT-WMTB... Page 179
UniSheet conductor marking for marking
collars, for printing with THERMOMARK
CARD
US-WMT... Page 180
Insert conductor marking for marking collars,
for printing with THERMOMARK ROLL
EMT... Page 194
Conductor marking for threading, for printing
with THERMOMARK ROLL
WMT... Page 196
Cable marking for assembly with cable
binders, for printing with THERMOMARK
ROLL
WMTB... Page 197
Halogen-free conductor and cable marking
for assembly with cable binders
WMTB-HF... Page 198
Device marking - MARKING system
Stainless steel or aluminum laser device
marking for marking with TOPMARK LASER
LS-EMSP... Page 226
LS-EMLP... Page 228
LS-EMP... Page 230
Stick-on aluminum device marking, for
printing with BLUEMARKCLED
EMLP-AL Page 237
Aluminum device marking to be screwed in
or riveted, for printing with
BLUEMARKCLED
EMSP-AL... Page 238
Aluminum device marking that can be
snapped into marker carriers, for printing
with BLUEMARKCLED
EMP-AL... Page 239
UniCard device marking that can be
snapped into marker carriers, for printing
with BLUEMARK
UC-EMP... Page 243
UniCard snap-in device marking, for printing
with BLUEMARK
UC-EM... Page 245
UniCard snap-in device marking for various
manufacturers, for marking with TOPMARK
LASER, BLUEMARK, and THERMOMARK CARD
UCT-EM... Page 248
UniSheet stick-on device marking, for
printing with THERMOMARK CARD
US-EMLP... Page 254
US-EMLP-HA... Page 256
7
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
UniSheet device marking for snapping into
marker carriers, for printing with
THERMOMARK CARD
US-EMP... Page 257
Device marking for snapping into marker
carriers, for printing with THERMOMARK
CARD
P-SS-ZB.../ P-ZB... Page 288
Stick-on device marking and additional
screws or rivets, for printing with
THERMOMARKCARD
US-EMLSP... Page 260
Stick-on device marking for marking with
THERMOMARKCARD
US-EML... Page 261
US-EMLF... Page 262
Highly flexible stick-on PVC device marking,
for printing with THERMOMARKROLL
EMLF... Page 272
EMLC.... Page 273
Stick-on device marking for rough or
structured surfaces, for printing with
THERMOMARKROLL
EML-HA... Page 274
Stick-on device marking for high-
temperature applications, for printing with
THERMOMARK ROLL
EML-HT... Page 275
Stick-on device marking, for ESD
applications, for printing with
THERMOMARKROLL...
EML-ESD... Page 276
System marking - MARKING system
UniCard device marking that can be
snapped into marker carriers, for printing
with BLUEMARK
UC-EMP... Page 243

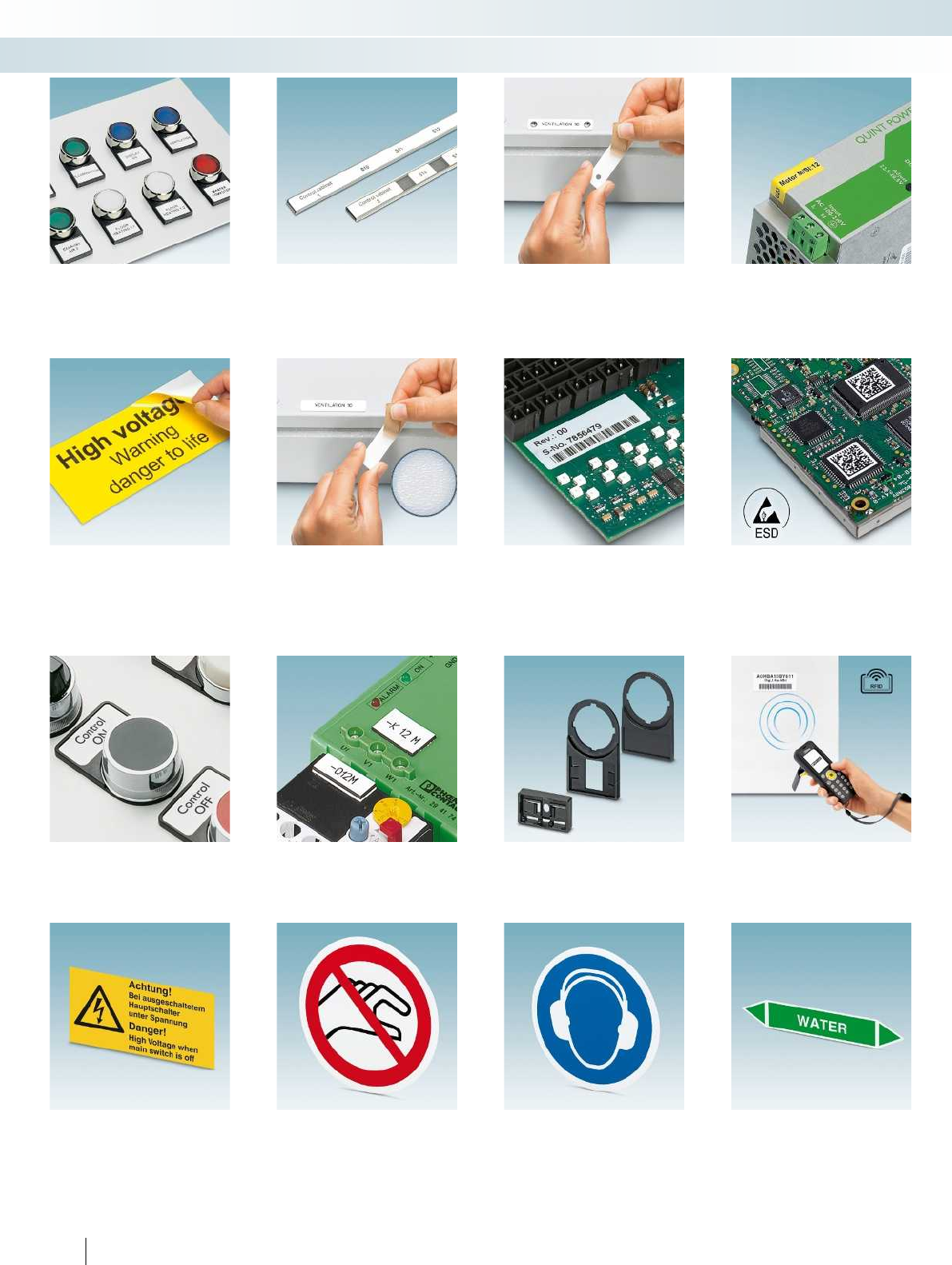

Stick-on device marking, can be engraved or
marked with writing
GPE... Page 284
Marker carrier for buttons and control
devices
CARRIER-EMP 22... Page 286
CARRIER-EMLP 22... Page 287
RFID system
RFMARK HF/UHF handheld Page 311
Stick-on warning labels, with lightning flash
and warning instruction
PML-W301... Page 324
Stick-on prohibition signs, preprinted and for
printing with THERMOMARK
PML-P101... Page 328
Stick-on mandatory signs, preprinted and for
printing with THERMOMARK
PML-M101... Page 336
Stick-on pipeline markers, for printing with
THERMOMARKROLL...
PML-T101... Page 342
8
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
For further information and full technical data, visit phoenixcontact.net/products
Stick-on device marking, for printing with
THERMOMARKROLL
EML... Page 264
Device marking for marking in Ex areas, for
use with THERMOMARK ROLL
EML...-EX Page 268
Stick-on device marking, for printing with
THERMOMARK ROLL
EMLP... Page 269
Stick-on device marking, can be engraved or
marked, for printing with THERMOMARK
ROLL
EMLP 24... Page 271
EMLP 30... Page 272
Stick-on device marking, removable, for
printing with THERMOMARKROLL...
EML-RM... Page 277
Stick-on device marking for anti-tamper
protection, for printing with THERMOMARK
ROLL
EMLS... Page 278
Device marking for rotary switches from
Phoenix Contact, for printing with
THERMOMARK ROLL
EML-RS... Page 279
UniCard snap-in device marking for Axioline
E series, for printing with THERMOMARK
ROLL
EMT...R Page 280
System marking - MARKING system
RFID HF/UHF system marker with
transponder, for marking with BLUEMARK
PMLP-RFID... Page 312
PMP-RFID.... Page 313
UniCard system marking for sticking on or
inserting into marker carriers, for marking
with BLUEMARK
UC-PMLP... Page 314
UC-PMP... Page 315
Carriers for UC-PMP... and
PMP-RFID... markers Page 316
Stick-on warning labels, preprinted and for
printing with THERMOMARK, preprinted
US-PML-W... Page 320
Stick-on hazardous substances labels,
preprinted and for printing with
THERMOMARK
PML-GHS101... Page 350
Stick-on combi labels, for printing with
THERMOMARKCARD...
US-EMLF... Page 354
Magnetic label, unprinted, for printing with
THERMOMARKROLL...
PMM... Page 355
9
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
Hand tools - TOOL fox
Cable cutter
CUTFOX... Page 360
Cable cutter with ratchet function for
minimum effort
CUTFOX... Page 360
UNIFOX VDE combination pliers
UNIFOX-CE VDE... Page 365
Cable binder tools for plastic and stainless
steel cable binders
UNIFOX-CT... Page 366
WIREFOX stripping tool, angled
WIREFOX... Page 374
WIREFOX stripping tool
WIREFOX... Page 374
WIREFOX stripping tool
WIREFOX-D... Page 382
Stripping tool for coaxial cables
WIREFOX-D... Page 382
Crimping pliers for connectors and cable
lugs
CRIMPFOX-RCI... Page 394
CRIMPFOX RC... Page 396
CRIMPFOX RCT... Page 398
Basic pliers for accommodating various
crimp inserts
CRIMPFOX-C50 Page 399
Crimping pliers for solar connectors
CRIMPFOX-SR... Page 405
Basic pliers for accommodating various
coaxial crimp inserts
CRIMPFOX-M... Page 405
Voltage and continuity tester
DUSPOL... Page 426
SCREWFOX universal control cabinet keys
SF-CCK... Page 425
Digital current probe multimeter
TESTFOX... Page 427
Tool sets
TOOL... Page 430
10
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
For further information and full technical data, visit phoenixcontact.net/products
CUTFOX cable duct cutter
CUTFOX-CD Page 369
Cable duct cutter
PPS CD M Page 369
Profile cutter
PPS... Page 370
MICROFOX pliers for all electronics
applications
MICROFOX... Page 372
Stripping tool for solar cables
WIREFOX-D SR... Page 383
CRIMPHANDY - portable hand-held
machine,
for stripping and crimping in just one step
CRIMPHANDY Page 384
CRIMPFOX 4 IN 1 multi-functional crimping
pliers
CRIMPFOX 4 IN 1... Page 387
CRIMPFOX crimping pliers for ferrules
CRIMPFOX... Page 389
Screwdrivers
SZS... Page 408
SCREWFOX torque screwdrivers
TSD-M... Page 416
SCREWFOX cordless screwdrivers
SF-ASD Page 417
SCREWFOX preset torque screwdrivers
TSD... Page 424
Pliers, laser marked according to customer
specifications
CRIMPFOX...CUS Page 437
WIREFOX...CUS Page 439
Tool sets equipped according to customer
requirements Page 440
Tool bags with customized
marking Page 442
Ferrules, slip-on sleeves, cable lugs, ring
cable lugs
AI... Page 445
C... Page 454
11PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
Automatic devices - TOOL fox
Automatic cutting device for conductors and
cables
CUTFOX 10... Page 470
Stripping machine
WF 1000... Page 471

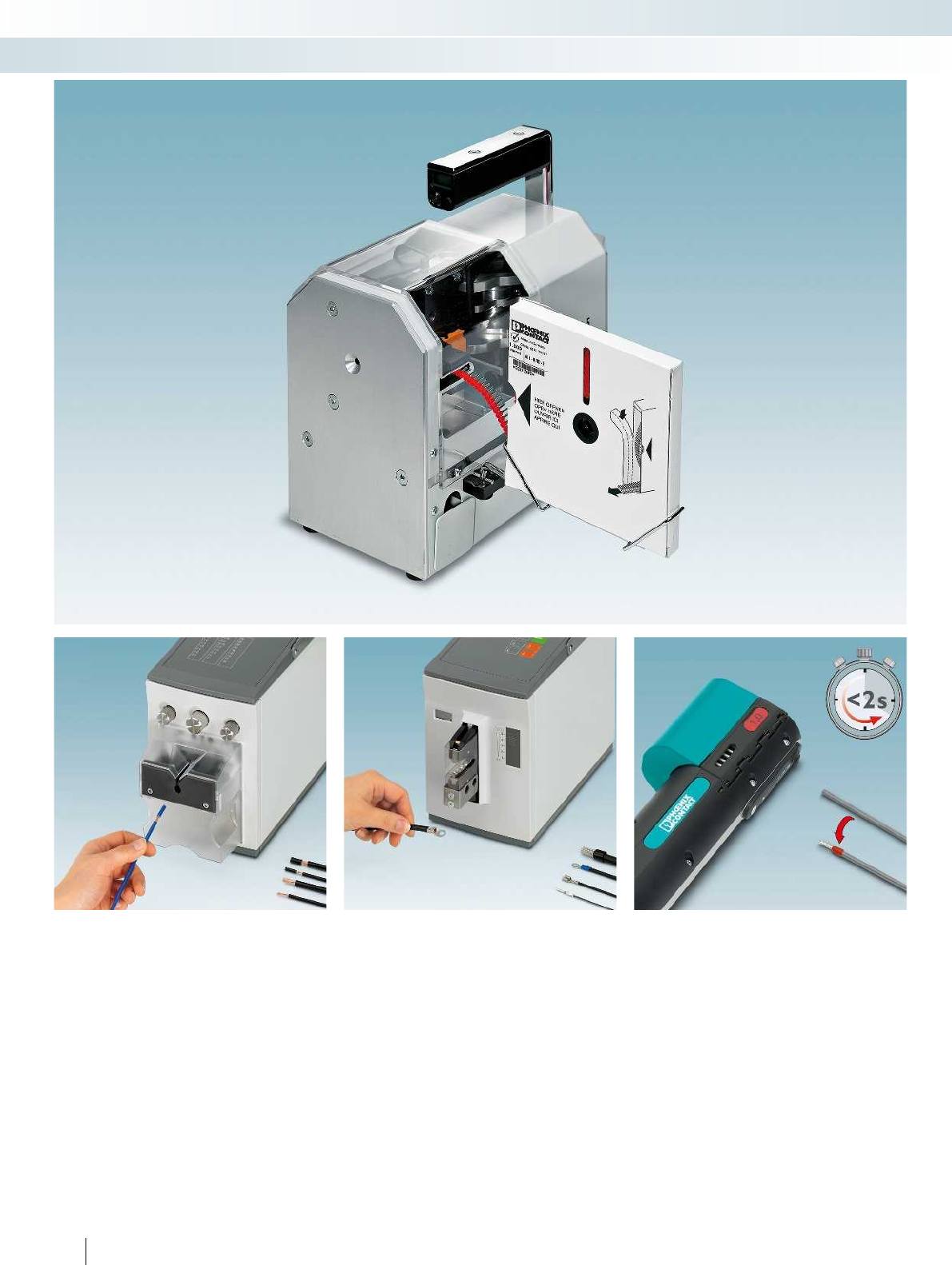

Portable crimping machine for ferrules, cable
lugs, and connectors
CF 500... Page 474
CRIMPHANDY portable hand-held device
CF CRIMPHANDY 1,0 Page 476
CF CRIMPHANDY 1,5 Page 477
Snap-on end brackets without screws
CLIPFIX... Page 520
Cover profiles
EA... Page 528
AP... Page 526
A/U... Page 527
Power, branch, and L/N/PE connection
terminal blocks
AK.../AKG... Page 532
EK... Page 531
AZK 35... Page 531
Europe terminal blocks and junction box
connectors
EC... Page 534
JBC... Page 538
DIN rail with cable clamps
WCC... Page 557
Protective hoses made of plastic
WP... Page 558
Screw connections for protective hoses
WP-G HF... Page 560
Spiral hoses
WG-S HF... Page 575
12
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
For further information and full technical data, visit phoenixcontact.net/products
Mounting material - CABINET add-on
Portable stripping and crimping machine for
taped products
CF 3000... Page 478
CLIPSAFE stainless steel Ex terminal boxes
and empty housings Page 484
CLIPSAFE ABS terminal boxes Page 496
Ex cable glands Page 500 DIN rails
NS... Page 508
Sockets with a 45 mm standard pitch
SD-D... Page 540
Shield connection clamps
SK... Page 542
Support bracket for single-sided shielding
AB-SK... Page 544
AB/SS... Page 530
Cable ducts and accessories
CD... Page 553
Plastic cable markers for insert labels
KMK... Page 582
Cable binders Page 588
13
PHOENIX CONTACT
Marking systems, tools, mounting material
Product range in pictures
14
PHOENIX CONTACT
CLIP PROJECT Planning and Marking software 16
CLIP PROJECT advanced 18
CLIP PROJECT professional 19
Customer-specific printing service 20
MARKING system app 22
15
PHOENIX CONTACT
The CLIP PROJECT Planning and Marking
software consists of two modules:
– CLIP PROJECT Planning enables the quick
and convenient planning and
configuration of fault-free terminal strips.
– CLIP PROJECT Marking is a powerful
piece of software for the creation of
individual labels for terminal blocks,
cables, lines, devices, and systems.
Thanks to the optimum interaction
between the two modules, even in
connection with electrical planning systems,
the result is an end-to-end process chain:
from planning and documentation, right
through to the finished terminal strip or the
finished marking.
The advanced version, CLIP PROJECT
PROFESSIONAL, also features an efficient
template designer, which can be used to
design custom labels.
All marking materials in the portfolio can
also be ordered as customer-specific
printed versions. Within no time at all, you
will receive high-quality marking solutions,
printed according to your individual
requirements.
Which marking suits your requirements?
Find out with the MARKING system app!
Quickly and easily find the right solution
with either the structured search assistant
or the integrated product scanner. Thanks
to the material editor, you can also create
the required markings directly in the
application environment.
Expand your THERMOMARK LINE
printer with the MINI FD BLUETOOTH
Bluetooth USB stick and send your print
orders directly and wirelessly (or via USB
connection) to the printer from your tablet
PC or smartphone.
Planning and marking software, customer-specific printing service,
and MARKING system app
16
PHOENIX CONTACT
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
Marking module
During selection, the marking materials
are displayed as a preview for rapid product
selection.
Interfaces to all CAE systems and
spreadsheet and text processing programs
are provided for the open exchange of data.
By integrating CLIP PROJECT into
EPLAN P8, the marking data for terminal,
conductor, and device marking can be
automatically taken from the circuit
diagram.
For further information and full technical data, visit phoenixcontact.net/products
17PHOENIX CONTACT
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
The online update immediately provides
the user with new products and program
extensions for the marking and planning
module.
All Phoenix Contact output devices and
standard office printers can be easily
controlled with just one piece of software.
Phoenix Contact provides a marking
service. Orders can be placed by e-mail and
all items printed and supplied to suit the
customer.
Planning module
During selection, all Phoenix Contact
products which can be fitted on DIN rails
are displayed as a preview for rapid product
selection.
The automatic correction function checks
the configured terminal strip and
automatically adds any missing accessories.
2D and 3D design data are available at the
click of a mouse.
The configured terminal strips can be
distributed across several DIN rails in order
to determine the exact space requirements
for installation.
Complete documentation and an
effective 3D preview are available for rapidly
and correctly producing the mechanical
structure of the terminal strips.
By integrating CLIPPROJECT into
EPLANP8, terminal strips are automatically
produced from the circuit diagram in
CLIPPROJECT. The product data is written
back to the EPLAN parts lists using the two-
way interface.
Phoenix Contact provides a terminal strip
service. The terminal strips configured to
suit your requirements can be ordered using
the e-mail function. Phoenix Contact will
supply the terminal strips promptly.
Technical data
General data
Software interface EPLAN 5.7
EPLAN Electric P8
AUCOTECELCAD
AUCOTECEngineering Base
AUCOTECRUPLAN
ZUKENE³
BentleyPromis-e
WSCAD
IGE XAO
PC-Schematic AUTOMATION
SDProget SPAC
System requirements
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Type Order No. Pcs. /
Pkt.
CLIP PROJECT advanced, planning and marking software,
German/English/French/Dutch/Italian/Spanish/Russian/Polish/
Hungarian/Czech/Turkish/Portuguese/Chinese and Japanese
CLIP-PROJECT ADVANCED 5146040 1
18
PHOENIX CONTACT
The CLIPPROJECTADVANCED
program enables the quick planning and
configuration of terminal strips for the
control cabinet and field as well as custom-
marking of terminal blocks, cables and lines,
and devices and systems:
– Planning of terminal strips with
components of the CLIPLINE,
INTERFACE, TRABTECH, and
AUTOMATION product ranges
– The automatic correction function
performs a logical test of the terminal
strips and automatically adds the
necessary accessories such as covers and
end brackets
– The terminal strip configurator enables
the distributed arrangement of individual
terminal strips on different DIN rails
– 3D preview and complete documentation
of the assembled DIN rails, suchas order
and mounting lists
– High-performance import of marking
information and extensive design options
for the custom-marking of terminal
blocks, cables, and lines, as well as devices
and systems
– Numerous sorting and filter functions for
efficient management of your print jobs
– Support for all marking materials and
output devices from Phoenix Contact
– Automatic Internet update
– Intuitive Windows
®
user interface
To reduce engineering costs and improve
data quality, CLIPPROJECTADVANCED
supports data exchange with electrical
planning systems in both directions:
– With the circuit diagram as the basis, the
required products are automatically
selected and their complete data written
back to the parts lists
– The marking information can be
automatically exported and assigned to
the desired marking materials
– In order for the marking to be assigned
clearly, even in the case of extensive
projects, the project structure tree from
the CAE system has been adopted in
CLIPPROJECT; this also allows the
marking to be output to sub-projects
CLIP PROJECT ADVANCED
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Software interface EPLAN 5.7
EPLAN Electric P8
AUCOTECELCAD
AUCOTECEngineering Base
AUCOTECRUPLAN
ZUKENE³
BentleyPromis-e
WSCAD
IGE XAO
PC-Schematic AUTOMATION
SDProget SPAC
System requirements
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Type Order No. Pcs. /
Pkt.
CLIP PROJECT professional, planning and marking software,
with template designer,
German/English/French/Dutch/Italian/Spanish/Russian/Polish/
Hungarian/Czech/Turkish/Portuguese/Chinese and Japanese
CLIP-PROJECT PROFESSIONAL 5146053 1
19PHOENIX CONTACT
The CLIP PROJECT Planning and Marking
software is available in both an ADVANCED
and PROFESSIONAL version:
– The PROFESSIONAL version also
includes an efficient template designer,
which can be used to design custom labels
and adapt existing material descriptions
– Graphics, various barcode types, and
geometric elements such as squares,
circles, and lines can be accessed for
design work
– Data can also be imported into the
templates from various data sources
– Rapid, simple, and flexible adaptation to
changing requirements
CLIP PROJECT PROFESSIONAL
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
20
PHOENIX CONTACT
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
Easy ordering process via
CLIPPROJECT and e-mail
You can create customer-specific marking
quickly and easily via CLIPPROJECT and
order via e-mail.
New: color-printed marking solutions
You can use marking materials in UniCard
and UniSheetformat as well as metal labels
for color printing.
We create marking materials
according to your requirements
All materials which can be marked
according to customer requirements are
indicated with this symbol. The ordering
process is described for you on the
following page.
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
2
1
For further information and full technical data, visit phoenixcontact.net/products
Special marking orders, step 3
– Zack marker strip (ZB...): 1 strip
– Card material (US-...): 1 card
– Plastic sheet (e.g., UC(T)-...): 1 sheet
– Sheet material (e.g., BMKL...): 1 sheet
– Rolls (e.g., EML (...x..)R): 1 strip (row)
– Metal labels for BLUEMARK CLED (e.g.,
EMP-AL...): 1 label
21
PHOENIX CONTACT
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
Special marking orders, step 1
All marking materials are available on our
website for your custom printing.
Simply search for the required item on our
website and select the material with the
ending ...CUS.
Special marking orders, step 2
Configuration of the selected CUS item:
under Configuration, you can enter the
required marking data in the free text field.
Tasks required:
– Marking text
– Font size
– Read direction “horizontal” (1) or
“vertical” (2)
– Normal or bold print
– Please send special characters, symbols,
and logos as an image file
Individually marked according to
customer requirements:
You will receive your marking materials,
custom-marked according to the marking
requirements you have provided, as quickly
as possible.
Search
#0289
Find out more with
the web code
Detailed information on these
products can be found on our
website.
Simply enter # and numbers in the
search field.
22
PHOENIX CONTACT
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
Marking editor
The marking editor allows you to create
the required markings directly in the
application environment via tablet PC or
smartphone.
Product scanner
The product scanner allows you to
quickly and easily call up technical data for
the marking material or directly mark it via
the material editor.
Search assistant
With the search assistant, you can carry
out a structured, targeted search for
suitable marking materials, even without
knowledge of this field.
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Application USB/Bluetooth
Transmission speed [Mbps] 3
Ordering data
Description Type Order No. Pcs. /
Pkt.
Bluetooth USB adapter
MINI FD BLUETOOTH 0830986 1
Accessories
Thermal transfer printer for cards, incl. European power cable,
US power cable, USB cable,
DVD with CLIPPROJECTADVANCED, CD with multilingual user
manual/driver/firmware,
DINA5 printed English/German user manual,
magazine for UCT–TM materials,
magazine for US materials,
one unit pack UCT–TM6,
one unit pack US–EMLP(85,6x54),
one ink ribbon (50-meter sample roll)
THERMOMARK CARD 5146464 1
Thermal transfer printer for material off the roll, including
European power cable, US power cable, USB cable,
DVD with CLIPPROJECTADVANCED, CD with multilingual user
manual/driver/firmware,
A5 printed English/German usermanual,
one roll of EML(20x8) labels containing 1000 labels,
one ink ribbon (50 meters)
THERMOMARK ROLL 5146477 1
THERMOMARK ROLL X1 5146723 1
Thermal transfer printer, incl. connecting cable, Windows
®
printer driver and operating instructions, software
THERMOMARK X1.2 5146231 1
23
PHOENIX CONTACT
You can retrofit your
THERMOMARKLINE printer with
MINIFDBLUETOOTH.
MINIFDBLUETOOTH enables reliable
wireless data exchange between
THERMOMARKLINE printers and mobile,
Bluetooth-capable devices, such as
smartphones and tablet PCs. This means
that print orders can be conveniently sent
to the printer using the MARKINGsystem
app.
Functions of the MARKING system
app:
– Material editor for mobile marking of
marking materials
– Product scanner for calling up appropriate
marking solutions quickly and
conveniently
– Search assistant for searching for marking
materials quickly and easily – even
without knowledge of this field
– My projects: manage the projects you
have created in a structured and clear
manner
– List of saved items: save the required
number of your desired item along with a
short description for traceability
– Favorites: save frequently used marking
materials
– Easily set the right print parameters from
your tablet PC or smartphone
MARKINGsystem app and MINI FD
BLUETOOTH
Marking and labeling - MARKING system
Planning and marking software, customer-specific printing service, and MARKING system app
Notes:
For further information on the THERMOMARKLINE printers,
please refer to the product area on our website at
phoenixcontact.net/products.
24
PHOENIX CONTACT
Product range overview
Marking systems 26
TOPMARK LASER 28
BLUEMARK CLED 30
THERMOMARK CARD 32
THERMOMARK ROLL 36
THERMOMARKROLLX1 37
MARKINGBOX 38
THERMOMARKCARD SET and ROLLSET 39
THERMOMARKX1.2 40
THERMOMARKW2 41
CMS-P1-PLOTTER 42
CMS-P1-PLOTTER engraving unit 43
Overview of marking material - printers 48
Which printer prints which marking
25
PHOENIX CONTACT
The right printer for every application.
We can provide a wide range of marking
systems for your terminal, conductor, cable,
and device marking requirements.
TOPMARK LASER provides permanent and
resistant marking in an industrial
environment and is easy to use without
special laser knowledge. The BLUEMARK
CLED high-speed printer with innovative
UV technology prints materials quickly and
easily in UniCard format as well as
aluminum markers.
The printers in the THERMOMARK
series are renowned for their proven
maintenance-free printing method and
maximum user-friendliness. They can be
used to print markers in a variety of
materials and print formats, as well as labels
and shrink sleeves, in outstanding quality.
Marking systems - MARKING system
26
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Phoenix Contact is an expert partner for
control cabinet and system engineering. In
this context, we aim to supplement our
products with services, hardware, and
software to make the planning and
production of systems as efficient as
possible.
MARKING system from Phoenix Contact
represents an integrated marking system
from planning right through to the finished
printed label. In addition to the wide range
of marking materials, the marking range also
includes the CLIP PROJECT software as
well as various printers.
The data required for marking is sent to the
printers by the CLIP PROJECT planning
software, which is supplied as standard. This
controls the printers and facilitates the
creation of marking data by allowing data to
be imported directly from circuit diagrams.
Phoenix Contact provides a variety of
printing systems:
– TOPMARK LASER, laser marker for
marking laser and UCT material
– BLUEMARK CLED, high-speed printer
with UV technology for marking UniCard
formats and aluminum markers
– THERMOMARKCARD, thermal transfer
printer for marking UniCard and
UniSheet formats
– THERMOMARKROLL, thermal transfer
printer for marking material off the roll
and continuous media
– THERMOMARKROLLX1, thermal
transfer printer for large quantities
– THERMOMARK W2, thermal transfer
printer for double-sided marking and
perforation of continuous shrink sleeves
– CMS-P1-PLOTTER and P1 ENGRAVING
UNIT to extend plotters for engraving
A comprehensive range of materials for
marking terminal blocks, conductors,
cables, and devices is available for each of
the printing systems provided. As a result,
each printing system represents a self-
contained solution capable of performing all
marking tasks in and around the control
cabinet. To ensure that you benefit from
consistently high levels of marking quality, all
the materials offered are tailored to the
devices concerned and undergo extensive
testing.
For further information and full technical data, visit phoenixcontact.net/products
27PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
The TOPMARK laser marking system
provides you with the flexibility to
implement the requirements of challenging
industrial identification. With modern laser
technology you can create permanent,
durable markings with ease - preset
parameters eliminate the need for special
laser knowledge.
BLUEMARKCLED uses the latest UV
technology for marking. This makes the
markers instantly wipe-resistant and ready
for immediate use. The fast printing
technology enables 14,000 labels to be
processed per hour. Thanks to the LED
technology, the printer does not require a
warm-up time, is environmentally friendly,
and is also very quiet.
The new THERMOMARKCARD
thermal transfer printer can be used to
print marking materials supplied in card
format. It provides you a really easy way to
produce terminal, conductor, cable, and
device markings of incredibly high quality.
The low weight and compact design of the
new printer mean that it can also be used as
a portable solution wherever it is needed.
The THERMOMARKROLL thermal
transfer printer has been designed for
printing material off the roll and continuous
media. You can easily create high-quality
printed labels, markers, and shrink sleeves.
The compact printer is also suitable for
mobile use. The THERMOMARKROLLX1
is particularly suitable for marking in large
quantities.
The THERMOMARKW2 has been
specially developed for the double-sided
printing and perforation of continuous
WMS shrink sleeves. Double-sided marking
ensures optimum legibility on conductors
and cables. The special construction of the
guide elements ensures easy handling when
inserting the sleeve.
Apart from label strips and UniCard
materials, the CMS-P1-PLOTTER can also
be used to label sheet materials. Its
integrated pen station facilitates handling
and helps prevent the pens from drying out.
The CMS–P1–PLOTTER can be converted
into an engraving unit quickly and easily by
swapping the plotter head for the engraving
device.
Integration in the Planning and Marking
Software makes the TOPMARKLASER the
fastest desktop laser marker in its class -
and the easiest to use. You can now mark all
materials without special knowledge of
laser technology.
– Wide range of materials comprising
stainless steel, aluminum, ABS,
polyacrylics, and polycarbonate
– Preset optimized laser parameters are
available for all material types
– Automatic material detection with the
UCT cards enables fast and effective
marking
– Permanent markings are created using
engraving marking, annealing marking or
carbonizing the material
Technical data
Dimensions Width Length Height
[mm] 664 666 736
General data
Temperature range [°C] 5 ... 40
Marking method Direct laser marking
Laser system Ytterbium fiber laser, pulsed, 1064 nm
Laser class Laser class 1 according to EN 60825-1 classification
Interfaces 10/100 Mbps Ethernet
Power supply [V] 100 ... 240
Weight [kg] 105
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Power consumption [W] 450
CW laser power (continuous wave) [W] 20
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Laser marker and MARKINGNOTEBOOK, incl.
CLIPPROJECTprofessional software and installed drivers, user
manual, sheet hopper, card hopper and 230V extraction unit
With German operating system and German keyboard TOPMARK LASER 0831831 1
Accessories
Carriage, for accommodating TOPMARKLASER, extraction unit,
and MARKINGNOTEBOOK
TOPMARK LASER STATION 0831835 1
Sheet hopper, for TOPMARKLASER
TOPMARK LASER-MAG SHEET 0831836 1
Magazine for the TOPMARK LASER, for accommodating UCT
material automatically
TOPMARK LASER-MAG UCT-A 0803141 1
Magazine for the TOPMARK LASER, for accommodating UCT
material manually
TOPMARK LASER-MAG UCT-M 0803143 1
Extraction unit:
230VTOPMARK LASER EXTRACTION 230V 0803302 1
120VTOPMARK LASER EXTRACTION 120V 0803327 1
Pre-filter pad, for replacement
TOPMARK LASER PRE FILTER SET 0803303 1
HEPA filter, for replacement
TOPMARK LASER HEPA FILTER 0803305 1
Activated carbon filter, for replacement
TOPMARK LASER CARBON FILTER 0803306 1
USB stick, for software control of the TOPMARK LASER
TOPMARK LASER FD 0803307 1
MP-TEC fine particle filter, for replacement
TOPMARK LASER MP-TEC FILTER 0803308 1
Suction tube, for replacement, length: 2.5 m
TOPMARK LASER TUBE 0803309 1
Connecting cable, for replacement
TOPMARK LASER CLEANING
NOZZLE
0803310 1
TOPMARKLASER set, desktop laser
marker including extraction unit and
notebook
28
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Direct laser marking
For further information and full technical data, visit phoenixcontact.net/products
The TOPMARKLASER marking system
provides you with the flexibility to
implement the requirements of challenging
industrial identification.
– Includes the TOPMARK LASER laser
marking system, for all materials in
UniCard (UCT) card format as well as the
laser sheets, with applied metals and
plastic materials
– Includes an extraction unit 230V, US
version 120V
– Includes a powerful notebook with pre-
installed CLIP PROJECT configuration
and marking software
– Comes in the relevant language versions
according to the country-specific versions
Technical data
Dimensions Width Length Height
[mm] 664 630 682
General data
Temperature range [°C] 5 ... 40
Marking method Direct laser marking
Laser system Ytterbium fiber laser, pulsed, 1064 nm
Laser class Laser class 1 according to EN 60825-1 classification
Interfaces -
Power supply [V] 100 ... 240
Weight [kg] 105
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Power consumption [W] 450
CW laser power (continuous wave) [W] 20
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Laser marker and MARKINGNOTEBOOK, incl.
CLIPPROJECTprofessional software and installed drivers, user
manual, sheet hopper, card hopper and 230V extraction unit
with German operating system and Swiss keyboard TOPMARK LASER DE CH 0803285 1
with Russian operating system and Russian keyboard
TOPMARK LASER RU RU 0803286 1
with Swedish operating system and Swedish keyboard
TOPMARK LASER SE SE 0803287 1
with Danish operating system and Danish keyboard
TOPMARK LASER DK DK 0803288 1
with Chinese operating system and US international keyboard
TOPMARK LASER CN US 0803289 1
with Polish operating system and US international keyboard
TOPMARK LASER PL US 0803290 1
with French operating system and French keyboard
TOPMARK LASER FR FR 0803291 1
with Italian operating system and Italian keyboard
TOPMARK LASER IT IT 0803292 1
with Spanish operating system and Spanish keyboard
TOPMARK LASER ES ES 0803293 1
with Portuguese operating system and Portuguese keyboard
TOPMARK LASER PT PT 0803295 1
with English operating system and Belgian keyboard
TOPMARK LASER EN BE 0803296 1
with English operating system and US international keyboard
TOPMARK LASER US 0803297 1
with English operating system and US international keyboard
TOPMARK LASER EN 0803298 1
with Hungarian operating system and Hungarian keyboard
TOPMARK LASER HU HU 0803299 1
new
TOPMARKLASER set, desktop laser
marker including extraction unit and
notebook
29
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Direct laser marking
UV
Dimensions
[mm]
General data
Temperature range [°C] 5 ... 35 5 ... 35 -
Print method
Volume
Pressure capacity
Interfaces
Power supply [V] 100 ... 240 / 50 Hz ... 60 Hz 100 ... 240 / 50 Hz ... 60 Hz -
Weight [kg] 16 16 -
Operating systems
Power consumption [W] 74 74 -
Description Color
Printer with solvent-free LED UV technology, including CLIP
PROJECT advanced software, collection container for 20 sheets,
CD with multilingual user manual, English/German user manual,
driver and firmware, European and US power cable, USB cable
gray
Set, consisting of: 1 x BLUEMARKCLED, Order No. 5147999, 1 x
MARKING NOTEBOOK, CLIP-PROJECT PROFESSIONAL
With German operating system and German
keyboard
gray
With English operating system and English
keyboard
gray
Accommodating box, in conjunction with the BLUEMARKCLED-
MAG40, for accommodating 90 UC or UCT sheets
Fluid cartridge, replacement, 20ml printing fluid, black
Exchangeable magazine,
For accommodating 20 UC or UCT sheets
For accommodating 40 UC or UCT sheets
Magazine for the BLUEMARK printer, for accommodating UM
materials
Compartment
For accommodating 20 UC or UCT sheets
Transport case, with aluminum edges, for printer and accessories
Magazines for marking aluminum markers
30
PHOENIX CONTACT
MARKING system
The new BLUEMARKCLED makes
marking standardized UniCard material for
terminal blocks, conductors, and device
marking as easy as printing on paper.
The printer receives marking data directly
from your CAE system via the
CLIPPROJECT central planning and
marking software.
Simple operation
– Order-specific printing, thanks to large
exchangeable magazine for up to 40
marker sheets
– Printing can be rotated by 180° as
required, thanks to automatic material
detection
– The front feed enables individual sheets
to be marked regardless of how the
magazine is assembled
Easy operation
– Thanks to large color touch screen
– Direct entry of data and commands
– Clear symbols and plain text messages
– Ready to print as soon as device is
switched on
– Language selection via touchscreen menu
CLED – compact UV LED printing
technology
Printing fluid is exposed to UV light which
is the basis of our quick-dry printing
concept. This light is generated with high
intensity using 24 LEDs on a surface of
1cm.
– Excellent printing quality
– No drying time
– High wipe and abrasion resistance
– Excellent resistance to chemicals
– Environmentally friendly, as solvent-free
system
BLUEMARK CLED
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
Marking and labeling - MARKING system
Marking systems
UV LED technology
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Width Length Height Width Length Height Width Length Height
480 500 330 480 500 330 400 470 160
Temperature range [°C] 5 ... 35 5 ... 35 -
UV LED technology UV LED technology -
20 ml 20 ml -
Approx. 14,000 markers/h (UC-TMF 4 with 2 characters/marker) Approx. 14,000 markers/h (UC-TMF 4 with 2 characters/marker) -
10/100 Mbps Ethernet / USB 2.0 10/100 Mbps Ethernet -
Power supply [V] 100 ... 240 / 50 Hz ... 60 Hz 100 ... 240 / 50 Hz ... 60 Hz -
Weight [kg] 16 16 -
MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
-
Power consumption [W] 74 74 -
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
BLUEMARK CLED 5147999 1
BLUEMARK CLED SET 5147400 1
BLUEMARK CLED SET EN 5147401 1
BLUEMARK CLED-BASE 5146669 1
Accessories Accessories Accessories
BLUEMARK CLED-FLUID-CARTR. 5146662 1BLUEMARK CLED-FLUID-CARTR. 5146662 1
BLUEMARK CLED-MAG 20 5146655 1BLUEMARK CLED-MAG 20 5146655 1
BLUEMARK CLED-MAG 40 5146668 1BLUEMARK CLED-MAG 40 5146668 1
BLUEMARK MAG UM-TM 0803335 1BLUEMARK MAG UM-TM 0803335 1
BLUEMARK CLED-STACKER 20 5146656 1BLUEMARK CLED-STACKER 20 5146656 1
BLUEMARK CLED CASE 5146725 1BLUEMARK CLED CASE 5146725 1
See page 160 See page 160
31PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Printers Printing set for cards Accomodating box
1
2
2
1
– The THERMOMARKCARD can print
markers supplied in card format for cable,
device, and system marking applications
– For all UniCard (UCT) and UniSheet (US)
materials
– Maintenance-free operation with tried-
and-tested thermal transfer printing
technology
– High-quality, fast marking. Printing time
for one UniCard: just 8 seconds
– Easy operating concept based on
straightforward touchscreen entry
– USB and Ethernet connections
– Easy to control with the CLIPPROJECT
software
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
CCC
Technical data
Dimensions Width Length Height
[mm] 253 320 189
General data
Temperature range [°C] 5 ... 35
Print resolution [dpi] 300 dpi
Max. print width [mm] 104
Interfaces 10/100 Mbps Ethernet / USB 2.0
Power supply [V] 100 ... 240 / 50 Hz ... 60 Hz
Weight [kg] 6
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Thermal transfer printer for cards, incl. European power cable,
US power cable, USB cable,
DVD with CLIPPROJECTADVANCED, CD with multilingual user
manual/driver/firmware,
DINA5 printed English/German user manual,
magazine for UCT–TM materials,
magazine for US materials,
one unit pack UCT–TM6,
one unit pack US–EMLP(85,6x54),
one ink ribbon (50-meter sample roll)
gray THERMOMARK CARD 5146464 1
Accessories
Transport case
TL CASE 0800613 1
Ink ribbon, length: 300m, width: 110mm
black THERMOMARK-RIBBON 110-TC 0801371 1
Ink ribbon, specially for US-PML..., US-EMLF...,
Length: 240m, width: 110mm white TM-RIBBON 110-TC/TR WH 1014402 1
THERMOMARKCARD, thermal
transfer printer for sheet materials
and cards
32
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for sheets
and cards
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
– Robust magazines for UniCard marking
material
– The format automatically ensures printing
with a high level of positional accuracy
– Even compatible with marking sheets that
have already been started
Ordering data
Description Type Order No. Pcs. /
Pkt.
Magazine, for THERMOMARKCARD...
for accommodating: UCT–TM..., UCT1–TM...,
UCT5–TM..., UCT–EM(5X10), UCT-EM(6X10)
THERMOMARK CARD-UCT-MAG1 5146480 1
Magazine, for THERMOMARKCARD..., for accommodating:
UCT–TMF ...
THERMOMARK CARD-UCT-MAG2 5146563 1
Magazine, for THERMOMARKCARD..., for accommodating:
UCT–WMS...
THERMOMARK CARD-UCT-MAG3 5146613 1
Plastic magazine, for THERMOMARKCARD..., for
accommodating: UCT1–TMF...
THERMOMARK CARD-UCT-MAG4 5146614 1
Plastic magazine, for THERMOMARKCARD..., for
accommodating: UCT2–TM ...
THERMOMARK CARD-UCT-MAG5 5146615 1
Magazine, for THERMOMARKCARD..., for accommodating:
UCT3–TM ...
THERMOMARK CARD-UCT-MAG6 5146616 1
Magazine, for THERMOMARKCARD..., for accommodating
UCT-WMT... sheets, UCT-EM(17X10)
THERMOMARK CARD-UCT-MAG7 0801734 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17,5X8),
UCT-EM(20X7), UCT-EM(15X10)
THERMOMARK CARD-UCT-MAG8 0801735 1
for accommodating UCT-EM(12X3.3),
UCT-EM(12X6)
THERMOMARK CARD-UCT-MAG9 0801736 1
THERMOMARK CARD-UCT-MAG10 0801737 1
for accommodating UCT-EM(17X10) and (20X8) THERMOMARK CARD-UCT-MAG11 0801738 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(10X8),
UCT-EM(12X7)
THERMOMARK CARD-UCT-MAG12 0830399 1
for accommodating UCT-EM(10X5) THERMOMARK CARD-UCT-MAG13 0830400 1
for accommodating UCT-EM(21X8) and
UCTEM(17X8)
THERMOMARK CARD-UCT-MAG14 0830401 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(20 x 9) THERMOMARK CARD-UCT-MAG15 0830402 1
for accommodating UCT-EM(17 x 9) THERMOMARK CARD-UCT-MAG16 0830403 1
for accommodating UCT-EM(18 x 8) THERMOMARK CARD-UCT-MAG17 0830404 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17,5X7,5) THERMOMARK CARD-UCT-MAG18 0830405 1
for accommodating UCT-EM(10 x 7),
UCT-WMTB(29 x 8)
THERMOMARK CARD-UCT-MAG20 0830751 1
for accommodating UCT-EM(17,5X9) THERMOMARK CARD-UCT-MAG22 0830771 1
Magazine, for THERMOMARKCARD...
for accommodating UCT6M-TM... THERMOMARK CARD-UCT-MAG23 0830808 1
for accommodating UCT6R-TM... THERMOMARK CARD-UCT-MAG24 0830809 1
Magazine, for THERMOMARKCARD...,
for accommodating: UCT–WMCO...(12 x 4) THERMOMARK CARD-UCT-MAG25 0802935 1
for accommodating UCT-EMP... THERMOMARK CARD-UCT-MAG26 0802988 1
for accommodating: UCT–WMTBA... THERMOMARK CARD-UCT-MAG27 0802989 1
Magazine for the THERMOMARK CARD printer,
for accommodating: UCT sheets
(UCT-WMCO...(18 x 4))
THERMOMARK CARD-UCT-MAG28 0803205 1
Magazine for THERMOMARKCARD
33
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for sheets
and cards
1
2
2
1
– Robust magazine for UniSheet marking
material
– The format automatically ensures printing
with a high level of positional accuracy
– Even compatible with marking sheets that
have already been started
Ordering data
Description Type Order No. Pcs. /
Pkt.
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Magazine for THERMOMARKCARD
34
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for sheets
and cards
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
– Robust magazine for universal material
– For accommodating up to 4 double strips
per magazine
– The format automatically ensures printing
with a high level of positional accuracy
– Marking strips that have already been
started can also be used
Ordering data
Description Type Order No. Pcs. /
Pkt.
Magazine, for THERMOMARKCARD...
for accommodating UM1-TM..., UM5-TM... TMP-UM-MAG1 0831200 1
Magazine for THERMOMARK CARD
for accommodating UM1-TMF... TMP-UM-MAG3 0831202 1
Magazine for THERMOMARK CARD
for accommodating UM1U-TM... TMP-UM-MAG4 0831203 1
for accommodating UM2-TM... TMP-UM-MAG5 0803328 1
for accommodating UM3-TM... TMP-UM-MAG6 0803329 1
for accommodating UM6M-TM... TMP-UM-MAG7 0803330 1
for accommodating UM6R-TM... TMP-UM-MAG8 0803331 1
for accommodating UM8-TM... TMP-UM-MAG9 0803332 1
Magazine for THERMOMARK CARD
for accommodating UM7-TM... TMP-UM-MAG10 0803334 1
new
Magazine for THERMOMARKCARD
35
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for sheets
and cards
2
1
1
2
– The THERMOMARKROLL can print
markers supplied on rolls in the context
of terminal, conductor, cable, and device
marking applications
– For all labels and shrink sleeves
– Maintenance-free operation with tried-
and-tested thermal transfer printing
technology
– High-quality, fast marking
– Easy operating concept based on
straightforward touchscreen entry
– USB and Ethernet connections
– Easy to control with the CLIPPROJECT
software
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
CCC
Technical data
Dimensions Width Length Height
[mm] 253 320 189
General data
Temperature range [°C] 5 ... 40
Print resolution [dpi] 300 dpi
Max. print width [mm] 104
Max. printing length [mm] 1000
Interfaces 10/100 Mbps Ethernet / USB 2.0
Power supply [V] 100 ... 240 / 50 Hz ... 60 Hz
Weight [kg] 4
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Thermal transfer printer for material off the roll, including
European power cable, US power cable, USB cable,
DVD with CLIPPROJECTADVANCED, CD with multilingual user
manual/driver/firmware,
A5 printed English/German usermanual,
one roll of EML(20x8) labels containing 1000 labels,
one ink ribbon (50 meters)
gray THERMOMARK ROLL 5146477 1
Accessories
Cutter, can be retrofitted, for precise cutting of continuous media
into required lengths
THERMOMARK ROLL-CUTTER 5146422 1
Cutter, can be retrofitted, for perforating continuous media
THERMOMARK ROLL-CUTTER/P 5146435 1
External media hub, for roll diameters of 150 mm to 400mm
THERMOMARK ROLL-ERH 5146448 1
External media hub, for roll diameters of up to 500mm
THERMOMARK-ERH 500 5146309 1
Ink ribbon, length: 300m, width: 110mm
black THERMOMARK-RIBBON 110 5145384 1
blue THERMOMARK-RIBBON 110 BU 0829544 1
green THERMOMARK-RIBBON 110 GN 0829542 1
red THERMOMARK-RIBBON 110 RD 0829543 1
Ink ribbon, specifically for high-temperature labels, EML-HT...
black THERMOMARK-RIBBON 110-EML-HT 0800342 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 110mm
black THERMOMARK-RIBBON 110-WMSU 0801358 1
white THERMOMARK-RIBBON 110-WMSU
WH
0801359 1
black TM-RIBBON 110-EX 0803211 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 64mm
black THERMOMARK-RIBBON 64-WMSU 0801360 1
white THERMOMARK-RIBBON 64-WMSU
WH
0801361 1
Ink ribbon, specifically for cable markers for assembly with cable
binders, WMTB HF..., length: 300m, width: 110mm
black THERMOMARK-RIBBON 110-WMTB
HF
5148007 1
white TM-RIBBON 110-WMTB HF WH 0802990 1
Transport case
silver TL CASE 0800613 1
THERMOMARKROLL, thermal
transfer printer for material off the
roll
36
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for rolls
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
The THERMOMARKROLLX1 printer is
suitable for marking large quantities and
provides the following features:
– Accommodates large rolls; inside the
printer housing, the label rolls are
protected against environmental
influences such as dust and dirt
– For all labels and shrink sleeves
– Maintenance-free operation with tried-
and-tested thermal transfer printing
technology
– High-quality, fast marking
– Easy operating concept based on
straightforward touchscreen entry
– USB and Ethernet connections
– Easy to control with the CLIPPROJECT
software
– Printing and dispensing labels on request
or automatically after removing the label
with the THERMOMARKROLLX1 -
DISPENSER
Cutting to length or perforating is
easy
– Continuous media can be cut or
perforated with a high degree of
positioning accuracy (see figure below)
CCC
Technical data
Dimensions Width Length Height
[mm] 264 412 245
General data
Temperature range [°C] 5 ... 40
Print resolution [dpi] 300 dpi
Max. print width [mm] 104
Max. printing length [mm] 1000
Interfaces 10/100 Mbps Ethernet / USB 2.0
Power supply [V] 100 ... 240 / 50 Hz ... 60 Hz
Weight [kg] 5
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Thermal transfer printer for material off the roll, including
European power cable, US power cable, USB cable,
DVD with CLIPPROJECTADVANCED, CD with multilingual user
manual/driver/firmware,
A5 printed English/German usermanual,
one roll of EML(20x8) labels containing 1000 labels,
one ink ribbon (50 meters)
gray THERMOMARK ROLL X1 5146723 1
Accessories
Cutter, can be retrofitted, for precise cutting of continuous media
into required lengths
THERMOMARK ROLL X1 CUTTER 5146765 1
Perforation device, can be retrofitted, for perforating and cutting
continuous media
THERMOMARK ROLL X1 CUTTER/P 5146766 1
Label dispenser, dispensing device for labels with a height of
10mm or more
THERMOMARK ROLL X1 -DISPENSER 1014401 1
Ink ribbon, length: 300m, width: 110mm
black THERMOMARK-RIBBON 110 5145384 1
blue THERMOMARK-RIBBON 110 BU 0829544 1
green THERMOMARK-RIBBON 110 GN 0829542 1
red THERMOMARK-RIBBON 110 RD 0829543 1
Ink ribbon, specifically for high-temperature labels, EML-HT...
black THERMOMARK-RIBBON 110-EML-HT 0800342 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 110mm
black THERMOMARK-RIBBON 110-WMSU 0801358 1
white THERMOMARK-RIBBON 110-WMSU
WH
0801359 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 64mm
black THERMOMARK-RIBBON 64-WMSU 0801360 1
white THERMOMARK-RIBBON 64-WMSU
WH
0801361 1
Ink ribbon, specifically for cable markers for assembly with cable
binders, WMTB HF..., length: 300m, width: 110mm
black THERMOMARK-RIBBON 110-WMTB
HF
5148007 1
Ink ribbon, length: 300m, width: 110mm, color: black
black TM-RIBBON 110-EX 0803211 1
Transport case
silver THERMOMARK ROLL X1-CASE 5146724 1
THERMOMARKROLLX1, thermal
transfer printer for material off the
roll
37
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for rolls
1
2
2
1
2
1
1
2
MARKINGBOX is the complete marking
system for all terminal, conductor, cable,
and device marking applications. It is
available for different country-specific
keyboards and operating systems.
– Includes the THERMOMARKCARD
printer for all materials in the UniCard
(UCT) and UniSheet (US) formats
– Includes the THERMOMARKROLL
printer for all labels and shrink sleeves
supplied in rolls
– Includes a powerful notebook with pre-
installed CLIPPROJECT configuration
and marking software, as well as the
printer drivers required to enable quick
startup without any need for installation
and setup work. Plug and print. Simply
connect the devices via USB and you're
ready to print
– The compact and robust THERMOMARK
printers are optimally suited to mobile
use on site
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
Ordering data
Description Type Order No. Pcs. /
Pkt.
Set, consisting of: 1x THERMOMARKCARD, Order No. 5146464,
1x THERMOMARKROLL, Order No. 5146477, 1x
MARKINGNOTEBOOK, CLIP-PROJECT PROFESSIONAL
German operating system and keyboard MARKING BOX 5147100 1
English operating system and US international
keyboard
MARKING BOX EN 5147101 1
Printing set, consisting of: 1x THERMOMARKCARD, Order No.
5146464, 1x MARKINGNOTEBOOK, CLIP-PROJECT
PROFESSIONAL
German operating system and keyboard
English operating system and US international
keyboard
Printing set, consisting of: 1x THERMOMARKROLL, Order No.
5146477, 1x MARKINGNOTEBOOK, CLIP-PROJECT
PROFESSIONAL
German operating system and keyboard
English operating system and US international
keyboard
Versions
German operating system and Swiss keyboard MARKING BOX DE CH 0801749 1
English operating system and Belgian keyboard MARKING BOX EN BE 0801742 1
French operating system and keyboard MARKING BOX FR FR 0801590 1
Spanish operating system and keyboard MARKING BOX ES ES 0801747 1
Italian operating system and keyboard MARKING BOX IT IT 0801745 1
Polish operating system and US international
keyboard
MARKING BOX PL US 0801744 1
Hungarian operating system and keyboard MARKING BOX HU HU 0801750 1
Portuguese operating system and keyboard MARKING BOX PT PT 0801748 1
Russian operating system and keyboard MARKING BOX RU RU 0801739 1
Danish operating system and keyboard MARKING BOX DK DK 0801741 1
Swedish operating system and keyboard MARKING BOX SE SE 0801740 1
Accessories
Printer accessories phoenixcontact.net/products
38
PHOENIX CONTACT
Thermal transfer for sheets
and cards
Thermal transfer for rolls
THERMOMARK printer sets
Marking and labeling - MARKING system
Marking systems
Printing set, complete Printing set for cards Printing set for material provided on rolls
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
THERMOMARK CARD SET 5147200 1
THERMOMARK CARD SET EN 5147201 1
THERMOMARK ROLL SET 5147300 1
THERMOMARK ROLL SET EN 5147301 1
THERMOMARK CARD SET DE CH 5147220 1THERMOMARK ROLL SET DE CH 5147230 1
THERMOMARK CARD SET EN BE 5147214 1THERMOMARK ROLL SET EN BE 5147225 1
THERMOMARK CARD SET FR FR 0801591 1THERMOMARK ROLL SET FR FR 0801592 1
THERMOMARK CARD SET ES ES 5147218 1THERMOMARK ROLL SET ES ES 5147228 1
THERMOMARK CARD SET IT IT 5147217 1THERMOMARK ROLL SET IT IT 5147227 1
THERMOMARK CARD SET PL US 5147215 1THERMOMARK ROLL SET PL US 5147226 1
THERMOMARK CARD SET HU HU 5147221 1THERMOMARK ROLL SET HU HU 5147231 1
THERMOMARK CARD SET PT PT 5147219 1THERMOMARK ROLL SET PT PT 5147229 1
THERMOMARK CARD SET RU RU 5147211 1THERMOMARK ROLL SET RU RU 5147222 1
THERMOMARK CARD SET DK DK 5147213 1THERMOMARK ROLL SET DK DK 5147224 1
THERMOMARK CARD SET SE SE 5147212 1THERMOMARK ROLL SET SE SE 5147223 1
Accessories Accessories
39PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Printing set, complete Printing set for cards Printing set for material provided on rolls
2
1
1
2
An important addition to the range is the
THERMOMARKX1.2, a top-of-the-line
thermal transfer printer with the following
key features:
– High print speed
– Print resolution of 300 dpi
– This printer is suitable for marking large
quantities and is capable of processing all
types of material supplied on rolls
– The easy-to-use centering function for
the printing material makes it possible to
label continuous media such as shrink
sleeves
– High-quality resin-based ink ribbons
ensure a form of marking that is resistant
to mechanical and chemical effects
– Continuous media can be cut and
perforated with a high degree of
positional accuracy
Technical data
Dimensions Width Length Height
[mm] 242 446 274
General data
Temperature range [°C] 10 ... 35
Print resolution [dpi] 300 dpi
Max. print width [mm] 105
Max. printing length [mm] 2000
Interfaces Serial (RS-232) / USB 2.0 / 10/100 Mbps Ethernet
Power supply [V] 100 ... 240 / 50 Hz ... 60 Hz
Weight [kg] 10
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Thermal transfer printer, incl. connecting cable, Windows
®
printer driver and operating instructions, software
gray THERMOMARK X1.2 5146231 1
Accessories
Starter set, complete for THERMOMARK X1.2 consists of:
planning and marking software, THERMOMARK X1.2 thermal
transfer printer, ink ribbon, roll of labels
THERMOMARK X1.2-KIT 5146341 1
Cutter, for THERMOMARK X1...
THERMOMARK X1-CUTTER 5145290 1
Perforator
THERMOMARK X1-CUTTER/P 5146244 1
Transport case, with aluminum edges, for printer and accessories
THERMOMARK X1-CASE 5145300 1
External media hub, for roll diameters of 150 mm to 400mm
THERMOMARK ROLL-ERH 5146448 1
External media hub, for roll diameters of up to 500mm
THERMOMARK-ERH 500 5146309 1
Ink ribbon, length: 300m, width: 110mm
black THERMOMARK-RIBBON 110 5145384 1
Ink ribbon, specifically for high-temperature labels, EML-HT...
black THERMOMARK-RIBBON 110-EML-HT 0800342 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 110mm
black THERMOMARK-RIBBON 110-WMSU 0801358 1
white THERMOMARK-RIBBON 110-WMSU
WH
0801359 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 64mm
black THERMOMARK-RIBBON 64-WMSU 0801360 1
white THERMOMARK-RIBBON 64-WMSU
WH
0801361 1
Ink ribbon, length: 300m, width: 110mm, color: black
black TM-RIBBON 110-EX 0803211 1
Ink ribbon, specifically for cable markers for assembly with cable
binders, WMTB HF..., length: 300m, width: 110mm
black THERMOMARK-RIBBON 110-WMTB
HF
5148007 1
THERMOMARKX1.2, thermal
transfer printer for material off the
roll
40
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for rolls
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
The THERMOMARKW2 has been
specially developed for the double-sided
printing and perforation of continuous
WMS shrink sleeves
– Double-sided printing ensures optimum
marking legibility
– The guide elements ensure easy handling
when inserting the sleeve
– The user-friendly interface of the
CLIPPROJECT software enables you to
enter custom specifications for the
marking and marker length
– Black and white ink ribbons are available
to facilitate color marking
– The printed markers can be easily and
quickly separated along the perforations
Technical data
Dimensions Width Length Height
[mm] 248 554 405
General data
Temperature range [°C] 10 ... 35
Print resolution [dpi] 300 dpi
Max. print width [mm] 105.6
Max. printing length [mm] 1000
Interfaces Serial (RS-232) / USB 2.0 / 10/100 Mbps Ethernet
Power supply [V] 100 ... 240 / 50 Hz ... 60 Hz
Weight [kg] 21
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Thermal transfer printer, specially for shrink sleeve marking on
both sides, including perforation knife, connecting cable,
Windows
®
printer driver, operating instructions, CLIP PROJECT
advanced planning and marking software
gray THERMOMARK W2 5146147 1
Accessories
External media hub, for roll diameters of 150 mm to 400mm
THERMOMARK ROLL-ERH 5146448 1
External media hub, for roll diameters of up to 500mm
THERMOMARK-ERH 500 5146309 1
External media hub, for roll diameters of up to 500mm
THERMOMARK-ERH 500 5146309 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 110mm
black THERMOMARK-RIBBON 110-WMSU 0801358 1
white THERMOMARK-RIBBON 110-WMSU
WH
0801359 1
Ink ribbon, specifically for WMS... shrink sleeves, length: 300m,
width: 64mm
black THERMOMARK-RIBBON 64-WMSU 0801360 1
white THERMOMARK-RIBBON 64-WMSU
WH
0801361 1
THERMOMARKW2, thermal
transfer printer for continuous shrink
sleeve
41
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Thermal transfer for rolls
x
y
1 2 3
– During long periods of non-use, the
plotter pens are stored safely in a pen
station
– The pens are removed and deposited
automatically
– The pen station of the CMS-P1-PLOTTER
prevents the plotter pens from drying out
– An automatic marking preparation
function ensures optimum marking
results right from the first character
– The plotter is controlled with the
CLIPPROJECT software
– The plotter can be connected to the
computer quickly and easily via the
Centronics or USB interface
– Easily operated with just a few buttons
Technical data
Dimensions Width Length Height
[mm] 440 660 125
General data
Lettering field size [mm] 440 x 296 mm
Max. material height [mm] 10.5
Max. plotting speed [m/s] 0.4
Interfaces Parallel (Centronics) / USB 2.0
Input voltage / frequency [V] 100 ... 240 / 50 Hz ... 60 Hz
Weight [kg] 8
Operating systems MS Windows XP SP3, MS Windows Vista, MS Windows 7 (32/64-
bit), MS Windows 8 (32/64-bit)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marking plotter, incl. power supply unit, connecting cable
(Centronics and USB), CMS-PEN0,25 pen, manual, planning and
marking software, CLIP PROJECT
silver CMS-P1-PLOTTER 5144615 1
Accessories
Starter set, consisting of:
- CLIP PROJECT, - CMS-P1-PLOTTER,
- Magazines for UC-TM , UC-TMF, and UC-EMP, plus marking
material
- Ink and cleaning set
CMS-P1-PLOTTER-KIT 5144628 1
Transport case for CMS-P1-PLOTTER, rounded profile case with
aluminum frame for a complete plotter system
CMS-P1-PLOTTER-CASE 5144631 1
Covering hood for CMS-P1-PLOTTER, flexible hood for
protecting against contamination
CMS-P1-PLOTTER-COVER 5144806 1
Set of seals for the pen station, 4 replacement seals for the pen
station of the CMS-P1-PLOTTER and 10 marking preparation
plates, incl. assembly tool
CMS-P1-PENDEPOT 5144835 1
Pen plates, for the pen station of the CMS-P1-PLOTTER
CMS-P1-PREPLATES 5145135 1
Magazines and pens See page 44
CMS-P1-PLOTTER
42
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Plotter
For further information and full technical data, visit phoenixcontact.net/products
– The P1ENGRAVINGUNIT is the ideal
marking solution for device and
component marking applications that
involve high levels of mechanical and
chemical stress
– The CMS–P1–PLOTTER can be
converted into an engraving unit quickly
and easily by swapping the plotter head
for the engraving device
– To allow different line thicknesses,
engraving chisels with diameters ranging
from 0.2...1.0mm are available as
accessories
– These are supplemented by a
comprehensive product range of pre-
assembled engraving materials; see page
284
– These materials remain in position and do
not slip when used with the CMS–P1–
M/GPEENGRAVING plotter magazine
Technical data
Dimensions Width Length Height
[mm] 250 350
General data
Power supply [V] 110 ... 240 / 50 Hz ... 60 Hz
Weight [kg] 8
Speed range [RPM] 5000 ... 50000
Collet chuck [mm] 3
Power consumption [W] 150
Ordering data
Description Type Order No. Pcs. /
Pkt.
Engraving unit, for the CMS-P1-PLOTTER, incl. operating
instructions (English/German), data CD and engraving chisel
P1 ENGRAVING UNIT 5145546 1
Accessories
Engraving chisel, with a point angle of 15°
Point diameter 0.2 mm P1 GRAVER 0.2 5145478 1
Point diameter 0.3 mm P1 GRAVER 0.3 5145481 1
Point diameter 0.4 mm P1 GRAVER 0.4 5145494 1
Point diameter 0.5 mm P1 GRAVER 0.5 5145504 1
Point diameter 0.7 mm P1 GRAVER 0.7 5145517 1
Point diameter 1.0 mm P1 GRAVER 1.0 5145520 1
Engraving chisel set, chisel with a point angle of 15°, point
diameter: 0.2 mm, 0.3 mm, 0.4 mm, 0.5 mm, 0.7 mm, 1.0 mm
P1 GRAVER SET 5145533 1
Vacuum cleaner bag, 5 spare bags for replacement
P1 ENGRAVING VC BAG 5145559 1
Magazine for the CMS-P1-PLOTTER, for accommodating
EMLP... and GPE... materials for engraving
- 1 GPE label sheet CMS-P1-M/GPE ENGRAVING 5145711 1
CMS-P1-PLOTTER engraving unit
43
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Engraving
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Magazine, for CMS-P1-PLOTTER, for accommodating: UC–TM
..., UC-TMN ..., UC3–TM ..., UC–WMC1,9..., UC–WMC3,1..., UC-
WMTBA ..., UC–EM(17,5x9), UC–EM(18x8), UC–EM(21x8)
gray P1 UC-MAG 1 5146079 1
For accommodating UC–WMC4,4... gray P1 UC-MAG 2 5146082 1
For accommodating UC–WMC5,6..., UC–
WMC7,5...
gray P1 UC-MAG 3 5146095 1
For accommodating UC–TMF..., UC1–TMF...,
UC2F–TM..., UC–WMT...
gray P1 UC-MAG 4 5146105 1
For accommodating UC1–TM..., UC1U–TM...,
UC2–TM...
gray P1 UC-MAG 5 5146118 1
For accommodating: UC–EM..., UC–EMP..., UC–
EMLP..., UC–EMSP..., and UC–WMTB...
gray P1 UC-MAG 6 5146121 1
For accommodating: UC–WMCO... gray P1 UC-MAG 7 5146568 1
Plastic magazines, for CMS-P1-PLOTTER, for accommodating:
- 22 zack marker strips
CMS-P1-M/ZB 5144699 1
- 26 flat zack marker strips or ZBN strips CMS-P1-M/ZBF 5144709 1
- 2 zack marker sheets CMS-P1-M/ZBM 5144660 1
- 3 flat zack marker sheets CMS-P1-M/ZBFM 5144686 1
- 22 contactor marker zack marker strips CMS-P1-M/SS-ZB 5144712 1
- 4 to 6 PABA marker bars CMS-P1-M/PAB 5144741 1
- 30 marker pins ZB strips CMS-P1-M/BN-ZB 5144725 1
- 1 GPE label sheet CMS-P1-M/GPE 5144754 1
- 20 strips LBHZ conductor marking CMS-P1-M/LBHZ 5144738 1
- 1 GPE label sheet CMS-P1-M/GPE ENGRAVING 5145711 1
Magazine for accommodating sheet material, self-adhesive
mat for fixing labels, foils and paper, size of sheet max. DIN A4
CMS-P1-PAD 5144819 1
Accessories
Adapter plate for WMU magazines, for using the universal CMS-
WMU replaceable frame with the magazine inserts of the CMS-
MCP 3 plotter
CMS-P1-WMU-ADAPTER 5144822 1
Replacement fixation pad for CMS-P1-M/ZBFM, 9 self-adhesive
fixation pads, sufficient for 3 magazines
CMS-P1-M/ZBFM-PAD 5144848 1
Replacement fixation pad for CMS-P1-M/GPE and CMS-P1-
M/GPE ENGRAVING, one fixation pad, sufficient for one magazine
CMS-P1-M/GPE-PAD 5144880 1
Replacement fixation pad for CMS-P1-PAD, 1 fixation pad in
DIN A4 format
CMS-P1-PAD/SPARE 5144893 1
44
PHOENIX CONTACT
– Robust plastic magazines for marking all
commercially available marking materials
– Even compatible with marking sheets that
have already been started
– Option of partial marking
– In terms of its size, the magazine utilizes
plotter capacity to the full
– We offer a variety of different magazines
for marking materials
– If you cannot find the right magazine for
your materials, please get in touch
Magazines for CMS-P1-PLOTTER
Marking and labeling - MARKING system
Marking systems
x
y
1 2 3
For further information and full technical data, visit phoenixcontact.net/products
– Plotter pens for high-quality product
marking
– Wipe-resistant with a perfect appearance
– Totally integrated product range
consisting of plotter pens, ink, and
cleaning fluid for the CMS–P1–PLOTTER
plotter
– Both reusable and disposable plotter pens
are available
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Disposable plotter pen, non-refillable plotter pen, with pen
station, completely filled with 1 ml CMS-INK-TR-C5 ink, for high
requirements
Line thickness 0.25 mm black CMS-DISPOSABLE-PEN 0,25 TR 5146685 1
Line thickness 0.35 mm black CMS-DISPOSABLE-PEN 0,35 TR 5146686 1
Pens, incl. adapters, ink tank and pen station, for different line
thicknesses, without ink
Line thickness 0.25 mm CMS-PEN 0,25 5067815 1
Line thickness 0.35 mm CMS-PEN 0,35 5067828 1
Line thickness 0.50 mm CMS-PEN 0,50 5067831 1
Accessories
Cleaning set for pens, consisting of: 1 cleaning cup, 2 cartridges
of 10 ml cleaning liquid each and 2 spare sealing caps for the pen
station
CMS-R-SET-TR 5146751 1
Cleaning cartridges with spare sealing caps, 2 cartridges, each
with 10 ml cleaning liquid and 2 caps
CMS-R-FLUID-TR-C2 5146752 1
Ink cartridge, for CMS-PEN...
CMS-INK-TR-C5 5146684 1
Plotter pens
45
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
Plotter
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Disposable pen, non-refillable, for manual marking, can be also
used for plotter marking when combined with the P–PENADAPTER
black P-PEN 0815211 10
Accessories
Aluminum adapter, to fix the P-PEN for plotter marking
P-PEN ADAPTER 0815224 1
– High-quality marking of unprinted
marking materials, can be performed
manually or with the CMS-P1-PLOTTER
– Used in conjunction with the P-PEN
ADAPTER when combined with plotter
– Disposable pen
– No handling of cleaning fluid required
Marker pen for plotter and manual
marking
Marking and labeling - MARKING system
Marking systems
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker pen, refillable, for manual marking, 0.35mm line
thickness, can be refilled with CMS–INK–TR–C5, delivered without
ink
black X-PEN 0,35 0811228 1
Accessories
Ink cartridge, for CMS-PEN...
black CMS-INK-TR-C5 5146684 1
46
PHOENIX CONTACT
– High-quality marking of unprinted
marking materials is also possible without
the use of marking devices
– We provide three versions for manual
marking
– Refillable pen: X–PEN
– Disposable pen: B–STIFT
– Disposable pen: P-PEN, can also be used
for plotter marking when combined with
an adapter
Marker pen for manual marking
47
PHOENIX CONTACT
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker pen, not refillable, for manual marking, line thickness 0.5
mm
black B-STIFT 1051993 10
– High-quality marking of unprinted
marking materials is also possible without
the use of marking devices
– We provide three versions for manual
marking
– Refillable pen: X–PEN
– Disposable pen: B–STIFT
– Disposable pen: P-PEN, can also be used
for plotter marking when combined with
an adapter
Marker pen for manual marking
Marking and labeling - MARKING system
Marking systems
UV
2
1
1
2
1
2
2
1
Marking system TOPMARK LASER BLUEMARK CLED THERMOMARK CARD THERMOMARK ROLL
Terminal marking
UC...-TM... Page 56
UCT...-TM... Page 76 Page 76 Page 76
UM...-TM... Page 118 Page 118
US-TM... Page 80
US-TMF... Page 81
US-TML... Page 82
ZB...
ZBF...
TMT... Page 84
TML... Page 88
SK... Page 95
Conductor/cable marking
LS-WMTB... Page 156
WMTB-AL... Page 160
AI-WM... Page 169
UC-WMT... Page 170
UC-WMTB(A)... Page 172
UC-WMC(O)... Page 162
UCT-WMT... Page 174 Page 174 Page 174
UCT-WMTB(A)... Page 178 Page 178 Page 178
UCT-WMCO... Page 177 Page 177 Page 177
UCT-WMS... Page 176 Page 176 Page 176
US-WMT... Page 180
US-WMTB... Page 182
US-WML... Page 183
WMT... Page 196
WMTB...(HF) Page 197
WMS... (pre-assembled) Page 189
WMS...
(continuous shrink sleeve) Page 192
WML.../WML HF... /WML-FLAG...
Page 185
EMT... Page 194
WMTW... Page 195
Overview
Marking system -
marking material -
matrix
48
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
2
1
1
2
2
1
1
2
x
y
1 2 3
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
THERMOMARK ROLL X1 THERMOMARK X1.2 THERMOMARK W2 CMS-P1-PLOTTER P1 ENGRAVING UNIT
Page 56
Page 62
Page 70
Page 84 Page 84
Page 88 Page 88
Page 95 Page 95
Page 170
Page 172
Page 162
Page 196 Page 196
Page 197 Page 197
Page 189 Page 189
Page 192 Page 192 Page 192
Page 185 Page 185
Page 194 Page 194
Page 195 Page 195
49PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
UV
2
1
1
2
1
2
2
1
Marking system TOPMARK LASER BLUEMARK CLED THERMOMARK CARD THERMOMARK ROLL
Device marking
LS-EM... Page 226
EM...AL... Page 238
UC-EM... Page 245
UC-EMP... Page 243
UC-EMLP...(EX) Page 240
UC-EMSP... Page 242
UCT-EM(P)... Page 248 Page 248 Page 248
US-EMP... Page 257
US-EMLP...(HA) Page 254
US-EMLSP... Page 260
US-EMSP... Page 259
US-EML... Page 261
US-EMLF... Page 354
EMT... Page 280
EML...(EX) Page 264
E M L P. . . Page 269
EMLF... Page 272
EMLC... Page 273
EMLS... Page 278
EML-HA... Page 274
EML-HT... Page 275
EML-ESD... Page 276
EML-RM... Page 277
GPE...
BMK...
BMKL...
System marking
US-PML-W... Page 320
US-PML-P... Page 326
US-PML-M... Page 334
US-PML-GHS... Page 348
US-EMLF... Page 354
PML-W.... Page 321
PML-P... Page 327
PML-M... Page 335
PML-GHS... Page 349
PML-T... Page 342
PMM... Page 355
Overview
Marking system -
marking material
matrix
50
PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
2
1
1
2
2
1
1
2
x
y
1 2 3
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
THERMOMARK ROLL X1 THERMOMARK X1.2 THERMOMARK W2 CMS-P1-PLOTTER P1 ENGRAVING UNIT
Page 245
Page 243
Page 240
Page 242
Page 280 Page 280
Page 264 Page 264
Page 269 Page 269 Page 269
Page 272 Page 272
Page 273 Page 273
Page 278 Page 278
Page 274 Page 274
Page 275 Page 275
Page 276 Page 276
Page 277 Page 277
Page 284 Page 284
Page 283
Page 282
Page 321 Page 321
Page 327 Page 327
Page 335 Page 335
Page 349 Page 349
Page 342 Page 342
Page 355 Page 355
51PHOENIX CONTACT
Marking and labeling - MARKING system
Marking systems
52
PHOENIX CONTACT
Product range overview
Terminal marking 54
UniCard UC-TM... terminal marking
For tall marker grooves 56
For flat marker grooves 58
ZB... zack marker strip terminal marking
For tall marker grooves 62
For flat marker grooves 70
UniCard UCT-TM... terminal marking
For tall marker grooves 76
For flat marker grooves 78
UniSheet US-TM... terminal marking
For universal marker grooves 80
For flat marker grooves 81
TMT... terminal marking supplied in rolls
Marker strips for tall and flat marker grooves 84
TML... terminal marking supplied in rolls
Self-adhesive markers for terminal blocks without marker
grooves
88
SK... terminal marking supplied as card material
Self-adhesive markers for terminal blocks without marker
grooves
92
Group marker labels and warning labels 96
Overview of terminal marking for Phoenix Contact 100
The right marking solution for every terminal
Terminal marking for terminal blocks from other
manufacturers
106
Overview of terminal marking for other manufacturers 126
Phoenix Contact provides the right marking solution for every
terminal
53
PHOENIX CONTACT
Large-surface and clear marking of
terminal strips is essential for quick and
error-free wiring of terminal strips. This is
also true for the maintenance and startup of
control cabinets and systems.
Terminal markers from PhoenixContact
are optimally adapted to the terminals and
are available marked or unmarked in card,
roll or sheet format.
Terminal marking - MARKING system
54
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Those involved in control cabinet and
system engineering must ensure meaningful
marking of electrical connecting elements
and control cabinet components. As with
comprehensive documentation, precise
marking of all terminal points makes it
easier to set up and maintain the systems
concerned. EN60204–1/VDE0113Part1
stipulates requirements concerning
consistent system marking and, therefore,
for ensuring that it matches the technical
documentation.
Various marking materials are available for
marking Phoenix Contact terminal blocks.
The marking strips can be easily separated
by hand, and their special geometry ensures
that the marking remains in place even in
the event of impact and vibration in
machines and vehicles.
The terminal markers are available in
strips or sheets and with or without
marking in accordance with customer
requirements. Depending on the version,
unmarked terminal markers can be marked
using the various printing systems available
from Phoenix Contact.
– Markers in UniCard format can be quickly
and reliably marked using the new
BLUEMARK CLED printer
– Markers in UniSheet format can be
quickly and reliably marked using the new
THERMOMARKCARD printer
– Material off the roll has been specially
developed for marking using thermal
transfer printers, e.g., from the new
THERMOMARKLINE series from
PhoenixContact
– Zack marker strips are ideal for marking
with the plotter, but can also be marked
directly by hand.
All marking systems are characterized by
their high resolution and excellent wipe
resistance.
Various marking labels are available for
marking terminal block groups in addition to
the marking of the actual terminal points.
These are snapped into the marking grooves
of terminal blocks. Details of group marking
products that can be fixed to end brackets
can be found in the chapter titled Mounting
material starting on page 483.
For further information and full technical data, visit phoenixcontact.net/products
55PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers are available in the UniCard and
UniSheet formats for the marking of
terminal blocks with a tall marker groove.
They can be supplied unprinted or printed
according to customer requirements.
Markers are available in the UniCard and
UniSheet formats for terminal blocks,
modules, and connectors with a flat marker
groove. They can be supplied unprinted or
printed in accordance with customer
requirements.
Miniature terminal blocks/transformer
terminal blocks have neither a flat nor a tall
marker groove. Special markers are available
in UniCard format for the purpose of
marking such terminal blocks.
The universal marker groove can be
marked with markers in UniSheet format.
These are available unprinted or printed in
accordance with customer requirements.
10-section zack marker strips are available
in tall and flat versions. They are used to
mark terminal blocks, modules or
connectors and can be supplied unprinted
or printed.
Unmarked zack marker strips can
accommodate printed marker strips. Once
printed, the self-adhesive strip is simply
stuck onto the zack marker strip.
The marker strips can be used in both tall
and flat marker marker grooves. They can
be easily separated by hand since they are
pre-perforated for the pitch.
Self-adhesive marker strips can be applied
to all PCB terminal blocks and COMBICON
connectors. They can be supplied printed
on cards or unprinted on a roll.
Markers are available in both UniCard and
UniSheet formats for marking modular
terminal blocks from other manufacturers.
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-TM... UniCard marking range
includes markers for products with a tall
marker groove
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a marker groove,
120-section, 15individual labels per strip, for a terminal block width
of 4.2mm,
white UC-TM 4 0818111 10
red UC-TM 4 RD 0818250 10
orange UC-TM 4 OG 0818221 10
yellow UC-TM 4 YE 0818234 10
violet UC-TM 4 VT 0819084 10
blue UC-TM 4 BU 0818247 10
green UC-TM 4 GN 0818263 10
UniCard, for marking terminal blocks with a marker groove,
96-section, 12 individual labels per strip, for a terminal block width
of 5.2 mm
white UC-TM 5 0818108 10
red UC-TM 5 RD 0818302 10
orange UC-TM 5 OG 0818276 10
yellow UC-TM 5 YE 0818289 10
violet UC-TM 5 VT 0819107 10
blue UC-TM 5 BU 0818292 10
green UC-TM 5 GN 0818315 10
UniCard, for marking terminal blocks with a marker groove,
80-section, 10individual labels per strip, for a terminal block width
of 6.2mm
white UC-TM 6 0818085 10
red UC-TM 6 RD 0818357 10
orange UC-TM 6 OG 0818328 10
yellow UC-TM 6 YE 0818331 10
violet UC-TM 6 VT 0819110 10
blue UC-TM 6 BU 0818344 10
green UC-TM 6 GN 0818360 10
UniCard, for marking terminal blocks with a marker groove,
56-section, 7individual labels per strip, for a terminal block width of
8.2mm
white UC-TM 8 0818072 10
red UC-TM 8 RD 0818409 10
orange UC-TM 8 OG 0818373 10
yellow UC-TM 8 YE 0818386 10
violet UC-TM 8 VT 0819123 10
blue UC-TM 8 BU 0818399 10
green UC-TM 8 GN 0818412 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 1 5146079 1
Can be marked using:
UniCard terminal marking for tall
marker groove
56
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths
up to 8.2mm
UV LED technology Plotter
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a marker groove,
48-section, 6individual labels per strip, for a terminal block width of
10.2mm
white UC-TM 10 0818069 10
red UC-TM 10 RD 0818454 10
orange UC-TM 10 OG 0818425 10
yellow UC-TM 10 YE 0818438 10
violet UC-TM 10 VT 0815936 10
blue UC-TM 10 BU 0818441 10
green UC-TM 10 GN 0818467 10
UniCard, for marking terminal blocks with a marker groove,
40-section, 5individual labels per strip, for a terminal block width of
12mm
white UC-TM 12 0819194 10
red UC-TM 12 RD 0817701 10
orange UC-TM 12 OG 0817691 10
yellow UC-TM 12 YE 0819204 10
violet UC-TM 12 VT 0822660 10
blue UC-TM 12 BU 0817785 10
green UC-TM 12 GN 0817808 10
UniCard, for marking terminal blocks with a marker groove,
32-section, 4individual labels per strip, for a terminal block width of
16mm
white UC-TM 16 0819217 10
red UC-TM 16 RD 0817798 10
orange UC-TM 16 OG 0817772 10
yellow UC-TM 16 YE 0819220 10
violet UC-TM 16 VT 0822673 10
blue UC-TM 16 BU 0817769 10
green UC-TM 16 GN 0817756 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 1 5146079 1
57
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 16mm
UniCard terminal marking for
tall marker groove
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-TMF... UniCard marking range
includes markers for products with tall
and flat marker grooves
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a flat marker groove,
120-section, 15individual labels per strip, for a terminal block width
of 4.2mm
white UC-TMF 4 0818166 10
red UC-TMF 4 RD 0818506 10
orange UC-TMF 4 OG 0818470 10
yellow UC-TMF 4 YE 0818483 10
violet UC-TMF 4 VT 0815897 10
blue UC-TMF 4 BU 0818496 10
green UC-TMF 4 GN 0818519 10
UniCard, for marking terminal blocks with a flat marker groove,
96-section, 12individual labels per strip, for a terminal block width
of 5.2mm
white UC-TMF 5 0818153 10
red UC-TMF 5 RD 0818551 10
orange UC-TMF 5 OG 0818522 10
yellow UC-TMF 5 YE 0818535 10
violet UC-TMF 5 VT 0815907 10
blue UC-TMF 5 BU 0818548 10
green UC-TMF 5 GN 0818564 10
UniCard, for marking terminal blocks with a flat marker groove,
80-section, 10individual labels per strip, for a terminal block width
of 6.2mm
white UC-TMF 6 0818140 10
red UC-TMF 6 RD 0818603 10
orange UC-TMF 6 OG 0818577 10
yellow UC-TMF 6 YE 0818580 10
violet UC-TMF 6 VT 0815910 10
blue UC-TMF 6 BU 0818593 10
green UC-TMF 6 GN 0818616 10
UniCard, for marking terminal blocks with a flat marker groove,
64-section, 7individual labels per strip, for a terminal block width of
8.2mm
white UC-TMF 8 0818137 10
red UC-TMF 8 RD 0818658 10
orange UC-TMF 8 OG 0818629 10
yellow UC-TMF 8 YE 0818632 10
violet UC-TMF 8 VT 0815923 10
blue UC-TMF 8 BU 0818645 10
green UC-TMF 8 GN 0818661 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 4 5146105 1
Can be marked using:
UniCard terminal marking for flat
marker groove
58
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths
up to 8.2mm
UV LED technology Plotter
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a flat marker groove,
48-section, 6individual labels per strip, for a terminal block width of
10.2mm
white UC-TMF 10 0818124 10
red UC-TMF 10 RD 0818700 10
orange UC-TMF 10 OG 0818674 10
yellow UC-TMF 10 YE 0818687 10
violet UC-TMF 10 VT 0815981 10
blue UC-TMF 10 BU 0818690 10
green UC-TMF 10 GN 0818713 10
UniCard, for marking terminal blocks with a flat marker groove,
40-section, 5individual labels per strip, for a terminal block width of
12mm
white UC-TMF 12 0819233 10
red UC-TMF 12 RD 0817840 10
orange UC-TMF 12 OG 0817866 10
yellow UC-TMF 12 YE 0819246 10
violet UC-TMF 12 VT 0822686 10
blue UC-TMF 12 BU 0817853 10
green UC-TMF 12 GN 0817837 10
UniCard, for marking terminal blocks with a flat marker groove,
32-section, 4individual labels per strip, for a terminal block width of
16mm
white UC-TMF 16 0819262 10
red UC-TMF 16 RD 0817824 10
orange UC-TMF 16 OG 0817811 10
yellow UC-TMF 16 YE 0819259 10
violet UC-TMF 16 VT 0822699 10
blue UC-TMF 16 BU 0817905 10
green UC-TMF 16 GN 0817921 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 4 5146105 1
59
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 16mm
UniCard terminal marking for flat
marker groove
UV
x
y
1 2 3
P R I NT E D
FOR YOU
– The UC-TMN... UniCard marking range
includes markers for products with a
marking stud holder, such as mini terminal
blocks, transformer terminal blocks or
COMBICON PCB connection terminal
blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking transformer terminal blocks
96-section white UC-TMN 5,2 0822945 10
64-section white UC-TMN 7,5 0821823 10
48-section white UC-TMN 10 0828554 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 1 5146079 1
60
PHOENIX CONTACT
UV LED technology Plotter
Can be marked using:
UniCard terminal marking for
marking stud holders
Marking and labeling - MARKING system
Terminal marking
Stud-type markers for terminal block widths of
5.2/7.5/10mm
For further information and full technical data, visit phoenixcontact.net/products
61PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
x
y
1 2 3
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
2
1
P R I NT E D
FOR YOU
– The ZB zack marker strip system is a
marking solution for modular terminal
blocks and electronic modules with tall
marker grooves
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– Different pitches are possible on request
– Unmarked marking strips can be custom-
marked with a plotter or by hand
– Marking service: PhoenixContact can
custom-mark all zack marker strip
markers in accordance with your
requirements
Selection of marking direction
– Please take care to select the correct
marking direction for printed products
–① "Printed horizontally" marking, text is
the right way round for a horizontally
arranged terminal strip
–② "Printed vertically" marking, text is the
right way round for a vertically arranged
terminal strip
Notes:
1
) 10 identically marked strips make up one packing unit (PU).
Technical data
General data
Can be marked using CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Zack marker strip, 10-section, unprinted: pack contains enough
to label 100 terminal blocks
white ZB 3,5:UNBEDRUCKT 0829414 10
as above, however, large batch, sufficient for
1000 terminal blocks
white
Zack marker strip, printed horizontally, ten sections with
consecutive numbers, e.g., 1 - 10, 11 - 20, etc. up to 91 - 100,
(ZB3,5 and ZB4, max. 2 digits)
1
)
Markers for a terminal block width of 5.2mm white ZB 3,5,LGS:FORTL.ZAHLEN 0801404 10
Zack marker strip, printed horizontally, 10-section, with same
numbers, e.g., 1/1/1, 2/2/2, etc. up to 100/100/100
1
)
white
Zack marker strip, 10-section, printed horizontally:
with L1, L2, L3, N, PE
1
)
white
U, V, W, N, white
Zack marker strip, printed vertically, 10-section, with
consecutive numbers, e.g., 1-10, 11-20, etc. up to 91-100
1
)
white ZB 3,5,QR:FORT.ZAHLEN 0801405 10
Accessories
Magazine, for CMS-P1-PLOTTER
CMS-P1-M/ZB 5144699 1
62
PHOENIX CONTACT
Plotter
Can be marked using:
Zack marker strip terminal marking
for tall marker groove
Marking and labeling - MARKING system
Terminal marking
Markers for a terminal block width of 3.5mm Markers for a terminal block width of 4.2
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
CMS-P1-PLOTTER CMS-P1-PLOTTER CMS-P1-PLOTTER
PA PA PA
V2 V2 V2
-40 ... 100 -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZB 4 :UNBEDRUCKT 0805001 10 ZB 5 :UNBEDRUCKT 1050004 10 ZB 5,08:UNBEDRUCKT 0809793 10
ZB 4/WH-100:UNBEDRUCKT 0805810 100 ZB 5/WH-100:UNBEDRUCKT 5060906 100
ZB 4,LGS:FORTL.ZAHLEN 0805739 10 ZB 5,LGS:FORTL.ZAHLEN 1050017 10 ZB 5,08,LGS:FORTL.ZAHLEN 0809803 10
ZB 5,LGS:GLEICHE ZAHLEN 1050033 10
ZB 5,LGS:L1-N,PE 1050415 10 ZB 5,08,LGS:L1-N,PE 0809832 10
ZB 5,08,LGS:U-N 0809845 10
ZB 4,QR:FORTL.ZAHLEN 0805807 10 ZB 5,QR:FORTL.ZAHLEN 1050020 10 ZB 5,08,QR:FORTL.ZAHLEN 0809858 10
Accessories Accessories Accessories
CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1
63
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
mm Markers for a terminal block width of 4.2mm Markers for a terminal block width of 5.2mm Markers for a terminal block width of 5.08mm
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using CMS-P1-PLOTTER CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Zack marker strip, 10-section, unprinted: pack contains enough
to label 100 terminal blocks
white ZB 6:UNBEDRUCKT 1051003 10 ZB 6,6:UNBEDRUCKT 1052332 10
as above, however, large batch, sufficient for
1000 terminal blocks
white
Zack marker strip, printed horizontally, 10-section, with
consecutive numbers, e.g., 1-10, 11-20, etc. up to 91-100
Markers for a terminal block width of 6.2mm white ZB 6,LGS:FORTL.ZAHLEN 1051016 10 ZB 6,6,LGS:FORTL.ZAHLEN 1052345 10
Zack marker strip, printed horizontally, 10-section, with same
numbers, e.g., 1/1/1, 2/2/2, etc. up to 100/100/100
white ZB 6,LGS:GLEICHE ZAHLEN 1051032 10
Zack marker strip, 10-section, printed horizontally:
with L1, L2, L3, N, PE
white ZB 6,LGS:L1-N,PE 1051414 10
U, V, W, N, white ZB 6,LGS:U-N 1051430 10
Zack marker strip, printed vertically, 10-section, with
consecutive numbers, e.g., 1-10, 11-20, etc. up to 91-100
1
)
white ZB 6,QR:FORTL.ZAHLEN 1051029 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1
64
PHOENIX CONTACT
Markers for a terminal block width of 6.2mm Markers for a terminal block width of 6.6mm Markers for a terminal block width of 7.5
– The ZB zack marker strip system is a
marking solution for modular terminal
blocks and electronic modules with tall
marker grooves
– Marking service: PhoenixContact can
custom-mark all zack marker strip
markers in accordance with your
requirements
Notes:
1
) 10 identically marked strips make up one packing unit (PU).
Zack marker strip terminal marking
for tall marker groove
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
CMS-P1-PLOTTER CMS-P1-PLOTTER CMS-P1-PLOTTER
PA PA PA
V2 V2 V2
-40 ... 100 -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZB 7,5:UNBEDRUCKT 0803948 10 ZB 7,62:UNBEDRUCKT 1054000 10 ZB 8:UNBEDRUCKT 1052002 10
ZB 7,62/WH-100:UNBEDRUCKT 5060922 100 ZB 8/WH-100:UNBEDRUCKT 5060896 100
ZB 7,62,LGS:FORTL.ZAHLEN 1054233 10 ZB 8,LGS:FORTL.ZAHLEN 1052015 10
ZB 8,LGS:L1-N,PE 1052413 10
ZB 8,QR:FORTL.ZAHLEN 1052028 10
Accessories Accessories Accessories
CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1
65
PHOENIX CONTACT
mm Markers for a terminal block width of 7.5mm Markers for a terminal block width of 7.62mm Markers for a terminal block width of 8.2mm
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using CMS-P1-PLOTTER CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Zack marker strip, 10-section, unprinted: pack contains enough
to label 100 terminal blocks
white ZB 9:UNBEDRUCKT 0829127 10 ZB 10:UNBEDRUCKT 1053001 10
as above, however, large batch, sufficient for
1000 terminal blocks
white ZB10/WH-100:UNBEDRUCKT 5060883 100
5-section white
Flat zack marker strip, 10-section, printed horizontally: with
consecutive numbers, e.g., 1–10, 11–20, etc. up to 91–100
1
)
Markers for a terminal block width of 10.2mm white ZB10,LGS:FORTL.ZAHLEN 1053014 10
Zack marker strip, printed horizontally, 10-section, with same
numbers, e.g., 1/1/1, 2/2/2, etc. up to 100/100/100
1
)
white ZB10,LGS:GLEICHE ZAHLEN 1053030 10
Zack marker strip, 10-section, printed horizontally:
with L1, L2, L3, N, PE
1
)
white ZB10,LGS:L1-N,PE 1053412 10
U, V, W, N, white ZB10,LGS:U-N 1053438 10
5-section white
Zack marker strip, printed vertically, 10-section, with
consecutive numbers, e.g., 1-10, 11-20, etc. up to 91-100
1
)
white ZB10,QR:FORTL.ZAHLEN 1053027 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1
66
PHOENIX CONTACT
Markers for a terminal block width of 9mm Markers for a terminal block width of 10.2mm Markers for a terminal block width of 12
– The ZB zack marker strip system is a
marking solution for modular terminal
blocks and electronic modules with tall
marker grooves
– Marking service: PhoenixContact can
custom-mark all zack marker strip
markers in accordance with your
requirements
Notes:
1
) 10 identically marked strips make up one packing unit (PU).
Zack marker strip terminal marking
for tall marker groove
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
CMS-P1-PLOTTER CMS-P1-PLOTTER CMS-P1-PLOTTER
PA PA PA
V2 V2 V2
-40 ... 100 -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZB 12:UNPRINTED 0812120 10 ZB 13:UNBEDRUCKT 0829131 10 ZB 15:UNBEDRUCKT 0811972 10
ZB 12,LGS:L1-N,PE 0812146 10 ZB 15,LGS:L1-N,PE 0811998 10
Accessories Accessories Accessories
CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1
67
PHOENIX CONTACT
mm Markers for a terminal block width of 12mm Markers for a terminal block width of 13mm Markers for a terminal block width of 15mm
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using CMS-P1-PLOTTER CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Zack marker strip, 5-section, unprinted: pack contains enough
to label 50 terminal blocks
white ZB 16,3:UNPRINTED 0820222 10 ZB 17:UNBEDRUCKT 0829391 10
4-part, for 40 terminals white
Zack marker strip, 5-section, printed horizontally:
With L1, L2, L3, N, PE
1
)
white
4-section white
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1
68
PHOENIX CONTACT
Markers for a terminal block width of 16.3mm Markers for a terminal block width of 17mm Markers for a terminal block width of 18
– The ZB zack marker strip system is a
marking solution for modular terminal
blocks and electronic modules with tall
marker grooves
– Marking service: PhoenixContact can
custom-mark all zack marker strip
markers in accordance with your
requirements
Notes:
1
) 10 identically marked strips make up one packing unit (PU).
Zack marker strip terminal marking
for tall marker groove
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
CMS-P1-PLOTTER CMS-P1-PLOTTER CMS-P1-PLOTTER X-PEN 0,35 P-PEN
PA PA PA
V2 V2 V2
-40 ... 100 -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZB 18:UNBEDRUCKT 0811833 10
ZB 22:UNBEDRUCKT 0811862 10 ZB 25:UNPRINTED 0802751 10
ZB 18,LGS:L1-N,PE 0811846 10
ZB 22,LGS:L1-N,PE 0811875 10
Accessories Accessories Accessories
CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1CMS-P1-M/ZB 5144699 1
69
PHOENIX CONTACT
mm Markers for a terminal block width of 18mm Markers for a terminal block width of 22mm Markers for a terminal block width of 25mm
Marking and labeling - MARKING system
Terminal marking
x
y
1 2 3
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
2
1
P R I NT E D
FOR YOU
– The ZBF zack marker strip system with
flat marker groove is a marking solution
for terminal blocks and electronics
modules
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– Different pitches are possible on request
– Unmarked marking strips can be custom-
marked with a plotter or by hand
– Marking service: PhoenixContact can
custom-mark all zack marker strip
markers in accordance with your
requirements
Selection of marking direction
– Please take care to select the correct
marking direction for printed products
–① "Printed horizontally" marking, text is
the right way round for a horizontally
arranged terminal strip
–② "Printed vertically" marking, text is the
right way round for a vertically arranged
terminal strip
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100.
1
) 10 identically marked strips make up one packing unit (PU).
Technical data
General data
Can be marked using CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Zack flat marker strip, horizontal, 10-section, unprinted: pack
contains enough to label 100 terminal blocks
white ZBF 3,5:UNBEDRUCKT 0829392 10
as above, however, large batch, sufficient for 1000
terminal blocks
white
Zack marker strip, flat, printed horizontally, ten sections with
consecutive numbers, e.g., 1 - 10, 11 - 20, etc. up to 91 - 100,
(ZBF 3.5 and ZBF4, max. 2 digits)
1
)
Markers for a terminal block width of 5.2mm white ZBF 3,5,LGS:FORTL.ZAHLEN 0801406 10
Zack marker strip, flat, printed horizontally, 10-section, with
even numbers, e.g., 2-20, 22-40, etc. up to 82-100,
(ZBF 4 max. 2-digit)
1
)
white
Zack marker strip, flat, printed horizontally, 10-section, with
odd numbers, e.g. 1-19, 21-39, etc. up to 81-99,
(ZBF 4 max. 2-digit)
1
)
white
Zack marker strip, flat, printed vertically, 10-section, with
consecutive numbers, e.g., 1-10, 11-20, etc. up to 91-100
1
)
white ZBF 3,5,QR:FORTL.ZAHLEN 0801407 10
Accessories
Magazine, for CMS-P1-PLOTTER
CMS-P1-M/ZBF 5144709 1
70
PHOENIX CONTACT
Plotter
Can be marked using:
Zack marker strip terminal marking
for flat marker groove
Marking and labeling - MARKING system
Terminal marking
Markers for a terminal block width of 3.5mm Markers for a terminal block width of 4.2
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
CMS-P1-PLOTTER CMS-P1-PLOTTER CMS-P1-PLOTTER
PA PA PA
V2 V2 V2
-40 ... 100 -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZBF 4:UNBEDRUCKT 0808587 10 ZBF 5:UNBEDRUCKT 0808642 10 ZBF 6:UNBEDRUCKT 0808710 10
ZBF 4/WH-100:UNBEDRUCKT 0808613 100 ZBF 5/WH-100:UNBEDRUCKT 0808668 100 ZBF 6/WH-100:UNBEDRUCKT 0808736 100
ZBF 4,LGS:FORTL.ZAHLEN 0808626 10 ZBF 5,LGS:FORTL.ZAHLEN 0808671 10 ZBF 6,LGS:FORTL.ZAHLEN 0808749 10
ZBF 4,LGS:GERADE ZAHLEN 0810818 10 ZBF 5,LGS:GERADE ZAHLEN 0810821 10 ZBF 6,LGS:GERADE ZAHLEN 0810834 10
ZBF 4,LGS:UNGERADE ZAHLEN 0810850 10 ZBF 5,LGS:UNGERADE ZAHLEN 0810863 10 ZBF 6,LGS:UNGERADE ZAHLEN 0810876 10
ZBF 4,QR:FORTL.ZAHLEN 0808820 10 ZBF 5,QR:FORTL.ZAHLEN 0808697 10 ZBF 6,QR:FORTL.ZAHLEN 0808765 10
Accessories Accessories Accessories
CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1
71
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
mm Markers for a terminal block width of 4.2mm Markers for a terminal block width of 5.2mm Markers for a terminal block width of 6.2mm
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using CMS-P1-PLOTTER CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Zack marker strip, flat, 10-section, without color print
white ZBF 7,5:UNBEDRUCKT 0809942 10 ZBF 8:UNBEDRUCKT 0808781 10
5-section white
Zack marker strip, flat, printed horizontally, 10-section, with
consecutive numbers, e.g., 1-10, 11-20, etc. up to 91-100
1
)
Markers for a terminal block width of 8.2mm white ZBF 7,5,LGS:FORTL.ZAHLEN 0809955 10 ZBF 8,LGS:FORTL.ZAHLEN 0808804 10
Zack marker strip, flat, printed vertically, 10-section, with
consecutive numbers, e.g., 1-10, 11-20, etc. up to 91-100
1
)
white ZBF 7,5,QR:FORTL.ZAHLEN 0809968 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1
72
PHOENIX CONTACT
Markers for a terminal block width of 7.5mm Markers for a terminal block width of 8.2mm Markers for a terminal block width of 9
– The ZBF zack marker strip system with
flat marker groove is a marking solution
for terminal blocks and electronics
modules
– Marking service: PhoenixContact can
custom-mark all zack marker strip
markers in accordance with your
requirements
Notes:
1
) 10 identically marked strips make up one packing unit (PU).
Zack marker strip terminal marking
for flat marker groove
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
CMS-P1-PLOTTER CMS-P1-PLOTTER CMS-P1-PLOTTER
PA PA PA
V2 V2 V2
-40 ... 100 -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZBF 9:UNBEDRUCKT 0829129 10 ZBF10:UNBEDRUCKT 0809997 10
ZBF 12:UNBEDRUCKT 0809735 10
ZBF10,LGS:FORTL.ZAHLEN 0810009 10
ZBF10,QR:FORTL.ZAHLEN 0810025 10
Accessories Accessories Accessories
CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1
73
PHOENIX CONTACT
mm Markers for a terminal block width of 9mm Markers for a terminal block width of 10.2mm Markers for a terminal block width of 12mm
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using CMS-P1-PLOTTER CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Zack marker strip, flat, 5-section, without color print
white ZBF 13:UNBEDRUCKT 0829133 10 ZBF 15:UNBEDRUCKT 0811202 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1
74
PHOENIX CONTACT
Markers for a terminal block width of 13mm Markers for a terminal block width of 15mm Markers for a terminal block width of 16.3
– The ZBF zack marker strip system with
flat marker groove is a marking solution
for terminal blocks and electronics
modules
– Marking service: PhoenixContact can
custom-mark all zack marker strip
markers in accordance with your
requirements
Zack marker strip terminal marking
for flat marker groove
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
CMS-P1-PLOTTER CMS-P1-PLOTTER CMS-P1-PLOTTER
PA PA PA
V2 V2 V2
-40 ... 100 -40 ... 100 -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZBF 16:UNPRINTED 0827464 10 ZBF 17:UNBEDRUCKT 0815020 10 ZBF 19,7:UNBEDRUCKT 0810627 10
Accessories Accessories Accessories
CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1CMS-P1-M/ZBF 5144709 1
75
PHOENIX CONTACT
mm Markers for a terminal block width of 16.3mm Markers for a terminal block width of 17mm Markers for a terminal block width of 19.7mm
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
1
2
2
1
UV
– The UCT-TM... UniCard marking range
includes markers for products with tall
marker grooves
– The markers, which are supplied in
uniform sheets, can be marked quickly,
easily, and precisely using the TOPMARK
LASER, BLUEMARK..., and the
THERMOMARK CARD
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100.
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a marker groove,
102-section, 17individual labels per strip, for a terminal block width
of 3.5mm
white UCT-TM 3,5 0829484 10
red UCT-TM 3,5 RD 0829505 10
orange UCT-TM 3,5 OG 0829506 10
yellow UCT-TM 3,5 YE 0829485 10
violet UCT-TM 3,5 VT 0829507 10
blue UCT-TM 3,5 BU 0829508 10
green UCT-TM 3,5 GN 0829509 10
UniCard, for marking terminal blocks with a marker groove,
84-section, 14individual labels per strip, for a terminal block width
of 4.2mm
white UCT-TM 4 0828732 10
red UCT-TM 4 RD 0829149 10
orange UCT-TM 4 OG 0829150 10
yellow UCT-TM 4 YE 0828733 10
violet UCT-TM 4 VT 0829151 10
blue UCT-TM 4 BU 0829152 10
green UCT-TM 4 GN 0829153 10
UniCard, for marking terminal blocks with a marker groove,
72-section, 12individual labels per strip, for a terminal block width
of 5.2mm
white UCT-TM 5 0828734 10
red UCT-TM 5 RD 0829154 10
orange UCT-TM 5 OG 0829155 10
yellow UCT-TM 5 YE 0828735 10
violet UCT-TM 5 VT 0829156 10
blue UCT-TM 5 BU 0829157 10
green UCT-TM 5 GN 0829158 10
UniCard, for marking terminal blocks with a marker groove,
60-section, 10individual labels per strip, for a terminal block width
of 6.2mm
white UCT-TM 6 0828736 10
red UCT-TM 6 RD 0829159 10
orange UCT-TM 6 OG 0829160 10
yellow UCT-TM 6 YE 0828737 10
violet UCT-TM 6 VT 0829161 10
blue UCT-TM 6 BU 0829162 10
green UCT-TM 6 GN 0829163 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating: UCT–TM..., UCT1–TM..., UCT5–TM...,
UCT–EM(5X10), UCT-EM(6X10)
THERMOMARK CARD-UCT-MAG1 5146480 1
Can be marked using:
UniCard terminal marking for tall
marker groove
76
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for a terminal block width of up to
6.2mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a marker groove,
48-section, 8individual labels per strip, for a terminal block width of
7.62mm
white UCT-TM 7,62 0828738 10
red UCT-TM 7,62 RD 0829510 10
orange UCT-TM 7,62 OG 0829511 10
yellow UCT-TM 7,62 YE 0828739 10
violet UCT-TM 7,62 VT 0829512 10
blue UCT-TM 7,62 BU 0829513 10
green UCT-TM 7,62 GN 0829514 10
UniCard, for marking terminal blocks with a marker groove,
42-section, 7individual labels per strip, for a terminal block width of
8.2mm
white UCT-TM 8 0828740 10
red UCT-TM 8 RD 0829164 10
orange UCT-TM 8 OG 0829165 10
yellow UCT-TM 8 YE 0828741 10
violet UCT-TM 8 VT 0829166 10
blue UCT-TM 8 BU 0829167 10
green UCT-TM 8 GN 0829168 10
UniCard, for marking terminal blocks with a marker groove,
36-section, 6individual labels per strip, for a terminal block width of
10.2mm
white UCT-TM 10 0829142 10
red UCT-TM 10 RD 0829169 10
orange UCT-TM 10 OG 0829170 10
yellow UCT-TM 10 YE 0829143 10
violet UCT-TM 10 VT 0829171 10
blue UCT-TM 10 BU 0829172 10
green UCT-TM 10 GN 0829173 10
UniCard, for marking terminal blocks with a marker groove,
30-section, 5individual labels per strip, for a terminal block width of
12mm
white UCT-TM 12 0829144 10
red UCT-TM 12 RD 0829174 10
orange UCT-TM 12 OG 0829175 10
yellow UCT-TM 12 YE 0829145 10
violet UCT-TM 12 VT 0829176 10
blue UCT-TM 12 BU 0829177 10
green UCT-TM 12 GN 0829178 10
UniCard, for marking terminal blocks with a marker groove,
18-section, 3 individual labels per strip, for a terminal block width of
16 mm
white UCT-TM 16 0829146 10
red UCT-TM 16 RD 0829179 10
orange UCT-TM 16 OG 0829180 10
yellow UCT-TM 16 YE 0829147 10
violet UCT-TM 16 VT 0829181 10
blue UCT-TM 16 BU 0829182 10
green UCT-TM 16 GN 0829183 10
77
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 16mm
UniCard terminal marking for
tall marker groove
P R I NT E D
FOR YOU
1
2
2
1
UV
– The UCT-TMF... UniCard marking range
includes markers for products with tall
and flat marker grooves
– The markers, which are supplied in
uniform sheets, can be marked quickly,
easily, and precisely using the TOPMARK
LASER, BLUEMARK..., and the
THERMOMARK CARD
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a flat marker groove,
108-section, 18individual labels per strip, for a terminal block width
of 3.5mm
white UCT-TMF 3,5 0829486 10
red UCT-TMF 3,5 RD 0829515 10
orange UCT-TMF 3,5 OG 0829516 10
yellow UCT-TMF 3,5 YE 0829487 10
violet UCT-TMF 3,5 VT 0829517 10
blue UCT-TMF 3,5 BU 0829518 10
green UCT-TMF 3,5 GN 0829519 10
UniCard, for marking terminal blocks with a flat marker groove, 90-
section, 15individual labels per strip, for a terminal block width of
4.2mm
white UCT-TMF 4 0828742 10
red UCT-TMF 4 RD 0829184 10
orange UCT-TMF 4 OG 0829185 10
yellow UCT-TMF 4 YE 0828743 10
violet UCT-TMF 4 VT 0829186 10
blue UCT-TMF 4 BU 0829187 10
green UCT-TMF 4 GN 0829188 10
UniCard, for marking terminal blocks with a flat marker groove, 72-
section, 12individual labels per strip, for a terminal block width of
5.2mm
white UCT-TMF 5 0828744 10
red UCT-TMF 5 RD 0829189 10
orange UCT-TMF 5 OG 0829190 10
yellow UCT-TMF 5 YE 0828745 10
violet UCT-TMF 5 VT 0829191 10
blue UCT-TMF 5 BU 0829192 10
green UCT-TMF 5 GN 0829193 10
UniCard, for marking terminal blocks with a flat marker groove, 60-
section, 10individual labels per strip, for a terminal block width of
6.2mm
white UCT-TMF 6 0828746 10
red UCT-TMF 6 RD 0829194 10
orange UCT-TMF 6 OG 0829195 10
yellow UCT-TMF 6 YE 0828747 10
violet UCT-TMF 6 VT 0829196 10
blue UCT-TMF 6 BU 0829197 10
green UCT-TMF 6 GN 0829198 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating:
UCT–TMF ...
THERMOMARK CARD-UCT-MAG2 5146563 1
Can be marked using:
UniCard terminal marking for flat
marker groove
78
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for a terminal block width of up to
6.2mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks with a flat marker groove,
42-section, 7individual labels per strip, for a terminal block width of
8.2mm
white UCT-TMF 8 0828748 10
red UCT-TMF 8 RD 0829199 10
orange UCT-TMF 8 OG 0829200 10
yellow UCT-TMF 8 YE 0828749 10
violet UCT-TMF 8 VT 0829201 10
blue UCT-TMF 8 BU 0829202 10
green UCT-TMF 8 GN 0829203 10
UniCard, for marking terminal blocks with a flat marker groove,
36-section, 6individual labels per strip, for a terminal block width of
10.2mm
white UCT-TMF 10 0829204 10
red UCT-TMF 10 RD 0829205 10
orange UCT-TMF 10 OG 0829206 10
yellow UCT-TMF 10 YE 0829207 10
violet UCT-TMF 10 VT 0829208 10
blue UCT-TMF 10 BU 0829209 10
green UCT-TMF 10 GN 0829210 10
UniCard, for marking terminal blocks with a flat marker groove,
30-section, 5individual labels per strip, for a terminal block width of
12mm
white UCT-TMF 12 0829214 10
red UCT-TMF 12 RD 0829212 10
orange UCT-TMF 12 OG 0829213 10
yellow UCT-TMF 12 YE 0829211 10
violet UCT-TMF 12 VT 0829215 10
blue UCT-TMF 12 BU 0829216 10
green UCT-TMF 12 GN 0829217 10
UniCard, for marking terminal blocks with a flat marker groove,
24-section, 4individual labels per strip, for a terminal block width of
16mm
white UCT-TMF 16 0829218 10
red UCT-TMF 16 RD 0829219 10
orange UCT-TMF 16 OG 0829220 10
yellow UCT-TMF 16 YE 0829221 10
violet UCT-TMF 16 VT 0829222 10
blue UCT-TMF 16 BU 0829223 10
green UCT-TMF 16 GN 0829224 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating:
UCT–TMF ...
THERMOMARK CARD-UCT-MAG2 5146563 1
79
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 16mm
UniCard terminal marking for flat
marker groove
P R I NT E D
FOR YOU
1
2
2
1
– The US-TM100 UniSheet markers are
suitable for products with universal
marker grooves
– The markers, which are supplied as
uniform cards, can be printed onto
quickly, easily, and precisely using the
THERMOMARKCARD
– The perforated marking strips are easy to
separate and can be easily fitted
– The cards provide space for including
function texts
– Marking service: PhoenixContact can
custom-mark all UniSheet markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100.
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, for marking push-in terminal blocks with a special center
groove
white US-TM 100 0829255 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet terminal marking for a
universal marker groove
80
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
13 strips with a strip width of 104mm
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
– The US-TMF100 UniSheet markers are
suitable for products with a flat marker
groove
– The markers, which are supplied as
uniform cards, can be printed onto
quickly, easily, and precisely using the
THERMOMARKCARD
– The perforated marking strips are easy to
separate and can be easily fitted
– The cards provide space for including
function texts
– Marking service: PhoenixContact can
custom-mark all UniSheet markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, for marking terminal blocks with a tall, flat or universal
marker groove
white US-TMF 100 0829260 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet terminal marking for a flat
marker groove
81
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
20 strips with a strip width of 104mm
Thermal transfer for sheets
and cards
1
2
2
1
– The US-TML marking range includes self-
adhesive marker strips for products
without a marker groove
– The markers, which are supplied as
uniform cards, can be printed onto
quickly, easily, and precisely using the
THERMOMARKCARD
– The perforated marking strips are easy to
separate and can be easily fitted
– The cards provide space for including
function texts
Technical data
General data
Can be marked using THERMOMARK CARD THERMOMARK CARD THERMOMARK CARD THERMOMARK CARD
Number of individual labels 26
Number of individual labels per strip 1
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet,unprinted, for marking terminal blocks without marker
groove
Lettering field size: 104x2.8mm white US-TML (104X2,8) 0830767 10
UniSheet,unprinted, for marking terminal blocks without marker
groove
Lettering field size: 104x3.8mm white
Lettering field size: 104x5mm white
Lettering field size: 104x10mm white
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
82
PHOENIX CONTACT
Thermal transfer for sheets
and cards
Can be marked using:
UniSheet marker strips, self-adhesive,
for terminal blocks without marker
groove
Marking and labeling - MARKING system
Terminal marking
26 strips, 104 mm wide, 2.8 mm high 22 strips, 104 mm wide, 3.8 mm high 19 strips, 104 mm wide, 5 mm high 11 strips, 104 mm wide,
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Can be marked using THERMOMARK CARD THERMOMARK CARD THERMOMARK CARD THERMOMARK CARD
22 19 11
111
Polyester Polyester Polyester
-40 ... 150 -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
US-TML (104X3,8) 0830768 10
US-TML (104X5) 0830769 10
US-TML (104X10) 0830770 10
Accessories Accessories Accessories
THERMOMARK CARD-US-MAG1 5146451 1THERMOMARK CARD-US-MAG1 5146451 1THERMOMARK CARD-US-MAG1 5146451 1
83PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
26 strips, 104 mm wide, 2.8 mm high 22 strips, 104 mm wide, 3.8 mm high 19 strips, 104 mm wide, 5 mm high 11 strips, 104 mm wide, 10 mm high
P R I NT E D
FOR YOU
2
1
1
2
– The TMT marking range includes markers
for all products with tall and flat marker
grooves
– The markers that are supplied on rolls can
be quickly and cost-effectively marked
using THERMOMARK printers
– The perforated marking strips are easy to
separate and can be easily fitted using the
tool supplied
– Marking service: PhoenixContact can
custom-mark all TMT markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100.
1
) The TMTTOOL snap-in tool can only be used for terminal blocks
from PhoenixContact.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Markers, perforated, unprinted, for a terminal block width of
4.2mm, for all terminal blocks with a tall, flat or universal marker
groove, 1 roll = 1000 strips, 24,000 individual labels, 24 individual
labels per strip, strip height: 6.4mm, incl. TMTTOOL
white TMT 4 R 0816375 1
Markers, as above, for a terminal block width of 5.2mm, 1 roll =
1000 strips, 19,000 individual labels, 19 individual labels per strip,
incl. TMT TOOL
white TMT 5 R 0816430 1
Markers, as above, for a terminal block width of 6.2mm, 1 roll =
1000 strips, 16,000 individual labels, 16 individual labels per strip,
incl. TMT TOOL
white TMT 6 R 0816498 1
Markers, as above, for a terminal block width of 8.2mm, 1 roll =
1000 strips, 12,000 individual labels, 12 individual labels per strip,
incl. TMT TOOL
white TMT 8 R 0816553 1
Accessories
Locking tool to snap into the TMT... materials
1
)
orange TMT TOOL 0816650 1
Can be marked using:
Marker strips for terminal marking,
for tall and flat marker grooves
84
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths
up to 8.2mm
Thermal transfer for rolls
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Markers, perforated, unprinted, for all terminal blocks with a tall,
flat or universal marker groove, 1 roll = 1000 strips, 10,000
individual labels, 10 individual labels per strip, strip height: 6.4mm,
incl. TMTTOOL
white TMT 10 R 0816210 1
Markers, for terminal blocks, unperforated, unprinted, strip
width: 101.5mm, 1roll = 1000 strips, 1000 individual labels, 1
individual label per strip, incl. TMTTOOL
white TMT 100 R 0816605 1
Accessories
Locking tool to snap into the TMT... materials
1
)
orange TMT TOOL 0816650 1
85
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for a terminal block width of 10.2mm
Notes:
1
) The TMTTOOL snap-in tool can only be used for terminal blocks
from PhoenixContact.
Marker strips for terminal marking,
for tall and flat marker grooves
P R I NT E D
FOR YOU
2
1
1
2
– The TMT marking range includes markers
for all products with tall and flat marker
grooves
– Marking service: PhoenixContact can
custom-mark all TMT markers in
accordance with your requirements
Notes:
1
) The TMTTOOL snap-in tool can only be used for terminal blocks
from PhoenixContact.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material PVC
Material strength 0.50 mm -
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Insert strips, unprinted, 1roll=50m, continuous
Strip height:5.5mm white TMT (EX5,5)R 0803062 1
Strip height:6.2mm white TMT (EX6,2)R 0803063 1
Strip height:6.5mm white TMT (EX6,5)R 0803064 1
Strip height:7.5mm white TMT (EX7,5)R 0803065 1
Strip height:8mm white TMT (EX8)R 0803066 1
Strip height:8.5mm white TMT (EX8,5)R 0803067 1
Strip height:9.5mm white TMT (EX9,5)R 0828295 1
Strip height:10mm white TMT (EX10)R 0803068 1
Strip height:10.5mm white TMT (EX10,5)R 0803070 1
Strip height:10.8mm white TMT2 (EX11)R 0802683 1
Strip height:12mm white TMT (EX12)R 0803071 1
Accessories
Locking tool to snap into the TMT... materials
1
)
orange TMT TOOL 0816650 1
External media hub, for roll diameters of 150 mm to 400mm
THERMOMARK ROLL-ERH 5146448 1
Can be marked using:
Terminal marking, marker strips for
tall and flat marker grooves
86
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
For further information and full technical data, visit phoenixcontact.net/products
87PHOENIX CONTACT
TMT ... terminal marking for terminal blocks from Phoenix Contact and other manufacturers
TMT (EX5,5)R
TMT (EX6,2)R
TMT (EX6,5)R
TMT (EX7,5)R
TMT (EX8)R
TMT (EX8,5)R
TMT (EX9,5)R
TMT (EX10)R
TMT (EX10,5)R
TMT2 (EX11)R
TMT (EX12)R
TMT- markers, roll 0803062
0803063 0803064 0803065 0803066 0803067 0828295 0803068 0803070 0802683 0803071
Strip height 5.5 6.2 6.5 7.5 8 8.5 9.5 10 10.5 10.8 12
Terminal manufacturer
Phoenix Contact
Fuji Electronics Industry
IDEC
KASUGA
TOGI
WAGO (2001 ... - 2016 ...)
Yoshida Electronics
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
2
1
1
2
– The products in the TML marking range
allow subsequent marking of zack marker
strip materials and flat zack marker strip
materials using a marking foil
– The markers that are supplied on rolls can
be quickly and cost-effectively marked
using THERMOMARK printers
– Marking service: PhoenixContact can
custom-mark all TML markers in
accordance with your requirements
Notes:
An overview of the terminal blocks that can be marked that are
available from Phoenix Contact can be found starting on page 100
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2 THERMOMARK S1.1 THERMOMARK ROLL X1
Number of individual labels per strip 1
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marking foil for zack marker strip, unprinted, perforated, 1 roll
= 1000 strips, strip length: 101mm, strip height: 9.5mm
transparent TML (101X9,5)R TR 0816647 1
Marking foil for zack marker strip, flat, unprinted, perforated, 1
roll = 1000 strips, strip length: 101 mm, strip height: 4.2 mm
transparent TML (101X4,2)R TR 0816621 1
Can be marked using:
Self-adhesive marker strips
88
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Marker with strip width of 101.5 mm
Thermal transfer for rolls
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2 THERMOMARK S1.1 THERMOMARK ROLL X1
Number of individual labels per strip 10
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marking foil for zack marker strip, unprinted, 1 roll = 40m
continuous, strip height: 9.5mm
transparent TML (EX9,5)R TR 0816634 1
Marking foil for zack marker strip, flat, unprinted, 1 roll = 40m
continuous, strip height: 4.2mm
transparent TML (EX4,2)R TR 0816715 1
Marking foil for zack marker strip, unprinted, 1roll = 30m
continuous, strip height: 7mm
white TML (EX7)R 0830837 1
Marking foil for zack marker strip, unprinted, 1roll = 30m
continuous, strip height: 7mm
silver TML (EX7)R SR 0830838 1
89
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Marker with strip height of 9.5 mm and 4.2 mm,
continuous
Self-adhesive marker strips
2
1
1
2
– The TML marking range provides self-
adhesive marker strips for marking
products that do not have a marker
groove
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2 THERMOMARK S1.1 THERMOMARK ROLL X1
Number of individual labels per strip 1
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Self-adhesive marker strips, unprinted
1 roll = 2500 strips, lettering field size: 104 x 2.8mm white TML (104X2,8)R 0801832 1
1 roll = 2500 strips, lettering field size: 104 x 3.8mm white TML (104X3,8)R 0801833 1
1 roll = 2500 strips, lettering field size: 104 x 5mm white TML (104X5)R 0801834 1
1 roll = 1500 strips, lettering field size: 104 x 10mm white TML (104X10)R 0801835 1
Self-adhesive marker strips for
terminal blocks without a marker
groove
90
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Unmarked
Thermal transfer for rolls
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– The TML marking range provides self-
adhesive marker strips for marking
products that do not have a marker
groove
– The marker strips are automatically
perforated or cut to the required length
during the printing process
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2 THERMOMARK S1.1 THERMOMARK ROLL X1
Number of individual labels per strip 14
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Self-adhesive marker strips, unprinted, continuous
1 roll = 30m continuous, strip height: 2.8mm white TML (EX2,8)R 0801836 1
1 roll = 30m continuous, strip height: 3.8mm white TML (EX3,8)R 0801837 1
1 roll = 30m continuous, strip height: 5mm white TML (EX5)R 0801838 1
white TML (EX7)R 0830837 1
1 roll = 30m continuous, strip height: 10mm white TML (EX10)R 0801839 1
Self-adhesive marker strips for
terminal blocks without marker
groove, continuous
91
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Unmarked
Thermal transfer for rolls
P R I NT E D
FOR YOU
– The SK range of self-adhesive labels can
be used to label products that do not
feature a marker groove
– The markers that are supplied on rolls can
be quickly and cost-effectively marked
using THERMOMARK printers
– The markers that are supplied as cards
can be easily marked using standard laser
printers
– Ideal for marking COMBICON
connectors
– Marking service: PhoenixContact can
custom-mark SK markers in accordance
with your requirements
Technical data
General data
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker card, printed horizontally, self-adhesive, 10-section
marker strips, 14 identical sets of ten marked, e.g.,1 - 10, 11 - 20,
and so on up to 91 - 99, enough to label 140 terminal blocks
white SK 2,54/2,8:FORTL.ZAHLEN 0804853 10
Marker card, printed horizontally, self-adhesive, 10-section
marker strips, 14 identical sets of ten marked, e.g.,1 - 10, 11 - 20,
and so on up to 91 - 99, enough to label 140 terminal blocks
white SK 3,5/2,8:FORTL.ZAHLEN 0804073 10
Marker card, printed horizontally, self-adhesive, 10-section
marker strips, 14 identical sets of ten marked, e.g.,1 - 10, 11 - 20,
and so on up to 91 - 99, enough to label 140 terminal blocks
white SK 3,81/2,8:FORTL.ZAHLEN 0804109 10
Marker card, printed horizontally, self-adhesive, 10-section
marker strips, 14 identical sets of ten marked, e.g.,1 - 10, 11 - 20,
and so on up to 91 - 100, enough to label 140 terminal blocks
white SK 5,08/2,8:FORTL.ZAHLEN 0804280 10
Marker card, unprinted, DIN A4 format, pitch as desired, self-
adhesive, with 50 perforated marker strips, strip length of 185 mm
white SK U/2,8 WH:UNBEDRUCKT 0803883 10
Self-adhesive marker strips, unprinted, continuous, material
off the roll, for marking with thermal transfer printer, can be
separated using cutter, pitch as desired, strip length of up to
1000mm, 14strips, strip height of2.8mm, 1roll = 90m
white SK 2,8 WH:REEL 0805205 1
Self-adhesive marker strips for
terminal blocks without a marker
groove
92
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers marked up to 5.08mm pitch
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker card, printed horizontally, self-adhesive, 10-section
marker strip, 12 identical sets of ten marked, for example, with
1-10, 11-20 etc. up to 91-100, sufficient for 120 terminal blocks
white SK 5/3,8:FORTL.ZAHLEN 0804183 10
Marker card, printed horizontally, self-adhesive, 10-section
marker strip, 12 identical sets of ten marked, for example, with
1-10, 11-20 etc. up to 91-100, sufficient for 120 terminal blocks
white SK 5,08/3,8:FORTL.ZAHLEN 0804293 10
Marker card, printed horizontally, self-adhesive, 10-section
marker strip, 12 identical sets of ten marked, for example, with
1-10, 11-20 etc. up to 91-100, sufficient for 120 terminal blocks
white SK 6,2/3,8:FORTL.ZAHLEN 0804374 10
Marker card, printed horizontally, self-adhesive, 10-section
marker strip, 12 identical sets of ten marked, for example, with
1-10, 11-20 etc. up to 91-100, sufficient for 120 terminal blocks
white SK 7,5/3,8:FORTL.ZAHLEN 0804455 10
Marker card, printed horizontally, self-adhesive, 10-section
marker strip, 12 identical sets of ten marked, for example, with
1-10, 11-20 etc. up to 91-100, sufficient for 120 terminal blocks
white SK 7,62/3,8:FORTL.ZAHLEN 0804549 10
Marker card, unprinted, DIN A4 format, pitch as desired, self-
adhesive, with 40 perforated marker strips, strip length of 185 mm
white SK U/3,8 WH:UNBEDRUCKT 0803906 10
Self-adhesive marker strips, unprinted, continuous, material
off the roll, for marking with thermal transfer printer, can be
separated using cutter, pitch as desired, strip length of up to
1000mm, 12strips, strip height of3.8mm, 1roll = 90m
white SK 3,8 WH:REEL 0805218 1
93
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers marked up to 7.62mm pitch
Self-adhesive marker strips for
terminal blocks without a marker
groove
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Material Polyester Polyester
Temperature range [°C] -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Marker card, printed horizontally, self-adhesive, 10-section
marker strip, 10 identical sets of ten marked 1-10, 11-20 etc. up to
91-100, for example, sufficient for 100 terminal blocks
white SK 7,5/5:FORTL.ZAHLEN 0804468 10 SK 7,62/5:FORTL.ZAHLEN 0804552 10
Marker card, unprinted, DIN A4 format, pitch as desired, self-
adhesive, with 35 perforated marker strips, strip length of 185 mm
white SK U/5,0 WH:UNBEDRUCKT 0803922 10 SK U/5,0 WH:UNBEDRUCKT 0803922 10
Self-adhesive marker strips, unprinted, continuous, material
off the roll, for marking with thermal transfer printer, can be
separated using cutter, pitch as desired, strip length of up to
1000mm, 10strips, strip height of5.0mm, 1roll = 90m
white SK 5,0 WH:REEL 0805221 1SK 5,0 WH:REEL 0805221 1
94
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers marked with 7.5mm pitch Markers marked with 7.62mm pitch
– The SK range of self-adhesive labels can
be used to label products that do not
feature a marker groove
– Marking service: PhoenixContact can
custom-mark all SK markers according to
your requirements
Self-adhesive marker strips for
terminal blocks without a marker
groove
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2 THERMOMARK S1.1 THERMOMARK ROLL X1
CMS-P1-PLOTTER Office printing systems
Material Polyester Polyester
Temperature range [°C] -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Self-adhesive marker strips, unprinted, continuous, material
off the roll, for marking with thermal transfer printer, can be
separated using cutter, pitch as desired, strip length of up to
1000mm, 14strips, strip height of2.8mm, 1roll = 90m
white SK 2,8 WH:REEL 0805205 1
Self-adhesive marker strips, unprinted, continuous, material
off the roll, for marking with thermal transfer printer, can be
separated using cutter, pitch as desired, strip length of up to
1000mm, 12strips, strip height of3.8mm, 1roll = 90m
white SK 3,8 WH:REEL 0805218 1
Self-adhesive marker strips, unprinted, continuous, material
off the roll, for marking with thermal transfer printer, can be
separated using cutter, pitch as desired, strip length of up to
1000mm, 10strips, strip height of5.0mm, 1roll = 90m
white SK 5,0 WH:REEL 0805221 1
Self-adhesive marker strips, unprinted, continuous, material
off the roll, for marking with thermal transfer printer, can be
separated using cutter, pitch as desired, strip length of up to
1000mm, 7strips, strip height of10mm, 1roll = 90m
white SK 10,0 WH:REEL 0812188 1
Marker card, unprinted, DIN A4 format, pitch as desired, self-
adhesive, with 50 perforated marker strips, strip length of 185 mm
white SK U/2,8 WH:UNBEDRUCKT 0803883 10
Marker card, unprinted, DIN A4 format, pitch as desired, self-
adhesive, with 40 perforated marker strips, strip length of 185 mm
white SK U/3,8 WH:UNBEDRUCKT 0803906 10
Marker card, unprinted, DIN A4 format, pitch as desired, self-
adhesive, with 35 perforated marker strips, strip length of 185 mm
white SK U/5,0 WH:UNBEDRUCKT 0803922 10
95
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers with a strip length of up to 1000mm Markers with a strip length of up to 185mm
Self-adhesive marker strips for
terminal blocks without a marker
groove
P R I NT E D
FOR YOU
1
2
2
1
UV
– Group marking which saves space
– Large marking option
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the TOPMARK LASER,
BLUEMARK..., and THERMOMARK
CARD
– The format automatically ensures printing
with a high level of positional accuracy
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, can be marked with THERMOMARKCARD and
BLUEMARK, 24-section, 8individual labels per strip, lettering field
size: 30 x 5mm
white UCT-EM (30X5) 0801505 10
yellow UCT-EM (30X5) YE 0830340 10
Accessories
End bracket, for snapping onto NS35, 5.15 mm wide, can be
marked with ZB 5 and UCT-EM(30X5), parking option for bridges
and test plugs
CLIPFIX 35-5 3022276 50
Magazine, for THERMOMARKCARD..., for accommodating:
UCT–EM(30X5)
THERMOMARK CARD-UCT-MAG10 0801737 1
Can be marked using:
UniCard group marking for snapping
into CLIPFIX35-5 end bracket
96
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material PA PA / PC
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 120 -40 ... 100
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Group marking label, can be snapped into terminal center, can be
marked with an EML(24X3)R or EML(25,4X12,7)R... label or
manually with B–STIFT or X–PEN, in the foot part with ZB3,5
gray GBS 3,5-25X3,5 0830290 100
gray GBS 3,5-25X12 0830292 100
Group marking label, can be snapped into terminal center, can be
marked with an EML(24X4)R or EML(25,4X12,7)R label or
manually with B–STIFT or X–PEN, in the foot part with ZB5, UC–
TM5
gray GBS 5-25X5 0829126 100
gray GBS 5-25X12 0810588 100
Group marking label, can be snapped into terminal center, can be
marked with ESL26x6 or EMT(25x6)R insert strips, in foot part
with zack marker strip ZB, length: 29mm
gray GBS-ZB/26X6 0809298 50
Accessories Accessories
Labels for thermal transfer printer
2500 labels per roll white EML (24X3)R 0830291 1
2500 labels per roll white EML (25,4X12,7)R 0816825 1
1000 labels per roll white EML (24X4)R 0800061 1
Insert strip for laser printer, perforated, for terminal strip marker
KLM, marking field: 26 x 6 mm
Lettering field size: 26 x 6 mm white ESL 26X6 0808105 10
Insert labels for thermal transfer printer, halogen-free
Lettering field size: 25x6mm, 5000labels per roll white EMT (25X6)R 0817264 1
97PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
3.5mm and 5.2mmpitch 29mm pitch
– Space-saving group marking directly on
the terminal block
– Fits all terminal blocks with design width
of 3.5mm and a tall center marker groove
– Large-surface marking with labels or
manually using B–STIFT or X–PEN
Marking of terminal block groups for
snapping into tall marker grooves
Technical data
General data
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 100
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Double marker carrier, can be snapped into push-in double-level
terminal blocks PTTB 1,5/S, can be marked with ZB 3,5 or ZBF 3,5
gray STP 3,5-2 0830131 100
Triple marker carrier, can be snapped into the push-in three-level
terminal block PT 1,5/S-3..., can be marked with ZB 3,5 or ZBF 3,5
gray STP 3,5-3 0830132 100
Double marker carrier, can be snapped into the double-level
terminal blocks STTB1,5, PTTB1,5, can be marked with UC-TM4,
ZB4 or UC-TMF4, ZBF4
gray STP 4-2 0810575 100
Double marker carrier, can be snapped into STTB 2.5, STTB 4,
PTTB 2.5, PTTB 4 double-level terminal blocks, can be marked
with UC-TM5, ZB5 or UC-TMF5, ZBF5
gray STP 5-2 0800967 100
Three-compartment marker carrier, can be snapped into
ST2,5–3... and PT2,5–3... three-level terminal blocks, can be
marked with UC–TMF5 and ZBF5 or ...TM 5 and ZB 5
gray STP 5-3 0810562 100
Double marker carrier, snaps into double-level fast connection
terminal blocks, QTTCB ... and QTTCBS, can be marked with ZB 5
and ZBF 5
gray STP 5-2/S 0800970 100
Double marker carrier, snaps into all terminal blocks with a width
of 4.2 mm and a zack marker strip center groove, can be marked
with ZB 4 or ZBF 4
gray STP 4-2-ZB 3038613 100
Double marker carrier, can be snapped into all terminal blocks
with a width of 5.2mm or above and a zack marker strip center
groove, can be marked with ZB5 or ZBF5
gray STP 5-2-ZB 3037643 100
Marker adapter, 300mm long, can be snapped into the lateral
groove on modular terminal blocks, designed to accommodate
ZB... or UC–TM...
gray CARRIER-TM 300 0828282 25
Marker adapter, double row, 300mm long, can be snapped into
the center groove on modular terminal blocks, designed to
accommodate two ZB... or UC–TM...
gray CARRIER-TMD 300 0828693 25
Marker adapters, such as the CARRIER-TM 300; marking area at
an angle to the top of the terminal block
gray CARRIER-TMH 300 0830670 25
98
PHOENIX CONTACT
STP...
– The marking areas of wired multiple-level
terminal blocks are increased in size using
the marker carriers
– Depending on version, the marker
carriers are placed in the receivers on the
upper terminal block level
STP...-ZB
– The marker carriers can for example snap
into the center marking groove of ST...
spring-cage terminal blocks and double
the marking area; see figure below
CARRIER-TM 300
– Can be snapped into all terminal blocks in
the CLIPLINE complete system that have
a lateral flat marker groove
– For accommodating ZB..., UC-TM... or
UCT-TM... terminal markers which
increases the marking area
CARRIER-TMD 300
– Double-row snap-in marker adapter for
accommodating two ZB... or UC–TM...
and UCT-TM... terminal markers which
doubles the marking area
Marker carrier for STP ... multi-level
terminal blocks
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PA
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Warning label, for UT... series
5.2 mm wide yellow WS UT 2,5 3047923 10
6.2 mm wide yellow WS UT 4 3047332 10
8.2 mm wide yellow WS UT 6 3047345 10
10.2 mm wide yellow WS UT 10 3047361 10
12 mm wide yellow WS UT 16 3047374 10
16 mm wide yellow WS UT 35 3047387 10
Warning cover, for ST... series
4.2 mm wide yellow WST 1,5 3030958 50
5.2 mm wide yellow WST 2,5 3030941 50
6.2 mm wide yellow WST 4 3030954 50
8.2 mm wide yellow WST 6 3030967 10
10.2 mm wide yellow WST 10/35 3030006 25
99PHOENIX CONTACT
– Warning labels and warning covers serve
to cover and identify mains terminal
blocks
– This prevents accidental actuation of the
terminal points
– The warning labels snap into the screw
shafts of the relevant terminal
– Can be isolated lengthwise and crosswise
WS... warning labels
Marking and labeling - MARKING system
Terminal marking
Warning labels for terminals from the
UT... and ST... series
UC-TM 4 UC-TM 5 UC-TM 6 UC-TM 8 UC-TM 10 UC-TM 12 UC-TM 16
see page 56 onwards
ZB 4 ZB 5 ZB 6 ZB 8 ZB 10 ZB 12 ZB 16
see page 62 onwards
UCT-TM 4 UCT-TM 5 U C T- T M 6 UCT-TM 8
UCT-TM 10 UCT-TM 12 UCT-TM 16
see page 76 onwards
TMT 4 R TMT 5 R TMT 6 R TMT 8 R TMT 10 R
TMT 100 R TMT 100 R
Large terminal block markers for
central and side marking
see page 84 onwards
Pitch 4 5 6 8 10 12 16
Screw terminal blocks
UT 2,5..., UTTB 2,5..., UTN 2,5..., MUT 2,5... 5
UT 4..., UTTB 4..., UTME(D) 4..., UTN 4..., USST 4... 6
UT 6..., UTME(D) 6..., UTN 6..., USST 6... 8
UT 10..., UTN 10..., USST 10... 10
UT 16..., UTI 16... 12
UT 35 16
UK 1,5 N..., USLKG 1,5 N 4
UK 2,5 N..., USLKG 2,5 N, UK 3 N...,
USLKG 3, UKK(B) 3..., UDK 3..., MTK(D)... 5
UK 5 N..., USLKG 5 N, UDK 4..., UKK(B) 5,
UDMTK(B) 5..., UKN 2,5..., UKN 5..., PIK 4...,
SSK 0525...
6
UK 6 N..., USLKG 6 N, UKN 6..., PIK 6...,
URTK..., UGSK..., URDK..., UK 6-T..., SSK 110 8
UK 10 N..., USLKG 10 N, UKKB 10...,
UKN 10..., SK 116... 10
U(I)K 16..., U(I)SLKG 16, UIKN 16... 12
U(I)K 35..., U(I)SLKG 35, UIKN 35..., SSK 135... 15
UKH..., USLKG 50/95, USLKG 50/70/95 > 16
DIK(D) 1,5..., DOK(D) 1,5..., VIOK 1,5...,
DLK(B) 2,5..., SLKK 5... 6
UVKB 4..., UHK 4..., USK 4..., UK 4...,
UKK 4..., VBST 4... 6
UK 5-HESI..., UKK 5-HESI..., UK-SI...,
UK 6-FSI..., UK 10-DREHSI... 8
UK 6,3-HESI..., USIG... 10
MT 1,5..., MTTB 1,5... 4
MBK 6..., MSLKG 6 8
DFK 4... 6
DFK 5... 9.5
UW(V) 4... 8
UW(V) 10.../16.../25... 10
HDFK(V) 50..., HDFK(V) 95..., > 18
Terminal marking for Phoenix Contact
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
100
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC-TMF 4 UC-TMF 5 UC-TMF 6 UC-TMF 8
UC-TMF 10 UC-TMF 12 UC-TMF 16 US-TMF 100
see page 58 onwards 81
ZBF 4 ZBF 5 ZBF 6 ZBF 8 ZBF 10 ZBF 12 ZBF 16
see page 70 onwards
U C T- T M F 4 U C T- T M F 5 U C T- T M F 6 UCT-TMF 8
UCT-TMF 10 UCT-TMF 12 UCT-TMF 16
see page 78 onwards
TMT 4 R TMT 5 R TMT 6 R TMT 8 R TMT 10 R
TMT 100 R TMT 100 R
Small terminal block markers for
central and side marking
see page 84 onwards
Pitch 4 5 6 8 10 12 16
Screw terminal blocks
UT 2,5..., UTTB 2,5..., UTN 2,5...,
MUT 2,5..., UTI 2,5... 5
UT 4..., UTTB 4..., UTME(D) 4..., UTN 4...,
USST 4... 6
UT 6..., UTME(D) 6..., UTN 6..., USST 6...
8
UT 10..., UTN 10..., USST 10... 10
UT 16..., UTI 16... 12
UT 35 16
UK 1,5 N..., USLKG 1,5 N 4
UK 2,5 N..., USLKG 2,5 N, UK 3 N...,
USLKG 3, UKK(B) 3..., UDK 3..., MTK(D)...
5
UK 5 N..., USLKG 5 N, UDK 4..., UKK(B) 5, UD-
MTK(B) 5..., UKN 2,5..., UKN 5..., PIK 4..., SSK
0525
6
UK 6 N..., USLKG 6 N, UKN 6...,
PIK 6...,URTK..., UGSK..., URDK...,
UK 6-T, SSK 110
8
UK 10 N..., USLKG 10 N, UKKB 10...,
UKN 10..., SSK 116 10
U(I)K 16..., U(I)SLKG 16, UIKN 16... 12
U(I)K 35..., U(I)SLKG 35, UIKN 35...,
SSK 135 15
UKH..., USLKG 50/95, USLKG 50/70/95 > 16
DIK(D) 1,5..., DOK(D) 1,5..., VIOK 1,5...,
DLK(B) 2,5..., SLKK 5... 6
UVKB 4..., UHK 4..., USK 4..., UK 4...,
UKK 4..., VBST 4... 6
UK 5-HESI..., UKK 5-HESI..., UK-SI...,
UK 6-FSI..., UK 10-DREHSI... 8
UK 6,3-HESI..., UK 10,3 HESI..., USIG... 10
MT 1,5..., MTTB 1,5... 4
MBK 6..., MSLKG 6 8
DFK 4... 6
DFK 5... 9.5
UW(V) 4... 8
UW(V) 10.../16.../25... 10
HDFK(V) 50..., HDFK(V) 95... > 18
101
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
UC-TM 4 UC-TM 5 UC-TM 6 UC-TM 8 UC-TM 10 UC-TM 12 UC-TM 16
see page 56 onwards
ZB 3,5 ZB 4 ZB 5 ZB 6 ZB 7,62 ZB 8 ZB 10 ZB 12 ZB 16
see page 62 onwards
UCT-TM 3,5
UCT-TM 4 UCT-TM 5 UCT-TM 6
UCT-TM 7,62
UCT-TM 8
UCT-TM 10 UCT-TM 12 UCT-TM 16
see page 76 onwards
TMT 4 R TMT 5 R TMT 6 R TMT 8 R TMT 10 R
TMT 100 R TMT 100 R
Large terminal block markers
for central marking
see page 84 onwards
Pitch 3.5 456 7.62 8 10 12 16
Spring-cage terminal blocks
ST 1,5/S-QUATTRO 3.5
ST 1,5... 4
ST 2,5... (except ST 2,5-3L) 5
ST 4..., STTB 4... 6
ST 6..., STME(D) 6... 8
ST 10... 10
ST 16... 12
ST 35... 16
ST 4-HESI (6,3 x 32),
ST 4-FSI... 8
STU 2,5... 5
STU 4..., STTBU 4... 6
STU 10... 10
STU 35... 16
STS 2,5..., STTBS 2,5... 5
STS 4..., STTBS 4... 6
STS 6... 8
STI 2,5..., STN 2,5... 5
STI 4..., STN 4... 6
STI 10..., STN 10... 10
STI 16..., STN 16... 12
STN 35... 16
SRTK 6..., SGSK 6...,
SRDK 6... 8
ZRV... 7.62
ZRTK..., ZGSK..., ZRDK... 8
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
Terminal marking for Phoenix Contact
102
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC-TMF 4 UC-TMF 5 UC-TMF 6 UC-TMF 8
UC-TMF 10 UC-TMF 12 UC-TMF 16
US-TMF 100
see page 58 onwards 81
ZBF 3,5 ZBF 4 ZBF 5 ZBF 6 ZBF 8 ZBF 10 ZBF 12 ZBF 16
see page 70 onwards
UCT-TMF 3,5
UCT-TMF 4 UCT-TMF 5 UCT-TMF 6 UCT-TMF 8
UCT-TMF 10 UCT-TMF 12 UCT-TMF 16
see page 78 onwards
TMT 4 R TMT 5 R TMT 6 R TMT 8 R TMT 10 R
TMT 100 R TMT 100 R
Small terminal block markers
for central and side marking
see page 84 onwards
Pitch 3.5 456 8 10 12 16
Spring-cage terminal blocks
ST 1,5/S-QUATTRO 3.5
ST 1,5..., STTB 1,5... 4
ST 2,5..., STTB 2,5...,
ST 2,5-3..., STIO... 5
ST 4..., STTB 4... 6
ST 6..., STME(D) 6... 8
ST 10... 10
ST 16... 12
ST 35... 16
ST 4-HESI (6,3 x 32),
ST 4-FSI... 8
STU 2,5... 5
STU 4..., STTBU 4... 6
STU 10... 10
STU 35... 16
STS 2,5..., STTBS 2,5... 5
STS 4..., STTBS 4... 6
STS 6... 8
STI 2,5..., STN 2,5... 5
STI 4..., STN 4... 6
STI 10..., STN 10... 10
STI 16..., STN 16... 12
STN 35... 16
SRTK 6..., SGSK 6...,
SRDK 6... 8
ZRV... 7.62
ZRTK..., ZGSK..., ZRDK... 8
ZFK 6-DREHSI... 12
ZFKK 2,5... 5
ZDMTK 2,5... 6
ZPV... 5
MZFKK 1,5... 5
MSB(V) 2,5.../
MSDB(V) 2,5... 5/10
103
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
Terminal marking for Phoenix Contact
UC-TM 4 UC-TM 5 UC-TM 6 UC-TM 8 UC-TM 10 UC-TM 12 UC-TM 16 US-TM 100
see page 56 onwards 81
ZB 3,5 ZB 4 ZB 5 ZB 6 ZB 8 ZB 10 ZB 12 ZB 16
see page 62 onwards
U C T- T M 3 , 5
UCT-TM 4 UCT-TM 5 UCT-TM 6 UCT-TM 8
UCT-TM 10 UCT-TM 12 U C T- T M 1 6
see page 76 onwards
Large terminal block markers
for central marking
TMT 4 R TMT 5 R TMT 6 R TMT 8 R TMT 10 R
TMT 100 R TMT 100 R
see page 84 onwards
Pitch 3.5 456 8 10 12 16
Push-in connection terminal blocks
PT 1,5/S..., PTTB 1,5/S...,
PTS 1,5/S..., PTTBS 1,5/S... 3.5
PT 2,5..., PTTB 2,5...,
PTTBS 2,5..., PTI 2,5...,
PTN 2,5..., PTS 2,5...,
PTU 2,5...
5
PT 4..., PTME(D) 4...,
PTTB 4..., PTI 4..., PTN 4...,
PTU 4...
6
PT 6..., PTME 6..., PTI 6...,
PTN 6... 8
PT 10... 10
PT 16... 12
PTPOWER... 25
Fast connection terminal blocks
QTC(U)(S) 1,5..., 5
QTC(U)(S) 2,5..., 6
Bolt connection terminal blocks
OTTA 2,5... 9
OTTA 6.... 11
OTTA 25... 18
RT(O) 3..., RBO... 12
RT(O) 5... 16
RT(O) 8... 20
HV M.../1, HV M.../2 > 13
UHV 25- UHV 240 > 26
104
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC-TMF 4 UC-TMF 5 UC-TMF 6 UC-TMF 8
UC-TMF 10 UC-TMF 12 UC-TMF 16
US-TMF 100
see page 58 onwards 81
ZBF 3,5 ZBF 4 ZBF 5 ZBF 6 ZBF 8 ZBF 10 ZBF 12 ZBF 16
see page 70 onwards
UCT-TMF 3,5
UCT-TMF 4 UCT-TMF 5 U C T- T M F 6 UCT-TMF 8
UCT-TMF 10 UCT-TMF 12 UCT-TMF 16
see page 78 onwards
Small terminal block markers
for central and side marking
TMT 4 R TMT 5 R TMT 6 R TMT 8 R TMT 10 R
TMT 100 R TMT 100 R
see page 84 onwards
Pitch 3.5 456 8 10 12 16
Push-in connection terminal blocks
PT 1,5/S..., PTTB 1,5/S..., PTIO...,
PTS 1,5/S..., PTTBS 1,5/S, MPT 1,5/S...
3.5
PT 2,5..., PTTB 2,5..., PTTBS 2,5...,
PTI 2,5..., PTN 2,5..., PTS 2,5...,
PTU 2,5..., MPT 2,5...
5
PT 4..., PTME(D) 4..., PTTB 4...,
PTI 4..., PTN 4..., PTU 4 6
PT 6..., PTME 6..., PTI 6..., PTN 6... 8
PT 10... 10
PT 16... 12
PTPOWER... 25
Fast connection terminal blocks
QTC(U)(S) 1,5...,, QTTCB(U (S) 1,5...
5
QTC(U)(S) 2,5..., 6
Bolt connection terminal blocks
OTTA 2,5... 9
OTTA 6.... 11
OTTA 25... 18
RT(O) 3... 12
RT(O) 5... 16
RT(O) 8... 20
HV M.../1, HV M.../2 > 13
UHV 25- UHV 240 > 26
COMBI plugs and couplings
UPBV 2,5..., SP(V) 2,5..., SP-H 2,5 ...,
SP(D)B 2,5..., SC 2,5... 5
UP 4..., UPBV 4... 5
SP 4..., SC 4... 6
PP-H 1,5/S..., PPC 1,5/S... 3.5
PP-H 2,5..., QP 1,5... 5
UP 6... 8
PP-H 4... 6
PP-H 6..., PPC 6... 8
105
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC1-TM... UniCard marking range
includes markers for Weidmüller, Conta-
Clip, and Klemsan terminal blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
96-section, 12 individual labels per strip, for a terminal block width
of 5mm
white UC1-TM 5 0821784 10
red UC1-TM 5 RD 0828185 10
orange UC1-TM 5 OG 0828186 10
yellow UC1-TM 5 YE 0828187 10
blue UC1-TM 5 BU 0828188 10
green UC1-TM 5 GN 0828189 10
UniCard, for marking terminal blocks from other manufacturers,
offset foot, 96-section, 12 individual labels per strip, for a terminal
block width of 5mm
white UC1U-TM 5 0821302 10
UniCard, for marking terminal blocks from other manufacturers,
80-section, 10 individual labels per strip, for a terminal block width
of 6mm
white UC1-TM 6 0821247 10
red UC1-TM 6 RD 0828190 10
orange UC1-TM 6 OG 0828191 10
yellow UC1-TM 6 YE 0828192 10
blue UC1-TM 6 BU 0828193 10
green UC1-TM 6 GN 0828194 10
UniCard, for marking terminal blocks from other manufacturers,
64-section, 8 individual labels per strip, for a terminal block width of
8mm
white UC1-TM 8 0821739 10
red UC1-TM 8 RD 0828195 10
orange UC1-TM 8 OG 0828196 10
yellow UC1-TM 8 YE 0828197 10
blue UC1-TM 8 BU 0828198 10
green UC1-TM 8 GN 0828199 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 5 5146118 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with tall
marker groove
106
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 8mm
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
For further information and full technical data, visit phoenixcontact.net/products
– The UC1-TMF... UniCard marking range
includes markers for Weidmüller, Wago,
ABB (entrelec), Conta-Clip, and Klemsan
terminal blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
120-section, 15 individual labels per strip, for a terminal block width
of 4mm
white UC1-TMF 4 0821360 10
red UC1-TMF 4 RD 0828200 10
orange UC1-TMF 4 OG 0828201 10
yellow UC1-TMF 4 YE 0828202 10
blue UC1-TMF 4 BU 0828203 10
green UC1-TMF 4 GN 0828204 10
UniCard, for marking terminal blocks from other manufacturers,
96-section, 12 individual labels per strip, for a terminal block width
of 5mm
white UC1-TMF 5 0821425 10
red UC1-TMF 5 RD 0828205 10
orange UC1-TMF 5 OG 0828206 10
yellow UC1-TMF 5 YE 0828127 10
blue UC1-TMF 5 BU 0828207 10
green UC1-TMF 5 GN 0828208 10
UniCard, for marking terminal blocks from other manufacturers,
80-section, 10 individual labels per strip, for a terminal block width
of 6mm
white UC1-TMF 6 0821483 10
red UC1-TMF 6 RD 0828209 10
orange UC1-TMF 6 OG 0828210 10
yellow UC1-TMF 6 YE 0828211 10
blue UC1-TMF 6 BU 0828212 10
green UC1-TMF 6 GN 0828213 10
UniCard, for marking terminal blocks from other manufacturers,
64-section, 8 individual labels per strip, for a terminal block width of
8mm
white UC1-TMF 8 0821548 10
red UC1-TMF 8 RD 0828214 10
orange UC1-TMF 8 OG 0828215 10
yellow UC1-TMF 8 YE 0828216 10
blue UC1-TMF 8 BU 0828217 10
green UC1-TMF 8 GN 0828218 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 4 5146105 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with a flat
marker groove
107
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 8mm
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC2-TM... UniCard marking range
includes markers for Wago terminal
blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
120-section, 15 individual labels per strip, for a terminal block width
of 4mm
white UC2-TM 4 0821713 10
UniCard, for marking terminal blocks from other manufacturers,
96-section, 12 individual labels per strip, for a terminal block width
of 5mm
white UC2-TM 5 0821690 10
UniCard, for marking terminal blocks from other manufacturers,
80-section, 10 individual labels per strip, for a terminal block width
of 6mm
white UC2-TM 6 0821674 10
UniCard, for marking terminal blocks from other manufacturers,
64-section, 8 individual labels per strip, for a terminal block width of
8mm
white UC2-TM 8 0821755 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 5 5146118 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with tall
marker groove
108
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 8mm
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
For further information and full technical data, visit phoenixcontact.net/products
– The UC2F-TM... UniCard marking range
includes markers for ABB (entrelec)
terminal blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
120-section, 15 individual labels per strip, for a terminal block width
of 4mm
white UC2F-TM 4 0822178 10
UniCard, for marking terminal blocks from other manufacturers,
96-section, 12 individual labels per strip, for a terminal block width
of 5mm
white UC2F-TM 5 0822181 10
UniCard, for marking terminal blocks from other manufacturers,
80-section, 10 individual labels per strip, for a terminal block width
of 6mm
white UC2F-TM 6 0822194 10
UniCard, for marking terminal blocks from other manufacturers,
64-section, 8 individual labels per strip, for a terminal block width of
8mm
white UC2F-TM 8 0822204 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 4 5146105 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with a flat
marker groove
109
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 8mm
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC3-TM... UniCard marking range
includes markers for Wieland and
Legrand terminal blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
96-section, 12 individual labels per strip, for a terminal block width
of 5mm
white UC3-TM 5 0822369 10
UniCard, for marking terminal blocks from other manufacturers,
80-section, 10 individual labels per strip, for a terminal block width
of 6mm
white UC3-TM 6 0822385 10
UniCard, for marking terminal blocks from other manufacturers,
64-section, 8 individual labels per strip, for a terminal block width of
8mm
white UC3-TM 8 0822408 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 1 5146079 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with tall
marker groove
110
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to 8mm
UV LED technology Plotter
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
Material PC PC
Inflammability class according to UL 94 V0 V0
Temperature range [°C] -40 ... 120 -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
72-section, 12individual labels per strip, for a terminal block width
of 5mm
white UCT1-TM 5 0829482 10
red UCT1-TM 5 RD 0829226 10
orange UCT1-TM 5 OG 0829227 10
yellow UCT1-TM 5 YE 0829228 10
blue UCT1-TM 5 BU 0829229 10
green UCT1-TM 5 GN 0829230 10
UniCard, for marking terminal blocks from other manufacturers
such as
UCT1-TM 5, but with offset foot
white UCT1U-TM 5 0803204 10
UniCard, for marking terminal blocks from other manufacturers,
60-section, 10individual labels per strip, for a terminal block width
of 6mm
white UCT1-TM 6 0829483 10
red UCT1-TM 6 RD 0829232 10
orange UCT1-TM 6 OG 0829233 10
yellow UCT1-TM 6 YE 0829234 10
blue UCT1-TM 6 BU 0829235 10
green UCT1-TM 6 GN 0829236 10
UniCard, for marking terminal blocks from other manufacturers,
72-section, 12individual labels per strip, for a terminal block width
of 5mm
white UCT1-TMF 5 0829237 10
red UCT1-TMF 5 RD 0829238 10
orange UCT1-TMF 5 OG 0829239 10
yellow UCT1-TMF 5 YE 0829240 10
blue UCT1-TMF 5 BU 0829241 10
green UCT1-TMF 5 GN 0829242 10
UniCard, for marking terminal blocks from other manufacturers,
60-section, 10individual labels per strip, for a terminal block width
of 6mm
white UCT1-TMF 6 0829243 10
red UCT1-TMF 6 RD 0829244 10
orange UCT1-TMF 6 OG 0829245 10
yellow UCT1-TMF 6 YE 0829246 10
blue UCT1-TMF 6 BU 0829247 10
green UCT1-TMF 6 GN 0829248 10
Accessories Accessories
Magazine, for THERMOMARKCARD...
for accommodating: UCT–TM..., UCT1–TM..., UCT5–TM...,
UCT–EM(5X10), UCT-EM(6X10)
THERMOMARK CARD-UCT-MAG1 5146480 1
Plastic magazine, for THERMOMARKCARD..., for
accommodating: UCT1–TMF...
THERMOMARK CARD-UCT-MAG4 5146614 1
111
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for a terminal block width of 5/6mm Flat marker for a terminal block width of
5/6mm
– The UCT1-TM... UniCard marking range
includes markers for Weidmüller, Conta-
Clip, and Klemsan terminal blocks
– The UCT1-TMF... UniCard marking
range includes markers for Weidmüller,
Wago, ABB (entrelec), Contaclip, and
Klemsan terminal blocks
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
UniCard marking for terminal blocks
from other manufacturers with tall
marker groove
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC PC
Inflammability class according to UL 94 V0 V0
Temperature range [°C] -40 ... 120 -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
72-section, 12individual labels per strip, for terminal block widths
of 5 and 6mm
white UCT2-TM 5/6 0829249 10
UniCard, for marking terminal blocks from other manufacturers,
72-section, 12individual labels per strip, for a terminal block width
of 5mm
white UCT3-TM 5 0829251 10
UniCard, for marking terminal blocks from other manufacturers,
60-section, 10individual labels per strip, for a terminal block width
of 6mm
white UCT3-TM 6 0829252 10
Accessories Accessories
Plastic magazine, for THERMOMARKCARD..., for
accommodating: UCT2–TM ...
THERMOMARK CARD-UCT-MAG5 5146615 1
Magazine, for THERMOMARKCARD..., for accommodating:
UCT3–TM ...
THERMOMARK CARD-UCT-MAG6 5146616 1
112
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths of 5 to 6 mm Markers for terminal block widths of 5 to 6 mm
– The UCT2-TM 5/6 UniCard markers are
suitable for Wago terminal blocks
– The UCT3-TM... UniCard marking range
includes markers for Wieland and
Legrand terminal blocks
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
UniCard marking for terminal blocks
from other manufacturers with tall
marker groove
P R I NT E D
FOR YOU
1
2
2
1
UV
For further information and full technical data, visit phoenixcontact.net/products
– The UCT5-TM... UniCard marking range
includes markers for Cabur terminal
blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly,
easily, and precisely using the TOPMARK
LASER, BLUEMARK..., and the
THERMOMARK CARD
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
66-section, 11individual labels per strip, for a terminal block width
of 5mm
white UCT5-TM 5 0828750 10
UniCard, for marking terminal blocks from other manufacturers,
54-section, 9 individual labels per strip, for a terminal block width of
6mm
white UCT5-TM 6 0828752 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT6M-TM... THERMOMARK CARD-UCT-MAG23 0830808 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with tall
marker groove
113
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths of 5/6mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
UV
– The UniCard UCT6M... marking range
includes markers for ABB terminal blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly,
precisely, and easily.
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
72-section, 12 individual labels per strip, for a terminal block width
of 5.2mm
white UCT6M-TM 5 0830756 10
UniCard, for marking terminal blocks from other manufacturers,
60-section, 10individual labels per strip, for a terminal block width
of 6.2mm
white UCT6M-TM 6 0830757 10
UniCard, for marking terminal blocks from other manufacturers,
42-section, 7individual labels per strip, for a terminal block width of
8.2mm
white UCT6M-TM 8 0830758 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT6M-TM... THERMOMARK CARD-UCT-MAG23 0830808 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with a flat
marker groove
114
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to
8.2mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
UV
For further information and full technical data, visit phoenixcontact.net/products
– The UniCard UCT6R-TM... marking
range includes markers for entrelec
terminal blocks
– The markers, which are supplied in
uniform sheets, can be marked quickly,
precisely, and easily.
– The multi-section marking strips are easy
to fit and can be easily separated if
required
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking terminal blocks from other manufacturers,
72-section, 12 individual labels per strip, for a terminal block width
of 5.2mm
white UCT6R-TM 5 0830753 10
UniCard, for marking terminal blocks from other manufacturers,
60-section, 10individual labels per strip, for a terminal block width
of 6.2mm
white UCT6R-TM 6 0830754 10
UniCard, for marking terminal blocks from other manufacturers,
42-section, 7individual labels per strip, for a terminal block width of
8.2mm
white UCT6R-TM 8 0830755 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT6R-TM... THERMOMARK CARD-UCT-MAG24 0830809 1
Can be marked using:
UniCard marking for terminal blocks
from other manufacturers with tall
marker groove
115
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Markers for terminal block widths up to
8.2mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
– The US2-TM 100 UniSheet markers are
suitable for Wago terminal blocks
– The markers, which are supplied as
uniform cards, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated marking strips are easy to
separate and can be easily fitted
– The cards provide space for including
function texts
– Marking service: PhoenixContact can
custom-mark all UniSheet markers in
accordance with your requirements
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using THERMOMARK CARD
Number of individual labels 12
Number of individual labels per strip 1
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, for marking terminal blocks from other manufacturers
with a WagoTopJobS terminal block groove, strip length of
104mm
white US2-TM 100 0829268 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet marking for terminals from
other manufacturers
116
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
12 strips with a strip width of 104mm
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– The TMT2. . . markers are suitable for
Wago terminal blocks
– The marker strips are automatically
perforated and cut to the desired length
– The markers in the form of continuous
rolls can be printed quickly, easily, and
precisely with the
THERMOMARKROLL... printers
Notes:
An overview of terminal blocks that can be marked can be found
on page 126 onwards.
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Number of individual labels 1
Number of individual labels per strip 1
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, for marking terminal blocks from other manufacturers
with a Wago TopJob S terminal block groove, strip height of
10.8mm, continuous
Strip height:10.8mm white TMT2 (EX11)R 0802683 1
Can be marked using:
Marker strips, continuous, for
terminal blocks from other
manufacturers
117
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Marker with strip height of 10.8mm,
continuous
Thermal transfer for rolls
1
2
2
1
UV
– The universalUM1-TM...material
marking range includes markers for
Weidmüller, Conta-Clip, and Klemsan
– The markers, which are supplied in
double strips, can be quickly and easily
marked with BLUEMARK... and
THERMOMARKCARD...
– The markers support multiline marking
– The marking strips are easy to fit and can
be easily separated if required
– The marking strips are snapped into the
magazine in a twist-proof manner by
means of a coding pin and fed to the
output devices
– The format automatically ensures printing
with a high level of positional accuracy
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED
Material PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UM1-TM..., for marking terminal blocks from other manufacturers,
Weidmüller, Conta-Clip, Klemsan, unprinted, 34-section, pitch:
3.5mm, label height: 12 mm
white UM1-TM (3,5X12) 0830925 10
red UM1-TM (3,5X12) RD 0833020 10
orange UM1-TM (3,5X12) OG 0833021 10
yellow UM1-TM (3,5X12) YE 0833022 10
blue UM1-TM (3,5X12) BU 0833023 10
green UM1-TM (3,5X12) GN 0833024 10
UM1-TM..., for marking terminal blocks from other manufacturers,
Weidmüller, Conta-Clip, Klemsan, unprinted, 24-section, pitch:
5mm, label height: 10mm
white UM1-TM (5X10) 0830905 10
red UM1-TM (5X10) RD 0833025 10
orange UM1-TM (5X10) OG 0833026 10
yellow UM1-TM (5X10) YE 0833027 10
blue UM1-TM (5X10) BU 0833028 10
green UM1-TM (5X10) GN 0833029 10
UM1-TM..., for marking terminal blocks from other manufacturers,
Weidmüller, Conta-Clip, Klemsan, unprinted, 24-section, pitch:
5mm, label height: 12mm
white UM1-TM (5X12) 0830912 10
red UM1-TM (5X12) RD 0833035 10
orange UM1-TM (5X12) OG 0833036 10
yellow UM1-TM (5X12) YE 0833037 10
blue UM1-TM (5X12) BU 0833038 10
green UM1-TM (5X12) GN 0833039 10
UM1-TM..., for marking terminal blocks from other manufacturers,
Weidmüller, Conta-Clip, Klemsan, unprinted, 20-section, pitch:
6mm, label height: 10mm
white UM1-TM (6X10) 0830903 10
red UM1-TM (6X10) RD 0833040 10
orange UM1-TM (6X10) OG 0833041 10
yellow UM1-TM (6X10) YE 0833042 10
blue UM1-TM (6X10) BU 0833043 10
green UM1-TM (6X10) GN 0833044 10
Accessories
Magazine, for THERMOMARKCARD...
For accommodating UM1-TM..., UM5-TM... TMP-UM-MAG1 0831200 1
Magazine for the BLUEMARK printer, for accommodating UM
materials
BLUEMARK MAG UM-TM 0803335 1
Can be marked using:
new
UM marking for terminals from other
manufacturers, strips
118
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For a tall marker groove with a pitch of 3.5 to
6mm
Thermal transfer for sheets
and cards
UV LED technology
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED
Material PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UM1-TM..., for marking terminal blocks from other manufacturers,
Weidmüller, Conta-Clip, Klemsan, unprinted, 20-section, pitch:
6mm, label height: 12mm
white UM1-TM (6X12) 0830909 10
red UM1-TM (6X12) RD 0833050 10
orange UM1-TM (6X12) OG 0833051 10
yellow UM1-TM (6X12) YE 0833052 10
blue UM1-TM (6X12) BU 0833053 10
green UM1-TM (6X12) GN 0833054 10
UM1-TM..., for marking terminal blocks from other manufacturers,
Weidmüller, Conta-Clip, Klemsan, unprinted, 14-section, pitch:
8mm, label height: 10mm
white UM1-TM (8X10) 0830906 10
red UM1-TM (8X10) RD 0833055 10
orange UM1-TM (8X10) OG 0833056 10
yellow UM1-TM (8X10) YE 0833057 10
blue UM1-TM (8X10) BU 0833058 10
green UM1-TM (8X10) GN 0833059 10
UM1-TM...,
for marking terminal blocks from other manufacturers, Weidmüller,
Conta-Clip, Klemsan, unprinted, 14-section, pitch: 8mm, label height:
12mm
white UM1-TM (8X12) 0830920 10
red UM1-TM (8X12) RD 0833060 10
orange UM1-TM (8X12) OG 0833061 10
yellow UM1-TM (8X12) YE 0833062 10
blue UM1-TM (8X12) BU 0833063 10
green UM1-TM (8X12) GN 0833064 10
UM1-TM..., for marking terminal blocks from other manufacturers,
Weidmüller, Conta-Clip, Klemsan, unprinted, 10-section, pitch:
12mm,
label height: 10mm
white UM1-TM (12X10) 0830916 10
red UM1-TM (12X10) RD 0833065 10
orange UM1-TM (12X10) OG 0833066 10
yellow UM1-TM (12X10) YE 0833067 10
blue UM1-TM (12X10) BU 0833068 10
green UM1-TM (12X10) GN 0833069 10
Accessories
Magazine, for THERMOMARKCARD...
For accommodating UM1-TM..., UM5-TM... TMP-UM-MAG1 0831200 1
Magazine for the BLUEMARK printer, for accommodating UM
materials
BLUEMARK MAG UM-TM 0803335 1
119
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For a tall marker groove with a pitch of 6 to
12mm
new
UM marking for terminals from other
manufacturers, strips
1
2
2
1
UV
– The universalUM1-TM...material
marking range includes markers for
Weidmüller, Conta-Clip, and Klemsan
– The markers, which are supplied in
double strips, can be quickly and easily
marked with BLUEMARK... and
THERMOMARKCARD...
– The markers support multiline marking
– The marking strips are easy to fit and can
be easily separated if required
– The marking strips are snapped into the
magazine in a twist-proof manner by
means of a coding pin and fed to the
output devices
– The format automatically ensures printing
with a high level of positional accuracy
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED
Material PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UM1U-TM..., for marking terminal blocks from other
manufacturers, Weidmüller, Conta-Clip, Klemsan, with an offset
foot, unprinted, 24-section, pitch: 5mm
white UM1U-TM (5X10) 0830910 10
red UM1U-TM (5X10) RD 0833030 10
orange UM1U-TM (5X10) OG 0833031 10
yellow UM1U-TM (5X10) YE 0833032 10
blue UM1U-TM (5X10) BU 0833033 10
green UM1U-TM (5X10) GN 0833034 10
UM1U-TM..., for marking terminal blocks from other manufacturers
such as Weidmüller, CONTA-CLIP, Klemsan, with an offset foot,
unprinted, 20-section, pitch: 6mm
white UM1U-TM (6X10) 0830907 10
red UM1U-TM (6X10) RD 0833045 10
orange UM1U-TM (6X10) OG 0833046 10
yellow UM1U-TM (6X10) YE 0833047 10
blue UM1U-TM (6X10) BU 0833048 10
green UM1U-TM (6X10) GN 0833049 10
Accessories
Magazine for THERMOMARK CARD
For accommodating UM1U-TM... TMP-UM-MAG4 0831203 1
Magazine for the BLUEMARK printer, for accommodating UM
materials
BLUEMARK MAG UM-TM 0803335 1
Can be marked using:
new
UM marking for terminals from other
manufacturers, strips
120
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For a tall marker groove, with an offset foot,
up to a pitch of 6mm
Thermal transfer for sheets
and cards
UV LED technology
1
2
2
1
UV
For further information and full technical data, visit phoenixcontact.net/products
– The universalUM1-TM...material
marking range includes markers for
Weidmüller, Conta-Clip, Klemsan, Wago,
and ABB(Entrelec) terminal blocks
– The markers, which are supplied in
double strips, can be quickly and easily
marked with BLUEMARK... and
THERMOMARKCARD...
– The markers support multiline marking
– The marking strips are easy to fit and can
be easily separated if required
– The marking strips are snapped into the
magazine in a twist-proof manner by
means of a coding pin and fed to the
output devices
– The format automatically ensures printing
with a high degree of positioning accuracy
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED
Material PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UM1-TMF..., for marking terminal blocks from other
manufacturers, Weidmüller, Conta-Clip, Klemsan, Wago,
ABB(Entrelec), unprinted, 34-section, pitch: 3.5mm
white UM1-TMF (3,5X5) 0830935 10
red UM1-TMF (3,5X5) RD 0833000 10
orange UM1-TMF (3,5X5) OG 0833001 10
yellow UM1-TMF (3,5X5) YE 0833002 10
blue UM1-TMF (3,5X5) BU 0833003 10
green UM1-TMF (3,5X5) GN 0833004 10
UM1-TMF..., for marking terminal blocks from other
manufacturers, Weidmüller, Conta-Clip, Klemsan, Wago, ABB
(Entrelec), unprinted, 24-section, pitch: 5mm
white UM1-TMF (5X5) 0830902 10
red UM1-TMF (5X5) RD 0833005 10
orange UM1-TMF (5X5) OG 0833006 10
yellow UM1-TMF (5X5) YE 0833007 10
blue UM1-TMF (5X5) BU 0833008 10
green UM1-TMF (5X5) GN 0833009 10
UM1-TMF..., for marking terminal blocks from other
manufacturers, Weidmüller, Conta-Clip, Klemsan, Wago, ABB
(Entrelec), unprinted, 20-section, pitch: 6mm
white UM1-TMF (6X5) 0830904 10
red UM1-TMF (6X5) RD 0833010 10
orange UM1-TMF (6X5) OG 0833011 10
yellow UM1-TMF (6X5) YE 0833012 10
blue UM1-TMF (6X5) BU 0833013 10
green UM1-TMF (6X5) GN 0833014 10
UM1-TMF..., for marking terminal blocks from other
manufacturers, Weidmüller, Conta-Clip, Klemsan, Wago, ABB
(Entrelec), unprinted, 14-section, pitch: 8mm
white UM1-TMF (8X5) 0830924 10
red UM1-TMF (8X5) RD 0833015 10
orange UM1-TMF (8X5) OG 0833016 10
yellow UM1-TMF (8X5) YE 0833017 10
blue UM1-TMF (8X5) BU 0833018 10
green UM1-TMF (8X5) GN 0833019 10
Accessories
Magazine for THERMOMARK CARD
For accommodating UM1-TMF... TMP-UM-MAG3 0831202 1
Magazine for the BLUEMARK printer, for accommodating UM
materials
BLUEMARK MAG UM-TM 0803335 1
Can be marked using:
new
UM marking for terminals from other
manufacturers, strips
121
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For a flat marker groove up to a pitch of 8mm
Thermal transfer for sheets
and cards
UV LED technology
1
2
2
1
UV
– The universal UM...-TM... material
marking range includes markers for
terminal blocks from a variety of
manufacturers. UM2... for Wago, UM3...
for Wieland, UM5... for Cabur, and
UM6M... for ABB
– The markers, which are supplied in
double strips, can be quickly and easily
marked with BLUEMARK... and
THERMOMARK CARD
– The markers support multiline marking
– The marking strips are easy to fit and can
be easily separated if required
– The marking strips are snapped into the
magazine in a twist-proof manner by
means of a coding pin and fed to the
output devices
– The format automatically ensures printing
with a high degree of positioning accuracy
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED THERMOMARK CARD
Material PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UM2-TM... for marking Wago terminal blocks, unprinted,
34/28/24-section, pitch: 3.5to 6mm
white UM2-TM (3,5X10) 0830936 10
white UM2-TM (4X10) 0830934 10
white UM2-TM (5/6X10) 0830911 10
UM3-TM... for marking Wieland terminal blocks, unprinted,
24/20/14-section, pitch: 5 to 8mm
white
white
white
UM5-TM... for marking Cabur terminal blocks, unprinted,
28/24/20-section, pitch: 4 to 6mm
white
white
white
UM6M-TM... for marking ABB terminal blocks, unprinted,
24/20/14-section, pitch: 5 to 8mm
white
white
white
Accessories
Magazine, for THERMOMARKCARD...
For accommodating UM1-TM..., UM5-TM...
For accommodating UM2-TM... TMP-UM-MAG5 0803328 1
For accommodating UM3-TM...
For accommodating UM6M-TM...
Magazine for the BLUEMARK printer, for accommodating UM
materials
BLUEMARK MAG UM-TM 0803335 1
122
PHOENIX CONTACT
Thermal transfer for sheets
and cards
UV LED technology
Can be marked using:
UM marking for terminals from other
manufacturers, strips
Marking and labeling - MARKING system
Terminal marking
new
For a tall marker groove up to a pitch of 6mm For a tall marker groove up to a pitch of 8 mm For a tall marker groove up to a pitch of 6
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
BLUEMARK CLED THERMOMARK CARD BLUEMARK CLED THERMOMARK CARD BLUEMARK CLED THERMOMARK CARD BLUEMARK CLED
PC PC PC
V2 V2 V2
-40 ... 120 -40 ... 120 -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UM3-TM (5X8) 0830917 10
UM3-TM (6X8) 0830915 10
UM3-TM (8X8) 0830929 10
UM5-TM (4X10) 0830938 10
UM5-TM (5X10) 0830922 10
UM5-TM (6X10) 0830919 10
UM6M-TM (5X12) 0830928 10
UM6M-TM (6X12) 0830926 10
UM6M-TM (8X12) 0830939 10
Accessories Accessories Accessories
TMP-UM-MAG1 0831200 1
TMP-UM-MAG6 0803329 1
TMP-UM-MAG7 0803330 1
BLUEMARK MAG UM-TM 0803335 1BLUEMARK MAG UM-TM 0803335 1BLUEMARK MAG UM-TM 0803335 1
123PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
new
new
new
mm For a tall marker groove up to a pitch of 8 mm For a tall marker groove up to a pitch of 6mm For a tall marker groove up to a pitch of 8 mm
1
2
2
1
UV
– The universal UM...-TM... material
marking range includes markers for
terminal blocks from a variety of
manufacturers. UM6R... for Entrelec,
UM7... for Legrand, and UM8... for
Woertz
– The markers, which are supplied in
double strips, can be quickly and easily
marked with BLUEMARK... and
THERMOMARK CARD
– The markers support multiline marking
– The marking strips are easy to fit and can
be easily separated if required
– The marking strips are snapped into the
magazine in a twist-proof manner by
means of a coding pin and fed to the
output devices
– The format automatically ensures printing
with a high level of positional accuracy
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED THERMOMARK CARD
Number of individual labels 24
Number of individual labels per strip 12
Material PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UM6R-TM... for marking Entrelec terminal blocks, unprinted,
24/20/18-section, pitch: 5 to 8mm
white UM6R-TM (5X10) 0830923 10
white UM6R-TM (6X10) 0830921 10
white UM6R-TM (8X10) 0830932 10
UM7-TM... for marking Legrand terminal blocks, unprinted,
24/20/18-section, pitch: 5 to 8mm
white
white
white
UM8-TM... for marking Woertz terminal blocks, unprinted,
24/20-section, pitch: 5 to 6mm
white
white
Accessories
Magazine for THERMOMARK CARD
For accommodating UM7-TM...
For accommodating UM6R-TM... TMP-UM-MAG8 0803331 1
For accommodating UM8-TM...
Magazine for the BLUEMARK printer, for accommodating UM
materials
BLUEMARK MAG UM-TM 0803335 1
124
PHOENIX CONTACT
Thermal transfer for sheets
and cards
UV LED technology
Can be marked using:
UM marking for terminals from other
manufacturers, strips
Marking and labeling - MARKING system
Terminal marking
new
For a tall marker groove up to a pitch of 8 mm For a tall marker groove up to a pitch of 8 mm For a tall marker groove up to a pi
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
BLUEMARK CLED THERMOMARK CARD BLUEMARK CLED THERMOMARK CARD BLUEMARK CLED
24 24
12 12
PC PC
V2 V2
-40 ... 120 -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UM7-TM (5X10) 0830933 10
UM7-TM (6X10) 0830931 10
UM7-TM (8X10) 0830945 10
UM8-TM (5X9) 0830946 10
UM8-TM (6X9) 0830943 10
Accessories Accessories
TMP-UM-MAG10 0803334 1
TMP-UM-MAG9 0803332 1
BLUEMARK MAG UM-TM 0803335 1BLUEMARK MAG UM-TM 0803335 1
125PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
new
new
For a tall marker groove up to a pitch of 8 mm For a tall marker groove up to a pitch of 8 mm For a tall marker groove up to a pitch of 6mm
UC1U-
TM 5
UC1-
TM 5
UC1-
TM 6
UC1-
TM 8
UCT1-
TM 5
UCT1-
TM 6
UC1-
TMF 4
UC1-
TMF 5
UC1-
TMF 6
UC1-
TMF 8
UCT1-
TMF 5
UCT1-
TMF 6
UniCard, white 0821302
0821784 0821247 0821739 0829482 0829483 0821360 0821425 0821483 0821548 0829237 082 9243
Pitch 5 5 68564568 56
Screw connection terminal blocks
AKZ 1,5/AKZ 2,5 5
AKZ 4/AKE 4 6
DLD(A)2,5.../MAK 2,5/VLI
2,5 6
SAK 10/16/35/95//
EK 10/16/35 5
SAK 2,5/4//EK 2,5/4 6
SAKS.../SAK 6//EK 6 8
WDK 2,5/4... 5
WDL 2,5... 6
WDT... 5
WDU (WPE) 1,5/2,5... 5
WDU (WPE) 4... 6
WDU (WPE) 6-240... 8
W F. . . 8
WFF... 6
WNT 2,5 5
WNT 4 6
WNT 6-WNT 70N 8
WSI 4 6
WSI 6 6
WTL 4/6 6
WTR 2,5... 5
WTR 4... 6
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
Terminal marking for Weidmüller
126
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC1U-
TM 5
UC1-
TM 5
UC1-
TM 6
UC1-
TM 8
UCT1-
TM 5
UCT1-
TM 6
UC1-
TMF 4
UC1-
TMF 5
UC1-
TMF 6
UC1-
TMF 8
UCT1-
TMF 5
UCT1-
TMF 6
UniCard, white
0821302 0821784 0821247 0821739 0829482 0829483 0821360 0821425 0821483 0821548 0829 237 0829243
Pitch 5 5 68 56 4568 56
Spring-cage connection terminal blocks
ZDK 2,5 (PE).../ZDLD
2,5.../ZMAK 2,5 5
ZDK 4 (PE)... 6
ZDK 6/S 8
ZDL 2,5/S.../ZDL 4/S... 5
ZDT 2,5 (PE).../ZT (PE)
2,5.../ZP 2,5... 5
ZDU (ZPE) 10...-
ZDU (ZPE) 35/ZEI 16... 5
ZDU (ZPE) 2,5... 5
ZDU (ZPE) 4... 6
ZDU (ZPE) 6.../ZEI 6 8
ZNT 2,5/10/16/35... 5
ZNT 4 6
ZNT 6 8
ZPV 1,5.../ZIA 1,5.../ZVL 1,5...
5
ZSI 2,5.../ZSI 6... 5
ZSI 6-2/FC 6
ZT (PE) 4.../ZP 4... 6
ZTD 6/ZTL 6 6
ZTR 2,5.../ZDTR 2,5.../ZDL 2,5...
5
IDC terminal blocks
IDU (IPE 1,5) N.../ITR 1,5
N.../IDK 1,5 N(PE)... 5
IDU (IPE) 2,5 N.../ITR 2,5 N...
6
IT 1,5.../IEK 1,5 N (PE).../
IAK 1,5 N.../IIK 1,5 N... 5
Push-in connection terminal blocks
PDL 4... 5
PDU (PPE) 2,5/4.../PDK 2,5/4 (PE)...
5
PDU (PPE) 6/10.../
PDU (PPE) 16.../PEI 16... 8
PNT 2,5/4 5
PNT 6/10/16 8
127
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
UC3-TM 5 UC3-TM 6 UC3-TM 8 UCT3-TM 5 UCT3-TM 6
UniCard, white 0822369 0822385 0822408 0829251 0829252
Pitch 5 6856
Screw connection terminal blocks
9700 A/5... 5
9700 A/6... 6
9700 A/8... 8
9700 A/10... 10
9700 A/12... 12
9700 A/16... 16
9700 A/6 ETK... 6
9700 A/8 ETK... 8
9700 A/10 ETK... 10
WK(M) 2,5... 5
WK 4..., WKI 4..., WKM 4... 6
WK 6... 8
WKN 10..., WKI 10... 10
WKN 16..., WKI 16... 12
WKN 35..., WKI 35... 16
WKN 70... 24
WKN 70... 28
9785 U/..., 9786 U/... 12
Terminal marking for Wieland
128
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC-TM 4 UC-
TMF 4
UCT-
TM 4
UCT-
TMF 4
UC3-
TM 5
UC3-
TM 6
UC3-
TM 8
UCT3-
TM 5
UCT3-
TM 6
US-TMF
100
UniCard, white 0818111 0818166 0828732 0828742 0822369 0822385 0822408 0829251 0829252 0829260
Pitch4444568 56
Spring-cage connection terminal blocks
WKF 1,5... 4
WKF 1,5 KOI..., WKF
1,5 KOA... 5
WK(I)F 2,5..., WKFN
2,5... 5
WKF 4..., WKFN 4... 6
WKF 6... 8
WKF 10... 10
WK(I)F 16... 12
WKF 35... 16
Fast connection terminal blocks
WKC 1.. . 5
WKC 2,5... 6
WKF 16...WKC 12
129PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
UC1-
TM 5
UC1-
TM 6
UC1-
TM 8
UCT1-
TM 5
UCT1-
TM 6
UC1-
TMF 4
UC1-
TMF 5
UC1-
TMF 6
UC1-
TMF 8
UCT1-
TMF 5
UCT1-
TMF 6
UniCard, white 0821784 0821247 0821739 0829482 0829483 0821360 0821425 0821483 0821548 0829237 0829243
Pitch 5 68 56 4568 56
Spring-cage connection terminal blocks
Z(S)RK 2,5..., ZSL 2,5... 5
ZRK 4..., ZSL 4... 6
ZRK (ZSL) 6..., ZRK (ZSL)
10..., ZRK (ZSL) 16... 8
ZRKD 2,5..., ZSLD 2,5... 5
ZIKD 2,5..., ZVMAK 2,5... 5
ZTRK 2,5... 5
ZIZA 1,5... 5
ZS... 5
Push-in connection terminal blocks
FRK 1,5.../FSL 1,5... 4
FRK 2,5.../FSL 2,5... 5
FRK 4.../FSL 2,5... 6
FRKD 2,5.../FSLD 2,5... 5
FDLIS 2,5... 5
FTRK 2,5... 5
HSK... 8
Terminal marking for Conta-Clip
130
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC1-
TM 5
UC1-
TM 6
UC1-
TM 8
UCT1-
TM 5
UCT1-
TM 6
UC1-
TMF 4
UC1-
TMF 5
UC1-
TMF 6
UC1-
TMF 8
UCT1-
TMF 5
UCT1-
TMF 6
UniCard, white 0821784 0821247 0821739 0829482 0829483 0821360 0821425 0821483 0821548 0829237 0829243
Pitch 5 68 56 4568 56
Screw connection terminal blocks
RK 1,5-4... 6
RK 2,5... 5
RK 2,5-4... 6
RK 6-10.../16.../35... 8
RK 50...-RK 240... 8
SL... 5
RKD 2,5... 5
RKD 4... 6
DLI 2,5..., VMAK 2,5... 6
IK (D) 2,5... 5
TRK 1,5... 5
TK.../STK... 8
PTK... 8
SIK 10... 8
STK... 6
SK... 8
TSK 2,5 5
FF.../SF... 6
DLIS.../DLI... 6
N T. .. 6
RKA 2,5... 5
RKA 4... 6
RKA 10... 8
RKB 4... 5
KBL 2,5... 5
KBL 2,5-4... 6
KBL 6-10... 8
131PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Terminal marking for ABB (Entrelec)
UCT6M-TM 5 UCT6M-TM 6 UCT6M-TM 8
UniCard, white 0830756 0830757 0830758
Pitch 5 6 8
SNK series
ZS4... 5.2
ZS6... 6
ZS10... 8
ZS16... 10
ZS35... 16
ZS70... 22
ZS95... 26
ZS4-S-R... 6
ZS4-S-R3... 8
ZS4-S-T2-R... 6
ZS4-SP-R... 6
ZS4-SP-T2-R... 6
ZS4-SF...
6
ZS4-SF1... 8
BAM3 10
CS-R1
3
TC5... 5.2
Pg5... 5.2
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
132
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC2F-TM 5
UCT6R-TM 5
UC2F-TM 6
UCT6R-TM 6
UC2F-TM 8
UCT6R-TM 8 UC1-TMF 4 UC1-TMF 5 UC1-TMF 6
UniCard, white 0822187
0830753
0822194
0830754
0822204
0830755 0821360 0821425 0821483
Pitch 5 6 845 6
Screw connection terminal blocks
M(A) 2,5/5... 5
M 4/6... 6
M 6/8 8
M 10/10, M 16/12, M 35/16, M 70/22, M
95/22 8
D 150/31..., D 240/36... 8
D 4/6 NTLP 6
MA 2,5/5.NT 5
M 4/6.NT 6
M 6/8.NT 8
M 10/10.NT, M 16/12.NT, M 35/16. 8
Spring-cage connection terminal blocks
D 1,5/4... 2 L, D 1,5/4.../4 L 4
D 2,5/5... 2 L, D 2,5/5... 3 L, D 2,5/5... 4 L
5
D 4/6... 2 L, D 4/6... 3 L, D 4/6... 4 L 6
D 6/8... 2 L 8
D 10/10... 2 L, D 16/12... 2 L, D 35/16... 2 L
8
D 2,5/5.NT.L 5
D 4/6.NT.L 6
D 6/8.NL.L 8
D 10/10.NZ.L., D 16/12.NT.L, D
35/16NT.L. 8
D 2,5/5.N... 5
IDC terminal blocks
D 1,5... ADO 5
D 1,5/6... ADO 6
D 2,5/8... ADO, D 4/8... ADO 8
D 1,5/6.NT.ADO 6
D 2,5/8.NT.ADO 8
D 2,5/5... ADO 5
D 4/6... ADO 6
D 6/8... ADO, D 6/8.ADO3 8
133
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
UC2-
TM 4
UC2-
TM 5
UC2-
TM 6
UC2-
TM 8
UCT2-
TM 5/6
UC1-
TMF 4
UC1-
TMF 5
UC1-
TMF 6
UC1-
TMF 8
US2-TM 100/
TMT 2
UniCard, white 0821713 0821690 0821674 0821755 0829249 0821360 0821425 0821483 0821548 0829268/
0802683
Pitch 4 5 685/64568
Spring-cage connection terminal blocks
2001... 4
2002..., 2003... 5
2004..., 2005..., 2006... 6
2010..., 2016... 8
261..., 264... 6
270... 5
279... 4
280... 5
280-8... 5
281... 6
282..., 283..., 284..., 8
285..., 290... 5
727... 6
769... 5
775..., 776..., 777... 6
780... 5
781... 6
782..., 783..., 784..., 785... 8
869..., 870..., 880... 5
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
Terminal marking for Wago
134
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UCT5-TM 5 UCT5-TM 6
UniCard, white 0828750 0828752
Pitch 56
Screw connection terminal blocks
CBD.2 5.5
CBD.4 6.5
CBD.6 8
CBD.10 10
CBD.16 12
CBD.35 16
CBD.50 18
CBD.70 20.5
AFO.2/1+2, AFO.2/2+2 6.5
CBC.2 5
CBC.4 6
CBC.6 8
CBC.16 12
CBC.35 16
GPA.70 20.5
GPA.95 26
GPA.150 31
GPA.240 37
TE.6 8
TE.10 10
TE.16 12
TE.35 16
TED.4 6.5
TEO.2 5.5
TEO.4 6.5
TEC.6 8
TEC.10 10
TEC.16 12
TEC.35 16
TEC.70 20.5
CBE.2, CBR.2, CVF.2 5
CVF.4, DAS.4 6
DBC.2 5
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
Terminal marking for Cabur
UCT5-TM 5 UCT5-TM 6
UniCard, white 0828750 0828752
Pitch 56
Screw connection terminal blocks
DSFA.4, DSS.4 6
EDM.2, TC/DIN, TC/PO 5.5
EDM.4, FDP.2, FFS.4, FVS.4 6.5
EDM.6 8
EDM.10, SFR.6 10
EDM.16, FPC.10, FPL.10 12
EDM.25 16
EDM.35 18.5
EDM.70 21
MPFA.4, MPS.4, RP.4 6
MPS.2/SV, MPS.2/SW, MPS.2/SWP
5.5
PDF.2, SCB.4 6.5
RN.2, TR.2 5
TR.4 7.3
SCB.6, SFO.4, SFR.4, SV.6 8
SV.2 5.5
SV.4 7
SV.10 10.5
TDE.2, TLD.2, TLE.2, TLS.2 6.2
VPC.2, VPD.2 5.08
Spring-cage connection terminal blocks
HCD.1 5.08
Push-in connection terminal blocks
NCS, NCV 6.2
135
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
UC1U-
TM 5
UC1-
TM 5
UC1-
TM 6
UC1-
TM 8
UCT1-
TM 5
UCT1-
TM 6
UC1-
TMF 4
UC1-
TMF 5
UC1-
TMF 6
UC1-
TMF 8
UCT1-
TMF 5
UCT1-
TMF 6
UniCard, white
0821302
0821784 0821247 0821739 0829482 0829483 0821360 0821425 0821483 0821548 0829237 0829243
Pitch 5 5 68 56 4568 56
Screw connection terminal blocks
AVK 2,5/PEK 2,5
K/WGT 2,5 5
AVK 4.../AVK
2,5/4T/PEK 2,5/PEK
4/WGT 4
6
AVK 6-240/
PEK 6-35 8
AVK 6/10T16/35T//
WGT 6/WGT 10
8
PIK 2,5... 5
PIK 4... 6
PIK 3... 6
ASK 2 8
ASK 3 6
ASK 4/AVK 4 FS 8
ASK 4S/ASK 4 LD 6
WGO... 8
AY K 4. .. 6
AYK 10... 8
MVK 2,5 (T) 5
MVK 4 (T) 6
Spring-cage connection terminal blocks
YBK 2,5 (T) 5
YBK 4 (T) 6
YBK 6 (T)
YBK 10 (T) 8
MYK 2,5 (T).../MYP-
PK 2,5... 5
YBK 2,5 F.../YBK 3... 5
YBK 4... 6
YBK S.../YBK I... 8
YBK 2,5
A.../YBK 2,5 E.../YB
K 2,5C...
5
PCY 2,5... 5
The pitch of the terminal block is greater than the width of the labelThe pitch of the terminal block corresponds to the width of the label
Terminal marking for Klemsan
136
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UC3-TM 5 UC3-TM 6 UC3-TM 8
UniCard, white 0822369 0822385 0822408
Pitch 5 6 8
Screw connection terminal blocks, Viking 2
39060 5
39061-39068 6
39070 6
39077 5
39078, 39080, 39082 6
39084, 39085 6
39300 5
39301-39305 6
39307 6
39370 5
39371, 39372, 39374 6
39376, 39378 6
Spring-cage connection terminal blocks, Viking 3
39601, 39602 5
39604 6
39605 8
39606, 39607 8
39608 6
39627 5
39628, 39636 6
39611, 39612 5
39614 6
39615 8
39616, 39617 8
39618, 39646 6
39621 5
39624 6
39625 8
39626, 39629 8
39622 5
39630, 39666 6
Terminal marking for Legrand
137
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Pitch of Phoenix Contact marking material smaller than Weidmüller pitchPitch of Phoenix Contact marking material equal to Weidmüller pitch
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white
0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Push-in connection terminal blocks
PDK 2,5 5.1
PDL 4 5.1
PDU 2,5 5.1
PDU 6/10 8.1
PDU 16 12.1
PEI 16 15
PMAK 4 5.1
PNT 2,5 5.1
PNT 6/10 8.1
PNT 16 12.1
PPE 2,5 5.1
PPE 6 8.1
PPE 16 12.1
PSI 6/10 12.2
PTD 6/10 8.1
PTL 6/10 8.1
PTR 2,5 5.1
Terminal marking for Weidmüller
138
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white 0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Spring-cage connection terminal blocks
ZDK 1,5 3.5
ZDK 2,5 5.1
ZDK 4 6.1
ZDKPE 2,5 5.1
ZDLD 2,5 5.1
ZDT 2,5 5.1
ZDTR 2,5 5.1
ZDU 1,5 3.5
ZDU 2,5 5.1
ZDU 4 6.1
ZDU 6 8.1
ZDU 10 10.1
ZDU 16 12.1
ZDU 35 16
ZDUA 2,5 5.1
ZDUB 2,5 5.1
ZEI16 10
ZEI 16-2 14
ZIA 1,5 5.08
ZMAK 2,5 5.1
ZNT 4 6.1
ZNT 6 8.1
ZNT 16 10
ZNT 35 16
ZP 2,5 5.1
ZP 4 6.1
ZPE 1,5 3.5
ZPE 2,5 5.1
ZPE 4 6.1
ZPE 6 8.1
ZPE 10 10.1
ZPE 16 12.1
139PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Pitch of Phoenix Contact marking material smaller than Weidmüller pitchPitch of Phoenix Contact marking material equal to Weidmüller pitch
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white
0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Spring-cage connection terminal blocks
ZPE 35 16
ZPEA 2,5 5.1
ZPEB 2,5 5.1
ZPV 1,5 5.1
ZRV 1.5 5.1
ZRV 2.5 5.2
ZSI 2x6 16
ZSI 2,5 7.9
ZSI 6 12.2
ZT 2,5 5.1
ZT 4 6.5
ZTC 2,5 5.1
ZTCPE 2,5 5.1
ZTD 6 8
ZTL 6 8
ZTPE 2,5 5.1
ZTPE 4 6.5
ZTR 2,5 5.1
ZTR 6 8.1
ZTTR 2,5 5.1
ZVL 1,5 5.08
ZVLD 2,5 5.1
Terminal marking for Weidmüller
140
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white 0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Screw connection terminal blocks
AKE 2,5 5.1
AKE 4 7
AKZ 1,5 5.1
AKZ 2,5 5.1
AKZ 4 6.1
DLA 2,5 6.1
DLD 2,5 6.1
KDKS 1 8
MAK 2,5 6.2
SAKS 2 27.6
SAKS 4 24
SAKS 5 28
VLI 1,5 6.15
WDK 1,5/R 3.5 8
WDK 2,5 5.1
WDK 4 6.1
WDK 10 9.9
WDKL 4 6.5
WDL 2,5 6.1
WDT 1,5 6.4
WDTR 2,5 6.2
WDU 1,5 5.1
WDU 1,5/R 3.5
WDU 2,5 5.1
WDU 2,5/TC 10.2
WDU 4 6.1
WDU 6 7.9
WDU 10 9.9
WDU 16 11.9
WDU 35 16
WDU 50 18.5
WDU 70 20.5
WDU 95 27
141PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Pitch of Phoenix Contact marking material smaller than Weidmüller pitchPitch of Phoenix Contact marking material equal to Weidmüller pitch
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white
0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Screw connection terminal blocks
WDU 120 32
WDU 240 36
WMF 2,5 5.08
WNT 2,5 5.1
WNT 4 6.1
WNT 6 7.9
WNT 10 9.9
WNT 16 12
WNT 35 16
WNT 70 20.5
WPE 1,5 5.1
WPE 1,5/R 3.5
WPE 2,5 5.1
WPE 4 6.1
WPE 6 7.9
WPE 10 9.9
WPE 16 11.9
WPE 35 16
WPE 50 18.5
WPE 70 20.5
WPE 95 27
WPE 120 32
WPO 4 6
WSI 4 9.1
WSI 6 7.9
WT 4 6.1
WTD 6 7.9
WTD 6/4 FF 11
WTL 4 6.1
WTL 4/2 6
Terminal marking for Weidmüller
142
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white 0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Screw connection terminal blocks
WTL 6 7.9
WTL 6 SL 7.9
WTL 6/4 FF 11
WTQ 6 7.9
WTR 2,5 5.1
WTR 4 6.1
WTR 35 32
WTR 4 SL 6.1
WTR 4/SI 6.1
Bolt connection terminal blocks
WF 5 13
WF 6 17.8 8
WF 8 22.8
WF 10 33.8
WF 12 33.8
WF 6/2 BZ 17.8
WF 8/2 BZ 22.8
WF 10/2 BZ 33.8
WFF 35 27
WFF 70 32
WFF 120 38
WFF 185 55
WFF 300 55
143PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Pitch of Phoenix Contact marking material smaller than Conta Clip pitchPitch of Phoenix Contact marking material equal to Conta Clip pitch
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white
0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Pressure spring connection terminal blocks
FDLI 2,5 5.1
FDLIS 2,5 5.1
FDLIS B 2,5 15.3
FNT 2,5 5.1
FNT 6 8.1
FRK 1,5 4.1
FRK 2,5 5.1
FRK 4 6.1
FRKD 2,5 5.1
FRKI 2,5 5.1
FRKI 6 8.1
FSIK 4 6.1
FSL 1,5 4.1
FSL 2,5 5.1
FSL 4 6.1
FSLD 2,5 5.1
FSLI 2,5 5.1
FSLI 6 8.1
FTRK 2,5 5.1
Bolt connection terminal blocks
HSK 16 13
HSK 35 16
HSK 50 21
HSK 70 40
HSK 95 40
HSK 120 32
HSK 150 50
HSK 240 50
Terminal marking for CONTA-CLIP
144
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white 0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Spring-cage connection terminal blocks
SL 4 6.1
ZIKD 2,5 5.1
ZIZA 1,5 5.1
ZMP 1,5 5.1
ZRK 2,5 5.1
ZRK 4 6.1
ZRK 6 8.1
ZRK 10 10.1
ZRK 16 12.1
ZRKD 2,5 5.1
ZRKS 2,5 5.1
ZSL 2,5 5.1
ZSL 4 6.1
ZSL 6 8.1
ZSL 10 10.1
ZSL 16 12.1
ZSLD 2,5 5.1
ZSLN 2,5 5.1
ZSLS 2,5 5.1
ZSRK 2,5 5.1
ZST 2,5 5.1
ZSTK 2,5 5.1
ZTRK 2,5 5.1
ZVMAK 2,5 5.1
145PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Pitch of Phoenix Contact marking material smaller than CONTA-CLIP pitchPitch of Phoenix Contact marking material equal to CONTA-CLIP pitch
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white
0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Screw connection terminal blocks
BKA 2,5 5
BKA 4 6
BKA 10 8
DLI 2,5 6
DLIS 2,5 6
FF 1/15 6
FF 2,5 6
IK 2,5 5
IKD 2,5 5
KBL 2,5 5
KBL 2,5-4 6
KBL 6 8
NT 2,5 6
NT 6 8
PTK 10 8
RK 1,5 6
RK 2,5 5
RK 2,5-4 6
RK 6 8
RK 16 12
RK 35 16
RK 50 20
RK 95 25
RK 150 31
RK 240 36
RKB 4 6
RKD 2,5 5
RKD 4 6
RKDG 4 6
SF 2.5 6
SIK 10 PA 8
SIK 10 Z 10
Terminal marking for CONTA-CLIP
146
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white 0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Screw connection terminal blocks
SK 1 12.2
SL 2,5 6
SL 4/15 7
SL 4/35 8
SL 10 10
SL 16 10
SL 35 16
SLN 2,5 6
SMAG 4/2,5 5.9
SMAG 6/4 6.6
SMAG 10/6 8.3
SRK 2,5 5
SRK 4 6
SRK 6 8
SRK 10 10
SSIK 4 6.1
SSIK 6 8
SSL 2,5 5
SSL 4 6
SSL 6 8
SSL 10 10
STA 5/1 5
STK 1 8
STK 2 8
STKD 1 8
TK 2 8
TK 4 7.5
TKS 4 7.5
TKS 10 11.25
TRK 1,5 6
TSK 2,5 10
VMAK 6
147PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Pitch of Phoenix Contact marking material smaller than Klemsan pitchPitch of Phoenix Contact marking material equal to Klemsan pitch
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white
0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Spring-cage connection terminal blocks
MYK 2,5… 5
MYPK 2,5… 5
MYSK 2,5… 5
PCY 2,5… 5.05
PYK 1,5… 4.2
PYK 2,5… 5
PYK 2,5-2… 5
PYK 2,5-3… 5
PYK 3 S… 5
PYK 4… 6
PYK 4 I… 8
PYK 4 S… 8
PYK 4-2… 6
PYK 6… 8
PYK 10… 10
PYKM 2,5… 5
PYKMR 2,5… 5
YBK 2,5… 5
YBK 2,5-2… 5
YBK 2,5-3… 5
YBK 3 S… 5
YBK 4… 5
YBK 4-2… 6
YBK 6… 8
YBK 10… 10
YBK I… 8
YBK S… 8
Terminal marking for Klemsan
148
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white 0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Screw connection terminal blocks
ASK 2… 8
ASK 3… 6.2
ASK 4 LD… 10
ASK 4 S… 10
ASK 5… 8
AVK 2,5… 5
AVK 2,5 CCA…
6
AVK 2,5 EA…
6
AVK 2,5 F… 6
AVK 2,5 T RD 5.75
AVK 2,5/4… 6
AVK 4… 6
AVK 4 B… 10
AVK 4 FS… 8
AVK 4 T RD 6.2
AVK 6… 8
AVK 10… 10
AVK 16… 12
AVK 25… 12
AVK 35… 16
AVK Y 4… 6
AVK Y 6… 8
AVK Y 10… 10
AYK 1 6… 11
MVK 2,5… 5
MVK 4… 5
PIK 2,5 N… 5
PIK 4 FS… 6
PIK 4 N… 6
PIK 10 N… 10
149
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
Pitch of Phoenix Contact marking material smaller than Klemsan pitchPitch of Phoenix Contact marking material equal to Klemsan pitch
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white
0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Screw connection terminal blocks
PUK 2… 6
PUK 3… 6
WGL 1… 8
WGO 1… 8
WGO 2… 10
WGO 3… 8
WGO 4… 8
WGO PB…6 11
WGO Y…6…
8
Terminal marking for Klemsan
150
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
For further information and full technical data, visit phoenixcontact.net/products
UM1-TMF UM1...-TM
3.5x5 5x5 6x5 8x5 3.5x12 5x10 U 5x10 5x12 6x10 U 6x10 6x12 8x10 8x12 12x10
UniCard, white 0830935 0830902 0830904 0830924 0830925 0830905 0830910 0830912 0830903 0830907 0830909 0830906 0830920 0830916
Pitch
Bolt connection terminal blocks
AVK 50… 20
AVK 70… 22
AVK 95… 25
AVK 95 B… 40
AVK 150… 31
AVK 150 B… 48
AVK 240… 36
AVK 240 B…
53
AVK PB 50… 20
AVK PB 70… 22
AVK PB 95… 25
AVK PB 150…
31
CPB 6… 9.5
CPB 6B… 13
PB 6… 11
151
PHOENIX CONTACT
Marking and labeling - MARKING system
Terminal marking
152
PHOENIX CONTACT
Product range overview
Conductor and cable marking 154
LaserSheet LS-WMTB... conductor and cable marking
Stainless steel and aluminum markers, for assembly with cable
binders
156
WMTBAL... aluminum conductor and cable marking 160
UniCard UC-WM... and UCT-WM... conductor and
cable marking
Clip-on and slide-on markers, for insertion into marking collars,
for assembly with cable binders, for threading
162
UniSheet US-WM... conductor and cable marking
Markers for insertion into marking collars, for assembly with
cable binders, adhesive markers for wrapping around
181
WM... conductor and cable marking supplied in rolls
Adhesive markers for wrapping around or as flags 184
WMS... shrink sleeves supplied in rolls 189
EMT and WMT... conductor and cable marking supplied
in rolls
Markers for insertion into marking collars, for threading, for
assembly with cable binders
194
KMK... cable markers for assembly with cable binders 200
Cable markers for carrier assembly
Markers made of plastic and stainless steel 211
PATG... and PATO... marking collars 214
Overview of conductor markers and cable markers 218
The right marking solution for every diameter
153
PHOENIX CONTACT
Clear and permanent marking of all
conductors and cables considerably
improves transparency in control cabinets
and switchgear. It makes assembly and
maintenance work easier and assists in
rectifying faults.
PhoenixContact conductor and cable
markers provide the ideal marking option
for any application. Just select an assembly
method. The markers can be threaded on,
clipped on, adhered in place or secured with
cable binders.
Conductor and cable marking - MARKING system
154
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Far from being a luxury, standard-
compliant and permanent conductor
markings are actually a mark of quality
demanded by customers in respect of
modern high-quality capital goods. Phoenix
Contact conductor and cable marking
systems provide ideal marking options for
any user regardless of whether the
conductor markers are to be threaded on,
slid on, clipped on, adhered in place or
secured with cable binders.
Depending on the material, the following
marking systems can be used for the
individual marking of conductor and cable
markers:
– TOPMARK LASER, laser marker for
marking UniCard formats, as well as
stainless steel and aluminum labels
– BLUEMARK CLED, high-speed printer
with UV technology for marking UniCard
formats and aluminum markers
– THERMOMARKCARD, thermal transfer
printer for marking UniCard and
UniSheet formats
– THERMOMARKROLL, thermal transfer
printer for marking material off the roll
and continuous media
– THERMOMARKROLLX1, thermal
transfer printer for large quantities
– THERMOMARK W2, thermal transfer
printer for double-sided marking and
perforation of continuous shrink sleeves
– CMS–P1–PLOTTER
– Commercially available desktop laser
printers
The CLIP PROJECT software produces
easy, efficient markings. It generates the
marking data directly from the circuit
diagram and automatically sends the data to
the relevant marking systems for further
processing.
If no marking systems are available or your
production facility is affected by capacity
bottlenecks, you also have the option of
using our marking service. We will be happy
to handle your printing orders. This also
includes engraving or laser marking of
stainless steel cable markers.
For further information and full technical data, visit phoenixcontact.net/products
155PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Conductor and cable markings can be
optimally and permanently marked with
stainless steel or aluminum markers. They
are easily attached using cable binders.
Clip-on conductor markers feature two
non-detachable marking areas that remain
legible at all times. They can be clipped onto
pre-wired conductors and cables manually.
Individual printed markers are threaded
onto conductors or attached by means of
cable binders. Various materials can be
supplied as cards or on rolls.
The ferrules feature an insulating collar
that supports marking and are marked prior
to crimping. This combines two operations
in one.
Conductors can be fitted with PATG and
PATO marking collars. Marking is achieved
by means of insert strips that support
marking.
Shrink sleeves are ideal for captive
marking of cables and conductors. They are
available prefabricated and in rolls.
Conductor markers can be fitted using
cable binders almost regardless of
conductor or cable diameter. The large
marking area provides enough space for
long labels.
Cable marker labels consist of a marking
field and a transparent foil that protects the
marking against abrasion and dirt. The labels
are available in various shapes and sizes.
Plastic cable markers are suitable for both
bundling and marking conductors and
cables. A screw cap protects the marking
against dirt and can be replaced at any time.
General data
Can be marked using
Material
Wipe resistance
Components
Description
Stainless steel label, for assembly with cable binders, conductor
diameter
36-section, >2.9 mm Ø
16-section, >4.6 mm Ø
16-section, >4.6 mm Ø
8-section, >4.6 mm Ø
Aluminum label, for assembly with cable binders, conductor
diameter
36-section, >2.9 mm Ø
16-section, >4.6 mm Ø
16-section, >4.6 mm Ø
8-section, >4.6 mm Ø
Sheet hopper, for TOPMARKLASER
156
PHOENIX CONTACT
– The LS-WMTB... product range is
available in stainless steel (V4A) or
aluminum and includes markers that can
be quickly and easily fitted with cable
binders
– The LS-WMTB-V4A... group is
particularly characterized by its high
resistance to salt water, chloride, and
solvents and it is therefore also suitable
for the most demanding industrial
requirements
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-WMTB-V4A(29x8)
Lettering field size: 29x8mm
– The use of modern laser technology
creates highly resistant and permanent
marking, which can only be removed by
destroying the material
– The LS-WMTB-V4A... product group can
be marked in two ways: by engraving or
annealing
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Stainless steel and aluminum cable
marking for assembly with cable
binders
Notes:
For corresponding stainless steel cable binders, see page 594.
Marking and labeling - MARKING system
Conductor and cable marking
Direct laser marking
Can be marked using:
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
TOPMARK LASER TOPMARK LASER TOPMARK LASER
V4A aluminum aluminum
DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
LS-WMTB-V4A (29X8) 0831516 5
LS-WMTB-V4A (40X15) 0831517 5
LS-WMTB-V4A (60X15) 0831518 5
LS-WMTB-V4A (100X15) 0831519 5
LS-WMTB-AL (29X8) 0831500 5LS-WMTB-AL (29X8) BK 0831508 5
LS-WMTB-AL (40X15) 0831501 5LS-WMTB-AL (40X15) BK 0831509 5
LS-WMTB-AL (60X15) 0831502 5LS-WMTB-AL (60X15) BK 0831510 5
LS-WMTB-AL (100X15) 0831503 5LS-WMTB-AL (100X15) BK 0831511 5
Accessories Accessories Accessories
TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1
157
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Stainless steel, material thickness: 0.5mm Aluminum, material thickness: 0.8mm Aluminum, black, material thickness: 0.8mm
General data
Can be marked using
Material
Wipe resistance
Components
Description
Stainless steel label, round, for assembly with cable binders
30-section, diameter: 25mm
20-section, diameter: 30mm
Aluminum label, round, for assembly with cable binders
30-section, diameter: 25mm
20-section, diameter: 30mm
Sheet hopper, for TOPMARKLASER
158
PHOENIX CONTACT
– The LS-WMTB... product range in
circular format is available in stainless
steel (V4A) or aluminum and includes
markers that can be quickly and easily
fitted with cable binders
– The LS-WMTB-V4A... group is
particularly characterized by its high
resistance to saltwater, chloride, and
solvents and it is therefore also suitable
for the most demanding industrial
requirements
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-WMTB-V4A(D25)
Diameter: 25mm
– The use of modern laser technology
creates highly resistant and permanent
marking, which can only be removed by
destroying the material
– The LS-WMTB-V4A... product group can
be marked in two ways: by engraving or
annealing
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Stainless steel and aluminum cable
marking for assembly with cable
binders
Notes:
For corresponding stainless steel cable binders, see page 594.
Marking and labeling - MARKING system
Conductor and cable marking
Direct laser marking
Can be marked using:
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
TOPMARK LASER TOPMARK LASER TOPMARK LASER
V4A aluminum aluminum
DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
LS-WMTB-V4A (D25) 0831520 5
LS-WMTB-V4A (D30) 0831521 5
LS-WMTB-AL (D25) 0831504 5LS-WMTB-AL (D25) BK 0831512 5
LS-WMTB-AL (D30) 0831505 5LS-WMTB-AL (D30) BK 0831513 5
Accessories Accessories Accessories
TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1
159
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Stainless steel, material thickness: 0.5mm Aluminum, material thickness: 0.8mm Aluminum, black, material thickness: 0.8mm
UV
P R I NT E D
FOR YOU
The WMTBA... product range is available
in aluminum (AL) and is characterized by:
– High-quality appearance
– Easy assembly with cable binders
– Suitable for large-surface marking of
conductors and cables >2.9mm in
diameter
Notes:
For corresponding stainless steel cable binders, see page 594.
Technical data
General data
Can be marked using BLUEMARK CLED
Material aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Aluminum label, 0.8mm thick, conductor diameter[mm]
Lettering field size: 29x8mm, >2.9 mm Ø aluminum WMTB-AL (29X8) 0830805 90
Lettering field size: 40x15mm, >4.6 mm Ø aluminum WMTB-AL (40X15) 0830524 45
Lettering field size: 60x15mm, >4.6 aluminum WMTB-AL (60X15) 0830525 45
Aluminum label, round, 0.8mm thick
Diameter: 30mm aluminum
Accessories
Magazine, for BLUEMARK printer, for accommodating aluminum
labels
for WMTB-AL (29X8) BLUEMARK MAG WM-M (29X8) 0802743 1
for WMTB-AL (40X15) BLUEMARK MAG WM-M (40X15) 0802744 1
for WMTB-AL (60X15) BLUEMARK MAG WM-M (60X15) 0802746 1
Magazine, for BLUEMARK printer, for accommodating stainless
steel and aluminum labels
for WMTB-AL(D30)...
160
PHOENIX CONTACT
UV LED technology
Aluminum cable marking for
assembly with cable binders
Marking and labeling - MARKING system
Conductor and cable marking
Aluminum, material thickness: 0.8mm Aluminum, material thickness: 0.8
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
BLUEMARK CLED
aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data
Type Order No. Pcs. /
Pkt.
WMTB-AL (D30) 0830804 90
Accessories
BLUEMARK MAG WM-M (D30) 0802747 1
161
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
mm Aluminum, material thickness: 0.8mm
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-WMC... UniCard marking range
includes markers for captive marking of
control cables right through to light
plastic-sheathed cables with large
diameters
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– Can be clipped on even after wiring has
been completed
– One-handed assembly
– Two marking areas that are clearly legible
at all times
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
For more variants, see phoenixcontact.net/products.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Conductor diameter range [mm] 1.2 ... 1.9
Conductor cross section range [mm²] 0.25 ... 0.34
Conductor cross section range AWG 24 ... 22
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, lettering field size
15x4mm, 20-section, 4 individual labels per strip
white UC-WMC 1,9 (15X4) 0828004 10
red UC-WMC 1,9 (15X4) RD 0828006 10
orange UC-WMC 1,9 (15X4) OG 0828007 10
yellow UC-WMC 1,9 (15X4) YE 0828008 10
violet UC-WMC 1,9 (15X4) VT 0828009 10
blue UC-WMC 1,9 (15X4) BU 0828010 10
UniCard, for subsequent marking of conductors, lettering field size
30 x 4 mm, 12-section, 4 individual labels per strip
white UC-WMC 1,9 (30X4) 0830283 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 1 5146079 1
Can be marked using:
Clip-on UniCard conductor marking
162
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters
from 1.2 to 1.9mm
UV LED technology Plotter
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Conductor diameter range [mm] 1.9 ... 3.1
Conductor cross section range [mm²] 0.5 ... 1.5
Conductor cross section range AWG 20 ... 16
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, lettering field size
15x4mm, 20-section, 4 individual labels per strip
white UC-WMC 3,1 (15X4) 0818205 10
red UC-WMC 3,1 (15X4) RD 0818755 10
orange UC-WMC 3,1 (15X4) OG 0818726 10
yellow UC-WMC 3,1 (15X4) YE 0818739 10
violet UC-WMC 3,1 (15X4) VT 0825370 10
blue UC-WMC 3,1 (15X4) BU 0818742 10
UniCard, for subsequent marking of conductors, lettering field size
23x4mm, 12-section, 4 individual labels per strip
white UC-WMC 3,1 (23X4) 0818218 10
red UC-WMC 3,1 (23X4) RD 0818807 10
orange UC-WMC 3,1 (23X4) OG 0818771 10
yellow UC-WMC 3,1 (23X4) YE 0818784 10
violet UC-WMC 3,1 (23X4) VT 0825371 10
blue UC-WMC 3,1 (23X4) BU 0818797 10
UniCard, for subsequent marking of conductors, lettering field size
30 x 4 mm, 12-section, 4 individual labels per strip
white UC-WMC 3,1 (30X4) 0819631 10
red UC-WMC 3,1 (30X4) RD 0820769 10
orange UC-WMC 3,1 (30X4) OG 0823863 10
yellow UC-WMC 3,1 (30X4) YE 0819644 10
violet UC-WMC 3,1 (30X4) VT 0825372 10
blue UC-WMC 3,1 (30X4) BU 0820756 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 1 5146079 1
163
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters
from 1.9 to 3.1mm
Clip-on UniCard conductor marking
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-WMC... UniCard marking range
includes markers for captive marking of
control cables right through to light
plastic-sheathed cables with large
diameters
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– Can be clipped on even after wiring has
been completed
– One-handed assembly
– Two marking areas that are clearly legible
at all times
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Conductor diameter range [mm] 2.8 ... 4.4
Conductor cross section range [mm²] 1.5 ... 4
Conductor cross section range AWG 16 ... 12
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, lettering field size
15 x 5.5 mm, 15-section, 3 individual labels per strip
white UC-WMC 4,4 (15X5,5) 0818182 10
red UC-WMC 4,4 (15X5,5) RD 0818852 10
orange UC-WMC 4,4 (15X5,5) OG 0818823 10
yellow UC-WMC 4,4 (15X5,5) YE 0818836 10
violet UC-WMC 4,4 (15X5,5) VT 0825373 10
blue UC-WMC 4,4 (15X5,5) BU 0818849 10
green UC-WMC 4,4 (15X5,5) GN 0818865 10
UniCard, for subsequent marking of conductors, lettering field size
23x5.5 mm, 9-section, 3individual labels per strip
white UC-WMC 4,4 (23X5,5) 0818195 10
red UC-WMC 4,4 (23X5,5) RD 0818904 10
orange UC-WMC 4,4 (23X5,5) OG 0818878 10
yellow UC-WMC 4,4 (23X5,5) YE 0818881 10
violet UC-WMC 4,4 (23X5,5) VT 0825374 10
blue UC-WMC 4,4 (23X5,5) BU 0818894 10
green UC-WMC 4,4 (23X5,5) GN 0818917 10
UniCard, for subsequent marking of conductors, lettering field size
30x5.5mm, 9-section, 3individual labels per strip
white UC-WMC 4,4 (30X5,5) 0819657 10
red UC-WMC 4,4 (30X5,5) RD 0820882 10
orange UC-WMC 4,4 (30X5,5) OG 0823944 10
yellow UC-WMC 4,4 (30X5,5) YE 0819660 10
violet UC-WMC 4,4 (30X5,5) VT 0825375 10
blue UC-WMC 4,4 (30X5,5) BU 0820879 10
green UC-WMC 4,4 (30X5,5) GN 0823957 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 2 5146082 1
Can be marked using:
Clip-on UniCard conductor marking
164
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters
from 2.8 to 4.4mm
UV LED technology Plotter
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 120 -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen
Conductor diameter range [mm] 4.2 ... 5.6 5 ... 7.5
Conductor cross section range [mm²] 4 ... 10 6 ... 16
Conductor cross section range AWG 12 ... 10 10 ... 6
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, lettering field size
23x8mm, 6-section, 2individual labels per strip
white UC-WMC 5,6 (23X8) 0825382 5UC-WMC 7,5 (23X8) 0818179 5
red UC-WMC 5,6 (23X8) RD 0825387 5UC-WMC 7,5 (23X8) RD 0819039 5
orange UC-WMC 5,6 (23X8) OG 0825385 5UC-WMC 7,5 (23X8) OG 0818920 5
yellow UC-WMC 5,6 (23X8) YE 0825386 5UC-WMC 7,5 (23X8) YE 0818933 5
violet UC-WMC 5,6 (23X8) VT 0825388 5UC-WMC 7,5 (23X8) VT 0825376 5
blue UC-WMC 5,6 (23X8) BU 0825383 5UC-WMC 7,5 (23X8) BU 0818946 5
green UC-WMC 5,6 (23X8) GN 0825384 5UC-WMC 7,5 (23X8) GN 0818959 5
UniCard, for subsequent marking of conductors, lettering field size
30x8mm, 6-section, 2 individual labels per strip
white UC-WMC 5,6 (30X8) 0825396 5UC-WMC 7,5 (30X8) 0819673 5
red UC-WMC 5,6 (30X8) RD 0825401 5UC-WMC 7,5 (30X8) RD 0820963 5
orange UC-WMC 5,6 (30X8) OG 0825399 5UC-WMC 7,5 (30X8) OG 0823724 5
yellow UC-WMC 5,6 (30X8) YE 0825400 5UC-WMC 7,5 (30X8) YE 0819686 5
violet UC-WMC 5,6 (30X8) VT 0825402 5UC-WMC 7,5 (30X8) VT 0825377 5
blue UC-WMC 5,6 (30X8) BU 0825397 5UC-WMC 7,5 (30X8) BU 0820950 5
green UC-WMC 5,6 (30X8) GN 0825398 5UC-WMC 7,5 (30X8) GN 0823708 5
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 3 5146095 1P1 UC-MAG 3 5146095 1
165
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters
from 4.2 to 5.6mm
Markers for conductor diameters
from 5 to 7.5mm
Clip-on UniCard conductor marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 120 -40 ... 120
Components Free from silicone and halogen Free from silicone and halogen
Conductor diameter range [mm] 1.3 ... 1.6 1.6 ... 2.1
Conductor cross section range [mm²] 0.25 ... 0.5 0.5 ... 0.75
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, lettering field size
12x3mm, 40-section, 10individual labels per strip
white UC-WMCO 1,6 (12X3) 0827092 10 UC-WMCO 2,1 (12X3) 0827120 10
red UC-WMCO 1,6 (12X3) RD 0827516 10 UC-WMCO 2,1 (12X3) RD 0827540 10
orange UC-WMCO 1,6 (12X3) OG 0827517 10 UC-WMCO 2,1 (12X3) OG 0827541 10
yellow UC-WMCO 1,6 (12X3) YE 0827513 10 UC-WMCO 2,1 (12X3) YE 0827537 10
violet UC-WMCO 1,6 (12X3) VT 0827518 10 UC-WMCO 2,1 (12X3) VT 0827542 10
blue UC-WMCO 1,6 (12X3) BU 0827514 10 UC-WMCO 2,1 (12X3) BU 0827538 10
green UC-WMCO 1,6 (12X3) GN 0827515 10 UC-WMCO 2,1 (12X3) GN 0827539 10
UniCard, for subsequent marking of conductors, lettering field
size21x3mm, 40-section, 10individual labels per strip
white UC-WMCO 1,6 (21X3) 0827106 10 UC-WMCO 2,1 (21X3) 0827134 10
red UC-WMCO 1,6 (21X3) RD 0827528 10 UC-WMCO 2,1 (21X3) RD 0827552 10
orange UC-WMCO 1,6 (21X3) OG 0827529 10 UC-WMCO 2,1 (21X3) OG 0827553 10
yellow UC-WMCO 1,6 (21X3) YE 0827525 10 UC-WMCO 2,1 (21X3) YE 0827549 10
violet UC-WMCO 1,6 (21X3) VT 0827530 10 UC-WMCO 2,1 (21X3) VT 0827554 10
blue UC-WMCO 1,6 (21X3) BU 0827526 10 UC-WMCO 2,1 (21X3) BU 0807550 10
green UC-WMCO 1,6 (21X3) GN 0827527 10 UC-WMCO 2,1 (21X3) GN 0827551 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 7 5146568 1P1 UC-MAG 7 5146568 1
Assembly tool, for easily sliding on UC–WMCO1,6 and UC–
WMCO2,1 conductor markers
UC-WMCO 2,1 TOOL 0827803 10 UC-WMCO 2,1 TOOL 0827803 10
Assembly tool set, for easily sliding on UC–WMCO1,6 ...
andUC–WMCO4,9... conductor markers
UC-WMCO TOOL SET 0827807 1UC-WMCO TOOL SET 0827807 1
166
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters
from 1.3 to 1.6mm
Markers for conductor diameters
from 1.6 to 2.1mm
– The UC-WMCO... UniCard marking
range includes slide-on markers for the
subsequent marking of conductors. They
can be slid on easily using the
UC-WMCO...TOOL
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK or
plotter
– The format automatically ensures printing
with a high level of positional accuracy
– Large-surface marking in a space-saving
design
UniCard slide-on conductor marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 120 -40 ... 120
Components Free from silicone and halogen Free from silicone and halogen
Conductor diameter range [mm] 2.1 ... 2.9 2.9 ... 3.6
Conductor cross section range [mm²] 0.75 ... 1.5 1.5 ... 2.5
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, lettering field size
12x3.5mm, 40-section, 10 individual labels per strip
white UC-WMCO 2,9 (12X3,5) 0827148 10
red UC-WMCO 2,9 (12X3,5) RD 0827564 10
orange UC-WMCO 2,9 (12X3,5) OG 0827565 10
yellow UC-WMCO 2,9 (12X3,5) YE 0827561 10
violet UC-WMCO 2,9 (12X3,5) VT 0827566 10
blue UC-WMCO 2,9 (12X3,5) BU 0827562 10
green UC-WMCO 2,9 (12X3,5) GN 0827563 10
UniCard, for subsequent marking of conductors, lettering field size
21x3.5mm, 40-section, 10 individual labels per strip
white UC-WMCO 2,9 (21X3,5) 0827162 10
red UC-WMCO 2,9 (21X3,5) RD 0827576 10
orange UC-WMCO 2,9 (21X3,5) OG 0827577 10
yellow UC-WMCO 2,9 (21X3,5) YE 0827573 10
violet UC-WMCO 2,9 (21X3,5) VT 0827578 10
blue UC-WMCO 2,9 (21X3,5) BU 0827574 10
green UC-WMCO 2,9 (21X3,5) GN 0827575 10
UniCard, for subsequent marking of conductors, lettering field size
12x4.5mm, 32-section, 8 individual labels per strip
white UC-WMCO 3,6 (12X4,5) 0827176 10
red UC-WMCO 3,6 (12X4,5) RD 0827588 10
orange UC-WMCO 3,6 (12X4,5) OG 0827589 10
yellow UC-WMCO 3,6 (12X4,5) YE 0827585 10
violet UC-WMCO 3,6 (12X4,5) VT 0827590 10
blue UC-WMCO 3,6 (12X4,5) BU 0827586 10
green UC-WMCO 3,6 (12X4,5) GN 0827587 10
UniCard, for subsequent marking of conductors, lettering field size
21x4.5mm, 32-section, 8 individual labels per strip
white UC-WMCO 3,6 (21X4,5) 0827190 10
red UC-WMCO 3,6 (21X4,5) RD 0827600 10
orange UC-WMCO 3,6 (21X4,5) OG 0827601 10
yellow UC-WMCO 3,6 (21X4,5) YE 0827597 10
violet UC-WMCO 3,6 (21X4,5) VT 0827602 10
blue UC-WMCO 3,6 (21X4,5) BU 0827598 10
green UC-WMCO 3,6 (21X4,5) GN 0827599 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 7 5146568 1P1 UC-MAG 7 5146568 1
Assembly tool, for easily sliding on UC–WMCO 2,9... and UC–
WMCO 3,6... conductor markers
UC-WMCO 3,6 TOOL 0827804 10 UC-WMCO 3,6 TOOL 0827804 10
Assembly tool set, for easily sliding on UC–WMCO1,6 ...
andUC–WMCO4,9... conductor markers
UC-WMCO TOOL SET 0827807 1UC-WMCO TOOL SET 0827807 1
167
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters
from 2.1 to 2.9mm
Markers for conductor diameters
from 2.9 to 3.6mm
UniCard slide-on conductor marking
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 120 -40 ... 120
Components Free from silicone and halogen Free from silicone and halogen
Conductor diameter range [mm] 3.6 ... 4.9 3.6 ... 4.9
Conductor cross section range [mm²] 2.5 ... 4 2.5 ... 4
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, lettering field size
12x 5mm, 24-section, 6individual labels per strip
white UC-WMCO 4,9 (12X5) 0827733 5
red UC-WMCO 4,9 (12X5) RD 0827737 5
orange UC-WMCO 4,9 (12X5) OG 0827738 5
yellow UC-WMCO 4,9 (12X5) YE 0827734 5
violet UC-WMCO 4,9 (12X5) VT 0827739 5
blue UC-WMCO 4,9 (12X5) BU 0827735 5
green UC-WMCO 4,9 (12X5) GN 0827736 5
UniCard, for subsequent marking of conductors, lettering field size
21x 5mm, 24-section, 6individual labels per strip
white UC-WMCO 4,9 (21X5) 0827747 5
red UC-WMCO 4,9 (21X5) RD 0827751 5
orange UC-WMCO 4,9 (21X5) OG 0827752 5
yellow UC-WMCO 4,9 (21X5) YE 0827748 5
violet UC-WMCO 4,9 (21X5) VT 0827753 5
blue UC-WMCO 4,9 (21X5) BU 0827749 5
green UC-WMCO 4,9 (21X5) GN 0827750 5
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 7 5146568 1P1 UC-MAG 7 5146568 1
Assembly tool, for easily sliding on UC–WMCO4,9... conductor
markers
UC-WMCO 5,8 TOOL 0827805 10 UC-WMCO 5,8 TOOL 0827805 10
Assembly tool set, for easily sliding on UC–WMCO1,6 ...
andUC–WMCO4,9... conductor markers
UC-WMCO TOOL SET 0827807 1UC-WMCO TOOL SET 0827807 1
168
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters from 3.6 to
4.9mm, lettering field size 12x5mm
Markers for conductor diameters from 3.6 to
4.9mm, lettering field size 21x 5mm
– The UC-WMCO... UniCard marking
range includes slide-on markers for the
subsequent marking of conductors. They
can be slid on easily using the
UC-WMCO...TOOL
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK or
plotter
UniCard slide-on conductor marking
UV
For further information and full technical data, visit phoenixcontact.net/products
– Ferrules can be marked with BLUEMARK
– Crimping and marking in one step
– Highly resistant and optimum printing
quality, thanks to modern UV printing
technology
– Ferrules made from electrolytic copper
– Electrogalvanized
– Corresponding crimping pliers can be
found on page 389
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED
Material / coating E-CU / tin-plated (galvanic)
Temperature range [°C] -40 ... 120
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Ferrules, with plastic sleeve that can be marked, color range
according to DIN 46228-4: 1990-09
20 pcs., 0.5mm² cross section white AI-WM 0,5-8 WH 3240542 780
20 pcs., 0.75mm² cross section gray AI-WM 0,75-8 GY 3240543 780
20 pcs., 1.0mm² cross section red AI-WM 1-8 RD 3240544 780
20 pcs., 1.5mm² cross section white AI-WM 1,5-8 WH 3240545 780
20 pcs., 2.5mm² cross section blue AI-WM 2,5-8 BU 3240572 528
Accessories
Magazine for BLUEMARK printer, for accommodating ferrules
with insulating collar that can be marked
For 0.5–1.5mm² BLUEMARK MAG AI-WM 5146567 1
For 2.5mm² BLUEMARK MAG AI-WM 2,5 5146640 1
Can be marked using:
Conductor marking with ferrules that
can be marked
169
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Ferrules for conductors with a cross section of
0.5 to 2.5mm², lettering field size: 15x4mm
UV LED technology
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC–WMT... UniCard marking range
includes markers for conductor marking
with marking collars from the
PATG/PATO ... system; see page 214
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– Marked insert strips are simply inserted
into the collars. This protects the marking
against contamination
– To simplify mounting, the insert labels are
arranged on UniCard sheets so that they
can be separated branch by branch
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
PATG/PATO... system, see page 214.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, with insert strips for PATG and PATO marking collars, for
lettering field size 10x4 mm, 48-section, 8individual labels per
strip
white UC-WMT (10X4) 0819372 10
red UC-WMT (10X4) RD 0821001 10
orange UC-WMT (10X4) OG 0823986 10
yellow UC-WMT (10X4) YE 0819385 10
violet UC-WMT (10X4) VT 0825360 10
blue UC-WMT (10X4) BU 0820992 10
green UC-WMT (10X4) GN 0823999 10
UniCard, with insert strips for PATG and PATO marking collars, for
lettering field size 12x4 mm, 32-section, 8individual labels per
strip
white UC-WMT (12X4) 0823517 10
red UC-WMT (12X4) RD 0823614 10
orange UC-WMT (12X4) OG 0823588 10
yellow UC-WMT (12X4) YE 0823591 10
violet UC-WMT (12X4) VT 0825378 10
blue UC-WMT (12X4) BU 0823575 10
green UC-WMT (12X4) GN 0823601 10
UniCard, with insert strips for PATG and PATO marking collars, for
lettering field size 15x4 mm, 32-section, 8individual labels per
strip
white UC-WMT (15X4) 0819398 10
red UC-WMT (15X4) RD 0821043 10
orange UC-WMT (15X4) OG 0824037 10
yellow UC-WMT (15X4) YE 0819408 10
violet UC-WMT (15X4) VT 0825361 10
blue UC-WMT (15X4) BU 0821030 10
green UC-WMT (15X4) GN 0824040 10
UniCard, with insert strips for PATG and PATO marking collars, for
lettering field size 18x4 mm, 24-section, 8individual labels per
strip
white UC-WMT (18X4) 0820293 10
red UC-WMT (18X4) RD 0821085 10
orange UC-WMT (18X4) OG 0824079 10
yellow UC-WMT (18X4) YE 0820303 10
violet UC-WMT (18X4) VT 0825362 10
blue UC-WMT (18X4) BU 0821072 10
green UC-WMT (18X4) GN 0824082 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 4 5146105 1
Can be marked using:
UniCard conductor marking for
marking collars
170
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker with lettering field size
10x4mm to 18x4mm
UV LED technology Plotter
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 120 -40 ... 120
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, with insert strips for PATG and PATO marking collars, for
lettering field size 23x4 mm, 24-section, 8individual labels
strip
white UC-WMT (23X4) 0819411 10
red UC-WMT (23X4) RD 0821124 10
orange UC-WMT (23X4) OG 0824118 10
yellow UC-WMT (23X4) YE 0819424 10
violet UC-WMT (23X4) VT 0825363 10
blue UC-WMT (23X4) BU 0821111 10
green UC-WMT (23X4) GN 0824121 10
silver UC-WMT (23X4) SR 0802719 10
UniCard sheet
, with insert strips for PATG and PATO marking
collars, for lettering field size 30x4 mm, 24-section, 8individual labels
strip
white UC-WMT (30X4) 0819437 10
red UC-WMT (30X4) RD 0821166 10
orange UC-WMT (30X4) OG 0824150 10
yellow UC-WMT (30X4) YE 0819440 10
violet UC-WMT (30X4) VT 0825364 10
blue UC-WMT (30X4) BU 0821153 10
green UC-WMT (30X4) GN 0824163 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 4 5146105 1P1 UC-MAG 4 5146105 1
171
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker with lettering field size 23x4mm Marker with lettering field size 30x4mm
UniCard conductor marking for
marking collars
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-WMTB... and UC-WMTBA...
UniCard marking range includes markers
that can be secured using standard cable
binders
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– For large-surface marking of conductors
and cables > 7mm in diameter
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
For more cable markers for fixing with cable binders, visit:
phoenixcontact.net/products
For corresponding cable binders, see from page 588.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Components Free from silicone and halogen
Cable diameter range [mm] > 7
Cable cross section range [mm²] > 16
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for mounting with two cable binders, lettering field size:
44x15mm, 4-section, 1 individual label per strip
white UC-WMTB (44X15) 0828376 10
red UC-WMTB (44X15) RD 0828377 10
orange UC-WMTB (44X15) OG 0828378 10
yellow UC-WMTB (44X15) YE 0828379 10
violet UC-WMTB (44X15) VT 0828380 10
blue UC-WMTB (44X15) BU 0828381 10
green UC-WMTB (44X15) GN 0828382 10
silver UC-WMTB (44X15) SR 0828383 10
brown UC-WMTB (44X15) BN 0828384 10
UniCard, for mounting with one cable binder
3-section, lettering field size: 52x30mm white UC-WMTB (52X30) 5775288 10
2-section, lettering field size: 52x50mm white UC-WMTB (52X50) 5775289 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 6 5146121 1
Can be marked using:
UniCard cable marking for assembly
with cable binders
172
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for cable diameters >7mm
UV LED technology Plotter
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 120 -40 ... 120
Components Free from silicone and halogen Free from silicone and halogen
Cable diameter range [mm] > 4 > 6
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
UniCard, for assembly with cable binders, lettering field size
24x5mm, 12-section, 4individual labels per strip
white UC-WMTBA (24X5) 0820426 10
red UC-WMTBA (24X5) RD 0820565 10
orange UC-WMTBA (24X5) OG 0825342 10
yellow UC-WMTBA (24X5) YE 0820439 10
violet UC-WMTBA (24X5) VT 0825344 10
blue UC-WMTBA (24X5) BU 0820552 10
green UC-WMTBA (24X5) GN 0825343 10
UniCard, for assembly with cable binders, lettering field size
29x6mm, 12-section, 4individual labels per strip
white UC-WMTBA (29X8) 0820183 10
red UC-WMTBA (29X8) RD 0820604 10
orange UC-WMTBA (29X8) OG 0825345 10
yellow UC-WMTBA (29X8) YE 0820390 10
violet UC-WMTBA (29X8) VT 0825347 10
blue UC-WMTBA (29X8) BU 0820594 10
green UC-WMTBA (29X8) GN 0825346 10
silver UC-WMTBA (29X8) SR 0802749 10
UniCard, for assembly with cable binders, lettering field size 60 x
11mm,4-section, 1individual label per strip
white UC-WMTBA (60X11) 0820468 10
red UC-WMTBA (60X11) RD 0820646 10
orange UC-WMTBA (60X11) OG 0825348 10
yellow UC-WMTBA (60X11) YE 0820471 10
violet UC-WMTBA (60X11) VT 0825350 10
blue UC-WMTBA (60X11) BU 0820633 10
green UC-WMTBA (60X11) GN 0825349 10
Accessories Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 1 5146079 1P1 UC-MAG 1 5146079 1
173
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for cable diameters >4mm Markers for cable diameters >6mm
Notes:
Cable binders can be used for UC-WMTBA... up to a width of
5mm.
For corresponding cable binders, see from page 588.
UniCard cable marking for assembly
with cable binders
P R I NT E D
FOR YOU
1
2
2
1
UV
– The UCT–WMT... UniCard marking
range includes markers for conductor
marking with marking collars from the
PATG/PATO ... system; see page 214
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK,
TOPMARK LASER, and THERMOMARK
CARD
– The format automatically ensures printing
with a high level of positional accuracy
– Marked insert strips are simply inserted
into the collars. This protects the marking
against contamination
– To simplify mounting, the insert labels are
arranged on UniCard sheets so that they
can be separated branch by branch
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
PATG/PATO... system, see page 214.
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC V0
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, with insert strips for PATG and PATO marking collars,
with lettering field size 10 x 4 mm, 60-section
white UCT-WMT (10X4) 0801430 10
red UCT-WMT (10X4) RD 0801433 10
orange UCT-WMT (10X4) OG 0801434 10
yellow UCT-WMT (10X4) YE 0801431 10
violet UCT-WMT (10X4) VT 0801436 10
blue UCT-WMT (10X4) BU 0801437 10
green UCT-WMT (10X4) GN 0801435 10
UniCard, with insert strips for PATG and PATO marking collars,
with lettering field size 12 x 4 mm, 50-section
white UCT-WMT (12X4) 0801438 10
red UCT-WMT (12X4) RD 0801440 10
orange UCT-WMT (12X4) OG 0801441 10
yellow UCT-WMT (12X4) YE 0801439 10
violet UCT-WMT (12X4) VT 0801443 10
blue UCT-WMT (12X4) BU 0801444 10
green UCT-WMT (12X4) GN 0801442 10
UniCard, with insert strips for PATG and PATO marking collars,
with lettering field size 15 x 4 mm, 50-section
white UCT-WMT (15X4) 0801446 10
red UCT-WMT (15X4) RD 0801448 10
orange UCT-WMT (15X4) OG 0801449 10
yellow UCT-WMT (15X4) YE 0801447 10
violet UCT-WMT (15X4) VT 0801451 10
blue UCT-WMT (15X4) BU 0801452 10
green UCT-WMT (15X4) GN 0801450 10
UniCard, with insert strips for PATG and PATO marking collars,
with lettering field size 18x4mm, 40-section
white UCT-WMT (18X4) 0801462 10
red UCT-WMT (18X4) RD 0801464 10
orange UCT-WMT (18X4) OG 0801465 10
yellow UCT-WMT (18X4) YE 0801463 10
violet UCT-WMT (18X4) VT 0801467 10
blue UCT-WMT (18X4) BU 0801468 10
green UCT-WMT (18X4) GN 0801466 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating
UCT-WMT... sheets, UCT-EM(17X10)
THERMOMARK CARD-UCT-MAG7 0801734 1
Can be marked using:
UniCard conductor marking for
marking collars
174
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker with lettering field size from 10x4 mm
to 18x4 mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC V0
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, with insert strips for PATG and PATO marking collars,
with lettering field size 23x4mm
white UCT-WMT (23X4) 0801453 10
red UCT-WMT (23X4) RD 0801455 10
orange UCT-WMT (23X4) OG 0801456 10
yellow UCT-WMT (23X4) YE 0801454 10
violet UCT-WMT (23X4) VT 0801459 10
blue UCT-WMT (23X4) BU 0801460 10
green UCT-WMT (23X4) GN 0801457 10
UniCard, with insert strips for PATG and PATO marking collars,
with lettering field size 30x4mm
white UCT-WMT (30X4) 0801422 10
red UCT-WMT (30X4) RD 0801424 10
orange UCT-WMT (30X4) OG 0801425 10
yellow UCT-WMT (30X4) YE 0801423 10
violet UCT-WMT (30X4) VT 0801427 10
blue UCT-WMT (30X4) BU 0801428 10
green UCT-WMT (30X4) GN 0801426 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating
UCT-WMT... sheets, UCT-EM(17X10)
THERMOMARK CARD-UCT-MAG7 0801734 1
175
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker with lettering field size 23x4
mm/30x4 mm
UniCard conductor marking for
marking collars
P R I NT E D
FOR YOU
1
2
2
1
UV
– The UCT-WMS... UniCard marking range
includes markers that can be slid onto
conductors
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the TOPMARK LASER,
THERMOMARKCARD, and the
BLUEMARKCLED
– The format automatically ensures printing
with a high level of positional accuracy
– The markers support multiline marking
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC V0
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking conductors with a diameter of 1.5-3.2mm
55-section, lettering field size: 12x4mm white UCT-WMS 3,2 (12X4) 0828570 8
yellow UCT-WMS 3,2 (12X4) YE 0828572 8
45-section, lettering field size: 12x5.5mm, for
conductors with a diameter of 2.5-4.7mm
white UCT-WMS 4,7 (12X5,5) 0828571 6
yellow UCT-WMS 4,7 (12X5,5) YE 0828573 6
Accessories
Magazine, for THERMOMARKCARD..., for accommodating:
UCT–WMS...
THERMOMARK CARD-UCT-MAG3 5146613 1
Can be marked using:
UniCard slide-on conductor marking
176
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters
of 1.5 to 4.7mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
UV
For further information and full technical data, visit phoenixcontact.net/products
– The UCT-WMCO... UniCard marking
range includes markers for the
subsequent marking of conductors by
clipping on
– Secure tight fit even in the event of
vibrations
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily with the TOPMARKLASER,
THERMOMARKCARD, and the
BLUEMARK... printers
– The format automatically ensures printing
with a high level of positional accuracy
– Large-surface marking in a space-saving
design
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for subsequent marking of conductors, conductor
diameter 2-2.9mm
Lettering field size: 12x4mm white UCT-WMCO 2,9 (12X4) 0830780 9
yellow UCT-WMCO 2,9 (12X4) YE 0831204 9
Lettering field size: 18x4mm white UCT-WMCO 2,9 (18X4) 0830781 9
yellow UCT-WMCO 2,9 (18X4) YE 0831205 9
UniCard, for subsequent marking of conductors, conductor
diameter 2.9-3.5mm
Lettering field size: 12x4mm white UCT-WMCO 3,5 (12X4) 0830782 7
yellow UCT-WMCO 3,5 (12X4) YE 0831206 7
Lettering field size: 18x4mm white UCT-WMCO 3,5 (18X4) 0830783 7
yellow UCT-WMCO 3,5 (18X4) YE 0831207 7
UniCard, for subsequent marking of conductors, conductor
diameter 3.5-4.1mm
Lettering field size: 12x4mm white UCT-WMCO 4,1 (12X4) 0830784 6
yellow UCT-WMCO 4,1 (12X4) YE 0831208 6
Lettering field size: 18x4mm white UCT-WMCO 4,1 (18X4) 0830785 6
yellow UCT-WMCO 4,1 (18X4) YE 0831209 6
UniCard, for subsequent marking of conductors, conductor
diameter 4.1-4.7mm
Lettering field size: 12x4mm white UCT-WMCO 4,7 (12X4) 0830786 6
yellow UCT-WMCO 4,7 (12X4) YE 0831210 6
Lettering field size: 18x4mm white UCT-WMCO 4,7 (18X4) 0830787 6
yellow UCT-WMCO 4,7 (18X4) YE 0831211 6
Accessories
Magazine, for THERMOMARKCARD...,
for accommodating: UCT–WMCO...(12 x 4) THERMOMARK CARD-UCT-MAG25 0802935 1
Magazine for the THERMOMARK CARD printer,
for accommodating: UCT sheets (UCT-WMCO...(18 x 4)) THERMOMARK CARD-UCT-MAG28 0803205 1
Can be marked using:
Clip-on UniCard conductor marking
177
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for conductor diameters from
2to4.7mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
UV
– The UCT-WMTBA... UniCard marking
range includes markers that can be
secured using standard cable binders
– The markers, which are supplied in
uniform sheets, can be marked quickly,
easily, and precisely using the
TOPMARKLASER,
THERMOMARKCARD, and the
BLUEMARK...
– The format automatically ensures printing
with a high level of positional accuracy
– For large-surface marking of conductors
and cables > 5mm in diameter
– The sheets provide space to include
function texts
– Thanks to their angular shape, the
markers fit perfectly onto cables
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
For cable binders up to 5mm wide.
For matching cable binders, see page 588 onwards or the product
area on our website at phoenixcontact.net/products.
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for assembly with cable binders, for conductor diameters
> 5mm, 15-section, 5individual labels per strip
Lettering field size: 24x4mm white UCT-WMTBA (24X4) 1014082 10
yellow UCT-WMTBA (24X4) YE 1014083 10
UniCard, for assembly with cable binders, for conductor diameters
> 6mm, 12-section, 4individual labels per strip
Lettering field size: 29x6mm white UCT-WMTBA (29X6) 1014084 10
yellow UCT-WMTBA (29X6) YE 1014085 10
UniCard, for assembly with cable binders, for conductor diameters
> 6mm, 3-section, 1individual label per strip
Lettering field size: 40x17mm white UCT-WMTBA (40X17) 1014086 10
Lettering field size: 40x17mm white UCT-WMTBA (40X17) 1014086 10
Accessories
Magazine, for THERMOMARKCARD...,
for accommodating: UCT–WMTBA... THERMOMARK CARD-UCT-MAG27 0802989 1
Can be marked using:
UniCard cable marking for assembly
with cable binders
178
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for cable diameters > 5mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
1
2
2
1
UV
For further information and full technical data, visit phoenixcontact.net/products
– The UCT-WMTB ... UniCard marking
range includes markers that can be
secured using standard cable binders
– The markers, which are supplied in
uniform sheets, can be marked quickly,
easily, and precisely using the TOPMARK
LASER, THERMOMARK CARD, and the
BLUEMARK ...
– The format automatically ensures printing
with a high degree of positioning accuracy
– For large-surface marking of conductors
and cables > 2.9mm in diameter
– The sheets provide space to include
function texts
– Due to the lateral notches for the cable
binders, the markers optimally adjust to
smaller cable and conductor diameters >
2.9mm
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
For matching cable binders, see page 588 onwards or the product
area on our website at phoenixcontact.net/products.
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC V0
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for assembly with cable binders, for conductor diameters
> 2.9 mm, 6-section, 1 individual label per strip
Lettering field size: 29x8mm white UCT-WMTB (29X8) 0803321 10
Lettering field size: 29x8mm blue UCT-WMTB (29X8) BU 0803324 10
Lettering field size: 29x8mm green UCT-WMTB (29X8) GN 0803325 10
Lettering field size: 29x8mm red UCT-WMTB (29X8) RD 0803323 10
Lettering field size: 29x8mm gray UCT-WMTB (29X8) GY 0803326 10
Lettering field size: 29x8mm yellow UCT-WMTB (29X8) YE 0803322 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(10 x 7), UCT-WMTB(29 x 8) THERMOMARK CARD-UCT-MAG20 0830751 1
Can be marked using:
new
UniCard cable marking for assembly
with cable binders
179
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Markers for cable diameters > 2.9 mm
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
– The US-WMT... UniSheet marking range
includes markers for conductor marking
with marking collars from the
PATG/PATO ... system
– The markers, which are supplied as
uniform cards, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– Marked insert strips are simply inserted
into the collars. This protects the marking
against contamination
– The perforated marking strips are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniSheet markers in
accordance with your requirements
Notes:
For PATG/PATO... system marking collars, see page 214.
Technical data
General data
Can be marked using THERMOMARK CARD
Number of individual labels 112
Number of individual labels per strip 14
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with insert strips for PATG and PATO marking collars,
112-section, lettering field size 10x4mm
white US-WMT (10X4) 0828765 10
red US-WMT (10X4) RD 0829273 10
orange US-WMT (10X4) OG 0829274 10
yellow US-WMT (10X4) YE 0828952 10
violet US-WMT (10X4) VT 0829276 10
blue US-WMT (10X4) BU 0829277 10
green US-WMT (10X4) GN 0829278 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet conductor marking for
marking collars
180
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker with lettering field size 10x4mm
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD
Number of individual labels per strip 14
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with insert strips for PATG and PATO marking collars,
96-section, lettering field size 12x4mm
white US-WMT (12X4) 0828766 10
red US-WMT (12X4) RD 0829280 10
orange US-WMT (12X4) OG 0829281 10
yellow US-WMT (12X4) YE 0828953 10
violet US-WMT (12X4) VT 0829283 10
blue US-WMT (12X4) BU 0829284 10
green US-WMT (12X4) GN 0829285 10
UniSheet, with insert strips for PATG and PATO marking collars,
84-section, lettering field size 15x4mm
white US-WMT (15X4) 0828767 10
red US-WMT (15X4) RD 0829287 10
orange US-WMT (15X4) OG 0829288 10
yellow US-WMT (15X4) YE 0828954 10
violet US-WMT (15X4) VT 0829290 10
blue US-WMT (15X4) BU 0829291 10
green US-WMT (15X4) GN 0829292 10
UniSheet, with insert strips for PATG and PATO marking collars,
70-section, lettering field size 18x4mm
white US-WMT (18X4) 0828768 10
red US-WMT (18X4) RD 0829294 10
orange US-WMT (18X4) OG 0829295 10
yellow US-WMT (18X4) YE 0828955 10
violet US-WMT (18X4) VT 0829297 10
blue US-WMT (18X4) BU 0829298 10
green US-WMT (18X4) GN 0829299 10
UniSheet, with insert strips for PATG and PATO marking collars,
56-section, lettering field size 23x4mm
white US-WMT (23X4) 0828769 10
red US-WMT (23X4) RD 0829301 10
orange US-WMT (23X4) OG 0829302 10
yellow US-WMT (23X4) YE 0828956 10
violet US-WMT (23X4) VT 0829304 10
blue US-WMT (23X4) BU 0829305 10
green US-WMT (23X4) GN 0829306 10
UniSheet, with insert strips for PATG and PATO marking collars,
42-section, lettering field size 30x4mm
white US-WMT (30X4) 0828770 10
red US-WMT (30X4) RD 0829308 10
orange US-WMT (30X4) OG 0829309 10
yellow US-WMT (30X4) YE 0828957 10
violet US-WMT (30X4) VT 0829311 10
blue US-WMT (30X4) BU 0829312 10
green US-WMT (30X4) GN 0829313 10
181
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker with lettering field size
12x4 to 30x4mm
UniSheet conductor marking for
marking collars
P R I NT E D
FOR YOU
1
2
2
1
– The US-WMTB... UniSheet marking range
includes markers that can be secured
using standard cable binders
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated marking strips are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
Notes:
For corresponding cable binders, see from page 588.
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with markers for attachment using cable binders, for a
conductor diameter ≥13mm
35-section, lettering field size: 24x5mm white US-WMTB (24X5) 0828771 10
red US-WMTB (24X5) RD 0829320 10
orange US-WMTB (24X5) OG 0829321 10
yellow US-WMTB (24X5) YE 0828958 10
violet US-WMTB (24X5) VT 0829323 10
blue US-WMTB (24X5) BU 0829324 10
green US-WMTB (24X5) GN 0829325 10
24-section, lettering field size: 29x8mm, for
conductor diameter ≥13mm
white US-WMTB (29X8) 0828772 10
red US-WMTB (29X8) RD 0829327 10
orange US-WMTB (29X8) OG 0829328 10
yellow US-WMTB (29X8) YE 0828959 10
violet US-WMTB (29X8) VT 0829330 10
blue US-WMTB (29X8) BU 0829331 10
green US-WMTB (29X8) GN 0829332 10
12-section, lettering field size: 44x15mm, for
conductor diameter ≥13mm
white US-WMTB (44X15) 0828773 10
red US-WMTB (44X15) RD 0829334 10
orange US-WMTB (44X15) OG 0829335 10
yellow US-WMTB (44X15) YE 0828960 10
violet US-WMTB (44X15) VT 0829337 10
blue US-WMTB (44X15) BU 0829338 10
green US-WMTB (44X15) GN 0829339 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet conductor marking for
assembly with cable binders
182
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters > 13mm
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
– The US-WML... cable marker labels
consist of a marking field and a
transparent protective foil
– The protective foil is wound over the
marking and provides permanent
protection against dirt and abrasion
– The cable marker labels do not increase
the cross section of the cable, allowing
the cable to be subsequently drawn
through cable ducts, forexample
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– Quick and easy handling
– Resistant to solvents
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Temperature range [°C] -50 ... 110
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker labels
32-section, lettering field size: 13x13mm,
conductor diameter <6.0mm
white US-WML 6 (13X13) 0800472 10
8-section, lettering field size: 19 x 25mm,
conductor diameter <14.0mm
white US-WML 14 (25X19) 0800473 10
4-section, lettering field size: 25 x 25mm,
conductor diameter <36.0mm
white US-WML 36 (25X25) 0800474 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
Self-adhesive conductor marking with
transparent protective foil
183
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters of up to
36mm
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1 2 3
– WML... cable marker labels consist of a
marking field and a transparent protective
foil
– The protective foil is wound over the
marking and provides permanent
protection against dirt and abrasion
– The cable marker labels do not increase
the cross section of the cable, allowing
the cable to be subsequently drawn
through cable ducts, forexample
– Quick and easy handling
– Resistant to solvents
Notes:
Print image may vary depending on laser printer
Technical data
General data
Can be marked using - Office printing systems
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from halogen and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker labels, sheet format:A4, self-adhesive
1 sheet = 168 labels, up to 3.0 mm Ø white WML 3 (13X10)A4 0830687 10
1 sheet = 168 labels, up to 3.0 mm Ø yellow WML 3 (13X10)A4 YE 0830688 10
1 sheet = 77 labels, up to 5.0 mm Ø white WML 5 (25X10)A4 0830689 10
1 sheet = 77 labels, up to 5.0 mm Ø yellow WML 5 (25X10)A4 YE 0830690 10
1 sheet = 56 labels, up to 7.5 mm Ø white WML 7,5 (25X13)A4 0830691 10
1 sheet = 56 labels, up to 7.5 mm Ø yellow WML 7,5 (25X13)A4 YE 0830692 10
1 sheet = 28 labels, up to 14 mm Ø white WML 14 (25X19)A4 0830693 10
1 sheet = 28 labels, up to 14 mm Ø yellow WML 14 (25X19)A4 YE 0830694 10
1 sheet = 10 labels, up to 22 mm Ø white WML 22 (35X25)A4 0830695 10
1 sheet = 10 labels, up to 22 mm Ø yellow WML 22 (35X25)A4 YE 0830696 10
1 sheet = 14 labels, up to 36 mm Ø white WML 36 (25X38)A4 0830697 10
1 sheet = 14 labels, up to 36 mm Ø yellow WML 36 (25X38)A4 YE 0830698 10
Can be marked using:
Self-adhesive conductor marking with
transparent protective foil
184
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameter up to 36 mm
Office laser printing
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– The cable marker labels consist of a
marking field and a transparent protective
foil
– The protective foil is wound over the
marking and provides permanent
protection against dirt and abrasion
– The cable marker labels do not increase
the cross section of the cable, allowing
the cable to be subsequently drawn
through cable ducts, forexample
– Quick and easy handling
– Resistant to solvents
Radio-frequency identification, RFID
– The WML-RFID/HF conductor markers
are also equipped with an integrated high-
frequency transponder and are used for
contact-free identification, data exchange,
and localization using an RFID handheld
device
Notes:
Due to the wide variety of cable and conductor types, the
transponder function must always be checked by the end
customer.
WML-RFID/HF conductor markers cannot be marked by the
THERMOMARK S1.1 and THERMOMARK X1.1.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material PVC
Temperature range [°C] -50 ... 110
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker labels
5000 labels, up to 3 mm Ø white WML 3 (13X10)R 0800073 1
3000 labels, up to 5 mm Ø white WML 5 (25X10)R 0817523 1
3000 labels, up to 5 mm Ø yellow WML 5 (25X10)R YE 0830673 1
7000 labels, up to 6 mm Ø white WML 6 (13X13)R 0816252 1
7000 labels, up to 6 mm Ø yellow WML 6 (13X13)R YE 0830674 1
4000 labels, up to 7.5 mm Ø white WML 7,5 (13X13)R 0800074 1
1500 labels, up to 7.5 mm Ø white WML 7,5 (17X9)R 0828444 1
2100 labels, up to 7.5 mm Ø white WML 7,5 (25X13)R 0800075 1
1000 labels, up to 12 mm Ø white WML 12 (25X19)R 0800076 1
1500 labels, up to 14 mm Ø white WML 14 (25X19)R 0817536 1
1500 labels, up to 14 mm Ø yellow WML 14 (25X19)R YE 0817549 1
1000 labels, up to 14 mm Ø white WML 14 (38X19)R 0817552 1
1500 labels, up to 14 mm Ø yellow WML 14 (38X19)R YE 0830675 1
2500 labels, up to 18 mm Ø white WML 18 (12X12)R 0817507 1
500 labels, up to 20 mm Ø white WML 20 (31X25)R 0828457 1
900 labels, up to 22 mm Ø white WML 22 (25X25)R 0800078 1
500 labels, up to 36 mm Ø white WML 36 (25X38)R 0817510 1
250 labels, up to 46 mm Ø white WML 46 (25X38)R 0800067 1
Cable marker labels, on large roll
10,000 labels, up to 5 mm Ø white WML 5 (25X10)RL 0830676 1
15,000 labels, up to 6 mm Ø white WML 6 (13X13)RL 0830677 1
5000 labels, up to 14 mm Ø white WML 14 (25X19)RL 0830678 1
3000 labels, up to 14 mm Ø white WML 14 (38X19)RL 0830679 1
Cable marker labels, with integrated HF transponder
900 labels, min. 6mm to 14 mm Ø white WML-RFID/HF 14 (25X19)R 0803386 1
Can be marked using:
Self-adhesive conductor marking with
transparent protective foil
185
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters of up to
46mm
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
– The halogen-free cable marker labels
consist of a marking field and a
transparent protective foil
– The protective foil is wound over the
marking and provides permanent
protection against dirt and abrasion
– The cable marker labels do not increase
the cross section of the cable, allowing
the cable to be subsequently drawn
through cable ducts, forexample
– High-quality marking image created by
thermal transfer printing
– Quick and easy handling
– Resistant to solvents
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyethylene
Temperature range [°C] -40 ... 100
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker labels, halogen-free
5000 labels, up to 3 mm Ø white WML HF 3(13X10)R 0830812 1
5000 labels, up to 3 mm Ø yellow WML HF 3(13X10)R YE 0830813 1
3000 labels, up to 5 mm Ø white WML HF 5(25X10)R 0830814 1
3000 labels, up to 5 mm Ø yellow WML HF 5(25X10)R YE 0830815 1
2100 labels, up to 7.5 mm Ø white WML HF 7,5(25X13)R 0830816 1
2100 labels, up to 7.5 mm Ø yellow WML HF 7,5(25X13)R YE 0830817 1
1500 labels, up to 14 mm Ø white WML HF 14(25X19)R 0830818 1
1500 labels, up to 14 mm Ø yellow WML HF 14(25X19)R YE 0830819 1
900 labels, up to 22 mm Ø white WML HF 22(25X25)R 0830820 1
900 labels, up to 22 mm Ø yellow WML HF 22(25X25)R YE 0830821 1
500 labels, up to 36 mm Ø white WML HF 36(25X38)R 0830822 1
500 labels, up to 36 mm Ø yellow WML HF 36(25X38)R YE 0830823 1
Can be marked using:
Self-adhesive conductor marking with
transparent protective foil, halogen-
free
186
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameter up to 36 mm
Thermal transfer for rolls
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyolefine
Temperature range [°C] -40 ... 60
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from halogen and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marking flags
up to 6 mm Ø, lettering field size: 20x10mm,
2500 labels per roll
white WML-FLAG 6 (20X10)R 0830711 1
up to 6 mm Ø, lettering field size: 30x10mm,
2500 labels per roll
white WML-FLAG 6 (30X10)R 0830712 1
The WML-FLAGV... conductor marking
flags support large-surface marking of
conductors with a diameter of up to 6mm
perpendicular to the conductor direction.
They are characterized by:
– Can be printed on both sides
– High-quality marking image created by
thermal transfer printing
– Quick and easy handling
– Resistant to solvents
Self-adhesive conductor marking as a
flag, vertical
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameter up to 6 mm
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyolefine
Temperature range [°C] -40 ... 60
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from halogen and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marking flags
up to 6 mm Ø, lettering field size: 20x10mm,
2500 labels per roll
white WML-FLAGV 6 (20X10)R 0830713 1
up to 6 mm Ø, lettering field size: 30x10mm,
2500 labels per roll
white WML-FLAGV 6 (30X10)R 0830714 1
187
PHOENIX CONTACT
The WML-FLAG... conductor marking
flags support large-surface marking of
conductors with a diameter of up to 6mm
parallel to the conductor direction. They
are characterized by:
– Can be printed on both sides
– High-quality marking image created by
thermal transfer printing
– Quick and easy handling
– Resistant to solvents
Self-adhesive conductor marking as a
flag, horizontal
Marker for conductor diameter up to 6 mm
P R I NT E D
FOR YOU
2
1
1
2
– WMS-2 HF... shrink sleeves provide
permanent and captive conductor and
cable marking
– The material is offered pre-assembled in a
handy conductor format
– Up to four separate markers are secured
per row on a carrier material and can each
be removed separately
– The conductor is fed through the sleeve
and can be fixed by shrinking the sleeve, if
desired
– The shrink sleeves also provide electrical
insulation and mechanical protection
– The shrink rate is 2:1
– The shrink sleeves can be printed on one
side
– The standards DINEN45545-2 and
NFPA130:2007 are met
Notes:
The 110-WMTB HF ink ribbon is required for marking WMS-2 HF
shrink sleeves, see Printer, Page 36.
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.1 THERMOMARK X1.2
Material Polyolefine
Temperature range [°C] -30 ... 105
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free
Shrink rate 2:1
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Shrink sleeve, for conductor diameter of 1.2 - 2.4mm
1 roll = 4000markers, each 15mm long white WMS-2 HF 2,4 (15X4)RL 0801000 1
yellow WMS-2 HF 2,4 (15X4)RL YE 0801004 1
1roll = 2000markers, each 30mm long white WMS-2 HF 2,4 (30X4)RL 0801006 1
yellow WMS-2 HF 2,4 (30X4)RL YE 0801007 1
1roll = 1000markers, each 60mm long white WMS-2 HF 2,4 (60X4)RL 0801008 1
yellow WMS-2 HF 2,4 (60X4)RL YE 0801009 1
Shrink sleeve, for conductor diameter of 1.5-3.2mm
1 roll = 4000markers, each 15mm long white WMS-2 HF 3,2 (15X5)RL 0801001 1
yellow WMS-2 HF 3,2 (15X5)RL YE 0801010 1
1roll = 2000markers, each 30mm long white WMS-2 HF 3,2 (30X5)RL 0801011 1
yellow WMS-2 HF 3,2 (30X5)RL YE 0801012 1
1roll = 1000markers, each 60mm long white WMS-2 HF 3,2 (60X5)RL 0801002 1
yellow WMS-2 HF 3,2 (60X5)RL YE 0801013 1
Shrink sleeve, for conductor diameter of 2.4-4.8mm
1 roll = 4000markers, each 15mm long white WMS-2 HF 4,8 (15X9)RL 0801014 1
yellow WMS-2 HF 4,8 (15X9)RL YE 0801015 1
1roll = 2000markers, each 30mm long white WMS-2 HF 4,8 (30X9)RL 0801016 1
yellow WMS-2 HF 4,8 (30X9)RL YE 0801017 1
1roll = 1000markers, each 60mm long white WMS-2 HF 4,8 (60X9)RL 0801019 1
yellow WMS-2 HF 4,8 (60X9)RL YE 0801020 1
Shrink sleeve, for conductor diameter of 3.2-6.4mm
1roll = 2000markers, each 30mm long white WMS-2 HF 6,4 (30X10)RL 0801022 1
yellow WMS-2 HF 6,4 (30X10)RL YE 0801023 1
1roll = 1000markers, each 60mm long white WMS-2 HF 6,4 (60X10)RL 0801024 1
yellow WMS-2 HF 6,4 (60X10)RL YE 0801025 1
Shrink sleeve, for conductor diameter of 4.8-9.5mm
1 roll = 4000markers, each 15mm long white WMS-2 HF 9,5 (15X16)RL 0801003 1
1roll = 2000markers, each 30mm long white WMS-2 HF 9,5 (30X16)RL 0801026 1
yellow WMS-2 HF 9,5 (30X16)RL YE 0801027 1
1roll = 1000markers, each 60mm long white WMS-2 HF 9,5 (60X16)RL 0801028 1
yellow WMS-2 HF 9,5 (60X16)RL YE 0801029 1
Shrink sleeve, for conductor diameter of 6.4-12.7mm
1roll = 1000markers, each 60mm long white WMS-2 HF 12,7 (60X20)RL 0833200 1
yellow WMS-2 HF 12,7 (60X20)RL YE 0833201 1
Shrink sleeve, for conductor diameter of 9.5-19.1mm
1roll = 1000markers, each 60mm long white WMS-2 HF 19,1 (60X30)RL 0833202 1
yellow WMS-2 HF 19,1 (60X30)RL YE 0833203 1
For conductor diameter of 12.7-25.4mm
1roll = 1000markers, each 60mm long white WMS-2 HF 25,4 (60X40)RL 0833204 1
yellow WMS-2 HF 25,4 (60X40)RL YE 0833205 1
For conductor diameter of 19.1-38.1mm
1roll = 1000markers, each 60mm long white WMS-2 HF 38,1 (60X60)RL 0833206 1
yellow WMS-2 HF 38,1 (60X60)RL YE 0833207 1
Can be marked using:
new
Pre-assembled shrink sleeves,
halogen-free
188
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Conductor diameter from 1.2 to 38mm,
white and yellow
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– The shrink tubes WMS ... permanently
identify conductors and cables
– The tubes are pre-assembled for
optimum use of material
– Up to four markers per tube are
separated by perforation
– The conductor to be marked is easily
threaded through the tube and fixed by
shrinking the tube
– The tubes remain flexible after shrinking
– The shrink tubes offer the conductors
additional electrical insulation and
mechanical protection
The following standards are satisfied:
– UL 224 (125°C,600V, all tubing-1)
– CSA.C22.2 No. 198.1 (125°C,600V, all
tubing-1)
– MIL-STD-202G, SAE AMS-DTL-23053,
SAE AS-81531
Notes:
The special THERMOMARK-RIBBON...WMSU is required for
marking shrink sleeves WMS..., see Printer, Page 36.
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyolefine
Temperature range [°C] -55 ... 135
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free
Shrink rate 3:1
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Shrink sleeve, for conductor diameters 0.8 - 2.4 mm
1 roll = 1000 marker, each 15mm long white WMS 2,4 (15X4)R 0800379 1
yellow WMS 2,4 (15X4)R YE 0800412 1
1 roll = 500 marker, each 30mm long white WMS 2,4 (30X4)R 0800373 1
yellow WMS 2,4 (30X4)R YE 0800407 1
1 roll = 250 marker, each 60 mm long white WMS 2,4 (60X4)R 0800363 1
yellow WMS 2,4 (60X4)R YE 0800398 1
Shrink sleeve, for conductor diameters 1.0 - 3.2 mm
1 roll = 1000 marker, each 15mm long white WMS 3,2 (15X5)R 0800380 1
yellow WMS 3,2 (15X5)R YE 0800413 1
1 roll = 500 marker, each 30mm long white WMS 3,2 (30X5)R 0800374 1
yellow WMS 3,2 (30X5)R YE 0800408 1
1 roll = 250 marker, each 60 mm long white WMS 3,2 (60X5)R 0800364 1
yellow WMS 3,2 (60X5)R YE 0800399 1
Shrink sleeve, for conductor diameters 1.6 - 4.8 mm
1 roll = 1000 marker, each 15mm long white WMS 4,8 (15X9)R 0800382 1
yellow WMS 4,8 (15X9)R YE 0800414 1
1 roll = 500 marker, each 30mm long white WMS 4,8 (30X9)R 0800375 1
yellow WMS 4,8 (30X9)R YE 0800409 1
1 roll = 250 marker, each 60 mm long white WMS 4,8 (60X9)R 0800366 1
yellow WMS 4,8 (60X9)R YE 0800400 1
Shrink sleeve, for conductor diameters 2.1 - 6.4 mm
1 roll = 1000 marker, each 15mm long white WMS 6,4 (15X10)R 0801593 1
1 roll = 500 marker, each 30mm long white WMS 6,4 (30X10)R 0800376 1
yellow WMS 6,4 (30X10)R YE 0800410 1
1 roll = 250 marker, each 60 mm long white WMS 6,4 (60X10)R 0800367 1
yellow WMS 6,4 (60X10)R YE 0800401 1
Can be marked using:
Pre-assembled shrink sleeves
189
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Conductor cross sections from 0.8 to 6.4mm
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
– The shrink tubes WMS ... permanently
identify conductors and cables
– The tubes are pre-assembled for
optimum use of material
– Up to four markers per tube are
separated by perforation
– The conductor to be marked is easily
threaded through the tube and fixed by
shrinking the tube
– The tubes remain flexible after shrinking
– The shrink tubes offer the conductors
additional electrical insulation and
mechanical protection
The following standards are satisfied:
– UL 224 (125°C,600V, all tubing-1)
– CSA.C22.2 No. 198.1 (125°C,600V,
all tubing-1)
– MIL-STD-202G, SAE AMS-DTL-23053,
SAE AS-81531
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyolefine
Temperature range [°C] -55 ... 135
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free
Shrink rate 3:1
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Shrink sleeve, for conductor diameters 3.2 - 9.5 mm
1 roll = 500 marker, each 30mm long white WMS 9,5 (30X16)R 0800377 1
yellow WMS 9,5 (30X16)R YE 0800411 1
1 roll = 250 marker, each 60 mm long white WMS 9,5 (60X16)R 0800368 1
yellow WMS 9,5 (60X16)R YE 0800402 1
Shrink sleeve, for conductor diameters 4.2 - 12.7 mm
1 roll = 250 marker, each 60 mm long white WMS 12,7 (60X20)R 0800369 1
yellow WMS 12,7 (60X20)R YE 0800403 1
Shrink sleeve, for conductor diameters 6.4 - 19.1 mm
1 roll = 250 marker, each 60 mm long white WMS 19,1 (60X30)R 0800370 1
yellow WMS 19,1 (60X30)R YE 0800404 1
Shrink sleeve, for conductor diameters 8.5 - 25.4 mm
1 roll = 250 marker, each 60 mm long white WMS 25,4 (60X40)R 0800371 1
yellow WMS 25,4 (60X40)R YE 0800405 1
Shrink sleeve, for conductor diameters 12.7 - 38.1 mm
1 roll = 250 marker, each 60 mm long white WMS 38,1 (60X60)R 0800372 1
yellow WMS 38,1 (60X60)R YE 0800406 1
Can be marked using:
Pre-assembled shrink sleeves
190
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Conductor diameter from 3.2 to 38mm,
white and yellow
Thermal transfer for rolls
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyolefine Polyolefine
Temperature range [°C] -55 ... 135 -55 ... 135
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free Halogen-free
Shrink rate 3:1 3:1
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Shrink sleeve, for conductor diameters 0.8 - 2.4 mm
1 roll = 4000 marker, each 15mm long white WMS 2,4 (15X4)RL 0800389 1
1 roll = 10000 marker, each 15mm long white WMS 2,4 (15X4)RXL 0800396 1
1 roll = 2000 marker, each 30mm long white WMS 2,4 (30X4)RL 0800386 1
1 roll = 5000 marker, each 30mm long white WMS 2,4 (30X4)RXL 0800394 1
1 roll = 1000 marker, each 60mm long white WMS 2,4 (60X4)RL 0800383 1
1 roll = 2500 marker, each 60mm long white WMS 2,4 (60X4)RXL 0800392 1
Shrink sleeve, for conductor diameters 1.0 - 3.2 mm
1 roll = 4000 marker, each 15mm long white WMS 3,2 (15X5)RL 0800390 1
1 roll = 2000 marker, each 30mm long white WMS 3,2 (30X5)RL 0800387 1
1 roll = 1000 marker, each 60mm long white WMS 3,2 (60X5)RL 0800384 1
1 roll = 2500 marker, each 60mm long yellow WMS 3,2 (60X5)RXL YE 0803102 1
Shrink sleeve, for conductor diameters 1.6 - 4.8 mm
1 roll = 4000 marker, each 15mm long white WMS 4,8 (15X9)RL 0800391 1
1 roll = 10000 marker, each 15mm long white WMS 4,8 (15X9)RXL 0800397 1
1 roll = 2000 marker, each 30mm long white WMS 4,8 (30X9)RL 0800388 1
1 roll = 5000 marker, each 30mm long white WMS 4,8 (30X9)RXL 0800395 1
yellow WMS 4,8 (30X9)RXL YE 0803313 1
1 roll = 1000 marker, each 60mm long white WMS 4,8 (60X9)RL 0800385 1
1 roll = 2500 marker, each 60mm long white WMS 4,8 (60X9)RXL 0800393 1
yellow WMS 4,8 (60X9)RXL YE 0803103 1
Shrink sleeve, for conductor diameters 2.1 - 6.4 mm
1 roll = 4000 marker, each 15mm long white WMS 6,4 (15X10)RL 0801594 1
1 roll = 2500 marker, each 15mm long white WMS 6,4 (15X10)RXL 0801595 1
1 roll = 2500 marker, each 60mm long yellow WMS 6,4 (60X10)RXL YE 0803104 1
Shrink sleeve, for conductor diameters 3.2 - 9.5 mm
1 roll = 1000 marker, each 60mm long white WMS 9,5 (60X16)RL 0803105 1
yellow WMS 9,5 (60X16)RL YE 0803106 1
Shrink sleeve, for conductor diameters 4.2 - 12.7 mm
1 roll = 1000 marker, each 60mm long yellow WMS 12,7 (60X20)RL YE 0803107 1
Shrink sleeve, for conductor diameters 6.4 - 19.1 mm
1 roll = 1000 marker, each 60mm long yellow WMS 19,1 (60X30)RL YE 0803108 1
191
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Conductor diameter from 0.8 to 4.8mm,
white and yellow, on large roll
Conductor diameter from 0.8 to 4.8mm,
white and yellow, on extra large roll
Notes:
The special THERMOMARK-RIBBON...WMSU is required for
marking shrink sleeves WMS..., see Printer, Page 36
The external THERMOMARKROLL–ERH media hub is required
for RL rolls, see Printer, Page 36
The external THERMOMARK–ERH500 media hub is required for
RXL rolls, see Printer, Page 36.
Pre-assembled shrink sleeves
2
1
1
2
P R I NT E D
FOR YOU
– The shrink tubes are automatically
perforated or cut to the length required
in the printing process
– Are available in the form of continuous
on-roll goods and can be printed on both
sides using the THERMOMARKW2
printer
– Individual markers can be cut to any
length up to 1m
The following standards are satisfied:
– UL 224 (125°C,600V, all tubing-1)
– CSA.C22.2 No. 198.1 (125°C,600V, all
tubing-1)
– MIL-STD-202G, SAE AMS-DTL-23053,
SAE AS-81531
Notes:
The special THERMOMARK-RIBBON...WMSU is required for
marking shrink sleeves WMS..., see Printer, Page 36
How to use the external media hubs:
THERMOMARK ROLL:
Use the external THERMOMARK ROLL-ERH media hub for R
rolls and the external THERMOMARK-ERH 500 for large rolls, see
Printer, Page 36.
THERMOMARK ROLL X1 and THERMOMARK W2:
R rolls can be inserted directly in the device, use the
THERMOMARK-ERH 500 for large rolls, see Printer, Page 36.
Technical data
General data
Can be marked using THERMOMARK W1 THERMOMARK W2 THERMOMARK
ROLL THERMOMARK X1.2 THERMOMARK ROLL X1
Material Polyolefine
Temperature range [°C] -55 ... 135
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free
Shrink rate 3:1
Ordering data
Description Type Order No. Pcs. /
Pkt.
Shrink sleeve
1 roll = 30m, Conductor diameter: 0.8–2.4mm WMS 2,4 (EX4)R 0800289 1
1 roll = 30m, Conductor diameter: 1.0 -3.2mm WMS 3,2 (EX5)R 0800290 1
1 roll = 30m, Conductor diameter: 1.6 - 4.8mm WMS 4,8 (EX9)R 0800291 1
1 roll = 25m, Conductor diameter: 2.1 - 6.4mm WMS 6,4 (EX10)R 0800292 1
1 roll = 20m, Conductor diameter: 3.2 - 9.5mm WMS 9,5 (EX16)R 0800293 1
1 roll = 20m, Conductor diameter: 4.2 - 12.7mm WMS 12,7 (EX20)R 0800294 1
1 roll = 20m, Conductor diameter: 6.4 - 19.1mm WMS 19,1 (EX30)R 0800295 1
1 roll = 15m, Conductor diameter: 8.5 - 25.4mm WMS 25,4 (EX40)R 0800296 1
1 roll = 15m, Conductor diameter: 12.7 - 38.1mm WMS 38,1 (EX60)R 0800298 1
1 roll = 15m, Conductor diameter: 16.9 - 50.8mm WMS 50,8 (EX80)R 0800299 1
Shrink sleeve, large roll
1 roll = 120m, Conductor diameter: 0.8 - 2.4 mm WMS 2,4 (EX4)RL 0800319 1
1 roll = 120m, Conductor diameter: 1.0 - 3.2 mm WMS 3,2 (EX5)RL 0800320 1
1 roll = 120m, Conductor diameter: 1.6 - 4.8 mm WMS 4,8 (EX9)RL 0800321 1
1 roll = 100m, Conductor diameter: 2.1 - 6.4 mm WMS 6,4 (EX10)RL 0800322 1
1 roll = 80m, Conductor diameter: 3.2 - 9.5 mm WMS 9,5 (EX16)RL 0800324 1
1 roll = 80m, Conductor diameter: 4.2 - 12.7 mm WMS 12,7 (EX20)RL 0800325 1
1 roll = 80m, Conductor diameter: 6.4 - 19.1 mm WMS 19,1 (EX30)RL 0800326 1
1 roll = 60m, Conductor diameter: 8.5 - 25.4 mm WMS 25,4 (EX40)RL 0800327 1
192
PHOENIX CONTACT
Thermal transfer for rolls
Can be marked using:
Continuous shrink sleeve
Marking and labeling - MARKING system
Conductor and cable marking
Conductor diameter from 0.8 to 50.8mm,
white
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
THERMOMARK W1 THERMOMARK W2 THERMOMARK
ROLL THERMOMARK X1.2 THERMOMARK ROLL X1
THERMOMARK W1 THERMOMARK W2 THERMOMARK
ROLL THERMOMARK X1.2 THERMOMARK ROLL X1
Polyolefine Polyolefine
-55 ... 135 -55 ... 135
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Halogen-free Halogen-free
3:1 3:1
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WMS 2,4 (EX4)R YE 0800300 1WMS 2,4 (EX4)R BK 0800415 1
WMS 3,2 (EX5)R YE 0800301 1WMS 3,2 (EX5)R BK 0800416 1
WMS 4,8 (EX9)R YE 0800302 1WMS 4,8 (EX9)R BK 0800418 1
WMS 6,4 (EX10)R YE 0800303 1WMS 6,4 (EX10)R BK 0800419 1
WMS 9,5 (EX16)R YE 0800304 1WMS 9,5 (EX16)R BK 0800421 1
WMS 12,7 (EX20)R YE 0800305 1WMS 12,7 (EX20)R BK 0800422 1
WMS 19,1 (EX30)R YE 0800306 1WMS 19,1 (EX30)R BK 0800423 1
WMS 25,4 (EX40)R YE 0800308 1WMS 25,4 (EX40)R BK 0800424 1
WMS 38,1 (EX60)R YE 0800309 1WMS 38,1 (EX60)R BK 0800425 1
WMS 50,8 (EX80)R YE 0800311 1WMS 50,8 (EX80)R BK 0800426 1
WMS 2,4 (EX4)RL YE 0800328 1WMS 2,4 (EX4)RL BK 0800427 1
WMS 3,2 (EX5)RL YE 0800329 1WMS 3,2 (EX5)RL BK 0800428 1
WMS 4,8 (EX9)RL YE 0800330 1WMS 4,8 (EX9)RL BK 0800429 1
WMS 6,4 (EX10)RL YE 0800331 1WMS 6,4 (EX10)RL BK 0800430 1
WMS 9,5 (EX16)RL YE 0800332 1WMS 9,5 (EX16)RL BK 0800431 1
WMS 12,7 (EX20)RL YE 0800333 1WMS 12,7 (EX20)RL BK 0800432 1
WMS 19,1 (EX30)RL YE 0800334 1WMS 19,1 (EX30)RL BK 0800434 1
WMS 25,4 (EX40)RL YE 0800335 1WMS 25,4 (EX40)RL BK 0800435 1
193
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Conductor diameter from 0.8 to 50.8mm,
yellow
Conductor diameter from 0.8 to 50.8mm,
black
P R I NT E D
FOR YOU
2
1
1
2
– EMT ... insert labels for marking various
marking collars
– Can be printed onto, with
THERMOMARK... for material off the roll
– Thanks to their special contour, EMT ...
insert labels remain securely inside the
collar once inserted
– The PABL ... sheets are available to allow
marking with a laser printer
Notes:
PATG/PATO... system, see page 214.
KMK..., see page 202.
LM..., see page 203.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Insert strips, lettering field size: 10x4mm, 7500 labels per roll
white EMT (10X4)R 0816235 1
Lettering field size: 15x4mm, 7500 labels per roll white EMT (15X4)R 0817329 1
red EMT (15X4)R RD 0816249 1
yellow EMT (15X4)R YE 0817358 1
blue EMT (15X4)R BU 0817332 1
Lettering field size: 23x4mm, 5000 labels per roll white EMT (23X4)R 0817361 1
yellow EMT (23X4)R YE 0817374 1
Lettering field size: 24x4mm, 5000 labels p. roll white EMT (24X4)R 0816265 1
Lettering field size: 25x6mm, 5000labels per roll white EMT (25X6)R 0817264 1
Lettering field size: 29x8mm, 5400 labels per roll white EMT (29X8)R 0817277 1
yellow EMT (29X8)R YE 0817280 1
Lettering field size: 40x17mm, 2300 labels per
roll
white EMT (40X17)R 0817293 1
Lettering field size: 60x15mm, 2500 labels per
roll
white EMT (60X15)R 0801846 1
Insert strips, for PATG/PATO, perforated, DIN A4 sheet, lettering
field size: 15 x 4 mm, 1 sheet = 360 labels, for office laser printers
white PABL 15X4 0808260 10
Can be marked using:
Insertable conductor marking for
marking collars
194
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Insert labels for marker carriers
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– The WMTW... insert labels are used to
label marking collars from the
PATG/PATO ... system; see page 214
– Easy assembly, thanks to a threading and
insertion aid, which can be easily
separated by means of a perforation after
inserting the marker
– Thanks to their special shape, the
WMTW ... insert labels remain securely
inside the marking collar
– Can be printed onto, with
THERMOMARK... for material off the roll
– Marking service: Phoenix Contact can
custom-mark all conductor markers in
accordance with your requirements
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyolefine
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Insertable conductor marking
Lettering field size: 10x4mm, 3000 labels per roll white WMTW (10X4)R 0831000 1
Lettering field size: 10x4mm, 3000 labels per roll yellow WMTW (10X4)R YE 0831001 1
Lettering field size: 15x4mm, 3000 labels per roll white WMTW (15X4)R 0831002 1
Lettering field size: 15x4mm, 3000 labels per roll yellow WMTW (15X4)R YE 0831003 1
Lettering field size: 23x4mm, 3000 labels per roll white WMTW (23X4)R 0831004 1
Lettering field size: 23x4mm, 3000 labels per roll yellow WMTW (23X4)R YE 0831005 1
Can be marked using:
Insertable conductor marking with
threading and insertion aid for
marking collars
195
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
For PATG ... and PATO... marker carriers
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
– The conductor to be marked is pushed
through two punched holes in the marker
and positioned
– The special hole geometry ensures a
strong axial hold
– Made from high-quality polyester foil
– Available for different conductor
diameters
– Custom marking and easy handling
– High-quality marking image created by
thermal transfer printing
– Special packaging protects the conductor
markers against external influences, dust,
and dirt
– Marking service: Phoenix Contact can
custom-mark all conductor markers in
accordance with your requirements
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Number of individual labels 4000
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Slide-on conductor markers, 1 roll = 4000 conductor markers
Lettering field size: 15x4mm, conductor
diameter: 1.0 - 2.4mm
white WMT 2,4 (15X4)R 0816281 1
Lettering field size: 15x5mm, conductor
diameter: 2.0 - 3.5mm
white WMT 3,5 (15X5)R 0817222 1
Lettering field size: 15x6mm, conductor
diameter: 3.0 - 4.2mm
white WMT 4,2 (15X6)R 0817235 1
Lettering field size: 15x8mm, conductor
diameter: 4.0 - 5.5mm
white WMT 5,5 (15X8)R 0817248 1
Lettering field size: 17x10mm, conductor
diameter: 5.0 - 8.4mm
white WMT 8,4 (17X10)R 0817251 1
Can be marked using:
Slide-on conductor marking
196
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters of 1.0 to
8.4mm
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– Conductor marking for identifying and
bundling conductors in indoor areas
– Made from high-quality polyester foil
– The marker has two fastening eyes so that
it can be attached to the conductor by
means of PKB... cable binders
– Marking service: Phoenix Contact can
custom-mark all conductor markers in
accordance with your requirements
Notes:
For corresponding cable binders, see from page 588.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable markers for assembly with cable binders
Lettering field size: 24x8mm (max. cable binder
width: 5mm), 4000 cable markers per roll
white WMTB (24X8)R 0816278 1
Lettering field size: 35x15mm (max. cable binder
width: 5mm), 1700 cable markers per roll
white WMTB (35X15)R 0817316 1
Can be marked using:
Conductor marking for cable binder
assembly
197
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters
of 6mm and above
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
Halogen-free conductor and cable
marking for marking and bundling
conductors and cables indoors and
outdoors.
– Made from high-quality thermoplastic
polyether urethane
– Highly flexible material, adapts to the
bending of the conductors or cables
– Additional marking, such as project
information, can be printed on the carrier
material. This makes it easier to assign the
markers during mounting
– Very high tensile strength
– Flame-retardant material
– The marker has two fastening lugs so that
it can be attached to the conductor by
means of cable binders
– Marking service: Phoenix Contact can
custom-mark all conductor markers in
accordance with your requirements
Notes:
For corresponding cable binders, see from page 588.
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.1 THERMOMARK X1.2
Material PUR
Inflammability class according to UL 94 V0
Temperature range [°C] -25 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable markers for assembly with cable binders, maximum
cable binder width: 5mm
1000 markers per roll, lettering field size:
40x12mm
white WMTB HF (40X12)R 0830407 1
yellow WMTB HF (40X12)R YE 0830408 1
red WMTB HF (40X12)R RD 0803314 1
blue WMTB HF (40X12)R BU 0802991 1
1000 markers per roll, lettering field size:
55x15mm
white WMTB HF (55X15)R 0830409 1
yellow WMTB HF (55X15)R YE 0830410 1
red WMTB HF (55X15)R RD 0803315 1
blue WMTB HF (55X15)R BU 0802992 1
500 markers per roll, lettering field size:
55x25mm
white WMTB HF (55X25)R 0830411 1
yellow WMTB HF (55X25)R YE 0830412 1
red WMTB HF (55X25)R RD 0803316 1
blue WMTB HF (55X25)R BU 0802993 1
Accessories
Ink ribbon, specifically for cable markers for assembly with cable
binders, WMTB HF..., length: 300m, width: 110mm
black THERMOMARK-RIBBON 110-WMTB
HF
5148007 1
Ink ribbon, specifically for cable markers for assembly with cable
binders, WMTB HF..., length: 300m, width: 110mm
white TM-RIBBON 110-WMTB HF WH 0802990 1
Can be marked using:
Conductor marking for cable binder
assembly
198
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters
of 6mm and above
Thermal transfer for rolls
For further information and full technical data, visit phoenixcontact.net/products
– The WM–CARRIER/B... conductor
marker carriers consist of a marking field
for labels and a transparent, self-adhesive
laminated protective foil
– The protective foil provides permanent
protection against contamination and
abrasion
– High-quality marking image created by
thermal transfer printing
– Quick and easy handling
– The marker has two fastening lugs so that
it can be attached to the conductor by
means of cable binders
– Resistant to solvents
– Marking service: Phoenix Contact can
custom-mark all cable marker labels in
accordance with your requirements
Notes:
For corresponding cable binders, see from page 588.
Technical data
General data
Material PVC/polyester
Temperature range [°C] -10 ... 60
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Conductor marker carriers, maximum cable binder width: 5mm
Lettering field size: 48x10mm transparent WM-CARRIER/B (48X10)LPR 0830423 100
Lettering field size: 55x15mm transparent WM-CARRIER/B (55X15)LPR 0830424 100
Lettering field size: 85x15mm transparent WM-CARRIER/B (85X15)LPR 0830425 100
Accessories
Labels
2500 labels per roll white EML (40X6)R 0830481 1
2500 labels per roll yellow EML (40X6)R YE 0830482 1
2500 labels per roll white EML (50X10)R 0830483 1
2500 labels per roll yellow EML (50X10)R YE 0830484 1
2500 labels per roll white EML (75X10)R 0830485 1
2500 labels per roll yellow EML (75X10)R YE 0830486 1
Conductor marker carriers for
assembly with cable binders, for labels
with laminated protective foil
199
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Marker for conductor diameters from 6 mm
Technical data
General data
Material Polyethylene
Temperature range [°C] -40 ... 80
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plastic cable marker for insert labels, with eyelets for fastening
with cable binders
Lettering field size: 25x6mm transparent KMK 1 0830745 100
Plastic cable markers for insert labels, with eyelets for fastening
with cable binders
Lettering field size: 29x8mm transparent
Plastic cable markers for insert labels, with eyelets for fastening
with cable binders
Lettering field size: 40x17mm transparent
Plastic cable markers for insert labels, with eyelets for fastening
with cable binders
Lettering field size: 60x15mm transparent
Accessories
Insert strips for laser printers, DIN A4, perforated
Lettering field size: 25x6mm, 1sheet = 252labels ESL (25X6) 0801849 10
Lettering field size: 29x8mm, 1sheet = 174labels
Lettering field size: 40x17mm, 1sheet = 56labels
Lettering field size: 60x15mm, 1sheet = 51labels
Insert labels for thermal transfer printer, halogen-free
Lettering field size: 25x6mm, 5000labels per roll EMT (25X6)R 0817264 1
Lettering field size: 29x8mm, 5400 labels per roll
Lettering field size: 40x17mm, 2300 labels per roll
Lettering field size: 60x15mm, 2500 labels per roll
UniSheet, 0.5mm thick, inflammability class V0 according to
UL94
84-section, lettering field size: 25x6mm US-EMP (25X6)-1 0802754 10
48-section, lettering field size: 29x8mm
16-section, lettering field size: 40x17mm
9-section, lettering field size: 60x15mm
200
PHOENIX CONTACT
Plastic cable marker for insert labels,
for assembly with cable binders
Notes:
For corresponding cable binders, see from page 588.
– The KMK... versions have eyelets and are
attached with cable binders
– Plastic cable markers for marking and
bundling multiple conductors and cables
indoors
– The printed insert label is protected from
dirt by the sealing cap
– Marking service: Phoenix Contact can
custom-mark all insert labels for plastic
cable markers in accordance with your
requirements
Marking and labeling - MARKING system
Conductor and cable marking
Lettering field size 25x6mm,
for cable diameter > 6mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Polyethylene Polyethylene Polyethylene
-40 ... 80 -40 ... 80 -40 ... 80
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
KMK 2 1005266 100
KMK 4 1005305 50
KMK 5 0830746 50
Accessories Accessories Accessories
ESL 29X8 0808257 10
ESL 40X17 0808095 10
ESL (60X15) 0801851 10
EMT (29X8)R 0817277 1
EMT (40X17)R 0817293 1
EMT (60X15)R 0801846 1
US-EMP (29X8) 0829436 10
US-EMP (40X17) 0829437 10
US-EMP (60X15) 0828781 10
201PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Lettering field size 29x8mm,
for cable diameter >6mm
Lettering field size 40x17mm,
for cable diameter >9mm
Lettering field size 60x15mm,
for cable diameter >9mm
Technical data
General data
Material Polyethylene
Temperature range [°C] -40 ... 80
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plastic cable markers for insert labels, with cable binders with a
pointed end, can be marked with ESL..., EMT... or US-EMP... insert
labels, diameter: 10 ... 25mm, lettering field size: 29x8mm
transparent KMK 1005208 100
Plastic cable markers for insert labels, with cable binders with a
pointed end, can be marked with ESL..., EMT... or US-EMP... insert
labels, diameter: 16 ... 35mm, lettering field size: 40x17mm
transparent
Cable and conductor markers for insert labels, can be marked
with EST or ESL, diameter of 1-12mm, lettering field size:
24x4mm
white
Cable and conductor markers for labels, can be marked with
EML or EMLC, diameter of 1 - 20mm, lettering field size: 20x8mm
white
Accessories
Insert strips for laser printers, DIN A4, perforated
Lettering field size: 29x8mm, 1sheet = 174labels ESL 29X8 0808257 10
Lettering field size: 40x17mm, 1sheet = 56labels
Lettering field size: 24x 4mm, 1sheet = 488labels
Insert labels for thermal transfer printers
Lettering field size: 29x8mm, 5400 labels per roll EMT (29X8)R 0817277 1
Lettering field size: 40x17mm, 2300 labels per roll
Lettering field size: 24x4mm, 5000 labels p. roll
UniSheet, 0.5mm thick
48-section, lettering field size: 29x8mm US-EMP (29X8) 0829436 10
16-section, lettering field size: 40x17mm
Textile label, lettering field size: 20x8mm
2500 labels per roll
2500 labels per roll
202
PHOENIX CONTACT
Plastic cable marker for insert labels,
for assembly with cable binders
Notes:
For corresponding cable binders, see from page 588.
– Plastic cable markers for marking and
bundling multiple conductors and cables
indoors
– The printed insert label is protected from
dirt by the sealing cap
– Marking service: Phoenix Contact can
custom-mark all insert labels for plastic
cable markers in accordance with your
requirements
Marking and labeling - MARKING system
Conductor and cable marking
For insert labels with lettering field size
29x8mm, for cable diameters >10mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Polyethylene PA PA
-40 ... 80 -40 ... 100 -40 ... 100
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
KMK 3 1005211 50
LM 1004377 100
KME 0807083 50
Accessories Accessories Accessories
ESL 40X17 0808095 10
ESL 24X4 0808231 10
EMT (40X17)R 0817293 1
EMT (24X4)R 0816265 1
US-EMP (40X17) 0829437 10
EMLC (20X8)R 0815680 1
EML (20X8)R 0816786 1
203PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Insert label, with lettering field size
40x17mm, for cable diameters >16mm
For insert labels with lettering field
size24x4mm, for cable diameters >1mm
For adhesive labels, with lettering field size
20x8mm, for cable diameters >1mm
Technical data
General data
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 125
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker carrier for cable binder assembly
transparent KMK HP (25X6) 0830720 100
Accessories
UniCard, insert strip for KMK... cable marker carriers, can be
marked with THERMOMARK CARD..., BLUEMARK CLED, and
TOPMARK Laser
Lettering field size: 25x6mm, 15-section UCT-EMP (25X6) 1014117 10
Lettering field size: 29x8mm, 15-section
Lettering field size: 60x15 mm, 3-section
Lettering field size: 40x17 mm, 3-section
UniSheet, 0.5mm thick, inflammability class V0 according to
UL94
84-section, lettering field size: 25x6mm US-EMP (25X6)-1 0802754 10
48-section, lettering field size: 29x8mm
9-section, lettering field size: 60x15mm
16-section, lettering field size: 40x17mm
Insert labels for thermal transfer printer, halogen-free
Lettering field size: 25x6mm, 5000labels per roll EMT (25X6)R 0817264 1
Lettering field size: 29x8mm, 5400 labels per roll
Lettering field size: 60x15mm, 2500 labels per roll
Lettering field size: 40x17mm, 2300 labels per roll
Cable binder, inflammability class according to UL94:V0,
halogen-free, temperature range: -40°C...85°C, maximum bundle
Ø [mm]/minimum tensile strength [N]
35 / 130 WT-HP HF 3,6X140 0830982 100
50 / 220 WT-HP HF 4,8X200 0830983 100
79 / 220 WT-HP HF 4,5X290 0830984 100
Magazine, for THERMOMARKCARD...,
for accommodating UCT-EMP... THERMOMARK CARD-UCT-MAG26 0802988 1
204
PHOENIX CONTACT
Plastic cable markers for insert labels,
for assembly with cable binders
Notes:
For matching cable binders, see page 588 or the product area on
our website at phoenixcontact.net/products.
– KMKHP... plastic cable markers for
marking and bundling conductors and
cables indoors
– Inflammability class V0 acc. to UL 94
– The KMKHP... cable markers are
particularly suitable for use in the railway
industry, traffic technology, and building
technology thanks to their outstanding
material properties
– The KMK... versions have eyelets and are
attached with cable binders
– The printed insert label is protected from
dirt by the sealing cap
– Marking service: Phoenix Contact can
custom-mark all insert labels for plastic
cable markers in accordance with your
requirements
Marking and labeling - MARKING system
Conductor and cable marking
Lettering field size: 25x6mm,
for cable diameter >6mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PC PC PC
V0 V0 V0
-40 ... 125 -40 ... 125 -40 ... 125
Halogen-free Halogen-free Halogen-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
KMK HP (29X8) 0830721 100 KMK HP (60X15) 0830722 50 KMK HP (40X17) 0830723 50
Accessories Accessories Accessories
UCT-EMP (29X8) 1014118 10
UCT-EMP (60X15) 1014119 10
UCT-EMP (40X17) 1014120 10
US-EMP (29X8) 0829436 10
US-EMP (60X15) 0828781 10
US-EMP (40X17) 0829437 10
EMT (29X8)R 0817277 1
EMT (60X15)R 0801846 1
EMT (40X17)R 0817293 1
WT-HP HF 3,6X140 0830982 100 WT-HP HF 3,6X140 0830982 100 WT-HP HF 3,6X140 0830982 100
WT-HP HF 4,8X200 0830983 100 WT-HP HF 4,8X200 0830983 100 WT-HP HF 4,8X200 0830983 100
WT-HP HF 4,5X290 0830984 100 WT-HP HF 4,5X290 0830984 100 WT-HP HF 4,5X290 0830984 100
THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1
205PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Lettering field size: 29x8mm,
for cable diameter >6mm
Lettering field size: 60x15mm,
for cable diameter >9mm
Lettering field size: 40x17mm,
for cable diameter >9mm
Technical data
General data
Material PA
Inflammability class according to UL 94 HB
Temperature range [°C] -40 ... 100
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker carrier for cable binder assembly
transparent KMK UV (25X6) 1014106 100
Accessories
UniCard, insert strip for KMK... cable marker carriers, can be
marked with THERMOMARK CARD..., BLUEMARK CLED, and
TOPMARK Laser
Lettering field size: 25x6mm, 15-section UCT-EMP (25X6) 1014117 10
Lettering field size: 29x8mm, 15-section
Lettering field size: 60x15 mm, 3-section
Lettering field size: 40x17 mm, 3-section
UniSheet, 0.5mm thick, inflammability class V0 according to
UL94
84-section, lettering field size: 25x6mm US-EMP (25X6)-1 0802754 10
48-section, lettering field size: 29x8mm
9-section, lettering field size: 60x15mm
16-section, lettering field size: 40x17mm
Insert labels for thermal transfer printer, halogen-free
Lettering field size: 25x6mm, 5000labels per roll EMT (25X6)R 0817264 1
Lettering field size: 29x8mm, 5400 labels per roll
Lettering field size: 60x15mm, 2500 labels per roll
Lettering field size: 40x17mm, 2300 labels per roll
Cable binder, halogen-free, inflammability class according to
UL94:V2, maximum bundle Ø [mm] / min. tensile strength [N]
1
)
35 / 130 WT-UV HF 3,6X140 BK 3240832 100
50 / 220 WT-UV HF 4,5X200 BK 3240834 100
79 / 220 WT-UV HF 4,5X290 BK 3240835 100
Magazine, for THERMOMARKCARD...,
for accommodating UCT-EMP... THERMOMARK CARD-UCT-MAG26 0802988 1
206
PHOENIX CONTACT
Plastic cable markers for insert labels,
for assembly with cable binders
Notes:
For matching cable binders, see page 588 or the product area on
our website at phoenixcontact.net/products.
1
) WT-UVHF...BK cable binders are weatherproof and UV
resistant according to ISO4892 (after QUV-B 600hours) for up to
10years.
– KMKUV... plastic cable markers for
marking and bundling conductors and
cables outdoors
– The KMKUV... cable markers are ultra-
transparent, impact resistant, and have
excellent weathering resistance. At the
same time, they also possess outstanding
chemical resistance
– The KMK... versions have eyelets and are
attached with cable binders
– The printed insert label is protected from
dirt by the sealing cap
– Marking service: Phoenix Contact can
custom-mark all insert labels for plastic
cable markers in accordance with your
requirements
Marking and labeling - MARKING system
Conductor and cable marking
Lettering field size: 25x6mm,
for cable diameter >6mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PA PA PA
HB HB HB
-40 ... 100 -40 ... 100 -40 ... 100
Halogen-free Halogen-free Halogen-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
KMK UV (29X8) 1014107 100 KMK UV (60X15) 1014108 50 KMK UV (40X17) 1014109 50
Accessories Accessories Accessories
UCT-EMP (29X8) 1014118 10
UCT-EMP (60X15) 1014119 10
UCT-EMP (40X17) 1014120 10
US-EMP (29X8) 0829436 10
US-EMP (60X15) 0828781 10
US-EMP (40X17) 0829437 10
EMT (29X8)R 0817277 1
EMT (60X15)R 0801846 1
EMT (40X17)R 0817293 1
WT-UV HF 3,6X140 BK 3240832 100 WT-UV HF 3,6X140 BK 3240832 100 WT-UV HF 3,6X140 BK 3240832 100
WT-UV HF 4,5X200 BK 3240834 100 WT-UV HF 4,5X200 BK 3240834 100 WT-UV HF 4,5X200 BK 3240834 100
WT-UV HF 4,5X290 BK 3240835 100 WT-UV HF 4,5X290 BK 3240835 100 WT-UV HF 4,5X290 BK 3240835 100
THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1
207PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Lettering field size: 29x8mm,
for cable diameter >6mm
Lettering field size: 60x15mm,
for cable diameter >9mm
Lettering field size: 40x17mm,
for cable diameter >9mm
Technical data
General data
Material PA/ABS
Temperature range [°C] -40 ... 80
Components Free from silicone and halogen Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Conductor markers, lettering field size: 20x8mm
for conductor diameters of 0-2.5mm gray GKM 1 GY 1750498 100
For conductor diameters of 4.8-11mm gray
Accessories
Marker tags, 5-section, unprinted, marking with X-PEN, B-STIFT,
plotter or BKMT 20 x 8 label
Lettering field size: 20x8mm white SS-ZB WH 5031171 50
Lettering field size: 20x8mm yellow SS-ZB YE 5031650 50
UniCard, for marking devices from the following manufacturers:
ABB, Conta-Clip, Escha, Festo, ifm-electronik, Harting, Moeller,
PhoenixContact, Siemens
Lettering field size: 20x9mm white UC-EM (20X9) 0825503 10
Lettering field size: 20x9mm yellow UC-EM (20X9) YE 0827637 10
Lettering field size: 20x9mm white UCT-EM (20X9) 0801471 10
Lettering field size: 20x9mm yellow UCT-EM (20X9) YE 0801472 10
208
PHOENIX CONTACT
GKM ... conductor marker
– The GKM ... conductor markers support
large-surface conductor marking
– Flexible application, thanks to spring-
loaded conductor attachment
– Particularly suitable for temporary
marking
– Quick and easy to use
Marking and labeling - MARKING system
Conductor and cable marking
Conductor diameter from 0 to 5.2mm Conductor diameter from 4.8 to 11
For further information and full technical data, visit phoenixcontact.net/products
Technical data
PA/ABS
-40 ... 80
Components Free from silicone and halogen Free from silicone and halogen
Ordering data
Type Order No. Pcs. /
Pkt.
GKM 2 GY 1750485 100
Accessories
SS-ZB WH 5031171 50
SS-ZB YE 5031650 50
UC-EM (20X9) 0825503 10
UC-EM (20X9) YE 0827637 10
UCT-EM (20X9) 0801471 10
UCT-EM (20X9) YE 0801472 10
209PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
mm Conductor diameter from 4.8 to 11mm
210
PHOENIX CONTACT
Type key for SD-WMTBS ...
International color code
Print Marker color Font color
0 black white
1brown white
2 red white
3orange black
4 yellow black
5green white
6 blue white
7violet white
8 gray black
9white black
Example 0826514 SD-WMTBS (S) YE
0826514 SD-WMTBS (S) YE
Order No. Product type Imprint Color
0826637 SD-WMTBS (NEUTRAL) CC (NEUTRAL) = unprinted YE = yellow
0826514 SD-WMTBS (S) YE (S) = printed with numbers 0 - 9 YE = yellow
0826611: letter SD-WMTBS (CH) YE (CH) = letters A - Z YE = yellow
0826624: symbol SD-WMTBS (SY) YE (SY) = symbols + - / . GND YE = yellow
0826527 SD-WMTBS (NU) CC (NU) = printed with numbers 0 - 9 CC = international color code
Marking and labeling - MARKING system
Conductor and cable marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PVC
Inflammability class according to UL 94 V2
Temperature range [°C] -30 ... 60
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker
1
)
Unprinted international
color code
SD-WMTBS (NEUTRAL) CC 0826637 100
Printed: with numbers 0-9 yellow SD-WMTBS (S) YE 0826514 100
Printed: with upper case letters A-Z yellow SD-WMTBS (CH) YE 0826611 100
Printed: with symbols + - / . GND yellow SD-WMTBS (SY) YE 0826624 100
International color code, printed: With numbers
between 0-9
international
color code
SD-WMTBS (NU) CC 0826527 100
Label holder, for cable binders up to 4.8mm wide
For max 7 characters black SD-WMTB (70X10) 0826530 100
For max 13 characters black SD-WMTB (100X10) 0826543 100
211
PHOENIX CONTACT
– Cable markers for marking cables and
conductors with larger cross sections
– The printed individual markers are
pushed onto the corresponding holders
Cable marking for carrier assembly
Marking and labeling - MARKING system
Conductor and cable marking
Individual marker with carrier for cable
diameter >16mm
Notes:
1) For an ordering example, see page 210.
The label holder is attached using cable binders; for
corresponding cable binders up to 4.8mm wide, see page 588
onwards.
Technical data
General data
Material Stainless steel
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker
1
)
Unprinted silver SD-WMTBS (NEUTRAL) VA 0826666 50
Printed: with numbers 0-9 silver SD-WMTBS (NU) VA 0826556 50
Printed: with upper case letters A-Z silver SD-WMTBS (CH) VA 0826640 50
Printed: with symbols + - / . GND silver SD-WMTBS (SY) VA 0826653 50
Label holder
For max 6 characters silver SD-WMTB (30X10) VA 0826569 50
For max 9 characters silver SD-WMTB (47X10) VA 0826572 50
For max 13 characters silver SD-WMTB (70X10) VA 0826585 50
For max 17 characters silver SD-WMTB (92X10) VA 0826598 50
For max. 20 characters silver SD-WMTB (111X10) VA 0826608 50
Accessories
Cable binder, made of stainless steel (AISI 304), width 4.6mm,
maximum bundle Ø [mm]/minimum tensile strength [N]
30 / 890 silver WT-STEEL S 4,6X150 3240807 100
50 / 890 silver WT-STEEL S 4,6X201 3240808 100
212
PHOENIX CONTACT
– Cable markers for marking cables and
conductors with larger cross sections
– The individual high-grade steel markers
are pushed onto the corresponding
holders
– They are secured using high-grade steel
cable binders
– Easy assembly with UNIFOX-CTM7,9
Stainless steel cable marking for
carrier assembly
Marking and labeling - MARKING system
Conductor and cable marking
Stainless steel marker with carrier for
assembly with cable binders
Notes:
1) For ordering example, see page 210.
For further stainless steel cable binders, see page 594.
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material Stainless steel 304
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Steel cable markers, rustproof, non-magnetic, label size:
89x19mm, lettering field size: 65x19mm
silver KMV 0806644 100
Steel cable markers, rustproof, non-magnetic, label size:
44x9.6mm, lettering field size: 23x9mm
silver KMV 44X9,6 0812007 100
Accessories
Cable binder, made of stainless steel (AISI 304), width 4.6mm,
maximum bundle Ø [mm]/minimum tensile strength [N]
30 / 890 silver WT-STEEL S 4,6X150 3240807 100
213
PHOENIX CONTACT
– Cable markers for marking cables and
conductors with larger cross sections
– The individual high-grade steel markers
are pushed onto the corresponding
holders
– They are secured using high-grade steel
cable binders
– Easy assembly with UNIFOX-CTM7,9
High-grade steel cable marking for
embossing or laser engraving
Marking and labeling - MARKING system
Conductor and cable marking
Stainless steel marker for assembly
with cable binders
Notes:
For further stainless steel cable binders, see page 594.
Technical data
General data
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -50 ... 80
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Conductor marker carrier, closed, 10 mm wide
Conductor diameter: 0.6-1.2 mm transparent PATG 0/10 1013795 1000
Conductor diameter: 1.5-2.5 mm transparent PATG 1/10 1013805 1000
Conductor cross section: 2.0-4.0 mm transparent PATG 2/10 1013818 1000
Conductor cross section: 4.0-7.0 mm transparent PATG 3/10 1013821 500
Wire marker carrier, closed, 12 mm wide
Conductor diameter: 0.6-1.2 mm transparent PATG 0/12 0827076 1000
Conductor diameter: 1.5-2.5 mm transparent PATG 1/12 0827077 1000
Conductor cross section: 2.0-4.0 mm transparent PATG 2/12 0827078 1000
Conductor cross section: 4.0-7.0 mm transparent PATG 3/12 0827079 500
Conductor cross section: 6.0-10.0 mm transparent PATG 4/12 0827080 500
transparent PATG 5/12 0803312 200
Conductor marker carrier, closed, 15 mm wide
Conductor diameter: 0.6-1.2 mm transparent PATG 0/15 1013740 1000
Conductor diameter: 1.5-2.5 mm transparent PATG 1/15 1013025 1000
Conductor cross section: 2.0-4.0 mm transparent PATG 2/15 1013038 1000
Conductor cross section: 4.0-7.0 mm transparent PATG 3/15 1013041 500
Conductor cross section: 6.0-10.0 mm transparent PATG 4/15 1013054 500
Conductor cross section: 10.0-14.0 mm transparent PATG 5/15 1013067 200
Conductor cross section: 14.0-22.0 mm transparent PATG 6/15 1013070 200
Conductor cross section: 22.0-30.0 mm transparent PATG 7/15 1013083 50
Conductor cross section: 30.0-35.0 mm transparent PATG 8/15 1013096 50
Conductor diameter: 35.0 - 45.0 mm transparent PATG 9/15 1013106 50
Wire marker carrier, closed, 18 mm wide
Conductor diameter: 0.6-1.2 mm transparent PATG 0/18 0820507 1000
Conductor diameter: 1.5-2.5 mm transparent PATG 1/18 0820510 1000
Conductor cross section: 2.0-4.0 mm transparent PATG 2/18 0820523 1000
Conductor cross section: 4.0-7.0 mm transparent PATG 3/18 0820536 500
Conductor cross section: 6.0-10.0 mm transparent PATG 4/18 0820549 500
Conductor cross section: 10.0-14.0 mm transparent PATG 5/18 0828059 200
Conductor cross section: 14.0-22.0 mm transparent PATG 6/18 0828062 200
Conductor marker carrier, closed, 23 mm wide
Conductor diameter: 0.6-1.2 mm transparent PATG 0/23 0828046 1000
Conductor diameter: 1.5-2.5 mm transparent PATG 1/23 1013847 1000
Conductor cross section: 2.0-4.0 mm transparent PATG 2/23 1013850 500
Conductor cross section: 4.0-7.0 mm transparent PATG 3/23 1013863 500
Conductor cross section: 6.0-10.0 mm transparent PATG 4/23 0808011 200
Conductor cross section: 10.0-14.0 mm transparent PATG 5/23 0808024 200
Conductor cross section: 14.0-22.0 mm transparent PATG 6/23 0808037 100
Conductor cross section: 22.0-30.0 mm transparent PATG 7/23 0808040 50
Conductor cross section: 30.0-35.0 mm transparent PATG 8/23 0808053 50
Conductor marker carrier, closed, 30 mm wide
Conductor diameter: 1.5-2.5 mm transparent PATG 1/30 0822440 500
Conductor cross section: 2.0-4.0 mm transparent PATG 2/30 0822453 500
Conductor cross section: 4.0-7.0 mm transparent PATG 3/30 0822466 200
Conductor cross section: 6.0-10.0 mm transparent PATG 4/30 0822479 200
Conductor cross section: 10.0-14.0 mm transparent PATG 5/30 0822482 200
214
PHOENIX CONTACT
– These conductor marking systems consist
of marker carriers and insert labels
– The PATG... collar is a captive marker
carrier
– Can be used to mark conductors with a
diameter of 0.6...50mm
– The corresponding UC-WMT..., UCT-
WMT..., US-WMT..., WMTW..., and
EMT... insert labels are used for marking
Marking collars for insert labels
Marking and labeling - MARKING system
Conductor and cable marking
Closed marker carrier, for sliding on
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material PVC PVC
Inflammability class according to UL 94 V0 V0
Temperature range [°C] -50 ... 80 -50 ... 80
Components Silicone-free Silicone-free
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Conductor marker carrier, open, 10 mm wide
Conductor cross section: 2.0-3.5 mm transparent PATO 1/10 1013876 1000
Conductor diameter: 2.8 - 4.4 mm transparent PATO 2/10 1013889 1000
Wire marker carrier, open, 12 mm wide
Conductor cross section: 2.0-3.5 mm transparent PATO 1/12 0827081 1000
Conductor diameter: 2.8 - 4.4 mm transparent PATO 2/12 0827082 1000
Conductor marker carrier, open, 15 mm wide
Conductor cross section: 2.0-3.5 mm transparent PATO 1/15 1013119 1000
Conductor diameter: 2.8 - 4.4 mm transparent PATO 2/15 1013122 1000
Conductor diameter: 6.7 - 8.0mm transparent PATO 3/15 1013135 500
Conductor diameter: 6.7 - 10.0 mm transparent PATO 4/15 1013148 500
Wire marker carrier, open, 18 mm wide
Conductor cross section: 2.0-3.5 mm transparent PATO 1/18 0823740 500
Conductor diameter: 2.8 - 4.4 mm transparent PATO 2/18 0823753 500
Conductor marker carrier, open, 23 mm wide
Conductor cross section: 2.0-3.5 mm transparent PATO 1/23 1013892 500
Conductor diameter: 2.8 - 4.4 mm transparent PATO 2/23 1013902 500
Conductor marker carrier, open, 30 mm wide
Conductor cross section: 2.0-3.5 mm transparent PATO 1/30 0822495 500
Conductor diameter: 2.8 - 4.4 mm transparent PATO 2/30 0822505 500
Cable marker carrier, lettering field along the length of cable,
marking with UC-WMT and PABA...., lettering field: 30 x 4 mm, is
secured with PKB cable tie
transparent PAB-KTL 1013261 200
Lettering field size: 23 x 4 mm, marking with UC-
WMT and PABA.../23
transparent PAB-KTL 23 1013957 200
Plastic cable marker for PKE insert label, can be marked with
PKE insert label, marking field: 9 mm x 20 mm, with eyelets for
fastening to PKB cable ties
transparent PKT 9X20 0803977 240
215PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
Open marker carrier, for clipping on Marker carrier for assembly with cable binders
– Can be marked using UC-WMT..., US-
WMT..., UCT-WMT..., and WMTW
plastic labels or EMT... insert strips
PATO . . .
– These marking collars are used for
subsequent marking of systems that have
already been wired
PA B -KT L . . .
– Marking collars for identifying and
bundling conductors
Marking collars for insert labels
Technical data
General data
Material TPU
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 100
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Conductor marker carrier, closed, 10 mm wide
Cable diameter: 1.3 - 2.8mm transparent/
black
PATG HF 1/10 1014044 1000
Cable diameter: 2.0- 4.0mm transparent/
black
PATG HF 2/10 1014050 1000
Cable diameter: 4.0- 7.0mm transparent/
black
PATG HF 3/10 1014056 500
Wire marker carrier, closed, 12 mm wide
Cable diameter: 1.3 - 2.8mm transparent/
black
PATG HF 1/12 1014045 1000
Cable diameter: 2.0- 4.0mm transparent/
black
PATG HF 2/12 1014051 1000
Cable diameter: 4.0- 7.0mm transparent/
black
PATG HF 3/12 1014057 500
Cable diameter: 5.0- 10.0mm transparent/
black
PATG HF 4/12 1014063 500
Conductor marker carrier, closed, 15 mm wide
Cable diameter: 1.3 - 2.8mm transparent/
black
PATG HF 1/15 1014046 1000
Cable diameter: 2.0- 4.0mm transparent/
black
PATG HF 2/15 1014052 1000
Cable diameter: 4.0- 7.0mm transparent/
black
PATG HF 3/15 1014058 500
Cable diameter: 5.0- 10.0mm transparent/
black
PATG HF 4/15 1014064 500
Wire marker carrier, closed, 18 mm wide
Cable diameter: 1.3 - 2.8mm transparent/
black
PATG HF 1/18 1014047 1000
Cable diameter: 2.0- 4.0mm transparent/
black
PATG HF 2/18 1014053 1000
Cable diameter: 4.0- 7.0mm transparent/
black
PATG HF 3/18 1014059 500
Cable diameter: 5.0- 10.0mm transparent/
black
PATG HF 4/18 1014065 500
Conductor marker carrier, closed, 23 mm wide
Cable diameter: 1.3 - 2.8mm transparent/
black
PATG HF 1/23 1014048 1000
Cable diameter: 2.0- 4.0mm transparent/
black
PATG HF 2/23 1014054 500
Cable diameter: 4.0- 7.0mm transparent/
black
PATG HF 3/23 1014060 500
Cable diameter: 5.0- 10.0mm transparent/
black
PATG HF 4/23 1014066 200
Conductor marker carrier, closed, 30 mm wide
Cable diameter: 1.3 - 2.8mm transparent/
black
PATG HF 1/30 1014049 500
Cable diameter: 2.0- 4.0mm transparent/
black
PATG HF 2/30 1014055 500
Cable diameter: 4.0- 7.0mm transparent/
black
PATG HF 3/30 1014061 200
Cable diameter: 5.0- 10.0mm transparent/
black
PATG HF 4/30 1014067 200
216
PHOENIX CONTACT
new
Halogen-free marking collars for
insert labels
Notes:
High-quality fluid printing with the BLUEMARK is required when
using the UC-WMT insert labels.
– These conductor marking systems consist
of marker carriers and insert labels
– The PATG HF... sleeve is a captive marker
carrier
– Conductors with a diameter of 1.3mm ...
10mm can be marked with it.
– The corresponding UC-WMT and
UCT-WMT insert labels are used for
marking
– These conductor marking systems are
particularly suitable for use in the railway
and automotive industry, traffic
technology, and building technology,
thanks to their outstanding material
properties
– Comprehensive approvals, such as the
NF F 16-101/16-102, DIN EN 45545-2,
and DIN 5510-2 ensure international use
Marking and labeling - MARKING system
Conductor and cable marking
Closed marker carrier, for sliding on
For further information and full technical data, visit phoenixcontact.net/products
217PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
x
y
1 2 3
UV
UV
UV
Stainless steel and aluminum labels Aluminum labels Conductor clips Ferrules
(dimensions in mm²)
Page 160 Page 160 Page 162 Page 169
Conductor diameter
[mm]
LS-WMTB-... (29X8)
LS-WMTB-... (40X15)
LS-WMTB-- (60X15)
LS-WMTB-... (100x15)
LS-WMTB-... (D25)
LS-WMTB-.... (D30)
WMTB-AL (29X8)
WMTB-AL (40X15)
WMTB-AL (60X15)
WMTB-AL (D30)
UC-WMC 1,9...
UC-WMC 3,1...
UC-WMC 4,4...
UC-WMC 5,6...
UC-WMC 7,5...
UC-WMCO 1,6...
UC-WMCO 2,1...
UC-WMCO 2,9...
UC-WMCO 3,6...
UC-WMCO 4,9...
AI-WM 0,5-8 WH
AI-WM 0,75-8 GY
AI-WM 1-8 RD
AI-WM 1,5-8 WH
AI-WM 2,5-8 BU
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7.0
8.0
9.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
35.0
40.0
45.0
50.0
Overview of conductor and cable marking
1.9
3.1 2.8
4.4 4.2
5.6
5.0
7.5
1.2
1.9
1.3
1.6
1.6
2.1
2.1
2.9
2.9
3.6
3.6
4.9
0.5 0.75 1.0 1.5 2.5
>
4.6
> 50
>
4.6
> 50
>
2.4
> 50
>
2.9
> 50
Markers for marking with TOPMARK LASER,
BLUEMARK..., THERMOMARK... or plotters
>
2.9
> 50
>
4.6
> 50
>
4.6
> 50
>
4.6
> 50
25
30
218
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
1
2
2
1
2
1
1
2
UV
UV
UV
x
y
1 2 3
x
y
1 2 3
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
Conductor marker
Marking collars
in conjunction with UC-WMT ... / EMT ..../ US-WMT .../ WMTW ... / UCT-WMT...
for assembly with cable binders for threading on
Page 172 Page 176 Page 214
UC-WMTB ...
UC-WMTBA (24x5)...
UC-WMTBA (29x8)...
UC-WMTBA (60x11)...
UCT-WMS 3,2...
UCT-WMS 4,7...
PATG 0/...
PATG 1/...
PATG 2/...
PATG 3/...
PATG 4/...
PATG 5/...
PATG 6/...
PATG 7/...
PATG 8/...
PATG 9/...
PATO 1/...
PATO 2/...
PATO 3/...
PATO 4/...
PAB-KT L
4.0
> 50
6.0
> 50
6.0
> 50
7.0
> 50
1.5
3.2
2.5
4.7
0.6
1.2
1.5
2.5 2.0
4.0
4.0
7.0 6.0
10.0
10.0
14.0
14.0
22.0
22.0
30.0
> 6.0
> 50
30.0
35.0
35.0
45
2.0
3.5
2.8
4.4
4.4
6.7
6.7
10.0
219
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
1
2
2
1
2
1
1
2
1
2
2
1
Cable markers
for threading on Cable marker labels
Page 182 Page 185
Conductor diameter
[mm]
US-WMTB (24X5)
US-WMTB (29X8)
US-WMTB (44X15)
WML 3...
WML 5...
WML 6... / US-WML 6...
WML 7,5...
WML 12...
WML 14... / US-WML
14...
WML 18...
WML 22...
WML 36... / US-WML 36...
WML 46...
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
7.0
8.0
9.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
35.0
40.0
45.0
50.0
Overview of conductor and cable marking
2.0
3.0
2.0
5.0
3.0
6.0
3.0
7.5
5.0
12.0
5.0
14.0
2.5
18.0
7.0
22.0
11.0
36.0
11.0
46.0
> 13.0
> 50
> 13.0
> 50
> 4.0
> 50
Markers for marking with THERMOMARK...
or laser printers
220
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
1 2 3
1
2
2
1
2
1
1
2
2
1
1
2
2
1
1
2
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
Shrink sleeve Conductor markers for threading on/
for cable binder fixing
Plastic cable markers
in conjunction with US-EMP .../ ESL .../ EMT ...
Page 189 Page 196 Page 200
WMS (2HF*) 2,4...
WMS (2HF*) 3,2...
WMS (2HF*) 4,8...
WMS (2HF*) 6,4...
WMS (2HF*) 9,5...
WMS (2HF*)12,7...
WMS (2HF*)19,1...
WMS (2HF*)25,4...
WMS (2HF*)38,1...
WMS (2HF*)50,8...
WMT 2,4...
WMT 3,5...
WMT 4,2...
WMT 5,5...
WMT 8,4...
WMTB ... / US-WMTB ...
KMK
KMK 1
KMK 2
KMK 3
KMK 4
KMK 5
1.0
2.4 2.0
3.5 3.0
4.2 4.0
5.5 5.0
8.4
0.5
> 50
2.1
3.2*
6.4
0.8
1.2*
2.4
1.0
1.6*
3.2
1.6
2.4*
4.8
6.4
9.5*
19.1
12.7
19.1*
38.1
3.2
4.8*
9.5
4.2
6.4*
12.7
8.5
12.7*
25.4
16.9
25.4*
50.8
10.0
25.0
0.5
> 50
0.5
> 50
16.0
35.0
0.5
> 50
0.5
> 50
221
PHOENIX CONTACT
Marking and labeling - MARKING system
Conductor and cable marking
222
PHOENIX CONTACT
Product range overview
Device marking 224
LS-EM... stainless steel, aluminum, plastic, and laser foil
device marking
Designed to be stuck on, screwed in or riveted or snapped into
marker carriers
226
Aluminum EM...AL and stainless steel EM...-V4A device
marking
Designed to be stuck on, screwed in or riveted or snapped into
marker carriers
237
UniCard UC-EM... and UCT-EM... device marking
Designed to be stuck on, screwed in or riveted or snapped into
marker carriers
240
Snap-in, for devices from Phoenix Contact and other
manufacturers
248
UniSheet US-EM... device marking
Designed to be stuck on, screwed in or riveted or snapped into
marker carriers, labels, and combi labels
254
EM... device marking, labels supplied in rolls
Labels for buttons, continuous and textile labels, labels for rough
surfaces, for high-temperature and ESD applications, removable
labels, labels with anti-tamper protection
264
Insert strips for devices from Phoenix Contact and other
manufacturers
280
BMK... device marking, labels supplied asDINAsheets 282
GPE... and EMLP... device marking, markers for printing
or engraving
284
Marker carriers and profiles 286
Device marking overview
The right marking solution for every device
Phoenix Contact 292
Other manufacturers 294
223
PHOENIX CONTACT
Identifying electrical and electronic
control cabinets does not just make service
work easier. In some sectors, it is actually a
mandatory requirement. Moreover,
equipment identification improves the
quality of the control cabinets and systems.
Phoenix Contact provides a variety of
different markers for device marking. From
adhesive labels to high-quality engraving
labels, the wide marker range caters for
every application.
A variety of printing systems is available
for marking or engraving.
Device marking - MARKING system
224
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Explicit marking of electrical and
electronic control cabinet components is
essential for safe and efficient work. As with
comprehensive technical documentation,
marking all operating equipment increases
the availability of the switchgear and
simplifies maintenance.
Last but not least, equipment
identification improves the quality of the
control cabinets and systems.
PhoenixContact provides a wide range of
labels and tags. Depending on the type, they
can be marked using BLUEMARK, thermal
transfer printers, the plotter, engraving
devices, commercially available desktop
laser printers or by hand.
With the TOPMARK laser marker you
can implement resistant, durable marking
on high-quality materials in industrial
environments.
For the BLUEMARKCLED and
THERMOMARK CARD, there is a
complete range of plastic labels available for
control cabinets as well as for buttons and
switchgear.
The labels of all the various printing
systems feature a high level of wipe and
scratch resistance.
The self-adhesive labels are made from a
two-layer material and are highly durable,
e.g., where buttons and switches are subject
to frequent use. The best way to mark these
labels is to use the engraving device of the
CMS–P1–PLOTTER plotter.
Please contact us, if you are unable to find
a suitable size or color for your application
from the options available in our product
range.
It goes without saying that Phoenix
Contact also provides a comprehensive
engraving and marking service for device
marking applications. Test us out!
For further information and full technical data, visit phoenixcontact.net/products
225PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Device markers are available in various
sizes, materials, and colors. The self-
adhesive labels have been designed for use
in a wide temperature range.
Drilled labels are available for marking
devices and control cabinets. These can be
securely attached to the device using screws
or rivets.
The CARRIER marking system is the
perfect choice for marking buttons. It
consists of a carrier plus marking label and
can be used in control cabinets as well as in
the field.
High-temperature labels are ideal for
marking PCBs. These labels can safely and
permanently withstand temperatures of
-40°C to180°C; or a temperature of 300°C
for up to 60 seconds.
Tamper-proof labels are used as rating
plates or seals. When they are peeled off,
part of the metallic layer comes away,
leaving behind a pattern on both the label
and the surface.
GPE label sheets consist of a two-layer
material that is ideal for engraving. However,
the pre-fabricated self-adhesive labels can
also be marked directly by hand or using a
plotter.
In the case of small print volumes, labels
can also be printed using commercially
available desktop laser printers. Copy
sheets are provided with margins to make it
easier to remove individual labels.
The self-adhesive markers are available in
various shapes and sizes. They can be used
to mark components, devices, and buttons
and are highly resistant to chemical and
mechanical effects.
Self-adhesive marker carriers are used in
conjunction with marking labels for the
purpose of marking devices and modules.
The carriers can be stuck onto all standard
surfaces.
P R I NT E D
FOR YOU
– The LS-EMSP... product range is available
in stainless steel (V4A) or aluminum and
includes markers that can be quickly and
easily fitted with screws or rivets
– The LS-EMSP-V4A... group is particularly
characterized by its high resistance to
saltwater, chloride, and solvents and is
therefore also suitable for the most
demanding industrial requirements
– The LS-EMSP-V4A... product group can
be permanently marked in two ways: by
engraving or annealing
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-EMSP-V4A(39x15)
Lettering field size: 39x15mm
Notes:
For matching rivets for securing the LS-EMSP-V4A... and LS-
EMSP-AL..., see page368 or the product area on our website at
phoenixcontact.net/products.
For drilling diagrams, visit phoenixcontact.net/products.
1
) From lettering field size 110x80 to 170x180mm, the material
thickness is 1.5mm.
Technical data
General data
Can be marked using TOPMARK LASER
Material V4A
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Ordering data
Description Type Order No. Pcs. /
Pkt.
Marking label, with mounting holes 3.2mm in diameter
24-section LS-EMSP-V4A (39X15) 0831653 5
16-section LS-EMSP-V4A (50X15) 0831654 5
10-section LS-EMSP-V4A (50X30) 0831655 5
6-section LS-EMSP-V4A (75,6X54) 0831656 5
2-section LS-EMSP-V4A (90X60) 0831657 5
2-section
2-section
1-section
1-section
Marking label, with mounting holes 3.2mm in diameter
10-section, red
10-section, orange
10-section, blue
10-section, green
6-section, red
6-section, orange
6-section, blue
6-section, green
Accessories
Sheet hopper, for TOPMARKLASER
TOPMARK LASER-MAG SHEET 0831836 1
226
PHOENIX CONTACT
Direct laser marking
Can be marked using:
Stainless steel and aluminum device
marking for screwing or riveting
Marking and labeling - MARKING system
Device marking
Stainless steel, material thickness: 0.5mm Aluminum, material thickness: 0.8
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
TOPMARK LASER TOPMARK LASER TOPMARK LASER
Aluminum Aluminum Aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
LS-EMSP-AL (39X15) 0831615 5LS-EMSP-AL (39X15) BK 0831626 5
LS-EMSP-AL (50X15) 0831616 5LS-EMSP-AL (50X15) BK 0831627 5
LS-EMSP-AL (50X30) 0831617 5LS-EMSP-AL (50X30) BK 0831628 5
LS-EMSP-AL (75,6X54) 0831618 5LS-EMSP-AL (75,6X54) BK 0831629 5
LS-EMSP-AL (90X60) 0831619 5LS-EMSP-AL (90X60) BK 0831630 5
LS-EMSP-AL (110X80) 0831620 5LS-EMSP-AL (110X80) BK 0831631 5
LS-EMSP-AL (150X80) 0831621 5LS-EMSP-AL (150X80) BK 0831632 5
LS-EMSP-AL (150X120) 0831622 5LS-EMSP-AL (150X120) BK 0831633 5
LS-EMSP-AL (170X180) 0831623 5LS-EMSP-AL (170X180) BK 0831634 5
LS-EMSP-AL (50X30) RD 0831637 5
LS-EMSP-AL (50X30) OG 0831641 5
LS-EMSP-AL (50X30) BU 0831645 5
LS-EMSP-AL (50X30) GN 0831649 5
LS-EMSP-AL (75,6X54) RD 0831638 5
LS-EMSP-AL (75,6X54) OG 0831642 5
LS-EMSP-AL (75,6X54) BU 0831646 5
LS-EMSP-AL (75,6X54) GN 0831650 5
Accessories Accessories Accessories
TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1
227
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
mm Aluminum, material thickness: 0.8mm
1
) Aluminum, black, material thickness: 0.8mm
1
) Aluminum, colored, material thickness:
0.8mm
P R I NT E D
FOR YOU
– The aluminumLS-EMLP-AL... product
range includes self-adhesive device
markers with a high adhesive strength
– The use of modern laser technology
creates highly resistant and permanent
marking, which can only be removed by
destroying the material
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-EMLP-AL(27x15)
Lettering field size: 27x15mm
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Technical data
General data
Can be marked using TOPMARK LASER
Material Aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Ordering data
Description Type Order No. Pcs. /
Pkt.
Marking label, aluminum, self-adhesive
40-section LS-EMLP-AL (27X15) 0831580 5
35-section LS-EMLP-AL (27X18) 0831581 5
24-section LS-EMLP-AL (49X15) 0831582 5
16-section LS-EMLP-AL (60X15) 0831583 5
10-section LS-EMLP-AL (60X30) 0831584 5
6-section LS-EMLP-AL (85,6X54) 0831585 5
2-section LS-EMLP-AL (100X60) 0831586 5
Marking label, aluminum, self-adhesive
10-section, red
10-section, orange
10-section, blue
10-section, green
6-section, red
6-section, orange
6-section, blue
6-section, green
Accessories
Sheet hopper, for TOPMARKLASER
TOPMARK LASER-MAG SHEET 0831836 1
228
PHOENIX CONTACT
Direct laser marking
Can be marked using:
Adhesive aluminum device marking
Marking and labeling - MARKING system
Device marking
Aluminum, material thickness: 0.8mm Aluminum, black, material thickness: 0.8
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
TOPMARK LASER TOPMARK LASER
Aluminum Aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
LS-EMLP-AL (27X15) BK 0831589 5
LS-EMLP-AL (27X18) BK 0831590 5
LS-EMLP-AL (49X15) BK 0831591 5
LS-EMLP-AL (60X15) BK 0831592 5
LS-EMLP-AL (60X30) BK 0831593 5
LS-EMLP-AL (85,6X54) BK 0831594 5
LS-EMLP-AL (100X60) BK 0831595 5
LS-EMLP-AL (60X30) RD 0831598 5
LS-EMLP-AL (60X30) OG 0831602 5
LS-EMLP-AL (60X30) BU 0831606 5
LS-EMLP-AL (60X30) GN 0831610 5
LS-EMLP-AL (85,6X54) RD 0831599 5
LS-EMLP-AL (85,6X54) OG 0831603 5
LS-EMLP-AL (85,6X54) BU 0831607 5
LS-EMLP-AL (85,6X54) GN 0831611 5
Accessories Accessories
TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1
229
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
mm Aluminum, black, material thickness: 0.8mm Aluminum, colored, material thickness:
0.8mm
P R I NT E D
FOR YOU
– The aluminum LS-EMP-AL... product
range includes markers that can be
quickly and easily fitted into existing
CARRIER-EMP... label frames
– The use of modern laser technology
creates highly resistant and permanent
marking, which can only be removed by
destroying the material
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-EMP-AL(27x15)
Lettering field size: 27x15mm
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Technical data
General data
Can be marked using TOPMARK LASER
Material Aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data
Description Type Order No. Pcs. /
Pkt.
Marking label, aluminum, can be snapped into marker carriers
40-section LS-EMP-AL (27X15) 0831661 5
35-section LS-EMP-AL (27X18) 0831662 5
24-section LS-EMP-AL (49X15) 0831663 5
16-section LS-EMP-AL (60X15) 0831664 5
10-section LS-EMP-AL (60X30) 0831665 5
6-section LS-EMP-AL (85,6X54) 0831666 5
2-section LS-EMP-AL (100X60) 0831667 5
Accessories
Sheet hopper, for TOPMARKLASER
TOPMARK LASER-MAG SHEET 0831836 1
Marker carriers, for snap-in labels
Marker size: 27x15mm CARRIER-EMP (27X15) 0827451 80
Marker size: 49x15mm CARRIER-EMP (49X15) 0827452 40
Marker size: 60x15mm CARRIER-EMP (60X15) 0827453 40
Marker size: 60x30mm CARRIER-EMP (60X30) 0827454 30
Marker size: 85x54mm CARRIER-EMP (85,6X54) 0829365 10
Marker carriers, for snap-in labels, for buttons and switches
22mm in diameter
Marker size: 27x15mm CARRIER-EMP 22 (27X15) 0827447 50
Marker size: 27x18mm CARRIER-EMP 22 (27X18) 0827448 50
230
PHOENIX CONTACT
Direct laser marking
Can be marked using:
Aluminum device marking for
snapping into marker carriers
Marking and labeling - MARKING system
Device marking
Aluminum, material thickness: 0.8mm Aluminum, black, material thickness: 0.8
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
TOPMARK LASER
Aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
Ordering data
Type Order No. Pcs. /
Pkt.
LS-EMP-AL (27X15) BK 0831669 5
LS-EMP-AL (27X18) BK 0831670 5
LS-EMP-AL (49X15) BK 0831671 5
LS-EMP-AL (60X15) BK 0831672 5
LS-EMP-AL (60X30) BK 0831673 5
LS-EMP-AL (85,6X54) BK 0831674 5
LS-EMP-AL (100X60) BK 0831675 5
Accessories
TOPMARK LASER-MAG SHEET 0831836 1
CARRIER-EMP (27X15) 0827451 80
CARRIER-EMP (49X15) 0827452 40
CARRIER-EMP (60X15) 0827453 40
CARRIER-EMP (60X30) 0827454 30
CARRIER-EMP (85,6X54) 0829365 10
CARRIER-EMP 22 (27X15) 0827447 50
CARRIER-EMP 22 (27X18) 0827448 50
231
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
mm Aluminum, black, material thickness: 0.8mm
– The LS-EMLP... product range includes
self-adhesive double-layer plastic device
markers
– A wide range of different marker sizes is
available for custom designs
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-EMLP(11x9)SR
Lettering field size: 11x9mm, silver
material with black marking
Technical data
General data
Can be marked using TOPMARK LASER
Material TRANSPLY-ABS
Temperature range [°C] -20 ... 85
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data
Description Type Order No. Pcs. /
Pkt.
Plastic label sheet, self-adhesive, double-layer plastic labels
1sheet=255labels LS-EMLP (11X9) WH 0831678 10
1sheet=221labels LS-EMLP (13X9) WH 0831679 10
1sheet=220labels LS-EMLP (17X7) WH 0831680 10
1sheet=170labels LS-EMLP (17X9) WH 0831681 10
1sheet=130labels LS-EMLP (17,5X12) WH 0831682 10
1sheet=100labels LS-EMLP (17,5X15) WH 0831683 10
1sheet=176labels LS-EMLP (20X7) WH 0831684 10
1sheet=160labels LS-EMLP (20X8) WH 0831685 10
1sheet=104labels LS-EMLP (22X12) WH 0831686 10
1sheet=56labels LS-EMLP (22X22) WH 0831687 10
1sheet=120labels LS-EMLP (27X8) WH 0831688 10
1sheet=78labels LS-EMLP (27X12,5) WH 0831689 10
1sheet=60labels LS-EMLP (27X15) WH 0831690 10
1sheet=54labels LS-EMLP (27X18) WH 0831691 10
1sheet=36labels LS-EMLP (27X27) WH 0831692 10
1sheet=33labels LS-EMLP (45X14) WH 0831693 10
1sheet=30labels LS-EMLP (45X15) WH 0831694 10
1sheet=30labels LS-EMLP (49X15) WH 0831695 10
1sheet=20labels LS-EMLP (60X15) WH 0831696 10
1sheet=10labels LS-EMLP (60X30) WH 0831697 10
1sheet=6labels LS-EMLP (85,6X54) WH 0831698 10
1sheet=2labels LS-EMLP (100X60) WH 0831699 10
Accessories
Sheet hopper, for TOPMARKLASER
TOPMARK LASER-MAG SHEET 0831836 1
232
PHOENIX CONTACT
Direct laser marking
Can be marked using:
Plastic adhesive device marking
Marking and labeling - MARKING system
Device marking
TRANSPLY-ABS, white,
material thickness: 0.8mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
TOPMARK LASER TOPMARK LASER
TRANSPLY-ABS TRANSPLY-ABS
-20 ... 85 -20 ... 85
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
LS-EMLP (11X9) YE 0831732 10 LS-EMLP (11X9) SR 0831705 10
LS-EMLP (13X9) YE 0831733 10 LS-EMLP (13X9) SR 0831706 10
LS-EMLP (17X7) YE 0831734 10 LS-EMLP (17X7) SR 0831707 10
LS-EMLP (17X9) YE 0831735 10 LS-EMLP (17X9) SR 0831708 10
LS-EMLP (17,5X12) YE 0831736 10 LS-EMLP (17,5X12) SR 0831709 10
LS-EMLP (17,5X15) YE 0831737 10 LS-EMLP (17,5X15) SR 0831710 10
LS-EMLP (20X7) YE 0831738 10 LS-EMLP (20X7) SR 0831711 10
LS-EMLP (20X8) YE 0831739 10 LS-EMLP (20X8) SR 0831712 10
LS-EMLP (22X12) YE 0831740 10 LS-EMLP (22X12) SR 0831713 10
LS-EMLP (22X22) YE 0831741 10 LS-EMLP (22X22) SR 0831714 10
LS-EMLP (27X8) YE 0831742 10 LS-EMLP (27X8) SR 0831715 10
LS-EMLP (27X12,5) YE 0831743 10 LS-EMLP (27X12,5) SR 0831716 10
LS-EMLP (27X15) YE 0831744 10 LS-EMLP (27X15) SR 0831717 10
LS-EMLP (27X18) YE 0831745 10 LS-EMLP (27X18) SR 0831718 10
LS-EMLP (27X27) YE 0831746 10 LS-EMLP (27X27) SR 0831719 10
LS-EMLP (45X14) YE 0831747 10 LS-EMLP (45X14) SR 0831720 10
LS-EMLP (45X15) YE 0831748 10 LS-EMLP (45X15) SR 0831721 10
LS-EMLP (49X15) YE 0831749 10 LS-EMLP (49X15) SR 0831722 10
LS-EMLP (60X15) YE 0831750 10 LS-EMLP (60X15) SR 0831723 10
LS-EMLP (60X30) YE 0831751 10 LS-EMLP (60X30) SR 0831724 10
LS-EMLP (85,6X54) YE 0831752 10 LS-EMLP (85,6X54) SR 0831725 10
LS-EMLP (100X60) YE 0831753 10 LS-EMLP (100X60) SR 0831726 10
Accessories Accessories
TOPMARK LASER-MAG SHEET 0831836 1TOPMARK LASER-MAG SHEET 0831836 1
233PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
TRANSPLY-ABS, yellow,
material thickness: 0.8mm
TRANSPLY-ABS, silver,
material thickness: 0.8mm
P R I NT E D
FOR YOU
– The LS-EMLP24/30/32... product range
includes self-adhesive double-layer plastic
device markers with a hole for the switch
– A wide range of different marker sizes is
available for custom designs
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-EMLP24(30x12)WH
Lettering field size: 30x12mm
Hole diameter for switch: 24mm, white
material with black marking
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Technical data
General data
Can be marked using TOPMARK LASER
Material TRANSPLY-ABS
Temperature range [°C] -20 ... 85
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plastic label sheet, with hole for switch, diameter 24mm, self-
adhesive double-layer plastic labels
1sheet=20labels white LS-EMLP 24 (30X12) WH 0831700 10
1sheet=20labels yellow LS-EMLP 24 (30X12) YE 0831754 10
1sheet=20labels silver LS-EMLP 24 (30X12) SR 0831727 10
Plastic label sheet, with hole for switch, diameter 30mm, self-
adhesive double-layer plastic labels
1sheet=9labels white LS-EMLP 30 (45X10) WH 0831701 10
1sheet=9labels yellow LS-EMLP 30 (45X10) YE 0831755 10
1sheet=9labels silver LS-EMLP 30 (45X10) SR 0831728 10
Plastic label sheet, with hole for switch, diameter 32mm, self-
adhesive double-layer plastic labels
1sheet=12labels white LS-EMLP 32 (38X14) WH 0831702 10
1sheet=12labels yellow LS-EMLP 32 (38X14) YE 0831756 10
1sheet=12labels silver LS-EMLP 32 (38X14) SR 0831729 10
Accessories
Sheet hopper, for TOPMARKLASER
TOPMARK LASER-MAG SHEET 0831836 1
Can be marked using:
Stick-on device marking, plastic,
with hole for switch
234
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
TRANSPLY-ABS, colored,
material thickness: 0.8mm
Direct laser marking
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
– The LS-EML... product range includes
self-adhesive, double-layer plastic foil
labels that can be custom designed
– The laser foil is characterized by its high
heat resistance and particularly strong
adhesive properties
– By selecting the material in the CLIP
PROJECT planning and configuration
software, the correct laser parameters
are automatically passed to the
TOPMARK LASER
–Designation example:
LS-EML(180x180)BK-WH
Lettering field size: 180x180mm, can be
custom designed, black material with
white marking
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Technical data
General data
Can be marked using TOPMARK LASER
Material Polyacrylate
Temperature range [°C] -40 ... 300
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Type Order No. Pcs. /
Pkt.
Laser foil, double-layer plastic foil, for custom label design
Lettering field size: 180x180mm LS-EML (180X180) BK-WH 0831784 10
Accessories
Sheet hopper, for TOPMARKLASER
TOPMARK LASER-MAG SHEET 0831836 1
Can be marked using:
Laser foil adhesive device marking
235
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Polyacrylate, black-white
Direct laser marking
UV
General data
Can be marked using
Material
Wipe resistance
Description Color
Marking label, aluminum, self-adhesive, can be snapped in,
0.8mm thick
Lettering field size: 27x15mm aluminum
Lettering field size: 27x18mm aluminum
Lettering field size: 49x15mm aluminum
Lettering field size: 60x15mm aluminum
Lettering field size: 60x30mm aluminum
Lettering field size: 85.6x54mm aluminum
Lettering field size: 100x60mm aluminum
Magazine, for BLUEMARK CLED
for accommodating EMP-AL(27X15), EMLP-AL(27X15)
for accommodating EMP-AL(27X18), EMLP-AL(27X18)
for accommodating EMP-AL(49X15), EMLP-AL(49X15),
EMSP-AL(39X15)
for accommodating EMP-AL(60X15), EMLP-AL(60X15),
EMSP-AL(50X15)
for accommodating EMP-AL(60X30), EMLP-AL(60X30),
and ...-EX versions, EMSP-AL(50X30)
for accommodating EMP-AL(85,6X54), EMLP-AL(85,6X54),
and ...-EX versions, EMSP-AL(75,6X54)
for accommodating EMLP-AL(100X60) and ...-EX versions,
EMSP-AL(90X60)
236
PHOENIX CONTACT
– The aluminum EMLP-AL... product range
includes self-adhesive device markers
with a high adhesive strength and is
characterized by:
– The markers can be marked quickly, easily,
and cost-effectively with the BLUEMARK
CLED
– Marking service: PhoenixContact can
custom-mark EMLP ... markers according
to your requirements
– A wide range of different marker sizes is
available for custom designs. Formats
from 27x15 to 100x60mm cover the
entire range of device and system marking
– By using modern UV LED printing
technology, a highly resistant and
optimum printing quality can be achieved,
which is resistant to solvents and suitable
for use even under harsh industrial
conditions
– In conjunction with magazines, optimum
printing accuracy is guaranteed
Stick-on aluminum device marking
Marking and labeling - MARKING system
Device marking
UV LED technology
Can be marked using:
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
BLUEMARK CLED
Aluminum
DIN EN 61010-1 (VDE 0411-1)
Ordering data
Type Order No. Pcs. /
Pkt.
EMLP-AL (27X15) 0830508 90
EMLP-AL (27X18) 0830509 90
EMLP-AL (49X15) 0830511 45
EMLP-AL (60X15) 0830512 45
EMLP-AL (60X30) 0830513 45
EMLP-AL (85,6X54) 0830514 15
EMLP-AL (100X60) 0830515 15
Accessories
BLUEMARK MAG EM-M (27X15) 0802736 1
BLUEMARK MAG EM-M (27X18) 0802737 1
BLUEMARK MAG EM-M (49X15) 0802738 1
BLUEMARK MAG EM-M (60X15) 0802739 1
BLUEMARK MAG EM-M (60X30) 0802740 1
BLUEMARK MAG EM-M (85,6X54) 0802741 1
BLUEMARK MAG EM-M (100X60) 0802742 1
237
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Aluminum, material thickness: 0.8 mm
P R I NT E D
FOR YOU
UV
– The aluminum EMSP-AL... product range
includes markers that can be quickly and
easily fitted with screws or rivets and is
characterized by:
– High-quality appearance
– The markers can be marked quickly, easily,
and cost-effectively with the BLUEMARK
CLED
– By using modern UV LED printing
technology, a highly resistant and
optimum printing quality can be achieved,
which is resistant to solvents and suitable
for use even under harsh industrial
conditions
– Marking service: PhoenixContact can
custom-mark EMSP ... markers according
to your requirements
– In conjunction with magazines, optimum
printing accuracy is guaranteed
Notes:
For corresponding rivets for fixing the EMSP-AL ..., see page 368.
For drilling diagrams, visit phoenixcontact.net/products
Technical data
General data
Can be marked using BLUEMARK CLED
Material Aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marking label, aluminum, 0.8mm thick, with mounting holes
3.2mm in diameter
Lettering field size: 39x15mm aluminum EMSP-AL (39X15) 0830510 45
Lettering field size: 50x15mm aluminum EMSP-AL (50X15) 0830773 45
Lettering field size: 50x30mm aluminum EMSP-AL (50X30) 0830502 45
Lettering field size: 75.6x54mm aluminum EMSP-AL (75,6X54) 0830503 15
Lettering field size: 90x60mm aluminum EMSP-AL (90X60) 0830504 15
Accessories
Magazine, for BLUEMARK CLED
for accommodating EMP-AL(49X15), EMLP-AL(49X15), EMSP-
AL(39X15)
BLUEMARK MAG EM-M (49X15) 0802738 1
for accommodating EMP-AL(60X15), EMLP-AL(60X15), EMSP-
AL(50X15)
BLUEMARK MAG EM-M (60X15) 0802739 1
for accommodating EMP-AL(60X30), EMLP-AL(60X30), and ...-
EX versions, EMSP-AL(50X30)
BLUEMARK MAG EM-M (60X30) 0802740 1
for accommodating EMP-AL(85,6X54), EMLP-AL(85,6X54), and
...-EX versions, EMSP-AL(75,6X54)
BLUEMARK MAG EM-M (85,6X54) 0802741 1
for accommodating EMLP-AL(100X60) and ...-EX versions,
EMSP-AL(90X60)
BLUEMARK MAG EM-M (100X60) 0802742 1
Can be marked using:
Aluminum device marking for
screwing or riveting
238
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Aluminum, material thickness: 0.8mm
UV LED technology
P R I NT E D
FOR YOU
UV
For further information and full technical data, visit phoenixcontact.net/products
– The aluminum EMP-AL ... product range
includes markers that can be quickly and
easily fitted into existing CARRIER-EMP
... label frames and is characterized by:
– The markers can be marked quickly, easily,
and cost-effectively with the BLUEMARK
CLED
– By using modern UV LED printing
technology, a highly resistant and
optimum printing quality can be achieved,
which is resistant to solvents and suitable
for use even under harsh industrial
conditions
– In conjunction with magazines, optimum
printing accuracy is guaranteed
– Marking service: Phoenix Contact can
custom-mark all EMLP... markers
according to your requirements
Technical data
General data
Can be marked using BLUEMARK CLED
Material Aluminum
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marking label, aluminum, 0.8mm thick, can be snapped into
marker carriers
Lettering field size: 27x15mm aluminum EMP-AL (27X15) 0830776 90
Lettering field size: 27x18mm aluminum EMP-AL (27X18) 0830777 90
Lettering field size: 49x15mm aluminum EMP-AL (49X15) 0830778 45
Lettering field size: 60x15mm aluminum EMP-AL (60X15) 0830779 45
Lettering field size: 60x30mm aluminum EMP-AL (60X30) 0830796 45
Lettering field size: 85.6x54mm aluminum EMP-AL (85,6X54) 0830797 15
Accessories
Magazine, for BLUEMARK CLED
for accommodating EMP-AL(27X15), EMLP-AL(27X15) BLUEMARK MAG EM-M (27X15) 0802736 1
for accommodating EMP-AL(27X18), EMLP-AL(27X18) BLUEMARK MAG EM-M (27X18) 0802737 1
for accommodating EMP-AL(49X15), EMLP-AL(49X15),
EMSP-AL(39X15)
BLUEMARK MAG EM-M (49X15) 0802738 1
for accommodating EMP-AL(60X15), EMLP-AL(60X15),
EMSP-AL(50X15)
BLUEMARK MAG EM-M (60X15) 0802739 1
for accommodating EMP-AL(60X30), EMLP-AL(60X30),
and ...-EX versions, EMSP-AL(50X30)
BLUEMARK MAG EM-M (60X30) 0802740 1
for accommodating EMP-AL(85,6X54), EMLP-AL(85,6X54),
and ...-EX versions, EMSP-AL(75,6X54)
BLUEMARK MAG EM-M (85,6X54) 0802741 1
Can be marked using:
Aluminum device marking for
snapping into marker carriers
239
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Aluminum, material thickness: 0.8mm
UV LED technology
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-EMLP... UniCard marking range
includes self-adhesive device markers
with good adhesive properties
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, with self-adhesive plastic labels
10-part, lettering field size: 11x9mm white UC-EMLP (11X9) 0819291 10
yellow UC-EMLP (11X9) YE 0822602 10
silver UC-EMLP (11X9) SR 0828094 10
10-section, lettering field size: 15 x 5 mm white UC-EMLP (15X5) 0819301 10
yellow UC-EMLP (15X5) YE 0822615 10
silver UC-EMLP (15X5) SR 0828095 10
10-section, lettering field size: 17x9mm white UC-EMLP (17X9) 0819314 10
yellow UC-EMLP (17X9) YE 0822628 10
silver UC-EMLP (17X9) SR 0828096 10
10-section, lettering field size: 17x15mm white UC-EMLP (17X15) 0827885 10
yellow UC-EMLP (17X15) YE 0827886 10
silver UC-EMLP (17X15) SR 0827887 10
10-section, lettering field size: 20x8mm white UC-EMLP (20X8) 0819327 10
yellow UC-EMLP (20X8) YE 0822631 10
silver UC-EMLP (20X8) SR 0828097 10
6-section, lettering field size: 22x22mm white UC-EMLP (22X22) 0825463 10
yellow UC-EMLP (22X22) YE 0825464 10
silver UC-EMLP (22X22) SR 0825465 10
8-section, lettering field size: 27x12.5mm white UC-EMLP (27X12,5) 0825469 10
yellow UC-EMLP (27X12,5) YE 0825470 10
silver UC-EMLP (27X12,5) SR 0825471 10
blue UC-EMLP (27X12,5) BU 0830853 10
green UC-EMLP (27X12,5) GN 0830854 10
8-section, lettering field size: 27 x 15mm white UC-EMLP (27X15) 0827894 10
yellow UC-EMLP (27X15) YE 0827895 10
silver UC-EMLP (27X15) SR 0827896 10
8-section, lettering field size: 27x18mm white UC-EMLP (27X18) 0825475 10
yellow UC-EMLP (27X18) YE 0825476 10
silver UC-EMLP (27X18) SR 0825477 10
6-section, lettering field size: 27x27mm white UC-EMLP (27X27) 0825481 10
yellow UC-EMLP (27X27) YE 0825482 10
silver UC-EMLP (27X27) SR 0825483 10
4-section, lettering field size: 49x15mm white UC-EMLP (49X15) 0827903 10
silver UC-EMLP (49X15) SR 0827905 10
yellow UC-EMLP (49X15) YE 0827904 10
4-section, lettering field size: 60 x 15 mm white UC-EMLP (60X15) 0819330 10
yellow UC-EMLP (60X15) YE 0822644 10
silver UC-EMLP (60X15) SR 0828088 10
3-section, lettering field size: 60x30mm white UC-EMLP (60X30) 0819343 10
yellow UC-EMLP (60X30) YE 0822657 10
silver UC-EMLP (60X30) SR 0828091 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 6 5146121 1
Can be marked using:
UniCard stick-on device marking
240
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
For further information and full technical data, visit phoenixcontact.net/products
– The UC-EMLP...-EX UniCard marking
range includes self-adhesive device
markers with good adhesive properties
– The marking requirements in terms of
legibility, adhesion, and wipe resistance in
potentially explosive areas (ATEX),
according to IEC/EN60079-0, can also be
ensured following storage in typical gas
atmospheres. PhoenixContact
developed these sheets especially for
process engineering which is where these
requirements typically arise. These sheets
meet the requirements for wipe
resistance according to DINEN61010-1
against aggressive media such as acetone,
ethanol, and MEK
– Thanks to the special adhesive, the
marker meets the demanding
requirements of process engineering
– The markers can be marked quickly, easily,
and inexpensively with the
BLUEMARKCLEDandLED
– By using modern UV LED printing
technology, a highly resistant and
optimum printing quality can be achieved,
which is resistant to solvents and suitable
for use even under harsh industrial
conditions
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, with self-adhesive plastic labels
6-section, lettering field size: 22x22mm white UC-EMLP (22X22)-EX 0803224 10
8-section, lettering field size: 27x18mm white UC-EMLP (27X18)-EX 0803225 10
6-section, lettering field size: 27x27mm white UC-EMLP (27X27)-EX 0803226 10
4-section, lettering field size: 49x15mm white UC-EMLP (49X15)-EX 0803227 10
3-section, lettering field size: 60x30mm white UC-EMLP (60X30)-EX 0803228 10
Can be marked using:
Stick-on UniCard device marking for
applications in process engineering
241
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UV LED technology
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-EMSP... UniCard marking range
includes markers that can be attached
using screws or rivets
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
Corresponding rivet for fixing the UC–EMSP..., see page 368.
For drilling diagrams, visit phoenixcontact.net/products.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, plastic labels with mounting holes 3.2mm in diameter
4-section, lettering field size: 50x15mm white UC-EMSP (50X15) 0828706 10
yellow UC-EMSP (50X15) YE 0828707 10
silver UC-EMSP (50X15) SR 0828708 10
blue UC-EMSP (50X15) BU 0803134 10
red UC-EMSP (50X15) RD 0803135 10
3-section, lettering field size: 50x30mm white UC-EMSP (50X30) 0828709 10
yellow UC-EMSP (50X30) YE 0828710 10
silver UC-EMSP (50X30) SR 0828711 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 6 5146121 1
Can be marked using:
UniCard device marking for screwing
or riveting
242
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
For further information and full technical data, visit phoenixcontact.net/products
– The UC-EMP... UniCard marking range
includes markers that can be fitted into
existing CARRIER-EMP... label frames
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Notes:
Matching label frames, see page 286.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, 1.2mm thick
8-section, lettering field size: 17x15mm white UC-EMP (17X15) 0825421 10
yellow UC-EMP (17X15) YE 0825422 10
silver UC-EMP (17X15) SR 0825423 10
8-section, lettering field size: 27x15mm white UC-EMP (27X15) 0825439 10
yellow UC-EMP (27X15) YE 0825440 10
silver UC-EMP (27X15) SR 0825441 10
4-section, lettering field size: 49x15mm white UC-EMP (49X15) 0825457 10
yellow UC-EMP (49X15) YE 0825458 10
silver UC-EMP (49X15) SR 0825459 10
4-section, lettering field size: 60 x 15 mm white UC-EMP (60X15) 0822259 10
yellow UC-EMP (60X15) YE 0825330 10
silver UC-EMP (60X15) SR 0827647 10
3-section, lettering field size: 60x30mm white UC-EMP (60X30) 0822275 10
yellow UC-EMP (60X30) YE 0825331 10
silver UC-EMP (60X30) SR 0827648 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 6 5146121 1
Can be marked using:
UniCard device marking that can be
snapped into marker carriers
243
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-EMP... UniCard marking range
includes markers for all applications
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The UC-EMP... device markers are ideal
for fitting into existing CARRIER-EMP...
label frames
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
Notes:
Matching label frames, see page 286.
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, 1.2mm thick
10-section, lettering field size: 27x8mm white UC-EMP (27X8) 0825427 10
yellow UC-EMP (27X8) YE 0825428 10
silver UC-EMP (27X8) SR 0825429 10
8-section, lettering field size: 27x12.5mm white UC-EMP (27X12,5) 0825433 10
yellow UC-EMP (27X12,5) YE 0825434 10
silver UC-EMP (27X12,5) SR 0825435 10
8-section, lettering field size: 27x15mm white UC-EMP (27X15) 0825439 10
yellow UC-EMP (27X15) YE 0825440 10
silver UC-EMP (27X15) SR 0825441 10
8-section, lettering field size: 27x18mm white UC-EMP (27X18) 0825445 10
yellow UC-EMP (27X18) YE 0825446 10
silver UC-EMP (27X18) SR 0825447 10
6-section, lettering field size: 27x27 mm white UC-EMP (27X27) 0825451 10
yellow UC-EMP (27X27) YE 0825452 10
silver UC-EMP (27X27) SR 0825453 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 6 5146121 1
Can be marked using:
UniCard device marking that can be
snapped into marker carriers
244
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
For further information and full technical data, visit phoenixcontact.net/products
– The UC-EM... UniCard marking range
includes markers for devices and
switching devices from a wide variety of
manufacturers
– An overview of the devices that support
marking plus their manufacturers can be
found starting on page 292
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Number of individual labels 20
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
Siemens
Lettering field size: 10x7mm white UC-EM (10X7) 0825487 10
Lettering field size: 10x7mm turquoise UC-EM (10X7) TQ 0825488 10
UniCard, for marking devices from the following manufacturers:
Bosch/Rexroth, ifm-electronic, Lumberg, Pepperl & Fuchs,
Siemens
Lettering field size: 10x8mm white UC-EM (10X8) 0825491 10
Lettering field size: 10x8mm turquoise UC-EM (10X8) TQ 0825492 10
UniCard, for marking devices from the following manufacturers:
ABB, Lumberg
Lettering field size: 17.5x7.5mm white UC-EM (17,5X7,5) 0825495 10
UniCard, for marking devices from the following manufacturers:
ABB, ifm-electronic, Moeller, Murr Elektronik
Lettering field size: 17.5x8mm white UC-EM (17,5X8) 0823766 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 6 5146121 1
Can be marked using:
UniCard snap-in device marking for
devices from various manufacturers
245
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UV LED technology Plotter
P R I NT E D
FOR YOU
UV
x
y
1 2 3
– The UC-EM... UniCard marking range
includes markers for devices and
switching devices from a wide variety of
manufacturers
– An overview of the devices that support
marking plus their manufacturers can be
found starting on page 292
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARK
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Number of individual labels 20
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
MurrElektronik, PhoenixContact, Weidmüller
Lettering field size: 17.5x9mm white UC-EM (17,5X9) 0827490 10
yellow UC-EM (17,5X9) YE 0827494 10
UniCard, for marking devices from the following manufacturers:
Schneider Electric, ifm-electronic
Lettering field size: 18x8mm white UC-EM (18X8) 0825497 10
UniCard, for marking devices from the following manufacturers:
Lumberg, Weidmüller
Lettering field size: 19x9mm white UC-EM (19X9) 0827492 10
yellow UC-EM (19X9) YE 0827496 10
UniCard, for marking devices from the following manufacturers:
Harting, ifm-electronic, PhoenixContact, Siemens
Lettering field size: 20x7mm white UC-EM (20X7) 0825499 10
turquoise UC-EM (20X7) TQ 0825500 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 6 5146121 1
Can be marked using:
UniCard snap-in device marking for
devices from various manufacturers
246
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UV LED technology Plotter
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using BLUEMARK CLED BLUEMARK LED CMS-P1-PLOTTER
Number of individual labels 20
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
ABB, Conta-Clip, Escha, Festo, ifm-electronik, Harting, Moeller,
PhoenixContact, Siemens
Lettering field size: 20x9mm white UC-EM (20X9) 0825503 10
Lettering field size: 20x9mm yellow UC-EM (20X9) YE 0827637 10
Lettering field size: 20x9mm turquoise UC-EM (20X9) TQ 0825504 10
UniCard, for marking devices for marking devices from the
following manufacturers: Schneider Electric, ifm-electronic,
MurrElektronik
Lettering field size: 21x8mm white UC-EM (21X8) 0825507 10
Accessories
Magazine, for CMS-P1-PLOTTER
P1 UC-MAG 5 5146118 1
247
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UniCard snap-in device marking for
devices from various manufacturers
P R I NT E D
FOR YOU
1
2
2
1
UV
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARKCLED,
TOPMARK LASER, and the
THERMOMARK CARD
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components free from silicone, halogen, and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking PhoenixContact devices, Axioline
Lettering field size: 7x10mm, 30individual labels white UCT-EM (7X10) 0830765 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating
UCT-WMT... sheets, UCT-EM(17X10)
THERMOMARK CARD-UCT-MAG7 0801734 1
Can be marked using:
UniCard snap-in device marking for
Axioline E series
248
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
UV
For further information and full technical data, visit phoenixcontact.net/products
The UCT–EM... UniCard marking range
includes markers for devices and switchgear
from a wide range of manufacturers.
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARKCLED,
TOPMARK LASER, and the
THERMOMARK CARD
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– An overview of the devices that support
marking plus their manufacturers can be
found starting on page 292
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
CONTA-CLIP, MurrElektronik, 66individual markers
Lettering field size: 5x10mm white UCT-EM (5X10) 0801497 10
UniCard, for marking devices from the following manufacturers:
CONTA-CLIP, Festo, Finder, 54individual markers
Lettering field size: 6x10mm white UCT-EM (6X10) 0801493 10
UniCard, for marking devices from the following manufacturers:
Beckhoff, Escha, Lumberg, MurrElektronik, Pepperl & Fuchs,
Turck, 54individual markers
Lettering field size: 10x5mm white UCT-EM (10X5) 0801470 10
UniCard, for marking devices from the following manufacturers:
Siemens, 54individual markers
Lettering field size: 10x7mm white UCT-EM (10X7) 0801498 10
Lettering field size: 10x7mm turquoise UCT-EM (10X7) TQ 0801499 10
UniCard, for marking devices from the following manufacturers:
Bosch/Rexroth, ifm-electronic, Lumberg, Pepperl & Fuchs,
Siemens, 54individual markers
Lettering field size: 10x8mm white UCT-EM (10X8) 0801485 10
Lettering field size: 10x8mm turquoise UCT-EM (10X8) TQ 0801486 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating: UCT–TM..., UCT1–TM..., UCT5–TM...,
UCT–EM(5X10), UCT-EM(6X10)
THERMOMARK CARD-UCT-MAG1 5146480 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(10X5) THERMOMARK CARD-UCT-MAG13 0830400 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(10 x 7), UCT-WMTB(29 x 8) THERMOMARK CARD-UCT-MAG20 0830751 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(10X8), UCT-EM(12X7) THERMOMARK CARD-UCT-MAG12 0830399 1
Can be marked using:
UniCard snap-in device marking for
devices from various manufacturers
249
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
1
2
2
1
UV
The UCT–EM... UniCard marking range
includes markers for devices and switchgear
from a wide range of manufacturers.
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARKCLED,
TOPMARK LASER, and the
THERMOMARK CARD
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– An overview of the devices that support
marking plus their manufacturers can be
found starting on page 292
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Number of individual labels 30
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
Bernecke + Rainer
Lettering field size: 12x3.3mm white UCT-EM (12X3,3) 0801502 10
UniCard, for marking devices from the following manufacturers:
Bernecke + Rainer
Lettering field size: 12x6mm white UCT-EM (12X6) 0801503 10
UniCard, for marking devices from the following manufacturers:
Beckhoff, Wago
Lettering field size: 12x7mm white UCT-EM (12X7) 0801501 10
UniCard, for marking devices from the following manufacturers:
Siemens
Lettering field size: 15x10mm white UCT-EM (15X10) 0801504 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(12X3.3), UCT-EM(12X6) THERMOMARK CARD-UCT-MAG9 0801736 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(12X3.3), UCT-EM(12X6) THERMOMARK CARD-UCT-MAG9 0801736 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(10X8), UCT-EM(12X7) THERMOMARK CARD-UCT-MAG12 0830399 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17,5X8), UCT-EM(20X7), UCT-
EM(15X10)
THERMOMARK CARD-UCT-MAG8 0801735 1
Can be marked using:
UniCard snap-in device marking for
devices from various manufacturers
250
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Number of individual labels 24
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
ABB, Festo, Finder, MurrElektronik, Wago
Lettering field size: 17x9mm white UCT-EM (17X9) 0801475 10
Lettering field size: 17x9mm yellow UCT-EM (17X9) YE 0801476 10
UniCard, for marking devices from the following manufacturers:
Allen Bradley, Festo
Lettering field size: 17x10mm white UCT-EM (17X10) 0801483 10
Lettering field size: 17x10mm yellow UCT-EM (17X10) YE 0801484 10
UniCard, for marking devices from the following manufacturers:
ABB, Lumberg
Lettering field size: 17.5x7.5mm white UCT-EM (17,5X7,5) 0801482 10
UniCard, for marking devices from the following manufacturers:
ABB, Schneider Electric, ifm-electronic, MurrElektronik
Lettering field size: 17x8mm white UCT-EM (17X8) 0801842 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17 x 9) THERMOMARK CARD-UCT-MAG16 0830403 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17X10) and (20X8) THERMOMARK CARD-UCT-MAG11 0801738 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17,5X7,5) THERMOMARK CARD-UCT-MAG18 0830405 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(21X8) and UCTEM(17X8) THERMOMARK CARD-UCT-MAG14 0830401 1
251
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UniCard snap-in device marking for
devices from various manufacturers
P R I NT E D
FOR YOU
1
2
2
1
UV
The UCT–EM... UniCard marking range
includes markers for devices and switchgear
from a wide range of manufacturers.
– The markers, which are supplied in
uniform sheets, can be marked quickly
and easily using the BLUEMARKCLED,
TOPMARK LASER, and the
THERMOMARK CARD
– The format automatically ensures printing
with a high level of positional accuracy
– The large temperature range for
application means that the labels can be
used in control cabinets as well as in the
field
– The sheets provide space to include
function texts
– An overview of the devices that support
marking plus their manufacturers can be
found starting on page 292
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Number of individual labels 24
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
ABB, ifm-electronic, Moeller, MurrElektronik
Lettering field size: 17.5x8mm white UCT-EM (17,5X8) 0801496 10
UniCard, for marking devices from the following manufacturers:
MurrElektronik, PhoenixContact, Weidmüller
Lettering field size: 17.5x9mm white UCT-EM (17,5X9) 0801491 10
Lettering field size: 17.5x9mm yellow UCT-EM (17,5X9) YE 0801492 10
UniCard, for marking devices from the following manufacturers:
ABB, SchneiderElectric, ifm-electronic, MurrElektronik
Lettering field size: 18x8mm white UCT-EM (18X8) 0801488 10
UniCard, for marking devices from the following manufacturers:
ifm-electronic, PhoenixContact, Siemens
Lettering field size: 20x7mm white UCT-EM (20X7) 0801494 10
Lettering field size: 20x7mm turquoise UCT-EM (20X7) TQ 0801495 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17,5X8), UCT-EM(20X7), UCT-
EM(15X10)
THERMOMARK CARD-UCT-MAG8 0801735 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17,5X9) THERMOMARK CARD-UCT-MAG22 0830771 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(18 x 8) THERMOMARK CARD-UCT-MAG17 0830404 1
Can be marked using:
UniCard snap-in device marking for
devices from various manufacturers
252
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
UV LED technology
Direct laser marking
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD BLUEMARK CLED BLUEMARK LED
TOPMARK LASER
Number of individual labels 24
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, for marking devices from the following manufacturers:
Escha, MurrElektronik, Turck
Lettering field size: 20x8mm white UCT-EM (20X8) 0801477 10
UniCard, for marking devices from the following manufacturers:
ABB, Conta-Clip, Escha, Festo, ifm-electronic, Lumberg, Moeller,
MurrElektronik, Pepperl & Fuchs, PhoenixContact, Siemens,
Turck, Weidmüller
Lettering field size: 20x9mm white UCT-EM (20X9) 0801471 10
Lettering field size: 20x9mm turquoise UCT-EM (20X9) TQ 0801473 10
Lettering field size: 20x9mm yellow UCT-EM (20X9) YE 0801472 10
UniCard, for marking devices from the following manufacturers:
ABB, SchneiderElectric, ifm-electronic, MurrElektronik
Lettering field size: 21x8mm white UCT-EM (21X8) 0801489 10
Accessories
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(17X10) and (20X8) THERMOMARK CARD-UCT-MAG11 0801738 1
for accommodating UCT-EM(20 x 9) THERMOMARK CARD-UCT-MAG15 0830402 1
Magazine, for THERMOMARKCARD...
for accommodating UCT-EM(21X8) and UCTEM(17X8) THERMOMARK CARD-UCT-MAG14 0830401 1
253
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UniCard snap-in device marking for
devices from various manufacturers
P R I NT E D
FOR YOU
1
2
2
1
– The US-EMLP... UniSheet marking range
includes self-adhesive device markers
with good adhesive properties in different
sizes for:
– Device marking
– Module marking
– Switchgear marking
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated markers are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
– For more label sizes, visit
phoenixcontact.net/products
Marking of power circuit breakers, for
example:
– 8.8x15mm for ABB, Schneider Electric
– 17x15mm for ABB, Hager, Legrand
– 35x15mm for ABB, Legrand, Schneider
Electric
– 52.5x15mm for ABB, Legrand,
Schneider Electric
– 70x15mm for Legrand, Schneider
Electric
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive plastic labels, 0.5mm thick
88-section, lettering field size: 8.8x15mm white US-EMLP (8,8X15) 0830303 10
yellow US-EMLP (8,8X15) YE 0830316 10
red US-EMLP (8,8X15) RD 0830318 10
silver US-EMLP (8,8X15) SR 0830317 10
135-section, lettering field size: 11x9mm white US-EMLP (11X9) 0828789 10
yellow US-EMLP (11X9) YE 0828871 10
silver US-EMLP (11X9) SR 0828872 10
189-section, lettering field size: 15x5mm white US-EMLP (15X5) 0828790 10
yellow US-EMLP (15X5) YE 0828873 10
silver US-EMLP (15X5) SR 0828874 10
108-section, lettering field size: 17x7mm white US-EMLP (17X7) 0828792 10
yellow US-EMLP (17X7) YE 0828877 10
silver US-EMLP (17X7) SR 0828878 10
54-section, lettering field size: 17x15mm white US-EMLP (17,5X15) 0830839 10
yellow US-EMLP (17X15) YE 0828879 10
silver US-EMLP (17X15) SR 0828880 10
75-section, lettering field size: 20x9mm white US-EMLP (20X9) 0828795 10
yellow US-EMLP (20X9) YE 0828883 10
silver US-EMLP (20X9) SR 0828884 10
24-section, lettering field size: 22x22mm white US-EMLP (22X22) 0828796 10
yellow US-EMLP (22X22) YE 0828885 10
silver US-EMLP (22X22) SR 0828886 10
51-section, lettering field size: 27x8mm white US-EMLP (27X8) 0828797 10
yellow US-EMLP (27X8) YE 0828889 10
silver US-EMLP (27X8) SR 0828890 10
30-section, lettering field size: 27x12.5mm white US-EMLP (27X12,5) 0828798 10
yellow US-EMLP (27X12,5) YE 0828891 10
silver US-EMLP (27X12,5) SR 0828892 10
27-section, lettering field size: 27x15mm white US-EMLP (27X15) 0828799 10
yellow US-EMLP (27X15) YE 0828893 10
silver US-EMLP (27X15) SR 0828894 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet stick-on device marking
254
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive plastic labels, 0.5mm thick
21-section, lettering field size: 27x18mm white US-EMLP (27X18) 0828800 10
yellow US-EMLP (27X18) YE 0828895 10
silver US-EMLP (27X18) SR 0828896 10
15-section, lettering field size: 27x27mm white US-EMLP (27X27) 0828801 10
yellow US-EMLP (27X27) YE 0828897 10
silver US-EMLP (27X27) SR 0828898 10
45-section, lettering field size: 35x9mm white US-EMLP (35X9) 0828802 10
yellow US-EMLP (35X9) YE 0828899 10
silver US-EMLP (35X9) SR 0829430 10
27-section, lettering field size: 35x15mm white US-EMLP (35X15) 0830300 10
yellow US-EMLP (35X15) YE 0830319 10
red US-EMLP (35X15) RD 0830321 10
silver US-EMLP (35X15) SR 0830320 10
28-section, lettering field size: 40x10mm white US-EMLP (40X10) 0830341 10
yellow US-EMLP (40X10) YE 0830342 10
silver US-EMLP (40X10) SR 0830328 10
18-section, lettering field size: 49x15mm white US-EMLP (49X15) 0828803 10
yellow US-EMLP (49X15) YE 0828901 10
silver US-EMLP (49X15) SR 0828902 10
16-section, lettering field size: 52.5x15mm white US-EMLP (52,5X15) 0830301 10
yellow US-EMLP (52,5X15) YE 0830322 10
red US-EMLP (52,5X15) RD 0830324 10
silver US-EMLP (52,5X15) SR 0830323 10
9-section, lettering field size: 60x15mm white US-EMLP (60X15) 0828804 10
yellow US-EMLP (60X15) YE 0828903 10
silver US-EMLP (60X15) SR 0828904 10
4-section, lettering field size: 60x30mm white US-EMLP (60X30) 0828805 10
yellow US-EMLP (60X30) YE 0828905 10
silver US-EMLP (60X30) SR 0828906 10
8-section, lettering field size: 70x15mm white US-EMLP (70X15) 0830302 10
yellow US-EMLP (70X15) YE 0830325 10
red US-EMLP (70X15) RD 0830327 10
silver US-EMLP (70X15) SR 0830326 10
2-section, lettering field size: 85.6x54mm white US-EMLP (85,6X54) 0828806 10
yellow US-EMLP (85,6X54) YE 0828907 10
silver US-EMLP (85,6X54) SR 0828908 10
red US-EMLP (85,6X54) RD 0830841 10
2-section, lettering field size: 100x60mm white US-EMLP (100X60) 0828807 10
yellow US-EMLP (100X60) YE 0828909 10
silver US-EMLP (100X60) SR 0828910 10
1-section, lettering field size: 104x135mm white US-EMLP (104X135) 0830304 10
yellow US-EMLP (104X135) YE 0830305 10
silver US-EMLP (104X135) SR 0830306 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
255
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
UniSheet stick-on device marking
P R I NT E D
FOR YOU
1
2
2
1
– The US-EMLP-HA... UniSheet marking
range has excellent adhesive properties
on rough, textured, and low-energy
surfaces, thanks to the special adhesive
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated markers are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
– Marking service: Phoenix Contact can
custom-mark all US-EMLP-HA... markers
according to your requirements
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive plastic labels, 0.5mm thick
108-section, lettering field size: 17x7mm white US-EMLP-HA (17X7) 0830988 10
70-section, lettering field size: 20x9mm white US-EMLP-HA (20X9) 0830989 10
4-section, lettering field size: 60x30mm white US-EMLP-HA (60X30) 0830990 10
4-section, lettering field size: 60x30mm silver US-EMLP-HA (60X30) SR 0830991 10
2-section, lettering field size: 85.6x54mm white US-EMLP-HA (85,6X54) 0830992 10
2-section, lettering field size: 85.6x54mm silver US-EMLP-HA (85,6X54) SR 0830993 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet device marking for sticking
onto rough or textured surfaces
256
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
– The US-EMP... UniSheet marking range
includes markers that can be fitted into
existing CARRIEREMP... label frames
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated markers are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
Notes:
Matching label frames, see page 286.
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, just 0.5mm thick
54-section, lettering field size: 17x15mm white US-EMP (17X15) 0828774 10
yellow US-EMP (17X15) YE 0828842 10
silver US-EMP (17X15) SR 0828843 10
70-section, lettering field size: 20x9mm white US-EMP (20X9) 0829439 10
84-section, lettering field size: 25x6mm white US-EMP (25X6)-1 0802754 10
84-section, lettering field size: 26x6mm white US-EMP (25X6) 0829435 10
51-section, lettering field size: 27x8mm white US-EMP (27X8) 0828775 10
yellow US-EMP (27X8) YE 0828844 10
silver US-EMP (27X8) SR 0828845 10
30-section, lettering field size: 27x12.5mm white US-EMP (27X12,5) 0828776 10
yellow US-EMP (27X12,5) YE 0828846 10
silver US-EMP (27X12,5) SR 0828847 10
27-section, lettering field size: 27x15mm white US-EMP (27X15) 0828777 10
yellow US-EMP (27X15) YE 0828848 10
silver US-EMP (27X15) SR 0828849 10
21-section, lettering field size: 27x18mm white US-EMP (27X18) 0828778 10
yellow US-EMP (27X18) YE 0828850 10
silver US-EMP (27X18) SR 0828851 10
15-section, lettering field size: 27x27mm white US-EMP (27X27) 0828779 10
yellow US-EMP (27X27) YE 0828852 10
silver US-EMP (27X27) SR 0828853 10
21-section, lettering field size: 27.9x17.4 mm US-EMP (27,9X17,4) 0830980 10
silver US-EMP (27,9X17,4) SR 0803300 10
48-section, lettering field size: 29x8mm white US-EMP (29X8) 0829436 10
yellow US-EMP (29X8) YE 0829440 10
42-section, lettering field size: 35x9mm white US-EMP (35X9) 0830842 10
yellow US-EMP (35X9) YE 0830843 10
silver US-EMP (35X9) SR 0830844 10
16-section, lettering field size: 40x17mm white US-EMP (40X17) 0829437 10
40-section, lettering field size: 44x7mm white US-EMP (44X7) 0829438 10
18-section, lettering field size: 49x15mm white US-EMP (49X15) 0828780 10
yellow US-EMP (49X15) YE 0828854 10
silver US-EMP (49X15) SR 0828855 10
9-section, lettering field size: 60x15mm white US-EMP (60X15) 0828781 10
yellow US-EMP (60X15) YE 0828856 10
silver US-EMP (60X15) SR 0828857 10
4-section, lettering field size: 60x30mm white US-EMP (60X30) 0828782 10
yellow US-EMP (60X30) YE 0828858 10
silver US-EMP (60X30) SR 0828859 10
2-section, lettering field size: 85.6x54mm white US-EMP (85,6X54) 0828783 10
yellow US-EMP (85,6X54) YE 0828860 10
silver US-EMP (85,6X54) SR 0828861 10
9-section, lettering field size: 100x15mm white US-EMP (100X15) 0829521 10
yellow US-EMP (100X15) YE 0829522 10
silver US-EMP (100X15) SR 0829523 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet device marking that can be
snapped into marker carriers
257
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1
2
2
1
The US–EMP... UniSheet device markers
can be easily and individually snapped into
the CARRIER(/L)–EMP(1000X15)...
marker profile. They offer the following
advantages and are suitable for the
following:
– Device marking
– Module marking
– Switchgear marking
– The labels are available in different sizes
corresponding to common device pitch
measurements
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated markers are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
Marking of power circuit breakers, for
example:
– 8.8x15mm for ABB, Schneider Electric
– 17x15mm for ABB, Hager, Legrand
– 35x15mm for ABB, Legrand, Schneider
Electric
– 52.5x15mm for ABB, Legrand,
Schneider Electric
– 70x15mm for Legrand, Schneider
Electric
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, 0.5mm thick, can be marked with THERMOMARK
CARD
88-section, lettering field size: 8.8x15mm white US-EMP (8,8X15) 0830293 10
yellow US-EMP (8,8X15) YE 0830426 10
red US-EMP (8,8X15) RD 0830428 10
silver US-EMP (8,8X15) SR 0830427 10
54-section, lettering field size: 17x15mm white US-EMP (17X15) 0828774 10
yellow US-EMP (17X15) YE 0828842 10
silver US-EMP (17X15) SR 0828843 10
27-section, lettering field size: 27x15mm white US-EMP (27X15) 0828777 10
yellow US-EMP (27X15) YE 0828848 10
silver US-EMP (27X15) SR 0828849 10
24-section, lettering field size: 35x15mm white US-EMP (35X15) 0830295 10
yellow US-EMP (35X15) YE 0830307 10
red US-EMP (35X15) RD 0830309 10
silver US-EMP (35X15) SR 0830308 10
18-section, lettering field size: 49x15mm white US-EMP (49X15) 0828780 10
yellow US-EMP (49X15) YE 0828854 10
silver US-EMP (49X15) SR 0828855 10
16-section, lettering field size: 52.5x15mm white US-EMP (52,5X15) 0830296 10
yellow US-EMP (52,5X15) YE 0830310 10
red US-EMP (52,5X15) RD 0830312 10
silver US-EMP (52,5X15) SR 0830311 10
9-section, lettering field size: 60x15mm white US-EMP (60X15) 0828781 10
yellow US-EMP (60X15) YE 0828856 10
silver US-EMP (60X15) SR 0828857 10
8-section, lettering field size: 70x15mm white US-EMP (70X15) 0830297 10
yellow US-EMP (70X15) YE 0830313 10
red US-EMP (70X15) RD 0830315 10
silver US-EMP (70X15) SR 0830314 10
9-section, lettering field size: 100x15mm white US-EMP (100X15) 0829521 10
yellow US-EMP (100X15) YE 0829522 10
silver US-EMP (100X15) SR 0829523 10
Accessories
Profile, for screwing or riveting, 1000mm long, for accommodating
UC-... / US-... / EMT... and EMP-AL material with a height of
15mm
gray CARRIER-EMP (1000X15) GY 0829366 25
transparent CARRIER-EMP (1000X15) TR 0829530 25
Profile, self-adhesive, 1000mm long, for accommodating UC-... /
US-... / EMT... and EMP-AL... material with a height of 15mm
gray CARRIER/L-EMP (1000X15) GY 0829559 25
transparent CARRIER/L-EMP (1000X15) TR 0829560 25
CARRIER cover, 1000mm long
transparent CARRIER-EMP (1000X15) COVER 0829520 25
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet device marking that can be
snapped into marker carriers
258
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
– The US-EMSP... UniSheet marking range
includes markers that can be attached
using screws or rivets
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated markers are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniSheet markers in
accordance with your requirements
Notes:
For corresponding rivets for fixing the US-EMSP...., see page 368.
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, 0.5mm thick, with mounting holes 3.2 mm in diameter
4-section, lettering field size: 50x30mm white US-EMSP (50X30) 0828786 10
yellow US-EMSP (50X30) YE 0828927 10
silver US-EMSP (50X30) SR 0828928 10
2-section, lettering field size: 75.6x54mm white US-EMSP (75,6X54) 0828787 10
yellow US-EMSP (75,6X54) YE 0828929 10
silver US-EMSP (75,6X54) SR 0828930 10
2-section, lettering field size: 90x60mm white US-EMSP (90X60) 0828788 10
yellow US-EMSP (90X60) YE 0828931 10
silver US-EMSP (90X60) SR 0828932 10
red US-EMSP (90X60) RD 0802937 10
blue US-EMSP (90X60) BU 0803038 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet device marking for screwing
or riveting
259
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1
2
2
1
– The US–EMLSP... UniSheet marking
range includes adhesive markers which
can also be attached with screws or rivets
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated markers are easy to
separate and can be easily fitted
– The sheets provide space to include
function texts
– Marking service: PhoenixContact can
custom-mark all UniSheet markers in
accordance with your requirements
Notes:
For corresponding rivets for fixing the UC–EMLSP..., see page 368.
For drilling diagrams, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive plastic labels, mounting holes with
3.2mm diameter, 0.5mm thick
Lettering field size: 28x10mm white US-EMLSP (28X10) 0830343 10
yellow US-EMLSP (28X10) YE 0830344 10
silver US-EMLSP (28X10) SR 0830329 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet device marking for sticking
on and additional screwing or riveting
260
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
1
2
2
1
For further information and full technical data, visit phoenixcontact.net/products
– The US-EML... UniSheet marking ranges
include markers for marking equipment in
switchgear and systems manufacturing
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The perforated markers and labels are
easy to separate and can be easily fitted
– When used in conjunction with high-
quality ink ribbons, they result in a highly
resistant form of marking that is suitable
for harsh environments
– The sheets provide space to include
function texts
– The US-EML... material is UL-listed
Technical data
General data
Can be marked using THERMOMARK CARD
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive labels
80-section, lettering field size: 17.5x8mm white US-EML (17,5X8) 0800461 10
yellow US-EML (17,5X8) YE 0800463 10
64-section, lettering field size: 20x8mm white US-EML (20X8) 0800458 10
yellow US-EML (20X8) YE 0800460 10
34-section, lettering field size: 104x3.8mm white US-EML (104X3,8) 0800464 10
1-section, lettering field size: 104x140mm white US-EML (104X140) 0800465 10
yellow US-EML (104X140) YE 0800467 10
silver US-EML (104X140) SR 0800466 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Can be marked using:
UniSheet device marking, stick-on
labels
261
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
1
2
2
1
P R I NT E D
FOR YOU
The unmarked US-EMLF... combi labels
on US... cards allow you to create custom
information signs. A variety of symbols
which conform to ISO7010 are available in
the CLIPPROJECT software. The markers
offer the following features:
– High adhesive strength
– Suitable for indoor and outdoor use
– The markers, which are supplied in
uniform sheets, can be marked quickly,
easily, and inexpensively
– The format automatically ensures printing
with a high level of positional accuracy
– The perforated markers are easy to
separate
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive labels, 2-section, lettering field size:
104x70mm
white US-EMLF (104X70) 1014294 10
yellow US-EMLF (104X70) YE 1014295 10
blue US-EMLF (104X70) BU 1014296 10
UniSheet, with self-adhesive labels, 1-section, lettering field size:
104x140mm
white US-EMLF (104X140) 1014291 10
yellow US-EMLF (104X140) YE 1014292 10
blue US-EMLF (104X140) BU 1014293 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
262
PHOENIX CONTACT
Thermal transfer for sheets
and cards
Can be marked using:
UniSheet - stick-on combi labels,
unprinted
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
For further information and full technical data, visit phoenixcontact.net/products
263PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
2
1
1
2
P R I NT E D
FOR YOU
– EML... self-adhesive device markers have
been specially developed to allow the
marking of various types of operating
equipment in control, system, and control
cabinet engineering applications
– Precise printing quality and good adhesive
properties
– If high-quality ink ribbons are used, the
marking is resistant to solvents, making it
suitable for use even under harsh
industrial conditions
– A wide range of marker sizes and colors
are available for custom designs
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– The EML... materials are UL-listed
–Designation example: EML
(10X4)R...
Lettering field size: 10x4mm
Type of packaging: roll
Notes:
The THERMOMARKROLL–ERH external media hub is required
for RL rolls, see under “Printers” on page 36.
For additional label sizes, see the product area on our website at
phoenixcontact.net/products
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data
Description Type Order No. Pcs. /
Pkt.
Labels
10,000 labels per roll EML (10X4)R 0815583 1
10,000 labels per roll EML (10X7)R 0816663 1
2500 labels per roll EML (15X6)R 0803275 1
2500 labels per roll EML (15X9)R 0815677 1
2500 labels per roll EML (16,5X5)R 0816702 1
10,000 labels per roll EML (16X7)R 0818001 1
2500 labels per roll EML (17,5X8)R 0816744 1
2500 labels per roll EML (19X6)R 0816760 1
2500 labels per roll
2500 labels per roll EML (20X8)R 0816786 1
2500 labels per roll
2500 labels per roll EML (24X3)R 0830291 1
1000 labels per roll EML (24X4)R 0800061 1
Labels for thermal transfer printer
2500 labels per roll EML (25,4X12,7)R 0816825 1
2500 labels per roll
2500 labels per roll
2500 labels per roll
2500 labels per roll
1000 labels per roll
2500 labels per roll EML (30X20)R 0816922 1
2500 labels per roll
1000 labels per roll EML (36X25)R 0803136 1
2500 labels per roll EML (38X17)R 0816951 1
2500 labels per roll EML (40X6)R 0830481 1
1000 labels per roll EML (40X8)R 0816980 1
1000 labels per roll
1000 labels per roll EML (40X25)R 0818027 1
1000 labels per roll EML (51X25)R 0817028 1
2500 labels per roll
1000 labels per roll EML (70X32)R 0817060 1
400 labels per roll EML (70X50)R 0817099 1
2500 labels per roll EML (75X10)R 0830485 1
1000 labels per roll EML (80X20)R 0803138 1
2500 labels per roll EML (90X5)R 0817109 1
1000 labels per roll EML (105X23)R 0803137 1
500 labels per roll
300 labels p. roll EML (100X73)R 0817125 1
250 labels p. roll EML (100X90)R 0817154 1
264
PHOENIX CONTACT
Thermal transfer for rolls
Can be marked using:
Stick-on device marking
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications, white
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Polyester Polyester
-40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
EML (10X7)R YE 0816676 1
EML (15X6) R YE 0819288 1
EML (15X9)R YE 0816045 1EML (15X9)R SR 0816032 1
EML (16,5X5)R YE 0816728 1
EML (16X7)R YE 0816731 1
EML (17,5X8)R YE 0816757 1
EML (19X6)R YE 0800107 1
EML (20X7)R YE 0816773 1
EML (20X8)R YE 0816799 1
EML (21,5X21,5)R SR 0816812 1
EML (25,4X12,7)R YE 0816838 1
EML (26,5X7,5)R SR 0816841 1
EML (26,5X12)R SR 0816854 1
EML (26,5X17,5)R YE 0816896 1EML (26,5X17,5)R SR 0816883 1
EML (26,5X18,5)R SR 0816906 1
EML (26,5X26,5)R SR 0816919 1
EML (30X20)R YE 0816935 1
EML (32X25)R YE 0800020 1
EML (40X6)R YE 0830482 1
EML (40X15)R SR 0815729 1
EML (40X25)R YE 0816977 1
EML (51X25)R YE 0817031 1EML (51X25)R SR 0817002 1
EML (50X10)R YE 0830484 1
EML (70X32)R YE 0817073 1EML (70X32)R SR 0817057 1
EML (70X50)R SR 0817086 1
EML (75X10)R YE 0830486 1
EML (100X30)R YE 0801816 1
EML (100X73)R YE 0817138 1EML (100X73)R SR 0817112 1
EML (100X90)R SR 0817141 1
265
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications, yellow
Unmarked or marked according to customer
specifications, silver
2
1
1
2
P R I NT E D
FOR YOU
– EML... self-adhesive device markers have
been specially developed to allow the
marking of various types of operating
equipment in control, system, and control
cabinet engineering applications
– Precise printing quality and good adhesive
properties
– If high-quality ink ribbons are used, the
marking is resistant to solvents, making it
suitable for use even under harsh
industrial conditions
– A wide range of marker sizes and colors
are available for custom designs
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– The EML... materials are UL-listed
–Designation example: EML
(10X4)R...
Lettering field size: 10x4mm
Type of packaging: roll
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data
Description Type Order No. Pcs. /
Pkt.
Labels, on large roll
10,000 labels per roll EML (16,5X5)RL 0816113 1
10,000 labels per roll
10,000 labels per roll
10,000 labels per roll
10,000 labels per roll EML (19X6,4)RL 0816142 1
10,000 labels per roll EML (25,4X12,7)RL 0816087 1
10,000 labels per roll
10,000 labels per roll EML (38,1X19)RL 0816171 1
3000 labels per roll EML (50,8X25,4)RL 0816184 1
3000 labels per roll EML (69,8X31,8)RL 0816197 1
2500 labels per roll
1000 labels per roll
Labels, round, 17.5mm diameter
2500 labels per roll EML (D17,5)R 0815774 1
Labels, on large roll
EML (25,4X12,7)R TR 0801841 1
Width: 37mm, length: 90mEML (37XE)RL TR 0815716 1
EML (51X12,5)R TR 0815745 1
Width: 100mm, length: 90m
Labels, on large roll
20,000 labels per roll EML (20X8)RXL 0802762 1
Endless label
Width: 110mm, length 40mEML (110XE)R 0815596 1
266
PHOENIX CONTACT
Thermal transfer for rolls
Can be marked using:
Stick-on device marking
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications, transparent and white
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Polyester Polyester
-40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
EML (16,5X5)RL YE 0816126 1
EML (17,5X8)RL YE 0816139 1
EML (18X6)RL YE 0828460 1
EML (18X7)RL YE 0802733 1
EML (30X20)RL YE 0816168 1
EML (76,2X6,5)RL YE 0816207 1
EML (101,6X25,4)RL SR 0815790 1
EML (100XE)RL SR 0815787 1
EML (110XE)R YE 0815606 1EML (110XE)R SR 0801994 1
267
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications, yellow
Unmarked or marked according to customer
specifications, silver
P R I NT E D
FOR YOU
2
1
1
2
– The EML...-EX self-adhesive device
markers have been specifically developed
for marking various types of equipment in
the Ex area
– The marking requirements in terms of
legibility, adhesion, and wipe resistance in
potentially explosive areas (ATEX),
according to IEC/EN 60079-0, can also be
ensured following storage in typical gas
atmospheres. PhoenixContact
developed these labels especially for
process engineering, which is where these
requirements typically arise. These labels
meet the requirements for wipe
resistance according to DINEN61010-1
against aggressive media such as acetone,
ethanol, and MEK
– They are only suitable in conjunction with
the TM-RIBBON110-EX
– Thanks to the special surface and
adhesive, the marker meets the
demanding requirements of process
engineering
– If high-quality ink ribbons are used, the
marking is resistant to solvents, making it
suitable for use even under harsh
industrial conditions
– A wide range of marker sizes and colors
are available for custom designs
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
–Designation example:
EML(10x4)R-EX
Lettering field size: 10x4mm
Type of packaging: roll
– Marking service: Phoenix Contact can
custom-mark all EMLmarkers according
to your requirements
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Labels
10,000 labels per roll white EML (10X4)R-EX 0803251 1
2500 labels per roll white EML (15X9)R-EX 0803253 1
2500 labels per roll white EML (20X8)R-EX 0803254 1
2500 labels per roll white EML (30X20)R-EX 0803255 1
1000 labels per roll white EML (40X25)R-EX 0803256 1
400 labels per roll white EML (70X50)R-EX 0803257 1
300 labels p. roll white EML (100X40)R-EX 0803258 1
300 labels p. roll white EML (100X73)R-EX 0803259 1
250 labels p. roll white EML (100X90)R-EX 0803260 1
Accessories
Ink ribbon, length: 300m, width: 110mm, color: black
TM-RIBBON 110-EX 0803211 1
Can be marked using:
Stick-on device marking for
applications in process engineering
268
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– The EMLP... self-adhesive markers meet
the same standards as the engraved labels
– Quick and cost-effective marking with
THERMOMARK... printers
– High-quality appearance
– High level of resistance to chemical and
mechanical effects
– Primarily used for marking electrical
components, devices, and buttons
–Designation example:
EMLP(13x9)R
Lettering field size :13x9mm
Type of packaging: roll
– Marking service: Phoenix Contact can
custom-mark all EMLP... markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Markers
500 markers per roll white EMLP (13X9)R 0819453 1
500 markers per roll white EMLP (17X7)R 0826844 1
500 markers per roll white EMLP (17,5X12)R 0819466 1
3000 markers per roll white EMLP (17,5X15)R 0802684 1
500 markers per roll white EMLP (20X7)R 0819479 1
500 markers per roll white EMLP (20X8)R 0819482 1
500 markers per roll white EMLP (22X12)R 0819495 1
500 markers per roll white EMLP (45X15)R 0801820 1
500 markers per roll white EMLP (45X25)R 0802727 1
250 markers per roll white EMLP (60X30)R 0819505 1
500 markers per roll white EMLP (65X25)R 0802728 1
3000 markers per roll silver EMLP (17,5X15)R SR 0802685 1
500 markers per roll silver EMLP (27X8)R SR 0819518 1
500 markers per roll silver EMLP (27X12,5)R SR 0819521 1
500 markers per roll silver EMLP (27X18)R SR 0819534 1
500 markers per roll silver EMLP (22X22)R SR 0825528 1
500 markers per roll silver EMLP (27X27)R SR 0827467 1
500 markers per roll silver EMLP (45X15)R SR 0819547 1
250 markers per roll silver EMLP (60X30)R SR 0801729 1
Can be marked using:
Stick-on device marking
269
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
– The EMLPEx... self-adhesive continuous
markers are equivalent to engraved labels
– Quick and cost-effective marking with
THERMOMARK... printers
– High-quality appearance
– High level of resistance to chemical and
mechanical effects
– Primarily used for marking electrical
components, devices, and buttons
–Designation example:
EMLP(13x9)R
Lettering field size :13x9mm
Type of packaging: roll
– Marking service: Phoenix Contact can
custom-mark all EMLP... markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Continuous roll
Width: 15mm, length: 20m white EMLP (EX15)R 0802686 1
silver EMLP (EX15)R SR 0802687 1
yellow EMLP (EX15)R YE 0803276 1
black EMLP (EX15)R BK 0803279 1
blue EMLP (EX15)R BU 0803277 1
red EMLP (EX15)R RD 0803280 1
Width: 30mm, length: 20mwhite EMLP (EX30)R 0802688 1
silver EMLP (EX30)R SR 0802689 1
red EMLP (EX30)R RD 0803436 1
Can be marked using:
Stick-on device marking, continuous
270
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– The EMLP24... self-adhesive markers are
ideal for marking electrical buttons
– Quick and cost-effective marking with
THERMOMARK... printers
– High-quality appearance
– High level of resistance to chemical and
mechanical effects
– Marking service: Phoenix Contact can
custom-mark all EMLP... markers in
accordance with your requirements
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Markers for 24 mm buttons, can be marked with thermal transfer
printer
500 markers per roll white EMLP 24 (30X12)R 0819550 1
500 markers per roll silver EMLP 24 (30X12)R SR 0819563 1
500 markers per roll red EMLP 24 (30X12)R RD 0819576 1
500 markers per roll green EMLP 24 (30X12)R GN 0819589 1
Can be marked using:
Stick-on device marking, for 24 mm
buttons
271
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Markers for 30 mm buttons, can be marked with thermal transfer
printers
500 markers per roll white EMLP 30(45X10)R 0801855 1
500 markers per roll yellow EMLP 30(45X10)R YE 0801857 1
500 markers per roll black EMLP 30(45X10)R BK 0801858 1
Notes:
If using THERMOMARKROLL, use the external ROLL-ERH
media hub.
– The EMLP30... self-adhesive markers are
ideal for marking electrical buttons
– Quick and cost-effective marking with
THERMOMARK... printers
– High-quality appearance
– High level of resistance to chemical and
mechanical effects
Stick-on device marking, for 30 mm
buttons
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Continuous label, width: 108mm, length: 48m
white EMLF (108XE)R 0800549 1
yellow EMLF (108XE)R YE 0800550 1
silver EMLF (108XE)R SR 0800551 1
transparent EMLF (108XE)R TR 0800552 1
272
PHOENIX CONTACT
– Highly flexible, soft PVC label that adapts
well to uneven surfaces
– Extremely high-quality appearance
– Outdoor-durable for up to eight years
when subject to a temperature range of
-40°Cto 90°C
Highly flexible PVC stick-on device
marking
Unmarked or marked according to customer
specifications
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– Textile foil with extremely low restoring
forces
– Enables labels to be stuck over edges and
curves
– Halogen-free material
– Outdoor-durable for one to two years
when subject to a temperature range of-
40°Cto+150°C
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material PA
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Fabric label
10,000 labels per roll white EMLC (5,5X20)R 0817617 1
5000 labels per roll white EMLC (5,5X40)R 0817620 1
2500 labels per roll yellow EMLC (15X9)R YE 0800236 1
2500 labels per roll yellow EMLC (17,5X8)R YE 0800237 1
2500 labels per roll white EMLC (20X8)R 0815680 1
2500 labels per roll yellow EMLC (20X8)R YE 0800235 1
10,000 labels per roll yellow EMLC (20X8)RL YE 0815800 1
2500 labels per roll yellow EMLC (25X8)R YE 0800240 1
2500 labels per roll yellow EMLC (25,4X12,7)R YE 0800238 1
1000 labels per roll yellow EMLC (38X17)R YE 0800557 1
1000 labels per roll white EMLC (40X8)R 0800554 1
1000 labels per roll yellow EMLC (40X8)R YE 0800555 1
750 labels per roll yellow EMLC (51X25)R YE 0800558 1
Can be marked using:
Highly flexible stick-on textile foil
273
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
The EML–HA... self-adhesive device
markers have excellent adhesive properties
on rough, structured, and low-energy
surfaces, thanks to their special adhesive.
– Precise printing quality and good adhesive
properties
– If high-quality ink ribbons are used, the
marking is resistant to solvents, making it
suitable for use even under harsh
industrial conditions
– A wide range of different marker sizes are
available in white and silver for custom
designs
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– Marking service: Phoenix Contact can
custom-mark all EML–HA... labels
according to your requirements
– The marking material is UL listed
–Designation example:
EML-HA(15x9)R
Lettering field size: 15x9mm
Type of packaging: roll
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Label, for rough plastic surfaces, highly adhesive, white
2500 labels per roll white EML-HA (15X9)R 0830600 1
2500 labels per roll white EML-HA (19X6)R 0830601 1
2500 labels per roll white EML-HA (20X20)R 0830602 1
2500 labels per roll white EML-HA (26,5X12)R 0830603 1
2500 labels per roll white EML-HA (40X8)R 0830604 1
1000 labels per roll white EML-HA (40X15)R 0830605 1
1000 labels per roll white EML-HA (51X25)R 0830729 1
1000 labels per roll white EML-HA (60X30)R 0830606 1
1000 labels per roll white EML-HA (70X32)R 0830607 1
1000 labels per roll white EML-HA (70X50)R 0830730 1
250 labels p. roll white EML-HA (70X150)R 0830608 1
1000 labels per roll white EML-HA (76X51)R 0830609 1
1000 labels per roll white EML-HA (85X32)R 0830610 1
300 labels p. roll white EML-HA (100X73)R 0830731 1
250 labels p. roll white EML-HA (100X90)R 0830732 1
Label, for rough plastic surfaces, highly adhesive, silver
2500 labels per roll silver EML-HA (15X9)R SR 0830611 1
2500 labels per roll silver EML-HA (19X6)R SR 0830612 1
2500 labels per roll silver EML-HA (20X20)R SR 0830613 1
2500 labels per roll silver EML-HA (26,5X12)R SR 0830614 1
2500 labels per roll silver EML-HA (40X8)R SR 0830615 1
1000 labels per roll silver EML-HA (40X15)R SR 0830616 1
1000 labels per roll silver EML-HA (51X25)R SR 0830733 1
1000 labels per roll silver EML-HA (60X30)R SR 0830617 1
1000 labels per roll silver EML-HA (70X32)R SR 0830618 1
1000 labels per roll silver EML-HA (70X50)R SR 0830734 1
250 labels p. roll silver EML-HA (70X150)R SR 0830619 1
1000 labels per roll silver EML-HA (76X51)R SR 0830620 1
1000 labels per roll silver EML-HA (85X32)R SR 0830621 1
300 labels p. roll silver EML-HA (100X73)R SR 0830735 1
250 labels p. roll silver EML-HA (100X90)R SR 0830736 1
Can be marked using:
Device marking for sticking onto
rough or structured surfaces
274
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– White polyimide labels with high level of
temperature resistance
– Continuous temperature range of
-40°Cto+180°C, up to
+300°Ctemporarily, for up to 60 seconds
– For marking PCBs, can be used in all
industrial soldering processes
– High weathering and chemical resistance
– The marking material is UL listed
– Protection against tampering: the labels
cannot be removed without disintegrating
–Designation example:
EML-HT (8x8)R
Lettering field size: 8x8mm
Type of packaging: roll
– Single-web large roll with 8000 or 10,000
labels (see figure below)
Notes:
The THERMOMARK–RIBBON110–EML-HT ink ribbon is
required for marking EM-LHT... high-temperature labels, see
under “Printers”, page 37.
If large rolls are processed with the THERMOMARKROLL, the
external THERMOMARKROLL-ERH media hub must be used.
EML-HT...RL-T cannot be marked with the THERMOMARK S1.1.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Acrylate
Temperature range [°C] -40 ... 180
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
High-temperature labels
4000 labels per roll white EML-HT (8X8)R 0800340 1
4000 labels per roll white EML-HT (15X6)R 0830644 1
4000 labels per roll white EML-HT (15X15)R 0800341 1
4000 labels per roll white EML-HT (20X7)R 0830645 1
4000 labels per roll white EML-HT (24X4)R 0830646 1
4000 labels per roll white EML-HT (25X8)R 0830647 1
2500 labels per roll white EML-HT (25,4X12,7)R 0830648 1
2500 labels per roll white EML-HT (32X10)R 0830649 1
2500 labels per roll white EML-HT (35X6,5)R 0830650 1
1000 labels per roll white EML-HT (40X15)R 0800339 1
2500 labels per roll white EML-HT (45X5)R 0800337 1
1000 labels per roll white EML-HT (50X10)R 0800338 1
1000 labels per roll, round, 12mm diameter white EML-HT (D12)R 0801376 1
High-temperature labels, on large roll
10,000 labels per roll white EML-HT (8X8)RL-T 0830651 1
10,000 labels per roll white EML-HT (15X6)RL-T 0830652 1
8000 labels per roll white EML-HT (15X15)RL-T 0830653 1
10,000 labels per roll white EML-HT (20X7)RL-T 0830654 1
10,000 labels per roll white EML-HT (24X4)RL-T 0830655 1
10,000 labels per roll white EML-HT (25X8)RL-T 0830656 1
10,000 labels per roll white EML-HT (25,4X12,7)RL-T 0830657 1
10,000 labels per roll white EML-HT (32X10)RL-T 0830658 1
10,000 labels per roll white EML-HT (35X6,5)RL-T 0830659 1
8000 labels per roll white EML-HT (40X15)RL-T 0830660 1
10,000 labels per roll white EML-HT (45X5)RL-T 0830661 1
10,000 labels per roll white EML-HT (50X10)RL-T 0830662 1
Accessories
Ink ribbon, specifically for high-temperature labels, EML-HT...
black THERMOMARK-RIBBON 110-EML-HT 0800342 1
Can be marked using:
Stick-on device marking, for high-
temperature applications
275
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
– Safe marking for sensitive components on
PCBs
– Static dissipative adhesive: prevents
transmission of voltage and protects the
component against electrostatic
discharge
– Marking service: Phoenix Contact can
custom-mark all EML-ESD... markers
according to your requirements
–Designation example:
EML-ESD (8x8)R
Lettering field size: 8x8mm
Type of packaging: roll
Notes:
If large rolls are processed with the THERMOMARKROLL, the
external THERMOMARKROLL-ERH media hub must be used.
EML-ESD... RL-T cannot be marked with the THERMOMARK
S1.1.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Device marking, roll
4000 labels per roll white EML-ESD (8X8)R 0830564 1
4000 labels per roll white EML-ESD (15X6)R 0830565 1
4000 labels per roll white EML-ESD (15X15)R 0830566 1
4000 labels per roll white EML-ESD (20X7)R 0830567 1
4000 labels per roll white EML-ESD (24X4)R 0830568 1
4000 labels per roll white EML-ESD (25X8)R 0830569 1
2500 labels per roll white EML-ESD (25,4X12,7)R 0830570 1
2500 labels per roll white EML-ESD (32X10)R 0830571 1
2500 labels per roll white EML-ESD (35X6,5)R 0830572 1
2500 labels per roll white EML-ESD (40X15)R 0830573 1
2500 labels per roll white EML-ESD (45X5)R 0830574 1
1000 labels per roll white EML-ESD (50X10)R 0830575 1
Device marking, large roll
10,000 labels per roll white EML-ESD (8X8)RL-T 0830576 1
10,000 labels per roll white EML-ESD (15X6)RL-T 0830577 1
8000 labels per roll white EML-ESD (15X15)RL-T 0830578 1
10,000 labels per roll white EML-ESD (20X7)RL-T 0830579 1
10,000 labels per roll white EML-ESD (24X4)RL-T 0830580 1
10,000 labels per roll white EML-ESD (25X8)RL-T 0830581 1
10,000 labels per roll white EML-ESD (25,4X12,7)RL-T 0830582 1
10,000 labels per roll white EML-ESD (32X10)RL-T 0830583 1
10,000 labels per roll white EML-ESD (35X6,5)RL-T 0830584 1
8000 labels per roll white EML-ESD (40X15)RL-T 0830585 1
10,000 labels per roll white EML-ESD (45X5)RL-T 0830586 1
10,000 labels per roll white EML-ESD (50X10)RL-T 0830587 1
Can be marked using:
Stick-on device marking, for ESD
applications
276
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– Particularly suitable for temporary
marking
– The labels adhere well and reliably, and
can be removed easily and residue-free if
required
– The labels cannot be reused following
removal
– Marking service: Phoenix Contact can
custom-mark all EML-RM... markers
according to your requirements
–Designation example:
EML-RM (8x8)R
Lettering field size: 8x8mm
Type of packaging: roll
Notes:
If large rolls are processed with the THERMOMARKROLL, the
external THERMOMARKROLL-ERH media hub must be used.
EML-RM...RL-T cannot be marked with the THERMOMARK S1.1.
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Labels, removable
4000 labels per roll white EML-RM (8X8)R 0830528 1
4000 labels per roll white EML-RM (15X6)R 0830529 1
4000 labels per roll white EML-RM (15X15)R 0830530 1
4000 labels per roll white EML-RM (20X7)R 0830531 1
4000 labels per roll white EML-RM (24X4)R 0830532 1
4000 labels per roll white EML-RM (25X8)R 0830533 1
2500 labels per roll white EML-RM (25,4X12,7)R 0830534 1
2500 labels per roll white EML-RM (32X10)R 0830535 1
2500 labels per roll white EML-RM (35X6,5)R 0830536 1
2500 labels per roll white EML-RM (40X15)R 0830537 1
2500 labels per roll white EML-RM (45X5)R 0830538 1
1000 labels per roll white EML-RM (50X10)R 0830539 1
1000 labels per roll white EML-RM (70X50)R 0803186 1
Labels, on large roll, removable
1000 labels per roll white EML-RM (8X8)RL-T 0830540 1
1000 labels per roll white EML-RM (15X6)RL-T 0830541 1
1000 labels per roll white EML-RM (15X15)RL-T 0830542 1
1000 labels per roll white EML-RM (20X7)RL-T 0830543 1
1000 labels per roll white EML-RM (24X4)RL-T 0830544 1
1000 labels per roll white EML-RM (25X8)RL-T 0830545 1
1000 labels per roll white EML-RM (25,4X12,7)RL-T 0830546 1
1000 labels per roll white EML-RM (32X10)RL-T 0830547 1
1000 labels per roll white EML-RM (35X6,5)RL-T 0830548 1
1000 labels per roll white EML-RM (40X15)RL-T 0830549 1
1000 labels per roll white EML-RM (45X5)RL-T 0830550 1
1000 labels per roll white EML-RM (50X10)RL-T 0830551 1
Accessories
Ink ribbon, length: 300m, width: 110mm
black THERMOMARK-RIBBON 110 5145384 1
Can be marked using:
Stick-on device marking, removable
277
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
– Tamper-proof label, can be used as a
rating plate or seal, forexample
– When peeled off, part of the metallic
layer comes away, leaving behind a
triangular pattern on both the label and
the surface
– The safety function is reliable up to80°C
– Marking service: Phoenix Contact can
custom-mark all EMLS... markers in
accordance with your requirements
– The EMLS... materials are UL-listed
–Designation example:EMLS (15x9)R
SR
Lettering field size: 15 x 9 mm
Type of packaging: roll
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Safety labels
2500 labels per roll silver EMLS (15X9)R SR 0800347 1
2500 labels per roll silver EMLS (19X6)R SR 0800343 1
1000 labels per roll silver EMLS (20X20)R SR 0800344 1
1000 labels per roll silver EMLS (26,5X12)R SR 0800353 1
1000 labels per roll silver EMLS (38,1X19)R SR 0800354 1
1000 labels per roll silver EMLS (40X8)R SR 0800348 1
1000 labels per roll silver EMLS (40X15)R SR 0800345 1
500 labels per roll silver EMLS (60X30)R SR 0800355 1
500 labels per roll silver EMLS (70X32)R SR 0800346 1
100 labels per roll silver EMLS (70X150)R SR 0800351 1
250 labels p. roll silver EMLS (76X51)R SR 0800350 1
250 labels p. roll silver EMLS (85X32)R SR 0800356 1
Can be marked using:
Stick-on device marking, with
anti-tamper protection
278
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Label, roll, unmarked, can be marked with: THERMOMARK ROLL,
THERMOMARK X, THERMOMARK S1.1, mounting type:
adhered/inserted,
250 labels p. roll white EML-RS (45,7X45,7)R 0803387 1
silver EML-RS (45,7X45,7)R SR 0803187 1
Accessories
Snap-in shock protection, for RS20-... rotary switches,
transparent
EMPPR (45,8X45,8) 0803389 25
new
– EML-RS for marking rotary switches from
Phoenix Contact
– For either sticking on or snapping in with
transparent EMPPR (45,8x45,8) cover
– Additional protection under extreme
ambient conditions with the transparent
EMPPR (45,8x45,8) cover
Device marking for rotary switches
from Phoenix Contact, for sticking on
or snapping in
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Technical data
General data
Can be marked using
THERMOMARK ROLL
THERMOMARK ROLL X1
THERMOMARK
X1.1
THERMOMARK X1.2
THERMOMARK S1.1
Material PVC
Temperature range [°C] -30 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Insert strips, unprinted, 1 roll = 50m, continuous, strip height:
15mm
white EMT (EX15)R 0830671 1
279
PHOENIX CONTACT
Notes:
For corresponding CARRIER-EMP... carrier profiles, see
phoenixcontact.net/products
– The EMT marking range includes markers
for all products with tall and flat marker
grooves
– Marking service: Phoenix Contact can
custom-mark all EMT markers according
to your requirements
Unmarked or marked according to customer
specifications
P R I NT E D
FOR YOU
2
1
1
2
– EMT... insert strips are available in
different sizes for marking the Axioline
modules from PhoenixContact
– EMT (62...)R insert strips are available in
different sizes for marking the Inline
modules from Phoenix Contact
– Can be printed using all the thermal
transfer printers available from Phoenix
Contact
– Precise printing quality
– An overview of the devices that support
marking can be found starting on
page 292
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.1 THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Insert strips for Axioline modules
500 labels per roll, lettering field size: 35x28mm white EMT (35X28)R 0801602 1
500 labels per roll, lettering field size: 35x28mm yellow EMT (35X28)R YE 0801603 1
500 labels per roll, lettering field size: 35x46mm white EMT (35X46)R 0801604 1
500 labels per roll, lettering field size: 35x46mm yellow EMT (35X46)R YE 0801605 1
Insert strips for Inline modules, 500 labels per
roll, lettering field size: 62x10mm
white EMT (62X10)R 0800057 1
500 labels per roll, lettering field size: 62x10mm yellow EMT (62X10)R YE 0800477 1
250 labels per roll, lettering field size: 62x46mm white EMT (62X46)R 0800059 1
250 labels per roll, lettering field size: 62x46mm yellow EMT (62X46)R YE 0800478 1
Can be marked using:
Snap-in device makers for Axioline
systems from Phoenix Contact
280
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
– EMT... insert strips are available for
marking Siemens controllers
– Can be printed using all the thermal
transfer printers available from Phoenix
Contact
– Precise printing quality
– An overview of the devices that support
marking can be found starting on page
292
Notes:
For additional information on the use of Siemens devices, see the
product area on our website at phoenixcontact.net/products.
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK ROLL X1
THERMOMARK X1.1 THERMOMARK X1.2
Material Polyester
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Insert strips
500 labels per roll, lettering field size:
31x12.5mm
white EMT (31X12,5)R 0800008 1
500 labels per roll, lettering field size:
31x12.5mm
yellow EMT (31X12,5)R YE 0802764 1
500 labels per roll, lettering field size:
31x12.5mm
gray EMT (31X12,5)R GY 0801612 1
500 labels per roll, lettering field size: 50x26mm white EMT (50X26)R 0800052 1
500 labels per roll, lettering field size: 50x26mm turquoise EMT (50X26)R TQ 0800053 1
500 labels per roll, lettering field size: 50x26mm yellow EMT (50X26)R YE 0800054 1
500 labels per roll, lettering field size: 103x17mm white EMT (103X17)R 0800039 1
500 labels per roll, lettering field size: 103x17mm turquoise EMT (103X17)R TQ 0800041 1
500 labels per roll, lettering field size: 103x17mm yellow EMT (103X17)R YE 0800436 1
500 labels per roll, lettering field size: 103x23mm white EMT (103X23)R 0800040 1
500 labels per roll, lettering field size: 103x23mm yellow EMT (103X23)R YE 0800437 1
500 labels per roll, lettering field size: 103x23mm turquoise EMT (103X23)R TQ 0800042 1
1 roll = 30m, lettering field size: continuous x
14mm
white EMT (EX14)R 0803461 1
1 roll = 30m, lettering field size: continuous x
14mm
turquoise EMT (EX14)R TQ 0803462 1
1 roll = 30m, lettering field size: continuous x
14mm
yellow EMT (EX14)R YE 0803463 1
500labels per roll, lettering field size: 23x109mm white EMT (23X109)R 0803457 1
500labels per roll, lettering field size: 23x109mm turquoise EMT (23X109)R TQ 0803458 1
500labels per roll, lettering field size: 23x109mm yellow EMT (23X109)R YE 0803459 1
500labels per roll, lettering field size: 23x109mm gray EMT (23X109)R GY 0803460 1
Insert strips with two lettering field sizes per
roll, with 250 of each size measuring:
50x12.8mm and 27.5x12.8mm
white EMT (50/28X13)R 0800049 1
with 250 each of 50x12.8mm and 27.5x12.8mm yellow EMT (50/28X13)R YE 0800438 1
with 250 each of 50x12.8mm and 27.5x12.8mm turquoise EMT (50/28X13)R TQ 0800050 1
with 250 each of 50x12.8mm and 27.5x12.8mm red EMT (50/28X13)R RD 0832082 1
Can be marked using:
Device markers for Siemens
ET200SP controllers
281
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
P R I NT E D
FOR YOU
1 2 3
– These labels have been specially
developed for laser printers
– Can be printed on all commercially
available laser printers
– The unperforated SKU... sheets are
available for custom label designs
– Marking service: Phoenix Contact can
custom-mark all BMKL... markers in
accordance with your requirements
Notes:
Print image may vary depending on laser printer
Technical data
General data
Can be marked using - Office printing systems
Material Polyester
Temperature range [°C] -20 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Sheet of labels for laser printer, DIN A4
1 sheet = 273 labels white BMKL 12X12 WH 5032361 10
1 sheet = 290 labels white BMKL 15X 9 WH 0803663 10
1 sheet = 396 labels white BMKL 18X 6 WH 5032293 10
1 sheet = 288 labels white BMKL 18X 8 WH 5032329 10
1 sheet = 224 labels white BMKL 20X 8 WH 5032280 10
1 sheet = 224 labels white BMKL 25X 8 WH 5032332 10
1 sheet = 147 labels white BMKL 25X12 WH 5032374 10
1 sheet = 228 labels white BMKL 26,8X6,8 WH 0807106 10
1 sheet = 63 labels white BMKL 50X12 WH 5032387 10
1 sheet = 45 labels white BMKL 64X16 WH 0821807 2
1 sheet = 21 labels white BMKL 64X34 WH 5032400 10
1 sheet = 290 labels yellow BMKL 15X 9 YE 5032497 10
1 sheet = 405 labels yellow BMKL 16X 6 YE 0807096 10
1 sheet = 288 labels yellow BMKL 18X 8 YE 5032170 10
1 sheet = 168 labels yellow BMKL 19X11 YE 0800705 10
1 sheet = 224 labels yellow BMKL 20X 8 YE 5032138 10
1 sheet = 162 labels yellow BMKL 26X10 YE 0811516 10
1 sheet = 45 labels yellow BMKL 64X16 YE 0821810 2
1 sheet = 192 labels silver BMKL 27X 8 SR 0803702 10
1 sheet = 126 labels silver BMKL 27X12,5 SR 0803676 10
1 sheet = 84 labels silver BMKL 27X18 SR 0803689 10
1 sheet = 54 labels silver BMKL 27X27 SR 0803692 10
1 sheet = 360 labels orange BMKL 18X 6,5 OG 5036147 10
Marking sheet, unperforated, self-adhesive, DIN A4 format
white SK U WH:UNGESTANZT 0800129 10
yellow SK U YE:UNGESTANZT 0800132 10
silver SK U SR:UNGESTANZT 0800145 10
Can be marked using:
Stick-on device marking
282
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Office laser printing
P R I NT E D
FOR YOU
x
y
1 2 3
For further information and full technical data, visit phoenixcontact.net/products
– Self-adhesive labels for marking by hand
or with a plotter
– Secure adhesion even on curved or
uneven surfaces as well as at corners
– Available in various dimensions
– Marking service: Phoenix Contact can
custom-mark all BMK... markers in
accordance with your requirements
Technical data
General data
Can be marked using CMS-P1-PLOTTER
Material Polyester foil
Temperature range [°C] -40 ... 80
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Label sheet
1 sheet = 270 labels white BMK 20X 8 WH 0805470 10
1 sheet = 324 labels yellow BMK 15X 9 YE 5031605 10
1 sheet = 198 labels yellow BMK 19X11 YE 5031582 10
1 sheet = 270 labels yellow BMK 20X 8 YE 5031388 10
1 sheet = 88 labels yellow BMK 38X11 YE 5031676 10
Accessories
Magazine for accommodating sheet material, self-adhesive
mat for fixing labels, foils and paper, size of sheet max. DIN A4
CMS-P1-PAD 5144819 1
Can be marked using:
Stick-on device marking
283
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Plotter
P R I NT E D
FOR YOU
x
y
1 2 3
– The label sheet is made up of
prefabricated, individual self-adhesive
labels
– The adhesive foil used ensures good
adhesive properties, even on uneven
surfaces
– Can be easily marked using the CMS–P1–
PLOTTER
– Can be engraved using the
P1ENGRAVINGUNIT
– Two-layer material
– Marking service: Phoenix Contact can
custom-mark all GPE... markers in
accordance with your requirements
Notes:
Matching magazines to accommodate the label sheets, see
page 44.
Technical data
General data
Can be marked using P1 ENGRAVING UNIT CMS-P1-PLOTTER
Material TRANSPLY-ABS
Temperature range [°C] -20 ... 85
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plastic label sheet, self-adhesive double-layer plastic labels,
material thickness: 0.8mm, square corners
1 sheet = 120 labels white GPE 13X 9 WH 0806932 10
1 sheet = 75 labels white GPE 17,5X12 WH 0806916 10
1 sheet = 100 labels white GPE 20X 7 WH 0806990 10
1 sheet = 88 labels white GPE 20X 8 WH 0806945 10
1 sheet = 60 labels white GPE 22X12 WH 0806929 10
1 sheet = 9 labels white GPE 52X26 WH 0806958 10
1 sheet = 9 labels white GPE 60X30 WH 0806961 10
1 sheet = 21 labels red/white GPE 60X12 RD-WH 0824202 10
1 sheet = 5 labels yellow GPE 70X32 YE 0824215 10
1 sheet = 30 labels silver GPE 28X17,5 SR 0807889 10
Plastic label sheet, self-adhesive double-layer plastic labels,
material thickness: 0.8mm, with rounded corners, radius: 2mm
1 sheet = 66 labels white GPE 27X 8 WH/R 0815198 10
1 sheet = 30 labels white GPE 27X18 WH/R 0815208 10
1 sheet = 26 labels white GPE 45X14 WH/R 0815282 10
1 sheet = 21 labels white GPE 60X12 WH/R 0807630 10
1 sheet = 9 labels white GPE 60X30 WH/R 0815292 10
1 sheet = 32 labels silver GPE 22X22 SR/R 0806628 10
1 sheet = 66 labels silver GPE 27X 8 SR/R 0806877 10
1 sheet = 42 labels silver GPE 27X12,5 SR/R 0806880 10
1 sheet = 30 labels silver GPE 27X18 SR/R 0806893 10
1 sheet = 18 labels silver GPE 27X27 SR/R 0806903 10
1 sheet = 26 labels silver GPE 45X14 SR/R 0807009 10
1 sheet = 21 labels silver GPE 60X12 SR/R 0806631 10
Can be marked using:
Stick-on device marking, can be
engraved or marked with writing
284
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Engraving Plotter
P R I NT E D
FOR YOU
x
y
1 2 3
For further information and full technical data, visit phoenixcontact.net/products
– High level of resistance to chemical and
mechanical effects
– High-quality appearance
– Can be easily marked using the CMS–P1–
PLOTTER
– Can be engraved using the
P1ENGRAVINGUNIT
– For marking components, devices, and
buttons
– Marking service: Phoenix Contact can
custom-mark all EMLP... markers in
accordance with your requirements
Technical data
General data
Can be marked using P1 ENGRAVING UNIT CMS-P1-PLOTTER
Material TRANSPLY-ABS
Temperature range [°C] -20 ... 85
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plastic label sheet, with a hole for 24-mm-Ø pushbutton, self-
adhesive double-layer plastic labels, material thickness: 0.8 mm
1 sheet = 6 labels white EMLP 24 (30X12) 0822301 1
1 sheet = 6 labels black EMLP 24 (30X12) BK 0822314 1
1 sheet = 6 labels silver EMLP 24 (30X12) SR 0822330 1
Plastic label sheet, with a hole for 32-mm-Ø pushbutton, self-
adhesive double-layer plastic labels, material thickness: 0.8 mm
1 sheet = 6 labels white EMLP 32 (38X14) 0822291 1
1 sheet = 6 labels black EMLP 32 (38X14) BK 0822327 1
1 sheet = 6 labels silver EMLP 32 (38X14) SR 0822343 1
Accessories
Magazine, to hold 1 GPE label sheet
CMS-P1-M/GPE ENGRAVING 5145711 1
Can be marked using:
Stick-on device marking, can be
engraved or marked with writing
285
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Unmarked or marked according to customer
specifications
Engraving Plotter
Technical data
General data
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 105
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker carrier, for UC–EMP.../US–EMP.../ EMP-AL... snap-in
labels
Marker size: 17x15mm black CARRIER-EMP (17X15) 0827450 80
Marker size: 27x15mm black CARRIER-EMP (27X15) 0827451 80
Marker size: 49x15mm black CARRIER-EMP (49X15) 0827452 40
Marker size: 60x15mm black CARRIER-EMP (60X15) 0827453 40
Marker size: 60x30mm black CARRIER-EMP (60X30) 0827454 30
Marker size: 85x54mm black CARRIER-EMP (85,6X54) 0829365 10
– The CARRIER–EMP... marker carriers
are used in conjunction with the UC–
EMP.../ US–EMP... and EMP-AL... snap-
in labels
– They are used to clearly identify devices
and control cabinets
– They can be assembled using screws or
rivets
Marker carrier
Marking and labeling - MARKING system
Device marking
For snap-in labels
Technical data
General data
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 105
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker carrier, for UC–EM.../US–EMP.../ EMP-AL... snap-in
labels
Marker size: 27x8mm black CARRIER-EMP 22 (27X8) 0827445 50
Marker size: 27x12.5mm black CARRIER-EMP 22 (27X12,5) 0827446 50
Marker size: 27x15mm black CARRIER-EMP 22 (27X15) 0827447 50
Marker size: 27x18mm black CARRIER-EMP 22 (27X18) 0827448 50
Marker size: 27x27mm black CARRIER-EMP 22 (27X27) 0827449 50
286
PHOENIX CONTACT
– Snap-in UC-/US-EMP... and EMP-AL...
labels are available for marking CARRIER-
EMP22... marker carriers
– Can be used for all buttons and switches
with 22mm diameter
Marker carriers, can be marked using
snap-in markers for control devices
For buttons and switches 22mm in diameter
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 105
Components Free from silicone and halogen
Button diameter [mm] 22
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker carrier, for buttons and switches with a 22mm diameter,
can be marked with self-adhesive labels EML..., UC-EMLP ... / US-
EMLP ... and EMLP-AL ...
Marker size: 27x8mm black CARRIER-EMLP 22 (27X8) 0828984 50
Marker size: 27x12.5mm black CARRIER-EMLP 22 (27X12,5) 0828985 50
Marker size: 27x15mm black CARRIER-EMLP 22 (27X15) 0828986 50
Marker size: 27x18mm black CARRIER-EMLP 22 (27X18) 0828987 50
Marker size: 27x27mm black CARRIER-EMLP 22 (27X27) 0828988 50
– Can be used for all buttons and switches
with 22mm diameter
– The large marking areas on the
CARRIER–EMLP can be custom-marked
with EML... thermal transfer labels and
UC-EMLP... / US-EMLP... and EMLP-
AL... labels
– EMLPR... transparent adhesive protective
foil can be used for additional protection
of the label surfaces
Marker carriers, can be marked using
control device labels
Marking and labeling - MARKING system
Device marking
For buttons and switches 22mm in diameter
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Shock protection foil, designed for sticking into CARRIER-
EMLP...
51 labels per sheet transparent EMLPR (26,5X14,5) 0800546 10
42 labels per sheet transparent EMLPR (26,5X17,5) 0800360 10
30 labels per sheet transparent EMLPR (26,5X26,5) 0800361 10
14 labels per sheet transparent EMLPR (30X40) 0800359 10
6 labels per sheet transparent EMLPR (80X42) 0800357 10
4 labels per sheet transparent EMLPR (80X60) 0800358 10
9 labels per sheet transparent EMLPR (100X30) 0800362 10
Shock protection, designed for snapping into CARRIER-EMP...
transparent EMPPR (27X15) 0829535 50
transparent EMPPR (27X18) 0829536 50
287
PHOENIX CONTACT
– Stuck or snapped onto marked
CARRIER... to protect the labels
– Extremely thick, yet flexible and
transparent shock protection
– High level of mechanical and chemical
stability
– Suitable for permanent outdoor use
Transparent stick-on or snap-in cover
Shock protection
Technical data
General data
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -15 ... 80
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Profile, self-adhesive, for accommodating SS-ZB labels, UC–
EM(20X9), UCT-EM(20X9), length: 1000mm
gray P-SS-ZB 100 1013737 10
Profile, self-adhesive, designed to accommodate UC–TM...,
UCT–TM..., ZB..., length: 1m
gray P-ZB METER 1051854 1
– Self-adhesive marker carriers, available by
the meter for shortening to meet
individual requirements
– Powerful adhesion and optimum grip on
standard device surfaces
– The P–SS–ZB100 is particularly suitable
for accommodating SS-ZB,
UC-EM(20X9), UCT-EM(20X9)
– The P–ZBMETER can accommodate
marking material for the tall and flat
marker grooves found on Phoenix
Contact modular terminal blocks
Marking profiles
Marking and labeling - MARKING system
Device marking
For self-adhesion
Technical data
General data
Material PVC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 105
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Profile, for screwing or riveting, 1000mm long, for accommodating
UC-... / US-... / EMT... and EMP-AL material with a height of
15mm
gray CARRIER-EMP (1000X15) GY 0829366 25
transparent CARRIER-EMP (1000X15) TR 0829530 25
Profile, self-adhesive, 1000mm long, for accommodating UC-... /
US-... / EMT... and EMP-AL... material with a height of 15mm
gray CARRIER/L-EMP (1000X15) GY 0829559 25
transparent CARRIER/L-EMP (1000X15) TR 0829560 25
CARRIER cover, 1000mm long
transparent CARRIER-EMP (1000X15) COVER 0829520 25
288
PHOENIX CONTACT
– The CARRIER–EMP... marker carriers
can be individually equipped with UC–
EMP... / US–EMP... / EMT... and EMP-AL
... device markers
– For marking devices
– For marking assemblies
– For marking control and switchgear
Marking profiles
Designed to be stuck on or for
screwing/riveting
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PVC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 60
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Component marking label, self-adhesive, can be marked with
UC-WMT..., US-WMT..., EMT..., and UCT-WMT
Lettering field size: 15x4mm transparent PAB-SK 15 1013287 500
Lettering field size: 30 x 4 mm transparent PAB-SK 30 1013290 200
UniCard, with insert strips for PATG and PATO marking collars, for
lettering field size 15x4 mm, 32-section, 8individual labels per
strip
white UC-WMT (15X4) 0819398 10
yellow UC-WMT (15X4) YE 0819408 10
white UC-WMT (30X4) 0819437 10
yellow UC-WMT (30X4) YE 0819440 10
UniCard, with insert strips for PATG and PATO marking collars,
with lettering field size 15 x 4 mm, 50-section
white UCT-WMT (15X4) 0801446 10
yellow UCT-WMT (15X4) YE 0801447 10
white UCT-WMT (30X4) 0801422 10
yellow UCT-WMT (30X4) YE 0801423 10
289PHOENIX CONTACT
– Self-adhesive marker carriers for marking
devices and components
– Powerful adhesion and optimum grip on
standard device surfaces
– These carrier materials can be fitted, e.g.,
with UC–WMT..., US–WMT..., EMT...,
and UCT-WMT
Marker carrier
Marking and labeling - MARKING system
Device marking
For insert strips
x
y
1 2 3
– Control cabinet markers consisting of a
transparent cap and a base carrier
– The base carrier features two fixing holes
so that it can be screwed on
– Once marked, the insert label is inserted
in the cap and this is then snapped onto
the base carrier
– The marking is protected against external
influences
– The ES–SSMK... insert strips can be
marked using the CMS–P1–PLOTTER and
the CMS–P1–PAD magazine
Technical data
General data
Can be marked using CMS-P1-PLOTTER
Material PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 115
Components Free from silicone and halogen
Drill hole spacing [mm] 40
Hole diameter [mm] 3.5
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Control cabinet marker, two mounting holes M3
Size: 60 x 18 mm, lettering field: 56 x 14 mm, incl. 1
x ES-SSMK-GB 60X18
transparent/
white
SSMK 60X18 5032439 50
Size: 96 x 30 mm, lettering field: 92 x 26 mm, incl. 1
x ES-SSMK-GB 90X30
transparent/
white
SSMK 96X30 5032442 50
Accessories
Large format sheet insert strips, can be marked with plotter, DIN
A4, perforated, material: Cardboard
1 sheet = 75 strips, marking field: 56 x 14 mm transparent/
white
ES-SSMK-GB 60X18 5032468 10
1 sheet = 22 strips, marking field: 92 x 26 mm transparent/
white
ES-SSMK-GB 96X30 5032455 10
Can be marked using:
Marker carriers with cover
290
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For screw or rivet fixing
Plotter
For further information and full technical data, visit phoenixcontact.net/products
– Extremely thick, but flexible and
transparent label made from halogen-free
PU
– Stuck over labels or markers that have
been marked to protect them
– High level of mechanical and chemical
stability
– Suitable for permanent outdoor use
Technical data
General data
Material Polyester foil
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Shock protection foil, designed for sticking into CARRIER-
EMLP...
51 labels per sheet transparent EMLPR (26,5X14,5) 0800546 10
42 labels per sheet transparent EMLPR (26,5X17,5) 0800360 10
30 labels per sheet transparent EMLPR (26,5X26,5) 0800361 10
14 labels per sheet transparent EMLPR (30X40) 0800359 10
6 labels per sheet transparent EMLPR (80X42) 0800357 10
4 labels per sheet transparent EMLPR (80X60) 0800358 10
9 labels per sheet transparent EMLPR (100X30) 0800362 10
Transparent stick-on cover
291
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Shock protection
UC-TM 6
U C T- T M 6
UC-TMF 6
UC-TMF 12
U C T- T M F 6
UCT-TMF 12
UC-EM (17,5X9)
UC-EM (20X9)
UC-EMP (20X9)
US-EMP (20X9)
UCT-EM (17,5X9)
UCT-EM (20X9)
ZB 5, ZB 6, ZB 15
Catalog 7: interface technology and switching devices
INTERFACE Relay PLC power terminal Order No. 2966508
INTERFACE Relay PLC-B..., PLC-O..., PLC-R...
DEK-REL… relay terminal block
DEK-OE… special relays
DEK-TR… inverter module
COMPACT-LINE UM 45...
PROCESS INTERFACE PI-EX...
RIFLINE complete
UC-TM 5
UCT-TM 5
UC1U-TM 5
UC-TM 6
UCT-TM 6
UC-TMF 8
UCT-TMF 8
UC-TMF 10
UCT-TMF 10
UC-TMF 16
UCT-TMF 16
UC-WMT (23X4)
US-WMT (23X4)
UC-EM (17,5X9)
UC-EM (20X7)
UC-EMP (20X9)
US-EMP (20X9)
UCT-EM (17,5X9)
UCT-EM (20X7)
UCT-EM (20X9)
Catalog 4: sensor/actuator cabling and industrial plug-in connectors
SACB with M8 slots
SACB with M12 slots
SACB with M5 slots
SACB-SPEEDCON distributor boxes with M12 slots and metal threads
SACB-SPEEDCON distributor boxes with M12 slots and plug-in screw
connection
Distributor boxes with QUICKON slots
Sensor/actuator cabling accessories
PSR-SACB sensor box with M12 slots
VS-SCRJ…, VS-IL-2X… data plug-in connectors
ASI CC DIST… AS-Interface distributor
VS-SI... front plate
HC-M… modular contact insert
HEAVYCON HC-B...A... heavy-duty plug-in connectors
HEAVYCON HC-D...A... heavy-duty plug-in connectors
Device marking for
Phoenix Contact
292
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For further information and full technical data, visit phoenixcontact.net/products
UC-TM 6
UCT-TM 6
UC-TMF 6
UC-TMF 8
UC-TMF 12
UCT-TMF 6
UCT-TMF 8
UCT-TMF 12
UCT-EM (7X10)
EMT (35X18,7)
EMT (35X28)
EMT (35X46)
Catalog 8: control technology, I/O systems, automation infrastructure
Inline
INTERBUS ST...
Fieldline... M8
Fieldline... M12
Axioline F series
Axioline E series
UC-TM 6
U C T- T M 6
UC-TMF 5
UC-TMF 18
U C T- T M F 5
UCT-TMF 18
Catalog 6: surge protection and power supply units
FLASHTRAB compact PLUS lightning arrester
FLASHTRAB PLUS lightning arrester
FLASHTRAB compact lightning arrester
VALVETRAB compact surge arrester
VALVETRAB MS surge arrester
MAINS-PLUGTRAB device protection
PLUGTRAB with function monitoring PT-IQ
PLUGTRAB PT… plug-in surge protection cascade
Modular terminal blocks with TT... surge protection elements
293
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Device marking for devices
from other manufacturers
UCT-EM (17X10)
Allen Bradley
100-C09Z*10, 100-F A22, 100-F A40
Motor starter 140M x
UC-EM (17,5X7,5)
UC-EM (17,5X8)
UCT-EM (17X9)
UCT-EM (17,5X7,5)
UCT-EM (17,5X8)
UCT-EM (17X8)
UCT-EM (20X9)
ABB
Miniature circuit breaker S 221..., S 223..., S 281..., S 284...
Residual current device F271..., F172...
Switch, button, indicator light E 221…, E 222…, E 223…
Switch, button, indicator light E 225…, E 226…, E 227…
Power dimmer STD…
Power supply unit NTLS…
Power consumption meter RS 232…
Installation contactors ESB…, EN…
Miniature circuit breakers LE1..., LE3..., LP1-3..., LPUC 1/2, LP1NA..., LP3NA...
Residual current devices F…, FIP…, FIK…, FI-LP…, FIS…
FI signal generator FISG…
Load switch IS…
Surge arrester SA 4…
Logic modules
Logic and extension module LM…, DO…, DX…
Miniature circuit breaker
Switch contacts A9, A12, A16, A26, A30, A40, A50, A63, A75, A95, A110, A145, A185, A210,
A260, A300, AF400, AF460, AF580, AF750
Mini contacts B6, B7
SZ-KZS
294
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For further information and full technical data, visit phoenixcontact.net/products
UCT-EM (12X3,3)
UCT-EM (12X6)
Bernecke + Rainer
X20 system
UCT-EM (10X8)
Bosch/Rexroth
Bosch/distributor
UCT-EM (10X5)
UCT-EM (12X7)
UC1-TMF 5
UCT1-TMF 5
Beckhoff
BK 3010, BK 3110
BC 2000, BC 3100, BC 4000
BC 9000, BC 9050
Field distributor IE 3112-2-00
IL 2301-B310
SAI distributor (sensor/actuator interface)
295
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
Device marking for devices
from other manufacturers
UCT-EM (6X10)
UCT-EM (17X9)
UCT-EM (17X10)
UC-EM (20X9)
UCT-EM (20X9)
FESTO
Compact Performance
CPA10/EV1
CP-E16 valve island
CP-E16-KL-CL
Electronics CP-16-M
IBS 6x10
MPV-E/A08-M8, MPV-E/A08-M12, MPV-E/A12-M8
CPV pneumatics
IBS 9/17
IBS 10/17
MT
Valve island IBS 9/20
CPV18-V1 valves
UCT-EM (5X10)
UCT-EM (6X10)
UC-EM (20X9)
UCT-EM (20X9)
CONTA-CLIP
PRSU
CP V4, optocoupler, AOP
PGSV, PSP
UCT-EM (10X5)
UCT-EM (20X8)
UC-EM (20X9)
UCT-EM (20X9)
ESCHA
Distributor block MB
Distributor block FK/FKS
M12 distributor
Distributor block 8MB
296
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For further information and full technical data, visit phoenixcontact.net/products
UCT-EM (6X10)
UCT-EM (17X9)
Finder
Variclip (relay retaining bracket)
Variclip 020.24
Sockets with screw and spring-cage terminal block, 93 series
UC-EM (10X8)
UC-EM (17,5X8)
UC-EM (20X7)
UC-EM (21X8)
UCT-EM (10X8)
UCT-EM (17X8)
UCT-EM (17,5X8)
UCT-EM (18X8)
UCT-EM (20X7)
UCT-EM (20X9)
UCT-EM (21X8)
ifm-electronic
AC 20 xx classic module/universal M
AC 24 80/81 CompactLine
AC 5210 AS-i module
AV 52xx ClassicLine
AC 225 SmartLine
ClassicLine distribution module AC52…
Active AS-i module AC2480
AC 50 xx module bases
Active AS-i module AC225...
Compact module AC 24 xx
UC-EM (20X7)
UCT-EM (20X7)
UC-EM (20X9)
UCT-EM (20X9)
UC-TM 6
UCT-TM 6
UC-TM 5
UCT-TM 5
HARTING
Front plate Han - Port
Plug-in connector Han - Snap
Connection distributor Han - E AV
Connection distributor Han - D AV
297
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
UC-EM (17,5X8)
UC-EM (20X9)
UCT-EM (17,5X8)
UCT-EM (20X9)
Moeller
Function relay DILET 11…, DILET 70…, EMR 4…
Basic device and extension module EASY 2..., EASY 5..., EASY 6..., EASY 7...,
EASY 200...
Relay ZE..., ZEV...
Contactor DILER, DILEM
Device marking for devices
from other manufacturers
UC-EM (10X8)
UC-EM (17,5X7,5)
UC-EM (19X9)
UC-EM (20X9)
UCT-EM (10X5)
UCT-EM (10X8)
UCT-EM (17,5X7,5)
UCT-EM (20X9)
Lumberg
INTERBUS remote bus terminal block
PROFIBUS DP...
CANopen® device CSL...
DeviceNet™ device DSL...
AS-Interface module
Ethernet switch EEC...
Sensor/actuator distributor ASB
Valve adapter VAD...
Valve adapter VBD...
I/O module UEM...
PROFIBUS DP PSL 7...
AS-Interface module ASL 501
AS-Interface ABAS/UTAS
Terminal strip SBS4/LED-3
Distributors E2C and SB8
AS-Interface IBA, IBI, IBP
ASB 2-VC-1A, ASB 8
ASBM 12/LED 3, ASBSM 4/LED 3
PROFIBUS 0970-PSL-651
298
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For further information and full technical data, visit phoenixcontact.net/products
UC-EM (17,5X9)
UC-EM (20X9)
UC-EM (21X8)
UCT-EM (5X10)
UCT-EM (10X5)
UCT-EM (17X9)
UCT-EM (17,5X8)
UCT-EM (17,5X9)
UCT-EM (17X8)
UCT-EM (20X8)
UCT-EM (20X9)
UCT-EM (21X8)
MURR ELEKTRONIK
ASI IO SL DIO 8/4/4
M8 distributors
MSUD valve plug combination
AS-i bus module MVK8
MVPS8 sensor/actuator box
B6 mini contact
Initiator holder
M12 Y cable
Plastic M12 distributor systems
MERINO
Merio M12 8-way distributor 27106
MVK12 AS-i bus module
MVM8 Order No. 276658
MVP 12 distributor: 4-way 27114
MVP 12 distributor: 6-way 27115
MVP 12 distributor: 8-way 27116
MVP 12 AS-i module distributor 27773 to 27778
Cube 67
MASI
MICO 4.6
MVP 12 distributor: 4-way 27530, MVP 12 distributor: 8-way 27535
MVK MP DI 08, DI 8 PROFIBUS
AMMS/AMMDS
AMZS/AMZSW, Order No. 276397
AS/S01/DIL/RC-BUG2
Cube 67 BN-P, KM 5, Logic distributor 8-way M12, Order No. 276247
M12 distributor, MAW/MDW, MBM bus modules IP20, MBV series
MIS system wiring, MKS/MKSxxx, MPOT, MSUD valve connection tech-
nology
MSVD/MSDO, MSVS, MUFW/MF...W/MIB
MVK-I bus module Order No. ME 553300
NEF mains interference suppression filter, RMM/RMME, UFL/UG-
SB/UGS/SV/LUGS/PKB
Valve plug type A, B, BI, C, CI, distributor MVB 8V
299
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
UC-EM (20X9)
UCT-EM (10X5)
UCT-EM (10X8)
UCT-EM (20X9)
Pepperl & Fuchs
G6 compact modules
ASI VAA-2E-64SN (pneumatic module VAA)
AS-i bus module, G6 compact module, IPG-64-B7
VAS 2A-K 12 U, WA-4E-62-ZE
Device marking for devices
from other manufacturers
UC-EM (18X8)
UC-EM (21X8)
UCT-EM (17X8)
UCT-EM (18X8)
UCT-EM (21X8)
Schneider Electric
Standard contactors GC 1610, 1611, 1620, 2502, 2510, 2511,
2520
Preselection contactors GY 1611, 1620, 2511, 2520
TeSys D series, D control relay, K, K control relay
TeSys model U
Standard contactors GC 1622, 1630, 1640, 2504, 2522, 2530,
2540
Standard contactors 4002, 4004, 4011, 4020, 4022, 4030, 4040,
6302, 6304, 6311, 6320, 6322, 6330, 6340, 10020, 10040
Preselection contactors GY 1640, 2530, 2540, 4020, 4030,
4040, 6320, 6330, 6340
Motor adjustment combination TeSys LD1...
Motor adjustment combination HL contactors LD 4...
Motor output/reversing combination LD5...
300
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For further information and full technical data, visit phoenixcontact.net/products
UC-EM (10X7)
UC-EM (10X8)
UC-EM (20X7)
UC-EM (20X9)
EMT (50/28X13)R...
EMT (50X26)R...
EMT (EX14)R...
EMT (23X109)R...
EMT (31X12,5)R...
EMT (103X17)R...
EMT (103X23)R...
UCT-EM (10X7)
UCT-EM (10X8)
UCT-EM (15X10)
UCT-EM (20X7)
UCT-EM (20X9)
Siemens
AS-i slaves I/O module K45…/K60…
ASi-safe module K45.../K60..., mounting plate
K45/K60
AS-i slaves SlimLine S22.5.../S45...
AS-i slaves counter module, ground fault
detection module
AS-i slaves surge protection module
AS-i repeater, 4-way distributor, round cable
distributor
AS-i compact module K20...
Contactor, auxiliary contactor, contactor
combination, auxiliary switch block
Auxiliary switch blocks 3RH 1921...
EMC interference suppr. module
Solid-state relay, solid-state contactor, special function module
Circuit breaker, el. overload relay, therm.
overload relay
Soft starter, direct starter
Motor management and control devices, tim-
er relays, monitoring relays, safety relays
ET 200S
ET 200SP
S7-300
S7-400
S7-1500
Bus module ET 200X, contact block, Signum
button series, 3SB3 button, switching
element 3SB14...
Motor circuit breaker
End block 8WA1 808
301
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
UC-EM (18X8)
UC-EM (21X8)
UCT-EM (18X8)
UCT-EM (21X8)
Telemecanique
Standard contactor GC 1610, 1611, 1620, 2502
Standard contactor GC 1622, 1630, 1640, 2504
Standard contactor GC 2510, 2511, 2520
Standard contactor GC 2522, 2530, 2540
Standard contactor GC 4002, 4004, 4011, 4020, 4022, 4030, 4040
Standard contactor GC 6302, 6304, 6311, 6320, 6322, 6330, 6340
Standard contactor GC 10020, 10040
Preselection contactor GY 1611, 1620
Preselection contactor GY 1640
Preselection contactor GY 2511, 2520
Preselection contactor GY 2530, 2540
Preselection contactor GY 4020, 4030, 4040
Preselection contactor GY 6320, 6330, 6340
Motor output combination TeSys LD1…
Motor output combination HL contactors LD4…
Motor output combination/reversing combination LD5…
Device marking for devices
from other manufacturers
302
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For further information and full technical data, visit phoenixcontact.net/products
UC1-TMF 5
UC1-TM 5
UCT1-TMF 5
UCT1-TM 5
UC-EM (19X9)
UC-EM (17,5X9)
UC-EM (20X9)
UCT-EM (17,5X9)
UCT-EM (20X9)
Weidmüller
M8 distributor systems
M5 distributor systems
Actuator/sensor interface
Actuator/sensor interface line
M12 distributor systems
M12 metal distributor systems
SAI distributor
UC-EM (20X9)
UCT-EM (10X5)
UCT-EM (20X8)
UCT-EM (20X9)
Tu r c k
PLC distributor SDPB-0404D-006, SDPL-0404D-1003, SAI distributor
JTBS-46SC
8MB12-xxx, FLDP-IM-8, PDP-M81 / I16T
UCT-EM (12X7)
UCT-EM (17X9)
Wago
Miniature circuit breaker
I/O modules
303
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
UC-EMP (27X8)
US-EMP (27X8)
US-EMLP (27X8)
EML (26,5X7,5)R SR
EMLP (27X8)R SR
UC-EMP (27X12,5)
US-EMP (27X12,5)
US-EMLP (27X12,5)
EML (26,5X12)R SR
EMLP (27X12,5)R SR
UC-EMP (27X15)
US-EMP (27X15)
US-EMLP (27X15)
EMP-AL (27x15)
EMLP-AL (27x15)
UC-EMP (27X18)
US-EMP (27X18)
US-EMLP (27X18)
EML (26,5X17,5)R ...
EMLP (27X18)R SR
EMP-AL (27x18)
EMLP-Al (27x18)
UC-EMP (27X27)
US-EMP (27X27)
US-EMLP (27X27)
EML (26,5X26,5)R SR
EMLP (27X27)R SR
Phoenix Contact
CARRIER-EMP 22 (27 x 8)
CARRIER-EMP 22 (27 x 12,5)
CARRIER-EMP 22 (27 x 15)
CARRIER-EMP 22 (27 x 18)
CARRIER-EMP 22 (27 x 27)
CARRIER-EMLP 22 (27 x 8)
CARRIER-EMLP 22 (27 x 12,5)
CARRIER-EMLP 22 (27 x 15)
CARRIER-EMLP 22 (27 x 18)
CARRIER-EMLP 22 (27 x 27)
UC-EMP (17X15)
US-EMP (17X15)
UC-EMP (27X15)
US-EMP (27X15)
EMP-AL (27x15)
EMLP-AL (27x15)
UC-EMP (49X15)
US-EMP (49X15)
EMP-AL (49x15)
UC-EMP (60X15)
US-EMP (60X15)
EMP-AL (60x15)
UC-EMP (60X30)
US-EMP (60X30)
EMP-AL (60x30)
US-EMP (85,6X54)
EMP-AL (85,6x54)
Phoenix Contact
CARRIER-EMP (17 x 15)
CARRIER-EMP (27 x 15)
CARRIER-EMP (49 x 15)
CARRIER-EMP (60 x 15)
CARRIER-EMP (60 x 30)
CARRIER-EMP (85,6 x 54)
CARRIER-EMP (1000 x 15)
CARRIER-EMP (1000 x 15) TR
CARRIER/L-EMP (1000 x 15)
CARRIER/L-EMP (1000 x 15) TR
Marker carriers from
Phoenix Contact
304
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
For further information and full technical data, visit phoenixcontact.net/products
UC-EMP (17X15)
US-EMP (17X15)
UC-EMLP (22x22)
UC-EMP (27X8)
US-EMP (27X8)
UC-EMP (27X12,5)
US-EMP (27X12,5)
UC-EMP (27X15)
US-EMP (27X15)
UC-EMP (27X18)
US-EMP (27X18)
UC-EMP (27X27)
US-EMP (27X27)
UC-EMP (49X15)
US-EMP (49X15)
UC-EMP (60X15)
US-EMP (60X15)
UC-EMP (60X30)
US-EMP (60X30)
ABB
MA6-1060
BSH-A
BSH-B
CONTA-CLIP
GSU-H 17 x 15
GSU-H 27 x 15
GSU-H 49 x 15
GSU-H 60 x 15
GSU-H 60 x 30
Grafoplast
SIT 0A06...
SIT 0A07...
SIT 0B05...
SIT 0B07...
SIT 0B08...
SIT 0B09...
Moeller
M22S-ST-X
Murrplastik
BT 22,5
BTK 22,5
BT Harmony ZB4
BT 15/27
BT 15/49
Siemens
3SB3922-0AY
3SB3925-0AV
3SB1906-2AA
3SB1906-2AW
Empty housing 3SB38...
Weidmüller
SM-H 27/12,5
SM-H 27/18
SM-H 27/27
CC-H 15/17
CC-H 15/27
CC-H 15/49
CC-H 30/60
Marker carriers from
other manufacturers
305
PHOENIX CONTACT
Marking and labeling - MARKING system
Device marking
306
PHOENIX CONTACT
Product range overview
System marking 308
RFMARK RFID system 310
PMLP... and PMP... system marking
Unmarked system marking with transponder, UniCard material 312
UC-PMLP... and UC-PMP... system marking 314
System marking accessories 316
PML-W... warning labels
Unmarked warning labels, UniSheetmaterial 320
Unmarked warning labels, supplied in rolls 321
Preprinted warning labels 322
PML-P... prohibition signs
Unmarked prohibition signs, UniSheetmaterial 326
Unmarked prohibition signs, supplied in rolls 327
Preprinted prohibition signs 328
PML-M... mandatory signs
Unmarked mandatory signs, UniSheetmaterial 334
Unmarked mandatory signs, supplied in rolls 335
Preprinted mandatory signs 336
PML-T... pipeline signs
Unmarked pipeline signs, supplied in rolls 342
PML-GHS... hazardous substances labels
Unmarked hazardous substances labels, UniSheetmaterial 348
Unmarked hazardous substances labels, supplied in rolls 349
Preprinted hazardous substances labels 350
US-EMLF... combi labels
Unmarked combi labels, UniSheetmaterial 354
PMM... magnetic labels
Unmarked magnetic labels, supplied in rolls 355
307
PHOENIX CONTACT
Clear and extensive marking of systems
not only guarantees safety but is also a legal
requirement. Safety and information signs
provide important information and help to
improve operational processes.
Phoenix Contact provides numerous
marking labels for system marking. From
warning labels to multicolored symbol signs,
the extremely diverse product range covers
all applications. We offer a range of printing
systems for marking.
HF and UHF handheld devices and
matching markers with transponder/tag are
also available. With the RFMARK RFID
system, data can be received, transmitted,
and scanned on a contact-free basis and
without visual contact.
System marking - MARKING system
308
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unambiguous marking of systems helps to
avoid operating errors and is therefore a key
component of occupational safety.
Information and safety signs also provide
important information on site, making it
easier to maintain systems.
Phoenix Contact provides a wide range of
labels which meet the legal requirements for
correct system marking. Depending on the
type, they can be marked using the
THERMOMARK LINE thermal transfer
printers. The markers are characterized by
a high level of wipe and scratch resistance.
The RFMARK-RFID system provides all
the advantages of system marking using
radio frequency identification handheld
devices. The corresponding markers with
transponder/tag can be marked with the
BLUEMARK.
Please contact us if you are unable to find
a suitable size or color for your application
from the options available in our product
range. It goes without saying that Phoenix
Contact also provides a comprehensive
marking service for system marking
applications. Test us out!
For further information and full technical data, visit phoenixcontact.net/products
309PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
PML-W warning labels
Warning labels are used to identify danger
areas in systems and workshops. The
unmarked warning labels allow you to
create custom warning instructions.
PML-P prohibition signs
Prohibition signs prohibit potentially
dangerous activities. They are therefore a
key component of occupational health and
safety.
PML-M mandatory signs
Mandatory signs prescribe a certain mode
of behavior and are used to prevent
accidents in the workplace.
PML-T pipeline signs
Pipeline markers are used to indicate
fluids or gases. By removing the arrowhead
that is not required, the direction of flow
can also be defined.
PML-GHS hazardous substances
labels
Hazardous substances labels are used for
the additional marking of the pipeline
markers if hazardous substances according
to the Ordinance on Hazardous Substances
(GefStoffV) are transported through the
pipelines.
PMM magnetic labels
Magnetic labels provide a flexible solution
if you do not wish to apply permanent
marking. If required, they can be quickly
attached to metallic surfaces and removed
just as easily.
Dimensions
[mm]
General data
Degree of protection
Temperature range [°C] -20 ... 55 -20 ... 55
Weight [kg] 0.55 0.235
Frequency [MHz] 13.56 868
Read/write format [m] max. 0.1 max. 2
Memory
Display
Description
Handheld, high-frequency range
Range up to 0.1m, depending on the environment
Handheld, ultra-high frequency range
Range up to 2.0m, depending on the environment
Charging and data exchange station, with replacement battery,
connection for USB2.0 and Ethernet, charger,
For RFMARKHF, with power supply unit and power cable (EU/UK)
for RFMARKUHF, with power supply unit and power cable
(EU/UK/US/CN)
Replacement battery,
For RFMARKHF, Li-ion7.4V, 2.6Ah
For RFMARKUHF, Li-ion3.7V, 2.26Ah
Protective bag, with strap, protection against splash water, touch
screen operation not possible
for RFMARKHF
Belt pouch, touch screen can be operated,
for RFMARKHF
For RFMARKUHF
Read and write USB stick,
Crossed dipole antenna, range: 1m
310
PHOENIX CONTACT
RFMARK high-frequency handheld
RFMARKHF is a powerful handheld
device for contact-free reading and writing
of HF transponders. The RFMARKHF can
identify and locate HF transponders. Data
can be received, transmitted, and scanned
on a contact-free basis and without visual
contact.
RFMARKultra-high frequency
handheld
The RFMARKUHF is a powerful
handheld device which is equipped with a
crossed dipole antenna. This allows UHF
transponders to be written and read
regardless of their position. Bulk detection
of 150transponders persecond is also
possible.
Advantages and accessories
Advantages of the RFMARK readers:
– Easy operation via touch screen
– Low power consumption and long battery
life
– 1D laser scanner and 2D imager
Matching accessories
You can make optimum use of the
RFMARK readers and ensure they are as
user-friendly as possible with our reader
accessories.
Radio-frequency identification, RFID
Used for contact-free identification, data
exchange, and localization of
transponders/tags without visual contact.
With the aid of an RFID handheld device,
which acts as a transmitter and receiver,
data is transmitted to and received from a
transponder/tag by electromagnetic waves
(UHF) or a magnetic field (HF).
RFMARKRFID system
Marking and labeling - MARKING system
System marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Width Length Height Width Length Height
90 250 45 60 147 39
IP54 IP54
Temperature range [°C] -20 ... 55 -20 ... 55
Weight [kg] 0.55 0.235
Frequency [MHz] 13.56 868
Read/write format [m] max. 0.1 max. 2
256 MB DDR RAM 256 MB DDR RAM
3.5" color touch screen 2.2" color touch screen
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
RFMARK HF 5148010 1
RFMARK UHF 5148011 1
Accessories Accessories
RFMARK HF POWER LINK STATION 5148013 1
RFMARK UHF POWER LINK STATION 5148014 1
RFMARK HF/ACCU 5148015 1
RFMARK UHF/ACCU 5148016 1
RFMARK HF PROTECTION CASE 5148017 1
RFMARK HF/BELTPOUCH 5148018 1
RFMARK UHF/BELTPOUCH 5148021 1
RFMARK UHF FD 5148012 1
311PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Handheld, high-frequency (HF) Handheld, ultra-high frequency (UHF)
UV
Markers
– The PMLP-RFID... marking range includes
self-adhesive markers for system marking,
pre-mounted in a frame, with good
adhesive properties
– The markers are integrated in a uniform
matrix and can be printed quickly and
easily with the BLUEMARKCLED
– The format automatically ensures printing
with a high level of positional accuracy
– The wide temperature range means that
the labels can be used both indoors and
outdoors
Inlays
– The HF transponder inlays comply with
ISO15693 and ISO 18000-3mode1
– The UHF transponder inlays comply with
EPCClass1Gen2 and ISO18000-6C
Technical data
General data
Can be marked using BLUEMARK CLED
Material PVC/PC
Inflammability class according to UL 94 -
Temperature range [°C] -25 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Self-adhesive plastic label, in a frame, with integrated HF
transponder
1-section, lettering field size: 90x38mm, reading
performance: max.0.1m, depending on the
environment
white PMLP-RFID/HF (90X38) 0830956 10
1-section, lettering field size: 110x38mm, reading
performance: 0.1m, depending on the
environment
white PMLP-RFID/HF (110X38) 0831030 10
UniCard, self-adhesive plastic label, with integrated UHF
transponder
1-section, lettering field size: 90x38mm, reading
performance: max.2.0m, depending on the
environment
white PMLP-RFID/UHF (90X38) 0830957 10
1-section, lettering field size: 110x38mm, reading
performance: 2.0m, depending on the
environment
white PMLP-RFID/UHF (110X38) 0831031 10
Can be marked using:
Stick-on system marking with RFID
transponder
312
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Self-adhesive label with integrated RFID
transponder
UV LED technology
UV
For further information and full technical data, visit phoenixcontact.net/products
Markers
– The PMP-RFID... marking range includes
markers for system marking, pre-
mounted in a frame, specially designed to
fit into existing CARRIER-
PMP(108/110x38) marker carriers
– The markers are integrated in a uniform
matrix and can be printed quickly and
easily with the BLUEMARKCLED
– The format automatically ensures printing
with a high level of positional accuracy
– The wide temperature range means that
the labels can be used both indoors and
outdoors
– The CARRIER-PM(L)P... can be equipped
with colored PMST markers according to
DIN2403
Inlays
– The HF transponder inlays comply with
ISO15693 and ISO 18000-3mode1
– The UHF transponder inlays comply with
EPCClass1Gen2 and ISO18000-6C
Technical data
General data
Can be marked using BLUEMARK CLED
Material PVC/PC
Inflammability class according to UL 94 V0
Temperature range [°C] -25 ... 80
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and cadmium
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plastic label, in a frame, with integrated HF transponder
1-section, lettering field size: 90x38mm, reading
performance: max.0.1m, depending on the
environment
white PMP-RFID/HF (90X38) 0830954 10
1-section, lettering field size: 110x38mm, reading
performance: 0.1m, depending on the
environment
white PMP-RFID/HF (110X38) 0831028 10
UniCard, plastic label with integrated UHF transponder
1-section, lettering field size: 90x38mm, reading
performance: max.2.0m, depending on the
environment
white PMP-RFID/UHF (90X38) 0830955 10
1-section, lettering field size: 90x38mm, reading
performance: max.2.0m, depending on the
environment
orange PMP-RFID/UHF (90X38) OG 0803048 10
1-section, lettering field size: 110x38mm, reading
performance: 2.0m, depending on the
environment
white PMP-RFID/UHF (110X38) 0831029 10
Can be marked using:
System marking for inserting into
marker carriers, with RFID
transponder
313
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Label with integrated RFID transponder
UV LED technology
UV
P R I NT E D
FOR YOU
– The UniCard UC-PMLP... marking range
includes self-adhesive markers for system
marking, with good adhesive properties
– The UniCard UC-PMP... marking range
includes markers for system marking,
specially designed to fit into existing
CARRIER-PM(L)P... marker carriers
– The format automatically ensures printing
with a high level of positional accuracy
– The wide temperature range means that
the labels can be used both indoors and
outdoors
– Marking service: PhoenixContact can
custom-mark all UniCard markers in
accordance with your requirements
– The CARRIER-PM(L)P... can be equipped
with colored PMST markers according to
DIN2403
Technical data
General data
Can be marked using BLUEMARK CLED
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniCard, with self-adhesive plastic label, 1-section,
lettering field size: 90 x 38mm white UC-PMLP (90X38) 0831017 10
Lettering field size: 110 x 38mm white UC-PMLP (110X38) 0831020 10
UniCard, plastic label, 1-section
lettering field size: 90 x 38mm white
lettering field size: 90 x 38mm
Lettering field size: 110 x 38mm white
314
PHOENIX CONTACT
UV LED technology
Can be marked using:
System marking for sticking on or
inserting into marker carriers
Marking and labeling - MARKING system
System marking
Unmarked or marked according to customer
specifications
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
BLUEMARK CLED
PA
V2
-40 ... 120
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen
Ordering data
Type Order No. Pcs. /
Pkt.
UC-PMP (90X38) 0831016 10
UC-PMP (90X38) YE 0831046 10
UC-PMP (90X38) VT 0831047 10
UC-PMP (90X38) BU 0831048 10
UC-PMP (110X38) 0831019 10
315
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked or marked according to customer
specifications
– CARRIER PMP (108x38) is a flexible
marker carrier for the UC-PMP and
PMP-RFID labels with a width of
90mm
– The PMST markers for media marking
according to DIN 2403 are designed
specifically for the CARRIER-PMP
(108x38)
– The RVT-PA 3,5 BK fixing rivet is suitable
for fixing the PMST markers in the
different CARRIER-PM(L)P
– The CARRIER-PMP can be attached to
pipes using the SCRT hose clamp or
the WT cable binder
Notes:
1
) RVT-PA...BK rivet for fixing PMST... marker strips to the
CARRIER-PMP...
Technical data
General data
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 105
Wipe resistance -
Components Free from silicone and halogen Silicone-free - -
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker carrier, for UC-PMP... and PMP-RFID... labels that can be
inserted
Carrier size: 108x38mm black CARRIER-PMP (108X38) 0830958 10
Marking label for conveyed fluids, for equipping CARRIER-
PMP... according to DIN2403
white
yellow
orange
red
violet
green
gray
brown
blue
black
Plastic body-bound rivet, 3.5mm diameter
1
)
Mounting strip, can be screwed, for CARRIER-PMP...
316
PHOENIX CONTACT
Marker carrier for UC-PMP... and
PMP-RFID... markers
Marking and labeling - MARKING system
System marking
For mounting with screws, screw clamps, or
cable binders
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PVC PVC Chromium steel 1.4016
V0 - -
-30 ... 80 -30 ... 80 -
DIN EN 61010-1 (VDE 0411-1) - -
Components Free from silicone and halogen Silicone-free - -
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PMST (9X38) 0830960 100
PMST (9X38) YE 0830964 100
PMST (9X38) OG 0830966 100
PMST (9X38) RD 0830962 100
PMST (9X38) VT 0830967 100
PMST (9X38) GN 0830961 100
PMST (9X38) GY 0830963 100
PMST (9X38) BN 0830968 100
PMST (9X38) BU 0830969 100
PMST (9X38) BK 0830965 100
RVT-PA 3,5 BK 0830959 100
SCRT 9X16-27 0830970 50
SCRT 9X25-40 0830971 50
SCRT 9X40-60 0830972 25
SCRT 9X60-80 0830973 25
SCRT 9X80-100 0830974 25
SCRT 9X100-120 0830975 25
SCRT 9X140-160 0830976 25
SCRT 9X160-180 0830977 25
SCRT 9X180-200 0830978 25
317PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
For attachment to the CARRIER-PMP(108x38)
using rivets
Rivet for attaching the PMST markers Screw clamp for attachment to pipes
318
PHOENIX CONTACT
Marker carrier for UC-PMP... and
PMP-RFID... markers
– The CARRIER-PMP (110x38) is designed
for mounting the UC-PMP and PMP-
RFID labels. The carrier features snap-
in pins which prevent the labels and the
PM(S)T markers from falling out
– The self-adhesive CARRIER/L-PMP-
ENCLOSED (110x38) consists of a closed
housing and has an adhesive strip on the
rear side for direct fixing onto smooth
and clean surfaces. For difficult surfaces, it
is also possible to fix the carrier with two
M5 countersunk screws. The carrier is
equipped with detents that prevent the
labels and the PM(S)T marker from falling
out
– The CARRIER-PMP-ENCLOSED
(110x38) consists of a closed housing and
is designed for the UC-PMP and PMP-
RFID labels. Mounting takes place by
screwing two M5 countersunk screws.
The carrier is equipped with detents that
prevent the labels and the PM(S)T marker
from falling out
– The PMT and PMST(10 x 38) markers for
media marking according to DIN 2403 are
designed specifically for the CARRIER-
PM(L)P(110x38). These can be
inserted quickly and easily into the
carriers. The PMST(10x38) label has a
hole for additional fixing in the three
different carriers (110x38) using the
RVT-PA 3,5 BK fixing rivet
Technical data
General data
Material PA
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 105
Wipe resistance -
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and cadm
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Marker carrier, for UC-PMP and PMP-RFID labels that can be
inserted, carrier size 110 x 38mm
black CARRIER-PMP (110X38) 0831056 10
Closed, self-adhesive marker carrier, for UC-PMP and PMP-
RFID labels that can be inserted, carrier size 110 x 38mm
black
Closed marker carrier, for UC-PMP and PMP-RFID labels that
can be inserted, carrier size 140 x 68mm
black
Marking label for conveyed fluids, for equipping CARRIER-PMP
(110x38), CARRIER/L-PMP (110x38), and CARRIER-PMP-
ENCLOSED (110x38) according to DIN 2403
white
yellow
orange
red
violet
green
gray
brown
blue
black
Marking label for conveyed fluids, with centered hole, for
additional attachment with a plastic expanding rivet, for equipping
CARRIER-PMP (110x38), CARRIER/L-PMP (110x38), and
CARRIER-PMP-ENCLOSED (110x38) according to DIN 2403
white
yellow
orange
red
violet
green
gray
brown
blue
black
Marking and labeling - MARKING system
System marking
For mounting with screws, screw clamps or
cable binders
For further information and full technical data, visit phoenixcontact.net/products
319PHOENIX CONTACT
Technical data Technical data Technical data
PA PA PVC
V2 V2 -
-40 ... 105 -40 ... 105 -30 ... 80
- - DIN EN 61010-1 (VDE 0411-1)
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and cadmium
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CARRIER/L-PMP-ENCLOSED
(110X38)
0831062 10
CARRIER-PMP-ENCLOSED (110X38) 0831068 10
PMT (10X38) 0831086 100
PMT (10X38) YE 0831087 100
PMT (10X38) OG 0831088 100
PMT (10X38) RD 0831089 100
PMT (10X38) VT 0831090 100
PMT (10X38) GN 0831091 100
PMT (10X38) GY 0831092 100
PMT (10X38) BN 0831093 100
PMT (10X38) BU 0831094 100
PMT (10X38) BK 0831095 100
PMST (10X38) 0831076 100
PMST (10X38) YE 0831077 100
PMST (10X38) OG 0831078 100
PMST (10X38) RD 0831079 100
PMST (10X38) VT 0831080 100
PMST (10X38) GN 0831081 100
PMST (10X38) GY 0831082 100
PMST (10X38) BN 0831083 100
PMST (10X38) BU 0831084 100
PMST (10X38) BK 0831085 100
Marking and labeling - MARKING system
System marking
For sticking or screwing on For mounting with screws Media markers for inserting into carriers
P R I NT E D
FOR YOU
1
2
2
1
The unmarked US-PML warning labels
allow you to create custom warning
instructions. A variety of symbols are
available in the CLIPPROJECT software.
The warning labels offer the following
features:
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The warning labels conform to the
ISO7010 international standard
– The format automatically ensures printing
with a high degree of positioning accuracy
– Marking service: Phoenix Contact
can custom-mark all US-PML ... warning
labels according to your requirements
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive warning labels, triangular
24-section, side length: 25mm yellow US-PML-W100 (25X25) 1014125 10
6-section, side length: 50mm yellow US-PML-W100 (50X50) 1014126 10
1-section, side length: 100mm yellow US-PML-W100 (100X100) 1014127 10
UniSheet, with self-adhesive warning labels, triangular with
additional rectangular lettering field
16-section, side length: 25mm yellow US-PML-W200 (25X25) 1014131 10
4-section, side length: 50mm yellow US-PML-W200 (50X50) 1014132 10
1-section, side length: 100mm yellow US-PML-W200 (100X100) 1014133 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110-TC 0801371 1
Can be marked using:
UniSheet - stick-on warning labels,
unmarked
320
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
The unmarked PML warning labels allow
you to create custom warning instructions.
A variety of symbols are available in the
CLIP PROJECT software. The warning
labels offer the following features:
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– The warning labels conform to the
ISO7010 international standard
– Marking service: Phoenix Contact can
custom-mark all PML... warning labels
according to your requirements
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Warning label, triangular
500 labels per roll, side length: 25mm yellow PML-W100 (25X25)R 0830429 1
500 labels per roll, side length: 50mm yellow PML-W100 (50X50)R 0830430 1
250 labels per roll, side length: 100mm yellow PML-W100 (100X100)R 0830431 1
Warning label, triangular, additional rectangular lettering field
500 labels per roll, side length: 25mm yellow PML-W200 (25X25)R 0830451 1
500 labels per roll, side length: 50mm yellow PML-W200 (50X50)R 0830452 1
250 labels per roll, side length: 100mm yellow PML-W200 (100X100)R 0830453 1
Warning label, rectangular
500 labels per roll, width: 52mm, height: 26mm yellow PML-W300 (52X26)R 0830458 1
500 labels per roll, width: 74mm, height: 37mm yellow PML-W300 (74X37)R 0830459 1
250 labels per roll, width: 105mm, height: 52mm yellow PML-W300 (105X52)R 0830460 1
Accessories
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110 5145384 1
Can be marked using:
Stick-on warning labels, unmarked
321
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
The PML warning labels are available with
various warning instructions. The warning
labels offer the following features:
– Printed cards
– Suitable for indoor and outdoor use
– The warning labels conform to the
ISO7010 international standard
Technical data
General data
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Warning label, triangular, with lightning flash
25 labels per sheet, side length: 25mm yellow PML-W101 (25X25) 0830433 5
9 labels per sheet, side length: 50mm yellow PML-W101 (50X50) 0830434 5
9 labels per sheet, side length: 100mm yellow PML-W101 (100X100) 0830435 5
1 label per sheet, side length: 200mm yellow PML-W101 (200X200) 0830436 5
Stick-on warning labels, triangular
with lightning flash
322
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material PVC PVC
Temperature range [°C] -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free Silicone-free
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Warning label, triangular with lightning flash, additional
rectangular lettering field, printed text in German/English:
"Spannung Voltage"
16 labels per sheet, side length: 25mm yellow PML-W201 (25X25) 0830454 5
4 labels per sheet, side length: 50mm yellow PML-W201 (50X50) 0830455 5
4 labels per sheet, side length: 100mm yellow PML-W201 (100X100) 0830456 5
1 label per sheet, side length: 200mm yellow PML-W201 (200X200) 0830457 5
Warning label, triangular, with lightning flash, additional
rectangular lettering field, printed text: 230V
16 labels per sheet, side length: 25mm yellow PML-W202 (25X25) 0830437 5
4 labels per sheet, side length: 50mm yellow PML-W202 (50X50) 0830438 5
4 labels per sheet, side length: 100mm yellow PML-W202 (100X100) 0830439 5
1 label per sheet, side length: 200mm yellow PML-W202 (200X200) 0830440 5
Warning label, triangular, additional rectangular lettering field,
printed items: lightning flash and 400V
16 labels per sheet, side length: 25mm yellow PML-W203 (25X25) 0830441 5
4 labels per sheet, side length: 50mm yellow PML-W203 (50X50) 0830442 5
4 labels per sheet, side length: 100mm yellow PML-W203 (100X100) 0830443 5
1 label per sheet, side length: 200mm yellow PML-W203 (200X200) 0830444 5
Warning label, triangular, additional rectangular lettering field,
printed items: lightning flash and 120V
4 labels per sheet, side length: 50mm yellow PML-W204 (50X50) 0830445 5
4 labels per sheet, side length: 100mm yellow PML-W204 (100X100) 0830446 5
1 label per sheet, side length: 200mm yellow PML-W204 (200X200) 0830447 5
Warning label, triangular, additional rectangular lettering field,
printed items: lightning flash and 240V
4 labels per sheet, side length: 50mm yellow PML-W205 (50X50) 0830448 5
4 labels per sheet, side length: 100mm yellow PML-W205 (100X100) 0830449 5
1 label per sheet, side length: 200mm yellow PML-W205 (200X200) 0830450 5
323PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
– Printed cards
– Suitable for indoor and outdoor use
– The warning labels conform to the
ISO7010 international standard
Stick-on warning labels, triangular
with lightning flash and details of
voltage
– Printed cards
– Suitable for indoor and outdoor use
Technical data
General data
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Warning label, rectangular, with lightning flash, printed text in
German/English: "Danger! High voltage when main switch is off"
4 labels per sheet, WxH: 52x26mm yellow PML-W301 (52X26) 0830461 5
3 labels per sheet, WxH: 74x37mm yellow PML-W301 (74X37) 0830462 5
4 labels per sheet, WxH: 105x 52mm yellow PML-W301 (105X52) 0830463 5
2 labels per sheet, WxH: 200x100mm yellow PML-W301 (200X100) 0830464 5
Warning label, rectangular, printed text in German: "Achtung! Vor
Öffnen des Gehäuses Netzstecker ziehen!"
4 labels per sheet, WxH: 52x26mm yellow
3 labels per sheet, WxH: 74x37mm yellow
4 labels per sheet, WxH: 105x 52mm yellow
2 labels per sheet, WxH: 200x100mm yellow
Warning label, rectangular, with lightning flash, printed text in
English: "Caution! Before opening housing, pull main plug!"
4 labels per sheet, WxH: 52x26mm yellow
3 labels per sheet, WxH: 74x37mm yellow
4 labels per sheet, WxH: 105x 52mm yellow
2 labels per sheet, WxH: 200x100mm yellow
Warning label, rectangular, printed text in German: "Achtung! Vor
Öffnen des Gehäuses Hauptschalter ausschalten!"
4 labels per sheet, WxH: 52x26mm yellow
3 labels per sheet, WxH: 74x37mm yellow
4 labels per sheet, WxH: 105x 52mm yellow
2 labels per sheet, WxH: 200x100mm yellow
Warning label, rectangular, with lightning flash, printed text in
English: "Caution! Before opening housing, turn off main power
switch!"
4 labels per sheet, WxH: 52x26mm yellow
3 labels per sheet, WxH: 74x37mm yellow
4 labels per sheet, WxH: 105x 52mm yellow
2 labels per sheet, WxH: 200x100mm yellow
324
PHOENIX CONTACT
Stick-on warning labels, with lightning
flash and warning instruction
Marking and labeling - MARKING system
System marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data
PVC
-40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Silicone-free
Ordering data
Type Order No. Pcs. /
Pkt.
PML-W302 (52X26) 0830465 5
PML-W302 (74X37) 0830466 5
PML-W302 (105X52) 0830467 5
PML-W302 (200X100) 0830468 5
PML-W303 (52X26) 0830469 5
PML-W303 (74X37) 0830470 5
PML-W303 (105X52) 0830471 5
PML-W303 (200X100) 0830472 5
PML-W304 (52X26) 0830473 5
PML-W304 (74X37) 0830474 5
PML-W304 (105X52) 0830475 5
PML-W304 (200X100) 0830476 5
PML-W305 (52X26) 0830477 5
PML-W305 (74X37) 0830478 5
PML-W305 (105X52) 0830479 5
PML-W305 (200X100) 0830480 5
325PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
P R I NT E D
FOR YOU
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Prohibition sign, color preprinted, without symbols
4-section, diameter: 50mm red/white US-PML-P100 (D50) 1014217 10
1-section, diameter: 100mm red/white US-PML-P100 (D100) 1014218 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110-TC 0801371 1
326
PHOENIX CONTACT
– The color preprinted US PML-P
prohibition signs on US cards allow you to
create custom prohibition notices
– A variety of symbols are available in the
CLIP PROJECT software
UniSheet - stick-on prohibition signs,
color preprinted without symbols
Marking and labeling - MARKING system
System marking
Unmarked
Notes:
For accessories, visit phoenixcontact.net/products
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Prohibition sign, color preprinted, without symbols
500 labels per roll, diameter: 50mm red/white PML-P100 (D50)R 1014225 1
250 labels per roll, diameter: 100mm red/white PML-P100 (D100)R 1014226 1
Accessories
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110 5145384 1
327
PHOENIX CONTACT
The color preprinted PML-P prohibition
signs on a roll allow you to create custom
prohibition notices. A variety of symbols
are available in the CLIPPROJECT
software. The prohibition signs offer the
following features:
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The prohibition signs conform to the
ISO7010 international standard
– The format automatically ensures printing
with a high level of positional accuracy
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– Marking service: Phoenix Contact can
custom-mark all PML... markers
according to your requirements
Stick-on prohibition signs, color
preprinted, without symbols
Marking and labeling - MARKING system
System marking
Unmarked
The PML-P... prohibition signs are available
with various symbols. The prohibition signs
offer the following features:
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the
ISO 7010 international standard
Technical data
General data
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Prohibition sign, preprinted with “No smoking” symbol
3-section, diameter: 50mm red/white PML-P101 (D50) 1014184 5
3-section, diameter: 100mm red/white PML-P101 (D100) 1014185 5
1-section, diameter: 200mm red/white PML-P101 (D200) 1014186 5
Prohibition sign, preprinted with “Do not connect” symbol
3-section, diameter: 50mm red/white
3-section, diameter: 100mm red/white
1-section, diameter: 200mm red/white
Prohibition sign, preprinted with “Forbidden for persons with
pacemakers” symbol
3-section, diameter: 50mm red/white
3-section, diameter: 100mm red/white
1-section, diameter: 200mm red/white
Prohibition sign, preprinted with “Do not touch” symbol
3-section, diameter: 50mm red/white
3-section, diameter: 100mm red/white
1-section, diameter: 200mm red/white
328
PHOENIX CONTACT
Stick-on prohibition signs, preprinted
with symbols
Marking and labeling - MARKING system
System marking
Symbol - No smoking Symbol - Do not conn
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PVC PVC PVC
-40 ... 90 -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Silicone-free Silicone-free Silicone-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-P102 (D50) 1014187 5
PML-P102 (D100) 1014188 5
PML-P102 (D200) 1014189 5
PML-P103 (D50) 1014190 5
PML-P103 (D100) 1014191 5
PML-P103 (D200) 1014192 5
PML-P104 (D50) 1014193 5
PML-P104 (D100) 1014194 5
PML-P104 (D200) 1014195 5
329PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Symbol - No smoking Symbol - Do not connect Symbol - Forbidden for persons with
pacemakers
Symbol - Do not touch
Technical data Technical data
General data
Material PVC PVC
Temperature range [°C] -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Components Silicone-free Silicone-free
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Prohibition sign, preprinted with “Do not walk here” symbol
3-section, diameter: 50mm red/white PML-P105 (D50) 1014196 5
3-section, diameter: 100mm red/white PML-P105 (D100) 1014197 5
1-section, diameter: 200mm red/white PML-P105 (D200) 1014198 5
Prohibition sign, preprinted with “No fire, naked lights or smoking”
symbol
3-section, diameter: 50mm red/white PML-P106 (D50) 1014199 5
3-section, diameter: 100mm red/white PML-P106 (D100) 1014200 5
1-section, diameter: 200mm red/white PML-P106 (D200) 1014201 5
Prohibition sign, preprinted with “Do not reach in” symbol
3-section, diameter: 50mm red/white
3-section, diameter: 100mm red/white
1-section, diameter: 200mm red/white
Prohibition sign, preprinted with “Do not extinguish with water”
symbol
3-section, diameter: 50mm red/white
3-section, diameter: 100mm red/white
1-section, diameter: 200mm red/white
Prohibition sign, preprinted with “No mobile phones” symbol
3-section, diameter: 50mm red/white
3-section, diameter: 100mm red/white
1-section, diameter: 200mm red/white
330
PHOENIX CONTACT
Symbol - Do not walk here Symbol - No fire, naked lights or smoking Symbol - Do not reach in Symbol - Do not extinguish with water
– Printed cards
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the ISO
7010 international standard
Stick-on prohibition signs, preprinted
with symbols
Marking and labeling - MARKING system
System marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PVC PVC PVC
-40 ... 90 -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Silicone-free Silicone-free Silicone-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-P107 (D50) 1014202 5
PML-P107 (D100) 1014203 5
PML-P107 (D200) 1014204 5
PML-P108 (D50) 1014205 5
PML-P108 (D100) 1014206 5
PML-P108 (D200) 1014207 5
PML-P109 (D50) 1014208 5
PML-P109 (D100) 1014209 5
PML-P109 (D200) 1014210 5
331PHOENIX CONTACT
Symbol - Do not walk here Symbol - No fire, naked lights or smoking Symbol - Do not reach in Symbol - Do not extinguish with water Symbol - No mobile phones
Marking and labeling - MARKING system
System marking
– Printed cards
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the
ISO 7010 international standard
Technical data
General data
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Prohibition sign, preprinted with “No food” symbol
3-section, diameter: 50mm red/white PML-P110 (D50) 1014211 5
3-section, diameter: 100mm red/white PML-P110 (D100) 1014212 5
1-section, diameter: 200mm red/white PML-P110 (D200) 1014213 5
Prohibition sign, preprinted with “No access for unauthorized
persons” symbol
3-section, diameter: 50mm red/white
3-section, diameter: 100mm red/white
1-section, diameter: 200mm red/white
332
PHOENIX CONTACT
Stick-on prohibition signs, preprinted
with symbols
Marking and labeling - MARKING system
System marking
Symbol - No food Symbol - No access for unauthorized persons
For further information and full technical data, visit phoenixcontact.net/products
Technical data
PVC
-40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Silicone-free
Ordering data
Type Order No. Pcs. /
Pkt.
PML-P111 (D50) 1014214 5
PML-P111 (D100) 1014215 5
PML-P111 (D200) 1014216 5
333PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Symbol - No food Symbol - No access for unauthorized persons
P R I NT E D
FOR YOU
1
2
2
1
The unmarked US-PML-M mandatory
signs on US cards allow you to create
custom information signs. A variety of
symbols are available in the CLIPPROJECT
software. The mandatory signs offer the
following features:
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the
ISO7010 international standard
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The format automatically ensures printing
with a high level of positional accuracy
– The perforated markers are easy to
separate
– Marking service: Phoenix Contact can
custom-mark all US-PML... markers
according to your requirements
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Mandatory sign, color preprinted, without symbols
4-section, diameter: 50mm blue US-PML-M100 (D50) 1014176 10
1-section, diameter: 100mm blue US-PML-M100 (D100) 1014177 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Ink ribbon, specially for US-PML..., US-EMLF...,
Length: 240m, width: 110mm white TM-RIBBON 110-TC/TR WH 1014402 1
Can be marked using:
UniSheet - stick-on mandatory signs,
color preprinted, without symbols
334
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
The color preprinted PML-M mandatory
signs on a roll allow you to create custom
mandatory notices. A variety of symbols are
available in the CLIPPROJECT software.
The mandatory signs offer the following
features:
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the
ISO7010 international standard
– The format automatically ensures printing
with a high level of positional accuracy
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Mandatory sign, color preprinted, without symbols
500 labels per roll, diameter: 50mm blue PML-M100 (D50)R 1014180 1
250 labels per roll, diameter: 100mm blue PML-M100 (D100)R 1014181 1
Accessories
Ink ribbon, specially for US-PML..., US-EMLF...,
Length: 240m, width: 110mm white TM-RIBBON 110-TC/TR WH 1014402 1
Can be marked using:
Stick-on mandatory signs, color
preprinted, without symbols
335
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked
Thermal transfer for rolls
The PML-M mandatory signs are available
with various symbols. The mandatory signs
offer the following features:
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the
ISO 7010 international standard
Technical data
General data
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Mandatory sign, preprinted with “General mandatory action”
symbol
3-section, diameter: 50mm blue PML-M101 (D50) 1014137 5
3-section, diameter: 100mm blue PML-M101 (D100) 1014138 5
1-section, diameter: 200mm blue PML-M101 (D200) 1014139 5
Mandatory sign, preprinted with “Wear safety goggles” symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
Mandatory sign, preprinted with “Observe instructions for use”
symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
Mandatory sign, preprinted with “Wear ear protectors” symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
336
PHOENIX CONTACT
Stick-on mandatory signs, preprinted,
with symbols
Marking and labeling - MARKING system
System marking
Symbol - General mandatory action symbol Symbol - Wear safety go
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PVC PVC PVC
-40 ... 90 -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Silicone-free Silicone-free Silicone-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-M102 (D50) 1014140 5
PML-M102 (D100) 1014141 5
PML-M102 (D200) 1014142 5
PML-M103 (D50) 1014143 5
PML-M103 (D100) 1014144 5
PML-M103 (D200) 1014145 5
PML-M104 (D50) 1014146 5
PML-M104 (D100) 1014147 5
PML-M104 (D200) 1014148 5
337PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Symbol - General mandatory action symbol Symbol - Wear safety goggles Symbol - Observe instructions for use Symbol - Wear ear protectors
Technical data Technical data
General data
Material PVC PVC
Temperature range [°C] -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Components Silicone-free Silicone-free
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Mandatory sign, preprinted with “Wear face shield” symbol
3-section, diameter: 50mm blue PML-M105 (D50) 1014149 5
3-section, diameter: 100mm blue PML-M105 (D100) 1014150 5
1-section, diameter: 200mm blue PML-M105 (D200) 1014151 5
Mandatory sign, preprinted with “Wear safety helmet” symbol
3-section, diameter: 50mm blue PML-M106 (D50) 1014152 5
3-section, diameter: 100mm blue PML-M106 (D100) 1014153 5
1-section, diameter: 200mm blue PML-M106 (D200) 1014154 5
Mandatory sign, preprinted with “Use face mask” symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
Mandatory sign, preprinted with “Wear protective gloves” symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
Mandatory sign, preprinted with “Wear protective clothing”
symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
338
PHOENIX CONTACT
Symbol - Wear face shield Symbol - Wear safety helmet Symbol - Use face mask Symbol - Wear protective gloves Symbol - Wear protecti
Printed cards
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the
ISO 7010 international standard
Stick-on mandatory signs, preprinted,
with symbols
Marking and labeling - MARKING system
System marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PVC PVC PVC
-40 ... 90 -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Silicone-free Silicone-free Silicone-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-M107 (D50) 1014155 5
PML-M107 (D100) 1014156 5
PML-M107 (D200) 1014157 5
PML-M108 (D50) 1014158 5
PML-M108 (D100) 1014159 5
PML-M108 (D200) 1014160 5
PML-M109 (D50) 1014161 5
PML-M109 (D100) 1014162 5
PML-M109 (D200) 1014163 5
339PHOENIX CONTACT
ty helmet Symbol - Use face mask Symbol - Wear protective gloves Symbol - Wear protective clothing
Marking and labeling - MARKING system
System marking
Technical data Technical data
General data
Material PVC PVC
Temperature range [°C] -40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free Silicone-free
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Mandatory sign, preprinted with “Disconnect before starting work”
symbol
3-section, diameter: 50mm blue PML-M110 (D50) 1014164 5
3-section, diameter: 100mm blue PML-M110 (D100) 1014165 5
1-section, diameter: 200mm blue PML-M110 (D200) 1014166 5
Mandatory sign, preprinted with “Wear conductive footwear”
symbol
3-section, diameter: 50mm blue PML-M111 (D50) 1014167 5
3-section, diameter: 100mm blue PML-M111 (D100) 1014168 5
1-section, diameter: 200mm blue PML-M111 (D200) 1014169 5
Mandatory sign, preprinted with “Wear head cover” symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
Mandatory sign, preprinted with “Wear safety shoes” symbol
3-section, diameter: 50mm blue
3-section, diameter: 100mm blue
1-section, diameter: 200mm blue
340
PHOENIX CONTACT
Symbol - Disconnect before starting work Symbol - Wear conductive footwear Symbol - Wear head cover Symbol - Wear safety shoes
Printed cards
– Highly flexible, plasticized PVC labels
which are ideal for uneven surfaces
– Suitable for indoor and outdoor use
– The mandatory signs conform to the
ISO 7010 international standard
Stick-on mandatory signs, preprinted,
with symbols
Marking and labeling - MARKING system
System marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
PVC PVC
-40 ... 90 -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Silicone-free Silicone-free
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-M112 (D50) 1014170 5
PML-M112 (D100) 1014171 5
PML-M112 (D200) 1014172 5
PML-M113 (D50) 1014173 5
PML-M113 (D100) 1014174 5
PML-M113 (D200) 1014175 5
341PHOENIX CONTACT
Symbol - Disconnect before starting work Symbol - Wear conductive footwear Symbol - Wear head cover Symbol - Wear safety shoes
Marking and labeling - MARKING system
System marking
2
1
1
2
P R I NT E D
FOR YOU
The color preprinted PML-T... pipeline
markers supplied in rolls enable the custom
marking of pipelines according to DIN 2403.
The markers offer the following features:
– Finely perforated arrowheads enable the
arrowheads which are not required to be
easily removed
– High adhesive strength
– High temperature resistance
– Suitable for indoor and outdoor use
– In combination with the PML-GHS
hazardous substances labels, marking
which conforms to the Ordinance on
Hazardous Substances (GefStoffV) can be
applied
– The format automatically ensures printing
with a high level of positional accuracy
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– Marking service: Phoenix Contact can
custom-mark all markers according to
your requirements
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Pipeline markers, green, group 1 (water), unprinted
250 labels per roll, marker size: 26x280mm green PML-T101 (26X280)R 1014229 1
250 labels per roll, marker size: 52x560mm green PML-T101 (52X560)R 1014230 1
Pipeline markers, red, group 2 (steam), unprinted
250 labels per roll, marker size: 26x280mm red
250 labels per roll, marker size: 52x560mm red
Pipeline markers, gray, group 3 (air), unprinted
250 labels per roll, marker size: 26x280mm gray
250 labels per roll, marker size: 52x560mm gray
Pipeline markers, yellow/red, group 4 (combustible gases),
unprinted
250 labels per roll, marker size: 26x280mm yellow/red
250 labels per roll, marker size: 52x560mm yellow/red
Accessories
Ink ribbon, specially for US-PML..., US-EMLF...,
Length: 240m, width: 110mm TM-RIBBON 110-TC/TR WH 1014402 1
Ink ribbon, length: 300m, width: 110mm
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK ROLL, THERMOMARK ROLL X1,
THERMOMARK X1.2, attachment type: adhered
500 labels per roll, marker size: 13x13mm PML-GHS100 (13X13)R 1014289 1
500 labels per roll, marker size: 25x25mm PML-GHS100 (25X25)R 1014290 1
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK CARD, attachment type: adhered,
50-section, marker size: 13x13mm US-PML-GHS100 (13X13) 1014287 10
9-section, marker size: 25x25mm US-PML-GHS100 (25X25) 1014288 10
342
PHOENIX CONTACT
Thermal transfer for rolls
Can be marked using:
Stick-on pipeline markers, unmarked
Marking and labeling - MARKING system
System marking
Group 1 (water) Group 2 (steam) Group 3 (air) Group 4 (combustible gases)
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Polyester Polyester Polyester
-40 ... 150 -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-T102 (26X280)R 1014231 1
PML-T102 (52X560)R 1014232 1
PML-T103 (26X280)R 1014233 1
PML-T103 (52X560)R 1014234 1
PML-T104 (26X280)R 1014235 1
PML-T104 (52X560)R 1014236 1
Accessories Accessories Accessories
TM-RIBBON 110-TC/TR WH 1014402 1
THERMOMARK-RIBBON 110 5145384 1THERMOMARK-RIBBON 110 5145384 1
PML-GHS100 (13X13)R 1014289 1PML-GHS100 (13X13)R 1014289 1PML-GHS100 (13X13)R 1014289 1
PML-GHS100 (25X25)R 1014290 1PML-GHS100 (25X25)R 1014290 1PML-GHS100 (25X25)R 1014290 1
US-PML-GHS100 (13X13) 1014287 10 US-PML-GHS100 (13X13) 1014287 10 US-PML-GHS100 (13X13) 1014287 10
US-PML-GHS100 (25X25) 1014288 10 US-PML-GHS100 (25X25) 1014288 10 US-PML-GHS100 (25X25) 1014288 10
343
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Group 1 (water) Group 2 (steam) Group 3 (air) Group 4 (combustible gases)
2
1
1
2
P R I NT E D
FOR YOU
– Finely perforated arrowheads enable the
arrowheads which are not required to be
easily removed
– High adhesive strength
– High temperature resistance
– Suitable for indoor and outdoor use
– In combination with the PML-GHS
hazardous substances labels, marking
which conforms to the Ordinance on
Hazardous Substances (GefStoffV) can be
applied
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Pipeline markers, yellow/black, group 5 (non-combustible gases),
unprinted
250 labels per roll, marker size: 26x280mm yellow/black PML-T105 (26X280)R 1014237 1
250 labels per roll, marker size: 52x560mm yellow/black PML-T105 (52X560)R 1014238 1
Pipeline markers, orange, group 6 (acids), unprinted
250 labels per roll, marker size: 26x280mm orange
250 labels per roll, marker size: 52x560mm orange
Pipeline markers, violet, group 7 (alkalis), unprinted
250 labels per roll, marker size: 26x280mm violet
250 labels per roll, marker size: 52x560mm violet
Pipeline markers, brown/red, group 8 (combustible liquids),
unprinted
250 labels per roll, marker size: 26x280mm brown/red
250 labels per roll, marker size: 52x560mm brown/red
Accessories
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110 5145384 1
Ink ribbon, specially for US-PML..., US-EMLF...,
Length: 240m, width: 110mm
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK ROLL, THERMOMARK ROLL X1,
THERMOMARK X1.2, attachment type: adhered
500 labels per roll, marker size: 13x13mm PML-GHS100 (13X13)R 1014289 1
500 labels per roll, marker size: 25x25mm PML-GHS100 (25X25)R 1014290 1
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK CARD, attachment type: adhered,
50-section, marker size: 13x13mm US-PML-GHS100 (13X13) 1014287 10
9-section, marker size: 25x25mm US-PML-GHS100 (25X25) 1014288 10
344
PHOENIX CONTACT
Thermal transfer for rolls
Can be marked using:
Stick-on pipeline markers, unmarked
Marking and labeling - MARKING system
System marking
Group 5 (non-combustible gases) Group 6 (acids) Group 7 (alkalis) Group 8 (combustible liquids)
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Polyester Polyester Polyester
-40 ... 150 -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-T106 (26X280)R 1014239 1
PML-T106 (52X560)R 1014240 1
PML-T107 (26X280)R 1014241 1
PML-T107 (52X560)R 1014242 1
PML-T108 (26X280)R 1014243 1
PML-T108 (52X560)R 1014244 1
Accessories Accessories Accessories
THERMOMARK-RIBBON 110 5145384 1
TM-RIBBON 110-TC/TR WH 1014402 1TM-RIBBON 110-TC/TR WH 1014402 1
PML-GHS100 (13X13)R 1014289 1PML-GHS100 (13X13)R 1014289 1PML-GHS100 (13X13)R 1014289 1
PML-GHS100 (25X25)R 1014290 1PML-GHS100 (25X25)R 1014290 1PML-GHS100 (25X25)R 1014290 1
US-PML-GHS100 (13X13) 1014287 10 US-PML-GHS100 (13X13) 1014287 10 US-PML-GHS100 (13X13) 1014287 10
US-PML-GHS100 (25X25) 1014288 10 US-PML-GHS100 (25X25) 1014288 10 US-PML-GHS100 (25X25) 1014288 10
345
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Group 5 (non-combustible gases) Group 6 (acids) Group 7 (alkalis) Group 8 (combustible liquids)
2
1
1
2
P R I NT E D
FOR YOU
– Finely perforated arrowheads enable the
arrowheads which are not required to be
easily removed
– High adhesive strength
– High temperature resistance
– Suitable for indoor and outdoor use
– In combination with the PML-GHS
hazardous substances labels, marking
which conforms to the Ordinance on
Hazardous Substances (GefStoffV) can be
applied
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Pipeline markers, brown/black, group 9 (non-combustible liquids),
unprinted
250 labels per roll, marker size: 26x280mm brown/black PML-T109 (26X280)R 1014245 1
250 labels per roll, marker size: 52x560mm brown/black PML-T109 (52X560)R 1014246 1
Pipeline markers, blue, group 0 (oxygen), unprinted
250 labels per roll, marker size: 26x280mm blue
250 labels per roll, marker size: 52x560mm blue
Accessories
Ink ribbon, specially for US-PML..., US-EMLF...,
Length: 240m, width: 110mm TM-RIBBON 110-TC/TR WH 1014402 1
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK ROLL, THERMOMARK ROLL X1,
THERMOMARK X1.2, attachment type: adhered
500 labels per roll, marker size: 13x13mm PML-GHS100 (13X13)R 1014289 1
500 labels per roll, marker size: 25x25mm PML-GHS100 (25X25)R 1014290 1
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK CARD, attachment type: adhered,
50-section, marker size: 13x13mm US-PML-GHS100 (13X13) 1014287 10
9-section, marker size: 25x25mm US-PML-GHS100 (25X25) 1014288 10
346
PHOENIX CONTACT
Thermal transfer for rolls
Can be marked using:
Stick-on pipeline markers, unmarked
Marking and labeling - MARKING system
System marking
Group 9 (non-combustible liquids) Group 0 (oxygen)
P R I NT E D
FOR YOU
For further information and full technical data, visit phoenixcontact.net/products
Technical data
THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Polyester
-40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data
Type Order No. Pcs. /
Pkt.
PML-T110 (26X280)R 1014247 1
PML-T110 (52X560)R 1014248 1
Accessories
TM-RIBBON 110-TC/TR WH 1014402 1
PML-GHS100 (13X13)R 1014289 1
PML-GHS100 (25X25)R 1014290 1
US-PML-GHS100 (13X13) 1014287 10
US-PML-GHS100 (25X25) 1014288 10
347
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Group 9 (non-combustible liquids) Group 0 (oxygen)
1
2
2
1
The unmarked US-PML-GHS hazardous
substances labels on US cards allow you to
create custom information signs. A variety
of symbols are available in the
CLIPPROJECT software. The hazardous
substances labels offer the following
features:
– High adhesive strength
– High temperature resistance
– Suitable for indoor and outdoor use
– The markers conform to the GHS
international standard
– The markers, which are supplied in
uniform sheets, can be printed onto
quickly, easily, and cost-effectively using
the THERMOMARKCARD
– The format automatically ensures printing
with a high level of positional accuracy
– The perforated markers are easy to
separate
Technical data
General data
Can be marked using THERMOMARK CARD
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK CARD, attachment type: adhered,
50-section, marker size: 13x13mm red/white US-PML-GHS100 (13X13) 1014287 10
9-section, marker size: 25x25mm red/white US-PML-GHS100 (25X25) 1014288 10
Accessories
Magazine, for THERMOMARKCARD..., for accommodating all
US–materials
THERMOMARK CARD-US-MAG1 5146451 1
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110-TC 0801371 1
Can be marked using:
UniSheet - stick-on hazardous
substances labels, color preprinted,
without symbols
348
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked
Thermal transfer for sheets
and cards
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
The color preprinted PML-GHS...R
hazardous substances labels on a roll allow
you to create custom information signs. A
variety of symbols are available in the
CLIPPROJECT software. The hazardous
substances labels offer the following
features:
– High adhesive strength
– High temperature resistance
– Suitable for indoor and outdoor use
– The markers conform to the GHS
international standard
– The format automatically ensures printing
with a high level of positional accuracy
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Hazardous substances label, roll, red/white, preprinted, can be
marked with: THERMOMARK ROLL, THERMOMARK ROLL X1,
THERMOMARK X1.2, attachment type: adhered
500 labels per roll, marker size: 13x13mm red/white PML-GHS100 (13X13)R 1014289 1
500 labels per roll, marker size: 25x25mm red/white PML-GHS100 (25X25)R 1014290 1
Accessories
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110 5145384 1
Can be marked using:
Stick-on hazardous substances labels,
color preprinted, without symbols
349
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked
Thermal transfer for rolls
The PML-GHS hazardous substances
labels are available with various symbols and
enable the additional custom marking of the
PML-T pipeline markers according to the
Ordinance on Hazardous Substances. The
hazardous substances labels offer the
following features:
– High adhesive strength
– High temperature resistance
– Suitable for indoor and outdoor use
– The hazardous substances labels conform
to the GHS international standard
Technical data
General data
Material Polyester
Temperature range [°C] -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Hazardous substances label, preprinted with “Explosive” symbol
35-section, marker size: 13x13mm red/white PML-GHS101 (13X13) 1014269 5
12-section, marker size: 25x25mm red/white PML-GHS101 (25X25) 1014270 5
Hazardous substances label, preprinted with “Flammable”
symbol
35-section, marker size: 13x13mm red/white
12-section, marker size: 25x25mm red/white
Hazardous substances label, preprinted with “Oxidizing” symbol
35-section, marker size: 13x13mm red/white
12-section, marker size: 25x25mm red/white
Hazardous substances label, preprinted with “Pressurized
gases” symbol
35-section, marker size: 13x13mm red/white
12-section, marker size: 25x25mm red/white
350
PHOENIX CONTACT
Stick-on hazardous substances labels,
preprinted with symbol
Marking and labeling - MARKING system
System marking
Symbol - Explosive Symbol - Flammable Symbol - Oxidizing Symbol - Pressurized gases
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Polyester Polyester Polyester
-40 ... 150 -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-GHS102 (13X13) 1014271 5
PML-GHS102 (25X25) 1014272 5
PML-GHS103 (13X13) 1014273 5
PML-GHS103 (25X25) 1014274 5
PML-GHS104 (13X13) 1014275 5
PML-GHS104 (25X25) 1014276 5
351PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Symbol - Explosive Symbol - Flammable Symbol - Oxidizing Symbol - Pressurized gases
Technical data Technical data
General data
Material Polyester Polyester
Temperature range [°C] -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Hazardous substances label, preprinted with “Corrosivity”
symbol
35-section, marker size: 13x13mm red/white PML-GHS105 (13X13) 1014277 5
12-section, marker size: 25x25mm red/white PML-GHS105 (25X25) 1014278 5
Hazardous substances label, preprinted with “Toxic” symbol
35-section, marker size: 13x13mm red/white PML-GHS106 (13X13) 1014279 5
12-section, marker size: 25x25mm red/white PML-GHS106 (25X25) 1014280 5
Hazardous substances label, preprinted with “General symbol
for hazardous substances”
35-section, marker size: 13x13mm red/white
12-section, marker size: 25x25mm red/white
Hazardous substances label, preprinted with “Hazardous to
health” symbol
35-section, marker size: 13x13mm red/white
12-section, marker size: 25x25mm red/white
Hazardous substances label, preprinted with “Hazardous to the
environment” symbol
35-section, marker size: 13x13mm red/white
12-section, marker size: 25x25mm red/white
352
PHOENIX CONTACT
Symbol - Corrosivity Symbol - Toxic Symbol - General symbol for hazardous
– Printed cards
– High adhesive strength
– High temperature resistance
– Suitable for indoor and outdoor use
– The hazardous substances labels conform
to the GHS international standard
Stick-on hazardous substances labels,
preprinted with symbol
Marking and labeling - MARKING system
System marking
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Polyester Polyester Polyester
-40 ... 150 -40 ... 150 -40 ... 150
Wipe resistance DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1) DIN EN 61010-1 (VDE 0411-1)
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PML-GHS107 (13X13) 1014281 5
PML-GHS107 (25X25) 1014282 5
PML-GHS108 (13X13) 1014283 5
PML-GHS108 (25X25) 1014284 5
PML-GHS109 (13X13) 1014285 5
PML-GHS109 (25X25) 1014286 5
353PHOENIX CONTACT
Symbol - Corrosivity Symbol - Toxic Symbol - General symbol for hazardous
substances
Symbol - Hazardous to health Symbol - Hazardous to the environment
Marking and labeling - MARKING system
System marking
P R I NT E D
FOR YOU
1
2
2
1
The unmarked US-EMLF... combi labels
on US... cards allow you to create custom
information signs. A variety of symbols
which conform to ISO7010 are available in
the CLIPPROJECT software. The markers
offer the following features:
– High adhesive strength
– Suitable for indoor and outdoor use
– The markers, which are supplied in
uniform sheets, can be marked quickly,
easily, and inexpensively
– The format automatically ensures printing
with a high level of positional accuracy
– The perforated markers are easy to
separate
Technical data
General data
Can be marked using THERMOMARK CARD
Material PVC
Temperature range [°C] -40 ... 90
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Components Silicone-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
UniSheet, with self-adhesive labels, 2-section, lettering field size:
104x70mm
white US-EMLF (104X70) 1014294 10
yellow US-EMLF (104X70) YE 1014295 10
blue US-EMLF (104X70) BU 1014296 10
UniSheet, with self-adhesive labels, 1-section, lettering field size:
104x140mm
white US-EMLF (104X140) 1014291 10
yellow US-EMLF (104X140) YE 1014292 10
blue US-EMLF (104X140) BU 1014293 10
Can be marked using:
UniSheet - stick-on combi labels,
unprinted
354
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked or marked according to customer
specifications
Thermal transfer for sheets
and cards
P R I NT E D
FOR YOU
2
1
1
2
For further information and full technical data, visit phoenixcontact.net/products
The PMM magnetic labels supplied in rolls
represent an individual and flexible marking
solution, e.g., for stock marking. A variety of
symbols, linear and 2Dcodes are available in
the CLIPPROJECT software. The magnetic
labels offer the following features:
– High adhesive strength
– Magnetic tape coated with polyester foil
– The flexible magnetic tape will also
adhere to round objects with a radius of
12mm and higher
– The format automatically ensures printing
with a high level of positional accuracy
– When used in conjunction with high-
quality ink ribbons, a resistant form of
marking is produced, which is even
suitable for harsh environments
– The special packaging protects rolls that
have already been started from the dirt
found in industrial environments
– Easy to assemble with the
THERMOMARKCUTTER
Technical data
General data
Can be marked using THERMOMARK ROLL THERMOMARK X1.1 THERMOMARK
X1.2
Material Magnetic tape
Temperature range [°C] -30 ... 55
Wipe resistance DIN EN 61010-1 (VDE 0411-1)
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Magnetic foil as continuous media, anisotropic, 1 roll = 15m, label
height: 20mm
white PMM (EX20)R 1014303 1
silver PMM (EX20)R SR 1014304 1
yellow PMM (EX20)R YE 1014305 1
Magnetic foil as continuous media, anisotropic, 1 roll = 15m, label
height: 25mm
white PMM (EX25)R 1014306 1
silver PMM (EX25)R SR 1014307 1
yellow PMM (EX25)R YE 1014308 1
Magnetic foil as continuous media, anisotropic, 1 roll = 15m, label
height: 30mm
white PMM (EX30)R 1014309 1
silver PMM (EX30)R SR 1014310 1
yellow PMM (EX30)R YE 1014311 1
Magnetic foil as continuous media, anisotropic, 1 roll = 15m, label
height: 40mm
white PMM (EX40)R 1014312 1
silver PMM (EX40)R SR 1014313 1
yellow PMM (EX40)R YE 1014314 1
Magnetic foil as continuous media, anisotropic, 1 roll = 15m, label
height: 50mm
white PMM (EX50)R 1014315 1
silver PMM (EX50)R SR 1014316 1
yellow PMM (EX50)R YE 1014317 1
Accessories
Ink ribbon, length: 300m, width: 110mm
THERMOMARK-RIBBON 110 5145384 1
Can be marked using:
Magnetic labels, unprinted
355
PHOENIX CONTACT
Marking and labeling - MARKING system
System marking
Unmarked or marked according to customer
specifications
Thermal transfer for rolls
356
PHOENIX CONTACT
Product range overview
Hand tools 358
CUTFOX... cutting tools and UNIFOX... universal
tools
Cable cutters 360
Cutting tools for special applications 362
Universal tools 365
Cable duct, profile, and DIN-rail cutters 369
MICROFOX electronics pliers 372
WIREFOX stripping tools
Stripping tools 374
Stripping tools 380
CRIMPFOX pressing and crimping tools 384
CRIMPHANDY portable hand-held machine 384
CRIMPFOX 4 IN 1 multi-functional crimping pliers 387
Crimp pliers for ferrules 388
Crimping pliers for ring cable and tube lugs 394
Universal basic pliers for connectors up to 120mm 399
Crimping pliers for slip-on sleeves 400
Crimping pliers for turned contacts 402
Crimping pliers for coaxial, FO, D-SUB, CATV, data plugs, and
solar connectors
403
Universal basic pliers 405
SCREWFOX screwdriver tools
Screwdrivers 408
Cordless screwdrivers 417
Socket wrenches 422
Control cabinet keys 425
TESTFOX measuring tools
Voltage and continuity testers 426
Digital multimeters 427
To o l s e t s 430
Customer-specific hand tools and tool sets 437
Connectors 444
357
PHOENIX CONTACT
The TOOLfox range of tools provides
processing and measuring tools for all
electrical engineering applications.
The ergonomically designed tools for
cutting, stripping, crimping, screwing, and
testing impress with their optimum handling
and quality. Specially hardened tool steels
ensure maximum durability.
Cutting machines, stripping machines, and
crimping machines are available which can
be used to automate steps.
A wide range of connectors rounds off
the product range.
Hand tools - TOOL fox
358
PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Professional cutting Professional stripping Professional crimping
For further information and full technical data, visit phoenixcontact.net/products
359PHOENIX CONTACT
Tools - TOOL fox
Hand tools
An ideal cable cutter is available for every
application. The various versions enable
professional processing of conductors and
cables with a diameter of up to 100 mm. All
parts of the cable cutters that are subject to
particular strain are tempered and specially
hardened.
Profile cutters are available for rapid
processing of DIN rails and cable ducts
without chips or burrs. An optional
hydraulic unit can be attached to convert
manual DIN-rail cutters into automatic
ones.
The stripping tools can strip all types of
conductors and cables quickly, precisely and
reliably. They adapt automatically to the
conductor cross section concerned.
CRIMPFOX 4 IN 1 are multi-functional
crimping pliers for processing conductors
and ferrules. A variety of work steps can be
performed with just a single tool: cutting,
stripping, twisting, and crimping.
The product innovation for switchgear
manufacturing – the CRIMPHANDY, a
battery-operated, portable hand-held
machine. It strips and crimps the conductor
in under two seconds, resulting in time
savings of 75 percent.
The extensive range of professional
crimping pliers can be used to process a
variety of contact types with a cross section
of up to 120mm. The innovative design
and ergonomically shaped handles reduce
the forces required by up to 25 percent.
With their interchangeable dies, the
CRIMPFOX–M universal crimping pliers can
be used to process all kinds of contacts. The
dies can be changed quickly and easily
without the need for additional tools.
With their precise torque-setting feature,
the torque and cordless screwdrivers are
the perfect complement to the Phoenix
Contact range of screw terminal blocks.
The wide range of hardened BIT
screwdriver inserts makes the products
suitable for universal use.
Our multimeters, current pliers, and
voltage testers are high-quality measuring
tools, which have been tested and approved
in accordance with national and
international standards.
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Cable cutter, for copper and aluminum up to 12 mm diameter (up
to 35mm²), size: 165 mm
CUTFOX 12 1212128 1
Cable cutter, angled, for copper and aluminum up to 18 mm
diameter (up to 50mm²), size: 180 mm
CUTFOX 18 1212129 1
Electrician's scissors, high cutting performance, thanks to micro-
serrated cutting area, suitable for copper, aluminum, Kevlar fibers,
and plastic, two-component non-slip soft-grip handles, ergonomic
design, adjustable screw joint
CUTFOX-ES 1212621 1
– CUTFOX... cable cutters for professional
cutting results
– Suitable for conductors with a max.
diameter of 18mm
– Ergonomic grip design to eliminate fatigue
when working
– All parts of the cable cutters that are
subject to particular strain are tempered
or specially hardened
CUTFOX cable cutters
Tools - TOOL fox
Hand tools
Up to a maximum conductor diameter of
12mm
Up to a maximum conductor diameter of
18mm
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Ring cable cutter, with ratchet function, for copper and aluminum
up to a diameter of 50mm, for steel-armored CU/AL cables, for
stranded steel cables up to a diameter of 12mm, equipped with
needle bearings, size: 260mm
CUTFOX 50 STEEL 1212526 1
Ring cable cutter, with ratchet function, for copper and aluminum
up to 45 mm diameter (up to 300mm²), size: 260mm
CUTFOX 45 1212132 1
Ring cable cutter, with ratchet function, for copper and aluminum
up to 52mm diameter (up to 300mm²), size: 325mm
CUTFOX 52 1212133 1
360
PHOENIX CONTACT
– CUTFOX... one-handed ring cable
cutters for professional cutting results
– Extremely robust design
– Minimum deformation of the conductors
and cables
– Can be released in all positions
– Superb cutting quality
– Little force needed due to ratchet
function
CUTFOX one-handed ring cable
cutters
Up to a maximum conductor diameter of
50mm, steel-armored
Up to a maximum conductor diameter of
45mm
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Cable cutter, with ratchet function, for copper and aluminum up to
25mm diameter (up to 185mm²), size: 245mm
CUTFOX 25 1212130 1
Cable cutter, with ratchet function, for copper and aluminum up to
35mm diameter (up to 300mm²), size: 245mm
CUTFOX 35 1212131 1
– CUTFOX... cable cutters for professional
cutting results
– With ratchet function for minimum effort
– All parts of the cable cutters that are
subject to particular strain are tempered
or specially hardened
– Ideal in tight workspaces
– Adjustable screw joint
– Can be released in all positions
– Extremely robust
CUTFOX cable cutters
Tools - TOOL fox
Hand tools
Up to a maximum conductor diameter of
25mm
Up to a maximum conductor diameter of
35mm
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Two-hand ring cable cutter, with ratchet function, for copper and
aluminum up to 62mm diameter (up to 750mm²), size: 410mm
CUTFOX 62 1212134 1
Two-hand ring cable cutter, with ratchet function, for copper and
aluminum up to 100mm diameter (up to 1400mm²), size: 610mm
CUTFOX 100 1212135 1
361
PHOENIX CONTACT
– CUTFOX... two-handed ring cable
cutters for professional cutting results
– Suitable for conductors with a diameter
of up to 100mm
– With ratchet function for minimum effort
– Can be released in all positions
– Superb cutting quality
– Extremely robust design
– Lowest possible deformation of
conductors and cables
CUTFOX two-handed ring cable
cutters
Up to a maximum conductor diameter of
62mm
Up to a maximum conductor diameter of
100mm
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Cutting tool, for separating individual bridge bars from FBS...
jumpers and EB... insertion bridges, size: 260mm
CUTFOX-FBS 1212124 1
Bridge cutting tool, for cutting FBI... fixed bridges to length, size:
165mm
CUTFOX FB 1205985 1
Cable cutter, precision blade with macro-notching, for copper and
aluminum up to 50mm², VDE1000VAC/1500VDC tested, size:
160mm
Cable cutter, precision blade with macro-notching, for copper and
aluminum up to 70mm², VDE1000VAC/1500VDC tested, size:
210mm
Cable cutter, for laminated busbars/ribbed tape measuring up to
6x16x0.8mm, copper and aluminum cables with a diameter of up
to 50mm, VDE1000VAC, 1500VDC, size: 210mm
Diagonal cutter, with optimized leverage,
VDE1000VAC/1500VDC tested, size: 160mm
Power diagonal cutter, with optimized leverage, also suitable for
piano wire, VDE1000VAC/1500VDC tested, size: 200mm
Diagonal cutter, with optimized leverage, VDE
1000VAC/1500VDC tested, size: 130mm
362
PHOENIX CONTACT
Front cutting tool for cutting out plug-in and
insertion bridges
Cutting tool for screw-on bridges Cable cutter for conductors with a diameter of
– The CUTFOX–FBS cutting tool is suitable
for cutting out individual bars from FBS...
plug-in bridges
– Screw-on bridges can be cut to length
with the CUTFOXFB without crushing
them
– VDE-tested cutting tools made from
special high-grade tool steel
– Inductively hardened blades for long-term
stable cutting performance
Cutting tools for special applications
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CUTFOX 16 VDE 1212126 1
CUTFOX 25 VDE 1212127 1
CUTFOX-LB VDE 1212527 1
CUTFOX-S VDE 1212207 1
CUTFOX-SP VDE 1212206 1
CUTFOX-S VDE M 1212830 1
363PHOENIX CONTACT
Cutting tool for screw-on bridges Cable cutter for conductors with a diameter of
up to 25mm (VDE)
Cable cutter for conductors and ribbed tape
with a diameter of up to 50mm (VDE)
Diagonal cutter, also suitable for piano wire
(VDE)
Tools - TOOL fox
Hand tools
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Power diagonal cutter, with optimized leverage, also suitable for
bolts and piano wire, VDE1000VAC/1500VDC tested, size:
200mm
CUTFOX-SP BOLT VDE 1212831 1
new
– The CUTFOX-SP BOLT VDE cutting tool
is suitable for precise cutting of bolts,
nails, rivets, steel wire, or similar hard
materials
– VDE-tested cutting tools made from
special high-grade tool steel
– Inductively hardened blades for
permanently stable cutting performance
CUTFOX bolt cutter
Tools - TOOL fox
Hand tools
new
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Diagonal cutter, angled design, size:180mm
CUTFOX-SE 1212832 1
Electricians diagonal cutter, angled design, with stripping,
crimping, and bending function. Screw pincers up to M3.5/M4, size:
180mm
CUTFOX-SE LM 1212833 1
364
PHOENIX CONTACT
new
– CUTFOX-SE LM electricians diagonal
cutter with stripping and cutting range
– Ergonomic grip design to eliminate fatigue
when working
– All parts of the diagonal cutters that are
subject to particular strain are tempered
or specially hardened
CUTFOX cutting tools, angled design
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Combination pliers, cross-notched gripping surface, integrated
M8-M10 ring wrench, VDE1000VAC/1500VDC tested, size:
180mm
black UNIFOX-C VDE 1212202 1
Combination pliers, cross-notched gripping surface, integrated
M8-M10 ring wrench, VDE1000VAC/1500VDC tested, size:
165mm
black UNIFOX-C VDE M 1212834 1
Combination pliers, angled design, with opening spring and
locking device, cross-notched gripping surface, integrated M8-
M10 ring wrench, VDE1000VAC/1500VDC tested, size:
200mm
black UNIFOX-CE VDE 1212203 1
– UNIFOX... VDE-totally-insulated
combination pliers in straight and angled
versions
– Ergonomic grip design to eliminate fatigue
when working
– Excellent transmission ratios for excellent
gripping and cutting performance
– Noticeably less force required on the part
of the user
UNIFOX universal tools
Tools - TOOL fox
Hand tools
Combination pliers (VDE), straight Combination pliers (VDE), angled
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Needle-nose pliers with cutter, notched gripping surface,
VDE1000VAC/1500VDC tested, size: 170mm
black UNIFOX-P VDE 1212204 1
Needle-nose pliers with cutter, angled 45°, notched gripping
surface, VDE1000VAC/1500VDC tested, size: 170mm
black UNIFOX-PC VDE 1212205 1
Needle-nose pliers, angled design, with opening spring and
locking device, finely notched gripping surface, stripping possible
for 1.5mm² and 2.5mm², integrated M8-M10 ring wrench,
VDE1000VAC/1500VDC tested, size: 200mm
black UNIFOX-PE VDE 1212529 1
365
PHOENIX CONTACT
– Individually tested safety tools according
to DINEN60900 (VDE0682–201)
– For working on or in the vicinity of live
parts up to 1000V AC or 1500V DC
– The tools feature ergonomic two-
component safety handles
UNIFOX universal tools
Needle-nose pliers (VDE), straight Needle-nose pliers (VDE), curved and angled
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Flat-nose pliers, finely notched gripping surface,
VDE1000VAC/1500VDC tested, size: 160mm
black UNIFOX-F VDE 1212363 1
Round-nose pliers, finely notched gripping surface,
VDE1000VAC/1500VDC tested, size: 160mm
black UNIFOX-R VDE 1212364 1
Water pump pliers, with groove joint, gripping surfaces with dual
notching, acc. to VDEISO8976, size: 240mm
UNIFOX-WP 1212365 1
– UNIFOX... VDE-totally-insulated flat-
nose, round-nose, and water pump pliers
– Notched grip areas
– Ergonomic grip design to eliminate fatigue
when working
– Excellent transmission ratios for optimum
gripping performance
– Forged die hardened in oil for maximum
durability
UNIFOX universal tools
Tools - TOOL fox
Hand tools
Flat-nose pliers (VDE) Water pump pliers
Ordering data
Description Type Order No. Pcs. /
Pkt.
Cable binder pliers, for plastic cable binders with a width of 2.2-
4.8mm, for a material thickness of up to 1.6mm
UNIFOX-CT 4,8 1212475 1
Ergonomically designed grip with comfortable
tension force adjustment
UNIFOX-CT 4,8P 1212609 1
Cable binder tool, for steel cable binders with a width of up to
7.9mm, material thickness of up to 0.3mm
UNIFOX-CT M 7,9 1212610 1
366
PHOENIX CONTACT
– Ergonomic tool for attaching and
detaching cable binders in a single
operation
– The infinitely adjustable tension force is
indicated by a scale in the handle area
– When the tension force is reached, the
remainder is automatically severed for a
flush finish
UNIFOX cable binder tools for plastic
and high-grade steel cable binders
367
PHOENIX CONTACT
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Screw pliers, with rapid adjustment for wrench size 10-36mm,
260mm
UNIFOX-WRENCH 1212835 1
new
– Screw wrench and pliers in one: zero-play
grip and secure screwing of screws and
nut areas
– Smooth jaws prevent the usual damage to
screws and nuts from wrenches and pipe
wrenches
– With quick-snap ratchet infeed for rapid
adjustment to the workpiece without
push button
UNIFOX screw pliers
Tools - TOOL fox
Hand tools
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Blind rivet pliers
black UNIFOX-RVT M 1212476 1
Rivet, aluminum/steel,
rivetdiameter/length
2.4/8mm,forUW 4... terminal blocks silver RVT-AL/ST 2,4L/8 3240548 500
3/6mm silver RVT-AL/ST 3/6 3240504 500
3/8mm silver RVT-AL/ST 3/8 3240505 500
3/10mm silver RVT-AL/ST 3/10 3240506 500
3/12mm, for UW 10..., UW 16..., and RW 5...
terminal blocks
silver RVT-AL/ST 3/12 3240507 500
3.2/6mm silver RVT-AL/ST 3,2/6 3240509 500
3.2/8mm silver RVT-AL/ST 3,2/8 3240510 500
3.2/10mm silver RVT-AL/ST 3,2/10 3240511 500
3.2/12mm silver RVT-AL/ST 3,2/12 3240512 500
4/6mm silver RVT-AL/ST 4/6 3240513 500
4/8mm silver RVT-AL/ST 4/8 3240514 500
4/10mm silver RVT-AL/ST 4/10 3240515 500
4/12mm silver RVT-AL/ST 4/12 3240516 500
4/14mm, for UW 25... and RW 8... terminal blocks silver RVT-AL/ST 4/14 3240517 500
4.8/6mm silver RVT-AL/ST 4,8/6 3240518 500
4.8/8mm silver RVT-AL/ST 4,8/8 3240519 500
4.8/10mm silver RVT-AL/ST 4,8/10 3240520 500
4.8/12mm silver RVT-AL/ST 4,8/12 3240521 500
4.8/14mm silver RVT-AL/ST 4,8/14 3240553 500
4.8/16mm silver RVT-AL/ST 4,8/16 3240522 500
Accessories Accessories
Rivet nozzle, long, specially designed for 3240548 rivet
UNIFOX-RVT M/BIT 2,4L 1212477 1
368
PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Blind rivet pliers Blind riveting with diameters of 2.4 to 5mm
– Compact, ergonomically shaped pliers
– 3 inserts for rivet diameter of 2.4–
3.2mm, 4mm, and 4.8–5.0mm
– Special rivets are available for fixing RW...
and UW... high-current panel feed-
through terminal blocks that are
specifically designed for terminal blocks
UNIFOX universal tools
For further information and full technical data, visit phoenixcontact.net/products
Technical data
Dimensions Width Length Height
[mm] - 245 -
General data
Weight [kg] 0.43
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable duct cutter
black CUTFOX-CD 1212474 1
– Easy, burr-free cutting with minimum
effort, thanks to the special cutting
geometry and optimum leverage
– Non-slip ergonomic grip
– With spring reset
– 45° limit stop
– 75mm cutting width
Cable duct cutter
Tools - TOOL fox
Hand tools
Technical data
Dimensions Width Length Height
[mm] 285 280 290
General data
Length of the measuring bar [mm] 1000
Length of the hand lever [mm] 500
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable duct cutters
black PPS CD M 1207569 1
Accessories
Replacement blade, for PPSCDM
PPS CD BLADE 1207572 1
Replacement counter support (grip protection), for PPSCDM
PPS CD M COHO 1208995 1
Workbench, with plywood panel 700x1200x50mm, without
mounting screws and bore holes
PPS TABLE 1206285 1
369
PHOENIX CONTACT
– Leverage and special cutting geometry
enables easy, burr-free cutting with
minimum effort
– Grip protection for safety
– Metric measuring rail with adjustable limit
stop
– 125mm cutting width
– Material thickness of up to 2.5mm
Cable duct cutters
Technical data
Dimensions Width Length Height
[mm] 150 60 180 180 100 220 250 100 230
General data
Weight [kg] 8.3
Length of the measuring bar [mm] 1000
Length of the hand lever [mm] 590
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Profile cutter, for cutting standard DIN rails to length,
NS15/NS35/7,5/NS35/15 and for cutting the NLS–CU3/10
neutral busbar to length, with inch/metric measuring rail
black PPS BASIC I/M 1207585 1
Profile cutter, for cutting and stamping holes in standard DIN rails,
NS15/NS32/NS35/7,5/NS35/15, and for cutting the NLS–
CU3/10 neutral busbar to length, can accommodate 2 stamping
bits, with metric measuring rail, supplied without stamping bits
black
Same as before, but with inch/metric measuring
rail
black
Profile cutter, for cutting and stamping holes in standard DIN rails,
NS15/NS32/NS35/7,5/NS35/15, and for cutting the NLS–
CU3/10 neutral busbar to length, can accommodate 2 stamping
bits, stamping bits are easily interchangeable, with metric
measuring rail, supplied without stamping bits
black
Same as before, but with inch/metric measuring
rail
black
Accessories
Stamping insert, for elongated holes, longitudinal:
3.5 x 12 mm
4.5 x 12 mm
5.5 x 12 mm
6.5 x 15 mm
Stamping insert, for elongated holes, traverse:
3.5 x 12 mm
4.5 x 12 mm
5.5 x 12 mm
6.5 x 15 mm
Stamping bit, for bore holes
3.8 mm Ø
4.3 mm Ø
5.3 mm Ø
6.4 mm Ø
7.0 mm Ø
8.4 mm Ø
Hydraulic cylinder, for connection to an existing hydraulic system,
operating pressure of 160–220bar, G1/4" connection thread, with
spring reset
Workbench, with plywood panel 700x1200x50mm, without
mounting screws and bore holes
PPS TABLE 1206285 1
370
PHOENIX CONTACT
Profile cutters
– The PPSBASICI/M is the lightweight
version of the profile cutters. It can
process the common EN DIN rails
NS35/15, NS35/7,5 and NS15, and the
NLS-CU3/10 neutral busbar
– The PPSSTANDARD... and
PPSCLASSIC... can be equipped with
two stamping bits for round holes or
elongated holes
– The PPSCLASSIC... is the best choice if
hole formats are changed on a frequent
basis. By simply folding open the upper
part of the PPS..., the stamping bits can be
changed in no time at all
Tools - TOOL fox
Hand tools
DIN rail cutter DIN rail cutter with bore hole die DIN rail cutter with piercer and quick change
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Width Length Height Width Length Height
150 60 180 180 100 220 250 100 230
19 19
1000 1000
1000 1000
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PPS STANDARD M 1206175 1
PPS STANDARD I/M 1206230 1
PPS CLASSIC M 1206243 1
PPS CLASSIC I/M 1206256 1
Accessories Accessories
PPS-ST (3,5X12)L 1203563 1PPS-ST (3,5X12)L 1203563 1
PPS-ST (4,5X12)L 1203534 1PPS-ST (4,5X12)L 1203534 1
PPS-ST (5,5X12)L 1202603 1PPS-ST (5,5X12)L 1202603 1
PPS-ST (6,5X15)L 1202593 1PPS-ST (6,5X15)L 1202593 1
PPS-ST (3,5X12)Q 1203550 1PPS-ST (3,5X12)Q 1203550 1
PPS-ST (4,5X12)Q 1203547 1PPS-ST (4,5X12)Q 1203547 1
PPS-ST (5,5X12)Q 1203411 1PPS-ST (5,5X12)Q 1203411 1
PPS-ST (6,5X15)Q 1203408 1PPS-ST (6,5X15)Q 1203408 1
PPS-ST (3,8) 1204892 1PPS-ST (3,8) 1204892 1
PPS-ST (4,3) 1202616 1PPS-ST (4,3) 1202616 1
PPS-ST (5,3) 1202629 1PPS-ST (5,3) 1202629 1
PPS-ST (6,4) 1202632 1PPS-ST (6,4) 1202632 1
PPS-ST (7,0) 1204889 1PPS-ST (7,0) 1204889 1
PPS-ST (8,4) 1202726 1PPS-ST (8,4) 1202726 1
PPS HYDRAULIC CYL 1208924 1
PPS TABLE 1206285 1PPS TABLE 1206285 1
371PHOENIX CONTACT
Tools - TOOL fox
Hand tools
DIN rail cutter DIN rail cutter with bore hole die DIN rail cutter with piercer and quick change
mechanism
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Electronic diagonal cutter, round head, with chamfer, with
opening spring
MICROFOX-SB 1212489 1
Electronic diagonal cutter, tapered head, angled (21°), without
chamfer, with opening spring
MICROFOX-SP 1212488 1
Electronic diagonal cutter, tapered head, without chamfer, with
opening spring, non-reflective phosphate-treated surface, punched
version
MICROFOX-SP-1 1212487 1
Electronic front cutter, without chamfer, with opening spring
MICROFOX-E 1212494 1
Electronic front cutter, 20° angle, without chamfer, with opening
spring
MICROFOX-EO 1212495 1
– Various head shapes, even for areas that
are difficult to access
– Precision-ground for exact cutting
applications with minimum effort
– Mirror-polished and oiled metal surfaces
– Additional inductive hardened cutting for
long-term, stable cutting performance
Notes:
Technical data regarding cutting capacity, see
phoenixcontact.net/products
MICROFOX electronics pliers
Tools - TOOL fox
Hand tools
Diagonal cutter, with chamfer Front cutter
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Electronic needle-nose pliers, smooth grip, with opening spring
MICROFOX-P 1212491 1
Electronic needle-nose pliers, 45° angle, smooth grip, with
opening spring
MICROFOX-PC 1212492 1
Electronic flat-nose pliers, smooth grip, with opening spring
MICROFOX-F 1212493 1
Electronic round-nose pliers, smooth grip, with opening spring
MICROFOX-R 1212490 1
372
PHOENIX CONTACT
– Ergonomically designed two-component
grip for fatigue-proof and non-slip use
– Opening spring for uniform, smooth
opening
– Through-connected joint for permanent
stability and optimum distribution of
force
– Smooth grip to prevent damage to
components when gripping and bending
MICROFOX electronic pliers
Needle-nose pliers Flat/round-nose pliers
ESD
ESD
ESD
ESD
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ESD electronic diagonal cutter, round head, without chamfer,
with opening spring
MICROFOX-S ESD 1212480 1
ESD electronic front cutter, without chamfer, with opening spring
MICROFOX-E ESD 1212485 1
– Mirror-polished and phosphate-treated
metal surfaces for optimum corrosion
protection and no glare when working
– Various head shapes, even for areas that
are difficult to access
– Screwed precision-joint
– Precision-ground for exact cutting
applications
Notes:
Technical data regarding cutting capacity, see
phoenixcontact.net/products
MICROFOX ESD electronics pliers
Tools - TOOL fox
Hand tools
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ESD electronic needle-nose pliers, smooth grip, with opening
spring
MICROFOX-P ESD 1212482 1
ESD electronic needle-nose pliers, 45° angle, smooth grip, with
opening spring
MICROFOX-PC ESD 1212483 1
ESD electronic flat-nose pliers, smooth grip, with opening spring
MICROFOX-F ESD 1212484 1
ESD electronic round-nose pliers, smooth grip, with opening
spring
MICROFOX-R ESD 1212481 1
373
PHOENIX CONTACT
– Special conductive, ESD-compliant
plastics according to, for example: DIN
EN 61340-5
– Ergonomically designed two-component
handles for fatigue-proof and non-slip use
– Opening spring for uniform, smooth
opening
– Smooth grip to prevent damage to
components when gripping and bending
MICROFOX ESD electronic pliers
Technical data Technical data
Conductor/cable stripping range
Conductor / cable [mm²] / AWG 0.08 - 2.5 / 28 - 12 0.1 - 4 / 28 - 12
Stripping length up to ... [mm] 15 18
Wire cutter solid // stranded [mm²] / AWG 2.5 / 14 // 6 / 10 1.5 / 16 // 10 / 8
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Stripping tool, angled design, for cables and conductors with a
cross section of 0.08mm – 2.5mm², self-adjusting, stripping length
of up to 15mm, cutting capacity: solid up to 2.5mm², stranded up
to 6mm²
black WIREFOX 2,5 1212368 1
Stripping tool, angled shape, for cables and conductors
(specifically also intended for
rubber and other kinds of special insulation) from 0.1mm – 4mm²,
self-adjusting, stripping length of up to 18mm, cutting capacity:
solid up to 1.5mm², stranded up to 10mm²
Black/green WIREFOX-E 4 1212704 1
Stripping tool, angled shape, for cables and conductors
(specifically also intended for
short-circuit-proof cables) from 1.5mm – 6mm², self-adjusting,
stripping length of up to 18mm, cutting capacity: solid up to
1.5mm², stranded up to 10mm²
Black/green
Stripping tool, angled design, for cables and conductors from
0.02mm – 10mm², self-adjusting, stripping length of up to 18mm,
cutting capacity: solid up to 1.5mm², stranded up to 10mm²
Black/green
Stripping tool, angled design, for cables and conductors from
4mm – 16mm², self-adjusting, stripping length of up to 18mm,
cutting capacity: solid up to 1.5mm², stranded up to 10mm²
Black/green
Accessories Accessories
Replacement blade cartridge
WIREFOX 2,5/SB 1212369 1WIREFOX 4/SB 1212151 1
Spare limit stop
WIREFOX 2,5/WS 1212370 1
374
PHOENIX CONTACT
0.08 - 2.5 mm² conductor cross section Conductor cross section of 0.1 - 4 mm² for
special conductors
– Ergonomically shaped pliers
– WIREFOX... stripping pliers feature an
automatic adjustment mechanism for a
wide range of different types of insulation
and conductor sizes
– Practical integrated wire cutter
– Flexible, adjustable conductor limit stop
– The blade cartridges can be replaced
quickly and easily and can be combined
with one another
WIREFOX stripping tools
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
1.5 - 6 / 16 - 8 0.02 - 10 / 34 - 8 4 - 16 / 12 - 5
18 18 18
1.5 / 16 // 10 / 8 1.5 / 16 // 10 / 8 1.5 / 16 // 10 / 8
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WIREFOX-E 6SC 1212705 1
WIREFOX-E 10 1212706 1
WIREFOX-E 16 1212707 1
Accessories Accessories Accessories
WIREFOX 6SC/SB 1212314 1WIREFOX 10/SB 1212152 1WIREFOX 16/SB 1212153 1
375PHOENIX CONTACT
Conductor cross section of 1.5 - 6 mm² for
short-circuit-proof cables
0.02 - 10 mm² conductor cross section 4 - 16 mm² conductor cross section
Tools - TOOL fox
Hand tools
Technical data
Conductor/cable stripping range
Conductor / cable [mm²] / AWG 0.1 - 4 / 28 - 12
Stripping length up to ... [mm] 18
Wire cutter solid // stranded [mm²] / AWG 1.5 / 16 // 10 / 8
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Stripping tool, for cables and conductors (specifically also
intended for rubber and other kinds of special insulation) with a
cross section of 0.1–4mm², self-adjusting, stripping length of up
to 18mm, cutting capacity: solid up to 1.5mm², stranded up to
10mm²
Black/green WIREFOX 4 1212156 1
Stripping tool, for lines and conductors (specially for short-circuit-
proof lines) of 1.5 - 6mm², self-adjusting, stripping length of up to
18mm, cutting capacity: solid up to 1.5mm², stranded up to
10mm²
Black/green
Stripping tool, for 0.02-10mm² cables and conductors, self-
adjusting, stripping length up to 18mm, cutting capacity: solid up to
1.5mm², stranded up to 10mm²
Black/green
Stripping tool, for wires and conductors of 4 - 16mm², self-
aligned, stripping length up to 18mm, cutting capacity: Solid up to
1.5mm², stranded up to 10mm²
Black/green
Accessories
Replacement blade cartridge
WIREFOX 4/SB 1212151 1
376
PHOENIX CONTACT
WIREFOX stripping tools
– Ergonomically shaped pliers
– Anti-slip handle design provides a safe and
comfortable grip
– WIREFOX... stripping pliers feature an
automatic adjustment mechanism for a
wide range of different types of insulation
and conductor sizes
– Practical integrated wire cutter
– Highly adjustable limit stop for the
stripping length
– The blade cartridges can be replaced
quickly and easily and can be combined
with one another
Tools - TOOL fox
Hand tools
Conductor cross section 0.1 - 4 mm² for
special conductors
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
1.5 - 6 / 16 - 8 0.02 - 10 / 34 - 8 4 - 16 / 12 - 5
18 18 18
1.5 / 16 // 10 / 8 1.5 / 16 // 10 / 8 1.5 / 16 // 10 / 8
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WIREFOX 6SC 1212158 1
WIREFOX 10 1212150 1
WIREFOX 16 1212155 1
Accessories Accessories Accessories
WIREFOX 6SC/SB 1212314 1WIREFOX 10/SB 1212152 1WIREFOX 16/SB 1212153 1
377PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Conductor cross section of 1.5 - 6 mm² for
short-circuit-proof cables
0.02 - 10 mm² conductor cross section 4 - 16 mm² conductor cross section
Technical data Technical data
Conductor/cable stripping range
Conductor / cable [mm²] / AWG 6 - 16 / 10 - 5 - / -
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Stripping pliers, for cables and conductors with a cross section of
6–16mm², self-adjusting, any stripping length, also suitable for
sensor/actuator cables
black WIREFOX 16-1 1212157 1
Stripping pliers, for halogen-free sensor/actuator cables (SAC
cables), with PUR and PVC insulation, for diameters from 4.4mm
to 7mm, any stripping length
black WIREFOX SAC 1212623 1
Stripping pliers, for halogen-free sensor/actuator cables (SAC
cables), with PUR and PVC insulation, from 3.2mm to 4.4mm
diameter, any stripping length
black WIREFOX SAC-1 1212757 1
Stripping pliers, for removing jackets from cables for cable
cutouts, cable tap-offs, and shield connections with a diameter of
8-9mm, insulation thickness of up to 1.2mm, stripping lengths of
20mm and above
black WIREFOX-D SHIELD 1212172 1
Stripping pliers, for 0.75-2.5mm² flat cables up to 15mm wide,
any stripping length
black
Stripping pliers, for AS interface flat wires, any desired stripping
length
black
Stripping pliers, for stripping conductors with a cross section of
up to 10mm², VDE-tested
black
Multifunction stripping tool, for removing the jacket from cables
with a diameter of 8 to 13mm, for stripping cables with a cross
section of 0.2 to 10mm², with full-fledged diagonal cutter,
VDE1000VAC/1500VDC tested
black
Accessories Accessories
Spare knife
WIREFOX 16-1/SB 1204944 1
378
PHOENIX CONTACT
For sensor/actuator cables (SAC cables) For both shielded and unshielded cables For flat cables Conductor cross section of 0.2
– WIREFOX... stripping pliers feature an
automatic adjustment mechanism for a
wide range of different types of insulation
and conductor sizes
– Special blade geometries for various
applications
– Precise and clean stripping results
– Any stripping lengths possible, thanks to
the special design of the pliers
WIREFOX stripping tools
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
0.75 - 2.5 / 18 - 12 0.2 - 10 / 24 - 8 0.2 - 10 / 24 - 8
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WIREFOX FC 1212619 1
WIREFOX ASI 1212154 1
WIREFOX 10 VDE 1212366 1
WIREFOX-MP VDE 1212528 1
Accessories Accessories Accessories
WIREFOX ASI/SB 1208076 1
379PHOENIX CONTACT
unshielded cables For flat cables Conductor cross section of 0.2-10mm² (VDE) Multifunctional tool
Tools - TOOL fox
Hand tools
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Stripping tool, for stripping multicore signal, control and fiberglass
wires of 2.5–11-mm–Ø, insulation thickness up to 1mm
black WIREFOX-D 11 1212160 1
Stripping tool, for stripping installation wires with 8 - 13mm–Ø, for
example, NYM3x1.5mm² to NYM5x2.5mm², single-wire
stripping, 0.2 - 4mm², with blade for lateral cutting and extendable
knife
black
Stripping tool, for stripping wires (especially fiber optics wires) of
4–16–mm–Ø
black
Stripping tool, for stripping wires of 8–28–mm–Ø
black
Stripping tool, for stripping conductors of 4.5–40–mm–Ø,
insulation strength up to 4.5mm, swiveling knife for round,
longitudinal and spiral cuts
black
Accessories
Spare knife
WIREFOX-D 11/SB 1212312 1
380
PHOENIX CONTACT
WIREFOX stripping tools
– Large selection of precision stripping
tools
– The right tool for every application
– Possible to strip conductors and cables
with all kinds of insulation up to a
diameter of 40mm
– The blades are precision-ground and are
designed for long-term stable use
– Quick, easy, and reliable to use
Tools - TOOL fox
Hand tools
Conductor diameter of 2.5-11mm Conductor diameter of 8
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WIREFOX-D 13 1212162 1
WIREFOX-D 16 1212173 1
WIREFOX-D 28 1212174 1
WIREFOX-D 40 1212161 1
Accessories Accessories
WIREFOX-D 40/SB 1212313 1
381PHOENIX CONTACT
Tools - TOOL fox
Hand tools
mm Conductor diameter of 8-13mm Conductor diameter of 4.5-40mm
l1 l3
l1 l2 l3
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Stripping tool, for coaxial cables from 2.5–7.6 mm Ø, I3 =
variable
2-stage, setting dimension l1=6.0mm black WIREFOX-D CX-1 1212163 1
2-stage, setting dimension l1=9.2mm black WIREFOX-D CX-2 1212164 1
2-stage, setting dimension 1=12mm black WIREFOX-D CX-3 1212165 1
2-stage, setting dimension l1=6.8mm black WIREFOX-D CX-4 1212166 1
3-stage, setting dimension l1= 5.5mm,
l2= 5.5mm
black WIREFOX-D CX-5 1212167 1
3-stage, strip-off dimension l1= 8.3mm,
l2= 2.7mm
black WIREFOX-D CX-6 1212168 1
3-stage, setting dimension l1= 6.0mm,
l2= 6.0mm
black WIREFOX-D CX-7 1212169 1
3-stage, strip-off dimension l1= 6.8mm,
l2= 2.5mm
black WIREFOX-D CX-8 1212170 1
3-stage, strip-off dimension l1= 7.5mm,
l2= 3.5mm
black WIREFOX-D CX-9 1212171 1
Stripping tool, for standard 2.5, 4, and 6mm² solar cables, with
15mm length stop, for SUNCLIX field connectors
black
Stripping tool, for 2.5-6mm² solar cables, 8.5mm stripping
length, for MC3, MC4 and SOLARLOK contacts
black
Stripping tool, for CATV type F, stripping length: 6.35mm
black
Accessories
Spare knife
WIREFOX-D CX-1/SB 1212303 1
WIREFOX-D CX-2/SB 1212304 1
WIREFOX-D CX-3/SB 1212305 1
WIREFOX-D CX-4/SB 1212306 1
WIREFOX-D CX-5/SB 1212307 1
WIREFOX-D CX-6/SB 1212308 1
WIREFOX-D CX-7/SB 1212309 1
WIREFOX-D CX-8/SB 1212310 1
WIREFOX-D CX-9/SB 1212311 1
382
PHOENIX CONTACT
WIREFOX stripping tools
– Large selection of precision stripping
tools
– The right tool for every application
– Possible to strip conductors and cables
with all kinds of insulation up to a
diameter of 40mm
– Easy to use
– Use of high-quality components for
durability
Tools - TOOL fox
Hand tools
For coaxial cables, conductor diameter
of 2.5-7.6mm
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WIREFOX-D SR 6-1 1212511 1
WIREFOX-D SR 6 1212507 1
WIREFOX-D CX 6,35 1212733 1
Accessories Accessories
383PHOENIX CONTACT
new
Tools - TOOL fox
Hand tools
For solar cables, conductor cross section of
2.5-6mm²
For coaxial cables, RG 59 and RG 6
Technical data
Dimensions Width Length Height
[mm] 43 205 70
General data
Weight [kg] 0.43
Conductor [mm²] / AWG - 1 / -
Working cycle [s] < 2
Compression Square crimp
Ordering data
Description Type Order No. Pcs. /
Pkt.
Portable hand-held machine, battery-powered, for ferrules,
1.0mm², incl. battery and charger, 100-240V, in a robust case
For standard PVC conductors (class 5) CF CRIMPHANDY 1,0 1212465 1
Accessories
Reel ferrules, 1.0mm², 8mm, with plastic sleeve, according to
DIN46228-4, 50pieces per strip, 20strips per unit pack
Red, according to DIN 46228-4 and NF C 63-023: 1994-02 AI 1,0-8 RD-S 1212523 1000
Yellow, special color, according to DIN 46228-4 and NF C 63-023:
1994-02
AI 1,0-8 YE-S 1212782 1000
Replacement battery, for CFCrimphandy..., Li-ion 7.4V, 0.68Ah
CF CRIMPHANDY/ACCU 1212518 1
Replacement charger, for CFCRIMPHANDY..., 100-240V AC
CF CRIMPHANDY/CHARGER 1212519 1
Receptacle tray for CF-CRIMPHANDY
CF CRIMPHANDY/COVER 1212709 1
Replacement service tool, for CF-CRIMPHANDY 1.0
CF CRIMPHANDY 1,0/SERVICE-TOOL 1212759 1
384
PHOENIX CONTACT
The product innovation for switchgear
manufacturing – the Crimphandy. You can
strip and crimp your conductors in under
two seconds using this portable hand-held
device – in 75% less time than before.
– The Crimphandy impresses with its easy,
effortless handling, which helps protect
your joints and tendons
– The compact lightweight tool is ideal for
mobile use in the field. Up to 2000
crimping operations can be performed,
thanks to the high-performance lithium-
ion polymer battery
– Automatic cross section monitoring
prevents faulty crimping as a result of
incorrect conductor sizes
– The attachable waste receptacle catches
the discarded insulation and thereby helps
to ensure a clean working environment
CRIMPHANDY, portable hand-held
machine, for a 1.0mm conductor
cross section
Tools - TOOL fox
Hand tools
1.0mm² conductor cross section
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
For further information and full technical data, visit phoenixcontact.net/products
Technical data
Dimensions Width Length Height
[mm] 43 205 70
General data
Weight [kg] 0.43
Conductor [mm²] / AWG - 1.5 / -
Working cycle [s] < 2
Compression Square crimp
Ordering data
Description Type Order No. Pcs. /
Pkt.
Portable hand-held machine, battery-powered, for ferrules,
1.5mm², incl. battery and charger, 100-240V, in a robust case
For standard PVC conductors (class 5) CF CRIMPHANDY 1,5 1212466 1
Accessories
Reel ferrules, 1.5mm², 8mm, with plastic sleeve, according to
DIN46228-4, 50pieces per strip, 20strips per unit pack
Black, according to DIN 46228-4 and NF C 63-023: 1994-02 AI 1,5-8 BK-S 1212524 1000
Red, special color, according to DIN 46228-4 and NF C 63-023:
1994-02
AI 1,5-8 RD-S 1212781 1000
Replacement battery, for CFCrimphandy..., Li-ion 7.4V, 0.68Ah
CF CRIMPHANDY/ACCU 1212518 1
Replacement charger, for CFCRIMPHANDY..., 100-240V AC
CF CRIMPHANDY/CHARGER 1212519 1
Receptacle tray for CF-CRIMPHANDY
CF CRIMPHANDY/COVER 1212709 1
Service tool, for CF-CRIMPHANDY 1,5, for rectifying malfunctions
CF CRIMPHANDY 1,5/SERVICE-TOOL 1212708 1
385PHOENIX CONTACT
The product innovation for switchgear
manufacturing – the Crimphandy. You can
strip and crimp your conductors in under
two seconds using this portable hand-held
device – in 75% less time than before.
– Ferrules are automatically fed in, in strip
form, via the integrated magazine,
enabling multiple conductors to be
crimped one after another without
interruption
– The sleeves can be reloaded within a
matter of seconds. The special sleeves
with function end prevent incorrect
insertion
The square crimp mold is ideal for the
terminal blocks from the CLIPLINE
complete system
– UT... screw connection terminal blocks
– ST... spring-cage connection terminal
blocks
– PT... push-in connection terminal blocks
– COMBI plug-in connection solutions
CRIMPHANDY, portable hand-held
machine, for a 1.5mm conductor
cross section
Tools - TOOL fox
Hand tools
1.5mm² conductor cross section
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
Application range
Conductor [mm²] / AWG 0.5 - 2.5 / 20 - 14 - / -
Compression
Description
Tool for processing ferrules with cutting, stripping, twisting, and
crimping unit, with one magazine
Tool for processing ferrules with cutting, stripping, twisting, and
crimping unit, with three magazines, including one strip each of
ferrules from 0.5 mm²-2.5mm², packaged in a robust plastic case
Taped ferrules, 0.5mm², sleeve length: 8mm, with plastic collar,
according to DIN 46228-4, white, for processing with the
CRIMPFOX 4 IN 1, 10 strips each with 50 sleeves per strip
10 strips each with 40 sleeves per strip blue
Ferrule magazine for CRIMPFOX 4 IN 1, for ferrules with
insulating collars from 0.5-2.5mm with a length of 8mm
386
PHOENIX CONTACT
– The multi-functional CRIMPFOX 4 IN 1
crimping pliers are used to process taped
ferrules according to DIN 46228-4
– 4 functions combined in a single tool:
cutting, stripping, twisting, and crimping
– An effective handling process enables all
steps to be performed without putting
the tool down
– Fitted with a releasing pressure lock, the
pliers provide consistently high-quality
crimping and are therefore ideal for
industrial use
– The robust stripping unit with its special
blade geometry provides permanently
consistent stripping results
– Length and cross section settings are not
necessary
– In order to re-establish the twist which is
lost during the stripping process, a
twisting system is included
– The cross section can be conveniently
changed in a matter of seconds by
replacing the magazine which is loaded
with taped product
CRIMPFOX 4 IN 1 multi-functional
crimping pliers
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Conductor [mm²] / AWG 0.5 - 2.5 / 20 - 14 - / -
Indent crimp -
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX 4 IN 1 1200101 1
CRIMPFOX 4 IN 1 SET 1200102 1
AI 0,5-8 WH S1 1200104 500
AI 0,75-8 GY S1 1200105 500
AI 1,0-8 RD S1 1200106 500
AI 1,5-8 BK S1 1200107 500
AI 2,5-8 BU S1 1200108 400
Accessories Accessories
CRIMPFOX 4 IN 1/MAG 1200103 1
387PHOENIX CONTACT
new
new
Tools - TOOL fox
Hand tools
Multi-functional ferrule crimping pliers Conductor cross section of 0.5-2.5mm²
Technical data
Application range
Conductor [mm²] / AWG 0.25 - 2.5 / 24 - 12
Compression Trapezoidal crimp
Ordering data
Description Type Order No. Pcs. /
Pkt.
Crimping pliers, compact pliers, for ferrules according to DIN
46228-1 and DIN 46228-4, unlockable pressure lock, lateral entry
CRIMPFOX 2,5-M 1212719 1
Crimping pliers, for ferrules as per DIN 46228-1 and DIN 46228-4,
five marked die stations, pressure lock can be released, lateral
entry
Crimping pliers, compact pliers, for ferrules according to DIN
46228-1 and DIN 46228-4, unlockable pressure lock, lateral entry
Crimping pliers, compact pliers, for ferrules according to DIN
46228-1 and DIN 46228-4, unlockable pressure lock, lateral entry
Accessories
Replacement die
Replacement recuperating spring
CRIMPFOX/ SPR-1 1212069 1
388
PHOENIX CONTACT
CRIMPFOX crimping pliers for
ferrules
– Extensive range of crimping pliers
– All ferrules can be optimally crimped with
a minimum amount of effort even in the
case of large conductor cross sections
– Consistently high crimping quality thanks
to the integrated pressure lock
– Marked die stations for precise
processing of corresponding cross
sections
Tools - TOOL fox
Hand tools
0.25-2.5mm² conductor cross section Conductor cross section of 0.25
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
0.25 - 6 / 24 - 10 0.25 - 6 / 24 - 10 4 - 10 / 12 - 8
Trapezoidal crimp Trapezoidal crimp Trapezoidal crimp
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX 6 1212034 1
CRIMPFOX 6-M 1212720 1
CRIMPFOX 10 1212721 1
Accessories Accessories Accessories
CRIMPFOX 6/DIE 1212035 1
CRIMPFOX/ SPR-3 1212036 1CRIMPFOX/ SPR-1 1212069 1CRIMPFOX/ SPR-1 1212069 1
389PHOENIX CONTACT
Tools - TOOL fox
Hand tools
mm² conductor cross section Conductor cross section of 0.25-6mm² 0.25 - 6 mm² conductor cross section 4 - 10 mm² conductor cross section
Technical data
Application range
Conductor [mm²] / AWG 0.25 - 6 / 24 - 10
Compression Trapezoidal crimp
Ordering data
Description Type Order No. Pcs. /
Pkt.
Crimping pliers, for ferrules as per DIN 46228-1 and DIN 46228-4,
self-adjusting die, pressure lock can be released, lateral entry
CRIMPFOX 6T 1212037 1
Crimping pliers, for ferrules as per DIN 46228-1 and DIN 46228-4,
self-adjusting die, pressure lock can be released, front entry
Crimping pliers, for ferrules as per DIN 46228-1 and DIN 46228-4,
self-adjusting die, pressure lock can be released, front entry
Accessories
Replacement recuperating spring
CRIMPFOX/ SPR-1 1212069 1
390
PHOENIX CONTACT
CRIMPFOX crimping pliers for
ferrules
– Extensive range of crimping pliers
– All ferrules can be optimally crimped with
a minimum amount of effort even in the
case of large conductor cross sections
– Consistently high crimping quality, thanks
to the integrated pressure lock
C R I M P F O X 6 T- F
– Self-adjusting die automatically adapts to
the connector size
– Bound to impress, thanks to the quick and
reliable contact processing method
– Ergonomically designed handles ensure an
optimum grip and help avoid fatigue when
working
Tools - TOOL fox
Hand tools
Conductor cross section of 0.25-6mm² Conductor cross section of 0.25
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
0.25 - 6 / 24 - 10 0.5 - 6 / 20 - 10
Trapezoidal crimp Square crimp
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX 6T-F 1212038 1
CRIMPFOX 6S-F 1212043 1
Accessories Accessories
CRIMPFOX/ SPR-1 1212069 1CRIMPFOX/ SPR-3 1212036 1
391PHOENIX CONTACT
Tools - TOOL fox
Hand tools
mm² Conductor cross section of 0.25-6mm² Conductor cross section of 0.5-6mm²
Technical data Technical data
Application range
Conductor [mm²] / AWG 0.14 - 10 / 25 - 7 0.14 - 6 / 25 - 10
Compression Square crimp HEX crimp
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers, for ferrules as per DIN46228, 0.14–10 mm²,
pressure lock can be released, lateral entry
CRIMPFOX 10S 1212045 1
Crimping pliers, for ferrules as per DIN46228, 0,14–6 mm²,
pressure lock can be released, lateral entry
CRIMPFOX 6H 1212046 1
Accessories Accessories
Replacement recuperating spring
CRIMPFOX/SPR-2 1212047 1CRIMPFOX/SPR-2 1212047 1
392
PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Conductor cross section of 0.14-10mm² Conductor cross section of 0.14-6mm²
– These compact crimping pliers have been
designed to reduce effort when working
– Self-adjusting die automatically adapts to
the connector size
Notes:
For corresponding ferrules, see from page 444.
CRIMPFOX crimping pliers for
ferrules
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Application range
Conductor [mm²] / AWG 10 - 25 / 8 - 4 35 - 50 / 2 - 1
Compression WM crimp WM crimp
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers, for ferrules as per DIN 46228-1 and DIN 46228-4,
three marked die stations, pressure lock can be released, lateral
entry
CRIMPFOX 25R 1212039 1
Crimping pliers, for ferrules as per DIN 46228-1 and DIN 46228-4,
two marked die stations, pressure lock can be released, lateral
entry
CRIMPFOX 50R 1212041 1
Accessories Accessories
Replacement die
CRIMPFOX 25R/DIE 1212040 1CRIMPFOX 50R/DIE 1212042 1
Replacement recuperating spring
CRIMPFOX/ SPR-1 1212069 1CRIMPFOX/ SPR-1 1212069 1
393PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Conductor cross section of 10-25mm² Conductor cross section of 35-50mm²
– These crimping pliers can be used to
process ferrules measuring up to 50mm
– Ergonomically designed handles ensure an
optimum grip and reduce the amount of
force required by 25 percent
Notes:
For corresponding ferrules, see from page 444.
CRIMPFOX crimping pliers for
ferrules
Technical data Technical data
Application range
Conductor [mm²] / AWG 0.14 - 1 / 26 - 18 0.5 - 2.5 / 20 - 14
Compression Oval crimp Oval crimp
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers, for insulated cable lugs (light green, red), three
marked die stations, pressure lock can be released, lateral entry
CRIMPFOX-RCI 1 1212055 1
Crimping pliers, compact pliers, for insulated cable lugs (light
green, red), three marked die stations, unlockable pressure lock,
lateral entry
CRIMPFOX-RCI 1-M 1212727 1
Crimping pliers, for insulated cable lugs (red, blue), two marked
die stations, pressure lock can be released, lateral entry
CRIMPFOX-RCI 2,5 1212053 1
Crimping pliers, compact pliers, for insulated cable lugs (red,
blue), two marked die stations, unlockable cable lug, lateral entry
CRIMPFOX-RCI 2,5-M 1212728 1
Crimping pliers, for insulated cable lugs symmetric (red, blue,
yellow), three marked die stations, pressure lock can be released,
lateral entry
Crimping pliers, compact pliers, for symmetrical insulated cable
lugs (red, blue, yellow), three marked die stations, unlockable
pressure lock, lateral entry
Crimping pliers, compact pliers, for symmetrical insulated DIN
cable lugs (red, blue, yellow), three marked die stations, unlockable
pressure lock, lateral entry
black
Crimping pliers, for insulated cable lugs asymmetric (red, blue,
yellow), three marked die stations, pressure lock can be released,
lateral entry
black
Crimping pliers, compact pliers, for fully insulated shrink
connectors (red, blue, yellow), three marked die stations,
unlockable pressure lock, lateral entry
black
394
PHOENIX CONTACT
Conductor cross section of 0.14-1mm² Conductor cross section of 0.5 - 2.5 mm² Conductor cross section of 0.5
– Consistently high crimping quality, thanks
to the pressure lock. It is released as soon
as the required crimping pressure is
reached, therefore ensuring sufficient
pressure is applied
– The color coded dies clearly indicate the
cross section
Notes:
Suitable ferrules, cable lugs and flat connectors have been
documented, see from page 444.
For replacement dies and retaining springs, go to the product area
on the website at phoenixcontact.net/products.
CRIMPFOX crimping pliers for cable
lugs and connectors
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
0.5 - 6 / 20 - 10 0.5 - 6 / 20 - 10 0.5 - 6 / 20 - 10
Oval crimp Oval crimp Oval crimp
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX-RCI 6 1212057 1
CRIMPFOX-RCI 6-M 1212730 1
CRIMPFOX-RCI DIN 6 1212729 1
CRIMPFOX-RCI 6-1 1212059 1
CRIMPFOX-HS 6 1212722 1
395PHOENIX CONTACT
mm² Conductor cross section of 0.5 - 2.5 mm² Conductor cross section of 0.5-6mm² Conductor cross section of 0.5-6mm² Conductor cross section of 0.5-6mm²
Tools - TOOL fox
Hand tools
Technical data Technical data
Application range
Conductor [mm²] / AWG 0.35 - 2.5 / 22 - 14 0.5 - 6 / 20 - 10
Compression Indent crimp Indent crimp
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers, for non-insulated cable lugs, three marked die
stations, pressure lock can be released, lateral entry
CRIMPFOX-RC 2,5 1212063 1
Crimping pliers, compact pliers, for uninsulated cable lugs, three
marked die stations, unlockable pressure lock, lateral entry
CRIMPFOX-RC 2,5-M 1212723 1
Crimping pliers, compact pliers, for uninsulated cable lugs, two
marked die stations, unlockable pressure lock, lateral entry
CRIMPFOX-RC 6-M 1212724 1
Crimping pliers, for uninsulated cable lugs, two marked die
stations, unlockable pressure lock, lateral entry
Crimping pliers, for uninsulated cable lugs, three marked die
stations, unlockable pressure lock, lateral entry
396
PHOENIX CONTACT
Conductor cross section of 0.35 - 2.5 mm² Conductor cross section of 0.5-6mm² Conductor cross section of 0.5 - 6 mm² Conductor cross section of 4
– For processing non-insulated cable lugs
– Compact and lightweight design
– Unlockable pressure lock
– Marked die stations for precise
processing of the relevant cross sections
Notes:
Suitable ferrules, cable lugs and flat connectors have been
documented, see from page 444.
For replacement dies and retaining springs, visit
phoenixcontact.net/products
CRIMPFOX crimping pliers for non-
insulated cable lugs
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
0.5 - 6 / 20 - 10 4 - 10 / 12 - 8 10 - 25 / 8 - 4
Indent crimp Indent crimp Indent crimp
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX-RC 6 1212710 1
CRIMPFOX-RC 10 1212061 1CRIMPFOX-RC 25 1212065 1
397PHOENIX CONTACT
mm² Conductor cross section of 0.5 - 6 mm² Conductor cross section of 4-10mm² Conductor cross section of 10-25mm²
Tools - TOOL fox
Hand tools
Technical data Technical data
Application range
Conductor [mm²] / AWG 4 - 16 / 4 - 12 10 - 70 / 8 - 00
Compression Indent crimp Indent crimp
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers, for standard, uninsulated tube lugs, three marked
die stations
CRIMPFOX-RCT 16-1 1212731 1
Crimping pliers, for standard, uninsulated tube lugs, three marked
die stations, unlockable pressure lock, lateral entry, 10-25mm²
conductor cross section, crimping: HEX crimp
CRIMPFOX-RCT 25-1 1212066 1
Crimping pliers, for standard, uninsulated tube lugs, with rotatable
die, 5 stations, 10-70mm² conductor cross section
CRIMPFOX-RCT 70-1 1212732 1
398
PHOENIX CONTACT
Tools - TOOL fox
Hand tools
4 - 16 mm² conductor cross section 10 - 70 mm² conductor cross section
– For processing uninsulated tube lugs
– Consistently high crimping quality, thanks
to the integrated pressure lock
CRIMPFOX crimping pliers for
uninsulated tube lugs
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Basic pliers, with ratchet function, for accommodating dies for
various contacts
Up to 50mm² CRIMPFOX-C50 1212340 1
Two-hand operation of up to 120mm² CRIMPFOX-C120 1212318 1
Accessories Accessories
Upper part of die, for ferrules 50mm², 70mm², trapezoidal crimp
CRIMPFOX-C120 AI 70/M-DIE 1212335 1
For 95mm² CRIMPFOX-C120 AI 95/M-DIE 1212336 1
Lower part of die, for ferrules 50mm², trapezoidal crimp CRIMPFOX-C120 AI 50/F-DIE 1212337 1
For 70mm² CRIMPFOX-C120 AI 70/F-DIE 1212338 1
For 95mm² CRIMPFOX-C120 AI 95/F-DIE 1212339 1
Die (pair), for ferrules 120mm², trapezoid crimp CRIMPFOX-C120 AI 120/DIE 1209910 1
Die pair, for insulated cable lugs, 10mm², oval crimp
CRIMPFOX-C50 RCI 10/DIE 1212346 1CRIMPFOX-C120 RCI 10/DIE 1212327 1
For 16mm² CRIMPFOX-C50 RCI 16/DIE 1212347 1CRIMPFOX-C120 RCI 16/DIE 1212328 1
For 25mm² CRIMPFOX-C50 RCI 25/DIE 1212348 1CRIMPFOX-C120 RCI 25/DIE 1212329 1
For 35mm² CRIMPFOX-C120 RCI 35/DIE 1212330 1
Die upper part, for non-isolated cable lugs, (DIN46234) 6 -
35mm², indent crimp
CRIMPFOX-C50 RC 35/M-DIE 1212343 1
For 6 - 70mm² CRIMPFOX-C120 RC 70/M-DIE 1212331 1
Die lower part, for non-isolated cable lugs, 25mm², indent crimp CRIMPFOX-C50 RC 25/F-DIE 1212344 1
For 35mm² CRIMPFOX-C50 RC 35/F-DIE 1212345 1
For 10, 16, 25, 35mm² CRIMPFOX-C120 RC 35/F-DIE 1212332 1
For 6, 50mm² CRIMPFOX-C120 RC 50/F-DIE 1212333 1
For 10, 70mm² CRIMPFOX-C120 RC 70/F-DIE 1212334 1
Die (pair), for commercially available copper tubular cable lugs,
35mm², WM crimp
CRIMPFOX-C50 RCT 35-1/DIE 1212341 1
For 16, 35mm² CRIMPFOX-C120 RCT 35-1/DIE 1212320 1
For 50mm² CRIMPFOX-C50 RCT 50-1/DIE 1212342 1
For 25, 50mm² CRIMPFOX-C120 RCT 50-1/DIE 1212321 1
For 10, 70mm² CRIMPFOX-C120 RCT 70-1/DIE 1212319 1
For 95mm² CRIMPFOX-C120 RCT 95-1/DIE 1212322 1
For 120mm² CRIMPFOX-C120 RCT 120-1/DIE 1212323 1
Pre-round die (pair), for sector cable, 25, 35mm²
CRIMPFOX-C50 R25-35/DIE 1212349 1
For 35, 50mm² CRIMPFOX-C50 R35-50/DIE 1212350 1
For 50, 70mm² CRIMPFOX-C50 R50-70/DIE 1212351 1
For 25, 50mm² CRIMPFOX-C120 R25-50/DIE 1212324 1
For 35, 70mm² CRIMPFOX-C120 R35-70/DIE 1212325 1
For 95mm² CRIMPFOX-C120 R95/DIE 1212326 1
399PHOENIX CONTACT
Tools - TOOL fox
Hand tools
For dies up to 50mm² For dies up to 120mm²
– Universal crimping pliers up to 120mm
– Wide variety of available dies
– Easily foldable jaw holders mean that the
dies can be changed quickly
– A mechanical drive system keeps the level
of force required to an absolute minimum
Notes:
Suitable ferrules, cable lugs and flat connectors have been
documented, see from page 444.
For more dies, see phoenixcontact.net/products.
CRIMPFOX basic pliers, for
accommodating various crimp inserts
Technical data Technical data
Application range
Conductor [mm²] / AWG 0.1 - 1.5 / 26 - 16 0.1 - 1.5 / 26 - 16
Compression B crimp B crimp
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers, for 2.8/4.8/6.3mm non-insulated slip-on
sleeves, three marked die stations, unlockable pressure lock,
lateral entry
CRIMPFOX-SC 1,5 1212048 1
Crimping pliers, compact pliers, for uninsulated slip-on sleeves,
2.8/4.8/6.3mm, three marked die stations, unlockable pressure
lock, lateral entry
CRIMPFOX-SC 1,5-M 1212725 1
Crimping pliers, for 2.8/4.8/6.3mm non-insulated slip-on
sleeves, three marked die stations, unlockable pressure lock,
lateral entry
black
Crimping pliers, for 2.8/4.8/6.3mm non-insulated slip-on
sleeves, three marked die stations, unlockable pressure lock,
lateral entry, incl. positioning tool
black
Crimping pliers, compact pliers, for angled, uninsulated slip-on
sleeves, marked die station, unlockable pressure lock, lateral entry
Accessories Accessories
Replacement die
CRIMPFOX-SC 1,5/DIE 1212049 1
Replacement recuperating spring
CRIMPFOX/ SPR-3 1212036 1CRIMPFOX/ SPR-1 1212069 1
400
PHOENIX CONTACT
Conductor cross section of 0.1-1.5mm² Conductor cross section of 0.1 - 1.5 mm² Conductor cross section of 0.5
– For processing non-insulated flat
connectors and slip on sleeves with a
cross section of up to 6mm
– Consistently high crimping quality, thanks
to the integrated pressure lock
– Marked die stations for precise
processing of the relevant cross sections
Notes:
Suitable ferrules, cable lugs and flat connectors have been
documented, see from page 444.
CRIMPFOX crimping pliers for non-
insulated slip-on sleeves
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
0.5 - 6 / 22 - 10 0.5 - 6 / 22 - 10 1 - 2.5 / 18 - 14
B crimp B crimp B crimp
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX-SC 6 1212050 1
CRIMPFOX-SC 6L 1212052 1
CRIMPFOX-SCA 2,5-M 1212726 1
Accessories Accessories Accessories
CRIMPFOX-SC 6/DIE 1212051 1CRIMPFOX-SC 6/DIE 1212051 1
CRIMPFOX/ SPR-1 1212069 1CRIMPFOX/ SPR-1 1212069 1CRIMPFOX/ SPR-1 1212069 1
401PHOENIX CONTACT
mm² Conductor cross section of 0.1 - 1.5 mm² Conductor cross section of 0.5-6mm² Conductor cross section of 0.5-6mm² For angled slip-on sleeves, 1.0 - 2.5 mm²
conductor cross section
Tools - TOOL fox
Hand tools
Technical data
Application range
Conductor [mm²] / AWG 0.5 - 4 / 22 - 12
Compression Square crimp
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Crimping pliers, for turned contacts with a pin diameter of
1.6/2.5/4.0mm
- For CK1,6-ED ... , CK2,5-ED..., CK4,0-E D... 0,5-
4 mm² turned contacts
black CRIMPFOX-TC 4 1212113 1
For conductor cross sections of 6–10mm² black CRIMPFOX-TC 10 1212114 1
Accessories
Replacement die
- For CRIMPFOX-TC 4 CRIMPFOX-TC 4/DIE 1212295 1
- For CRIMPFOX-TC 10 CRIMPFOX-TC 10/DIE 1212296 1
Replacement recuperating spring
CRIMPFOX/ SPR-1 1212069 1
– Crimping pliers for processing turned
contacts of up to 10mm
– The integrated positioning tool ensures
that the contacts are perfectly aligned in
the die
– Marked die stations for precise
processing of the relevant cross sections
CRIMPFOX crimping pliers for turned
contacts
Tools - TOOL fox
Hand tools
Conductor cross section of 0.5-4mm²
Technical data
Application range
Conductor [mm²] / AWG 0.08 - 2.5 / 28 - 13
Compression Four-mandrel crimping
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Crimping pliers, for turned contacts, universal cross section
setting, up to a maximum of 2.5mm², digital display with 0.01mm
increments, unlockable pressure lock, lateral entry, including
positioning tool
black CRIMPFOX-TC MP 1212510 1
Crimping pliers, for turned contacts, universal cross section
setting, from 0.08 mm² up to a maximum of 2.5mm², digital display
with 0.01mm increments, pressure lock can be unlocked, lateral
entry, including positioning tool
black CRIMPFOX-TC MP-1 1212620 1
402
PHOENIX CONTACT
– Crimping pliers for processing turned pin
and socket contacts of up to 2.5mm
– Crimp depth setting in increments from
0.01mm possible
– Low strain and length adjustment of the
contacts, thanks to special crimp
geometry
– The integrated positioning tool ensures
that the contacts are perfectly aligned in
the die
– You can find further details on this
product (incl. connector matrix) at
phoenixcontact.net/products
CRIMPFOX four-mandrel crimping
pliers for turned contacts, with digital
display
Conductor cross sections up to 2.5mm²
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Application range
Compression HEX crimp HEX crimp
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimp pliers, for:
Coaxial connector 1.69mm, 3.25mm, 4.52mm,
three marked die stations, pressure lock can be
released, lateral entry, Hex crimp
CRIMPFOX-CX 4,52 1212094 1
Crimping pliers, compact pliers, coaxial connectors, 1.69mm,
3.25mm, 4.52mm, three marked die stations, unlockable pressure
lock, lateral entry, Hex crimp
CRIMPFOX-CX 4,52-M 1212713 1
Crimping pliers, compact pliers, coaxial connectors, 1.69mm,
5.41mm, 6.48mm, three marked die stations, unlockable pressure
lock, lateral entry, Hex crimp
CRIMPFOX-CX 6,48-M 1212714 1
Crimping pliers, for: coaxial connectors, 1.69mm, 5.41mm,
6.48mm, three marked die stations, unlockable pressure lock,
lateral entry, Hex crimp
CRIMPFOX-CX 6,48 1212095 1
Crimping pliers, compact pliers, coaxial connectors, 0.7mm,
1.07mm, 1.69mm, 3.25mm, 4.52mm, 5.41mm, six marked die
stations, unlockable pressure lock, lateral entry, Hex crimp
CRIMPFOX-CX 5,41-M 1212712 1
Crimping pliers, for: coaxial connectors, 1.73mm, 8.23mm,
9.14mm, three marked die stations, unlockable pressure lock,
lateral entry
black CRIMPFOX-CX 9,14 1212096 1
Crimping pliers, for: coaxial connectors, 2.54mm, 10.54mm, two
marked die stations, unlockable pressure lock, lateral entry
black CRIMPFOX-CX 10,54 1212097 1
Crimping pliers, for: coaxial connectors, 2.54mm, 10.90mm, two
marked die stations, unlockable pressure lock, lateral entry
black CRIMPFOX-CX 10,90 1212098 1
Crimping pliers, compact pliers, coaxial connectors, 1.69mm,
2.54mm, 5.41mm, 10.90mm, four marked die stations,
unlockable pressure lock, lateral entry
CRIMPFOX-CX 10,90-1 1212715 1
Crimping pliers, compact pliers, coaxial connectors, HDTV, BNC,
TNC, 1.04mm, 4.52mm, 6.48mm, 7.06mm, four marked die
stations, unlockable pressure lock, lateral entry
CRIMPFOX-CX 7,06 HD-M 1212718 1
403PHOENIX CONTACT
Tools - TOOL fox
Hand tools
For coaxial connectors
– CRIMPFOX–CX... are crimping pliers for
processing coaxial connectors
– Consistently high crimping quality, thanks
to the pressure lock, which can be
unlocked without tools
– Marked die stations for precise
processing of corresponding cross
sections
Notes:
For replacement dies and retaining springs, go to the product area
on the website at phoenixcontact.net/products.
CRIMPFOX crimping pliers for
coaxial connectors
Technical data Technical data
Application range
Compression HEX crimp HEX crimp
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers, for CATV connectors, RG6.59, 1.69mm,
8.23mm, two marked die stations, unlockable pressure lock, lateral
entry
CRIMPFOX-CATV 8,23 1212716 1
Crimping pliers, for CATV connectors, 6.65mm, 8.23mm,
9.70mm, three marked die stations, unlockable pressure lock,
lateral entry
CRIMPFOX-CATV 8,23-1 1212717 1
– CRIMPFOX-CATV... are crimping pliers
for processing coaxial CATV connectors
– Consistently high crimping quality, thanks
to the pressure lock
– It is released as soon as the required
crimping pressure is reached, therefore
ensuring sufficient pressure is applied
– Ergonomically designed handle for
fatigue-proof and non-slip use
CRIMPFOX crimping pliers for
coaxial CATV connectors
Tools - TOOL fox
Hand tools
For 1.69 mm, 8.23 mm For 6.65 mm, 8.23 mm, 9.70 mm
Technical data Technical data
Application range
Compression B crimp HEX crimp
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Crimping pliers
- For rolled D-SUB contacts, high-density,
0.08mm²-0.5mm², incl. contact locator
black CRIMPFOX-DSUB 5 1212111 1
- For rolled D-SUB contacts, standard, 0.05mm²-
0.5mm², incl. contact locator
CRIMPFOX-DSUB 5-1 1212711 1
Crimping pliers, for fiber optics connector, 3.25mm, 3.84mm,
4.52mm, 5.0mm, 5.41mm, five marked die stations, pressure lock
can be released, lateral entry
CRIMPFOX-FO 5,41 1212099 1
404
PHOENIX CONTACT
– The integrated positioning tool of the
CRIMPFOX D-SUB... ensures that the
contacts are perfectly aligned in the die
Notes:
For replacement dies and retaining springs, go to the product area
on the website at phoenixcontact.net/products.
CRIMPFOX crimping pliers for
D-SUB, coaxial, and fiber optic
connectors
Crimping pliers, for D-SUB contacts Crimping pliers, for fiber optic connectors
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Crimping pliers, square crimp, for MC3 solar connectors, 2.5–
6mm², unlockable pressure lock, lateral entry, with three marked
die stations
CRIMPFOX-SR 6-1 1212467 1
Crimping pliers, B-crimp, for MC4 solar connectors, 2.5–6mm²,
unlockable pressure lock, lateral entry, with three marked die
stations
CRIMPFOX-SR 6-2 1212468 1
Crimping pliers, square crimp, for SOLARLOK solar connectors,
2.5–6mm², unlockable pressure lock, lateral entry, with three
marked die stations
CRIMPFOX-SR 6-3 1212469 1
– Safe crimping of MC3 and MC4 solar
connectors from Multi-Contact and
SOLARLOK connectors from Tyco
– Ergonomically designed grip
– Optimized mechanical transmission
reduces the force required by up to
25percent
CRIMPFOX crimping pliers for solar
connectors
Tools - TOOL fox
Hand tools
Conductor cross section of 2.5-6mm²
Ordering data
Description Type Order No. Pcs. /
Pkt.
Basic pliers, for accommodating dies for various contact types,
pressure lock can be unlocked, lateral entry
CRIMPFOX-M 1212072 1
Crimping pliers set, consisting of CRIMPFOX-M and dies
1212074, 1212079, 1212080, 1212081
CRIMPFOX-M SET 1212093 1
405
PHOENIX CONTACT
Notes:
For more crimping dies for ferrules, cable lugs, slip-on sleeves,
turned contacts, coaxial, RJ45, and RJ11 plugs, visit
phoenixcontact.net/products
– One of the key features of the
CRIMPFOX–M crimping pliers is the way
the crimp inserts can be quickly replaced
without the need for tools
– The variety of inserts makes it a space-
saving universal tool for all crimping
applications
– Suitable for one and two-hand operation.
Contacts up to 50mm can also be
processed easily, with minimum effort
CRIMPFOX universal pliers for
accommodating various crimp inserts
Basic pliers
Ordering data
Description Type Order No. Pcs. /
Pkt.
Die, for MC3 solar connectors, lateral entry, 2.5-6mm²
CRIMPFOX-M SR 6-1/DIE 1212471 1
For MC4 solar connectors, lateral entry, 2.5-6mm² CRIMPFOX-M SR 6-2/DIE 1212472 1
For SOLARLOK solar connectors, lateral entry,
2.5-6 mm²
CRIMPFOX-M SR 6-3/DIE 1212473 1
Die, for ferrules, 0.25-10mm²
CRIMPFOX-M 10/DIE 1212080 1
For 16–25mm² CRIMPFOX-M 25/DIE 1212081 1
For 35–50mm² CRIMPFOX-M 50/DIE 1212082 1
Die, for insulated cable lugs, 0.5–1.5mm² and 1.5–2.5mm²
CRIMPFOX-M RCI 2,5/DIE 1212074 1
For insulated cable lugs, 0.1-0.4mm² and 4-6mm² CRIMPFOX-M RCI 6/DIE 1212073 1
Die, for non-insulated cable lugs, 0.75-2.5mm²
CRIMPFOX-M RC 2,5/DIE 1212078 1
For 0.5-6mm² CRIMPFOX-M RC 6/DIE 1212079 1
For 4-6 and 10mm² CRIMPFOX-M RC 10-1/DIE 1212744 1
For 4–10mm² CRIMPFOX-M RC 10/DIE 1212077 1
Die, for non-insulated slip-on sleeves, 0.1-1mm²
CRIMPFOX-M SC 1/DIE 1212083 1
For 0.5–2.5mm² CRIMPFOX-M SC 2,5/DIE 1212084 1
For 0.5–6mm² CRIMPFOX-M SC 6/DIE 1212085 1
with wide, flat crimp for 0.5-6mm² CRIMPFOX-M SC 6-FL/DIE 1212741 1
For angled slip-on sleeves, for 6.3mm, 1.0-
2.5mm²
CRIMPFOX-M SCA 2,5/DIE 1212742 1
For angled slip-on sleeves, for 8mm, 1.0-2.5mm² CRIMPFOX-M SCA 2,5-1/DIE 1212743 1
Die,
For turned contacts with pin diameters 2.5 mm
and 4.0mm (CK2,5...,CK4,0), cross section 0.14
- 4mm²
CRIMPFOX-M TC 4/DIE 1212075 1
For turned contacts with pin diameter 4mm
(CK4,0...), cross section 6–10mm²
CRIMPFOX-M TC 10/DIE 1212076 1
Die, for RG174, RG179, BNC, TNC coaxial connectors
black CRIMPFOX-M CX-1/DIE 1212087 1
For RG58, RG59, RG62, RG71, BNC, TNC black CRIMPFOX-M CX-2/DIE 1212088 1
For CATVRG6,59 black CRIMPFOX-M CX-3/DIE 1212089 1
For BNC, TNC, RG6, 1.73, 6.48, 8.23mm CRIMPFOX-M CX-4/DIE 1212745 1
For BNC, TNC, 0.70, 3.25, 3.85mm CRIMPFOX-M CX-5/DIE 1212746 1
For BNC, TNC, 1.07, 6.48, 8.23mm CRIMPFOX-M CX-6/DIE 1212747 1
For BNC, TNC, 1.72, 5.41 mm CRIMPFOX-M CX-7/DIE 1212748 1
For CATV RG 6.59 1.72, 8.23mm CRIMPFOX-M CX-8/DIE 1212749 1
Die, for unshielded RJ45 connectors
black CRIMPFOX-M RJ45/DIE 1212090 1
For unshielded RJ11 connectors black CRIMPFOX-M RJ11/DIE 1212091 1
Die, for shrink connectors, 0.5-1.5mm² red and
1.5-2.5mm² blue
black CRIMPFOX-M HS/DIE 1219092 1
Die, for shrink connectors, 0.1–0.4mm² green and 4–6mm²
yellow
CRIMPFOX-M HS-1/DIE 1212282 1
406
PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Dies for CRIMPFOX-M
Notes:
For more crimping dies for ferrules, cable lugs, slip-on sleeves,
turned contacts, coaxial, RJ45, and RJ11 plugs, visit
phoenixcontact.net/products
Dies for the CRIMPFOX-M universal
pliers
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Basic pliers, for accommodating dies for various contact types,
pressure lock can be unlocked, lateral entry
black CRIMPFOX-C D 1212734 1
Die, for unshielded RJ11 plugs
CRIMPFOX-C RJ11/DIE 1212735 1
Die, for unshielded RJ22 plugs
CRIMPFOX-C RJ22/DIE 1212736 1
Die, for unshielded RJ45 plugs
CRIMPFOX-C RJ45/DIE 1212737 1
Die, for unshielded RJ45 plugs, universal
CRIMPFOX-C RJ45U/DIE 1212738 1
Die, 10-pos.
CRIMPFOX-C 10P/DIE 1212739 1
Die, for DEC MML plugs
CRIMPFOX-C MMJ/DIE 1212740 1
407PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Basic pliers Die for CRIMPFOX-C D
– One of the key features of the
CRIMPFOX–CD crimping pliers is the
way the crimp inserts can be quickly
replaced without the need for tools
– The variety of inserts makes them a
space-saving universal tool for data plug
applications
CRIMPFOX universal pliers for
accommodating various dies for data
plugs
Ordering data
Description Type Order No. Pcs. /
Pkt.
Screwdriver, for slotted-head screws, with VDE approval
Blade: 0.4x2.5x80mm, length: 161mm SZS 0,4X2,5 VDE 1205037 10
Blade: 0.5x3.5x100mm, length: 181mm SZS 0,5X3,0 VDE 1207404 10
Blade: 0.6x2.5x80mm, length: 161mm SZS 0,6X2,5 VDE 1205040 10
Blade: 0.6x3.5x100mm, length: 181mm SZS 0,6X3,5 VDE 1212602 10
Blade: 0.8x4.0x100mm, length: 198mm SZS 0,8X4,0 VDE 1212508 1
Blade: 1.0x4.0x100mm, length: 198mm SZS 1,0X4,0 VDE 1205066 10
Blade: 1.0x5.5x125mm, length: 223mm SZS 1,0X5,5 VDE 1209114 10
Blade: 1.0x6.5x150mm, length: 248mm SZS 1,0X6,5 VDE 1205079 10
Blade: 1.2x8.0x175mm, length: 287mm SZS 1,2X8,0 VDE 1205082 10
Screwdriver, two-component handle, with non-slip grip, for
slotted-head screws
Blade: 0.4x2.0x60mm, length: 130mm
Blade: 0.4x2.5x75mm, length: 145mm
Blade: 0.4x2.5x80mm, length: 161mm
Blade: 0.6x3.5x100mm, length: 181mm
Blade: 0.6x3.5x200mm, length: 281mm
Blade: 0.8x4.0x100mm, length: 198mm
Blade: 1.0x5.5x150mm, length: 248mm
Blade: 1.2x6.5x150mm, length: 255mm
Screwdriver, two-component handle, with non-slip grip, with
impact cap, with hexagon wrench aid for open-end wrench and ring
wrench, for slotted-head screws
Blade: 1.2x7x125mm, length: 230mm
Blade: 1.6x10x175mm, length: 287mm
408
PHOENIX CONTACT
SCREWFOX screwdrivers for slotted-
head screws
– Large contact surface of blades inside
screw head
– Individually tested safety screwdrivers
acc. to DINEN60900 (VDE0682-201)
– For working on or in the vicinity of live
parts up to 1000V AC or 1500V DC
– The tools feature ergonomic two-
component safety handles
Tools - TOOL fox
Hand tools
VDE flat-bladed screwdriver Flat-bladed screwdriver, non-insulated
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Type Order No. Pcs. /
Pkt.
SF-SL 0,4X2,0-60 1212546 10
SF-SL 0,4X2,5-75 1212547 10
SF-SL 0,5X3,0-80 1212548 10
SF-SL 0,6X3,5-100 1212549 10
SF-SL 0,6X3,5-200 1212550 10
SF-SL 0,8X4,0-100 1212551 10
SF-SL 1,0X5,5-150 1212552 10
SF-SL 1,2X6,5-150 1212553 10
SF-SLIC 1,2X7,0-125 1212554 10
SF-SLIC 1,6X10-175 1212555 10
409PHOENIX CONTACT
Tools - TOOL fox
Hand tools
VDE flat-bladed screwdriver Flat-bladed screwdriver, non-insulated
Ordering data
Description Type Order No. Pcs. /
Pkt.
Screwdriver/actuation tool, for slotted-head screws/spring-cage
terminal blocks, insulated, two-component handle, with non-slip
grip, VDE
Blade: 0.6x3.5x100mm, length: 181mm SF-SL 0,6X3,5-100 S-VDE 1212587 10
Blade: 0.8x4.0x100mm, length: 198mm SF-SL 0,8X4,0-100 S-VDE 1212588 10
Blade: 1.0x5.5x150mm, length: 248mm SF-SL 1,0X5,5-125 S-VDE 1212589 10
Screwdriver, protective insulation integrated into shaft, insulated
according to VDE
Size: PZ1x80mm
Size: PZ2x100mm
Screwdriver, protective insulation integrated into shaft, insulated
according to VDE
Size: PH1x80mm
Size: PH2x100mm
Screwdriver, protective insulation integrated into shaft, insulated
according to VDE
Size: Pozidriv
®
- bladed (plus-minus) PZ1x80mm
Size: Pozidriv
®
- bladed (plus-minus)
PZ2x100mm
Screwdriver, protective insulation integrated into shaft, insulated
according to VDE
Size: Phillips-Recess
®
- bladed (plus-minus)
PH1x80mm
Size: Phillips-Recess
®
- bladed (plus-minus)
PH2x100mm
Screwdriver set, protective insulation integrated into shaft,
bladed/Phillips crosshead/combined profile, Pozidriv
®
+ bladed
(plus-minus), insulated according to VDE, 7-piece, including rack,
set contains the following products: 0.6x3.5x100; 0.8x4.0x100;
1.0x5.5x125; PH1x80; PH2x100; PZ1x80; PZ2x100
410
PHOENIX CONTACT
SCREWFOX VDE
screwdriver/actuation tool for ST...
terminal blocks
– In addition to catering for standard
applications, SF–SL... screwdrivers are
particularly suited to the assembly of
modular terminal blocks
– VDE-tested, for maximum safety
– As the insulation runs into the shaft, there
is no protruding edge
Tools - TOOL fox
Hand tools
VDE flat-bladed screwdrivers with integrated
insulation
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SF-PZ 1-80 S-VDE 1212695 10
SF-PZ 2-100 S-VDE 1212696 10
SF-PH 1-80 S-VDE 1212693 10
SF-PH 2-100 S-VDE 1212694 10
SF-PZSL 1-80 S-VDE 1212699 10
SF-PZSL 2-100 S-VDE 1212700 10
SF-PHSL 1-80 S-VDE 1212697 10
SF-PHSL 2-100 S-VDE 1212698 10
SF-SL/PH/PZ-SL SET S-VDE 1212701 1
411PHOENIX CONTACT
Tools - TOOL fox
Hand tools
VDE screwdrivers with Pozidriv
®
or Phillips-
Recess
®
drive, with integrated insulation
VDE screwdrivers with plus-minus drive, with
integrated insulation
VDE screwdriver with various drives
Ordering data
Description Type Order No. Pcs. /
Pkt.
Screwdriver/actuation tool, for slotted-head screws/spring-cage
terminal blocks
Blade: 0.4x2.5x75mm, length: 156mm SZF 0-0,4X2,5 1204504 10
Blade: 0.6x3.5x100mm, length: 181mm SZF 1-0,6X3,5 1204517 10
Blade: 0.8x4.0x100mm, length: 198mm SZF 2-0,8X4,0 1204520 10
Blade: 1.0x5.5x150mm, length: 248mm SZF 3-1,0X5,5 1206612 10
Screwdriver/actuation tool, for slotted-head screws/spring-cage
terminal blocks, insulated
Blade: 0.6x3.5x100mm, length: 181mm SZS 0,6X3,5 1205053 10
Actuation tool, insulated, for all 2.5 mm² and 4 mm² ST... spring-
cage terminal blocks, plus push-in and QT... fast connection
terminal blocks
412
PHOENIX CONTACT
SCREWFOX screwdriver and
actuation tool for ST..., QTC..., and
TB... terminal blocks
– In addition to the standard application,
these screwdrivers are also ideal for
actuating modular terminal blocks from
the ST... and QTC... series
– The defined blade angle opens the spring
terminal block as far as possible without
leaving any damage
Tools - TOOL fox
Hand tools
Flat-bladed screwdriver, non-insulated Actuation tool for push-in technology,
Ordering data
Description Type Order No. Pcs. /
Pkt.
Screwdrivers, for Pozidriv
®
/Supadriv
®
Phillips screws, VDE
approval
Size: PZ0x80mm, length: 161mm SZK PZ0 VDE 1206447 10
Size: PZ1x80mm, length: 178mm SZK PZ1 VDE 1206450 10
Size: PZ2x100mm, length: 205mm SZK PZ2 VDE 1206463 10
Size: PZ3x150mm, length: 262mm SZK PZ3 VDE 1212599 10
Screwdrivers, for Phillips Recess
®
screws, VDE approval
Size: PH0x80mm, length: 161mm SZK PH0 VDE 1205147 10
Size: PH1x80mm, length: 178mm SZK PH1 VDE 1205150 10
Size: PH2x100mm, length: 205mm SZK PH2 VDE 1205163 10
Size: PH3x150mm, length: 262mm SZK PH3 VDE 1212536 10
Screwdrivers, for Pozidriv
®
Phillips screws
Size: PZ0x60mm, length: 141mm
Size: PZ1x80mm, length: 178mm
Size: PZ2x100mm, length: 205mm
Size: PZ3x150mm, length: 262mm
Screwdrivers, for Phillips Recess
®
screws
Size: PH0x60mm, length: 141mm
Size: PH1x80mm, length: 178mm
Size: PH2x100mm, length: 205mm
Size: PH3x150mm, length: 262mm
Screwdriver, for Pozidriv
®
/Supadriv
®
Phillips screws, VDE
approval
Size: PZ1x80mm, length: 178mm
Size: PZ2x100mm, length: 205mm
Size: PH1x80mm, length: 178mm
Size: PH2x100mm, length: 205mm
Screwdriver, for test socket screws, with VDE approval
For 2.3 mm Ø screw, blade: 0.6x3.5x100mm,
length: 198mm
For 4 mm Ø screw, blade: 0.9x6.5x175mm,
length: 287mm
414
PHOENIX CONTACT
SCREWFOX screwdrivers for Phillips
and slotted-head screws
Notes:
Pozidriv
®
/Supadriv
®
,
trademarks of European Ind. Serv. Ltd.
Phillips Recess
®
,
trademark of Phillips Screw Company
– Screwdrivers for Phillips screws with
Pozidriv and Phillips Recess screw head
– VDE approval
– The SZG... screwdrivers have been
specially designed for driving in test
socket screws safely and without slipping
Tools - TOOL fox
Hand tools
VDE crosshead screwdrivers with Pozidriv
®
and Phillips-Recess
®
drive
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SF-PZ 0-60 1212562 10
SF-PZ 1-80 1212563 10
SF-PZ 2-100 1212564 10
SF-PZ 3-150 1212565 10
SF-PH 0-60 1212558 10
SF-PH 1-80 1212559 10
SF-PH 2-100 1212560 10
SF-PH 3-150 1212561 10
SF-PZSL 1-80 VDE 1212556 10
SF-PZSL 2-100 VDE 1212557 10
SF-PHSL 1-80 VDE 1212283 10
SF-PHSL 2-100 VDE 1212288 10
SZG 0,6X3,5 VDE 1205121 10
SZG 0,9X6,5 VDE 1205134 10
415PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Crosshead screwdrivers with Pozidriv
®
and
Phillips-Recess
®
drive
VDE screwdriver with plus-minus drive VDE screwdriver for test socket screws
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Torque screwdrivers
Adjustable from 0.3-1.2Nm black TSD-M 1,2NM 1212224 1
Adjustable from 1.2-3Nm black TSD-M 3NM 1212225 1
Adjustable from 3-6Nm black TSD-M 6NM 1212226 1
Accessories
Battery-powered screwdriver bit set, 1 attachment set each in
5.5 mm, 8 mm, 13 mm, adapter to ¼"
ASD BIT SET HN 1209952 1
Socket wrench insert, magnetic, hexagonal, 1/4" drive, suitable
for holders according to DIN 3126-F6,3/ISO1173
Wrench size of 5.5mm BHN 5,5 1209965 1
Wrench size of 8mm BHN 8 1209978 1
Wrench size of 10mm BHN 10 1209981 1
Wrench size of 13mm BHN 13 1209994 1
Adapter for ¼"
BF 6,3 1209936 1
Adapter insert, for torque screwdrivers with adjustable torque, for
accommodating SAC nuts for 4mm hexagonal screwdrivers
TSD-M SAC-BIT ADAPTER 1212600 1
416
PHOENIX CONTACT
– Torque screwdrivers with hexagonal
quick connection holder
– High-precision, finely adjustable torque
screwdrivers according to ENISO6789
– TSD–M... torque screwdrivers are
adjustable from 0.3-6.0Nm
– The figure below shows the other TSD-
M6NM version
SCREWFOX torque screwdrivers
Tools - TOOL fox
Hand tools
Torque screw driver, 0.3 - 1.2Nm, adjustable
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Cordless screwdriver, 3.6V, incl. rechargeable battery, 1.5Ah
SF-ASD 21 1212532 1
Cordless screwdriver set, incl. two batteries and charger, 230V,
packaged in a robust aluminum case
SF-ASD 21 SET 230V 1212530 1
Accessories
Replacement charger, for SF–ASD21 cordless screwdriver,
230V
SF-ASD 21/CHARGER 230V 1212535 1
Replacement battery, for SF-ASD21, Li-ion 3.6V, 1.5Ah
SF-ASD 21/ACCU 1,5 AH 1212533 1
417PHOENIX CONTACT
– Cordless screwdriver with two-speed
gearbox, forward/reverse running and 21-
stage clutch with drilling stage of up to
600rpm
– 6.3mm hexagonal quick connection drill
chuck
– Integrated LEDs are used to illuminate
the working area
– With optional snap-on protective cap to
prevent unintentional torque adjustment
– High torque accuracy through electronic
disconnecting coupling
– Ergonomic, non-slip handle design
SCREWFOX cordless screwdriver
Tools - TOOL fox
Hand tools
21 different torque stages
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Bit screwdriver, with 1/4" quick-action chuck, suitable for bits
according to DIN3126-C6.3 and E6.3/ISO1173, magnetic
black SF-M BH 1212070 1
Universal bit holder, E6,3-1/4" drive, with automatic locking, one-
hand operation, magnetic, for bits according to DIN3126C6,3 and
E6,3
silver SF-UBH 1212590 1
Screw bit, slotted, E6,3-1/4" drive, hardened, suitable for holder
according to DIN3126-F6,3/ISO1173
Size: 0.45x2.4x70mm
Size: 0.5x3.0x50mm silver
Size: 0.5x3.0x70mm silver
Size: 0.6x3.5x50mm silver
Size: 0.6x3.5x70mm silver
Size: 0.8x4.0x50mm silver
Size: 0.8x4.0x70mm silver
Size: 1.0X4.0x70mm silver
Size: 1.0x5.5x50mm silver
Size: 1.0x5.5x70mm silver
Size: 1.2x6.5x70mm silver
Screw bit, PH cross, E6,3-1/4" drive, hardened, suitable for holder
according toDIN3126-F6,3/ISO1173
Size: PH1x50mm silver
Size: PH2x50mm silver
Size: PH3x50mm silver
Size: PH1x70mm silver
Size: PH2x70mm silver
Size: PH3x70mm silver
Screw bit, PZ cross, E6,3-1/4" drive, hardened, suitable for holder
accordingtoDIN3126-F6,3/ISO1173
Size: PZ1x50mm silver
Size: PZ2x50mm silver
Size: PZ3x50mm silver
Size: PZ1x70mm silver
Size: PZ2x70mm silver
Size: PZ3x70mm silver
Size: PZ1x70mm silver
Size: PZ2x70mm silver
Size: PH1x70mm silver
Size: PH2x70mm silver
Screw bit, slotted, graduated, E6,3-1/4" drive, for test socket
screws, hardened, suitable for holderaccording toDIN3126-
F6,3/ISO1173
Size: 0.6x3.5x50mm silver
Size: 0.9x6.5x50mm silver
418
PHOENIX CONTACT
SCREWFOX tool inserts for cordless
screwdriver and bit handle
Notes:
Pozidriv
®
/Supadriv
®
,
trademarks of European Ind. Serv. Ltd.
Phillips Recess
®
,
trademark of Phillips Screw Company
Torx
®
,
trademark of Acument Intellectual Properties, LLC, Troy, Mich.,US
– Tools for SF–ASD21 cordless
screwdriver, various designs
– The hardened bits are suitable for hard
and soft screws
– Optimum edge geometries increase the
bearing surface and prevent the screws
from being over-tightened
Tools - TOOL fox
Hand tools
Universal bit holder Screw bit, slotted Screw bit, PH and PZ cross-recessed Screw bit, plus/minus
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SF-BIT-SL 0,45X2,4-70 1212607 5
SF-BIT-SL 0,5X3,0-50 1212566 5
SF-BIT-SL 0,5X3,0-70 1212567 5
SF-BIT-SL 0,6X3,5-50 1212568 5
SF-BIT-SL 0,6X3,5-70 1212569 5
SF-BIT-SL 0,8X4,0-50 1212571 5
SF-BIT-SL 0,8X4,0-70 1212572 5
SF-BIT-SL 1,0X4,0-70 1212754 1
SF-BIT-SL 1,0X5,5-50 1212574 5
SF-BIT-SL 1,0X5,5-70 1212575 5
SF-BIT-SL 1,2X6,5-70 1212577 5
SF-BIT-PH 1-50 1212579 5
SF-BIT-PH 2-50 1212580 5
SF-BIT-PH 3-50 1212581 5
SF-BIT-PH 1-70 1212582 5
SF-BIT-PH 2-70 1212583 5
SF-BIT-PH 3-70 1212584 5
SF-BIT-PZ 1-50 1212591 5
SF-BIT-PZ 2-50 1212592 5
SF-BIT-PZ 3-50 1212593 5
SF-BIT-PZ 1-70 1212594 5
SF-BIT-PZ 2-70 1212595 5
SF-BIT-PZ 3-70 1212596 5
SF-BIT-PZSL 1-70 1212603 5
SF-BIT-PZSL 2-70 1212604 5
SF-BIT-PHSL 1-70 1212479 5
SF-BIT-PHSL 2-70 1212601 5
SF-BIT-SLS 0,6X3,5-50 1212605 5
SF-BIT-SLS 0,9X6,5-50 1212606 5
419PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Universal bit holder Screw bit, slotted Screw bit, PH and PZ cross-recessed Screw bit, plus/minus
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Screw bit, Torx
®
, E6,3-1/4" drive, hardened, suitable for holder
according to DIN3126-F6,3/ISO1173, size: TX8x50mm
silver SF-BIT-TX 8-50 1212570 5
Size: TX10x50mm silver SF-BIT-TX 10-50 1212573 5
Size: TX15x50mm silver SF-BIT-TX 15-50 1212576 5
Size: TX20x50mm silver SF-BIT-TX 20-50 1212578 5
Size: TX25x50mm silver SF-BIT-TX 25-50 1212585 5
Size: TX30x50mm silver SF-BIT-TX 30-50 1212586 5
Screw bit, hexagonal, E6,3-1/4" drive, hardened, suitable for
holder according to DIN3126-F6,3/ISO 1173
Size: hex 2x50mm silver
Size: hex 2.5x50mm silver
Size: hex 3x50mm silver
Size: hex 4x50mm silver
Size: hex 5x50mm silver
Size: hex 6x50mm silver
Size: hex 8x50mm silver
420
PHOENIX CONTACT
SCREWFOX tool inserts for cordless
screwdriver and bit handle
– Tools for SF–ASD21 cordless
screwdriver, various designs
– The hardened bits are suitable for hard
and soft screws
– Optimum edge geometries increase the
bearing surface and prevent the screws
from being over-tightened
Tools - TOOL fox
Hand tools
Screw bit, Torx
®
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Type Order No. Pcs. /
Pkt.
SF-BIT-HEX 2-50 1212645 5
SF-BIT-HEX 2,5-50 1212646 5
SF-BIT-HEX 3-50 1212647 5
SF-BIT-HEX 4-50 1212648 5
SF-BIT-HEX 5-50 1212649 5
SF-BIT-HEX 6-50 1212650 5
SF-BIT-HEX 8-50 1212651 5
421PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Screw bit, hex
Ordering data
Description Type Order No. Pcs. /
Pkt.
Socket wrench, hexagon
Wrench size of 5.5mm SHN 5.5 1209855 10
Wrench size of 8mm SHN 8 1209868 1
Wrench size of 13mm SHN 13 1209923 1
T-handle screwdriver, for Allen screws, ergonomically shaped
handle, matt chrome-plated
Size: hex 2x100mm
Size: hex 2.5x100mm
Size: hex 3x100mm
Size: hex 4x150mm
Size: hex 5x150mm
Size: hex 6x200mm
Size: hex 8x200mm
Size: hex 10x200mm
Allen wrench, fully insulated, safety tool in accordance with EN
60900, length: 150 mm, handle width: 110 mm
Wrench size 5 mm, for M6 screws
Wrench size 6mm, for M8 screws
Wrench size 8mm, for M10 screws
Allen wrench set, 9-part, 1.5 to 10.0mm, chrome-plated matt
finish, with ball head, incl. bracket
422
PHOENIX CONTACT
SCREWFOX socket wrenches
SHN ...
– Ergonomically designed two-component
grip for fatigue-proof and non-slip use
SF-THEX...
– Ergonomically designed handles ensure an
optimum grip and help avoid fatigue when
working
– The hardened blades are designed for
durability
– Optimum edge geometries increase the
bearing surface and prevent the screws
from being over-tightened
VDE-ISS...
– VDE-insulated Allen wrench with double-
layer insulation, for twice as much safety
Allen screw set
– Offset screwdriver set in convenient
holder
– The strict fabrication tolerances and
special hardening process ensure
reliability and optimum work results
– The ball head on the long limb makes it
possible to carry out work in hard-to-
access areas
Tools - TOOL fox
Hand tools
Hexagon insert bit, wrench size
of 5.5 / 8 / 13mm
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SF-THEX 2-100 1212637 5
SF-THEX 2,5-100 1212638 5
SF-THEX 3-100 1212639 5
SF-THEX 4-150 1212640 5
SF-THEX 5-150 1212641 5
SF-THEX 6-200 1212642 5
SF-THEX 8-200 1212643 5
SF-THEX 10-200 1212644 5
VDE-ISS 5 1203343 1
VDE-ISS 6 1201934 1
VDE-ISS 8 1201947 1
SF-LHEX SET 1212544 1
423PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Allen screw, wrench size 2-10mm Allen screw (VDE), wrench size of 5 / 6 / 8mm Allen screw, L-shaped, 1.5 - 10mm
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Torque screwdriver
With preset torque of 0.2 Nm and 4 mm hexagonal
drive
black TSD 02 SAC 1208487 1
With preset torque of 0.4 Nm and 4 mm hexagonal
drive
black TSD 04 SAC 1208429 1
With a preset torque of 0.8 Nm and a 4 mm
hexagonal drive
black TSD 08 SAC 1212597 1
With a preset torque of 2.0 Nm and 4 mm
hexagonal drive
black TSD 20 SAC 1212020 1
With a preset torque of 2.5 Nm and 4 mm
hexagonal drive
black TSD 25 SAC 1212315 1
Torque screwdrivers
Adjustable from 0.3-1.2Nm black TSD-M 1,2NM 1212224 1
Adjustable from 1.2-3Nm black TSD-M 3NM 1212225 1
Adjustable from 3-6Nm black TSD-M 6NM 1212226 1
Adapter insert, for torque screwdrivers with adjustable torque, for
accommodating SAC nuts for 4mm hexagonal screwdrivers
silver TSD-M SAC-BIT ADAPTER 1212600 1
Accessories
Nut
For assembling sensor/actuator cables with M8 connectors and for
M8 connectors with insulation displacement connection, for 4 mm
hexagonal screwdriver
SAC BIT M8-D10 1208461 1
For assembling SACC M8 connectors with longitudinal knurl,
excluding those with insulation displacement connection, for 4 mm
hexagonal screwdriver
SACC BIT M8-D12 1208474 1
For assembling sensor/actuator cables with M12 connectors and
for M12 connectors with insulation displacement connection, for
4 mm hexagonal screwdriver
SAC BIT M12-D15 1208432 1
For assembling SACC M12 connectors, excluding those with
insulation displacement connection, for 4 mm hexagonal
screwdriver
SACC BIT M12-D20 1208445 1
For mounting M12 connectors with hexagonal stainless steel knurl,
wrench size 14, with 4 mm hexagonal drive
SAC BIT M12-W14 1212513 1
For assembling 7/8" connectors, with 4mm hexagonal drive SAC BIT MIN-D25 1212512 1
For the reliable tightening of the pressure nuts with a wrench size of
13 mm, for 4 mm hexagonal screwdriver
SAC BIT QUICKON-W13 1212033 1
For reliable tightening of the pressure nuts with a wrench size of
24 mm, for 4 mm hexagonal screwdriver
SAC BIT HOOD-W 24 1212486 1
424
PHOENIX CONTACT
– TSD...SAC torque screwdrivers with a
range of preset torques from 0.2Nm to
2.5Nm
– A wide variety of SAC... nuts for all kinds
of applications
– With the TSD-M... torque screwdrivers,
the torque can be custom-set
– The TSD-M... adapters can accommodate
the various nuts
SCREWFOX preset torque
screwdrivers
Tools - TOOL fox
Hand tools
1
3
2
1
3
2
4
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Control cabinet key, metal, for all common types of control
cabinet
USS 4 1203149 1
– Universal control cabinet key with the
following closures:
1 = 6 mm, 8mm square
2 = 8mm triangle
3 = 5mm two-way key bit
SCREWFOX universal control
cabinet key
Tools - TOOL fox
Hand tools
Four-way closure
Ordering data
Description Type Order No. Pcs. /
Pkt.
Control cabinet key, metal, for all common types of control
cabinet
SF-CCK 9 1212525 1
425
PHOENIX CONTACT
–Universal control cabinet key, with
strong chain and snap hook, for the
following closures:
1 = 5, 6, 7-8, 9-10mm square
2 = 7, 8 - 9, 10 - 11mm triangle
3 = 3-5mm two-way key bit
4 = 6mm semicircle
SCREWFOX universal control
cabinet key
Nine-way closure
Technical data Technical data
General data
Voltage range [V DC] - ... - 6 ... 400
Voltage range [V AC] 150 ... 250 6 ... 400
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Voltage tester, single-position, for 150-250V, conforms to
DIN57680/6 and VDE0680/6, can also be used as an actuation
tool for spring-cage terminal blocks, VDE insulated, with non-slip
grip, size: 0.5x3.0x70mm
SF-VT VDE 1212598 10
Voltage tester
black PROFIPOL 1209101 1
The PROFIPOL voltage tester has the
following features:
– DC and AC voltage tests in the range
between 6V and 400V
– Polarity test (+/-) for DC voltage
– Shock-proof housing that is protected
against dust and splash water, IP65
– LED display
TESTFOX phasing and voltage tester
Tools - TOOL fox
Hand tools
Single-position voltage tester Two-position voltage tester
Technical data
General data
Voltage range [V DC] 12 ... 1000
Voltage range [V AC] 12 ... 1000
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Voltage tester
black DUSPOL EXPERT 1209091 1
426
PHOENIX CONTACT
– DC and AC voltage tests in the range
from 12V to 1000VAC/1000VDC
– Acoustic and optical continuity test
– Vibration alarm for safe voltage detection
– Shock-proof housing that is protected
against dust and splash water, IP65
TESTFOX voltage and continuity
tester
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Display scope 2000 digits 4000 digits
Accuracy of display 1,0 % 0,5 %
AC voltage measuring range 0.1 V ... 600 V 0.1 mV ... 600 V
DC voltage measuring range 0.1 V ... 600 V 0.1 mV ... 600 V
AC current measuring range 0.1 A ... 400 A 10 mA ... 300 A
DC current measuring range - ... - 10 mA ... 300 A
Resistance measuring range 0.1 Ω ... 20 MΩ0.1 Ω ... 40 MΩ
Continuity test range Acoustic (20 Ω) Acoustic (50 Ω)
Degree of protection IP30 IP30
Measuring category CAT III 600 V CAT III 300 V / CAT II 600 V
Voltage supply 2 x micro battery 1.5 V, LR03, AAA 2 x micro battery 1.5 V, LR03, AAA
Test certificate IEC/EN 61010-1, DIN VDE 0411 IEC/EN 61010-1, DIN VDE 0411
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Current pliers/multimeter
black TESTFOX CC 1212210 1
Current pliers/multimeter
black TESTFOX CC-1 1212211 1
427PHOENIX CONTACT
Tools - TOOL fox
Hand tools
For AC current For DC and AC current
– The current probes can be used for
voltages of up to 600V, category III
– They combine the functions of a digital
multimeter with those of a current probe
– Contained within a compact and practical
housing, so ideal for use in cramped
conditions
– All measuring ranges are protected
against overload
TESTFOX, digital current probe
multimeter
428
PHOENIX CONTACT
TESTFOX digital multimeter
– You are bound to be enthused by the
technology of the digital multimeters and
impressed by their quality
– The devices are extremely versatile
– Tested and approved according to
applicable IEC/EN61010 standards
independently of certification body
– Suitable for measuring AC voltages and
resistance as well as testing continuity and
diodes
– TESTFOXM–1 also allows you to
measure DC and AC currents,
capacitance, and frequencies, as well as
temperatures within the range of-20°C
to+800°C
High-level safety
– Phase voltages can be detected precisely,
thanks to the audible and red light signals
– The devices can be used for voltages of up
to 600V category III or 1000V category
II
– They provide professional service
technicians and operating engineers with
a higher level of protection, thereby
ensuring maximum safety during work
Safe cable breakage detection
– Cable breaks and faulty lamps in exposed
cables can be traced from the phase
infeed side right through to the point of
interruption
Technical data
General data
Display scope 2000 digits
Accuracy of display 0.5 %
Volt sensor yes
AC voltage measuring range 0.1 mV ... 750 V
DC voltage measuring range 0.1 mV ... 1000 V
AC current measuring range - ... -
DC current measuring range - ... -
Resistance measuring range 0.1 Ω ... 20 MΩ
Continuity test range Yes (25 Ω)
Frequency measuring range - ... -
Capacity measuring range - ... -
Temperature measuring range - ... -
Diode test Yes (1.5 mA)
Degree of protection IP30
Measuring category CAT III 600 V / CAT II 1000 V CAT III 600 V / CAT II 1000 V
Voltage supply 2 x micro battery 1.5 V, LR03, AAA 2 x micro battery 1.5 V, LR03, AAA
Test certificate IEC/EN 61010-1, DIN VDE 0411 IEC/EN 61010-1, DIN VDE 0411
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Digital multimeter
black TESTFOX M 1212208 1
Digital multimeter
black
Tools - TOOL fox
Hand tools
For DC and AC voltages For DC and AC voltages/currents
For further information and full technical data, visit phoenixcontact.net/products
429
PHOENIX CONTACT
Technical data
2000 digits
0.5 %
yes
0.1 mV ... 750 V
0.1 mV ... 1000 V
1 mA ... 10 A
1 mA ... 10 A
0.1 Ω ... 20 MΩ
Yes (25 Ω)
1 Hz ... 20 MHz
1.00 pF ... 2.00 mF
-20°C ... 800°C
Yes (1.5 mA)
IP30
Measuring category CAT III 600 V / CAT II 1000 V CAT III 600 V / CAT II 1000 V
Voltage supply 2 x micro battery 1.5 V, LR03, AAA 2 x micro battery 1.5 V, LR03, AAA
Test certificate IEC/EN 61010-1, DIN VDE 0411 IEC/EN 61010-1, DIN VDE 0411
Ordering data
Type Order No. Pcs. /
Pkt.
TESTFOX M-1 1212209 1
Tools - TOOL fox
Hand tools
For DC and AC voltages For DC and AC voltages/currents
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Tool case, equipped with one of each of the following tools:
CRIMPFOX6S-F|WIREFOX10|
WIREFOX-D40|CUTFOX18|
SZF1-0,6X3,5|5mtape measure|
50pcs.JBC2,5/5junction box connectors|
TOOL-KIT STANDARD EMPTY
TOOL-KIT STANDARD 1212422 1
Tool kit, empty, with elastic straps to hold tools of different sizes in
place
TOOL-KIT STANDARD EMPTY 1212423 1
Tool carry case wrap, equipped with one of each of the following
tools:
CUTFOX-SVDE|CUTFOX16VDE|
UNIFOX-CVDE|UNIFOX-PVDE|
SZS0,4X2,5|SZS0,5X3,0|SZS1,0X4,0|
SZS1,0X6,5| SZKPH0| SZKPH1|
SZK PH2| PROFIPOL|
TOOL-WRAPEMPTY
TOOL-WRAP 1212505 1
Tool carry-on bag, empty
TOOL-WRAP EMPTY 1212501 1
Tool belt pouch, equipped with one of each of the following tools:
CUTFOX-SVDE|CUTFOX18|
WIREFOX-D13|UNIFOX-CEVDE|
USS4|SZS0,5X3,0|SZS1,0X4,0|
SZS1,0X5,5|SZKPH1|SZKPH2|
Cutting knife|5mtape measure|
PROFIPOL| TOOL-BELTPOUCHEMPTY
Tool belt pouch, empty
Tool bag, equipped with one of each of the following tools:
CUTFOXSVDE| CUTFOX18|
WIREFOX10VDE| WIREFOX-D13|
WIREFOX-D28| CRIMPFOX-M|
CRIMPFOX-M10/DIE| UNIFOX-CEVDE|
UNIFOX-PVDE| UNIFOXWP|
SZS0,4X2,5| SZS0,5X3,0| SZS1,0X4,0|
SZS1,0X6,5| SZKPH0| SZKPH1|
SZKPH2| PROFIPOL| USS4|
Cutting knife|5mtape measure|
TOOLCARRIEREMPTY
Tool bag, empty
Tool bag, with laptop and document compartments, equipped with
one of each of the following tools:
CUTFOX25VDE| CUTFOX-SVDE|
WIREFOX10| WIREFOX-D40|
CRIMPFOX-MSET| UNIFOX-CVDE|
UNIFOX-PVDE| UNIFOXWP|
SZS0,4X2,5| SZS0,5X3,0| SZS1,0X4,0|
SZS1,0X6,5| SZKPH0| SZKPH1|
SZKPH2| DUSPOLEXPERT| USS4|
AISORTIBOXRD| Cutting knife|
5mtape measure| TOOL-BAGEMPTY
Tool bag, with document and laptop compartments, empty
430
PHOENIX CONTACT
Tool set in a case Tool set in a carry case wrap Tool set in a belt pouch Tool set in a shoulder bag Tool set in a bag with laptop
– Universal tool sets, with cutting,
stripping, crimping, and testing tools from
the TOOL fox tool range
– Robust and heavy-duty tool bags for long-
term use
– With permanently closeable business
card pocket
– With various compartments and options
for storing tools and materials
– For further sets, visit
phoenixcontact.net/products
TOOL fox, tool sets for convenient
use on site
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TOOL-BELTPOUCH 1212506 1
TOOL-BELTPOUCH EMPTY 1212502 1
TOOL-CARRIER 1212503 1
TOOL-CARRIER EMPTY 1212499 1
TOOL-BAG 1212504 1
TOOL-BAG EMPTY 1212500 1
431PHOENIX CONTACT
Tool set in a case Tool set in a carry case wrap Tool set in a belt pouch Tool set in a shoulder bag Tool set in a bag with laptop and document
compartments
Tools - TOOL fox
Hand tools
Ordering data
Description Type Order No. Pcs. /
Pkt.
Stripping, crimping and cutting set, consisting of: cable cutter
for copper and aluminum up to 12 mm Ø, stripping tool for stripping
multicore signal, control and fiberglass wires of Ø 2.5–11mm,
insulation thickness up to 1mm,
basic pliers for accommodating dies for different contact types,
die, for CRIMPFOX–M, for unshielded RJ45 connectors
TOOL DATA SET 1208856 1
Cutting, stripping, and crimping set, comprising: cable cutter for
copper and aluminum up to Ø 12 mm, stripping tool for cables and
conductors with a cross section of 0.02–10mm², self-adjusting,
stripping length of up to 18mm, cutting capacity of up to 10mm²
stranded/1.5mm² solid,
crimping pliers for ferrules measuring 0.14–10mm²
Stripping, crimping, and screwing set, comprising: screwdriver
for slotted-head screws,
stripping tool for 0.02– 10mm² cables and conductors, self-
adjusting, stripping length of up to 18mm, cutting capacity of up to
10mm² stranded/1.5mm² solid,
crimping pliers for ferrules acc. to DIN46228 Parts 1+4,
0.5–6mm², front insertion, square crimping
ferrules, CSA-certified, 50 pcs. each of: AI0,5–8WH, AI2,5–8BU
ferrules, CSA-certified, 100 pcs. each of: AI0,75–8GY, AI1-8RD,
AI1,5–8BK
Range box, made of metal, equipped with ferrules in accordance
with DIN46228–4: 1990–09, CSA-certified
500 pieces each of AI 0,25-6 YE, AI 0,34-6 TQ, AI 0,5-8 WH, AI
0,75-8 GY, AI 1-8 RD, AI 1,5-8 BK,
300 pieces of AI 2,5-8 BU,
200 pieces of AI 4-10 GY,
100 pieces of AI 6-12 YE
as well as stripping tool for wires and conductors of up to 6mm²
crimp pliers for ferrules in accordance with DIN46228, Part 1+4,
0.5–6mm², front insertion, trapezoidal crimp
Range box, made of metal, equipped with ferrules in accordance
with DIN 46228–4: 1990–09, CSA-certified
300 pieces of AI 10-12 RD,
200 pieces of AI 16-12 BU,
100 pieces of AI 25-16 YE
as well as stripping tool, for stripping wires of 4.5 - 40mm,
crimp pliers for ferrules in accordance with DIN46228, Part 1+4,
10 - 25mm², lateral insertion, WM crimp
Assortment box, metal, no components mounted
432
PHOENIX CONTACT
TOOL fox, tool sets
– We have put together a number of
attractive tool sets for you by selecting
products from our comprehensive range
of professional tools
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
TOOL SET ALLROUND 2 1208843 1
TOOL-SET ALLROUND 3 1208953 1
CRIMPSET 6 1202072 1
CRIMPSET 25 1202580 1
CRIMPSET 6/25 LEER 1204041 1
433PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Ordering data
Description Type Order No. Pcs. /
Pkt.
Screwdriver set, slotted/Phillips Recess
®
6-part, incl. rack,
contents: 0.5x3.0x80; 0.8x4.0x100; 1.0x5.5x150;
1.2x6.5x150, PH1, PH2
SF-SL/PH SET 1212541 1
Screwdriver set, slotted/Pozidriv
®
cross-recessed, 6-part, incl.
rack, contents: 0.5x3.0x80; 0.8x4.0x100; 1.0x5.5x150;
1.2x6.5x150, PZ1, PZ2
SF-SL/PZ SET 1212542 1
Screwdriver set, slotted/Pozidriv
®
cross-recessed, VDE
insulated, 6-part, incl. rack, contents: 0.4x2.5x80;
0.6x3.5x100; 0.8x4.0x100; 1.0x5.5x125; PZ1, PZ2
SF-SL/PZ SET VDE 1212540 1
Screwdriver set, slotted/Phillips Recess
®
, VDE insulated, 6-part,
incl. rack, contents: 0.4x2.5x80; 0.6x3.5x100; 0.8x4.0x100;
1.0x5.5x125; PH1, PH2
SF-SL/PH SET VDE 1212539 1
Screwdriver set, protective insulation integrated into shaft,
bladed/Phillips crosshead/combined profile, Pozidriv
®
+ bladed
(plus-minus), insulated according to VDE, 7-piece, including rack,
set contains the following products: 0.6x3.5x100; 0.8x4.0x100;
1.0x5.5x125; PH1x80; PH2x100; PZ1x80; PZ2x100
SF-SL/PH/PZ-SL SET S-VDE 1212701 1
Screwdriver set, Torx
®
with drill bit, 6-part, incl. rack, contents:
TX8x60; TX10x80; TX15x80; TX20x100; TX25x100;
TX30x115
SF-TXH SET 1212538 1
Screwdriver set, Torx
®
, VDE insulated, 6-part, incl. rack,
contents: TX8x80; TX10x80; TX15x80; TX20x80;
TX25x100; TX30x100
SF-TX SET VDE 1212537 1
434
PHOENIX CONTACT
– The SF-SL ... screwdriver sets are available
with a variety of contents
– Wall-mountable screwdriver rack
included
TOOL fox, screwdriver set
Tools - TOOL fox
Hand tools
Notes:
Pozidriv
®
/Supadriv
®
,
trademarks of European Ind. Serv. Ltd.
Phillips Recess
®
,
trademark of Phillips Screw Company
Torx
®
,
trademark of Acument Intellectual Properties, LLC, Troy, Mich.,US
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Bit set, with SF–UBH universal bit holder, 25mm long
slotted/cross-recessed (PZ and PH) bits, 10-part
SF-BIT SET 1212545 10
Battery-powered screwdriver bit set, 1 attachment set each in
5.5 mm, 8 mm, 13 mm, adapter to ¼"
ASD BIT SET HN 1209952 1
– Bit set, in compact plastic box, with quick-
change bit holder and the following 25
mm long bits: 0.8 x 5.5, 1.0 x 5.5, 1.2 x 6.5,
PH1, PH2, PH3, PZ1, PZ2, PZ3
– Clearly arranged storage
– Bits can be accessed quickly, thanks to
convenient, one-handed opening
mechanism
– Equipped with hardened bits for durability
TOOL fox, bit set
Tools - TOOL fox
Hand tools
Ordering data
Description Type Order No. Pcs. /
Pkt.
Bit screwdriver set with quick-action chuck, 89mm long
slotted/cross-recessed (PZ and PH)/hex/Torx
®
bits, 17-part, in
folding belt pouch, contents: PH1,2,3x89; PZ1,2,3x89;
SL1.5x5.5x89; TX10-30x89; SW3,4,5,6x89
SF-M SET 1212543 1
Bit screwdriver set with quick-action chuck, , 89mm long
slotted/crosshead/hex/Torx® bits, 17-piece, in folding belt pouch,
contents: PH 1, 2, 3x89, SL0.4x 2.5, 0.6x3.5, 0.8x3.5,
1.0x5.5, 1.2x6.5x89, TX10-30, SW 3, 4, 5x89
SF-M SET 2 1212756 1
435
PHOENIX CONTACT
– Bit screwdriver set, packed in a practical
belt pouch
– Equipped with the most common types of
screw bit
TOOL fox, screwdriver set
Description
Crimping pliers, for ferrules, according to DIN46228-1and-4,
five marked die stations, laser marked according to customer
specifications
1
)
Lateral entry, 0.25-6.0mm², unlockable pressure
lock, trapezoidal crimp
Front insertion, 0.5-6mm², square crimp
Crimping pliers, unlockable pressure lock, lateral entry, oval
crimp, laser marked according to customer specifications
1
)
For insulated cable lugs (light green, red),
0.14-1mm², three marked die stations
For insulated cable lugs (red, blue),
0.75-2.5mm², two marked die stations
Crimping pliers, for uninsulated cable lugs, three marked die
stations, 0.34-2.5mm², unlockable pressure lock, lateral entry,
indent crimp, laser marked according to customer
specifications
1
)
Crimping pliers, for uninsulated slip-on sleeves 2.8/4.8/6.3mm,
three marked die stations, B-crimp, 0.1-1.5mm², unlockable
pressure lock, lateral entry, laser marked according to customer
specifications
1
)
Crimping pliers, for ferrules according to DIN 46228-1and-4,
self-adjusting die, trapezoidal crimp, 0.5-6mm², unlockable
pressure lock, laser marked according to customer
specifications
1
)
Front insertion
Lateral entry
Crimping pliers, three marked die stations, 0.75-6mm², oval
crimp, unlockable pressure lock, lateral entry, laser marked
according to customer specifications
1
)
For insulated cable lugs, symmetrical (red, blue,
yellow)
For insulated cable lugs, asymmetrical (red, blue,
yellow)
Crimping pliers, for ferrules according to DIN 46228-1and-4,
WM crimp, unlockable pressure lock, lateral entry, laser marked
according to customer specifications
1
)
Three marked die stations, 10-25mm²
Two marked die stations, 35-50mm²
436
PHOENIX CONTACT
– Customize your crimping tool!
– You can now use robust laser engraving to
mark CRIMPFOX pliers
– Individual laser marking prevents your
tools from being mixed up
Notes:
Matching accessories can be found in main catalog5 or the
product area on our website at phoenixcontact.net/products.
1
) Tools with customer-specific laser marking can be ordered
quickly and easily in the product area on our website at
phoenixcontact.net/products.
The advantages of our CRIMPFOXtools:
– Consistently high crimping quality
– Unlockable pressure lock
– Marked die stations for precise
processing of the relevant cross sections
– Easy work, thanks to improved force
transfer
– Ergonomically designed, non-slip handles
CRIMPFOX pliers, laser marked
according to customer specifications
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX 6 CUS 1212767 1
CRIMPFOX 6S-F CUS 1212769 1
CRIMPFOX-RCI 1 CUS 1212772 1
CRIMPFOX-RCI 2,5 CUS 1212773 1
CRIMPFOX-RC 2,5 CUS 1212777 1
CRIMPFOX-SC 1,5 CUS 1212779 1
CRIMPFOX 6T-F CUS 1212771 1
CRIMPFOX 6T CUS 1212770 1
CRIMPFOX-RCI 6 CUS 1212774 1
CRIMPFOX-RCI 6-1 CUS 1212775 1
CRIMPFOX 25R CUS 1212765 1
CRIMPFOX 50R CUS 1212766 1
437PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Description
Crimping pliers, for uninsulated cable lugs, three marked die
stations, indent crimp, unlockable pressure lock, lateral entry, laser
marked according to customer specifications
1
)
4-10mm²
10-25mm²
Crimping pliers, for uninsulated slip-on sleeves 2.8/4.8/6.3mm,
three marked die stations, 0.5-6mm², B-crimp, unlockable
pressure lock, lateral entry, laser marked according to customer
specifications
1
)
Crimping pliers, for ferrules according to DIN46228, unlockable
pressure lock, lateral entry, laser marked according to customer
specifications
1
)
Square crimp, 0.14–10mm²
HEX crimp, 0.14–6 mm²
Stripping tool, self-adjusting, easily replaceable blade cassettes,
stripping length of up to 18mm, cutting capacity: up to 1.5mm²
solid, up to 10mm² stranded, laser marked according to
customer specifications
1
)
For cables and conductors from 0.1–4mm²,
specifically also intended for rubber and other
kinds of special insulation
For cables and conductors from 1.5-6mm²,
specifically for short-circuit-proof cables and
rubber insulation
For standard cables and conductors from 0.02-
10mm²
For standard cables and conductors from 4-
16mm²
438
PHOENIX CONTACT
– Customize your crimping and stripping
tool!
– You can now use robust laser engraving to
mark CRIMPFOX and WIREFOX pliers
– Individual laser marking prevents your
tools from being mixed up
Notes:
Matching accessories can be found in main catalog5 or the
product area on our website at phoenixcontact.net/products.
1
) Tools with customer-specific laser marking can be ordered
quickly and easily in the product area on our website at
phoenixcontact.net/products.
The advantages of our WIREFOXtools:
– The special spring mechanism helps you
to work precisely and safely
– Ergonomically designed, non-slip handles
– The WIREFOX pliers automatically adjust
to different insulations and conductor
diameters
– Highly adjustable limit stop for the
stripping length
– Practical integrated wire cutter
– Easily replaceable blade cassettes for
different cross sections and insulation
CRIMPFOX and WIREFOX pliers,
laser marked according to customer
specifications
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CRIMPFOX-RC 10 CUS 1212776 1
CRIMPFOX-RC 25 CUS 1212778 1
CRIMPFOX-SC 6 CUS 1212780 1
CRIMPFOX 10S CUS 1212764 1
CRIMPFOX 6H CUS 1212768 1
WIREFOX 4 CUS 1212762 1
WIREFOX 6SC CUS 1212763 1
WIREFOX 10 CUS 1212760 1
WIREFOX 16 CUS 1212761 1
439PHOENIX CONTACT
Tools - TOOL fox
Hand tools
Ordering data
Description Type Order No. Pcs. /
Pkt.
Toolbox, lockable, with adjustable strap, equipped with: cable
cutter, diagonal cutter, micro cutter, stripping and sheath stripping
tools, crimping tool set, combination, needle-nose, and water pump
pliers, VDE bladed and Phillips screwdrivers, control cabinet key,
voltage tester, ferrule box, blades, tape measure, continuity tester,
marking tool, ring, open-end, and adjustable wrench set, T-handle
hexagonal wrench, safety glasses, hammer, 41-piece ratchet
socket wrench set, 1/4"
TOOL-CASE 1212629 1
Tool case, empty, lockable, with permanently closeable business
card pocket, very comfortable to carry
thanks to padded strap, with document compartment
TOOL-CASE EMPTY 1212628 1
Tool case, equipped with tools according to customer
requirements
TOOL-CASE CUS 1200072 1
You can put together your own CUS tool
set according to your individual
requirements
– Six different bags are available, designed
for typical applications
– Products are configured and ordered with
web code:
#0290
CUStool sets, equipped with tools
according to customer requirements
Tools - TOOL fox
Hand tools
Tool case, lockable, with straps
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Tool bag, with adjustable straps, with document and laptop
compartments, equipped with tools according to customer
requirements
TOOL-BAG CUS 1200081 1
Tool bag, with strap, equipped with tools according to
customer requirements
TOOL-CARRIER CUS 1200082 1
440
PHOENIX CONTACT
– Products are configured and ordered with
web code:
#0290
CUStool sets, equipped with tools
according to customer requirements
Tool bag, with document and laptop
compartments
Tool bag, with strap
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Tool belt pouch, with two robust internal pockets, equipped with
tools according to customer requirements
TOOL-BELTPOUCH CUS 1200084 1
– Individual tool sets, with cutting,
stripping, crimping, installation, and
testing tools from the TOOLfox tool
range
– Rugged and heavy-duty tool bags
– Products are configured and ordered with
web code:
#0290
CUStool sets, equipped with tools
according to customer requirements
Tools - TOOL fox
Hand tools
Tool belt pouch
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Tool case, with elastic straps to hold the tools in place, equipped
with tools according to customer requirements
TOOL-KIT CUS 1200085 1
Tool wrap, equipped with tools according to customer
requirements
TOOL-WRAP CUS 1200083 1
441
PHOENIX CONTACT
– Products are configured and ordered with
web code:
#0290
CUStool sets, equipped with tools
according to customer requirements
Tool case Wrap-up tool bag
Ordering data
Description Type Order No. Pcs. /
Pkt.
Tool case, with permanently closable business card pocket, with
US EMP (85.6 x 54) marking label marked according to customer
requirements
TOOL-CASE EMPTY CUS 8191312 1
new
– A business card sized label is available for
customization. This can be marked
according to customer requirements
– Products are configured and ordered with
web code:
#0290
Tool case with customized marking
Tools - TOOL fox
Hand tools
new
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Tool bag, with permanently closeable business card pocket, with
US EMP (85.6 x 54) marking label, marked according to customer
requirements
TOOL-BAG EMPTY CUS 8191308 1
Tool bag, with permanently closeable business card pocket, with
US EMP (85.6 x 54) marking label, marked according to customer
requirements
TOOL-CARRIER EMPTY CUS 8191310 1
442
PHOENIX CONTACT
new
– The tool bags impress with their hard-
wearing materials and robust
construction
– Products are configured and ordered with
web code:
#0290
Tool bags with customized marking
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Tool belt pouch, with permanently closable business card pocket,
with US EMP (85.6 x 54) marking label marked according to
customer requirements
TOOL-BELTPOUCH EMPTY CUS 8191311 1
new
– The business card pocket can be
permanently closed using the plastic
rivets supplied as standard
– Products are configured and ordered with
web code:
#0290
Tool belt pouch with customized
marking
Tools - TOOL fox
Hand tools
new
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Tool kit, with permanently closeable business card pocket, with
US EMP (85.6 x 54) marking label, marked according to customer
requirements
TOOL-KIT STANDARD EMPTY CUS 8191307 1
Tool wrap, with permanently closable business card pocket, with
marking label US EMP (85.6 x 54) marked according to customer
requirements
TOOL-WRAP EMPTY CUS 8191309 1
443
PHOENIX CONTACT
new
– No risk of switching tool bags thanks to
the clearly printed labels
– Products are configured and ordered with
web code:
#0290
Tool kit, tool wrap with customized
marking
b
h
d
k
j
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Ferrules, without plastic sleeves, CSA-certified
0.25
1
) 24 silver - 5.00 1.70 - - 0.15 0.80 A 0,25- 5 3202465 1000
0.25
1
) 24 silver - 7.00 1.70 - - 0.15 0.80 A 0,25- 7 3202478 1000
0.34
1
)22 silver -7.00 1.80 - - 0.15 0.90 A 0,34- 7 3009202 1000
0.5 20 silver - 6.00 2.10 - - 0.15 1.00 A 0,5 - 6 3200218 1000
0.5
1
) 20 silver - 8.00 2.10 - - 0.15 1.00 A 0,5 - 8 3202481 1000
0.5 20 silver - 10.00 2.10 - - 0.15 1.00 A 0,5 -10 3202494 1000
0.75 18 silver -6.00 2.30 - - 0.15 1.20 A 0,75- 6 3200221 1000
0.75
1
)18 silver -8.00 2.30 - - 0.15 1.20 A 0,75- 8 3202504 1000
0.75 18 silver -10.00 2.30 - - 0.15 1.20 A 0,75-10 3200234 1000
1 18 silver - 6.00 2.50 - - 0.15 1.40 A 1 - 6 3200247 1000
1
1
) 18 silver - 8.00 2.50 - - 0.15 1.40 A 1 - 8 3202517 1000
1 18 silver - 10.00 2.50 - - 0.15 1.40 A 1 -10 3200250 1000
1.5 16 silver -7.00 2.80 - - 0.15 1.70 A 1,5 - 7 3200263 1000
1.5 16 silver -10.00 2.80 - - 0.15 1.70 A 1,5 -10 3200276 1000
1.5 16 silver -12.00 2.80 - - 0.15 1.70 A 1,5 -12 3202588 1000
1.5 16 silver -15.00 2.80 - - 0.15 1.70 A 1,5 -15 3202591 1000
1.5 16 silver -18.00 2.80 - - 0.15 1.70 A 1,5 -18 3202601 1000
2.5 14 silver - 7.00 3.40 - - 0.15 2.20 A 2,5 - 7 3200289 1000
2.5 14 silver - 12.00 3.40 - - 0.15 2.20 A 2,5 -12 3200292 1000
2.5 14 silver - 18.00 3.40 - - 0.15 2.20 A 2,5 -18 3202821 1000
412 silver -9.00 4.00 - - 0.20 2.80 A 4 - 9 3200302 1000
412 silver -12.00 4.00 - - 0.20 2.80 A 4 -12 3200315 1000
412 silver -18.00 4.00 - - 0.20 2.80 A 4 -18 3202834 1000
6 10 silver - 10.00 4.70 - - 0.20 3.50 A 6 -10 3202520 500
6 10 silver - 12.00 4.70 - - 0.20 3.50 A 6 -12 3200328 500
10 8silver -12.00 5.80 - - 0.20 4.50 A 10 -12 3200331 500
10 8silver -18.00 5.80 - - 0.20 4.50 A 10 -18 3200344 500
16 6 silver - 12.00 7.50 - - 0.20 5.80 A 16 -12 3200425 100
25
1
) 4 silver -12.00 9.50 - - 0.20 7.30 A 25 -12 3200357 100
25 4silver -15.00 9.50 - - 0.20 7.30 A 25 -15 3200360 100
25 4silver -18.00 9.50 - - 0.20 7.30 A 25 -18 3200373 100
25
1
) 4 silver - 20.00 9.50 - - 0.20 7.30 A 25 -20 3200386 100
25 4 silver - 40.00 9.50 - - 0.20 7.30 A 25 -40 3241238 100
35 2silver -18.00 11.00 - - 0.20 8.30 A 35 -18 3200399 100
35
1
) 2 silver -20.00 11.00 - - 0.20 8.30 A 35 -20 3200409 100
35 2silver -40.00 11.00 - - 0.20 8.20 A 35 -40 3241239 100
50 1/0 silver - 40.00 13.00 - - 0.30 10.30 A 50 -40 3241240 100
70 2/0 silver -40.00 15.00 - - 0.40 12.50 A 70 -40 3241241 100
95 3/0 silver - 40.00 17.00 - - 0.40 14.50 A 95 -40 3241242 100
444
PHOENIX CONTACT
– The ferrules without plastic sleeve are
made from soft tin-plated electrolytic
copper
– The dimensions of the ferrules conform
to DIN46228–1
– The A 0,25.. can also be used to process
conductors with a cross section of 0.14
mm
Ferrules without insulating collar,
according to DIN46228–1
Notes:
1
) These ferrules are not included in DIN46228–4:1990–09.
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.14 to 35 mm²
i
d
j
k
b
h
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Ferrules, with plastic sleeve, color range as per DIN 46228-4:
1990-09, CSA-certified
0.25
1
) 22 yellow - 10.50 2.00 6.00 0.25 0.15 0.80 AI 0,25- 6 YE 3203024 100
0.25
1
) 22 yellow - 12.50 2.00 8.00 0.25 0.15 0.80 AI 0,25- 8 YE 3203037 100
0.5 20 white -12.00 2.50 6.00 0.25 0.15 1.10 AI 0,5 - 6 WH 3200687 100
0.5 20 white -14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 WH 3200014 100
0.5 20 white -14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 WH -1000 3200881 1000
0.5 20 white -16.00 2.50 10.00 0.25 0.15 1.10 AI 0,5 -10 WH 3201275 100
0.5
1
)20 white -18.00 2.50 12.00 0.25 0.15 1.10 AI 0,5 -12 WH 3200506 100
0.75 18 gray - 12.00 2.80 6.00 0.25 0.15 1.30 AI 0,75- 6 GY 3200690 100
0.75 18 gray - 14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75- 8 GY 3200519 100
0.75 18 gray - 14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75- 8 GY -1000 3200894 1000
0.75 18 gray - 16.00 2.80 10.00 0.25 0.15 1.30 AI 0,75-10 GY 3201288 100
0.75 18 gray - 18.00 2.80 12.00 0.25 0.15 1.30 AI 0,75-12 GY 3200849 100
118 red -12.00 3.00 6.00 0.30 0.15 1.50 AI 1 - 6 RD 3200742 100
118 red -14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 RD 3200030 100
118 red -14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 RD -1000 3200904 1000
118 red -16.00 3.00 10.00 0.30 0.15 1.50 AI 1 -10 RD 3200182 100
118 red -18.00 3.00 12.00 0.30 0.15 1.50 AI 1 -12 RD 3200674 100
1.5
1
) 16 black - 12.00 3.40 6.00 0.30 0.15 1.80 AI 1,5 - 6 BK 3200755 100
1.5 16 black - 14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 BK 3200043 100
1.5 16 black - 14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 BK -1000 3200917 1000
1.5 16 black - 16.00 3.40 10.00 0.30 0.15 1.80 AI 1,5 -10 BK 3200195 100
1.5 16 black - 18.00 3.40 12.00 0.30 0.15 1.80 AI 1,5 -12 BK 3201482 100
1.5 16 black - 24.00 3.40 18.00 0.30 0.15 1.80 AI 1,5 -18 BK 3200056 100
2.5 14 blue -14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5 - 8 BU 3200522 100
2.5 14 blue -14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5 - 8 BU -1000 3200920 1000
2.5
1
)14 blue -17.00 4.20 10.00 0.30 0.15 2.30 AI 2,5 -10 BU 3202533 100
2.5 14 blue -18.00 4.20 12.00 0.30 0.15 2.30 AI 2,5 -12 BU 3200962 100
2.5 14 blue -24.00 4.20 18.00 0.30 0.15 2.30 AI 2,5 -18 BU 3200580 100
4 12 gray - 17.00 4.80 10.00 0.30 0.20 2.80 AI 4 -10 GY 3200535 100
4 12 gray - 20.00 4.80 12.00 0.30 0.20 2.80 AI 4 -12 GY 3200959 100
4 12 gray - 26.00 4.80 18.00 0.30 0.20 2.80 AI 4 -18 GY 3200593 100
610 yellow -20.00 6.20 12.00 0.30 0.20 3.50 AI 6 -12 YE 3200548 100
610 yellow -26.00 6.20 18.00 0.30 0.20 3.50 AI 6 -18 YE 3200603 100
10 8 red - 22.00 7.50 12.00 0.30 0.20 4.60 AI 10 -12 RD 3200551 100
10 8 red - 28.00 7.50 18.00 0.30 0.20 4.60 AI 10 -18 RD 3200616 100
16 6blue -24.00 8.80 12.00 0.40 0.20 5.80 AI 16 -12 BU 3200564 100
16 6blue -29.00 8.80 18.00 0.40 0.20 5.80 AI 16 -18 BU 3200629 100
25 4 yellow - 30.00 11.00 16.00 0.50 0.20 7.30 AI 25 -16 YE 3200577 50
25 4 yellow - 32.00 11.00 18.00 0.50 0.20 7.30 AI 25 -18 YE 3201505 50
25 4 yellow - 36.00 11.00 22.00 0.50 0.20 7.30 AI 25 -22 YE 3200700 50
35 2red -30.00 12.50 16.00 0.50 0.20 8.30 AI 35 -16 RD 3200441 50
35 2red -32.00 12.50 18.00 0.50 0.20 8.30 AI 35 -18 RD 3201495 50
35 2red -39.00 12.50 25.00 0.50 0.20 8.30 AI 35 -25 RD 3200713 50
50 1/0 blue - 36.00 15.00 20.00 0.60 0.35 10.30 AI 50 -20 BU 3200454 50
50 1/0 blue - 40.00 15.00 25.00 0.60 0.35 10.30 AI 50 -25 BU 3200726 25
70
1
) 2 yellow -37.00 16.00 20.00 0.60 0.35 12.70 AI 70 -20 YE 3201848 25
95
1
) 4 red - 44.00 18.00 25.00 0.60 0.35 14.70 AI 95 -25 RD 3201853 25
120
1
) 5 blue -48.00 21.00 27.00 0.70 0.45 16.70 AI120 -27 BU 3201822 25
445
PHOENIX CONTACT
– The ferrules with plastic sleeve are made
from soft tin-plated electrolytic copper
– The insulation reliability of close
connections is increased and the splicing
of wires is prevented
– The AI 0,25.. can also be used to process
conductors with a cross section of 0.14
mm
Ferrules with insulating collar,
according to DIN46228–4
Notes:
1
) These ferrules are not included in DIN46228–4:1990–09.
Tools - TOOL fox
Hand tools
Conductor cross sections
from 0.14 to 120 mm²
i
d
j
k
b
h
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Ferrules, with plastic sleeve, color code as per NF C 63-023:
1994-02, CSA-certified
0.5 20 white - 12.00 2.50 6.00 0.25 0.15 1.10 AI 0,5 - 6 WH 3200687 100
0.5 20 white - 14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 WH 3200014 100
0.5 20 white - 14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 WH -1000 3200881 1000
0.5 20 white - 16.00 2.50 10.00 0.25 0.15 1.10 AI 0,5 -10 WH 3201275 100
0.5
1
) 20 white - 18.00 2.50 12.00 0.25 0.15 1.10 AI 0,5 -12 WH 3200506 100
0.75 18 blue -14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75- 8 BU 3200027 100
1 18 red - 12.00 3.00 6.00 0.30 0.15 1.50 AI 1 - 6 RD 3200742 100
1 18 red - 14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 RD 3200030 100
1 18 red - 14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 RD -1000 3200904 1000
1 18 red - 16.00 3.00 10.00 0.30 0.15 1.50 AI 1 -10 RD 3200182 100
1 18 red - 18.00 3.00 12.00 0.30 0.15 1.50 AI 1 -12 RD 3200674 100
1.5
1
)16 black -12.00 3.40 6.00 0.30 0.15 1.80 AI 1,5 - 6 BK 3200755 100
1.5 16 black -14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 BK 3200043 100
1.5 16 black -14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 BK -1000 3200917 1000
1.5 16 black -16.00 3.40 10.00 0.30 0.15 1.80 AI 1,5 -10 BK 3200195 100
1.5 16 black -18.00 3.40 12.00 0.30 0.15 1.80 AI 1,5 -12 BK 3201482 100
1.5 16 black -24.00 3.40 18.00 0.30 0.15 1.80 AI 1,5 -18 BK 3200056 100
2.5 14 gray - 14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5 - 8 GY 3200069 100
2.5 14 gray - 18.00 4.20 12.00 0.30 0.15 2.30 AI 2,5 -12 GY 3200205 100
2.5 14 gray - 24.00 4.20 18.00 0.30 0.15 2.30 AI 2,5 -18 GY 3200072 100
412 orange -17.00 4.80 10.00 0.30 0.20 2.80 AI 4 -10 OG 3200085 100
412 orange -20.00 4.80 12.00 0.30 0.20 2.80 AI 4 -12 OG 3200438 100
412 orange -26.00 4.80 18.00 0.30 0.20 2.80 AI 4 -18 OG 3200098 100
6 10 green - 20.00 6.20 12.00 0.30 0.20 3.50 AI 6 -12 GN 3200108 100
6 10 green - 26.00 6.20 18.00 0.30 0.20 3.50 AI 6 -18 GN 3200111 100
10 8brown -22.00 7.50 12.00 0.30 0.20 4.60 AI 10 -12 BN 3200124 100
10 8brown -28.00 7.50 18.00 0.30 0.20 4.60 AI 10 -18 BN 3200137 100
16 6 ivory - 24.00 8.80 12.00 0.40 0.20 5.80 AI 16 -12 IV 3201181 100
25 4black -30.00 11.00 16.00 0.50 0.20 7.30 AI 25 -16 BK 3200412 50
25 4black -36.00 11.00 22.00 0.50 0.20 7.30 AI 25 -22 BK 3200739 50
35 2 red - 30.00 12.50 16.00 0.50 0.20 8.30 AI 35 -16 RD 3200441 50
35 2 red - 39.00 12.50 25.00 0.50 0.20 8.30 AI 35 -25 RD 3200713 50
50 1/0 blue -36.00 15.00 20.00 0.60 0.35 10.30 AI 50 -20 BU 3200454 50
50 1/0 blue -40.00 15.00 25.00 0.60 0.35 10.30 AI 50 -25 BU 3200726 25
446
PHOENIX CONTACT
– In terms of dimensions, these ferrules
conform to DIN46228–4:1990–09
– The color code of the plastic insulating
collar is based on the French standard
NFC63–023:1994–02
– The metal sleeves are made from soft tin-
plated electrolytic copper
Ferrules with insulating collar with
color code in acc. with NFC63–023
Notes:
1
) These ferrules are not included in DIN46228–4:1990–09.
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 50 mm²
i
d
j
k
b
h
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
0.14 24 gray - 12.50 2.00 8.00 0.25 0.15 0.80 AI 0,14- 8 GY -1000 3203011 1000
0.25
1
) 22 blue - 10.50 2.00 6.00 0.25 0.15 0.80 AI 0,25- 6 BU 3203040 100
0.25
1
) 22 blue - 16.50 2.00 12.00 0.25 0.15 0.80 AI 0,25-12 BU 3200632 100
0.34
1
)22 turquoise -10.50 2.00 6.00 0.25 0.15 0.80 AI 0,34- 6 TQ 3203053 100
0.34
1
)22 turquoise -12.50 2.00 8.00 0.25 0.15 0.80 AI 0,34- 8 TQ 3203066 100
0.34
1
)22 turquoise -16.50 2.00 12.00 0.25 0.15 0.80 AI 0,34-12 TQ 3200645 100
0.5 20 orange - 12.00 2.50 6.00 0.25 0.15 1.10 AI 0,5 - 6 OG 3201301 100
0.5 20 orange - 14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 OG 3201123 100
0.5 20 orange - 14.00 2.50 10.00 0.25 0.15 1.10 AI 0,5 -10 OG 3241126 500
0.75 18 white -12.00 2.80 6.00 0.25 0.15 1.30 AI 0,75- 6 WH 3201314 100
0.75 18 white -14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75- 8 WH 3201110 100
1 18 yellow - 12.00 3.00 6.00 0.30 0.15 1.50 AI 1 - 6 YE 3201327 100
1 18 yellow - 14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 YE 3201097 100
1.5 16 red -14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 RD 3201136 100
1.5 16 red -14.00 3.40 18.00 0.30 0.15 1.80 AI 1,5 -18 RD 3241125 500
2.5 14 blue - 14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5 - 8 BU 3200522 100
2.5 14 blue - 14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5 - 8 BU -1000 3200920 1000
2.5 14 blue - 18.00 4.20 12.00 0.30 0.15 2.30 AI 2,5 -12 BU 3200962 100
2.5 14 blue - 24.00 4.20 18.00 0.30 0.15 2.30 AI 2,5 -18 BU 3200580 100
412 gray -17.00 4.80 10.00 0.30 0.20 2.80 AI 4 -10 GY 3200535 100
412 gray -20.00 4.80 12.00 0.30 0.20 2.80 AI 4 -12 GY 3200959 100
412 gray -26.00 4.80 18.00 0.30 0.20 2.80 AI 4 -18 GY 3200593 100
6 10 black - 20.00 6.20 12.00 0.30 0.20 3.50 AI 6 -12 BK 3201107 100
10 8ivory -22.00 7.50 12.00 0.30 0.20 4.60 AI 10 -12 IV 3201068 100
16 6 green - 24.00 8.80 12.00 0.40 0.20 5.80 AI 16 -12 GN 3201152 100
16 6 green - 28.00 8.80 18.00 0.40 0.20 5.80 AI 16 -18 GN 3201330 100
25 4brown -30.00 11.00 16.00 0.50 0.20 7.30 AI 25 -16 BN 3201084 50
35 2 beige - 30.00 12.50 16.00 0.50 0.20 8.30 AI 35 -16 BE 3201071 50
50 1/0 olive -36.00 15.00 20.00 0.60 0.35 10.30 AI 50 -20 OL 3201178 50
95
1
) 4 red - 44.00 18.00 25.00 0.60 0.35 14.70 AI 95 -25 RD 3201853 25
120
1
) 5 blue -48.00 21.00 27.00 0.70 0.45 16.70 AI120 -27 BU 3201822 25
447
PHOENIX CONTACT
– The ferrules with plastic sleeve are made
from soft tin-plated electrolytic copper
– In terms of dimensions, they conform to
DIN46228–4:1990–09
Ferrules with insulating collar in
special colors
Notes:
1
) These ferrules are not included in DIN46228–4:1990–09.
Tools - TOOL fox
Hand tools
Conductor cross sections
from 0.14 to 120 mm²
i
d
j
k
b
h
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Ferrules, with plastic sleeves, CSA-certified
0.5 20 white - 13.50 3.00 8.00 0.25 0.15 1.10 AI 0,5 - 8 WH-GB 1208966 500
0.5 20 white -15.50 3.00 10.00 0.25 0.15 1.10 AI 0,5-10 WH-GB 3203150 100
0.75 18 gray - 14.00 3.40 8.00 0.25 0.15 1.30 AI 0,75- 8 GY-GB 1208979 500
0.75 18 gray -16.00 3.40 10.00 0.25 0.15 1.30 AI 0,75-10 GY-GB 3203163 100
1 18 red - 14.00 3.40 8.00 0.30 0.15 1.50 AI 1 - 8 RD-GB 1208982 500
118 red -16.00 3.40 10.00 0.30 0.15 1.50 AI 1 -10 RD-GB-1000 1208869 1000
1.5 16 black - 14.00 3.70 8.00 0.30 0.15 1.80 AI 1,5 - 8 BK-GB-1000 3202892 1000
1.5 16 black -16.00 3.70 10.00 0.30 0.15 1.80 AI 1,5 -10 BK-GB-1000 1208872 1000
448
PHOENIX CONTACT
– These ferrules enable practical crimping
of conductors with increased insulation
– Due to the increased diameter of the
insulating collar, this type of ferrule is
specifically used with AWG cables
Ferrules for special applications
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 1.5 mm²
i
d
j
k
b
h
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Ferrules, with plastic sleeve, color range as per DIN 46228-4:
1990-09, CSA-certified
1.5 16 black - 17.50 7.00 8.00 0.30 0.15 1.80 AI-XL 1,5- 8 BK 3201916 100
1.5 16 black - 19.50 7.00 10.00 0.30 0.15 1.80 AI-XL 1,5-10 BK 3201974 100
2.5 14 blue -17.50 7.90 8.00 0.30 0.15 2.30 AI-XL 2,5- 8 BU 3201929 100
2.5 14 blue -21.50 7.90 12.00 0.30 0.15 2.30 AI-XL 2,5-12 BU 3201987 100
4 12 gray - 19.50 7.90 10.00 0.30 0.20 2.90 AI-XL 4 -10 GY 3201932 100
610 yellow -23.00 8.70 12.00 0.30 0.20 3.60 AI-XL 6 -12 YE 3201945 100
10 8 red - 24.00 10.20 12.00 0.30 0.20 4.60 AI-XL 10 -12 RD 3201958 100
16 6blue -25.50 12.50 12.00 0.40 0.20 6.00 AI-XL 16 -12 BU 3201961 100
449
PHOENIX CONTACT
– Suitable for conductors with thicker
insulation, such as short-circuit-proof
conductors
Ferrules for special applications
Tools - TOOL fox
Hand tools
Conductor cross sections from 1.5 to 16 mm²
i
b
h
j
k
l
d
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG b d h i j k l
Ferrules, with plastic sleeve, color range as per DIN 46228-4:
1990-09, CSA-certified
2 x 0.5 2 x 20 white 15.00 2.50 8.00 0.25 0.15 1.50 - AI-TWIN 2X 0,5 - 8 WH 3200933 100
2 x 0.75 2 x 18 gray 15.00 2.80 8.00 0.25 0.15 1.80 -AI-TWIN 2X 0,75- 8 GY 3200807 100
2 x 0.75 2 x 18 gray 17.00 2.80 10.00 0.25 0.15 1.80 -AI-TWIN 2X 0,75-10 GY 3200975 100
2 x 1 2 x 18 red 15.00 3.40 8.00 0.30 0.15 2.05 - AI-TWIN 2X 1 - 8 RD 3200810 100
2 x 1 2 x 18 red 17.00 3.40 10.00 0.30 0.15 2.05 - AI-TWIN 2X 1 -10 RD 3200988 100
2 x 1 2 x 18 red 19.00 3.40 12.00 0.30 0.15 2.05 - AI-TWIN 2X1-12 RD 3240679 100
2 x 1.5 2 x 16 black 16.00 3.60 8.00 0.30 0.15 2.30 -AI-TWIN 2X 1,5 - 8 BK 3200823 100
2 x 1.5 2 x 16 black 18.00 3.60 10.00 0.30 0.15 2.30 -AI-TWIN 2X 1,5 -10 BK 3201534 100
2 x 1.5 2 x 16 black 20.00 3.60 12.00 0.30 0.15 2.30 -AI-TWIN 2X 1,5 -12 BK 3200991 100
2 x 2.5 2 x 14 blue 18.50 4.20 10.00 0.30 0.20 2.90 - AI-TWIN 2X 2,5 -10 BU 3200836 100
2 x 2.5 2 x 14 blue 21.50 4.20 13.00 0.30 0.20 2.90 - AI-TWIN 2X 2,5 -13 BU 3200878 100
2 x 4 2 x 12 gray 23.00 4.90 12.00 0.30 0.20 3.80 -AI-TWIN 2X 4 -12 GY 3201000 100
2 x 6 2 x 10 yellow 25.00 5.90 14.00 0.40 0.20 4.90 - AI-TWIN 2X 6 -14 YE 3201013 100
2 x 10 2 x 8 red 26.00 7.20 14.00 0.40 0.20 6.50 -AI-TWIN 2X10 -14 RD 3201026 100
2 x 16 2 x 6 blue 31.00 8.80 16.00 0.50 0.20 8.50 - AI-TWIN 2X16 -16 BU 3202847 50
Ferrules, with plastic sleeve, color range according to NF C 63-
023, CSA-certified
2 x 0.75 18 blue 15.00 2.80 8.00 0.25 0.15 1.80 -AI-TWIN 2X0,75-8 BU 3240668 100
2 x 2.5 14 gray 18.50 4.20 10.00 0.30 0.20 2.90 -AI-TWIN 2X2,5-10 GY 3240669 100
450
PHOENIX CONTACT
– The TWIN ferrules provide a practical
way of crimping two conductors in one
ferrule
– These special ferrules allow chain bridges
to be set up with ease
– Different versions of the individual TWIN
ferrules can be selected for specific
applications
Ferrules for special applications
Tools - TOOL fox
Hand tools
Conductor cross sections
from 2 x 0.5 to 2 x 16 mm²
For further information and full technical data, visit phoenixcontact.net/products
Conductor cross section of 0.5-2.5mm²
Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Taped ferrules, with plastic sleeve, large coils for automatic
processing, color range acc. to DIN46228–4: 1990–09, CSA
certified
0.5 20 white - 14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5-8 WH-B 3000 3240663 3000
0.75 18 gray -14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75-8 GY-B 3000 3240664 3000
1 18 red - 14.00 3.00 8.00 0.30 0.15 1.50 AI 1-8 RD-B 3000 3240665 3000
1.5 16 black -14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5-8 BK-B 2500 3240666 2500
2.5 14 blue - 14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5-8 BU-B 1500 3240667 1500
– Ferrules in tape format for automatic
processing
– The ferrules are supplied on large coils,
each containing a quantity of up to 3000
Ferrules with plastic sleeve, taped,
supplied on large coils
Tools - TOOL fox
Hand tools
Conductor cross section of 0.5-2.5mm²
Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Taped ferrules, 0.5mm², sleeve length: 8mm, with plastic collar,
according to DIN 46228-4, white, for processing with the
CRIMPFOX 4 IN 1, 10 strips each with 50 sleeves per strip
0.5 20 white - 14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5-8 WH S1 1200104 500
0.75 18 gray -14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75-8 GY S1 1200105 500
1 18 red - 14.00 3.00 8.00 0.30 0.15 1.50 AI 1,0-8 RD S1 1200106 500
1.5 16 black -14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5-8 BK S1 1200107 500
10 strips each with 40
sleeves per strip
2.5 14 blue - 14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5-8 BU S1 1200108 400
– Suitable for processing with the
CRIMPFOX 4 IN 1
– The ferrules with plastic sleeve are made
from soft tin-plated electrolytic copper
– In terms of dimensions, they conform to
DIN46228–4:1990–09
new
Ferrules with plastic collar in strip
form
451
PHOENIX CONTACT
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Sorti-box, equipped with ferrules in accordance with DIN 46228-4,
CSA-certified
500 pcs. each of AI 0,5-8 WH, AI 2,5-8 BU,
100 pcs. each of AI 0,75-8 GY, AI 1-8 RD, AI 1,5-8 BK
red AI SORTI BOX RD 3202960 1
Sorti-box, equipped with ferrules in accordance with DIN 46228-4,
CSA-certified
50 pcs. of AI 4-10 GY,
20 pcs. each of AI 6-12 YE, AI 10-12 RD,
10 pcs. of AI 16-12 BU
anthracite AI SORTI BOX ANT 3202973 1
Sorti-box, equipped with TWIN ferrules in accordance with DIN
46228-4, CSA-certified
500 pcs. each of AI-TWIN 2x0,5-8 WH, AI-TWIN 2x0,75-8 GY, AI-
TWIN 2x1-8 RD, AI-TWIN 2x1,5-8 BK
25 pcs.of AI-TWIN 2x2,5-10 BU
blue AI-TWIN SORTI BOX BU 3202986 1
Sorti-box, equipped with TWIN ferrules in accordance with DIN
46228-4, CSA-certified
20 pcs. of AI-TWIN 2x4-12 GY,
10 pcs. each of AI-TWIN 2x6-14 YE, AI-TWIN 2x10-14 RD
gray AI-TWIN SORTI BOX GY 3202999 1
Assortment box, empty, with five compartments
light gray AI SORTI BOX-E LGY 3203008 10
452
PHOENIX CONTACT
– The practical assortment boxes are
designed to keep your workshop tidy
– Color coding and the transparent cover
facilitate fast access to the required
ferrules
– Using the integrated euro-clip, they can
be hung up on perforated board walls, for
example, to save space
Assortment boxes containing ferrules
Tools - TOOL fox
Hand tools
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
Range box, made of metal, equipped with ferrules in accordance
with DIN46228–4: 1990–09, CSA-certified
500 pieces each of AI 0,25-6 YE, AI 0,34-6 TQ, AI 0,5-8 WH, AI
0,75-8 GY, AI 1-8 RD, AI 1,5-8 BK,
300 pieces of AI 2,5-8 BU,
200 pieces of AI 4-10 GY,
100 pieces of AI 6-12 YE
as well as stripping tool for wires and conductors of up to 6mm²
Crimp pliers for ferrules in accordance with DIN46228, Part 1+4,
0.5–6mm², front insertion, trapezoidal crimp
CRIMPSET 6 1202072 1
Range box, made of metal, equipped with ferrules in accordance
with DIN 46228–4: 1990–09, CSA-certified
300 pieces of AI 10-12 RD,
200 pieces of AI 16-12 BU,
100 pieces of AI 25-16 YE
as well as stripping tool, for stripping wires of 4.5 - 40mm,
Crimp pliers for ferrules in accordance with DIN46228, Part 1+4,
10 - 25mm², lateral insertion, WM crimp
CRIMPSET 25 1202580 1
Assortment box, metal, no components mounted
CRIMPSET 6/25 LEER 1204041 1
453PHOENIX CONTACT
– Stripping and crimping set with a
selection of CSA/CSA-certified ferrules
Ferrule set with tool
Tools - TOOL fox
Hand tools
b
ec
g
a
f
d
Technical data Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] ... 110
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Ring cable lug, non-isolated, as per DIN46234
0.5 - 1 20 - 18 silver 6.00 14.00 5.00 1.60 6.00 2.80 0.80 C-RC 1/M2,5 DIN 3240069 100
0.5 - 1 20 - 18 silver 6.00 14.00 5.00 1.60 6.00 3.20 0.80 C-RC 1/M3 DIN 3240070 100
0.5 - 1 20 - 18 silver 6.00 14.00 5.00 1.60 6.00 3.70 0.80 C-RC 1/M3,5 DIN 3240071 100
0.5 - 1 20 - 18 silver 8.00 16.00 5.00 1.60 7.00 4.30 0.80 C-RC 1/M4 DIN 3240072 100
0.5 - 1 20 - 18 silver 10.00 18.00 5.00 1.60 8.00 5.30 0.80 C-RC 1/M5 DIN 3240073 100
0.5 - 1 20 - 18 silver 10.00 18.00 5.00 1.60 8.00 6.50 0.80 C-RC 1/M6 DIN 3240074 100
0.5 - 1 20 - 18 silver 11.60 22.00 5.00 1.60 12.00 8.40 0.80 C-RC 1/M8 DIN 3240075 100
2.5mm² 1 - 2.5 18 - 14 silver 6.00 14.00 5.00 2.30 6.00 3.20 0.80 C-RC 2,5/M3 DIN 3240076 100
1 - 2.5 18 - 14 silver 6.00 14.00 5.00 2.30 6.00 3.70 0.80 C-RC 2,5/M3,5 DIN 3240077 100
1 - 2.5 18 - 14 silver 8.00 16.00 5.00 2.30 7.00 4.30 0.80 C-RC 2,5/M4 DIN 3240078 100
1 - 2.5 18 - 14 silver 10.00 19.00 5.00 2.30 9.00 5.30 0.80 C-RC 2,5/M5 DIN 3240079 100
1 - 2.5 18 - 14 silver 11.00 21.50 5.00 2.30 11.00 6.50 0.80 C-RC 2,5/M6 DIN 3240080 100
1 - 2.5 18 - 14 silver 14.00 24.00 5.00 2.30 12.00 8.40 0.80 C-RC 2,5/M8 DIN 3240081 100
1 - 2.5 18 - 14 silver 14.00 25.40 5.00 2.30 12.00 10.50 0.80 C-RC 2,5/M10 DIN 3240082 100
2.6 - 6 12 - 10 silver 8.00 17.50 6.00 3.60 8.00 4.30 1.00 C-RC 6/M4 DIN 3240083 50
2.6 - 6 12 - 10 silver 10.00 20.00 6.00 3.60 9.00 5.30 1.00 C-RC 6/M5 DIN 3240084 50
2.6 - 6 12 - 10 silver 11.00 22.00 6.00 3.60 10.00 6.50 1.00 C-RC 6/M6 DIN 3240085 50
2.6 - 6 12 - 10 silver 14.00 26.00 6.00 3.60 13.00 8.40 1.00 C-RC 6/M8 DIN 3240086 50
2.6 - 6 12 - 10 silver 18.00 30.00 6.00 3.60 15.00 10.50 1.00 C-RC 6/M10 DIN 3240087 50
2.6 - 6 12 - 10 silver 18.00 35.50 6.00 3.60 15.00 13.00 1.00 C-RC 6/M12 DIN 3240088 50
- 10 - 8 silver 10.00 21.00 8.00 4.50 8.00 5.30 1.10 C-RC 10/M5 DIN 3240089 100
- 10 - 8 silver 11.00 23.00 8.00 4.50 9.00 6.50 1.10 C-RC 10/M6 DIN 3240090 100
- 10 - 8 silver 14.00 27.00 8.00 4.50 12.00 8.40 1.10 C-RC 10/M8 DIN 3240091 100
- 10 - 8 silver 18.00 30.00 8.00 4.50 13.00 10.50 1.10 C-RC 10/M10 DIN 3240092 100
- 10 - 8 silver 22.00 34.00 8.00 4.50 15.00 13.00 1.10 C-RC 10/M12 DIN 3240093 100
- 16 - 6 silver 11.00 26.00 10.00 5.80 10.00 5.30 1.10 C-RC 16/M5 DIN 3240094 100
- 16 - 6 silver 11.00 26.00 10.00 5.80 10.00 6.50 1.20 C-RC 16/M6 DIN 3240095 100
- 16 - 6 silver 14.00 29.00 10.00 5.80 12.00 8.40 1.20 C-RC 16/M8 DIN 3240096 100
- 16 - 6 silver 18.00 33.00 10.00 5.80 14.00 10.50 1.20 C-RC 16/M10 DIN 3240097 100
- 16 - 6 silver 22.00 37.00 10.00 5.80 16.00 13.00 1.20 C-RC 16/M12 DIN 3240098 100
- 25 - 4 silver 12.00 31.00 11.00 7.50 14.00 5.30 1.50 C-RC 25/M5 DIN 3240099 100
- 25 - 4 silver 12.00 31.00 11.00 7.50 14.00 6.50 1.50 C-RC 25/M6 DIN 3240100 100
- 25 - 4 silver 16.00 33.00 11.00 7.50 14.00 8.40 1.50 C-RC 25/M8 DIN 3240101 100
- 25 - 4 silver 18.00 35.00 11.00 7.50 15.00 10.50 1.50 C-RC 25/M10 DIN 3240102 100
- 25 - 4 silver 31.00 42.00 11.00 7.50 20.00 13.00 1.50 C-RC 25/M12 DIN 3240103 100
- 25 - 4 silver 35.00 49.00 11.00 7.50 25.00 17.00 1.50 C-RC 25/M16 DIN 3240104 100
- 35 - 2 silver 15.00 34.00 12.00 9.00 14.00 6.50 1.60 C-RC 35/M6 DIN 3240105 100
- 35 - 2 silver 16.00 34.00 12.00 9.00 14.00 8.40 1.60 C-RC 35/M8 DIN 3240106 100
- 35 - 2 silver 18.00 36.00 12.00 9.00 15.00 10.50 1.60 C-RC 35/M10 DIN 3240107 100
- 35 - 2 silver 22.00 42.00 12.00 9.00 19.00 13.00 1.60 C-RC 35/M12 DIN 3240108 100
- 35 - 2 silver 28.00 50.00 12.00 9.00 24.00 17.00 1.60 C-RC 35/M16 DIN 3240109 100
- 50 - 1/0 silver 18.00 43.00 16.00 11.00 18.00 6.50 1.80 C-RC 50/M6 DIN 3240110 100
- 50 - 1/0 silver 18.00 43.00 16.00 11.00 18.00 8.40 1.80 C-RC 50/M8 DIN 3240111 100
- 50 - 1/0 silver 18.00 43.00 16.00 11.00 18.00 10.50 1.80 C-RC 50/M10 DIN 3240112 100
- 50 - 1/0 silver 22.00 47.00 16.00 11.00 20.00 13.00 1.80 C-RC 50/M12 DIN 3240113 100
- 50 - 1/0 silver 28.00 54.00 16.00 11.00 24.00 17.00 1.80 C-RC 50/M16 DIN 3240114 100
- 70 - 2/0 silver 22.00 49.00 18.00 13.00 20.00 6.50 2.00 C-RC 70/M6 DIN 3240115 100
- 70 - 2/0 silver 22.00 49.00 18.00 13.00 20.00 8.40 2.00 C-RC 70/M8 DIN 3240116 100
- 70 - 2/0 silver 22.00 49.00 18.00 13.00 20.00 10.50 2.00 C-RC 70/M10 DIN 3240117 100
- 95 - 3/0 silver 24.00 54.00 20.00 15.00 22.00 8.40 2.50 C-RC 95/M8 DIN 3240120 50
- 95 - 3/0 silver 24.00 54.00 20.00 15.00 22.00 10.50 2.50 C-RC 95/M10 DIN 3240121 50
- 95 - 3/0 silver 24.00 54.00 20.00 15.00 22.00 13.00 2.50 C-RC 95/M12 DIN 3240122 50
454
PHOENIX CONTACT
– The ring cable lugs without plastic sleeve
are made from high-quality tin-plated
electrolytic copper for maximum
protection against corrosion
– The hard-soldered press zone enables
maximum conductor extraction values to
be achieved
– The CRIMPFOX-RC... tools from our
CRIMPFOX range of crimping pliers are
available for optimum crimping
Ring cable lugs, non-insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 240 mm²
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] ... 110
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Ring cable lug, non-isolated, as per DIN46234
120 250 silver 24.00 56.00 22.00 16.50 22.00 8.40 3.00 C-RC 120/M8 DIN 3240124 25
120 250 silver 24.00 56.00 22.00 16.50 22.00 10.50 3.00 C-RC 120/M10 DIN 3240125 25
120 250 silver 24.00 56.00 22.00 16.50 22.00 13.00 3.00 C-RC 120/M12 DIN 3240126 25
150 300 silver 30.00 65.00 24.00 19.00 26.00 10.50 3.20 C-RC 150/M10 DIN 3240128 25
150 300 silver 30.00 65.00 24.00 19.00 26.00 13.00 3.20 C-RC 150/M12 DIN 3240129 25
150 300 silver 30.00 65.00 24.00 19.00 26.00 17.00 3.20 C-RC 150/M16 DIN 3240130 25
185 350 silver 36.00 74.00 28.00 21.00 22.00 10.50 3.50 C-RC 185/M10 DIN 3240131 20
185 350 silver 36.00 74.00 28.00 21.00 22.00 13.00 3.50 C-RC 185/M12 DIN 3240132 20
185 350 silver 36.00 74.00 28.00 21.00 22.00 17.00 3.50 C-RC 185/M16 DIN 3240133 20
240 500 silver 38.00 75.00 32.00 23.50 24.00 10.50 4.00 C-RC 240/M10 DIN 3240134 10
240 500 silver 38.00 75.00 32.00 23.50 24.00 13.00 4.00 C-RC 240/M12 DIN 3240135 10
240 500 silver 38.00 75.00 32.00 23.50 24.00 17.00 4.00 C-RC 240/M16 DIN 3240136 10
455PHOENIX CONTACT
Ring cable lugs, non-insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 240 mm²
b
ec
g
a
f
d
Technical data Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Ring cable lug, insulated, according to UL
0.5 - 1.5 20 - 16 red 5.50 17.50 10.50 4.10 4.30 3.20 0.75 C-RCI 1,5/M3 3240016 100
0.5 - 1.5 20 - 16 red 5.50 17.50 10.50 4.10 4.30 3.70 0.75 C-RCI 1,5/M3,5 3240017 100
0.5 - 1.5 20 - 16 red 8.00 21.70 10.50 4.10 7.30 4.30 0.75 C-RCI 1,5/M4 3240018 100
0.5 - 1.5 20 - 16 red 8.00 21.70 10.50 4.10 7.30 5.30 0.75 C-RCI 1,5/M5 3240019 100
0.5 - 1.5 20 - 16 red 11.60 27.60 10.50 4.10 11.20 6.50 0.75 C-RCI 1,5/M6 3240020 100
2.5mm² 1.5 - 2.5 16 - 14 blue 6.60 20.60 11.00 4.50 7.80 3.20 0.80 C-RCI 2,5/M3 3240021 100
1.5 - 2.5 16 - 14 blue 6.60 20.60 11.00 4.50 6.30 3.70 0.80 C-RCI 2,5/M3,5 3240022 100
1.5 - 2.5 16 - 14 blue 8.50 23.00 11.00 4.50 7.80 4.30 0.80 C-RCI 2,5/M4 3240023 100
1.5 - 2.5 16 - 14 blue 9.50 23.00 11.00 4.50 7.30 5.30 0.80 C-RCI 2,5/M5 3240024 100
1.5 - 2.5 16 - 14 blue 12.00 28.10 11.00 4.50 11.00 6.50 0.80 C-RCI 2,5/M6 3240025 50
1.5 - 2.5 16 - 14 blue 12.00 28.10 11.00 4.50 11.00 8.50 0.80 C-RCI 2,5/M8 3240026 50
4 - 6 12 - 10 yellow 9.50 26.70 14.00 6.60 8.00 4.30 1.00 C-RCI 6/M4 3240027 50
4 - 6 12 - 10 yellow 9.50 26.70 14.00 6.60 8.00 5.30 1.00 C-RCI 6/M5 3240028 50
4 - 6 12 - 10 yellow 12.00 32.70 14.00 6.60 12.70 6.50 1.00 C-RCI 6/M6 3240029 25
4 - 6 12 - 10 yellow 15.00 34.90 14.00 6.60 13.40 8.50 1.00 C-RCI 6/M8 3240030 25
4 - 6 12 - 10 yellow 15.00 34.90 14.00 6.60 13.40 10.50 1.00 C-RCI 6/M10 3240031 25
- 10 - 8 red 10.00 31.30 16.00 7.50 10.90 5.30 1.10 C-RCI 10/M5 3240219 50
- 10 - 8 red 11.00 31.30 16.00 7.50 19.30 6.50 1.10 C-RCI 10/M6 3240220 50
- 10 - 8 red 14.00 37.30 16.00 7.50 13.80 8.40 1.10 C-RCI 10/M8 3240221 50
- 10 - 8 red 18.00 37.30 16.00 7.50 13.80 10.50 1.10 C-RCI 10/M10 3240222 50
456
PHOENIX CONTACT
– The insulated ring cable lugs with plastic
sleeve are hard-soldered and feature the
'EASY ENTRY' system
– The sleeves are conically tapered to
facilitate easy and correct insertion of the
conductor
Ring cable lugs, insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 10 mm²
b
ec
g
a
f
d
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Ring cable lug, insulated, with additional crimp zone for
conductor insulation
0.5 - 1.5 20 - 16 red 5.50 17.70 11.00 4.10 4.00 3.20 0.75 C-RCEI 1,5/M3 3241201 100
0.5 - 1.5 20 - 16 red 6.60 20.60 11.00 4.10 6.30 3.70 0.75 C-RCEI 1,5/M3,5 3241202 100
0.5 - 1.5 20 - 16 red 8.00 22.00 11.00 4.10 7.00 4.30 0.75 C-RCEI 1,5/M4 3241203 100
0.5 - 1.5 20 - 16 red 8.00 22.00 11.00 4.10 7.00 5.30 0.75 C-RCEI 1,5/M5 3241204 100
0.5 - 1.5 20 - 16 red 11.60 27.80 11.00 4.10 11.10 6.50 0.75 C-RCEI 1,5/M6 3241205 100
1.5 - 2.5 16 - 14 blue 6.60 20.50 11.00 4.50 6.30 3.70 0.80 C-RCEI 2,5/M3,5 3241206 100
1.5 - 2.5 16 - 14 blue 8.50 23.00 11.00 4.50 7.80 4.30 0.80 C-RCEI 2,5/M4 3241207 100
1.5 - 2.5 16 - 14 blue 9.50 23.00 11.00 4.50 7.30 5.30 0.80 C-RCEI 2,5/M5 3241208 100
1.5 - 2.5 16 - 14 blue 12.00 28.00 11.00 4.50 11.00 6.50 0.80 C-RCEI 2,5/M6 3241209 100
1.5 - 2.5 16 - 14 blue 12.00 28.00 11.00 4.50 11.00 8.40 0.80 C-RCEI 2,5/M8 3241210 100
- - --------
4 - 6 12 - 10 yellow 9.50 26.00 13.00 6.50 8.30 5.30 1.00 C-RCEI 6/M5 3241211 100
4 - 6 12 - 10 yellow 12.00 29.50 13.00 6.50 10.50 6.50 1.00 C-RCEI 6/M6 3241212 100
4 - 6 12 - 10 yellow 15.00 34.20 13.00 6.50 13.70 8.40 1.00 C-RCEI 6/M8 3241213 100
4 - 6 12 - 10 yellow 15.00 34.20 13.00 6.50 13.70 10.50 1.00 C-RCEI 6/M10 3241214 100
457PHOENIX CONTACT
– The insulated ring cable lugs with plastic
sleeve are hard-soldered and feature the
'EASY ENTRY' system
– The sleeves are conically tapered to
facilitate easy and correct insertion of the
conductor
Ring cable lugs, insulated with
additional crimp zone for conductor
insulation
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 10 mm²
g
b
a
f
d
c
Technical data Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] ... 110
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Fork-type cable lug, non-isolated DIN46234
0.5 - 1.5 20 - 16 silver 5.70 16.00 4.50 1.90 - 3.20 0.75 C-FC 1,5/M3 3240137 100
0.5 - 1.5 20 - 16 silver 6.20 16.00 4.50 1.90 - 3.70 0.75 C-FC 1,5/M3,5 3240138 100
0.5 - 1.5 20 - 16 silver 7.20 16.00 4.50 1.90 - 4.30 0.75 C-FC 1,5/M4 3240139 100
0.5 - 1.5 20 - 16 silver 8.00 16.00 4.50 1.90 - 5.30 0.75 C-FC 1,5/M5 3240140 100
0.5 - 1.5 20 - 16 silver 10.70 17.00 4.50 1.90 - 6.40 0.80 C-FC 1,5/M6 3240141 100
2.5mm² 1.5 - 2.5 16 - 14 silver 5.70 16.00 4.80 2.50 -3.20 0.80 C-FC 2,5/M3 3240142 100
1.5 - 2.5 16 - 14 silver 6.20 16.00 4.80 2.50 -3.70 0.80 C-FC 2,5/M3,5 3240143 100
1.5 - 2.5 16 - 14 silver 7.20 16.00 4.80 2.50 -4.30 0.80 C-FC 2,5/M4 3240144 100
1.5 - 2.5 16 - 14 silver 8.00 16.00 4.80 2.50 -5.30 0.80 C-FC 2,5/M5 3240145 100
1.5 - 2.5 16 - 14 silver 10.70 17.00 4.80 2.50 -6.40 0.80 C-FC 2,5/M6 3240146 100
1.5 - 2.5 16 - 14 silver 13.50 22.10 4.80 2.50 -8.40 0.80 C-FC 2,5/M8 3240147 100
2.6 - 6 12 - 10 silver 8.20 19.50 6.50 3.60 - 4.30 1.00 C-FC 6/M4 3240148 50
2.6 - 6 12 - 10 silver 9.00 19.50 6.50 3.60 - 5.30 1.00 C-FC 6/M5 3240149 50
2.6 - 6 12 - 10 silver 12.00 23.10 6.50 3.60 - 6.40 1.00 C-FC 6/M6 3240150 50
2.6 - 6 12 - 10 silver 13.50 25.00 6.50 3.60 - 8.40 1.00 C-FC 6/M8 3240151 50
458
PHOENIX CONTACT
– The fork-type cable lugs without plastic
sleeve feature a hard-soldered neck. In
conjunction with the CRIMPFOX–RC...
and CRIMPFOX–RCI... pliers they can be
used to achieve maximum conductor pull-
out forces
– The insulated versions are halogen-free
and feature "EASYENTRY" technology
Fork-type cable lugs, insulated and
non-insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 6 mm²
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Fork-type cable lug, insulated, according to UL
0.5 - 1.5 20 - 16 red 5.70 22.00 10.50 4.10 - 3.20 0.75 C-FCI 1,5/M3 3240032 100
0.5 - 1.5 20 - 16 red 5.70 22.00 10.50 4.10 - 3.70 0.75 C-FCI 1,5/M3,5 3240033 100
0.5 - 1.5 20 - 16 red 7.20 22.00 10.50 4.10 - 4.30 0.75 C-FCI 1,5/M4 3240034 100
0.5 - 1.5 20 - 16 red 8.00 22.00 10.50 4.10 - 5.30 0.75 C-FCI 1,5/M5 3240035 100
0.5 - 1.5 20 - 16 red 10.70 22.00 10.50 4.10 - 6.50 0.75 C-FCI 1,5/M6 3240036 100
2.5mm² 1.5 - 2.5 16 - 14 blue 5.70 22.50 11.00 4.50 -3.20 0.80 C-FCI 2,5/M3 3240037 100
1.5 - 2.5 16 - 14 blue 5.70 22.50 11.00 4.50 -3.70 0.80 C-FCI 2,5/M3,5 3240038 100
1.5 - 2.5 16 - 14 blue 7.20 22.50 11.00 4.50 -4.30 0.80 C-FCI 2,5/M4 3240039 100
1.5 - 2.5 16 - 14 blue 8.00 22.50 11.00 4.50 -5.30 0.80 C-FCI 2,5/M5 3240040 50
1.5 - 2.5 16 - 14 blue 10.70 22.50 11.00 4.50 -6.50 0.80 C-FCI 2,5/M6 3240041 50
4 - 6 12 - 10 yellow 8.20 26.70 14.00 6.60 - 4.30 1.00 C-FCI 6/M4 3240042 50
4 - 6 12 - 10 yellow 9.00 26.70 14.00 6.60 - 5.30 1.00 C-FCI 6/M5 3240043 50
4 - 6 12 - 10 yellow 12.00 30.30 14.00 6.60 - 6.50 1.00 C-FCI 6/M6 3240044 25
4 - 6 12 - 10 yellow 13.50 32.80 14.00 6.60 - 8.50 1.00 C-FCI 6/M8 3240045 25
459PHOENIX CONTACT
– The fork-type cable lugs without plastic
sleeve feature a hard-soldered neck. In
conjunction with the CRIMPFOX–RC...
and CRIMPFOX–RCI... pliers they can be
used to achieve maximum conductor pull-
out forces
– The insulated versions are halogen-free
and feature "EASYENTRY" technology
Fork-type cable lugs, insulated and
non-insulated
Tools - TOOL fox
Hand tools
0.5 to 6 mm² conductor cross sections
b
c
g
f
d
b
c
g
f
d
Conductor cross sections from 0.5 to 6 mm²
Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Pin cable lug, isolated as per UL
0.5 - 1.5 20 - 16 red - 22.50 10.50 4.10 - 2.00 0.75 C-PCI 1,5/2 3240064 100
1.5 - 2.5 16 - 14 blue -23.00 11.00 4.50 -2.00 0.80 C-PCI 2,5/2 3240066 100
4 - 6 12 - 10 yellow - 27.50 14.00 6.60 - 2.70 0.80 C-PCI 6/2,7 3240068 50
The key features of the insulated pin cable
lugs with plastic collars are as follows:
– "EASY ENTRY" for easy and reliable
conductor entry
– Hard-soldered crimping zone for
maximum extraction forces
– Electrolytic tin plating
– Halogen-free
Pin cable lugs, insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 6 mm²
Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Pin cable lug,insulated, with additional crimp zone for
conductor insulation
0.5 - 1.5 20 - 16 red - 23.50 11.00 4.10 - 1.90 0.75 C-PCEI 1,5/2 3241215 100
1.5 - 2.5 16 - 14 blue -23.50 11.00 4.50 -1.90 0.80 C-PCEI 2,5/2 3241216 100
4 - 6 12 - 10 yellow - 26.70 13.00 6.50 - 2.80 0.80 C-PCEI 6/2 3241217 100
The key features of the insulated pin cable
lugs with plastic collars are as follows:
– "EASY ENTRY" for easy and reliable
conductor entry
– Hard-soldered crimping zone for
maximum extraction forces
– Electrolytic tin plating
– Halogen-free
Pin cable lugs, insulated with
additional crimp zone for conductor
insulation
460
PHOENIX CONTACT
b
c
g
a
d
g
c
b
d
a
For further information and full technical data, visit phoenixcontact.net/products
Conductor cross sections from 0.5 to 6 mm²
Technical data
General data
Material / coating Copper / Tin-plated
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Flat pin cable lug, insulated
0.5 - 1.5 20 - 16 red 2.80 28.00 10.50 4.00 - - 0.80 C-BCI 1,5/2,8 3240015 100
0.5 - 1.5 20 - 16 red 4.60 28.00 10.50 4.00 - - 0.80 C-BCI 1,5/4,6 3240568 100
1.5 - 2.5 16 - 14 blue 2.80 28.50 11.00 4.50 - - 0.80 C-BCI 2,5/2,8 3240046 100
1.5 - 2.5 16 - 14 blue 4.60 28.50 11.00 4.50 - - 0.80 C-BCI 2,5/4,6 3240569 100
4 - 6 12 - 10 yellow 2.80 32.00 14.00 6.50 - - 0.80 C-BCI 6/2,8 3240047 50
4 - 6 12 - 10 yellow 4.60 32.00 14.00 6.50 - - 1.00 C-BCI 6/4,6 3240570 50
Flat pin cable lug, approved for horizontal crushing. Also ideal for
spring-assisted USST... screw terminal blocks
4 - 6 12 - 10 yellow 2.80 30.50 13.00 6.50 - - 0.80 C-BCI 6/2,8 SO 3240057 50
4 - 6 12 - 10 yellow 4.60 30.50 13.00 6.50 - - 1.00 C-BCI 6/4,6 SO 3240067 50
The key features of the flat pin cable lugs
with plastic collars are as follows:
– "EASY ENTRY" for easy and reliable
conductor entry
– Electrolytic tin plating
– Halogen-free
Flat pin cable lugs with hooks,
insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 6 mm²
Technical data
General data
Material / coating CU / electrogalvanized
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Flat pin cable lug, insulated, pin dimensions:
19.5x2.8mm 0.5 - 1.5 20 - 16 red 2.80 19.50 10.50 4.10 - - 0.75 C-BCSI 1,5/9X2,8 3240531 100
20x2.8mm 1.5 - 2.5 16 - 14 blue 2.80 20.00 11.00 4.50 - - 0.80 C-BCSI 2,5/9X2,8 3240532 100
32x4.5mm 4 - 6 12 - 10 yellow 2.80 24.00 14.00 6.60 - - 1.00 C-BCSI 6/10X2,8 3240546 100
24x2.8mm 4 - 6 12 - 10 yellow 4.50 32.00 14.00 6.60 - - 1.00 C-BCSI 6/18X4,5 3240533 50
– Easy and reliable conductor entry thanks
to "EASY ENTRY"
– Hard-soldered crimping zone for
maximum conductor pull-out force in
connection with CRIMPFOXRCI... pliers
– Electrogalvanized
– Halogen-free
Flat pin cable lugs, straight, insulated
461
PHOENIX CONTACT
g
a
b
Technical data Technical data
General data
Material / coating Brass / Tin-plated
Temperature range [°C] ... 110
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Slip-on sleeve, non-isolated as per DIN46247
0.5 - 1 20 - 18 silver 2.80 14.50 - - - - 0.30 C-SCF 1/2,8X0,5 3240152 100
0.5 - 1 20 - 18 silver 2.80 12.50 - - - - 0.30 C-SCF 1/2,8X0,8 3240153 100
0.5 - 1.5 20 - 16 silver 4.80 15.60 ----0.40 C-SCF 1,5/4,8X0,5 3240154 100
0.5 - 1.5 20 - 16 silver 4.80 15.60 ----0.40 C-SCF 1,5/4,8X0,8 3240155 100
0.5 - 1.5 20 - 16 silver 6.30 19.20 ----0.40 C-SCF 1,5/6,3X0,8 3240156 100
1.5 - 2.5 16 - 14 silver 4.80 15.60 - - - - 0.40 C-SCF 2,5/4,8X0,5 3240157 100
1.5 - 2.5 16 - 14 silver 4.80 15.60 - - - - 0.40 C-SCF 2,5/4,8X0,8 3240158 100
1.5 - 2.5 16 - 14 silver 6.30 19.20 - - - - 0.40 C-SCF 2,5/6,3X0,8 3240159 100
4 - 6 12 - 10 silver 6.30 19.20 ----0.40 C-SCF 6/6,3X0,8 3240160 100
Flat connector, non-isolated as per DIN46248
0.5 - 1.5 20 - 16 silver 6.30 20.00 - - - - 0.80 C-SCM 1,5/6,3X0,8 3240161 100
1.5 - 2.5 16 - 14 silver 6.30 20.00 - - - - 0.80 C-SCM 2,5/6,3X0,8 3240162 100
Accessories
Insulating sleeve, as shock protection for slip-on sleeves, to be
threaded onto the cable in advance
For 2.8 mm slip-on sleeves transparent PT/FS 2,8 1406700 500
For 4.8mm slip-on sleeves transparent PT/FS 4,8 1670497 25
For 6.3 mm slip-on sleeves transparent PT/FS 6,3 0604707 500
462
PHOENIX CONTACT
– The non-insulated slip-on sleeves and flat
connectors are made from electrolytically
tin-plated brass
– They complete the product range in
terms of connectors
Slip-on sleeves and flat connectors,
non-insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 6 mm²
b
c
g
d
a
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating Brass / Tin-plated
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Slip-on sleeve, insulated, according to UL
0.5 - 1.5 20 - 16 red 2.80 18.50 10.50 4.10 - - 0.25 C-SCFI 1,5/2,8X0,5 3240048 100
0.5 - 1.5 20 - 16 red 2.80 18.50 10.50 4.10 - - 0.25 C-SCFI 1,5/2,8X0,8 3240049 100
0.5 - 1.5 20 - 16 red 4.80 19.50 10.50 4.10 - - 0.40 C-SCFI 1,5/4,8X0,5 3240050 100
0.5 - 1.5 20 - 16 red 4.80 19.50 10.50 4.10 - - 0.40 C-SCFI 1,5/4,8X0,8 3240051 100
0.5 - 1.5 20 - 16 red 6.30 21.50 10.50 4.10 - - 0.40 C-SCFI 1,5/6,3X0,8 3240052 100
1.5 - 2.5 16 - 14 blue 4.80 20.00 11.00 5.00 - - 0.40 C-SCFI 2,5/4,8X0,5 3240053 50
1.5 - 2.5 16 - 14 blue 4.80 20.00 11.00 5.00 - - 0.40 C-SCFI 2,5/4,8X0,8 3240054 50
1.5 - 2.5 16 - 14 blue 6.30 22.00 11.00 5.00 - - 0.40 C-SCFI 2,5/6,3X0,8 3240055 50
4 - 6 12 - 10 yellow 6.30 25.00 14.00 6.60 - - 0.40 C-SCFI 6/6,3X0,8 3240056 50
Slip-on blade connector, insulated, according to UL
0.5 - 1.5 20 - 16 red 6.30 22.00 10.50 4.10 - - 0.80 C-SCMI 1,5/6,3X0,8 3240058 100
1.5 - 2.5 16 - 14 blue 6.30 22.50 11.00 4.50 - - 0.80 C-SCMI 2,5/6,3X0,8 3240059 50
4 - 6 12 - 10 yellow 6.30 24.50 14.00 6.60 - - 0.80 C-SCMI 6/6,3X0,8 3240060 50
463PHOENIX CONTACT
The key features of the insulated flat
connectors and slip-on sleeves with plastic
collars are as follows:
– "EASY ENTRY" for easy and reliable
conductor entry
– Hard-soldered crimping zone for
maximum extraction forces
– Electrolytic tin plating
– Halogen-free
Slip-on sleeves and flat connectors,
insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 6 mm²
c
d
b
ag
g
b
c
d
a
Conductor cross sections from 0.5 to 2.5 mm²
Technical data
General data
Material / coating Brass / electrogalvanized
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Slip-on distributor, insulated, for 6.3x0.8mm plugs and sleeves
0.5 - 1.5 20 - 16 red 6.30 22.50 10.50 41.00 - - 0.40 C-SCFMI 1,5/6,3X0,8 3240529 50
1.5 - 2.5 16 - 14 blue 6.30 23.00 11.00 11.00 - - 0.40 C-SCFMI 2,5/6,3X0,8 3240530 50
– Easy and reliable conductor entry thanks
to "EASY ENTRY"
– Hard-soldered crimping zone for
maximum conductor pull-out force in
connection with CRIMPFOXRCI... pliers
– Electrogalvanized
– Halogen-free
Slip-on distributor, insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 6 mm²
Technical data
General data
Material / coating Brass / electrogalvanized
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Slip-on sleeve, fully insulated, for connectors:
2.8x0.5mm 0.5 - 1.5 20 - 16 red 2.80 19.00 10.50 4.30 - - 0.25 C-SCFFI 1,5/2,8X0,5 3240534 50
2.8x0.8mm 0.5 - 1.5 20 - 16 red 2.80 19.00 10.50 4.30 - - 0.25 C-SCFFI 1,5/2,8X0,8 3240535 50
4.8x0.5mm 0.5 - 1.5 20 - 16 red 4.80 19.50 10.50 4.30 - - 0.40 C-SCFFI 1,5/4,8X0,5 3240536 50
4.8x0.8mm 0.5 - 1.5 20 - 16 red 4.80 19.50 10.50 4.30 - - 0.40 C-SCFFI 1,5/4,8X0,8 3240537 50
6.3x0.8mm 0.5 - 1.5 20 - 16 red 6.30 21.50 10.50 4.30 - - 0.40 C-SCFFI 1,5/6,3X0,8 3240538 50
4.8x0.5mm 1.5 - 2.5 16 - 14 blue 4.80 20.00 11.00 5.00 - - 0.40 C-SCFFI 2,5/4,8X0,5 3240539 50
4.8x0.8mm 1.5 - 2.5 16 - 14 blue 4.80 20.00 11.00 5.00 - - 0.40 C-SCFFI 2,5/4,8X0,8 3240540 50
6.3x0.8mm 1.5 - 2.5 16 - 14 blue 6.30 22.00 11.00 5.00 - - 0.40 C-SCFFI 2,5/6,3X0,8 3240547 25
6.3x0.8mm 4 - 6 12 - 10 yellow 6.30 26.00 14.00 6.60 - - 0.40 C-SCFFI 6/6,3X0,8 3240541 25
– Easy and reliable conductor entry, thanks
to "EASY ENTRY"
– Hard-soldered crimping zone for
maximum conductor pull-out force in
connection with CRIMPFOXRCI... pliers
– Electrogalvanized
– Halogen-free
Slip-on sleeves, fully insulated
464
PHOENIX CONTACT
b
d
g
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating CU / electrogalvanized
Temperature range [°C] -20 ... 105
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b c d e f g
Butt connector, insulated
0.5 - 1.5 20 - 16 red - 25.00 - 4.00 - - 0.75 C-JCI 1,5 3240061 50
1.5 - 2.5 16 - 14 blue -25.30 -4.50 - - 0.80 C-JCI 2,5 3240062 50
4 - 6 12 - 10 yellow - 27.50 - 6.50 - - 1.00 C-JCI 6 3240063 25
465PHOENIX CONTACT
– Conductor through connection
protection
– Hard-soldered crimping zone for
maximum conductor pull-out force in
connection with CRIMPFOXRCI... pliers
– Electrogalvanized
– Halogen-free
Butt connector, fully insulated
Tools - TOOL fox
Hand tools
Conductor cross sections from 0.5 to 6 mm²
466
PHOENIX CONTACT
Product range overview
Automatic devices 468
Automatic cutting device for conductors and cables 470
Stripping machine 471
Pneumatic crimping pliers 472
Portable crimping machine for ferrules, cable lugs, and
connectors
476
CRIMPHANDY portable hand-held machine 478
Portable stripping and crimping machine for taped products 478
Ferrules with plastic sleeve, taped 479
Stripping and crimping machine for bulk goods 480
467
PHOENIX CONTACT
PhoenixContact provides a
comprehensive range of innovative
automatic tools for flexible and fast
processing of conductors and cables where
various steps can be automated.
A combination of functionality, quality,
and short modification times guarantees
high levels of flexibility while ensuring
excellent results every time. Cutting
machines, stripping machines, and crimping
machines are available.
Automatic devices - TOOL fox
468
PHOENIX CONTACT
Tools - TOOL fox
Automatic devices
Automatic stripping Automatic crimping Automatic stripping and crimping in a
single operation
For further information and full technical data, visit phoenixcontact.net/products
469PHOENIX CONTACT
Tools - TOOL fox
Automatic devices
The CUTFOX10 automatic cutting
device cuts conductors and cables with a
cross section of up to 10mm. Solid and
stranded conductors can be cut to length
with millimeter precision. The length and
number of cuts is entered via the user-
friendly display. The CUTFOX10
automatically adapts to the diameter when
there is a change in material.
The WF1000 stripping machine enables
the automatic stripping of conductors with
a cross section of up to 6mm or cables
with a diameter of up to 6mm, as well as
the option of partial stripping.
The stripping dimensions are set individually
via rotary buttons and shown visually on the
display.
The Crimphandy is a portable hand-held
device for stripping and crimping ferrules in
one step. Automatic monitoring functions
ensure permanent, high-quality crimping.
The CF500 crimping device is
characterized by a high press capacity in a
compact design.
Thanks to the adjustable press capacity and
interchangeable dies, it is suitable for
insulated cable lugs, tubular cable lugs, and
crimping wire lugs, as well as slip-on sleeves
and ferrules up to 50mm.
The CF 3000-2,5 stripping and crimping
machine processes taped ferrules with
insulating collars in accordance with
DIN46228–4. This device allows
conductors with a cross section range of
0.25-2.5mm to be stripped and fitted
with ferrules in one operation. The
automatic device can be adapted to various
cross sections in under a minute.
The automatic stripping and crimping
machine CF1000 processes loose (bulk)
ferrules with insulating collars in accordance
with DIN46228–4. Using this machine,
conductors can be stripped and fitted with
ferrules in one operation.
Technical data
Dimensions Width Length Height
[mm] 195 295 230
General data
Weight [kg] 11
Power consumption [VA] 80
Cutting efficiency
Finely stranded [mm²] 0.25 - 10
Solid strand [mm²] 0.25 - 2.5
Max. throughput [mm] 8
Cross section setting automatic
Maximum number of cuts [Pcs.] 999
Length [mm] 2 ... 99999
Feed rate [m/s] 0.5
Unit of measurement mm/inch
Dialog language German / English / French / Italian
Ordering data
Description Type Order No. Pcs. /
Pkt.
Automatic cutting device, 100 - 240V/50-60Hz version, for
conductors and cables with a diameter of up to 8mm, solid (up to
2.5mm²) and stranded (up to 10mm²)
CUTFOX 10 1206829 1
Accessories
Cable unwinders, for CUTFOX10, for accommodating and gently
unwinding cable rings and coils, complete
CUTFOX 10 C-UN 1208393 1
Turntable, for CUTFOX10 cable unwinders, for accommodating
cable rings and cable coils
CUTFOX 10 R-C 1208403 1
Retaining bolts, for CUTFOX10 rotary table, 4 pcs.
CUTFOX 10 BAR 1208416 1
Replacement drive rollers, for CUTFOX10, 2 pcs.
CF-10 WHEEL SET 1207271 1
Spare knife set, for CUTFOX10
CF-10 CUTTER KNIFE SET 1207284 1
Drive rollers for CUTFOX 10, 2 pcs., with PU tread, for sensitive
cables/conductors and their insulation
CF-10 WHEEL SET PU 1200098 1
Drive rollers for CUTFOX 10, 2 pcs.,with hardened, finely knurled
steel tread, for very hard insulation and materials.
CF-10 WHEEL SET STEEL 1200099 1
470
PHOENIX CONTACT
– The automatic cutting device can be used
to cut conductors, cables, and similar
profiles
– It impresses with its easy handling and
enables materials to be changed in a
matter of seconds
– The desired length and number of cuts
can be specified in a user-friendly way via
the display
– The drive and measurement rolls
automatically adjust to each inserted
diameter
– Additional inputs and settings are not
necessary
– High length accuracy, thanks to separate
measuring and transport roll
– Light weight enables mobile use
Automatic cutting device for
conductors and cables
Tools - TOOL fox
Automatic devices
Conductor cross sections from 0.25 to 10 mm²
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
For further information and full technical data, visit phoenixcontact.net/products
Technical data
Dimensions Width Length Height
[mm] 141 363 221
General data
Weight [kg] 9.5
Power consumption [VA] 160
Working cycle [s] 0.3
Stripping power
Finely stranded [mm²] 0.08 - 6
Stripping length [mm] 3-20
Partial stripping length [mm] 2-20
Max. throughput [mm] 6
Ordering data
Description Type Order No. Pcs. /
Pkt.
Stripping machine, 230V/50Hz version, for conductors and
cables, solid and stranded 0.08 - 6mm² (maximum Ø 6mm), with
integrated graphic display
WF 1000 1212149 1
Stripping machine, 120V/60Hz version, for conductors and
cables, solid and stranded 0.08 - 6mm² (maximum Ø 6mm), with
integrated graphic display
WF 1000 120V 1212258 1
Accessories
Spare stripping knife, for WF1000
WF 1000/SB 1212279 1
Actuation button for WF 1000
WF 1000/TR 1212416 1
Replacement receptacle tray, for WF 1000
WF 1000/COV 1212417 1
471PHOENIX CONTACT
– Compact stripping machine for
automatically stripping conductors with a
cross section of 0.08 to 6mm
– Multi-strand cables with a diameter of up
to 6mm can also be stripped
– Partial stripping is supported
– Even special types of insulation, such as
PTFE and silicone, can be stripped in
addition to standard types
– The clamping force automatically adjusts
itself to the required extraction force, this
reduces/prevents pressure points on
sensitive insulation
– The stripping dimensions are set
individually via rotary buttons and shown
visually on the large display
Stripping machine
Tools - TOOL fox
Automatic devices
Conductor cross sections from 0.08 to 6 mm²
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
Technical data Technical data
Application range
Conductor [mm²] / AWG 0.25 - 2.5 / 24 - 14 0.25 - 4 / 24 - 12
Pressure range [bar] 4 - 6 4 - 6
Air consumption per compression [l] 0.2 0.2
Compression trapezoidal trapezoidal
Ordering data Ordering data
Description Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Pneumatic crimping pliers, for ferrules according to DIN46228,
universal die, lateral and front entry
ZAP 25 1203110 1
Pneumatic crimping pliers, for ferrules according to DIN46228,
three marked die stations, lateral entry
ZAP 40 1212630 1
Pneumatic crimping pliers, for ferrules according to DIN46228,
three marked die stations, lateral entry
Pneumatic crimping pliers, for ferrules according to DIN46228,
universal die, lateral and front entry, with foot switch and table
clamp
Pneumatic crimping pliers, for ferrules according to DIN46228,
Universal die, lateral and front entry, with foot switch and table
clamp
472
PHOENIX CONTACT
Conductor cross sections from
0.25 to 2.5 mm²
Conductor cross section of 0.25 to 4 mm² Conductor cross sections from 4 to 10 mm² Conductor cross sections from
– These crimping pliers are pneumatic tools
for ferrules with a cross section range of
0.25 to 10mm
– The perfect alternative to the hand pliers,
which protects joints and tendons. They
are light, easy to handle, and perfect for
control cabinet manufacturing
– The ZAP...T table models are designed for
work at the workbench and equipped
with a foot switch. This keeps both hands
free for equipping the conductor
Pneumatic crimping pliers
Tools - TOOL fox
Automatic devices
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
4 - 10 / 12 - 8 0.25 - 2.5 / 24 - 14 4 - 10 / 12 - 8
4 - 6 4 - 6 4 - 6
0.2 0.2 0.2
trapezoidal trapezoidal trapezoidal
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
ZAP 100 1203259 1
ZAP 25 T 1203123 1
ZAP 100 T 1203262 1
473PHOENIX CONTACT
Conductor cross section of 0.25 to 4 mm² Conductor cross sections from 4 to 10 mm² Conductor cross sections from
0.25 to 2.5 mm²
Conductor cross sections from 4 to 10 mm²
Tools - TOOL fox
Automatic devices
Technical data
Dimensions Width Length Height
[mm] 140 220 320
General data
Weight [kg] 10
Power consumption [VA] 160
Pressure [kN] 10
Working cycle [s] 1
Ordering data
Description Type Order No. Pcs. /
Pkt.
Crimping device, 230V/50Hz version, with quantity counter and
foot switch
230 V version CF 500-230V 1208348 1
Crimping device, 120V/60Hz version, with quantity counter and
foot switch
120V design CF 500-120V 1208351 1
Accessories
CF 500 protective cover, without recess (for all dies without
assignment)
CF 500/COV 1212250 1
For ferrules of up to 6mm² (AI6...) CF 500/COV AI 6 1212254 1
For TWIN ferrules (AI–TWIN...) CF 500/COV AI TWIN 1212266 1
For insulated cable lugs (RCI..., TC4) CF 500/COV RCI 1212255 1
For uninsulated cable lugs 0.5-10mm² (RC...FC...) CF 500/COV RC 10 1212252 1
For uninsulated cable lugs and tubular cable lugs 0.34-2.5mm²
(RC...,FC...)
CF 500/COV RCT 2,5 1212253 1
For slip-on sleeves and flat connectors SC1,5... and SC6... CF 500/COV SC 1212251 1
For FBS... plug-in bridges CF 500/COV FBS 1212462 1
CF 500 Locator, for slip-on sleeves (SCF...), 0.1-1.5mm²,
width: 2.8mm, length: 5mm
CF 500/LOC SCF 2,8/1,5 1212249 1
For slip-on sleeves (SCF...), width: 4.8mm, 0.5-2.5mm² CF 500/LOC SCF 4,8/2,5 1212248 1
For slip-on sleeves (SCF...) width: 6.3mm, 0.5-6mm² CF 500/LOC SCF 6,3/6 1212247 1
For slip-on sleeves (SCM...), width: 6.3mm, 0.5-2.5mm² CF 500/LOC SCM 6,3/2,5 1212264 1
For slip-on sleeves (SCM...), width: 6.3mm, 1.5-6mm² CF 500/LOC SCM 6,3/6 1212265 1
474
PHOENIX CONTACT
A key feature of the CF 500 is its easy
handling and high degree of flexibility.
A huge range of different contact types
can be processed with the crimping device.
Positioning aids make it easier to crimp the
contacts.
– The crimp inserts can be changed quickly
and easily in a matter of seconds
– The carrier handle means that it is also
suitable for mobile use
– The crimping procedure is activated via a
foot switch. This keeps both hands free
for equipping the conductors with the
appropriate contacts
– The contact can be fixed in place before
the crimping procedure via an additional
two-stage operating mode. This makes it
easier to process crimp contacts and
prevents incorrect crimping
Portable crimping machine for
ferrules, cable lugs, and connectors
Tools - TOOL fox
Automatic devices
Connectors up to 50 mm²
Notes:
See data sheet for further technical data.
For more information about dies, visit:
phoenixcontact.net/products.
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
For further information and full technical data, visit phoenixcontact.net/products
Ordering data
Description Type Order No. Pcs. /
Pkt.
CF500 die, for ferrules (A... and AI...) 0,25-6mm²
CF 500/DIE AI 6 1212238 1
For ferrules (A... and AI...) 10, 16 and 25 mm² CF 500/DIE AI 25 1212239 1
For ferrules (A... and AI...) 35 and 50 mm² CF 500/DIE AI 50 1212261 1
For TWIN ferrules (AI-TWIN...) 2x4, 2x6 and
2x10mm²
CF 500/DIE AI-TWIN 10 1212262 1
CF500 die
For insulated cable lugs (RCI... and FCI...) 0,14-
1,5mm²
CF 500/DIE RCI 1,5 1212263 1
For insulated cable lugs (RCI... and FCI...) 0,5-
6mm²
CF 500/DIE RCI 6 1212240 1
For insulated cable lugs (RCI... and FCI...) 0.5-
6mm² (asymmetrical crushing mold)
CF 500/DIE RCI 6-1 1212691 1
For cable lugs (RC... and FC...) 0,5-10mm² CF 500/DIE RC 10 1212244 1
For cable lugs (RC... and FC...) 16mm² CF 500/DIE RC 16 1212257 1
CF500 die
For slip-on sleeves and flat connectors (SCF... and
SCM...) 0,1-1.5mm²
CF 500/DIE SC 1,5 1212241 1
For slip-on sleeves and flat connectors (SCF... and
SCM...) 0,5-6mm²
CF 500/DIE SC 6 1212242 1
CF500 die
For turned contacts with pin diameters 2.5 and
4.0mm (CK2,5...,CK4,0) 0.14-4mm²
CF 500/DIE TC 4 1212237 1
For turned contacts (CK4.0) 6-10mm² CF 500/DIE TC 10 1212260 1
CF 500 die, for MC 4 solar contacts, 2.5 - 6 mm²
CF 500/DIE SR 6-2 1212692 1
CF 500 die, for uninsulated cable lugs (RC...,FC...) and tubular
cable lugs 0.34-4mm²
For tube lugs 0.34-2.5mm² silver CF 500/DIE RCT 4 1212243 1
For standard tubular cable lugs 4-10mm²,
4mm²: outer-Ø 5mm, inner-Ø 3mm, 6mm²:
outer-Ø 6.5mm, inner-Ø 3.5mm, 10mm²: outer-Ø
7mm, inner-Ø 4.5mm
silver CF 500/DIE RCT 10-1 1212245 1
For tube lugs 4-10mm², 4mm²: Outside Ø 5mm,
inside Ø 3mm, 6mm²: Outside Ø 5.5mm, inside
Ø 3.8mm, 10mm²: Outside Ø 6mm, inside Ø
4.5mm
silver CF 500/DIE RCT 10-2 1212246 1
For tube lugs 4-10mm², 4mm²: Outside Ø 5mm,
inside Ø 3mm, 6mm²: Outside Ø 6mm, inside Ø
4mm, 10mm²: Outside Ø 8mm, inside Ø 5mm
silver CF 500/DIE RCT 10-3 1212256 1
CF500 die, for assembling FBS... plug-in bridges
For FBS... plug-in bridges CF 500/DIE FBS 1212461 1
475PHOENIX CONTACT
The large number of crimping dies makes
the CF 500 an all-rounder.
– In addition to standard contacts, there are
a range of special dies to be used, which
(among other things) enable the FBS...
jumpers from the CLIPLINE complete
system
– FBS ...-4, FBS ...-5, FBS ...-6, FBS ...-8
– If the die you require is not listed, please
contact us
Dies for crimping machine
Tools - TOOL fox
Automatic devices
Technical data
Dimensions Width Length Height
[mm] 43 205 70
General data
Weight [kg] 0.43
Conductor [mm²] / AWG - 1 / -
Working cycle [s] < 2
Compression Square crimp
Ordering data
Description Type Order No. Pcs. /
Pkt.
Portable hand-held machine, battery-powered, for ferrules,
1.0mm², incl. battery and charger, 100-240V, in a robust case
For standard PVC conductors (class 5) CF CRIMPHANDY 1,0 1212465 1
Accessories
Reel ferrules, 1.0mm², 8mm, with plastic sleeve, according to
DIN46228-4, 50pieces per strip, 20strips per unit pack
Red, according to DIN 46228-4 and NF C 63-023: 1994-02 AI 1,0-8 RD-S 1212523 1000
Yellow, special color, according to DIN 46228-4 and NF C 63-023:
1994-02
AI 1,0-8 YE-S 1212782 1000
Replacement battery, for CFCrimphandy..., Li-ion 7.4V, 0.68Ah
CF CRIMPHANDY/ACCU 1212518 1
Replacement charger, for CFCRIMPHANDY..., 100-240V AC
CF CRIMPHANDY/CHARGER 1212519 1
Receptacle tray for CF-CRIMPHANDY
CF CRIMPHANDY/COVER 1212709 1
Replacement service tool, for CF-CRIMPHANDY 1.0
CF CRIMPHANDY 1,0/SERVICE-TOOL 1212759 1
476
PHOENIX CONTACT
The product innovation for switchgear
manufacturing – the Crimphandy. You can
strip and crimp your conductors in under
two seconds using this portable hand-held
device – in 75% less time than before.
– The Crimphandy impresses with its easy,
effortless handling, which helps protect
your joints and tendons
– The compact lightweight is ideal for
mobile use in the field. Up to 2000
crimping operations can be performed
thanks to the high-performance lithium-
ion polymer battery
– Automatic cross section monitoring
prevents faulty crimping as a result of
incorrect conductor sizes
– The attachable waste receptacle catches
the discarded insulation and thereby helps
to ensure a clean working environment
CRIMPHANDY, portable hand-held
machine, for a 1.0mm conductor
cross section
Tools - TOOL fox
Automatic devices
1.0mm² conductor cross section
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
For further information and full technical data, visit phoenixcontact.net/products
Technical data
Dimensions Width Length Height
[mm] 43 205 70
General data
Weight [kg] 0.43
Conductor [mm²] / AWG - 1.5 / -
Working cycle [s] < 2
Compression Square crimp
Ordering data
Description Type Order No. Pcs. /
Pkt.
Portable hand-held machine, battery-powered, for ferrules,
1.5mm², incl. battery and charger, 100-240V, in a robust case
For standard PVC conductors (class 5) CF CRIMPHANDY 1,5 1212466 1
Accessories
Reel ferrules, 1.5mm², 8mm, with plastic sleeve, according to
DIN46228-4, 50pieces per strip, 20strips per unit pack
Black, according to DIN 46228-4 and NF C 63-023: 1994-02 AI 1,5-8 BK-S 1212524 1000
Red, special color, according to DIN 46228-4 and NF C 63-023:
1994-02
AI 1,5-8 RD-S 1212781 1000
Replacement battery, for CFCrimphandy..., Li-ion 7.4V, 0.68Ah
CF CRIMPHANDY/ACCU 1212518 1
Replacement charger, for CFCRIMPHANDY..., 100-240V AC
CF CRIMPHANDY/CHARGER 1212519 1
Receptacle tray for CF-CRIMPHANDY
CF CRIMPHANDY/COVER 1212709 1
Service tool, for CF-CRIMPHANDY 1,5, for rectifying malfunctions
CF CRIMPHANDY 1,5/SERVICE-TOOL 1212708 1
477PHOENIX CONTACT
The product innovation for switchgear
manufacturing – the Crimphandy. You can
strip and crimp your conductors in under
two seconds using this portable hand-held
device – in 75% less time than before.
– Ferrules are automatically fed in, in strip
form, via the integrated magazine,
enabling multiple conductors to be
crimped one after another without
interruption
– The sleeves can be reloaded within a
matter of seconds. The special sleeves
with function end prevent incorrect
insertion
The square crimp mold is ideal for the
terminal blocks from the CLIPLINE
complete system
– UT... screw connection terminal blocks
– ST... spring-cage connection terminal
blocks
– PT... push-in connection terminal blocks
– COMBI plug-in connection solutions
CRIMPHANDY, portable hand-held
machine, for a 1.5mm conductor
cross section
Tools - TOOL fox
Automatic devices
1.5mm² conductor cross section
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
Technical data
Dimensions Width Length Height
[mm] 165 320 300
General data
Weight [kg] 12
Application range
Conductor [mm²] / AWG 0.25 - 2.5 / 24 - 14
Power consumption [VA] 80
Working cycle [s] 1.2
Compression trapezoidal
Ordering data
Description Type Order No. Pcs. /
Pkt.
Stripping and crimping device, 230V version, for taped
insulated ferrules 0.25–2.5 mm², sleeve length 8mm, incl.
conversion kits 0.5–2.5mm²
CF 3000-2,5 1205477 1
Stripping and crimping device, 120V version, for taped
insulated ferrules 0.25–2.5 mm², sleeve length 8mm, incl.
conversion kits 0.5–2.5mm²
CF 3000-2,5 120V 1205516 1
Accessories
Extension kit, complete, for CF3000, for taped insulated ferrules,
0.25/0.34mm², sleeve length 8mm
CF 3000-TOOLKIT 0,25 1212376 1
Spare locator,
0,25mm² CF 3000 LOC 0,25 1212377 1
0.5 mm² CF 3000 LOC 0,5 1205639 1
0.75 mm
2
CF 3000 LOC 0,75 1205642 1
1.0 mm² CF 3000 LOC 1,0 1205655 1
1.5 mm² CF 3000 LOC 1,5 1205668 1
2.5 mm² CF 3000 LOC 2,5 1205671 1
Spare knife, 0.25mm², adjustable
0,25mm², adjustable CF 3000 AB 0,25 1212380 1
0.5 mm² CF 3000 AM 0,5 1205587 1
0.75 mm
2
CF 3000 AM 0,75 1205590 1
1,0mm² CF 3000 AM 1,0 1205600 1
1,5mm² CF 3000 AM 1,5 1205613 1
2.5mm² CF 3000 AM 2,5 1205626 1
478
PHOENIX CONTACT
– The compact stripping and crimping
machine can be used to process taped
ferrules with insulating collars in
accordance with DIN46228–4
– Up to 1000 conductors can be processed
an hour
– The conductor is stripped in a single
operation and is crimped with a ferrule to
a high standard of quality
– Particularly suitable for pre-assembling
conductors
– Thanks to its compact and lightweight
design, it can also be used as a portable
solution for transport between different
work locations
– The automatic device can be adapted to
various cross sections in under a minute
– Color coding in accordance with ferrule
standard DIN46228–4 makes the
assignment of modification components
really clear
The suitable taped ferrules support the
use of all modular terminal blocks, especially
from the CLIPLINEcomplete system:
– UT... screw terminal blocks
– ST spring-cage terminal blocks
– Push-in connection terminal blocksPT
– COMBI plug-in connection solutions
Portable automatic stripping and
crimping device for taped products
Tools - TOOL fox
Automatic devices
Conductor cross sections
from 0.25 to 2.5 mm²
Notes:
An application video can be found in the download area for the
relevant product on our website at phoenixcontact.net/products.
i
d
j
k
b
h
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating E-CU / tin-plated (galvanic)
Plastic sleeve material polypropylene
Long/short-term temperature 105°C / 120°C
Ordering data
Description Cross section Color Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm²] AWG a b d h i j k
Taped ferrule, with plastic sleeve, color range as per
DIN 46228-4: 1990-09, CSA-certified
0.25 22 yellow - 14.00 2.20 8.00 0.25 0.15 0.80 AI 0,25-8 YE-B 3240251 1000
0.5 20 white -14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 WH-B 3201369 1000
0.75 18 gray - 14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75- 8 GY-B 3201372 1000
118 red -14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 RD-B 3201385 1000
1.5 16 black - 14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 BK-B 3201398 1000
2.5 14 blue -14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5 - 8 BU-B 3201408 500
Taped ferrules, with plastic sleeve, color code as per
NF C 63-023: 1994-02, CSA-certified
0.5 20 white - 14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 WH-B 3201369 1000
0.75 18 blue -14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75- 8 BU-B 3201547 1000
1 18 red - 14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 RD-B 3201385 1000
1.5 16 black -14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 BK-B 3201398 1000
2.5 14 gray - 14.00 4.20 8.00 0.30 0.15 2.30 AI 2,5 - 8 GY-B 3201550 500
Taped ferrules, with plastic sleeve, special colors, CSA-certified
0.25 22 blue -14.00 2.20 8.00 0.25 0.15 0.80 AI 0,25-8 BU-B 3240250 1000
0.34 22 turquoise - 14.00 2.20 8.00 0.25 0.15 0.80 AI 0,34-8 TQ-B 3240249 1000
0.5 20 orange -14.00 2.50 8.00 0.25 0.15 1.10 AI 0,5 - 8 OG-B 3201563 1000
0.75 18 white - 14.00 2.80 8.00 0.25 0.15 1.30 AI 0,75- 8 WH-B 3201576 1000
118 yellow -14.00 3.00 8.00 0.30 0.15 1.50 AI 1 - 8 YE-B 3201589 1000
1.5 16 red - 14.00 3.40 8.00 0.30 0.15 1.80 AI 1,5 - 8 RD-B 3201592 1000
479
PHOENIX CONTACT
– The taped ferrules have been developed
specifically for the CF3000–2,5 crimping
machine
– Available in the main color ranges up to
2.5mm
– Can be used to wire all terminal blocks,
especially those of the CLIPLINE
complete system
Ferrules with plastic sleeve, taped, for
the CF3000-2,5 crimping machine
Tools - TOOL fox
Automatic devices
Conductor cross sections from 0.25 to 8 mm²
Technical data
Dimensions Width Length Height
[mm] 240 490 390
General data
Weight [kg] 29
Power supply [V] 100 ... 240 , 50 Hz ... 60 Hz
Air consumption per compression [l] 1.2
Working cycle [s] 1.5
Compression trapezoidal
Ordering data
Description Type Order No. Pcs. /
Pkt.
Stripping and crimping device, 100-240V version, electro-
pneumatic, for loose ferrules with insulating collar, 0.34–4mm²,
incl. conversion kits 0.5–1.5mm² (sleeve length 6 - 12mm)
CF 1000-1,5 1208199 1
Accessories
Extension kit, complete, for CF 1000, for loose ferrules
with insulating collar, from serial number 160637
0.25/0.34mm
2
, sleeve length 6 and 8mm CF 1000-TOOLKIT 0,34/6-8 1208226 1
2.5 mm², sleeve length 6 to 12mm CF 1000-TOOLKIT 2,5/6-12 1208242 1
4mm², sleeve length 10mm CF 1000-TOOLKIT 4,0/10 1208271 1
Spare knife, V-form, for CF1000
0.25 to 2.5mm
2
CF 1000 EM 1205215 1
4mm
2
CF 1000 EM4,0 1212663 1
Extension components for processing AI...GB sleeves and
conductors with thicker insulation. (from device serial number
160637)
Separation plate, for AI...GB, 0.5 to 1.5mm
2
CF 1000 VEP1,5 GB 1206901 1
Sleeve receiver, for AI...GB 0.5mm
2
sleeves CF 1000 LOC0,5 GB 1212907 1
for AI...GB 0.75mm
2
sleeves CF 1000 LOC0,75 GB 1212908 1
for AI...GB 1.0mm
2
sleeves CF 1000 LOC1,0 GB 1212909 1
for AI...GB 1.5mm
2
sleeves CF 1000 LOC1,5 GB 1212910 1
Replacement feeder bowl, for CF 1000-1,5
0.25 - 0.34mm
2
sleeves CF 1000 SORT0,34 1206890 1
0.50 - 1.5mm
2
sleeves CF 1000 SORT1,5 1204326 1
2.5 and 4.0mm
2
sleeves CF 1000 SORT4,0 1206887 1
480
PHOENIX CONTACT
The stripping and crimping device can be
used to process loose ferrules from 0.25 to
4mm with insulating collars according to
DIN 46228–4.
The optimized sensor technology has
improved the processing of small cross
sections.
– The conductor is stripped and crimped
with a ferrule to a high standard of quality
in a single step, which enables up to
1000conductors to be processed per
hour
– The added counter provides you with an
overview of the quantity
– The pull-out forces conform to the
requirements of IEC/EN60999 and
IEC/EN60947
– The press unit can be switched off at the
touch of a button so that the CF1000 can
be used as a stripping machine
– A cross section change can be carried out
in just a few steps without any need for
tools. The sleeve length can be easily set
with a screwdriver. Additional settings are
not necessary. You can order additional
feeder bowls as accessories for an even
faster cross section change
– Robust design, suitable for industrial bulk
processing
– High reliability thanks to maintenance and
wear-free components
– Additional feeder bowls make the cross
section change even quicker
Stripping and crimping machine for
bulk goods
Tools - TOOL fox
Automatic devices
Conductor cross sections from 0.34 to 4mm²
Notes:
Accessories and replacement parts for older device versions can
be found at phoenixcontact.net/products.
For further information and full technical data, visit phoenixcontact.net/products
Technical data
Dimensions Width Length Height
[mm] 240 490 390
General data
Weight [kg] 29
Power supply [V] 100 ... 240 , 50 Hz ... 60 Hz
Air consumption per compression [l] 1.2
Working cycle [s] 1.5
Compression trapezoidal
Ordering data
Description Type Order No. Pcs. /
Pkt.
Stripping and crimping device, 100-240V version, electro-
pneumatic, for loose ferrules with insulating collar, 4mm², 6mm²,
and 10mm², without conversion kit
CF 1000-10 1212456 1
Accessories
Conversion kit, complete, for CF 1000-10, for loose ferrules with
insulating collar
4mm², sleeve length 10- 12mm CF 1000-10-TOOLKIT 4/10-12 1212458 1
6mm², sleeve length 12mm CF 1000-10-TOOLKIT 6/12 1212459 1
10 mm², sleeve length 12mm CF 1000-10-TOOLKIT 10/12 1212460 1
Replacement knife, V-form, for CF 1000-10
4mm
2
CF 1000 EM4,0 1212663 1
6mm
2
CF 1000-10 EM6,0 1212664 1
10mm
2
CF 1000-10 EM10 1212665 1
481
PHOENIX CONTACT
The CF 1000-10 processes loose ferrules
from 4 - 10mm
2
with plastic collars
according to DIN 46228-4
– The conductor is stripped and crimped
with a ferrule to a high standard of quality
in a single step, which enables up to 1000
conductors to be processed per hour
– The added counter provides you with an
overview of the quantity
– The cross section change can be carried
out in just a few steps without any need
for tools. The sleeve length can be easily
set with a screwdriver. Additional settings
are not necessary
– The pull-out forces conform to the
requirements of IEC/EN60999 and
IEC/EN60947
Stripping and crimping machine for
bulk goods
Tools - TOOL fox
Automatic devices
Conductor cross section of 4/6/10mm²
482
PHOENIX CONTACT
Product range overview
CLIPSAFE stainless steel Ex terminal boxes and empty
housings
484
CLIPSAFE ABS terminal boxes 496
Ex cable glands 500
Component mounting
NS 15, NS 35, and NS 32 DIN rails 508
End brackets for DIN rails 520
Marking for terminal strips 522
Brackets for mounting on DIN rails 524
Adapter and support bracket 525
Busbars
Neutral busbar 530
Power and branch terminal blocks 531
Connection terminal blocks for busbars 532
Connection terminal blocks and sockets
Europe connectors 534
Junction box connectors 538
Sockets 540
Shielding
Shield connection clamps 542
Supports 544
Cable management
Cable routing 552
Cable ducts 553
Scissors and cutters 556
Cable clamps for DIN rail 557
Cable protection
Protective hoses and screw connections 558
Accessories 576
Cable bundling
Cable binders 582
483
PHOENIX CONTACT
The CABINET add-on range includes
terminal boxes as well as mounting material
and assembly equipment.
The robust CLIPSAFE stainless steel Ex
terminal boxes and empty housings provide
all-round protection for your application in
industrial environments as well as in process
technology. The housing range includes
standardized housings with dimensions of
up to 1000 x 1000 x 300 mm. We can also
adjust these to suit your requirements while
adhering to Ex standards according to
ATEX and IECEx. Supplied pre-equipped
with terminal blocks and cable glands for
use in potentially explosive areas with
corresponding device approval.
The installation of switchgear and control
cabinets need not be time- and space-
consuming if suitable mounting devices are
used. We offer a comprehensive range of
products for this.
DIN rails and end brackets, for example,
ensure the secure attachment of electrical
connecting elements and components
inside the control cabinet.
Additional security is assured by cover
profiles, while shield connection clamps
enable EMC-compliant wiring.
The cable management product range
includes an extensive range of cable
protection systems and cable ducts, as well
as cable binders for every application.
Your web code: #0140
Installation and mounting material - CABINET add-on
484
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Empty Ex housing
Choose the right stainless steel housing
for your application from 140 Ex-approved
versions. Custom dimensions and surface
treatments are available on request.
Empty Ex housing processed
according to customer specifications
We can customize the housings according
to your specifications with threads, bore
holes, and rectangular cutouts, taking Ex
standards according ATEX and IECEx into
consideration.
Ex terminal boxes
Terminal boxes are supplied ready
equipped with terminal blocks and cable
glands with corresponding ATEX and IECEx
device approval. Individual control boxes
with electronic components are available on
request.
For further information and full technical data, visit phoenixcontact.net/products 485PHOENIX CONTACT
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Comprehensive product range
The housings are available as door or cover
versions in nine different depths and sizes up
to 1000mmx1000mmx300mm. The
robust housings made from up to 2mm thick
high-grade 1.4404 (V4A), AISI316L stainless
steel are ideal for use under extreme
conditions.
Flexible door stop
The door stop can be easily changed
according to your individual requirements
or the installation situation. The 135°
opening angle of the door guarantees
comfortable work during maintenance and
servicing. The special door and cover seal
guarantees a reliable seal even after it has
been opened multiple times.
Flexible wall fastening
The mounting brackets that are supplied
as standard can be flexibly adapted to the
installation situation. Welded-on mounting
brackets are available on request.
Custom flange plate equipment
The terminal boxes and empty housings
can be equipped with flange plates on up to
four sides. The flange plates are equipped
with protective sealing frames (patent
pending) and with captive mounting screws.
Safe outdoor use
The housings satisfy all the requirements
of IP66 protection according to EN60529,
NEMA4X, and NEMA250 and are
designed for safe use outdoors in the
temperature range from -55°Cto135°C. A
drainage channel reliably prevents the
ingress of moisture and dirt when opened.
Ex cable glands
A comprehensive range of Ex cable glands
made from stainless steel or nickel-plated
brass is available to safely feed through
standard, reinforced, and shielded cables.
IP66, IP67, and IP68 protection provides
maximum safety.
Your web code: #0140
A
B
C
Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L
Sealing material Silicon
Degree of protection IP66
Impact strength [J] 7
Surface characteristics brushed , 240 grain
Temperature resistance [°C] -55 ... 135
Type of locking Screw-on cover, Allen screws Screw-on cover, Allen screws Screw-on cover, Allen screws Screw-on cover, Allen screws
Housing fixing External fixing clips
Material strength [mm] 1.5
Ordering data
Description
Dimension
AxBxC
[mm]
Type Order No. Pcs. /
Pkt.
Terminal box, without mounting plate 100 x 100 x 80 E S6 A 100X100X80 0899000 1
150 x 100 x 80 E S6 A 150X100X80 0899001 1
200 x 100 x 80 E S6 A 200X100X80 0899002 1
120 x 120 x 100 E S6 A 120X120X100 0899009 1
Terminal box, with mounting plate 150 x 150 x 80
200 x 150 x 80
300 x 150 x 80
400 x 150 x 80
200 x 200 x 80
300 x 200 x 80
150 x 150 x 100
200 x 200 x 120
300 x 200 x 120
400 x 200 x 120
600 x 200 x 120
200 x 300 x 120
300 x 300 x 120
Accessories
Mounting plate, sheet steel, galvanized
Dimensions: 150x150x2mm
Dimensions: 200x150x2mm
Dimensions: 300x150x2mm
Dimensions: 400x150x2mm
Dimensions: 200x200x2mm
Dimensions: 300x200x2mm, can also be used for 200x300mm
Dimensions: 400x200x2mm
Dimensions: 600x200x2mm
Dimensions: 300x300x2mm
Torque screwdrivers, adjustable from 3-6Nm black TSD-M 6NM 1212226 1
Screw bit, hexagonal, E6.3-1/4" drive, hardened,
suitable for holder according to DIN3126-
F6.3/ISO1173, size: hex 3x50mm
silver SF-BIT-HEX 3-50 1212647 5
Size: hex 4x50mm silver SF-BIT-HEX 4-50 1212648 5
Stainless steel label, unmarked, 70x50x1mm EMP-V4A CS LID-S 0839005 10
486
PHOENIX CONTACT
new
Empty housing, depth of 80-120mm
– Defined stops and the special seal support
ensure optimum seal compression and
therefore satisfy the stringent
requirements for housing leak-tightness
– From a depth (C) of 160 mm, up to four
housing sides can be fitted with flange
plates on request
– The stainless steel marking label supplied
as standard is fitted on the outside away
from the seal area in the bore holes
provided
– The patented protective seal frame
protects the flange plate seal against
external influences
– Additional ground bolts are attached to
the door and housing for easy door stop
replacement
– The housing design features a large
assembly opening for easy access to the
terminal boxes. The flat seal edge
prevents injury during installation,
servicing or maintenance work
Terminal box marking
An extensive range of marking materials is
available for the durable and unique marking
of terminal boxes; see “Device marking”
section
Marking
Baseefa 14 ATEX 0393U
IECEx BAS 14.0179U
II 2 G Ex e IIC Gb
II 2 D Ex tb IIIC Db
-55°C ≤ Ta ≤ +135°C Type IP66
Notes:
Detailed installation and assembly instructions for use in Ex areas:
see installation instructions and the download area for the item at
www.phoenixcontact.net/products.
Torque values for all mounting screws are documented in the
installation instructions supplied as standard and in the product
area of the website at www.phoenixcontact.net/products.
In the case of sides with a length of ≥ 600mm, the material
thickness increases to 2mm.
1
) Matching stainless steel labels: EMP-V4A Lid-S - 0839005 and
EMP-V4A Lid-S CUS - 0839006.
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 80mm and 100mm,
housing with cover screwed in place,
without flange, without mounting plate
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404
Silicon Silicon Silicon
IP66 IP66 IP66
777
brushed , 240 grain brushed , 240 grain brushed , 240 grain
-55 ... 135 -55 ... 135 -55 ... 135
Type of locking Screw-on cover, Allen screws Screw-on cover, Allen screws Screw-on cover, Allen screws Screw-on cover, Allen screws
External fixing clips External fixing clips External fixing clips
1.5 1.5 1.5
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
E S6 A 150X150X80
1
)0899003 1
E S6 A 200X150X80
1
)0899004 1
E S6 A 300X150X80
1
)0899005 1
E S6 A 400X150X80
1
)0899006 1
E S6 A 200X200X80 0899007 1
E S6 A 300X200X80 0899008 1
E S6 A 150X150X100 0899010 1
E S6 A 200X200X120 0899011 1
E S6 A 300X200X120 0899012 1
E S6 A 400X200X120 0899013 1
E S6 A 600X200X120 0899014 1
E S6 A 200X300X120 0899015 1
E S6 A 300X300X120 0899016 1
Accessories Accessories Accessories
AE MP SH 150X150 0161962 1AE MP SH 150X150 0161962 1
AE MP SH 200X150 0161963 1
AE MP SH 300X150 0161964 1
AE MP SH 400X150 0161965 1
AE MP SH 200X200 0161966 1AE MP SH 200X200 0161966 1
AE MP SH 300X200 0161967 1AE MP SH 300X200 0161967 1
AE MP SH 400X200 0161968 1
AE MP SH 600X200 0161969 1
AE MP SH 300X300 0161970 1
TSD-M 6NM 1212226 1TSD-M 6NM 1212226 1TSD-M 6NM 1212226 1
SF-BIT-HEX 3-50 1212647 5SF-BIT-HEX 3-50 1212647 5SF-BIT-HEX 3-50 1212647 5
SF-BIT-HEX 4-50 1212648 5SF-BIT-HEX 4-50 1212648 5SF-BIT-HEX 4-50 1212648 5
EMP-V4A CS LID 0839003 10 EMP-V4A CS LID 0839003 10 EMP-V4A CS LID 0839003 10
487
PHOENIX CONTACT
new
new
new
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 80mm,
housing with cover screwed in place,
without flange, with mounting plate
Depth of 100mm,
housing with cover screwed in place,
without flange, with mounting plate
Depth of 120mm,
housing with cover screwed in place,
without flange, with mounting plate
A
B
C
Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L
Sealing material Silicon
Degree of protection IP66
Impact strength [J] 7
Surface characteristics brushed , 240 grain
Temperature resistance [°C] -55 ... 135
Type of locking Screw-on cover, Allen screws Screw-on cover, Allen screws Door with hinge, Quarter turn locking with two-way key b
Housing fixing External fixing clips
Material strength [mm] 1.5
Ordering data
Description
Dimension
AxBxC
[mm]
Type Order No. Pcs. /
Pkt.
Terminal box 200 x 200 x 160 E S6 A 200X200X160 0899017 1
260 x 260 x 160 E S6 A 260X260X160 0899019 1
400 x 260 x 160 E S6 A 400X260X160 0899021 1
200 x 300 x 160 E S6 A 200X300X160 0899023 1
300 x 300 x 160 E S6 A 300X300X160 0899025 1
400 x 300 x 160 E S6 A 400X300X160 0899027 1
260 x 380 x 160 E S6 A 260X380X160 0899029 1
380 x 380 x 160 E S6 A 380X380X160 0899031 1
500 x 400 x 160 E S6 A 500X400X160 0899033 1
382 x 458 x 160 E S6 A 382X458X160 0899035 1
480 x 480 x 160 E S6 A 480X480X160 0899037 1
300 x 500 x 160 E S6 A 300X500X160 0899039 1
400 x 500 x 160 E S6 A 400X500X160 0899041 1
350 x 500 x 160 E S6 A 350X500X160 0899043 1
450 x 620 x 160 E S6 A 450X620X160 0899045 1
Accessories
Mounting plate, sheet steel, galvanized
Dimensions: 200x200x2mm AE MP SH 200X200 0161966 1
Dimensions: 260x260x2mm AE MP SH 260X260 0161987 1
Dimensions: 400x260x2mm AE MP SH 400X260 0162001 1
Dimensions: 300x200x2mm, can also be used for 200x300mm AE MP SH 300X200 0161967 1
Dimensions: 300x300x2mm AE MP SH 300X300 0161970 1
Dimensions: 400x300x2mm AE MP SH 400X300 0161971 1
Dimensions: 260x380x2mm AE MP SH 260X380 0161972 1
Dimensions: 380x380x2mm AE MP SH 380X380 0161973 1
Dimensions: 500x400x2mm AE MP SH 500X400 0161974 1
Dimensions: 382x458x2mm AE MP SH 382X458 0161975 1
Dimensions: 480x480x2mm AE MP SH 480X480 0161976 1
Dimensions: 300x500x2mm AE MP SH 300X500 0161981 1
Dimensions: 350x500x2mm AE MP SH 350X500 0161982 1
Dimensions: 450x620x2mm AE MP SH 450X620 0161983 1
Torque screwdrivers, adjustable from 3-6Nm black TSD-M 6NM 1212226 1
Screw bit, hexagonal, E6.3-1/4" drive, hardened,
suitable for holder according to DIN3126-
F6.3/ISO1173, size: hex 3x50mm
silver SF-BIT-HEX 3-50 1212647 5
Size: hex 4x50mm silver SF-BIT-HEX 4-50 1212648 5
Stainless steel label, unmarked, 70x50x1mm EMP-V4A CS LID 0839003 10
488
PHOENIX CONTACT
new
Empty housing, depth of 160 mm
– Defined stops and the special seal support
ensure optimum seal compression and
therefore satisfy the stringent
requirements for housing leak-tightness
– From a depth (C) of 160 mm, up to four
housing sides can be fitted with flange
plates on request
– The stainless steel marking label supplied
as standard is fitted on the outside away
from the seal area in the bore holes
provided
– The patented protective seal frame
protects the flange plate seal against
external influences
– Additional ground bolts are attached to
the door and housing for easy door stop
replacement
– The housing design features a large
assembly opening for easy access to the
terminal boxes. The flat seal edge
prevents injury during installation,
servicing or maintenance work
Terminal box marking
An extensive range of marking materials is
available for the durable and unique marking
of terminal boxes; see “Device marking”
section
Marking
Baseefa 14 ATEX 0393U
IECEx BAS 14.0179U
II 2 G Ex e IIC Gb
II 2 D Ex tb IIIC Db
-55°C ≤ Ta ≤ +135°C Type IP66
Notes:
Detailed installation and assembly instructions for use in Ex areas:
see installation instructions and the download area for the item at
www.phoenixcontact.net/products.
Torque values for all mounting screws are documented in the
installation instructions supplied as standard and in the product
area of the website at www.phoenixcontact.net/products.
In the case of sides with a length of ≥ 600mm, the material
thickness increases to 2mm.
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 160 mm, housing with cover screwed
in place, without flange, with mounting plate
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404
Silicon Silicon Silicon
IP66 IP66 IP66
777
brushed , 240 grain brushed , 240 grain brushed , 240 grain
-55 ... 135 -55 ... 135 -55 ... 135
Type of locking Screw-on cover, Allen screws Screw-on cover, Allen screws Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key bit
External fixing clips External fixing clips External fixing clips
1.5 1.5 1.5
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
E1 S6 A 200X200X160 0899018 1C S6 A 200X200X160 0899047 1C1 S6 A 200X200X160 0899048 1
E1 S6 A 260X260X160 0899020 1C S6 A 260X260X160 0899049 1C1 S6 A 260X260X160 0899050 1
E1 S6 A 400X260X160 0899022 1C S6 A 400X260X160 0899051 1C1 S6 A 400X260X160 0899052 1
E1 S6 A 200X300X160 0899024 1C S6 A 200X300X160 0899053 1C1 S6 A 200X300X160 0899054 1
E1 S6 A 300X300X160 0899026 1C S6 A 300X300X160 0899055 1C1 S6 A 300X300X160 0899056 1
E1 S6 A 400X300X160 0899028 1C S6 A 400X300X160 0899057 1C1 S6 A 400X300X160 0899058 1
E1 S6 A 260X380X160 0899030 1C S6 A 260X380X160 0899059 1C1 S6 A 260X380X160 0899060 1
E1 S6 A 380X380X160 0899032 1C S6 A 380X380X160 0899061 1C1 S6 A 380X380X160 0899062 1
E1 S6 A 500X400X160 0899034 1C S6 A 500X400X160 0899063 1C1 S6 A 500X400X160 0899064 1
E1 S6 A 382X458X160 0899036 1C S6 A 382X458X160 0899065 1C1 S6 A 382X458X160 0899066 1
E1 S6 A 480X480X160 0899038 1C S6 A 480X480X160 0899067 1C1 S6 A 480X480X160 0899068 1
E1 S6 A 300X500X160 0899040 1C S6 A 300X500X160 0899069 1C1 S6 A 300X500X160 0899070 1
E1 S6 A 400X500X160 0899042 1C S6 A 400X500X160 0899071 1C1 S6 A 400X500X160 0899072 1
E1 S6 A 350X500X160 0899044 1C S6 A 350X500X160 0899073 1C1 S6 A 350X500X160 0899074 1
E1 S6 A 450X620X160 0899046 1C S6 A 450X620X160 0899075 1C1 S6 A 450X620X160 0899076 1
Accessories Accessories Accessories
AE MP SH 200X200 0161966 1AE MP SH 200X200 0161966 1AE MP SH 200X200 0161966 1
AE MP SH 260X260 0161987 1AE MP SH 260X260 0161987 1AE MP SH 260X260 0161987 1
AE MP SH 450X620 0161983 1AE MP SH 450X620 0161983 1AE MP SH 450X620 0161983 1
AE MP SH 300X200 0161967 1AE MP SH 300X200 0161967 1AE MP SH 300X200 0161967 1
AE MP SH 300X300 0161970 1AE MP SH 300X300 0161970 1AE MP SH 300X300 0161970 1
AE MP SH 400X300 0161971 1AE MP SH 400X300 0161971 1AE MP SH 400X300 0161971 1
AE MP SH 260X380 0161972 1AE MP SH 260X380 0161972 1AE MP SH 260X380 0161972 1
AE MP SH 380X380 0161973 1AE MP SH 380X380 0161973 1AE MP SH 380X380 0161973 1
AE MP SH 500X400 0161974 1AE MP SH 500X400 0161974 1AE MP SH 500X400 0161974 1
AE MP SH 382X458 0161975 1AE MP SH 382X458 0161975 1AE MP SH 382X458 0161975 1
AE MP SH 480X480 0161976 1AE MP SH 480X480 0161976 1AE MP SH 480X480 0161976 1
AE MP SH 300X500 0161981 1AE MP SH 300X500 0161981 1AE MP SH 300X500 0161981 1
AE MP SH 350X500 0161982 1AE MP SH 350X500 0161982 1AE MP SH 350X500 0161982 1
AE MP SH 450X620 0161983 1AE MP SH 450X620 0161983 1AE MP SH 450X620 0161983 1
TSD-M 6NM 1212226 1TSD-M 6NM 1212226 1TSD-M 6NM 1212226 1
SF-BIT-HEX 3-50 1212647 5SF-BIT-HEX 3-50 1212647 5SF-BIT-HEX 3-50 1212647 5
SF-BIT-HEX 4-50 1212648 5SF-BIT-HEX 4-50 1212648 5SF-BIT-HEX 4-50 1212648 5
EMP-V4A CS LID 0839003 10 EMP-V4A CS DOOR 0839001 10 EMP-V4A CS DOOR 0839001 10
489PHOENIX CONTACT
new
new
new
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 160 mm, housing with cover screwed
in place, with flange plates on the bottom, with
mounting plate
Depth of 160 mm, cabinet with hinged door,
without flange, with mounting plate
Depth of 160 mm, cabinet with hinged door,
with flange plates on the bottom, with
mounting plate
A
B
C
Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404
Sealing material Silicon
Degree of protection IP66
Impact strength [J] 7
Surface characteristics brushed , 240 grain
Temperature resistance [°C] -55 ... 135
Type of locking Screw-on cover, Allen screws Door with hinge, Quarter turn locking with two-way key bit
Housing fixing External fixing clips
Material strength [mm] 1.5
Ordering data
Description
Dimension
AxBxC
[mm]
Type Order No. Pcs. /
Pkt.
Terminal box, with cover screwed in
place
260 x 300 x 200 E S6 A 260X300X200 0899077 1
300 x 300 x 200 E S6 A 300X300X200 0899078 1
300 x 400 x 200 E S6 A 300X400X200 0899079 1
400 x 400 x 200 E S6 A 400X400X200 0899080 1
Control box, with door and twist lock 260 x 300 x 200
300 x 300 x 200
600 x 400 x 200
Accessories
Mounting plate, sheet steel, galvanized
Dimensions: 260x300x2mm AE MP SH 260X300 0161984 1
Dimensions: 300x300x2mm AE MP SH 300X300 0161970 1
Dimensions: 400x300x2mm AE MP SH 400X300 0161971 1
Dimensions: 400x400x2mm AE MP SH 400X400 0161985 1
Dimensions: 600x400x2mm
Torque screwdrivers, adjustable from 3-6Nm black TSD-M 6NM 1212226 1
Screw bit, hexagonal, E6.3-1/4" drive, hardened,
suitable for holder according to DIN3126-
F6.3/ISO1173, size: hex 3x50mm
silver SF-BIT-HEX 3-50 1212647 5
Size: hex 4x50mm silver SF-BIT-HEX 4-50 1212648 5
Stainless steel label, unmarked, 70x50x1mm EMP-V4A CS LID 0839003 10
490
PHOENIX CONTACT
new
Terminal boxes, depth of 200mm
– Defined stops and the special seal support
ensure optimum seal compression and
therefore satisfy the stringent
requirements for housing leak-tightness
– From a depth (C) of 160 mm, up to four
housing sides can be fitted with flange
plates on request
– The stainless steel marking label supplied
as standard is fitted on the outside away
from the seal area in the bore holes
provided
– The patented protective seal frame
protects the flange plate seal against
external influences
– Additional ground bolts are attached to
the door and housing for easy door stop
replacement
– The housing design features a large
assembly opening for easy access to the
terminal boxes. The flat seal edge
prevents injury during installation,
servicing or maintenance work
Terminal box marking
An extensive range of marking materials is
available for the durable and unique marking
of terminal boxes; see “Device marking”
section
Marking
Baseefa 14 ATEX 0393U
IECEx BAS 14.0179U
II 2 G Ex e IIC Gb
II 2 D Ex tb IIIC Db
-55°C ≤ Ta ≤ +135°C Type IP66
Notes:
Detailed installation and assembly instructions for use in Ex areas:
see installation instructions and the download area for the item at
www.phoenixcontact.net/products.
Torque values for all mounting screws are documented in the
installation instructions supplied as standard and in the product
area of the website at www.phoenixcontact.net/products.
In the case of sides with a length of ≥ 600mm, the material
thickness increases to 2mm.
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 200 mm, housing with cover screwed
in place, without flange plates,
with mounting plate
For further information and full technical data, visit phoenixcontact.net/products
Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404
Silicon
IP66
7
brushed , 240 grain
-55 ... 135
Type of locking Screw-on cover, Allen screws Door with hinge, Quarter turn locking with two-way key bit
External fixing clips
1.5
Ordering data
Type Order No. Pcs. /
Pkt.
C S6 A 260X300X200 0899081 1
C S6 A 300X300X200 0899082 1
C S6 A 600X400X200 0899083 1
Accessories
AE MP SH 260X300 0161984 1
AE MP SH 300X300 0161970 1
AE MP SH 600X400 0161986 1
TSD-M 6NM 1212226 1
SF-BIT-HEX 3-50 1212647 5
SF-BIT-HEX 4-50 1212648 5
EMP-V4A CS DOOR 0839001 10
491PHOENIX CONTACT
new
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 200 mm, cabinet with hinged door,
without flange plates, with mounting plate
A
B
C
Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404
Sealing material Silicon
Degree of protection IP66
Impact strength [J] 7
Surface characteristics brushed , 240 grain
Temperature resistance [°C] -55 ... 135
Type of locking Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key
Housing fixing External fixing clips
Material strength [mm] 1.5
Ordering data
Description
Dimension
AxBxC
[mm]
Type Order No. Pcs. /
Pkt.
Terminal box, with door and twist lock 260 x 260 x 210 C S6 A 260X260X210 0899084 1
300 x 300 x 210 C S6 A 300X300X210 0899087 1
260 x 380 x 210 C S6 A 260X380X210 0899090 1
600 x 400 x 210 C S6 A 600X400X210 0899093 1
382 x 458 x 210 C S6 A 382X458X210 0899096 1
480 x 480 x 210 C S6 A 480X480X210 0899099 1
350 x 500 x 210 C S6 A 350X500X210 0899102 1
600 x 600 x 210 C S6 A 600X600X210 0899105 1
450 x 620 x 210 C S6 A 450X620X210 0899108 1
550 x 740 x 210 C S6 A 550X740X210 0899111 1
508 x 762 x 210 C S6 A 508X762X210 0899114 1
640 x 860 x 210 C S6 A 640X860X210 0899117 1
610 x 914 x 210 C S6 A 610X914X210 0899120 1
740 x 980 x 210 C S6 A 740X980X210 0899123 1
Accessories
Mounting plate, sheet steel, galvanized
Dimensions: 260x260x2mm AE MP SH 260X260 0161987 1
Dimensions: 300x300x2mm AE MP SH 300X300 0161970 1
Dimensions: 260x380x2mm AE MP SH 260X380 0161972 1
Dimensions: 600x400x2mm AE MP SH 600X400 0161986 1
Dimensions: 382x458x2mm AE MP SH 382X458 0161975 1
Dimensions: 480x480x2mm AE MP SH 480X480 0161976 1
Dimensions: 350x500x2mm AE MP SH 350X500 0161982 1
Dimensions: 600x600x2mm AE MP SH 600X600 0161988 1
Dimensions: 450x620x2mm AE MP SH 450X620 0161983 1
Dimensions: 550x740x2mm AE MP SH 550X740 0161989 1
Dimensions: 508x762x2mm AE MP SH 508X762 0161990 1
Dimensions: 640x860x2mm AE MP SH 640X860 0161991 1
Dimensions: 610x914x2mm AE MP SH 610X914 0161992 1
Dimensions: 740x980x2mm AE MP SH 740X980 0161993 1
Torque screwdrivers, adjustable from 3-6Nm black TSD-M 6NM 1212226 1
Screw bit, hexagonal, E6.3-1/4" drive, hardened,
suitable for holder according to DIN3126-
F6.3/ISO1173, size: hex 3x50mm
silver SF-BIT-HEX 3-50 1212647 5
Size: hex 4x50mm silver SF-BIT-HEX 4-50 1212648 5
Stainless steel label, unmarked, 70x50x1mm EMP-V4A CS DOOR 0839001 10
492
PHOENIX CONTACT
new
Empty housing, depth of 210mm
– Defined stops and the special seal support
ensure optimum seal compression and
therefore satisfy the stringent
requirements for housing leak-tightness
– From a depth (C) of 160 mm, up to four
housing sides can be fitted with flange
plates on request
– The stainless steel marking label supplied
as standard is fitted on the outside away
from the seal area in the bore holes
provided
– The patented protective seal frame
protects the flange plate seal against
external influences
– Additional ground bolts are attached to
the door and housing for easy door stop
replacement
– The housing design features a large
assembly opening for easy access to the
terminal boxes. The flat seal edge
prevents injury during installation,
servicing or maintenance work
Terminal box marking
An extensive range of marking materials is
available for the durable and unique marking
of terminal boxes; see “Device marking”
section
Marking
Baseefa 14 ATEX 0393U
IECEx BAS 14.0179U
II 2 G Ex e IIC Gb
II 2 D Ex tb IIIC Db
-55°C ≤ Ta ≤ +135°C Type IP66
Notes:
Detailed installation and assembly instructions for use in Ex areas:
see installation instructions and the download area for the item at
www.phoenixcontact.net/products.
Torque values for all mounting screws are documented in the
installation instructions supplied as standard and in the product
area of the website at www.phoenixcontact.net/products.
In the case of sides with a length of ≥ 600mm, the material
thickness increases to 2mm.
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 210 mm, cabinet with hinged door,
without flange plates, with mounting plate
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404
Silicon Silicon
IP66 IP66
77
brushed , 240 grain brushed , 240 grain
-55 ... 135 -55 ... 135
Type of locking Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key bit
External fixing clips External fixing clips
1.5 1.5
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
C1 S6 A 260X260X210 0899085 1C3 S6 A 260X260X210 0899086 1
C1 S6 A 300X300X210 0899088 1C3 S6 A 300X300X210 0899089 1
C1 S6 A 260X380X210 0899091 1C3 S6 A 260X380X210 0899092 1
C1 S6 A 600X400X210 0899094 1C3 S6 A 600X400X210 0899095 1
C1 S6 A 382X458X210 0899097 1C3 S6 A 382X458X210 0899098 1
C1 S6 A 480X480X210 0899100 1C3 S6 A 480X480X210 0899101 1
C1 S6 A 350X500X210 0899103 1C3 S6 A 350X500X210 0899104 1
C1 S6 A 600X600X210 0899106 1C3 S6 A 600X600X210 0899107 1
C1 S6 A 450X620X210 0899109 1C3 S6 A 450X620X210 0899110 1
C1 S6 A 550X740X210 0899112 1C3 S6 A 550X740X210 0899113 1
C1 S6 A 508X762X210 0899115 1C3 S6 A 508X762X210 0899116 1
C1 S6 A 640X860X210 0899118 1C3 S6 A 640X860X210 0899119 1
C1 S6 A 610X914X210 0899121 1C3 S6 A 610X914X210 0899122 1
C1 S6 A 740X980X210 0899124 1C3 S6 A 740X980X210 0899125 1
Accessories Accessories
AE MP SH 260X260 0161987 1AE MP SH 260X260 0161987 1
AE MP SH 300X300 0161970 1AE MP SH 300X300 0161970 1
AE MP SH 260X380 0161972 1AE MP SH 260X380 0161972 1
AE MP SH 600X400 0161986 1AE MP SH 600X400 0161986 1
AE MP SH 382X458 0161975 1AE MP SH 382X458 0161975 1
AE MP SH 480X480 0161976 1AE MP SH 480X480 0161976 1
AE MP SH 350X500 0161982 1AE MP SH 350X500 0161982 1
AE MP SH 600X600 0161988 1AE MP SH 600X600 0161988 1
AE MP SH 450X620 0161983 1AE MP SH 450X620 0161983 1
AE MP SH 550X740 0161989 1AE MP SH 550X740 0161989 1
AE MP SH 508X762 0161990 1AE MP SH 508X762 0161990 1
AE MP SH 640X860 0161991 1AE MP SH 640X860 0161991 1
AE MP SH 610X914 0161992 1AE MP SH 610X914 0161992 1
AE MP SH 740X980 0161993 1AE MP SH 740X980 0161993 1
TSD-M 6NM 1212226 1TSD-M 6NM 1212226 1
SF-BIT-HEX 3-50 1212647 5SF-BIT-HEX 3-50 1212647 5
SF-BIT-HEX 4-50 1212648 5SF-BIT-HEX 4-50 1212648 5
EMP-V4A CS DOOR 0839001 10 EMP-V4A CS DOOR 0839001 10
493PHOENIX CONTACT
new
new
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 210 mm, cabinet with hinged door,
with flange plates on the bottom, with
mounting plate
Depth of 210 mm, cabinet with hinged door,
with flange plates on the bottom, left, and
right, with mounting plate
A
B
C
Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L
Sealing material Silicon
Degree of protection IP66
Impact strength [J] 7
Surface characteristics brushed , 240 grain
Temperature resistance [°C] -55 ... 135
Type of locking Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key
Housing fixing External fixing clips
Material strength [mm] 2
Ordering data
Description
Dimension
AxBxC
[mm]
Type Order No. Pcs. /
Pkt.
Terminal box with door and twist
lock, without flange, including mounting
plate
600 x 650 x 240 C S6 A 600X650X240 0899126 1
400 x 650 x 260
600 x 600 x 300
508 x 762 x 300
600 x 800 x 300
800 x 800 x 300
740 x 980 x 300
1000 x 1000 x 300
Control box with door and twist lock,
including flange and mounting plate
600 x 600 x 300
508 x 762 x 300
600 x 800 x 300
800 x 800 x 300
740 x 980 x 300
1000 x 1000 x 300
Accessories
Mounting plate, sheet steel, galvanized
Dimensions: 600x650x2mm AE MP SH 600X650 0161994 1
Dimensions: 400x650x2mm
Dimensions: 600x600x2mm
Dimensions: 508x762x2mm
Dimensions: 600x800x2mm
Dimensions: 800x800x2mm
Dimensions: 740x980x2mm
Dimensions: 1000x1000x2mm
Torque screwdrivers, adjustable from 3-6Nm black TSD-M 6NM 1212226 1
Screw bit, hexagonal, E6.3-1/4" drive, hardened,
suitable for holder according to DIN3126-
F6.3/ISO1173, size: hex 3x50mm
silver SF-BIT-HEX 3-50 1212647 5
Size: hex 4x50mm silver SF-BIT-HEX 4-50 1212648 5
Stainless steel label, unmarked, 70x50x1mm EMP-V4A CS DOOR 0839001 10
494
PHOENIX CONTACT
new
Empty housing, depth of 240mm,
260mm, and 300mm
– Defined stops and the special seal support
ensure optimum seal compression and
therefore satisfy the stringent
requirements for housing leak-tightness
– From a depth (C) of 160 mm, up to four
housing sides can be fitted with flange
plates on request
– The stainless steel marking label supplied
as standard is fitted on the outside away
from the seal area in the bore holes
provided
– The patented protective seal frame
protects the flange plate seal against
external influences
– Additional ground bolts are attached to
the door and housing for easy door stop
replacement
– The housing design features a large
assembly opening for easy access to the
terminal boxes. The flat seal edge
prevents injury during installation,
servicing or maintenance work
Terminal box marking
An extensive range of marking materials is
available for the durable and unique marking
of terminal boxes; see “Device marking”
section
Marking
Baseefa 14 ATEX 0393U
IECEx BAS 14.0179U
II 2 G Ex e IIC Gb
II 2 D Ex tb IIIC Db
-55°C ≤ Ta ≤ +135°C Type IP66
Notes:
Detailed installation and assembly instructions for use in Ex areas:
see installation instructions and the download area for the item at
www.phoenixcontact.net/products.
Torque values for all mounting screws are documented in the
installation instructions supplied as standard and in the product
area of the website at www.phoenixcontact.net/products.
In the case of sides with a length of ≥ 600mm, the material
thickness increases to 2mm.
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 240 mm, cabinet with hinged door,
without flange plates, with mounting plate
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Material Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404 Stainless steel, 316L/1.4404
Silicon Silicon Silicon
IP66 IP66 IP66
777
brushed , 240 grain brushed , 240 grain brushed , 240 grain
-55 ... 135 -55 ... 135 -55 ... 135
Type of locking Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key bit Door with hinge, Quarter turn locking with two-way key bit
External fixing clips External fixing clips External fixing clips
222
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
C S6 A 400X650X260 0899127 1
C S6 A 600X600X300 0899128 1
C S6 A 508X762X300 0899130 1
C S6 A 600X800X300 0899132 1
C S6 A 800X800X300 0899134 1
C S6 A 740X980X300 0899136 1
C S6 A 1000X1000X300 0899138 1
C1 S6 A 600X600X300 0899129 1
C1 S6 A 508X762X300 0899131 1
C1 S6 A 600X800X300 0899133 1
C1 S6 A 800X800X300 0899135 1
C1 S6 A 740X980X300 0899137 1
C1 S6 A 1000X1000X300 0899139 1
Accessories Accessories Accessories
AE MP SH 400X650 0161995 1
AE MP SH 600X600 0161988 1AE MP SH 600X600 0161988 1
AE MP SH 508X762 0161990 1AE MP SH 508X762 0161990 1
AE MP SH 600X800 0161996 1AE MP SH 600X800 0161996 1
AE MP SH 800X800 0161997 1AE MP SH 800X800 0161997 1
AE MP SH 740X980 0161993 1AE MP SH 740X980 0161993 1
AE MP SH 1000X1000 0161998 1AE MP SH 1000X1000 0161998 1
TSD-M 6NM 1212226 1TSD-M 6NM 1212226 1TSD-M 6NM 1212226 1
SF-BIT-HEX 3-50 1212647 5SF-BIT-HEX 3-50 1212647 5SF-BIT-HEX 3-50 1212647 5
SF-BIT-HEX 4-50 1212648 5SF-BIT-HEX 4-50 1212648 5SF-BIT-HEX 4-50 1212648 5
EMP-V4A CS DOOR 0839001 10 EMP-V4A CS DOOR 0839001 10 EMP-V4A CS DOOR 0839001 10
495PHOENIX CONTACT
new
new
new
Installation and mounting material - CABINET add-on
CLIPSAFE stainless steel Ex terminal boxes and empty housings
Depth of 260 mm, cabinet with hinged door,
without flange plates, with mounting plate
Depth of 300 mm, cabinet with hinged door,
without flange plates, with mounting plate
Depth of 300 mm, cabinet with hinged door,
with flange plates on the bottom,
with mounting plate
A
B
C
Technical data
Material ABS
Sealing material Silicon
Degree of protection IP66
Impact strength [J] 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102
Surface characteristics - , -
Temperature resistance [°C] -40 ... 70
Type of locking Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess
Housing fixing Screw connection in housing base Screw connection in housing base Screw connection in housing base
Ordering data
Description
Dimension
AxBxC
[mm]
Type Order No. Pcs. /
Pkt.
Terminal box with 6 2.5 mm² terminal
blocks and 2xM20 cable glands (1
below/1 above)
85 x 83 x 60 E AB A 85X83X60 6PT 3001998 1
Terminal box with 12 2.5 mm² terminal
blocks and 3xM20 cable glands (1
below/2 above)
130 x 80 x 60
Terminal box with 20 2.5 mm² terminal
blocks and 4xM20 cable glands (1
below/3 above)
180 x 130 x 100
496
PHOENIX CONTACT
new
Assembled terminal boxes
– Terminal box with cover, pre-assembled
terminal strip, and push-in technology
(2.5 mm cross section)
– Available pre-assembled with 6, 12 or
20terminal blocks
– Available with 2, 3 or 4 M20 plastic cable
glands depending on the version
– Fast wiring without the need for
additional components
Connection data for the terminal
blocks
Nominal current I
N
: 24A (at 2.5mm)
Nominal voltage U
N
: 800V
Maximum load current: 30A (with a 4mm
conductor cross section)
Min. conductor cross section, solid: 0.14mm
Max. conductor cross section, solid: 4mm
Installation and mounting material - CABINET add-on
CLIPSAFE ABS terminal boxes
Terminal box with 6 2.5 mm² terminal blocks
and push-in technology
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
ABS ABS
Silicon Silicon
IP66 IP66
Impact strength [J] 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102
- , - - , -
-40 ... 70 -40 ... 70
Type of locking Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess
Housing fixing Screw connection in housing base Screw connection in housing base Screw connection in housing base
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
E AB A 130X80X60 12PT 3001999 1
E AB A 180X130X100 20PT 3002001 1
497PHOENIX CONTACT
new
new
Installation and mounting material - CABINET add-on
CLIPSAFE ABS terminal boxes
Terminal box with 12 2.5 mm² terminal blocks
and push-in technology
Terminal box with 20 2.5 mm² terminal blocks
and push-in technology
A
B
C
Technical data
Material ABS
Sealing material Silicon
Degree of protection IP66
Impact strength [J] 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102
Surface characteristics - , -
Temperature resistance [°C] -40 ... 70
Type of locking Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess
Housing fixing Screw connection in housing base Screw connection in housing base Screw connection in housing base
Ordering data
Description
Dimension
AxBxC
[mm]
Type Order No. Pcs. /
Pkt.
Terminal box with 6 2.5 mm² terminal
blocks and 2xM20 cable glands (1
below/1 above)
85 x 83 x 60 E AB A 85X83X60 6TB 3002002 1
Terminal box with 12 2.5 mm² terminal
blocks and 3xM20 cable glands (1
below/2 above)
130 x 80 x 60
Terminal box with 20 2.5 mm² terminal
blocks and 4xM20 cable glands (1
below/3 above)
180 x 130 x 100
498
PHOENIX CONTACT
new
Assembled terminal boxes
Terminal box with cover, pre-assembled
terminal strip, and screw connection
technology (2.5mm cross section)
– Available pre-assembled with 6, 12 or
20terminal blocks
– Available with 2, 3 or 4 M20 plastic cable
glands depending on the version
– Fast wiring without the need for
additional components
Connection data for the terminal
blocks
Nominal current I
N
: 24A
Nominal voltage U
N
: 800V
Maximum load current: 24A
Min. conductor cross section, solid: 0.5mm
Max. conductor cross section, solid: 4mm
Installation and mounting material - CABINET add-on
CLIPSAFE ABS terminal boxes
Terminal box with 6 2.5 mm² terminal blocks
and screw connection technology
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
ABS ABS
Silicon Silicon
IP66 IP66
Impact strength [J] 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102 2 according to EN 62262/EN 50102
- , - - , -
-40 ... 70 -40 ... 70
Type of locking Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess Screw-on cover, Phillips-Recess
Housing fixing Screw connection in housing base Screw connection in housing base Screw connection in housing base
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
E AB A 130X80X60 12TB 3002003 1
E AB A 180X130X100 20TB 3002004 1
499PHOENIX CONTACT
new
new
Installation and mounting material - CABINET add-on
CLIPSAFE ABS terminal boxes
Terminal box with 122.5mm² terminal blocks
and screw connection technology
Terminal box with 20 2.5 mm² terminal blocks
and screw connection technology
ba
e
c
f
d
ba
e
c
f
d
Plastic cable gland
Technical data
General data
Cable gland material Polyamide
Seal material EPDM
O-ring material EPDM
Ambient temperature (operation) -40°C ... 75°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M12 black 3.00 - 6.00 16.00 16.00 15.00 12.00 35.00 18.00 - G-ESIS-M12-S68L-PEPDS-BK 1415106 10
M16 black 4.50 - 9.00 20.00 20.00 15.00 16.00 37.00 23.00 -G-ESIS-M16-S68L-PEPDS-BK 1415107 10
M20 black 7.00 - 13.00 24.00 24.00 15.00 20.00 41.00 28.00 - G-ESIS-M20-S68L-PEPDS-BK 1415108 10
M25 black 10.00 - 17.00 29.00 29.00 15.00 25.00 43.00 33.00 -G-ESIS-M25-M68L-PEPDS-BK 1415109 10
M32 black 13.00 - 21.00 36.00 36.00 15.00 32.00 45.00 41.00 - G-ESIS-M32-M68L-PEPDS-BK 1415110 5
M40 black 17.00 - 28.00 46.00 46.00 18.00 40.00 58.00 51.00 -G-ESIS-M40-M68L-PEPDS-BK 1415111 5
M50 black 23.00 - 35.00 55.00 55.00 18.00 50.00 63.00 61.00 - G-ESIS-M50-L68L-PEPDS-BK 1415112 1
M63 black 34.00 - 48.00 68.00 68.00 18.00 63.00 67.00 75.00 -G-ESIS-M63-L68L-PEPDS-BK 1415113 1
– Halogen-free
– Vibration-proof plastic cable gland with
protection against over-tightening of the
cap nut
– Glow-wire test:750°C
– Degree of protection: IP66/IP68, 5 bar
(30 minutes)
Marking:
– II 2 G Ex e IIC Gb
– II 2 D Ex IIIC Db IP68
new
Plastic cable glands,
metric, Ex protection
Notes:
For counter nuts, see page 506
Installation and mounting material - CABINET add-on
Ex cable glands
Ex:
PTB 13 ATEX 1015 X / IECEx PTB 13.0034X
Plastic cable gland
Technical data
General data
Cable gland material Polyamide
Seal material EPDM
O-ring material EPDM
Ambient temperature (operation) -40°C ... 75°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M12 black/blue 3.00 - 6.00 16.00 16.00 15.00 12.00 35.00 18.00 - G-ESIS-M12-S68L-PEPDS-BL 1415114 10
M16 black/blue 4.50 - 9.00 20.00 20.00 15.00 16.00 37.00 23.00 -G-ESIS-M16-S68L-PEPDS-BL 1415116 10
M20 black/blue 7.00 - 13.00 24.00 24.00 15.00 20.00 41.00 28.00 - G-ESIS-M20-S68L-PEPDS-BL 1415117 10
M25 black/blue 10.00 - 17.00 29.00 29.00 15.00 25.00 43.00 33.00 -G-ESIS-M25-M68L-PEPDS-BL 1415118 10
M32 black/blue 13.00 - 21.00 36.00 36.00 15.00 32.00 45.00 41.00 - G-ESIS-M32-M68L-PEPDS-BL 1415119 5
M40 black/blue 17.00 - 28.00 46.00 46.00 18.00 40.00 58.00 51.00 -G-ESIS-M40-M68L-PEPDS-BL 1415120 5
M50 black/blue 23.00 - 35.00 55.00 55.00 18.00 50.00 63.00 61.00 - G-ESIS-M50-L68L-PEPDS-BL 1415121 1
M63 black/blue 34.00 - 48.00 68.00 68.00 18.00 63.00 67.00 75.00 -G-ESIS-M63-L68L-PEPDS-BL 1415122 1
– Halogen-free
– Vibration-proof plastic cable gland with
protection against over-tightening of the
cap nut
– Glow-wire test:750°C
– Degree of protection: IP66/IP68, 5 bar
(30 minutes)
Marking:
– II 2 G Ex e IIC Gb
– II 2 D Ex IIIC Db IP68
new
Plastic cable glands,
metric, Ex protection
Notes:
For counter nuts, see page 506
500
PHOENIX CONTACT
Ex:
PTB 13 ATEX 1015 X / IECEx PTB 13.0034X
ba
e
c
f
d
EMC
ba
e
c
f
d
For further information and full technical data, visit phoenixcontact.net/products
Brass cable gland
Technical data
General data
Cable gland material Nickel-plated brass
Seal material EPDM
O-ring material EPDM
Ambient temperature (operation) -40°C ... 75°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M12 silver 4.00 - 7.00 - 16.00 12.00 12.00 30.00 18.00 - G-ESIS-M12-S68N-NEPDS-S 1415123 10
M16 silver 5.00 - 10.00 -20.00 12.00 16.00 33.00 22.00 -G-ESIS-M16-S68N-NEPDS-S 1415124 10
M20 silver 6.00 - 13.00 - 24.00 12.00 20.00 35.00 27.00 - G-ESIS-M20-S68N-NEPDS-S 1415125 10
M25 silver 10.00 - 17.00 -29.00 12.00 25.00 38.00 32.00 -G-ESIS-M25-M68N-NEPDS-S 1415126 10
M32 silver 13.00 - 21.00 - 36.00 15.00 32.00 43.00 40.00 - G-ESIS-M32-M68L-NEPDS-S 1415127 5
M40 silver 16.00 - 28.00 -46.00 15.00 40.00 51.00 51.00 -G-ESIS-M40-M68L-NEPDS-S 1415129 5
M50 silver 21.00 - 35.00 - 55.00 15.00 50.00 57.00 61.00 - G-ESIS-M50-L68L-NEPDS-S 1415146 1
M63 silver 34.00 - 48.00 -68.00 15.00 63.00 61.00 75.00 -G-ESIS-M63-L68L-NEPDS-S 1415147 1
– Halogen-free
– Polyamide compression ring
– Degree of protection: IP66/IP68, 5 bar
(30 minutes)
Marking:
– II 2 G Ex e IIC Gb
– II 2 D Ex IIIC Db IP68
new
Brass cable glands,
metric, Ex protection
Notes:
For counter nuts, see page 506
Installation and mounting material - CABINET add-on
Ex cable glands
Ex:
PTB 04 ATEX 1112 X / IECEx PTB 13.0027X
Brass EMC cable gland
Technical data
General data
Cable gland material Nickel-plated brass
Seal material EPDM
O-ring material EPDM
Ambient temperature (operation) -40°C ... 75°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M12 silver 4.00 - 7.00 16.00 16.00 12.00 12.00 30.00 18.00 - G-ESISEC-M12-S68N-NEPDS-S 1415148 10
M16 silver 5.00 - 10.00 20.00 20.00 12.00 16.00 33.00 22.00 -G-ESISEC-M16-S68N-NEPDS-S 1415149 10
M20 silver 6.00 - 13.00 24.00 24.00 12.00 20.00 35.00 27.00 - G-ESISEC-M20-S68N-NEPDS-S 1415163 10
M25 silver 10.00 - 17.00 29.00 29.00 12.00 25.00 38.00 32.00 -G-ESISEC-M25-M68N-NEPDS-S 1415165 10
M32 silver 13.00 - 21.00 36.00 36.00 15.00 32.00 43.00 40.00 - G-ESISEC-M32-M68L-NEPDS-S 1415166 5
M40 silver 16.00 - 28.00 46.00 46.00 15.00 40.00 51.00 51.00 -G-ESISEC-M40-M68L-NEPDS-S 1415168 5
M50 silver 21.00 - 35.00 55.00 55.00 15.00 50.00 57.00 61.00 - G-ESISEC-M50-L68L-NEPDS-S 1415169 1
M63 silver 34.00 - 48.00 68.00 68.00 15.00 63.00 61.00 75.00 -G-ESISEC-M63-L68L-NEPDS-S 1415170 1
– Halogen-free
– Polyamide compression ring
– Permanent braided shield contact by
means of grounding cones in the EMC
screw connection
– Degree of protection: IP66/IP68, 5 bar
(30 minutes)
Marking:
– II 2 G Ex e IIC Gb
– II 2 D Ex IIIC Db IP68
new
Brass EMC cable glands,
metric, Ex protection
Notes:
For ribbed counter nut, see page 507
501
PHOENIX CONTACT
Ex:
PTB 04 ATEX 1112 X / IECEx PTB 13.0027X
d
a b
e
c
f
d
a b
e
c
f
Brass cable gland
Technical data
General data
Cable gland material Nickel-plated brass
Seal material Thermoplastic elastomers
O-ring material Viton
Ambient temperature (operation) -60°C ... 130°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver 6.50 - 14.00 27.00 27.00 15.00 20.00 39.00 29.70 - G-ESS-M20-S66L-NTES-S 1411075 20
M25 silver 11.10 - 20.00 36.00 36.00 15.00 25.00 41.00 39.60 -G-ESS-M25-M66L-NTES-S 1411077 20
M32 silver 17.00 - 26.30 41.00 41.00 15.00 32.00 42.00 45.10 - G-ESS-M32-M66L-NTES-S 1411079 10
M40 silver 23.50 - 32.20 50.00 50.00 15.00 40.00 43.00 55.00 -G-ESS-M40-L66L-NTES-S 1411081 2
M50 silver 35.60 - 44.10 60.00 60.00 15.00 50.00 45.00 66.00 - G-ESS-M50-L66L-NTES-S 1411084 2
M63 silver 47.20 - 56.00 75.00 75.00 15.00 63.00 45.00 82.50 -G-ESS-M63-L66L-NTES-S 1411086 2
The cable glands for unarmored and
braided cables provide flameproof (type
“d”), increased safety (type “e”), and
restricted breathing (type “nR”) protection.
– Degree of protection: IP66/IP67/IP68
Brass cable glands,
metric, Ex protection
Notes:
For counter nuts, see page 506
Installation and mounting material - CABINET add-on
Ex cable glands
Ex:
CIDET
EAC Ex
NEPSI
SIRA13ATEX1068X / IECEx SIR13.0023X
Stainless steel cable gland
Technical data
General data
Cable gland material Stainless steel 1.4404
Seal material Thermoplastic elastomers
O-ring material Viton
Ambient temperature (operation) -60°C ... 130°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver 6.50 - 14.00 27.00 27.00 15.00 20.00 39.00 29.70 - G-ESS-M20-S66L-STES-S 1411076 20
M25 silver 11.10 - 20.00 36.00 36.00 15.00 25.00 41.00 39.60 -G-ESS-M25-M66L-STES-S 1411078 20
M32 silver 17.00 - 26.30 41.00 41.00 15.00 32.00 42.00 45.10 - G-ESS-M32-M66L-STES-S 1411080 10
M40 silver 23.50 - 32.20 50.00 50.00 15.00 40.00 43.00 55.00 -G-ESS-M40-L66L-STES-S 1411082 2
M50 silver 35.60 - 44.10 60.00 60.00 15.00 50.00 45.00 66.00 - G-ESS-M50-L66L-STES-S 1411085 2
M63 silver 47.20 - 56.00 75.00 75.00 15.00 63.00 45.00 82.50 -G-ESS-M63-L66L-STES-S 1411087 2
The cable glands for unarmored and
braided cables provide flameproof (type
“d”), increased safety (type “e”), and
restricted breathing (type “nR”) protection.
– Degree of protection: IP66/IP67/IP68
Stainless steel cable glands,
metric, Ex protection
Notes:
For counter nuts, see page 507
502
PHOENIX CONTACT
Ex:
CIDET
EAC Ex
NEPSI
SIRA13ATEX1068X / IECEx SIR13.0023X
d
a b
e
c
f
d
a b
e
c
f
For further information and full technical data, visit phoenixcontact.net/products
Brass cable gland
Technical data
General data
Cable gland material Nickel-plated brass
Seal material Thermoplastic elastomers
O-ring material Viton
Ambient temperature (operation) -60°C ... 130°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver 9.50 - 15.90 24.00 24.00 15.00 20.00 62.00 26.40 - G-ESSWU-M20S-S66L-NTES-S 1411088 10
M20 silver 12.50 - 20.90 30.50 30.50 15.00 20.00 65.00 33.60 -G-ESSWU-M20-M66L-NTES-S 1411090 10
M25 silver 18.20 - 26.20 37.50 37.50 15.00 25.00 70.00 41.30 - G-ESSWU-M25-M66L-NTES-S 1411092 10
M32 silver 23.70 - 33.90 46.00 46.00 15.00 32.00 73.00 50.60 -G-ESSWU-M32-L66L-NTES-S 1411094 5
M40 silver 27.90 - 40.40 55.00 55.00 15.00 40.00 73.00 60.50 - G-ESSWU-M40-L66L-NTES-S 1411097 1
M50 silver 40.40 - 53.10 70.00 70.00 15.00 50.00 75.00 77.00 -G-ESSWU-M50-L66L-NTES-S 1411100 1
M63 silver 54.60 - 65.90 80.00 80.00 15.00 63.00 78.00 88.00 - G-ESSWU-M63-L66L-NTES-S 1411102 1
The cable glands for armored cables
provide increased safety (type “e”)
protection.
– Degree of protection: IP66/IP67/IP68
Brass cable glands,
metric, Ex protection
Notes:
For counter nuts, see page 506
Installation and mounting material - CABINET add-on
Ex cable glands
Ex:
CIDET EAC Ex
NEPSI
SIRA13ATEX1070X / IECEx SIR13.0025X
Stainless steel cable gland
Technical data
General data
Cable gland material Stainless steel 1.4404
Seal material Thermoplastic elastomers
O-ring material Viton
Ambient temperature (operation) -60°C ... 130°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver 9.50 - 15.90 24.00 24.00 15.00 20.00 85.00 26.40 - G-EDSWU-M20S-S66L-STES-S 1411089 10
M20 silver 12.50 - 20.90 30.50 30.50 15.00 20.00 87.00 33.60 -G-EDSWU-M20-M66L-STES-S 1411091 10
M25 silver 18.20 - 26.20 37.50 37.50 15.00 25.00 97.00 41.30 - G-EDSWU-M25-M66L-STES-S 1411093 10
M32 silver 23.70 - 33.90 46.00 46.00 15.00 32.00 100.00 50.60 -G-EDSWU-M32-L66L-STES-S 1411095 5
M40 silver 27.90 - 40.40 55.00 55.00 15.00 40.00 101.00 60.50 - G-EDSWU-M40-L66L-STES-S 1411099 1
M50 silver 40.40 - 53.10 70.00 70.00 15.00 50.00 115.00 77.00 -G-EDSWU-M50-L66L-STES-S 1411101 1
M63 silver 54.60 - 65.90 80.00 80.00 15.00 63.00 118.00 88.00 - G-EDSWU-M63-L66L-STES-S 1411103 1
The cable glands for armored cables
provide flameproof (type “d”), increased
safety (type “e”), and restricted breathing
(type “nR”) protection.
– Degree of protection: IP66/IP67/IP68
Stainless steel cable glands,
metric, Ex protection
Notes:
For counter nuts, see page 507
503
PHOENIX CONTACT
Ex:
CIDET EAC Ex
NEPSI
SIRA13ATEX1073X / IECEx SIR13.0028X
e
c
d
a
f
e
c
d
a
f
Brass screw plug
Technical data
General data
Material Nickel-plated brass
Ambient temperature (operation) -60°C ... 200°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver - 24.00 - 15.00 20.00 24.00 26.40 - A-EXSH-M20-68L-N-S 1411104 20
M25 silver -30.00 -15.00 25.00 24.00 33.00 -A-EXSH-M25-68L-N-S 1411107 20
M32 silver - 36.00 - 15.00 32.00 24.00 39.60 - A-EXSH-M32-68L-N-S 1411109 10
M40 silver -46.00 -15.00 40.00 24.00 50.60 -A-EXSH-M40-68L-N-S 1411111 5
M50 silver - 55.00 - 15.00 50.00 24.00 60.50 - A-EXSH-M50-68L-N-S 1411113 2
M63 silver -65.00 -15.00 63.00 24.00 77.00 -A-EXSH-M63-68L-N-S 1411115 1
Screw plugs provide IP66 and IP68
protection when installed with an entry
thread ring, sealing unused cable entries in
flameproof (type “d”) and increased safety
(type “e”) installations.
Brass screw plugs,
metric, Ex protection
Notes:
For counter nuts, see page 506.
Installation and mounting material - CABINET add-on
Ex cable glands
Ex:
SIRA01ATEX1284U / IECEx SIR07.0083X
Stainless steel screw plug
Technical data
General data
Material Stainless steel 1.4404
Ambient temperature (operation) -60°C ... 200°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver - 24.00 - 15.00 20.00 24.00 26.40 - A-EXSH-M20-68L-S-S 1411105 20
M25 silver -30.00 -15.00 25.00 24.00 33.00 -A-EXSH-M25-68L-S-S 1411108 20
M32 silver - 36.00 - 15.00 32.00 24.00 39.60 - A-EXSH-M32-68L-S-S 1411110 10
M40 silver -46.00 -15.00 40.00 24.00 50.60 -A-EXSH-M40-68L-S-S 1411112 5
M50 silver - 55.00 - 15.00 50.00 24.00 60.50 - A-EXSH-M50-68L-S-S 1411114 2
M63 silver -65.00 -15.00 63.00 24.00 77.00 -A-EXSH-M63-68L-S-S 1411116 1
Screw plugs provide IP66 and IP68
protection when installed with an entry
thread ring, sealing unused cable entries in
flameproof (type “d”) and increased safety
(type “e”) installations.
Stainless steel screw plugs,
metric, Ex protection
Notes:
For counter nuts, see page 507.
504
PHOENIX CONTACT
Ex:
SIRA01ATEX1284U / IECEx SIR07.0083X
e
c
d
a
f
e
c
d
a
f
For further information and full technical data, visit phoenixcontact.net/products
Brass pressure compensation
Technical data
General data
Material Nickel-plated brass
Ambient temperature (operation) -60°C ... 130°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver - 30.00 - 15.00 20.00 32.00 33.00 - A-EXB-20-66L-N-S 1411117 5
M25 silver -31.50 -15.00 25.00 32.00 39.60 -A-EXB-25-66L-N-S 1411120 5
Breather/drain plugs for increased safety
(type “e”) provide superior ventilation for
devices. They are designed to act as a
pressure compensation element preventing
moisture build-up to IP66.
Brass pressure compensation, metric,
Ex protection
Notes:
For counter nuts, see page 506.
Installation and mounting material - CABINET add-on
Ex cable glands
Ex:
EAC Ex
NEPSI
SIRA10ATEX1307U / IECEx SIR10.0149U
Stainless steel pressure compensation
Technical data
General data
Material Stainless steel 1.4404
Ambient temperature (operation) -60°C ... 130°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver - 30.00 - 15.00 20.00 32.00 26.40 - A-EXB-20-66L-S-S 1411118 5
M25 silver -31.50 -15.00 25.00 32.00 33.00 -A-EXB-25-66L-S-S 1411121 5
Breather/drain plugs for increased safety
(type “e”) provide superior ventilation for
devices. They are designed to act as a
pressure compensation element preventing
moisture build-up to IP66.
Stainless steel pressure
compensation, metric, Ex protection
Notes:
For counter nuts, see page 507.
505
PHOENIX CONTACT
Ex:
EAC Ex
NEPSI
SIRA10ATEX1307U / IECEx SIR10.0149U
ea
d
f
ea
d
f
Plastic counter nut
Technical data
General data
Material PA 6 GF 30
Ambient temperature (operation) -20°C ... 80°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M12 jet black - 18.00 - - 12.00 5.00 19.50 - A-INL-M12-P-BK 1411213 10
M16 jet black -22.00 - - 16.00 5.00 24.20 -A-INL-M16-P-BK 1411214 10
M20 jet black - 26.00 - - 20.00 6.00 28.60 - A-INL-M20-P-BK 1411215 5
M25 jet black -32.00 - - 25.00 6.00 35.00 -A-INL-M25-P-BK 1411216 5
M32 jet black - 41.00 - - 32.00 7.00 46.10 - A-INL-M32-P-BK 1411217 5
M40 jet black -50.00 - - 40.00 7.00 55.30 -A-INL-M40-P-BK 1411218 5
M50 jet black - 60.00 - - 50.00 8.00 66.10 - A-INL-M50-P-BK 1411219 5
M63 jet black -75.00 - - 63.00 8.00 82.50 -A-INL-M63-P-BK 1411220 5
– Material: polyamide 6
– Color: deep black (RAL 9005)
– Ambient temperature:
-20°C...+80°C
Plastic counter nuts,
metric, EN 60423
Installation and mounting material - CABINET add-on
Ex cable glands
Brass counter nut
Technical data
General data
Material Nickel-plated brass
Ambient temperature (operation) -70°C ... 220°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M12 silver - 15.00 - - 12.00 2.80 16.50 - A-INL-M12-N-S 1411240 100
M16 silver -19.00 - - 16.00 2.80 21.00 -A-INL-M16-N-S 1411241 100
M20 silver - 24.00 - - 20.00 3.00 27.00 - A-INL-M20-N-S 1411242 100
M25 silver -30.00 - - 25.00 3.50 33.50 -A-INL-M25-N-S 1411243 100
M32 silver - 36.00 - - 32.00 4.00 40.00 - A-INL-M32-N-S 1411244 100
M40 silver -46.00 - - 40.00 5.00 50.00 -A-INL-M40-N-S 1411246 50
M50 silver - 57.00 - - 50.00 5.00 65.00 - A-INL-M50-N-S 1411247 25
M63 silver -70.00 - - 63.00 6.00 75.00 -A-INL-M63-N-S 1411248 25
– Material: brass, nickel-plated
– Ambient temperature:
-70°C...+220°C
Brass counter nuts,
metric, EN 60423
506
PHOENIX CONTACT
ea
d
f
a
d
e
f
For further information and full technical data, visit phoenixcontact.net/products
Stainless steel counter nut
Technical data
General data
Material Stainless steel 1.4305
Ambient temperature (operation) -70°C ... 220°C
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M20 silver - 24.00 - - 20.00 3.00 27.00 - A-INL-M20-S-S 1411249 10
M25 silver -30.00 - - 25.00 3.50 33.50 -A-INL-M25-S-S 1411250 10
M32 silver - 36.00 - - 32.00 4.00 40.00 - A-INL-M32-S-S 1411251 5
M40 silver -46.00 - - 40.00 5.00 50.00 -A-INL-M40-S-S 1411252 5
M50 silver - 55.00 - - 50.00 5.00 65.00 - A-INL-M50-S-S 1411253 2
M63 silver -70.00 - - 63.00 6.00 75.00 -A-INL-M63-S-S 1411254 1
Stainless steel counter nuts,
metric
Installation and mounting material - CABINET add-on
Ex cable glands
Brass counter nut
Ordering data
Thread type Color Clamping area Dimensions [mm] Type Order No. Pcs. /
Pkt.
[mm] a b c d e f g
M12 silver - 15.00 - - 12.00 4.70 16.50 - A-INLE-M12-N-S 1411267 100
M16 silver -19.00 - - 16.00 4.70 21.00 -A-INLE-M16-N-S 1411268 100
M20 silver - 24.00 - - 20.00 4.70 27.00 - A-INLE-M20-N-S 1411269 100
M25 silver -30.00 - - 25.00 5.20 33.50 -A-INLE-M25-N-S 1411270 50
M32 silver - 36.00 - - 32.00 5.70 40.00 - A-INLE-M32-N-S 1411271 50
M40 silver -46.00 - - 40.00 6.50 50.00 -A-INLE-M40-N-S 1411272 50
M50 silver - 60.00 - - 50.00 6.50 65.00 - A-INLE-M50-N-S 1411273 10
M63 silver -70.00 - - 63.00 7.00 75.00 -A-INLE-M63-N-S 1411274 10
– Material: brass, nickel-plated
– Ambient temperature:
-70°C...+220°C
– Version: ribbed
Brass counter nuts,
metric, EN 60423, ribbed
507
PHOENIX CONTACT
Technical data
General data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, passivated with a thick layer Steel / gal
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
DIN rail, unperforated, in accordance with
EN 60715 - 15 x 5.5 mm, galvanized and thick layer passivated,
supply length: 2 m
silver NS 15 UNPERF 2000MM 1401695 5
DIN rail, unperforated, in accordance with
EN 60715 - 15 x 5.5 mm, galvanized and thick layer passivated, cut
to length according to customer specifications
1
)
silver NS 15 UNPERF/... 1208089 1
DIN rail, unperforated, in acc. with EN 60715 - 15 x 5.5 mm,
galvanized and thick layer passivated, cut to length acc. to
customer specifications and provided with mounting holes
2
)
silver NS 15 UNPERF/SO/... 1208092 1
DIN rail, perforated, in accordance with EN 60715 - 15 x 5.5 mm,
galvanized and thick layer passivated, supply length: 2 m
silver
DIN rail, perforated, in accordance with EN 60715 - 15 x 5.5 mm,
galvanized and thick layer passivated, cut to length according to
customer specifications
1
)
silver
DIN rail, perforated, dimensions according to
EN60715 - 15 x 5.5mm, white passivated, low design, supply
length: 2m
white
DIN rail, perforated, dimensions in acc. with
EN 60715 - 15 x 5.5 mm, supply length: 2 m, material: aluminum
silver
508
PHOENIX CONTACT
DIN rails NS 15, flat design
Notes:
For dimensional drawings and ordering examples, see page 519.
For PPS... DIN rail profile cutters, see page 370.
1
) Please specify the desired length in millimeters when placing
your order. See order example.
2
) Please specify the desired length and borehole when placing
your order. See order example.
– The design of the DIN rails complies with
European standard EN60715
– Particular attention has been paid to a
high degree of dimensional accuracy and
surface tempering
– All DIN rails are also available cut to
length
The DIN rails are available with various
surface coatings and are suitable for the
following applications:
– Zinc plated, for indoor applications
– White passivated, for indoor applications
– Zinc plated and thick layer passivated, for
indoor and protected outdoor
applications
– Aluminum; as a result of their improved
conductivity, these versions can also be
used as PEN busbars
Installation and mounting material - CABINET add-on
Component mounting
Unperforated, zinc plated, and thick layer
passivated
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, passivated with a thick layer Steel / galvanized, white passivated Aluminum / uncoated
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
NS 15 PERF 2000MM 1401682 5
NS 15 PERF/... 1208102 1
NS 15 WH PERF 2000MM 1204096 5
NS 15 AL PERF 2000MM 1401763 5
509PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Component mounting
Perforated, zinc plated, and thick layer
passivated
Perforated, white passivated Perforated, aluminum
Technical data
General data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, white passivated Steel / galvanized Copper
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
DIN rail, unperforated, in acc. with EN 60715 - 35 x 7.5 mm,
galvanized and passivated with a thick layer, low design, supply
length: 2 m
silver NS 35/ 7,5 UNPERF 2000MM 0801681 5
DIN rail, unperforated, according to EN 60715 - 35x7.5mm,
galvanized and thick layer passivated, low design, supply length:
1m
silver NS 35/ 7,5 UNPERF 1000MM 1207649 20
DIN rail, unperforated, in accordance with
EN 60715 - 35 x 7.5 mm, galvanized and thick layer passivated, low
design, cut to length according to customer specifications
1
)
silver NS 35/ 7,5 UNPERF/... 1208115 1
DIN rail, unperforated, in accordance with
EN 60715 - 35 x 7.5 mm, galvanized and thick layer passivated, low
design, cut to length according to customer specifications and
provided with mounting holes
2
)
silver NS 35/ 7,5 UNPERF/SO/... 1208128 1
DIN rail, unperforated, dimensions according to
EN 60715 - 35 x 7.5mm, white passivated, low design, supply
length: 2m
white
DIN rail, unperforated, dimensions in acc. with
EN 60715 - 35 x 7.5 mm, galvanized, low design,
supply length: 2 m
silver
DIN rail, unperforated, dimensions in acc. with
EN 60715 - 35 x 7.5 mm, low design, supply length: 2 m,
Material: copper
copper-colored
Accessories
DIN rail end piece
for DIN rail NS35/7.5 NS 35/ 7,5 CAP 1206560 100
510
PHOENIX CONTACT
DIN rails NS 35, flat design
Notes:
For dimensional drawings and ordering examples, see page 519.
For PPS... DIN rail profile cutters, see page 370.
1
) Please specify the desired length in millimeters when placing
your order. See order example.
2
) Please specify the desired length and borehole when placing
your order. See order example.
– The design of the DIN rails complies with
European standard EN60715
– Particular attention has been paid to a
high degree of dimensional accuracy and
surface tempering
– All DIN rails are also available cut to
length
The DIN rails are available with various
surface coatings and are suitable for the
following applications:
– Zinc plated, for indoor applications
– White passivated, for indoor applications
– Zinc plated and thick layer passivated, for
indoor and protected outdoor
applications
– Aluminum; as a result of their improved
conductivity, these versions can also be
used as PEN busbars
Installation and mounting material - CABINET add-on
Component mounting
Unperforated, zinc plated, and thick layer
passivated
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, white passivated Steel / galvanized Copper / uncoated
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
NS 35/ 7,5 WH UNPERF 2000MM 1204122 5
NS 35/ 7,5 ZN UNPERF 2000MM 1206434 5
NS 35/ 7,5 CU UNPERF 2000MM 0801762 5
Accessories Accessories Accessories
NS 35/ 7,5 CAP 1206560 100 NS 35/ 7,5 CAP 1206560 100 NS 35/ 7,5 CAP 1206560 100
511PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Component mounting
Unperforated, white passivated Unperforated, zinc plated Unperforated, copper
Technical data Technical data
General data
Material / coating Aluminum / uncoated Stainless steel V2A / uncoated
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DIN rail, unperforated, dimensions in acc. with
EN 60715 - 35 x 7.5 mm, low design, supply length: 2 m,
Material: aluminum
silver NS 35/ 7,5 AL UNPERF 2000MM 0801704 5
DIN rail, unperforated, dimensions in acc. with
EN 60715 - 35 x 7.5 mm, low design, supply length: 2 m,
Material: high-grade steel V2A
silver NS 35/ 7,5 V2A UNPERF 2000MM 0801377 5
Accessories Accessories
DIN rail end piece
for DIN rail NS35/7.5 NS 35/ 7,5 CAP 1206560 100 NS 35/ 7,5 CAP 1206560 100
512
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Component mounting
Unperforated, aluminum Unperforated, stainless steel
Notes:
For dimensional drawings and ordering examples, see page 519.
For PPS... DIN rail profile cutters, see page 370.
DIN rails NS 35, flat design
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DIN rail, perforated, in acc. with EN 60715 - 35 x 7.5 mm,
galvanized and passivated with a thick layer, low design,
supply length: 2 m
silver NS 35/ 7,5 PERF 2000MM 0801733 5
DIN rail, perforated, according to EN 60715 - 35x7.5mm,
galvanized and thick layer passivated, low design, supply length:
1m
silver NS 35/ 7,5 PERF 1000MM 1207651 20
DIN rail, perforated, in accordance with EN 60715 - 35 x 7.5 mm,
galvanized and thick layer passivated, low design, for cabinet width
/ depth of 0.8 m
Length: 755 mm silver NS 35/ 7,5 PERF 755MM 1207640 10
For cabinet width / depth of 1.2 m, supply length:
1155 mm
silver NS 35/ 7,5 PERF 1155MM 1207666 10
DIN rail, perforated, in accordance with EN 60715 - 35 x 7.5 mm,
galvanized and thick layer passivated, low design, cut to length
according to customer specifications
1
)
silver NS 35/ 7,5 PERF/... 1208131 1
DIN rail, perforated, dimensions in acc. with
EN 60715 - 35 x 7.5 mm, galvanized, low design,
supply length: 2 m
silver NS 35/ 7,5 ZN PERF 2000MM 1206421 5
DIN rail, perforated, in accordance with EN 60715 - 35 x 7.5 mm,
galvanized and thick layer passivated, low design, for cabinet width
/ depth of 0.8 m
Length: 755 mm silver NS 35/ 7,5 PERF 755MM 1207640 10
Accessories Accessories
DIN rail end piece
for DIN rail NS35/7.5 NS 35/ 7,5 CAP 1206560 100 NS 35/ 7,5 CAP 1206560 100
513
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Component mounting
Perforated, zinc plated, and thick layer
passivated
Perforated, zinc plated
Notes:
1
) Please specify the desired length in millimeters when placing
your order. See order example.
For PPS... DIN rail profile cutters, see page 370.
NS 35 DIN rails, flat design,
perforated
Technical data Technical data
General data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, white passivated Steel / galvanized Copper
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
DIN rail, unperforated, in acc. with EN 60715 - 35 x 15 mm,
galvanized and passivated with a thick layer, tall design, supply
length: 2 m
silver NS 35/15 UNPERF 2000MM 1201714 5
DIN rail, unperforated, according to EN60715 - 35x15mm,
galvanized and thick layer passivated, low design, supply length:
1m
NS 35/15 UNPERF 1000MM 1207655 20
DIN rail, unperforated in accordance with
EN 60715 - 35 x 15 mm, galvanized and thick layer passivated, tall
design, cut to length according to customer specifications
1
)
silver NS 35/15 UNPERF/... 1208144 1
DIN rail, unperforated in accordance with
EN 60715 - 35 x 15 mm, galvanized and thick layer passivated, tall
design, cut to length according to customer specifications and
provided with mounting holes
2
)
silver NS 35/15 UNPERF/SO/... 1208157 1
DIN rail, unperforated, similar to EN 60715 - 35 x 15mm, 1.5mm
thick, white passivated, tall design, supply length: 2m
white NS 35/15 WH UNPERF 2000MM 1204135 5
DIN rail, unperforated similar to EN 60715 - 35 x 15 mm, 1.5 mm
thick, tin-plated, tall design, supply length: 2 m
silver
DIN rail, unperforated similar to EN 60715 - 35 x 15 mm, 1.5 mm
thick, tall design, supply length: 2 m, Material: copper
copper-colored
DIN rail, unperforated in accordance with EN 60715 - 35 x 15
mm, 2.3 mm thick, galvanized and thick layer passivated, tall
design, for universal cut, supply length: 2 m
silver
Accessories Accessories
for DIN rail NS35/15 NS 35/15 CAP 1206573 100 NS 35/15 CAP 1206573 100
514
PHOENIX CONTACT
Unperforated, zinc plated, and thick layer
passivated
Unperforated, white passivated Unperforated, zinc plated Unpe
Notes:
For dimensional drawings and ordering examples, see page 519
For PPS... DIN rail profile cutters, see page 370
1
) Please specify the desired length in millimeters when placing
your order. See order example.
2
) Please specify the desired length and borehole when placing
your order. See order example.
NS35 DIN rails, tall design
Installation and mounting material - CABINET add-on
Component mounting
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, white passivated Steel / galvanized Copper / uncoated Steel / galvanized, passivated with a thick layer
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
NS 35/15 ZN UNPERF 2000MM 1206586 5
NS 35/15 CU UNPERF 2000MM 1201895 5
NS 35/15-2,3 UNPERF 2000MM 1201798 5
Accessories Accessories Accessories
NS 35/15 CAP 1206573 100 NS 35/15 CAP 1206573 100
515PHOENIX CONTACT
Unperforated, white passivated Unperforated, zinc plated Unperforated, copper Unperforated, zinc plated, and thick layer
passivated, material thickness 2.3 mm
Installation and mounting material - CABINET add-on
Component mounting
Technical data
General data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, white passivated Steel / galvanized
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
DIN rail, perforated, in acc. with EN 60715 - 35 x 15 mm,
galvanized and passivated with a thick layer, tall design, supply
length: 2 m
silver NS 35/15 PERF 2000MM 1201730 5
DIN rail, perforated, according to EN60715-35x15mm,
galvanized and thick layer passivated, tall design, supply length:
1m
silver NS 35/15 PERF 1000MM 1207658 20
DIN rail, perforated, in accordance with EN 60715 - 35 x 15 mm,
galvanized and thick layer passivated, tall design, for cabinet width
/ depth of 0.8 m
Length: 755 mm silver NS 35/15 PERF 755MM 1207679 10
For cabinet width / depth of 1.0 m, supply length:
955 mm
silver NS 35/15 PERF 955MM 1207682 10
For cabinet width / depth of 1.2 m, supply length:
1155 mm
silver NS 35/15 PERF 1155MM 1207695 10
DIN rail, perforated in accordance with EN 60715 - 35 x 15 mm,
galvanized and thick layer passivated, tall design, supply length: 2
m, cut to length according to the customer specifications
1
)
silver NS 35/15 PERF/... 1208160 1
DIN rail, perforated, according to EN 60715 - 35 x 15mm, white
passivated, tall design, supply length: 2m
white
DIN rail, perforated similar to EN 60715 - 35 x 15 mm, 1.5 mm
thick, tin-plated, tall design, supply length: 2 m
silver
516
PHOENIX CONTACT
NS 35 DIN rails, tall design,
perforated
Notes:
For dimensional drawings and ordering examples, see page 519.
For PPS... DIN rail profile cutters, see page 370.
1
) Please specify the desired length in millimeters when placing
your order. See order example.
– The design of the DIN rails complies with
European standard EN60715
– Particular attention has been paid to a
high degree of dimensional accuracy and
surface tempering
– All DIN rails are also available cut to
length
The DIN rails are available with various
surface coatings and are suitable for the
following applications:
– Zinc plated, for indoor applications
– White passivated, for indoor applications
– Zinc plated and thick layer passivated, for
indoor and protected outdoor
applications
– Aluminum and copper. As a result of their
improved conductivity, these versions can
also be used as PEN busbars
Installation and mounting material - CABINET add-on
Component mounting
Perforated, zinc plated, and thick layer
passivated
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Material / coating Steel / galvanized, passivated with a thick layer Steel / galvanized, white passivated Steel / galvanized
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
NS 35/15 WH PERF 2000MM 0806602 5
NS 35/15 ZN PERF 2000MM 1206599 5
517PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Component mounting
Perforated, white passivated Perforated, zinc plated
Technical data
General data
Material / coating Steel / galvanized, passivated with a thick layer
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
DIN rail, unperforated, in accordance with EN 60715 - G32,
supply length: 2 m, galvanized and thick layer passivated
silver NS 32 UNPERF 2000MM 1201015 5
DIN rail, perforated, in accordance with EN 60715 - G32,
galvanized and thick layer passivated, supply length: 2 m
silver NS 32 PERF 2000MM 1201002 5
Notes:
For PPS... DIN rail profile cutters, see page 370.
NS32 DIN rails
Installation and mounting material - CABINET add-on
Component mounting
NS 32 DIN rail
Technical data
Dimensions Width Length Height
[mm] 35 2000 15
General data
Material Aluminum
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
DIN rail, unperforated similar to EN 60715 - 35 x 15 mm, deep-
drawn, tall design, with slide nut guide, supply length: 2 m
silver NS 35/15 AL UNPERF 2000MM 1201756 5
DIN rail, unperforated similar to EN 60715 - 35 x 15 mm, deep-
drawn, tall design, with slide nut guide, cut to length according to
customer specifications
silver NS 35/15 AL UNPERF/... 1210213 1
Slide nut, for DIN rail NS 35/15-AL, for fixing devices, material:
Steel
M4 silver GLM 4 1201769 100
M5 silver GLM 5 1201772 100
M6 silver GLM 6 1201785 100
518
PHOENIX CONTACT
Notes:
For dimensional drawings and ordering examples, see page 519.
– The NS35/15AL DIN rail has been
designed to accommodate GLM... slide
nuts
– The slide nuts even allow components
without an additional snap-on foot to be
mounted
NS35 DIN rails, tall design that
supports the use of slide nuts
NS 35, 15 mm high DIN rail with slide nut guide
L
19,8
25
35
25
14,5
2
1,6 6,5
15
15°
1
15°
R1,2
R1,2
15
12,3
35
24
B
A
L
25
15
6,2
35
27
R 1,25
R 1,25
15°
1
15
1,5
15
25
6,2
35
27
7,5
1
R0,8
R0,8
15
5,5
1
R0,2
R0,5
20
4,2
12,2
10,5
C
B
A
L
15
R2
16,55
32
1,5
6
1510
6,2
For further information and full technical data, visit phoenixcontact.net/products
519PHOENIX CONTACT
Example configuration for
NS 35/7,5 UNPERF/...:
(minimum order quantity 20 units)
When ordering 20 unperforated NS 35/7,5 DIN
rails without end holes with a length of
1750 mm, the following information must be
given:
Item Order No. Length in mm
20 /1208115 /1750
Example configuration for
NS 35/15 UNPERF/SO/...:
(minimum order quantity 20 units)
When ordering 20 unperforated NS 35/15 DIN
rails with 6 mm ø end holes at both ends (as
20 mm elongated holes, the hole center of which
is 50 mm from the end of the rail) with a length
of 550 mm, the following information must be
given:
Item Order
No.
Lengt
h in
mm
Dim.
A
Dim.
B
Dim.
C
20 /1208157 /550 /6/50 /20
L = length
A = hole diameter [mm]
B = distance between end and hole center [mm]
C = length of elongated hole [mm]
The following dimensions are possible:
Round hole: C = 0
Elongated hole: C = 10, 15, 20, or 25 mm
NS 35/15-2.3NS 35/7,5NS 32NS 15
Dimensional drawings for DIN rails
NS 35/15
NS 35/15-AL
Installation and mounting material - CABINET add-on
Component mounting
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 5.2 22 22.6 5.15 48.5 35
General data
Material PA PA
Inflammability class according to UL 94 V2 V2
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
End clamp, for snapping onto NS 15, 5.2 mm wide, marking with
ZB 5 and ZBF 5, KLM, parking facilities for bridges and test
accessories
gray CLIPFIX 15 3022263 50
End bracket, for snapping onto NS35, 5.15 mm wide, can be
marked with ZB 5 and UCT-EM(30X5), parking option for bridges
and test plugs
gray CLIPFIX 35-5 3022276 50
End clamp, to snap on NS 35, 9.5 mm wide, can be marked with
ZB 6, ZB 8/27, KLM...
gray CLIPFIX 35 3022218 50
– Phoenix Contact has engineered its
CLIPFIX end brackets to maintain a
secure grip on the various DIN rail
systems
– Design width of just 5.2 mm
– Parking facility for bridges and connectors
– Large area for marking
Snap-on end bracket, for NS15 and
NS35 DIN rails
Installation and mounting material - CABINET add-on
Component mounting
End bracket for NS 15 DIN rail End bracket for NS 35 DIN rail
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 9.5 50.5 35.3 10 55.5 50
General data
Material PA PA
Tightening torque [Nm] 0.4 - 0.5 0.4 - 0.5
Inflammability class according to UL 94 V2 V2
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
End clamp, to screw on, for NS 35 and NS 32, can be marked with
ZB 6, KLM, KLM-A and UBE
gray E/UK 1201442 50
Universal end bracket, to screw on, for NS 35 and NS 32, for
supporting the ends of double level and three level terminal blocks,
can be marked with ZB 10
gray E/UK 1 1201413 50
520
PHOENIX CONTACT
– With universal foot for NS35 and NS32
DIN rails
– High and low designs
– Large area for marking
Screw-on end bracket, for NS35 and
NS32 DIN rails
For NS35 and NS32 DIN rails For multi-level terminal blocks on NS35 and
NS32 DIN rails
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 6.2 22 11.4 6.1 21.2 18
General data
Material PA PA
Tightening torque [Nm] 0.4 - 0.5 0.4 - 0.5
Inflammability class according to UL 94 V2 V2
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
End clamp, to snap on NS 15, for slide-on miniature terminal
blocks, can be fastened with a screw, can be marked with KLM 1
gray E/MBK 1401637 100
End clamp, to screw on NS 15, 6.1 mm wide, can be fastened
with a screw, can be marked with KLM 1
gray E/MK 1 1421659 100
The E/MBK end bracket has been specially
designed for the MBK miniature IEC
terminal blocks.
– Can be screwed onto NS15 DIN rails
– Can be mounted directly on the mounting
plate as an MBK terminal block base
– Large area for marking
Screw-on end bracket, for NS15 DIN
rail
Installation and mounting material - CABINET add-on
Component mounting
For miniature IEC terminal blocks on
NS15 DIN rail
For NS15 DIN rail
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 9.5 48.6 32.8 10 59 44
General data
Material PA Aluminum
Tightening torque [Nm] 0.4 - 0.5 0.4 - 0.5
Inflammability class according to UL 94 V2 -
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
End clamp, to screw on NS 35, can be equipped with terminal strip
marker KLM-A or ZB 8
gray E/NS 35 N 0800886 50
End bracket, aluminum, for screwing on, for end support of 50 -
300mm² terminal blocks, can be marked with ZB10, for mounting
on NS35...
silver E/AL-NS 35 1201662 10
521
PHOENIX CONTACT
– The E/AL-NS35 provides optimum
support for large terminals and devices
– Large area for marking
Screw-on end bracket, for NS35 DIN
rail
For NS35 DIN rail For terminal blocks from50mm² on
NS35 DIN rails
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 12.5 22 42 10 22 27
General data
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 100 -40 ... 100
Components Halogen-free Halogen-free
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Terminal strip marker, adjustable height, for end clamp CLIPFIX
..., can be marked with SS-ZB
Lettering field size: 20x8mm gray KLM 2 0807575 100
Terminal strip marker, adjustable height, for end clamp
CLIPFIX..., can be marked with EML(20x8) label or with B-STIFT
or X-PEN
gray KLM 3 0811969 100
Can be cut to length gray KLM 3-L 0814788 100
– The KLM has been specially developed for
the CLIPFIX end brackets
– The precise engagement mechanism
allows infinite adjustment of the marking
area height
– The KLM3-L is suitable for multi-level
terminal blocks and can be cut at two
defined points
Marking for terminal strips
Installation and mounting material - CABINET add-on
Component mounting
For CLIPFIX end brackets, can be marked with
snap-on label
For CLIPFIX end brackets, can be marked with
label
Technical data Technical data
General data
Material ABS ABS
Inflammability class according to UL 94 HB HB
Temperature range [°C] -40 ... 80 -40 ... 80
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Terminal strip markers, for E/MK, E/MK 1 and E/MBK end
bracket, lettering field: 24 x 4 mm
transparent KLM 1 1004319 100
Terminal strip markers, for E/UK or CLIPFIX 35 end brackets,
lettering field: 25 x 6 mm
transparent KLM 1004306 100
Accessories Accessories
Insert strips for thermal transfer printers, 5000 labels per roll
Lettering field size: 24x4mm, 5000 labels p. roll white EMT (24X4)R 0816265 1
Lettering field size: 25x6mm, 5000labels per roll white EMT (25X6)R 0817264 1
522
PHOENIX CONTACT
Marking for terminal strips
For E/MK and E/MBK end brackets For E/UK and CLIPFIX 35 end brackets
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material ABS PA
Inflammability class according to UL 94 HB V2
Temperature range [°C] -40 ... 80 -40 ... 100
Components Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Terminal strip markers, for strip marking, adjustable height, for
use with end clamps E/UK, E/NS 35 N or CLIPFIX 35, lettering field:
44 x 7 mm
transparent KLM-A 1004348 100
Terminal strip marker carriers, for marking terminal groups, for
end bracket E/UK, lettering field: 40 x 17 mm
Hood material: PE
gray UBE 0800310 10
Terminal strip marker carrier, for marking terminal block groups,
for assembly on NS32... or NS35... DIN rail, lettering field size:
40x17mm
Hood material: PE
gray UBE/D 0800307 10
Accessories Accessories
Insert strip for thermal transfer printer, for terminal strip marker
UBE/D or UBE
Lettering field size: 40x17mm, 2300 labels per
roll
white EMT (40X17)R 0817293 1
Insert strip for laser printer, perforated, for terminal strip marker
KLM-A
Lettering field size: 44x7mm white ESL 44X7 0808244 10
Lettering field size: 40x17mm, 1sheet =
56labels
white ESL 40X17 0808095 10
523PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Component mounting
For E/UK, E/NS 35 N, and CLIPFIX 35
end brackets
For end bracket and DIN rail mounting
Marking for terminal strips
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 19.7 87 35.4 20 84 46
General data
Material Steel Steel
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Angled bracket, for fixing DIN rails at an angle of 30°, with M6
screw, galvanized and thick layer passivated
silver BG/S 1201086 10 BG/SH 1201099 10
Angled brackets, with DIN rail limit stop, for fixing DIN rails at an
angle of 30°, with M6 screw, galvanized and thick layer passivated
silver BG/SA 1201604 10 BG/SHA 1201594 10
– The BG/S brackets can be used to fix
DIN rails at a distance from the mounting
surface
– 30° tilt angle
Angled brackets for fixing DIN rails
Installation and mounting material - CABINET add-on
Component mounting
Angled bracket, low Angled bracket, high
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 20 84 12 20 37 15
General data
Material Steel Steel
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Flat bracket, for fixing DIN rails 12 mm above the base, with M6
screw, galvanized and thick layer passivated
silver BG/F 1201060 10
Flat bracket, is screwed with DIN rails 15 mm above the base,
fixing hole: 6.5 mm Ø, galvanized and thick layer passivated
silver BG/F 1 1201112 10
524
PHOENIX CONTACT
– The BG/F brackets can be used to fix
DIN rails at a distance from the mounting
surface
Flat brackets for fixing DIN rails
Flat brackets with lugs Flat brackets without lugs
For further information and full technical data, visit phoenixcontact.net/products
Technical data
Dimensions Width Length Height
[mm] 10 42.6 19
General data
Material PA
Inflammability class according to UL 94 V2
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Universal rail adapter, for NS35... or NS32... DIN rail, for
accommodation of switching devices, 10mm wide
For M3 screws gray USA 10 1201578 10
For M5 screws gray USA 10/4,6 1202713 10
– The universal adapters are used to secure
and hold electrical or electronic switching
devices
– The allow fully insulated mounting of
components or DIN rails
Universal adapter
Installation and mounting material - CABINET add-on
Component mounting
For NS35 and NS32 DIN rails
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 38 35 21 7 37.5 9
General data
Material PA PP
Inflammability class according to UL 94 V2 HB
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Support bracket, for fixing DIN rails 21 mm above the mounting
surface, with M6 screw, countersunk fixing hole 6.1 mm Ø, can also
be used for protective insulation of terminal strips
gray AB/NS 1201141 10
DIN rail end piece
for DIN rail NS35/7.5 gray NS 35/ 7,5 CAP 1206560 100
for DIN rail NS35/15 gray NS 35/15 CAP 1206573 100
525
PHOENIX CONTACT
– The support bracket can be used for
totally insulated DIN rail support
– The NS35/...CAP end caps can be
attached to the ends of NS35/7,5 and
NS35/15 DIN rails
Mounting accessories
Support bracket, insulated Protective caps for DIN rails
Technical data
General data
Material PVC
Temperature range [°C] -15 ... 65
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cover profile, supply length 1m
transparent AP-ME METER 3034361 10
Cover profile, please specify the desired length in cm
transparent AP-ME CM 3034345 1
Covering hood, for the contact and dust-protected encapsulation
of the components
transparent AH-ME 3240265 5
– Cover profiles provide protection against
unauthorized use of terminal strips
– This profile has been specially adapted to
the contour of the measuring transducer
disconnect terminal blocks
– The cover can be securely snapped onto
the corresponding APH–ME end brackets
and sealed as an option
– The AH-ME cover, which is enclosed on
all sides, is snapped onto the end brackets
and can be optionally sealed
Cover profiles
Installation and mounting material - CABINET add-on
Component mounting
Cover profile and hood, sealable
Technical data Technical data
General data
Material PA PA
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -40 ... 115 -40 ... 115
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
End bracket, for AP-ME cover profile
gray APH-ME 3034374 10
Holder, for AP-ME cover profile
gray APT-ME 3034358 10
526
PHOENIX CONTACT
– The APH–ME end bracket is used in
conjunction with the AP–ME cover
– It provides facilities for retaining FBS ...–8
plug-in bridges and is optionally sealable
– The APT–ME holder serves as a partition
plate or intermediate support in the case
of long terminal strips
Holder for AP–ME cover profiles
Cover profile end bracket, sealable Cover profile holder
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material PVC Polycarbonate PC
Inflammability class according to UL 94 V2 V2
Temperature range [°C] -15 ... 65 -40 ... 115
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Cover profile, for terminal strips, can be marked with insert strips
AP-ES, a cover profile carrier should be placed at the ends and at
intervals of approx. 40 cm, maximum supply length: 1 m
1
)
Can be snapped onto cover profile carrier AP 2-TU transparent AP 2 CM 5022889 1
Can be snapped onto AP 3-TU or AP 3-TNS 35 transparent AP 3 CM 5022876 1
Cover profile carrier, for mounting on NS 32 or NS 35/7.5 DIN rail,
for fixing the cover profile AP, 2 mm thick, material: PA
gray AP 2-TU 5022630 50
gray AP 3-TU 5022656 50
Sealable cover profile, for mounting on NS35 DIN rail, for fixing
the cover profile AP 3, with plastic knurled nut M5, space
requirement: 13 mm
gray AP 3-TNS 35 5022672 10
U-shaped cover, Inner dimensions: 100 x 38 mm, 2 mm thick,
maximum supply length: 2.05 m, also required: 2 end brackets
E/UK and 2 cover holders VAH, made acc. to length
specifications
1
)
transparent A/U CM 5021110 1
Adjustable cover holder, for mounting covers (up to 3 mm thick),
additional requirements: One end bracket E/UK or CLIPFIX 35,
material PA
gray VAH 1201468 10
Accessories Accessories
Insert strips, for group marking, for sliding into the cover profile AP
2 and AP 3, cardboard, lettering field: 35 x 500 mm
white AP-ES 5022685 10
527
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Component mounting
Cover profile mounting on a DIN rail Cover profile for mounting on end bracket
– Cover profiles provide protection against
unauthorized use of terminal strips
– Large-area marking possible with AP-ES
insert strips
Notes:
1
) When ordering please specify the desired length in cm.
Accuracy 1 mm.
Cover profiles
Technical data
General data
Material ABS
Inflammability class according to UL 94 HB
Temperature range [°C] -40 ... 80
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Single cover, for covering the UK 2,5 neutral terminal, snap fit
transparent EA 4 0805360 50
Single cover, for covering the UK 3 N, UK 5 N, UK 6 N, UK 4-FSR,
UK 4FS/FS,UK 4-LOER terminals, snap fit
transparent EA 5 1024014 100
Single cover, for covering the UK 16 neutral terminal, snap fit
transparent EA 7 1024250 100
Single cover, for covering the UK 3 N, UK 5 N, UK 6 N, UK 4-FSR,
UK 4FS/FS,UK 4-LOER terminals, snap fit, black print: Lightning
flash
yellow EA 5-WS 1024085 100
Single cover, for covering the UK 35, UIK 35 terminal, cannot be
marked, snap fit
transparent EA 11 1024263 50
528
PHOENIX CONTACT
– Covering of live parts
– Protection against accidental actuation of
terminal points or disconnect terminal
blocks
– Protection against environmental
influences
– Can be marked
Cover profiles for UK terminal blocks
Installation and mounting material - CABINET add-on
Component mounting
Single cover for UK terminal blocks
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material Polycarbonate PC
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 115
Components Free from silicone and halogen
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Holding profile, is snapped into the cover holder APK-TU, with
groove for Zack marker strip ZB 5 up to ZB 10, length: 2 m
transparent APK 1 5022795 10
Holding profile, is snapped into the cover holder APK-TU, with
groove for Zack marker strip ZB 5 up to ZB 10, length: 2 m
gray APK-HP 2 METER 5022818 2
Cover profile holder, 10 mm width, for mounting on NS 32 or NS
35/7.5, for fixing the holding profile APK-HP, can be marked with
Zack marker strip ZB 10, Material: PA
gray APK-TU 5022805 10
529PHOENIX CONTACT
– Covering of live parts
– Protection against accidental actuation of
terminal points or disconnect terminal
blocks
– Protection against environmental
influences
– Can be marked
Cover profiles
Installation and mounting material - CABINET add-on
Component mounting
Cover profile, hinged for DIN rail mounting
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 10 1000 3 6 1000 6
General data
Material Copper Copper
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
PEN conductor busbar, 3 x 10 mm, 1 m long, material: Copper,
tin-plated, nominal current: 140 A
silver NLS-CU 3/10 SN 1000MM 0402174 10
PEN conductor busbar, in accordance with DIN VDE 0611-4, 6 x
6 mm, 1 m long, material: Copper, tin-plated, nominal current: 140
A
silver NLS-CU 6/ 6 SN 1000MM 0402161 10
Neutral busbar
Installation and mounting material - CABINET add-on
Busbars
3 x 10 mm 6 x 6 mm
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 19.4 23.4 21.7 10 42 48
General data
Material PA PA
Inflammability class according to UL 94 V0 V0
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Support bracket, insulated, with retaining screw, for 3 x 10 mm or
6 x 6 mm busbars
gray AB/SS 0404428 10
Double support bracket, insulating material, optionally for use
with 3 x 10 mm or 6 x 6 mm neutral busbar, height: 48 mm
Height 48 mm gray AB2/SS 0404431 10
Height 36.8 mm gray ABN 2/SS 0404460 10
Triple support bracket, made from isolation material
gray AB3/SS 0800086 10
530
PHOENIX CONTACT
There is a choice of three support frames
available as support for busbars:
– The AB/SS for one rail
– The AB 2/SS for offset arrangement of
neutral and (PE) busbars
– The lower ABN 2/SS
Notes:
For dimensional drawings, see phoenixcontact.net/products
Supports for neutral busbars
Support bracket for shield conn. terminal
blocks SK
Support bracket, multi-level, insulated
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 8 40 36 12 40 37
Max. electrical data I
max.
[A] max. Ø [mm²] AWG (UL) I
max.
[A] max. Ø [mm²] AWG (UL)
76 0.5 - 16 - 125 0.75 - 35 -
Rated data IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
Nominal current / cross section [A] / [mm²] 57 / 10 - - - 125 / 35 - - 95 / 25
Connection capacity solid stranded ferrule solid stranded ferrule
without/with plastic sleeve without/with plastic sleeve
1 conductor [mm²] 0.5 - 16 0.5 - 10 0.5 - 16 0.5 - 10 0.75 - 35 0.75 - 35 0.75 - 35 0.75 - 35
2 conductors (of the same type) [mm²] 0.5 - 10 0.5 - 10 0.5 - 10 - 0.75 - 10 0.75 - 10 0.75 - 10 -
General data
Stripping length [mm] 14 14
Screw thread M5 M6
Tightening torque [Nm] 2.5 - 3 3.2 - 3.7
Ordering data Ordering data
Description Color Type I
max
Order No. Pcs. /
Pkt. Type I
max
Order No. Pcs. /
Pkt.
Power terminal, copper, nickel-plated aluminum EK 116 0401010 10 EK 135 0401023 10
Power terminals
Installation and mounting material - CABINET add-on
Busbars
10 (16) mm², 76 A, power terminal 35 (35) mm², 125 A, power terminal
Technical data
Dimensions Width Length Height
[mm] 12 40 36
Max. electrical data I
max.
[A] max. Ø [mm²] AWG (UL)
125 0.75 - 35 -
Rated data IEC UL CSA IEC/
EN60079-7
Nominal current / cross section [A] / [mm²] 125 / 35 - - -
Connection capacity solid stranded ferrule
without/with plastic sleeve
1 conductor [mm²] 0.75 - 35 0.75 - 35 0.75 - 35 0.75 - 35
2 conductors (of the same type) [mm²] 0.75 - 10 0.75 - 10 0.75 - 10 -
General data
Stripping length [mm] 15
Screw thread M6
Tightening torque [Nm] 3.2 - 3.7
Ordering data
Description Color Type I
max
Order No. Pcs. /
Pkt.
Branch terminal block, for connection to copper
bars up to 5 mm thick
aluminum AZK 35 0702997 10
531
PHOENIX CONTACT
– A branch of flat copper busbars often has
to be produced in switch systems
– This can be done easily with the branch
terminal block because the terminal block
can be attached and firmly clamped
anywhere on a copper rail (up to max.
5mm thick) later on
Branch Terminals
35 (35) mm², 125 A, branch terminal
710 14,3
19,4
Ø8,5
Ø4,5
55
44,5
35,5
16
23,4
27,5
29,5
Technical data
Dimensions Width Length Height
[mm] 7 23.7 23.6 9.8 23.7 29 14.3 27 39
Max. electrical data I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
41 300 0.5 - 6 22-12 76 300 1.5 - 16 18-6 125 300 2.5 - 35 18-2
Rated data IEC UL CSA IEC/
EN60079-7
Rated voltage [V] 300 300 - - 300 300 - - 300 300 - -
Nominal current / cross section [A] / [mm²] 41 / 4 20 / - - - 76 / 16 50 / - 65 / - - 125 / 35 115 / - 135 / - -
Rated cross section [mm²]4--- 16--- 35---
Cross section range AWG 20 - 10 22-12 - - 16 - 6 18-6 18-6 - 14 - 2 18-2 18-2 -
Connection capacity solid stranded ferrule
without/with plastic sleeve
1 conductor [mm²] 0.5 - 6 0.5 - 4 0.5 - 6 0.5 - 6 1.5 - 16 1.5 - 16 1.5 - 16 1.5 - 16 2.5 - 35 2.5 - 35 2.5 - 35 2.5 - 35
2 conductors (of the same type) [mm²] 0.5 - 2.5 0.5 - 2.5 0.5 - 2.5 - 1.5 - 6 1.5 - 6 1.5 - 6 - 1.5 - 16 1.5 - 16 1.5 - 16 -
2 stranded conductors with a TWIN ferrule [mm²] - - - 0.5 - 2.5 - - - 1.5 - 10 - - - 1.5 - 10
General data
Stripping length [mm] 16
Screw thread M4
Tightening torque [Nm] 1.5 - 1.8
Insulating material PA
Inflammability class according to UL 94 V2
Ordering data
Description Color Type I
max
Order No. Pcs. /
Pkt.
Connection terminal block, steel, pushed onto
NLS neutral busbar, can be marked with ZB...
black AKG 4 BK 0421032 50
Up to 6 mm² solid, 7 mm wide green-yellow AKG 4 GNYE 0421029 50
Up to 6 mm² solid, 7 mm wide blue AKG 4 BU 0421016 50
Without insulating cap silver AK 4 0404017 50
Connection terminal block, steel, pushed onto
NLS neutral busbar, can be marked with ZB...
black
Up to 16 mm² solid, 10 mm wide green-yellow
Up to 16 mm² solid, 10 mm wide blue
Without insulating cap silver
Connection terminal block, steel, pushed onto
NLS neutral busbar, can be marked with ZB...
black
Up to 35 mm² solid, 14.3 mm wide green-yellow
Up to 35 mm² solid, 14.3 mm wide blue
Without insulating cap silver
532
PHOENIX CONTACT
L/N/PE connection terminal blocks
– In electrical systems subject to the setup
requirements of DINVDE0100 or
IEC60204–1 / EN60204–1 / VDE0113–
1, N, PE or phase conductor L are often
connected to central busbars. This
requires the conductor and/or terminal
block to be clearly marked for the
corresponding circuit.
The connection terminal blocks satisfy
these requirements in several ways:
– Through individual marking of each
terminal block
– By their blue, green-yellow or black
colored housings
– Large marking possible with ZB, UC-TM,
UCT-TM
Installation and mounting material - CABINET add-on
Busbars
4 (6) mm², 41 A, connection terminal blocks 16 (16) mm², 76 A, connection terminal blocks 35 (35) mm², 125 A, connection terminal
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Width Length Height Width Length Height
7 23.7 23.6 9.8 23.7 29 14.3 27 39
I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL) I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
41 300 0.5 - 6 22-12 76 300 1.5 - 16 18-6 125 300 2.5 - 35 18-2
IEC / EN
IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
Rated voltage [V] 300 300 - - 300 300 - - 300 300 - -
Nominal current / cross section [A] / [mm²] 41 / 4 20 / - - - 76 / 16 50 / - 65 / - - 125 / 35 115 / - 135 / - -
Rated cross section [mm²]4--- 16--- 35---
Cross section range AWG 20 - 10 22-12 - - 16 - 6 18-6 18-6 - 14 - 2 18-2 18-2 -
solid stranded ferrule solid stranded ferrule
without/with plastic sleeve without/with plastic sleeve
1 conductor [mm²] 0.5 - 6 0.5 - 4 0.5 - 6 0.5 - 6 1.5 - 16 1.5 - 16 1.5 - 16 1.5 - 16 2.5 - 35 2.5 - 35 2.5 - 35 2.5 - 35
- 2.5 - 1.5 - 6 1.5 - 6 1.5 - 6 - 1.5 - 16 1.5 - 16 1.5 - 16 -
2 stranded conductors with a TWIN ferrule [mm²] - - - 0.5 - 2.5 - - - 1.5 - 10 - - - 1.5 - 10
16 16
M5 M6
2.5 - 3 3.2 - 3.7
PA PA
V2 V2
Ordering data Ordering data
Type I
max
Order No. Pcs. /
Pkt. Type I
max
Order No. Pcs. /
Pkt.
AKG 16 BK 0423030 50
AKG 16 GNYE 0423027 50
AKG 16 BU 0423014 50
AK 16 0404033 50
AKG 35 BK 0424039 50
AKG 35 GNYE 0424026 50
AKG 35 BU 0424013 50
AK 35 0404046 50
533
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Busbars
4 (6) mm², 41 A, connection terminal blocks 16 (16) mm², 76 A, connection terminal blocks 35 (35) mm², 125 A, connection terminal
blocks
534
PHOENIX CONTACT
Europe connectors
Notes:
For more variants, see phoenixcontact.net/products.
– The Europe connectors for conductors
with a cross section of up to 16mm
feature wire protection
– Particularly suitable for finely stranded
conductors, including those without
ferrules
– Insulating housing made from halogen-
free polyamide
– High-quality metal parts with corrosion-
resistant surfaces
– Secure fixing in housing
Technical data
Dimensions Width Length Height
[mm] 16.2 93.6 13.4 18.6 117 15 22.2 132.7 17.3 25.2 173.9 20.8
Max. electrical data I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
24 450 0.5 - 2.5 22-12 32 450 0.75 - 4 20-10 41 450 1 - 6 14-8 76 450 6 - 16 10-6
Rated data IEC UL CSA IEC/
EN60079-7
Rated voltage [V] 450 300 - - 450 300 - - 450 300 - - 450 300 - -
Nominal current / cross section [A] / [mm²] 24 / 2.5 20 / - - - 32 / 4 30 / - - - 41 / 6 50 / - - - 76 / 16 55 / - - -
Rated cross section [mm²]2.5--- 4--- 6--- 16---
Cross section range AWG 20 - 14 22-12 - - 18 - 12 20-10 - - 16 - 10 14-8 - - 10 - 6 10-6 - -
Connection capacity solid stranded ferrule
without/with plastic sleeve
1 conductor [mm²] 0.5 - 2.5 0.5 - 2.5 0.5 - 1.5 0.5 - 1 0.75 - 4 0.75 -
2 conductors (of the same type) [mm²] 0.5 - 0.75 0.5 - 0.75 - - 0.75 -
2 stranded conductors with a TWIN ferrule [mm²] - - - 0.5 - - - 0.5 - 1 - - - 0.5 - 1 - - - 0.75 - 2.5
General data
Stripping length [mm] 5
Screw thread M2,6
Tightening torque [Nm] 0.4 - 0.5
Insulating material PA
Inflammability class according to UL 94 V2
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Europe connector, 12-pos., with wire protection transparent EC 2,5 P TR 3240167 10
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
2.5 (2.5) mm², 24 A, 12-pos. 4 (4) mm², 32 A, 12-pos. 6 (6) mm², 41 A, 12-pos. 16 (16) mm², 76 A, 12-pos.
For further information and full technical data, visit phoenixcontact.net/products
535
PHOENIX CONTACT
Technical data Technical data Technical data
Width Length Height Width Length Height Width Length Height
16.2 93.6 13.4 18.6 117 15 22.2 132.7 17.3 25.2 173.9 20.8
I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL) I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL) I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
24 450 0.5 - 2.5 22-12 32 450 0.75 - 4 20-10 41 450 1 - 6 14-8 76 450 6 - 16 10-6
IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
Rated voltage [V] 450 300 - - 450 300 - - 450 300 - - 450 300 - -
Nominal current / cross section [A] / [mm²] 24 / 2.5 20 / - - - 32 / 4 30 / - - - 41 / 6 50 / - - - 76 / 16 55 / - - -
Rated cross section [mm²]2.5--- 4--- 6--- 16---
Cross section range AWG 20 - 14 22-12 - - 18 - 12 20-10 - - 16 - 10 14-8 - - 10 - 6 10-6 - -
solid stranded ferrule solid stranded ferrule solid stranded ferrule
without/with plastic sleeve without/with plastic sleeve without/with plastic sleeve
1 conductor [mm²] 0.5 - 2.5 0.5 - 2.5 0.5 - 1.5 0.5 - 1 0.75 - 4 0.75 - 4 0.5 - 2.5 0.5 - 2.5 1 - 6 1 - 6 0.75 - 4 0.75 - 4 6 - 16 6 - 16 1.5 - 10 1.5 - 10
2 conductors (of the same type) [mm²] 0.5 - 0.75 0.5 - 0.75 - - 0.75 - 1.5 0.75 - 1 0.5 - 1 - 0.75 - 2.5 0.75 - 1.5 0.75 - 1.5 - 1.5 - 4 2.5 - 4 1.5 - 2.5 -
2 stranded conductors with a TWIN ferrule [mm²] - - - 0.5 - - - 0.5 - 1 - - - 0.5 - 1 - - - 0.75 - 2.5
678
M3 M3,5 M4
0.5 - 0.6 0.8 - 1 1.2 - 1.5
PA PA PA
V2 V2 V2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
EC 4 P TR 3240171 10 EC 6 P TR 3240175 10 EC 16 P TR 3240182 10
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
2.5 (2.5) mm², 24 A, 12-pos. 4 (4) mm², 32 A, 12-pos. 6 (6) mm², 41 A, 12-pos. 16 (16) mm², 76 A, 12-pos.
Technical data Technical data
Dimensions Width Length Height Width Length Height
[mm] 16.6 94.9 13 18.9 116.5 14.9 17.3 133.8 23.4 20.7 174.5 25 30 187.3 28
Max. electrical data I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL) I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
32 450 0.5 - 4 - 41 450 0.75 - 6 - 57 450 1 - 10 - 76 450 1.5 - 16 - 101 750 10 - 25 -
Rated data IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
Rated voltage [V]450--- 450--- 450--- 450--- 750---
Nominal current / cross section [A] / [mm²]32 / 4--- 41 / 6--- 57 / 10--- 76 / 16--- 101 / 25---
Rated cross section [mm²]4--- 6--- 10--- 16--- 25---
Cross section range AWG20 - 12--- 18 - 10--- 16 - 8--- 14 - 6--- 8 - 4---
Connection capacity solid stranded ferrule solid stranded ferrule
without/with plastic sleeve without/with plastic sleeve
1 conductor [mm²] 0.5 - 4 0.5 - 4 0.75 - 2.5 0.75 - 2.5 0.75 - 6 0.75 - 6 0.75 - 4 0.75 - 2.5 1 - 10 1 - 10 1.5 - 6 1.5 - 4 1.5 - 16 2.5 - 16 2
2 conductors (of the same type) [mm²] 0.5 - 1 - 1 - - 0.75 - 1.5 0.75 - 1.5 0.5 - 1 - 1 - 2.5 1.5 - 2.5 0.75 - 1.5 - 2.5 - 4 2.5 - 4 1.5 - 2.5 -
2 stranded conductors with a TWIN ferrule [mm²] - - - 0.5 - - - 0.5 - 1 - - - 0.5 - 1.5 - - - 1 - 4 - - - 1.5 - 6
General data
Stripping length [mm] 5 6
Screw thread M2,6 M3
Tightening torque [Nm] 0.4 - 0.5 0.5 - 0.6
Insulating material PP PP
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Europe connector, 12-pos. white EC 4 3240168 10 EC 6 3240172 10
black EC 4 BK 3240169 10 EC 6 BK 3240173 10
536
PHOENIX CONTACT
4 (4) mm², 32 A, 12-pos. 6 (6) mm², 41 A, 12-pos. 10 (10) mm², 57 A, 12-pos. 16 (16) mm², 76 A, 12-pos. 25 (25) mm², 101 A, 12-pos.
– These Europe connectors are suitable for solid
and stranded conductors with a max. cr. sect.
of 25mm
– The prismatic clamping part facilitates
conductor entry and secure contact can be
established even in the case of conductors
without ferrules
– The polypropylene insulating housing allows
individual positions to be disconnected simply
by twisting and without the need for tools
– The high-quality metal parts, which feature
corrosion-resistant surfaces, are fixed
securely in the housing
Europe connectors
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Width Length Height Width Length Height Width Length Height
16.6 94.9 13 18.9 116.5 14.9 17.3 133.8 23.4 20.7 174.5 25 30 187.3 28
I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL) I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL) I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
32 450 0.5 - 4 - 41 450 0.75 - 6 - 57 450 1 - 10 - 76 450 1.5 - 16 - 101 750 10 - 25 -
IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
Rated voltage [V]450--- 450--- 450--- 450--- 750---
Nominal current / cross section [A] / [mm²]32 / 4--- 41 / 6--- 57 / 10--- 76 / 16--- 101 / 25---
Rated cross section [mm²]4--- 6--- 10--- 16--- 25---
Cross section range AWG20 - 12--- 18 - 10--- 16 - 8--- 14 - 6--- 8 - 4---
solid stranded ferrule solid stranded ferrule solid stranded ferrule
without/with plastic sleeve without/with plastic sleeve without/with plastic sleeve
1 conductor [mm²] 0.5 - 4 0.5 - 4 0.75 - 2.5 0.75 - 2.5 0.75 - 6 0.75 - 6 0.75 - 4 0.75 - 2.5 1 - 10 1 - 10 1.5 - 6 1.5 - 4 1.5 - 16 2.5 - 16 2.5 - 10 2.5 - 10 10 - 25 10 - 25 4 - 16 4 - 10
2 conductors (of the same type) [mm²] 0.5 - 1 - 1 - - 0.75 - 1.5 0.75 - 1.5 0.5 - 1 - 1 - 2.5 1.5 - 2.5 0.75 - 1.5 - 2.5 - 4 2.5 - 4 1.5 - 2.5 - 4 - 6 4 - 6 2.5 - 4 -
2 stranded conductors with a TWIN ferrule [mm²] - - - 0.5 - - - 0.5 - 1 - - - 0.5 - 1.5 - - - 1 - 4 - - - 1.5 - 6
789
M3,5 M4 M5
0.8 - 1 1.2 - 1.5 2 - 3
PP PP PP
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
EC 10 3240176 10 EC 16 3240179 10 EC 25 3240183 10
EC 10 BK 3240177 10 EC 16 BK 3240180 10 EC 25 BK 3240184 10
537
PHOENIX CONTACT
4 (4) mm², 32 A, 12-pos. 6 (6) mm², 41 A, 12-pos. 10 (10) mm², 57 A, 12-pos. 16 (16) mm², 76 A, 12-pos. 25 (25) mm², 101 A, 12-pos.
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
538
PHOENIX CONTACT
Junction box connectors
– Thanks to their push-in connection
method, the three junction box
connectors available from Phoenix
Contact enable wiring to be installed
under the tightest of conditions without
the need for tools
– Solid single-strand conductors with a
cross section range of 0.5mm to
2.5mm can be connected
– Solid multi-strand conductors (7 litz
wires) with a cross section range of
1.5mm to 2.5mm can be safely
connected
– Different cross sections can be wired
together in a junction box connector
– The transparent housing makes it easier
to carry out a visual inspection of the
terminal points, thereby increasing the
safety of the wiring
– Integrated test openings enable the use of
test devices once wiring has been
completed
Technical data
Dimensions Width Length Height
[mm] 17.2 15.6 8.9 26 15.6 8.9 39.2 15.6 8.9
Max. electrical data I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
24 450 0.5 - 2.5 - 24 450 0.5 - 2.5 - 24 450 0.5 - 2.5 -
Rated data IEC UL CSA IEC/
EN60079-7
Rated voltage [V] 450 - - - 450 - - - 450 - - -
Nominal current / cross section [A] / [mm²] 24 / 2.5 - - - 24 / 2.5 - - - 24 / 2.5 - - -
Rated cross section [mm²]2.5--- 2.5--- 2.5---
Cross section range AWG 20 - 14 - - - 20 - 14 - - - 20 - 14 - - -
Connection capacity solid stranded ferrule
without/with plastic sleeve
1 conductor [mm²] 0.5 - 2.5 1.5 - 2.5 - - 0.5
General data
Stripping length [mm] 8
Insulating material PC/PA
Inflammability class according to UL 94 V2
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plug-in terminal block, 3-pos. transparent JBC 2,5/3 3240164 100
5-pos. transparent
8-pos. transparent
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
2.5 (2.5) mm², 24 A, 3-pos. 2.5 (2.5) mm², 24 A, 5-pos. 2.5 (2.5) mm², 24 A, 8-pos.
For further information and full technical data, visit phoenixcontact.net/products
539
PHOENIX CONTACT
Technical data Technical data
Width Length Height Width Length Height
17.2 15.6 8.9 26 15.6 8.9 39.2 15.6 8.9
I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL) I
max.
[A] U
max.
[V] max. Ø [mm²] AWG (UL)
24 450 0.5 - 2.5 - 24 450 0.5 - 2.5 - 24 450 0.5 - 2.5 -
IEC UL CSA IEC/
EN60079-7
IEC UL CSA IEC/
EN60079-7
Rated voltage [V] 450 - - - 450 - - - 450 - - -
Nominal current / cross section [A] / [mm²] 24 / 2.5 - - - 24 / 2.5 - - - 24 / 2.5 - - -
Rated cross section [mm²]2.5--- 2.5--- 2.5---
Cross section range AWG 20 - 14 - - - 20 - 14 - - - 20 - 14 - - -
solid stranded ferrule solid stranded ferrule
without/with plastic sleeve without/with plastic sleeve
1 conductor [mm²] 0.5 - 2.5 1.5 - 2.5 - - 0.5 - 2.5 1.5 - 2.5 - - 0.5 - 2.5 1.5 - 2.5 - -
88
PC/PA PC/PA
V2 V2
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
JBC 2,5/5 3240165 100
JBC 2,5/8 3240166 50
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
2.5 (2.5) mm², 24 A, 3-pos. 2.5 (2.5) mm², 24 A, 5-pos. 2.5 (2.5) mm², 24 A, 8-pos.
L1
PE
N
Technical data
Nominal voltage 250 V AC
Max. continuous current 16 A
General data SD-D... and EMG 45... EMG 90...
Dimensions W / H / D 45 mm / 75 mm / 65.2 mm 90 mm / 75 mm / 70.5 mm 45 mm / 75 mm / 70.5 mm 45 mm / 75 mm / 70.5 mm 83 mm / 134 mm /
Connection data solid / stranded / AWG 0.2 - 4 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 4 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 4 mm² / 0
Standards/regulations IP20
Contact material CuZn37
Ambient temperature range -20°C ... 60°C
Standards/regulations IEC 83 , DIN 49440-1
Ordering data
Description Type Order No. Pcs. /
Pkt.
Socket for the DIN rail
Screw connection, light indicator, green SD-D/SC/LA 2964898 5
Screw connection, light indicator, gray SD-D/SC/LA/GY 2963491 5
Screw connection, light indicator, yellow SD-D/SC/LA/YE 2963404 5
Screw connection, green SD-D/SC 2963310 5
Screw connection, gray SD-D/SC/GY 2963815 5
Screw connection, yellow SD-D/SC/YE 2963459 5
Spring-cage connection, light indicator, green SD-D/SP/LA 2963307 5
Spring-cage connection, light indicator, gray SD-D/SP/LA/GY 2963488 5
Spring-cage connection, light indicator, yellow SD-D/SP/LA/YE 2963475 5
Spring-cage connection, green SD-D/SP 2963323 5
Spring-cage connection, gray SD-D/SP/GY 2963501 5
Spring-cage connection, yellow SD-D/SP/YE 2963462 5
Socket for the DIN rail with device fuse (5 x 20 mm, 6.3 A)
Screw connection, light indicator, green EMG 45-SD-D/LA/SI 2943738 5
Screw connection, light indicator, yellow EMG 45-SD-D/LA/SI YE 2940825 5
Double socket for the DIN rail
Screw connection, light indicator, green EMG 90-2SD-D/LA 2941523 2
Screw connection, gray
Screw connection, residual current circuit breaker, gray
Accessories
Marker tags, 5-section, unprinted, marking with X-PEN, B-STIFT,
plotter or BKMT 20 x 8 label
Lettering field size: 20x8mm white SS-ZB WH 5031171 50
Lettering field size: 20x8mm yellow SS-ZB YE 5031650 50
marked according to customer specifications white SS-ZB WH CUS 0824470 1
540
PHOENIX CONTACT
Sockets with 45 mm standard pitch
It is equally important in modern
switchgears as in simple distributions: the
rail-mountable socket in standard format.
The socket is mounted in an exposed
position to allow mounting tools, service
devices and other electrical equipment to
be installed comfortably.
The mains connecting terminal blocks
(L1, N and PE) are arranged on one side of
the socket for easy connection. All SD
sockets are supplied with equipment
marker tags. Additional equipment marker
tags are available for the EMG housings.
The 45 mm socket is available with or
without a miniature fuse. There is a 6.3 A
fine fuse (5 x 20 mm) for protection.
System parts, in which items are still live
even after the main switch has been turned
off, must be marked in accordance with
DIN VDE 0105-1 and IEC 60204-1/EN
60204-1/DIN VDE 0113-1 as well as the
Accident Prevention Regulation VBG 4. In
this case, a socket version in a yellow
housing is available.
The sockets with a 45 mm standard pitch
and with 90 mm double housings can be
quickly snapped onto the 35 mm DIN rail in
accordance with EN 60715.
For the sockets, you can choose between
the following versions:
– Screw or Spring-Cage Connection
– with or without light indicator
– Grounding connector, Belgian, French or
USA version
– Housing: green, yellow or light gray
With the VS-SI-SD... socket inserts,
the sockets can be integrated into the
IP65 VS-SI-EB-EMV-1 mounting
frame, for example. For further
information, visit
phoenixcontact.net/products.
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
DW
H
Notes:
Type of housing:
SD-... Polyamide non-reinforced PA
EMG...-SD:polycarbonate fiber reinforced PCF
EM-DUO... PVC 94 V0
Socket insert Aminoplast type 131
For approvals and dimensional drawing, visit
phoenixcontact.net/products
Germany France/Belgium USA USA
L1
PE
N
L1
PE
N
L1
PE
N
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
250 V AC 125 V AC 125 V AC
16 A 15 A 15 A
SD-F... SD-US... EM-DUO... EM-DUO.../GFI
Dimensions W / H / D 45 mm / 75 mm / 65.2 mm 90 mm / 75 mm / 70.5 mm 45 mm / 75 mm / 70.5 mm 45 mm / 75 mm / 70.5 mm 83 mm / 134 mm / 49 mm 83 mm / 134 mm / 52 mm
Connection data solid / stranded / AWG 0.2 - 4 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 4 mm² / 0.2 - 2.5 mm² / 24 - 12 0.2 - 4 mm² / 0.2 - 2.5 mm² / 30 - 12 0.2 - 6 mm² / 0.2 - 4 mm² / 30 - 10
IP20 IP20 IP20
CuZn37 CuZn37 -
-20°C ... 60°C -20°C ... 60°C -20°C ... 50°C
IEC 83 , DIN 49440-1 IEC 83 , DIN 49440-1 UL 508 , CSA 22.2
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
SD-F/SC/LA 2963336 5
SD-F/SC/LA/GY 2963844 5SD-US/SC/LA/GY 2963860 10
SD-F/SC/LA/YE 2963909 5
SD-F/SC 2963352 5
SD-F/SC/GY 2963828 5
SD-F/SP/LA 2963349 5
SD-F/SP/LA/GY 2963857 5
EM-DUO 120/15 5600461 1
EM-DUO/120/15/GFI 5600462 1
Accessories Accessories Accessories
SS-ZB WH 5031171 50 SS-ZB WH 5031171 50
SS-ZB YE 5031650 50 SS-ZB YE 5031650 50
SS-ZB WH CUS 0824470 1SS-ZB WH CUS 0824470 1
541
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Connection terminal blocks and sockets
DW
H
DW
H
DW
H
Germany France/Belgium USA USA
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Shield terminal block, for applying the shield to busbars, contact
resistance < 1 mΩ
Ø 2-5 mm, tightening torque 0.4 Nm silver SK 5 3025338 10
Ø 3-8 mm, tightening torque 0.6 Nm silver SK 8 3025163 10
Ø 3-14 mm, tightening torque 0.8 Nm silver SK 14 3025176 10
Ø 5-20 mm, tightening torque 0.8 Nm silver SK 20 3025189 10
Ø 5 - 28mm, tightening torque 1Nm silver SK 28 3026997 10
Ø 20-35 mm, tightening torque 1.5-1.8 Nm silver SK 35 3026463 10
Shield connection clamp, for applying the shield directly to the
conductive mounting plates, plate thickness 1-2 mm
Ø 2-5 mm, tightening torque 0.4 Nm silver SK 5-D 3025406 10
Ø 3-8 mm, tightening torque 0.6 Nm silver SK 8-D 3026861 10
Ø 3-14 mm, tightening torque 0.8 Nm silver SK 14-D 3026874 10
Ø 5-20 mm, tightening torque 0.8 Nm silver SK 20-D 3026887 10
Ø 5 - 28mm, tightening torque 1Nm silver SK 28-D 3027006 10
Ø 20-35 mm, tightening torque 1.5-1.8 Nm silver SK 35-D 3026890 10
Accessories Accessories
PEN conductor busbar, 3 x 10 mm, 1 m long, material: Copper,
tin-plated, nominal current: 140 A
NLS-CU 3/10 SN 1000MM 0402174 10
542
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Shielding
Shield connection clamps for busbar
mounting
Shield connection clamps for direct mounting
The screw-type shield connection
terminal blocks of the SK series are
characterized by:
– Simple handling
– Knurled screw
– Spring-loaded, large pressure piece
– Are suited to direct and busbar mounting
Notes:
For dimensional drawings, see page 551.
Shield clamps SK...
For further information and full technical data, visit phoenixcontact.net/products
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Shield terminal block, for applying the shield to busbars, contact
resistance < 1 mΩ
Ø 3-8 mm silver SKS 8 3240210 10
Ø 3-14 mm silver SKS 14 3240211 10
Ø 5-20 mm silver SKS 20 3240212 10
Shield connection terminal block, for directly applying the shield
to conductive mounting plates, metal thickness 1-2 mm, with
fastening screw M4
Ø 3-8 mm silver SKS 8-D 3240213 10
Ø 3-14 mm silver SKS 14-D 3240214 10
Ø 5-20 mm silver SKS 20-D 3240215 10
Shield connection terminal block, with screwfix, mounting on
DIN rail NS35..., for shield support on busbars
Ø 3-8 mm silver SKS 8-NS35 3240216 10
Ø 3-14 mm silver SKS 14-NS35 3240217 10
Ø 5-20 mm silver SKS 20-NS35 3240218 10
Shield connection terminal block, with snap-on foot,mounting
on DIN rail NS35..., for shield support on busbars
Ø 3-8 mm silver SKS 8-SNS35 3062786 10
Ø 3-14 mm silver SKS 14-SNS35 3062799 10
Ø 5-20 mm silver SKS 20-SNS35 3062809 10
Accessories Accessories
PEN conductor busbar, 3 x 10 mm, 1 m long, material: Copper,
tin-plated, nominal current: 140 A
NLS-CU 3/10 SN 1000MM 0402174 10 NLS-CU 3/10 SN 1000MM 0402174 10
543PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Shielding
Shield connection clamps for busbar and
direct mounting
Shield connection clamps for DIN rail
mounting
– The spring shield connection terminal
blocks SKS... are available for cable and
conductor diameters of between 3 and
20mm
– Three different forms of mounting are
possible: on NS35 DIN rails, on busbars
or directly on conductive mounting plates
Notes:
For dimensional drawings, see page 551.
Shield clamps SKS...
12,9
65
102,4
84,4
54,45
36,8
Technical data
Dimensions Width Length Height
[mm] 5.2 102.4 6.2 77.35 6.2 95.5 9.5 97.8
General data
Material PA
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Support bracket frame with end holder function, for mounting
on NS35..., direct contact with NS35..., for accommodating
3x10mm busbars, shield connection terminal blocks SK and SKS
gray AB-SK TOP 3062090 10
Support bracket with end holder function, for mounting on
NS35..., isolated to NS35..., for accommodating 3x10mm
busbars, for shield connection terminal blocks SK and SKS
gray AB-SK TOP INSULATED 3062074 10
Support bracket, for mounting on NS35..., direct contact with
NS35..., for accommodating 3x10mm busbars, shield connection
terminal blocks SK
gray
Support bracket, 65mm, for mounting on NS35..., direct contact
with NS35..., for accommodating 3x10mm busbars, shield
connection terminal blocks SK
gray
Support bracket with end holder function, for mounting on
NS35..., isolated to NS35..., for accommodating 3x10mm
busbars, for shield connection terminal blocks SK and SKS
gray
Accessories
PEN conductor busbar, 3 x 10 mm, 1 m long, material: Copper,
tin-plated, nominal current: 140 A
silver NLS-CU 3/10 SN 1000MM 0402174 10
Lateral groove marking UC-TM 5, UCT-TM 5 or ZB 5
UC-TMF 5, UCT-TMF 5 or ZBF 5
544
PHOENIX CONTACT
AB-SK TOP
Support bracket for shield support on
one side
AB-SK TOP
– For convenient shield connection,
especially for single- and multi-level
terminal blocks and devices with a front
connection
– The 3x10mm rail can be mounted in the
support frames vertically, horizontally and
at a 45° angle for optimum conductor
placing
– Compact design in a 5.2mm pitch
– Can be marked with zack marker strip
and KLM terminal strip marker...; see
Catalog 5
– Parking facility for plug-in bridges FBS
– End holder function
– For mounting shield connection terminal
blocks SK and SKS
AB-SK
– The single-sided shield support frames
AB-SK are particularly well suited to
space-saving conductor connection for
terminal blocks and devices with cable
entry at the side
– Available in two lengths
– For mounting shield connection terminal
blocks SK
AB-SKS
– For convenient shield connection,
especially for single- and multi-level
terminal blocks and devices with a front
connection
– Isolated to DIN rail
– End holder function
– For mounting shield connection terminal
blocks SK and SKS
Installation and mounting material - CABINET add-on
Shielding
Support bracket frame, tall, for shield
connection terminal blocks SK & SKS
28,7
35,4
9,4
46,8521,25
77,35
28,7
35,4
6521,25
95,5
9,4
44
46,9
25
60
63,5
97,8
27
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Width Length Height Width Length Height Width Length Height
5.2 102.4 6.2 77.35 6.2 95.5 9.5 97.8
PA PA PA
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
AB-SK 3025341 10
AB-SK 65 3026489 10
AB-SKS 60 3240223 10
Accessories Accessories Accessories
NLS-CU 3/10 SN 1000MM 0402174 10 NLS-CU 3/10 SN 1000MM 0402174 10 NLS-CU 3/10 SN 1000MM 0402174 10
545PHOENIX CONTACT
AB-SK AB-SK 65 AB-SKS 60
Installation and mounting material - CABINET add-on
Shielding
Support bracket frame, for shield conn.
terminal blocks SK
Support bracket, 65 mm long, for shield conn.
terminal blocks SK
Isolated support bracket, tall, for shield
connection terminal blocks SK and SKS
36,8
54,45
84,4
12,9
155,8
65 65
Technical data
Dimensions Width Length Height
[mm] 5.2 155.8 5.2 155.8 8.2 150 8.2 150
General data
Material PA
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Double support bracket with end bracket function, for
mounting on NS35..., direct contact with NS35..., for
accommodating 3x10mm busbars, shield connection terminal
blocks SK and SKS
gray AB-SK-D TOP 3062100 10
Double support bracket with end bracket function, for
mounting on NS35..., isolated to NS35..., for accommodating
3x10mm busbars, for shield connection terminal blocks SK and
SKS
gray
Double support bracket, for mounting on NS35..., direct contact
with NS35..., for accommodating 3x10mm busbars, shield
connection terminal blocks SK
gray
Double support bracket, 65mm, for mounting on NS35...,
isolated to NS35... for accommodating 3x10mm busbars, shield
connection terminal blocks SK
gray
Accessories
PEN conductor busbar, 3 x 10 mm, 1 m long, material: Copper,
tin-plated, nominal current: 140 A
silver NLS-CU 3/10 SN 1000MM 0402174 10
Lateral groove marking UC-TM 5, UCT-TM 5 or ZB 5
UC-TMF 5, UCT-TMF 5 or ZBF 5
546
PHOENIX CONTACT
AB-SK-D TOP
Double support bracket for shield
support on both sides
AB-SK-D TOP
– For convenient shield connection,
especially for single- and multi-level
terminal blocks and devices with a front
connection
– The 3x10mm rail can be mounted in the
support frames vertically, horizontally and
at a 45° angle for optimum conductor
placing
– Compact design in a 5.2mm pitch
– Can be marked with zack marker strip
and KLM terminal strip marker...; see
Catalog 5
– Parking facility for bridges and connectors
– For mounting shield connection terminal
blocks SK and SKS
AB-SK 65-D
– The double shield support frames are
particularly well suited to space-saving
conductor connections for terminal
blocks and devices with cable entry at the
side
– Available in two lengths
– For mounting shield connection terminal
blocks SK
Installation and mounting material - CABINET add-on
Shielding
Double support bracket, tall, for shield
connection terminal blocks SK and SKS
36,8
54,45
84,4
12,9
155,8
65 65
9,5
28,7
35,4
10
150
6565
9,5
28,7
35,4
10
150
6565
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Width Length Height Width Length Height Width Length Height
5.2 155.8 5.2 155.8 8.2 150 8.2 150
PA PA PA
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
AB-SK-D TOP INSULATED 3062087 10
AB-SK 65-D 3026900 10
AB-SK 65-D INSULATED 3040889 10
Accessories Accessories Accessories
NLS-CU 3/10 SN 1000MM 0402174 10 NLS-CU 3/10 SN 1000MM 0402174 10 NLS-CU 3/10 SN 1000MM 0402174 10
UC-TM 5, UCT-TM 5 or ZB 5
UC-TMF 5, UCT-TMF 5 or ZBF 5
547PHOENIX CONTACT
AB-SK-D TOP INSULATED AB-SK 65-D AB-SK 65-D INSULATED
Installation and mounting material - CABINET add-on
Shielding
Isolated, double support bracket, tall, for
shield connection terminal blocks SK and SKS
Double support bracket, tall, for shield
connection terminal blocks SK
Isolated, double support bracket, tall, for
shield connection terminal blocks SK
23,4
12,85
21,7
19,4
Ø4,5
23,4
16,1
21,05
4,5
19,4
17,4
23
24
24
5
Technical data Technical data
General data
Material PA PA
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Support bracket, insulated, with retaining screw, for 3 x 10 mm or
6 x 6 mm busbars
gray AB/SS 0404428 10
Support bracket, with contact to the mounting plate, with retaining
screw, for 3 x 10 mm busbars
gray AB/SS-M 3025888 10
Supportbracket, insulated, for 3 x 10 mm or 6 x 6 mm busbars
gray AB/SKS 3240224 10
Accessories Accessories
PEN conductor busbar, 3 x 10 mm, 1 m long, material: Copper,
tin-plated, nominal current: 140 A
silver NLS-CU 3/10 SN 1000MM 0402174 10 NLS-CU 3/10 SN 1000MM 0402174 10
AB/SS AB/SS-M AB/SKS
548
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Shielding
Support bracket for shield connection
terminal blocks SK
Support bracket for shield connection
terminal blocks SK & SKS
The support frames are available in the
following versions:
– AB/SS for isolated installation on the
mounting plate and
– AB/SS-M for non-isolated installation on
the mounting plate
– For mounting shield connection terminal
blocks SK and SKS
Notes:
For dimensional drawings, see phoenixcontact.net/products
Support bracket frame for direct
mounting
42
24,5
Ø4,5
33,8
19,8
13 13
71,5
29,5
Ø4,5
47,8
33,8
19,8
13 13
13
42
27
Ø4,5
45
31
13 13
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PA
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Double support bracket, insulating material, optionally for use
with 3 x 10 mm or 6 x 6 mm neutral busbar, height: 48 mm
Height 48 mm gray AB2/SS 0404431 10
Height 36.8 mm gray ABN 2/SS 0404460 10
Triple support bracket, made from isolation material
gray AB3/SS 0800086 10
Accessories
PEN conductor busbar, 3 x 10 mm, 1 m long, material: Copper,
tin-plated, nominal current: 140 A
silver NLS-CU 3/10 SN 1000MM 0402174 10
PEN conductor busbar, in accordance with DIN VDE 0611-4, 6 x
6 mm, 1 m long, material: Copper, tin-plated, nominal current: 140
A
silver NLS-CU 6/ 6 SN 1000MM 0402161 10
549
PHOENIX CONTACT
– Double and triple support frames for
different busbars
– Type allows for an extremely compact
design using large amounts of wiring, e.g.
for multi-level front connection terminal
blocks
– Support frames are isolated
– Direct mounting
Multi-level support bracket for direct
mounting
ABN 2/SS AB3/SSAB2/SS
Installation and mounting material - CABINET add-on
Shielding
Support bracket, multi-level, insulated
56
53,4
35,2
24,7
Ø4,5
Ø13
10
Ø9
56
20
15
19,1
Technical data
General data
Material Aluminum
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Support bracket, for direct mounting with contacting on the
mounting surface
silver AB-SK/E 3026476 10
Support bracket frame, for mounting on NS35 DIN rails
silver AB-SK/E-NS 35 3213111 10
AB-SK/E-NS 35 AB-SK/E
550
PHOENIX CONTACT
– T-shaped support frames for space-saving
direct mounting and free positioning on
the mounting plate
– Suitable for shield connection terminal
blocks SK5 to SK14, SKS8 and SKS14
– Version for NS35 DIN rail mounting
Support bracket frame for direct and
DIN rail mounting
Installation and mounting material - CABINET add-on
Shielding
e
d
b
max. c
a
d
c
ae
f
b
d
c
b
d
c
b
4
12
30
3
12
7,5
12
13
12
13
3
12
10,5
12
15,5
3
12
15,5
12
22,5
3
12
22,5
12
30
12
38,5
4
38,5
12
e
d
b
max. c
a
For further information and full technical data, visit phoenixcontact.net/products
551PHOENIX CONTACT
SK 8-D
Drilling plan
SK 20-D
SK 14-D
SK 28-D
Drilling and punching patterns for
SK...-D
SK 5-D
Dimensions in mm
a b c d e
SK 5 6.5 19.5 46.8 9 6
SK 8 6.5 19.5 48.7 12 9
SK 14 6.5 19.5 59.3 17 14
SK 20 6.5 19.5 75 24 21
SK 28 6.5 20 93 32 28
SK 35 6.5 20 106.5 40 36
SK 5-D 6.5 19.5 46.8 9 6
SK 8-D 6.5 19.5 47.2 12 9
SK 14-D 6.5 19.5 57.8 17 14
SK 20-D 6.5 19.5 73.5 24 21
SK 28-D 6.5 20 91.5 32 28
SK 35-D 6.5 20 105.0 41 36
SK 35-D
SK ...
SK ...-D
SKS ...
SKS ...-D
SKS ...-NS35
Punching template
Shield connection clamps SK
Dimensions in mm
a b c d e f
SKS 8 –18 26 12.4 – –
SKS 14 – 21 32 19 – –
SKS 20 –27 40.5 24.7 – –
SKS 8-D – 18 26 12.4 – –
SKS 14-D –21 32 19 – –
SKS 20-D – 27 40.5 24.7 – –
SKS 8-NS35 618 26 12.4 52 54
SKS 14-NS35 6 21 32 19 52 60
SKS 20-NS35 627 40.5 24.7 52 68.4
Shield connection clamps SKS
Installation and mounting material - CABINET add-on
Shielding
552
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable routing
The wide choice of cable ducts provides
users with flexible and straightforward
cable installation solutions that simply
involve breaking out the lateral segments
without any need for tools. The cable ducts
are available in different colors and with a
halogen-free design.
Cable protection
The comprehensive range of plastic and
metal protective hoses provides the right
solution for every application.
Protective hose screw connections with
tool-free quick mounting function and
various IP protection classes round off the
range of products.
Cable bundling
For bundling cables, detectable cable
binders and stainless steel or plastic cable
binders are available in either a removable
version or with a marking area.
Whether you are working in the food
industry or the offshore sector, our
comprehensive product range provides the
ideal solution for every application.
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PC/ABS
Components Halogen-free
Inflammability class according to UL 94 V0
Temperature range [°C] -25 ... 90
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable duct, 2000mm long, comprising lower and upper part
WxH: 25x25mm light gray CD-HF 25X25 3240340 25
WxH: 25x40mm light gray CD-HF 25X40 3240341 24
WxH: 25x60mm light gray CD-HF 25X60 3240342 15
WxH: 25x80mm light gray CD-HF 25X80 3240343 10
WxH: 30x40mm light gray CD-HF 30X40 3240344 20
WxH: 30x60mm light gray CD-HF 30X60 3240345 24
WxH: 30x80mm light gray CD-HF 30X80 3240346 12
WxH: 30x100mm light gray CD-HF 30X100 3240347 12
WxH: 40x40mm light gray CD-HF 40X40 3240348 25
WxH: 40x60mm light gray CD-HF 40X60 3240349 20
WxH: 40x80mm light gray CD-HF 40X80 3240350 10
WxH: 40x100mm light gray CD-HF 40X100 3240351 10
WxH: 60x40mm light gray CD-HF 60X40 3240352 20
WxH: 60x60mm light gray CD-HF 60X60 3240353 12
WxH: 60x80mm light gray CD-HF 60X80 3240354 10
WxH: 60x100mm light gray CD-HF 60X100 3240355 8
WxH: 80x25mm light gray CD-HF 80X25 3240356 12
WxH: 80x40mm light gray CD-HF 80X40 3240357 15
WxH: 80x60mm light gray CD-HF 80X60 3240358 10
WxH: 80x80mm light gray CD-HF 80X80 3240359 6
WxH: 80x100mm light gray CD-HF 80X100 3240360 8
WxH: 100x40mm light gray CD-HF 100X40 3240361 10
WxH: 100x60mm light gray CD-HF 100X60 3240362 8
WxH: 100x80mm light gray CD-HF 100X80 3240363 6
WxH: 100x100mm light gray CD-HF 100X100 3240364 6
WxH: 120x60mm light gray CD-HF 120X60 3240365 6
WxH: 120x80mm light gray CD-HF 120X80 3240366 4
Accessories
Upper cable duct part, 2000mm long
For a width of 25mm CD-HF COVER 25 3240369 14
For a width of 30mm CD-HF COVER 30 3240370 10
For a width of 40mm CD-HF COVER 40 3240371 14
For a width of 60mm CD-HF COVER 60 3240372 10
For a width of 80mm CD-HF COVER 80 3240373 10
For a width of 100mm CD-HF COVER 100 3240367 7
For a width of 120mm CD-HF COVER 120 3240368 6
Universal wire holding bracket, pre-perforated for cable duct
widths of 40, 60, 80 and 100mm
CD WR 3240284 10
Plastic body-bound rivet, 4mm diameter, for a material thickness
of 1.5...6mm
RVT-PA 4 3240498 100
6mm diameter, material thickness of 2...8mm RVT-PA 6 3240499 100
Rivet setting tool, for use with RVT–PA4 plastic body-bound
rivets
UNIFOX-RVT P 4 1212478 1
Rivet setting tool, for use with RVT–PA6 plastic body-bound
rivets
UNIFOX-RVT P 6 1212509 1
553PHOENIX CONTACT
Halogen-free cable ducts are
recommended for use in many areas that
are subject to high safety requirements,
such as high-rise buildings, office buildings,
and public facilities where there is a high
volume of foot traffic,e.g., airports. The key
features of the cable ducts are as follows:
– Installed conductors are securely held in
place by means of wire retaining clips that
can be snapped onto bars on the side
– The wide, diagonal heads of the cable
duct bars make it easy to fit the cover and
hold it securely in place
– Predetermined breaking point enables
tool-free, burr-free removal of bars
– Fast and seamless creation of T and cross
connections by means of an additional
predetermined breaking point in the cable
duct base
– Cover is securely held in place for both
horizontal and vertical mounting
Halogen-free cable ducts and
accessories
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Notes:
For cable ducts cut to customer requirements, visit:
phoenixcontact.net/products
General data
Material
Inflammability class according to UL 94 V0 V0 V0
Temperature range [°C] -5 ... 60 -5 ... 60 -5 ... 60
Description
Cable duct, 2000mm long, comprising lower and upper part
WxH: 25x25mm
WxH: 25x40mm
WxH: 25x60mm
WxH: 25x80mm
WxH: 30x40mm
WxH: 30x60mm
WxH: 30x80mm
WxH: 30x100mm
WxH: 40x40mm
WxH: 40x60mm
WxH: 40x80mm
WxH: 40x100mm
WxH: 60x40mm
WxH: 60x60mm
WxH: 60x80mm
WxH: 60x100mm
WxH: 80x25mm
WxH: 80x40mm
WxH: 80x60mm
WxH: 80x80mm
WxH: 80x100mm
WxH: 100x40mm
WxH: 100x60mm
WxH: 100x80mm
WxH: 100x100mm
WxH: 120x60mm
WxH: 120x80mm
Upper cable duct part, 2000mm long
For a width of 25mm
For a width of 30mm
For a width of 40mm
For a width of 60mm
For a width of 80mm
For a width of 100mm
For a width of 120mm
Universal wire holding bracket, pre-perforated for cable duct
widths of 40, 60, 80 and 100mm
Plastic body-bound rivet, 4mm diameter, for a material thickness
of 1.5...6mm
6mm diameter, material thickness of 2...8mm
Rivet setting tool, for use with RVT–PA4 plastic body-bound
rivets
Rivet setting tool, for use with RVT–PA6 plastic body-bound
rivets
554
PHOENIX CONTACT
– Installed conductors are securely held in
place by means of wire retaining clips that
can be snapped onto bars on the side
– The wide, diagonal heads of the cable
duct bars make it easy to fit the cover and
hold it securely in place
– Predetermined breaking point enables
tool-free, burr-free removal of bars
– The CUTFOX-CD cable duct cutter for
easy cutting with minimum effort and no
burrs
– Plastic body-bound rivets enable easy
fixing of cable ducts using the rivet setting
tool
– Thanks to its powerful leverage and
special blade geometry, the PPSCD cable
duct cutter allows easy cutting with
minimum effort and no burrs
Cable ducts and accessories
Notes:
For cable ducts cut to customer requirements, visit:
phoenixcontact.net/products
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PVC PVC PVC
Inflammability class according to UL 94 V0 V0 V0
Temperature range [°C] -5 ... 60 -5 ... 60 -5 ... 60
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
CD 25X25 3240187 25 CD 25X25 WH 3240616 25 CD 25X25 BU 3240301 25
CD 25X40 3240188 24 CD 25X40 WH 3240617 24 CD 25X40 BU 3240302 24
CD 25X60 3240191 15 CD 25X60 WH 3240618 15 CD 25X60 BU 3240303 15
CD 25X80 3240197 10 CD 25X80 WH 3240619 10 CD 25X80 BU 3240304 10
CD 30X40 3240278 20 CD 30X40 WH 3240620 20 CD 30X40 BU 3240305 20
CD 30X60 3240280 24 CD 30X60 WH 3240621 24 CD 30X60 BU 3240306 24
CD 30X80 3240282 12 CD 30X80 WH 3240622 12 CD 30X80 BU 3240307 12
CD 30X100 3240283 12 CD 30X100 WH 3240623 12 CD 30X100 BU 3240308 12
CD 40X40 3240189 25 CD 40X40 WH 3240624 25 CD 40X40 BU 3240309 25
CD 40X60 3240192 20 CD 40X60 WH 3240625 20 CD 40X60 BU 3240310 20
CD 40X80 3240198 10 CD 40X80 WH 3240626 10 CD 40X80 BU 3240311 10
CD 40X100 3240294 10 CD 40X100 WH 3240627 10 CD 40X100 BU 3240312 10
CD 60X40 3240190 20 CD 60X40 WH 3240628 20 CD 60X40 BU 3240313 20
CD 60X60 3240193 12 CD 60X60 WH 3240629 12 CD 60X60 BU 3240314 12
CD 60X80 3240199 10 CD 60X80 WH 3240630 10 CD 60X80 BU 3240315 10
CD 60X100 3240263 8CD 60X100 WH 3240631 8CD 60X100 BU 3240316 8
CD 80X25 3240281 12 CD 80X25 WH 3240632 12 CD 80X25 BU 3240317 12
CD 80X40 3240335 15 CD 80X40 WH 3240633 15 CD 80X40 BU 3240318 15
CD 80X60 3240194 10 CD 80X60 WH 3240634 10 CD 80X25 BU 3240317 12
CD 80X80 3240200 6CD 80X80 WH 3240635 6CD 80X80 BU 3240320 6
CD 80X100 3240264 8CD 80X100 WH 3240636 8CD 80X100 BU 3240321 8
CD 100X40 3240279 10 CD 100X40 WH 3240637 10 CD 100X40 BU 3240322 10
CD 100X60 3240195 8CD 100X60 WH 3240638 8CD 100X60 BU 3240323 8
CD 100X80 3240201 6CD 100X80 WH 3240639 6CD 100X80 BU 3240324 6
CD 100X100 3240205 6CD 100X100 WH 3240640 6CD 100X100 BU 3240325 6
CD 120X60 3240196 6CD 120X60 WH 3240641 6CD 120X60 BU 3240326 6
CD 120X80 3240202 4CD 120X80 WH 3240642 4CD 120X80 BU 3240327 4
Accessories Accessories Accessories
CD COVER 25 3240285 14 CD COVER 25 WH 3240645 14 CD COVER 25 BU 3240330 14
CD COVER 30 3240295 20 CD COVER 30 WH 3240646 10 CD COVER 30 BU 3240331 10
CD COVER 40 3240286 14 CD COVER 40 WH 3240647 14 CD COVER 40 BU 3240332 14
CD COVER 60 3240287 10 CD COVER 60 WH 3240648 10 CD COVER 60 BU 3240333 10
CD COVER 80 3240288 10 CD COVER 80 WH 3240649 10 CD COVER 80 BU 3240334 10
CD COVER 100 3240289 6CD COVER 100 WH 3240643 6CD COVER 100 BU 3240328 6
CD COVER 120 3240290 6CD COVER 120 WH 3240644 6CD COVER 120 BU 3240329 6
CD WR 3240284 10 CD WR 3240284 10 CD WR 3240284 10
RVT-PA 4 3240498 100 RVT-PA 4 3240498 100 RVT-PA 4 3240498 100
RVT-PA 6 3240499 100 RVT-PA 6 3240499 100 RVT-PA 6 3240499 100
UNIFOX-RVT P 4 1212478 1UNIFOX-RVT P 4 1212478 1UNIFOX-RVT P 4 1212478 1
UNIFOX-RVT P 6 1212509 1UNIFOX-RVT P 6 1212509 1UNIFOX-RVT P 6 1212509 1
555PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable ducts, gray Cable ducts, white Cable ducts, blue
Technical data
Dimensions Width Length Height
[mm] - 245 -
General data
Weight [kg] 0.43
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable duct cutter
black CUTFOX-CD 1212474 1
Cable duct cutters
black PPS CD M 1207569 1
Accessories
Replacement blade, for PPSCDM
PPS CD BLADE 1207572 1
Replacement counter support (grip protection), for PPSCDM
PPS CD M COHO 1208995 1
Workbench, with plywood panel 700x1200x50mm, without
mounting screws and bore holes
PPS TABLE 1206285 1
556
PHOENIX CONTACT
– Easy, burr-free cutting with minimum
effort, thanks to the special cutting
geometry and optimum leverage
– Non-slip ergonomic grip
– With spring reset
– 45° limit stop
– 75mm cutting width
Cable duct cutters
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
1,5
16
30
15
R0,5
25 28,5
6,2
15 32
9
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material Steel
Ordering data
Description Type Order No. Pcs. /
Pkt.
Cable clamp, for DIN rail
For cable diameters of 6–14mm WCC 14 3240252 25
For cable diameters of 12–18mm WCC 18 3240253 25
For cable diameters of 18–22mm WCC 22 3240254 25
For cable diameters of 22–26mm WCC 26 3240255 25
For cable diameters of 26–30mm WCC 30 3240256 25
For cable diameters of 30–34mm WCC 34 3240257 25
For cable diameters of 34–38mm WCC 38 3240258 25
For cable diameters of 38–42mm WCC 42 3240259 25
For cable diameters of 42–56mm WCC 56 3240260 25
For cable diameters of 56–64mm WCC 64 3240261 25
DIN rails, for cable clamps
NS 30/15 PERF.2000MM 3240262 5
NS 30/15 PERF. 2000MM DIN rail
557PHOENIX CONTACT
– The cable clamps provide strain relief
– Individual or bundled cables with a
diameter of up to 64mm can be safely
and easily installed
– The halogen-free plastic troughs have
been designed to be perfectly secure
while at the same time protecting the
conductors
Cable clamps and DIN rail
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable clamps for a cable diameter
of 6-64mm
Technical data
General data
Material PA
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 105
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Protective hose, slotted, for retrofitting
Diameter [mm]
Outside/inside
Bending radius [mm]
static
21.2 / 16.5 40 black WP-PA HF-SL 21,2 BK 3240845 10
28.5 / 23 45 black WP-PA HF-SL 28,5 BK 3240846 10
34.5 / 29 55 black WP-PA HF-SL 34,5 BK 3240847 10
42.5 / 36 65 black WP-PA HF-SL 42,5 BK 3240848 10
Protective hose
Diameter [mm]
Outside/inside
Bending radius [mm]
static/dynamic
10 / 6.5 13 / 35 black
13 / 10 20 / 45 black
15.8 / 12 35 / 55 black
21.2 / 16.5 45 / 75 black
28.5 / 23 55 / 100 black
34.5 / 29 65 / 120 black
42.5 / 36 90 / 150 black
Protective hose
Diameter [mm]
Outside/inside
Bending radius [mm]
static/dynamic
10 / 6.5 13 / 35 black
13 / 10 20 / 45 black
15.8 / 12 35 / 55 black
21.2 / 16.5 45 / 75 black
28.5 / 23 55 / 100 black
34.5 / 29 65 / 120 black
42.5 / 36 90 / 150 black
Transition sleeves, from hose to cable
Diameter [mm]
Outside/inside
10 / 8 8black
13 / 10 10 black
15.8 / 12 12 black
21.2 / 16.5 16.5 black
28.2 / 23 23 black
34.5 / 29 29 black
42.5 / 37 37 black
End sleeves
Diameter [mm]
Outside/inside
10 / 4.3 black
13 / 7.8 black
15.8 / 10.3 black
21.2 / 14.3 black
28.2 / 20.8 black
34.5 / 26.8 black
42.5 / 33.8 black
558
PHOENIX CONTACT
Protective hoses made of plastic
Notes:
Pcs. / Pkt. specifies the protective hose length in [m].
The plastic protective hoses offer
optimum protection, thanks to the
following properties:
– Airtight and liquid tight
– Oil-resistant up to+80°C
– Gasoline-resistant
– Largely resistant to acids and solvents
– Free from silicone, halogen, and cadmium
– UV resistant
The V0 version provides additional
protection, thanks to its self-extinguishing
property. This makes it suitable for use in
the following areas:
– Machine and system engineering
– Vehicle construction
– Rail vehicles
– Shipbuilding
– Automation
– Electrical systems
The transition and end sleeves offer an
alternative form of termination to the actual
cable gland.
– Can be used wherever it is not possible or
necessary to attach a cable gland
– Prevent damage to the conductors being
fed through
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Slotted, outside diameter of 21.2 - 42.5 mm PA 6.6 V0 plastic protective hose, outside
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PA PA TPE
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium halogen-free
V0 V0 HB
-40 ... 115 -40 ... 105 -40 ... 120
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-PA HF 10,0 BK 3240680 50
WP-PA HF 13,0 BK 3240681 50
WP-PA HF 15,8 BK 3240682 50
WP-PA HF 21,2 BK 3240683 50
WP-PA HF 28,5 BK 3240684 50
WP-PA HF 34,5 BK 3241088 25
WP-PA HF 42,5 BK 3241089 25
WP-PA HF-HB 10,0 BK 3240838 50
WP-PA HF-HB 13,0 BK 3240839 50
WP-PA HF-HB 15,8 BK 3240840 50
WP-PA HF-HB 21,2 BK 3240841 50
WP-PA HF-HB 28,5 BK 3240842 50
WP-PA HF-HB 34,5 BK 3240843 25
WP-PA HF-HB 42,5 BK 3240844 25
WP-EC TPE HF 10,0 BK 3240974 50
WP-EC TPE HF 13,0 BK 3240975 50
WP-EC TPE HF 15,8 BK 3240976 50
WP-EC TPE HF 21,2 BK 3240977 50
WP-EC TPE HF 28,5 BK 3240978 25
WP-EC TPE HF 34,5 BK 3240979 25
WP-EC TPE HF 42,5 BK 3240980 25
WP-SC PA HF 10,0 BK 3240981 50
WP-SC PA HF 13,0 BK 3240982 50
WP-SC PA HF 15,8 BK 3240983 50
WP-SC PA HF 21,2 BK 3240984 50
WP-SC PA HF 28,5 BK 3240985 25
WP-SC PA HF 34,5 BK 3240986 25
WP-SC PA HF 42,5 BK 3240987 25
559PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Slotted, outside diameter of 21.2 - 42.5 mm PA 6.6 V0 plastic protective hose, outside
diameter of 10 - 42.5 mm
PA 6.6 HB plastic protective hose, outside
diameter of 10 - 42.5 mm
Transition sleeve for protective hose
diameters of 10 - 42.5 mm
Technical data
General data
Material PA
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Degree of protection IP66
Thread type Pg
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 115
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Screw connection, IP66, straight, with Pg thread, for protective
hose outside diameter [mm]
10 black WP-G HF IP66 PG7 BK 3240888 50
13 black WP-G HF IP66 PG9 BK 3240889 50
15.8 black WP-G HF IP66 PG11 BK 3240890 50
21.2 black WP-G HF IP66 PG16 BK 3240891 50
28.5 black WP-G HF IP66 PG21 BK 3240892 25
34.5 black WP-G HF IP66 PG29 BK 3240893 25
42.5 black WP-G HF IP66 PG36 BK 3240894 25
Screw connection, IP66, straight, with metric thread, for
protective hose outside diameter [mm]
10 black
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Screw connection, IP69K, straight, with Pg thread, for protective
hose outside diameter [mm]
10 black
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Screw connection, IP69K, straight, with metric thread, for
protective hose outside diameter [mm]
10 black
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Accessories
Counter nuts and seals see page 578 onwards
560
PHOENIX CONTACT
Screw connections for plastic
protective hoses
Notes:
For accessories and dimensional drawings, see
phoenixcontact.net/products
The plastic screw connections with
straight design are available in IP66 and
IP69K protection classes. They offer the
following features:
– Vibration-resistant, automatic protective
hose latching
– Pg or metric thread
– Resistant to oil and gasoline
– Resistant to acids and solvents
– Free from silicone, halogen, and cadmium
Tool-free protective hose mounting
– Secure, reliable, and easy latching in the
hose screw connection, see figure below
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP66 degree of protection,
Pg7 - Pg36 thread
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PA PA PA
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
IP66 IP68/IP69K IP68/IP69K
metric Pg metric
V0 V0 V0
-40 ... 115 -40 ... 115 -40 ... 115
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-G HF IP66 M10 BK 3240895 50
WP-G HF IP66 M12 BK 3240896 50
WP-G HF IP66 M16 BK 3240897 50
WP-G HF IP66 M20 BK 3240898 50
WP-G HF IP66 M25 BK 3240899 25
WP-G HF IP66 M32 BK 3240900 25
WP-G HF IP66 M40 BK 3240901 25
WP-G HF IP69K PG7 BK 3240874 50
WP-G HF IP69K PG9 BK 3240875 50
WP-G HF IP69K PG11 BK 3240876 50
WP-G HF IP69K PG16 BK 3240877 50
WP-G HF IP69K PG21 BK 3240878 25
WP-G HF IP69K PG29 BK 3240879 25
WP-G HF IP69K PG36 BK 3240880 25
WP-G HF IP69K M10 BK 3240881 50
WP-G HF IP69K M12 BK 3240882 50
WP-G HF IP69K M16 BK 3240883 50
WP-G HF IP69K M20 BK 3240884 50
WP-G HF IP69K M25 BK 3240885 25
WP-G HF IP69K M32 BK 3240886 25
WP-G HF IP69K M40 BK 3240887 25
Accessories Accessories Accessories
see page 578 onwards see page 578 onwards see page 578 onwards
561PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP66 degree of protection,
M10 - M40 metric thread
IP69K degree of protection,
Pg7 - Pg36 thread
IP69K degree of protection,
M10 - M40 metric thread
Technical data
General data
Material PA
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Degree of protection IP66
Thread type Pg
Inflammability class according to UL 94 HB
Temperature range [°C] -40 ... 115
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Screw connection, IP66, 90° angled, with Pg thread, for protective
hose outside diameter [mm]
10 black WP-GA HF IP66 PG7 BK 3240916 50
13 black WP-GA HF IP66 PG9 BK 3240917 50
15.8 black WP-GA HF IP66 PG11 BK 3240918 50
21.2 black WP-GA HF IP66 PG16 BK 3240919 50
28.5 black WP-GA HF IP66 PG21 BK 3240920 25
34.5 black WP-GA HF IP66 PG29 BK 3240921 10
42.5 black WP-GA HF IP66 PG36 BK 3240922 10
Screw connection, IP66, 90° angled, with metric thread, for
protective hose outside diameter [mm]
10 black
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Screw connection, IP69K, 90° angled, with Pg thread, for
protective hose outside diameter [mm]
10 black
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Screw connection, IP69K, 90° angled, with metric thread, for
protective hose outside diameter [mm]
10 black
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Accessories
Counter nuts and seals see page 578 onwards
562
PHOENIX CONTACT
Screw connections, angled, for plastic
protective hoses
Notes:
For accessories and dimensional drawings, see
phoenixcontact.net/products
The plastic screw connections with
angled design are available in IP66 and IP69K
protection classes. They offer the following
features:
– Vibration-resistant, automatic protective
hose latching
– Pg or metric thread
– Resistant to oil and gasoline
– Resistant to acids and solvents
– Free from silicone, halogen, and cadmium
Tool-free protective hose mounting
– Secure, reliable, and easy latching in the
hose screw connection
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP66 degree of protection,
Pg7 - Pg36 thread
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PA PA PA
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
IP66 IP68/IP69K IP68/IP69K
metric Pg metric
HB HB HB
-40 ... 115 -40 ... 115 -40 ... 115
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-GA HF IP66 M10 BK 3240923 50
WP-GA HF IP66 M12 BK 3240924 50
WP-GA HF IP66 M16 BK 3240925 50
WP-GA HF IP66 M20 BK 3240926 50
WP-GA HF IP66 M25 BK 3240927 50
WP-GA HF IP66 M32 BK 3240928 25
WP-GA HF IP66 M40 BK 3240929 10
WP-GA HF IP69K PG7 BK 3240902 50
WP-GA HF IP69K PG9 BK 3240903 50
WP-GA HF IP69K PG11 BK 3240904 50
WP-GA HF IP69K PG16 BK 3240905 50
WP-GA HF IP69K PG21 BK 3240906 25
WP-GA HF IP69K PG29 BK 3240907 10
WP-GA HF IP69K PG36 BK 3240908 10
WP-GA HF IP69K M10 BK 3240909 50
WP-GA HF IP69K M12 BK 3240910 50
WP-GA HF IP69K M16 BK 3240911 50
WP-GA HF IP69K M20 BK 3240912 50
WP-GA HF IP69K M25 BK 3240913 25
WP-GA HF IP69K M32 BK 3240914 10
WP-GA HF IP69K M40 BK 3240915 10
Accessories Accessories Accessories
see page 578 onwards see page 578 onwards see page 578 onwards
563PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP66 degree of protection,
M10 - M40 metric thread
IP69K degree of protection,
Pg7 - Pg36 thread
IP69K degree of protection,
M10 - M40 metric thread
Technical data
General data
Material PA
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadm
Degree of protection IP66
Thread type Pg
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 115
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Screw connection, IP66, straight, with Pg thread, for protective
hose outside diameter [mm]
10 black WP-GR HF IP66 PG7 BK 3240944 20
13 black WP-GR HF IP66 PG9 BK 3240945 20
15.8 black WP-GR HF IP66 PG11 BK 3240946 20
21.2 black WP-GR HF IP66 PG16 BK 3240947 10
28.5 black WP-GR HF IP66 PG21 BK 3240948 10
34.5 black WP-GR HF IP66 PG29 BK 3240949 10
42.5 black WP-GR HF IP66 PG36 BK 3240950 10
Screw connection, IP66, straight, with metric thread, for
protective hose outside diameter [mm]
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Screw connection, IP69K, straight, with Pg thread, for protective
hose outside diameter [mm]
10 black
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Screw connection, IP69K, straight, with metric thread, for
protective hose outside diameter [mm]
13 black
15.8 black
21.2 black
28.5 black
34.5 black
42.5 black
Accessories
Counter nuts and seals see page 578 onwards
564
PHOENIX CONTACT
Screw connections with strain relief,
for plastic protective hoses
Notes:
For accessories and dimensional drawings, see
phoenixcontact.net/products
The plastic screw connections with strain
relief are available in IP66 and IP69K
protection classes. They offer the following
features:
– Vibration-resistant, automatic protective
hose latching
– Pg or metric thread
– Integrated cable strain relief
– Resistant to oil and gasoline
– Resistant to acids and solvents
– Free from silicone, halogen, and cadmium
Tool-free protective hose mounting
– Secure, reliable, and easy latching in the
hose screw connection
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP66 degree of protection, Pg7 - Pg36 thread,
with strain relief
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PA PA PA
Components free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium free from silicone, halogen, and cadmium
IP66 IP68/IP69K IP68/IP69K
metric Pg metric
V0 V0 V0
-40 ... 115 -40 ... 115 -40 ... 115
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-GR HF IP66 M12 BK 3240952 20
WP-GR HF IP66 M16 BK 3240953 20
WP-GR HF IP66 M20 BK 3240954 20
WP-GR HF IP66 M25 BK 3240955 10
WP-GR HF IP66 M32 BK 3240956 10
WP-GR HF IP66 M40 BK 3240957 10
WP-GR HF IP69K PG7 BK 3240930 20
WP-GR HF IP69K PG9 BK 3240931 20
WP-GR HF IP69K PG11 BK 3240932 20
WP-GR HF IP69K PG16 BK 3240933 10
WP-GR HF IP69K PG21 BK 3240934 10
WP-GR HF IP69K PG29 BK 3240935 10
WP-GR HF IP69K PG36 BK 3240936 10
WP-GR HF IP69K M12 BK 3240938 20
WP-GR HF IP69K M16 BK 3240939 20
WP-GR HF IP69K M20 BK 3240940 20
WP-GR HF IP69K M25 BK 3240941 10
WP-GR HF IP69K M32 BK 3240942 10
WP-GR HF IP69K M40 BK 3240943 10
Accessories Accessories Accessories
see page 578 onwards see page 578 onwards see page 578 onwards
565PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP66 degree of protection, M12 - M40 metric
thread, with strain relief
IP69K degree of protection, Pg7 - Pg36 thread,
with strain relief
IP69K degree of protection, M12 - M40 metric
thread, with strain relief
566
PHOENIX CONTACT
Protective hoses with PVC- or PU-
coated spirals
Notes:
Pcs. / Pkt. specifies the protective hose length in [m].
The WP-SPIRALPVCC... plastic
protective hoses with soft PVC-coated
spring wire helix offer optimum protection,
thanks to the following properties:
– Highly flexible
– Can be stretched and compressed
– Internal corrosion protection
– Largely resistant to acids and solvents
– Free from silicone and cadmium
– Airtight and liquid tight
The WP-SPIRALPUC ... plastic
protective hoses with fixed, PU-coated
spring wire helix offer the following:
– Very tough and resistant to abrasion
– Highly flexible
– Resistant to germs
– Airtight and liquid tight
– Resistant to oil and grease
– Gasoline-resistant
– Largely resistant to acids and solvents
– Free from silicone, halogen, and cadmium
– Flame-protected
– Behaves extremely well at low
temperatures
– V2 according to UL94
– Suitable as a suction tube
The covered protective hoses are
particularly suitable for the following fields
of application:
– Machine and system engineering
– Vehicle construction
– Use in guide chains
– Shipbuilding
– Automation
– Electrical systems
Technical data
General data
Material PVC
Components Free from silicone and cadmium Free from silicone, halogen, and cadmium Halogen-free
Inflammability class according to UL 94 -
Temperature range [°C] -25 ... 80
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Protective hose, PVC-coated spiral
Diameter [mm]
Outside/inside
Bending radius [mm]
static
10 / 7 8 gray WP-SPIRAL PVC C 10 3240849 10
14 / 10 10 gray WP-SPIRAL PVC C 14 3240850 10
17 / 13 13 gray WP-SPIRAL PVC C 17 3240851 10
21 / 16 17 gray WP-SPIRAL PVC C 21 3240852 10
27 / 22 20 gray WP-SPIRAL PVC C 27 3240853 10
36 / 29 24 gray WP-SPIRAL PVC C 36 3240854 10
45 / 38 36 gray WP-SPIRAL PVC C 45 3240855 10
Protective hose, PU-coated spiral
Diameter [mm]
Outside/inside
Bending radius [mm]
static
10 / 7 8blue
14 / 10 10 blue
17 / 13 13 blue
21 / 16 17 blue
27 / 22 20 blue
36 / 29 24 blue
45 / 38 36 blue
End sleeves
Diameter [mm]
Outside/inside
Cable diameter
[mm]
10 / 7 6 gray
14 / 10 9 gray
17 / 13 11.5 gray
21 / 16 14.5 gray
27 / 21 19.5 gray
36 / 29 26.5 gray
45 / 38 36 gray
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Protective hose, PVC coated spiral, outside
diameter of 10 - 45 mm
For further information and full technical data, visit phoenixcontact.net/products
567
PHOENIX CONTACT
Technical data Technical data
PU PP
Components Free from silicone and cadmium Free from silicone, halogen, and cadmium Halogen-free
V2 HB
-40 ... 80 -10 ... 110
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-SPIRAL PU C HF 10 3240856 10
WP-SPIRAL PU C HF 14 3240857 10
WP-SPIRAL PU C HF 17 3240858 10
WP-SPIRAL PU C HF 21 3240859 10
WP-SPIRAL PU C HF 27 3240860 10
WP-SPIRAL PU C HF 36 3240861 10
WP-SPIRAL PU C HF 45 3240862 10
WP-SC HF 10 3241016 50
WP-SC HF 14 3241017 50
WP-SC HF 17 3241018 50
WP-SC HF 21 3241019 50
WP-SC HF 27 3241020 25
WP-SC HF 36 3241021 25
WP-SC HF 45 3241022 20
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Protective hose, PU coated spiral,
outside diameter of 10 - 45 mm
End sleeve for protective hose
diameter of 10 - 45 mm
Technical data
General data
Material PP
Degree of protection IP65
Thread type Pg
Components Halogen-free
Inflammability class according to UL 94 HB
Temperature range [°C] -10 ... 110
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Screw connection, IP65, straight, with Pg thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6 gray WP-G PP HF PG7 3240988 10
14 9 gray WP-G PP HF PG9 3240989 10
17 11 gray WP-G PP HF PG11 3240990 10
21 14.5 gray WP-G PP HF PG16 3240991 10
27 19.5 gray WP-G PP HF PG21 3240992 10
36 27 gray WP-G PP HF PG29 3240993 2
45 36 gray WP-G PP HF PG36 3240994 2
Screw connection, IP65, straight, with metric thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6gray
14 8gray
17 11 gray
21 15 gray
27 20 gray
36 27 gray
45 35 gray
Screw connection, IP54, rotatable, with Pg thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 5.5 gray
14 9.5 gray
17 11.5 gray
21 14.5 gray
27 19.5 gray
36 27 gray
45 35.5 gray
Screw connection, IP54, rotatable, with metric thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 5.5 gray
14 9.5 gray
17 11.5 gray
21 14.5 gray
27 19.5 gray
36 27 gray
Accessories
Counter nuts and seals see page 578 onwards
568
PHOENIX CONTACT
Screw connections, for protective
hoses with coated spirals
The polypropylene screw connections
with a straight design are available with or
without a rotatable connecting thread.
– Easy, tool-free mounting
– High resistance to dust and fluids
– Vibration resistance and high tensile
strength, thanks to hose screw-out
locking
Rotatable screw connections
– The protective hose can still be rotated
after panel mounting, thanks to the
special screw connections
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP65 degree of protection, Pg7 - Pg36 thread IP65 degree of protection, M10 - M40 metric
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PP PP PP
IP65 IP54 IP54
Metric Pg Metric
Halogen-free Halogen-free Halogen-free
HB HB HB
-10 ... 110 -10 ... 110 -10 ... 110
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-G PP HF M10 3240995 10
WP-G PP HF M12 3240996 10
WP-G PP HF M16 3240997 10
WP-G PP HF M20 3240998 10
WP-G PP HF M25 3240999 10
WP-G PP HF M32 3241000 2
WP-G PP HF M40 3241001 2
WP-GT PP HF PG7 3241002 10
WP-GT PP HF PG9 3241003 10
WP-GT PP HF PG11 3241004 10
WP-GT PP HF PG16 3241005 10
WP-GT PP HF PG21 3241006 10
WP-GT PP HF PG29 3241007 2
WP-GT PP HF PG36 3241008 2
WP-GT PP HF M12 3241010 10
WP-GT PP HF M16 3241011 10
WP-GT PP HF M20 3241012 10
WP-GT PP HF M25 3241013 10
WP-GT PP HF M32 3241014 10
WP-GT PP HF M40 3241015 2
Accessories Accessories Accessories
see page 578 onwards see page 578 onwards see page 578 onwards
569PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP65 degree of protection, Pg7 - Pg36 thread IP65 degree of protection, M10 - M40 metric
thread
IP54 degree of protection, Pg7 - Pg36 thread,
rotatable
IP54 degree of protection, M12 - M40 metric
thread, rotatable
Technical data
General data
Material Steel, galvanized
Temperature range [°C] -200 ... 220
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Protective hose
Diameter [mm]
Outside/inside
Bending radius [mm]
static
10 / 8 28 silver WP-STEEL ZC 10 3240697 10
14 / 11 34 silver WP-STEEL ZC 14 3240865 10
17 / 14 40 silver WP-STEEL ZC 17 3240698 10
21 / 18 50 silver WP-STEEL ZC 21 3240699 10
27 / 23 63 silver WP-STEEL ZC 27 3240866 10
36 / 31 85 silver WP-STEEL ZC 36 3240700 10
45 / 40 100 silver WP-STEEL ZC 45 3240701 10
Protective hose
Diameter [mm]
Outside/inside
Bending radius [mm]
static
10 / 8 22 silver
14 / 11 25 silver
17 / 14 40 silver
21 / 18 50 silver
27 / 23 63 silver
36 / 31 85 silver
45 / 40 100 silver
End sleeves
Outside diameter of hose
[mm]
Cable diameter
[mm]
10 6.5 brass
14 10 brass
17 12.5 brass
21 16.5 brass
27 21.5 brass
36 29.5 brass
45 38 brass
570
PHOENIX CONTACT
Protective hoses made of steel or
stainless steel
Notes:
Pcs. / Pkt. specifies the protective hose length in [m].
The metal protective hoses made of
galvanized steel or stainless steel offer
optimum protection and have a wide range
of uses, thanks to the following properties:
– Interlocked, helix-wound profile
– Highly flexible
– High tensile strength and resistance to
lateral pressure
These properties make the products
suitable for use in the following areas:
– Machine and system engineering
– Vehicle construction
– Ex area according to EN60079–14 and
EN61241–14
– Shipbuilding
– Rail vehicles
– Automation
– Electrical systems
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Stainless steel protective hose, outside
diameter of 10 - 45 mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Stainless steel 1.4301/AISI 304 Brass
-200 ... 600 -40 ... 250
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-STEEL S 10 3240686 10
WP-STEEL S 14 3240687 10
WP-STEEL S 17 3240863 10
WP-STEEL S 21 3240688 10
WP-STEEL S 27 3240864 10
WP-STEEL S 36 3240689 10
WP-STEEL S 45 3240690 10
WP-SC BRASS 10 3241065 50
WP-SC BRASS 14 3241066 50
WP-SC BRASS 17 3241067 50
WP-SC BRASS 21 3241068 50
WP-SC BRASS 27 3241069 25
WP-SC BRASS 36 3241070 25
WP-SC BRASS 45 3241071 20
571PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Stainless steel protective hose (V2A), outside
diameter of 10-45 mm
End sleeve for protective hose
diameter of 10 - 45 mm
Technical data
General data
Material Brass
Degree of protection IP40
Thread type Pg
Temperature range [°C] -40 ... 125
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Screw connection, IP40, with Pg thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6.5 Brass WP-G BRASS IP40 PG7 3241037 10
14 10 Brass WP-G BRASS IP40 PG9 3241038 10
17 12.5 Brass WP-G BRASS IP40 PG11 3241039 10
21 16 Brass WP-G BRASS IP40 PG16 3241040 10
27 21.5 Brass WP-G BRASS IP40 PG21 3241041 10
36 29 Brass WP-G BRASS IP40 PG29 3241042 2
45 38 Brass WP-G BRASS IP40 PG36 3241043 2
Screw connection, IP40, with metric thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6.5 Brass
14 10 Brass
17 12.5 Brass
21 16 Brass
27 21.5 Brass
36 27.5 Brass
45 35 Brass
Screw connection, IP40, rotatable, with Pg thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6 Brass
14 9 Brass
17 12 Brass
21 15.5 Brass
27 20.5 Brass
36 27.5 Brass
45 36.5 Brass
Screw connection, IP40, rotatable, with metric thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6Brass
14 9Brass
17 12 Brass
21 15.5 Brass
27 20.5 Brass
36 27.5 Brass
45 35 Brass
572
PHOENIX CONTACT
Screw connections, for protective
hoses made of steel or stainless steel
Notes:
Inner sleeves and seals are supplied as standard.
The screw connections are available with
or without a rotatable connecting thread
and have the following properties:
– Easy mounting of protective hose without
tools
– Vibration resistance and high tensile
strength, thanks to hose screw-out
locking
– Integrated inner sleeve and rotation lock
for hose
Rotatable screw connections
– The protective hose can still be rotated
after panel mounting, thanks to the
special screw connections
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP40 degree of protection, Pg7 - Pg36 thread IP40 degree of protection, M10 - M40 metric
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Brass Brass Brass
IP40 IP40 IP40
Metric Pg Metric
-40 ... 125 -40 ... 250 -40 ... 250
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-G BRASS IP40 M10 3241044 10
WP-G BRASS IP40 M12 3241045 10
WP-G BRASS IP40 M16 3241046 10
WP-G BRASS IP40 M20 3241047 10
WP-G BRASS IP40 M25 3241048 10
WP-G BRASS IP40 M32 3241049 2
WP-G BRASS IP40 M40 3241050 2
WP-GT BRASS PG7 3241023 10
WP-GT BRASS PG9 3241024 10
WP-GT BRASS PG11 3241025 10
WP-GT BRASS PG16 3241026 10
WP-GT BRASS PG21 3241027 10
WP-GT BRASS PG29 3241028 2
WP-GT BRASS PG36 3241029 2
WP-GT BRASS M10 3241030 10
WP-GT BRASS M12 3241031 10
WP-GT BRASS M16 3241032 10
WP-GT BRASS M20 3241033 10
WP-GT BRASS M25 3241034 10
WP-GT BRASS M32 3241035 2
WP-GT BRASS M40 3241036 2
573PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
IP40 degree of protection, Pg7 - Pg36 thread IP40 degree of protection, M10 - M40 metric
thread
IP40 degree of protection, Pg7 - Pg36 thread,
rotatable
IP40 degree of protection, M10 - M40 metric
thread, rotatable
Technical data Technical data
General data
Material Steel, galvanized/PVC Brass
Degree of protection - IP65
Thread type - Pg
Temperature range [°C] -25 ... 80 -40 ... 125
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Protective hose, in galvanized steel, PVC coated
Diameter [mm]
Outside/inside
Bending radius [mm]
static
10 / 7 95 Black WP-STEEL PVC C 10 3240867 10
14 / 10 105 Black WP-STEEL PVC C 14 3240868 10
17 / 13 115 Black WP-STEEL PVC C 17 3240869 10
21 / 17 110 Black WP-STEEL PVC C 21 3240870 10
27 / 22 135 Black WP-STEEL PVC C 27 3240871 10
36 / 29 145 Black WP-STEEL PVC C 36 3240872 10
45 / 38 215 Black WP-STEEL PVC C 45 3240873 10
End sleeves, in brass
Outside diameter of hose
[mm]
Cable diameter
[mm]
10 6Brass WP-SC BRASS WP PVC 10 3241072 50
14 8.5 Brass WP-SC BRASS WP PVC 14 3241073 50
17 11.5 Brass WP-SC BRASS WP PVC 17 3241074 50
21 15.5 Brass WP-SC BRASS WP PVC 21 3241075 50
27 20.5 Brass WP-SC BRASS WP PVC 27 3241076 25
36 27.5 Brass WP-SC BRASS WP PVC 36 3241077 25
45 36.5 Brass WP-SC BRASS WP PVC 45 3241078 20
Screw connection, IP65, with Pg thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6 Brass WP-G BRASS IP65 PG7 3241051 10
14 8.5 Brass WP-G BRASS IP65 PG9 3241052 10
17 11.5 Brass WP-G BRASS IP65 PG11 3241053 10
21 15.5 Brass WP-G BRASS IP65 PG16 3241054 10
27 20.5 Brass WP-G BRASS IP65 PG21 3241055 10
36 27.5 Brass WP-G BRASS IP65 PG29 3241056 2
45 35 Brass WP-G BRASS IP65 PG36 3241057 2
Screw connection, IP65, with metric thread
Outside diameter of
protective hose [mm]
Cable diameter
[mm]
10 6Brass WP-G BRASS IP65 M10 3241058 10
14 8.5 Brass WP-G BRASS IP65 M12 3241059 10
17 11.5 Brass WP-G BRASS IP65 M16 3241060 10
21 15.5 Brass WP-G BRASS IP65 M20 3241061 10
27 20.5 Brass WP-G BRASS IP65 M25 3241062 10
36 27.5 Brass WP-G BRASS IP65 M32 3241063 2
45 35 Brass WP-G BRASS IP65 M40 3241064 2
574
PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Stainless steel protective hose (V2A), PVC
coated, outside diameter of 10 - 45 mm
IP65 degree of protection, Pg7 - Pg36 thread
and M10 - M40 metric thread
– Optimum protection
– Numerous possible applications
– Tool-free assembly of screw connection
and protective hose
– Screw connection for high resistance
Notes:
Pcs. / Pkt. specifies the protective hose length in [m].
Inner sleeves and seals are supplied as standard.
Protective hoses made of steel with
PVC coating and screw connections
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PE
Components Free from silicone and halogen
Inflammability class according to UL 94 HB
Temperature range [°C] -50 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Spiral hose, for bundle diameters
2-15mm Transparent WG-S HF 15 3241109 50
4-20mm Transparent WG-S HF 20 3241111 25
7-40mm Transparent WG-S HF 40 3241113 25
12-50mm Transparent WG-S HF 50 3241115 25
13-70mm Transparent WG-S HF 70 3241117 25
15-80mm Transparent WG-S HF 80 3241119 20
20-120mm Transparent WG-S HF 120 3241121 25
25-150mm Transparent WG-S HF 150 3241123 20
Spiral hose, for bundle diameters
2-15mm Black WG-S HF 15 BK 3241110 50
4-20mm Black WG-S HF 20 BK 3241112 25
7-40mm Black WG-S HF 40 BK 3241114 25
12-50mm Black WG-S HF 50 BK 3241116 25
13-70mm Black WG-S HF 70 BK 3241118 25
15-80mm Black WG-S HF 80 BK 3241120 20
20-120mm Black WG-S HF 120 BK 3241122 25
25-150mm Black WG-S HF 150 BK 3241124 20
Accessories
Electrician's scissors, high cutting performance, thanks to micro-
serrated cutting area, suitable for copper, aluminum, Kevlar fibers,
and plastic, two-component non-slip soft-grip handles, ergonomic
design, adjustable screw joint
CUTFOX-ES 1212621 1
575PHOENIX CONTACT
Easy bundling and routing of cables and
conductors
– Fast and easy to use
– Can be retrofitted
– The spiral structure means that individual
conductors and cables can be led out at
any point
– Offer protection under light mechanical
strain
Spiral hoses
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Spiral hose, for bundle
diameters of 2mm -150mm
Notes:
Pcs. / Pkt. indicates the spiral hose length in [m].
Technical data
General data
Material PA
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Protective hose holder with cover, screwable, made of plastic
Outside diameter of
protective hose [mm]
Hole diameter [mm]
10 10 black WP-BASE C PA HF 10,0 BK 3240958 50
13 13 black WP-BASE C PA HF 13,0 BK 3240959 50
15.8 15.8 black WP-BASE C PA HF 15,8 BK 3240960 50
21.2 21.2 black WP-BASE C PA HF 21,2 BK 3240961 50
28.5 28.2 black WP-BASE C PA HF 28,2 BK 3240962 25
34.5 34.5 black WP-BASE C PA HF 34,5 BK 3240963 25
42.5 42.5 black WP-BASE C PA HF 42,5 BK 3240964 25
Protective hose clip, screwable
Outside diameter of
protective hose [mm]
Hole diameter [mm]
10 10 silver/black
13 13 silver/black
14 14 silver/black
15.8 15.8 silver/black
17 17 silver/black
22 22 silver/black
29 29 silver/black
36 37 silver/black
45 45 silver/black
Fixing bracket, screwable
Screw connection Hole diameter [mm]
Pg16 23 silver
Pg21 29 silver
Pg29 37.5 silver
Pg36 47.5 silver
Fixing bracket, screwable
Screw connection Hole diameter [mm]
M16 17 silver
M20 21 silver
M25 26 silver
M32 33 silver
M40 43 silver
576
PHOENIX CONTACT
Accessories for protective hose
mounting
The WP-BASEC... protective hose
holders with cover can be attached using a
screw.
– An integrated rib fastening also helps to
relieve the strain on the protective hose
– The base of the holder is designed so that
it can even be pushed onto a C DIN rail
– The engagement pins enable hose holders
of different sizes to be arranged alongside
each other
WP-BASEHF... protective hose clips:
– Galvanized steel locking latch with rubber
profile
– Screw mounting
WP-BASE... fixing bracket:
– With two mounting holes according to
DIN46320
– Protective hose feed-through can be
attached to the side of the panel
– Pg or metric protective hose screw
connections can be mounted on a bracket
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Protective hose with cover Protective hose clip Fixing bracket, screw version,
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Steel, galvanized Steel, galvanized Steel, galvanized
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-BASE HF 9-10 3240965 50
WP-BASE HF 13 3240966 50
WP-BASE HF 14 3240967 50
WP-BASE HF 15,8 3240968 50
WP-BASE HF 17 3240969 50
WP-BASE HF 22 3240970 50
WP-BASE HF 29 3240971 50
WP-BASE HF 37 3240972 50
WP-BASE HF 45 3240973 25
WP-BASE A PG16 3241079 25
WP-BASE A PG21 3241080 25
WP-BASE A PG29 3241081 25
WP-BASE A PG36 3241082 25
WP-BASE A M16 3241083 25
WP-BASE A M20 3241084 25
WP-BASE A M25 3241085 25
WP-BASE A M32 3241086 25
WP-BASE A M40 3241087 25
577PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Protective hose with cover Protective hose clip Fixing bracket, screw version,
for Pg screw connection
Fixing bracket, screw version,
for metric screw connection
Technical data
General data
Material Polyamide fiberglass reinforced Polyamide fiberglass reinforced Nickel-plated brass Nickel-plated brass
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Counter nut, plastic, for protective hose screw connections with
metric thread
for M12 gray WP-CN PA M12 3241132 100
for M16 gray WP-CN PA M16 3241133 100
for M20 gray WP-CN PA M20 3241134 100
for M25 gray WP-CN PA M25 3241135 100
for M32 gray WP-CN PA M32 3241136 100
for M40 gray WP-CN PA M40 3241137 50
Counter nut, plastic, for
protective hose screw connections with Pg thread
for Pg7 gray
for Pg9 gray
for Pg11 gray
for Pg16 gray
for Pg21 gray
for Pg29 gray
for Pg36 gray
Counter nut, nickel-plated brass, for protective hose screw
connections with metric thread
for M10 silver
for M12 silver
for M16 silver
for M20 silver
for M25 silver
for M32 silver
for M40 silver
Counter nut, nickel-plated brass, for protective hose screw
connections with Pg thread
for Pg7 silver
for Pg9 silver
for Pg11 silver
for Pg16 silver
for Pg21 silver
for Pg29 silver
for Pg36 silver
578
PHOENIX CONTACT
Accessories for protective hose
mounting
WP-CN ...
The counter nuts are used to lock
protective hose screw connections in the
case of bore holes without a thread.
– Counter nuts made of brass or plastic
– The fiberglass-reinforced polyamide
ensures a high degree of mechanical
stability
– Metric thread according to EN50262,
making the counter nut suitable for
universal use
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Counter nut, M12 - M40, plastic Counter nut, Pg7 - Pg36, plastic Counter nut, M10 - M40, brass Counter nut, Pg7 - Pg36, brass
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Material Polyamide fiberglass reinforced Polyamide fiberglass reinforced Nickel-plated brass Nickel-plated brass
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-CN PA PG7 3241138 100
WP-CN PA PG9 3241139 100
WP-CN PA PG11 3241140 100
WP-CN PA PG16 3241141 100
WP-CN PA PG21 3241142 100
WP-CN PA PG29 3241143 100
WP-CN PA PG36 3241144 50
WP-CN BRASS M10 3241145 100
WP-CN BRASS M12 3241146 100
WP-CN BRASS M16 3241147 100
WP-CN BRASS M20 3241148 100
WP-CN BRASS M25 3241149 100
WP-CN BRASS M32 3241150 100
WP-CN BRASS M40 3241151 50
WP-CN BRASS PG7 3241152 100
WP-CN BRASS PG9 3241153 100
WP-CN BRASS PG11 3241154 100
WP-CN BRASS PG16 3241155 100
WP-CN BRASS PG21 3241156 100
WP-CN BRASS PG29 3241157 100
WP-CN BRASS PG36 3241158 50
579PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Counter nut, M12 - M40, plastic Counter nut, Pg7 - Pg36, plastic Counter nut, M10 - M40, brass Counter nut, Pg7 - Pg36, brass
Technical data
General data
Material Perbunan
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Flat gasket, Perbunan, for protective hose screw connections
with metric thread
for M10 black WP-FS IP68 M10 3241159 50
for M12 black WP-FS IP68 M12 3241160 50
for M16 black WP-FS IP68 M16 3241161 50
for M20 black WP-FS IP68 M20 3241162 50
for M25 black WP-FS IP68 M25 3241163 50
for M32 black WP-FS IP68 M32 3241164 25
for M40 black WP-FS IP68 M40 3241165 25
Flat gasket, Perbunan, for protective hose screw connections
with Pg thread
for Pg7 black WP-FS IP68 PG7 3241166 50
for Pg9 black WP-FS IP68 PG9 3241167 50
for Pg11 black WP-FS IP68 PG11 3241168 50
for Pg16 black WP-FS IP68 PG16 3241169 50
for Pg21 black WP-FS IP68 PG21 3241170 25
for Pg29 black WP-FS IP68 PG29 3241171 25
for Pg36 black WP-FS IP68 PG36 3241172 25
Flat gasket, Centellen, for protective hose screw connections
with metric thread
for M10 green
for M12 green
for M16 green
for M20 green
for M25 green
for M32 green
for M40 green
Flat gasket, Centellen, for protective hose screw connections
with Pg thread
for Pg7 green
for Pg9 green
for Pg11 green
for Pg16 green
for Pg21 green
for Pg29 green
for Pg36 green
O-ring, Perbunan, for protective hose screw connections with
metric thread
for M10 black
for M12 black
for M16 black
for M20 black
for M25 black
for M32 black
for M40 black
O-ring, Perbunan, for protective hose screw connections with Pg
thread
for Pg7 black
for Pg9 black
for Pg11 black
for Pg16 black
for Pg21 black
for Pg29 black
for Pg36 black
580
PHOENIX CONTACT
Accessories for protective hose
mounting
WP-FS ...
The Perbunan flat sealing rings are used to
seal protective hose screw connections on
uneven surfaces. They are inserted between
the hose screw connection and the surface,
thereby achieving degrees of protection up
toIP68.
WP-FS HF...
The Centellen flat sealing rings also
provide an optimum seal on uneven
surfaces. As well as havingIP68 protection
and high mechanical stability, the sealing
rings are also UV resistant and halogen-free.
This enables them to be used outdoors.
Properties:
– Resistant to oil, seal against dust and
water, UV resistant, halogen-free, high
mechanical stability
WP-OR...
The properties of the Perbunan O-rings,
such as their resistance to oil and seal
against water and dust, mean that they can
be used in a wide range of applications.
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Flat gasket made from Perbunan Flat gasket
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
Centellen Perbunan
Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
WP-FS HF IP68 M10 3241173 50
WP-FS HF IP68 M12 3241174 50
WP-FS HF IP68 M16 3241175 50
WP-FS HF IP68 M20 3241176 50
WP-FS HF IP68 M25 3241177 50
WP-FS HF IP68 M32 3241178 25
WP-FS HF IP68 M40 3241179 25
WP-FS HF IP68 PG7 3241180 50
WP-FS HF IP68 PG9 3241181 50
WP-FS HF IP68 PG11 3241182 50
WP-FS HF IP68 PG16 3241183 50
WP-FS HF IP68 PG21 3241184 25
WP-FS HF IP68 PG29 3241185 25
WP-FS HF IP68 PG36 3241186 25
WP-OR M10 3241187 50
WP-OR M12 3241188 50
WP-OR M16 3241189 50
WP-OR M20 3241190 50
WP-OR M25 3241191 50
WP-OR M32 3241192 25
WP-OR M40 3241193 25
WP-OR PG7 3241194 50
WP-OR PG9 3241195 50
WP-OR PG11 3241196 50
WP-OR PG16 3241197 50
WP-OR PG21 3241198 25
WP-OR PG29 3241199 25
WP-OR PG36 3241200 25
581PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Flat gasket made from Perbunan Flat gasket made from Centellen O-ring made from Perbunan
Technical data
General data
Material Polyethylene
Temperature range [°C] -40 ... 80
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halo
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Plastic cable markers for insert labels, with cable binders with a
pointed end, can be marked with ESL..., EMT... or US-EMP... insert
labels, diameter: 10 ... 25mm, lettering field size: 29x8mm
transparent KMK 1005208 100
Plastic cable markers for insert labels, with cable binders with a
pointed end, can be marked with ESL..., EMT... or US-EMP... insert
labels, diameter: 16 ... 35mm, lettering field size: 40x17mm
transparent
Cable and conductor markers for insert labels, can be marked
with EST or ESL, diameter of 1-12mm, lettering field size:
24x4mm
white
Cable and conductor markers for labels, can be marked with
EML or EMLC, diameter of 1 - 20mm, lettering field size: 20x8mm
white
Accessories
Insert strips for laser printers, DIN A4, perforated
Lettering field size: 29x8mm, 1sheet = 174labels ESL 29X8 0808257 10
Lettering field size: 40x17mm, 1sheet = 56labels
Lettering field size: 24x 4mm, 1sheet = 488labels
Insert labels for thermal transfer printers
Lettering field size: 29x8mm, 5400 labels per roll EMT (29X8)R 0817277 1
Lettering field size: 40x17mm, 2300 labels per roll
Lettering field size: 24x4mm, 5000 labels p. roll
UniSheet, 0.5mm thick
48-section, lettering field size: 29x8mm US-EMP (29X8) 0829436 10
16-section, lettering field size: 40x17mm
Textile label, lettering field size: 20x8mm
2500 labels per roll
2500 labels per roll
582
PHOENIX CONTACT
Plastic cable marker for insert labels,
for assembly with cable binders
Notes:
For corresponding cable binders, see from page 588.
– Plastic cable markers for marking and
bundling multiple conductors and cables
indoors
– The printed insert label is protected from
dirt by the sealing cap
– Marking service: Phoenix Contact can
custom-mark all insert labels for plastic
cable markers in accordance with your
requirements
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
For insert labels with lettering field size
29x8mm, for cable diameters >10mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
Polyethylene PA PA
-40 ... 80 -40 ... 100 -40 ... 100
Components Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen Free from silicone and halogen
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
KMK 3 1005211 50
LM 1004377 100
KME 0807083 50
Accessories Accessories Accessories
ESL 40X17 0808095 10
ESL 24X4 0808231 10
EMT (40X17)R 0817293 1
EMT (24X4)R 0816265 1
US-EMP (40X17) 0829437 10
EMLC (20X8)R 0815680 1
EML (20X8)R 0816786 1
583PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Insert label, with lettering field size
40x17mm, for cable diameters >16mm
For insert labels with lettering field
size24x4mm, for cable diameters >1mm
For adhesive labels, with lettering field size
20x8mm, for cable diameters >1mm
Technical data
General data
Material PC
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 125
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker carrier for cable binder assembly
transparent KMK HP (25X6) 0830720 100
Accessories
UniCard, insert strip for KMK... cable marker carriers, can be
marked with THERMOMARK CARD..., BLUEMARK CLED, and
TOPMARK Laser
Lettering field size: 25x6mm, 15-section UCT-EMP (25X6) 1014117 10
Lettering field size: 29x8mm, 15-section
Lettering field size: 60x15 mm, 3-section
Lettering field size: 40x17 mm, 3-section
UniSheet, 0.5mm thick, inflammability class V0 according to
UL94
84-section, lettering field size: 25x6mm US-EMP (25X6)-1 0802754 10
48-section, lettering field size: 29x8mm
9-section, lettering field size: 60x15mm
16-section, lettering field size: 40x17mm
Insert labels for thermal transfer printer, halogen-free
Lettering field size: 25x6mm, 5000labels per roll EMT (25X6)R 0817264 1
Lettering field size: 29x8mm, 5400 labels per roll
Lettering field size: 60x15mm, 2500 labels per roll
Lettering field size: 40x17mm, 2300 labels per roll
Cable binder, inflammability class according to UL94:V0,
halogen-free, temperature range: -40°C...85°C, maximum bundle
Ø [mm]/minimum tensile strength [N]
35 / 130 WT-HP HF 3,6X140 0830982 100
50 / 220 WT-HP HF 4,8X200 0830983 100
79 / 220 WT-HP HF 4,5X290 0830984 100
Magazine, for THERMOMARKCARD...,
for accommodating UCT-EMP... THERMOMARK CARD-UCT-MAG26 0802988 1
584
PHOENIX CONTACT
Plastic cable markers for insert labels,
for assembly with cable binders
Notes:
For corresponding cable binders, see from page 588.
– KMKHP... plastic cable markers for
marking and bundling conductors and
cables indoors
– Inflammability class V0 acc. to UL 94
– The KMKHP... cable markers are
particularly suitable for use in the railway
industry, traffic technology, and building
technology thanks to their outstanding
material properties
– The KMK... versions have eyelets and are
attached with cable binders
– The printed insert label is protected from
dirt by the sealing cap
– Marking service: Phoenix Contact can
custom-mark all insert labels for plastic
cable markers in accordance with your
requirements
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Lettering field size: 25x6mm,
for cable diameter >6mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PC PC PC
V0 V0 V0
-40 ... 125 -40 ... 125 -40 ... 125
Halogen-free Halogen-free Halogen-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
KMK HP (29X8) 0830721 100 KMK HP (60X15) 0830722 50 KMK HP (40X17) 0830723 50
Accessories Accessories Accessories
UCT-EMP (29X8) 1014118 10
UCT-EMP (60X15) 1014119 10
UCT-EMP (40X17) 1014120 10
US-EMP (29X8) 0829436 10
US-EMP (60X15) 0828781 10
US-EMP (40X17) 0829437 10
EMT (29X8)R 0817277 1
EMT (60X15)R 0801846 1
EMT (40X17)R 0817293 1
WT-HP HF 3,6X140 0830982 100 WT-HP HF 3,6X140 0830982 100 WT-HP HF 3,6X140 0830982 100
WT-HP HF 4,8X200 0830983 100 WT-HP HF 4,8X200 0830983 100 WT-HP HF 4,8X200 0830983 100
WT-HP HF 4,5X290 0830984 100 WT-HP HF 4,5X290 0830984 100 WT-HP HF 4,5X290 0830984 100
THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1
585PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Lettering field size: 29x8mm,
for cable diameter >6mm
Lettering field size: 60x15mm,
for cable diameter >9mm
Lettering field size: 40x17mm,
for cable diameter >9mm
Technical data
General data
Material PA
Inflammability class according to UL 94 HB
Temperature range [°C] -40 ... 100
Components Halogen-free
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable marker carrier for cable binder assembly
transparent KMK UV (25X6) 1014106 100
Accessories
UniCard, insert strip for KMK... cable marker carriers, can be
marked with THERMOMARK CARD..., BLUEMARK CLED, and
TOPMARK Laser
Lettering field size: 25x6mm, 15-section UCT-EMP (25X6) 1014117 10
Lettering field size: 29x8mm, 15-section
Lettering field size: 60x15 mm, 3-section
Lettering field size: 40x17 mm, 3-section
UniSheet, 0.5mm thick, inflammability class V0 according to
UL94
84-section, lettering field size: 25x6mm US-EMP (25X6)-1 0802754 10
48-section, lettering field size: 29x8mm
9-section, lettering field size: 60x15mm
16-section, lettering field size: 40x17mm
Insert labels for thermal transfer printer, halogen-free
Lettering field size: 25x6mm, 5000labels per roll EMT (25X6)R 0817264 1
Lettering field size: 29x8mm, 5400 labels per roll
Lettering field size: 60x15mm, 2500 labels per roll
Lettering field size: 40x17mm, 2300 labels per roll
Cable binder, halogen-free, inflammability class according to
UL94:V2, maximum bundle Ø [mm] / min. tensile strength [N]
1
)
35 / 130 WT-UV HF 3,6X140 BK 3240832 100
50 / 220 WT-UV HF 4,5X200 BK 3240834 100
79 / 220 WT-UV HF 4,5X290 BK 3240835 100
Magazine, for THERMOMARKCARD...,
for accommodating UCT-EMP... THERMOMARK CARD-UCT-MAG26 0802988 1
586
PHOENIX CONTACT
Plastic cable markers for insert labels,
for assembly with cable binders
Notes:
For corresponding cable binders, see from page 588.
1
) WT-UVHF...BK cable binders are weatherproof and UV
resistant according to ISO4892 (after QUV-B 600hours) for up to
10years.
– KMKUV... plastic cable markers for
marking and bundling conductors and
cables outdoors
– The KMKUV... cable markers are ultra-
transparent, impact resistant, and have
excellent weathering resistance. At the
same time, they also possess outstanding
chemical resistance
– The KMK... versions have eyelets and are
attached with cable binders
– The printed insert label is protected from
dirt by the sealing cap
– Marking service: Phoenix Contact can
custom-mark all insert labels for plastic
cable markers in accordance with your
requirements
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Lettering field size: 25x6mm,
for cable diameter >6mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data Technical data
PA PA PA
HB HB HB
-40 ... 100 -40 ... 100 -40 ... 100
Halogen-free Halogen-free Halogen-free
Ordering data Ordering data Ordering data
Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
KMK UV (29X8) 1014107 100 KMK UV (60X15) 1014108 50 KMK UV (40X17) 1014109 50
Accessories Accessories Accessories
UCT-EMP (29X8) 1014118 10
UCT-EMP (60X15) 1014119 10
UCT-EMP (40X17) 1014120 10
US-EMP (29X8) 0829436 10
US-EMP (60X15) 0828781 10
US-EMP (40X17) 0829437 10
EMT (29X8)R 0817277 1
EMT (60X15)R 0801846 1
EMT (40X17)R 0817293 1
WT-UV HF 3,6X140 BK 3240832 100 WT-UV HF 3,6X140 BK 3240832 100 WT-UV HF 3,6X140 BK 3240832 100
WT-UV HF 4,5X200 BK 3240834 100 WT-UV HF 4,5X200 BK 3240834 100 WT-UV HF 4,5X200 BK 3240834 100
WT-UV HF 4,5X290 BK 3240835 100 WT-UV HF 4,5X290 BK 3240835 100 WT-UV HF 4,5X290 BK 3240835 100
THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1THERMOMARK CARD-UCT-MAG26 0802988 1
587PHOENIX CONTACT
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Lettering field size: 29x8mm,
for cable diameter >6mm
Lettering field size: 60x15mm,
for cable diameter >9mm
Lettering field size: 40x17mm,
for cable diameter >9mm
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
21 / 80 transparent WT-HF 2,5X98 3240732 100
40 / 80 transparent WT-HF 2,6X160 3240736 100
52 / 80 transparent WT-HF 2,6X200 3240740 100
35 / 130 transparent WT-HF 3,6X140 3240744 100
50 / 130 transparent WT-HF 3,6X200 3240748 100
80 / 130 transparent WT-HF 3,6X290 3240752 100
40 / 220 transparent WT-HF 4,5X160 3240756 100
50 / 220 transparent WT-HF 4,5X200 3240760 100
79 / 220 transparent WT-HF 4,5X290 3240764 100
100 / 220 transparent WT-HF 4,5X360 3240768 100
115 / 220 transparent WT-HF 4,5X430 3240770 100
80 / 540 transparent WT-HF 7,8X300 3240772 100
100 / 540 transparent WT-HF 7,8X365 3240774 100
158 / 540 transparent WT-HF 7,8X540 3240719 100
233 / 700 transparent WT-HF 9X780 3240778 100
143 / 1080 transparent WT-HF 12,6X850 3240730 50
302 / 1080 transparent WT-HF 12,6X1000 3240728 50
Cable binder, large pack, maximum bundle Ø [mm]/minimum
tensile strength [N]
21 / 80 transparent WT-HF 2,5X98-L 3240735 1000
40 / 80 transparent WT-HF 2,6X160-L 3240739 1000
52 / 80 transparent WT-HF 2,6X200-L 3240743 1000
35 / 130 transparent WT-HF 3,6X140-L 3240747 1000
50 / 130 transparent WT-HF 3,6X200-L 3240751 1000
80 / 130 transparent WT-HF 3,6X290-L 3240755 500
40 / 220 transparent WT-HF 4,5X160-L 3240759 1000
50 / 220 transparent WT-HF 4,5X200-L 3240763 1000
Accessories
Cable binder pliers, for plastic cable binders with a width of
2.2-4.8mm, for a material thickness of up to 1.6mm
UNIFOX-CT 4,8 1212475 1
Professional cable binder tools, for plastic cable binders with a
width of 2.2-4.8mm, up to 1.6mm material thickness
Ergonomically designed grip with comfortable tension force
adjustment
UNIFOX-CT 4,8P 1212609 1
588
PHOENIX CONTACT
– For bundling and fastening conductors
and cables
– Can be used indoors and outdoors even
under unfavorable industrial conditions
– With the UNIFOX-CT... cable binder
tool, the cable binders can be easily
tightened and cut off flush in one step
– Cable binders are easy to use, thanks to
their optimized geometries
– Optimum head shape for high tensile
forces
– Temperature range: briefly up to110°C
– Comprehensive approvals
–Designation example:
WT-HF 2,5X98
Cable binder width: 2.5mm
Cable binder length: 98mm
Plastic cable binders
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 98-1000mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
21 / 80 black WT-HF 2,5X98 BK 3240733 100
40 / 80 black WT-HF 2,6X160 BK 3240737 100
52 / 80 black WT-HF 2,6X200 BK 3240741 100
35 / 130 black WT-HF 3,6X140 BK 3240745 100
50 / 130 black WT-HF 3,6X200 BK 3240749 100
80 / 130 black WT-HF 3,6X290 BK 3240753 100
40 / 220 black WT-HF 4,5X160 BK 3240757 100
50 / 220 black WT-HF 4,5X200 BK 3240761 100
79 / 220 black WT-HF 4,5X290 BK 3240765 100
100 / 220 black WT-HF 4,5X360 BK 3240769 100
115 / 220 black WT-HF 4,5X430 BK 3240771 100
80 / 540 black WT-HF 7,8X300 BK 3240773 100
100 / 540 black WT-HF 7,8X365 BK 3240775 100
158 / 540 black WT-HF 7,8X540 BK 3240721 100
233 / 700 black WT-HF 9X780 BK 3240779 100
143 / 1080 black WT-HF 12,6X850 BK 3240731 50
302 / 1080 black WT-HF 12,6X1000 BK 3240729 50
Cable binder, large pack, maximum bundle Ø [mm]/minimum
tensile strength [N]
21 / 80 black WT-HF 2,5X98 BK-L 3240734 1000
40 / 80 black WT-HF 2,6X160 BK-L 3240738 1000
52 / 80 black WT-HF 2,6X200 BK-L 3240742 1000
35 / 130 black WT-HF 3,6X140 BK-L 3240746 1000
50 / 130 black WT-HF 3,6X200 BK-L 3240750 1000
80 / 130 black WT-HF 3,6X290 BK-L 3240754 500
40 / 220 black WT-HF 4,5X160 BK-L 3240758 1000
50 / 220 black WT-HF 4,5X200 BK-L 3240762 1000
Cable binder, inflammability class according to UL94:V0,
halogen-free, temperature range: -40°C...85°C, maximum bundle
Ø [mm]/minimum tensile strength [N]
35 / 130 transparent WT-HP HF 3,6X140 0830982 100
79 / 220 transparent WT-HP HF 4,5X290 0830984 100
50 / 220 transparent WT-HP HF 4,8X200 0830983 100
Accessories
Cable binder pliers, for plastic cable binders with a width of 2.2-
4.8mm, for a material thickness of up to 1.6mm
UNIFOX-CT 4,8 1212475 1
Professional cable binder tools, for plastic cable binders with a
width of 2.2-4.8mm, up to 1.6mm material thickness
Ergonomically designed grip with comfortable tension force
adjustment
UNIFOX-CT 4,8P 1212609 1
589PHOENIX CONTACT
– The black cable binders are UV stabilized
by adding carbon black and are suitable
for use in outdoor systems according to
ISO 4895 (QUV-B 150 hours) for up to
three years
– Temperature range: briefly up to110°C
– Comprehensive approvals
Plastic cable binders
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 98-1000mm
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 105
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
21 / 80 black WT-UV HF 2,5X98 BK 3240831 100
35 / 130 black WT-UV HF 3,6X140 BK 3240832 100
50 / 130 black WT-UV HF 3,6X200 BK 3240833 100
50 / 220 black WT-UV HF 4,5X200 BK 3240834 100
79 / 220 black WT-UV HF 4,5X290 BK 3240835 100
100 / 540 black WT-UV HF 7,8X365 BK 3240837 100
– Halogen-free/silicone-free
– Constantly high temperature resistance
up to105°C
–Designation example:
W T- U V HF 2,5X98BK
Cable binder width: 2.5mm
Cable binder length: 98mm
The WT-UVHF... cable binders are
specially designed for outdoor use and offer
the following features:
– Weatherproof and UV resistant according
to ISO4892(QUV-B600 hours) for up
to ten years
– Cable binders are easy to use, thanks to
their optimum geometries
– Optimum head shape for high tensile
forces
Cable binders for outdoor use
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 98-365mm
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V0
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, inflammability class according to UL94:V0,
halogen-free, temperature range: -40°C...85°C, maximum bundle
Ø [mm]/minimum tensile strength [N]
35 / 130 transparent WT-HP HF 3,6X140 0830982 100
50 / 220 transparent WT-HP HF 4,8X200 0830983 100
79 / 220 transparent WT-HP HF 4,5X290 0830984 100
590
PHOENIX CONTACT
Thanks to their UL 94 V0 inflammability
class and absence of halogen, the WT-HP
HF... cable binders are particularly suitable
for use in the rail industry.
–Designation example:
WT-HP HF 3,6x140
Cable binder width: 3.6mm
Cable binder length: 140mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 125
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
21 / 80 transparent WT-HT HF 2,5X98 3240780 100
35 / 130 transparent WT-HT HF 3,6X140 3240782 100
50 / 130 transparent WT-HT HF 3,6X200 3240784 100
50 / 220 transparent WT-HT HF 4,5X200 3240786 100
79 / 220 transparent WT-HT HF 4,5X290 3240788 100
100 / 540 transparent WT-HT HF 7,8X365 3240792 100
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
21 / 80 black WT-HT HF 2,5X98 BK 3240781 100
35 / 130 black WT-HT HF 3,6X140 BK 3240783 100
50 / 130 black WT-HT HF 3,6X200 BK 3240785 100
50 / 220 black WT-HT HF 4,5X200 BK 3240787 100
79 / 220 black WT-HT HF 4,5X290 BK 3240789 100
100 / 540 black WT-HT HF 7,8X365 BK 3240793 100
Accessories
Cable binder pliers, for plastic cable binders with a width of 2.2-
4.8mm, for a material thickness of up to 1.6mm
UNIFOX-CT 4,8 1212475 1
Professional cable binder tools, for plastic cable binders with a
width of 2.2-4.8mm, up to 1.6mm material thickness
Ergonomically designed grip with comfortable tension force
adjustment
UNIFOX-CT 4,8P 1212609 1
591PHOENIX CONTACT
The WT-HTHF... cable binders are
specially designed for high-temperature
applications and offer the following features:
– Constantly high temperature resistance
up to125°C and briefly up to145°C
– Cable binders are easy to use, thanks to
their optimum geometries
– Black cable binders are UV stabilized
– Special head shape for high tensile forces
– Halogen-free/silicone-free
–Designation example:
WT-HTHF 2,5X98
Cable binder width: 2.5mm
Cable binder length: 98mm
Cable binders for use under high
temperatures
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 98-365mm
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 80
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
50 / 220 transparent WT-D HF 7,5X200 3240712 100
65 / 220 transparent WT-D HF 7,5X250 3240714 100
100 / 220 transparent WT-D HF 7,5X350 3240716 100
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
50 / 220 black WT-D HF 7,5X200 BK 3240713 100
65 / 220 black WT-D HF 7,5X250 BK 3240715 100
100 / 220 black WT-D HF 7,5X350 BK 3240717 100
The WT-DHF... cable binders are ideal
for temporary mounting and offer the
following features:
– Can be removed easily without tools and
reused
– Cable binders are easy to use, thanks to
their optimum geometries
– Halogen-free/silicone-free
Cable binders for reopening
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 200-350mm
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
32 / 130 hole diameter 4.5mm transparent WT-E HF 3,6X150 3240718 100
50 / 220 hole diameter 5.2mm transparent WT-E HF 4,8X200 3240720 100
44 / 540 hole diameter 6.5mm transparent WT-E HF 7,8X200 3240722 100
75 / 540 hole diameter 6.5mm transparent WT-E HF 7,8X300 3240724 100
104 / 540 hole diameter 6.5mm transparent WT-E HF 7,8X380 3240726 100
592
PHOENIX CONTACT
Notes:
For corresponding cable binder pliers, see previous page.
The WT-EHF... cable binders with lug for
direct mounting offer the following features:
– Space saving, thanks to molded fastening
lug
– Secure hold, thanks to screw or rivet
fixing
– Easy to use
– Halogen-free/silicone-free
– Optimum head shape for high tensile
forces
– Temperature range: briefly up to110°C
Cable binders with lug for direct rivet
or screw mounting
Cable tie length of 150 - 380 mm
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, maximum bundle Ø [mm]/minimum tensile strength
[N]
38 / 130 hole diameter 5.2mm transparent WT-R HF 3,6X150 3240801 100
50 / 220 hole diameter 6.3mm transparent WT-R HF 4,8X200 3240803 100
Notes:
For corresponding cable binder pliers, see previous page.
The WT-R HF... cable binders for
straightforward direct mounting offer the
following features:
– Space saving, thanks to molded body-
bound rivet
– Easy to plug in and optimum hold in
standard drill hole
– Optimum head shape for high tensile
forces
– Halogen-free/silicone-free
Cable binders with body-bound rivet
for direct mounting
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 150 - 200 mm
Technical data
General data
Material PA 6.6
Components Free from silicone and halogen
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, with metal portions, maximum bundle Ø
[mm]/minimum tensile strength [N]
21 / 80 blue WT-ID HF 2,5X98 BU 3240794 100
35 / 130 blue WT-ID HF 3,5X140 BU 3240795 100
50 / 130 blue WT-ID HF 3,5X200 BU 3240796 100
50 / 220 blue WT-ID HF 4,5X200 BU 3240797 100
79 / 220 blue WT-ID HF 4,5X290 BU 3240798 100
100 / 540 blue WT-ID HF 7,5X365 BU 3240800 100
593
PHOENIX CONTACT
Notes:
For corresponding cable binder pliers, see previous page.
The WT-IDHF... cable binders are
specially designed for production processes
in the food, pharmaceutical and chemical
industries and offer the following features:
– High level of protection against
contamination in the production process
– Detectable using X-ray units or metal
detectors
– Magnetic
– Easy to see
– Corrosion-free
Detectable cable binders
Cable tie length of 98 - 365 mm
Technical data
General data
Material Stainless steel 1.4301/AISI 304
Temperature range [°C] -80 ... 538
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, made of stainless steel (AISI 304), width 4.6mm,
maximum bundle Ø [mm]/minimum tensile strength [N]
30 / 890 silver WT-STEEL S 4,6X150 3240807 100
50 / 890 silver WT-STEEL S 4,6X201 3240808 100
69 / 890 silver WT-STEEL S 4,6X259 3240809 100
102 / 890 silver WT-STEEL S 4,6X360 3240810 100
152 / 890 silver WT-STEEL S 4,6X520 3240811 100
203 / 890 silver WT-STEEL S 4,6X679 3240812 100
254 / 890 silver WT-STEEL S 4,6X838 3240723 100
305 / 890 silver WT-STEEL S 4,6X1067 3240805 100
Cable binder, made of stainless steel (AISI 304), width 7.9mm,
maximum bundle Ø [mm]/minimum tensile strength [N]
69 / 1335 silver WT-STEEL S 7,9X259 3240814 100
102 / 1335 silver WT-STEEL S 7,9X360 3240815 100
152 / 1335 silver WT-STEEL S 7,9X520 3240816 100
203 / 1335 silver WT-STEEL S 7,9X679 3240817 100
254 / 1335 silver WT-STEEL S 7,9X838 3240725 100
305 / 1335 silver WT-STEEL S 7,9X1067 3240813 100
Accessories
Cable binder tool, for steel cable binders with a width of up to
7.9mm, material thickness of up to 0.3mm
UNIFOX-CT M 7,9 1212610 1
594
PHOENIX CONTACT
The WT-STEELS... cable binders are
especially suited to use outdoors and in the
chemical industry. They offer the following
features:
– Secure, permanent attachment and a long
service life
– Corrosion resistant
– Chemical resistance
– UV resistant
– Weatherproof
– Fire-proof
– Vibration-resistant
– Easy to use and self-locking
– Anti-magnetic
– Halogen-free/silicone-free
Cable binders made of stainless steel
AISI304(V2A)
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 150 - 1067 mm
Notes:
For corresponding stainless steel cable markers, see 212
For further information and full technical data, visit phoenixcontact.net/products
Technical data
General data
Material Stainless steel 1.4401/AISI 316
Temperature range [°C] -80 ... 538
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder, made of stainless steel (AISI 316), width 4.6mm,
maximum bundle Ø [mm]/minimum tensile strength [N]
30 / 890 silver WT-STEEL SH 4,6X150 3240820 100
50 / 890 silver WT-STEEL SH 4,6X201 3240821 100
69 / 890 silver WT-STEEL SH 4,6X259 3240822 100
102 / 890 silver WT-STEEL SH 4,6X360 3240823 100
152 / 890 silver WT-STEEL SH 4,6X520 3240824 100
203 / 890 silver WT-STEEL SH 4,6X679 3240825 100
254 / 890 silver WT-STEEL SH 4,6X838 3240727 100
305 / 890 silver WT-STEEL SH 4,6X1067 3240818 100
Cable binder, made of stainless steel (AISI 316), width 7.9mm,
maximum bundle Ø [mm]/minimum tensile strength [N]
69 / 1335 silver WT-STEEL SH 7,9X259 3240827 100
102 / 1335 silver WT-STEEL SH 7,9X360 3240828 100
152 / 1335 silver WT-STEEL SH 7,9X520 3240829 100
203 / 1335 silver WT-STEEL SH 7,9X679 3240830 100
254 / 1335 silver WT-STEEL SH 7,9X838 3240766 100
305 / 1335 silver WT-STEEL SH 7,9X1067 3240826 100
Accessories
Cable binder tool, for steel cable binders with a width of up to
7.9mm, material thickness of up to 0.3mm
UNIFOX-CT M 7,9 1212610 1
595PHOENIX CONTACT
The WT-STEELSH... cable binders are
especially suited to use with aggressive
chemicals and in onshore and offshore
areas. They offer the following features:
– Secure, permanent attachment with long
service life
– Corrosion resistant when exposed to
aggressive chemicals, e.g., acids, salt fog,
and sea water
– UV resistant
– Weatherproof
– Fire-proof
– Vibration-resistant
– Easy to use
– Anti-magnetic
– Halogen-free/silicone-free
Cable binders made of stainless steel
AISI316(V4A)
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Cable tie length of 150 - 1067 mm
Technical data
General data
Material ABS
Inflammability class according to UL 94 HB
Temperature range [°C] -40 ... 60
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder base, for cable binders of up to 4mm width,
self-adhesive and screwable, 4mm fixing hole, dimensions:
19x19mm
transparent WT-BASE LS HF 4 3240706 100
black WT-BASE LS HF 4 BK 3240707 100
Cable binder base, for cable binders of up to 6mm width,
self-adhesive and screwable, 4.8mm fixing hole, dimensions:
27x27mm
transparent WT-BASE LS HF 6 3240708 100
black WT-BASE LS HF 6 BK 3240709 100
The WT-BASELS... cable binder bases
are characterized by their excellent
adhesive properties as well as the following:
– Easy to use
– Cable binders can be fed through on four
sides
– Self-adhesive and optionally screwable
– Secure hold, load can be applied after just
a few minutes
– Halogen-free/silicone-free
Cable binder base, self-adhesive
and/or screwable
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Technical data
General data
Material PA 6.6
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable binder base, for cable binders of up to 5mm width,
screwable, 3.5mm fixing hole, dimensions: 9.5x15mm
transparent WT-BASE HF 5 3240702 100
black WT-BASE HF 5 BK 3240703 100
Cable binder base, for cable binders of up to 9mm width,
screwable, 5mm fixing hole, dimensions: 14.6x22mm
transparent WT-BASE HF 9 3240704 100
black WT-BASE HF 9 BK 3240705 100
596
PHOENIX CONTACT
– Space-saving design
– Easy to use
– Cable binders can be fed through on two
sides
– Halogen-free/silicone-free
Cable binder base, screwable
For further information and full technical data, visit phoenixcontact.net/products
Technical data Technical data
General data
Material PA 6.6 PA 6
Inflammability class according to UL 94 V2 HB
Temperature range [°C] -40 ... 85 -10 ... 65
Ordering data Ordering data
Description Color Type Order No. Pcs. /
Pkt. Type Order No. Pcs. /
Pkt.
Cable binder base, for cable binders of up to 8mm width, with
molded body-bound rivet, 6.5mm drilling diameter
transparent WT-BASE R HF 8 3240711 100
Cable binder base, for cable binders of up to 9.5mm width, with
fins, 8mm drilling diameter, can be knocked in
black WT-BASE P HF 9,5 BK 3240710 100
– WT-BASER... with molded body-bound
rivet for direct mounting in materials of
up to 3mm thickness
– WT-BASEP... is ideally suited to use in
solid panels
– Easy to use, can be directly knocked into
the panel
Cable binder base for direct mounting
Installation and mounting material - CABINET add-on
Cable routing, cable protection, cable bundling
Technical data
General data
Material PA 6.6
Inflammability class according to UL 94 V2
Temperature range [°C] -40 ... 85
Ordering data
Description Color Type Order No. Pcs. /
Pkt.
Cable driller
Bundle diameters 5.1 - 7.6mm transparent WG-D HF 7,6 3241099 1000
Bundle diameters 7.6 - 10.2mm transparent WG-D HF 10,2 3241101 1000
Bundle diameters 10.2 - 12.7mm transparent WG-D HF 12,7 3241103 1000
Bundle diameters 12.7 - 16mm transparent WG-D HF 16 3241105 1000
Bundle diameters 16 - 20.3mm transparent WG-D HF 20,3 3241107 1000
Cable driller
Bundle diameters 5.1 - 7.6mm black WG-D HF 7,6 BK 3241100 1000
Bundle diameters 7.6 - 10.2mm black WG-D HF 10,2 BK 3241102 1000
Bundle diameters 10.2 - 12.7mm black WG-D HF 12,7 BK 3241104 1000
Bundle diameters 12.7 - 16mm black WG-D HF 16 BK 3241106 1000
Bundle diameters 16 - 20.3mm black WG-D HF 20,3 BK 3241108 1000
597
PHOENIX CONTACT
– Fast and easy to use
– Can be removed again
– Reusable
– Tool-free mounting
– Ideal for temporary bundling
– Halogen-free/silicone-free
Cable drillers, for fast and tool-free
bundling of conductors and cables
598
PHOENIX CONTACT
device safety and the avoidance of risks.
These are legally binding regulations of the
European Union (EU), which means that the
fulfilment of these requirements is a legal
prerequisite for the marketing of
these products within the EU.
Where applicable, our products currently
fall within the scope of the following
directives:
– 2006/95/EC
Electrical equipment for use within
certain voltage limits (low-voltage
directive)
– 2004/108/EC
Electromagnetic compatibility
(EMC Directive)
– 2006/42/EC
Safety of machinery
(Machinery Directive)
– 94/9/EC
Devices and protective systems for use in
potentially explosive areas (ATEX 100a
directive)
– 1999/5/EC
Wireless systems and
telecommunications terminal equipment
(R&TTE).
The standards used as the basis for the
aforementioned directives have been at the
heart of our development standard for
some time as a way of ensuring compliance
with European directives. The numbers of
the directives indicate their version at the
time of publication. In the event of changes
to directives and/or standards, our products
will undergo conformity assessment again in
good time and a new declaration of
conformity will be issued simultaneously.
The current declarations for each product
can also be found in our Download Center.
Among the aforementioned European
directives, the EMC Directive plays a
particularly important role. It uses a legally
binding directive as the basis for defining
electromagnetic compatibility as a
fundamental device property. European
legislation therefore places great emphasis
on the electromagnetic compatibility of
devices and systems as a basic prerequisite
for the error-free operation of machines
and systems. As an international leader in
the field of surge protection, Phoenix
Contact has extensive expertise in EMC.
This expertise and the experiences gained
over many years in the development and
application of industrial interface and
communication technology have resulted in
an extremely high standard of quality for
our products when it comes to
electromagnetic compatibility. Our sister
company, Phoenix Testlab, was founded in
Integrated management system
The objective of the Phoenix Contact
integrated management system is to
integrate all requirements pertaining to
products, processes, and the organization.
Statutory and regulatory requirements, as
well as those of international standards and
our customers, are met and, in some cases,
even exceeded in all phases of the product
lifecycle.
The integration of quality, environmental
protection, and occupational safety into the
Phoenix Contact management system is
monitored for conformance every year by
independent, internationally recognized
institutes. Certifications according to
international standards ISO 9001, ISO
14001, and BS OHSAS 18001 are for us the
result of our corporate philosophy of
meeting the needs of our customers,
employees, and the environment to the
greatest possible extent. They are used as
the basis for innovative products with the
trusted, high Phoenix Contact quality
standard, active environmental protection,
and responsible occupational health and
safety. Of course we also integrate the
additional requirements of standards,
international approvals, and special
customer requirements into our company
processes.
The result of this system is a building
block for the success of the Phoenix
Contact Group as well as its products and
services.
CE marking
CE marking was introduced as an
important instrument for the free
movement of goods within the European
single market. By applying the mark to a
product, the manufacturer confirms its
compliance with all EU directives applicable
to this product. The EC directives describe
the product characteristics with regard to
order to share this expertise with other
companies. Phoenix Testlab GmbH is an
independent, accredited service company,
which carries out EMC testing in
compliance with the European standards.
At Phoenix Testlab, devices are also tested
with regard to their electrical safety,
mechanical influences, and their behavior in
relation to environmental influences.
Phoenix Testlab is also a “Notified Body”
according to EMC Directive 2004/108/EC and
R&TTE directive 1999/5/EC for wireless
systems and telecommunications terminal
equipment. As a “Telecom Certification
Body” (TCB), Phoenix Testlab is also able to
approve these products for the markets in
the USA, Canada, and Japan.
Standards and regulations
All relevant standards and regulations are
used as the basis for the development and
maintenance of our products.
International standards are subject to
continuous changes as a result of
harmonization and new developments. In
order to comply with this process, we keep
a record of the current version of the
standards applicable to our products in the
product area of our website at
phoenixcontact.net/products.
Online product information service
on the world wide web
Phoenix Contact is continuously
extending its product range.
Within the scope of our product
monitoring obligation, all products are
subject to an improvement process.
The Internet is an ideal platform to
quickly communicate new product
developments and improvements to the
market.
You can quickly access the relevant
Phoenix Contact website for your region via
phoenixcontact.com. There you will always
find an up-to-date overview of products,
solutions, and services from Phoenix
Contact. This includes technical documents
such as data sheets and user manuals,
current driver and demo software, and a
direct link to the relevant contact person.
Quality in quantity
Technical information
General information, terminal block standards, and regulations
For further information and full technical data, visit phoenixcontact.net/products
599PHOENIX CONTACT
Materials
use in temperatures between -30°C and
+80°C.
Polyester
Polyester is a chemical-resistant material.
It is ideally suited to printing, shaping, and
punching. Polyester is resistant to UV
radiation and absorbs little moisture. The
polyester used by Phoenix Contact is
silicone- and halogen-free. Depending on its
composition, it is suitable for use in
temperatures between -40°C and +150°C.
Polyolefine
Polyolefines are semi-crystalline
thermoplastics, which can be easily
processed as extrusion profiles (shrink
sleeves). They are characterized by good
chemical resistance. Silicone-free,
temperature range: -55°C to +125°C.
Polyethylene (PE)
Polyethylene is a thermoplastic material
which is highly resistant to acids, alkalis, and
other solvents. PE absorbs hardly any
moisture and has high durability and
breaking elongation. Silicone- and halogen-
free, temperature range: -40°C to +80°C.
Halogen-free
The term halogen-free, based on
international standards for base materials
for PCBs (e.g., IEC 61249-2-21,
IPC 4101 C), relates to the elements
chlorine and bromine in flame protection
agents. This also forbids the use of flame
protection agents containing halogen
according to DIN EN ISO 1043-4.
This means that, according to the
definition in the ZVEI position paper
(requirements for the use of halogen-free
products in the electrical and electronics
industry), no flame protection agents
containing halogen or PVC are present in
the components.
Polyamide (PA)
Polyamide has excellent electrical,
mechanical, chemical, and thermal
properties, even at high operating
temperatures.
Brief peak temperatures of
up to 200°C are permitted as a result of
heat aging stabilization. Polyamide absorbs
moisture from its surroundings (2.8% on
average). This is not the embedded water of
crystallization, however, but rather
chemically bound H
2
O groups in the
molecular structure. This makes the plastic
flexible and resistant to breakage, even at
temperatures as low as -60°C. According to
UL 94, PA belongs to inflammability class V2
to V0.
The polyamide used by Phoenix
Contact is silicone- and halogen-free and is
suitable for use at temperatures between
-60°C and +125°C.
Polycarbonate (PC)
Polycarbonate has a high mechanical
strength and chemical resistance. Rigidity,
dimensional stability, and good heat
distortion resistance are further
distinguishing features of this material.
Polycarbonate is used to manufacture
particularly smooth and stable marking
materials. The polycarbonate used by
Phoenix Contact absorbs little moisture, is
silicone- and halogen-free, and is suitable for
use at temperatures between -40°C and
+125°C.
Polycarbonate/acrylonitrile butadiene
styrene (PC/ABS)
PC/ABS blends are amorphous
thermoplastics which are characterized by
high impact strength potential even at low
temperatures. They are resistant to acids
and lyes, for example. In addition to
benefiting from a high dimensional accuracy
and low distortion tendency, they absorb
little moisture. The products manufactured
from these blends have high-gloss surfaces.
Temperature range: -50°C to +90°C.
Acrylonitrile butadiene styrene (ABS)
ABS is a copolymer. It has a high impact
strength and is strong and hard. The ABS
used by Phoenix Contact is silicone-free and
is suitable for use at temperatures between
-40°C and +85°C.
Polyvinyl chloride (PVC)
PVC has a long service life. It is
characterized in particular by its
outstanding mechanical strength and high
chemical resistance. Neither oxygen nor
ozone affects PVC. The material is resistant
to corrosive salt solutions and most acids.
The polyvinyl chloride used by Phoenix
Contact is silicone-free and is suitable for
Technical information
Marking and labeling - MARKING system
600
PHOENIX CONTACT
DIN EN ISO 1043-4
Halogen-free flame protection
Halogens include the chemical elements
astatine, fluorine, chlorine, bromine, and
iodine. One characteristic of the halogen
compounds of bromine and chlorine relates
to the reduction in the degree of
inflammability when used in plastics. In the
event of fire, poisonous corrosive gases are
formed. Secondary damage attributable in
part to the water used to extinguish the fire
can also be caused. For this reason, Phoenix
Contact does not use any flame protection
systems which contain halogens or other
additives. Polyamide, polycarbonate,
polycarbonate/acrylonitrile butadiene
styrene, acrylonitrile butadiene styrene, and
polyolefines feature halogen-free flame
protection systems.
UL 94 V0/1/2
Inflammability classification
Test setup
according to UL
94
Classification
UL 94 V0 UL 94 V1 UL 94 V2 UL 94 HB
Burning time after each flame treatment ≤ 10 s ≤ 30 s ≤ 30 s -
Total burning time after 10 flame treatments ≤ 50 s ≤ 250 s ≤ 250 s -
Glowing time after the 2nd flame treatment ≤ 30 s ≤ 60 s ≤ 60 s -
Complete burn-off No No No Yes
Ignition of the wadding beneath the sample No No No -
The test bar is clamped vertically and
flame-treated several times. Each flame
treatment lasts 10 seconds. Between the
flame treatments, the time until the test bar
is extinguished is measured. Then the
afterflame times and the drip behavior are
evaluated.
This test setup is not suitable for foils
and/or very thin test objects that shrink
when exposed to the heat of the flame.
Phoenix Contact only uses plastics which
conform to UL 94 V1/2/0.
The inflammability tests for plastics have
been defined by the Underwriters
Laboratory (USA) in regulation UL 94. This
applies to all areas of application,
particularly in electrical engineering.
Inflammability of the plastic material is
examined in the test laboratory in a
horizontal (HB - Horizontal Burn) or
vertical (V - Vertical Burn) test with a naked
flame. In order of increasing resistance to
combustion, the evaluation classes are HB,
V1, V2, V0. Test results are listed on “yellow
cards” and are published annually in the
Recognized Component Directory.
The flash point, the combustion point,
and the ignition point of a material are
decisive with regard to behavior in fire. The
tests show that the classifications of
UL 94 V1/2/0 are stricter than those of
UL 94 HB.
Technical information
Marking and labeling - MARKING system
For further information and full technical data, visit phoenixcontact.net/products
601PHOENIX CONTACT
+120°C (+80°C for PVC). The test objects
reach the maximum permissible operating
temperature during the warming phase and
the 10-minute pause phase. The cooling
down phase follows. This test consists of a
total of 192 cycles.
Without exception, Phoenix Contact
marking materials are tested according to
IEC 60947-7-1/-2. All plastics used also have
sufficient safety reserves.
Temperature in relation to time
Terminal blocks are characterized, among
other things, by long life cycles and their
ability to safely withstand continuous
temperatures of +125°C. In order to ensure
that the printing of these terminal blocks
also meets these requirements, Phoenix
Contact uses marking materials with heat
stabilizers.
To simulate usage over several years, the
marking materials, together with the
terminal blocks or conductors, are
subjected to a defined temperature cycle in
the climate cabinet. The minimum
temperature in the climate cabinet is set to
+20°C and the maximum temperature to
Cycle
t/min
T/°C
IEC 60947-7-1/-2
Aging test
Chemical Weight %
Alkalis
Sodium hydroxide solution 3
Potassium hydroxide solution 3
Ammonium hydroxide (ammonia water) 25
Alcohols
Ethanol 100
1-propanol 100
2-propanol 100
Diethylene glycol 100
Aldehyde/ketones
Ethyl acetate 100
Resistance to oil and chemicals
UV-B components restrict mechanical
properties in plastics. As a consequence,
imprints and labels can be damaged to a
greater or lesser extent dependent upon
the type of plastic.
Marking materials from Phoenix Contact
can be stored in dry as well as humid
atmospheres under UV radiation and are
tested in accordance with the
aforementioned standards.
Physical and/or chemical
processes/reactions can occur as a result of
external media, such as liquids or gases. This
can result in a change to the plastic's
properties. The plastic can be damaged or
even destroyed. Imprints and labels can also
be affected by these changes.
In order to prevent this from happening,
Phoenix Contact uses only plastics and
printing/marking materials which have been
tested based on DIN EN ISO 175.
According to DIN EN ISO 175
UV light resistance
According to DIN EN ISO 4892-2 and DIN EN ISO 60068-2-5
Chemical Weight %
Oils, greases, aliphatic and aromatic hydrocarbons
IRM 902 100
IRM 903 100
ASTM No.1 100
Xylol 100
Test benzene (180/220) 100
Hycut SU 68 100
Hycut SET 46 100
Shell Tellus 92 100
Aqueous salt solutions
Sodium chloride 5
Potassium chloride 5
Ammonium chloride (ammonia solution) 100
Technical information
Marking and labeling - MARKING system
602
PHOENIX CONTACT
DIN 50018
Corrosion test
Extreme ambient influences impose
demanding requirements on components
and their Marking and labeling.
The following test method, based on
DIN 50018, describes the corrosion test in
an alternating condensation climate with an
atmosphere that contains sulfur dioxide.
Two liters of distilled water and one liter
of SO
2
gas are introduced into a climate
cabinet. During the test and at a test
temperature of 40°C, an acidic atmosphere
is formed, which affects the material
surfaces of the test objects. After a testing
time of eight hours, the test objects are left
to dry for 16 hours with the door open.
Finally, a microscopic visual check is
performed.
All marking materials used by Phoenix
Contact conform to this demanding
standard and are resistant to aggressive
substances.
In the shipbuilding industry in particular,
technical components must be marked in a
way that is legible at all times in corrosive
atmospheres. The salt content of the air in
combination with the increased humidity
places high demands on the imprints and
materials used. The impact of the climate at
sea can be simulated on the basis of
IEC 60068-2-11/-52.
The resistance of the materials is tested
with salt spray in a corrosive atmosphere.
The test objects are placed in the test
chamber and subjected to a finely dosed
spray of 5% sodium chloride solution (NaCl;
pH value 6.5 - 7.2) at a temperature of
+35°C for a period of 96 hours. A
microscopic inspection is performed after
the test.
Phoenix Contact marking materials fulfill
these stringent requirements and can be
used even in extreme climatic conditions.
IEC 60068-2-11/-52
Salt spray
Markings and imprints must be able to
withstand a variety of different solvent
vapors. According to the aforementioned
standard, imprints and markings are stored
in an acetone, n-hexane, and ethanol
atmosphere for 10 days, after which they
must continue to be legible.
Phoenix Contact marking materials are
solvent-resistant and fulfill the stringent
requirements.
According to EN 60464-2:2001
Resistance to solvents
Technical information
Marking and labeling - MARKING system
For further information and full technical data, visit phoenixcontact.net/products
603PHOENIX CONTACT
According to DIN EN ISO 1518
Scratch resistance
Markings and imprints must also be
resistant to point and/or linear mechanical
loads.
For this reason, Phoenix Contact tests all
markings and imprints for scratch resistance
in accordance with the aforementioned
standard. The test is carried out by applying
a scratching tool with a hemispherical tip
(1 mm in diameter) to the test objects.
Depending on the printing procedure, a
force of between 2 N and 6 N is applied.
This is followed by a visual and microscopic
inspection of the test objects. Phoenix
Contact marking materials fulfill these high
mechanical requirements.
According to KIMW 003, Part 1 In-house standard of the Lüdenscheid Plastics Institute
Resistance to abrasion
Markings and imprints must be resistant
to surface loads. The aforementioned in-
house standard prescribes the grouping of
labels and imprints into load classes. A felt
disk (hardness H1 according to DIN 61200)
is subjected to various numbers of strokes
(1000, 10,000, 30,000) with a pressure force
of 1 N, 2 N, and/or 4 N. Imprints are
classified into the various load classes
defined in the in-house standard on the
basis of the pressure force and the number
of strokes at which they sustain damage.
Phoenix Contact imprints and markings
meet the requirements of the highest load
class K9 (30,000 strokes with a 4 N
pressure force).
According to IEC 60068-2-6
Vibration resistance
This test demonstrates the vibration
resistance and the tight fit of the marking
materials under the influence of continuous
vibrations. Harmonic, sinusoidal vibrations
are applied to the test object to simulate
rotating, pulsating or oscillating forces. The
test is performed on each of the three
spatial axes (x, y, z). In the test, the objects
run through a frequency range of 3 Hz to
150 Hz at a speed of one octave per
minute. The r.m.s. value of the acceleration
is up to 50 m/s. The test objects are tested
in the three axes for two hours each. The
marking materials must not be damaged in
such a way that would impair their
continued use.
All Phoenix Contact marking materials
meet the requirements of the standard and
are particularly suitable for applications in
which they are subjected to high levels of
vibration.
According to DIN EN 61010-1
Abrasion and wipe resistance
Markings and imprints must be resistant
to standard industrial cleaning agents. The
aforementioned standard prescribes the use
of a soft cloth with water, isopropanol,
petroleum ether, and n-hexane to clean
markings and imprints. They must remain
clearly legible after cleaning.
Phoenix Contact marking materials fulfill
the stringent requirements as regards
abrasion and wipe resistance and can be
used in all applications.
Technical information
Marking and labeling - MARKING system
v=300 mm/min
90°
604
PHOENIX CONTACT
In many applications and especially in
traffic technology, marking materials are
subjected to vibrations and shocks. For a
practical simulation of vibration stress, the
test objects are tested for vibration
resistance at increasing and decreasing
frequencies and amplitudes. In the test, the
objects run through a frequency range of
5 Hz to 150 Hz. The r.m.s. value of the
acceleration is up to 42.5 m/s. The test
objects are tested for five hours in each of
the three axes (x, y, z). The components and
marking materials must not be damaged in
such a way that would impair their
continued use.
All Phoenix Contact marking materials
fulfill these stringent vibration
requirements.
According to DIN EN 61373 - broadband noise (intensity accord-
ing to DIN EN 50155)
Vibration test
Adhesive tape 60°
According to DIN EN ISO 2409
A Sellotape test is conducted based on
DIN EN ISO 2409. A transparent strip of
self-adhesive tape with an adhesive strength
of 10 ± 1 N is attached to the imprint or
marking to be tested. It is then pulled away
from the surface at an angle of 60° to the
direction of tensile force at a speed of
1 cm/s.
There should be no marks from the print
on the adhesive tape after the test.
Phoenix Contact marking materials meet
the requirements of this standard. They are
tough and resistant to peeling.
Test setup
Imprint
Pull-out direction
Synthetic material
Grid test
According to FINAT test method No. 2
This test is used to compare the adhesive
strength of labels on a variety of base
materials. To this end, a strip of labels
(25 mm x 175 mm) is applied to the
respective base material with a specified
force. After a defined storage period, the
strip is removed from the base material at
an angle of 90° and a speed of 300 mm/min.
The adhesive strength is specified in
N/25 mm. The test therefore enables the
most suitable label to be selected for the
application.
Adhesive strength test
Technical information
Marking and labeling - MARKING system
For further information and full technical data, visit phoenixcontact.net/products
605PHOENIX CONTACT
Shear cutting
Ratchet-driven cable cutters are a quick
and reliable solution for cutting conductors
and cables in the upper cross-section range
up to 1400 mm. Special cutting geometries
help to ensure that the tool is easily
accessible and can be relied upon to
produce burr-free right-angle cuts. In this
cutting procedure, which is also known as
shear cutting, the two blades move towards
and past one another and cut (shear) the
material without burring. DIN 8588
describes this procedure as severing.
Bite cutting
During bite cutting, the material is
severed by two wedge-shaped blades
moving in opposite directions. The wedge
angle set for the blades is deliberately large
and stable. In addition to the hardening of
the entire tool, the cutting area is
subsequently hardened again inductively to
62 HRC. This makes it possible to sever
even extremely hard materials such as piano
wire and spring steel with a tensile strength
of up to 2300 N/mm without damaging the
tool. Bite cutting is suitable only to a limited
extent for cutting through cables and lines.
The high-quality CUTFOX cutting tools
from Phoenix Contact can be relied upon
for long-term stability and permanently
consistent results.
Shear cutting
Bite cutting
Cutting
Cable stripped correctly according to
DIN IEC 60352
Cable stripped incorrectly according to
DIN IEC 60352
Permissible markings on
the insulation
Insulation not cut cleanly,
blunt stripping blades
Insulation damaged, gripper
of stripping tool damaged
Individual wires damaged or
cut, stripping blade not set
correctly
Insulation residue, blunt or
incorrectly set stripping
blade
Stripping describes the removal of the
insulation of conductors up to 16 mm. In
the case of larger conductor cross sections
and multiple-wire and multi-layer
conductors and cables, only the outer
insulation sheath is removed. The length of
the insulation to be removed varies
according to the terminal point and
connector. Removing the insulation must
not damage either the single inner wires or
the braided shield. The remaining insulation
must also remain intact, although pressure
points on and color changes in the
insulation material are permitted. Further
faults that need to be prevented are
stipulated in DIN IEC 60352.
Suitable blade geometries are used to
process special insulation materials. V
blades are used for both hard (e.g.,
Te f l o n /R ad ox
®
) and soft rubber insulations
(silicone).
Phoenix Contact WIREFOX automatic
stripping pliers can remove insulation
quickly and correctly.
Stripping
Technical information
Tools - TOOL fox
606
PHOENIX CONTACT
Crimping describes the joining of contact
and conductor mechanically. In addition to
crimping, two other terms are used
dependent upon the type of deformation.
A distinction is made between squeezing
(for insulated cable lugs) and pressing (for
ferrules and non-insulated cable lugs). Slip-
on blade connectors are described as being
crimped.
A number of important points must be
considered in order to establish a reliable
connection between contact and
conductor:
– The conductor must be prepared
correctly
– The contact and the conductor must be
compatible
– The conductor must be positioned
correctly in the contact
– A suitable crimping tool must be selected
Professional crimping pliers are always
equipped with a releasing pressure lock.
They unlock as soon as the required
crimping pressure is attained, thus ruling
out the possibility of too little pressure.
This guarantees the user a consistent
crimping result with maximum pull-out
values.
The DIN EN 60352-1 and
DIN EN 60999-1 standards are among the
references used to assess crimping results.
In addition to a variety of electrical and
mechanical tests, conductor pull-out tests
are the decisive criterion.
All Phoenix Contact crimping tools have
been adjusted and tested according to valid
standards. They ensure gas-tight crimping
that will remain stable in the long-term.
Crimping/pressing/crushing
Square crimp
For crimping ferrules according
to DIN 46228. Areas of appli-
cation: for conductor sizes 0.14 - 10 mm.
Trapezoid crimp
For crimping ferrules according
to DIN 46228-1 and
DIN 46228-4. Areas of application: for con-
ductor sizes 0.25 - 10 mm.
Double indent crimp
For crimping non-insulated ca-
ble lugs. Areas of application:
for conductor sizes 0.75 - 10 mm.
Indent/prong crimp
For crimping non-insulated ca-
ble lugs. Areas of application:
for conductor sizes 0.75 - 10 mm.
B crimp
For crimping non-insulated
slip-on blade connectors and
slip-on sleeves. Areas of application: for
conductor sizes 0.1 - 6 mm.
WM crimp
For crimping ferrules according
to DIN 46228-1 and
DIN 46228-4. Areas of application: for con-
ductor sizes 10 - 50 mm.
Oval crimp
For crimping insulated cable
lugs and connectors. Areas of
application: for conductor sizes
0.1 - 6 mm.
Hex crimp
For crimping non-insulated tu-
bular cable lugs, coaxial con-
nectors, and fiber optic connectors. Areas
of application: for conductor sizes 0.5 - 6
mm. Coaxial: 1.73 mm, 2.54 mm, 8.23 mm,
10.54 mm, and 10.9 mm. FO: 3.25 mm,
3.84 mm, 4.52 mm, 5.0 mm, and 5.41 mm.
Pressing
Technical information
Tools - TOOL fox
For further information and full technical data, visit phoenixcontact.net/products
607PHOENIX CONTACT
In practice, crimping points can be
affected by tensile forces during wiring or
operation. Therefore, crimped contacts
must offer a high degree of mechanical
safety. To test the tensile load capacity of
the crimp, a predefined cross-sectional
tensile force is applied for a period of 60
seconds. The tensile force exerts stress on
the conductor at the crimping point. The
crimp must withstand the load without
sustaining damage.
The test results for Phoenix Contact
contacts are significantly higher than the
minimum values required by the standard.
DIN EN 60352-2
Conductor pull-out test
Structure and dimensions of connecting cables
Conductor pull-out forces
Crimping sleeves Ferrules Ferrules
Metric conductor cross section Comparable conductor cross sec-
tion
DIN EN 60352-2 (11/2006) IEC EN 60999
1
)
(up to 35 mm
2
)
IEC EN 60947-7-1
(35 mm
2
and above)
AWG/kcmil [mm
2
] [mm
2
] [N]
2
) [N]
3
) [N]
3
)
30 0.0507 0.05 6
(29) 0.0647
28 0.0804 0.08 11
(27) 0.102
26 0.128 0.12 15
(25) 0.163 0.14 18
24 0.205 0.22 28 10
(23) 0.259 0.25 32
22 0.325 0.32 40 15
(21) 0.412
20 0.519 0.5 60 20
(19) 0.653 0.75 85 30
18 0.824 0.82 90 30
(17) 1.04 1 108 35
16 1.307 1.3 135 40
(15) 1.651 1.5 150 40
14 2.082 2.1 200 50
(13) 2.627 2.5 230 50
12 3.307 3.3 275 60
(11) 4.169 4 310 60
10 5.26 6 360 80
(9) 6.633
88.367 8.4 370 90
(7) 10.55 10 380 90
613.229 100
(5) 16.767 16
421.148 135
(3) 26.667 25 156
233.624 35 190
142.406 236
053.482 50 236
00 67.43 70 285
000 85.014 95 351
0000 107.22 120 427
250 kcmil 127 120 427
300 kcmil 152 150 427
350 kcmil 177 185 503
400 kcmil 203 503
500 kcmil 253 240 578
600 kcmil 304 300 578
1
) DIN 57609 has been replaced by IEC EN 60999.
2
) Pull-out values for open and closed crimping sleeves and insulated crimping sleeves.
3
) Pull-out values for ferrules, insulated and non-insulated.
Conductor cross sections/conductor pull-out forces
Technical information
Tools - TOOL fox
608
PHOENIX CONTACT
Corrosion-free contact areas are a
prerequisite for high-performance and low-
resistance connections. The corrosion test
described below shows that when used
correctly at contact points, Phoenix
Contact crimping tools and connectors
achieve a permanent gas-tight connection
that remains intact even when exposed to
aggressive substances.
The test method, which is based on
DIN 50018, describes the corrosion test in
an alternating condensation climate with an
atmosphere that contains sulfur dioxide.
Two liters of distilled water and one liter
of SO
2
gas are introduced into a climate
cabinet. At a test temperature of 40°C,
acidic compounds < Ph 7 form during the
test and attack the metal surfaces. After a
testing time of eight hours, the test objects
are left to dry for 16 hours with the door
open. A visual check follows. Before and
after the corrosion test, the contact
resistance of the contacts is recorded
according to DIN EN 60512-2-1:2002.
Changes that can be attributed to the
effects of corrosion are investigated.
Gas tightness
Conductors are marked in different
colors so that different types can be
identified more easily. Conductor cross
sections and their corresponding color
codes are listed in the table.
Conductor cross section Color
[mm
2
]AWG
0.1 - 0.5
0.25 - 0.75
26 - 20
24 - 18
yellow/light green
green
0.5 - 1.5
1.5 - 2.5
20 - 16
16 - 14
red
blue
4 - 6
10
12 - 10
8
yellow
red
16
25
6
4
blue
yellow
Color codes
Technical information
Tools - TOOL fox
For further information and full technical data, visit phoenixcontact.net/products
609PHOENIX CONTACT
Extract from DIN EN 60947-1/EN 60947-
1,
Table 4
The torque according to IEC/EN and the recommended tightening
torque for Phoenix Contact terminal blocks are specified.
Head screw with slot
Thread Torque
[Nm]
M1.6 0.1*
M2.0 0.2*
M2.5 (M2.6) 0.4*
M3 0.5*
M4 1.2*
M4.5 1.8*
M5 2.0*
M6 2.5*
M8 3.5*
M10 4.0*/10**
M12 14**
M14 19**
M16 25**
M20 36**
M24 50**
* Valid for nuts and screws tightened with screwdrivers.
**Valid for nuts and screws that can be tightened with tools other
than screwdrivers.
Table 4 of the standard specifies the
tightening torque to demonstrate the
mechanical strength of screw
connections/screw terminal blocks.
Although these torques are sufficient for
connecting conductors with Phoenix
Contact terminal blocks,
The table opposite lists recommended
tightening torques which differ from those
in this standard and will ensure gas-tight
connections that remain stable in the long
term.
Phoenix Contact torque screwdrivers can
be set to the corresponding torques.
DIN EN 60947-1
Tightening torque of terminal block screws
Color Code
White WH
Red RD
Blue BU
Green GN
Yellow YE
Gray GY
Brown BN
Orange OG
Black BK
Turquoise TQ
Ivory IV
Beige BE
Olive OL
Color designations
Technical information
Tools - TOOL fox
610
PHOENIX CONTACT
DIN rails/protective conductor busbars
Extract from IEC 60947-7-2/EN 60947-7-2/DIN EN 60947-7-2/VDE 0611-3
Phoenix Contact type Rail profile Material Short-circuit current rat-
ing
= E CU conductor
Short-time withstand
current 1 s
Max. permissible thermal
nominal current for PEN func-
tion
[mm
2
]* [kA] [A]
NS 15 UNPERF 2000MM DIN rail, acc. to EN 60715 – 15 x 5.5 Steel 10 1.2 * *
NS 15 PERF 2000MM DIN rail, acc. to EN 60715 – 15 x 5.5 Steel 10 1.2 * *
NS 15-AL PERF 2000MM DIN rail, dimensions acc. to EN 60715 – 15 x 5.5 Aluminum 16 1.92 76
NS 32 UNPERF 2000MM G-profile rail, acc. to EN 60715 – G 32 Steel 35 4.2 * *
NS 32 PERF 2000MM G-profile rail, acc. to EN 60715 – G 32 Steel 35 4.2 * *
NS 32-CU/35 QMM UNPERF 2000MM G-profile rail, dimensions acc. to EN 60715 – G 32 Copper 120 14.4 269
NS 32-CU/120 QMM UNPERF 2000MM G-profile rail, similar to EN 60715 – G 32 Copper 150 18.0 309
NS 35/7,5 UNPERF 2000MM DIN rail, acc. to EN 60715 – 35 x 7.5 Steel 16 1.92 * *
NS 35/7,5 PERF 2000MM DIN rail, acc. to EN 60715 – 35 x 7.5 Steel 16 1.92 * *
NS 35/7,5 ZN UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 7.5 Steel 16 1.92 * *
NS 35/7,5 ZN PERF 2000MM DIN rail, similar to EN 60715 – 35 x 7.5 Steel 16 1.92 * *
NS 35/7,5 V2A UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 7.5 Steel 16 1.92 * *
NS 35/7,5-CU UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 7.5 Copper 50 6.0 150
NS 35/7,5-AL UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 7.5 Aluminum 35 4.2 125
NS 35/15-2,3 UNPERF 2000MM DIN rail, acc. to EN 60715 – 35 x 15 Steel 50 6.0 * *
NS 35/15 UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 15 Steel 25 3.0 * *
NS 35/15 PERF 2000MM DIN rail, similar to EN 60715 – 35 x 15 Steel 25 3.0 * *
NS 35/15 ZN UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 15 Steel 25 3.0 * *
NS 35/15 ZN PERF 2000MM DIN rail, similar to EN 60715 – 35 x 15 Steel 25 3.0 * *
NS 35/15-CU UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 15 Copper 95 11.4 232
NS 35/15-AL UNPERF 2000MM DIN rail, similar to EN 60715 – 35 x 15 Aluminum 70 8.4 192
* Cross sections calculated according to IEC 60439-1/EN 60439-1/DIN EN 60439-1/VDE 0660-500.
* * Protective conductor busbars made of steel may not be used for the PEN function.
DIN rails
IEC 60947-7-1/UL 1059
Clearances and creepage distances
UL
Use
Group
Definition Max. voltage
[V]
AOperating elements, consoles,
and similar
150
300
600
BConventional devices, including
office and electronic data process-
ing equipment and similar
150
300
600
CIndustrial applications, without re-
strictions
150
300
600
DIndustrial applications, equipment
with limited rating
300
600
Carrying out a dimensional check of
clearances and creepage distances confirms
that electrical insulation properties are
adequate with respect to the following:
– Application
– Expected pollution
– Ambient conditions
The minimum distances are defined in
IEC 60947-1 and UL 1059.
The distance is verified by measuring
between two neighboring terminal blocks
and the support, taking into account the
shortest distances.
For the clearance, this means:
It is the shortest distance in the air
between two conductive parts. The
deciding factors for rating the minimum
clearance values are the rated surge voltage
and the surge voltage category of the
terminal block.
For the creepage distances, this
means:
It is the shortest distance along the
insulating body between two conductive
parts. The deciding factors for determining
the minimum creepage distance are the
rated voltage, the pollution degree, and the
insulation material group of the terminal
block.
The minimum values can be taken from
the tables of the relevant standards.
IEC 60947-7-1
Phoenix Contact terminal blocks are
designed with surge voltage category III and
pollution degree 3 with the required
distances.
UL 1059
Phoenix Contact terminal blocks are
generally designed for a nominal voltage of
600 V in Use Group C.
Detailed information can be found in the
data sheets or the catalog documentation.
Technical information
Mounting material - CABINET add-on
X
j
FR
CCA
NL
F
DE
C
+
CA
p
DE
x
GB
&
US NL
m
JP
,
*
CA
US
CH
o
NO
A
US
!
FI
z
PL
a
CA
DE
y
RU
u
US
CA
w
BR
d
KR
g
IT
$
DE
l
US
BY
KZ
RU
DE
NL
C
CA
K
AT
&
US
s
CH
,
CA
US
J
V
DE
A
US
DE
a
CA
US
u
US
CA
CA
f
US
US
CA
BY
KZ
RU
T
DE
CN
For further information and full technical data, visit phoenixcontact.net/products
611
PHOENIX CONTACT
Certification bodies and approvals Country
code Explosion protection Country
code Ship classification societies Country
code
IECEE CB Scheme
(in combination with certifying body)
Interna-
tional
International
Electrotechnical Commission
Interna-
tional Bureau Veritas
CENELEC Certification Agreement
(CCA inspection report)
(in combination with certifying body)
EU DEKRA Certification B.V. Germanischer Lloyd AG
Canadian Standards Association (CSA) Physikalisch-Technische Bundesanstalt Lloyd's Register of Shipping
Canadian Standards Association (CSA)
- CSA approval for the USA - KIWA Nederland B.V. Nippon Kaiji Kyokai
Canadian Standards Association.
(CSA) Combined logo
- CSA approval for Canada and the USA -
QS Schaffhausen AG Det Norske Veritas
Underwriters Laboratories Inc. (UL) VTT Expert Services Oy Polski Rejestr Statków
Underwriters Laboratories Inc. (UL)
- UL approval for Canada -
IBExU Institut für Sicherheitstechnik
GmbH Russian Maritime Register of Shipping
Underwriters Laboratories Inc.
(UL) Combined logo
- UL approval for the USA and Canada -
TÜV Rheinland do Brasil Korean Register of Shipping
INSIEME PER LA QUALITA'E LA
SICUREZZA Technischer Überwachungsverein Nord American Bureau of Shipping
Eurasian Conformity DEKRA EXAM GmbH
DEKRA Certification B.V. Canadian Standards Association (CSA)
Österreichischer Verband für
Elektrotechnik
Canadian Standards Association (CSA)
- CSA approval for the USA -
electrosuisse SEV
Verband für Elektro-,
Energie- und Informationstechnik
Canadian Standards Association.
(CSA) Combined logo
- CSA approval for Canada and the USA -
Verband Deutscher Elektrotechniker e.V.
(VDE)
– Approval of drawings
– Reports with production monitoring
Underwriters Laboratories Inc. (UL)
Berufsgenossenschaft (BG)
GS - Geprüfte Sicherheit
Underwriters Laboratories Inc. (UL)
- UL approval for Canada -
Intertek ETL Listed
- Approval for the USA -
Underwriters Laboratories Inc.
(UL) Combined logo
- UL approval for the USA and Canada -
Intertek ETL Listed
- Approval for Canada - FM Approvals
Intertek ETL Listed
- Approval for the USA and Canada - Eurasian Conformity for Ex-products
TÜV Rheinland Industrie Service GmbH
China Compulsory Certificate
Certification bodies and safety marks
Technical information
Certification bodies
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
Index
Alphabetical
A
A 0,25- 5 3202465 444
A 0,25- 7 3202478 444
A 0,34- 7 3009202 444
A 0,5 - 6 3200218 444
A 0,5 - 8 3202481 444
A 0,5 -10 3202494 444
A 0,75- 6 3200221 444
A 0,75- 8 3202504 444
A 0,75-10 3200234 444
A 1 - 6 3200247 444
A 1 - 8 3202517 444
A 1 -10 3200250 444
A 1,5 - 7 3200263 444
A 1,5 -10 3200276 444
A 1,5 -12 3202588 444
A 1,5 -15 3202591 444
A 1,5 -18 3202601 444
A 2,5 - 7 3200289 444
A 2,5 -12 3200292 444
A 2,5 -18 3202821 444
A 4 - 9 3200302 444
A 4 -12 3200315 444
A 4 -18 3202834 444
A 6 -10 3202520 444
A 6 -12 3200328 444
A 10 -12 3200331 444
A 10 -18 3200344 444
A 16 -12 3200425 444
A 25 -12 3200357 444
A 25 -15 3200360 444
A 25 -18 3200373 444
A 25 -20 3200386 444
A 25 -40 3241238 444
A 35 -18 3200399 444
A 35 -20 3200409 444
A 35 -40 3241239 444
A 50 -40 3241240 444
A 70 -40 3241241 444
A 95 -40 3241242 444
A-EXB-20-66L-N-S 1411117 505
A-EXB-20-66L-S-S 1411118 505
A-EXB-25-66L-N-S 1411120 505
A-EXB-25-66L-S-S 1411121 505
A-EXSH-M20-68L-N-S 1411104 504
A-EXSH-M20-68L-S-S 1411105 504
A-EXSH-M25-68L-N-S 1411107 504
A-EXSH-M25-68L-S-S 1411108 504
A-EXSH-M32-68L-N-S 1411109 504
A-EXSH-M32-68L-S-S 1411110 504
A-EXSH-M40-68L-N-S 1411111 504
A-EXSH-M40-68L-S-S 1411112 504
A-EXSH-M50-68L-N-S 1411113 504
A-EXSH-M50-68L-S-S 1411114 504
A-EXSH-M63-68L-N-S 1411115 504
A-EXSH-M63-68L-S-S 1411116 504
A-INL-M12-N-S 1411240 506
A-INL-M12-P-BK 1411213 506
A-INL-M16-N-S 1411241 506
A-INL-M16-P-BK 1411214 506
A-INL-M20-N-S 1411242 506
A-INL-M20-P-BK 1411215 506
A-INL-M20-S-S 1411249 507
A-INL-M25-N-S 1411243 506
A-INL-M25-P-BK 1411216 506
A-INL-M25-S-S 1411250 507
A-INL-M32-N-S 1411244 506
A-INL-M32-P-BK 1411217 506
A-INL-M32-S-S 1411251 507
A-INL-M40-N-S 1411246 506
A-INL-M40-P-BK 1411218 506
A-INL-M40-S-S 1411252 507
A-INL-M50-N-S 1411247 506
A-INL-M50-P-BK 1411219 506
A-INL-M50-S-S 1411253 507
A-INL-M63-N-S 1411248 506
A-INL-M63-P-BK 1411220 506
A-INL-M63-S-S 1411254 507
A-INLE-M12-N-S 1411267 507
A-INLE-M16-N-S 1411268 507
A-INLE-M20-N-S 1411269 507
A-INLE-M25-N-S 1411270 507
A-INLE-M32-N-S 1411271 507
A-INLE-M40-N-S 1411272 507
A-INLE-M50-N-S 1411273 507
A-INLE-M63-N-S 1411274 507
A/U CM 5021110 527
AB-SK 3025341 545
AB-SK 65 3026489 545
AB-SK 65-D 3026900 547
AB-SK 65-D INSULATED 3040889 547
AB-SK TOP 3062090 544
AB-SK TOP INSULATED 3062074 544
AB-SK-D TOP 3062100 546
AB-SK-D TOP INSULATED 3062087 547
AB-SK/E 3026476 550
AB-SK/E-NS 35 3213111 550
AB-SKS 60 3240223 545
AB/NS 1201141 525
AB/SKS 3240224 548
AB/SS 0404428 530
AB/SS-M 3025888 548
AB2/SS 0404431 530
AB3/SS 0800086 530
ABN 2/SS 0404460 530
AE MP SH 1000X1000 0161998 495
AE MP SH 150X150 0161962 487
AE MP SH 200X150 0161963 487
AE MP SH 200X200 0161966 487
AE MP SH 260X260 0161987 488
AE MP SH 260X300 0161984 490
AE MP SH 260X380 0161972 488
AE MP SH 300X150 0161964 487
AE MP SH 300X200 0161967 487
AE MP SH 300X300 0161970 487
AE MP SH 300X500 0161981 488
AE MP SH 350X500 0161982 488
AE MP SH 380X380 0161973 488
AE MP SH 382X458 0161975 488
AE MP SH 400X150 0161965 487
AE MP SH 400X200 0161968 487
AE MP SH 400X260 0162001 488
AE MP SH 400X300 0161971 488
AE MP SH 400X400 0161985 490
AE MP SH 400X650 0161995 495
AE MP SH 450X620 0161983 489
AE MP SH 480X480 0161976 488
AE MP SH 500X400 0161974 488
AE MP SH 508X762 0161990 492
AE MP SH 550X740 0161989 492
AE MP SH 600X200 0161969 487
AE MP SH 600X400 0161986 491
AE MP SH 600X600 0161988 492
AE MP SH 600X650 0161994 494
AE MP SH 600X800 0161996 495
AE MP SH 610X914 0161992 492
AE MP SH 640X860 0161991 492
AE MP SH 740X980 0161993 492
AE MP SH 800X800 0161997 495
AH-ME 3240265 526
AI 0,14- 8 GY -1000 3203011 447
AI 0,25- 6 BU 3203040 447
AI 0,25- 6 YE 3203024 445
AI 0,25- 8 YE 3203037 445
AI 0,25-12 BU 3200632 447
AI 0,34- 6 TQ 3203053 447
AI 0,34- 8 TQ 3203066 447
AI 0,34-12 TQ 3200645 447
AI 0,5 - 6 OG 3201301 447
AI 0,5 - 6 WH 3200687 445
AI 0,5 - 8 OG 3201123 447
AI 0,5 - 8 OG-B 3201563 479
AI 0,5 - 8 WH 3200014 445
AI 0,5 - 8 WH -1000 3200881 445
AI 0,5 - 8 WH-B 3201369 479
AI 0,5 - 8 WH-GB 1208966 448
AI 0,5 -10 OG 3241126 447
AI 0,5 -10 WH 3201275 445
AI 0,5 -12 WH 3200506 445
AI 0,75- 6 GY 3200690 445
AI 0,75- 6 WH 3201314 447
AI 0,75- 8 BU 3200027 446
AI 0,75- 8 BU-B 3201547 479
AI 0,75- 8 GY 3200519 445
AI 0,75- 8 GY -1000 3200894 445
AI 0,75- 8 GY-B 3201372 479
AI 0,75- 8 GY-GB 1208979 448
AI 0,75- 8 WH 3201110 447
AI 0,75- 8 WH-B 3201576 479
AI 0,75-10 GY 3201288 445
AI 0,75-12 GY 3200849 445
AI 1 - 6 RD 3200742 445
AI 1 - 6 YE 3201327 447
AI 1 - 8 RD 3200030 445
AI 1 - 8 RD -1000 3200904 445
AI 1 - 8 RD-B 3201385 479
AI 1 - 8 RD-GB 1208982 448
AI 1 - 8 YE 3201097 447
AI 1 - 8 YE-B 3201589 479
AI 1 -10 RD 3200182 445
AI 1 -10 RD-GB-1000 1208869 448
AI 1 -12 RD 3200674 445
AI 1,5 - 6 BK 3200755 445
AI 1,5 - 8 BK 3200043 445
AI 1,5 - 8 BK -1000 3200917 445
AI 1,5 - 8 BK-B 3201398 479
AI 1,5 - 8 BK-GB-1000 3202892 448
AI 1,5 - 8 RD 3201136 447
AI 1,5 - 8 RD-B 3201592 479
AI 1,5 -10 BK 3200195 445
AI 1,5 -10 BK-GB-1000 1208872 448
AI 1,5 -12 BK 3201482 445
AI 1,5 -18 BK 3200056 445
AI 1,5 -18 RD 3241125 447
AI 2,5 - 8 BU 3200522 445
AI 2,5 - 8 BU -1000 3200920 445
AI 2,5 - 8 BU-B 3201408 479
AI 2,5 - 8 GY 3200069 446
AI 2,5 - 8 GY-B 3201550 479
AI 2,5 -10 BU 3202533 445
AI 2,5 -12 BU 3200962 445
AI 2,5 -12 GY 3200205 446
AI 2,5 -18 BU 3200580 445
AI 2,5 -18 GY 3200072 446
AI 4 -10 GY 3200535 445
AI 4 -10 OG 3200085 446
AI 4 -12 GY 3200959 445
AI 4 -12 OG 3200438 446
AI 4 -18 GY 3200593 445
AI 4 -18 OG 3200098 446
AI 6 -12 BK 3201107 447
AI 6 -12 GN 3200108 446
AI 6 -12 YE 3200548 445
AI 6 -18 GN 3200111 446
AI 6 -18 YE 3200603 445
AI 0,25-8 BU-B 3240250 479
AI 0,25-8 YE-B 3240251 479
AI 0,34-8 TQ-B 3240249 479
AI 0,5-10 WH-GB 3203150 448
AI 0,5-8 WH S1 1200104 387
AI 0,5-8 WH-B 3000 3240663 451
AI 0,75-10 GY-GB 3203163 448
AI 0,75-8 GY S1 1200105 387
AI 0,75-8 GY-B 3000 3240664 451
AI 1,0-8 RD S1 1200106 387
AI 1,0-8 RD-S 1212523 384
AI 1,0-8 YE-S 1212782 384
AI 1,5-8 BK S1 1200107 387
AI 1,5-8 BK-B 2500 3240666 451
AI 1,5-8 BK-S 1212524 385
AI 1,5-8 RD-S 1212781 385
AI 1-8 RD-B 3000 3240665 451
AI 10 -12 BN 3200124 446
AI 10 -12 IV 3201068 447
AI 10 -12 RD 3200551 445
AI 10 -18 BN 3200137 446
AI 10 -18 RD 3200616 445
AI 16 -12 BU 3200564 445
AI 16 -12 GN 3201152 447
AI 16 -12 IV 3201181 446
AI 16 -18 BU 3200629 445
AI 16 -18 GN 3201330 447
AI 2,5-8 BU S1 1200108 387
AI 2,5-8 BU-B 1500 3240667 451
AI 25 -16 BK 3200412 446
AI 25 -16 BN 3201084 447
AI 25 -16 YE 3200577 445
AI 25 -18 YE 3201505 445
AI 25 -22 BK 3200739 446
AI 25 -22 YE 3200700 445
AI 35 -16 BE 3201071 447
AI 35 -16 RD 3200441 445
AI 35 -18 RD 3201495 445
AI 35 -25 RD 3200713 445
AI 50 -20 BU 3200454 445
AI 50 -20 OL 3201178 447
AI 50 -25 BU 3200726 445
AI 70 -20 YE 3201848 445
AI 95 -25 RD 3201853 445
AI SORTI BOX ANT 3202973 452
AI SORTI BOX RD 3202960 452
AI SORTI BOX-E LGY 3203008 452
AI-TWIN 2X 0,5 - 8 WH 3200933 450
AI-TWIN 2X 0,75- 8 GY 3200807 450
AI-TWIN 2X 0,75-10 GY 3200975 450
AI-TWIN 2X 1 - 8 RD 3200810 450
AI-TWIN 2X 1 -10 RD 3200988 450
AI-TWIN 2X 1,5 - 8 BK 3200823 450
AI-TWIN 2X 1,5 -10 BK 3201534 450
AI-TWIN 2X 1,5 -12 BK 3200991 450
AI-TWIN 2X 2,5 -10 BU 3200836 450
AI-TWIN 2X 2,5 -13 BU 3200878 450
AI-TWIN 2X 4 -12 GY 3201000 450
AI-TWIN 2X 6 -14 YE 3201013 450
AI-TWIN 2X10 -14 RD 3201026 450
AI-TWIN 2X16 -16 BU 3202847 450
AI-TWIN 2X0,75-8 BU 3240668 450
AI-TWIN 2X1-12 RD 3240679 450
AI-TWIN 2X2,5-10 GY 3240669 450
AI-TWIN SORTI BOX BU 3202986 452
AI-TWIN SORTI BOX GY 3202999 452
AI-WM 0,5-8 WH 3240542 169
AI-WM 0,75-8 GY 3240543 169
AI-WM 1,5-8 WH 3240545 169
AI-WM 1-8 RD 3240544 169
AI-WM 2,5-8 BU 3240572 169
AI-XL 1,5- 8 BK 3201916 449
AI-XL 1,5-10 BK 3201974 449
AI-XL 2,5- 8 BU 3201929 449
AI-XL 2,5-12 BU 3201987 449
AI-XL 4 -10 GY 3201932 449
AI-XL 6 -12 YE 3201945 449
AI-XL 10 -12 RD 3201958 449
AI-XL 16 -12 BU 3201961 449
AI120 -27 BU 3201822 445
AK 4 0404017 532
AK 16 0404033 533
AK 35 0404046 533
AKG 4 BK 0421032 532
AKG 4 BU 0421016 532
AKG 4 GNYE 0421029 532
AKG 16 BK 0423030 533
AKG 16 BU 0423014 533
AKG 16 GNYE 0423027 533
AKG 35 BK 0424039 533
AKG 35 BU 0424013 533
AKG 35 GNYE 0424026 533
AP 2 CM 5022889 527
AP 2-TU 5022630 527
AP 3 CM 5022876 527
AP 3-TNS 35 5022672 527
AP 3-TU 5022656 527
AP-ES 5022685 527
AP-ME METER 3034361 526
AP-ME CM 3034345 526
APH-ME 3034374 526
APK 1 5022795 529
612
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
Index
Alphabetical
APK-HP 2 METER 5022818 529
APK-TU 5022805 529
APT-ME 3034358 526
ASD BIT SET HN 1209952 435
AZK 35 0702997 531
B
B-STIFT 1051993 47
BF 6,3 1209936 416
BG/F 1201060 524
BG/F 1 1201112 524
BG/S 1201086 524
BG/SA 1201604 524
BG/SH 1201099 524
BG/SHA 1201594 524
BHN 5,5 1209965 416
BHN 8 1209978 416
BHN 10 1209981 416
BHN 13 1209994 416
BLUEMARK CLED 5147999 31
BLUEMARK CLED CASE 5146725 31
BLUEMARK CLED SET 5147400 31
BLUEMARK CLED SET EN 5147401 31
BLUEMARK CLED-BASE 5146669 31
BLUEMARK CLED-FLUID-CARTR. 5146662 31
BLUEMARK CLED-MAG 20 5146655 31
BLUEMARK CLED-MAG 40 5146668 31
BLUEMARK CLED-STACKER 20 5146656 31
BLUEMARK MAG AI-WM 5146567 169
BLUEMARK MAG AI-WM 2,5 5146640 169
BLUEMARK MAG EM-M (100X60) 0802742 237
BLUEMARK MAG EM-M (27X15) 0802736 237
BLUEMARK MAG EM-M (27X18) 0802737 237
BLUEMARK MAG EM-M (49X15) 0802738 237
BLUEMARK MAG EM-M (60X15) 0802739 237
BLUEMARK MAG EM-M (60X30) 0802740 237
BLUEMARK MAG EM-M (85,6X54) 0802741 237
BLUEMARK MAG UM-TM 0803335 31
BLUEMARK MAG WM-M (29X8) 0802743 160
BLUEMARK MAG WM-M (40X15) 0802744 160
BLUEMARK MAG WM-M (60X15) 0802746 160
BLUEMARK MAG WM-M (D30) 0802747 161
BMK 15X 9 YE 5031605 283
BMK 19X11 YE 5031582 283
BMK 20X 8 WH 0805470 283
BMK 20X 8 YE 5031388 283
BMK 38X11 YE 5031676 283
BMKL 12X12 WH 5032361 282
BMKL 15X 9 WH 0803663 282
BMKL 15X 9 YE 5032497 282
BMKL 16X 6 YE 0807096 282
BMKL 18X 6 WH 5032293 282
BMKL 18X 6,5 OG 5036147 282
BMKL 18X 8 WH 5032329 282
BMKL 18X 8 YE 5032170 282
BMKL 19X11 YE 0800705 282
BMKL 20X 8 WH 5032280 282
BMKL 20X 8 YE 5032138 282
BMKL 25X 8 WH 5032332 282
BMKL 25X12 WH 5032374 282
BMKL 26,8X6,8 WH 0807106 282
BMKL 26X10 YE 0811516 282
BMKL 27X 8 SR 0803702 282
BMKL 27X12,5 SR 0803676 282
BMKL 27X18 SR 0803689 282
BMKL 27X27 SR 0803692 282
BMKL 50X12 WH 5032387 282
BMKL 64X16 WH 0821807 282
BMKL 64X16 YE 0821810 282
BMKL 64X34 WH 5032400 282
C
C S6 A 1000X1000X300 0899138 495
C S6 A 200X200X160 0899047 489
C S6 A 200X300X160 0899053 489
C S6 A 260X260X160 0899049 489
C S6 A 260X260X210 0899084 492
C S6 A 260X300X200 0899081 491
C S6 A 260X380X160 0899059 489
C S6 A 260X380X210 0899090 492
C S6 A 300X300X160 0899055 489
C S6 A 300X300X200 0899082 491
C S6 A 300X300X210 0899087 492
C S6 A 300X500X160 0899069 489
C S6 A 350X500X160 0899073 489
C S6 A 350X500X210 0899102 492
C S6 A 380X380X160 0899061 489
C S6 A 382X458X160 0899065 489
C S6 A 382X458X210 0899096 492
C S6 A 400X260X160 0899051 489
C S6 A 400X300X160 0899057 489
C S6 A 400X500X160 0899071 489
C S6 A 400X650X260 0899127 495
C S6 A 450X620X160 0899075 489
C S6 A 450X620X210 0899108 492
C S6 A 480X480X160 0899067 489
C S6 A 480X480X210 0899099 492
C S6 A 500X400X160 0899063 489
C S6 A 508X762X210 0899114 492
C S6 A 508X762X300 0899130 495
C S6 A 550X740X210 0899111 492
C S6 A 600X400X200 0899083 491
C S6 A 600X400X210 0899093 492
C S6 A 600X600X210 0899105 492
C S6 A 600X600X300 0899128 495
C S6 A 600X650X240 0899126 494
C S6 A 600X800X300 0899132 495
C S6 A 610X914X210 0899120 492
C S6 A 640X860X210 0899117 492
C S6 A 740X980X210 0899123 492
C S6 A 740X980X300 0899136 495
C S6 A 800X800X300 0899134 495
C-BCI 1,5/2,8 3240015 461
C-BCI 1,5/4,6 3240568 461
C-BCI 2,5/2,8 3240046 461
C-BCI 2,5/4,6 3240569 461
C-BCI 6/2,8 3240047 461
C-BCI 6/2,8 SO 3240057 461
C-BCI 6/4,6 3240570 461
C-BCI 6/4,6 SO 3240067 461
C-BCSI 1,5/9X2,8 3240531 461
C-BCSI 2,5/9X2,8 3240532 461
C-BCSI 6/10X2,8 3240546 461
C-BCSI 6/18X4,5 3240533 461
C-FC 1,5/M3 3240137 458
C-FC 1,5/M3,5 3240138 458
C-FC 1,5/M4 3240139 458
C-FC 1,5/M5 3240140 458
C-FC 1,5/M6 3240141 458
C-FC 2,5/M3 3240142 458
C-FC 2,5/M3,5 3240143 458
C-FC 2,5/M4 3240144 458
C-FC 2,5/M5 3240145 458
C-FC 2,5/M6 3240146 458
C-FC 2,5/M8 3240147 458
C-FC 6/M4 3240148 458
C-FC 6/M5 3240149 458
C-FC 6/M6 3240150 458
C-FC 6/M8 3240151 458
C-FCI 1,5/M3 3240032 459
C-FCI 1,5/M3,5 3240033 459
C-FCI 1,5/M4 3240034 459
C-FCI 1,5/M5 3240035 459
C-FCI 1,5/M6 3240036 459
C-FCI 2,5/M3 3240037 459
C-FCI 2,5/M3,5 3240038 459
C-FCI 2,5/M4 3240039 459
C-FCI 2,5/M5 3240040 459
C-FCI 2,5/M6 3240041 459
C-FCI 6/M4 3240042 459
C-FCI 6/M5 3240043 459
C-FCI 6/M6 3240044 459
C-FCI 6/M8 3240045 459
C-JCI 1,5 3240061 465
C-JCI 2,5 3240062 465
C-JCI 6 3240063 465
C-PCEI 1,5/2 3241215 460
C-PCEI 2,5/2 3241216 460
C-PCEI 6/2 3241217 460
C-PCI 1,5/2 3240064 460
C-PCI 2,5/2 3240066 460
C-PCI 6/2,7 3240068 460
C-RC 1/M2,5 DIN 3240069 454
C-RC 1/M3 DIN 3240070 454
C-RC 1/M3,5 DIN 3240071 454
C-RC 1/M4 DIN 3240072 454
C-RC 1/M5 DIN 3240073 454
C-RC 1/M6 DIN 3240074 454
C-RC 1/M8 DIN 3240075 454
C-RC 10/M10 DIN 3240092 454
C-RC 10/M12 DIN 3240093 454
C-RC 10/M5 DIN 3240089 454
C-RC 10/M6 DIN 3240090 454
C-RC 10/M8 DIN 3240091 454
C-RC 120/M10 DIN 3240125 455
C-RC 120/M12 DIN 3240126 455
C-RC 120/M8 DIN 3240124 455
C-RC 150/M10 DIN 3240128 455
C-RC 150/M12 DIN 3240129 455
C-RC 150/M16 DIN 3240130 455
C-RC 16/M10 DIN 3240097 454
C-RC 16/M12 DIN 3240098 454
C-RC 16/M5 DIN 3240094 454
C-RC 16/M6 DIN 3240095 454
C-RC 16/M8 DIN 3240096 454
C-RC 185/M10 DIN 3240131 455
C-RC 185/M12 DIN 3240132 455
C-RC 185/M16 DIN 3240133 455
C-RC 2,5/M10 DIN 3240082 454
C-RC 2,5/M3 DIN 3240076 454
C-RC 2,5/M3,5 DIN 3240077 454
C-RC 2,5/M4 DIN 3240078 454
C-RC 2,5/M5 DIN 3240079 454
C-RC 2,5/M6 DIN 3240080 454
C-RC 2,5/M8 DIN 3240081 454
C-RC 240/M10 DIN 3240134 455
C-RC 240/M12 DIN 3240135 455
C-RC 240/M16 DIN 3240136 455
C-RC 25/M10 DIN 3240102 454
C-RC 25/M12 DIN 3240103 454
C-RC 25/M16 DIN 3240104 454
C-RC 25/M5 DIN 3240099 454
C-RC 25/M6 DIN 3240100 454
C-RC 25/M8 DIN 3240101 454
C-RC 35/M10 DIN 3240107 454
C-RC 35/M12 DIN 3240108 454
C-RC 35/M16 DIN 3240109 454
C-RC 35/M6 DIN 3240105 454
C-RC 35/M8 DIN 3240106 454
C-RC 50/M10 DIN 3240112 454
C-RC 50/M12 DIN 3240113 454
C-RC 50/M16 DIN 3240114 454
C-RC 50/M6 DIN 3240110 454
C-RC 50/M8 DIN 3240111 454
C-RC 6/M10 DIN 3240087 454
C-RC 6/M12 DIN 3240088 454
C-RC 6/M4 DIN 3240083 454
C-RC 6/M5 DIN 3240084 454
C-RC 6/M6 DIN 3240085 454
C-RC 6/M8 DIN 3240086 454
C-RC 70/M10 DIN 3240117 454
C-RC 70/M6 DIN 3240115 454
C-RC 70/M8 DIN 3240116 454
C-RC 95/M10 DIN 3240121 454
C-RC 95/M12 DIN 3240122 454
C-RC 95/M8 DIN 3240120 454
C-RCEI 1,5/M3 3241201 457
C-RCEI 1,5/M3,5 3241202 457
C-RCEI 1,5/M4 3241203 457
C-RCEI 1,5/M5 3241204 457
C-RCEI 1,5/M6 3241205 457
C-RCEI 2,5/M3,5 3241206 457
C-RCEI 2,5/M4 3241207 457
C-RCEI 2,5/M5 3241208 457
C-RCEI 2,5/M6 3241209 457
C-RCEI 2,5/M8 3241210 457
C-RCEI 6/M10 3241214 457
C-RCEI 6/M5 3241211 457
C-RCEI 6/M6 3241212 457
C-RCEI 6/M8 3241213 457
C-RCI 1,5/M3 3240016 456
C-RCI 1,5/M3,5 3240017 456
C-RCI 1,5/M4 3240018 456
C-RCI 1,5/M5 3240019 456
C-RCI 1,5/M6 3240020 456
C-RCI 10/M10 3240222 456
C-RCI 10/M5 3240219 456
C-RCI 10/M6 3240220 456
C-RCI 10/M8 3240221 456
C-RCI 2,5/M3 3240021 456
C-RCI 2,5/M3,5 3240022 456
C-RCI 2,5/M4 3240023 456
C-RCI 2,5/M5 3240024 456
C-RCI 2,5/M6 3240025 456
C-RCI 2,5/M8 3240026 456
C-RCI 6/M10 3240031 456
C-RCI 6/M4 3240027 456
C-RCI 6/M5 3240028 456
C-RCI 6/M6 3240029 456
C-RCI 6/M8 3240030 456
C-SCF 1,5/4,8X0,5 3240154 462
C-SCF 1,5/4,8X0,8 3240155 462
C-SCF 1,5/6,3X0,8 3240156 462
C-SCF 1/2,8X0,5 3240152 462
C-SCF 1/2,8X0,8 3240153 462
C-SCF 2,5/4,8X0,5 3240157 462
C-SCF 2,5/4,8X0,8 3240158 462
C-SCF 2,5/6,3X0,8 3240159 462
C-SCF 6/6,3X0,8 3240160 462
C-SCFFI 1,5/2,8X0,5 3240534 464
C-SCFFI 1,5/2,8X0,8 3240535 464
C-SCFFI 1,5/4,8X0,5 3240536 464
C-SCFFI 1,5/4,8X0,8 3240537 464
C-SCFFI 1,5/6,3X0,8 3240538 464
C-SCFFI 2,5/4,8X0,5 3240539 464
C-SCFFI 2,5/4,8X0,8 3240540 464
C-SCFFI 2,5/6,3X0,8 3240547 464
C-SCFFI 6/6,3X0,8 3240541 464
C-SCFI 1,5/2,8X0,5 3240048 463
C-SCFI 1,5/2,8X0,8 3240049 463
C-SCFI 1,5/4,8X0,5 3240050 463
C-SCFI 1,5/4,8X0,8 3240051 463
C-SCFI 1,5/6,3X0,8 3240052 463
C-SCFI 2,5/4,8X0,5 3240053 463
C-SCFI 2,5/4,8X0,8 3240054 463
C-SCFI 2,5/6,3X0,8 3240055 463
C-SCFI 6/6,3X0,8 3240056 463
C-SCFMI 1,5/6,3X0,8 3240529 464
C-SCFMI 2,5/6,3X0,8 3240530 464
C-SCM 1,5/6,3X0,8 3240161 462
C-SCM 2,5/6,3X0,8 3240162 462
C-SCMI 1,5/6,3X0,8 3240058 463
C-SCMI 2,5/6,3X0,8 3240059 463
C-SCMI 6/6,3X0,8 3240060 463
C1 S6 A 1000X1000X300 0899139 495
C1 S6 A 200X200X160 0899048 489
C1 S6 A 200X300X160 0899054 489
C1 S6 A 260X260X160 0899050 489
C1 S6 A 260X260X210 0899085 493
C1 S6 A 260X380X160 0899060 489
C1 S6 A 260X380X210 0899091 493
C1 S6 A 300X300X160 0899056 489
C1 S6 A 300X300X210 0899088 493
C1 S6 A 300X500X160 0899070 489
C1 S6 A 350X500X160 0899074 489
C1 S6 A 350X500X210 0899103 493
C1 S6 A 380X380X160 0899062 489
C1 S6 A 382X458X160 0899066 489
613
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
C1 S6 A 382X458X210 0899097 493
C1 S6 A 400X260X160 0899052 489
C1 S6 A 400X300X160 0899058 489
C1 S6 A 400X500X160 0899072 489
C1 S6 A 450X620X160 0899076 489
C1 S6 A 450X620X210 0899109 493
C1 S6 A 480X480X160 0899068 489
C1 S6 A 480X480X210 0899100 493
C1 S6 A 500X400X160 0899064 489
C1 S6 A 508X762X210 0899115 493
C1 S6 A 508X762X300 0899131 495
C1 S6 A 550X740X210 0899112 493
C1 S6 A 600X400X210 0899094 493
C1 S6 A 600X600X210 0899106 493
C1 S6 A 600X600X300 0899129 495
C1 S6 A 600X800X300 0899133 495
C1 S6 A 610X914X210 0899121 493
C1 S6 A 640X860X210 0899118 493
C1 S6 A 740X980X210 0899124 493
C1 S6 A 740X980X300 0899137 495
C1 S6 A 800X800X300 0899135 495
C3 S6 A 260X260X210 0899086 493
C3 S6 A 260X380X210 0899092 493
C3 S6 A 300X300X210 0899089 493
C3 S6 A 350X500X210 0899104 493
C3 S6 A 382X458X210 0899098 493
C3 S6 A 450X620X210 0899110 493
C3 S6 A 480X480X210 0899101 493
C3 S6 A 508X762X210 0899116 493
C3 S6 A 550X740X210 0899113 493
C3 S6 A 600X400X210 0899095 493
C3 S6 A 600X600X210 0899107 493
C3 S6 A 610X914X210 0899122 493
C3 S6 A 640X860X210 0899119 493
C3 S6 A 740X980X210 0899125 493
CARRIER-EMLP 22 (27X12,5) 0828985 287
CARRIER-EMLP 22 (27X15) 0828986 287
CARRIER-EMLP 22 (27X18) 0828987 287
CARRIER-EMLP 22 (27X27) 0828988 287
CARRIER-EMLP 22 (27X8) 0828984 287
CARRIER-EMP (1000X15) COVER 0829520 288
CARRIER-EMP (1000X15) GY 0829366 288
CARRIER-EMP (1000X15) TR 0829530 288
CARRIER-EMP (17X15) 0827450 286
CARRIER-EMP (27X15) 0827451 286
CARRIER-EMP (49X15) 0827452 286
CARRIER-EMP (60X15) 0827453 286
CARRIER-EMP (60X30) 0827454 286
CARRIER-EMP (85,6X54) 0829365 286
CARRIER-EMP 22 (27X12,5) 0827446 286
CARRIER-EMP 22 (27X15) 0827447 286
CARRIER-EMP 22 (27X18) 0827448 286
CARRIER-EMP 22 (27X27) 0827449 286
CARRIER-EMP 22 (27X8) 0827445 286
CARRIER-PMP (108X38) 0830958 316
CARRIER-PMP (110X38) 0831056 318
CARRIER-PMP-ENCLOSED (110X38) 0831068 319
CARRIER-TM 300 0828282 98
CARRIER-TMD 300 0828693 98
CARRIER-TMH 300 0830670 98
CARRIER/L-EMP (1000X15) GY 0829559 288
CARRIER/L-EMP (1000X15) TR 0829560 288
CARRIER/L-PMP-ENCLOSED (110X38)0831062 319
CD 100X100 3240205 555
CD 100X100 BU 3240325 555
CD 100X100 WH 3240640 555
CD 100X40 3240279 555
CD 100X40 BU 3240322 555
CD 100X40 WH 3240637 555
CD 100X60 3240195 555
CD 100X60 BU 3240323 555
CD 100X60 WH 3240638 555
CD 100X80 3240201 555
CD 100X80 BU 3240324 555
CD 100X80 WH 3240639 555
CD 120X60 3240196 555
CD 120X60 BU 3240326 555
CD 120X60 WH 3240641 555
CD 120X80 3240202 555
CD 120X80 BU 3240327 555
CD 120X80 WH 3240642 555
CD 25X25 3240187 555
CD 25X25 BU 3240301 555
CD 25X25 WH 3240616 555
CD 25X40 3240188 555
CD 25X40 BU 3240302 555
CD 25X40 WH 3240617 555
CD 25X60 3240191 555
CD 25X60 BU 3240303 555
CD 25X60 WH 3240618 555
CD 25X80 3240197 555
CD 25X80 BU 3240304 555
CD 25X80 WH 3240619 555
CD 30X100 3240283 555
CD 30X100 BU 3240308 555
CD 30X100 WH 3240623 555
CD 30X40 3240278 555
CD 30X40 BU 3240305 555
CD 30X40 WH 3240620 555
CD 30X60 3240280 555
CD 30X60 BU 3240306 555
CD 30X60 WH 3240621 555
CD 30X80 3240282 555
CD 30X80 BU 3240307 555
CD 30X80 WH 3240622 555
CD 40X100 3240294 555
CD 40X100 BU 3240312 555
CD 40X100 WH 3240627 555
CD 40X40 3240189 555
CD 40X40 BU 3240309 555
CD 40X40 WH 3240624 555
CD 40X60 3240192 555
CD 40X60 BU 3240310 555
CD 40X60 WH 3240625 555
CD 40X80 3240198 555
CD 40X80 BU 3240311 555
CD 40X80 WH 3240626 555
CD 60X100 3240263 555
CD 60X100 BU 3240316 555
CD 60X100 WH 3240631 555
CD 60X40 3240190 555
CD 60X40 BU 3240313 555
CD 60X40 WH 3240628 555
CD 60X60 3240193 555
CD 60X60 BU 3240314 555
CD 60X60 WH 3240629 555
CD 60X80 3240199 555
CD 60X80 BU 3240315 555
CD 60X80 WH 3240630 555
CD 80X100 3240264 555
CD 80X100 BU 3240321 555
CD 80X100 WH 3240636 555
CD 80X25 3240281 555
CD 80X25 BU 3240317 555
CD 80X25 WH 3240632 555
CD 80X40 3240335 555
CD 80X40 BU 3240318 555
CD 80X40 WH 3240633 555
CD 80X60 3240194 555
CD 80X60 WH 3240634 555
CD 80X80 3240200 555
CD 80X80 BU 3240320 555
CD 80X80 WH 3240635 555
CD COVER 100 3240289 555
CD COVER 100 BU 3240328 555
CD COVER 100 WH 3240643 555
CD COVER 120 3240290 555
CD COVER 120 BU 3240329 555
CD COVER 120 WH 3240644 555
CD COVER 25 3240285 555
CD COVER 25 BU 3240330 555
CD COVER 25 WH 3240645 555
CD COVER 30 3240295 555
CD COVER 30 BU 3240331 555
CD COVER 30 WH 3240646 555
CD COVER 40 3240286 555
CD COVER 40 BU 3240332 555
CD COVER 40 WH 3240647 555
CD COVER 60 3240287 555
CD COVER 60 BU 3240333 555
CD COVER 60 WH 3240648 555
CD COVER 80 3240288 555
CD COVER 80 BU 3240334 555
CD COVER 80 WH 3240649 555
CD WR 3240284 553
CD-HF 100X100 3240364 553
CD-HF 100X40 3240361 553
CD-HF 100X60 3240362 553
CD-HF 100X80 3240363 553
CD-HF 120X60 3240365 553
CD-HF 120X80 3240366 553
CD-HF 25X25 3240340 553
CD-HF 25X40 3240341 553
CD-HF 25X60 3240342 553
CD-HF 25X80 3240343 553
CD-HF 30X100 3240347 553
CD-HF 30X40 3240344 553
CD-HF 30X60 3240345 553
CD-HF 30X80 3240346 553
CD-HF 40X100 3240351 553
CD-HF 40X40 3240348 553
CD-HF 40X60 3240349 553
CD-HF 40X80 3240350 553
CD-HF 60X100 3240355 553
CD-HF 60X40 3240352 553
CD-HF 60X60 3240353 553
CD-HF 60X80 3240354 553
CD-HF 80X100 3240360 553
CD-HF 80X25 3240356 553
CD-HF 80X40 3240357 553
CD-HF 80X60 3240358 553
CD-HF 80X80 3240359 553
CD-HF COVER 100 3240367 553
CD-HF COVER 120 3240368 553
CD-HF COVER 25 3240369 553
CD-HF COVER 30 3240370 553
CD-HF COVER 40 3240371 553
CD-HF COVER 60 3240372 553
CD-HF COVER 80 3240373 553
CF 1000 EM 1205215 480
CF 1000 EM4,0 1212663 480
CF 1000 LOC0,5 GB 1212907 480
CF 1000 LOC0,75 GB 1212908 480
CF 1000 LOC1,0 GB 1212909 480
CF 1000 LOC1,5 GB 1212910 480
CF 1000 SORT0,34 1206890 480
CF 1000 SORT1,5 1204326 480
CF 1000 SORT4,0 1206887 480
CF 1000 VEP1,5 GB 1206901 480
CF 1000-1,5 1208199 480
CF 1000-10 1212456 481
CF 1000-10 EM10 1212665 481
CF 1000-10 EM6,0 1212664 481
CF 1000-10-TOOLKIT 10/12 1212460 481
CF 1000-10-TOOLKIT 4/10-12 1212458 481
CF 1000-10-TOOLKIT 6/12 1212459 481
CF 1000-TOOLKIT 0,34/6-8 1208226 480
CF 1000-TOOLKIT 2,5/6-12 1208242 480
CF 1000-TOOLKIT 4,0/10 1208271 480
CF 3000 AB 0,25 1212380 478
CF 3000 AM 0,5 1205587 478
CF 3000 AM 0,75 1205590 478
CF 3000 AM 1,0 1205600 478
CF 3000 AM 1,5 1205613 478
CF 3000 AM 2,5 1205626 478
CF 3000 LOC 0,25 1212377 478
CF 3000 LOC 0,5 1205639 478
CF 3000 LOC 0,75 1205642 478
CF 3000 LOC 1,0 1205655 478
CF 3000 LOC 1,5 1205668 478
CF 3000 LOC 2,5 1205671 478
CF 3000-2,5 1205477 478
CF 3000-2,5 120V 1205516 478
CF 3000-TOOLKIT 0,25 1212376 478
CF 500-120V 1208351 474
CF 500-230V 1208348 474
CF 500/COV 1212250 474
CF 500/COV AI 6 1212254 474
CF 500/COV AI TWIN 1212266 474
CF 500/COV FBS 1212462 474
CF 500/COV RC 10 1212252 474
CF 500/COV RCI 1212255 474
CF 500/COV RCT 2,5 1212253 474
CF 500/COV SC 1212251 474
CF 500/DIE AI 6 1212238 475
CF 500/DIE AI 25 1212239 475
CF 500/DIE AI 50 1212261 475
CF 500/DIE AI-TWIN 10 1212262 475
CF 500/DIE FBS 1212461 475
CF 500/DIE RC 10 1212244 475
CF 500/DIE RC 16 1212257 475
CF 500/DIE RCI 1,5 1212263 475
CF 500/DIE RCI 6 1212240 475
CF 500/DIE RCI 6-1 1212691 475
CF 500/DIE RCT 10-1 1212245 475
CF 500/DIE RCT 10-2 1212246 475
CF 500/DIE RCT 10-3 1212256 475
CF 500/DIE RCT 4 1212243 475
CF 500/DIE SC 1,5 1212241 475
CF 500/DIE SC 6 1212242 475
CF 500/DIE SR 6-2 1212692 475
CF 500/DIE TC 4 1212237 475
CF 500/DIE TC 10 1212260 475
CF 500/LOC SCF 2,8/1,5 1212249 474
CF 500/LOC SCF 4,8/2,5 1212248 474
CF 500/LOC SCF 6,3/6 1212247 474
CF 500/LOC SCM 6,3/2,5 1212264 474
CF 500/LOC SCM 6,3/6 1212265 474
CF CRIMPHANDY 1,0 1212465 384
CF CRIMPHANDY 1,0/SERVICE-TOOL1212759 384
CF CRIMPHANDY 1,5 1212466 385
CF CRIMPHANDY 1,5/SERVICE-TOOL1212708 385
CF CRIMPHANDY/ACCU 1212518 384
CF CRIMPHANDY/CHARGER 1212519 384
CF CRIMPHANDY/COVER 1212709 384
CF-10 CUTTER KNIFE SET 1207284 470
CF-10 WHEEL SET 1207271 470
CF-10 WHEEL SET PU 1200098 470
CF-10 WHEEL SET STEEL 1200099 470
CLIP-PROJECT ADVANCED 5146040 18
CLIP-PROJECT PROFESSIONAL 5146053 19
CLIPFIX 15 3022263 520
CLIPFIX 35 3022218 520
CLIPFIX 35-5 3022276 520
CMS-DISPOSABLE-PEN 0,25 TR 5146685 45
CMS-DISPOSABLE-PEN 0,35 TR 5146686 45
CMS-INK-TR-C5 5146684 45
CMS-P1-M/BN-ZB 5144725 44
CMS-P1-M/GPE 5144754 44
CMS-P1-M/GPE ENGRAVING 5145711 44
CMS-P1-M/GPE-PAD 5144880 44
CMS-P1-M/LBHZ 5144738 44
CMS-P1-M/PAB 5144741 44
CMS-P1-M/SS-ZB 5144712 44
CMS-P1-M/ZB 5144699 44
CMS-P1-M/ZBF 5144709 44
CMS-P1-M/ZBFM 5144686 44
CMS-P1-M/ZBFM-PAD 5144848 44
CMS-P1-M/ZBM 5144660 44
CMS-P1-PAD 5144819 44
CMS-P1-PAD/SPARE 5144893 44
CMS-P1-PENDEPOT 5144835 42
CMS-P1-PLOTTER 5144615 42
CMS-P1-PLOTTER-CASE 5144631 42
CMS-P1-PLOTTER-COVER 5144806 42
CMS-P1-PLOTTER-KIT 5144628 42
CMS-P1-PREPLATES 5145135 42
CMS-P1-WMU-ADAPTER 5144822 44
CMS-PEN 0,25 5067815 45
CMS-PEN 0,35 5067828 45
CMS-PEN 0,50 5067831 45
CMS-R-FLUID-TR-C2 5146752 45
CMS-R-SET-TR 5146751 45
CRIMPFOX 10 1212721 389
CRIMPFOX 10S 1212045 392
CRIMPFOX 10S CUS 1212764 439
CRIMPFOX 2,5-M 1212719 388
CRIMPFOX 25R 1212039 393
CRIMPFOX 25R CUS 1212765 437
CRIMPFOX 25R/DIE 1212040 393
Index
Alphabetical
614
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
CRIMPFOX 50R 1212041 393
CRIMPFOX 50R CUS 1212766 437
CRIMPFOX 50R/DIE 1212042 393
CRIMPFOX 6 1212034 389
CRIMPFOX 6 CUS 1212767 437
CRIMPFOX 6-M 1212720 389
CRIMPFOX 6/DIE 1212035 389
CRIMPFOX 6H 1212046 392
CRIMPFOX 6H CUS 1212768 439
CRIMPFOX 6S-F 1212043 391
CRIMPFOX 6S-F CUS 1212769 437
CRIMPFOX 6T 1212037 390
CRIMPFOX 6T CUS 1212770 437
CRIMPFOX 6T-F 1212038 391
CRIMPFOX 6T-F CUS 1212771 437
CRIMPFOX 4 IN 1 1200101 387
CRIMPFOX 4 IN 1 SET 1200102 387
CRIMPFOX 4 IN 1/MAG 1200103 387
CRIMPFOX-C 10P/DIE 1212739 407
CRIMPFOX-C D 1212734 407
CRIMPFOX-C MMJ/DIE 1212740 407
CRIMPFOX-C RJ11/DIE 1212735 407
CRIMPFOX-C RJ22/DIE 1212736 407
CRIMPFOX-C RJ45/DIE 1212737 407
CRIMPFOX-C RJ45U/DIE 1212738 407
CRIMPFOX-C120 1212318 399
CRIMPFOX-C120 AI 120/DIE 1209910 399
CRIMPFOX-C120 AI 50/F-DIE 1212337 399
CRIMPFOX-C120 AI 70/F-DIE 1212338 399
CRIMPFOX-C120 AI 70/M-DIE 1212335 399
CRIMPFOX-C120 AI 95/F-DIE 1212339 399
CRIMPFOX-C120 AI 95/M-DIE 1212336 399
CRIMPFOX-C120 R25-50/DIE 1212324 399
CRIMPFOX-C120 R35-70/DIE 1212325 399
CRIMPFOX-C120 R95/DIE 1212326 399
CRIMPFOX-C120 RC 35/F-DIE 1212332 399
CRIMPFOX-C120 RC 50/F-DIE 1212333 399
CRIMPFOX-C120 RC 70/F-DIE 1212334 399
CRIMPFOX-C120 RC 70/M-DIE 1212331 399
CRIMPFOX-C120 RCI 10/DIE 1212327 399
CRIMPFOX-C120 RCI 16/DIE 1212328 399
CRIMPFOX-C120 RCI 25/DIE 1212329 399
CRIMPFOX-C120 RCI 35/DIE 1212330 399
CRIMPFOX-C120 RCT 120-1/DIE 1212323 399
CRIMPFOX-C120 RCT 35-1/DIE 1212320 399
CRIMPFOX-C120 RCT 50-1/DIE 1212321 399
CRIMPFOX-C120 RCT 70-1/DIE 1212319 399
CRIMPFOX-C120 RCT 95-1/DIE 1212322 399
CRIMPFOX-C50 1212340 399
CRIMPFOX-C50 R25-35/DIE 1212349 399
CRIMPFOX-C50 R35-50/DIE 1212350 399
CRIMPFOX-C50 R50-70/DIE 1212351 399
CRIMPFOX-C50 RC 25/F-DIE 1212344 399
CRIMPFOX-C50 RC 35/F-DIE 1212345 399
CRIMPFOX-C50 RC 35/M-DIE 1212343 399
CRIMPFOX-C50 RCI 10/DIE 1212346 399
CRIMPFOX-C50 RCI 16/DIE 1212347 399
CRIMPFOX-C50 RCI 25/DIE 1212348 399
CRIMPFOX-C50 RCT 35-1/DIE 1212341 399
CRIMPFOX-C50 RCT 50-1/DIE 1212342 399
CRIMPFOX-CATV 8,23 1212716 404
CRIMPFOX-CATV 8,23-1 1212717 404
CRIMPFOX-CX 10,54 1212097 403
CRIMPFOX-CX 10,90 1212098 403
CRIMPFOX-CX 10,90-1 1212715 403
CRIMPFOX-CX 4,52 1212094 403
CRIMPFOX-CX 4,52-M 1212713 403
CRIMPFOX-CX 5,41-M 1212712 403
CRIMPFOX-CX 6,48 1212095 403
CRIMPFOX-CX 6,48-M 1212714 403
CRIMPFOX-CX 7,06 HD-M 1212718 403
CRIMPFOX-CX 9,14 1212096 403
CRIMPFOX-DSUB 5 1212111 404
CRIMPFOX-DSUB 5-1 1212711 404
CRIMPFOX-FO 5,41 1212099 404
CRIMPFOX-HS 6 1212722 395
CRIMPFOX-M 1212072 405
CRIMPFOX-M 10/DIE 1212080 406
CRIMPFOX-M 25/DIE 1212081 406
CRIMPFOX-M 50/DIE 1212082 406
CRIMPFOX-M CX-1/DIE 1212087 406
CRIMPFOX-M CX-2/DIE 1212088 406
CRIMPFOX-M CX-3/DIE 1212089 406
CRIMPFOX-M CX-4/DIE 1212745 406
CRIMPFOX-M CX-5/DIE 1212746 406
CRIMPFOX-M CX-6/DIE 1212747 406
CRIMPFOX-M CX-7/DIE 1212748 406
CRIMPFOX-M CX-8/DIE 1212749 406
CRIMPFOX-M HS-1/DIE 1212282 406
CRIMPFOX-M HS/DIE 1219092 406
CRIMPFOX-M RC 10-1/DIE 1212744 406
CRIMPFOX-M RC 10/DIE 1212077 406
CRIMPFOX-M RC 2,5/DIE 1212078 406
CRIMPFOX-M RC 6/DIE 1212079 406
CRIMPFOX-M RCI 2,5/DIE 1212074 406
CRIMPFOX-M RCI 6/DIE 1212073 406
CRIMPFOX-M RJ11/DIE 1212091 406
CRIMPFOX-M RJ45/DIE 1212090 406
CRIMPFOX-M SC 1/DIE 1212083 406
CRIMPFOX-M SC 2,5/DIE 1212084 406
CRIMPFOX-M SC 6-FL/DIE 1212741 406
CRIMPFOX-M SC 6/DIE 1212085 406
CRIMPFOX-M SCA 2,5-1/DIE 1212743 406
CRIMPFOX-M SCA 2,5/DIE 1212742 406
CRIMPFOX-M SET 1212093 405
CRIMPFOX-M SR 6-1/DIE 1212471 406
CRIMPFOX-M SR 6-2/DIE 1212472 406
CRIMPFOX-M SR 6-3/DIE 1212473 406
CRIMPFOX-M TC 10/DIE 1212076 406
CRIMPFOX-M TC 4/DIE 1212075 406
CRIMPFOX-RC 10 1212061 397
CRIMPFOX-RC 10 CUS 1212776 439
CRIMPFOX-RC 2,5 1212063 396
CRIMPFOX-RC 2,5 CUS 1212777 437
CRIMPFOX-RC 2,5-M 1212723 396
CRIMPFOX-RC 25 1212065 397
CRIMPFOX-RC 25 CUS 1212778 439
CRIMPFOX-RC 6 1212710 397
CRIMPFOX-RC 6-M 1212724 396
CRIMPFOX-RCI 1 1212055 394
CRIMPFOX-RCI 1 CUS 1212772 437
CRIMPFOX-RCI 1-M 1212727 394
CRIMPFOX-RCI 2,5 1212053 394
CRIMPFOX-RCI 2,5 CUS 1212773 437
CRIMPFOX-RCI 2,5-M 1212728 394
CRIMPFOX-RCI 6 1212057 395
CRIMPFOX-RCI 6 CUS 1212774 437
CRIMPFOX-RCI 6-1 1212059 395
CRIMPFOX-RCI 6-1 CUS 1212775 437
CRIMPFOX-RCI 6-M 1212730 395
CRIMPFOX-RCI DIN 6 1212729 395
CRIMPFOX-RCT 16-1 1212731 398
CRIMPFOX-RCT 25-1 1212066 398
CRIMPFOX-RCT 70-1 1212732 398
CRIMPFOX-SC 1,5 1212048 400
CRIMPFOX-SC 1,5 CUS 1212779 437
CRIMPFOX-SC 1,5-M 1212725 400
CRIMPFOX-SC 1,5/DIE 1212049 400
CRIMPFOX-SC 6 1212050 401
CRIMPFOX-SC 6 CUS 1212780 439
CRIMPFOX-SC 6/DIE 1212051 401
CRIMPFOX-SC 6L 1212052 401
CRIMPFOX-SCA 2,5-M 1212726 401
CRIMPFOX-SR 6-1 1212467 405
CRIMPFOX-SR 6-2 1212468 405
CRIMPFOX-SR 6-3 1212469 405
CRIMPFOX-TC 10 1212114 402
CRIMPFOX-TC 10/DIE 1212296 402
CRIMPFOX-TC 4 1212113 402
CRIMPFOX-TC 4/DIE 1212295 402
CRIMPFOX-TC MP 1212510 402
CRIMPFOX-TC MP-1 1212620 402
CRIMPFOX/ SPR-1 1212069 388
CRIMPFOX/ SPR-3 1212036 389
CRIMPFOX/SPR-2 1212047 392
CRIMPSET 6 1202072 433
CRIMPSET 6/25 LEER 1204041 433
CRIMPSET 25 1202580 433
CUTFOX 10 1206829 470
CUTFOX 10 BAR 1208416 470
CUTFOX 10 C-UN 1208393 470
CUTFOX 10 R-C 1208403 470
CUTFOX 100 1212135 361
CUTFOX 12 1212128 360
CUTFOX 16 VDE 1212126 363
CUTFOX 18 1212129 360
CUTFOX 25 1212130 361
CUTFOX 25 VDE 1212127 363
CUTFOX 35 1212131 361
CUTFOX 45 1212132 360
CUTFOX 50 STEEL 1212526 360
CUTFOX 52 1212133 360
CUTFOX 62 1212134 361
CUTFOX FB 1205985 362
CUTFOX-CD 1212474 369
CUTFOX-ES 1212621 360
CUTFOX-FBS 1212124 362
CUTFOX-LB VDE 1212527 363
CUTFOX-S VDE 1212207 363
CUTFOX-S VDE M 1212830 363
CUTFOX-SE 1212832 364
CUTFOX-SE LM 1212833 364
CUTFOX-SP BOLT VDE 1212831 364
CUTFOX-SP VDE 1212206 363
D
DUSPOL EXPERT 1209091 426
E
E AB A 130X80X60 12PT 3001999 497
E AB A 130X80X60 12TB 3002003 499
E AB A 180X130X100 20PT 3002001 497
E AB A 180X130X100 20TB 3002004 499
E AB A 85X83X60 6PT 3001998 496
E AB A 85X83X60 6TB 3002002 498
E S6 A 100X100X80 0899000 486
E S6 A 120X120X100 0899009 486
E S6 A 150X100X80 0899001 486
E S6 A 150X150X100 0899010 487
E S6 A 150X150X80 0899003 487
E S6 A 200X100X80 0899002 486
E S6 A 200X150X80 0899004 487
E S6 A 200X200X120 0899011 487
E S6 A 200X200X160 0899017 488
E S6 A 200X200X80 0899007 487
E S6 A 200X300X120 0899015 487
E S6 A 200X300X160 0899023 488
E S6 A 260X260X160 0899019 488
E S6 A 260X300X200 0899077 490
E S6 A 260X380X160 0899029 488
E S6 A 300X150X80 0899005 487
E S6 A 300X200X120 0899012 487
E S6 A 300X200X80 0899008 487
E S6 A 300X300X120 0899016 487
E S6 A 300X300X160 0899025 488
E S6 A 300X300X200 0899078 490
E S6 A 300X400X200 0899079 490
E S6 A 300X500X160 0899039 488
E S6 A 350X500X160 0899043 488
E S6 A 380X380X160 0899031 488
E S6 A 382X458X160 0899035 488
E S6 A 400X150X80 0899006 487
E S6 A 400X200X120 0899013 487
E S6 A 400X260X160 0899021 488
E S6 A 400X300X160 0899027 488
E S6 A 400X400X200 0899080 490
E S6 A 400X500X160 0899041 488
E S6 A 450X620X160 0899045 488
E S6 A 480X480X160 0899037 488
E S6 A 500X400X160 0899033 488
E S6 A 600X200X120 0899014 487
E/AL-NS 35 1201662 521
E/MBK 1401637 521
E/MK 1 1421659 521
E/NS 35 N 0800886 521
E/UK 1201442 520
E/UK 1 1201413 520
E1 S6 A 200X200X160 0899018 489
E1 S6 A 200X300X160 0899024 489
E1 S6 A 260X260X160 0899020 489
E1 S6 A 260X380X160 0899030 489
E1 S6 A 300X300X160 0899026 489
E1 S6 A 300X500X160 0899040 489
E1 S6 A 350X500X160 0899044 489
E1 S6 A 380X380X160 0899032 489
E1 S6 A 382X458X160 0899036 489
E1 S6 A 400X260X160 0899022 489
E1 S6 A 400X300X160 0899028 489
E1 S6 A 400X500X160 0899042 489
E1 S6 A 450X620X160 0899046 489
E1 S6 A 480X480X160 0899038 489
E1 S6 A 500X400X160 0899034 489
EA 4 0805360 528
EA 5 1024014 528
EA 5-WS 1024085 528
EA 7 1024250 528
EA 11 1024263 528
EC 10 3240176 537
EC 10 BK 3240177 537
EC 16 3240179 537
EC 16 BK 3240180 537
EC 16 P TR 3240182 535
EC 2,5 P TR 3240167 534
EC 25 3240183 537
EC 25 BK 3240184 537
EC 4 3240168 536
EC 4 BK 3240169 536
EC 4 P TR 3240171 535
EC 6 3240172 536
EC 6 BK 3240173 536
EC 6 P TR 3240175 535
EK 116 0401010 531
EK 135 0401023 531
EM-DUO 120/15 5600461 541
EM-DUO/120/15/GFI 5600462 541
EMG 45-SD-D/LA/SI 2943738 540
EMG 45-SD-D/LA/SI YE 2940825 540
EMG 90-2SD-D/LA 2941523 540
EML (100X73)R 0817125 264
EML (100X73)R YE 0817138 265
EML (100X90)R 0817154 264
EML (100X90)R SR 0817141 265
EML (10X4)R 0815583 264
EML (10X7)R 0816663 264
EML (10X7)R YE 0816676 265
EML (110XE)R 0815596 266
EML (110XE)R YE 0815606 267
EML (15X9)R 0815677 264
EML (15X9)R YE 0816045 265
EML (16,5X5)R 0816702 264
EML (16,5X5)R YE 0816728 265
EML (16,5X5)RL 0816113 266
EML (16,5X5)RL YE 0816126 267
EML (16X7)R 0818001 264
EML (16X7)R YE 0816731 265
EML (17,5X8)R 0816744 264
EML (17,5X8)R YE 0816757 265
EML (17,5X8)RL YE 0816139 267
EML (19X6)R 0816760 264
EML (19X6)R YE 0800107 265
EML (19X6,4)RL 0816142 266
EML (20X7)R YE 0816773 265
EML (20X8)R 0816786 264
EML (20X8)R YE 0816799 265
EML (21,5X21,5)R SR 0816812 265
EML (25,4X12,7)R 0816825 264
EML (25,4X12,7)R YE 0816838 265
EML (26,5X12)R SR 0816854 265
EML (26,5X17,5)R YE 0816896 265
EML (26,5X18,5)R SR 0816906 265
EML (26,5X7,5)R SR 0816841 265
EML (30X20)R 0816922 264
EML (30X20)R YE 0816935 265
Index
Alphabetical
615
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
EML (30X20)RL YE 0816168 267
EML (32X25)R YE 0800020 265
EML (37XE)RL TR 0815716 266
EML (38,1X19)RL 0816171 266
EML (38X17)R 0816951 264
EML (40X15)R SR 0815729 265
EML (40X25)R 0818027 264
EML (40X25)R YE 0816977 265
EML (40X8)R 0816980 264
EML (50,8X25,4)RL 0816184 266
EML (51X12,5)R TR 0815745 266
EML (51X25)R 0817028 264
EML (51X25)R YE 0817031 265
EML (69,8X31,8)RL 0816197 266
EML (70X32)R 0817060 264
EML (70X32)R YE 0817073 265
EML (70X50)R 0817099 264
EML (76,2X6,5)RL YE 0816207 267
EML (90X5)R 0817109 264
EML (D17,5)R 0815774 266
EML (100X30)R YE 0801816 265
EML (100X40)R-EX 0803258 268
EML (100X73)R SR 0817112 265
EML (100X73)R-EX 0803259 268
EML (100X90)R-EX 0803260 268
EML (100XE)RL SR 0815787 267
EML (101,6X25,4)RL SR 0815790 267
EML (105X23)R 0803137 264
EML (10X4)R-EX 0803251 268
EML (110XE)R SR 0801994 267
EML (15X6) R YE 0819288 265
EML (15X6)R 0803275 264
EML (15X9)R SR 0816032 265
EML (15X9)R-EX 0803253 268
EML (18X6)RL YE 0828460 267
EML (18X7)RL YE 0802733 267
EML (20X8)R-EX 0803254 268
EML (20X8)RXL 0802762 266
EML (24X3)R 0830291 264
EML (24X4)R 0800061 264
EML (25,4X12,7)R TR 0801841 266
EML (25,4X12,7)RL 0816087 266
EML (26,5X17,5)R SR 0816883 265
EML (26,5X26,5)R SR 0816919 265
EML (30X20)R-EX 0803255 268
EML (36X25)R 0803136 264
EML (40X25)R-EX 0803256 268
EML (40X6)R 0830481 264
EML (40X6)R YE 0830482 265
EML (50X10)R 0830483 199
EML (50X10)R YE 0830484 265
EML (51X25)R SR 0817002 265
EML (70X32)R SR 0817057 265
EML (70X50)R SR 0817086 265
EML (70X50)R-EX 0803257 268
EML (75X10)R 0830485 264
EML (75X10)R YE 0830486 265
EML (80X20)R 0803138 264
EML-ESD (15X15)R 0830566 276
EML-ESD (15X15)RL-T 0830578 276
EML-ESD (15X6)R 0830565 276
EML-ESD (15X6)RL-T 0830577 276
EML-ESD (20X7)R 0830567 276
EML-ESD (20X7)RL-T 0830579 276
EML-ESD (24X4)R 0830568 276
EML-ESD (24X4)RL-T 0830580 276
EML-ESD (25,4X12,7)R 0830570 276
EML-ESD (25,4X12,7)RL-T 0830582 276
EML-ESD (25X8)R 0830569 276
EML-ESD (25X8)RL-T 0830581 276
EML-ESD (32X10)R 0830571 276
EML-ESD (32X10)RL-T 0830583 276
EML-ESD (35X6,5)R 0830572 276
EML-ESD (35X6,5)RL-T 0830584 276
EML-ESD (40X15)R 0830573 276
EML-ESD (40X15)RL-T 0830585 276
EML-ESD (45X5)R 0830574 276
EML-ESD (45X5)RL-T 0830586 276
EML-ESD (50X10)R 0830575 276
EML-ESD (50X10)RL-T 0830587 276
EML-ESD (8X8)R 0830564 276
EML-ESD (8X8)RL-T 0830576 276
EML-HA (100X73)R 0830731 274
EML-HA (100X73)R SR 0830735 274
EML-HA (100X90)R 0830732 274
EML-HA (100X90)R SR 0830736 274
EML-HA (15X9)R 0830600 274
EML-HA (15X9)R SR 0830611 274
EML-HA (19X6)R 0830601 274
EML-HA (19X6)R SR 0830612 274
EML-HA (20X20)R 0830602 274
EML-HA (20X20)R SR 0830613 274
EML-HA (26,5X12)R 0830603 274
EML-HA (26,5X12)R SR 0830614 274
EML-HA (40X15)R 0830605 274
EML-HA (40X15)R SR 0830616 274
EML-HA (40X8)R 0830604 274
EML-HA (40X8)R SR 0830615 274
EML-HA (51X25)R 0830729 274
EML-HA (51X25)R SR 0830733 274
EML-HA (60X30)R 0830606 274
EML-HA (60X30)R SR 0830617 274
EML-HA (70X150)R 0830608 274
EML-HA (70X150)R SR 0830619 274
EML-HA (70X32)R 0830607 274
EML-HA (70X32)R SR 0830618 274
EML-HA (70X50)R 0830730 274
EML-HA (70X50)R SR 0830734 274
EML-HA (76X51)R 0830609 274
EML-HA (76X51)R SR 0830620 274
EML-HA (85X32)R 0830610 274
EML-HA (85X32)R SR 0830621 274
EML-HT (15X15)R 0800341 275
EML-HT (15X15)RL-T 0830653 275
EML-HT (15X6)R 0830644 275
EML-HT (15X6)RL-T 0830652 275
EML-HT (20X7)R 0830645 275
EML-HT (20X7)RL-T 0830654 275
EML-HT (24X4)R 0830646 275
EML-HT (24X4)RL-T 0830655 275
EML-HT (25,4X12,7)R 0830648 275
EML-HT (25,4X12,7)RL-T 0830657 275
EML-HT (25X8)R 0830647 275
EML-HT (25X8)RL-T 0830656 275
EML-HT (32X10)R 0830649 275
EML-HT (32X10)RL-T 0830658 275
EML-HT (35X6,5)R 0830650 275
EML-HT (35X6,5)RL-T 0830659 275
EML-HT (40X15)R 0800339 275
EML-HT (40X15)RL-T 0830660 275
EML-HT (45X5)R 0800337 275
EML-HT (45X5)RL-T 0830661 275
EML-HT (50X10)R 0800338 275
EML-HT (50X10)RL-T 0830662 275
EML-HT (8X8)R 0800340 275
EML-HT (8X8)RL-T 0830651 275
EML-HT (D12)R 0801376 275
EML-RM (15X15)R 0830530 277
EML-RM (15X15)RL-T 0830542 277
EML-RM (15X6)R 0830529 277
EML-RM (15X6)RL-T 0830541 277
EML-RM (20X7)R 0830531 277
EML-RM (20X7)RL-T 0830543 277
EML-RM (24X4)R 0830532 277
EML-RM (24X4)RL-T 0830544 277
EML-RM (25,4X12,7)R 0830534 277
EML-RM (25,4X12,7)RL-T 0830546 277
EML-RM (25X8)R 0830533 277
EML-RM (25X8)RL-T 0830545 277
EML-RM (32X10)R 0830535 277
EML-RM (32X10)RL-T 0830547 277
EML-RM (35X6,5)R 0830536 277
EML-RM (35X6,5)RL-T 0830548 277
EML-RM (40X15)R 0830537 277
EML-RM (40X15)RL-T 0830549 277
EML-RM (45X5)R 0830538 277
EML-RM (45X5)RL-T 0830550 277
EML-RM (50X10)R 0830539 277
EML-RM (50X10)RL-T 0830551 277
EML-RM (70X50)R 0803186 277
EML-RM (8X8)R 0830528 277
EML-RM (8X8)RL-T 0830540 277
EML-RS (45,7X45,7)R 0803387 279
EML-RS (45,7X45,7)R SR 0803187 279
EMLC (5,5X20)R 0817617 273
EMLC (5,5X40)R 0817620 273
EMLC (15X9)R YE 0800236 273
EMLC (17,5X8)R YE 0800237 273
EMLC (20X8)R 0815680 273
EMLC (20X8)R YE 0800235 273
EMLC (20X8)RL YE 0815800 273
EMLC (25,4X12,7)R YE 0800238 273
EMLC (25X8)R YE 0800240 273
EMLC (38X17)R YE 0800557 273
EMLC (40X8)R 0800554 273
EMLC (40X8)R YE 0800555 273
EMLC (51X25)R YE 0800558 273
EMLF (108XE)R 0800549 272
EMLF (108XE)R SR 0800551 272
EMLF (108XE)R TR 0800552 272
EMLF (108XE)R YE 0800550 272
EMLP (13X9)R 0819453 269
EMLP (17,5X12)R 0819466 269
EMLP (17,5X15)R 0802684 269
EMLP (17,5X15)R SR 0802685 269
EMLP (17X7)R 0826844 269
EMLP (20X7)R 0819479 269
EMLP (20X8)R 0819482 269
EMLP (22X12)R 0819495 269
EMLP (22X22)R SR 0825528 269
EMLP (27X12,5)R SR 0819521 269
EMLP (27X18)R SR 0819534 269
EMLP (27X27)R SR 0827467 269
EMLP (27X8)R SR 0819518 269
EMLP (45X15)R 0801820 269
EMLP (45X15)R SR 0819547 269
EMLP (45X25)R 0802727 269
EMLP (60X30)R 0819505 269
EMLP (60X30)R SR 0801729 269
EMLP (65X25)R 0802728 269
EMLP (EX15)R 0802686 270
EMLP (EX15)R BK 0803279 270
EMLP (EX15)R BU 0803277 270
EMLP (EX15)R RD 0803280 270
EMLP (EX15)R SR 0802687 270
EMLP (EX15)R YE 0803276 270
EMLP (EX30)R 0802688 270
EMLP (EX30)R RD 0803436 270
EMLP (EX30)R SR 0802689 270
EMLP 24 (30X12) 0822301 285
EMLP 24 (30X12) BK 0822314 285
EMLP 24 (30X12) SR 0822330 285
EMLP 24 (30X12)R 0819550 271
EMLP 24 (30X12)R GN 0819589 271
EMLP 24 (30X12)R RD 0819576 271
EMLP 24 (30X12)R SR 0819563 271
EMLP 30(45X10)R 0801855 272
EMLP 30(45X10)R BK 0801858 272
EMLP 30(45X10)R YE 0801857 272
EMLP 32 (38X14) 0822291 285
EMLP 32 (38X14) BK 0822327 285
EMLP 32 (38X14) SR 0822343 285
EMLP-AL (100X60) 0830515 237
EMLP-AL (27X15) 0830508 237
EMLP-AL (27X18) 0830509 237
EMLP-AL (49X15) 0830511 237
EMLP-AL (60X15) 0830512 237
EMLP-AL (60X30) 0830513 237
EMLP-AL (85,6X54) 0830514 237
EMLPR (100X30) 0800362 287
EMLPR (26,5X14,5) 0800546 287
EMLPR (26,5X17,5) 0800360 287
EMLPR (26,5X26,5) 0800361 287
EMLPR (30X40) 0800359 287
EMLPR (80X42) 0800357 287
EMLPR (80X60) 0800358 287
EMLS (15X9)R SR 0800347 278
EMLS (19X6)R SR 0800343 278
EMLS (20X20)R SR 0800344 278
EMLS (26,5X12)R SR 0800353 278
EMLS (38,1X19)R SR 0800354 278
EMLS (40X15)R SR 0800345 278
EMLS (40X8)R SR 0800348 278
EMLS (60X30)R SR 0800355 278
EMLS (70X150)R SR 0800351 278
EMLS (70X32)R SR 0800346 278
EMLS (76X51)R SR 0800350 278
EMLS (85X32)R SR 0800356 278
EMP-AL (27X15) 0830776 239
EMP-AL (27X18) 0830777 239
EMP-AL (49X15) 0830778 239
EMP-AL (60X15) 0830779 239
EMP-AL (60X30) 0830796 239
EMP-AL (85,6X54) 0830797 239
EMP-V4A CS DOOR 0839001 486
EMP-V4A CS LID 0839003 487
EMP-V4A CS LID-S 0839005 486
EMPPR (27X15) 0829535 287
EMPPR (27X18) 0829536 287
EMPPR (45,8X45,8) 0803389 279
EMSP-AL (39X15) 0830510 238
EMSP-AL (50X15) 0830773 238
EMSP-AL (50X30) 0830502 238
EMSP-AL (75,6X54) 0830503 238
EMSP-AL (90X60) 0830504 238
EMT (10X4)R 0816235 194
EMT (15X4)R 0817329 194
EMT (15X4)R BU 0817332 194
EMT (15X4)R RD 0816249 194
EMT (15X4)R YE 0817358 194
EMT (23X4)R 0817361 194
EMT (23X4)R YE 0817374 194
EMT (24X4)R 0816265 194
EMT (25X6)R 0817264 194
EMT (29X8)R 0817277 194
EMT (29X8)R YE 0817280 194
EMT (40X17)R 0817293 194
EMT (103X17)R 0800039 281
EMT (103X17)R TQ 0800041 281
EMT (103X17)R YE 0800436 281
EMT (103X23)R 0800040 281
EMT (103X23)R TQ 0800042 281
EMT (103X23)R YE 0800437 281
EMT (23X109)R 0803457 281
EMT (23X109)R GY 0803460 281
EMT (23X109)R TQ 0803458 281
EMT (23X109)R YE 0803459 281
EMT (31X12,5)R 0800008 281
EMT (31X12,5)R GY 0801612 281
EMT (31X12,5)R YE 0802764 281
EMT (35X28)R 0801602 280
EMT (35X28)R YE 0801603 280
EMT (35X46)R 0801604 280
EMT (35X46)R YE 0801605 280
EMT (50/28X13)R 0800049 281
EMT (50/28X13)R RD 0832082 281
EMT (50/28X13)R TQ 0800050 281
EMT (50/28X13)R YE 0800438 281
EMT (50X26)R 0800052 281
EMT (50X26)R TQ 0800053 281
EMT (50X26)R YE 0800054 281
EMT (60X15)R 0801846 194
EMT (62X10)R 0800057 280
EMT (62X10)R YE 0800477 280
EMT (62X46)R 0800059 280
EMT (62X46)R YE 0800478 280
EMT (EX14)R 0803461 281
EMT (EX14)R TQ 0803462 281
EMT (EX14)R YE 0803463 281
EMT (EX15)R 0830671 279
ES-SSMK-GB 60X18 5032468 290
ES-SSMK-GB 96X30 5032455 290
ESL (25X6) 0801849 200
ESL (60X15) 0801851 201
ESL 24X4 0808231 203
ESL 26X6 0808105 97
ESL 29X8 0808257 201
ESL 40X17 0808095 201
ESL 44X7 0808244 523
Index
Alphabetical
616
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
G
G-EDSWU-M20-M66L-STES-S 1411091 503
G-EDSWU-M20S-S66L-STES-S 1411089 503
G-EDSWU-M25-M66L-STES-S 1411093 503
G-EDSWU-M32-L66L-STES-S 1411095 503
G-EDSWU-M40-L66L-STES-S 1411099 503
G-EDSWU-M50-L66L-STES-S 1411101 503
G-EDSWU-M63-L66L-STES-S 1411103 503
G-ESIS-M12-S68L-PEPDS-BK 1415106 500
G-ESIS-M12-S68L-PEPDS-BL 1415114 500
G-ESIS-M12-S68N-NEPDS-S 1415123 501
G-ESIS-M16-S68L-PEPDS-BK 1415107 500
G-ESIS-M16-S68L-PEPDS-BL 1415116 500
G-ESIS-M16-S68N-NEPDS-S 1415124 501
G-ESIS-M20-S68L-PEPDS-BK 1415108 500
G-ESIS-M20-S68L-PEPDS-BL 1415117 500
G-ESIS-M20-S68N-NEPDS-S 1415125 501
G-ESIS-M25-M68L-PEPDS-BK 1415109 500
G-ESIS-M25-M68L-PEPDS-BL 1415118 500
G-ESIS-M25-M68N-NEPDS-S 1415126 501
G-ESIS-M32-M68L-NEPDS-S 1415127 501
G-ESIS-M32-M68L-PEPDS-BK 1415110 500
G-ESIS-M32-M68L-PEPDS-BL 1415119 500
G-ESIS-M40-M68L-NEPDS-S 1415129 501
G-ESIS-M40-M68L-PEPDS-BK 1415111 500
G-ESIS-M40-M68L-PEPDS-BL 1415120 500
G-ESIS-M50-L68L-NEPDS-S 1415146 501
G-ESIS-M50-L68L-PEPDS-BK 1415112 500
G-ESIS-M50-L68L-PEPDS-BL 1415121 500
G-ESIS-M63-L68L-NEPDS-S 1415147 501
G-ESIS-M63-L68L-PEPDS-BK 1415113 500
G-ESIS-M63-L68L-PEPDS-BL 1415122 500
G-ESISEC-M12-S68N-NEPDS-S 1415148 501
G-ESISEC-M16-S68N-NEPDS-S 1415149 501
G-ESISEC-M20-S68N-NEPDS-S 1415163 501
G-ESISEC-M25-M68N-NEPDS-S 1415165 501
G-ESISEC-M32-M68L-NEPDS-S 1415166 501
G-ESISEC-M40-M68L-NEPDS-S 1415168 501
G-ESISEC-M50-L68L-NEPDS-S 1415169 501
G-ESISEC-M63-L68L-NEPDS-S 1415170 501
G-ESS-M20-S66L-NTES-S 1411075 502
G-ESS-M20-S66L-STES-S 1411076 502
G-ESS-M25-M66L-NTES-S 1411077 502
G-ESS-M25-M66L-STES-S 1411078 502
G-ESS-M32-M66L-NTES-S 1411079 502
G-ESS-M32-M66L-STES-S 1411080 502
G-ESS-M40-L66L-NTES-S 1411081 502
G-ESS-M40-L66L-STES-S 1411082 502
G-ESS-M50-L66L-NTES-S 1411084 502
G-ESS-M50-L66L-STES-S 1411085 502
G-ESS-M63-L66L-NTES-S 1411086 502
G-ESS-M63-L66L-STES-S 1411087 502
G-ESSWU-M20-M66L-NTES-S 1411090 503
G-ESSWU-M20S-S66L-NTES-S 1411088 503
G-ESSWU-M25-M66L-NTES-S 1411092 503
G-ESSWU-M32-L66L-NTES-S 1411094 503
G-ESSWU-M40-L66L-NTES-S 1411097 503
G-ESSWU-M50-L66L-NTES-S 1411100 503
G-ESSWU-M63-L66L-NTES-S 1411102 503
GBS 3,5-25X12 0830292 97
GBS 3,5-25X3,5 0830290 97
GBS 5-25X12 0810588 97
GBS 5-25X5 0829126 97
GBS-ZB/26X6 0809298 97
GKM 1 GY 1750498 208
GKM 2 GY 1750485 209
GLM 4 1201769 518
GLM 5 1201772 518
GLM 6 1201785 518
GPE 13X 9 WH 0806932 284
GPE 17,5X12 WH 0806916 284
GPE 20X 7 WH 0806990 284
GPE 20X 8 WH 0806945 284
GPE 22X12 WH 0806929 284
GPE 22X22 SR/R 0806628 284
GPE 27X 8 SR/R 0806877 284
GPE 27X 8 WH/R 0815198 284
GPE 27X12,5 SR/R 0806880 284
GPE 27X18 SR/R 0806893 284
GPE 27X18 WH/R 0815208 284
GPE 27X27 SR/R 0806903 284
GPE 28X17,5 SR 0807889 284
GPE 45X14 SR/R 0807009 284
GPE 45X14 WH/R 0815282 284
GPE 52X26 WH 0806958 284
GPE 60X12 RD-WH 0824202 284
GPE 60X12 SR/R 0806631 284
GPE 60X12 WH/R 0807630 284
GPE 60X30 WH 0806961 284
GPE 60X30 WH/R 0815292 284
GPE 70X32 YE 0824215 284
J
JBC 2,5/3 3240164 538
JBC 2,5/5 3240165 539
JBC 2,5/8 3240166 539
K
KLM 1004306 522
KLM 1 1004319 522
KLM 2 0807575 522
KLM 3 0811969 522
KLM 3-L 0814788 522
KLM-A 1004348 523
KME 0807083 203
KMK 1005208 202
KMK 1 0830745 200
KMK 2 1005266 201
KMK 3 1005211 203
KMK 4 1005305 201
KMK 5 0830746 201
KMK HP (25X6) 0830720 204
KMK HP (29X8) 0830721 205
KMK HP (40X17) 0830723 205
KMK HP (60X15) 0830722 205
KMK UV (25X6) 1014106 206
KMK UV (29X8) 1014107 207
KMK UV (40X17) 1014109 207
KMK UV (60X15) 1014108 207
KMV 0806644 213
KMV 44X9,6 0812007 213
L
LM 1004377 203
LS-EML (180X180) BK-WH 0831784 235
LS-EMLP (100X60) SR 0831726 233
LS-EMLP (100X60) WH 0831699 232
LS-EMLP (100X60) YE 0831753 233
LS-EMLP (11X9) SR 0831705 233
LS-EMLP (11X9) WH 0831678 232
LS-EMLP (11X9) YE 0831732 233
LS-EMLP (13X9) SR 0831706 233
LS-EMLP (13X9) WH 0831679 232
LS-EMLP (13X9) YE 0831733 233
LS-EMLP (17,5X12) SR 0831709 233
LS-EMLP (17,5X12) WH 0831682 232
LS-EMLP (17,5X12) YE 0831736 233
LS-EMLP (17,5X15) SR 0831710 233
LS-EMLP (17,5X15) WH 0831683 232
LS-EMLP (17,5X15) YE 0831737 233
LS-EMLP (17X7) SR 0831707 233
LS-EMLP (17X7) WH 0831680 232
LS-EMLP (17X7) YE 0831734 233
LS-EMLP (17X9) SR 0831708 233
LS-EMLP (17X9) WH 0831681 232
LS-EMLP (17X9) YE 0831735 233
LS-EMLP (20X7) SR 0831711 233
LS-EMLP (20X7) WH 0831684 232
LS-EMLP (20X7) YE 0831738 233
LS-EMLP (20X8) SR 0831712 233
LS-EMLP (20X8) WH 0831685 232
LS-EMLP (20X8) YE 0831739 233
LS-EMLP (22X12) SR 0831713 233
LS-EMLP (22X12) WH 0831686 232
LS-EMLP (22X12) YE 0831740 233
LS-EMLP (22X22) SR 0831714 233
LS-EMLP (22X22) WH 0831687 232
LS-EMLP (22X22) YE 0831741 233
LS-EMLP (27X12,5) SR 0831716 233
LS-EMLP (27X12,5) WH 0831689 232
LS-EMLP (27X12,5) YE 0831743 233
LS-EMLP (27X15) SR 0831717 233
LS-EMLP (27X15) WH 0831690 232
LS-EMLP (27X15) YE 0831744 233
LS-EMLP (27X18) SR 0831718 233
LS-EMLP (27X18) WH 0831691 232
LS-EMLP (27X18) YE 0831745 233
LS-EMLP (27X27) SR 0831719 233
LS-EMLP (27X27) WH 0831692 232
LS-EMLP (27X27) YE 0831746 233
LS-EMLP (27X8) SR 0831715 233
LS-EMLP (27X8) WH 0831688 232
LS-EMLP (27X8) YE 0831742 233
LS-EMLP (45X14) SR 0831720 233
LS-EMLP (45X14) WH 0831693 232
LS-EMLP (45X14) YE 0831747 233
LS-EMLP (45X15) SR 0831721 233
LS-EMLP (45X15) WH 0831694 232
LS-EMLP (45X15) YE 0831748 233
LS-EMLP (49X15) SR 0831722 233
LS-EMLP (49X15) WH 0831695 232
LS-EMLP (49X15) YE 0831749 233
LS-EMLP (60X15) SR 0831723 233
LS-EMLP (60X15) WH 0831696 232
LS-EMLP (60X15) YE 0831750 233
LS-EMLP (60X30) SR 0831724 233
LS-EMLP (60X30) WH 0831697 232
LS-EMLP (60X30) YE 0831751 233
LS-EMLP (85,6X54) SR 0831725 233
LS-EMLP (85,6X54) WH 0831698 232
LS-EMLP (85,6X54) YE 0831752 233
LS-EMLP 24 (30X12) SR 0831727 234
LS-EMLP 24 (30X12) WH 0831700 234
LS-EMLP 24 (30X12) YE 0831754 234
LS-EMLP 30 (45X10) SR 0831728 234
LS-EMLP 30 (45X10) WH 0831701 234
LS-EMLP 30 (45X10) YE 0831755 234
LS-EMLP 32 (38X14) SR 0831729 234
LS-EMLP 32 (38X14) WH 0831702 234
LS-EMLP 32 (38X14) YE 0831756 234
LS-EMLP-AL (100X60) 0831586 228
LS-EMLP-AL (100X60) BK 0831595 229
LS-EMLP-AL (27X15) 0831580 228
LS-EMLP-AL (27X15) BK 0831589 229
LS-EMLP-AL (27X18) 0831581 228
LS-EMLP-AL (27X18) BK 0831590 229
LS-EMLP-AL (49X15) 0831582 228
LS-EMLP-AL (49X15) BK 0831591 229
LS-EMLP-AL (60X15) 0831583 228
LS-EMLP-AL (60X15) BK 0831592 229
LS-EMLP-AL (60X30) 0831584 228
LS-EMLP-AL (60X30) BK 0831593 229
LS-EMLP-AL (60X30) BU 0831606 229
LS-EMLP-AL (60X30) GN 0831610 229
LS-EMLP-AL (60X30) OG 0831602 229
LS-EMLP-AL (60X30) RD 0831598 229
LS-EMLP-AL (85,6X54) 0831585 228
LS-EMLP-AL (85,6X54) BK 0831594 229
LS-EMLP-AL (85,6X54) BU 0831607 229
LS-EMLP-AL (85,6X54) GN 0831611 229
LS-EMLP-AL (85,6X54) OG 0831603 229
LS-EMLP-AL (85,6X54) RD 0831599 229
LS-EMP-AL (100X60) 0831667 230
LS-EMP-AL (100X60) BK 0831675 231
LS-EMP-AL (27X15) 0831661 230
LS-EMP-AL (27X15) BK 0831669 231
LS-EMP-AL (27X18) 0831662 230
LS-EMP-AL (27X18) BK 0831670 231
LS-EMP-AL (49X15) 0831663 230
LS-EMP-AL (49X15) BK 0831671 231
LS-EMP-AL (60X15) 0831664 230
LS-EMP-AL (60X15) BK 0831672 231
LS-EMP-AL (60X30) 0831665 230
LS-EMP-AL (60X30) BK 0831673 231
LS-EMP-AL (85,6X54) 0831666 230
LS-EMP-AL (85,6X54) BK 0831674 231
LS-EMSP-AL (110X80) 0831620 227
LS-EMSP-AL (110X80) BK 0831631 227
LS-EMSP-AL (150X120) 0831622 227
LS-EMSP-AL (150X120) BK 0831633 227
LS-EMSP-AL (150X80) 0831621 227
LS-EMSP-AL (150X80) BK 0831632 227
LS-EMSP-AL (170X180) 0831623 227
LS-EMSP-AL (170X180) BK 0831634 227
LS-EMSP-AL (39X15) 0831615 227
LS-EMSP-AL (39X15) BK 0831626 227
LS-EMSP-AL (50X15) 0831616 227
LS-EMSP-AL (50X15) BK 0831627 227
LS-EMSP-AL (50X30) 0831617 227
LS-EMSP-AL (50X30) BK 0831628 227
LS-EMSP-AL (50X30) BU 0831645 227
LS-EMSP-AL (50X30) GN 0831649 227
LS-EMSP-AL (50X30) OG 0831641 227
LS-EMSP-AL (50X30) RD 0831637 227
LS-EMSP-AL (75,6X54) 0831618 227
LS-EMSP-AL (75,6X54) BK 0831629 227
LS-EMSP-AL (75,6X54) BU 0831646 227
LS-EMSP-AL (75,6X54) GN 0831650 227
LS-EMSP-AL (75,6X54) OG 0831642 227
LS-EMSP-AL (75,6X54) RD 0831638 227
LS-EMSP-AL (90X60) 0831619 227
LS-EMSP-AL (90X60) BK 0831630 227
LS-EMSP-V4A (39X15) 0831653 226
LS-EMSP-V4A (50X15) 0831654 226
LS-EMSP-V4A (50X30) 0831655 226
LS-EMSP-V4A (75,6X54) 0831656 226
LS-EMSP-V4A (90X60) 0831657 226
LS-WMTB-AL (100X15) 0831503 157
LS-WMTB-AL (100X15) BK 0831511 157
LS-WMTB-AL (29X8) 0831500 157
LS-WMTB-AL (29X8) BK 0831508 157
LS-WMTB-AL (40X15) 0831501 157
LS-WMTB-AL (40X15) BK 0831509 157
LS-WMTB-AL (60X15) 0831502 157
LS-WMTB-AL (60X15) BK 0831510 157
LS-WMTB-AL (D25) 0831504 159
LS-WMTB-AL (D25) BK 0831512 159
LS-WMTB-AL (D30) 0831505 159
LS-WMTB-AL (D30) BK 0831513 159
LS-WMTB-V4A (100X15) 0831519 157
LS-WMTB-V4A (29X8) 0831516 157
LS-WMTB-V4A (40X15) 0831517 157
LS-WMTB-V4A (60X15) 0831518 157
LS-WMTB-V4A (D25) 0831520 159
LS-WMTB-V4A (D30) 0831521 159
M
MARKING BOX 5147100 38
MARKING BOX DE CH 0801749 38
MARKING BOX DK DK 0801741 38
MARKING BOX EN 5147101 38
MARKING BOX EN BE 0801742 38
MARKING BOX ES ES 0801747 38
MARKING BOX FR FR 0801590 38
MARKING BOX HU HU 0801750 38
MARKING BOX IT IT 0801745 38
MARKING BOX PL US 0801744 38
MARKING BOX PT PT 0801748 38
MARKING BOX RU RU 0801739 38
MARKING BOX SE SE 0801740 38
MICROFOX-E 1212494 372
MICROFOX-E ESD 1212485 373
MICROFOX-EO 1212495 372
Index
Alphabetical
617
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
MICROFOX-F 1212493 372
MICROFOX-F ESD 1212484 373
MICROFOX-P 1212491 372
MICROFOX-P ESD 1212482 373
MICROFOX-PC 1212492 372
MICROFOX-PC ESD 1212483 373
MICROFOX-R 1212490 372
MICROFOX-R ESD 1212481 373
MICROFOX-S ESD 1212480 373
MICROFOX-SB 1212489 372
MICROFOX-SP 1212488 372
MICROFOX-SP-1 1212487 372
MINI FD BLUETOOTH 0830986 23
N
NLS-CU 3/10 SN 1000MM 0402174 530
NLS-CU 6/ 6 SN 1000MM 0402161 530
NS 15 AL PERF 2000MM 1401763 509
NS 15 PERF 2000MM 1401682 509
NS 15 PERF/... 1208102 509
NS 15 UNPERF 2000MM 1401695 508
NS 15 UNPERF/... 1208089 508
NS 15 UNPERF/SO/... 1208092 508
NS 15 WH PERF 2000MM 1204096 509
NS 30/15 PERF.2000MM 3240262 557
NS 32 PERF 2000MM 1201002 518
NS 32 UNPERF 2000MM 1201015 518
NS 35/ 7,5 AL UNPERF 2000MM 0801704 512
NS 35/ 7,5 CAP 1206560 525
NS 35/ 7,5 CU UNPERF 2000MM 0801762 511
NS 35/ 7,5 PERF 755MM 1207640 513
NS 35/ 7,5 PERF 1000MM 1207651 513
NS 35/ 7,5 PERF 1155MM 1207666 513
NS 35/ 7,5 PERF 2000MM 0801733 513
NS 35/ 7,5 PERF/... 1208131 513
NS 35/ 7,5 UNPERF 1000MM 1207649 510
NS 35/ 7,5 UNPERF 2000MM 0801681 510
NS 35/ 7,5 UNPERF/... 1208115 510
NS 35/ 7,5 UNPERF/SO/... 1208128 510
NS 35/ 7,5 V2A UNPERF 2000MM 0801377 512
NS 35/ 7,5 WH UNPERF 2000MM 1204122 511
NS 35/ 7,5 ZN PERF 2000MM 1206421 513
NS 35/ 7,5 ZN UNPERF 2000MM 1206434 511
NS 35/15 AL UNPERF 2000MM 1201756 518
NS 35/15 AL UNPERF/... 1210213 518
NS 35/15 CAP 1206573 525
NS 35/15 CU UNPERF 2000MM 1201895 515
NS 35/15 PERF 755MM 1207679 516
NS 35/15 PERF 955MM 1207682 516
NS 35/15 PERF 1000MM 1207658 516
NS 35/15 PERF 1155MM 1207695 516
NS 35/15 PERF 2000MM 1201730 516
NS 35/15 PERF/... 1208160 516
NS 35/15 UNPERF 1000MM 1207655 514
NS 35/15 UNPERF 2000MM 1201714 514
NS 35/15 UNPERF/... 1208144 514
NS 35/15 UNPERF/SO/... 1208157 514
NS 35/15 WH PERF 2000MM 0806602 517
NS 35/15 WH UNPERF 2000MM 1204135 514
NS 35/15 ZN PERF 2000MM 1206599 517
NS 35/15 ZN UNPERF 2000MM 1206586 515
NS 35/15-2,3 UNPERF 2000MM 1201798 515
P
P-PEN 0815211 46
P-PEN ADAPTER 0815224 46
P-SS-ZB 100 1013737 288
P-ZB METER 1051854 288
P1 ENGRAVING UNIT 5145546 43
P1 ENGRAVING VC BAG 5145559 43
P1 GRAVER 0.2 5145478 43
P1 GRAVER 0.3 5145481 43
P1 GRAVER 0.4 5145494 43
P1 GRAVER 0.5 5145504 43
P1 GRAVER 0.7 5145517 43
P1 GRAVER 1.0 5145520 43
P1 GRAVER SET 5145533 43
P1 UC-MAG 1 5146079 44
P1 UC-MAG 2 5146082 44
P1 UC-MAG 3 5146095 44
P1 UC-MAG 4 5146105 44
P1 UC-MAG 5 5146118 44
P1 UC-MAG 6 5146121 44
P1 UC-MAG 7 5146568 44
PAB-KTL 1013261 215
PAB-KTL 23 1013957 215
PAB-SK 15 1013287 289
PAB-SK 30 1013290 289
PABL 15X4 0808260 194
PATG 0/10 1013795 214
PATG 0/12 0827076 214
PATG 0/15 1013740 214
PATG 0/18 0820507 214
PATG 0/23 0828046 214
PATG 1/10 1013805 214
PATG 1/12 0827077 214
PATG 1/15 1013025 214
PATG 1/18 0820510 214
PATG 1/23 1013847 214
PATG 1/30 0822440 214
PATG 2/10 1013818 214
PATG 2/12 0827078 214
PATG 2/15 1013038 214
PATG 2/18 0820523 214
PATG 2/23 1013850 214
PATG 2/30 0822453 214
PATG 3/10 1013821 214
PATG 3/12 0827079 214
PATG 3/15 1013041 214
PATG 3/18 0820536 214
PATG 3/23 1013863 214
PATG 3/30 0822466 214
PATG 4/12 0827080 214
PATG 4/15 1013054 214
PATG 4/18 0820549 214
PATG 4/23 0808011 214
PATG 4/30 0822479 214
PATG 5/12 0803312 214
PATG 5/15 1013067 214
PATG 5/18 0828059 214
PATG 5/23 0808024 214
PATG 5/30 0822482 214
PATG 6/15 1013070 214
PATG 6/18 0828062 214
PATG 6/23 0808037 214
PATG 7/15 1013083 214
PATG 7/23 0808040 214
PATG 8/15 1013096 214
PATG 8/23 0808053 214
PATG 9/15 1013106 214
PATG HF 1/10 1014044 216
PATG HF 1/12 1014045 216
PATG HF 1/15 1014046 216
PATG HF 1/18 1014047 216
PATG HF 1/23 1014048 216
PATG HF 1/30 1014049 216
PATG HF 2/10 1014050 216
PATG HF 2/12 1014051 216
PATG HF 2/15 1014052 216
PATG HF 2/18 1014053 216
PATG HF 2/23 1014054 216
PATG HF 2/30 1014055 216
PATG HF 3/10 1014056 216
PATG HF 3/12 1014057 216
PATG HF 3/15 1014058 216
PATG HF 3/18 1014059 216
PATG HF 3/23 1014060 216
PATG HF 3/30 1014061 216
PATG HF 4/12 1014063 216
PATG HF 4/15 1014064 216
PATG HF 4/18 1014065 216
PATG HF 4/23 1014066 216
PATG HF 4/30 1014067 216
PATO 1/10 1013876 215
PATO 1/12 0827081 215
PATO 1/15 1013119 215
PATO 1/18 0823740 215
PATO 1/23 1013892 215
PATO 1/30 0822495 215
PATO 2/10 1013889 215
PATO 2/12 0827082 215
PATO 2/15 1013122 215
PATO 2/18 0823753 215
PATO 2/23 1013902 215
PATO 2/30 0822505 215
PATO 3/15 1013135 215
PATO 4/15 1013148 215
PKT 9X20 0803977 215
PML-GHS100 (13X13)R 1014289 349
PML-GHS100 (25X25)R 1014290 349
PML-GHS101 (13X13) 1014269 350
PML-GHS101 (25X25) 1014270 350
PML-GHS102 (13X13) 1014271 351
PML-GHS102 (25X25) 1014272 351
PML-GHS103 (13X13) 1014273 351
PML-GHS103 (25X25) 1014274 351
PML-GHS104 (13X13) 1014275 351
PML-GHS104 (25X25) 1014276 351
PML-GHS105 (13X13) 1014277 352
PML-GHS105 (25X25) 1014278 352
PML-GHS106 (13X13) 1014279 352
PML-GHS106 (25X25) 1014280 352
PML-GHS107 (13X13) 1014281 353
PML-GHS107 (25X25) 1014282 353
PML-GHS108 (13X13) 1014283 353
PML-GHS108 (25X25) 1014284 353
PML-GHS109 (13X13) 1014285 353
PML-GHS109 (25X25) 1014286 353
PML-M100 (D100)R 1014181 335
PML-M100 (D50)R 1014180 335
PML-M101 (D100) 1014138 336
PML-M101 (D200) 1014139 336
PML-M101 (D50) 1014137 336
PML-M102 (D100) 1014141 337
PML-M102 (D200) 1014142 337
PML-M102 (D50) 1014140 337
PML-M103 (D100) 1014144 337
PML-M103 (D200) 1014145 337
PML-M103 (D50) 1014143 337
PML-M104 (D100) 1014147 337
PML-M104 (D200) 1014148 337
PML-M104 (D50) 1014146 337
PML-M105 (D100) 1014150 338
PML-M105 (D200) 1014151 338
PML-M105 (D50) 1014149 338
PML-M106 (D100) 1014153 338
PML-M106 (D200) 1014154 338
PML-M106 (D50) 1014152 338
PML-M107 (D100) 1014156 339
PML-M107 (D200) 1014157 339
PML-M107 (D50) 1014155 339
PML-M108 (D100) 1014159 339
PML-M108 (D200) 1014160 339
PML-M108 (D50) 1014158 339
PML-M109 (D100) 1014162 339
PML-M109 (D200) 1014163 339
PML-M109 (D50) 1014161 339
PML-M110 (D100) 1014165 340
PML-M110 (D200) 1014166 340
PML-M110 (D50) 1014164 340
PML-M111 (D100) 1014168 340
PML-M111 (D200) 1014169 340
PML-M111 (D50) 1014167 340
PML-M112 (D100) 1014171 341
PML-M112 (D200) 1014172 341
PML-M112 (D50) 1014170 341
PML-M113 (D100) 1014174 341
PML-M113 (D200) 1014175 341
PML-M113 (D50) 1014173 341
PML-P100 (D100)R 1014226 327
PML-P100 (D50)R 1014225 327
PML-P101 (D100) 1014185 328
PML-P101 (D200) 1014186 328
PML-P101 (D50) 1014184 328
PML-P102 (D100) 1014188 329
PML-P102 (D200) 1014189 329
PML-P102 (D50) 1014187 329
PML-P103 (D100) 1014191 329
PML-P103 (D200) 1014192 329
PML-P103 (D50) 1014190 329
PML-P104 (D100) 1014194 329
PML-P104 (D200) 1014195 329
PML-P104 (D50) 1014193 329
PML-P105 (D100) 1014197 330
PML-P105 (D200) 1014198 330
PML-P105 (D50) 1014196 330
PML-P106 (D100) 1014200 330
PML-P106 (D200) 1014201 330
PML-P106 (D50) 1014199 330
PML-P107 (D100) 1014203 331
PML-P107 (D200) 1014204 331
PML-P107 (D50) 1014202 331
PML-P108 (D100) 1014206 331
PML-P108 (D200) 1014207 331
PML-P108 (D50) 1014205 331
PML-P109 (D100) 1014209 331
PML-P109 (D200) 1014210 331
PML-P109 (D50) 1014208 331
PML-P110 (D100) 1014212 332
PML-P110 (D200) 1014213 332
PML-P110 (D50) 1014211 332
PML-P111 (D100) 1014215 333
PML-P111 (D200) 1014216 333
PML-P111 (D50) 1014214 333
PML-T101 (26X280)R 1014229 342
PML-T101 (52X560)R 1014230 342
PML-T102 (26X280)R 1014231 343
PML-T102 (52X560)R 1014232 343
PML-T103 (26X280)R 1014233 343
PML-T103 (52X560)R 1014234 343
PML-T104 (26X280)R 1014235 343
PML-T104 (52X560)R 1014236 343
PML-T105 (26X280)R 1014237 344
PML-T105 (52X560)R 1014238 344
PML-T106 (26X280)R 1014239 345
PML-T106 (52X560)R 1014240 345
PML-T107 (26X280)R 1014241 345
PML-T107 (52X560)R 1014242 345
PML-T108 (26X280)R 1014243 345
PML-T108 (52X560)R 1014244 345
PML-T109 (26X280)R 1014245 346
PML-T109 (52X560)R 1014246 346
PML-T110 (26X280)R 1014247 347
PML-T110 (52X560)R 1014248 347
PML-W100 (100X100)R 0830431 321
PML-W100 (25X25)R 0830429 321
PML-W100 (50X50)R 0830430 321
PML-W101 (100X100) 0830435 322
PML-W101 (200X200) 0830436 322
PML-W101 (25X25) 0830433 322
PML-W101 (50X50) 0830434 322
PML-W200 (100X100)R 0830453 321
PML-W200 (25X25)R 0830451 321
PML-W200 (50X50)R 0830452 321
PML-W201 (100X100) 0830456 323
PML-W201 (200X200) 0830457 323
PML-W201 (25X25) 0830454 323
PML-W201 (50X50) 0830455 323
PML-W202 (100X100) 0830439 323
PML-W202 (200X200) 0830440 323
PML-W202 (25X25) 0830437 323
PML-W202 (50X50) 0830438 323
PML-W203 (100X100) 0830443 323
PML-W203 (200X200) 0830444 323
PML-W203 (25X25) 0830441 323
PML-W203 (50X50) 0830442 323
PML-W204 (100X100) 0830446 323
PML-W204 (200X200) 0830447 323
PML-W204 (50X50) 0830445 323
PML-W205 (100X100) 0830449 323
PML-W205 (200X200) 0830450 323
PML-W205 (50X50) 0830448 323
Index
Alphabetical
618
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
PML-W300 (105X52)R 0830460 321
PML-W300 (52X26)R 0830458 321
PML-W300 (74X37)R 0830459 321
PML-W301 (105X52) 0830463 324
PML-W301 (200X100) 0830464 324
PML-W301 (52X26) 0830461 324
PML-W301 (74X37) 0830462 324
PML-W302 (105X52) 0830467 325
PML-W302 (200X100) 0830468 325
PML-W302 (52X26) 0830465 325
PML-W302 (74X37) 0830466 325
PML-W303 (105X52) 0830471 325
PML-W303 (200X100) 0830472 325
PML-W303 (52X26) 0830469 325
PML-W303 (74X37) 0830470 325
PML-W304 (105X52) 0830475 325
PML-W304 (200X100) 0830476 325
PML-W304 (52X26) 0830473 325
PML-W304 (74X37) 0830474 325
PML-W305 (105X52) 0830479 325
PML-W305 (200X100) 0830480 325
PML-W305 (52X26) 0830477 325
PML-W305 (74X37) 0830478 325
PMLP-RFID/HF (110X38) 0831030 312
PMLP-RFID/HF (90X38) 0830956 312
PMLP-RFID/UHF (110X38) 0831031 312
PMLP-RFID/UHF (90X38) 0830957 312
PMM (EX20)R 1014303 355
PMM (EX20)R SR 1014304 355
PMM (EX20)R YE 1014305 355
PMM (EX25)R 1014306 355
PMM (EX25)R SR 1014307 355
PMM (EX25)R YE 1014308 355
PMM (EX30)R 1014309 355
PMM (EX30)R SR 1014310 355
PMM (EX30)R YE 1014311 355
PMM (EX40)R 1014312 355
PMM (EX40)R SR 1014313 355
PMM (EX40)R YE 1014314 355
PMM (EX50)R 1014315 355
PMM (EX50)R SR 1014316 355
PMM (EX50)R YE 1014317 355
PMP-RFID/HF (110X38) 0831028 313
PMP-RFID/HF (90X38) 0830954 313
PMP-RFID/UHF (110X38) 0831029 313
PMP-RFID/UHF (90X38) 0830955 313
PMP-RFID/UHF (90X38) OG 0803048 313
PMST (10X38) 0831076 319
PMST (10X38) BK 0831085 319
PMST (10X38) BN 0831083 319
PMST (10X38) BU 0831084 319
PMST (10X38) GN 0831081 319
PMST (10X38) GY 0831082 319
PMST (10X38) OG 0831078 319
PMST (10X38) RD 0831079 319
PMST (10X38) VT 0831080 319
PMST (10X38) YE 0831077 319
PMST (9X38) 0830960 317
PMST (9X38) BK 0830965 317
PMST (9X38) BN 0830968 317
PMST (9X38) BU 0830969 317
PMST (9X38) GN 0830961 317
PMST (9X38) GY 0830963 317
PMST (9X38) OG 0830966 317
PMST (9X38) RD 0830962 317
PMST (9X38) VT 0830967 317
PMST (9X38) YE 0830964 317
PMT (10X38) 0831086 319
PMT (10X38) BK 0831095 319
PMT (10X38) BN 0831093 319
PMT (10X38) BU 0831094 319
PMT (10X38) GN 0831091 319
PMT (10X38) GY 0831092 319
PMT (10X38) OG 0831088 319
PMT (10X38) RD 0831089 319
PMT (10X38) VT 0831090 319
PMT (10X38) YE 0831087 319
PPS BASIC I/M 1207585 370
PPS CD BLADE 1207572 369
PPS CD M 1207569 369
PPS CD M COHO 1208995 369
PPS CLASSIC I/M 1206256 371
PPS CLASSIC M 1206243 371
PPS HYDRAULIC CYL 1208924 371
PPS STANDARD I/M 1206230 371
PPS STANDARD M 1206175 371
PPS TABLE 1206285 369
PPS-ST (3,5X12)L 1203563 371
PPS-ST (3,5X12)Q 1203550 371
PPS-ST (3,8) 1204892 371
PPS-ST (4,3) 1202616 371
PPS-ST (4,5X12)L 1203534 371
PPS-ST (4,5X12)Q 1203547 371
PPS-ST (5,3) 1202629 371
PPS-ST (5,5X12)L 1202603 371
PPS-ST (5,5X12)Q 1203411 371
PPS-ST (6,4) 1202632 371
PPS-ST (6,5X15)L 1202593 371
PPS-ST (6,5X15)Q 1203408 371
PPS-ST (7,0) 1204889 371
PPS-ST (8,4) 1202726 371
PROFIPOL 1209101 426
PT/FS 2,8 1406700 462
PT/FS 4,8 1670497 462
PT/FS 6,3 0604707 462
R
RFMARK HF 5148010 311
RFMARK HF POWER LINK STATION 5148013 311
RFMARK HF PROTECTION CASE 5148017 311
RFMARK HF/ACCU 5148015 311
RFMARK HF/BELTPOUCH 5148018 311
RFMARK UHF 5148011 311
RFMARK UHF FD 5148012 311
RFMARK UHF POWER LINK STATION5148014 311
RFMARK UHF/ACCU 5148016 311
RFMARK UHF/BELTPOUCH 5148021 311
RVT-AL/ST 2,4L/8 3240548 368
RVT-AL/ST 3,2/10 3240511 368
RVT-AL/ST 3,2/12 3240512 368
RVT-AL/ST 3,2/6 3240509 368
RVT-AL/ST 3,2/8 3240510 368
RVT-AL/ST 3/10 3240506 368
RVT-AL/ST 3/12 3240507 368
RVT-AL/ST 3/6 3240504 368
RVT-AL/ST 3/8 3240505 368
RVT-AL/ST 4,8/10 3240520 368
RVT-AL/ST 4,8/12 3240521 368
RVT-AL/ST 4,8/14 3240553 368
RVT-AL/ST 4,8/16 3240522 368
RVT-AL/ST 4,8/6 3240518 368
RVT-AL/ST 4,8/8 3240519 368
RVT-AL/ST 4/10 3240515 368
RVT-AL/ST 4/12 3240516 368
RVT-AL/ST 4/14 3240517 368
RVT-AL/ST 4/6 3240513 368
RVT-AL/ST 4/8 3240514 368
RVT-PA 3,5 BK 0830959 317
RVT-PA 4 3240498 553
RVT-PA 6 3240499 553
S
SAC BIT HOOD-W 24 1212486 424
SAC BIT M12-D15 1208432 424
SAC BIT M12-W14 1212513 424
SAC BIT M8-D10 1208461 424
SAC BIT MIN-D25 1212512 424
SAC BIT QUICKON-W13 1212033 424
SACC BIT M12-D20 1208445 424
SACC BIT M8-D12 1208474 424
SCRT 9X100-120 0830975 317
SCRT 9X140-160 0830976 317
SCRT 9X16-27 0830970 317
SCRT 9X160-180 0830977 317
SCRT 9X180-200 0830978 317
SCRT 9X25-40 0830971 317
SCRT 9X40-60 0830972 317
SCRT 9X60-80 0830973 317
SCRT 9X80-100 0830974 317
SD-D/SC 2963310 540
SD-D/SC/GY 2963815 540
SD-D/SC/LA 2964898 540
SD-D/SC/LA/GY 2963491 540
SD-D/SC/LA/YE 2963404 540
SD-D/SC/YE 2963459 540
SD-D/SP 2963323 540
SD-D/SP/GY 2963501 540
SD-D/SP/LA 2963307 540
SD-D/SP/LA/GY 2963488 540
SD-D/SP/LA/YE 2963475 540
SD-D/SP/YE 2963462 540
SD-F/SC 2963352 541
SD-F/SC/GY 2963828 541
SD-F/SC/LA 2963336 541
SD-F/SC/LA/GY 2963844 541
SD-F/SC/LA/YE 2963909 541
SD-F/SP/LA 2963349 541
SD-F/SP/LA/GY 2963857 541
SD-US/SC/LA/GY 2963860 541
SD-WMTB (100X10) 0826543 211
SD-WMTB (111X10) VA 0826608 212
SD-WMTB (30X10) VA 0826569 212
SD-WMTB (47X10) VA 0826572 212
SD-WMTB (70X10) 0826530 211
SD-WMTB (70X10) VA 0826585 212
SD-WMTB (92X10) VA 0826598 212
SD-WMTBS (CH) VA 0826640 212
SD-WMTBS (CH) YE 0826611 211
SD-WMTBS (NEUTRAL) CC 0826637 211
SD-WMTBS (NEUTRAL) VA 0826666 212
SD-WMTBS (NU) CC 0826527 211
SD-WMTBS (NU) VA 0826556 212
SD-WMTBS (S) YE 0826514 211
SD-WMTBS (SY) VA 0826653 212
SD-WMTBS (SY) YE 0826624 211
SF-ASD 21 1212532 417
SF-ASD 21 SET 230V 1212530 417
SF-ASD 21/ACCU 1,5 AH 1212533 417
SF-ASD 21/CHARGER 230V 1212535 417
SF-BIT SET 1212545 435
SF-BIT-HEX 2,5-50 1212646 421
SF-BIT-HEX 2-50 1212645 421
SF-BIT-HEX 3-50 1212647 421
SF-BIT-HEX 4-50 1212648 421
SF-BIT-HEX 5-50 1212649 421
SF-BIT-HEX 6-50 1212650 421
SF-BIT-HEX 8-50 1212651 421
SF-BIT-PH 1-50 1212579 419
SF-BIT-PH 1-70 1212582 419
SF-BIT-PH 2-50 1212580 419
SF-BIT-PH 2-70 1212583 419
SF-BIT-PH 3-50 1212581 419
SF-BIT-PH 3-70 1212584 419
SF-BIT-PHSL 1-70 1212479 419
SF-BIT-PHSL 2-70 1212601 419
SF-BIT-PZ 1-50 1212591 419
SF-BIT-PZ 1-70 1212594 419
SF-BIT-PZ 2-50 1212592 419
SF-BIT-PZ 2-70 1212595 419
SF-BIT-PZ 3-50 1212593 419
SF-BIT-PZ 3-70 1212596 419
SF-BIT-PZSL 1-70 1212603 419
SF-BIT-PZSL 2-70 1212604 419
SF-BIT-SL 0,45X2,4-70 1212607 419
SF-BIT-SL 0,5X3,0-50 1212566 419
SF-BIT-SL 0,5X3,0-70 1212567 419
SF-BIT-SL 0,6X3,5-50 1212568 419
SF-BIT-SL 0,6X3,5-70 1212569 419
SF-BIT-SL 0,8X4,0-50 1212571 419
SF-BIT-SL 0,8X4,0-70 1212572 419
SF-BIT-SL 1,0X4,0-70 1212754 419
SF-BIT-SL 1,0X5,5-50 1212574 419
SF-BIT-SL 1,0X5,5-70 1212575 419
SF-BIT-SL 1,2X6,5-70 1212577 419
SF-BIT-SLS 0,6X3,5-50 1212605 419
SF-BIT-SLS 0,9X6,5-50 1212606 419
SF-BIT-TX 10-50 1212573 420
SF-BIT-TX 15-50 1212576 420
SF-BIT-TX 20-50 1212578 420
SF-BIT-TX 25-50 1212585 420
SF-BIT-TX 30-50 1212586 420
SF-BIT-TX 8-50 1212570 420
SF-CCK 9 1212525 425
SF-LHEX SET 1212544 423
SF-M BH 1212070 418
SF-M SET 1212543 435
SF-M SET 2 1212756 435
SF-PH 0-60 1212558 415
SF-PH 1-80 1212559 415
SF-PH 1-80 S-VDE 1212693 411
SF-PH 2-100 1212560 415
SF-PH 2-100 S-VDE 1212694 411
SF-PH 3-150 1212561 415
SF-PHSL 1-80 S-VDE 1212697 411
SF-PHSL 1-80 VDE 1212283 415
SF-PHSL 2-100 S-VDE 1212698 411
SF-PHSL 2-100 VDE 1212288 415
SF-PZ 0-60 1212562 415
SF-PZ 1-80 1212563 415
SF-PZ 1-80 S-VDE 1212695 411
SF-PZ 2-100 1212564 415
SF-PZ 2-100 S-VDE 1212696 411
SF-PZ 3-150 1212565 415
SF-PZSL 1-80 S-VDE 1212699 411
SF-PZSL 1-80 VDE 1212556 415
SF-PZSL 2-100 S-VDE 1212700 411
SF-PZSL 2-100 VDE 1212557 415
SF-SL 0,4X2,0-60 1212546 409
SF-SL 0,4X2,5-75 1212547 409
SF-SL 0,5X3,0-80 1212548 409
SF-SL 0,6X3,5-100 1212549 409
SF-SL 0,6X3,5-100 S-VDE 1212587 410
SF-SL 0,6X3,5-200 1212550 409
SF-SL 0,8X4,0-100 1212551 409
SF-SL 0,8X4,0-100 S-VDE 1212588 410
SF-SL 1,0X5,5-125 S-VDE 1212589 410
SF-SL 1,0X5,5-150 1212552 409
SF-SL 1,2X6,5-150 1212553 409
SF-SL/PH SET 1212541 434
SF-SL/PH SET VDE 1212539 434
SF-SL/PH/PZ-SL SET S-VDE 1212701 411
SF-SL/PZ SET 1212542 434
SF-SL/PZ SET VDE 1212540 434
SF-SLIC 1,2X7,0-125 1212554 409
SF-SLIC 1,6X10-175 1212555 409
SF-THEX 10-200 1212644 423
SF-THEX 2,5-100 1212638 423
SF-THEX 2-100 1212637 423
SF-THEX 3-100 1212639 423
SF-THEX 4-150 1212640 423
SF-THEX 5-150 1212641 423
SF-THEX 6-200 1212642 423
SF-THEX 8-200 1212643 423
SF-TX SET VDE 1212537 434
SF-TXH SET 1212538 434
SF-UBH 1212590 418
SF-VT VDE 1212598 426
SHN 13 1209923 422
SHN 5.5 1209855 422
SHN 8 1209868 422
SK 2,54/2,8:FORTL.ZAHLEN 0804853 92
SK 2,8 WH:REEL 0805205 92
SK 3,5/2,8:FORTL.ZAHLEN 0804073 92
SK 3,8 WH:REEL 0805218 93
SK 3,81/2,8:FORTL.ZAHLEN 0804109 92
SK 5 3025338 542
SK 5,0 WH:REEL 0805221 94
SK 5,08/2,8:FORTL.ZAHLEN 0804280 92
SK 5,08/3,8:FORTL.ZAHLEN 0804293 93
SK 5-D 3025406 542
Index
Alphabetical
619
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
SK 5/3,8:FORTL.ZAHLEN 0804183 93
SK 6,2/3,8:FORTL.ZAHLEN 0804374 93
SK 7,5/3,8:FORTL.ZAHLEN 0804455 93
SK 7,5/5:FORTL.ZAHLEN 0804468 94
SK 7,62/3,8:FORTL.ZAHLEN 0804549 93
SK 7,62/5:FORTL.ZAHLEN 0804552 94
SK 8 3025163 542
SK 8-D 3026861 542
SK 10,0 WH:REEL 0812188 95
SK 14 3025176 542
SK 14-D 3026874 542
SK 20 3025189 542
SK 20-D 3026887 542
SK 28 3026997 542
SK 28-D 3027006 542
SK 35 3026463 542
SK 35-D 3026890 542
SK U SR:UNGESTANZT 0800145 282
SK U WH:UNGESTANZT 0800129 282
SK U YE:UNGESTANZT 0800132 282
SK U/2,8 WH:UNBEDRUCKT 0803883 92
SK U/3,8 WH:UNBEDRUCKT 0803906 93
SK U/5,0 WH:UNBEDRUCKT 0803922 94
SKS 14 3240211 543
SKS 14-D 3240214 543
SKS 14-NS35 3240217 543
SKS 14-SNS35 3062799 543
SKS 20 3240212 543
SKS 20-D 3240215 543
SKS 20-NS35 3240218 543
SKS 20-SNS35 3062809 543
SKS 8 3240210 543
SKS 8-D 3240213 543
SKS 8-NS35 3240216 543
SKS 8-SNS35 3062786 543
SS-ZB WH 5031171 208
SS-ZB WH CUS 0824470 540
SS-ZB YE 5031650 208
SSMK 60X18 5032439 290
SSMK 96X30 5032442 290
ST-BW 1207608 413
STP 3,5-2 0830131 98
STP 3,5-3 0830132 98
STP 4-2 0810575 98
STP 4-2-ZB 3038613 98
STP 5-2 0800967 98
STP 5-2-ZB 3037643 98
STP 5-2/S 0800970 98
STP 5-3 0810562 98
SZF 0-0,4X2,5 1204504 412
SZF 1-0,6X3,5 1204517 412
SZF 2-0,8X4,0 1204520 412
SZF 3-1,0X5,5 1206612 412
SZG 0,6X3,5 VDE 1205121 415
SZG 0,9X6,5 VDE 1205134 415
SZK PH0 VDE 1205147 414
SZK PH1 VDE 1205150 414
SZK PH2 VDE 1205163 414
SZK PH3 VDE 1212536 414
SZK PZ0 VDE 1206447 414
SZK PZ1 VDE 1206450 414
SZK PZ2 VDE 1206463 414
SZK PZ3 VDE 1212599 414
SZS 0,4X2,5 VDE 1205037 408
SZS 0,5X3,0 VDE 1207404 408
SZS 0,6X2,5 VDE 1205040 408
SZS 0,6X3,5 1205053 412
SZS 0,6X3,5 VDE 1212602 408
SZS 0,8X4,0 VDE 1212508 408
SZS 1,0X4,0 VDE 1205066 408
SZS 1,0X5,5 VDE 1209114 408
SZS 1,0X6,5 VDE 1205079 408
SZS 1,2X8,0 VDE 1205082 408
T
TESTFOX CC 1212210 427
TESTFOX CC-1 1212211 427
TESTFOX M 1212208 428
TESTFOX M-1 1212209 429
THERMOMARK CARD 5146464 32
THERMOMARK CARD SET 5147200 39
THERMOMARK CARD SET DE CH 5147220 39
THERMOMARK CARD SET DK DK 5147213 39
THERMOMARK CARD SET EN 5147201 39
THERMOMARK CARD SET EN BE 5147214 39
THERMOMARK CARD SET ES ES 5147218 39
THERMOMARK CARD SET FR FR 0801591 39
THERMOMARK CARD SET HU HU 5147221 39
THERMOMARK CARD SET IT IT 5147217 39
THERMOMARK CARD SET PL US 5147215 39
THERMOMARK CARD SET PT PT 5147219 39
THERMOMARK CARD SET RU RU 5147211 39
THERMOMARK CARD SET SE SE 5147212 39
THERMOMARK CARD-UCT-MAG1 5146480 33
THERMOMARK CARD-UCT-MAG10 0801737 33
THERMOMARK CARD-UCT-MAG11 0801738 33
THERMOMARK CARD-UCT-MAG12 0830399 33
THERMOMARK CARD-UCT-MAG13 0830400 33
THERMOMARK CARD-UCT-MAG14 0830401 33
THERMOMARK CARD-UCT-MAG15 0830402 33
THERMOMARK CARD-UCT-MAG16 0830403 33
THERMOMARK CARD-UCT-MAG17 0830404 33
THERMOMARK CARD-UCT-MAG18 0830405 33
THERMOMARK CARD-UCT-MAG2 5146563 33
THERMOMARK CARD-UCT-MAG20 0830751 33
THERMOMARK CARD-UCT-MAG22 0830771 33
THERMOMARK CARD-UCT-MAG23 0830808 33
THERMOMARK CARD-UCT-MAG24 0830809 33
THERMOMARK CARD-UCT-MAG25 0802935 33
THERMOMARK CARD-UCT-MAG26 0802988 33
THERMOMARK CARD-UCT-MAG27 0802989 33
THERMOMARK CARD-UCT-MAG28 0803205 33
THERMOMARK CARD-UCT-MAG3 5146613 33
THERMOMARK CARD-UCT-MAG4 5146614 33
THERMOMARK CARD-UCT-MAG5 5146615 33
THERMOMARK CARD-UCT-MAG6 5146616 33
THERMOMARK CARD-UCT-MAG7 0801734 33
THERMOMARK CARD-UCT-MAG8 0801735 33
THERMOMARK CARD-UCT-MAG9 0801736 33
THERMOMARK CARD-US-MAG1 5146451 34
THERMOMARK ROLL 5146477 36
THERMOMARK ROLL SET 5147300 39
THERMOMARK ROLL SET DE CH 5147230 39
THERMOMARK ROLL SET DK DK 5147224 39
THERMOMARK ROLL SET EN 5147301 39
THERMOMARK ROLL SET EN BE 5147225 39
THERMOMARK ROLL SET ES ES 5147228 39
THERMOMARK ROLL SET FR FR 0801592 39
THERMOMARK ROLL SET HU HU 5147231 39
THERMOMARK ROLL SET IT IT 5147227 39
THERMOMARK ROLL SET PL US 5147226 39
THERMOMARK ROLL SET PT PT 5147229 39
THERMOMARK ROLL SET RU RU 5147222 39
THERMOMARK ROLL SET SE SE 5147223 39
THERMOMARK ROLL X1 5146723 37
THERMOMARK ROLL X1 -DISPENSER1014401 37
THERMOMARK ROLL X1 CUTTER 5146765 37
THERMOMARK ROLL X1 CUTTER/P 5146766 37
THERMOMARK ROLL X1-CASE 5146724 37
THERMOMARK ROLL-CUTTER 5146422 36
THERMOMARK ROLL-CUTTER/P 5146435 36
THERMOMARK ROLL-ERH 5146448 36
THERMOMARK W2 5146147 41
THERMOMARK X1-CASE 5145300 40
THERMOMARK X1-CUTTER 5145290 40
THERMOMARK X1-CUTTER/P 5146244 40
THERMOMARK X1.2 5146231 40
THERMOMARK X1.2-KIT 5146341 40
THERMOMARK-ERH 500 5146309 36
THERMOMARK-RIBBON 110 5145384 36
THERMOMARK-RIBBON 110 BU 0829544 36
THERMOMARK-RIBBON 110 GN 0829542 36
THERMOMARK-RIBBON 110 RD 0829543 36
THERMOMARK-RIBBON 110-EML-HT0800342 36
THERMOMARK-RIBBON 110-TC 0801371 32
THERMOMARK-RIBBON 110-WMSU 0801358 36
THERMOMARK-RIBBON 110-WMSU WH0801359 36
THERMOMARK-RIBBON 110-WMTB HF5148007 36
THERMOMARK-RIBBON 64-WMSU 0801360 36
THERMOMARK-RIBBON 64-WMSU WH0801361 36
TL CASE 0800613 32
TM-RIBBON 110-EX 0803211 36
TM-RIBBON 110-TC/TR WH 1014402 32
TM-RIBBON 110-WMTB HF WH 0802990 36
TML (101X4,2)R TR 0816621 88
TML (101X9,5)R TR 0816647 88
TML (104X10)R 0801835 90
TML (104X2,8)R 0801832 90
TML (104X3,8)R 0801833 90
TML (104X5)R 0801834 90
TML (EX10)R 0801839 91
TML (EX2,8)R 0801836 91
TML (EX3,8)R 0801837 91
TML (EX4,2)R TR 0816715 89
TML (EX5)R 0801838 91
TML (EX7)R 0830837 89
TML (EX7)R SR 0830838 89
TML (EX9,5)R TR 0816634 89
TMP-UM-MAG1 0831200 35
TMP-UM-MAG10 0803334 35
TMP-UM-MAG3 0831202 35
TMP-UM-MAG4 0831203 35
TMP-UM-MAG5 0803328 35
TMP-UM-MAG6 0803329 35
TMP-UM-MAG7 0803330 35
TMP-UM-MAG8 0803331 35
TMP-UM-MAG9 0803332 35
TMT 4 R 0816375 84
TMT 5 R 0816430 84
TMT 6 R 0816498 84
TMT 8 R 0816553 84
TMT 10 R 0816210 85
TMT (EX10)R 0803068 86
TMT (EX10,5)R 0803070 86
TMT (EX12)R 0803071 86
TMT (EX5,5)R 0803062 86
TMT (EX6,2)R 0803063 86
TMT (EX6,5)R 0803064 86
TMT (EX7,5)R 0803065 86
TMT (EX8)R 0803066 86
TMT (EX8,5)R 0803067 86
TMT (EX9,5)R 0828295 86
TMT 100 R 0816605 85
TMT TOOL 0816650 84
TMT2 (EX11)R 0802683 86
TOOL DATA SET 1208856 432
TOOL SET ALLROUND 2 1208843 433
TOOL-BAG 1212504 431
TOOL-BAG CUS 1200081 440
TOOL-BAG EMPTY 1212500 431
TOOL-BAG EMPTY CUS 8191308 442
TOOL-BELTPOUCH 1212506 431
TOOL-BELTPOUCH CUS 1200084 441
TOOL-BELTPOUCH EMPTY 1212502 431
TOOL-BELTPOUCH EMPTY CUS 8191311 443
TOOL-CARRIER 1212503 431
TOOL-CARRIER CUS 1200082 440
TOOL-CARRIER EMPTY 1212499 431
TOOL-CARRIER EMPTY CUS 8191310 442
TOOL-CASE 1212629 440
TOOL-CASE CUS 1200072 440
TOOL-CASE EMPTY 1212628 440
TOOL-CASE EMPTY CUS 8191312 442
TOOL-KIT CUS 1200085 441
TOOL-KIT STANDARD 1212422 430
TOOL-KIT STANDARD EMPTY 1212423 430
TOOL-KIT STANDARD EMPTY CUS 8191307 443
TOOL-SET ALLROUND 3 1208953 433
TOOL-WRAP 1212505 430
TOOL-WRAP CUS 1200083 441
TOOL-WRAP EMPTY 1212501 430
TOOL-WRAP EMPTY CUS 8191309 443
TOPMARK LASER 0831831 28
TOPMARK LASER CARBON FILTER 0803306 28
TOPMARK LASER CLEANING NOZZLE0803310 28
TOPMARK LASER CN US 0803289 29
TOPMARK LASER DE CH 0803285 29
TOPMARK LASER DK DK 0803288 29
TOPMARK LASER EN 0803298 29
TOPMARK LASER EN BE 0803296 29
TOPMARK LASER ES ES 0803293 29
TOPMARK LASER EXTRACTION 120V0803327 28
TOPMARK LASER EXTRACTION 230V0803302 28
TOPMARK LASER FD 0803307 28
TOPMARK LASER FR FR 0803291 29
TOPMARK LASER HEPA FILTER 0803305 28
TOPMARK LASER HU HU 0803299 29
TOPMARK LASER IT IT 0803292 29
TOPMARK LASER MP-TEC FILTER 0803308 28
TOPMARK LASER PL US 0803290 29
TOPMARK LASER PRE FILTER SET 0803303 28
TOPMARK LASER PT PT 0803295 29
TOPMARK LASER RU RU 0803286 29
TOPMARK LASER SE SE 0803287 29
TOPMARK LASER STATION 0831835 28
TOPMARK LASER TUBE 0803309 28
TOPMARK LASER US 0803297 29
TOPMARK LASER-MAG SHEET 0831836 28
TOPMARK LASER-MAG UCT-A 0803141 28
TOPMARK LASER-MAG UCT-M 0803143 28
TSD 02 SAC 1208487 424
TSD 04 SAC 1208429 424
TSD 08 SAC 1212597 424
TSD 20 SAC 1212020 424
TSD 25 SAC 1212315 424
TSD-M 1,2NM 1212224 416
TSD-M 3NM 1212225 416
TSD-M 6NM 1212226 416
TSD-M SAC-BIT ADAPTER 1212600 424
U
UBE 0800310 523
UBE/D 0800307 523
UC-EM (10X7) 0825487 245
UC-EM (10X7) TQ 0825488 245
UC-EM (10X8) 0825491 245
UC-EM (10X8) TQ 0825492 245
UC-EM (17,5X7,5) 0825495 245
UC-EM (17,5X8) 0823766 245
UC-EM (17,5X9) 0827490 246
UC-EM (17,5X9) YE 0827494 246
UC-EM (18X8) 0825497 246
UC-EM (19X9) 0827492 246
UC-EM (19X9) YE 0827496 246
UC-EM (20X7) 0825499 246
UC-EM (20X7) TQ 0825500 246
UC-EM (20X9) 0825503 247
UC-EM (20X9) TQ 0825504 247
UC-EM (20X9) YE 0827637 247
UC-EM (21X8) 0825507 247
UC-EMLP (11X9) 0819291 240
UC-EMLP (11X9) SR 0828094 240
UC-EMLP (11X9) YE 0822602 240
UC-EMLP (15X5) 0819301 240
UC-EMLP (15X5) SR 0828095 240
UC-EMLP (15X5) YE 0822615 240
UC-EMLP (17X15) 0827885 240
UC-EMLP (17X15) SR 0827887 240
UC-EMLP (17X15) YE 0827886 240
UC-EMLP (17X9) 0819314 240
UC-EMLP (17X9) SR 0828096 240
UC-EMLP (17X9) YE 0822628 240
UC-EMLP (20X8) 0819327 240
UC-EMLP (20X8) SR 0828097 240
UC-EMLP (20X8) YE 0822631 240
UC-EMLP (22X22) 0825463 240
UC-EMLP (22X22) SR 0825465 240
Index
Alphabetical
620
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
UC-EMLP (22X22) YE 0825464 240
UC-EMLP (22X22)-EX 0803224 241
UC-EMLP (27X12,5) 0825469 240
UC-EMLP (27X12,5) BU 0830853 240
UC-EMLP (27X12,5) GN 0830854 240
UC-EMLP (27X12,5) SR 0825471 240
UC-EMLP (27X12,5) YE 0825470 240
UC-EMLP (27X15) 0827894 240
UC-EMLP (27X15) SR 0827896 240
UC-EMLP (27X15) YE 0827895 240
UC-EMLP (27X18) 0825475 240
UC-EMLP (27X18) SR 0825477 240
UC-EMLP (27X18) YE 0825476 240
UC-EMLP (27X18)-EX 0803225 241
UC-EMLP (27X27) 0825481 240
UC-EMLP (27X27) SR 0825483 240
UC-EMLP (27X27) YE 0825482 240
UC-EMLP (27X27)-EX 0803226 241
UC-EMLP (49X15) 0827903 240
UC-EMLP (49X15) SR 0827905 240
UC-EMLP (49X15) YE 0827904 240
UC-EMLP (49X15)-EX 0803227 241
UC-EMLP (60X15) 0819330 240
UC-EMLP (60X15) SR 0828088 240
UC-EMLP (60X15) YE 0822644 240
UC-EMLP (60X30) 0819343 240
UC-EMLP (60X30) SR 0828091 240
UC-EMLP (60X30) YE 0822657 240
UC-EMLP (60X30)-EX 0803228 241
UC-EMP (17X15) 0825421 243
UC-EMP (17X15) SR 0825423 243
UC-EMP (17X15) YE 0825422 243
UC-EMP (27X12,5) 0825433 244
UC-EMP (27X12,5) SR 0825435 244
UC-EMP (27X12,5) YE 0825434 244
UC-EMP (27X15) 0825439 243
UC-EMP (27X15) SR 0825441 243
UC-EMP (27X15) YE 0825440 243
UC-EMP (27X18) 0825445 244
UC-EMP (27X18) SR 0825447 244
UC-EMP (27X18) YE 0825446 244
UC-EMP (27X27) 0825451 244
UC-EMP (27X27) SR 0825453 244
UC-EMP (27X27) YE 0825452 244
UC-EMP (27X8) 0825427 244
UC-EMP (27X8) SR 0825429 244
UC-EMP (27X8) YE 0825428 244
UC-EMP (49X15) 0825457 243
UC-EMP (49X15) SR 0825459 243
UC-EMP (49X15) YE 0825458 243
UC-EMP (60X15) 0822259 243
UC-EMP (60X15) SR 0827647 243
UC-EMP (60X15) YE 0825330 243
UC-EMP (60X30) 0822275 243
UC-EMP (60X30) SR 0827648 243
UC-EMP (60X30) YE 0825331 243
UC-EMSP (50X15) 0828706 242
UC-EMSP (50X15) BU 0803134 242
UC-EMSP (50X15) RD 0803135 242
UC-EMSP (50X15) SR 0828708 242
UC-EMSP (50X15) YE 0828707 242
UC-EMSP (50X30) 0828709 242
UC-EMSP (50X30) SR 0828711 242
UC-EMSP (50X30) YE 0828710 242
UC-PMLP (110X38) 0831020 314
UC-PMLP (90X38) 0831017 314
UC-PMP (110X38) 0831019 315
UC-PMP (90X38) 0831016 315
UC-PMP (90X38) BU 0831048 315
UC-PMP (90X38) VT 0831047 315
UC-PMP (90X38) YE 0831046 315
UC-TM 4 0818111 56
UC-TM 4 BU 0818247 56
UC-TM 4 GN 0818263 56
UC-TM 4 OG 0818221 56
UC-TM 4 RD 0818250 56
UC-TM 4 VT 0819084 56
UC-TM 4 YE 0818234 56
UC-TM 5 0818108 56
UC-TM 5 BU 0818292 56
UC-TM 5 GN 0818315 56
UC-TM 5 OG 0818276 56
UC-TM 5 RD 0818302 56
UC-TM 5 VT 0819107 56
UC-TM 5 YE 0818289 56
UC-TM 6 0818085 56
UC-TM 6 BU 0818344 56
UC-TM 6 GN 0818360 56
UC-TM 6 OG 0818328 56
UC-TM 6 RD 0818357 56
UC-TM 6 VT 0819110 56
UC-TM 6 YE 0818331 56
UC-TM 8 0818072 56
UC-TM 8 BU 0818399 56
UC-TM 8 GN 0818412 56
UC-TM 8 OG 0818373 56
UC-TM 8 RD 0818409 56
UC-TM 8 VT 0819123 56
UC-TM 8 YE 0818386 56
UC-TM 10 0818069 57
UC-TM 10 BU 0818441 57
UC-TM 10 GN 0818467 57
UC-TM 10 OG 0818425 57
UC-TM 10 RD 0818454 57
UC-TM 10 VT 0815936 57
UC-TM 10 YE 0818438 57
UC-TM 12 0819194 57
UC-TM 12 BU 0817785 57
UC-TM 12 GN 0817808 57
UC-TM 12 OG 0817691 57
UC-TM 12 RD 0817701 57
UC-TM 12 VT 0822660 57
UC-TM 12 YE 0819204 57
UC-TM 16 0819217 57
UC-TM 16 BU 0817769 57
UC-TM 16 GN 0817756 57
UC-TM 16 OG 0817772 57
UC-TM 16 RD 0817798 57
UC-TM 16 VT 0822673 57
UC-TM 16 YE 0819220 57
UC-TMF 4 0818166 58
UC-TMF 4 BU 0818496 58
UC-TMF 4 GN 0818519 58
UC-TMF 4 OG 0818470 58
UC-TMF 4 RD 0818506 58
UC-TMF 4 VT 0815897 58
UC-TMF 4 YE 0818483 58
UC-TMF 5 0818153 58
UC-TMF 5 BU 0818548 58
UC-TMF 5 GN 0818564 58
UC-TMF 5 OG 0818522 58
UC-TMF 5 RD 0818551 58
UC-TMF 5 VT 0815907 58
UC-TMF 5 YE 0818535 58
UC-TMF 6 0818140 58
UC-TMF 6 BU 0818593 58
UC-TMF 6 GN 0818616 58
UC-TMF 6 OG 0818577 58
UC-TMF 6 RD 0818603 58
UC-TMF 6 VT 0815910 58
UC-TMF 6 YE 0818580 58
UC-TMF 8 0818137 58
UC-TMF 8 BU 0818645 58
UC-TMF 8 GN 0818661 58
UC-TMF 8 OG 0818629 58
UC-TMF 8 RD 0818658 58
UC-TMF 8 VT 0815923 58
UC-TMF 8 YE 0818632 58
UC-TMF 10 0818124 59
UC-TMF 10 BU 0818690 59
UC-TMF 10 GN 0818713 59
UC-TMF 10 OG 0818674 59
UC-TMF 10 RD 0818700 59
UC-TMF 10 VT 0815981 59
UC-TMF 10 YE 0818687 59
UC-TMF 12 0819233 59
UC-TMF 12 BU 0817853 59
UC-TMF 12 GN 0817837 59
UC-TMF 12 OG 0817866 59
UC-TMF 12 RD 0817840 59
UC-TMF 12 VT 0822686 59
UC-TMF 12 YE 0819246 59
UC-TMF 16 0819262 59
UC-TMF 16 BU 0817905 59
UC-TMF 16 GN 0817921 59
UC-TMF 16 OG 0817811 59
UC-TMF 16 RD 0817824 59
UC-TMF 16 VT 0822699 59
UC-TMF 16 YE 0819259 59
UC-TMN 10 0828554 60
UC-TMN 5,2 0822945 60
UC-TMN 7,5 0821823 60
UC-WMC 1,9 (15X4) 0828004 162
UC-WMC 1,9 (15X4) BU 0828010 162
UC-WMC 1,9 (15X4) OG 0828007 162
UC-WMC 1,9 (15X4) RD 0828006 162
UC-WMC 1,9 (15X4) VT 0828009 162
UC-WMC 1,9 (15X4) YE 0828008 162
UC-WMC 1,9 (30X4) 0830283 162
UC-WMC 3,1 (15X4) 0818205 163
UC-WMC 3,1 (15X4) BU 0818742 163
UC-WMC 3,1 (15X4) OG 0818726 163
UC-WMC 3,1 (15X4) RD 0818755 163
UC-WMC 3,1 (15X4) VT 0825370 163
UC-WMC 3,1 (15X4) YE 0818739 163
UC-WMC 3,1 (23X4) 0818218 163
UC-WMC 3,1 (23X4) BU 0818797 163
UC-WMC 3,1 (23X4) OG 0818771 163
UC-WMC 3,1 (23X4) RD 0818807 163
UC-WMC 3,1 (23X4) VT 0825371 163
UC-WMC 3,1 (23X4) YE 0818784 163
UC-WMC 3,1 (30X4) 0819631 163
UC-WMC 3,1 (30X4) BU 0820756 163
UC-WMC 3,1 (30X4) OG 0823863 163
UC-WMC 3,1 (30X4) RD 0820769 163
UC-WMC 3,1 (30X4) VT 0825372 163
UC-WMC 3,1 (30X4) YE 0819644 163
UC-WMC 4,4 (15X5,5) 0818182 164
UC-WMC 4,4 (15X5,5) BU 0818849 164
UC-WMC 4,4 (15X5,5) GN 0818865 164
UC-WMC 4,4 (15X5,5) OG 0818823 164
UC-WMC 4,4 (15X5,5) RD 0818852 164
UC-WMC 4,4 (15X5,5) VT 0825373 164
UC-WMC 4,4 (15X5,5) YE 0818836 164
UC-WMC 4,4 (23X5,5) 0818195 164
UC-WMC 4,4 (23X5,5) BU 0818894 164
UC-WMC 4,4 (23X5,5) GN 0818917 164
UC-WMC 4,4 (23X5,5) OG 0818878 164
UC-WMC 4,4 (23X5,5) RD 0818904 164
UC-WMC 4,4 (23X5,5) VT 0825374 164
UC-WMC 4,4 (23X5,5) YE 0818881 164
UC-WMC 4,4 (30X5,5) 0819657 164
UC-WMC 4,4 (30X5,5) BU 0820879 164
UC-WMC 4,4 (30X5,5) GN 0823957 164
UC-WMC 4,4 (30X5,5) OG 0823944 164
UC-WMC 4,4 (30X5,5) RD 0820882 164
UC-WMC 4,4 (30X5,5) VT 0825375 164
UC-WMC 4,4 (30X5,5) YE 0819660 164
UC-WMC 5,6 (23X8) 0825382 165
UC-WMC 5,6 (23X8) BU 0825383 165
UC-WMC 5,6 (23X8) GN 0825384 165
UC-WMC 5,6 (23X8) OG 0825385 165
UC-WMC 5,6 (23X8) RD 0825387 165
UC-WMC 5,6 (23X8) VT 0825388 165
UC-WMC 5,6 (23X8) YE 0825386 165
UC-WMC 5,6 (30X8) 0825396 165
UC-WMC 5,6 (30X8) BU 0825397 165
UC-WMC 5,6 (30X8) GN 0825398 165
UC-WMC 5,6 (30X8) OG 0825399 165
UC-WMC 5,6 (30X8) RD 0825401 165
UC-WMC 5,6 (30X8) VT 0825402 165
UC-WMC 5,6 (30X8) YE 0825400 165
UC-WMC 7,5 (23X8) 0818179 165
UC-WMC 7,5 (23X8) BU 0818946 165
UC-WMC 7,5 (23X8) GN 0818959 165
UC-WMC 7,5 (23X8) OG 0818920 165
UC-WMC 7,5 (23X8) RD 0819039 165
UC-WMC 7,5 (23X8) VT 0825376 165
UC-WMC 7,5 (23X8) YE 0818933 165
UC-WMC 7,5 (30X8) 0819673 165
UC-WMC 7,5 (30X8) BU 0820950 165
UC-WMC 7,5 (30X8) GN 0823708 165
UC-WMC 7,5 (30X8) OG 0823724 165
UC-WMC 7,5 (30X8) RD 0820963 165
UC-WMC 7,5 (30X8) VT 0825377 165
UC-WMC 7,5 (30X8) YE 0819686 165
UC-WMCO 1,6 (12X3) 0827092 166
UC-WMCO 1,6 (12X3) BU 0827514 166
UC-WMCO 1,6 (12X3) GN 0827515 166
UC-WMCO 1,6 (12X3) OG 0827517 166
UC-WMCO 1,6 (12X3) RD 0827516 166
UC-WMCO 1,6 (12X3) VT 0827518 166
UC-WMCO 1,6 (12X3) YE 0827513 166
UC-WMCO 1,6 (21X3) 0827106 166
UC-WMCO 1,6 (21X3) BU 0827526 166
UC-WMCO 1,6 (21X3) GN 0827527 166
UC-WMCO 1,6 (21X3) OG 0827529 166
UC-WMCO 1,6 (21X3) RD 0827528 166
UC-WMCO 1,6 (21X3) VT 0827530 166
UC-WMCO 1,6 (21X3) YE 0827525 166
UC-WMCO 2,1 (12X3) 0827120 166
UC-WMCO 2,1 (12X3) BU 0827538 166
UC-WMCO 2,1 (12X3) GN 0827539 166
UC-WMCO 2,1 (12X3) OG 0827541 166
UC-WMCO 2,1 (12X3) RD 0827540 166
UC-WMCO 2,1 (12X3) VT 0827542 166
UC-WMCO 2,1 (12X3) YE 0827537 166
UC-WMCO 2,1 (21X3) 0827134 166
UC-WMCO 2,1 (21X3) BU 0807550 166
UC-WMCO 2,1 (21X3) GN 0827551 166
UC-WMCO 2,1 (21X3) OG 0827553 166
UC-WMCO 2,1 (21X3) RD 0827552 166
UC-WMCO 2,1 (21X3) VT 0827554 166
UC-WMCO 2,1 (21X3) YE 0827549 166
UC-WMCO 2,1 TOOL 0827803 166
UC-WMCO 2,9 (12X3,5) 0827148 167
UC-WMCO 2,9 (12X3,5) BU 0827562 167
UC-WMCO 2,9 (12X3,5) GN 0827563 167
UC-WMCO 2,9 (12X3,5) OG 0827565 167
UC-WMCO 2,9 (12X3,5) RD 0827564 167
UC-WMCO 2,9 (12X3,5) VT 0827566 167
UC-WMCO 2,9 (12X3,5) YE 0827561 167
UC-WMCO 2,9 (21X3,5) 0827162 167
UC-WMCO 2,9 (21X3,5) BU 0827574 167
UC-WMCO 2,9 (21X3,5) GN 0827575 167
UC-WMCO 2,9 (21X3,5) OG 0827577 167
UC-WMCO 2,9 (21X3,5) RD 0827576 167
UC-WMCO 2,9 (21X3,5) VT 0827578 167
UC-WMCO 2,9 (21X3,5) YE 0827573 167
UC-WMCO 3,6 (12X4,5) 0827176 167
UC-WMCO 3,6 (12X4,5) BU 0827586 167
UC-WMCO 3,6 (12X4,5) GN 0827587 167
UC-WMCO 3,6 (12X4,5) OG 0827589 167
UC-WMCO 3,6 (12X4,5) RD 0827588 167
UC-WMCO 3,6 (12X4,5) VT 0827590 167
UC-WMCO 3,6 (12X4,5) YE 0827585 167
UC-WMCO 3,6 (21X4,5) 0827190 167
UC-WMCO 3,6 (21X4,5) BU 0827598 167
UC-WMCO 3,6 (21X4,5) GN 0827599 167
UC-WMCO 3,6 (21X4,5) OG 0827601 167
UC-WMCO 3,6 (21X4,5) RD 0827600 167
UC-WMCO 3,6 (21X4,5) VT 0827602 167
UC-WMCO 3,6 (21X4,5) YE 0827597 167
UC-WMCO 3,6 TOOL 0827804 167
UC-WMCO 4,9 (12X5) 0827733 168
UC-WMCO 4,9 (12X5) BU 0827735 168
UC-WMCO 4,9 (12X5) GN 0827736 168
UC-WMCO 4,9 (12X5) OG 0827738 168
UC-WMCO 4,9 (12X5) RD 0827737 168
UC-WMCO 4,9 (12X5) VT 0827739 168
UC-WMCO 4,9 (12X5) YE 0827734 168
UC-WMCO 4,9 (21X5) 0827747 168
UC-WMCO 4,9 (21X5) BU 0827749 168
UC-WMCO 4,9 (21X5) GN 0827750 168
UC-WMCO 4,9 (21X5) OG 0827752 168
UC-WMCO 4,9 (21X5) RD 0827751 168
UC-WMCO 4,9 (21X5) VT 0827753 168
UC-WMCO 4,9 (21X5) YE 0827748 168
UC-WMCO 5,8 TOOL 0827805 168
UC-WMCO TOOL SET 0827807 166
Index
Alphabetical
621
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
UC-WMT (10X4) 0819372 170
UC-WMT (10X4) BU 0820992 170
UC-WMT (10X4) GN 0823999 170
UC-WMT (10X4) OG 0823986 170
UC-WMT (10X4) RD 0821001 170
UC-WMT (10X4) VT 0825360 170
UC-WMT (10X4) YE 0819385 170
UC-WMT (12X4) 0823517 170
UC-WMT (12X4) BU 0823575 170
UC-WMT (12X4) GN 0823601 170
UC-WMT (12X4) OG 0823588 170
UC-WMT (12X4) RD 0823614 170
UC-WMT (12X4) VT 0825378 170
UC-WMT (12X4) YE 0823591 170
UC-WMT (15X4) 0819398 170
UC-WMT (15X4) BU 0821030 170
UC-WMT (15X4) GN 0824040 170
UC-WMT (15X4) OG 0824037 170
UC-WMT (15X4) RD 0821043 170
UC-WMT (15X4) VT 0825361 170
UC-WMT (15X4) YE 0819408 170
UC-WMT (18X4) 0820293 170
UC-WMT (18X4) BU 0821072 170
UC-WMT (18X4) GN 0824082 170
UC-WMT (18X4) OG 0824079 170
UC-WMT (18X4) RD 0821085 170
UC-WMT (18X4) VT 0825362 170
UC-WMT (18X4) YE 0820303 170
UC-WMT (23X4) 0819411 171
UC-WMT (23X4) BU 0821111 171
UC-WMT (23X4) GN 0824121 171
UC-WMT (23X4) OG 0824118 171
UC-WMT (23X4) RD 0821124 171
UC-WMT (23X4) SR 0802719 171
UC-WMT (23X4) VT 0825363 171
UC-WMT (23X4) YE 0819424 171
UC-WMT (30X4) 0819437 171
UC-WMT (30X4) BU 0821153 171
UC-WMT (30X4) GN 0824163 171
UC-WMT (30X4) OG 0824150 171
UC-WMT (30X4) RD 0821166 171
UC-WMT (30X4) VT 0825364 171
UC-WMT (30X4) YE 0819440 171
UC-WMTB (44X15) 0828376 172
UC-WMTB (44X15) BN 0828384 172
UC-WMTB (44X15) BU 0828381 172
UC-WMTB (44X15) GN 0828382 172
UC-WMTB (44X15) OG 0828378 172
UC-WMTB (44X15) RD 0828377 172
UC-WMTB (44X15) SR 0828383 172
UC-WMTB (44X15) VT 0828380 172
UC-WMTB (44X15) YE 0828379 172
UC-WMTB (52X30) 5775288 172
UC-WMTB (52X50) 5775289 172
UC-WMTBA (24X5) 0820426 173
UC-WMTBA (24X5) BU 0820552 173
UC-WMTBA (24X5) GN 0825343 173
UC-WMTBA (24X5) OG 0825342 173
UC-WMTBA (24X5) RD 0820565 173
UC-WMTBA (24X5) VT 0825344 173
UC-WMTBA (24X5) YE 0820439 173
UC-WMTBA (29X8) 0820183 173
UC-WMTBA (29X8) BU 0820594 173
UC-WMTBA (29X8) GN 0825346 173
UC-WMTBA (29X8) OG 0825345 173
UC-WMTBA (29X8) RD 0820604 173
UC-WMTBA (29X8) SR 0802749 173
UC-WMTBA (29X8) VT 0825347 173
UC-WMTBA (29X8) YE 0820390 173
UC-WMTBA (60X11) 0820468 173
UC-WMTBA (60X11) BU 0820633 173
UC-WMTBA (60X11) GN 0825349 173
UC-WMTBA (60X11) OG 0825348 173
UC-WMTBA (60X11) RD 0820646 173
UC-WMTBA (60X11) VT 0825350 173
UC-WMTBA (60X11) YE 0820471 173
UC1-TM 5 0821784 106
UC1-TM 5 BU 0828188 106
UC1-TM 5 GN 0828189 106
UC1-TM 5 OG 0828186 106
UC1-TM 5 RD 0828185 106
UC1-TM 5 YE 0828187 106
UC1-TM 6 0821247 106
UC1-TM 6 BU 0828193 106
UC1-TM 6 GN 0828194 106
UC1-TM 6 OG 0828191 106
UC1-TM 6 RD 0828190 106
UC1-TM 6 YE 0828192 106
UC1-TM 8 0821739 106
UC1-TM 8 BU 0828198 106
UC1-TM 8 GN 0828199 106
UC1-TM 8 OG 0828196 106
UC1-TM 8 RD 0828195 106
UC1-TM 8 YE 0828197 106
UC1-TMF 4 0821360 107
UC1-TMF 4 BU 0828203 107
UC1-TMF 4 GN 0828204 107
UC1-TMF 4 OG 0828201 107
UC1-TMF 4 RD 0828200 107
UC1-TMF 4 YE 0828202 107
UC1-TMF 5 0821425 107
UC1-TMF 5 BU 0828207 107
UC1-TMF 5 GN 0828208 107
UC1-TMF 5 OG 0828206 107
UC1-TMF 5 RD 0828205 107
UC1-TMF 5 YE 0828127 107
UC1-TMF 6 0821483 107
UC1-TMF 6 BU 0828212 107
UC1-TMF 6 GN 0828213 107
UC1-TMF 6 OG 0828210 107
UC1-TMF 6 RD 0828209 107
UC1-TMF 6 YE 0828211 107
UC1-TMF 8 0821548 107
UC1-TMF 8 BU 0828217 107
UC1-TMF 8 GN 0828218 107
UC1-TMF 8 OG 0828215 107
UC1-TMF 8 RD 0828214 107
UC1-TMF 8 YE 0828216 107
UC1U-TM 5 0821302 106
UC2-TM 4 0821713 108
UC2-TM 5 0821690 108
UC2-TM 6 0821674 108
UC2-TM 8 0821755 108
UC2F-TM 4 0822178 109
UC2F-TM 5 0822181 109
UC2F-TM 6 0822194 109
UC2F-TM 8 0822204 109
UC3-TM 5 0822369 110
UC3-TM 6 0822385 110
UC3-TM 8 0822408 110
UCT-EM (10X5) 0801470 249
UCT-EM (10X7) 0801498 249
UCT-EM (10X7) TQ 0801499 249
UCT-EM (10X8) 0801485 249
UCT-EM (10X8) TQ 0801486 249
UCT-EM (12X3,3) 0801502 250
UCT-EM (12X6) 0801503 250
UCT-EM (12X7) 0801501 250
UCT-EM (15X10) 0801504 250
UCT-EM (17,5X7,5) 0801482 251
UCT-EM (17,5X8) 0801496 252
UCT-EM (17,5X9) 0801491 252
UCT-EM (17,5X9) YE 0801492 252
UCT-EM (17X10) 0801483 251
UCT-EM (17X10) YE 0801484 251
UCT-EM (17X8) 0801842 251
UCT-EM (17X9) 0801475 251
UCT-EM (17X9) YE 0801476 251
UCT-EM (18X8) 0801488 252
UCT-EM (20X7) 0801494 252
UCT-EM (20X7) TQ 0801495 252
UCT-EM (20X8) 0801477 253
UCT-EM (20X9) 0801471 253
UCT-EM (20X9) TQ 0801473 253
UCT-EM (20X9) YE 0801472 253
UCT-EM (21X8) 0801489 253
UCT-EM (30X5) 0801505 96
UCT-EM (30X5) YE 0830340 96
UCT-EM (5X10) 0801497 249
UCT-EM (6X10) 0801493 249
UCT-EM (7X10) 0830765 248
UCT-EMP (25X6) 1014117 204
UCT-EMP (29X8) 1014118 205
UCT-EMP (40X17) 1014120 205
UCT-EMP (60X15) 1014119 205
UCT-TM 10 0829142 77
UCT-TM 10 BU 0829172 77
UCT-TM 10 GN 0829173 77
UCT-TM 10 OG 0829170 77
UCT-TM 10 RD 0829169 77
UCT-TM 10 VT 0829171 77
UCT-TM 10 YE 0829143 77
UCT-TM 12 0829144 77
UCT-TM 12 BU 0829177 77
UCT-TM 12 GN 0829178 77
UCT-TM 12 OG 0829175 77
UCT-TM 12 RD 0829174 77
UCT-TM 12 VT 0829176 77
UCT-TM 12 YE 0829145 77
UCT-TM 16 0829146 77
UCT-TM 16 BU 0829182 77
UCT-TM 16 GN 0829183 77
UCT-TM 16 OG 0829180 77
UCT-TM 16 RD 0829179 77
UCT-TM 16 VT 0829181 77
UCT-TM 16 YE 0829147 77
UCT-TM 3,5 0829484 76
UCT-TM 3,5 BU 0829508 76
UCT-TM 3,5 GN 0829509 76
UCT-TM 3,5 OG 0829506 76
UCT-TM 3,5 RD 0829505 76
UCT-TM 3,5 VT 0829507 76
UCT-TM 3,5 YE 0829485 76
UCT-TM 4 0828732 76
UCT-TM 4 BU 0829152 76
UCT-TM 4 GN 0829153 76
UCT-TM 4 OG 0829150 76
UCT-TM 4 RD 0829149 76
UCT-TM 4 VT 0829151 76
UCT-TM 4 YE 0828733 76
UCT-TM 5 0828734 76
UCT-TM 5 BU 0829157 76
UCT-TM 5 GN 0829158 76
UCT-TM 5 OG 0829155 76
UCT-TM 5 RD 0829154 76
UCT-TM 5 VT 0829156 76
UCT-TM 5 YE 0828735 76
UCT-TM 6 0828736 76
UCT-TM 6 BU 0829162 76
UCT-TM 6 GN 0829163 76
UCT-TM 6 OG 0829160 76
UCT-TM 6 RD 0829159 76
UCT-TM 6 VT 0829161 76
UCT-TM 6 YE 0828737 76
UCT-TM 7,62 0828738 77
UCT-TM 7,62 BU 0829513 77
UCT-TM 7,62 GN 0829514 77
UCT-TM 7,62 OG 0829511 77
UCT-TM 7,62 RD 0829510 77
UCT-TM 7,62 VT 0829512 77
UCT-TM 7,62 YE 0828739 77
UCT-TM 8 0828740 77
UCT-TM 8 BU 0829167 77
UCT-TM 8 GN 0829168 77
UCT-TM 8 OG 0829165 77
UCT-TM 8 RD 0829164 77
UCT-TM 8 VT 0829166 77
UCT-TM 8 YE 0828741 77
UCT-TMF 10 0829204 79
UCT-TMF 10 BU 0829209 79
UCT-TMF 10 GN 0829210 79
UCT-TMF 10 OG 0829206 79
UCT-TMF 10 RD 0829205 79
UCT-TMF 10 VT 0829208 79
UCT-TMF 10 YE 0829207 79
UCT-TMF 12 0829214 79
UCT-TMF 12 BU 0829216 79
UCT-TMF 12 GN 0829217 79
UCT-TMF 12 OG 0829213 79
UCT-TMF 12 RD 0829212 79
UCT-TMF 12 VT 0829215 79
UCT-TMF 12 YE 0829211 79
UCT-TMF 16 0829218 79
UCT-TMF 16 BU 0829223 79
UCT-TMF 16 GN 0829224 79
UCT-TMF 16 OG 0829220 79
UCT-TMF 16 RD 0829219 79
UCT-TMF 16 VT 0829222 79
UCT-TMF 16 YE 0829221 79
UCT-TMF 3,5 0829486 78
UCT-TMF 3,5 BU 0829518 78
UCT-TMF 3,5 GN 0829519 78
UCT-TMF 3,5 OG 0829516 78
UCT-TMF 3,5 RD 0829515 78
UCT-TMF 3,5 VT 0829517 78
UCT-TMF 3,5 YE 0829487 78
UCT-TMF 4 0828742 78
UCT-TMF 4 BU 0829187 78
UCT-TMF 4 GN 0829188 78
UCT-TMF 4 OG 0829185 78
UCT-TMF 4 RD 0829184 78
UCT-TMF 4 VT 0829186 78
UCT-TMF 4 YE 0828743 78
UCT-TMF 5 0828744 78
UCT-TMF 5 BU 0829192 78
UCT-TMF 5 GN 0829193 78
UCT-TMF 5 OG 0829190 78
UCT-TMF 5 RD 0829189 78
UCT-TMF 5 VT 0829191 78
UCT-TMF 5 YE 0828745 78
UCT-TMF 6 0828746 78
UCT-TMF 6 BU 0829197 78
UCT-TMF 6 GN 0829198 78
UCT-TMF 6 OG 0829195 78
UCT-TMF 6 RD 0829194 78
UCT-TMF 6 VT 0829196 78
UCT-TMF 6 YE 0828747 78
UCT-TMF 8 0828748 79
UCT-TMF 8 BU 0829202 79
UCT-TMF 8 GN 0829203 79
UCT-TMF 8 OG 0829200 79
UCT-TMF 8 RD 0829199 79
UCT-TMF 8 VT 0829201 79
UCT-TMF 8 YE 0828749 79
UCT-WMCO 2,9 (12X4) 0830780 177
UCT-WMCO 2,9 (12X4) YE 0831204 177
UCT-WMCO 2,9 (18X4) 0830781 177
UCT-WMCO 2,9 (18X4) YE 0831205 177
UCT-WMCO 3,5 (12X4) 0830782 177
UCT-WMCO 3,5 (12X4) YE 0831206 177
UCT-WMCO 3,5 (18X4) 0830783 177
UCT-WMCO 3,5 (18X4) YE 0831207 177
UCT-WMCO 4,1 (12X4) 0830784 177
UCT-WMCO 4,1 (12X4) YE 0831208 177
UCT-WMCO 4,1 (18X4) 0830785 177
UCT-WMCO 4,1 (18X4) YE 0831209 177
UCT-WMCO 4,7 (12X4) 0830786 177
UCT-WMCO 4,7 (12X4) YE 0831210 177
UCT-WMCO 4,7 (18X4) 0830787 177
UCT-WMCO 4,7 (18X4) YE 0831211 177
UCT-WMS 3,2 (12X4) 0828570 176
UCT-WMS 3,2 (12X4) YE 0828572 176
UCT-WMS 4,7 (12X5,5) 0828571 176
UCT-WMS 4,7 (12X5,5) YE 0828573 176
UCT-WMT (10X4) 0801430 174
UCT-WMT (10X4) BU 0801437 174
UCT-WMT (10X4) GN 0801435 174
UCT-WMT (10X4) OG 0801434 174
UCT-WMT (10X4) RD 0801433 174
UCT-WMT (10X4) VT 0801436 174
UCT-WMT (10X4) YE 0801431 174
UCT-WMT (12X4) 0801438 174
UCT-WMT (12X4) BU 0801444 174
UCT-WMT (12X4) GN 0801442 174
UCT-WMT (12X4) OG 0801441 174
UCT-WMT (12X4) RD 0801440 174
UCT-WMT (12X4) VT 0801443 174
UCT-WMT (12X4) YE 0801439 174
UCT-WMT (15X4) 0801446 174
UCT-WMT (15X4) BU 0801452 174
Index
Alphabetical
622
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
UCT-WMT (15X4) GN 0801450 174
UCT-WMT (15X4) OG 0801449 174
UCT-WMT (15X4) RD 0801448 174
UCT-WMT (15X4) VT 0801451 174
UCT-WMT (15X4) YE 0801447 174
UCT-WMT (18X4) 0801462 174
UCT-WMT (18X4) BU 0801468 174
UCT-WMT (18X4) GN 0801466 174
UCT-WMT (18X4) OG 0801465 174
UCT-WMT (18X4) RD 0801464 174
UCT-WMT (18X4) VT 0801467 174
UCT-WMT (18X4) YE 0801463 174
UCT-WMT (23X4) 0801453 175
UCT-WMT (23X4) BU 0801460 175
UCT-WMT (23X4) GN 0801457 175
UCT-WMT (23X4) OG 0801456 175
UCT-WMT (23X4) RD 0801455 175
UCT-WMT (23X4) VT 0801459 175
UCT-WMT (23X4) YE 0801454 175
UCT-WMT (30X4) 0801422 175
UCT-WMT (30X4) BU 0801428 175
UCT-WMT (30X4) GN 0801426 175
UCT-WMT (30X4) OG 0801425 175
UCT-WMT (30X4) RD 0801424 175
UCT-WMT (30X4) VT 0801427 175
UCT-WMT (30X4) YE 0801423 175
UCT-WMTB (29X8) 0803321 179
UCT-WMTB (29X8) BU 0803324 179
UCT-WMTB (29X8) GN 0803325 179
UCT-WMTB (29X8) GY 0803326 179
UCT-WMTB (29X8) RD 0803323 179
UCT-WMTB (29X8) YE 0803322 179
UCT-WMTBA (24X4) 1014082 178
UCT-WMTBA (24X4) YE 1014083 178
UCT-WMTBA (29X6) 1014084 178
UCT-WMTBA (29X6) YE 1014085 178
UCT-WMTBA (40X17) 1014086 178
UCT1-TM 5 0829482 111
UCT1-TM 5 BU 0829229 111
UCT1-TM 5 GN 0829230 111
UCT1-TM 5 OG 0829227 111
UCT1-TM 5 RD 0829226 111
UCT1-TM 5 YE 0829228 111
UCT1-TM 6 0829483 111
UCT1-TM 6 BU 0829235 111
UCT1-TM 6 GN 0829236 111
UCT1-TM 6 OG 0829233 111
UCT1-TM 6 RD 0829232 111
UCT1-TM 6 YE 0829234 111
UCT1-TMF 5 0829237 111
UCT1-TMF 5 BU 0829241 111
UCT1-TMF 5 GN 0829242 111
UCT1-TMF 5 OG 0829239 111
UCT1-TMF 5 RD 0829238 111
UCT1-TMF 5 YE 0829240 111
UCT1-TMF 6 0829243 111
UCT1-TMF 6 BU 0829247 111
UCT1-TMF 6 GN 0829248 111
UCT1-TMF 6 OG 0829245 111
UCT1-TMF 6 RD 0829244 111
UCT1-TMF 6 YE 0829246 111
UCT1U-TM 5 0803204 111
UCT2-TM 5/6 0829249 112
UCT3-TM 5 0829251 112
UCT3-TM 6 0829252 112
UCT5-TM 5 0828750 113
UCT5-TM 6 0828752 113
UCT6M-TM 5 0830756 114
UCT6M-TM 6 0830757 114
UCT6M-TM 8 0830758 114
UCT6R-TM 5 0830753 115
UCT6R-TM 6 0830754 115
UCT6R-TM 8 0830755 115
UM1-TM (12X10) 0830916 119
UM1-TM (12X10) BU 0833068 119
UM1-TM (12X10) GN 0833069 119
UM1-TM (12X10) OG 0833066 119
UM1-TM (12X10) RD 0833065 119
UM1-TM (12X10) YE 0833067 119
UM1-TM (3,5X12) 0830925 118
UM1-TM (3,5X12) BU 0833023 118
UM1-TM (3,5X12) GN 0833024 118
UM1-TM (3,5X12) OG 0833021 118
UM1-TM (3,5X12) RD 0833020 118
UM1-TM (3,5X12) YE 0833022 118
UM1-TM (5X10) 0830905 118
UM1-TM (5X10) BU 0833028 118
UM1-TM (5X10) GN 0833029 118
UM1-TM (5X10) OG 0833026 118
UM1-TM (5X10) RD 0833025 118
UM1-TM (5X10) YE 0833027 118
UM1-TM (5X12) 0830912 118
UM1-TM (5X12) BU 0833038 118
UM1-TM (5X12) GN 0833039 118
UM1-TM (5X12) OG 0833036 118
UM1-TM (5X12) RD 0833035 118
UM1-TM (5X12) YE 0833037 118
UM1-TM (6X10) 0830903 118
UM1-TM (6X10) BU 0833043 118
UM1-TM (6X10) GN 0833044 118
UM1-TM (6X10) OG 0833041 118
UM1-TM (6X10) RD 0833040 118
UM1-TM (6X10) YE 0833042 118
UM1-TM (6X12) 0830909 119
UM1-TM (6X12) BU 0833053 119
UM1-TM (6X12) GN 0833054 119
UM1-TM (6X12) OG 0833051 119
UM1-TM (6X12) RD 0833050 119
UM1-TM (6X12) YE 0833052 119
UM1-TM (8X10) 0830906 119
UM1-TM (8X10) BU 0833058 119
UM1-TM (8X10) GN 0833059 119
UM1-TM (8X10) OG 0833056 119
UM1-TM (8X10) RD 0833055 119
UM1-TM (8X10) YE 0833057 119
UM1-TM (8X12) 0830920 119
UM1-TM (8X12) BU 0833063 119
UM1-TM (8X12) GN 0833064 119
UM1-TM (8X12) OG 0833061 119
UM1-TM (8X12) RD 0833060 119
UM1-TM (8X12) YE 0833062 119
UM1-TMF (3,5X5) 0830935 121
UM1-TMF (3,5X5) BU 0833003 121
UM1-TMF (3,5X5) GN 0833004 121
UM1-TMF (3,5X5) OG 0833001 121
UM1-TMF (3,5X5) RD 0833000 121
UM1-TMF (3,5X5) YE 0833002 121
UM1-TMF (5X5) 0830902 121
UM1-TMF (5X5) BU 0833008 121
UM1-TMF (5X5) GN 0833009 121
UM1-TMF (5X5) OG 0833006 121
UM1-TMF (5X5) RD 0833005 121
UM1-TMF (5X5) YE 0833007 121
UM1-TMF (6X5) 0830904 121
UM1-TMF (6X5) BU 0833013 121
UM1-TMF (6X5) GN 0833014 121
UM1-TMF (6X5) OG 0833011 121
UM1-TMF (6X5) RD 0833010 121
UM1-TMF (6X5) YE 0833012 121
UM1-TMF (8X5) 0830924 121
UM1-TMF (8X5) BU 0833018 121
UM1-TMF (8X5) GN 0833019 121
UM1-TMF (8X5) OG 0833016 121
UM1-TMF (8X5) RD 0833015 121
UM1-TMF (8X5) YE 0833017 121
UM1U-TM (5X10) 0830910 120
UM1U-TM (5X10) BU 0833033 120
UM1U-TM (5X10) GN 0833034 120
UM1U-TM (5X10) OG 0833031 120
UM1U-TM (5X10) RD 0833030 120
UM1U-TM (5X10) YE 0833032 120
UM1U-TM (6X10) 0830907 120
UM1U-TM (6X10) BU 0833048 120
UM1U-TM (6X10) GN 0833049 120
UM1U-TM (6X10) OG 0833046 120
UM1U-TM (6X10) RD 0833045 120
UM1U-TM (6X10) YE 0833047 120
UM2-TM (3,5X10) 0830936 122
UM2-TM (4X10) 0830934 122
UM2-TM (5/6X10) 0830911 122
UM3-TM (5X8) 0830917 123
UM3-TM (6X8) 0830915 123
UM3-TM (8X8) 0830929 123
UM5-TM (4X10) 0830938 123
UM5-TM (5X10) 0830922 123
UM5-TM (6X10) 0830919 123
UM6M-TM (5X12) 0830928 123
UM6M-TM (6X12) 0830926 123
UM6M-TM (8X12) 0830939 123
UM6R-TM (5X10) 0830923 124
UM6R-TM (6X10) 0830921 124
UM6R-TM (8X10) 0830932 124
UM7-TM (5X10) 0830933 125
UM7-TM (6X10) 0830931 125
UM7-TM (8X10) 0830945 125
UM8-TM (5X9) 0830946 125
UM8-TM (6X9) 0830943 125
UNIFOX-C VDE 1212202 365
UNIFOX-C VDE M 1212834 365
UNIFOX-CE VDE 1212203 365
UNIFOX-CT 4,8 1212475 366
UNIFOX-CT 4,8P 1212609 366
UNIFOX-CT M 7,9 1212610 366
UNIFOX-F VDE 1212363 366
UNIFOX-P VDE 1212204 365
UNIFOX-PC VDE 1212205 365
UNIFOX-PE VDE 1212529 365
UNIFOX-R VDE 1212364 366
UNIFOX-RVT M 1212476 368
UNIFOX-RVT M/BIT 2,4L 1212477 368
UNIFOX-RVT P 4 1212478 553
UNIFOX-RVT P 6 1212509 553
UNIFOX-WP 1212365 366
UNIFOX-WRENCH 1212835 367
US-EML (104X140) 0800465 261
US-EML (104X140) SR 0800466 261
US-EML (104X140) YE 0800467 261
US-EML (104X3,8) 0800464 261
US-EML (17,5X8) 0800461 261
US-EML (17,5X8) YE 0800463 261
US-EML (20X8) 0800458 261
US-EML (20X8) YE 0800460 261
US-EMLF (104X140) 1014291 262
US-EMLF (104X140) BU 1014293 262
US-EMLF (104X140) YE 1014292 262
US-EMLF (104X70) 1014294 262
US-EMLF (104X70) BU 1014296 262
US-EMLF (104X70) YE 1014295 262
US-EMLP (100X60) 0828807 255
US-EMLP (100X60) SR 0828910 255
US-EMLP (100X60) YE 0828909 255
US-EMLP (104X135) 0830304 255
US-EMLP (104X135) SR 0830306 255
US-EMLP (104X135) YE 0830305 255
US-EMLP (11X9) 0828789 254
US-EMLP (11X9) SR 0828872 254
US-EMLP (11X9) YE 0828871 254
US-EMLP (15X5) 0828790 254
US-EMLP (15X5) SR 0828874 254
US-EMLP (15X5) YE 0828873 254
US-EMLP (17,5X15) 0830839 254
US-EMLP (17X15) SR 0828880 254
US-EMLP (17X15) YE 0828879 254
US-EMLP (17X7) 0828792 254
US-EMLP (17X7) SR 0828878 254
US-EMLP (17X7) YE 0828877 254
US-EMLP (20X9) 0828795 254
US-EMLP (20X9) SR 0828884 254
US-EMLP (20X9) YE 0828883 254
US-EMLP (22X22) 0828796 254
US-EMLP (22X22) SR 0828886 254
US-EMLP (22X22) YE 0828885 254
US-EMLP (27X12,5) 0828798 254
US-EMLP (27X12,5) SR 0828892 254
US-EMLP (27X12,5) YE 0828891 254
US-EMLP (27X15) 0828799 254
US-EMLP (27X15) SR 0828894 254
US-EMLP (27X15) YE 0828893 254
US-EMLP (27X18) 0828800 255
US-EMLP (27X18) SR 0828896 255
US-EMLP (27X18) YE 0828895 255
US-EMLP (27X27) 0828801 255
US-EMLP (27X27) SR 0828898 255
US-EMLP (27X27) YE 0828897 255
US-EMLP (27X8) 0828797 254
US-EMLP (27X8) SR 0828890 254
US-EMLP (27X8) YE 0828889 254
US-EMLP (35X15) 0830300 255
US-EMLP (35X15) RD 0830321 255
US-EMLP (35X15) SR 0830320 255
US-EMLP (35X15) YE 0830319 255
US-EMLP (35X9) 0828802 255
US-EMLP (35X9) SR 0829430 255
US-EMLP (35X9) YE 0828899 255
US-EMLP (40X10) 0830341 255
US-EMLP (40X10) SR 0830328 255
US-EMLP (40X10) YE 0830342 255
US-EMLP (49X15) 0828803 255
US-EMLP (49X15) SR 0828902 255
US-EMLP (49X15) YE 0828901 255
US-EMLP (52,5X15) 0830301 255
US-EMLP (52,5X15) RD 0830324 255
US-EMLP (52,5X15) SR 0830323 255
US-EMLP (52,5X15) YE 0830322 255
US-EMLP (60X15) 0828804 255
US-EMLP (60X15) SR 0828904 255
US-EMLP (60X15) YE 0828903 255
US-EMLP (60X30) 0828805 255
US-EMLP (60X30) SR 0828906 255
US-EMLP (60X30) YE 0828905 255
US-EMLP (70X15) 0830302 255
US-EMLP (70X15) RD 0830327 255
US-EMLP (70X15) SR 0830326 255
US-EMLP (70X15) YE 0830325 255
US-EMLP (8,8X15) 0830303 254
US-EMLP (8,8X15) RD 0830318 254
US-EMLP (8,8X15) SR 0830317 254
US-EMLP (8,8X15) YE 0830316 254
US-EMLP (85,6X54) 0828806 255
US-EMLP (85,6X54) RD 0830841 255
US-EMLP (85,6X54) SR 0828908 255
US-EMLP (85,6X54) YE 0828907 255
US-EMLP-HA (17X7) 0830988 256
US-EMLP-HA (20X9) 0830989 256
US-EMLP-HA (60X30) 0830990 256
US-EMLP-HA (60X30) SR 0830991 256
US-EMLP-HA (85,6X54) 0830992 256
US-EMLP-HA (85,6X54) SR 0830993 256
US-EMLSP (28X10) 0830343 260
US-EMLSP (28X10) SR 0830329 260
US-EMLSP (28X10) YE 0830344 260
US-EMP (100X15) 0829521 257
US-EMP (100X15) SR 0829523 257
US-EMP (100X15) YE 0829522 257
US-EMP (17X15) 0828774 257
US-EMP (17X15) SR 0828843 257
US-EMP (17X15) YE 0828842 257
US-EMP (20X9) 0829439 257
US-EMP (25X6) 0829435 257
US-EMP (25X6)-1 0802754 257
US-EMP (27,9X17,4) 0830980 257
US-EMP (27,9X17,4) SR 0803300 257
US-EMP (27X12,5) 0828776 257
US-EMP (27X12,5) SR 0828847 257
US-EMP (27X12,5) YE 0828846 257
US-EMP (27X15) 0828777 257
US-EMP (27X15) SR 0828849 257
US-EMP (27X15) YE 0828848 257
US-EMP (27X18) 0828778 257
US-EMP (27X18) SR 0828851 257
US-EMP (27X18) YE 0828850 257
US-EMP (27X27) 0828779 257
US-EMP (27X27) SR 0828853 257
US-EMP (27X27) YE 0828852 257
US-EMP (27X8) 0828775 257
US-EMP (27X8) SR 0828845 257
US-EMP (27X8) YE 0828844 257
US-EMP (29X8) 0829436 257
US-EMP (29X8) YE 0829440 257
US-EMP (35X15) 0830295 258
Index
Alphabetical
623
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
US-EMP (35X15) RD 0830309 258
US-EMP (35X15) SR 0830308 258
US-EMP (35X15) YE 0830307 258
US-EMP (35X9) 0830842 257
US-EMP (35X9) SR 0830844 257
US-EMP (35X9) YE 0830843 257
US-EMP (40X17) 0829437 257
US-EMP (44X7) 0829438 257
US-EMP (49X15) 0828780 257
US-EMP (49X15) SR 0828855 257
US-EMP (49X15) YE 0828854 257
US-EMP (52,5X15) 0830296 258
US-EMP (52,5X15) RD 0830312 258
US-EMP (52,5X15) SR 0830311 258
US-EMP (52,5X15) YE 0830310 258
US-EMP (60X15) 0828781 257
US-EMP (60X15) SR 0828857 257
US-EMP (60X15) YE 0828856 257
US-EMP (60X30) 0828782 257
US-EMP (60X30) SR 0828859 257
US-EMP (60X30) YE 0828858 257
US-EMP (70X15) 0830297 258
US-EMP (70X15) RD 0830315 258
US-EMP (70X15) SR 0830314 258
US-EMP (70X15) YE 0830313 258
US-EMP (8,8X15) 0830293 258
US-EMP (8,8X15) RD 0830428 258
US-EMP (8,8X15) SR 0830427 258
US-EMP (8,8X15) YE 0830426 258
US-EMP (85,6X54) 0828783 257
US-EMP (85,6X54) SR 0828861 257
US-EMP (85,6X54) YE 0828860 257
US-EMSP (50X30) 0828786 259
US-EMSP (50X30) SR 0828928 259
US-EMSP (50X30) YE 0828927 259
US-EMSP (75,6X54) 0828787 259
US-EMSP (75,6X54) SR 0828930 259
US-EMSP (75,6X54) YE 0828929 259
US-EMSP (90X60) 0828788 259
US-EMSP (90X60) BU 0803038 259
US-EMSP (90X60) RD 0802937 259
US-EMSP (90X60) SR 0828932 259
US-EMSP (90X60) YE 0828931 259
US-PML-GHS100 (13X13) 1014287 348
US-PML-GHS100 (25X25) 1014288 348
US-PML-M100 (D100) 1014177 334
US-PML-M100 (D50) 1014176 334
US-PML-P100 (D100) 1014218 326
US-PML-P100 (D50) 1014217 326
US-PML-W100 (100X100) 1014127 320
US-PML-W100 (25X25) 1014125 320
US-PML-W100 (50X50) 1014126 320
US-PML-W200 (100X100) 1014133 320
US-PML-W200 (25X25) 1014131 320
US-PML-W200 (50X50) 1014132 320
US-TM 100 0829255 80
US-TMF 100 0829260 81
US-TML (104X10) 0830770 83
US-TML (104X2,8) 0830767 82
US-TML (104X3,8) 0830768 83
US-TML (104X5) 0830769 83
US-WML 14 (25X19) 0800473 183
US-WML 36 (25X25) 0800474 183
US-WML 6 (13X13) 0800472 183
US-WMT (10X4) 0828765 180
US-WMT (10X4) BU 0829277 180
US-WMT (10X4) GN 0829278 180
US-WMT (10X4) OG 0829274 180
US-WMT (10X4) RD 0829273 180
US-WMT (10X4) VT 0829276 180
US-WMT (10X4) YE 0828952 180
US-WMT (12X4) 0828766 181
US-WMT (12X4) BU 0829284 181
US-WMT (12X4) GN 0829285 181
US-WMT (12X4) OG 0829281 181
US-WMT (12X4) RD 0829280 181
US-WMT (12X4) VT 0829283 181
US-WMT (12X4) YE 0828953 181
US-WMT (15X4) 0828767 181
US-WMT (15X4) BU 0829291 181
US-WMT (15X4) GN 0829292 181
US-WMT (15X4) OG 0829288 181
US-WMT (15X4) RD 0829287 181
US-WMT (15X4) VT 0829290 181
US-WMT (15X4) YE 0828954 181
US-WMT (18X4) 0828768 181
US-WMT (18X4) BU 0829298 181
US-WMT (18X4) GN 0829299 181
US-WMT (18X4) OG 0829295 181
US-WMT (18X4) RD 0829294 181
US-WMT (18X4) VT 0829297 181
US-WMT (18X4) YE 0828955 181
US-WMT (23X4) 0828769 181
US-WMT (23X4) BU 0829305 181
US-WMT (23X4) GN 0829306 181
US-WMT (23X4) OG 0829302 181
US-WMT (23X4) RD 0829301 181
US-WMT (23X4) VT 0829304 181
US-WMT (23X4) YE 0828956 181
US-WMT (30X4) 0828770 181
US-WMT (30X4) BU 0829312 181
US-WMT (30X4) GN 0829313 181
US-WMT (30X4) OG 0829309 181
US-WMT (30X4) RD 0829308 181
US-WMT (30X4) VT 0829311 181
US-WMT (30X4) YE 0828957 181
US-WMTB (24X5) 0828771 182
US-WMTB (24X5) BU 0829324 182
US-WMTB (24X5) GN 0829325 182
US-WMTB (24X5) OG 0829321 182
US-WMTB (24X5) RD 0829320 182
US-WMTB (24X5) VT 0829323 182
US-WMTB (24X5) YE 0828958 182
US-WMTB (29X8) 0828772 182
US-WMTB (29X8) BU 0829331 182
US-WMTB (29X8) GN 0829332 182
US-WMTB (29X8) OG 0829328 182
US-WMTB (29X8) RD 0829327 182
US-WMTB (29X8) VT 0829330 182
US-WMTB (29X8) YE 0828959 182
US-WMTB (44X15) 0828773 182
US-WMTB (44X15) BU 0829338 182
US-WMTB (44X15) GN 0829339 182
US-WMTB (44X15) OG 0829335 182
US-WMTB (44X15) RD 0829334 182
US-WMTB (44X15) VT 0829337 182
US-WMTB (44X15) YE 0828960 182
US2-TM 100 0829268 116
USA 10 1201578 525
USA 10/4,6 1202713 525
USS 4 1203149 425
V
VAH 1201468 527
VDE-ISS 5 1203343 423
VDE-ISS 6 1201934 423
VDE-ISS 8 1201947 423
W
WCC 14 3240252 557
WCC 18 3240253 557
WCC 22 3240254 557
WCC 26 3240255 557
WCC 30 3240256 557
WCC 34 3240257 557
WCC 38 3240258 557
WCC 42 3240259 557
WCC 56 3240260 557
WCC 64 3240261 557
WF 1000 1212149 471
WF 1000 120V 1212258 471
WF 1000/COV 1212417 471
WF 1000/SB 1212279 471
WF 1000/TR 1212416 471
WG-D HF 10,2 3241101 597
WG-D HF 10,2 BK 3241102 597
WG-D HF 12,7 3241103 597
WG-D HF 12,7 BK 3241104 597
WG-D HF 16 3241105 597
WG-D HF 16 BK 3241106 597
WG-D HF 20,3 3241107 597
WG-D HF 20,3 BK 3241108 597
WG-D HF 7,6 3241099 597
WG-D HF 7,6 BK 3241100 597
WG-S HF 120 3241121 575
WG-S HF 120 BK 3241122 575
WG-S HF 15 3241109 575
WG-S HF 15 BK 3241110 575
WG-S HF 150 3241123 575
WG-S HF 150 BK 3241124 575
WG-S HF 20 3241111 575
WG-S HF 20 BK 3241112 575
WG-S HF 40 3241113 575
WG-S HF 40 BK 3241114 575
WG-S HF 50 3241115 575
WG-S HF 50 BK 3241116 575
WG-S HF 70 3241117 575
WG-S HF 70 BK 3241118 575
WG-S HF 80 3241119 575
WG-S HF 80 BK 3241120 575
WIREFOX 10 1212150 377
WIREFOX 10 CUS 1212760 439
WIREFOX 10 VDE 1212366 379
WIREFOX 10/SB 1212152 375
WIREFOX 16 1212155 377
WIREFOX 16 CUS 1212761 439
WIREFOX 16-1 1212157 378
WIREFOX 16-1/SB 1204944 378
WIREFOX 16/SB 1212153 375
WIREFOX 2,5 1212368 374
WIREFOX 2,5/SB 1212369 374
WIREFOX 2,5/WS 1212370 374
WIREFOX 4 1212156 376
WIREFOX 4 CUS 1212762 439
WIREFOX 4/SB 1212151 374
WIREFOX 6SC 1212158 377
WIREFOX 6SC CUS 1212763 439
WIREFOX 6SC/SB 1212314 375
WIREFOX ASI 1212154 379
WIREFOX ASI/SB 1208076 379
WIREFOX FC 1212619 379
WIREFOX SAC 1212623 378
WIREFOX SAC-1 1212757 378
WIREFOX-D 11 1212160 380
WIREFOX-D 11/SB 1212312 380
WIREFOX-D 13 1212162 381
WIREFOX-D 16 1212173 381
WIREFOX-D 28 1212174 381
WIREFOX-D 40 1212161 381
WIREFOX-D 40/SB 1212313 381
WIREFOX-D CX 6,35 1212733 383
WIREFOX-D CX-1 1212163 382
WIREFOX-D CX-1/SB 1212303 382
WIREFOX-D CX-2 1212164 382
WIREFOX-D CX-2/SB 1212304 382
WIREFOX-D CX-3 1212165 382
WIREFOX-D CX-3/SB 1212305 382
WIREFOX-D CX-4 1212166 382
WIREFOX-D CX-4/SB 1212306 382
WIREFOX-D CX-5 1212167 382
WIREFOX-D CX-5/SB 1212307 382
WIREFOX-D CX-6 1212168 382
WIREFOX-D CX-6/SB 1212308 382
WIREFOX-D CX-7 1212169 382
WIREFOX-D CX-7/SB 1212309 382
WIREFOX-D CX-8 1212170 382
WIREFOX-D CX-8/SB 1212310 382
WIREFOX-D CX-9 1212171 382
WIREFOX-D CX-9/SB 1212311 382
WIREFOX-D SHIELD 1212172 378
WIREFOX-D SR 6 1212507 383
WIREFOX-D SR 6-1 1212511 383
WIREFOX-E 10 1212706 375
WIREFOX-E 16 1212707 375
WIREFOX-E 4 1212704 374
WIREFOX-E 6SC 1212705 375
WIREFOX-MP VDE 1212528 379
WM-CARRIER/B (48X10)LPR 0830423 199
WM-CARRIER/B (55X15)LPR 0830424 199
WM-CARRIER/B (85X15)LPR 0830425 199
WML 12 (25X19)R 0800076 185
WML 14 (25X19)A4 0830693 184
WML 14 (25X19)A4 YE 0830694 184
WML 14 (25X19)R 0817536 185
WML 14 (25X19)R YE 0817549 185
WML 14 (25X19)RL 0830678 185
WML 14 (38X19)R 0817552 185
WML 14 (38X19)R YE 0830675 185
WML 14 (38X19)RL 0830679 185
WML 18 (12X12)R 0817507 185
WML 20 (31X25)R 0828457 185
WML 22 (25X25)R 0800078 185
WML 22 (35X25)A4 0830695 184
WML 22 (35X25)A4 YE 0830696 184
WML 3 (13X10)A4 0830687 184
WML 3 (13X10)A4 YE 0830688 184
WML 3 (13X10)R 0800073 185
WML 36 (25X38)A4 0830697 184
WML 36 (25X38)A4 YE 0830698 184
WML 36 (25X38)R 0817510 185
WML 46 (25X38)R 0800067 185
WML 5 (25X10)A4 0830689 184
WML 5 (25X10)A4 YE 0830690 184
WML 5 (25X10)R 0817523 185
WML 5 (25X10)R YE 0830673 185
WML 5 (25X10)RL 0830676 185
WML 6 (13X13)R 0816252 185
WML 6 (13X13)R YE 0830674 185
WML 6 (13X13)RL 0830677 185
WML 7,5 (13X13)R 0800074 185
WML 7,5 (17X9)R 0828444 185
WML 7,5 (25X13)A4 0830691 184
WML 7,5 (25X13)A4 YE 0830692 184
WML 7,5 (25X13)R 0800075 185
WML HF 14(25X19)R 0830818 186
WML HF 14(25X19)R YE 0830819 186
WML HF 22(25X25)R 0830820 186
WML HF 22(25X25)R YE 0830821 186
WML HF 3(13X10)R 0830812 186
WML HF 3(13X10)R YE 0830813 186
WML HF 36(25X38)R 0830822 186
WML HF 36(25X38)R YE 0830823 186
WML HF 5(25X10)R 0830814 186
WML HF 5(25X10)R YE 0830815 186
WML HF 7,5(25X13)R 0830816 186
WML HF 7,5(25X13)R YE 0830817 186
WML-FLAG 6 (20X10)R 0830711 187
WML-FLAG 6 (30X10)R 0830712 187
WML-FLAGV 6 (20X10)R 0830713 187
WML-FLAGV 6 (30X10)R 0830714 187
WML-RFID/HF 14 (25X19)R 0803386 185
WMS 12,7 (60X20)R 0800369 190
WMS 12,7 (60X20)R YE 0800403 190
WMS 12,7 (60X20)RL YE 0803107 191
WMS 12,7 (EX20)R 0800294 192
WMS 12,7 (EX20)R BK 0800422 193
WMS 12,7 (EX20)R YE 0800305 193
WMS 12,7 (EX20)RL 0800325 192
WMS 12,7 (EX20)RL BK 0800432 193
WMS 12,7 (EX20)RL YE 0800333 193
WMS 19,1 (60X30)R 0800370 190
WMS 19,1 (60X30)R YE 0800404 190
WMS 19,1 (60X30)RL YE 0803108 191
WMS 19,1 (EX30)R 0800295 192
WMS 19,1 (EX30)R BK 0800423 193
WMS 19,1 (EX30)R YE 0800306 193
WMS 19,1 (EX30)RL 0800326 192
WMS 19,1 (EX30)RL BK 0800434 193
WMS 19,1 (EX30)RL YE 0800334 193
WMS 2,4 (15X4)R 0800379 189
WMS 2,4 (15X4)R YE 0800412 189
WMS 2,4 (15X4)RL 0800389 191
WMS 2,4 (15X4)RXL 0800396 191
WMS 2,4 (30X4)R 0800373 189
WMS 2,4 (30X4)R YE 0800407 189
Index
Alphabetical
624
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
WMS 2,4 (30X4)RL 0800386 191
WMS 2,4 (30X4)RXL 0800394 191
WMS 2,4 (60X4)R 0800363 189
WMS 2,4 (60X4)R YE 0800398 189
WMS 2,4 (60X4)RL 0800383 191
WMS 2,4 (60X4)RXL 0800392 191
WMS 2,4 (EX4)R 0800289 192
WMS 2,4 (EX4)R BK 0800415 193
WMS 2,4 (EX4)R YE 0800300 193
WMS 2,4 (EX4)RL 0800319 192
WMS 2,4 (EX4)RL BK 0800427 193
WMS 2,4 (EX4)RL YE 0800328 193
WMS 25,4 (60X40)R 0800371 190
WMS 25,4 (60X40)R YE 0800405 190
WMS 25,4 (EX40)R 0800296 192
WMS 25,4 (EX40)R BK 0800424 193
WMS 25,4 (EX40)R YE 0800308 193
WMS 25,4 (EX40)RL 0800327 192
WMS 25,4 (EX40)RL BK 0800435 193
WMS 25,4 (EX40)RL YE 0800335 193
WMS 3,2 (15X5)R 0800380 189
WMS 3,2 (15X5)R YE 0800413 189
WMS 3,2 (15X5)RL 0800390 191
WMS 3,2 (30X5)R 0800374 189
WMS 3,2 (30X5)R YE 0800408 189
WMS 3,2 (30X5)RL 0800387 191
WMS 3,2 (60X5)R 0800364 189
WMS 3,2 (60X5)R YE 0800399 189
WMS 3,2 (60X5)RL 0800384 191
WMS 3,2 (60X5)RXL YE 0803102 191
WMS 3,2 (EX5)R 0800290 192
WMS 3,2 (EX5)R BK 0800416 193
WMS 3,2 (EX5)R YE 0800301 193
WMS 3,2 (EX5)RL 0800320 192
WMS 3,2 (EX5)RL BK 0800428 193
WMS 3,2 (EX5)RL YE 0800329 193
WMS 38,1 (60X60)R 0800372 190
WMS 38,1 (60X60)R YE 0800406 190
WMS 38,1 (EX60)R 0800298 192
WMS 38,1 (EX60)R BK 0800425 193
WMS 38,1 (EX60)R YE 0800309 193
WMS 4,8 (15X9)R 0800382 189
WMS 4,8 (15X9)R YE 0800414 189
WMS 4,8 (15X9)RL 0800391 191
WMS 4,8 (15X9)RXL 0800397 191
WMS 4,8 (30X9)R 0800375 189
WMS 4,8 (30X9)R YE 0800409 189
WMS 4,8 (30X9)RL 0800388 191
WMS 4,8 (30X9)RXL 0800395 191
WMS 4,8 (30X9)RXL YE 0803313 191
WMS 4,8 (60X9)R 0800366 189
WMS 4,8 (60X9)R YE 0800400 189
WMS 4,8 (60X9)RL 0800385 191
WMS 4,8 (60X9)RXL 0800393 191
WMS 4,8 (60X9)RXL YE 0803103 191
WMS 4,8 (EX9)R 0800291 192
WMS 4,8 (EX9)R BK 0800418 193
WMS 4,8 (EX9)R YE 0800302 193
WMS 4,8 (EX9)RL 0800321 192
WMS 4,8 (EX9)RL BK 0800429 193
WMS 4,8 (EX9)RL YE 0800330 193
WMS 50,8 (EX80)R 0800299 192
WMS 50,8 (EX80)R BK 0800426 193
WMS 50,8 (EX80)R YE 0800311 193
WMS 6,4 (15X10)R 0801593 189
WMS 6,4 (15X10)RL 0801594 191
WMS 6,4 (15X10)RXL 0801595 191
WMS 6,4 (30X10)R 0800376 189
WMS 6,4 (30X10)R YE 0800410 189
WMS 6,4 (60X10)R 0800367 189
WMS 6,4 (60X10)R YE 0800401 189
WMS 6,4 (60X10)RXL YE 0803104 191
WMS 6,4 (EX10)R 0800292 192
WMS 6,4 (EX10)R BK 0800419 193
WMS 6,4 (EX10)R YE 0800303 193
WMS 6,4 (EX10)RL 0800322 192
WMS 6,4 (EX10)RL BK 0800430 193
WMS 6,4 (EX10)RL YE 0800331 193
WMS 9,5 (30X16)R 0800377 190
WMS 9,5 (30X16)R YE 0800411 190
WMS 9,5 (60X16)R 0800368 190
WMS 9,5 (60X16)R YE 0800402 190
WMS 9,5 (60X16)RL 0803105 191
WMS 9,5 (60X16)RL YE 0803106 191
WMS 9,5 (EX16)R 0800293 192
WMS 9,5 (EX16)R BK 0800421 193
WMS 9,5 (EX16)R YE 0800304 193
WMS 9,5 (EX16)RL 0800324 192
WMS 9,5 (EX16)RL BK 0800431 193
WMS 9,5 (EX16)RL YE 0800332 193
WMS-2 HF 12,7 (60X20)RL 0833200 188
WMS-2 HF 12,7 (60X20)RL YE 0833201 188
WMS-2 HF 19,1 (60X30)RL 0833202 188
WMS-2 HF 19,1 (60X30)RL YE 0833203 188
WMS-2 HF 2,4 (15X4)RL 0801000 188
WMS-2 HF 2,4 (15X4)RL YE 0801004 188
WMS-2 HF 2,4 (30X4)RL 0801006 188
WMS-2 HF 2,4 (30X4)RL YE 0801007 188
WMS-2 HF 2,4 (60X4)RL 0801008 188
WMS-2 HF 2,4 (60X4)RL YE 0801009 188
WMS-2 HF 25,4 (60X40)RL 0833204 188
WMS-2 HF 25,4 (60X40)RL YE 0833205 188
WMS-2 HF 3,2 (15X5)RL 0801001 188
WMS-2 HF 3,2 (15X5)RL YE 0801010 188
WMS-2 HF 3,2 (30X5)RL 0801011 188
WMS-2 HF 3,2 (30X5)RL YE 0801012 188
WMS-2 HF 3,2 (60X5)RL 0801002 188
WMS-2 HF 3,2 (60X5)RL YE 0801013 188
WMS-2 HF 38,1 (60X60)RL 0833206 188
WMS-2 HF 38,1 (60X60)RL YE 0833207 188
WMS-2 HF 4,8 (15X9)RL 0801014 188
WMS-2 HF 4,8 (15X9)RL YE 0801015 188
WMS-2 HF 4,8 (30X9)RL 0801016 188
WMS-2 HF 4,8 (30X9)RL YE 0801017 188
WMS-2 HF 4,8 (60X9)RL 0801019 188
WMS-2 HF 4,8 (60X9)RL YE 0801020 188
WMS-2 HF 6,4 (30X10)RL 0801022 188
WMS-2 HF 6,4 (30X10)RL YE 0801023 188
WMS-2 HF 6,4 (60X10)RL 0801024 188
WMS-2 HF 6,4 (60X10)RL YE 0801025 188
WMS-2 HF 9,5 (15X16)RL 0801003 188
WMS-2 HF 9,5 (30X16)RL 0801026 188
WMS-2 HF 9,5 (30X16)RL YE 0801027 188
WMS-2 HF 9,5 (60X16)RL 0801028 188
WMS-2 HF 9,5 (60X16)RL YE 0801029 188
WMT 2,4 (15X4)R 0816281 196
WMT 3,5 (15X5)R 0817222 196
WMT 4,2 (15X6)R 0817235 196
WMT 5,5 (15X8)R 0817248 196
WMT 8,4 (17X10)R 0817251 196
WMTB (24X8)R 0816278 197
WMTB (35X15)R 0817316 197
WMTB HF (40X12)R 0830407 198
WMTB HF (40X12)R BU 0802991 198
WMTB HF (40X12)R RD 0803314 198
WMTB HF (40X12)R YE 0830408 198
WMTB HF (55X15)R 0830409 198
WMTB HF (55X15)R BU 0802992 198
WMTB HF (55X15)R RD 0803315 198
WMTB HF (55X15)R YE 0830410 198
WMTB HF (55X25)R 0830411 198
WMTB HF (55X25)R BU 0802993 198
WMTB HF (55X25)R RD 0803316 198
WMTB HF (55X25)R YE 0830412 198
WMTB-AL (29X8) 0830805 160
WMTB-AL (40X15) 0830524 160
WMTB-AL (60X15) 0830525 160
WMTB-AL (D30) 0830804 161
WMTW (10X4)R 0831000 195
WMTW (10X4)R YE 0831001 195
WMTW (15X4)R 0831002 195
WMTW (15X4)R YE 0831003 195
WMTW (23X4)R 0831004 195
WMTW (23X4)R YE 0831005 195
WP-BASE A M16 3241083 577
WP-BASE A M20 3241084 577
WP-BASE A M25 3241085 577
WP-BASE A M32 3241086 577
WP-BASE A M40 3241087 577
WP-BASE A PG16 3241079 577
WP-BASE A PG21 3241080 577
WP-BASE A PG29 3241081 577
WP-BASE A PG36 3241082 577
WP-BASE C PA HF 10,0 BK 3240958 576
WP-BASE C PA HF 13,0 BK 3240959 576
WP-BASE C PA HF 15,8 BK 3240960 576
WP-BASE C PA HF 21,2 BK 3240961 576
WP-BASE C PA HF 28,2 BK 3240962 576
WP-BASE C PA HF 34,5 BK 3240963 576
WP-BASE C PA HF 42,5 BK 3240964 576
WP-BASE HF 13 3240966 577
WP-BASE HF 14 3240967 577
WP-BASE HF 15,8 3240968 577
WP-BASE HF 17 3240969 577
WP-BASE HF 22 3240970 577
WP-BASE HF 29 3240971 577
WP-BASE HF 37 3240972 577
WP-BASE HF 45 3240973 577
WP-BASE HF 9-10 3240965 577
WP-CN BRASS M10 3241145 579
WP-CN BRASS M12 3241146 579
WP-CN BRASS M16 3241147 579
WP-CN BRASS M20 3241148 579
WP-CN BRASS M25 3241149 579
WP-CN BRASS M32 3241150 579
WP-CN BRASS M40 3241151 579
WP-CN BRASS PG11 3241154 579
WP-CN BRASS PG16 3241155 579
WP-CN BRASS PG21 3241156 579
WP-CN BRASS PG29 3241157 579
WP-CN BRASS PG36 3241158 579
WP-CN BRASS PG7 3241152 579
WP-CN BRASS PG9 3241153 579
WP-CN PA M12 3241132 578
WP-CN PA M16 3241133 578
WP-CN PA M20 3241134 578
WP-CN PA M25 3241135 578
WP-CN PA M32 3241136 578
WP-CN PA M40 3241137 578
WP-CN PA PG11 3241140 579
WP-CN PA PG16 3241141 579
WP-CN PA PG21 3241142 579
WP-CN PA PG29 3241143 579
WP-CN PA PG36 3241144 579
WP-CN PA PG7 3241138 579
WP-CN PA PG9 3241139 579
WP-EC TPE HF 10,0 BK 3240974 559
WP-EC TPE HF 13,0 BK 3240975 559
WP-EC TPE HF 15,8 BK 3240976 559
WP-EC TPE HF 21,2 BK 3240977 559
WP-EC TPE HF 28,5 BK 3240978 559
WP-EC TPE HF 34,5 BK 3240979 559
WP-EC TPE HF 42,5 BK 3240980 559
WP-FS HF IP68 M10 3241173 581
WP-FS HF IP68 M12 3241174 581
WP-FS HF IP68 M16 3241175 581
WP-FS HF IP68 M20 3241176 581
WP-FS HF IP68 M25 3241177 581
WP-FS HF IP68 M32 3241178 581
WP-FS HF IP68 M40 3241179 581
WP-FS HF IP68 PG11 3241182 581
WP-FS HF IP68 PG16 3241183 581
WP-FS HF IP68 PG21 3241184 581
WP-FS HF IP68 PG29 3241185 581
WP-FS HF IP68 PG36 3241186 581
WP-FS HF IP68 PG7 3241180 581
WP-FS HF IP68 PG9 3241181 581
WP-FS IP68 M10 3241159 580
WP-FS IP68 M12 3241160 580
WP-FS IP68 M16 3241161 580
WP-FS IP68 M20 3241162 580
WP-FS IP68 M25 3241163 580
WP-FS IP68 M32 3241164 580
WP-FS IP68 M40 3241165 580
WP-FS IP68 PG11 3241168 580
WP-FS IP68 PG16 3241169 580
WP-FS IP68 PG21 3241170 580
WP-FS IP68 PG29 3241171 580
WP-FS IP68 PG36 3241172 580
WP-FS IP68 PG7 3241166 580
WP-FS IP68 PG9 3241167 580
WP-G BRASS IP40 M10 3241044 573
WP-G BRASS IP40 M12 3241045 573
WP-G BRASS IP40 M16 3241046 573
WP-G BRASS IP40 M20 3241047 573
WP-G BRASS IP40 M25 3241048 573
WP-G BRASS IP40 M32 3241049 573
WP-G BRASS IP40 M40 3241050 573
WP-G BRASS IP40 PG11 3241039 572
WP-G BRASS IP40 PG16 3241040 572
WP-G BRASS IP40 PG21 3241041 572
WP-G BRASS IP40 PG29 3241042 572
WP-G BRASS IP40 PG36 3241043 572
WP-G BRASS IP40 PG7 3241037 572
WP-G BRASS IP40 PG9 3241038 572
WP-G BRASS IP65 M10 3241058 574
WP-G BRASS IP65 M12 3241059 574
WP-G BRASS IP65 M16 3241060 574
WP-G BRASS IP65 M20 3241061 574
WP-G BRASS IP65 M25 3241062 574
WP-G BRASS IP65 M32 3241063 574
WP-G BRASS IP65 M40 3241064 574
WP-G BRASS IP65 PG11 3241053 574
WP-G BRASS IP65 PG16 3241054 574
WP-G BRASS IP65 PG21 3241055 574
WP-G BRASS IP65 PG29 3241056 574
WP-G BRASS IP65 PG36 3241057 574
WP-G BRASS IP65 PG7 3241051 574
WP-G BRASS IP65 PG9 3241052 574
WP-G HF IP66 M10 BK 3240895 561
WP-G HF IP66 M12 BK 3240896 561
WP-G HF IP66 M16 BK 3240897 561
WP-G HF IP66 M20 BK 3240898 561
WP-G HF IP66 M25 BK 3240899 561
WP-G HF IP66 M32 BK 3240900 561
WP-G HF IP66 M40 BK 3240901 561
WP-G HF IP66 PG11 BK 3240890 560
WP-G HF IP66 PG16 BK 3240891 560
WP-G HF IP66 PG21 BK 3240892 560
WP-G HF IP66 PG29 BK 3240893 560
WP-G HF IP66 PG36 BK 3240894 560
WP-G HF IP66 PG7 BK 3240888 560
WP-G HF IP66 PG9 BK 3240889 560
WP-G HF IP69K M10 BK 3240881 561
WP-G HF IP69K M12 BK 3240882 561
WP-G HF IP69K M16 BK 3240883 561
WP-G HF IP69K M20 BK 3240884 561
WP-G HF IP69K M25 BK 3240885 561
WP-G HF IP69K M32 BK 3240886 561
WP-G HF IP69K M40 BK 3240887 561
WP-G HF IP69K PG11 BK 3240876 561
WP-G HF IP69K PG16 BK 3240877 561
WP-G HF IP69K PG21 BK 3240878 561
WP-G HF IP69K PG29 BK 3240879 561
WP-G HF IP69K PG36 BK 3240880 561
WP-G HF IP69K PG7 BK 3240874 561
WP-G HF IP69K PG9 BK 3240875 561
WP-G PP HF M10 3240995 569
WP-G PP HF M12 3240996 569
WP-G PP HF M16 3240997 569
WP-G PP HF M20 3240998 569
WP-G PP HF M25 3240999 569
WP-G PP HF M32 3241000 569
WP-G PP HF M40 3241001 569
WP-G PP HF PG11 3240990 568
WP-G PP HF PG16 3240991 568
WP-G PP HF PG21 3240992 568
WP-G PP HF PG29 3240993 568
WP-G PP HF PG36 3240994 568
WP-G PP HF PG7 3240988 568
WP-G PP HF PG9 3240989 568
WP-GA HF IP66 M10 BK 3240923 563
WP-GA HF IP66 M12 BK 3240924 563
WP-GA HF IP66 M16 BK 3240925 563
WP-GA HF IP66 M20 BK 3240926 563
WP-GA HF IP66 M25 BK 3240927 563
WP-GA HF IP66 M32 BK 3240928 563
WP-GA HF IP66 M40 BK 3240929 563
WP-GA HF IP66 PG11 BK 3240918 562
WP-GA HF IP66 PG16 BK 3240919 562
Index
Alphabetical
625
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
WP-GA HF IP66 PG21 BK 3240920 562
WP-GA HF IP66 PG29 BK 3240921 562
WP-GA HF IP66 PG36 BK 3240922 562
WP-GA HF IP66 PG7 BK 3240916 562
WP-GA HF IP66 PG9 BK 3240917 562
WP-GA HF IP69K M10 BK 3240909 563
WP-GA HF IP69K M12 BK 3240910 563
WP-GA HF IP69K M16 BK 3240911 563
WP-GA HF IP69K M20 BK 3240912 563
WP-GA HF IP69K M25 BK 3240913 563
WP-GA HF IP69K M32 BK 3240914 563
WP-GA HF IP69K M40 BK 3240915 563
WP-GA HF IP69K PG11 BK 3240904 563
WP-GA HF IP69K PG16 BK 3240905 563
WP-GA HF IP69K PG21 BK 3240906 563
WP-GA HF IP69K PG29 BK 3240907 563
WP-GA HF IP69K PG36 BK 3240908 563
WP-GA HF IP69K PG7 BK 3240902 563
WP-GA HF IP69K PG9 BK 3240903 563
WP-GR HF IP66 M12 BK 3240952 565
WP-GR HF IP66 M16 BK 3240953 565
WP-GR HF IP66 M20 BK 3240954 565
WP-GR HF IP66 M25 BK 3240955 565
WP-GR HF IP66 M32 BK 3240956 565
WP-GR HF IP66 M40 BK 3240957 565
WP-GR HF IP66 PG11 BK 3240946 564
WP-GR HF IP66 PG16 BK 3240947 564
WP-GR HF IP66 PG21 BK 3240948 564
WP-GR HF IP66 PG29 BK 3240949 564
WP-GR HF IP66 PG36 BK 3240950 564
WP-GR HF IP66 PG7 BK 3240944 564
WP-GR HF IP66 PG9 BK 3240945 564
WP-GR HF IP69K M12 BK 3240938 565
WP-GR HF IP69K M16 BK 3240939 565
WP-GR HF IP69K M20 BK 3240940 565
WP-GR HF IP69K M25 BK 3240941 565
WP-GR HF IP69K M32 BK 3240942 565
WP-GR HF IP69K M40 BK 3240943 565
WP-GR HF IP69K PG11 BK 3240932 565
WP-GR HF IP69K PG16 BK 3240933 565
WP-GR HF IP69K PG21 BK 3240934 565
WP-GR HF IP69K PG29 BK 3240935 565
WP-GR HF IP69K PG36 BK 3240936 565
WP-GR HF IP69K PG7 BK 3240930 565
WP-GR HF IP69K PG9 BK 3240931 565
WP-GT BRASS M10 3241030 573
WP-GT BRASS M12 3241031 573
WP-GT BRASS M16 3241032 573
WP-GT BRASS M20 3241033 573
WP-GT BRASS M25 3241034 573
WP-GT BRASS M32 3241035 573
WP-GT BRASS M40 3241036 573
WP-GT BRASS PG11 3241025 573
WP-GT BRASS PG16 3241026 573
WP-GT BRASS PG21 3241027 573
WP-GT BRASS PG29 3241028 573
WP-GT BRASS PG36 3241029 573
WP-GT BRASS PG7 3241023 573
WP-GT BRASS PG9 3241024 573
WP-GT PP HF M12 3241010 569
WP-GT PP HF M16 3241011 569
WP-GT PP HF M20 3241012 569
WP-GT PP HF M25 3241013 569
WP-GT PP HF M32 3241014 569
WP-GT PP HF M40 3241015 569
WP-GT PP HF PG11 3241004 569
WP-GT PP HF PG16 3241005 569
WP-GT PP HF PG21 3241006 569
WP-GT PP HF PG29 3241007 569
WP-GT PP HF PG36 3241008 569
WP-GT PP HF PG7 3241002 569
WP-GT PP HF PG9 3241003 569
WP-OR M10 3241187 581
WP-OR M12 3241188 581
WP-OR M16 3241189 581
WP-OR M20 3241190 581
WP-OR M25 3241191 581
WP-OR M32 3241192 581
WP-OR M40 3241193 581
WP-OR PG11 3241196 581
WP-OR PG16 3241197 581
WP-OR PG21 3241198 581
WP-OR PG29 3241199 581
WP-OR PG36 3241200 581
WP-OR PG7 3241194 581
WP-OR PG9 3241195 581
WP-PA HF 10,0 BK 3240680 559
WP-PA HF 13,0 BK 3240681 559
WP-PA HF 15,8 BK 3240682 559
WP-PA HF 21,2 BK 3240683 559
WP-PA HF 28,5 BK 3240684 559
WP-PA HF 34,5 BK 3241088 559
WP-PA HF 42,5 BK 3241089 559
WP-PA HF-HB 10,0 BK 3240838 559
WP-PA HF-HB 13,0 BK 3240839 559
WP-PA HF-HB 15,8 BK 3240840 559
WP-PA HF-HB 21,2 BK 3240841 559
WP-PA HF-HB 28,5 BK 3240842 559
WP-PA HF-HB 34,5 BK 3240843 559
WP-PA HF-HB 42,5 BK 3240844 559
WP-PA HF-SL 21,2 BK 3240845 558
WP-PA HF-SL 28,5 BK 3240846 558
WP-PA HF-SL 34,5 BK 3240847 558
WP-PA HF-SL 42,5 BK 3240848 558
WP-SC BRASS 10 3241065 571
WP-SC BRASS 14 3241066 571
WP-SC BRASS 17 3241067 571
WP-SC BRASS 21 3241068 571
WP-SC BRASS 27 3241069 571
WP-SC BRASS 36 3241070 571
WP-SC BRASS 45 3241071 571
WP-SC BRASS WP PVC 10 3241072 574
WP-SC BRASS WP PVC 14 3241073 574
WP-SC BRASS WP PVC 17 3241074 574
WP-SC BRASS WP PVC 21 3241075 574
WP-SC BRASS WP PVC 27 3241076 574
WP-SC BRASS WP PVC 36 3241077 574
WP-SC BRASS WP PVC 45 3241078 574
WP-SC HF 10 3241016 567
WP-SC HF 14 3241017 567
WP-SC HF 17 3241018 567
WP-SC HF 21 3241019 567
WP-SC HF 27 3241020 567
WP-SC HF 36 3241021 567
WP-SC HF 45 3241022 567
WP-SC PA HF 10,0 BK 3240981 559
WP-SC PA HF 13,0 BK 3240982 559
WP-SC PA HF 15,8 BK 3240983 559
WP-SC PA HF 21,2 BK 3240984 559
WP-SC PA HF 28,5 BK 3240985 559
WP-SC PA HF 34,5 BK 3240986 559
WP-SC PA HF 42,5 BK 3240987 559
WP-SPIRAL PU C HF 10 3240856 567
WP-SPIRAL PU C HF 14 3240857 567
WP-SPIRAL PU C HF 17 3240858 567
WP-SPIRAL PU C HF 21 3240859 567
WP-SPIRAL PU C HF 27 3240860 567
WP-SPIRAL PU C HF 36 3240861 567
WP-SPIRAL PU C HF 45 3240862 567
WP-SPIRAL PVC C 10 3240849 566
WP-SPIRAL PVC C 14 3240850 566
WP-SPIRAL PVC C 17 3240851 566
WP-SPIRAL PVC C 21 3240852 566
WP-SPIRAL PVC C 27 3240853 566
WP-SPIRAL PVC C 36 3240854 566
WP-SPIRAL PVC C 45 3240855 566
WP-STEEL PVC C 10 3240867 574
WP-STEEL PVC C 14 3240868 574
WP-STEEL PVC C 17 3240869 574
WP-STEEL PVC C 21 3240870 574
WP-STEEL PVC C 27 3240871 574
WP-STEEL PVC C 36 3240872 574
WP-STEEL PVC C 45 3240873 574
WP-STEEL S 10 3240686 571
WP-STEEL S 14 3240687 571
WP-STEEL S 17 3240863 571
WP-STEEL S 21 3240688 571
WP-STEEL S 27 3240864 571
WP-STEEL S 36 3240689 571
WP-STEEL S 45 3240690 571
WP-STEEL ZC 10 3240697 570
WP-STEEL ZC 14 3240865 570
WP-STEEL ZC 17 3240698 570
WP-STEEL ZC 21 3240699 570
WP-STEEL ZC 27 3240866 570
WP-STEEL ZC 36 3240700 570
WP-STEEL ZC 45 3240701 570
WS UT 10 3047361 99
WS UT 16 3047374 99
WS UT 2,5 3047923 99
WS UT 35 3047387 99
WS UT 4 3047332 99
WS UT 6 3047345 99
WST 1,5 3030958 99
WST 10/35 3030006 99
WST 2,5 3030941 99
WST 4 3030954 99
WST 6 3030967 99
WT-BASE HF 5 3240702 596
WT-BASE HF 5 BK 3240703 596
WT-BASE HF 9 3240704 596
WT-BASE HF 9 BK 3240705 596
WT-BASE LS HF 4 3240706 596
WT-BASE LS HF 4 BK 3240707 596
WT-BASE LS HF 6 3240708 596
WT-BASE LS HF 6 BK 3240709 596
WT-BASE P HF 9,5 BK 3240710 597
WT-BASE R HF 8 3240711 597
WT-D HF 7,5X200 3240712 592
WT-D HF 7,5X200 BK 3240713 592
WT-D HF 7,5X250 3240714 592
WT-D HF 7,5X250 BK 3240715 592
WT-D HF 7,5X350 3240716 592
WT-D HF 7,5X350 BK 3240717 592
WT-E HF 3,6X150 3240718 592
WT-E HF 4,8X200 3240720 592
WT-E HF 7,8X200 3240722 592
WT-E HF 7,8X300 3240724 592
WT-E HF 7,8X380 3240726 592
WT-HF 12,6X1000 3240728 588
WT-HF 12,6X1000 BK 3240729 589
WT-HF 12,6X850 3240730 588
WT-HF 12,6X850 BK 3240731 589
WT-HF 2,5X98 3240732 588
WT-HF 2,5X98 BK 3240733 589
WT-HF 2,5X98 BK-L 3240734 589
WT-HF 2,5X98-L 3240735 588
WT-HF 2,6X160 3240736 588
WT-HF 2,6X160 BK 3240737 589
WT-HF 2,6X160 BK-L 3240738 589
WT-HF 2,6X160-L 3240739 588
WT-HF 2,6X200 3240740 588
WT-HF 2,6X200 BK 3240741 589
WT-HF 2,6X200 BK-L 3240742 589
WT-HF 2,6X200-L 3240743 588
WT-HF 3,6X140 3240744 588
WT-HF 3,6X140 BK 3240745 589
WT-HF 3,6X140 BK-L 3240746 589
WT-HF 3,6X140-L 3240747 588
WT-HF 3,6X200 3240748 588
WT-HF 3,6X200 BK 3240749 589
WT-HF 3,6X200 BK-L 3240750 589
WT-HF 3,6X200-L 3240751 588
WT-HF 3,6X290 3240752 588
WT-HF 3,6X290 BK 3240753 589
WT-HF 3,6X290 BK-L 3240754 589
WT-HF 3,6X290-L 3240755 588
WT-HF 4,5X160 3240756 588
WT-HF 4,5X160 BK 3240757 589
WT-HF 4,5X160 BK-L 3240758 589
WT-HF 4,5X160-L 3240759 588
WT-HF 4,5X200 3240760 588
WT-HF 4,5X200 BK 3240761 589
WT-HF 4,5X200 BK-L 3240762 589
WT-HF 4,5X200-L 3240763 588
WT-HF 4,5X290 3240764 588
WT-HF 4,5X290 BK 3240765 589
WT-HF 4,5X360 3240768 588
WT-HF 4,5X360 BK 3240769 589
WT-HF 4,5X430 3240770 588
WT-HF 4,5X430 BK 3240771 589
WT-HF 7,8X300 3240772 588
WT-HF 7,8X300 BK 3240773 589
WT-HF 7,8X365 3240774 588
WT-HF 7,8X365 BK 3240775 589
WT-HF 7,8X540 3240719 588
WT-HF 7,8X540 BK 3240721 589
WT-HF 9X780 3240778 588
WT-HF 9X780 BK 3240779 589
WT-HP HF 3,6X140 0830982 589
WT-HP HF 4,5X290 0830984 589
WT-HP HF 4,8X200 0830983 589
WT-HT HF 2,5X98 3240780 591
WT-HT HF 2,5X98 BK 3240781 591
WT-HT HF 3,6X140 3240782 591
WT-HT HF 3,6X140 BK 3240783 591
WT-HT HF 3,6X200 3240784 591
WT-HT HF 3,6X200 BK 3240785 591
WT-HT HF 4,5X200 3240786 591
WT-HT HF 4,5X200 BK 3240787 591
WT-HT HF 4,5X290 3240788 591
WT-HT HF 4,5X290 BK 3240789 591
WT-HT HF 7,8X365 3240792 591
WT-HT HF 7,8X365 BK 3240793 591
WT-ID HF 2,5X98 BU 3240794 593
WT-ID HF 3,5X140 BU 3240795 593
WT-ID HF 3,5X200 BU 3240796 593
WT-ID HF 4,5X200 BU 3240797 593
WT-ID HF 4,5X290 BU 3240798 593
WT-ID HF 7,5X365 BU 3240800 593
WT-R HF 3,6X150 3240801 593
WT-R HF 4,8X200 3240803 593
WT-STEEL S 4,6X1067 3240805 594
WT-STEEL S 4,6X150 3240807 594
WT-STEEL S 4,6X201 3240808 594
WT-STEEL S 4,6X259 3240809 594
WT-STEEL S 4,6X360 3240810 594
WT-STEEL S 4,6X520 3240811 594
WT-STEEL S 4,6X679 3240812 594
WT-STEEL S 4,6X838 3240723 594
WT-STEEL S 7,9X1067 3240813 594
WT-STEEL S 7,9X259 3240814 594
WT-STEEL S 7,9X360 3240815 594
WT-STEEL S 7,9X520 3240816 594
WT-STEEL S 7,9X679 3240817 594
WT-STEEL S 7,9X838 3240725 594
WT-STEEL SH 4,6X1067 3240818 595
WT-STEEL SH 4,6X150 3240820 595
WT-STEEL SH 4,6X201 3240821 595
WT-STEEL SH 4,6X259 3240822 595
WT-STEEL SH 4,6X360 3240823 595
WT-STEEL SH 4,6X520 3240824 595
WT-STEEL SH 4,6X679 3240825 595
WT-STEEL SH 4,6X838 3240727 595
WT-STEEL SH 7,9X1067 3240826 595
WT-STEEL SH 7,9X259 3240827 595
WT-STEEL SH 7,9X360 3240828 595
WT-STEEL SH 7,9X520 3240829 595
WT-STEEL SH 7,9X679 3240830 595
WT-STEEL SH 7,9X838 3240766 595
WT-UV HF 2,5X98 BK 3240831 590
WT-UV HF 3,6X140 BK 3240832 590
WT-UV HF 3,6X200 BK 3240833 590
WT-UV HF 4,5X200 BK 3240834 590
WT-UV HF 4,5X290 BK 3240835 590
WT-UV HF 7,8X365 BK 3240837 590
X
X-PEN 0,35 0811228 46
Index
Alphabetical
626
PHOENIX CONTACT
Type Order No. Page Type Order No. Page Type Order No. Page Type Order No. Page
Z
ZAP 25 1203110 472
ZAP 25 T 1203123 473
ZAP 100 1203259 473
ZAP 100 T 1203262 473
ZAP 40 1212630 472
ZB 10:UNBEDRUCKT 1053001 66
ZB 12,LGS:L1-N,PE 0812146 67
ZB 12:UNPRINTED 0812120 67
ZB 13:UNBEDRUCKT 0829131 67
ZB 15,LGS:L1-N,PE 0811998 67
ZB 15:UNBEDRUCKT 0811972 67
ZB 16,3:UNPRINTED 0820222 68
ZB 17:UNBEDRUCKT 0829391 68
ZB 18,LGS:L1-N,PE 0811846 69
ZB 18:UNBEDRUCKT 0811833 69
ZB 22,LGS:L1-N,PE 0811875 69
ZB 22:UNBEDRUCKT 0811862 69
ZB 25:UNPRINTED 0802751 69
ZB 3,5,LGS:FORTL.ZAHLEN 0801404 62
ZB 3,5,QR:FORT.ZAHLEN 0801405 62
ZB 3,5:UNBEDRUCKT 0829414 62
ZB 4 :UNBEDRUCKT 0805001 63
ZB 4,LGS:FORTL.ZAHLEN 0805739 63
ZB 4,QR:FORTL.ZAHLEN 0805807 63
ZB 4/WH-100:UNBEDRUCKT 0805810 63
ZB 5 :UNBEDRUCKT 1050004 63
ZB 5,08,LGS:FORTL.ZAHLEN 0809803 63
ZB 5,08,LGS:L1-N,PE 0809832 63
ZB 5,08,LGS:U-N 0809845 63
ZB 5,08,QR:FORTL.ZAHLEN 0809858 63
ZB 5,08:UNBEDRUCKT 0809793 63
ZB 5,LGS:FORTL.ZAHLEN 1050017 63
ZB 5,LGS:GLEICHE ZAHLEN 1050033 63
ZB 5,LGS:L1-N,PE 1050415 63
ZB 5,QR:FORTL.ZAHLEN 1050020 63
ZB 5/WH-100:UNBEDRUCKT 5060906 63
ZB 6,6,LGS:FORTL.ZAHLEN 1052345 64
ZB 6,6:UNBEDRUCKT 1052332 64
ZB 6,LGS:FORTL.ZAHLEN 1051016 64
ZB 6,LGS:GLEICHE ZAHLEN 1051032 64
ZB 6,LGS:L1-N,PE 1051414 64
ZB 6,LGS:U-N 1051430 64
ZB 6,QR:FORTL.ZAHLEN 1051029 64
ZB 6:UNBEDRUCKT 1051003 64
ZB 7,5:UNBEDRUCKT 0803948 65
ZB 7,62,LGS:FORTL.ZAHLEN 1054233 65
ZB 7,62/WH-100:UNBEDRUCKT 5060922 65
ZB 7,62:UNBEDRUCKT 1054000 65
ZB 8,LGS:FORTL.ZAHLEN 1052015 65
ZB 8,LGS:L1-N,PE 1052413 65
ZB 8,QR:FORTL.ZAHLEN 1052028 65
ZB 8/WH-100:UNBEDRUCKT 5060896 65
ZB 8:UNBEDRUCKT 1052002 65
ZB 9:UNBEDRUCKT 0829127 66
ZB10,LGS:FORTL.ZAHLEN 1053014 66
ZB10,LGS:GLEICHE ZAHLEN 1053030 66
ZB10,LGS:L1-N,PE 1053412 66
ZB10,LGS:U-N 1053438 66
ZB10,QR:FORTL.ZAHLEN 1053027 66
ZB10/WH-100:UNBEDRUCKT 5060883 66
ZBF 12:UNBEDRUCKT 0809735 73
ZBF 13:UNBEDRUCKT 0829133 74
ZBF 15:UNBEDRUCKT 0811202 74
ZBF 16:UNPRINTED 0827464 75
ZBF 17:UNBEDRUCKT 0815020 75
ZBF 19,7:UNBEDRUCKT 0810627 75
ZBF 3,5,LGS:FORTL.ZAHLEN 0801406 70
ZBF 3,5,QR:FORTL.ZAHLEN 0801407 70
ZBF 3,5:UNBEDRUCKT 0829392 70
ZBF 4,LGS:FORTL.ZAHLEN 0808626 71
ZBF 4,LGS:GERADE ZAHLEN 0810818 71
ZBF 4,LGS:UNGERADE ZAHLEN 0810850 71
ZBF 4,QR:FORTL.ZAHLEN 0808820 71
ZBF 4/WH-100:UNBEDRUCKT 0808613 71
ZBF 4:UNBEDRUCKT 0808587 71
ZBF 5,LGS:FORTL.ZAHLEN 0808671 71
ZBF 5,LGS:GERADE ZAHLEN 0810821 71
ZBF 5,LGS:UNGERADE ZAHLEN 0810863 71
ZBF 5,QR:FORTL.ZAHLEN 0808697 71
ZBF 5/WH-100:UNBEDRUCKT 0808668 71
ZBF 5:UNBEDRUCKT 0808642 71
ZBF 6,LGS:FORTL.ZAHLEN 0808749 71
ZBF 6,LGS:GERADE ZAHLEN 0810834 71
ZBF 6,LGS:UNGERADE ZAHLEN 0810876 71
ZBF 6,QR:FORTL.ZAHLEN 0808765 71
ZBF 6/WH-100:UNBEDRUCKT 0808736 71
ZBF 6:UNBEDRUCKT 0808710 71
ZBF 7,5,LGS:FORTL.ZAHLEN 0809955 72
ZBF 7,5,QR:FORTL.ZAHLEN 0809968 72
ZBF 7,5:UNBEDRUCKT 0809942 72
ZBF 8,LGS:FORTL.ZAHLEN 0808804 72
ZBF 8:UNBEDRUCKT 0808781 72
ZBF 9:UNBEDRUCKT 0829129 73
ZBF10,LGS:FORTL.ZAHLEN 0810009 73
ZBF10,QR:FORTL.ZAHLEN 0810025 73
ZBF10:UNBEDRUCKT 0809997 73
Index
Alphabetical
627
PHOENIX CONTACT
