Catalog
April 2015
Control units Ø 16, Ø 22, and Ø 30
Emergency stop and
Emergency switching off
functions
Digi-Cat, a handy USB key for PC
Contact your local representative to get your own Digi-Cat
How can you fit a 6000-page catalog in your pocket ?
Schneider Electric provides you with the complete set of industrial automation catalogs all on a handy
USB key for PC or in an application for tablets
e-Library, the app for tablets
>Convenient to carry
>Always up-to-date
>Environmentally friendly
>Easy-to-share format
>Go to the App Store and search for e-Library
>or scan the QR code
If you have an iPad®:
>Go to the Google Play Store
TM and search for eLibrary
>or scan the QR code
If you have an Android tablet:
1
General contents
Ø 16, Ø 22, and Ø 30 Emergency stop and Emergency switching
off functions
b Presentation of Emergency stop and Emergency switching off functions
v Ø 16 XB6E and XB6 ................................................................................... page 2
v Ø 22 XB4, XB5, and XB7 ............................................................................ page 6
v Ø 30 9001K and SK .................................................................................. page 26
v Magelis XBTGH ........................................................................................ page 28
b References
v Ø 16: XB6E and XB6
- XB6E monolithic .................................................................................. page 3
- XB6E accessories ................................................................................. page 3
- XB6 modular .......................................................................................... page 4
- XB6 complete bodies and accessories .................................................. page 5
v Ø 22: XB4
- XB4 metal .............................................................................................. page 7
- Body/contact assemblies and light blocks.............................................. page 9
- Circular yellow legends ........................................................................ page 14
- Accessories ......................................................................................... page 15
v Ø 22: XB5
- XB5 plastic........................................................................................... page 16
- Body/contact assemblies and light blocks............................................ page 18
- Circular yellow legends ........................................................................ page 23
- Accessories ......................................................................................... page 24
v Ø 22: XB7
- XB7 plastic........................................................................................... page 25
- Accessories ......................................................................................... page 25
v Ø 30: 9001K and SK
- 9001K metal and 9001SK plastic ......................................................... page 27
- Accessories ......................................................................................... page 27
v Magelis XBTGH

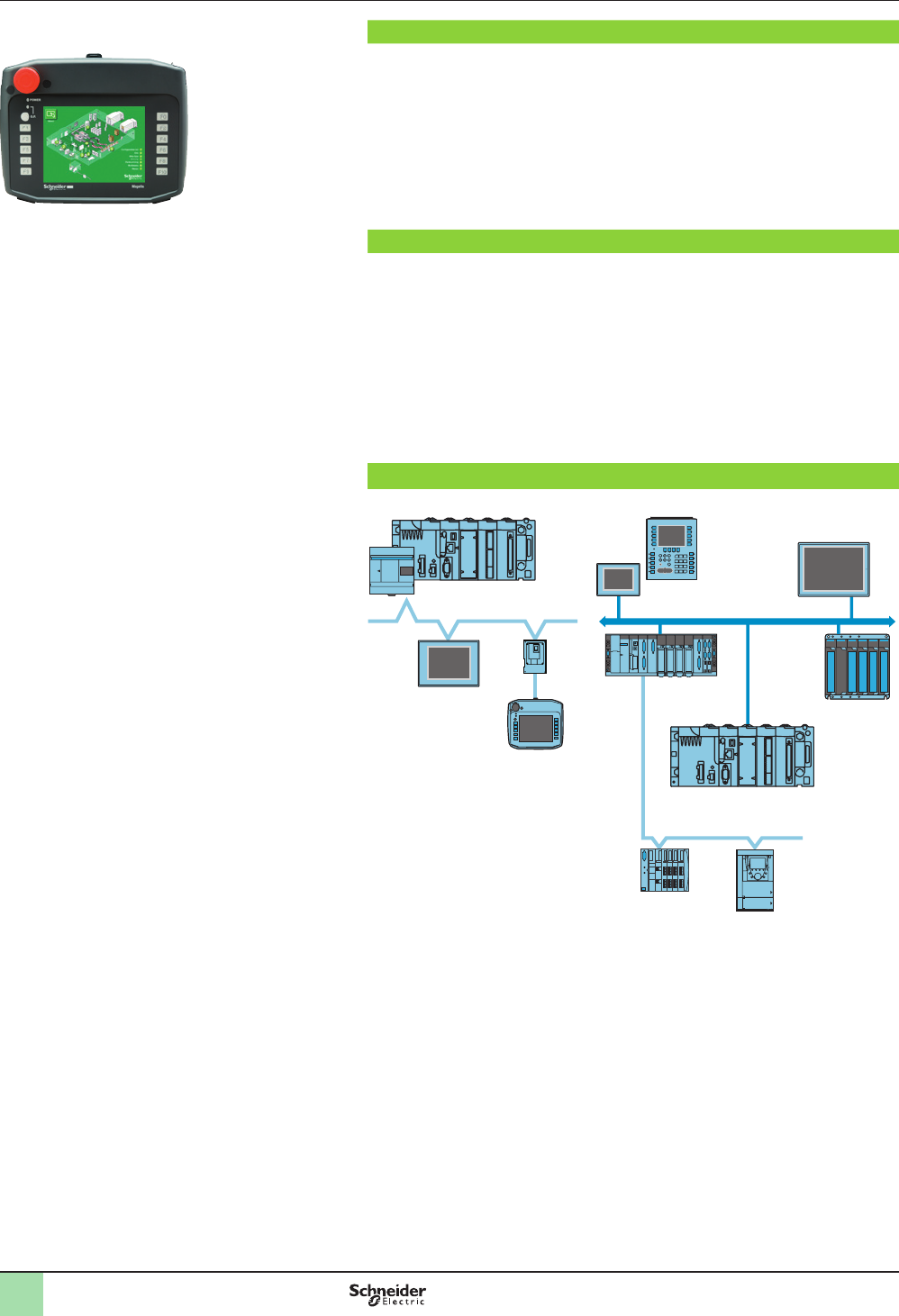

- Emergency stop function embedded on MagelisTM XBTGH
Advanced hand-held panel .................................................................. page 29
b Product reference index ......................................................................... page 30
2
2
Presentation Control units Ø 16 plastic
Harmony XB6E monolithic and XB6 modular
Emergency stop pushbuttons
References:
page 3
Presentation
The Ø 16 mm/0.630 in. Harmony XB6 and XB6E plastic range of Emergency stop
pushbuttons is compact and thus suitable for installation on small machines and
control panels. Their reduced diameter makes them suitable for applications where
mounting space is less. Designed for control of machines and installations, these
functions meet the requirements of majority of industrial applications.
b This range includes:
v Ø 32 mm/1.260 in.
Emergency stop trigger action pushbuttons for Start/Stop control
of machines and installations, adjustment and parametering (contact functions),
v Ø 32 mm/1.260 in.
Illuminated Emergency stop pushbuttons for control and signaling
(contact functions and signaling functions),
v Fast connector sockets with push-in technology,
v Various accessories.
Installation
b Harmony XB6 and XB6E products are both simple and quick to install:
v Mounting by single installer (self-maintaining of the head in its cut-out)
v Clip-together component system (head, body, contact blocks and LED)
b Type of connection:
v For XB6 and XB6E: faston connector
v For XB6E: fast connector socket
Environment
The performance features of these range meet the most demanding international
standards and approvals:
b Degrees of protection:
v For XB6 and XB6E: IP 65 conforming to standard IEC 60529
v For XB6: NEMA type 4, 4X and 13 conforming to standard UL 50 and CSA C22-2
94 (except key switches)
b International standards:
v For XB6 and XB6E: EN/IEC 60947-5-5
v For XB6:
conform to standards EN/IEC 60204-1 and EN/ISO 13850, to Machinery
Directive 98/37/EC and to standard EN/IEC 60947-5-5
b Product certications:
v For XB6E: UR, CCC,
v For XB6: UL, CSA, CCC, GOST
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
3

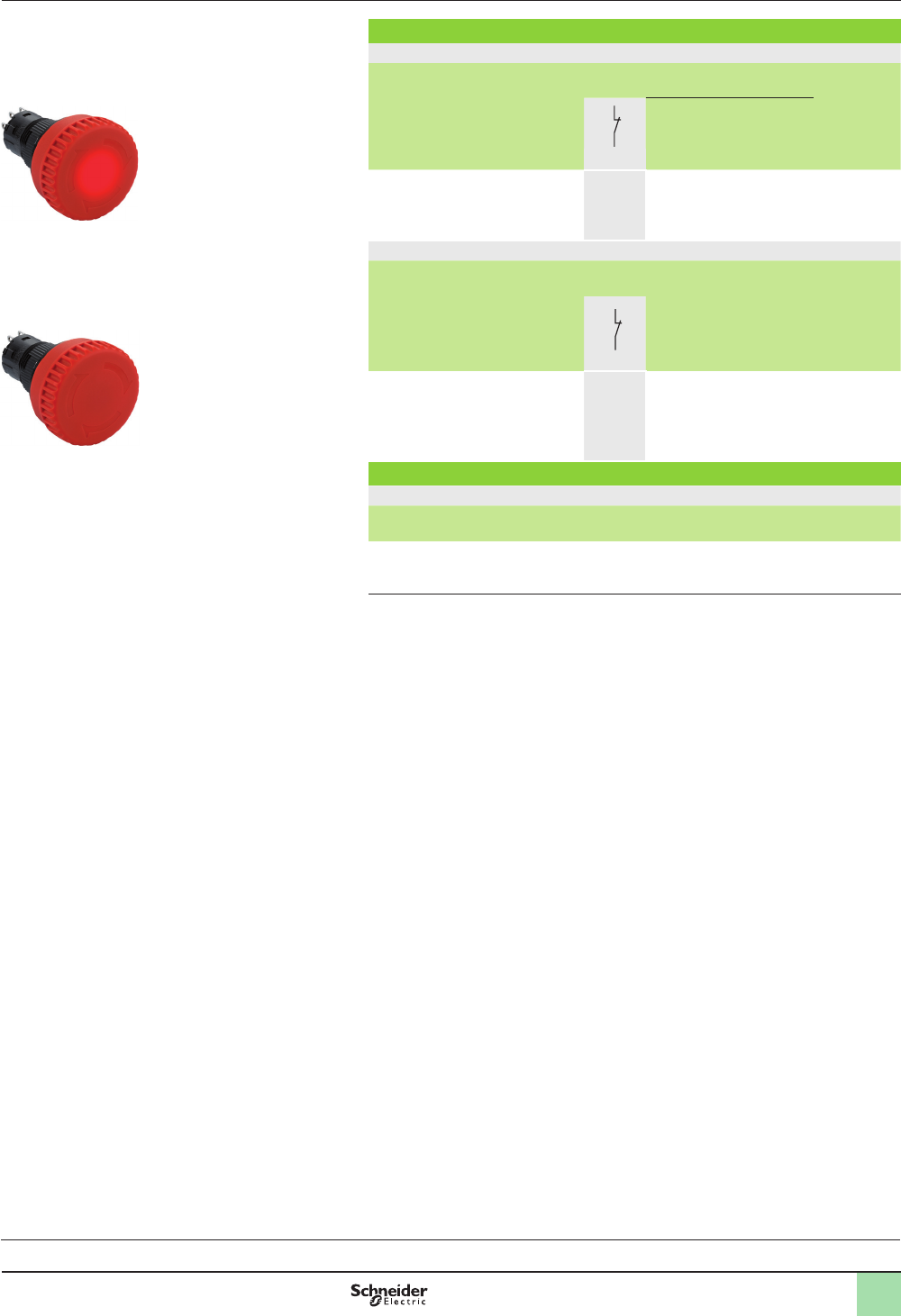

Emergency stop mushroom head pushbutton
Illuminated
Shape
of head
Type
of push
Type of
contacts
Reference Weight
kg/lb
With 12 V
LED
With 24 V
LED
N/C
Circular,
Ø 32 mm
/1.260 in.
Trigger action,
turn to release,
pull to release
2XB6ETI522P XB6ETI523P 0.027/0.060
Non-illuminated
Shape
of head
Type
of push
Type of
contacts
Reference Weight
kg/lb
N/C
Circular,
Ø 32 mm
/1.260 in.
Trigger action,
turn to release,
pull to release
2XB6ETN521P 0.027/0.060
Accessories
Labels for Emergency stop mushroom head pushbutton
Shape Color Marking Sold in
lots of
Reference Weight
kg/lb
Circular Yellow EMERGENCY STOP 10 ZB6Y56 0.010/0.022
Control units Ø 16 plastic 0
Harmony XB6E monolithic
Emergency stop pushbuttons and accessories
References
Presentation:
page 2
XB6ETI522P
PF122740
XB6ETN521P
PF122790
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
4

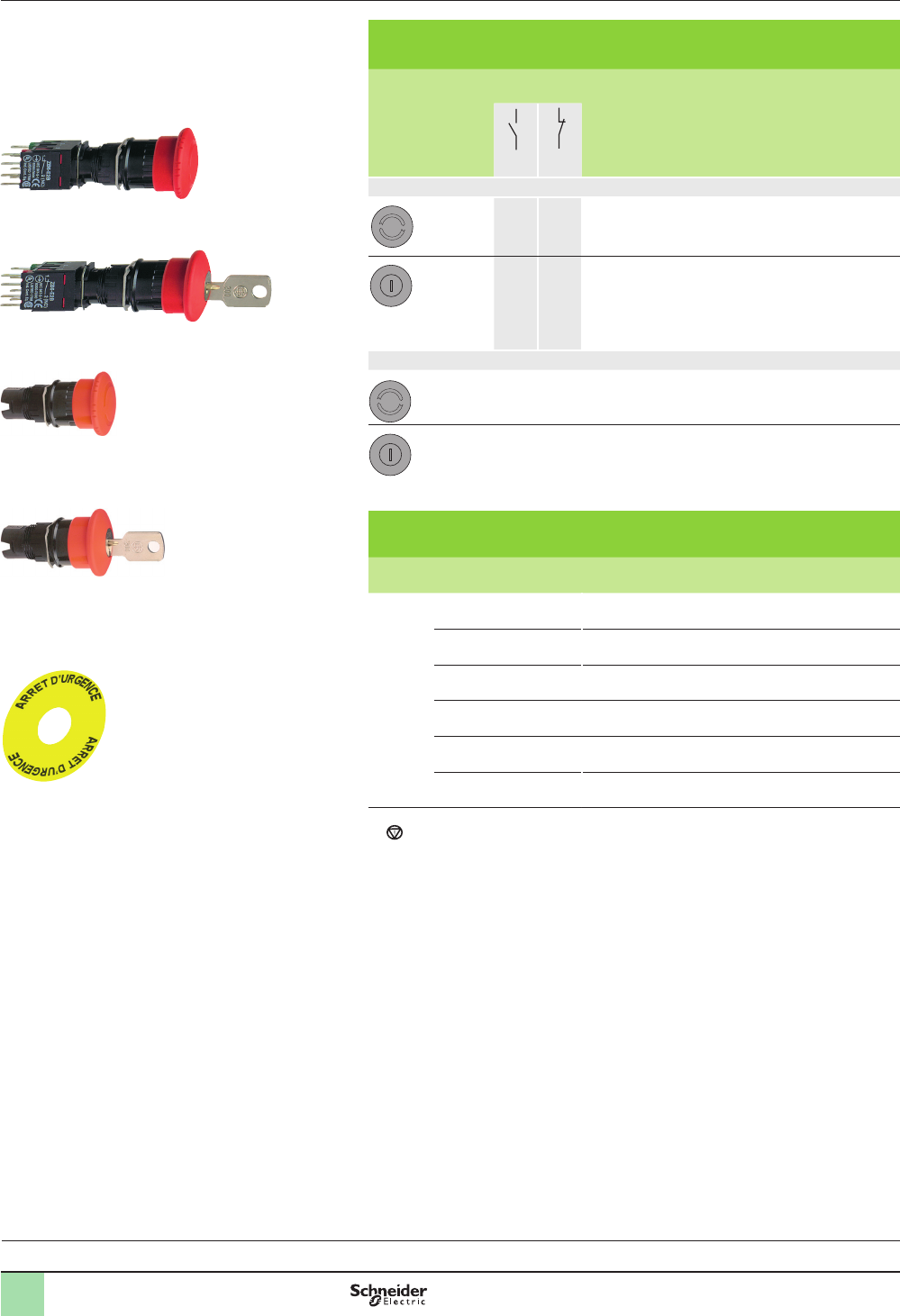

Emergency stop trigger action and mechanical latching
pushbuttons
Shape
of head
Type
of reset
Type of
contacts
Diameter
of push
mm/in.
Color Reference Weight
kg/lb
N/O N/C
Complete units
Turn to
release
1 2 30/1.181 Red XB6AS8349B
(ZB6Z4B +ZB6AS834)
0.041/0.090
Key
release
(key
200)
1 2 30/1.181 Red XB6AS9349B
(ZB6Z4B + ZB6AS934)
0.056/0.123
Heads only
Turn to
release
30/1.181 Red ZB6AS834 0.035/0.077
Key
release
(key
200)
30/1.181 Red ZB6AS934 0.050/0.110
Circular legends for Emergency Stop mushroom head
pushbuttons (yellow)
Diameter
mm/in.
Marking on yellow
background
Reference Weight
kg/lb
45/1.772 Without (1)ZB6Y7001 0.001/0.002
ARRET D’URGENCE (1) ZB6Y7130 0.001/0.002
EMERGENCY STOP (1) ZB6Y7330 0.001/0.002
PARADA EMERGENCIA (1) ZB6Y7430 0.001/0.002
ARRESTO EMERGENZA (1) ZB6Y7630 0.001/0.002
NOT-HALT (1) ZB6Y7230 0.001/0.002
(1)
For complying with EN/ISO 13850 standard, paragraph 4.4.6., Emergency Stop function logo
has been added.

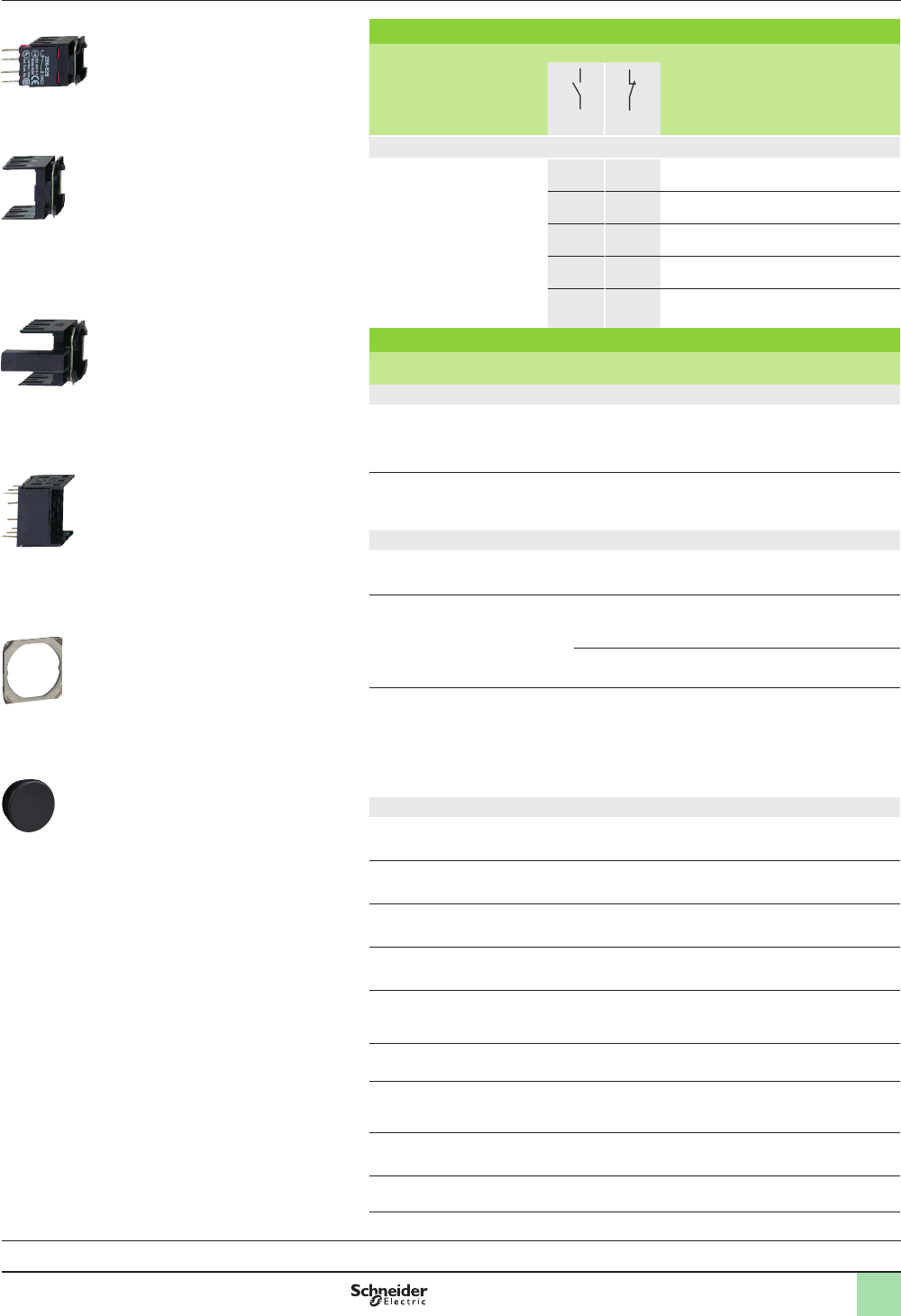

Control units Ø 16 plastic 1
Harmony XB6 modular
Emergency stop pushbuttons and circular legends
References (continued)
1
XB6AS8349B
Presentation:
page 2
PF514166
XB6AS9349B
PF514167
ZB6AS834
110770
ZB6AS934
110771
ZB6Y7130
DG121436
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
5
Control units Ø 16 plastic 1
Harmony XB6 modular
Complete bodies and accesories
Complete bodies
Description Supply
voltage
V
Type of contacts Reference Weight
kg/lb
N/O N/C
Faston connectors
Direct supply
Fixing collar +
contact block
y 250 1 ZB6Z1B 0.004/0.009
– 1 ZB6Z2B 0.004/0.009
2 – ZB6Z3B 0.006/0.013
– 2 ZB6Z4B 0.006/0.013
1 1 ZB6Z5B 0.006/0.013
Accessories
Description Application Sold in
lots of
Reference Weight
kg/lb
Body accessories
Body/xing
collar
For mounting
contact blocks
and
light source
10 ZB6Y009 0.002/0.004
Body bracket
(xing screws
included)
Printed circuit
board mounting
4ZB6Y011 0.010/0.022
Mounting accessories
Plug-in socket
adapter
Printed circuit
board mounting
10 ZB6Y010 0.004/0.009
Dummy contact
block housing
(without contacts)
Printed circuit
board
mounting
Without pins
for printed
circuit
10 ZB6Y006 0.001/0.002
With pins for
printed circuit
10 ZB6Y006A 0.001/0.002
Adapter for XAL
control station
22 mm
/0.866 in. to
Ø 16 mm
/0.630 in.
reducer)
Ø 16/0.630 in.
circular,
square or
rectangular
units
5ZB6Y006A 0.001/0.002
Miscellaneous accessories
Anti-rotation
plate
Selector switches,
Emergency stop buttons
10 ZB6Y003 0.001/0.002
Nut Securing head on
support
10 ZB6Y002 0.001/0.002
Dismantling tool Removal of contact blocks
from body/xing collar
5ZB6Y018 0.005/0.011
Extractor Removal of pushbutton
caps
5ZB6Y016 0.010/0.022
Bezel tightening
tool + bulb
extractor
Tightening and slackening
the bezel and
changing bulbs
2ZB6Y905 0.006/0.013
Metal assembly
tool
Tightening of xing nut 1ZB6Y906 0.022/0.049
Dismantling tool
kit, comprising 3
tools
Removal of contacts,
xing nuts and
pushbutton caps
1ZB6Y019 0.030/0.066
Female Faston
connector
100 ZB6Y004 0.002/0.004
Blanking plug 10 ZB6Y005 0.001/0.002
References (continued)
1
Presentation:
page 2
ZB6Z1B
PF514173
ZB6Y009
101488
ZB6Y011
101503
ZB6Y010
101502
ZB6Y003
107422
ZB6Y005
107380
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
6
6
References:
page 7
Control units Ø 22
Harmony XB4, XB5, and XB7
Emergency stop and Emergency switching off functions
Presentation
Presentation
The Ø 22 mm/0.866 in. Harmony XB4 metal, XB5 plastic, and XB7 plastic range of Emergency stop and Emergency
switching off functions combines simplicity of installation, exibility, robustness, ergonomy and reliability. Designed
for control of machines and installations, this functions meet the requirements of majority of industrial applications.
Following are broad and comprehensive offer under this range:
b Emergency stop trigger action and mechanically latching pushbuttons (conforming to standards EN/IEC 60204-1
and EN/ISO 13850)
b Emergency switching off mechanically latching pushbuttons (conforming to standard IEC 60364-5-53)
b Legends and legend holders
b Accessories and spare parts
Installation
b These products are both simple and quick to install:
v Mounting by single installer (self-maintaining of the head in its cut-out)
v Clip-together component system (head, body, contact blocks and LED)
v Fixing by a single locking screw
v Anti-loosening system for screw clamp terminals of contact blocks.
b Various types of connection are available:
v Screw clamp terminal connector
v Spring clamp terminal connector
v Faston connector
v Plug-in connector
Environment
The performance features of these range meet the most demanding international standards and approvals:
b Degrees of protection:
The range includes products for use in difcult industrial environments, due to:
v Their high degree of protection for harsh environments (IP 66 / IP 69K with bellows)
v Their resistance to high pressure cleaning
v Their “all climates” TH compatibility
v A wide choice of contact blocks with various breaking capacities (low, standard or high power switching)
v For XB7: IP 65 for Emergency stop pushbuttons
b International standards:
v Emergency stop function: Mushroom head Emergency stop trigger action and mechanical latching pushbuttons
conform to standards EN/IEC 60204-1 and
EN/ISO 13850, to Machinery Directive 2006/42/EC and to standard
EN/IEC 60947-5-5.
v Emergency switching off function: Mushroom head switching off mechanical latching pushbuttons conform to
standards IEC 60364-5-53 and EN/IEC 60947-5-5.
For XB7,
v Emergency stop function: EN/IEC 60947-5-5, EN/ISO 13850 and EN/IEC 60204-1
v Emergency switching off function: EN/IEC 60364-5-53
b Product certications:
v UL 508, CSA C22-2 n° 14, and GB 14048.5
v International certications: UL, CSA, CCC, EAC
v Marine certications for XB4 and XB5: BV, RINA, LROS, DNV, GL
Please consult our Customer Care Centre for a full explanation of these standards and directives.
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
7

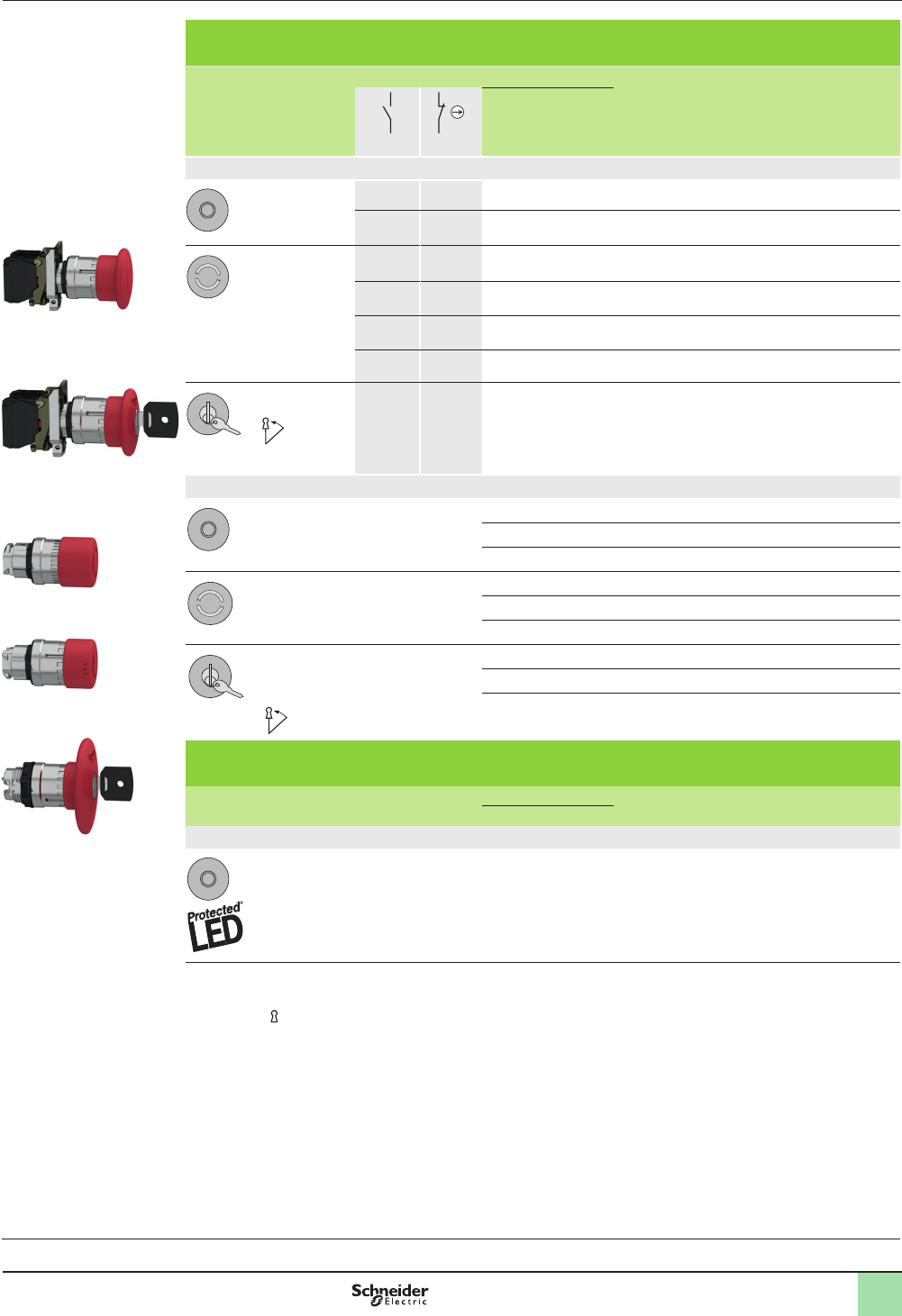

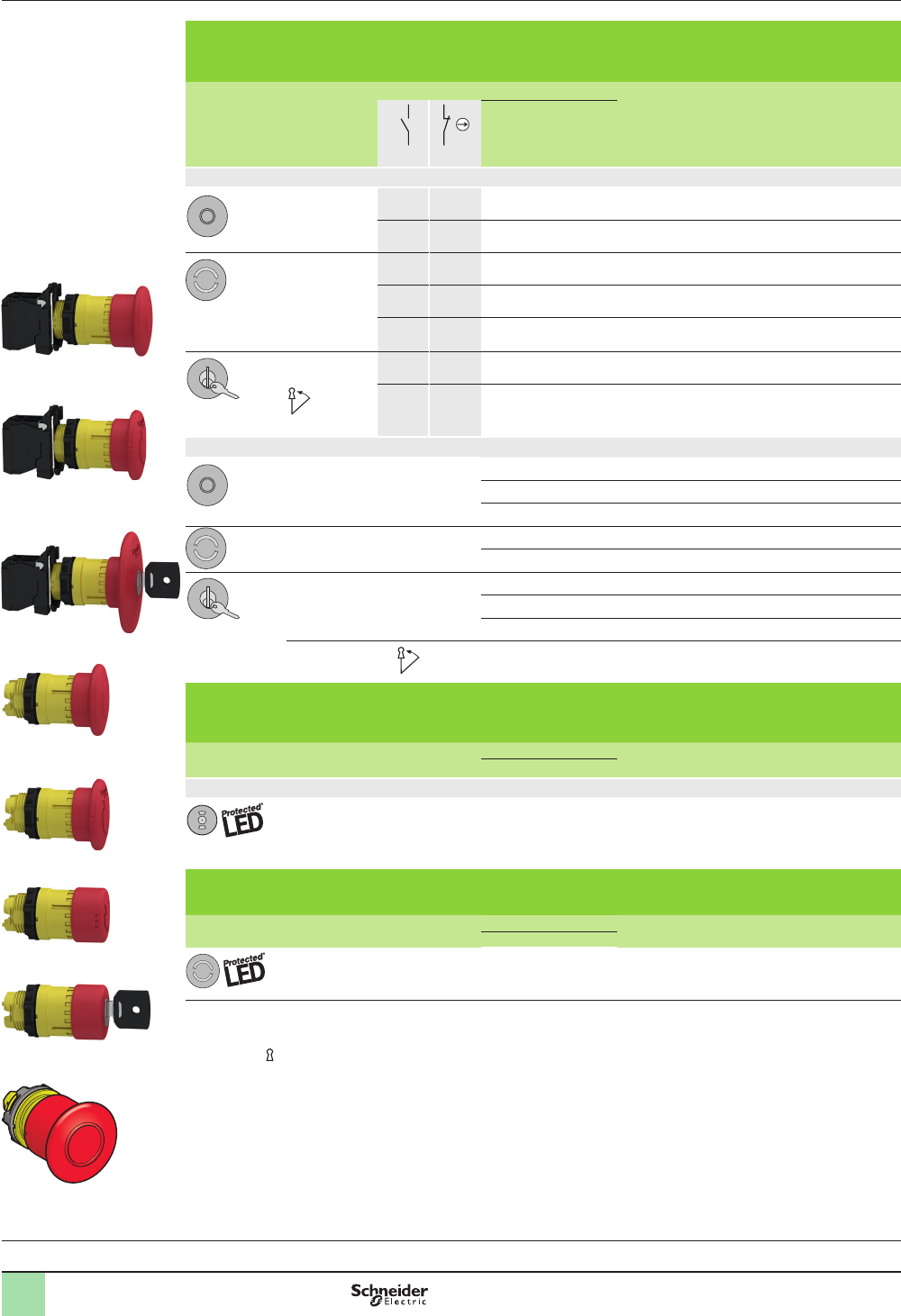

Emergency stop and switching off pushbuttons with trigger action and mechanical
latching (1) (2) Screw clamp terminal connections (Schneider Electric anti-loosening system)
Shape
of head
Type
of reset
Type of contact Push Reference Weight
kg/lb
Ø mm/in. Color
N/O N/C
Complete units
Push-pull 1 40/1.575 Red XB4BT842
(ZB4BZ105 + ZB4BT84)
0.125/0.276
1 1 40/1.575 Red XB4BT845
(ZB4BZ105 + ZB4BT84)
0.136/0.300
Turn to release 1 40/1.575 Red XB4BS8442
(ZB4BZ102 + ZB4BS844)
0.118/0.260
1 1 40/1.575 Red XB4BS8445
(ZB4BZ105 + ZB4BS844)
0.130/0.287
2 40/1.575 Red XB4BS8444
(ZB4BZ104 + ZB4BS844)
0.130/0.287
1 2 40/1.575 Red XB4BS84441
(ZB4BZ141 + ZB4BS844)
0.140/0.309
Key release
(key n°455) (3)
1 1 40/1.575 Red XB4BS9445
(ZB4BZ105 + ZB4BS944)
0.170/0.375
Heads only
Push-pull 30/1.181 Red ZB4BT844 0.078/0.172
40/1.575 Red ZB4BT84 0.078/0.172
60/2.362 Red ZB4BX84 0.098/0.216
Turn to release 30/1.181 Red ZB4BS834 0.068/0.150
40/1.575 Red ZB4BS844 0.073/0.161
60/2.362 Red ZB4BS864 0.093/0.205
Key release
(key n° 455)
2 keys included
with head (5) (3)
30/1.181 Red ZB4BS934 0.094/0.207
40/1.575 Red ZB4BS944 (4) 0.098/0.216
60/2.362 Red ZB4BS964 0.118/0.260
Illuminated Emergency switching off function only, mechanical latching
pushbuttons (1) Screw clamp terminal connections (Schneider Electric anti-loosening system)
Shape
of head
Type
of reset
Push Reference Weight
kg/lb
Ø mm/in. Color
Heads only (6)
Push-pull 40/1.575 Red ZB4BW643 0.051/0.112
(1)Recommendedmaximumnumberofcontactsconstitutingthebody(xingcollar+contact)associatedwiththehead,seepage
12 of Harmony XB4 catalog DIA5ED2121212EN.
(2) It is recommended that a legend or yellow background is used.
(3) The symbol indicates key withdrawal position(s).
(4) Other key numbers:
-keyn°421E:addsufx12 to the reference.
-keyn°458A:addsufx10 to the reference.
-keyn°520E:addsufx14 to the reference.
-keyn°3131A:addsufx20 to the reference.
-keyn°4A185:addsufxD to the reference.
Example: To order a Ø 40 mm/1.575 in. red mushroom head for a trigger action and mechanical latching Emergency stop
pushbutton, with release by key n° 421E, the reference becomes: ZB4BS94412.
(5)Forspecickeyswithothernumbers,pleaseconsultourCustomerCareCentre.
(6) Only for use with bodies comprising a light source with integral LED.

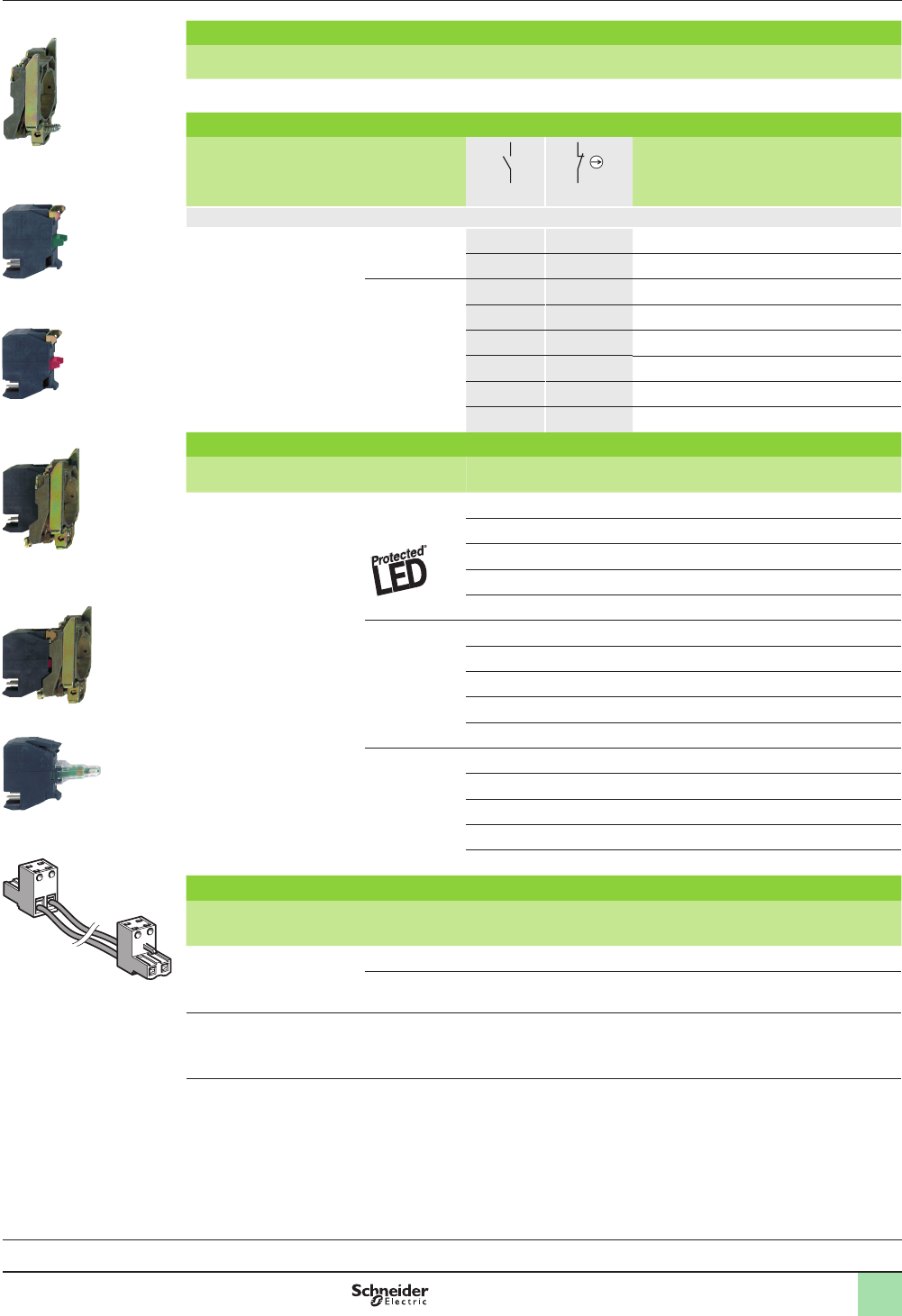

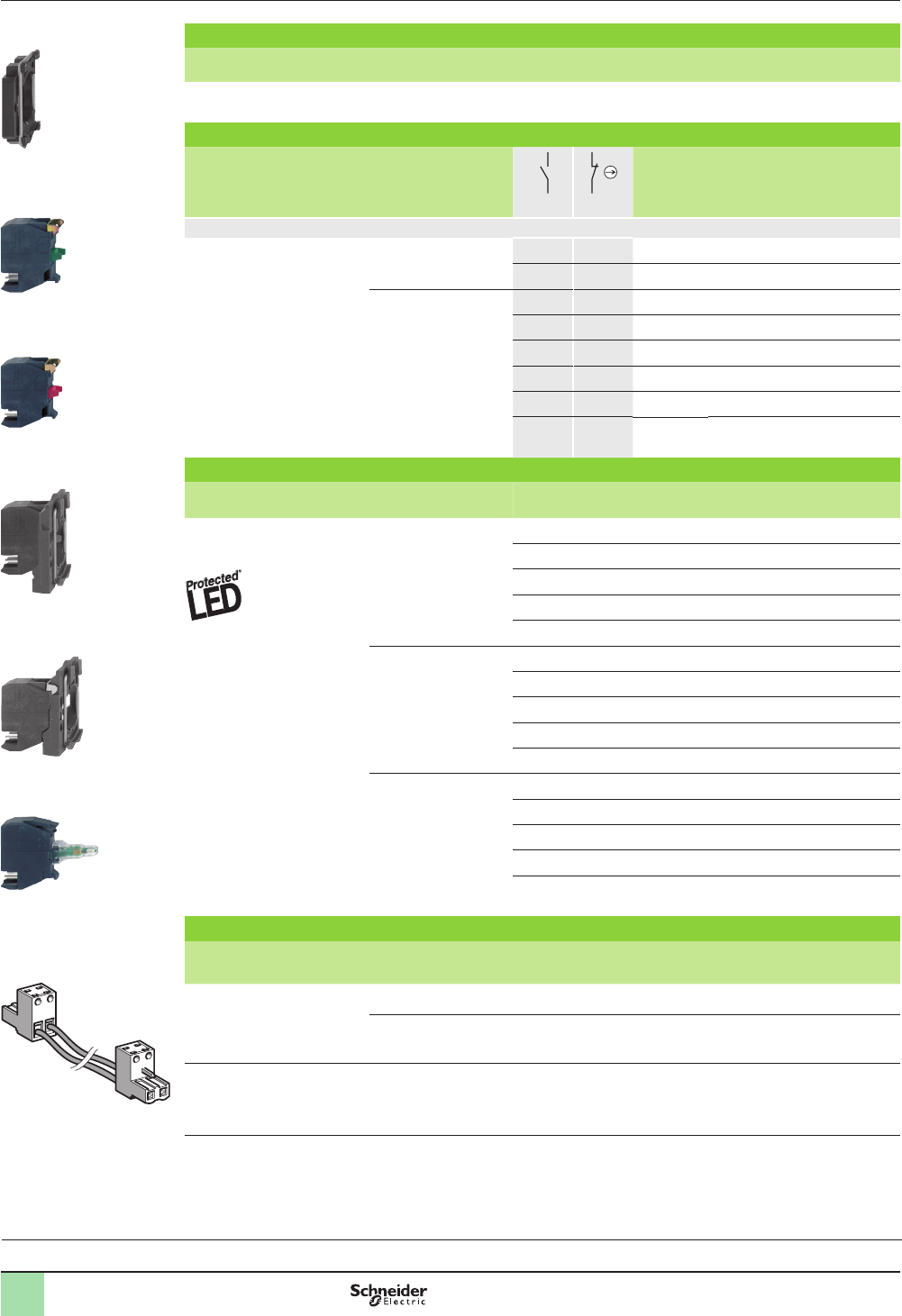

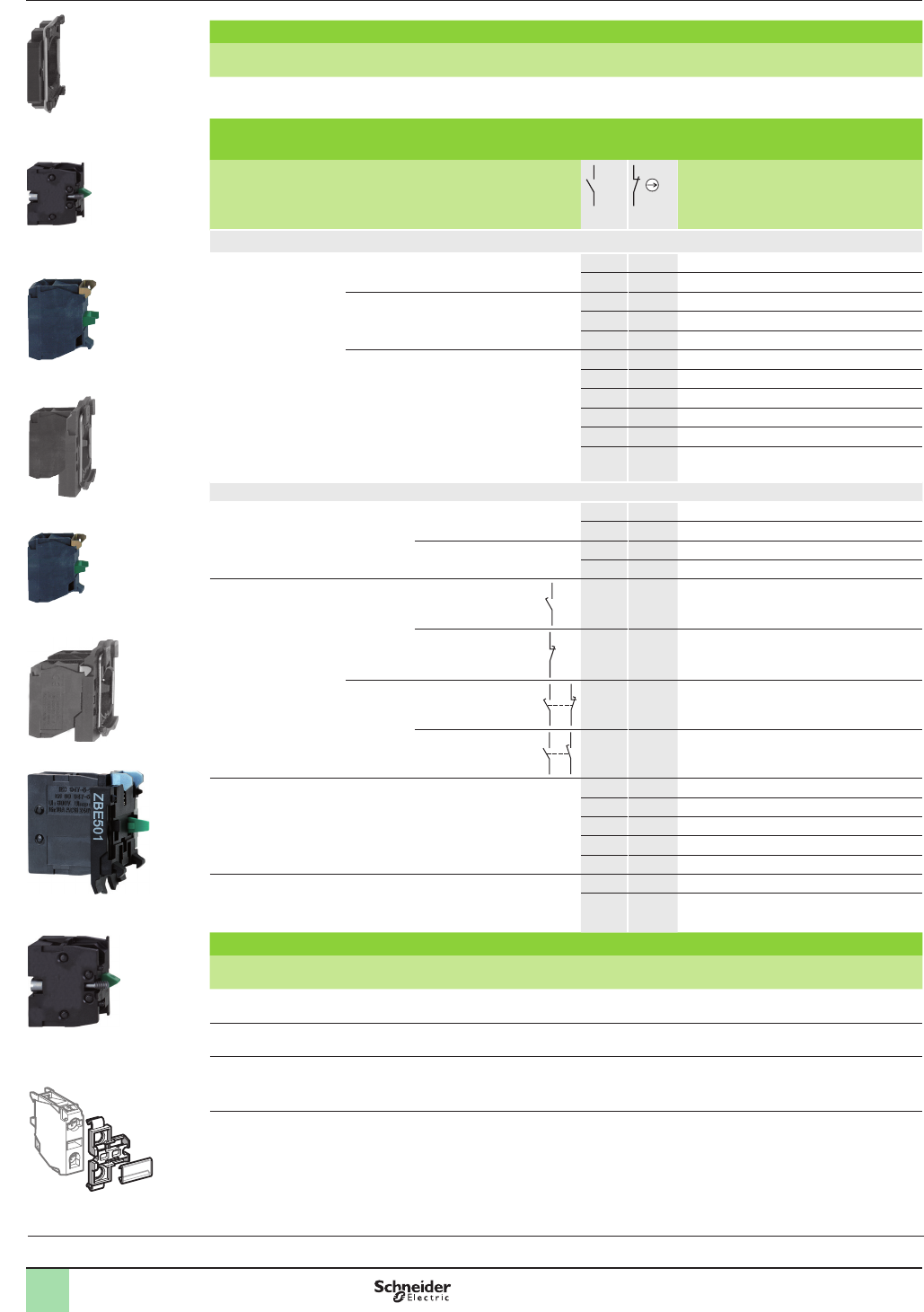

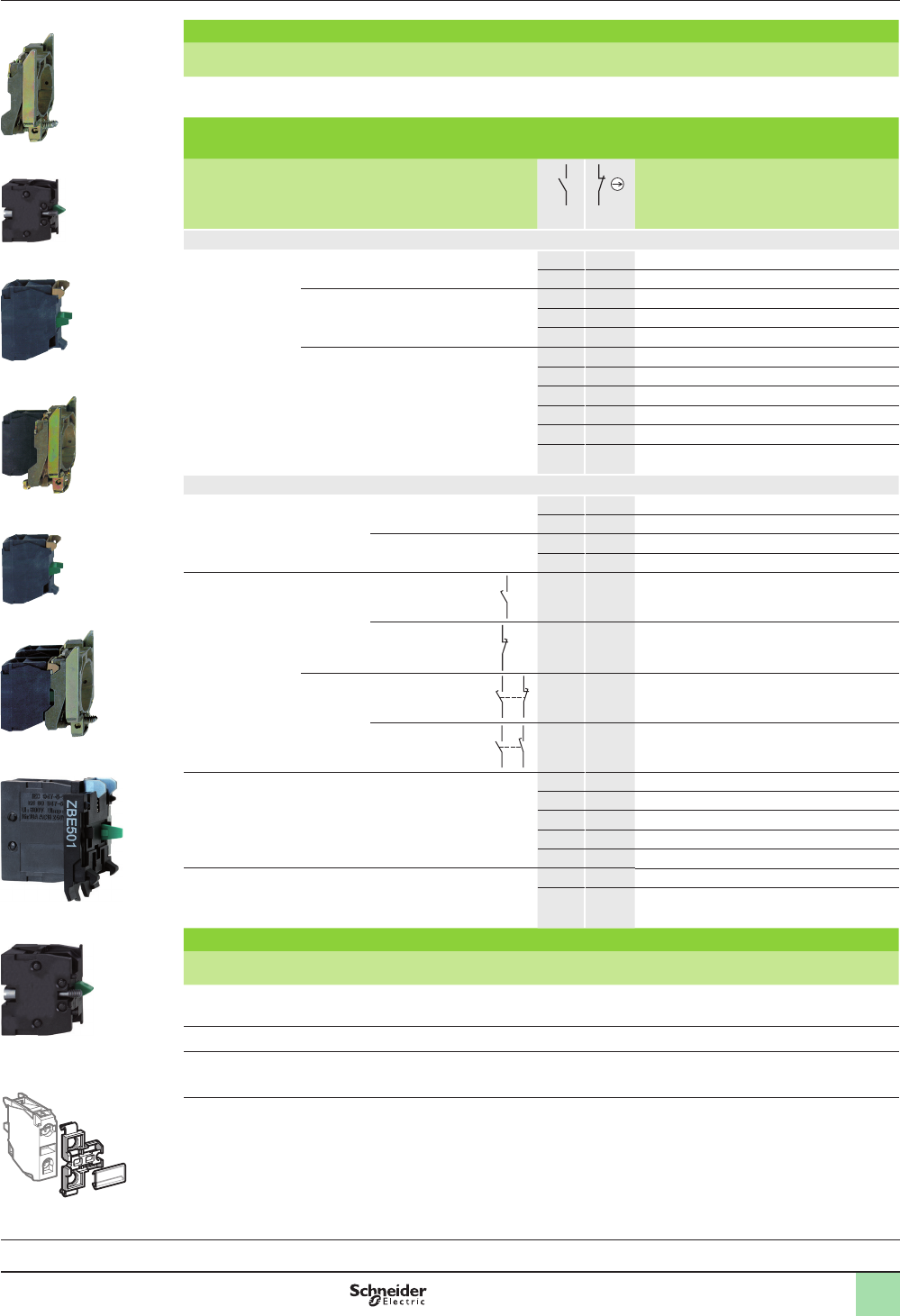

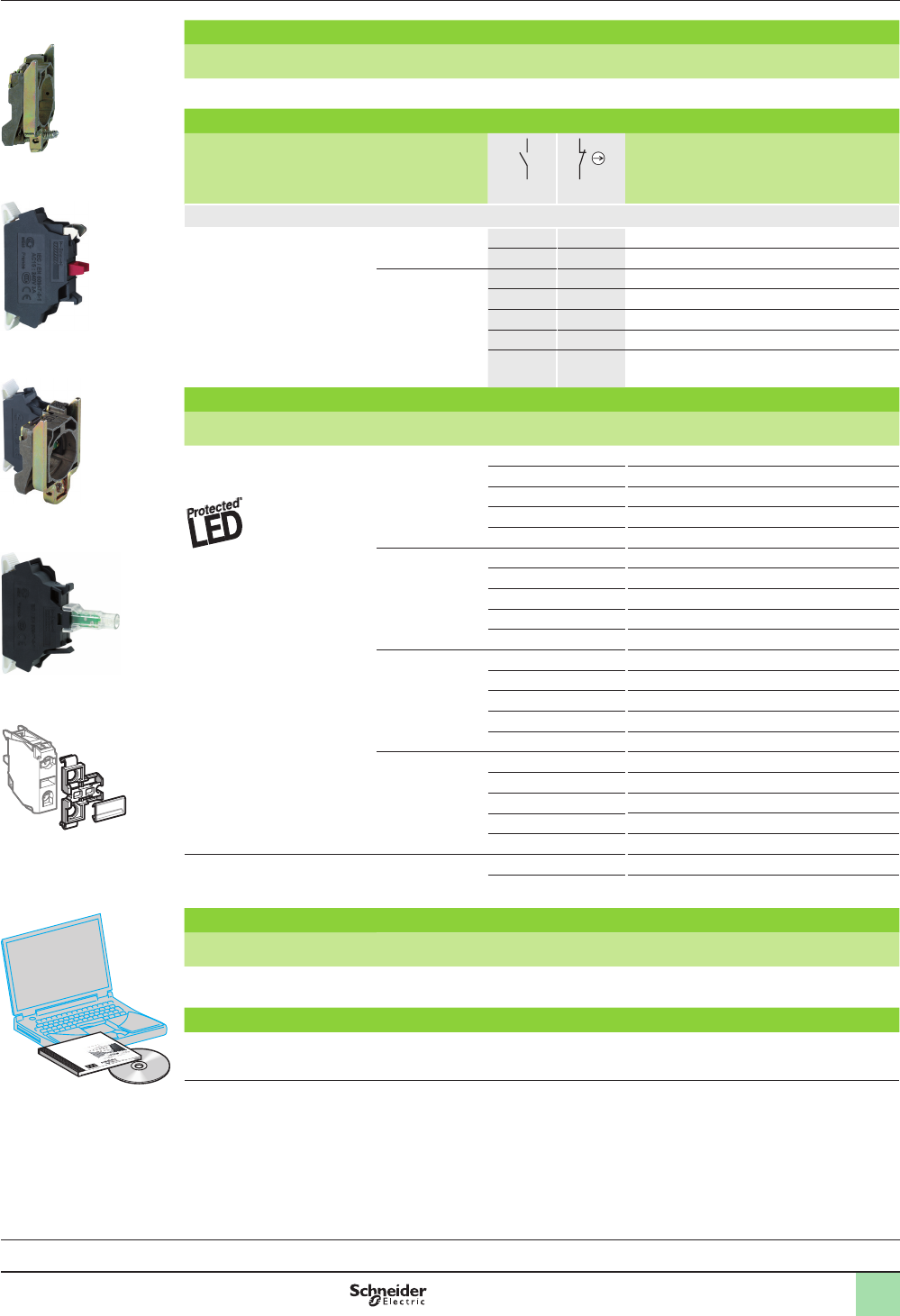

Control units Ø 22
Harmony XB4, metal
Emergency stop and Emergency switching off functions
Conforming to EN/IEC 60204-1, 60364-5-53,
EN/ISO 13850 and Machinery Directive 2006/42/EC
References
BS5 aruØ40 .EPS
BT aruØ40 .EPS
Presentation:
page 6
ZB4BT844
PF512506
ZB4BS834
PF512507
ZB4BS964
PF512508
BT aruØ40 .EPS
XB4BT845
PF512504
XB4BS9445
PF512505
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
8

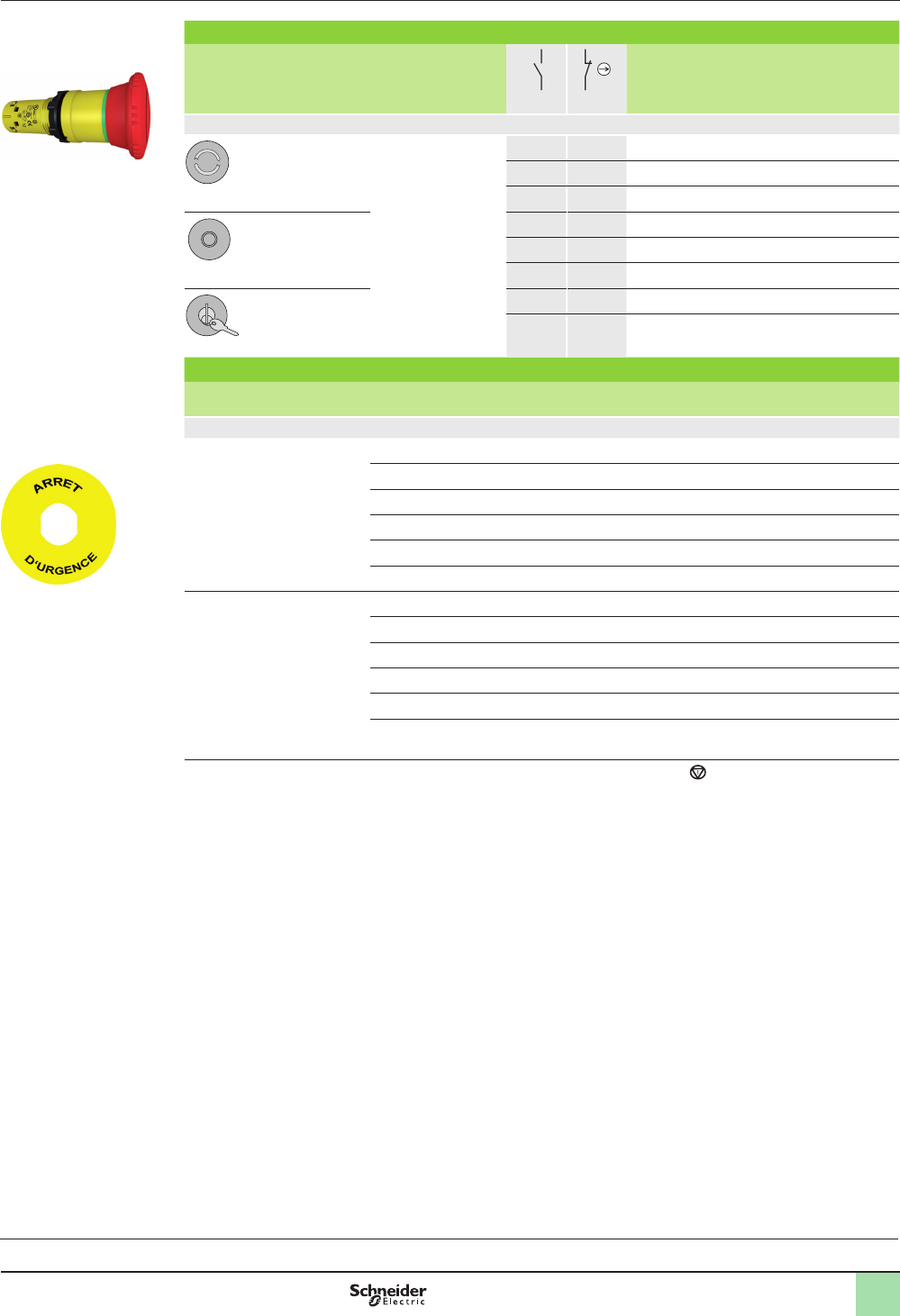

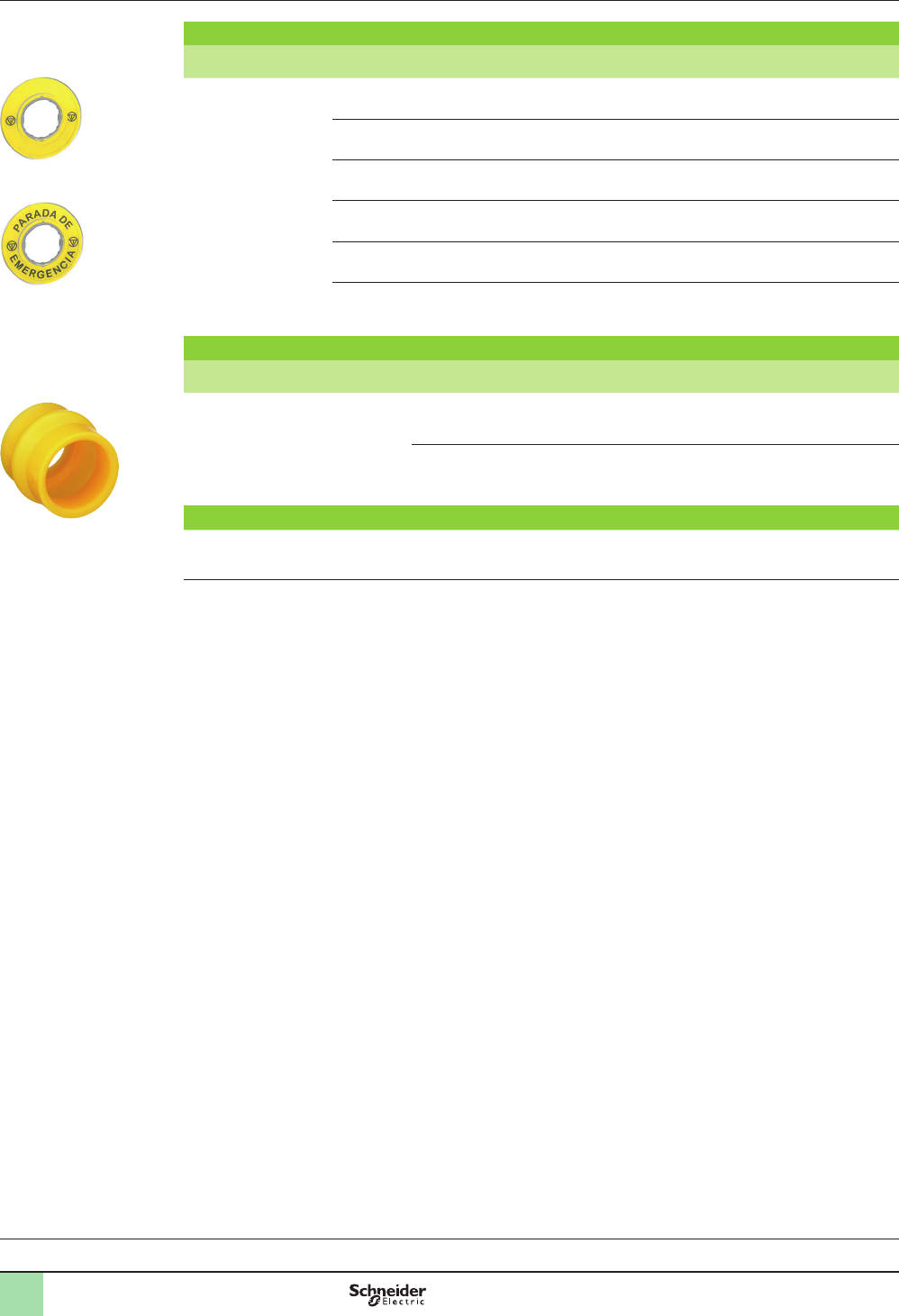

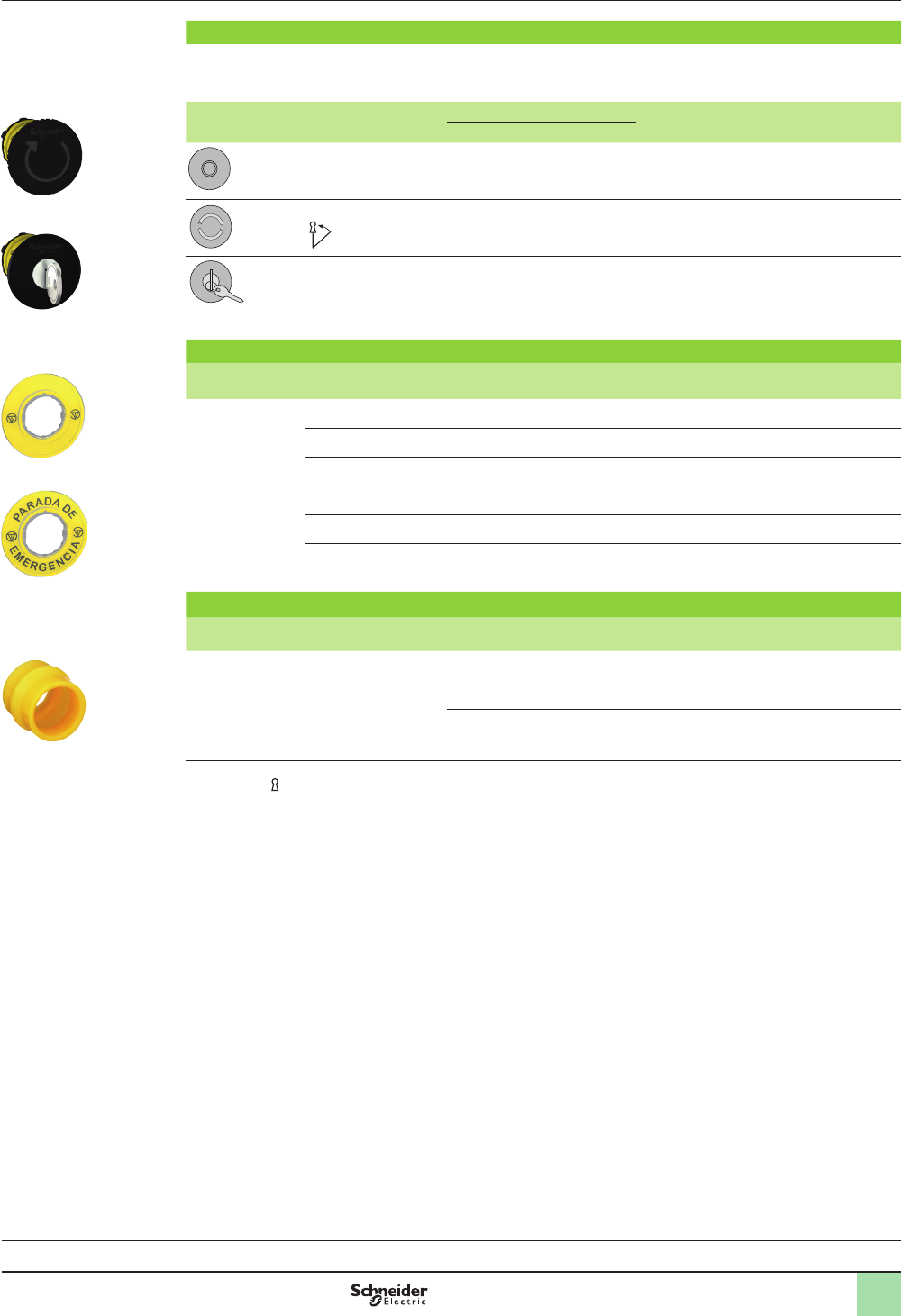

Circular yellow legends for Emergency stop (1)
Description Marking Color Sold in
lots of
Reference Weight
kg/lb
Ø 60 mm/2.362 in.
legend for Emergency
stop function
Yellow 5ZBY9121 0.007/0.015
EMERGENCY STOP Yellow 5ZBY9320 0.007/0.015
ARRET D’URGENCE Yellow 5ZBY9120 0.007/0.015
NOT HALT Yellow 5ZBY9220 0.007/0.015
PARADA DE EMERGENCIA Yellow 5ZBY9420 0.007/0.015
ARRESTO DI EMERGENZA Yellow 5ZBY9620 0.007/0.015
Bellows for harsh environments (IP 69K) (2)
For use in Material For use with Color Sold in
lots of
Unit
reference
Weight
kg/lb
Environments subject to
humidity, dust, high
pressure, cleaning, etc.
Silicone Emergency stop /
Switching off function
Yellow 2ZBZ28 0.009/0.020
Other functions Black 2ZBZ58 0.009/0.020
Heads with black metal bezel
To order, add a gure 7 to the references selected above.
Example: ZB4BT844 becomes ZB4BT8447.
(1) Other legend models for Emergency stop and Emergency switching off function see page 15.
(2) Not compatible with Ø 30 mm/1.181 in. pushbutton.
Control units Ø 22
Harmony XB4, metal
Emergency stop and Emergency switching off functions
Circular yellow legends for Emergency stop
References (continued)
Presentation:
page 6
ZBY9121
PF131618A
ZBY9420
PF131622A
ZBZ28
DF524008
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
9
Control units Ø 22
Harmony XB4, metal

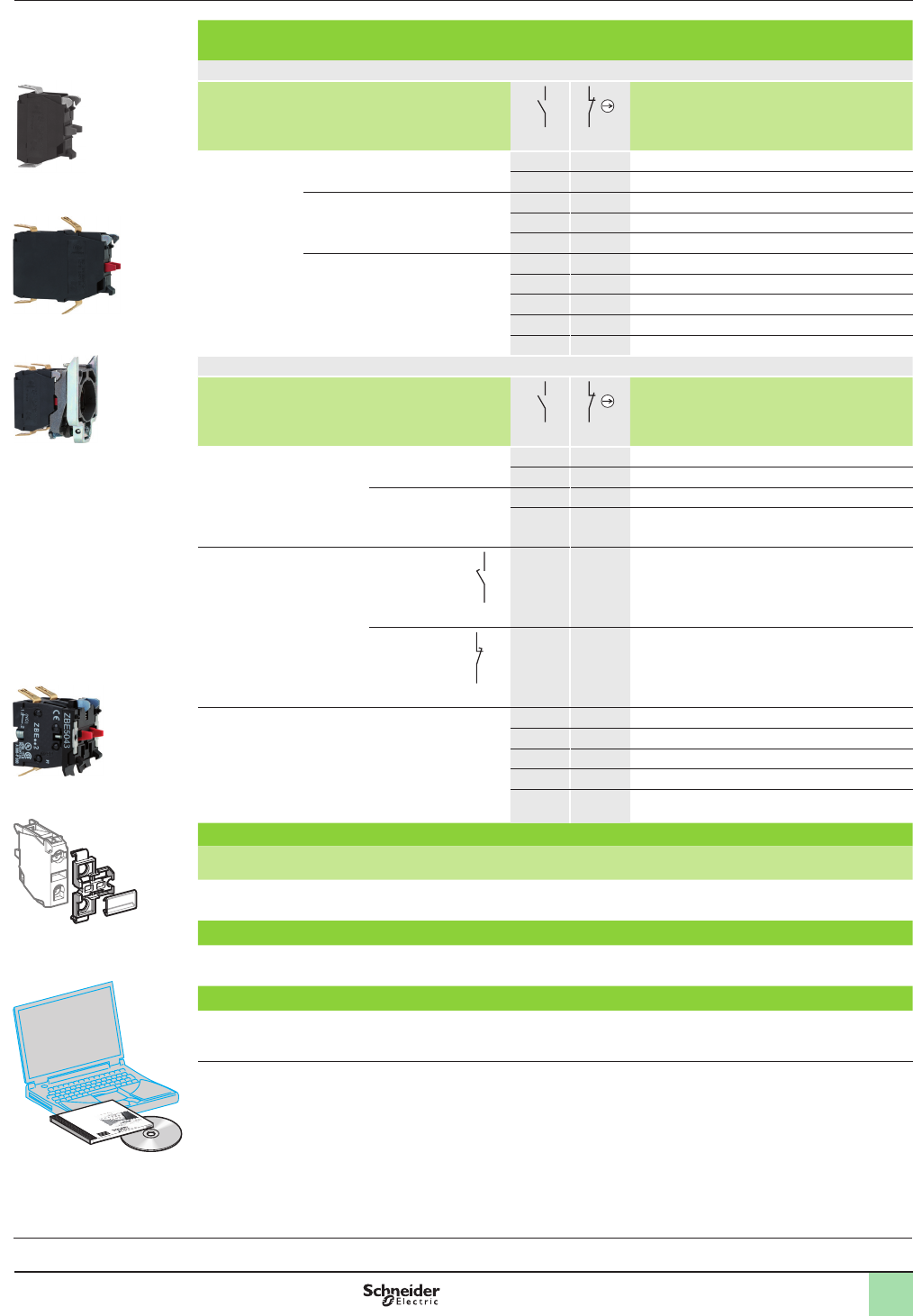

Body/contact assemblies - Screw clamp terminal
connections
References (continued)
Body/xing collar
For use with Sold in lots of Unit reference Weight
kg/lb
Electrical block (contact or light) 10 ZB4BZ009 0.038/0.084
Contact functions (1)
Screw clamp terminal connections (Schneider Electric anti-loosening system)
Description Type of
contact
Description
Sold in lots
of
Unit
reference
Weight
kg/lb
N/O N/C
Contacts for standard applications
Contact blocks Single 1 5ZBE101 0.011/0.024
1 5ZBE102 0.011/0.024
Double 2 5ZBE203 0.020/0.044
2 5ZBE204 0.020/0.044
1 1 5ZBE205 0.020/0.044
Single with
body/xing
collar
1 1ZB4BZ101 0.053/0.117
1 1ZB4BZ102 0.053/0.117
2 1ZB4BZ103 0.062/0.137
2 1ZB4BZ104 0.062/0.137
1 1 1ZB4BZ105 0.062/0.137
1 2 1ZB4BZ141 0.072/0.159
Contacts for specic applications
Low power
switching
Single Standard 1 5ZBE1016 0.012/0.026
1 5ZBE1026 0.012/0.026
Dusty environment(2)
(IP 5X, 50 μm dust)
1 5ZBE1016P 0.012/0.026
1 5ZBE1026P 0.012/0.026
Staggered
contacts
Single Early make
N/O
1 5ZBE201 0.011/0.024
Late break
N/C
1 5ZBE202 0.011/0.024
Single with
body/xing
collar
Overlapping
N/O+N/C
1 1 5ZB4BZ106 0.062/0.137
Staggered
N/O+N/O
2 5ZB4BZ107 0.062/0.137
High power
switching
Single Standard (3) 1 1ZBE501 0.020/0.044
1 1ZBE502 0.020/0.044
2 1ZBE503 0.032/0.071
2 1ZBE504 0.032/0.071
1 1 1ZBE505 0.032/0.071
Additional contact
blocks for high
power switching
Single Standard (4) 1 1ZB2BE101 0.020/0.044
1 1ZB2BE102 0.020/0.044
Clip-on legend holder, sheet of blank legends and labelling software
Description Sold in lots
of
Unit reference Weight
kg/lb
Clip-on legend-holder for electrical blocks with screw clampterminal
connections(5). For identication of an XB4Bcontrol orsignaling unit
10 ZBZ001 0.001/0.002
Sheet of 50 blank legends for legend holder ZBZ001 10 ZBY001 0.023/0.051
‘SIS Label’’ labelling software for legend design (ZBY001 legends)(for
design of legends in English, French, German, Italian, Spanish)
1XBY2U 0.100/0.220
(1) The contact blocks enable variable composition of body/contact assemblies. Maximum number of rows possible: 3. Either
3rowsof3singlecontactsor1rowof3doublecontacts+1rowof3singlecontacts(doublecontactsoccupytherst2rows).
Maximumnumberofcontactsisspeciedonpage12ofDIA5ED2121212EN,HarmonyXB4catalog.
(2)Itisnotpossibletotanadditionalcontactblockonthebackofthesecontactblocks.
(3) It is not possible to use these contacts with light blocks.
(4)TobettedonthebackofZBE50p contacts.
(5) This legend holder is not compatible with high power switching contacts
.
Presentation:
page 6
ZB4BZ009
101191
ZB4BZ101
101274
ZBE203
101261
ZBE201
101261
ZB4BZ106
814346
ZBE501
PF080706
ZB2BE101
PG114156SE
ZBE101
PF512546
ZBZ001-PRO-3-M
814262
ZBZ001
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
10

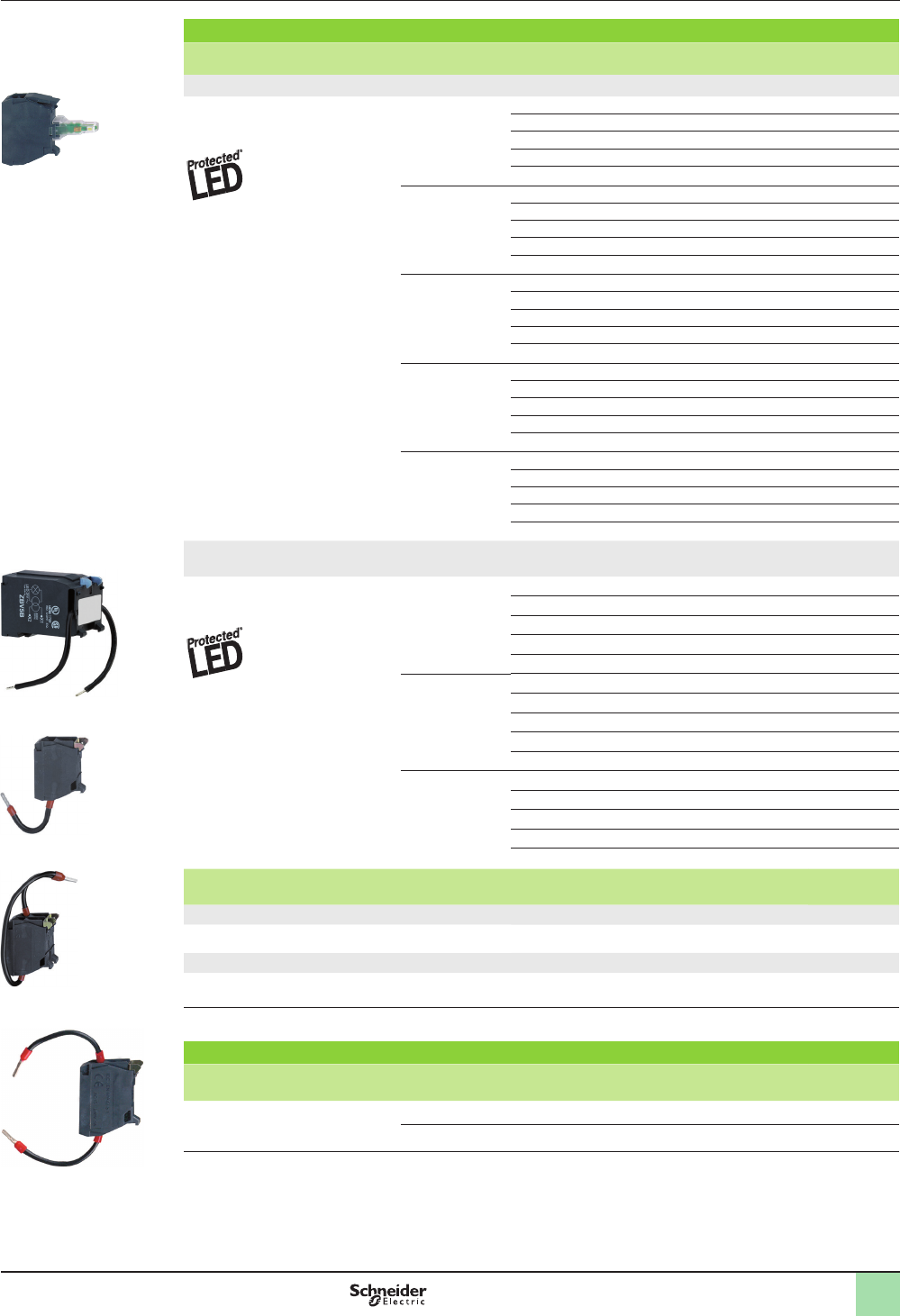

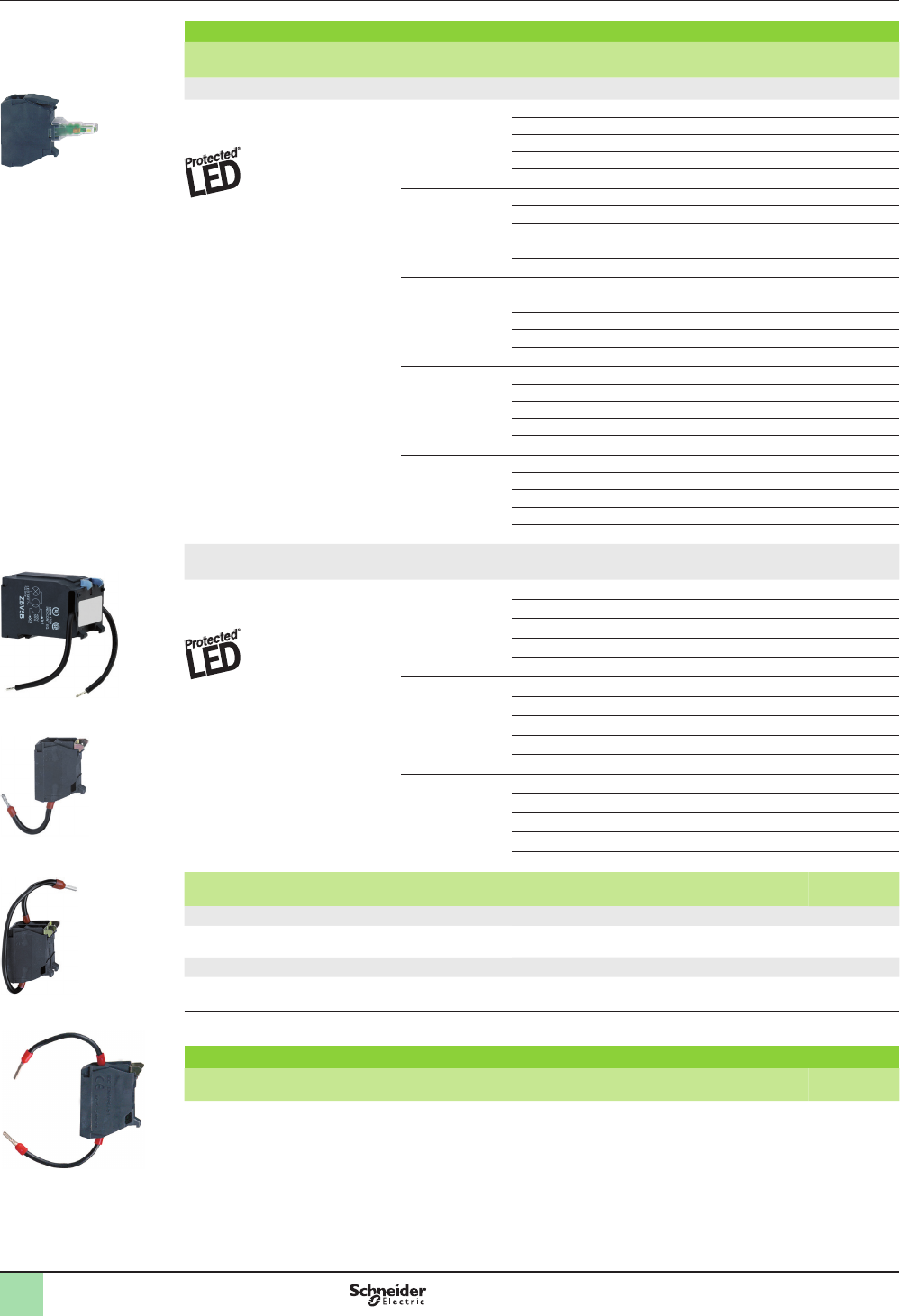

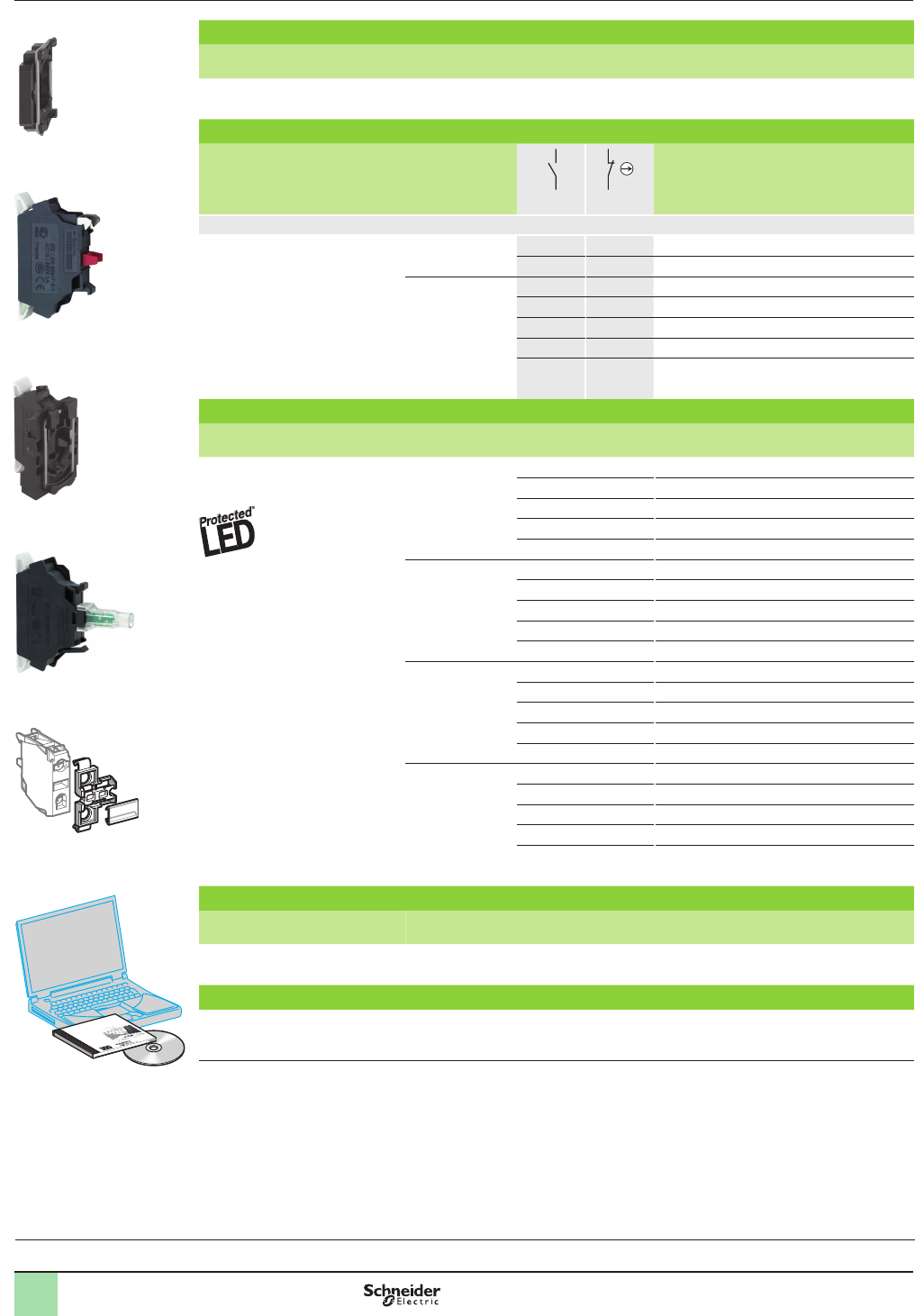

Light blocks
Description Supply voltage
V
Color of
light source
Sold in
lots of
Unit
reference
Weight
kg/lb
Light blocks with screw clamp terminal connections
(SchneiderElectric anti-loosening system)
Integral LED
(to combine with
heads for integral LED)
z 12
(50/60 Hz)
White 5ZBVJ1 0.017/0.037
Green 5ZBVJ3 0.017/0.037
Red 5ZBVJ4 0.017/0.037
Orange 5ZBVJ5 0.017/0.037
Blue 5ZBVJ6 0.017/0.037
z 24
(50/60 Hz)
White 5ZBVB1 0.017/0.037
Green 5ZBVB3 0.017/0.037
Red 5ZBVB4 0.017/0.037
Orange 5ZBVB5 0.017/0.037
Blue 5ZBVB6 0.017/0.037
z 24…120
(50/60 Hz)
White 5ZBVBG1 0.017/0.037
Green 5ZBVBG3 0.017/0.037
Red 5ZBVBG4 0.017/0.037
Orange 5ZBVBG5 0.017/0.037
Blue 5ZBVBG6 0.017/0.037
a 110...120
(50/60 Hz)
White 5ZBVG1 0.017/0.037
Green 5ZBVG3 0.017/0.037
Red 5ZBVG4 0.017/0.037
Orange 5ZBVG5 0.017/0.037
Blue 5ZBVG6 0.017/0.037
a 230...240
(50/60 Hz)
White 5ZBVM1 0.017/0.037
Green 5ZBVM3 0.017/0.037
Red 5ZBVM4 0.017/0.037
Orange 5ZBVM5 0.017/0.037
Blue 5ZBVM6 0.017/0.037
Flashing light blocks with screw clamp terminal connections
(Schneider Electric anti-loosening system)
Integral LED
(to combine with
heads for integral LED)
z 24
(50/60 Hz)
White 5
ZBV18B1
0.017/0.037
Green 5
ZBV18B3
0.017/0.037
Red 5
ZBV18B4
0.017/0.037
Orange 5
ZBV18B5
0.017/0.037
Blue 5
ZBV18B6
0.017/0.037
a 110...120
(50/60 Hz)
White 5ZBV18G1 0.017/0.037
Green 5ZBV18G3 0.017/0.037
Red 5ZBV18G4 0.017/0.037
Orange 5ZBV18G5 0.017/0.037
Blue 5ZBV18G6 0.017/0.037
a 230...240
(50/60 Hz)
White 5ZBV18M1 0.017/0.037
Green 5ZBV18M3 0.017/0.037
Red 5ZBV18M4 0.017/0.037
Orange 5ZBV18M5 0.017/0.037
Blue 5ZBV18M6 0.017/0.037
For use with Supply voltage
V
Description Reference Weight
kg/lb
Transformer blocks for 24 V light blocks (1)
Light blocks with integral LED
a 400 V - 50Hz Transformer 400 V - 24 V aZBV5B (2) 0.090/0.198
Blocks for “test light” function
Light blocks z 12 and 24
z 24…120
Single module,1 connecting wire ZBZG156 (3) 0.010/0.022
Light blocks with integral LED
a 48…230 Double module, with connecting wires ZBZG156 (3) 0.010/0.022
LED suppressors
For use with Supply voltage
V
Level of
protection
Reference Weight
kg/lb
Light blocks with integral LED tted
with screw clamp terminal
connections
a 120 25…120 VA ZBZVG 0.010/0.022
a 230 30…230 VA ZBZVM 0.010/0.022
(1) To be used with 2 dummy contact blocks ZBE000.
(2) To order a 440...460 V - 60 Hz transformer blocks, please replace ‘5’’ in the reference by ‘‘8’: ZBV5B becomes ZBV8B.To
order a 550...600 V - 60 Hz transformer blocks, please replace ‘5’’ by ‘‘9’: ZBV5B becomes ZBV9B.
(3) Block for use with z light blocks with integral LED types ZBVJjp, ZBVBp, ZVB BGp or with direct supply light block for BA 9s
bulb, ZBV6.
(4)
Block for use a light blocks integral LED types ZBVGp, ZBVMp, see connection on Schneider Electric website, Harmony XB4
.
Control units Ø 22
Harmony XB4, metal
Light blocks - “Test light” - Protection
References (continued)
ZBV5B
PF080705
ZBVB1
101268
ZBZG156
121461
ZBZM156
121493
ZBZVG
105079
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
11
Control units Ø 22
Harmony XB4, metal
Body/contact assemblies - Spring clamp terminal
connections
References (continued)
Body/xing collar
For use with Sold in lots of Unit reference Weight
kg/lb
Electrical block (contact or light) 10 ZB4BZ009 0.038/0.084
Contact functions Spring clamp terminal connections (1)
Description Type of contact
Sold in lots
of
Unit reference Weight
kg/lb
N/O N/C
Contacts for standard applications
Contact blocks Single 1 4ZBE1015 0.011/0.024
1 4ZBE1025 0.011/0.024
Single with
body/xing collar
1 1ZB4BZ1015 0.053/0.117
1 1ZB4BZ1025 0.053/0.117
2 1ZB4BZ1035 0.062/0.137
2 1ZB4BZ1045 0.062/0.137
1 1 1ZB4BZ1055 0.062/0.137
Light blocks Spring clamp terminal connections (1)
Description Supply voltage
V
Color of
light source
Sold in lots
of
Unit reference Weight
kg/lb
Integral LED
(to combine with
heads for integral LED)
z 12
(50/60 Hz)
White 4ZBVJ15 0.016/0.035
Green 4ZBVJ35 0.016/0.035
Red 4ZBVJ45 0.016/0.035
Orange 4ZBVJ55 0.016/0.035
Blue 4ZBVJ65 0.016/0.035
z 24
(50/60 Hz)
White 4ZBVB15 0.016/0.035
Green 4ZBVB35 0.016/0.035
Red 4ZBVB45 0.016/0.035
Orange 4ZBVB55 0.016/0.035
Blue 4ZBVB65 0.016/0.035
a 110...120
(50/60 Hz)
White 4ZBVG15 0.016/0.035
Green 4ZBVG35 0.016/0.035
Red 4ZBVG45 0.016/0.035
Orange 4ZBVG55 0.016/0.035
Blue 4ZBVG65 0.016/0.035
a 230...240
(50/60 Hz)
White 4ZBVM15 0.016/0.035
Green 4ZBVM35 0.016/0.035
Red 4ZBVM45 0.016/0.035
Orange 4ZBVM55 0.016/0.035
Blue 4ZBVM65 0.016/0.035
Integral LED +
body/xing collar
a 110...120
(50/60 Hz)
Green 4ZB4BVG35 0.053/0.117
Red 4ZB4BVG45 0.053/0.117
Sheet of 50 blank legends
For use with Sold in lots
of
Unit reference Weight
kg/lb
Legend holder ZBZ001 10 ZBY001 0.023/0.051
“SIS Label” labelling software (for legends ZBY001)
For legend design
for English, French, German, Italian, Spanish
10 XBY2U 0.100/0.220
(1)Itisnotpossibletotanadditionalblockonthebackofthesecontactorlightblocks.
Presentation:
page 6
ZB4BZ009
101191
ZBE1015
PF107777
ZB4BZ1015
PF107779
PF080711
ZBVB35
ZBZ001-PRO-3-M
814262
ZBZ001
Labelling software
Logiciel de création d'étiquettes
Beschriftungssoftware
Software para crear etiquetas
Software per la creazione di etichette
SIS-Label
Merlin Gerin
Modicon
Square D
Telemecanique
540548
XBY2U
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
12
Control units Ø 22
Harmony XB4, metal
Body/contact assemblies - Faston connectors
References (continued)
Contact functions (1)
Faston connectors (Ø 6.35 or 2 x 2.8 mm/0.250 or 2 x 0.110 in.)
(Schneider Electric anti-loosening system)
Description Type of
contact
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Contacts for standard applications
Contact blocks Single 1 5ZBE1013 0.011/0.024
1 5ZBE1023 0.011/0.024
Double 2 5ZBE2033 0.020/0.044
2 5ZBE2043 0.020/0.044
1 1 5ZBE2053 0.020/0.044
Single with
body/xing collar
1 1ZB4BZ1013 (2) 0.053/0.117
1 1ZB4BZ1023 (2) 0.053/0.117
2 1ZB4BZ1033 0.062/0.137
2 1ZB4BZ1043 0.062/0.137
1 1 1ZB4BZ1053 0.062/0.137
Application Type of
contact
Description
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Contacts for specic applications
Low power
switching
Single Standard 1 5ZBE10163 (2) 0.012/0.026
1 5ZBE10263 (2) 0.012/0.026
Dusty
environments (3)
(IP 5X, 50 μm dust)
1 5ZBE1016P3 (2) 0.012/0.026
1 5ZBE1026P3 (2) 0.012/0.026
Staggered
contacts
Single Early make 1 5ZBE2013 (2) 0.011/0.024
N/O
Late break 1 5ZBE2023 (2) 0.011/0.024
N/C
High power
switching
Single Standard (4) 1 1ZBE5013 0.021/0.046
1 1ZBE5023 0.021/0.046
2 1ZBE5033 0.033/0.073
2 1ZBE5043 0.033/0.073
1 1 1ZBE5053 0.033/0.073
Clip-on legend holder for electrical blocks with screw clamp terminal connections
(5)
For use with Sold in lots of Unit reference Weight
kg/lb
Identication of an XB4B
control or signaling unit
10 ZBZ001 0.001/0.002
Sheet of 50 blank legends
Legend holder ZBZ001 10 ZBY001 0.023/0.051
“SIS Label” labelling software (for legends ZBY001)
For legend design
for English, French, German, Italian, Spanish
1XBY2U 0.100/0.220
(1) The contact blocks enable variable composition of body/contact assemblies. Maximum number of rows possible: 3. Either 3
rowsof3singlecontactsor1rowof3doublecontacts+1rowof3singlecontacts(doublecontactsoccupytherst2rows).
(2) To order products with screw clamp terminal connections for lugs, replace the 3 at the end of the reference with a 9. Example:
ZBE1013 becomes ZBE1019.
(3)Itisnotpossibletotanadditionalcontactblockonthebackofthesecontactblocks.
(4) It is not possible to use these contacts with light blocks.
(5)
This legend holder is not
compatible with high power switching contact blocks.
ZBE1023
PF080708
Presentation:
page 6
ZBE2043
PF080709
ZB4BZ1043
PF080704
ZBE5043
PF080710
ZBZ001-PRO-3-M
814262
ZBZ001
Labelling software
Logiciel de création d'étiquettes
Beschriftungssoftware
Software para crear etiquetas
Software per la creazione di etichette
SIS-Label
Merlin Gerin
Modicon
Square D
Telemecanique
540548
XBY2U
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
13
Control units Ø 22
Harmony XB4, metal
Body/contact assemblies - Plug-in connectors
References (continued)
530719
APE1C2250
Body/xing collar
For use with Sold in
lots of
Unit reference Weight
kg/lb
Electrical block (contact or light) 10 ZB4BZ009 0.038/0.084
Contact functions Plug-in connector (1)
Description Type of contact
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Contacts for standard applications
Contact blocks Single 1 5ZBE1014 0.011/0.024
1 5ZBE1024 0.011/0.024
Single with
body/xing collar
1 1ZB4BZ1014 0.050/0.110
1 1ZB4BZ1024 0.050/0.110
2 1ZB4BZ1034 0.058/0.128
2 1ZB4BZ1044 0.058/0.128
1 1 1ZB4BZ1054 0.058/0.128
1 2 1ZB4BZ1414 0.064/0.141
Light blocks Plug-in connector
Description Supply voltage
V
Color of
light source
Sold in
lots of
Unit
reference
Weight
kg/lb
Integral LED
(to combine with
heads for integral LED)
z 24
(50/60 Hz)
White 5
ZBVB14
0.016/0.035
Green 5ZBVB34 0.016/0.035
Red 5ZBVB44 0.016/0.035
Orange 5ZBVB54 0.016/0.035
Blue 5ZBVB64 0.016/0.035
a 110…120
(50/60 Hz)
White 5ZBVG14 0.016/0.035
Green 5ZBVG34 0.016/0.035
Red 5ZBVG44 0.016/0.035
Orange 5ZBVG54 0.016/0.035
Blue 5ZBVG64 0.016/0.035
a 230…240
(50/60 Hz)
White 5ZBVM14 0.016/0.035
Green 5ZBVM34 0.016/0.035
Red 5ZBVM44 0.016/0.035
Orange 5ZBVM54 0.016/0.035
Blue 5ZBVM64 0.016/0.035
Connecting cables and connector
Description Number of
connectors
Wi re
c.s.a.
mm2/AWG
Length
Ø mm/in.
Sold in
lots of
Unit
reference
Weight
kg/lb
Cables with connectors
2-pin,
Ø 5.08 mm/0.200 in. pitch
10.75/19 500/19.685 8APE1C2150 0.120/0.265
20.75/19 500/19.685 8APE1C2250 0.180/0.397
Spring terminal connector
2-pin,
Ø 5.08 mm/0.200 in. pitch
0.2 to 0.5 /25
to 14
10 APE1PRE21 0.003/0.007
(1)Itisnotpossibletotanadditionalcontactblockonthebackofthesecontactblocks.
ZBE1024
101265
ZB4BZ1014
101254
ZB4BZ1024
101256
ZBVB14
101270
ZB4BZ009
101191
101262
ZBE1014
Presentation:
page 6
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
14

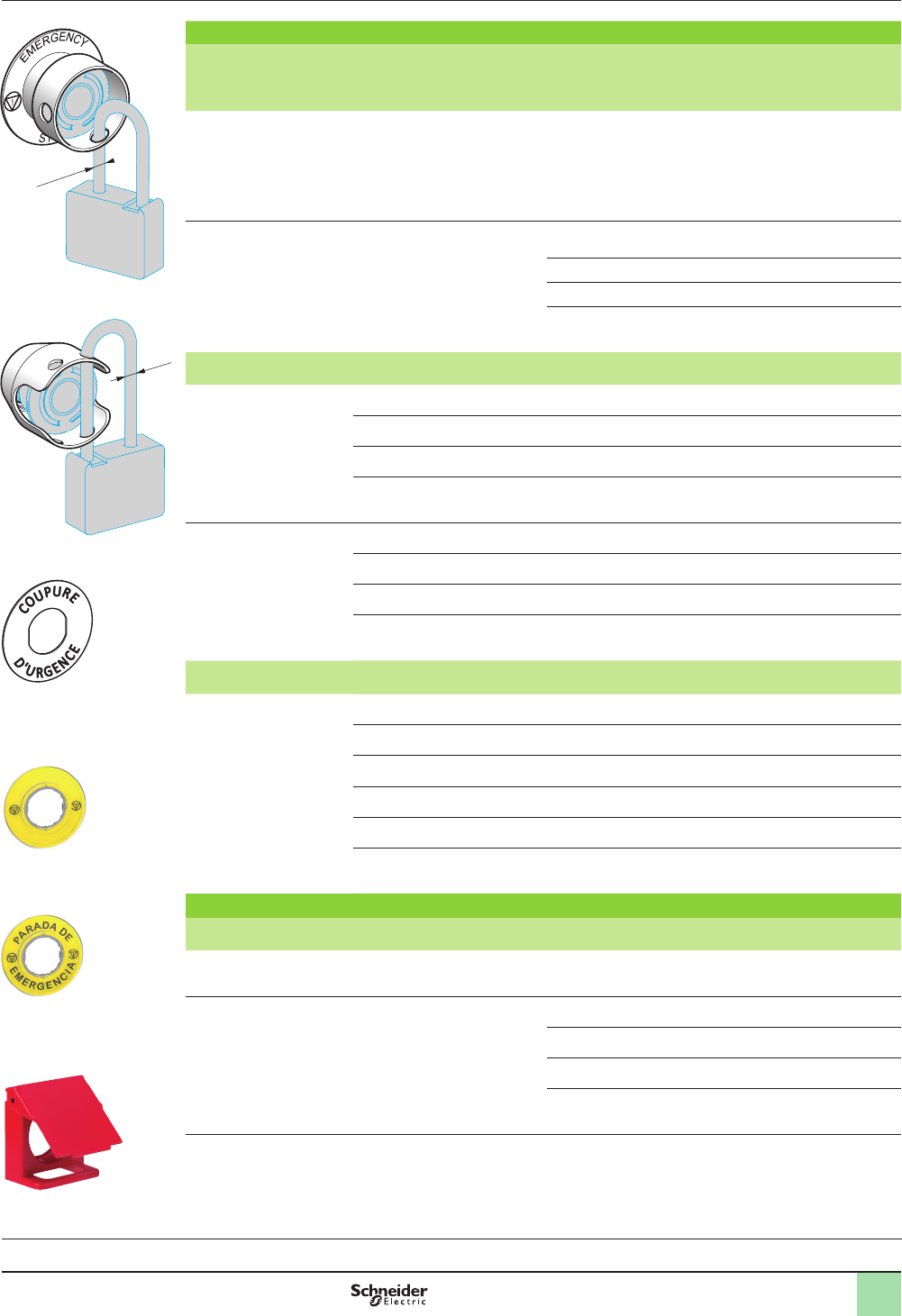

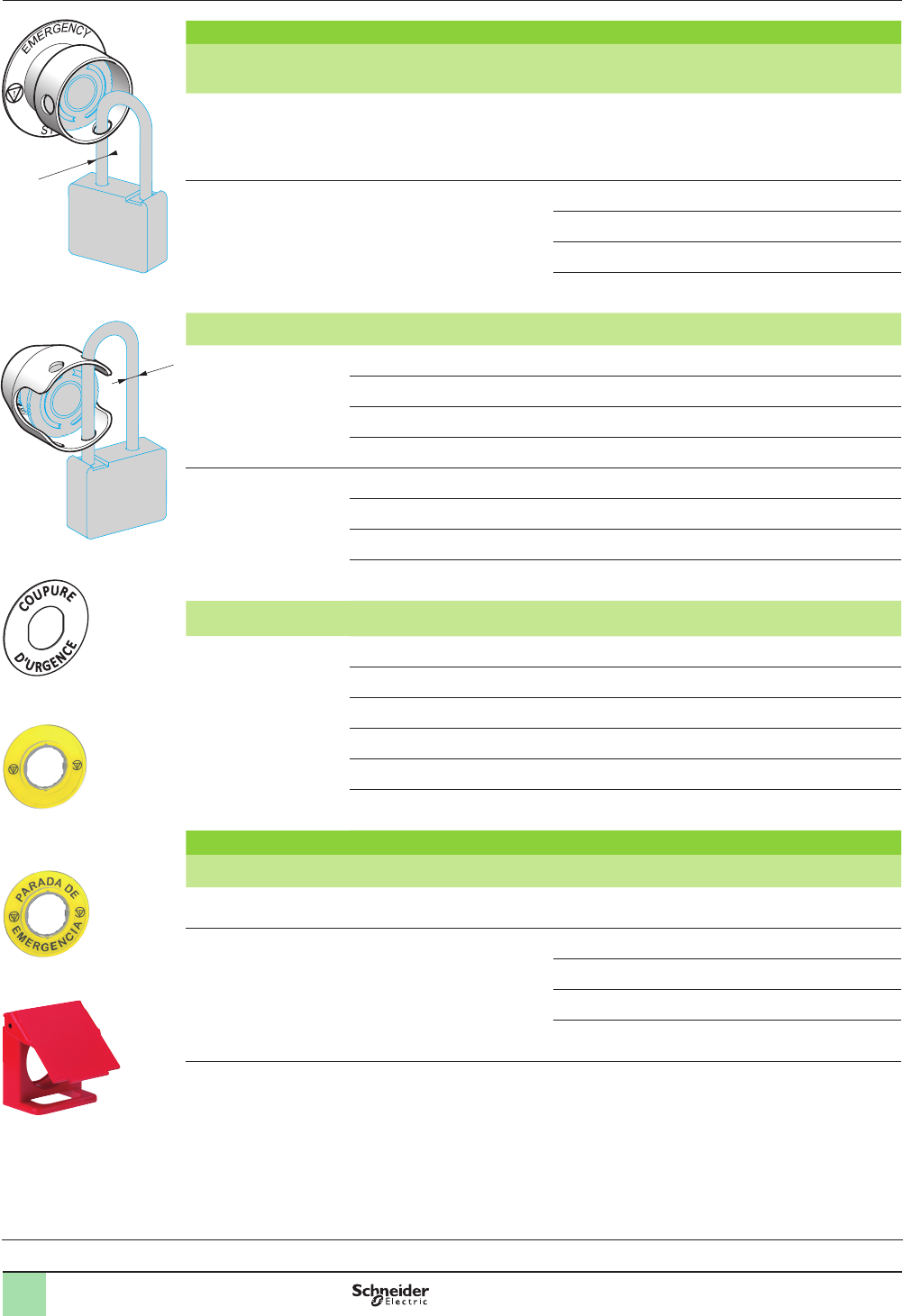

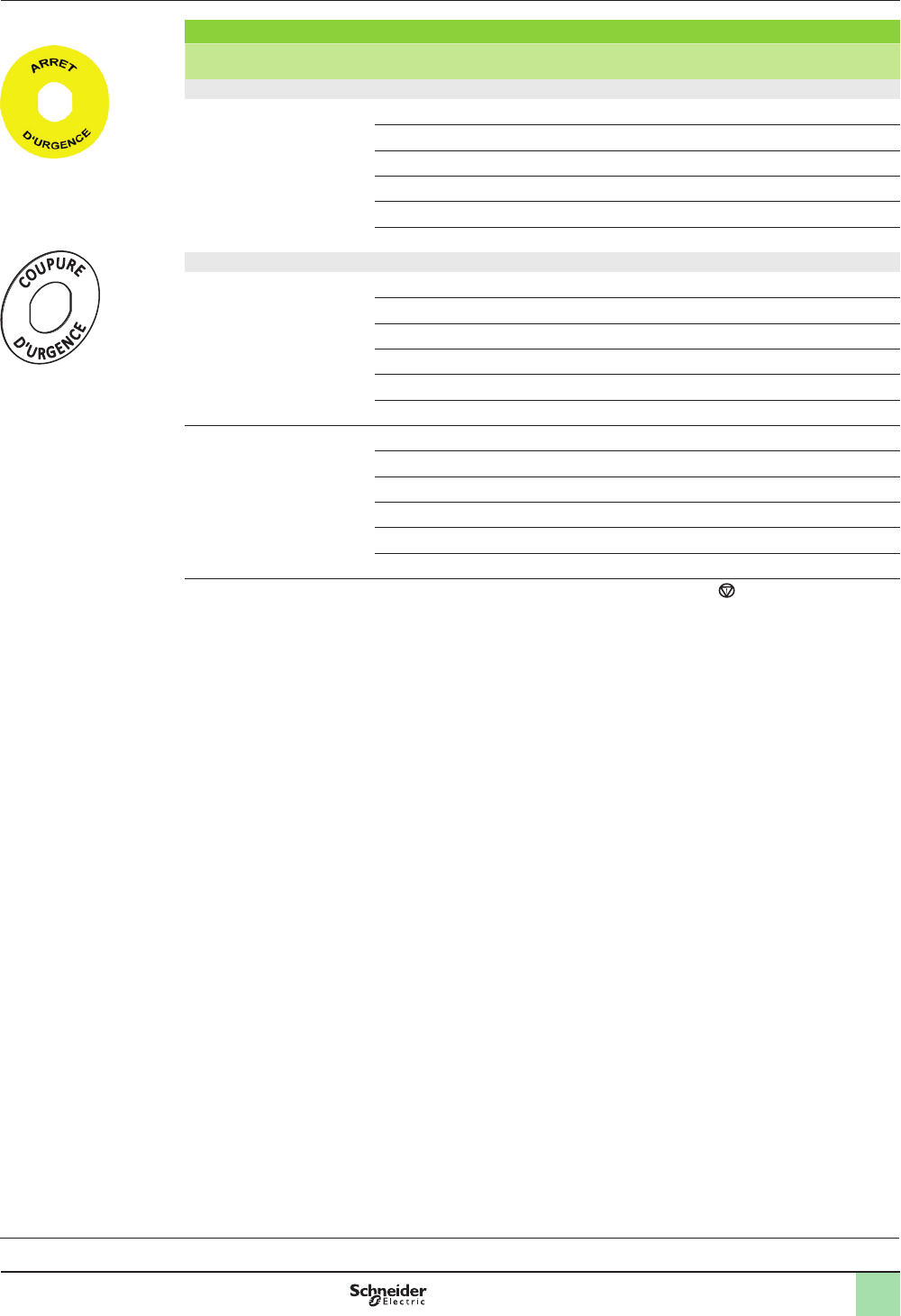

Control units Ø 22
Harmony XB4 metal

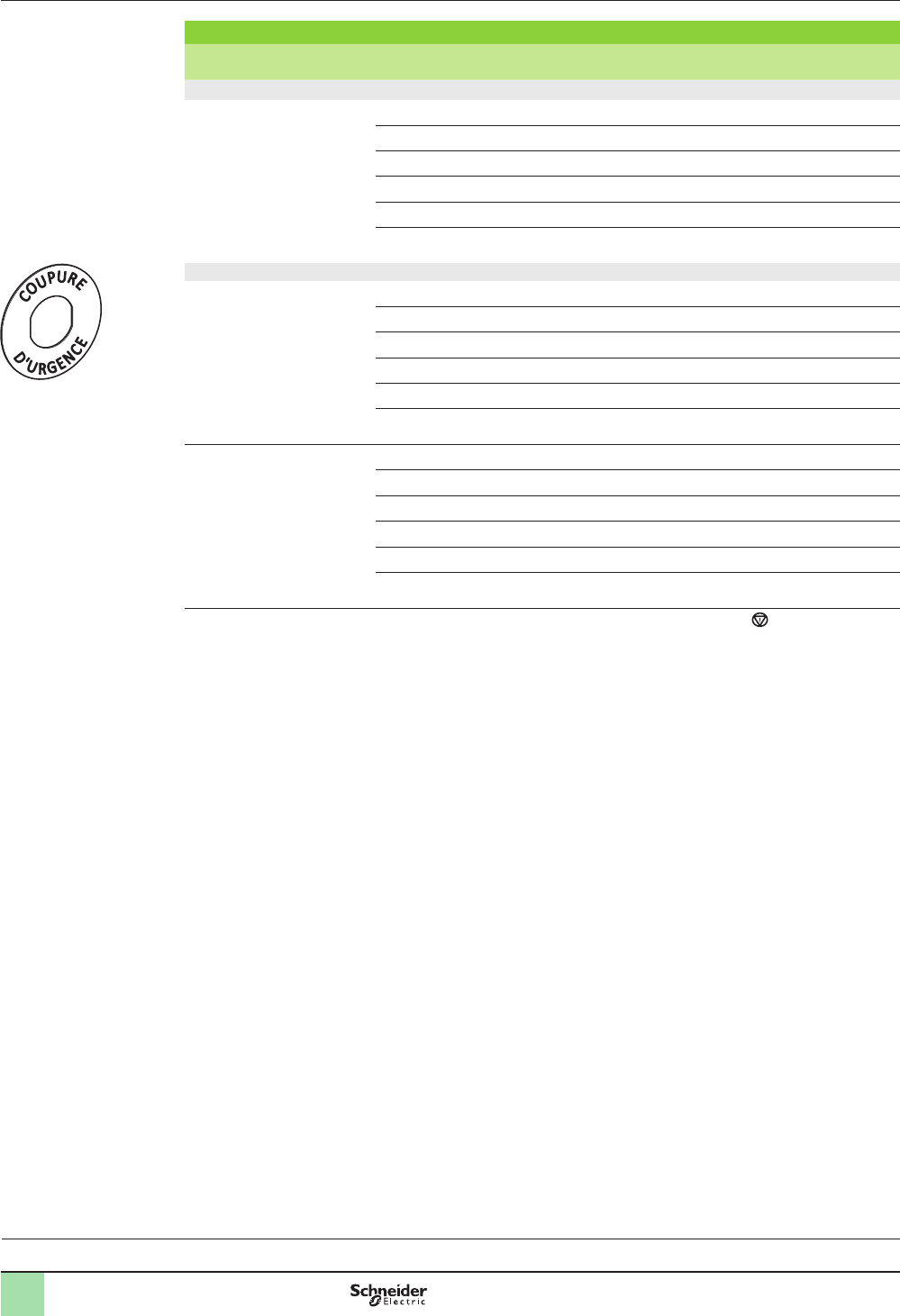

Circular yellow legends
References (continued)
Circular yellow legends for mushroom head pushbuttons
Diameter
mm/in.
Conforming
to standards
Marking on Yellow
background
Sold in
lots of
Unit
Reference
Weight
kg/lb
Used for “Emergency stop” function (1)
90/3.543 EN/IEC
60204-1 and
EN/ISO 13850
10 ZBY8140 0.008/0.018
ARRET D’URGENCE 10 ZBY8130 0.008/0.018
EMERGENCY STOP 10 ZBY8330 0.008/0.018
NOT-HALT 10 ZBY8230 0.008/0.018
PARADA DE EMERGENCIA 10 ZBY8430 0.008/0.018
ARRESTO DE EMERGENZA 10 ZBY8630 0.008/0.018
Used for “Emergency switching off” function
60/2.362 EN/IEC
60204-1
10 ZBY9101 0.004/0.009
COUPURE D’URGENCE 10 ZBY9160 0.004/0.009
EMERGENCY SWITCHING OFF 10 ZBY9360 0.004/0.009
NOT-AUS 10 ZBY9260 0.004/0.009
DESCONEXION DE EMERGENCIA 10 ZBY9460 0.004/0.009
INTERRUZIONE DI EMERGENZA 10 ZBY9660 0.004/0.009
90/3.543 EN/IEC
60204-1
10 ZBY8101 0.008/0.018
COUPURE D’URGENCE 10 ZBY8160 0.008/0.018
EMERGENCY SWITCHING OFF 10 ZBY8360 0.008/0.018
NOT-AUS 10 ZBY8260 0.008/0.018
DESCONEXION DE EMERGENCIA 10 ZBY8460 0.008/0.018
INTERRUZIONE DI EMERGENZA 10 ZBY8660 0.008/0.018
(1) For complying with EN/ISO 13850 standard, paragraph 4.4.6., Emergency Stop function logo has been added.
DF539642
ZBY9160
Presentation:
page 6
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
15
Control units Ø 22
Harmony XB4 metal
Accessories for pushbuttons
References (continued)
Accessories for mushroom head pushbuttons
Description Exclusive
use with the following
Ø 40 mm/1.575 in.
trigger action pushbuttons
Color Reference Weight
kg/lb
Padlocking kit
(1) (2)
For Emergency stop (3) and
Emergency switching off
function (4),
(padlockable)
XB4BS844p,
XB4BS9445,
ZB4BS844,
ZB4BS944p.
Yellow ZBZ3605 0.045/0.099
Metal guards
For Emergency stop (3)
function
Padlockable (2)
XB4BT8p,
XB4BS8p,
XB4BS9p,
ZB4BT8p,
ZB4BS8p,
ZB4BS9p.
Chromium
plated
ZBZ1600 0.046/0.101
Black ZBZ1602 0.046/0.101
Red ZBZ1604 0.046/0.101
Blue ZBZ1606 0.046/0.101
Description Marking Color Reference Weight
kg/lb
Ø 60 mm/2.362 in. legend
for padlocking device
ZBZ3605
For Emergency stop function
(3)
Without Yellow ZBY9140T 0.004/0.009
ARRET D’URGENCE Yellow ZBY9130T 0.004/0.009
EMERGENCY STOP Yellow ZBY9330T 0.004/0.009
NOT-HALT Yellow ZBY9230T 0.004/0.009
Ø 60 mm/2.362 in. legend
for padlocking device
ZBZ3605
For Emergency
switching off function (4)
Without Yellow ZBY9101T 0.004/0.009
COUPURE D’URGENCE Yellow ZBY9160T 0.004/0.009
EMERGENCY SWITCHING OFF Yellow ZBY9360T 0.004/0.009
NOT-AUS Yellow ZBY9260T 0.004/0.009
Description Marking Color Sold in
lots of
Reference Weight
kg/lb
Ø 60 mm/2.362 in. legend
for Emergency stop
function
Yellow 5ZBY9121 0.007/0.015
EMERGENCY STOP Yellow 5ZBY9320 0.007/0.015
ARRET D’URGENCE Yellow 5ZBY9120 0.007/0.015
NOT HALT Yellow 5ZBY9220 0.007/0.015
PARADA DE EMERGENCIA Yellow 5ZBY9420 0.007/0.015
ARRESTO DI EMERGENZA Yellow 5ZBY9620 0.007/0.015
Other accessories
Description For use with Color Reference Weight
kg/lb
Plastic guard Selector switches and key
switches
Black ZBZ2102 0.005/0.011
Padlockable aps Pushbuttons Black ZB4BZ62 0.076/0.168
Red ZB4BZ64 0.076/0.168
Yellow ZB4BZ65 0.076/0.168
Blue ZB4BZ66 0.076/0.168
(1) Standard circular legends are not compatible with this product. Use special legends ZBY9pppT.
(2)Noisolationfunctionispossiblewhenthisguardistted.
(3) Ensures conformity with standards EN/IEC60204-1andEN/ISO 13850.
(4) Ensures conformity with standard EN/IEC60204-1.
(5) Only when mounted on control stations. Use legends ZBY9pppT.
Presentation:
page 6
DF539642
ZBY9160T
DF540769
Ø 6
ZBZ160p
DF539643
Ø 8 maxi
Ø 6 mini
ZBZ3605
107353
ZB4BZ64
ZBY9121
PF131618A
ZBY9420
PF131622A
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
16
Emergency stop and switching off pushbuttons with trigger action and
mechanical latching (1) (2)
Screw clamp terminal connections (Schneider Electric anti-loosening system)
Shape
of head
Type
of reset
Type of contact Push Reference Weight
kg/lb
Ø mm/in. Color
N/O N/C
Complete units
Push-pull 1 40/1.575 Red XB5AT842
(ZB5AZ102 + ZB5AT84)
0.065/0.143
1 1 40/1.575 Red XB5AT845
(ZB5AZ105 + ZB5AT84)
0.076/0.168
Turn to release 1 40/1.575 Red XB5AS8442
(ZB5AZ102 + ZB5AS844)
0.060/0.132
1 1 40/1.575 Red XB5AS8445
(ZB5AZ105 + ZB5AS844)
0.072/0.159
2 40/1.575 Red XB5AS8444
(ZB5AZ104 + ZB5AS844)
0.072/0.159
Key release
(key n° 455)(3)
1 40/1.575 Red XB5AS9442
(ZB5AZ102 + ZB5AS944)
0.075/0.165
1 1 40/1.575 Red XB5AS9445
(ZB5AZ105 + ZB5AS944)
0.112/0.247
Heads only
Push-pull 30/1.181 Red ZB5AT844 0.049/0.108
40/1.575 Red ZB5AT84 0.049/0.108
60/2.362 Red ZB5AX84 0.067/0.148
Turn to release 30/1.181 Red ZB5AS834 0.042/0.002
40/1.575 Red ZB5AS844 0.046/0.002
Key release (key n° 455)
(2 keys included with head) (5)(3)
30/1.181 Red ZB5AS934 0.068/0.003
40/1.575 Red ZB5AS944 (4) 0.071/0.003
60/2.362 Red ZB5AS964 0.092/0.004
Key release
(key n° 4A185) (5)
40/1.575 Red ZB5AS944D 0.071/0.003
Illuminated Emergency stop and Emergency switching off functions, mechanical latching
pushbuttons with mechanical state indicator (1)
For elevator inspection box applications
Shape
of head
Type
of reset
Push Unit
reference
Weight
kg/lb
Ø mm/in. Color
Heads only (6)
Push-pull (7)
For Emergency stop and
Emergency switching off
function
40/1.575 Red ZB5AT8643M 0.034/0.075
Illuminated Emergency switching off function only, mechanical latching pushbuttons (1)
Screw clamp terminal connections (Schneider Electric anti-loosening system)
Shape
of head
Type
of reset
Push Reference Weight
kg/lb
Ø mm/in. Color
Turn to release 40/1.575 Red ZB5AW743 0.022/0.049
(1)
Recommendedmaximumnumberofcontactsconstitutingthebody(xingcollarandcontact)associatedwiththehead,seepage12of
Harmony XB5 catalog DIA5ED2121213EN.
(2) It is recommended that a legend or yellow background is used.
(3) The symbol indicates key withdrawal position(s).
(4) Other key numbers:
-keyn°421E:addsufx12 to the reference.
-keyn°458A:addsufx10 to the reference.
-keyn°520E:addsufx14 to the reference.
-keyn°3131A:addsufx20 to the reference.
-keyn°4A185:addsufxD to the reference.
Example: To order a Ø 40 mm/1.575 in. red mushroom head for a trigger action and mechanical latching Emergency stop pushbutton,
with release by key n° 421E, the reference becomes: ZB5AS94412.
(5)Forspecickeyswithothernumbers,pleaseconsultourCustomerCareCentre.
(6) Only for use with bodies comprising a light source with integral LED.
(7)CannotbeusedwithmetalguardsZBZ160p.
Control units Ø 22
Harmony XB5, plastic
Emergency stop and Emergency switching off functions
Conforming to EN/IEC 60204-1, 60364-5-53,
EN/ISO 13850 and Machinery Directive 2006/42/EC
References (continued)
BS1 aruØ40.EPS
BS5 aruØ40 .EPS
Presentation:
page 6
BS5 aruØ40 .EPS
BS1 aruØ40.EPS
PF513667
XB5AS9445
PF513662
XB5AS8445
PF513661
XB5AT845
PF513664
ZB5AT84
PF513666
ZB5AS844
PF513665
ZB5AS834
PF513663
ZB5AS934
PF513658
ZB5AT8643M
BS5 aruØ40 .EPS
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
17
General safe stops
General safe stops are used to stop the operation of a machine in a safe manner. These devices cannot be used as
Emergency stop and must not be associated with a Yellow background. The general safe stop are made with Yellow
bezel and Black head.
Shape
of head
Type
of reset
Push Reference Weight
kg/lb
Ø (mm)/in. Color
Push-pull 40/1.575 Black ZB5AT82Y 0.050/0.110
Turn to release 40/1.575 Black ZB5AS842Y 0.046/0.101
Key release
(key n° 455)
2 keys included with
head) (2)
40/1.575 Black ZB5AS942Y 0.071/0.157
Circular yellow legends for Emergency stop (1)
Description Marking Color Sold in
lots of
Reference Weight
kg/lb
Ø 60 mm/2.362 in.
legend for
Emergency stop
function
- Yellow 5ZBY9121 0.007/0.015
EMERGENCY STOP Yellow 5ZBY9320 0.007/0.015
ARRET D’URGENCE Yellow 5ZBY9120 0.007/0.015
NOT HALT Yellow 5ZBY9220 0.007/0.015
PARADA DE EMERGENCIA Yellow 5ZBY9420 0.007/0.015
ARRESTO DI EMERGENZA Yellow 5ZBY9620 0.007/0.015
Bellows for harsh environments (IP 69K) (3)
Description Material For use with Color Sold in
lots of
Unit
reference
Weight
kg/lb
For use in
environments
subject to humidity,
dust, high pressure
cleaning, etc.
Silicone Emergency stop /
Switching off
function
Yellow 2ZBZ28 0.009/0.020
Other functions Black 2ZBZ58 0.009/0.020
(1) Other legend models for Emergency stop and Emergency switching off function, see page 58 of catalog DIA5D2121212EN
(2) The symbol indicates key withdrawal position(s).
(3) Not compatible with Ø 30 mm/1.181 in. pushbuttons.
Control units Ø 22
Harmony XB5, plastic
General safe stop and circular yellow legends for
Emergency stop
References (continued)
Presentation:
page 6
BS5 aruØ40 .EPS
BS1 aruØ40.EPS
PF131624A
ZB5AT82Y
PF131618A
ZBY9121
PF131626B
ZB5AS942Y
PF131622A
ZBY9420
ZBZ28
DF524008
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
18
ZB5AZ107
814667
814411
ZB5AZ101
814588
ZB5AZ009
Control units Ø 22
Harmony XB5, plastic
Body/contact assemblies - Screw clamp terminal
connections
References (continued)
Body/xing collar
For use with Sold in
lots of
Unit
reference
Weight
kg/lb
Electrical block (contact or light) 10 ZB5AZ009 0.006/0.013
Contact functions (1)
Screw clamp terminal connections (Schneider Electric anti-loosening system)
Application Type of
contact
Description
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Contacts for standard applications
Contacts for standard
applications
Single Contact blocks 1 5ZBE101 0.011/0.024
1 5ZBE102 0.011/0.024
Double 2 5ZBE203 0.020/0.044
2 5ZBE204 0.020/0.044
1 1 5ZBE205 0.020/0.044
Single with
body/xing
collar
1 1ZB5AZ101 0.021/0.046
1 1ZB5AZ102 0.021/0.046
2 1ZB5AZ103 0.030/0.066
2 1ZB5AZ104 0.030/0.066
1 1 1ZB5AZ105 0.030/0.066
1 2 1ZB5AZ141 0.040/0.088
Contacts for specic applications
Low power switching Single Standard 1 5ZBE1016 0.012/0.026
1 5ZBE1026 0.012/0.026
Dusty environment(2)
(IP 5X, 50 μm dust)
1 5ZBE1016P 0.012/0.026
1 5ZBE1026P 0.012/0.026
Staggered contacts Single Early make
N/O
1 5ZBE201 0.011/0.024
Late break
N/C
1 5ZBE202 0.011/0.024
Single with
body/xing
collar
Overlapping
N/O+N/C
1 1 5ZB4BZ106 0.062/0.137
Staggered
N/O+N/O
2 5ZB4BZ107 0.062/0.137
High power switching Single Standard (3) 1 1ZBE501 0.020/0.044
1 1ZBE502 0.020/0.044
2 1ZBE503 0.032/0.071
2 1ZBE504 0.032/0.071
1 1 1ZBE505 0.032/0.071
Additional contact
blocks for high power
switching
Single Standard (4) 1 1ZB2BE101 0.020/0.044
1 1ZB2BE102 0.020/0.044
Clip-on legend holder, sheet of blank legends and labelling software
Description Sold in
lots of
Unit reference Weight
kg/lb
Clip-on legend-holder for electrical blocks with screw clampterminal
connections(5). For identication of an XB4Bcontrol orsignaling unit
10 ZBZ001 0.001/0.002
Sheet of 50 blank legends for legend holder ZBZ001 10 ZBY001 0.023/0.051
‘SIS Label’’ labelling software for legend design (ZBY001 legends)(for design of
legends in English, French, German, Italian, Spanish)
1XBY2U 0.100/0.220
(1) The contact blocks enable variable composition of body/contact assemblies. Maximum number of rows possible: 3. Either
3rowsof3singlecontactsor1rowof3doublecontacts+1rowof3singlecontacts(doublecontactsoccupytherst2rows).
Maximumnumberofcontactsisspeciedonpage12ofHarmonyXB5catalogDIA5ED2121213EN.
(2)Itisnotpossibletotanadditionalcontactblockonthebackofthesecontactblocks.
(3)Itisnotpossibletotanadditionalcontactblockonthebackofthesecontactblocksortousethesecontactswithlightblocks.
(4)TobettedonthebackofZBE50
p
contacts.
(5) This legend holder is not compatible with high power switching
contacts
.
ZBZ001-PRO-3-M
814262
ZBZ001
Presentation:
page 6
ZBE203
101261
ZBE201
101261
ZBE501
PF080706
ZB2BE101
PG114156SE
ZBE101
PF512546
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
4
19
Light blocks
Description Supply voltage
V
Color of
light source
Sold in
lots of
Unit
reference
Weight
kg/lb
Light blocks with screw clamp terminal connections(SchneiderElectric anti-loosening system)
Integral LED
(to combine with
heads for integral LED)
z 12
(50/60 Hz)
White 5ZBVJ1 0.017/0.037
Green 5ZBVJ3 0.017/0.037
Red 5ZBVJ4 0.017/0.037
Orange 5ZBVJ5 0.017/0.037
Blue 5ZBVJ6 0.017/0.037
z 24
(50/60 Hz)
White 5ZBVB1 0.017/0.037
Green 5ZBVB3 0.017/0.037
Red 5ZBVB4 0.017/0.037
Orange 5ZBVB5 0.017/0.037
Blue 5ZBVB6 0.017/0.037
z 24…120
(50/60 Hz)
White 5ZBVBG1 0.017/0.037
Green 5ZBVBG3 0.017/0.037
Red 5ZBVBG4 0.017/0.037
Orange 5ZBVBG5 0.017/0.037
Blue 5ZBVBG6 0.017/0.037
a 110...120
(50/60 Hz)
White 5ZBVG1 0.017/0.037
Green 5ZBVG3 0.017/0.037
Red 5ZBVG4 0.017/0.037
Orange 5ZBVG5 0.017/0.037
Blue 5ZBVG6 0.017/0.037
a 230...240
(50/60 Hz)
White 5ZBVM1 0.017/0.037
Green 5ZBVM3 0.017/0.037
Red 5ZBVM4 0.017/0.037
Orange 5ZBVM5 0.017/0.037
Blue 5ZBVM6 0.017/0.037
Flashing light blocks with screw clamp terminal connections
(Schneider Electric anti-loosening system)
Integral LED
(to combine with
heads for integral LED)
z 24
(50/60 Hz)
White 5
ZBV18B1
0.017/0.037
Green 5
ZBV18B3
0.017/0.037
Red 5
ZBV18B4
0.017/0.037
Orange 5
ZBV18B5
0.017/0.037
Blue 5
ZBV18B6
0.017/0.037
a 110...120
(50/60 Hz)
White 5ZBV18G1 0.017/0.037
Green 5ZBV18G3 0.017/0.037
Red 5ZBV18G4 0.017/0.037
Orange 5ZBV18G5 0.017/0.037
Blue 5ZBV18G6 0.017/0.037
a 230...240
(50/60 Hz)
White 5ZBV18M1 0.017/0.037
Green 5ZBV18M3 0.017/0.037
Red 5ZBV18M4 0.017/0.037
Orange 5ZBV18M5 0.017/0.037
Blue 5ZBV18M6 0.017/0.037
For use with Supply voltage
V
Description Reference Weight
kg/lb
Transformer blocks for 24 V light blocks (1)
Light blocks with integral LED
a 400 V - 50Hz Transformer 400 V - 24 V aZBV5B (2) 0.090/0.198
Blocks for “test light” function
Light blocks z 12 and 24
z 24…120
Single module,1 connecting wire ZBZG156 (3) 0.010/0.022
Light blocks with integral LED
a 48…230 Double module, with connecting wires ZBZG156 (3) 0.010/0.022
LED suppressors
For use with Supply voltage
V
Level of
protection
Reference Weight
kg/lb
Light blocks with integral LED tted
with screw clamp terminal
connections
a 120 25…120 VA ZBZVG 0.010/0.022
a 230 30…230 VA ZBZVM 0.010/0.022
(1) To be used with 2 dummy contact blocks ZBE000.
(2) To order a 440...460 V - 60 Hz transformer blocks, please replace ‘5’’ in the reference by ‘‘8’: ZBV5B becomes ZBV8B.
To order a 550...600 V - 60 Hz transformer blocks, please replace ‘‘5’ by ‘‘9’ : ZBV5B becomes ZBV9B.
(3) Block for use with z light blocks with integral LED types ZBVJjp, ZBVBp, ZVBBGp or with direct supply light block for
BA 9s bulb, ZBV6.
(4) Block for use a light blocks integral LED types ZBVGp, ZBVMp,
see connection on Schneider Electric website, Harmony XB5.
Control units Ø 22
Harmony XB5, plastic
Light blocks - “Test light” - Protection
References (continued)
ZBV5B
PF080705
ZBVB1
101268
ZBZG156
121461
ZBZM156
121493
ZBZVG
105079
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
20
PF107781
ZB5AZ1015
814588
ZB5AZ009
Control units Ø 22
Harmony XB5, plastic
Body/contact assemblies - Spring clamp terminal
connections
References (continued)
Body/xing collar
For use with Sold in
lots of
Unit reference Weight
kg/lb
Electrical block (contact or light) 10 ZB5AZ009 0.006/0.013
Contact functions Spring clamp terminal connections (1)
Description Type of contact
Sold in
lots of
Unit reference Weight
kg/lb
N/O N/C
Contacts for standard applications
Contact blocks Single 1 4ZBE1015 0.011/0.024
1 4ZBE1025 0.011/0.024
Single with
body/xing collar
1 1ZB5AZ1015 0.021/0.046
1 1ZB5AZ1025 0.021/0.046
2 1ZB5AZ1035 0.030/0.066
2 1ZB5AZ1045 0.030/0.066
1 1 1ZB5AZ1055 0.030/0.066
Light blocks Spring clamp terminal connections (1)
Description Supply voltage
V
Color of
light source
Sold in
lots of
Unit reference Weight
kg/lb
Integral LED
(to combine with
heads for integral LED)
z 12
(50/60 Hz)
White 4ZBVJ15 0.016/0.035
Green 4ZBVJ35 0.016/0.035
Red 4ZBVJ45 0.016/0.035
Orange 4ZBVJ55 0.016/0.035
Blue 4ZBVJ65 0.016/0.035
z 24
(50/60 Hz)
White 4ZBVB15 0.016/0.035
Green 4ZBVB35 0.016/0.035
Red 4ZBVB45 0.016/0.035
Orange 4ZBVB55 0.016/0.035
Blue 4ZBVB65 0.016/0.035
a 110...120
(50/60 Hz)
White 4ZBVG15 0.016/0.035
Green 4ZBVG35 0.016/0.035
Red 4ZBVG45 0.016/0.035
Orange 4ZBVG55 0.016/0.035
Blue 4ZBVG65 0.016/0.035
a 230...240
(50/60 Hz)
White 4ZBVM15 0.016/0.035
Green 4ZBVM35 0.016/0.035
Red 4ZBVM45 0.016/0.035
Orange 4ZBVM55 0.016/0.035
Blue 4ZBVM65 0.016/0.035
Sheet of 50 blank legends
For use with Sold in
lots of
Unit reference Weight
kg/lb
Legend holder ZBZ001 10 ZBY001 0.023/0.051
“SIS Label” labelling software (for legends ZBY001)
For legend design
for English, French, German, Italian, Spanish
10 XBY2U 0.100/0.220
(1)Itisnotpossibletotanadditionalblockonthebackofthesecontactorlightblocks.
ZBZ001-PRO-3-M
814262
ZBZ001
Labelling software
Logiciel de création d'étiquettes
Beschriftungssoftware
Software para crear etiquetas
Software per la creazione di etichette
SIS-Label
Merlin Gerin
Modicon
Square D
Telemecanique
540548
XBY2U
Presentation:
page 6
ZBE1015
PF107777
PF080711
ZBVB35
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
21
Control units Ø 22
Harmony XB5, plastic
Body/contact assemblies - Faston connectors
References (continued)
Contact functions (1)
Faston connectors (Ø 6.35 or 2 x 2.8 mm/0.250 or 2 x 0.110 in.)
Contacts for standard applications
Description Type of
contact
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Contact blocks Single 1 5ZBE1013 0.011/0.024
1 5ZBE1023 0.011/0.024
Double 2 5ZBE2033 0.020/0.044
2 5ZBE2043 0.020/0.044
1 1 5ZBE2053 0.020/0.044
Single with
body/xing collar
1 1ZB5AZ1013 (2) 0.021/0.046
1 1ZB5AZ1023 (2) 0.021/0.046
2 1ZB5AZ1033 0.030/0.066
2 1ZB5AZ1043 0.030/0.066
1 1 1ZB5AZ1053 0.030/0.066
Contacts for specic applications
Application Type of
contact
Description
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Low power
switching
Single Standard 1 5ZBE10163 (2) 0.012/0.026
1 5ZBE10263 (2) 0.012/0.026
Dusty
environments (3)
(IP 5X, 50 μm dust)
1 5ZBE1016P3 (2) 0.012/0.026
1 5ZBE1026P3 (2) 0.012/0.026
Staggered
contacts
Single Early make 1 5ZBE2013 (2) 0.011/0.024
N/O
Late break 1 5ZBE2023 (2) 0.011/0.024
N/C
High power
switching
Single Standard (4) 1 1ZBE5013 0.021/0.046
1 1ZBE5023 0.021/0.046
2 1ZBE5033 0.033/0.073
2 1ZBE5043 0.033/0.073
1 1 1ZBE5053 0.033/0.073
Clip-on legend holder for electrical blocks with screw clamp terminal connections
(5)
For use with Sold in
lots of
Unit reference Weight
kg/lb
IIdentication of an XB5A
control or signaling unit
10 ZBZ001 0.001/0.002
Sheet of 50 blank legends
Legend holder ZBZ001 10 ZBY001 0.023/0.051
“SIS Label” labelling software (for legends ZBY001)
For legend design
for English, French, German, Italian, Spanish
1XBY2U 0.100/0.220
(1) The contact blocks enable variable composition of body/contact assemblies. Maximum number of rows possible: 3. Either 3
rowsof3singlecontactsor1rowof3doublecontacts+1rowof3singlecontacts(doublecontactsoccupytherst2rows).
(2) To order products with screw clamp terminal connections for lugs, replace the 3 at the end of the reference with a 9. Example:
ZBE1013 becomes ZBE1019.
(3)Itisnotpossibletotanadditionalcontactblockonthebackofthesecontactblocks.
(4) It is not possible to use these contacts with light blocks.
(5)
This legend holder is not
compatible with high power switching contacts.
ZBE1023
PF080708
ZBZ001-PRO-3-M
814262
ZBZ001
Labelling software
Logiciel de création d'étiquettes
Beschriftungssoftware
Software para crear etiquetas
Software per la creazione di etichette
SIS-Label
Merlin Gerin
Modicon
Square D
Telemecanique
540548
XBY2U
Presentation:
page 6
ZBE2043
PF080709
ZB4BZ1043
PF080704
ZBE5043
PF080710
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
22
Control units Ø 22
Harmony XB5, plastic
Body/contact assemblies - Plug-in connector
References (continued)
Body/xing collar
For use with Sold in
lots of
Unit reference Weight
kg/lb
Electrical block (contact or light) 10 ZB5AZ009 0.006/0.013
Contact functions Plug-in connector (1)
Description Type of contact
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Contacts for standard applications
Contact blocks Single 1 5ZBE1014 0.011/0.024
1 5ZBE1024 0.011/0.024
Single with
body/xing collar
1 1ZB5AZ1014 0.018/0.040
1 1ZB5AZ1024 0.018/0.040
2 1ZB5AZ1034 0.026/0.057
2 1ZB5AZ1044 0.026/0.057
1 1 1ZB5AZ1054 0.026/0.057
1 2 1ZB5AZ1414 0.036/0.079
Light blocks Plug-in connector
Description Supply voltage
V
Color of
light source
Sold in
lots of
Unit
reference
Weight
kg/lb
Integral LED
(to combine with
heads for integral LED)
z 24
(50/60 Hz)
White 5
ZBVB14
0.016/0.035
Green 5ZBVB34 0.016/0.035
Red 5ZBVB44 0.016/0.035
Orange 5ZBVB54 0.016/0.035
Blue 5ZBVB64 0.016/0.035
a 110…120
(50/60 Hz)
White 5ZBVG14 0.016/0.035
Green 5ZBVG34 0.016/0.035
Red 5ZBVG44 0.016/0.035
Orange 5ZBVG54 0.016/0.035
Blue 5ZBVG64 0.016/0.035
a 230…240
(50/60 Hz)
White 5ZBVM14 0.016/0.035
Green 5ZBVM34 0.016/0.035
Red 5ZBVM44 0.016/0.035
Orange 5ZBVM54 0.016/0.035
Blue 5ZBVM64 0.016/0.035
Connecting cables and connector
Description Number of connectors Wir e
c.s.a.
mm2/AWG
Length
Ø mm/in.
Sold in
lots of
Unit
reference
Weight
kg/lb
Cables with connectors
2-pin,
Ø 5.08 mm/0.200 in. pitch
10.75/19 500/
19.685
8APE1C2150 0.120/0.265
20.75/19 500/
19.685
8APE1C2250 0.180/0.397
Spring terminal connector
2-pin,
Ø 5.08 mm/0.200 in. pitch
0.2 to 0.5/
25 to 14
10 APE1PRE21 0.003/0.007
(1)Itisnotpossibletotanadditionalcontactblockonthebackofthesecontactblocks.
ZBE1024
101265
ZBVB14
101270
ZB5AZ009
814588101262
ZBE1014
ZB5AZ1014
814408
ZB5AZ1024
814410
APE1C2250
530719
Presentation:
page 6
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
23
Control units Ø 22
Harmony XB5, plastic
Circular yellow legends
References (continued)
Circular yellow legends for mushroom head pushbuttons
Diameter
mm/in.
Conforming
to standards
Marking on
Yellow background
Sold in
lots of
Unit
Reference
Weight
kg/lb
Used for “Emergency stop” function (1)
90/3.543 EN/IEC
60204-1
and
EN/ISO
13850
10 ZBY8140 0.008/0.018
ARRET D’URGENCE 10 ZBY8130 0.008/0.018
EMERGENCY STOP 10 ZBY8330 0.008/0.018
NOT-HALT 10 ZBY8230 0.008/0.018
PARADA DE EMERGENCIA 10 ZBY8430 0.008/0.018
ARRESTO DE EMERGENZA 10 ZBY8630 0.008/0.018
Used for “Emergency switching off” function
60/2.362 EN/IEC
60204-1
10 ZBY9101 0.004/0.009
COUPURE D’URGENCE 10 ZBY9160 0.004/0.009
EMERGENCY SWITCHING OFF 10 ZBY9360 0.004/0.009
NOT-AUS 10 ZBY9260 0.004/0.009
DESCONEXION DE EMERGENCIA 10 ZBY9460 0.004/0.009
INTERRUZIONE DI EMERGENZA 10 ZBY9660 0.004/0.009
90/3.543 EN/IEC
60204-1
10 ZBY8101 0.008/0.018
COUPURE D’URGENCE 10 ZBY8160 0.008/0.018
EMERGENCY SWITCHING OFF 10 ZBY8360 0.008/0.018
NOT-AUS 10 ZBY8260 0.008/0.018
DESCONEXION DE EMERGENCIA 10 ZBY8460 0.008/0.018
INTERRUZIONE DI EMERGENZA 10 ZBY8660 0.008/0.018
(1) For complying with EN/ISO 13850 standard, paragraph 4.4.6., Emergency Stop function logo has been added.
DF539642
ZBY9160
ZBY9130
PF514403
Presentation:
page 6
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
24
Control units Ø 22
Harmony XB5, plastic
Accessories for pushbuttons
References (continued)
Accessories for mushroom head pushbuttons
Description Exclusive use with the
following Ø 40 mm/1.575 in.
trigger action pushbuttons
Color Reference Weight
kg/lb
Padlocking kit (1) (2)
For Emergency stop (3) and
Emergency switching off
function (4),
(padlockable)
XB5AS844p,
XB5AS944p,
ZB5AS844,
ZB5AS944p
Yellow ZBZ3605 0.045/0.099
Metal guards
For Emergency stop (3)
function
Padlockable (2)
XB5AT8p,
XB5AS8p,
XB5AS9p,
ZB5AT8p,
ZB5AS8p,
ZB5AS9p
Chromium plated ZBZ1600 0.046/0.101
Black ZBZ1602 0.046/0.101
Red ZBZ1604 0.046/0.101
Blue ZBZ1606 0.046/0.101
Description Marking Color Reference Weight
kg/lb
Ø 60 mm/2.362 in. legend
for padlocking device
ZBZ3605
For Emergency
stop function (3)
Without Yellow ZBY9140T 0.004/0.009
ARRET D’URGENCE Yellow ZBY9130T 0.004/0.009
EMERGENCY STOP Yellow ZBY9330T 0.004/0.009
NOT-HALT Yellow ZBY9230T 0.004/0.009
Ø 60 mm/2.362 in. legend
for padlocking device
ZBZ3605
For Emergency
switching off function (4)
Without Yellow ZBY9101T 0.004/0.009
COUPURE D’URGENCE Yellow ZBY9160T 0.004/0.009
EMERGENCY SWITCHING OFF Yellow ZBY9360T 0.004/0.009
NOT-AUS Yellow ZBY9260T 0.004/0.009
Description Marking Color Sold in
lots of
Reference Weight
kg/lb
Ø 60 mm/2.362 in. legend
for Emergency stop
function
- Yellow 5ZBY9121 0.007/0.015
EMERGENCY STOP Yellow 5ZBY9320 0.007/0.015
ARRET D’URGENCE Yellow 5ZBY9120 0.007/0.015
NOT HALT Yellow 5ZBY9220 0.007/0.015
PARADA DE EMERGENCIA Yellow 5ZBY9420 0.007/0.015
ARRESTO DI EMERGENZA Yellow 5ZBY9620 0.007/0.015
Other accessories
Description For use with Color Reference Weight
kg/lb
Plastic guard Selector switches and
key switches
Black ZBZ2102 0.005/0.011
Padlockable aps Pushbuttons Black ZB4BZ62 0.076/0.168
Red ZB4BZ64 0.076/0.168
Yellow ZB4BZ65 0.076/0.168
Blue ZB4BZ66 0.076/0.168
(1) Standard circular legends are not compatible with this product. Use special legends ZBY9pppT.
(2)Noisolationfunctionispossiblewhenthisguardistted.
(3) Ensures conformity with standards EN/IEC60204-1andEN/ISO 13850.
(4) Ensures conformity with standard EN/IEC60204-1.
(5) Only when mounted on control stations. Use legends ZBY9pppT.
Presentation:
page 6
DF540769
Ø 6
ZBZ160p
DF539643
Ø 8 maxi
Ø 6 mini
ZBZ3605
107353
ZB4BZ64
PF131618A
ZBY9121
PF131622A
ZBY9420
DF539642
ZBY9160T
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
25
XB7NS842
PF100411
Control units Ø 22
Harmony XB7, monolithic
Emergency stop pushbuttons, circular legends
References (continued)
Emergency stop and emergency switching off function with mechanical latching
Shape of head Type of
push
Standards
Sold in
lots of
Unit
reference
Weight
kg/lb
N/O N/C
Contacts for standard applications
Turn to
release
EN/IEC 60204-1,
EN/ISO 13850,
EN/IEC 60947-5-5,
Machinery directive
2006/42/EC
and UL
1 10 XB7NS8442 0.045/0.099
1 1 10 XB7NS8445 0.045/0.099
2 10 XB7NS8444 0.045/0.099
Push-pull 1 10 XB7NT842 0.040/0.088
1 1 10 XB7NT845 0.040/0.088
2 10 XB7NT844 0.040/0.088
Key release
(n° 455)
2 10 XB7NS9444 0.072/0.159
1 10 XB7NS9445 0.072/0.159
Circular legends, yellow, for mushroom head pushbuttons
Description Marking on yellow
background
Sold in
lots of
Unit reference Weight
kg/lb
Used for “Emergency stop” function (1)
Ø 60 mm/2.362 in.
circular legend
compatible with
Emergency stop
5ZBY9121 0.007/0.015
ARRET D’URGENCE 5ZBY9320 0.007/0.015
EMERGENCY STOP 5ZBY9120 0.007/0.015
NOT-HALT 5ZBY9220 0.007/0.015
PARADA DE EMERGENCIA 5ZBY9420 0.007/0.015
ARRESTO DE EMERGENZA 5ZBY9620 0.007/0.015
Ø 90 mm/3.543 in.
circular legend
compatible with
Emergency stop
10 ZBY8140 0.008/0.018
ARRET D’URGENCE 10 ZBY8130 0.008/0.018
EMERGENCY STOP 10 ZBY8330 0.008/0.018
NOT-HALT 10 ZBY8230 0.008/0.018
PARADA DE EMERGENCIA 10 ZBY8430 0.008/0.018
ARRESTO DE EMERGENZA 10 ZBY8630 0.008/0.018
(1) For compliance with standard EN/ISO 13850, paragraph 4.4.6, the Emergency stop logo has been added.
Presentation:
page 6
ZBY9130
PF514403
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
26
26
Presentation Control units Ø 30
Harmony 9001K & SK range
Emergency stop pushbuttons
Presentation
The Ø 30 mm/1.181 in. Harmony 9001 range of Emergency stop and Emergency switching off functions is robust
and meet a great number of applications in heavy industries such as: petrochemical, metallurgy, mining, oil and
gas, wastewater treatment, and automobile manufacturing.
b Two family of products are available :
v The Harmony 9001K control and signalling units offering good robustness with a chromium plated metal bezel
v The Harmony 9001SK control and signalling units, with a double insulated bezel designed for applications
requiring a high resistance to corrosion
b This range includes:
v Emergency stop trigger action and mechanical latching pushbuttons
(conforming to standards EN/IEC
60204-1 and EN/ISO 13850)
v Choice of accessories and spare parts common to both families,
v Choice of aluminium or plastic legend plates.
Installation
b Harmony 9001 products are both simple and quick to install:
v Block setting by single installer with a single screw contact block,
v Automatic self-grounding operators without additional wiring,
v Easy function identication thanks to the coloured contact blocks,
v Clear window for status of contact operation and troubleshooting,
v Side-by-side and/or stacked mounting of contact blocks to minimize enclosure space requirements.
b Connection is made through screw clamp terminals (cross headedslotted screw)
Environment
The performance features of these range meet the most demanding international standards and approvals:
b Degrees of protection:
Products are originally oil-tight, dust-tight and water-tight. No boot needs to be added.
v For 9001K chromium plated metal bezel: IP 66 according to IEC 61140 and NEMA type 1, 2, 3, 3R, 4,12 and 13
v For 9001SK plastic bezel: IP 66 according to IEC 61140 and NEMA type 1, 2, 3, 3R, 4, 4X, 12 et 13.
b International standards:
v EN/IEC 60204/1 et EN/ISO 13850 for Emergency stop mushroom head pushbuttons (if used with the
Emergency stop legend plates)
b Product certications:
v International certications: UL, CSA, NOM, RoHS, GOST
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
27

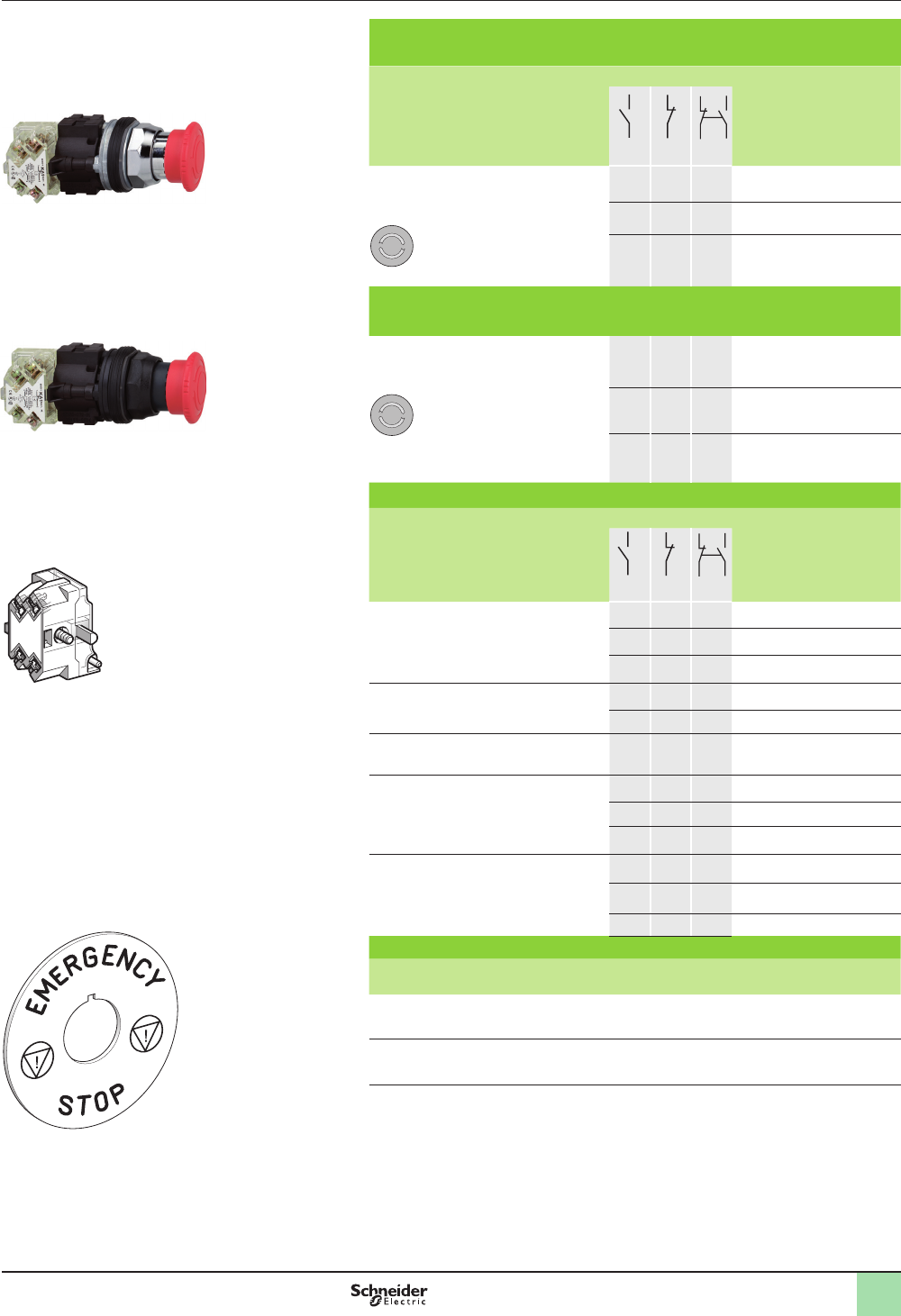

Emergency stop mushroom head pushbutton
(with chromium plated metal bezel)
Shape
of head
Type
of push
Head
color &
material
Type of contacts Reference Weight
kg/lb
N/O N/C C/O
Circular,
Ø 40 mm
/1.575 in.
2 positions
(1)
Turn to Release
Trigger action
Red,
plastic
11–9001KR16H13 0.141/0.311
22–9001KR16H2 0.141/0.311
–––9001KR16 (2) 0.141/0.311
Emergency stop mushroom head pushbutton
(with double insulated bezel)
Circular,
Ø 40 mm
/1.575 in.
2 positions
Turn to release
Trigger action
(1)
1 1 9001SKR16H13 0.141/0.311
22–9001SKR16H2 0.141/0.311
–––9001SKR16 (2) 0.141/0.311
Contact blocks with protected terminals
Description Type of contacts Reference Weight
kg/lb
N/O N/C C/O
Standard
contact blocks
––19001KA1 (3) 0.027/0.060
1––9001KA2 (3) 0.023/0.051
–1–9001KA3 (3) 0.023/0.051
Late break
contact blocks
––19001KA4 0.027/0.060
–1–9001KA5 0.023/0.051
Early break
contact blocks
1––9001KA6 0.023/0.051
Logic reed
contact blocks
Hermetically sealed
1––9001KA41 (3) 0.045/0.099
–1–9001KA42 (3) 0.045/0.099
––19001KA43 (3) 0.045/0.099
Power reed
contact blocks
Hermetically sealed
1–19001KA51 (3) 0.045/0.099
–1–9001KA52 (3) 0.045/0.099
––19001KA53 (3) 0.045/0.099
Emergency stop legend plate (plastic)
Description Legend plate
colour
Marking Reference Weight
kg/lb
Ø 60 mm
/2.362 in.
Yellow EMERGENCY STOP 9001KN9330 0.005/0.011
Ø 90 mm
/3.543 in.
Yellow EMERGENCY STOP 9001KN8330 0.005/0.011
(1)Emergencystopdevice,conformstoEN/IEC60204-1andEN/ISO13850whenusedwith
Emergency Stop legend plate 9001KN8330 or 9001KN9330.
(2)Suppliedwithoutcontactblock.Contactblockstobeorderedseparately.
(3)
It is possible to mount up to 3 levels of contact blocks (maximum of 6 contacts blocks) on 9001
K and 9001 SK references. For additional contact blocks to be installed by the customer,
please refer to Schneider Electric website, Harmony 9001K and Harmony 9001SK
.
Control units Ø 30
Harmony 9001K & SK range
Emergency stop pushbuttons, contact blocks, and
circular yellow legends
References
DF540921
9001 KNp330
9001KR16H13
PF100883
9001SKR16H13
PF100878
9001KA1
821 136
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
28
Presentation Operator dialogue terminals
MagelisTM XBTGH Advanced hand-held panel
Emergency stop function
Presentation
The Magelis XBTGH Advanced hand-held panel offer a portable touch screen
terminal with 5.7" color screen and safety devices (Emergency stop, enabling grip
switch, etc.)
The emergency stop button with 2 NC safety contacts and 1 NO auxiliary contact is
used to stop the machine during emergency.
Operation
These terminals are available in multifunction levels (5.7" ) which features new
information and communication technologies:
b High level of communication (embedded Ethernet, multi-link, Web server and
FTP)
b External storage of data (Compact Flash memory card and USB memory stick) for
storing production data and backing up applications
b Multimedia data with integrated image and sound management (digital or analog
camera)
b Management of peripherals: Printers, bar code readers, loudspeakers, etc.
Communication
Magelis Standard Advanced panel communicate with PLCs via one or two integrated
serial links, using communication protocols:
b Schneider Electric (Uni-TE, Modbus)
b Third-party: Mitsubishi Electric, Omron, Allen-Bradley and Siemens
Ethernet TCP/IP
CANopen
Premium
Quantum
Modicon M340
Modicon STB
XBTGT
XBTGK
HMIGTW
ATV 71
Modicon M340
Modbus / Uni-Telway
Twido
XBTGT
XBTGH
XBTGTW
Magelis XBTGH with emergency stop
29

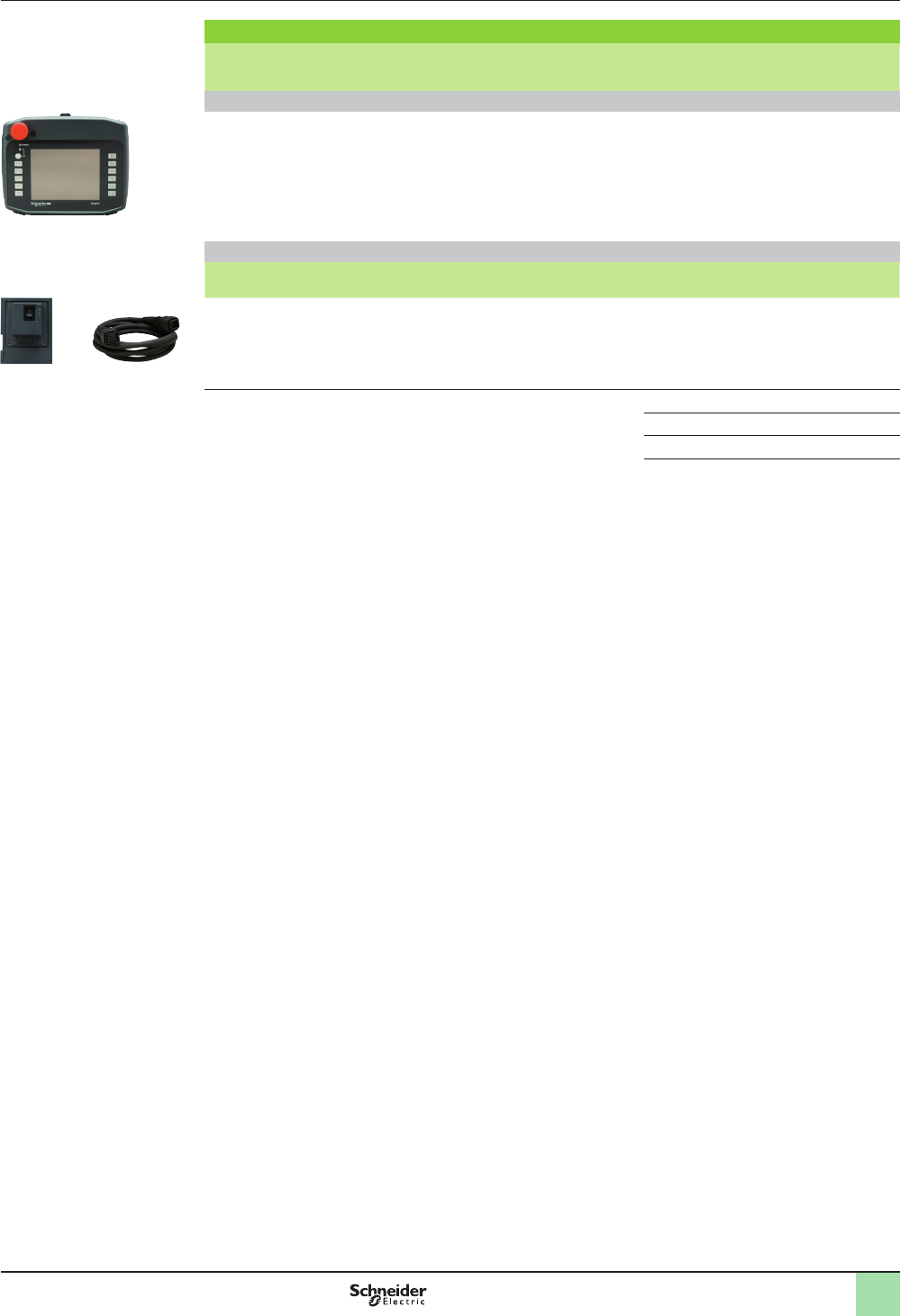

References Operator dialogue terminals
Magelis XBTGH Advanced hand-held panel
Emergency stop function
XBTGH Advanced hand-held panel (1)
Type of front panel Number
of ports
Application
memory
capacity
Compact
Flash
memory
Video
input
Number of
Ethernet
ports
Reference Weight
kg/lb
Multifunction, 5.7" screen
TFT color mode screen
and Emergency stop
button
1 COM1
1 USB
32 MB Yes No 1 XBTGH2460 (2)
Connection components
Description Usage Length
m/ft.
Reference Weight
kg/lb
Junction box for XBTGH Specically for the XBTGH terminal, it enables:
b24 V c power supply to XBTGH terminal
bConnection of various safety inputs/outputs
bConnection on multi-protocol serial link
(9-way SUB-D) or Ethernet TCP/IP (RJ45)
Can be mounted on 35 mm rail
XBTZGJBOX (2) (3)
Interface cable for XBTGH For connecting XBTGH terminal to junction box
XBTZGJBOX
3/9.84 XBTZGHL3
5/16.40 XBTZGHL5
10/32.80 XBTZGHL10
20/65.62 XBTZGHL20 (4)
(1) ) For more information on Magelis XBTGH functions, description and connection accessories, please refer to Magelis
XBTGH Advanced hand-held panel catalog in our website www.schneider-electric.com.
(2) The XBTGH terminal is connected to junction box XBTZGJBOX using cable XBTZGHLpp, to be ordered separately.
(3) A junction box is required at each XBTGH terminal connection point.
(4) With this cable, the following limitations apply to the junction box:
-noRS232Cseriallink
- an isolation box cannot be used
- 24 V c supply voltage tolerance of approximately 10%
XBTGH2460
XBTZGJBOX XBTZGHLpp
30
Index Product reference index
9
9001KA1 3
9001KA2 3
9001KA3 3
9001KA4 3
9001KA5 3
9001KA6 3
9001KA41 3
9001KA42 3
9001KA43 3
9001KA51 3
9001KA52 3
9001KA53 3
9001KN8330 3
9001KN9330 3
9001KR16 3
9001KR16H2 3
9001KR16H13 3
9001SKR16 3
9001SKR16H2 3
9001SKR16H13 3
A
APE1C2150 9
18
APE1C2250 9
18
APE1PRE21 9
18
X
XB4BS8442 3
XB4BS8444 3
XB4BS8445 3
XB4BS9445 3
XB4BS84441 3
XB4BT842 3
XB4BT845 3
XB5AS8442 12
XB5AS8444 12
XB5AS8445 12
XB5AS9442 12
XB5AS9445 12
XB5AT842 12
XB5AT845 12
XB6AS8349B 4
XB6AS9349B 4
XB6ETI522P 3
XB6ETI523P 3
XB6ETN521P 3
XB7NS8442 21
XB7NS8444 21
XB7NS8445 21
XB7NS9444 21
XB7NS9445 21
XB7NT842 21
XB7NT844 21
XB7NT845 21
XBTGH2460 3
XBTZGHL3 3
XBTZGHL5 3
XBTZGHL10 3
XBTZGHL20 3
XBTZGJBOX 3
XBY2U 5
7
8
14
16
17
Z
ZB2BE101 5
14
ZB2BE102 5
14
ZB4BS834 3
ZB4BS844 3
ZB4BS864 3
ZB4BS934 3
ZB4BS944 3
ZB4BS964 3
ZB4BT84 3
ZB4BT844 3
ZB4BVG35 7
ZB4BVG45 7
ZB4BW643 3
ZB4BX84 3
ZB4BZ009 5
7
9
ZB4BZ62 11
20
ZB4BZ64 11
20
ZB4BZ65 11
20
ZB4BZ66 11
20
ZB4BZ101 5
ZB4BZ102 5
ZB4BZ103 5
ZB4BZ104 5
ZB4BZ105 5
ZB4BZ106 5
ZB4BZ106 14
ZB4BZ107 5
ZB4BZ107 14
ZB4BZ141 5
ZB4BZ1013 8
ZB4BZ1014 9
ZB4BZ1015 7
ZB4BZ1023 8
ZB4BZ1024 9
ZB4BZ1025 7
ZB4BZ1033 8
ZB4BZ1034 9
ZB4BZ1035 7
ZB4BZ1043 8
ZB4BZ1044 9
ZB4BZ1045 7
ZB4BZ1053 8
ZB4BZ1054 9
ZB4BZ1055 7
ZB4BZ1414 9
ZB5AS834 12
ZB5AS842Y 13
ZB5AS844 12
ZB5AS934 12
ZB5AS942Y 13
ZB5AS944 12
ZB5AS944D 12
ZB5AS964 12
ZB5AT82Y 13
ZB5AT84 12
ZB5AT844 12
ZB5AT8643M 12
ZB5AW743 12
ZB5AX84 12
ZB5AZ009 14
16
18
ZB5AZ101 14
ZB5AZ102 14
ZB5AZ103 14
ZB5AZ104 14
ZB5AZ105 14
ZB5AZ141 14
ZB5AZ1013 17
ZB5AZ1014 18
ZB5AZ1015 16
ZB5AZ1023 17
ZB5AZ1024 18
ZB5AZ1025 16
ZB5AZ1033 17
ZB5AZ1034 18
ZB5AZ1035 16
ZB5AZ1043 17
ZB5AZ1044 18
ZB5AZ1045 16
ZB5AZ1053 17
ZB5AZ1054 18
ZB5AZ1055 16
ZB5AZ1414 18
ZB6AS834 4
ZB6AS934 4
ZB6Y002 5
ZB6Y003 5
ZB6Y004 5
ZB6Y005 5
ZB6Y006 5
ZB6Y006A 5
ZB6Y009 5
ZB6Y010 5
ZB6Y011 5
ZB6Y016 5
ZB6Y018 5
ZB6Y019 5
ZB6Y56 3
ZB6Y905 5
ZB6Y906 5
ZB6Y7001 4
ZB6Y7130 4
ZB6Y7230 4
ZB6Y7330 4
ZB6Y7430 4
ZB6Y7630 4
ZB6Z1B 5
ZB6Z2B 5
ZB6Z3B 5
ZB6Z4B 5
ZB6Z5B 5
ZBE101 5
14
ZBE102 5
14
ZBE201 5
14
ZBE202 5
14
ZBE203 5
14
ZBE204 5
14
ZBE205 5
14
ZBE501 5
14
ZBE502 5
14
ZBE503 5
14
ZBE504 5
14
ZBE505 5
14
ZBE1013 8
17
ZBE1014 9
18
ZBE1015 7
16
ZBE1016 5
14
ZBE1016P 5
14
ZBE1016P3 8
17
ZBE1023 8
17
ZBE1024 9
18
ZBE1025 7
16
ZBE1026 5
14
ZBE1026P 5
14
ZBE1026P3 8
17
ZBE2013 8
17
ZBE2023 8
17
ZBE2033 8
17
ZBE2043 8
17
ZBE2053 8
17
ZBE5013 8
17
ZBE5023 8
17
ZBE5033 8
17
ZBE5043 8
17
ZBE5053 8
17
ZBE10163 8
17
ZBE10263 8
17
ZBV5B 6
15
ZBV18B1 6
15
ZBV18B3 6
15
ZBV18B4 6
15
ZBV18B5 6
15
ZBV18B6 6
15
ZBV18G1 6
15
ZBV18G3 6
15
ZBV18G4 6
15
ZBV18G5 6
15
ZBV18G6 6
15
ZBV18M1 6
15
ZBV18M3 6
15
ZBV18M4 6
15
ZBV18M5 6
15
ZBV18M6 6
15
ZBVB1 6
15
ZBVB3 6
15
ZBVB4 6
15
ZBVB5 6
15
ZBVB6 6
15
ZBVB14 9
18
ZBVB15 7
16
ZBVB34 9
18
ZBVB35 7
16
ZBVB44 9
18
ZBVB45 7
16
ZBVB54 9
18
ZBVB55 7
16
ZBVB64 9
18
ZBVB65 7
16
ZBVBG1 6
15
ZBVBG3 6
15
ZBVBG4 6
15
ZBVBG5 6
15
ZBVBG6 6
15
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
31
ZBVG1 6
15
ZBVG3 6
15
ZBVG4 6
15
ZBVG5 6
15
ZBVG6 6
15
ZBVG14 9
18
ZBVG15 7
16
ZBVG34 9
18
ZBVG35 7
16
ZBVG44 9
18
ZBVG45 7
16
ZBVG54 9
18
ZBVG55 7
16
ZBVG64 9
18
ZBVG65 7
16
ZBVJ1 6
15
ZBVJ3 6
15
ZBVJ4 6
15
ZBVJ5 6
15
ZBVJ6 6
15
ZBVJ15 7
16
ZBVJ35 7
16
ZBVJ45 7
16
ZBVJ55 7
16
ZBVJ65 7
16
ZBVM1 6
15
ZBVM3 6
15
ZBVM4 6
15
ZBVM5 6
15
ZBVM6 6
15
ZBVM14 9
18
ZBVM15 7
16
ZBVM34 9
18
ZBVM35 7
16
ZBVM44 9
18
ZBVM45 7
16
ZBVM54 9
18
ZBVM55 7
16
ZBVM64 9
18
ZBVM65 7
16
ZBY001 5
7
8
14
16
17
ZBY8101 10
19
ZBY8130 10
19
21
10
ZBY8140 19
21
ZBY8160 10
19
ZBY8230 10
19
21
ZBY8260 10
19
ZBY8330 10
19
21
ZBY8360 10
19
ZBY8430 10
19
21
ZBY8460 10
19
ZBY8630 10
19
21
ZBY8660 10
19
ZBY9101 10
19
ZBY9101T 11
20
ZBY9120 4
11
13
20
21
ZBY9121 8
15
17
24
25
ZBY91215 4
11
13
20
21
ZBY9130T 11
20
ZBY9140T 11
20
ZBY9160 10
19
ZBY9160T 11
20
ZBY9220 4
11
13
20
21
ZBY9230T 11
20
ZBY9260 10
19
ZBY9260T 11
20
ZBY9320 4
11
13
20
21
ZBY9330T 11
20
ZBY9360 10
19
ZBY9360T 11
20
ZBY9420 4
11
13
20
21
ZBY9460 10
19
ZBY9620 4
11
13
20
21
ZBY9660 10
19
ZBZ001 5
8
14
17
ZBZ28 4
13
ZBZ58 4
13
ZBZ1600 11
20
ZBZ1602 11
20
ZBZ1604 11
20
ZBZ1606 11
20
ZBZ2102 11
20
ZBZ3605 11
20
ZBZG156 6
15
ZBZVG 6
15
ZBZVM 6
15
2
1
3
4
5
6
7
8
9
10
2
1
3
4
5
6
7
8
9
10
The information provided in this documentation contains general descriptions and/or technical
characteristics of the performance of the products contained herein. This documentation is not
intended as a substitute for and is not to be used for determining suitability or reliability of these
products for speci c user applications. It is the duty of any such user or integrator to perform the
appropriate and complete risk analysis, evaluation and testing of the products with respect to the
relevant speci c application or use thereof. Neither Schneider Electric nor any of its af liates or
subsidiaries shall be responsible or liable for misuse of the information contained herein.
Design: Schneider Electric
Photos: Schneider Electric
Head Of ce
35, rue Joseph Monier
F-92500 Rueil-Malmaison
France
www.schneider-electric.com/controlSchneider Electric Industries SAS
DIA5ED2150501EN
April 2015 - V1.0
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Schneider Electric:
XB4BS542 XB4BS142 XB4BS544 XB6AS8349B XB4AS2 XB4AS1 XB4BS9442 XB4BS8442 XB5AS8442

Navigation menu
