The Hubbell AFB Series recessed stamp steel boxes are suitable for
the majority of standard raised floor applications in providing the
flexibility, accessibility, capacity, and depth profiles needed to meet
different raised floor depth and application requirements.
These multi-service boxes are available in 4- or 8-gang options
and utilize Hubbell modular screw-type 106 plates, StyleLine®
plates, blank plates, and a 6-port modular face plate to accom-
modate XCELERATOR™ series high performance UTP jacks, and
Audio/Video connectors.
One reversible metallic cover/flange assembly mounts to all box
sizes and has been designed with a large cable door to provide
ample room for exiting cables.
Utilizes screw-type modular
face plates.
Available for deep and shallow
raised floors.
Internal barriers separate power
and data.
Hinged clamping arms provide
ease of installation from above.
Raised Access Floor Boxes
HUBBELL PREMISE WIRING DELIVERY SYSTEMS
Cover flange finish: durable powder coat, gray.
16 ga. galvanized, stamped steel bases.
Meets NEC Section 300-22(C) - suitable for use in air handling
spaces and raised floor plenums.
Knockouts: 1¼”, 1”, ¾”, ½”.
UL and CSA listed
SPECIFICATIONS
www.hubbell-premise.com

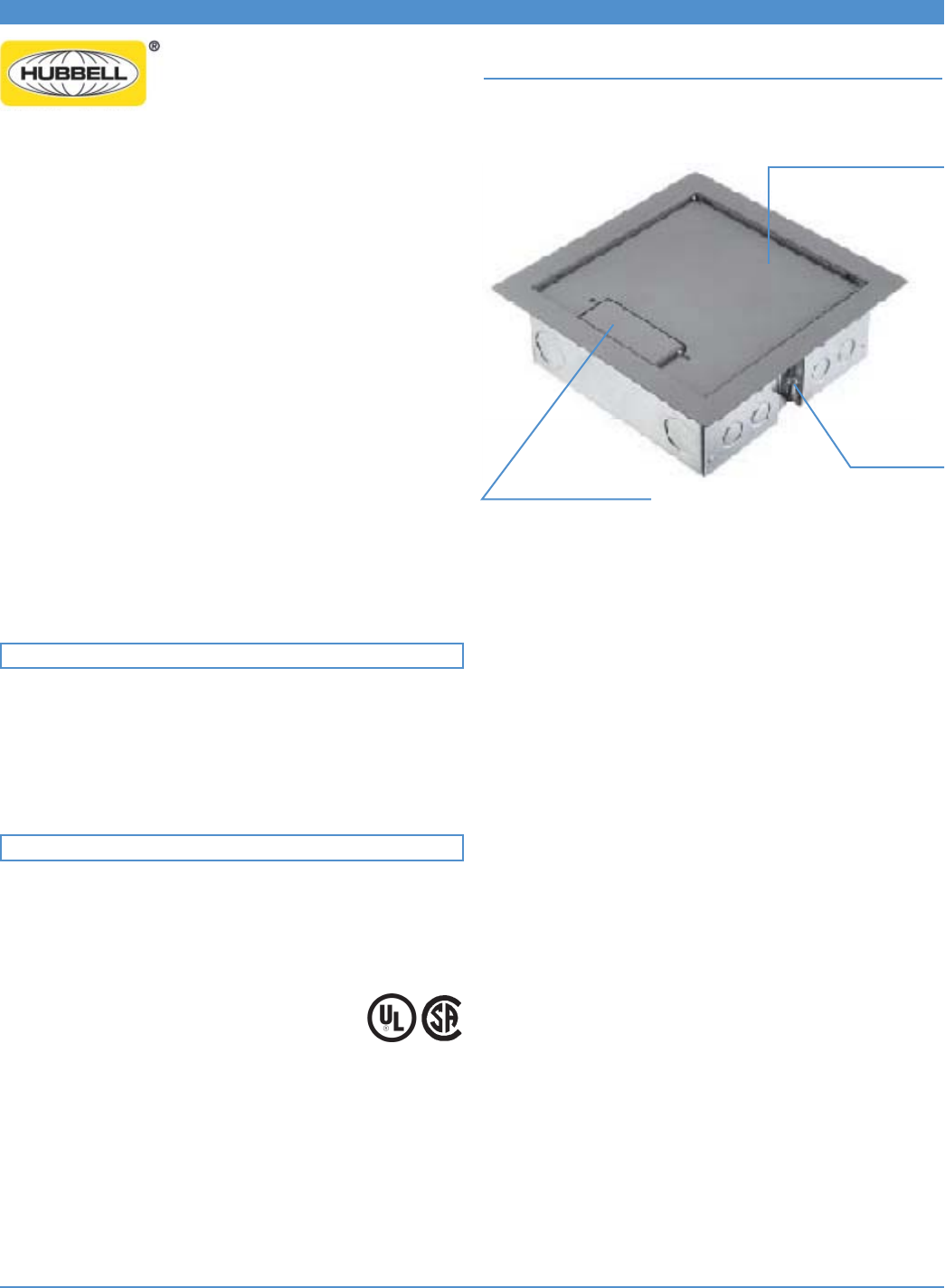

Oversized, flip-up cable
door provides a spacious
pathway for exiting cables.
Adjustable
mounting
bracket.
Reversible single piece
cover/flange allows pro-
vision for carpet inlay.
4- and 8-gang versions available.
Maximum wiring capacity.
Installation from above.
FEATURES
DS-D21 03/07
ORDER INFORMATION
Order screw-type face plates separately (see below).

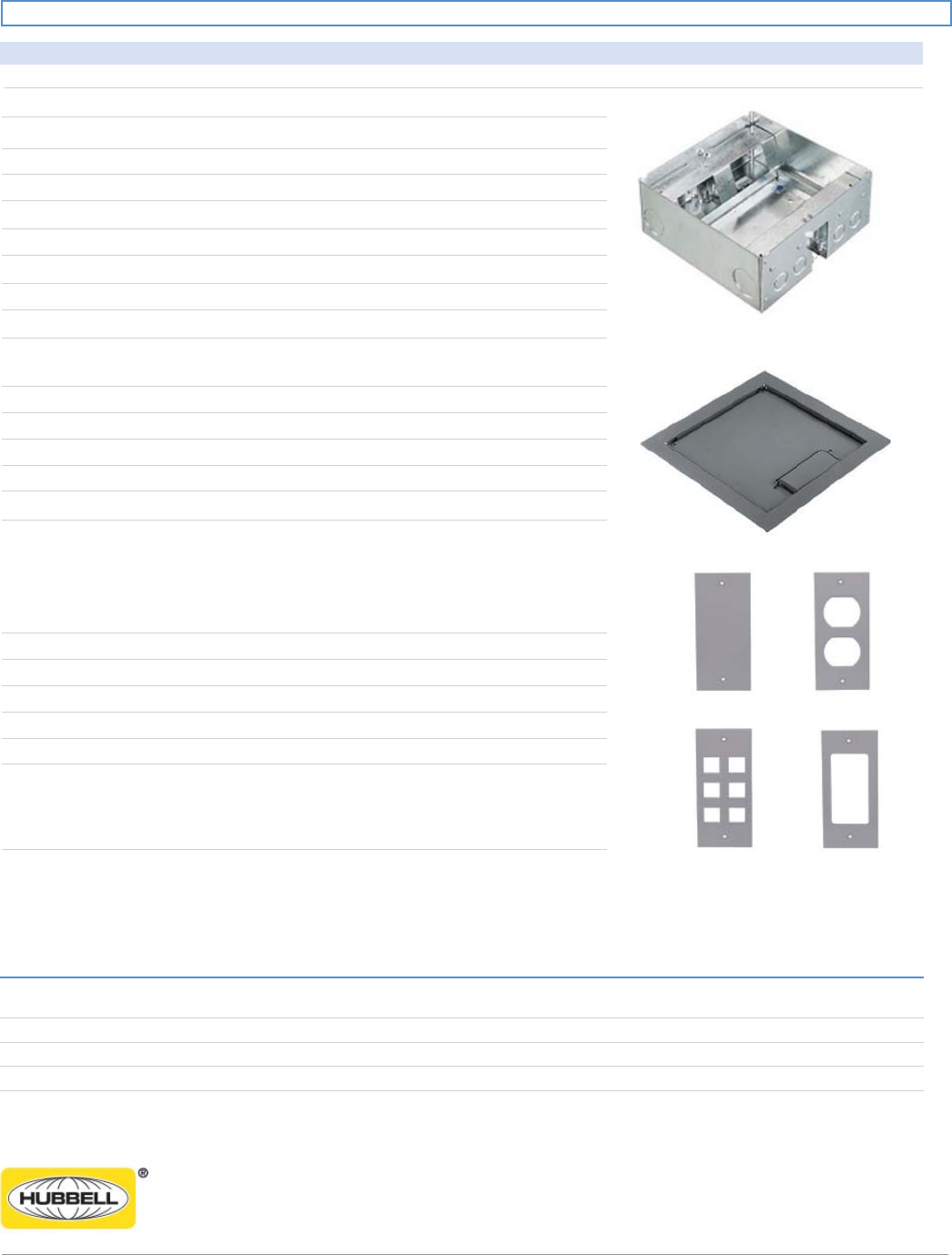

Floor Box, Raised Access
Raised Access Floor Boxes with Cover Assembly
Material: Stamped steel.
Size Cover Finish Catalog No.
4-gang deep Granite AFB301GNT
4-gang deep Black AFB301BK
4-gang shallow Granite AFB401GNT
4-gang shallow Black AFB401BK
8-gang deep Granite AFB501GNT
8-gang deep Black AFB501GNT
Replacement Cover and Flange Assemblies
Material: Reversible steel.
Color Catalog No.
Granite HBLTCGNT
Black HBLTCGNTBK
For Cable Management Feeds HBLTCGNTCF
Face Plates, Screw-Type for Raised Access Floor Boxes
Description Color Catalog No.
Face Plate, Blank Gray HPWBL300SGY
Face Plate, Duplex 106 Gray HPWST302SGY
Face Plate, Keystone, 6-port Gray HPW317SGY*
Face Plate, Style Line® Gray HPWDE301SGY
Face Plate, iSTATION™ Gray HPWIMFSGY**
*Accepts XCELERATOR™ high-performance UTP jacks (see Catalog page B5) and Audio/Video
connectors (see Catalog pages B8-B11).
** Accepts 3U iSTATION™ modules (see Catalog pages B14-B16).
Dimensions
Wiring Chamber
Catalog No. Length Width Height Cubic in. Capacity Conduit Knockouts
AFB301 series 10” (254) 10” (254) 4.00” (101.6) 4 x 29.5 (483.0) ½”, ¾”, 1”, 1 ¼”
AFB401 series 10” (254) 10” (254) 2.63” (67.7) 4 x 25.5 (418.0) ½”, ¾”
AFB501 series 10” (254) 10” (254) 5.13” (130.2) 4 x 49.5 (811.0) ½”, ¾”, 1”, 1 ¼”
HPWST302SGY
HPWBL300SGY
HPW317SGY HPWDE301SGY
Hubbell Premise Wiring
HUBBELL INCORPORATED (Delaware)
14 Lord’s Hill Road • Stonington, CT 06378-0901 • (860) 535-8326 • 800-626-0005
Fax: (860) 535-8328 • Internet site: http://www.hubbell-premise.com
Hubbell Premise Wiring, Latin America 305-408-4501 Fax: 305-408-8201
Hubbell de Mexico, S.A. de C.V. (5255) 9151-9999 Fax: (5255) 9151-9989
Hubbell Premise Wiring, Middle East 971-4-393-4192 Fax: 971-4-393-4194
Hubbell Premise Wiring, Puerto Rico 787-855-1075 Fax: 787-855-3265
Hubbell-Taian Co., Ltd., Taiwan 886-2-2522-1862 Fax: 886-2-2522-1872
Hubbell Premise Wiring, Venezuela 58-212-5156482 Fax: 58-212-6627258
Worldwide Locations
Hubbell Premise Wiring, Asia Pacific 852-2836-7131 Fax: 852-2836-7132
Hubbell Canada Inc. 905-839-1138 Fax: 905-839-9108
Hubbell Premise Wiring, Central America 506-309-4158 Fax: 506-260-1616
Hubbell Premise Wiring, China 86-21-6374 2660 Fax: 86-21-6374 2799
Hubbell Premise Wiring, Europe 44-01283 500500 Fax: 44-01283 500400
Hubbell Premise Wiring, India 91-99001-03341
Hubbell Int’l. Inc., Korea Branch (82 2) 2607 1363 Fax: (82 2) 2603 7386
