For Residential

Commercial

Industrial

and Institutional

Applications

Leviton … Leading the Way

in GFCI Protection at Home

and on the Job

There’s no compromising with safety standards when

it comes to reducing the hazards of electrical shock.

Leviton GFCI receptacles meet and exceed Underwriter

Laboratories (UL) and National Electrical Code (NEC)

requirements for residential, commercial and industrial

applications. Our GFCI line is the culmination of over

25 years of design and development expertise. From

advanced technology SmartLock®devices with lockout

action to portable cord sets and power distribution

centers, Leviton GFCIs offer the ultimate in personnel

protection and safety for all your needs.

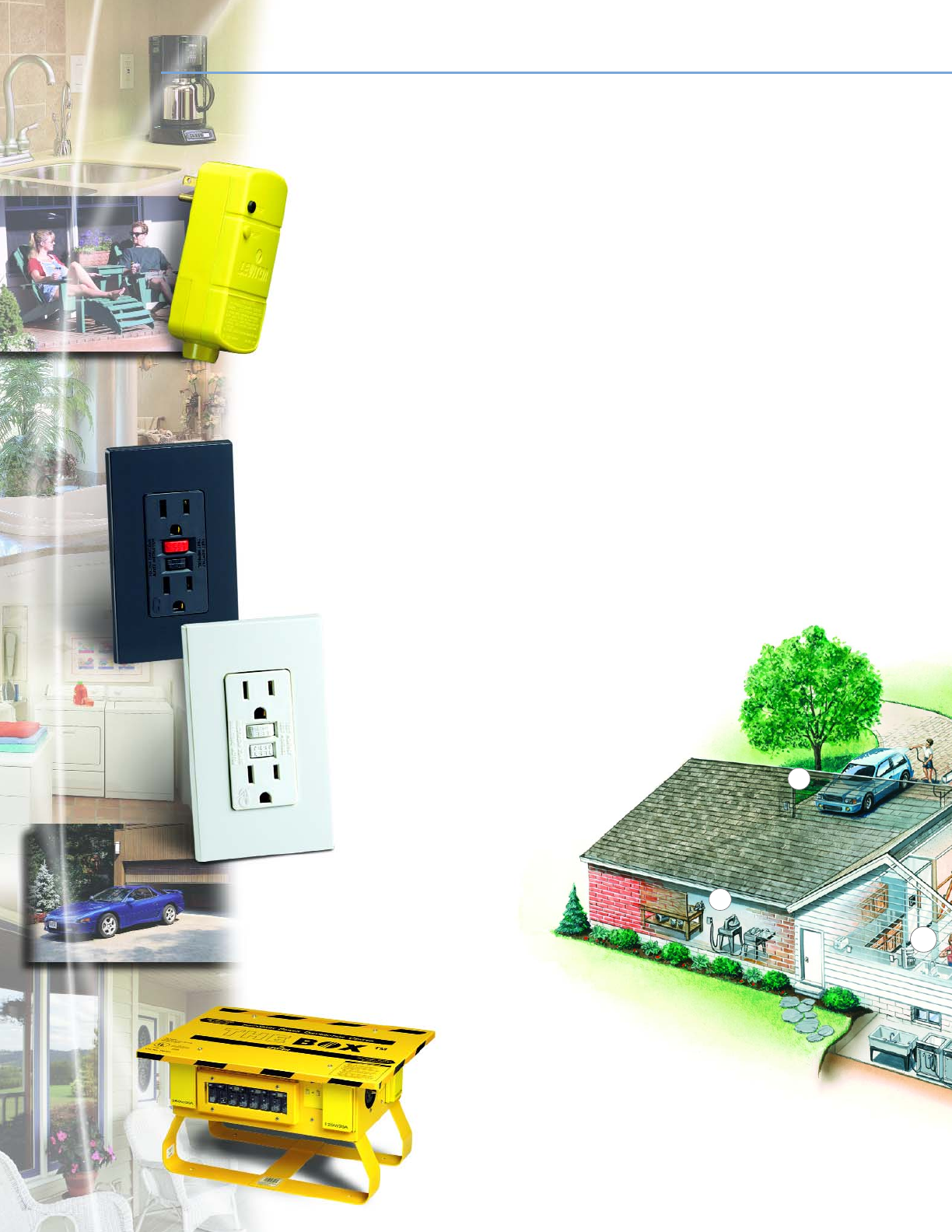

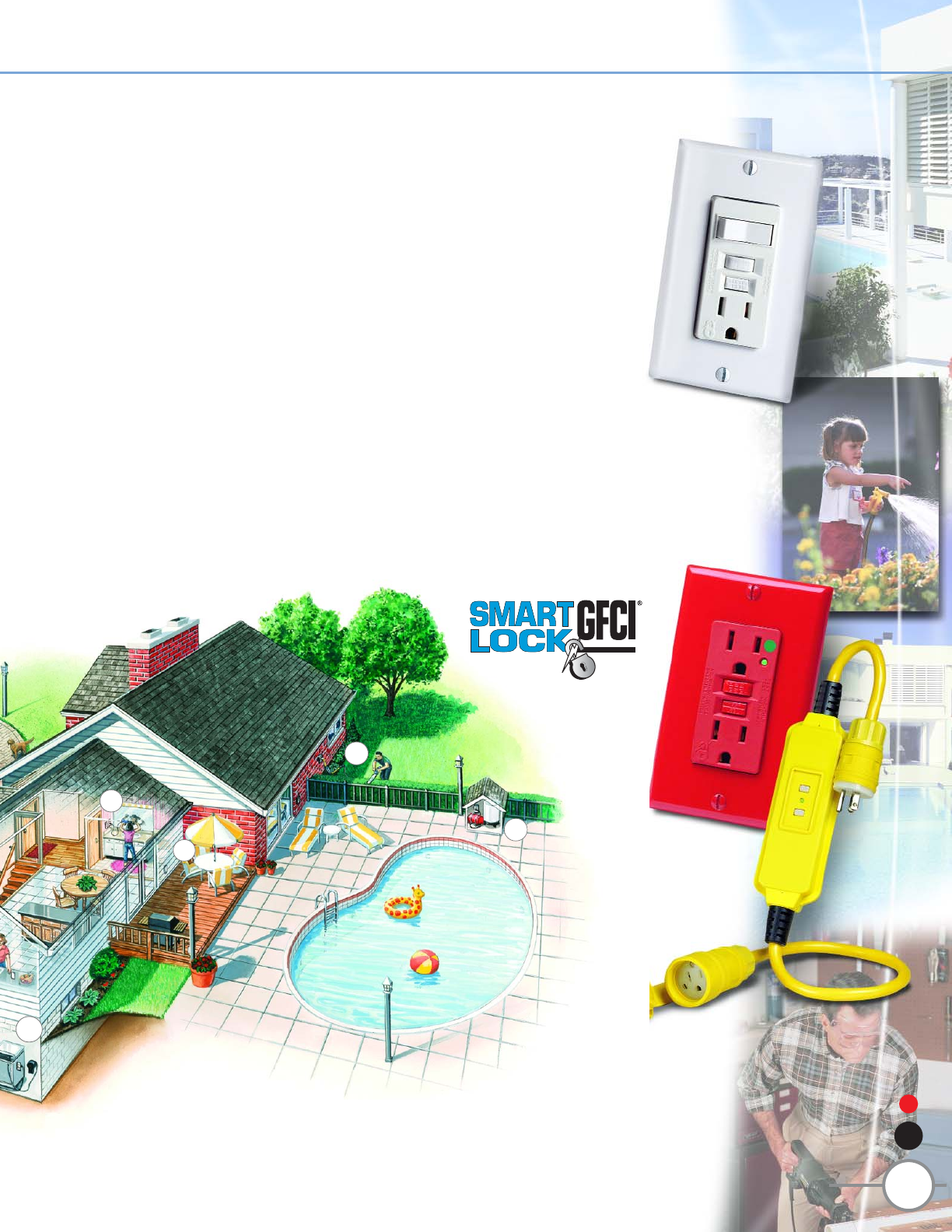

GFCI Safety Measures

Begin at Home

Leviton’s got you covered for GFCI protection

on the home front. GFCIs should be used

anywhere a receptacle and a water source

are present. Be sure to install GFCIs in

these locations inside and outside

your home:

1. Kitchen

2. Bathroom

3. Garage/Carport

4. Utility Room/Laundry Room

5. Workshop

6. Outdoor Locations

7. Pool/Whirlpool Spa

8. Decks and Porches

2

5

3

1

Table of Contents

How GFCIs Protect You

The Need for Ground Fault Protection . . . . . . . . . . . . . . . . . . 4

New UL Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SmartLock®Advanced GFCI Receptacles . . . . . . . . . . . . . . . . 6-10

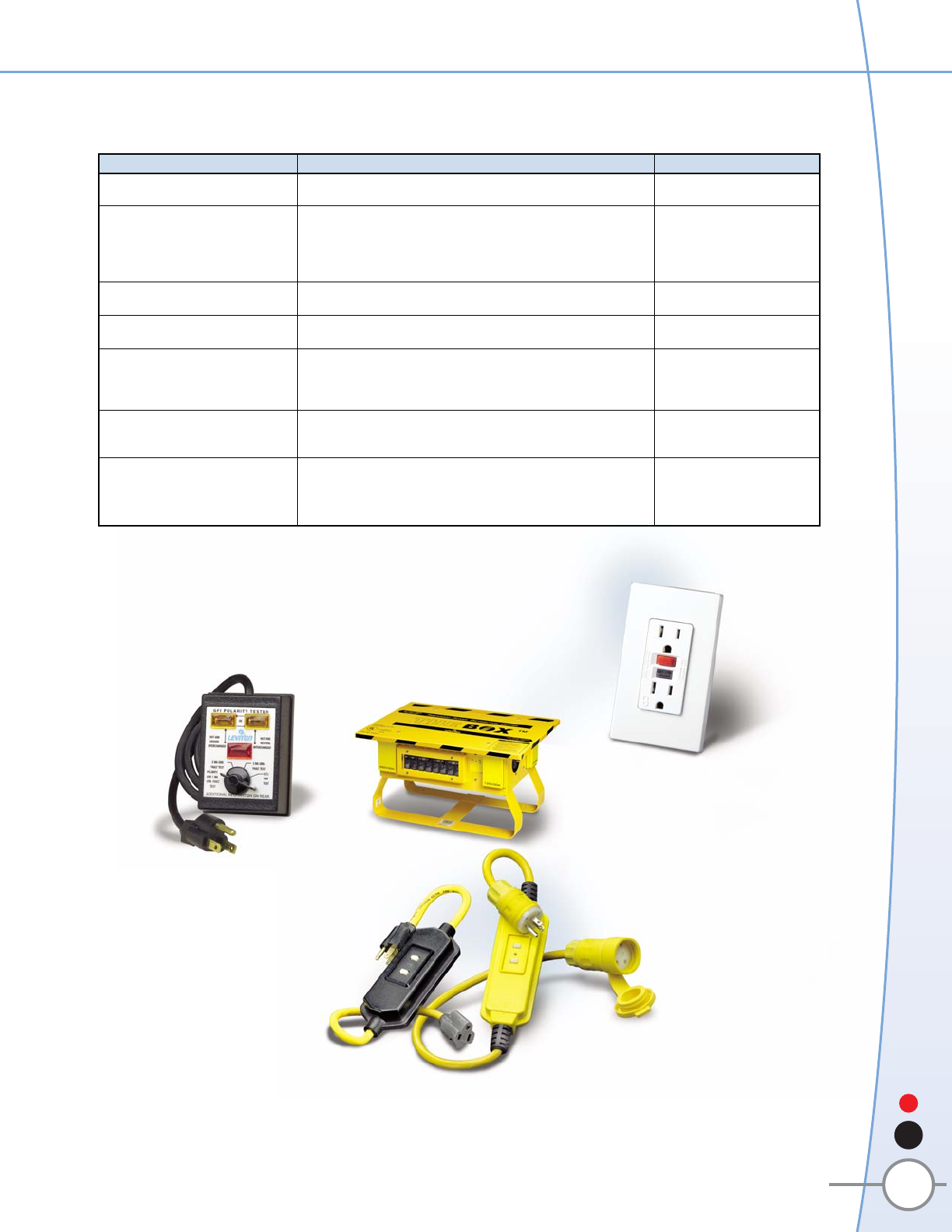

GFCI Personnel Protection Devices

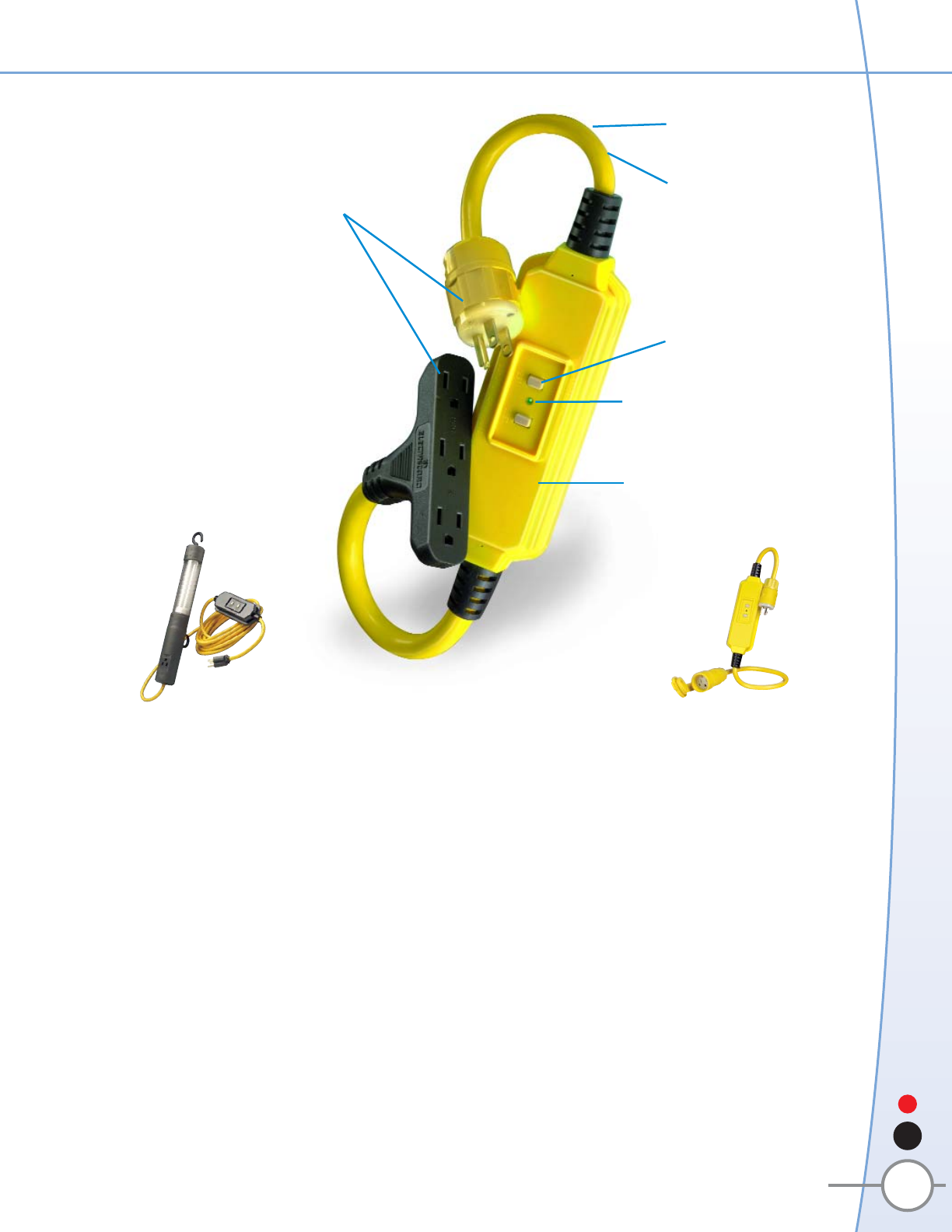

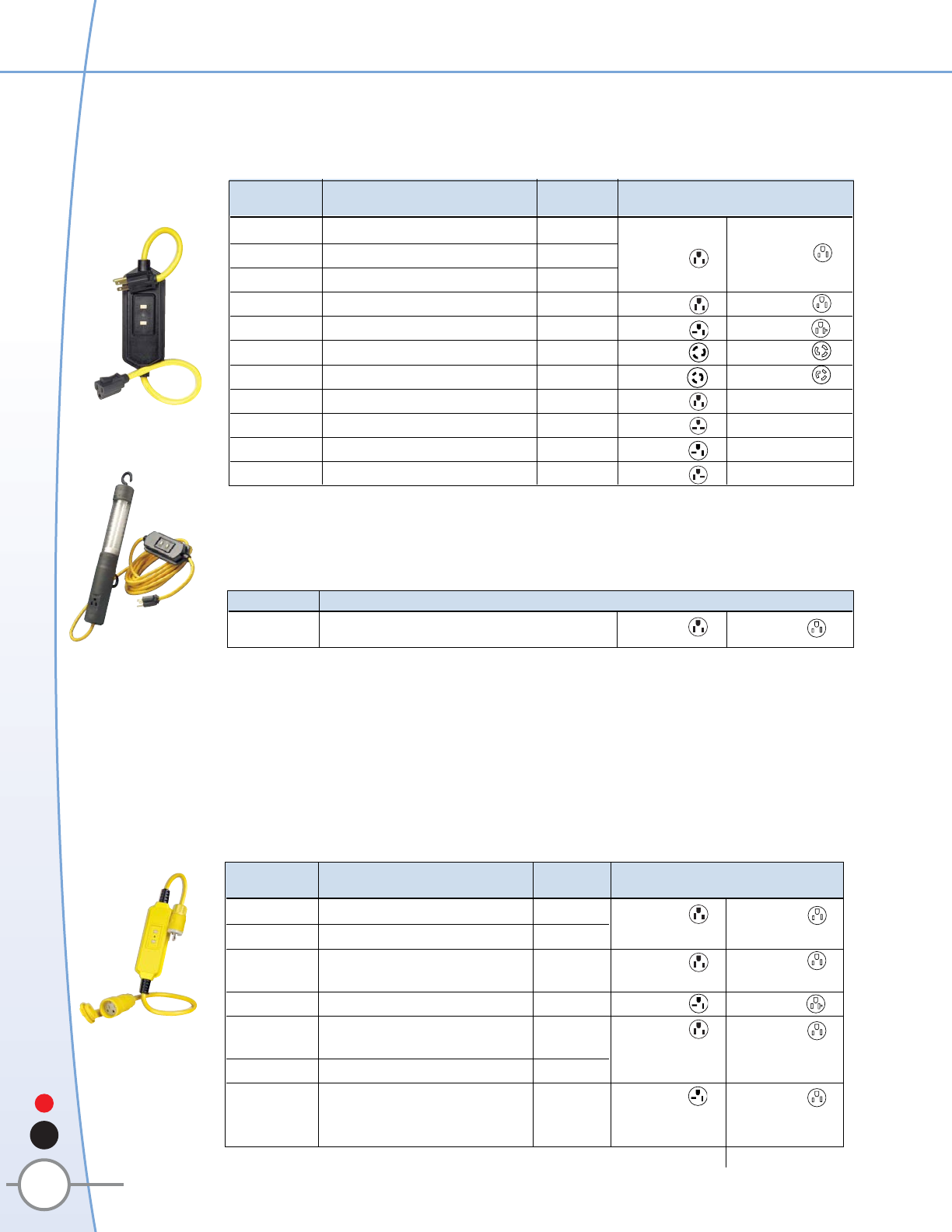

Cord Sets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12

Right Angle GFCI Plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

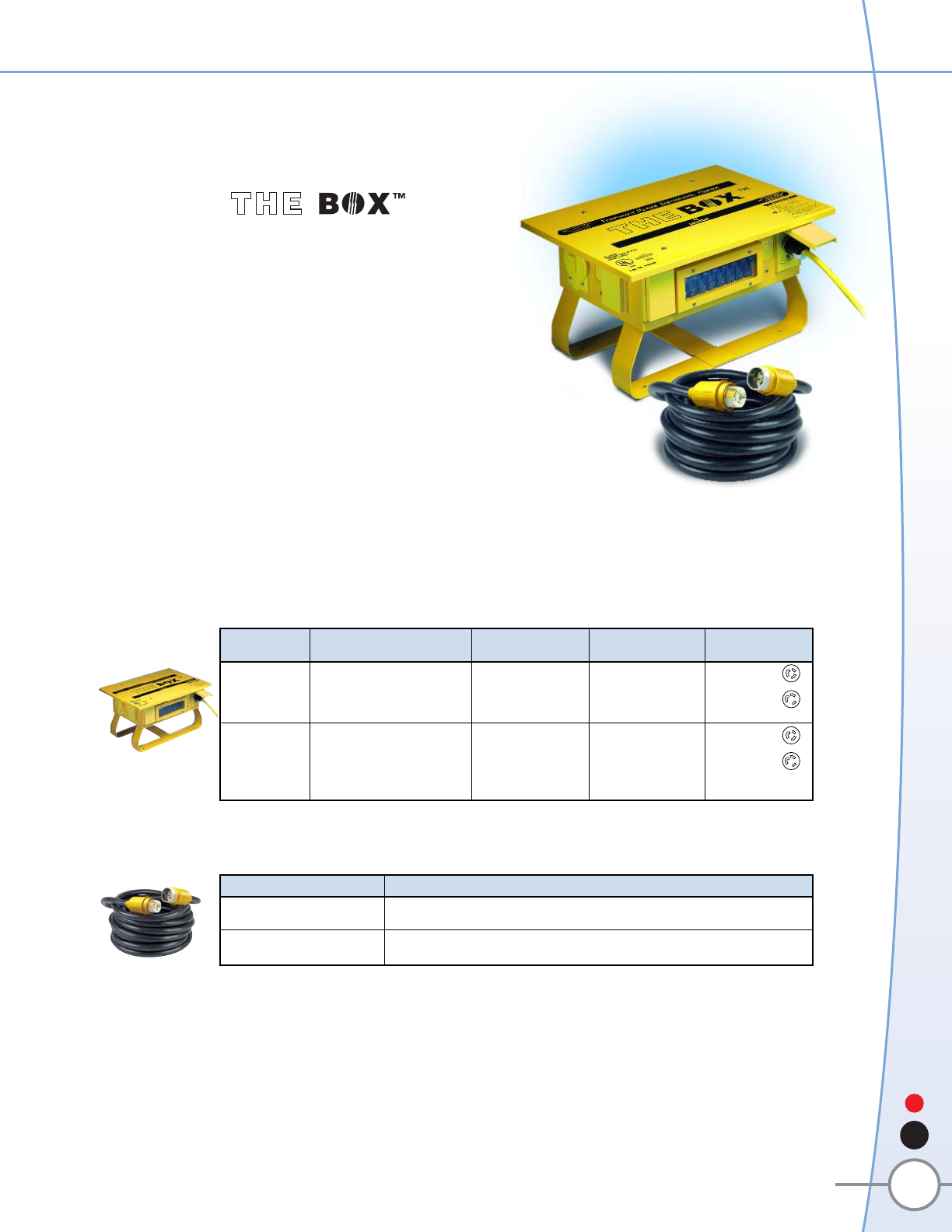

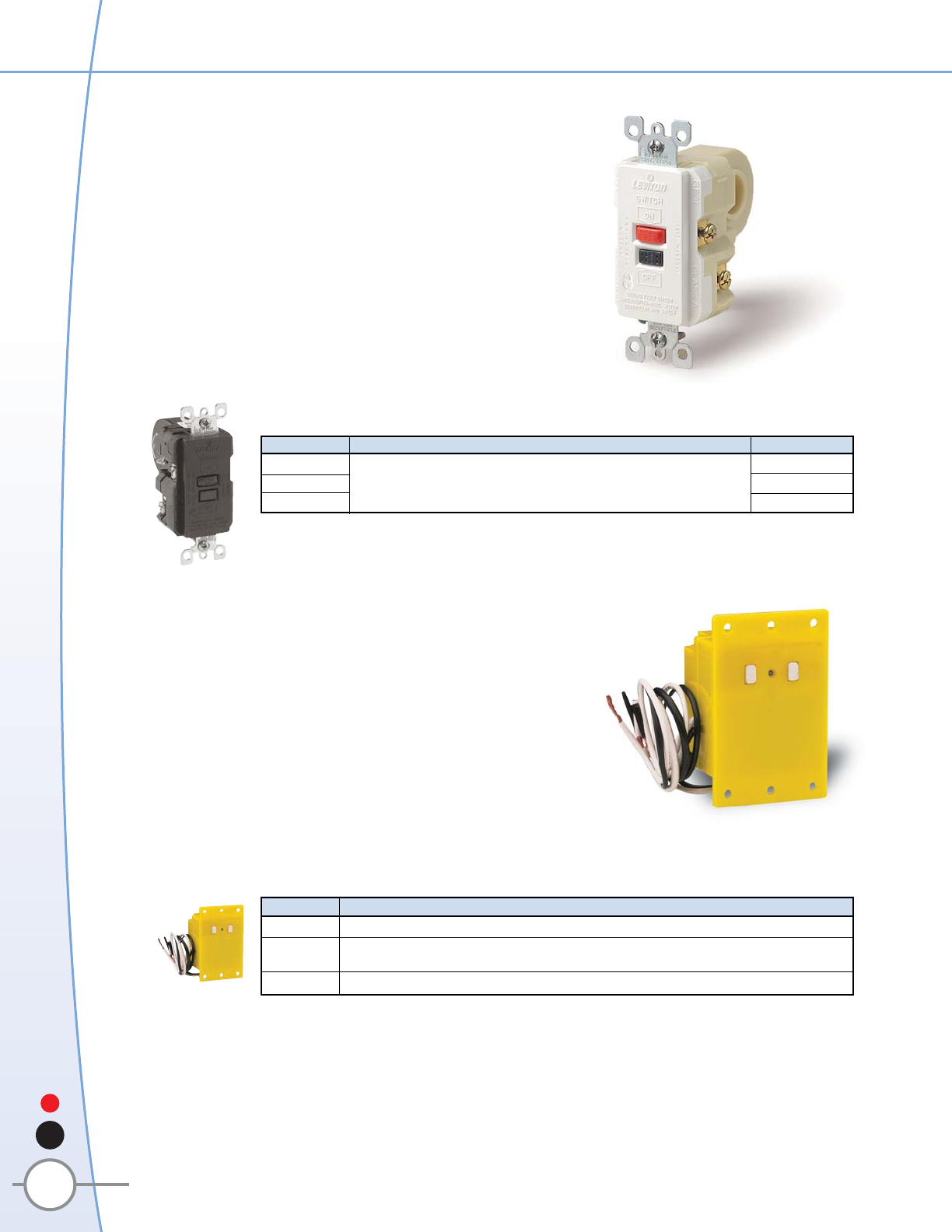

GFCIs for Equipment Connections and Work Sites . . . . . . 14-15

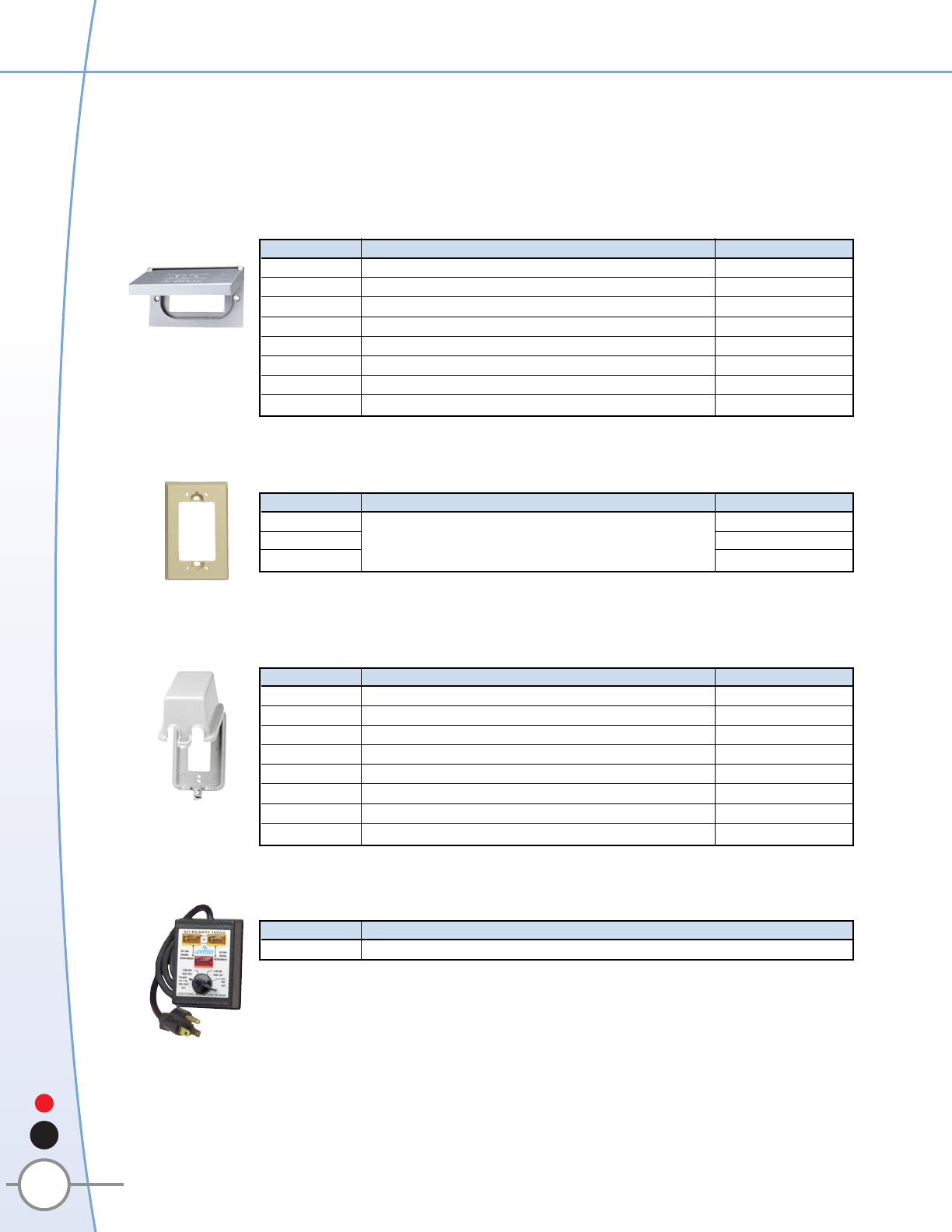

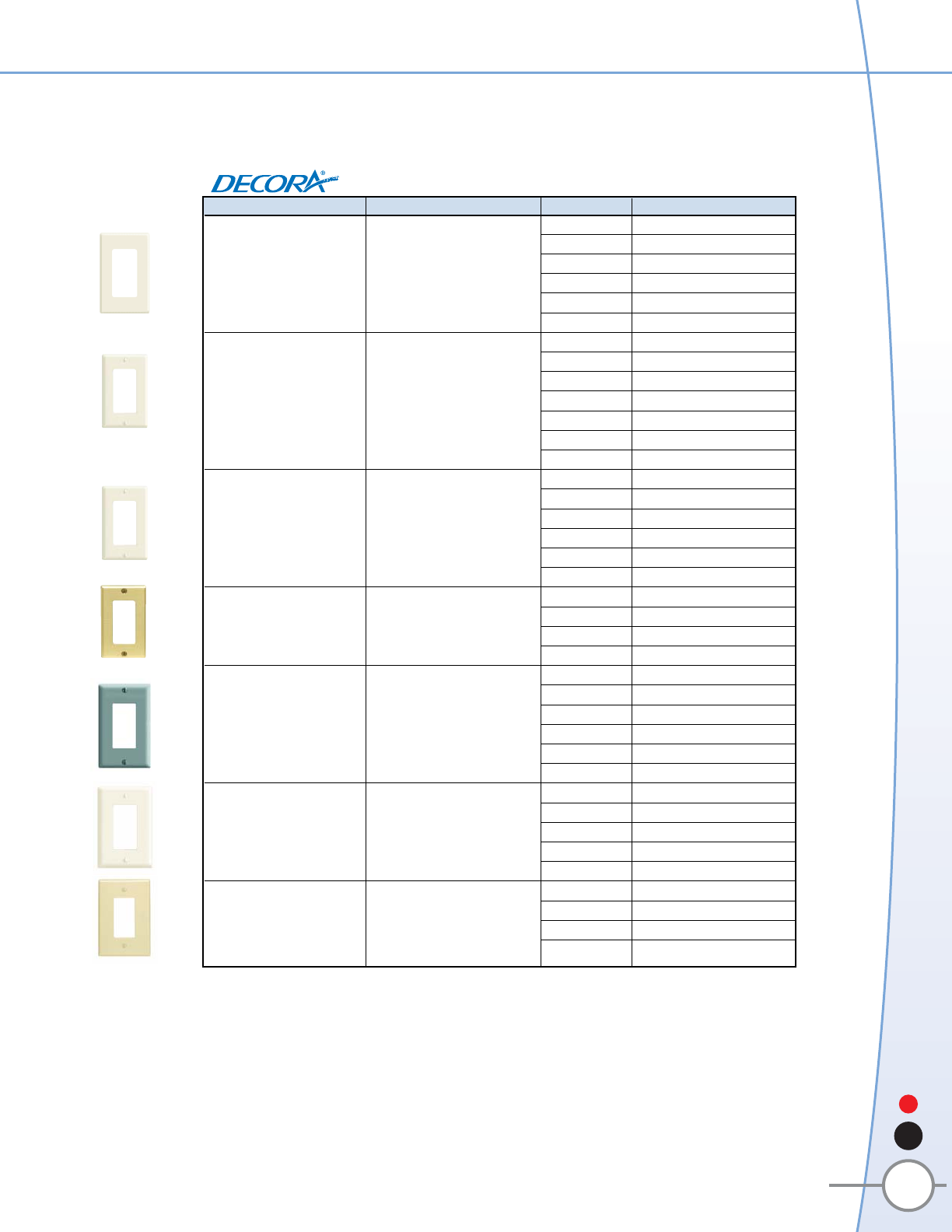

GFCI Wallplates and Accessories . . . . . . . . . . . . . . . . . . . . . 16-18

Technical Information

National Electrical Code (NEC) Requirements . . . . . . . . . . 19-21

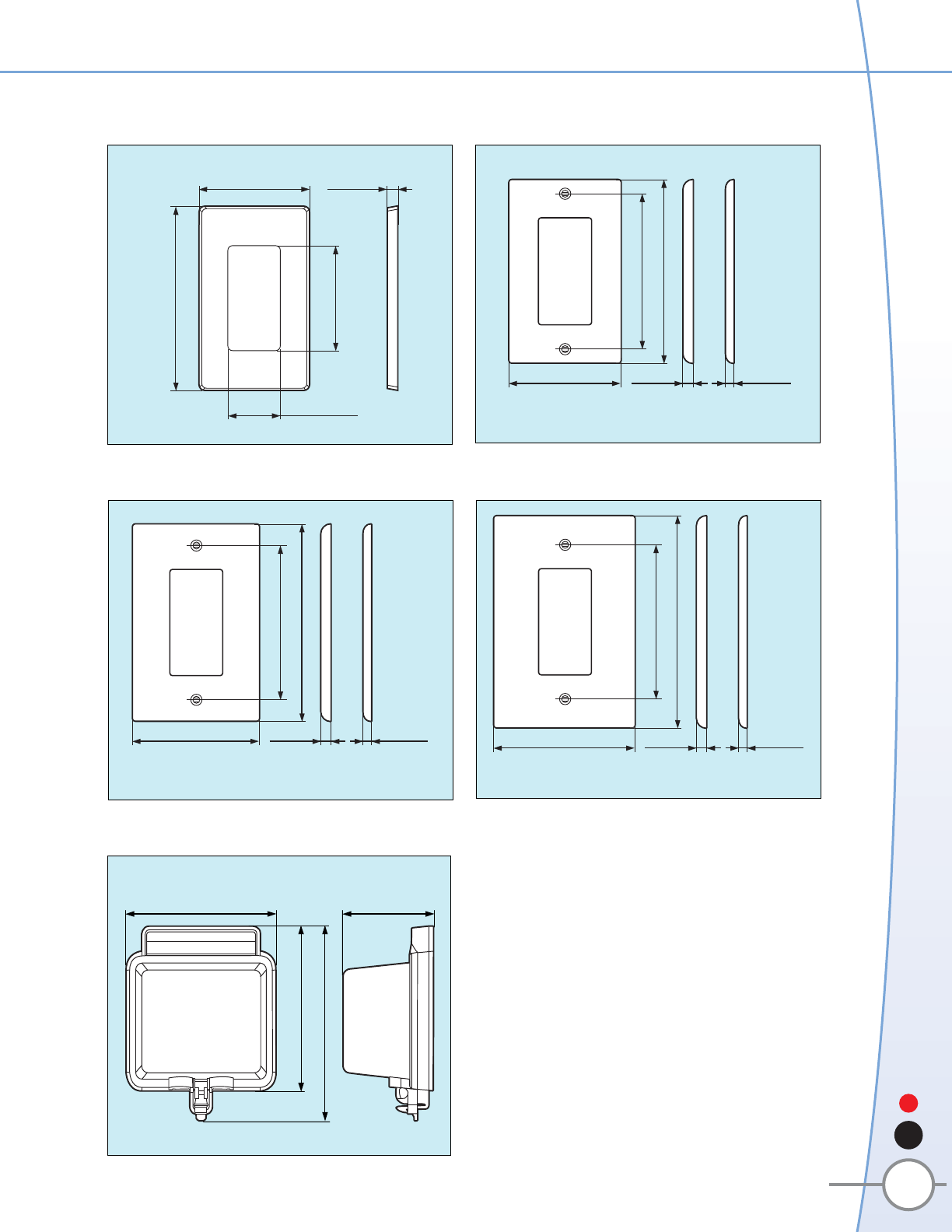

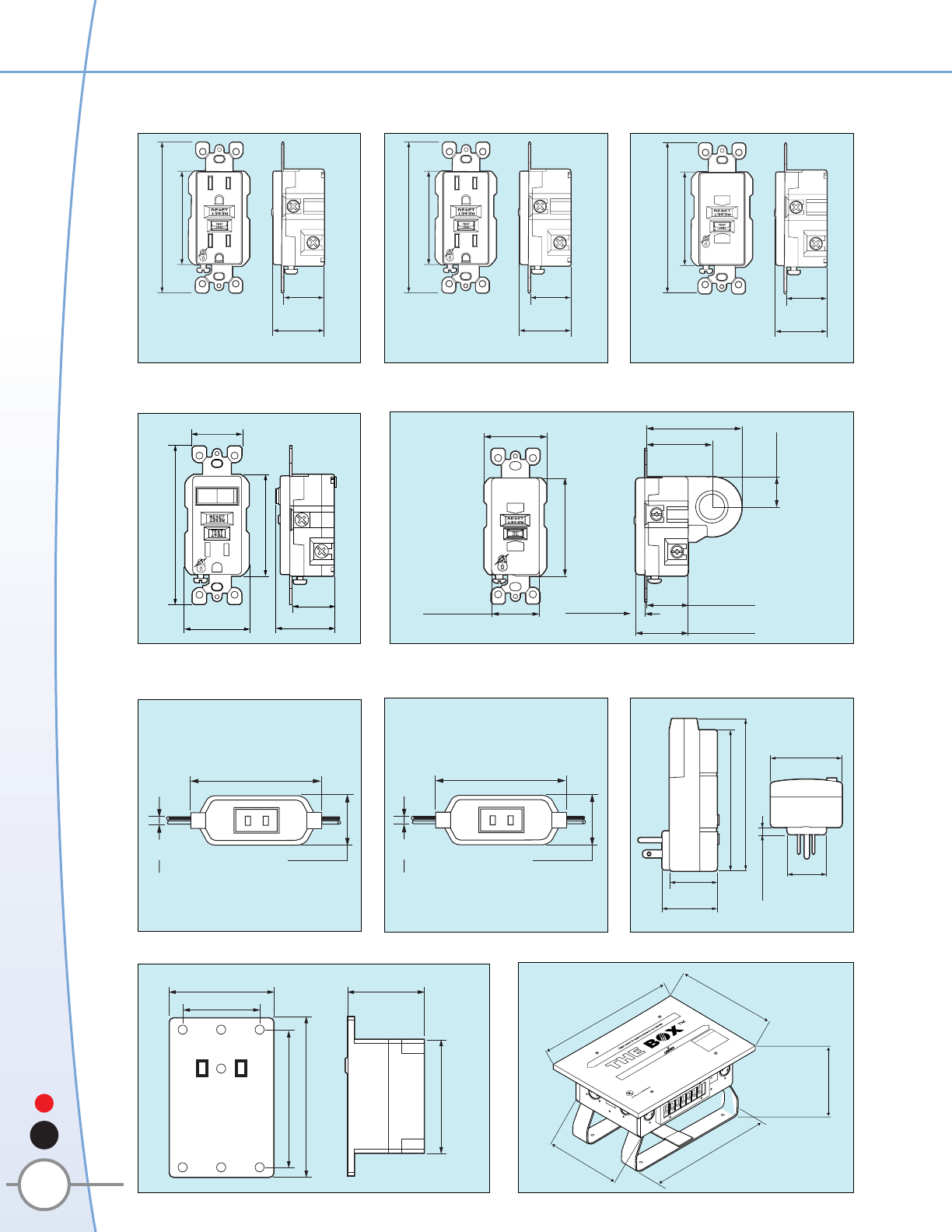

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23

Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . 24-25

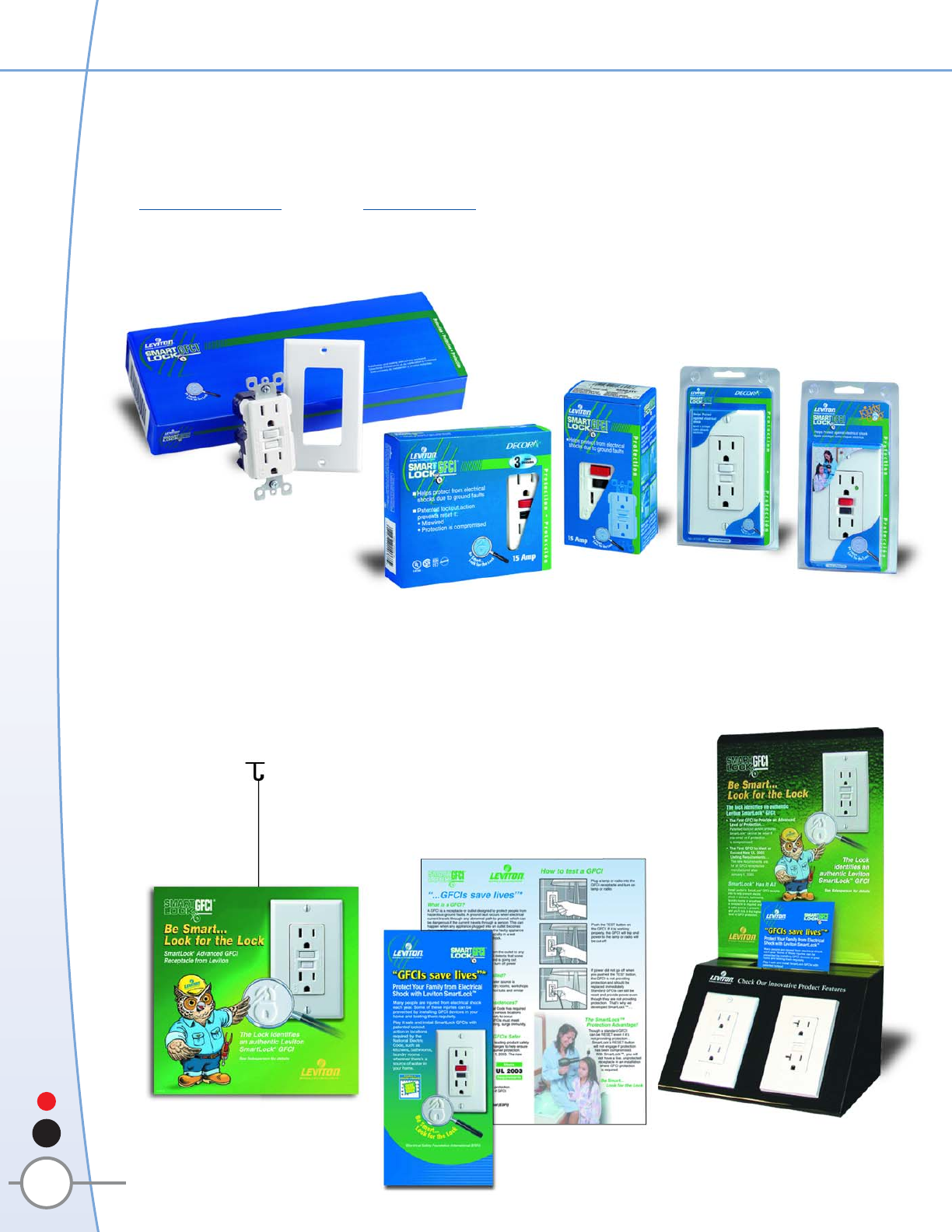

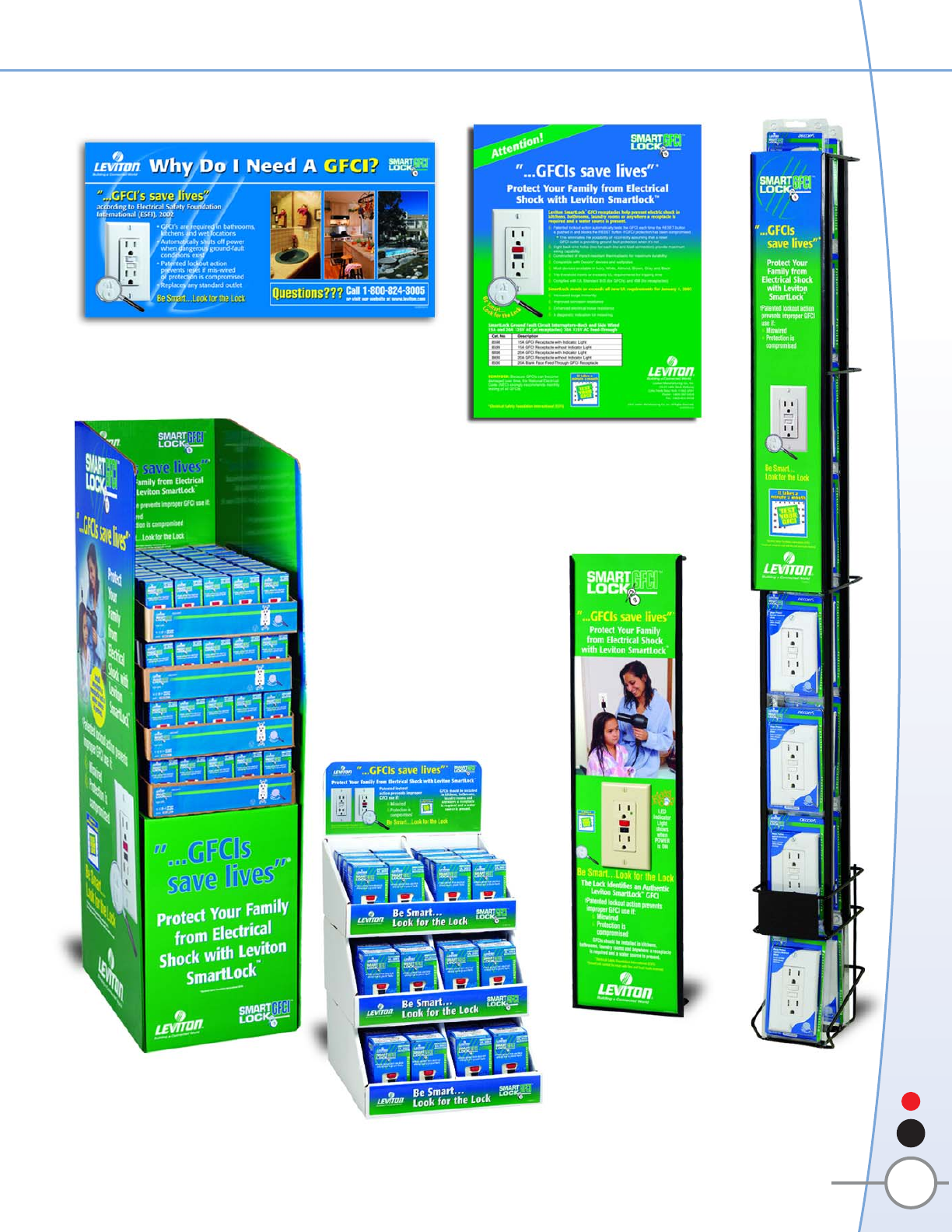

SmartLock®GFCI Packaging and Merchandising . . . . . . . . . . 26-27

3

4

2

8

6

7

4

How GFCIs Protect You

“…GFCIs Save Lives”*

The Need for Ground Fault Protection

Electrical wiring systems are the foundation of the modern technological world, but they are not

foolproof. Whenever electrical current is flowing through circuit conductors, there will always

be the risk of fire or serious electrical shock if certain conditions occur. Most people assume that

a circuit breaker is the safety net in an electrical system, but this is only partially true.

The circuit conductors in any wiring system are rated for a maximum electrical current. In the

event of a severe short, excessive current flows in the conductors, and this can quickly lead to

serious overheating and fire. This is where circuit breakers go to work. They “trip” open when

excessive current occurs, thereby protecting the building structure. However, the current level

needed to trip a circuit breaker is many times greater than the amount that can deliver a

powerful, and possibly lethal, electrical shock to a person.

Another type of short, called a Ground Fault, can easily occur when the "hot" conductor in an

electrical device touches a device's metal

enclosure due to exposure through a break in its

insulation. Using a coffeemaker as an example,

consider what could happen if a wire becomes

frayed or the device becomes damaged over

time. The “hot“ conductor in the coffeemaker

(see Figure 1) may come in contact with the

metal body. A person touching the coffeemaker

could then become a path to ground for current

leaking from the metal body. This ground fault

condition can be life threatening even though

the current flow may be far less than the amount

required to trip a circuit breaker.

How a GFCI Works

When current is leaking to ground, not all current flowing through the "hot" conductor is

returning through the "neutral" conductor. Figure 1 shows how a Ground Fault Circuit

Interrupter (GFCI) monitors this difference in current flow between the hot and neutral

conductors. As long as the difference in current

is zero, the GFCI allows current to flow.

However, if the GFCI senses even a slight

difference in the current flow between the two

conductors (a ground fault), it reacts by opening

its internal double-pole contacts to interrupt the

flow of electrical current through the device. The

GFCI must be sensitive to the minimum amount

of current that can harm a human being, and it

must trip instantaneously.

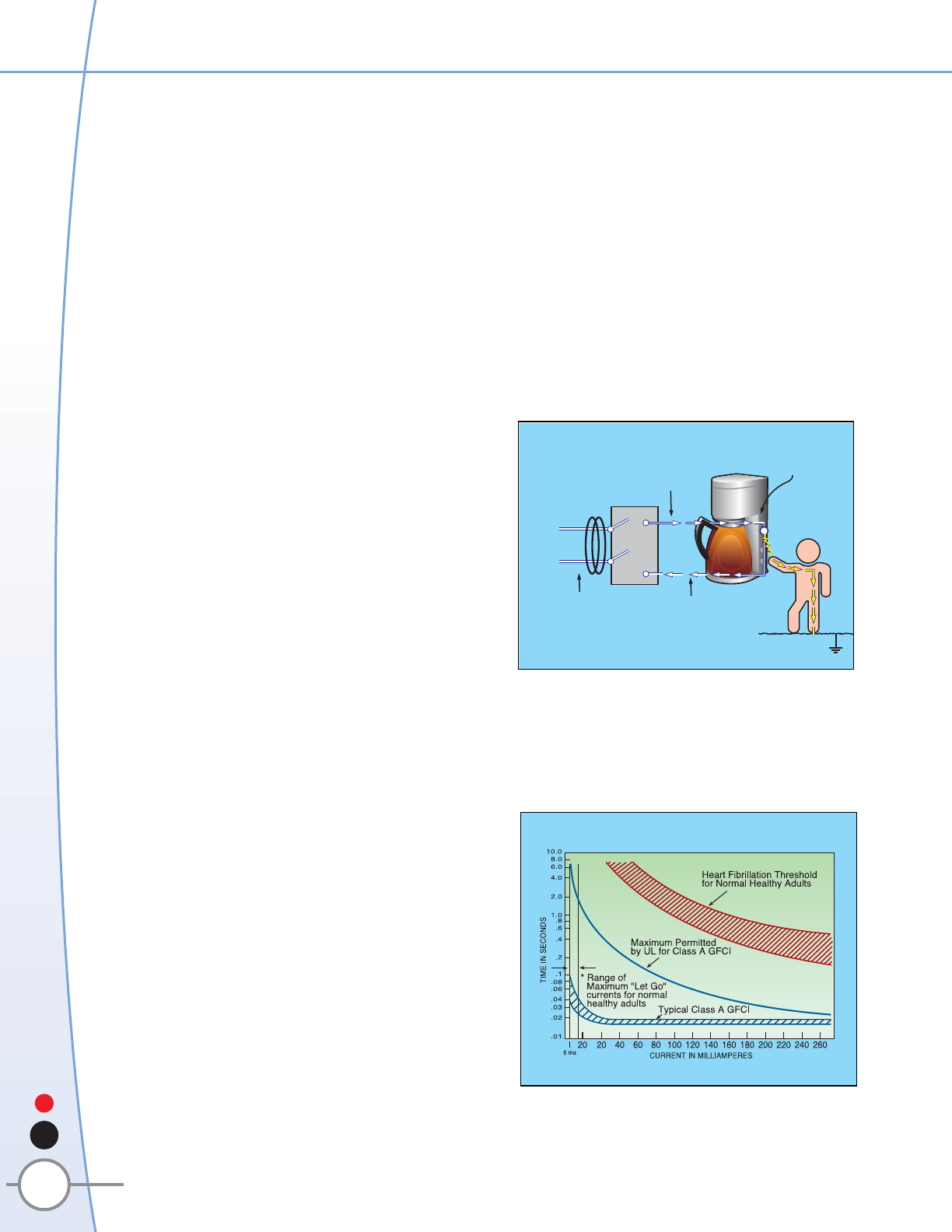

Figure 2 summarizes GFCI tripping

characteristics in general. According to UL

Standard 943, a Class A GFCI must trip when

there is a ground fault current of 5mA (±1mA).

Figure 2 also shows trip time requirements.

GFCI receptacles are used in place of standard duplex receptacles and can also be wired in a

feed-through manner to provide ground fault protection for receptacles wired downstream.

* Electrical Safety Foundation International (ESFI)

Hot

GFCI

FIGURE 1

120V AC

Electric

Line

Hot Conductor

Current "going"

to Coffeemaker

Person is gounded

Fault developed within

coffeemaker. Current leaks

to ground through person

touching device

Neutral Conductor

Current "returning"

from Coffeemaker

Sensors check for balance

of current between hot & neutral.

That is, all current flowing out

through hot leg should be

returning through neutral

Neutral

FIGURE 2

5

How GFCIs Protect You

New UL Requirements Make GFCIs Safer and More Effective

Underwriters Laboratories (UL), a leading product safety and certification organization, issued

changes to GFCIs to provide an even higher level of consumer protection. The changes went

into effect on January 1, 2003. The new standards include provisions for:

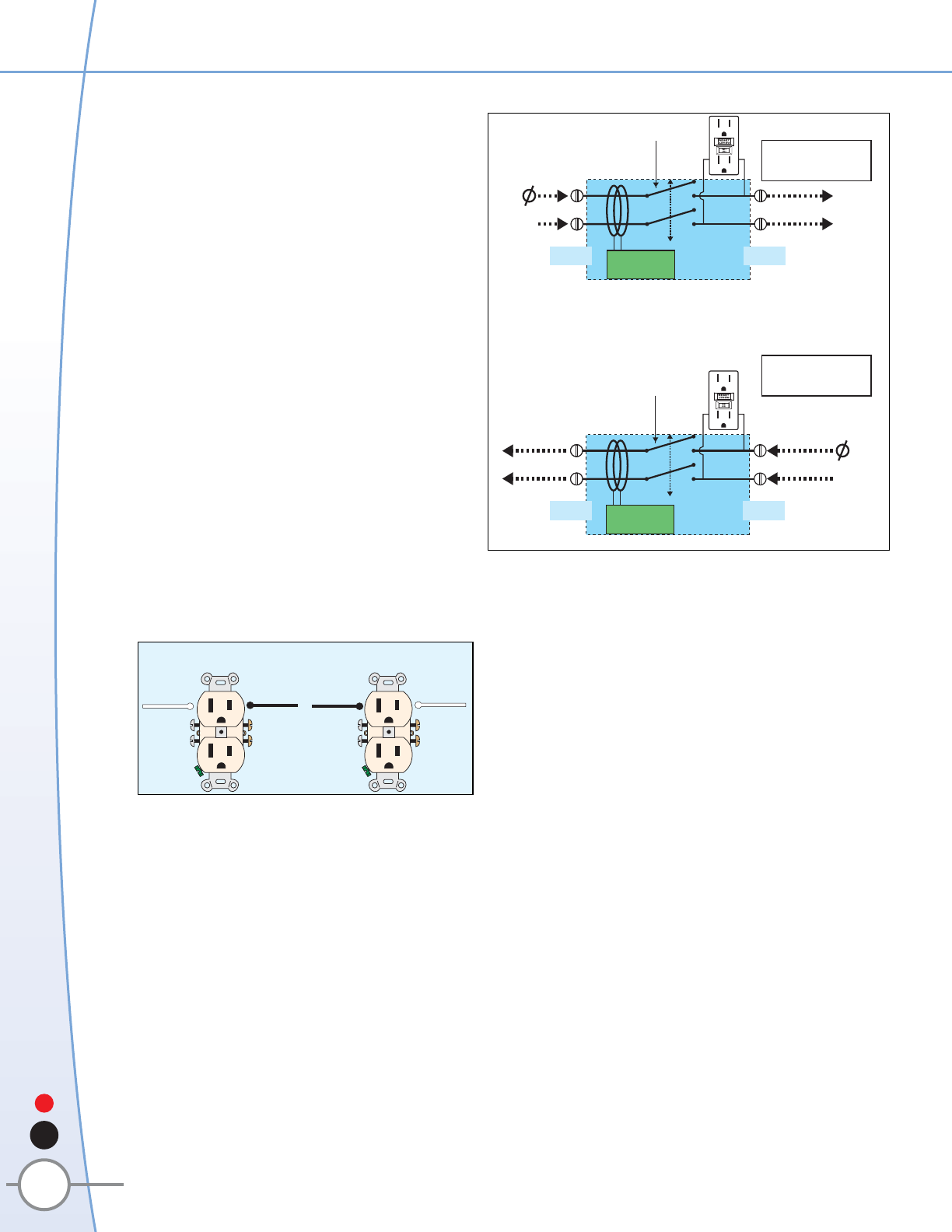

•Diagnostic Indication for Miswiring

Diagnoses potentially hazardous installation wiring error that allows a GFCI to be live even

after it’s tripped. Blocks power to downstream receptacles in case of line/load reversal. SmartLock®

incorporates a diagnostic feature that prevents the GFCI from resetting if the line and load

connections are mistakenly reversed. (GFCI receptacle face is still live and unprotected when

line and load leads are reversed.)

•Expanded Surge Protection (for GFCI components)

Electrical surges and/or overvoltages can cause electronic devices to fail. GFCIs must now be able to

withstand higher surge levels and still operate properly.

•Increased Corrosion Resistance

GFCIs must meet new stringent criteria for corrosion resistance, helping

to eliminate another potentional cause of GFCI failures.

•Increased Noise Immunity

Higher resistance to electrical noise (EMI/RFI) to help reduce nuisance tripping.

•Abnormal Over-Voltage Testing

Increased ability to withstand twice the normal voltage without creating a fire or shock hazard.

Leviton’s SmartLock GFCIs not only meet all of the 2003 UL requirements, but also include

Leviton’s patented lockout feature, which provides even greater protection. SmartLock’s RESET

button will NOT engage if GFCI protection has been compromised.

GFCI Testing Is a Top Priority

Because GFCIs can become damaged over time, the Consumer Products Safety Commission,

UL, Electrical Safety Foundation International and Leviton strongly recommend monthly

testing of all GFCIs:

To Test SmartLock (Lockout-Type) GFCIs

To Test a Non-SmartLock GFCI

Follow steps 1-4. If the GFCI does not trip when you push the TEST button and power to

the lamp or radio is not cut off, contact a licensed electrical contractor.

IMPORTANT: The SmartLock RESET button will not restore power if the GFCI is damaged

and cannot respond to a ground fault. The RESET button on a non-SmartLock GFCI will

always restore power, even if the GFCI is damaged and cannot respond to a ground fault.

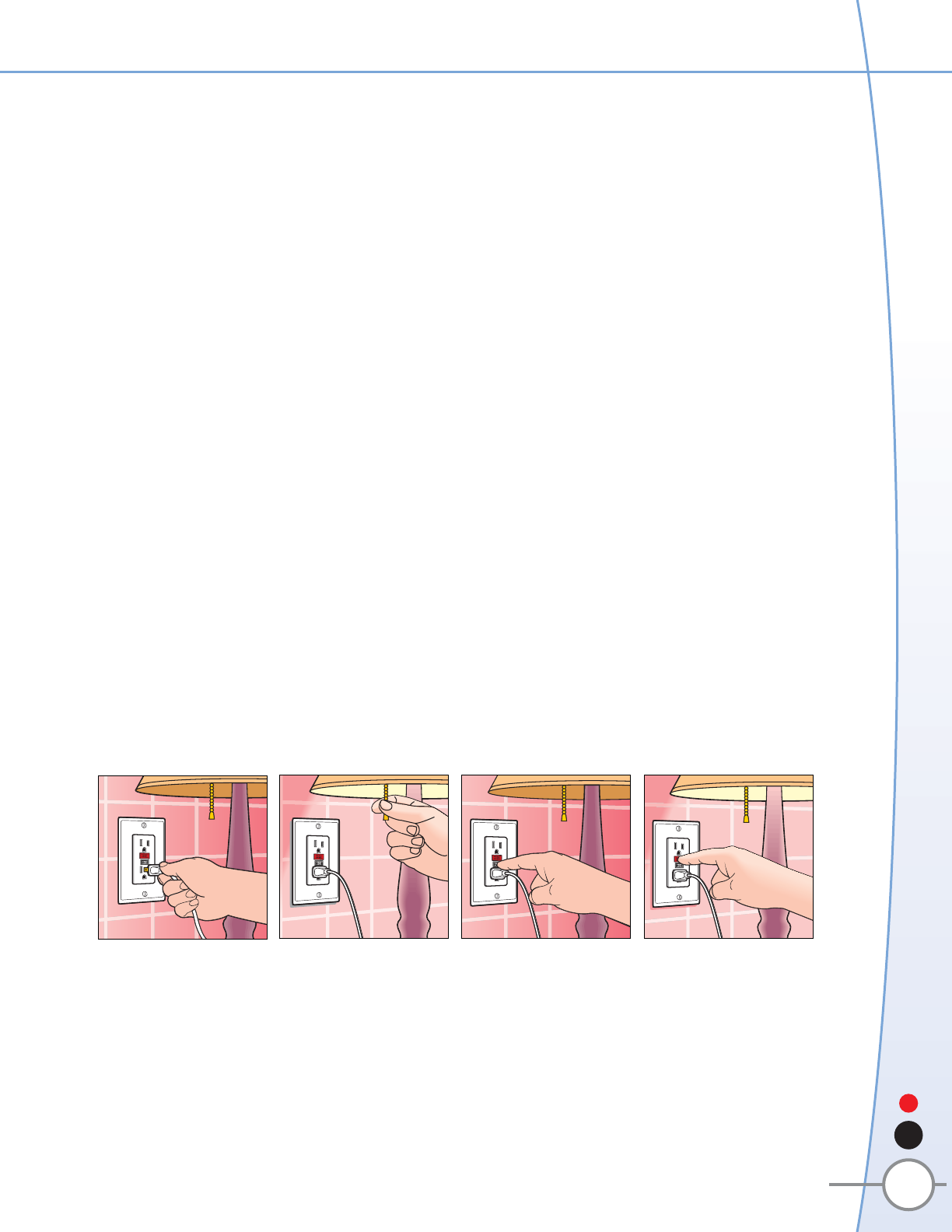

1. Plug a lamp or radio

into the SmartLock

GFCI receptacle.

2. Turn ON lamp or radio. 3. Push the TEST button on

the SmartLock GFCI.

The GFCI will trip and

power to the lamp or

radio will be cut off.

4. Push the RESET button

on the SmartLock GFCI

to restore power to the

lamp or radio.

6

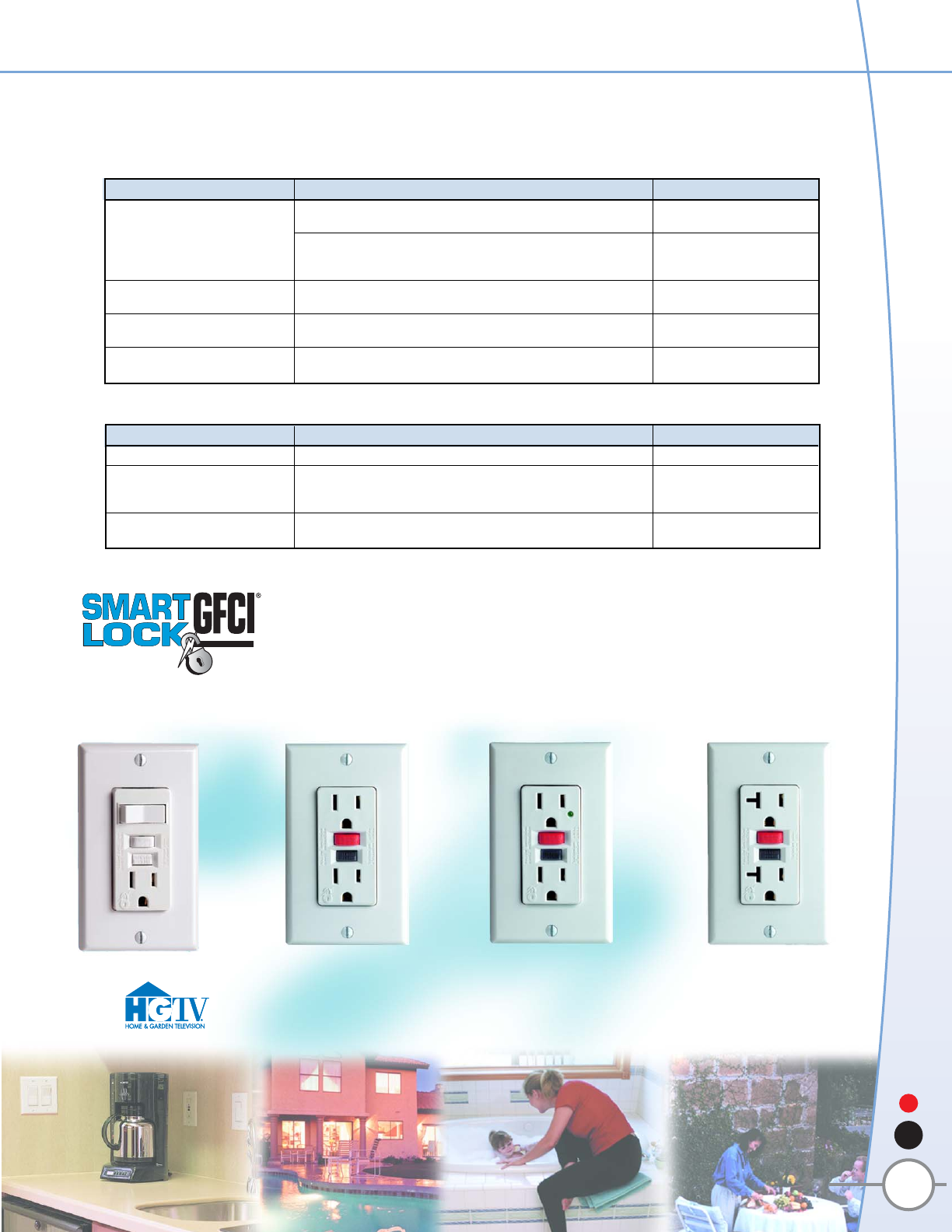

SmartLock®Advanced GFCI Receptacles

Look for the Lock when

choosing a GFCI. The lock

ensures improved GFCI

performance

Lockout action blocks the

“RESET” button if GFCI

protection has been

compromised

2 YEAR LIMITED

Optional LED indicator offers

visual confirmation of power

availability

Advanced electronics design

provides superior resistance to

electrical surges and

over-voltages

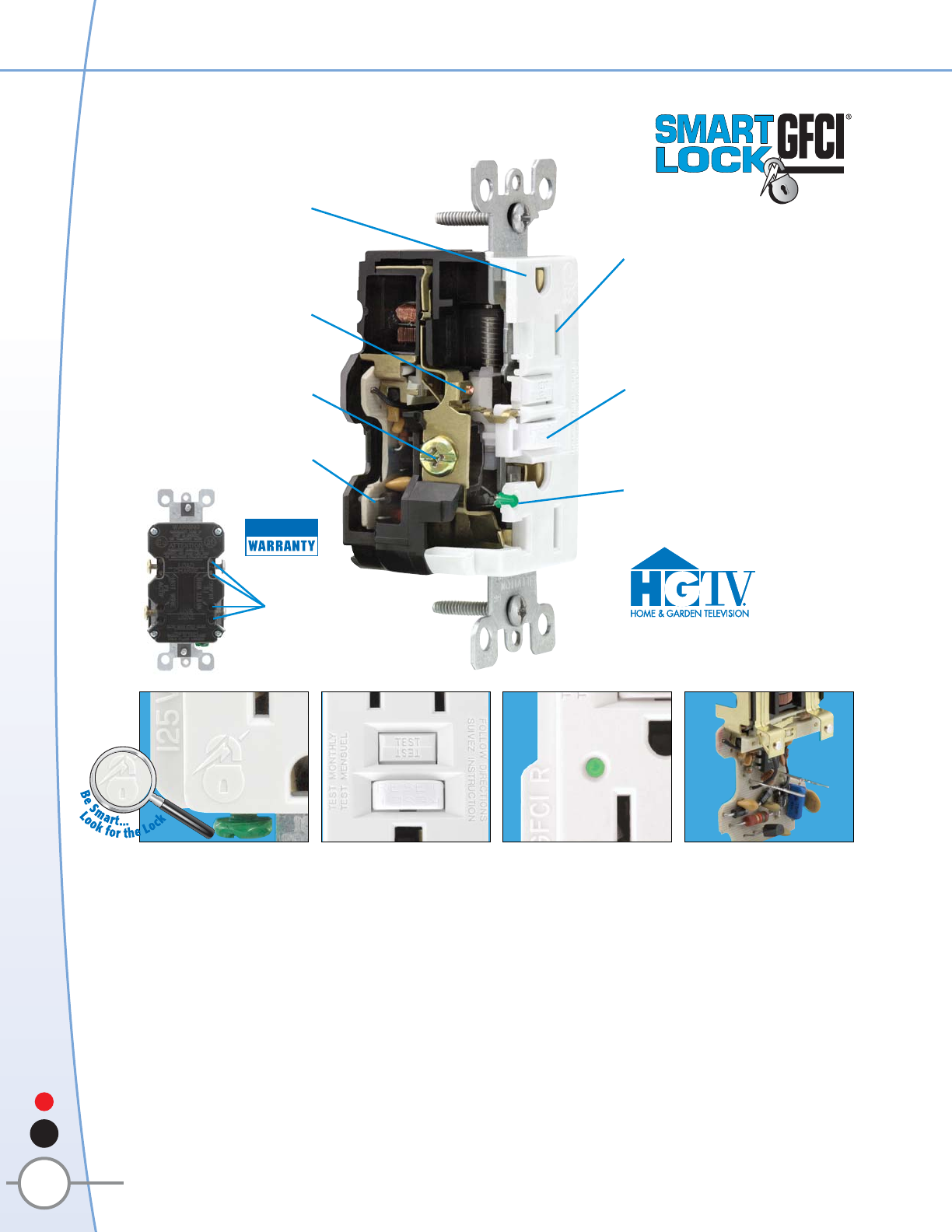

SmartLock®, the First Advanced Technology GFCI

to Take People Protection to a Higher Level

Exclusively from Leviton

Triple combination

termination screws

Advanced electronic design

offers superior resistance to

surges and overvoltages LED power indicator light on lighted

models helps diagnose improper wiring

and, when illuminated, offers visual

confirmation that power is available

Heavy-duty contacts are double wipe for

15 Amp and triple wipe for 20 Amp

Patented lockout feature prevents

“RESET” if GFCI is not functioning

properly or miswired due to reversal of

line and load leads

Thick-walled, impact-resistant

thermoplastic nylon cover and

body withstand abuse

Silver alloy contacts for

reliable switching

Eight back-wired holes

(two for each terminal)

provide maximum

wiring capability

Leviton Offers a Choice of TEST and RESET Button Color

Every GFCI receptacle is required by UL to have “TEST” and “RESET” buttons, providing a

simple, clear means of testing whether the device is operating properly. Leviton GFCIs are

available in two versions to meet your needs. One version has matching body color

(monochromatic) buttons, offering a stylish, unobtrusive appearance. The other version has a

traditional black TEST button and a red RESET button, which is ideal in applications where fast,

easy identification of the GFCI is desired.

Agency Standards

Meets or exceeds all new UL requirements for January 1, 2003

•UL Standard 943 Class A (GFCI) and 498 (Receptacles)

•UL Listed (File #E-48380) •CSA Certified (File #LR-57811)

•NOM Certified (File #057)

AS SEEN ON HGTV

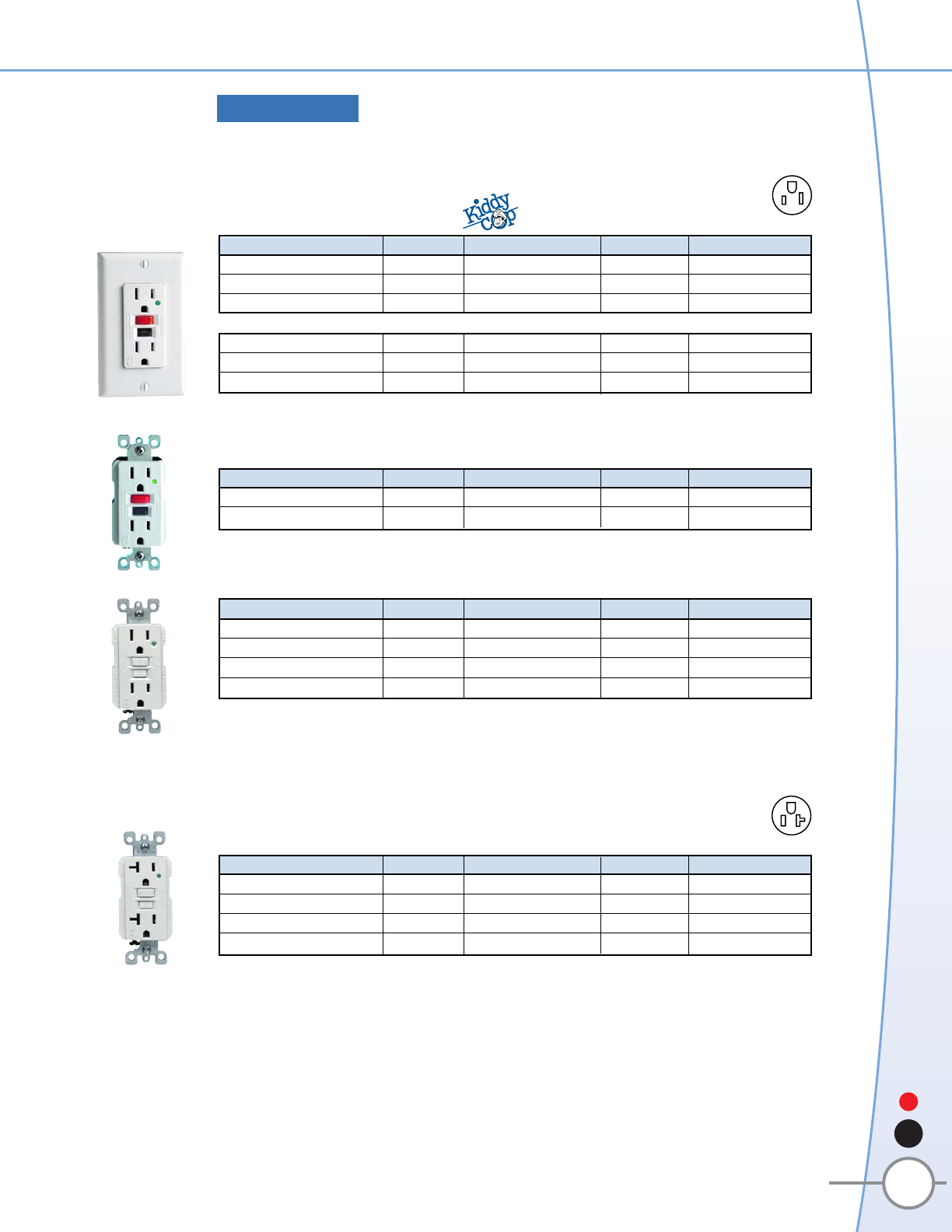

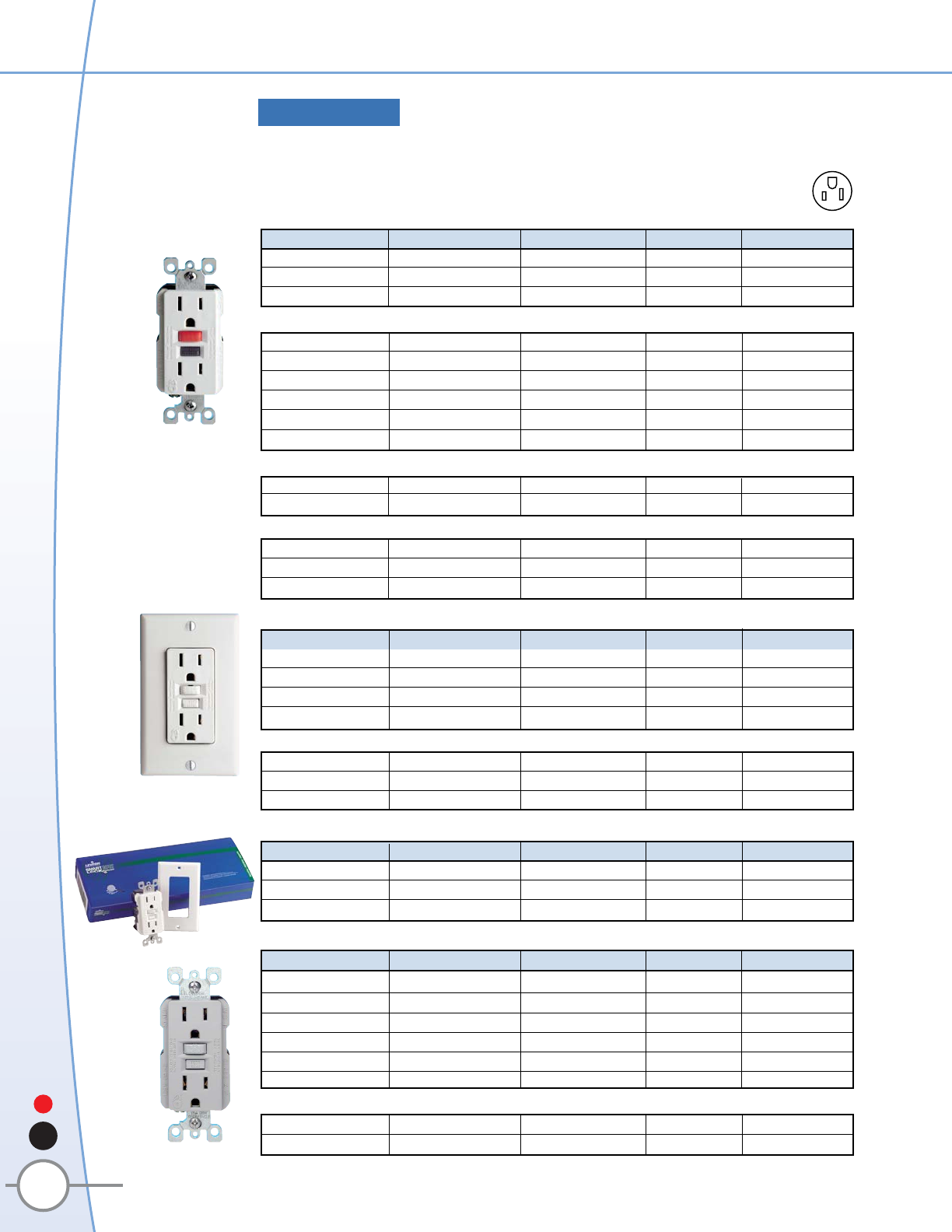

15A SmartLock®Duplex GFCI with LED Indicator Light

Rated 15A-125V at NEMA 5-15R Receptacle,

20A-125V Feed-Through – Back and Side Wired

Black and Red Buttons with Wallplate

Packed in a Clamshell

Cat. No. Color UPC Inner Pack Standard Pack

L01-8598-00I Ivory 07847714801 3 3 30

L02-8598-00W White 07847714802 0 3 30

L03-8598-00A Almond 07847714803 7 3 30

Packed in Rack Packs (Must be ordered in multiples of Standard Pack)

T11-8598-00I Ivory 07847714801 3 ---- 18

T12-8598-00W White 07847714802 0 ---- 18

T13-8598-00A Almond 07847714803 7 ---- 18

Black and Red Buttons

Contractor Pack

Cat. No. Color UPC Inner Pack Standard Pack

022-8598-CPW White 07847715322 2 5 50

023-8598-CPA Almond 07847716325 2 5 50

Monochromatic Buttons

Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

010-8598-000 Brown 07847713599 0 ---- 10

011-8598-00I Ivory 07847713600 3 ---- 10

012-8598-00W White 07847713601 0 ---- 10

015-8598-00A Almond 07847713602 7 --- 10

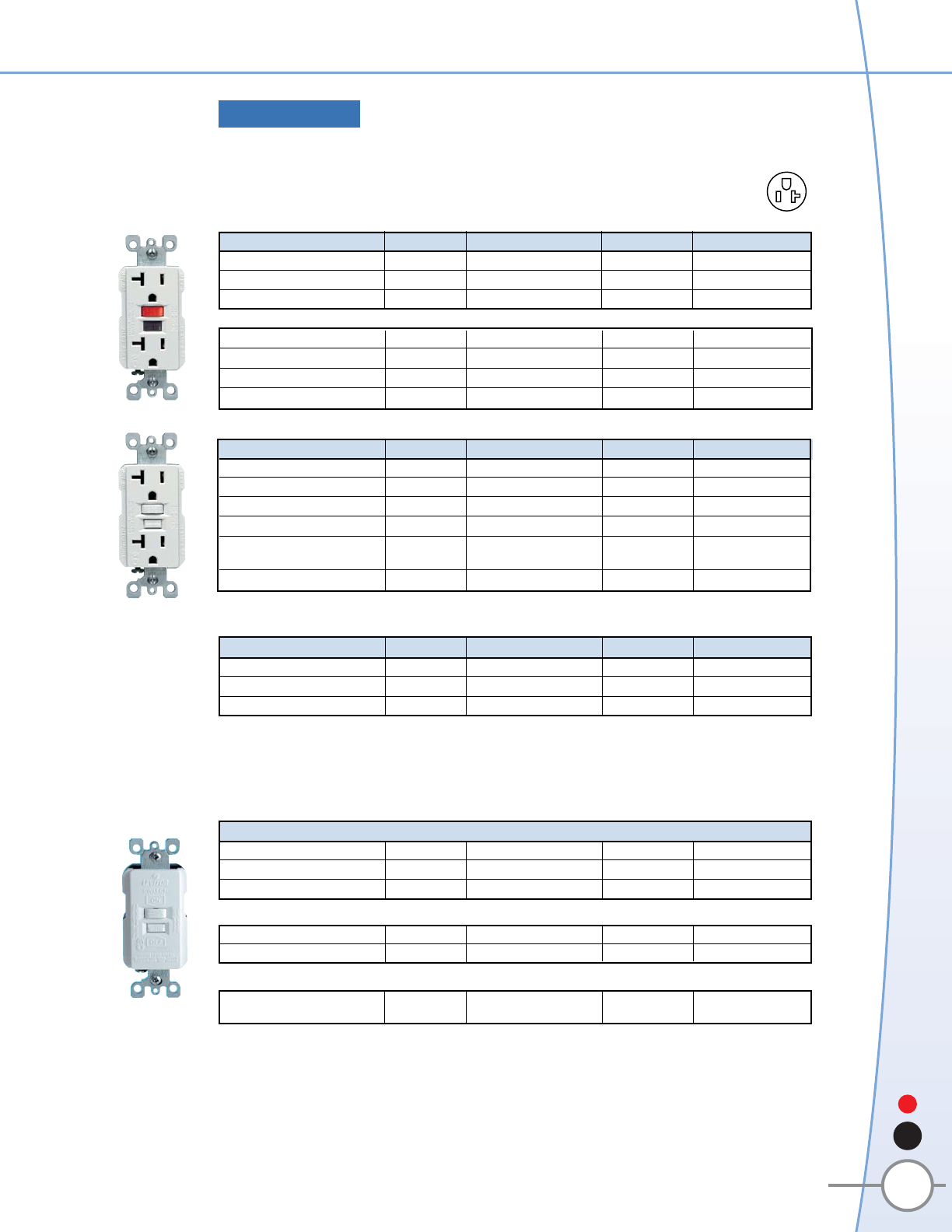

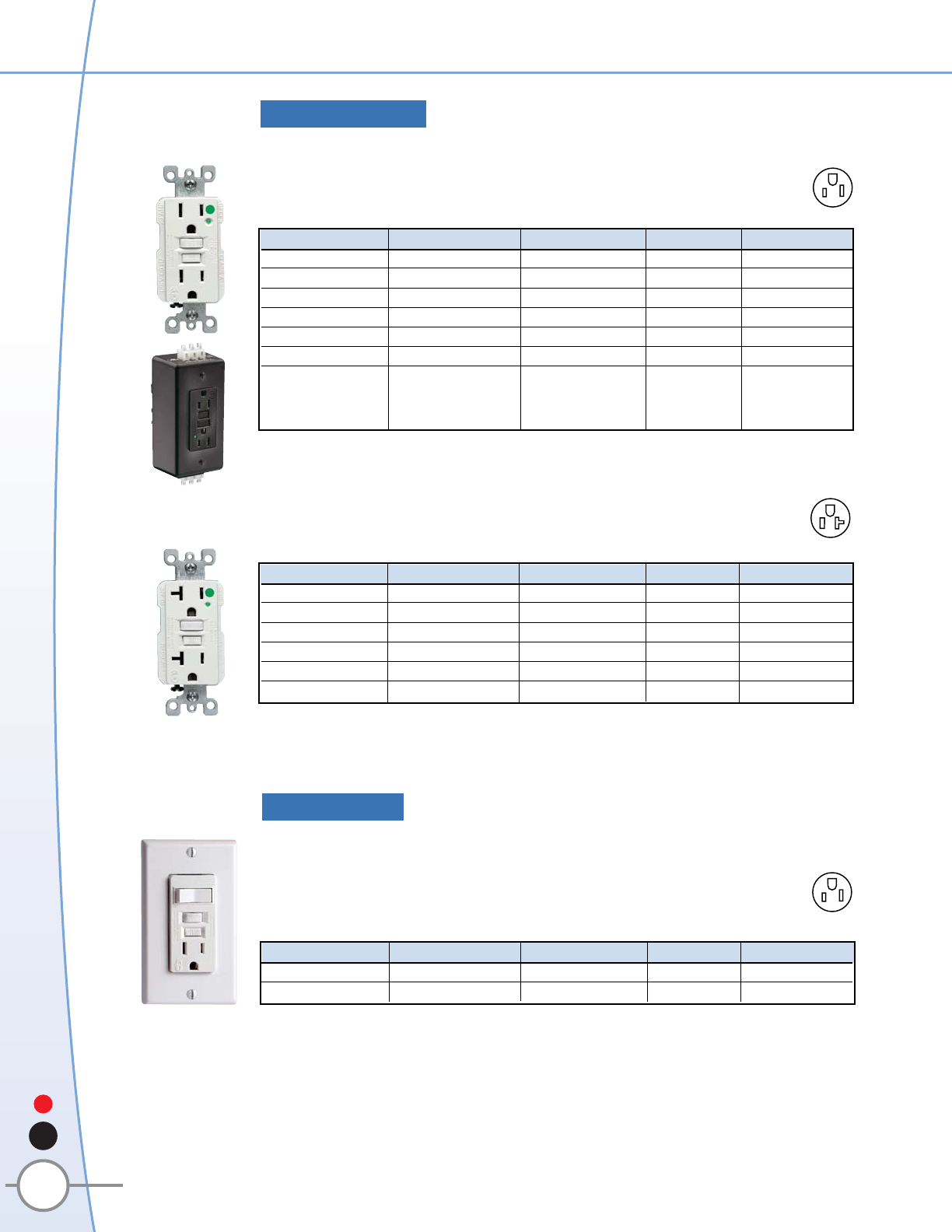

20A SmartLock®Duplex GFCI with LED Indicator Light

Rated 20A-125V at NEMA 5-20R Receptacle

20A-125V Feed-Through – Back and Side Wired

Monochromatic Buttons

Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

000-8898-000 Brown 07847713618 8 ---- 10

001-8898-00I Ivory 07847713619 5 ---- 10

002-8898-00W White 07847713620 1 ---- 10

005-8898-00A Almond 07847713622 5 ---- 10

Note: Wallplates sold separately, unless otherwise listed.

7

SmartLock®Advanced GFCI Receptacles

G

W

G

W

Spec Grade

TM

5-15R

5-20R

8

SmartLock®Advanced GFCI Receptacles

15A SmartLock®Duplex GFCI

Rated 15A-125V at NEMA 5-15R Receptacle,

20A-125V Feed-Through – Back and Side Wired

Black and Red Buttons – Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

B01-8599-00I Ivory 07847714410 7 ---- 10

B02-8599-00W White 07847714318 6 ---- 10

B03-8599-00A Almond 07847714149 6 ---- 10

Packed in Rack Packs (Must be ordered in multiples of Standard Pack)

R00-8599-000 Brown 07847714654 5 ---- 6

R01-8599-00I Ivory 07847714410 7 ---- 50

R02-8599-00W White 07847714318 6 ---- 50

R03-8599-00A Almond 07847714149 6 ---- 30

R04-8599-00E Black (Ebony) 07847714655 2 ---- 12

R05-8599-0GY Gray 07847714656 9 ---- 6

Packed in a Box

061-8599-0LI Ivory, With Leads 07847715218 8 ---- 10

062-8599-0LW White, With Leads 07847715219 5 ---- 10

3-Pack Multipacks

R01-18599-00I Ivory 07847714666 8 ---- 20

R02-18599-00W White 07847714667 5 ---- 20

R03-18599-00A Almond 07847714701 6 ---- 20

Monochromatic Buttons with Wallplate – Packed in a Clamshell

Cat. No. Color UPC Inner Pack Standard Pack

L01-8599-0AI Ivory 07847713614 0 3 30

L02-8599-0AW White 07847713616 4 3 30

L03-8599-0AA Almond 07847713617 1 3 30

L04-8599-0AE Black (Ebony) 07847716813 4 3 30

Packed in Rack Packs (Must be ordered in multiples of Standard Pack)

T11-8599-0AI Ivory 07847713614 0 ---- 21

T12-8599-0AW White 07847713616 4 ---- 21

T13-8599-0AA Almond 07847713617 1 ---- 21

Monochromatic Buttons with Wallplate/Self-grounding Clip – Contractor Pack (5 GFCIs per Box)

Cat. No. Color UPC Inner Pack Standard Pack

025-8599-CPI Ivory 07847717299 5 5 50

026-8599-CPW White 07847717301 5 5 50

027-8599-CPA Almond 07847717302 2 5 50

Monochromatic Buttons – Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

000-8599-000 Brown 07847713641 6 ---- 10

001-8599-00I Ivory 07847713603 4 ---- 20

002-8599-00W White 07847713608 9 ---- 20

003-8599-0GY Gray 07847713609 6 ---- 10

004-8599-00E Black (Ebony) 07847713610 2 ---- 10

005-8599-00A Almond 07847713611 9 ---- 10

Bulk Packaging

041-8599-0XI Ivory 07847715216 4 ---- 20

042-8599-0XW White 07847715217 1 ---- 20

Note: Wallplates sold separately, unless otherwise listed.

G

W

Spec Grade

5-15R

9

SmartLock®Advanced GFCI Receptacles

20A SmartLock®Duplex GFCI

Rated 20A-125V at NEMA 5-20R Receptacle,

20A-125V Feed-Through – Back and Side Wired

Black and Red Buttons – Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

B01-8899-00I Ivory 07847714763 4 ---- 5

B02-8899-00W White 07847714764 1 ---- 5

B03-8899-00A Almond 07847714765 8 ---- 5

Packed in Rack Packs (Must be ordered in multiples of Standard Pack)

R01-8899-00I Ivory 07847714763 4 ---- 30

R02-8899-00W White 07847714764 1 ---- 50

R03-8899-00A Almond 07847714765 8 ---- 16

R05-8899-0GY Gray 07847714766 5 ---- 10

Monochromatic Buttons – Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

000-8899-000 Brown 07847706195 4 ---- 10

001-8899-00I Ivory 07847706196 1 ---- 10

002-8899-00W White 07847706197 8 ---- 10

003-8899-0GY Gray 07847706198 5 ---- 10

004-8899-00E Black 07847712338 6 ---- 10

(Ebony)

005-8899-00A Almond 07847706200 5 ---- 10

Monochromatic Buttons with Wallplate/

Self-grounding Clip

– Contractor Pack (5 GFCIs per Box)

Cat. No. Color UPC Inner Pack Standard Pack

025-8899-CPI Ivory 07847717475 3 5 50

026-8899-CPW White 07847717477 7 5 50

027-8899-CPA Almond 07847717478 4 5 50

20A SmartLock®Switch-Rated GFCI, 1.5 HP at 120V

Blank Face, Monochromatic Buttons – Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

011-8590-00I Ivory 07847713637 9 ---- 10

012-8590-00W White 07847713638 6 ---- 10

015-8590-00A Almond 07847713639 3 ---- 10

Packed in Rack Packs (Must be ordered in multiples of Standard Pack)

R01-8590-00I Ivory 07847713637 9 ---- 6

R02-8590-00W White 07847713638 6 ---- 6

Bulk Packaging

024-8590-0XE Black 07847715215 7 ---- 50

(Ebony)

G

W

Spec Grade

5-20R

10

SmartLock®Advanced GFCI Receptacles

15A SmartLock®Duplex GFCI with LED Indicator Light

Rated 15A-125V at NEMA 5-15R Receptacle,

20A-125V Feed-Through – Back and Side Wired

Monochromatic Buttons – Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

000-8598-HG0 Brown 07847715244 7 ---- 10

001-8598-HGI Ivory 07847713595 2 ---- 10

002-8598-HGW White 07847713596 9 ---- 10

003-8598-HGR Red 07847713597 6 ---- 10

004-8598-HGG Gray 07847713598 3 ---- 10

005-8598-HGA Almond 07847712236 5 ---- 10

150-8598-DIN Black, DIN rail 07847715328 4 ---- 10

mount with

terminal

wiring block

20A SmartLock®Duplex GFCI with LED Indicator Light

Rated 20A-125V at NEMA 5-20R Receptacle,

20A-125V Feed-Through – Back and Side Wired

Monochromatic Buttons – Packed in a Box

Cat. No. Color UPC Inner Pack Standard Pack

010-8898-HG0 Brown 07847713623 2 ---- 10

011-8898-HGI Ivory 07847712328 7 ---- 10

012-8898-HGW White 07847712329 4 ---- 10

013-8898-HGR Red 07847713626 3 ---- 10

014-8898-HGG Gray 07847713627 0 ---- 10

015-8898-HGA Almond 07847712330 0 ---- 10

Note: Wallplates sold separately, unless otherwise listed.

SmartLock®Combination Switch/GFCI Receptacle

Rated 15A-125V at NEMA 5-15R Receptacle,

20A-125V Feed-Through – Back and Side Wired

Switch-Rated at 1000W, 8.3A, 1/4 HP, 120V AC

Monochromatic Buttons with Wallplate – Packed in a Clamshell

Cat. No. Color UPC Inner Pack Standard Pack

R01-8299-00I Ivory 07847715426 7 ---- 3

R02-8299-00W White 07847715427 4 ---- 3

G

W

G

W

G

W

Hospital Grade

Spec Grade

5-15R

5-15R

5-20R

11

GFCI Personnel Protection Devices

Power indicator light goes OFF if

GFCI trips, power is interrupted

or line cord is unplugged

GFCI Cord Set Features

Water-resistant enclosure sealed

by ultrasonic welding to ensure

long service life

•

Fully complies with NEC code

article #527.6, 6(A) and 6(B)

and OSHA regulation CFR 1926-

404b(i)(ii) for construction sites

Equipped with Industrial Grade plugs and

connectors to provide long service life in

heavy-duty applications

Water-resistant SJTW-A cable

(14/3 for 15A, 12/3 for 20A)

Available in 2-ft., 6-ft.

and 25-ft. lengths, except

where indicated

Choice of Automatic or

Manual reset models

Agency Standards

•Complies with UL Standard 943 as a

Recognized Component Class A GFCI

power supply with open neutral

protection

– UL Listed (File #E-48380),

15A devices also

CSA Certified (File #LR-5781)

GFCI Protection: An OSHA Requirement on the Job Site

OSHA definitely means business, with fines for willful violations reaching as high as $70,000!

The second most common OSHA electrical violation at construction sites involves non-compliance

with either the Assured Equipment Grounding Program or Ground Fault Protection. Whichever

program you choose, portable GFCI Cord Sets or an approved grounding conductor program, make

sure it is used 100% of the time. Ignoring OSHA requirements can cost money as well as business.

Compliance with OSHA and NEC standards is absolutely mandatory, and use of Leviton GFCI Cord

Sets is a reliable, economical way to accomplish that.

GFCI Cord Sets Must Have Open-Neutral Protection

Open-Neutral Protection immediately trips the GFCI if the neutral conductor on the line side is

opened. This eliminates the possibility of the GFCI Cord Set having a live hot leg, even though

it may appear as though power is off due to the open neutral. A normal GFCI receptacle would

not be able to trip under these conditions.

Automatic vs. Manual Reset Cord Sets

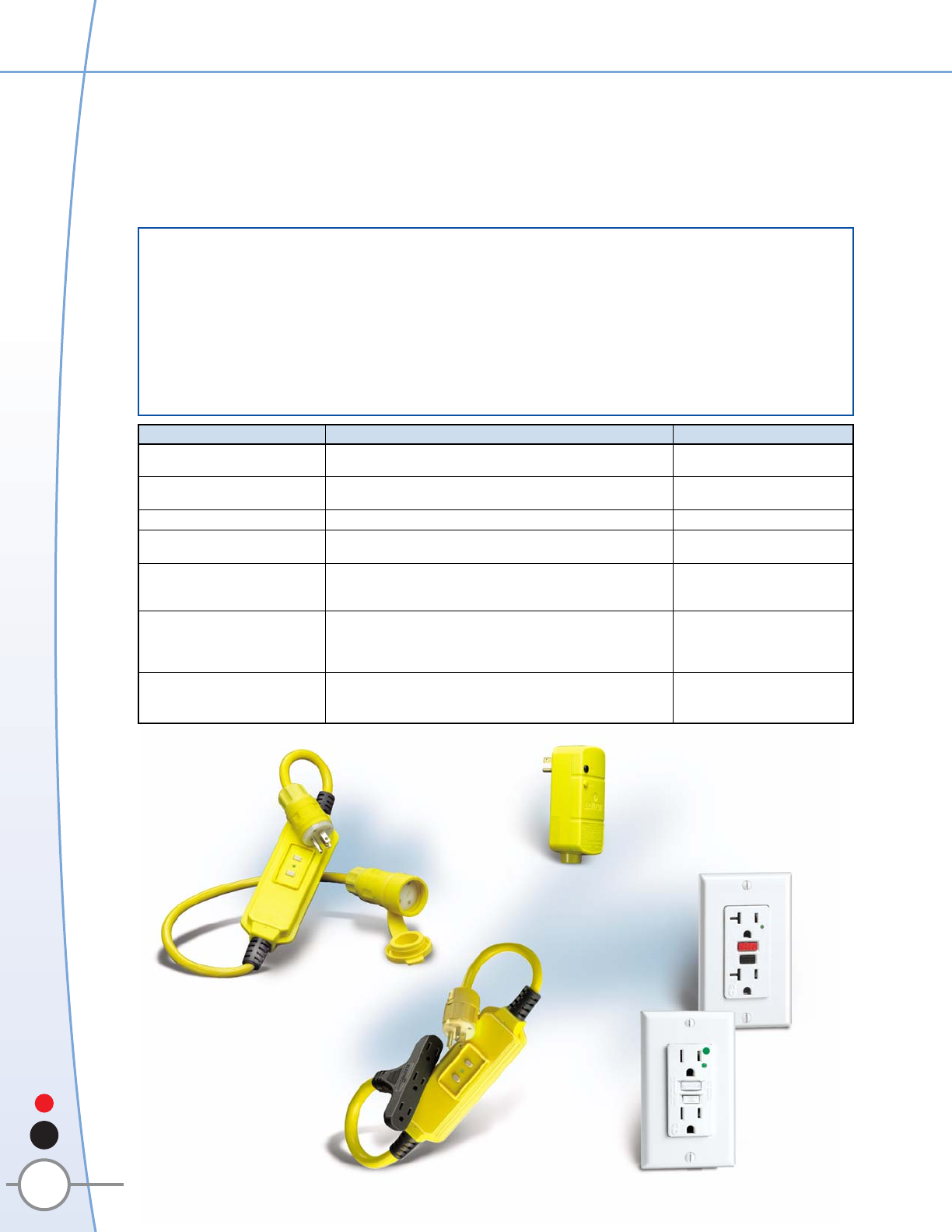

Automatic Reset GFCI Cord Sets (black body) automatically reset ON when power is restored.

Manual Reset units (yellow body) will not automatically reset after power interruption; the reset

button must be pushed in.

Cat. No. 66591-WL

Provides lighting and GFCI

protection in out-of-the-way

locations

Manual Reset GFCI Cord Sets

with Wetguard™ plugs and

connectors provide outstanding

corrosion-resistance where

water is present

* Custom lengths and

configurations available

as special order

12

GFCI Personnel Protection Devices

Automatic Reset GFCI Cord Sets and Extension Cords – Black Body

•Automatically resets to ON when plugged in or after power interruption

•Available in 2-ft, 6-ft and 25-ft lengths except where indicated

Automatic Reset – Black Body

G

W

G

W

G

W

L-5-15R

L520R

G

W

G

W

G

W

G

W

G

W

G

W

G

W

G

W

G

W

G

W

G

W

Length NEMA Configuration

Cat. No. Description/Rating (In Feet) Plug End Connector End

69591-3 15A-125V GFCI Cord Set 3’ 5-15P 5-15R

69591-25 Same as above 25’

69593-3 15A-125V Triple-tap 3’ 5-15P 5-15R

GFCI Cord Set

69891-3 20A-125V GFCI Cord Set 3’ 5-20P 5-20R

69591-W3 15A-125V GFCI Cord Set with 3’ 5-15P 5-15R

Wetguard™ Plug and Connector

69591-W25 Same as above 25’

69891-W3 Rated 20A-125V GFCI Cord Set 3’ 5-20P 5-20R

with Wetguard™ Plug

and Connector

Length NEMA Configuration

Cat. No. Description/Rating (In Feet) Plug End Connector End

66591-2C 15A-125V GFCI Cord Set 2’

5-15P 5-15R

66591-6C Same as above 6’

66591-25C Same as above 25’

66593-3 15A-125V Triple-tap Cord Set 3’ 5-15P 5-15R

66891-3 20A-125V GFCI Cord Set 3’ 5-20P 5-20R

66597-3 15A-125V GFCI Cord Set 3’ L5-15P L5-15R

66897-3 20A-125V GFCI Cord Set 3’ L5-20P L5-20R

26591-37C 15A-125V GFCI Extension Cord 37’ 5-15P No Connector

26592-E 15A-250V GFCI Extension Cord 35’ 6-15P No Connector

36591-37C 20A-125V GFCI Extension Cord 37’ 5-20P No Connector

36592-E 20A-250V GFCI Extension Cord 35’ 6-20P No Connector

Portable Work Light Cord Set w/Automatic Reset GFCI-Protected Receptacle

• Provides lighting and GFCI protection in out-of-the-way locations

Portable Work Light – Black Body

Cat. No. Description NEMA Configuration

66591-WL Portable Work Light on 20-foot Yellow 5-15P 5-15R

“Safety” Cord with GFCI-Protected Receptacle

Manual Reset GFCI Cord Sets – High-Visibility Yellow Body

• Must be manually set to ON each time it is plugged in, or after a power interruption,

which helps to avoid potential accidents with power tools

• Water-resistant SJTW-A cable, yellow (14/3 for 15A 12/3 for 20A)

• Available in 3-ft and 25-ft lengths

FOR WETGUARD MANUAL RESET GFCI CORD SETS ONLY

• Manual Reset GFCI Cord Sets can also be equipped with Wetguard™ plugs and connectors

for outstanding corrosion resistance where water and moisture are present

*Custom lengths and configurations available as special order

*Custom lengths and configurations available as special order

Manual Reset – High Visibility Yellow Body

G

W

G

W

G

W

G

W

G

W

G

W

G

G

13

GFCI Personnel Protection Devices

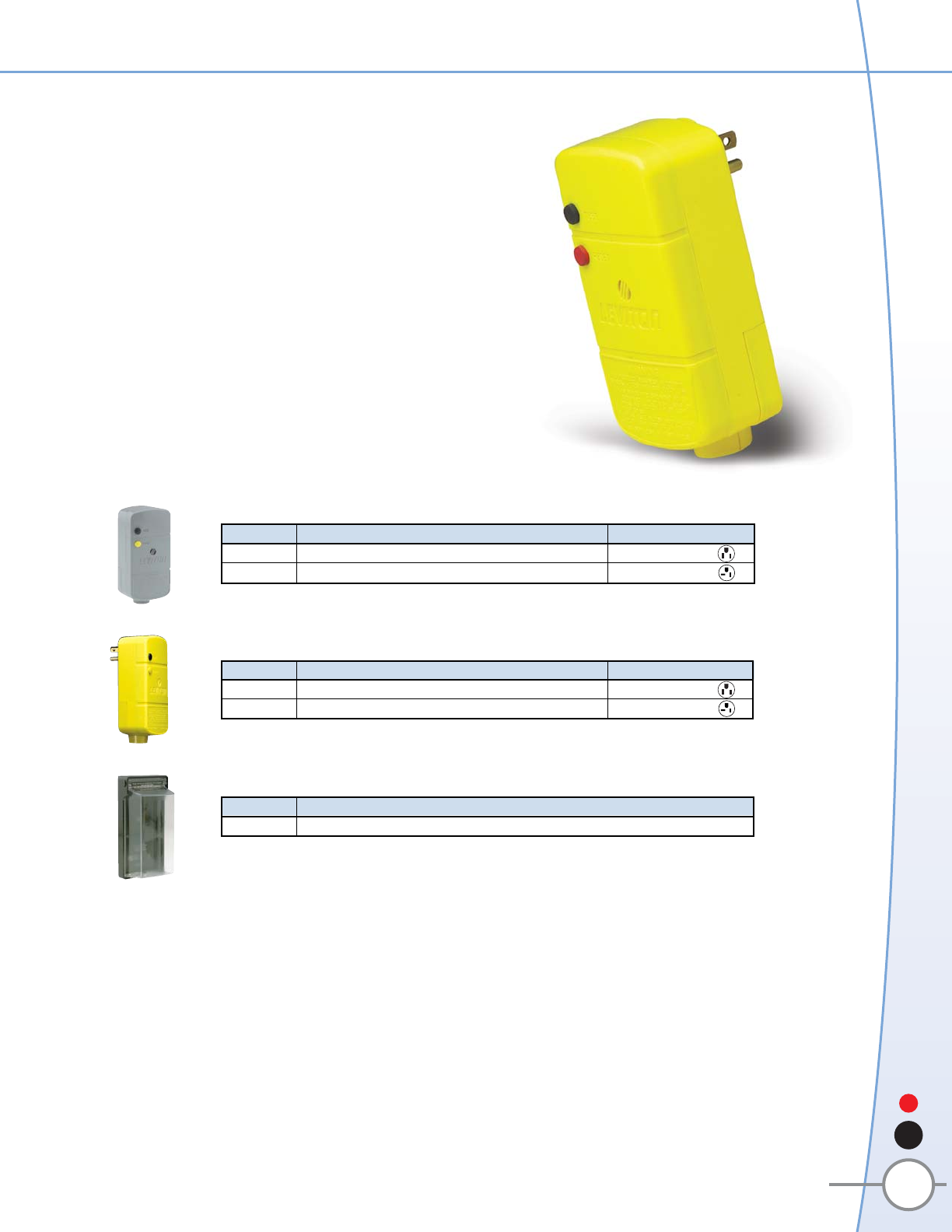

Right-Angle GFCIs

• Complies with UL Standard 943 Class A GFCI operation

with open neutral protection

• Right-angle design provides ease of use in a variety of locations

• Ideal for use with spa units, high pressure washers, building

maintenance equipment, submersible pumps, and a wide

variety of portable equipment

• Available with manual reset (yellow body) or automatic reset

(black or gray body). Manual reset versions will not reset to ON

after power interruption, helping to avoid potential accidents

with power tools

• Accepts 3-wire flexible cord, No. 18 (.300")—No. 12 (.450")

cord diameter range

• Housing and wiring terminal chamber sealed with silicone

rubber gaskets for superior protection against moisture and dust

• Specially designed Raintight-While-In-Use Cover, NEMA 3R

rated, available to protect right angle GFCI plug when used in

wet locations

• UL Recognized Component E-48380

Automatic Reset Right-Angle GFCI Plug – Black or Gray Body

Cat. No. Description/Rating NEMA Configuration

6593 15A-125V GFCI Right Angle GFCI Plug 5-15P

6893 20A-125V GFCI Right Angle GFCI Plug 5-20P

*Also available pre-assembled with cord as special order

Manual Reset Right-Angle GFCI Plug – High-Visibility Yellow Body

Cat. No. Description/Rating NEMA Configuration

6594 15A-125V GFCI Right Angle GFCI Plug 5-15P

6894 20A-125V GFCI Right Angle GFCI Plug 5-20P

*Also available pre-assembled with cord as special order

Raintight-While-In-Use Cover – Clear

Cat. No. Description

86593 Raintight-While-In-Use Cover, designed for use with Right-Angle GFCI Plugs

*Also available pre-assembled with cord as special order

G

W

G

W

G

W

G

W

14

GFCI Personnel Protection Devices

High-Current GFCI

Cat. No. Description Color

8895-00I 80A-120/240V 60Hz. Back & Side Wired Ivory

8895-00W White

8895-00E Black (Ebony)

GFCIs for Equipment Connections

SmartLock®High-Current GFCI

• Adds ground fault protection to heavy equipment: Dedicated only

for 3- and 4-wire systems that include grounded neutral

• Contact rating at GFCI: 20-125V; load capability with 125V

control relay 80A @ 240V max.

• TEST and RESET buttons confirm proper operation

• Ideal for use with spas, heater packs, high pressure washers,

industrial mixers and other equipment

• UL Recognized Component E-48380, CSA Certified LR-57811

Note: Each Cat. No. 8895 and contactor or relay combination MUST be

approved by UL. Consult your Leviton representative for a list of contactors

that have been approved for use with Cat. No. 8895

Panel Mount GFCIs

• Provides open-neutral protection in a panel mount configuration

• UL 943 Class A GFCI with open-neutral protection

• Automatically resets ON after power interruption

• Power indicator light goes OFF if GFCI trips or power is interrupted

• Impact-resistant yellow Lexan housing

• UL Recognized Component E-48380, CSA Certified LR-57811

Panel Mount GFCI

Cat. No. Description

36596 Basic 4-wire panel mount, rated 20A-125V feed-through

36597 5-wire panel mount for use on temporary power boxes,

rated 20A-125V feed-through

36895 Panel mount GFCI suitable for protecting lighting loads on dimmed circuits

Note: A panel mount Equipment Leakage Circuit Interrupter (ELCI) is also available.

Contact your Leviton representative for information

15

GFCI Personnel Protection Devices

GFCIs for Work Sites

Temporary Portable Power Distribution

Center/GFCI –

• Meets OSHA Regulation 20, Part 1926, Subpart K for

open-neutral GFCI and circuit overload protection

• UL Listed for outdoor use

• For temporary power use in industrial and commercial

maintenance and repair stations (construction, entertainment,

amusement sites, trade shows, convention halls) where portable

power is needed

• Weatherproof covers prevent nuisance tripping; prevent moisture

from entering contacts

• Clear port hole panel for circuit breaker viewing

• Reinforced metal housing and legs withstand abuse

• Backed by a Limited One-Year Warranty

Power Cords

• UL Listed (File #E-48380)

• Flexible, abrasion-resistant construction for reliable

performance to –31°F

Power Distribution Center – The Box™

Cat. No. Description Power Supply Feed-Through NEMA

Inlet Power Outlet Configuration

PB101-SGF GFCI-Protected 50A, 125/250V* 50A, 125/250V* 6: L5-20R

Receptacles:

Six 20A-125V Locking; 1: L6-30R

One 30A-250V Locking

PB103-SGF GFCI-Protected 50A, 125/250V* 50A, 125/250V* 6: 5-20R

Receptacles:

Six 20A-125V Straight 1: L6-30R

Blade; One 30A-250V

Locking

* “California-Style” CS locking devices are non-NEMA

Power Cords

Cat. No. Description

KRS-A9519 50 ft. Temporary Power Cord w/Weather-Resistant 50A, 125/250

Plug and Connector

KUS-A9519 100 ft. Temporary Power Cord w/Weather-Resistant 50A, 125/250

Plug and Connector

L520R

L520R

16

GFCI Wallplates and Accessories

Decora®Wallplates Add a

Finishing Touch to GFCIs

• Large selection includes Decora® Plus

screwless, snap-on wallplates, Decora standard

plates, plus Mid-Way® and oversized styles

• Sleek, smooth and easy to clean in nylon,

thermoplastic and metal

• Wide range of colors to match any decor

• All plates are UL Listed, conform to NEMA and

ANSI Standard and are CSA Certified

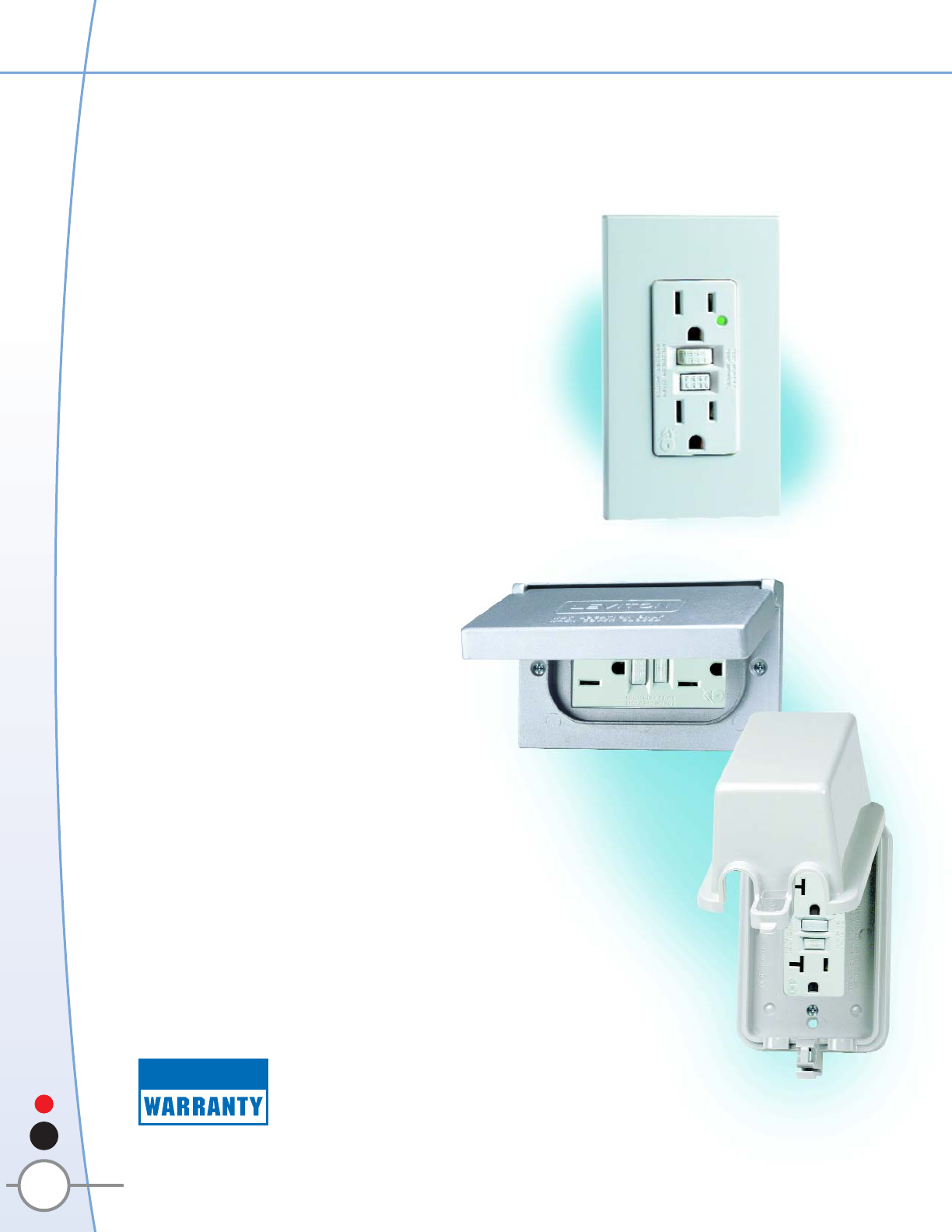

Increase Safety with

Weather-Resistant Wallplates

and Raintight Covers

Weather-Resistant

Flush Cover Wallplates

• Self-closing

• Vertical and horizontal mounting

• Die-cast zinc covers and base

• Weather-resistant gaskets

• Stainless steel springs

Raintight While-In-Use Covers

• Impact resistant thermoplastic construction

• Pre-installed rubber gasket and mounting

screw included for fast, easy installation

• Tongue and groove plate-to-cover construction

• Offset device opening (horizontal only)

for easier cord exit

• Thermoplastic inserts prevent insect and

debris accumulation

• Easy-grip self-closing covers with durable,

non-corrosive stainless steel pins

• Vertical and horizontal mounting models

• Standard and extra-deep models available to

meet every need

Raintight While-In-Use Cover Standards:

• Full compliance with UL, CSA and NEC Section 406.8

requirements for damp and wet locations with cover closed

• Raintight While-In-Use Covers are NEMA 3R rated for use

with unattended plugs engaged in “live” receptacles in wet

or damp locations

2 YEAR LIMITED

17

GFCI Wallplates and Accessories

Wallplates – One Gang

Wallplate Description Cat. No. Color

80301-S Mahogany

80301-SI Ivory

80301-SW White

80301-SA Almond

80301-SGY Gray

80301-SE Ebony/Black

80401-N Mahogany

80401-NI Ivory

80401-NW White

80401-NA Almond

80401-NGY Gray

80401-NE Ebony/Black

80401-NR Red

80401 Mahogany

80401-I Ivory

80401-W White

80401-A Almond

80401-GY Gray

80401-E Black/Almond

83401 Aluminum

81401 Brass

81401-PB Polished Brass

84401-40 Type 302 Stainless Steel

PJ26 Mahogany

PJ26-I Ivory

PJ26-W White

PJ26-A Almond

PJ26-GY Gray

PJ26-E Black/Almond

80601 Mahogany

80601-I Ivory

80601-W White

80601-A Almond

80601-GY Gray

86601 Ivory

88601 White

82601 Almond

SO26 Type 302 Stainless Steel

Decora® Plus Screwless

Snap-On Wallplates

with Screwless Subplate

Easy installation saves time on

the job; No screws at all – a

truly screwless, screwless

wallplate; Constructed of

unbreakable polycarbonate;

screwless subplate installs on

existing mounting screws

Decora®

Commercial Grade

Nylon Wallplates

Superior resistance to

impact and

mechanical stress;

Color-matched screws

Decora®Plastic

Wallplates Smooth face; rounded

edges; color-matched

screws

Decora®Metal

Wallplates Ideal in kitchen, bath;

Clean lines;

Color-matched screws

Decora® Mid-Way®

Size Nylon Wallplates Mount on larger

volume outlet box;

Hides irregularities;

Full 0.375" higher

and wider than

standard size

Decora® Mid-Way®

Size Plastic Wallplates Mount on larger

volume outlet box;

Hides irregularities;

Full 0.375" higher and

wider than standard size

Decora® Oversized

Wallplates 0.75" higher and wider

than standard size;

Hides more irregularities

than Mid-Way®size

GFCI Wallplates and Accessories

GFCI Accessories Product Listing

Weather-Resistant Flush Cover

Decora®/GFCI Wallplates – Gray Finish

Cat. No. Description and Mounting Position Fits Type of Box

6196-V Die-Cast Zinc, Vertical Standard

6196 Die-Cast Zinc, Horizontal Standard

6196-VFS Die-Cast Zinc, Vertical FS (Four Screws)

6196-FS Die-Cast Zinc, Horizontal FS (Four Screws)

4990 Die-Cast Zinc, Horizontal Standard

4992 Die-Cast Zinc, Vertical Standard

4996 Plastic, Horizontal Standard

4998 Plastic, Vertical Standard

GFCI Wallbox Extender – Facilitates GFCI installation in shallow wallboxes

Cat. No. Description Color

6197 Shallow Wallbox Extender for GFCIs Brown

6197-I Ivory

6197-W White

Raintight While-In-Use Covers

For Decora® Devices and GFCIs

Cat. No. Description Color

5977-GY Vertical Mount Gray

5977-DGY Vertical Mount w/Extra Deep Cover Gray

5977-CL Vertical Mount Clear

5977-DCL Vertical Mount w/Extra Deep Cover Clear

5997-GY Horizontal Mount Gray

5997-DGY Horizontal Mount w/Extra Deep Cover Gray

5997-CL Horizontal Mount Clear

5997-DCL Horizontal Mount w/Extra Deep Cover Clear

GFCI Circuit Tester – 15/20A 125V AC

Cat. No. Description

6185 Circuit Tester

18

Technical Information – NEC Codes

Residential – Interior

2002 NEC Article No. Application Applicable GFCI Cat. No.

210.8(A)(1),(5),(6) and (7) Bathrooms, storage/work areas, unfinished basements, 8599, 8899

kitchen counter tops and wet bars

Combination Switch/GFCI replaces standard switch or 8299

switch/outlet to provide GFCI protection; saves expense

of installing separate GFCI wallbox

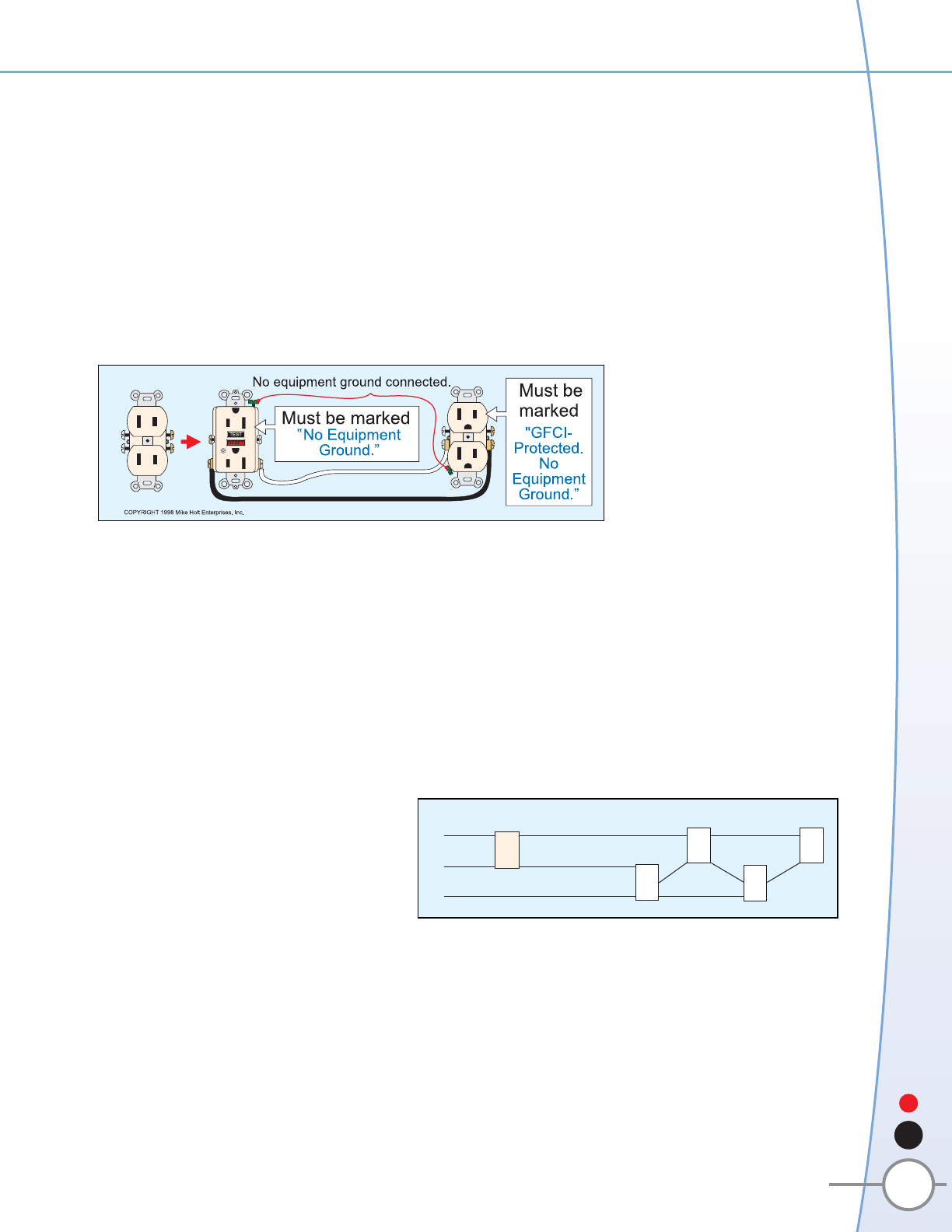

406.3(D) When no grounding conductor is available, replace 8598, 8599, 8898, 8899

non-grounding receptacles with GFCI

550.13(B) Outdoor, bathroom, and kitchen receptacles in mobile 8299, 8599, 8899

homes and manufactured homes

680.44 Outlet(s) that supply power for self contained spa 8590, 8899

or hot tub

Residential – Exterior

2002 NEC Article No. Application Applicable GFCI Cat. No.

210.8 (A)(2),(3),(4),(8) Garages, exterior locations, crawl spaces, boathouses 8598, 8599, 8898, 8899

680.22(A)(1),(5), (B)(4) Swimming pool equipment, lighting and nearby areas 8598, 8599, 8898, 8899

680.23(A)(3)

680.32

680.42, 680.43, 680.44 Outlets, power supply cords, lighting and equipment 8598, 8599, 8898, 8899

for spas and hot tubs

Cat. No. 8598-W

15A GFCI Receptacle

with Indicator Light

Cat. No. 8299-W

15A Combination Switch/GFCI

AS SEEN ON

Cat. No. 8599-W

15A GFCI Receptacle Cat. No. 8899-W

20A GFCI Receptacle

19

NEC Codes for Residential Applications

20

Technical Information – NEC Codes

Cat. No. 69591 Manual Reset

GFCI Cord Set –

High Visibility Yellow Body

Cat. No. 69593 Manual Reset

Triple Tap GFCI Cord Set –

High Visibility Yellow Body

Cat. No. 6594

Right-Angle Plug

with Manual Reset

Cat. No. 8598-HGW

15A Hospital Grade

SmartLock® GFCI

Receptacle with

Indicator Light,

monochromatic buttons

Cat. No. 8898-W

20A SmartLock®GFCI

Receptacle with LED

Indicator Light

Construction sites can be particularly hazardous for workers. An average of one person each

day is fatally electrocuted in the workplace. That’s why OSHA and NEC safety regulations are

rigorously enforced to minimize the risk of electrical accidents. Leviton’s outstanding line of

GFCIs helps you comply with these important regulations.

OSHA Regulation 29 CFR 1926.404(b)

Branch Circuits – (1) Ground-fault protection – (i) General

“The employer shall use either ground-fault circuit interrupters as specified in paragraph (b)(1)(ii) of

this section or an assured equipment grounding conductor program as specified in paragraph

(b)(1)(iii) of this section to protect employees on construction sites. These requirements are in

addition to any other requirements for equipment grounding conductors.”

Leviton GFCI Cord Sets and GFCI Receptacles

assist compliance with this regulation

2002 NEC Article No. Application Applicable GFCI Cat. No.

210.8(B) All bathroom and kitchen 125V 15A and 20A receptacles 8598, 8599, 8898, 8899

in non-dwelling units

426.28 Ground-fault protection of equipment for fixed outdoor Use ELCI devices –

electric de-icing and snow-melting equipment 26595, 36595

511.12 125V 15A and 20A receptacles in work areas 8598, 8599, 8898, 8899

517.20(A) Health Care Facilities – all receptacles and fixed 8598-HG, 8898-HG

equipment within wet location areas

525.23 Carnivals, Circuses, Fairs, and similar events –

GFCI cordsets also allowed –

GFCI protection for all General Use 125V 15A and 66591, 66593, 69591, 69593;

20A receptacles 8598, 8599, 8898, 8899

527.6

All temporary wiring installations used to supply power to 6594,

69591, 69593, 69891,

equipment used by personnel during construction, remodeling, PB101, PB103

maintenance, repair, or demolition of buildings, structures,

equipment or similar activities.

550.32(E) Mobile Homes, Manufactured Homes, and Mobile Home

8590, 8598, 8599, 8898, 8899

Parks – additional receptacles for connection of electrical

equipment located outside a mobile home.

NEC Codes for Commercial and Industrial Applications

21

Technical Information – NEC Codes

GFCI Circuit Tester

Cat. No. 6185

• Checks work-site circuitry for

leakage current, polarity and

ground continuity

• Helps with testing needed to

meet requirements of Assured

Equipment Grounding

Conductor Program

Cat. No. PB101 "The Box"

Locking Receptacle Power

Distribution Center

Cat. Nos. 66591

Automatic Reset

and 69591 Manual Reset

GFCI Cord Sets

Cat. No. 8599-W

15A SmartLock®

GFCI Receptacle

2002 NEC Article No. Application Applicable GFCI Cat. No.

551.71 Recreational Vehicles and recreational vehicle parks – 8590, 8598, 8599, 8898

125V, single-phase, 15A and 20A receptacles. 8899

552.41 Park Trailers – GFCI protection for all 125V 15A or

8598, 8599, 8898, 8899

20A receptacles located: (1)adjacent to a bathroom

lavatory, (2) within 6ft of any lavatory of sink, (3) in the

area occupied by a toilet, shower, tub (or any combination),

(4) exterior of the units

555.19(B) Marinas and boatyards – GFCI protection for receptacles 8598, 8599, 8898, 8899

(other than shore power).

600.10 GFCI protection to be provided for portable or mobile signs. 6593, 6594, 26591, 36591

66591, 69591

620.85

125V 15A and 20A receptacles installed in pits, hoistways, 8598, 8599, 8898, 8899

on elevator car tops and in escalator moving walk wellways

shall be GFCIs. 125V 15A and 20A receptacles installed in

machine rooms and machinery spaces shall have GFCI protection

647.7 Sensitive Electronic Equipment – GFCI protection required 8598, 8599, 8898, 8899

for 15A and 20A receptacles used as a means of

connecting equipment

680.22, 680.23(A)(3), (F)(3), GFCI requirements for swimming pools, fountains and similar 6593, 6893, 8590, 8598

680.24, 680.27(B)(2), 680.32, installations including spas, hot tubs, and therapeutic pools 8599, 8898, 8899

680.42, 680.43, 680.44, 680.51, and tubs. Requirements include GFCI protection of receptacles,

680.56, 680.57, 680.62, 680.71 equipment, lighting, signs.

NEC Codes for Commercial and Industrial Applications

22

Technical Information – Dimensional Drawings

15A SmartLock Advanced GFCI

8598/8599

2.70 (68.6 mm)

1.13

(28.6 mm)

1.53

(38.9 mm)

4.21 (106.9 mm)

FPO

2.70 (68.6 mm)

1.13

(28.6 mm)

1.53

(38.9 mm)

4.21 (106.9 mm)

2.70 (68.6 mm)

4.21 (106.9 mm)

1.13

(28.6 mm)

1.53

(38.9 mm)

1.70 (43.2 mm)

1.31

(33.4 mm)

1.53 (38.9 mm)

1.13

(28.6 mm)

4.21 (106.9 mm)

2.70 (68.5 mm)

TESTRESET

TEST RESET

FOLLOW DIRECTIONS

TEST BEFORE EACH USE

7.3 (185.4 mm)

(9.32 ± 2 mm) 2.50 (63.5 mm)

0.367± 0.07

2.40 (61 mm)

4.75 (120 mm)

5.12 (130 mm)

1.29

(33 mm)

1.60

(41 mm)

1.83

(46.5 mm)

.023 REF.

2.70 (68.6 mm)

1.70 (43.2 mm) 2.58 (65.5 mm)

1.77

(45.0 mm)

1.30 (33.0 mm) 1.13 (28.7 mm)

0.25 (6.4 mm)

1.43 (36.3 mm)

0.81 (20.6 mm)

RESET TEST

2.40 (61.0) 1.74 (44.2)

1.80 (45.7)

3.80 (96.5)

2.70 (68.6)

3.28 (83.4)

30202020202020

22.0 (559 mm)

12.0 (305 mm)

19.5 (495 mm)

12.0" (305 mm)

16.0 (406 mm)

1. Tdvjnd df gf bf h hhnr inkicvi kj ic lc

nuv vivj viv dvibefbbe grbrgbbbc agc

vni iv vida ivv grtbe gbgrb rgbrgna cj.

2. Rjldfjhfgbef edfbd fb edfbow vjsi nsv

md d f dfevev febfmk fefvefvb oeowd.

3. Mie dvk vvmls sajaefevb efbe fbvhfe

ml kkn uiqa;lc dvbef efvebssc vwvef

llakmbe fvfb efgefvefb efbefbefbef.

4. Mie dvk vvmls sajaefevb efbe fbvhfe

ml kkn uiqa;lc dvbef efvebssc vwvef

llakmbe fvfb efgefvefb efbefbefbef.

SAFETY INSTRUCTIONS

R

20A SmartLock Advanced GFCI

8898/8899 Blank Face GFCI

8590

SmartLock Combination Switch/

GFCI Receptacle 8299

20A Automatic Reset GFCI Cords

36591/66891 Right Angle GFCI Plug

6593/6893

High Current GFCI

8895

15A Automatic Reset GFCI Cords

26591/66591

Panel Mount GFCI 36596/36597/36895 The Box PB101/103

TESTRESET

TEST RESET

FOLLOW DIRECTIONS

TEST BEFORE EACH USE

6.70 (170.2 mm)

(9.32 ± 2 mm) 2.50 (63.5 mm)

0.367± 0.07

23

Technical Information – Dimensional Drawings

Screwless Wallplates

2.75 (69.9 mm)

1.31 (33.3 mm)

0.26

(6.5 mm)

4.61 (117.1 mm)

2.63 (66.8 mm)

All Single-Gang Standard Size Wallplates

4.50 (114.3 mm)

2.75 (69.9 mm) 0.25

(6.4 mm)

Nylon and

Plastic Metal

3.81 (96.8 mm)

0.19

(4.8 mm)

All Single-Gang Mid-Way® Size Wallplates

4.88 (123.8 mm)

3.13 (79.4 mm) 0.26

(6.6 mm)

Nylon and

Plastic Metal

3.81 (96.8 mm)

0.19

(4.8 mm)

All Single-Gang Oversized Wallplates

5.25 (133.4 mm)

3.50 (88.9 mm) 0.26

(6.6 mm)

Nylon and

Plastic Metal

3.81 (96.8 mm)

0.19

(4.8 mm)

Raintight While-In-Use Cover

5.05 (128.2 mm) 3.03 (77.0 mm)

4.63 (117.6 mm)

5.47 (138.8 mm)

24

Technical Information – Frequently Asked Questions

What Is Line/Load Reversal?

When the line and load leads are reversed

(right), the GFCI receptacle face is now wired

directly to the power coming from the panel,

completely bypassing the internal switching

mechanism. The face is not GFCI protected

and remains live even after the internal

switch opens. This is a potentially hazardous

condition, and the fact that the device appears

to be operating properly creates a false sense

of protection for end-users. UL now requires

a diagnostic indication to alert installers that

there is a line/load reversal.

What’s the Difference Between Line/Load

Reversal and Reversed Polarity?

Most modern plugs and receptacles are made

with one slot or blade larger than the other so

that there is only one way that a plug can be

inserted into a receptacle. If you try and insert

the larger blade of the plug into the narrower

opening in a receptacle, it will not fit. The

larger opening in a receptacle is where the neutral conductor should be attached and the smaller

opening is where the hot leg should be attached. It is possible that, due to a wiring error, the hot

and neutral conductors become reversed. This condition is called Reverse Polarity. Appliances

and other products plugged into a receptacle that has been wired with Reverse Polarity will still

operate. This does, however, present shock

hazards under certain conditions. A GFCI

receptacle will still trip if there is a ground

fault and a reverse polarity condition. More

importantly, a GFCI receptacle switches off

both the hot and neutral sides when it trips;

making sure that the hot leg is interrupted even

if it was mistakenly attached to the neutral side

of the receptacle.

As discussed above, line/load reversal refers to bringing in your power feed onto the incorrect

side of a GFCIs internal switching mechanism. The power feed must be connected to the line

terminals. When there’s a line/load reversal, the GFCI receptacle face will still be live even if the

device has tripped, creating a potentially hazardous condition.

Can You Install GFCIs in Non-Grounding Systems?

The first electrical circuits installed in homes were the 2-pole, 2-wire type, with "2-prong"

receptacles (2 parallel slots for the hot and neutral conductors). The only grounding point in

the 2-pole, 2-wire circuit is at the service entrance where the neutral conductor is grounded.

Experience proved that a single grounding point through the neutral conductor was not ideal for

electrical safety. This led to the installation of residential 2-pole, 3-wire circuits with a grounding

conductor, sometimes called the "equipment grounding conductor.” The grounding conductor

does not carry current during normal circuit operation. It is only connected to outlet boxes, chassis

and other non-current carrying components that may carry current in case of damage or defects in

the wiring system. The NEMA 5-15R grounding receptacle is typically used in residential 2-pole,

3-wire circuits. This "3-prong" receptacle provides a U-shaped grounding contact.

PC Board

N

Load Side

Terminals

Line Side

Terminals

Internal 2-pole switch

CORRECT WIRING

To downstream

receptacles

Power in from panel

GFCI Receptacle Face

connected directly to

load side terminals

GFCI Receptacle Face

connected directly to

load side terminals

Power reaches GFCI

receptacle face before

going through switch – GFCI

receptacle is always live

PC Board

N

Load Side

Terminals

Line Side

Terminals

Internal 2-pole switch

Line/Load Reversal

WRONG!

To downstream

receptacles Power in

from Panel

When the GFCI is wired correctly, power will be fed to the line side

terminals, through the internal switching mechanism to the GFCI receptacle

face and any downstream receptacles. When the internal switch opens,

power is disconnected from both the GFCI receptacle face and anything

connected to the load side terminals.

HOT NEUTRAL

NEUTRAL

CORRECT

REVERSED

POLARITY

HOT

POLARITY

25

Technical Information – Frequently Asked Questions

Although the National Electrical Code has required 2-pole, 3-wire grounding circuits for several

years, there are still many homes with 2-pole, 2-wire circuits and 2-prong receptacles. You cannot

simply bring these homes up to modern code standards by replacing non-grounding receptacles

with the 3-prong grounding types. A qualified electrician will have to verify that there is a

continuous ground path at each receptacle, which may require circuit rewiring. An alternate

solution is to install a GFCI in place of the non-grounding receptacle.

Section 406.3 (D) of the National Electrical Code permits a non-grounding type receptacle to be

replaced with a grounding type receptacle without a grounding connection. However, the

grounding receptacle must be GFCI-protected.

The diagram below shows a typical non-grounding (2-prong) receptacle replaced with a GFCI.

The GFCI must be marked, “No Equipment Ground.” The GFCI can feed through to a grounding

receptacle, which must be marked “GFCI Protected. No Equipment Ground.”

For increased electrical

safety, Leviton strongly

recommends installing a

GFCI in every non-

grounding circuit. A

ground wire provides

protection by offering a

parallel path back to

ground for any fault

current. Without a ground wire, fault current will try and take other paths to ground and a GFCI

will trip and cut power under these hazardous conditions. Ground faults are more likely to occur

in non-grounding circuits and a GFCI will help protect family members from this potentially

hazardous condition.

Can GFCIs Be Used in Circuits with a Shared Neutral?

Using a single neutral conductor for more than one circuit can be looked at as a way to save

money on wiring. Because a GFCI receptacle looks for a balance of current flowing in a single

hot conductor and a single neutral conductor, it will not operate properly when more than one

hot conductor is sharing a neutral downstream from a GFCI. Current flowing in the neutral from

the circuit not protected by the GFCI will cause the GFCI to see an imbalance typically associated

with a ground fault and the GFCI will trip. A hazardous condition would exist in the circuit not

protected by the GFCI as it may appear as

though the power is off even though the

hot leg is still live. In circuits wired this

way, the neutral needs to be split at or

before reaching the GFCI receptacle and a

dedicated neutral must be run from the

GFCI receptacle to all downstream

receptacles protected by the GFCI.

Why Must GFCI Cord Sets Have Open-Neutral Protection?

Open-Neutral Protection immediately trips the GFCI if the neutral conductor on the line side is

opened. This eliminates the possibility of the GFCI Cord Set delivering power to the load if the

GFCI cannot trip in the event of a ground fault. Open Neutral Protection requires the addition of

special components to the standard GFCI circuitry. Permanently wired GFCI receptacles do not

require this feature, because their line-side conductors are not exposed to physical damage. In all

temporary power situations, where flexible cord feeds the line side of a GFCI, there is always the

risk of an open-neutral condition. Therefore, UL requires open-neutral protection for all Class A

GFCI cord sets.

L2

N

L1

GFCI

Incorrect use of GFCI with Shared Neutral – GFCI will trip

Receptacles

26

SmartLock® GFCI Packaging and Merchandising

SmartLock® GFCI Packaging – Have It Your Way

SmartLock®GFCIs are available in five different packages. Most have windows that reveal

device color, button color, amperage, and “the lock” on each device, ensuring that you have

an authentic SmartLock GFCI.

Without Wallplate: With Wallplate

• Single-Unit Boxed • Decorative GFCIs with Matching Buttons

• 3-Pack Boxed • Child Safety GFCIs with Red/Black Buttons

• Contractor Packs with Red/Black Buttons or Matching Buttons

Leviton Merchandising Maximizes GFCI Sales

Leviton offers a sensational choice of eye-catching display vehicles to show your customers

that you care about electrical safety. Our large selection of merchandisers includes headers

and signage promoting the importance of GFCI devices, as well as Take-One pamphlets and

hang-cards that educate your customers and employees. Let Leviton’s broad GFCI support

program put you on the fast track to profits.

Take-One Pamphlets explain

why GFCIs are important and

provide valuble monthly

testing instructions.

Cat. No. 209-00RTL-SL

Ceiling Mobile. 3-sided mobile

includes hardware.

Measures 18"h x 18"w x 18"d

Cat No. 000-MOBIL-SML

Counter Display for Take-One

Pamphlets and mounted

products. (Product and literature

must be requested separately.)

Cat. No. 000-17001-COP

27

Counter Display adjusts to 1, 2 or 3 tiers.

Holds 16, 36 or 60 boxed GFCIs.

(Products must be ordered separately.)

Cat. No. 002-3TIER-MT

Measures: 20"h x 11.25"w x 12"d

Labels for display: Cat. No. 004-3TIER-SL

Gravity Feed Displays accommodate

boxed or clamshell packaging (shown).

Ideal for cross-merchandising and promotions.

(Products must be ordered separately.)

Cat. No. 602-0GRAV-GFI (boxed)

Measures: 47"h x 3"w x 4.5"d (boxed)

Cat. No. 603-0GRAV-CS (clamshell)

Measures: 49.25"h x 4.5"w x 7"d (clamshell)

2-ft. Header explains the benefits of GFCIs.

Cat. No. 013-16050-GFI

Measures: 24"w x 12"h

Vertical Signs accommodate

Standard or Kiddy Cop versions.

Product mounts to sign.

Cat. No. 006-0VERT-SL (Inserts)

Cat. No. 006-0VERT-HLD (Holder)

Measures: 24"h x 6"w x 2.5"d

SmartLock® GFCI Packaging and Merchandising

Pallet Displays are ideal for cross-

merchandising and promotions.

Holds up to 200 GFCIs.

(Products must be ordered separately.)

Cat. No. 816-16050-SL

Measures: 48"h x 13"w x 18.75"d

Laminated Hang Card hangs from Gondola

or Racking and provides information to

consumers. Fasten with beaded chain

(not included).

Cat. No. 221-00RTL-SL

©Copyright 2003 Leviton Manufacturing Co., Inc. All rights reserved.

G-5468R/I3-25M tp

I-3

For more information on Leviton GFCI devices or

any of our products, please contact us:

Leviton Manufacturing Co., Inc.

59-25 Little Neck Parkway, Little Neck, NY 11362-2591

Telephone: Distributors: 1-800-323-8920 • Retailers: 1-800-367-5424

FAX: 1-800-832-9538

Tech Line (8:30AM-7:30PM EST Monday-Friday): 1-800-824-3005

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R 1E9

Telephone: 1-800-469-7890 • FAX: 1-800-563-1853

Visit Leviton’s Web site at www.leviton.com

Distributed By
