Industrial

Heat Tracing

Products and Services

Heat Tracing Temperature Measurement

Services

Wiring Products

Floor Warming Specialty Heaters

Leak Detection

A Solutions Company

Tyco Thermal Controls is the world leader in heat-

tracing products and solutions for the industrial,

commercial and residential markets. Employing over

2,000 people globally, Tyco Thermal Controls has the

experience and product breadth to meet your heat-

tracing requirements.

Worldwide Approach

With operations in 48 countries and worldwide

experience, Tyco Thermal Controls supports your

project efforts anywhere, anytime. Whether it’s top-

notch products or turnkey services, Tyco Thermal

Controls has the solution.

The Market Demands—We Supply

From Heat-Tracing Systems, Specialty Heaters and

Floor Warming to Wiring, Temperature Measurement,

and Leak Detection, we are able to offer innovative

solutions worldwide. Furthermore, we proudly provide

Turnkey Services for each—WORLDWIDE!

We manage the heat you need™

1

For every heat-tracing need, depend on the undisputed industry leader.

Tyco Thermal Controls stands as the world leader in heat-tracing

solutions for the industrial, commercial, and residential markets. An

innovative company, Tyco Thermal Controls offers top-notch products

and turnkey services under such industry renowned names as

Raychem,® Tracer,® Pyrotenax,® and DigiTrace.®

We offer the most complete line of heat-tracing systems and have

manufactured over one billion feet of heating cable. As the inventor

of self-regulating heat tracing, our Raychem brand is known for

technical expertise in polymer science and radiation cross-linking—

both critical parts of the process. Also an industry leader in the

manufacture of mineral insulated cables, Tyco Thermal Controls is well

known for its Pyrotenax brand.

Tyco Thermal Controls’ DigiTrace brand offers the most complete line of

heat-trace control and monitoring systems-from single circuit mechanical

thermostats to multi-circuit, microprocessor-based networked systems.

Our DigiTrace Supervisor software links your control and monitoring

system back to a PC for centralized control system monitoring.

Our Services Division, is widely regarded as the premiere provider

of turnkey heat-tracing solutions in the industrial market today.

Offering turnkey engineering, design, construction and maintenance,

Tyco Thermal Controls is capable of handling heat-tracing projects

of any size and scope. By focusing on safety and utilizing the value-

added capabilities made available by Raychem, Pyrotenax, Tracer, and

DigiTrace products, Tyco Thermal Controls heat-tracing installations

are timely, thorough, and cost-effective.

With operations in 48 countries and worldwide experience, Tyco Thermal

Controls can support your project efforts anywhere in the world.

2

Heat-Trace Panel

(may include circuit

breakers, controllers

and alarms)

Transformer

Lighted End Seal

Cable Tray

Note: The illustrations on

these pages do not necessar-

ily depict actual applications

and installations.

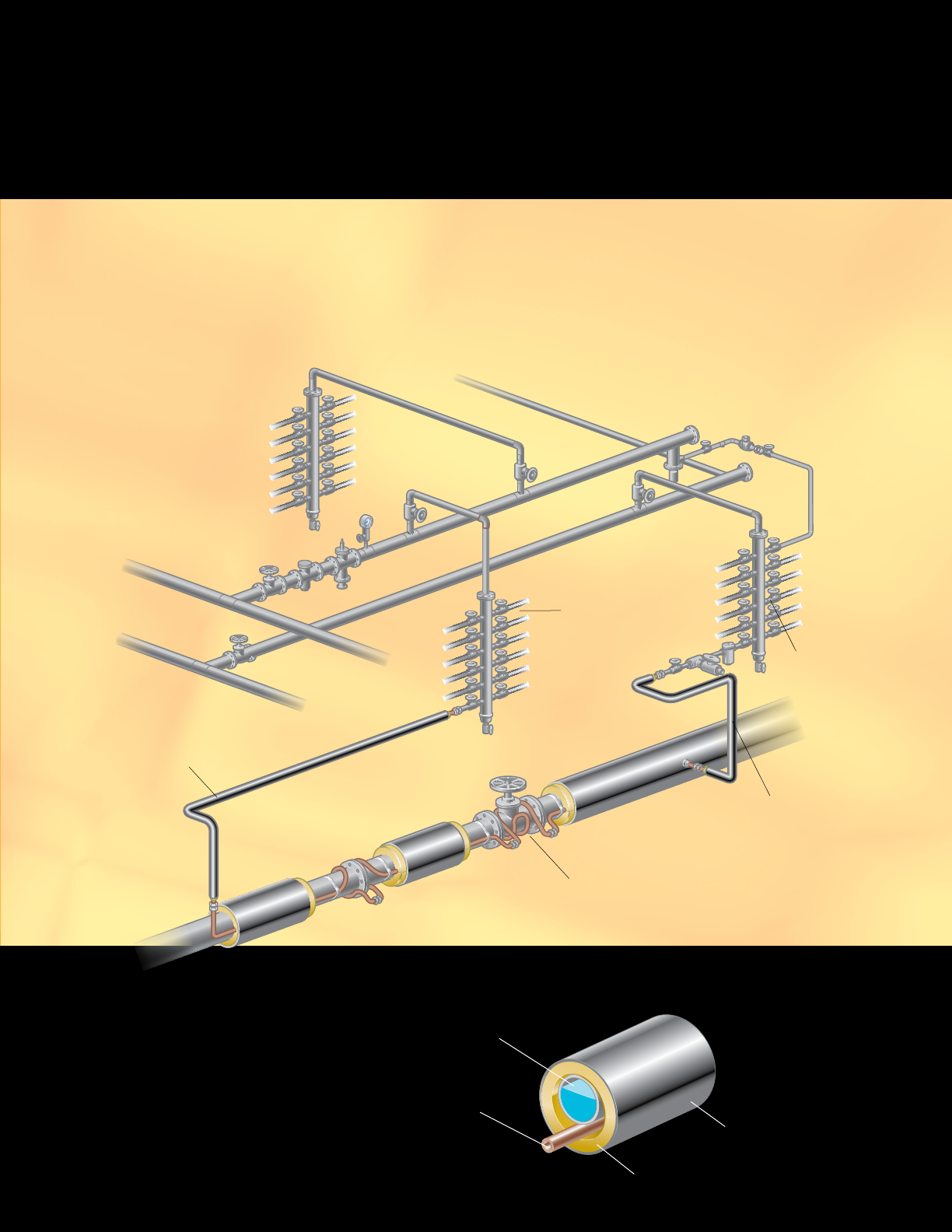

A typical cross

section of an electrically

heat-traced pipe.

Electric Heat-Traced Pipe

Fluid

Heating

cable

Insulation

Cladding

Power Connection

Heating Cable

Field Mounted

Thermostat or Controller

(when required)

Electric Heat-Tracing Systems

A complete electrical heat-tracing system is much

more than just the heating cable. Tyco Thermal

Controls can provide a complete system from

electrical transformer and heat-trace panel to power

connections, heating cable, end terminations, glass

tape and warning labels. We can supply the individual

components, provide engineering and design and

even install and maintain the entire system.

3

A typical cross section of a

steam-traced pipe.

Steam-Traced Pipe

Fluid

Copper or

stainless

steel tubing

Insulation

Cladding

Steam Supply

Steam Supply

Manifold

Steam-Tracing

Condensate

Return

Manifold

Condensate

Return

A steam-tracing system may be chosen for a particular

site or process consideration. A complete system

can consist of a steam supply source, steam tubing,

valves, traps, and return lines. Tyco Thermal Controls

can supply a complete steam-tracing system from

engineering, design, material supply and installation.

Steam-Tracing Systems

Services

A Heat Management System (HMS) is an engineered system designed

to maintain or protect process piping, equipment, vessels and

instrumentation at pre determined temperatures and within defined

design criteria.

4

“Providing a heat-tracing system means

more to us than just supplying a heat

source for your application.”

POST-INSTALLATION SERVICES

MAINTENANCE

AUDIT

HEAT DELIVERY SYSTEM

CONTROL & MONITORING

UTILITY DISTRIBUTION

THERMAL INSULATION

INSTRUMENT WINTERIZATION

PROCUREMENT & FABRICATION

ENGINEERING & DESIGN

PRE-PROJECT PLANNING (P3)

ENGINEERING

QUALITY ASSURANCE/

QUALITY CONTROL (QA/QC)

FIELD COORDINATION

COMMISSIONING & START-UP

INSTALLATION

SUPERVISION/MANAGEMENT

MATERIALS MANAGEMENT

PROJECT CONTROLS

SITE SERVICES

HEAT MANAGEMENT SYSTEM

Engineering

We believe every project requires a solution-oriented mindset from a service/

product provider. Through early involvement in the project cycle, we can

offer optimization techniques to reduce the total installed cost of your heat-

tracing system.

Tyco Thermal Controls designs Heat Management Systems using state-of-

the-art design tools that standardize the engineering process and ensure that

designs are optimized and executed in accordance with standard design

processes and procedures.

Tyco Thermal Controls

provides our customers

with thorough turnover

documentation at the

conclusion of each project

to make the hand-off from

construction to operations

as smooth as possible.

5

Safety

Safety is our number one concern. We are recognized as a

leader in the industry in safety performance by consistently

challenging the norm through safety innovations including

training and motivational programs. Committed to safety

through proactive safety

management techniques.

Warm Pipe Warranty

By allowing Tyco Thermal Controls to handle all of the engineering, design, and

construction of your heat-tracing system, we can provide you with a Warm Pipe

Warranty, ensuring that the system operates as specified.

W

A

R

M

P

I

P

E

W

A

R

R

A

N

T

Y

Procurement & Fabrication

Tyco Thermal Controls manufactures a wide range of heat-tracing products and

components for the most demanding heat-tracing applications. We can order, ship and

receive materials for you. Heat Management System components include:

 Heat Delivery System which is either electrically powered or transfers heat through

re-circulating fluids such as glycol, steam or hot oil.

 Control & Monitoring System of the heat delivery system.

 Utility Distribution System which can be electricity, steam/condensate, hot oil, or

glycol to the heat delivery system.

 Thermal Insulation System installed over the heat delivery system.

 Instrument Winterization in the form of pre-packaged instrument enclosures and

pre-traced/pre-insulated tube bundles.

Comprehensive design

capabilities include all

aspects of electric and

circulating fluid tracing

systems

Site Services

Using Tyco Thermal Controls Site Services allows you to maintain a single point of

responsibility and accountability through the entire Heat Management System process,

and you ensure continuity of project knowledge from engineering through start-up.

We can manage all the necessary services you need: Engineering, Procurement,

Construction, Construction Management, Quality Assurance, or any variation thereof.

Post-Installation Services

Initiating a Heat Management System audit,

or implementing a maintenance agreement,

provides you with the security of having

your system regularly evaluated by experts

in the heat-tracing industry, allowing timely

resolution of potential system problems.

Quality Assurance & Quality Control (QA / QC)

Tyco Thermal Controls’ Quality Management System addresses all processes including

the design, supply, installation, and commissioning to ensure your Heat Tracing

System is operating as intended when commissioned.

We manage the heat

you needTM

SELF-REGULATING CABLES

The preferred choice for most complex pipe-tracing applications.

Heat-Tracing Products

6

Our industrial heating cables are backed by

a ten-year extended warranty!

Raychem XTV fiber-wrap cable

provides process temperature

maintenance up to 250°F (121°C)

and withstands intermittent

exposures to 420°F (215°C).

Raychem QTVR cable provides

freeze protection and process tem-

perature maintenance, maintaining

and withstanding exposure

temperatures up to 225°F (110°C).

Raychem BTV cable provides freeze

protection on metal and plastic

pipes, maintaining temperatures

up to 150°F (65°C) and withstand-

ing exposure to 185°F (85°C).

Tyco Thermal Controls offers the industry’s most complete line of heat-

tracing products to meet every need—for everything from pipe freeze

protection to high temperature process maintenance.

POWER-LIMITING CABLES

For applications exceeding

the temperature range of self-

regulating cables.

Raychem VPL heating cable main-

tains temperatures greater than

300°F (150°C) and withstands

continuous exposure to 500°F

(260°C), power off.

Note: These photos and illustrations

do not necessarily depict actual applications

and installations.

MINERAL INSULATED CABLES

For high temperature applications.

Pyrotenax MI cable maintains

temperatures up to 1022°F (550°C)

and withstands continuous exposure

to 1200°F (650°C).

7

ADVANCED HEAT-TRACING COMPONENTS

Raychem power connections, tees, and splices are vital parts of

any heat-tracing system. These high-quality advanced components

are easy to install and will deliver reliable service. All install without

a torch, heat gun, or messy sealants!

• Spring clamp terminals provide reliable connection and allow easy

reentry.

• The power connection installs in less than 10 minutes, using

only standard cable-stripping tools and a screwdriver.

• High-intensity LED lights are available with our power con-

nections and end seals to provide visual monitoring of system

power and continuity.

LONGLINE HEATING

Choose from the most complete

selection of longline heat-tracing

systems and technologies.

Circuit lengths can vary from

500 feet (152.4 meters) to over

15 miles (24 kilometers):

• Raychem Self-regulating systems,

LBTV, SLBTV and VL cables

• Raychem Series resistance

systems, SC cables

• Pyrotenax MI mineral insulated

cables

• Tracer STS skin-effect system

SNOW AND ICE PREVENTION

• Raychem self-regulating heating cables are

installed in concrete to prevent dangerous

icing on loading ramps, walkways, entrances,

and driveways.

• Raychem heating cables are installed on roofs

and gutters to prevent hazards and property

damage caused by ice buildup.

Both systems automatically adjust their heat

output in response to ambient temperatures, for

better reliability and energy efficiency.

• Pyrotenax mineral insulated cables are

installed in concrete and asphalt and provide a

constant heat output.

TANK HEATING

Choose from tank pad heaters and

heating cables for tank and vessel

heating solutions.

• The Raychem RHS tank heating

system maintains tank tempera-

tures up to 200° F (93°C). Heaters

are available from 150 watts to

1,400 watts.

• RHS-L heaters can be used

on polypropylene, FRP, and metal

tanks.

TUBING BUNDLES

Raychem tubing bundles (RTB)

offer a cost-effective alternative to

traditional field tracing and insulating.

• Pre-traced and pre-insulated tubing

bundles for such applications

as impulse, sample, and process

lines

• Choice of single or dual tubing

in stainless steel, monel, copper,

PFA Teflon, or other materials

• Choice of electric or steam-traced

bundles

Cold Pipe: In response

to cold, the core or

fiber contracts micro-

scopically opening up

electrical paths.

Copper

bus wire

BTV and QTVR

heating cables

share a similar

construction as

illustrated at right.

XTV heating

cables feature

a fiber-wrap

construction

that can easily

be cut back

for power

connection and

termination.

Self-

regulating

conductive-

core heating

element

Insulating

jacket

Braided

tin-copper

shield and

outer jacket

Copper

bus wire

Self-

regulating

conductive

fiber

Insulating

jacket

Braided

tin-copper

shield and

outer jacket

Warm Pipe: In response

to warmth, the core or

fiber begins to expand

microscopically disrupt-

ing the electrical paths.

Hot Pipe: The core or

fiber expands enough

to disrupt almost all

of the electrical paths.

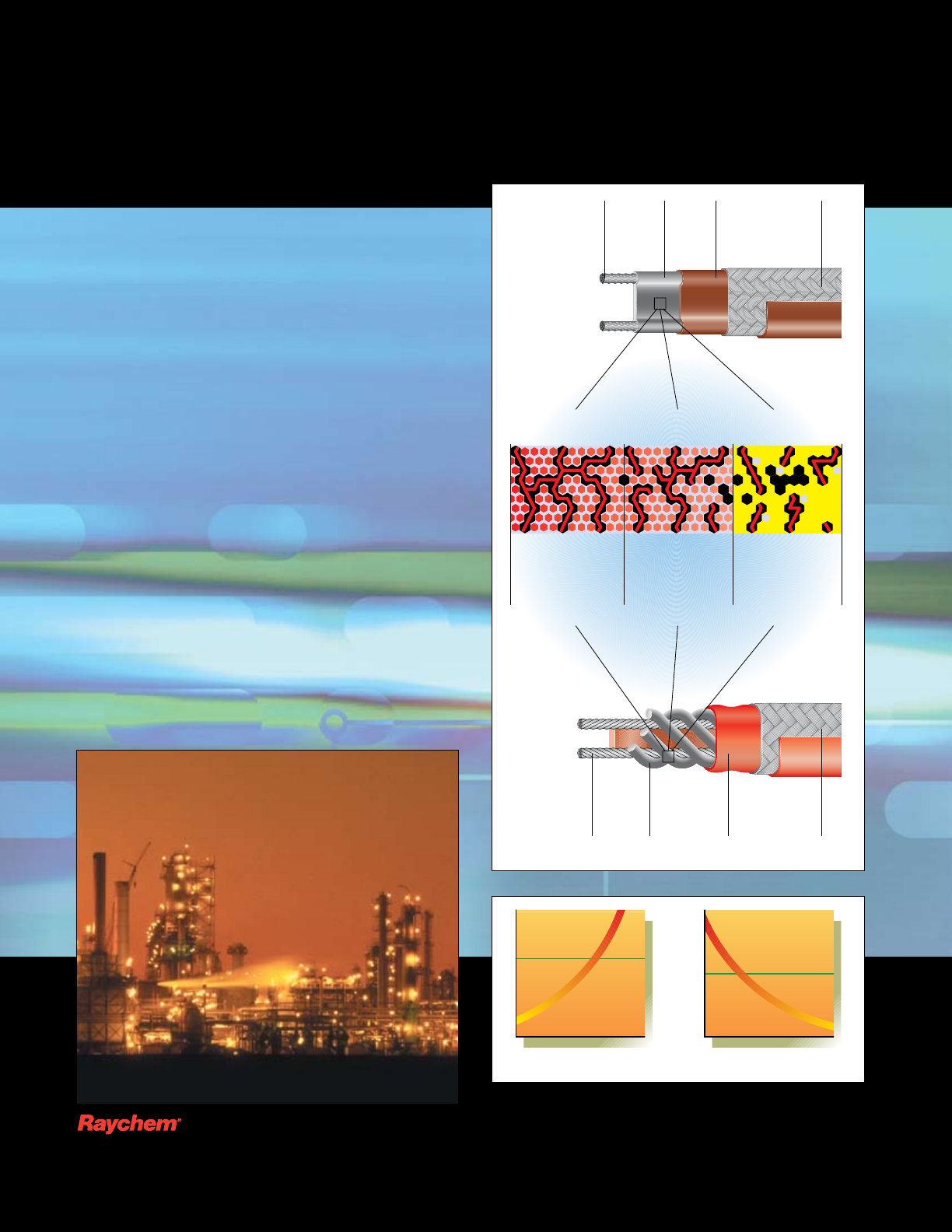

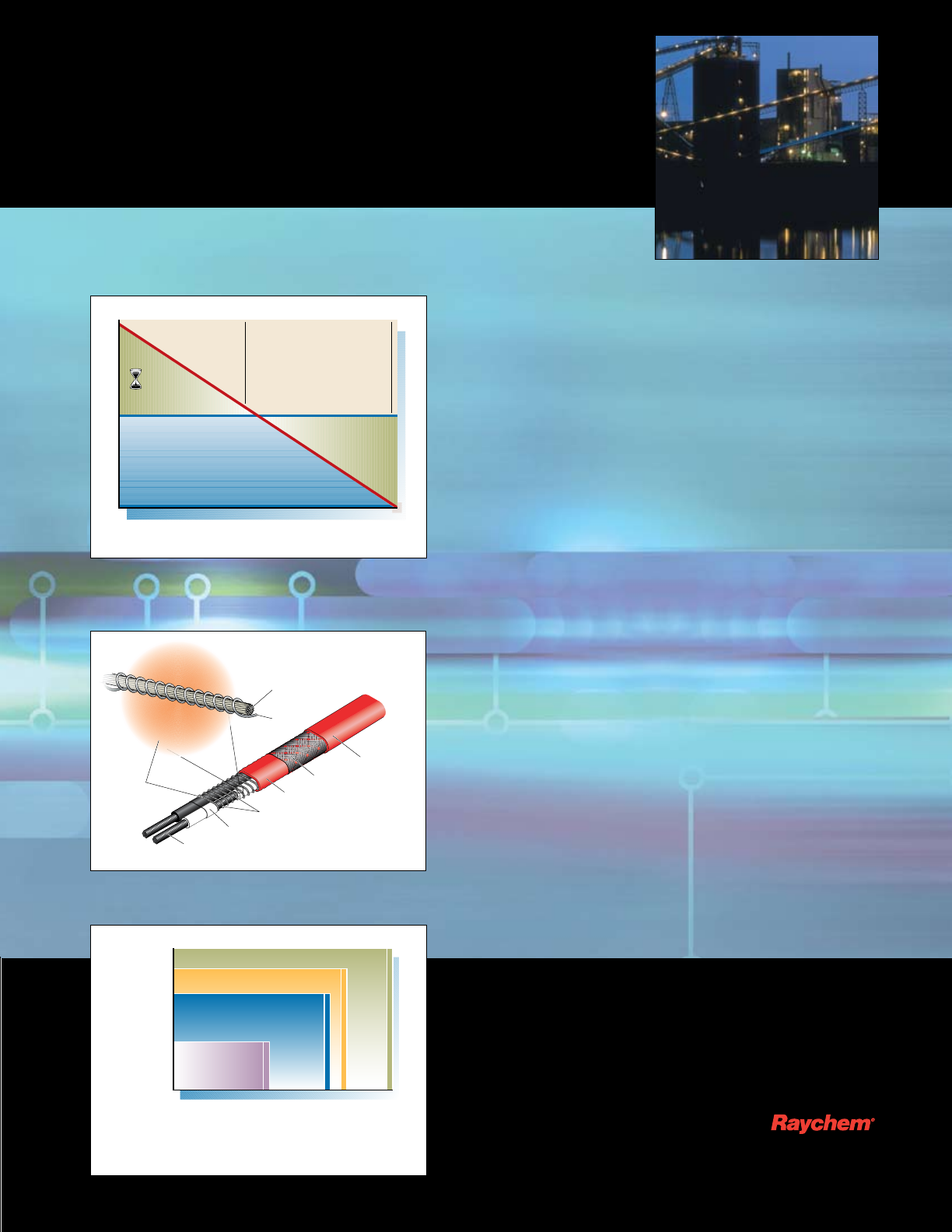

How self-regulation works in the Raychem conductive-polymer heaters:

Temperature

Resistance

Temperature

Power

Constant Wattage

Constant Wattage

8

Innovative Heat-Tracing Technologies

Tyco Thermal Controls self-regulating and power-limiting systems

consist of insulated electric heating cables with voltage applied

to two parallel bus wires. This enables the cables to be cut to

any length, then spliced and “teed” in the field.

SELF-REGULATING TECHNOLOGY

This technology was used in designing the two types of self-

regulating, polymeric heating elements illustrated at right.

In both the monolithic (solid core) and fiber wrap products, the

heating element is made of polymer mixed with conductive

carbon. This special formulation of materials creates an electrical

path for conducting current between the parallel bus wires along

the entire cable length.

In each heating cable, the number of electrical paths between

the bus wires changes in response to temp erature fluctuations.

As the temperature surrounding the heater decreases, the

conductive core or fiber contracts microscopically. This contraction

decreases electrical resistance and creates numerous electrical

paths between the bus wires. Current flows across these paths

to warm the core or fiber.

As the temperature rises, the core or fiber expands microscopically.

This expansion increases electrical resistance and the number

of electrical paths decreases. The heater automatically begins to

reduce its power output.

The graphs above illustrate the response of self-regulating

heating cables to changes in temperature. As the

temperature rises, electrical resistance increases, and our

heaters reduce their power output.

Temperature

Power Output

Rapid Startup

Energy Savings

$

Raychem

Self-Regulating

Systems

Conventional

Heating

Cables

Fluoropolymer outer jacket

Fluoropolymer inner jacket

Bus wire connection

Clear jacket

Nickel-plated bus wires

Metal braid

Power-limiting

heating element

Fiberglass yarn

PTC alloy

Exposure Temperature

Maintenance Temperature

Asphalt

Sulfur

Fuel Oil

Caustic Soda

Water

Mineral Insulated - MI

Power Limiting - VPL

Self Regulating

Fiber - XTV

Self Regulating

Monolithic

BTV, QTVR

Water Treatment

Food

Primary Metals

Refining

Pulp and Paper

Chemicals

Utilities

9

Tyco Thermal Controls self-regulating systems offer:

Easy installation Parallel circuitry and flat cable design makes Raychem

heat-tracing systems easy to handle and install. They may be cut

to length on site, and overlapped at valves, flanges, and instruments.

Rapid start-up Provides high power output as needed. This means fast start-

up—and less downtime—when pipes or other application surfaces are cold.

Reduced operating costs The system compensates for variables

such as heat sinks, as well as fluctuations in voltage and temperature.

Heat is automatically supplied only when and where needed.

Uniform temperatures Because the heater senses and responds to

actual conditions along the pipe, the system automatically accommodates

variations due to static fluid and differing elevations.

Unconditional T-ratings Our self-regulating heating cables offer uncondi-

tional T-ratings, as specified by the National Electrical Code, article 500-8 (B).

POWER-LIMITING TECHNOLOGY

• The power-limiting VPL heater is based on a coiled resistor alloy-

heating element wrapped around two parallel bus wires. The

resistance of this heating element increases as its temperature

increases, creating a positive temperature coefficient (PTC) effect.

• The PTC effect results in a decrease in power output at elevated

temperatures. This allows the VPL to cross over itself without damage

from overheating.

Choose the right technology for your heat-tracing application.

Tyco Thermal Controls offers the greatest selection in self-

regulating, power-limiting and mineral insulated heating cables.

10

Multipoint Control and Monitoring Systems

DigiTrace multipoint control and monitoring systems provide scalable

solutions for both hazardous and nonhazardous locations. The systems sense

pipe or tank temperatures to provide tight control in process temperature

maintenance or critical freeze protection applications. They also feature

continuous monitoring technology to detect heat-tracing faults, monitor heat-

tracing current and provide networking capabilities.

DigiTrace NGC-30 This microprocessor-based controller represents Tyco

Thermal Controls next generation controllers. The User Interface Terminal

(UIT) utilizes touch screen technology to simplify programming, monitoring

and fault identification. The NGC-30 systems with the UIT are approved for

use in both hazardous and nonhazardous locations. This system can support

up to 260 heat-tracing circuits and is compatible with the RMM2 temperature

monitoring module. Each heat-tracing circuit can be independently

programmed to provide maximum system flexibility.

Features:

• Control and monitoring with high/low current and temperature alarms

• Meets NEC requirements for ground-fault trip protection

• Up to 60-Amp solid-state relays or mechanical contactors

• Communication with host system over Ethernet or an RS-485 twisted pair

• RTD failure alarm

• Can be located in Hazardous Class I Div 2 hazardous locations

DigiTrace T2000 This microprocessor-based controller uses a single con-

trol card per heat-tracing cable architecture to maximize system reliability.

The singlepoint T2000 control modules are easily inserted into a rack

assembly as circuits are added. Individual circuits may be locked out or

changed without affecting other circuits. Optional hand-held programmer

available for both hazardous and nonhazardous locations allows for local

digital communications.

Single- and Dual-Point Control and Monitoring Systems

DigiTrace 910 and 920 Both the 910 (single-point controller) and the 920

(dual-point controller) provide the same features as the T2000 multi-circuit

controllers. These controllers are designed for use when just a few lines

of heat-tracing are required. Both controllers are available for hazardous

and nonhazardous locations, and are fully compatible with the DigiTrace

Supervisor software.

DigiTrace JBS-100-ECP-A and JBS-100-ECW-A These electronic temperature

controllers provide accurate control of a single heating circuit using a RTD sen-

sor. The JBS-100-ECP-A is pipe-mounted and serves as a power connection

kit for both Raychem self-regulating and Pyrotenax mineral insulated heating

cables. The JBS-100-ECW-A is wall-mounted, and may be used with all types of

heating cables. Both the JBS-100-ECP-A and JBS-100-ECW-A have adjustable

set points between 32°F to 425°F (0°C to 218°C), power input of 120 Vac to

277 Vac and switches current up to 30 A.

A local display allows for monitoring of set point, actual temperature and also

indicates alarm conditions. These units are c-CSA-us (certified to U.S. and

Canadian Standards) for use in nonhazardous locations.

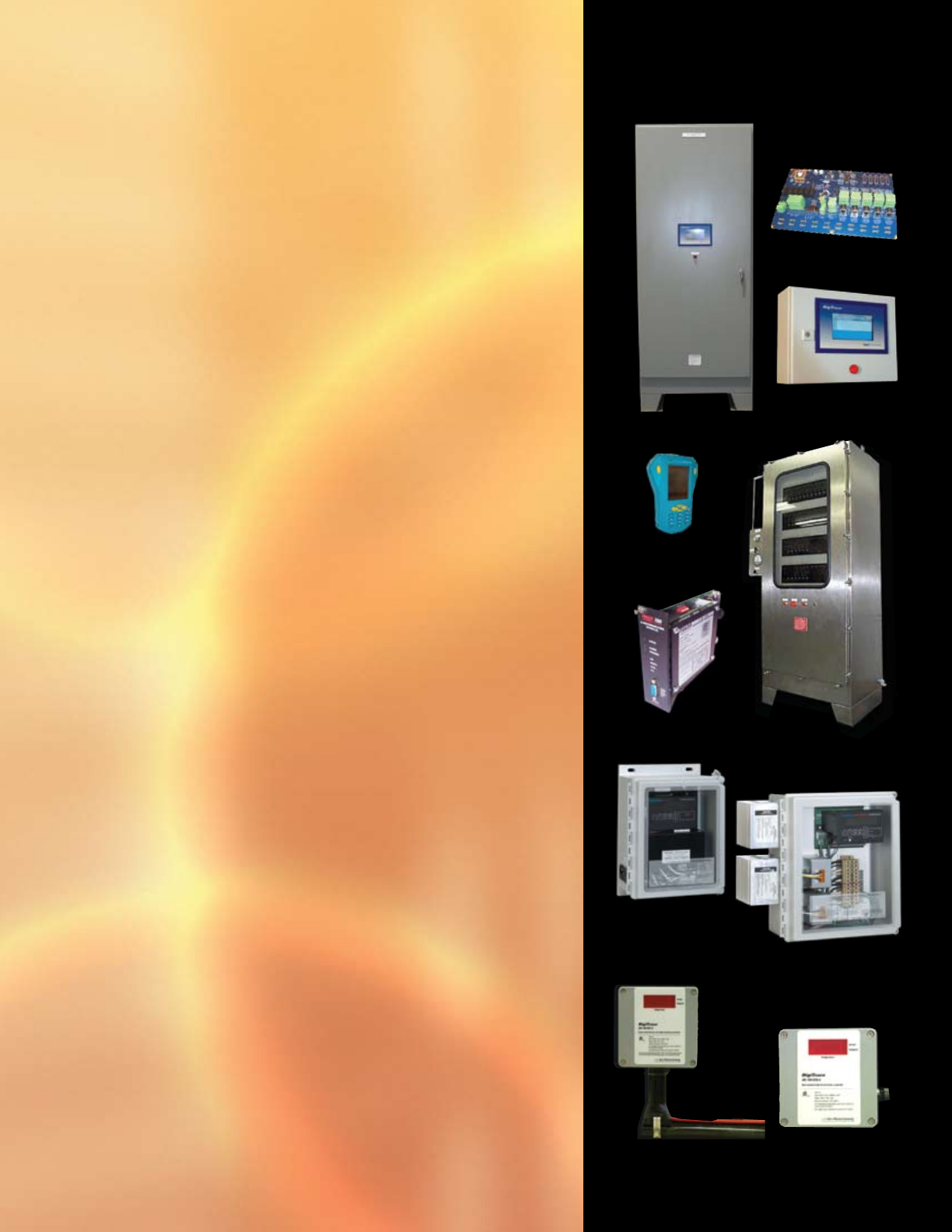

Advanced Heat-Tracing Control and Monitoring Systems

Portable

programmer

920 series

910 series

JBS-100-ECW-A

JBS-100-ECP-A

CM2000+ T2000

NGC-30

Remote

Mount UIT

CRM/CRMS

11

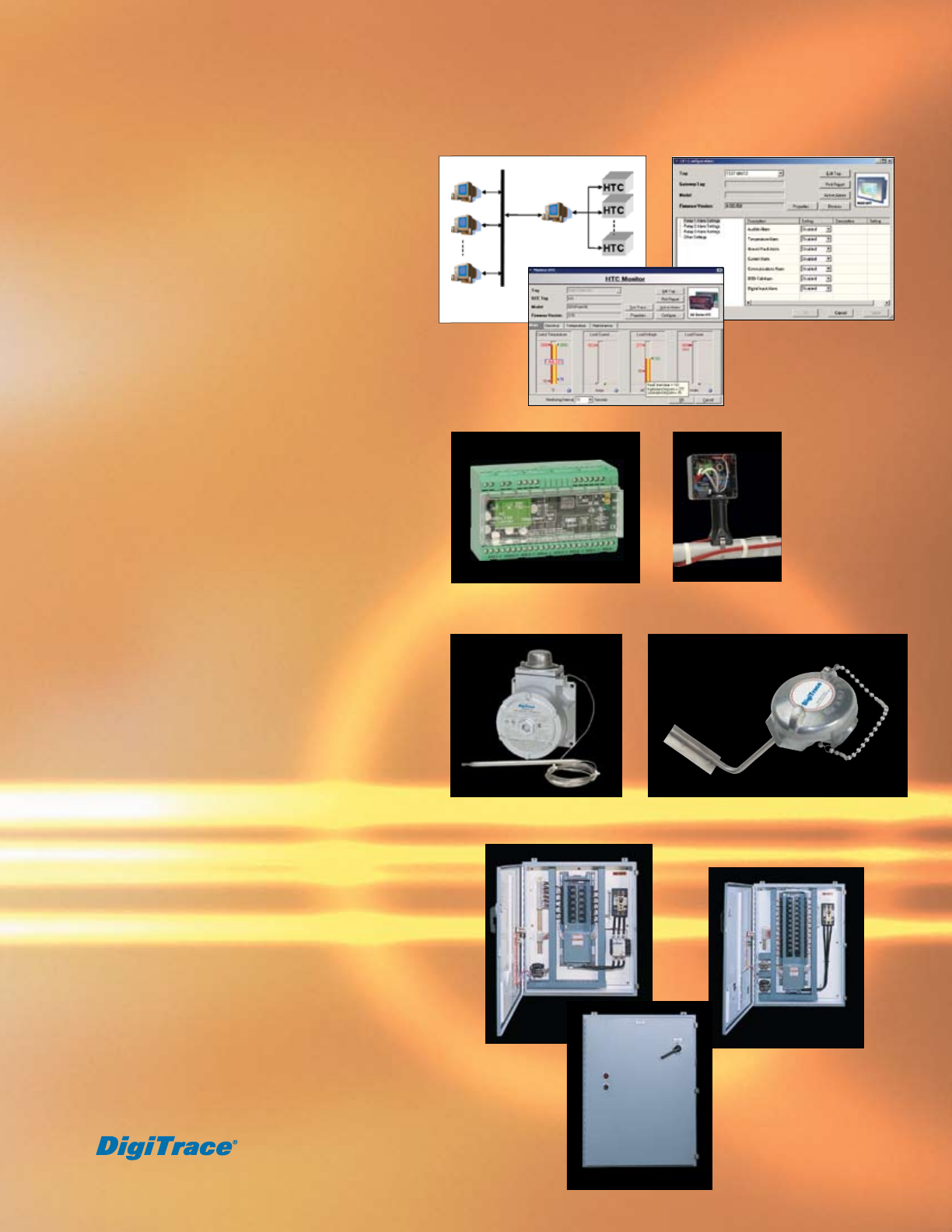

Additional Heat-Tracing Controls and Heat-Trace Panels

Heat-Trace Panels

DigiTrace dedicated power-distribution panels can

reduce costly field wiring and reduce controller costs.

Choose from a complete line of dedicated heat-tracing

power distribution panels. Each is available with:

• Group or individual circuit control

• Standard circuit breakers, ground-fault breakers, or

ground-fault breakers with alarm

Supervisor Software

The DigiTrace Supervisor software enables

users to interface with field installed DigiTrace

NGC-30, 910, 920 and T2000 control Systems.

The Windows®-based Supervisor software can

be used to program individual units or groups

of units, monitor, check, and record alarm status,

data log, and generate reports.

Thermostats and RTDs

DigiTrace simple ambient and line

sensing mechanical or electronic thermostats are for

use in nonhazardous and hazardous locations.

Also choose RTDs for nonhazardous and hazardous

locations as well as low and high temperature

applications.

Remote Temperature Monitoring

DigiTrace Control and Monitoring Systems

are supported by remote temperature

monitoring devices. These devices are

designed to help reduce costs by eliminating

home runs for RTDs. The devices are

available for hazardous and nonhazardous

locations.

RMM2 SES

E507S-LS RTD4AL

HTPI

HTPG

12

Engineered Products

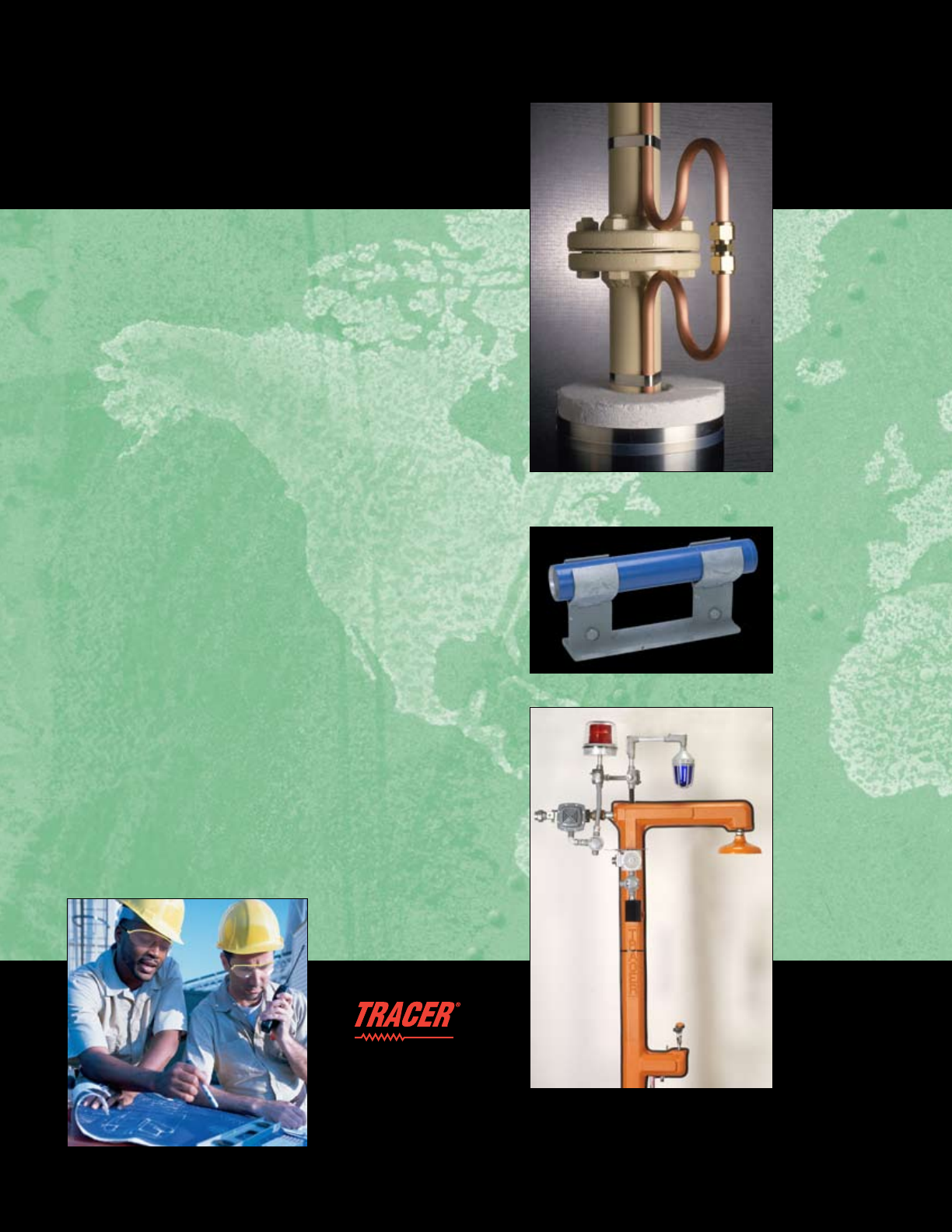

Steam-Tracing Systems

Providing complete steam-tracing and recirculating fluid-

tracing systems, Tyco Thermal Controls Services include not

only installation, but also isometric detail drawings with heat-

tracing parameters and calculations, typical and project specific

installation details, nameplate and tagging schedules, complete

system Bill of Material generation, and post-construction “as-built”

documentation. These, along with established project management

techniques, ensure your steam-heating system performs as

required.

Pipe Shoes

The Interlock™ clamp-on pipe shoe is a patented pipe support design

that eliminates field welding requirements for pipe supports,

which is a significant benefit in heat-tracing design and construction.

It can be used on all pipe applications, including bare pipe, painted

pipe, insulated pipe, and heat-traced pipe.

Pre-traced Pre-Insulated Safety Stations

ShowerGuard™ pre-traced, pre-insulated safety shower/eyewash unit

is designed to minimize field installation requirements and eliminate

the numerous disadvantages associated with field installations of

electric heat-trace cable, insulation, and moisture-barrier jacketing.

Tyco Thermal Controls offers a wide array of engineered products

for the industrial market. Each product is designed to add value to

even the simplest of heat-tracing installations.

13

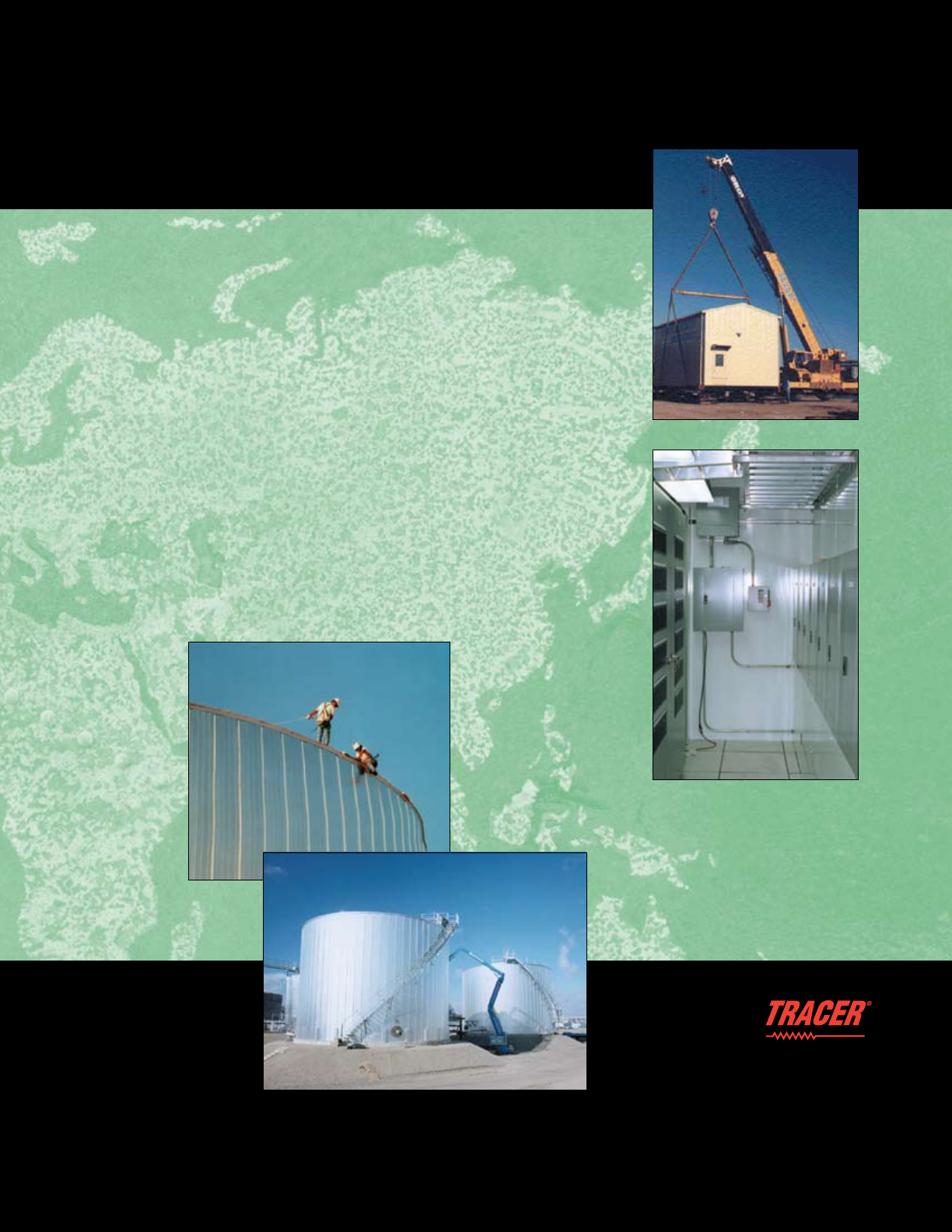

Pre-Fabricated EHT Buildings

Systems containing a large number of heat-tracing circuits

contained within a small amount of real estate may benefit from

the use of a Pre-Fabricated EHT building. These buildings

provide a common location for heat-trace controllers and power

dis tribution. They may also include dedicated heat-trace trans-

formers and dedicated control and monitoring software, as well

as provide a well-organized, comfortable area in which to service

your heat-tracing system. Additional benefits include reduced

power distribution and control wiring as well as greatly reduced

field construction cost and scheduling concerns.

Tank Insulation Systems

Trac-Loc™ standing lock seam insulation system delivers

structurally superior, maintenance-free, and lower-cost insulation

than conventional tank insulation methods.

14

Web Services and Software

Visit www.tycothermal.com

All the tools and information you need to

design, select, and purchase a complete heat-

tracing system. Use our Web-based program,

or download design software to use off-

line. Download, print, or browse product data

sheets and installation instructions.

Design On-Line

TraceCalc Net is an on-line tool that walks you through heat trace

design in three simple steps:

• Finding the right products for your application

• Choosing quantities for a complete bill of materials

• Selecting optional control and monitoring systems

On-Line Technical Support

On our interactive frequently asked questions and answers (FAQ)

page, you’ll find questions broken down by markets and product lines.

If your question does not appear, simply submit a new question.

A Tyco Thermal Controls technical expert will answer your question and

post it to the Web site.

Download Design Software

Save time with TraceCalc® Pro.

This software provides complete

heat-tracing designs for

pipes, tanks and vessels

in a fraction of the time

needed for manual design.

15

We manage the heat you needTM

Before you buy, weigh the facts:

The leading full-service integrator Nobody puts the

entire system together better. By optimizing Heat-Tracing,

Insulation and Power Distribution requirements with an

unbiased selection of technologies, our turnkey services

will bring your project predictable, reliable results.

Greater selection Offering the most complete product

line of proven heat-tracing technologies to better satisfy

your unique needs.

More innovation As a world leader in heating cable

technologies, heat-tracing design optimization, construction,

and control and monitoring systems we invented many of

today’s industry standards.

More manufacturing experience Quality-driven manu -

facturing processes, combined with years of manufacturing

self-regulating and mineral-insulated cables gives you

products proven to be the most reliable.

The most advanced line of control and monitoring systems

From single circuit mechanical thermostats to multi-circuit,

microprocessor-based networked systems, we can meet

all of your control and monitoring requirements, allowing

your system to run safely, reliably and profitably.

For Proven Heat-Tracing Solutions, Look to the Leader.

Menlo Park, CA

World Wide Headquarters

Trenton, Ontario

Baton Rouge, LA

Service Centers

Manufacturing Centers

Houston, TX

Edmonton, Alberta

Philadelphia, PA

Chicago, IL

SALES OR TECHNICAL SUPPORT

Visit our website at www.tycothermal.com

or contact us at 1-800-545-6258.

NORTH AMERICAN OPERATIONS

16

Worldwide Headquarters

Tyco Thermal Controls

2415 Bay Road

Redwood City, CA 94063-3032

USA

Tel: (800) 545-6258

Tel: (650) 216-1526

Fax: (800) 527-5703

Fax: (650) 474-7711

info@tycothermal.com

www.tycothermal.com

Service Headquarters

Tyco Thermal Controls

7433 Harwin Drive

Houston, TX 77036

USA

Tel: (800) 545-6258

Fax: (800) 527-5703

U.S.A.

Tyco Thermal Controls

2415 Bay Road

Redwood City, CA 94063-3032

USA

Tel: (800) 545-6258

Fax: (800) 527-5703

Canada

Tyco Thermal Controls

250 West St.

Trenton, Ontario

Canada K8V 5S2

Tel: (800) 545-6258

Fax: (800) 527-5703

Latin America

Tyco Thermal Controls

Carlos Calvo 2560 (C1230AAP)

Buenos Aires, Argentina

Tel: (54 11) 4 308 6444

Fax: (54 11) 4 308 6445

Europe

Tyco Thermal Controls

Staatsbaan 4A

3210 Lubbeek

Belgium

Tel: (32) 16/213-511

Fax: (32) 16/213-600

South East Asia/Middle East

Tyco Thermal Controls

1st Floor, Ujagar Compound,

Sub Plot 2A, CTS No. 653/6,

Opp. Deonar Bus Depot,

Deonar, Mumbai

400 088 India

Tel: 91-22-2550 9890/91/92/...98

Fax: 91-22-2556 1491

Asia

Tyco Thermal Controls

20F, Innovation Building,

1009 Yi Shan Rd,

Shanghai 200233,

P.R.China

Tel: 86-21-2412-1688

Fax: 86-21-5426-2937 / 5426-3167
