Introduction
100 Ampere Frame
225 / 250 Ampere Frame
400 Ampere Frame
600 Ampere Frame
800 / 1000 Ampere Frame
1200 Ampere Frame
2000 / 2500 Ampere Frame
Magnetic Only Molded Case Circuit Breakers
Molded Case Switches
Accessories

Class 601

Thermal-Magnetic / Magnetic

Only Molded Case Circuit

Breakers

Catalog

2004

CONTENTS

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

100 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

225 / 250 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

400 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

600 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

800 / 1000 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

1200 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

2000 / 2500 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

MAGNETIC ONLY MOLDED CASE CIRCUIT BREAKERS . . . . . . . . . . 139

MOLDED CASE SWITCHES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Table of Contents

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Molded Case Circuit Breaker Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Internal Operating Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Circuit Breaker Tripping Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

UL 489 Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Ratings for Molded Case Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Return and Exchange Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Catalog Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

100 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Powerpact® Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Powerpact® Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Let-through Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Powerpact® Let-through Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

225 / 250 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Powerpact® Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Powerpact® Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Let-through Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Powerpact® Let-through Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

400 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

600 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Let-through Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

800 / 1000 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

Powerpact® Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Table of Contents

Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Powerpact® Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111

1200 AMPERE FRAME. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

2000 / 2500 AMPERE FRAME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .121

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Tripping Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

MAGNETIC ONLY MOLDED CASE CIRCUIT BREAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Ampere Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Magnetic Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Adjustable Instantaneous-trip Circuit Breakers for Single Motor Circuit Protection . . . . . . . . . . . . . 141

MOLDED CASE SWITCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Reverse Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Powerpact® Selection Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .146

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Factory and Field Installation Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Shunt Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .151

Ground Fault Shunt Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Undervoltage Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Undervoltage Trip Time-delay Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Auxiliary Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Alarm Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Micrologic® Ground Fault Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .157

Electrical Operators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Circuit Breaker Handle Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Circuit Breaker Cylinder Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Walking Beam Mechanical Interlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Operating Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

UL Listed Terminations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Control Wire Terminations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Lug Delete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

Power Distribution Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Rear Connecting Studs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

I-Line® Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

KA Insert Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Table of Contents

LC, LI, LE, LX and LXI Circuit Breaker Termination Clip Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Replacement Handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Mechanical Key Interlock Adaptor Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Visi-blade® Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Sub-feed Lugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

INTRODUCTION

This section of the catalog introduces low voltage thermal-magnetic circuit breakers, magnetic only

circuit breakers, and molded case switches. It provides an overview which covers:

•Construction standards

•Ratings and tripping characteristics

•Catalog numbers used when ordering (to specify the circuit breakers and accessories used with it)

•Return and exchange policies

The frame size sections contain application information on thermal-magnetic and magnetic only circuit

breakers and molded case switches. They are presented in subsections based on their amperage

ratings as shown below.

•100 Ampere Frame

•225 / 250 Ampere Frame

•400 Ampere Frame

•600 Ampere Frame

•800 Ampere Frame

•1000 Ampere Frame

•1200 Ampere Frame

•2000 / 2500 Ampere Frame

•Magnetic Only

•Molded Case Switches

The section, Accessories, contains the accessories used with thermal-magnetic circuit breakers,

magnetic only circuit breakers and molded case switches. Ordering information for the accessories is

also provided.

Circuit breakers are designed to protect electrical systems from damage caused by overloads, short

circuits, and ground faults. A molded case circuit breaker is defined by the National Electrical

Manufacturers Association (NEMA) as, “... a device assembled as an integral unit in supporting and

enclosing housing of insulated material, designed to open and close a circuit by non-automatic means,

and to open the circuit automatically on a predetermined overcurrent, without injury to itself when

properly applied within its rating.”

Square D manufactures thermal-magnetic, magnetic only, and electronic trip molded circuit breakers.

Thermal-magnetic and magnetic only circuit breakers, along with the molded case switches available

from Square D, are described in this catalog. Electronic trip circuit breakers are described in catalog

Class 602 Electronic Trip Molded Case Circuit Breakers (a separate publication available from

Square D). Also, see Class 611, 612, 613, and 734 catalogs for other Powerpact® and Masterpact®

circuit breakers.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Molded Case Circuit Breaker Types

This catalog discusses the following types of molded case circuit breakers:

•Thermal-magnetic, including current limiting circuit breakers

•Magnetic only (Mag-Gard®) circuit breakers

•Molded case switches

■Thermal-Magnetic Molded Case Circuit Breakers

Thermal-magnetic molded case circuit breakers are the most common overcurrent protection devices.

Their primary functions are to provide a means to manually open a circuit and automatically open a

circuit under overload or short circuit conditions. Thermal-magnetic circuit breakers use bimetals and

electromagnetic assemblies to provide overcurrent protection. Their characteristic inverse time tripping

under overload conditions is ideally suited for many applications varying from residential to heavy

industrial loads. For higher level (short circuit) overcurrents, instantaneous trip characteristics allow

molded case circuit breakers to interrupt with no intentional delay.

❏Current Limiting Circuit Breakers

Current limiting circuit breakers are used for overcurrent protection and switching on ac systems

where high fault currents may be encountered. They have permanent trip units containing

individual thermal and magnetic trip elements in each pole like thermal-magnetic circuit breakers.

But they go one step further by limiting the amount of current that normally passes through a circuit

breaker during a severe fault on the circuit being protected. Square D® current limiting circuit

breakers are designed to take advantage of the electromagnetic repulsion created by closely

spaced, parallel contact arms carrying current in opposite directions. This repulsion, intensified by

an “O” shaped magnet surrounding the contact arms, causes the contacts to blow open in less than

one millisecond under fault conditions above 10 to 15 times the handle rating of the circuit breaker.

This high speed contact separation enhances the ability of the I-Limiter® circuit breakers to limit

both peak current and I2t let-through energy. UL requires that peak current and I2t let-through

curves be available for current limiting circuit breakers.

The following steps describe the short circuit interrupting process of current limiting circuit breakers

at fault levels within the current limiting range:

1. Contacts Part—The electromagnetic repulsion between the contact arms exceeds the spring

force that holds the contact arms together. The repulsion blows the contact open.

2. Limited Peak Current Reached—The intense magnetic field inside the “O” shaped magnet

forces the arc (between the opening contacts) into the stack plates.

3. Limiter Latch Holds Contacts Open—After Ip has been reached, the current must then be

driven to zero. At the same time this occurs, a specially designed limiter latch holds the

contacts open until interruption is complete.

4. Interruption Complete—To complete interruption, the arc voltage is sustained at a high enough

level to overcome source voltage and thereby drive the current to zero (complete interruption).

This requires a rapid rise in arc resistance and is accomplished by maintaining arc length while

06013012

06013013

06013014

FIL

Current Limiting

Circuit Breaker

06013018

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

quickly cooling the arc. Cooling the arc causes a loss of ionization which increases arc

resistance.

■Magnetic Only Circuit Breakers

Mag-Gard® magnetic only circuit breakers comply with National Electrical Code (NEC) requirements

for providing motor circuit protection when installed as part of a listed combination controller having

motor overload protection.

Mag-Gard instantaneous trip circuit breakers (often referred to as motor circuit protectors) are similar

in construction to thermal-magnetic circuit breakers. They are designed as disconnect devices for use

in combination with motor starters. Mag-Gard circuit breakers are built without thermal detection

elements (bimetals), therefore, they provide short circuit protection only. Mag-Gard circuit breakers

have an adjustable amperage pick up so they can be set to open instantaneously at current values

slightly above the motor starting inrush current. This setting coordinates the pick-up time-current

response of the Mag-Gard with the overload relay of the starter to give the best possible motor

protection. According to the 2002 NEC, “Where the setting specified in Table 430.52 is not sufficient for

the starting current of the motor, the setting of an instantaneous trip circuit breaker shall be permitted

to be increased but shall in no case exceed 1300 percent of the motor full-load current for other than

Design E motors or Design B energy efficient motors and no more than 1700 percent of full-load motor

current for Design E motors or Design B energy efficient motors. Trip settings above 800 percent for

other than Design E motors or Design B energy efficient motors and above 1100 percent for Design E

motors or Design B energy efficient motors shall be permitted where the need has been demonstrated

by engineering evaluation. In such cases, it shall not be necessary to first apply an instantaneous-trip

circuit breaker at 800 percent or 1100 percent.” Current interrupting ratings for these UL recognized

components are established in combination with motor starters and properly sized overload relays and

contactors. Mag-Gard circuit breakers are tested in combination with Square D® starters per UL

Standard 845.

■Molded Case Switches

Molded case switches are intended for use as disconnect devices only. UL Standard 489 requires

molded case switches to be protected by a thermal-magnetic circuit breaker (or fuse) of equivalent

rating. Molded case switches are labeled with their appropriate withstand ratings. Withstand rating is

defined as the maximum current, at rated voltage, that the molded case switch will withstand, without

damage, when protected by a circuit breaker (or fuse) with an equal continuous current rating.

Automatic molded case switches are similar in construction to thermal-magnetic circuit breakers,

except that the thermal detection element is not present. These switches open instantaneously at a

non-adjustable, factory preset, magnetic trip point calibrated to protect only the molded case

construction, they are more compact than conventional disconnect switches and accept electrical

accessories for added flexibility.

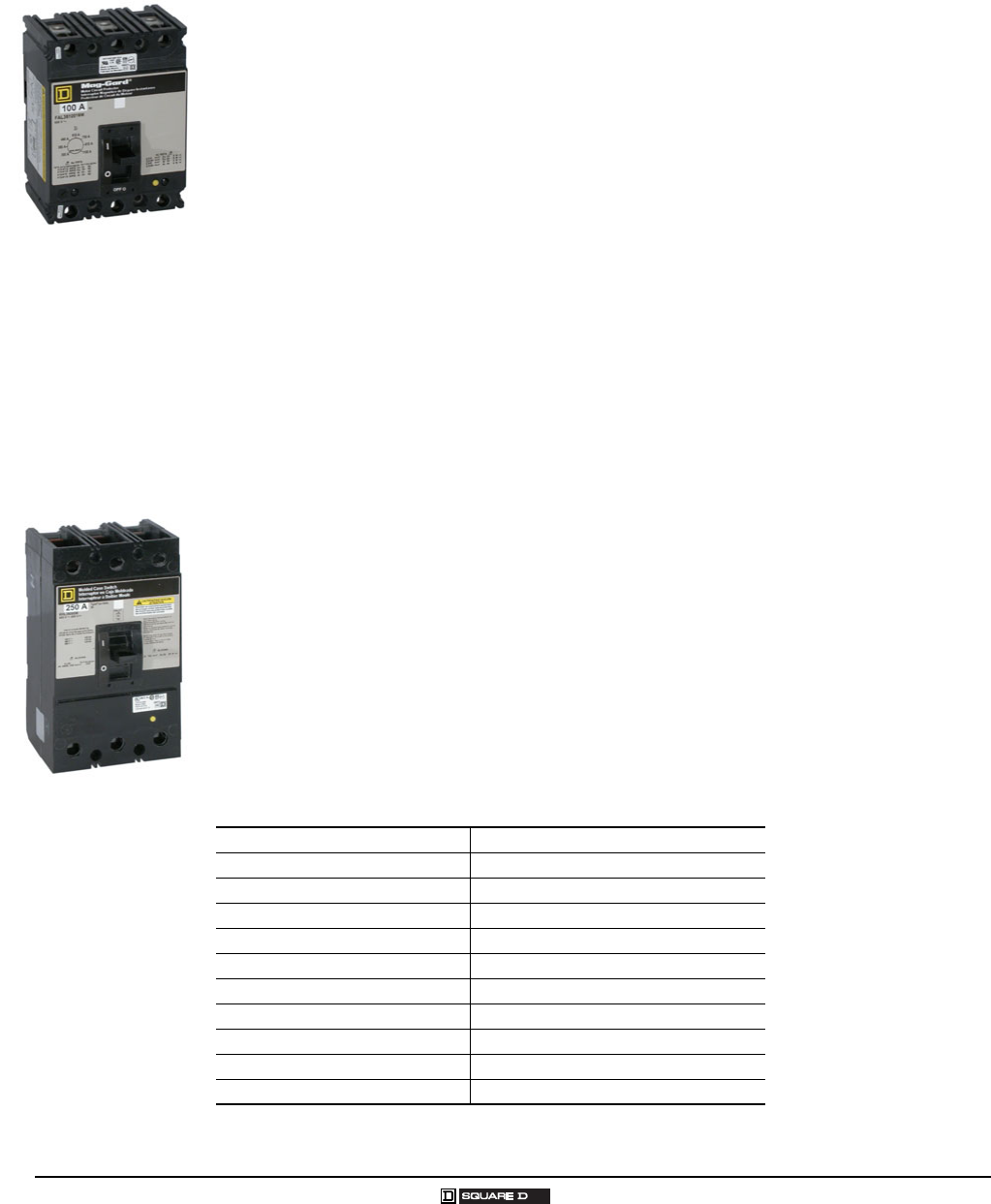

The following molded case switches are available from Square D:

Table 1: Molded Case Switches

FH 100 Ampere Frame

HD, HG, HJ, HL★15–150 Ampere Frame

QB, QD, QG, QJ★70–250 Ampere Frame

KH 250 Ampere Frame

JD, JG, JJ, JL★150–250 Ampere Frame

LH 400 Ampere Frame

M-frame★300–800 Ampere Frame

MH 600-1000 Ampere Frame

NC 1200 Ampere Frame

PH 2000 Ampere Frame

PC 2500 Ampere Frame

★See Powerpact® H- and J-frame catalog, Class 611, for more information. Also, see

Class 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit breakers.

FAL

Magnetic Only

Circuit Breaker

06013013

KHL

Automatic Molded

Case Switch

06013014

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Internal Operating Mechanisms

The following mechanisms allow the circuit breaker to operate:

•Thermal trip

•Magnetic trip

•Push-to-trip button

•Shunt trip

•Undervoltage trip

NOTE: Shunt trip and undervoltage trip are described in the Accessories section.

■Tripping Mechanism

The tripping mechanism is an assembly within the circuit breaker frame that causes the circuit breaker

to open automatically under sustained overload, short circuit, or high level ground fault conditions.

The tripping mechanisms in 2- and 3-pole circuit breakers operate such that an overcurrent on any

given pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously. A

thermal and magnetic factory calibration test (with current) is performed on each pole of every circuit

breaker manufactured by Square D®.

The sensing system of a thermal-magnetic circuit breaker is an integral part of the circuit breaker that

continually monitors the current flowing through the circuit breaker. It detects abnormal current

conditions and, depending on the magnitude of the current, initiates an inverse-time or an

instantaneous tripping response. This action causes the tripping mechanism to open the circuit

breaker contacts and interrupt current flow. The speed of the tripping process must be controllable and

inversely matched to the severity of the overcurrent. The ability of a particular circuit breaker to

interrupt a given level of overcurrent depends on the sensitivity of the circuit breaker.

Thermal-magnetic circuit breakers have two tripping elements.

❏Thermal Trip

The molded case circuit breaker thermal trip element is a root means squared (RMS) sensing

device. The bimetal thermal element is constructed from metals of dissimilar rates of expansion

bonded together. The thermal portion responds to overloads by reacting to the heat generated both

by the current flowing through the circuit breaker and by the heat contribution from the ambient

conditions. The bending force of the bimetal causes the circuit breaker to trip. The deflection of the

bimetal is predictable as a function of current and time. This is the inverse time tripping

characteristics of the thermal element (i.e., the tripping time decreases as the magnitude of the

current increases).

Square D calibrates the thermal elements for a specific amperage rating, and they are not field

adjustable. The thermal trip elements are calibrated for 40° C ambient temperature per UL

Standard 489.

Figure 1: Thermal Trip Condition

Normal Condition Thermal Trip Condition

06013019

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

❏Magnetic Trip

The magnetic (instantaneous) trip element uses an electromagnetic assembly, in series with the

load current, to trip the circuit breaker instantaneously (with no intentional delay) at or above a

predetermined current value. During a short circuit of significant magnitude, the high level current

passing through the conductor rapidly increases the magnetic field of the electromagnet which

attracts the armature. As the armature is drawn toward the electromagnet, it initiates an unlatching

action and opens the circuit breaker contacts.

■Line and Load Connections

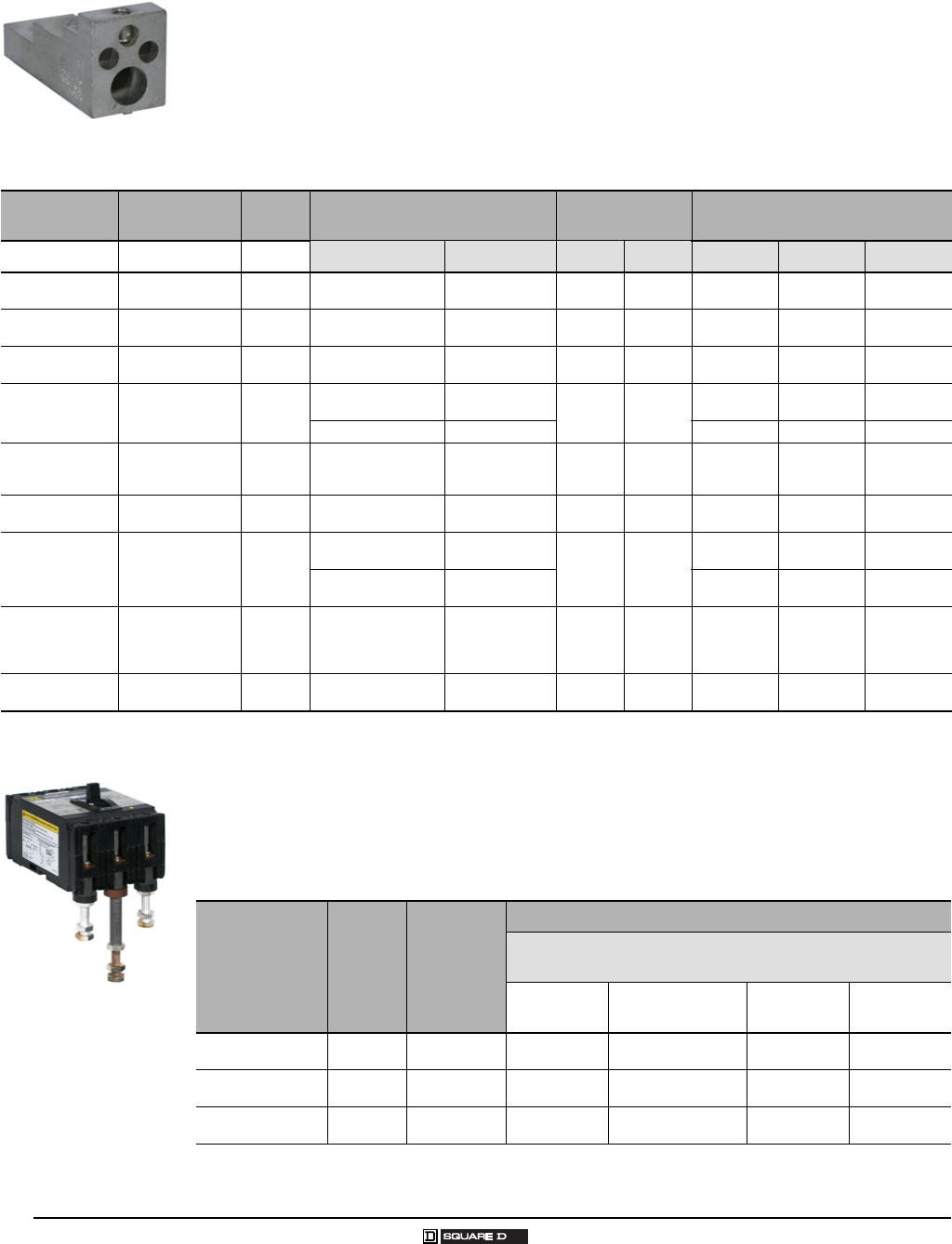

Thermal-magnetic circuit breakers, magnetic only circuit breakers, and molded case switches are

provided with factory installed UL Listed mechanical-type aluminum alloy lugs suitable for either

aluminum or copper wire. In addition to mechanical lugs, Square D can supply copper mechanical

lugs, aluminum or copper Versa-Crimp® compression lugs, and power distribution connectors. Circuit

breakers can be ordered without lugs to accept bus connections.

Square D also offers I-Line® circuit breakers, which feature plug-on connectors. They are designed for

easy installation and removal of the circuit breakers in our exclusive I-Line panelboards. I-Line circuit

breakers use “blow-on” type connectors. In case of a short circuit, in the circuit being protected, the

increased magnetic flux causes the plug-on connectors to grasp the panelboard bus bars even tighter.

These connectors are an integral part of the I-Line circuit breakers, as is the breaker mounting bracket.

■Push-To-Trip Button

Push-To-Trip is a standard feature of Square D® molded case circuit breakers that allows the circuit

breaker to be manually tripped without exposure to live parts. The Push-To-Trip button is located on

the face of each molded case circuit breaker for ease of periodic operation.

International I/O (ON/OFF) markings appear on the face of each Square D molded case circuit breaker

and molded case switch in addition to the standard ON/OFF markings to indicate handle position.

When tripped, the handle assumes a center position. To reset the breaker, the handle is moved to the

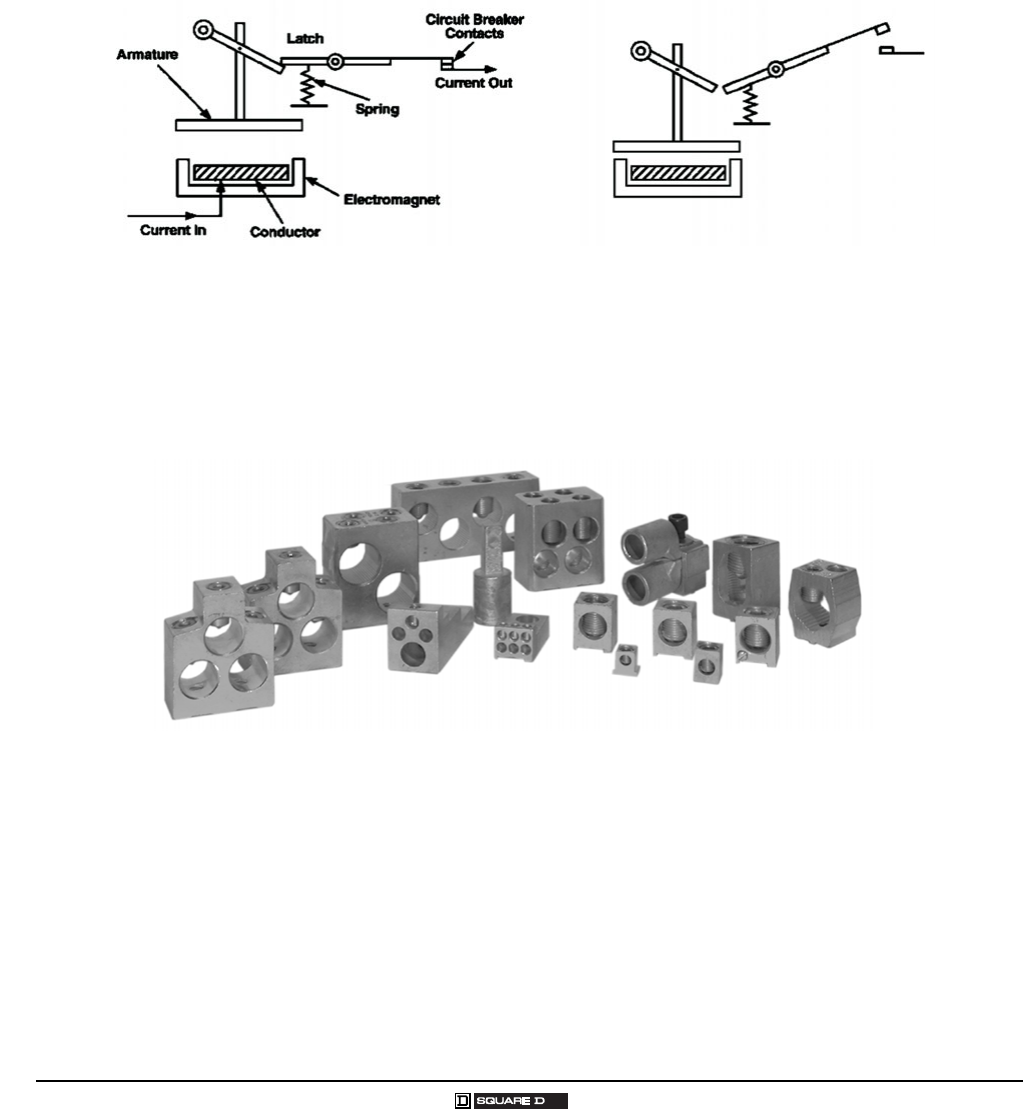

Figure 2: Magnetic Tip Condition

Normal Condition Magnetic Trip Condition

06013020

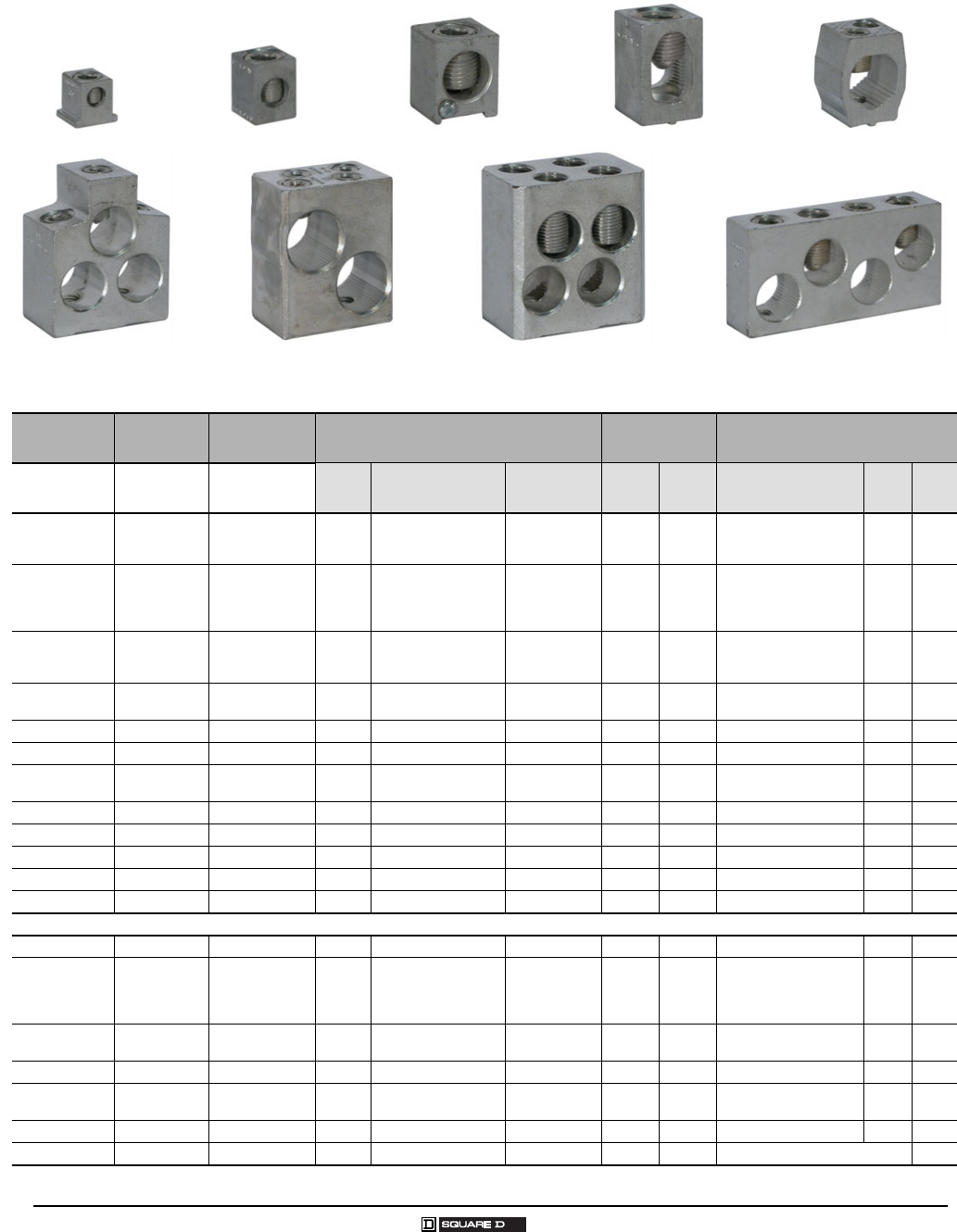

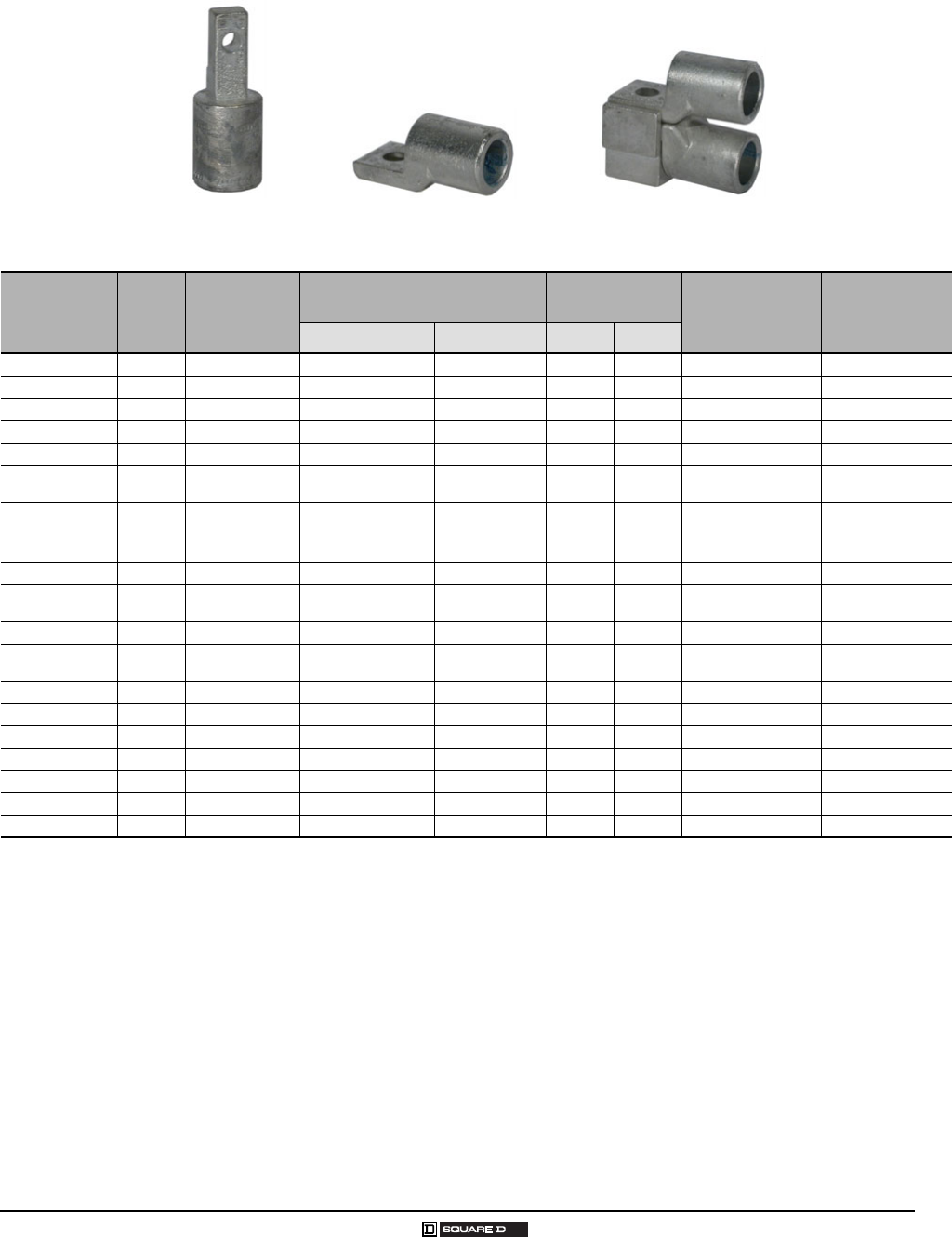

Figure 3: Mechanical and Versa-Crimp Lugs

06013021

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

OFF position and then to the ON position. During normal on/off operation, the handle opens and closes

the circuit breaker contacts but does not exercise the tripping mechanism. Square D suggests that the

circuit breaker’s tripping mechanism be exercised at least annually. Use of the Push-To-Trip system

will also check:

•Alarm circuits

•Emergency circuits

•Motor sequencing operations

For maintenance information, application, and field testing guides contact your local Square D sales

office 1-888 Square D.

Circuit Breaker Tripping Characteristics

The tripping characteristics of thermal-magnetic molded case circuit breakers can be represented by a

characteristic tripping curve that plots tripping time versus current level. The curve shows the amount

of time required for a circuit breaker to trip for currents ranging from minor overloads to maximum

interrupting capacity.

■Thermal Tripping Characteristics

The left-hand portion of a tripping curve displays the circuit breaker’s thermal response. On low level

overcurrents, up to the magnetic tripping level, thermal tripping occurs when a bimetal in the circuit

breaker responds to heat associated with overcurrent. The bimetal deflects, unlatching the

mechanism, which causes the circuit breaker contacts to open. The larger the overcurrent, the faster

the circuit breaker operates to open the circuit (inverse time).

■Magnetic Tripping Characteristics

■Circuit Breaker Coordination

To determine what level of coordination exists between molded case circuit breakers, a comparison of

circuit breaker characteristic tripping curves is necessary.

A coordination study is an organized effort to achieve optimum electrical distribution system protection

by determining the appropriate frame sizes, ampere ratings, and settings of overcurrent protective

devices. When an overcurrent within the coordination limits occurs in a distribution system, only the

protective device nearest the overload or fault opens. Lack of coordination between overcurrent

devices can result in upstream devices opening and interrupting electrical distribution in other parts of

the system.

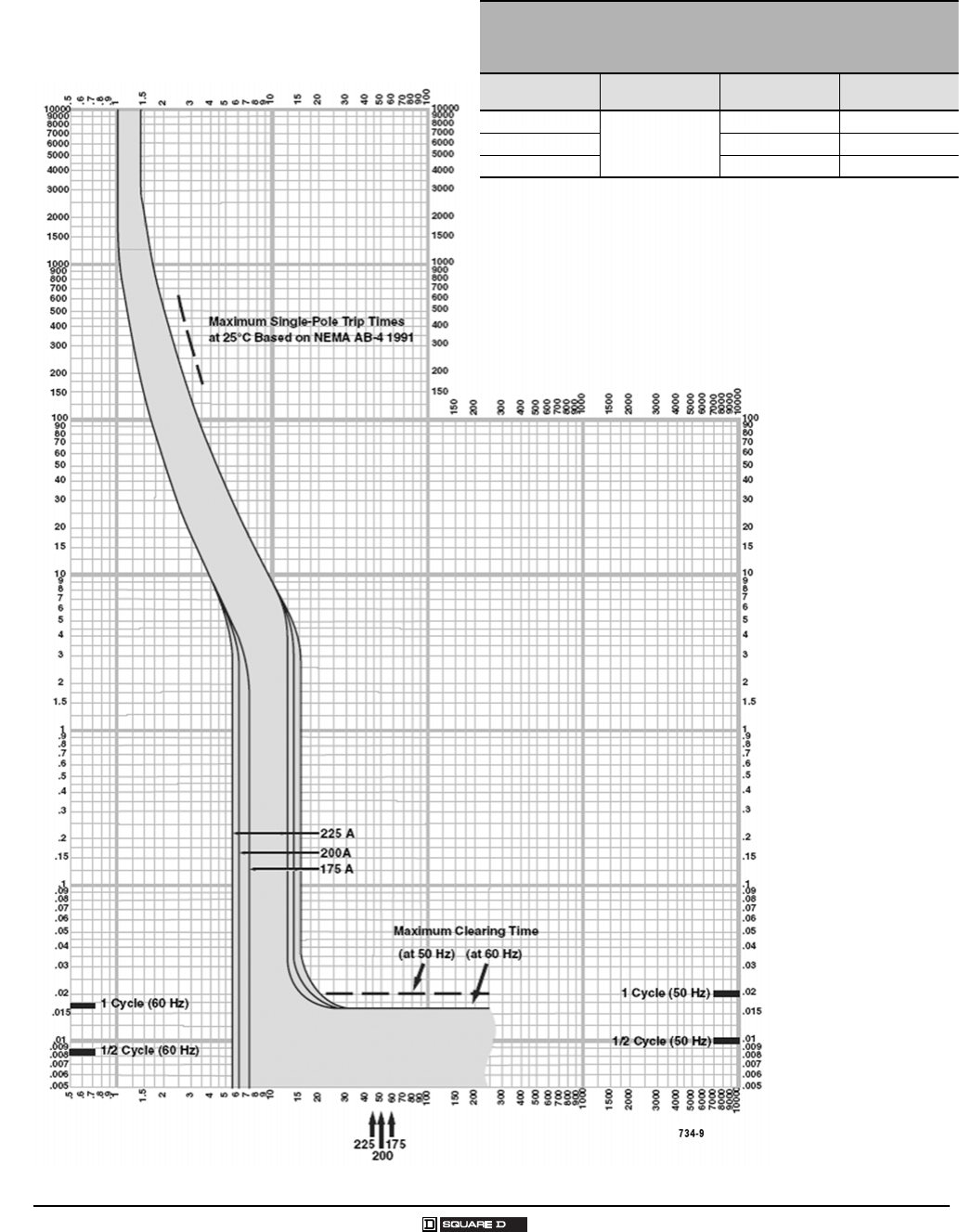

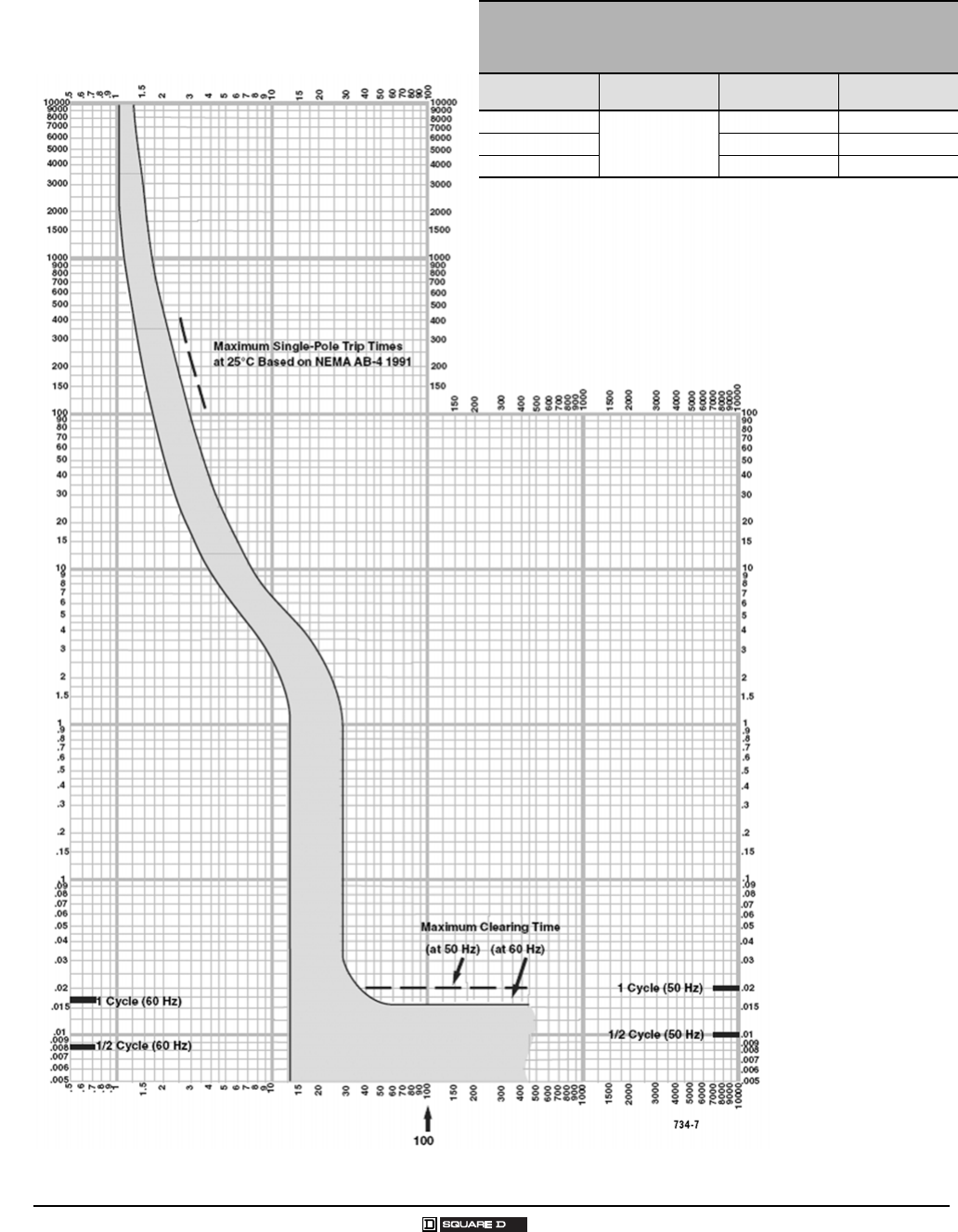

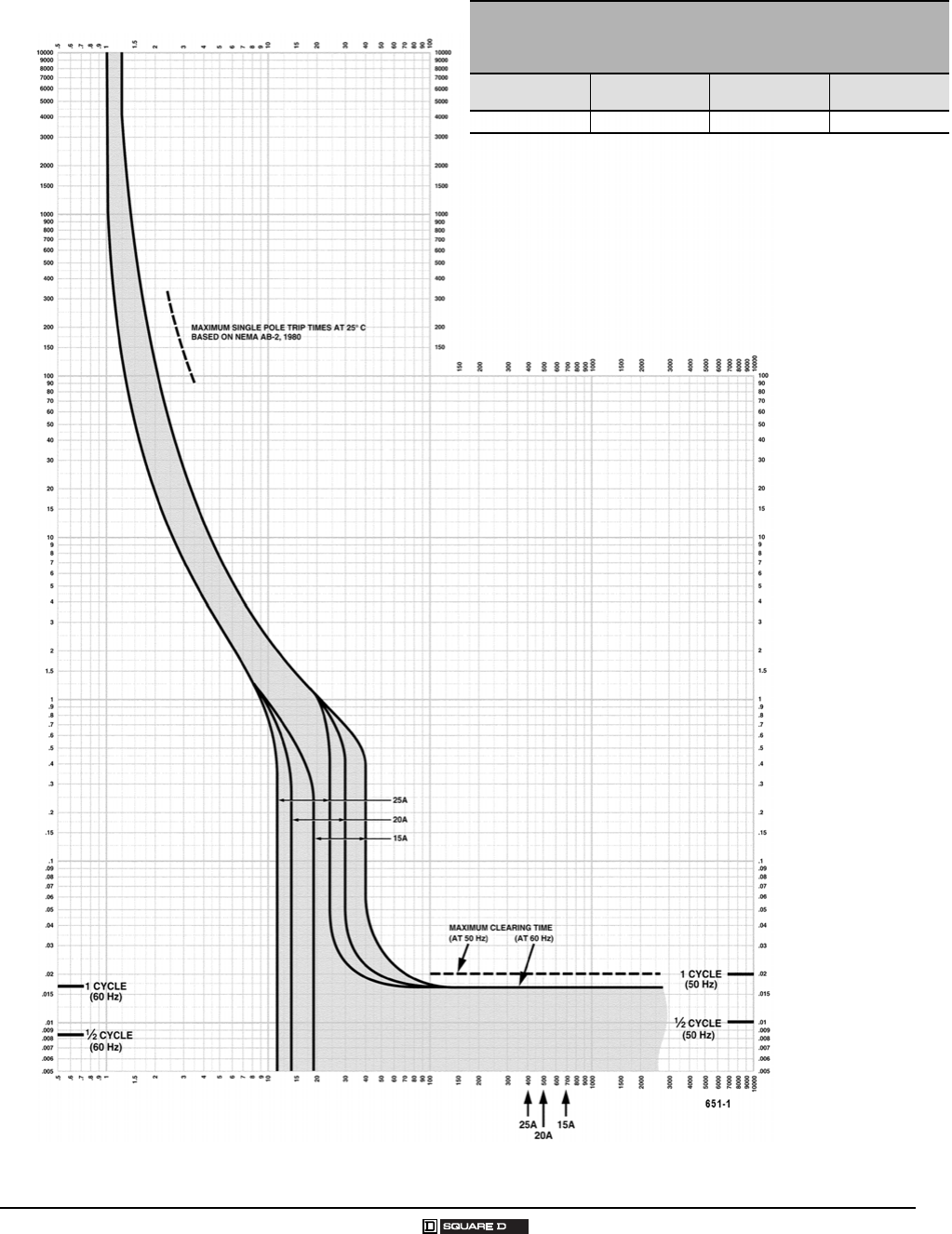

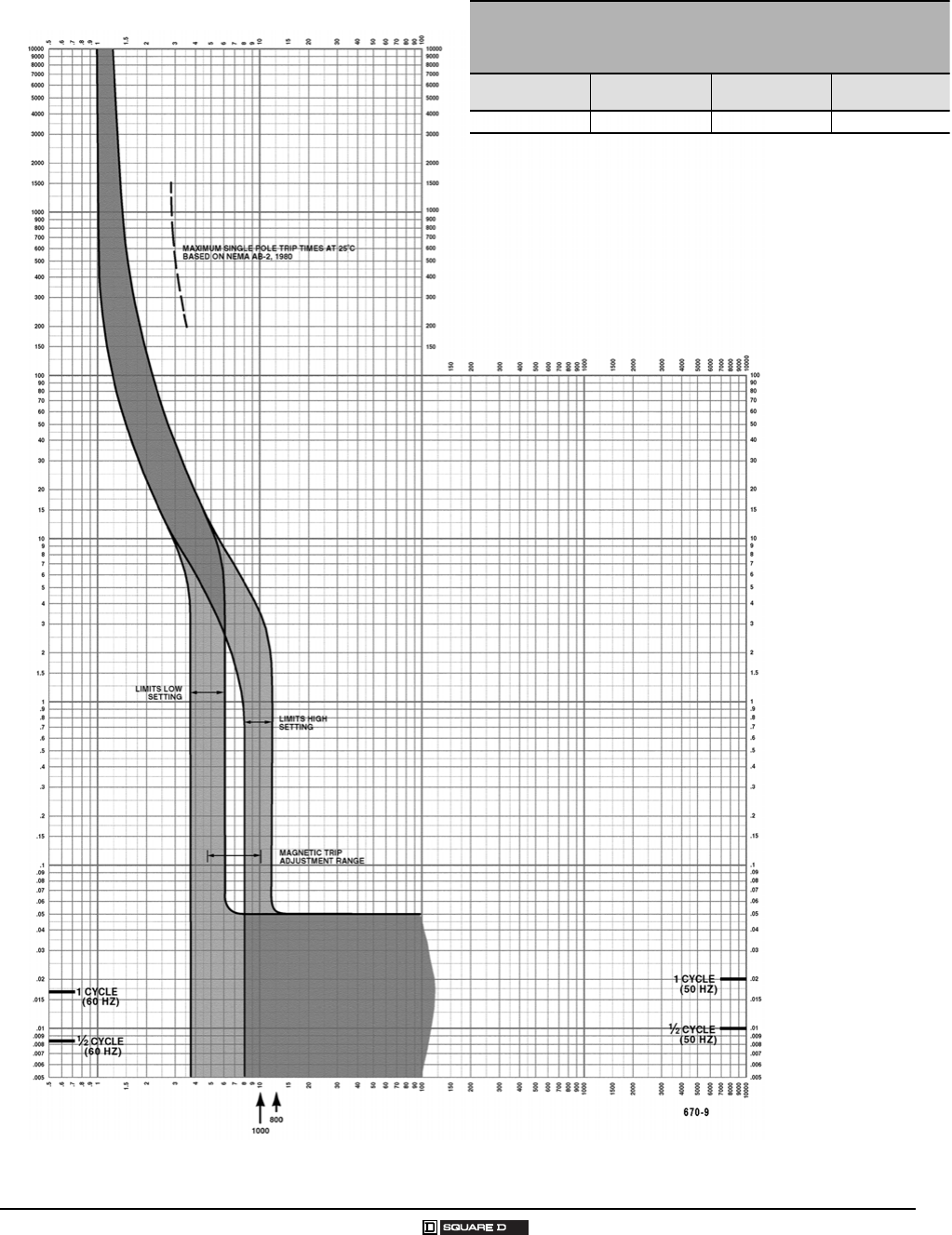

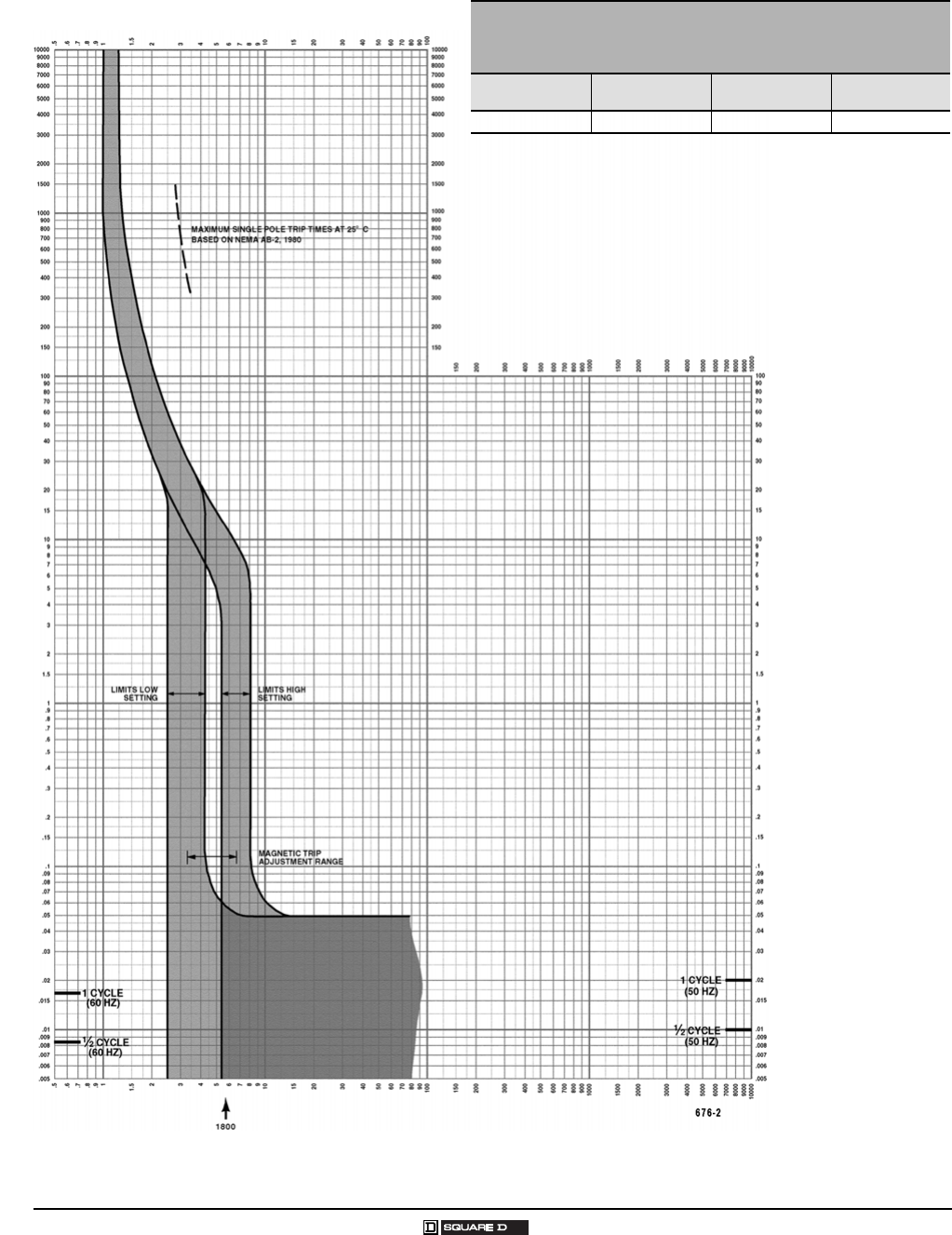

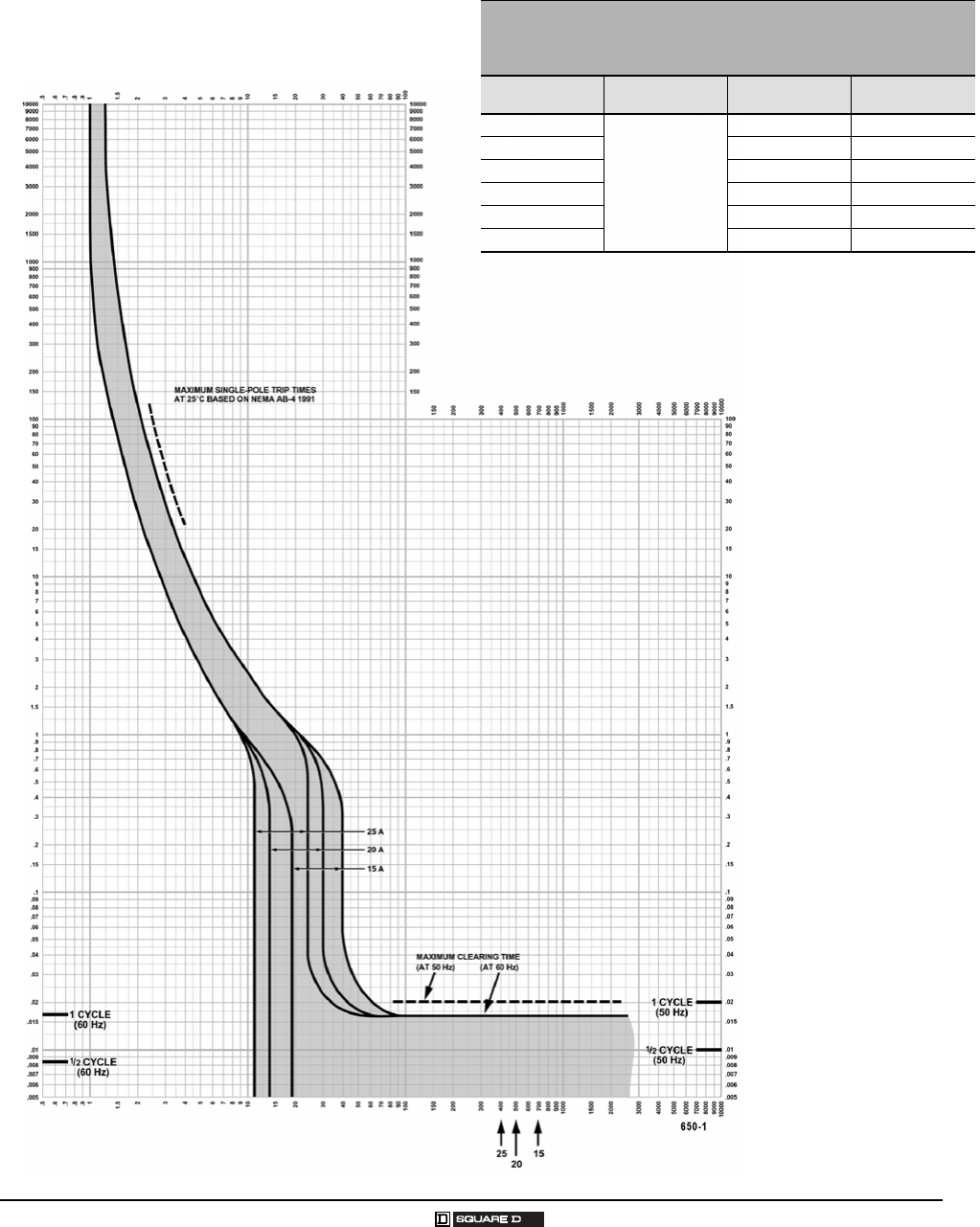

Figure 4: FI Characteristic Tripping Curve

The right hand portion of a tripping curve displays the magnetic tripping response of the

circuit breaker. This takes place when overcurrents of sufficient magnitude operate an

internal magnetic armature that unlatches the tripping mechanism. Magnetic tripping

occurs with no intentional delay.

For example, the FI circuit breaker time current characteristic tripping curve shows the

tripping response of the circuit breaker for currents ranging from minor overloads to

maximum interrupting capacity.

06013022

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

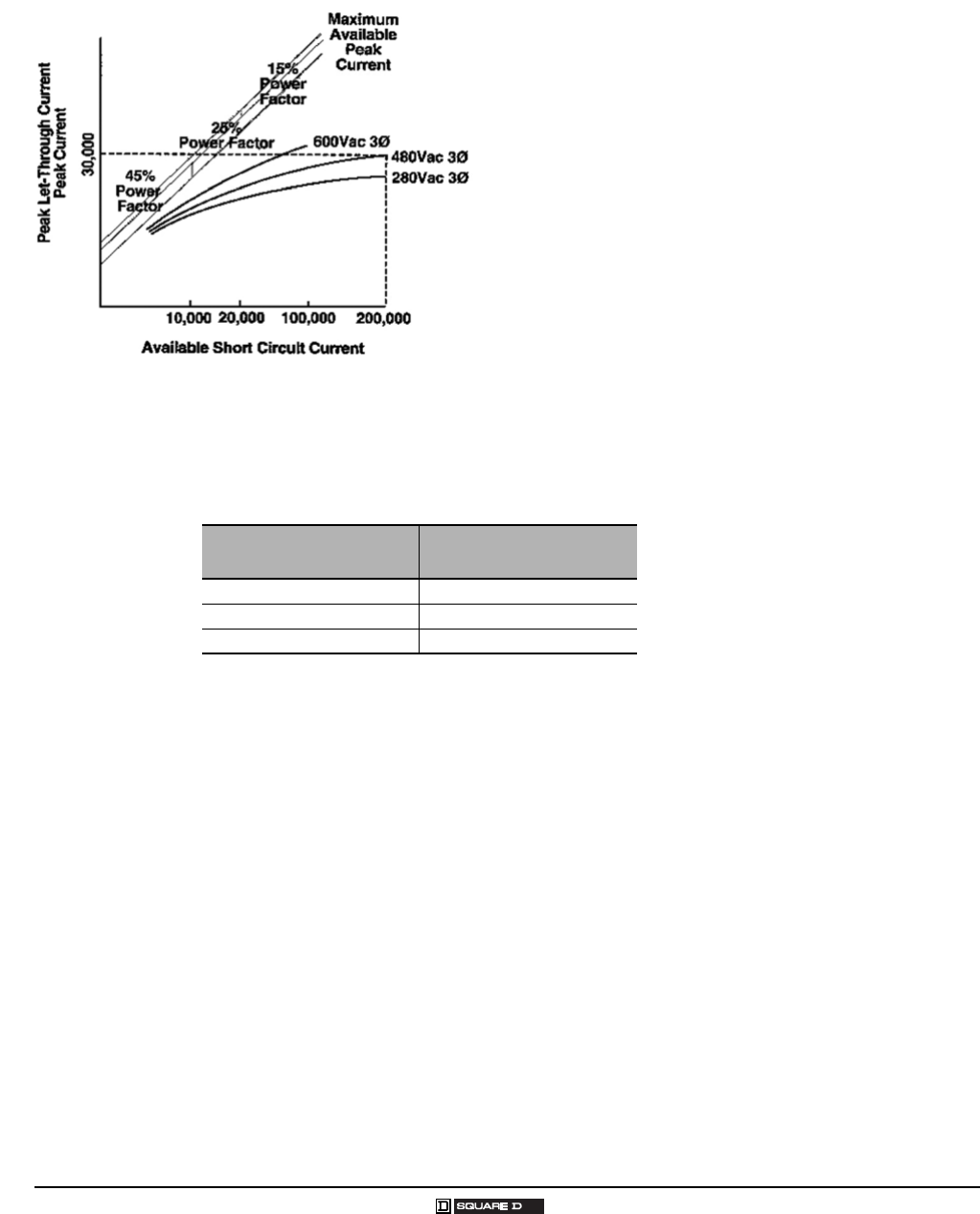

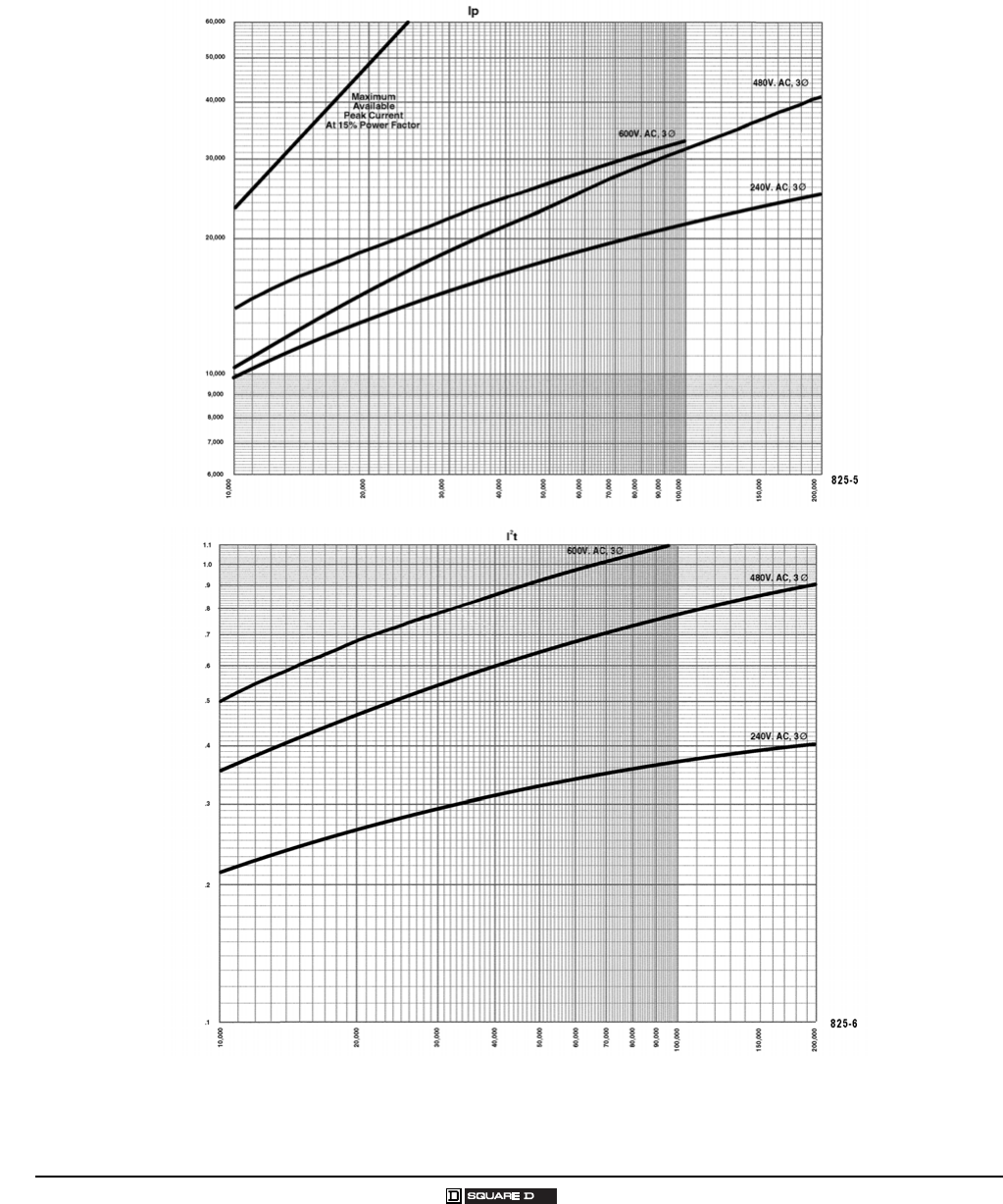

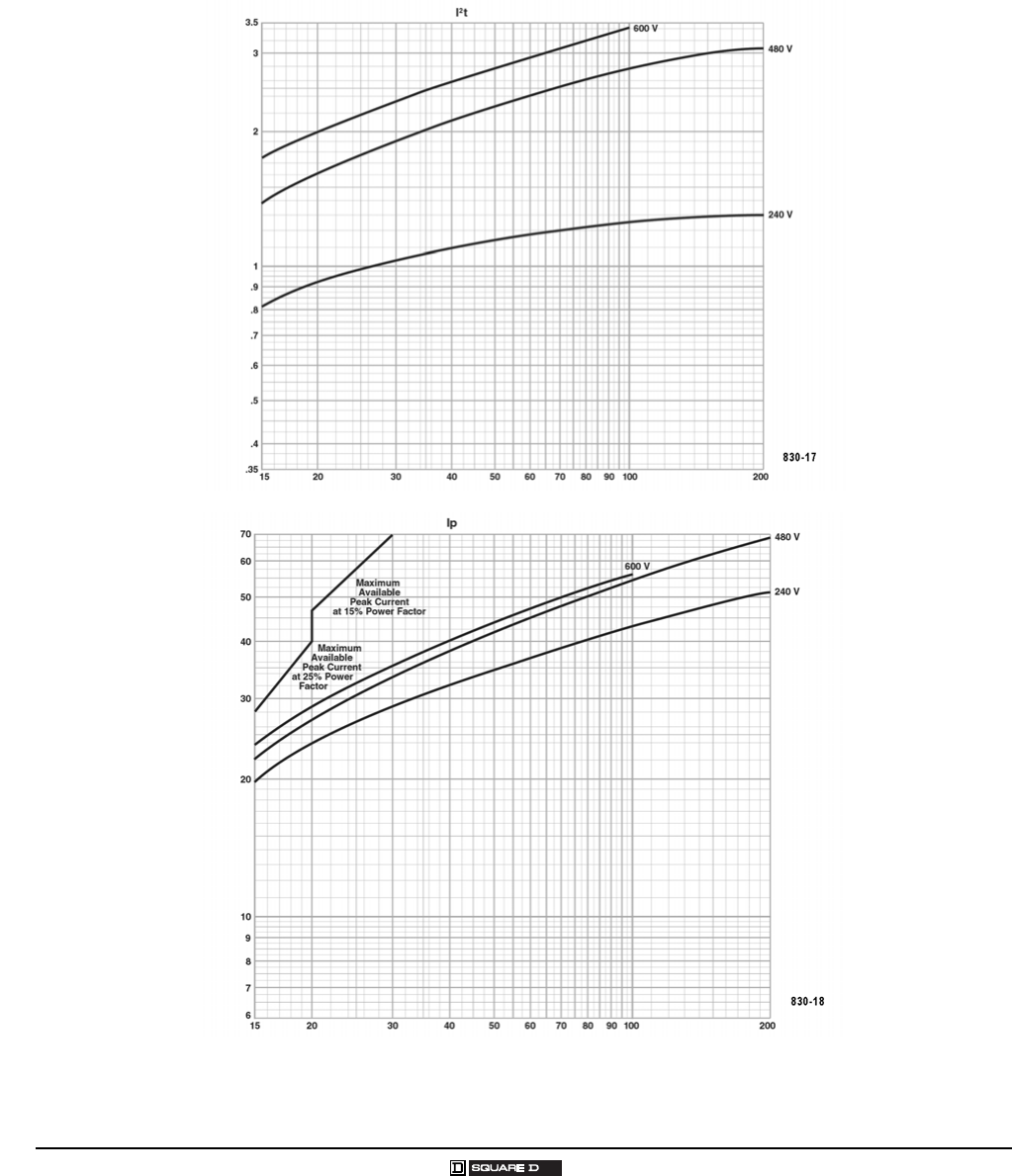

■Let-through Current Curves

Short circuits which produce high fault currents typically are associated with low short circuit power

factors; that is, high X/R ratios. Since different portions of a system will exhibit various available fault

levels and power factors associated with those levels, UL has established that the following power

factors be used in short circuit testing:

Since the peak current let-through curves for the I-Limiter® current limiting circuit breakers were

derived from tests at the current levels and power factors indicated, the degree of current limitation is

expressed by the differential between the maximum available peak current and the actual test let-

through peak current.

The curves extend from the threshold of current limitation through the maximum interrupting rating of

the current limiting circuit breaker.

Figure 5: Maximum Instantaneous Let-through Current

Let-through current curves show the extent to which a current

limiting circuit breaker limits the peak current that could flow

during a short circuit. On these curves, the slanting straight

lines marked 15%, 25% and 45% power factor show the

maximum theoretical peak currents that could flow in a faulted

circuit having that particular short circuit power factory—with

NO current limiting device in the circuit.

06013023

Table 2: Power Factors in Short Circuit Testing

Test Current RMS

Symmetrical (Amperes) Power Factor (%)

10,000 or Less 45–50

10,000–20,000 25–30

Over 20,000 15–20

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Construction

Thermal-magnetic circuit breakers are manufactured and tested according to the following standards

and files:

•Underwriters Laboratories Inc. (UL) Listed to UL489 Standard, File E10027,

•National Electrical Manufacturers Association (NEMA) AB-1 Standard,

•Canadian Standards Association (CSA) Certified to CSA C22.2 No. 5-02 Standard, File LR7551,

•International Electrotechnical Commission (IEC) 60947-2 Standard,

•Federal Specification W-C-375B/GEN as Class 11a, 11b; 12a, 12b; and 13a, 13b.

Magnetic only circuit breakers are manufactured and tested according to the following standards and

files:

•Underwriters Laboratories Inc. (UL) Recognized to UL489 Standard, File E10027,

•Canadian Standards Association (CSA) Certified to CSA C22.2 No. 5-02 Standard, File LR32390.

Molded case switches are manufactured and tested according to the following standards and files:

•Underwriters Laboratories Inc. (UL) Listed to UL489 Standard, File E33117 or E87159,

•Canadian Standards Association (CSA) Certified to CSA C22.2 No. 5-02 Standard, File LR32390

or LR40970.

NOTE: Circuit breakers are to be applied by guidelines detailed in the NEC and other local electrical

codes.

■Specifications

Cases for molded case circuit breakers are constructed of a glass-reinforced insulating material that

provides high dielectric strength. Current carrying components are isolated from the handle and

accessory mounting area. The handle position indicates whether the circuit breaker is OFF, ON or

tripped.

Square D® molded case circuit breakers:

•have common tripping of all poles,

•are equipped with a Push-To-Trip button to manually trip the circuit breaker,

•can be mounted and operated in any position,

•are fully tested, UL listed, CSA certified, and IEC rated for reverse connection without restrictive

“LINE” or “LOAD” markings.

Figure 6: Maximum Let-through I2t Energy

Let-through I2t curves show the extent to which the current limiting

circuit breaker limits energy let-through under short circuit

conditions. The theoretical I2t let-through of symmetrical sinusoidal

current can be calculated. At 100,000 amperes rms, this would be

83 x 106 ampere2 seconds for ½ cycle if NO CURRENT LIMITING

DEVICE WERE IN THE CIRCUIT. In contrast, the curves show that

with the same level of 100,000 rms symmetrical short circuit

amperes available, the 100 ampere current limiting circuit breaker

would limit the energy flow 0.62 x 106 ampere2 seconds at 480

volts or 0.27 x 106 ampere2 seconds at 240 volts.

06013024

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

■Tripping System

Square D® thermal-magnetic molded case circuit breakers have a permanent trip unit that contains a

factory preset thermal trip element and a magnetic trip element in each pole. The thermal trip element

is rms sensing. In circuit breakers with frame sizes greater than 100 ampere, the magnetic trip element

is field adjustable. A single adjustment simultaneously adjusts the instantaneous trip point in each

pole.

■Terminations

All factory installed mechanical type lugs are UL Listed to accept solid or stranded conductors and can

be used with wire rated at 60° C, 75° C, and 90° C (sized according to the NEC 75° C temperature

rating). Most molded case circuit breakers are UL Listed to accept field installable mechanical type and

compression type lugs.

■UL Requirements.

A UL label on a Square D molded case circuit breaker indicates that the circuit breaker meets the

requirements of UL Standard 489 for circuit breakers.

A UL label also means the production procedure is monitored by UL inspectors for continuing

conformance to UL performance requirements. These requirements are based on sound engineering

principles, research, records of test and field experience, and information gathered from users and

inspection authorities. These requirements are subject to revision as necessary.

■UL HACR Type

All UL 489 listed molded case circuit breakers are HACR type.

UL 489 Test Procedures

■Limited Available Fault Current Tests

UL requires a series of tests on a single set of sample circuit breakers for compliance with

UL Standard 489. The tests for thermal-magnetic breakers are described below.

Since molded case switches are derivatives of molded case circuit breakers, some testing of switches

is identical to that for circuit breakers. These tests include a 600% overload performance test.

❏200% Thermal Calibration

Each pole of the circuit breaker must trip within a specified time limit when carrying 200% of its

continuous current rating.

❏135% Thermal Calibration

With all poles connected in series, the circuit breaker must trip within a specified time limit when

carrying 135% of its continuous current rating.

❏Magnetic Calibration

If the circuit breaker has an adjustable magnetic tripping means, then it must trip within a specified

percentage of the marked tripping current.

❏Overload

The circuit breaker is operated making and breaking 600% of its continuous current rating, but not

less than 150 ampere.

For circuit breakers through 1600 ampere, the number of 600% operations is 50. For larger circuit

breakers to 4000 ampere, the number of operations is 25.

❏Temperature Rise

While carrying 100% of rated current at a 40° C ambient temperature and mounted in open air, the

circuit breaker is checked for temperature rise on a wring terminal. The temperature on the terminal

shall not exceed a 50° C rise above ambient temperature and must be within specified limits.

❏Endurance

The circuit ibreaker must successfully complete the following number of switching operations:

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

❏Calibration Retest

Both the 200% and 135% thermal calibration tests are repeated.

❏Short Circuit

For circuit breakers rated 240 Vac and higher, two short circuit tests per pole and one test with all

poles connected in series is performed. For example, a 3-pole circuit breaker receives seven short

circuit tests.

For circuit breakers rated 120/240 Vac, three tests are made with all poles connected in series.

The circuit breaker is connected to the test circuit using wire correctly sized for the rating of the

circuit breakers. The line leads are not more than four feet in length and the load leads are not

more than 10 inches in length.

NOTE: Successful testing requires that the current be interrupted while monitoring the integrity of

the line-end load connection.

❏Trip Out

The 200% thermal calibration test is repeated following the short circuit tests.

❏Dielectric

The circuit breaker must withstand, for one minute, twice its rated voltage plus 1000 Vac:

•between line and load terminals with the circuit breaker open, that is, with the circuit breaker in

the tripped and off positions,

•between terminals of opposite polarity with the circuit breaker closed, and

•between live parts and the overall enclosure with the circuit breaker both open and closed.

No conditioning of the circuit breaker can take place during or between these tests. There also can

be no failure of functional parts at the conclusion of the sequences.

■High Available Fault Current Tests

After qualifying a set of circuit breakers to the standard tests, a manufacturer can have additional

circuit breaker samples tested on higher than standard available fault currents.

The following performance requirements apply:

❏200% Thermal Calibration

Each pole of the circuit breaker must trip within a specified time limit when carrying 200% of its

continuous current rating.

❏Short Circuit

With the load side terminals connected by 10-inch lengths of specified cable, the circuit breaker is

exposed to a short circuit current for a set time interval. After safe interruption, the circuit breaker is

reset and closed again on the short circuit.

❏250% Thermal Calibration

Each pole of the circuit breaker must trip within a specified time limit when carrying 250% of its

continuous current rating.

Table 3: Circuit Breaker Endurance

Frame Size

Amperes

Full Load

Operations No Load Operations

0–100 6,000 4,000

101–225 4,000 4,000

226–600 1,000 5,000

601–800 500 3,000

801–2500 500 2,000

2501–4000 400 1,100

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

❏Dielectric Withstand

The circuit breaker is subjected to twice its rated voltage, but not less than 900 Vac.

When the sample circuit breaker passes these tests, breakers of the same construction can be

marked or labeled with the higher current interrupting rating.

■Switching Duty

The switching duty (SWD) listing applies only to 15 ampere and 20 ampere circuit breakers rated at

277 Vac or less. The circuit breakers are subjected to specified temperature rise tests at

predetermined periods during the endurance operations.

■Performance Requirements for Magnetic Trip Only Circuit Breakers

Design performance verification is tested as follows:

1. Verification of calibration

2. Overload

3. Temperature rise

4. Mechanical and electrical endurance

5. Limited fault current

6. Re-verification of calibration

7. Dielectric

Ratings for Molded Case Circuit Breakers

Molded case circuit breakers are selected by their ratings. The ratings must meet or exceed the

parameters of the electrical system on which they are used.

■Voltage Rating

A circuit breaker may be rated either for alternating current (ac) or direct current (dc) system

applications. The established voltage rating of a circuit breaker is based on design parameters such as

clearance of current carrying parts and dielectric withstand tests both through air and over surfaces.

Voltage ratings indicate the maximum voltage for the electrical system on which the circuit breaker can

be applied. UL Standard 489 recognizes the following ratings:

A circuit breaker can be rated for either ac or dc system applications or both. Circuit breaker voltage

ratings must be equal to or greater than the nominal voltage of the electrical system on which they are

used.

Paragraph 240.85 of the 2002 NEC states that a circuit breaker must be applied in the following

manner:

240.85—A circuit breaker with a straight voltage rating, such as 240 V or 480 V, shall be

permitted to be applied in a circuit in which the nominal voltage between any two conductors

does not exceed the circuit breaker’s voltage rating. A two-pole circuit breaker shall not be used

for protecting a 3-phase, corner-grounded delta circuit unless the circuit breaker is marked

1Ø–3Ø to indicate such suitability.

Table 4: UL Standard 489 Recognized Voltage Ratings

Volts for Alternating Current

(ac)

Volts for Direct Current

(dc)

120 125

120/240 125/250

240 250

277 600

480Y/277

480

600

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

A circuit breaker with a slash rating, such as 120/240 V or 480Y/277 V, shall be permitted to be

applied in a solidly grounded circuit where the nominal voltage of any conductor to ground does

not exceed the lower of the two values of the circuit breaker’s voltage rating and the nominal

voltage between any two conductors does not exceed the higher value of the circuit breaker’s

voltage rating.

FPN: Proper application of molded case circuit breakers on 3-phrase systems, other than

solidly grounded wye, particularly on corner grounded delta systems, considers the circuit

breakers’ individual pole-interrupting capability.

■Continuous Current Rating

The continuous current rating (or handle rating) of a circuit breaker is defined by NEMA as: “The

maximum direct current or rms current, in amperes, at rated frequency which a device or assembly will

carry continuously without exceeding the specified limits of observable temperature rise.” Continuous

current amperage ratings established by the 2002 NEC, paragraph 240.6 are: 15 A, 20 A, 25 A, 30 A,

35 A, 40 A, 45 A, 50 A, 60 A, 70 A, 80 A, 90 A, 100 A, 110 A, 125 A, 150 A, 175 A, 200 A, 225 A,

250 A, 300 A, 350 A, 400 A, 450 A, 500 A, 600 A, 700 A, 800 A, 1000 A, 1200 A, 1600 A, 2000 A,

2500 A, 3000 A, 4000 A, 5000 A, 6000 A.

Paragraph 210.20 (A) and 215.3 of the 2002 NEC states:

210.20 (A)—Where a branch circuit supplies continuous loads or any combination of

continuous and noncontinuous loads, the rating of the overcurrent device shall not be less than

the noncontinuous load plus 125 percent of the continuous load.

Exception: Where the assembly, including the overcurrent devices protecting the branch

circuit(s), is listed for operation at 100 percent of its rating, the ampere rating of the overcurrent

device shall be permitted to be not less than the sum of the continuous load plus the

noncontinuous load.

215.3—Feeders shall be protected against overcurrent in accordance with the provisions of

Part I of Article 240. Where a feeder supplies continuous loads or any combination of

continuous and noncontinuous loads, the rating of the overcurrent device shall not be less than

the noncontinuous load plus 125 percent of the continuous load.

Exception No. 1: Where the assembly, including the overcurrent devices protecting the

feeder(s), is listed for operation at 100 percent of its rating, the ampere rating of the overcurrent

device shall be permitted to not less than the sum of the continuous load plus the

noncontinuous load.

Exception No. 2: Overcurrent protection for feeders over 600 volts, nominal, shall comply with

Prt IX of Article 240.

NEC defines a continuous load as: “A load where the maximum current is expected to continue for

three hours or more.”

UL Standard 489 states that circuit breakers must carry 100% of their continuous current rating

indefinitely (without tripping) at 40° C in free air. Thermal-magnetic circuit breakers are sized per the

NEC for 80% continuous current ratings in the intended enclosure. The continuous current rating is

indicated on the front of each circuit breaker.

■Interrupting Ratings

Square D® thermal-magnetic molded case circuit breakers can be standard interrupting, high

interrupting, extra high interrupting, and time current limiting in construction and are UL Listed for the

interrupting ratings as shown below.

UL recognizes component combinations (circuit breaker / circuit breaker and fuse / circuit breaker) for

series connected interrupting ratings. All series rated combinations are marked on the end use

equipment along with the statement, “Caution—Series Rated System.”

For 100% rated applications, see Class 602, 611, 612, and 613 catalogs for more information.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

NOTE: These ratings apply to I-Line® circuit breakers and circuit breakers with or without lugs.

Table 5: UL Listed Interrupting Ratings in kA (RMS Symmetrical Amperes)

Ampacity Catalog Prefix Maximum Voltage UL Listed Interrupting ratings (in kA)

240 Vac 480 Vac 600 Vac 125 Vdc 250 Vdc 500 Vdc

Standard Interrupting

15–100 FA

600 Vac

480 Vac

240 Vac

—

70–250 KA 600 Vac 42 25 22 10 10 —

125–600 LA 600 Vac 42 30 22 10 10 —

300–1000 MA 600 Vac 42 30 22 10 10 —

600–1200 NA 600 Vac 100 50 25 — — —

600–2000 PA 600 Vac 65 50 42 — — —

High Interrupting

15–100 FH 600 Vac 65 25 18 50 50 —

70–250 KH 600 Vac 65 35 25 50 50 —

125–400 LH 600 Vac 65 35 25 50 50 —

300–1000 MH 600 Vac 65 65 25 50 50 —

600–2000 PH 600 Vac 125 100 65 — — —

15–100 FH-DC 500 Vdc — — — — — 20

70–250 KH-DC 500 Vdc — — — — — 20

125–400 LH-DC 500 Vdc — — — — — 20

300–1000 MH-DC 500 Vdc — — — — — 20

600–2500 PA-DC 500 Vdc — — — — — 25

Extra High Interrupting

15–100 FC 480 Vac 100 65 — — — —

110–250 KC 480 Vac 100 65 — — — —

300–600 LC 600 Vac 100 65 35 — — —

600–1200 NC 600 Vac 125 100 65 — — —

1600–2500 PC 600 Vac 125 100 65 — — —

Current Limiting

20–100 FI 600 Vac 200 200 100 — — —

110–250 KI 600 Vac 200 200 100 — — —

300–600 LI 600 Vac 200 200 100 — — —

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

The ampere interrupting rating (AIR) of a circuit breaker is the highest current at rated voltage that the

circuit breaker is intended to interrupt under standard test conditions. The interrupting rating is shown

on the faceplate of the circuit breaker for each voltage level that the circuit breaker can use. Circuit

breakers are selected with interrupting ratings equal to or greater than the available short circuit

current at the point where the circuit breaker is applied in the system. Circuit breaker interrupting

ratings are commonly expressed in rms symmetrical amperes. The industry standardization on rms

symmetrical ampere ratings takes into account asymmetrical current conditions by specifying a power

factor in the test circuit.

■Ambient Temperature Rating

To meet the requirements of UL Standard 489, CSA, and IEC, molded case circuit breakers are

designed, built and calibrated for use on 50/60 Hertz (Hz) ac systems in a 40° C ambient temperature.

The ambient temperature is the temperature of the air surrounding a circuit breaker. Thermal-magnetic

circuit breakers are temperature sensitive devices, and their rated continuous current carrying capacity

is based on a UL specified 40° C calibration temperature. The ambient temperature can affect the

thermal (overload) tripping characteristics of thermal-magnetic circuit breakers. When applying the

Table 6: Powerpact® UL Listed Interrupting Ratings in kA (RMS Symmetrical Amperes)

Ampacity Catalog Prefix Maximum Voltage UL Listed Interrupting ratings (in kA)

240 Vac 480 Vac 600 Vac 125 Vdc 250 Vdc 500 Vdc

15–150

600 Vac

25 18 14

20 20 TBD

HG 65 35 18

HJ 100 65 25

HL 125 100 50

70–250

QB 240 Vac 10—————

QD 25—————

QG 600 Vac 65 — — — — —

QJ 240 Vac 100 — — — — —

150–250

600Vac

100

125

100

20 20 TBD

300–800 MG 600 Vac 65 35 18 — — —

MJ 100 65 25 — — —

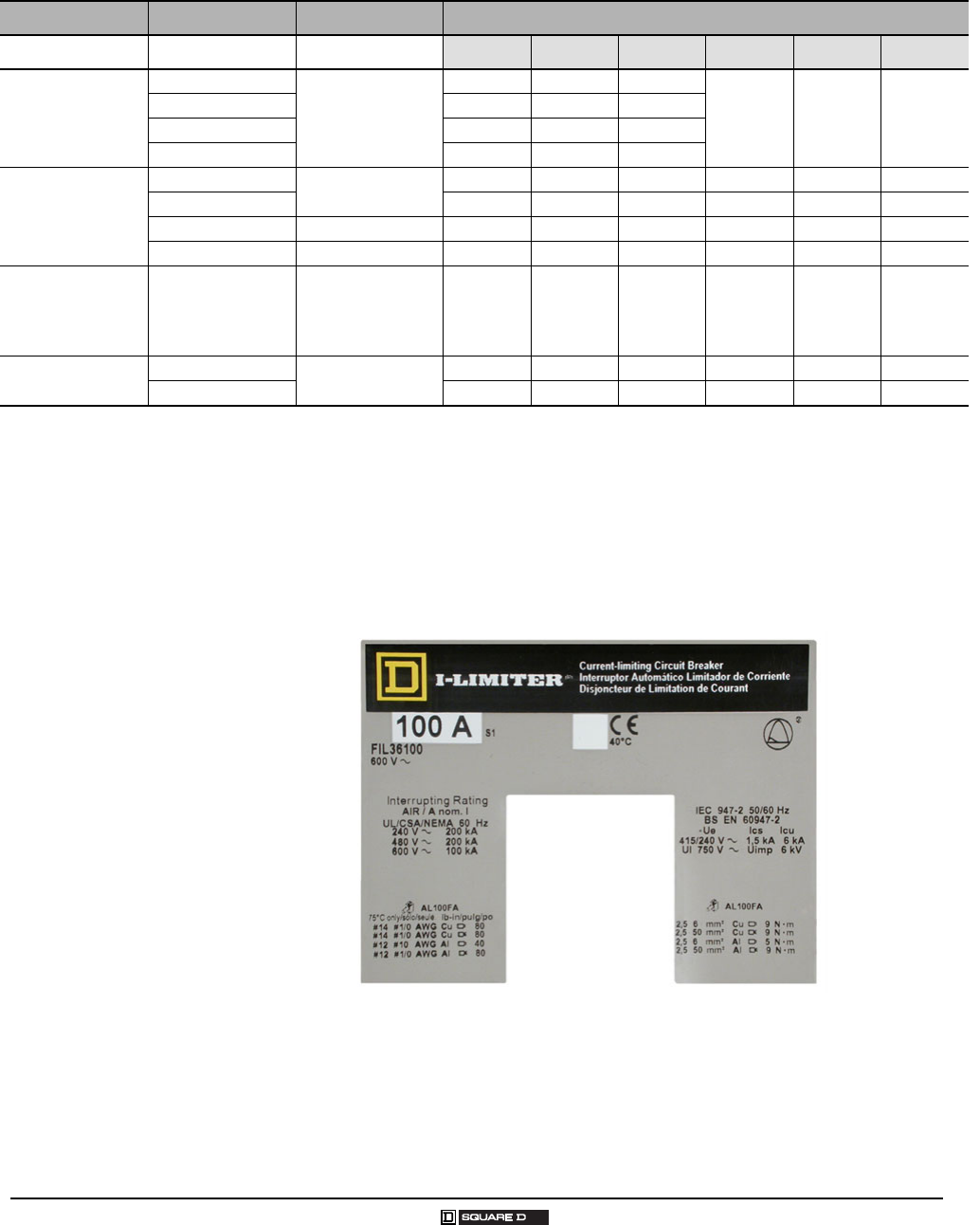

Figure 7: Circuit Breaker Faceplate Label

06013025

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

circuit breaker at a temperature other than 40° C, it may be necessary to rerate the circuit breaker to

compensate for ambient conditions. Conductors are sized using the ampacity rerating factors shown in

NEC Table 310-16 when designating systems for ambient temperatures other than 40° C.

Thermal-magnetic circuit breakers use bimetal strips that bend in response to temperature changes.

Current flowing through the circuit breaker creates most of the heat that causes the tripping action. The

ambient temperature surrounding the circuit breaker either adds to or subtracts from this available

heat.

■Rerating of Thermal-Magnetic Circuit Breakers for Ambient Conditions

Square D® thermal-magnetic circuit breakers are to be applied in ambient temperatures within a range

of -10° C to +60° C. These rerating guidelines should be followed:

1. At ambient temperatures between 25° C and 40° C, no rerating is necessary.

2. At ambient temperatures between -10° C and 24° C, thermal-magnetic circuit breakers carry more

than their continuous current rating without tripping. Wire and equipment damage can result if they

are not in the same low ambient environment as the circuit breaker.

If closer protection of the equipment and wire is required, the increased current carrying capacity of

the circuit breaker at the lower ambient temperature should be taken into consideration.

3. At ambient temperatures between 41° C and 60° C thermal-magnetic circuit breakers carry less

than their continuous current rating and must be carefully selected to prevent nuisance tripping.

The following procedure is used to determine the continuous current carrying capacity of a thermal-

magnetic circuit breaker at ambient temperature other than 40° C (see data bulletin Determining

Current Carrying Capacity in Special Applications for more information):

1. Refer to the ambient rerating curves for the circuit breaker type.

2. Select the curve for the specific amperage rating of the circuit breaker involved. Note in the figure,

below, that the curve crosses the 40° C ambient temperature line at the circuit breaker’s UL Listed

continuous current rating (handle rating).

3. Follow this curve to the ambient temperature in which the circuit breaker is to be installed.

4. Read the continuous current carrying capacity at this left axis point.

5. Apply any other applicable factors, such as 80% loading per the NEC.

Figure 8: LA Circuit Breaker Ambient Rerating Curves

For example, this figure shows the ambient rerating curves for the

LA thermal-magnetic circuit breaker. Determine the continuous

current carrying capacity of a 400 ampere LA circuit breaker

applied at 40° C by finding 40 on the horizontal axis and reading up

to the 400 ampere curve. The circuit breaker carries 400A, which is

its rated capacity. If the circuit breaker is used on a continuous load

(3 hours or more). Paragraph 220-10b of the NEC requires that

loading not exceed 80% of the rating (400 ampere x .80 = 320

ampere).

06013026

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

■Frequency Rating

The standard rated frequency for circuit breakers is 60 Hz, but Square D® circuit breakers can be

applied on 50 Hz systems without thermal or magnetic rerating. Other frequencies can affect the

thermal, magnetic and short circuit tripping characteristics of circuit breakers.

Applying thermal-magnetic circuit breakers at frequencies above 50/60 Hz requires special

consideration of the effects of high frequency on circuit breaker tripping characteristics. Thermal and

magnetic operations must be treated separately.

■Thermal Tripping Performance

At frequencies below 60 Hz, the thermal rerating of thermal-magnetic circuit breakers is negligible.

However, at frequencies above 60 Hz, thermal rerating is required. High frequency operation causes

abnormal heat rise in the current carrying parts because of the skin effect. One of the most common

frequency applications is at 400 Hz.

For example, when applying a 200 ampere KA circuit breaker on a 400 Hz system, the circuit breaker’s

current carrying capacity is as follows:

•Non-continuous loads (less than three hours): The KA circuit breaker may be applied at .92 of its

rating, or 184 ampere.

•Continuous loads (3 hours or more): Paragraph 220-10b of the NEC requires that circuit breaker’s

loading does not exceed 80% of its rating when used for continuous loads. (Unless the circuit

breaker is rated for operation at 100% of its rating). Therefore, the current carrying capacity of a

200 ampere KA circuit breaker operating under continuous load at 400 Hz would be

200x.92x.80=147ampere.

■Magnetic Tripping Performance

Figure 9: 400 Hz Thermal Rerating Multiplier

At frequencies above 60 Hz, the interrupting capacity of

thermal-magnetic circuit breakers is less than the 60 Hz

interrupting capacity. Unless specifically marked on 400

Hz systems, the interrupting capacity of Square D® circuit

breakers is reduced to 1/10th of the 60 Hz interrupting

capacity.

06013027

Figure 10: 60 Hz Current Multipliers

At frequencies above 60 Hz, more current is necessary to

magnetically trip a circuit breaker than at 60 Hz. The

figure below shows the multipliers of 60 Hz current that it

takes to magnetically trip a circuit breaker when applied

at various frequencies. For example, at 60 Hz it takes

1000 amperes to magnetically trip a 200 ampere KA

circuit breaker at its low setting. At 400 Hz it takes 2600

amperes (2.6 multiplier) to magnetically trip the same

circuit breaker.

06013028

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

■Rerating for Direct Current

Trip curves provide complete time-current characteristics of circuit breakers when applied on ac

systems only. Thermal-magnetic circuit breakers (1000 ampere frame or less) on dc systems retain

their thermal tripping characteristics, but a multiplier must be applied to the ac magnetic trip level to

determine an equivalent dc trip level.

Below is a list of multipliers for the dc magnetic trip level of each type of thermal-magnetic circuit

breaker:

For example, the equivalent dc magnetic trip levels for a 200 ampere KA circuit breaker would be:

ac Hi Setting = 2000 ampere + 20%

dc Hi Setting = 2000 ampere x 1.15 = 2300 ampere + 20%

ac Lo Setting = 1000 ampere + 25%

dc Lo Setting = 1000 ampere x 1.3 = 1300 ampere + 25%

■UL Listed 500 Vdc Rated Circuit Breakers

Square D has UL listed dc thermal-magnetic circuit breakers specifically designed for use on

ungrounded dc systems having a maximum short circuit (loaded) voltage of 500 Vdc or a maximum

floating (unloaded) voltage of 600 Vdc.

This UL Listed dc rating is available on FH. KH, LH, MH and PA molded case circuit breakers. Specific

time current characteristic tripping curves are available for these applications.

Return and Exchange Policy

Molded case circuit breakers are factory sealed and no internal inspection or maintenance is required

under normal conditions. Important: DO NOT OPEN THE SEALED CASE. Opening of the sealed

case voids the UL label and the Square D® warranty.

All damaged or used circuit breakers should be replaced as a unit and returned to the factory for

inspection. Upon receipt of the circuit breaker, Square D performs a thorough inspection of the circuit

breaker and issues a test report (on request). Unused circuit breakers and circuit breakers returned for

inspection must be returned as instructed by the local Square D sales office.

Circuit breakers sent to the factory for inspection or testing are not returned. Square D offers a new

circuit breaker and allows a credit for the circuit breaker that was returned. Price and credit allowances

for all replacements of molded case circuit breakers and trip units are determined by Class, as follows.

■Class I

New circuit breakers that have been broken by handling or assembling, by other than Square D, or in

transit and have not been in service.

❏Allowance

A replacement circuit breaker is furnished and billed at list price minus the regular discount. When

the circuit breaker in need of repair is returned, a credit allowance (42% of the billing price minus

any transportation paid by Square D®) is issued against the invoice of the replacing order.

Table 7: Rerating Multipliers for Direct Current

Circuit Breaker Magnetic Trip Level Multiplier

FA/FH/FC 1.15

KA/KH/KC Hi Setting 1.15

Lo Setting 1.3

LA/LH Hi Setting 1.2

Lo Setting 1.3

MA/MH Hi Setting 1.1

Lo Setting 1.2

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

■Class II

New circuit breakers that meet factory inspection standards and are interchangeable electrically and

physically with standard units of current manufacture.

❏Allowance

A replacement circuit breaker is furnished at the list price minus the regular discount. When the

unused circuit breaker is returned, a credit (in the amount of the billing price minus 20% restocking

charge and any transportation paid by Square D) is issued.

■Class III

Inoperative circuit breakers.

❏Allowance

A replacement circuit breaker is furnished at the list price minus the regular discount. Upon return

of the circuit breaker claimed inoperative, full credit is issued on the basis of the replacement cost

plus any transportation costs paid by the customer.

Examination by Square D must substantiate the claimed inoperative nature of the material

returned.

■Class IV

Exchange of permanent trip circuit breakers (KA, LA, MA or NA) furnished in lieu of circuit breakers

specified with interchangeable trip. These circuit breakers can be identified by a label stating they are

subject to this exchange policy.

❏Allowance

A replacement circuit breaker within the same frame size, but of a different trip rating than that

exchanged, is furnished at the lowest recognized competitive list price for a trip unit of the same

frame size and trip rating minus the regular discount. This exchange arrangement requires that the

replaced circuit breaker be returned to Square D.

Catalog Numbers

Square D circuit breakers are ordered by a catalog number that includes the breaker family,

description, poles, voltage rating, amperage rating and suffix.

The table below shows a typical catalog number broken down by components. For example,

FAL36050V2100, can be broken down as follows:

FA 100 ampere frame circuit breaker

L Circuit breaker with lugs on both ends

3 Number of poles

6 Voltage rating

050 Continuous current amperage rating (handle rating)

V and 2100 V indicates the Visi-Blade® feature and the 2100 indicates a factory

installed contact alarm. These two components are the suffix

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Table 8: Breakdown of Typical Catalog Number

FA L36050V2100

Breaker Family

FY - 30 Ampere Frame

FA - 100 Ampere Frame

KA - 250 Ampere Frame

LA - 400 Ampere Frame

MA 1000 Ampere Frame

NA - 1200 Ampere Frame

NOTE:

“A” is replaced by letter “H” for High Interrupting

“A” is replaced by letter “C” for Extra High Interrupting

“A” is replaced by letter “I” for Current Limiting. (FA, KA. LA

circuit breakers only)

Description

NO LETTER - (I-Line®) Plug-on Breaker

B - (I-Line) Bolt-on Breaker (400 ampere frame maximum)

F - Terminal Pads Only (No Lugs)

L - Lugs on Both Ends (Merchandised - Universal Breaker)

P - Lugs OFF End Only

R - Plug-on Breaker (I-Line Type DO with Plug-on Line and Load connectors)

Poles

1 - 1-Pole

2 - 2-Pole

3 - 3-Pole

Voltage Rating

2 - 240 Vac

4 - 480 Vac

6 - 600 Vac

Ampere Rating

015–090 - 15–90 Ampere Rating

100–900 - 100–900 Ampere Rating

1000–1200 - 1000–1200 Ampere Rating

000 or 0000 - Molded Case Switch

000X or 000XX - Molded Case Switch

Suffix

The suffix indicates a special feature of the circuit breaker.

A, B, C - indicated I-Line Phase Connections

CV - Indicates Visi-Blade®

M - Indicates Automatic Molded Case Switch

XXM - Indicated Instantaneous Trip Only (Mag-Gard®) (i.e., 18M is 300-1100 ampere

adjustable trip range)

XXT - Indicates adjustable magnetic trip with responsive thermal (mining breakers)

G - Indicates Ground Fault Shunt Trip accessory

XXXX - I.e., 2100 Indicates a factory installed accessory

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Table 9: Powerpact® Q-frame Catalog Numbering System★

Number Segment Character Description Q BL32250 4▲L W■

Circuit Breaker Family Q

Circuit Breaker Type

(Interrupting Rating)

B10 kA

D25 kA

G65 kA

J100 kA

Connection Type

AI-Line

E Bolt-on I-Line

F No lugs (Bus Connection)

L Lugs on both ends

M Lugs on ON (I) end only

P Lugs on OFF (O) end only

Poles 22-pole

33-pole

240 Volts Only 2

Continuous Current

Rating (Amperes)

100

110

125

150

175

200

225

250

000 S 22 = Switch (QB only)

I-Line Phasing

2-pole

1 = AB

2 = AC

3 = BA

4 = BC

5 = CA

6 = CB

3-pole None = ABC

6 = CBA

Special Ambient CA = 50 C

Control Taps L

U = Control taps applied to ON (I) end

V = Control taps applied to OFF (O) end

W = Control taps applied to both ends

Termination Options T

M = Lugs applied to OFF (O) end; studs with nuts and washers

threaded onto ON (I) end

N = Lugs applied to ON (I) end; studs applied to OFF (O) end (nuts/washers in bag, supplied)

P = Studs applied to ON (I) end; Lugs applied to OFF (O) end (nuts/washers in bag, supplied)

S = Studs on BOTH ends (nuts/ washers in bag, supplied)

Special Features Y

D = Calibration test report supplied

F =Fungus treatment

P = Handle Padlock Attachment, ON (I) or OFF (O) position

Q = Handle Padlock Attachment, OFF (O) position only

★See Class 611, 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit breakers.

▲May be collapsed if none.

■May be collapsed if none. May be multiple options.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Table 10: Powerpact® H-frame Catalog Numbering System★

Number Segment Character Description H LL36150 T▲ ■

Circuit Breaker Family H

Circuit Breaker Type

(Interrupting Rating)

D25 kA

G65 kA

J100 kA

L125 kA

Connection Type

AI-Line

DDrawout

FBus Bar

K Reverse I-Line

L Lugs (Line/Load Side)

M Lugs (Line Side)

N Plug-in

P Lugs (Load Side)

S Rear Connected

Poles

22-pole

33-pole

Voltage 6 600 Vac

Continuous Current

Rating (Amperes)

150 15–150 ampere

000 Switch

Trip Unit

— Standard Fixed Trip Unit (suitable for reverse connection)

F06 60 Ampere H-frame Only (no trip unit)

F15 150 Ampere H-frame Only (no trip unit)

TComplete Circuit Breaker (frame and removable trip unit)

S15 Molded Case Switch 150 Ampere H-frame Automatic Switch

C100% Continuous Current Rating

Accessory Suffix Codes★

★See Powerpact H- and J-frame catalog, Class 611, for more information. Also, see Class 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit

breakers.

▲May be collapsed if none.

■May be collapsed if none. May be multiple options.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Table 11: Powerpact® J-frame Catalog Numbering System★

Number Segment Character Description J LL36250 T▲ ■

Circuit Breaker Family J

Circuit Breaker Type

(Interrupting Rating)

D25 kA

G65 kA

J100 kA

L125 kA

Connection Type

AI-Line

DDrawout

FBus Bar

K Reverse I-Line

L Lugs (Line/Load Side)

M Lugs (Line Side)

N Plug-in

P Lugs (Load Side)

S Rear Connected

Poles

22-pole

33-pole

Voltage 6 600 Vac

Continuous Current

Rating (Amperes)

150 150–250 ampere

000 Switch

Trip Unit — Standard Fixed Trip Unit (suitable for reverse connection)

F25 250 Ampere J-frame Only (no trip unit)

TComplete Circuit Breaker (frame and removable trip unit)

S17 Molded Case Switch 175 Ampere J-frame Automatic Switch

S25 Molded Case Switch 250 Ampere J-frame Automatic Switch

C100% Continuous Current Rating

Accessory Suffix Codes★

★See Powerpact H- and J-frame catalog, Class 611, for more information. Also, see Class 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit

breakers.

▲May be collapsed if none.

■May be collapsed if none. May be multiple options.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Introduction

Table 12: Powerpact® M-frame Catalog Numbering System★

Number Segment Character Description M GA36800 6▲AB■

Circuit Breaker Family M

Circuit Breaker Type

(Interrupting Rating)

G35 kA @ 480 Volts

J65 kA @ 480 Volts

Connection Type

AI-Line

F No lugs (Bus Connection)

L Lugs on both ends

M Lugs on ON (I) end only

P Lugs on OFF (O) end only

Poles

22-pole

33-pole

Voltage 6 600 Vac

Continuous Current

Rating (Amperes)

300

350

400

450

500

600

700

800

I-Line Phasing

2-pole

1 = AB

2 = AC

3 = BA

4 = BC

5 = CA

6 = CB

3-pole

None = ABC

6 = CBA

Accessory Suffix Codes★

★See M-frame, P-frame, R-frame and NS630b–NS3200 Electronic Trip Circuit Breakers Catalog for more information. Also, see Class 611, 612, 613, and 734

catalogs for other Powerpact and Masterpact® circuit breakers.

▲May be collapsed if none.

■May be collapsed if none. May be multiple options.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

100 AMPERE FRAME

This section provides specific information on Square D® 100 ampere frame thermal-magnetic molded

case circuit breakers. For more information, see the Introduction in this catalog.

Description

Applications

• FI current limiting circuit breakers are used for electrical systems where high fault currents can occur.

• FA/FH, FC, and FI circuit breakers are used in industrial enclosures, panelboards, switchboards,

busway plug-in units, combination starters, or motor control centers.

• FY thermal-magnetic circuit breakers are used in I-Line® panelboards and switchboards.

NOTE: For IEC 60947-2 rated S-line ratings, not UL listed, see Supplemental Digest.

Table 13: Description of 100 Ampere Frame Circuit Breakers

Circuit Breaker Description

HD, HG, HJ, HL 15–150 ampere, 600 Vac, 50/60 Hz

250 Vdc, 2-, 3-pole.

FA/FH 15-100 ampere, 600 Vac, 50/60 Hz,

250 Vdc, 1-, 2- and 3-pole.

FC 15-100 ampere, 480 Vac, 50/60 Hz,

2- and 3-pole

FI 20-100 ampere, 600 Vac 50/60 Hz,

2- and 3-pole

FY 15-30 ampere, 277 Vac, 50/60 Hz, 1-pole

Table 14: 100 Ampere Frame Interrupting Ratings

Catalog Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line 120 240 480Y/

277 480 600 125 250 500 415/240

FY1 15–30 181414 —————11a, 13b 10/2.5

FAL 240

Vac

FA 240

Vac

15–100

—

11a

11b, 12b

10/2.5

FAL 480

Vac

FA 480

Vac

15–100

—

11a, 12a, 13a

13b

10/2.5

FAL 600

Vac

FA 600

Vac

15–100

—

18a

18a 10/2.5

FHL★FH★

2, 3

15–30

35–100

15–100

—

13a

22a

10/2.5

FHL-DC▲— 3 — ——— ————20K— —

FCL FC2, 320–10010010065 65————22a 10/2.5

FIL FI 2, 3 20–100 200 200 200 200 100 — — — 16a 6/1.5

★Separate UL rating available for 240 Vac and 480 Vac grounded B single phase systems. Breakers must be ordered with 5861 suffix.

▲UL Listed 500 Vdc rating for use on ungrounded systems. Must be connected 3 poles in series. Consult your local Square D sales office for additional information

1-888-Square D.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Selection Data

Table 15: 150 Ampere Powerpact® H-frame Molded Case Circuit Breakers★

Catalog Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line®120 240 480Y/

277 480 600 125 250 500 415 240

HD HDA

2, 3 15–150

25 25 18 18 14 20 20 TBD 19a 18/4 25/6

HG HGA 65 65 35 35 18 20 20 TBD 22a 35/8 65/16

HJ HJA 100 100 65 65 25 20 20 TBD 23a 65/16 100/25

HL HLA 125 125 100 100 50 20 20 TBD 25a 100/25 125/31

★See Powerpact H- and J-frame catalog, Class 611, for more information. Also, see Class 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit

breakers.

Table 16: 100 Ampere Frame Unit Mount Circuit Breakers

Ampere

Rating

AC Magnetic Trip

Settings Amperes

One Pole

Catalog No.

Two Pole

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit

Wire Range

FAL Standard Interrupting

Hold Trip 120 Vac 240 Vac 240 Vac

275

600

FAL12015

FAL12020

FAL12025

FAL12030

FAL22015

FAL22020

FAL22025

FAL22030

FAL32015

FAL33020

FAL32025

FAL32030

AL50FA

#14-#4 Cu or

#12-#4 AI

100

400

830

800

900

850

1450

1700

FAL12035

FAL12040

FAL12045

FAL12050

FAL12060

FAL12070

FAL12080

FAL12090

FAL12100

FAL22035

FAL22040

FAL22045

FAL22050

FAL22060

FAL22070

FAL22080

FAL22090

FAL22100

FAL32035

FAL32040

FAL32045

FAL32050

FAL32060

FAL32070

FAL32080

FAL32090

FAL32100

AL100FA

#14-#1/0 Cu or

#12-#1/o AI

FAL Standard Interrupting

Hold Trip 277 Vac/125 Vdc 480 Vac/250 Vdc 480 Vac/250 Vdc

275

600

FAL14015

FAL14020

FAL14025

FAL14030

FAL24015

FAL24020

FAL24025

FAL24030

FAL34015

FAL34020

FAL34025

FAL34030

AL50FA

#14-#4 Cu or

#12-#4 AI

100

400

800

900

850

1450

1700

FAL14035

FAL14040

FAL14045

FAL14050

FAL14060

FAL14070

FAL14080

FAL14090

FAL14100

FAL24035

FAL24040

FAL24045

FAL24050

FAL24060

FAL24070

FAL24080

FAL24090

FAL24100

FAL34035

FAL34040

FAL34045

FAL34050

FAL34060

FAL34070

FAL34080

FAL34090

FAL34100

AL100FA

#14-#1/0 Cu or

#12-#1/o AI

Continued on next page

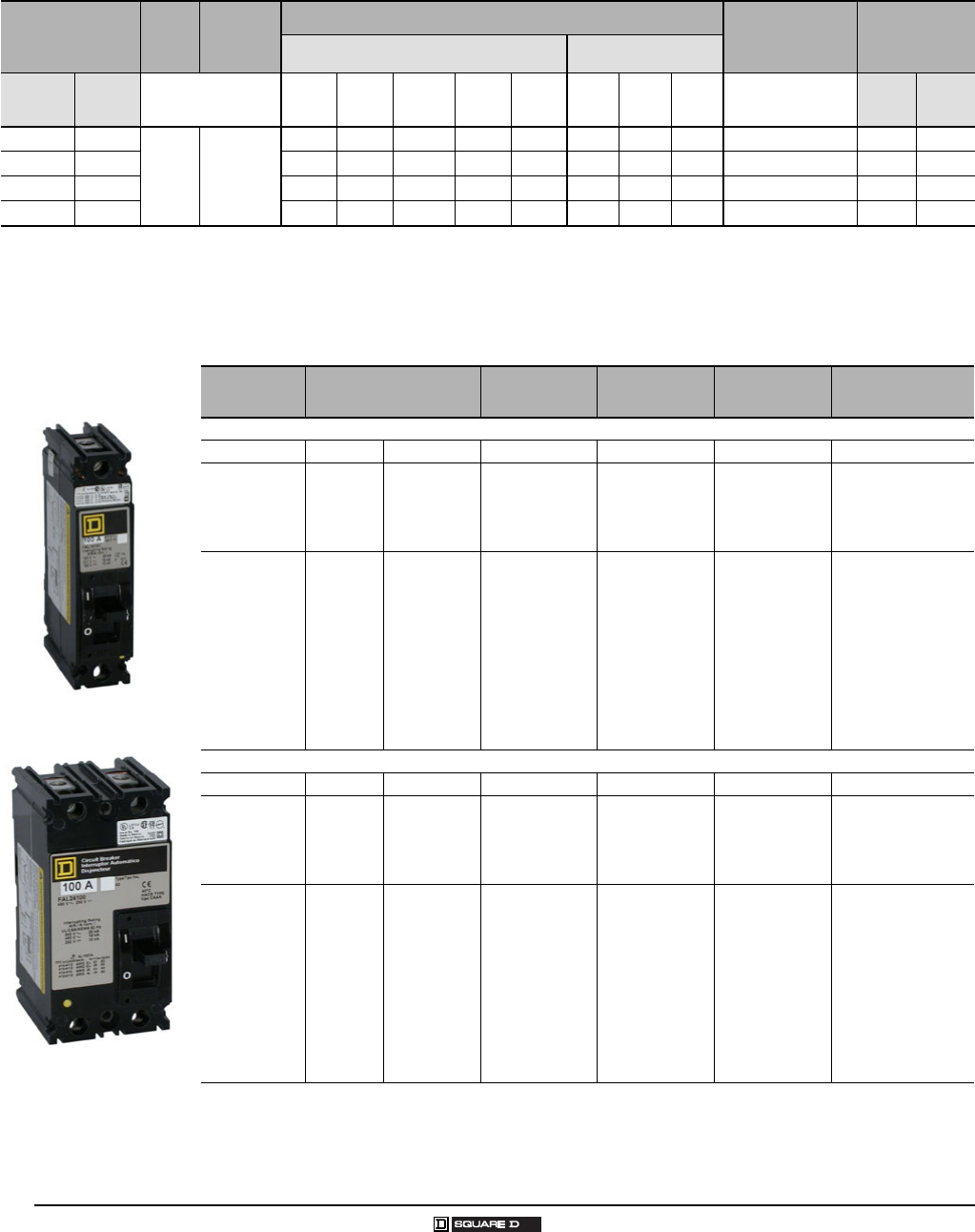

FAL One-pole

15–100 Ampere

FAL/FHL Two-pole

15–100 Ampere

06013029

06013030

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

FAL Standard Interrupting

Hold Trip 600 Vac/250 Vdc 600 Vac/250 Vdc

275

600

—

FAL26015

FAL26020

FAL26025

FAL26030

FAL36015

FAL36020

FAL36025

FAL36030

AL50FA

#14-#4 Cu or

#12-#4 AI

100

400

800

900

850

1450

1700

—

FAL26035

FAL26040

FAL26045

FAL26050

FAL26060

FAL26070

FAL26080

FAL26090

FAL26100

FAL36035

FAL36040

FAL36045

FAL36050

FAL36060

FAL36070

FAL36080

FAL36090

FAL36100

AL100FA

#14-#1/0 Cu or

#12-#1/o AI

FHL High Interrupting

Hold Trip 277 Vac/125 Vdc 600 Vac/250 Vdc 600 Vac/250 Vdc

275

600

FHL16015

FHL16020

FHL16025

FHL16030

FHL26015

FHL26020

FHL26025

FHL26030

FHL36015

FHL36020

FHL36025

FHL36030

AL50FA

#14–#4 Cu or

#12–#4 AI

100

400

800

900

850

1450

1700

FHL16035

FHL16040

FHL16045

FHL16050

FHL16060

FHL16070

FHL16080

FHL16090

FHL16100

FHL26035

FHL26040

FHL26045

FHL26050

FHL26060

FHL26070

FHL26080

FHL26090

FHL26100

FHL36035

FHL36040

FHL36045

FHL36050

FHL36060

FHL36070

FHL36080

FHL36090

FHL36100

AL100FA

#14–#1/0 Cu or

#12–#1/0 AI

FCL Extra High Interrupting

Hold Trip 480 Vac★480 Vac

275

600

—

FCL24015

FCL24020

FCL24025

FCL24030

FCL34015

FCL34020

FCL34025

FCL34030

CU30FA

#14–#10 Cu

100

400

800

900

850

1450

1700

—

FCL24035

FCL24040

FCL24045

FCL24050

FCL24060

FCL24070

FCL24080

FCL24090

FCL24100

FCL34035

FCL34040

FCL34045

FCL34050

FCL34060

FCL34070

FCL34080

FCL34090

FCL34100

AL100FA4

#14–#3 Cu or

#12–#1 AI

FIL I-Limiter® Current Limiting

Hold Trip 600 Vac 600 Vac

275

600

—

FIL26020

FIL26030

FIL36020

FIL36030

AL50FA

1-#14–#4 Cu or

1-#12–#4 AI

Continued on next page

Table 16: 100 Ampere Frame Unit Mount Circuit Breakers (continued)

Ampere

Rating

AC Magnetic Trip

Settings Amperes

One Pole

Catalog No.

Two Pole

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit

Wire Range

FIL Two- and Three-pole

20–100 Ampere

FAL/FHL/FCL Three-pole

15–100 Ampere

06013031

06013018

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

100

400

800

850

1700

—

FIL26040

FIL26050

FIL26060

FIL26070

FIL26080

FIL26090

FIL26100

FIL36040

FIL36050

FIL36060

FIL36070

FIL36080

FIL36090

FIL36100

AL100FA

1-#14–#1/0 Cu or

1-#12–#1/0 AI

★FCL 2-pole circuit breaker built using 3-pole module.

Table 17: 100 Ampere Frame I-Line® Circuit Breakers

Ampere

Rating

AC Magnetic Trip

Settings Amperes

One Pole★

Catalog No.

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit

Wire Range

FA Standard Interrupting

Hold Trip 240 Vac 240 Vac

275

600

—

FA22015( )

FA22020( )

FA22025( )

FA22030( )

FA32015

FA33020

FA32025

FA32030

AL50FA

1-#14–#4 Cu or

1-#12–#4 AI

100

400

830

800

900

850

1450

1700

—

FA22035( )

FA22040( )

FA22045( )

FA22050( )

FA22060( )

FA22070( )

FA22080( )

FA22090( )

FA22100( )

FA32035

FA32040

FA32045

FA32050

FA32060

FA32070

FA32080

FA32090

FA32100

AL100FA

1-#14–#1/0 Cu or

1-#12–#1/0 AI

FA Standard Interrupting

Hold Trip 277 Vac/125 Vdc 480 Vac/250 Vdc 480 Vac/250 Vdc

275

600

FY14015( )

▲

FY14020( )

▲

FY14025( )

▲

FY14030( )

▲

FA24015( )

FA24020( )

FA24025( )

FA24030( )

FA34015

FA34020

FA34025

FA34030

AL50FA

1-#14–#4 Cu or

1-#12–#4 AI

100

400

800

900

850

1450

1700

FA14035( )■

FA14040( )■

FA14045( )■

FA14050( )■

FA14060( )■

FA14070( )■

FA14080( )■

FA14090( )■

FA14100( )■

FA24035( )

FA24040( )

FA24045( )

FA24050( )

FA24060( )

FA24070( )

FA24080( )

FA24090( )

FA24100( )

FA34035

FA34040

FA34045

FA34050

FA34060

FA34070

FA34080

FA34090

FA34100

AL100FA

1-#14–#1/0 Cu or

1-#12–#1/0 AI

FA Standard Interrupting

Hold Trip 600 Vac/250 Vdc 600 Vac/250 Vdc

275

600

—

FA26015( )

FA26020( )

FA26025( )

FA26030( )

FA36015

FA36020

FA36025

FA36030

AL50FA

1-#14–#4 Cu or

1-#12–#4 AI

Continued on next page

Table 16: 100 Ampere Frame Unit Mount Circuit Breakers (continued)

Ampere

Rating

AC Magnetic Trip

Settings Amperes

One Pole

Catalog No.

Two Pole

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit

Wire Range

FY/ FA/FH One-pole

1-1/2” Mounting Height

FA/FH Two-pole

3” Mounting Height

06013032

06013033

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

100

400

800

900

850

1450

1700

—

FA26035( )

FA26040( )

FA26045( )

FA26050( )

FA26060( )

FA26070( )

FA26080( )

FA26090( )

FA26100( )

FA36035

FA36040

FA36045

FA36050

FA36060

FA36070

FA36080

FA36090

FA36100

AL100FA

1-#14–#1/0 Cu or

1-#12–#1/0 AI

FH High Interrupting

Hold Trip 277 Vac/125 Vdc 600 Vac/250 Vdc 600 Vac/250 Vdc

275

600

FH16015( )

FH16020( )

FH16025( )

FH16030( )

FH26015( )

FH26020( )

FH26025( )

FH26030( )

FH36015

FH36020

FH36025

FH36030

AL50FA

1-#14–#4 Cu or

1-#12–#4 AI

100

400

800

900

850

1450

1700

FH16035( )

FH16040( )

FH16045( )

FH16050( )

FH16060( )

FH16070( )

FH16080( )

FH16090( )

FH16100( )

FH26035( )

FH26040( )

FH26045( )

FH26050( )

FH26060( )

FH26070( )

FH26080( )

FH26090( )

FH26100( )

FH36035

FH36040

FH36045

FH36050

FH36060

FH36070

FH36080

FH36090

FH36100

AL100FA

1-#14–#1/0 Cu or

1-#12–#1/0 AI

FC Extra High Interrupting

Hold Trip 480 Vac 480 Vac

275

600

—

FC24015( )

FC24020( )

FC24025( )

FC24030( )

FC34015

FC34020

FC34025

FC34030

CU30FA4

1-#14–#10 Cu

100

400

800

900

850

1450

1700

—

FC24035( )

FC24040( )

FC24045( )

FC24050( )

FC24060( )

FC24070( )

FC24080( )

FC24090( )

FC24100( )

FC34035

FC34040

FC34045

FC34050

FC34060

FC34070

FC34080

FC34090

FC34100

AL100FA4

1-#14–#3 Cu or

1-#12–#1 AI

FI I-Limiter® Current Limiting

Hold Trip 600 Vac 600 Vac

275

600

—

FI26020( )

FI26030( )

FI36020

FI36030

AL50FA

1-#14–#4 Cu or

1-#12–#4 AI

Continued on next page

Table 17: 100 Ampere Frame I-Line® Circuit Breakers (continued)

Ampere

Rating

AC Magnetic Trip

Settings Amperes

One Pole★

Catalog No.

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit

Wire Range

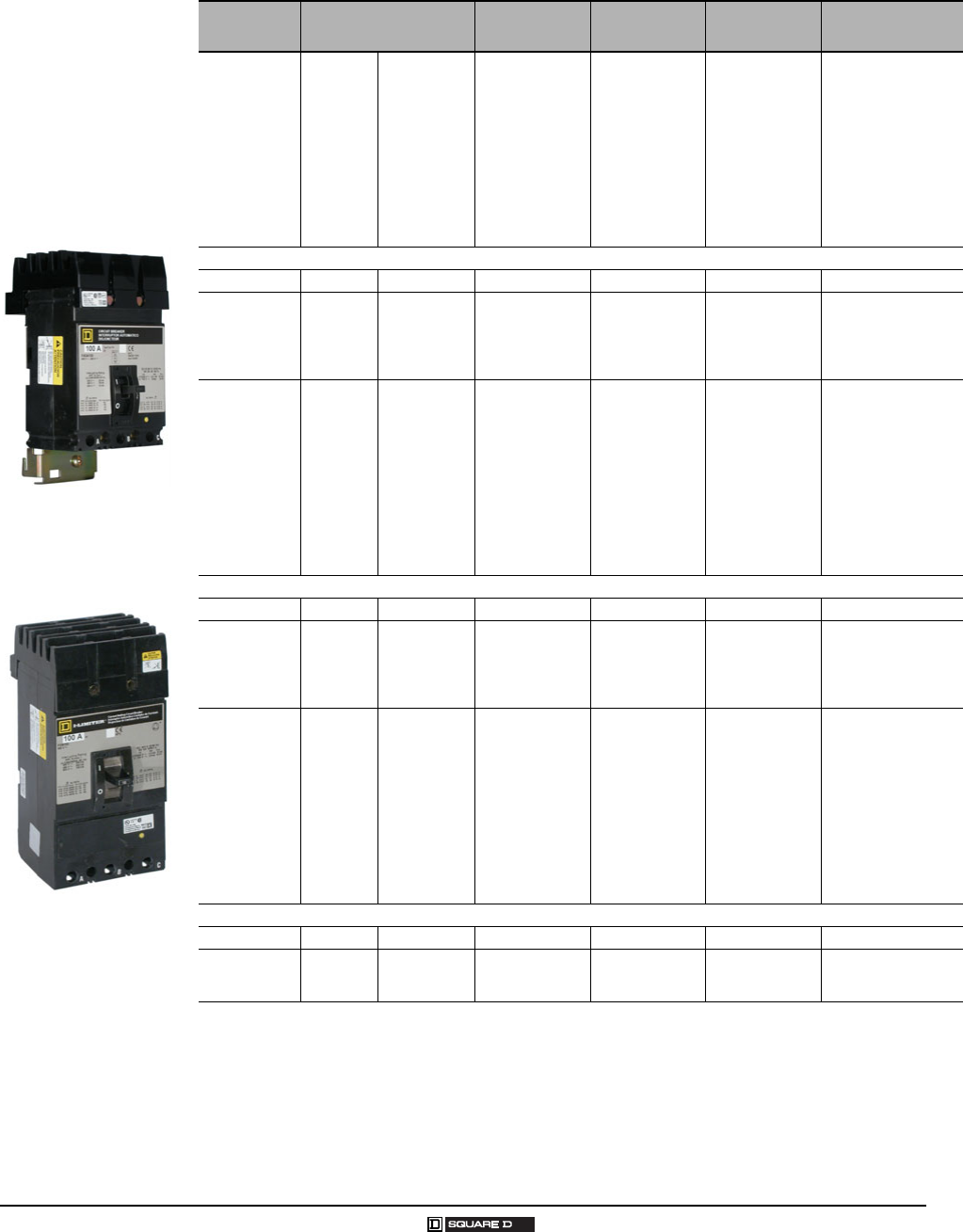

FA/FH Three-pole

FC Two- and Three-pole

4-1/2” Mounting Height

FI Two- and Three-pole

4-1/2” Mounting Height

06013034

06013012

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Powerpact® Selection Data

For Powerpact selection information see Class 611, 612, 613, and 734 catalogs.

100

400

800

850

1700

—

FI26040( )

FI26050( )

FI26060( )

FI26070( )

FI26080( )

FI26090( )

FI26100( )

FI36040

FI36050

FI36060

FI36070

FI36080

FI36090

FI36100

AL100FA

1-#14–#1/0 Cu or

1-#12–#1/0 AI

★1- and 2-pole circuit breaker catalog numbers are completed by adding the required phase connection letters as a suffix to the

catalog number.

▲Rated 277 Vac 15 and 20 ampere FY breakers are rated for switching duty (SWD). 15, 20, 25, and 30 ampere FA I-Line® breakers

are also available (no SWD rating).

■Rated 277 Vac, 125 Vdc except FY, which has no dc rating. 15–30 ampere breakers suitable for use with 60°C or 75°C

conductors. 35-100 ampere breakers are suitable for use with 75°C conductors.

Table 17: 100 Ampere Frame I-Line® Circuit Breakers (continued)

Ampere

Rating

AC Magnetic Trip

Settings Amperes

One Pole★

Catalog No.

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit

Wire Range

H-frame: Class 611

06113477

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Dimensions

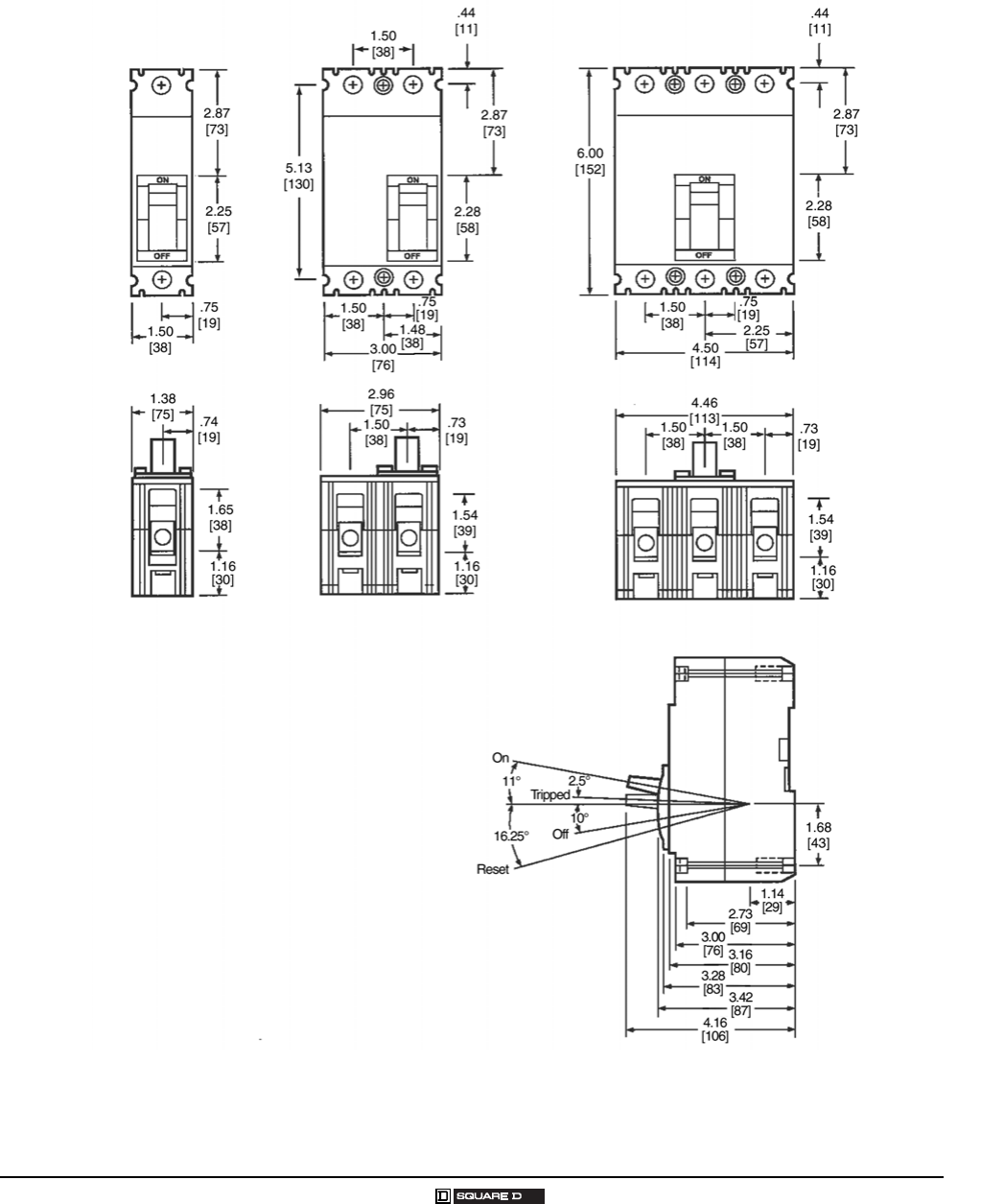

Figure 11: FAL, FHL, FCL 100 Ampere Frame

Dimensions: In.

[mm]

FCL 2-pole circuit breaker dimension is

the same as a 3-pole circuit breaker.

06013035

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Figure 12: FIL 100 Ampere Frame

Dimensions: In.

[mm]

06013036

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

FA/FH/FC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 650-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

15–25

240 1★, 2, 3

FA 480 1▲, 2, 3

FC 240 2, 3

FC 480 2, 3

FA 600 2, 3

FA, FH 600 1▲, 2, 3

★120 Vac maximum

▲277 Vac maximum

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0650TC0001

December 2000

Drawing No. B48095-650-01

(Replaces 0650TC9001)

TIME IN SECONDS

06013037

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

FA/FH/FC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 650-2

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

240 1★, 2, 3

FA 480 1▲, 2, 3

FC 240 2, 3

FC 480 2, 3

FA 600 2, 3

FH 600 1▲, 2, 3

★120 Vac maximum

▲277 Vac maximum

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0650TC0002

December 2000

Drawing No. B48095-650-02

(Replaces 0650TC9002)

TIME IN SECONDS

Tripping curves for

coordination studies are

available upon request.

06013038

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

FA/FH/FC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 650-3

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

35–60

240 1★, 2, 3

FA 480 1▲, 2, 3

FC 240 2, 3

FC 480 2, 3

FA 600 2, 3

FH 600 1▲, 2, 3

★120 Vac maximum

▲277 Vac maximum

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0650TC0003

December 2000

Drawing No. B48095-650-03

(Replaces 650-3,

dated April, 1990)

TIME IN SECONDS

06013039

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

FA/FH/FC FAMILY MOLDED CASE CIRCUIT BREAKERS

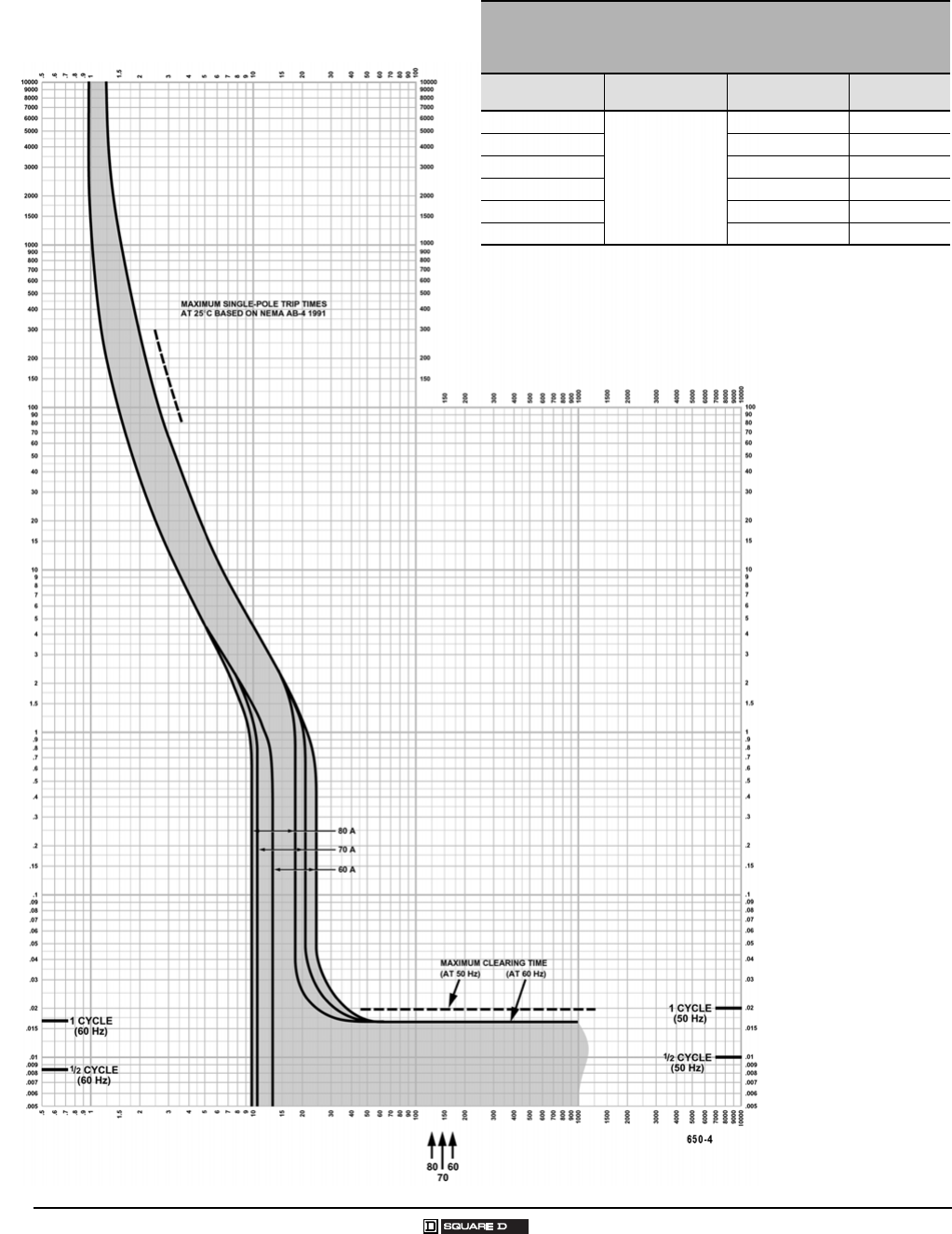

CHARACTERISTIC TRIP CURVE NO. 650-4

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

60–80

240 1★, 2, 3

FA 480 1▲, 2, 3

FC 240 2, 3

FC 480 2, 3

FA 600 2, 3

FH 600 1▲, 2, 3

★120 Vac maximum

▲277 Vac maximum

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0650TC0004

December 2000

Drawing No. B48095-650-04

(Replaces 0650TC9004)

TIME IN SECONDS

06013040

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

FA/FH/FC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 650-5

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

90 & 100

240 1★, 2, 3

FA 480 1▲, 2, 3

FC 240 2, 3

FC 480 2, 3

FA 600 2, 3

FH 600 1▲, 2, 3

★120 Vac maximum

▲277 Vac maximum

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0650TC0005

December 2000

Drawing No. B48095-650-05

(Replaces 0650TC9005)

TIME IN SECONDS

06013041

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 820-5

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

FI 20–30 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0820TC0005

December 2000

Drawing No. B48095-820-05

(Replaces 0820TC8505)

TIME IN SECONDS

06013042

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 820-6

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

FI 35–50 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0820TC0006

December 2000

Drawing No. B48095-820-06

(Replaces 0820TC8506)

TIME IN SECONDS

06013043

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

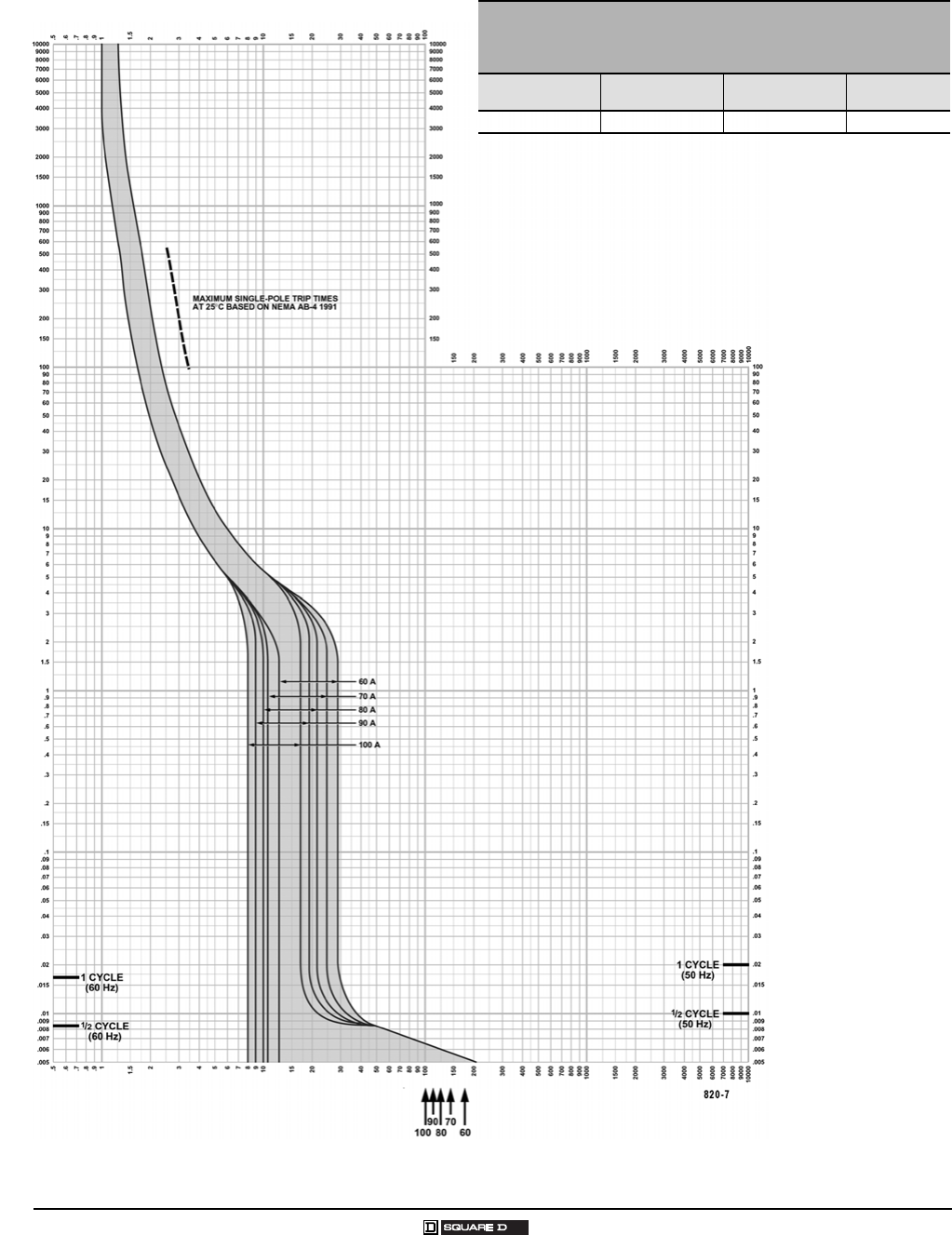

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 820-7

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

FI 60–100 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0820TC0007

December 2000

Drawing No. B48095-820-07

(Replaces 0820TC8507)

TIME IN SECONDS

06013044

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

FY THERMAL-MAGNETIC MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 651-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

FY 15–25 277 1

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0651TC9201

Drawing No. B48095-651-01

TIME IN SECONDS

06013045

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

FY THERMAL-MAGNETIC MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 651-2

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

FY 30 277 1

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0651TC9202

Drawing No. B48095-651-02

TIME IN SECONDS

06013046

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Powerpact® Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT H-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 50-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

HD, HG, HJ, HL 15–35 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0050TC0401

June 2004

Drawing No. B48095-050-01

TIME IN SECONDS

06113478

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® H-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 50-2

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

HD, HG, HJ, HL 40–60 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0050TC0402

June 2004

Drawing No. B48095-050-02

TIME IN SECONDS

06113479

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies

are available upon

request.

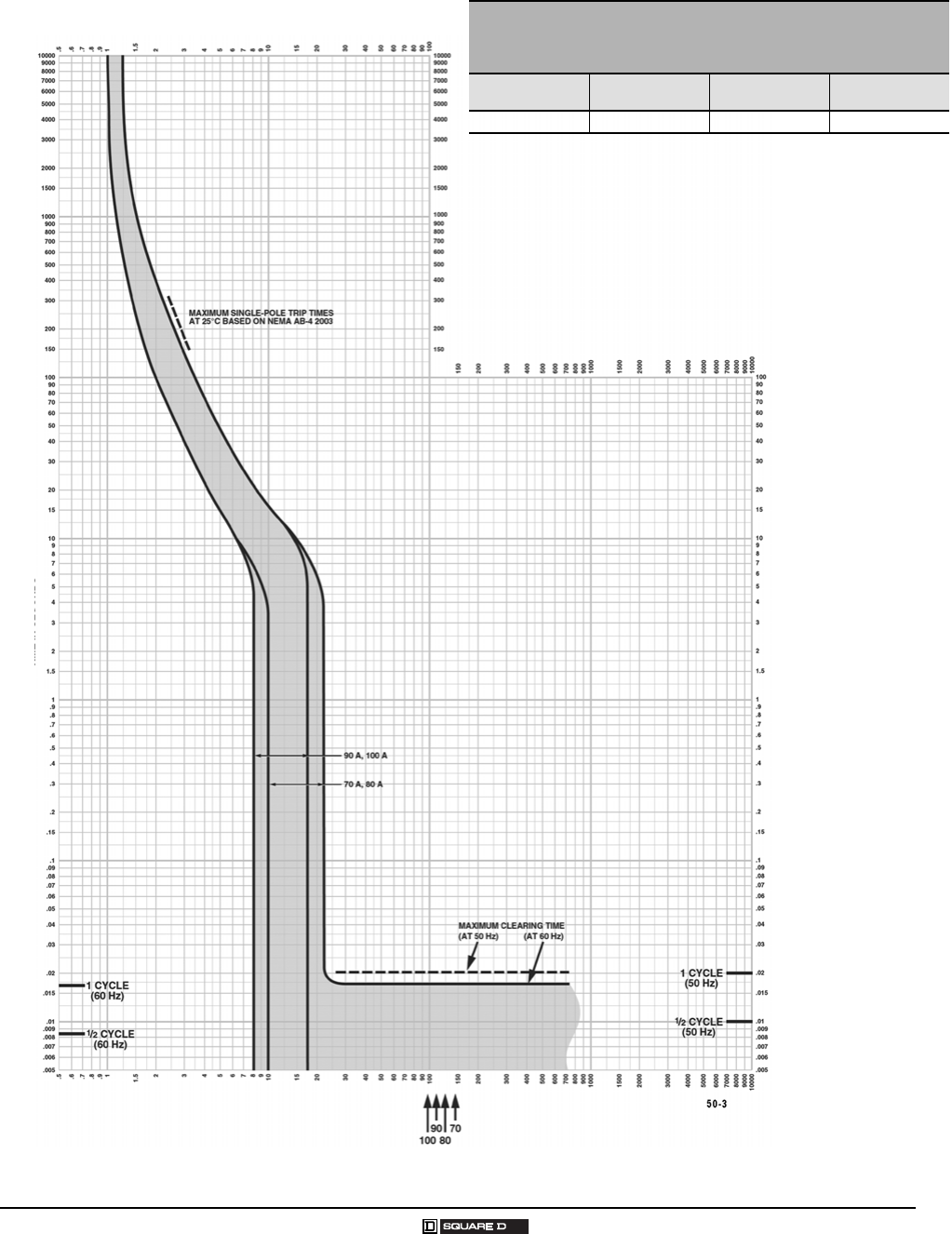

POWERPACT® H-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 50-3

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

HD, HG, HJ, HL 70–100 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0050TC0403

June 2004

Drawing No. B48095-050-03

TIME IN SECONDS

06113480

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® H-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 50-4

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

HD, HG, HJ, HL 110–150 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0050TC0404

June 2004

Drawing No. B48095-050-04

TIME IN SECONDS

06113481

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Let-through Curves

Maximum★ Peak Let-Through Current (Amperes)

★Based on typical values obtained throughout the circuit breaker

development and UL test programs.

Available Short Circuit Current (RMS Symmetrical Amperes)

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

FI 100 Ampere Frame at 240, 480 and 600 Vac, 3Ø

20 Amperes

Curve No. 820-1 Peak Let-Through Current Ip

and 820-2 Let-Through I2t

Available Short Circuit Current (RMS Symmetrical Amperes)

Maximum★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 820-1

Curve No. 820-2

06013047

06013048

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Maximum★ Peak Let-Through Current (Amperes)

★Based on typical values obtained throughout the circuit breaker

development and UL test programs.

Available Short Circuit Current (RMS Symmetrical Amperes)

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

FI 100 Ampere Frame at 240, 480 and 600 Vac, 3Ø

25–100 Amperes

Curve No. 820-3 Peak Let-Through Current Ip

and 820-4 Let-Through I2t

Available Short Circuit Current (RMS Symmetrical Amperes)

Maximum★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 820-3

Curve No. 820-4

06013050 06013049

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

100 Ampere Frame

Powerpact® Let-through Curves

Typical★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on typical values obtained throughout the circuit breaker

development and UL test programs.

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

WERPA

T H-FRAME

UIT BREAKER

H-frame 150 Ampere (HD, HG, HJ, and HL)

110–250 Amperes

Curve No. 50-6 Let-Through I2t

and 50-7 Peak Let-Through Current Ip

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

Maximum★ Let-Through I2t (Amperes Seconds x 103)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 50-6

Curve No. 50-7

0611348206113483

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

225 / 250 AMPERE FRAME

This section provides specific information on Square D® 225 / 250 ampere frame thermal-magnetic

molded case circuit breakers. For more information, see the Introduction in this catalog.

Description

Applications

•KI current limiting circuit breakers are used for electrical systems where high fault currents can

occur.

•KA/KH, KC and KI circuit breakers are used in industrial enclosures, panelboards, switchboards,

busway plug-in units, combination starters and motor control centers.

•QB, QD, QG, QJ (250 ampere Q-frame) circuit breakers are used in individual enclosures,

metering devices, panelboards 225 ampere maximum I-Line®, and switchboards.

Table 18: Description of 225 / 250 Ampere Frame Circuit Breakers

Circuit

Breaker Description

QB, QD, QG, QJ 100–225 ampere, 240 Vac, 50/60 Hz, 2- and 3-pole.

JD, JG, JJ, JL 150–120 amperes, 600 Vac, 50/60 Hz, 3-pole

KA/KH 70–250 ampere, 600 Vac, 50/60 Hz2- and 3-pole

KC 110–250 ampere, 480 Vac 50/60 Hz, 2- and 3-pole

KI 110–250 ampere, 600 Vac, 50/60 Hz, 2- and 3-pole

current limiting

Table 19: 250 Ampere Powerpact® Q-frame Interrupting Ratings (225 Ampere I-Line)★

Catalog

Number Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line 120 120/

240 240 480Y/

277 480 600 125 250 500 415/240

QBL

QBM

QMP

QBF

QBA

QBE

70–250▲

—— 10 — —————12b 10/5

3 —— 10 — —————12b 10/5

QDL

QDM

QDP

QDF

QDA

QDE

70–250▲

—— 25 — —————14b 10/5

3 —— 25 — —————14b 10/5

QGL

QGM

QGP

QGF

QGA

QGE

70–250▲

—— 65 — —————15b 10/5

3 —— 65 — —————15b 10/5

QJL

QJM

QJP

QJF

QJA

QJE

270–250▲— — 100 — — — — — — 15b 10/5

3 70–250▲208Y/120 Vac: 100 kA — — — — — — 10/5

★ See Class 611, 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit breakers.

▲225 ampere I-Line.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

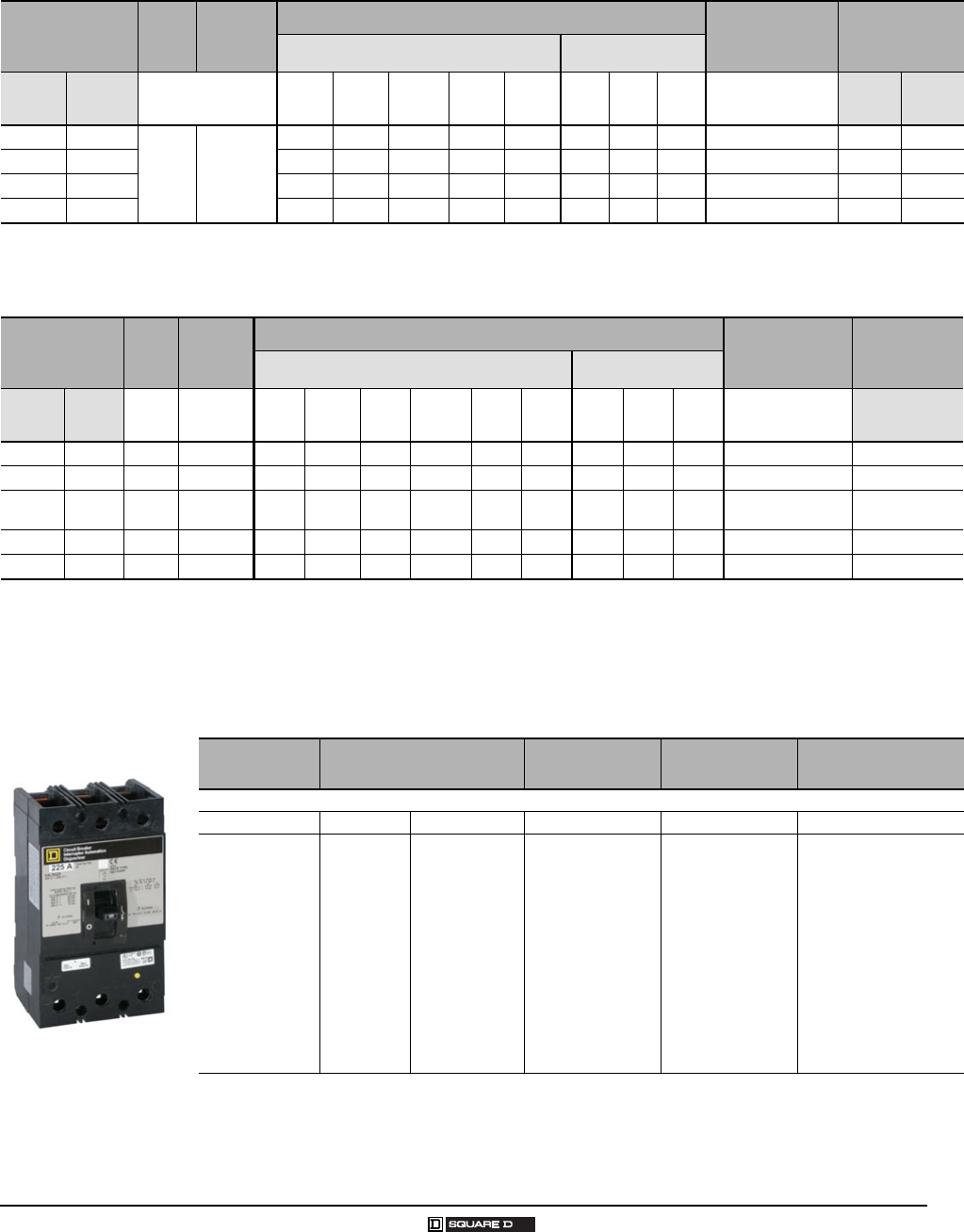

Selection Data

Table 20: 250 Ampere Powerpact® J-frame Interrupting Ratings★

Catalog Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line®120 240 480Y/

277 480 600 125 250 500 415 240

JD JDA

2, 3 150–250

25 25 18 18 14 20 20 TBD 19a 18/4 25/6

JG JGA 65 65 35 35 18 20 20 TBD 22a 35/8 65/16

JJ JJA 100 100 65 65 25 20 20 TBD 23a 65/16 100/25

JL JLA 125 125 100 100 50 20 20 TBD 25a 100/25 125/31

★See Powerpact H- and J-frame catalog, Class 611, for more information. Also, see Class 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit

breakers.

Table 21: 250 Ampere Frame Interrupting Ratings

Catalog

Number Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line 120 120/

240 240 480Y/

277 480 600 125 250 500 415/240

KAL KA 2, 3 70–250 42 42 42 25 25 22 10 10 — 19a, 20a 10/2.5

KHL★KH★2, 3 70–250 65 65 65 35 35 25 10 10 — 23a 10/2.5

KHL-

DC▲— 3 — —— —— ————20— —

KCL KC 2, 3 110–250 100 100 100 65 65 — — — — 23a 65/65

KIL KI 2, 3 110–250 200 200 200 200 200 100 — — — 16a 130/65

★Separate UL rating available for 240 Vac and 480 Vac grounded B single phase systems. Breakers must be ordered with 5861 suffix.

▲UL Listed 500 Vdc rating for use on ungrounded systems. Must be connected 3 poles in series. Consult your local Square D® sales office for additional information

1-888-Square D.

Table 22: 250 Ampere Frame Unit Mount Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes★

Two Pole

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

KAL Standard Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

100

110

125

150

175

200

225

250

350

400

450

500

550

625

750

875

1000

1125

1250

700

800

900

1000

1100

1250

1500

1750

2000

2250

2500

KAL26070

KAL26080

KAL26090

KAL26100

KAL26110

KAL26125

KAL26150

KAL26175

KAL26200

KAL26225

KAL26250

KAL36070

KAL36080

KAL36090

KAL36100

KAL36110

KAL36125

KAL36150

KAL36175

KAL36200

KAL36225

KAL36250

AL250KA

1-#6-350 kcmil

Continued on next page

KAL/KHL Two- and

Three-pole

70–250 Ampere

06013051

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

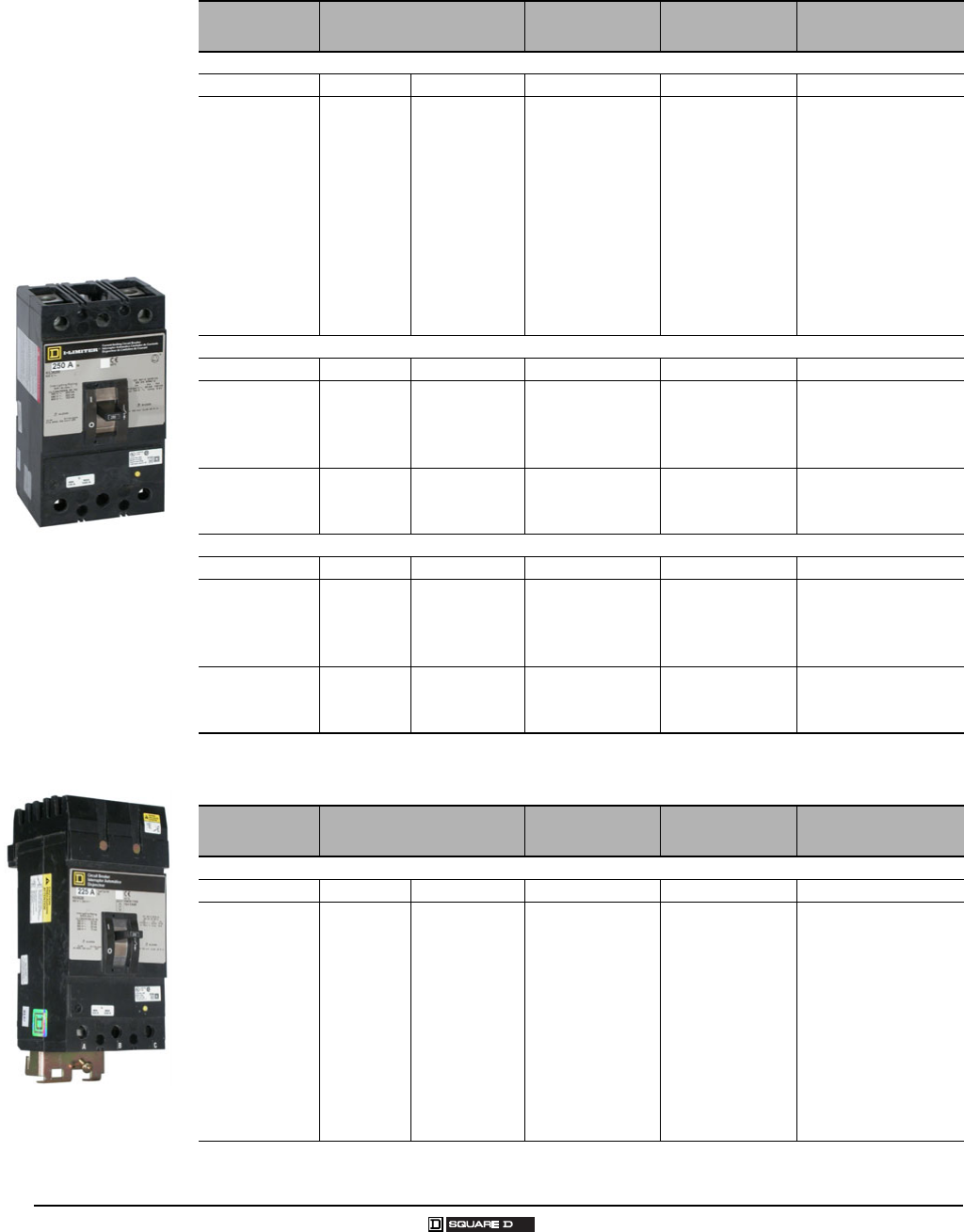

KHL High Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

100

110

125

150

175

200

225

250

350

400

450

500

550

625

750

875

1000

1125

1250

700

800

900

1000

1100

1250

1500

1750

2000

2250

2500

KHL26070

KHL26080

KHL26090

KHL26100

KHL26110

KHL26125

KHL26150

KHL26175

KHL26200

KHL26225

KHL26250

KHL36070

KHL36080

KHL36090

KHL36100

KHL36110

KHL36125

KHL36150

KHL36175

KHL36200

KHL36225

KHL36250

AL250KA

1-#6-350 kcmil

KCL Extra High Interrupting

Low High 480 Vac 480 Vac

110

125

150

175

550

625

750

875

1100

1250

1500

1750

KCL24110

KCL24125

KCL24150

KCL24175

KCL34110

KCL24125

KCL34150

KCL34175

AL250KA

1-#6-350 kcmil

200

225

250

1000

1125

1250

2000

2250

2500

KCL24200

KCL24225

KCL24250

KCL34200

KCL34225

KCL34250

AL250KI

1-1/0-350 kcmil

KIL I-Limiter® Current Limiting

Low High 600 Vac 600 Vac

110

125

150

175

550

625

750

875

1100

1250

1500

1750

KIL26110

KIL26125

KIL26150

KIL26175

KIL36110

KIL36125

KIL36150

KIL36175

AL250KA

1-#6-350 kcmil

200

225

250

1000

1125

1250

2000

2250

2500

KIL26200

KIL26225

KIL26250

KIL36200

KIL36225

KIL36250

AL250KI

1-1/0-350 kcmil

★ UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

Table 23: 250 Ampere Frame I-Line® Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

KA Standard Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

100

110

125

150

175

200

225

250

350

400

450

500

550

625

750

875

1000

1125

1250

700

800

900

1000

1100

1250

1500

1750

2000

2250

2500

KA26070( )

KA26080( )

KA26090( )

KA26100( )

KA26110( )

KA26125( )

KA26150( )

KA26175( )

KA26200( )

KA26225( )

KA26250( )

KA36070

KA36080

KA36090

KA36100

KA36110

KA36125

KA36150

KA36175

KA36200

KA36225

KA36250

AL250KA

1-#6-350 kcmil

Continued on next page

Table 22: 250 Ampere Frame Unit Mount Circuit Breakers (continued)

Ampere Rating AC Magnetic Trip Settings

Amperes★

Two Pole

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

KIL Two- and Three-pole

110–250 Ampere

KA Two- and Three-pole

70–250 Ampere

4-1/2” Mounting Height

0601305206013053

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

Powerpact® Selection Data

For Powerpact selection information see Class 611, 612, 613, and 734 catalogs.

KH High Interrupting

Low High 600 Vac/250 Vdc 600Vac/250Vdc

100

110

125

150

175

200

225

250

350

400

450

500

550

625

750

875

1000

1125

1250

700

800

900

1000

1100

1250

1500

1750

2000

2250

2500

KH26070( )

KH26080( )

KH26090( )

KH26100( )

KH26110( )

KH26125( )

KH26150( )

KH26175( )

KH26200( )

KH26225( )

KH26250( )

KH36070

KH36080

KH36090

KH36100

KH36110

KH36125

KH36150

KH36175

KH36200

KH36225

KH36250

AL250KA

1-#6-350 kcmil

KC Extra High Interrupting

Low High 480 Vac 480 Vac

110

125

150

175

550

625

750

875

1100

1250

1500

1750

KC24110( )

KC24125( )

KC24150( )

KC24175( )

KC34110

KC34125

KC34150

KC34175

AL250KA

1-#6-350 kcmil

200

225

250

1000

1125

1250

2000

2250

2500

KC24200( )

KC24225( )

KC24250( )

KC34200

KC34225

KC34250

AL250KI

1-1/0-350 kcmil

KI I-Limiter® Current Limiting

Low High 600 Vac 600 Vac

110

125

150

175

550

625

750

875

1100

1250

1500

1750

KI26110( )

KI26125( )

KI26150( )

KI26175( )

KI36110

KI36125

KI36150

KI36175

AL250KA

1-#6-350 kcmil

200

225

250

1000

1125

1250

2000

2250

2500

KI26200( )

KI26225( )

KI26250( )

KI36200

KI36225

KI36250

AL250KI

1-1/0-350 kcmil

★ Two pole circuit breaker catalog numbers are completed by adding required phase connection letters as a suffix to the catalog

number.

▲ UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

Table 23: 250 Ampere Frame I-Line® Circuit Breakers (continued)

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

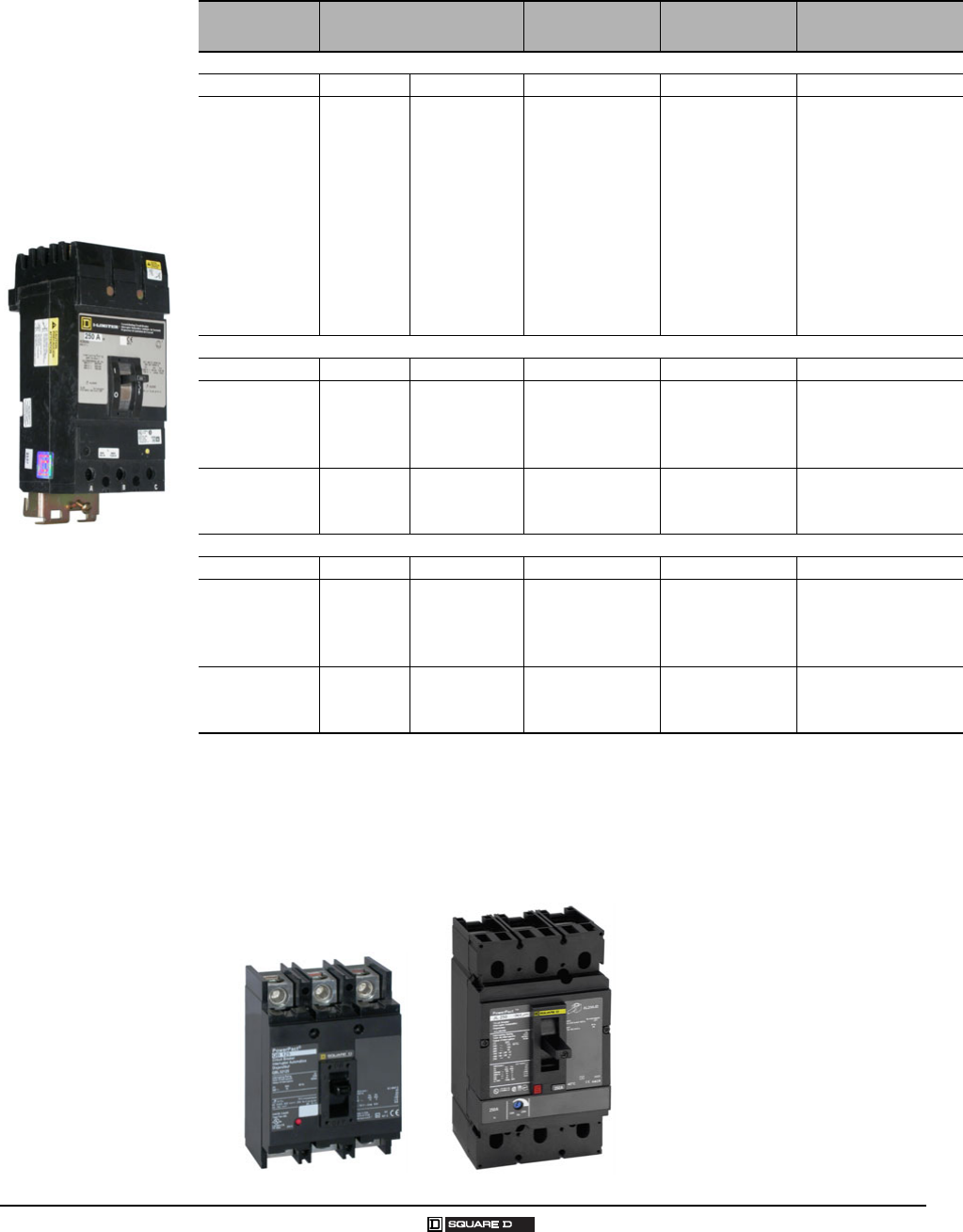

KI Two- and Three-pole

110–250 Ampere

4-1/2” Mounting Height

06013054

Q-frame: Class 734 J-frame: Class 611

07343030

06113484

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

Dimensions

Figure 13: KAL, KHL, KCL, KIL 250 Ampere Frame

Dimensions: In.

[mm]

06013055

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

KA/KH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 655-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

KA/KH 70–100 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 655-1

May 1985

06013056

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

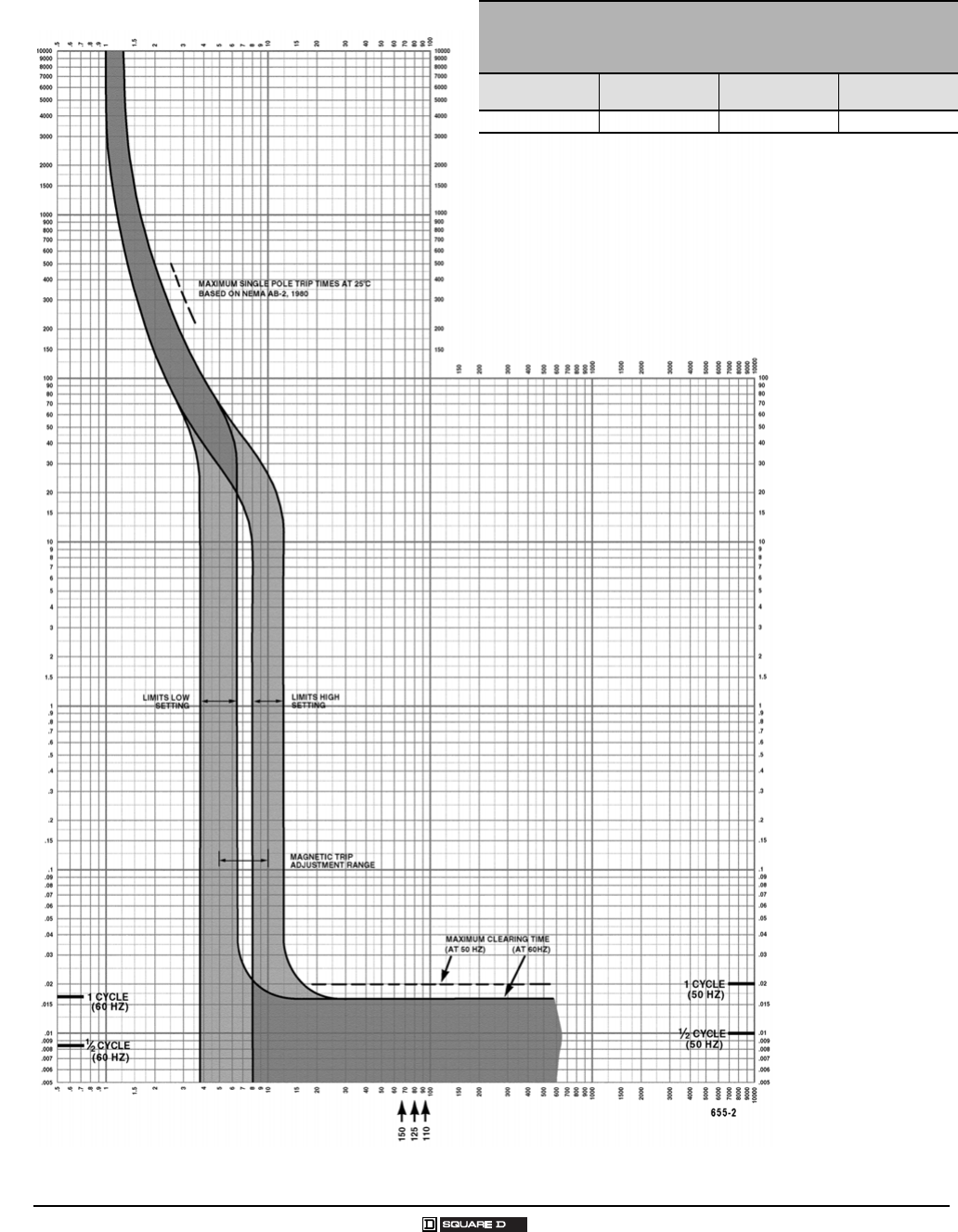

KA/KH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 655-2

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

KA/KH 110–150 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0655TC8502

Drawing No. B48095-655-02

06013057

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

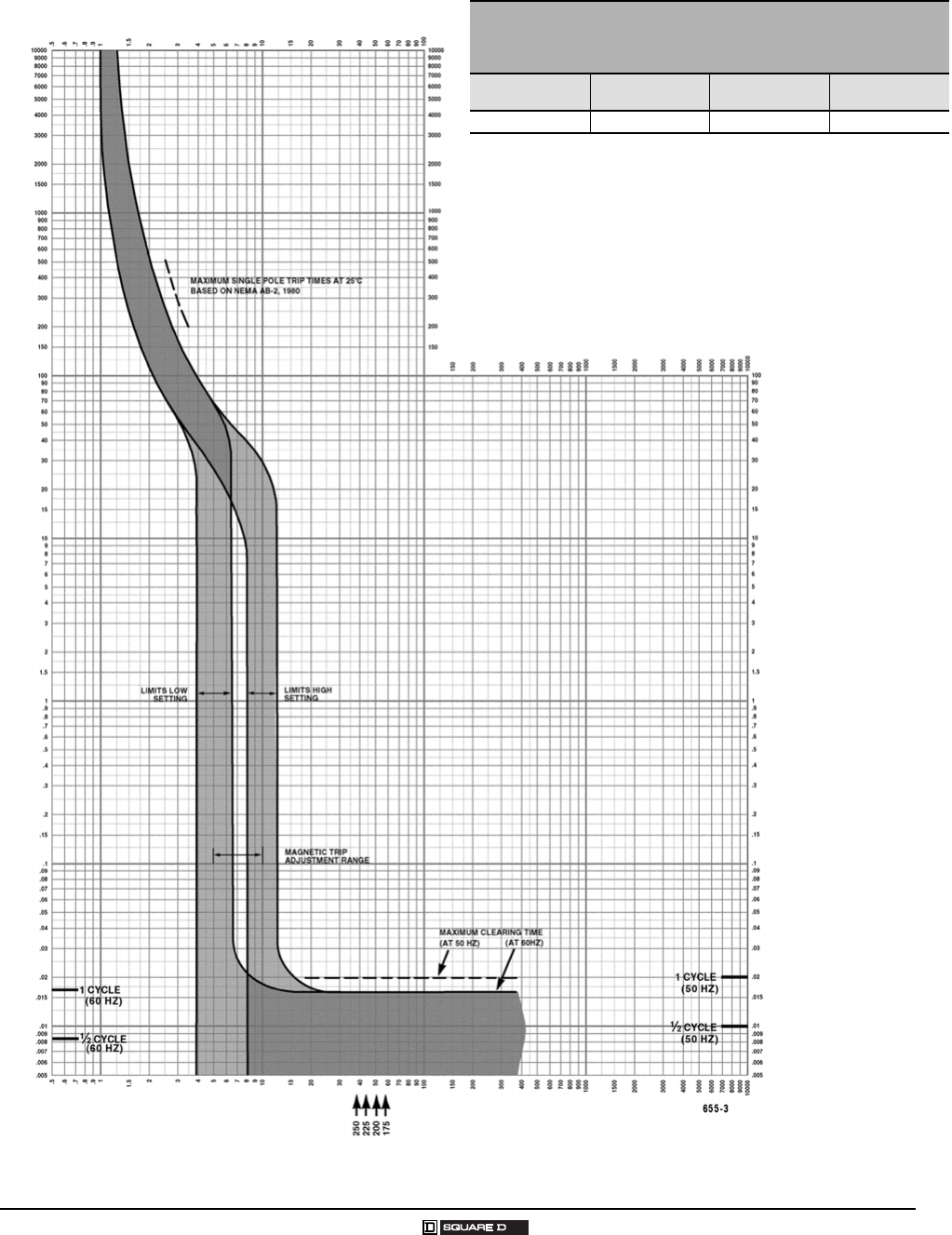

KA/KH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 655-3

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

KA/KH 175–250 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0655TC8803

Drawing No. B48095-655-03

06013058

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies

are available upon

request.

KC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 655-4

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

KC 110–225 240

480 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0655TC0004

December 2000

Drawing No. B48095-655-04

(Replaces 0655TC8904)

06013059

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies

are available upon

request.

KC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 655-5

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

KC 250 240

480 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0655TC0005

December 2000

Drawing No. B48095-655-05

(Replaces 0655TC8905)

06013060

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

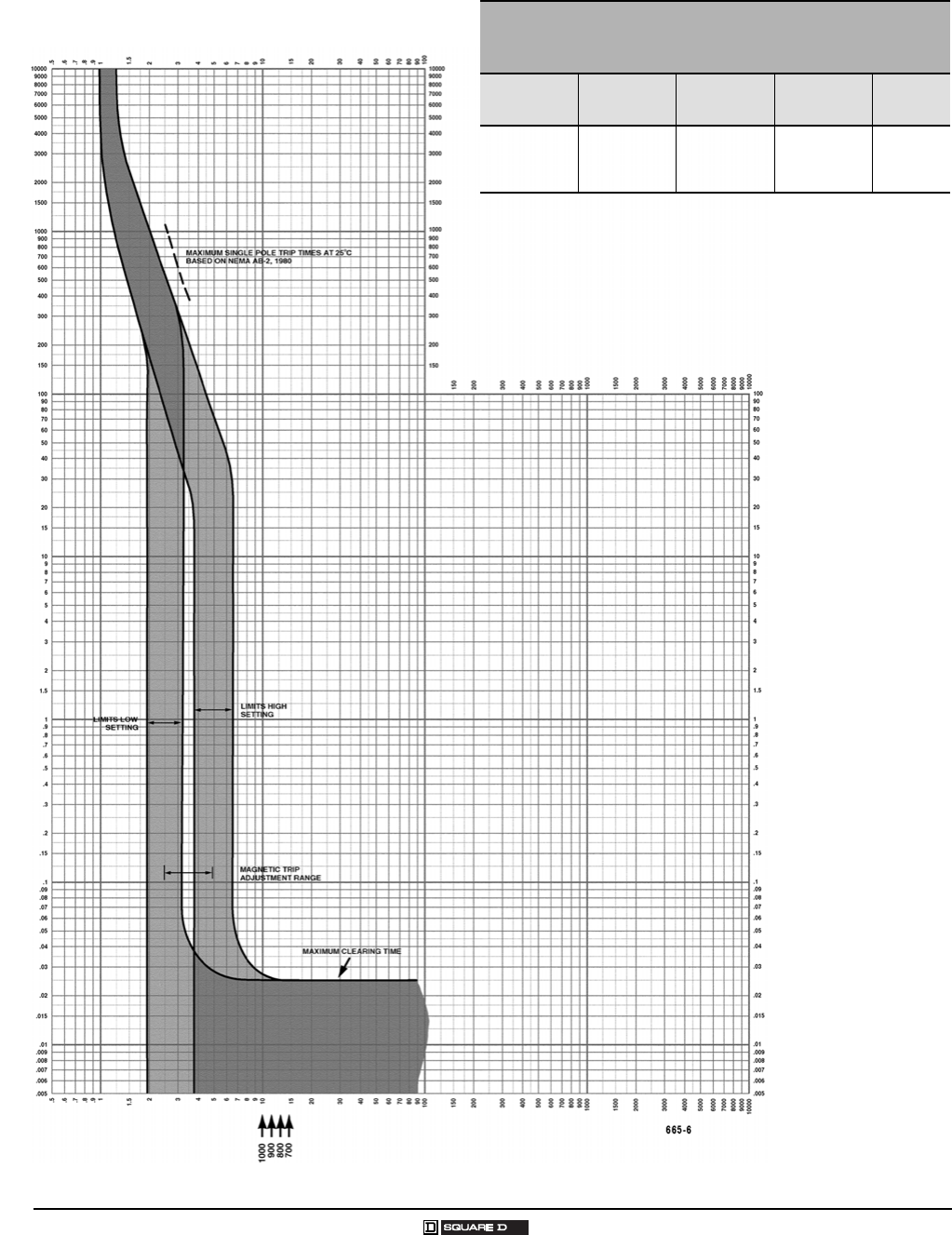

KH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 655-6

CIRCUIT BREAKER INFORMATION

Circuit

Breaker Prefix

Circuit

Breaker Suffix

Continuous

Ampere

Rating

Maximum AC

Voltage

Number of

Poles

KH 170C 125 500 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0655TC8906

Drawing No. B48095-655-06

06013061

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 825-3

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

KI 110–225 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0825TC0003

December 2000

Drawing No. B48095-825-03

(Replaces 0825TC8503)

TIME IN SECONDS

06013062

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 825-4

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

KI 250 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0825TC0004

December 2000

Drawing No. B48095-825-04

(Replaces 0825TC8504)

TIME IN SECONDS

06013063

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

Powerpact® Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

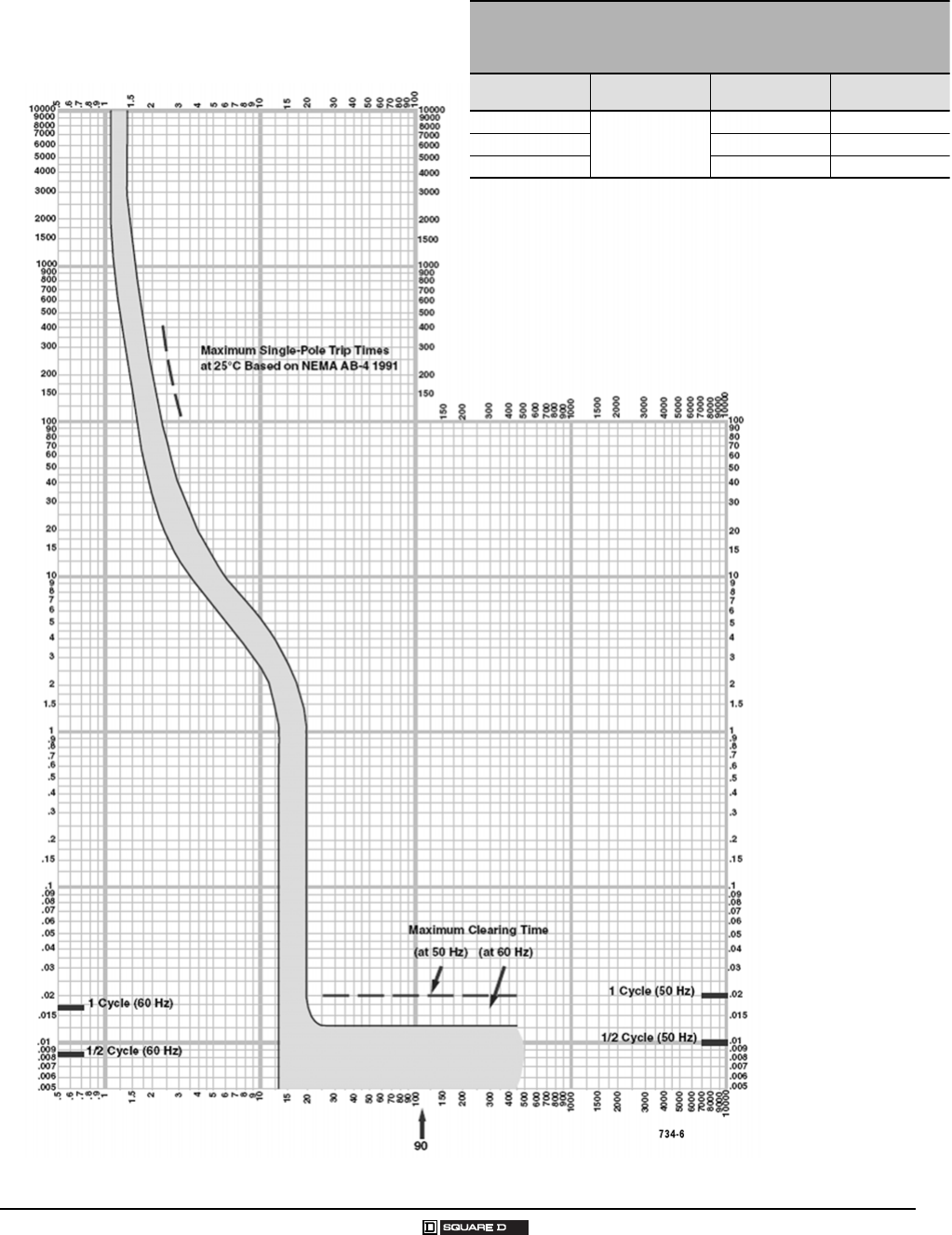

POWERPACT Q-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 734-4

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

QB, QD, QG, QJ

240 2

QB, QD, QG 240 3

QJ 208Y/120 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

07343031

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

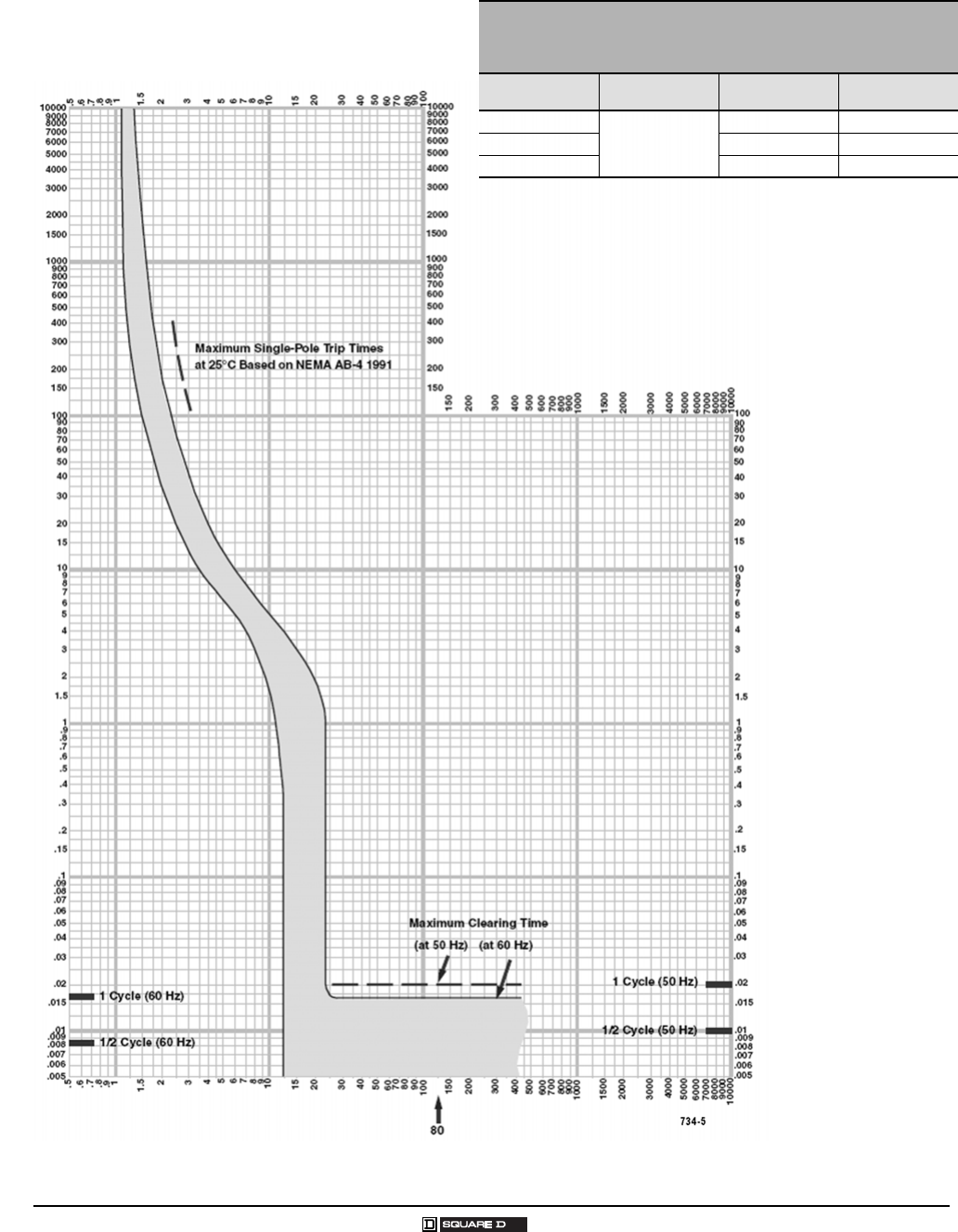

POWERPACT® Q-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 734-5

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

QB, QD, QG, QJ

240 2

QB, QD, QG 240 3

QJ 208Y/120 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

07343032

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® Q-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 734-6

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

QB, QD, QG, QJ

240 2

QB, QD, QG 240 3

QJ 208Y/120 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

07343033

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® Q-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 734-7

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

QB, QD, QG, QJ

100

240 2

QB, QD, QG 240 3

QJ 208Y/120 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

07343034

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® Q-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 734-8

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

QB, QD, QG, QJ

110–150

240 2

QB, QD, QG 240 3

QJ 208Y/120 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

07343035

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® Q-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 734-9

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

QB, QD, QG, QJ

175–225

240 2

QB, QD, QG 240 3

QJ 208Y/120 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

07343036

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® Q-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 734-10

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

QB, QD, QG, QJ

250

240 2

QB, QD, QG 240 3

QJ 208Y/120 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

07343037

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

POWERPACT® J-FRAME MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 50-5

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

JD, JG, JJ, JL 150–250 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

Curve No. 0050TC0405

June 2004

Drawing No. B48095-050-05

TIME IN SECONDS

06113485

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

Let-through Curves

Maximum★ Peak Let-Through Current (Amperes)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 0825TC0002

December 2000

Drawing No. B48095-825-02

(Replaces 0825TC8502R9/96)

Available Short Circuit Current (RMS Symmetrical Amperes)

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

KI 250 Ampere Frame at 240, 480 and 600 Vac, 3Ø

110–250 Amperes

Curve No. 825-1 Peak Let-Through Current Ip

and 825-2 Let-Through I2t

Available Short Circuit Current (RMS Symmetrical Amperes)

Maximum★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 825-1

Curve No. 825-2

06013064

06013065

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

Maximum★ Peak Let-Through Current (Amperes)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Available Short Circuit Current (RMS Symmetrical Amperes)

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

KI Series 2 250 Ampere Frame at 240, 480 and 600 Vac, 3Ø

110–250 Amperes

Curve No. 825-5 Peak Let-Through Current Ip

and 825-6 Let-Through I2t

Available Short Circuit Current (RMS Symmetrical Amperes)

Maximum★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 0825TC9601

Drawing No. B48095-825-06

Curve No. 825-5

Curve No. 825-6

06013066

06013067

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

225 / 250 Ampere Frame

Powerpact® Let-through Curves

Typical★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on typical values obtained throughout the circuit breaker

development and UL test programs.

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

WERPA

T J-FRAME

UIT BREAKER

J-frame 250 Ampere (JD, JG, JJ, and JL)

110–250 Amperes

Curve No. 50-8 Let-Through I2t

and 50-9 Peak Let-Through Current Ip

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

Maximum★ Let-Through I2t (Amperes Seconds x 103)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 50-8

Curve No. 50-9

06113486

06113487

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

400 AMPERE FRAME

This section provides specific information on Square D® 400 ampere frame thermal-magnetic molded

case circuit breakers. For more information, see the Introduction in this catalog.

Description

Applications

Q4, LA and LH, circuit breakers are used in industrial enclosures, panelboards, switchboards, busway

plug-in units, combination starters and motor control centers.

Selection Data

ere

Table 24: Description of 400 Ampere Frame Circuit Breakers

Circuit Breaker Description

Q4 250–400 ampere, 240 Vac, 50/60 Hz,

2- and 3-pole

LA/LH 125–400 ampere, 600 Vac, 50/60 Hz, 250 Vdc,

2- and 3-pole

Table 25: 400 Ampere Frame Interrupting Ratings

Catalog Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line®120 240 480Y/

277 480 600 125 250 500 380/220

Q4L Q4 2, 3 250–400 25 25 — —————14b —

LAL LA 2, 3 125–400 42 42 30 30 22 10 10 — 21a 20/5

LHL★LH★2, 3 125–400 65 65 35 35 25 — — — 23a 20/5

LHL-DC▲— 3 — ——— ————20— —

★Separate UL rating available for 240 Vac and 480 Vac grounded B single phase systems. Breakers must be ordered with 5861 suffix.

▲UL Listed 500 Vdc rating for use on ungrounded systems. Must be connected 3 poles in series. Consult your local Square D sales office for additional information

1-888-Square D.

Table 26: 400 Ampere Frame Unit Mount Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

Q4L Standard Interrupting

Low High 240 Vac 240 Vac

250

300

350

400

1250

1500

1750

2000

2500

3000

3500

4000

Q4L2250

Q4L2300

Q4L2350

Q4L2400

Q4L3250

Q4L3300

Q4L3350

Q4L3400

AL400LA

1-#1-600 kcmil or

2-#1-250 kcmil

Continued on next page

Q4/LA/LH

Two- and Three-pole

6” Mounting Height

06013068

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

LAL Standard Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

125

150

175

200

225

250

300

350

400

625

750

875

1000

1125

1250

1500

1750

2000

1250

1500

1750

2000

2250

2500

3000

3500

4000

LAL26125

LAL26150

LAL26175

LAL26200

LAL26225

LAL26250

LAL26300

LAL26350

LAL26400

LAL36125

LAL36150

LAL36175

LAL36200

LAL36225

LAL36250

LAL36300

LAL36350

LAL36400

AL400LA

1-#1-600 kcmil or

2-#1-250 kcmil

LHL High Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

125

150

175

200

225

250

300

350

400

625

750

875

1000

1125

1250

1500

1750

2000

1250

1500

1750

2000

2250

2500

3000

3500

4000

LHL26125

LHL26150

LHL26175

LHL26200

LHL26225

LHL26250

LHL26300

LHL26350

LHL26400

LHL36125

LHL36150

LHL36175

LHL36200

LHL36225

LHL36250

LHL36300

LHL36350

LHL36400

AL400LA

1-#1-600 kcmil or

2-#1-250 kcmil

Table 27: 400 Ampere Frame I-Line® Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

Q4 Standard Interrupting

Low High 240 Vac 240 Vac

250

300

350

400

1250

1500

1750

2000

2500

3000

3500

4000

Q422250( )

Q422300( )

Q422350( )

Q422400( )

Q432250

Q432300

Q432350

Q432400

AL400LA

1-#1-600 kcmil or

2-#1-250 kcmil

LA Standard Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

125

150

175

200

225

250

300

350

400

625

750

875

1000

1125

1250

1500

1750

2000

1250

1500

1750

2000

2250

2500

3000

3500

4000

LA26125( )

LA26150( )

LA26175( )

LA26200( )

LA26225( )

LA26250( )

LA26300( )

LA26350( )

LA26400( )

LA36125

LA36150

LA36175

LA36200

LA36225

LA36250

LA36300

LA36350

LA36400

AL400LA

1-#1-600 kcmil or

2-#1-250 kcmil

Continued on next page

Table 26: 400 Ampere Frame Unit Mount Circuit Breakers (continued)

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

Q4L/LAL/LHL

Two- and Three-pole

125–400 Amperes

06013069

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

LH High Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

125

150

175

200

225

250

300

350

400

625

750

875

1000

1125

1250

1500

1750

2000

1250

1500

1750

2000

2250

2500

3000

3500

4000

LH26125( )

LH26150( )

LH26175( )

LH26200( )

LH26225( )

LH26250( )

LH26300( )

LH26350( )

LH26400( )

LH36125

LH36150

LH36175

LH36200

LH36225

LH36250

LH36300

LH36350

LH36400

AL400LA

1-#1-600 kcmil or

2-#1-250 kcmil

★Two pole circuit breaker catalog numbers are completed by adding required phase connection letters as a suffix to the catalog

number.

▲UL magnetic trip setting tolerances are -20% / +30% (Low) and -20% / + 30% (High) from the nominal values shown.

Table 27: 400 Ampere Frame I-Line® Circuit Breakers (continued)

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

Dimensions

Figure 14: Q4L, LAL, LHL 400 Ampere Frame

Dimensions: In.

[mm]

06013070

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

Q4 FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 735-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

Q4 250–400 240 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0735TC8501

Drawing No. B48095-735-01

06013071

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

LA/LH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 660-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

LA, LH 125–150 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 660-1

May 1995

06013072

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

LA/LH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 660-2

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

LA, LH 175–225 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0660TC8602

Drawing No. B48095-660-02

06013073

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

400 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

LA/LH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 660-3

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

LA, LH 250–400 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0660TC8603

Drawing No. B48095-660-03

06013074

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

600 AMPERE FRAME

This section provides specific information on Square D® 600 ampere frame thermal-magnetic molded

case circuit breakers. For more information, see the Introduction in this catalog.

Description

Applications

LC and LI circuit breakers are used in industrial enclosures, panelboards, switchboards, busway plug-

in units, combination starters and motor control centers.

Selection Data

Table 28: Description of 600 Ampere Frame Circuit Breakers

Circuit Breakers Description

LC/LI 300–600 ampere, 600 Vac, 50/60 Hz,

2- and 3-pole

Table 29: 600 Ampere Frame Interrupting Ratings

Catalog Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line®120 240 480Y/

277 480 600 125 250 500 415/240

LCL LC 2, 3 300–400 — 100 — 65 35 — — — 23a 65/65

LCL LC 2, 3 450–600 — 100 — 65 35 — — — 23a 65/50

LIL LI 2, 3 300–600 — 200 — 200 100 — — — 23a —

Table 30: 600 Ampere Frame Unit Mount Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes★

Two Pole

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

LCL Extra High Interrupting

Low High 600 Vac 600 Vac

300

350

400

1500

1750

2000

3200

LCL26300

LCL26350

LCL26400

LCL36300

LCL36350

LCL36400

AL600Li35

2-#1-350 kcmil

450

500

600

2250

2500

3000

4200

LCL26450

LCL26500

LCL26600

LCL36450

LCL36500

LCL36600

AL600LI5

2-4/0-500 kcmil

LIL I-Limiter® Current Limiting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

300

350

400

1500

1750

2000

3200

LIL26300

LIL26350

LIL26400

LIL36300

LIL36350

LIL36400

AL600LI35

2-#1-350 kcmil

450

500

600

2250

2500

3000

4200

LIL26450

LIL26500

LIL26600

LIL36450

LIL36500

LIL36600

AL600LI5

2-4/0-500 kcmil

★UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

LCL/LIL

Two- and Three-pole

06013075

06013076

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

Dimensions

Table 31: 600 Ampere I-Line® Mount Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

LC Extra High Interrupting

Low High 600 Vac 600 Vac

300

350

400

1500

1750

2000

3200

LC26300( )

LC26350( )

LC26400( )

LC36300

LC36350

LC36400

AL600Li35

2-#1-350 kcmil

450

500

600

2250

2500

3000

4200

LC26450( )

LC26500( )

LC26600( )

LC36450

LC36500

LC36600

AL600LI5

2-4/0-500 kcmil

LI I-Limiter® Current Limiting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

300

350

400

1500

1750

2000

3200

li26300( )

li26350( )

li26400( )

li36300

li36350

li36400

AL600Li35

2-#1-350 kcmil

450

500

600

2250

2500

3000

4200

LI26450( )

LI26500( )

LI26600( )

LI36450

LI36500

LI36600

AL600LI5

2-4/0-500 kcmil

★Two pole circuit breaker catalog numbers are completed by adding required phase connection letters as a suffix to the catalog

number.

▲UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

Figure 15: LCL, LIL 600 Ampere Frame

Dimensions: In.

[mm]

06013077

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

LC THERMAL-MAGNETIC MOLDED CASE CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 660-12

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

LC 450 240

600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0660TC0212

March 2002

Drawing No. B48095-660-12

06013078

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

LC THERMAL-MAGNETIC MOLDED CASE CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 660-13

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

LC 500 240

600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0660TC0213

March 2002

Drawing No. B48095-660-13

06013079

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

LC THERMAL-MAGNETIC MOLDED CASE CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 660-14

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

LC 600 240

600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0660TC0214

March 2002

Drawing No. B48095-660-14

06013080

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 830-19

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

LI 300 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0830TC0219

March 2002

Drawing No. B48095-830-19

06013081

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 830-20

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

LI 350 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0830TC0220

March 2002

Drawing No. B48095-830-20

06013082

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 830-21

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

LI 400 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0830TC0221

March 2002

Drawing No. B48095-830-21

06013083

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 830-22

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

LI 450 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0830TC0222

March 2002

Drawing No. B48095-830-22

06013084

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

SERIES 3

CHARACTERISTIC TRIP CURVE NO. 830-23

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

LI 500 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0830TC0223

March 2002

Drawing No. B48095-830-23

06013085

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

SERIES 3

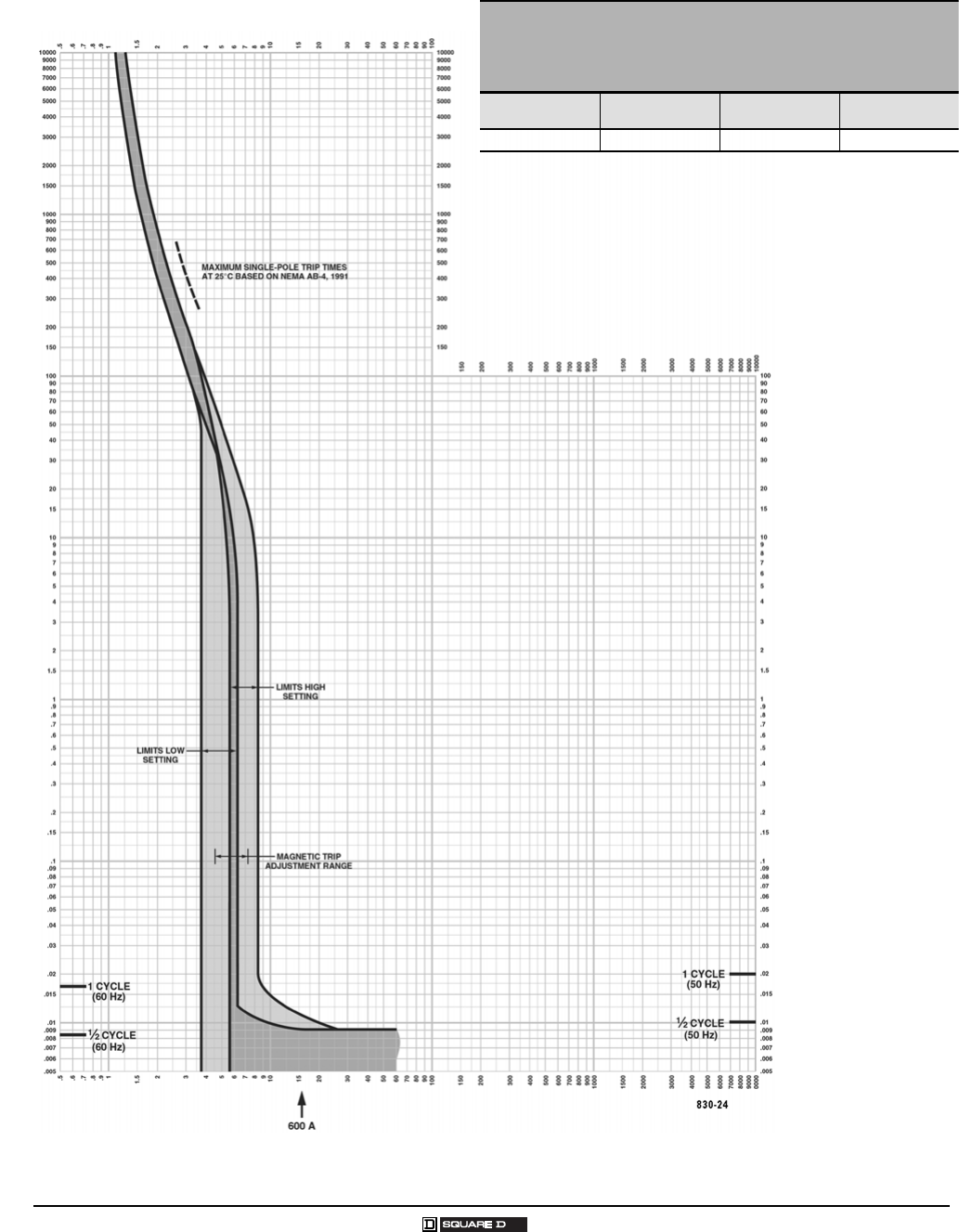

CHARACTERISTIC TRIP CURVE NO. 830-24

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

LI 600 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0830TC0224

March 2002

Drawing No. B48095-830-24

06013086

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

Let-through Curves

Typical★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on typical values obtained throughout the circuit breaker

development and UL test programs.

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

LI Series 2, 3 and LXI Series 2B, 3B 400 Ampere Frame at 240, 480 and 600 Vac, 3Ø

300–400 Amperes

LXI Series 2B, 3B 250 Ampere Frame at 240, 480, and 600 Vac, 3Ø

100–250 Ampere

Curve No. 830-15 Let-Through I2t and 830-16 Peak Let-Through Current Ip

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

Maximum★ Let-Through I2t (Amperes Seconds x 103)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 0830TC0216

March 2002

Drawing No. B48095-830-16

(Replaces No. 0830TC9616)

Curve No. 830-16

Curve No. 830-15

06013087

06013088

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

600 Ampere Frame

Typical★ Let-Through I2t (Amperes2 Seconds x 106)

★Based on typical values obtained throughout the circuit breaker

development and UL test programs.

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

I-LIMITER® CURRENT LIMITING CIRCUIT BREAKERS

LI Series 2, 3 and LXI Series 2B, 3B 600 Ampere Frame at 240, 480 and 600 Vac, 3Ø

450–600 Amperes

Curve No. 830-17 Let-Through I2t

and 830-18 Peak Let-Through Current Ip

Available Short Circuit Current (RMS Symmetrical Amperes x 103)

Maximum★ Let-Through I2t (Amperes Seconds x 103)

★Based on maximum values obtained throughout the circuit breaker

development and UL test programs.

Curve No. 0830TC0218

March 2002

Drawing No. B48095-830-18

(Replaces No. 0830TC9618)

Curve No. 830-18

Curve No. 830-17

06013089

06013090

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

800 / 1000 AMPERE FRAME

This section provides specific information on Square D® 800 / 1000 ampere frame thermal-magnetic

molded case circuit breakers. For more information, see the Introduction in this catalog.

Description

Applications

MA / MH circuit breakers are used in industrial enclosures, panelboards, switchboards, busway plug-in

units, combination starters and motor control centers.

Table 32: Description of 800 / 1000 Ampere Frame Circuit Breakers

Circuit Breaker Description

MG/MJ 300-800 ampere, 600 Vac, 50/60 Hz, 2- and

3-pole

MA/MH 300-800 ampere, 600 Vac, 50/60 Hz, 250 Vdc,

2- and 3-pole

MAL/MHL 300-1200 ampere, 600 Vac, 50/60 Hz, 250 Vdc,

2- and 3-pole

Table 33: 800 / 1000 Ampere Frame Interrupting Ratings

Catalog Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line®120 240 480Y/

277 480 600 125 250 500 415/240

MAL

—

2, 3

300–1000

300–800

—

21a

30/30

MHL★

—

MH★

2, 3

300–1000

300–800

—

23a

65/33

LHL-DC▲— 3 — ——— ————20— —

★Separate UL rating available for 240 Vac and 480 Vac grounded B single phase systems. Breakers must be ordered with 5861 suffix. See Supplemental Digest

for specific ratings.

▲UL Listed 500 Vdc rating for use on ungrounded systems. Must be connected 3 poles in series. Consult your local Square D sales office for additional information

1-888-Square D.

Table 34: 800 Ampere Powerpact® M-frame Molded Case Circuit Breakers★

Catalog Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA) Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical Amperes DC Volts

Unit

Mount I-Line 120 240 480Y/

277 480 600 125 250 500 415/240

MG ▲2, 3 300–800 65 65 35 35 18 — — — 22a 35/17.5

MJ ▲2, 3 300–800 100 100 65 65 25 — — — 23a 50/25

★See Powerpact Class 611, 612, 613, and 734 catalogs for other Powerpact and Masterpact® circuit breakers.

▲See the Introduction section, Powerpact M-frame Catalog Numbering System, for available information.

100

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

Selection Data

Table 35: 800 Ampere I-Line® Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

MA Standard Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

300

350

400

450

500

600

700

800

1500

1750

2000

2250

2500

3000

3500

4000

3000

3500

4000

4500

5000

6000

7000

8000

MA26300( )

MA26350( )

MA26400( )

MA26450( )

MA26500( )

MA26600( )

MA26700( )

MA26800( )

MA36300

MA36350

MA36400

MA36450

MA36500

MA36600

MA36700

MA36800

AL900MA

3-#3/0-500 kcmil

MH High Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

300

350

400

450

500

600

700

800

1500

1750

2000

2250

2500

3000

3500

4000

3000

3500

4000

4500

5000

6000

7000

8000

MH26300( )

MH26350( )

MH26400( )

MH26450( )

MH26500( )

MH26600( )

MH26700( )

MH26800( )

MH36300

MH36350

MH36400

MH36450

MH36500

MH36600

MH36700

MH36800

AL900MA

3-#3/0-500 kcmil

★Two pole circuit breaker catalog numbers are completed by adding required phase connection letters as a suffix to the catalog

number.

▲UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

Table 36: 1000 Ampere Frame Unit Mount Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

MAL Standard Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

300

350

400

450

500

600

700

800

900

1000

1500

1750

2000

2250

2500

3000

3500

4000

4500

5000

3000

3500

4000

4500

5000

6000

7000

8000

9000

10000

MAL26300

MAL26350

MAL26400

MAL26450

MAL26500

MAL26600

MAL26700

MAL26800

MAL26900

MAL261000

MAL36300

MAL36350

MAL36400

MAL36450

MAL36500

MAL36600

MAL36700

MAL36800

MAL36900

MAL361000

AL900MA

3-#3/0-350 kcmil

1200 5100 10200 MHL261200 MHL361200 AL1000MA

4-#1/0-500 kcmil

Continued on next page

MA/MH

Two- and Three-pole

9” Mounting Height

300–800 Amperes

MAL/MHL

Two- and Three-pole

300–1000 Amperes

06013091

06013092

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

101

Powerpact® Selection Data

For Powerpact selection information see Class 611, 612, 613, and 734 catalogs.

MHL High Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

300

350

400

450

500

600

700

800

900

1000

1500

1750

2000

2250

2500

3000

3500

4000

4500

5000

3000

3500

4000

4500

5000

6000

7000

8000

9000

10000

MHL26300

MHL26350

MHL26400

MHL26450

MHL26500

MHL26600

MHL26700

MHL26800

MHL26900

MHL261000

MHL36300

MHL36350

MHL36400

MHL36450

MHL36500

MHL36600

MHL36700

MHL36800

MHL36900

MHL361000

AL900MA

3-#3/0-500 kcmil

1200 5100 10200 MAL261200 MAL361200 AL1000MA

4-#1/0-350 kcmil

★Two pole circuit breaker catalog numbers are completed by adding required phase connection letters as a suffix to the catalog

number.

▲UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

Table 36: 1000 Ampere Frame Unit Mount Circuit Breakers (continued)

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

M-frame: Class 612

06123321

102

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

Dimensions

Figure 16: MAL, MHL 800 / 1000 Ampere Frame

Dimensions: In.

[mm]

06013093

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

103

Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MA/MH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 665-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

MA/MH 125–450 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0665TC8501

Drawing No. B48095-665-01

06013094

104

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MA/MH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 665-2

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

MA/MH 500–600 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0665TC8502

Drawing No. B48095-665-02

06013095

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

105

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MA/MH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 665-3

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

MA/MH 700–1000 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0665TC8503

Drawing No. B48095-665-03

06013096

106

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 665-4

CIRCUIT BREAKER INFORMATION

Circuit

Breaker Prefix

Circuit

Breaker Suffix

Continuous

Ampere

Rating

Maximum DC

Voltage

Number of

Poles

MH 31DC 450 500 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0665TC8504

Drawing No. B48095-665-04

06013097

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

107

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 665-5

CIRCUIT BREAKER INFORMATION

Circuit

Breaker Prefix

Circuit

Breaker Suffix

Continuous

Ampere

Rating

Maximum DC

Voltage

Number of

Poles

MH 32DC

33DC

500

600 500 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0665TC8505

Drawing No. B48095-665-05

06013098

108

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 665-6

CIRCUIT BREAKER INFORMATION

Circuit

Breaker Prefix

Circuit

Breaker Suffix

Continuous

Ampere

Rating

Maximum DC

Voltage

Number of

Poles

35DC

36DC

39DC

40DC

700

800

900

1000

500 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 665-6

May 1989

06013099

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

109

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MA/MH FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 665-7

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Pole

MA/MH 1200 600 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0665TC9107

Drawing No. 48095-665-07

06013100

110

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

MH THERMAL-MAGNETIC MOLDED CASE CIRCUIT BREAKER

CHARACTERISTIC TRIP CURVE NO. 665-8

CIRCUIT BREAKER INFORMATION

Circuit

Breaker Prefix

Circuit

Breaker Suffix

Continuous

Ampere

Rating

Maximum DC

Voltage

Number of

Poles

MH 40DC 1200 500 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0665TC8508

March 2001

Drawing No. B48095-665-08

(Replaces 0655TC9108)

06013101

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

111

Powerpact® Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT (In)

MULTIPLES OF RATED CURRENT (In) ELECTRONIC TRIP 1.0

CHARACTERISTIC TRIP CURVE NO. 613-14

CIRCUIT BREAKER INFORMATION

Long-time Pickup and Delay

Instantaneous Pickup and Delay

2x–10x

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

Curves apply from -30°C to +60°C ambient temperature.

NOTE:

1. There is a thermal-imaging effect that can act to shorten the

long-time delay. The thermal-imaging effect comes into play

if a current above the long-time delay pickup value exists

for a time and then is cleared by the tripping of a

downstream device or the circuit breaker itself. A

subsequent overload will cause the circuit breaker to trip in

a shorter time than normal. The amount of time delay

reduction is inverse to the amount of time that has elapsed

since the previous overload. Approximately 20 minutes is

required between overloads to completely reset thermal-

imaging.

2. Total clearing times shown include the response times of

the trip unit, the circuit breaker opening, and the extinction

of the current.

TIME IN SECONDS

06123322

Tripping curves for coordination

studies are available upon request.

Curve No. 0613TC0114

April 2001

Drawing No. B48095-613-14

112

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

800 / 1000 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT (In)

Tripping curves for coordination

studies are available upon request.

MICROLOGIC® 6.0 A/P/H TRIP UNIT

WITH ADJUSTABLE GROUND-FAULT

PICKUP AND DELAY

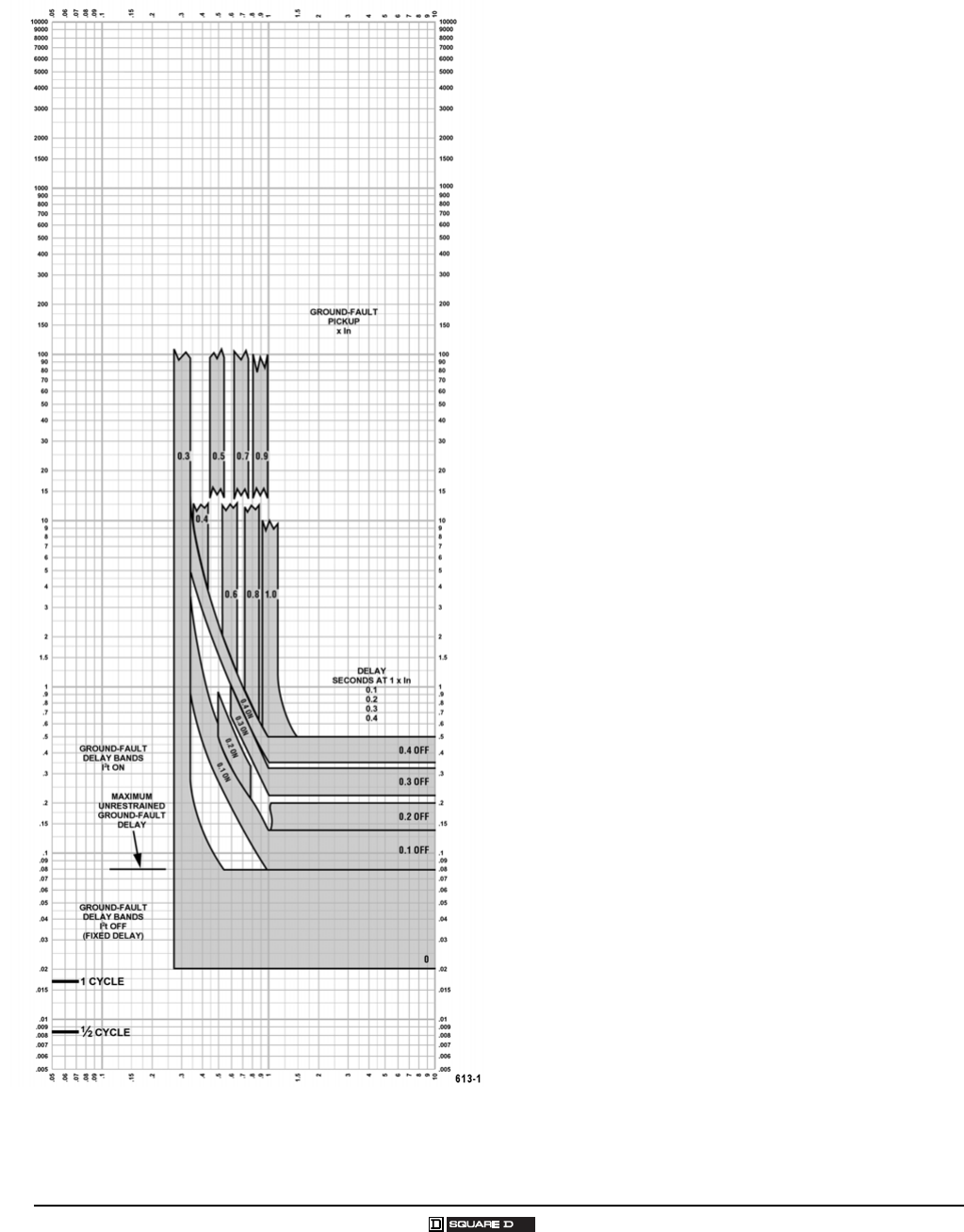

CHARACTERISTIC TRIP CURVE NO. 613-1

Ground-fault I2t OFF and ON in ≤ 400 Ampere

This curve is to be used for application and coordination purposes only.

Curves apply from -30°C to +60°C ambient temperature.

TIME IN SECONDS

Curve No. 0613TC0001

December 2000

Drawing No. B48095-613-01

06123323

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

113

1200 AMPERE FRAME

This section provides specific information on Square D® 1200 ampere frame thermal-magnetic molded

case circuit breakers. For more information, see the Introduction in this catalog.

Description

Applications

NA and NC circuit breakers are used in industrial enclosures, panelboards and switchboards.

Selection Data

Table 37: Description of 1200 Ampere Frame Circuit Breakers

Circuit Breaker Description

NA/NC 600–1200 ampere, 600 Vac, 50/60 Hz,

2- and 3-pole

Table 38: 1200 Ampere Frame Interrupting Ratings

Catalog Number

Prefix

No.

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA)

Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical

Amperes

Unit

Mount I-Line®120 240 480Y/

277 480 600 415/240

NAL NA 2, 3 600–1200 100 100 50 50 25 23a 50/25

NCL NC 2, 3 600–1200 125 125 100 100 65 25a 70/35

Table 39: 1200 Ampere Unit Mount Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes

Two Pole

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

NAL High Interrupting

Low High 600 Vac 600 Vac

600

700

800

900

1000

1200

4000

5000

8000

10000

NAL26600

NAL26700

NAL26800

NAL26900

NAL261000

NAL261200

NAL36600

NAL36700

NAL36800

NAL36900

NAL361000

NAL361200

AL1200NE6

4-#3/0-600 kcmil

NCL Extra High Interrupting

Low High 600 Vac 600 Vac

600

700

800

900

1000

1200

4000

5000

8000

10000

NCL26600

NCL26700

NCL26800

NCL26900

NCL261000

NCL261200

NCL36600

NCL36700

NCL36800

NCL36900

NCL361000

NCL361200

AL1200NE6

4-#3/0-600 kcmil

NAL/NCL

Two- and Three-pole

600–1200 Amperes

06013102

114

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

Table 40: 1200 Ampere Frame I-Line® Circuit Breakers

Ampere Rating AC Magnetic Trip Settings

Amperes▲

Two Pole★

Catalog No.

Three Pole

Catalog No.

Standard Lug Kit Wire

Range

NA High Interrupting

Low High 240 Vac 240 Vac

600

700

800

900

1000

1200

4000

5000

8000

10000

NA26600( )

NA26700( )

NA26800( )

NA26900( )

NA261000( )

NA261200( )

NA36600

NA36700

NA36800

NA36900

NA361000

NA361200

AL1200NE6

4-#3/0-600 kcmil

NC Extra High Interrupting

Low High 600 Vac/250 Vdc 600 Vac/250 Vdc

600

700

800

900

1000

1200

4000

5000

8000

10000

NC26600( )

NC26700( )

NC26800( )

NC26900( )

NC261000( )

NC261200( )

NC36600

NC36700

NC36800

NC36900

NC361000

NC361200

AL1200NE6

4-#3/0-600 kcmil

★Two pole circuit breaker catalog numbers are completed by adding required phase connection letters as a suffix to the catalog

number.

▲UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

NA/NC

Two- and Three-pole

15” Mounting Height

600–1200 Amperes

06013103

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

115

Dimensions

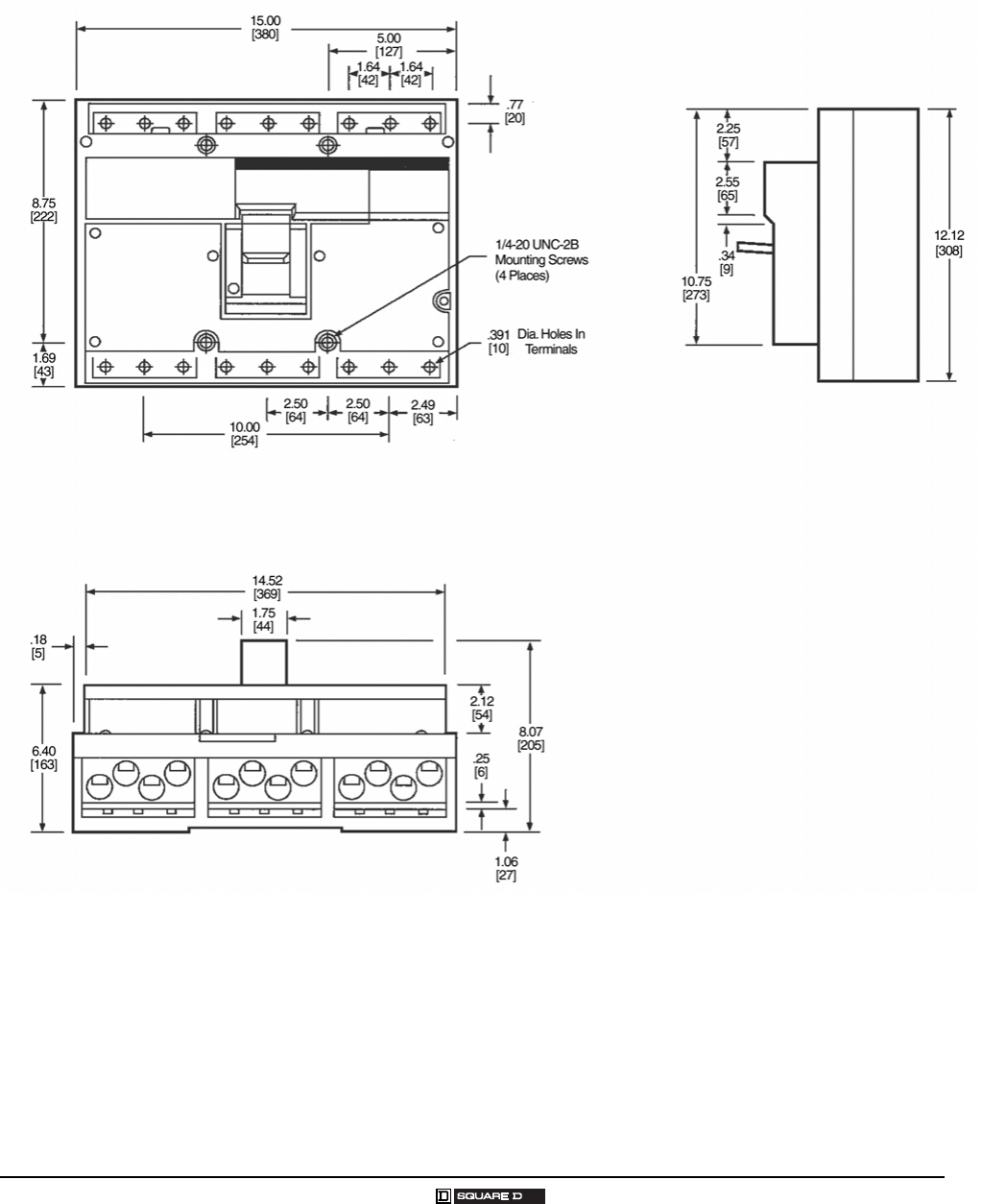

Figure 17: NAL, NCL 1200 Ampere Frame

Dimensions: In.

[mm]

06013104

116

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

NA FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 670-6

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

NA, NC 600 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0670TC8706

Drawing No. 48095-670-06

06013105

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

117

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

NA FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 670-7

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

NA, NC 700 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0670TC8707

Drawing No. 48095-670-07

06013106

118

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

NA FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 670-8

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

NA, NC 900 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0670TC8708

Drawing No. 48095-670-08

06013107

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

119

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

NA FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 670-9

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

NA, NC 800 & 1000 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0670TC8709

Drawing No. 48095-670-09

06013108

120

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

1200 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

NA FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 670-10

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

NA, NC 1200 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0670TC8710

Drawing No. 48095-670-10

06013109

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

121

2000 / 2500 AMPERE FRAME

This section provides specific information on Square D® 2000 / 2500 ampere frame thermal-magnetic

molded case circuit breakers. For more information, see the Introduction in this catalog.

Description

Applications

PAF, PHF and PCF circuit breakers are used in industrial enclosures, switchboards and busway plug-

in units.

Selection Data

Table 41: Description of 2000 / 2500 Ampere Frame Circuit Breakers

Circuit Breaker Description

PAF/PHF 600–2000 ampere, 600 Vac, 50/60 Hz,

2- and 3- pole

PCF 600–2500 ampere, 600 Vac, 50/60 Hz,

2- and 3-pole

Table 42: 2000 / 2500 Ampere Frame Interrupting Ratings

Catalog

Number

Prefix

No. of

Poles

Cont.

Ampere

Rating

UL Listed Interrupting Rating (kA)

Federal Specs.

W-C-375B/GEN

IEC 60947-2

Icu/Ics (kA)

AC Voltage

AC Volts - RMS Symmetrical

Amperes

Volts

Unit

Mount 120 240 480Y/

277 480 600 500 415/240

PAF 2, 3 600–1200 65 65 50 50 42 — 24a 50

PAF-DC 3 1200–

2000 —————25K — —

PHF★2, 3 600–2000 125 125 100 100 65 — 25a 100

PCF★2, 3 1600–

2500 125 125 100 100 65 — 25a 100

★Separate UL rating available for 240 Vac and 480 Vac grounded B single phase systems. Breakers must be ordered with 5861

suffix. See Supplemental Digest for specific ratings.

Table 43: 2000 Ampere Unit Mount Circuit Breakers

Ampere

Rating

AC Magnetic

Trip Settings

Amperes★

Two Pole - 600 Vac Three Pole - 600 Vac

Frame Only Rating Columns

Two Per Kit Frame Only Rating Columns

Three Per Kit

Low High Catalog No. Kit Catalog No. Catalog No. Kit Catalog No.

PAF Standard Interrupting - Complete Breaker Requires Frame and Rating Columns

600

700

800

1000

1200

1400

1600

1800

2000

3200

3500

4500

5000

6500

8000

9000

10000

11000

12000

PAF2026

PA2600RC

PA2700RC

PA2800RC

PA21000RC

PA21200RC

PA21400RC

PA21600RC

PA21800RC

PA22000RC

PAF2036

PA3600RC

PA3700RC

PA3800RC

PA31000RC

PA31200RC

PA31400RC

PA31600RC

PA31800RC

PA32000RC

Continued on next page

PAF/PHF

Two- and Three-pole

600–2000 Amperes

06013110

122

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

PHF High Interrupting - Complete Breaker Requires Frame and Rating Columns

600

700

800

1000

1200

1400

1600

1800

2000

3200

3500

4500

5000

6500

8000

9000

10000

11000

12000

PHF2026

PA2600RC

PA2700RC

PA2800RC

PA21000RC

PA21200RC

PA21400RC

PA21600RC

PA21800RC

PA22000RC

PHF2036

PA3600RC

PA3700RC

PA3800RC

PA31000RC

PA31200RC

PA31400RC

PA31600RC

PA31800RC

PA32000RC

★UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

Table 44: 2500 Ampere Unit Mount Circuit Breakers

Ampere

Rating

AC Magnetic

Trip Settings

Amperes★

Two Pole - 600 Vac Three Pole - 600 Vac

Frame Only Rating Columns

Two Per Kit Frame Only Rating Columns

Three Per Kit

Low High Catalog No. Kit Catalog No. Catalog No. Kit Catalog No.

PCF High Interrupting - Complete Breaker Requires Frame and Rating Columns

1600

1800

2000

2500

6000

8000

12000

14000

PCF2526

PC21600RC

PC21800RC

PC22000RC

PC22500RC

PCF2536

PC31600RC

PC31800RC

PC32000RC

PC32500RC

★UL magnetic trip setting tolerances are -20% /+30% (Low) and -20% /+30% (High) from the nominal values shown.

Figure 18: PAF/PCF Circuit Breaker with Terminal Pad Kit

Table 43: 2000 Ampere Unit Mount Circuit Breakers (continued)

Ampere

Rating

AC Magnetic

Trip Settings

Amperes★

Two Pole - 600 Vac Three Pole - 600 Vac

Frame Only Rating Columns

Two Per Kit Frame Only Rating Columns

Three Per Kit

Low High Catalog No. Kit Catalog No. Catalog No. Kit Catalog No.

PAF circuit breaker with one optional PAL-TB terminal pad

kit end 18 optional lugs installed. Kits mount on either end

of the circuit breaker. Each kit contains three terminal pads,

one per phase, with provisions for mounting a maximum of

six lugs per pad. Lugs (Cat. No AL2500PA) must be

ordered separately.

PCF circuit breakers are supplied with a terminal pad kit as

standard for line and load cable terminations. The pad kit

allows mounting a maximum of eight lugs per pad. Lugs

(Cat. No. AL2500PA) must be ordered separately.

06013111

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

123

Dimensions

Figure 19: PAF, PHF 2000 Ampere Frame

Dimensions: In.

[mm]

06013112

124

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

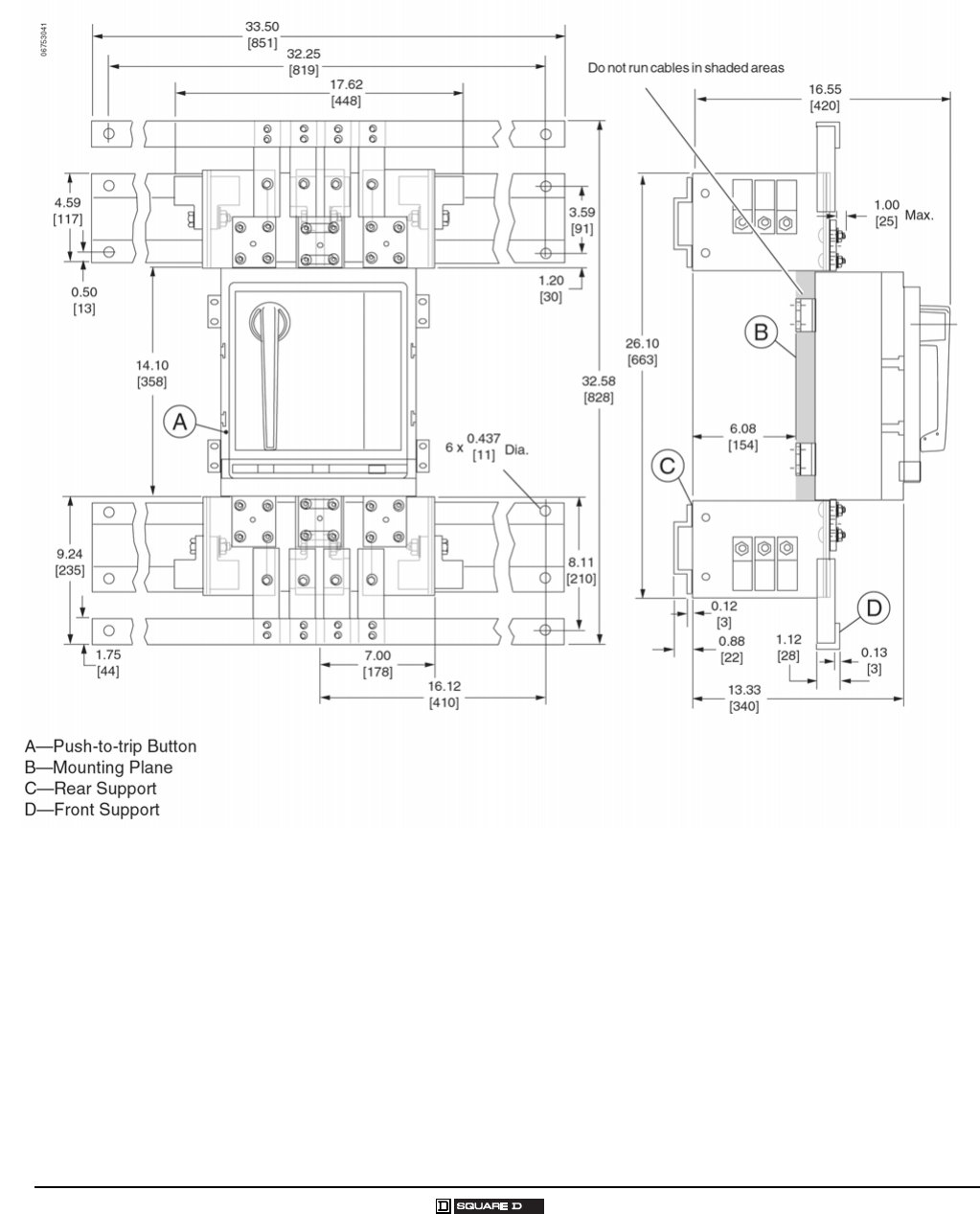

Figure 20: Circuit Breaker with Terminal Pads—PALTB for PAF, PHF Ampere Frame

Dimensions: In.

[mm]

06013113

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

125

Figure 21: PCF 2000 Ampere Frame

Dimensions: In.

[mm]

06013114

126

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

Tripping Curves

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 675-1

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 600 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8501

Drawing No. 48095-675-01

06013115

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

127

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 675-2

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 700 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8502

Drawing No. 48095-675-02

06013116

128

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

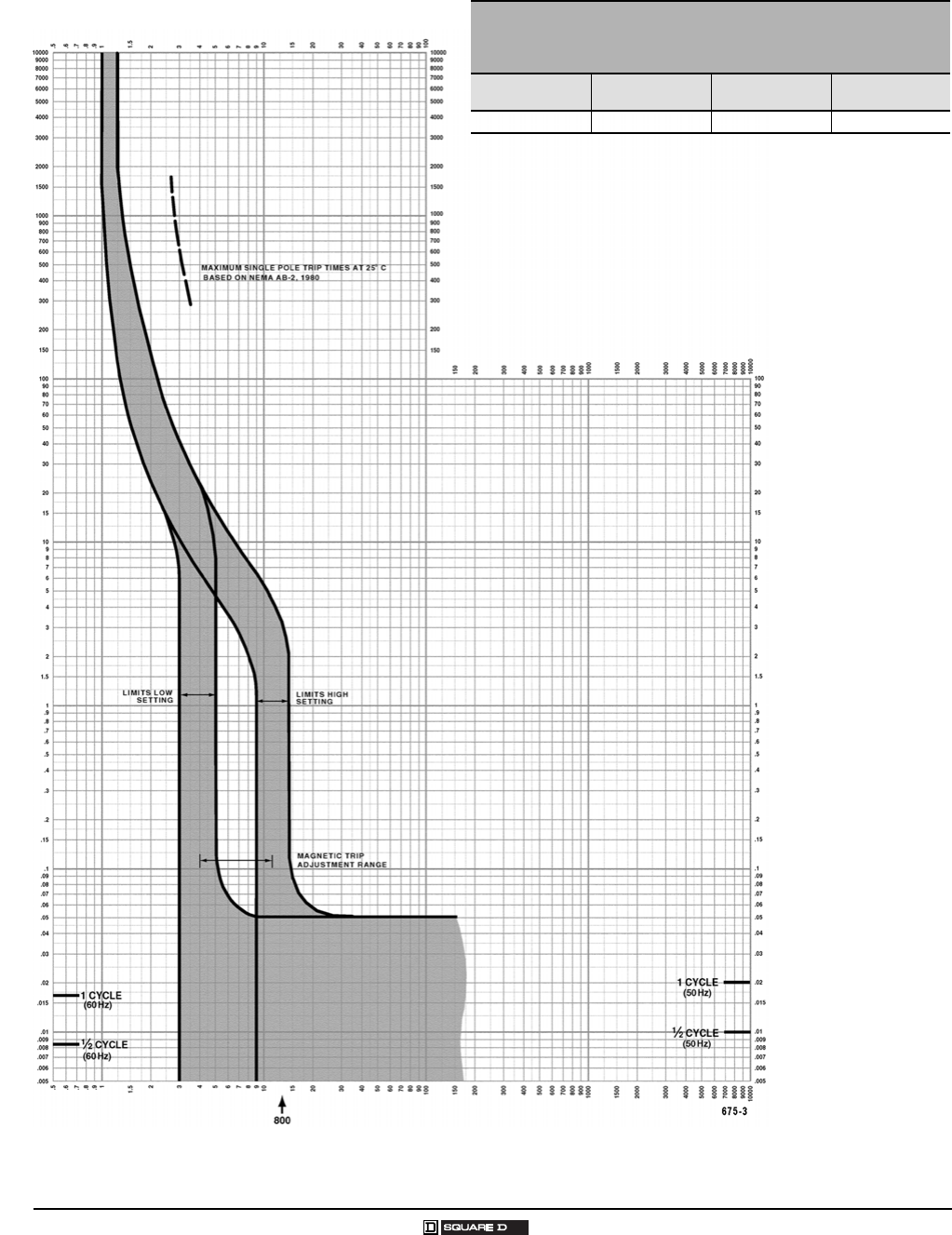

CHARACTERISTIC TRIP CURVE NO. 675-3

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 800 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8503

Drawing No. 48095-675-03

06013117

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

129

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

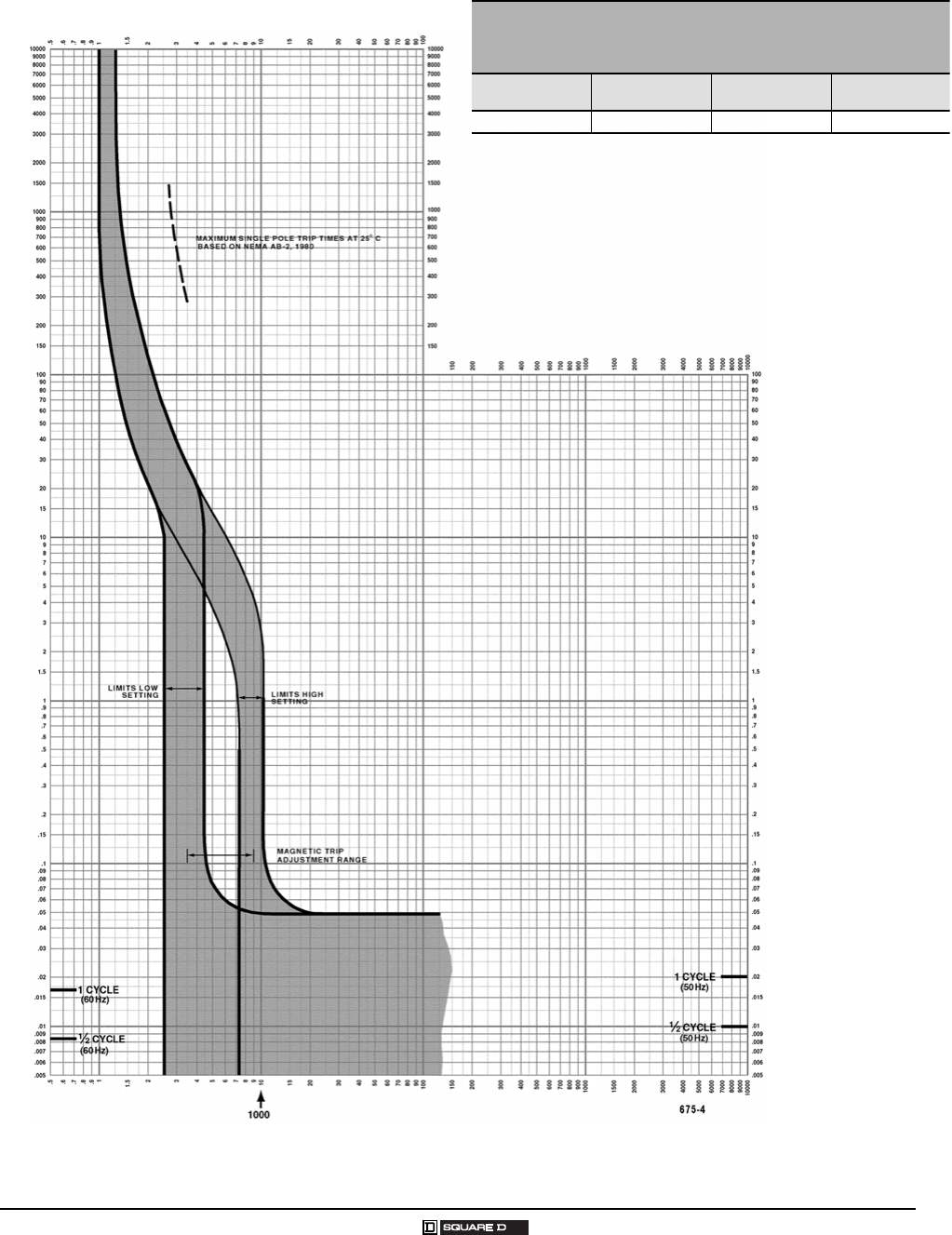

CHARACTERISTIC TRIP CURVE NO. 675-4

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 1000 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8504

Drawing No. 48095-675-04

06013118

130

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 675-5

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 1200 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8505

Drawing No. 48095-675-05

06013119

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

131

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 675-6

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 1400 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8506

Drawing No. 48095-675-06

06013120

132

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 675-7

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 1600 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8507

Drawing No. 48095-675-07

06013121

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

133

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 675-8

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 1800 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8508

Drawing No. 48095-675-08

06013122

134

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 675-9

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PA, PH 2000 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0675TC8509

Drawing No. 48095-675-09

06013123

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

135

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 676-01

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PC 1600 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0676TC8501

Drawing No. 48095-676-01

06013124

136

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 676-02

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PC 1800 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0676TC8502

Drawing No. 48095-676-02

06013125

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

137

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 676-03

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PC 2000 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0676TC8503

Drawing No. 48095-676-03

06013126

138

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

2000 / 2500 Ampere Frame

TIME IN SECONDS

MULTIPLES OF RATED CURRENT

Tripping curves for

coordination studies are

available upon request.

PA\PH\PC FAMILY MOLDED CASE CIRCUIT BREAKERS

CHARACTERISTIC TRIP CURVE NO. 676-04

CIRCUIT BREAKER INFORMATION

Circuit Breaker

Prefix

Continuous

Ampere Rating

Maximum AC

Voltage Number of Poles

PC 2500 600 2, 3

This curve is to be used for application and coordination purposes only.

The EZ-AMPTM overlay feature at the bottom of the page should be used during

coordination studies.

All time/current characteristic curve data is based on 40°C ambient cold start.

Terminations are made with conductors of appropriate length and ratings.

TIME IN SECONDS

Curve No. 0676TC8504

Drawing No. 48095-676-04

06013127

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Magnetic Only Molded Case Circuit Breakers

139

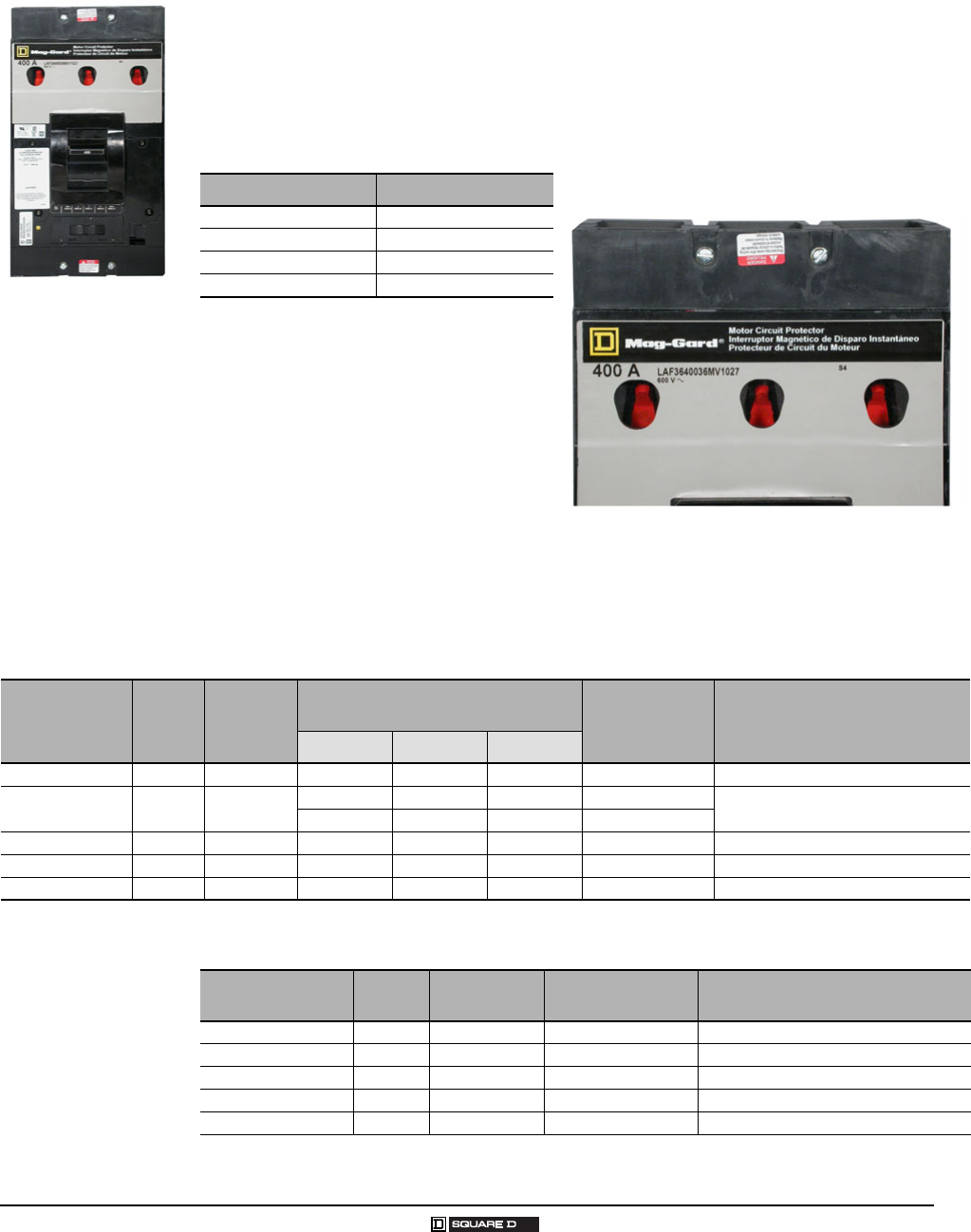

MAGNETIC ONLY MOLDED CASE CIRCUIT BREAKERS

This section provides specific information on Square D® magnetic only molded case circuit breakers.

For more information, see the Introduction in this catalog.

Description

Characteristics

Mag-Gard magnetic only instantaneous trip circuit breakers are similar in construction to thermal-

magnetic circuit breakers. Mag-Gard circuit breakers were tested per UL Standard 485, in combination

with Square D starters at the following available fault currents:

Ampere Rating

The Mag-Gard ampere rating is its continuous current carrying capacity. Continuous currents larger

than the ampere rating can damage the circuit breaker. Mag-Gard circuit breakers do not contain

thermal trip elements.

The current range over which the instantaneous magnetic trip point may be adjusted is the adjustable

trip range amperes.

Magnetic Adjustment

FA through NA frame Mag-Gard circuit breakers have an adjustable instantaneous magnetic trip.

Table 45: Description of Magnetic Only Circuit Breakers

Circuit Breaker Description

Mag-Gard®3–1200 ampere, 600 Vac, 50/60 Hz, 3-pole,

instantaneous trip

Table 46: Combination Starters - NEMA Application Data

Mag-Gard Motor Circuit Protector Type

NEMA Type Voltage Enclosure Available Amperes

RMS Symmetrical

0 & 1 0-480 Standard★ & Oversize 22,000

0 & 1 481-600 Standard★ & Oversize 10,000

0-2 with Current

Limiting Module 600 Oversize 100,000

0-3 with Current

Limiting Module 600 Standard★100,000

0-3 600 NEMA 7 & 9 5,000

2 600 Oversize 22,000

2-6 600 Standard★22,000

4 with Current Limiting

Panel 600 Standard★100,000

4 & 5 600 NEMA 7 & 9 10,000

7 0-480 Standard★30,000

7 481-600 Standard★22,000

★Standard enclosure includes non-oversize NEMA Types 1, 4 & 4X Stainless, 4X Polyester, and 12.

140

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Magnetic Only Molded Case Circuit Breakers

Selection Data

Table 47: Magnetic Only Circuit Breakers

Ampere Rating Adjustable★

Trip Range Amperes Suffix 3-Pole

Catalog Number

3-1200 Amperes, 600 Vac, 50/60 Hz▲

FAL■

100

8-28

18-70

50-180

100-350

75-260

150-580

300-1100

—

FAL3600311M

FAL3600712M

FAL3601513M

FAL3603013M

FAL3603015M

FAL3605014M

FAL3605016M

FAL3610016M

FAL3610018M

GJL

9-33

21-77

45-165

90-330

150-550

225-825

—

GJL36003M01

GJL36007M02

GJL36015M03

GJL36030M04

GJL36050M05

GJL36075M06

KAL

150 750-1500 — KAL3615026M

250

400-800

500-1000

625-1250

750-1500

875-1750

1000-2000

1125-2250

1250-2500

—

KAL3625021M

KAL3625022M

KAL3625025M

KAL3625026M

KAL3625029M

KAL3625030M

KAL3625031M

KAL3625032M

LAL 400

500-1000

750-1600

1000-2000

1125-2250

1250-2500

1500-3000

1750-3500

2000-4000

—

LAL3640022M

LAL3640028M

LAL3640030M

LAL3640031M

LAL3640032M

LAL3640033M

LAL3640035M

LAL3640036M

MAL★★

600

800

1000

—

MAL36600

MAL36800

MAL361000

625-1250

750-1500

1000-2000

1500-3000

2000-4000

2500-5000

3000-6000

3500-7000

4000-8000

4500-8600

5000-9000

25M

26M

30M

33M

36M

40M

42M

44M

45M

46M

47M

Continued on next page

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Magnetic Only Molded Case Circuit Breakers

141

Adjustable Instantaneous-trip Circuit Breakers for Single Motor Circuit Protection

Adjustable instantaneous-trip circuit breakers are intended for use in combination with motor starters

with overload relays for the protection of motor circuits from short circuits. Other specific applications

include rectifiers and resistance welders. These circuit breakers contain a magnetic trip element in

each pole with the trip point adjustable from the front. Interrupting ratings are determined by testing the

instantaneous-trip circuit breakers in combination with a contactor and overload relay.

1. This selection table is suitable for motors, other than NEMA Design E, with locked-rotor indicating

code letters per NEC Table 430.7 (b) as follows:

For other motors order a special thermal-magnetic circuit breaker with magnetic trip settings for the

specific motor— specify motor horsepower, voltage, frequency, full-load current and code letter or

locked rotor current.

2. Determine motor hp rating from the motor nameplate.

3. Refer to the table at right and select an instantaneous- trip circuit breaker with an Ampere rating

recommended for the hp and voltage involved.

4. Select an adjustable trip setting of at least 800%, not to exceed 1300%, of the motor full-load

amperes (FLA) for other than Design E motors. For Design E motors, select an adjustable trip

setting of at least 1100% not to exceed 1700% of FLA.

5. The NEC 1300% maximum setting may be inadequate for instantaneous-trip circuit breakers to

withstand current surges typical of the magnetization current of autotransformer type reduced

voltage starters, or open transition wye-delta starters during transfer from "start" to "run," constant

hp multi-speed motors, and motors labeled "high efficiency." Select thermal-magnetic circuit

breakers from page 6-35 for those applications.

6. Part-winding motors, per NEC 430.3, should have two circuit breakers selected from the above at

not more than one half the allowable trip setting for the horsepower rating. The two circuit breakers

should operate simultaneously as a disconnecting means per NEC 430.103.

NAL 1200

4000-8000

4500-9000

5000-10000

—

NAL36120045M

NAL36120046M

NAL36120047M

★UL magnetic trip setting tolerances are ±20% from the nominal values shown.

▲250 Vdc ratings are available except on NA. Consult factory for trip range. No UL component recognition.

■FAL frame has line and load restriction and cannot be reverse connected.

★★Each ampere rating can be ordered with any designated trip range for the frame by adding the proper suffix to catalog numbers.

Horsepower Motor Code Letters

1/2 or less A–L

3/4 to 1-1/2 A–K

2 to 3 A–J

5 to 25 A–H

30 to 125 A–G

150 or more A–F

Table 47: Magnetic Only Circuit Breakers (continued)

Ampere Rating Adjustable★

Trip Range Amperes Suffix 3-Pole

Catalog Number

3-1200 Amperes, 600 Vac, 50/60 Hz▲

142

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Magnetic Only Molded Case Circuit Breakers

Table 48: Adjustable Instantaneous Trip Circuit Breakers for Single Motor Circuit Protection

NOTE: Based on NEC 430.52 and NEC Table 430.150.

Hp Ratings of Induction Type Squirrel-

cage and Wound Rotor Motors ★Full

Load

Amperes

Mag-Gard®

Circuit

Breaker

Catalog No.

★★Magnetic Trip

Settings

GJL Family

Mag-Gard

Circuit

Breaker

Catalog No.

★★Magnetic Trip

Settings

Three-Phase 60 Hz ac

200 Volts 230 Volts 460 Volts 575 Volts MIN MAX MIN MAX

1/2 0.8 FAL3600311M★1000% 3500% GJL36003M01▲1100% 4100%

1/2 1 FAL3600311M★800% 2800% GJL36003M01▲900% 3300%

3/4 1.1 FAL3600311M 700% 2500% GJL36003M01▲800% 3000%

3/4 1 1.4 FAL3600311M 600% 2000% GJL36003M01 600% 2400%

1 1.8 FAL3600311M 400% 1600% GJL36003M01 500% 1800%

1/2 2 FAL3600311M 400% 1400% GJL36003M01 500% 1700%

1-1/2 2.1 FAL3600311M 400% 1300% GJL36003M01 400% 1600%

1/2 2.3 FAL3600311M■300% 1200% GJL36003M01 400% 1400%

1-1/2 2.6 FAL3600712M 700% 2700% GJL36003M01 300% 1300%

2 2.7 FAL3600712M 700% 2600% GJL36003M01■300% 1200%

3/4 2.8 FAL3600712M 600% 2500% GJL36003M01■300% 1200%

3/4 3.2 FAL3600712M 600% 2200% GJL36007M02 700% 2400%

2 3.4 FAL3600712M 500% 2100% GJL36007M02 600% 2300%

1 3.6 FAL3600712M 500% 1900% GJL36007M02 600% 2100%

3 3.9 FAL3600712M 500% 1800% GJL36007M02 500% 2000%

1 4.1 FAL3600712M 400% 1700% GJL36007M02 500% 1900%

3 4.8 FAL3600712M 400% 1500% GJL36007M02 400% 1600%

1-1/2 5.2 FAL3600712M 300% 1300% GJL36007M02 400% 1500%

1-1/2 6 FAL3600712M■300% 1200% GJL36007M02 400% 1300%

5 6.1 FAL3600712M■300% 1100% GJL36015M03 700% 2700%

2 6.8 FAL3601513M 700% 2600% GJL36015M03 700% 2400%

5 7.6 FAL3601513M 700% 2400% GJL36015M03 600% 2200%

2 7.8 FAL3601513M 600% 2300% GJL36015M03 600% 2100%

7-1/2 9 FAL3601513M 600% 2000% GJL36015M03 500% 1800%

3 9.6 FAL3601513M 500% 1900% GJL36015M03 500% 1700%

3 7-1/2 10 11 FAL3601513M 500% 1600% GJL36015M03 400% 1500%

10 14 FAL3603015M 700% 2500% GJL36030M04 600% 2400%

5 15.2 FAL3603015M 700% 2300% GJL36030M04 600% 2200%

15 17 FAL3603015M 600% 2100% GJL36030M04 500% 1900%

5 5 17.5 FAL3603015M 600% 2000% GJL36030M04 500% 1900%

15 21 FAL3603015M 500% 1700% GJL36030M04 400% 1600%

7-1/2 20 22 FAL3605016M 700% 2600% GJL36030M04 400% 1500%

7-1/2 25.3 FAL3605016M 600% 2300% GJL36030M04 400% 1300%

20 25 27 FAL3605016M 600% 2100% GJL36050M05 600% 2000%

10 28 FAL3605016M 500% 2100% GJL36050M05 500% 2000%

30 32 FAL3605016M 500% 1800% GJL36050M05 500% 1700%

10 32.2 FAL3605016M 500% 1800% GJL36050M05 500% 1700%

25 34 FAL3605016M 400% 1700% GJL36050M05 400% 1600%

30 40 FAL3605016M 400% 1500% GJL36050M05 400% 1400%

40 41 FAL3610018M 700% 2700% GJL36050M05 400% 1300%

15 42 FAL3610018M 700% 2600% GJL36075M06 400% 1300%

15 48.3 FAL3610018M 600% 2300% GJL36075M06 500% 1700%

40 50 52 FAL3610018M 600% 2100% GJL36075M06 400% 1600%

20 54 FAL3610018M 600% 2000% GJL36075M06 400% 1500%

20 60 62 FAL3610018M 500% 1800% GJL36075M06 400% 1300%

50 65 FAL3610018M 500% 1700% GJL36075M06 300% 1300%

Continued on next page

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Magnetic Only Molded Case Circuit Breakers

143

25 68 FAL3610018M 400% 1600%

60 75 77 FAL3615024M 600% 1400%

25 78.2 FAL3615024M 600% 1400%

30 80 FAL3615024M 600% 1400%

30 92 KAL3625025M 700% 1400%

75 96 KAL3625025M 700% 1300%

100 99 KAL3625025M 600% 1300%

40 104 KAL3625026M 700% 1400%

40 120 KAL3625029M 700% 1500%

100 124 KAL3625029M 700% 1400%

125 125 KAL3625029M 700% 1400%

50 130 KAL3625029M 700% 1300%

150 144 KAL3625030M 700% 1400%

50 150 KAL3625030M 700% 1300%

60 154 KAL3625031M 700% 1500%

125 156 KAL3625031M 700% 1400%

60 177.1 KAL3625032M 700% 1400%

150 180 KAL3625032M 700% 1400%

75 200 192 KAL3625032M 700% 1300%

75 221 LAL3640033M 700% 1400%

200 240 LAL3640035M 700% 1500%

250 242 LAL3640035M 700% 1400%

100 248 LAL3640035M 700% 1400%

100 285 LAL3640036M 700% 1400%

300 289 LAL3640036M 700% 1400%

250 302 LAL3640036M 700% 1300%

125 312 LAL3640036M 600% 1300%

350 336 MAL3660040M 700% 1500%

125 359 MAL3660040M 700% 1400%

150 360 MAL3660040M 700% 1400%

300 361 MAL3660040M 700% 1400%

400 382 MAL3660040M 700% 1300%

350 414 MAL3660042M 700% 1400%

500 472 MAL3660044M 700% 1500%

400 477 MAL3660044M 700% 1500%

200 480 MAL3660044M 700% 1500%

200 552 MAL3680045M 700% 1400%

500 590 MAL3680045M 700% 1400%

250 602 MAL3680045M 700% 1300%

★Motor full-load currents are taken from NEC Table 430.150. Select wire and circuit breakers on basis of horsepower rather than nameplate full-load current per

NEC 430.6 (A) for general motor applications. Do not use these values to select overload relay thermal units. See Digest pages 14-129–14-152 for selection of

thermal units when actual full load current is not known. The voltages listed are rated motor voltages. Corresponding nominal system voltages are 200 to 208, 220

to 240, 440 to 480 and 550 to 600 volts.

▲See NEC 430.52 (A) for breaker settings above 800%.

■If due to motor starting characteristics, trip settings at the 1300% maximum permitted level are needed, the next size Mag-Gard® circuit breaker should be chosen.

★★Only MIN and MAX settings are shown, intermediate settings are available on all circuit breakers.

Table 48: Adjustable Instantaneous Trip Circuit Breakers for Single Motor Circuit Protection (continued)

NOTE: Based on NEC 430.52 and NEC Table 430.150.

Hp Ratings of Induction Type Squirrel-

cage and Wound Rotor Motors ★Full

Load

Amperes

Mag-Gard®

Circuit

Breaker

Catalog No.

★★Magnetic Trip

Settings

GJL Family

Mag-Gard

Circuit

Breaker

Catalog No.

★★Magnetic Trip

Settings

Three-Phase 60 Hz ac

200 Volts 230 Volts 460 Volts 575 Volts MIN MAX MIN MAX

144

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Magnetic Only Molded Case Circuit Breakers

TIME IN SECONDS

MULTIPLES OF LOW SETTING (NOMINAL VALUE)

IN AMPERES (SEE TABLE 2)

Tripping curves for coordination

studies are available upon request.

TIME IN SECONDS

MULTIPLES OF LOW SETTING (NOMINAL VALUE)

IN AMPERES (SEE TABLE 2)

Curve No. 0680TC9401

Drawing No. B48095-680-01

(Replaces 680-1 dated 4/91)

MAG-GARD® INSTANTANEOUS TRIP MOLDED CASE CIRCUIT

BREAKERS CHARACTERISTIC TRIP CURVE NO. 680-1

A Mag-Gard circuit breaker characteristic curve is shown. Any value of current

to the right of the shaded area will trip the Mag-Gard circuit breaker. The Mag-

Gard circuit breaker will not trip for any value of current to the left of the shaded

area. For any value of current within the shaded area, the Mag-Gard circuit

breaker will either hold in indefinitely or trip instantaneously. To prevent

damage to the Mag-Gard circuit breaker, proper overload protection must be

provided (NEC 430-52). The shaded area represents the UL 489 tolerances.

They are ±25% on low settings and ±20% on high setting. Where trip values

are not high enough due to excessive inrush currents, thermal-magnetic circuit

breakers may be used if sized in accordance with NEC Table 430-152.

Table 1 Table 2

Suffix

Number

AC Magnetic Trip

Setting Nominal

Values

Align Arrow

Frame

Size

Maximum

Clearing Time

Low High

M01

M02

M03

M04

M05

M06

150

225

165

330

550

825

1111 Multiples

476 Multiples

222 Multiples

111 Multiples

67 Multiples

44 Multiples

.008 Seconds

.016 Seconds

.025 Seconds

.050 Seconds

11M

12M

13M

14M

15M

100

180

260

350

1250 Multiples

555 Multiples

200 Multiples

133 Multiples

100 Multiples

16M

18M

21M

22M

25M

150

300

400

500

625

580

1100

800

1000

1250

67 Multiples

33 Multiples

25 Multiples

20 Multiples

16 Multiples

26M

28M

29M

30M

31M

750

875

1000

1125

1500

1600

1750

2000

2250

13 Multiples

11 Multiples

10 Multiples

9 Multiples

32M

33M

35M

36M

40M

1250

1500

1750

2000

2500

3000

3500

4000

5000

8 Multiples

6.7 Multiples

5.7 Multiples

5 Multiples

4 Multiples

42M

44M

45M

46M

47M

3000

3500

4000

4500

6000

7000

8000

8600

9000

3.3 Multiples

2.8 Multiples

2.5 Multiples

2.2 Multiples

2 Multiples

06013128

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Molded Case Switches

145

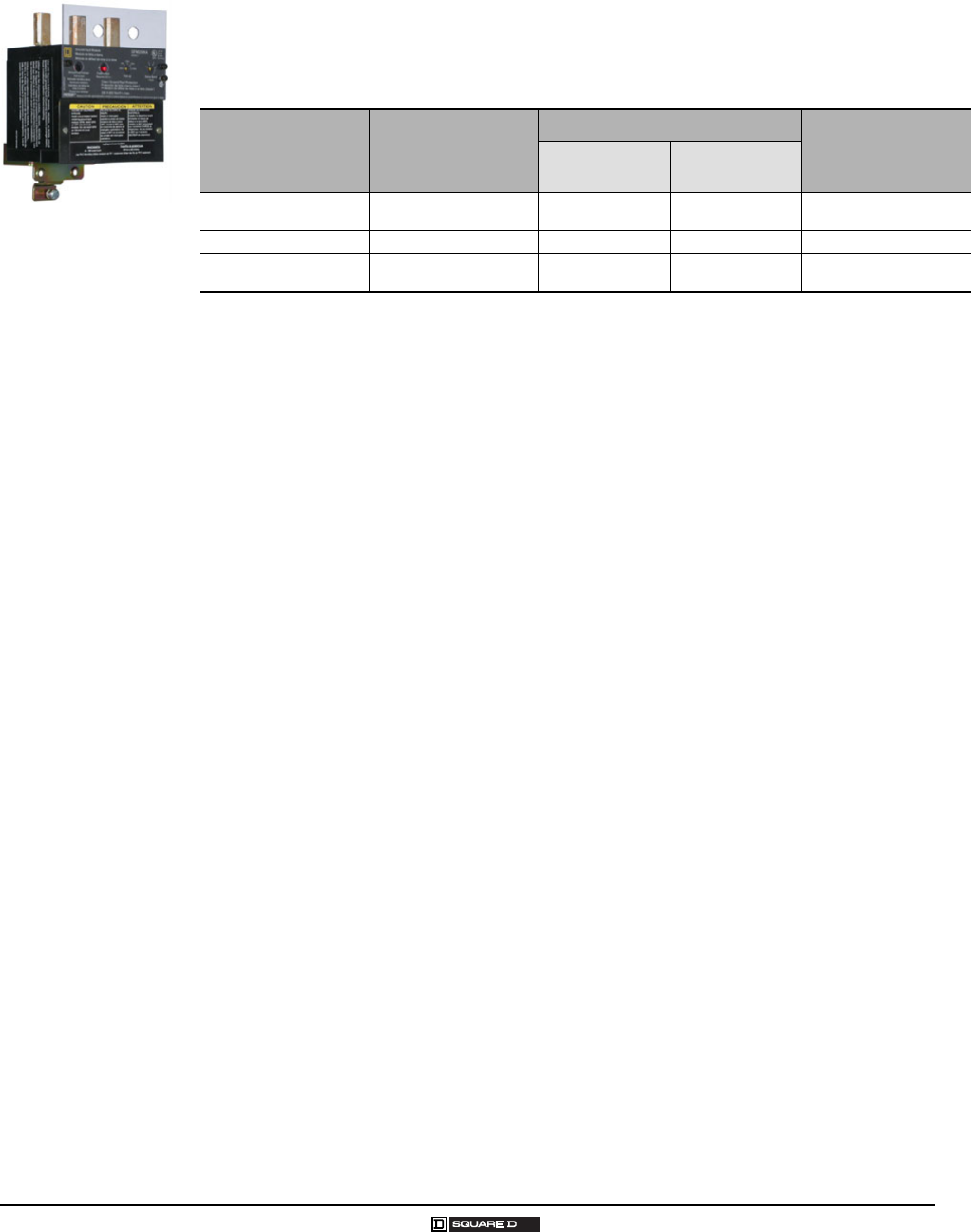

MOLDED CASE SWITCHES

This section provides specific information on Square D® molded case switches. For more information,

see the Introduction in this catalog.

Description

Reverse Connection

Square D, molded case switches have been fully tested and are UL listed for reverse connection

without restrictive “LINE” or “LOAD” markings.

Selection Data

Table 49: Description of Molded Case Switches

Circuit Breaker Description

Molded Case

Switches

100–2500 ampere, 600 Vac, 50/60 Hz,

2- and 3- pole automatic molded case switches

KHL

06013014

Table 50: Molded Case Switches

Ampere

Rating

2-Pole 3-Pole UL Listed Withstand Rating (kA)★Trip Point - Amps.

(Automatic Switch) Lug Kit

Installed

Catalog No. Catalog No. 240 Vac 480 Vac 600 Vac 250 Vdc AC▲DC▲

600 Vac Automatic

100

150

250

400

600

800

1000

1200

2000

2500

FHL26000M

—

KHL26000M

LHL26000M

MHL260006M

MHL260008M

MHL26000M

NCL2600012M

PHF260000M

PCF260000M

FHL36000M

FHL3600015M

KHL36000M

LHL36000M

MHL360006M

MHL360008M

MHL36000M

NCL3600012M

PHF360000M

PCF360000M

125

100

—

1500

2500

4500

8000

9000

16000

1725

—

5175

9600

9900

N/A

N.A

AL100FA

AL150FA

AL250KA

AL400LA

AL900MA

AL1200N

N/A

★The “Withstand Rating” is the maximum current, at rated voltage, that the molded case switch will withstand without damage when protected by a circuit breaker

with an equal continuous current rating.

▲UL magnetic trip setting tolerances are ±20% from the nominal values shown.

146

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Molded Case Switches

Powerpact® Selection Data

NOTE: For Powerpact selection information see Class 611, 612, 613, and 734 catalogs.

Q-frame: Class 734 J-frame: Class 611H-frame: Class 611 M-frame: Class 612

07343030

06113477

06113484

06123321

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Molded Case Switches

147

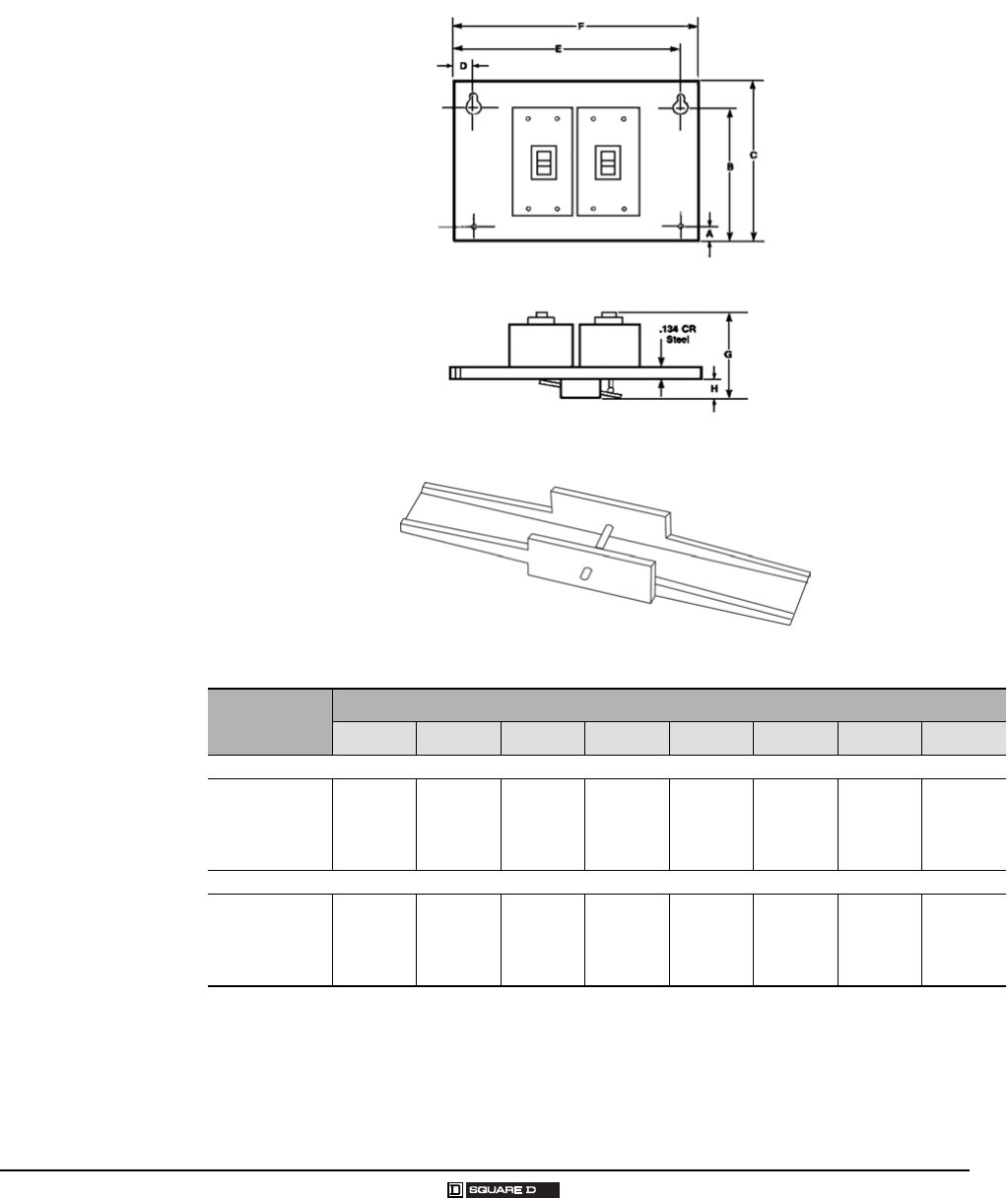

Dimensions

06013130

148

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

ACCESSORIES

NOTE: For Powerpact® and Masterpact® accessory information see Class 611, 612, 613, and 734

catalogs.

This section describes the UL Listed accessories available for Square D® thermal-magnetic molded

case circuit breakers, Mag-Gard® magnetic only instantaneous trip circuit breakers and molded case

switches. These accessories increase application versatility and meet the demands of modern

electrical distribution systems.

The following table lists the accessories available for Square D thermal-magnetic circuit breakers,

magnetic only circuit breakers and molded case switches.

Factory and Field Installation Types

NOTE: See Catalog Numbers for an explanation of the catalog numbering system.

Some electrical accessories are factory installed while others are field installable.

■Factory Installed Accessories

Factory installed accessories are internally mounted and provided with minimum 18-inch lead wires.

Factory installed devices cannot be removed or repaired in the field.

Factory installed accessories are ordered by adding the correct suffix number to the standard circuit

breaker catalog number (i.e., a 3-pole, 600 Vac, 100 ampere molded case circuit breaker with a

120/240 Vac shunt trip would be FAL361001021). Suffix numbers for some combinations of factory

Table 51: Accessories Available

Accessory

Circuit Breaker Frame

FA FH FC FI FY

QB▲

QD▲

QG▲

QJ▲

KA KH KC KI Q4 LA LI LC LH MA MH NA NC PAF PHF PCF

Shunt Trip XXXX XXXXXXXXXXXXX X X X

Ground Fault

Shunt Trip XXXX XXXXXX XXXXX X X X

Undervoltage

Trip XXXX XXXXXXXXXXXXX X X X

Auxiliary SwitchXXXX XXXXXXXXXXXXX X X X

Alarm Switch XXXX XXXXXXXXXXXXX X X X

Cylinder Lock★XXXX XX XX XXX

Ground Fault

Module XXXX XXXX

Handle Padlock

Attachment XXXXX X XXXXXXXXXXXXX X X X

Walking Beam X X X X X X

Front Mount

Mechanical

Interlock

Combination

Handle Tie and

Lock Off

XXXXX X

Handle

Extension XXXX X XXXXXXXXX X

Electrical

Operator XXXX X XX XXX X X X

★Cylinder locks not available on FA/FH Mag-Gard circuit breakers.

▲For Powerpact Q-frame information see Class 734.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

149

installed electrical accessories are listed in this section. If the combination is not listed in one of the

tables, order the combination by description.

The table below shows suffix numbers for the following combinations of factory installed accessories

for the FA, FH, FC, FI, KA, KH, KC, and KI thermal-magnetic circuit breakers, magnetic only circuit

breakers and molded case switches. Additional combinations are available; please contact your local

Square D® sales office: 1-888 Square D.

Table 52: Suffixes for Factory Installed Accessories

NOTE: The FA 1-pole Circuit Breaker is not included in this table.

Device

Suffix

Shunt Trip Shunt Trip Undervoltage

Trip

Undervoltage

Trip Auxiliary Switches Not

Compatible

With:

Vdc

Vac

120/240

Vac

277/480

Vac

Vdc

120

Vac

240

Vac 1A-1B 2A-2B 3A-3B

1027 X

1386 X XFA 2P

1426 X XFA 2P

1472 X XFA 2P, FA 3P,

FI, KC, KI

1028 X

1390 X XFA 2P

1433 X XFA 2P

1477 X XFA 2P, FA 3P,

FI, KC, KI

1042 X

1441 X XFA 2P

1442 X XFA 2P

1021 X

1380 X X FA 2P

1422 X XFA 2P

1466 X XFA 2P, FA 3P,

FI, KC, KI

1037 X

1388 X X FA 2P

1427 X X FA 2P

1127 X

1616 X X FA 2P

1625 X X FA 2P

1128 X FI, KC, KI

1627 XX

FA, 2P, FI,

KC, KI

1670 XX

FA 2P, FA 3P,

FI, KC, KI

1121 X

1590 XX FA 2P

1595 XXFA 2P

1631 XX

FA 2P, FA 3P,

FI, KC, KI

1124 X

1581 XX FA 2P

1619 XXFA 2P

Continued on next page

150

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

■Factory Installed Combinations of Electrical Accessories

1611 XX

FA 2P, FA 3P,

FI, KC, KI

1212 XFA 2P use

1202 suffix

1352 X

1354 X★1FA 2P

1364 X★2FA 2P

1218 X★3FA 2P, FA 3P,

FI, KC, KI

★1—Circuit breaker has 2 sets of 2A2B auxiliary contacts.

★2—The FA 3-pole, FI, KC, and KI circuit breakers will include 1A1B in the left pole and 2A2B in the right pole to achieve 3A3B.

★3—Circuit breaker has 2 sets of 3A3B contacts.

Table 52: Suffixes for Factory Installed Accessories (continued)

NOTE: The FA 1-pole Circuit Breaker is not included in this table.

Device

Suffix

Shunt Trip Shunt Trip Undervoltage

Trip

Undervoltage

Trip Auxiliary Switches Not

Compatible

With:

Vdc

Vac

120/240

Vac

277/480

Vac

Vdc

120

Vac

240

Vac 1A-1B 2A-2B 3A-3B

Table 53: Available Factory Installed Accessory Combinations

FA, FH, FC and FI Thermal-Magnetic

Circuit Breakers KA and KH Circuit Breakers KC and KI Circuit Breakers

Accessory 1-Pole 2-Pole 3-Pole Accessory 2, 3

Pole Accessory 2, 3

Pole

A/S (1A1B or 2A2B) X X A/S (1A1B or 2A2B or 3A3B) X A/S (1A1B or 2A2B) X

A/S (3A3B or 4A4B) X A/S (4A4B or 5A5B or 6A6B) X A/S (3A3B or 4A4B) X

A/S (1A1B or 2A2B), B/A X X A/S (1A1B or 2A2B or 3A3B), B/A X A/S (1A1B or 2A2B), B/A X

A/S (3A3B or 4A4B), B/A X A/S (4A4B or 5A5B or 6A6B), B/A X A/S (3A3B or 4A4B), B/A X

A/S (1A1B or 2A2B), B/A, S/T X A/S (1A1B or 2A2B or 3A3B), B/A, S/T X A/S (1A1B or 2A2B), B/A, S/T X

A/S (1A1B or 2A2B), S/T X A/S (1A1B or 2A2B or 3A3B), S/T X A/S (1A1B or 2A2B), S/T X

A/S (1A1B or 2A2B), B/A, UVR X A/S (1A1B or 2A2B or 3A3B), B/A, UVR X A/S (1A1B or 2A2B), B/A, UVR X

A/S (1A1B or 2A2B), UVR X A/S (1A1B or 2A2B or 3A3B), UVR X A/S (1A1B or 2A2B), UVR X

B/A X X X B/A X B/A X

B/A, S/T X X B/A, S/T X B/A, S/T X

B/A, UVR X X B/A, UVR X B/A, UVR X

S/T X X S/T X S/T X

S/T, B/A, UVR X S/T, B/A, UVR X S/T, B/A, UVR X

S/T, UVR X S/T, UVR X S/T, UVR X

UVR X X UVR X UVR X

CL X CL X CL X

CL, A/S (1A1B or 2A2B) X CL, A/S (1A1B or 2A2B or 3A3B) X CL, A/S (1A1B or 2A2B) X

CL, B/A, A/S (1A1B or 2A2B) X CL, B/A, A/S (1A1B or 2A2B or 3A3B) X CL, B/A, A/S (1A1B or 2A2B) X

CL, B/A X CL, B/A X CL, B/A X

CL, B/A, S/T X CL, B/A, S/T X CL, B/A, S/T X

CL, S/T X CL, S/T X CL, S/T X

CL, B/A, UVR X CL, B/A, UVR X CL, B/A, UVR X

CL, UVR X CL, UVR X CL, UVR X

Cylinder Lock not available on FA/FH Mag-Gard®

LEGEND - A/S=Auxiliary Switch, B/A=Bell Alarm, S/T=Shunt Trip, UVR=Undervoltage Trip, CL=Cylinder Lock

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

151

■Field Installable Accessories

Field installable accessories can be installed, interchanged or replaced in the field without affecting the

circuit breaker’s UL listing or interrupting ratings. Field installable accessories cannot be used in a

mounting location or a pole that has a factory installed only accessory. Field installable electrical

accessories and circuit breakers are shipped separately. The following thermal-magnetic circuit

breakers, magnetic only circuit breakers and molded case switches accept UL Listed, Square D® field

installable accessories:

•Q4, LA, and LH Series 4 and higher

•LI and LC Series 1 and higher

•MA and MH Series 2 and higher

•PA, PH, and PC Series 4 and higher

•NA and NC Series 1 and higher

Shunt Trip

The shunt trip accessory is used to trip the circuit breaker from a remote location by using a trip coil

energized from a separate circuit. When energized by a push button or other pilot device, the shunt trip

causes the circuit breaker to trip. The trip coil has coil clearing contacts to break the coil circuit when

the circuit breaker opens.

Shunt trips are available for 2- and 3-pole thermal-magnetic circuit breakers, magnetic only circuit

breakers and molded case switches with standard control voltage ratings to 480 Vac or 24 Vdc.

Additional ac control voltage ratings to 600 Vac are supplied with a 120 Vac rated coil and a control

voltage transformer for user mounting. Control voltages above 480 Vac are not UL Listed. A 120 Vac

shunt trip operates at 55% or more of rated voltage and all other shunt trips operate at 75% or more of

rated voltage.

Ground Fault Shunt Trip

A ground fault shunt trip operates in the same manner as a standard shunt trip, except that since the

trip coil is rated for continuous duty, no coil clearing contact is needed. This accessory was designed

for use with the Micrologic® Ground Fault Module (GFM).

Table 54: Shunt Trip—Selection Data

Control Voltage Factory Installed

Shunt Trip Suffix

Field Installable Shunt

Trip Catalog Number★

Shunt Trip

24 Vac 50/60 Hz 1042 ( ) 1042

48 Vac 50/60 Hz 1048 ( ) 1048

120–240 Vac 50/60 Hz 1021 ( ) 1021

120–240 Vac 400 Hz 1046▲( ) 1046▲

208–480 Vac 50/60 Hz — ( ) 1086■

277–480 Vac 50/60 Hz 1037 ( ) 1037★★

600 Vac 50/60 Hz 1026▲( ) 1026▲

6 Vdc 1040 ( ) 1040

12 Vdc 1039 ( ) 1039

24 Vdc 1027 ( ) 1027

48 Vdc 1028 ( ) 1028

72 Vdc 1038 ( ) 1038

125 Vdc 1029 ( ) 1029

250 Vdc 1030 ( ) 1030

Ground Fault Shunt Trip 24 Vac 50/60 Hz G ( ) G★★

★Complete accessory catalog number by adding appropriate circuit breaker prefix (LA1, MA1, NA1, or PA1).

▲Not UL LIsted

■PA1 prefix only.

★★Not available with PA1 prefix.

152

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Undervoltage Trip

The undervoltage trip accessory reduces the possibility of damage to the electrical equipment when a

reduction or loss of system voltage occurs. When the voltage drops below a level established by

UL 489 requirements for more than 3 milliseconds, the undervoltage trip mechanism (undervoltage trip

release) trips the circuit breaker or molded case switch and prevents it from being reclosed until this

voltage level is restored.

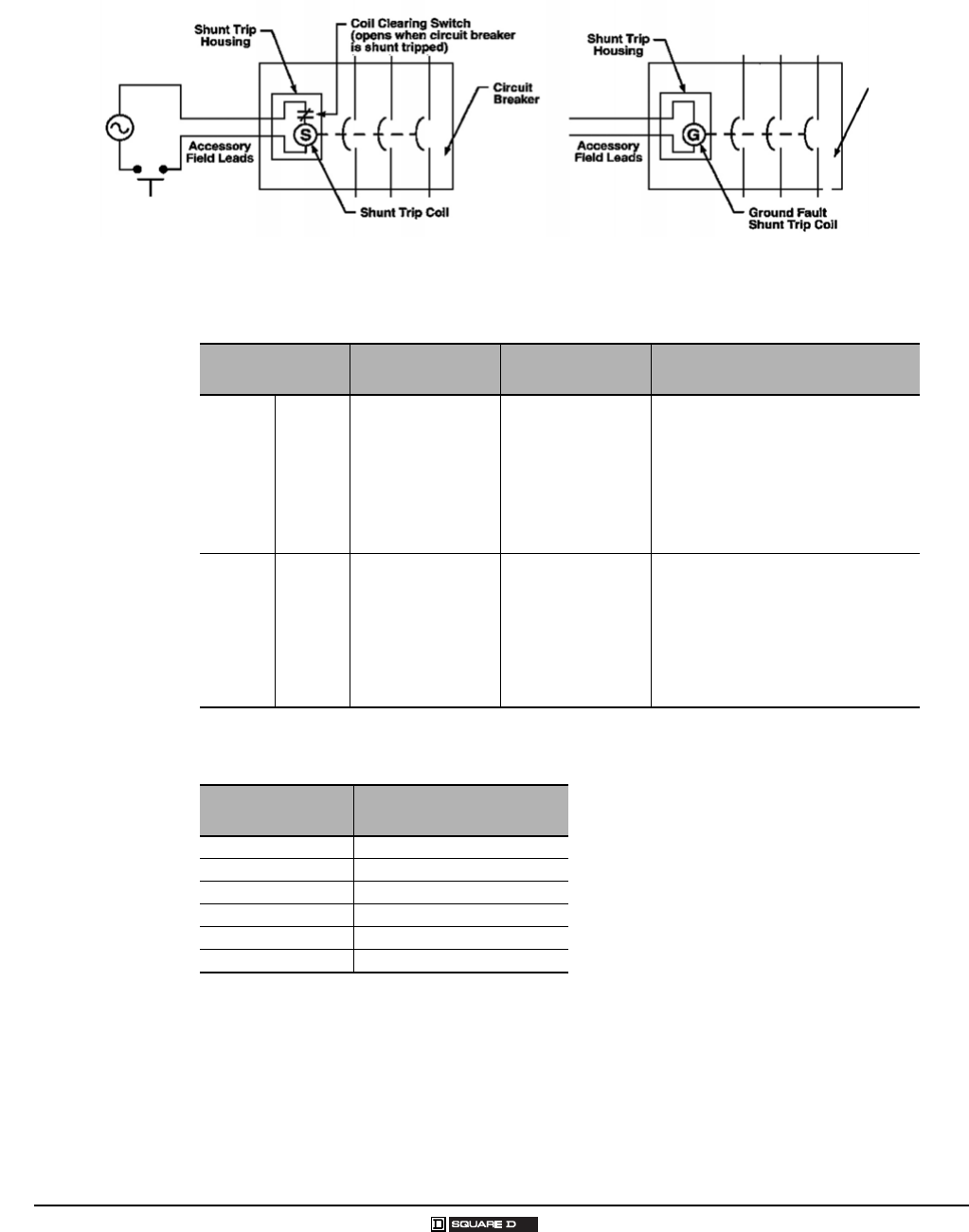

Figure 22: Ground Fault and Shunt Trip Wiring Diagram

Shunt Trip Wiring Diagram

Color Code Black Leads

Ground Fault Shunt Trip Wiring

Diagram Color Code Orange

06013131

Table 55: Shunt Trip Electrical Specifications

Voltage Rating Maximum Current

in Milliamps (RMS)

Coil Burden Max.

Minimum Recommended Supply

Transformer (VA)

24 850 (3650) 20.4 (88) 25

48 540 26 50

120 240 (4000) 29 (54) 50

208 515 (500) 107 (104) 50

240 740 154 50

277 50 13.9 25

480 93 44.6 50

DC 6

125

250

1714

800

1500

750

200

350

(6000)

(460)

(920)

(208)

(80)

(160)

10.3

9.6

14.4

43.7

(36)

(72)

(11)

(44)

(15)

(10)

(40)

—

( ) Values in parenthesis apply to field installable devices used in PA/PC frame breakers.

Table 56: Shunt Trip & Undervoltage Trip Clearing Times

Circuit Breaker Average Clearing Time,

Milliseconds

FA 16

KA 20

LA, Q4 25

MA 33

NA 35

PA, PC 40

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

153

Undervoltage trip accessories are available on 2- and 3-pole circuit breakers and molded case

switches with standard control voltage ratings to 240 Vac or 24 Vdc. Additional ac control voltage

ratings up to 600 Vac can be supplied with a 120 Vac rated device and control voltage transformer for

user mounting. Optional dc voltage ratings up to 250 Vdc are available and can be supplied with a

24 Vdc undervoltage trip release and a step down resistor for field installation. Voltage ratings above

24 Vac or 240 Vdc are not UL listed.

Table 57: UL 489 Undervoltage Trip Requirements

To Trip

Circuit

Breaker

Undervoltage

Trip MUST

Trip

Undervoltage

Trip MAY Trip

Undervoltage Trip

MUST NOT Trip

Percent of

Rated Voltage 0% 70% 100%

35% 85%

To reseal

Undervoltage

Tip

Undervoltage Trip

MAY Pickup and Seal

Undervoltage

Trip MUST

Pickup and

Seal

06013132

Table 58: Undervoltage Trip—Selection Data

Voltage Factory Installed

Suffix

Field Installable

Catalog Number★

24 Vac 50/60 Hz 1143 ( ) 1143

48 Vac 400 Hz 1157▲( ) 1157▲

120 Vac 50/60 Hz 1121 ( ) 1121

208 Vac 50/60 Hz 1122 ( ) 1122

240 Vac 50/60 Hz 1124 ( ) 1124

277 Vac 50/60 Hz 1142▲( ) 1142▲

380 Vac 50/60 Hz 1148▲( ) 1148▲

415 Vac 50/60 Hz 1149▲( ) 1149▲

440 Vac 50/60 Hz 1134▲( ) 1134▲

480 Vac 50/60 Hz 1125▲( ) 1125▲

600 Vac 50/60 Hz 1126▲( ) 1126▲

6 Vdc 1136 ( ) 1136

12 Vdc 1133 ( ) 1133

24 Vdc 1127 ( ) 1127

48 Vdc 1128■( ) 1128▲

72 Vdc 1135■( ) 1135▲

125 Vdc 1129■( ) 1129▲

250 Vdc 1130■( ) 1130▲

★Complete accessory catalog number by adding appropriate circuit breaker prefix

(LA1, MA1, NA1, or PA1). Compatibility with circuit breaker must be verified.

▲Not UL Listed.

■UL Listed only on PA, PC, PE circuit breakers.

154

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Undervoltage Trip Time-delay Unit

The undervoltage trip time-delay unit, when connected in series with a 120 Vac undervoltage trip,

introduces an adjustable time delay of .1 to .6 seconds in the release of the undervoltage trip coil. This

prevents momentary voltage fluctuations from releasing the undervoltage trip coil and nuisance

tripping the circuit breaker.

The time delay unit can be mounted separately (Catalog Number UVTD), or mounted in a 1-1/2-inch

single pole FA I-Line® circuit breaker space (Catalog Number UVTD1). It can be wired into existing

circuits already equipped with 120 Vac undervoltage trip.

Table 59: Undervoltage Trip Electrical Specifications

Voltage Rating Maximum Current in

Milliamps (RMS) Maximum Inrush Coil Burden (VA)

Sealed

Minimum

Recommended

Supply Transformer

(VA)

24 170 4.1 3.4 25

120 63 7.6 5.4 25

208 30 6.2 4.1 25

240 32 7.6 5.5 25

★277 63 7.6 5.4 25

★380 63 7.6 5.4 25

★415 63 7.6 5.4 25

★440 63 7.6 5.4 25

★480 63 7.6 5.4 25

★600 63 7.6 5.4 25

6 400 2.4 2.4 —

12 185 2.2 2.2 —

24 69 1.6 1.6 —

▲48 64 3.1 3.1 —

▲72 45 3.2 3.2 —

▲125 40 5 5 —

▲250 21 5.2 5.2 —

▲300 21 6.2 6.2 —

★Includes a separate control voltage transformer. (Not UL Listed).

▲Includes a separate resistor.

UVTD

Undervoltage Trip

Time-delay Unit

06013133

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

155

Auxiliary Switch

The auxiliary switch accessory monitors the circuit breaker’s contact status and provides a remote

signal indicating whether the contact is open or closed. When the circuit breaker is in the OFF or

tripped state, the auxiliary switch’s A contact is open and the B contact is closed. When the circuit

breaker is ON, the B contact is open and the A contact is closed.

Maximum Ratings:

•10 Ampere 120 Vac or 240 Vac

•1/3 hp 120 Vac or 240 Vac (1/4 hp-FA and KA)

•4 Ampere 120 Vac lamp load

•1/2 Ampere 120 Vdc

•1/4 Ampere 120 Vdc

Table 60: Auxiliary Switch—Selection Data

Type of Contacts Factory Installed Suffix Field Installable

Catalog Number

1A and 1B 1212 ( ) 1212

2A and 2B 1352 ( ) 1352

3A and 3B 1364 ( ) 1364★

★Complete accessory catalog number by adding appropriate circuit breaker prefix (LA1, MA1,

NA1 or PA1).

Auxiliary Switch

Auxiliary Switch Wiring Diagram

06013134

156

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

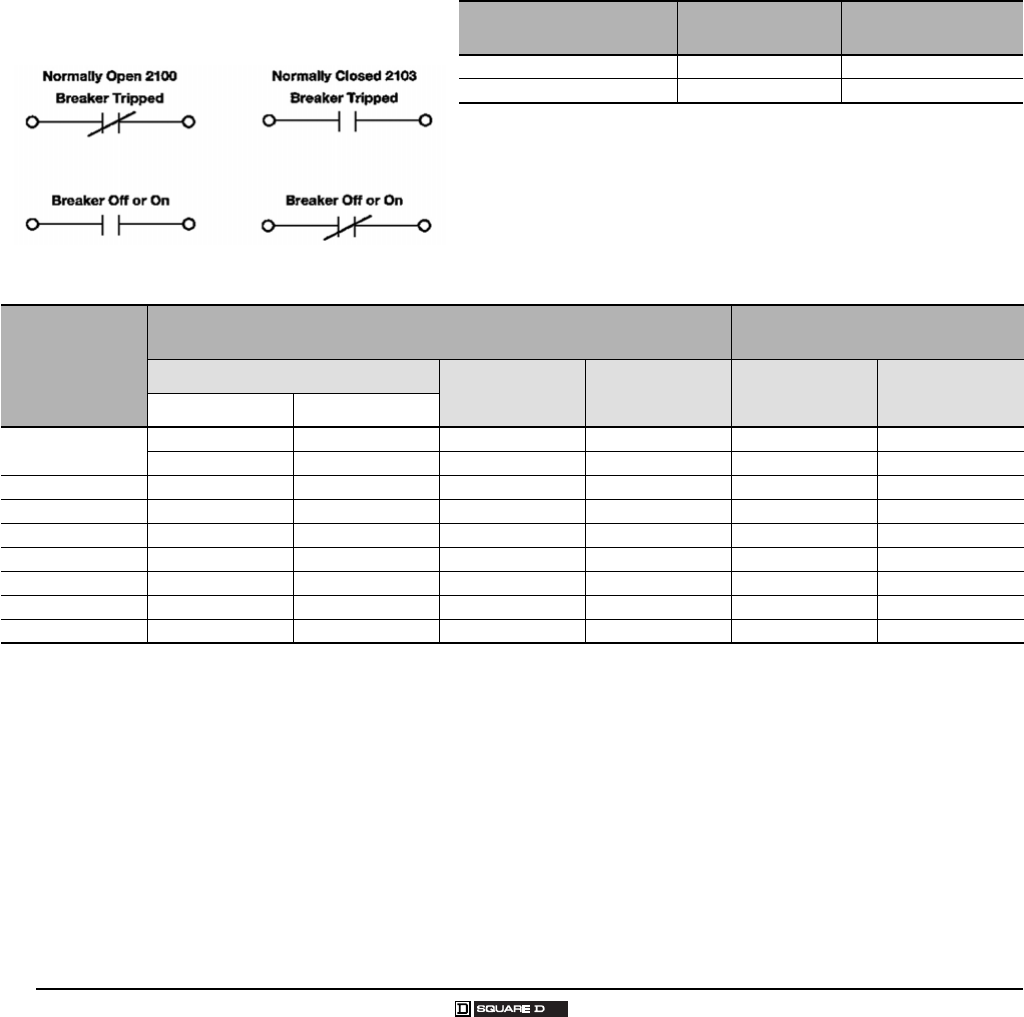

Alarm Switch

The alarm switch accessory monitors the circuit breaker’s trip status and is used to provide a remote

warning signal indicating the circuit breaker has tripped. This signal can be used in conjunction with a

horn, pilot light or some other indicator.

The contact on the standard alarm switch is open when the circuit breaker is in the OFF or ON position

and is closed when the circuit breaker is in the tripped position.

Alarm switches are actuated when the circuit breaker is tripped as a result of an overload, short circuit,

undervoltage trip operation, shunt trip operation or a result of a manual Push-To-Trip operation.

Standard construction is with Normally Open (N.O.) contacts. Maximum ratings are 7A at 120 Vac or

240 Vac.

Table 61: Alarm Switch—Selection Data

Type of Contacts Factory Installed

Suffix

Field Installable

Catalog Number★

Normally Open 2100 ( ) 2100

Normally Closed 2103▲( ) 2103▲

★Complete accessory catalog number by adding appropriate circuit breaker prefix (NA1

only).

▲Not UL listed.

06013135

Table 62: Endurance Operations For Electrical Accessories

Circuit Breaker

Frame Size

UL 489 Operations Square D® Certified Operations

Circuit Breaker

Auxiliary Switch Shunt Trip UVR

Alarm Switch Auxiliary Switch Shunt Trip UVR

Alarm Switch

Load No Load

100 Ampere 6,000 4,000 10,000 600 10,000 10,000

6,000 4,000 10,000 600 10,000 10,000

225 Ampere 4,000 4,000 8,000 400 8,000 8,000

250 Ampere 1,000 5,000 6,000 100 6,000 6,000

400 Ampere 1,000 5,000 1,000 100 6,000 6,000

600 Ampere 500 2,000 500 50 2,500 2,500

800 Ampere 500 2,000 500 50 2,500 2,500

1200 Ampere 500 2,000 500 50 2,500 2,500

2500 Ampere 500 2,000 500 50 2,500 2,500

Operations are at rated voltage and current.

One tripping operation is defined as a close-trip-reset operation of the circuit breaker.

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

157

Micrologic® Ground Fault Module

The Micrologic Ground Fault Module (GFM) is a UL Listed self-powered ground fault sensing device

that signals a circuit breaker ground fault shunt trip. It is available for use with unit mount or I-Line®

construction circuit breakers.

Fewer components are required at the branch level since the GFM eliminates the need for a control

test panel and relay device. The integral Push-To-Test button allows testing at the job site and

eliminates the need for costly primary injection testing. The GFM uses electronic circuitry to provide

branch circuit ground fault protection using a compact module that mounts directly to the OFF and lugs

of the circuit breaker. By eliminating the need for wiring external ground fault relays and sensors, the

GFM saves space and reduces labor costs.

Standard features include:

•All GFMs supplied for I-line mounting, are easily converted to unit mount by removing the I-line

brackets.

•Molded case circuit breakers using the GFM require a ground fault shunt trip (add suffix G to the

circuit breaker catalog number when ordering).

•All GFMs must be used with a 3-pole breaker.

•Up to 200,000 ampere short circuit withstand rating at 600 Vac.

■Adjustable ground fault pickup settings

GFM100FA and GFM100FI modules are adjustable from 20 ampere through 100 ampere. GFM250

module is adjustable from 40 ampere through 200 ampere.

■Adjustable ground fault delay settings

Actual time-delay varies with the magnitude of the ground fault.

■Sealable adjustments

A clear plastic shield that fits over posts protruding from the module and can be sealed by attaching a

sealing wire through the hole in the posts.

■Integral Push-To-Trip Button

A button on the face of the GFM allows testing of the ground fault system without the need for any

peripheral equipment. This meets the requirements of NEC230-95(c).

NOTE: A 120Vac 60Hz power source capable of supplying 0.5A is required to power the test feature.

■Zone selective interlocking

Zone selective interlocking (ZSI) is standard with upstream Micrologic trip system circuit breakers. The

GFM can also be zone interlocked with the GC-100 ground fault system by using a restraint interface

module (Catalog Number RIM32).

■Ground fault indication

A pop-out indicator on the face of the GFM indicates the module has sensed a ground fault and

initiated a tripping signal to the companion circuit breaker.

■Neutral current transformer

A neutral current transformer (CT) is supplied with each GFM for 3-phase 4-wire applications or

1-phase 3-wire applications.

Table 63: Ground Fault Module—Selection Data

Companion Circuit

Breaker Prefix Catalog Number

Enclosure Space Required Ground Fault Pickup

Adjustment Range

Amperes

Panelboard Switchboard /

Enclosure

FAL, FHL, FCL, FA, FH,

FC GFM100FA LA KA 20–100

FIL, FI GFM100FI LA LA 20–100

KAL, KHL, KCL, KIL, KA,

KH, KC, KI GFM250 LA LA 40–200

Ground Fault Module

06013136

158

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Electrical Operators

Electrical operators provide ON, OFF and reset control from remote location of thermal-magnetic

molded case circuit breakers, magnetic only molded case circuit breakers and molded case switches.

When a remote indication of the circuit breaker status is required, use of circuit breaker with a 1A1B

auxiliary switch for ON-OFF indication or with an alarm switch for trip indication.

■Electrical Operator Endurance

The UL Standard 489 endurance requirement for an electrical operator is equal to the circuit breaker’s

no-load endurance requirement. For example, 100 ampere circuit breakers are required to sustain a

minimum of 4,000 operations to meet UL requirements. There are two types of electrical operators

available: side mount and top mount.

■Side Mount Electrical Operators (MO1)

Side mount electrical operators are field installable on FA, FH, FC, FI, KA, KH, KC, KL, Q4, LA, LH, MA

and MH families of molded case circuit breakers and molded case switches. Unit mount circuit

breakers require a separate mounting pan to mount the circuit breaker flush with the electrical

operator. The operators may be field installed on circuit breakers in I-Line® panelboards and

Figure 23: Ground Fault Module Dimensions

Dimensions: In.

[mm]

06013137

FAMO1

06013138

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

159

switchboards without a mounting pan, but require 4-1/2 inches of circuit breaker mounting space. The

operators require a single pole, double throw maintained contact switch and 120 Vac control voltage.

■Top Mount Electrical Operators (MO2)

Top mount electrical operators are field installable on KA, KH, KC, KL, Q4, LA, LH, MA, MH, PA, PH

and PC families of circuit breakers. They are intended for use on indoor, NEMA Type 1 applications.

The top mount electrical operator requires a single pole, double throw switch and the proper control

voltage.

The PAMO2 is an electronically controlled motor-gear reduction operating mechanism that installs to

the top surface of a PA, PH or PC circuit breaker or molded case switch. The device can be operated

in the ON or OFF position using low energy control circuitry. The PAMO2 requires momentary,

continuous or solid state contacts and the correct control voltages.

Table 64: Electrical Operators

Characteristics Of Electrical Operators Electrical Operator—Selection Data

Motor

Operator

Catalog No.

Circuit

Breaker

Prefix

Closing

Time

(Sec.)

Current (Amps)

Endurance

Operations

Motor

Operator

Catalog No.

Circuit

Breaker

Prefix

Control

Voltage

Recommend-

ed Control

Transformer

Mounting

Pan Cat.

No.

Inrush

(Peak) Cont.

Side Mount Motor Operators Side Mount Motor Operators

FAMO1 FA/FH/FC/FI .80 2.0 .71 4000 FAMO1

FA/FH/FC/FI

120 Vac EO-1 50VA

N/A

FAL/FHL/FC

L/FIL FAMOP

KAMO1 KA/KH/KC/KI .90 2.0 .71 4000 KAMO1

KA/KH/KC/KI

120 Vac EO-1 50VA

N/A

KAL/KHL/KC

L/KIL KAMOP

LAMO1 Q4/LA/LH .65 18.0 4.2 3000 LAMO1

Q4/LA/LH

120 Vac EO-3 150VA

N/A

Q4L/LAL/LH

LLAMOP

MAMO1 MA/MH .65 18.0 4.2 3000 MAMO1 MA/MH 120 Vac EO-3 50VA N/A

MAL/MHL FAMOP

Top Mounted Motor Operators Top Mounted Motor Operators

KAMO2120AC5C KA/KH/KC/KI .30 13.6 5.5 5000

N/A

KAMO2120AC KA/KH/KC/KI .30 16.0 6.0 5000 KAMO2120AC KA/KH/KC/KI 120 Vac EO-4 300VA

KAMO2240AC KA/KH/KC/KI .30 7.0 3.0 5000 KAMO2240AC KA/KH/KC/KI 240 Vac EO-4 300VA

KAMO224DC KA/KH/KC/KI .30 35.0 22.5 5000 KAMO224DC KA/KH/KC/KI 24 Vac

KAMO2125DC KA/KH/KC/KI .30 13.2 6.6 5000 KAMO2125DC KA/KH/KC/KI 125 Vac

LAMO2120AC5C Q4/LA/LH .30 13.6 5.0 5000

N/A

LAMO2120AC Q4/LA/LH .30 14.0 5.5 5000 LAMO2120AC Q4/LA/LH 120 Vac EO-4 300VA

LAMO2240AC Q4/LA/LH .30 7.0 3.0 5000 LAMO2240AC Q4/LA/LH 240 Vac EO-4 300VA

LAMO224DC Q4/LA/LH .30 35.0 22.5 5000 LAMO224DC Q4/LA/LH 24 Vac

LAMO2125DC Q4/LA/LH .30 13.2 6.6 5000 LAMO2125DC Q4/LA/LH 125 Vac

MAMO2120AC5C MA/MH .30 23 9.4 5000

MAMO2120AC MA/MH .30 14.0 5.5 5000 MAMO2120AC MA/MH 120 Vac EO-1 300VA

MAMO2240AC MA/MH .30 7.0 3.0 5000 MAMO2240AC MA/MH 240 Vac EO-1 300VA

MAMO224DC MA/MH .30 35.0 22.5 5000 MAMO224DC MA/MH 24 Vac

MAMO2125DC MA/MH .30 13.2 6.5 5000 MAMO2125DC MA/MH 125 Vac

PAMO2 PA/PH/PC .30 40.0 10.0 5000 PAMO2 PA/PH/PC

120 Vac

48 Vdc

24 Vdc

EO-1 VA

160

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Figure 24: Electrical Operator Side Mount Dimensions and Wiring Diagram

FA/KA Mounting Diagram

LA/MA Mounting Diagram

Electrical Operator Wiring Diagram

Circuit Breaker with

Electrical Operator

06013139

06013141

06013142

06013143

Table 65: Electrical Operator Mounting Dimensions, Inches (mm)

Electrical

Operator

A B C D E F G H

IN mm IN mm IN mm IN mm IN mm IN mm IN mm IN mm

FAMO1 .40 10.16 10.20 259.08 10.69 269.24 .40 10.16 7.72 196.09 8.58 217.93 5.72 14.29 — —

KAMO1 .40 10.16 10.20 259.08 10.50 269.24 .40 10.16 7.72 196.09 8.58 217.93 5.81 147.57 — —

LAMO1 .50 12.70 12.06 306.32 12.50 317.50 2.38 60.45 6.13 166.70 9.63 244.60 12.25 311.15 7.53 191.26

MAMO1 .45 11.43 15.06 382.52 14.94 379.48 2.37 60.20 6.74 171.19 10.88 276.35 13.50 342.90 7.53 191.26

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

161

Figure 25: Top Mount Electrical Operator Dimensions and Wiring Diagrams

Mounting Dimensions for Electrical Operator

Mounted on MAL or MHL Circuit Breaker or Switch

Mounting Dimensions for Electrical Operator

Mounted on LAL, LHL, Q4L Circuit Breaker or Switch

Mounting Dimensions for Electrical Operator

Mounted on KAL, KHL, FIL, or KIL Circuit Breaker or Switch

Internal Schematic

Top Mounted Electrical Operator

06013144

06013145

162

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Figure 26: PAMO2 Electrical Operator Suggested Wiring Diagrams

Control Voltage:

Switches shown in the suggested wiring diagrams can be,

• Momentary contact,

• Solid state contacts

• Continuous contracts.

PAMO2 Electrical Operator

7.60

[193]

7.00

[178]

10.40

[264]

06013146

06013147

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

163

Circuit Breaker Handle Accessories

Several handle accessories are available to lock the circuit breaker. See table below to select the

desired accessories.

Circuit Breaker Cylinder Locks

A key cylinder lock prevents the circuit breaker from being reset or turned ON. Cylinder locks cannot

be used to lock the circuit breaker in the ON position. The cylinder lock key can be removed in the

UNLOCKED or LOCKED OFF position. A key cylinder lock is available for Square D® FA, KA, LA and

MA frame circuit breakers.

Walking Beam Mechanical Interlock

The walking beam mechanical interlock is used with two circuit breakers to maintain essential loads

during power outages. It is UL Listed for FA, KA, LA and MA circuit breakers, 15 ampere through 1000

ampere. Manual and automatic transfer schemes use these interlocked circuit breakers.

Mechanically interlocked circuit breakers are intended to prohibit both power sources from being

simultaneously connected to the load. The circuit breakers are equipped with an actuator button that

operates with and detects the position of the circuit breaker contacts.

Table 66: Circuit Breaker Handle Accessories—Selection Data

Accessories Circuit Breaker No. of Poles Catalog Number

Locks Circuit Breaker

ON★OFF

Handle Padlock

Attachment

PA, PC 2, 3 PAPAF — X

FY 1 HPAFYQ X X

Q2 2, 3 HPAFYQ X X

FA,FH, FC 1, 2, 3 HPAFK X X

FI, KI, KA, KH, KC 2, 3 HPAFK X X

LA, LH, Q4, MA, MH 2, 3 HPALM X▲X

LC, LI 2, 3 HPALI X X

NA, NC 2, 3 HPANE X X

Handle Extension LA, LH, Q4 2, 3 LAHEX — —

MA, MH, NA, NC 2, 3 MAHEX — —

Handle Extension &

Padlock Attachment

LC, LI 2, 3 AHEXLI — —

LA, LH, Q4, MA, MH 2, 3 HPAXLM X★X

Handle Tie

2-FA 3 FKHT — —

2-KA,

2-FI or 2-KI or 1-FI & 1-KI 2, 3 FKHT — —

2LA or 2 Q4 2, 3 LAHT — —

California Title 24

Combination Handle Tie &

Lock-off

FY (3) Single Pole FY3HT — —

FA, FH, FC (3) Single Pole FY3HT — —

★Circuit breaker will trip free when locked in the ON position.

▲MA, MH circuit breakers will not lock in the ON position.

Table 67: Cylinder Lock—Selection Data

Accessory Circuit Breaker Factory Installed Catalog

No. (Suffix)

Field Installed Catalog

Number

Cylinder Lock

FA, FH, FC, FI, KA, KH, KC, KI CL★—

LA, LH, Q4 — LA1CL

MA, MH — MA1CL

★Factory installed cylinder locks are available for -pole circuit breakers only. Cylinder locks are not available on FA/FH Mag-Gard®

magnetic only circuit breakers.

Padlock Attachment

06013148

LA1CL Cylinder Lock

06013149

164

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Walking beam interlocks are available with circuit breakers for unit mounting, but identical frame size

breakers must be used. The circuit breakers can be manually or motor operated.

■Unit Mounting

Pre-drilled and tapped mounting pans ease the mounting of all required components. To establish the

correct dimensional relationships, Square D suggests using the mounting pans when installing these

interlocks.

Table 68: Walking Beam—Selection Data

Circuit Breaker Walking Beam Assembly Mounting Pan

Catalog Number

Catalog Number Catalog Number

Prefix Suffix

Manually Operated

FAL

KAL

LAL, LHL

MAL, MHL

FA4WB

KA4WB

LA6WB

MA9WB

FAWBP4

KAWBP4

LAWBP6

MAWBP9

Electrically Operated

FAL

KAL

LAL, LHL

MAL, MHL

WBMO

FA9WB

KA9WB

LA10WB

MA13WB

KAWBP9

LAWBP10

MAWBP13

Figure 27: Walking Beam Mechanical Interlock

Requires two circuit breakers with WB suffix, one walking beam

assembly and one mounting pan.

06013150

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

165

■Dimensions

The dimensions shown below are for two unit-mounted circuit breakers that are installed on the

appropriate mounting pan include the walking beam assembly. The dimensions also show the

electrically operated version.

Table 69: Electrical Operator Mounting Dimensions, Inches (mm)

Circuit Breaker

Dimensions (Inches)

A B C D E F G H

Manually Operated

FAL

KAL

LAL, LHL

MAL, MHL

.562

.50

.75

.68

5.74

7.81

10.25

12.39

6.38

8.50

11.25

14.12

.50

.52

.56

10.25

13.37

19.56

10.75

14.00

20.12

5.77

6.38

7.48

8.13

1.5

Electrically Operated

FAL

KAL

LAL, LHL

MAL, MHL

.50

.75

.68

7.88

9.75

12.75

13.43

8.50

10.25

13.75

14.12

.50

.56

19.25

22.56

28.56

19.75

23.12

29.12

7.22

7.31

9.03

8.13

1.5

Requires two circuit breakers with WB suffix, one walking beam

assembly and one mounting pan.

0601315106013152

166

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Operating Mechanisms

■Door Mounted

Type L door mounted, variable depth operating mechanisms are kits featuring heavy duty, all metal

construction with trip indication. All of the operating mechanisms can be padlocked in the OFF position

when the enclosure door is open. The kits include handle assemblies, padlocks, door drilling template

and shafts. Handle assemblies can be locked in the OFF position with up to three padlocks that also

lock the door closed. The 3-inch handle accepts one padlock. A door drilling template is supplied with

each kit to ease installation. The kits are rated for installation into NEMA Type 1, 3, 3R and 12

enclosures. All NEMA Type 1, 3, 3R and 12 handle assemblies are painted; the handle is flat black;

and the base ring is silver.

■Flange Mounted, Variable Depth

Designed for installation in custom built control enclosures where main or branch circuit protective

devices are required. All circuit breaker operating mechanisms are field convertible or either right- or

left-hand flanged mounting.

■Door Closing Mechanisms

Class 9423 door closing mechanisms are designed for use on small to medium size single door control

enclosures. They are primarily designed for use with the Class 9422 flange-mounted disconnect

switches and circuit breaker operating mechanisms. However, they can be used independently.

When used on properly designed and gasketed NEMA Type 12 industrial use enclosures, they meet

NFPA 70 standards.

Figure 28: Door Mounted Variable Depth Operating Mechanisms

3 in. Handle

Assemblies

NEMA

1, 3, 3R, 12

Standard

Handle

Assemblies

NEMA

1, 3, 3R, 12

Operating

Mechanism

Standard

Shaft

Long

Shaft

NEMA 4 Special 3 in.

Version

NEMA 4

06013153

06013154

06013155

06013140

06013156

06013154

06013153

Type RN1 Operating Mechanism

[Circuit Breaker Not Included]

06013157

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

167

UL Listed Terminations

Square D supplies all thermal-magnetic molded case circuit breakers, Mag-Gard® instantaneous trip

circuit breakers and molded case switches (1200 ampere frame and smaller) with mechanical-type

aluminum alloy lugs suitable for use with either aluminum or copper wire.

I-line® circuit breakers are supplied with mechanical-type lugs on the OFF end.

Additionally, Square D offers a large selection of UL Listed lugs to meet individual termination

requirements for almost every application. Besides the mechanical lugs, Square D can supply copper

mechanical lugs or our exclusive aluminum or copper Versa-Crimp® compression lugs. Power

distribution connectors permit multiple conductor installation in control panel applications.

Control Wire Terminations

Mechanical lugs with provisions for separate control wire terminations are available in kit form. They

can be field or factory installed.

The FA-T adaptor has been designed for mounting on the FA 100 ampere frame circuit breaker,

between the breaker lug and its terminal. It has a tab extension suitable for attachment of 250-inch

slip-on connectors. Fully insulated type connectors must be used to prevent live parts from extending

into the wiring gutter area.

On larger frame circuit breakers, provision is made for securing the control wire directly to the circuit

breaker lug with provided #6-32 screws, threaded directly into the lug body. Use ring type connectors

crimped to the control wire to provide secure terminations for control wiring. These control terminations

are UL recognized components for use with Square D® circuit breakers.

Lug Delete

In certain applications, a circuit breaker does not require lugs on one or both ends. This can be

accomplished by ordering a standard circuit breaker and removing the lugs. The alternative is to order

the circuit breaker without lugs.

Table 70: Control Wire Termination Kits—Selection Data

Breaker Prefix Catalog Number Qty. Per Kit UL Listed Wire Size

FA, FAL, FH, FHL, FC, FCL FA-T★2—

KA, KAL, KH, KHL, KC, KCL AL250 KAT 2 One #4–#300 MCM Al or Cu

LA, LAL, LH, LHL 2

One #1–#600 MCM Al or Cu

Two #1–#250 MCM Al or Cu

MA, MAL, MH, MHL AL900 LAT 1 Three 3/0–#500 MCM Al or Cu

NA, NAL, NC, NCL AL1200 NE6T 1 Four 3/0–#600 MCM Al or Cu

★ Use fully insulated 250 slip-on connectors.

Table 71: Lug—Selection Data

Lug Configuration Circuit Breaker Catalog

Number

ON End OFF End “Prefix” Indication

No Lugs No Lugs “F”

(e.g. KAF36150)

No Lugs Lugs “P”

(e.g. KAP36150)

168

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

AL50FA AL100FA AL250KA AL400LA AL400L7

AL1200NE6AL1000MAAL800MA7AL800MA

06013158

06013159

06013160

06013165

06013164

06013163

06013161

06013162

06013166

Table 72: Mechanical Lug Kit Wire Ranges and Torques—Selection Data

Lug Kit No. of Lugs

Per Kit

Circuit

Breaker

Number of Wires Per Lug and Wire

Ranges

Lug Mounting

Screw Torque Wire Binding Screw Torque

No.

Wires Domestic Metric Lb-in. N•m Wire Lb-in. N•m

AL50FA 3 FA, FH, FI 1 #14–#4 Cu or

#12–#4 Al

2.5–25 mm2

4–25 mm240 4.5

Cu #14–#4 STR/SOL

Al #12–#4 STR

Al #12–#10 SOL

4.0

1.7

AL100FA4 3 FC 1 #14–#3 Cu or

#12–#1 Al 65 7.3

Cu #14–#3 STR

Cu #14–#8 SOL

Al #8–#1 STR

Al #12–#10 SOL

7.3

AL100FA 3 FA, FH, FI 1 #14–1/0 Cu or

#12–1/0 Al

2.5–50 mm2

4–50 mm240 4.5

Cu #14–1/0 STR

Al #12–1/0 STR

Al #12–#10 SOL

9.0

4.5

AL100TF 3 FA, FH 1 #12–#3 Cu 50 5.7 Cu #12–#3 STR

Cu #12–#10 SOL

5.6

AL250KA 3 KA, KH, KC, KI 1 #6–#350 kcmil 25–185 mm280 9.0 250 28.2

AL250KI 3 KC, KI 1 1/0–#350 kcmil 50–185 mm280 9.0 250 28.2

AL400LA 1 Q4, LA, LH 1

#0–#600 kcmil or

#1–#250 kcmil

50–300 mm2

50–120 mm2180 20.0 300 33.9

AL800MA7 1 MA, MH 2 #500–#750 kcmil 240–300 mm2180 20.0 300 33.9

AL900MA 1 MA, MH 3 3/0–#500 kcmil 95–240 mm2180 20.0 300 33.9

AL1000MA 1 MA, MH 4 1/0–#350 kcmil 50–185 mm2180 20.0 300 33.9

AL1200NE6 1 NA, NC 4 3/0–#600 kcmil 95–300 mm2250 28.2 330 37.3

AL2500PA 2 PAF, PHF, PCF 1 3/0–#750 kcmil 95–300 mm2840 550

CU30FA4 3 FC 1 #14–#10 Cu N/A N/A #14–#10 STR/SOL 35 4.0

CU100FA 3 FA, FH, FI 1 #14–#1 Cu 2.5–50 mm250 5.7

Cu #3–#1 STR

Cu #6–#4 STR

Cu #8 STR/SOL

Cu #14–#10 STR/SOL

5.7

5.1

4.5

4.0

CU100TF 3 FA, FH 1 #12–#3 Cu 50 5.7 Cu #12–#3 STR

Cu #12–#10 SOL

5.7

CU250KA 3 KA, KH, KC, KI 1 #6–#250 MCM Cu 16–20 mm280 9.0 250 22.6

CU400LA 1 Q4, LA, LH 2 #1–#600 MCM Cu

#1–#250 MCM Cu

50–300 mm2

50–120 mm2180 20.0 300 33.9

CU1000MA 1 MA, MH 3 3/0–#500 MCM Cu 95–240 mm2300 33.9 300 33.9

CU1200NE6 1 NA, NC 4 3/0–#600 MCM Cu 95–300 mm2250 28.2 330 37.3

STR = Stranded, SOL = Solid

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

169

VC250KA3 VC250KA35 VC400LA3

06013167

06013168

06013169

Table 73: Versatile Compression Lug Kit Wire Ranges and Mounting Screw Torques—Selection Data

Lug Kit

No. of

Lugs

Per Kit

Circuit Breaker

Versatile System Wire Ranges★Lug Mounting

Screw Torque Versa-Crimp®

Tool Type

Mounting Hole

Dia./(Inches)

Domestic Metric Lb-in. N•m

VC100FA 1 FA, FH, FC, FI #8–1/0 10–50 mm2 50 5.7 VC-6 .265

VC250KA3 1 KA, KH, KC, KI #4–#300 MCM 25–150 mm2 50 5.7 VC-6 .265

VC250KA35 1 KA, KH, KC, KI #250–#350 MCM 120–185 mm2 50 5.7 VC-6 .375

VC400LA3 2 LA, LH, Q4 #4–#300 MCM 25–150 mm2 180 20.0 VC-6 .375

VC400LA5 1 LA, LH, Q4 2/0–#500 MCM 70–240 mm2250 28.2 VC-6 .390

VC400LA7 1 LA, LH, Q4 #500–#750 MCM Al

or #500 MCM Cu

240–300 mm2Al

or 240 mm2 Cu 250 28.2 VC-6FT or VC-8 .390

VC800MA5 2 MA, MH 2/0–#500 MCM 70–240 mm2Cu 300 33.9 VC-6 .500

VC800MA7 2 MA, MH #500–#750 MCM Al

or #500 MCM Cu

240–300 mm2Al

or 240 mm2 Cu 300 33.9 VC-6FT or VC-8 .500

VC1200NE5 4 NA, NC 2/0–#500 MCM 70–240 mm2Cu 600 67.8 VC-6 .500

VC1200NE7 4 NA, NC #500–#750 MCM Al

or #500 MCM Cu

240–300 mm2 Al

or 240 mm2Cu 600 67.8 VC-6FT or VC-8 .500

VC2000PA5 1 PA, PH 2/0–#500 MCM 70–240 mm Cu2600 67.8 VC-6 .500

VC2000PA7 1 PA, PH, PCF #500–#750 MCM Al

or #500 MCM Cu

240–300 mm2Al

or 240 mm2 Cu 800 67.8 VC-6FT or VC-8 .500

CVC100FA 1 FA, FH, FI #6–1/0 16–50 mm2Cu 50 5.7 VC-6 .265

CVC250KA3 1 KA, KH, KC, KI 2/0–#300 MCM Cu 70–150 mm Cu250 5.7 VC-6 .265

CVC400LA3 2 LA, LH, Q4 2/0–#300 MCM Cu 70–150 mm2 Cu 180 20.0 VC-6 .375

CVC400LA5 1 LA, LH, Q4 #250–#500 MCM Cu 120–240 mm2Cu 250 28.2 VC-6 .390

CVC800MA5 2 MA, MH #250–#500 MCM Cu 120–240 mm2Cu 300 33.9 VC-6 .500

CVC1200NE5 4 NA, NC #250–#500 MCM Cu 120–240 mm2 Cu 600 67.8 VC-6 .500

CVC1200NE7 4 NA, NC #500–#750 MCM Cu 240–300 mm2 Cu 600 67.8 VC-6FT or VC-8 .500

★Unless otherwise specified, wire ranges are for both aluminum and copper conductors.

170

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

Power Distribution Connectors

Power distribution connectors can be used for multiple lead wire connections on one circuit breaker.

Field installable kits, including aluminum alloy connectors and all necessary mounting hardware, are

available for the Square D® FA, KA, LA, Q4 and MA molded case circuit breakers. Each is UL Listed

(per UL Standard 486a) for copper wire only. Power distribution connectors are for use on the OFF end

of the circuit breaker only, when the OFF end is connected to the load.

Rear Connecting Studs

Rear connecting studs are designed to allow rear termination in applications, such as control panels

where wire gutter space may be limited. The studs can be bolted directly to the bus bars or lugs can be

attached to the studs. Long and short studs should be alternated on adjacent poles to assure proper

electrical clearance. These studs are not UL Listed.

PDC4LA250

06013170

Table 74: Power Distribution Connectors—Selection Data

Lug Kit No. of Lugs Per

Kit

Circuit

Breaker Wire Ranges (Copper only) Lug Mounting

Screw Torque Wire Binding Screw Torque

Domestic Metric Lb-in. N•m Wire Size Lb-in. N•m

PDC6FA6 FA, FH, FI 6 #14–#6 2.5–16 mm240 4.5 #14–#10

#8–#6

2.3

2.8

PDC3FA2 FA, FH, FI 3 #14–#2 2.5–35 mm240 4.5 #14–#8

#6–#2

4.0

4.5

PDC6KA4 KA, KH, KC, KI 6 #14–#4 2.5–25 mm280 9.0 #14–#10

#8–#4

2.3

4.0

PDC3KA20 KA, KH, KC, KI 3 (2) #14–#1 2.5–50 mm2

80 9.0

#14–#8

#4–#1

(1) #12–2/0 4–70 mm2#12–2/0 50 57

PDC6LA20 LA, LH, Q4 6 #12–2/0 4–70 mm2180 20.0

#12

#6–#10

#20–#4

4.0

5.1

5.7

PDC12LA4 LA, LH, Q4 12 #14–#4 2.5–25 mm2180 20.0 #14–#10

#8–#4

2.3

4.0

PDC4LA250 LA, LH, Q4 4

(3) #14–#1 2.5–35 mm2

180 20.0

#6–#14

#1–#4

4.0

4.5

(1) 2/0 #250 kcmil 35–120 mm22/0–4/0

#250 kcmil

180

190

14.7

21.4

PDC6MA20 MA, MH, ME, MX 6 #12–2/0 4.70 mm2180 20.0

#12

#6–#10

2/0–#4

PDC12MA4 MA, MH, ME, MX 12 #14–#4 2.5–25 mm2180 20.0 #14–#10

#8–#4

2.3

4.0

Table 75: Rear Connecting Studs—Selection Data

Circuit Breaker

Catalog Number

Prefix

Ampere

Ratings

Stud Catalog

Number

Dimensions

Inches

Millimeters

Overall

Length

Back of

Circuit Breaker Diameter Threads /

Inches

FAL, FHL 15–100 FAS–20 2.25

5.72

2.00

5.08

0.125

0.318

5.30

FAL, FHL 15–100 FAS–42 4.875

2.383

4.25

0.795

0.125

0.318

6.30

KAL, KHL 70–225 KAS–21 2.25

5.72

2.125

5.398

0.50

1.27

5.19

Continued on next page

06013171

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

171

I-Line® Accessories

■Top-feed I-Line

I-Line panelboards may require the use of a top-feed I-Line circuit breaker in applications where a top-

feed main circuit breaker is required. This involves having the I-Line jaw connectors on the OFF end of

the circuit breaker, as opposed to the standard location on the ON end. To designate this construction,

place MT at the end of the circuit breaker catalog number (i.e. KA36150 becomes KA36150MT). Not

available for FY circuit breakers.

■I-Line Electric Joint Compound

I-Line circuit breakers, I-Line busway plug-on units, and I-Line panelboards and switchboards are

supplied with factory applied joint compound on the plug-on connectors. The compound contributes to

the overall performance of the connection. If removed, the joint compound should be reapplied. Order

catalog number PIC-7201 for a 2-ounce container of compound especially formulated for the I-Line,

QMB and Model IV MCC connections.

KA Insert Kit

The standard lugs supplied with KA, KH, KC and KI circuit breakers and molded case switches (Series

2 and higher) are secured with a screw fastened through the circuit breaker terminal into the lug body.

If the standard lug is removed and a bolted connection to the circuit breaker terminal pad is desired,

the AL250KAIN threaded insert kit is required to make this connection. The AL250KAIN is inserted

below the terminal pad and secured by a wire retaining clip. See figure below.

KAL, KHL 70–225 KAS–45 2.125

13.018

4.825

11.748

0.50

1.27

5.19

LAL, LHL 125–400 LAS–54 6.188

15.718

5.50

13.97

0.75

1.905

6.30

LAL, LHL 125–400 LAS–114 12.188

30.958

11.50

29.21

0.75

1.905

6.30

MAL, MHL 300–1000 MAS–54 6.188

15.718

5.50

13.97

1.25

3.175

4.72

MAL, MHL 300–1000 MAS–114 12.188

30.958

11.50

29.21

1.25

3.175

.472

Use alternate length studs on adjacent poles to obtain proper voltage spacing.

Table 76: Insert Kit—Selection Data

Kit Catalog Inserts Per kit Circuit Breakers

AL250KAIN 3 KA, KH, KC, KI

Table 75: Rear Connecting Studs—Selection Data (continued)

Circuit Breaker

Catalog Number

Prefix

Ampere

Ratings

Stud Catalog

Number

Dimensions

Inches

Millimeters

Overall

Length

Back of

Circuit Breaker Diameter Threads /

Inches

172

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

LC, LI, LE, LX and LXI Circuit Breaker Termination Clip Kit

The standard lugs supplied with LC and LI circuit breakers are secured by means of a screw fastened

through the circuit breaker terminal into the lug body. If the standard lug is removed and a bolted

connection to the circuit breaker terminal is desired, the AL600IN threaded terminal clip kit is required

to make this connection. The AL600IN clip snaps onto the bottom of the terminal. For ordering

information, see the chart below.

Replacement Handles

Replacement handle assemblies for PAF, PHF and PCF circuit breakers (manufactured after

March 1975) are available as follows:

Mechanical Key Interlock Adaptor Plate

An adaptor plate is available for PAF, PHF and PCF circuit breakers that can be added under the

circuit breaker handle to allow mechanical interlocking with a key interlock (not included). The kit,

Catalog Number PAKK, includes all the necessary hardware to mount onto the circuit breaker handle.

Table 77: Termination Clip Kit—Selection Data

Kit Catalog Inserts Per kit Circuit Breakers

AL250KAIN 3 KA, KH, KC, KI

Table 78: Replacement Handles—Selection Data

Circuit Breaker Catalog

Number Prefix

Replacement Handle

Catalog Number

PAF, PHF, PCF HRPA

Replacement Handle Assembly

Optional PAKK Assembly

06013172

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

Accessories

173

Visi-blade® Circuit Breakers

Visi-blade construction is a modification to the cover of a thermal-magnetic circuit breaker, a molded

case switch, or a Mag-Gard® circuit breaker, which provides a window through which the position of

the movable contacts can be verified. Luminescent paint is applied to the moveable contact arms to

indicate their position. Visi-blade circuit breakers are UL Listed except for the FH. Visi-blade

construction is available only on circuit breakers listed in the following table. Add suffix letter V to the

circuit breaker catalog number (i.e. FAL36100V).

Sub-feed Lugs

Sub-feed lug kits are UL Listed for use on listed equipment. They have plug-on jaw construction and

plug-on to the I-Line® bus stack in the same manner as branch circuit breakers. Lugs on these devices

accommodate the same wire sizes as the equivalent ampere rated circuit breakers.

Table 79: Visi-blade Circuit Breakers

Circuit Breaker Prefix Amperes

FA, FH★15–100

KA, KH 70–250

LA, LH 125–400

MA, MH 300–1000

★FH Visi-blade circuit breaker is not UL Listed.

Mag-Gard Circuit Breaker

LAF36400

06013173

06013174

Table 80: I-Line Sub-feed Lug Kits–Selection Data

Ampere Rating Ht. (In.) Catalog

Number

Max. Short Circuit System Ratings

RMS Symmetrical Amperes Protected by

Circuit Breaker Standard I-Line Panelboard

240 Vac 480 Vac 600 Vac

100 4-1/2 SL100 65,000 25,000 18,000 FH HCN, HCM, HCW, HCWM, HCWM-U

225 4-1/2 SL225 65,000 35,000 25,000 KH HCM, HCW, HCWM, HCWM-U

200,000 200,000 100,000 KI

400 6 SL400★65,000 35,000 25,000 LH HCW, HCWM, HCWM-U

800 9 SL800 65,000 65,000 25,000 MH HCM, HCW, HCWM, HCWM-U

1200 15 SL1200 126,000 100,000 65,000 NC HCW, HCWM, HCWM-U

★SL400 cannot be used in HCM panelboards due to inadequate wire bending space.

Table 81: Terminations

Catalog No. No.

Poles

Ampere

Rating

Standard Lug Kit

Catalog No. Standard Lug Wire Size★

SL100 3 100 AL100FA #4-1/0 Cu or #12–1/0 Al

SL225 3 225 — #4-#300 kcmil

SL400 3 400 AL400LA (1) #1–#600 kcmil or (2)-#1–#250 kcmil

SL800 3 800 AL800MA (3) 3/0–#500 kcmil

SL1200 3 1200 AL1200NE6 (4) 3/0–#600 kcmil

★Unless otherwise specified, wire sizes apply to both aluminum and copper conductors.

174

Thermal-Magnetic / Magnetic Only Molded Case Circuit Breakers

175

Replaces Catalog 0601CT9101

3700 Sixth Street SW

Cedar Rapids, Iowa 52404 USA

1-888-Square D

1-888-778-2733

www.us.SquareD.com

10/2004

Schneider Electric USA

Thermal Magnetic / Only Circuit Breakers

Navigation menu

Versions of this User Manual:

Views

Navigation
