Cooper B-Line’s new line of Dura-Clean electrical

and mechanical support products are specifically

designed for the critical and rigorous wash-down

requirements of the Food & Beverage and

Pharmaceutical industries.

Manufactured from high quality stainless steel

with all angles minimized to prevent water

pooling and collection, Dura-Clean strut and

hanger components are designed with the

durability and flexibility needed for applications

where pipe, conduit and enclosures are

subjected to regular, high pressure, high moisture

wash-down environments.

Dura-Clean products can be installed in trapeze

configurations for hanging piping, conduit or

virtually any type of roof supported racking

system - or wall-mount configurations for vertical

or horizontal pipe support runs and enclosure

support.

The new Dura-Clean Washdown Support System

products from Cooper B-Line.

Highest quality.

Lasting durability.

Immediate availability.

Recommended Torque

Materials

Metric

Metric dimensions are shown in parentheses. Unless noted, all metric dimensions are in millimeters.

Bolt Size 3/8”-16 1/2”-13

Foot/Lbs. 19 50

Nm 26 68

Finish

Code Finish Specification

SS4 Stainless Steel Type 304 ASTM A240

SS6 Stainless Steel Type 316 ASTM A240

Dura Clean

Dura Clean™ Washdown Support System

148

Reference page 148 for general fitting and standard finish specifications.

Dura Clean™ Channels

149

Dura Clean

DURA CLEAN™ CHANNEL

• Thickness: 12 Gauge (2.6mm)

• Standard Lengths: 12” (.30m), 24” (.61m), 48” (1.22m), 120” (3.06m)

• Standard Finish: #4 Polished 304 Stainless Steel w/cellophane cover

(other materials available upon request)

• Weight: 1.68 lbs/ft (2.50kg/m)

• 15/8” (41mm) x 15/8” (41mm) profile with 13/32” (10mm) x 3” (76mm) slot

on 4” (101mm) centers

• Straight leg design does not harbor water or dust, eliminating areas

known to harbor bacteria

• Profile allows product to be used with standard strut accessories

Length

Part No. In. (mm)

DC22S-12 12” (305)

DC22S-24 24” (610)

DC22S-48 48” (1219)

DC22S-120 120” (3048)

Section Properties X - X Axis Y - Y Axis

Channel Weight Areas of Moment of Section Radius of Moment of Section Radius of

Section Inertia (I) Modulus (S) Gyration (R) Inertia (I) Modulus (S) Gyration (R)

lbs./ft. kg/m in.2cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

DC22S 1.68 0.7628 0.4829 3.1155 0.1328 5.5276 0.1283 2.1025 0.5244 1.332 0.2178 9.0655 0.2681 4.3934 0.6717 1.7061

Channel Beam Span Uniform Load Deflection Uniform Load @ Deflection =

1/240 Span 1/360 Span

in. mm lbs. N in. mm lbs. N lbs. N

DC22S 12 305 2500 562 0.0146 0.37 2500 562 2500 562

DC22S 18 457 1667 375 0.0329 0.83 1667 375 1667 375

DC22S 24 610 1250 281 0.0584 1.48 1250 281 1250 281

DC22S 30 762 1000 225 0.0913 2.32 1000 225 913 205

DC22S 36 914 833 187 0.1314 3.34 833 187 634 143

DC22S 42 1067 714 161 0.1788 4.54 699 157 466 105

DC22S 48 1219 625 141 0.2337 5.94 535 120 357 80

DC22S 54 1372 556 125 0.2960 7.52 423 95 282 63

DC22S 60 1524 500 112 0.3651 9.27 342 77 228 51

15/8”

(41mm)

15/8”

(41mm)

Dura Clean™ Wall Rails

150

Reference page 148 for general fitting and standard finish specifications.

Dura Clean

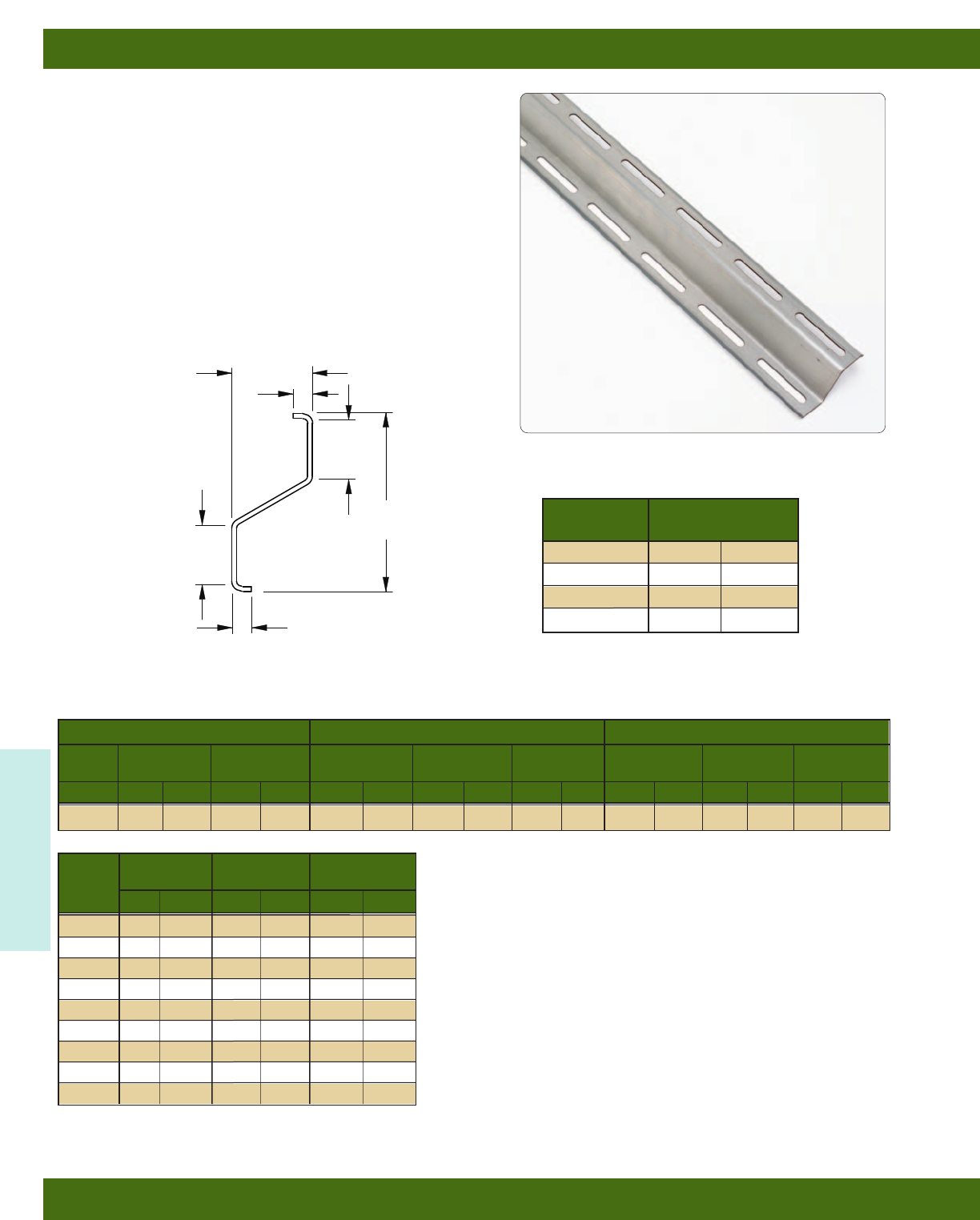

DURA CLEAN™ WALL MOUNT RAILS

• Thickness: 12 Gauge (2.6mm)

• Standard Lengths: 12” (.30m), 24” (.61m), 48” (1.22m), 120” (3.06m)

• Standard Finish: #4 Polished 304 Stainless Steel w/cellophane

cover (other materials available upon request)

• Weight: 1.90 lbs/ft (2.83kg/m)

• Z-Profile with

13

/

32

” (10mm) x 3” (76mm) slot on 4” (101mm) centers

• DCSP spacers are used to offset profile 1” (25.4mm) from mounting

surface to eliminate any area that may harbor bacteria

Section Properties X - X Axis Y - Y Axis

Channel Weight Areas of Moment of Section Radius of Moment of Section Radius of

Section Inertia (I) Modulus (S) Gyration (R) Inertia (I) Modulus (S) Gyration (R)

lbs./ft. kg/m in.2cm2in.4cm4in.3cm3in. cm in.4cm4in.3cm3in. cm

DCWM 1.8999 0.8618 0.5456 3.5200 0.7305 30.406 0.3564 5.8403 1.1571 2.939 0.2345 9.7606 0.2646 4.336 0.6556 1.6652

Channel Beam Span Uniform Load Deflection

in. mm lbs. N in. mm

DCWM 12 305 1350 303 0.0014 0.04

DCWM 18 457 900 202 0.0032 0.08

DCWM 24 610 675 152 0.0057 0.15

DCWM 30 762 540 121 0.0090 0.23

DCWM 36 914 450 101 0.0129 0.33

DCWM 42 1067 386 87 0.0176 0.45

DCWM 48 1219 338 76 0.0230 0.58

DCWM 54 1372 300 67 0.0290 0.74

DCWM 60 1524 270 61 0.0358 0.91

1.13”

(29mm)

.35”

(9mm)

.35”

(9mm)

1.72”

(44mm)

3.69”

(94mm)

1.13”

(29mm)

Length

Part No. In. (mm)

DCWM-12 12” (305)

DCWM-24 24” (610)

DCWM-48 48” (1219)

DCWM-120 120” (3048)

Reference page 148 for general fitting and standard finish specifications.

Dura Clean™ Accessories

151

Dura Clean

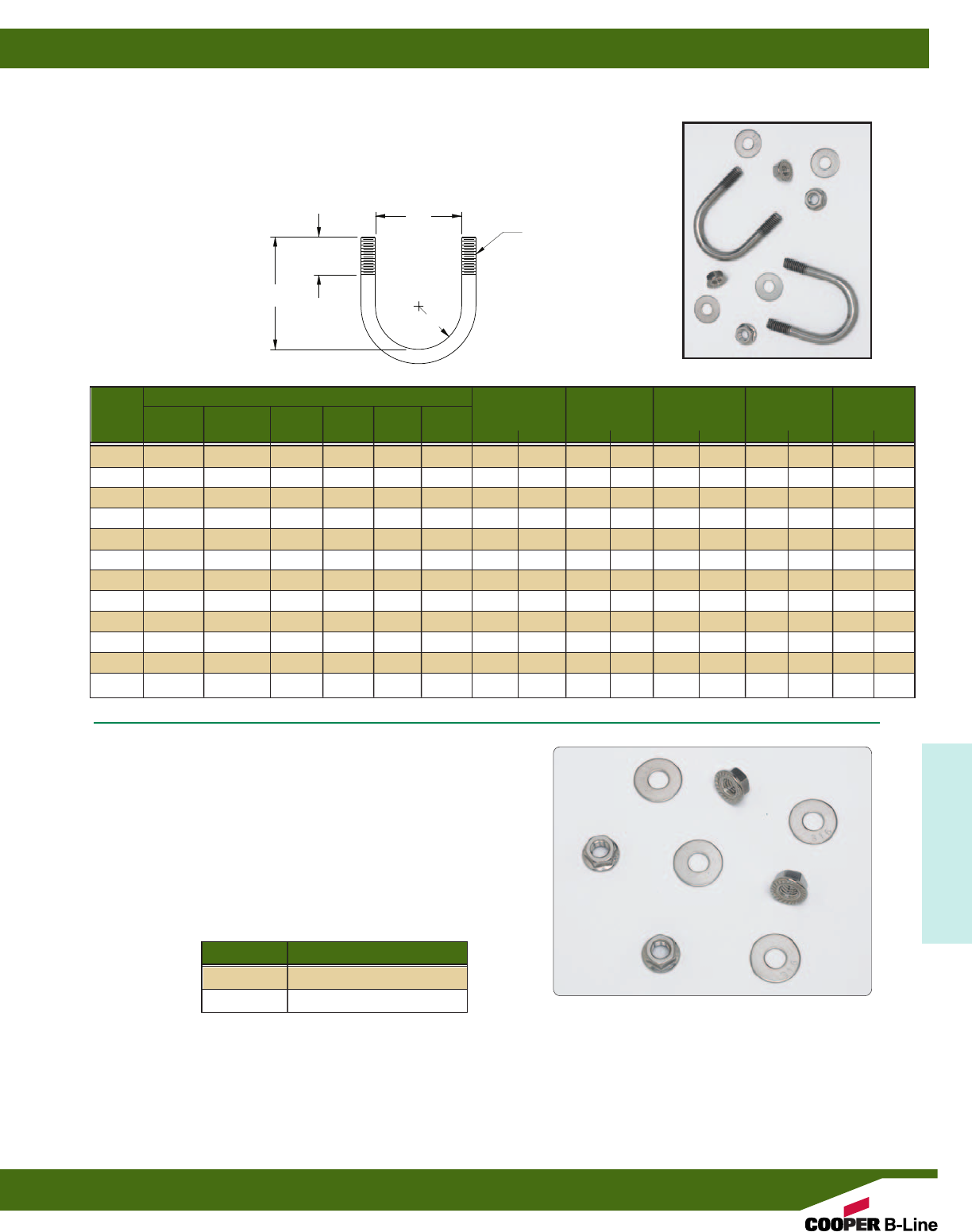

U-BOLTS

• Material: Stream cleaned 304 Stainless Steel

• Includes serrated flange hex nuts and flat washers

• Designed for use with rigid/emt conduit, OD tubing and copper, schedule 40/80

and Ocal pipe sizes

HARDWARE

• Material: 316 Stainless Steel

• Flat washer for 3/8” threaded rod

• Serrated hex nut for 3/8”-16 threaded rod

• Weight/C: Flat Washers 1.7 Lbs. (0.77kg)

Serrated Hex Nuts 3.0 Lbs. (1.36kg)

Pipe - Conduit - Tubing Sizes

Part OD Sch. Rigid EMT Copper Ocal “A” “B” “C” Design Load Wt./C

Number Tubing 40/80 Pipe Conduit Conduit Pipe Pipe in. mm in. mm in. mm lbs. kN lbs. kg

DC-1 1/2”, 3/4”- - 1/2”1/2” - 0.81 20.6 0.88 22.2 1.50 38.1 600 2.67 27.0 12.2

DC-2 -1/2”1/2”3/4”3/4”1/2” 0.98 25.0 0.88 22.2 1.67 42.5 600 2.67 28.4 12.9

DC-3 1” 3/4”3/4” 1” 1” 3/4” 1.23 31.1 1.00 25.4 1.91 48.6 600 2.67 30.4 13.8

DC-4 11/4” 1” 1” - 11/4” 1” 1.46 37.0 1.00 25.4 2.15 54.5 900 4.00 32.3 14.6

DC-5 11/2”1

1/4”1

1/4”1

1/4”1

1/2” - 1.72 43.7 1.00 25.4 2.41 61.2 900 4.00 33.3 15.1

DC-6 -1

1/2”1

1/2”1

1/2”-1

1/4” 1.96 49.8 1.00 25.4 2.65 67.3 900 4.00 36.4 16.5

DC-7 2” - - 2” 2” 11/2” 2.26 57.4 1.00 25.4 2.95 74.9 1200 5.34 38.9 17.6

DC-8 21/2” 2” 2” - 21/2” 2” 2.69 68.2 1.00 25.4 3.38 85.7 1200 5.34 42.4 19.2

DC-9 3” 21/2”2

1/2”2

1/2”3”2

1/2” 3.19 80.9 1.00 25.4 3.88 98.4 1200 5.34 46.5 21.1

DC-10 31/2” 3” 3” 3” 31/2” 3” 3.69 93.6 1.00 25.4 4.38 111.1 1800 8.00 53.0 24.0

DC-11 4” 31/2”3

1/2”3

1/2”4”3

1/2” 4.25 108.0 1.00 25.4 4.88 123.8 1800 8.00 54.9 24.9

DC-12 - 4” 4” 4” - 4” 4.71 119.5 1.00 25.4 5.33 135.4 1800 8.00 58.6 26.6

Part Number Description

3/8FWSS6

3/8” Flat Washer

SFHN3/8SS6

3/8”-16 Serrated Hex Nut

“C”

3/8”-16

Cut Threads

“A”

“B”

3”

(76mm) 3/8” (9.5mm)

3”

(76mm)

3/8”-16 Cut Thread

(both ends)

Length

Dura Clean™ Accessories

152

Reference page 148 for general fitting and standard finish specifications.

Dura Clean

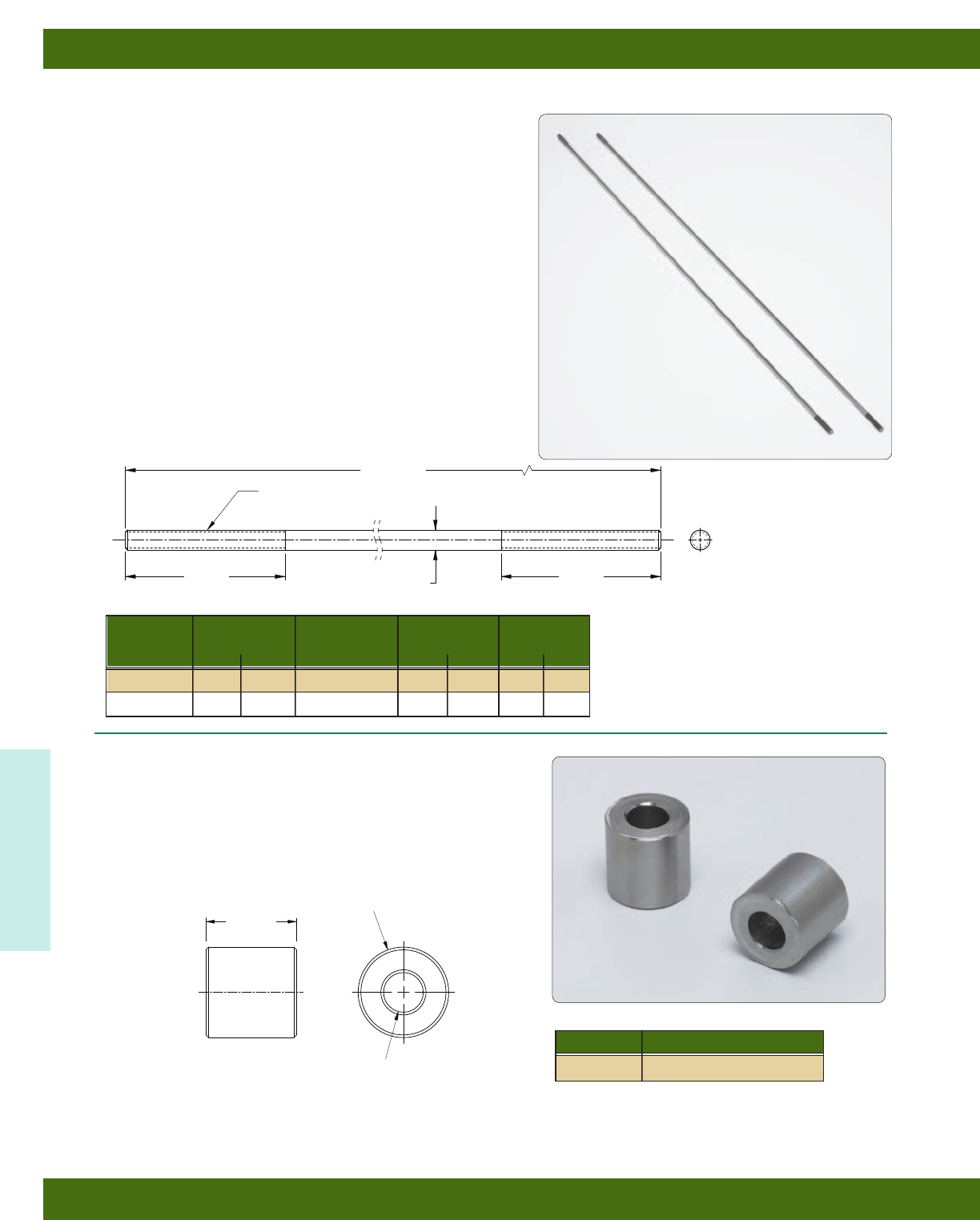

THREADED ROD

• Material: Steam cleaned 304 Stainless Steel

• Standard Lengths: 36” (.92m) & 72” (1.83m)

(other length available upon request)

• 3/8”-16 cut threads standard

• Cut threads allow the customer to cut rods to length and then field

cut threads where required

SPACERS

• Material: 304 Stainless Steel

• Spacers are used to provide 1” (25mm) of separation from wall to

channel, eliminating any area that may harbor bacteria.

• Weight/C: 16.9 Lbs. (7.6kg)

Channel Length Threads Per Recommended Wt./100 pcs

Inch Load

in. mm lbs. N lbs. kg

DCR38-36 36” 914 16 730 324 186.2 84.4

DCR38-72 72” 1829 16 730 324 372.4 168.9

1.000” OD

(25mm)

1”

(25mm)

.440” ID

(11mm)

Part Number Description

DCSP SS4 Stand-off Spacer

Dura Clean™ Accessories

153

Dura Clean

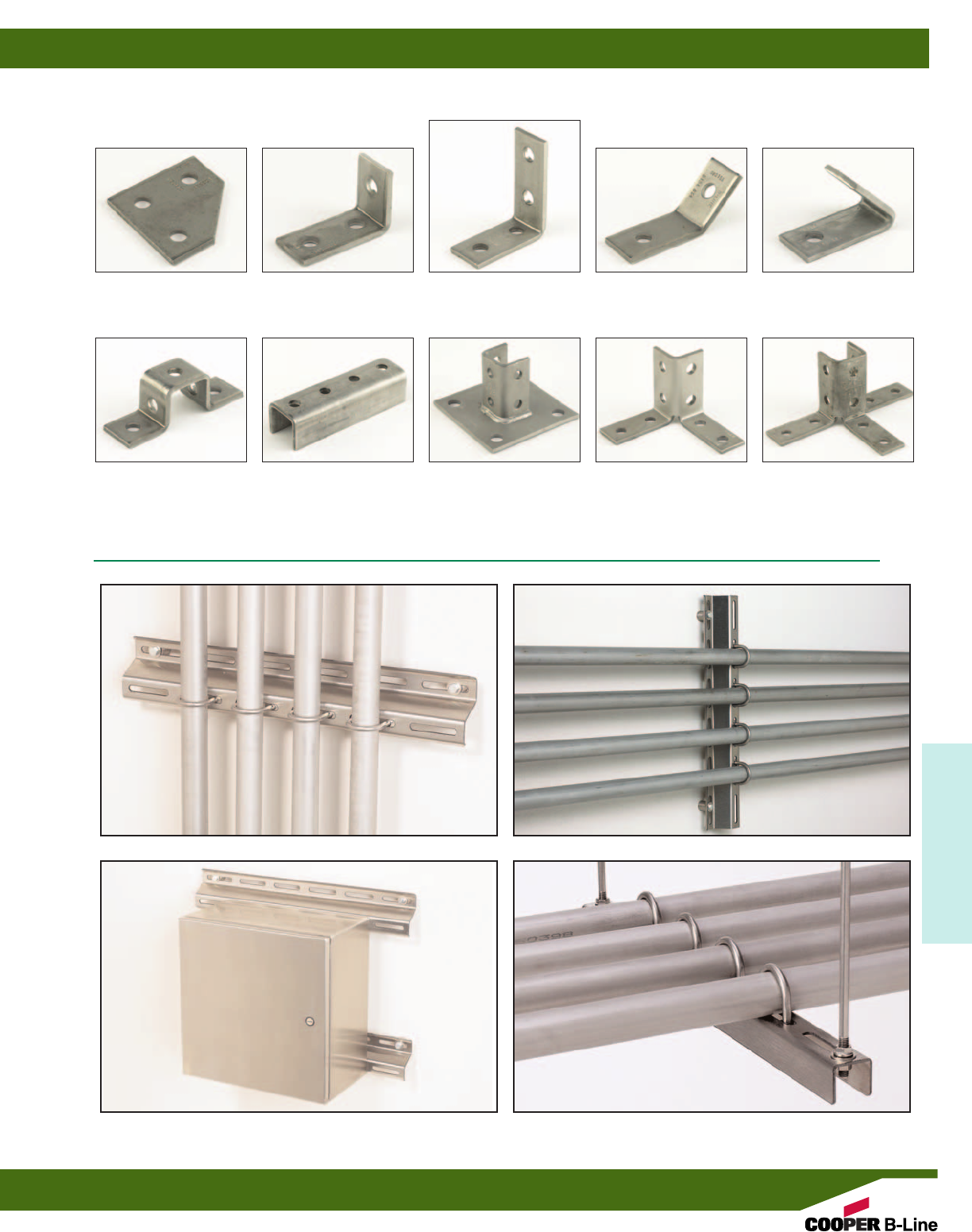

B135*

Flat Corner Plate

B102*

3-Hole Corner Angle

B104*

4-Hole Corner Angle

B154*

2-Hole 45° Open Angle

B155*

2-Hole ‘U’ Support

B107*

5-Hole ‘U’ Support

B172*

4-Hole Splice Clevis

B280SQ*

Post Base

B121*

8-Hole Double Corner

Connection

B123*

12-Hole Triple Wing

Connection

Other Stainless Steel Products

* Available in SS4 & SS6. Consult Customer Service for other products that can be made in Stainless Steel
