REPLACEMENT PARTS GUIDE / SERVICE PARTS
FEBRUARY 2014
Range Hoods
Ventilation Fans
Roof & Wall Caps
Wall Switches
Heaters
Attic Ventilation
Ceiling Fans & Light Kits
Balanced Ventilation Systems
Ironing Centers
Door Chimes
Trash Compactors
Central Vacuum Systems
Hartford Technical Support Group
Toll-Free Hot Line
800-637-1453
Index
This page intentionally left blank
Index
Index - i
11, 11C ................................................................................68
12C, 12CMG .......................................................................68
15BL, 15SS, 15TT, 15WH, 15WT, 15XEBL, 15XESS,
15XESSA, 15XETT, 15XEWH, 15XEWT ............................95
50NT....................................................................................53
80NT....................................................................................53
80RDF, 80RDB ....................................................................53
100 ......................................................................................96
100HFL ...............................................................................83
100HL .................................................................................82
101 ......................................................................................78
103 ......................................................................................78
110 ......................................................................................96
110RDF, 110RDB ...............................................................50
111 ......................................................................................78
112, 114, 114-2 ..................................................................78
113 .....................................................................................78
120 ......................................................................................78
123 ......................................................................................78
124 ......................................................................................78
128 ......................................................................................78
133 ......................................................................................78
134 ......................................................................................78
140, 141, 142, 143 .............................................................78
149 ......................................................................................78
150 ......................................................................................78
154 ......................................................................................78
155 ......................................................................................78
156 .....................................................................................79
157 ......................................................................................79
160 ......................................................................................81
161 ......................................................................................82
162 ......................................................................................82
163 ......................................................................................82
164 ......................................................................................82
165F, 165FT ........................................................................79
167F, 167FT ........................................................................79
170, 174, 178 .....................................................................79
172 ......................................................................................79
173 ......................................................................................79
176 ......................................................................................80
177 ......................................................................................80
179 ......................................................................................80
180 ......................................................................................96
181 ......................................................................................80
190, 191 ..............................................................................80
192 ......................................................................................80
194 ......................................................................................81
195 ......................................................................................81
198 ......................................................................................81
199 ......................................................................................81
212 ......................................................................................96
300, 301 ..............................................................................72
309 ........................................................................................5
310 ........................................................................................5
311 ........................................................................................5
312, 319 ..............................................................................72
313 ......................................................................................73
314, 314MG ........................................................................73
315, 317 ..............................................................................73
320 .......................................................................................5
322 ........................................................................................5
323 ........................................................................................5
324 ........................................................................................5
325, 325H .............................................................................5
326, 326H, RM326H ............................................................6
328 ........................................................................................6
329, 329H .............................................................................6
331, 331H .............................................................................6
332, 332H .............................................................................6
332KR ...................................................................................6
334 ........................................................................................6
335 ........................................................................................6
336 ........................................................................................6
338 ........................................................................................6
340 ......................................................................................84
341 ......................................................................................84
342 ......................................................................................84
343 ......................................................................................84
344 ......................................................................................84
345 ......................................................................................84
345CSOBK, 345CSOWW ...................................................84
345GOBK, 345GOWW .......................................................84
345RSOBK, 345RSOWW ..................................................85
345SOBK, 345SOWW ........................................................85
346 ......................................................................................85
347, 349 ..............................................................................85
348 ......................................................................................85
349BR .................................................................................85
350, 350BK, 350BR............................................................85
353 ......................................................................................85
353SOBK ............................................................................85
355, 355BK, 355BR............................................................85
355CSOBK ..........................................................................85
355CSOBR ..........................................................................85
355RSOBK ..........................................................................85
355RSOBR .........................................................................85
355SOBK ............................................................................85
355SOBR ............................................................................86
355SOWW .........................................................................86
356, 356BK, 356BR............................................................86
358 ......................................................................................86
360, 360MG ........................................................................73
361, 361MG ........................................................................73
362, 362MG ........................................................................73
363, 363MG ........................................................................73
365 ......................................................................................73
366 ......................................................................................73
367 ......................................................................................73
368, .....................................................................................74
375 ......................................................................................74
383, 383MG ........................................................................74
425, 426, 428 .....................................................................86
430, 431 ..............................................................................76
443 ......................................................................................76
450 ......................................................................................76
461 ......................................................................................69
465 ......................................................................................69
466 ......................................................................................69
471 ......................................................................................69
472 ......................................................................................76
475 ......................................................................................69
476 ......................................................................................69
477 ......................................................................................69
478 ......................................................................................69
479 ......................................................................................69
481 ......................................................................................69
486 ......................................................................................69
491 ......................................................................................69
496 ......................................................................................69
497 ......................................................................................69
497S ....................................................................................69
499 ......................................................................................69
499S ....................................................................................70
502, 502MG ........................................................................70
503, 503MG ........................................................................70
504, 504MG ........................................................................70
505, 505MG ........................................................................70
506, 506MG ........................................................................70
507, 507MG ........................................................................71
508, 508MG ........................................................................71
509, 509MG ........................................................................71
509S, 509SMG ...................................................................71
510, 510MG .......................................................................72
511, 511MG ........................................................................72
512 ......................................................................................72
512M ...................................................................................72
521, 522, 523, 524, 525, 526 ............................................86
576 ......................................................................................51
600 ......................................................................................56
634 ......................................................................................76
636 ......................................................................................77
639 ......................................................................................77
641 ......................................................................................77
642 ......................................................................................77
644 ......................................................................................77
645 ......................................................................................77
646 ......................................................................................77
649 ......................................................................................77
650, 651, 652, 653 .............................................................56
654H ...................................................................................55
655 ......................................................................................55
656 ......................................................................................55
657 ......................................................................................55
658 ......................................................................................55
659 .....................................................................................55
660 ......................................................................................56
661 ......................................................................................56
662, 668 ..............................................................................49
663, 688 ..............................................................................49
664 ......................................................................................56
665, 666 ..............................................................................56
669 ......................................................................................49
670 ......................................................................................49
671 ......................................................................................50
672 ......................................................................................72
673 ......................................................................................72
674 ......................................................................................51
675 ......................................................................................50
676 ......................................................................................51
678 ......................................................................................51
679FL ..................................................................................52
679FLT ................................................................................52
679L ...................................................................................52
679 ......................................................................................51
680FL, 680FLT ....................................................................52
680 ......................................................................................52
681 ......................................................................................56
682 ......................................................................................56
682L, 682LNT .....................................................................56
683 ......................................................................................53
683L ....................................................................................53
684 ......................................................................................53
685 ......................................................................................53
686, 686SF .........................................................................57
689 ......................................................................................50
690, 690NT .........................................................................50
695 ......................................................................................56
Model .....................................................Page # Model .....................................................Page # Model .....................................................Page #
Index
Index - ii
696 ......................................................................................56
699 ......................................................................................57
707 ......................................................................................58
708 ......................................................................................58
709 ......................................................................................58
710 ......................................................................................58
712 ......................................................................................58
714 ......................................................................................59
720 ......................................................................................59
721 ......................................................................................59
722 ......................................................................................59
730 ......................................................................................60
732 ......................................................................................60
735 ......................................................................................60
740BR, 740WH ..................................................................60
741BR, 741BRNT ...............................................................61
741BRFL, 741BRFLNT .......................................................61
741SN, 741SNNT ...............................................................61
741WH, 741WHNT ............................................................61
741WHFL, 741WHFLNT ....................................................62
742RB, 742RBNT, 742SN,
742SNNT, 742WH, 742WHNT ...........................................62
744, 744NT .........................................................................57
744FL, 744FLNT .................................................................57
744LED ...............................................................................57
744SFL, 744SFLNT ............................................................57
745BNNT ............................................................................62
750, 750-R02 .....................................................................62
751, 751-R02 .....................................................................63
752 ......................................................................................63
753SN, 753WH ..................................................................63
754RB, 754RBNT, 754SN, 754SNNT ................................63
755 ......................................................................................63
756 ......................................................................................63
757PT, 757SN, 757SNNT ..................................................64
758, 758NT .........................................................................64
761BN, 761RB, 761WHA ...................................................64
761WHNT ...........................................................................64
764BN, 764RB, 764WH .....................................................64
765HFL ...............................................................................83
765HL .................................................................................83
766BN, 766RB ....................................................................64
768CHNT ............................................................................65
770 ......................................................................................53
771 ......................................................................................50
772RBNT ............................................................................65
773BNNT ............................................................................65
778WH, 778WHNT ............................................................65
781WHNT ...........................................................................65
784 ......................................................................................53
788CHNT ............................................................................65
791LED ...............................................................................65
840S, 840W, 841 ................................................................57
850S, 850W, 851S, 851W, 852S, 852W ...........................57
885AL, 885BL .....................................................................77
971, 972, 973, 978 .............................................................94
1050, 1050L, 1051, 1051L, 1052, 1055, 1059, 1170 .....95
1420, 1426 ...........................................................................2
1449, 1450 ...........................................................................2
1500 ......................................................................................2
1530, 1536 ...........................................................................2
1600 ......................................................................................3
2020 ....................................................................................84
2024 ....................................................................................84
2030, 2130 .........................................................................84
2136 ....................................................................................84
2200 ......................................................................................3
2220 ....................................................................................84
2224 ....................................................................................84
2230 ....................................................................................84
2236 ....................................................................................84
2530, 2536 ...........................................................................3
2630, 2636 ...........................................................................4
2680F ..................................................................................52
2684F ..................................................................................53
2730, 273003, 2736, 273603 .............................................. 4
2830, 283003, 2836, 283603 .............................................. 4
4000, 4800 ...........................................................................7
5000, 6000 ...........................................................................8
6100, 6200, 6201 ...............................................................81
7000, 8000 .........................................................................11
9810WH ..............................................................................81
9815WH ..............................................................................81
11000 ................................................................................... 1
13000 ................................................................................... 2
14000, 17000 .......................................................................2
15000, 16000 .......................................................................2
18000 ....................................................................................3
24000, 25000 .......................................................................3
26000, 27000, 28000...........................................................4
30000, 31000, 32000...........................................................5
34000 ....................................................................................6
35000 ....................................................................................6
35316 ..................................................................................85
36000 ....................................................................................7
38000 ....................................................................................7
39000 ....................................................................................7
40000 ....................................................................................7
40425 ..................................................................................88
41000 ....................................................................................7
42000 ....................................................................................7
43000 ....................................................................................7
44000, 45000 .......................................................................8
46000 ....................................................................................8
47000 ....................................................................................8
48000 ....................................................................................8
52000 ....................................................................................8
53000 ....................................................................................8
57000 ....................................................................................8
60000 ................................................................................... 8
60000 Filter Chart .................................................................9
61000, 613004, 619004 ......................................................9
62000, 629004, NP629004 .................................................9
63000, 637004 ...................................................................10
63000EX, 637004EX ..........................................................10
64000 ..................................................................................10
64000 Aluminum Filter Chart .............................................10
64000 Baffle Filter Chart .....................................................10
67000 ..................................................................................10
68000 ..................................................................................10
70000 ..................................................................................11
71000 ..................................................................................11
72000 ..................................................................................11
73000 ..................................................................................11
75000 ..................................................................................11
76000 ..................................................................................11
77000 ..................................................................................11
78000, 79000 .....................................................................12
81000 ..................................................................................12
82000 ..................................................................................12
83000 ..................................................................................12
84000, 86000 .....................................................................12
88000 ..................................................................................12
89000 ..................................................................................13
90000 ..................................................................................13
103023 .................................................................................. 1
103123 .................................................................................. 1
113023 .................................................................................. 1
113123 .................................................................................. 2
123035, 123135, 12000 ......................................................2
614804 .................................................................................. 9
614804EX .............................................................................9
619004EX ............................................................................9
A1025, A1026 ....................................................................86
A1125, A1126 .....................................................................86
A1225, A1226 .....................................................................86
A1322, A1323, A1324, A1326 ...........................................86
A1625, A1626 ....................................................................86
A1725, A1726 ....................................................................86
A1825, A1826 .....................................................................86
A1925, A1926 ....................................................................86
ACS90 .................................................................................66
ACS120L .............................................................................66
ACS130 ...............................................................................66
ACS, ACS30 ........................................................................13
AE60 ....................................................................................88
AEE60362SS ......................................................................13
AEEPD2445SS, AEEPD2445SSE ......................................13
AP1, AP100 ........................................................................13
APE130SS .........................................................................14
AVD40B, AVD40KB, AVD40WB, AVD45B,
AVD45KB, AVD45WB, AVD50B .........................................93
AVD40N, AVD40KN, AVD40WN ........................................93
AVD50N .............................................................................93
B53, B5330SS, B5336SS ..................................................14
B56, B5630SS, B5636SS ..................................................14
B57, B5730SS, B5736SS .................................................14
B58, B5830SS, B5836SS ..................................................15
B59, B5936SS ....................................................................15
B425R, B426R, B428R ......................................................86
B521D, B522D, B523D, B524D,
B525D, B525R, B526D, B526R .........................................86
B1396A ...............................................................................96
B3030SS, B3036SS ..........................................................14
BCR1 ...................................................................................15
BK110NBWH, BK120NBWH..............................................94
BK115LWH, BK125LWH, BK147LWH ...............................94
BK144LCL ...........................................................................94
BK300LWH .........................................................................94

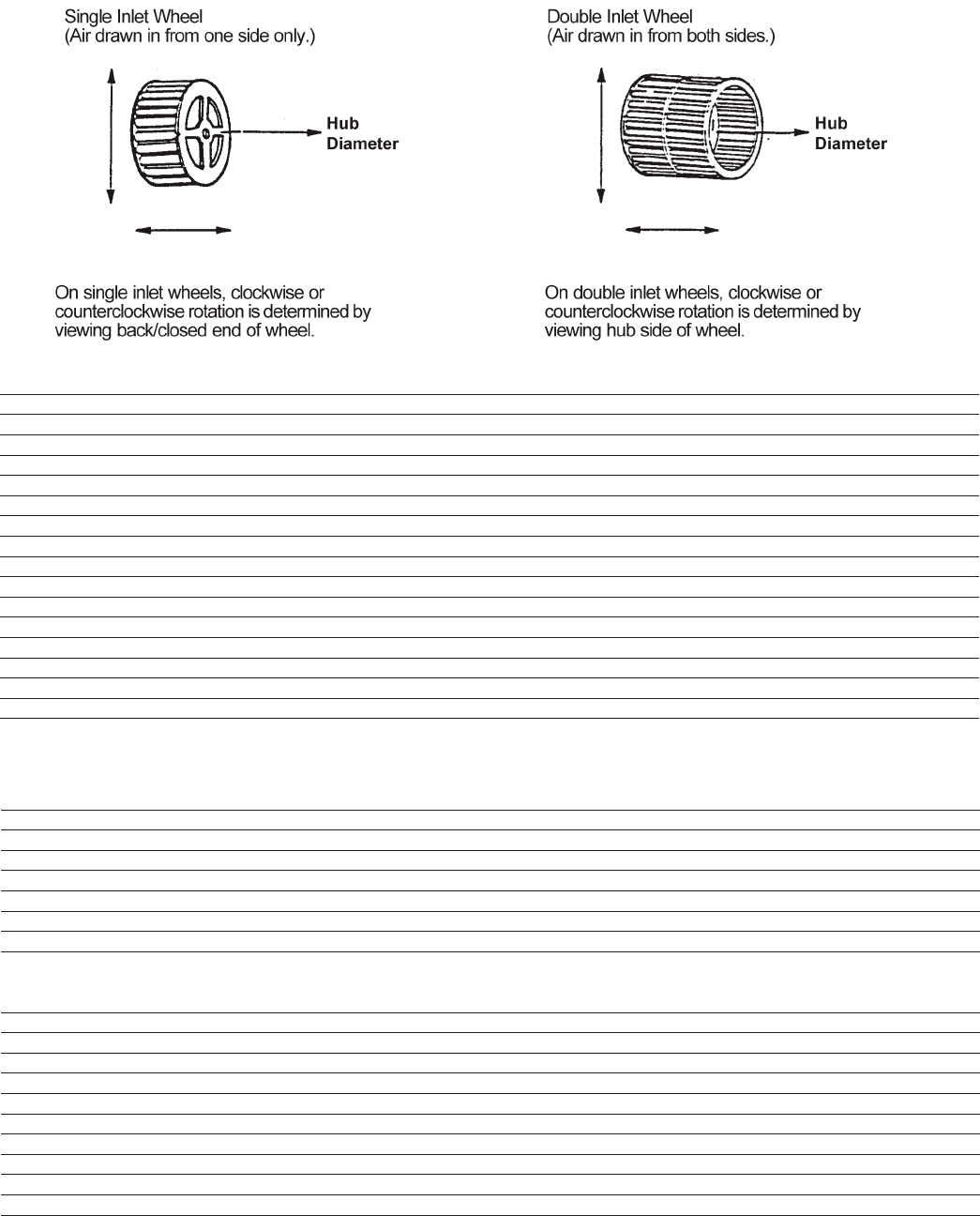

Blower Wheels ................................................................. 126
BRAC1, BR10, BR30, BR30M, BR40, BR40M, BR45 .....93
BVS200 ...............................................................................88
C50, C51 .............................................................................94
C65 ......................................................................................94
C95 ......................................................................................94
C100, CBP103 ....................................................................94
C105 ....................................................................................94
C120 ....................................................................................94
C121 ....................................................................................94
C122 ....................................................................................94
C140BK, C140WH ..............................................................94
C200, C201, C202, C203, C204, C205, C206, C206P,
C206WH, C207, C208, C208P, C208WH, C300, C301,
C302, C303, C304 ..............................................................94
C210, C210N ......................................................................94
C212, C212N ......................................................................94
C225 ....................................................................................94
C305, C305RW ...................................................................94
Model .....................................................Page # Model .....................................................Page # Model .....................................................Page #
Index
Index - iii
C306 ....................................................................................94
C308 ....................................................................................94
C309 ....................................................................................94
C310 ....................................................................................94
C500 ....................................................................................94
C501, C501CY, C501K ......................................................94
C905, C907, C909, C915 ...................................................94
CBD1 ...................................................................................15
CBD3 ...................................................................................15
CBX1 ...................................................................................15
Central Vacuum System Accessories ................................97
CFC, CFC56BR, CFC56WH .................................................86
CFH, CFH52BS, CFH52PB, CFH52RB, CFH52WH ............86
CFO, CFO52BQ, CFO52WB, CFO52WH .............................87
CFS, CFS52BS, CFS52PB, CFS52RB, CFS52WH .............87
Charcoal Pellets ............................................................... 122
Chime Buttons ...................................................................94
CJD1....................................................................................16
CJD3....................................................................................16
CL ........................................................................................16
CR........................................................................................16
CT600 ..................................................................................96
CV10....................................................................................96
CV20....................................................................................97
CV30....................................................................................97
CV40....................................................................................97
CV171, T-21 ........................................................................96
CV172, CV175, CV178, CV179, CV278 .............................96
CV177 .................................................................................96
CV180 .................................................................................96
CV212 .................................................................................96
CV310 .................................................................................96
CV315, LP92 .......................................................................97
CV331P, CV333, CV335, CV335P ......................................97
CV520BR ............................................................................97
Ductless Filters ................................................................ 122
E60E30SS, E60E36SS, E60E42SS, E60E48SS ................17
E64E30SS, E64E36SS, E64E42SS, E64E48SS ................18
E661 ....................................................................................18
E662 ....................................................................................18
E662E ..................................................................................18
E6030SS, E6036SS, E6042TSS, E6048TSS ...................17
E6430SS, E6436SS, E6442SS, E6448SS, E6448TSS .....17
E54000, E5490SS ..............................................................16
E55000, E5590SS ..............................................................16
E60000 Baffle Filter Chart...................................................17
E60000E Baffle Filter Chart ................................................17
E64000 Baffle Filter Chart...................................................18
E64000E Baffle Filter Chart ................................................18
ED50L .................................................................................54
EI5936SS ............................................................................19
EPD61 .................................................................................19
ERV70S, ERV70T ...............................................................89
ERV90HCS, ERV90HCT .....................................................89
ERV100HC ..........................................................................88
ERV110, ERV110ENT ........................................................88
ERV140TE ...........................................................................88
ERV200, ERV200ENT .......................................................89
ERV200HC ..........................................................................89
ERVH100S, ERVH100SE ...................................................89
EW5630SS, EW5636SS ...................................................19
EW5830SS EW5836SS .....................................................19
EZ80 ....................................................................................57
F40000 ................................................................................20
Fiberglass Smoke Filter ................................................... 122
Filter with Light Lens Built Into Filter .............................. 121
FL2679FT ............................................................................52
FL2680F, FL2680FT ............................................................52
Foam Filter ....................................................................... 122
G6MD, G8MD .....................................................................76
Glass Light Lens .............................................................. 123
Grille Size Reference Guide ............................................. 124
GSEH3K, GSHH3K .............................................................89
GSFH1K ..............................................................................90
GSVH1K ..............................................................................90
HD50 ...................................................................................54
HD50RDF, HD50RDB .........................................................54
HD50L .................................................................................54
HD80 ...................................................................................54
HD80L .................................................................................54
HD80RDF, HD80RDB .........................................................54
HF 3.1, HR 2.6 ....................................................................90
HFL695 ...............................................................................56
HLB3 ...................................................................................20
HLB6 ...................................................................................20
HLB9 ...................................................................................20
HLB11 .................................................................................20
Housing Designations ..................................................... 127
HRV70SE, HRV70TE ..........................................................89
HRV90HS, HRV90HT ........................................................91
HRV100H ............................................................................90
HRVH100SE ......................................................................89
HRV150TE ..........................................................................91
HRV200H ............................................................................91
HRV650 .............................................................................91
HRV1150 ............................................................................91
HS90 ...................................................................................66
HS110LU ............................................................................66
HS110UE ............................................................................66
HS120L ...............................................................................66
HS130 .................................................................................66
HV 1.5 .................................................................................88
IAQ Filters......................................................................... 121
L100, L100C, L100EX, L100L, L100MG ..........................74
L150, L150C, L150EX, L150L, L150MG ..........................74
L200, L200C, L200EX, L200L, L200MG ...........................75
L250, L250C, L250EX, L250L, L250MG ...........................75
L300KMG ............................................................................75
L300, L300C, L300EX, L300L, L300MG ...........................75
L400K, L400KL...................................................................75
L400, L400C, L400EX, L400L ...........................................75
L500K, L500KL...................................................................76
L500, L500C, L500EX, L500L ..........................................75
L700, L700C, L700EX, L700L ..........................................76
L900, L900C, L900EX, L900L ..........................................76
L1500, L1500C, L1500EX, L1500L ...................................74
L2000L ................................................................................73
L3500EXL ...........................................................................74
LA100WH, LA120K, LA120WL, LA202WH ......................94
LA208K, LA208WH ............................................................94
LA305RW ...........................................................................94
LA501K, LA501CY..............................................................94
LA600WH ...........................................................................94
Light Bulbs ....................................................................... 123
LK20, LK20FWWH, LK20FWPB,
LK20FWBS, LK20ASRB .....................................................87
LK30, LK30AWH, LK30ABS, LK30ARB ............................87
LK50, LK50DWH, LK50DWB, LK50DBQ ..........................87
LP80, LPN80 ......................................................................57
LP90 ....................................................................................96
MD6TR, MD8TR .................................................................76
MD10T, MD6T, MD8T ........................................................76
MD10TU, MD6TU, MD8TU ................................................76
MHS120L ............................................................................66
Motor Cross Reference ......................................................98
MP100 ................................................................................91
MP140 ................................................................................92
MP200 ................................................................................92
MP280 ................................................................................92
MS90 ..................................................................................67
MS120L ..............................................................................67
MS130 ................................................................................67
N673....................................................................................72
N679....................................................................................51
N680....................................................................................52
N730....................................................................................60
N732....................................................................................60
N735....................................................................................60
N741SN ..............................................................................61
N750....................................................................................62
N123035 ...............................................................................2
NP50000 .............................................................................20
NP52000 .............................................................................21
NP60000, RM60000 ..........................................................21
NP60000, RM60000 Aluminum Grease Filter Chart ........21
NP60000, RM60000 Stainless Steel Baffle Filter Chart ....21
NS1, NS130BL, NS130SS, NS130WW, NS90 .................66
NS120L ...............................................................................66
NS130 .................................................................................66
NS136BL, NS136SS, NS136WW ......................................21
NS54, NS5430SS ...............................................................22
NS6500 ...............................................................................22
NS58000 .............................................................................22
NSP130 ...............................................................................22
NSPM25, NSPM25BL, NSPM25WW ...............................22
NSPM44, NSPM44BL, NSPM44WW ...............................23
NSPM250 ...........................................................................22
NSPM390, PM390 .............................................................23
NuTone Central Vacuum Bags ...........................................97
P5 ........................................................................................23
P8 ........................................................................................23
P402, P502 .........................................................................87
PD542WW, PD542VD .......................................................87
PH416AB, PH416PB, PH416PW, PH416WB,
PH416WW, PH516AB, PH516PB, PH516PW,
PH516WB, PH516WW ......................................................88
PLASTIC LIGHT LENS ..................................................... 123
PM25, PM25BL, PM25WW...............................................22
PM39, PM39-521 ...............................................................24
PM44, PM44BL, PM44WW...............................................23
PM250 ................................................................................22
PM250WW .........................................................................23
PM390, PM390HS, PM390WW ........................................23
PM500, PM500SS .............................................................24
PME52, PME52SS .............................................................24
PME300 ..............................................................................24
QB1 .....................................................................................24
QDE .....................................................................................24
QL1, QL100 ........................................................................24
QML ....................................................................................25
QP2 .....................................................................................25
QP3 .....................................................................................26
QP4 .....................................................................................26
QP130, QP136 ....................................................................25
QP142 .................................................................................25
QS1 .....................................................................................26
QS2 .....................................................................................27
QS3 .....................................................................................27
Model .....................................................Page # Model .....................................................Page # Model .....................................................Page #
Index
Index - iv
QSE1 ...................................................................................28
QT80E, QTN80E..................................................................34
QT80L, QTN80L..................................................................34
QT90E .................................................................................34
QT90L .................................................................................35
QT110E, QTN110E .............................................................34
QT110LE, QTN110LE .........................................................34
QT130E, QTN130E .............................................................34
QT130LE, QTN130LE .........................................................34
QT140E ...............................................................................34
QT140LE .............................................................................34
QT20000 .............................................................................28
QTNLEDA, QTNLEDB .........................................................35
QTR050F .............................................................................35
QTR070 ...............................................................................35
QTR070L .............................................................................35
QTR080L .............................................................................35
QTR080, QTR080F .............................................................35
QTR100 ..............................................................................35
QTR100FLT ........................................................................36
QTR100L .............................................................................36
QTR110L ............................................................................36
QTR110, QTR110F .............................................................36
QTR130 ...............................................................................36
QTR130FLT .........................................................................36
QTR140 ...............................................................................36
QTR140L .............................................................................36
QTRE080C2S ......................................................................37
QTRE080FL, QTRE080FLF .................................................37
QTRE080FLT, QTRE080FLTF..............................................37
QTRE080, QTRE080F .........................................................36
QTRE080R ..........................................................................37
QTRE090 .............................................................................37
QTRE090FL .........................................................................37
QTRE100S, FQTRE100S ....................................................38
QTRE110FLFT, QTRE110FLT .............................................38
QTRE110FL, QTRE110FLF .................................................38
QTRE110, QTRE110F .........................................................38
QTREGN080 .......................................................................38
QTREGN080FL ...................................................................39
QTREN080FLFT, QTREN080FLT ........................................39
QTREN080FL, QTREN080FLF ...........................................39
QTREN080, QTREN080F ...................................................39
QTREN110FLFT, QTREN110FLT ........................................40
QTREN110FL, QTREN110FLF ...........................................40
QTREN110, QTREN110F ...................................................39
QTRGN110 .........................................................................40
QTRN050F ..........................................................................40
QTRN080L .........................................................................40
QTRN080, QTRN080F ........................................................40
QTRN110L ..........................................................................41
QTRN110, QTRN110F ........................................................41
QTX100HL ..........................................................................41
QTX110HFLT, QTXN110HFLT ............................................41
QTX110HL, QTXN110HL ...................................................41
QTXE050, QTXEN050 ........................................................42
QTXE080 .............................................................................42
QTXE080FL .........................................................................42
QTXE080FLT .......................................................................42
QTXE110 .............................................................................42
QTXE110FL .........................................................................43
QTXE110FLT .......................................................................43
QTXE110S ..........................................................................43
QTXE110SFLT .....................................................................43
QTXE150 .............................................................................44
QTXE150FL .........................................................................44
QTXE150FLT .......................................................................44
QTXEN050 ..........................................................................44
QTXEN080 ..........................................................................44
QTXEN080FL ......................................................................45
QTXEN080FLT ....................................................................45
QTXEN110 ..........................................................................45
QTXEN110FL ......................................................................45
QTXEN110FLT ....................................................................45
QTXEN110S ........................................................................46
QTXEN110SFLT ..................................................................46
QTXEN150 ..........................................................................46
QTXEN150FL ......................................................................46
QTXEN150FLT ....................................................................46
QTXGN100HL .....................................................................47
QTXN100HL ........................................................................47
QTXN110SL ........................................................................47
QTXR000HF, QTXRN000HF ...............................................47
QTXR000HL, QTXRN000HL ..............................................47
RD1, RD2, RD3 ..................................................................76
RDA, RDH ...........................................................................76
RDF1 ...................................................................................76
RDJ1, RDJ1P ......................................................................76
RF-49BR .............................................................................86
RM325H ...............................................................................5
RM326H ...............................................................................6
RM50000 ............................................................................28
RM51000 ............................................................................29
RM52000 ............................................................................29
RM53000 ............................................................................29
RM65000, RM65904 .........................................................29
RMDD3004, RMDD3004EX ..............................................30
RMDD3604, RMDD3604EX ..............................................30
RMDD4804, RMDD4804EX ..............................................31
RME50000, RME5030SS ..................................................31
RMIP33, RMIP45 ..............................................................31
RMIP33, RMIP45 - Aluminum Filter Chart .......................31
RMIP33, RMIP45 - Baffle Filter Chart ...............................31
RMIPWC .............................................................................31
RMN ....................................................................................31
RMP17000, RMP17004 ...................................................32
RMPE7000, RMPE7004 ....................................................32
Round Aluminum Filters ................................................. 121
RP1, RP100 ........................................................................32
RP2, RP200 ........................................................................33
RP, RMP ..............................................................................31
RVK1A .................................................................................77
S12 ......................................................................................81
S50U ...................................................................................68
S50UE .................................................................................68
S80FLUE .............................................................................68
S80LU .................................................................................68
S80U ...................................................................................68
S80UE .................................................................................68
S90 ......................................................................................66
S110FLUE ...........................................................................67
S110LU ...............................................................................67
S110U .................................................................................67
S110UE ...............................................................................67
S120FL ................................................................................67
S120L ..................................................................................66
S130 ....................................................................................66
S150 ....................................................................................68
S150L ..................................................................................68
S8093 ..................................................................................96
SL6200R ............................................................................... 7
SMD6, SMD8 .....................................................................76
Model .....................................................Page # Model .....................................................Page # Model .....................................................Page #
SMSK102 ............................................................................47
SMSK103 ............................................................................47
SP100 .................................................................................92
SP140 .................................................................................92
SP200 .................................................................................92
Square and Rectangular Aluminum Filters .................... 120
SSQTXE080 ........................................................................47
SSQTXE110 ........................................................................48
TF40, TF40BS, TF40RB, TF40WH .....................................88
TS12 ....................................................................................81
TYIK1 ..................................................................................92
U-15, TU-15, TU-24 ...........................................................81
V-14 .....................................................................................97
V-16 .....................................................................................97
V-17 .....................................................................................97
V170, V174, VM170, VM175.............................................96
WA6500 ..............................................................................33
Wall Switches ....................................................................77
WS1530SS .........................................................................33
WVK1A ................................................................................77
XB50L, XB80L, XB110L, XN50L, XN80L, XN110L ..........48
XB50, XB80, XB110, XN50, XN80, XN110 .......................48
XB110HL, XN110HL ..........................................................48
XB110H, XN110H ..............................................................48
ZB80L, ZB110L, ZN80L, ZN110L ......................................49
ZB80ML, ZB110ML, ZN80ML, ZN110ML ........................49
ZB80M, ZB110M, ZN80M, ZN110M .................................49
ZB80, ZB110, ZN80, ZN110 ...............................................48
ZB110HL, ZN110HL ...........................................................48
ZB110H, ZN110H ...............................................................48
Index
1
103023
97007725 Aluminum Grease Filter - 8-7/8” x 23-7/8”
n.l.a. F20T12/24” Fluorescent Tube - Available
Locally
97009816 Light/Switch Bar - Includes Bulb Holders,
Ballast, Fan Speed Control, & Light Switch
97009817 Housing Only for Light/Switch Bar
97007726 Cover Only for Light/Switch Bar
99150491 Screw used to Attach Cover to Light/Switch
Bar - #8-18 x 3/8” - 2 Required
99160356 Screw used to Attach Light/Switch Bar to
Top Liner & Housing Brackets - #10-24 x
3/8” - 2 Required
97007424 Heat Sentry
97007428 Ballast Transformer
97009818 Control Box Wiring Harness - Connects
Wiring Box to Light/Switch Bar
99030132 Fan Switch - Speed Control
99260491 Hex Lock Nut for Fan Speed Control Switch
- 3/8”-32
99360118 Knob for Fan Switch - Black
99270553 Fluorescent Starter - Type FS-2
99270650 Base & Bracket for Fluorescent Starter
99270550 Fluorescent Lamp Holder - 2 Required
98005860 Retainer to Hold Lampholder to Light/
Switch Bar - 2 Required
99160319 Screw used to Attach Lampholder Retainer
- #6-32 x 3/8 - 4 Required
97016970 Light Switch - Sold in Pack of 2 Only
97013583 Liner Top Piece - Includes Filter Clips
98006454 Left Hand Liner Side Piece
98006455 Right Hand Liner Side Piece
99150470 Screw used to Attach Top Liner Piece - #8-
18 x 3/8” - 13 Required
97007486 Liner Front Piece - 2 Required
97009790 Liner Extension Set for 36” or 42” Hoods -
Optional - Requires 1 for 36” or 2 for 42”
97010327 Blower Assembly - Includes Motor, Rubber
Mounts, Blower Wheel, Scroll Housing, &
Mounting Rods/Nuts
97010736 Motor
99100491 Rubber Motor Mount / Isolator Bushing - 4
Required
98005212 Motor Retaining Ring / Cup End - 2 Re-
quired
99170245 Screw used to Attach Motor Retaining Ring
/ Cup to Blower Scroll Housing - #8-18 x
3/8” - 10 Required
99020138 Blower Wheel CW
99020139 Blower Wheel CCW
97007314 Blower Scroll Housing Only - Does Not In-
clude Motor or Blower Wheels
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut #10-24 - 2 Required
97007487 Blower Housing - Inside Box that Blower
Assembly Mounts Into
97007488 Blower Housing Mounting Bracket - 2 Re-
quired
99200202 Screw for Blower Box Mounting Bracket -
1/4-20 x 1/2” - 4 Required
99260473 Sheet Metal Nut for Blower Box Mounting
Bracket - #10-24 - 2 Required
97007406 Blower Housing Wiring Harness - Connects
Grounded Plug to Wiring Box
93270619 Plastic Harness Clip for 97007406 Wiring
Harness
97006078 Damper Assembly - Includes Damper Flap
& 2 Damper Bushings
98005221 Damper Flap Only
99100379 Damper Bushing - 2 Required
97007489 Parts Bag *
S103123 Rough-in Kit / Plate - Not Included with
Wood Hood
* Parts Bag includes [4] 1/4-20 screws, [13] #8 screws,
[8] #10 x 7/8” screws, [2] #10-24 screws, & [8] #8 x 1/2”
screws
103123
97007473 Rough-In Plate Only
99150418 Screw used to Mount Rough-In Plate - #10
x 1-1/2” - 4 Required
98003370 Wiring Box Cover Only
99150415 Screw to Attach Wiring Box Cover to
Rough-In Plate - #8 x 1/4”
99150471 Green Ground Screw for Power Cord and
Wiring Box - #10-32 x 1/2”
99400052 Plastic Seal Bushing / Strain Relief for
Power Cord
99440033 Power Cord
11000
(Discontinued 2008)
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
97007696 Non-Duct Filter - 8-3/4” x 10-1/2” *
99420472 Filter Retaining Clip
99090632 Nameplate
99360232 Knob - 2 Required **
99260419 Lock Nut for Fan Switch - 1/8”-27
99030132 Fan Switch - Solid State
99260470 Lock Nut for Light Switch - 15/32”-32
97005328 Light Switch
n.l.a. Switch Box Cover
97011224 Blower Assembly - Includes Motor, Fan
Blade, & Motor Mounting Bracket
99020272 Fan Blade - 11000-D Only
06118-00 Fan Blade - All Models EXCEPT 11000-D
99420040 Hairpin Clip for Fan Blade
98005568 Motor Mounting Bracket Only
99260428 Nut used to Attach Motor to Motor Mount-
ing Bracket - #6-32 - 2 Required
99160356 Screw used to Attach Motor Mounting
Bracket to Hood - #10-24 x 3/8” - 2 Re-
quired
97006241 Motor Receptacle
99270423 Light Socket with Wires
n.l.a. Aluminum Wiring Tube
n.l.a. Outlet Box Cover
n.l.a. Canopy Housing
99100420 Foam Gasket Only for Vent Cover
98005629 Vent Cover - White
98005630 Vent Cover - Almond
98005635 Vent Cover - Black
98009855 Vent Cover - Biscuit
n.l.a. Vent Cover - Golden Wheat
n.l.a. Vent Cover - Avocado
n.l.a. Vent Cover - Coffee
97005544 Damper Assembly - Includes Damper Flap
& Damper Bushing
98005221 Damper Flap Only
99100379 Damper Bushing - 2 Required
99170245 Screw used to Attach Damper/Duct Con-
nector to Hood - #8-18 x 3/8” - 2 Required
97006239 Parts Bag ***
* Optional, not included with Hood
** Knob style changed in 1999, if hood is older must order
[2] to have matched set
*** Parts Bag includes [2] #8-18 x 1/4” screws, [4] #10-16
x 1-1/2” screws, [4] washers, & [4] wall anchors
113023
97007725 Aluminum Grease Filter - 8-7/8” x 23-7/8”
98006352 Filter Retaining Clip - 2 Required
n.l.a. F20T12/24” Fluorescent Tube - Available
Locally
n.l.a. Light/Switch Bar - Includes Bulb Holders,
Ballast, Fan Speed Control, & Light Switch
97009817 Light/Switch Bar Housing Only
n.l.a. Cover for Light/Switch Bar
99150491 Screw used to Attach Light/Switch Bar
Cover to Light/Switch Bar Housing - #8-18
x 3/8” - 2 Required
99360118 Knob for Speed Control
99260491 Lock Nut for Speed Control Switch - 3/8”
99030132 Fan Switch - Variable Speed
99030165 Light Switch
97007428 Ballast Transformer
99270550 Fluorescent Lampholder - 2 Required
98005860 Retainer for Lampholders - 2 Required
99160319 Screw used to Attach Lampholder Retainer
to Light/Switch Bar - #6-32 x 3/8” - 4 Re-
quired
99270553 Fluorescent Starter - Type FS-2
99270650 Base for FS-2 Fluorescent Starter
97007424 Heat Sentry Thermostat
99030033 Momentary Contact Switch
n.l.a. Wire Harness for Light/Fan Switches - 2
Required
97009818 Wire Harness that Connects Light/Switch
Bar to Junction Box
97010327 Blower Assembly - Includes Motor, Blower
Wheels, Cups, & Blower Scroll Housing
97010736 Motor
99100491 Rubber Motor Mount / Isolator Bushing - 4
Required
98005212 Motor Retaining Ring / Cup - 2 Required
99170245 Screw used to Attach Motor Retaining Ring
/ Cup to Blower Scroll Housing - #8-18 x
3/8” - 4 Required
99020138 Blower Wheel CW
99020139 Blower Wheel CCW
97007314 Blower Scroll Housing Only - Does Not In-
clude Motor or Blower Wheels
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97007406 Blower Housing Wiring Harness
99150478 Screw used to Attach Blower Compartment
Cover to Lower Housing Assembly - #8 x
3/8” - 7 Required
n.l.a. Lower Housing Assembly
n.l.a. Spacer Bracket - 2 Required
n.l.a. Upper Housing Assembly
99260488 Lock Nut used to Attach Frame Assembly to
Housing - #10-24 - 20 Required
n.l.a. Upper Door Frame Assembly
n.l.a. Lower Door Frame Assembly
n.l.a. Door Slide Assembly - 2 Required
99100438 Door Pad - 2 Required
93100402 Door Bumper - 4 Required
Index
2
n.l.a. Upper Shelf
98006316 Blower Compartment Cover
99400055 Bushing
n.l.a. Baffle Plate
98005221 Damper Flap
99100379 Damper Bushing - 2 Required
n.l.a. Parts Bag *
* Parts Bag includes [2] 5/16-18 x 3/4” screws, [2] 5/16-18
nuts, [6] 1/4-20 nuts, [20] #10-24 nuts, [2] spacer brack-
ets, [2] #10 x 1-1/2” screws, [2] 1/4 washers, [2] #6 nuts,
[2] 1/4-20 x 3” screws, [6] #6 washers, [2] 1/4-20 wing
toggles, [8] #6 x 1/4” screws, & [10] #10 x 5/8” screws
113123
n.l.a. Rough-In Plate
n.l.a. Screw used to Install Rough-In Plate -
5/16”-10 x 3” - 2 Required
n.l.a. Flat Washer used Install Rough-In Plate -
5/16” - 2 Required
98003370 Wiring Box Cover
99150415 Screw used to Attach Cover to Wiring Box
- #8 x 1/4”
99150471 Green Ground Screw for Outlet Box &
Power Cord - #10-32 x 1/2” - 2 Required
99400052 Plastic Bushing / Strain Relief for Power
Cord
99440073 Power Cord
123035, 123135, N123035, 12000
(Discontinued 1998)
n.l.a. Aluminum Grease Filter Kit - 9” x 10-1/8” -
Kit Contains 2 Filters
97007807 Non-Duct Filter Kit - 9” x 10-1/8” - Kit Con-
tains 2 Filters *
n.l.a. F20T12/24” Fluorescent Tube - Available
Locally
95000340 Blower Cover - Grille
99150488 Screw used to Attach Grille Cover to Hood
- #8 x 1/2” - 4 Required
99110538 Grille Baffle - Front Vent Cover
95000341 Top Housing Trim
98006261 Mounting Plate for Microwave Shelf
n.l.a. Control Panel Cover and Shelf Trim Kit - In-
cludes Switch Panel, Shelf Trim, & 3 Sliding
Knobs
n.l.a. Shelf Trim Only
97011804 Plastic Switch Panel Trim - Black
97011802 Knob - Fan/Light On/Off Switch - 2 Re-
quired
99110535 Slide Knob for Speed Control
97006721 Fan/Light Switch Control Board
98005852 Control Board Access Cover
99150489 Screw used to Attach Fan/Light Switch
Control Board to Hood - #6 x 1/2” - 2 Re-
quired
97006737 Side Box Wirning Harness that Plugs into
Fan/Light Switch Control Board
97006940 Ballast Transformer
99270553 Fluorescent Starter - Type FS-2
99271261 Fluorescent Starter Base
99270550 Fluorescent Lampholder - 2 Required
98005860 Lampholder Retainer - 2 Required
97006736 Fluorescent Light Wiring Harness
97010327 Blower Assembly - Includes Motor, 2
Blower Wheels, 4 Rubber Mounts, 2 Motor
Cups, & Scroll Housing
97010736 Motor
99100491 Rubber Motor Mount / Isolator - 4 Required
98005212 Motor Retaining Ring / Motor Cup - 2 Re-
quired
99150478 Screw used to Attach Motor Retaining Ring
/ Cup to Blower Scroll Housing - #8-18 x
3/8” - 8 Required
99020138 Blower Wheel CW
99020139 Blower Wheel CCW
97007314 Blower Scroll Housing Only - Does Not In-
clude Motor or Blower Wheels
99420464 Blower Mounting Rod - 2 Required
99260476 Blower Mounting Rod Nut - 2 Required
98005817 Blower Support Brace
97006738 Blower Housing Wiring Harness
97006733 Heat Sentry Thermostat
99270556 3-Prong Outlet with Wires
97006078 Damper Assembly - Includes Damper Flap
& 2 Damper Bushings
98005221 Damper Flap Only
99100379 Damper Bushing Only - 2 Required
99170245 Screw used to Attach Damper/Duct Con-
nector to Hood - #8 x 3/8” - 2 Required
97007352 Parts Bag for 123135 Only
* Optional, not included with Hood
13000
(Discontinued 1972)
99010049 Aluminum Grease Filter - 11-3/4” x 12-1/4”
99010088 Non-Duct Filter - 11-3/4” x 12-1/4” *
99030049 Fan Switch
97005328 Light Switch
n.l.a. Knob
* Optional, not included with Hood
14000, 17000
(Discontinued 1970)
99010049 Aluminum Grease Filter - 11-3/4” x 12-1/4”
99010088
Non-Duct Filter - 14000 - 11-3/4” x 12-1/4” *
99030014 Fan & Light Switch Push Button - 2 Re-
quired
* Optional, not included with Hood
1420, 1426
(Discontinued 1992)
99010136 Aluminum Grease Filter - 6-1/2” x 26-3/4”
97007808 Non-Duct Filter - 1426 - 6-3/8” x 26-3/4” *
n.l.a. Drawer
n.l.a. Drawer Trim
n.l.a. Roller - 4 Required
n.l.a. Front Panel
97006966 Handle w/Screws
99030033 Switch
99080221 Motor - 1420
99080220 Motor - 1426
99020136 Blade
n.l.a. Motor Bracket
99260428 Nut used to Attach Motor to Motor Bracket
- #6-32 - 2 Required
99270531 Fuse
n.l.a. Bottom Plate
97005544 Damper/Duct Connector Assembly
99170245 Screw used to Attach Damper/Duct Con-
nector to Hood - #8-18 x 3/8” - 2 Required
* Optional, not included with Hood
1449, 1450
(Discontinued 1992)
97007355 Aluminum Grease Filter - 4-7/8” x 27”
97007809 Non-Duct Filter - 4-7/8” x 27” *
n.l.a. Filter Retaining Clip - 2 Required
98006287 Ductfree Blower Discharge Cover
97007217 Front Cover
98006184 Front Cover Safety Strap - 2 Required
99090582 Decorative Trim Plate
98006286 Blower Air Duct Cover
n.l.a. Motor Switch with Wire Leads
99110571 Push Button
98006191 Switch Actuator
n.l.a. Actuator Spring
97007419 Motor
99020167 Blower Wheel
n.l.a. Blower Scroll Housing
n.l.a. Wiring Harness
n.l.a. Housing Assembly - All Colors
n.l.a. Bottom Panel
n.l.a. Outlet Box Cover
97007237 Damper Assembly - Includes Damper Flap
& Damper Frame
98005221 Damper Flap Only
* Optional, not included with Hood
1500
(Discontinued 1976)
99010040 Aluminum Grease Filter - 5-1/2” x 27”
99030033 Switch
99270748 Receptacle
15000, 16000
(Discontinued 1970)
99010033 Aluminum Grease Filter - 8” x 9-1/2” - 2
Required
99010036 Non-Duct Filter - 10-3/4” x 20” *
99020014 Blower Wheel - CW
99020015 Blower Wheel - CCW
* Optional, not included with Hood
1530, 1536
(Biscuit Discontinued 2010)
99010175 Foam Filter - 6-1/4” x 23-5/8”
99140156 Filter Spring - 2 Required
99050018 Light Lens
n.l.a. Bulb - F20T12/24” Fluorescent Tube - Avail-
able Locally
97009433 On/Off Switch Assembly for Fan & Light
with Heat Sentry Assembly
99090677 Fan Control Trim Only - Black
99360133 Fan Control Knob Only - Black
99090697 Fan Control Trim Only - White
99360140 Fan Control Knob Only - White
99091018 Fan Control Trim Only - Biscuit
99360240 Fan Control Knob Only - Biscuit
99091030 Fan Control Trim Only - Stainless
99360249 Fan Control Knob Only - Stainless
97008578 Variable Fan Speed Control Switch & Con-
trol Board
98006937 Access Cover for Switch - Black
99150526 Screw used to Attach Access Cover - Black
- #8-18 x 3/8”
98007164 Access Cover for Switch - White
98009729 Access Cover for Switch - Biscuit
98010173 Access Cover for Switch - Stainless
Index
3
99150478 Screw used to Attach Access Cover -
White/Biscuit/Stainless - #8-18 x 3/8”
97010327 Blower Assembly - Includes Motor, Blower
Wheels, Retaining Rings / Cups, & Blower
Scroll Housing
97007314 Blower Scroll Housing Only - Does Not In-
clude Motor or Blower Wheels
97010736 Motor
99100491 Rubber Motor Mount - 4 Required
98005212 Motor Retaining Ring / Cup - 2 Required
99170245 Screw used to Attach Motor Cup to Scroll
Housing - #8-18 x 3/8” - 8 Required
99020139 Blower Wheel - CCW
99020138 Blower Wheel - CW
99420464 Blower Mounting Rod - 2 Required
99260476 Blower Mounting Rod Nut - 2 Required
97008929 Drawer Assembly - Black - 1530 - Includes
Glass Visor, Front Trim, & Drawer End Cap
97008930 Drawer Assembly - Black - 1536 - Includes
Glass Visor, Front Trim, & Drawer End Cap
97009054 Drawer Assembly - White - 1530 - Includes
Glass Visor, Front Trim, & Drawer End Cap
97009055 Drawer Assembly - White - 1536 - Includes
Glass Visor, Front Trim, & Drawer End Cap
97015470 Drawer Assembly - Biscuit - 1530 - In-
cludes Glass Visor, Front Trim, & Drawer
End Cap
97015471 Drawer Assembly - Biscuit - 1536 - In-
cludes Glass Visor, Front Trim, & Drawer
End Cap
97016559 Drawer Assembly - Stainless - 1530 - In-
cludes Glass Visor, Front Trim, & Drawer
End Cap
97016560 Drawer Assembly - Stainless - 1536 - In-
cludes Glass Visor, Front Trim, & Drawer
End Cap
99110683 Drawer End Cap - Black
99110699 Drawer End Cap - White
99111195 Drawer End Cap - Biscuit
99100463 Drawer Stop - 2 Required
n.l.a. Left Hand Drawer Bracket - Black - 1530-A,
1536-A
n.l.a. Right Hand Drawer Bracket - Black - 1530-
A, 1536-A
97008971 Left Hand Drawer Bracket Assembly - Black
- 1530-B,C 1536-B,C - Includes Thumb
Screw & Drawer Clamp
97009436 Right Hand Drawer Bracket Assembly
- Black - 1530-B,C 1536-B,C - Includes
Thumb Screw & Drawer Clamp
97008979 Left Hand Drawer Bracket Assembly -
White - Includes Thumb Screw & Drawer
Clamp
97009435 Right Hand Drawer Bracket Assembly -
White - Includes Thumb Screw & Drawer
Clamp
97015120 Left Hand Drawer Bracket Assembly - Bis-
cuit - Includes Thumb Screw & Drawer
Clamp
97015119 Right Hand Drawer Bracket Assembly -
Biscuit - Includes Thumb Screw & Drawer
Clamp
97016556 Left Hand Drawer Bracket Assembly -
Stainless - Includes Thumb Screw & Draw-
er Clamp
97016555 Right Hand Drawer Bracket Assembly -
Stainless - Includes Thumb Screw & Draw-
er Clamp
n.l.a. Drawer Clamp - 1530-A, 1536-A - 2 Re-
quired
98007155 Drawer Clamp - 1530-B, 1536-B - 2 Re-
quired
99420602 Thumb Screw for Drawer Bracket - Black/
Stainless - 4 Required
99420603 Thumb Screw for Drawer Bracket - White -
4 Required
99420630 Thumb Screw for Drawer Bracket - Biscuit
- 4 Required
98006938 Wire Box Cover
97008618 Fan Wire Harness
99270550 Lampholder - 2 Required
98005860 Lampholder Bracket - 2 Required
99160319 Screw used to Attach Lampholder Bracket
- #6-32 x 3/8” - 4 Required
97015775 Light Wire Harness
99270651 Ballast Transformer
99270553 Fluorescent Starter - Type FS-2
98006940 Front Trim - Black - 1530-A, 1536-A
98007168 Front Trim - White - 1530-A, 1536-A
98010015 Front Trim - 1530-B, 1536-B - All Finishes
97011138 Bottom Filter Panel - Black
97011139 Bottom Filter Panel - White
97015726 Bottom Filter Panel - Biscuit
97016557 Bottom Filter Panel - Silver (SS)
n.l.a. Right Hand Mounting Bracket - Black -
1530-A, 1536-A
n.l.a. Left Hand Mounting Bracket - Black - 1530-
A, 1536-A
n.l.a. Right Hand Mounting Bracket - White -
1530-A, 1536-A
n.l.a. Left Hand Mounting Bracket - White - 1530-
A, 1536-A
97015950 Right Hand Mounting Bracket - All Finishes
- 1530-B, 1536-B
97015949 Left Hand Mounting Bracket - All Finishes -
1530-B, 1536-B
97006078 Damper / Duct Connector - 3-1/4” x 10” -
Includes Damper Flap & Bushing
98005221 Damper Flap Only
99100379 Damper Bushing Only
99480019 Installation Rod - Used During Installation
of Hood Mounting Brackets
97008631 Parts Bag - Black/Stainless
97008980 Parts Bag - White
97015121 Parts Bag - Biscuit
1600
(Discontinued 1974)
99010040 Aluminum Grease Filter - 5-1/2” x 27”
99030033 Switch
99270748 Receptacle
18000
(Discontinued 1972)
99010049 Aluminum Grease Filter - 11-3/4” x 12-1/4”
99010088 Non-Duct Filter - 11-3/4” x 12-1/4” *
97005328 Light Switch
99030049 Fan Switch
n.l.a. Knob
* Optional, not included with Hood
2200
(Discontinued 1992)
99010032 Aluminum Grease Filter - 8-3/4” x 15”
n.l.a. Front Trim
n.l.a. Oven Hood Door
99140102 Spring for Hood Door - 2 Required
98004568 Handle
99030033 Switch
n.l.a. Blower Assembly
n.l.a. Motor
n.l.a. Fan Blade
n.l.a. Scroll Housing
99260425 Nut used to Attach Motor to Scroll Housing
- #8-32 - 2 Required
97000716 Receptacle for Fan Motor
98002362 Outlet Box Cover
n.l.a. Housing
24000, 25000
(Discontinued 1976)
99010036 Non-Duct Filter - 25000 - 10-3/4” x 20”
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob
2530, 2536
(Discontinued 1993)
97009786 Aluminum Grease Filter Set - 2530 - In-
cludes 2 Filters - [1] 10-3/8” x 3-7/8” & [1]
8” x 3-7/8”
97009787 Aluminum Grease Filter Set - 2536 - In-
cludes 2 Filters - [1] 13-3/8” x 3-7/8” & [1]
11” x 3-7/8”
n.l.a. Chimney Assembly
n.l.a. Right End Cap for Chimney Assembly
99150488 Screw used to Attach End Cap to Chimney
Assembly - #8 - 4 Required
98007397 Stainless Steel Trim Panel - 28” - 2530
98007413 Stainless Steel Trim Panel - 34” - 2536
99150478 Screw used to Attach Trim Panel to Chim-
ney Assembly - #8-18 x 1/4” - 5 Required
n.l.a. Flip Up Door Assembly
99100468 Magnet
99160359 Screw used to Attach Flip Up Door Assy to
Housing - #10-16 x 2”
99710032 Spacer
99110850 Back Slide Strip
97009830 Fan Switch - Variable Speed
n.l.a. Bracket for Fan Switch
99360165 Knob for Fan Switch
97009829 Door Switch / Bracket Assembly
93470012 Roller - 2530-C,D - 2536-C,D
97009812 Lift Rod / Spring Assembly - 2530-A,B -
2536-A,B
99160361 Screw used to Attach Chimney Assy to
Housing - #10-24 x 3/8”
97009953 Fan Motor - 2530-A, 2536-A
99080349 Fan Motor - 2530-B,C,D, 2536-B,C,D
99150536 Motor Mounting Screw - 1/4”-20 x 5/16” -
3 Required
99100484 Rubber Motor Mounts / Isolators - 3 Re-
quired
99260477 Nut used to Attach Motor to Rubber
Mounts - 1/4”-20 - 3 Required
97011423 Blower Wheel
n.l.a. Blower Scroll Housing
n.l.a. Grease Jar
Index
4
n.l.a. Motor Cover Weldment
n.l.a. Support Leg for Blower Housing
n.l.a. Blower Motor Transition - Square to Round
n.l.a. Housing
98007392 Access Door for Downdraft Housing
99260488 Nut used to Attach Access Door to Down-
draft Housing - #10-24 - 4 Required
n.l.a. Venturi Plate Weldment
n.l.a. Gear Motor - 2530-A,B, 2536-A,B
99080590 Gear Motor - 2530-C,D, 2536-C,D
n.l.a. Bracket for Gear Motor
99160225 Screw used to Attach Gear Motor to Brack-
et - #8-32 x 1/2” - 4 Required
98008101 Gear Motor Cover - 2530-C,D, 2536-C,D
99170245 Screw used to Attach Gear Motor Cover to
Housing - #8-18 x 3/8” - 2 Required - 2530-
C,D, 2536-C,D
97009972 Lower Micro Switch Assembly with Bracket
99380633 U-bolt - #10-24 Thread
99250254 Flat Washer used between Lift Rod & U-
bolt - 3/16” - 2530-A, 2536-A
n.l.a. Crank - 2530-A,B, 2536-A,B
97018840 Crank - 2530-C,D, 2536-C,D
99260437 Nut used to Attach Crank to Chimney Slide
Assembly - #10-24 - 2 Required
98007642 Plate which Crank Attaches to
99270558 Receptacle - 2530-B,C,D, 2536-B,C,D
97009969 Power Cord
26000, 27000, 28000
(Discontinued 1974)
99010085 Aluminum Grease Filter - 9-1/2” x 11-3/4”
99010101 Non-Duct Filter - 27000 - 9-1/2” x 11-3/4” *
99110380 Light Lens
n.l.a. Fan & Light Switch
n.l.a. Light Socket
n.l.a. Motor
n.l.a. Blade
* Optional, not included with Hood
2630, 2636
(Discontinued 1993)
97009786 Aluminum Grease Filter Set - 2630 - In-
cludes 2 Filters - [1] 10-3/8” x 3-7/8” & [1]
8” x 3-7/8”
97009787 Aluminum Grease Filter Set - 2636 - In-
cludes 2 Filters - [1] 13-3/8” x 3-7/8” & [1]
11” x 3-7/8”
n.l.a. Chimney Assembly
n.l.a. Right Hand End Cap
n.l.a. Pop-up Door
98007397 Stainless Steel Trim Panel - 2630
98007413 Stainless Steel Trim Panel - 2636
99150478 Screw used to Attach Trim Panel to Chim-
ney - #8-18 x 3/8” - 5 Required
99100468 Magnet for Door
99710032 White Plastic Spacer
99110850 Black Slide Strip
97009830 Fan Speed Control Switch - Rotary
99360165 Knob for Fan Switch
97009829 Door Switch/Bracket Assembly
93470012 Roller - 2630-C,D, 2636-C, D
97009812 Push Rod - 2630-A, 2636-A
99160361 Top Screw used to Attach Chimney Assy to
Downdraft Housing - #10-24 x 3/8”
98007392 Access Door for Downdraft Housing
99260488 Nut used to Attach Access Door to Down-
draft Housing - #10-24 - 4 Required
97009972 Lower Micro Switch Assembly with Bracket
99150415 Screw used to Attach Micro Switch to Gear
Motor Bracket - #8-18 x 1/4” - 2 Required
99080590 Gearbox with Motor
98007785 Gear Motor Bracket
99160225 Screw used to Attach Gear Motor to Brack-
et - #8-32 x 1/2” - 4 Required
99380633 U-bolt for Gear Motor - #10-24 Thread
97018840 Crank
n.l.a. Downdraft Housing
97009969 Power Cord
2730, 273003, 2736, 273603
97009786 Aluminum Grease Filter Set - 2730 - In-
cludes 2 Filters - [1] 10-3/8” x 3-7/8” & [1]
8” x 3-7/8”
97009787 Aluminum Grease Filter Set - 2736 - In-
cludes 2 Filters - [1] 13-3/8” x 3-7/8” & [1]
11” x 3-7/8”
97011325 Chimney Assembly with Slide - 2730
97011326 Chimney Assembly with Slide - 2736
97011322 Top Cover - Stainless Steel - 2730 - In-
cludes Right and Left Side Bracket & Button
Cover
97011323 Top Cover - Stainless Steel - 2736 - In-
cludes Right and Left Side Bracket & Button
Cover
97011447 Top Cover - White - 2730 - Includes Right
and Left Side Bracket & Button Cover
97011448 Top Cover - White - 2736 - Includes Right
and Left Side Bracket & Button Cover
97011449 Top Cover - Black - 2730 - Includes Right
and Left Side Bracket & Button Cover
97011450 Top Cover - Black - 2736 - Includes Right
and Left Side Bracket & Button Cover
97011259 Right Side Top Bracket for Top Cover
97011260 Left Side Top Bracket for Top Cover
99150491 Screws Used to Attach Side & Switch
Bracket to Top Cover / Chimney Assy - #8-
18 x 3/8” - 6 Required
99111235 Up/Down Switch Button Cover - Black - 1”
x 1” - Replaces Grey *
99111236 Up/Down Switch Button Cover - White - 1”
x 1” *
99111230 Up/Down Switch Button Cover - Biscuit - 1”
x 1” *
97011927 Switch Assembly - Includes Up/Down
Switch, Speed Control Switch, & Bracket
Assy
97011238 Up/Down Switch Assembly
97010714 Fan Speed Control Switch
99260491 Lock Nut for Fan Speed Switch - 3/8”-32
99360165 Knob for Fan Speed Control Switch
99150488 Screw Used to Attach Switch Cover to Side
of Chimney - #8-18 x 1/2” - 2 Required
93470012 Roller
99100544 Foam Strip - 2730
99100545 Foam Strip - 2736
99710032 Plastic Spacer - 3 Required
99110850 Slide Strip - 4 Required
97011311 Blower Assembly - Includes Motor, Capaci-
tor, Blower Wheel, Isolators, & Blower Box
Housing
99080362 Motor with Capacitor
99271000 Capacitor
99100484 Motor Isolator - 3 Required
99020247 Blower Wheel
98008150 Scroll Box Cover
98008144 Air Box Cover - 2730
98008169 Air Box Cover - 2736
98008158 Air Box Opening Cover - 2730
98008185 Air Box Opening Cover - 2736
97009972 Lower Micro Switch Assembly
99080590 Gear Motor
97011500 Gearmotor Bracket Assembly
99160225 Screw used to Attach Gear Motor to Brack-
et - #8-32 x 1/2” - 4 Required
97011443 Gear Motor Cover
99170245 Screw Used to Attach Gear Box Cover & Air
Box Cover to Downdraft Housing - #8-18 x
3/8” - 19 Required
97018840 Crank
99380633 U Bolt - 10-24 Thread
98007642 Back-up Plate for U Bolt
99260437 Nut used to Attach U Bolt - #10-24 - 2 Re-
quired
97010994 Downdraft Housing - 2730
97010992 Downdraft Housing - 2736
98008159 Leg Support
99150536 Screw used to Attach Leveling Leg to
Downdraft Housing - 1/4”-20 x 5/16” - 5
Required
99250927 Washer for Leveling Leg Screw - 1/4”
99110880 Installation Template - 2730
99110881 Installation Template - 2736
97010993 Power Cord with Wire Harness
97011305 Parts Bag
* Cover is decal sticker ONLY, will NOT include up/down
switch. For switch, must order Switch Assy 97011238.
2830, 283003, 2836, 283603
97009786 Aluminum Grease Filter Set - 2830 - In-
cludes 2 Filters - [1] 10-3/8” x 3-7/8” & [1]
8” x 3-7/8”
97009787 Aluminum Grease Filter Set - 2836 - In-
cludes 2 Filters - [1] 13-3/8” x 3-7/8” & [1]
11” x 3-7/8”
97018523 Chimney Assembly with Slide - 2830
97018524 Chimney Assembly with Slide - 2836
97011322 Top Cover - Stainless Steel - 2830 - In-
cludes Right and Left Side Bracket & Button
Cover
97011323 Top Cover - Stainless Steel - 2836 - In-
cludes Right and Left Side Bracket & Button
Cover
97011447 Top Cover - White - 2830 - Includes Right
and Left Side Bracket & Button Cover
97011448 Top Cover - White - 2836 - Includes Right
and Left Side Bracket & Button Cover
97011449 Top Cover - Black - 2830 - Includes Right
and Left Side Bracket & Button Cover
97011450 Top Cover - Black - 2836 - Includes Right
and Left Side Bracket & Button Cover
97011259 Right Side Top Bracket for Top Cover
97011260 Left Side Top Bracket for Top Cover
99150526 Screws used to attach Side & Switch
Bracket to Top Cover / Chimney Assy - #8-
18 x 3/8” - 6 Required
99111235 Up/Down Switch Button Cover - Black - 1”
x 1” - Replaces Grey *
99111236 Up/Down Switch Button Cover - White - 1”
x 1” *
99111230 Up/Down Switch Button Cover - Biscuit - 1”
Index
5
x 1” *
97011927 Switch Assembly - Includes Up/Down
Switch, Speed Control Switch, & Bracket
Assy
97011238 Up/Down Switch Assembly
99360165 Knob for Speed Control Switch
99150488 Screw used to attach Switch Cover to Side
of Chimney - #8-18 x 1/4” - 2 Required
99470016 Roller
99710032 Plastic Spacer - 3 Required
99110850 Slide Strip - 4 Required
97010998 Air Box / Housing Assembly - 2830
97011000 Air Box / Housing Assembly - 2836
98008174 Air Box Cover - 2830
98008173 Air Box Cover - 2836
97010999 Outlet Assembly
97009972 Lower Micro Switch Assembly
99080590 Gear Motor
97011500 Gear Motor Bracket Assembly
97011443 Gear Motor Cover
99150415 Screw used to attach Gear Motor Cover to
Air Box Assembly - #8-18 x 1/4” - 2 Re-
quired
97018840 Crank Assembly - Includes Roller, U-bolt, &
Back-up Plate
99380633 U Bolt - #10-24
99260437 Nut for U Bolt - 2 Required
97010997 Wire Harness / Power Cord
99110880 Installation Template
97011332 Parts Bag
* Cover is decal sticker ONLY, will NOT include up/down
switch. For switch, must order Switch Assy 97011238.
30000, 31000, 32000
(Discontinued 1974)
99010085 Aluminum Grease Filter - 9-1/2” x 11-3/4”
99010101 Non-Duct Filter - 31000 - 9-1/2” x 11-3/4”
*
99140113 Filter Retaining Spring
99110380 Light Lens
99030027 Fan Switch Push Button
99030014 Light Switch Push Button
n.l.a. Motor
n.l.a. Blade
* Optional, not included with Hood
309
(Discontinued 1972)
99010039 Aluminum Grease Filter - 2 Required - 11-
3/4” x 16-1/2”
99030014 Light Switch Push Button
99030072 Toggle Switch
310
(Discontinued 1972)
99010039 Aluminum Grease Filter - 2 Required - 11-
3/4” x 16-1/2”
99030014 Light Switch Push Button
311
(Discontinued 1972)
99010032 Aluminum Grease Filter - 2 Required -
8-3/4” x 15”
99030014 Light Switch
99030033 Fan Switch
97007387 Motor
99020010 Blower Wheel - CW
99020011 Blower Wheel - CCW
320
(Discontinued 2005)
99010103 Aluminum Grease Filter - 9-1/2” x 17-1/4” -
2 Required
99050014 Glass Light Lens - 2 Required
97002310 Switch Tray Assembly - Includes Fan &
Light Switch, Light Sockets, & Light Lenses
97007159 Fan Switch
99030296 Light Dimmer Switch
99360119 Knob for Fan & Light - 2 Required
99270423 Light Socket - 2 Required
97002312 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080066 Motor
99020104 Blower Wheel - CW
99020105 Blower Wheel - CCW
97001878 Scroll - Right
n.l.a. Scroll - Left
99270748 Female Receptacle
97002311 Male Plug Connector
97002313 Lens Panel - Black
97002309 Housing Assembly - Black
99440033 Power Supply Cord
97002303 Housing Hanger Strap
n.l.a. Damper Assembly
99090632 Nameplate
322
(Discontinued 1974)
99010104 Aluminum Grease Filter - 9-1/2” x 19-3/4” -
2 Required
99050014 Light Lens - 2 Required
97011282 Fan Switch - Includes Knob
99030296 Light Switch
see note Knob for Fan Switch *
99360119 Knob for Light Switch
99270423 Light Socket - 2 Required
n.l.a. Motor
99020121 Blower Wheel - CCW
99020122 Blower Wheel - CW
97002320 Scroll - Right
97002321 Scroll - Left
97002303 Housing Hanger Strap
99440033 Power Supply Cord
* Original knob is no longer available. Customer can order
new Fan Switch p/n 97011282 and it will come with new
knob p/n 99360119.
323
(Discontinued 2004)
99010104 Aluminum Grease Filter - 9-1/2” x 19-3/4” -
2 Required
99050014 Light Lens
97005227 Switch Tray Assembly - Includes Fan &
Light Switches, Light Lenses, Sockets,
Switch Tray, & Lens Panel
97011282 Fan Switch - Includes Knob
99030296 Light Switch
99360119 Knob for Light Switch
see note Knob for Fan Switch *
99270423 Light Socket
97010636 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
97018834 Motor
99020121 Blower Wheel - CCW
99020122 Blower Wheel - CW
97002320 Scroll - Right
97002321 Scroll - Left
97005816 Heat Sentry Thermostat
97002314 Light Housing - White
97002318 Lens Panel - Black
97002316 Housing Assembly - Black
99440033 Power Supply Cord
97002303 Housing Hanger Strap
99090632 Nameplate
* Original knob is no longer available. Customer can order
new Fan Switch p/n 97011282 and it will come with new
style knob p/n 99360119.
324
(Discontinued 1995)
99010103 Aluminum Grease Filter - 9-1/2” x 17-1/4” -
2 Required
99050014 Light Lens - 2 Required
97013416 Fan Switch
99030296 Light Switch
99360119 Knob for Fan & Light Switch - 2 Required
99270423 Light Socket
97005816 Heat Sentry Thermostat
97002309 Housing Assembly - Black
97002303 Housing Hanger Strap
99770015 Cord with Male Plug - 27’’ Leads
99770014 Female Receptacle - 6’’ Leads
99090632 Nameplate
325, 325H, RM325H
---- Parts listed below are for OLD style models with metal
Scroll Housing. ----
97018851 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor *
99020145 Blower Wheel
97010648 Rough-In Assembly - Includes Mounting
Plate, Power Cord, & Outlet Box
99440033 Power Cord
98003370 Outlet Box Cover
---- Parts listed below are for NEW style models with plastic
Scroll Housing. ----
97018820 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
99080629 Motor
99020298 Blower Wheel
99111448 Scroll Housing Half - Motor Side
99111447 Scroll Housing Half - Inlet Side
99271379 Motor Capacitor
99770130 Power Cord from Motor
97018883 Rough-In Assembly - Includes Mounting
Plate, Power Cord, & Outlet Box
97018738 Rough-in Plate Only
99440033 Power Cord from Outlet Box
98003370 Outlet Box Cover
99170245 Screw Used to Attach Outlet Box Cover to
Rough-in Plate - #8-18 x 3/8”
V08543 Damper/Duct Connector - 8” Round
97018828 Parts Bag **
* Must order Blower Assembly Adapter Kit p/n 97018851
to convert to NEW style
** Parts Bag includes Rubber Grommets, [4] M4 x
16.8MM Screws, [3] M4 x 0.7 x 16MM Screws, [1] M4 x
0.7 x 12MM Screw, & Scroll Housing Retaining Ring
Index
6
326, 326H, RM326H
---- Parts listed below are for OLD style models with double
shafted motor and two blower wheels. ----
97018834 Blower Assembly *
see note Motor **
99020122 Blower Wheel - CW
99020121 Blower Wheel - CCW
97014247 Motor Mount
98003366 Scroll Brace - 2 Required
99260477 Nut used to Attach Motor to Motor Mount -
1/4”-20 - 4 Required
97002321 Scroll Housing - Left - CW Side
97002320 Scroll Housing - Right - CCW Side
99170245 Screw used to Attach Scroll Housings to
Motor Mount - #8-18 x 3/8” - 12 Required
97012113 Rough-in Plate Assembly - Includes
Rough-in Plate, Outlet Box, & Power Cord
97014160 Rough-in Plate Only
99100387 Polyfoam that is Attached to Rough-in Plate
99380605 Barrel Nut used to Attach Blower Assembly
to Rough-in Plate
98003370 Outlet Box Cover
99170245 Screw used to Attach Outlet Box Cover to
Rough-in Plate - #8-18 x 3/8”
99100382 Strain Relief on Power Cord
99440033 Power Cord
---- Parts listed below are for NEW style models with single
shafted motor and one blower wheel. ----
97018820 Blower Assembly - Includes Motor, Capaci-
tor, Blower Wheel, & Scroll Housings
99080629 Motor
99020298 Blower Wheel
99111448 Scroll Housing - Motor Side
99111447 Scroll Housing - Inlet / Blower Wheel Side
99271379 Capacitor
97018828 Motor Hardware Bag - Includes Motor
Grommet & Screws ***
97018824 Rough-in Plate Assembly - Includes
Rough-in Plate, Outlet Box, & Power Cord
97018167 Rough-in Plate Only
97018827 Adapter Mounting Plate Assembly
98003370 Outlet Box Cover
99170245 Screw used to Attach Outlet Box Cover to
Rough-in Plate - #8-18 x 3/8”
99400060 Strain Relief on Power Cord
99440033 Power Cord
99580015 In-line Backdraft Damper - 10” Round
* Blower Assembly will convert OLD style to NEW style -
Single shafted Motor with 1 Blower Wheel.
** Must order complete Blower Assembly p/n 97018834
*** Screws included are [4] M4 x 16.8MM, [3] M4 x 0.7 x
16MM, & [1] M4 x 0.7 x 12MM
328
(Discontinued 1995)
99010103 Aluminum Grease Filter - 9-1/2” x 17-1/4” -
2 Required
99050014 Light Lens - 2 Required
97005283 Switch Tray Assembly - Includes Fan &
Light Switches, Light Lenses, Sockets,
Switch Tray, & Lens Panel
99030296 Light Switch
97013416 Fan Switch
99360119 Knob for Fan & Light Switch - 2 Required
99270423 Light Socket - 2 Required
97005816 Heat Sentry Thermostat
97002309 Housing Assembly - Black
97002303 Housing Hanger Strap
99770015 Cord with Male Plug - 27’’ Leads
99770014 Female Receptacle - 6’’ Leads
99090632 Nameplate
329, 329H
(Discontinued 2010)
99010103 Aluminum Grease Filter - 9-1/2” x 17-1/4” -
2 Required
99050014 Light Lens - 2 Required
97005283 Switch Tray Assembly - Includes Fan &
Light Switches, Light Lenses, Sockets,
Switch Tray, & Lens Panel
99030296 Light Switch
97013416 Fan Switch
99360119 Knob for Fan & Light Switch - 2 Required
99270423 Light Socket - 2 Required
97005816 Heat Sentry Thermostat
97002309 Housing Assembly - Black
97002303 Housing Hanger Strap
99770015 Cord with Male Plug - 27’’ Leads
99770014 Female Receptacle - 6’’ Leads
99090632 Nameplate
331, 331H
99080397 Motor with Capacitor
99020264 Blower Wheel
99271110 Capacitor
99100484 Rubber Motor Isolator - 3 Required
98008509 Wiring Box Cover
99140145 Damper Spring
98008507 Damper
98008511 Outlet Screen / Bird Screen
332, 332H
99080396 Motor with Capacitor
99020263 Blower Wheel
99271110 Capacitor
99100484 Rubber Motor Isolator - 3 Required
98008509 Wiring Box Cover
99140145 Damper Spring
98008507 Damper
98008511 Outlet Screen/Bird Screen
332KR
S332KR Rough-In Plate Assembly - Includes Plate,
Duct Collar, Outlet Box, & Power Cords
97014478 Rough-In Plate Only - Includes 10” Duct
Collar
98003370 Outlet Box Cover
99440033 Power Cord - 3 Prong
99440114 Power Cord - 2 Prong
334
(Discontinued 1995)
99530123 Motor
99530140 Motor Cooling Blade
n.l.a. Blade
99530127 Dome
335
99080478 Motor - Includes Blower Wheel
see note Blower Wheel *
99271222 Wire Assembly
97015531 Motor Capacitor
99100530 Terminal Rubber Boot
99710036 Spacer Ring
98009430 Motor Support
98009429 Top Cover
99100532 Foam Seal
97016229 Bird Screen / Grille
98009497 Damper Flap - 2 Required
99140145 Damper Spring - 2 Required
* Wheel is not available as a separate part. Must order Mo-
tor & Wheel Assembly p/n 99080478.
336
97017160 Motor - Includes Blower Wheel
see note Blower Wheel *
99271221 Wire Assembly
99271203 Motor Capacitor
99100530 Terminal Rubber Boot
99710037 Spacer Ring
98009539 Motor Support
98009538 Top Cover
99100531 Foam Seal
98009537 Bird Screen / Grille
98009541 Damper Flap - 2 Required
99140145 Damper Spring - 2 Required
* Wheel is not available as a separate part. Must order Mo-
tor & Wheel Assembly p/n 97017160.
338
(Discontinued 1995)
n.l.a. Motor Cooling Blade
n.l.a. Blade
34000
(Discontinued 1979)
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
99140135 Filter Clip
99110437 Light Lens - 3-1/2” x 4-3/8”
99030134 Light Switch
99030135 Fan Switch
97012248 Fan Assembly - Includes Motor, Fan Blade,
& Motor Mounting Bracket
see note Motor *
06118-00 Fan Blade
98005568 Motor Mounting Bracket
* Must order Fan Assembly p/n 97012248.
35000
(Discontinued 1979)
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
97007696 Non-Duct Filter - 8-3/4” x 10-1/2” *
99140135 Filter Clip
99110437 Light Lens - 3-1/2” x 4-3/8”
99030134 Light Switch
99030135 Fan Switch
97011220 Fan Assembly - Incluses Motor, Fan Blade,
& Motor Mounting Bracket
see note Motor **
06112-00 Fan Blade
98005568 Motor Mounting Bracket
* Optional, not included with Hood
** Must order Fan Assembly p/n 97011220.
Index
7
36000
(Discontinued 1979)
99010122 Aluminum Grease Filter - 10-1/2” Round
99140135 Filter Clip
99110437 Light Lens - 3-1/2” x 4-3/8”
99030134 Light Switch
99030135 Fan Switch
97011222 Fan Assembly - Includes Motor, Fan Blade,
& Motor Mounting Bracket
see note Motor *
06118-00 Fan Blade
98006765 Motor Mounting Bracket
* Must order Fan Assembly p/n 97011222.
38000
(Discontinued 1976)
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
97007696 Non-Duct Filter - 8-3/4” x 10-1/2” *
99140135 Filter Clip
99110437 Light Lens - 3-1/2” x 4-3/8”
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob
n.l.a. Motor
06118-00 Blade
98005568 Motor Bracket
* Optional., not included with Hood
39000
(Discontinued 1976)
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
97007696 Non-Duct Filter - 8-3/4” x 10-1/2” *
99140135 Filter Clip
99110437 Light Lens - 3-1/2” x 4-3/8”
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob
n.l.a. Motor
06112-00 Blade
98005568 Motor Bracket
* Optional, not included with Hood
4000, 4800
(Discontinued 1968)
99010033 Aluminum Grease Filter - 8” x 9-1/2”
99010036 Non-Duct Filter - 10-3/4” x 20” *
99030014 Switch Assembly
n.l.a. Motor
n.l.a. Blade
* Optional, not included with Hood
40000
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
99140135 Filter Clip - 40000
99420472 Plastic Filter Retainer - 40000-B thru H
99110437 Light Lens - 3-1/2” x 4-3/8”
99030135 Fan Switch - Black - 40000, 40000-B
99030134 Light Switch - Black - 40000, 40000-B
97016970 Fan & Light Switch Set - Black - 40000-C
thru H
97016971 Fan & Light Switch Set - White - 40000-C
thru H
97010966 Light Socket
97012248 Fan Assembly - 40000-B thru H - Includes
Motor, Fan Blade, & Bracket
99080218 Motor - All Models Except 40000-H
06118-00 Fan Blade - All Models Except 40000-H
99020272 Fan Blade - 40000-H
99420040 Hairpin Clip
98005568 Motor Mounting Bracket
99090881 Nameplate - White
97010709 Nameplate - Black - 40000-D thru H
98006621 Outlet Box Cover - 40000-B thru H
97005544 Damper / Duct Connector - 3-1/4” x 10”
97005543 Parts Bag
41000
(Model 412423 Discontinued 2012)
97007696 Non-Duct Filter - 8-3/4” x 10-1/2”
99140135 Filter Spring - 41000
99420472 Plastic Filter Retainer - 41000-B thru L
99110437 Light Lens - 3-1/2” x 4-3/8”
99030135 Fan Switch - Black - 41000, 41000-B
99030134 Light Switch - Black - 41000, 41000-B
97016970 Fan & Light Switch Set - Black - 41000-C
thru L
97016971 Fan & Light Switch Set - White - 41000-C
thru L
97010966 Light Socket
97011220 Fan Assembly - 41000, 41000-B thru L - In-
cludes Motor, Fan Blade, & Bracket
99080103 Motor - 41000, 41000-B,C
99080200 Motor - 41000-D thru J
99080365 Motor - 41000-K,L
06112-00 Fan Blade - 41000, 41000-B,C
99020176 Fan Blade - 41000-D thru J
99020287 Fan Blade - 41000-K,L
99420040 Hairpin Clip - 41000, 41000-B,C
98005568 Motor Mounting Bracket
99090881 Nameplate - White
97010709 Nameplate - Black - 41000-D thru L
98006621 Outlet Box Cover - 41000-B thru L
97005556 Parts Bag
42000
--NOTE-- Revision A thru J units were manufactured from
1978 to 1991
99010122 Aluminum Grease Filter - 42000-A thru J -
10-1/2” Diameter
97006931 Aluminum Grease Filter - 42000-K,L -
8-3/4” x 10-1/2”
99420420 Metal Filter Retainer Clip - 42000, 42000-B
thru G
99420472 Plastic Filter Retainer Clip - 42000-H,J,K,L
99110437 Light Lens - 3-1/2” x 4-3/8”
99030135 Fan Switch - Black - 42000-A
99030134 Light Switch - Black - 42000-A
97016970 Fan & Light Switch Set - Black - 42000-B
thru L
97016971 Fan & Light Switch Set - White - 42000-B
thru L
97010966 Light Socket
97011222 Fan Assembly - 42000-A thru J - Includes
Motor, Fan Blade, & Bracket
97012248 Fan Assembly - 42000-K,L - Includes Mo-
tor, Fan Blade, & Bracket
see note Motor *
06118-00 Fan Blade - 42000-A thru I
99020272 Fan Blade - 42000-J,K,L
98006765 Motor Mounting Bracket - 42000-A thru J
98005568 Motor Mounting Bracket - 42000-K,L
99090881 Nameplate White
97010709 Nameplate Black - 42000-D thru J
98006621 Outlet Box Cover
97010792 7” Round Inline Damper **
97018803 7” Round Inline Damper with Sound
Dampening Foam **
97005556 Parts Bag - Contains 4 Wood Screws - #10-
16 x 7/8”
* Must purchase Fan Assembly p/n 97011222 for Rev A
thru J or p/n 97012248 for Rev K & L
** Optional, not included with Hood
43000, SL6200R
R610045 Aluminum Grease Filter with Light Lens -
11-1/2” x 11-3/4” *
R610050 Aluminum Grease Filter with Light Lens &
Non-Duct Filter Pad with Clips for Pad **
R610051 Non-Duct Filter Pads - Contains 3 Pads **
97016970 Fan & Light Switch Kit - Black - 43000,
43000-A,B, SL6200R
97016971 Fan & Light Switch Kit - White - 43000,
43000-A,B, SL6200R
97016972 Fan & Light Switch Kit - Almond - 43000,
43000-A,B, SL6200R
97016973 Fan & Light Switch Kit - Biscuit - 43000,
43000-A,B, SL6200R
R566088 Light Socket
R730090 Motor & Fan Blade
R651967 Motor Bracket
R668824 Galvanized Baffle - 43000-A Only
99091020 Louver Vent Cover - White - 43000B,
SL6200R
99091021 Louver Vent Cover - Almond - 43000B,
SL6200R
99091022 Louver Vent Cover - Black - 43000B,
SL6200R
99091027 Louver Vent Cover - Biscuit - 43000B,
SL6200
R627491 Nameplate - White - 43000
R627492 Nameplate - Almond - 43000
R627493 Nameplate - Black - 43000
R627583 Nameplate - Biscuit - 43000
R627570 Nameplate - Black - SL6200R
R627569 Nameplate - White - SL6200R
R627606 Nameplate - Biscuit - SL6200R
R6689601 Wiring Cover - White 43000-B SL6200R
R6689602 Wiring Cover - Almond - 43000-B,
SL6200R
R6689603 Wiring Cover - Grey - 43000-B
R6689604 Wiring Cover - Black - 43000-B, SL6200R
R6689605 Wiring Cover - Biscuit - 43000-B, SL6200R
R668771-1 Outlet Box Cover - White - 43000-A
R668771-2 Outlet Box Cover - Almond - 43000-A
R668771-3 Outlet Box Cover - Grey - 43000-A
R668771-4 Outlet Box Cover - Black - 43000-A
97010792 7” Round Inline Damper **
97018803 7” Round Inline Damper with Sound
Dampening Foam **
R740016 Damper / Duct Connector - 3-1/4” x 10”
97005543 Parts Bag
* Grease Filter for ducted Hoods only. Can NOT be used
with Non-Duct Pad, does not contain Pad Clips.
** Optional, not included with Hood
Index
8
44000, 45000
(Discontinued 1980)
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
97007696 Non-Duct Filter - 8-3/4” x 10-1/2” *
99140135 Filter Clip
99110437 Light Lens - 3-1/2” x 4-3/8”
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob - 2 Required
97010966 Light Socket
n.l.a. Motor
06118-00 Fan Blade - 44000
06112-00 Fan Blade - 45000
98005568 Motor Mounting Bracket
* Optional, not included with Hood
46000
--NOTE-- Rev K began in 1996
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
97007696 Non-Duct Filter - 8-3/4” x 10-1/2” *
99420472 Filter Retaining Clip
99110437 Light Lens - 3-1/2” x 4-3/8”
97007159 Fan Switch - 46000-A thru J
99030285 Fan Switch - 46000-K,L
97005328 Light Switch - 46000-A thru K
97016438 Light Switch - 46000-L
97014244 Silver/Black Knob Kit - 46000, 46000-A,B,C
- Kit Contains 2 Knobs
99360232 Knob - Black - 2 Required **
S600349 Knob - White - 2 Required **
99360234 Knob - Almond - 2 Required **
99360248 Knob - Biscuit - 2 Required **
97007501 Diode for Light Dimming
97010966 Light Socket
97011224 Fan Assembly - Includes Motor, Fan Blade,
& Bracket
see note Motor ***
06118-00 Fan Blade - 46000-A thru J
99020272 Fan Blade - 46000-H,K,L
99420040 Hairpin Clip
98005568 Motor Mounting Bracket
97005678 Motor Receptacle
97013649 Wire Harness
99090457 Louver Vent Cover - Black
99090983 Louver Vent Cover - White
99090985 Louver Vent Cover - Almond
99091029 Louver Vent Cover - Biscuit
97015718 Nameplate - Black - 46000-L - Includes
Louver Cover
97007599 Nameplate - Black - 46000-A thru K - In-
cludes Louver Cover
97013938 Nameplate - White - 46000-K - Includes
Louver Cover
97015719 Nameplate - White - 46000-L - Includes
Louver Cover
97013939 Nameplate - Almond - 46000-K - Includes
Louver Cover
97015720 Nameplate - Almond - 46000-L - Includes
Louver Cover
97015485 Nameplate - Biscuit - 46000-K - Includes
Louver Cover
97015721 Nameplate - Biscuit - 46000-L - Includes
Louver Cover
97006184 Outlet Box Cover
R680508 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97005544 Damper / Duct Connector - 3-1/4” x 10”
* Optional, not included with Hood
** Knob design changed in 1999. If hood is older, must
purchase 2 Knobs to have matching set.
*** Must purchase Fan Assembly p/n 97011224
47000
(Discontinued 1997)
97009561 Non-Duct Filter - 8” x 9-1/2”
06292-00 Filter Retaining Clip
06276-00 Light Lens
97016970 Fan & Light Switch Kit - Black
97009555 Fan Assembly - Includes Motor, Fan Blade,
& Bracket
see note Motor *
06112-00 Fan Blade
25161-00 Motor Mounting Bracket
99090744 Nameplate
06233-11 Nose Trim Strip for 30” Width
06233-12 Nose Trim Strip for 36” Width
06233-13 Nose Trim Strip for 42” Width
25005-00 Knockout Plate
* Must purchase Fan Assembly p/n 97009555.
48000
(Discontinued 1997)
--NOTE-- A Model 48000 was built by Broan Canada. Parts
are not interchangeable. Please contact BNC for parts.
97009562 Aluminum Grease Filter - 8” x 9-1/2”
06276-00 Light Lens
97016970 Fan & Light Switch Kit - Black
n.l.a. Motor
06118-00 Fan Blade
20076-01 Motor Mounting Bracket
99090744 Nameplate
06233-11 Nose Trim Strip for 30” Width
06233-12 Nose Trim Strip for 36” Width
06233-13 Nose Trim Strip for 42” Width
06292-00 Filter Retaining Clip
25005-00 Knockout Plate
97010792 Damper / Duct Connector
5000, 6000
(Discontinued 1969)
99010033 Aluminum Grease Filter - 8” x 9-1/2” - 2
Required
99010036 Non-Duct Filter - 10-3/4” x 20” *
n.l.a. Light Lens - Glass - 4” x 6-15/16”
99030010 Switch Assembly - 5 Push Button
99080009 Motor
99020003 Blower Wheel - CW
99020004 Blower Wheel - CCW
* Optional, not included with Hood
52000
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
99420472 Filter Retainer
99110437 Light Lens - 3-1/2” x 4-3/8”
97016970 Motor & Light Switch Kit - Black
97016971 Motor & Light Switch Kit - White
97014665 Fan Assembly - Includes Motor, Fan Blade,
& Bracket
see note Motor *
99020272 Fan Blade
97014729 5” Inline Damper Assembly with Flaps - Not
Included with Hood
* Must purchase Fan Assembly p/n 97014665.
53000
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
99420472 Filter Retainer
99110437 Light Lens - 3-1/2” x 4-3/8”
97014665 Fan Assembly - Includes Motor, Fan Blade,
& Bracket
see note Motor *
99020248 Fan Blade
97014729 5” Inline Damper Assembly with Flaps - Not
Included with Hood
* Must purchase Fan Assembly p/n 97014665.
57000
(Discontinued 1994)
97009562 Aluminum Grease Filter - 8” x 9-1/2”
n.l.a. Filter Retainer - 2 Required
06276-00 Light lens
02192-00 Fan Switch
n.l.a. Light Switch
99360232 Knob - 2 Required *
02153-01 Light Socket
97011644 Fan Assembly - Includes Motor, Fan Blade,
& Bracket
06233-07 Black Glass Decal for 30” Width
06233-08 Black Glass Decal for 36” Width
99090925 Nameplate - Black
* Knob design has changed. Customer must purchase 2
Knobs for matching set.
60000
(Discontinued 2002)
99010248 Aluminum Grease Filter - 9-1/8” x 13-7/8” -
See Chart Below for QTY Required
99010249 Aluminum Grease Filter - 12-1/8” x 13-7/8”
- See Chart Below for QTY Required
99010250 Aluminum Grease Filter - 15-1/8” x 13-7/8”
- See Chart Below for QTY Required
99010251 Aluminum Grease Filter - 18-1/8” x 13-7/8”
- See Chart Below for QTY Required
see note Bulb - Fluorescent, 15”, F14T12 or F14T8 -
2 Required * **
SV02544 Halogen Light Bulb - Halogen, PAR20, 39
Watt - 3 Required **
see note Heat Lamp Bulb - Infared, BR40, 250 Watt
- 2 Required *
99030229 Fan On/Off Switch - Red, Lighted
V03501 Fan Speed Switch - Rotary
n.l.a. Light Switch - Double Rocker, Black
99030310 Heat Lamp Switch - Black
99360118 Knob for Fan Speed Switch
99270550 Fluorescent Lamp Socket **
99270553 Starter - FS-2 **
99270954 Fluorescent Starter Socket **
99270977 Ballast for Fluorescent Bulb **
97014167 Lamp Socket for Halogen & Infrared Bulbs
**
99030138 Heat Sentry Thermostat
* Not available, Customer must find Bulb locally.
** Units built prior to May 1997 used Fluorescent Bulbs -
Units built after May 1997 use Halogen Bulbs
Index
9
60000 Filter Chart
Hood Filter Part Number & Quantity Required
Width 99010248 99010249 99010250 99010251
30” 3 - - -
33” 2 1 - -
36” 1 2 - -
39” - 3 - -
42” - 2 1 -
45” - 1 2 -
48” - - 3 -
51” - 4 - -
54” - 3 1 -
57” - 2 2 -
60” - 1 3 -
63” - - 4 -
66” - - 3 1
69” - - 2 2
72” - - 1 3
61000, 613004, 619004
B08087485 Aluminum Grease Filter - 10-1/8” x 15-1/4”
- 61000-A - See below for Qty Required *
B08087163 Aluminum Grease Filter - 9-1/4” x 12-3/4” -
61000-B,C,D - See below for Qty Required
*
B02000191 Filter Spring - 61000-A Only
B03292425 Grey Round Finger Tab, Front - used on
B08087485 Filter
B03292426 Grey Round Finger Tab, Back - used on
B08087485 Filter
B03300498 Non-Duct Filter Kit - Includes 2 Round Fil-
ters **
B03290377 Ductfree Filter Brackets **
B02300719 Light Socket Assembly - 61000-A - In-
cludes Socket, Light Housing, & Hinged
Rectangle Lens
B02300791 Light Socket Assembly - 61000-B,C,D -
Includes Socket, Light Housing & Round
Lens
B02300891 Bulb - Halogen, Type JC, G4 Base, 12 Volt,
20 Watt - 2 Required
B06106286 Switch Assembly - 61000-A - Includes
Switch Box, Switch Circuit Board, Wire
Harness, & Buttons
B06107652 Switch Assembly - 61000-B,C,D - Includes
Switch Box, Switch Circuit Board, Wire Har-
ness, & Buttons
B08086266 Switch Circuit Board Only - 61000-B
B03292294 Switch Button Only - 3 Required
B06001768 Blower Assembly - 61000-A - Includes Mo-
tor, Blower Wheel, & Scroll Housing
B06002012 Blower Assembly - 61000-B,C,D - Includes
Motor, Blower Wheel, & Scroll Housing
B02310094 Motor - 61000-A
B02310201 Motor - 61000-B,C,D
B03295076 Blower Wheel - 61000-A
B03295071 Blower Wheel - 61000-B,C,D
B02300730 Capacitor - 61000-A
B02300233 Capacitor - 61000-B,C,D
B08086101 Control Board - 61000-A
B08086668 Control Board - 61000-B,C,D
B02300717 Transformer - 61000-A
B02300783 Transformer - 61000-B,C
B02300861 Transformer - 61000-D
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300787 Heat Sentry - 61000-B,C,D
BE3342284 Upper Flue - 61000-A,B
BE3347088 Upper Flue - 61000-C,D
B03292293 Upper Flue Mounting Bracket
BE3342283 Lower Flue - 61000-A,B
BE3347086 Lower Flue - 61000-C,D
B08089123 Non-Ducted Plenum *
99091031 Logo Sticker - will read “Broan Elite”
B02000756 Damper Flap Assembly - Includes Both
Damper Flaps, Rod and Spring - For Units
Built Before 09/07
B03292283 Plastic Duct Connector Only - For Units
Built Before 09/07
B08092518 Metal Duct Connector & Damper Flaps - For
Units Built After 09/07
B08081189 Parts Bag - Includes Mounting Screws &
Hood Mounting Bracket
* 2 Required for 30” wide Hoods & 3 Required 90cm wide
Hoods
** Optional, not included with Hood
614804
B08087163 Aluminum Grease Filter - Flip Latch -
9-3/4” x 12-3/4” - 4 Required
B02300789 Light Socket Assembly - Includes Socket,
Housing, & Round Lens
B02300891 Bulb - Halogen, Type JC, T4 Base, 12 Volt,
20 Watt - 4 Required
B06108054 Switch Assembly - Includes Switch Box,
Switch Board, Wire Harness, & Buttons
B08086266 Switch Circuit Board Only
B03292294 Switch Button Only - 3 Required
B06001997 Blower Assembly - Includes Motors, Blow-
er Wheels, & Scroll Housing
B02310183 Motor - 2 Required
B03295071 Blower Wheel - 2 Required
B02300233 Capacitor - 2 Required
B08086668 Control Board
B02300792 Transformer
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300787 Heat Sentry
BE3341311 Upper Flue
BE3341301 Lower Flue
BE3300517 Upper Flue Mounting Bracket
99091031 Logo Sticker - will read “Broan Elite”
B08085018 Plastic Damper Duct Connector - For Units
Built Before 09/07
B08092501 Metal Damper Duct Connector - For Units
Built After 09/07
B080810578 Parts Bag - Includes Mounting Screws &
Hood Mounting Bracket
614804EX
B08087163 Aluminum Grease Filter - Flip Latch - 9-1/4”
x 12-3/4” - 4 Required
B02300789 Light Socket Assembly - Includes Socket,
Housing, & Round Lens
B02300891 Bulb - Halogen, Type JC, G4 of T4 Base, 12
Volt, 20 Watt - 4 Required
B06108080 Switch Assembly - Includes Switch Box,
Switch Board, Wire Harness, & Buttons
B08080135 Switch Circuit Board Only
B03292294 Switch Button Only - 3 Required
B08086668 Small Control Board with Blue Square Re-
lay
B08086141 Large Control Board with Motor Triac At-
tached
B02300729 Transformer
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300787 Heat Sentry
BE3341311 Upper Flue
BE3341301 Lower Flue
BE3300517 Upper Flue Mounting Bracket
99091031 Logo Sticker - will read “Broan Elite”
B08085018 Plastic Damper Duct Connector - For Units
Built Before 09/07
B08092501 Metal Damper Duct Connector - For Units
Built After 09/07
B080810578 Parts Bag - Includes Mounting Screws &
Hood Mounting Bracket
619004EX
B08087163 Aluminum Grease Filter - Flip Latch - 9-14/”
x 12-3/4” - 3 Required
B02300789 Light Socket Assembly - Includes Socket,
Housing, & Round Lens
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base, 12
Volt, 20 Watt - 2 Required
B06108080 Switch Assembly - Includes Switch Box,
Switch Board, Wire Harness, & Buttons
B08080135 Switch Circuit Board Only
B03292294 Switch Button Only - 3 Required
B08086668 Small Control Board with Blue Square Re-
lay
B08086141 Large Control Board with Motor Triac At-
tached
B02300783 Transformer - 619004EX-A,B
B02300861 Transformer - 619004EX-C
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300787 Heat Sentry
BE3341311 Upper Flue
BE3341301 Lower Flue
BE3300517 Upper Flue Mounting Bracket
99091031 Logo Sticker - will read “Broan Elite”
B08085018 Plastic Damper Duct Connector - For Units
Built Before 09/07
B08092501 Metal Damper Duct Connector - For Units
Built After 09/07
SB080810578 Parts Bag - Includes Mounting Screws &
Hood Mounting Bracket
62000, 629004, NP629004
(Discontinued 2008)
BE3401653 Aluminum Grease Filter
B02002340 Filter Spring
B02300774 Bulb - Halogen, MR16, 12 Volt, 20 Watt -2
Required
B08088323 Switch Assembly - Includes Switch Box,
Switch Board, & Buttons
B02300203 Switch Wire Harness Cable - 62000-A
B02300206 Switch Wire Harness Cable - 62000-B
B02300727 Light Socket - 2 Required
B03292296 Lamp Shroud / Socket Bracket - 2 Required
B06001769 Blower Assembly - 62000-A - Includes Mo-
tor, Blower Wheel, & Scroll Housing
B06002019 Blower Assembly - 62000-B - Includes Mo-
tor, Blower Wheel, & Scroll Housing
B082300521 Motor - 62000-A
B02310184 Motor - 62000-B
B03295071 Blower Wheel - 62000-A
B03295076 Blower Wheel - 62000-B
B06106272 Capacitor - 62000-A
B02300233 Capacitor - 62000-B
n.l.a. Control Board - 62000-A
B08086697 Control Board - 62000-B
Index
10
02300654 Resistor - 62000-A
B02300717 Transformer - 62000-A
B02300783 Transformer - 62000-B
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300787 Heat Sentry - 62000-B
B008087279 Hand Blown Glass Shroud
B03204094 Glass Gasket - 2 Required
BE3400561 Upper Flue
B003181863 Lower Flue
B03202430 Flue Gasket
BE3334555 Upper Flue Mounting Bracket
99091031 Logo Sticker - will read “Broan Elite”
B080810111 Plastic Damper Duct Connector - For Units
Built Before 09/07
B08092518 Metal Damper Duct Connector - For Units
Built After 09/07
B080810285 Parts Bag - Includes Mounting Screws &
Hood Mounting Bracket
63000, 637004
B08087485 Aluminum Grease Filter - 637004-A -
Round Fingerwell - 10-1/8” x 15-1/4” - 3
Required
B08087599 Aluminum Grease Filter - 637004-B - Slide
Latch - 9-3/16” x 15-5/16” - 3 Required
B08087141 Aluminum Grease Filter - 637004-C - Flip
Latch - 9-3/16” x 15-5/16” - 3 Required
B03292425 Front Round Grey Finger Tab for Filter -
637004-A
B03292426 Back Round Grey Finger Tab for Filter -
637004-A
B02000191 Filter Spring - 637004-A
B02300719 Light Socket Assembly - 637004-A - In-
cludes Light Socket, Housing, & Hinged
Rectangular Lens
B02300789 Light Socket Assembly - 637004-B,C - In-
cludes Light Socket, Housing, & Round
Lens
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base, 12
Volt, 20 Watt - 4 Required
B06106297 Switch Assembly - 637004-A - Includes
Switch Box, Switch Board, Wire Harness,
& Buttons
B06107638 Switch Assembly - 637004-B,C - Includes
Switch Box, Switch Board, Wire Harness, &
Buttons
B08086266 Switch Circuit Board Only - 637004-B,C
B03292294 Switch Button Only - 3 Required
B06001772 Blower Assembly - 637004-A - Includes
Motor, Blower Wheel, & Scroll Housing
B06002007 Blower Assembly - 637004-B - Includes
Motor, Blower Wheel, & Scroll Housing
B06002008 Blower Assembly - 637004-C - Includes
Motor, Blower Wheel, & Scroll Housing
B02310094 Motor - 637004-A
B02310201 Motor - 637004-B,C
B03295076 Blower Wheel - 637004-A
B03295071 Blower Wheel - 637004-B,C
B02300730 Capacitor - 637004-A
B02300233 Capacitor - 637004-B,C
B06106298 Control Board Assembly - 637004-A - In-
cludes Box, Circuit Board, & Terminal Block
B08086101 Control Board Only - 637004-A
B08086668 Control Board - 637004-B,C
B02300729 Transformer - 637004-A
B02300792 Transformer - 637004-B,C
B02300782 Fuse - 4 Amp, 5mm x 20mm - 637004-B,C
B02300787 Heat Sentry - 637004-B,C
BE3403623 Upper Flue
BE3403622 Lower Flue
B03120186 Upper Skeleton
B03120185 Lower Skeleton
99091031 Logo Sticker - will read “Broan Elite”
B080810199 Metal Damper Duct Connector - 637004-A
B08085018 Plastic Damper Duct Connector - 637004-
B,C - For Units Built Before 09/07
B08092501 Metal Damper Duct Connector - 637004-C
- For Units Built After 09/07
B080810004 Parts Bag - Includes Mounting Screws
63000EX, 637004EX
B08087163 Aluminum Grease Filter - Flip Latch -
9-3/16” x 15-5/16” - 3 Required
B02300789 Light Socket Assembly - Includes Socket,
Lamp Housing, & Round Lens
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base, 12
Volt, 20 Watt - 4 Required
n.l.a. Complete Switch Assembly - 637004EX-A
- Includes Switch Box, Switch Board, Wire
Harness, & Buttons
B06108077 Complete Switch Assembly - 637004EX-
B,C - Includes Switch Box, Switch Board,
Wire Harness & Buttons
B08080135 Switch Circuit Board Only - 637004EX-B,C
B03292294 Switch Button Only - 3 Required
B08086668 Small Control Board for Heat Sentry -
637004EX-B,C
B08086141 Large Control Board with Motor Triac At-
tached
B02300729 Transformer
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300787 Heat Sentry - 637004EX-B,C
BE3403623 Upper Flue
BE3403622 Lower Flue
B03120186 Upper Skeleton
B03120185 Lower Skeleton
99091031 Logo Sticker - will read “Broan Elite”
B08085018 Plastic Damper Duct Connector - For Units
Built Before 09/07
B08092501 Metal Damper Duct Connector - For Units
Built After 09/07
080810024 Parts Bag for Electrical Junction Box
B080810004 Parts Bag - Includes Moutning Screws
64000
(Discontinued)
V03509 Aluminum Grease Filter - 8-15/16” x
9-11/16” - See Chart Below for QTY Re-
quired
V03510 Aluminum Grease Filter - 9-11/16” x 11-
15/16” - See Chart Below for QTY Required
V13429 Baffle Filter - 8-15/16” x 9-9/16” - See Chart
Below for QTY Required
V13430 Baffle Filter - 11-15/16” x 9-13/16” - See
Chart Below for QTY Required
V03686 Plastic Filter Spring for Filter
V13216 Grease Rail for 30” Wide Hood
V13217 Grease Rail for 36” Wide Hood
V13218 Grease Rail for 42” Wide Hood
V13219 Grease Rail for 48” Wide Hood
V02544 Bulb - Halogen, PAR20, 39 Watt
V03598 Infrared Warming Bulb - PAR38
V03502 Light Switch for Halogen Bulbs - Double
Rocker - Black
V02563 Warming Lamps Switch - Black *
V03503 Fan On/Off Switch - Red, Lighted *
V03501 Fan Speed Control Switch
V03504 Knob for Speed Control Switch
V03685 Light Socket for Halogen Lights & Warming
Lamps
V03435 Heat Sentry
V03436 Heat Sentry Mounting Bracket
V03505 Terminal Strip
V02773 Male 3-Prong Receptacle
V02772 Female 2-Prong Receptacle
S99091031 Logo Sticker - will read “Broan Elite”
V13278 Parts Bag - Includes Mounting Screws &
Wire Nuts
* Serial Numbers from 0201080800698 to 0201080900116
may have smaller switch. Contact Tech Support to obtain
smaller size switch with serial number.
64000 Aluminum Filter Chart
Hood Filter Part Number & Quantity Required
Width V03509 V03510
30” 2 1
36” - 3
42” 2 2
48” - 4
64000 Bafe Filter Chart
Hood Filter Part Number & Quantity Required
Width V13429 V13430
30” 2 1
36” - 3
42” 2 2
48” - 4
67000
(Discontinued 1997)
97009561 Non-Duct Filter - 8” x 9½”
n.l.a. Filter Retaining Clip
06276-00 Light Lens
n.l.a. Light Lens Panel - White
97009586 Light Lens Panel - Black
97016970 Fan & Light Switch Kit - Kit Includes 2
Switches
n.l.a. Light Socket
02200-51 Motor
06112-00 Fan Blade
n.l.a. Motor Mounting Bracket
06137-01 Front Panel - Black - for 30” Wide Hood
06137-02 Front Panel - Black - for 36” Wide Hood
n.l.a. Front Panel - Black - for 42” Wide Hood
n.l.a. Front Panel - White - for All Widths
n.l.a. Trim Frame - Black - for All Widths
n.l.a. Trim Frame - White - for All Widths
97009587 Wire Harness
n.l.a. Wiring Cover
68000
(Discontinued 1997)
97009562 Aluminum Grease Filter - 8” x 9-1/2”
06292-00 Filter Retaining Clip
06276-00 Light Lens
n.l.a. Light Lens Panel - White
97009586 Light Lens Panel - Black
97016970 Fan & Light Switch Kit
n.l.a. Light Socket
n.l.a. Motor
Index
11
06118-00 Fan Blade
20076-01 Motor Mounting Bracket
06137-01 Front Panel - Black - for 30” Wide Hood
06137-02 Front Panel - Black - for 36” Wide Hood
n.l.a. Front Panel - Black - for 42” Wide Hood
n.l.a. Front Panel - White - for All Widths
n.l.a. Trim Frame - Black - for All Widths
n.l.a. Trim Frame - White - for All Widths
97009587 Wire Harness
n.l.a. Wiring Cover
97010792 Damper Assembly
7000, 8000
(Discontinued)
99010033 Aluminum Grease Filter - 8” x 9-1/2”
99010036 Non-Duct Filter - 10-3/4” x 20” *
n.l.a. Motor
n.l.a. Fan Blade
99030014 Light Switch Push Button
99030027 Fan Switch Push Button
* Optional, not included with Hood
70000
(Discontinued 1979)
99010098 Aluminum Grease Filter - 11-1/2” x 20”
99140113 Filter Retaining Spring
99050013 Glass Light Lens
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob - 2 Required
99080066 Motor
99020104 Blower Wheel - CW
99020105 Blower Wheel - CCW
71000
(Discontinued 1979)
99010098 Aluminum Grease Filter - 11-1/2” x 20”
99010099 Non-Duct Filter - 11-3/4” x 20” *
99140113 Filter Retaining Spring
99050013 Glass Light Lens
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob - 2 Required
n.l.a. Motor
n.l.a. Blower Wheel
* Optional, not included with Hood
72000
(Discontinued 1979)
99010049 Aluminum Grease Filter - 11-3/4” x 12-1/4”
99140113 Filter Retaining Spring
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob - 2 Required
n.l.a. Motor
06118-00 Fan Blade
73000
(Discontinued 1979)
99010049 Aluminum Grease Filter - 11-3/4” x 12-1/4”
99010088 Non-Duct Filter - 11-3/4” x 12-1/4” *
99140113 Filter Retaining Spring
97007159 Fan Switch
97005328 Light Switch
n.l.a. Knob - 2 Required
n.l.a. Motor
06118-00 Fan Blade
* Optional, not included with Hood
74000
(Discontinued 1979)
99010098 Aluminum Grease Filter - 11-1/2” x 20”
99140113 Filter Spring
99050013 Glass Light Lens
99030132 Fan Switch
97005328 Light Switch
n.l.a. Knob - 2 Required
75000
(Discontinued 2000)
97007893 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
97007664 Non-Duct Filter Kit - Includes 2 Filters & 2
Foam Pieces *
99100441 Foam Piece - 2 Required
97013316 Light Lens - 3-5/8” x 7-1/2” - Will have
“Max 75watt Bulb” marked on Lens
97007159 Fan Switch
97005328 Light Switch
99360232 Knob - Black **
600349 Knob - White **
99270530 Light Socket
n.l.a. Blower Assembly - Includes Motor, Blowr
Wheels, & Scroll Housings
n.l.a. Motor
99020149 Blower Wheel - CW
99020150 Blower Wheel - CCW
97009713 Plastic Scroll Housing - CW
97009714 Plastic Scroll Housing - CCW
99100497 Rubber Motor Isolation Mount - 4 Required
99420458 Blower Mounting Rod
97007953 Bottom Cover - White
97007954 Bottom Cover - Coffee
97007957 Bottom Cover - Almond
n.l.a. Bottom Cover - Stainless
97009771 Bottom Cover - Black
99100518 Foam Pad on Bottom Cover Plate
99090613 Black Nameplate for 24” Wide Hood
99090606 Black Nameplate for 30” Wide Hood
99090607 Black Nameplate for 36” & 42” Wide Hood
99090778 White Nameplate for 30” Wide Hood
99090779 White Nameplate for 36” & 42” Wide Hood
99090628 Black Louver Cover
99090781 White Louver Cover
98006574 Outlet Box Cover
97005544 Damper Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes Mounting Screws
* Optional, not included with Hood
** Knob style changed in 1999. If Hood older than this,
must order 2 to have matched set.
76000
(Discontinued 2000)
97007893 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
97008537 Non-Duct Filter Kit - 76000, 76000-B -
5-29/32” x 11-5/8” - Includes 2 Filters *
97007664 Non-Duct Filter Kit - 76000-C Thru G - In-
cludes 2 Filters & 2 Foam Pieces *
99100441 Foam Piece - 2 Required
97013316 Light Lens - 3-5/8” x 7-1/2” - Will have
“Max 75watt Bulb” marked on Lens
97007159 Fan Switch
97005328 Light Switch
99360232 Knob - Black **
600349 Knob - White **
99270530 Light Socket
97009721 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housings
see note Motor - 76000 ***
99080156 Motor - 76000-B Thru G
99020141 Blower Wheel - 76000 - 2 Required
99020149 Blower Wheel - CW - 76000-B Thru G
99020150 Blower Wheel - CCW - 76000-B Thru G
97007333 Plastic Scroll - 76000 - 2 Required
99110519 Plastic Scroll - CW - 76000-B Thru G
99110518 Plastic Scroll - CCW - 76000-B Thru G
99100497 Rubber Motor Isolation Mount-4 Req.
99420458 Blower Mounting Rod
97005604 Bottom Cover - Almond - 76000, 76000-B
97007957 Bottom Cover - Almond - 76000-C Thru G
97007953 Bottom Cover - White - 76000-C Thru G
97007954 Bottom Cover - Coffee - 76000-C Thru G
n.l.a Bottom Cover - Stainless - 76000-C Thru G
97009771 Bottom Cover - Black - 76000-C Thru G
99100518 Foam Pad on Bottom Cover Plate
99090613 Black Nameplate for 24” Wide Hood -
76000-C Thru G
99090606 Black Nameplate for 30” Wide Hood -
76000-C Thru G
99090607 Black Nameplate for 36” & 42” Wide Hood
- 76000-C Thru G
99090778 White Nameplate for 30” Wide Hood -
76000-C Thru G
99090779 White Nameplate for 36” & 42” Wide Hood
- 76000-C Thru G
99090628 Black Louver Cover
99090781 White Louver Cover
98006574 Outlet Box Cover - 76000-C Thru G
97005544 Damper Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes Mounting Screws
* Optional, not included with Hood
** Knob style changed in 1999. If hood older than this,
must order 2 to have matched set.
*** Not available, must order Blower Assembly p/n
97009721
77000
(Discontinued 1992)
97007893 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
97008537 Non-Duct Filter Kit - 77000, 77000-B - In-
cludes 2 Filters *
97007664 Non-Duct Filter Kit - 77000-C Thru G - In-
cludes 2 Filters & 2 Foam Pieces *
99100441 Foam Piece - 2 Required
97013316 Light Lens - 3-5/8” x 7-1/2” - Will have
“Max 75watt Bulb” marked on Lens
97007159 Fan Switch
97005328 Light Switch
99360232 Knob - Black **
99270530 Light Socket
97009721 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housings
see note Motor - 77000 ***
99080156 Motor - 77000-B Thru G
99020141 Blower Wheel - 77000
99020149 Blower Wheel - CW - 77000-B Thru G
99020150 Blower Wheel - CCW - 77000-B Thru G
Index
12
97007333 Plastic Scroll - 77000
99110519 Plastic Scroll - CW - 77000-B Thru G
99110518 Plastic Scroll - CCW - 77000-B Thru G
99100497 Rubber Motor Isolation Mount - 4 Required
99420458 Blower Mounting Rod
97007953 Bottom Cover - White - 77000-C Thru G
97007954 Bottom Cover - Coffee - 77000-C Thru G
97005604 Bottom Cover - Almond - 77000, 77000-B
97007957 Bottom Cover - Almond - 77000-C Thru G
n.l.a. Bottom Cover - Gray
97009771 Bottom Cover - Black - 77000-C Thru G
99100518 Foam Pad on Bottom Cover Plate
99090613 Black Nameplate for 24” Wide Hood -
77000-C Thru G
99090606 Black Nameplate for 30” Wide Hood -
77000-C Thru G
99090607 Black Nameplate for 36” & 42” Wide Hood
99090778 White Nameplate for 30” Wide Hood -
77000-C Thru G
99090779 White Nameplate for 36” & 42” Wide Hood
- 77000-C Thru G
99090628 Black Louver Cover - 77000-C Thru G
99090781 White Louver Cover - 77000-C Thru G
98006574 Outlet Box Cover - 77000-C Thru G
97005544 Damper Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes Mounting Screws
* Optional, not included with Hood
** Knob style changed in 1999. If hood older than this,
must order 2 to have matched set.
*** Must order Blower Assembly p/n 97009721
78000, 79000
(Discontinued 1979)
97007893 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
97008537 Non-Duct Filter Kit - Includes 2 Filters *
97013316 Light Lens ( 3-5/8” X 7-1/2” ) - Will have
“Max 75watt Bulb” marked on Lens
see note Fan Switch **
see note Light Switch ***
99270530 Light Socket
n.l.a. Motor
99020141 Blower Wheel ****
97007333 Scroll Cover
99420458 Blower Mounting Rod
98005214 Outlet Box Cover
* Optional, not included with Hood
** Original white Fan Switch n.l.a. but can use black Fan
Switch p/n 99030135 as substitute.
*** Original white Light Switch n.l.a. but can use black
Light Switch p/n 99030134 as substitute.
**** New Blower Wheel may be slightly smaller than old
wheel but will fit and work properly.
81000
(Discontinued 2000)
97013159 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 6-9/16” x 14-
3/8”
97013160 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 6-9/16” x 17-
3/8”
n.l.a. Ductfree Filter Kit for 30” Wide Hood - In-
cludes 2 Filters - 6-9/16” x 14-3/8” *
97013162 Ductfree Filter Kit for 36” Wide Hood - In-
cludes 2 Filters - 6-9/16” x 17-3/8” *
97013316 Light Lens - 3-5/8” x 7-1/2” - 2 Required
- Will have “Max 75watt Bulb” marked on
Lens
97013302 Touch Pad - Black
97013303 Touch Pad - White
97013304 Touch Pad - Almond
99770060 Light Socket - 2 Required
n.l.a. Blower Assembly
n.l.a. Motor
99020149 Blower Wheel CW
99020150 Blower Wheel CCW
99420458 Blower Rod - 2 Required
99100497 Rubber Motor Mounting Isolators - 4 Re-
quired
97009714 Left Scroll Housing
97009713 Right Scroll Housing
98005572 Motor Mounting Frame Half - CW Side
98008836 Motor Mounting Frame Half - CCW Side
98005573 Frame Cross Brace - 2 Required
n.l.a. Electronic Control Assembly / Control
Board
93150459 Screw used to attach Control Assembly to
Touch Pad - #8-18 - 2 Required
97013985 Glass Visor for 30” Wide Hood
97013986 Glass Visor for 36” Wide Hood
98008747 Bottom Cover - Black - for 30” Wide Hood
n.l.a. Bottom Cover - Stainless Steel - for 30”
Wide Hood
n.l.a. Bottom Cover - White - for 30” Wide Hood
n.l.a. Bottom Cover - Almond - for 30” Wide
Hood
98008752 Bottom Cover - Stainless Steel - for 36”
Wide Hood
n.l.a. Bottom Cover - White - for 36” Wide Hood
n.l.a. Bottom Cover - Almond - for 36” Wide
Hood
n.l.a. Bottom Cover - Black - for 36” Wide Hood
98008815 Ductfree Cover
98008788 Wire Box Cover
97005544 Damper Assembly - Includes Damper Flap
& 2 Damper Bushings
98005221 Damper Flap
99100379 Damper Bushing - 2 Required
* Optional, not included with Hood
82000
(Discontinued 1983)
97007894 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 9-7/8” x 11-5/8”
99050015 Light Lens - 4-1/8” x 10-3/4”
99030141 Fan Switch
97016438 Light Switch
97005811 Light Dimming Diode
99360235 Knob - 2 Required
99270530 Light Socket - 2 Required
97010327 Blower Assembly - Includes Motor, Blower
Wheels, Rubber Mounts, & Scroll Housing
97010736 Motor
99020138 Blower Wheel - CW
99020139 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
97010902 Rubber Motor Mount Kit - Includes 4pcs
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97007901 Heat Sentry
97005666 Bottom Cover - Silver
97006078 Damper Duct Connector - 3-1/4” x 10”
83000
(Discontinued 2000)
97013159 A
luminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 6-9/16” x 14-3/8”
97013160
Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 6-9/16” x 17-3/8
”
n.l.a. Ductfree Filter Kit for 30” Wide Hood - In-
cludes 2 Filters - 6-9/16” x 14-3/8” *
97013162 Ductfree Filter Kit for 36” Wide Hood - In-
cludes 2 Filters - 6-9/16” x 17-3/8” *
97013316 Light Lens - 3-5/8” X 7-1/2” - 2 Required
- Will have “Max 75watt Bulb” marked on
Lens
97013302 Touch Pad, Black
97013303 Touch Pad, White
97013304 Touch Pad, Almond
n.l.a. Electronic Control Assembly
99770060 Light Socket Assembly - Contains 2 Sock-
ets
97013321 Blower Assembly - Includes Motor, Blower
Wheels, Scroll Housing, & Capacitor
97013318 Motor - Includes Capacitor
97013313 Blower Wheel - 2 Required
n.l.a. Blower Mounting Rod - 2 Required
99260472 Wing Nut for Blower Mounting Rod - 2 Re-
quired
97013985 Glass Visor 30”
97013986 Glass Visor 36”
* Optional, not included with Hood
84000, 86000
(Discontinued 1983)
97007894 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 9-7/8” x 11-5/8”
99050015 Light Lens - 4-1/8” x 10-3/4”
99030141 Fan Switch
97016438 Light Switch
97005811 Light Dimming Diode
99360235 Knob *
99270530 Light Socket - 2 Required
97007542 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
97018026 Motor
99020142 Blower Wheel - CW
99020143 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
99100411 Rubber Motor Mount - 2 Required
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97005666 Bottom Cover - Silver
97007901 Heat Sentry
97017429 Damper Duct Connector - 86000
* Knob design changed, must order 2 Knobs to have a
matching set.
88000
(Model 883022 Discontinued 2012)
97007894 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 9-7/8” x 11-5/8”
97007662 Ductfree Filter Kit - Includes 2 Filters - 10” x
11-3/4” *
99110605 Light Lens - 2-1/2” x 16”
97011801 Fan/Light Switch Circuit Board
97014358 Black Knob Replacement Kit - Includes
Light On/Off, Fan On/Off, & Speed Control
Knobs
Index
13
97014357 White Knob Replacement Kit - Includes
Light On/Off, Fan On/Off, & Speed Control
Knobs
97015652 Biscuit Knob Replacement Kit - Includes
Light On/Off, Fan On/Off, & Speed Control
Knobs
99270530 Light Socket - 2 Required
97010327 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
97010736 Motor
99020138 Blower Wheel - CW
99020139 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
99100491 Rubber Motor Mount - 4 Required
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97007901 Heat Sentry
97007657 Black Nameplate for 30” & 33” Wide Hood
97007658 Black Nameplate for 36” & 39” Wide Hood
97007659 Black Nameplate for 42” Wide Hood
97007660 Black Nameplate for 48” Wide Hood
97013356 White Nameplate for 30” Wide Hood
97013360 White Nameplate for 33” Wide Hood
97013357 White Nameplate for 36” & 39” Wide Hood
97013358 White Nameplate for 42” Wide Hood
97013359 White Nameplate for 48” Wide Hood
97007657 Biscuit Nameplate for 30” Wide Hood
97007658 Biscuit Nameplate for 36” Wide Hood
97007659 Biscuit Nameplate for 42” Wide Hood
99110620 Black Louver Cover
99110847 White Louver Cover
99111216 Biscuit Louver Cover
97009517 Bottom Cover - Black
97007895 Bottom Cover - White
97015498 Bottom Cover - Biscuit
97007899 Bottom Cover - Almond
97007631 Bottom Cover - Silver
97007656 Outlet Box Cover
97006078 Damper Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes Mounting Hardware
* Optional, not included with Hood
89000
97007894 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 9-7/8” x 11-5/8”
99110605 Light Lens - 2-1/2” x 16”
97011801 Fan/Light Switch Circuit Board
97014358 Black Knob Replacement Kit - Includes
Light On/Off, Fan On/Off, & Speed Control
Knobs
97014357 White Knob Replacement Kit - Includes
Light On/Off, Fan On/Off, & Speed Control
Knobs
97015652 Biscuit Knob Replacement Kit - Includes
Light On/Off, Fan On/Off, & Speed Control
Knobs
99270530 Light Socket - 2 Required
97007542 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
97018026 Motor
99020142 Blower Wheel - CW
99020143 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
99100439 Rubber Motor Mount - 4 Required
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97007901 Heat Sentry
97007657 Black Nameplate for 30” & 33” Wide Hood
97007658 Black Nameplate for 36” & 39” Wide Hood
97007659 Black Nameplate for 42” Wide Hood
97007660 Black Nameplate for 48” Wide Hood
97013360 White Nameplate for 30” Wide Hood
97013357 White Nameplate for 36” Wide Hood
97013358 White Nameplate for 42” Wide Hood
97007657 Biscuit Nameplate for 30” Wide Hood
97007658 Biscuit Nameplate for 36” Wide Hood
97007659 Biscuit Nameplate for 42” Wide Hood
99110620 Black Louver Cover
99110847 White Louver Cover
99111216 Biscuit Louver Cover
97009517 Bottom Cover - Black
97007895 Bottom Cover - White
97015498 Bottom Cover - Biscuit
97007899 Bottom Cover - Almond
97007631 Bottom Cover - Silver
97007656 Outlet Box Cover
97017429 Damper Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes Mounting Hardware
90000
(Discontinued 2000)
97007894 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 9-7/8” x 11-5/8”
97007662 Ductfree Filter Kit - Includes 2 Filters - 10” x
11-3/4” *
99110605 Light Lens - 2-1/2” x 16”
n.l.a. Touch Pad - Black
97014422 Touch Pad - White
97010892 Control Board Assembly - Includes Black
Touch Pad
97010893 Control Board Assembly - Includes White
Touch Pad
99270754 Light Socket - 2 Required
97010327 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
97010736 Motor
99020138 Blower Wheel - CW
99020139 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
97010902 Rubber Motor Mount Kit - Kit Includes 4pcs
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97010827 Black Nameplate & Touch Pad for 30” Wide
Hood
97010828 Black Nameplate & Touch Pad for 36” Wide
Hood
97010829 Black Nameplate & Touch Pad for 42” Wide
Hood
97010830 White Nameplate & Touch Pad for 30”
Wide Hood
97010831 White Nameplate & Touch Pad for 36”
Wide Hood
97010832 White Nameplate & Touch Pad for 42”
Wide Hood
99110620 Louver Cover - Black
99110847 Louver Cover - White
97007895 Bottom Cover - White
97007899 Bottom Cover - Almond
97007631 Bottom Cover - Silver
97009517 Bottom Cover - Black
97006078 Damper Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes Mounting Hardware
* Optional, not included with Hood
ACS, ACS30
97006931 Aluminum Grease Filter - 8-3/4” x 10-1/2”
97007696 Non-Duct Filter - 8-3/4” x 10-1/2” *
99420472 Filter Retainer
99110437 Light Lens - 3-1/2” x 4-3/8”
97013649 Harness Assembly - Includes Light Socket,
Fan Switch, Light Switch, & Wires
99030285 Fan Speed Switch
97016438 Light Switch
99260491 Lock Nut for Fan Switch - 3/8”-32
99260470 Lock Nut for Light Switch - 15/32”-32
97007501 Diode Assembly - for Low Light Setting
R99360246 Knob - Black - 2 Required
R99360244 Knob - White - 2 Required
R99360247 Knob - Bisque - 2 Required
97010966 Light Socket
97011224 Fan Assembly - Includes Motor, Fan Blade,
& Mounting Bracket
see note Motor **
99020272 Fan Blade
98005568 Motor Mounting Bracket
97011217 Screw & Nuts used to Attach Fan Assembly
to Hood - 2 Required ***
99260428 Nut used to Attach Motor to Motor Mount-
ing Bracket - 2 Required - #6-32
99111570 Nameplate - Black
99111571 Nameplate - White
99111572 Nameplate - Bisque
99111568 Louver Cover - Black
99111569 Louver Cover - White
99111567 Louver Cover - Bisque
97006184 Wiring Box Cover
99170245 Screw used to Attach Wiring Box Cover to
Hood - #8-18 x 3/8”
R680508 7” Round Duct Plate
97010792 7” Round In-line Damper *
97018803 7” Round In-line Damper with Sound
Dampening Foam *
97005544 Damper / Duct Connector Assembly -
3-1/4” x 10” - Includes Damper Flap &
Bushings
99150415 Screw used to Attach Duct Connector to
Hood - #8B-1/4” - 2 Required
98005221 Damper Flap Only
99100379 Damper Bushing
* Optional, not included with Hood
** Must purchase Fan Assembly p/n 97011224
*** Includes #10-16 x 1/2” Screw & #10-16 Nut
AEEPD2445SS, AEEPD2445SSE
97019391 Parts Bag
AEE60362SS
99150617 Screws - 8-18 x 3/8” - 9 Required
AP1, AP100
97017456 Aluminum Grease Filter Kit - Antimicrobial
Protected - Includes 2 Filters - 9-7/8” X 11-
11/16” *
97007662 Non-Duct Filter Kit - Includes 2 Filters - 10”
x 11-3/4” - **
V05921 Light Bulb - Halogen, Type MR16, GU10
Base, 120 Volt, 50 Watt - 2 Required
97016438 Light Switch
97016970 Fan Switch - On/Off - Rocker
99030132 Fan Speed Control Switch - Rotary
Index
14
600348 Knob - Black
600349 Knob - White
99271346 Light Socket - Includes Trim - 2 Required
98006546 Wiring Cover for Sockets
97007542 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080597 Motor
99020142 Blower Wheel - CW
99020143 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
98010342 Motor Ring Inlet
99100491 Rubber Motor Mount - 4 Required
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97017428 Heat Sentry Thermostat
97017324 Feature Panel Weldment / Front Light &
Switch Panel - Black
97017325 Feature Panel Weldment / Front Light &
Switch Panel - White
97017326 Feature Panel Weldment / Front Light &
Switch Panel - Silver - Used on Stainless
Steel Hood
99500323 PVC Foam for Front of Feature Weldment /
Switch Panel
97007631 Bottom Cover - Silver - Used on Stainless
Steel Hood
97007895 Bottom Cover - White
97009517 Bottom Cover - Black
97007656 Outlet Box Cover
97017429 Damper/Duct Connector - 3-1/4” x 10”
97005543 Parts Bag
* Cheaper Filter Kit available with NO antimicrobial coating
- p/n 97017455
** Optional, not included with Hood
APE130SS
97017456 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 9-7/8” x 11-11/16”
99111515 Light Lens - APE1-A
99111560 Light Lens - APE1-B
99271358 Bulb - APE1-A - Fluorescent 42W, GX24Q-4
99271457 Bulb - APE1-B - Fluorescent 26W, GX24Q-3
99271426 Night Light Bulb - 4 Watt, 120V, C-7 Type
99770153 Harness Assembly - Includes Motor Rotary
Speed Control Switch, Light Rotary Switch,
& Wire Harness
97016970 Switch for Motor - On / Off - Rocker
99030132 Switch for Motor Speed Control - Rotary
97016439 Switch for Light & Night Light - Rotary
600348 Knob - Black - 2 Required
97018489 Light Reflector Assembly - APE1-A - In-
cludes Reflector, Light Socket, & Night
Light Socket
97018925 Light Reflector Assembly - APE1-B - In-
cludes Reflector, Light Socket, & Night
Light Socket
99150417 Screw used to attach Reflector Assy to
Hood & Inlet Ring to Scroll Housing - #8-
18 x 1/4” - 7 Required
99770154 Ballast - APE1-A
99770169 Ballast - APE1-B
97007542 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080597 Motor
99020142 Blower Wheel - CW
99020143 Blower Wheel - CCW
97007313 Scroll Housing
99100491 Rubber Motor Mount / Isolation Bushing -
4 Required
98005212 Motor Cup / Retaining Ring - 2 Required
99170245 Screw used to attach Motor Cup to Scroll
Housing - #8-18 x 3/8” - 8 Required
98010342 Scroll Housing Inlet Ring - 2 Required
99420464 Blower Assembly Mounting Rod - 2 Re-
quired
99260476 Mounting Rod Nut - 2 Required
97017428 Heat Sentry Thermostat
97007656 Outlet Box Cover
98006546 Wiring Cover For Sockets
97018487 Front Switch & Light Panel - Silver
97007631 Bottom Cover - Silver
97017429 Damper / Duct Connector - 3-1/4” x 10”
97005543 Parts Bag
B3030SS, B3036SS
97018077 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
97018088 Non-Duct Filter Kit - Includes 2 Filters & 8
Clips *
V05921 Bulb - Halogen, 50W, Type MR16, GU10
Base - 2 Required
97018072 Fan & Light Switch Kit - Includes Both
Switches
99527366 Light Diode
97018083 Light Socket - 2 Required
97018080 Motor Kit - Includes 3 Isolators & Mounting
Hardware
97018079 Blower Wheel
97018078 Venturi Ring - Black Plastic Ring Below
Wheel
97018073 Capacitor Kit - Includes Wire Nuts
97018075 Right Light Panel for 30” Wide Hood
97018076 Right Light Panel for 36” Wide Hood
97018081 Left Light Panel for 30” Wide Hood
97018082 Left Light Panel for 36” Wide Hood
97018085 Bottom Panel for 30” Wide Hood
97018086 Bottom Panel for 36” Wide Hood
97018074 Diverter Assembly - Includes 2 Covers, Di-
verter, & Mounting Hardware
99526707 Suction Cup Tool
97017727 7” Round Duct Plate
97010792 7” Round In-line Damper Assembly *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97017728 Damper Duct Connector - 3-1/4” x 10”
97018287 Parts Bag - Includes Mounting Hardware
* Optional, not included with Hood
B53, B5330SS, B5336SS
97018027 Aluminum Grease Filter Set - B5330SS - In-
cludes 2 Filters
97018028 Aluminum Grease Filter Set - B5336SS - In-
cludes 3 Filters
97018030 Non-Duct Filter Set - Includes 2 Filters *
99527010 Light Trim Ring & Lens Assembly - 2 Re-
quired
99526976 Push Button Switch Assembly
99526975 Light Socket Assembly - 2 Required
99526974 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
99527012 Motor Capacitor
99528375 Transformer
99527013 Plastic Cover for Transformer Box
99528454 Decorative Flues - Includes Both Upper &
Lower
99526989 Lower Flue Mounting Bracket
99526991 Upper Flue Mounting Bracket
99526987 Hood Mounting Bracket
99526985 Non-Duct Plenum Assembly *
99526984 Flexible Expandable Aluminum Duct - 6”
Round *
99526983 Damper / Duct Connector - 6” Round
99528455 Parts Bag ***
* Optional, not included with Hood - Parts are included with
RK58 Recirculation Kit
** Must purchase Blower Assembly p/n 99526974
*** Parts Bag includes [8] #8 x 3/8” Screws, [5] #8 x
1-1/2” Screws, [2] #8 x 2-3/16” Screws, [5] Drywall An-
chors, & [2] Washers
B56, B5630SS, B5636SS
97018029 Aluminum Grease Filter Set - Includes 2
Filters
97018030 Non-Duct Filter Set - Includes 2 Filters *
99527010 Light Trim & Lens Assembly - 2 Required
B02300891 Halogen Bulb - Halogen, 12 Volt, 20 Watt,
Type JC, G4 or T4 Base - 2-Required
99526976 Switch/Push Button Assembly
99526975 Light Socket Assembly - 2 Required
99526974 Blower Assembly - Includes Motor & Blow-
er Wheel
see note Motor **
see note Blower Wheel **
99527012 Capacitor
99527011 Transformer / PCB
99526981 Curved Glass Plate for 30” Wide Hood
99527024 Curved Glass Plate for 36” Wide Hood
99526973 Decorative Flues - Includes Both Upper &
Lower
99526989 Lower Flue Mounting Bracket
99526991 Upper Flue Mounting Bracket
99526987 Hood Mounting Bracket
99526985 Non-Ducted Plenum / Air Diverter *
99526984 Flexible Expandable Aluminum Duct - 6”
Round *
99526983 Damper/Duct Connector - 6” Round
99526994 Parts Bag ***
* Optional, not Included with Hood - Parts are included in
RK56 Recirculation Kit
** Must purchase Blower Assembly p/n 99526974
*** Parts Bag includes [8] #8 x 3/8” Screws, [7] #8 x
1-1/2” Screws, [4] M4 x 1.0 Screws, [7] Drywall Anchors,
[2] Washers, & [4] Decorative Washers
B57, B5730SS, B5736SS
97018029 Aluminum Grease Filter Set - Includes 2
Filters
97018030 Non-Duct Filter Set - Includes 2 Filters *
99527010 Light Trim & Lens Assembly - 2 Required
B02300891 Bulb - Halogen, 12 Volt, 20 Watt, Type JC,
G4 or T4 Base - 2 Required
99526976 Switch/Push Button Assembly
99526975 Light Socket Assembly - 2 Required
99526974 Blower Assembly - Includes Motor & Blow-
er Wheel
see note Motor **
see note Blower Wheel **
Index
15
99527012 Capacitor
S99527011 Transformer / PCB
99526982 Curved Metal Plate / Canopy for 30” Wide
Hood
99527025 Curved Metal Plate / Canopy for 36” Wide
Hood
99526973 Decorative Flues - Includes Both Upper &
Lower
99526989 Lower Flue Mounting Bracket
99526991 Upper Flue Mounting Bracket
99526987 Hood Mounting Bracket
99526985 Non-Ducted Plenum / Air Diverter *
99526984 Flexible Expandable Aluminum Duct - 6”
Round *
99526983 Damper/Duct Connector - 6” Round
99526994 Parts Bag ***
* Optional, not included with Hood - Parts are included in
RK56 Recirculation Kit
** Must purchase Blower Assembly p/n 99526974
*** Parts Bag includes [8] #8 x 3/8” Screws, [7] #8 x
1-1/2” Screws, [4] M4 x 1.0 Screws, [7] Drywall Anchors,
[2] Washers, & [4] Decorative Washers
B58, B5830SS, B5836SS
97018027 Aluminum Grease Filter Set - B5830SS - In-
cludes 2 Filters
97018028 Aluminum Grease Filter Set - B5836SS - In-
cludes 3 Filters
97018030 Non-Duct Filter Set - Includes 2 Filters *
99527010 Light Trim & Lens Assembly - 2 Required
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base,
12V 20W Max - 2 Required
99526976 Switch / Push Button Assembly
99526975 Light Socket Assembly - 2 Required
99526974 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
99527012 Capacitor
99527011 Transformer / PCB
99526972 Decorative Flues - Includes Both Upper &
Lower
99526988 Lower Flue Mounting Bracket
99526990 Upper Flue Mounting Bracket
99526986 Hood Mounting Bracket
99526992 Non-Ducted Plenum / Air Plenum Assy *
99526984 Flexible Expandable Aluminum Duct - 6”
Round *
99526983 Damper / Duct Connector - 6” Round
99526993 Parts Bag ***
* Optional, not included with Hood - Parts are included in
RK58 Recirculation Kit
** Must order Blower Assembly p/n 99526974
*** Parts Bag includes [10] #8 x 3/8” Screws, [7] #8 x
1-1/2” Flat Head Screws, [7] Drywall Anchors, & [2] Wash-
ers
B59, B5936SS
97018029 Aluminum Grease Filter Set - Includes 2
Filters
99527023 Non-Duct Filter *
99528459 Non-Duct Filter Clips - Includes 2 *
99527010 Light Trim & Lens Assembly - 4 Required
B02300891 Bulb - Halogen, Type JC, 12 Volt, 20 Watt,
G4 Base - 4 Required
99526976 Switch / Push Button Assembly
99526975 Light Socket Assembly - 4 Required
99526974 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
99527012 Capacitor
99527011 Transformer / PCB
99527129 Decorative Flues - Includes Both Upper &
Lower
99527131 Curved Metal Arch - Includes Utensil Rail
99527022 Ceiling Mounting Bracket with Electrical
Outlet Box
99527130 Angle Mounting Bracket Set - Kit Includes 8
Brackets
99527021 Non-Ducted Plenum / Air Diverter *
99526984 Flexible Expandable Aluminum Duct - 6”
Round *
99526983 Damper / Duct Connector - 6” Round
99527132 Parts Bag ***
* Optional, not Included with Hood - Parts are included in
RK59 Recirculation Kit
** Must order Blower Assembly p/n 99526974
*** Parts Bag includes [8] M6 x 40mm Screws, [46] M4 x
8mm Pan Head Screws, [20] Flange Nuts, [8] M4 x 8mm
Sheet Metal Screws, & [3] Wire Nuts
BCR1
97018263 Top Cover Assembly
97018267 Battery, A23, 12Volt
97018264 Battery Door
97018266 Circuit Board - Includes Board & 4 Mount-
ing Screws
97018264 Bottom Housing - Includes Housing &
Mounting Screws
97018268 Magnetic Feet - Includes 2 Adhesive
Backed Feet
CBD1
R610092 Aluminum Grease Filter - 11-1/4” x 11-5/8”
99010317 Non-Duct Filter - 11-1/4” x 11-3/4” *
99526798 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 35 Watt - 2 Required
97017300 Fan & Light Switch Kit - White - Kit Includes
Both Switches
97018658 Fan & Light Switch Kit - Black - Kit Includes
Both Switches
99111563 Blue Indicator Light for Fan
97018656 Light Socket Assembly - Includes Both
Sockets & Wire Harness
97018665 Hardware for Light Socket Bracket - In-
cludes Socket Mounting Screw & Height
Adjustment Screw
99080666 Motor
R531076 Fan Blade - Includes Hairpin Clip
R99420635 Haripin Clip
99271465 Motor Wire Harness
97018660 Air Chute - Includes Baffle
R602534 Screws used to Attach Air Chute to Hood -
#8-18 x 3/8” - Package Includes 2 Screws
97018651 Bottom Panel - White
97018652 Bottom Panel - Black
97018653 Bottom Panel - Stainless Steel
R680508 7” Round Duct Plate - Includes Mounting
Hardware
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R740014 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Hardware
97018623 Parts Bag - Includes [5] #10 x 5/8” Screws
& Bulb Suction Cup Tool
* Optional, not included with Hood
CBD3
R610092 Aluminum Grease Filter - 11-1/4” x 11-5/8”
99010317 Non-Duct Filter - 11-1/4” x 11-3/4” *
99526798 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 35 Watt - 2 Required
97019322 Switch Assembly - White
97019323 Switch Assembly - Black
97019324 Switch Assembly - Stainless Steel
97018656 Socket Assembly - Includes Wire Harness
& Both Light Sockets
97018665 Socket Mounting Hardware
99080666 Motor
R531076 Fan Blade - Includes Hairpin Clip
R99420635 Hairpin Clip for Fan Blade
99271478 Transformer
99271466 Main Wire Harness
97018651 Bottom Panel for 30” Wide Hood - White
97018652 Bottom Panel for 30” Wide Hood - Black
97018653 Bottom Panel for 30” Wide Hood - Stain-
less Steel
98010876 Bottom Panel for 36” Wide Hood - White
98010877 Bottom Panel for 36” Wide Hood - Black
R602534 Screw Package for Bottom Panel & Duct
Connector - Includes 2 Screws - #8-18 x
3/8”
97018660 Air Chute Assembly - Includes Air Chute,
Baffle, & Mounting Hardware
99111538 Air Chute Only
99111539 Baffle Only
98009816 Wiring Shield/Cover
R680508 7” Round Duct Plate - Includes Mounting
Hardware
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R740014 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Hardware
97018623 Parts Bag - Includes [5] #10 x 5/8” Screws
& Bulb Suction Cup Tool
* Optional, not included with Hood
CBX1
R610092 Aluminum Grease Filter - 11-1/4” x 11-3/4”
99010317 Non-Duct Filter - 11-1/4” x 11-3/4” *
97019365 Switch Control Assembly - Includes Switch
Control Board, Interface, Cover, & Mount-
ing Hardware
99111574 Switch Control Cover Only
97019364 LED Light Assembly - 2 Required - Includes
LED Light, Socket, & Mounting Hardware
99080666 Motor
R531076 Fan Blade - Includes Harpin Clip
R99420635 Hairpin Clip for Fan Blade
99271480 Autotransformer
99271468 Wire Harness for Lights
97019363 Wire Harness for Motor
97018660 Air Chute Assembly - Includes Baffle &
Mounting Hardware
97018653 Bottom Panel - Includes Mounting Hard-
ware
Index
16
R680508 7” Round Duct Plate - Includes Mounting
Hardware
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R740014 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Hardware
* Optional, not included with Hood
CJD1
99010384 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
99010308 Non-Duct Filter Kit - Includes 2 Filters *
R169016 Filter Spring Kit - Includes 3 Springs
97019322 Switch Control Assembly - White
97019323 Switch Control Assembly - Black
97019324 Switch Control Assembly - Stainless Steel
98011023 Control Guard for Switch Assembly
99150484 Mouting Screw for Control Guard - #8-18 x
3/4” - 2 Required
98010989 Bracket for Switch Control
R602534 Mouting Screw Package for Switch Control
Bracket - #8-18 x 3/8” - Includes 2 Screws
R111630 Lamp Socket Assembly - Includes Both
Sockets & Wire Harness
R99080535 Motor - Includes Mouting Kit
R531075 Fan Blade - Includes Hairpin Clip
R99420635 Hairpin Clip for Fan Blade
R169002 Mounting Screw for Motor - 3 Required
99271478 Transformer - Includes Mounting Hardware
R401647 Air Chute Assembly - Includes Baffle &
Mounting Hardware
R401573 Air Chute Only
R401646 Baffle Only
R7201731 Light Panel - White
R7201734 Light Panel - Black
R720174 Light Panel - Stainless Steel
99271469 Wire Harness
R680504 Wiring Cover - Includes Mounting Screws
99150471 Ground Screw - #10-32 x 1/2”
R680508 7” Round Duct Plate - Includes Mounting
Hardware
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R740013 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Hardware
97019040 Hardware Bag
* Optional - not included with Hood
CJD3
99010384 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters
99010385 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters
99010308 Non-Duct Filter Kit for 30” Wide Hood *
99010389 Non-Duct Filter Kit for 36” Wide Hood *
R169016 Filter Spring Kit - Includes 3 Springs
97019366 Switch Control Assembly - Black - Includes
Switch Control Board, Cover, & Hardware
97019368 Switch Control Assembly - Stainless Steel
- Includes Switch Control Board, Cover, &
Hardware
99111573 Switch Control Cover Only - Black
99111574 Switch Control Cover Only - Stainless Steel
98011003 Bracket for Switch Assembly
R111630 Lamp Socket Assembly - Includes Both
Light Sockets & Wire Harness
R520132 Motor - Includes Mounting Hardware
R601536 Screws used to Mount Motor to Motor
Mounting Plate - Includes 4 Screws - M4
x 6mm
R531068 Blower Wheel - Includes Retaining Ring
R607215 Retaining Ring for Blower Wheel
R730111 Non-Ducted Blower Wheel Assembly - In-
cludes Blower Wheel, Retaining Ring, &
Performance Ring
R651973 Motor Mounting Plate - Includes Mounting
Hardware
R169009 Mounting Hardware for Motor Mounting
Plate - Includes 3 Sets
99271472 Capacitor for Motor
99271487 Autotransformer - Includes Mounting
Hardware
R401647 Air Chute Assembly - Includes Baffle Plate
& Mounting Hardware
R680507 Front Scroll Cover - Includes Mounting
Hardware
R680505 Outlet Scroll Cover - Includes Mounting
Hardware
R7201734 Light Panel for 30” Wide Hood - Black
R720174 Light Panel for 30” Wide Hood - Stainless
Steel
R720176 Light Panel for 36” Wide Hood - Stainless
Steel
R680520 Bottom Cover Assembly for 30” Wide Hood
- Includes Mounting Hardware & Filter
Springs
R680511 Bottom Cover Only for 30” Wide Hood
99271473 Wire Harness
R680508 7” Round Duct Plate - Includes Mounting
Hardware
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R740014 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Hardware
97019040 Hardware Bag
* Optional, not included with Hood
CL
(Discontinued 1980)
99010049 Aluminum Grease Filter - 11-3/4” x 12-1/4”
99010088 Non-Duct Filter - 11-3/4” x 12-1/4” *
99140113 Filter Spring Clip
97005328 Light Switch
97007159 Fan Switch
n.l.a. Knob - 2 Required
n.l.a. Motor
06112-00 Blade
99270748 Motor Receptacle
* Optional, not included with Hood
CR
(Discontinued 1980)
99010049 Aluminum Grease Filter - 11-3/4” x 12-1/4”
99140113 Filter Spring Clip
97005328 Light Switch
97007159 Fan Switch
n.l.a. Knob - 2 Required
n.l.a. Motor
06118-00 Blade
99270748 Motor Receptacle
E54000, E5490SS
B08087294 Aluminum Grease Filter - 9-3/8” x 11-3/4” -
3 Required
B03300488 Non-Ducted Filter - 8-7/8” x 9-1/2” *
B02300789 Light Socket Assembly - Includes Trim
Ring & Light Lens - 4 Required
B02300891 Bulb - Halogen, Type JC, 12 Volt, 20 Watt,
G4 or T4 Base - 4 Required
B06108718 Switch Assembly
B03295074 Knob for Fan Switch
B03295073 Knob for Light Switch
B03201014 Red Lens for Pilot Light
B06002126 Blower Assembly - Includes Motor, Wheel,
& Blower Housing
B02310260 Motor
B03295071 Wheel
B02300233 Motor Capacitor
B08086668 Control Circuit Board
B02300804 Heat Sentry
see note Transformer **
B02300782 Fuse - 5 x 20mm, 4 amp
B02300674 Holder for Fuse
B03295035 Fuse Box
BE3402103 Top Decorative Flue
BE3402102 Bottom Decorative Flue
B08092233 Top Support Frame
B08092083 Bottom Support Frame
BE3348620 Support Frame Bracket
B03295018 Duct Collar / Reducer - 6” Round to 5”
Round *
B02011452 5” Round Flexible Duct - 12-1/2” Collapsed
Length *
B08088378 Damper / Duct Discharge Collar - 6” Round
99091031 Nameplate / Logo
B080810768 Parts Bag ***
* Optional, not included with Hood - parts included in RK54
Recirculation Kit
** Transformer changed in September 2010 - Models
made before 09/10 use p/n B02300792 - Models made in
or after 09/10 use p/n B02300729
*** Parts Bag includes Support Frame Bracket, Discharge
Collar, Wiring Box Cover, & all Mounting Screws & Washers
E55000, E5590SS
(Discontinued 2008)
B08087092 Aluminum Grease Filter - 2 Required
B03300488 Non-Duct Filter - 8-7/8” x 9-1/2” *
B02300798 Light Socket Assembly - Includes Trim
Ring & Lens - 2 Required
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base, 12
Volt, 20 Watt - 2 Required
B06108719 Switch Assembly - Includes Switch Box,
Switch Circuit Board, Buttons, & Wire Har-
ness
B08086286 Switch Circuit Board
B03200351 Switch Button - 4 Required
B03201014 Pilot Lamp Lens
B06002013 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
B02310203 Motor
B03295076 Blower Wheel
B02300233 Motor Capacitor
B08086668 Control Circuit Board
B02300620 Limit Switch
B02300804 Heat Sentry
see note Transformer **
Index
17
B02300782 Fuse - 5 x 20mm, 4 amp
B02300674 Holder for Fuse
B03295035 Fuse Box
BE3348941 Bottom Decorative Flue
BE3346765 Top Decorative Flue
B02005121 Glass
B02011210 Glass Handle
B08091764 Glass Slide - 2 Required
99091031 Nameplate/Logo
B08088378 Damper / Duct Connector - 6” Round
B080810501 Parts Bag **
* Optional, not included with Hood - parts included in RK55
Recirculation Kit
** Transformer changed in November 2008 - Models made
before 11/08 use p/n B02300783 - Models made in or after
11/08 use p/n B02300861
** Includes Damper/Duct Discharge Collar, Mounting
Bracket For Hanging Hood, Flue Mounting Bracket, All
Mounting Screws & Drywall Anchors
E6030SS, E6036SS, E6042TSS,
E6048TSS
--NOTE-- Spec Label on Hood will NOT list revision letter
- to determine revision level you must go by serial number -
Revison B began in 02/2012 with S/N 0201120200932 - Re-
vision C also begain in 02/2012 with S/N 0202120401131
V17606
Stainless Steel Baffle Filter - 8-27-32” x 15-
1/8” - See Filter Chart Below for Qty Required
V17609
Stainless Steel Baffle Filter - 11-27/32” x 15-
1/8” - See Filter Chart Below for Qty Required
V07680 Handle for Baffle Filters - Includes 1 Handle
& 2 Screws
V08337 Filter Spring Kit for All Widths - Kit Includes
4 Springs
B03300498 Charcoal Filter Set - E60000-A,C - Set In-
cludes 2 Filters *
V08344 Charcoal Filter Support Set - E60000-A,C -
Set Includes 2 Supports *
97017930 Charcoal Filter Set - E60000-B - Set In-
cludes 2 Filters **
99111455 Charcoal Filter Support - E60000-B - 2 Re-
quired **
V05921 Bulb - Halogen, Type MR16 or PAR16,
GU10 Base, 120 Volt, 50 Watt ***
V08339 On/Off Switch for Fan - Rocker
V03501 Speed Control Switch for Fan - Rotary
V08338 Switch for Light - Rotary
V08355 Knobs used on Light Switch & Fan Speed
Control Switch - Kit Includes Both Knobs
V08093 Pilot Lamp Assy - Blue - Includes Bulb,
Socket, Wire Leads & Lens
V16569 Lamp Shell, Light Socket, & Trim Assy -
E60000-A ***
V09434 Light Trim / Bezel - E60000-B,C ***
V09435 Lamp Shell / Socket Holder - E60000-B,C
***
V05917 Light Socket - E60000-B,C ***
V08097 Blower Assembly - E60000-A,C - See Note
Below for Qty Required ****
97017924 Blower Assembly - E60000-B - See Note
Below for Qty Required ****
see note Motor *****
B03295071 Blower Wheel
see note Scroll Housing *****
V08342 Motor Capacitor - E60000-A,C
99271379 Motor Capacitor - E60000-B
V03435 Heat Sentry / Thermostat
V17640 Grease Rail for 30” Wide Hood
V17641 Grease Rail for 36” Wide Hood
V17642 Grease Rail for 42” Wide Hood
V17643 Grease Rail for 48” Wide Hood
99091031 Broan Elite Logo
V13296 Damper / Duct Connector - 3-1/4” x 10” -
E6030SS & E6036SS
V17797 Damper / Duct Connector - 4-1/2” x 18-
1/2” - E6042TSS & E6048TSS
V08352 Parts Bag ******
* Optional, not included with Hood - parts included in
ANKE60 Recirculation Kit
** Optional, not included with Hood
*** 2 Required for 30” & 36” wide Hoods - 3 Required for
42” & 48” Wide Hoods
**** Blower Assembly includes Motor, Blower Wheel,
Scroll Housing, & Capacitor - 1 Required for Models
E6030SS & E6036SS - 2 Required for Models E6042TSS
& E6048TSS
***** Must order Blower Assembly - See Above for Part
Number
****** Parts Bag includes [2] Wire Connectors, [1] Wire
Clamp, [3] Wall Anchors, [3] 3/4” Washers, [4] #8 x 3/8”
Screws, [8] #8 x 3/4” Screws, [8] #8-32 x 1/4” Screws, &
[4] #10 x 2” Flat Head Screws
E60000 Bafe Filter Chart
Please note: Filters do NOT include Handles
Hood Filter Part Number & Quantity Required
Width V17606 V17609
30” 2 1
36” - 3
42” 2 2
48” - 4
E60E30SS, E60E36SS, E60E42SS,
E60E48SS
--NOTE-- Spec Label on Hood will NOT list revision letter
- to determine revision level you must go by serial number
- Revision B begain in 02/2012 with S/N 0201120200932
V17606
Stainless Steel Baffle Filter - 8-27/32” x 15-
1/8” - See Filter Chart Below for Qty Required
V17609
Stainless Steel Baffle Filter - 11-27/32” x 15-
1/8” - See Filter Chart Below for Qty Required
V07680 Handle for Baffle Filters - Includes 1 Handle
& 2 Screws
V08337 Filter Spring Kit for All Widths - Kit Includes
4 Springs
V05921 Bulb - Halogen, Type MR16 or PAR16,
GU10 Base, 120 Volt, 50 Watt *
V08339 On/Off Switch for Fan - Rocker
V03501 Speed Control Switch for Fan - Rotary
V08338 Switch for Light - Rotary
V08355 Knobs used on Light Switch & Fan Speed
Control Switch - Kit Includes Both Knobs
V08093 Pilot Lamp Assy - Blue - Includes Bulb,
Socket, Wire Leads & Lens
V16569 Lamp Shell, Light Socket, & Trim Assy -
E60000E-A *
V05917 Light Socket - E60000E-B *
V09435 Lamp Shell / Socket Holder - E60000E-B *
V09434 Light Trim / Bezel - E60000E-B *
V03435 Heat Sentry / Thermostat
V13924 Female Connector
V13923 Male Connector
V17640 Grease Rail for 30” Wide Hood
V17641 Grease Rail for 36” Wide Hood
V17642 Grease Rail for 42” Wide Hood
V17643 Grease Rail for 48” Wide Hood
99091031 Broan Elite Logo
S332KR Rough-In Plate Kit - Included with Hood
S421 Inline Damper - 10” Round **
V08352 Parts Bag ***
* 2 Required for 30” & 36” wide Hoods - 3 Required for 42”
& 48” wide Hoods
** Optional - Not Included with Range Hood
*** Parts Bag includes [2] Wire Connectors, [1] Wire
Clamp, [3] Wall Anchors, [3] 3/4” Washers, [4] #8 x 3/8”
Screws, [8] #8 x 3/4” Screws, [8] #8-32 x 1/4” Screws, &
[4] #10 x 2” Flat Head Screws
E60000E Bafe Filter Chart
Please note: Filters do NOT include Handles
Hood Filter Part Number & Quantity Required
Width V17606 V17609
30” 2 1
36” - 3
42” 2 2
48” - 4
E6430SS, E6436SS, E6442SS,
E6448SS, E6448TSS
--NOTE-- Spec Label on Hood will NOT list revision letter -
to determine revision level you must ask for serial number
- Revision B began in 02/2012 with S/N 0201120200932 -
Revision C also began in 02/2012 with S/N 0202120401131
V17600 Stainless Steel Baffle Filter - 8-27/32” x
9-13/16” - See Filter Chart Below for Qty
Required
V17603 Stainless Steel Baffle Filter - 11-27/32” x
9-13/16” - See Filter Chart Below for Qty
Required
V07680 Handle for Baffle Filters - Includes 1 Handle
& 2 Screws
V08337 Filter Spring Kit for All Widths - Kit Includes
4 Springs.
B03300498 Charcoal Filter Set - E64000-A,C - Set In-
cludes 2 Filters *
V08344 Charcoal Filter Support Set - E64000-A,C -
Set Includes 2 Supports *
97017930 Charcoal Filter Set - E64000-B - Set In-
cludes 2 Filters **
99111455 Charcoal Filter Support - E64000-B - 2 Re-
quired **
V05921 Bulb - Halogen, Type MR16 or PAR16,
GU10 Base, 120 Volt, 50 Watt ***
V08339 On/Off Switch for Fan - Rocker
V03501 Speed Control Switch for Fan - Rotary
V08338 Switch for Light - Rotary
V08355 Knobs used on Light Switch & Fan Speed
Control Switch - Kit Includes Both Knobs
V08093 Pilot Lamp Assy - Blue - Includes Bulb,
Socket, Wire Leads & Lens
V16569 Lamp Shell, Light Socket, & Trim Assy -
E64000-A ***
V05917 Light Socket - E64000-B,C ***
V09435 Lamp Shell / Socket Holder - E64000-B,C
***
V09434 Light Trim / Bezel - E64000-B,C ***
V08097 Blower Assembly - E64000-A,C - See Note
Below for Qty Required ****
Index
18
97017924 Blower Assembly - E64000-B - See Note
Below for Qty Required ****
see note Motor *****
B03295071 Blower Wheel
see note Scroll Housing *****
V08342 Motor Capacitor - E64000-A,C
99271379 Motor Capacitor - E64000-B
V03435 Heat Sentry / Thermostat
V17640 Grease Rail for 30” Wide Hood
V17641 Grease Rail for 36” Wide Hood
V17642 Grease Rail for 42” Wide Hood
V17643 Grease Rail for 48” Wide Hood
99091031 Broan Elite Logo
V13296 Damper / Duct Connector - 3-1/4” x 10” -
E6430SS, E6436SS, E6442SS, & E6448SS
V17797 Damper / Duct Connector - 4-1/2” x 18-
1/2” - E6448TSS
V08353 Parts Bag ******
* Optional, not included with Hood - parts included in
ANKE60 Recirculation Kit
** Optional, not included with Range Hood
*** 2 Required for 30” & 36” wide Hoods - 3 Required for
42” & 48” Wide Hoods
**** Blower Assembly includes Motor, Blower Wheel,
Scroll Housing, & Capacitor - 1 Required for Models
E6030SS & E6036SS - 2 Required for Models E6042TSS
& E6048TSS
***** Must order Blower Assembly - See Above for Part
Number
****** Parts Bag includes [2] Wire Connectors, [9] #8 x
1/2” Screws, [1] Wire Clamp, [8] #8-32 x 1/4” Screws, &
[4] #8 x3/8” Screws
E64000 Bafe Filter Chart
Please note: Filters do NOT include Handles
Hood Filter Part Number & Quantity Required
Width V17600 V17603
30” 2 1
36” - 3
42” 2 2
48” - 4
E64E30SS, E64E36SS, E64E42SS,
E64E48SS
--NOTE-- Spec Label on Hood will NOT list revision letter
- to determine revision level you must go by serial number
- Revision B began in 02/2012 with S/N 0201120200932
V17600 Stainless Steel Baffle Filter - 8-27-32” x
9-13/16” - See Filter Chart Below for Qty
Required
V17603 Stainless Steel Baffle Filter - 11-27/32” x
9-13/16” - See Filter Chart Below for Qty
Required
V07680 Handle for Baffle Filters - Includes 1 Handle
& 2 Screws
V08337 Filter Spring Kit for All Widths - Kit Includes
4 Springs.
V05921 Bulb - Halogen, Type MR16 or PAR16,
GU10 Base, 120 Volt, 50 Watt *
V08339 On/Off Switch for Fan - Rocker
V03501 Speed Control Switch for Fan - Rotary
V08338 Switch for Light - Rotary
V08355 Knobs for Light Switch & Fan Speed Con-
trol Switch - Kit Includes Both Knobs
V08093 Pilot Lamp Assy - Blue - Includes Bulb,
Socket, Wire Leads & Lens
V16569 Lamp Shell, Light Socket, & Trim Assy -
E64000E-A *
V05917 Light Socket - E64000E-B *
V09435 Lamp Shell / Socket Holder - E64000E-B *
V09434 Light Trim / Bezel - E64000E-B *
V03435 Heat Sentry / Thermostat
V13924 Female Connector
V13923 Male Connector
V17640 Grease Rail for 30” Wide Hood
V17641 Grease Rail for 36” Wide Hood
V17642 Grease Rail for 42” Wide Hood
V17643 Grease Rail for 48” Wide Hood
99091031 Broan Elite Logo
S332KR Rough-In Plate Kit - Included with Hood
S421 Inline Damper - 10” Round **
V08353 Parts Bag ***
* 2 Required for 30” & 36” wide Hoods - 3 Required for 42”
& 48” Wide Hoods
** Optional - Not Included with Range Hood
*** Parts Bag includes [2] Wire Connectors, [9] #8 x 1/2”
Screws, [1] Wire Clamp, [8] #8-32 x 1/4” Screws, & [4] #8
x 3/8” Screws
E64000E Bafe Filter Chart
Please note: Filters do NOT include Handles
Hood Filter Part Number & Quantity Required
Width V17600 V17603
30” 2 1
36” - 3
42” 2 2
48” - 4
E661
--NOTE-- Revision B began in 03/2011 with S/N
0600110200497
V06244 Aluminum Grease Filter for 30” Wide Hood
- 9-7/8” x 18” - 2 Required
V06264 Aluminum Grease Filter for 36” Wide Hood
- 12-7/8” x 18” - 2 Required
V06244 Aluminum Grease Filter for 42” Wide Hood
- 9-7/8” x 18” - 3 Required
V05921 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 50 Watt - 2 Required
V06118 Switch Assembly / Electronic Control -
E661-A - Includes Switch Buttons & Switch
Circuit Board
V09225 Switch Assembly / Electronic Control -
E661-B - Includes Switch Buttons & Switch
Circuit Board
V18247 Switch Bracket Repair Kit
V06268 Light Bulb Trim Ring - E661-A - 2 Required
V09434 Light Bulb Trim Ring - E661-B - 2 Required
V05917 Light Socket - 2 Required
V09435 Light Socket Holder - E661-B Only - 2 Re-
quired
V01766E Motor - Includes Blower Wheel
see note Blower Wheel *
V02160 Capacitor
V06733-1 Electronic Control Processor Circuit Board
- E661-A ONLY
V06735 Transformer for Fan Speeds - E661-A
V07325 Transformer - E661-B
V06138 Heat Sentry
99091031 Broan Elite Logo
V06252 Air Flow Diverter
V14971 Damper / Duct Connector - 3-1/4” x 14”
ST461 Damper / Duct Connector Adapter to 3-1/4”
x 10” **
V06751 Parts Bag - Includes [1] Wire Clamp, [2]
Wire Connectors, [5] #8 x 1/2” Screws, &
[3] #6 x 1/2” Screws
* Must purchase Motor p/n V01766E
** Optional, not included with Range Hood
E662
(Discontinued 2008)
V06265 Aluminum Grease Filter for 30” Wide Hood
- 9-7/8” x 18” - 2 Required
V06266 Aluminum Grease Filter for 36” Wide Hood
- 12-7/8” x 18” - 2 Required
V06265 Aluminum Grease Filter for 42” Wide Hood
- 9-7/8” x 18” - 3 Required
V05921 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 50 Watt - 2 Required
V06263 Switch Assembly / Electronic Control - In-
cludes Switch Buttons & Switch Circuit
Board
V06268 Light Bulb Trim Ring - 2 Required
V05917 Light Socket - 2 Required
V15931 Blower Assembly - Includes Motors, Blow-
er Wheels, & Cabinet Scroll Housing
see note Motor *
see note Blower Wheel *
V06733-2 Electronic Control Processor Circuit Board
V06741 Transformer Kit for Fan Speeds - Includes
both Transformers & Wire Harness
V06138 Heat Sentry
V06262 Switch Control Faceplate
99091031 Broan Elite Logo
V06242 Left Air Flow Diverter
V06243 Right Air Flow Deviator
V06734 Low Voltage Harness for 30” Wide Hood
V06745 Low Voltage Harness for 36” Wide Hood
V06746 Low Voltage Harness for 42” Wide Hood
V06776 Cord from Blower to Hood - Male
V06784 Cord from Hood to Blower - Female
V14971 Damper / Duct Connector - 3-1/4” x 14”
V06752 Parts Bag - Includes [2] Wire Clamps, [3]
Wire Connectors, [5] #8 x 1/2” Screws, &
[9] #8 x 3/8” Screws
* Must purchase Blower Assembly - p/n V15931
E662E
(Discontinued 2008)
V06265 Aluminum Grease Filter for 30” Wide Hood
- 9-7/8” x 18” - 2 Required
V06266 Aluminum Grease Filter for 36” Wide Hood
- 12-7/8” x 18” - 2 Required
V06265 Aluminum Grease Filter for 42” Wide Hood
- 9-7/8” x 18” - 3 Required
V05921 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 50 Watt - 2 Required
V06263 Switch Assembly / Electronic Control - In-
cludes Switch Buttons & Switch Circuit
Board
V06268 Light Bulb Trim Ring - 2 Required
V05917 Light Socket - 2 Required
V06749 Electronic Control Processor Circuit Board
V06138 Heat Sentry
V06262 Switch Control Faceplate
99091031 Broan Elite Logo
V06744 Transformer & Wire Harness Kit
V06734 Low Voltage Harness for 30” Wide Hood
Index
19
V06745 Low Voltage Harness for 36” Wide Hood
V06746 Low Voltage Harness for 42” Wide Hood
V06777 Rough-In Plate - Includes Duct Connector -
10” Round
V06752 Parts Bag - Includes [2] Wire Clamps, [3]
Wire Connectors, [5] #8 x 1/2” Screws, &
[9] #8 x 3/8” Screws
EI5936SS
99010366 Aluminum Grease Filter - 12-19/32” x 14-
31/32”
99010365 Non-Duct Filter Kit - Kit Contains 2 Filters *
99526798 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 35 Watt - 4 Required
99527446 Switch Assembly - Includes Buttons &
User Interface
99527481 Switch Buttons Only - Incudes 4
99527447 Switch User Interface Cable
99527444 Light Socket - Includes Mounting Hardware
- 4 Required
99527445 Light Socket Bracket - Includes Mounting
Hardware - 4 Required
99527454 Light Panel - Includes Pair of Left & Right
99527443 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
see note Scroll Housing **
99527468 Capacitor For Motor
99527449 Control Board
99527450 Control Board Enclosure
99527471 Fuse - 5 Amp, 5x20mm, 120V
99527470 Heat Sensor
99527460 Curved Glass Plate
99527476 Decorative Flues - Includes Both Upper &
Lower Halves
99527477 Upper Flue Trim Strips - Includes 2 - These
Cover Seams In Upper Flue
99527478 Lower Flue Trim Strips - Includes 2 - These
Cover Seams In Lower Flue
99527479 Hood Frame Assembly - Bracket that at-
taches to Ceiling & Hood Canopy
99527465 Non-Duct Plenum Assembly *
99527459 Non-Duct Filter Tray *
99527462 6” Diameter Flexible Aluminum Duct for
Non-Duct Installations *
97018639 Remote Control Fix - Assembly for Units
Made Prior to 04/11 that are Not Working
with BCR1 Remote
see BCR1 Remote Control - Optional, Not Included
with Hood
99527461 Damper / Duct Connector - Includes
Mounting Clip - 6” Round
99527474 Parts Bag ***
* Optional, not included with Hood - parts included in
RKE59 Recirculation Kit
** Must order Blower Assembly - p/n 99527443
*** Contains (6) Mounting Screws 4mm x 38mm Cross
Recessed Pan Head / (3) Mounting Screws 4mm x 12mm
Cross Recessed Pan Head / (12) Mounting Screws 3mm
x 5mm Cross Recessed Pan Head / (4) Mounting Screws
.88” x .250” Cross Recessed Pan Head / (1) Suction Cup
Tool / (3) Wire Nuts / (1) Installation Manual
EPD61
V60675 Stainless Stell Baffle Filter - Includes Handle
- 11-27/32” x 15-1/8” - See Note for Qty
Required *
V08337 Filter Spring - See Note for Qty Required *
V05921 Bulb - Halogen, MR16 Type, GU10 Base,
120 Volt, 50 Watt - See Note for Qty Re-
quired **
V02563 Light Switch - Rocker
V08968 Fan Speed Control Switch - Rotary
V08095 Knob for Fan Speed Control Switch
V16569 Light Socket & Trim Assembly - See Note
for Qty Required **
97017924 Blower Assembly - Includes Motor, Wheel,
Capacitor, & Scroll Housing - 2 Required
see note Motor ***
see note Blower Wheel ***
see note Scroll Housing ***
see note Motor Capacitor ***
V03435 Heat Sentry
V08548 Emergency Main Power Switch
V60695 Grease Rail - 36” Wide Hood
V60696 Grease Rail - 48” Wide Hood
V08541 Duct Connector - 10” Round
V06750 Logo - Broan Elite
V04216 Parts Bag ****
* 3 Required for 36” Wide Hood & 4 Required for 48” Wide
Hood
** 2 Required for 36” Wide Hood & 3 Required for 48”
Wide Hood
*** Must order Blower Assembly p/n S97017924
**** Includes [3] Waterproof Wire Connectors, [2] Wire
Clamps LP16-AP, [8] #8 x 5/8” Screws, [2] #8 x 3/8” Zinc-
plated Screws, [8] #8 x 3/8” Screws, [4] #10 x 2” Screws,
[10] #8-32 x 3/8” Screws, [2] Wall Anchors, & 2 Washers
3/16” ID x 3/4” OD
EW5630SS, EW5636SS
99010367 Aluminum Grease Filter
99010381 Non-Duct Filter Kit *
99526798 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 35 Watt - 2 Required
99527446 Switch Assembly - Includes Buttons &
User Interface
99527481 Switch Buttons Only - Includes 4
99527447 Switch User Interface Cable
99527444 Light Socket - Includes Mounting Hardware
- 2 Required
99527445 Light Socket Bracket - Includes Mounting
Hardware - 2 Required
99527443 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
99527468 Motor Capacitor
99527449 Control Board
99527450 Control Board Enclosure
99527470 Heat Sensor
99527471
Fuse 5 Amp - 5mm diameter X 20 mm long
97018639 Remote Control Fix - Assembly for Units
Made Prior to 04/11 that are Not Working
with BCR1 Remote
see BCR1 Remote Control - Optional, Not Included
with Hood
99527442 Decorative Flues - Includes both Upper &
Lower
99527466 Upper Flue Mounting Bracket
99527455 Curved Glass Plate for 30” Wide Hood
99527456 Curved Glass Plate for 36” Wide Hood
99527451 Light Panel
99527457 Non-Duct Filter Tray *
99527462 Aluminum 6” Diameter Expandable Flexible
Duct For Non-Duct Installation Only *
99527463 Non-Duct Plenum Assembly *
99527461 Damper Assembly - Includes Mounting
Clips - 6” Round
99527472 Parts Bag ***
* Optional, not included with Hood - parts included with
RKE56 Recirculation Kit
** Must purchase Blower Assembly p/n 99527443
*** Parts Bag includes [6] 4mm x 38mm Screws, [2] 4mm
x 12mm Screws, [4] 3/16” x 1/4” Screws, & [1] Suction
Cup Tool
EW5830SS EW5836SS
99010368 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
99010365 Non-Duct Filter Kit - Includes 2 Filters *
99526798 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 35 Watt - 2 Required
99527446 Switch Assembly - Includes Switch Buttons
& Interface
99527481 Switch Buttons Only - Includes 4
99527448 Switch User Interface Cable
99527444 Light Socket - Includes Mounting Hardware
- 2 Required
99527445 Light Socket Bracket - Includes Mounting
Hardware - 2 Required
99527443 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
99527469 Motor Capacitor
99527449 Control Board
99527450 Control Board Enclosure
99527470 Heat Sensor
99527471 Fuse - 5 x 20mm, 5 amp
97018639 Remote Control Fix - Assembly for Units
Made Prior to 04/11 that are Not Working
with BCR1 Remote
see BCR1 Remote Control - Optional, Not Included
with Hood
99527452 Light Panel for 30” Wide Hood
99527453 Light Panel for 36” Wide Hood
99527480 Bottom Side Panels - 36” Wide Hoods Only
- Includes Both Sides
99527475 Decorative Flues - Includes Both Upper &
Lower Flues
99527467 Upper Flue Mounting Bracket
99527458 Non-Duct Filter Tray *
99527462 Aluminum 6” Diameter Expandable Flexible
Duct for Non-Duct Installation Only *
99527464 Non-Duct Plenum Assembly *
99527461 Damper Assembly - Includes Mounting
Clips - 6” Round
99527473 Parts Bag ***
* Optional, not included with Hood - parts included with
RKE58 Recirculation Kit
** Must purchase Blower Assembly - p/n 99527443
*** Parts Bag includes [6] 4mm x 38mm Screws, [2] 4mm
x 12mm Screws, & Suction Cup Tool
Index
20
F40000
97006931 Aluminum Filter - 8-3/4” x 10-1/2”
97007696 Non-Ducted Filter - 8-3/4” x 10-1/2” *
99420472 Plastic Filter Clip / Retainer
99110437 Light Lens - 3-1/2” x 4-3/8”
97016970 Fan & Light Switch Set - Black
97016971 Fan & Light Switch Set - White
97016972 Fan & Light Switch Set- Almond
97016973 Fan & Light Switch Set - Biscuit
97010966 Light Socket
97012248 Fan Assembly - Includes Motor, Fan Blade,
Mounting Bracket
see note Motor **
99020272 Fan Blade
98005568 Motor Mounting Bracket
97005678 Motor Receptacle with Wires
97010709 Nameplate - Black
99090881 Nameplate - White
n.l.a. Nameplate - Almond ***
99091077 Nameplate - Biscuit
99091022 Plastic Louver Cover - Black
99091020 Plastic Louver Cover - White
99091021 Plastic Louver Cover - Almond
99091027 Plastic Louver Cover - Biscuit
98006621 Wiring Box Cover
97005544 Damper Assy. 3¼” x 10”
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R680508 7” Round Duct Adapter Plate
97005543 Parts Bag - Includes [4] #10 x 5/8” Wood
Screws & [2] #8-18 x 3/8” Screws
* Optional, not included with Hood
** Must purchase Fan Assembly - p/n 97012248
*** Sugested Substitute - Black Nameplate p/n 97010709
HLB11
97016795 Blower Assembly - Includes Motor, Blower
Wheel, Scroll Housing, & Support Bracket
99080491 Motor
99020286 Blower Wheel
97014785 Blower Scroll Housing
98009514 Inlet Ring
97014788 Motor Bracket
98009516 Blower Support Bracket
98009513 Scroll Support Channel
97006142 Wiring Harness
98009532 Access Cover
99150472 Access Cover Screws - 4 Required
99420470 Access Panel Nut - 4 Required
97014784 Housing Assembly
98009531 Movable Housing Panel
99400035 Strain Relief Bushing
98005512 Wiring Adapter Plate
98005513 Outlet Box Cover
99150471 Ground Screw - #10-32 x 1/2” - 2 Required
97016791 Hanger Kit
98009520 Duct Connector - 8” x 12” - 2 Required
97014853 Damper Flap
97014728 Housing Mounting Bracket - 2 Required
99150417 Screw - #8-18 x 1/4” - 5 Required
93260447 Nut, Hex Flange - 5/16”-18 - 5 Required
99200202 Screw - 1/4”-20 x 1/2” - 5 Required
99260477 Whiz Nut - 1/4”-20 - 11 Required
99610015 Duct Transition - 8” x 12” to 10” Round - 2
Required
HLB3
97016792 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
99080485 Motor
99020273 Blower Wheel
99100491 Motor Mounting Grommet - 4 Required
97014775 Scroll Housing - Includes Channel Support
98009399 Inlet Ring
97006039 Wire Harness
98009417 Access Panel
99150472 Cover Mounting Screw - 2 Required
99420470 Cover Nut - 2 Required
97014736 Housing Assembly
99400035 Strain Relief Bushing
98005512 Wiring Plate
98005513 Wire Box Cover
99150471 Ground Screw - 10-32 x 1/2” - 2 Required
97016791 Hanger Kit
99390099 Duct Connector - 8” Round
97014761 Duct Connector with Damper Assembly -
8” Round
97014728 Housing Mounting Bracket - 2 Required
99150415 Screw - 8-18 x 1/4” - 12 Required
99260558 Lock Nut - 8-32 - 4 Required
99250959 Washer - 4 Required
99260477 Nut - 1/4”-20 - 6 Required
99150591 Screw - 10-16 x 7/8” - 4 Required
S414 Duct Transition - 8” Round to 10” Round -
2 Required
HLB6
97016793 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housings
99080488 Motor
99020273 Blower Wheel - 2 Required
99100497 Rubber Isolator - 4 Required
97014745 Scroll Housing - 2 Required
98009399 Inlet Ring - 2 Required
97006039 Wire Harness
97014794 Motor Mounting Bracket
98009461 Scroll Mounting Channel
98009464 Access Panel
99420470 Access Panel Nut - 4 Required
99150472 Access Panel Mounting Screw - 4 Required
99400035 Strain Relief Bushing
98005513 Wire Box Cover
98005512 Wiring Plate
99150471 Ground Screw - 10-32 x 1/2” - 2 Required
97016791 Hanger Kit
98009449 Duct Connector - 4-1/2” x 18” - 2 Required
97014822 Damper Flap Assembly - 2 Required
97014728 Housing Mounting Bracket - 2 Required
99150591 Screw - 10-16 x 7/8 - 4 Required
99250254 Washer - 4 Required
99260306 Nut - Hex, 10-24 - 4 Required
99250399 Washer - 4 Required
99160380 Screw - 10-24 x 7/8 - 4 Required
99150415 Screw - 8-18 x 1/4” - 18 Required
99260477 Nut - 1/4”-20 - 12 Required
93260456 Nut - Hex Flange, 3/8”-16
S423 Duct Transition - 4-1/2” x 18” to 10” Round
- 2 Required
HLB9
97016794 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
99080490 Motor
99020286 Blower Wheel
97014785 Scroll Housing
98009514 Inlet Ring
97014788 Motor Bracket
98009516 Support Bracket
98009513 Scroll Support Channel
97006142 Wiring Harness
98009532 Access Cover
99150472 Access Cover Screw - 4 Required
99420470 Access Panel Nut - 4 Required
97014784 Housing
98009531 Movable Housing Panel
99400035 Strain Relief Bushing
98005512 Wiring Adapter Plate
98005513 Outlet Box Cover
99150471 Ground Screw - #10-32 x 1/2” - 2 Required
97016791 Hanger Kit
98009520 Duct Connector - 8” x 12” - 2 Required
97014853 Damper Flap
97014728 Housing Mounting Bracket - 2 Required
99260477 Whiz Nut - 1/4”-20 - 11 Required
93260447 Nut - Hex Flange, 5/16”-18 - 5 Required
99150417 Screw - #8-18 x 1/4” - 5 Required
99610015 Duct Transition - 8” x 12” to 10” Round - 2
Required
NP50000
B08087292 Aluminum Grease Filter - 11-11/16” x 18-
13/16”
B03300495 Non-Duct Filter Kit - Includes 2 Filters
B03200618 Light Lens / Diffuser - 2 Required
B02300264 Bulb - Candelabra, Type T8, E12 Base, 120
Volt, 40 Watt - 2 Required
B08086255 Switch Circuit Board - NP50000-A
B08086280 Switch Circuit Board - NP50000-B
B03295033 Button for Light Switch
B03295032 Button for Fan Switch
B03201014 Warning Lamp Lens
B03295029 Switch Box Only
B03295030 Switch Box Cover
B02300280 Light Socket - 2 Required
B02011113 Back Light Reflector - 2 Required
B06001983 Blower Assembly - Includes Motor, Blowr
Wheel, & Scroll Housing
B02310177 Motor
B03295076 Blower Wheel
B03202007 Rubber Motor Washer - 3 Required
B02300233 Motor Capacitor
B08086668 Control Board - NP50000-B Only
B03295008 Control Board Box - NP50000-B Only
B02300787 Heat Sentry - NP50000-B Only
BE3343338 Lower Decorative Flue - Stainless Steel
B03117797 Lower Decorative Flue - White
B03114479 Lower Decorative Flue - Black
BE3343339 Upper Decorative Flue - Stainless Steel
B03117798 Upper Decorative Flue - White
B03114480 Upper Decorative Flue - Black
B08091367 Upper Flue Mounting Bracket
BE3344985 Hood Mounting Bracket
B03295016 Non-Duct Plenum / Air Diverter
B03295018 Non-Duct Plastic Adapter - Reducer 6”
Round to 5” Round
Index
21
B02300248 Power Cord
99091031 Logo Sticker - will read “Broan Elite”
B08088378 Damper / Duct Connector - 6” Round
B080810471 Parts Bag *
* Parts Bag includes Hood Mounting Bracket, Damper Duct
Connector, Upper Flue Mounting Bracket, [8] 4.8 x 38mm
Screws, [4] 3.9 x 9.5mm Screws, [8] Drywall Anchors,
Non-Duct Plenum, [4] 3.4 x 15mm Screws, & [2] 3.9 x
6mm Screws
NP52000
(Discontinued 2010)
B08087294 Aluminum Grease Filter - 9-3/8” x 11-3/4”
- 2 Required for 30” Width - 3 Required for
36” & 42” Widths
B03300488 Non-Duct Filter - 8-7/8” x 9-1/2” *
B02300791 Lens, Chrome Ring with Socket & Lamp
Housing - 2 Required
B02300891 Bulb - Halogen, Type JC, 12 Volt, 20 Watt,
G4 or T4 Base - 2 Required
B08086252 Switch Circuit Board - NP52000-A
B08086279 Switch Circuit Board - NP52000-B,C
B03295074 Slide Button for Motor Switch
B03295073 Slide Button for Light Switch
B03201014 Warning Lamp Lens
B03295075 Switch Box Only
B03295072 Switch Box Cover
B06001991 Blower Assembly - NP52000-A - Includes
Motor, Blower Wheel, Rubber Washers, &
Scroll Housing
B06002013 Blower Assembly - NP52000-B,C - Includes
Motor, Blower Wheel, Rubber Washers, &
Scroll Housing
B02310187 Motor - NP52000-A
B02310203 Motor - NP52000-B,C
B03295076 Blower Wheel
B03204177 Rubber Motor Washer - 3 Required -
NP52000-A
B03202007 Rubber Motor Washer - 3 Required -
NP52000-B,C
BE3402883 Blower Support Bracket
B02300233 Motor Capacitor
B08086668 Circuit Board - NP52000-B,C Only
B03295008 Circuit Board Box - NP52000-B,C Only
B02300783 Transformer - NP52000-A,B
B02300861 Transformer - NP52000-C
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300674 Fuse Holder
B03295035 Fuse Box Only
B02300787 Heat Sentry - NP52000-B,C Only
BE3343464 Decorative Upper Flue
BE3344597 Decorative Lower Flue
B08091367 Upper Flue Mounting Bracket
BE3344985 Hood Mourning Bracket
B03295016 Non-Ducted Plenum / Air Diverter *
B03295017 Non-Ducted Plenum Extension Sleeve - 2
Required *
B03295018 Non-Ducted Transition - 6” to 5” Round *
B02011452 5” Round Flexible Duct - 12-1/2” Collapsed
Length *
B02300249 Power Cord
B08088378 Damper / Duct Connector with Flaps &
Springs - 6” Round
B080810501 Parts Bag **
* Optional, not included with Hood, parts included in
RRK51 Recirculation Kit
** Parts Bag includes Hood Mounting Bracket, Damper
Duct Connector, Upper Flue Mounting Bracket, [8] 4.8 x
38mm Screws, [6] 3.9 x 9.5mm Screws, & [8] Drywall
Anchors
NP60000, RM60000
(Discontinued)
V05522 Aluminum Grease Filter - 9-1/2” x 15-1/4” -
See Filter Chart below for Qty Required
V05523 Aluminum Grease Filter - 11-5/8” x 15-1/4”
- See Filter Chart below for Qty Required
V05524 Aluminum Grease Filter - 13-5/8” x 15-1/4”
- See Filter Chart below for Qty Required
V05525 Aluminum Grease Filter - 17-17/32” x 15-
1/4” - See Filter Chart below for Qty Re-
quired
V14808 Stainless Steel Baffle Filter - 9-1/2” x 15” -
See Filter Chart below for Qty Required
V14809 Stainless Steel Baffle Filter - 11-5/8” x 15” -
See Filter Chart below for Qty Required
V14810 Stainless Steel Baffle Filter - 13-5/8” x 15” -
See Filter Chart below for Qty Required
V14811 Stainless Steel Baffle Filter - 17-17/32”
x 15” - See Filter Chart below for Qty Re-
quired
V05528 Filter Spring - See note for Qty Required *
V02544 Bulb - Halogen, Type PAR20, 120 Volt, 39
Watt - 3 Required
V03502 Double On/Off Switch for Halogen Lights
V02563 On/Off Switch for Warming Lamps - 2 Re-
quired
V03503 On/Off Switch for Fan - Red, Lighted **
V03501 Rotary Speed Control Switch for Motor
V03504 Knob for Speed Control Switch
V03685 Socket for Halogen & Infrared Warming
Lamps - 5 Required
V03435 Thermostat / Heat Sentry
V02264 Female Receptacle
V02773 Male Plug Connector, 3 Pin
V03505 Terminal Strip
V14763 Grease Rail for 30” Wide Hood
V14764 Grease Rail for 36” Wide Hood
V14765 Grease Rail for 42” Wide Hood
V14766 Grease Rail for 48” Wide Hood
V14767 Grease Rail for 54” Wide Hood
V14768 Grease Rail for 60” Wide Hood
V14769 Grease Rail for 66” Wide Hood
V14770 Grease Rail for 72” Wide Hood
V14744 Left Side Liner
V14745 Right Side Liner
99091031 Logo Sticker - will read “Broan Elite”
V12971 Parts Bag ***
* 3 Required for 30”, 36”, 42”, & 54” Wide Hoods - 4 Re-
quired for 48” & 72” Wide Hoods - 5 Required for 60” &
66” Wide Hoods
** Serial Numbers from 0200080800946 to
0200080900096 may have smaller switch. Contact Broan
Tech Support to obtain smaller size switch with serial num-
ber.
*** Includes [1] #10 x 2” Screw, [4] #8 x 3/4” Screws,
[8] #10-32 Nuts, [4] Wall Anchors, & [2] 3/16” ID x 3/4”
OD Washers
NP60000, RM60000 Aluminum
Grease Filter Chart
Hood Filter Part Number & Quantity Required
Width V05522 V05523 V05524 V05525
30” 3 - - -
36” - 3 - -
42” - - 3 -
48” - 4 - -
54” - - - 3
60” - 5 - -
66” - 2 3 -
72” - - - 4
NP60000, RM60000 Stainless
Steel Bafe Filter Chart
Hood Filter Part Number & Quantity Required
Width V14808 V14809 V14810 V14811
30” 3 - - -
36” - 3 - -
42” - - 3 -
48” - 4 - -
54” - - - 3
60” - 5 - -
66” - 2 3 -
72” - - - 4
NS1, NS130BL, NS130SS, NS130WW,
NS136BL, NS136SS, NS136WW
97017415 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters
97017416 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters
97017413 Non-Duct Filter Kit for 30” Wide Hood - In-
cludes 2 Filters & 8 Clips *
97017414
Non-Duct Filter Kit for 36” Wide Hood - 15-
1/2” x 12-3/4” - Includes 2 Filters & 8 Clips *
99527587 Non-Duct Filter Clip Kit - Includes 4 Clips *
V05921 Bulb - Halogen, Type MR16, GU10 Base, 50
Watt, 120 Volt - 2 Required
97017400 Fan & Light Switch Kit - White
97017399 Fan & Light Switch Kit - Black
97017403 Light Socket Kit - Black - Includes Both
Sockets & Trim Rings
97017616 Light Socket Kit - White - Includes Both
Sockets & Trim Rings
97017617 Light Socket Kit - Silver - Includes Both
Sockets & Trim Rings
97017405 Motor
97017408 Blower Wheel - Includes Mounting Ring
99526154 Mounting Ring for Blower Wheel
97017404 Motor Mounting Bracket - Black
97017620 Motor Mounting Bracket - White
97017406 High Speed Capacitor for Motor
97017407 Low Speed Capacitor for Motor
99526148 Nameplate - Black
99526149 Nameplate - White
97017409 Bottom Cover for 30” Wide Black or Stain-
less Steel Hood
97017410 Bottom Cover for 30” Wide White Hood
97017411 Bottom Cover for 36” Wide Black or Stain-
less Steel Hood
97017412 Bottom Cover for 36” Wide White Hood
99526174 Recirculation Plastic Cap for Ducted Instal-
lation - Black
Index
22
99526175 Recirculation Plastic Cap for Ducted Instal-
lation - White
99526146 Recirculation Plastic Grille for Non-Duct
Installation - Black
99526147 Recirculation Plastic Grille for Non-Duct
Installation - White
97017434 Recirculation Deflector for 30” Wide Hood
- Black
97017435 Recirculation Deflector for 30” Wide Hood
- White
97017436 Recirculation Deflector for 36” Wide Hood
- Black
97017437 Recirculation Deflector for 36” Wide Hood
- White
99526509 Recirculation Scroll Wall - Black
99526510 Recirculation Scroll Wall - White
97017398 Duct Plate - 7” Oval - Black
n.l.a. Duct Plate - 7” Oval - White **
97017397 Damper / Duct Connector - Black - 3-1/4” x
10”
97017618 Damper / Duct Connector - White - 3-1/4” x
10”
97017417 Parts Bag - Includes Hood Mounting
Screws
* Optional, not included with Hood
** No longer available - Customer may replace with Black
Duct Plate p/n 97017398
NS54, NS5430SS
99527658 Aluminum Grease Filter
99527023 Non-Duct Filter
99528459 Non-Duct Filter Clips - Includes 2
99271492 Bulb - Candelabra, Type B10, 120 Volt, 40
Watt - 2 Required
99527660 Switch Assembly
99527666 Wiring Harness for Switch Assembly
99527659 Light Socket Assembly - Includes Both
Sockets & Wire Harness
99526974 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor *
see note Blower Wheel *
99527662 Capacitor
99527665 Control Board
99527663 Plastic Cover for Control Board Box
99527661 Curved Glass Plate
99527667 Trim / Gasket for Hood Housing
99527669 Decorative Flues - Includes Both Upper &
Lower
99527686 Upper Flue Mounting Bracket
99527687 Lower Flue Mounting Bracket
99527685 Hood Mounting Bracket
99527670 Non-duct Plenum Assembly
99526984 6” Diameter Expandable Flexible Aluminum
Duct
99526983 Damper Duct Connector - 6” Round
99527664 Parts Bag **
* Must purchase Blower Assembly - p/n 99526974
** Parts Bag includes [8] #8 x 3/8” Screws, [4] M4x30mm
Screws, [2] Washers, [7] #8 x 1-1/2” Screws, [7] Drywall
Anchors, & [4] Decorative Washers
NS58000
99528311 Aluminum Grease Filter Set - Includes 2
Filters
97018030 Non-Duct Filter Set - Includes 2 Filters
99528459 Non-Duct Filter Clips - Includes 2
99271492 Bulb - Candelabra, Type B10, 120 Volt, 40
Watt - 2 Required
99528310 Switch Assembly - Includes Push Buttons
99527659 Light Socket Assembly - Includes Both
Sockets & Wire Harness
99526974 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor *
see note Blower Wheel *
99527012 Motor Capacitor
99528319 Control Board
99527663 Plastic Control Board Box & Cover
99526972 Decorative Flues - Includes Both Upper &
Lower
99526988 Lower Flue Mounting Bracket
99526990 Upper Flue Mounting Bracket
99526986 Hood Mounting Bracket
99526984 Flexible Aluminum Duct - 6” Round
99526992 Non-Duct Plenum Assembly
99526983 Damper / Duct Connector - 6” Round
99526993 Parts Bag **
* Must order Blower Assembly - p/n S99526974
** Includes [10] #8 x 3/8” Pan Head Screws, [7] #8 x 1-1/2”
Flat Head Screws, [7] Drywall Anchors, & [2] Washers
NS6500
(Discontinued 2013)
R610092 Aluminum Grease Filter - 11-1/4” x 11-5/8”
99010317 Non-Ducted Filter - 11-1/4” x 11-5/8” *
R401650 Light Lens - 2 Required
R561157 Switch Kit for Fan & Light - Black
R561159 Switch Kit for Fan & Light - White
R561163 Switch Kit for Fan & Light - Biscuit
99271236 Right Side Light Socket Assembly - Short
Wires
R566097 Left Side Light Socket Assembly - Long
Wires
99080666 Motor
R531076 Fan Blade - Includes Hitch Pin / Hairpin Clip
R607225 Hitch Pin / Hairpin Clip used to Attach Fan
Blade to Motor
R401653 Grille - Black
R401651 Grille - White
R401652 Grille - Biscuit
R99091071 Baffle - Black
R99091072 Baffle - White
R99091073 Baffle - Biscuit
97018838 Wiring Harness - Complete - Replaces part
numbers R111675, R111678, & R111679
R680541 Wiring Cover
R680508 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R740014 Damper / Duct Connector - 3-1/4” x 10”
* Optional, not included with Hood
NSP130
97017455 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 9-7/8” x 11-11/16”
V05921 Bulb - Halogen, Type MR16 or PAR16,
GU10 Base, 120 Volt, 50 Watt - 2 Required
97017311 Switch Assembly - Includes Both Fan &
Light Switch
99271346
Socket Assembly - Includes Trim - 2 Required
97007542 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080597 Motor
99020142 Blower Wheel - CW
99020143 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
99100491 Rubber Motor Mount - 4 Required
98010342 Motor Ring Inlet - 2 Required
97007313 Scroll Housing Only
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97017428 Heat Sentry Thermostat - Includes Bracket
Assembly
97017224 Front Light / Switch Panel
99500323 PVC Foam - 2 Required
98006546 Wiring Cover for Sockets
97007631 Bottom Cover
97007656 Wiring Box Cover
97017429 Damper / Duct Connector - 3-1/4” x 10”
97005543 Parts Bag
NSPM25, NSPM25BL, NSPM25WW
,
PM25, PM25BL, PM25WW
(Discontinued 2009)
R610027 Aluminum Grease Filter - Includes Light
Lens - 7-5/8” x 14-1/8”
R610049 Non-Duct Filter - Includes Light Lens -
7-5/8” x 14-1/8” *
R602539 Filter Screw - 2 Required
R600018 Tinnerman Clips / Nut for Filter Screws - 2
Required
97016971 Fan & Light Switch Kit - White
97016970 Fan & Light Switch Kit - Black
R111447 Light Socket
R730090 Fan Assembly - Includes Motor, Fan Blade,
& Mounting Bracket
see note Motor **
see note Fan Blade **
97010792 7” Round Inline Damper ***
97018803 7” Round Inline Damper with Sound
Dampening Foam ***
S354NDK Recirculation Kit ***
97005543 Parts Bag - Includes 4 Mounting Screws &
2 Damper Screws
* Optional, not included with Hood - parts included with
354NDK Recirculation Kit
** Must purchase Fan Assembly - p/n R730090
*** Optional, not included with Hood
NSPM250, PM250
99010370 Aluminum Grease Filter - 5-7/8” x 16-7/8”
B08999040 Non-Ducted Filter - 5-7/8” x 17-11/16” *
98010831 Metal Wire to Hold Filter - 2 Required
B03294757 Light Lens
B02300264 Bulb - Candelabra, Type T8, E12 Base, 120
Volt, 40 Watt - 2 Required
B02300826 Fan Switch - PM250-A
99030347 Fan Switch - PM250-B
B02300827 Light Switch - PM250-A
99030342 Light Switch - PM250-B
97018557 Light Socket Assembly - Contains Both
Sockets, Wire Leads, Upper & Lower Lamp
Holder Brackets
Index
23
B02300280 Light Socket - 2 Required
B03295094 Lower Lamp Socket Holder Bracket
B03295095 Upper Lamp Socket Holder Bracket
R730090 Motor & Fan Blade
B03127681 Silver Bottom Grid - PM250-A
97018550 Silver Bottom Grid - PM250-B
B03118152 White Bottom Grid - PM250-A
BE3348475 Switch Metal Cover / Holder - PM250-A
98010828 Switch Plate Cover - PM250-B
B03202454 Stain Relief Bushing
BE3248476 Lateral Wiring Box Cover
97010792 7” Round Inline Damper **
97018803 7” Round Inline Damper with Sound
Dampening Foam **
S356NDK Recirculation Kit **
B080810782 Parts Bag - PM250-A
97018559 Parts Bag - PM250-B ***
* Optional, not included with Hood - parts included with
356NDK Recirculation Kit
** Optional, not included with Hood
*** Includes [4] #8-32 x 5/8” Pan Head Screws, [4] #8-32
Nuts, [4] #8 Lock Washers, & [4] #8 x 5/8” Self-Tapping
Screws
NSPM390, PM390, PM390HS,
PM390WW
(Model PM390WW Discontinued 06/2013)
--NOTE-- Original plastic Blower Housing was changed to
a metal Housing in 2005
99010370 Aluminum Grease Filter - 5-7/8” x 16-7/8”
B08999040 Non-Duct Filter - 5-7/8” x 17-11/16” *
98010831 Metal Wire to Hold Filter - 2 Required
B03293051 Light Lens - 2 Required
B02300264 Bulb - Candelabra, Type T8, E12 Base, 120
Volt, 40 Watt - 2 Required
B06108860 Switch Assembly - PM390HS **
B06108607 Switch Assembly - PM390, PM390WW
***
B08086285 Switch Circuit Control Board Only - PM-
390HS
B08086263 Switch Circuit Control Board Only - PM390,
PM390WW
B03295041 Knob for Light Switch - PM390HS
B03295081 Knob for Light Switch - PM390, PM-
390WW
B03295042 Knob for Fan Switch - PM390HS
B03295082 Knob for Fan Switch - PM390, PM390WW
B03201014 Red Pilot Light Lens
B02300280 Light Socket - 2 Required
BE3348672 Light Reflector - 2 Required
B06002013 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
B02310203 Motor
B03295076 Blower Wheel
BW0000043 Plastic Motor Scroll Only
B02300233 Capacitor / Condenser for Motor
B03294780 Control Box for Motor Capacitor
B08086668 Control Board - PM390HS Only
B02300787 Heat Sentry - PM390HS Only
BR2300132 Terminal Block - PM390HS Only
B03127682 Silver Bottom Grid - PM390, PM390HS
B03118154 White Bottom Grid - PM390WW
B03295038 Plastic Slide Fastener for Attaching Bottom
Grid - Black - PM390, PM390HS
B03295083 Plastic Slide Fastener for Attaching Bottom
Grid - White - PM390WW
B03295039 Grid Stop - Small Plastic Part that Attaches
to Top of Plastic Fastener Listed Above -
PM390, PM390HS
B02395084 Grid Stop - Small Plastic Part that Attaches
to Top of Plastic Fastener Listed Above -
PM390WW
B02011013 Clasping Side Spring for Mounting Hood to
Cabinet
B02300249 Power Cord - PM390HS Only
BE3334250 Wiring Box - PM390, PM390WW
BE3351530 Wiring Box Cover - PM390, PM390WW
B032920170 Wiring Box - PM390HS
B032920200 Wire Clamp by Wiring Box - PM390HS
Only
B03292200 Wire Clamp by Switch Assy
B08088378 Damper / Duct Connector - 6” Round
S357NDK Recirculation Kit ****
B080810782 Parts Bag
* Optional, not included with Hood - parts included with
357NDK Recirculation Kit
** Switch Assembly includes Switch Box, Switch Circuit
Board, Buttons, Light Sockets, & Capacitor
*** Switch Assembly includes Switch Box, Switch Circuit
Board, Buttons, & Light Sockets
**** Optional, not included with Hood
NSPM44, NSPM44BL, NSPM44WW
,
PM44, PM44BL, PM44WW
(Discontinued 2009)
R610080 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
R610081 Non-Duct Filter Kit - PM44-B - Includes 2
Filters *
R602539 Filter Screw - 2 Required
R600018 Tinnerman Clips for Filter Screws - 2 Re-
quired
n.l.a. Light Lens - Glass - PM44-A
97013316 Light Lens - Plastic - PM44-B - 3-5/8”
x 7-1/2” - Will have “Max 75watt Bulb”
Marked on Lens
99030132 Fan Switch
R561107 Light Switch
R600325 Knob Kit for Fan & Light Switches - White -
Includes 2 Knobs
n.l.a. Knob Kit for Fan & Light Switch - Black -
Includes 2 Knobs
R566066 Light Socket
R730079 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
R520098 Motor
R531041 Blower Wheel - CW
R531042 Blower Wheel - CCW
n.l.a. White Bottom Cover Assembly - PM44-A
R7500761 White Bottom Cover Assembly - PM44-B -
Includes Screws & Plastic Lens
R7500364 Black Bottom Cover Assembly - PM44-A -
Includes Filter Clips & Glass Lens
R7500764 Black Bottom Cover Assembly - PM44-B -
Includes Screws & Plastic Lens
R740016 Damper / Duct Connector - 3-1/4” x 10”
S355NDK Charcoal Recirculation Kit - Complete *
97005543 Parts Bag - Includes 4 Mounting Screws &
2 Damper Screws
* Optional, not included with Hood
P5
V14973 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Case Housing
V01766 Motor
V03400 Blower Wheel
V01810 Blower Wheel Retaining Ring
V02160 Capacitor - 15M FD
V02001 Motor Grommet - 3 Required
V11705 Motor Mount Bracket
V03494 Blower Power Cord - 36”, Male Plug End
V12997 Rough-In Assembly - Includes Plate &
Power Cord
V03496 Main Power Cord - Female Plug End
V03500 Air Deflector
V13296 Damper / Duct Connector - 3-1/4” x 10”
P8
--NOTE-- Revision B Started Production Late 11/2002
V14974 Blower Assembly - P8-B Only - Includes
Motors, Blower Wheels, Capacitors, &
Case Housing
V01766 Motor - CW
V03457 Motor - CCW
V03400 Blower Wheel - CW
V03399 Blower Wheel - CCW
V01810 Blower Wheel Retaining Ring - 2 Required
V02160 Capacitor - 15M FD - 2 Required
V02001 Motor Grommet - 6 Required
V11705 Motor Mount Bracket - 2 Required
V03494 Blower Power Cord - 36”, Male Plug End
V14975 Rough-in Assembly - P8-B - Includes Plate
& Power Cord
V03496 Main Power Cord - Female Plug End
V03500 Air Deflector
V13296 Damper / Duct Connector - 3-1/4” x 10”
V14971 Damper / Duct Connector - 3-1/4” x 14” -
P8-B
PM250WW
(Discontinued 2011)
99010370 Aluminum Grease Filter - 5-7/8” x 16-7/8”
B08999040 Non-Duct Filter - 5-7/8” x 17-11/16” *
98010831 Metal Wire to Hold Filter
B03294757 Light Lens
B02300264 Bulb - Candelabra, Type T8, E12 Base, 120
Volt, 40 Watt - 2 Required
B02300822 Fan Switch
B02300823 Light Switch
BE3348475 Switch Metal Cover / Holder
B06108604 Light Socket Assembly - Includes Both
Sockets & Wire Leads
B02300280 Light Socket - 2 Required
B03295094 Lower Lamp Socket Holder Bracket
B03295095 Upper Lamp Socket Holder Bracket
R730090 Motor & Fan Blade
B03118152 White Bottom Grid
B03202454 Stain Relief Bushing
BE3248476 Lateral Wiring Box Cover
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
S356NDK Recirculation Kit *
B080810782 Parts Bag
* Optional, not included with Hood
Index
24
PM39, PM39-521
R610080 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
97013316 Light Lens - 3-5/8” x 7-1/2”
R561107 Light Switch - 3 Position Rotary
99030132 Fan Speed Control Switch
R566066 Light Socket
R730079 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
R520098 Motor
R531041 Blower Wheel - CW
R531042 Blower Wheel - CCW
PM500, PM500SS
B08087039 Aluminum Grease Filter - 2 Required
B08999053 Non-Duct Filter - 2 Required *
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base, 12
Volt, 20 Watt - 2 Required
B06108858 Switch Assembly - Includes Switch Box,
Switch Circuit Board, Capacitor, & Wire
Harness
B08086303 Switch Circuit Control Board Only
B03200376 Switch Button - 5 Required
B03201014 Red Pilot Light Lens
B02300798 Light Socket Assembly - Includes Trim
Ring & Lens - 2 Required
B02310260 Motor
B03295071 Blower Wheel
BW0000021 Scroll Housing
B03204177 Rubber Motor Mounting Washer - 3 Re-
quired
B02300233 Capacitor
B03295008 Electrical Box for Capacitor
B02300787 Heat Sentry
see note Transformer **
B02300782 Fuse - 4 Amp, 5mm x 20mm
B003102348 Bottom Frame
B03293065 Side Plastic Fastener - Used to Attach Bot-
tom Frame to Housing - 2 Required
B03293066 Grid Stop - Back Half of Side Fastener - 2
Required
B02011013 Side Clasping Spring for Mounting Hood to
Cabinet
B08088378 Damper / Duct Connector - 6” Round
B080810782 Parts Bag
* Optional, not included with Hood
** Transformer design changed in November 2010. If unit
made before 11/10 use p/n B02300783. If unit made in or
after 11/10 use p/n B02300861.
PME300
B08087694 Aluminum Grease Filter
B03293051 Light Lens - 2 Required
97016889 Bulb - Fluorescent, G24q-1, 13 Watt - 2 Re-
quired
B06102518 Switch Assembly - Includes Switch Box,
Cover, Switch Circuit Board, Switch Knobs,
& Wire Harness
BE3351462 Bracket for Switch Assembly
B03294780 Switch Box Only
B08080376 Switch Circuit Board
B03295040 Switch Box Cover
B03295042 Knob for Fan Switch
B03295041 Knob for Light Switch
B03201014 Pilot Lamp Lens
B02300987 Light Socket - 2 Required
B02300986 Fluorescent Ballast
B06002195 Blower Assembly - Includes Motor, Blower
Wheel, Rubber Washers, & Scroll Housing
B02310713 Motor
B03295071 Blower Wheel
B03204177 Rubber Motor Mounting Washer - 3 Re-
quired
BW0000019 Scroll Housing
B02300233 Motor Capacitor
B08086668 Main Control Board
B03294781 Control Box for Main Control Board
B03294033 Control Box Cover for Wiring Box & Control
Board Box
B02300787 Heat Sentry
B08093221 Bottom Frame
B03295038 Side Plastic Fastener - Used to Attach Bot-
tom Frame to Housing - 2 Required
B03295039 Grid Stop - Back Half of Side Fastener - 2
Required
B03292357 Control Box for Wiring
B02300249 Power Feeder Cord
BR2300132 Junction Clamp for Power Feeder Cord
B032920200 Wire Stop for Power Feeder Cord
B032920170 Wiring Box for Power Feeder Cord
B032920180 Wiring Box Cover for Power Feeder Cord
Box
B02011013 Clasping Spring for Mounting Housing
B08088378 Damper Duct Connector - 6” Round
B080810960 Hardware Package
PME52, PME52SS
--NOTE-- Revision B began in 10/2009
B08087804 Aluminum Grease Filter - 2 Required
V05921 Bulb - Type MR16, GU10 Base, 120 Volt, 50
Watt - 2 Required
B06103644 Switch Assembly - PME52-A *
B06103830 Switch Assembly - PME52-B *
BE3344843 Bracket for Switch Assembly
B03294780 Switch Box Only
B08080360 Switch Circuit Board
B03295043 Switch Box Cover
B03295081 Knob for Light Switch
B03295082 Knob for Motor Switch
B03201014 Pilot Lamp Lens
B06108882 Light Socket - 2 Required
B02009102 Ring Nut / Bezel - 2 Required
BE3349127 Bracket for Light Socket - 2 Required
B08086141 Main Control Board
B03294781 Electrical Box for Control Board
B03294033 Cover for Control Board Box
BR2300132 Terminal Block
BE3344847 Bottom Frame
B02000690 Knob used to Attach Bottom Frame to
Housing - 2 Required
B02011013 Clasping Spring for Mounting Housing
B08092406 Damper / Duct Connector - 8” Round
B080810782 Parts Bag
* Includes Switch Box, Cover, Switch Circuit Board, Switch
Knobs, & Wire Harness
QB1
97018894 Grease Filter Kit - Includes 2 Filters
97018889 Non-Duct Filter Kit - Includes 2 Filters &
Filter Clip Assembly *
97018905 Non-Duct Filter Clip Assembly - Includes 2
Screws, 2 Springs, & 2 Clips *
99526798 Bulb - Halogen, Type MR16, GU10 Base, 35
Watt - 2 Required
97018890 Switch Assembly
97018899 Lamp Socket - Includes Socket, Mounting
Screws, & Bracket - 2 Required
97018897 Motor Kit - Includes Motor, Isolators, &
Mounting Hardware
97018896 Blower Wheel
97018895 Blower Inlet Ring
97018891 Capacitor Kit - Includes Wire Nuts
97018893 Light Panel
97018902 Light Diode Assembly - for Night Light
Function
97018892 Diverter Assembly - Includes 3 Covers, Di-
verter, & Mounting Hardware
97018903 Louver Cover - Includes 3 Screws
97018904 Plastic Louver - Includes 3 Screws
97018906 Non-Duct Filter Cover *
99526707 Suction Cup Tool
97018898 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Hardware
97018287 Parts Bag - Includes [4] #10 x 5/8” Screws,
[9] #8 x 1/4” Screws, [3] Wire Nuts, & Suc-
tion Cup Tool
* Optional, not included with Hood - parts included with
RKQB Recirculation Kit
QDE
V14131 Aluminum Grease Filter Kit - 13-13/16” x
14-3/32” - Includes 2 Filters
V01752 Light Lens / Diffuser
V03623 Bulb - Fluorescent, Type PLC13, G24q-1
Base, 120 Volt, 13 Watt, 2700K - 2 Re-
quired
V15434 Light & Fan Switch Set - White *
V15433 Light & Fan Switch Set - Black *
V03649 Light Socket Assembly - Includes Ballast &
Both Sockets
V01765 Motor
V01988 Blower Wheel
V01757 Plastic Inlet Ring
V06756 Main Capacitor, 11.5UF - Capacitor with
Orange, Red & Black Wires
V02104 Secondary Capacitor, 7.5UF - Capacitor
with Black & Brown Wires
V16119 Bottom Pan - White
V16117 Bottom Pan - Black
V13296 Damper / Duct Connector - 3-1/4” x 10”
V04281 Parts Bag **
* Includes Fan Switch, Light Switch, & Nameplate / Overlay
** Parts Bag includes [1] Wire Clamp, [2] Wire Connectors,
[6] #6 x 1/2” Screws, & [5] #8 x 1/2” Screws
QL1, QL100
R610092 Aluminum Grease Filter - 11-1/4” x 11-5/8”
99010317 Non-Duct Filter - 11-1/4” x 11-5/8” *
R401650 Light Lens - 2 Required
R111687 Switch Assembly **
R561138 Fan Switch Only
R561138 Light Switch Only
R111658 Rectifier Assembly for Night Light Function
R99360244 Knob - White - 2 Required
R99360247 Knob - Biscuit - 2 Required
99271236 Light Socket Assembly with Short Wires on
Right Side
R566097 Light Socket Assembly with Long Wires on
Left Side
Index
25
99080666 Motor
R531076 Fan Blade - Includes Hitch Pin / Hairpin Clip
R99420635 Hitch Pin / Hairpin Clip
R401659 Grille / Name Plate - Biscuit
R401658 Grille / Name Plate - White
R99091072 Baffle - White
R99091073 Baffle - Biscuit
98009816 Wiring Cover
R680508 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R740014 Damper / Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes 4 Wood Screws - #10-
16 x 3/4”
* Optional, not included with Hood
** Includes Fan Switch, Light Switch, Night Light Rectifier,
& Wire Harness
QML
R610092 Aluminum Grease Filter - 11-1/4” x 11-5/8”
99010317 Non-Duct Filter - 11-1/4” x 11-3/4” *
99526798 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 35 Watt - 2 Required
97017300 Fan & Light Switch Pack - White
97018658 Fan & Light Switch Pack - Black
97018659 Wire Harness for Fan & Light Switch - In-
cludes Diode Assembly
97018656 Light Socket Assembly - Includes Both
Sockets & Wire Harness
99080666 Motor
R531076 Fan Blade - Includes Hairpin Clip
R99420635 Hairpin Clip
99680044 Cable Clip for Motor Wire Harness
97018660 Air Chute
R602534 Screw Kit for Air Chute - #8-18 x 3/8” - In-
cludes 2 Screws
97018652 Bottom Panel Assembly - Black
97018653 Bottom Panel Assembly - Stainless Steel
97018651 Bottom Panel Assembly - White
R680508 7” Round Duct Plate - Includes Mounting
Hardware
97010792 7” Round In-line Damper *
97018803 7” Round In-line Damper with Sound
Dampening Foam *
R740014 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Hardware
97018623 Parts Bag - Includes Mounting Hardware &
Suction Cup Tool
QP130, QP136
97017720 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 11-27/32” x 16-
1/4”
97017721 Aluminum Grease Filter Kif for 36” Wide
Hood - Includes 2 Filters - 14-7/8” x 16-
1/4”
99010353 Non-Duct Filter Kit for 30” Wide Hood - In-
cludes 2 Filters & 8 Filter Clips - 10-7/8” x
15-5/16” *
99010354 Non-Duct Filter Kit for 36” Wide Hood - In-
cludes 2 Filters & 8 Filter Clips - 13-7/8” x
15-5/16” *
99527587
Non-Ducted Filter Clip Kit - Includes 4 Clips *
99526798
Bulb - Halogen, Type MR16 or PAR16, GU10
Base, 120 Volt, 35 Watt - 4 Required **
97017729 Switch Assembly - White - Includes Light
Switch, Fan Switch, & Nameplate
97017730 Switch Assembly - Black - Includes Light
Switch, Fan Switch, & Nameplate
97018234 Light Diode Assembly - Includes Wire Nuts
97017731 Light Socket - Includes Socket, Wire Nuts
& Mounting Hardware - 4 Required
97018233 Bracket for Light Socket - Includes Mount-
ing Hardware - 4 Required
97017732 Motor Kit - Includes Motor. Isolators, &
Mounting Hardware
97017734 Blower Wheel - Includes Mounting Nut
97017754 Plastic Round Venturi Ring - Includes
Mounting Hardware
97017736 Capacitor Kit - Includes Capacitor, Wire
Nuts & Mounting Screw
99526653 Nameplate - White
99526652 Nameplate - Black
97017755 Right Hand Light Panel - White
97017758 Left Hand Light Panel - White
97017756 Right Hand Light Panel - Black
97017759 Left Hand Light Panel - Black
97017757 Right Hand Light Panel - Stainless Steel
97017760 Left Hand Light Panel - Stainless Steel
99526707 Rubber Suction Cup Tool
97017753 Non-Duct Plastic Slide - White - Located
Inside of Hood
97017821 Non-Duct Plastic Slide - Black - Located
Inside of Hood
97017727 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97017728 Damper / Duct Connector - 3-1/4” x 10”
97017735 Parts Bag - Located in the Side Styrofoam
Packing Material ***
* Optional, not incldued with Hood
** Not included with Hood
*** Parts Bag includes [5] #10 x 5/8”, [9] #8-18 x 1/4”, [1]
suction cup, & [3] wire nuts
QP142
97018201 Aluminum Grease Filter Kit - Includes 3 Fil-
ters - 11-27/32” x 16-1/4”
99010360 Non-Duct Filter Kit - Includes 3 Filters & 12
Filter Clips - 10-7/8” x 15-5/16” *
99527587 Non-Ducted Filter Clip Kit - Includes 4 Clips
*
99526798 Bulb - Halogen, Type MR16 or PAR16,
GU10 Base, 120 Volt, 35 Watt - 4 Required
**
97017729 Switch Assembly - White - Includes Light
Switch, Fan Switch, & Nameplate
97017730 Switch Assembly - Black - Includes Light
Switch, Fan Switch, & Nameplate
97018234 Light Diode - Includes Wire Nuts
97017731 Light Socket - Includes Socket, Wire Nuts
& Mounting Hardware - 4 Required
97018233 Bracket for Light Socket - 4 Required
97018221 Motor Kit - Includes Motor. Isolators, &
Mounting Hardware
97018220 Blower Wheel
97017736 Capacitor Kit - Includes Capacitor, Wire
Nuts & Mounting Screw
99526653 Nameplate - White
99526652 Nameplate - Black
97018225 Right Hand Light Panel - White
97018229 Left Hand Light Panel - Whtie
97018226 Right Hand Light Panel - Black
97018230 Left Hand Light Panel - Black
97018227 Right Hand Light Panel - Stainless Steel
97018231 Left Hand Light Panel - Stainless Steel
97018235 Bottom Pan - Includes Mounting Hardware
99526707 Rubber Suction Cup Tool
97018242 Non-Duct Black Plastic Plenum - Air Chute
97018243 Non-Duct Diverter
97018244 Non-Duct Plate
97017727 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97017728 Damper / Duct Connector - 3-1/4” x 10”
97018224 Parts Bag - Located in the Side Styrofoam
Packing Material ***
* Optional, not included with Hood
** Not included with Hood
*** Parts Bag includes [5] #10 x 5/8” Screws, [9] #8-18 x
1/4” Screws, [1] Suction Cup Tool, & [3] Wire Nuts
QP2
97018202 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 11-27/32” x 16-
1/4”
97018203 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 14-7/8” x 16-
1/4”
97018204 Aluminum Grease Filter Kit for 42” Wide
Hood - Includes 3 Filters - 11-27/32” x 16-
1/4”
99010353 Non-Duct Filter Kit for 30” Wide Hood - In-
cludes 2 Filters & 8 Filter Clips - 10-7/8” x
15-5/16” *
99010354 Non-Duct Filter Kit for 36” Wide Hood - In-
cludes 2 Filters & 8 Filter Clips - 13-7/8” x
15--5/16” *
99010360 Non-Duct Filter Kit for 42” Wide Hood - In-
cludes 3 Filters & 8 Filter Clips - 10-7/8” x
15-5/16” *
99527587 Non-Duct Filter Clip Kit - Includes 4 Clips *
V05921 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 50 Watt - 4 Required
97018245 Switch Assembly - White - Includes
Switches, Interface, Nameplate, & Mount-
ing Hardware
97018246 Switch Assembly - Black - Includes Switch-
es, Interface, Nameplate, & Mounting Hard-
ware
97018247 Switch Assembly - Bisque - Includes
Switches, Interface, Nameplate, & Mount-
ing Hardware
97017731 Light Socket - Includes Socket, Wire Nuts,
& Mounting Hardware - 4 Required
97018233 Bracket for Light Socket - 4 Requried
97018719 Motor Kit - Includes Motor. Isolators, &
Mounting Hardware
97018220 Blower Wheel - Includes Mounting Nut
97018251 Capacitor Kit - Includes Capacitor, Wire
Nuts & Mounting Screw
97018254 Circuit Board
97018255 Ribbon Cable
97018252 Heat Sentry
97018253 Fuse - 5mm x 20mm, 8 Amp, 120 Volt, Fast
Acting
Index
26
99528248 Nameplate - White
99528249 Nameplate - Black
99528250 Nameplate - Bisque
97018225 Right Hand Light Panel - White
97018229 Left Hand Light Panel - White
97018226 Right Hand Light Panel - Black
97018230 Left Hand Light Panel - Black
97018227 Right Hand Light Panel - Stainless Steel
97018231 Left Hand Light Panel - Stainless Steel
97018228 Right Hand Light Panel - Bisque
97018232 Left Hand Light Panel - Bisque
97018236 Bottom Pan for 30” Wide Hood - Includes
Mounting Hardware
97018237 Bottom Pan for 36” Wide Hood- Includes
Mounting Hardware
97018238 Bottom Pan for 42” Wide Hood - Includes
Mounting Hardware
99526707 Rubber Suction Cup Tool
97018242 Non-Duct Black Plastic Plenum / Air Chute
97018243 Non-Duct Diverter
97018244 Non-Duct Plate
97017727 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97017728 Damper / Duct Connector - 3-1/4” x 10”
97018224 Parts Bag - Located in the Side Styrofoam
Packing Material **
* Optional, not included with Hood
** Parts Bag includes [5] #10 x 5/8” Screws, [9] #8-18 x
1/4” Screws, [1] Suction Cup Tool, & [3] Wire Nuts
QP3
97018205 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 11-27/32” x 16-
1/4”
97018206 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 14-7/8” x 16-
1/4”
97018207 Aluminum Grease Filter Kit for 42” Wide
Hood - Includes 3 Filters - 11-27/32” x 16-
1/4”
99010353 Non-Duct Filter Kit for 30” Wide Hood - In-
cludes 2 Filters & 8 Filter Clips - 10-7/8” x
15-5/16” *
99010354 Non-Duct Filter Kit for 36” Wide Hood - In-
cludes 2 Non-Duct Filters & 8 Filter Clips -
13-7/8” x 15--5/16” *
99010360 Non-Duct Filter Kit for 42” Wide Hood - In-
cludes 3 Filters & 8 Filter Clips - 10-7/8” x
15-5/16” *
99527587 Non-Duct Filter Clip Kit - Includes 4 Clips *
V05921 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 50 Watt - 4 Required
97018256 Switch Assembly - White - Includes
Switches, Interface, Nameplate, & Mount-
ing Hardware
97018257 Switch Assembly - Black - Includes Switch-
es, Interface, Nameplate, & Mounting Hard-
ware
97017731 Light Socket - Includes Socket, Wire Nuts,
& Mounting Hardware - 4 Required
97018233 Bracket for Light Socket - 4 Required
97018720 Motor - Includes Motor, Isolators, &
Mounting Hardware
97018220 Blower Wheel - Includes Mounting Nut
97018251 Capacitor Kit - Includes Capacitor, Wire
Nuts & Mounting Screw
97018260 Circuit Board
97018261 Ribbon Cable
97018252 Heat Sentry
97018262 Transformer - Includes Transformer &
Mounting Hardware
97018253 Fuse - 5mm x 20mm, 8 Amp, 120 Volt, Fast
Acting
99528258 Nameplate - White
99528259 Nameplate - Black
97018225 Right Hand Light Panel - White
97018229 Left Hand Light Panel - White
97018226 Right Hand Light Panel - Black
97018230 Left Hand Light Panel - Black
97018227 Right Hand Light Panel - Stainless Steel
97018231 Left Hand Light Panel - Stainless Steel
97018239 Bottom Pan for 30” Wide Hood - Includes
Mounting Hardware
97018240 Bottom Pan for 36” Wide Hood - Includes
Mounting Hardware
97018241 Bottom Pan for 42” Wide Hood - Includes
Mounting Hardware
99526707 Rubber Suction Cup Tool
97018242 Non-Duct Black Plastic Plenum / Air Chute
97018243 Non-Duct Diverter
97018244 Non-Duct Plate
see BCR1 Remote Control *
97017727 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97017728 Damper / Duct Connector - 3-1/4” x 10”
97018224 Parts Bag - Located in the Side Styrofoam
Packing Material **
* Optional, not included with Hood
** Parts Bag includes [5] #10 x 5/8” Screws, [9] #8-18 x
1/4” Screws, [1] Suction Cup Tool, & [3] Wire Nuts
QP4
97018205 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 11-27/32” x 16-
1/4”
97018206 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 14-7/8” x 16-
1/4”
97018207 Aluminum Grease Filter Kit for 42” Wide
Hood - Includes 3 Filters - 11-27/32” x 16-
1/4”
V05921 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 50 Watt - 4 Required
97018257 Switch Assembly - Includes Interface,
Nameplate, & Mounting Hardware
97017731 Light Socket - Includes Socket, Wire Nuts
& Mounting Screws - 4 Required
97018233 Bracket for Light Socket - 4 Required
97018570 Motor Kit - Includes Motor, Isolators, &
Mounting Hardware
97018569 Blower Wheel - Includes Spring Clip
97018568 Capacitor Kit - Includes Wire Nuts &
Mounting Screw
97018260 Circuit Board
97018261 Ribbon Cable
97018252 Heat Sentry
97018262 Transformer - Includes Mounting Hardware
97018253 Fuse - 5mm x 20mm, 8 Amp, 120 Volt, Fast
Acting
99528259 Nameplate - Black
97018227 Right Hand Light Panel - Includes Mount-
ing Hardware
97018231 Left Hand Light Panel - Includes Mounting
Hardware
97018572 Bottom Pan for 30” Wide Hood - Includes
Mounting Hardware
97018573 Bottom Pan for 36” Wide Hood - Includes
Mounting Hardware
97018574 Bottom Pan for 42” Wide Hood - Includes
Mounting Hardware
97018582 Rubber Bushing
99526707 Suction Cup Tool
97018575 Vertical Diverter for Fan
see BCR1 Remote Control *
97018567 7” Round Duct Plate - Includes Mounting
Hardware
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97018571 Damper / Duct Connector - 3-1/4” x 14” -
Includes Mounting Hardware
ST461 Damper / Duct Connector Adapter - 3-1/4”
x 14” to 3-1/4” x 10” *
97017735 Parts Bag
* Optional, not included with Hood
QS1
99010299 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 11-7/8” x 14-
11/32”
99010300 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 11-7/8” x 17-
11/32”
99010301 Aluminum Grease Filter Kit for 42” Wide
Hood - Includes 2 Filters - 11-7/8” x 20-
11/32”
R169016 Grease Filter Spring Kit - Includes 3 Alumi-
num Springs
99010308 Non-Duct Filter Kit for 30” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
13-5/16” *
99010309 Non-Duct Filter Kit for 36” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
16-5/16” *
99010310 Non-Duct Filter Kit for 42” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
19-5/16” *
99527587 Non-Duct Filter Clip Kit - Includes 4 Clips *
V02544 Bulb - Halogen, PAR20, 120 Volt, 39 Watt -
2 Required *
R561115 Fan & Light Rocker Switch Kit - Almond
R561116 Fan & Light Rocker Switch Kit - White
R561117 Fan & Light Rocker Switch Kit - Black
R561119 Fan & Light Rocker Switch Kit - Biscuit
R169004 Indicator Light for Fan Operation - Includes
Lens & 2 Wire Nuts
R607657 Lens for Indicator Light
R169010 Light Diode Assembly - Includes Wire Nut
R111630 Light Socket Assembly - Includes Both
Sockets & Wire Harness
R99080535 Motor - Includes Mounting Screws
see note Fan Blade - QS1-A **
R607222 Compression Ring for Fan Blade - QS1-A
R531075 Fan Blade - QS1-B,C,D,E,F - Includes Hair-
pin Clip
Index
27
R99420635 Hairpin Clip for Fan Blade - QS1-B,C,D,E,F
R169002 Motor Mounting Screw Kit - Includes 3
Screws
R627497 Nameplate - White
R627498 Nameplate - Almond
R627499 Nameplate - Stainless Steel
R627575 Nameplate - Black
R627527 Nameplate - Biscuit
R401573 Black Plastic Air Chute - QS1-A,B,C
R401647 Black Plastic Air Chute & Baffle Assembly -
QS1-D,E,F
R401646 Baffle Only for Air Chute - QS1-D,E,F
R602058 Screw Kit for Plastic Air Chute - QS1-A,B,C
- Includes 3 Screws - #8 x 1/2” Pan Head
R602534 Screw for Plastic Air Chute - QS1-D,E,F
R7201731 Light Panel for 30” Wide Hood - White
R7201751 Light Panel for 36” Wide Hood - White
R7201771 Light Panel for 42” Wide Hood - White
R7201732 Light Panel for 30” Wide Hood - Almond
R7201752 Light Panel for 36” Wide Hood - Almond
R7201772 Light Panel for 42” Wide Hood - Almond
R7201734 Light Panel for 30” Wide Hood - Black
R7201754 Light Panel for 36” Wide Hood - Black
R7201774 Light Panel for 42” Wide Hood - Black
R7201735 Light Panel for 30” Wide Hood - Biscuit
R7201755 Light Panel for 36” Wide Hood - Biscuit
R7201775 Light Panel for 42” Wide Hood - Biscuit
R720174 Light Panel for 30” Wide Hood - Stainless
Steel
R720176 Light Panel for 36” Wide Hood - Stainless
Steel
R720178 Light Panel for 42” Wide Hood - Stainless
Steel
R680504 Wiring Cover
R740013 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Screws
R680508 7” Round Duct Plate - Includes Mounting
Screws
97010792 7” Round In-line Damper *
97018803 7” Round In-line Damper with Sound
Dampening Foam *
97005543 Parts Bag - Contains 4 Wood Screws - 10-
16 x 7/8”
* Optional, not included with Hood
** Fan Blade is no longer available. Must purchase Motor
p/n R99080535 & Fan Blade p/n R531075.
QS2
99010302 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 11-7/8” x 14-
11/32”
99010303 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 11-7/8” x 17-
11/32”
99010304 Aluminum Grease Filter Kit for 42” Wide
Hood - Includes 2 Filters - 11-7/8” x 20-
11/32”
R169016 Grease Filter Spring Kit - Includes 3 Alumi-
num Springs
99010308 Non-Duct Filter Kit for 30” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
13-5/16” *
99010309 Non-Duct Filter Kit for 36” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
16-5/16” *
99010310 Non-Duct Filter Kit for 42” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
19-5/16” *
99527587
Non-Ducted Filter Clip Kit - Includes 4 Clips *
V02544 Bulb - Halogen, PAR20, 120 Volt, 39 Watt -
2 Required *
R111663 Switch & Control Board Assembly - In-
cludes Nameplate & Screws
R111630 Light Socket Assembly - Includes Both
Sockets & Wire Harness
R520132 Motor - Includes Mounting Screws
R531068 Blower Wheel - Includes Retaining Ring
R607215 Retaining Ring for Wheel
R730111 Non-Duct Performance Ring Band with
Blower Wheel
R651973 Motor Plate - Includes Mounting Screws,
Washers, Isolators, & Nuts
R169009 Screws used to Attach Motor Plate to Hood
- Includes 3 Mounting Screws
R601536 Screws used to Attach Motor to Motor
Plate - Includes 4 Screws - Metric M4 x
6mm
R334755 Motor Capacitor
R501034 Autotransformer for Motor
R501031 Isolation Transformer
R564071 Fuse - 3 Amp, 5mm x 20mm - QS2-A
R564074 Fuse - 10 amp, 5mm x 20 mm - QS2-B,C,D
R111627 Wire Harness
R627501 Nameplate / Touchpad - White
R627502 Nameplate / Touchpad - Almond
R627503 Nameplate / Touchpad - Black
R627528 Nameplate / Touchpad - Biscuit
R169005 Plastic Back Panel for Nameplate - White -
Includes Nameplate
R169006 Plastic Back Panel for Nameplate - Almond
- Includes Nameplate
R169007 Plastic Back Panel for Nameplate - Black -
Includes Nameplate
R169008 Plastic Back Panel for Nameplate - Biscuit -
Includes Nameplate
R680505 Scroll Cover - Outlet
R680507 Scroll Cover - Front
R607660 Black Plastic Hole Plug for Top of Hood
R401573 Black Plastic Air Chute - QS2-A
R401647 Black Plastic Air Chute & Baffle Assembly -
QS2-B,C,D
R401646 Baffle Only for Above Air Chute - QS2-B,C,D
R602058 Screw Kit for Plastic Air Chute - QS2-A - In-
cludes 2 Screws
R602534 Screw Kit for Plastic Air Chute - QS2-B,C,D
- Includes 2 Screws
R7201731 Light Panel for 30” Wide Hood - White
R7201751 Light Panel for 36” Wide Hood - White
R7201771 Light Panel for 42” Wide Hood - White
R7201732 Light Panel for 30” Wide Hood - Almond
R7201752 Light Panel for 36” Wide Hood - Almond
R7201772 Light Panel for 42” Wide Hood - Almond
R7201734 Light Panel for 30” Wide Hood - Black
R7201754 Light Panel for 36” Wide Hood - Black
R7201774 Light Panel for 42” Wide Hood - Black
R7201735 Light Panel for 30” Wide Hood - Biscuit
R7201755 Light Panel for 36” Wide Hood - Biscuit
R7201775 Light Panel for 42” Wide Hood - Biscuit
R720174 Light Panel for 30” Wide Hood - Stainless
Steel
R720176 Light Panel for 36” Wide Hood - Stainless
Steel
R720178 Light Panel for 42” Wide Hood - Stainless
Steel
R169003 Light Panel Mounting Kit - Includes 2 Nuts
& Screws
R680511 Bottom Cover for 30” Wide Hood
R680520 Bottom Cover for 36” Wide Hood
R680527 Bottom Cover for 42” Wide Hood
R740013 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Screws
R680508 7” Round Duct Plate - Includes Mounting
Screws
97010792 7” Round In-line Damper - Optional *
97018803 7” Round In-line Damper with Sound
Dampening Foam *
97005543 Parts Bag - Contains 4-Wood Screws - 10-
16 x 7/8”
* Optional, not included with Hood
QS3
99010305 Aluminum Grease Filter Kit for 30” Wide
Hood - Includes 2 Filters - 11-7/8” x 14-
11/32”
99010306 Aluminum Grease Filter Kit for 36” Wide
Hood - Includes 2 Filters - 11-7/8” x 17-
11/32”
99010307 Aluminum Grease Filter Kit for 42” Wide
Hood - Includes 2 Filters - 11-7/8” x 20-
11/32”
R169016 Grease Filter Spring Kit - Includes 3 Alumi-
num Springs
99010308 Non-Duct Filter Kit for 30” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
13-5/16” *
99010309 Non-Duct Filter Kit for 36” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
16-5/16” *
99010310 Non-Duct Filter Kit for 42” Wide Hood -
Includes 2 Filters & 4 Clips - 10-13/16” x
19-5/16” *
99527587 Non-Duct Filter Clip Kit - Includes 4 Clips *
V02544 Bulb - Halogen, PAR20, 120 Volt, 39 Watt -
2 Required *
R111653 Switch & Control Board Assembly - In-
cludes Nameplate & Screws
R111630 Light Socket Assembly - Includes Both
Sockets & Wire Harness
R520133 Motor - Includes Mounting Screws
R531068 Blower Wheel - Includes Retaining Ring
R607215 Retaining Ring for Blower Wheel
R730111 Non-Duct Performance Ring Band with
Blower Wheel
R651973 Motor Plate - Includes Mounting Screws,
Washers, Isolators, & Nuts
R169009 Screws used to Attach Motor Plate to Hood
- Includes 3 Mounting Screws
R601536 Screws used to Attach Motor to Motor
Plate - Includes 4 Screws - Metric M4 x
6mm
R334156 Motor Capacitor - QS3-A
R334126 Motor Capacitor - QS3-B,C,D
R501035 Autotransformer for Motor
R501031 Isolation Transformer
R564074 Fuse - 10 amp, 5mm x 20mm
R111668 Wire Harness
R627505 Nameplate / Touchpad - White
R627506 Nameplate / Touchpad - Almond
R627507 Nameplate / Touchpad - Black
Index
28
R627529 Nameplate / Touchpad - Biscuit
R169011 Plastic Back Panel for Nameplate - White -
Includes Nameplate
R169012 Plastic Back Panel for Nameplate - Almond
- Includes Nameplate
R169013 Plastic Back Panel for Nameplate - Black -
Includes Nameplate
R169014 Plastic Back Panel for Nameplate - Biscuit -
Includes Nameplate
R680505 Scroll Cover - Outlet
R680507 Scroll Cover - Front
R607660 Black Plastic Hole Plug for Top of Hood
R401573 Black Plastic Air Chute QS3-A
R401647 Black Plastic Air Chute & Baffle Assembly -
QS3-B,C,D
R401646 Baffle Only For Above Air Chute - QS3-
B,C,D
R602058 Screw Kit for Plastic Air Chute - QS3-A - In-
cludes 2 Screws
R602534 Screw Kit for Attaching Plastic Air Chute -
QS3-B,C,D - Includes 2 Screws
R7201731 Light Panel for 30” Wide Hood - White
R7201751 Light Panel for 36” Wide Hood - White
R7201771 Light Panel for 42” Wide Hood - White
R7201732 Light Panel for 30” Wide Hood - Almond
R7201752 Light Panel for 36” Wide Hood - Almond
R7201772 Light Panel for 42” Wide Hood - Almond
R7201734 Light Panel for 30” Wide Hood - Black
R7201754 Light Panel for 36” Wide Hood - Black
R7201774 Light Panel for 42” Wide Hood - Black
R7201735 Light Panel for 30” Wide Hood - Biscuit
R7201755 Light Panel for 36” Wide Hood - Biscuit
R7201775 Light Panel for 42” Wide Hood - Biscuit
R720174 Light Panel for 30” Wide Hood - Stainless
Steel
R720176 Light Panel for 36” Wide Hood - Stainless
Steel
R720178 Light Panel for 42” Wide Hood - Stainless
Steel
R169003 Light Panel Mounting Kit - Includes 2 Nuts
& Screws
R680512 Bottom Cover for 30” Wide Hood
R680521 Bottom Cover for 36” Wide Hood
R680528 Bottom Cover for 42” Wide Hood
R740013 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Screws
R680508 7” Round Duct Plate - Includes Mounting
Screws
97010792 7” Round In-line Damper *
97018803 7” Round In-line Damper with Sound
Dampening Foam *
97005543 Parts Bag - Includes 4 Wood Screws - 10-
16 x 7/8”
* Optional, not included with Hood
QSE1
--NOTE-- Revision D began in 09/2012
99010299 Aluminum Grease Filter Kit - Includes 2 Fil-
ters - 11-7/8” x 14-11/32”
R169016 Filter Spring Kit - Includes 3 Springs
99111515 Light Lens - QSE1-A,B,C * For REV C See
Note
99111560 Light Lens - QSE1-C,D * For REV C See
Note
99271358 Bulb - QSE1-A,B,C - Fluorescent, Type
GX24Q-4, 42 Watt * For REV C See Note
99271457 Bulb - QSE1-C,D - Fluorescent, Type
GX24Q-3, 26 Watt * For REV C See Note
99271426 Night Light Bulb - Type C-7, 120 Volt, 4
Watt
R561116 Switch Kit - White - Includes Fan & Light
Rocker Switches
R561117 Switch Kit - Black - Includes Fan & Light
Rocker Switches
R169004 Indicator Light - Includes 2 Wire Nuts &
Lens
R607657 Lens for Indicator Light
97018489 Light Socket Assembly - QSE1-A,B,C - In-
cludes Reflector, Light & Night Light Socket
* For REV C See Note
97018925 Light Socket Assembly - QSE1-C,D - In-
cludes Reflector, Light & Night Light Socket
* For REV C See Note
99770154 Ballast - QSE1-A,B,C * For REV C See Note
99770169 Ballast - QSE1-C,D * For REV C See Note
R99080535 Motor - Includes 3 Mounting Screws
R169002 Screw Kit for Mounting Motor - Includes 3
Screws - #8-32 x 7/16” Hex
R531075 Fan Blade - Includes Hairpin Clip
R99420635 Hairpin Clip for Fan Blade
R627497 Nameplate - White
R629499 Nameplate - Stainless Steel
R627575 Nameplate - Black
98010817 Light Panel - White
98010818 Light Panel - Black
98010814 Light Panel - Stainless Steel
R602534 Screw Kit used to Attach Light Panel to
Hood - Includes 2 Screws - #8-18 x 3/8” - 5
Screws Required
99770150 Wire Harness
R680504 Wiring Cover - Includes Mounting Screws
R602533 Ground Screw - 2 Required
R680508 7” Round Duct Plate / Connector - Includes
Mounting Screws
97010792 7” Round In-line Damper **
97018803 7” Round In-line Damper with Sound
Dampening Foam **
R740013 Damper / Duct Connector - 3-1/4” x 10” -
Includes Mounting Screws
R602017 Screw Kit used to attach Duct Connectors
to Hood - Includes 2 Screws - #8-18 x 1/4”
97005543 Parts Bag - Includes 4 Wood Screws - #10-
16 x 3/4”
* If Hood is Rev C MUST check date code. For date codes
before 21D01 use Rev A,B,C parts. For date codes 21D01
and after use Rev C,D parts.
** Optional, not included with Hood
QT20000
99010316 Aluminum Grease Filter - 11-1/4” x 11-3/4”
99010317 Non-Duct Filter - 11-1/4” x 11-3/4” *
NTK7504000 Light Lens - QT20000-A
97018564 Light Lens - QT20000-B,C,D - 3-1/4” x
9-5/8” x 3-3/8”
R99030319 Fan Switch
R561138 Light Switch
R99360246 Knob - Black - 2 Required
R99360244 Knob - White - 2 Required
R99360245 Knob - Almond - 2 Required
R99360247 Knob - Biscuit - 2 Required
R111658 Rectifier Assembly - Includes Diode for
Night Light Setting
NTK7457000 Light Socket - QT20000-A - 2 Required
99271236 Light Socket - QT20000-B,C,D - 2 Required
n.l.a. Motor - QT20000-A
99080667 Motor - QT20000-B,C,D
99260428 Nut for Attaching Motor - QT20000-B,C,D -
#6-32 x 5/16” - 4 Required
NTK7458000 Fan Blade - QT20000-A - Includes Clamp
R607222 Clamp for Fan Blade - QT20000-A
R531076 Fan Blade - QT20000-B,C,D
R99420635 Hairpin Clip for Fan Blade - QT20000-B,C,D
NTK4423000 Wiring Cover QT20000
98009816 Wiring Cover QT20000-B,C,D
R99091034 Nameplate - White
R99091036 Nameplate - Almond
R99091033 Nameplate - Black
R99091035 Nameplate - Biscuit
NTK6630000 Pal Nut for Nameplate - 4 Required
R99091071 Baffle / Louver Vent Cover - Black
R99091072 Baffle / Louver Vent Cover - White
R99091074 Baffle / Louver Vent Cover - Almond
R99091073 Baffle / Louver Vent Cove r- Biscuit
97005544 Damper / Duct Connector - 3-1/4” x 10”
R680508 7” Round Duct Plate
97010792 7” Round In-line Damper *
97018803 7” Round In-line Damper with Sound
Dampening Foam *
97005543 Parts Bag - Includes 4 Wood Screws - #10-
16 x 3/4”
* Optional, not included with Hood
RM50000
--NOTE-- Revision C change was only cfm rating from 270
to 290 cfm - Production began 04/2011
B08087292 Aluminum Grease Filter - 11-11/16” x 18-
13/16”
B03300495 Non-Duct Filter Kit - Includes 2 Round Fil-
ters
B03200618 Light Lens - 2 Required
B02300264 Bulb - Candelabra, Type T8, E12 Base, 120
Volt, 40 Watt - 2 Required
B08086255 Switch Circuit Board - RM50000-A
B08086280 Switch Circuit Board - RM50000-B, C
B03295033 Slide Button for Light Switch
B03295032 Slide Button for Fan Switch
B03295029 Plastic Switch Box
B03295030 Plastic Switch Box Cover
B03201014 Pilot Lamp Lens
B02300280 Light Socket - 2 Required
B02011113 Back Light Reflector - 2 Required
B06001983 Blower Assembly - Includes Motor, Blower
Wheel, Rubber Washers, & Scroll Housing
B02310177 Motor
B03295076 Blower Wheel
B03202007 Rubber Motor Washer - 3 Required
BW0000019 Blower Scroll Cover
B02300233 Motor Capacitor
B03295008 Electrical Box for Capacitor
B08086668 Circuit Control Board - RM50000-B,C
B02300787 Heat Sentry - RM50000-B,C
BR2300132 Terminal Block
BE3343339 Upper Decorative Flue - Stainless Steel
BE3343338 Lower Decorative Flue - Stainless Steel
B03117798 Upper Decorative Flue - White
B03117797 Lower Decorative Flue - White
B03114480 Upper Decorative Flue - Black
B03114479 Lower Decorative Flue - Black
Index
29
B08091367 Upper Flue Mounting Bracket
B03295016 Non-Ducted Plenum / Air Diverter
B03295018 Non-Ducted Transition - 6” to 5” Round
B02011452 5” Round Flexible Duct - 12-1/2” Collapsed
Length
99091031 Rangemaster Logo
B02300248 Power Cord
B08088378 Damper / Duct Connector with Flaps &
Spring - 6” Round
B080810471 Parts Bag - Includes Mounting Bracket,
Mounting Screws, & Upper Flue Bracket
RM51000
B08087294 Aluminum Grease Filter - 9-3/8” x 11-3/4” -
See below for Qty Required *
B03300488 Non-Duct Filter - 8-7/8” x 9-1/2” **
B02300891 Bulb - Halogen, Type JC, T-4 or G-4 Base,
12 Volt, 20 Watt - 2 Required
B08086252 Switch Circuit Board - RM51000-A
B08086279 Switch Circuit Board - RM51000-B,C
B03295074 Slide Button for Fan Switch
B03295073 Slide Button for Light Switch
B02300791 Light Socket Assembly - Includes Lens,
Chrome Ring, Socket, & Lamp Housing - 2
Required
B06001991 Blower Assemby - RM51000-A - Includes
Motor, Blower Wheel, Rubber Washers, &
Scroll Housing
B06002013 Blower Assembly - RM51000-B,C - In-
cludes Motor, Blower Wheel, Rubber
Washers & Scroll Housing
B02310187 Motor - RM51000-A
B02310203 Motor - RM51000-B,C
B03295076 Blower Wheel
B03204177 Rubber Motor Washer - 3 Required -
RM51000-A
B03202007 Rubber Motor Washer - 3 Required -
RM51000-B,C
B02300233 Motor Capacitor
B08086668 Circuit Board - RM51000-B,C
B02300783 Transformer - RM51000-A,B
B02300861 Transformer - RM51000-C
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300674 Fuse Holder
B02300787 Heat Sentry - RM51000-B,C
BE3343456 Upper Decorative Flue
BE3345012 Lower Decorative Flue
B08091367 Upper Flue Mounting Bracket
BE3344985 Hood Mounting Bracket
B03295016 Non-Ducted Plenum / Air Diverter **
B03295017 Non-Ducted Plenum Extension Sleeve - 2
Required **
B03295018 Non-Duct Transition - 6” to 5” Round **
B02011452 5” Round Flexible Duct - 12-1/2” Collapsed
Length **
99091031 Logo - will read “Broan Elite”
B08088378 Damper / Duct Connector with Flaps &
Springs - 6” Round
B080810501 Parts Bag - Includes Mounting Bracket,
Mounting Screws, & Upper Flue Bracket
* 2 Required for 30” Wide Hood - 3 Required for 36” &
42” Wide Hoods
** Optional, not included with Hood - Parts are included in
RRK51 Recirculation Kit
RM52000
B08087294 Aluminum Grease Filter - 9-3/8” x 11-3/4” -
See below for Qty Required *
B03300488 Non-Duct Filter - 8-7/8” x 9-1/2” **
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base, 12
Volt, 20 Watt - 2 Required
B08086252 Switch Circuit Board - RM52000-A
B08086279 Switch Circuit Board - RM52000-B,C
B03295074 Slide Button for Fan Switch
B03295073 Slide Button for Light Switch
B02300791 Light Socket Assembly - Includes Lens,
Chrome Ring, Socket, & Lamp Housing - 2
Required
B06001991 Blower Assembly - RM52000-A - Includes
Motor, Blower Wheel, Rubber Washers, &
Scroll Housing
B06002013 Blower Assembly - RM52000-B,C - In-
cludes Motor, Blower Wheel, Rubber
Washers, & Scroll Housing
B02310187 Motor - RM52000-A
B02310203 Motor - RM52000-B,C
B03295076 Blower Wheel
B03204177 Rubber Motor Washer - 3 Required -
RM52000-A
B03202007 Rubber Motor Washer - 3 Required -
RM52000-B,C
B02300233 Motor Capacitor
B08086668 Circuit Board - RM52000-B,C
B02300783 Transformer - RM52000-A,B
B02300861 Transformer - RM52000-C
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300674 Fuse Holder
B02300787 Heat Sentry
BE3343464 Upper Decorative Flue
BE3344597 Lower Decorative Flue
B08091367 Upper Flue Mounting Bracket
BE3344985 Hood Mounting Bracket
B03295016 Non-Ducted Plenum / Air Diverter **
B03295017 Non-Ducted Plenum Extension Sleeve - 2
Required **
B03295018 Non-Ducted Transition - 6” to 5” Round **
B02011452 5” Round Flexible Duct - 12-1/2” Collapsed
Length **
99091031 Logo - will read “Broan Elite”
B08088378 Damper / Duct Connector with Flaps &
Springs - 6” Round
B080810501 Parts Bag - Includes Mounting Bracket,
Mounting Screws, and Upper Flue Bracket
* 2 Required for 30” Wide Hood - 3 Required for 36” &
42” Wide Hoods
** Optional, not included with Hood - Parts are included in
RRK51 Recirculation Kit
RM53000
--NOTE-- Revision C starting serial numbers: RM533004
= 34-10-0001 / RM533604 = 27-10-0001 / RM534204 =
27-10-0001
B08087294 Alminum Grease Filter - RM53000-A,B -
9-3/8” x 11-3/4” - 2 Required
B08087687 Aluminum Grease Filter for 30” Wide Hood
- RM53000-C - 3 Required
B08087688 Aluminum Grease Filter for 36” Wide Hood
- RM53000-C - 3 Required
B08087689 Aluminum Grease Filter for 42” Wide Hood
- RM53000-C - 3 Required
B03300488 Non-Duct Filter - 8-7/8” x 9-1/2” *
B02300891 Bulb - RM53000-A,B - Halogen, Type JC,
G4 or T4 Base, 12 Volt, 20 Watt - 2 Re-
quired
B02300890 Bulb - RM53000-C - Halogen, Type G9, G-9
Base, 120 Volt, 25 Watt - 2 Required
B08086279 Switch Circuit Board
B03295073 Slide Button for Light Switch
B03295074 Slide Button for Fan Switch
B02300791 Light Socket Assembly - RM53000-A,B
- Includes Lens, Chrome Ring, Socket, &
Lamp Housing - 2 Required
B02300918 Light Socket Assembly - RM53000-C -
Includes Lens, Chrome Ring, Socket, &
Lamp Housing - 2 Required
B06002158 Blower Assembly - RM53000-A - Includes
Motor, Blower Wheel, Rubber Washers, &
Scroll Housing
B06002013 Blower Assembly - RM53000-B,C - In-
cludes Motor, Blower Wheel, Rubber
Washers & Scroll Housing
B02310219 Motor - RM53000-A
B02310203 Motor - RM53000-B,C
B03295076 Blower Wheel
B03204177 Rubber Motor Washer - 3 Required -
RM53000-A
B03202007 Rubber Motor Washer - 3 Required -
RM53000-B,C
B02300233 Motor Capacitor
B08086668 Control Circuit Board
B02300783 Transformer - RM53000-A
B02300861 Transformer - RM53000-B
B02300782 Fuse - 4 Amp, 5mm x 20mm - RM53000-
A,B
B02300674 Fuse Holder - RM53000-A,B
B02300787 Heat Sentry
BE3347193 Upper Decorative Flue
BE3347192 Lower Decorative Flue
B08091367 Upper Flue Mounting Bracket
B03295016 Non-Ducted Plenum / Air Diverter *
B03295018 Non-Ducted Transition 6” to 5” Round *
B02011452 5” Round Flexible Duct - 12-1/2” Collapsed
Length *
99091031 Logo - will read “Broan Elite”
B08088378 Damper / Duct Connector with Flaps &
Springs - 6” Round
B080810501 Parts Bag - Includes Mounting Bracket,
Mounting Screws, & Upper Flue Bracket
* Optional, not included with Hood - Parts are included in
RRK51 Recirculation Kit
RM65000, RM65904
--NOTE-- Revision B began in 04/2003
B08087298 Aluminum Grease Filter - 11-3/16” x 11-
1/4” - 2 Required
B02000191 Filter Spring - 2 Required
B02300774 Bulb - Halogen, Type MR16, 12 Volt, 20
Watt - 2 Required
B06107341 Switch Assembly - Includes Switch Box,
Switch Circuit Board, Buttons & 24” Wire
Harness
BW0000054 Switch Circuit Board Only
B03202296 Switch Button Only - 5 Required
B02300688 Light Socket - 2 Required
B02009103 Socket Shroud Housing / Support - 2 Re-
quired
B02009102 Bezel / Chrome Ring for Light - 2 Required
Index
30
B06001989 Blower Assembly - RM65000-A - Includes
Motor, Blower Wheel, Rubber Washers, &
Scroll Housing
B06002019 Blower Assembly - RM65000-B - Includes
Motor, Blower Wheel, Rubber Washers, &
Scroll Housing
B02310185 Motor - RM65000-A
B02310184 Motor - RM65000-B
B03202007 Rubber Motor Washer - 3 Required
B03295071 Blower Wheel
B02300233 Motor Capacitor
B08086661 Control Board - RM65000-A
B08086662 Control Board - RM65000-B
B02300787 Heat Sentry - RM65000-B
B02300783 Transformer
B02300782 Fuse - 4 Amp, 5mm x 20mm
B02300674 Fuse Holder
S99091031 Logo Sticker - will read “Broan Elite”
BE3342056 Upper Decorative Flue
BE3342055 Lower Decorative Flue
BE3342057 Upper Flue Mounting Bracket
B002010000 Glass Visor
BE3342079 Glass Right Stop
BE3342043 Glass Left Stop
B03292283 Duct Connector Only *
B02000756 Damper Flap - Includes 2 Damper Flaps,
Rod and Spring **
B08092518 Duct Connector & Damper Flaps *(Metal
After Sept. 2007)
B080810616 Parts Bag - Incldues Mounting Brackets &
Screws
* Current Duct Connector is metal - Units made before Sep-
tember 2007 were plastic
** Damper Flaps will work on metal Duct Connector p/n
B03292283 ONLY - if customer has plastic Duct Connec-
tor, will have to replace with Damper / Duct Connector p/n
B08092518
RMDD3004, RMDD3004EX
97015841 Aluminum Grease Filter Set - Includes 2
Filters - 4-1/2” x 12-5/8”
99140195 Filter Spring - 4 Required
99111235 Cover for Up/Down Switch Button - Black -
1” x 1” *
97018397 Top Cover - Includes Up/Down Switch
99271296 Wire Harness for Up/Down Switch
99271292 Fan Speed Switch - Variable
97011311 Blower Assembly - RMDD3004,
RMDD3004-B **
99080362 Fan Motor - Includes Capacitor -
RMDD3004, RMDD3004-B
99020247 Blower Wheel - RMDD3004, RMDD3004-B
99100484 Rubber Motor Isolator - 3 Required
97017039 Gear Motor Kit - RMDD3004 - Includes Mi-
cro Switches
97017045 Cover for Gear Motor - RMDD3004
97017059 Gear Motor Kit - RMDD3004EX - Includes
Micro Switches
97017046 Cover for Gear Motor - RMDD3004EX
97017023 Bracket for Gear Motor
99271234 Micro Switch on Gear Motor - Contains 2
99271291 Control Board
99271295 Wire Harness for Control Board
99030323 Heat Sentry
99271306 Wire Harness for Heat Sentry
98010010 Mounting Bracket for Heat Sentry
97015674 Crank Assembly - RMDD3004, RMD-
D3004EX
97018525 Crank Assembly - RMDD3004-B, RMD-
D3004EX-B
97015970 Chimney Weldment / Chimney Stack -
RMDD3004, RMDD3004EX
97018526 Chimney Weldment / Chimney Stack -
RMDD3004-B, RMDD3004EX-B
97015874 End Cap Right
98009358 End Cap Left
97015973 Machined Chimney Slide
98010013 Machined Airbox Slide
99710032 Plastic Spacer - White
99111184 Slide Strip - 5 Required
97015974 Airbox Weldment / Downdraft Housing
98009802 Front Airbox Bottom - RMDD3004, RMD-
D3004EX
98010798 Front Airbox Bottom - RMDD3004-B,
RMDD3004EX-B
98008158 Airbox Opening Cover - RMDD3004, RMD-
D3004EX
98010802 Airbox Opening Cover - RMDD3004-B,
RMDD3004EX-B
98009773 Airbox Cover Clamp - Located Left & Right
of Gear Motor Box - RMDD3004, RMD-
D3004EX - 2 Required
98010804 Airbox Cover Clamp - Located Left & Right
of Gear Motor Box - RMDD3004-B, RMD-
D3004EX-B - 2 Required
97017025 Scroll Box Assembly - RMDD3004
97018476 Scroll Box Assembly - RMDD3004-B
97016974 Scroll Box Assembly - RMDD3004EX,
RMDD3004EX-B
98008150 Scroll Box Cover - RMDD3004, RMD-
D3004EX
98010809 Scroll Box Cover - RMDD3004-B, RMD-
D3004EX-B
98008167
Duct Connector - RMDD3004 - 3-1/4” x 10”
98010810
Duct Connector - RMDD3004-B - 3-1/4” x 10”
98010005 Duct Connector - RMDD3004EX - 3-1/4” x
14”
99271304 Wiring Harness for Remote Blower - RMD-
D3004EX
99271210 Cord
99400060 Relief Bushing for Cord
99091031 Logo - Broan Elite Logo
99110880 Installation Template
97011305 Parts Bag
* Cover is decal ONLY, will NOT include Up/Down Switch.
For Switch, must order Top Cover p/n 97018397
** Includes Motor, Blower Wheel, Capacitor, Isolators, &
Blower Box Housing
RMDD3604, RMDD3604EX
97015842 Aluminum Grease Filter Set - Includes 2
Filters - 4-1/2” x 15-5/8”
99140195 Filter Spring - 4 Required
99111235 Cover for Up/Down Switch Button - Black -
1” x 1” *
97018398 Top Cover - Includes Up/Down Switch
99271296 Wire Harness for Up/Down Switch
99271292 Fan Speed Switch - Variable
97011311 Blower Assembly - RMDD3604,
RMDD3604-B **
99080362 Fan Motor - Includes Capacitor -
RMDD3604, RMDD3604-B
99020247 Blower Wheel - RMDD3604, RMDD3604-B
99100484 Rubber Motor Isolator - 3 Required
97017035 Gear Motor Kit - RMDD3604 - Includes Mi-
cro Switches
97017041 Cover for Gear Motor - RMDD3604
97017037 Gear Motor Kit - RMDD3604EX - Includes
Micro Switches
97017043 Cover for Gear Motor - RMDD3604EX
97017023 Bracket for Gear Motor
99271234 Micro Switch Assembly on Gear Motor
99271291 Control Board
99271295 Wire Harness for Control Board
99030323 Heat Sentry
99271306 Wire Harness for Heat Sentry
97015674 Crank Assembly - RMDD3604, RMD-
D3604EX
97018525 Crank Assembly - RMDD3604-B, RMD-
D3604EX-B
97015971 Chimney Weldment / Chimney Stack -
RMDD3604, RMDD3604EX
97018527 Chimney Weldment / Chimney Stack -
RMDD3604-B, RMDD3604EX-B
97015874 End Cap Right
98009358 End Cap Left
97015973 Machined Chimney Slide
98010013 Machined Airbox Slide
99710032 Plastic Spacer - White
99111184 Slide Strip - 5 Required
98010010 Mounting Bracket for Heat Sentry
97015975 Airbox Weldment / Downdraft Housing
97017024 Front Airbox Bottom - RMDD3604, RMD-
D3604EX
98010799 Front Airbox Bottom - RMDD3604-B,
RMDD3604EX-B
98008158 Airbox Opening Cover - RMDD3604, RMD-
D3604EX
98010803 Airbox Opening Cover - RMDD3604-B,
RMDD3604EX-B
98009773 Airbox Cover Clamp - Located Left & Right
of Gear Motor Box - RMDD3604, RMD-
D3604EX - 2 Required
98010804 Airbox Cover Clamp - Located Left & Right
of Gear Motor Box - RMDD3604-B, RMD-
D3604EX-B - 2 Required
97017025 Scroll Box Assembly - RMDD3604
97018476 Scroll Box Assembly - RMDD3604-B
97016974 Scroll Box Assembly - RMDD3604EX,
RMDD3604EX-B
98008150 Scroll Box Cover - RMDD3604, RMD-
D3604EX
98010809 Scroll Box Cover - RMDD3604-B, RMD-
D3604EX-B
98008167
Duct Connector - RMDD3604 - 3-1/4” x 10”
98010810
Duct Connector - RMDD3604-B - 3-1/4” x 10”
98010005
Duct Connector - RMDD3604EX - 3-1/4” x 14”
99271304 Wiring Harness for Remote Blower - RMD-
D3604EX
99271210 Cord
99400060 Relief Bushing for Cord
99091031 Logo - Broan Elite Logo
99110881 Installation Template
97011305 Parts Bag
* Cover is decal ONLY, will NOT include Up/Down Switch.
For Switch, must order Top Cover p/n 97018398
** Includes Motor, Blower Wheel, Capacitor, Isolators, &
Blower Box Housing
Index
31
RMDD4804, RMDD4804EX
97015843 Aluminum Grease Filter Set - Includes 2
Filters - 4-1/2” x 21-5/8”
99140195 Filter Spring - 4 Required
99111235 Cover for Up/Down Switch Button - Black -
1” x 1” *
97018399 Top Cover - Includes Up/down Switch
99271296 Wire Harness for Up/Down Switch
99271292 Fan Speed Switch - Variable
97011311 Blower Assembly - RMDD4804,
RMDD4804-B **
99080362 Fan Motor - Includes Capacitor -
RMDD4804, RMDD4804-B
99020247 Blower Wheel - RMDD4804, RMDD4804-B
99100484 Rubber Motor Isolator - 3 Required
97017036 Gear Motor Kit - RMDD4804 - Includes Mi-
cro Switches
97017042 Cover for Gear Motor - RMDD4804
97017038 Gear Motor Kit - RMDD4804EX - Includes
Micro Switches
97017044 Cover for Gear Motor - RMDD4804EX
97017023 Bracket for Gear Motor
99271234 Micro Switch on Gear Motor - Contains 2
99271291 Control Board
99271295 Wire Harness for Control Board
99030323 Heat Sentry
99271306 Wire Harness for Heat Sentry
98010010 Mounting Bracket for Heat Sentry
97015674 Crank Assembly - RMDD4804, RMD-
D4804EX
97018525 Crank Assembly - RMDD4804-B, RMD-
D4804EX-B
97015972 Chimney Weldment / Chimney Stack -
RMDD4804, RMDD4804EX
97018528 Chimney Weldment / Chimney Stack -
RMDD4804-B, RMDD4804EX-B
97015874 End Cap Right
98009358 End Cap Left
97015973 Machined Chimney Slide
98010013 Machined Airbox Slide
99710032 Plastic Spacer - White
99111184 Slide Strip - 5 Required
97015976 Airbox Weldment / Downdraft Housing
97017040 Front Airbox Bottom - RMDD4804, RMD-
D4804EX
98010801 Front Airbox Bottom - RMDD4804-B,
RMDD4804EX-B
98008158 Airbox Opening Cover - RMDD4804, RMD-
D4804EX
98010803 Airbox Opening Cover - RMDD4804-B,
RMDD4804EX-B
98009773 Airbox Cover Clamp - Located Left & Right
of Gear Motor Box - RMDD4804, RMD-
D4804EX - 2 Required
98010804 Airbox Cover Clamp - Located Left & Right
of Gear Motor Box - RMDD4804-B, RMD-
D4804EX-B - 2 Required
97017025 Scroll Box Assembly - RMDD4804
97018476 Scroll Box Assembly - RMDD4804-B
97016974 Scroll Box Assembly - RMDD4804EX,
RMDD4804EX-B
98008150 Scroll Box Cover - RMDD4804, RMD-
D4804EX
98010809 Scroll Box Cover - RMDD4804-B, RMD-
D4804EX-B
98008167
Duct Connector - RMDD4804 - 3-1/4” x 10”
98010810
Duct Connector - RMDD4804-B - 3-1/4” x 10”
98010005
Duct Connector - RMDD4804EX - 3-1/4” x 14”
99271304 Wiring Harness for Remote Blower - RMD-
D4804EX
99271210 Cord
99400060 Relief Bushing for Cord
99091031 Logo - Broan Elite Logo
99110880 Installation Template
97011305 Parts Bag
* Cover is decal sticker ONLY, will NOT include up/down
switch. For switch, must order top cover.
** Includes Motor, Blower Wheel, Capacitor, Isolators, &
Blower Box Housing
RME50000, RME5030SS
B08087292 Aluminum Grease Filter - 11-11/16” x 18-
13/16”
B03294757 Light Lens
B02320351 Bulb - Fluorescent, G24Q-1, 13 Watt - 2
Required
B08080375 Switch Circuit Board Only
B03295072 Switch Board Box
B03295075 Switch Board Box Cover
B03295074 Fan Switch Button
B03295073 Light Switch Button
B03201014 Warning Lamp
B02300987 Light Socket - 2 Required
B02320352 Fluorescent Ballast
B06002195 Blower Assembly - Includes Motor, Blower
Wheel, Rubber Mounting Washers, &
Scroll Housing
B02310713 Motor
B03295071 Blower Wheel
B03204177 Rubber Washer for Motor Mounting - 3
Required
BW0000019 Blower Scroll Housing
B02300985 Motor Capacitor
B08086668 Main Control Board
B03295008 Control Box for Motor Capacitor & Main
Control Board
B02300787 Heat Sentry
BE3244974 Electrical Box Support
B032920170 Wiring Box for Power Feeder Cable
BR2300132 4 Wire Terminal Block from Wiring Box
B032920180 Wiring Box Cover for Power Feeder Cable
Box
B02300983 Power Feeder Cord
B03292357 Control Box for Wiring
B03294033 Control Box Cover for Wiring Box
B03292287 Cable Stop from Wiring Box
BE3343339 Upper Decorative Flue
BE3343338 Lower Decorative Flue
B08091367 Flue Mounting Bracket
BE3344985 Hood Mounting Bracket
B02011314 Logo
B08088378 Damper Duct Connector - 6” Round
B080810480 Hardware Package *
* Includes Hood Mounting Bracket, Flue Mounting Bracket,
[8] 4.8 x 38mm Screws, [2] 3.9 x 9.5mm Screws, Drywall
Anchors, & [2] 3.9 x 6mm Screws
RMIP33, RMIP45
V05865 Aluminum Grease Filter - 9-1/4” x 12-1/2” -
See Below for Qty Required
V05866 Aluminum Grease Filter - 11-1/8” x 12-1/2”
- See Below for Qty Required
V13431
Stainless Steel Baffle Filter & Handle - 9-1/4”
x 12-1/2” - See Below for Qty Required
V13432 Stainless Steel Baffle Filter & Handle - 11-
1/8” x 12-1/2” - See Below for Qty Required
V07680 Baffle Filter Handle - Includes Mounting
Screw
V03686 Filter Clip - 3 Required for RMIP33, 4 Re-
quired for RMIP45
V02544 Bulb - Halogen, PAR20 Type, 120 Volt, 39
Watt - 2 Required for RMIP33, 3 Required
for RMIP45
V03503 On/Off Fan Switch - Red Lighted Rocker *
V03501 Fan Speed Control - Rotary
V03504 Knob for Speed Control
V03502 Light Switch - Double Rocker
V03685 Light Socket - 2 Required for RMIP33, 3
Required for RMIP45
V03435 Heat Sentry / Thermostat
V02773 Male Plug
V02772 Female Plug
V03505 Terminal Strip
S99091031 Logo Sticker - will read “Broan Elite”
V15085 Grease Rail - RMIP33
V15086 Grease Rail - RMIP45
V03888 Parts Bag
** RMIP33 with Serial #s between 0200080800552
to 020008090090 & RMIP45 with Serial #s between
0200080800946 to 0200080900096 may have smaller
On/Off Fan Switch - Contact Broan Tech Support to obtain
smaller sized Switch with Serial #.
RMIP33, RMIP45 - Aluminum Filter
Chart
Hood Filter Part Number & Quantity Required
Width V05865 V05866
30” 3 -
45” 2 2
RMIP33, RMIP45 - Bafe Filter Chart
Hood Filter Part Number & Quantity Required
Width V13431 v13432
30” 3 -
45” 2 2
RMIPWC
V05915 On/Off Fan & Light Switch - Includes Both
V03501 Fan Speed Control Switch
V03504 Knob for Speed Control Switch
V15087 Faceplate
V05874 Screws for Faceplate - #8-1/2 - 2 Required
V05872
Wire Harness - Includes 7” Wires with Molex
Connector & 6” Wires with Spade Connector
RMN
V05804 Parts Bag - Includes [9] 3/8” Screws
RP, RMP
V03172 Shelves - RP, RMP - Incldues Both
99390105 Shelf Hinge - RP - 4 Required
99390104 Shelf Latch - RP - 2 Required
Index
32
RMP17000, RMP17004
--NOTE-- Revision C = change to 120 Volt Lights - 03/2007
B08087153 Aluminum Grease Filter - 6-11/16” x 12-
3/4” - 2 Required
B03300495
Non-Duct Round Filter Set - Includes 2 Filters *
B02300891 Bulb - RMP17000-A,B - Halogen, Type JC,
T4 or G4 Base, 12 Volt, 20 Watt - 2 Re-
quired
V05921 Bulb - RMP17000-C - Halogen, Type
MR16, GU10 Base, 120 Volt, 50 Watt - 2
Required
B06142412 Switch Assembly - RMP17000-A - Includes
Switch Box, Switch Board, & Buttons
B06143142 Switch Assembly - RMP17000-B - Includes
Switch Box, Switch Board, & Buttons
B06108725 Switch Assembly - RMP17000-C - Includes
Switch Box, Switch Board, & Buttons
B08086263 Switch Control Board Only - RMP17004-A
B08086285
Switch Control Board Only - RMP17004-B, C
B03295081 Light Switch Slide Button
B03295082 Fan Switch Slide Button
B03294780 Switch Box Only
B03295080 Switch Box Cover
B03201014 Red Pilot Lamp Cover
B02300741 Light Socket Assembly - RMP17004-A
- Includes Round Lens, Chrome Ring, &
Socket - 2 Required
B02300906 Light Socket Assembly - RMP17004-B
- Includes Round Lens, Chrome Ring, &
Socket - 2 Required
B06108882 Light Socket - RMP17000-C - 2 Required
B02009102 Round Chrome Ring - RMP17000-C - 2
Required
B06001994 Blower Assembly - RMP17004-A - Includes
Motor, Blower Wheel, & Scroll Housing
B06002080 Blower Assembly - RMP17004-B,C - In-
cludes Motor, Blower Wheel, & Scroll
Housing
B02310183 Motor - RMP17004-A
B02310260 Motor - RMP17004-B,C
B03295071 Blower Wheel
B03202007 Motor Washer - 3 Required
BW0000021 Scroll Housing Only
B02300233 Motor Capacitor
B06108818 Motor Capacitor with Wire Leads
B03295008 Electrical Box for Capacitors
BR2300134 Large Terminal Block - Connects Switch to
Motor - RMP17004-A
B08086668 Circuit Board - RMP17004-B,C
B02300787 Heat Sentry - RMP17004-B,C
B02300783 Transformer - RMP17004-A,B
B03295005
Transformer Protective Cover - RMP17004-A,B
B03294776
Transformer Terminal Cover - RMP17004-A,B
B02300782 Fuse - RMP17004-A,B - 5mm x 20mm, 4
Amp
B02300674 Fuse Holder with Plastic Cap - RMP17004-
A,B
B03295035 Electrical Box for Fuse Holder - RMP17004-
A,B
B183100509 Grill Bottom Frame - RMP17004-A,B - In-
cludes 2 Grease Filters & Grill Stops
B003183627 Grill Bottom Frame - RMP17004-A,B
B03295083 Grill Stop - Bottom Half - RMP1000-A,B - 2
Required
B03295084 Grill Stop - Top Half - RMP17004-A,B - 2
Required
B02000112 Screw for Attaching Grille Stops -
RMP17004-A,B - 2 Required
B003185305 Grill Bottom Frame - RMP1000-C
B02000690 Knob/Thumb Screw for Attaching Grille
Frame - RMP17000-C - 2-Required
B02011013 Clasping Side Spring for Mounting Hood -
1 Required
B02300249 Power Cord
BR2300132 4 Wire Terminal Block for Power Cord
B08088378 Damper/Duct Connector with Flaps &
Springs - 6” Round
B080810168 Parts Bag - Includes [4] 3.2mm x 13mm
Screws
* Optional - not included with hood.
RMPE7000, RMPE7004
--NOTE-- Revision C = change to 120 Volt Lights in
03/2007 - Revision D began in 10/2010
B08087153 Aluminum Grease Filter - 6-11/16” x 12-
3/4” - 2 Required
B02300891 Bulb - Halogen, Type JC, G4 or T4 Base, 12
Volt, 20 Watt - RMPE7004-A,B - 2 Required
V05921 Bulb - Halogen, Type MR16, GU10 Base,
120 Volt, 50 Watt - RMPE7004-C,D - 2 Re-
quired
B06107409 Switch Assembly - RMPE7004-A - Includes
Switch Box, Switch Board, & Buttons
B06108348 Switch Assembly - RMPE7004-B - Includes
Switch Box, Switch Board, & Buttons
B06103829
Switch Assembly - RMPE7004-C,D - In-
cludes Switch Box, Switch Board, & Buttons
B08080360 Switch Circuit Board Only
B03295081 Light Switch Slide Button
B03295082 Fan Switch Slide Button
B03294780 Switch Box Only
B03295080 Switch Box Cover - RMPE7004-A,B
B03295043 Switch Box Cover - RMPE7004-C,D
B03201014 Red Pilot Lamp Cover
B02300741 Light Socket Assembly - RMPE7004-A
- Includes Round Lens, Chrome Ring, &
Socket - 2 Required
B02300906 Light Socket Assembly - RMPE7004-B
- Includes Round Lens, Chrome Ring, &
Socket - 2 Required
B06108882 Light Socket - RMPE7000-C,D - 2 Required
B02009102 Round Chrome Ring - RMPE7000-C,D - 2
Required
B08086141 Large Circuit Board with Triak
B03294781 Electrical Box for Large Circuit Board
B03294033 Cover for Large Circuit Board Electrical Box
B08086668 Small Circuit Board - RMPE7004-B,C,D
B03295008 Electrical Box for Small Circuit Board - RM-
PE7004-B,C,D
B02300787 Heat Sentry - RMPE7004-B,C,D
B02300783 Transformer - RMPE7004-A,B
B03295005 Transformer Protective Cover - RMPE7004-
A,B
B03294776 Transformer Terminal Cover - RMPE7004-
A,B
B02300782 Fuse - 4 Amp, 5mm x 20mm - RMPE7004-
A,B
B02300674 Fuse Holder with Plastic Cap - RMPE7004-
A,B
B03295035 Electrical Box for Fuse & Fuse Holder -
RMPE7004-A,B
B003183627 Grill Bottom Frame - RMPE7004-A,B
B03295083 Grill Stop - Bottom Half - RMPE7004-A.B -
2 Required
B03295084 Grill Stop - Top Half - RMPE7004-A,B - 2
Required
B02000112 Screw for Attaching Grille Stops to Frame -
RMPE7004-A,B - 2 Required
B183100509 Grill Bottom Frame - RMPE7004-C,D - In-
cludes 2 Grease Filters
B003185305 Grill Bottom Frame - RMPE7004-C,D
B02000690 Screw/Thumb Screw for Attaching Grille -
RMPE7004-C,D - 2 Required
B02011013 Clasping Side Spring for Mounting Hood -
1 Required
BE3334250 Wiring Box - Incoming / Outgoing - 2 Re-
quired
BE3351530 Cover for Wiring Box - Incoming / Outgoing
- 2 Required
B08085018 Damper Duct Connector with Flaps and
Spring - Plastic - RMPE7004-A,B,C *
B08092501 Damper Duct Connector with Flaps and
Spring - Metal - RMPE7004-C,D **
B080810168 Parts Bag - Includes [4] 3.2mm x 13mm
Screws
* Rev C used Plastic Duct Connector until September 2007
** Rev C used Metal Duct Connector beginning October
2007
RP1, RP100
97017455 Aluminum Grease Filter Kit - Incldues 2 Fil-
ters - 9-7/8” x 11-11/16” *
V05921 Bulb - Halogen, Type MR16, GU10 Base, 50
Watt, 120 Volt - 2 Required
97017312 Switch Assembly - Black - Includes Both
Light & Fan Rocker Switches
97017264 Switch Assembly - White - Includes Both
Light & Fan Rocker Switches
99271346 Light Socket - Includes Trim - 2 Required
98006546 Wiring Cover for Sockets
97007542 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080597 Motor
99020142 Blower Wheel - CW
99020143 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
98010342 Motor Ring Inlet
99100491 Rubber Motor Mount - 4 Required
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97017428 Heat Sentry Thermostat
99770113 Wiring Harness **
97017222 Front Light & Switch Panel / Feature Panel
Weldment - Black
97017223 Front Light & Switch Panel / Feature Panel
Weldment - White
97017224 Front Light & Switch Panel / Feature Panel
Weldment - Silver
99500323 PVC Foam for Front of Feature Panel
97007631 Bottom Cover - Silver
97007895 Bottom Cover - White
97009517 Bottom Cover - Black
97007656 Outlet Box Cover
97017429 Damper/Duct Connector - 3-1/4” x 10”
97005543 Parts Bag
* Better quality Filter Kit available with Antimicrobial Coat-
ing - p/n 97017456
** Does NOT Include Sockets, Switches or Heat Sentry
Index
33
RP2, RP200
97017456 Aluminum Antimicrobial Protected Grease
Filter Kit - Includes 2 Filters - 9-7/8” x 11-
11/16” *
97007662 Non-Duct Filter Kit - Includes 2 Filters - 10”
x 11-3/4” **
V05921 Bulb - Halogen, Type MR16, GU10 Base, 50
Watt, 120 Volt - 2 Required
97017312 Switch Assembly - Black - Includes Both
Light & Fan Rocker Switches
97017264 Switch Assembly - White - Includes Both
Light & Fan Rocker Switches
99271346 Light Socket - Includes Trim - 2 Required
98006546 Wiring Cover for Sockets
97007542 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080597 Motor
99020142 Blower Wheel - CW
99020143 Blower Wheel - CCW
98005212 Motor Retaining Ring - 2 Required
98010342 Motor Ring Inlet
99100491 Rubber Motor Mount - 4 Required
99420464 Blower Mounting Rod - 2 Required
99260476 Mounting Rod Nut - 2 Required
97017428 Heat Sentry Thermostat
99770113 Wiring Harness ***
97017222 Front Light & Switch Panel / Feature Panel
Weldment - Black
97017223 Front Light & Switch Panel / Feature Panel
Weldment - White
97017224 Front Light & Switch Panel / Feature Panel
Weldment - Silver
99500323 PVC Foam for Front of Feature Panel
97007631 Bottom Cover - Silver
97007895 Bottom Cover - White
97009517 Bottom Cover - Black
97007656 Outlet Box Cover
97017429 Damper/Duct Connector - 3-1/4” x 10”
97005543 Parts Bag
* Cheaper Filter Kit available with NO Antimicrobial Coat-
ing - p/n 97017455
** Optional, not included with Hood
*** Does Not Include Sockets, Switches or Heat Sentry
WA6500
99010316 Aluminum Greaes Filter - 11-1/4” x 11-3/4”
99010317 Non-Duct Filter - 11-1/4” x 11-3/4” *
NTK7504000 Light Lens - WA6500-A
97018564 Light Lens - WA6500-B,C - 3-1/4” x 9-5/8”
x 3-3/8”
R561138 Light Switch
R111658 Rectifier Assembly for Night Light
R99030319 Fan Switch
R99360246 Knob - Black - 2 Required
R99360244 Knob - White - 2 Required
R99360245 Knob - Almond - 2 Required
R99360247 Knob - Biscuit - 2 Required
NTK7457000 Light Socket - WA6500-A - 2 Required
99271236 Light Socket - WA6500-B,C - 2 Required
n.l.a. Motor - WA6500-A
99080667 Motor - WA6500-B,C
NTK7458000 Fan Blade with Clamp - WA6500-A
R607222 Clamp for Fan Blade - WA6500-A
R531076 Fan Blade - WA6500-B,C
R99420635 Hair Pin Hitch Clip for Fan Blade - WA6500-
B,C
NTK4423000 Wiring Cover WA6500
98009816 Wiring Cover WA6500-B, C
R99091034 Nameplate - White
R99091036 Nameplate - Almond
R99091033 Nameplate - Black
R99091035 Nameplate - Biscuit
NTK6630000 Pal Nut for Nameplate - 4 Required
R99091071 Baffle / Louver Vent Cover - Black
R99091072 Baffle / Louver Vent Cover - White
R99091074 Baffle / Louver Vent Cover - Almond
R99091073 Baffle / Louver Vent Cover - Biscuit
97005544 Damper / Duct Connector - 3-1/4” x 10”
R680508 7” Round Duct Plate
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
97005543 Parts Bag - Includes 4 Wood Screws - #10-
16 x 3/4”
* Optional, not included with Hood
WS1530SS
99010361 Aluminum Grease Filter Kit - Includes 2 Fil-
ters
99010308 Non-Duct Filter Kit - Includes 2 Filters - 10-
13/16” x 13-5/16” *
R169016 Filter Spring Kit -Includes 3 Springs
V02544 Bulb - Halogen, PAR20, 120 Volt, 39 Watt -
2 Required **
97018344 Switch Control Board Assembly - Includes
Nameplate
R111630 Light Socket Assembly - Includes Both
Sockets
R99080535 Motor - Includes 3 Screws for Mounting
R169002 Screw Kit for Mounting Motor - Includes 3
Screws
R531075 Fan Blade - Includes Hairpin Clip
R99420635 Hairpin Clip for Fan Blade
97018343 Auto Transformer - Includes 2 Nuts for
Mounting
R501031 Isolation Transformer
R564074 Fuse - 5mm x 20mm, 10 Amp, Fast Acting,
125 Volt
R720174 Light Panel
R602534 Screw for Mounting Light Panel - #8-18 X
3/8” - Incldues 2 Screws
99091152 Nameplate
99091149 Medallion / Logo - Located on Right Nose
of Hood
R602533 Ground Screw - 2 Required
98010725 Wiring Cover - Includes Moutning Screws
99271422 Wire Harness
R401647 Air Chute Assembly - Includes Baffle &
Screw for Mounting
R401646 Baffle
R680508 7” Round Duct Plate - Includes Mounting
Hardware
R602017 Screws for Mounting 7” Round Duct Plate
- #8-18 x 1/4” - Includes 2 Screws
97010792 7” Round Inline Damper *
97018803 7” Round Inline Damper with Sound
Dampening Foam *
R730013 Damper / Duct Connector - 3-1/4” x 10”
97005543 Parts Bag - Includes 4 Wood Screws #10-
16 x 7/8”
* Optional, not included with Hood
** Not included with Hood
Index
34
QT110E, QTN110E
97016497 Grille Assembly - QT110E - Includes Grille
Springs
97017622 Grille Assembly - QTN110E - Includes Grille
Springs
99140199 Grille Spring - 2 Required
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel / Harness Assembly - Includes
Receptacle for Fan
97016466 Housing
98010102 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97016449 Damper / Duct Connector - 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97018218
QT110LE, QTN110LE
97017776 Grille Assembly - QT110LE - Includes Grille
Springs, Light Sockets, & Light Lens
97017775 Grille Assembly - QTN110LE - Includes
Grille Springs, Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111401 Light Lens - QT110LE
99111400 Light Lens - QTN110LE
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3.9”
MOL - 2 Required
99271426 Night Light Bulb - Type C7, 4 Watt
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel/Harness Assembly - Includes
Receptacles for Fan & Lights
97016466 Housing
98010102 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97016449 Damper / Duct Connector - 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97018218
QT130E, QTN130E
97017621 Grille Assembly - QT130E - Includes Grille
Springs
97018427 Grille Assembly - QTN130E - Includes Grille
Springs
99140199 Grille Spring - 2 Required
97016591 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel/Harness Assembly - Includes
Receptacle for Fan
97016466 Housing
98010102 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97018562 Damper / Duct Connector - 6” Round
S475 Duct Reducer - 6” to 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97016591
QT130LE, QTN130LE
97017774 Grille Assembly - QT130LE - Includes Grille
Springs, Light Sockets, & Light Lens
97018428 Grille Assembly - QTN130LE - Includes
Grille Springs, Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111399 Light Lens - QT130LE
99111512 Light Lens - QTN130LE
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3.9”
MOL - 2 Required
99271426 Night Light Bulb - Type C7, 4 Watt
97016926 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel/Harness Assembly - Includes
Receptacles for Fan & Lights
97016466 Housing
98010102 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97018562 Damper / Duct Connector - 6” Round
S475 Duct Reducer - 6” to 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97016926
QT140E
97016497 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
97016591 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel / Harness Assembly - Includes
Fan Receptacle
97016466 Housing
98010102 Knock-Out Wiring Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97016450 Damper / Duct Connector - 6” Round
S475 Duct Reducer - 6” to 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97016591
QT140LE
97018832 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111400 Light Lens
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3.9”
MOL - 2 Required
99271426 Night Light Bulb - Type C7, 4 Watt
97016926 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel / Harness Assembly - Includes
Fan & Light Receptacles
97016466 Housing
98010102 Knock-Out Wiring Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97018562 Damper / Duct Connector - 6” Round
S475 Duct Reducer - 6” to 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97016926
QT80E, QTN80E
97016497 Grille Assembly - QT80E - Includes Grille
Springs
97017623 Grille Assembly - QTN80E - Includes Grille
Springs
99140199 Grille Spring - 2 Required
97017783 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel / Harness Assembly - Includes
Receptacle for Fan
97016466 Housing
98010102 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97016449 Damper / Duct Connector - 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97017783
QT80L, QTN80L
97016546 Grille Assembly - QT80L - Includes Grille
Springs, Light Sockets, & Light Lens
97016543 Grille Assembly - QTN80L - Includes Grille
Springs, Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111281 Light Lens
99271426 Night Light Bulb - Type C7, 4 Watt
97018816 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
see note Motor *
see note Blower Wheel *
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel / Harness Assembly - Includes
Receptacles for Fan & Lights
97016466 Housing
98010102 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97016449 Damper / Duct Connector - 4” Round
97018014 I-Joist Spacer Block - 2 Required
* Must purchase Blower Assembly - p/n 97018816
QT90E
97017642 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
97017854 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Bracket
see note Motor *
97017863 Blower Wheel
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
Index
35
97018010 Wire Panel / Harness Assembly - Includes
Receptacle for Fan
98010102 Electrical Knockout Plate for Top of Hous-
ing
99170245 Screw for Attaching Knockout Plate to
Housing - #8-18 x 3/8”
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 97017854
QT90L
97017431 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111392 Light Lens
99271426 Night Light Bulb - Type C7, 4 Watt
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Bracket
see note Motor *
97017863 Blower Wheel
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel / Harness Assembly - Includes
Receptacle for Fan & Lights
98010102 Electrical Knockout Plate for Top of Hous-
ing
99170245 Screw for Attaching Knockout Plate to
Housing - #8-18 x 3/8”
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 97018218
QTNLEDA, QTNLEDB
97018480 Grille Assembly - QTNLEDA - Includes
Grille Springs & Light Sockets
97018561 Grille Assembly - QTNLEDB - Includes
Grille Springs & Light Sockets
99140199 Grille Spring - 2 Required
99111530 Round LED Ring / Plate - QTNLEDA
99111532 Square LED Ring / Plate - QTNLEDB
99111529 Light Lens
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3.9”
MOL - 2 Required
97018578 Blower Assembly - Includes Motor, Blower
Wheel, Mounting Plate, & Control Assy
97018580 Motor & Blower Wheel
97018529 Motor Mounting Plate & Control Assembly
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
99260558 Nut for Attaching Motor to Motor Mounting
Plate - 4 Required - #8-32
97018552 Wire Panel / Harness Assembly - Includes
Receptacles for Fan & Lights
97016466 Housing
SQTHB1 Hanger Bar Bracket Kit
98010102 Knock-Out Wiring Plate
99170245 Screw for Attaching Wiring Plate to Hous-
ing - #8-18 x 3/8”
97018014 I-Joist Spacer Block - 2 Required
S475 Duct Reducer 6” to 4”
97018562 Damper / Duct Connector - 6” Round
QTR050F
--NOTE-- Revision B began in 10/2008 & included a design
change to the 72MM type Motor
97016497 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
97017782 Blower Assembly - Includes 72MM Type
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor *
99020284 Blower Wheel - QTR050F-A **
97017863 Blower Wheel - QTR050F-B
97016468
Motor Mounting Bracket / Plate - QTR050F-A
97017848
Motor Mounting Bracket / Plate - QTR050F-B
99100491 Rubber Motor Isolator - QTR050F-A - 4
Required
99250959 Motor Mounting Washer - QTR050F-A - #8
x 5/8” - 4 Required
99260558 Nut for Attaching Motor - QTR050F-A - #8-
32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel / Harness Assembly - Includes
Receptacle for Fan ***
98010102 Knockout Wiring Plate ***
97016449 Damper / Duct Connector - 4” Round ***
* Must purchase Blower Assembly - p/n 97017782
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
*** Not included with QTR050F Finish Pack
QTR070
(Discontinued 07/2013)
--NOTE-- Revision B began in 03/2008 & included a design
change to the Grille Assembly
97017642 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97016621 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
99080568 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket / Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97016583 Wire Panel / Harness Assembly - Includes
Receptacle for Fan
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* If Unit is Rev A style, replacement Grille Assembly will
appear different but is compatible
QTR070L
(Discontinued 07/2013)
97017431 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111281 Light Lens
97016621 Blower Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
99080568 Motor
99020284 Blower Wheel
97016467 Motor Mounting Bracket / Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel / Harness Assembly - Includes
Receptacles for Fan & Lights
98010102 Knockout Plate
97016449 Damper / Duct Connector - 4” Round
QTR080, QTR080F
97016497 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
97016621 Blower Assembly - Includes Motor, Blower
Wheel, & Mouting Plate
99080568 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket / Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel / Harness Assembly - Includes
Receptacle for Fan *
98010102 Knockout Plate *
97016449 Damper / Duct Connector - 4” Round *
* Not included with QTR080F Finish Pack
QTR080L
97016546 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111281 Light Lens - 5-23/64” x 10-19/64”
97016621 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080568 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket / Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4
Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
97018011 Wire Panel / Harness Assembly - Includes
Receptacles for Fan & Lights
98010102 Knockout Plate
97016449 Damper / Duct Connector - 4” Round
QTR100
(Discontinued 2009)
97016497 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor **
see note Blower Wheel **
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Hanger Bar Kit - Includes 4 Hanger Bars
97016449 Damper / Duct Connector - 4” Round
* Substitute Grille - design is different from original
QTR100 Grille
** Must purchase Blower Assembly - p/n 97018218
Index
36
QTR100FLT
(Discontinued 2009)
97017427 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111377 Light Lens
99271358 Bulb - Fluorescent, 42 Watt, 4 Pin
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor *
see note Blower Wheel *
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97016864 Ballast Assembly
99260558 Ballast Mounting Nut - #8-32 - 2 Required
97018011 Wire Panel Cover & Harness Assy - In-
cludes Receptacles for Fan & Lights
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 97018218
QTR100L
(Discontinued 2009)
97017425 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111377 Light Lens
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor *
see note Blower Wheel *
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 97018218
QTR110, QTR110F
97016497 Grille Assembly - Includes 2 Grille Springs
99140199 Grille Spring - 2 Required
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor *
99020284 Blower Wheel - QTR110-A
see note Blower Wheel - QTR110-B *
97016468
Motor Mounting Bracket & Plate - QTR110-A
97016467
Motor Mounting Bracket & Plate - QTR110-B
99100491 Rubber Motor Isolator - 4-Required -
QTR110-A
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan **
98010102 Knockout Plate **
97016449 Damper / Duct Connector - 4” Round **
* Must purchase Blower Assembly - p/n 97018218
** Not included with QTR110F Finish Pack
QTR110L
97016546 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111281 Light Lens
97018218 Blower Assembly - Includes Motor, Blower
Wheel, Motor Mounting Plate
see note Motor *
99020284 Blower Wheel - QTR110L-A
see note Blower Wheel - QTR110L-B *
97016468 Motor Mounting Bracket & Plate -
QTR110L-A
97016467 Motor Mounting Bracket & Plate -
QTR110L-B
99100491 Rubber Motor Isolator - 4 Required -
QTR110L-A
99250959 Motor Mounting Washer - #8 x .625 - 4
Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Knockout Plate
97016449 Damper / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 97018218
QTR130
(Discontinued 2012)
97017621 Grille Assembly - Includes 2 Springs
99140199 Grille Spring - 2 Required
97017069 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080595 Motor
99020284 Blower Wheel
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel & Harness Assembly - Includes
Receptacle for Fan
98010102 Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97018014 I-Joist Spacer Block - 2 Required
S475 Duct Reducer - 6” to 4” Round
97016450 Damper / Duct Connector - 6” Round
QTR130FLT
(Discontinued 2012)
97018271 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111399 Light Lens
99271381 Bulb - Fluorescent, GU24 Base, 18 Watt - 2
Required
97017069 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080595 Motor
99020284 Blower Wheel
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel & Harness Assembly - Includes
Receptacles for Fan & Lights
98010102 Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97018014 I-Joist Spacer Block - 2 Required
S475 Duct Reducer- 6” to 4” Round
97016450 Damper / Duct Connector - 6” Round
QTR140
97016497 Grille Assembly - Includes Grille Springs -
QTR140-A
97016912 Grille Assembly - Includes Grille Springs -
QTR140-B - 13” x 14”
99140199 Grille Spring - 2 Required
97017069 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080595 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel & Harness Assembly - Includes
Receptacle for Fan
97018014 I-Joist Spacer Block - 2 Required
S475 Duct Reducer - 6” to 4” Round
97016450 Damper / Duct Connector - 6” Round
QTR140L
97017067 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111345 Light Lens
97017069 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080595 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel Cover & Wire Harness Assem-
bly - Includes Receptacles for Fan & Lights
98010102 Knockout Plate
S475 Duct Reducer - 6” to 4” Round
97016450 Damper / Duct Connector - 6” Round
QTRE080, QTRE080F
--NOTE-- Revision B began in 07/2008 - Motor changed
to 72MM style
97016497 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
97017853 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor - QTRE080-A *
97017846 Motor - QTRE080-B
99020284 Blower Wheel - QTRE080-A **
97017863 Blower Wheel - QTRE080-B
97016468 Motor Mounting Bracket & Plate -
QTRE080-A
97017848 Motor Mounting Bracket & Plate -
QTRE080-B
99100491 Rubber Motor Isolator - QTRE080-A - 4
Required
Index
37
99250959 Motor Mounting Washer - #8 x 5/8” - 4
Required
99260558 Motor Mounting Nut - #8-32 - 4-Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan ***
98010102 Knockout Plate ***
97018014 I-Joist Spacer Block - 2 Required ***
SQTHB1 Hanger Bar Kit ***
97016449 Damper / Duct Connector - 4” Round ***
* Must purchase Blower Assembly - p/n 97017853
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
*** Not included with QTRE080F Finish Pack
QTRE080C2S
97016497 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
10941352 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor *
see note Blower Wheel *
10941351 Wire Panel & Harness Assembly - Includes
Recptacle for Fan
97016466 Housing
SQTHB1 Housing Hanger Bar Kit
98010102 Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97018014 I Joist Spacer Block - 2 Required
97016449 Damer / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 10941352
QTRE080FL, QTRE080FLF
(Discontinued 2007)
97018273 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111281 Light Lens
99271311 Bulb - Fluorescent, 26 Watt, 2 Pin
97017850 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel ***
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4-Required
99250959 Motor Mounting Washers - #8 x 5/8” - 4
Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast - Includes Plugs for Fluorescent
Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights ****
98010102 Knockout Plate ****
97018014 I-Joist Spacer Block - 2 Required ****
SQTHB1 Hanger Bar Kit ****
97016449 Damper / Duct Connector - 4” Round ****
* Original Grille Assembly no longer available. This Kit will
convert Grille & Lights to new style Grille Assemlby. It in-
cludes Grille, Grille Springs, Light Sockets, Light Lens, [2]
GU24 18 Watt Light Bulbs, & Instructions on how to re-
move old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017850
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTRE080FLF Finish Pack
QTRE080FLT, QTRE080FLTF
--NOTE-- Revision B began in 07/2008 - Motor changed
to 72mm style
97018273 Grille Assembly & Coversion Kit *
99140199 Grille Spring - 2 Required
99111281 Light Lens - QTRE080FLT-A,B, QTRE-
080FLTF-A,B - 5-11/32” x 10-5/16”
99111401 Light Lens - QTRE080FLT-C, QTRE-
080FLTF-C - 5-11/32” x 10-9/32”
99271358 Bulb - QTRE080FLT-A,B, QTRE080FLTF-
A,B - Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTRE080FLT-C, QTRE080FLTF-C
- Fluorescent, GU24 Base, 18 Watt - 2 Re-
quired
97017855 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel - QTRE080FLT-A, QTRE-
080FLTF-A ***
97017863 Blower Wheel - QTRE080FLT-B,C, QTRE-
080FLTF-B,C
97016901 Motor Mounting Bracket & Plate - QTRE-
080FLT-A, QTRE080FLTF-A
99100491 Rubber Motor Isolator - QTRE080FLT-A,
QTRE080FLTF-A - 4 Required
99250959 Motor Mounting Washer - QTRE080FLT-A,
QTRE080FLTF-A - #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTRE080FLT-A,
QTRE080FLTF-A - #8-32 - 4 Required
99260423 Motor Mounting Nut - QTRE080FLT-B,C,
QTRE080FLTF-B,C - #8-32 - 2 Required
97016864 Ballast - QTRE080FLT-A,B, QTRE080FLTF-
A,B - Includes Plugs for Fluorescent Bulb
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights ****
98010102 Knockout Plate ****
97018014 I-Joist Spacer Block - 2 Required ****
SQTHB1 Hanger Bar Kit ****
97016449 Damper / Duct Connector - 4” ****
* Original Grille Assembly for QTRE080FLT-A,B & QTRE-
080FLTF-A,B no longer available. This Kit will convert Grille
& Lights to new style Grille Assemlby. It includes Grille,
Grille Springs, Light Sockets, Light Lens, [2] GU24 18 Watt
Light Bulbs, & Instructions on how to remove old Ballast
for conversion.
** Must purchase Blower Assembly - p/n 97017855
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTRE080FLTF Finish Pack
QTRE080R
97016497 Grille Assembly - 13” x 14” - Includes Grille
Springs
99140199 Grille Spring - 2 Required
97017853 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97017846 Motor
97017863 Blower Wheel
99260423 Motor Mounting Nut - #8-32 - 2 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel & Harness Assembly - Includes
Receptacle for Fan
98010102 Knockout Plate
99170245
Knockout Plate Mounting Screw - #8-18 x
3/8”
97018138 Retrofit Mounting Frame Assembly - In-
cludes Sliding Channels for Mounting
Housing
98010614 Duct Connector Bracket
97016449 Damper / Duct Connector - 4” Round
97018139 Parts Bag - Includes [6] #8-18 x 3/8”
Screws & [1] #8-18 x 3/8” Thumb Screw
QTRE090
(Discontinued 2012)
--NOTE-- Grille Design changed in 11/2007
97016459 Grille - QTRE090-A - Includes Grille Springs
97016497 Grille - QTRE090-B - Includes Grille Springs
99140199 Grille Spring - 2 Required
97017784 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor *
99020284 Blower Wheel
97016468 Motor Mouting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel & Harness Assembly - Includes
Receptacle for Fan
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 97017784
QTRE090FL
(Discontinued 10/2009)
--NOTE-- Revision B introduced 42W 4Pin Bulb in 05/2008
- Revision C introduced 72MM Style Motor in 11/2008
97018273 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111281 Light Lens - Old Grille Design using 26W
2Pin or 42W 4Pin Bulbs
99111401 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Bulbs
99271311 Bulb - QTRE090FL-A - Fluorescent, 26
Watt, 2 Pin
99271358 Bulb - QTRE090FL-B,C - Fluorescent, 42
Watt, 4 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017851 Blower Assembly - QTRE090FL-A - In-
cludes Motor, Blower Wheel, & Motor
Mounting Plate
97017856 Blower Assembly - QTRE090FL-B,C - In-
cludes 72MM Style Motor, Blower Wheel,
& Motor Mounting Plate
see note Motor - QTRE090FL-A **
see note Motor - QTRE090FL-B,C ***
99020284 Blower Wheel - QTRE090FL-A,B
97017863 Blower Wheel - QTRE090FL-C
97016468 Motor Mounting Bracket & Plate - QTRE-
090FL-A
97016901 Motor Mounting Bracket & Plate - QTRE-
090FL-B
99250959 Motor Mounting Washer - QTRE090FL-A,B
- #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - QTRE090FL-A,B -
4 Required
97016618 Ballast Assembly - QTRE090FL-A
Index
38
97016864 Ballast Assembly - QTRE090FL-B,C
99260488 Ballast Mounting Nut - QTRE090FL-A -
#10-24 - 2 Required
99260558 Ballast Mounting Nut - QTRE090FL-B,C
-#8-32 - 2 Required
97016585 Wire Panel & Harness Assembly - QTRE-
090FL-A - Includes Receptacles for Fan &
Lights
97018011 Wire Panel & Harness Assembly - QTRE-
090FL-B,C - Includes Receptacles for Fan
& Lights
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Original Grille Assembly for QTRE090FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017851
*** Must purchase Blower Assembly - p/n 97017856
QTRE100S, FQTRE100S
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008
97017420 Grille Assembly - Includes Grille Springs -
13” x 13-3/4”
99140199 Grille Spring - 2 Required
97017998 Blower Assembly *
see note Motor - QTRE100S-A **
97017999 Motor & Blower Wheel - QTRE100S-B
99020284 Blower Wheel - QTRE100S-A ***
97017863 Blower Wheel - QTRE100S-B
97017478 Humidity Control & Motor Mounting Brack-
et & Plate
99100491 Rubber Mounting Isolators - QTRE100S-A
- 4 Required
99250959 Motor Mounting Washer - QTRE100S-A -
#8 - 4 Required
99260558 Motor Mounting Nut - QTRE100S-A - #8-
32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97017085 Wire Panel & Harness Assembly - Includes
Receptacle for Fan
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Hanger Bar Kit
97016449 Damper / Duct Connector - 4” Round
* Includes 72MM Style Motor, Blower Wheel, Humidity
Control Module, & Motor Mounting Plate
** Must purchase Blower Assembly - p/n 97017998
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTRE110, QTRE110F
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008
97016497 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
97017784 Blower Assembly - QTRE110-A,
QTRE110F-A *
97017854 Blower Assembly - QTRE110-B,
QTRE110F-B **
see note Motor - QTRE110-A, QTRE110F-A ***
see note Motor - QTRE110-B, QTRE110F-B ****
99020284 Blower Wheel - QTRE110-A, QTRE110F-A
97017863 Blower Wheel - QTRE110-B, QTRE110F-B
97016468 Motor Mounting Bracket & Plate -
QTRE110-A, QTRE110F-A
99100491 Rubber Motor Isolator - QTRE110-A,
QTRE110F-A - 4 Required
99250959 Motor Mounting Washer - QTRE110-A,
QTRE110F-A - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan *****
98010102 Knockout Plate *****
97016449 Damper / Duct Connector - 4” Round
*****
* Includes Motor, Blower Wheel, & Motor Mounting Plate
** Includes 72MM Style Motor, Blower Wheel, & Motor
Mounting Plate
*** Must purchase Blower Assembly - p/n 97017784
**** Must purchase Blower Assembly - p/n 97017854
***** Not included with QTRE110F Finish Pack
QTRE110FL, QTRE110FLF
(Discontinued 08/2007)
97016548 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111281 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111401 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017851 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor **
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan ***
98010102 Knockout Plate ***
97016449 Damper / Duct Connector - 4” Round ***
* Original Grille Assembly for QTRE110FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017851
** Not included with QTRE110FLF Finish Pack
QTRE110FLFT, QTRE110FLT
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008
97018273 Grille Assembly & Coversion Kit *
99140199 Grille Spring - 2 Required
99111281 Light Lens - QTRE110FLFT-A,B, QTRE-
110FLT-A,B - 5-11/32” x 10-5/16”
99111401 Light Lens - QTRE110FLFT-C, QTRE-
110FLT-C - 5-11/32” x 10-9/32”
99271358 Bulb - QTRE110FLFT-A,B, QTRE110FLT-
A,B - Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTRE110FLFT-C, QTRE110FLT-C
- Fluorescent, 18 Watt, GU24 Base - 2 Re-
quired
97017856 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel - QTRE110FLFT-A, QTRE-
110FLT-A ***
97017863 Blower Wheel - QTRE110FLFT-B,C, QTRE-
110FLFT-B,C
97016901 Motor Mounting Bracket & Plate - QTRE-
110FLFT-A, QTRE110FLT-A
99100491 Rubber Motor Isolator - QTRE110FLFT-A,
QTRE110FLT-A - 4 Required
99250959 Motor Mounting Washer - QTRE110FLFT-
A, QTRE110FLT-A - #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTRE110FLFT-A,
QTRE110FLT-A - #8-32 - 4 Required
97016864 Ballast with Plugs for Fluorescent Bulb -
QTRE110FLFT-A,B, QTRE110FLT-A,B
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Light ****
98010102 Knockout Plate ****
97018014 I-Joist Spacer Block - 2 Required ****
SQTHB1 Housing Moutning Hanger Bar Kit ****
97016449 Damper / Duct Connector - 4” Round ****
* Original Grille Assembly for QTRE110FLFT-A,B, QTRE-
110FLT-A,B no longer available. This Kit will convert Grille
& Lights to new style Grille Assemlby. It includes Grille,
Grille Springs, Light Sockets, Light Lens, [2] GU24 18 Watt
Light Bulbs, & Instructions on how to remove old Ballast
for conversion.
** Must purchase Blower Assembly - p/n 97017856
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTRE110FLFT Finish Pack
QTREGN080
(Discontinued 08/2005)
97016611 Grille Assembly - Includes Grille Springs
99140199 Grille Spring - 2 Required
97017853 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate *
see note Motor **
99020284 Blower Wheel ***
97016468 Motor Mounting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - 4 Required
97018010 Wire Panel & Harness Assembly - Includes
Receptacle for Fan
98010102 Knockout Plate
99170245 Knockout Moutning Screw - #8-18 x 3/8” -
2 Required
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Original Motor no longer available - Compatible replace-
ment includes 72MM Style Motor
** Must purchase Blower Assembly - p/n 97017853
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
Index
39
QTREGN080FL
(Discontinued 08/2005)
97018274 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111310 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111401 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017853 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate **
see note Motor ***
99020284 Blower Wheel ****
97016468 Motor Mounting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - 4 Required
97016618 Ballast Assembly
97016585 Wire Panel & Harness Assembly - Includes
Receptacles for Fan & Lights
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Original Grille Assembly for QTREGN080FL no longer
available. This Kit will convert Grille & Lights to new style
Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
** Original Motor no longer available - Compatible replace-
ment includes 72MM Style Motor
*** Must purchase Blower Assembly - p/n 97017853
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTREN080, QTREN080F
--NOTE-- Revision D introduced 72MM Style Motor in
07/2008
97017623 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017853 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTREN080-A,B,C, QTREN080F-
A,B,C **
97017846 Motor - QTREN080-D, QTREN080F-D
99020284 Blower Wheel - QTREN080-A,B,C,
QTREN080F-A,B,C ***
97017863
Blower Wheel - QTREN080-D, QTREN080F-D
97016468 Motor Mounting Bracket & Plate -
QTREN080-A,B,C, QTREN080F-A,B,C
97017848 Motor Mounting Bracket & Plate -
QTREN080-D, QTREN080F-D
99100491 Rubber Motor Isolator - QTREN080-A,B,C,
QTREN080F-A,B,C - 4 Required
99250959 Motor Mounting Washer - QTREN080-
A,B,C, QTREN080F-A,B,C - #8 x 5/8” - 4
Required
99260558 Motor Mounting Nut - QTREN080-A,B,C,
QTREN080F-A,B,C - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan ****
98010102 Knockout Plate ****
97018014 I-Joist Spacer Block - 2 Required ****
SQTHB1 Housing Mounting Hanger Bar Kit ****
97016449 Damper / Duct Connector - 4” Round ****
* Grille may appear different but will be compatible. Grille
design changed in 12/2007
** Must purchase Blower Assembly - p/n 97017853
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTREN080F Finish Pack
QTREN080FL, QTREN080FLF
(Discontinued 08/2007)
97018274 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111310 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111401 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017850
Blower Assembly - Includes 72MM Style Mo-
tor, Blower Wheel, & Motor Mounting Plate
see note Motor **
99020284 Blower Wheel ***
97016468 Motor Mounting Bracket & Plate ****
99100491 Rubber Motor Isolator - 4 Required ****
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired ****
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights *****
98010102 Knockout Plate *****
97018014 I-Joist Spacer Block - 2 Required *****
SQTHB1 Housing Mounting Hanger Bar Kit *****
97016449 Damper / Duct Connector - 4” Round
*****
* Original Grille Assembly for QTREN080FL, QTREN080FLF
no longer available. This Kit will convert Grille & Lights to
new style Grille Assemlby. It includes Grille, Grille Springs,
Light Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, &
Instructions on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017850
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** For NON 72MM style Blower Assembly ONLY
***** Not included with QTREN080FLF Finish Pack
QTREN080FLFT, QTREN080FLT
--NOTE-- Revision B introduced 72MM Style Motor in 07-
2008 - Revision C introduced new Grille design in 04/2010
97018274 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111310 Ligth Lens - QTREN080FLFT-A,B, QTREN-
080FLT-A,B - 6-3/32” x 8-25/32”
99111401 Light Lens - QTREN080FLFT-C, QTREN-
080FLT-C - 5-11/32” x 10-9/32”
99271358 Bulb - QTREN080FLFT-A,B, QTREN080FLT-
A,B - Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTREN080FLFT-C, QTREN080FLT-
C - Fluorescent, 18 Watt, GU24 Base - 2
Required
97017855 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel - QTREN080FLFT-A, QTREN-
080FLT-A ***
97017863 Blower Wheel - QTREN080FLFT-B,C,
QTREN080FLT-B,C
97016901 Motor Mounting Bracket & Plate - QTREN-
080FLFT-A, QTREN080FLT-A
99100491 Rubber Motor Isolator - QTREN080FLFT-A,
QTREN080FLT-A - 4 Required
99250959 Motor Mounting Washer - QTREN080FLFT-
A, QTREN080FLT-A - #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTREN080FLFT-A,
QTREN080FLT-A - #8-32 - 4 Required
99260423 Motor Mounting Nut - QTREN080FLFT-B,C,
QTREN080FLT-B,C - #8-32 - 2 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97016864 Ballast with Plugs for Fluorescent Bulb -
QTREN080FLFT-A,B, QTREN080FLT-A,B
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights ****
98010102 Knockout Plate ****
97018014 I-Joist Spacer Block - 2 Required ****
SQTHB1 Housing Mounting Hanger Bar Kit ****
97016449 Damper / Duct Connector - 4” Round ****
* Original Grille Assembly for QTREN080FLFT-A,B, QTREN-
080FLT-A,B no longer available. This Kit will convert Grille
& Lights to new style Grille Assemlby. It includes Grille,
Grille Springs, Light Sockets, Light Lens, [2] GU24 18 Watt
Light Bulbs, & Instructions on how to remove old Ballast
for conversion.
** Must purchase Blower Assembly - p/n 97017855
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTREN080FLFT Finish Pack
QTREN110, QTREN110F
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008
97017623 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017784 Blower Assembly - QTREN110-A,B,
QTREN110F-A,B **
97017854 Blower Assembly - QTREN110-C,
QTREN110F-C ***
see note Motor - QTREN110-A,B, QTREN110F-A,B
****
see note Motor - QTREN110-C, QTREN110F-C
*****
99020284 Blower Wheel - QTREN110-A,B,
QTREN110F-A,B
97017863
Blower Wheel - QTREN110-C, QTREN110F-C
97016467 Motor Mounting Bracket & Plate -
QTREN110-A,B, QTREN110F-A,B
99100491 Rubber Motor Isolator - QTREN110-A,B,
QTREN110F-A,B - 4 Required
99250959 Motor Mounting Washer - QTREN110-A,B,
QTREN110F-A,B - #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTREN110-A,B,
QTREN110F-A,B - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan ******
98010102 Knockout Plate ******
97018014 I-Joist Spacer Block - 2 Required ******
SQTHB1 Housing Mounting Hanger Bar Kit ******
Index
40
97016449 Damper / Duct Connector - 4” Round
******
* Grille may appear different but will be compatible. Grille
design changed in 11/2007
** Includes Motor, Blower Wheel, & Motor Mounting Plate
*** Includes 72MM Style Motor, Blower Wheel, & Motor
Mounting Plate
**** Must purchase Blower Assembly - p/n 97017784
***** Must purchase Blower Assembly - p/n 97017854
****** Not included with QTREN110F Finish Pack
QTREN110FL, QTREN110FLF
(Discontinued 08/2007)
97018274 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111310 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111401 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017851 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor **
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights ***
98010102 Knockout Plate ***
97018014 I-Joist Spacer Block - 2 Required ***
SQTHB1 Housing Mounting Hanger Bar Kit ***
97016449 Damper / Duct Connector - 4” Round ***
* Original Grille Assembly for QTREN110FL, QTREN110FLF
no longer available. This Kit will convert Grille & Lights to
new style Grille Assemlby. It includes Grille, Grille Springs,
Light Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, &
Instructions on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017851
*** Not included with QTREN110FLF Finish Pack
QTREN110FLFT, QTREN110FLT
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008 - Revision C introduced new Grille design in 04/2010
97018274 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111310 Light Lens - QTREN110FLFT-A,B, QTREN-
110FLT-A,B - 6-3/32” x 8-25/32”
99111401 Light Lens - QTREN110FLFT-C, QTREN-
110FLT-C - 5-11/32” x 10-9/32”
99271358 Bulb - QTREN110FLFT-A,B, QTREN110FLT-
A,B - Fluorescent, 42 Watt, 4 Pin
99271381
Bulb - QTREN110FLFT-C, QTREN110FLT-C -
Fluorescent, 18 Watt, GU24 Base - 2 Required
97017856
Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel - QTREN110FLFT-A, QTREN-
110FLT-A ***
97017863 Blower Wheel - QTREN110FLFT-B,C,
QTREN110FLT-B,C
97016901 Motor Mounting Bracket & Plate - QTREN-
110FLFT-A, QTREN110FLT-A
99100491 Rubber Motor Isolator - QTREN110FLFT-A,
QTREN110FLT-A - 4 Required
99250959 Motor Mounting Washer - QTREN110FLFT-
A, QTREN110FLT-A - #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTREN110FLFT-A,
QTREN110FLT-A - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97016864 Ballast with Plugs for Fluorescent Bulb -
QTREN110FLFT-A,B, QTREN110FLT-A,B
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights ****
98010102 Knockout Plate ****
97018014 I-Joist Spacer Block - 2 Required ****
SQTHB1 Housing Mounting Hanger Bar Kit ****
97016449 Damper / Duct Connector - 4” Round ****
* Original Grille Assembly for QTREN110FLFT-A,B, QTREN-
110FLT-A,B no longer available. This Kit will convert Grille
& Lights to new style Grille Assemlby. It includes Grille,
Grille Springs, Light Sockets, Light Lens, [2] GU24 18 Watt
Light Bulbs, & Instructions on how to remove old Ballast
for conversion.
** Must purchase Blower Assembly - p/n 97017856
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTREN110FLFT Finish Pack
QTRGN110
(Discontinued 2005)
97016497 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97018218 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor **
see note Blower Wheel **
see note Motor Mouting Bracket & Plate **
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97018010 Wire Panel Cover & Wire Harness Assem-
bly - Includes Receptacle for Fan
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
* Original Grille Assembly no longer available - Replace-
ment will appear different but is compatible.
** Must purchase Blower Assemlby - p/n 97018218
QTRN050F
--NOTE-- Revision B introduced new Grille design in 11/2007
- Revision C introduced 72MM Style Motor in 10/2008
97017623 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017782
Blower Assembly - Includes 72MM Style Mo-
tor, Blower Wheel, & Motor Mounting Plate
see note Motor **
99020284 Blower Wheel - QTRN050F-A,B ***
97017863 Blower Wheel - QTRN050F-C
97016468 Motor Mounting Bracket & Plate -
QTRN050F-A,B
97017848 Motor Mounting Bracket & Plate -
QTRN050F-C
99100491 Rubber Motor Isolator - QTRN050F-A,B - 4
Required
99250959 Motor Mounting Washer - QTRN050F-A,B
- #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTRN050F-A,B - #8-
32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan ****
98010102 Knockout Plate ****
97018014 I-Joist Spacer Block - 2 Required ****
SQTHB1 Housing Mounting Hanger Bar Kit ****
97016449 Damper / Duct Connector - 4” Round ****
* Grille Assembly for QTRN050F-A no longer available. Re-
placement looks different but is compatible.
** Must purchase Blower Assembly - p/n 97017782
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTRN050F Finish Pack
QTRN080, QTRN080F
--NOTE-- Revision B introduced new Grille design in 11/2007
97017623 Grille Assembly - Inlcudes Grille Springs *
99140199 Grille Spring - 2 Required
97016621 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080568 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan **
98010102 Knockout Plate **
97018014 I-Joist Spacer Block - 2 Required **
97016449 Damper / Duct Connector - 4” Round **
* Grille for QTRN080-A, QTRN080F-A no longer available.
Replacement looks different but is compatible.
** Not included with QTRN080F Finish Pack
QTRN080L
97016543 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111281 Light Lens
97016621 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080568 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
97016449 Damper / Duct Connector - 4” Round
Index
41
QTRN110, QTRN110F
--NOTE-- Revision B introduced new Grille design in
11/2007
97017623 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97018218 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel - QTRN110-A, QTRN110F-A
***
97017863 Blower Wheel - QTRN110-B, QTRN110F-B
97016468 Motor Mounting Bracket & Plate -
QTRN110-A, QTRN110F-A
97016467 Motor Mounting Bracket & Plate -
QTRN110-B, QTRN110F-B
99100491 Rubber Motor Isolator - QTRN110-A,
QTRN110F-A - 4 Required
99250959 Motor Mounting Washer - QTRN110-A,
QTRN110F-A - #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTRN110-A,
QTRN110F-A - #8-32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Wire Harness Assem-
bly - Includes Receptacle for Fan ****
98010102 Knockout Plate ****
97016449 Damper / Duct Connector - 4” Round ****
* Grille for QTRN110-A, QTRN110F-A no longer available.
Replacement looks different but is compatible.
** Must purchase Blower Assembly - p/n 97018218
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
**** Not included with QTRN110F Finish Pack
QTRN110L
97016543 Grille Assembly - Includes Grille Springs,
Light Sockets, & Light Lens
99140199 Grille Spring - 2 Required
99111281 Light Lens
97018218 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor *
99020284 Blower Wheel - QTRN110L-A **
97017863 Blower Wheel - QTRN110L-B
97016468 Motor Mounting Bracket & Plate -
QTRN110L-A
97016467 Motor Mounting Bracket & Plate -
QTRN110L-B
99100491 Rubber Motor Isolator - QTRN110L-A - 4
Required
99250959 Motor Mounting Washer - QTRN110L-A -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTRN110L-A - #8-
32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97018011 Wire Panel Cover & Wire Harness Assem-
bly - Includes Receptacles for Fan & Lights
98010102 Knockout Plate
97016449 Damper / Duct Connector - 4” Round
* Must purchase Blower Assembly - p/n 97018218
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTX100HL
(Discontinued 2012)
97016474 Grille Assembly - Includes Grille, Light
Sockets, & Light Lens
99150622 Grille Mounting Screw - #8-18 x 2” - 2 Re-
quired
99260512 Sheet Metal Nut for Grille Screw - 2 Re-
quired
99111460 Light Lens
97016567 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080556 Fan Motor
99020284 Blower Wheel for Fan Motor
97016471 Fan Motor Mounting Bracket & Plate
99100491 Rubber Isolator for Fan Motor Mount - 4
Required
99250959 Fan Motor Mounting Washer - #8 x 5/8” - 4
Required
99260558 Fan Motor Mounting Nut - #8-32 - 4 Re-
quired
97016566 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080558 Heater Motor
99020283 Blower Wheel for Heater Motor
97016565 Heater Element - Includes Thermal Fuse
97016564 Heater Scroll Housing Only
97016563 Wire Panel Cover & Harness Assembly -
Includes Receptacles for Heater, Fan, &
Lights
99150471 Ground Screw - #10-32 x 1/2”
98003036 Housing Mounting & Support Angle Brack-
ets - 4 Required
98007763 Channel for Support Angle Brackets - 2 Re-
quired
99170245 Screw for Mounting Support Channel - #8-
18 x 3/8” - 4 Required
97016450 Damper / Duct Connector - 6” Round
S77DW Wall Switch - White
QTX110HFLT, QTXN110HFLT
99271381 Fluorescent Bulb 18Watt, GU24 Base (2
Required)
97018035 Grille Assembly - QTX110HFLT - Includes
Grille, Light Sockets, & Light Lens
97018036 Grille Assembly - QTXN110HFLT - Includes
Grille, Light Sockets, & Light Lens
99150622 Grille Mounting Screw - #8-18 x 2” - 2 Re-
quired
99260512 Sheet Metal Nut for Grille Screw - 2 Re-
quired
99111460 Light Lens - QTX110HFLT
99111461 Light Lens - QTXN110HFLT
97016567 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080556 Fan Motor
99020284 Blower Wheel for Fan Motor
97016471 Fan Motor Mounting Bracket & Plate
99100491 Rubber Isolator for Fan Motor Mount - 4
Required
99250959 Fan Motor Mounting Washer - #8 x 5/8” - 4
Required
99260558 Fan Motor Mounting Nut - #8-32 - 4 Re-
quired
97016566 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080558 Heater Motor
99020283 Blower Wheel for Heater Motor
97016565 Heater Element - Includes Thermal Fuse
97016564 Heater Scroll Housing Only
97018049 Wire Panel Cover & Harness Assembly -
Includes Receptacles for Heater, Fan, &
Lights
99150471 Ground Screw - #10-32 x 1/2”
98003036 Housing Mounting & Support Angle Brack-
ets - 4 Required
98007763 Channel for Support Angle Brackets - 2 Re-
quired
99170245 Screw for Mounting Support Channel - #8-
18 x 3/8” - 4 Required
97016450 Damper / Duct Connector - 6” Round
QTX110HL, QTXN110HL
97016474 Grille Assembly - QTX110HL - Includes
Grille, Light Sockets, & Light Lens
97016473 Grille Assembly - QTXN110HL - Includes
Grille, Light Sockets, & Light Lens
99150622 Grille Mounting Screw - #8-18 x 2” - 2 Re-
quired
99260512 Sheet Metal Nut for Grille Screw - 2 Re-
quired
99111291 Light Lens - QTX110HL
99111271 Light Lens - QTXN110HL
97016567 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080556 Fan Motor
99020284 Blower Wheel for Fan Motor
97016471 Fan Motor Mounting Bracket & Plate
99100491 Rubber Isolator for Fan Motor Mount - 4
Required
99250959 Fan Motor Mounting Washer - #8 x 5/8” - 4
Required
99260558 Fan Motor Mounting Nut - #8-32 - 4 Re-
quired
97016566 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080558 Heater Motor
99020283 Blower Wheel for Heater Motor
97016565 Heater Element - Includes Thermal Fuse
97016564 Heater Scroll Housing Only
97016563 Wire Panel Cover & Harness Assembly -
Includes Receptacles for Heater, Fan, &
Lights
99150471 Ground Screw - #10-32 x 1/2”
98003036 Housing Mounting & Support Angle Brack-
et - 4 Required
98007763 Channel for Support Angle Brackets - 2 Re-
quired
99170245 Screw for Mounting Support Channel - 4
Required
97016450 Damper / Duct Connector - 6” Round
QTX110SL
97016965 Grille Assembly - Includes Grille Springs,
Light Sockets, Light Lens, Sensor, & Wire
Harness
99140199 Grille Spring - 2 Required
99111345 Light lens
99271344 Sensor Wire Harness from Grille Sensor to
Humidity Control Module
97017087 Blower Assembly - Includes Motor, Blower
Wheel, Humidity Control Module, & Motor
Mounting Plate
99080598 Motor
Index
42
99020284 Blower Wheel
97017083 Humidity Control Module - Includes Motor
Mounting Bracket & Plate
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Motor Rubber Isolators - 4 Required
99250959 Motor Mounting Washer - #8-32 - 4 Re-
quired
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97017086 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
QTXE050, QTXEN050
--NOTE-- Revision B introduced new Grille design in 2007 -
Revision C introduced 72MM Style Motor in 2008
97017621 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017782 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel - QTXE050-A,B ***
97017863 Blower Wheel - QTXE050-C
97016468 Motor Mounting Bracket & Plate -
QTXE050-A
97016467 Motor Mounting Bracket & Plate -
QTXE050-B
see note Motor Mounting Bracket & Plate -
QTXE050-C **
99100491 Rubber Motor Isolator - QTXE050-A,B - 4
Required
99250959 Motor Mounting Washers - QTXE050-A,B -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXE050-A,B - #8-
32 - 4 Required
99170245 Screw Used to Attach Mounting Plate to
Housing - QTXE050-A,B - #8-18 x 3/8”
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - QTXE050-C - #8-18 x
3/8”
97016466 Housing
97018010 Wire Panel Cover & Wire Harness Assem-
bly - Includes Receptacle for Fan
98010102 Knockout Plate
97018014 Spacer Used for I-Joist Installs - 2 Required
SQTHB1 Hanger Bar Kit - Kit Includes 2 Hanger Bars
97016450 Damper / Duct Connector - 6” Round
* Grille for QTXE050-A no longer available. Replacement
looks different but is compatible.
** Must purchase Blower Assembly - p/n 97017782
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXE080
--NOTE-- Revision B introduced new Grille design in 2007 -
Revision C introduced 72MM Style Motor in 2008
97017621 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017783 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Mounting Plate
see note Motor **
99020284 Blower Wheel - QTXE080-A,B ***
97017863 Blower Wheel - QTXE080-C
97016468 Motor Mounting Bracket & Plate -
QTXE080-A
97016467 Motor Mounting Bracket & Plate -
QTXE080-B
see note Motor Mounting Bracket & Plate -
QTXE080-C **
99100491 Rubber Motor Isolator - QTXE080-A,B - 4
Required
99250959 Motor Mounting Washers - QTXE080-A,B -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXE080-A,B - #8-
32 - 4 Required
99170245 Screw Used to Attach Mounting Plate to
Housing - QTXE080-A,B - #8-18 x 3/8”
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - QTXE080-C - #8-18 x
3/8”
97016466 Housing
97018010 Wire Panel Cover & Wire Harness Assem-
bly - Includes Receptacle for Fan
98010102 Knockout Plate
97018014 Spacer Used for I-Joist Installs - 2 Required
QTHB1 Hanger Bar Kit - Kit Includes 2 Hanger Bars
97016450 Damper / Duct Connector - 6” Round
* Grille for QTXE080-A no longer available. Replacement
looks different but is compatible.
** Must purchase Blower Assembly - p/n 97017783
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXE080FL
(Discontinued 08/2007)
97018271 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111284 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111399 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017850 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel ***
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Recptacles for Fan & Lights
98010102 Knockout Plate
97016450 Damper/Duct Connector - 6”
* Original Grille Assembly for QTXE080FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017850
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXE080FLT
--NOTE-- Revision B introduced 72MM Style Motor in
06/2008 - Revision C introduced new Grille design in
04/2010
97018271 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111284 Light Lens - QTXE080FLT-A,B - Old Grille
Design using 42W, 4Pin Fluorescent Bulb
99111399 Light Lens - QTXE080FLT-C - New Grille
Design using [2] 18W, GU24 Fluorescent
Bulbs
99271358 Bulb - QTXE080FLT-A,B - Old Grille Design
- Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTXE080FLT-C - New Grille Design
- Fluorescent, 18 Watt, GU24 Base - 2 Re-
quired
97017850 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXE080FLT-A **
97017843 Motor - QTXE080FLT-B,C
99020284 Blower Wheel - QTXE080FLT-A ***
97017863 Blower Wheel - QTXE080FLT-B,C
97016468 Motor Mounting Bracket & Plate - QTXE-
080FLT-A
97017849 Motor Mounting Bracket & Plate - QTXE-
080FLT-B,C
99100491 Rubber Motor Isolator - QTXE080FLT-A - 4
Required
99250959 Motor Mounting Washer - QTXE080FLT-A -
#8 x 5/8” - 4-Required
99260558 Motor Mounting Nut - QTXE080FLT-A - #8-
32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97016864 Ballast with Plugs for Fluorescent Bulb -
QTXE080FLT-A,B
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXE080FLT-A,B no longer
available. This Kit will convert Grille & Lights to new style
Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
** Must purchase Blower Assemlby - p/n 97017850
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXE110
--NOTE--Revision B introduced new Grille design in 2007 -
Revision C introduced 72MM Style Motor in 2008
97017621 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017784
Blower Assembly - Includes 72MM Style Mo-
tor, Blower Wheel, & Motor Mounting Plate
see note Motor **
99020284 Blower Wheel - QTXE110-A,B
97017863 Blower Wheel - QTXE110-C
97016468 Motor Mounting Bracket & Plate -
QTXE110-A
97016467 Motor Mounting Bracket & Plate -
QTXE110-B
Index
43
see note Motor Mounting Bracket & Plate -
QTXE110-C **
99100491 Rubber Motor Isolator - QTXE110-A,B - 4
Required
99250959 Motor Mounting Washer - QTXE110-A,B -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXE110-A,B - #8-
32 - 4 Required
99170245 Screw Used to Attach Mounting Plate to
Housing - QTXE110-A,B - #8-18 x 3/8”
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - QTXE110-C - #8-18 x
3/8”
97016466 Housing
97018010 Wire Panel Cover & Wire Harness Assem-
bly - Includes Receptacle for Fan
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit - Kit In-
cludes 2 Hanger Bars
97016450 Damper / Duct Connector - 6” Round
* Grille for QTXE110-A no longer available. Replacement
looks different but is compatible.
** Must purchase Blower Assembly - p/n 97017784
QTXE110FL
(Discontinued 08/2007)
97018271 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111284 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111399 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017851 Blower Assembly
99020284 Blower Wheel
see note Motor **
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXE110FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017851
QTXE110FLT
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008 - Revision C introduced new Grille design in
04/2010
97018271 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111284 Light Lens - QTXE110FLT-A,B - Old Grille
Design using 42W, 4Pin Fluorescent Bulb
99111399 Light Lens - QTXE110FLT-C - New Grille
Design using [2] 18W, GU24 Fluorescent
Bulbs
99271358 Bulb - QTXE110FLT-A,B - Old Grille Design
- Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTXE110FLT-C - New Grille Design
- Fluorescent, 18 Watt, GU24 Base - 2 Re-
quired
97017851 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXE110FLT-A **
97017999 Motor & Blower Wheel - QTXE110FLT-B,C
99020284 Blower Wheel - QTXE110FLT-A ***
97017863 Blower Wheel - QTXE110FLT-B,C
97016468 Motor Mounting Bracket & Plate - QTXE-
110FLT-A
97016901 Motor Mounting Bracket & Plate - QTXE-
110FLT-B
see note Motor Mounting Bracket & Plate - QTXE-
110FLT-C **
99100491 Rubber Motor Isolator - QTXE110FLT-A - 4
Required
99250959 Motor Mounting Washer - QTXE110FLT-A -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXE110FLT-A - #8-
32 - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97016864 Ballast with Plugs for Fluorescent Bulb -
QTXE110FLT-A,B
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXE110FLT-A,B no longer
available. This Kit will convert Grille & Lights to new style
Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017851
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXE110S
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008
97016963 Grille Assembly - 12-7/8” x 13-3/4” - In-
cludes Grille, 2 Springs, Sensor, & Wire
Harness
99140199 Grille Spring - 2 Required
99271344 Sensor Wire Harness from Grille Sensor to
Humidity Control Module
97017087 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXE110S-A *
97017999 Motor & Blower Wheel - QTXE110S-B
99020284 Blower Wheel - QTXE110S-A **
97017863 Blower Wheel - QTXE110S-B
99260558 Motor Mounting Nut - QTXE110S-A - #8-
32 - 4 Required
99100491 Motor Rubber Isolators - QTXE110S-A - 4
Required
99250959 Motor Mounting Washer - QTXE110S-A -
#8 x 5/8” - 4 Required
99420665 Thumbscrew for Attaching Motor Mount-
ing Plate to Housing - #8-18 x 3/8”
97017083 Humidity Control Module - Includes Motor
Mounting Plate
97017085 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Must purchase Blower Assembly - p/n 97017087
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXE110SFLT
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008 - Revision C introduced new Grille design in
11/2012
97016966 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111345 Light Lens
99271358 Bulb - QTXE110SFLT-A,B - Fluorescent, 4
Pin, 42 Watt
99271381 Bulb - QTXE110SFLT-C - Fluorescent,
GU24, 18 Watt - 2 Required
99271344 Sensor Wire Harness from Grille Sensor to
Humidity Contorl Module
97017088 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXE110SFLT-A **
97017999 Motor & Blower Wheel - QTXE110SFLT-B,C
99020284 Blower Wheel - QTXE110SFLT-A ***
97017863 Blower Wheel - QTXE110SFLT-B,C
97017084 Motor Mounting Plate & Humidity Control
Module - QTXE110SFLT-A,B
97017083 Motor Mounting Plate & Humidity Control
Module - QTXE110SFLT-C
99100491 Motor Mounting Rubber Isolator - QTX-
E110SFLT-A - 4 Required
99250959 Motor Mounting Washer - QTXE110SFLT-A
- #8 - 4 Required
99260558 Motor Mounting Nut - QTXE110SFLT-A,
#8-32 - 4 Required
99170245 Screw used to Attach Motor Plate to Hous-
ing - QTXE110SFLT-A - #8-18 x 3/8”
99420665 Thumbscrew used to Attach Motor Plate to
Housing - QTXE110SFLT-B,C - #8-18 x 3/8”
97016864 Ballast - QTXE110SFLT-A,B
99260423 Nut used to Attach Ballast to Motor Plate -
QTXE110SFLT-A,B - #8-32 - 2 Required
97016466 Housing
97017086 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Wiring Knock-Out Plate
97018014 Spacer Block for I-Joist Installation - 2 Re-
quired
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXE110SFLT-A,B no lon-
ger available. This Kit will convert Grille & Lights to new
style Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
Index
44
** Must purchase Blower Assembly - p/n 97017088
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXE150
--NOTE-- Revision B introduced new Grille design in 2007
- Revision C introduced 72MM Style Motor design in 2008
97017621 Grille Assembly - Includes 2 Grille Springs
*
99140199 Grille Spring - 2 Required
97016591 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Mounting Plate
99080565 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate -
QTXE150-A
97016467 Motor Mounting Bracket & Plate -
QTXE150-B,C
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washers - #8 x 5/8” - 4
Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99170245 Screw Used to Attach Mounting Plate to
Housing - QTXE150-A,B - #8-18 x 3/8”
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - QTXE150-C - #8-18 x
3/8”
99500397 Insulation Pad that Attaches to Mounting
Plate
97016466 Housing
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Wiring Knockout Plate
97018014 Spacer Block Used for I-Joist Installs - 2
Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Grille for QTXE150-A no longer available. Replacement
looks different but is compatible.
QTXE150FL
(Discontinued 08/2007)
97018271 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111284 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111399 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97016591 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080565 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
99500397 Housing Insulation
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXE150FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
QTXE150FLT
--NOTE-- Revision B introduced new Grille design in
04/2010
97018271 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111284 Light Lens - QTXE150FLT-A - Old Grille De-
sign using 42W, 4Pin Fluorescent Bulb
99111399 Light Lens - QTXE150FLT-B - New Grille
Design using [2] 18W, GU24 Fluorescent
Bulbs
99271358 Bulb - QTXE150FLT-A - Old Grille Design -
Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTXE150FLT-B - New Grille Design
- Fluorescent, 18 Watt, GU24 Base - 2 Re-
quired
97016926 Blower Assembly - QTXE150FLT-A - In-
cludes Motor, Blower Wheel, & Motor
Mounting Plate
97016591 Blower Assembly - QTXE150FLT-B - In-
cludes Motor, Blower Wheel, & Motor
Mounting Plate
99080565 Motor - QTXE150FLT-A
see note Motor - QTXE150FLT-B **
99020284 Blower Wheel - QTXE150FLT-A
see note Blower Wheel - QTXE150FLT-B **
97016901 Motor Mounting Bracket & Plate - QTXE-
150FLT-A
see note Motor Mounting Bracket & Plate - QTXE-
150FLT-B **
99100491 Rubber Motor Isolator - QTXE150FLT-A - 4
Required
99250959 Motor Mouting Washers - QTXE150FLT-A -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXE150FLT-A - #8-
32 - 4 Required
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - QTXE150-C - #8-18 x
3/8”
97016864 Ballast - QTXE150FLT-A
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
99500397 Housing Insulation
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXE150FLT-A no longer
available. This Kit will convert Grille & Lights to new style
Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97016591
QTXEN050
--NOTE-- Revision B introduced new Grille design in
11/2007 - Revision C introduced 72MM Style Motor in
10/2008
97016460 Grille Assembly - QTXEN050-A - Includes
Grille Springs
97017622 Grille Assembly - QTXEN050-B,C - Includes
Grille Springs
99140199 Grille Spring - 2 Required
97017782 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXEN050-A,B *
97017842 Motor - QTXEN050-C
99020284 Blower Wheel - QTXEN050-A,B **
97017863 Blower Wheel - QTXEN050-C
97016468 Motor Mounting Bracket & Plate - QTX-
EN050-A,B
see note Motor Mounting Bracket & Plate - QTX-
EN050-C *
99100491 Rubber Motor Isolator - QTXEN050-A,B - 4
Required
99250959 Motor Mounting Washer - QTXEN050-A,B
- #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXEN050-A,B - #8-
32 - 4 Required
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Must purchase Blower Assembly - p/n 97017782
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN080
--NOTE-- Revision B introduced new Grille design in
11/2007 - Revision C introduced 72MM Style Motor in
06/2008
97016460 Grille Assembly - QTXEN080-A - Includes
Grille Springs
97017622 Grille Assembly - QTXEN080-B,C - Includes
Grille Springs
99140199 Grille Spring - 2 Required
97017783 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor *
99020284 Blower Wheel - QTXEN080-A,B **
97017863 Blower Wheel - QTXEN080-C
97016468 Motor Mounting Bracket & Plate - QTX-
EN080-A,B
see note Motor Mounting Bracket & Plate - QTX-
EN080-C *
99100491 Rubber Motor Isolator - QTXEN080-A,B - 4
Required
99250959 Motor Mounting Washer - QTXEN080-A,B
- #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXEN080-A,B - #8-
32 - 4 Required
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
Index
45
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Must purchase Blower Assembly - p/n 97017783
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN080FL
(Discontinued 08/2007)
97018272 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111287 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111400 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017850 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor **
99020284 Blower Wheel ***
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast With Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXEN080FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017850
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN080FLT
--NOTE-- Revision B introduced 72MM Style Motor in
06/2008 - Revision C introduced new Grille design in
04/2010
97018272 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111287 Light Lens - QTXEN080FLT-A,B - Old Grille
Design using 42W, 4Pin Fluorescent Bulb
99111400 Light Lens - QTXEN080FLT-C - New Grille
Design using [2] 18W, GU24 Fluorescent
Bulbs
99271358 Bulb - QTXEN080FLT-A,B - Old Grille De-
sign - Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTXEN080FLT-C - New Grille Design
- Fluorescent, 18 Watt, GU24 Base - 2 Re-
quired
97017850 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXEN080-A **
97017843 Motor - QTXEN080FLT-B,C
99020284 Blower Wheel - QTXEN080FLT-A ***
97017863 Blower Wheel - QTXEN080FLT-B,C
97016468 Motor Moutning Bracket & Plate - QTXEN-
080FLT-A
see note Motor Mounting Bracket & Plate - QTXEN-
080FLT-B,C **
99100491 Rubber Motor Isolator - QTXEN080FLT-A
- 4 Required
99250959 Motor Mounting Washer - QTXEN080FLT-A
- #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXEN080FLT-A -
#8-32 - 4 Required
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97016864 Ballast with Plugs for Fluorescent Bulb -
QTXEN080FLT-A,B
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXEN080FLT-A,B no lon-
ger available. This Kit will convert Grille & Lights to new
style Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017850
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN110
--NOTE-- Revision B introduced new Grille design in
11/2007 - Revision C introduced 72MM Style Motor in
11/2008
97016460 Grille Assembly - QTXEN110-A - Includes
Grille Springs
97017622 Grille Assembly - QTXEN110-B,C - Includes
Grille Springs
99140199 Grille Spring - 2 Required
97017784 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXEN110-A,B *
97017999 Motor & Blower Wheel - QTXEN110-C
99020284 Blower Wheel - QTXEN110-A,B **
97017863 Blower Wheel - QTXEN110-C
97016468 Motor Mounting Bracket & Plate - QTX-
EN110-A,B
see note Motor Mounting Bracket & Plate - QTX-
EN110-C *
99100491 Rubber Motor Isolator - QTXEN110-A,B - 4
Required
99250959 Motor Mounting Washer - QTXEN110 - #8
x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXEN110-A,B - #8-
32 - 4 Required
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Must purchase Blower Assembly - p/n 97017784
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN110FL
(Discontinued 08/2007)
97018272 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111287 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111400 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97017851 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor **
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXEN110FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - 97017851
QTXEN110FLT
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008 - Revision C introduced new Grille design in
04/2010
97018272 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111287 Light Lens - QTXEN110FLT-A,B - Old Grille
Design using 42W, 4Pin Fluorescent Bulb
99111400 Light Lens - QTXEN110FLT-C - New Grille
Design using [2] 18W, GU24 Fluorescent
Bulbs
99271358 Bulb - QTXEN110FLT-A,B - Old Grille De-
sign - Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTXEN110FLT-C - New Grille Design
- Fluorescent, 18 Watt, GU24 Base - 2 Re-
quired
97017851 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXEN110FLT-A **
97017999 Motor & Blower Wheel - QTXEN110FLT-
B,C
99020284 Blower Wheel - QTXEN110FLT-A ***
97017863 Blower Wheel - QTXEN110FLT-B,C
97016468 Motor Mounting Bracket & Plate - QTXEN-
110FLT-A
see note Motor Mounting Bracket & Plate - QTXEN-
110FLT-B,C **
Index
46
99100491 Rubber Motor Isolator - QTXEN110FLT-A -
4 Required
99250959 Motor Mounting Washer - QTXEN110FLT-A
- #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXEN110FLT-A -
#8-32 - 4 Required
99420665 Thumbscrew Used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97016864 Ballast with Plugs for Fluorescent Bulb -
QTXEN110FLT-A,B
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXEN110FLT-A,B no lon-
ger available. This Kit will convert Grille & Lights to new
style Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97017851
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN110S
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008
97016964 Grille Assembly - Includes Grille Springs,
Sensor, & Sensor Wire Harness
99140199 Grille Spring - 2 Required
99271344 Sensor Wire Harness from Grille Sensor to
Humidity Control Module
97017087 Blower Assembly *
see note Motor - QTXEN110S-A **
97017999 Motor & Blower Wheel - QTXEN110S-B
99020284 Blower Wheel - QTXEN110S-A ***
97017863 Blower Wheel - QTXEN110S-B
97017083 Humidity Control Module & Motor Mount-
ing Plate
99260558 Motor Mounting Nut - QTXEN110S-A - #8-
32 - 4 Required
99250959 Motor Mounting Washer - QTXEN110S-A -
#8 - 4 Required
99100491 Rubber Isolators - QTXEN110S-A - 4 Re-
quired
99170245 Screw used to Attach Mounting Plate to
Housing - QTXEN110S-A - #8-18 x 3/8”
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - QTXEN110S-B - #8-18
x 3/8”
97017086 Wire Panel Cover & Harness Assembly -
QTXEN110S-A - Includes Receptacle for
Fan
97017085 Wire Panel Cover & Harness Assembly -
QTXEN110S-B - Includes Receptacle for
Fan
98010102 Knock-Out Wiring Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
97016466 Housing
97018014 Spacer used for I-Joist Installs - 2 Required
SQTHB1 Hanger Bar Kit - Includes 2 Hanger Bars
97016450 Damper / Duct Connector - 6” Round
* Includes 72MM Style Motor, Blower Wheel, Humidity
Control Module, & Motor Mounting Plate
** Must purchase Blower Assembly - p/n 97017087
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN110SFLT
--NOTE-- Revision B introduced 72MM Style Motor in
11/2008 - Revision C introduced new Grille design in
04/2010
97016967 Grille Assembly & Conversion Kit *
99140199 Grille Springs - 2 Required
99111345 Light lens
99271358 Bulb - QTXEN110SFLT-A,B - Old Grille De-
sign - Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTXEN110SFLT-C - New Grille De-
sign - Fluorescent, 18 Watt, GU24 Base - 2
Required
99271344 Sensor Wire Harness from Grille to Humid-
ity Control Module
97017088 Blower Assembly **
see note Motor - QTXEN110SFLT-A ***
97017999 Motor & Blower Wheel - QTXEN110SL-B,C
99020284 Blower Wheel - QTXEN110SFLT-A ****
97017863 Blower Wheel - QTXEN110SFLT-B,C
97017084 Humidity Control Module & Motor Mouting
Bracket & Plate
99260558 Motor Mounting Nuts - QTXEN110SFLT-A -
#8-32 - 4 Required
99100491 Motor Rubber Isolators - QTXEN110SFLT-
A - 4 Required
99250959 Motor Mounting Washer - QTXEN110SFLT-
A - #8 - 4 Required
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - QTXEN110S-B - #8-18
x 3/8”
97016864 Ballast Assembly for Fluorescent Bulb -
QTXEN110SFLT-A,B
97017086 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan & Lights
98010102 Wiring Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXEN110SFLT-A,B no lon-
ger available. This Kit will convert Grille & Lights to new
style Grille Assemlby. It includes Grille, Grille Springs, Hu-
midity Sensor, Humidity Sensor Wire Harness, Light Sock-
ets, Light Lens, [2] GU24 18 Watt Light Bulbs, & Instruc-
tions on how to remove old Ballast for conversion.
** Includes 72MM Style Motor, Blower Wheel, Humidity
Control Module, & Motor Mounting Plate
*** Must purchase Blower Assembly - p/n 97017088
**** If Motor has been previously replaced with 72mm
type, must purchase Blower Wheel p/n 97017863
QTXEN150
--NOTE-- Revision B introduced new Grille design & 72MM
Style Motor in 11/2008
97016460 Grille Assembly - QTXEN150-A - Includes
Grille Springs
97017622 Grille Assembly - QTXEN150-B - Includes
Grille Springs
99140199 Grille Spring - 2 Required
97016591 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
99080565 Motor - QTXEN150-A
see note Motor - QTXEN150-B *
99020284 Blower Wheel - QTXEN150-A **
97017863 Blower Wheel - QTXEN150-B
97016468 Motor Mounting Bracket & Plate - QTX-
EN150-A
see note Motor Mounting Bracket & Plate - QTX-
EN150-B *
99100491 Rubber Motor Isolator - QTXEN150-A -
4-Required
99250959 Motor Mounting Washer - QTXEN150-A -
#8 x 5/8” - 4 Required
99260558 Motor Moutning Nut - QTXEN150-A - #8-
32 - 4 Required
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Electrical Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Must purchase Blower Assembly - p/n 97016591
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
QTXEN150FL
(Discontinued 08/2007)
97018272 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111287 Light Lens - Old Grille Design using 26W
2Pin Fluorescent Bulb
99111400 Light Lens - New Coverted Grille Design us-
ing [2] 18W GU24 Fluorescent Bulbs
99271311 Bulb - Old Grille Design - Fluorescent, 26
Watt, 2 Pin
99271381 Bulb - New Converted Grille Design - Fluo-
rescent, 18 Watt, GU24 Base - 2 Required
97016591 Blower Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080565 Motor
99020284 Blower Wheel
97016468 Motor Mounting Bracket & Plate
99100491 Rubber Motor Isolator - 4 Required
99250959 Motor Mounting Washer - #8 x 5/8” - 4 Re-
quired
99260558 Motor Mounting Nut - #8-32 - 4 Required
97016618 Ballast with Plugs for Fluorescent Bulb
97016585 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
99500397 Housing Insulation
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXEN150FL no longer avail-
able. This Kit will convert Grille & Lights to new style Grille
Assemlby. It includes Grille, Grille Springs, Light Sockets,
Light Lens, [2] GU24 18 Watt Light Bulbs, & Instructions
on how to remove old Ballast for conversion.
QTXEN150FLT
97018272 Grille Assembly & Conversion Kit *
99140199 Grille Spring - 2 Required
99111287 Light Lens - QTXEN150FLT-A - Old Grille
Design using 42W, 4Pin Fluorescent Bulb
99111400 Light Lens - QTXEN150FLT-B - New Grille
Index
47
Design using [2] 18W, GU24 Fluorescent
Bulbs
99271358 Bulb - QTXEN150FLT-A - Old Grille Design
- Fluorescent, 42 Watt, 4 Pin
99271381 Bulb - QTXEN150FLT-B - New Grille Design
- Fluorescent, 18 Watt, GU24 Base - 2 Re-
quired
97016926 Blower Assembly - QTXEN150FLT-A - In-
cludes Motor, Blower Wheel, & Motor
Mounting Plate
97016591 Blower Assembly - QTXEN150FLT-B - In-
cludes 72MM Style Motor, Blower Wheel,
& Motor Mounting Plate
99080565 Motor - QTXEN150FLT-A
see note Motor - QTXEN150FLT-B **
99020284 Blower Wheel - QTXEN150FLT-A
97017863 Blower Wheel - QTXEN150FLT-B
97016901 Motor Mounting Bracket & Plate - QTXEN-
150FLT-A
see note Motor Mounting Bracket & Plate - QTXEN-
150FLT-B **
99100491 Rubber Motor Isolator - QTXEN150FLT-A -
4 Required
99250959 Motor Mounting Washer - QTXEN150FLT-A
- #8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXEN150FLT-A -
#8-32 - 4 Required
97016864 Ballast with Plugs for Fluorescent Bulb -
QTXEN150FLT-A
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Electrical Knockout Plate
99500397 Housing Insulation
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
* Original Grille Assembly for QTXEN150FLT-A no longer
available. This Kit will convert Grille & Lights to new style
Grille Assemlby. It includes Grille, Grille Springs, Light
Sockets, Light Lens, [2] GU24 18 Watt Light Bulbs, & In-
structions on how to remove old Ballast for conversion.
** Must purchase Blower Assembly - p/n 97016591
QTXGN100HL
(Discontinued 08/2005)
97016615 Grille Assembly - Includes Grille, Light
Sockets, & Light Lens
99111271 Light Lens
99150622 Grille Mounting Screw - #8-18 x 2” - 2 Re-
quired
99260512 Sheet Metal Nut for Grille Mounting Screw
- 2 Required
97016567 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080556 Fan Motor
99020284 Blower Wheel for Fan Motor
97016471 Fan Motor Mounting Bracket & Plate
99100491 Rubber Isolator for Fan Motor Mounting - 4
Required
99250959 Fan Motor Mounting Washer - #8 x 5/8” - 4
Required
99260558 Fan Motor Mounting Nut - #8-32 - 4 Re-
quired
97016566 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080558 Heater Motor
99020283 Blower Wheel For Heater Motor
97016565 Heater Element - Includes Thermal Fuse
97016564 Heater Scroll Only
97016563 Wire Panel Cover & Harness Assembly -
Includes Receptacles for Fan, Heater, &
Lights
99150471 Ground Screw - #10-32 x 1/2”
98003036 Housing Mounting Hanger Bars - 4 Re-
quired
98007763 Channel for Hanger Bars - 2 Required
99170245 Hanger Bar Channel Mounting Screw - #8-
18 x 3/8” - 4 Required
97016450 Damper / Duct Connector - 6” Round
QTXN100HL
(Discontinued 11/2008)
97016473 Grille Assembly - Includes Grille, Light
Sockets, & Light Lens
99111271 Light Lens
99150622 Grille Mounting Screw - #8-18 x 2” - 2 Re-
quired
99260512 Sheet Metal Nut for Grille Mounting Screw
- 2 Required
97016567 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080556 Fan Motor
99020284 Blower Wheel for Fan Motor
97016471 Fan Motor Mounting Bracket & Plate
99100491 Rubber Isolator for Fan Motor Mounting - 4
Required
99250959 Fan Motor Mounting Washer - #8 x 5/8” - 4
Required
99260558 Fan Motor Mounting Nut #8-32 - 4 Re-
quired
97016566 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080558 Heater Motor
99020283 Blower Wheel for Heater Motor
97016565 Heater Element - Includes Thermal Fuse
97016564 Heater Scroll Only
97016563 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles Fan, Heater, & Lights
99150471 Ground Screw - #10-32 x 1/2”
98003036 Housing Mounting Hanger Bars - 4 Re-
quired
98007763 Channel for Hanger Bars - 2 Required
99170245 Hanger Bar Channel Mounting Screw - #8-
18 x 3/8” - 4 Required
97016450 Damper / Duct Connector - 6” Round
QTXN110SL
97016968 Grille Assembly - QTXN110SL-A *
97016965 Grille Assembly - QTXN110SL-B *
99140199 Grille Spring - 2 Required
99111345 Light Lens
99271344 Sensor Wire Harness from Grille Sensor to
Humidity Control Module
97017452 Blower Assembly - Includes Motor, Blower
Wheel, Humidity Control Module, & Motor
Mounting Plate
see note Motor **
99020284 Blower Wheel
97017083 Humidity Control Module & Motor Mount-
ing Plate - QTXN110SL-A
see note Humidity Control Module - QTXN110SL-B
**
see note Motor Mounting Plate - QTXN110SL-B **
99260558 Motor Mounting Nut - QTXN110SL-A - #8-
32 - 4 Required
99250959 Motor Mounting Washer - QTXN110SL-A -
#8 - 4 Required
99100491 Rubber Isolator - QTXN110SL-A - 4 Re-
quired
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97017086 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Light
98010102 Wiring Knock-Out Plate
99170245 Knock-Out Plate Mounting Screw - #8-18 x
3/8”
97016466 Housing
97018014 Spacer used in I-Joist Installs - 2 Required
SQTHB1 Hanger Bar Kit - Includes Both Hanger Bars
97016450 Damper Duct Connector - 6” Round
* Includes Grille, Grille Springs, Light Sockets, Light Lens,
Humidity Sensor, & Sensor Wire Harness
** Must purchase Blower Assembly - p/n 97017452
QTXR000HF, QTXRN000HF
97016466 Housing
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Wiring Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Hanger Bar Kit
97016449 Damper / Duct Connector - 4” Round
QTXR000HL, QTXRN000HL
97016466 Housing
97018011 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98010102 Wiring Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Hanger Bar Kit
97016449 Damper / Duct Connector - 4” Round
SMSK102
This product consists of 1-QTXE110 and 1-QTXE080. See
model SSQTXE080 & SSQTXE110 for parts.
SMSK103
This product consists of 1-QTXE110 and 2-QTXE080. See
model SSQTXE080 & SSQTXE110 for parts.
SSQTXE080
--NOTE-- Revision B introduced new Grille design in
11/2007 - Revision C introduced 72MM style Motor in
06/2008
97017621 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017783 Blower Assembly - Includes 72mm Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXE080-A,B **
97017843 Motor - QTXE080-C
99020284 Blower Wheel - QTXE080-A,B ***
97017863 Blower Wheel - QTXE080-C
97016468 Motor Mounting Bracket & Plate -
QTXE080-A,B
97017848 Motor Mounting Bracket & Plate -
QTXE080-C
99100491 Rubber Motor Isolator - QTXE080-A,B - 4
Required
Index
48
99250959 Motor Mounting Washer - QTXE080-A,B -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXE080-A,B - #8-
32 - 4 Required
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Wiring Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
97017259 Wall Switch for Smart Sense 80cfm Fan
* Grille for QTXE080-A no longer available. Replacement
looks different but is compatible.
** Must purchase Blower Assembly - p/n 97017783
** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
SSQTXE110
--NOTE-- Revision B introduced new Grille design in
11/2007 - Revision C introduced 72MM style Motor in
11/2008
97017621 Grille Assembly - Includes Grille Springs *
99140199 Grille Spring - 2 Required
97017784 Blower Assembly - Includes 72MM Style
Motor, Blower Wheel, & Motor Mounting
Plate
see note Motor - QTXE110-A,B **
97017999 Motor & Blower Wheel - QTXE110-C
99020284 Blower Wheel - QTXE110-A,B ***
97017863 Blower Wheel - QTXE110-C
97016468 Motor Mounting Bracket & Plate -
QTXE110-A,B
see note Motor Mounting Bracket & Plate -
QTXE110-C **
99100491 Rubber Motor Isolator - QTXE110-A,B - 4
Required
99250959 Motor Mounting Washer - QTXE110-A,B -
#8 x 5/8” - 4 Required
99260558 Motor Mounting Nut - QTXE110-A,B - #8-
32 - 4 Required
99420665 Thumbscrew used to Attach Mounting
Plate to Housing - #8-18 x 3/8”
97018010 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98010102 Wiring Knockout Plate
97018014 I-Joist Spacer Block - 2 Required
SQTHB1 Housing Mounting Hanger Bar Kit
97016450 Damper / Duct Connector - 6” Round
97017260 Wall Switch for Smart Sense 110cfm Fan
* Grille for QTXE110-A no longer available. Replacement
looks different but is compatible.
** Must purchase Blower Assembly - p/n 97017784
*** If Motor has been previously replaced with 72mm type,
must purchase Blower Wheel p/n 97017863
XB110H, XN110H
97019009 Grille Assemlby - XB110H *
97019011 Grille Assembly - XN110H *
99140208 Grille Spring - 2 Required
97018753 Motor & Control Board
99020301 Blower Wheel
97018768 Blower Scroll Cover
see note Humidity Control Module **
97018472 Wiring Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
97018721 Parts Bag - Includes Knockout Plate &
Screws
* Includes Grille, Grille Springs, & Humidity Control Module
** Must purchase Grille Assembly
XB110HL, XN110HL
97019013 Grille Assembly - XB110HL *
97019015 Grille Assembly - XN110HL *
99140208 Grille Spring - 2 Required
99111542 Light Lens
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3500K -
2 Required
97018756 Motor & Control Board
99020301 Blower Wheel
97018768 Blower Scroll Cover
see note Humidity Control Module **
97018474 Wiring Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
97018721 Parts Bag - Includes Knockout Plate &
Screws
* Includes Grille, Grille Springs, Light Lens, Light Sockets,
Bulbs, & Humidity Control Module
** Must purchase Grille Assembly
XB50, XB80, XB110, XN50, XN80,
XN110
Revision B introduced new Scroll Cover design in 08/2013
97018870 Grille Assembly - XB50, XB80, XB110 - In-
cludes 2 Grille Springs
97018872 Grille Assembly - XN50, XN80, XN110 - In-
cludes 2 Grille Springs
99140208 Grille Spring - 2 Required
97018762 Motor & Control Board - XB50-A, XN50-A
97019399 Motor & Control Board - XB50-B, XN50-B
97018761 Motor & Control Board - XB80-A, XN80-A
97019398 Motor & Control Board - XB80-B, XN80-B
97018759 Motor & Control Board - XB110, XN110
99020301 Blower Wheel
97018768 Blower Scroll Cover - XB50-A, XB80-A,
XB110, XN50-A, XN80-A, XN110
97019371 Blower Scroll Cover - XB50-B, XB80-B,
XN50-B, XN80-B
97018471 Wiring Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
99111513 Duct Reducer - 6” to 4” Round *
97018721 Parts Bag - Includes Knock-Out Plate &
Screws
* Included with Models XB50, XB80, XN50, & XN80 Only
XB50L, XB80L, XB110L, XN50L,
XN80L, XN110L
Revision B introduced new Scroll Cover design in 08/2013
97018531 Grille Assembly - XB50L, XB80L, XB110L *
97018533
Grille Assembly - XN50L, XN80L, XN110L *
99140208 Grille Spring - 2 Required
99111399 Light Lens
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3500K -
2 Required
97018766
Motor & Control Board - XB50L-A, XN50L-A
97019402
Motor & Control Board - XB50L-B, XN50L-B
97018765
Motor & Control Board - XB80L-A, XN80L-A
97019401
Motor & Control Board - XB80L-B, XN80L-B
97018763 Motor & Control Board - XB110L, XN110L
99020301 Blower Wheel
97018768 Blower Scroll Cover - XB50L-A, XB80L-A,
XB110L, XN50L-A, XN80L-A, XN110L
97019371 Blower Scroll Cover - XB50L-B, XB80L-B,
XN50L-B, XN80L-B
97018473 Wiring Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
99111513 Duct Reducer - 6” to 4” Round **
97018721 Parts Bag - Includes Knock-Out Plate &
Screws
* Includes Grille, Grille Springs, Light Lens, Light Sockets
& Bulbs
** Included with Models XB50L & XB80L Only
ZB110H, ZN110H
97019008 Grille Assembly - ZB110H *
97019010 Grille Assembly - ZN110H *
99140208 Grille Spring - 2 Required
97018753 Motor & Control Board
99020301 Blower Wheel
97018768 Blower Scroll Cover
see note Humidity Control Module **
97018472 Wire Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
97018721 Parts Bag - Includes Knockout Plate &
Screws
* Includes Grille, Grille Springs, & Humidity Control Module
** Must purchase Grille Assembly
ZB110HL, ZN110HL
97019012 Grille Assembly - ZB110HL *
97019014 Grille Assembly - ZN110HL *
99140208 Grille Spring - 2 Required
99111542 Light Lens
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3500K -
2 Required
97018756 Motor & Control Board
99020301 Blower Wheel
97018768 Blower Scroll Cover
see note Humidity Control Module **
97018474 Wire Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
97018721 Parts Bag - Includes Knockout Plate &
Screws
* Includes Grille, Grille Springs, Light Lens, Light Sockets,
Bulbs, & Humidity Control Module
** Must purchase Grille Assembly
ZB80, ZB110, ZN80, ZN110
Revision B introduced new Scroll Cover design in 08/2013
97018870 Grille Assembly - ZB80, ZB110 - Includes 2
Grille Springs
97018872 Grille Assembly - ZN80, ZN110 - Includes 2
Grille Springs
99140208 Grille Spring - 2 Required
Index
49
97018755 Motor & Control Board - ZB80-A, ZN80-A
97019394 Motor & Control Board - ZB80-B, ZN80-B
97018753 Motor & Control Board - ZB110, ZN110
99020301 Blower Wheel
97018768 Blower Scroll Cover - ZB80-A, ZB110,
ZN80-A, ZN110
97019371 Blower Scroll Cover - ZB80-B, ZN80-B
97018471 Wiring Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
99111513 Duct Reducer - 6” to 4” Round - Included
with Model ZB80 Only
97018721 Parts Bag - Includes Knock-Out Plate &
Screws
ZB80L, ZB110L, ZN80L, ZN110L
Revision B introduced new Scroll Cover design in 08/2013
97018531 Grille Assembly - ZB80L, ZB110L *
97018533 Grille Assembly - ZN80L, ZN110L *
99140208 Grille Spring - 2 Required
99111399 Light Lens
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3500K -
2 Required
97018758
Motor & Control Board - ZB80L-A, ZN80L-A
97019396
Motor & Control Board - ZB80L-B, ZN80L-B
97018756 Motor & Control Board - ZB110L, ZN110L
99020301 Blower Wheel
97018768 Blower Scroll Cover - ZB80L-A, ZB110L,
ZN80L-A, ZN110L
97019371 Blower Scroll Cover - ZB80L-B, ZN80L-B
97018473 Wiring Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
99111513 Duct Reducer - 6” to 4” Round - Included
with Model ZB80L Only
97018721 Parts Bag - Includes Knock-Out Plate &
Screws
* Includes Grille, Grille Springs, Light Lens, Light Sockets,
& Bulbs
ZB80M, ZB110M, ZN80M, ZN110M
Revision B introduced new Scroll Cover design in 08/2013
97018775 Grille Assembly - ZB80M, ZB110M - In-
cludes 2 Grille Springs
97018779 Grille Assembly - ZN80M, ZN110M - In-
cludes 2 Grille Springs
99140208 Grille Spring - 2 Required
97018755 Motor & Control Board - ZB80M-A,
ZN80M-A
97019394 Motor & Control Board - ZB80M-B,
ZN80M-B
97018753 Motor & Control Board - ZB110M, ZN110M
99020301 Blower Wheel
97018768 Blower Scroll Cover - ZB80M-A, ZB110M,
ZN80M-A, ZN110M
97019371 Blower Scroll Cover - ZB80M-B, ZN80M-B
97018846 Motion Control Module
97018472 Wiring Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
99111513 Duct Reducer - 6” to 4” Round - Included
with Model ZB80M Only
97018721 Parts Bag - Includes Knockout Plate &
Screws
ZB80ML, ZB110ML, ZN80ML,
ZN110ML
Revision B introduced new Scroll Cover design in 08/2013
97018776 Grille Assembly - ZB80ML, ZB110ML *
97018780 Grille Assembly - ZN80ML, ZN110ML *
99140208 Grille Spring - 2 Required
99111542 Light Lens
99271381 Bulb - Fluorescent, GU24, 18 Watt, 3500K -
2 Required
97018758 Motor & Control Board - ZB80ML-A, ZN-
80ML-A
97019396 Motor & Control Board - ZB80ML-B, ZN-
80ML-B
97018756 Motor & Control Board - ZB110ML, ZN-
110ML
99020301 Blower Wheel
97018768 Blower Scroll Cover - ZB80ML-A,
ZB110ML, ZN80ML-A, ZN110ML
97019371 Blower Scroll Cover - ZB80ML-B, ZN80ML-
B
97019369 Motion Control Module
97018474 Wire Panel / Harness Assembly
97018382 Housing
97018349 Mounting Frame / Hanger Bar Brackets
97018331 Damper / Duct Connector - 6” Round
99111513 Duct Reducer - 6” to 4” Round - Included
with Model ZB80ML Only
97018721 Parts Bag - Includes Knockout Plate &
Screws
* Includes Grille, Grille Springs, Light Lens, Light Sockets,
& Bulbs
662, 668
(Discontinued 1977)
--NOTE-- Housing Size was 8” x 8-1/4” x 3-3/4”
97011324 White Metal Grille - 10-1/4” x 10-1/4”
n.l.a. Grille Screw - #14-10 x 1-3/8” with 7/16”
Head
97012038 Motor & Blower Wheel
99110379 Blower Wheel
n.l.a. Motor Mounting Bracket & Plate
99270748 Receptacle
n.l.a. Damper / Duct Connector - 3” Round
663, 688
(Model 663 Discontinued 1989)
--NOTE-- Revisions A thru E used “A” Style Can / Housing
which measured 8” x 8-1/4” x 3-3/4” - Revision G intro-
duced “D” Style Can / Housing in 1986 which measured
7-1/4” x 7-1/2” x 3-5/8” - Parts are NOT interchangeable.
97006651 Grille Assembly - Fits ALL Models - 10” x
10” - Includes Grille Springs
97011723 Grille Assembly - 663-G,H, 688-G,H,J,K -
9-1/4” x 9” - Includes Grille Springs
97011308 Optional Metal Grille Assembly - White -
Fits ALL Models - 10-1/4” x 10-1/4” - In-
cludes Grille Springs
99140144 Grille Spring for 97006651 Grille - 2 Re-
quired
99140187 Grille Spring for 97011723 Grille - 2 Re-
quired
99140154 Grille Spring for 97011308 Grille - 2 Re-
quired
97012029 Fan Assembly - 663, 663-A,B,C,D,E, 688,
688-A,B,C,D,E *
97012026 Fan Assembly - 663-G,H, 688-G,H,J,K *
97012038 Motor & Blower Wheel - 663,
663-A,B,C,D,E, 688, 688-A,B,C,D,E
97012041
Motor & Blower Wheel - 663-G, 688-G,H,J, K
99110379 Blower Wheel - 663, 663-A,B,C, 688,
688-A,B,C
see note Blower Wheel - 663-D, 688-D **
99110630 Blower Wheel - 663-E,G,H, 688-E,G,H,
99111002 Blower Wheel - 663-J, 688-J,K
97006987 Motor Mounting Bracket & Plate - 663,
663-A,B,C, 688, 688-A,B,C,D,E
98006791 Motor Mounting Bracket & Plate - 663-G,H,
688-G,H,J,K
n.l.a. Housing - 663, 663-A,B,C,D,E, 688,
688-A,B,C,D,E
97008319 Housing - 663-G,H, 688-G,H,J,K
97008746 Wiring Panel Cover & Harness Assembly
- 663-G,H, 688-G,H,J,K - Includes Recep-
tacle for Fan
99271252 Fan Receptacle Only
99390015 Ground Clip
n.l.a. Damper / Duct Connector - 663, 663-A,B,C,
688, 688-A,B,C,D,E - 3” Round
97016377 Damper / Duct Connector - 663-G,H,
688-G,H,J,K - 3” Round
* Includes Motor, Blower Wheel, & Motor Mounting Plate
** Must check Motor Shaft type before ordering Blower
Wheel. If Motor has Knurled type shaft then must purchase
Blower Wheel p/n 99110630. If Motor has D shaped shaft
then must purchase Blower Wheel p/n 99110379
669
(Discontinued 1977)
--NOTE-- Housing Size was 8” x 8-1/4” x 3-3/4”
97011324 White Metal Grille - 10-1/4” x 10-1/4”
n.l.a. Grille Screw - #14-10 x 1-3/8” with 7/16”
Head
97012039 Motor & Blower Wheel
99110379 Blower Wheel
99270748 Receptacle
n.l.a. Damper / Duct Connector - 3” Round
670
--NOTE-- Revision A used “A” Style Can / Housing which
measured 8” x 8-1/4” x 3-3/4” - Revision G introduced
“D” Style Can / Housing in 1986 which measured 7-1/4” x
7-1/2” x 3-5/8” - Parts are NOT interchangeable.
97013880 Grille Coversion Kit for 670 with Old Style
Center Screw Mount
97006651 Grille Assembly - Fits ALL Models - 10” x
10” - Includes Grille Springs
97011723 Grille Assemlby - 670-G,H,K,J - 9-1/4” x 9”
- Includes Grille Springs
97011308 Optional Metal Grille Assembly - White -
Fits ALL Models - 10-1/4” x 10-1/4” - In-
cludes Grille Springs
97005030 Grille Screw for 670 with Old Style Center
Screw Mount Grille - #14-10 x 2”
99110748 Grille Logo Button Cover for 670 with Old
Style Center Screw Mount Grille
99140144 Grille Spring for 97006651 Grille - 2 Re-
quired
99140187 Grille Spring for 97011723 Grille - 2 Re-
quired
99140154 Grille Spring for 97011308 Grille - 2 Re-
quired
97012029 Fan Assembly - 670, 670-A - Includes Mo-
tor, Blower Wheel, & Motor Mounting Plate
Index
50
97008320 Fan Assembly - 670-G,H,J - Includes Mo-
tor, Blower Wheel, & Motor Mounting Plate
97012038 Motor & Blower Wheel - 670, 670-A
97008947 Motor & Blower Wheel - 670-G,H,J
99110446 Blower Wheel - 670, 670-A,
99020292 Blower Wheel - 670-G,H,J
97006987 Motor Mounting Bracket & Plate - 670,
670-A
98006791 Motor Mounting Bracket & Plate -
670-G,H,J
n.l.a. Housing - 670, 670-A
97008319 Housing - 670-G,H,J
97008746 Wiring Panel Cover & Harness Assembly -
670-G,H,J - Includes Receptacle for Fan
99271252 Fan Receptacle Only
99390015 Ground Clip
n.l.a. Damper / Duct Connector - 670, 670-A - 3”
Round
97016377 Damper / Duct Connector- 670-G,H,K,J - 3”
Round
671
--NOTE-- Revision A used “A” Style Can / Housing which
measured 8” x 8-1/4” x 3-3/4” - Revision G introduced
“D” Style Can / Housing in 1986 which measured 7-1/4” x
7-1/2” x 3-5/8” - Parts are NOT interchangeable.
97013880 Grille Coversion Kit for 671 with Old Style
Center Screw Mount
97006651 Grille Assembly - Fits ALL Models - 10” x
10” - Includes Grille Springs
97011723 Grille Assemlby - 671-G,H,J - 9-1/4” x 9” -
Includes Grille Springs
97011308 Optional Metal Grille Assembly - White -
Fits ALL Models - 10-1/4” x 10-1/4” - In-
cludes Grille Springs
97005030 Grille Screw for 671 with Old Style Center
Screw Mount Grille - #14-10 x 2”
99110748 Grille Logo Button Cover for 671 with Old
Style Center Screw Mount Grille
99140144 Grille Spring for 97006651 Grille - 2 Re-
quired
99140187 Grille Spring for 97011723 Grille - 2 Re-
quired
99140154 Grille Spring for 97011308 Grille - 2 Re-
quired
97005045 Fan Assembly - 671, 671-A - Includes Mo-
tor, Blower Wheel, & Motor Mounting Plate
97008321 Fan Assembly - 671-G,H,J - Includes Mo-
tor, Blower Wheel, & Motor Mouting Plate
97008513 Motor & Blower Wheel - 671, 671-A
97008948 Motor & Blower Wheel - 671-G,H,J
99110446 Blower Wheel - 671, 671-A
99020292 Blower Wheel - 671-G,H,J
97006987 Motor Mounting Bracket - 671, 671-A
98006791 Motor Mounting Bracket - 671-G,H,J
n.l.a Housing - 671, 671-A
97008319 Housing - 671-G,H,J
97008746 Wiring Panel Cover & Harness Assembly -
671-G,H,J - Includes Receptacle for Fan
99271252 Fan Receptacle Only
99390015 Ground Clip
n.l.a Damper / Duct Connector - 671, 671-A - 3”
Round
97016377 Damper / Duct Connector - 671-G,H,J - 3”
Round
675
(Discontinued 1987)
--NOTE-- Housing Size was 8” x 8-1/4” x 3-3/4”
97013880 Grille Coversion Kit for 675 with Old Style
Center Screw Mount
97006651 Grille Assembly - Fits ALL Models - 10” x
10” - Includes Grille Springs
97011308 Optional Metal Grille Assembly - White -
Fits ALL Models - 10-1/4” x 10-1/4” - In-
cludes Grille Springs
97005030 Grille Screw for 675 with Old Style Center
Screw Mount Grille - #14-10 x 2”
99110748 Grille Logo Button Cover for 675 with Old
Style Center Screw Mount Grille
99140144 Grille Spring for 97006651 Grille - 2 Re-
quired
99140154 Grille Spring for 97011308 Grille - 2 Re-
quired
see note Fan Assembly - 675, 675-A *
see note Motor & Blower Wheel - 675, 675-A*
99020116 Blower Wheel - 675, 675-A
97006987 Motor Mounting Bracket & Plate
99270748 Receptacle
99390015 Ground Clip
n.l.a. Damper / Duct Connector - 3” Round
* Original Motor is no longer available. Customer may use
Motor & Blower Wheel p/n 97008513 as substitute. Please
warn customer this will look completely different from the
original motor, but it will be compatible.
689
--NOTE-- Revision A thru D used “A” Style Can / Housing
which measured 8” x 8-1/4” x 3-3/4” - Revision G intro-
duced “D” Style Can / Housing in 1986 which measured
7-1/4” x 7-1/2” x 3-5/8” - Parts are NOT interchangeable.
97006651 Grille Assembly - Fits ALL Models - 10” x
10” - Includes Grille Springs
97011723 Grille Assembly - 689-G,H,J,K - 9-1/4” x 9”
- Includes Grille Springs
97011308 Optional Metal Grille Assembly - White -
Fits ALL Models - 10-1/4” x 10-1/4” - In-
cludes Grille Springs
99140144 Grille Spring for 97006651 Grille - 2 Re-
quired
99140187 Grille Spring for 97011723 Grille - 2 Re-
quired
99140154 Grille Spring for 97011308 Grille - 2 Re-
quired
97012030 Fan Assembly - 689, 689-A,B,C,D - In-
cludes Motor, Blower Wheel, & Motor
Mounting Plate
97012027 Fan Assembly - 689-G,H,J,K - Includes Mo-
tor, Blower Wheel, & Motor Mounting Plate
97012039 Motor & Blower Wheel - 689, 689-A,B,C,D
97012042 Motor & Blower Wheel - 689-G,H,J,K
99110379 Blower Wheel - 689, 689-A,B,C
see note Blower Wheel - 689-D *
99110630 Blower Wheel - 689-G,H
99111002 Blower Wheel - 689-J,K
97006987 Motor Mounting Bracket & Plate - 689,
689-A,B,C,D
98006791 Motor Mounting Bracket & Plate -
689-G,H,J,K
n.l.a. Housing - 689, 689-A,B,C,D
97008319 Housing - 689-G,H,J,K
97008746 Wiring Panel Cover & Harness Assembly -
689-G,H,J,K - Includes Receptacle for Fan
99271252 Fan Receptacle Only
99390015 Ground Clip
n.l.a. Damper / Duct Connector - 689,
689-A,B,C,D - 3” Round
97016377 Damper / Duct Connector - 689-G,H,J,K -
3” Round
* Must check Motor Shaft type before ordering Blower
Wheel. If Motor has Knurled type shaft then must purchase
Blower Wheel p/n 99110630. If Motor has D shaped shaft
then must purchase Blower Wheel p/n 99110379
690, 690NT
97016776 Grille Assembly - Includes Grille Springs -
9-3/8” x 10-3/4”
99140198 Grille Spring - 2 Required
97018811 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Bracket
97018812 Motor & Motor Mounting Bracket
97016962 Blower Wheel
98010267 Motor Mounting Plate for D-Housing Fans
98010268 Motor Mounting Plate for 690 (Nutone)
Housing Fans
99260423 Motor Moutning Nuts - #8-32 - 2 Required
99111346 Plastic Scroll Band
97016924 Parts Bag *
* Includes [1] #8-18 x 3/8” Screw, [1] #8-32 Nut, & [1]
Wrench
771
97017421 Grille Assembly - 9” X 9-1/4” - Includes
Grille Springs
99140187 Grille Spring - 2 Required
97017450 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080599 Motor
97016962 Blower Wheel
97017446 Motor Mounting Bracket & Plate
97008319 Housing - 7-1/4” x 7-1/2” x 3-5/8”
97008746 Wiring Panel Cover & Harness Assembly -
Includes Receptacle for Fan
99271252 Fan Receptacle Only
99390015 Ground Clip
97016377 Damper / Duct Connector - 3” Round
110RDF, 110RDB
98009908 Metal Grille - White - 9-1/2” x 11-5/8”
99150573 Grille Mounting Screw - #8-18 x 13/16” - 2
Required
93260454 Grille Screw Mounting Nut - 2 Required *
97015157 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080517 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan *
99270982 Fan Receptacle Only *
99150471 Ground Screw *
98008868 Electrical Knockout Plate *
99170245 Electrical Knockout Plate Mounting Screw -
#8-18 x 3/8” *
97011831 Housing Mounting Slide Brackets & Chan-
nels Kit *
97015727 Damper / Duct Connector - Metal - 4”
Round *
* Not included with 110RDF Finish Pack
Index
51
576
97013576 White Plastic Grille - 10-5/8” x 11-1/8” x
1-1/2” - Includes Grille Springs
99140192 Grille Spring - Fan Contains 2
97018554 Complete Blower Assembly - Includes Mo-
tor, Blower Wheel, & Mounting Plate
97018310 Motor Mounting Plate
99080656 Motor
99260425 Nut used to Attach Motor to Mounting Plate
- #8-32 - Fan Contains 2
99020300 Blower Wheel
97015170 Wire Panel Assembly - Includes Receptacle
& Wire Panel
99270982 Receptacle
98009611 Wire Panel Only
97014922 Housing
98008868 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97003932 Damper/Duct Connector - 4” Duct
674
97016798 Grille Assembly - 10-1/8” x 10-1/2” - In-
cludes Grille Springs
99140192 Grille Spring - 2 Required
97015157 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080517 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98009611 Wire Panel Cover Only
99270982 Fan Receptacle Only
98008868 Electrical Knockout Plate
99170245 Electrical Knockout Plate Mounting Screw -
#8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97003932 Damper / Duct Connector - 4” Round
676
--NOTE-- Revisions A thru C used “B1” style Can which
was black with Fan Receptacle located on the side of hous-
ing - Revision D introduced “J” style Can in 2000 which
is silver with the Fan Receptacle in the corner of housing.
--NOTE-- Grille mounting changed from center screw
mount to grille springs in 1979. Grille design changed 1996,
new Grille Assemblies appear different but are compatible.
97013880 Grille Conversion Kit for Center Screw
Mounted Grilles *
97013576 Plastic Grille - Includes Grille Springs - 10-
5/8” x 11-1/8”
97011308 Optional Metal Grille Assembly - White - 10-
1/4” x 10-1/4” - Includes Grille Springs
97005034 Grille Mounting Screw for Old Style Center
Screw Mounted Grille
99110748 Grille Logo Button - Covers Screw on Old
Style Center Screw Mounted Grille
99140192 Grille Spring - 2 Required
97017065 Fan Assembly - 676-A,B,C, 676F-A,B,C -
Includes Motor, Blower Wheel, & Motor
Mounting Plate
97015157 Fan Assembly - 676-D, 2676F-A - Includes
Motor, Blower Wheel, & Motor Mounting
Plate
97009752 Motor - 676, 676-A,B,C, 676F-A,B,C
99080517 Motor - 676-D, 2676F-A
97009755 Blower Wheel - 676, 676-A,B,C, 676F-
A,B,C **
99020276 Blower Wheel - 676-D, 2676F-A
97006987 Motor Mounting Plate & Bracket - 676,
676-A,B,C, 676F-A,B,C
97014926 Motor Mounting Plate & Bracket - 676-D,
2676F-A
99260425 Motor Mounting Nut - #8-32 - 2 Required
99100399 Rubber Motor Spacer - 676, 676-A,B,C,
676F-A,B,C - 2 Required
97015170 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
99270982 Fan Receptacle Only
99390015 Ground Clip - 676, 676-A,B,C
99150471 Ground Screw - 676-D, 2676F-A - #10-32 x
1/2”
98008868 Electrical Knockout Plate
99170245 Electrical Knockout Plate Mounting Screw -
#8-18 x 3/8”
97003932 Damper / Duct Connector - 4” Round
* Includes Parts to convert old style Grille to new style Grille
with Grille Springs
** Blower Wheel changed from Metal / Aluminum to Plastic
in 1990
678
--NOTE-- Revisions A thru F used “B3” style Can which
was painted black with Fan & Light Receptacles located on
the side of the housing - Revision G introduced “J” style
Can in 2000 which was a silver galvanized finish with the
Fan & Light Receptacles in the corner of the housing.
97014094 Grille Assembly - Fits ALL Models - 10-5/8”
x 11-1/8” - Includes Light Lens
99110751 Grille Only - 678-A,B,C,D - 9-1/2” x 10-1/4”
97013974 Grille Only - 678-E,F,G - 10-5/8” x 11-1/8”
97011813 Light Lens - 678-A,B,C,D
97013578 Light Lens - 678-E,F,G
97005316 Grille Acorn Nut - #10-24
99160309 Grille Mounting Stud / Screw -
678-A,B,C,D,E,F, 678F-B,C,D,E - #10-24 x
2-3/4”
99150582 Grille Mounting Stud / Screw - 678-G,
2678F-A - #10-24 x 3/4”
97014212 Light Reflector Assembly - Includes Socket
97014211 Light Reflector Only
99770118 Light Socket with Male Plug
97012028 Fan Assembly - 678-A,B,C,D,E,F, 678F-F
- Includes Motor, Blower Wheel, & Motor
Mounting Plate
97015163 Fan Assembly - 678-G, 2678F-A - Includes
Motor, Blower Wheel, & Motor Mounting
Plate
97012038 Motor & Blower Wheel - 678,
678-A,B,C,D,E,F, 678F-F
99080521 Motor - 678-G, 2678F-A
99110379 Blower Wheel - 678, 678-A
99110630 Blower Wheel - 678-B,C
99111002 Blower Wheel - 678-D,E,F,G, 678F-F,
2678F-A
97006989 Motor Mounting Bracket & Plate - 678,
678-A,B,C,D,E,F
97014926 Motor Mounting Bracket & Plate - 678-G,
2678F-A
99260428 Motor Mounting Nut - #6-32 x 5/16” - 2
Required
99270982 Black Receptacle for Fan
99270479 White Receptacle for Light -
678-A,B,C,D,E,F, 678F-F
99270981
White Receptacle for Light - 678-G, 2678F-A
97015171 Wire Panel Cover with Receptacles - 678-G,
2678F-A
98008868 Electrical Knockout Plate - 678-G, 2678F-A
99170245 Screw for Attaching Electrical Knockout
Plate - 678-G, 2678F-A - #8-18 x 3/8”
99150471 Ground Screw - 678-G, 2678F-A - #10-32 x
1/2”
97014185 Damper / Duct Connector - 4” Round
679, N679
--NOTE-- Revisions A thru D used “B3” style Can which
was painted black with Fan & Light Receptacles located on
the side of the housing - Revision E introduced “J” style Can
in 2000 which was a silver galvanized finish with the Fan &
Light Receptacles in the corner of the housing.
97014094 Grille Assembly - Fits ALL Models - 10-5/8”
x 11-1/8” - Includes Light Lens
99110751 Grille Only - 679-A,B, N679-A,B - 9-1/2” x
10-1/4”
97013974 Grille Only - 679-C,D,E, 2679F-A - 10-5/8” x
11-1/8”
97011813 Light Lens - 679-A,B, N679-A,B
97013578 Light Lens - 679-C,D,E, N679-C
97005316 Grille Acorn Nut #10-24
99160309 Grille Mounting Stud / Screw - 679-A,B,C,D,
679F-B,C,D, N679-C - #10-24 x 2-3/4”
99150582 Grille Mounting Stud / Screw 679-E,
2679F-A, N679-C - #10-24 x 3/4”
97014212 Light Reflector Assembly - Includes Socket
97014211 Light Reflector Only
99770118 Light Socket with Male Plug
97006939 Fan Assembly - 679-A,B,C,D, 679F-B,C,D,
N679-A,B - Includes Motor, Blower Wheel,
& Motor Mounting Plate
97015165 Fan Assembly - 679-E, 2679F-A, N679-C
- Includes Motor, Blower Wheel, & Motor
Mounting Plate
97008513 Motor & Blower Wheel - 679-A,B,C,D,
N679-A,B
99080166 Motor - 679-A,B,C,D, N679-A,B
99080522 Motor - 679-E, 2679F-A, N679-C
99110446 Blower Wheel
97006989 Motor Mounting Bracket & Plate -
679-A,B,C,D
97014926 Motor Mounting Bracket & Plate - 679-E,
2679F-A, N679-C
99260428 Motor Mounting Nut - #6-32 x 5/16” - 2
Required
97015171 Wire Panel Cover with Receptacles - 679-E,
2679F-A, N679-C
99270982 Black Receptacle for Fan
99270479 White Receptacle for Light - 679-A,B,C,D,
679F-B,C,D, N679-A,B
99270981 White Receptacle for Light - 679-E, 2679F-
A, N679-C
98008868 Electrical Knockout Plate - 679-E, 2679F-A,
N679-C
99170245 Screw for Attaching Electrical Knockout
Plate - 679-E, 2679F-A, N679-C - #8-18 x
3/8”
99150471 Ground Screw - 679-E, 2679F-A, N679-C -
#10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
Index
52
679FL
(Discontinued 05/2006)
97014094 Grille Assembly - Fits ALL Models - 10-5/8”
x 11-1/8” - Includes Light Lens
99110751 Grille Only - 679FL-A - 9-1/2” x 10-1/4”
97013974 Grille Only - 679FL-B,C, FL2679F-A - 10-
5/8” x 11-1/8”
97011813 Light Lens - 679FL-A
97013578 Light Lens - 679FL-B,C, FL2679F-A
97010729 Bulb - Fluorescent, 120 Volt, 13 Watt, 2 Pin
97005316 Grille Acorn Nut - #10-24
99160309 Grille Mounting Stud / Screw - 679FL-B,
FL679F-B - #10-24 x 2-3/4”
99150582 Grille Mounting Stud / Screw - 679FL-C,
FL2679F-A - #10-24 x 3/4”
97010822 Light Reflector Assembly - 679FL-A,B - In-
cludes Socket
97015167 Light Reflector Assembly - 679FL-C,
FL679F-A - Includes Socket & Ballast
98006276 Light Reflector Only
97010726 Light Socket - 679FL-A,B
97015202
Light Socket & Ballast - 679FL-C, FL2679F-A
97010906 Ballast - 679FL-A,B
97006939 Fan Assembly - 679FL-A,B, FL679F-B -
Includes Motor, Blower Wheel, & Motor
Mounting Plate
97015165 Fan Assembly - 679FL-C, FL2679F-A -
Includes Motor, Blower Wheel, & Motor
Mounting Plate
99080166 Motor - 679FL-A,B
99080522 Motor - 679FL-C, FL2679F-A
99110446 Blower Wheel
97006989 Motor Mounting Bracket & Plate - 679FL,
679FL-B, FL679F-B
97014926 Motor Mounting Bracket & Plate - 679FL-C,
FL2679F-A
99260428 Motor Mounting Nut - #6-32 x 5/16” - 2
Required
97015171 Wire Cover Panel with Receptacles - 679FL-
C, FL2679F-A,
99270982 Black Receptacle for Fan
97006241 White Receptacle for Light 679FL-A,B
99270981 White Receptacle for Light - 679FL-C,
FL2679F-A
98008868 Electrical Knockout Plate - 679FL-C,
FL2679F-A
99170245 Screw For Attaching Electrical Knockout
Plate - 679FL-C, FL2679F-A - #8-18 x 3/8”
99150471 Ground Screw - 679FL-C, FL2679F-A -
#10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
679FLT, FL2679FT
(Discontinued 05/2010)
97014094 Grille Assembly - 10-5/8” x 11-1/8” - In-
cludes Light Lens
97013974 Grille Only
97013578 Light Lens
97016889 Bulb - Fluorescent, 120 Volt, 13 Watt, 4 Pin
97005316 Grille Acorn Nut - #10-24
99150582 Grille Mounting Stud / Screw - #10-24 x
3/4”
97016895 Light Reflector Assembly - Includes Socket
& Ballast
97015165 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Moutning Plate
99080522 Motor
99110446 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260428 Motor Mounting Nut - #6-32 x 5/16” - 2
Required
97015171 Wire Cover Panel with Receptacles *
99270982 Black Receptacle for Fan *
99270981 White Receptacle for Light *
98008868 Electrical Knockout Plate *
99170245 Screw For Attaching Electrical Knockout
Plate - #8-18 x 3/8” *
99150471 Ground Screw - #10-32 x 1/2” *
97014185 Damper / Duct Connector - 4” Round *
* Not included with FL2679FT Finish Pack
679L
99111467 Grille Only
99111468 Light Lens
97005316 Grille Acorn Nut - #10-24
99150582 Grille Mounting Stud / Screw - #10-24 x
3/4”
97014212 Light Reflector Assembly - Includes Socket
97014211 Light Reflector Only
99770118 Light Socket with Male Plug
97015165 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080522 Motor
99110446 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260428 Motor Mounting Nut - #6-32 x 5/16” - 2
Required
97015171 Wire Panel Cover with Receptacles
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
98008868 Electrical Knockout Plate
99170245 Screw for Attaching Electrical Knockout
Plate - #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
680, N680, 2680F
97014094 Grille Assembly - 10-5/8” x 11-1/8” - In-
cludes Light Lens
97013974 Grille Only
97013578 Light Lens
97005316 Grille Acorn Nut - #10-24
99150582 Grille Mounting Stud / Screw - #10-24 x
3/4”
97014212 Light Reflector Assembly - Includes Socket
97014211 Light Reflector Only
99770118 Light Socket with Male Plug
97015157 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080517 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015171 Wire Cover Panel with Receptacles *
99270982 Black Receptacle for Fan *
99270981 White Receptacle for Light *
98008868 Electrical Knockout Plate *
99170245 Screw for Attaching Electrical Knockout
Plate - #8-18 x 3/8” *
99150471 Ground Screw - #10-32 x 1/2” *
97014185 Damper / Duct Connector - 4” Round *
* Not included with 2680F Finish Pack
680FL, FL2680F
(Discontinued 05/2006)
97014094 Grille Assembly - 10-5/8” x 11-1/8” - In-
cludes Light Lens
97013974 Grille Only
97013578 Light Lens
97015191 Bulb - Fluorescent Bulb, 2 Pin, 120 Volt, 22
Watt, CFQ13W/GX23
97005316 Grille Acorn Nut - #10-24
99150582 Grille Mounting Stud / Screw - #10-24 x
3/4”
97015969 Light Reflector Assembly - Includes Socket
& Ballast
97015203 Light Socket & Ballast
97015157 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080517 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015171 Wire Cover Panel wth Receptacles *
99270982 Black Receptacle for Fan *
99270981 White Receptacle for Light *
98008868 Electrical Knockout Plate *
99170245 Screw For Attaching Electrical Knockout
Plate - #8-18 x 3/8” *
99150471 Ground Screw - #10-32 x 1/2” *
97014185 Damper / Duct Connector - 4” Round *
* Not included with FL2680F Finish Pack
680FLT, FL2680FT
(Discontinued 05/2010)
97014094 Grille Assembly - 10-5/8” x 11-1/8” - In-
cludes Light Lens
97013974 Grille Only
97013578 Light Lens
97016889 Fluorescent Bulb - Fluorescent, 4 Pin, 120
Volt, 13 Watt, CFQ13W/G24q/827
97005316 Grille Acorn Nut - #10-24
99150582 Grille Mounting Stud / Screw - #10-24 x
3/4”
97016895 Light Reflector Assembly - Includes Socket
& Ballast
97015157 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080517 Motor
99020276 Blower Wheel
97014926 Motor Moutning Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015171 Wire Cover Panel with Receptacles *
99270982 Black Receptacle for Fan *
99270981 White Receptacle for Light *
98008868 Electrical Knockout Plate *
99170245 Screw For Attaching Electrical Knockout
Plate - #8-18 x 3/8” *
99150471 Ground Screw - #10-32 x 1/2” *
97014185 Damper / Duct Connector - 4” Round
* Not included with FL2680FT Finish Pack
Index
53
683
--NOTE-- Revision A Housing measured 8-1/2” x 9” x 4” -
Revision C introduced new Housing size in 04/2007 - 8” x
8-1/4” x 5-3/4”
NT100267000 Grille Assembly - 683-A,B - 9-3/8” x 10-
3/4” - Includes Grille Springs
97017032 Grille Assembly - 683-C - 11-1/8” x 11-3/8”
- Includes Grille Springs
NT0430A000 Grille Spring Set - 683-A,B - Includes 2
Springs
99140192 Grille Spring - 683-C - 2 Required
NT100272000 Fan Assembly - 683-A,B - Includes Motor,
Blower Wheel, & Motor Mounting Plate
97015162 Fan Assembly - 683-C - Includes Motor,
Blower Wheel, & Motor Mounting Plate
NT86652000 Motor - 683-A,B
99080520 Motor - 683-C
NT5901A000 Blower Wheel - 683-A,B
99020276 Blower Wheel - 683-C
NT42199000 Motor Mounting Bracket & Plate - 683-A,B
97014926 Motor Mounting Bracket & Plate - 683-C
NT32787000 Motor Mounting Rubber Grommets - 683-
A,B - 2 Required
97015170 Wire Panel Cover with Female Receptacle -
683-C
NT23383000 Wire Panel Cover - 683-A,B
98009611 Wire Panel Cover - 683-C
NT10034000 Female Receptacle - 683-A,B
99270982 Female Receptacle - 683-C
98008868 Electrical Knockout Plate - 683-C
99170245 Screw For Attaching Electrical Knockout
Plate - 683-C - #8-18 x 3/8”
99150471 Ground Screw - 683-C - #10-32 x 1/2”
NT32788000 Metal Grounding Clip for Motor - 683-A,B
NT85209000 Damper / Duct Connector - 683-A,B - 3”
Round
97003932 Damper / Duct Connector - 683-C - 4”
Round
683L
99111370 Grille Only - 11” x 12” x 1-3/8”
99111371 Light Lens - 7-9/16” x 7-9/16” x 1-3/16”
97005316 Grille Acorn Nut - #10-24
99150582 Grille Mounting Stud / Screw - #10-24 x
3/4”
97014212 Light Reflector Assembly - Includes Socket
97014211 Light Reflector Only
99770118 Light Socket with Male Plug
97015162 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080520 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015171 Wire Cover Panel with Receptacles
98009612 Wire Cover Panel Only
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
98008868 Electrical Knockout Plate
99170245 Screw For Attaching Electrical Knockout
Plate - #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
684, 684NT, 2684F
--NOTE-- Revisions A thru C used “B1” style Can which
was black with Fan Receptacle located on the side of hous-
ing - Revision D introduced “J” style Can in 2000 which
is silver with the Fan Receptacle in the corner of housing.
--NOTE-- Grille mounting changed from center screw
mount to grille springs in 1979. Grille design changed 1996,
new Grille Assemblies appear different but are compatible.
97013880 Grille Conversion Kit for Center Screw
Mounted Grilles *
97013576 Plastic Grille - Includes Grille Springs - 10-
5/8” x 11-1/8”
97011308 Optional Metal Grille Assembly - White - 10-
1/4” x 10-1/4” - Includes Grille Springs
97005034 Grille Mounting Screw for Old Style Center
Screw Mounted Grille
99110748 Grille Logo Button - Covers Screw on Old
Style Center Screw Mounted Grille
99140192 Grille Spring - 2 Required
97009745 Fan Assembly - 684-A,B,C, 684F-A,B,C -
Includes Motor, Blower Wheel, & Motor
Mounting Plate
97015159 Fan Assembly - 684-D, 684NT-A, 2684F-A
- Includes Motor, Blower Wheel, & Motor
Mounting Plate
97009753 Motor - 684-A,B,C, 684F-A,B,C
99080518 Motor - 684-D, 684NT-A, 2684F-A
97009755 Blower Wheel - 684, 684-A,B,C, 684F-A,B,
C **
99020276 Blower Wheel - 684-D, 684NT-A, 2684F-A
97006987 Motor Mounting Bracket & Plate - 684,
684-A,B,C, 684F-A,B,C
97014926 Motor Mounting Bracket & Plate - 684-D,
684NT-A, 2684F-A
99260425 Motor Mounting Nut - #8-32 - 2 Required
99100399 Rubber Motor Spacer - 684, 684-A,B,C,
684F-A,B,C - 2 Required
97015170 Wire Panel Cover with Receptacle ***
99270982 Fan Receptacle ***
98008868 Electrical Knockout Plate ***
99170245 Screw for Attaching Electrical Knockout
Plate - #8-18 x 3/8” ***
99390015 Ground Clip - 684, 684-A,B,C ***
99150471 Ground Screw 684-D, 684NT-A, 2684F-A -
#10-32 x 1/2” ***
97003932 Damper / Duct Connector - 4 “ Round ***
* Includes Parts to convert old style Grille to new style Grille
with Grille Springs
** Blower Wheel changed from Metal / Aluminum to Plastic
in 1990
*** Not included with 2684F Finish Pack
685
(Discontinued 05/2007)
99111330 Grille Only - 10-1/2” x 10-1/2” x 1-7/8”
99111331 Light Lens
97005316 Grille Acorn Nut - #10-24
99150582
Grille Mounting Stud / Screw - #10-24 x 3/4”
98010226 Light Reflector
99770118 Light Socket with Male Plug
97016839 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080517 Motor
99020276 Blower Wheel
97016838 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015171 Wire Panel Cover with Receptacles
98009612 Wire Panel Cover
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
98008868 Electrical Knockout Plate
99170245 Screw for Attaching Electrical Knockout
Plate - #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
770, 50NT
97017032 Grille Assembly - 11-1/8” x 11-3/8” - In-
cludes Grille Springs
99140192 Grille Spring - 2 Required
97018554 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080656 Motor
99020300 Blower Wheel
97018310 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover with Receptacle
98009611 Wire Panel Cover Only
99270982 Fan Receptacle - Black
98008868 Electrical KnockOut Plate
99170245 Electrical KnockOut Plate Mounting Screw
- #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97003932 Damper / Duct Connector - 4” Round
784, 80NT
97017032 Grille Assembly - 11-1/8” x 11-3/8” - In-
cludes Grille Springs
99140192 Grille Spring - 2 Required
97018326 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080634 Motor
99020300 Blower Wheel
97018310 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover Assembly with Recep-
tacle
98009611 Wire Panel Cover Only
99270982 Fan Receptacle - Black
98008868 Electrical KnockOut Plate
99170245 Electrical KnockOut Plate Mounting Screw
- #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97003932 Damper / Duct Connector - 4” Round
80RDF, 80RDB
98009908 Metal Grille - White - 9-1/2” x 11-5/8”
99150573 Grille Screw - #8-18 x 13/16” - 2 Required
97015159 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080518 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover with Fan Receptacle *
99270982 Fan Receptacle - Black *
98008868 Electrical Knockout Plate *
99170245 Electrical Knockout Plate Mounting Screw -
#8-18 x 3/8” *
99150471 Ground Screw - #10-32 x 1/2” *
97011831 Housing Mounting Slide Brackets & Chan-
nels *
97015727
Metal Damper / Duct Connector - 4” Round *
* Not included with 80RDF Finish Pack
Index
54
ED50L, HD50L
--NOTE-- Revisions A thru C used “B3” style Can which
was painted black with Fan & Light Receptacles located on
the side of the housing - Revision D introduced “J” style
Can in 2000 which was a silver galvanized finish with the
Fan & Light Receptacles in the corner of the housing.
--NOTE-- Grille & Lens Design was changed in 1996.
97014094 Grille Assembly - Fits ALL Models - 10-5/8”
x 11-1/8” - Includes Light Lens
99110751
Grille Only - ED50L, HD50L - 9-1/2” x 10-1/4”
97013974
Grille Only - HD50L-B,C,D - 10-5/8” x 11-1/8”
97011813 Light Lens - ED50L, HD50L
97013578 Light Lens - HD50L-B,C,D
99150582 Grille Mounting Stud / Screw - #10-24 x
3/4”
97005316 Grille Mounting Acorn Nut - #10-24
97014212 Light Reflector Assembly - Includes Light
Socket
97014211 Light Reflector Only
99770118 Light Socket with Male Plug
n.l.a Fan Assembly - ED50L, HD50L, HD50L-B,C
- Includes Motor, Blower Wheel, & Mount-
ing Plate
97015161 Fan Assembly - HD50L-D - Includes Motor,
Blower Wheel, & Mounting Plate
n.l.a Motor - ED50L, HD50L, HD50L-B,C
99080519 Motor - HD50L-D
97011315 Blower Wheel - ED50L, HD50L, HD50L-B,C
99020276 Blower Wheel - HD50L-D
99100399 Rubber Motor Spacer - ED50L, HD50L,
HD50L-B,C - 2 Required
97011314 Motor Mounting Bracket & Plate - ED50L,
HD50L, HD50L-B,C
97014926
Motor Mounting Bracket & Plate - HD50L-D
99260425 Motor Mounting Nut - #8-32 - 2 Required
99170245 Screw used to Attach Mounting Plate to
Housing - ED50L, HD50L, HD50L-B,C - #8-
18 x 3/8”
97015171 Wire Panel Cover Assembly - HD50L-D -
Includes Fan & Light Receptacles
98009612 Wire Panel Cover Only - HD50L-D
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
n.l.a Housing - ED50L, HD50L, HD50L-B,C
97014922 Housing - HD50L-D
98008868 Electircal KnockOut Plate - HD50L-D
99170245 Electrical KnockOut Plate Mounting Screw
- HD50L-D - #8-18 x 3/8”
97014185 Damper Duct Connector - 4” Round
HD50
--NOTE-- Original HD50 used “B1” style Can which was
black with Fan Receptacle located on the side of housing -
Revision B introduced “J” style Can in 2000 which is a silver
with the Fan Receptacle in the corner of housing.
97011308 Metal Grille Assembly - White - 10-1/4” x
10-1/4” - Includes Grille Springs
99140192 Grille Spring - 2 Required
see note Fan Assembly - HD50 - Includes Motor,
Blower Wheel, & Motor Mounting Plate *
97015161 Fan Assembly - HD50-B - Includes Motor,
Blower Wheel, & Motor Mounting Plate
97011309 Motor - HD50
99080519 Motor - HD50-B
97009755 Blower Wheel - HD50
99020276 Blower Wheel - HD50-B
97011452 Motor Mounting Bracket & Plate - HD50
97014926 Motor Mounting Bracket & Plate - HD50-B
99100399 Motor Mounting Rubber Spacers - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover Assembly with Fan Re-
ceptacle - HD50-B
99270982 Fan Receptacle - Black
98008868 Electrical KnockOut Plate - HD50-B
99390015 Ground Clip - HD50
99150471 Ground Screw - HD50-B - #10-32 x 1/2”
97003932 Damper / Duct Connector - 4” Round
* Not available. Must purchase Motor, Blower Wheel, &
Motor Mounting Plate separately.
HD50RDF, HD50RDB
98009908 Metal Grille - White - 9-1/2” x 11-5/8”
99150573 Grille Mounting Screw - #8-18 x 13/16” - 2
Required
97015161 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080519 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover with Fan Receptacle *
99270982 Fan Receptacle - Black *
98008868 Electrical Knockout Plate *
99170245 Electrical Knockout Plate Mounting Screw -
#8-18 x 3/8” *
99150471 Ground Screw - #10-32 x 1/2” *
97011831 Housing Mounting Slide Brackets & Chan-
nels
97015727
Metal Damper / Duct Connector - 4” Round *
* Not included with HD50RDF or HD50RDB Finish Packs
HD80
--NOTE-- Original HD50 used “B1” style Can which was
black with Fan Receptacle located on the side of housing -
Revision B introduced “J” style Can in 2000 which is silver
with the Fan Receptacle in the corner of housing.
97011308 Metal Grille Assembly - White - 10-1/4” x
10-1/4” - Includes Grille Springs
99140192 Grille Spring - 2 Required
97009745 Fan Assembly - HD80 - Includes Motor,
Blower Wheel, & Motor Mounting Plate
97015162 Fan Assembly - HD80-B - Includes Motor,
Blower Wheel, & Motor Mouting Plate
see note Motor - HD80 *
99080520 Motor - HD80-B
97009755 Blower Wheel - HD80
99020276 Blower Wheel - HD80-B
97011452 Motor Mounting Bracket & Plate - HD80
97014926 Motor Mounting Bracket & Plate - HD80-B
99100399 Motor Mounting Rubber Spacers - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Panel Cover Assembly - HD80-B - In-
cludes Fan Receptacle
99270982 Fan Receptacle - Black
98008868 Electrical KnockOut Plate - HD80-B
99390015 Ground Clip - HD80
99150471 Ground Screw - HD80-B - #10-32 x 1/2”
97003932 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly p/n 97009745
HD80L
--NOTE-- Revisions A thru C used “B3” style Can which
was painted black with Fan & Light Receptacles located on
the side of the housing - Revision D introduced “J” style
Can in 2000 which was a silver galvanized finish with the
Fan & Light Receptacles in the corner of the housing.
--NOTE-- Revision B introduced new Grille design in 1996
97014094 Grille Assembly - Fits ALL Models - 10-5/8”
x 11-1/8” - Includes Light Lens
99110751 Grille Only - HD80L - 9-1/2” x 10-1/4”
97013974
Grille Only - HD80L-B,C,D - 10-5/8” x 11-1/8”
97011813 Light Lens - HD80L
97013578 Light Lens - HD80L-B,C,D
97005316 Grille Mounting Acorn Nut - #10-24
99150582 Grille Mounting Screw / Stud - #10-24 x
3/4”
97014212 Light Reflector Assembly - Includes Socket
97014211 Light Reflector Only
99770118 Light Socket with Male Plug
see note Fan Assembly - HD80L, HD80L-B,C - In-
cludes Motor, Blower Wheel, & Motor
Mounting Plate *
97015162 Fan Assembly - HD80L-D - Includes Motor,
Blower Wheel, & Motor Mounting Plate
see note Motor - HD80L, HD80L-B,C *
99080520 Motor - HD80L-D
97011315 Blower Wheel - HD80L, HD80L-B,C
99020276 Blower Wheel - HD80L-D
97011314 Motor Mounting Bracket & Plate - HD80L,
HD80L-B,C
97014926
Motor Mounting Bracket & Plate - HD80L-D
99260425 Motor Mounting Nut - #8-32 - 2 Required
99100399 Rubber Motor Spacer - 2 Required
97015171 Wire Panel Cover Assembly with Fan &
Light Receptacles - HD80L-D
98009612 Wire Panel Cover Only - HD80L-D
99270981 White Receptacle for Light
99270982 Black Receptacle for Fan
98008868 Electrical Knockout Plate - HD80L-D
99170245 Electrical Knockout Plate Mounting Screw -
HD80L-D - #8-18 x 3/8”
99390015 Ground Clip - HD80L, HD80L-B,C
99150471 Ground Screw - HD80L-D - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Original motor no longer available - Customer may use
Motor p/n 97009753 as sub but please note this motor is
NOT a heavy duty type motor and is NOT rated for continu-
ous use.
HD80RDF, HD80RDB
98009908 Metal Grille - White - 9-1/2” x 11-5/8”
99150573 Grille Mounting Screw - #8-18 x 13/16” - 2
Required
97015162 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080520 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015170 Wire Cover Panel Assembly with Fan Re-
ceptacle *
99270982 Fan Receptacle - Black *
98008868 Electrical KnockOut Plate *
99150471 Ground Screw - #10-32 x 1/2” *
97015727
Metal Damper / Duct Connector - 4” Round *
* Not included with HD80RDF or HD80RDB Finish Packs
Index
55
654H
99270982 Fan Receptacle - Black
99270981 Light Receptacle - White
99270489 Heater Receptacle - Red
97007543 Housing Only
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
655
97013662 Grille Assembly - Fits ALL Models - 10-5/8”
x 16-3/4” - Includes Light Lens
99110424 Grille Only - 655-A,B - 10” X 16”
97013836 Grille Only - 655-C - 10-5/8” x 16-3/4”
97011813 Light Lens - 655-A,B
97013578 Light Lens - 655-C
97005318 Grille Mounting Screw & Acorn Nut Kit for
Attaching Grille
99160410 Grille Moutning Screw - #10-24 x 3-1/4”
97005316 Acorn Nut - #10-24
97004096 Light Reflector Assembly - 655-A - In-
cludes Light Socket
97014212 Light Reflector Assembly - 655-B,C - In-
cludes Light Socket
98006276 Light Reflector Only - 655-A
97014211 Light Reflector Only - 655-B,C
99770118 Light Socket with Male Plug
97005011 Fan Assembly - Includes Motor, Blower
Wheel, & Mounting Plate
99080166 Fan Motor
99110446 Fan Blower Wheel
97013627 Fan Mounting Plate
99260428 Nut used to Attach Fan Motor to Plate - #6-
32 - 2 Required
99170245 Screw used to Attach Motor Plate to Hous-
ing - #8-18 x 3/8”
97017063 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, Thermal Fuse, &
Scroll Housing
97017062 Heater Motor - Includes Wheel
99020290 Heater Blower Wheel
98004514 Heater Element
97011810 Thermal Cutoff / Fuse
97005058 Terminal & Bolt Assembly for Element - 3
Required
99270107 Ceramic Hook for Element - 5 Required
97005006 Heater Scroll Housing
98003788 Heater Scroll Cover
99150417 Screw used to Attach Scroll Cover to Scroll
Housing - #8-15 x 1/4” - 4 Required
99160422 Screw used to Attach Heater Assy to Hous-
ing - #10-32 x 3/8” - 2 Required
99260566 Nut Attached to Housing for Above Screw -
#10-32 - 2 Required
99270748 Black Receptacle for Fan
99270479 White Receptacle for Light
99270489 Red Receptacle for Heater
97007543 Housing
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper Duct Connector - 4” Round
656
97013662 Grille Assembly - Fits ALL Models - 10-5/8”
x 16-3/4” - Includes Light Lens
99110424 Grille Only - 656-A,B - 10” x 16”
97013836 Grille Only - 656-C - 10-5/8” x 16-3/4”
97011813 Light Lens - 656-A,B
97013578 Light Lens - 656-C
97005318 Grille Mounting Screw & Acorn Nut Kit for
Attaching Grille
99160410 Grille Moutning Screw - #10-24 x 3-1/4”
97005316 Grille Mounting Acorn Nut - #10-24
97004096 Light Reflector Assembly - 656-A - In-
cludes Socket
97014212 Light Reflector Assembly - 656-B,C - In-
cludes Socket
98006276 Reflector Only - 656-A
97014211 Reflector Only - 656-B,C
99770118 Light Socket with Male Plug
97017063 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, Thermal Fuse, &
Scroll Housing
97017062 Heater Motor - Includes Wheel
99020290 Heater Blower Wheel
98004514 Heater Element
97011810 Thermal Cutoff / Fuse
97005058 Terminal & Bolt Assembly - 3 Required
99270107 Ceramic Hook for Element - 5 Required
97013628 Partition Bracket
99270479 White Receptacle for Light
99270489 Red Receptacle for Heater
97007543 Housing
98003036 Housing Mounting Bracket - 4 Required
657
97013662 Grille Assembly - Fits ALL Models - 10-5/8”
x 16-3/4” - Includes Light Lens
99110424 Grille Only - 657-A,B - 10” x 16”
97013836 Grille Only - 657-C - 10-5/8” x 16-3/4”
97011813 Light Lens - 657-A,B
97013578 Light Lens - 657-C
97005318 Grille Mounting Screw & Acorn Nut Kit for
Attaching Grille
99160410 Grille Moutning Screw - #10-24 x 3-1/4”
97005316 Grille Mounting Acorn Nut - #10-24
97004096 Light Reflector Assembly - 657-A - In-
cludes Socket
97014212 Light Reflector Assembly - 657-B,C - In-
cludes Socket
98006276 Reflector Only - 657-A
97014211 Reflector Only - 657-B,C
99770118 Light Socket with Male Plug
97005011 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080166 Motor
99110446 Blower Wheel
97013627 Motor Mounting Bracket & Plate
99270748 Black Receptacle for Fan
99270479 White Receptacle for Light
97007543 Housing
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
658
97013581 Grille Assembly - 10-5/8” x 16-3/4” - In-
cludes Grille Logo Button & Grille Screw
99150566 Grille Screw
99110748 Grille Logo Button
97005327 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080166 Fan Motor
99110446 Fan Blower Wheel
97006987 Fan Motor Mounting Bracket & Plate
97017063 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, Thermal Fuse, &
Scroll Housing
97017062 Heater Motor - Includes Wheel
99020290 Heater Blower Wheel
98004514 Heater Element
97011810 Thermal Cutoff / Fuse
99270107 Ceramic Hook for Heater - 5 Required
97005006 Heater Scroll Housing
98003788 Heater Scroll Housing Cover
99270748 Fan Receptacle - Black
99270489 Heater Receptacle - Red
97007543 Housing
98003036 Housing Mounting Bracket - 4 Required
97003932 Damper / Duct Connector - 4” Round
659
97013662 Grille Assembly - Fits ALL Models - 10-5/8”
x 16-3/4” - Includes Light Lens
99110424 Grille Only - 659-A,B,C - 10” x 16”
97013836 Grille Only - 659-D - 10-5/8” x 16-3/4”
97011813 Light Lens - 659-A,B,C
97013578 Light Lens - 659-D
97005318 Grille Mounting Screw & Acorn Nut Kit for
Attaching Grille
99160410 Grille Moutning Screw - #10-24 x 3-1/4”
97005316 Grille Mounting Acorn Nut - #10-24
97004096 Light Reflector Assembly - 659-A,B - In-
cludes Socket
97014212 Light Reflector Assembly - 659-C,D - In-
cludes Socket
98006276 Reflector Only - 659-A,B
97014211 Reflector Only - 659-C,D
99770118 Light Socket with Male Plug
97012051 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97012038 Fan Motor & Blower Wheel
99110379 Fan Blower Wheel - 659-A - Fits D Shaped
Motor Shaft
99111002 Fan Blower Wheel - 659-B - Fits Splined
Motor Shaft
97013627 Fan Motor Mounting Bracket & Plate
97017063 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, Thermal Fuse, &
Scroll Housing
97017062 Heater Motor - Includes Wheel
99020290 Heater Blower Wheel
98004514 Heater Element
97011810 Thermal Cutoff / Fuse
97005058 Terminal & Bolt Assembly - 3 Required
99270107 Ceramic Hook for Heater - 5 Required
99270748 Black Receptacle for Fan
99270479 White Receptacle for Light
99270489 Red Receptacle for Heater
97007543 Housing
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
Index
56
695
(Discontinued)
97013662 Grille Assembly - Fits ALL Models - 10-5/8”
x 16-3/4” - Includes Light Lens
99110424 Grille Only - 695-A,B,C - 10” x 16”
97013836 Grille Only - 695-D - 10-5/8” x 16-3/4”
97011813 Light Lens - 695-A,B,C
97013578 Light Lens - 695-D
97005319 Grille Mounting Screw & Acorn Nut Kit for
Attaching Grille
99160309 Grille Moutning Screw - #10-24 x 2-3/4”
97005316 Grille Mounting Acorn Nut - #10-24
97004096 Light Reflector Assembly - 695-A,B - In-
cludes Socket
97014212 Light Reflector Assembly - 695-C,D - In-
cludes Socket
98006276 Reflector Only - 695-A,B
97014211 Reflector Only - 695-C,D
99770118 Light Socket with Male Plug
97017714 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97009752 Fan Motor
97009755 Fan Blower Wheel
97013627 Fan Motor Mounting Bracket & Plate
97017063 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, Thermal Fuse, &
Scroll Housing
97017062 Heater Motor - Includes Wheel
99020290 Heater Blower Wheel **
98004514 Heater Element
97011810 Thermal Cutoff / Fuse
97005058 Terminal & Bolt Assembly - 3 Required
99270107 Ceramic Hook for Heater - 5 Required
99270748 Black Receptacle for Fan
99270479 White Receptacle for Light
99270489 Red Receptacle for Heater
97007384 Housing
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
696
97013662 Grille Assembly - Fits ALL Models - 10-5/8”
x 16-3/4” - Includes Light Lens
99110424 Grille Only - 696-A,B,C - 10” x 16”
97013836 Grille Only - 696-D - 10-5/8” x 16-3/4”
97011813 Light Lens - 696-A, B, C
97013578 Light Lens - 696-D
97005319 Grille Mounting Screw & Acorn Nut Kit for
Attaching Grille
99160309 Grille Moutning Screw - #10-24 x 2-3/4”
97005316 Grille Mounting Acorn Nut - #10-24
97004096 Light Reflector Assembly - 696-A,B - In-
cludes Socket
97014212 Light Reflector Assembly - 696-C,D - In-
cludes Socket
98006276 Reflector Only - 696-A,B
97014211 Reflector Only - 696-C,D
99770118 Light Socket with Male Plug
97017714 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080605 Motor
97009755 Blower Wheel
97013627 Motor Mounting Bracket & Plate
99270748 Black Receptacle for Fan
99270479 White Receptacle for Light
97007384 Housing
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
HFL695
(Discontinued)
97013662 Grille Assembly - Includes Light Lens
97013836 Grille Only - 10-5/8” x 16-3/4”
97013578 Light Lens
97005319 Grille Mounting Screw & Acorn Nut Kit for
Attaching Grille
99160309 Grille Moutning Screw - #10-24 x 2-3/4”
97005316 Grille Mounting Acorn Nut - #10-24
97014212 Light Reflector Assembly - Includes Socket
97014211 Reflector Only
99770118 Light Socket with Male Plug
97017714 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080605 Fan Motor
97009755 Fan Blower Wheel
97013627 Fan Motor Mounting Bracket & Plate
97017063 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, Thermal Fuse, &
Scroll Housing
97017062 Heater Motor - Includes Wheel
99020290 Heater Blower Wheel
98004514 Heater Element
97011810 Thermal Cutoff / Fuse
97005058 Terminal & Bolt Assembly - 3 Required
99270107 Ceramic Hook for Heater - 5 Required
99270748 Black Receptacle for Fan
99270479 White Receptacle for Light
99270489 Red Receptacle for Heater
97007384 Housing
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
600
(Discontinued 1965)
97007965 Grille - Plastic - Replaces Original Metal
Grille
99380017 Grille Mounting Screw
n.l.a. Motor
97000646 Fan Blade
n.l.a. Motor Mounting Bracket
650, 651, 652, 653
(Discontinued 1973)
n.l.a. Grille - 14” x 14”
n.l.a. Light Lens - Glass - 7-1/2” x 7-1/2”
n.l.a. Motor - Same used for Heater & Fan
97000649 Fan Blade - Same used for Heater & Fan
98001398 Heater Element
97011811 Thermal Cutoff / Fuse
97005058 Terminal / Bolt Assembly
99270107 Ceramic Hook
660
(Discontinued 1973)
Model 660 was used to designate the housing used with fan
models 664, 665,and 666. Please see parts list for Models
664 664 and 666.
661
(Discontinued 1973)
97011324 Metal Grille - White - 10-1/4” x 10-1/4”
99380017 Grille Mounting Screw - #10-12 x 11/16”
n.l.a. Motor
99110379 Fan Blade
664
(Discontinued 1973)
--NOTE-- Housing Size was 9” x 8-1/4”
97011324 Metal Grille - White - 10-1/4” x 10-1/4”
99380017 Grille Mounting Screw - #10-12 x 11/16”
99080060 Motor
97000649 Fan Blade (4 Fins)
n.l.a. Motor Mounting Bracket
99270748 Receptacle for Fan
665, 666
(Discontinued 1973)
--NOTE-- Housing Size was 9” x 8-1/4”
97011324 Metal Grille - White - 10-1/4” x 10-1/4”
99380017 Grille Mounting Screw - #10-12 x 11/16”
99080037 Motor *
99020012 Blower Wheel (Squirrel Cage Style)
n.l.a. Motor Mounting Bracket
99270748 Receptacle for Fan
*Original Motor for Model 665 (60 CFM) is no longer avail-
able. We are substituting the motor for the 666 which was
80 CFM.
681
(Discontinued 1995)
97009648 Grille - 8-1/2” x 8-1/2” - Includes Grille
Springs
99140187 Grille Spring - 2 Required
02200-54 Motor *
99111002 Blower Wheel
n.l.a. Motor Mounting Bracket
99270982 Receptacle for Fan
25107-00 Housing Mounting Bracket
n.l.a. Damper Flap
* New Motor uses self tapping screws to attach itself to
bracket. Customer will need to order 2pcs of p/n 99170245
screws or obtain #8-18 x 3/8” self tapping screws locally.
682
97009648 Grille - 8-1/2” x 8-1/2” - Includes Grille
Springs
99140187 Grille Spring - 2 Required
97009563 Non-Duct Filter - 6-7/8” x 2-3/16”
97009793 Fan Assembly - Includes Motor, Fan Blade,
& Motor Mounting Bracket
02200-41 Motor
99020187 Fan Blade
98010543 Motor Mounting Bracket
25255-01 Housing
20125-00 Housing Mounting Bracket
98010541 Wiring Cover
75999-00 Knockout Plate
682L, 682LNT
(Discontinued 2006)
97009649 Grille - 9-1/4” x 9-1/4” - Includes Grille
Springs
99140187 Grille Spring - 2 Required
76079-00 Light Lens
97009564 Non-Duct Filter - 682L (Made Prior to
1994) - 6-7/8” x 2-5/8”
97009563 Non-Duct Filter - 682L-A, 682LNT - 6-7/8”
x 2-3/16”
02153-08 Light Socket
25269-00 Light Reflector
97009793 Fan Assembly - Includes Motor, Fan Blade,
& Motor Mounting Bracket
Index
57
02200-41 Motor
99020187 Fan Blade
25083-01 Motor Mounting Bracket
02189-00 Thermal Protector for Motor
02189-01 Thermal Protector for Light
25263-02 Housing
20055-02 Housing Mounting Bracket
20126-04 Wiring Cover
75999-00 Knockout Plate
686, 686SF
(Discontinued 2007)
97009341 Grille - 9-5/8” x 5-7/8” - Includes Grille
Springs
99140153 Grille Spring - 2 Required
n.l.a. Air Freshener *
n.l.a. Switch - 686SF
n.l.a. Knob - 686SF
99080222 Motor
99020187 Fan Blade
99270748 Receptacle for Fan
97008371 Housing
97009350 Plastic Housing Collar - 686SF
98006752 Wiring Cover
99390015 Grounding Clip
* Available locally - Fan will accept Stick-Ups, Wizard, or
Round the Clock brand air fresheners
699
(Discontinued 1991)
97009649 Grille - 9-1/4” x 9-1/4” - Includes Grille
Springs
99140187 Grille Spring - 2 Required
76079-00 Light Lens
02153-05 Light Socket
25269-00 Light Reflector
02200-54 Motor
99111002 Fan Blade
n.l.a. Motor Mounting Bracket
02189-00 Thermal Protector for Motor
02189-01 Thermal Protector for Light
n.l.a. White Receptacle for Light
99270982 Black Receptacle for Fan
n.l.a. Receptacle Bracket
25274-00 Housing Mounting Bracket
n.l.a. Damper Flap
744, 744NT
99524802 Grille Trim Ring - 7-3/8” Diameter - In-
cludes Mounting Springs
99525160 Spring for Mounting Trim Ring - 2 Required
97016453 Light Socket & Bracket Assembly *
97016491 Socket Bracket / Holder Only
97016454 Motor & Motor Mounting Bracket
99080557 Motor Only
99524804 Blower Wheel
99524805 Motor Mounting Bracket Only
99271323 Female Receptacle for Fan
99271322 Thermal Protector
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
* Includes Socket, Bracket, Female Receptacle, Thermal
Protector, & Plastic Wire Clips
744FL, 744FLNT
99524802 Grille Trim Ring - 7-3/8” Diameter - In-
cludes Mounting Springs
99525160 Spring for Mounting Trim Ring - 2 Required
97016848 Bulb - Fluorescent, R30 Type, GX24Q-1
Base, 4 Pin, 14 Watt - 744FL-A, 744FLNT-A
99271448 Bulb - Fluorescent, R30 Type, GU24 Base, 2
Pin, 16 Watt - 744FL-B, 744FLNT-B
see note Light Socket Assembly - 744FL-A,
744FLNT-A *
97018937 Light Socket Assembly - 744FL-B,
744FLNT-B **
see note Ballast - 744FL-A, 744FLNT-A *
see note Bracket for Light Socket - 744FL-A,
744FLNT-A *
98010900 Bracket for Light Socket - 744FL-B,
744FLNT-B
99420551 Plastic Wire Clip
97016454 Motor & Motor Mounting Bracket
99080557 Motor Only
99524804 Blower Wheel
99524805 Motor Mounting Bracket Only
see note Receptacle - 744FL-A, 744FLNT-A *
see note Receptacle - 744FL-B, 744FLNT-B ***
98005512 Electrical Knockout Plate
98010583 Electrical Box Cover - 744FL-B, 744FLNT-B
98003036 Hanger Bar Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
* Original Light Socket no longer available. Must purchase
Service Kit p/n 97019016 to convert Light Socket to accept
new GU24 Base Bulb. Kit includes Light Socket, Bracket,
Receptacle, & GU24 Bulb
** Includes Light Socket, Bracket, Female Receptacle,
Thermal Protector, & Plastic Wire Clips
*** Must purchase Light Socket Assembly p/n 97018937
744LED
99524802 Grille Trim Ring - 7-3/8” Diameter - In-
cludes Mounting Springs
99525160 Spring for Mounting Trim Ring - 2 Required
99271458 Bulb - LED, GU24 Base, 14 Watt
97019028 Light Socket Assembly - Includes Socket,
Wire Harness, Socket Bracket, & Recep-
tacle
98011010 Bracket for Light Socket Only
97016454 Motor & Motor Mounting Bracket
99080557 Motor Only
99524804 Blower Wheel
99524805 Motor Mounting Bracket Only
98010583 Electrical Box Cover
98005512 Electircal Knock-Out Plate
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
744SFL, 744SFLNT
97018169 Grille Trim Ring - 7-3/8” Diameter - In-
cludes Mounting Springs & Humidity Sen-
sor
99525160 Spring for Mounting Trim Ring - 2 Required
97016848 Bulb - Fluorescent, R30 Type, 4 Pin,
GX24Q-1 Base, 14 Watt - 744SFL-A,
744SFLNT-A
99271448 Bulb - Fluorescent, R30 Type, GU24 Base,
16 Watt - 744SFL-B, 744SFLNT-B
97019017 Light Socket with Ballast - 744SFL-A,
744SFNT-A *
99770171 Light Socket - 744SFL-B, 744SFLNT-B
99770141 Lamp Wire Harness - Includes Blue &
White Wire with Female Connector
see note Humidity Control Module - Includes Light
Socket Bracket - 744SFL-A, 744SFLNT-A *
97018868 Humidity Control Module - Includes Light
Socket Bracket - 744SFL-B, 744SFLNT-B
97016454 Motor & Motor Mounting Bracket
99080557 Motor Only
99524804 Blower Wheel
99524805 Motor Mounting Bracket Only
99770143 Main Wire Harness **
98005512 Electrical Knockout Plate
98010628 Electrical Box Cover
97016382 Housing
98003036 Hanger Bar Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
* Original Light Socket no longer available. Must purchase
Service Kit p/n 97019017 to convert Light Socket to accept
new GU24 Bulb. Kit includes Light Socket, Bracket, Humid-
ity Control Module, & GU24 Bulb.
** Includes Brown, Orange, White, & Black Wires with Fe-
male Motor Receptacle
840S, 840W, 841
(Discontinued 1968)
97002117 Grille - 840S, 840W
n.l.a. Fan Motor
97000917 Fan Blade
97000018 Gear Box
97008639 Gear Box Motor
850S, 850W, 851S, 851W, 852S,
852W
(Discontinued 1968)
n.l.a. Grille
99380004 Grille Mounting Screw - #10-24 x 1”
n.l.a. Motor
97000917 Blade
EZ80
97019325 Grille Assembly - 14-1/2” x 13” - Includes
Grille Springs
79140014 Grille Spring Kit - Includes 2 Springs
97019349 Fan Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor *
see note Blower Wheel *
77001297 Capacitor
97019006 Wire Panel / Harness Assemlby
97019326 Wiring Knock-Out Plate
77001447 Tightening Clamps - Includes 4 Screws &
Clamps
79110158 4” to 3” Round Duct Reducer
77001277 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly p/n 97019349
LP80, LPN80
77001280 Grille Assembly - LP80 - 13” x 14” - In-
cludes Grille Springs
77001282 Grille Assembly - LPN80 - 13” x 14” - In-
cludes Grille Springs
79140014 Grille Spring Kit - Kit Contains 2
77001279 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor *
Index
58
see note Blower Wheel *
see note Scroll Housing *
77001297 Capacitor
77001298 Wire Panel Assembly - Includes Receptacle
77001300 Knockout Plate
77001299 Hanger Bar
79110158 4” to 3” Duct Reducer
77001277 Damper / Duct Connector Assembly - 4”
Round
* Must order Blower Assembly - p/n 77001279
707
(Discontinued 2007)
97014841 Grille Assembly - 11-1/2” x 10-1/2” - In-
cludes Wood Grille, Light Lens, Light Re-
flector & Light Socket
97014810 Grille Only
97013578 Light Lens
97005316 Grille Mounting Acorn Nut - #10-24
99160309 Grille Mounting Screw / Stud - 707-A - #10-
24 x 2-3/4”
99150582 Grille Mounting Screw / Stud - 707-B - #10-
24 x 3/4”
97014212 Light Reflector Assembly - Includes Socket
97014211 Light Reflector Only
99770118 Light Socket Only
see note
Fan Assembly - 707-A - Includes Motor,
Blower Wheel, & Motor Mounting Bracket *
97015165 Fan Assembly - 707-B - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
99080166 Motor - 707-A **
99080522 Motor - 707-B
99110446 Blower Wheel
97006989 Motor Mounting Bracket & Plate - 707-A
97014926 Motor Mounting Bracket & Plate - 707-B
97015171 Wire Panel Cover Assembly - 707-B - In-
cludes Receptacles for Fan & Light
99270981 White Receptacle for Light
99270982 Black Receptacle for Fan
98008868 Electrical Knockout Plate - 707-B
99170245 Knockout Plate Mounting Screw - 707-B -
#8-18 x 3/8”
97014185 Damper / Duct Connector - 4” Round
* No longer available - Must purchase Motor, Blower
Wheel, & Mounting Bracket separately
** Motor is a substitute - will appear different but is com-
patible
708
(Discontinued 1998)
--NOTE-- Revision A used a plastic molded Housing that
measured 8-1/2” x 9-1/8” - Revision B introduced a black
painted steel Housing that measured 8” x 8-1/4”
97010908 Grille Assembly - 708-A - Includes Wood
Grille, Grille Springs, & Rubber Bumpers
97013128 Grille Assembly - 708-B - Includes Wood
Grille, Grille Springs, & Rubber Bumpers
06184-03 Grille Spring - 708-A - 2 Required
n.l.a. Grille Spring - 708-B - 2 Required
20026-01 Grille Spring Bracket - 708-A - 2 Required
n.l.a. Grille Bumper Kit - Includes Set of 4 Brown
Bumpers
see note
Fan Assembly - 708-A - Includes Motor,
Blower Wheel, & Motor Mounting Bracket *
97009745 Fan Assembly - 708-B - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
02200-23 Motor - 708-A
97009753 Motor - 708-B
06104-00 Blower Wheel - 708-A
97009755 Blower Wheel - 708-B
97006987 Motor Mounting Bracket & Plate - 708-B
99270982 Black Receptacle for Fan - 708-A
99270982 Black Receptacle for Fan - 708-B
20125-00 Housing Mounting Bracket - 708-A
06238-00 Damper Flap - 708-A
97003932 Damper / Duct Connector - 708-B - 4”
Round
* No longer available - Must purchase Motor & Blower
Weel separately
709
(Discontinued 2001)
97010909 Grille Assembly - 709-A,B - Includes Wood
Grille, Rubber Bumpers & Grille Springs
99340217 Grille Assembly - 709-C - Includes Wood
Grille & Rubber Bumpers
06184-03 Grille Spring - 709-A,B - 2 Required
20026-01 Grille Spring Bracket - 709-A,B - 2 Required
97005316 Grille Mounting Acorn Nut - #10-24 - 709-C
99160309 Grille Mounting Screw / Stud - 709-C - #10-
24 x 2-3/4”
n.l.a. Grille Bumper - Includes Set of 4 Brown
Bumpers
n.l.a. Light Lens - 709-A,B
97013350 Light Lens - 709-C
97013150 Light Reflector Assembly - 709-C - In-
cludes Light Socket
n.l.a. Light Reflector - 709-A,B
n.l.a. Light Socket - 709-A,B
99270029 Light Socket Only - 709-C
02200-23 Motor - 709-A,B
99080166 Motor - 709-C *
06104-00 Blower Wheel - 709-A,B
99110446 Blower Wheel - 709-C
n.l.a. Motor Mounting Bracket & Plate - 709-A,B
97006989 Motor Mounting Bracket & Plate - 709-C
02124-05 White Receptacle for Light - 709-A,B
97014239 White Receptacle for Light - 709-C
99270982 Black Receptacle for Fan - 709-A,B
n.l.a. Black Receptacle for Fan - 709-C
02189-01 Thermostat for Light - 709-A,B
97014239 Thermostat for Light - 709-C
02189-00 Thermostat for Motor - 709-A,B
97014432 Thermostat for Motor - 709-C
20055-00 Housing Mounting Bracket - 709-A,B
06238-00 Damper Flap - 709-A,B
97014185 Damper / Duct Connector - 709-C - 4”
Round
* Motor is a substitute - will appear different but is com-
patible
710
(Discontinued 2005)
--NOTE-- Revision D introduced silver galvanized housing
& 4-pin plug connector for the light sockets in 01/2000
97008602 Grille Assembly - 710-A,B,C - Includes
Brass Grille Pan, Light Socket, & Night
Light Socket
97015173 Grille Assembly - 710-D - Includes Brass
Grille Pan, Light Socket, & Night Light
Socket
99150538 Grille Mounting Screw - 710-A,B,C - #8-18
x 2” - 2 Required
99420470 Grille Mounting Plastic Nut - 710-A,B,C - 2
Required
97005316 Grille Mounting Acorn Nut - 710-D - #10-24
99150583 Grille Mounting Screw / Stud - 710-D - #10-
24 x 1-1/4”
99250399 Grille Mounting Washer - 710-D
97008781 Light Lens - Includes Glass Lens, Brass
Retaining Ring & Spring Clips
99390052 Brass Retaining Ring for Light Lens
99140155 Spring Clips for Light Lens - 2 Required
99770027 Light Socket Only - 710-A,B,C
99770028 Night Light Socket Only - 710-A,B,C
99770086 Light Socket Assembly - 710-D - Includes
Both Light Socket & Night Light Socket
97017066 Fan Assembly - 710-A,B,C - Includes Mo-
tor, Blower Wheel, & Motor Mounting
Bracket
97015192 Fan Assembly - 710-D - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
97009752 Motor - 710-A,B,C
99080517 Motor - 710-D
97009755 Blower Wheel - 710-A,B,C
99020276 Blower Wheel - 710-D
99100399 Rubber Motor Spacers - 710-A,B,C - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light & Night Light -
710-A,B,C - 2 Required
99770085 4-Pin Receptacle for Light & Night Light -
710-D
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
712
(Discontinued 2002)
--NOTE-- Revision D introduced silver galvanized housing
& 4-pin plug connector for the light sockets in 01/2000
97008604 Grille Assembly - 712-A,B,C - Includes
White Grille Pan, Light Socket, & Night
Light Socket
97015174 Grille Assembly - 712-D - Includes White
Grille Pan, Light Socket, & Night Light
Socket
99150538 Grille Mounting Screw - 712-A,B,C - #8-18
x 2” - 2 Required
99420470 Grille Mounting Plastic Nut - 712-A,B,C - 2
Required
97005316 Grille Mounting Acorn Nut - 712-D - #10-24
99150583 Grille Mounting Screw / Stud - 712-D - #10-
24 x 1-1/4”
99250399 Grille Mounting Washer - 712-D
97008912 Light Lens - Includes Glass Lens, White
Retaining Ring & Spring Clips
99390106 White Retaining Ring for Light Lens
99140155 Spring Clips for Light Lens - 2 Required
99770027 Light Socket Only - 712-A,B,C
99770028 Night Light Socket Only - 712-A,B,C
99770086 Light Socket Assembly - 712-D - Includes
Both Light & Night Light Sockets
97017066 Fan Assembly - 712-A,B,C - Includes Mo-
tor, Blower Wheel, & Motor Mounting Plate
97015192 Fan Assembly - 712-D - Includes Motor,
Blower Wheel, & Motor Mounting Plate
97009752 Motor - 712-A,B,C
99080517 Motor - 712-D
Index
59
97009755 Blower Wheel - 712-A,B,C
99020276 Blower Wheel - 712-D
99100399 Rubber Motor Spacers - 712-A,B,C - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
99270982 Black Receptacle for Fan Motor
99270479 White Receptacle for Light & Night Light -
712-A,B,C - 2 Required
99770085 4-Pin Receptacle for Light & Night Light -
712-D
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
714
(Discontinued 2005)
--NOTE-- Revision D introduced silver galvanized housing
& 4-pin plug connector for the light sockets in 01/2000
97010660 Grille Assembly - 714-A,B,C - Includes
Chrome Grille Pan, Light Socket, & Night
Light Socket
97015175 Grille Assembly - 714-D - Includes Chrome
Grille Pan, Light Socket, & Night Light
Socket
99150538 Grille Mounting Screw - 714-A,B,C - #8-18
x 2” - 2 Required
99420470 Grille Mounting Plastic Nut - 714-A,B,C - 2
Required
97005316 Grille Mounting Acorn Nut - 714-D - #10-24
99150583 Grille Mounting Screw / Stud - 714-D - #10-
24 x 1-1/4”
99250399 Grille Mounting Washer - 714-D
97008913 Light Lens - Includes Glass Lens, Chrome
Retaining Ring, & Spring Clips
99390075 Chrome Retaining Ring for Light Lens
99140155 Spring Clips for Light Lens - 2 Required
99770027 Light Socket Only - 714-A,B,C
99770028 Night Light Socket Only - 714-A,B,C
99770086 Light Socket Assembly - 714-D - Includes
Both Light & Night Light Sockets
97017066 Fan Assembly - 714-A,B,C - Includes Mo-
tor, Blower Wheel, & Motor Mounting
Bracket
97015192 Fan Assembly - 714-D - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
97009752 Motor - 714-A,B,C
99080517 Motor - 714-D
97009755 Blower Wheel - 714-A,B,C
99020276 Blower Wheel - 714-D
99100399 Rubber Motor Spacers - 714-A,B,C - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light & Night Light -
714-A,B,C - 2 Required
99770085 4-Pin Receptacle for Light & Night Light -
714-D
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
720
(Discontinued 2003)
--NOTE-- Revision D introduced silver galvanized housing
& 4-pin plug connector for the light sockets in 01/2000
97008605 Grille Assembly - 720-A,B,C - Includes
Square Wood Grille Pan, Light Socket, &
Night Light Socket
97015176 Grille Assembly - 720-D - Includes Square
Wood Grille Pan, Light Socket, & Night
Light Socket
99150538 Grille Mounting Screw - 720-A,B,C - #8-18
x 2” - 2 Required
99420470 Grille Mounting Plastic Nut - 720-A,B,C - 2
Required
97005316 Grille Mounting Acorn Nut - 720-D - #10-24
99150583 Grille Mounting Screw / Stud - 720-D - #10-
24 x 1-1/4”
99250399 Grille Mounting Washer - 720-D
97008781 Light Lens - Includes Glass Lens, Brass
Retaining Ring, & Springs Clips
99390052 Brass Retaining Ring for Light Lens
99140155 Spring Clips for Light Lens - 2 Required
99770027 Light Socket Only - 720-A,B,C
99770028 Night Light Socket Only - 720-A,B,C
99770086 Light Socket Assembly - 720-D - Includes
Both Light & Night Light Sockets
97017066
Fan Assembly - 720-A,B,C - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
97015192 Fan Assembly - 720-D - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
97009752 Motor - 720-A,B,C
99080517 Motor - 720-D
97009755 Blower Wheel - 720-A,B,C
99020276 Blower Wheel - 720-D
99100399 Rubber Motor Spacers - 720-A,B,C - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light & Night Light -
720-A,B,C - 2 Required
99770085 4-Pin Receptacle for Light & Night Light -
720-D
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
721
(Discontinued 2007)
--NOTE-- Revision D introduced silver galvanized housing
& 4-pin plug connector for the light sockets in 01/2000
97008606 Grille Assembly - 721-A,B,C - Includes
Round Wood Grille Pan, Light Socket, &
Night Light Socket
97015177 Grille Assembly - 721-D - Includes Round
Wood Grille Pan, Light Socket, & Night
Light Socket
99150538 Grille Mounting Screw - 721-A,B,C - #8-18
x 2” - 2 Required
99420470 Grille Mounting Plastic Nut - 721-A,B,C - 2
Required
97005316 Grille Mounting Acorn Nut - 721-D - #10-24
99150583 Grille Mounting Screw / Stud - 721-D - #10-
24 x 1-1/4”
99250399 Grille Mounting Washer - 721-D
97008781 Light Lens - Includes Glass Lens, Brass
Retaining Ring & Spring Clips
99390052 Brass Retaining Ring for Light Lens
99140155 Spring Clips for Light Lens - 2 Required
99770027 Light Socket Only - 721-A,B,C
99770028 Night Light Socket Only - 721-A,B,C
99770086 Light Socket Assembly - 721-D - Includes
Both Light & Night Light Sockets
97017066 Fan Assembly - 721-A,B,C - Includes Mo-
tor, Blower Wheel, & Motor Mounting
Bracket
97015192 Fan Assembly - 721-D - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
97009752 Motor - 721-A,B,C
99080517 Motor - 721-D
97009755 Blower Wheel - 721-A,B,C
99020276 Blower Wheel - 721-D
99100399 Rubber Motor Spacers - 721-A,B,C - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light & Night Light -
721-A,B,C - 2 Required
99770085 4-Pin Receptacle for Light & Night Light -
721-D
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
722
(Discontinued 2005)
--NOTE-- Revision D introduced silver galvanized housing
& 4-pin plug connector for the light sockets in 01/2000
97008607 Grille Assembly - 722-A,B,C - Includes
Octagon Wood Grille Pan, Light Socket, &
Night Light Socket
97015178 Grille Assembly - 722-D - Includes Octagon
Wood Grille Pan, Light Socket, & Night
Light Socket
99150538 Grille Mounting Screw - 722-A,B,C - #8-18
x 2” - 2 Required
99420470 Grille Mounting Plastic Nut - 722-A,B,C - 2
Required
97005316 Grille Mounting Acorn Nut - 722-D - #10-24
99150583 Grille Mounting Screw / Stud - 722-D - #10-
24 x 1-1/4”
99250399 Grille Mounting Washer - 722-D
97008781 Light Lens - Includes Glass Lens, Brass
Retaining Ring, & Spring Clips
99390052 Brass Retaining Ring for Light Lens
99140155 Spring Clips for Light Lens - 2 Required
99770027 Light Socket Only - 722-A,B,C
99770028 Night Light Socket Only - 722-A,B,C
99770086 Light Socket Assembly - 722-D - Includes
Both Light & Night Light Sockets
97017066 Fan Assembly - 722-A,B,C - Includes Mo-
tor, Blower Wheel, & Motor Mounting
Bracket
97015192 Fan Assembly - 722-D - Includes Motor,
Blower Wheel, & Motor Mounting Bracket
97009752 Motor - 722-A,B,C
99080517 Motor - 722-D
97009755 Blower Wheel - 722-A,B,C
99020276 Blower Wheel - 722-D
99100399 Rubber Motor Spacers - 722-A,B,C - 2 Re-
quired
99260425 Motor Mounting Nut - #8-32 - 2 Required
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light & Night Light -
722-A,B,C - 2 Required
99770085 4-Pin Receptacle for Light & Night Light -
722-D
98003036 Housing Mounting Bracket - 4 Required
97014185 Damper / Duct Connector - 4” Round
Index
60
730, N730
(Discontinued 2005)
see note Grille *
06184-03 Grille Spring - 2 Required
99010211 Honeycomb Assembly
06151-00 Light Lens - Glass - 2 Required
02153-05 Light Socket - 2 Required
n.l.a. Night Light Socket - 730-A,B, N730-A,B
99770075 Night Light Socket - 730-C, N730-C
25341-00 Light Reflector - 2 Required
02200-59 Fan Motor
06226-00 Fan Blower Wheel - Plastic
25075-00 Fan Motor Mounting Bracket & Plate
75038-03 Heater Assembly - Includes Motor, Blower
Wheel, Element, Thermal Protector &
Scroll Housing
02200-60 Heater Motor
06228-00 Heater Blower Wheel - Metal
75619-02 Heater Element
02178-00 Thermal Protector - Heater
A97014916 Wire Panel Cover & Harness Assembly - In-
cludes All Receptacles & Both Thermostats
- 730-C
02142-00 White Receptacle for Light - 730-A,B,
N730-A,B
97014243 White Receptacle for Light - 730-C, N730-C
02124-04 Black Receptacle for Fan
02124-03 Red Receptacle for Heater
99271168 Thermostat for Fan
99271169 Thermostat for Light
20050-10 Wire Panel Cover Only - 730-A,B, N730-A,B
98009110 Wire Panel Cover Only - 730-C, N730-C
97009651 Housing
98003036 Mounting Bracket for Housing - 4 Required
98007763 Slide Bracket - 2 Required
25064-00 Outlet Box
S77DW 4 Function Wall Switch - White
S77DV 4 Function Wall Switch - Ivory
97009595 Damper / Duct Connector - 4” Round
* Original Polished Chrome Grille no longer available. Cus-
tomer may use WHITE Grille p/n 98009307P as substitute.
Replacement Grille does NOT include Grille Springs, Light
Lenses, or Honeycomb Assembly.
732, N732
(N732 Discontinued 2005 & 732 in 2008)
98009307P Grille - Includes White Grille Plate Only
06184-03 Grille Spring - 2 Required
99010211 Honeycomb Assembly
97010944 Wood Trim for Grille - Includes Mounting
Kit
76105-00 Wood Trim Mounting Kit - Includes 4 Cor-
ner Clips & 8 Mounting Screws
06151-00 Light Lens - Glass - 2 Required
02153-05 Light Socket - 2 Required
99770075 Night Light Socket
25341-00 Light Reflector - 2 Required
02200-59 Fan Motor
06226-00 Fan Blower Wheel - Plastic
25075-00 Fan Motor Mounting Bracket & Plate
75038-03 Heater Assembly - Includes Motor, Blower
Wheel, Element, Thermal Protector, &
Scroll Housing
02200-60 Heater Motor
06228-00 Heater Blower Wheel - Metal
75619-02 Heater Element
02178-00 Thermal Protector - Heater
A97014916 Wire Panel Cover & Harness Assembly - In-
cludes All Receptacles & Both Thermostats
97014243 White Receptacle for Light
02124-04 Black Receptacle for Fan
02124-03 Red Receptacle for Heater
99271168 Thermostat for Fan
99271169 Thermostat for Light
98009110 Wire Panel Cover Only
97009651 Housing
98003036 Mounting Bracket for Housing - 4 Required
98007763 Slide Bracket - 2 Required
25064-00 Outlet Box
S77DW 4 Function Wall Switch - White
S77DV 4 Function Wall Switch - Ivory
97009595 Damper / Duct Connector - 4” Round
735, N735
(Discontinued 2005)
see note Grille *
06184-03 Grille Spring - 2 Required
76138-01 Honeycomb Assy
97010944 Wood Trim for Grille - Includes Mounting
Kit
76105-00 Wood Trim Mounting Kit - Includes 4 Cor-
ner Clips & 8 Mounting Screws
06151-00 Light Lens - Glass - 2 Required
02153-05 Light Socket - 2 Required
n.l.a. Night Light Socket - 735-A,B, N735-A,B
99770075 Night Light Socket - 735-C, N735-C
25341-00 Light Reflector - 2 Required
02200-59 Fan Motor
06226-00 Fan Blower Wheel - Plastic
25075-00 Fan Motor Mounting Bracket & Plate
75038-03 Heater Assembly - Includes Motor, Blower
Wheel, Element, Thermal Protector, &
Scroll Housing
02200-60 Heater Motor
06228-00 Heater Blower Wheel - Metal
75619-02 Heater Element
02178-00 Thermal Protector - Heater
A97014916 Wire Panel Cover & Harness Assembly - In-
cludes All Receptacles & Both Thermostats
- 735-C
02142-00 White Receptacle for Lights - 735-A,B,
N735-A,B
97014243
White Receptacle for Lights - 735-C, N735-C
02124-04 Black Receptacle for Fan
02124-03 Red Receptacle for Heater
99271168 Thermostat for Fan
99271169 Thermostat for Light
20050-10 Wire Panel Cover Only - 735-A,B, N735-A,B
98009110 Wire Panel Cover Only - 735-C, N735-C
97009651 Housing
98003036 Mounting Bracket for Housing - 4 Required
98007763 Slide Bracket - 2 Required
25064-00 Outlet Box
S77DW 4 Function Wall Switch - White
S77DV 4 Function Wall Switch - Ivory
97009595 Damper / Duct Connector - 4” Round
* Original Polished Brass Grille no longer available. Cus-
tomer may use WHITE Grille p/n 98009307P as substitute.
Replacement Grille does NOT include Grille Springs, Light
Lenses, or Honeycomb Assembly.
740BR, 740WH
(Discontinued 2002)
--NOTE-- Revision A & B Models have a 3-Pin Molex Plug
for Light Sockets - Revision C & D Models have a standard
2 Prong Plug
99523567 Light Fixture Assembly - 740BR-A,B *
99523697 Light Fixture Assembly - 740BR-C,D *
99523566 Light Fixture Assembly - 740WH-A,B *
n.l.a. Light Fixture Assembly - 740WH-C,D *
see note Grille Pan **
97013917 Grille Pan Mounting Screws - 740BR-A,B -
Includes [2] #8-18 x 1-7/8” Brass Screws
n.l.a. Grille Pan Mounting Screws - 740WH-A,B -
Includes [2] #8-18 x 1-7/8” White Screws
99420470 Grille Pan Mounting Nut - 740BR-A,B,
740WH-A,B - 2 Required
99150618 Grille Pan Mounting Screw - 740BR-C,D
740WH-C,D - #10-24 x 1-3/4”
see note Glass Shade **
97015308 Shade Mounting Hardware - 740BR-C,D
- Includes Finial Nut, Finial Cap, Shade
Mounting Rod, & Washer
97015311 Shade Mounting Hardware - 740WH-C,D
- Includes Finial Nut, Finial Cap, Shade
Mounting Rod, & Washer
97013913 Finial Nut - 740BR
97013914 Finial Nut - 740WH
97013915 Finial Cap - 740BR
97013916 Finial Cap - 740WH
see note Shade Mounting Rod - 740BR-A,B,
740WH-A,B - 6-1/2” Long **
see note Shade Mounting Rod - 740BR-C,D,
740WH-C,D - 8-1/4” Long ***
99524076 Washer for Mounting Rod
see note Light Socket Assembly - 740BR-A,B,
740WH-A,B **
99523703 Light Socket Assembly - 740BR-C,D,
740WH-C,D
99523327 Ring Nut to Attach Sockets to Grille Pan - 4
Required
97006939 Fan Assembly - 740BR-A,B, 740WH-A,B
- Includes Motor, Blower Wheel, & Motor
Moutning Plate
97015312 Fan Assembly - 740BR-C,D 740WH-C,D
- Includes Motor, Blower Wheel, & Motor
Mounting Plate
99080166 Motor - 740BR-A,B 740WH-A,B
99080522 Motor - 740BR-C,D, 740WH-C,D
99110446 Blower Wheel
97006989 Motor Mounting Bracket & Plate - 740BR-
A,B, 740WH-A,B
99170245 Screw used to Attach Mounting Plate to
Housing - 740BR-A,B, 740WH-A,B - #18-
18 x 3/8”
97014926 Motor Mounting Bracket & Plate - 740BR-
C,D, 740WH-C,D
99260428 Nut used to Attach Motor to Mounting
Bracket - #6-32 - 2 Required
97013920 Receptacle with Thermostat for Light -
740BR-A,B, 740WH-A,B
99270981 Receptacle for Light - 740BR-C,D, 740WH-
C,D
n.l.a. Receptacle with Thermostat for Fan -
740BR-A,B, 740WH-A,B
99270982 Receptacle for Fan - 740BR-C,D, 740WH-
C,D
Index
61
97015171 Wire Panel Cover & Harness Assembly -
740BR-C,D, 740WH-C,D - Includes Recep-
tacles for Fan & Lights
98009612 Wire Panel Cover Only
98008868 Knock-Out Wiring Plate - 740BR-C,D,
740WH-C,D
99170245 Screw used to Attach Knock-Out Plate to
Housing - 740BR-C,D, 740WH-C,D - #8-18
x 3/8”
n.l.a.
Housing Assembly - 740BR-A,B, 740WH-A,B
97014922
Housing Assembly - 740BR-C,D, 740WH-C,D
97003932 Damper / Duct Connector - 740BR-A,B,
740WH-A,B - 4” Round
97014185 Damper / Duct Connector - 740BR-C,D,
740WH-C,D - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must order complete Light Fixture As-
sembly
*** Not available - Must order Shade Mounting Hardware
741BR, 741BRNT
(741BRNT Disontinued 2010)
--NOTE-- Revision A Models have a 3-Pin Molex Plug for
Light Sockets - Revision B Models have a standard 2 Prong
Plug
99523554 Light Fixture Assembly - 741BR-A,
741BRNT-A *
99523699 Light Fixture Assembly - 741BR-B,
741BRNT-B *
see note Grille Pan **
97013917 Grille Pan Mounting Screws - 741BR-A,
741BRNT-A - Includes [2] #8-18 x 1-7/8”
Screws
99420470 Grille Pan Mounting Nut - 741BR-A,
741BRNT-A - 2 Required
99150618 Grille Pan Mounting Screw - 741BR-B,
741BRNT-B - #10-24 x 1-3/4”
99523639 Glass Shade
99523628 Shade Mounting Rod - 741BR-A,
741BRNT-A - 5-1/16” Long
99523652 Shade Mounting Rod - 741BR-B,
741BRNT-B - 6-1/2” Long
97013913 Finial Nut - Bright Brass
97013915 Finial Cap - Bright Brass
see note Light Socket - 741BR-A, 741BRNT-A **
97015320 Light Socket - 741BR-B, 741BRNT-B - 2
Required
see note Fan Assembly - 741BR-A, 741BRNT-A -
Includes Motor, Blower Wheel, & Motor
Mounting Plate ***
97015312 Fan Assembly - 741BR-B, 741BRNT-B -
Includes Motor, Blower Wheel, & Motor
Mounting Plate
99080166 Motor - 741BR-A, 741BRNT-A
99080522 Motor - 741BR-B, 741BRNT-B
99110446 Blower Wheel
97006989 Motor Mounting Bracket & Plate - 741BR-
A, 741BRNT-A
97014926 Motor Mounting Bracket & Plate - 741BR-
B, 741BRNT-B
99260428 Motor Mounting Nut - #6-32 - 2 Required
see note Wire Harness for Light Sockets - 3 Pin -
741BR-A, 741BRNT-A **
97015313 Wire Harness for Light Sockets - 2 Prong
Plug - 741BR-B, 741BRNT-B
97015171 Wire Panel Cover & Harness Assembly
- 741BR-B, 741BRNT-B - Includes Recep-
tacles for Fan & Lights
99270982 Receptacle for Fan
97014844
Receptacle for Lights - 741BR-A, 741BRNT-A
99270981
Receptacle for Lights - 741BR-B, 741BRNT-B
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must order complete Light Fixture As-
sembly
*** No longer available - Must purchase Motor & Blower
Weel separately
741BRFL, 741BRFLNT
(Discontinued 2005)
--NOTE-- Revision A Models have a 3-Pin Molex Plug for
Light Sockets - Revision B Models have a standard 2 Prong
Plug
99523580 Light Fixture Assembly - 741BRFL-A,
741BRFLNT-A *
99523701 Light Fixture Assembly - 741BRFL-B,
741BRFLNT-B *
see note Grille Pan **
97013917 Grille Pan Mounting Screws - 741BRFL-A,
741BRFLNT-A - Includes [2] #8-18 x 1-7/8”
Screws
99420470 Grille Pan Mounting Nut - 741BRFL-A,
741BRFLNT-A - 2 Required
99150618 Grille Pan Mounting Screw - 741BRFL-B,
741BRFLNT-B - #10-24 x 1-3/4”
99523639 Glass Shade
99523628 Shade Mounting Rod - 741BRFL-A,
741BRFLNT-A - 5-1/16” Long
99523652 Shade Mounting Rod - 741BRFL-B,
741BRFLNT-B - 6-1/2” Long
97013913 Finial Nut - Bright Brass
97013915 Finial Cap - Bright Brass
97010729 Bulb - Fluorescent, 13 Watt
99523640 Light Socket - 2 Required
see note Fan Assembly - 741BRFL-A, 741BRFLNT-
A - Includes Motor, Blower Wheel, & Motor
Mounting Plate ***
97015312 Fan Assembly - 741BRFL-B, 741BRFLNT-
B - Includes Motor, Blower Wheel, & Motor
Mounting Plate
99080166 Motor - 741BRFL-A, 741BRFLNT-A
99080522 Motor - 741BRFL-B, 741BRFLNT-B
99110446 Blower Wheel
99260428 Motor Mounting Nut - #6-32 - 2 Required
97006989 Motor Mounting Bracket & Plate -
741BRFL-A, 741BRFLNT-A
97014926 Motor Mounting Bracket & Plate -
741BRFL-B, 741BRFLNT-B
97015321 Ballast Transformer - 2 Required
see note Wire Harness for Light Sockets - 3 Pin -
741BRFL-A, 741BRFLNT-A **
97015313 Wire Harness for Light Sockets - 2 Prong
Plug - 741BRFL-B, 741BRFLNT-B
97015171 Wire Panel Cover & Harness Assembly -
741BRFL-B, 741BRFLNT-B - Includes Re-
ceptacles for Fan & Lights
99270982 Receptacle for Fan
97014844 Receptacle for Lights - 741BRFL-A,
741BRFLNT-A
99270981 Receptacle for Lights - 741BRFL-B,
741BRFLNT-B
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must order complete Light Fixture As-
sembly
*** No longer available - Must purchase Motor & Blower
Weel separately
741SN, 741SNNT, N741SN
(Model N741SN Discontinued 09/2008 & 741SNNT in
2012)
99523770 Light Fixture Assembly *
see note Grille Pan **
99150618
Grille Pan Mounting Screw - #10-24 x 1-3/4”
99523639 Glass Shade
99523652 Shade Mounting Rod - 6-1/2” Long
97015574 Finial Nut - Satin Nickel
97015575 Finial Cap / Washer - Satin Nickel
97015320 Light Socket - 2 Required
97015312 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080522 Motor
99110446 Plastic Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260428 Motor Mounting Nut - #6-32 - 2 Required
97015313 Wire Harness for Light Sockets - 2 Prong
Plug
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
99270982 Receptacle for Fan
99270981 Receptacle for Lights
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must order complete Light Fixture As-
sembly
741WH, 741WHNT
(741WHNT Discontinued 2012)
--NOTE-- Revision A Models have a 3-Pin Molex Plug for
Light Sockets - Revision B Models have a standard 2 Prong
Plug
99523555 Light Fixture Assembly - 741WH-A,
741WHNT-A *
99523700 Light Fixture Assembly - 741WH-B,
741WHNT-B *
see note Grille Pan **
97013917 Grille Pan Mounting Screws - 741WH-A,
741WHNT-A - Includes [2] #8-18 x 1-7/8”
Screws
99420470 Grille Pan Mounting Nut - 741WH-A,
741WHNT-A - 2 Required
99150618 Grille Pan Mounting Screw - 741WH-B,
741WHNT-B - #10-24 x 1-3/4”
99523639 Glass Shade
99523628 Shade Mounting Rod - 741WH-A,
741WHNT-A - 5-1/16” Long
99523652 Shade Mounting Rod - 741WH-B,
741WHNT-B - 6-1/2” Long
97013914 Finial Nut - White
97013916 Finial Cap / Washer - White
see note Light Socket - 741WH-A, 741WHNT-A **
97015320 Light Socket - 741WH-B, 741WHNT-B - 2
Required
see note Fan Assembly - 741WH-A, 741WHNT-A
- Includes Motor, Blower Wheel, & Motor
Mounting Plate ***
Index
62
97015312 Fan Assembly - 741WH-B, 741WHNT-B
- Includes Motor, Blower Wheel, & Motor
Mounting Plate
99080166 Motor - 741WH-A, 741WHNT-A
99080522 Motor - 741WH-B, 741WHNT-B
99110446 Blower Wheel
99260428 Motor Mounting Nut - #6-32 - 2 Required
97006989 Motor Mounting Bracket & Plate - 741WH-
A, 741WHNT-A
97014926 Motor Mounting Bracket & Plate - 741WH-
B, 741WHNT-B
see note Wire Harness for Light Sockets - 3 Pin -
741WH-A, 741WHNT-A **
97015313 Wire Harness for Light Sockets - 2 Prong
Plug - 741WH-B, 741WHNT-B
97015171 Wire Panel Cover & Harness Assembly -
741WH-B, 741WHNT-B - Includes Recep-
tacles for Fan & Lights
99270982 Receptacle for Fan
97014844 Receptacle for Lights - 741WH-A,
741WHNT-A
99270981 Receptacle for Lights - 741WH-B,
741WHNT-B
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must order complete Light Fixture As-
sembly
*** No longer available - Must purchase Motor & Blower
Weel separately
741WHFL, 741WHFLNT
(741WHFL Discontinued 2005 & 741WHFLNT in 2012)
--NOTE-- Revision A Models have a 3-Pin Molex Plug for
Light Sockets - Revision B Models have a standard 2 Prong
Plug
99523581 Light Fixture Assembly - 741WHFL-A,
741WHFLNT-A *
99523702 Light Fixture Assembly - 741WHFL-B,
741WHFLNT-B *
see note Grille Pan **
97013917 Grille Pan Mounting Screws - 741WHFL-
A, 741WHFLNT-A - Includes [2] #8-18 x
1-7/8” Screws
99420470 Grille Pan Mounting Nut - 741WHFL-A,
741WHFLNT-A - 2 Required
99150618 Grille Pan Mounting Screw - 741WHFL-B,
741WHFLNT-B - #10-24 x 1-3/4”
99523639 Glass Shade
99523628 Shade Mounting Rod - 741WHFL-A,
741WHFLNT-A - 5-1/16” Long
99523652 Shade Mounting Rod - 741WHFL-B,
741WHFLNT-B - 6-1/2” Long
97013914 Finial Nut - White
97013916 Finial Cap / Washer - White
97010729 Bulb - Fluorescent, 13 Watt
99523640 Light Socket - 2 Required
see note Fan Assembly - 741WHFL-A, 741WHFLNT-
A - Includes Motor, Blower Wheel, & Motor
Mounting Plate ***
97015312 Fan Assembly - 741WHFL-B, 741WHFLNT-
B - Includes Motor, Blower Wheel, & Motor
Mounting Plate
99080166 Motor - 741WHFL-A, 741WHFLNT-A
99080522 Motor - 741WHFL-B, 741WHFLNT-B
99110446 Blower Wheel
99260428 Motor Mounting Nut - #6-32 - 2 Required
97006989 Motor Mounting Bracket & Plate - 741WH-
FL-A, 741WHFLNT-A
97014926 Motor Mounting Bracket & Plate - 741WH-
FL-B, 741WHFLNT-B
97015321 Ballast Transformer - 2 Required
see note Wire Harness for Light Sockets - 3 Pin -
741WHFL-A, 741WHFLNT-A **
97015313 Wire Harness for Light Sockets - 2 Prong
Plug - 741WHFL-B, 741WHFLNT-B
97015171 Wire Panel Cover & Harness Assembly -
741WHFL-B, 741WHFLNT-B - Includes
Receptacles for Fan & Lights
99270982 Receptacle for Fan
97014844 Receptacle for Lights - 741WHFL-A,
741WHFLNT-A
99270981 Receptacle for Lights - 741WHFL-B,
741WHFLNT-B
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must order complete Light Fixture As-
sembly
*** No longer available - Must purchase Motor & Blower
Weel separately
742RB, 742RBNT, 742SN,
742SNNT, 742WH, 742WHNT
(All Models EXCEPT 742RBNT Discontinued 05/2007)
99524948
Light Fixture Assembly - 742RB, 742RBNT *
99523770
Light Fixture Assembly - 742SN, 742SNNT *
99523700 Light Fixture Assembly - 742WH,
742WHNT *
see note Grille Pan **
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
99523639 Glass Shade
99523652 Shade Mounting Rod
99524076 Shade Mounting Washer
99524951 Finial Nut - 742RB, 742RBNNT - Oil Rubbed
Bronze
97015574 Finial Nut - 742SN, 742SNNT - Satin Nickel
97013914 Finial Nut - 742WH, 742WHNT - White
99524950 Finial Cap / Washer - 742RB, 742RBNT - Oil
Rubbed Bronze
97015575 Finial Cap / Washer - 742SN, 742SNNT -
Satin Nickel
97013916 Finial Cap / Washer - 742WH, 742WHNT -
White
97015320 Light Socket - 2 Required
97016381 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080559 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
99270981 White Receptacle for Lights
99270982 Black Receptacle for Fan
98009612 Wire Panel Cover Only
98008868 Knock Out Plate
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must order complete Light Fixture As-
sembly
745BNNT
97018629 Light Fixture Assembly *
97018732 Grille Pan Assembly - Includes Grille Pan &
Light Sockets
99150583 Grille Mounting Screw - #10-24 x 1-1/4”
99523639 Glass Shade
97018634 Shade Mounting Hardware - Includes Lock
Washer, Mounting Rod, 4 Washers, & Finial
Nut
97018731 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080669 Motor
99020300 Blower Wheel
97018311 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
99270981 White Receptacle for Lights
99270982 Black Receptacle for Fan
98009612 Wiring Panel Cover Only
97014922 Housing / Can
98008868 Knock-Out Plate
99170245 Screw used to Attach Knock-Out Plate to
Housing - #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
750, 750-R02, N750
(Model N750 Discontinued 11/2007)
To determine Revision level, check spec label on motor
mounting plate -R02 versions will have this
marked in upper right corner
97017702 Grille Assembly - Includes Grille, Light
Lens, & Grille Springs
99111406 Grille Only - 750-R02 - Does NOT Include
Lens or Springs
NT0444A000 Grille Spring - 2 Required
61753000 Light Lens - Glass
NT85974000 Reflector Assembly - Includes Reflector,
Light Socket, & Night Light Socket
85950000 Lamp Socket Assembly - Includes Both
Light & Night Light Sockets
101049000 Reflector Only
NT16133000 Reflector Mounting Wing Nut - 750, N750
99260575 Reflector Mounting Acorn Nut - 750-R02 -
1/4”-20
97017703 Fan Assembly - Includes Motor, Blower
Wheel & Motor Mounting Plate
see note Motor - 750, N750 *
97017709 Motor - 750-R02
5901A000 Blower Wheel - 750, N750
NT63007000 Blower Wheel Mounting Push Nut - 750,
N750
100603000 Blower Wheel - 750-R02
32787000 Motor Mounting Bracket & Plate
NT10034000 Black Receptacle for Fan - 750, N750
99270982 Black Receptacle for Fan - 750-R02
NT36892000 Whtie Receptacle for Lights
44388000 Housing Moutning Hanger Bar - 4 Required
101183000 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly - p/n 97017703
Index
63
751, 751-R02
To determine Revision level, check spec label on motor
mounting plate -R02 versions will have this marked in up-
per right corner
97017702 Grille Assembly - Includes Grille, Light
Lens, & Grille Springs
99111406 Grille Only - 751-R02 - Does NOT Include
Lens or Springs
57000000 Grille Spring - 2 Required
61753000 Light Lens - Glass
86000000 Reflector Assembly - Includes Reflector &
Light Socket
101049000 Reflector Only
85979000 Light Socket
NT16133000 Reflector Mounting Wing Nut - 751
99260575 Reflector Mounting Acorn Nut - 751-R02 -
1/4”-20
97017704 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
see note Motor - 751 *
97017709 Motor - 751-R02
5901A000 Blower Wheel - 751
NT63007000 Blower Wheel Mounting Push Nut - 751
100603000 Blower Wheel - 751-R02
32787000 Motor Mounting Bracket & Plate
NT10034000 Black Receptacle for Fan - 751
99270982 Black Receptacle for Fan - 751-R02
NT82304000 White Receptacle for Light - 751
99270981 White Receptacle for Light - 751-R02
44388000 Housing Mounting Hanger Bar - 4 Required
101183000 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly p/n 97017704
752
(Discontinued 08/2005)
97017702 Grille Assembly - Includes Grille, Light
Lens, & Grille Springs
57000000 Grille Spring - 2 Required
61753000 Light Lens - Glass
n.l.a. Bulb - Fluorescent, 26 Watt, Type CFQ26W/
G24D - Available Locally
SNT85976000 Light Socket Assembly - Includes Lamp-
holder, Ballast, & Wire Harness Plug
101049000 Light Reflector Only
SNT16133000 Reflector Mounting Wing Nut
97017706 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Bracket *
see note Motor *
SNT5901A000 Blower Wheel
SNT63007000 Blower Wheel Mounting Push Nut
32787000 Rubber Motor Isolation Mounts - 2 Re-
quired
SNT10034000 Black Receptacle for Fan
SNT36892000 White Receptacle for Light
NT32788000 Ground Clip
NT44388000 Housing Mounting Bars - 4 Required
NT101183000 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly - p/n 97017706
753SN, 753WH
(Discontinued 05/2007)
n.l.a. Light Fixture Assembly - 753SN *
99525325 Light Fixture Assembly - 753WH *
97016740 Grille Pan Assembly - 753SN - Includes
Satin Nickel Grille Pan & Light Socket
97016743 Grille Pan Assembly - 753WH - Includes
White Grille Pan & Light Socket
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
n.l.a. Glass Shade
97016741 Shade Mounting Hardware - 753SN - In-
cludes Shade Mounting Rod, Washer, Finial
Nut, & Finial Cap
97016744 Shade Mounting Hardware - 753WH - In-
cludes Shade Mounting Rod, Washer, Finial
Nut, & Finial Cap
see note Light Socket **
97015312 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080522 Motor
99110446 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260428 Motor Mounting Nut - #6-32 - 2 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Light
99270981 White Receptacle for Light
99270982 Black Receptacle for Fan
99150471 Ground Screw - #10-32 x 1/2”
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Socket
** Not available - Must purchase Grille Pan Assembly
754RB, 754RBNT, 754SN, 754SNNT
(Models 754RBNT & 754SNNT Discontinued 2012)
99525297
Light Fixture Assembly - 754RB, 754RBNT *
99525296
Light Fixture Assembly - 754SN, 754SNNT *
97016700 Grille Pan Assembly - 754RB, 754RBNT -
Includes Rubbed Bronze Grille Pan & Light
Sockets
97016703 Grille Pan Assembly - 754SN, 754SNNT
- Includes Satin Nickel Grille Pan & Light
Sockets
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
97016702 Glass Shade
97016701 Shade Mounting Hardware - 754RB,
754RBNT - Includes Shade Mounting Rod,
Washer, Finial Nut, & Finial Cap
97016704 Shade Mounting Hardware - 754SN,
754SNNT - Includes Shade Mounting Rod,
Washer, Finial Nut, & Finial Cap
see note Light Socket **
97015312 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080522 Motor
99110446 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260428 Motor Mounting Nut - #6-32 - 2 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270982 Black Receptacle for Fan
99270981 White Receptacle for Lights
99150471 Ground Screw - #10-32 x 1/2”
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Not available - Must purchase Grille Pan Assembly
755
(Discontinued 12/2007)
n.l.a. Light Fixture Assembly *
97016705 Grille Pan Assembly - Includes Decorative
Grille Pan & Light Sockets
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
n.l.a. Glass Shade
97016706 Shade Mounting Hardware - Includes
Shade Mounting Rod, Washer, Finial Nut, &
Finial Cap
see note Light Socket **
97015312 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080522 Motor
99110446 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260428 Motor Mounting Nut - #6-32 - 2 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
99150471 Ground Screw - #10-32 x 1/2”
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Must purchase Grille Pan Assembly - p/n 97016705
756
(Discontinued 12/2007)
99525299 Light Fixture Assembly *
97016708 Grille Pan Assembly - Includes Decorative
Grille Pan & Light Sockets
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
97016710 Glass Shade
97016709 Shade Mounting Hardware - Includes
Shade Mounting Rod, Washers, Finial Nut,
& Finial Cap
see note Light Socket **
97016671 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97016722 Motor
99020276 Blower Wheel
97016630 Motor Mouting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - 4 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270981 White Receptacle for Lights
99270982 Black Receptacle for Fan
99150471 Ground Screw - #10-32 x 1/2”
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Must purchase Grille Pan Assembly - p/n 97016708
Index
64
757PT, 757SN, 757SNNT
(Models 757PT & 757SNNT Discontinued in 12/2007)
99525300 Light Fixture Assembly - 757PT *
99525323
Light Fixture Assembly - 757SN, 757SNNT *
97016711 Grille Pan Assembly - 757PT - Includes
Pewter Grille Pan & Light Sockets
97016715 Grille Pan Assembly - 757SN, 757SNNT -
Includes Pewter Grille Pan & Light Sockets
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
97016714 Glass Shade
97016712 Shade Ring - 757PT
97016716 Shade Ring - 757SN, 757SNNT
97016713 Shade Mounting Hardware - 757PT **
97016717 Shade Mounting Hardware - 757SN,
757SNNT **
see note Light Socket ***
97016671 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97016722 Motor
99020276 Blower Wheel
97016630 Motor Mounting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99100491 Rubber Motor Isolator - 4 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270981 White Receptacle for Lights
99270982 Black Receptacle for Fan
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Shade Ring, Glass Shade, Shade Mounting
Hardware, Grille Pan, & Light Sockets
** Includes Shade Mounting Rod, Washer, & Shade Ring
Mounting Hardware
*** Must purchase Grille Pan Assembly
758, 758NT
(Discontinued 11/2008)
99525301 Light Fixture Assembly *
n.l.a. Grille Pan Assembly - Includes Decorative
Grille Pan & Light Sockets
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
97016720 Glass Shade
97016719 Shade Mounting Hardware - Includes
Shade Mounting Rod & Washer
n.l.a. Light Socket
97015312 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080522 Motor
99110446 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260428 Motor Mounting Nut - #8-32 - 2 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270982 Black Receptacle for Fan
99270981 White Receptacle for Fan
99150471 Ground Screw - #10-32 x 1/2”
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
761BN, 761RB, 761WHA
97018130 Light Fixture Assembly - 761BN *
97018131 Light Fixture Assembly - 761RB *
97018774 Light Fixture Assembly - 761WHA *
99391082 Grille Pan Assembly - 761BN - Includes
Brushed Nickel Grille Pan & Light Sockets
99391083 Grille Pan Assembly - 761RB - Includes Oil-
Rubbed Bronze Grille Pan & Light Sockets
99390200 Grille Pan Assembly - 761WHA - Includes
White Grille Pan & Light Sockets
99150583 Grille Mounting Screw - #10-24 x 1-1/4”
99527160 Glass Shade - 761BN - Opal Glass
99527165 Glass Shade - 761RB - Ivory Alabaster
99528286 Glass Shade - 761WHA - White Alabaster
97018142 Shade Mounting Hardware - Includes
Shade Mounting Rod & Washer
see note Light Socket **
97016671 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97016722 Motor
99020276 Blower Wheel
97016630 Motor Mounting Bracket & Plate
99260558 Motor Mounting Nut - #8-32 - 3 Required
99250959 Motor Mounting Washer - 3 Required
99100491 Rubber Motor Grommet - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Must purchase Grille Pan Assembly
761WHNT
(Discontinued 2012)
97017767 Light Fixture Assembly *
97017798 Grille Pan Assembly - Includes White Grille
Pan & Light Sockets
99150583 Grille Stud/Screw
99526708 Glass Shade
97017795 Shade Mounting Hardware - Includes
Shade Mounting Rod, Washer, Finial Nut, &
Finial Cap
see note Light Socket **
97015192 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080517 Motor
99020276 Blower Wheel
97014926 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 2 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cldues Receptacles for Fan & Lights
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Must purchase Grille Pan Assembly - p/n 97017798
764BN, 764RB, 764WH
97018133 Light Fixture Assembly - 764BN *
97018132 Light Fixture Assembly - 764RB *
97018136 Light Fixture Assembly - 764WH *
99391086 Grille Pan Assembly - 764BN - Includes
Brushed Nickel Grille Pan & Light Sockets
99391087 Grille Pan Assembly - 764RB - Includes Oil-
Rubbed Bronze Grille Pan & Light Sockets
99391088 Grille Pan Assembly - 764WH - Includes
White Grille Pan & Light Sockets
99150618 Grille Mounting Screw - #10-24 x 1-3/4”
99527180 Glass Shade - 764BN, 764WH - White Ala-
baster
99527181 Glass Shade - 764RB - Ivory Alabaster
97018137 Shade Mounting Hardware - 764BN - In-
cludes Shade Mounting Rod, Washer, Finial
Nut, & Finial Cap
97018140 Shade Mounting Hardware - 764RB - In-
cludes Shade Mounting Rod, Washer, Finial
Nut, & Finial Cap
97018141 Shade Mounting Hardware - 764WH - In-
cludes Shade Mounting Rod, Washer, Finial
Nut, & Finial Cap
see note Light Socket **
97016671 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97016722 Motor
99020276 Blower Wheel
97016630 Motor Mounting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 3 Required
99260558 Motor Mounting Nut - #8-32 - 3 Required
99100491 Rubber Motor Isolator - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Reptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270981 White Receptacle for Lights
99270982 Black Receptacle for Fan
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Must purchase Grille Pan Assembly
766BN, 766RB
97018134 Light Fixture Assembly - 766BN *
97018135 Light Fixture Assembly - 766RB *
99391084 Grille Pan Assembly - 766BN - Includes
Brushed Nickel Grille Pan & Light Sockets
99391085 Grille Pan Assembly - 766RB - Includes Oil-
Rubbed Bronze Grille Pan & Light Sockets
99150583 Grille Mounting Screw - #10-24 x 1-1/4”
99527172 Glass Shade - 766BN - White Alabaster
99527173 Glass Shade - 766RB - Ivory Alabaster
97018142 Shade Mounting Hardware - Includes
Shade Mounting Rod & Washer
see note Light Socket **
97016671 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97016722 Motor
99020276 Blower Wheel
97016630 Motor Mounting Bracket & Plate
99250959 Motor Mounting Washer - #8 - 3 Required
99260558 Motor Mounting Nut - #8-32 - 3 Required
99100491 Rubber Motor Isolator - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
Index
65
98009612 Wire Panel Cover Only
99270981 White Receptacle for Light
99270982 Black Receptacle for Fan
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Must purchase Grille Pan Assembly
768CHNT
(Discontinued 2012)
97017772 Light Fixture Assembly *
97017806 Grille Pan Assembly - Includes Chrome
Grille Pan & Light Sockets
99150583 Grille Mounting Screw - #10-24 x 1-1/4”
99526716 Glass Shade
97017794 Shade Mounting Hardware - Includes
Shade Mounting Rod, Washers, Finial Nuts,
& Finial Cap
see note Light Socket **
97016671 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
97016722 Motor
99020276 Blower Wheel
97016630 Motor Mounting Bracket & Plate
99260558 Motor Mounting Nut - #8-32 - 3 Required
99250959 Motor Mounting Washer - 3 Required
99100491 Rubber Motor Isolator - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270982 Black Receptacle for Fan
99270981 White Receptacle for Light
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, & Light Sockets
** Must purchase Grille Pan Assembly - p/n 97017806
772RBNT
97018630 Light Fixture Assembly *
97018733 Grille Pan Assembly - Includes Rubbed
Bronze Grille Pan, Light Sockets, & Bulbs
99150583 Grille Mounting Screw - #10-24 x 1-1/4”
99527648 Glass Shade
97018635 Shade Mounting Hardware - Shade Mount-
ing Rod, Washer, Finial Nut, & Finial Cap
99271452 Bulb - Fluorescent, 13 Watt, GU24 Type - 2
Required
see note Light Socket **
97018327 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080634 Motor
99020300 Blower Wheel
97018311 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wiring Panel Cover Only
99270981 White Receptacle for Light
99270982 Black Receptacle for Fan
97014922 Housing / Can
98008868 Knockout Plate
99170245 Knockout Plate to Housing - #8-18 x 3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, Light Sockets, & Bulbs
** Must purchase Grille Pan Assembly - p/n 97018733
773BNNT
97018631 Light Fixture Assembly *
97018734 Grille Pan Assembly - Includes Decorative
Grille Pan, Light Sockets, & Bulbs
99150583 Grille Mounting Screw - #10-24 x 1-1/4”
99527649 Glass Shade
97018636 Shade Mounting Hardware - Includes
Shade Mounting Rod, Washers, Final Nut,
& Finial Cap
99271452 Bulb - Fluorescent, 13 Watt, GU24 Type - 2
Required
see note Light Socket **
97018327 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080634 Motor
99020300 Blower Wheel
97018311 Motor Mounting Plate
99260425 Motor Mounting Nut - #8-32 - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wiring Panel Cover Only
99270981 White Receptacle for Light
99270982 Black Receptacle for Fan
97014922 Housing / Can
98008868 Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
99150471 Ground Screw - #10-32 x 1/2”
97014185 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, Light Sockets, & Bulbs
** Must purchase Grille Pan Assembly - p/n 97018734
778WH, 778WHNT
97018015 Light Fixture Assembly *
99390176 Grille Pan Assembly - Includes Grille Pan,
Light Sockets, & Bulbs
99150583 Grille Mounting Screw - #10-24 x 1-1/4”
99526716 Glass Shade
97018016 Shade Mounting Hardware - Includes
Shade Mounting Rod, Washers, Finial Nut,
& Finial Cap
99271452 Bulb - Fluorescent, 13 Watt, GU24 Base - 2
Required
see note Light Socket **
97018327 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080634 Motor
99020300 Blower Wheel
97018311 Motor Mounting Bracket & Plate
99260425 Motor Mounting Nut - #8-32 - 3 Required
97015171 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98009612 Wire Panel Cover Only
99270982 Black Receptacle for Fan
99270982 White Receptacle for Light
99150471 Ground Screw - #10-32 x 1/2”
98008868 Electrical Knockout Plate
99170245 Knockout Plate Mounting Screw - #8-18 x
3/8”
97003932 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, Light Sockets, & Bulbs
** Must purchase Grille Pan Assembly - p/n 99390176
781WHNT
97018716 Light Fixture Assembly *
97018751 Grille Pan Assembly - Includes Decorative
Grille Pan, Light Sockets, & Bulbs
97018781 Grille Mounting Bracket Assembly
99526708 Glass Shade
97018648
Shade Mounting Hardware - Includes Shade
Mounting Rod, Finial Nut, & Finial Cap
99271452 Bulb - Fluorescent, 13W, GU24 Type - 2
Required
97018749 Fan Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
see note Scroll Housing **
97018750 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
97018729 Housing Assembly
97018804 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, Light Sockets, & Bulbs
** Must purchase Fan Assembly - p/n 97018749
788CHNT
97018717 Light Fixture Assembly *
97018748 Grille Pan Assembly - Includes Grille Pan,
Light Sockets, & Bulbs
97018781 Grille Mounting Bracket Assembly
99526716 Glass Shade
97018649 Shade Mounting Hardware - Includes
Shade Mounting Rod, Washers, Finial Nut,
& Finial Cap
99271452 Bulb - Fluorescent, 13W, GU24 Type - 2
Required
97018749 Fan Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor **
see note Blower Wheel **
see note Scroll Housing **
97018750 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
97018729 Housing Assembly
97018804 Damper / Duct Connector - 4” Round
* Includes Glass Shade, Shade Mounting Hardware, Grille
Pan, Light Sockets, & Bulbs
** Must purchase Fan Assembly - p/n 97018749
791LED
97019316 Grille Assembly - Includes Light Lens, LED
Lights, & Grille Springs
79140014 Grille Spring - 2 Required
99111575 Light Lens
99271476 LED Driver Assembly
97018749 Fan Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor *
see note Blower Wheel
see note Scroll Housing
97018750 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Light
97019355 Housing
97018804 Damper / Duct Connector - 4” Round
Index
66
ACS120L, NS120L, S120L
(Discontinued)
97009887 Grille Assembly - Includes Grille & Night
Light Socket
99150542 Grille Mounting Screw - #6-20 x 2-7/8” - 2
Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
99770118 Light Socket
99770028 Night Light Socket
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, & Motor Mounting
Plate
99080274 Motor
99110735 Blower Wheel
97014513 Motor Mounting Bracket & Plate
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011270 Scroll Housing
97014515 Wire Cover Panel
97009287 Receptacle / Wire Harness for Fan
99270479 White Receptacle for Light
99271204 Gray Receptacle for Night Light
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97014185 Damper / Duct Connector - 4” Round
ACS130, NS130, S130
(Discontinued)
97009281 Grille Assembly - Includes Grille Springs -
11-1/2” x 11-1/2”
99140160 Grille Spring - 2 Required
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, & Motor Mounting
Plate
99080274 Motor
99110735 Blower Wheel
97014513 Motor Mounting Bracket & Plate
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011270 Scroll Housing
97014514 Wire Panel Cover
97009287 Receptacle / Wire Harness for Fan
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97003932 Damper / Duct Connector - 4” Round
ACS90, NS90, S90
(Discontinued)
97009281 Grille Assembly - Includes Grille Springs -
11-1/2” x 11-1/2”
99140160 Grille Spring - 2 Required
97009799 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, Motor Mounting
Plate, & Adapter Plug
97012025 Fan Motor Adapter Plug
99080273 Motor
99110735 Blower Wheel
97014513 Motor Mounting Bracket & Plate
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011270 Scroll Housing
97014514 Wire Panel Cover
97009287 Receptacle / Wire Harness for Fan
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97003932 4” Plastic Damper/Duct Connector
HS110LU
(Discontinued 12/2007)
97013566 Grille Assembly - Includes Grille, Light
Socket, Night Light Socket, & Socket Wir-
ing Harness
99150565 Grille Mounting Screw - 2 Required
99110736 Light Lens
see note Light Socket *
see note Night Light Socket *
97013570 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080450 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Rubber Grommets - 4 Required
97011834 Humidity Control Module
n.l.a. Wire Panel Cover & Harness Assembly - In-
cludes Thermostats & Receptacles for Fan
& Lights
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
* Must purchase Grille Assembly - p/n 97013566
HS110UE
(Discontinued 06/2007)
97013402 Grille Assembly - Includes Grille Springs
99140190 Grille Spring - 2 Required
97013571 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080455 Motor
99020269 Blower Wheel
99100483 Motor Rubber Grommets - 4 Required
97013401 Motor Mounting Bracket & Plate
97013804 Motor Capacitor
97011965 Humidity Control Module
n.l.a. Wire Panel Cover & Harness Assembly - In-
cldues Thermostats & Receptacle for Fan
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
HS120L
(Discontinued)
97011836 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150542 Grille Mounting Screw - #6-20 x 2-7/8” - 2
Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
97012134 Light Socket Assembly - Includes Both
Light & Night Light Sockets
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, & Motor Mounting
Plate
99080274 Motor - HS120L
see note Motor - HS120L-B *
99110735 Blower Wheel
97014513 Motor Mounting Bracket & Plate
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011270 Scroll Housing
97011834 Humidity Control Module
n.l.a. Wire Panel Cover & Harness Assembly - In-
cludes Thermostats & Receptacles for Fan
& Lights
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97014185 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly - p/n 97009800
HS130
(Discontinued 2007)
97009281 Grille Assembly - Includes Grille Springs -
11-1/2” x 11-1/2”
99140160 Grille Spring - 2 Required
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, & Motor Mounting
Plate
99080274 Motor - HS130
see note Motor - HS130-B *
99110735 Blower Wheel
97014513 Motor Mounting Bracket & Plate
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011270 Scroll Housing
n.l.a. Humidity Control Assy - HS130
97011965 Humidity Control Assy - HS130-B
n.l.a. Wire Cover Panel & Harness Assembly - In-
cludes Thermostats & Receptacle for Fan
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97003932 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly - p/n 97009800
HS90
(Discontinued 2007)
97009281 Grille Assembly - Includes Grille Springs -
11-1/2” x 11-1/2”
99140160 Grille Spring - 2 Required
97009799 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, Motor Mounting
Plate, & Adapter Plug
97012025 Fan Motor Adapter Plug
99080273 Motor - HS90
97012136 Motor - HS90-B
99110735 Blower Wheel
98007290 Motor Mounting Bracket & Plate
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011270 Scroll Housing
97011965 Humidity Control Assy
n.l.a. Wire Cover Panel & Harness Assembly - In-
cludes Thermostats & Receptacle for Fan
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97003932 Damper / Duct Connector - 4” Round
MHS120L
(Discontinued)
97011909 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150542 Grille Mounting Screw - #6-20 x 2-7/8” - 2
Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
Index
67
99078495 Lens Mask for Motion Sensing Viewing
Area Adjustment
97012135 Light Socket Assembly - Includes Both
Light & Night Light Sockets
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, Motor Mounting
Plate, & Adapter Plug
97012025 Fan Motor Adapter Plug
99080274 Motor - MHS120L
see note Motor - MHS120L-B *
99110735 Blower Wheel
98007290 Motor Mounting Bracket & Plate
97011270 Scroll Housing
95000963 Motor Cup
99100412 Motor Mounting Rubber - 2 Required
97011835 Humidity Control Module
97011164 Motion Control Module
97011912 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97014185 Damper / Duct Connector - 4” Round
* Must purchase Fan Assembly - p/n 97009800
MS120L
(Discontinued)
97011129 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150542 Grille Mounting Screw - #6-20 x 2-7/8” - 2
Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
99078495 Lens Mask for Motion Sensing Viewing
Area Adjustment
97012134 Light Socket Assembly - Includes Both
Light & Night Light Sockets
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, Motor Mounting
Plate, & Adapter Plug
97012025 Fan Motor Adapter Plug
99080274 Motor
99110735 Blower Wheel
98007290 Motor Mounting Bracket & Plate
97011270 Scroll Housing
95000963 Motor Cup
99100412 Motor Mounting Rubber - 2 Required
97011127 Motion Control Module
97011131 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97014185 Damper / Duct Connector - 4” Round
MS130
(Discontinued)
97011128 Grille Assembly - Includes Grille Springs -
11-1/2” x 11-1/2”
99140160 Grille Spring - 2 Required
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, Motor Mounting
Plate, & Adapter Plug
97012025 Fan Motor Adapter Plug
99080274 Motor
99110735 Blower Wheel
98007290 Motor Mounting Bracket & Plate
97011270 Scroll Housing
95000963 Motor Cup
99100412 Motor Mounting Rubber - 2 Required
97011127 Motion Control Module
97011130 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97003932 Damper / Duct Connector - 4” Round
MS90
(Discontinued)
97011128 Grille Assembly - Includes Grille Springs -
11-1/2 x 11-1/2”
99140160 Grille Spring - 2 Required
97009799 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, Motor Mounting
Plate, & Adapter Plug
97012025 Fan Motor Adapter Plug
99080273 Motor
99110735 Blower Wheel
98007290 Motor Mounting Bracket & Plate
97011270 Scroll Housing
95000963 Motor Cup
99100412 Motor Mounting Rubber - 2 Required
97011127 Motion Control Module
97011130 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97003932 Damper / Duct Connector - 4” Round
S110FLUE
(Discontinued)
97010732 Grille Assembly - S110FLUE-A - Includes
Grille, Light Socket, & Night Light Socket
97016319 Grille Assembly - S110FLUE-B - Includes
Grille, Light Socket, & Night Light Socket
99150565 Grille Mounting Screw - 2 Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
97010730 Bulb - S110FLUE-A - Fluorescent, 18 Watt
99271311 Bulb - S110FLUE-B - Fluorescent, 26 Watt
see note Light Socket *
see note Night Light Socket *
97013571 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080455 Motor
99020269 Blower Wheel
97013415 Motor Mounting Bracket & Plate
99100483 Motor Rubber Grommets - 3 Required
99260567 Motor Mounting Nut - #8-32 - 3 Required
97013804 Motor Capacitor
97013563 Ballast - S110FLUE-A
97016320 Ballast - S110FLUE-B
97013568 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
* Must purchase Grille Assembly
S110LU
(Discontinued)
97013566 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150565 Grille Mounting Screw - 2 Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
see note Light Socket *
see note Night Light Socket *
97013570 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080450 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Rubber Grommets - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013567 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
* Must purchase Grille Assembly - p/n 97013566
S110U
(Discontinued)
97013402 Grille Assembly - Includes Grille Springs
99140190 Grille Spring - 2 Required
97013570 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080450 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Rubber Grommets - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013561 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
S110UE
(Discontinued)
97013402 Grille Assembly With Springs
99140190 Grille Spring - 2 Required
97013571 Fan Assembly - Includes Motor, Blower
Wheel, Motor Mounting Plate, & Capacitor
99080455 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Rubber Grommets - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013804 Motor Capacitor
97013561 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
S120FL
(Discontinued 2007)
97010732 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150542 Grille Mounting Screw - #6-20 x 2-7/8” - 2
Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
97010730 Bulb - Fluorescent, 18 Watt
99770040 Light Socket
99770028 Night Light Socket
Index
68
97009800 Fan Assembly - Includes Motor, Blower
Wheel, Scroll Housing, Motor Mounting
Plate, & Adapter Plug
97012025 Fan Motor Adapter Plug
99080274 Motor
99110735 Blower Wheel
98007290 Motor Mounting Bracket & Plate
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
99270961 Ballast
97014516 Wire Cover Panel
97009287 Receptacle for Fan
97010640 Receptacle for Light
99271204 Receptacle for Night Light
97009275 Housing
98003036 Housing Mounting Bracket - 4 Required
99390015 Ground Clip
97003932 Damper / Duct Connector - 4” Round
S150
(Discontinued)
97013402 Grille Assembly - Includes Grille Springs
99140190 Grille Spring - 2 Required
97014833 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080474 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Mounting Rubber - 3 Required
99250254 Motor Mounting Washer - #8 - 3 Required
99260425 Motor Mounting Nut - #8-32 - 3 Required
97013561 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98003036 Housing Mounting Bracket - 4 Required
97013349 Damper / Duct Connector - 4” Round
S150L
(Discontinued)
97013566 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150565 Grille Mounting Screw - 2 Required
99420631 White Plastic Grille Nut - 2 Required
99110736 Light Lens
see note Light Socket *
see note Night Light Socket *
97014833 Complete Blower Assembly
99080474 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Mounting Rubber - 3 Required
99250254 Motor Mounting Washer - #8 - 3 Required
99260425 Motor Mounting Nut - #8-32 - 3 Required
97013567 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98003036 Housing Mounting Bracket - 4 Required
97013349 Damper / Duct Connector - 4” Round
* Must purchase Grille Assembly - p/n 97013566
S50U
(Discontinued)
97013402 Grille Assembly - Includes Grille Springs
99140190 Grille Spring - 2 Required
97013562 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080446 Motor
99020270 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Mounting Rubber - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013561 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
S50UE
(Discontinued)
97013402 Grille Assembly - Includes Grille Springs
99140190 Grille Spring - 2 Required
97016318 Fan Assembly - Includes Motor, Blower
Wheel, Motor Mounting Plate, & Capacitor
99080550 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Mounting Rubber - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013804 Motor Capacitor
97013561 Wire Cover Panel & Harness Assembly - In-
cludes Receptacle for Fan
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
S80FLUE
(Discontinued)
97016319 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150565 Grille Mounting Screw - 2 Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
99271311 Bulb - Fluorescent, 26 Watt
see note Light Socket *
see note Night Light Socket *
97016321 Fan Assembly - Includes Motor, Blower
Wheel, Motor Mounting Plate, & Capacitor
99080454 Motor
99020269 Blower Wheel
97013415 Motor Mounting Bracket & Plate
99100483 Motor Mounting Rubber - 3 Required
99260567 Motor Mounting Nut - #8-32 - 3 Required
97013804 Motor Capacitor
97016320 Ballast
97013568 Wire Cover Panel & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
* Must purchase Grille Assembly - p/n 97016319
S80LU
(Discontinued)
97013566 Grille Assembly - Includes Grille, Light
Socket, & Night Light Socket
99150565 Grille Mounting Screw - 2 Required
99420631 Grille Mounting Plastic Nut - 2 Required
99110736 Light Lens
see note Light Socket *
see note Night Light Socket *
97013569 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080448 Motor
99020270 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Rubber Grommets - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013567 Wire Panel Cover & Harness Assembly - In-
cludes Receptacles for Fan & Lights
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
* Must purchase Grille Assembly - p/n 97013566
S80U
(Discontinued 11/2007)
97013402 Grille Assembly - Includes Grille Springs
99140190 Grille Spring - 2 Required
97013569 Fan Assembly - Includes Motor, Blower
Wheel, & Motor Mounting Plate
99080448 Motor
99020270 Blower Wheel
99100483 Motor Rubber Grommets - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013561 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
S80UE
(Discontinued)
97013402 Grille Assembly - Includes Grille Springs
99140190 Grille Spring - 2 Required
97013564 Fan Assembly - Includes Motor, Blower
Wheel, Motor Mounting Plate, & Capacitor
99080454 Motor
99020269 Blower Wheel
97013401 Motor Mounting Bracket & Plate
99100483 Motor Rubber Grommets - 4 Required
99260567 Motor Mounting Nut - #8-32 - 4 Required
97013804 Motor Capacitor
97013561 Wire Panel Cover & Harness Assembly - In-
cludes Receptacle for Fan
98003036 Housing Mounting Brackets - 4 Required
97013349 Damper / Duct Connector - 4” Round
11, 11C
(Discontinued 1983)
n.l.a. Grille
99160231 Grille Mounting Screw - #10-24 x 1”
99080006 Motor
n.l.a. Fan Blade
97000073 Gearbox Assembly - Includes Gearbox &
Gearbox Motor
97000018 Gearbox Only
97008639 Gearbox Motor Only
97000015 Gear Box Chain - Inlcudes Cotter Pin &
Hook
99140102 Door Spring
12C, 12CMG
(Model 12CMG Discontinued 2003)
--NOTE-- Revision B introduced new Grille design in 1994 -
Revision D production began in 06/2001
99010271 Aluminum Grease Filter *
97014186 Grille Coversion Kit - 12C-A **
97011851 Grille Assembly - 12C-B,C,D - 13-1/2” x 13-
1/2” - Includes Grille Knob
97013825 Metal Grille Assembly - White - 12CMG -
13-1/2” x 13-1/2” - Includes Grille Knob
99160323 Grille Mounting Screw - 12C-A - #10-12 x
1” - 2 Required
99420579 Grille Mounting Stud / Screw - 12C-B,C,D,
12MG
Index
69
97011918 Grille Mounting Knob - 12C-B,C,D, 12CMG
99080181 Fan Motor
99020166 Fan Blade 12C-A,B
99020271 Fan Blade 12C-C,D, 12CMG
98006066 Motor Mounting Bracket
99260425 Motor Mounting Nut - #8-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
97000073 Gearbox Assembly - 12C, 12C-A,B,C,
12CMG-A - Includes Gearbox & Gearbox
Motor
97015620 Gearbox Assembly - 12C-D, 12MG-B - In-
cludes Gearbox & Gearbox Motor
97000018 Gearbox Only
97008639 Gearbox Motor Only - 12C, 12C-A,B,C,
12CMG-A
99080538 Gearbox Motor Only - 12C-D, 12CMG-B
99160380 Gearbox Motor Mounting Screw - #10-24 x
7/8” - 3 Required
99270982 Receptacle for Fan & Gear Motor - 2 Re-
quired
97007004 Door
98006073 Hinge Pin for Door
99420478 Push nut for Hinge Pin - 2 Required
99140102 Spring for Door - 2 Required
97000015 Chain - Includes Cotter Pin & Hook
97015619 Inner Housing
97007100 Outter Housing
98006051 Wire Panel Cover / Outlet Box
* Optional - not included with Fan
** Includes Grille, Motor Mounting Bracket, Grille Mount-
ing Screw & Knob to convert Grille from old 2 Screw Mount
to new Center Mount Design
461
(Discontinued 1983)
n.l.a. Grille
99080056 Motor
n.l.a. Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
465
(Discontinued 1983)
97013825 Metal Grille Coversion Kit - 13-1/2” x 13-
1/2” *
99080155 Motor
97000893 Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
* Includes White Metal Grille, Motor Mounting Bracket,
Grille Mounting Screw & Knob to convert Grille from old 2
Screw Mount to new Center Mount Design
466
(Discontinued 1983)
n.l.a. Grille
99080154 Motor
n.l.a. Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
471
(Discontinued 1983)
99010046 Aluminum Grease Filter
n.l.a. Grille
99080056 Motor
n.l.a. Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
475
(Discontinued 1981)
99010042 Aluminum Grease Filter
97013825 Metal Grille Coversion Kit - 13-1/2” x 13-
1/2” *
99080155 Motor
97000893 Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
n.l.a. Damper Rod Clip
n.l.a. Damper Rubber
99140101 Damper Spring
* Includes White Metal Grille, Motor Mounting Bracket,
Grille Mounting Screw & Knob to convert Grille from old 2
Screw Mount to new Center Mount Design
476
(Discontinued 1978)
99010042 Aluminum Grease Filter
97013825 Metal Grille Coversion Kit - 13-1/2” x 13-
1/2” *
99080155 Motor
97000893 Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
n.l.a Damper Rod Clip
* Includes White Metal Grille, Motor Mounting Bracket,
Grille Mounting Screw & Knob to convert Grille from old 2
Screw Mount to new Center Mount Design
477
(Discontinued 1983)
97013825 Metal Grille Coversion Kit - 13-1/2” x 13-
1/2” *
n.l.a. Motor
n.l.a. Fan Blade
99270748 Receptacle for Fan
99140101 Damper Spring
* Includes White Metal Grille, Motor Mounting Bracket,
Grille Mounting Screw & Knob to convert Grille from old 2
Screw Mount to new Center Mount Design
478
(Discontinued 1980)
n.l.a Grille
99080154 Motor
n.l.a Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
n.l.a Damper Rod Clip
n.l.a Damper Rubber
99140101 Damper Spring
479
(Discontinued 1980)
n.l.a Grille
99080154 Motor
n.l.a Fan Blade
99260051 Rubber Well Nut - 3 Required
99270748 Receptacle for Fan
481
(Discontinued 1983)
n.l.a. Grille
n.l.a. Motor
n.l.a. Fan Blade
99030157 Fan Switch
99390035 Switch Trigger
99450101 Pull Chain
99270748 Receptacle for Fan
486
(Discontinued 1983)
n.l.a. Grille
n.l.a. Motor
97000917 Fan Blade
99030157 Fan Switch
99390035 Switch Trigger
99450101 Pull Chain
99270748 Receptacle for Fan
491
(Discontinued 1983)
99010046 Aluminum Grease Filter
97013826 Metal Grille Coversion Kit *
n.l.a. Motor
n.l.a. Fan Blade
99270748 Receptacle for Fan
* Includes White Metal Grille, Motor Mounting Bracket,
Grille Mounting Screw & Knob to convert Grille from old 2
Screw Mount to new Center Mount Design
496
(Discontinued 1983)
99010042 Aluminum Grease Filter
97013825
Metal Grille Coversion Kit - 13-1/2” x 13-1/2” *
n.l.a. Motor
97000917 Fan Blade
99270748 Receptacle for Fan
* Includes White Metal Grille, Motor Mounting Bracket,
Grille Mounting Screw & Knob to convert Grille from old 2
Screw Mount to new Center Mount Design
497
(Discontinued 1983)
99010042 Aluminum Grease Filter
n.l.a Grille
99380005 Grille Mounting Screw
99080062 Motor
n.l.a Fan Blade
99270748 Receptacle for Fan
497S
(Discontinued 1983)
n.l.a Grille
99380005 Grille Mounting Screw
99080062 Motor
n.l.a Fan Blade
99270748 Receptacle for Fan
499
(Discontinued 1983)
99010042 Aluminum Grease Filter
n.l.a Grille
99380005 Grille Mounting Screw
99080062 Motor
n.l.a Fan Blade
99270748 Receptacle for Fan
Index
70
499S
(Discontinued 1983)
n.l.a Grille
99380005 Grille Mounting Screw
99080062 Motor
n.l.a Fan Blade
99270748 Receptacle for Fan
502, 502MG
(Model 502MG Discontinued)
--NOTE-- Revision B introduced new Grille design in 1994
97014186 Grille Coversion Kit - 502-A *
97011851 Grille Assembly - 502-B,C - 13-1/2” x 13-
1/2” - Includes Grille Knob
97013825 Metal Grille Assembly - White - 502MG -
13-1/2” x 13-1/2” - Includes Grille Knob
97011918 Grille Mounting Knob - 502-B,C, 502MG
99160323 Grille Mounting Screw - 502-A - #10-12 x
1” - 2 Required
99420578 Grille Mounting Stud / Screw - 502-B,C,
502MG - 1/4”-20 x 3/4”
98008494 Grille Mounting Stud Bracket - 502-B,C,
502MG
99260434 Grille Mounting Stud Sheet Metal Nut -
502-B,C, 502MG - 1/4”-20, U-Type
99080596 Motor
99020166 Fan Blade - 502-A,B
99020271 Fan Blade - 502-C, 502MG
98006066 Motor Mounting Bracket
99260425 Motor Mounting Nut - #8-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
98005500 Damper Flap
98000977 Damper Rod
99100379 Damper Rod Bushing - 2 Required
98000985 Outlet Box Cover
98003054 Housing Mounting Bracket - Short - 2 Re-
quired
98003036 Housing Mounting Bracket - Long - 2 Re-
quired
97011882 Parts Bag
* Includes Grille, Motor Mounting Bracket, Grille Mounting
Screw & Knob to convert Grille from old 2 Screw Mount to
new Center Mount Design
503, 503MG
(Model 503MG Discontinued)
--NOTE-- Revision B introduced new Grille design in 1994
97013622 Grille - 503-A - 2 Screw Mount
97011919 Grille Assembly - 503-B,C - 11-1/2” x 11-
1/2” - Includes Grille Knob
97013826 Metal Grille Assembly - White - 503MG -
11-1/2” x 11-1/2” - Includes Grille Knob
97011918 Center Mounting Knob - 503-B,C, 503MG
99160323 Grille Mounting Screw - 503-A - #10-12 x
1” - 2 Required
99420584 Grille Mounting Stud / Screw - 503-B,C,
503MG
98007819 Grille Mounting Stud Bracket - 503-B,C,
503MG
99260434 Grille Mounting Stud Sheet Metal Nut -
503-B,C, 503MG - 1/4”-20, U-Type
99080355 Motor
99020165 Fan Blade
98007820 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
98005500 Damper Flap
98000977 Damper Rod
99100379 Damper Rod Bushing
98000985 Outlet Box Cover
97010378 Housing
98003054 Housing Mounting Bracket - Short
98003036 Housing Mounting Bracket - Long
97011732 Parts Bag
504, 504MG
(Model 504MG Discontinued)
--NOTE-- Revision B introduced new Grille design in 1994
99010271 Aluminum Grease Filter - 504-B,C, 504MG
- 10-1/2” Diameter *
97014186 Grille Coversion Kit - 504-A **
97011851 Grille Assembly - 504-B,C - 13-1/2” x 13-
1/2” - Includes Grille Knob
97013825 Metal Grille Assembly - White - 504MG -
13-1/2” x 13-1/2” - Includes Grille Knob
99160322 Grille Mounting Screw - 504-A - #10-12 x
3-3/8” - 2 Required
99420580 Grille Mounting Stud / Screw - 504-B,C,
504MG - 1/4”-20 x 2-3/8”
97011918 Grille Mounting Knob - 504-B,C, 504MG
98008494 Grille Mounting Stud Bracket - 504-B,C,
504MG
99260434 Grille Mounting Stud Sheet Metal Nut -
504-B,C, 504MG - 1/4”-20, U-Type
99080596 Motor
99020166 Fan Blade - 504-A,B
99020271 Fan Blade - 504-C, 504MG
98006066 Motor Mounting Bracket
99260425 Motor Mounting Nut - #8-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
98006046 Outlet Box
98006047 Outlet Box Cover
97007080 Housing
98003036 Housing Mounting Bracket - 4 Required
97011883 Parts Bag
* Optional, not included with Fan
** Includes Grille, Motor Mounting Bracket, Grille Mount-
ing Screw & Knob to convert Grille from old 2 Screw Mount
to new Center Mount Design
505, 505MG
(Model 505MG Discontinued)
--NOTE-- Revision B introduced new Grille design in 1994
97008730 Aluminum Grease Filter - 505-A - 7-1/2”
Diameter - 2 Screw Mount *
99010042 Aluminum Grease Filter -505-B, 505MG-A
- 9-1/2” Diameter - Center Mount *
97011789 Grille Coversion Kit - 505-A **
97011919 Grille Assembly - 505-B - 11-1/2” x 11-1/2”
- Includes Grille Knob
97013826 Metal Grille Assembly - White - 505MG -
11-1/2” x 11-1/2” - Includes Grille Knob
99160322 Grille Mounting Screw - 505-A - #10-12 x
3-3/8” - 2 Required
99420585 Grille Mounting Stud / Screw - 505-B,
505MG
97011918 Grille Mounting Knob - 505-B, 505MG
98008494 Grille Mounting Stud Bracket - 505-B,
505MG
99260434 Grille Mounting Stud Sheet Metal Bracket -
505-B, 505MG - 1/4”-20, U-Type
99080176 Motor
99020165 Fan Blade
98007820 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
98006062 Damper Flap - 2 Required
97014771 Damper Rod
99100379 Damper Rod Bushing - 2 Required
99100380 Damper Bumper - 2 Required
98006046 Outlet Box
98006047 Outlet Box Cover
97007077 Housing
98003036 Housing Mounting Bracket - 4 Required
97011733 Parts Bag
* Optional - not included with Fan
** Includes Grille, Motor Mounting Bracket, Grille Mount-
ing Screw & Knob to convert Grille from old 2 Screw Mount
to new Center Mount Design
506, 506MG
(Model 506MG Discontinued)
--NOTE-- Revision C introduced new Grille design in 1994
see note Grille Coversion Kit - 506-A,B *
97011851 Grille Assembly - 506-C,D - 13-1/2” x 13-
1/2” - Includes Grille Knob
97013825 Metal Grille Assembly - White - 506MG -
13-1/2” x 13-1/2” - Includes Grille Knob
99160322 Grille Mounting Screw - 506-A,B - #10-12 x
3-3/8” - 2 Required
99420580 Grille Mounting Stud / Screw - 506-C,D,
506MG - 1/4”-20 x 2-3/8”
97011918 Grille Mounting Knob - 506-C,D, 506MG
98008494 Grille Mounting Stud Bracket - 506-C,D,
506MG
99420479 Grille Mounting Stud Sheet Metal Nut -
506-C,D, 506MG - 1/4”-20, U-Type
99080596 Motor
99020166 Fan Blade - 506-A,B,C
99020271 Fan Blade - 506-D, 506MG
98006066 Motor Mounting Bracket
99260425 Motor Mounting Nut - #8-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99450101 Chain - 30” Long
99110563 Pendant
98006761 Chain Guard for Grille - 506-A,B
98007825 Chain Guard for Grille - 506-C,D
98008925 Chain Guard for Grille - 506MG
98006059 Chain Lock - 506-A,B - For Old 2 Screw
Mount Grilles
99270748 Receptacle for Fan
99030157 Switch
99390035 Switch Trigger
97007002 Door
99140147 Door Spring
98006067 Door Arm
99410005 Cotter Pin - 2 Required
98006073 Door Hinge Rod
99420478 Push Nut - 2 Required
Index
71
98006046 Outlet Box
98007823 Outlet Box Cover
97007095 Outer Housing
97013673 Inner Housing
97011884 Parts Bag
* Original 2 Screw Mount Grille no longer available. Must
purchase Grille Conversion Kit - p/n 97014186 - & new
Inner Housing - p/n 97013673 - to convert Grille to new
Center Mount design. Conversion Kit Includes Grille, Motor
Mounting Bracket, Grille Stud / Screw, & Grille Knob
507, 507MG
(Model 507MG Discontinued)
--NOTE-- Revision B introduced new Grille design in 1994
see note Grille Coversion Kit - 507-A,B *
97011919 Grille Assembly - 507-C - 11-1/2” x 11-1/2”
- Includes Grille Knob
97013826 Metal Grille Assembly - White - 507MG -
11-1/2” x 11-1/2” - Includes Grille Knob
99160322 Grille Mounting Screw - 507-A,B - #10-12 x
3-3/8” - 2 Required
99420585 Grille Mounting Stud / Screw - 507-C,
507MG
97011918 Grille Mounting Knob - 507-C, 507MG
98007819 Grille Mounting Stud Bracket - 507-C,
507MG
99420479 Grille Mounting Stud Sheet Metal Nut -
507-C, 507MG - 1/4”-20, U-Type
99080176 Motor
99020165 Fan Blade
98007820 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99450101 Chain - 30” Long
99110563 Pendant
98006761 Chain Guard for Grille - 507-A,B
98007825 Chain Guard for Grille - 507-C
98008925 Chain Guard for Grille - 507MG
98006059 Chain Lock - 507-A,B - For Old 2 Screw
Mount Grilles
99270748 Receptacle for Fan
99030157 Switch
99390035 Switch Trigger
97007003 Door
99140147 Door Spring
98006067 Door Arm
99410005 Cotter Pin - 2 Required
98006073 Door Hinge Rod
99420478 Push Nut - 2 Required
98006046 Outlet Box
98007823 Outlet Box Cover
97007091 Outer Housing
97010379 Inner Housing
97011734 Parts Bag
* Original 2 Screw Mount Grille no longer available. Must
purchase Grille Conversion Kit - p/n 97011791 - & new
Inner Housing - p/n 97010379 - to convert Grille to new
Center Mount design. Conversion Kit Includes Grille, Motor
Mounting Bracket, Grille Stud / Screw, & Grille Knob
508, 508MG
(Model 508MG Discontinued)
--NOTE-- Revision C introduced new Grille design in 1994
99010271 Aluminum Grease Filter - 508-C,D, 508MG
- 10-1/2” Diameter *
97014186 Grille Coversion Kit - 508-A,B **
97011851 Grille Assembly - 508-C,D - 13-1/2” x 13-
1/2” - Includes Grille Knob
97013825 Metal Grille Assembly - White - 508MG -
13-1/2” x 13-1/2” - Includes Grille Knob
99160322 Grille Mounting Screw - 508-A,B - #10-12 x
3-3/8” - 2 Required
99420612 Grille Mounting Stud / Screw - 508-C,D,
508MG - 1/4”-20 x 3-5/8”
97011918 Grille Mounting Knob - 508-C,D, 508MG
98008494 Grille Mounting Stud Bracket - 508-C,D,
508MG
99260434 Grille Mounting Stud Sheet Metal Nut -
508-C,D, 508MG - 1/4”-20, U-Type
99080596 Motor
99020166 Fan Blade - 508-A,B,C
99020271 Fan Blade - 508-D, 508MG
98006066 Motor Mounting Bracket
99260425 Motor Mounting Nut - #8-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
97011241 Outer Housing Assembly - Includes Wall
Cap & Damper Assembly
98006086 Damper Flap
98006048 Damper Rod
99100379 Damper Rod Retainer - 508-B
99140145 Damper Spring
99100489 Long Foam Strip on Damper Flap - 11-1/2”
x 1/4”
99100490 Short Foam Strip on Damper Flap - 3” x
1/4” - 2 Required
98006046 Outlet Box
98006047 Outlet Box Cover
99170245 Outlet Box Cover Mounting Screw - #8 x
3/8” - 2 Required
97013672 Inner Housing
97013685 Parts Bag
* Optional - not included with Fan
** Includes Grille, Motor Mounting Bracket, Grille Mount-
ing Screw & Knob to convert Grille from old 2 Screw Mount
to new Center Mount Design
509, 509MG
(Model 509MG Discontinued)
--NOTE-- Revision C introduced new Grille design in 1994
97008730 Aluminum Grease Filter - 509-A,B - 7-1/2”
Diameter *
99010042 Aluminum Grease Filter - 509-C, 509MG -
9-1/2” Diameter *
97011789 Grille Coversion Kit - 509-A,B **
97011919 Grille Assembly - 509-C - 11-1/2” x 11-1/2”
- Includes Grille Knob
97013826 Metal Grille Assembly - White - 509MG -
11-1/2” x 11-1/2” - Includes Grille Knob
99160322 Grille Mounting Screw - 509-A,B - #10-12 x
3-3/8” - 2 Required
99420586 Grille Mounting Stud / Screw - 509-C,
509MG - 1/4”-20 x 2-9/16”
97011918 Grille Mounting Knob - 509-C, 509MG
98007819 Grille Mounting Stud Bracket - 509-C,
509MG
99260434 Grille Mounting Stud Sheet Metal Nut -
509-C, 509MG - 1/4”-20, U-Type
99080180 Motor
99020165 Fan Blade
98007820 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 x 5/16” - 2
Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
97011240 Outer Housing Assembly - Includes Wall
Cap & Damper Assembly
98006086 Damper Flap
98006048 Damper Rod
99100379 Damper Rod Retainer - 509-B
99140145 Damper Spring
99100489 Long Foam Strip on Damper Flap - 11-1/2”
x 1/4”
99100490 Short Foam Strip on Damper Flap - 3” x
1/4” - 2 Required
98006046 Outlet Box
98006047 Outlet Box Cover
99170245 Outlet Box Cover Mounting Screw - #8 x
3/8” - 2 Required
97007085 Inner Housing
97011735 Parts Bag
* Optional - not included with Fan
** Includes Grille, Motor Mounting Bracket, Grille Mount-
ing Screw & Knob to convert Grille from old 2 Screw Mount
to new Center Mount Design
509S, 509SMG
(Model 509SMG Discontinued)
--NOTE-- Revision C introduced new Grille design in 1994
97008730 Aluminum Filter - 509S-A,B - 7-1/2” Diam-
eter *
99010042 Aluminum Filter - 509S-C, 509SMG -
9-1/2” Diameter *
97011790 Grille Coversion Kit - 509S-A,B **
97011727 Grille Assembly - 509S-C - 11-1/2” x 11-
1/2” - Includes Grille Knob
98008923 Metal Grille Assembly - White - 509SMG -
11-1/2” x 11-1/2” - Includes Grille Knob
99160322 Grille Mounting Screw - 509S-A,B - #10-12
x 3-3/8” - 2 Required
99420586 Grille Mounting Stud / Screw - 509S-C,
509SMG - 1/4”-20 x 2-9/16”
97011918 Grille Mounting Knob - 509S-C, 509SMG
98007819 Grille Mounting Stud Bracket - 509S-C,
509SMG
99260434 Grille Mounting Stud Sheet Metal Nut -
509S-C, 509SMG - 1/4”-20, U-Type
97005328 Rotary Switch - Includes Locking Nut
99360116 Knob for Rotary Switch - 509S-A,B - Stem
is 2” Long
99360218 Knob for Rotary Switch, 509S-C - Stem is
1-3/32” Long
99360230 Knob for Rotary Switch - 509SMG - Stem
is 1-3/4” Long
99080180 Motor
99020165 Fan Blade
98007820 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 x 5/16” - 2
Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
Index
72
97011240 Outer Housing Assembly - Includes Wall
Cap & Damper Assembly
98006086 Damper Flap
98006048 Damper Rod
99100379 Damper Rod Retainer - 509S-B
99140145 Damper Spring
99100489 Long Foam Strip on Damper Flap - 11-1/2”
x 1/4”
99100490 Short Foam Strip on Damper Flap - 3” x
1/4” - 2 Required
98006046 Outlet Box
98006047 Outlet Box Cover
99170245 Outlet Box Cover Mounting Screw - #8 x
3/8” - 2 Required
97007085 Inner Housing
97011729 Parts Bag
* Optional - not included with Fan
** Includes Grille, Motor Mounting Bracket, Grille Mount-
ing Screw & Knob to convert Grille from old 2 Screw Mount
to new Center Mount Design
510, 510MG
(Model 510MG Discontinued)
99010271 Aluminum Grease Filter *
97015045 Grille with Hole for Switch Side - Coversion
Kit - 510-A **
97014186 Grille without Hole for Non-Switch Side -
Coversion Kit - 510-A ***
97011852 Grille Assembly with Hole for Switch Side -
510-B,C - Includes Grille Knob
97011851 Grille Assembly without Hole for Non-
Switch Side - 510-B,C - Includes Grille
Knob
98008924 Metal Grille Assembly with Hole for Switch
Side - White - 510MG - Includes Grille Knob
97013825 Metal Grille Assembly without Hole for
Non-Switch Side - White - 510MG - In-
cludes Grille Knob
99160322 Grille Mounting Screw - 510-A - #10-12 x
3-3/8” - 2 Required
99160323 Grille Mounting Screw - 510-A - #10-12 x
1” - 2 Required
99420579 Grille Mounting Stud / Screw - 510-B,C,
510MG
97011918 Grille Mounting Knob, 510-B,C, 510MG
99260434 Grille Mounting Stud Sheet Metal Nut -
510-B,C, 510MG - #10-20, U-Type
99030132 Fan Speed Switch
99360218 Knob for Fan Switch - 510 - Stem is 1-3/32”
Long
99360230 Knob for Fan Switch - 510MG - Stem is
1-3/4” Long
99080596 Motor
99020166 Fan Blade - 510-A,B
99020271 Fan Blade - 510-C, 510MG
98006066 Motor Mounting Bracket
99260425 Motor Mounting Nut - #8-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
98006081 Outlet Box Cover
97011886 Parts Bag
* Optional - not included with Fan
** Includes Grille with Hole for Switch side, Motor Mount-
ing Bracket, Grille Mounting Screw & Knob to convert Grille
from old 2 Screw Mount to new Center Mount Design
*** Includes Grille without Hole for Non-Switch side, Motor
Mounting Bracket, Grille Mounting Screw & Knob to con-
vert Grille from old 2 Screw Mount to new Center Mount
Design
511, 511MG
(Model 511MG Discontinued)
99010271 Aluminum Grease Filter *
97015045 Grille with Hole for Switch Side - Coversion
Kit - 511-A **
97014186 Grille without Hole for Non-Switch Side -
Coversion Kit - 511-A ***
97011852 Grille Assembly with Hole for Switch Side -
511-B - Includes Grille Knob
97011851 Grille Assembly without Hole for Non-
Switch Side - 511-B - Includes Grille Knob
98008924 Metal Grille Assembly with Hole for Switch
Side - White - 511MG - Includes Grille Knob
97013825 Metal Grille Assembly without Hole for
Non-Switch Side - White - 511MG - In-
cludes Grille Knob
99160322 Grille Mounting Screw - 511-A - #10-12 x
3-3/8” - 2 Required
99160323 Grille Mounting Screw - 511-A - #10-12 x
1” - 2 Required
99420579 Grille Mounting Stud / Screw - 511-B,
511MG
97011918 Grille Mounting Knob - 511-B, 511MG
99260434 Grille Mounting Stud Sheet Metal Nut -
#10-12, U-Type
99030132 Fan Speed Switch
99360218 Knob for Fan Switch - 511 - Stem is 1-3/32”
Long
99360230 Knob for Fan Switch - 511MG - Stem is
1-3/4’ Long
99080175 Motor
99020165 Fan Blade
98007820 Motor Mounting Bracket
99260428 Motor Mounting Nut - #8-32 - 2 Required
99150479 Motor Bracket Mounting Screw - #8-32 x
1/2” - 2 Required
99270748 Receptacle for Fan
98006081 Outlet Box Cover
97011886 Parts Bag
* Optional - not included with Fan
** Includes Grille with Hole for Switch side, Motor Mount-
ing Bracket, Grille Mounting Screw & Knob to convert Grille
from old 2 Screw Mount to new Center Mount Design
*** Includes Grille without Hole for Non-Switch side, Motor
Mounting Bracket, Grille Mounting Screw & Knob to con-
vert Grille from old 2 Screw Mount to new Center Mount
Design
512
99110454 Grille - 8” Diameter - 2 Required
99080199 Motor
99020125 Fan Blade
97016802 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 - 2 Required
99170245 Motor Bracket Mounting Screw - #8 x 3/8”
- 2 Required
99270748 Receptacle for Fan
n.l.a. Housing
99420497 Housing Mounting Bracket - 2 Required
98005329 Outlet Box
98004932 Outlet Box Cover
512M
99110454 Grille - 8” Diameter
99080199 Motor
99020125 Fan Blade
97016802 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 - 2 Required
99170245 Motor Bracket Mounting Screw - #8 x 3/8”
- 2 Required
99270748 Receptacle for Fan
98005329 Outlet Box
98004932 Outlet Box Cover
99610012 Adjustable Duct - 6” Round
97011740 Wall Cap - White, Plastic, Louverd
672
(Discontinued 1977)
97007965 Grille *
99380017 Grille Mounting Screw
n.l.a. Motor
97000646 Fan Blade
99270748 Receptacle
* Original Metal Grille is no longer available, replacement is
a White Plastic Grille
673, N673
(Model N673 Discontinued)
99110454 Grille - 8” Diameter
99080199 Motor
99020125 Fan Blade
97016802 Motor Mounting Bracket
99260428 Motor Mounting Nut - #6-32 - 2 Required
99170245 Motor Bracket Mounting Screw - #8 x 3/8”
- 2 Required
99270748 Receptacle for Fan
97005321 Housing
98005329 Outlet Box
98004932 Outlet Box Cover
98004934 Damper Flap - 2 Required
98004935 Damper Rod
99100405 Damper Pad - 2 Required
99100379 Damper Bushing - 2 Required
300, 301
(Discontinued 1980)
99010032 Aluminum Grease Filter - 300
n.l.a. Grille
99380005 Grille Mounting Screw - 2 Required
99080009 Motor
99020003 Wheel - CW
99020004 Wheel - CCW
99100301 Rubber Motor Mount 2 Required
n.l.a. Scroll Housing
99270748 Receptacle for Fan
312, 319
(Discontinued 1980)
99010032 Aluminum Grease Filter
n.l.a. Grille
99380005 Grille Mounting Screw - 2 Required
97007387 Motor
99020010 Wheel - CW
99020011 Wheel - CCW
n.l.a. Scroll Housing
99270748 Receptacle for Fan
Index
73
313
(Discontinued 1980)
n.l.a. Grille
99380005 Grille Mounting Screw - 2 Required
97007387 Motor
99020010 Wheel - CW
99020011 Wheel - CCW
n.l.a. Scroll Housing
99270748 Receptacle for Fan
314, 314MG
(Discontinued 1999)
99110507 Plastic Grille - 314 - 12-1/8” x 15-1/2”
n.l.a. Metal Grille - 314MG
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99420470 White Plastic Grille Mounting Nut - 2 Re-
quired
see note Blower Assembly *
see note Motor **
99020014 Blower Wheel - CW
99020015 Blower Wheel - CCW
97007315 Blower Housing
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Mounting Cup
99260477 Blower Mounting Nut - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97005544 Damper / Duct Connector - 3-1/4” x 10”
* Original Blower Assembly no longer available - Customer
may substitute Blower Assembly p/n 97006023 - Please
NOTE: new Motor will be louder (3.9 sones) & more pow-
erful (200 cfm)
** Original Motor no longer available - Customer may sub-
stitute Motor p/n 99080151 - Please NOTE Motor will be
louder (3.9 sones) & more powerful (200 cfm)
315, 317
(Discontinued 1980)
97011324 Metal Grille - White - 10-1/4” X 10-1/4”
99380004 Grille Mounting Screw - #10-24 x 1”
97008342 Motor
99020015 Blower Wheel
99270748 Receptacle for Fan
360, 360MG
(Discontinued 1999)
99110506 Plastic Grille - 360 - 12-1/8” x 12-1/4”
98005876 Metal Grille - White - 360MG - 11-7/8” x 11-
7/8”
99150472 Grille Mounting Screw - 2 Required - #8-18
x 1-1/4”
99420470 White Plastic Grille Mounting Nut - 2 Re-
quired
97008579 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
97008583 Motor
99020014 Blower Wheel
97011269 Blower Scroll Housing
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Mounting Cup
99260477 Blower Mounting Nut - 2 Required - 1/4”-
20
98001187 Scroll Venturi Ring
97006039 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97005544 Damper / Duct Connecotr - 3-1/4” x 10”
361, 361MG
(Discontinued 1999)
99110506 Plastic Grille - 361 - 12-1/8” x 12-1/4”
98005876 Metal Grille - White - 361MG - 11-7/8” x 11-
7/8”
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99420470 White Plastic Grille Mounting Nut - 2 Re-
quired
97008580 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
97008584 Motor
99020014 Blower Wheel
97011269 Blower Scroll Housing
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Mounting Cup
99260477 Blower Mounting Nut - 2 Required
98001187 Scroll Venturi Ring
97006039 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97005544 Damper / Duct Connector - 3-1/4” x 10”
362, 362MG
(Discontinued 1999)
99110507 Plastic Grille - 362 - 12-1/8” x 15-1/2”
n.l.a. Metal Grille - White - 362MG
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99420470 White Plastic Grille Mounting Nut - 2 Re-
quired
97006023 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080151 Motor
99020014 Blower Wheel - CW
99020015 Blower Wheel - CCW
97007315 Blower Scroll Housing
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Mounting Cup - 2 Required
99260477 Blower Mounting Nut - 2 Required
98006714 Scroll Venturi Ring - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97005544 Damper / Duct Connector - 3-1/4” x 10”
363, 363MG
(Discontinued 1999)
99110507 Plastic Grille - 363 - 12-1/8” x 15-1/2”
n.l.a. Metal Grille - White - 363MG
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99420470 White Plastic Grille Mounting Nut - 2 Re-
quired
97006024 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
99080152 Motor
99020014 Blower Wheel - CW
99020015 Blower Wheel - CCW
97007315 Scroll Housing
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Mounting Cup - 2 Required
99260477 Blower Mounting Nut - 2 Required
98006714 Scroll Venturi Ring - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97005544 Damper / Duct Connector - 3-1/4” x 10”
365
(Discontinued 1999)
97009892 Grille - 15-5/8” x 17”
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 4
Required
99420470 White Plastic Grille Mounting Nut - 4 Re-
quired
97007072 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
see note Motor - 365-A *
99080178 Motor - 365-B
97011423 Blower Wheel
97007073 Blower Scroll Housing - 365-B
99100411 Motor Mounting Rubber - 365-A
99100484 Motor Mounting Rubber - 365-B - 3 Re-
quired
98005212 Motor Mounting Cup - 365-A
98005410 Blower Venturi Ring - 365-B
98005405 Blower Mounting Bracket
99260477 Blower Mounting Nut
97006081 Wiring Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97006062 Housing Mounting Bracket - 2 Required
n.l.a. Damper / Duct Connector - 7” Round
* Must purchase Blower Assembly - p/n 97007072
366
(Discontinued 1999)
98005532 Grille - 17” x 23-1/8”
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 4
Required
99420470 White Plastic Grille Mounting Nut - 4 Re-
quired
n.l.a. Motor
99020145 Blower Wheel - CW
97011423 Blower Wheel - CCW
98005410 Scroll Venturi Ring - 2 Required
97006032 Blower Mounting Bracket
n.l.a. Scroll Housing
97006142 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97006062 Housing Mounting Bracket - 2 Required
97006045 Damper / Duct Connector - 6” x 18”
367, L2000L
(Model 367 Discontinued 1999)
SG102 Optional Grille Assembly - Includes Grille,
Moutning Screws, & Mounting Nuts *
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 8
Required *
99420470 White Plastic Grille Mounting Nut - 8 Re-
quired *
99080194 Motor
99020172 Blower Wheel - CW
99020173 Blower Wheel - CCW
98006475 Scroll Venturi Ring - 4 Required
97007452 Left Hand Scroll Housing
Index
74
97007453 Right Hand Scroll Housing
98006381 Motor Mounting Platform
97007450 Blower Platform
99500335 Bottom Panel Insulation - 2 Required
99500333 Back Panel Insulation
99500334 End Panel Insulation - 2 Required
98006699 Access Panel
99500336 Access Panel Insulation
99270656 Receptacle for Fan
99270659 Outlet Box
99270658 Outlet Box Cover
98006364 Short Duct Inlet Flange - 2 Required
98006363 Long Duct Inlet Flange - 2 Required
SD100 Damper Kit - Includes Damper Flaps, Flap
Magnets, Rods, & Bushings *
99100379 Damper Bushing - 4 Required *
98006479 Damper Flap - 2 Required *
98006481 Damper Rod - 2 Required *
99760002 Damper Flap Magnet - 2 Required *
97007448 Parts Bag - Includes [4] 5/16”-18 x 1/2”
Screws & [4] 5/16”-18 Nuts
* Optional - not originally included with Unit
368, L3500EXL
(Model 368 Discontinued 1999)
SG103 Optional Grille Assembly - Includes Grille,
Mounting Screws, & Mounting Nuts *
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 8
Required *
99420470 White Plastic Grille Mounting Nut - 8 Re-
quired *
99080195 Motor
99020174 Blower Wheel - CW
99020175 Blower Wheel - CCW
98006476 Scroll Venturi Ring - 4 Required
97007454 Left Hand Scroll Housing
97007455 Right Hand Scroll Housing
98006382 Motor Mounting Platform
97007451 Blower Platform
99500339 Bottom Panel Insulation - 2 Required
99500337 Back Panel Insulation
99500338 End Panel Insulation - 2 Required
98006700 Access Panel
99500340 Access Panel Insulation
99270657 Receptacle for Fan
99270659 Outlet Box
99270658 Outlet Box Cover
98006376 Short Duct Inlet Flange - 2 Required
98006375 Long Duct Inlet Flange - 2 Required
SD101 Damper Kit - Includes Damper Flaps, Flap
Magnets, Rods, & Bushings *
99100379 Damper Bushing - 4 Required *
98006480 Damper Flap - 2 Required *
98006482 Damper Rod - 2 Required *
99760002 Damper Flap Magnet - 2 Required *
97007448 Parts Bag - Includes [4] 5/16”-18 x 1/2”
Screws & [4] 5/16”-18 Nuts
* Optional - not originally included with Unit
375
(Discontinued 1999)
97009892 Grille - 15-5/8” x 17”
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 4
Required
99420470 White Plastic Grille Mounting Nut - 4 Re-
quired
97009891 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
97009889 Motor
97009890 Blower Wheel
99100484 Motor Mounting Rubber - 3 Required
n.l.a. Scroll Housing
98005410 Scroll Venturi Ring
98005405 Blower Mounting Channel
97009943 Capacitor
97006081 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97006062 Housing Mounting Bracket - 2 Required
n.l.a. Damper / Duct Connector - 7” Round
383, 383MG
(Discontinued 1999)
97008729 Aluminum Grease Filter - 10-1/2” x 14” *
99110507 Plastic Grille - 383 - 12-1/8” x 15-1/2”
n.l.a. Metal Grille - White - 383MG
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99420470 White Plastic Grille Mounting Nut - 2 Re-
quired
97006024 Blower Assembly - Includes Motor , Blower
Wheels, & Scroll Housing
99080152 Motor
99020014 Blower Wheel - CW
99020015 Blower Wheel - CCW
97007315 Blower Scroll Housing
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Mounting Cup
98006714 Blower Venturi Ring - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Outlet Box Cover
98005512 Wiring Adapter Plate
97005544 Damper / Duct Connector - 3-1/4” x 10”
L100, L100C, L100EX, L100L,
L100MG
(Models L100C & L100EX Discontinued)
99110807 Plastic Grille - L100, L100C, L100EX - 14” x
14”
98009416 Metal Grille - White - L100MG - 14” x 14”
98009417 Access Panel - L100L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 2 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 2 Required
97014800 Blower Assembly - L100, L100L, L100MG
- Includes Motor, Blower Wheel, & Scroll
Housing
n.l.a. Blower Assembly - L100C, L100EX - In-
cludes Motor, Blower Wheel, & Scroll
Housing
99080481 Motor - L100, L100L, L100MG
n.l.a. Motor - L100C, L100EX
99110805 Blower Wheel
97014774 Scroll Housing
99100491 Motor Mounting Grommet - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99250959 Motor Mounting Washer - 4 Required
99500390 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wire Box Cover
97014728 Housing Mounting Bracket - 2 Required
99390098 Intake Connector Collar - L100L - 6” Round
97014760 Damper / Duct Connector - 6” Round
L150, L150C, L150EX, L150L,
L150MG
(Models L150C & L150EX Discontinued)
99110807 Plastic Grille - L150, L150C, L150EX - 14” x
14”
98009416 Metal Grille - White - L150MG - 14” x 14”
98009417 Access Panel - L150L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 2 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 2 Required
97014801 Blower Assembly - L150, L150L, L150MG
- Includes Motor, Blower Wheel, & Scroll
Housing
n.l.a. Blower Assembly - L150C, L150EX - In-
cludes Motor, Blower Wheel, & Scroll
Housing
99080482 Motor - L150, L150L, L150MG
n.l.a. Motor - L150C, L150EX
99110805 Blower Wheel
97014774 Scroll Housing
99100491 Motor Mounting Grommet - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99250959 Motor Mounting Washer - 4 Required
99500390 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wire Box Cover
97014728 Housing Mounting Bracket - 2 Required
99390098 Intake Connector Collar - L150L - 6” Round
97014760 Damper / Duct Connector - 6” Round
L1500, L1500C, L1500EX, L1500L
(Models L1500C & L1500EX Discontinued)
98009522 Grille - L1500, L1500C, L1500EX - 19-7/8”
x 23-7/8”
98009532 Access Panel - L1500L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 4 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 4 Required
97014849
Blower Assemlby - L1500, L1500L - Includes
Motor, Blower Wheel, & Scroll Housing
n.l.a.
Blower Assembly - L1500C, L1500EX - In-
cludes Motor, Blower Wheel, & Scroll Housing
99080491 Motor - L1500, L1500L
n.l.a. Motor - L1500C, L1500EX
99020274 Blower Wheel
99680019 Blower Wheel Clamp
97014785 Scroll Housing
98009514 Scroll Inlet Ring
97014788 Motor Bracket
98009516 Support Bracket
98009513 Scroll Support Channel
99500394 Front Insulation
99500393 Base Insulation
99500395 Back Insulation
97006142 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014853 Damper Flap
98009520 Duct Connector - 8” x 12”
Index
75
L200, L200C, L200EX, L200L,
L200MG
(Models L200C & L200EX Discontinued)
99110807 Plastic Grille - L200, L200C, L200EX - 14” x
14”
98009416 Metal Grille - White - L200MG - 14” x 14”
98009417 Access Panel - L200L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 2 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 2 Required
97014802 Blower Assembly - L200, L200L, L200MG
- Includes Motor, Blower Wheel, & Scroll
Housing
n.l.a. Blower Assembly - L200C, L200EX - In-
cludes Motor, Blower Wheel, & Scroll
Housing
99080483 Motor - L200, L200L, L200MG
n.l.a. Motor - L200C, L200EX
99110805 Blower Wheel
97014774 Scroll Housing
99100491 Motor Mounting Grommet - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99250959 Motor Mounting Washer - 4 Required
99500390 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wire Box Cover
97014728 Housing Mounting Bracket - 2 Required
99390099 Intake Connector Collar - L200L - 8” Round
97014761 Damper / Duct Connector - 8” Round
L250, L250C, L250EX, L250L,
L250MG
(Models L250C & L250EX Discontinued)
99110807 Plastic Grille - L250, L250C, L250EX - 14” x
14”
98009416 Metal Grille - White - L250MG - 14” x 14”
98009417 Access Panel - L250L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 2 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 2 Required
97014803 Blower Assembly - L250, L250L, L250MG
- Includes Motor, Blower Wheel, & Scroll
Housing
n.l.a. Blower Assembly - L250C, L250EX - In-
cludes Motor, Blower Wheel, & Scroll
Housing
99080484 Motor - L250, L250L, L250MG
n.l.a. Motor - L250C, L250EX
99110805 Blower Wheel
97014774 Scroll Housing
99100491 Motor Mounting Grommet - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99250959 Motor Mounting Washer - 4 Required
99500390 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wire Box Cover
97014728 Housing Mounting Bracket - 2 Required
99390099 Intake Connector Collar - L200L - 8” Round
97014761 Damper / Duct Connector - 8” Round
L300, L300C, L300EX, L300L,
L300MG
(Models L300C & L300EX Discontinued)
99110807 Plastic Grille - L300, L300C, L300EX - 14” x
14”
98009416 Metal Grille - White - L300MG - 14” x 14”
98009417 Access Panel - L300L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 2 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 2 Required
97014804 Blower Assembly - L300, L300L, L300MG
- Includes Motor, Blower Wheel, & Scroll
Housing
n.l.a. Blower Assembly - L300C, L300EX - In-
cludes Motor, Blower Wheel, & Scroll
Housing
99080485 Motor - L300, L300L, L300MG
n.l.a. Motor - L300C, L300EX
99110805 Blower Wheel
97014774 Scroll Housing
99100491 Motor Mounting Grommet - 4 Required
99260558 Motor Mounting Nut - #8-32 - 4 Required
99250959 Motor Mounting Washer - 4 Required
99500390 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wire Box Cover
97014728 Housing Mounting Bracket - 2 Required
99390099 Intake Connector Collar - L200L - 8” Round
97014761 Damper / Duct Connector - 8” Round
L300KMG
SLAF1 Aluminum Grease Filter - 12” x 12” *
98009416 Metal Grille - White - 14” x 14”
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99420470 White Plastic Grille Mounting Nut - 2 Re-
quired
97014814 Blower Assembly - Includes Motor, Blower
Wheel, & Scroll Housing
99080485 Motor
99020273 Blower Wheel
97014775 Scroll Housing
99260558 Motor Mounting Nut - #8-32 - 4 Required
99250959 Motor Mounting Washer - 4 Required
97006039 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014761 Damper / Duct Connector - 8” Round
* Optional - not included with Unit
L400, L400C, L400EX, L400L
(Models L400C & L400EX Discontinued)
98009463 White Metal Grille - L400, L400C, L400EX -
14” x 23-1/4”
98009464 Access Panel - L400L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 4 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 4 Required
97014817 Blower Assembly - L400, L400L - Includes
Motor, Blower Wheels, & Scroll Housings
n.l.a. Blower Assembly - L400C, L400EX - In-
cludes Motor, Blower Wheels, & Scroll
Housings
99080486 Motor - L400, L400L - Includes Capacitor
n.l.a. Motor - L400C, L400EX - Includes Capaci-
tor
99110805 Blower Wheel - 2 Required
99100497 Rubber Isolators - 4 Required
97014745 Scroll Housing - 2 Required
97014794 Motor Mounting Bracket
99500392 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014822 Damper Flap - 2 Required
98009449 Duct Connector - 4-1/2” x 18-1/2”
L400K, L400KL
SLAF2 Aluminum Grease Filter - L400K - 12” x 21-
1/4” *
98009463 White Metal Grille - L400K - 14” x 23-1/4”
98009464 Access Panel - L400KL
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 4 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 4 Required
97014818 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housings
99080486 Motor - Includes Capacitor
99020273 Blower Wheel - 2 Required
99100497 Rubber Isolators - 4 Required
97014745 Scroll Housing - 2 Required
97014794 Motor Mounting Bracket
98009461 Scroll Mounting Channel
97006039 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014822 Damper Flap - 2 Required
98009449 Duct Connector - 4-1/2” x 18-1/2”
* Optional - not included with Unit
L500, L500C, L500EX, L500L
(Models L500C & L500EX Discontinued)
98009463 White Metal Grille - L500, L500C, L500EX -
14” x 23-1/4”
98009464 Access Panel - L500L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 4 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 4 Required
97014819 Blower Assembly - L500, L500L - Includes
Motor, Blower Wheels, & Scroll Housings
n.l.a. Blower Assembly - L500C, L500EX - In-
cludes Motor, Blower Wheels, & Scroll
Housings
99080487 Motor - L500, L500L - Includes Capacitor
n.l.a.
Motor - L500C, L500EX - Includes Capacitor
99110805 Blower Wheel - 2 Required
99100497 Rubber Isolators - 4 Required
97014745 Scroll Housing - 2 Required
97014794 Motor Mounting Bracket
99500392 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014822 Damper Flap - 2 Required
98009449 Duct Connector - 4-1/2” x 18-1/2”
Index
76
L500K, L500KL
SLAF2 Aluminum Grease Filter - L500K - 12” x 21-
1/4” *
98009463 White Metal Grille - L500K - 14” x 23-1/4”
98009464 Access Panel - L500KL
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 4 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 4 Required
97014820 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housings
99080487 Motor - Includes Capacitor
99020273 Blower Wheel - 2 Required
99100497 Rubber Isolators - 4 Required
97014745 Scroll Housing - 2 Required
97014794 Motor Mounting Bracket
98009461 Scroll Mounting Channel
97006039 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014822 Damper Flap - 2 Required
98009449 Duct Connector - 4-1/2” x 18-1/2”
* Optional - not included with Unit
L700, L700C, L700EX, L700L
(Models L700C & L700EX Discontinued)
98009463 White Metal Grille - L700, L700C, L700EX -
14” x 23-1/4”
98009464 Access Panel - L700L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 4 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut - 4 Required
97014821 Blower Assembly - L700, L700L - Includes
Motor, Blower Wheels, & Scroll Housings
n.l.a. Blower Assembly - L700C, L700EX - In-
cludes Motor, Blower Wheels, & Scroll
Housings
99080488 Motor - L700, L700L - Includes Capacitor
n.l.a. Motor - L700C, L700EX - Includes Capaci-
tor
99110805 Blower Wheel - 2 Required
99100497 Rubber Isolators - 4 Required
97014745 Scroll Housing - 2 Required
97014794 Motor Mounting Bracket
99500392 Wrapper Insulation
99500391 Side Insulation - 2 Required
97006039 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014822 Damper Flap - 2 Required
98009449 Duct Connector - 4-1/2” x 18-1/2”
L900, L900C, L900EX, L900L
(Model L900C & L900EX Discontinued)
98009522 Grille - L900, L900C, L900EX - 19-7/8” x
23-7/8”
98009532 Access Panel - L900L
99150472 Grille / Access Panel Mounting Screw - #8-
18 x 1-1/4” - 4 Required
99420470 White Plastic Grille / Access Panel Mount-
ing Nut 4 Required
97014848 Blower Assembly - L900, L900L - Includes
Motor, Blower Wheel, & Scroll Housing
n.l.a. Blower Assembly - L900C, L900EX - Includes
Motor, Blower Wheel, & Scroll Housing
99080490 Motor - L900, L900L - Includes Capacitor
n.l.a.
Motor - L900C, L900EX - Includes Capacitor
99020274 Blower Wheel
99680019 Blower Wheel Clamp
97014785 Scroll Housing
98009514 Scroll Inlet Ring
97014788 Motor Mounting Bracket
98009516 Support Bracket
98009513 Scroll Support Channel
99500394 Front Insulation
99500393 Base Insulation
99500395 Back Insulation
97006142 Wire Harness for Motor Plug
98005513 Wiring Box Cover
97014728 Housing Mounting Bracket - 2 Required
97014853 Damper Flap
98009520 Duct Connector - 8”x 12”
G6MD, G8MD
99527207 Motorized Damper Assembly - G6MD
99527208 Motorized Damper Assembly - G8MD
97013273 C909 Transformer - Tri Volt
97018853 Pressure Switch Kit
MD10T, MD6T, MD8T
99528460 Motorized Damper Assembly - MD10T
99527207 Motorized Damper Assembly - MD6T
99527208 Motorized Damper Assembly - MD8T
97013273 C909 Transformer - Tri Volt
MD6TR, MD8TR
99527207 Motorized Damper Assembly - MD6TR
99527208 Motorized Damper Assembly - MD8TR
97013273 C909 Transformer - Tri Volt
99271418 Relay - 12V SPST
MD10TU, MD6TU, MD8TU
99528460 Motorized Damper Assembly - MD10TU
99527207 Motorized Damper Assembly - MD6TU
99527208 Motorized Damper Assembly - MD8TU
97013273 C909 Transformer - Tri Volt
97018853 Pressure Switch Kit
RD1, RD2, RD3
99150573 Grille Screw - #8-18 x 13/16” - 2 Required
n/a Radiation Damper Housing *
99523579 Fusible Link
99260485 Sheet Metal Nut #8 - 2 Required
99170245 Damper Screw - #8-18 x 3/8” - 2 Required
* Must order complete assembly RD1, RD2, or RD3
RDA, RDH
98009908 Metal Grille - White - 11-5/8” x 9-7/16” *
99150573 Grille Screw - #8-18 x 13/16” - 2 Required
99523357 Radiation Damper Housing
99523579 Fusible Link
99260485 Sheet Metal Nut #8 - 2 Required
97015727 Metal Damper / Duct Connector - 4” Round
99170245 Damper Screw - #8-18 x 3/8” - 2 Required
* Not included with Radiation Damper Assy - Grille is in-
cluded with Fan Finish Packs
RDF1
97018839 Parts Bag - Contains [4] #8-18 x 1/4”
Screws
No other parts available - Must order complete assy RDF1
RDJ1, RDJ1P
98009908 Metal Grille - White - 11-5/8” x 9-7/16”
99150573 Grille Screw - #8-18 x 13/16” - 2 Required
99523357 Radiation Damper Housing
99523579 Fusible Link
99260485 Sheet Metal Nut #8 - 2 Required
98007763 Slide Channel - 2 Required
98003036 Hanger Bar Support Angle - 2 Required
97015727 Metal Damper / Duct Connector - 4” Round
99170245 Damper & Channel Screw - #8-18 x 3/8” - 4
Required
SMD6, SMD8
99527207 Motorized Damper Assembly - SMD6
99527208 Motorized Damper Assembly - SMD8
97013273 C909 Transformer - Tri Volt
97018125 Link Logic Relay
430, 431
98001469 Grille
98000133 Damper Flap
98004517 Damper Rod
99140100 Damper Spring
443
(Discontinued)
--NOTE-- Replaced by RVK1A
98005783 Birdscreen
97017696 Damper Plate Assembly *
98005784 Damper Flap
98005785 Damper Rod
99100410 Foam Strip - 4” to 3” Reducer
99420559 Duct Clamp
99610002 Crimp Connector - 4” Round
99610005 Flex Vinyl Hose - 8’ Long
* Includes Damper Rod, Damper Flap, Damper Plate, &
Polyester Foam.
450
(Discontinued)
--NOTE-- Replaced by WVK2A
99520842 Plastic Wall Cap with Louvers
99520843 Aluminum Tube - 11’’ Long - 4” Round
99420559 Duct Clamp
99100410 Foam Strip - 4’’ to 3’’ Reducer
472
98001293 Damper Rod
98006062 Damper Flap - 2 Required
99140101 Spring
634
n/a Housing
98005577 Bird Screen
98005581 Damper Flap
98005584 Damper Plate
98005576 Damper Rod
99170245 Damper Plate Mounting Screw - #8-18 x
3/8”
99500321 Long Sealant Strip
99500322 Short Sealant Strip
Index
77
636
98005783 Bird Screen
97017696 Damper Plate Assembly *
98005784 Damper Flap
98005785 Damper Rod
* Includes Damper Rod, Damper Flap, Damper Plate, &
Polyester Foam.
639
98005586 Bird Screen
98005588 Damper Flap
98005585 Damper Rod
99100379 Damper Bushing
99140100 Damper Spring
641
98007466 Bird Screen
98007465 Damper Flap
99140115 Damper Spring
642
(Discontinued 2001)
--NOTE-- Replaced by 885AL
99580006 Metal Reducer - 4” to 3” Round
644
98005577 Bird Screen
98005581 Damper Flap
98005576 Damper Rod
645
(Discontinued)
--NOTE-- Replaced by WC650
99520841 Plastic Wall Cap
99520844 Aluminum Tube - 6” Long
99420456 Duct Clamp
646
99522050 Plastic Wall Cap
99522051 Aluminum Tube - 6” Long
649
98005586 Bird Screen
98005588 Damper Flap
98005585 Damper Rod
99100379 Damper Bushing
99140100 Damper Spring
885AL, 885BL
NT17128000 4” to 3” Duct Reducer
RVK1A
98005783 Birdscreen
97017696 Damper Plate Assembly *
98005784 Damper Flap
98005785 Damper Rod
99100410 Foam Strip - 4” to 3” Reducer
99420559 Duct Clamp
99610002 Crimp Connector - 4” Round
99610013 4” Round Flexible Hose - 8’ Long - Metallic
Laminate
* Includes Damper Rod, Damper Flap, Damper Plate, &
Polyester Foam.
WVK1A
99520842 Plastic Wall Cap with Louvers
99520843 Aluminum Tube - 11’’ Long
99420559 Duct Clamp
99100410 Foam Strip - 4’’ to 3’’ Reducer
99524384 4” Round Flexible Hose - 5’ Long - Metallic
Laminate
Wall Switches
Models 65V & 66W Discontinued 07/2013 - Model 685VL
Discontinued 08/2013
99110925 Ivory Knob - 57V
99110924 White Knob - 57W
99110903 Ivory Knob - 59V, 61V, 62V, 63V, 71V
99524664 White Knob - 59W, 61W, 62W, 63W
n.l.a. Ivory Knob - 70V (Discontinued 2009)
99110915 Ivory Knob - 72V, 75V
99110938 White Knob - 72W
97014112 Knob - DH100W
97012926 Ivory Wall Plate - 57V, 59V, 61V, 66V, 68V,
69V, 69VL, 71V, 77DV
n.l.a. Ivory Insert Plate - 57V
97012925 White Wall Plate - 57W, 59W, 61W, 66W,
68W, 69W, 69WL, 77DW
99090899 White Insert Plate - 57W
n.l.a. Ivory Wall Plate - 60V
n.l.a. White Wall Plate - 60W
97011984 Ivory Insert Plate - 61V
97011985 White Insert Plate - 61W
99090867 Ivory Wall Plate - 62V, 63V, 269VL, 685VL
n.l.a. White Wall Plate - 62W, 63W, 269WL,
685WL
99091096 Ivory Wall Plate - 64V
99090865 Brass Wall Plate - 65V, 65W
99090866 Chrome Wall Plate - 67V, 67W
99090877 Ivory Nameplate - 72V, 75V
99090907 White Nameplate - 72W
97014111 Wall Plate - DH100W
99030254 Switch Mechanism - 57V, 57W
n.l.a. Ivory Rocker Switch Mechanism - 60V
n.l.a. White Rocker Switch Mechanism - 60W
n.l.a. Switch Mechanism - 64V
S71V Timer Switch Assembly - 71V
99030232 Ivory Switch Mechanism - 72V
99030258 White Switch Mechanism - 72W
99030243 Ivory Switch Mechanism - 75V
99030334 Ivory 2 Rocker Switch Mechanism - 62V,
68V, 685VL
99030335 White 2 Rocker Switch Mechanism - 62W,
68W, 685WL
99030236 Ivory Rocker Switch - 63V, 69V, 269VL
99030239 White Rocker Switch - 63W, 69W, 269WL
99030336 Ivory 3 Rocker Switch Mechanism - 65V,
66V, 67V
99030337 White 3 Rocker Switch Mechanism - 65W,
66W, 67W
S66V Ivory 3 Rocker Switch Assembly - 66V
S66W White 3 Rocker Switch Assembly - 66W
99030282 Ivory Switch with Light - 69VL, 269VL,
685VL
99030283 White Switch with Light - 69WL, 269WL,
685WL
S77DV Ivory Switch Assembly - 77DV
S77DW White Switch Assembly - 77DW
990712044 Function Labels for Multiple Function
Switches
Index
78
101
(Discontinued)
n.l.a. Grille
n.l.a. Switch
99360025 Knob
98001364 Element
97011811 Thermal Cutoff
99270107 Ceramic Hooks
97005058 Terminal/Bolt Assembly
103
(Discontinued 1973)
n.l.a. Grille
n.l.a. Switch
99360025 Knob
n.l.a. Element
97011811 Thermal Cutoff
99270107 Ceramic Hooks
97005058 Terminal / Bolt Assembly
111
(Discontinued 1973)
n.l.a. Grille
n.l.a. Switch
99360025 Knob
99030024 Thermostat
98001364 Element
97011811 Thermal Cutoff
99270107 Ceramic Hooks
97005058 Terminal / Bolt Assembly
112, 114, 114-2
99522899 Cover / Top Panel
99521767 Thermostat Switch - 112
99521769 Knob - 112
99521765 Motor
99020130 Blower Wheel
99271288 Element - 2 Required
99521763 Thermal Fuse
99521762
Thermal Overload - 112-A, 114-A, 114-2 REV A
99522400 Thermal Overload - 112-B, 114-B, 114-2
REV B thru F
99522782 Alarm Light
97014272 Red Jumper Wire
99270735 Double Spade Terminal
113
(Discontinued 1973)
n.l.a. Grille
99030024 Thermostat
99360025 Knob
n.l.a. Element
97011811 Thermal Cutoff
99270107 Ceramic Hooks
97005058 Terminal / Bolt Assembly
120
97013821 Grille Assembly - White - Includes Mouting
Screws
99150528 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99080248 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
99270741 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
97008678 Thermal Overload Wire Harness
98003036 Housing Mounting Bracket
123
(Discontinued 1973)
n.l.a. Grille
n.l.a. Switch
99360025 Knob
n.l.a Motor
97000667 Fan Blade
n.l.a. Element
97011811 Thermal Cutoff
99270107 Ceramic Hook
97005058 Terminal / Bolt Assembly
124
97013821 Grille Assembly - White - Includes Mount-
ing Screws
99150528 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99080248 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
99270725 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
97008678 Thermal Overload Wire Harness
98003036 Housing Mounting Bracket
128
97013821 Grille Assembly - White - Includes Mount-
ing Screws
99150528 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
99080252 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
99270742 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
97008678 Thermal Overload Wire Harness
98003036 Housing Mounting Bracket
133
(Discontinued 1977)
n.l.a. Grille
99030024 Thermostat / Switch
99360025 Knob
n.l.a Motor
97000667 Fan Blade
n.l.a. Element
97011811 Thermal Cutoff
99270107 Ceramic Hook
97005058 Terminal / Bolt Assembly
134
(Discontinued 1987)
n.l.a. Grille - 10” x 13-3/4”
99150472 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97011803 Thermostat Switch
n.l.a Knob
n.l.a. Motor
99020130 Blower Wheel
n.l.a. Element
97011812 Thermal Cutoff
99260467 Push-On Retainer
99270520 Ceramic Bar
99270519 Ceramic Bushing
99270513 Ceramic Hook
97005423 Red Jumper Wire
n.l.a. Nameplate
n.l.a. Outlet Box Cover
140, 141, 142, 143
(Discontinued 1973)
97000667 Blade
n.l.a. Grille
99030040 Thermostat
99360034 Knob
n.l.a Motor
n.l.a. Element
97011811 Thermal Cutoff
97005058 Terminal / Bolt Assembly
99270107 Ceramic Hook
n.l.a. Ceramic Bar
149
(Discontinued 1992)
n.l.a. Grille
n.l.a. Motor
99020129 Fan Blade
n.l.a. Fan Blade Clip
98005338 Element
99270523 Thermal Cutoff
99270513 Ceramic Hook - 2 Required
n.l.a. Terminal Screw
97005423 Red Jumper Wire
n.l.a. Wire Harness from Element to Receptacle
97005422 Receptacle Assembly
n.l.a. Nameplate
n.l.a. Back Plate
150
(Discontinued 1988)
n.l.a. Grille
n.l.a. Motor
97000667 Fan Blade
99270694 Element
98001322 Element Support - 3 Required
97011811 Thermal Cutoff
97007968 Fiber Board Assembly
154
25045-00 Grille
99150491 Grille Mounting Screw - #8-18 x 3/8”
02200-18 Motor
06116-00 Fan Blade
75075-00 Heating Assembly - Includes Element, Ce-
ramic Hooks, Element Pan, & Thermal Fuse
02110-01 Element
99271493 Thermo Cutoff
98008740 Ceiling Pan
99090680 Name Plate
155
(Discontinued 1996)
n.l.a Grille
n.l.a Motor
99020195 Fan Blade
97008672 Element - Includes Thermal Cutoff
97008906 Thermal Cutoff
Index
79
156
(Discontinued 1994)
n.l.a. Grille - 156, 156-B
97008766 Grille - 156-C
99380018 Grille Nut - 156, 156-B
99150492 Grille Screw - 156-C - #8-18 x 1/2”
n.l.a. Motor
97000667 Fan Blade - 156, 156-B
99020191 Metal Fan Blade - 156-C
99020245 Plastic Fan Blade - 156-C
99420541 Hairpin Clip for Plastic Blade
99270694 Element - 156, 156-B
99270744 Element - 156-C
97011811 Thermal Cutoff - 156, 156-B
n.l.a. Thermal Cutoff - 156-C
157
25045-00 Grille
99150491 Grille Mounting Screw - #8-18 x 3/8”
99080437 Motor
06116-00 Fan Blade
99270744 Element
99271125 Thermal Cutoff
98008742 Element Support Bracket - 3 Required
99270721 Terminal Block
98008740 Ceiling Pan
98008741 Reflector
99090680 Name Plate
165F, 165FT
98006970 Grille - White
99150528 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - 165FT - In-
cludes Bracket
99030191 Thermostat Switch Only - 165FT
99360135 Knob - Gray - 165FT
99260464 Lock Nut for Thermostat Switch - 165FT -
3/8”-24
99150491 Thermostat Bracket Mounting Screw -
165FT - #8-18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness - 165FT
97009805 Heater / Fan Assembly *
99080248 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270742 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover **
97005422 Receptacle Wire Harness
98003036 Housing Mounting Bracket - 2 Required **
99090681 Grille Logo
97018522 Parts Bag - Includes Mounting Screws &
Knob
* Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
** Not included with Finish Pack
167F, 167FT
98006970 Grille - White
99150528 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - 165FT - In-
cludes Bracket
99030191 Thermostat Switch Only - 167FT
99360135 Knob - Gray - 167FT
99260464 Lock Nut for Thermostat Switch - 167FT -
3/8”-24
99150491 Thermostat Bracket Mounting Screw -
167FT - #8-18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness - 167FT
97009806 Heater / Fan Assembly *
99080276 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270757 Element
98006974 Element Mounting Bracket
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover **
97005422 Receptacle Wire Harness
98003036 Housing Mounting Bracket - 2 Required **
99090681 Grille Logo
97018522 Parts Bag - Includes Mounting Screws &
Knob
* Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
** Not included with Finish Pack
170, 174, 178
98006970 Grille - White
99150528 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - Includes
Bracket
99030191 Thermostat Switch Only
99360135 Knob - Gray
99260464 Lock Nut for Thermostat Switch - 3/8”-24
99150491 Thermostat Bracket Mounting Screw - #8-
18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness
97009807 Heater / Fan Assembly - 170 *
97009808 Heater / Fan Assembly - 174 *
97009809 Heater / Fan Assembly - 178 *
99080248 Motor - 170, 174
99080252 Motor - 178
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270741 Element - 170
99270725 Element - 174
99270742 Element - 178
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover
97005422 Receptacle Wire Harness
97008681 Housing
98003036 Housing Mounting Bracket - 2 Required
99090681 Grille Logo
97018522 Parts Bag - Includes Mounting Screws &
Knob
* Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
172
(Discontinued)
97014809 Grille - Chrome
99150532 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - Includes
Bracket
99030191 Thermostat Switch Only
n.l.a. Knob *
99260464 Lock Nut for Thermostat Switch - 3/8”-24
99150491 Thermostat Bracket Mounting Screw - #8-
18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness
97009807 Heater / Fan Assembly **
99080248 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270741 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover
97005422 Receptacle Wire Harness
97008681 Housing
98003036 Housing Mounting Bracket 2-Required
99090686 Grille Logo
* Original Black Knob n.l.a. - May substitute Silver Knob
p/n 99360135
** Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
173
(Discontinued)
n.l.a. Grille - Brass *
99150529 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - Includes
Bracket
99030191 Thermostat Switch Only
99360138 Knob - Black / Brass
99260464 Lock Nut for Thermostat Switch - 3/8”-24
99150491 Thermostat Bracket Mounting Screw - #8-
18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness
97009807 Heater / Fan Assembly **
99080248 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
Index
80
99270741 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover
97005422 Receptacle Wire Harness
97008681 Housing
98003036 Housing Mounting Bracket 2-Required
99090690 Grille Logo
* Original Brass Grille n.l.a. - May subsititute White Grille
p/n 98006970 or Chrome Grille p/n 97014809
** Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
176
(Discontinued)
97014809 Grille - Chrome
99150532 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - Includes
Bracket
99030191 Thermostat Switch Only
n.l.a. Knob *
99260464 Lock Nut for Thermostat Switch - 3/8”-24
99150491 Thermostat Bracket Mounting Screw - #8-
18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness
97009808 Heater / Fan Assembly **
99080248 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270725 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover
97005422 Receptacle Wire Harness
97008681 Housing
98003036 Housing Mounting Bracket - 2 Required
99090686 Grille Logo
* Original Black Knob n.l.a. - May substitute Silver Knob
p/n 99360135
** Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
177
(Discontinued)
n.l.a. Grille - Brass *
99150529 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - Includes
Bracket
99030191 Thermostat Switch Only
99360138 Knob - Black / Brass
99260464 Lock Nut for Thermostat Switch - 3/8”-24
99150491 Thermostat Bracket Mounting Screw - #8-
18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness
97009808 Heater / Fan Assembly **
99080248 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270725 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover
97005422 Receptacle Wire Harness
97008681 Housing
98003036 Housing Mounting Bracket - 2 Required
99090690 Grille Logo
* Original Brass Grille n.l.a. - May subsititute White Grille
p/n 98006970 or Chrome Grille p/n 97014809
** Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
179
(Discontinued)
97014809 Grille - Chrome
99150532 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - Includes
Bracket
99030191 Thermostat Switch Only
n.l.a. Knob *
99260464 Lock Nut for Thermostat Switch - 3/8”-24
99150491 Thermostat Bracket Mounting Screw - #8-
18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness
97009809 Heater / Fan Assembly **
99080252 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270742 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover
97005422 Receptacle Wire Harness
97008681 Housing
98003036 Housing Mounting Bracket - 2 Required
99090686 Grille Logo
* Original Black Knob n.l.a. - May substitute Silver Knob
p/n 99360135
** Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
181
(Discontinued)
n.l.a. Grille - Brass *
99150529 Grille Mounting Screw - #8-18 x 1-1/4” - 2
Required
97008717 Thermostat Switch Assembly - Includes
Bracket
99030191 Thermostat Switch Only
99360138 Knob - Black / Brass
99260464 Lock Nut for Thermostat Switch - 3/8”-24
99150491 Thermostat Bracket Mounting Screw - #8-
18 x 3/8” - 2 Required
97008677 Thermostat Wire Harness
97009809 Heater / Fan Assembly **
99080252 Motor
99020130 Blower Wheel
97008682 Motor Mounting Bracket & Plate
97008675 Motor Wire Harness
99270742 Element
98006974 Element Mounting Bracket
99030194 Thermal Overload
99271091 Thermal Overload Guard - Purple Card-
board with Sticker Labeled “Press Here”
99150491 Overload & Guard Mounting Screw - #8-18
x 3/8”
97008678 Overload Wire Assembly
98006975 Wiring Cover
97005422 Receptacle Wire Harness
97008681 Housing
98003036 Housing Mounting Bracket - 2 Required
99090690 Grille Logo
* Original Brass Grille n.l.a. - May subsititute White Grille
p/n 98006970 or Chrome Grille p/n 97014809
** Includes Motor, Blower Wheel, Motor Mounting Plate,
Element, Element Bracket, Thermal Overload, Overload
Guard, & Wire Harness
190, 191
(Discontinued 1996)
n.l.a. Grille *
99170245 Grille Mounting Screw - #8-18 x 3/8” - 4
Required
99030191 Thermostat Switch
99360135 Knob - Gray
99080249 Motor
99020255 Fan Blade
97008683 Motor Mounting Bracket & Plate
99270722 Element
97013945 Thermal Overload
99110687 Security Cover
93150462 Security Cover Mounting Screw - #8-18 x
5/8”
* Original Silver Grille n.l.a. - May substitute White Grille
p/n 97013822
192
97013822 Grille - White
99150478 Grille Mounting Screw - #8-18 x 3/8” - 4
Required
99030192 Thermostat Switch - 192-A,B
99030324 Thermostat Switch - 192-C
99360136 Knob
99080249 Motor
99020255 Fan Blade
97013858 Element
97008683 Motor Mounting Bracket & Plate
Index
81
99030190 Fan Delay
97013945 Thermal Overload
99110687 Security Cover
93150462 Security Cover Mounting Screw - #8-18 x
5/8”
97008743 Parts Bag - Includes Knob, Security Cover,
& Mounting Screws
194
97013822 Grille - White
99150478 Grille Mounting Screw - #8-18 x 3/8” - 4
Required
99030192 Thermostat - 194-A,B,C
99030324 Thermostat - 194-D
99360136 Knob
99080249 Motor
99020255 Fan Blade
99270723 Element
97008683 Motor Mounting Bracket & Plate
99030190 Fan Delay
97013945 Thermal Overload
99110687 Security Cover
93150462 Security Cover Mounting Screw - #8-18 x
5/8”
97008743 Parts Bag - Includes Knob, Security Cover,
& Mounting Screws
195
(Discontinued 1995)
n.l.a. Grille *
99170245 Grille Mounting Screw - #8-18 x 3/8” - 4
Required
99030191 Thermostat Switch
99360135 Knob - Gray
99080249 Motor
99020255 Fan Blade
97008683 Motor Mounting Bracket & Plate
99270723 Element
97013945 Thermal Overload
99110687 Security Cover
93150462 Security Cover Mounting Screw - #8-18 x
5/8”
* Original Silver Grille n.l.a. - May substitute White Grille
p/n 97013822
198
97013822 Grille - White
99150478 Grille Mounting Screw - #8-18 x 3/8” - 4
Required
99030192 Thermostat - 194-A,B,C
99030324 Thermostat - 194-D
99360136 Knob
99080251 Motor
99020255 Fan Blade
99270723 Element
97008683 Motor Mounting Bracket & Plate
99030190 Fan Delay
97013945 Thermal Overload
99110687 Security Cover
93150462
Security Cover Mounting Screw - #8-18 x 5/8”
97008743 Parts Bag - Includes Knob, Security Cover,
& Mounting Screws
199
(Discontinued 1995)
n.l.a. Grille *
99150478 Grille Mounting Screw - #8-18 x 3/8” - 4
Required
99030192 Thermostat
99360136 Knob
99080249 Motor
99020255 Fan Blade
99270723 Element
97008683 Motor Mounting Bracket & Plate
99030190 Fan Delay
97013945 Thermal Overload
99110687 Security Cover
93150462
Security Cover Mounting Screw - #8-18 x 5/8”
* Original Silver Grille n.l.a. - May substitute White Grille
p/n 97013822
6100, 6200, 6201
02111-04 Knob For Thermostat
02111-03 Knob for On/Off Switch
n.l.a. Front Foot
n.l.a. Rear Foot
n.l.a. Handle
9810WH
99111432 Grille - 9810WH-B,C,D - 11-9/16” x 14-3/4”
52872039 Grille Mounting Screw - 9810WH-C,D - #8
x 2”
57271000 Thermostat with Mounting Nut - 9810WH-
B,C,D
33384000 Thermostat Cover - 9810WH-B,C,D
30845000 Knob 9810WH-B
99360253 Knob 9810WH-C,D
97018621 Heater Assembly - 9810WH-B,C,D *
33178000 Motor & Blower Wheel - 9810WH-C,D
99270741 Element - 9810WH-B
see note Element - 9810WH-C,D **
35841000 Thermal Fuse - 9810WH-C,D ***
see note Thermal Protector - 9810WH-B,C ****
99271433 Thermal Protector - 9810WH-D
61962000 Heat Box - 9810WH-C,D
98003036 Housing Mounting Bracket - 2 Required
* Heater Assembly Includes Motor, Blower Wheel, Element,
Thermal Protector, & Thermostat
** Must purchase Heater Assembly p/n 97018621
*** Rev C requires 2 - Rev D requires 1
**** Please note this part (p/n 0936B000) was mistakenly
listed on parts list in Installation Manual. It was NOT actually
included in the finished product and is NOT needed.
9815WH
98006970 Grille - Metal - 9815WH-B 12” x 9-1/4”
99111432 Grille - Plastic - 9815WH-C,D,E - 11-9/16” x
14-3/4”
99150528 Grille Screw - 9815WH-B - #8-18 X 1.25”
52872039 Grille Screw - 9815WH-C,D,E
99030191 Thermostat - 9815WH-B
97008717
Thermostat with Mounting Nut - 9815WH-B
98006973 Thermostat Bracket - 9815WH-B
99260464 Thermostat Lock Nut - 9815WH-B
57271000 Thermostat with Mounting Nut - 9815WH-
C,D,E
33384000 Thermostat Cover - 9815WH-C,D,E
99360135 Knob - 9815WH-B
99360253 Knob - 9815WH-C,D,E
97009808 Heater Assembly - 9815WH-B *
97018622 Heater Assembly - 9815WH-C,D,E *
99080248 Motor - 9815WH-B
99020130 Blower Wheel - 9815WH-B
33178000 Motor & Blower Wheel - 9815WH-C,D,E
99270741 Element - 9815WH-B
see note Element - 9815WH-C,D,E **
35841000 Thermal Fuse - 9815WH-C,D,E ***
99030194 Thermal Overload - 9815WH-B
see note Thermal Protector - 9815WH-C,D ****
99271433 Thermal Protector - 9815WH-E
97005422 White Receptacle - 9815WH-B
98006975 Wire Cover for Above Receptacle to Snap
into - 9815WH-B
61962000 Heat Box - 9815WH-C,D,E
99390015 Ground Clip - 9815WH-B
98003036 Housing Mounting Bracket - 2 Required
* Heater Assembly Includes Motor, Blower Wheel, Element,
Thermal Protector, & Thermostat
** Must purchase Heater Assembly p/n 97018622
*** Rev C & D requires 2 - Rev E requires 1
**** Please note this part (p/n 0936B000) was mistakenly
listed on parts list in Installation Manual. It was NOT actually
included in the finished product and is NOT needed.
S12, TS12
(Discontinued 1963)
n.l.a. Grille
99030072 Toggle Switch - S12
99030040 Thermostat Switch - TS12
n.l.a. Knob
n.l.a Motor
97000667 Fan Blade
97011811 Thermal Cutoff
see note Element *
97005058 Terminal Bolt Assembly
* If Element has a continuous coil, use p/n 98001338 - If
Element has six coiled segments, it is n.l.a.
U-15, TU-15, TU-24
(Discontinued 1977)
n.l.a. Grille
99030040 Thermostat - TU-15, TU-24
n.l.a. Toggle Switch - U-15
99360034 Knob
n.l.a Motor - U-15, TU-15
n.l.a. Motor - TU-24
97000667 Fan Blade
see note Element - TU-15, U-15 *
n.l.a. Element - TU-24
97011811 Thermal Cutoff
97005058 Terminal/Bolt Assembly
99270107 Ceramic Hook
n.l.a. Ceramic Bar
* If Heater Assembly uses five Ceramic Hooks to support
the Element use p/n 98001338 - If Heater Assembly uses
two 5-1/2’’ long Ceramic Bars to support Element, use p/n
98002798
160
(Discontinued)
n.l.a. Grille Assembly
n.l.a. Grille Spring - 2 Required
97005242 Light Socket with Black & White Leads
97005241 Light Socket with Blue & White Leads
97005908 Fan Assembly - 160-A - Includes Motor,
Blower Wheel, & Mounting Bracket *
Index
82
97006223 Fan Assembly - 160-B - Includes Motor,
Blower Wheel, & Mounting Bracket *
99080146 Motor - CW - 160-A *
99080160 Motor - CCW - 160-B *
99020140 Blower Wheel - White - 160-A
99020144 Blower Wheel - Black - 160-B
n.l.a. Motor Mounting Bracket - 160-A
98003814 Motor Mounting Bracket - 160-B
n.l.a. Outlet Box Cover
n.l.a. Receptacle
98003036 Housing Mounting Bracket - 4 Required
n.l.a. Damper / Duct Connector - 160-A - 4”
Round
97003932 Damper / Duct Connector - 160-B - 4”
Round
* Original 50cfm Fan Motor is n.l.a. - Replacement Motor
is 70cfm / 3.5 Sones
161
--NOTE-- Grille design was changed in 09/2006
97010319 Grille Assembly - Includes Springs
99140127 Grille Spring - 161-A,B,C,D - 2 Required
06170-00 Grille Spring - 161-E,G - 2 Required
99270483 Light Socket - 161-A,B,C,D
99770034 Light Socket - 161-E,G
n.l.a. Outlet Box - 161-A,B,C,D
25064-00 Outlet Box - 161-E,G
n.l.a. Outlet Box Cover - 161-A,B,C,D
n.l.a. Outlet Box Cover - 161-E,G
98007763 Slide Bracket Channel 161-E,G, - 2 Re-
quired
98003036 Housing Mounting Bracket - 4 Required
162
--NOTE-- Revision E was introduced in 1990 - Grille design
was changed in 09/2006
97010319 Grille Assembly - Includes Springs
99140127 Grille Spring - 162-A,B,C,D - 2 Required
06170-00 Grille Spring - 162-E,G,J,K,L - 2 Required
99270483 Light Socket - 162-A,B,C,D
99770034 Light Socket - 162-E,G,J,K,L
97005906 Fan Assembly - 162-A,B *
97006222 Fan Assembly - 162-C,D *
97009796 Fan Assembly - 162-E,G,J,K,L **
see note Motor - CW - 162-A ***
99080145 Motor - CW - 162-B
99080159 Motor - CCW - 162-C,D
see note Motor - CW - 162-E ***
97010254 Motor - CW - 162-G,J,K,L
see note Blower Wheel - White / Aluminum - 162-A
***
99020140 Blower Wheel - White - 162-B
99020144 Blower Wheel - Black - 162-C,D
97009759 Blower Wheel - Black - 162-E
97010255 Blower Wheel - Black - 162-G,J,K,L
98003814 Motor Mounting Bracket - 162-A,B,C,D
98007352 Motor Mounting Bracket - 162-E,G,J,K,L
n.l.a. Receptacle - 162-A,B,C,D
99270828 Receptacle - 162-E,G,J,K,L
A99271191 Thermostat for Lamps with 2 White Leads
- 162-E,G,J,K,L
99270832 Thermostat for Motor with Blue & Red
Leads - 162-E,G,J,K,L
n.l.a. Outlet Box - 162-A,B,C,D
25064-00 Outlet Box - 162-E,G,J,K,L
n.l.a. Outlet Box Cover - 162-A,B,C,D
20050-09 Outlet Box Cover - 162-E,G,J,K,L
98003036 Housing Mounting Bracket - 4 Required
98007763 Slide Bracket Channel - 2 Required
97003932 Damper / Duct Connector - 162-A,B,C,D -
4” Round
97009595 Damper / Duct Connector - 162-E,G,J,K,L -
4” Round
* Includes Motor, Blower Wheel, Mounting Bracket, & Fan
Thermostat
** Includes Motor, Blower Wheel, & Mounting Bracket
*** Must order Fan Assembly
163
--NOTE-- Revison E was introduced in 1990 - Grille design
was changed in 09/2006
97010320 Grille Assembly - Includes Springs
06170-00 Grille Spring - 2 Required
99270483 Light Socket - 163-A,B,C,D - 2 Required
99770032 Light Socket with Black & White Leads -
163-E
99271356 Light Socket with Black & White Leads -
163-G,J,K
99770033 Light Socket with Red & White Leads -
163-E,G,J,K
n.l.a. Cooling Motor - 163-A,B,C,D
97009724 Cooling Motor - 163-E,G,J,K,
n.l.a. Fan Blade - 163-A,B,C,D
97009762 Fan Blade - 163-E,G,J,K
n.l.a. Motor Mounting Bracket - 163-A,B,C,D
98007426 Motor Mounting Bracket - 163-E,G,J,K
n.l.a. Receptacle - 163-A,B,C,D
99271323 Receptacle - 163-E,G,J,K
A99271191 Thermostat for Lamps with 2 White Leads
25064-00 Outlet Box 163-E,G,J,K
n.l.a. Outlet Box Cover 163-A,B,C,D
20050-09 Outlet Box Cover 163-E,G,J
98007763 Slide Bracket Channel - 163-E,G,J, 2 Re-
quired
98003036 Housing Mounting Bracket - 4 Required
164
--NOTE-- Revision E was introduced in 1990 - Grille design
was changed in 09/2006
97010320 Grille Assembly - Includes Springs
06170-00 Grille Spring - 2 Required
97005242 Light Socket with Black & White Leads -
164-A,B,C,D, 164A-C,D
97005241 Light Socket with Blue & White Leads -
164,A,B,C,D, 164A-C,D
99770032 Light Socket with Black & White Leads -
164-E,G
99271356 Light Socket with Black & White Leads -
164-J,K,L
99770033 Light Socket with Red & White Leads -
164-E,G,J,K,L
97005908 Fan Assembly - 164-A,B *
97006223 Fan Assembly - 164A-C,D, 164-C,D *
97009796 Fan Assembly - 164-E,G,J,K,L **
see note Motor - CW - 164-A ***
99080146 Motor - CW - 164-B
99080160 Motor - CCW - 164A-C,D, 164-C,D
see note Motor - CW - 164-E ***
97010254 Motor - CW - 164-G,J,K,L
see note Blower Wheel - White / Aluminum - 164-A
***
99020140 Blower Wheel - White - 164-B
99020144 Blower Wheel - Black - 164A-C,D, 164-C,D
97009759 Blower Wheel - Black - 164-E
97010255 Blower Wheel - Black - 164-G,J,K,L
98003814 Motor Mounting Bracket - 164A-C,D, 164-
C,D
98007352 Motor Mounting Bracket - 164-E,G,J,K,L
n.l.a. Female Receptacle - 164-A,B,C,D, 164A-
C,D
99271323 Female Receptacle - 164-E,G,J,K,L
A99271191 Thermostat for Lamps with 2 White Leads
164-E,G,J,K,L
99270832 Thermostat for Motor with Blue & Red
Leads - 164-E,G,J,K,L
n.l.a. Outlet Box / Cover - 164-A,B,C,D, 164A-C,D
25064-00 Outlet Box - E,G,J,K,L
20050-09 Outlet Box Cover 164-E, G, J, K, L,
98007763 Slide Bracket Channel -164-E,G,J,K,L - 2
Required
98003036 Housing Mounting Bracket - 4 Required
97003932 Damper/Duct Connector - 164A-C,D, 164-
C,D - 4” Round
97009595 Damper/Duct Connector - 164-E,G,J,K,L -
4” Round
* Includes Motor, Thermostat, Blower Wheel, & Mounting
Bracket
** Includes Motor, Blower Wheel, & Mounting Bracket
*** Must purchase Fan Assembly
100HL
97017639 Grille Assembly - Includes Light Lens
99111410 Light Lens
97005316 Acorn Nut for Mounting Grille - #10-24
99150583 Grille Mounting Screw / Stud - #10-24 x
1-1/4”
97017686 Light Reflector Assembly - Includes Light
Socket
97017769 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080602 Fan Motor
99020293 Fan Blower Wheel
99100491 Fan Motor Isolator Rubber Bushings - 4
Required
99250959 Fan Motor Mounting Washers - 4 Required
- #8
99260558 Fan Motor Mounting Nut - 4 Required - #8-
32
97017606 Fan Motor Mounting Bracket & Plate
97017768 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080606 Heater Motor
99020294 Heater Blower Wheel
97016565 Heater Element - Includes Thermal Fuse
98010089 Heater Element Mounting Bracket
98010409 Heater Motor Bracket
98010405 Heater Scroll Housing
97017713 Wire Panel / Harness Assembly - Includes
Receptacles
98010407 Knockout Plate
97017572 Housing Only
97017712 Right Slide Hanger Bar - 2 Required
97017711 Left Slide Hanger Bar - 2 Required
97016449 Damper / Duct Connector - 4” Round
97017739 Parts Bag - Includes [2] #8-18 x 3/8”
Screws
Index
83
100HFL
97017639 Grille Assembly - Includes Light Lens
99111410 Light Lens
99271360 Bulb - Fluorescent, GU24 Base, 27 Watt,
3500K
97005316 Acorn Nut for Mounting Grille - #10-24
99150583 Grille Mounting Screw / Stud - #10-24 x
1-1/4”
97017687 Light Reflector Assembly - Includes Light
Socket
97017769 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080602 Fan Motor
99020293 Fan Blower Wheel
99100491 Fan Motor Isolator Rubber Bushings - 4
Required
99250959 Fan Motor Mounting Washers - 4 Required
- #8
99260558 Fan Motor Mounting Nut - 4 Required - #8-
32
97017606 Fan Motor Mounting Bracket & Plate
97017768 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080606 Heater Motor
99020294 Heater Blower Wheel
97016565 Heater Element - Includes Thermal Fuse
98010089 Heater Element Mounting Bracket
98010409 Heater Motor Bracket
98010405 Heater Scroll Housing
97017713 Wire Panel / Harness Assembly - Includes
Receptacles
98010407 Knockout Plate
97017572 Housing Only
97017712 Right Slide Hanger Bar - 2 Required
97017711 Left Slide Hanger Bar - 2 Required
97016449 Damper / Duct Connector - 4” Round
97017739 Parts Bag - Includes [2] #8-18 x 3/8”
Screws
765HL
97017663 Grille Assembly - Includes Light Lens
99111414 Light Lens
97005316 Acorn Nut for Mounting Grille - #10-24
99150583 Grille Mounting Screw / Stud - #10-24 x
1-1/4”
97017686 Light Reflector Assembly - Includes Light
Socket
97017769 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080602 Fan Motor
99020293 Fan Blower Wheel
99100491 Fan Motor Isolator Rubber Bushings - 4
Required
99250959 Fan Motor Moutning Washers - 4 Required
- #8
99260558 Fan Motor Moutning Nut - 4 Required - #8-
32
97017606 Fan Motor Mounting Bracket & Plate
97017768 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080606 Heater Motor
99020294 Heater Blower Wheel
97016565 Heater Element - Includes Thermal Fuse
98010089 Heater Element Mounting Bracket
98010409 Heater Motor Bracket
98010405 Heater Scroll Housing
97017713 Wire Panel / Harness Assembly - Includes
Receptacles
98010407 Knockout Plate
97017572 Housing Only
97017712 Right Slide Hanger Bar - 2 Required
97017711 Left Slide Hanger Bar - 2 Required
97016449 Damper / Duct Connector - 4” Round
97017739 Parts Bag - Includes [2] #8-18 x 3/8”
Screws
765HFL
97017663 Grille Assembly - Includes Light Lens
99111414 Light Lens
99271360 Bulb - Fluorescent, GU24 Base, 27 Watt,
3500K
97005316 Acorn Nut for Mounting Grille - #10-24
99150583 Grille Mounting Screw / Stud - #10-24 x
1-1/4”
97017672 Light Reflector Assembly - Includes Light
Socket
97017769 Fan Assembly - Includes Fan Motor, Blower
Wheel, & Motor Mounting Plate
99080602 Fan Motor
99020293 Fan Blower Wheel
99100491 Fan Motor Isolator Rubber Bushings - 4
Required
99250959 Fan Motor Mounting Washers - 4 Required
- #8
99260558 Fan Motor Mounting Nut - 4 Required - #8-
32
97017606 Fan Motor Mounting Bracket & Plate
97017768 Heater Assembly - Includes Heater Motor,
Blower Wheel, Element, & Scroll Housing
99080606 Heater Motor
99020294 Heater Blower Wheel
97016565 Heater Element - Includes Thermal Fuse
98010089 Heater Element Mounting Bracket
98010409 Heater Motor Bracket
98010405 Heater Scroll Housing
97017713 Wire Panel / Harness Assembly - Includes
Receptacles
98010407 Knockout Plate
97017572 Housing Only
97017712 Right Slide Hanger Bar - 2 Required
97017711 Left Slide Hanger Bar - 2 Required
97016449 Damper / Duct Connector - 4” Round
97017739 Parts Bag - Includes [2] #8-18 x 3/8”
Screws
Index
84
2020
(Discontinued 1985)
97011607 Capacitor - 7.5 mF
2024
(Discontinued 1985)
99080167 Motor - Includes Capacitor
99020159 Motor Pulley
2030, 2130
(Discontinued 1985)
99020159 Motor Pulley
2136
(Discontinued 1985)
99020158 Fan Blade
99100424 Fan Belt
99020161 Blade Pulley
99020159 Motor Pulley
2220
(Discontinued 2006)
n.l.a. Shutter Assembly
n.l.a. Shutter Blade
97008945 Shutter Blade Pivots - Includes Left & Right
White Plastic Pivot
97007412 Pull Chain Switch Assembly
99080213 Motor
99020181 Fan Blade
98006717 Motor Mounting Rail
97011607 Capacitor
99130053 Shroud Half - 2 Required
98006737 Tie Rod with 3 Holes
98006738 Tie Rod with 4 Holes
97008355 Parts Bag
2224
(Discontinued 2006)
97008339 Shutter Assembly
99300365 Shutter Blade
97008945 Shutter Blade Pivots - Includes Left & Right
White Plastic Pivot
97007412 Pull Chain Switch Assembly
99080214 Motor
99020182 Fan Blade
98006717 Motor Mounting Rail
97011608 Capacitor
99130054 Shroud Half - 2 Required
98006737 Tie Rod with 3 Holes
98006738 Tie Rod with 4 Holes
97008355 Parts Bag
2230
(Discontinued 2006)
97008340 Shutter Assembly
99300366 Shutter Blade - 8 Required
97008945 Shutter Blade Pivots - Includes Left & Right
White Plastic Pivot
97007412 Pull Chain Switch Assembly
99080215 Motor
99020183 Fan Blade
98006717 Motor Mounting Rail
97011608 Capacitor
99130055 Shroud Half - 2 Required
98006737 Tie Rod with 3 Holes
98006738 Tie Rod with 4 Holes - 2 Required
97008355 Parts Bag
2236
(Discontinued 2006)
97008358 Shutter Assembly *
99300366 Shutter Blade - 12 Required
97008945 Shutter Blade Pivots - Includes Left & Right
White Plastic Pivot
99080227 Motor
99020158 Fan Blade
99100424 Fan Belt
98006787 Motor Mounting Rail
97011608 Capacitor
99130056 Shroud Half - 2 Required *
98006737 Tie Rod with 3 Holes
98006738 Tie Rod with 4 Holes
97008345 Parts Bag
* Item too large to ship UPS
340
(Discontinued 1985)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97006057 Thermostat with Wiring Box
98006746 Thermostat Wiring Box Cover
97009316 Motor
97006971 Fan Blade
98005557 Motor Mounting Band - 3 Required
99170254 Bolt for Motor Mounting Band
99260465 Nut for Motor Mounting Band
99170253 Housing Bolt
99260459 Rubber Well Nut
341
(Discontinued)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
see note Motor *
97006971 Fan Blade
* Original Motor n.l.a. - May substitute Motor p/n 97009317
but will need to order Fan Blade p/n 97006971 as well.
342
(Discontinued)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97006057 Thermostat with Wiring Box
see below Motor *
97006971 Fan Blade
* Original Motor n.l.a. - May substitute Motor p/n 97009318
but will need to order Fan Blade p/n 97006971 as well.
343
(Discontinued 1985)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97006057 Thermostat with Wiring Box
98006746 Thermostat Wiring Box Cover
97009316 Motor
97006971 Fan Blade
98005557 Motor Mounting Band 3- Required
99170254 Bolt for Motor Mounting Band
99260465 Nut for Motor Mounting Band
99170253 Housing Bolt
99260459 Rubber Well Nut
n.l.a. Housing Mounting Bracket
344
(Discontinued 1985)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
98006746 Thermostat Wiring Box Cover
97009317 Motor
97006971 Fan Blade
n.l.a. Firestat
98005557 Motor Mounting Band - 3 Required
99170254 Bolt for Motor Mounting Band
99260465 Nut for Motor Mounting Band
99170253 Housing Bolt
99260459 Rubber Well Nut
345
(Discontinued 1985)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97006057 Thermostat with Wiring Box
98006746 Thermostat Wiring Box Cover
97009317 Motor
97006971 Fan Blade
98005557 Motor Mounting Band 3- Required
99170254 Bolt for Motor Mounting Band
99260465 Nut for Motor Mounting Band
99170253 Housing Bolt
99260459 Rubber Well Nut
345CSOBK, 345CSOWW
77001311 Dome / Solar Panel Assembly - Black -
345CSOBK
77001313 Dome / Solar Panel Assembly - Weathered
Wood - 345CSOWW
79080082 Motor - DC
79310005 Fan Blade with Set Screw
77001285 Curb / Roof Sheet Panel - Black - 345CSOBK
77001286 Curb / Roof Sheet Panel - Weathered Wood
- 345CSOWW
CWT45 Cold Weather Thermostat - Optional, Not
Included with Fan
345GOBK, 345GOWW
77001317 Solar Panel Assembly - Black - 345GOBK
77001318 Solar Panel Assembly - Weathered Wood -
345GOWW
79080082 Motor - DC
79310005 Fan Blade with Set Screw
77001285 Roof Sheet Panel - Black - 345GOBK
77001286 Roof Sheet Panel - Weathered Wood -
345GOWW
CWT45 Cold Weather Thermostat - Optional, Not
Included with Fan
Index
85
345RSOBK, 345RSOWW
77001317 Solar Panel Assembly - Black - 345RSOBK
77001318 Solar Panel Assembly - Weathered Wood -
345RSOWW
77001320 Dome Assembly - Black - 345RSOBK
77001321 Dome Assembly - Weathered Wood -
345RSOWW
79080082 Motor - DC
79310005 Fan Blade with Set Screw
77001284 Roof Sheet Panel - Black - 345RSOBK
77001287 Roof Sheet Panel - Weathered Wood -
345RSOWW
CWT45 Cold Weather Thermostat - Optional, Not
Included with Fan
345SOBK, 345SOWW
77001311 Dome / Solar Panel Assembly - Black -
345SOBK
77001313 Dome / Solar Panel Assembly - Weathered
Wood - 345SOWW
79080082 Motor - DC
79310005 Fan Blade with Set Screw
77001284 Roof Sheet Panel - Black - 345SOBK
77001287 Roof Sheet Panel - Weathered Wood -
345SOWW
CWT45 Cold Weather Thermostat - Optional, Not
Included with Fan
346
(Discontinued 1985)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97006057 Thermostat with Wiring Box
98006746 Thermostat Wiring Box Cover
97009318 Motor
97006971 Fan Blade
98005557 Motor Mounting Band 3- Required
99170254 Bolt for Motor Mounting Band
99260465 Nut for Motor Mounting Band
99170253 Housing Bolt
99260459 Rubber Well Nut
347, 349
(Discontinued 1985)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97006057 Thermostat with Wiring Box
98006746 Thermostat Wiring Box Cover
n.l.a. Motor
97006971 Fan Blade
n.l.a. Capacitor
98005557 Motor Mounting Band - 3 Required
99170254 Bolt for Motor Mounting Band
99260465 Nut for Motor Mounting Band
99170253 Housing Bolt
99260459 Rubber Well Nut
348
(Discontinued 1985)
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97006057 Thermostat with Wiring Box
98006746 Thermostat Wiring Box Cover
97009317 Motor
97006971 Fan Blade
98005557 Motor Mounting Band - 3 Required
99170254 Bolt for Motor Mounting Band
99260465 Nut for Motor Mounting Band
99170253 Housing Bolt
99260459 Rubber Well Nut
349BR
0705B000 Metal Dome Cover
0711B000 Thermostat Assembly with Outlet Box
0706B000 Motor
0707B000 Fan Blade
0708B000 Conduit for Motor
0709B000 Mounting Bracket for Motor - 3 Required
0710B000 Bird Screen
350, 350BK, 350BR
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97008413 Adjustable Thermostat
97009316 Motor
97006971 Fan Blade
n.l.a. Motor Mounting Bracket - 350-A,B,
98008298 Motor Mounting Bracket - 350-C,D,E,F - 3
Required
98006710 Wiring Box - 350-A,B,
98009757 Wiring Box - 350-C,D,E,F
98006746 Wiring Box Cover - 350-A,B
98006877 Wiring Box Cover - 350-C,D,E,F
353
97008413 Adjustable Thermostat
97009316 Motor
97006971 Fan Blade
n.l.a. Motor Mounting Bracket - 353-A,B
98008298 Motor Mounting Bracket - 353-C,D,E,F - 3
Required
n.l.a. Housing Band - 353-A,B
98006879 Housing Band - 353-C,D,E,F
98006710 Wiring Box - 353-A,B
98009757 Wiring Box - 353-C,D,E,F
98006877 Wiring Box Cover - 353-C,D,E,F
98005039 Housing Mounting Bracket - 4 Required
97008483 Parts Bag - Includes [8] #10b-16 x 3/8”
35316
97008413 Adjustable Thermostat
97015764 Motor - Includes Capacitor
97006971 Fan Blade
98008298 Motor Mounting Bracket - 3 Required
98006879 Housing Band
98009757 Wiring Box
98006877 Wiring Box Cover
98005039 Housing Mounting Bracket - 4 Required
97008483 Parts Bag - Includes [8] #10b-16 x 3/8”
353SOBK
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527255 Remote Solar Panel Assembly - Black
99527253 Gable Roof Sheet Panel Black
355, 355BK, 355BR
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97008413 Adjustable Thermostat
97009317 Motor
97006971 Fan Blade
n.l.a. Motor Mounting Bracket - 355-A,B,
98008298 Motor Mounting Bracket - 355-C,D,E,F - 3
Required
98006710 Wiring Box - 355-A,B
98009757 Wiring Box - 355-C,D,E,F
98006746 Wiring Box Cover - 355-A,B
98006877 Wiring Box Cover - 355-C,D,E,F
355CSOBK
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527256 Curb/Gable - Roof Sheet Panel Black
99527250 Roof Sheet Panel Black
355CSOBR
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527254 Curb/Gable - Roof Sheet Panel Brown
355RSOBK
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527255 Remote Solar Panel Assy - Black
355RSOBR
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527256 Remote Solar Panel Assy - Brown
355SOBK
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527247 Solar Panel Assy- Black
99527250 Roof Sheet Panel Black
Index
86
355SOBR
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527248 Solar Panel Assy- Brown
99527251 Roof Sheet Panel - Brown
355SOWW
(Discontinued 2012)
99527257 Motor - DC
99527258 Motor-DC Brush Kit
99527261 Fan Blade
99527249 Solar Panel Assy - Weathered Wood
99527252 Roof Sheet Panel - Weathered Wood
356, 356BK, 356BR
--NOTE-- Model 356 Revision G introduced in 05/2001
n.l.a. Dome - White Plastic
99111462 Dome - Brown Plastic
99111463 Dome - Black Plastic
98005419 Dome - Silver Aluminum
97008413 Adjustable Thermostat
97009318 Motor - 356-A,B,C,D,E,F
97015612 Motor - 356-G, 356BR, 356BK
97006971 Fan Blade
n.l.a. Motor Mounting Bracket - 356-A,B,C
98008298 Motor Mounting Bracket - 356-D,E, F, G - 3
Required
98009757 Wiring Box - 356-A,B
98009886 Wiring Box - 356-D,E,F,G
98006746 Wiring Box Cover - 356-A,B
98006877 Wiring Box Cover - 356-D,E,F
358
98005419 Dome - Aluminum
97008413 Adjustable Thermostat
97009317 Motor
97006971 Fan Blade
n.l.a. Motor Mounting Bracket - 358-A,B,C
98008298 Motor Mounting Bracket - 358-D,E - 3 Re-
quired
98006710 Wiring Box - 358-A,B
98009757 Wiring Box - 358-D,E
98006746 Wiring Box Cover - 358-A,B
98006877 Wiring Box Cover - 358-D,E
RF-49BR
(Discontinued)
0705B000 Metal Dome Cover
0711B000 Thermostat Assembly with Outlet Box
0706B000 Motor
0707B000 Fan Blade
0708B000 Conduit for Motor
0709B000 Mounting Bracket for Motor - 3 Required
0710B000 Bird Screen
425, 426, 428, B425R, B426R,
B428R
(Discontinued)
n.l.a. Blade - Walnut
n.l.a. Blade - Walnut/Cane
n.l.a. Blade - White
n.l.a. Blade - White/Cane
n.l.a. Blade Holder - Antique Brass
n.l.a. Blade Holder - Bright Brass
99520632 Blade Mounting Screw - Antique Brass
n.l.a. Blade Mounting Screw - Bright Brass
n.l.a. Blade Holder Mounting Screw - Antique
Brass
n.l.a. Blade Holder Mounting Screw - Bright
Brass
n/a Pull Chain Switch
n.l.a. Reversing Switch
99520648 Wood Bead
521, 522, 523, 524, 525, 526,
B521D, B522D, B523D, B524D,
B525D, B525R, B526D, B526R
(Discontinued)
n.l.a. Blade - Walnut
n.l.a. Blade - Walnut/Cane
n.l.a. Blade - Black
n.l.a. Blade - White
99520629 Blade Holder - Antique Brass
n.l.a Blade Holder - Bright Brass
n.l.a. Blade Holder - Chrome
99520632 Blade Mounting Screw - Antique Brass
n.l.a. Blade Mounting Screw - Bright Brass
n.l.a. Blade Mounting Screw - Chrome
n.l.a. Blade Holder Mounting Screw - Antique
Brass
n.l.a. Blade Holder Mounting Screw - Bright
Brass
n.l.a. Blade Holder Mounting Screw - Chrome
n/a Pull Chain Switch
n.l.a. Reversing Switch
99520648 Wood Bead with Brass Chain
n.l.a. Wood Bead with Chrome Chain
n.l.a. Top Cover
A1025, A1026
(Discontinued)
99520754 Switch
A1125, A1126
(Discontinued)
99520528 Florentine Light Shade
99521712 Switch
A1225, A1226
(Discontinued)
99521712 Switch
A1322, A1323, A1324, A1326
(Discontinued)
99521712 Switch
A1625, A1626
(Discontinued)
99520512 Switch
A1725, A1726
(Discontinued)
99522286 Socket / Fitter Assembly - Antique Brass -
A1725
99522287 Socket / Fitter Assembly - Bright Brass -
A1726
99520512 Switch
A1825, A1826
(Discontinued)
99522289 Center Globe
99522288 Side Shade
99522292 Five Socket / Fitter Assembly - Antique
Brass - A1825
99522293 Five Socket / Fitter Assembly - Bright Brass
- A1826
99522340 Center Globe Fitter Assembly - Bright Brass
- A1826
99520512 Switch
A1925, A1926
(Discontinued)
99522292
Five Socket/Fitter Assy Antique Brass - A1925
99522293
Five Socket/Fitter Assy Bright Brass - A1926
99522340
Center Globe Fitter Assy Bright Brass - A1926
99520512 Switch
CFC, CFC56BR, CFC56WH
77000972 Blade Set - CFC56WH - Includes 3 Blades
77000973 Blade Set - CFC56BR - Includes 3 Blades
77000974 Canopy - CFC56WH
77000975 Canopy - CFC56BR
79030018 Switch & Plate
77000979 Downrod w/Ball, 6” - CFC56WH
77000980 Downrod w/Ball, 6” - CFC56BR
77000976 Coupling Cover - CFC56WH
77000977 Coupling Cover - CFC56BR
77000981 Mounting Bracket
77000978 Parts Bag
CFH, CFH52BS, CFH52PB,
CFH52RB, CFH52WH
77000911 Blade Set - CFH52WH - Includes 5 Blades
77000912 Blade Set - CFH52BS - Includes 5 Blades
77000913 Blade Set - CFH52PB - Includes 5 Blades
77000914 Blade Set - CFH52RB - Includes 5 Blades
77000921 Pull Chain Switch, Polished Brass Chain
77000922 Pull Chain Switch, Chrome Chain
77000923 Pull Chain Switch, Gunmetal Chain
77000926 Wood Bead w/Chain, Polished Brass Chain
77000927 Wood Bead w/Chain, Chrome Chain
77000928 Wood Bead w/Chain, Gunmetal Chain
77000919 Reversing Switch, 7 Wires, White
77000920 Reversing Switch, 7 Wires, Black
77000907 Blade Bracket Set - CFH52WH - Includes 5
Brackets
77000908 Blade Bracket Set - CFH52BS - Includes 5
Brackets
77000909 Blade Bracket Set - CFH52PB - Includes 5
Brackets
77000910 Blade Bracket Set - CFH52RB - Includes 5
Brackets
77000915 Parts Bag - CFH52WH
77000916 Parts Bag - CFH52BS
77000917 Parts Bag - CFH52PB
77000918 Parts Bag - CFH52RB
77000925 Capacitor - 4.5uf300VAC+6+5uf/250VAC
Index
87
CFO, CFO52BQ, CFO52WB,
CFO52WH
77000898 Blade Set - CFO52WH - Includes 5 Blades
77000899 Blade Set - CFO52WB - Includes 5 Blades
77000900 Blade Set - CFO52BQ - Includes 5 Blades
77000885 Mounting Bracket
77000886 Canopy - CFO52WH
77000887 Canopy - CFO52WB
77000888 Canopy - CFO52BQ
79100024 Rubber Yoke Cover & Ball Cover - White
79100025 Rubber Yoke Cover & Ball Cover - Black
77000889 Downrod w/Ball, 4” - CFO52WH
77000890 Downrod w/Ball, 4” - CFO52WB
77000891 Downrod w/Ball, 4” - CFO52BQ
77000892 Downrod w/Ball, 6” - CFO52WH
77000893 Downrod w/Ball, 6” - CFO52WB
77000894 Downrod w/Ball, 6” - CFO52BQ
77000919 Reversing Switch, 7 Wires - White
77000920 Reversing Switch, 7 Wires - Black
77000921 Pull Chain Switch, Polished Brass Chain
77000922 Pull Chain Switch, Chrome Chain
77000923 Pull Chain Switch, Gunmetal Chain
77000924 Pull Chain Switch, Stainless Chain
77000929 Wood Bead w/Chain, Stainless Chain
77000895 Blade Bracket Set - CFO52WH - Includes 5
Brackets
77000896 Blade Bracket Set - CFO52WB - Includes 5
Brackets
77000897 Blade Bracket Set - CFO52BQ - Includes 5
Brackets
77000904 Cover Switch - CFO52WH
77000905 Cover Switch - CFO52WB
77000906 Cover Switch - CFO52BQ
77000901 Parts Bag - CFO52WH
77000902 Parts Bag - CFO52WB
77000903 Parts Bag - CFO52BQ
77000925 Capacitor
CFS, CFS52BS, CFS52PB,
CFS52RB, CFS52WH
77000873 Blade Set - CFS52WH - Includes 5 Blades
77000874 Blade Set - CFS52BS - Includes 5 Blades
77000875 Blade Set - CFS52PB - Includes 5 Blades
77000876 Blade Set - CFS52RB - Includes 5 Blades
77000856 Mounting Bracket
77000857 Canopy - CFS52WH
77000858 Canopy - CFS52BS
77000859 Canopy - CFS52PB
77000860 Canopy - CFS52RB
77000861 Downrod w/Ball, 4” - CFS52WH
77000862 Downrod w/Ball, 4” - CFS52BS
77000863 Downrod w/Ball, 4” - CFS52PB
77000864 Downrod w/Ball, 4” - CFS52RB
77000865 Downrod w/Ball, 6” - CFS52WH
77000866 Downrod w/Ball, 6” - CFS52BS
77000867 Downrod w/Ball, 6” - CFS52PB
77000868 Downrod w/Ball, 6” - CFS52RB
77000919 Reversing Switch, 7 Wires - White
77000920 Reversing Switch, 7 Wires - Black
77000921 Pull Chain Switch, Polished Brass Chain
77000922 Pull Chain Switch, Chrome Chain
77000923 Pull Chain Switch, Gunmetal Chain
77000926 Wood Bead w/Chain, Polished Brass Chain
77000927 Wood Bead w/Chain, Chrome Chain
77000928 Wood Bead w/Chain, Gunmetal Chain
77000869 Blade Bracket Set - CFS52WH - Includes 5
Brackets
77000870 Blade Bracket Set - CFS52BS - Includes 5
Brackets
77000871 Blade Bracket Set - CFS52PB - Includes 5
Brackets
77000872 Blade Bracket Set - CFS52RB - Includes 5
Brackets
77000881 Cover Switch - CFS52WH
77000882 Cover Switch - CFS52BS
77000883 Cover Switch - CFS52PB
77000884 Cover Switch - CFS52RB
77000877 Parts Bag - CFS52WH
77000878 Parts Bag - CFS52BS
77000879 Parts Bag - CFS52PB
77000880 Parts Bag - CFS52RB
77000925 Capacitor
LK20, LK20FWWH, LK20FWPB,
LK20FWBS, LK20ASRB
77000930 Glass Shade - LK20FWWH, LK20FWPB,
LK20FWBS
77000933 Glass Shade - LK20ASRB
77000934 Light Kit - LK20FWWH
77000935 Light Kit - LK20FWPB
77000936 Light Kit - LK20FWBS
77000937 Light Kit - LK20ASRB
77000938 Parts Bag - LK20FWWH
77000939 Parts Bag - LK20FWPB
77000940 Parts Bag - LK20FWBS
77000941 Parts Bag - LK20ASRB
LK30, LK30AWH, LK30ABS,
LK30ARB
77000942 Glass Shade
77000946 Light Kit - LK30AWH
77000948 Light Kit - LK30ABS
77000949 Light Kit - LK30ARB
77000950 Parts Bag - LK30AWH
77000952 Parts Bag - LK30ABS
77000953 Parts Bag - LK30ARB
LK50, LK50DWH, LK50DWB,
LK50DBQ
77000962 Glass Shade - LK50DWH
77000963 Glass Shade - LK50DWB
77000964 Glass Shade - LK50DBQ
77000965 Light Kit - LK50DWH
77000966 Light Kit - LK50DWB
77000967 Light Kit - LK50DBQ
77000968 Parts Bag - LK50DWH
77000969 Parts Bag - LK50DWB
77000970 Parts Bag - LK50DBQ
P402, P502
(Discontinued 1984)
99523362 Blade Set - P402 - Includes 5 White /
Bleached Blades
99523151 Blade Set - P502 - Includes 5 White /
Bleached Blades
n.l.a. Blade Set - P402 - Includes 5 White / White
Blades
n.l.a. Blade Set - P502 - Includes 5 White / White
Blades
n.l.a. Blade Set - P402 - Includes 5 Oak / Walnut
Blades
n.l.a. Blade Set - P502 - Includes 5 Oak / Walnut
Blades
n.l.a. Canopy - Antique Brass
99523142 Canopy - Bright Brass
n.l.a. Canopy - White
99523144 Downrod with Ball - Antique Brass
n.l.a. Downrod with Ball - Bright Brass
99523146 Downrod with Ball - White
99523105 Mounting Hanger Bracket
n.l.a. Blade Holder Set - P402AB - Includes 5
Holders
n.l.a. Blade Holder Set - P502AB - Includes 5
Holders
n.l.a. Blade Holder Set - P402PB, P402WB,
P402PW - Includes 5 Holders
n.l.a. Blade Holder Set - P502PB, P502WB - In-
cludes 5 Holders
99523360 Blade Holder Set - P402WW - Includes 5
Holders
99523149 Blade Holder Set - P502WW - Includes 5
Holders
99523152 Reversing Switch
n/a Switch Pull Chain - P402, P502
99520648 Wood Bead with Chain - P502
n.l.a. Switch Box Cover - Antique Brass
n.l.a. Switch Box Cover - Bright Brass
99522257 Switch Box Cover - White
99520642 Switch Box Cover Plug - Antique Brass
99520641 Switch Box Cover Plug - Bright Brass,
White
n.l.a. Capacitor - P402
99523364 Capacitor - P502
99523155 Parts Bag - Bright Brass
99523154 Parts Bag - Antique Brass
PD542WW, PD542VD
(Discontinued)
n.l.a. Mounting Bracket
99523435 Blade Set - PD542WW - Includes 5 White
Blades
n.l.a. Blade Set - PD542VD - Includes 5 Almond
Blades
n.l.a. Blade Bracket Set - PD542WW - Includes 5
Brackets
n.l.a. Blade Bracket Set - PD542VD - Includes 5
Brackets
n.l.a. Capacitor
99523443 Parts Bag
99523438 Pull Chain Switch
99523437 Plastic Bead w/Chain
n.l.a. Reversible Switch
99523440 Switch Box Cover - PD542WW
99523439 Switch Box Cover - PD542VD
99523441 Plug for Switch Cover
n.l.a. Canopy - PD542WW
n.l.a. Canopy - PD542VD
99523431 Downrod with Ball - PD542WW
n.l.a. Downrod with Ball - PD542VD
Index
88
PH416AB, PH416PB, PH416PW,
PH416WB, PH416WW, PH516AB,
PH516PB, PH516PW, PH516WB,
PH516WW
(Discontinued)
n.l.a. Blade Set of 5 - PH416AB, PH416PB
n.l.a. Blade Set of 5 - PH516AB, PH516PB
99523362 Blade Set of 5 - PH416PW, PH416WB,
PH416WW
99523151 Blade Set of 5 - PH516PW, PH516WB,
PH516WW
n.l.a. Blade Bracket Set of 5 - PH416AB
n.l.a. Blade Bracket Set of 5 - PH416PB,
PH416PW, PH416 WB
99523360 Blade Bracket Set of 5 - PH416WW
n.l.a. Blade Bracket Set of 5 - PH516AB
n.l.a. Blade Bracket Set of 5 - PH516PB,
PH516PW, PH516WB
99523149 Blade Bracket Set of 5 - PH516WW
n.l.a. Mounting Bracket - 42” Units
99523152 Reversing Switch
99520648 Wood Bead with Chain
99520644 Switch Pull Chain - PH416 Series
n/a Switch Pull Chain - PH516 Series
n.l.a. Capacitor PH416 Series
99523364 Capacitor PH516 Series
n.l.a. Switch Box Cover PH416AB, PH516AB
n.l.a. Capacitor PH416 Series
99523364 Capacitor PH516 Series
n.l.a. Switch Box Cover PH416PB, PH416PW,
PH516PB, PH516PW
99522257 Switch Box Cover PH416WB, PH416WW,
PH516WB, PH516WW
99520642 Plug for Switch Cover PH416AB, PH516AB
99520641 Plug for Switch Cover PH416PB,
PH416PW, PH416WB, PH416WW,
PH516PB, PH516PW, PH516WB,
PH516WW
n.l.a. Mounting Bracket - 52” Units
n.l.a. Canopy PH416AB, PH516AB
n.l.a. Canopy PH416PB, PH416PW, PH516PB,
PH516PW
n.l.a. Canopy PH416WB, PH416WW, PH516WB,
PH516WW
TF40, TF40BS, TF40RB, TF40WH
77000954 Light Kit - TF40WH
77000956 Light Kit - TF40BS
77000957 Light Kit - TF40RB
77000958 Parts Bag - TF40WH
77000960 Parts Bag - TF40BS
77000961 Parts Bag - TF40RB
40425
SVT5W Main Control
AE60, HV 1.5
V04864 Wall Control with 40’ Low Voltage Wire
V11197 Filter - Aluminum
V00531 Styrofoam Filter Door
V01334 Filter Door Cover Black
V00615 Screws for Filter Door Cover
V12885 Toggle Switch
V11608 Blower Assembly for Units Built Before
12/2006
V16415 Blower Assembly for Units Built After
12/2006
V02169 Electronic Circuit Board for Units Before
12/2006
V15489 Electronic Circuit Board for Units Built After
12/2006
V00477 Damper Actuator Assembly
SV00866 6” Round Double Collar
SV01335 4” Round Port
V00842 Chains/Hooks/Springs-Hanging Kit
BVS200
(Discontinued 7/2000)
n.l.a Filter - 2 Required
97012059 Electrostatic Air Filter
97011542 Blower Assembly - BVS200-A - Includes
Motor & Blower Wheels
n.l.a Blower Assembly - BVS200-B
99080387 Motor - BVS200-A
n.l.a Motor - BVS200-B
99020256 Blower Wheel - CW
99020257 Blower Wheel - CCW
98008413 Damper
n.l.a Latch - BVS200-A
97011837 Latch - BVS200-B
n.l.a Power Cord
n.l.a Cover Assembly
n.l.a Divider Plate Insulation
97011519 Barrier Piece
ERV100HC
V03096 Foam Filter - 2 Required
V03136 ERV Core
V13555 Blower Assembly - Includes Motor & Blow-
er Wheels
see note Motor *
V12886 Blower Wheel - 2 Required
V02104 Capacitor
V12647 Electronic Circuit Board Assembly - In-
cludes Cover
V12873 Heat Sink
V01825 Safety Interrupter Switch
V12895 Thermistor Assembly
V18304 Fuse for Power Cord - 5mm x 15mm, 3
Amp, 250V
V12658 Furnace Interlock Switch Kit **
V03124 Damper Motor / Actuator Assembly
V12620 Damper Rod
V00248 Damper Rod Rubber Grommet
V12648 Door Assembly
V00672 Hinge Assembly - 2 Required
V00886 Door Latch - 2 Required
V00887 Door Latch Keeper - 2 Required
V02021 Upper Right Port for Fresh Air from Outside
- Double Collar
V02257 Upper Left Port for Stale Air Out - Double
Collar
V02256 Lower Balancing Port - Double Collar - 2
Required
V13404 Silicone Tube
V03148 Parts Bag - Includes Hanger Kit
V03203 Parts Bag - Includes Drain Kit
* Must purchase Blower Assembly - p/n V13555
** Optional - Not included with Unit
ERV110, ERV110ENT
(Discontinued)
99010264 Filter - 2 Required
97012057 Electrostatic Air Filter
97013188 ERV Core - ERV110
97013189 ERV Core - ERV110ENT
99030229 On/Off Switch - ERV110-A, ERV110ENT-A
99030171 On/Off Switch - ERV110-B,C, ERV110ENT-
B,C
99360118 Knob
n.l.a Blower Assembly - Includes Motor & Blow-
er Wheels
n.l.a. Motor
n.l.a. Blower Wheel - CCW
n.l.a. Blower Wheel - CW
n.l.a Control Panel Assy - ERV110
97011535 Control Panel Assy - ERV110ENT
n.l.a. Speed Control - ERV110-A, ERV110ENT-A
n.l.a. Timer, Defrost - ERV110
99030262 Timer, Defrost - ERV110ENT
n.l.a. Thermostat
97011529 Gear Motor Assembly
97011530 Door Assembly - ERV110-A,B, ER-
V110ENT-A,B
97011879
Door Assembly - ERV110-C, ERV110ENT-C
99420552 Hinge Set
99420553 Latch Set - ERV110-A, ERV110ENT-A
n.l.a. Latch Set - ERV110-B, ERV110ENT-B
97011837 Latch Set - ERV110-C, ERV110ENT-C
98008413 Damper
99140186 Spring for Damper
99390113 Tubing Clamp - ERV110-A,B, ERV110ENT-
A,B
99380644 Leveling Legs - 4 Required
97011525 Drain Pan Assembly
n.l.a. Insulation Divider - ERV110
n.l.a. Insulation Divider - ERV110ENT
n.l.a. Power Cord - ERV110-A, ERV110ENT-A
99271105 Power Cord - ERV110-B,C, ERV110ENT-
B,C
97011528 Damper Assembly - ERV110-A,B, ER-
V110ENT-A,B
99420554 Hanging Straps - 4 Required
n.l.a. Drain Fitting
ERV140TE
V18204 Core Filter - 2 Required
V18042 ERV Core
V18198 Motor Assembly - Includes Motor, Blower
Wheel, & Bracket - 2 Required
see note Motor *
see note Blower Wheel *
V18216 PCB / Circuit Board
V16416 PCB Connector / Green Terminal Block
V18218 Transformer
V15749 Thermistor Kit
Index
89
V21528 Door Assembly
V18207 Double Collar Oval Port - 4 Required
V18221 Exhaust Damper Spring
V18199 Damper System Assembly - Includes De-
frost Damper
V18200 Defrost Damper Only
V18220 Balancing Tool - 2 Required
V08917 Hardware Kit
* Must purchase Blower Assembly - p/n V18198
ERV200, ERV200ENT
(Discontinued)
99010265 Filter - 2 Required
97012058 Electrostatic Air Filter
n.l.a. ERV Core
99030229 On/Off Switch - ERV200-A, ERV200ENT-A
99030171 On/Off Switch - ERV200-B,C, ERV200ENT-
B,C
99360118 Knob
n.l.a. Blower Assembly - Includes Motor & Blow-
er Wheels
n.l.a. Motor
n.l.a. Blower Wheel - CCW
n.l.a. Blower Wheel - CW
n.l.a. Control Panel Assy - ERV200
97011535 Control Panel Assy - ERV200ENT
n.l.a. Speed Control - ERV200-A, ERV200ENT-A
n.l.a. Timer, Defrost - ERV200
99030262 Timer, Defrost - ERV200ENT
n.l.a. Thermostat
97011529 Gear Motor Assembly
97011530 Door Assembly - ERV200-A,B, ER-
V200ENT-A,B
97011879
Door Assembly - ERV200-C, ERV200ENT-C
99420552 Hinge Set
99420553 Latch Set - ERV200-A, ERV200ENT-A
n.l.a. Latch Set - ERV200-B, ERV200ENT-B
97011837 Latch Set - ERV200-C, ERV200ENT-C
98008413 Damper
99140186 Spring for Damper
99390113 Tubing Clamp - ERV200-A,B, ERV200ENT-
A,B
99380644 Leveling Legs - 4 Required
97011526 Drain Pan Assembly
n.l.a. Insulation Divider
n.l.a. Power Cord - ERV200-A, ERV200ENT-A
99271105 Power Cord - ERV200-B,C, ERV200ENT-
B,C
97011528 Damper Assembly - ERV200-A,B, ER-
V200ENT-A,B
99420554 Hanging Straps - 4 Required
n.l.a. Drain Fitting
ERV200HC
V03097 Foam Filter - 2 Required
V03137 ERV Core
V13506 Blower Assembly - Includes Motor & Blow-
er Wheels
see note Motor *
V12886 Blower Wheel - 2 Required
V02104 Capacitor
V12647 Electronic Circuit Board Assembly - In-
cludes Cover
V12895 Thermistor Assembly
V01825 Safety Interrupter Switch
V12873 Heat Sink
V18304 Fuse for Power Cord - 5mm x 15mm, 3
Amp, 250V
V12658 Furnace Interlock Switch Kit **
V12648 Door Assembly
V00672 Hinge Assembly - 2 Required
V00886 Door Latch - 2 Required
V00887 Door Latch Keeper - 2 Required
V03124 Damper Motor / Actuator Assembly
V12620 Damper Rod
V00248 Damper Rod Rubber Grommets
V02021 Upper Right Port for Fresh Air from Outside
- Double Collar
V02257 Upper Left Port for Stale Air Out - Double
Collar
V02256 Lower Balancing Port - Double Collar - 2
Required
V13404 Silicone Tube
V03148 Parts Bag - Includes Hanger Kit
V03203 Parts Bag - Includes Drain Kit
* Must purchase Blower Assembly - p/n V13506
** Optional - Not included with Unit
ERV70S, ERV70T, HRV70SE,
HRV70TE
V18883 Core Filter - Includes 2 Filters
V19208 Filter Retaining Wires - Includes 2 Wires
V19200 ERV Core - ERV70S, ERV70T
V19199 HRV Core - HRV70SE, HRV70TE
V18867 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
see note Motor
see note Blower Wheel
V16042 Capacitor - 5 uF
V19211 Capacitor - 13 uF
V19207 Electronic Circuit Board - ERV70S, ERV70T
V19206 Electronic Circuit Board - HRV70SE,
HRV70TE
V16416 PCB Connector / Green Terminal Block
V17244 Transformer
V21527 Door Assembly
V18881 Horizontal Ports Damper System - ER-
V70S, HRV70SE
V18868 Veritcal Ports Damper System - ERV70T,
HRV70TE
V18855 Double Collar Port with Damper - 4” Round
- 2 Required
V18854 Metal Port - 4” Round - 2 Required
V19212 Port Strap - 2 Required
V19213 Hardware Kit
* Must purchase Blower Assembly - p/n V18867
ERV90HCS, ERV90HCT
Blower Assembly design changed in 12/2013 - will appear
different but is compatible
V16031 Foam Filter - 2 Required
V16033 ERV Core - Includes Foam Filters
V16024 Blower Assembly - Includes Motor, Blower
Wheel, & 5uF Capacitor - 2 Required
see note Motor *
see note Blower Wheel *
V16042 Capacitor - 5uF
V16027 Capacitor - 7uF
V16038 Electronic Circuit Board
V16039 Transformer
V16096 Door Assembly
V16035 Door Latch with Screws
V16036 Door Hinges
V16040 Oval Port 5”
V16041 Oval Port With Balance Damper
V16029 Motorized Damper Port Assembly - In-
cludes Thermistor
V16416 Green Connector / Terminal Block
V06046 Hardware Kit
* Must purchase Blower Assembly - p/n V16024
ERVH100S, ERVH100SE, HRVH100SE
ACCHEPARF HEPA Filter Kit - Includes [1] HEPA Filter &
[2] Pre-Filters
ACCHEPAPFK Pre-Filter Kit - Includes [2] Pre-Filters
V61563 Core Filter - 2 Required
V61410 ERV Core - ERVH100S, ERVH100SE
V61567 HRV Core - HRVH100SE
V61553 Core Bracket
V61552 Blower Assembly - Includes Motor, Blower
Wheels, & Scroll Housing
see note Motor *
see note Blower Wheel *
V61550 Capacitor - 6 uF
V61548 Electronic Circuit Board
V61545 Transformer
V61554 Door Assembly
V61411 Door Bracket with Retaining Nut - 2 Re-
quired
V61569 Double Collar Port - 2 Required
V61565 Damper / Port System Assembly
* Must purchase Blower Assembly - p/n V61552
GSEH3K, GSHH3K
(Discontinued 08/2013)
Wall Control included changed from Model ACCGSC3 to
VT5W in 06/2008
SACCGSFHP2 Replacement Filter Yearly Kit - Includes [1]
HEPA Filter & [2] Pre-Filters
SACCGSFP2 Pre-Filter Only - Includes 2
SACCGSFH HEPA Filter Only
V05248 Pull Tab for HEPA Filter
V05689 Foam Core Filter - GSEH3K - 9-3/8” x
3-3/8” - 2 Required
V04295 Foam Core Filter - GSHH3K - 14” x 3-3/8” -
2 Required
V14996 ERV Core - GSEH3K
V14027 HRV Core - GSHH3K
V14572 Main Switch on Unit - 3 Positions
V04411 Knob for Main Switch
V04864 Old Style Wall Control - Model ACCGSC3 *
SVT5W New Style Wall Control - Model VT5W **
V05129 Knob for ACCGSC3 Wall Control
V13937 Blower Assembly - Includes Motor & Blow-
er Wheel
see note Motor ***
see note Blower Wheel ***
V14997 PC / Circuit Board - GSEH3K - Includes
Main Switch
V14384 PC / Circuit Board - GSHH3K - Includes
Main Switch
V14573 Transformer
V14575 Thermistor
V14571 Damper Motor
V14576 Damper Wire Kit
V14376 Door
V04410 Door Latch - 2 Required
V14378 Port Kit - 5”/ 6” Round - 2 Required
Index
90
V14379 Port Kit - 8” Round - 2 Required
V14697 Drain Connector Kit - GSHH3K - Includes
Plugs, Hose, Washers & Wire Ties
V14578 Drain Connector Kit - GSHH3K - Includes
Drain Fittings & Gaskets
V14786 Tandem Transition Pipe - Includes Pins &
Wire Ties
V14790 Exterior Hood for Air Duo Wall Cap
V14791 Exterior Hood for Single Outlet Wall Cap
****
V04318 Back Plate for Air Duo & Single Outlet Wall
Cap
V14785 Bird Screens for Exterior Hoods - Includes
[2] for Air Duo & [1] for Single Outlet Wall
Cap
V14787 White Plastic Inlet Grille
V04400 Duct Connector / Adapter for Mounting to
Furnace / Air Handler
V04655 Parts Bag - Includes Chain & Springs for
Hanging, Screws, & Plug
V05294 Parts Bag - Includes Wall Anchors, Screws,
& Pins
V14587 Installation Kit - Includes Tandem Transi-
tion, Exterior Air Duo Hood, Inlet Grille, &
Hardware
* Old style wall control has a 3 position sliding switch and
includes 40’ of low voltage wire
** New style wall control has digital display and 4 push
buttons
*** Must purchase Blower Assembly - p/n V13937
**** Optional - Not included with unit
GSFH1K
(Discontinued 2013)
SACCGSFHP2 Replacement Filter Yearly Kit - Includes [1]
HEPA Filter & [2] Pre-Filters
SACCGSFP2 Pre-Filter Only - Includes 2
SACCGSFH HEPA Filter Only
V05248 Pull Tab for HEPA Filter
V14572 Main Switch on Unit - 3 Positions
V04411 Knob for Main Switch
V05280 Wall Control - Includes 40’ of Low Voltage
Wire
V05129 Knob for Wall Control
V14570 Blower Assembly - Includes Motor & Blow-
er Wheel
see note Motor *
see note Blower Wheel *
V14383 PC / Circuit Board - Includes Main Switch
V14573 Transformer
V14376 Door
V04410 Door Latch - 2 Required
V14378 Port Kit - 5”/ 6” Round
V14379 Port Kit - 8” Round
V14787 White Plastic Inlet Grille
V04400 Duct Connector / Adapter for Mounting to
Furnace / Air Handler
V04655 Parts Bag - Includes Chain & Springs for
Hanging, Screws, & Plug
V05294 Parts Bag - Includes Wall Anchors, Screws,
& Pins
V14585 Installation Kit - Includes Inlet Grille, Duct
Connector, & Hardware
* Must purchase Blower Assembly - p/n V14570
GSVH1K
(Discontinued 2013)
SACCGSFHP2 Replacement Filter Yearly Kit - Includes [1]
HEPA Filter & [2] Pre-Filters
SACCGSFP2 Pre-Filter Only - Includes 2
SACCGSFH HEPA Filter Only
V05248 Pull Tab For Hepa Filter
V14572 Main Switch on Unit - 3 Positions
V04411 Knob for Main Switch
V05280 Wall Control - Includes 40’ of Low Voltage
Wire
V05129 Knob for Wall Control
V13937 Blower Assembly - Includes Motor & Blow-
er Wheel
see note Motor *
see note Blower Wheel *
V14383 PC / Circuit Board - Includes Main Switch
V14573 Transformer
V14376 Door
V04410 Door Latch - 2 Required
V14380 Damper Air Diffuser Assembly - Includes
Damper
V14378 Port Kit - 5”/ 6” Round - 2 Required
V14379 Port Kit - 8” Round - 2 Required
V14786 Tandem Transition Pipe - Includes Pins &
Wire Ties
V14790 Exterior Hood for Air Duo Wall Cap
V14791 Exterior Hood for Single Outlet Wall Cap
****
V04318 Back Plate for Air Duo & Single Outlet Wall
Cap
V14785 Bird Screens for Exterior Hoods - Includes
[2] for Air Duo & [1] for Single Outlet Wall
Cap
V14787 White Plastic Inlet Grille
V04400 Duct Connector / Adapter for Mounting to
Furnace / Air Handler
V04655 Parts Bag - Includes Chain & Springs for
Hanging, Screws, & Plug
V05294 Parts Bag - Includes Wall Anchors, Screws,
& Pins
V14587 Installation Kit - Includes Tandem Transi-
tion, Exterior Air Duo Hood, Inlet Grille, &
Hardware
* Must purchase Blower Assembly - p/n V13937
HF 3.1, HR 2.6
(Model HF 3.1 Discontinued 07/2013)
SACCGSFHP2 Replacement Filter Yearly Kit - Includes [1]
HEPA Filter & [2] Pre-Filters *
SACCGSFP2 Pre-Filter Only - Includes 2 *
SACCGSFH HEPA Filter Only *
V04852 Pull Tab for HEPA Filter
V04295 Foam Core Filter - 14” x 3-3/8” - 2 Required
V14027 HRV Core
V14572 Main Switch on Unit - 3 Positions
V04411 Knob for Main Switch
SVT5W Wall Control - Model VT5W
V13937 Blower Assembly - Includes Motor & Blow-
er Wheel
see note Motor **
see note Blower Wheel **
V14384 PC / Circuit Board - Includes Main Switch
V14573 Transformer
V14575 Thermistor
V14571 Damper Motor
V14576 Damper Wire Kit
V14376 Door
V04410 Door Latch - 2 Required
V14378 Port Kit - 5”/ 6” Round ***
V14379 Port Kit - 8” Round - HF 3.1 - 2 Required
V14697 Drain Connector Kit - Includes Plugs, Hose,
Washers & Wire Ties
V14578 Drain Connector Kit - Includes Drain Fit-
tings & Gaskets
V14786 Tandem Transition Pipe - Includes Pins &
Wire Ties
V14790 Exterior Hood for Air Duo Wall Cap
V14791 Exterior Hood for Single Outlet Wall Cap
****
V04318 Back Plate for Air Duo & Single Outlet Wall
Cap
V14785 Bird Screens for Exterior Hoods - Includes
[2] for Air Duo & [1] for Single Outlet Wall
Cap
V14787 White Plastic Inlet Grille
V04400 Duct Connector / Adapter for Mounting to
Furnace / Air Handler
V04655 Parts Bag - Includes Chain & Springs for
Hanging, Screws, & Plug
V05294 Parts Bag - Includes Wall Anchors, Screws,
& Pins
V14587 Installation Kit - Includes Tandem Transi-
tion, Exterior Air Duo Hood, Inlet Grille, &
Hardware
* Original MERV Filters not available - Must replace with
HEPA style
** Must purchase Blower Assembly - p/n V13937
*** [2] Required for Model HF 3.1 - [4] Required for Model
HR 2.6
**** Optional - Not included with unit
HRV100H
V03096 Foam Filter - 2 Required
V03134 HRV Core
V13504 Blower Assembly - Includes Motor & Blow-
er Wheels
see note Motor *
V12886 Blower Wheel - 2 Required
V02104 Capacitor
V12646 Electronic Circuit Board & Cover
V12873 Heat Sink
V01825 Safety Interrupter Switch
V12895 Thermistor Assembly
V18304 Fuse for Power Cord - 5mm x 15mm, 3
Amp, 250V
V12658 Furnace Interlock Switch Kit **
V12648 Door Assembly
V00672 Hinge Assembly - 2 Required
V00886 Door Latch - 2 Required
V00887 Door Latch Keeper - 2 Required
V03124 Damper Motor / Actuator Assembly
V12459 Fresh Air Damper
V12620 Damper Rod
V00248 Damper Rod Rubber Grommets
V02021 Upper Right Port for Fresh Air from Outside
- Double Collar
V02257 Upper Left Port for Stale Air Out - Double
Collar
V02256 Lower Balancing Port - Double Collar - 2
Required
V13404 Silicone Tube
Index
91
V03148 Parts Bag - Includes Hanger Kit
V03203 Parts Bag - Includes Drain Kit
* Must purchase Blower Assembly - p/n V13504
** Optional - Not included with Unit
HRV1150
V1608153 Supply & Exhaust Foam Filter Set - Includes
3 Filters
V1608156 Supply Medium Efficiency Second Stage
Filter Set - Includes 2 Filters
V1808146 HRV Core - 3 Required
V1808148 Blower Assembly - Includes Motors &
Blower Wheels
see note Motor *
V201586 Blower Wheel - 2 Required
V201589 Capacitor
V1808130 Control Board
V062104 Relay Located on Control Board - For Units
Made Before 01/2010
V1808109 Relay Located on Control Board - For Units
Made In or After 01/2010
V202693 Large Relay - 1.375” x 2” with 6 Terminals
- For Units Made Before 01/2010
V500025915 Large Relay - 1.375” X 2” with 6 Terminals
- For Units Made In or After 01/2010
V202729 Small Relay with 5 Terminals - For Units
Made Before 01/2010
V1607266 Small Relay with 5 Terminals - For Units
Made In or After 01/2010
V202382 Thermister
V1607720 Door Hinge - Includes Male & Female
V1607852 Door Latch & Keeper
V1808138 Intake Damper Actuator Motor Assembly
V202070 Intake Damper Assembly
V1808139 Defrost Motor Damper Assembly
* Must Purchase Blower Assembly - p/n V1808148
HRV150TE
V18205 Core Filter - 2 Required
V18202 HRV Core
V18198 Motor Assembly - Includes Motor, Blower
Wheel, & Scroll Housing - 2 Required
see note Motor *
see note Blower Wheel *
V18216 PCB / Circuit Board
V16416 PCB Connector / Green Terminal Block
V18218 Transformer
V15749 Thermistor Kit
V21528 Door Assembly
V18206 Oval Port - 2 Required
V18207 Double Collar Oval Port - 2 Required
V18221 Exhaust Damper Spring
V18199 Damper System Assembly - Includes De-
frost Damper
V18200 Defrost Damper Only
V18220 Balancing Tool - 2 Required
V08304 Hardware Kit
* Must purchase Blower Assembly - p/n V18198
HRV200H
V03097 Foam Filter - 2 Required
V03135 HRV Core
V13505 Blower Assembly - Includes Motor & Blow-
er Wheels
see note Motor *
V12886 Blower Wheel Kit - Includes 2 Blower
Wheels
V02104 Capacitor
V12646 Electronic Circuit Board & Cover
V12873 Heat Sink
V01825 Safety Interrupter Switch
V12895 Thermistor Assembly
V18304 Fuse for Power Cord - 5mm x 15mm, 3
Amp, 250V
V12658 Furnace Interlock Switch Kit **
V12648 Door Assembly
V00672 Hinge Assembly - 2 Required
V00886 Door Latch - 2 Required
V00887 Door Latch Keeper - 2 Required
V03124 Damper Motor / Actuator Assembly
V12459 Fresh Air Damper
V12620 Damper Rod
V00248 Damper Rod Rubber Grommets
V12643 Defrost Damper - Rectangular
V02021 Upper Right Port for Fresh Air from Outside
- Double Collar
V02257 Upper Left Port for Stale Air Out - Double
Collar
V02256 Lower Balancing Port - Double Collar - 2
Required
V13404 Silicone Tube
V03148 Parts Bag - Includes Hanger Kit
V03203 Parts Bag - Includes Drain Kit
* Must purchase Blower Assembly - p/n V13505
** Optional - Not included with Unit
HRV650
V1608153 Foam Filter - 2 Required
V1608152 Supply & Exhaust Foam Filter Set - Includes
2 Filters
V1608155 Supply Medium Efficiency Second Stage
Filter Set - Includes 2 Filters
V1808146 HRV Core - 2 Required
V1808144 Blower Assembly - Includes Motors &
Blower Wheels
V1808149 Motor - 2 Required
V201586 Blower Wheel - 2 Required
V201589 Capacitor
V1808130 Control Board
V062104 Relay Located on Control Board - For Units
Made Before 01/2010
V1808109 Relay Located on Control Board - For Units
Made In or After 01/2010
V202693 Large Relay - 1.375” X 2” with 6 Terminals
- For Units Made Before 01/2010
V500025915 Large Relay - 1.375” x 2” with 6 Terminals
- For Units Made In or After 01/2010
V202729 Small Relay with 5 Terminals - For Units
Made Before 01/2010
V1607266 Small Relay with 5 Terminals - For Units
Made In or After 01/2010
V202382 Thermister
V1607852 Door Latch & Keeper
V1607720 Door Hinge - Includes Male & Female
V1808138 Damper Actuator Motor Assembly for Out-
side Air Exhaust Only
V201982 Intake Damper Assembly - For Units Made
Before 01/2010
V1607821 Intake Damper Assembly - For Units Made
In or After 01/2010
V1808139 Defrost Motor / Core Damper Assembly
HRV700
V1608700 Foam Filter - 2 Required
V132107 Supply Medium Efficiency Filter
V1604190 HRV Core - USA Units Only
V1608120P Blower Assembly - Includes Motor & Blow-
er Wheel
V1604169 Motor
V1604177 Blower Wheel - For Units Made Before
01/2010
V120200 Blower Wheel - For Units Made In or After
01/2010
V1808141 Capacitor - For Units Made Before 01/2010
V201589 Capacitor - For Units Made In or After
01/2010
V1808130 Control Board
V202729 Relay - For Units Made Before 01/2010
V1607266 Relay - For Units Made In or After 01/2010
V1607255 Thermister - For Units Made Before
01/2010
V202382 Thermister - For Units Made In or After
01/2010
V1607720 Door Hinge - Includes Male & Female
V1607852 Door Latch & Keeper
V1604178 Damper Blade Assembly for Outside Air
Reciculation *
V1604164 Damper Actuator Belimo Conversion Kit
KM24
V225855 Damper / Defrost Motor
* Must purchase Damper Actuator Coversion Kit as well -
p/n V1604164
HRV90HS, HRV90HT
Blower Assembly design changed in 12/2013 - will appear
different but is compatible
V16032 Foam Filter - 2 Required
V16034 HRV Core - Includes Foam Filters
V16024 Blower Assembly - Includes Motor, Blower
Wheel, & 5uF Capacitor - 2 Required
see note Motor *
see note Blower Wheel *
V16042 Capacitor - 5uF
V16027 Capacitor - 7uF
V16038 Electronic Circuit Board
V16039 Transformer
V16096 Door Assembly
V16035 Door Latch with Screws - 2 Required
V16036 Door Hinge - 2 Required
V16040 Oval Port - 5” Round
V16041 Oval Port with Balance Damper - 2 Re-
quired
V16029 Motorized Damper Port Assembly
V16416 Green Connector / Terminal Block
V06011 Hardware Kit
* Must purchase Blower Assembly - p/n V16024
MP100
97011406 Access Cover
99170245 Access Cover Mounting Screw - #8 x 3/8” -
2 Required
97011407 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
97011400 Motor - Includes Capacitor
97011403 Capacitor
95000963 Motor Mounting Cup
99100412 Motor Mounting Rubber - 2 Required
97011361 Blower Scroll Housing Only
Index
92
97011403 Capacitor
97008575 Wiring Harness
98005513 Outlet Box Cover
97011410 Housing
98005512 Knock-Out Plate
99150471 Ground Screw - #10-32 x 1/2”
99110942 Inlet Port Cover - 2 Required
MP140
97011406 Access Cover
99170245 Access Cover Mounting Screw - #8 x 3/8” -
2 Required
97011413 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
97011411 Motor - Includes Capacitor
97011395 Blower Wheel
95000963 Motor Mounting Cup
99100412 Motor Mounting Rubber - 2 Required
97011362 Blower Scroll Housing Only
97011412 Capacitor
97008575 Wiring Harness
98005513 Outlet Box Cover
97011410 Housing
98005512 Knock-Out Plate
99150471 Ground Screw - #10-32 x 1/2”
99110942 Inlet Port Cover - 2 Required
MP200
97011406 Access Cover
99170245 Access Cover Mounting Screw - #8 x 3/8” -
2 Required
97011409 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
97011402 Motor - Includes Capacitor
97011396 Blower Wheel
95000963 Motor Mounting Cup
99100412 Motor Mounting Rubber - Fan Contains 2
97011363 Blower Scroll Housing Only
97011405 Capacitor
97008575 Wiring Harness
98005513 Outlet Box Cover
97011410 Housing
98005512 Knock-Out Plate
99150471 Ground Screw - #10-32 x 1/2”
99110942 Inlet Port Cover - 2 Required
MP280
97011419 Access Cover
99170245 Access Cover Mounting Screw - #8 x 3/8” -
4 Required
99420470 Access Cover Mounting Nut - 4 Required
97011417 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
97011415 Motor - Includes Capacitor
97011423 Blower Wheel
99100484 Motor Mounting Rubber - 3 Required
99150536 Motor Mounting Screw - 1/4”-20 x 5/16” -
3 Required
99260477 Motor & Scroll Housing Mounting Nut -
1/4”-20 - 7 Required
97011346 Blower Scroll Housing Only
98005405 Blower Mounting Channel
97011418 Capacitor - Includes Cover
97006081 Wiring Harness
98005513 Outlet Box Cover
97011414 Housing - Includes Access Cover Mounting
Nuts
98005512 Knock-Out Plate
99150471 Ground Screw - #10-32 x 1/2”
99110942 Inlet Port Cover - 2 Required
SP100
97011406 Access Cover
99170245 Access Cover Mounting Screw - #8-18 x
3/8” - 2 Required
97011407 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
97011400 Motor - Includes Capacitor
97011394 Blower Wheel
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011700 Scroll Housing Only
97011403 Capacitor
97008575 Wiring Harness
98005513 Outlet Box Cover
97011393 Housing
98005512 Knock-Out Plate
99150471 Ground Screw - #10-32 x 1/2”
SP140
97011406 Access Cover
99170245 Access Cover Mounting Screw - #8-18 x
3/8” - 2 Required
97011408 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
97011401 Motor - Includes Capacitor
97011395 Blower Wheel
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011701 Scroll Housing Only
97011404 Capacitor
97008575 Wiring Harness
98005513 Outlet Box Cover
97011393 Housing
98005512 Knock-Out Plate
99150471 Ground Screw - #10-32 x 1/2”
SP200
97011406 Access Cover
99170245 Access Cover Mounting Screw - #8-18 x
3/8” - 2 Required
97011409 Blower Assembly - Includes Motor, Blower
Wheel, Capacitor, & Scroll Housing
97011402 Motor - Includes Capacitor
97011396 Blower Wheel
99100412 Motor Mounting Rubber - 2 Required
95000963 Motor Cup
97011702 Scroll Housing Only
97011405 Capacitor
97008575 Wiring Harness
98005513 Outlet Box Cover
97011393 Housing
98005512 Knock-Out Plate
99150471 Ground Screw - #10-32 x 1/2”
TYIK1
V14790 Exterior Air Duo Hood
V04318 Back Plate for Air Duo Hood
V14785 Bird Screens - Includes 2
V14786 Tandem Transition Pipe
Index
93
AVD40B, AVD40KB, AVD40WB,
AVD45B, AVD45KB, AVD45WB,
AVD50B
(Discontinued 2008)
Revision C introduced new Piano Hinge design in 11/2004
99523940 Light Lens
n.l.a. Light Socket
99524043 Control Panel Assembly - Non-Electrical -
AVD40B, AVD40KB, & AVD40WB
99524041 Control Panel Assembly - AVD45B, AVD-
45KB, AVD45WB, & AVD50B *
see note Safety Switch - Push Button **
99523915 Timer Switch - 60 Minute
99523916 Knob for Timer Switch
99523913 Pilot Lamp with Lens Cover
99525227 Door - AVD40KB, AVD45KB
n.l.a. Door - AVD40WB, AVD45WB
AVDMFPNH Door - Mirror with 1” Bevel - AVD40B,
AVD45B, AVD50B
AVDORPN Door - Oak Raised Panel - Unfinished -
AVD40B, AVD45B, AVD50B
AVDWRPN Door - White Raised Panel - AVD40B,
AVD45B, AVD50B
AVDOFPN Door - Birch Flat Panel - Unfinished -
AVD40B, AVD45B, AVD50B
99523977 Hinge Kit - 1-3/4” Long ***
n.l.a. Hinge Kit - 10” Long ****
n.l.a. Board Assembly
SAVDCPN Board Cover
99525295 Board Spacer - AVD40B, AVD40KB, AVD-
40WB, AVD45B, AVD45KB, AVD45WB
99525225 Black Plastic Bushing for Height Adjust-
ment - AVD50B - 2-Required
99525226 Electrical Wire Cover - AVD45B-C,D, AVD-
45KB-C,D, AVD45WB-C,D, AVD50B-C,D
n.l.a. Electrical Wire Cover - AVD45B, AVD45KB,
AVD45WB, AVD50B
SAVDSMN Surface Mount Collar
* Includes Timer Switch, Safety Switch, Receptacle, Pilot
Light, & Metal Panel
** Must purchase Control Panel Assembly p/n 99524041
*** Used on Models AVD40B, AVD40B-B, AVD40KB, AVD-
40KB-B, AVD40WB, AVD40WB-B, AVD45B, AVD45B-B,
AVD45KB, AVD45KB-B, AVD45WB, AVD45WB-B, AVD50B,
AVD50-B - Includes 2 Door Hinges, Magnetic Catch, &
Mounting Screws
**** Used on Models AVD40B-C,D, AVD40KB-C,D, AVD-
40WB-C,D, AVD45B-C,D, AVD45KB-C,D, AVD45WB-C,D,
AVD50B-C,D - Includes Piano Hinge, Magnetic Catch, &
Screws
AVD40N, AVD40KN, AVD40WN
79340002 Door - AVD40KN
79340001 Door - AVD40WN
77000494 Hinge / Hardware Kit
77001044 Ironing Board
AVDCPN Ironing Board Cover
79110053 Board Spacer - 2 Required
79110035 Slide Bushing - 2 Required
AVD50N
Revision D introduced new Piano Style Hinge in 11/2004
99523940 Light Lens - AVD50N-A,B,C,D
79110065 Light Lens - AVD50N-E
n.l.a. Light Socket - AVD50N-A,B,C,D
see note Light Socket - AVD50N-E *
99524041 Control Panel Assembly - AVD50N-A,B,C,D
**
77000585 Control Panel Assembly - AVD50N-E ***
99523915 Timer Switch -60 Minute - AVD50N-
A,B,C,D
see note Timer Switch -60 Minute - AVD50N-E *
99523916 Knob - AVD50N-A,B,C,D
79360001 Knob - AVD50N-E
see note Safety Switch - Push Button - AVD50N-
A,B,C,D *
99523977 Hinge Kit - 1-3/4” Long - AVD50N-A,B,C
****
n.l.a. Hinge Kit - 10” Long - AVD50N-D
77000494 Hinge / Hardware Bag - AVD50N-E
77001043 Board - AVD50N-E only
SAVDCPN Cover
99525225 Black Plastic Bushing for Height Adjust-
ment - 2 Required - AVD50N-A,B,C,D
79110044 Height Adjustment Grommet - 2 Required -
AVD50N-E
79110059 Rotational Bearing for Board - AVD50N-E
79110035 Slide Bushing - 2 Required - AVD50N-E
99525226 Wire Channel - 14” Long - AVD50N-A,B,C,D
n.l.a. Wire Channel - 12” Long - AVD50N-A,B,C,D
79390133 Wire Cover - AVD50N-E
* Must purchase Control Panel Assembly p/n 77000585
** Includes Timer Switch, Safety Switch, Receptacle, Pilot
Light, & Metal Panel
*** Includes Timer Switch, Safety Switch, Receptacle, Pilot
Light, Light Socket, & Metal Panel
**** Includes 2 Door Hinges, Magnetic Catch & Mount-
ing Screws
BRAC1, BR10, BR30, BR30M,
BR40, BR40M, BR45
(Discontinued 2002)
n.l.a. Light Socket
n.l.a. Pilot Light
n.l.a. Timer
99522180 Timer Knob
n.l.a. Push Button Switch - BR40, BR45 For Light
n.l.a. Door - BR10
97013472 Birch Door - BR30, BR40 - 15” Wide
97013494 Mirror / Door Assembly - BR40M, BR30M
n.l.a. Birch Door - BR40 - 15-3/4” Wide
n.l.a. Birch Door - BR40 - 15-3/8” Wide
n.l.a. Oak Door - BR45 - 15-3/4” Wide
n.l.a. Oak Door - BR45 - 15-3/8” Wide
97013473 Oak Door - BR45 - 15” Wide
99522195 Hinge
n.l.a. Ironing Board - BR30, BR30M
n.l.a. Front Board Support Tube - BR30, BR30M
99522730 Ironing Board Assembly - BR40, BR40M,
BR45, & BRAC1
n.l.a. Cover/Pad Set
see note Cover Only *
n.l.a. Pad only
n.l.a. Board Storage Retaining Bar
n.l.a. Outlet
n.l.a. Door Latch Assembly
* Original cover is no longer available. Customer could use
SAVDCPN as an alternative, although the cover is slightly
smaller and will be a tight fit.
Index
94
971, 972, 973, 978
(Discontinued)
99522804 Chime Mechanism
BK110NBWH, BK120NBWH
SPB7WH Button - Unlighted
BK115LWH, BK125LWH,
BK147LWH
SPB7LWH Button - Lighted
BK144LCL
SPB18LWHCL Button - Lighted
BK300LWH
99521100 Chime Mechanism
99521797 Hanger Clip
SPB7LWH Button - Lighted
C100, CBP103
(Discontinued)
99521001 Cover
99521100 Chime Mechanism
C105
(Discontinued)
99523025 Cover
C120
(Discontinued)
99521100 Chime Mechanism
C121
(Discontinued)
99521003 Cover
99521100 Chime Mechanism
C122
(Discontinued)
99521100 Chime Mechanism
C140BK, C140WH
(Discontinued)
97013214 Chime Mechanism - C140WH
97013213 Chime Mechanism - C140BK
C200, C201, C202, C203, C204,
C205, C206, C206P, C206WH,
C207, C208, C208P, C208WH,
C300, C301, C302, C303, C304
(Discontinued)
n.l.a. Cover - C200
99521006 Cover - C201
99521007 Cover - C202
n.l.a. Cover - C203
n.l.a. Cover - C204
n.l.a. Cover - C205
n.l.a. Cover - C206
n.l.a. Cover - C206P
n.l.a. Cover - C206WH
n.l.a. Cover - C207
n.l.a. Cover - C208
n.l.a. Cover - C208P
n.l.a. Cover - C208WH
n.l.a. Cover - C300
n.l.a. Cover - C301
n.l.a. Cover - C302
n.l.a. Cover - C303
n.l.a. Cover - C304
99521100 Chime Mechanism / Solenoid Assembly
n.l.a. Long Chime Bar
n.l.a. Short Chime Bar
n.l.a. Rubber Isolator
n.l.a. Base Assembly
C210, C210N
(Discontinued)
n.l.a Chime Cover - C210 - Light Oak Finish
97014628 Chime Cover - C210N - Unfinished
99522804 Chime Mechanism
C212, C212N
(Discontinued)
97014629 Chime Cover - C212
97014630 Chime Cover - C212N
C225
(Discontinued)
99522803 Chime Cover
99521100 Chime Mechanism
C305, C305RW
(Discontinued)
n.l.a. Chime Cover - C305
97010920 Chime Cover - C305RW
99521375 Chime Mechanism
99521102 Chime Bar Rubber Isolator
99522027 Chime Bar - 5-3/4’’ (Includes Rubber Isola-
tors)
99522028 Chime Bar - 6-1/2’’ (Includes Rubber Isola-
tors)
99522029 Chime Bar - 7-1/2’’ (Includes Rubber Isola-
tors)
n.l.a. Complete Tube Assembly
C306
(Discontinued)
99521017 Chime Cover
99521375 Chime Mechanism
99521102 Chime Bar Rubber Isolator
99522027 Chime Bar - 5-3/4’’ (Includes Rubber Isola-
tors)
99522028 Chime Bar - 6-1/2’’ (Includes Rubber Isola-
tors)
99522029 Chime Bar - 7-1/2’’ (Includes Rubber Isola-
tors)
n.l.a. Complete Tube Assembly
C308
(Discontinued)
99522805 Chime Cover
99521100 Chime Mechanism
C309
(Discontinued)
99521100 Complete Chime Mechanism
C310
(Discontinued)
99521100 Complete Chime Mechanism
C50, C51
(Discontinued)
99521644 Cover
C500
(Discontinued)
99521420 Black Plastic Chime Face Plate
n.l.a. Wood Chime Case
99521400 Chime Mechanism
99522069 Matched Set of 4 Chime Tubes
99522070 Tube Hangers - Includes Set of 4
C501, C501CY, C501K
(Discontinued)
n.l.a. Chime Cover - C501 - Walnut
99522831 Cover - C501K Oak
97014976 Cover - C501CY - Cherry
99521400 Chime Mechanism
99522069 Matched Set of 4 Chime Tubes
99522070 Tube Hangers - Includes Set of 4
C65
(Discontinued)
99522804 Chime Mechanism
C905, C907, C909, C915
97013271 C905 Replacement Transformer
97013272 C907 Replacement Transformer
97013273 C909 Replacement Transformer
SC915 C915 Replacement Transformer
C95
(Discontinued)
99522804 Chime Mechanism
Chime Buttons
All Chime Button Assemblies are available as service
parts by adding the letter S in front of Model Number
ex: PB7WH = SPB7WH
n.l.a. Bulb for Lighted Buttons - Must order
Chime Button
LA100WH, LA120K, LA120WL,
LA202WH
99521100 Chime Mechanism
99521797 Hanger Clip
LA208K, LA208WH
99521100 Chime Mechanism
LA305RW
97010920 Chime Cover
LA501K, LA501CY
99521400 Chime Mechanism
99522070 Tube Hanger Hardware Bag
LA600WH
99526491 Diode
Index
95
1050, 1050L, 1051, 1051L, 1052,
1055, 1059, 1170
(Discontinued)
93620008 Trash Bags - 12 Pack
91013865 Bag Retention Kit
93110499 Bag Caddy - Nylon (Optional)
n.l.a. Air Freshener
93030117 Key Switch
93110695 Grey Key
93110936 Black Key
93110935 White Key
93800054 Grease - 2 oz Tube
91013900 Complete Power Unit - Includes Entire In-
side Mechanism
93840003 Trunnion Nut
92008438 Trunnion Nut Retainer
93150506 Trunnion Retainer Mounting Screw - #12-
24 x 5/16” - 2 Required
91009324 Gearbox - Includes Small Gear / Sprocket -
11 Tooth
93180002 Gearbox Mounting Screw - #10-32 x 1/2” -
2 Required
93260457 Gearbox Mounting Nut - #10-32 - 2 Re-
quired
93450006 Chain
93110434
Big Gear / Sprocket - Black Plastic - 50 Tooth
93380619 Main Drive Screw
93260439
Jam Nut on End of Main Drive Screw - 5/8”-18
93250908 Washer Located Behind Jam Nut
93420441 Drive Pin for Main Drive Screw
93250913 Thrust Washer Located Behind Drive Pin
93110458 Plastic Trunnion Bearing Sleeve
93300442 Trunnion Block
93470006 Reverse Thrust Bearing
93250907 Washer Located Next to Thrust Bearing
91005299 Motor - 1050-A
91008814 Motor - 1050-B, C
91009323 Motor - 1050-D,E,G,H,J, 1050L-A,B,
1051-D,E,G,H,J, 1051L-A,B, 1052-A,B,
1055-D,E,G,H,J, 1059-A,B, 1170-D
n.l.a. Motor Capacitor - 1050-A Only
see note Centrifugal Switch *
n.l.a. Upper Limit Switch - 1050-A
91008987 Upper Limit Switch - 1050-B,C,D,E,G,H,
1051-C,D,E,G,H, 1055-C,D,E,G,H, 1170-
C,D, 1052-A, 1050L-A, 1051L-A, 1059-A
91014197 Upper Limit Switch - 1050-J, 1050L-B,
1051-J, 1051L-B, 1052-B, 1055-J, 1059-B
n.l.a Air Scentry Panel - 1050-A,B,C,D,E,G,
1051-D,E,G, 1055-C,D, 1170-D
91012250 Air Scentry Panel - Includes Interlock
Switch - 1050-H,J, 1051-H,J, 1052-A,B,
1050L-B, 1051L-B, 1055-J, 1059-B
91008920 Latch Box - Includes Interlock Switch -
1050-A,B,C,E,G, 1051-D,E,G, 1055-D,E,G,
1170-D
91011979 Latch Box - 1050L-A,B, 1051L-A,B, 1055-
H,J, 1059-A,B
n.l.a. Lower Limit Switch - 1050-A
n.l.a Lower Limit Switch Replacement Kit -
1050-B, C, D, E, G, 1051-C, D, E, G, 1055-
D, E, G, 1170-D **
91011367 Storage Compartment Trim Assembly -
Black - 1050, 1050L - Includes Control
Panel Insert & Key
see note Control Panel Insert Only - Black - 1050,
1050L ***
91011368 Storage Compartment Trim Assembly -
White - 1051, 1051L - Includes Control
Panel Insert & Key
see note Control Panel Insert Only - White - 1051,
1051L ***
91017419 Storage Compartment Trim Assembly -
Grey - 1052 - Includes Control Panel Insert
& Key
93110694 Control Panel Insert Only - Grey - 1052
93110927 Top Control Panel - Black - 1055
93090906 Control Panel Insert - Black - 1055
93110933 Top Control Panel - White - 1059
93090945 Control Panel Insert - White - 1059
93110572 Storage Compartment Door - Black - 1050,
1050L
93110698 Storage Compartment Door - White - 1051,
1051L
93110854 Storage Compartment Door - Grey - 1052
n.l.a Storage Compartment - Almond
n.l.a. Storage Compartment - White
92007052 Storage Compartment - Black
91009863
Compactor Shortening Kit - Converts Units
with Storage Compartments to Low Profile
Style
n.l.a. Reversible Door Panel - Black / Biscuit
91009945 Reversible Door Panel - Black / Almond
91009957 Reversible Door Panel - White / Black
n.l.a. Reversible Door Panel - Almond / Harvest
n.l.a. Reversible Door Panel - Avocado / Coffee
93650018 Door Panel - Stainless Steel
93360100 Knob For Door Latch - Black - 1050L
93360141 Knob For Door Latch - White - 1051L
91013149 Complete Door Assembly - 1050-H,J
n.l.a Complete Door Assembly -1051-G,H
91011635
Complete Door & Drawer Assembly - 1050-J
91016541 Complete Door & Drawer Assembly -
1050L-A,B, 1051L-A,B, 1055-D,H,J, 1059-
A,B, 1170-D
n.l.a
Complete Door & Drawer Assembly - 1051-J
91012060 Complete Door & Drawer Assembly - 1052-
A,B
n.l.a. Complete Door & Drawer Assembly - 1059
93420449 Door Hinge - 2 Required
n.l.a. Side & Top Trim for Door -
1050-A,B,C,D,E,G, 1051-A,B,C,D,E,G,
1050L-A,B, 1051L-A,B, 1055-J, 1059-A,B
93650041 Side & Top Trim Door - 1050-H,J, 1051-H,J
93300424 Top Trim for Door - 1052-A,B
93300419 Side Trim for Door - 1052-A,B
n.l.a. Bottom Door Trim - 1050, 1051, 1055
93300420 Bottom Door Trim - 1052-A,B
99230342 Rivets for Door Trim - 6 Required
n.l.a. Door Liner with Latch - 1050-A,B,C,D,E,G,
1051-D,E,G
n.l.a Door Liner with Latch - 1055-D,H,J, 1170-
D, 1050L-A,B, 1051L-A,B, 1059-A, B ****
91011634 Door Liner - 1050-H,J, 1051-H,J
91011624 Door Liner - 1052-A,B
93100511 Black Rubber Interlock Actuator - 1050-
H,J, 1051-H,J, 1052-A,B, 1050L-A,B,
1051L-A,B, 1059-A,B, 1055-J
91016541 Drawer Assembly - 1050-A,B,C,D,E,G,
1051-D,E,G, 1055-C,D,H,J, 1170-D,
1050L-A,B, 1051L-A,B, 1059-A,B
91011726 Drawer Assembly - 1050-H,J, 1051-H,J,
1052-A,B
93470012 Roller - 4 Required
93260447 Roller Mounting Nut - 4 Required
91006230 Foot Pedal - Black
93140143 Foot Pedal Spring
93110516 Foot Pedal End Cap - 2 Required
93110515 Toe Space Cover - Black with holes for Foot
Pedal - 1050, 1051
93110514 Toe Space Cover - Black - 1050L, 1051L,
1052, 1059, 1055
93380623 Leveling Leg - 4 Required
93110447 Grey Pad for Level Leg - 4 Required
* Must purchase Motor
** Original Kit included Parts & Instructions on how to
By-Pass Lower Limit Switch - Kit is n.l.a. but we can send
Customer instructions on what Parts are needed and how
to By-Pass Lower Limit Switch
*** Must purchase Storage Compartment Trim Assembly
**** Must purchase Complete Door & Drawer Assembly
- p/n 91016541
15BL, 15SS, 15TT, 15WH, 15WT,
15XEBL, 15XESS, 15XESSA,
15XETT, 15XEWH, 15XEWT
(Models 15TT, 15XESSA, & 15XETT Discontinued 06/2013)
S15TCBL Trash Bags - 12 Pack
S15TCOD Odor Control Disk
99526867 Key Switch
99526868 Key
99526887 Complete Power Unit - 15BL, 15SS, 15TT,
15WH - Includes Entire Inside Mechanism
99526886 Complete Power Unit - 15XESS, 15XESSA,
15XETT, 15XEWH, 15XEWT - Includes En-
tire Inside Mechanism
99527073 Run Start Switch - 15BL, 15SS, 15TT,
15WH, 15WT
99527074 Run Start Switch - 15XEBL, 15XESS,
15XESSA, 15XETT, 15XEWH, 15XEWT
99527008 Upper Limit Switch Assembly - 15BL,
15SS, 15WH, 15WT, 15TT
99526891 Upper Limit Switch Assembly - 15XEBL,
15XESS, 15XESSA, 15XETT, 15XEWH,
15XEWT
99527019 Lower Limit Switch
99526856 Control Panel Assembly - 15BL, 15WH,
15SS, 15WT, 15TT *
99526855 Control Panel Assembly - 15XEBL,
15XESS, 15XESSA, 15XETT, 15XEWH,
15XEWT *
99526860 Display Module - 15BL, 15SS, 15TT,
15WH, 15WT - Includes Mode, Key Switch,
& Interlock Switch
99526857 Display Module - 15XEBL, 15XESS,
15XESSA, 15XETT, 15XEWH, 15XEWT **
99526866 Safety Interlock Switch
99526861 PCB Assembly - 15XEBL, 15XESS, 15XES-
SA, 15XETT, 15XEWH, 15XEWT
99526864 AC/DC Assembly - 15XEBL, 15XESS,
15XESSA, 15XETT, 15XEWH, 15XEWT
99526885 Gear Motor for Advancing Odor Disk -
15XEBL, 15XESS, 15XESSA, 15XETT,
15XEWH, 15XEWT
99526892 Main Motor - Includes Centrifugal Switch &
Capcitor
Index
96
99526893 Centrifugal Switch Assembly
99526894 Motor Capacitor
99526889 Drive Wheel / Big Gear - 2 Required
99526890 Idler Wheel / Small Gear
99526888 Drive Belt
99526895 Ram Screw Assembly
99526849 Top Trim Cover Assembly - Black - 15BL,
15XEBL - Includes Start Button
99526850 Top Trim Cover Assembly - Flat Stainless
- 15SS, 15TT, 15WT, 15XESS, 15XETT,
15XEWT - Includes Start Button
99526851 Top Trim Cover Assembly - Arched Stain-
less - 15XESSA - Includes Start Button
99526848 Top Trim Cover Assembly -White - 15WH,
15XEWH - Includes Start Button
99526835 Door Assembly - Black - 15BL, 15EXBL -
Includes Handle
99526836 Door Assembly - Flat Stainless - 15SS,
15EXSS - Includes Handle
99526837 Door Assembly - Arch Stainless - 15EXSSA
- Includes Handle
99526839 Door Assembly - Tile - 15TT, 15XETT - In-
cludes Handle
99526834 Door Assembly - White - 15WH, 15EXWH
- Includes Handle
99526838 Door Assembly - Wood - 15WT, 15EXWT -
Includes Handle
99526966 Door Hinge Hardware Kit - 15BL, 15XEBL
99526843 Door Hinge Hardware Kit - 15SS, 15WH,
15XESS, 15XESSA, 15XEWH
99526844 Door Hinge Hardware Kit - 15TT, 15WT,
15XETT, 15XEWT
99526854 Door Gasket Assembly
99526846 Safety Interlock Actuator - 15BL, 15SS,
15WH, 15XEBL, 15XESS, 15XESSA,
15XEWH
99526847 Safety Interlock Actuator - 15WT, 15XEWT
99526967 Safety Interlock Actuator - 15TT, 15XETT
99526869 Bucket Assembly - Black
99526871 Bucket Handle
99526872 Bucket Slide Assembly - Includes Both
Right & Left Hand Slides
99526883 Splash Guard / Compaction Plate - Black -
15BL, 15SS, 15WH, 15WT, 15TT
99526882 Splash Guard / Compaction Plate - SS -
15XEBL, 15XESS, 15XESSA, 15XEWH,
15XEWT, 15XETT
99527020 Latch Assembly for Compaction Plate
99526884 Cabinet Shell
99526875 Cabinet Stand / Base
99526878 Cabinet Back Panel - 15BL, 15SS, 15WH,
15WT, 15TT
99527026 Cabinet Back Panel - 15XEBL, 15XESS,
15XESSA, 15XEWH, 15XEWT, 15XETT
99526873 Leveling Foot - 2 Required
99526874 Leveling Wheel Assembly - 2 Required
99526881 Power Cord
99527094 Parts Bag - Includes Mounting Straps,
Mounting Screws, & Key
S15TCTK Free Standing Toe Kick
S15TCBB Cutting Board
* Includes Control Panel, Odor Disk Tray, Disk Position
Switch, & Battery Back-up
** Includes Display, PCB Assembly, AC/DC Assembly, Key
Switch, & Interlock Switch
100
(Discontinued 1984)
99670142 Motor
110
(Discontinued 1984)
99670122 Motor Filter
99670142 Motor
180, CV180
(Discontinued 1984)
99670122 Motor Filter - 2 Required
99080233 Motor - 2 Required
n.l.a. Motor Gasket
212, CV212
(Discontinued 1986)
99670123 Motor Filter
n.l.a. Motor Gasket
B1396A, CV177, CV310, LP90,
S8093
(Discontinued)
99670553 Belt - B1396A, CV177
99670561 Belt - CV310, LP90
99670235 Belt - CV177, S8093 *
99670507 Belt Window - B1396A, CV177
99670516 Light Bulb
n.l.a. Motor - B1396A, CV177
n.l.a. Motor - CV310, LP90
n.l.a. Motor - CV177, S8093 *
99670513 Motor Strap - B1396A, CV177
99670527 Brush / Roller Assembly - B1396A, CV177
n.l.a. Brush / Roller Assembly - CV310, LP90
99670517 Brush Strip - B1396A, CV177 - Includes 2
99670240 Brush Strip - CV177, S8093 - Includes 2 *
99670506 Roller Tube - B1396A, CV177
99670518 Roller Repair Kit - B1396A, CV177 **
99670525 Roller Cap - Belt Side - B1396A, CV177
99670526 Roller Cap - B1396A, CV177
99670536 Locknut on End of Roller - B1396A, CV177
- 2 Required
99670528 Vacuum Head Top / Hood Assembly -
B1396A, CV177
99670543 Air Duct Cover Assembly - B1396A, CV177
99670545 Felt Gasket for Air Duct Cover - B1396A,
CV177
99670544 Foam Pad - B1396A, CV177
99670522 Pivot / Elbow Assembly - B1396A, CV177
n.l.a Vacuum Base / Bottom Assembly
99670540 Base Mounting Screw - B1396A, CV177 - 2
Required
99670565 Rubber Bumper - CV310, LP90
99670533 Felt Gasket for Vacuum Base - B1396A,
CV177 - 2 Required
99670532 Single Felt Gasket for Vacuum Base -
B1396A, CV177
99670512 Rear Wheel - B1396A, CV177 - 2 Required
99670523 Front Wheel Axle - B1396A, CV177 - 2 Re-
quired
99670524 Front Wheel & Sleeve Assembly - B1396A,
CV177 - 2 Required
n.l.a. Power Cord
* Vacuum Head will be labeled “Powermatic”
** Includes both Roller Caps, Shaft, & Pulley, Bearing, &
Retainer Assembly
CT600
(Discontinued)
0518B000 Drive Belt
0646B000 Lens
9123A000 Bulb
0625B000 Lamp holder
0624B000 Motor
0671B000 Motor Bridge
0672B000 Motor Adjustment Spring
0628B000 Bearing Assay
0629B000 Beater Brush
88285000 Upper Wand - #C97PASHOV006
0626B000 Lower Wand & Cord Assembly
0654B000 Cord / Plug Assembly - #C64BAKZOV006
0650B000 Wand Release Lever
0636B000 Handle Release
0643B000 Power Head Cover Assembly
0673B000 Window Cover
0674B000 Button Extension
0637B000 Overload Protector
0656B000 Indicator Block Assay
0639B000 Front Axle Assay
0668B000 Roller Rear
0669B000 Axle Rear
0640B000 Nozzle Top
0642B000 Bumper
0651B000 Swivel
0652B000 Swivel Seal
0653B000 Swivel Cap
0655B000 Cover Plug Hsg
0666B000 Lifter
CV10
(Discontinued 05/2002)
97008064 Disposable Bags - 6 Pack
98006834 Filter
99080232 Motor - Includes Gasket
99030161 On / Off Switch
99271148 Relay
99270915 Transformer
97009719 Circuit Breaker
98006826 Wall Hanging Bracket
97009797 Low Voltage Wiring Clip
CV171, T-21
(Discontinued)
99670217 Belt - CV171, T-21
CV172, CV175, CV178, CV179,
CV278, V170, V174, VM170,
VM175
(Discontinued)
99670392 Belt - CV172
99670445 Belt - CV175
n.l.a. Belt - CV178, V170, V174, VM170, VM175
97011878 Belt - CV278
99670211 Belt - CV179
99670443 Brush / Roller Assembly - CV175
n.l.a. Brush / Roller Assembly - CV178
99670212 Brush / Roller Assembly - CV179
Index
97
CV20
(Discontinued 02/2004)
99010172 Filter Bag
99080235 Motor
99030161 On / Off Switch
99271148 Relay
99270915 Transformer
97009719 Circuit Breaker - 15 Amp
98006826 Wall Hanging Bracket
n.l.a. Gasket where Bucket Attaches to Unit
97008440 Waste Container
97009797 Low Voltage Wiring Clips
97009734 Hose Utility Inlet Assembly
97011370 Hose Utility Inlet Assembly - CV20-C
97011369 Pipe Inlet Assembly - CV20-C
CV30
(Discontinued 02/2004)
99010172 Filter Bag
99080236 Motor - Includes Gasket - CV30-A
n.l.a. Motor - Includes Gasket - CV30-B,C,D
99030161 On / Off Switch
99271148 Relay
99270915 Transformer
97009719 Circuit Breaker - 15 Amp
98006826 Wall Hanging Bracket
97008440 Waste Container
97009797 Low Voltage Wiring Clips
97009734 Hose Utility Inlet Assembly
97011370 Hose Utility Inlet Assembly - CV30-D
97011369 Pipe Inlet Assembly - CV30-D
CV315, LP92
(Discontinued)
99670585 Belt
99670568 Belt Window
99670516 Light Bulb
n.l.a. Lens
n.l.a. Lamp Holder
99670586 Motor
99670593 Brush / Roller Assembly
99670589 Circuit Breaker
99670599 On / Off Switch
99670583 Height Adjustment Assembly
n.l.a. Housing
99670565 Rubber Bumper for CV310, CV315
99670573 Duct Cover
99670571 Seal for Elbow
99670560 Back Wheel - 2 Required
CV331P, CV333, CV335, CV335P
(Discontinued)
99670258 On / Off Switch - Red - CV333
97014108 On / Off Switch - Black - CV333
see note 2 Position On / Off Switch - CV335P *
99670630 3 Position - On / Off / On - Black - CV335P
97013966 Wand Cord - 15” - CV331P, CV335P
99670243 AC Power Cord - 6’ - CV331P, CV335P
97014107 Metal Wand End - 5-3/4” - CV335
97014109 Plastic Bleeder Clamp for Hose
* Original 2-Pos Switch n.l.a. - Must replace with 3-Pos
Switch p/n 99670630
CV40
(Discontinued 02/2004)
99010174 Filter Bag
99100452 Gasket for Upper Motor
99080232 Upper Motor - CV40-A - Includes Gasket
99080344
Upper Motor - CV40-B,C,D - Includes Gasket
99150523 Upper Motor Mounting Screw - 1/4”-16 x
3/4” - 3 Required
99100453 Gasket for Lower Motor
99080233 Lower Motor - Includes Gasket
99030161 On / Off Switch
99271148 Relay
99270915 Transformer
97009719 Circuit Breaker - 15 Amp - CV40-A
97009720 Circuit Breaker - 12 Amp - CV40-B,C,D
99270710 Power Cord Set
98006825 Top Cover
99150491 Top Cover Mounting Screw - #8-18 x 3/8” -
6 Required
n.l.a. Upper Canister Shroud
n.l.a. Gasket used Between Upper Shroud &
Middle Section of Power Unit
99160343 Upper Shroud Mounting Screw - 5/16”-10
x 1-3/4” - 3 Required
n.l.a. Rubber Washer for Upper Shroud Mount-
ing Screw
n.l.a. Middle Vacuum Section of Power Unit
99100455 Gasket used Between Middle Section &
Bottom Waste Container
97008438 Bottom Waste Container - 7 Gallon Capac-
ity
n.l.a. Low Voltage Bushing
98006826 Wall Hanger Bracket
97008503 Flexhose Assembly with Clamp for Inlet As-
sembly
97009734 Hose Utility Inlet Assembly - CV40-A,B - In-
let is Straight
97011370 Hose Utility Inlet Assembly - CV40-C,D - In-
let is Angled
97011369 Pipe Inlet Assembly
CV520BR
(Discontinued)
n.l.a. Switch
NT0895B000 Fuse - 7 Amp
NT0894B000 Curved Chrome Wand
97013966 Wand Cord - 15”
99670243 AC Cord - 6’
NT0891B000 Round Air Value
NT0897B000 Plastic Handle
NT0893B000 Screws Holding Handle Together - Includes
Set of 5 Screws
NT0896B000 Swivel Kit
V-14
(Discontinued 1976)
97008064 Disposable Bags - 6 Pack
V-16
(Discontinued 1980)
97008064 Disposable Bags - 6 Pack
99670142 Motor
98006826 Wall Mounting Bracket
V-17
(Discontinued 1983)
99670142 Motor
NuTone Central Vacuum Bags
SVX3916 3 Pack of 6 Gallon Standard Filter Media
Bags - VX475
SVX3918 3 Pack of 8 Gallon Premium Bags - VX550,
VX1000
SVX3918STD 3 Pack of 8 Gallon Standard Media Bags -
VX550, VX1000
S391 3 Pack of 6 Gallon Bags - Old Style Units
Central Vacuum System Accessories
99670100 CV157 - Hose Hanger
99670195 CV161 - 20” Metal Wand with Snap lock
n.l.a. CV253 - Crevice Tool
99670482 CV254 - Round Dust Brush
99670483 CV255 - Upholstery Tool
99670600 CV259 - Tool Caddy Cloth
99670486 CV270 - Carpet & Floor Tool
Index
98
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
0001013-1 A.O. Smith 99080404 CCW 0.9 Replaced by 97012038
0003-01 V-Motor Co 99080417 CW 0.9 NuTone Hood
0004-01 V-Motor Co 99080216 CCW 0.6 Replaced by 97012038
0005-01 V-Motor Co 99080355 CW 1.3 503
0006-01 V-Motor Co 99080592 CCW 0.9 NuTone 605RP, 665RP, 668RP after April 2007
0012-03 V-Motor Co 86677000 CCW 1.0 NuTone 763RLN
0023-01 V-Motor Co 02200-18 CW 0.2 154, 9297T Heaters by Aubrey
0025-02 V-Motor Co 99080437 CW 0.2 157, 9157NT 6” leads with female spade connectors
0027-01 V-Motor Co 99080176 CW 1.5 505, 507
0033-02 V-Motor Co 99080159 CCW 0.9 Bulb Heater
0034-03 V-Motor Co 99080367 CW 0.9 Economy Hood
0112501 Prof. Elec. Prod. 97005906 CW 1.5 Bulb Heater
0112508 Prof. Elec. Prod. 99080166 CCW 1.4 679, 655, 657, 658 Exhaust
0112516 Prof. Elec. Prod. 99080062 CW 1.5 497, 499, 499S
0150008 Prof. Elec. Prod. 99080103 CCW 0.7 Economy Hood
015536 UPPCO 99080409 CW 0.8 240 Volt 509EX
015544B UPPCO 99080413 CCW 0.7 ED50
015557 A.O. Smith / UPPCO 99080180 CW 1.5 509
0162502 Prof. Elec. Prod. 99080216 CCW 0.6 Replaced by 97012038
0162534 Prof. Elec. Prod. 99080199 CCW 0.6 512, 512M, 673
0162536 Prof. Elec. Prod. 99080141 CCW 0.9 Replaced by 97012038
0187505 Prof. Elec. Prod. 99080219 CW 0.9 Replaced by 97011222
0187522 Prof. Elec. Prod. 99080217 CCW 1.0 Replaced by 97012039
0187531 Prof. Elec. Prod. 99080218 CCW 0.9 Economy Hood
01J2046/15/0003 Johnson Electric 99080372 CCW 0.6 41.000
020050 A.O. Smith R520110 CW 0.5 Whirlpool RH26 Series 2- Speed Hood
020072A A.O. Smith 97016135 CCW 0.3 41MX
020107 A.O. Smith 99080546 CCW 0.6 678MX 120V 60HZ
0250067 A.O. Smith 99080372 CCW 0.5 41.000
02J2048 Johnson Electric 99080199 CCW 0.6 512
02J2048/50J0001 Johnson Electric 99080199 CCW 0.6 512
02J2092/05/0001 Johnson Electric 99080591 CW 0.8 655, 656,658, HFL695, 696 Heater Mtr
02S-0015C A.O. Smith R730088 CW 1.4 PM25, PM250, 43,000
02S0031 A.O. Smith 99080402 CCW 0.9 Replaced by 97012041
02S0052A A.O. Smith 99080166 CCW 1.4 679, J-Can, 655 Exhaust Fan
02S0053 A.O. Smith 99080176 CW 1.5 505, 507
02S0054 UPPCO 99080255 CCW 1.5 671 D-Can
02S0054 A.O. Smith 99080255 CCW 1.5 671 D-Can
02S0055 A.O. Smith 99080404 CCW 0.9 Replaced by 97012038
02S0056 A.O. Smith 99080492 CCW 1.1 Replaced by 97012248
02S0058 A.O. Smith 99080521 CCW 1.0 678 J-Can
02S0059 A.O. Smith 99080522 CCW 1.4 679, J-Can
02S0065 A.O. Smith 99080199 CCW 0.7 673
02S0066 A.O. Smith 99080369 CCW 1.1 Replaced by 97011224 46,000, NY Hood
02S0067 A.O. Smith 99080372 CCW 0.5 41.000
02S-0091C UPPCO R520129 CW 1.4 Whirlpool RH37 Series
0340775B A.O. Smith 97012038 CCW 0.9 688, A-Can, 678 B-CAN
0340775B A.O. Smith 99080404 CCW 0.9 Replaced by 97012038
0343552B A.O. Smith 99080549 CCW 0.7 240 Volt
0343643A A.O. Smith 99080547 CCW 0.4 673MX,
0344057 A.O. Smith 99080485 CCW 2.6 L300, L300L
0344463B A.O. Smith 99080558 CCW 0.4 QTX100HL Heater Motor
0344487A A.O. Smith 99080553 CCW 0.3 240 Volt MP100EX
0344969B A.O. Smith 99080517 CCW 1.3 676, 680, J-Can.
0345136G A.O. Smith 99080568 CCW 0.7 QTR080
0345138 A.O. Smith 99080582 CCW 0.9 Replaced by Blower Assy 97018218 - QTR110
0345165C A.O. Smith 99080454 CCW 0.2 S80UE
0345602C A.O. Smith 99080556 CCW 0.4 QTX100HL Exhaust Motor
0345605F A.O. Smith 99080175 CW 0.9 Utility Ventilator
0346176A A.O. Smith 99080549 CCW 0.7 240 Volt
0346679C A.O. Smith 99080546 CCW 0.6 678MX, J-Can
03J2061/50/0006 Johnson Electric 99080532 CCW 1.5 Replaced by 99080667 - QT20000, WA6500
0440443B A.O. Smith 99080557 CW 0.4 744, 744NT
0441387B A.O. Smith 99080580 - n.l.a. CCW 0.3 QTRE090, QTRE110 - Replaced by 97016730
0441387B A.O. Smith 99080563 - n.l.a. CCW 0.3 QTRE090, QTRE110 - Replaced by 97016730
0441387B A.O. Smith 99080581 - n.l.a. CCW 0.3 QTRE090, QTRE110 - Replaced by 97016730
Index
99
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
0441424A A.O. Smith 99080565 CCW 0.5 QTXE150
0441444B A.O. Smith 99080562 CCW 0.4 QTXE080
0441996 A.O. Smith n.l.a. CCW 0.9 220-240 Volt MP280EX
0442198C A.O. Smith 99080561 CCW 0.4 QTR Exhaust Motor
0442711B A.O. Smith 99080567 CCW 0.3 QTRE090
0442711B A.O. Smith 99080566 CCW 1.3 Replaced by 99080595
0443133C A.O. Smith 99080402 CCW 0.9 Replaced by 97012041
0443200B A.O. Smith 99080560 CCW 0.3 QTXE050
0443376 A.O. Smith 99080566 CCW 1.3 Replaced by 99080595
0444281A A.O. Smith 99080521 CCW 1.0 678 J-Can
0444381A A.O. Smith 99080521 CCW 1.0 678 J-Can
0444438A A.O. Smith 99080574 CCW 1.1 Replaced by S97016697
0444439A A.O. Smith 99080573 CCW 1.1 IH1300RQ, YRH2330XJQ
04J2016/50/0003 Johnson Electric 99080533 CCW 1.0 Replaced by 97012248
04J2063 Johnson Electric 99080351 CW 0.9 Replaced by 97010254
04J2063/50/0003 Johnson Electric 99080351 CW 0.9 Replaced by 97010254
04J2063500003 Johnson Electric 99080351 CW 0.9 Replaced by 97010254
04J2071/50/0002 Johnson Electric R730088 CW 1.1 PM25
04J2081/50/0004 Johnson Electric 97016923 CCW 1.2 Replaced by 97018811 - 690 Replacement Kit
0540231A A.O. Smith n.l.a. CW 0.3 Old Wall Heater
0541083 A.O. Smith 99080489 CW 0.4 9PC78
0541082B A.O. Smith 99080464 CW 0.8 2C647A
0541359 A.O. Smith 99080587 CCW - Lead End 0.9 Replaced by 97010736
0541632A A.O. Smith 99080460 CW 1.6 Replaced by 99080596 10 inch Utility Fans
0542525A A.O. Smith 99080568 CCW 0.7 QTR080
0542529A A.O. Smith 99080551 CCW 0.9 DIV300, 805681
05J2025/50/0001 Johnson Electric 99080279 CW 0.2 Replaced by 97009724 for 163
0600439A A.O. Smith 99080037 CW 0.8 666
0600612A A.O. Smith 99080545 CCW 1.1 70CFM C Can Models
0603053A A.O. Smith 99080544 CCW 1.1 70CFM J Can Models
0800624A A.O. Smith 99080628 CW 1.3 220-240 Volts Replaced by 97017872 Wolf
ICBDD30I, 36”, 45”
100056113000 Johnson Electric 99080166 CCW 1.0 655, Old 679
100600000 Marathon S100600000 CCW 0.7 NuTone 671R
10103 UPPCO 99080032 CCW 0.4 Replaced by 97000680
101-1348 BOMAX 99080067 - n.l.a. CW 1.3 No Substitution
101-1395 BOMAX 99080062 CW 1.5 497, 499, 499S
101-1486 BOMAX 99080060 CCW 0.9 664
101-1487 BOMAX 99080061 - n.l.a. CW 0.6 No Sustitution - Model 672
101-1488 BOMAX 99080105 - n.l.a. n/a n/a No Substitution
101-1490 BOMAX n.l.a. n/a n/a 650, 651, 652, 653
101-1491 BOMAX 99080068 CW 0.5 661
101-1647 BOMAX 99080080 - n.l.a. n/a n/a No Substitution
101-1648 BOMAX 99080081 - n.l.a. n/a n/a No Substitution
101-1649 BOMAX n.l.a. n/a n/a No Substitution
101-1769 BOMAX 99080132 CW 0.8 Heater For 655 +
101-1770 BOMAX 99080216 CCW 0.6 Replaced by 97012038
101-1771 BOMAX 99080217 CCW 1.0 Replaced by 97012039
101-1773 BOMAX 99080165 CCW 0.8 670-A - Replaced by 97012038
101-1776 BOMAX 99080070 - n.l.a. n/a n/a No Substitution
101-1825 BOMAX n.l.a. n/a n/a No Substitution
101-1826 BOMAX 99080079 - n.l.a. n/a n/a No Substitution
101-1883 BOMAX 97005906 CW 1.5 Bulb Heater
101-1959 BOMAX 99080166 CCW 1.4 679, 655, 657, 658 Exhaust
101-2009 BOMAX 99080166 CCW 1.4 679, 655, 657, 658 Exhaust
101-2113 BOMAX n.l.a. CW n/a Wall Heater
101-2117 BOMAX n.l.a. CW n/a Wall Heater
101-2194 BOMAX 99080100 - n.l.a. n/a n/a CL Canopy Hood, 73,000
101-2496 BOMAX 99080199 CCW 0.6 512, 512M, 673
101-2556 BOMAX 99080117 CW 1.5 Replaced by 97005908
101-2650 BOMAX 99080119 - n.l.a. n/a n/a No Substitution
101-2651 BOMAX 99080120 - n.l.a. n/a n/a No Substitution
10131 UPPCO 02200-35 CW 0.6 Big Heat
102-1344 BOMAX 99080053 n/a n/a 30,000, 31,000, 32,000 - No Longer Available, No
Substitute
102-1857 BOMAX n.l.a. n/a n/a No Substitution
Index
100
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
102-2251 BOMAX 99080219 CW 0.9 Replaced by 97011222
102-2254 BOMAX 99080103 CCW 0.7 Economy Hood
10495-1 UPPCO 99080060 CCW 0.9 664
10495-2 UPPCO 99080061 - n.l.a. CW 0.6 No Sustitution - Model 672
10C0057 Johnson Electric 99080279 CW 0.2 Replaced by 97009724 for 163
11036 UPPCO 99080257 CCW 0.6 240 Volt 671EX D-Can
115499 Lamb 99080083 - n.l.a. n/a n/a No Substitution
115639 Lamb 99080084 n/a n/a Replaced by 99670142
11582 Barber Colman 99080010 CW n/a Replaced by 97008639
116119 Lamb 99080235 n/a n/a Central Vacuum
116392-01 Lamb Electric 99080344 n/a n/a Vacuum
116472 Lamb 99080235 n/a n/a Central Vacuum
116474 Lamb 99080232 n/a n/a Central Vacuum
11662 UPPCO 99080276 CCW 0.4 240 Volt Wall Heater 167
11751 UPPCO 99080278 - n.l.a. CW n/a 155
11V20138/0001 Johnson Electric 99080666 CCW 1.5 99080666
11V20139/0001 Johnson Electric 99080667 CCW 1.5 99080667
121-2142 BOMAX 99080015 - n.l.a. n/a n/a No Substitution
12152 UPPCO 99080279 CW 0.2 97009724
12415 UPPCO 99080367 CW 0.9 Economy Hood
12516A UPPCO 99080365 CCW 0.7 Economy Hood
13565 UPPCO 99080358 CCW 0.4 156
13646 UPPCO 97010905 - n.l.a. CCW 0.2 240 Volt 673EX
13969A UPPCO 99080414 CCW 0.5 Repl. By 97012204
141-1767 BOMAX 99080074 - n.l.a. n/a n/a No Substitution
141-2189 BOMAX 99080104 - n.l.a. n/a n/a No Substitution
141-2190 BOMAX 99080112 CCW n/a Replaced by 97012037
14-1756 Gould/Century Elec. 99080106 CW 3.0 Replaced by 97018834
14197A UPPCO 99080407 CCW n/a 240 Volt Repl. by 97012037
14266A UPPCO 99080404 CCW 0.9 Replaced by 97012038
14296A A.O. Smith 99080166 CCW 1.4 679, 655, 657, Exhaust
14689 A.O. Smith 99080176 CW 1.5 505, 507
14693 UPPCO 99080222 CW 0.3 686
14913 UPPCO 99080255 CCW 1.5 671 D-Can
14913 A.O. Smith 99080255 CCW 1.5 671-G,H
14953 UPPCO 99080254 CCW 1.0 670-G,H,J D-Can
14954 UPPCO 99080355 CW 1.3 503
15149A UPPCO 99080402 CCW 0.9 Replaced by 97012041
15149A A.O. Smith 99080402 CCW 0.9 Replaced by 97012041, 688-G, H,J
15149A A.O. Smith 99080402 CCW 0.9 Replaced by 97012041, 688-G, H,J
15194A UPPCO 99080406 CCW 0.9 Replaced by 97012038
15213 A.O. Smith 99080583 CW 1.5 Replaced by 97016779, 503N, 505N Canadian Order
From BNC
15253 UPPCO 99080395 CCW n/a 240 Volt 679EX B-Can
15312 A.O. Smith 02200-59 CW 0.8 730,732,735 Exhaust Motor
15353 UPPCO 99080351 CW 0.9 Replaced by 97010254
15353 A.O. Smith 99080351 CW 0.9 Replaced by 97010254
1545F A.O. Smith 97010736 CCW - Lead End 2.1 Deluxe Hoods
15528 A.O. Smith 99080586 CCW 0.6 512N Canadian Unit, Order From BNC
15533A UPPCO 99080403 CCW 1.5 Replaced by 97012042
15536 UPPCO 99080409 CW 0.8 240 Volt 509EX
15544B UPPCO 99080413 CCW 0.7 ED50
15556 UPPCO 99080175 CW 0.9 511
15557 UPPCO 99080180 CW 1.5 509
15563 UPPCO 99080411 CW n/a 240 Volt 503EX
15617 UPPCO 99080216 CCW 0.6 Replaced by 97012038 ,Bath Fan
15617 A.O. Smith 99080216 CCW 0.8 Replaced by 97012038
15665 UPPCO 99080417 CW 0.9 BP52 NuTone
15665 A.O. Smith 99080417 CW 1.2 NuTone Hood
15676 UPPCO 99080419 CCW 0.7 Replaced by 97013079
15716 UPPCO 99080437 CW 0.2 157, 9157NT
15731 UPPCO 99080372 CCW 0.5 Economy Hood
15731 A.O. Smith 99080372 CCW 0.6 41.000
15731 A.O. Smith 99080372 CCW 0.5 Economy Hood
15752 UPPCO n.l.a. n/a n/a No Substitution
15784E UPPCO 99080294 CCW 1.4 707 B-Can - Replaced by 99080166
Index
101
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
15784E UPPCO 99080294 CCW 1.4 707-A, 709-C - Replaced by 99080166
15784E A.O. Smith 99080294 CCW 1.5 707 -B-Can - Replaced by 99080166
15911A UPPCO n.l.a. CW n/a 240 Volt
15911B UPPCO n.l.a. CW n/a 240 Volt
15931 UPPCO 99080443 CW 0.6 240 Volt Replaced by 97013412
15933 UPPCO 99080445 - n.l.a. CW n/a 240 Volt - No Substitution
15932B UPPCO 99080444 - n.l.a. CCW 0.3 240 Volt
15933A UPPCO 99080445 - n.l.a. CW n/a 240 Volt - No Substitution
16117D UPPCO 99080461 CCW 0.4 240 Volt G.E. JN319WIW
161200-81R03BHOE ECM Motor Co. 97012136 CW 0.6 HS90
161200-91R05BB0E ECM Motor Co. 99080562 CCW 0.4 QTXE080
16161C UPPCO 99080448 CCW 1.1 S80U, S80LU
16163C UPPCO 99080248 CCW 0.6 120, 124, 170
16163C A.O. Smith 99080248 CCW 0.6 120, 124, 170
16246A UPPCO 99080446 CCW 0.7 S50U
16246C UPPCO 99080446 CCW 0.7 S50U
16261A UPPCO 99080448 CCW 1.1 S80U, S80LU
16261A UPPCO 99080448 CCW 1.1 S80U
16261C A.O. Smith 99080448 CCW 1.1 S80U, S80LU
16766A UPPCO 99080296 CCW 0.9 Replaced by 99521765
16833 UPPCO 97012043 CCW 0.4 240 Volt 688EX D-Can
16879 UPPCO 99080466 - n.l.a. CCW n/a 240 Volt 689EX
16883 UPPCO 99080405 CCW 0.4 Replaced by 97012043 240Volt
16883 UPPCO 99080405 CCW 0.4 Replaced by 97012043 240Volt
16889 UPPCO 99080469 CCW 0.5 S50UEX 240 Volt
16890 UPPCO 99080468 CCW 0.6 S80UEX 240 Volt
16910C UPPCO 97011224 CCW 1.1 Hood
16910C A.O. Smith 97011224 CCW 1.1 46,000, NY, Hood
17054 UPPCO 99080252 CCW 0.5 240 Volt Wall Heater
17080 UPPCO 99080475 CCW 0.6 240 Volt Wall Heater
17174B UPPCO 99080492 CCW 1.1 Replaced by 97012248
17174B A.O. Smith 99080492 CCW 1.1 Replaced by 97012248
17558 UPPCO 99080516 CCW 0.7 Replaced by 97012041
17558 UPPCO 97012041 CCW 0.9 688 D-Can
17597 UPPCO 99080265 CCW 0.4 240 Volt 670EX D-can
17625A UPPCO 99080531 CCW 1.6 Hood
17625A UPPCO 99080531 CCW 1.6 SL6200H
17673A UPPCO 99080522 CCW 1.4 679-E, 707-B, 740, 741
17673A A.O. Smith 99080522 CCW 1.4 679 J-Can
17674D UPPCO 99080526 CCW 0.9 679EX 240 Volt
17675B UPPCO 99080525 CCW 0.5 678EX 240 Volt
17676A UPPCO 99080521 CCW 1.0 678-G
17676A A.O. Smith 99080521 CCW 1.0 678 J-Can
17692 UPPCO 99080538 CW 0.4 12C-D
17692 A.O. Smith 99080538 CW 0.4 Gear motor
17869 UPPCO 99080533 CCW 1.1 Replaced by 97012248
17869 UPPCO 99080533 CCW 1.1 Replaced by 97012248
181-200-91R03BJ0D ECM Motor Co. 99080595 CCW 0.4 QTR140L
181200-91R05BLOG ECM Motor Co. 99080598 CCW 0.4 Replaced by 97017452 QTX110SL
184579-01 Magnetek/Universal 99080195 CCW - Lead End 4.3 368 LoSone 240 Volt
250202 V-Motor Co 99080437 CW 0.2 157, 9157NT 6” leads with female spade connectors
25-112A UPPCO 99080253 - n.l.a. CW n/a 2 Speed for Amana
2M177 Dayton 99080192 CW n/a 12 Volt Grainger 2C646A
2S-67N3 UPPCO 99080492 CCW 1.1 Replaced by 97012248
301-3001 Gould 99080216 CCW 0.6 Replaced by 97012038
322 P137 Westinghouse 99080129 CW 3.4 Replaced by 97009316 PAV
322 P138 Westinghouse 99080130 CW 4.3 Replaced by 97009317 PAV
322 P159 Westinghouse 99080131 CW 8.0 Replaced by 97009318 PAV
322 P477 Westinghouse 99080125 CW 8.0 Replaced by 97009318 PAV
322P137 Westinghouse 99080129 CW 3.4 Replaced by 97009316 PAV
322P138 Westinghouse 99080130 CW 4.3 Replaced by 97009317 PAV
322P159 Westinghouse 99080131 CW 8.0 Replaced by 97009318 PAV
322P477 Westinghouse 99080125 CW 8.0 Replaced by 97009318 PAV
3709UP-090 Merkle-Korff Ind 99080590 CW 2.2 Gear motor Downdraft
3720UP-265 Merkle-Korff Ind 99080588 CW 1.6 Gear motor Downdraft
37B2M UPPCO 99080358 CCW 0.4 156
Index
102
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
37B2M A.O. Smith 99080437 CW 0.2 157
3M256 Dayton 99080055 - n.l.a. CW 1.3 481, 491
3M625 Dayton 99080191 CW 0.8 2C647 Grainger - Replaced by 99080464
4127F A.O. Smith 99080345 CCW 1.3 Replaced by 97009752
463N040P01 Autotrol Corp. n.l.a. n/a n/a No Substitution
463N041P01 Control Co. of Amer. n.l.a. n/a n/a No Substitution
4K686 Dayton 99080005 - n.l.a. n/a n/a No Substitution
4k942 Dayton 99080008 - n.l.a. n/a n/a No Substitution
520098 Fasco R520098 n/a 2.5 PM44
520-098 Fasco R520098 n/a 2.5 PM44
520110 UPPCO R520110 CW 0.5 Whirlpool RH26 Series 2-Speed Hood
520112 UPPCO R520112 CW 1.5 Whirlpool RH47 Series, 2-Speed Hood
520114 UPPCO R520114 CW 1.5 1-Speed
520118 EBM R520118 CW 1.0 Replaced by R520132 Allure 2 Hood
520123 EBM R520123 CW 1.9 Replaced by R520133 Allure 2 Hood
520128 A.O. Smith R730088 CW 1.4 PM25, PM250, 43,000
520129 UPPCO R520129 CW 1.4 Whirlpool RH37 Series
520135 Johnson Electric R520135 CCW 1.5 NS6500 Hood - Replaced by 99080666
56720-4 Merkle-Korff Ind 99080588 CW 1.6 Gear motor Downdraft
57938 A.O.Smith 99080103 CCW 0.7 Economy Hood
57F2M A.O. Smith 97016135 CCW 0.3 41MX 2-speed hood
5991 ECM Motor Co. 99080295 CW 1.6 Replaced by 99080590 - Gear motor f/Downdraft
5K002 Dayton 99080004 - n.l.a. n/a n/a No Substitution
5K003 Dayton n.l.a. n/a n/a No Substitution
5KC21DV7S GE 91005299 n/a n/a Compactor
5KC21JV125 GE 91005299 n/a n/a Compactor
5KC21JV9S GE 91005299 n/a n/a Compactor
5KC21KV35 GE 91005299 n/a n/a Compactor
5KCP29HK671S GE 99080125 CW 8.0 Replaced by 97009318 PAV
5KCP45SG600S GE 99080195 CCW - Lead End 4.3 368
5KH21GV19S GE 91008814 n/a n/a Compactor
5KH21GV22S GE 91008814 n/a n/a Compactor
5KPM072HXP0001 Regal Beloit 97017842 CCW 0.2 QTXE050
5KPM072HXP0005 Regal Beloit 97017846 CCW 0.2 QTRE080
5KPM072HXP0005P Regal Beloit 97017846 CCW 0.2 QTRE080
5KPM072HXP0007*P Regal Beloit 97017843 CCW 0.2 QTXE080
5KPM072HXP0007P Regal Beloit 97017843 CCW 0.2 QTXE080
5KPM072HXP0010P Regal Beloit 99080630 CCS 0.2 Contact Broan Canada 888-882-7626
5KPM072HXP0011 Regal Beloit 30080437 CCW 0.2 Contact Broan Canada 888-882-7626
5KPM072HXP0013 Regal Beloit 30080438 CCW 0.2 Contact Broan Canada 888-882-7626
5KPM072HXP0014 99080643 CCW 0.2 Contact Broan Canada 888-882-7626
5KPM072HXP0016 Regal Beloit 99080636 CCW 0.3 Replaced by 97018218
5KPM072HXP0020 Regal Beloit 99080656 CCW 0.2 770, 50NT
5KPM072HXP0024 99080669 CCW 0.2 745
5KPM072HXP0027 Regal Beloit 99080650 CCW 0.2 Replaced by 97017782 - QTXE050
5KPM072HXP10012P Regal Beloit 30008439 CCW 0.2 Contact Broan Canada 888-882-7626
5KSB33BG1858 GE 99080216 CCW 0.6 Replaced by 97012038
5KSB33BG1972 GE 99080165 CCW 0.8 670-A - Replaced by 97012038
5KSB33GS816S GE n.l.a. n/a n/a No Substitution
5KSB33GSE158S GE 99080053 - n.l.a. n/a n/a 30,000, 31,000, 32000 - No Substitute
5KSB33GSE929D GE 99080053 - n.l.a. n/a n/a 30,000, 31,000, 32000 - No Substitute
5KSB34DC1861 GE 99080217 CCW 1.0 Replaced by 97012029
5KSB34DGE22P GE 99080219 CW 0.9 Replaced by 97011222
5KSB34DGEE-22P GE 99080219 CW 0.9 Replaced by 97011222
5KSB38G2050S GE 99080166 CCW 1.4 679, 655, 657, 658, Exhaust
5KSM49LS1767S GE 99080039 - n.l.a. n/a n/a No Substitution
5KSM58JS2206S GE 99080056 CW 1.6 461, 471
5KSM59AS1719BS GE 99080048 CW 0.9 Replaced by 97008342 315, 317
5KSM59AS1864DS GE 99080050 CW 0.9 Replaced by 97008342 315, 317
5KSM59AS2887S GE 99080054 CW 0.7 486, 496
5KSM59AS28915 GE 99080005 - n.l.a. n/a n/a No Substitution
5KSM59AS2925S GE 99080095 CCW 0.5 Replaced by 97009753
5KSM59CS2730S GE 99080096 CCW 1.3 Replaced by 97009752
5KSM59CS3005S GE 99080155 CW 1.0 4 Inch Cord
5KSM59CS3005S GE 99080023 - n.l.a. CW 1.0 No Substitution
5KSM59JS2027S GE 99080069 - n.l.a. n/a n/a No Substitution
Index
103
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
5KSM59LS1492S GE 99080038 - n.l.a. n/a n/a No Substitution
5KSM59LS1767S GE 99080039 - n.l.a. n/a n/a No Substitution
5KSM59LSL492S GE 99080039 - n.l.a. n/a n/a No Substitution
5KSM59S27305 GE 99080096 CCW 1.3 Replaced by 97009752
5KSM84DFK115AS GE R99080535 CCW 1.0 Allure 1
5KSM84DFK120P GE 99080517 CCW 0.9 676, 680, J-Can
5KSM84DFK120P GE 99080517 CCW 1.3 676, 680, J-Can
5KSM84DFK121P GE 99080518 CCW 0.6 684 J-Can
5KSM84DFK132P GE 99080273 CW 0.6 S90
5KSM84DFK151P GE 99080520 CCW 0.5 HD80, HD80L J-Can
5KSM84DFK151PB GE 99080520 CCW 0.5 HD80, HD80L
5KSM84DFK157P GE 99080519 CCW 0.4 HD50, HD50L J-Can
5KSM84DFK169P A.O. Smith 86933000 CCW 1.2 NuTone 8663R Series & others
5KSM84DFK175P GE 99080450 CCW 0.7 S110U, S110LU
5KSM84DFK194AP A.O. Smith 99080605 CCW 0.7 HFL695, 696
5KSM84DFK194P GE 99080548 CCW 0.7 Replaced by 99080605
5KSM84DFK211AP Marathon S100600000 CCW 0.7 NuTone 671R
5KSM84DFK212BP Marathon S100599000 CCW 1.2 Nutone 672R, 8814R, 8663
5KSM84DFK212P A.O. Smith 86933000 CCW 1.2 NuTone 8663R Series & others
5KSM84DFK250P Regal Beloit 99080605 CCW 0.9 HFL695, 696
5KSM84DFK75P 99080450 CCW 0.7 S110U, S110LU
5KSP19KS81T GE 99080066 CW - Lead End 3.0 320, 70,000 Hood
5KSP19KSK83T GE 99080073 - n.l.a. n/a n/a No Substitution
5KSP19SK18T GE 99080066 CW - Lead End 3.0 320, 70,000 Hood
5KSP19SK7CT GE 99080066 CW - Lead End 3.0 320, 70,000 Hood
5KSP1CL318HS GE 99080006 CW n/a 11C
5KSP29BK GE 99080123 CW 3.4 Replaced by 97009316 PAV
5KSP29BK1914AS GE 99080129 CW 3.4 Replaced by 97009316 PAV
5KSP29BK1914S GE 99080171 CW 3.4 Replaced by 97009316 PAV
5KSP29DK GE 99080171 CW 3.4 Replaced by 97009316 PAV
5KSP29DK2312BS GE 99080178 CW 3.0 365-B
5KSP29FK GE 99080130 CW 4.3 Replaced by 97009317 PAV
5KSP29FK1908AS GE 99080130 CW 4.3 Replaced by 97009317 PAV
5KSP29FK2058 GE 02200-26 - n.l.a. n/a n/a Contact Tech. Support
5KSP29KK1960S GE 99080131 CW 8.0 Repl. by 97009318 PAV
5KSP29KK1997CS GE 02200-27 - n.l.a. n/a n/a No Substitution
5KSP51CL318HS GE 99080006 CW n/a 11C
5KSP51EL20H GE 99080018 - n.l.a. n/a n/a No Substitution
5KPM072HXP0025 Regal Beloit 99080670 CCW 0.3 Replaced by 97016567
5KSPP19SK70T GE 99080066 CW - Lead End 3.0 320, 70,000 Hood
624A532 GE 99080069 - n.l.a. n/a n/a No Substitution
6338FB Leece Neville n.l.a. n/a n/a No Substitution
6339FB Leece Neville n.l.a. n/a n/a No Substitution
6393-1 A.O. Smith 99080145 CW 1.5 1-Bulb Heater 2 Prong Plug
6393-1 A.O. Smith 99080146 CW 1.5 2-Bulb Heater 5- Pin Plug
6718-2 Merkle-Korff Ind 99080590 CW 2.2 Gear motor Downdraft
67J2 A.O. Smith 99080546 CCW 0.6 678MX 120V 60HZ J-Can
6919-4 UPPCO n.l.a. n/a n/a 149
7108-5220 Fasco 02200-26 - n.l.a. n/a n/a No Substitution
7108-5221 Fasco 02200-28 - n.l.a. n/a n/a No Substitution
7108-5253 Fasco 99080197 CCW - Lead End 3.8 Replaced by 97007729
7126-1002 Fasco 99080194 CCW - Lead End 6.6 367
7126-1067 Fasco 99080196 - n.l.a. CW n/a 2020 WHV
7126-1323 Fasco 99080213 CW 4.5 2220 WHV
7131469A Fasco 99530123 CW 1.5 334
7151-2775-B Fasco 99080171 CW 3.4 Replaced by 97009316 PAV
7151-2781C Fasco 99080130 CW 4.3 Replaced by 97009317 PAV
7151-3160-B Fasco 99080178 CW 3.0 365-B
7162-4191 Fasco 99080440 CCW - Lead End 1.5 Replaced by 97013318 Finesse
7162-4456 Fasco 97011400 CCW 0.4 MP100, SP100
7162-4457 Fasco 97011402 CCW 1.2 MP200, SP200
7162-4458 Fasco 97011411 CCW 0.7 MP140
7162-4459 Fasco 99080380 CCW 0.7 Replaced by 97011401 SP140
7163-0192 Fasco 99080151 CW - Lead End 1.0 362
7163-2411 Fasco 99530123 CW 1.4 334
7163-3135 Fasco R520098 n/a 2.5 PM44
Index
104
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
7163-3563 Fasco 99080005 - n.l.a. n/a n/a No Substitution
7163-3564 Fasco 99080054 CW 0.7 486, 496
7163-3654 Fasco 99080054 CW 0.7 486, 496
7163-3682 Fasco 99080155 CW 1.0 4 Inch Cord 465, 475, 476
7163-3682 Fasco 99080023 - n.l.a. CW 1.0 No Substitution
7163-3684 Fasco 99080054 CW 0.7 486, 496
7163-3685 Fasco 99080095 CCW 0.5 Replaced by 97009753
7163-3686 Fasco 99080095 CCW 0.5 Replaced by 97009752
7163-3723 Fasco 99080055 - n.l.a. CW 1.3 481, 491
7163-3741 Fasco 99080191 CW 0.8 2C647 Grainger - Replaced by 99080464
7163-3864 Fasco 99080054 CW 0.7 496, 496
7163-3971 Fasco 99080069 - n.l.a. n/a n/a No Substitution
7163-4125 Fasco 99080140 CCW - Lead End 1.0 Replaced by 97010736
7163-4439 Fasco 02200-29 - n.l.a. n/a n/a No Substitution
7163-4763 Fasco 99080023 - n.l.a. CW 1.0 No Substitution
7163-4981 Fasco 99080149 CCW 0.6 Replaced by 97008583 360
7163-5465 Fasco 99080172 CCW - Lead End 2.4 384 For GE
7163-5779 Fasco 99080177 CW 1.6 Replaced by 99080596
7163-5934 Fasco 99080460 CW 1.6 Replaced by 99080596 10 inch Utility Fans
7163-5935 Fasco 99080181 CW 1.2 12C Exhaust Fan Mtr
7163-7574 Fasco 99080251 CCW 0.2 240 Volt Wall Heater 198
7163-7718 Fasco 02200-56 CW 0.9 Aubrey 7610, AC2710
71639263 Regal Beloit 97008342 CW 0.9 317
7163-9263 Fasco 97008342 CW 0.9 317
7163-9319 Fasco 99080037 CW 0.8 666
7163-9358 Fasco 99080009 CW - Lead End 1.6 300, 301
7163-9358 Fasco 99080009 CW - Lead End 1.6 300
7173-0048 Fasco 99080345 CCW 1.3 Replaced by 97009752
7173-0149 Fasco 99080346 CCW 0.5 Replaced by 97009753
7173-0153 Fasco 99080460 CW 1.6 Replaced by 99080596 10 inch Utility Fans
7173-0168 Fasco 99080450 CCW 0.7 S110U, S110LU
7173-0169 Fasco 97011309 CCW 0.3 HD50, B-Can
7173-0171 Fasco 99080376 CCW 0.7 Replaced by Blower Assy - 97009745 - HD80L B-Can
7173-0172 Fasco n.l.a. CCW 0.4 HD50L
7173-0173 Fasco 99080375 CCW 0.5 Replaced by Blower Assy - 97009745 - HD80L B-Can
7173-0184 Fasco 99080378 CW - Lead End 0.7 314 LoSone - No Longer Available - Replace with
99080151
7173-0192 Fasco 99080151 CW - Lead End 1.0 362
7173-0193 Fasco 99080273 CW 0.5 S90
7173-0237 Fasco 99080274 CW 0.7 S120L
7173-0237 Fasco 99080401 CW 0.9 Replaced by 97012137
7173-0238 Fasco 97012136 CW 0.5 HS90
7173-0239 Fasco 99080401 CW 0.7 Replaced by 97012137
7173-0241 Fasco 97010736 CCW - Lead End 1.0 NR, 82,000, 88,000 +
7173-0242 Fasco 99080241 CCW 0.6 Replaced by 97008583 Model 360
7173-0243 Fasco 99080242 CCW 1.2 Replaced by 97008584 Model 361
7173-0252 Fasco 97013878 CW 0.4 240 Volt S130EX
7173-09193 Fasco 97012136 CW 0.5 HS90
7173-1243 Fasco 99080520 CCW 0.5 HD80-B, HD80L-D
7173-1244 Fasco 99080519 CCW 0.3 HD50-B, HD50L-D, J-Can
7173-1245 Fasco 99080518 CCW 0.6 684 J-Can
7173-1246 Fasco 99080517 CCW 1.3 676, 680, J-Can
7173-1361 Fasco 99080520 CCW 0.7 HD80-B, HD80L-D J-Can
7173-1361 Fasco 99080520 CCW 0.5 HD80, HD80L
7173-1390 Fasco R99080535 CCW 0.9 QS1 WS1
71731980 Regal Beloit 99080602 CCW 0.9 100HL, 100HFL, 765HL, & 765HFL
71731999C Marathon 99080518 CCW 0.6 684
71732001 Marathon 99080517 CCW 0.9 676, 680, 710, 712, 714, 721, & 722
71732002 Marathon 99080520 CCW 0.5 HD80, HD80L
7173-7574 Fasco 99080251 CCW 0.2 240 Volt 198 Heater
7174-2395B Fasco 02200-45 - n.l.a. n/a n/a No Substitution
7176-2654 Fasco 99080153 n/a n/a 347 PAV
7176-3682 Fasco 99080155 CW 1.0 465, 475, 476
7190-2034 Fasco 99080454 CCW 0.3 S80UE
7190-2035 Fasco 99080455 CCW 0.3 S110UE, S110FLUE
71902612 Fasco 97015489 - n.l.a. CCW 3.0 DIV1200 Viking
Index
105
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
71902612 Fasco 97015489 - n.l.a. CCW 3.0 DIV600, DIV1200, 801644,
71902664 Fasco 97015644 CCW 2.4 DIV440 Viking
71902729 Fasco 97015644 CCW 2.4
743-2 ECM Motor Co. 99080295 CW 2.2 Replaced by 99080590 - Gear motor Downdraft
744-2 ECM Motor Co. 99080513 CW 2.8 Gear motor Downdraft
746-03 ECM Motor Co. 97015543 CW 1.6 Gear motor Downdraft
7472E Lamb 99080092 - n.l.a. n/a n/a No Substitution
7491E A.O. Smith 99080194 CCW - Lead End 6.3 L2000L, 367
8-184579-01 Magnetek 99080195 CCW - Lead End 4.3 368
81R03BH0E ECM Motor Co. 97012136 CW 0.6 HS90
8211910110 Redmond 99080047 - n.l.a. CW - Lead End 1.4 No Substitution
8213210380 Franklin 99080037 CW 0.8 665, 666
8213210440 Franklin 99080048 CW 0.9 Replaced by 97008342 315, 317
8213210630 Franklin 99080096 CCW 1.3 Replaced by 97009752
8213210690 Franklin 99080005 - n.l.a. n/a n/a No Substitution
8213210700 Franklin 99080054 CW 0.7 486, 496
8213210710 Franklin 99080095 CCW 0.5 Replaced by 97009753
8213710430 Franklin 99080008 - n.l.a. n/a n/a No Substitution
8213910110 Franklin 99080009 CW - Lead End 1.6 300, 301
8214110270 Franklin 99080056 CW 1.6 461, 471
8253210290 Franklin 99080050 CW 0.9 Replaced by 97008342 315, 317
8253210610 Franklin 99080054 CW 0.7 486, 496
8253210620 Franklin 99080096 CCW 1.3 Replaced by 97009752
8253210640 Franklin 99080048 CW 0.9 Replaced by 97008342 315, 317
8253210650 Franklin 99080005 - n.l.a. n/a n/a No Substitution
8253210660 Franklin 99080095 CCW 0.5 Replaced by 97009753
8253210820 Franklin 99080048 CW 0.9 Replaced by 97008342 315, 317
8253210840 Franklin 99080037 CW 0.8 665, 666
8253210850 Franklin 99080095 CCW 0.5 Replaced by 97009753
8253211000 Franklin 99080149 CCW 0.6 Replaced by 97008583 360
8253211210 Franklin 99080023 - n.l.a. CW 1.0 No Substitution
8253211390 Franklin 97008583 CCW 0.6 360
8253510270 Franklin 99080055 - n.l.a. CW 1.3 481, 491
8253510510 Brinkley 97008584 CCW 1.2 361
8253510510 Franklin 99080150 CCW 1.2 Replaced by 97008584 361
8253710450 Franklin 99080151 CW - Lead End 1.0 362
8253910300 Franklin 99080009 CW - Lead End 1.6 300, 301
8253910480 Franklin 99080152 CW - Lead End 1.8 363, 383
8253910550 Franklin 97007419 CW - Lead End 1.7 1450 Eyelevel Hood
8254110260 Franklin 99080069 - n.l.a. n/a n/a No Substitution
8254110430 Franklin 99080140 CCW - Lead End 1.0 Replaced by 97010736
8254110530 Franklin 99080056 CW 1.6 461, 471
8254310170 Franklin 99080140 CCW - Lead End 1.0 Replaced by 97010736
8315001294 A.O. Smith 99080372 CCW 0.5 41.000
8320000029 A.O. Smith 99080103 CCW 0.7 Economy Hood
8320001483 A.O. Smith 99080404 CCW 0.9 Replaced by 97012038
8320017676 A.O. Smith 99080521 CCW 1.0 678 J-Can
8320017692 A.O. Smith 99080538 CW 0.4 Gear motor for Motordoor
8320540231 A.O. Smith n.l.a. CW 0.3 Old Wall Heater
8323000074 A.O. Smith 99080252 CCW 0.5 240 Volt Wall Heater
8323020106 A.O. Smith 99080547 CCW 0.4 673MX,
8323540229 A.O. Smith n.l.a. CCW 0.6 650
8326000033 A.O. Smith n.l.a. CCW 0.8 134 Wall Heater
8326020107 A.O. Smith 99080546 CCW 0.6 678MX, J-Can
8330000076 A.O. Smith 99080254 CCW 1.0 670-G,H D-Can
8330001264 A.O. Smith 99080367 CW 0.8 Economy Hood
8335000024 UPPCO 99080062 CW 1.5 497, 499, 499S
8335000040 A.O. Smith 99080146 CW 1.5 2-Bulb Heater 5-Pin Plug
8335000043 A.O. Smith 99080159 CCW 0.9 Bulb Heater
8335000046 A.O. Smith 99080166 CCW 1.4 679, J-Can, 655 Exhaust Fan
8335000077 T.P.L. 99080255 CCW 1.5 671
8335000246 A.O. Smith 99080257 CCW 0.6 240 Volt, 671EX, D-Can
8335000507 A.O. Smith 99080145 CW 1.5 1-Bulb Heater 2 Prong Plug
8335001561 A.O. Smith 02200-23 CW 1.5 Aubrey 7584
8335017200 A.O. Smith 99080472 CCW 0.9 Replaced by 97014665
8335017673 A.O. Smith 99080522 CCW 1.4 679, J-Can
Index
106
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
8335540307 A.O. Smith 99080585 CW 0.9 BNC Canada Model 511N
8345001263 A.O. Smith 99080369 CCW 1.1 97011224 46,000, NY Hood
8345001263 A.O. Smith 99080369 CCW 1.1 Replaced by 97011224
8345015536 A.O. Smith 99080409 CW 0.8 240 Volt 509EX
8345444438 A.O. Smith 99080574 CCW 1.1 Replaced By S97016697
8345540305 A.O. Smith 99080583 CW 1.5 BNC Canada Models 503N & 505N
8345540306 A.O. Smith 99080584 CW 1.5 BNC Canada Model 509N
8353210830 Franklin 99080005 - n.l.a. n/a n/a No Substitution
8353910 Franklin 97007419 CW - Lead End 1.7 1450 Eve level Hood
8353910230 Franklin 99080188 CW - Lead End 1.7 Replaced by 97007419
8413810180 Franklin 99080034 CW - Lead End 2.6 Replaced by 97007387
8414010150 Franklin 99080066 CW - Lead End 3.0 320, 70,000 Hood
841401330 Franklin 97007729 n/a 1.6 84,000, 86,000, 89,000
8414020130 Franklin 99080073 - n.l.a. n/a n/a No Substitution
8415810110 Franklin 97007387 CW - Lead End 2.6 311, 312
8416010260 Franklin 97007072 CW 3.0 Complete Blower Assy. 365
8421-1 A.O. Smith 99080159 CCW 0.9 Bulb Heater
8523210480 Franklin 99080155 CW 1.0 4 Inch Cord, 465, 475, 476
8523210480 Franklin 99080155 CW 1.0 15 Inch Cord, 22C, 2200
85B2M UPPCO 99080132 CW 0.8 655, Heater Mtr
8715810280 Franklin 99080148 - n.l.a. CCW - Lead End 4.6 No Substitution
8843 UPPCO 99080154 CW 1.4 466, 478, 479
884841 Franklin 99080215 CW 5.0 2230 WHV
9194-1 A.O. Smith 99080585 CW 0.9 Replaced by 97016782, 511N Canadian Unit, Order
From BNC
9204-6 A.O. Smith 99080584 CW 1.5 Replaced by 97016781, 509N Canadian Unit, Order
From BNC
9217 UPPCO 99080368 CW 0.6 240 Volt Economy Hood
93080121 GE 91005299 n/a n/a Compactor
93080122-A GE 91005299 n/a n/a Compactor
93080184 GE 91008814 n/a n/a Compactor
93080193 GE 91008814 n/a n/a Compactor
950-312 Paul Jensen Co. 99080053 n/a n/a 30,000, 31,000, 32,000 - No Longer Available, No
Substitute
9813-1 UPPCO 99080366 CCW 0.4 240 Volt Economy Hood
9970 UPPCO 99080220 CW 0.5 1426
9996A UPPCO 99080408 CCW 1.0 Replaced By 97012039
9K014 Dayton 99080030 - n.l.a. n/a n/a No Substitution
9K056 Dayton 99080030 - n.l.a. n/a n/a No Substitution
9K084 Dayton 99080043 - n.l.a. n/a n/a No Substitution
9M019 Dayton 99080023 - n.l.a. CW 1.0 No Substitution
9M088 Dayton n.l.a. n/a n/a No Substitution
9M092 Dayton n.l.a. n/a n/a No Substitution
9M100 Dayton 99080028 - n.l.a. n/a n/a No Substitution
9M101 Dayton n.l.a. n/a n/a No Substitution
9M118 Dayton 99080023 - n.l.a. CW 1.0 No Substitution
9M154 Dayton 99080004 - n.l.a. n/a n/a No Substitution
9M155 Dayton 99080023 - n.l.a. CW 1.0 No Substitution
9M156 Dayton 99080025 - n.l.a. n/a n/a No Substitution
9M173 Dayton 99080023 - n.l.a. CW 1.0 841, 22C, 2,200
9M184 Dayton 99080047 - n.l.a. CW - Lead End 1.4 No Substitution
9M191 Dayton 97000680 - n.l.a. n/a n/a 150, 156-B
9M224 Dayton 99080047 - n.l.a. CW - Lead End 1.4 No Substitution
9M247 Dayton 99080005 - n.l.a. n/a n/a No Substitution
9M258 Dayton 99080053 n/a n/a 30,000, 31,000, 32,000 - No Longer Available, No
Substitute
9M297 Dayton n.l.a. n/a n/a No Substitution
9M370 Dayton 99080054 CW 0.7 486, 496
9M388 Dayton 99080023 - n.l.a. CW 1.0 No Substitution
9M419 Dayton 99080037 CW 0.8 665, 666
9M533 Dayton n.l.a. n/a n/a No Substitution
9M574 Dayton 99080095 CCW 0.5 Repl. by 97009753
9M631 Dayton 99080025 - n.l.a. n/a n/a No Substitution
9M670 Dayton 99080023 - n.l.a. CW 1.0 No Substitution
9M671 Dayton 99080025 - n.l.a. n/a n/a No Substitution
9M673 Dayton 99080005 - n.l.a. n/a n/a No Substitution
Index
107
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
9M680 Dayton 99080054 CW 0.7 486, 496
9M689 Dayton 99080095 CCW 0.5 Replaced by 97009753
9M690 Dayton 99080096 CCW 1.3 Replaced by 97009752
9M701 Dayton 99080055 - n.l.a. CW 1.3 481, 491
9M708 Dayton 97000680 - n.l.a. n/a n/a 150, 156-B
A0301B1156 Doerr 99080096 CCW 1.3 Replaced by 97009752
A04463A Redmond 99080034 CW - Lead End 2.6 Replaced by 97007387
A04657A Redmond 99080066 CW - Lead End 3.0 310, 70,000 Hood
A0510B2006 McMillan 99080129 CW 3.4 Replaced by 97009316 PAV
A0510B2055 McMillan 99080171 CW 3.4 Replaced by 97009316 PAV
A0510B2061 McMillan 02200-38 - n.l.a. n/a n/a No Substitution
A0510B2086 McMillan 02200-43 - n.l.a. n/a n/a No Substitution
A0510B2116 McMillan 99080209 CW 3.4 Replaced by 97009316 PAV
A0510B2118 McMillan 99080212 CW 3.4 Replaced by 97009316 PAV
A0510B2157 McMillan 99080210 CW 3.4 Replaced by 97009316 PAV
A0510B2159 McMillan 99080237 CW 3.4 Replaced by 97009316 PAV
A0510B2220 McMillan 99080263 CW 3.4 Replaced by 97009316 PAV
A0510B2221 McMillan 99080267 CW 4.3 Replaced by 97009317 PAV
A0516B2019 McMillan 99080130 CW 4.3 Replaced by 97009317 PAV
A0516B2117 McMillan 99080210 CW 4.3 Replaced by 97009317 PAV
A0516B2158 McMillan 99080239 CW 4.3 Replaced by 97009317 PAV
A0520B2087 McMillan 02200-44 - n.l.a. n/a n/a No Substitution
A06418A Redmond 97007387 CW - Lead End 2.6 312, 313, 319
A08XP-01P-0801000003 Regal Beloit 97017842 CCW 0.2 QTXE050
A08XP-01P-0801000003 Regal Beloit 30080437 CCW 0.2 Contact Broan Canada 888-882-7626
A0C418A Redmond 97007387 CW - Lead End 2.6 312, 313, 319
A143282 Leece Neville n.l.a. n/a n/a No Substitution
A143283 Leece Neville n.l.a. n/a n/a No Substitution
A143291 Leece Neville n.l.a. n/a n/a No Substitution
A143292 Leece Neville n.l.a. n/a n/a No Substitution
AC6215 Redmond 99080055 - n.l.a. CW 1.3 481, 491
AK1133A Redmond 99080037 CW 0.8 665, 666
AK24147A Redmond n.l.a. n/a n/a No Substitution
AK2522A Redmond 99080047 - n.l.a. CW - Lead End 1.4 No Substitution
AK41174-A Redmond 99080048 CW 0.9 Replaced by 97008342
AK4117-A Redmond 99080048 CW 0.9 Replaced by 97008342
AK41200A Redmond 99080064 - n.l.a. n/a n/a No Substitution
AK4521A Redmond 99080009 CW - Lead End 1.6 301, 301
AK4521E Redmond n.l.a. n/a n/a No Substitution
AK4554K Redmond n.l.a. n/a n/a No Substitution
AK4K94A Redmond 99080008 - n.l.a. n/a n/a No Substitution
AK4L114A Redmond 99080038 - n.l.a. n/a n/a No Substitution
AK4L122A Redmond 99080038 - n.l.a. n/a n/a No Substitution
AK4L139A Redmond 99080056 CW 1.6 461, 471
AK4L169A Redmond 99080069 - n.l.a. n/a n/a No Substitution
AK594 Redmond 99080023 - n.l.a. CW 1.0 No Substitution
AK6109A Redmond 99080050 CW 0.9 Replaced by 97008342 - Model 315, 317
AL41300A Redmond 99080050 CW 0.9 Replaced by 97008342 - Model 315, 317
AR5725-1 Doerr 99080069 - n.l.a. n/a n/a No Substitution
B33AA02D73N+ A.O. Smith 99080557 CW 0.4 744, 744NT
B33AA05D73N Fasco 99080152 CW - Lead End 1.8 363, 363MG, 383, 383MG
B8108C0708 Doerr 97000680 - n.l.a. n/a n/a 150, 156-B
BQ 7330-3 Doerr 99080166 CCW 1.4 679, 655, 657, Exhaust
BQ-7328 Doerr 97005906 CW 1.5 Bulb Heater
C0510B2382 MCMILLAN 99080370 CW 1.4 240 Volt 350EX PAV
C202A BBS 99080216 CCW 0.6 Replaced by 97012038
CA2F076N Magnetek/Universal 97007729 n/a 1.6 84,000, 86,000, 89,000
CA2F076N Universal 99080197 CCW - Lead End 3.8 Replaced by 97007729
CA2F076N A.O. Smith 97007729 n/a 1.6 84,000, 86,000, 89,000
CC00054 A.O. Smith 99080254 CCW 1.0 670-G,H D-Can
CC0025 A.O. Smith 99080533 CCW 1.1 Replaced by 97012248
CC0028 A.O. Smith 02200-41 CW 0.3 682, 682L
CC0029 A.O. Smith 02200-18 CW 0.3 154, 9297T Heaters by Aubrey
CC0034 A.O. Smith 99080248 CCW 0.6 120, 124, 170
CC0053 A.O. Smith 99080216 CCW 0.8 Replaced by 97012038
CC0054 A.O. Smith 99080254 CCW 1.0 670-G, H, J
Index
108
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
CC0055 A.O. Smith 99080403 CCW 1.5 Replaced by 97012042
CC0056 A.O. Smith 99080472 CCW 0.9 Replaced by 97014665
CC0068 A.O. Smith 99080492 CCW 1.1 Replaced by 97012248
CC0078 A.O. Smith 99080521 CCW 1.0 678 J-Can
CC0147 A.O. Smith 99080372 CCW 0.5 41.000
CC0148 A.O. Smith 99080402 CCW 0.9 Replaced by 97012041 688-G, H,J
CC0149 A.O. Smith 99080403 CCW 1.5 Replaced by 97012042
CC0150 A.O. Smith 99080492 CCW 1.1 Replaced by 97012248
CC0151 A.O. Smith 99080255 CCW 1.5 671 D-Can
CC0152 A.O. Smith 99080522 CCW 1.4 679, J-Can
CC0153 A.O. Smith 99080166 CCW 1.4 679, J-Can, 655 Exhaust Fan
CC0154 A.O. Smith 99080404 CCW 0.9 Replaced by 97012038
CC0155 A.O. Smith 99080521 CCW 1.0 678 J-Can
CC0156 A.O. Smith 99080369 CCW 1.1 Replaced by 97011224
CC155 A.O. Smith 99080521 CCW 1.0 678 J-Can
CE2F014N Magnetek/Universal 99080399 CW - Lead End 1.4 BVS200-B
CE2F016N A.O. Smith 99080387 CW - Lead End 1.4 ERV110ENT
CPM-023 Voorlas 99080192 CW n/a 12 Volt Grainger 2C646A
CPM-023 Ametek Specialty 99080192 CW n/a 12 Volt Grainger 2C646A
CPM-02711-098-40 G.S. Electric 99080192 CW n/a 12 Volt 2C646
CU-161200-91R01AURA ECM Motor Co. 99080556 CCW 0.5 QTX100HL Exhaust Motor
CU-161200-91R05BB0E ECM Motor Co. 99080562 CCW 0.4 QTXE080
CU-161200-91R06BB0A ECM Motor Co. 99080561 CCW 0.4 QTRE 80CFM
CU-161200-91R07 ECM Motor Co. 99080576 CCW 0.3 90 CFM Canadian Units Must order from BNC only
CU-181200-91R01BB0A ECM Motor Co. 99080579 CCW 0.4 110 CFM Canadian Units Must order from BNC only
CU-181200-91R02BB0A ECM Motor Co. 99080578 CCW 0.4 110 CFM Canadian Units Must order from BNC only
CU-181200-91R03BB0C ECM Motor Co. 99080565 CCW 0.5 QTXE150
CU-181200-91R04BB0C ECM Motor Co. 99080560 CCW 0.3 QTXE050
CU-181200-91R05BB0B ECM Motor Co. 99080580 - n.l.a. CCW 0.4 QTRE090, QTRE110 - Replaced by 97016730
CU-181200-91R06BB0B ECM Motor Co. 99080581 - n.l.a. CCW 0.4 QTRE090, QTRE110 - Replaced by 97016730
CU25120081R03QGOG ECM Motor Co. 99080587 CCW - Lead End 1.0 Replaced by 97010736
CU-251200-81R03QGOG ECM Motor Co. 99080587 CCW - Lead End 1.0 Replaced by 97010736
D0816B3120 MCMILLAN 99080537 CW 6.0 Replaced by 97015612 PAV
DA26092N Universal 97009318 CW 8.0 PAV
DA2E119N Magnetek/Universal 99080066 CW - Lead End 3.0 320, 70,000 Hood
DA2E119N A.O. Smith 99080066 CW - Lead End 3.0 320, 70,000 Hood
DA2G073N Universal 99080131 CW 8.0 Replaced by 97009318 PAV
DA2G086N Universal 99080211 CW 8.0 Replaced by 97009318 PAV
DA2G087N Universal 99080240 CW 8.0 Replaced by 97009318 PAV
DA2G087N A.O. Smith 99080537 CW 8.0 Replaced by 97015612 PAV
DA2G092N Magnetek/Universal 97009318 CW 8.0 346 PAV
DA2G092N A.O. Smith 99080268 CW 8.0 Replaced by 97009318 PAV
DA3E278N Universal/Magnetek 99080178 CW 3.0 365 LoSONE
DA3E278N A. O. Smith/Genteq 99080178 CW 3.0 365 LoSONE
DA3G204N Universal/Magnetek 99080428 - n.l.a. n/a n/a 240 VOLT 365EX
DE2E163N Magnetek/Universal 97011415 CCW 2.5 MP280
DE2E163N A.O. Smith 97011415 CCW 2.5 MP280
DE2E219N A.O. Smith n.l.a. CCW 0.9 220-240 Volt MP280EX
DE2G094N Magnetek/Universal 99080349 CCW 4.1 2530-B, 2536-B Downdraft
DE2G095N Universal/Magnetek 97009889 CW 4.4 375 LoSone
DE2G095N A.O Smith 97009889 CW 4.4 375 LoSone
DE2G097N Magnetek/Universal 99080357 CCW 4.4 Replaced by 97018851
DE2G097N A.O. Smith 99080357 CCW 4.4 Replaced by 97018851
DE2G097N A.O. Smith 99080357 CCW 4.4 Replaced by 97018851
DE2G120N Magnetek/Universal 99080514 CCW 4.4 DCS 600
DE2G120N A.O. Smith 99080514 CCW 4.4 DCS-BLR-600
DE2G127N A.O. Smith 99080552 CCW 1.1 Replaced by 97016330 VIV300
DE2J056N A.O. SMITH 99080362 CW 4.0 2730, 2736, Downdraft
DE3G126N Magnetek/Universal 99080397 CW 2.3 331H, EB6
DE3G126N A.O. Smith 99080397 CW 2.3 331H, EB6
DE3J051N Magnetek/Universal 99080396 CW 5.7 332H, EB9
DE3J051N A.O. Smith 99080396 CW 5.7 332H, EB9
DR-75-63-424 GE 99080034 CW - Lead End 2.6 Replaced by 97007387
DYAB-11582 Barber Coleman 99080010 CW n/a Replaced by 97008639
DYAB11842-1 Barber Coleman 99080036 - n.l.a. n/a n/a No Substitution
DYAB2937-10 Barber Coleman 99080014 CW n/a Replaced by 97008640
Index
109
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
DYAB2937-10 Barber Coleman 99080187 CW n/a Replaced by 97008640
DYAB4578-11 Barber Coleman 99080015 - n.l.a. n/a n/a No Substitution
DYAB4578-7 Barber Coleman 99080015 - n.l.a. n/a n/a No Substitution
DYAF-11429 Barber Coleman n.l.a. n/a n/a 650, 651, 652, 653
DYAF-118421 Barber Coleman 99080061 - n.l.a. CW 0.6 No Substitution - Model 672
DYAF11842-1 Barber Coleman 99080061 - n.l.a. CW 0.6 No Substitution - Model 672
E04527-6 ECM Motor Co. 99080595 CCW 0.4 QTR140L
E322 P137 Westinghouse 99080206 CW 3.4 Replaced by 97009316 PAV
E322 P138 Westinghouse 99080130 CW 4.3 Replaced by 97009317 PAV
E322P137 Westinghouse 99080206 CW 3.4 Replaced by 97009316 PAV
E322P138 Westinghouse 99080130 CW 4.3 Replaced by 97009317 PAV
ECM5991 ECM Motor Co. 99080295 CW 1.6 Replaced by 99080590 - Gear motor f/Downdraft
EP45RTC0005 Elektromek 97017924 CW 3.0
F001-557FH Leece Neville n.l.a. n/a n/a No Substitution
F0017221FB Leece Neville n.l.a. n/a n/a No Substitution
F0510B2157 McMillan 99080237 CW 3.4 Replaced by 97009316 PAV
F0510B2513 McMillan 99080263 CW 3.4 Replaced by 97009316 PAV
F0510B2515 McMillan 99080238 CW 3.4 Replaced by 97009316 PAV
F0510B2517 McMillan 99080237 CW 3.4 Replaced by 97009316 PAV
F0516B2514 McMillan 99080267 CW 4.3 Replaced by 97009317 PAV
F0516B2515 McMillan 99080238 CW 3.4 Replaced by 97009316 PAV
F0516B2516 McMillan 99080239 CW 4.3 Replaced by 97009317 PAV
F0812B3077 McMillan 99080529 CW 3.9 Replaced by 97015764, PAV
F42AA04A64N A.O. Smith 99080628 CW 1.3 220-240 Volts Replaced by 97017872 Wolf
ICBDD30I, 36”, 45”
H001119284G Leece Neville 99080055 - n.l.a. CW 1.3 481, 491
H001-12162B Leece Neville 99080037 CW 0.8 665, 666
H001-12282B Leece Neville 99080054 CW 0.7 486, 496
H00117442B Leece Neville 99080047 - n.l.a. CW - Lead End 1.4 No Substitution
H00134362B Leece Neville n.l.a. n/a n/a No Substitution
H00135362B Leece Neville n.l.a. n/a n/a No Substitution
HA3E023N Magnetek/Universal 99080148 - n.l.a. CCW - Lead End 4.6 No Substitution
HA3E023N Universal 99080148 - n.l.a. CCW - Lead End 4.6 No Substitution
HA3E023N A.O. Smith 99080148 - n.l.a. CCW - Lead End 4.6 No Substitution
HA3E024N Universal 99080202 CCW - Lead End 2.1 240 Volt 366EX
HA3E033N Magnetek/Universal 99080202 CCW - Lead End 2.1 240 Volt 366EX
HA3E0EEN Magnetek 99080202 CCW - Lead End 2.1 240 Volt 366EX
HA3E0EEN A.O. Smith 99080202 CCW - Lead End 2.1 240 Volt 366EX
HA3F060N Magnetek/Universal 99080202 CCW - Lead End 2.1 240 Volt 366EX
HE2E219N A.O. Smith n.l.a. CCW 0.9 220-240 Volt MP280EX
HF2L026N Magnetek/Universal 97011215 n/a 5.0 326, P12 - Replaced by 97018834
HF2L026N A.O. Smith 97011215 n/a 5.0 326, P12 - Replaced by 97018834
HF2L038N Magnetek/Universal 99080515 CW - Lead End 5.0 DCS-BLR-1200
HF2L038N A.O. Smith 99080515 CW - Lead End 5.0 DCS-BLR-1200
HF2L048 A.O. Smith 99080572 n/a 6.0 P12D
HF3E019N Universal/Magnetek 99080213 CW 4.5 2220 WHV
HF3E019N A.O. Smith 99080213 CW 4.5 2220 WHV
HF3G094N A.O. Smith 99080490 CCW 3.0 L900
HF3G096N Magnetek/Universal 99080511 CCW 1.1 L900EX 240 Volt
HF3G096N A.O. Smith 99080511 CCW 1.1 L900EX 240 Volt
HF3G097N Magnetek/Universal 99080501 CCW 1.0 277 Volt L900C
HF3G097N A.O. Smith 99080501 CCW 1.0 L900C 277 Volt
HF3H058N Magnetek/Universal 99080194 CCW - Lead End 6.3 L2000L, 367
HF3H058N A.O. Smith 99080194 CCW - Lead End 6.3 L2000L, 367
HF3H094N A.O. Smith 99080491 CCW 5.0 L1500
HF3H097N Magnetek/Universal 99080512 CCW 2.4 L1500EX 240 Volt
HF3H097N A.O. Smith 99080512 CCW 2.4 L1500EX 240 Volt
HF3H098N Magnetek/Universal 99080502 CCW 1.8 L1500C 277 Volt
HF3H098N A.O. Smith 99080502 CCW 1.8 L1500C 277 Volt
HF3J029N Universal/Magnetek 99080169 - n.l.a. n/a n/a No Substitution — WHV 2130
HF3J033N Magnetek/Universal 99080227 CW 5.5 2236 WHV
HF3J033N A.O. Smith 99080227 CW 5.5 2236 WHV
HF4H002N Universal/Magnetek 99080214 CW 4.5 2224 WHV
HF4H002N A.O. Smith 99080214 CW 4.5 2224 WHV
HF4J005 Universal/Magnetek 99080167 - n.l.a. CW n/a 2024 WHV
HF4J005N Universal 99080167 - n.l.a. CW n/a 2024 WHV
Index
110
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
HF4J007N Universal 99080168 - n.l.a. n/a n/a No Substitution
HF4L005N Universal 99080168 - n.l.a. n/a n/a No Substitution
HF4L008N Universal/Magnetek 99080215 CW 5.0 2230 WHV
HF4L008N A.O. Smith 99080215 CW 5.0 2230 WHV
ii036 UPPCO 99080257 CCW 0.6 240V 671EX D-Can
J238_038_3224 Jakel 99080199 CCW 0.6 673, 512
J238-038-3167 Jakel 99080222 CW 0.3 686
J238-038-3226 Jakel 02200-41 CW 0.3 682, 682L
J238-038-390 Jakel 99080437 CW 0.2 157, 9157NT 6” leads with female spade connectors
J238-038-390 Jakel 02200-18 CW 0.3 154, 9297T Heaters by Aubrey 8” leads with eyelets
(ring terminals)
J238-050-5118 Jakel 97012026 CCW 0.9 Motor and wheel
J238-062-5071 Jakel 02200-59 CW 0.8 730,732,735 Exhaust Motor
J238-062-6252 Jakel 99080254 CCW 1.0 670-G,H,J
J238-075-7024 Jakel 99080255 CCW 1.5 671 D-Can
J238-075-7033 Jakel 02200-60 CCW 0.6 730,732,735 Heater Motor
J238-075-7124 Jakel 02200-23 CW 1.5 Aubrey 7584
J238-075-7124 Jakel 02200-23 CW 1.5 Aubrey 7584
J238-075-7151 Jakel 97010254 CW 0.9 Bulb Heater
J238-087-8030 Jakel 99080218 CCW 0.9 Economy Hood
J238-138-1368 Jakel NTK7448000 CCW 1.5 QT Hood, WA Hood
J238-138-1384 Jakel 99080532 CCW 1.3 Replaced by 99080667 - QT Hood, WA Hood
J239-038-391 Jakel 02200-35 CW 0.6 Big Heat
JA2B085R A.O. Smith 97011309 CCW 0.3 HD50, B-Can
JA2B086R A.O. Smith n.l.a. CCW 0.3 HD50L
JA2B104N A.O. Smith 86933000 CCW 1.2 NuTone 8663R Series
JA2B115R Magnetek/Universal 99080519 CCW 0.4 HD50-B, HD50L-D J-Can
JA2B121D A.O. Smith 99080558 CCW 0.4 QTX100HL Heater Motor
JA2B122N A.O. Smith 99080559 CCW 0.6 742
JA2B-95R Magnetek 97011309 CCW 0.3 HD50 B-Can
JA2C0096 Universal 99080054 CW 0.7 486, 496
JA2C042N Universal 99080054 CW 0.7 486, 496
JA2C217 Magnetek/Universal 99080054 CW 0.7 486, 496
JA2C217N Magnetek/Universal 99080054 CW 0.7 486, 496
JA2C217N Magnetek/Universal 99080186 - n.l.a. CW 0.7 240 Volt 12CEX - No Longer Available
JA2C217N A.O. Smith 99080054 CW 0.7 486, 496
JA2C225N Universal 99080005 - n.l.a. n/a n/a No Substitution
JA2C227D Magnetek/Universal 99080346 CCW 0.5 Replaced by 97009753
JA2C227D Magnetek 99080518 CCW 0.5 684 J-Can
JA2C227D A.O. Smith 99080346 CCW 0.5 Replaced by 97009753
JA2C229N Magnetek/Universal 99080345 CCW 1.3 Replaced by 97009752
JA2C229N Universal 99080096 CCW 1.3 Replaced by 97009752
JA2C229N Magnetek 99080517 CCW 1.3 676, 680, J-Can
JA2C229N A.O. Smith 99080345 CCW 1.3 Replaced by 97009752
JA2C232N Magnetek/Universal 99080155 CW 1.0 465, 475, 476
JA2C232N A. O. Smith 99080155 CW 1.0 465, 475, 476
JA2C291D Magnetek/Universal 99080241 CCW 0.7 Replaced by 97008583 Model 360
JA2C291D A.O. Smith 99080241 CCW 0.7 Replaced by 97008583 Model 360
JA2C291N Magnetek/Universal 99080149 CCW 0.6 Replaced by 97008583 Model 360
JA2C394N A.O. Smith 86322 CW 0.8 Replaced by 86322000 NuTone QT9093 series
JA2C396D A.O. Smith 99080273 CW 0.5 S90
JA2C403N Magnetek/Universal 99080023 - n.l.a. CW 0.8 No Substitution
JA2C442N Magnetek/Universal 99080375 CCW 0.5 Replaced by Blower Assy - 97009745 - HD80L B-Can
JA2C443N A.O. Smith 99080376 CCW 0.6 Replaced by Blower Assy - 97009745 - HD80L B-Can
JA2C443N Magnetek 99080520 CCW 0.5 HD80, HD80L
JA2C445N Magnetek/Universal 97008586 n/a n/a 240 Volt 360EX
JA2C467D Magnetek/Universal 97012136 CW 0.7 HS90
JA2C467D A.O. Smith 97012136 CW 0.7 HS90
JA2C479N Magnetek/Universal 97013391 CCW 0.4 240 Volt 684EX
JA2C479N A.O. Smith 97013391 CCW 0.4 240 Volt 684EX
JA2C489D A.O. Smith 30080112AB CCW 0.4 Must order from BNC Canada Unit
JA2C509D Magnetek/Universal 99080524 CCW 0.4 240 Volt J-Can 684EX
JA2C509D A.O. Smith 99080524 CCW 0.4 684EX 240 Volt J-Can
JA2C527R A.O. Smith 99080519 CCW 0.4 HD50, HD50L J-Can
JA2C528N A.O. Smith 99080520 CCW 0.7 HD80, HD80L J-Can
JA2C528N A.O. Smith 99080520 CCW 0.5 HD80, HD80L
Index
111
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
JA2C529D A.O. Smith 99080518 CCW 0.5 684 J-Can
JA2C530N A.O. Smith 99080517 CCW 1.3 676, 680, J-Can.
JA2C547D A.O. Smith 99080557 CW 0.4 744, 744NT
JA2C553N A.O. Smith 99080570 CCW 0.7 756, 757
JA2C557N A.O. Smith 99080037 CW 0.8 666
JA2M260N Magnetek/Universal 99080181 CW 1.2 12C
JA2M260N A.O. Smith 99080181 CW 1.2 12C
JA2M267N A.O. Smith 99080186 - n.l.a. CW 0.7 No Substitution
JA2M284N Universal 99080150 CCW 1.2 Replaced by 97008584 361
JA2M284N Magnetek/Universal 99080242 CCW 1.2 Replaced by 97008584 361
JA2M284N A.O. Smith 99080242 CCW 1.2 Replaced by 97008584 Model 361
JA2M352N Magnetek/Universal 99080347 CCW 0.4 Replaced by 97009754,240 Volt
JA2M352N A.O. Smith 99080347 CCW 0.4 Replaced by 97009754,240 Volt
JA2M373N Magnetek/Universal 99080274 CW 0.7 S120L
JA2M373N A.O. Smith 99080274 CW 0.7 S120L
JA2M406R A.O. Smith 99080378 CW - Lead End 0.8 314 LoSone - n.l.a. - Replace with 99080151
JA2M426N Magnetek/Universal 99080401 CW 0.9 Replaced by 97012137
JA2M434N Magnetek/Universal 99080464 CW 0.8 2C647A
JA2M456N Magnetek/Universal 99080462 CW 0.4 240 Volt S130EX
JA2M464N Magnetek/Universal 99080489 CW 0.4 240 Volt 9PC78
JA2M469N Magnetek/Universal 99080523 CCW 0.4 240 Volt J-Can 676EX
JA2M469N A.O. Smith 99080523 CCW 0.4 676EX 240 Volt J-Can
JA2M474N A.O. Smith 99080251 CCW 0.2 240 Volt Wall Heater 198
JA2N024N Universal 99080055 - n.l.a. CW 1.3 481, 491
JA2N126N Magnetek/Universal 99080055 - n.l.a. CW 1.3 481, 491
JA2N126N A.O. Smith 99080055 - n.l.a. CW 1.3 481, 491
JA2N137 Universal 99080177 CW 1.6 Replaced by 99080596
JA2N139N Universal 99080460 CW 1.6 Replaced by 99080596 10 inch Utility Fans
JA2N153N A.O. Smith 99080151 CW - Lead End 1.0 362
JA2N173N Universal 99080460 CW 1.6 Replaced by 99080596 10 inch Utility Fans
JA2N186N Magnetek/Universal 99080243 - n.l.a. n/a n/a 240 Volt 361EX
JA2N186N Magnetek/Universal 99080243 - n.l.a. n/a n/a 240 Volt 361EX
JA2N258N Magnetek/Universal 99080420 - n.l.a. n/a n/a 240 Volt 362EX
JA2N294N Magnetek/Universal 99080474 CCW 1.2 S150, S150L
JA2N294N A.O. Smith 99080474 CCW 1.2 S150, S150L
JA2P116N Universal 97007729 n/a 1.6 84,000, 86,000, 89,000
JA2P116N Universal 97010736 CCW - Lead End 1.0 NR, 82,000, 88,000
JA2P129N Universal 97007419 CW - Lead End 1.7 1450 Eyelevel Hood
JA2P142N Magnetek/Universal 97007419 CW - Lead End 1.7 1450 Eyelevel Hood
JA2P145N Magnetek Universal 99080152 CW - Lead End 1.8 363, 383
JA2P145N A.O. Smith 99080152 CW - Lead End 1.8 363, 383
JA2P194N Magnetek Universal 99080177 CW 1.6 Replaced by 99080596
JA2P227N Magnetek/Universal 99080386 CW 0.7 240 Volt 508EX
JA2P258N A.O. Smith 99080460 CW 1.6 Replaced by 99080596 10 inch Utility Fans
JA2P258N A. O. Smith 99080596 CW 1.6 502, 504, 506, 508, 510
JA2P301N A. O. Smith 99080009 CW - Lead End 1.6 300
JA2R165N Magnetek/Universal 99080056 CW 1.6 461, 471
JA2R165N A.O. Smith 99080056 CW 1.6 461, 471
JA2R172N Universal 99080172 CCW - Lead End 2.4 384 made for G.E.
JA2R268N Magnetek/Universal 97010736 CCW - Lead End 1.0 Deluxe Hoods
JA2R268N A.O. Smith 97010736 CCW - Lead End 2.1 Deluxe Hoods
JA2R303N A.O. Smith 99080450 CCW 0.7 S110U, S110LU
JA2R303R A.O. Smith 99080450 CCW 0.7 S110U, S110LU
JA2R314N Magnetek/Universal 99080424 - n.l.a. n/a n/a 240 VOLT, 363EX
JA2R317N A.O. Smith 99080467 CCW 0.4 240 VOLT, S11UEX
JA2R321N A.O. Smith 99080482 CCW 1.2 L150, L150L
JA2R322 Magnetek/Universal 99080481 CCW 1.0 L100, L100L
JA2R322D A.O. Smith 99080481 CCW 1.0 L100, L100L
JA2R326 Magnetek/Universal 99080494 CCW 0.7 L150C, 277 Volt
JA2R326N A.O. Smith 99080494 CCW 0.7 L150C, 277 Volt
JA2R326N A.O. Smith 99080494 CCW 0.7 277 Volt L150C
JA2R327N A.O. Smith 99080504 CCW 0.7 L150EX, 240 Volt
JA2R327N A.O. Smith 99080504 CCW 0.7 L150EX 240 Volt
JA2R329N Magnetek/Universal 99080503 CCW 0.5 L100EX, 240 Volt
JA2R329N A.O. Smith 99080503 CCW 0.5 L100EX 240 Volt
JA2R32D ECM Motor Co. 99080481 CCW 1.0 L100, L100L
Index
112
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
JA2R330D A.O. Smith 99080493 CCW 0.5 277 Volt L100C
JA2R348D A.O. Smith 99080568 CCW 0.7 QTR080
JA2R349N A.O. Smith 99080582 CCW 0.9 Replaced by Blower Assy 97018218 - QTR110
JA2R349N A.O. Smith 99080569 CCW 0.9 Replaced by Blower Assy 97018218 - QTR110
JA2R358N A.O. Smith 99080566 CCW 1.3 Replaced by 99080595
JA2S143 Magnetek/Universal 99080034 CW - Lead End 2.6 Replaced by 97007387
JA2S143N Magnetek/Universal 99080034 CW - Lead End 2.6 Replaced by 97007387
JA2S143N A.O. Smith 99080034 CW - Lead End 2.6 Replaced by 97007387
JA2Y043N A.O. Smith 99080483 CCW 1.6 L200, L200L
JA2Y044N A.O. Smith 99080485 CCW 2.6 L300, L300L
JA2Y045N A.O. Smith 99080484 CCW 2.0 L250, L250L
JA2Y047 Magnetek 99080497 CCW 1.2 L300C 277 Volt
JA2Y047N Magnetek/Universal 99080497 CCW 1.2 L300C, 277 Volt
JA2Y048N A.O. Smith 99080505 CCW 0.9 L200EX, 240 Volt
JA2Y048N A.O. Smith 99080505 CCW 0.9 L200EX 240 Volt
JA2Y049N A.O. Smith 99080496 CCW 1.0 L250C, 277 Volt
JA2Y049N A.O. Smith 99080496 CCW 1.0 L250C 277 Volt
JA2Y050N A.O. Smith 99080495 CCW 0.8 L200C, 277 Volt
JA2Y050N A.O. Smith 99080495 CCW 0.8 L200C 277 Volt
JA2Y051N A.O. Smith 99080506 CCW 1.2 L250EX, 240 Volt
JA2Y051N A.O. Smith 99080506 CCW 1.2 L250EX 240 Volt
JA2Y053N A.O. Smith 99080507 CCW 1.4 L300EX, 240 Volt
JA2Y053N A.O. Smith 99080507 CCW 1.4 L300EX 240 Volt
JAC227N Universal 99080095 CCW 0.5 Replaced by 97009753
JAM267N Universal 99080186 - n.l.a. CW 0.7 No Substitution - 240 Volt 12CEX
JAR322 Magnetek/Universal 99080481 CCW 0.4 L100, L100L
JE1D006N A.O. Smith 97011400 CCW 0.5 MP100, SP100
JE1D018N A.O. Smith 99080553 CCW 0.3 240 Volt MP100EX
JE1E015N A.O. Smith 97011402 CCW 1.3 MP200, SP200
JE1E016N A.O. Smith 97011411 CCW 0.8 MP140
JE1E017N A.O. Smith 97011401 CCW 0.8 SP140
JE1E038N A.O. Smith 99080554 CCW 0.4 240 Volt MP140EX
JE1E039N A.O. Smith 99080555 CCW 0.6 240 Volt MP200EX
JE1G026N Magnetek/Universal 99080440 CCW - Lead End 1.9 Replaced by 97013318 Finesse
JE2033R A.O. Smith 99080563 - n.l.a. CCW 0.3 QTRE090, QTRE110 - Replaced by 97016730
JE2E020R Magnetek/Universal 99080454 CCW 0.2 S80UE
JE2E020R A.O. Smith 99080454 CCW 0.2 S80UE
JE2E021R Magnetek/Universal 99080455 CCW 0.3 S110UE, S110FLUE
JE2E029N A.O. Smith 97016326 - n.l.a. CCW 0.9 DIV300
JE2E030R A.O. Smith 99080550 CCW 0.2 S50UE
JE2E031R A.O. Smith 99080556 CCW 0.4 QTX100HL Exhaust Motor
JE2E032R A.O. Smith 99080561 CCW 0.4 QTR Exhaust Motor
JE2E033R A.O. Smith 99080563 - n.l.a. CCW 0.3 QTR Exhaust Motor - Replaced by 97016730
JE2E033R A.O. Smith 99080580 - n.l.a. CCW 0.3 QTRE090, QTRE110 - Replaced by 97016730
JE2E033R A.O. Smith 99080581 - n.l.a. CCW 0.3 QTRE090, QTRE110 - Replaced by 97016730
JE2E034R A.O. Smith 99080567 - n.l.a. CCW 0.3 QTRE090, QTRE110 - Replaced by 97016730
JE2E035R A.O. Smith 99080576 CCW 0.3 90 CFM Canadian Units Must order from BNC only
JE2F025N Magnetek/Universal 99080398 n/a 0.6 BVS110-B
JE2F041N Magnetek/Universal n.l.a. n/a 0.6 BVS110-A
JE2F050R A.O. Smith 99080562 CCW 0.4 QTXE080
JE2F053R A.O. Smith 99080560 CCW 0.3 QTXE050
JE2F054N A.O. Smith 99080565 CCW 0.5 QTXE150
JE2F054N A.O. Smith 99080646 CCW 0.5 QTXE150
JE2F055N A.O. Smith 99080587 CCW - Lead End 0.9 Replaced By 97010736
JE2G095N Magnetek/Universal 99080486 CW 1.3 L400, L400K, L400L
JE2G095N A.O. Smith 99080486 CW 1.3 L400, L400K, L400L
JE2G097N Magnetek/Universal 99080498 CW - Lead End 0.5 L400C, 277 Volt
JE2G097N A.O. Smith 99080498 CW - Lead End 0.5 L400C 277 Volt
JE2G098N A.O. Smith 99080508 CW - Lead End 0.7 L400EX 240Volt
JE2G098N A.O. Smith 99080508 CW - Lead End 0.7 L400EX 240 Volt
JE2G104N A.O. Smith R520098 n/a 2.5 PM44
JE2G104N A.O. Smith R520098 n/a 2.5 PM44
JE2G104N A.O. Smith R520098 n/a 0.9 PM44
JE2J051 Magnetek/Universal 99080487 CW 2.0 L500, L500K, L500L
JE2J051N Magnetek/Universal 99080487 CW 2.0 L500, L500K, L500L
JE2J051N A.O. Smith 99080487 CW 2.0 L500, L500K, L500L
Index
113
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
JE2J052N A.O. Smith 99080488 CW 2.7 L700, L700L
JE2J057N Magnetek/Universal 99080500 CW - Lead End 1.2 L700C, 277 Volt
JE2J057N A.O. Smith 99080500 CW - Lead End 1.2 L700C 277 Volt
JE2J058N Magnetek/Universal 99080509 CW - Lead End 1.1 L500EX, 240 Volt
JE2J058N A.O. Smith 99080509 CW - Lead End 1.1 L500EX 240 Volt
JE2J060N A.O. Smith 99080499 CW - Lead End 0.8 L500C, 277 Volt
JE2J061N Magnetek/Universal 99080510 CW - Lead End 1.1 L700EX 240 Volt
JE2J061N A.O. Smith 99080510 CW - Lead End 1.1 L700EX 240 Volt
JE2J066 A.O. Smith 99080487 CW 2.0 L500, L500K, L500L
JE2J066N A.O. Smith 99080487 CW 2.0 L500, L500K, L500L
JS00737 Alliance 99080036 - n.l.a. n/a n/a No Substitution
JS06359 Alliance n.l.a. n/a n/a Wall Heater
JS06360 Alliance 99080015 - n.l.a. n/a n/a No Substitution
JS06-SKY11684 Alliance 99080010 CW n/a Repl. by 97008639
JS0737 Alliance 99080061 - n.l.a. CW 0.6 No Substitution - Model 672
JS0738 Alliance 99080060 CCW 0.9 664
JS0739 Alliance n.l.a. n/a n/a 650, 651, 652, 653
JS0875 Alliance n.l.a. n/a n/a No Substitution
JS0878 Alliance n.l.a. n/a n/a No Substitution
JS0882 Alliance n.l.a. n/a n/a No Substitution
K07XP-00000018 Regal Beloit 97017843 CCW 0.2 QTXE080
K48HXCZK-1747 Emerson 99080349 CW 3.2 2530-B, 2536-B Downdraft
K55HSBRR-9366 Emerson 99080167 - n.l.a. CW n/a 2024 WHV
K55HXBRJ-9360 Emerson 99080168 - n.l.a. n/a n/a No Substitution
K55HXDEF-238 Emerson 99080168 - n.l.a. n/a n/a No Substitution
K55HXGMW1876 Emerson 99080215 CW 5.0 WHV
K63HXDEC-3792 Emerson 99080195 CCW - Lead End 5.7 L3500EXL, 368 LOSONE 230 Volt
K63ZCTH3424 Emerson 99080195 CCW - Lead End 4.3 368 LOSONE
KA55-HXETM-1016 Emerson 99080213 CW 4.5 2220 WHV
KSB33DG1972 GE 99080165 CCW 0.8 670-A - Replaced by 97012038
KSB3DC1861 GE 99080217 CCW 1.0 Replaced by 97012039
KSM59JS3394AS GE 97007419 CW - Lead End 1.7 1450 Eyelevel Hood
KSP19KSK83T GE 97011215 CW 3.0 Model 322 - Replaced by 97018834
KSP51EL12H GE 99080006 CW n/a 11C Exhaust Fan Motor
LMH00119284G Leece Neville 99080055 - n.l.a. CW 1.3 481, 491
LN6338FB Leece Neville n.l.a. n/a n/a No Substitution
LNL339FB Leece Neville n.l.a. n/a n/a No Substitution
M01096 Dayton 99080053 n/a n/a 30000, 31000, 32000 - No Substitute
M4E068-DF EBM 520133 CW 1.2 Replaced by R520133 - Model QS3
M4E068-DF29-64 EBM R520118 CW 1.0 Replaced by R520132 Allure 2 Hood
M4E068-DF33-66 EBM R520123 CW 1.9 Replaced by R520133 Allure 2 Hood
MDL 150 PC UPPCO 99080469 CCW 0.5 240 Volt S50UEX
MDL 150J3 UPPCO 99080469 CCW 0.5 240 Volt S50UEX
MDL 200N3 UPPCO 99080468 CCW 0.6 240 Volt S80UEX
MDL 200PC UPPCO 99080468 CCW 0.6 240 Volt S80UEX
MS4008 McMillan 99080267 CW 4.3 Replaced by 97009317 PAV
P-10103 UPPCO 99080032 CCW 0.4 Replaced by 97000680
P-10131 UPPCO 02200-35 CW 0.6 Big Heat
P-10294 UPPCO 99080230 CCW 1.0 Replaced by 97012039
P-10495-1 UPPCO 99080060 CCW 0.9 664
P-10495-2 UPPCO 99080061 - n.l.a. CW 0.6 No Substitution - Model 672
P-10856-4 UPPCO 99080248 CCW 0.6 Wall Heater
P-10859-2 UPPCO 97012042 CCW 1.5 Motor & Wheel
P-10867-3 UPPCO 99080253 - n.l.a. CW n/a No Substitution
P-10872-5 UPPCO 97008948 CCW 1.5 Motor & Wheel, D-Can
P-10890 UPPCO 97008947 CCW 1.0 Motor & Wheel, D-Can
P-10923 UPPCO 97008949 CCW 1.5 Replaced by 97012042
P-10995-1 UPPCO 99080246 CCW 0.4 Replaced by 97012043
P-11034 UPPCO 99080258 CCW 0.4 Replaced by 99080358
P-11036 UPPCO 99080257 CCW 0.6 240 Volt, 671EX, D-Can
P-11139 A.O. Smith 02200-60 CCW 0.6 730,732,735 Heater Motor
P-11162 UPPCO 99080276 CCW 0.4 240 Volt, 167 Heater
P-11224 UPPCO 99080249 CCW 0.6 240 Volt, 190 Heater
P-11289 UPPCO 99080247 - n.l.a. n/a n/a No Substitution
P-11662 UPPCO 99080276 CCW 0.4 240 Volt, 167 Wall Heater
P-11751 UPPCO 99080278 - n.l.a. CW n/a 155-B Ceiling Heater
Index
114
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
P-12090 UPPCO 99080343 n/a n/a 75,000
P-12150 UPPCO 99080280 CW 0.9 Replaced by 97009758, Bulb Htr
P-12152 UPPCO 99080279 CW 0.2 Replaced by 97009724
P-12415 UPPCO 99080219 CW 0.9 Replaced by 97011222
P-12415 UPPCO 99080367 CW 0.9 Economy Hood
P-12415 A.O. Smith 99080367 CW 0.8 Economy Hood
P-12432 UPPCO 99080218 CCW 1.1 Economy Hood
P-12432 UPPCO 99080363 CCW 1.1 Replaced by 97012248
P-12516 UPPCO 99080200 CCW 0.6 Economy Hood
P-12516 UPPCO 99080365 CCW 0.7 Economy Hood
P-12516A UPPCO 99080365 CCW 0.7 Economy Hood
P-12516B UPPCO 99080365 CCW 0.7 Economy Hood
P-12685 UPPCO 99080350 CW 0.9 Bulb Heater
P-12740 UPPCO 99080245 CCW 0.9 Replaced by 97012041, 688G-J
P-12740A UPPCO 99080402 CCW 0.9 Replaced by 97012041, 688G-J
P-12921 UPPCO 99080355 CW 1.3 503
P-13565 UPPCO 99080358 CCW 0.4 156-C Ceiling Heater
P-13584 UPPCO 99080141 CCW 0.9 Replaced by 97012038
P-13625 UPPCO 99080373 - n.l.a. CW 0.8 No Substitution - Model NZ
P-13646 UPPCO 99080361 CCW 0.2 Replaced by 97010905, 240 Volt
P-13820 UPPCO 99080252 CCW 0.5 240 Volt, Wall Heater
P-13875 UPPCO 99080222 CW 0.3 686
P-13945 UPPCO 99080132 CW 0.8 655, 656, 658, 659, 695 Heater
P-13969A UPPCO 99080414 CCW 0.5 Replaced by 97012204, 240 Volt
P-14095-2 UPPCO 99080061 - n.l.a. CW 0.6 No Substitution - Model 672
P-14183 UPPCO 99080372 CCW 0.5 Economy Hood
P-14197 UPPCO 99080112 CCW n/a Replaced by 97012037
P-14197A UPPCO 99080407 CCW n/a Replaced by 97012037, 240 V
P-14266 UPPCO 99080229 CCW 0.9 Replaced by 97012040, for 678
P-14266A UPPCO 97012038 CCW 0.9 678 B-Can, 688- A-Can
P-14266A UPPCO 99080404 CCW 0.9 Replaced by 97012038
P14296-A A.O. Smith 99080166 CCW 1.4 679, 655, 657, Exhaust
P-14296-A A.O. Smith 99080166 CCW 1.4 679, 655, 657, Exhaust
P-14689 A.O. Smith 99080176 CW 1.5 505, 507
P-14693 UPPCO 99080222 CW 0.3 686
P-14694 UPPCO 02200-41 CW 0.3 682, 682L
P-14780A UPPCO 99080410 CCW 1.1 Replaced by 97012248
P-14784E UPPCO 99080294 CCW 1.4 707-A, 709-C - Replaced by 99080166
P-14819 UPPCO 99080256 CCW 1.5 Replaced by 97012042
P-14819A UPPCO 99080403 CCW 1.5 Replaced by 97012042
P-14913 UPPCO 99080255 CCW 1.5 671-G,H
P-14953 UPPCO 99080254 CCW 1.0 670-G,H D-Can
P-14953 A.O. Smith 99080254 CCW 1.0 670-G,H D-Can
P-14954 UPPCO 99080355 CW 1.5 503
P-14954 A.O. Smith 99080355 CW 1.5 503
P-15082 A.O. Smith 02200-23 CW 1.5 Aubrey 7584
P-15149A UPPCO 97012041 CCW 0.9 688-G, H,J
P-15149A A.O. Smith 99080402 CCW 0.9 Replaced by 97012041, 688-G, H,J
P-15194 UPPCO 99080216 CCW 0.6 Replaced by 97012038
P-15253 UPPCO 99080395 CCW n/a 240 Volt, 679EX
P-15312 A.O. Smith 02200-59 CW 0.8 730, 732,735 Exhaust Motor
P-15318 A.O. Smith 99080199 CCW 0.7 673, 512
P-15353 UPPCO 99080351 CW 0.9 Replaced by 97010254
P-15353 A.O. Smith 99080351 CW 0.9 Replaced by 97010254
P-15360 UPPCO 99080418 CCW 1.1 Replaced by 97012248
P-15533A UPPCO 99080403 CCW 1.5 Replaced by 97012042
P-15563A UPPCO 99080411 CW n/a 240 Volt, 503EX
P-15617 UPPCO 99080216 CCW 0.8 Replaced by 97012038
P-15617 A.O. Smith 99080216 CCW 0.8 Replaced by 97012038
P-15665 UPPCO 99080417 CW 0.9 NuTone Hood
P-15665 A.O. Smith 99080417 CW 1.2 NuTone Hood
P-15676 UPPCO 99080419 CCW 0.7 Replaced by 97013079
P-15716 UPPCO 99080437 CW 0.2 157 Ceiling Heater
P15731 A O. Smith 99080372 CCW 0.5 41.000
P-15731 UPPCO 99080372 CCW 0.5 Economy Hood
P-15731 A.O. Smith 99080372 CCW 0.5 Economy Hood
Index
115
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
P-15752A UPPCO n.l.a. n/a n/a
P-15784E UPPCO 99080294 CCW 1.4 707 -B-Can - Replaced by 99080166
P-15784E A.O. Smith 99080294 CCW 1.5 707 -B-Can - Replaced by 99080166
P-15911A UPPCO n.l.a. CW n/a 240 Volt
P-15911B UPPCO n.l.a. CW n/a 240 Volt
P-15931 UPPCO 99080443 CW 0.6 Replaced By 97013412
P-15932B UPPCO 99080444 - n.l.a. CCW 0.3 Replaced
P-15933A UPPCO 99080445 - n.l.a. CW n/a No Substitution
P-16117D UPPCO 99080461 CCW 0.4 240 Volt, G.E JN319WIW
P-16163C UPPCO 99080248 CCW 0.6 120, 124, 170
P-16163C A.O. Smith 99080248 CCW 0.6 120, 124, 170
P-16246A UPPCO 99080446 CCW 0.7 S50U
P-16246C UPPCO 99080446 CCW 0.7 S50U
P-16261A UPPCO 99080448 CCW 1.1 S80U
P-16261C A.O. Smith 99080448 CCW 1.1 S80U, S80LU
P-16776A UPPCO 99080296 CCW 0.9 Replaced By 99521765
P-16833 UPPCO 97012043 CCW 0.4 240 Volt 688EX D-Can
P-16833 UPPCO 99080405 CCW 0.3 240 Volt 688EX D-Can
P-16879 UPPCO 99080466 - n.l.a. CCW n/a 240 Volt
P-16889 UPPCO 99080469 CCW 0.5 240 Volt, S50UEX
P-16890 UPPCO 99080468 CCW 0.6 240 Volt, S80UEX
P-16910B UPPCO 97011224 CCW 1.1 Hood
P-16910C UPPCO 97011224 CCW 1.1 46,000, NY Hood
P-16910C A.O. Smith 97011224 CCW 1.1 46,000, NY Hood
P-17080 UPPCO 99080475 CCW 0.6 Replaced by 99080249 240 Volt
P-17080 UPPCO 99080249 CCW 0.6 Wall Heater 240 Volt
P-17080 A.O. Smith 99080475 CCW 0.6 Replaced by 99080249
P-17174B UPPCO 99080492 CCW 1.1 Replaced by 97012248
P-17174B A.O. Smith 99080492 CCW 1.1 Replaced by 97012248
P-17200 UPPCO 99080472 CCW 0.9 Replaced by 97014665
P-17347A UPPCO 99080480 CCW 0.5 240 Volt, Economy Hood
P-17454 UPPCO R520112 CW 1.5 Whirlpool RH47 Series, 2-Speed Hood
P-17454 UPPCO R520114 CW 1.5 1-Speed
P-17456 UPPCO R520110 CW 0.5 Whirlpool RH26 Series 2-Speed Hood
P-17558 UPPCO 97012041 CCW 0.9 688 D-Can
P-17597 UPPCO 99080265 CCW 0.4 240 Volt 670EX D-Can
P-17673A A.O. Smith 99080522 CCW 1.4 679 J-Can
P-17674 UPPCO 99080526 CCW 0.9 679EX 240 Volt
P-17675B UPPCO 99080525 CCW 0.5 678EX 240 Volt
P-17676A A.O. Smith 99080521 CCW 1.0 678 J-Can
P-17692 UPPCO 99080538 CW 0.4 Gear motor for Motordoor
P-17692 A.O. Smith 99080538 CW 0.4 Gear motor for Motordoor
P-4629 UPPCO 99080079 - n.l.a. n/a n/a No Substitution
P-4629-2-4 UPPCO 99080081 - n.l.a. n/a n/a No Substitution
P-4734 UPPCO 99080166 CCW 1.4 679, 655, 657, Exhaust
P-4734-2-5 UPPCO 99080080 - n.l.a. n/a n/a No Substitution
P-4734-31-0 UPPCO 99080119 - n.l.a. n/a n/a No Substitution
P-4793-31-4 UPPCO 99080110 - n.l.a. n/a n/a No Substitution
P-5215 UPPCO 99080062 CW 1.5 497, 499, 499S
P-5702-31-7 UPPCO 99080220 CW 0.5 1426 Eyelevel hood
P-5792-2 UPPCO 99080199 CCW 0.6 512, 512M, 673
P-5793-31-8 UPPCO 99080103 CCW 0.7 Economy Hood
P-5793-31A-3 UPPCO 99080103 CCW 0.7 Economy Hood
P-57938 A.O. Smith 99080103 CCW 0.7 Economy Hood
P-5793-8 UPPCO 99080103 CCW 0.7 Economy Hood
P-6080-31-3 UPPCO 99080217 CCW 1.0 Replaced by 97012039
P-6080-31-4 UPPCO 99080100 - n.l.a. n/a n/a CL Canopy, 73,000 Hood
P-6080-31-6 UPPCO 99080165 CCW 0.8 670-A - Replaced by 97012038
P-608-31-1 UPPCO 99080216 CCW 0.6 Replaced by 97012038
P-6393-1 UPPCO 99080145 CW 1.5 1-Bulb Heater 2 Prong Plug
P-6393-1 UPPCO 97005906 CW 1.5 1-Bulb Heater 2-Prong Plug
P-6393-1 A.O. Smith 99080146 CW 1.5 2-Bulb Heater 5- Pin Plug
P-6397 UPPCO 97005906 CW 1.5 1-Bulb Heater
P-6457 UPPCO 99080166 CCW 1.4 679, 655, 657, Exhaust
P-6458-1 UPPCO 99080132 CW 0.8 Ceiling Heater
P-6524 UPPCO 99080110 - n.l.a. n/a n/a No Substitution
Index
116
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
P-6524-B UPPCO 99080103 CCW 0.7 Economy Hood
P-6587-1 UPPCO 99080199 CCW 0.6 512, 512M, 673
P-6845-13 UPPCO 99080136 CW - Lead End 3.9 Mid-Range Hood
P-6919-4 UPPCO n.l.a. n/a n/a 149 Ceiling Heater
P-6921-6 UPPCO n.l.a. n/a n/a 134 Wall Heater
P-6955 UPPCO 97005772 - n.l.a. n/a n/a No Substitution
P-6961 A.O. Smith n.l.a. CCW n/a 134 Wall Heater
P-6961-6 UPPCO n.l.a. CCW n/a 134 Wall Heater
P-8066 UPPCO 99080132 CW 0.8 Ceiling Heater
P-8068 UPPCO 99080135 - n.l.a. n/a n/a No Substitution
P-8163-1 UPPCO 99080221 CW n/a 1420 Eyelevel Hood
P-8285-1 UPPCO 99080138 - n.l.a. CW - Lead End 3.0 78,000 Hood
P-8288-1 UPPCO 99080143 CW 1.5 Replaced By 99080146
P8420-1 UPPCO 99080160 CCW 0.9 Bulb Heater
P-8420-1 UPPCO 99080160 CCW 0.9 Bulb Heater
P-8420-1 A.O. Smith 99080160 CCW 0.9 Bulb Heater
P-8421-1 UPPCO 99080159 CCW 0.9 Bulb Heater
P-8421-1 A.O. Smith 99080159 CCW 0.9 Bulb Heater
P-8443 UPPCO 99080154 CW 1.4 466, 478, 479
P-8504-7 UPPCO 99080156 CW - Lead End 3.4 76,000-B Thru G,
P-8504-7 A.O. Smith 99080156 CW - Lead End 3.4 76,000-B Thru G,
P-8541-2 UPPCO 99080157 CW - Lead End 3.4 Replaced by 99080156
P-8709 A.O. Smith 02200-18 CW 0.3 154, 9297T Heaters by Aubrey 8” leads with eyelets
(ring terminals)
P88421 UPPCO 99080062 CW 1.5 497, 499, 499S
P8842-1 UPPCO 99080062 CW 1.5 497, 499, 499S
P-8842-1 UPPCO 99080062 CW 1.5 497, 499, 499S
P-8843 UPPCO 99080154 CW 1.4 466, 478, 479
P-8951 UPPCO 99080166 CCW 1.4 679, 655, 657, 658, Exhaust
P-9090-2 UPPCO n.l.a. CW n/a 240 Volt, Hood
P-9123-1 UPPCO 99080183 n/a n/a 240 Volt, Economy Hood
P-9123-1 UPPCO 99080364 CCW 0.5 Replaced by 97014772
P-9123-1 UPPCO 99080183 n/a n/a 240 Volt Economy Hood
P9194 UPPCO 99080175 CW 0.9 511
P-9204-4 UPPCO 99080180 CW 1.5 509, 509S
P9204-5 UPPCO 99080176 CW 1.5 8 Inch Utility Fan
P9217 UPPCO 99080185 CW 0.6 240 Volt, Economy Hood
P-9217 UPPCO 99080368 CW 0.6 240 Volt, Economy Hood
P-9356-2 UPPCO 99080165 CCW 0.8 670-A - Replaced by 97012038
P-9356-2 A.O. Smith 99080165 CCW 0.8 670-A - Replaced by 97012038
P-9436-2 UPPCO 99080190 - n.l.a. CW 0.3 No Substitution
P-9610-4 UPPCO 99080198 - n.l.a. CCW n/a Hood
P-9631-2 UPPCO 99080199 CCW 0.6 512, 512M, 673
P-9672 UPPCO 99080198 - n.l.a. CCW n/a Hood
P-9672 UPPCO 99080198 - n.l.a. CCW n/a Hood
P-9672-8 UPPCO 99080198 - n.l.a. CCW n/a Hood
P-9672-8 UPPCO 99080369 CCW 1.1 Replaced by 97011224
P-9813-1 UPPCO 99080366 CCW 0.4 240 Volt, Economy Hood
P-9813-1 UPPCO 99080200 CCW 0.6 Economy Hood
P-9813-3 UPPCO 99080203 - n.l.a. n/a n/a No Substitution
P-9969 UPPCO 99080217 CCW 1.0 Replaced by 97012039
P-9969A UPPCO 99080408 CCW 1.0 Replaced by 97012039
P-9969A A.O. Smith 99080217 CCW 1.0 Replaced by 97012039
P-9970 UPPCO 99080220 CW 0.5 1426 Eyelevel hood
P-9983 UPPCO 99080216 CCW 0.6 Replaced by 97012038
P-9983A UPPCO 99080406 CCW 0.9 Replaced by 97012038
P-9988-1 UPPCO 02200-42 CW 0.9 7565
P-9991 UPPCO 99080221 CW n/a 1420, Eyelevel Hood
PA-4734-240V UPPCO 99080074 - n.l.a. n/a n/a No Substitution
PA4734-310 UPPCO 99080067 - n.l.a. CW 1.3 No Substitution
PA-4734-31-0 UPPCO 99080067 - n.l.a. CW 1.3 No Substitution
PA-4734-31-0 A.O. Smith 99080067 - n.l.a. CW 1.3 No Substitution
PA-4972-31-10 UPPCO 99080183 n/a n/a 240 Volt, Economy Hood
PA-4972-31-4 UPPCO 99080218 CCW 0.9 Economy Hood
PA-4972-31-8 UPPCO 99080219 CW 0.9 Replaced by 97011222
PA-5215 UPPCO 99080221 CW n/a 1420, Eyelevel Hood
Index
117
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
PA-5215-31-4 UPPCO 99080198 - n.l.a. CCW n/a Hood
PA-579331-9 UPPCO 99080110 - n.l.a. n/a n/a No Substitution
PS6521-2 McMillan 99080537 CW 6.0 Replaced by 97015612 PAV
QC-14-10-320127007 Broad Ocean 99080595 CCW 1.8 QTR130, QTR130FLT, QTR140, QTR140L
RAE355-AF13-10 EBM Papst 99080478 CW 2.4 335, EB12
RH35M-4EK.4F.1R Ziehl-Abegg 99080479 CW 3.8 Replaced by 97017160
S#322P 137 Westinghouse 99080171 CW 3.4 Replaced by 97009316 PAV
S-03551-2 A.O. Smith 99080568 CCW 0.7 QTR080
S03557-3 ECM Motor Co. 99080556 CCW 0.5 QTX100HL Exhaust Motor
S-04525-1 ECM Motor Co. 99080579 CCW 0.4 110 CFM Canadian Units Must order from BNC only
S-04526-1 ECM Motor Co. 99080578 CCW 0.4 110 CFM Canadian Units Must order from BNC only
S-04527-3 ECM Motor Co. 99080565 CCW 0.5 QTXE150
S-04527-6 ECM Motor Co. 99080595 CCW 0.5 QTR140, QTR140L
S04527-6 ECM Motor Co. 99080595 CCW 0.5 QTR140, QTR140L
S-04528-1 ECM Motor Co. 99080560 CCW 0.3 QTXE050
S-04587-3 ECM Motor Co. 99080562 CCW 0.4 QTXE080
S-04594-1 ECM Motor Co. 99080561 CCW 0.4 QTRE 80CFM
S-04724-1 ECM Motor Co. 99080580 - n.l.a. CCW 0.4 QTRE090, QTRE110 - Replaced by 97016730
S-04725-1 ECM Motor Co. 99080581 - n.l.a. CCW 0.4 QTRE090, QTRE110 - Replaced by 97016730
S04838-1 ECM Motor Co. 99080482 CCW 1.3 L150
S04839-2 ECM Motor Co. 99080483 CCW 1.7 L200
S-04843-3 ECM Motor Co. 99080481 CCW 1.0 L100
S-05219-1 ECM Motor Co. 99080566 CCW 1.3 Replaced by 99080595
S-05250-2 ECM Motor Co. 99080569 CCW 0.9 Replaced by Blower Assy 97018218 - QTR110
S05481-2 ECM Motor Co. 99080485 CCW 2.6 L300
S05481-3 ECM Motor Co. 99080485 CCW 2.6 L300
S05646-4 ECM Motor Co. 99080587 CCW - Lead End 1.0 Replaced By 97010736
S07290-1 ECM Motor Co. 97012136 CW 0.6 HS90
S10500070 Aerovox 99080103 CCW 0.7 Economy Hood
S10625002 Aerovox 99080216 CCW 0.6 Replaced by 97012038
S10625034 Aerovox 99080199 CCW 0.6 512, 512M, 673
S10625217 Aerovox 99080200 CCW 0.6 Economy Hood
S10625232 Aerovox 99080217 CCW 1.0 Replaced by 97008513
S10625236 Aerovox 99080216 CCW 0.6 Replaced by 97012038
S10625237 Aerovox 99080216 CCW 0.6 Replaced by 97012038
S10875067 Aerovox 99080218 CCW 0.9 Economy Hood
S10875074 Aerovox 99080166 CCW 1.4 679, 655, 657, 658, Exhaust
S10875121 Aerovox 99080166 CCW 1.4 679, 655, 657, 658, Exhaust
S10875164 Aerovox 99080219 CW 0.9 Replaced by 97011222
S11125035 Aerovox 99080176 CW 1.5 8 Inch Utility Fan
S11125038 Aerovox 99080180 CW 1.5 8 Inch Utility Fan
S-1245F A.O. Smith 99080197 CCW - Lead End 3.8 Replaced by 97007729
S-1246F A.O. Smith 97007729 n/a 1.6 84,000, 86,000, 89,000
S1-411200-91R02BD0E ECM Motor Co. 99080482 CCW 1.3 L150
S1-411200-91R03BD0E ECM Motor Co. 99080481 CCW 1.0 L100
S1-511200-91R01BD0E ECM Motor Co. 99080483 CCW 1.7 L200
S1-531200-91R01BK0E ECM Motor Co. 99080485 CCW 2.6 L300
S1-531200-91R01BKOE ECM Motor Co. 99080485 CCW 2.6 L300
S1547F-13 A.O. Smith 99080482 CCW 1.2 L150, L150L
S17054 UPPCO 99080252 CCW 0.5 240 Volt Wall Heater
S17054 A.O. Smith 99080252 CCW 0.5 240 Volt Wall Heater
S1718F A.O. Smith 99080489 CW 0.4 220-240 Volt 9PC78
S-17625A UPPCO 99080531 CCW 1.6 SL6200H
S-1782F-3 A.O. Smith 99080484 CCW 2.0 L250, L250L
S-17869 UPPCO 97012248 CCW 1.1 Economy Hood
S-17869 A.O. Smith 97012248 CCW 1.1 Economy Hood
S19875165 Aerovox 99080218 CCW 0.9 Economy Hood
S20625002 Aerovox 99080216 CCW 0.6 Replaced by 97012038
S2094F4 A.O. Smith 99080487 CW 2.0 L500, L500K, L500L
S2094F-4 A.O. Smith 99080486 CW 1.3 L400, L400K, L400L
S2095F4 A.O. Smith 99080487 CW 2.0 L500, L500K, L500L
S2108F1 A.O. Smith 99080481 CCW 1.0 L100, L100L
S2117F A.O. Smith 99080483 CCW 1.6 L200, L200L
S-2239F-3 A.O. Smith 99080490 CCW 3.0 L900
S-2239F-5 A.O. Smith 99080490 CCW 3.0 L900
S-2240F-4 A.O. Smith 99080491 CCW 5.0 L1500
Index
118
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
S-2293F2 A.O. Smith 99080488 CW 2.7 L700, L700L
S-2578F-5 A.O. Smith 99080507 CCW 1.4 L300EX, 240 Volt
S-2587F-4 A.O. Smith 99080493 CCW 0.5 277 Volt L100C
S2589F-1 A.O. Smith 99080495 CCW 0.8 L200C, 277 Volt
S-2590F-1 A.O. Smith 99080496 CCW 1.0 L250C, 277 Volt
S2592F-3 A.O. Smith 99080498 CW - Lead End 0.5 L400C 277 Volt
S-2594F-1 A.O. Smith 99080500 CW - Lead End 1.2 L700C 277 Volt
S-2595F-3 A.O. Smith 99080503 CCW 0.5 L100EX 240 Volt
S-2596F-4 A.O. Smith 99080504 CCW 0.7 L150EX, 240 Volt
S-2598F-4 A.O. Smith 99080506 CCW 1.2 L250EX, 240 Volt
S-2600F-2 A.O. Smith 99080509 CW - Lead End 1.1 L500EX 240 Volt
S-2602F-3 A.O. Smith 99080501 CCW 1.0 L900C 277 Volt
S-2603F A.O. Smith 99080502 CCW 1.8 L1500C 277 Volt
S-2604F A.O. Smith 99080511 CCW 1.1 L900EX 240 Volt
S-2605F A.O. Smith 99080512 CCW 2.4 L1500EX 240 Volt
S2753F A.O. Smith 99080464 CW 0.8 2C647A
S-2782F A.O. Smith 99080515 CW - Lead End 5.0 DCS-BLR-1200
S-3028-F A.O. Smith 99080523 CCW 0.4 676EX 240 Volt J-Can
S-3029-F2 A.O. Smith 99080524 CCW 0.4 684EX 240 Volt J-Can
S-3601B-1 A.O. Smith 99080054 CW 0.7 486, 496
S-3713E A.O. Smith 97009889 CW 4.4 375 LoSone
S-3800-F A.O. Smith 99080450 CCW 0.7 S110U, S110LU
S-3809-F A.O. Smith 99080474 CCW 1.2 S150, S150L
S3810F1 A.O. Smith 99080550 CCW 0.2 S50UE
S-4007F-1 A.O. Smith 99080519 CCW 0.4 HD50, HD50L J-Can
S4008F A.O. Smith 99080517 CCW 1.3 676, 680, J-Can.
S4008F A.O. Smith 99080517 CCW 1.3 676, 680, J-Can.
S-4009F-2 A.O. Smith 99080570 CCW 0.7 756, 757
S-4010F A.O. Smith 99080518 CCW 0.5 684 J-Can
S-4019F A.O. Smith 99080251 CCW 0.2 240 Volt Wall Heater 198
S4123F A.O. Smith 99080273 CW 0.5 S90
S-4123F A.O. Smith 99080273 CW 0.5 S90
S-4124F A.O. Smith 99080274 CW 0.7 S120L
S-4125F A.O. Smith 97012136 CW 0.7 HS90
S-4129F A.O. Smith 99080346 CCW 0.5 Replaced by 97009753
S-4174F-2 A.O. Smith R520098 Double Shaft 2.5 PM44
S-4174F-2 A.O. Smith R520098 Double Shaft 0.9 PM44
S-4329E-1 A.O. Smith 99080066 CW - Lead End 3.0 320, 70,000 Hood
S-4483E A.O. Smith 99080357 CCW 4.4 Replaced by 97018851
S-4483E A.O. Smith 99080357 CCW 4.4 Replaced by 97018851
S-4846B-3 A.O. Smith 99080055 - n.l.a. CW 1.3 481, 491
S-490D A.O. Smith 99080056 CW 1.6 461, 471
S493D A.O. Smith 99080155 CW 1.0 465, 475, 476
S-5040E A.O. Smith 99080034 CW - Lead End 2.6 Replaced by 97007387
S58NXLBF-5980 Emerson 91009323 CCW - Lead End 5.5 Compactor
S58ZZLKF-6028 Emerson 91009459 CCW - Lead End 3.0 Compactor 240 Volt
S58ZZMTY6855 Emerson 91009459 CCW - Lead End 3.0 Compactor 240 Volt
S60CXDYM4761 Dayton 99080043 - n.l.a. n/a n/a No Substitution
S60JXDSA4660 Dayton 99080030 - n.l.a. n/a n/a No Substitution
S6127E-1 A.O. Smith 97011402 CCW 1.3 MP200, SP200
S6128E A.O. Smith 97011411 CCW 0.8 MP140
S-6132E-1 A.O. Smith 99080380 CCW 0.8 Replaced by 97011401 SP140
S-6133E-1 A.O. Smith 97011400 CCW 0.5 MP100, SP100
S-6628D A.O. Smith 99080191 CW 0.8 2C647 Grainger - Replaced by 99080464
S-6674E A.O. Smith 99080214 CW 4.5 2224 WHV
S-6676E A.O. Smith 99080227 CW 5.5 2236 WHV
S-6810E-5 A.O. Smith 97011215 Double 5.0 326, P12 - Replaced by 97018834
S-7464E A.O. Smith 99080151 CW - Lead End 1.0 362
S-7466E A.O. Smith 99080241 CCW 0.7 Replaced by 97008583 Model 360
S-7467E A.O. Smith 99080181 CW 1.2 12C
S-7473E A.O. Smith 99080242 CCW 1.2 Replaced by 97008584 Model 361
S-7490E A.O. Smith 99080148 - n.l.a. CCW - Lead End 4.6 No Substitution
S-7899E A.O. Smith 99080537 CW 8.0 Replaced by 97015612 PAV
S-7951E A.O. Smith 99080396 CW 5.7 332H, EB9
S-7952E A.O. Smith 99080397 CW 2.3 331H, EB6
S-8210D A.O. Smith 99080268 CW 8.0 Replaced by 97009318 PAV
Index
119
Vendor Part Number Vendor Broan Part Number Rotation Shaft End Amp Notes and/or Where Used
MOTOR CROSS REFERENCE
S8937E A.O. Smith 97013391 CCW 0.4 240 Volt 684EX
S-8969E A.O. Smith 99080152 CW - Lead End 1.8 363, 383
S-9830D A.O. Smith 99080347 CCW 0.4 Replaced by 97009754,240 Volt
SI-131200-81R01BB0C ECM Motor Co. 99080557 CW 0.4 744
SI-131200-91R01BB0B A.O. Smith 99080568 CCW 0.7 QTR080
SI-22100-91R03 ECM Motor Co. 99080569 CCW 0.9 Replaced by Blower Assy 97018218 - QTR110
SI-221200-91R01 ECM Motor Co. 99080566 CCW 1.3 Replaced by 99080595
SI-221200-91R04 ECM Motor Co. 99080582 CCW 0.9 Replaced by Blower Assy 97018218 - QTR110
SI-411200-91R02 ECM Motor Co. 99080482 CCW 1.2 L150
SI-411200-91R02BD0E ECM Motor Co. 99080482 CCW 1.3 L150
SI-411200-91R03BD0E ECM Motor Co. 99080481 CCW 1.0 L100
SI53120091R01BK0E ECM Motor Co. 99080485 CCW 2.6 L300
SI-531200-91R01BK0E ECM Motor Co. 99080485 CCW 2.6 L300
SI-531200-91R01BKOE ECM Motor Co. 99080485 CCW 2.6 L300
SP-61K09 Johnson Electric 99080372 CCW 0.6 Economy Hood
SP-61K13 Johnson Electric 99080521 CCW 1.0 678 J-Can
SP-61K16 Johnson Electric 99080402 CCW 0.9 Replaced by 97012041
SP-61K20 V-Motor Co 99080367 CW 0.9 Economy Hood
SP-61K20 Johnson Electric 99080533 CCW 1.0 Replaced by 97012248
SP-61K20 Johnson Electric 99080492 CCW 1.0 Replaced by 97012248
SP-61K20 Johnson Electric 99080492 CCW 0.9 Replaced by 97012248
SP61K25 Johnson Electric 99080166 CCW 1.4 655 Old 679
SP-61K25 V-Motor Co 99080472 CCW 0.7 Replaced by 97014665
SP-61K25 V-Motor Co 30080432 CCW 1.0 Contact Broan Canada 888-882-7626
SP-61K25 V-Motor Co 30080432 CCW 1.0 Contact Broan Canada 888-882-7626
SP61K32 Johnson Electric 99080176 CW 1.5 505, 507
SP-61K32 Johnson Electric 99080176 CW 1.5 505, 507
SP61K38 Johnson Electric R520135 CCW 1.5 NS6500 Hood - Replaced by 99080666
SP-61K38 Johnson Electric R520135 CCW 1.5 NS6500 Hood - Replaced by 99080666
SP-61K38 Johnson Electric R520135 CCW 1.5 NS6500 Hood - Replaced by 99080666
SR08113U4002A01 Marathon S100600000 CCW 0.7 NuTone 671R
SR081-13U4-002A-01 Marathon S100600000 CCW 0.7 NuTone 671R
SR08118U4013 Regal Beloit 99080605 CCW 0.9 HFL695, 696
SR08118U4013 Marathon 99080605 CCW 0.7 HFL695, 696
SR081-18U4-013 Regal Beloit 99080605 CCW 0.9 HFL695, 696
SR081-42U4-003A GE 99080450 CCW 0.7 S110U, S110LU
SX11633C-1 Jakel 02200-18 CW 0.3 154, 9297T Heaters by Aubrey 8” leads with eyelets
(ring terminals)
SX11633C-1 Jakel 99080437 CW 0.2 157, 9157NT 6” leads with female spade connectors
SX12942 Jakel 02200-35 CW 0.6 Big Heat
SX15865A Jakel 99080222 CW 0.3 686
SX17373 Jakel 02200-41 CW 0.3 682, 682L
SX17374C Jakel 02200-23 CW 1.5 Aubrey 7584
SX17549 Jakel 97010254 CW 0.9 Bulb Heater
SX17596 Jakel 99080199 CCW 0.7 673
SX20016A Jakel NTK7448000 CCW 1.5 QT Hood, WA Hood
SX-20289 Jakel 99080532 CCW 1.25 Replaced by 99080667 - QT20000, WA6500
V09003J2061/50/0006 Johnson Electric 99080532 CCW 1.5 Replaced by 99080667 - QT20000, WA6500
V0C0014 Johnson Electric 520135 CCW 1.5 NS6500 Hood - Replaced by 99080666
V0C0032 TPL 99080606 CW 0.86 Heater Motor for Models 100HL, 100HFL, 765HL, &
765HFL
VOC0014 Johnson Electric 520135 CCW 1.5 NS6500 Hood - Replaced by 99080666
X0000422A A.O. Smith 99080464 CW 0.8 2C647A
XK184579 Magnetek 99080195 CCW - Lead End 4.3 240 Volt L3500EXL, 368,
XK184579 A.O. Smith 99080195 CCW - Lead End 4.3 240 Volt L3500EXL, 368,
Y4L403A82G Broad Ocean 99080481 CCW 0.4 L100, L100L
Y4L403A83G Broad Ocean 99080595 CCW 1.8 QTR130, QTR130FLT, QTR140, QTR140L
Y4L403A83G Broad Ocean 99080595 CCW 1.8 QTR130, QTR130FLT, QTR140, QTR140L
Y4L403B21G Broad Ocean 99080482 CCW .56 L150, L150L
Y4L403B22G Broad Ocean 99080483 CCW 0.88 L200, L200L
Y4L403B25G Broad Ocean 99080484 CCW 0.86 L250, L250L, L250MG
Y4L403B57C 99080485 CCW 1.2 L300, L300L, L300MG, L300KMG
Y4L403B57G 99080485 CCW 1.2 L300, L300L, L300MG, L300KMG
YK-34A Franklin 99080201 - n.l.a. n/a n/a No Substitution
YYW-040L4D35-01 Broad Ocean R520118 CW 1.0 Replaced by R520132 Allure 2 Hood
ZP45000500 Elektromek 97017924 CW 3.0
Index
120
SQUARE AND RECTANGULAR ALUMINUM FILTERS
Filter Part Number Height Width Approx. Thickness Description / Fits
97009786 * 3-7/8 8 3/32 Includes 2 different size filters for Downdraft - Broan, Creda, Magic Chef, Sears
3-7/8 10-3/8 3/32
97009787 * 3-7/8 11 3/32 Includes 2 different size filters for Downdraft - Broan, Creda, Magic Chef, Sears
3-7/8 13-3/8 3/32
99010212 4 28-1/2 3/8 Air Care, Aubrey
97007355 4-7/8 27 3/8 Broan, GE, Roper, Sears
99010246 5-5/16 28 5/16 Caloric
99010040 5-1/2 27 3/8 Broan
99010115 5-3/4 21-3/4 3/8 Broan
99010370 5-7/8 16-7/8 Broan - PM250, PM390
99010263 6-1/8 23-3/8 3/32 GE
99010136 6-1/2 26-3/4 3/8 Broan, Maytag, Montgomery Wards, White-Westinghouse
97013159 6-9/16 14-3/8 3/8 Broan, Sears
97013160 6-9/16 17-3/8 3/8 Broan, Sears
97007893 * 6-5/8 11-5/8 3/8 Broan, Nautilus, Roper, Sears
99010242 (Basket Style) 6-7/8 15-5/8 3/32 Jenn Air
97009562 8 9-1/2 3/32 Air Care, Aubrey, Rangemaster
99010033 8 9-1/2 3/8 Broan
99010214 8 10 3/8 Air Care, Aubrey
99010196 8-1/4 11-1/4 3/8 Kitch-n-Vent, NuTone, Ventrola
99010197 8-5/8 11 3/8 Rangaire, Whirlpool
97006931 (Basket Style) 8-3/4 10-1/2 3/32 Broan, Caloric, Crosley, Ge, Nautilus, Roper, Sears
99010032 8-3/4 15 3/8 Broan
97007725 8-7/8 23-7/8 3/8 Broan
99010198 8-15/16 8-15/16 3/8 Mercury, NuTone
99010199 9 10-3/32 3/8 Miami-Carey
97006981 * (NLA) 9 10-1/8 3/8 n.l.a.
99010200 9-1/16 11-11/16 3/8 NuTone
99010248 9-1/8 13-13/16 3/8 Broan
99010239 (NLA) 9-3/8 10-3/8 3/8 n.l.a.
99010215 9-1/2 11-1/8 7/16 Air Care, Aubrey
99010085 9-1/2 11-3/4 3/8 Broan
99010103 9-1/2 17-1/4 3/8 Broan 320, 324, 328, 329, 329H
97017455 9-7/8 11-11/16 3/8 Broan & NuTone RP1, NSP1
97017456 9-7/8 11-11/16 3/8 Broan AP1, RP2
99010104 9-1/2 19-3/4 3/8 Broan 322, 323
97007894 * 9-7/8 11-5/8 3/8 Amana, Broan, Ge, Roper, Sears
97017455 * 9-7/8 11-11/16 11/32 Aluminum - Used on NSP1, RP1, Pro-Style Hood
97017456 * 9-7/8 11-11/16 11/32 Aluminum with Microban Used on AP1, RP2 Pro-Style Hood
99010190 10-1/8 10-15/16 3/32 Miami-Carey
99010219 (Basket Style) 10-1/4 10-1/4 3/32 Air Care, Aubrey
99010201 10-3/8 11-3/8 3/8 GE, Hotpoint
99010108 (NLA) 10-3/8 11-1/2 3/8 Nautilus
99010216 10-1/2 13-5/8 7/16 Air Care, Aubrey
97008729 10-1/2 14 3/8 Broan
06267-00 (NLA) 10-5/8 30 3/8 Aubrey (folds into u-shaped filter)
99010087 (NLA) 10-3/4 20 3/8 n.l.a.
99010202 11 13-3/4 3/8 Air Care, Aubrey, Rangemaster
99530080 11 17-1/4 3/8 Nautilus
99010217 11-1/8 16-3/8 7/16 Air Care, Aubrey
R610092 11-1/4 11-5/8 11/32
99010316 11-1/4 11-3/4 11/32 Broan, NuTone, Sears
99010243 (Basket Style) 11-3/8 14 3/32 Jenn Air
99010098 11-1/2 20 3/8 Broan, Nautilus
99010049 11-3/4 12-1/4 3/8 Broan
99010039 (Basket Style) 11-3/4 16-1/2 3/32 x 3” deep Broan
97017720 11-13/16 16-1/4 3/8 QP130
97018201 11-27/32 16-1/4 3/8 QP142” Contains 3 Filters
97018205 * 11-27/32 16-1/4 3/8 QP3 30” Contains 2 Filters
97018207 11-27/32 16-1/4 3/8 QP3 42” Contains 3 Filters
99010299 * 11-7/8 14-11/32 3/8 QS1 / Allure I 30”
99010302 * 11-7/8 14-11/32 3/8 QS2 / Allure II 30”
99010305 * 11-7/8 14-11/32 3/8 QS3 / Allure III 30”
* Includes 2 Filters
Index
121
SQUARE AND RECTANGULAR ALUMINUM FILTERS (CONT.)
Filter Part Number Height Width Approx. Thickness Description / Fits
99010300 * 11-7/8 17-11/32 3/8 QS1 / Allure I 36”
99010303 * 11-7/8 17-11/32 3/8 QS2 / Allure II 36”
99010306 * 11-7/8 17-11/32 3/8 QS3 / Allure III 36”
99010301 * 11-7/8 20-11/32 3/8 QS1 / Allure I 42”
99010304 * 11-7/8 20-11/32 3/8 QS2 / Allure II 42”
99010307 * 11-7/8 20- 11/32 3/8 QS3 / Allure III 42”
LAF1 12 12 Broan-Losone Select
LAF2 12 21-1/4 Broan-Losone Select
99010249 12-1/8 13-13/16 3/8 Broan
99010244 13 20 3/8 Miami-Carey
V14131 * 13-13/16 14-3/32 1/2 QDE30
99010250 13-13/16 15-1/8 3/8 Broan
99010251 13-13/16 18-3/32 3/8 Broan
97017721 * 14-13/16 16-1/4 3/8 QP136”
97018206 * 14-7/8 16-1/4 3/8 QP336”
99010218 18-1/8 18-1/8 5/16 Air Care, Aubrey
* Includes 2 Filters
ROUND ALUMINUM FILTERS
Filter Part Number Diameter Thickness Type Description / Fits
99010240 6 3/32 Jenn Air
97008730 7-1/2 3/32 Flat, 2-Hole Broan, Nautilus
99010042 9-1/2 3/32 Flat Center Hole Air Care, Aubrey, Broan, Miami-carey, Nautilus, NuTone
99010221 10-1/2 3/32 1-1/2” Dome Air Care, Aubrey, Rangemaster
99010122 10-1/2 3/32 3-1/4” Dome Broan, Nautilus
99010271 10-1/2 3/32 Flat Center Hole Broan, Nautilus
99010046 11-1/2 3/32 Flat Center Hole Broan, Nautilus
FILTER WITH LIGHT LENS BUILT INTO FILTER
Filter Part Number Height Width Approx. Thickness Description / Fits
99010241 9 12 5/16
99010191 10 11-7/8 3/32 Modernaire
99010192 10-1/8 16-9/16 3/8 Broan, Nautilus
99010193 10-1/2 10-1/2 3/8 Charmglow, Swanson
99010109 10-7/8 15-5/8 3/8 Nautilus
99010195 11 17 3/8
99010194 11-3/4 13-7/16 3/8 NuTone
R610045 11-1/2 11-3/4
R610050 11-7/16 11-13/16 3/8 Broan, Rangaire, NuTone
IAQ FILTERS
Filter Part Number Height Width Approx. Thickness Description / Fits
V16031 8-1/4 6-3/4 3/8 Black Foam - ERV90 - Contains (2)
V16032 10-3/4 6-1/2 3/8 Black Foam - HRV90 - Contains (2)
V04295 14 3-3/8 3/8 Black Foam with White Bars - GSHH3K
V05689 9-3/8 3-3/8 3/8 Black Foam with White Bars - GSEH3K
97012057 11-1/8 10-1/8 7/8 Black Foam with Metal Frame - ERV110ENT
V1608152 14 13-1/2 2 Black Foam - HRV650
99010264 11-3/4 9-3/4 3/8 Aluminum Mesh with Aluminum Frame - ERV110, ERV110ENT
99010265 19-1/4 11-3/4 3/8 Aluminum Mesh with Aluminum Frame - ERV200, ERV200ENT
V11197 13-1/2 10-3/4 3/4 Aluminum Mesh with Aluminum Frame - AE60
V1608153 13 11 1 Black Foam - HRV1150 / HRV650 - Contains (3)
V1608155 13 11-1/2 1-3/4 White Fabric with White Cardboard Frame - HRV650 - Contains (2)
V03096 13 11-3/4 3/4 Black Foam with Aluminum Frame - HRV100H, ERV100HC
V03097 16-3/4 11-3/4 3/4 Black Foam with Aluminum Frame - HRV200H, ERV200HC
ACCGSFHP2 (HEPA) 20 15-3/4 1-3/4 (1) HEPA Black Filter with Plastic Frame - GSHH3K, GSEH3K
ACCGSFHP2 (Pre-Filter) 19 15 (2) Pre Filters White Fabric with Aluminum Frame - GSVH1K, GSFH1K
Index
122
DUCTLESS FILTERS
Filter Part Number Height Width Approx. Thickness Description / Fits
97009563 2-1/4 6-7/8 3/32 Air Care, Aubrey, Broan
97009564 2-5/8 6-7/8 3/32 Air Care, Aubrey, Broan
99010222 2-7/8 7-5/8 3/32 Air Care, Aubrey
99010223 4 28-1/2 3/32 Air Care, Aubrey, Rangemaster
97007809 4-7/8 27 3/8 Broan, Roper, Sears
99010247 5 28 3/8 Caloric
n.l.a. 5-3/8 27 3/8 Broan
99010112 5-3/4 21-3/4 3/8 Broan
97008537 * 5-7/8 11-5/8 3/8 Broan, Nautilus, Roper, Sears
B08999040 5-7/8 17-11/16 11/32 Broan PM250, PM390
97007808 6-3/8 26-3/4 3/8 Broan, Maytag, Mont. Wards, White-Westinghouse
97013161 * (NLA) 6-9/16 14-3/8 3/8 Broan, Sears
97013162 * 6-9/16 17-3/8 3/8 Broan, Sears
97007664 * 6-5/8 11-3/4 1-1/4 Broan, Nautilus, Roper, Sears
99010173 6-7/8 12-5/8 3/8 Sears, Sanyo
99010118 7-1/2 11-3/4 3/8 Broan
R610051 (3 pads) 7-3/4 10-3/8 1/4 Broan, Rangaire
99010181 8 9-1/2 3/8 Air Care, Aubrey, Rangemaster
97009561 8 9-1/2 15/32 Broan, Air Care, Aubrey (Combination Aluminum / Non-Ducted)
99010182 8-1/4 11-1/4 3/8 Kitch-n-Vent, Ventrola
99010183 8-5/8 10 3/8 Rangaire, Whirlpool
99010184 8-5/8 11 3/8 Rangaire
97007696 8-3/4 10-1/2 3/8 Broan, Caloric, Nautilus, Roper, Sears, Tappan, White-Westinghouse
99010185 8-7/8 9-3/8 3/8 Miami-carey
99010186 8-15/16 8-15/16 3/8 Mercury, NuTone
97007807 * 9 10-1/8 3/8 Broan, Nautilus, Sears
97005684 * 9-1/8 11-5/8 3/8 Sears
99010101 9-1/2 11-3/4 3/8 Broan
97007662 * 10 11-3/4 1-3/4 Broan, Sears
99010224 10-1/4 10-1/4 3/8 Air Care, Aubrey, Rangemaster
99010113 10-3/8 11-1/2 3/8 Broan, Nautilus
99010353 * 10-3/4 15-5/16 1/4 QP130
99010187 10-7/16 11-7/16 3/8 Ge, Hotpoint, NuTone
99010036 10-3/4 20 3/8 Broan
99010308 * 10-13/16 13-5/16 1/4 Allure 30” Hood Broan, NuTone
99010309 * 10-13/16 16-13/16 1/4 Allure 36” Hood Broan, NuTone
99010310 * 10-13/16 19-13/16 1/4 Allure 42” Hood Broan, NuTone
n.l.a. 10-7/8 11-3/4 3/8 Nautilus - Old p/n 99010111
99010188 11 13-3/4 3/8 Air Care, Aubrey
99530078 11 17 3/8 Nautilus
99010317 11-1/4 11-3/4 11/32 NS6500, QL,QT, WS, Broan, NuTone, Sears
99010099 11-3/8 20 3/8 Broan, Nautilus
99010088 11-3/4 12-1/4 3/8 Broan
99010245 12-5/8 20 5/16 Miami-carey
99010354 * 13-3/4 15-5/16 1/4 QP136
* Includes 2 Filters
FIBERGLASS SMOKE FILTER
Filter Part Number Height Width Approx. Thickness Description / Fits
99010100 (nla) 10-1/4 19 3/8 N.L.A. - Broan 71000, Nautilus
FOAM FILTER
Filter Part Number Height Width Approx. Thickness Description / Fits
99010175 6-1/4 23-5/8 3/8 Broan, Sears, NuTone
R610051 (3 pads) 7-3/4 10-3/8 1/4 Broan, Rangaire, NuTone
CHARCOAL PELLETS
Part Number Description / Fits
99660002 (1lb.) Broan, Nautilus
Index
123
GLASS LIGHT LENS
Part Number Length Width Depth Additional Info
99050018 (curved) 1-3/4 22-1/2 1-3/4 L-Shaped
06151-00 3-5/8 8
99050014 3-15/16 5-11/16
n.l.a. 4 6-15/16 No Longer Available - No Substitute
99050015 4-1/8 10-3/4
99050013 4-1/4 10-1/4
99050012 7-1/2 7-1/2 No Longer Available - No Substitute
97008781 8-11/16 Diameter 1-1/2
61753000 9-3/4 Diameter Used on Models 750, N750, 751, & 752
PLASTIC LIGHT LENS
Filter Part Number Height Width Approx. Thickness Description / Fits
99110605 2-1/2 16
06276-00 3 7
n.l.a. 3-7/16 13-3/4 1/8
99110437 3-1/2 4-3/8
97018564 3-1/4 9-5/8 3-3/8
97013316 3-5/8 7-1/2 Lens is Marked with “Max 75 Watt Bulb”
99111515 3-5/8 7-1/2 Lens is Marked with “42 Watt GU24 Bulb”
06235-00 3-7/8 9-3/8
99050014 3-15/16 5-11/16
99111331 4-3/8 8-1/2 1-1/4
99111281 5-23/64 10-19/64 11/16
76079-00 6-3/8 6-3/8 1-1/2
99110380 6-5/8 1-3/4
99110736 6-3/4 6-3/4 5/8
n.l.a. 7 7 1-3/4 No Longer Available
391 7 7-7/8 1 Replaced by 97018813
428 7 7-7/8 1 Replaced by 97011813
97011813 7 7-7/8 1
97013578 7 8 1-1/8
99111410 7-1/4 8-1/4 1
99111371 7-9/16 8-7/16 1-3/16
76078-00 8-3/8 Diameter
61753000 9-3/4 Diameter Replaced by Glass Lens - Used on Model 752
99110587 - n.l.a. 13-3/4 Diameter 1-7/8 No Longer Available
LIGHT BULBS
Part Number Description / Fits
B02300722 Halogen, T4 Base, 12 Volt, 20 Watt - Replaced by SB02300891
B02300774 Halogen, Type MR16, 12 Volt, 20 Watt - Push & Twist
B02300891 Halogen, Type JC, G4 or T4 Base, 12 Volt, 20 Watt - Small Bulb with 2 Push in Pins
V05921 Halogen, Type MR16, GU10 Base, 120 Volt, 50 Watt - Push & Twist
V02544 Halogen, Type PAR20, 120 Volt, 39 Watt - Thread-In
99526798 Halogen, Type MR16, GU10 Base, 120 Volt, 35 Watt - Push & Twist
V03598 Infrared, Type PAR38, 120V, IR175W - Thread-In Warming Lamp
B02300264 Candelabra, Type T8, E12 Base, 120 Volt, 40 Watt - Thread-In - Tube Shaped
99271492 Candelabra, Type B10, E12 Base, 120 Volt, 40 Watt - Thread-In - Flame Shaped
99271452 Fluorescent, GU24 Base, 120 Volt, 13 Watt - Push & Twist
V03623 Fluorescent, 4 Pin, 120 Volt, 13 Watt - Push In
97010729 Fluorescent, 2 Pin, 120 Volt, 13 Watt - Push In
97016889 Fluorescent, 4 Pin, 120 Volt, 13 Watt - Push In
97010730 Fluorescent, 2 Pin, 120 Volt, 18 Watt - Push In
99271381 Fluorescent, GU24 Base, 120 Volt, 18 Watt - Push & Twist
97015191 Fluorescent, 2 Pin, 120 Volt, 22 Watt - Push In
99271311 Fluorescent, 2 Pin, 120 Volt, 26Watt - Push In
n.l.a. Fluorescent, 2 Pin, CFQ26W/G24D, 120 Volt, 26 Watt - Push In
99271358 Fluorescent, 4 Pin, 120 Volt, 42 Watt - Push In
Index
124
GRILLE SIZE REFERENCE GUIDE
Size Part Number Material Finish Attached by Light? Models Used On
3-5/8 x 19-1/4 n.l.a. Metal White - No 112, 114
5-7/8 x 9-5/8 97009341 Plastic White 2 Springs No 686
7-3/8 Round 99524802 Plastic White 2 Springs Yes 744, 744FL
8 Round 99110454 Plastic White 1 Screw No 512, 512M, 673
8-1/2 x 8-1/2 97009648 Plastic White 2 Springs No 681, 682
9 x 9-1/4 97011723 Plastic White 2 Springs No 663-G-H, 670-G-H-K-J, 671-G-H-J, 688-G-J-K, 689-G-J-K
9-1/4 x 12 98006970 Metal White 2 Screws No 165F, 165FT, 167F, 167FT, 170, 174, 178, 178
9-1/4 x 14-1/4 97013821 Metal White 2 Screws No 120, 124, 128
9-1/4 x 9-1/4 97009649 Plastic White 2 Springs Yes 699
9-3/8 x 10-3/4 NT100267000 Plastic White 2 Springs No 683
10 x 10 97006651 Plastic White 2 Springs No 663, 670, 671, 675, 688, 689
10 x 13-1/4 n.l.a. Metal Chrome 2 Screws No 134
10 x 16 99110424 Plastic White Acorn Nut Yes 655, 656, 657, 659, 695, 696
10-1/2 x 10-1/2 99111330 Plastic White Acorn Nut Yes 685
10-1/2 x 11-1/2 97014841 Wood Oak Acorn Nut Yes 707
10-1/2 x 16-1/2 n.l.a. Aluminum Silver 2 Screws No 300, 301, 312, 313, 319
10-1/4 x 10-1/4 97010319 Plastic White 2 Springs Yes 161, 162
10-1/4 x 10-1/4 97011324 Aluminum Silver 1 Screw No 315, 317, 662, 664, 665, 666, 668, 669
10-1/4 x 10-1/4 97011308 Metal White 2 Springs No 663, 670, 671, 675. 688, 689, HD50, HD80
10-1/4 x 15-1/2 97013662 Plastic White Acorn Nut Yes 657, 696
10-1/4 x 15-5/8 97010320 Plastic White 2 Springs Yes 163, 164
10-1/4 x 15-5/8 76114-00 Metal Chrome 2 Springs Yes 730
10-1/4 x 15-5/8 97014557 Metal White 2 Springs Yes 732
10-1/8 x 10-1/2 97016798 Plastic White 2 Springs No 674
10-3/8 x 11-3/8 97010909 Wood Oak Acorn Nut Yes 709-A-B
10-3/8 x 11-3/8 99340217 Wood Oak Acorn Nut Yes 709-C
10-5/8 x 11-1/8 97013576 Plastic White 2 Springs No 676, 684
10-5/8 x 11-1/8 97014094 Plastic White Acorn Nut Yes 678, 679, 680
10-5/8 x 11-1/8 97014094 Plastic White Acorn Nut Yes 679FLT, 680FLT, HD50L, HD80L
10-5/8 x 11-1/8 99110751 Plastic White Acorn Nut Yes HD50L, HD80L
10-5/8 x 16-3/4 97013662 Plastic White Acorn Nut Yes 655, 656, 659, 695
10-5/8 x 16-3/4 97013581 Plastic White 1 Screw No 658
11 Round 25045-00 Aluminum Silver 1 Screw No 154, 157
11 x 11 97010908 Wood Oak 2 Springs No 708-A
11 x 11 97013128 Wood Oak 2 Springs No 708-B
11-1/2 x 11-1/2 97011919 Plastic White 1 Screw No 503, 505, 507, 509
11-1/2 x 11-1/2 97011727 Plastic White 1 Screw No 509S
11-1/2 x 11-1/2 97013566 Plastic White 2 Screws Yes HS110LU, S150L, S80LU
11-1/2 x 11-1/2 97013402 Plastic White 2 Springs No HS110UE, S110U, S110UE, S150, S50U, S50UE, S80U, S80UE
11-1/2 x 11-1/2 97011836 Plastic White 2 Screws Yes HS120L
11-1/2 x 11-1/2 97009281 Plastic White 2 Springs No HS130, HS90, S130, S90
11-1/2 x 11-1/2 97011909 Plastic White 2 Screws Yes MHS120L
11-1/2 x 11-1/2 97011129 Plastic White 2 Screws Yes MS120L
11-1/2 x 11-1/2 97011128 Plastic White 2 Springs No MS130, MS90
11-1/2 x 11-1/2 97010732 Plastic White 2 Screws Yes S110FLUE-A
11-1/2 x 11-1/2 97016319 Plastic White 2 Screws Yes S110FLUE-B
11-1/2 x 11-1/2 97013566 Plastic White 2 Screws Yes S110LU
11-1/2 x 11-1/2 97010732 Plastic White 2 Screws Yes S120FL
11-1/2 x 11-1/2 97009887 Plastic White 2 Screws Yes S120L
11-1/2 x 11-1/2 97016319 Plastic White 2 Screws Yes S80FLUE
11-3/4 x 11-3/4 n.l.a. Aluminum Silver 1 Screw No 486
11-3/4 x 11-3/4 97013825 Aluminum Silver 1 Screw No 496
11-3/8 x 11-3/8 97003598 Aluminum Silver 1 Screw No 466, 478, 479
11-5/16 x 11-5/16 97002117 Aluminum Silver 1 Screw No 497, 499
11-5/16 x 11-5/16 97002150 Aluminum Silver 1 Screw No 497S, 499S
11-7/8 x 11-7/8 98005876 Metal White 2 Screws No 360MG, 361MG
11-7/8 x 15 98005877 Metal White 2 Screws No 314MG, 362MG, 363MG, 383MG
11-7/8 x 17-1/8 76112-00 Metal Brass 2 Springs Yes 735
12-1/8 x 12-1/4 99110506 Plastic White 2 Screws No 360, 361
12-1/8 x 15-1/2 99110507 Plastic White 2 Screws No 314, 362, 363, 383
12-3/8 x 14 97016546 Plastic White 2 Springs Yes QTR080L, QTR110L
12-3/8 x 14 97016548 Plastic White 2 Springs Yes QTRE080FL
12-3/8 x 14 97016868 Plastic White 2 Springs Yes QTRE080FLT, QTRE110FLT
12-3/8 x 14 97016548 Plastic White 2 Springs Yes QTRE090FL-A, QTRE110FL
Index
125
GRILLE SIZE REFERENCE GUIDE (CONT.)
Size Part Number Material Finish Attached by Light? Models Used On
12-3/8 x 14 97016884 Plastic White 2 Springs Yes QTRE090FL-B
13 Octagon 99523567 Decorative Brass 1 Screw Yes 740BR-A
13 Octagon 99523697 Decorative Brass 1 Screw Yes 740BR-B
13 Octagon 99523566 Decorative White 1 Screw Yes 740WH-A
13 Octagon n.l.a. Decorative White 1 Screw Yes 740WH-B
13 x 14 97016614 Plastic White 2 Springs No QTR070
13 x 14 97016497 Plastic White 2 Springs No QTR080, QTR110
13 x 14 97016497 Plastic White 2 Springs No QTRE080, QTRE110, QTR140
13-1/2 x 13-1/2 97013825 Aluminum Silver 1 Screw No 465, 475, 476, 477
13-1/2 x 13-1/2 97011851 Plastic White 1 Screw No 502, 504, 506, 508, 510, 511, 12C
13-1/8 Round 99525298 Decorative Crackled 1 Screw Yes 755
13-1/8 Round 99525299 Decorative White 1 Screw Yes 756
13-1/8 Round 99525301 Decorative White 1 Screw Yes 758
13-1/8 Round 99525297 Decorative Rubbed Bronze 1 Screw Yes 754RB
13-1/8 Round 99525296 Decorative Satin Nickel 1 Screw Yes 754SN
13-1/8 Round 99525300 Decorative Pewter 1 Screw Yes 757PT
13-1/8 Round 99525323 Decorative Satin Nickel 1 Screw Yes 757SN
13-3/8 Round 99523554 Decorative Brass 1 Screw Yes 741BR-A
13-3/8 Round 99523699 Decorative Brass 1 Screw Yes 741BR-B
13-3/8 Round 99523580 Decorative Brass 1 Screw Yes 741BRFL-A
13-3/8 Round 99523701 Decorative Brass 1 Screw Yes 741BRFL-B
13-3/8 Round 99523770 Decorative Satin Nickel 1 Screw Yes 741SN-B
13-3/8 Round 99523555 Decorative White 1 Screw Yes 741WH-A
13-3/8 Round 99523700 Decorative White 1 Screw Yes 741WH-B
13-3/8 Round 99523581 Decorative White 1 Screw Yes 741WHFL-A
13-3/8 Round 99523702 Decorative White 1 Screw Yes 741WHFL-B
13-3/8 Round 99524948 Decorative Rubbed Bronze 1 Screw Yes 742RB
13-3/8 Round 99523770 Decorative Satin Nickel 1 Screw Yes 742SN
13-3/8 Round 99523700 Decorative White 1 Screw Yes 742WH
13-3/8 Round 99525324 Decorative Satin Nickel 1 Screw Yes 753SN
13-3/8 Round 99525325 Decorative White 1 Screw Yes 753WH
13-3/8 x 14-1/4 97016544 Plastic White 2 Springs Yes QTXE080FL, QTXE110FL, QTXE150FL
13-3/8 x 14-1/4 97016866 Plastic White 2 Springs Yes QTXE080FLT, QTXE110FLT, QTXE150FLT
14 Round 97008766 Aluminum Silver 1 Screw No 156-C
14 x 14 n.l.a. Aluminum Silver 2 Screws No 650, 651, 652, 653
14 x 14 99110807 Plastic White 2 Screws No L100, L150, L200, L250, L300
14 x 14 98009416 Metal White 2 Screws No L100MG, L150MG, L200MG, L250MG, L300KMG, L300MG
14 x 15 97016459 Plastic White 2 Springs No QTRE090, QTXE050, QTXE080, QTXE110, QTXE150
14 x 23-1/4 98009463 Metal White 2 Screws No L400, L400K, L500, L500K, L700
14-5/16 x 14-5/16 n.l.a. Aluminum Silver 1 Screw No 461, 471
14-5/16 x 14-5/16 97001188 Aluminum Silver 1 Screw No 481
14-5/16 x 14-5/16 97013826 Aluminum Silver 1 Screw No 491
14-5/8 Round 97008602 Aluminum Brass 1 Screw Yes 710-A-B-C
14-5/8 Round 97015173 Aluminum Brass 1 Screw Yes 710-D
14-5/8 Round 97008604 Aluminum White 1 Screw Yes 712-A-B-C
14-5/8 Round 97015174 Aluminum White 1 Screw Yes 712-D
14-5/8 Round 97010660 Aluminum Chrome 1 Screw Yes 714-A-B-C
14-5/8 Round 97015175 Aluminum Chrome 1 Screw Yes 714-D
14-7/8 Octagon 97008607 Wood Oak 1 Screw Yes 722-A-B-C
14-7/8 Octagon 97015178 Wood Oak 1 Screw Yes 722-D
15 Round NT0461B000 Plastic White 1 Screw Yes 750, 751
15 Round n.l.a. Plastic White 1 Screw Yes 752
15 x 20 97016474 Plastic White 2 Screws Yes QTX100HL, QTX110HL
15-1/8 Round 97008606 Wood Oak 1 Screw Yes 721-A-B-C
15-1/8 Round 97015177 Wood Oak 1 Screw Yes 721-D
15-1/8 x 15-1/8 97008605 Wood Oak 1 Screw Yes 720-A-B-C
15-1/8 x 15-1/8 97015176 Wood Oak 1 Screw Yes 720-D
15-5/8 x 17 97009892 Metal White 2 Screws No 365, 375
16-1/4 x 39-5/8 G102 Metal White 2 Screws No 367, L2000L
16-3/8 x 20-1/4 97013822 Metal White 2 Screws No 192, 194, 195, 198, 199
17 x 23-1/8 98005532 Metal White 2 Screws No 366
18-3/8 x 47-1/4 G103 Metal White 2 Screws No 368, L3500EXL
19-7/8 x 23-7/8 98009522 Metal White 2 Screws No L1500, L900
Index
126
BLOWER WHEELS
Part Number P/N on Wheel Height Width Hub Diameter Type Rotation Material
06222-00 - n.l.a. 3 1-7/8 3/16 CW Black Plastic
06226-00 3 1-7/8 3/16 CCW White Plastic
06228-00 3 1-7/8 3/16 CCW Metal
99020141 99020141 3-1/2 2-1/2 5/16 Single Inlet CCW Black Plastic
99020144 99020144 3-1/2 2-1/2 1/4 Single Inlet CCW Black Plastic
99020149 99020149 3-1/2 3-1/2 5/16 Single Inlet CW Black Plastic
99020150 99020150 3-1/2 3-1/2 5/16 Single Inlet CCW Black Plastic
99020118 3-3/4 2-1/2 3/16 Single Inlet CCW Metal
99020134 3-3/4 2-1/2 7/32 Single Inlet CW Metal
99020141 99020141 3-3/8 2-1/2 5/16 Single Inlet CCW Black Plastic
99020144 99020144 3-3/8 2-1/2 1/4 Single Inlet CCW Black Plastic
99020124 - n.l.a. 3-5/8 2-1/2 7/32 Single Inlet Either White Plastic
99020140 99020140 3-5/8 2-1/2 1/4 Single Inlet Either White Plastic
97009759 99110770 3-7/16 2-1/2 1/4 Single Inlet CW Plastic
97010255 99110872 3-7/16 2-1/2 7/32 Single Inlet CW Plastic
97013313 4-3/32 3-29/64 5/16 Double Inlet Plastic
06104-00 4-3/4 1-7/8 3/16 CCW White Plastic
06179-00 5-1/8 2-3/8 5/16 CCW White Plastic
99020002 5-1/4 2-1/2 1/4 Single Inlet CCW Metal
99020003 5-1/4 2-1/2 5/16 Single Inlet CW Metal
99020004 5-1/4 2-1/2 5/16 Single Inlet CCW Metal
99020010 5-1/4 3 3/8 Single Inlet CW Metal
99020011 5-1/4 3 3/8 Single Inlet CCW Metal
99020014 5-1/4 3 5/16 Single Inlet CW Metal
99020015 5-1/4 3 5/16 Single Inlet CCW Metal
99020104 5-1/4 3-7/8 3/8 Single Inlet CW Metal
99020105 5-1/4 3-7/8 3/8 Single Inlet CCW Metal
99020116 5-1/4 1-1/2 1/4 Single Inlet CCW Metal
99020138 5-3/16 3-1/2 5/16 Single Inlet CW Metal
99020139 5-3/16 3-1/2 5/16 Single Inlet CCW Metal
99020012 5-3/4 2-1/2 1/4 Single Inlet CW Metal
99020142 5-3/4 3-1/2 3/8 Single Inlet CW Metal
99020143 5-3/4 3-1/2 3/8 Single Inlet CCW Metal
99020162 5-3/4 3-7/16 5/16 Single Inlet CW Metal
99020163 5-3/4 3-7/16 5/16 Single Inlet CCW Metal
99110735 99110735 5-3/4 2-1/2 5/16 Single Inlet CCW Plastic
99020276 5-7/16 2-1/8 1/4 Single Inlet CW Plastic
97011315 99110931 5-7/16 1-1/2 1/4 Single Inlet CW Plastic
97009755 99110842 5-7/16 2-7/16 1/4 Single Inlet CW Plastic
99020246 6 2 1/4 Single Inlet CW Plastic
99020005 - n.l.a. 6-3/16 3-1/2 1/2 Single Inlet CW Metal
99020006 - n.l.a. 6-3/32 3-1/2 1/2 Single Inlet CCW Metal
99020269 6-3/32 3-1/16 5/16 Single Inlet CW Black Plastic
99020270 6-3/32 3-1/16 1/4 Single Inlet CW Black Plastic
NOTE: All wheels are forward inclined
Index
127
BLOWER WHEELS (CONT.)
Part Number P/N on Wheel Height Width Hub Diameter Type Rotation Material
99020167 6-1/4 2-1/16 5/16 Single Inlet CCW Metal
99020121 7-1/8 5-9/16 1/2 Single Inlet CCW Metal
99020122 7-1/8 5-9/16 1/2 Single Inlet CW Metal
99020145 7-11/16 4-1/8 1/2 Single Inlet CW Metal
97011423 7-11/16 4-1/8 1/2 Single Inlet CCW Metal
99020273 7-11/16 5-3/8 3/8 Double Inlet CCW Metal
99020273 7-11/16 5-17/32 3/8 Double Inlet CCW Metal
99110805 7-13/16 5-1/2 3/8 Double Inlet Plastic
99020172 8-1/16 8-1/32 5/8 Double Inlet CW Metal
99020173 8-1/16 8-1/32 5/8 Double Inlet CCW Metal
99020174 9-1/8 8-7/8 7/8 Double Inlet CW Metal
99020175 9-1/8 8-7/8 7/8 Double Inlet CCW Metal
99020264 10-3/4 29/64 1/2 Single Inlet CW Metal
99020274 11 7-31/32 29/64 Double Inlet Plastic
99020263 11-5/8 2-5/8 1/2 Single Inlet CW Metal
99020274 11 7-31/32 1/2 Double Inlet Plastic
NOTE: All wheels are forward inclined
HOUSING DESIGNATIONS
Housing / Can Models Used On
A 663, 663-A,B,C,D,E, 688, 688-A,B,C,D,E, 689, 689-A,B,C,D, 670, 670-A, 671, 671-A, 675, 675-A
B-1 676, 676-A,B,C, 684, 684-A,B,C, 708-B, HD50, HD50-A, HD80, HD80-A
B-2 710-A,B,C, 712-A,B,C, 714-A,B,C, 720-A,B,C, 721-A,B,C, 722-A,B,C, 741xx-A, 740xx-A
B-3 678, 678-A,B,C,D,E,F, 679, 679-A,B,C, 707-A, 709-C, HD50L, HD50L-A,B,C, HD80L, HD80L-A,B,C
B-4 679FL, 679FL-A,B
C 655, 656, 657, 658, 659, 695, 696
D 663-G,H, 688-G,H,J,K, 689-G,H,J,K, 670-G,H,J,K, 671-G,H,J,K
J HD50-B, HD50L-D, HD80-B, HD80L-D, 674, 676-D, 684-D, 685, 678-G, 679-E, 679FLT-A, 680-A, 680FL-A, 680FLT-A, 707-B, 708-C, 709-C, 710-D, 712-D, 714-D,
720-D, 721-D, 722-D, 683-C, 683L, 758NT, 758, 757xx, 756, 755, 754xx, 753xx, N741SN, 742xx, 741xx-B, 740xx-B, 761xx, 768xx, HD50NT, HD80NT, HD50LNT,
HD80LNT, QTNLEDA, QTNLEDB
L XBxx, XNxx, ZBxx, ZNxx
L16 L100, L100C, L100EX, L100L, L100MG, L150, L150C, L150EX, L150L, L150MG
L18 L200, L200C, L200EX, L200L, L200MG, L250, L250C, L250EX, L250L, L250MG, L300, L300C, L300EX, L300L, L300MG
L18K L300KMG
L2 L400, L400C, L400EX, L400L, L500, L500C, L500EX, L500L, L700, L700C, L700EX, L700L
L2K L400K, L400KL, L500K, L500KL
L3 L900, L900C, L900EX, L900L, L1500, L1500C, L1500EX, L1500L
N QT110E, QT110LE, QT130E, QT130LE, QT140E, QT140LE, QTN80E, QTN110E, QTN110LE, QTN130E, QTN130LE, QTRxxx, QTRExxx, QTXExxx, SSQTXxxx
S S90, S130, S120L, S120FL, HS90, HS130, MS90, MS130, HS120L, MS120L, MHS120L
U S50U, S80U, S110U, S80UE, S110UE, S80LU, S110LU, S80FLUE, S110FLUE, S150, S150L
