432E2270_NEW.indd 3

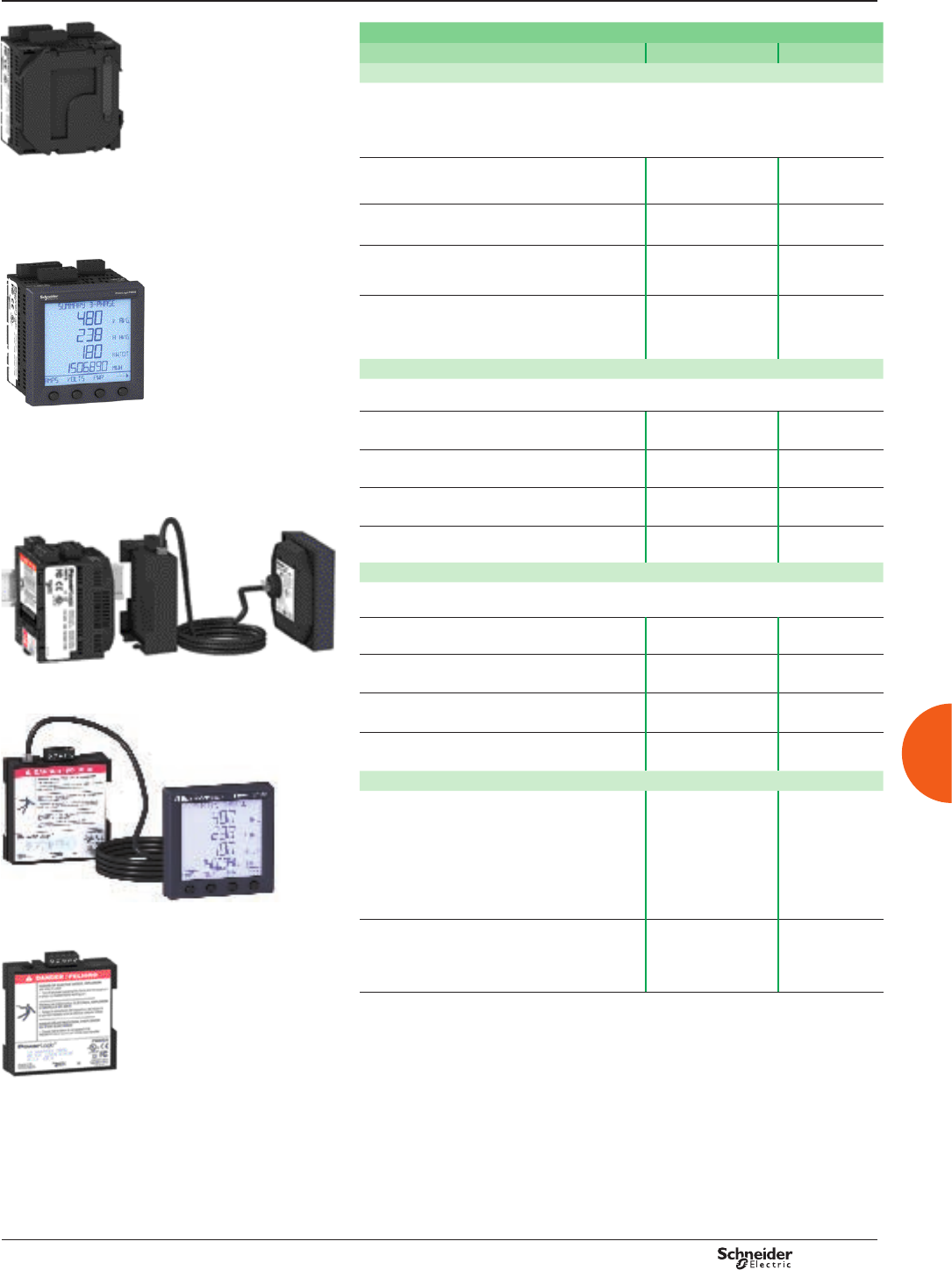

Part Numbers

Description Schneider Electric Square D

Meter without display

Use the base meter unit without display to comply with voltage limitations for local regulations

when door mounting is not possible, or when meter voltage exceeds regulations, or when

local display is not required. When the meter is used without a display, conguration of the

communications port is limited to the default (address 1, 9600 baud, parity even). Requires

software to read data.

PM810 meter unit only, no display,

basic instrumentation, THD, alarming, 80 kB logging

(with PM810LOG)

PM810UMG PM810U

PM820 meter unit only, no display,

basic instrumentation, THD, alarming, 80 kB logging

PM820UMG PM820U

PM850 meter unit only, no display,

basic instrumentation, THD, alarming, 800 kB

logging, waveform capture

PM850UMG PM850U

PM870 meter unit only, no display,

basic instrumentation, THD, alarming, 800 kB

logging, congurable waveform capture and

disturbance detection. IEC 62053-22 Class 0.2S.

PM870UMG PM870U

Meter with integrated display

Use the meter with integrated display for panel mounting when door space is available and when

voltage usage is within the local regulation limits.

PM810 meter with integrated display, PM810MG PM810

PM820 meter with integrated display PM820MG PM820

PM850 meter with integrated display PM850MG PM850

PM870 meter with integrated display PM870MG PM870

Meter with remote display

Conveniently packaged kit consist of a base meter (810, 820, 850 or 870) with a remote display,

remote display adapter, and remote display cable 3 m (9.ft 10 inches).

PM810 meter with remote display PM810RDMG PM810RD

PM820 meter with remote display PM820RDMG PM820RD

PM850 meter with remote display PM850RDMG PM850RD

PM870 meter with remote display PM870RDMG PM870RD

Parts and accessories

Remote display adapter with remote display and

a 3 m (9 ft 10 inch) cable

Use this combination of remote display, adapter, and

3 m cable to equip a base meter unit for use with a

remote display. In addition, the display can be carried

from meter to meter, enabling you to purchase one

display for multiple meters. Each base unit meter

must be equipped with a remote display adapter

(PM8RDA).

PM8RDMG PM8RD

Remote display adapter alone

When added to the front of the base unit (PM8xxU),

the adapter brings two additional communication

ports: one for the remote display and one 4-wire/2-

wire RS 485/RS 232.

PM8RDA PM8RDA

Part number list continued on next page.

PowerLogic PM800 series meter without display.

PowerLogic PM800 series meter with remote display.

Remote display adapter with display and cable.

Remote display adaptor alone.

PB101819 -32 PE86135 PB101822 -68 PE86134 PB101814 -36

PowerLogic PM800 series meter with integrated display.

PM800 series

Functions and characteristics (cont.)

Mid-range metering
