From the Ground Up

Transmission Products Catalog

Experience.Technology. Answers.

Building for the Future

BURNDY®developed and manufactured transmission connectors for the original

grid.

Now we are leading the way for 21st-century transmission lines.

BURNDY®offers a complete line of compression connectors to accommodate ACSR,

ACSS, and ACCC®conductors. In fact, our ACSS and ACCC®connectors meet the

proposed requirements of the future ANSI high-temperature standard.

BURNDY®Motion Control products have been used on bundle conductors since the

1960s. This experience enables us to provide Spacer Damper products along with

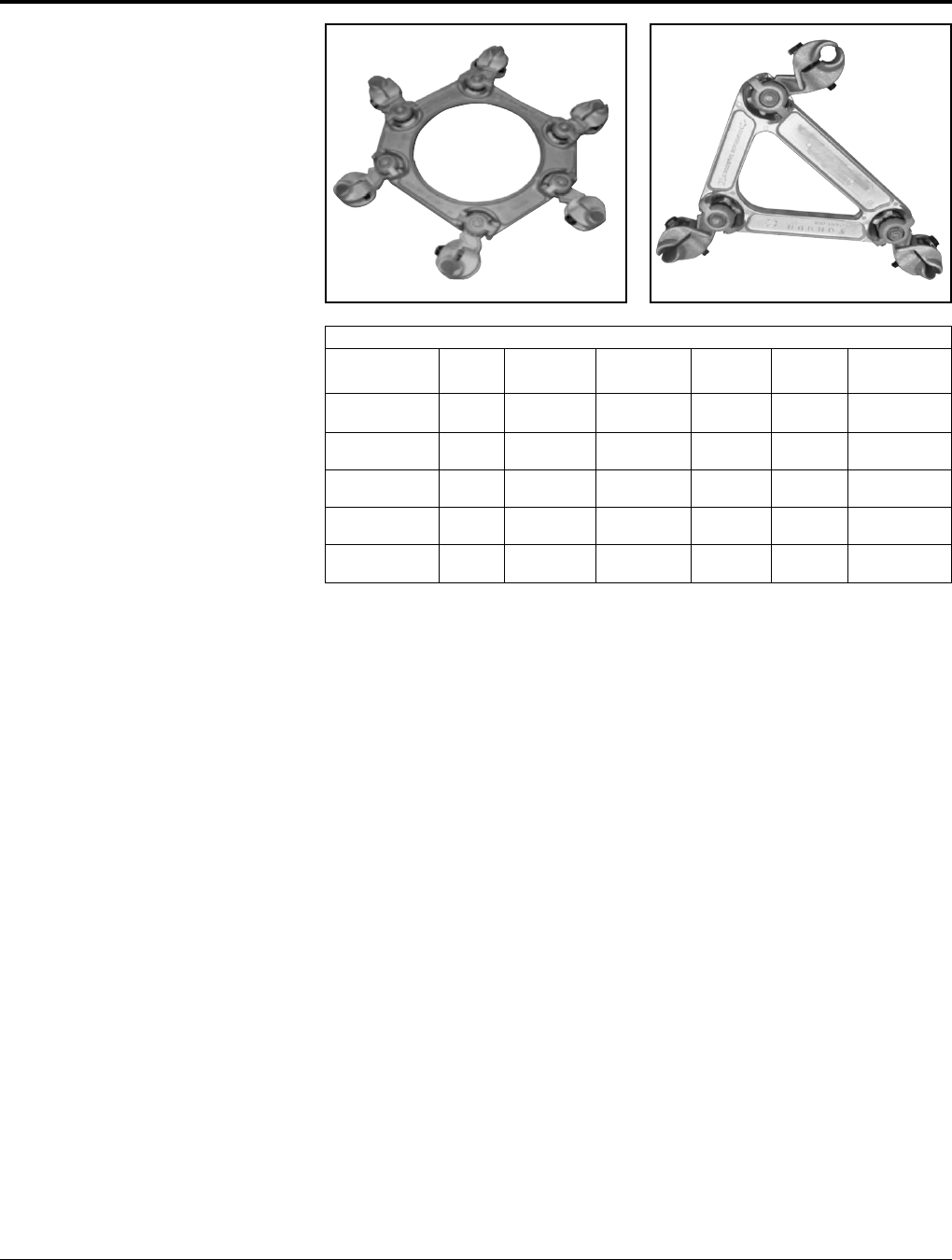

placement recommendations for optimum performance. Stockbridge Dampers are

designed to enhance conductor life by lessening potential vibration-induced fatigue.

IMPLOTM

There is Only One IMPLOTM

The increasing acceptance of implosive technology as a means for the installation of

transmission connectors is the result of intensive research and development coupled

with successful testing and field installations. The result is a high-quality, long-lasting

connection synonymous with that of the BURNDY®Transmission portfolio of products.

Our trained and experienced factory sales force can further help you get the products

that are right for your job. In fact, as you tell us what you need, our advanced

engineering support teams can custom build connectors specifically for your needs.

Get reconnected to www.burndy.com!

Experience.Technology. Answers.

www.burndy.com | 1-800-346-4175 10090595

Our IMPLOTM line of implosive connector products is compatible with a wide range of ACSR, ACSS, ACSS/TW, ASC, and

ASC/TW conductors.

Customer Service Department

7 Aviation Park Drive

Londonderry, NH 03053

1-800-346-4175

1-603-647-5299 (International)

Canada

1-800-361-6975 (Quebec)

1-800-387-6487 (All other provinces)

Mexico

011-52-722-265-4400

Brazil

011-55-11-5515-7200

Tool Repair Center

Littleton Industrial Park

Littleton, NH 03561

1-800-426-8720

TABLE OF CONTENTS

ACSR Conductor Accessories

Deadends Single Pad . . . . . . . . . . . . . . . . . . . 3

Deadends Double Pad. . . . . . . . . . . . . . . . . . . 4

Deadends Single Pad EHV . . . . . . . . . . . . . . . 5

Deadends Double Pad EHV . . . . . . . . . . . . . . 6

Splices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Splices EHV . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Jumper Terminals . . . . . . . . . . . . . . . . . . . . . . 9

Jumper Terminals EHV . . . . . . . . . . . . . . . . . 10

Loop Splice. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Loop Splice EHV . . . . . . . . . . . . . . . . . . . . . . 12

Compression T-Tap . . . . . . . . . . . . . . . . . . . . 13

T-Tap with Pad . . . . . . . . . . . . . . . . . . . . . . . . 14

Repair Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . 15

AAC/ACAR Conductor Accessories

Deadends Single Pad . . . . . . . . . . . . . . . . . . 16

Deadends Single Pad EHV . . . . . . . . . . . . . . 17

Deadends Double Pad. . . . . . . . . . . . . . . . . . 18

Deadends Double Pad EHV . . . . . . . . . . . . . 19

Splices, Stranded. . . . . . . . . . . . . . . . . . . . . . 20

Splices, Stranded EHV . . . . . . . . . . . . . . . . . 21

Splices, ACAR . . . . . . . . . . . . . . . . . . . . . . . . 22

Splices, ACAR EHV . . . . . . . . . . . . . . . . . . . . 23

Jumper Terminals . . . . . . . . . . . . . . . . . . . . . 24

Jumper Terminals EHV . . . . . . . . . . . . . . . . . 25

Loop Splice. . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Loop Splice EHV . . . . . . . . . . . . . . . . . . . . . . 27

T-Tap with Pad . . . . . . . . . . . . . . . . . . . . . . . . 28

Compression T-Tap . . . . . . . . . . . . . . . . . . . . 29

Repair Sleeve, AAC and ACAR. . . . . . . . . . . 30

ACSS Conductor

Accessories — High Temperature

Deadends Single Pad . . . . . . . . . . . . . . . . . . 31

Deadends Double Pad. . . . . . . . . . . . . . . . . . 32

Deadends Single Pad EHV . . . . . . . . . . . . . . 33

Deadends Double Pad EHV . . . . . . . . . . . . . 34

Splices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Splices EHV . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Jumper Terminals . . . . . . . . . . . . . . . . . . . . . 37

Jumper Terminals EHV . . . . . . . . . . . . . . . . . 38

Loop Splice. . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Loop Splice EHV . . . . . . . . . . . . . . . . . . . . . . 40

Compression T-Tap . . . . . . . . . . . . . . . . . . . . 41

T-Tap with Pad . . . . . . . . . . . . . . . . . . . . . . . . 42

Repair Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . 43

Alumoweld and EHS Steel

Conductor Accessories

Jumper Terminals . . . . . . . . . . . . . . . . . . . . . 44

Splices, Alumoweld . . . . . . . . . . . . . . . . . . . . 45

Splices, EHS Steel . . . . . . . . . . . . . . . . . . . . . 46

ACCC®Composite Core

Accessories — High Temperature

Deadends Single Pad. . . . . . . . . . . . . . . . 47-48

Splices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Jumper Terminals . . . . . . . . . . . . . . . . . . . . . 50

T-Tap with Pad . . . . . . . . . . . . . . . . . . . . . . . . 51

Repair Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . 52

IMPLO™ Conductor Accessories

Deadends Single Pad. . . . . . . . . . . . . . . . 53-56

Splices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57-60

Jumper Terminals. . . . . . . . . . . . . . . . . . . 61-63

Repair Sleeve . . . . . . . . . . . . . . . . . . . . . . 65-68

Motion Control Accessories

Stockbridge Dampers . . . . . . . . . . . . . . . . . . 69

Spacer Dampers . . . . . . . . . . . . . . . . . . . . . . 70

Damping Study. . . . . . . . . . . . . . . . . . . . . . . . 71

Oxide Inhibiting Joint Compounds

PENETROX™ . . . . . . . . . . . . . . . . . . . . . . 72-73

Installation Tooling and Accessories

Y60BHU, Y60BHUD . . . . . . . . . . . . . . . . . . . . 74

PAT46-18V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

PATCUT129ACSR-18V . . . . . . . . . . . . . . . . . . 76

PATHCC10-18V Series. . . . . . . . . . . . . . . . . . 77

Y45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Y46, Y46C . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

RHCC129ACSR . . . . . . . . . . . . . . . . . . . . . . . 80

Y10AC9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

EPP10, EPP6. . . . . . . . . . . . . . . . . . . . . . . . . . 82

GP10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Hydraulic Hoses. . . . . . . . . . . . . . . . . . . . . . . 84

Hydraulic Accessories. . . . . . . . . . . . . . . . . . 85

Index

Alpha-Numeric . . . . . . . . . . . . . . . . . . . . . 86-89

Quick Reference . . . . . . . . . . . . . . . . . . . . . . . 2

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

BURNDY®Transmission Products

Index BURNDY®Transmission Products

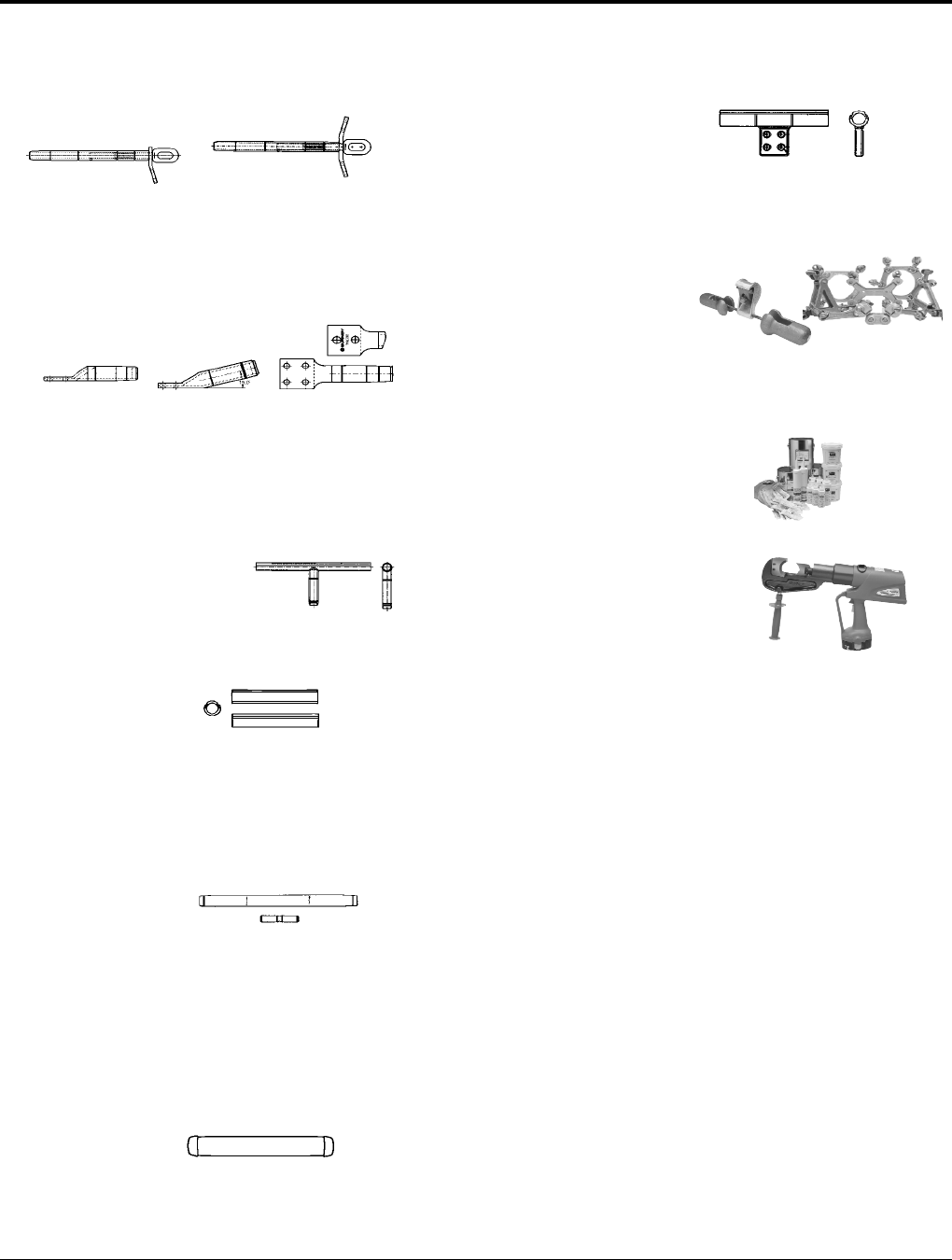

Quick Reference

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

T-Tap with Pad

ACSR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

AAC/ACAR . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

ACSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

ACCC®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Motion Control

Stockbridge Damper . . . . . . . . . . . . . . . . . . . 69

Spacer Damper . . . . . . . . . . . . . . . . . . . . . . . 70

Damping Study. . . . . . . . . . . . . . . . . . . . . . . . 71

Oxide Inhibiting

Joint Compounds

PENETROX™ . . . . . . . . . . . . . . . . . . . . . . 72-73

Installation Tooling

and Accessories

Y60BHU, Y60BHU-D . . . . . . . . . . . . . . . . . . . 74

PAT46-18V. . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

PATCUT129ACSR-18V . . . . . . . . . . . . . . . . . . 76

PATHCC10-18V Series. . . . . . . . . . . . . . . . . . 77

Y45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Y46, Y46C . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

RHCC129ACSR . . . . . . . . . . . . . . . . . . . . . . . 80

Y10AC9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

EPP10, EPP6. . . . . . . . . . . . . . . . . . . . . . . . . . 82

GP10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Hydraulic Hoses. . . . . . . . . . . . . . . . . . . . . . . 84

Hydraulic Accessories. . . . . . . . . . . . . . . . . . 85

Index

Alpha-Numeric Index . . . . . . . . . . . . . . . . 86-89

Deadends

ACSR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

ACSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-34

AAC/ACAR . . . . . . . . . . . . . . . . . . . . . . . . 16-19

ACCC®. . . . . . . . . . . . . . . . . . . . . . . . . . . . 47-48

IMPLO™ . . . . . . . . . . . . . . . . . . . . . . . . . . 53-56

Jumper Terminals

ACSR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

ACSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-38

AAC/ACAR . . . . . . . . . . . . . . . . . . . . . . . . 24-25

Steel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

ACCC®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

IMPLO™ . . . . . . . . . . . . . . . . . . . . . . . . . . 61-63

Compression T-Tap

ACSR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

AAC/ACAR . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

ACSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Repair Sleeve

ACSR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

ACSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

AAC/ACAR . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

ACCC®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

IMPLO™ . . . . . . . . . . . . . . . . . . . . . . . . . . 65-68

Splices

ACSR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

ACSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-36

AAC/ACAR . . . . . . . . . . . . . . . . . . . . . . . . 20-23

Alumoweld . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

EHS Steel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

ACCC®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

IMPLO™ . . . . . . . . . . . . . . . . . . . . . . . . . . 57-60

Loop Splice

ACSR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12

ACSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39-40

AAC/ACAR . . . . . . . . . . . . . . . . . . . . . . . . 26-27

QUICK CATALOG REFERENCE

BURNDY®Transmission Products ACSR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

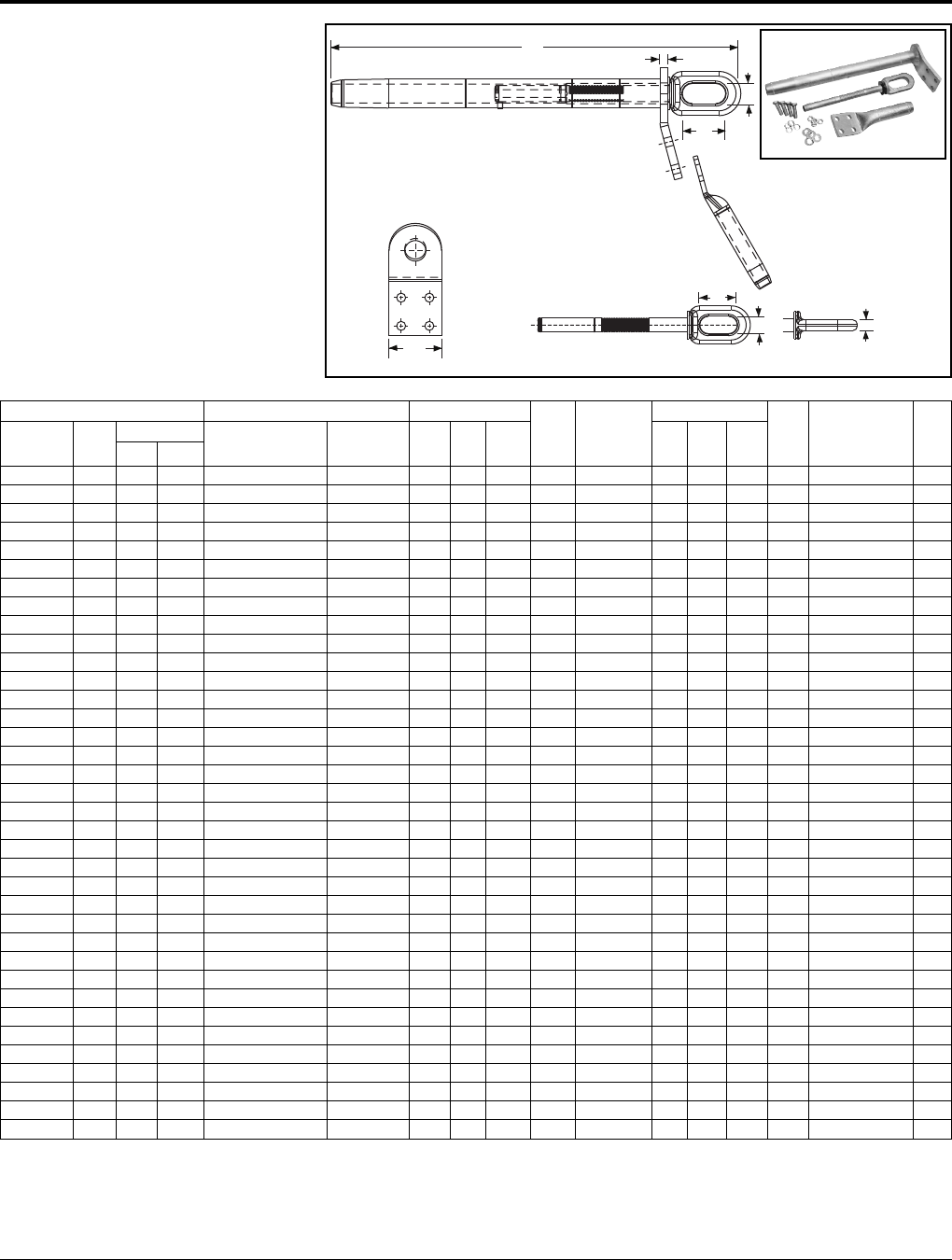

CC KW

TYPE YTW-R-REK,

YTW-R, YTW-RE,

YNA-R-H

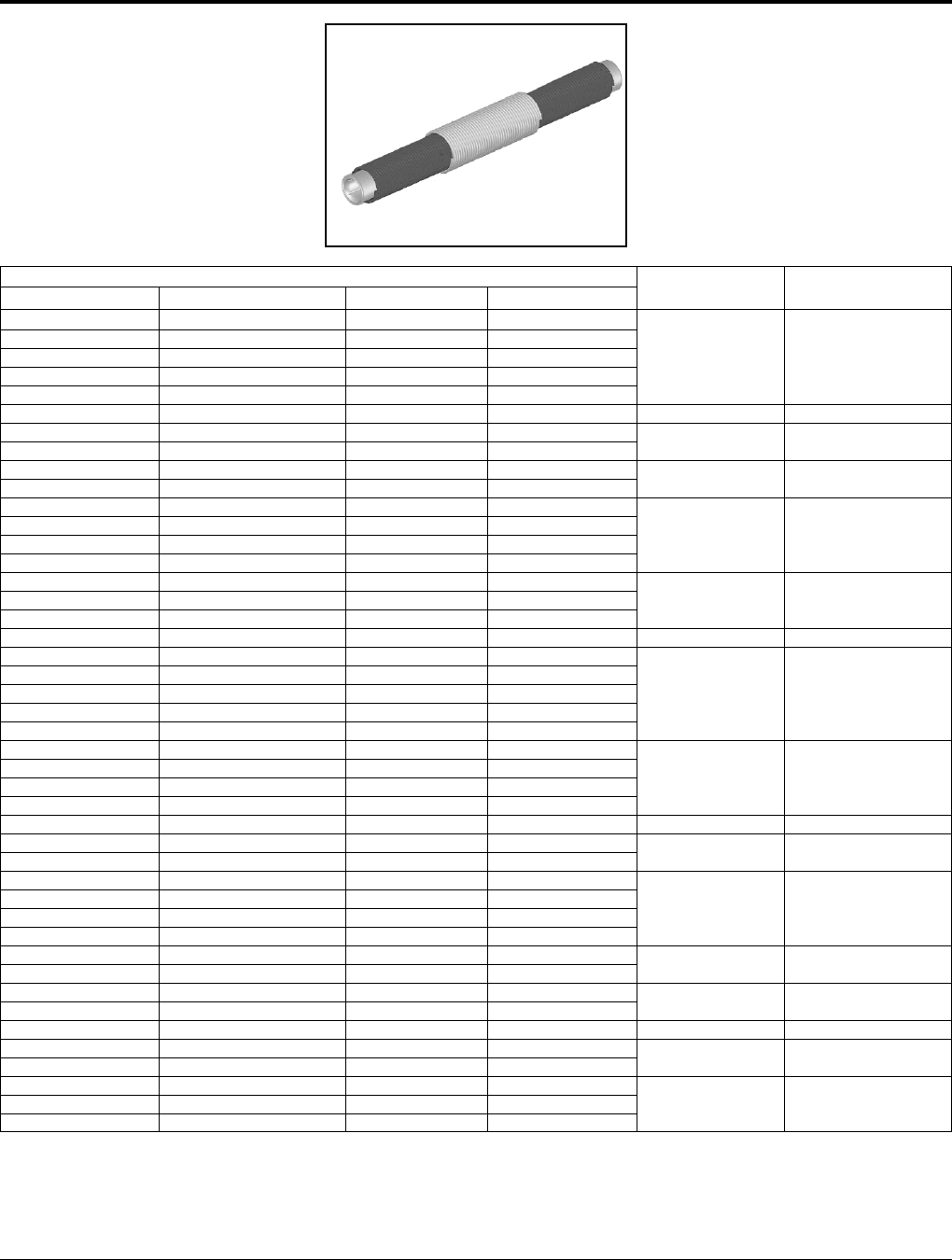

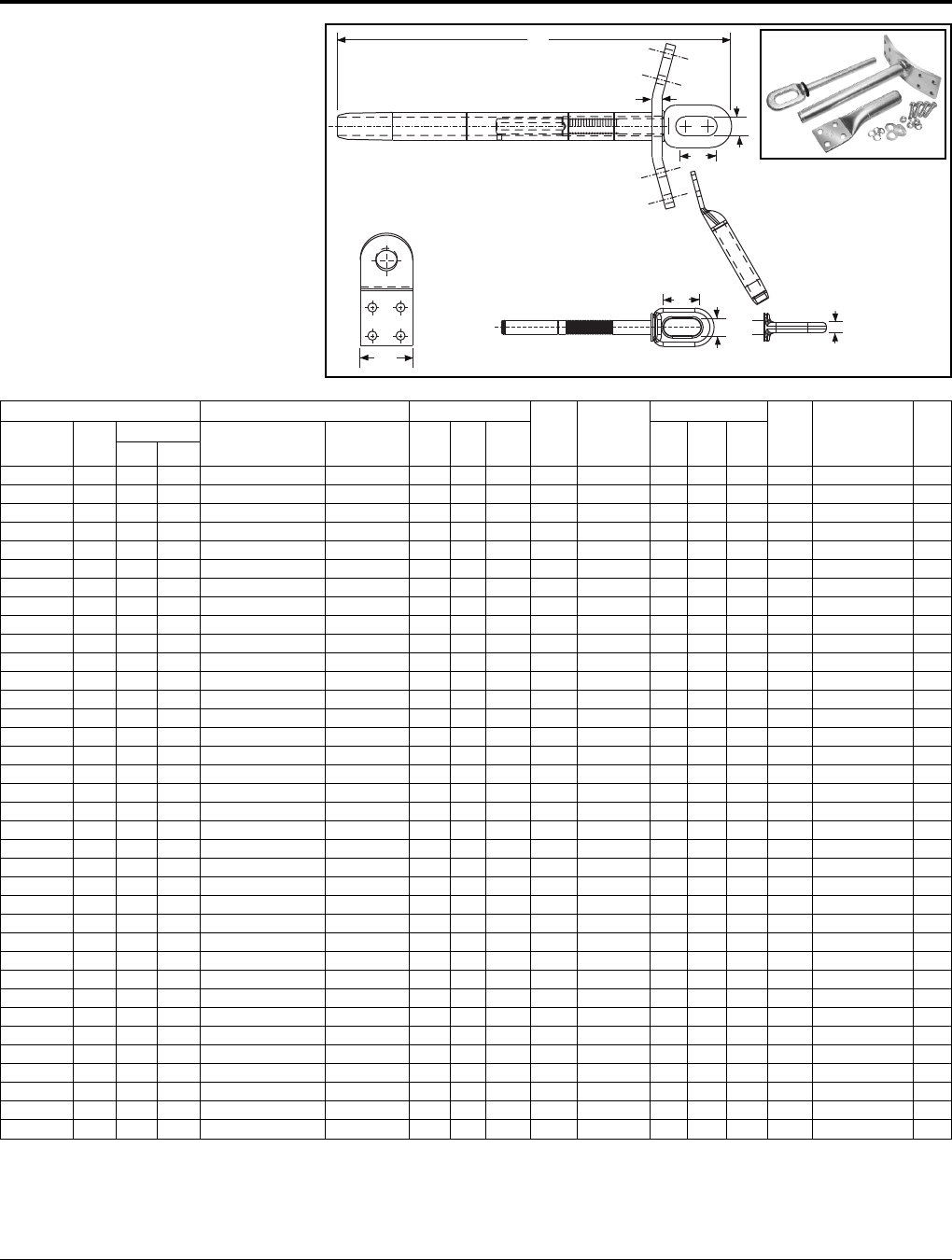

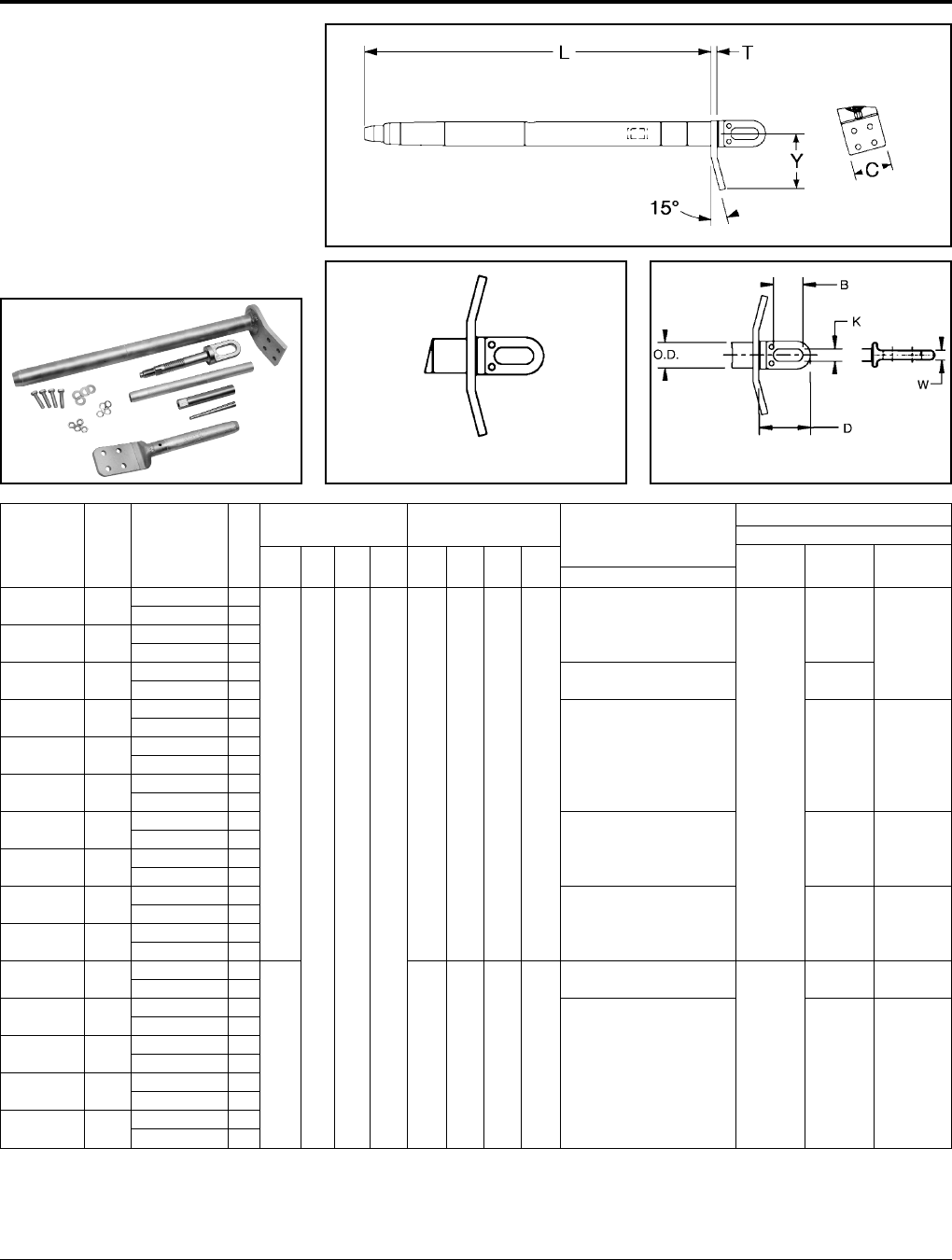

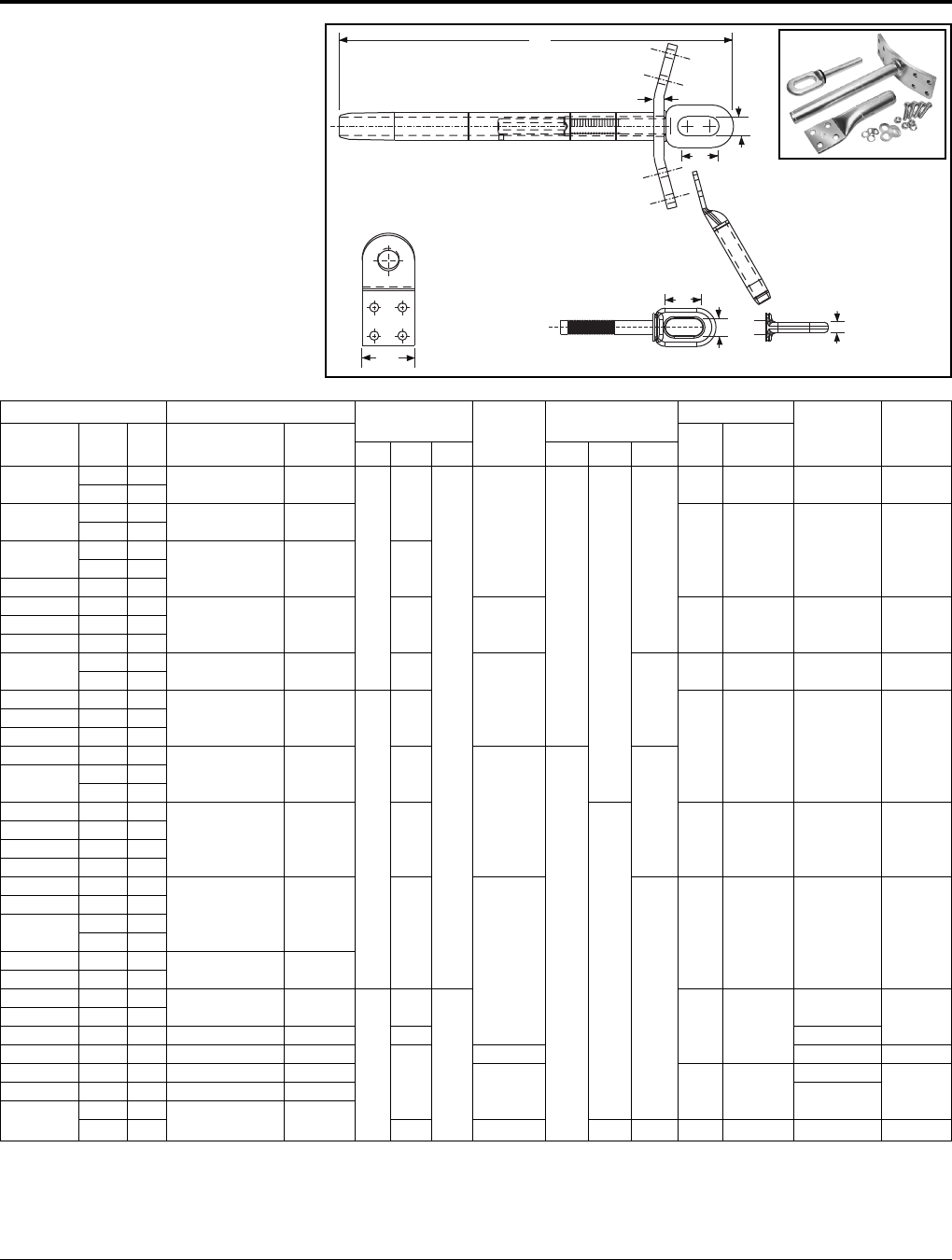

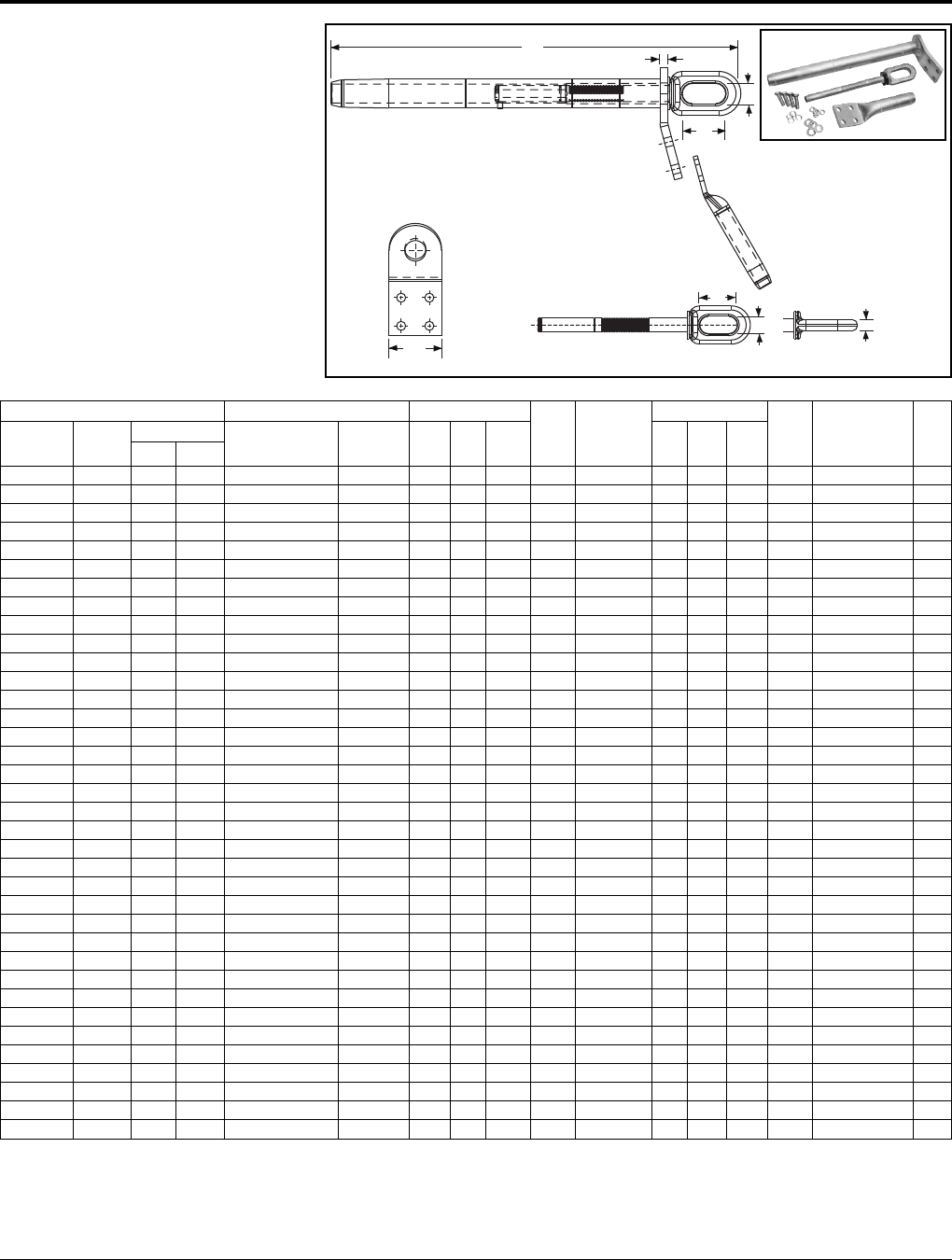

Single Pad Full Tension

Deadend for ACSR Conductor

Full tension compression deadend for ACSR

transmission lines up to and including 230 kV.

Standard 15º NEMA tap pad provides either

0º or 30º tap when YNA-R15 terminal is used.

ACSR Single Pad Inches Inches Terminal

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye* B K W Die Hardware Die*‡

Linnet 336.4 26 7 YTW32R34REK YTW32R 17.53 2.25 0.50 L717 YTW34RE 2.50 0.88 0.62 L718 YNA32R15H L717

Oriole 336.4 30 7 YTW32R33REK YTW32R 17.53 2.25 0.50 L717 YTW33RE 2.50 0.88 0.62 L718 YNA32R15H L717

Ibis 397.5 26 7 YTW34R34REK YTW34R 17.60 2.25 0.50 L719 YTW34RE 2.50 0.88 0.62 L718 YNA34R15H L719

Flicker 477 24 7 YTW36R362REK YTW36R 19.41 2.25 0.50 L720 YTW362RE 2.50 0.88 0.62 L721 YNA36R15H L720

Hawk 477 26 7 YTW36R36REK YTW36R 19.41 2.25 0.50 L720 YTW36RE 2.50 0.88 0.62 L721 YNA36R15H L720

Parakeet 556.5 24 7 YTW39R43REK YTW39R 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39R15H L722

Dove 556.5 26 7 YTW39R43REK YTW39R 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39R15H L722

Peacock 605 24 7 YTW43R43REK YTW43R 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Squab 605 26 7 YTW43R43REK YTW43R 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Rook 636 24 7 YTW43R43REK YTW43R 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Grosbeak 636 26 7 YTW43R43REK YTW43R 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Flamingo 666.6 24 7 YTW43R43REK YTW43R 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Starling 715.5 26 7 YTW451R48REK YTW451R 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451R15H L725

Cuckoo 795 24 7 YTW451R45REK YTW451R 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451R15H L725

Drake 795 26 7 YTW451R48REK YTW451R 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451R15H L725

Tern 795 45 7 YTW451R481REK YTW451R 25.41 3.25 0.50 L725 YTW481RE 2.69 1.25 0.75 L726 YNA451R15H L725

Condor 795 54 7 YTW451R45REK YTW451R 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451R15H L725

Ruddy 900 45 7 YTW48R481REK YTW48R 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49R15H L727

Rail 954 45 7 YTW48R481REK YTW48R 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49R15H L727

Cardinal 954 54 7 YTW48R48REK YTW48R 25.50 3.25 0.50 L727 YTW48RE 2.69 1.25 0.75 L726 YNA49R15H L727

Ortolan 1033.5 45 7 YTW49R483REK YTW49R 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49R15H L727

Curlew 1033.5 54 7 YTW49R50REK YTW49R 27.35 3.25 0.50 L727 YTW50RE 2.69 1.25 1.00 L726 YNA49R15H L727

Bluejay 1113 45 7 YTW49R483REK YTW49R 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49R15H L727

Finch 1113 54 19 YTW52R50REK YTW52R 31.55 3.25 0.50 L728 YTW50RE 2.69 1.25 1.00 L726 YNA52R15H L728

Bunting 1192.5 45 7 YTW52R521REK YTW52R 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52R15H L728

Bittern 1272 45 7 YTW52R521REK YTW52R 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52R15H L728

Pheasant 1272 54 19 YTW52R56REK YTW52R 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52R15H L728

Dipper 1351.5 45 7 YTW52R521REK YTW52R 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52R15H L728

Martin 1351.5 54 19 YTW52R56REK YTW52R 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52R15H L728

Nuthatch 1510.5 45 7 YTW549R521REK YTW549R 31.55 4.00 0.62 L729 YTW521RE 2.69 1.25 1.00 L726 YNA56R15H L729

Parrot 1510.5 54 19 YTW549R56REK YTW549R 31.55 4.00 0.62 L729 YTW56RE 2.69 1.25 1.00 L726 YNA56R15H L729

Lapwing 1590 45 7 YTW549R549REK YTW549R 31.55 4.00 0.62 L729 YTW549RE 2.69 1.25 1.00 L726 YNA56R15H L729

Falcon 1590 54 19 YTW56R590REK YTW56R 31.99 4.00 0.62 L729 YTW590RE 2.69 1.25 1.00 L726 YNA56R15H L729

Chukar 1780 84 19 YTW58R58REK YTW58R 32.99 4.00 0.62 L735 YTW58RE 2.69 1.25 1.00 L726 YNA58R15H L735

Bluebird 2156 84 19 YTW59R59REK YTW59R 33.34 4.00 0.62 L735 YTW59RE 2.69 1.25 1.00 L726 YNA59R15H L735

Kiwi 2167 72 7 YTW59R591REK YTW59R 33.34 4.00 0.62 L735 YTW591RE 2.69 1.25 1.00 L726 YNA59R15H L735

Complete Assembly: Includes Aluminum body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32R34REKSS) or to ter-

minal (YNA32R15HSS) if ordered separately.

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32R34REKNT).

Two hole NEMA pads standard on conductors up to 556.5

kcmil; Four hole NEMA pads on larger conductor sizes.

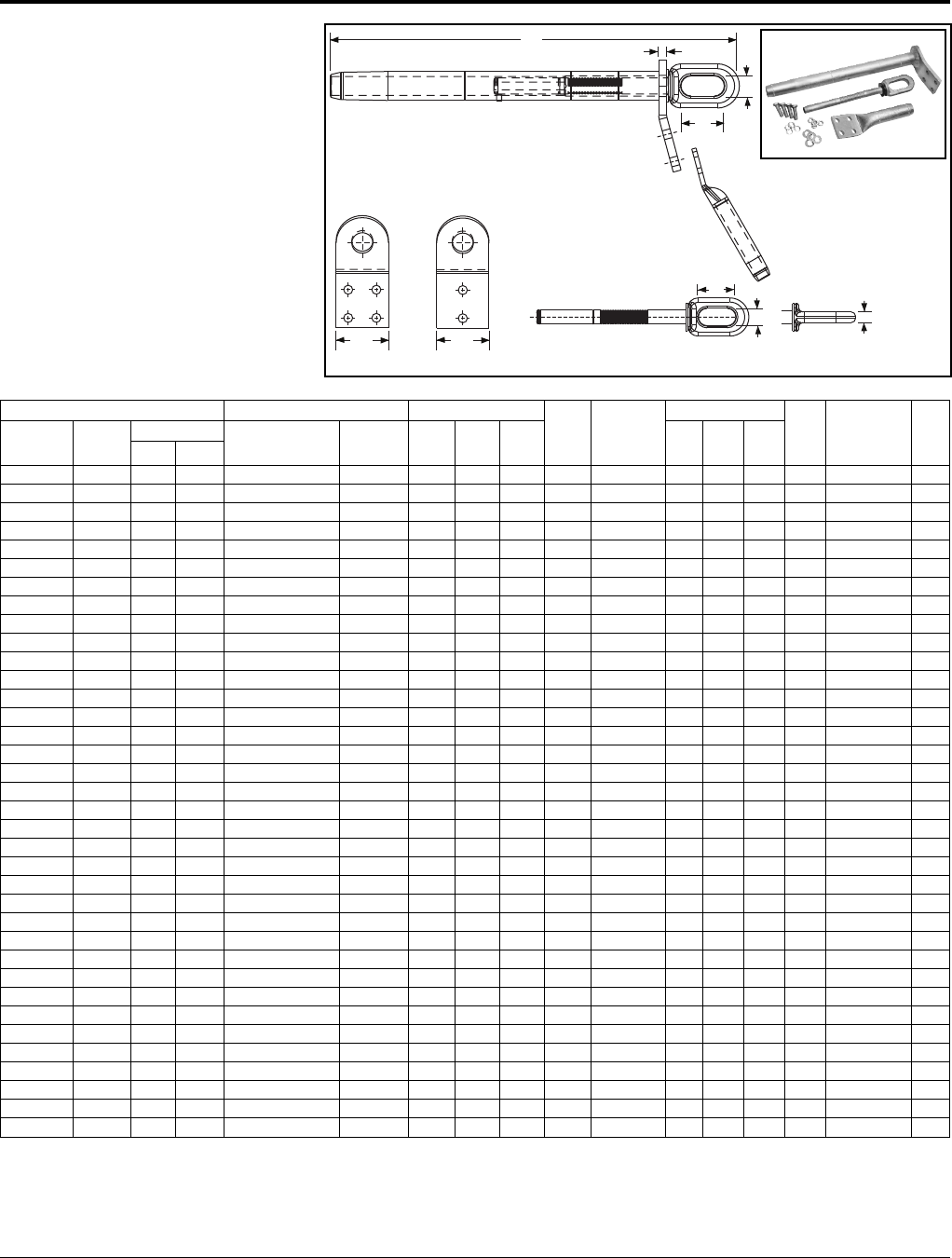

Complete Assembly

(Body, Eye, Terminal and Hardware)

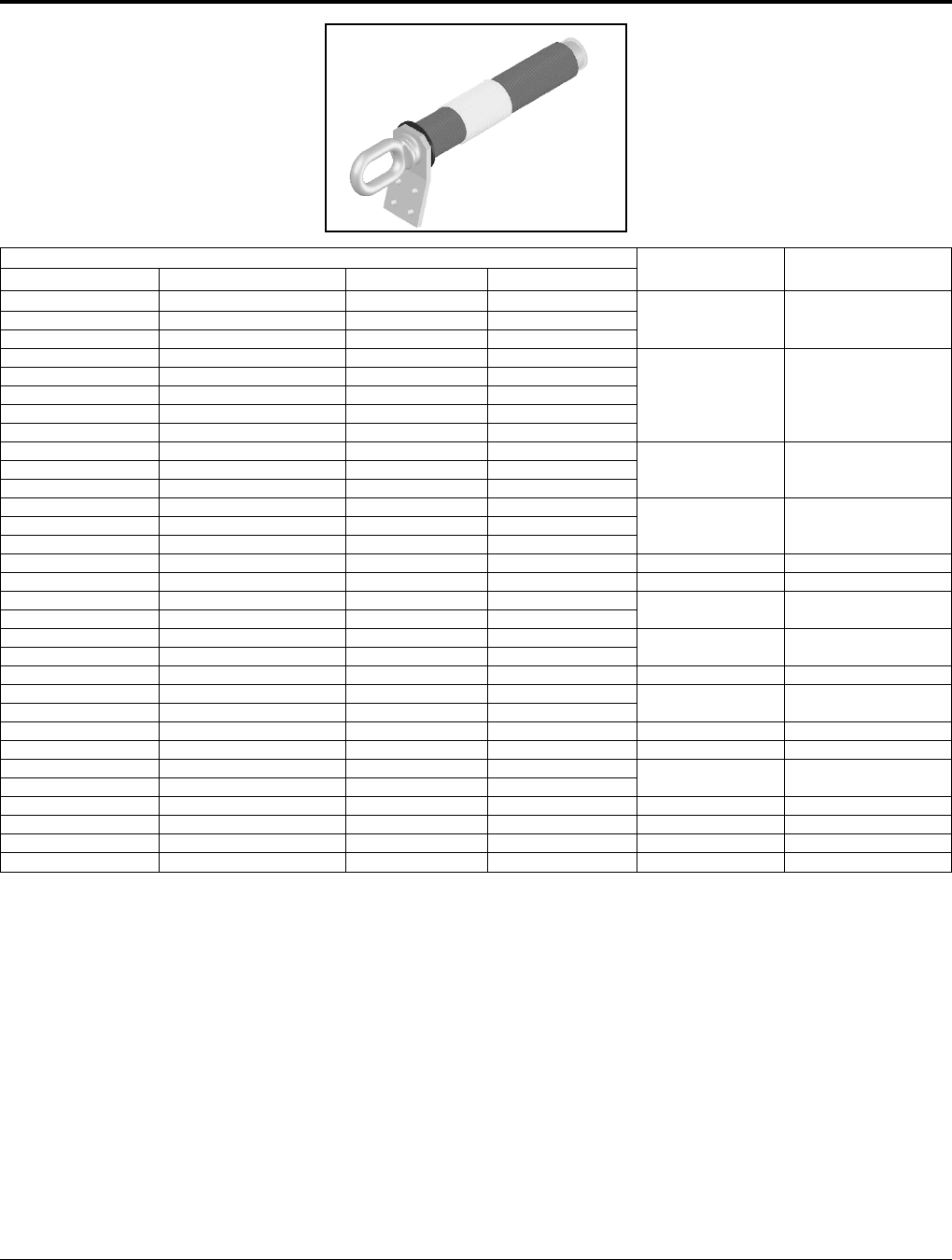

YTW-R Body

YTW-RE Steel eye

YNA-R-H Terminal and hardware

Steel Eye

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

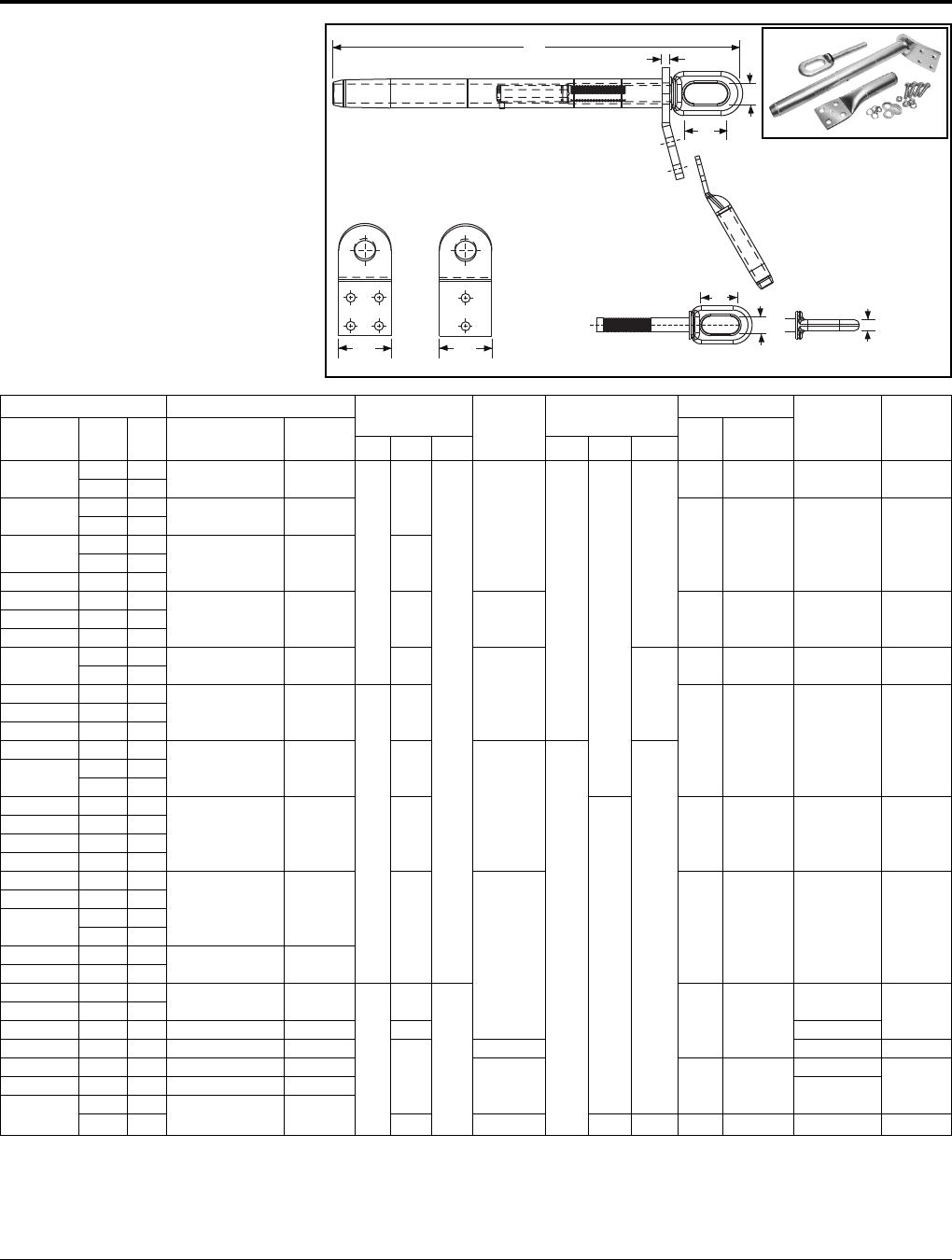

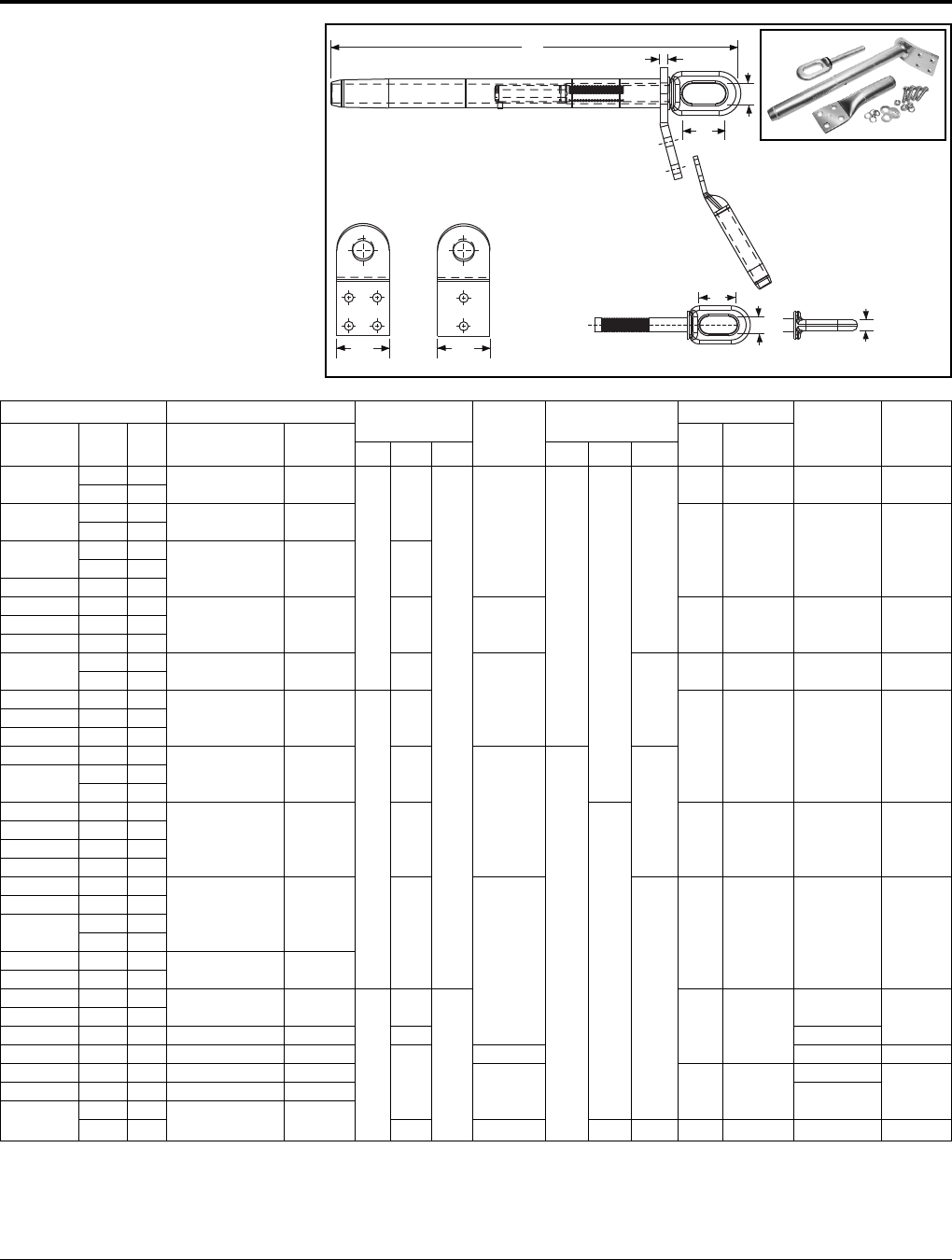

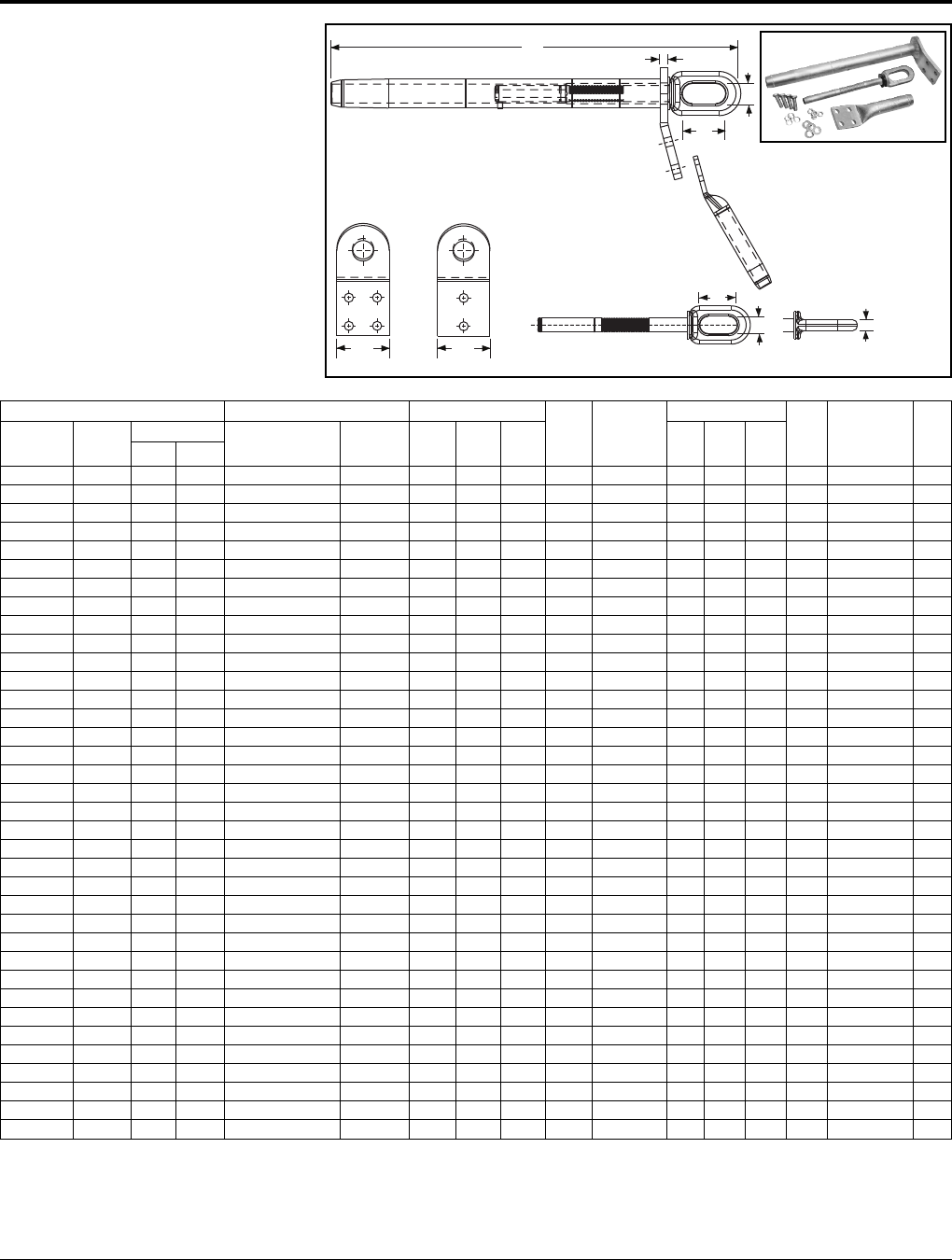

TYPES YTW-RD-REK,

YTW-RD, YTW-RE,

YNA-R-H

Double Pad Full Tension

Deadend for ACSR Conductor

Full tension compression deadend for ACSR

transmission lines up to and including 230 kV.

Standard 15º NEMA tap pad provides either

0º or 30º tap when YNA-R15 terminal is used.

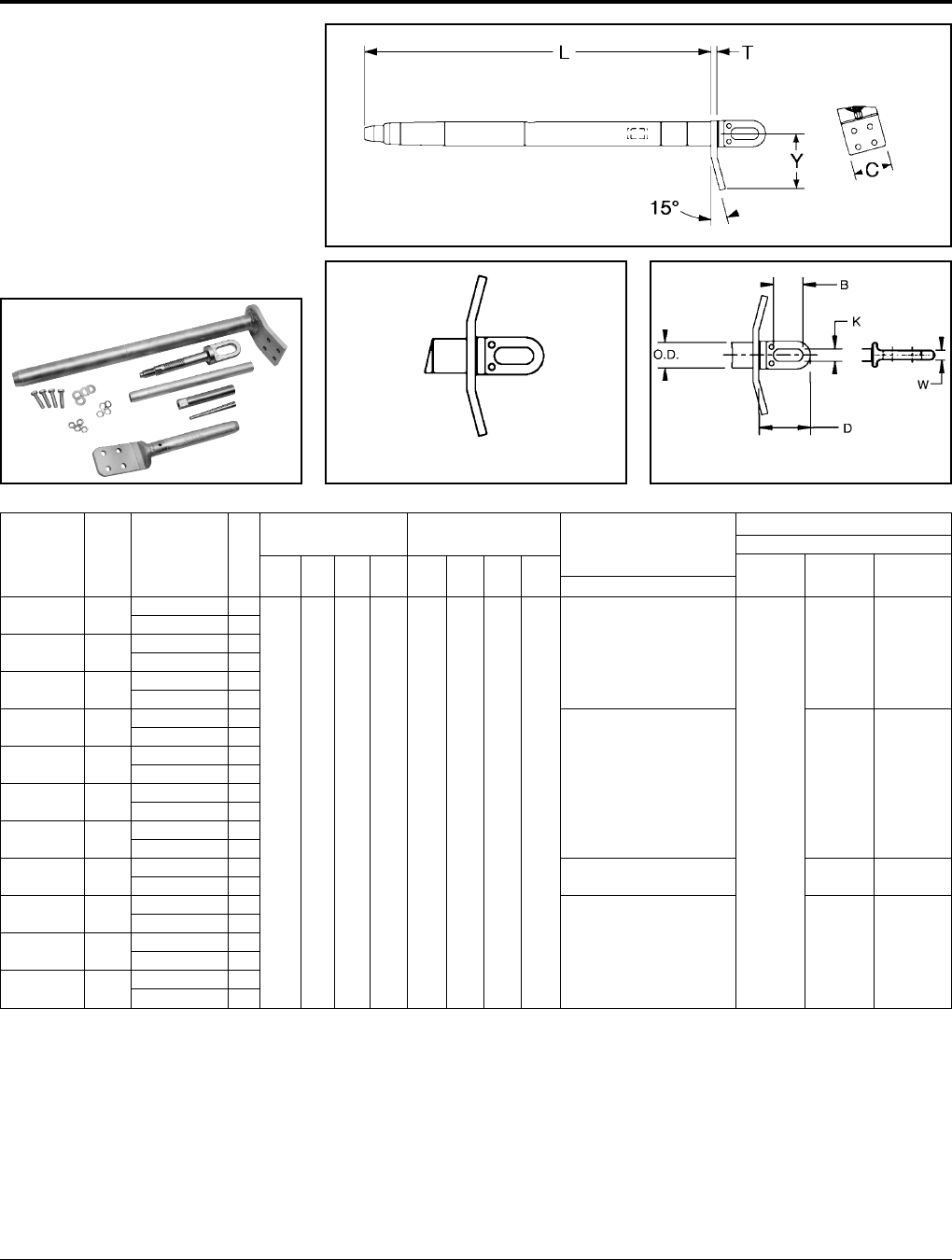

ACSR Double Pad Inches Inches Terminal

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye* B K W Die Hardware Die*‡

Linnet 336.4 26 7 YTW32RD34REK YTW32RD 17.53 2.25 0.50 L717 YTW34RE 2.50 0.88 0.62 L718 YNA32R15H L717

Oriole 336.4 30 7 YTW32RD33REK YTW32RD 17.53 2.25 0.50 L717 YTW33RE 2.50 0.88 0.62 L718 YNA32R15H L717

Ibis 397.5 26 7 YTW34RD34REK YTW34RD 17.60 2.25 0.50 L719 YTW34RE 2.50 0.88 0.62 L718 YNA34R15H L719

Flicker 477 24 7 YTW36RD362REK YTW36RD 15.44 2.25 0.50 L720 YTW362RE 2.50 0.88 0.62 L721 YNA36R15H L720

Hawk 477 26 7 YTW36RD36REK YTW36RD 19.41 2.25 0.50 L720 YTW36RE 2.50 0.88 0.62 L721 YNA36R15H L720

Parakeet 556.5 24 7 YTW39RD43REK YTW39RD 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39R15H L722

Dove 556.5 26 7 YTW39RD43REK YTW39RD 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39R15H L722

Peacock 605 24 7 YTW43RD43REK YTW43RD 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Squab 605 26 7 YTW43RD43REK YTW43RD 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Rook 636 24 7 YTW43RD43REK YTW43RD 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Grosbeak 636 26 7 YTW43RD43REK YTW43RD 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Flamingo 666.6 24 7 YTW43RD43REK YTW43RD 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43R15H L724

Starling 715.5 26 7 YTW451RD48REK YTW451RD 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451R15H L725

Cuckoo 795 24 7 YTW451RD45REK YTW451RD 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451R15H L725

Drake 795 26 7 YTW451RD48REK YTW451RD 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451R15H L725

Tern 795 45 7 YTW451RD481REK YTW451RD 25.41 3.25 0.50 L725 YTW481RE 2.69 1.25 0.75 L726 YNA451R15H L725

Condor 795 54 7 YTW451RD45REK YTW451RD 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451R15H L725

Ruddy 900 45 7 YTW48RD481REK YTW48RD 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49R15H L727

Rail 954 45 7 YTW48RD481REK YTW48RD 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49R15H L727

Cardinal 954 54 7 YTW48RD48REK YTW48RD 25.50 3.25 0.50 L727 YTW48RE 2.69 1.25 0.75 L726 YNA49R15H L727

Ortolan 1033.5 45 7 YTW49RD483REK YTW49RD 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49R15H L727

Curlew 1033.5 54 7 YTW49RD50REK YTW49RD 27.35 3.25 0.50 L727 YTW50RE 2.69 1.25 1.00 L726 YNA49R15H L727

Bluejay 1113 45 7 YTW49RD483REK YTW49RD 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49R15H L727

Finch 1113 54 19 YTW52RD50REK YTW52RD 31.55 3.25 0.50 L728 YTW50RE 2.69 1.25 1.00 L726 YNA52R15H L728

Bunting 1192.5 45 7 YTW52RD521REK YTW52RD 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52R15H L728

Bittern 1272 45 7 YTW52RD521REK YTW52RD 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52R15H L728

Pheasant 1272 54 19 YTW52RD56REK YTW52RD 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52R15H L728

Dipper 1351.5 45 7 YTW52RD521REK YTW52RD 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52R15H L728

Martin 1351.5 54 19 YTW52RD56REK YTW52RD 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52R15H L728

Nuthatch 1510.5 45 7 YTW549RD521REK YTW549RD 31.55 4.00 0.62 L729 YTW521RE 2.69 1.25 1.00 L726 YNA56R15H L729

Parrot 1510.5 54 19 YTW549RD56REK YTW549RD 31.55 4.00 0.62 L729 YTW56RE 2.69 1.25 1.00 L726 YNA56R15H L729

Lapwing 1590 45 7 YTW549RD549REK YTW549RD 31.55 4.00 0.62 L729 YTW549RE 2.69 1.25 1.00 L726 YNA56R15H L729

Falcon 1590 54 19 YTW56RD590REK YTW56RD 31.99 4.00 0.62 L729 YTW590RE 2.69 1.25 1.00 L726 YNA56R15H L729

Chukar 1780 84 19 YTW58RD58REK YTW58RD 32.99 4.00 0.62 L735 YTW58RE 2.69 1.25 1.00 L726 YNA58R15H L735

Bluebird 2156 84 19 YTW59RD59REK YTW59RD 33.34 4.00 0.62 L735 YTW59RE 2.69 1.25 1.00 L726 YNA59R15H L735

Kiwi 2167 72 7 YTW59RD591REK YTW59RD 33.34 4.00 0.62 L735 YTW591RE 2.69 1.25 1.00 L726 YNA59R15H L735

Complete Assembly: Includes Aluminum body, Steel eye, 15

degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32RD34REKSS) or to

terminal (YNA32R15HSS) if ordered separately.

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32RD34REKNT).

Two hole NEMA pads standard on conductors up to 556.5

kcmil; Four hole NEMA pads on larger conductor sizes.

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-RD Body

YTW-RE Steel eye

YNA-R-H Terminal and hardware

Steel Eye (YTW-RE)

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

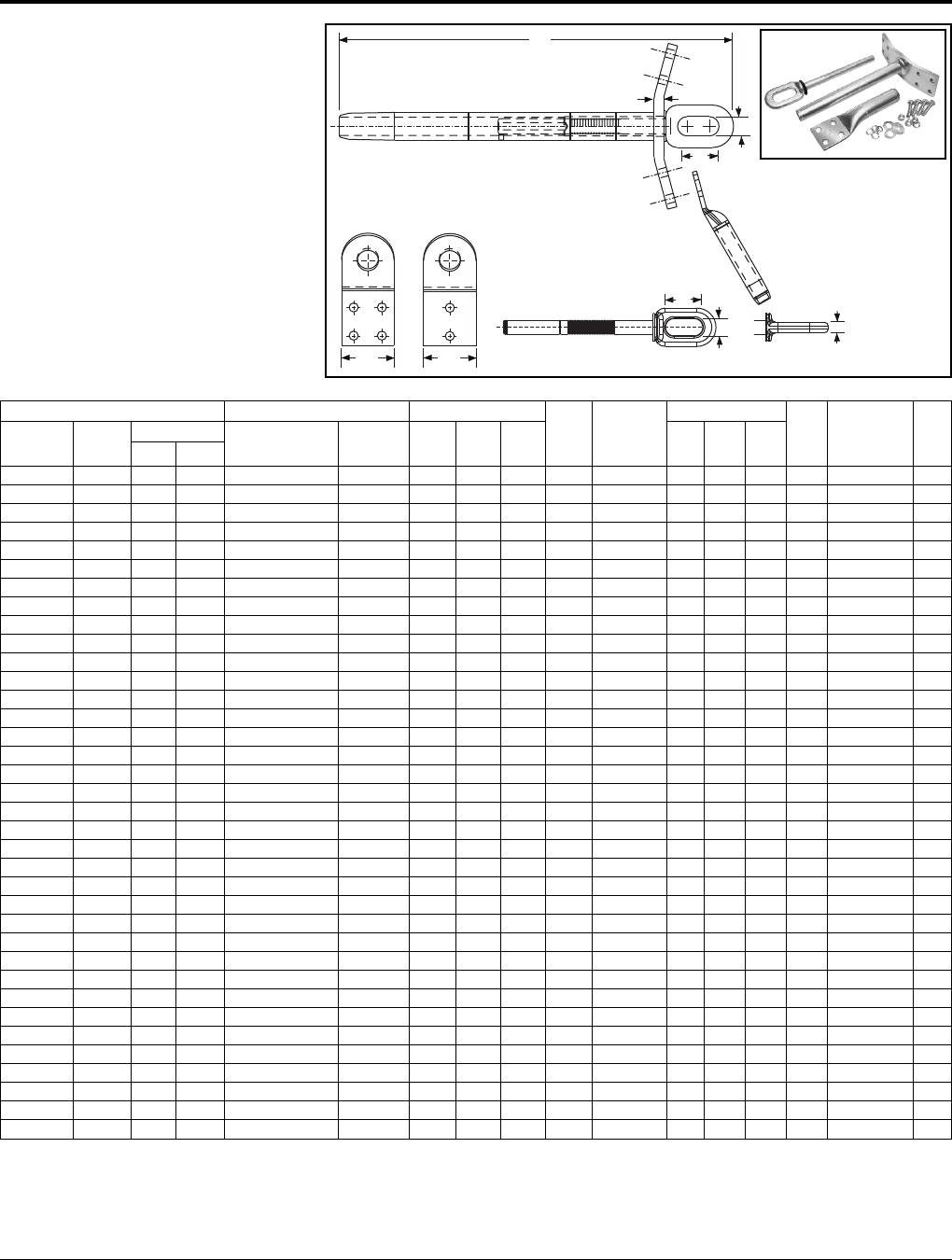

TYPES YTW-RT-REK,

YTW-RT, YTW-RE,

YNA-RT-H EHV

Single Pad, EHV Full Tension

Deadend for ACSR Conductor

Full tension compression deadend for ACSR

transmission lines at 345 kV and over.

Standard 15º NEMA tap pad provides either

0º or 30º tap when YNA-R15 terminal is used.

CC KW

ACSR Single Pad Inches Inches Terminal

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye* B K W Die Hardware Die*‡

Linnet 336.4 26 7 YTW32RT34REK YTW32RT 17.53 2.25 0.50 L717 YTW34RE 2.50 0.88 0.62 L718 YNA32RT15H L717

Oriole 336.4 30 7 YTW32RT33REK YTW32RT 17.53 2.25 0.50 L717 YTW33RE 2.50 0.88 0.62 L718 YNA32RT15H L717

Ibis 397.5 26 7 YTW34RT34REK YTW34RT 17.60 2.25 0.50 L719 YTW34RE 2.50 0.88 0.62 L718 YNA34RT15H L719

Flicker 477 24 7 YTW36RT362REK YTW36RT 19.41 2.25 0.50 L720 YTW362RE 2.50 0.88 0.62 L721 YNA36RT15H L720

Hawk 477 26 7 YTW36RT36REK YTW36RT 19.41 2.25 0.50 L720 YTW36RE 2.50 0.88 0.62 L721 YNA36RT15H L720

Parakeet 556.5 24 7 YTW39RT43REK YTW39RT 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39RT15H L722

Dove 556.5 26 7 YTW39RT43REK YTW39RT 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39RT15H L722

Peacock 605 24 7 YTW43RT43REK YTW43RT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Squab 605 26 7 YTW43RT43REK YTW43RT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Rook 636 24 7 YTW43RT43REK YTW43RT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Grosbeak 636 26 7 YTW43RT43REK YTW43RT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Flamingo 666.6 24 7 YTW43RT43REK YTW43RT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Starling 715.5 26 7 YTW451RT48REK YTW451RT 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Cuckoo 795 24 7 YTW451RT45REK YTW451RT 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Drake 795 26 7 YTW451RT48REK YTW451RT 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Tern 795 45 7 YTW451RT481REK YTW451RT 25.41 3.25 0.50 L725 YTW481RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Condor 795 54 7 YTW451RT45REK YTW451RT 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Ruddy 900 45 7 YTW48RT481REK YTW48RT 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49RT15H L727

Rail 954 45 7 YTW48RT481REK YTW48RT 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49RT15H L727

Cardinal 954 54 7 YTW48RT48REK YTW48RT 25.50 3.25 0.50 L727 YTW48RE 2.69 1.25 0.75 L726 YNA49RT15H L727

Ortolan 1033.5 45 7 YTW49RT483REK YTW49RT 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49RT15H L727

Curlew 1033.5 54 7 YTW49RT50REK YTW49RT 27.35 3.25 0.50 L727 YTW50RE 2.69 1.25 1.00 L726 YNA49RT15H L727

Bluejay 1113 45 7 YTW49RT483REK YTW49RT 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49RT15H L727

Finch 1113 54 19 YTW52RT50REK YTW52RT 31.55 3.25 0.50 L728 YTW50RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Bunting 1192.5 45 7 YTW52RT521REK YTW52RT 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Bittern 1272 45 7 YTW52RT521REK YTW52RT 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Pheasant 1272 54 19 YTW52RT56REK YTW52RT 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Dipper 1351.5 45 7 YTW52RT521REK YTW52RT 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Martin 1351.5 54 19 YTW52RT56REK YTW52RT 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Nuthatch 1510.5 45 7 YTW549RT521REK YTW549RT 31.55 4.00 0.62 L729 YTW521RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Parrot 1510.5 54 19 YTW549RT56REK YTW549RT 31.55 4.00 0.62 L729 YTW56RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Lapwing 1590 45 7 YTW549RT549REK YTW549RT 31.55 4.00 0.62 L729 YTW549RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Falcon 1590 54 19 YTW56RT590REK YTW56RT 31.99 4.00 0.62 L729 YTW590RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Chukar 1780 84 19 YTW58RT58REK YTW58RT 32.99 4.00 0.62 L735 YTW58RE 2.69 1.25 1.00 L726 YNA58RT15H L735

Bluebird 2156 84 19 YTW59RT59REK YTW59RT 33.34 4.00 0.62 L735 YTW59RE 2.69 1.25 1.00 L726 YNA59RT15H L735

Kiwi 2167 72 7 YTW59RT591REK YTW59RT 33.34 4.00 0.62 L735 YTW591RE 2.69 1.25 1.00 L726 YNA59RT15H L735

Complete Assembly: Includes Aluminum body, Steel eye, 15

degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32RD34REKSS) or to

terminal (YNA32R15HSS) if ordered separately.

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32RD34REKNT).

Two hole NEMA pads standard on conductors up to 556.5

kcmil; Four hole NEMA pads on larger conductor sizes.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-R Body

YTW-RE Steel eye

YNA-RT-H Terminal and hardware

Steel Eye

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

BURNDY®Transmission Products ACSR Conductor Accessories

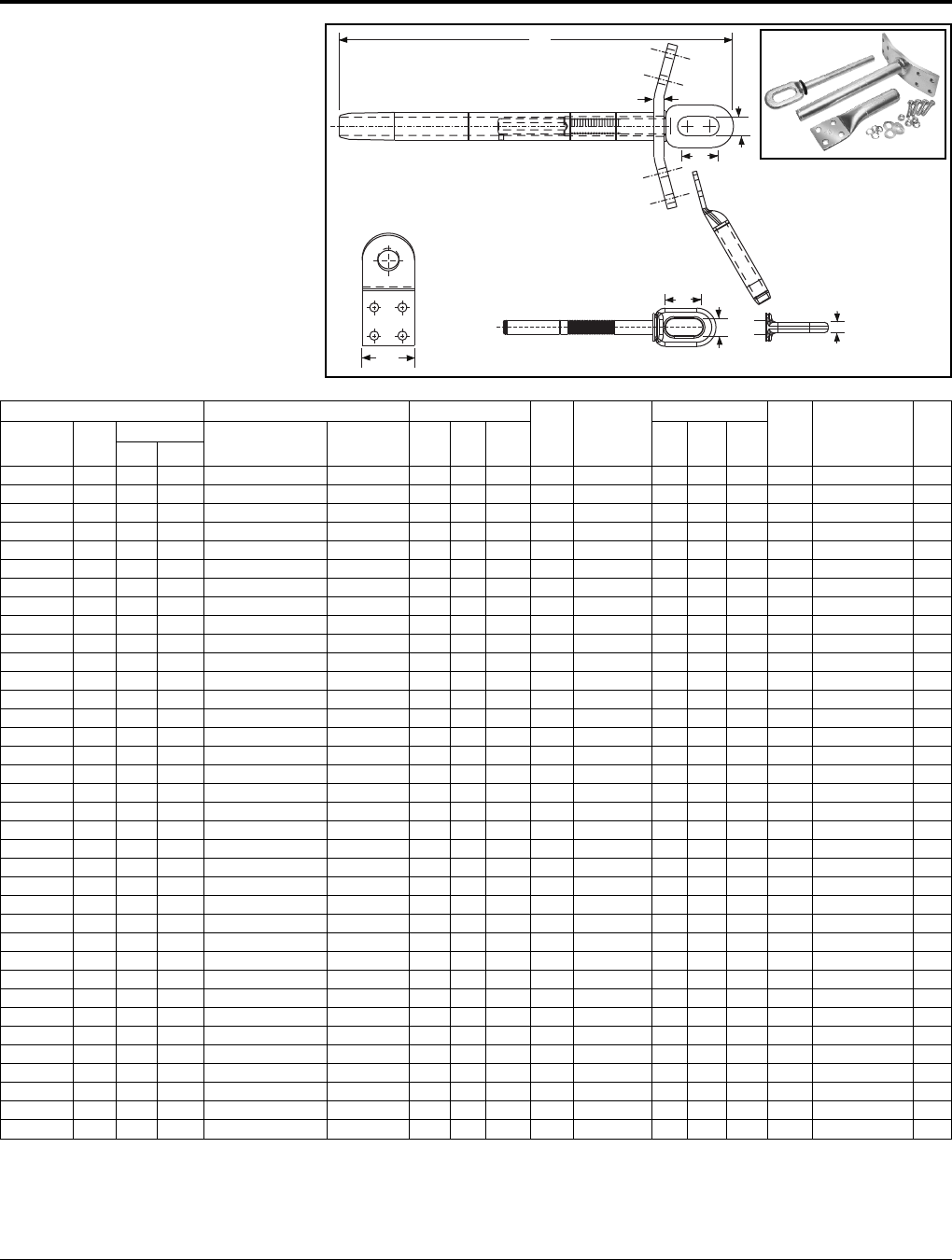

TYPES YTW-RDT-REK,

YTW-RDT, YTW-RE,

YNA-RT-H EHV

Double Pad, EHV Full Tension

Deadend for ACSR

Full tension compression deadend for ACSR

transmission lines at 345 kV and over.

Standard 15º NEMA tap pad provides either

0º or 30º tap when YNA-R15 terminal is used.

CC KW

ACSR Double Pad Inches Inches Terminal

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye* B K W Die Hardware Die*‡

Linnet 336.4 26 7 YTW32RDT34REK YTW32RDT 17.53 2.25 0.50 L717 YTW34RE 2.50 0.88 0.62 L718 YNA32RT15H L717

Oriole 336.4 30 7 YTW32RDT33REK YTW32RDT 17.53 2.25 0.50 L717 YTW33RE 2.50 0.88 0.62 L718 YNA32RT15H L717

Ibis 397.5 26 7 YTW34RDT34REK YTW34RDT 17.60 2.25 0.50 L719 YTW34RE 2.50 0.88 0.62 L718 YNA34RT15H L719

Flicker 477 24 7 YTW36RDT362REK YTW36RDT 15.44 2.25 0.50 L720 YTW362RE 2.50 0.88 0.62 L721 YNA36RT15H L720

Hawk 477 26 7 YTW36RDT36REK YTW36RDT 19.41 2.25 0.50 L720 YTW36RE 2.50 0.88 0.62 L721 YNA36RT15H L720

Parakeet 556.5 24 7 YTW39RDT43REK YTW39RDT 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39RT15H L722

Dove 556.5 26 7 YTW39RDT43REK YTW39RDT 19.66 2.25 0.50 L722 YTW43RE 2.50 0.88 0.69 L723 YNA39RT15H L722

Peacock 605 24 7 YTW43RDT43REK YTW43RDT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Squab 605 26 7 YTW43RDT43REK YTW43RDT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Rook 636 24 7 YTW43RDT43REK YTW43RDT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Grosbeak 636 26 7 YTW43RDT43REK YTW43RDT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Flamingo 666.6 24 7 YTW43RDT43REK YTW43RDT 20.49 3.25 0.50 L724 YTW43RE 2.50 0.88 0.69 L723 YNA43RT15H L724

Starling 715.5 26 7 YTW451RDT48REK YTW451RDT 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Cuckoo 795 24 7 YTW451RDT45REK YTW451RDT 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Drake 795 26 7 YTW451RDT48REK YTW451RDT 25.41 3.25 0.50 L725 YTW48RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Tern 795 45 7 YTW451RDT481REK YTW451RDT 25.41 3.25 0.50 L725 YTW481RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Condor 795 54 7 YTW451RDT45REK YTW451RDT 25.41 3.25 0.50 L725 YTW45RE 2.69 1.25 0.75 L726 YNA451RT15H L725

Ruddy 900 45 7 YTW48RDT481REK YTW48RDT 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49RT15H L727

Rail 954 45 7 YTW48RDT481RE YTW48RDT 25.50 3.25 0.50 L727 YTW481RE 2.69 1.25 0.75 L726 YNA49RT15H L727

Cardinal 954 54 7 YTW48RDT48REK YTW48RDT 25.50 3.25 0.50 L727 YTW48RE 2.69 1.25 0.75 L726 YNA49RT15H L727

Ortolan 1033.5 45 7 YTW49RDT483REK YTW49RDT 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49RT15H L727

Curlew 1033.5 54 7 YTW49RDT50REK YTW49RDT 27.35 3.25 0.50 L727 YTW50RE 2.69 1.25 1.00 L726 YNA49RT15H L727

Bluejay 1113 45 7 YTW49RDT483REK YTW49RDT 27.35 3.25 0.50 L727 YTW483RE 2.69 1.25 1.00 L726 YNA49RT15H L727

Finch 1113 54 19 YTW52RDT50REK YTW52RDT 31.55 3.25 0.50 L728 YTW50RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Bunting 1192.5 45 7 YTW52RDT521REK YTW52RDT 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Bittern 1272 45 7 YTW52RDT521REK YTW52RDT 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Pheasant 1272 54 19 YTW52RDT56REK YTW52RDT 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Dipper 1351.5 45 7 YTW52RDT521REK YTW52RDT 31.55 4.00 0.62 L728 YTW521RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Martin 1351.5 54 19 YTW52RDT56REK YTW52RDT 31.55 4.00 0.62 L728 YTW56RE 2.69 1.25 1.00 L726 YNA52RT15H L728

Nuthatch 1510.5 45 7 YTW549RDT521REK YTW549RDT 31.55 4.00 0.62 L729 YTW521RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Parrot 1510.5 54 19 YTW549RDT56REK YTW549RDT 31.55 4.00 0.62 L729 YTW56RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Lapwing 1590 45 7 YTW549RDT549REK YTW549RDT 31.55 4.00 0.62 L729 YTW549RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Falcon 1590 54 19 YTW56RDT590REK YTW56RDT 31.99 4.00 0.62 L729 YTW590RE 2.69 1.25 1.00 L726 YNA56RT15H L729

Chukar 1780 84 19 YTW58RDT58REK YTW58RDT 32.99 4.00 0.62 L735 YTW58RE 2.69 1.25 1.00 L726 YNA58RT15H L735

Bluebird 2156 84 19 YTW59RDT59REK YTW59RDT 33.34 4.00 0.62 L735 YTW59RE 2.69 1.25 1.00 L726 YNA59RT15H L735

Kiwi 2167 72 7 YTW59RDT591REK YTW59RDT 33.34 4.00 0.62 L735 YTW591RE 2.69 1.25 1.00 L726 YNA59RT15H L735

Complete Assembly: Includes Aluminum body, Steel eye, 15

degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32RD34REKSS) or to

terminal (YNA32R15HSS) if ordered separately.

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32RD34REKNT).

Two hole NEMA pads standard on conductors up to 556.5

kcmil; Four hole NEMA pads on larger conductor sizes.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-R Body

YTW-RE Steel eye

YNA-RT-H Terminal and hardware

Steel Eye

ACSR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

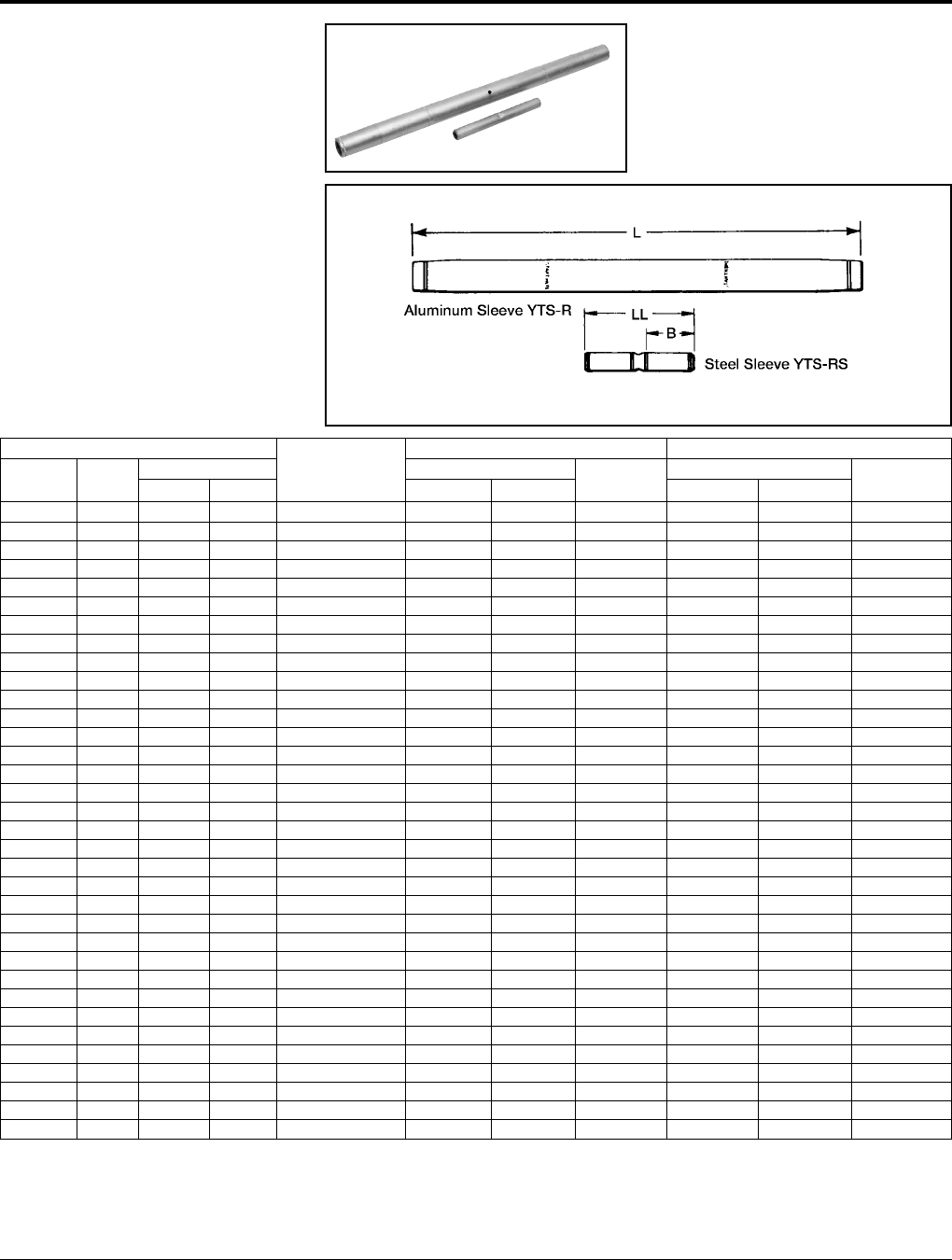

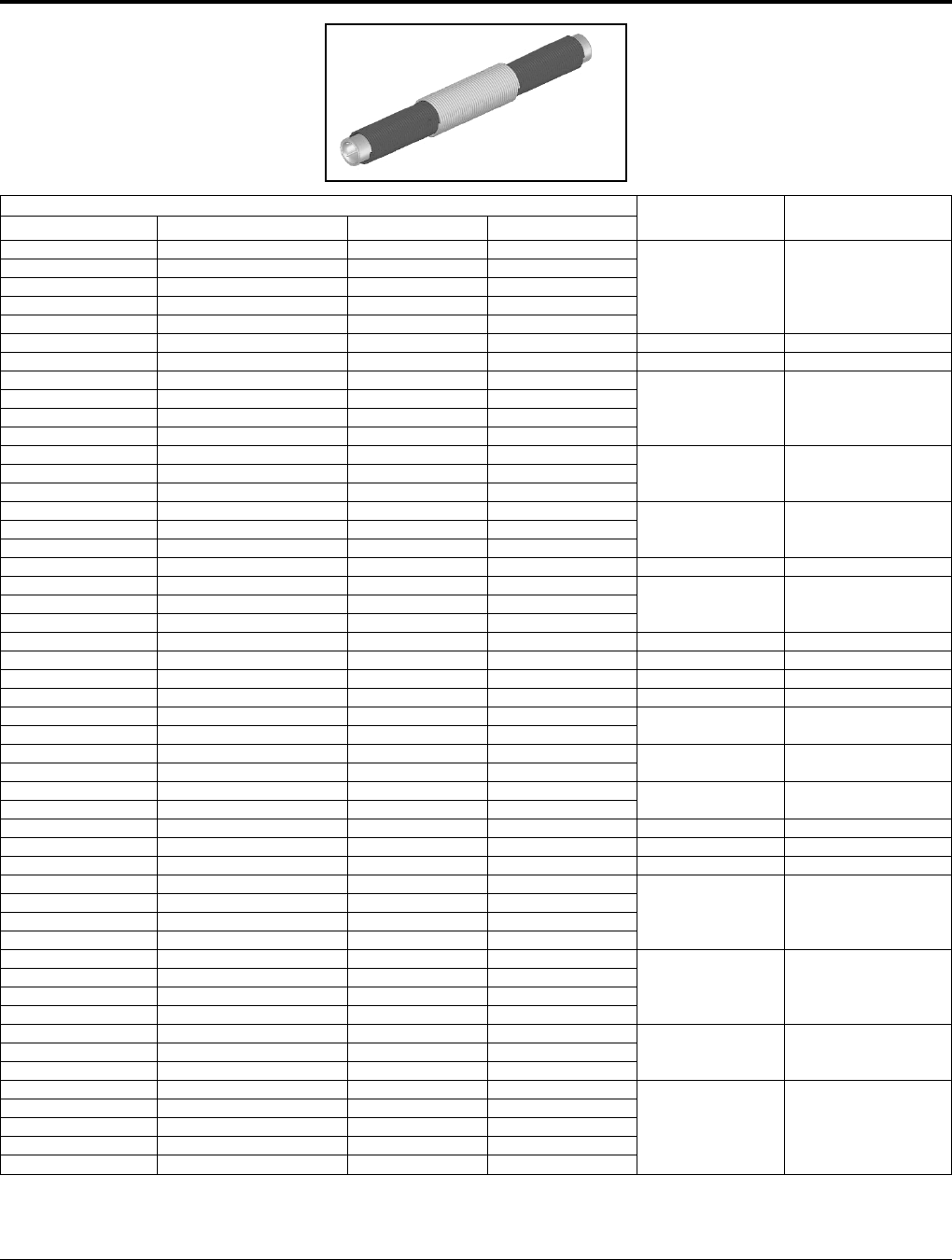

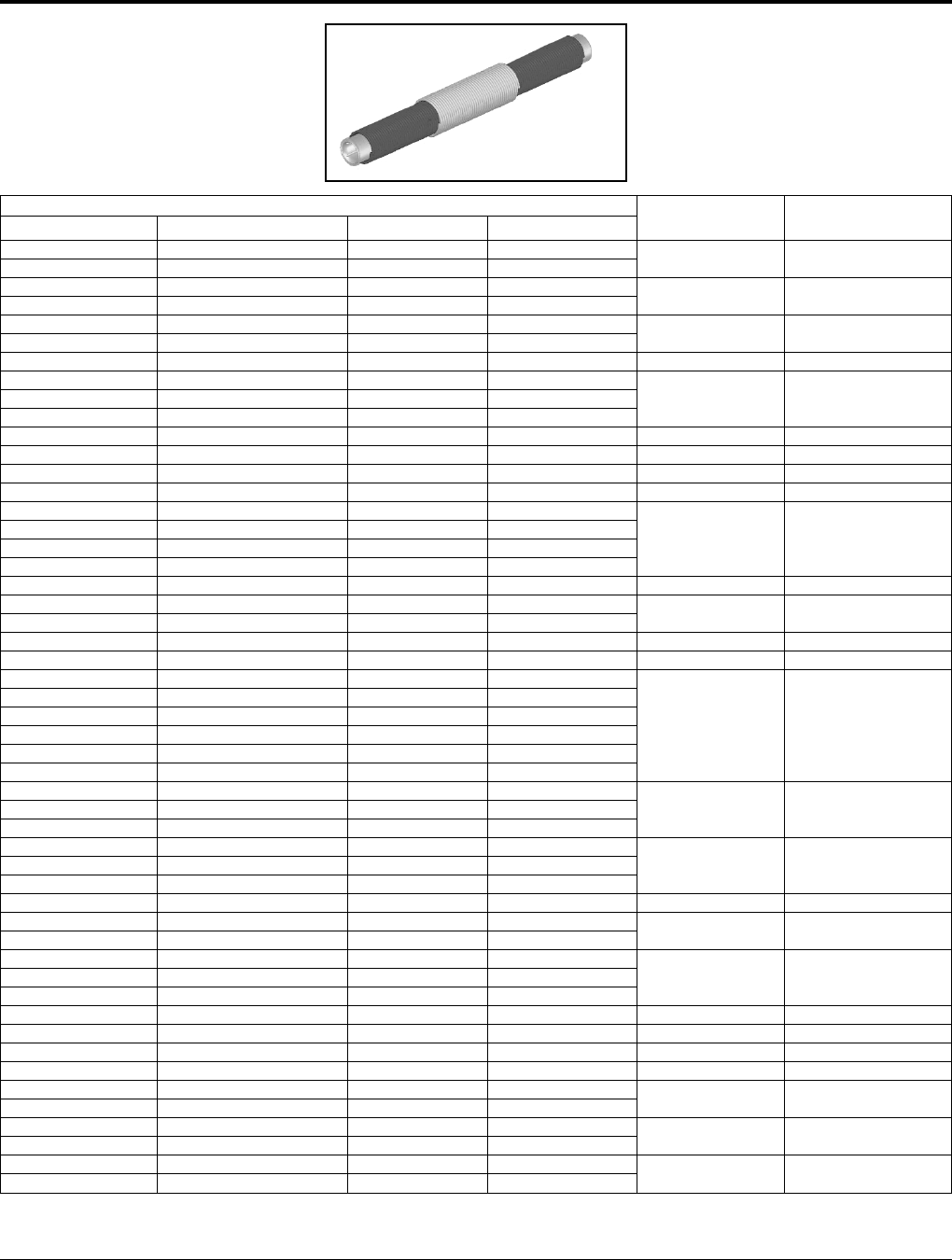

TYPE YTS-R-RS

Full Tension Splice Kit

for ACSR Conductor

Full tension, two-piece, compression splice

for ACSR transmission lines up to and includ-

ing 230 kV. Outer aluminum sleeve has filler

hole and plug for PENETROX™ joint com-

pound. Kit includes the outer aluminum and

inner steel sleeve.

ACSR Aluminum Sleeve Steel Sleeve

Conductor Size Stranding Inches Inches

Name kcmil Alum. Steel Splice Kit L O.D. Die*‡LL B Die*

Linnet 336.4 26 7 YTS32R34RS 17.30 1.19 L717 5.75 2.64 L718

Oriole 336.4 30 7 YTS32R33RS 17.30 1.19 L717 5.75 2.64 L718

Ibis 397.5 26 7 YTS34R34RS 17.20 1.28 L719 5.75 2.64 L718

Flicker 477 24 7 YTS36R362RS 18.16 1.41 L720 5.75 2.66 L721

Hawk 477 26 7 YTS36R36RS 18.16 1.41 L720 5.75 2.66 L721

Parakeet 556.5 24 7 YTS39R43RS 19.88 1.50 L722 5.90 2.66 L723

Dove 556.5 26 7 YTS39R43RS 19.88 1.50 L722 5.90 2.66 L723

Peacock 605 24 7 YTS43R43RS 21.44 1.61 L724 5.90 2.66 L723

Squab 605 26 7 YTS43R43RS 21.44 1.61 L724 5.90 2.66 L723

Rook 636 24 7 YTS43R43RS 21.44 1.61 L724 5.90 2.66 L723

Grosbeak 636 26 7 YTS43R43RS 21.44 1.61 L724 5.90 2.66 L723

Flamingo 666.6 24 7 YTS43R43RS 21.44 1.61 L724 5.90 2.66 L723

Starling 715.5 26 7 YTS451R48RS 28.00 1.80 L725 9.00 4.19 L726

Cuckoo 795 24 7 YTS451R449RS 28.00 1.80 L725 9.00 4.19 L726

Drake 795 26 7 YTS451R48RS 28.00 1.80 L725 9.00 4.19 L726

Tern 795 45 7 YTS451R48RS 28.00 1.80 L725 9.16 4.19 L726

Condor 795 54 7 YTS451R449RS 28.00 1.80 L725 9.00 4.19 L726

Rail 954 45 7 YTS48R481RS 28.00 1.97 L727 9.16 4.19 L726

Cardinal 954 54 7 YTS48R48RS 28.00 1.97 L727 9.00 4.19 L726

Ortolan 1033.5 45 7 YTS49R483RS 28.00 1.97 L727 9.16 4.19 L726

Curlew 1033.5 54 7 YTS49R48RS 28.00 1.97 L727 9.00 4.19 L726

Bluejay 1113 45 7 YTS49R483RS 28.00 1.97 L727 9.16 4.19 L726

Finch 1113 54 19 YTS52R48RS 41.07 2.25 L728 9.00 4.19 L726

Bunting 1192.5 45 7 YTS52R521RS 41.07 2.25 L728 9.00 4.19 L726

Bittern 1272 45 7 YTS52R521RS 41.07 2.25 L728 9.00 4.19 L726

Pheasant 1272 54 19 YTS52R59RS 41.07 2.25 L728 9.10 4.25 L726

Dipper 1351.5 45 7 YTS52R521RS 41.07 2.25 L728 9.00 4.19 L726

Martin 1351.5 54 19 YTS52R59RS 41.07 2.25 L728 9.10 4.25 L726

Nuthatch 1510.5 45 7 YTS549R521RS 31.73 2.50 L729 9.00 4.19 L726

Parrot 1510.5 54 19 YTS549R59RS 31.73 2.50 L729 9.10 4.25 L726

Lapwing 1590 45 7 YTS549R549RS 31.73 2.50 L729 9.00 4.19 L726

Falcon 1590 54 19 YTS56R59RS 31.73 2.50 L729 9.10 4.25 L726

Chukar 1780 84 19 YTS58R48RS 34.20 2.50 L735 9.00 4.19 L726

Bluebird 2156 84 19 YTS59R59RS 41.93 2.50 L735 9.10 4.25 L726

Kiwi 2167 72 7 YTS59R521RS 41.93 2.50 L735 9.00 4.19 L726

Splice Kit: Includes aluminum sleeve and steel sleeve.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

BURNDY®Transmission Products ACSR Conductor Accessories

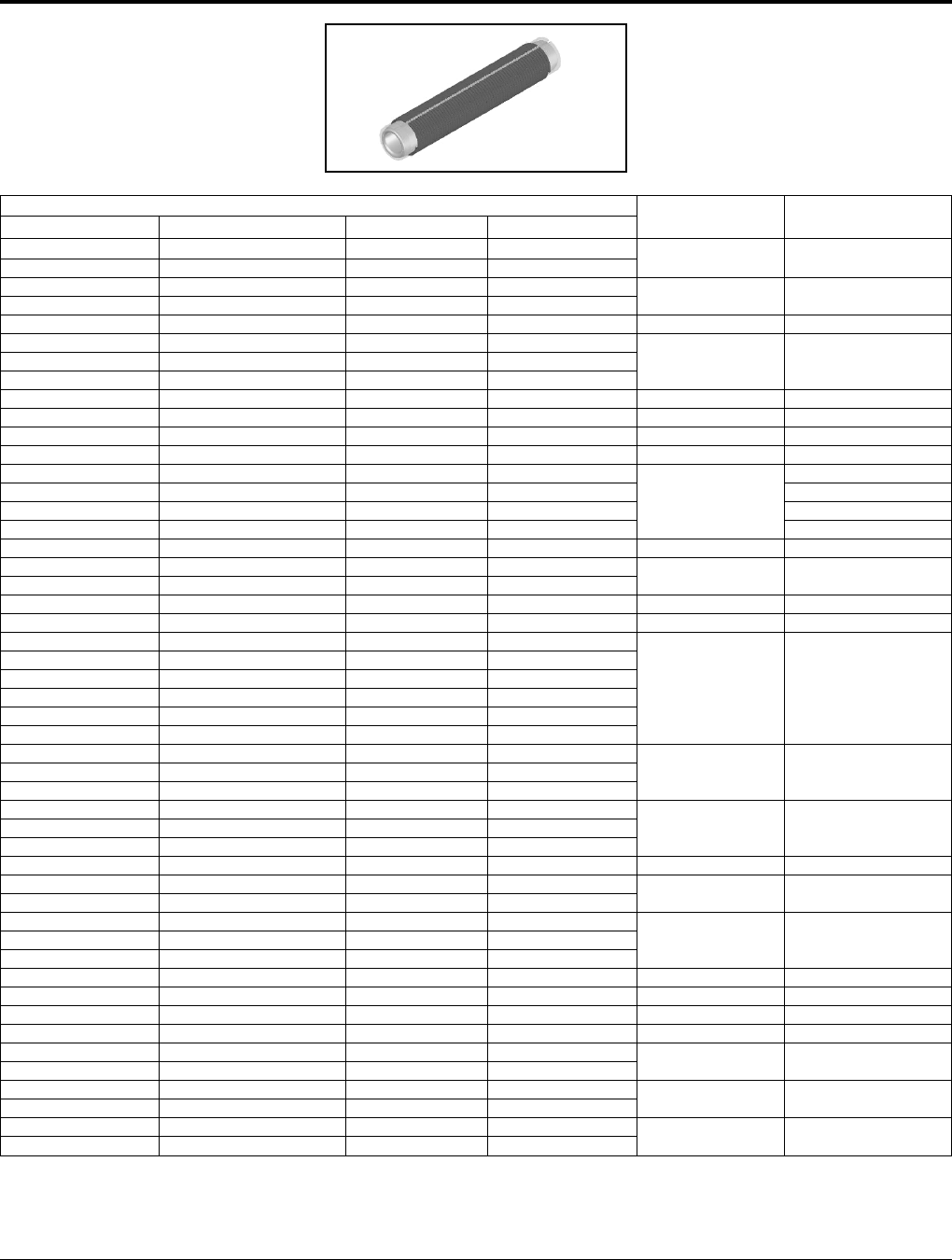

TYPE YTS-RT-RS EHV

Full Tension Splice Kit

for ACSR Conductor

Full tension, two-piece, compression splice

for ACSR transmission lines at 345 kV and

over. Outer aluminum sleeve has filler hole

and plug for PENETROX™ joint compound.

Kit includes the outer aluminum and inner

steel sleeve.

ACSR Aluminum Sleeve Steel Sleeve

Conductor Size Stranding Inches Inches

Name kcmil Alum. Steel Splice Kit L O.D. Die*‡LL B Die*

Linnet 336.4 26 7 YTS32RT34RS 17.30 1.19 L717 5.75 2.64 L718

Oriole 336.4 30 7 YTS32RT33RS 17.30 1.19 L717 5.75 2.64 L718

Ibis 397.5 26 7 YTS34RT34RS 17.20 1.28 L719 5.75 2.64 L718

Flicker 477 24 7 YTS36RT362RS 18.16 1.41 L720 5.75 2.66 L721

Hawk 477 26 7 YTS36RT36RS 18.16 1.41 L720 5.75 2.66 L721

Parakeet 556.5 24 7 YTS39RT43RS 19.88 1.50 L722 5.90 2.66 L723

Dove 556.5 26 7 YTS39RT43RS 19.88 1.50 L722 5.90 2.66 L723

Peacock 605 24 7 YTS43RT43RS 21.44 1.61 L724 5.90 2.66 L723

Squab 605 26 7 YTS43RT43RS 21.44 1.61 L724 5.90 2.66 L723

Rook 636 24 7 YTS43RT43RS 21.44 1.61 L724 5.90 2.66 L723

Grosbeak 636 26 7 YTS43RT43RS 21.44 1.61 L724 5.90 2.66 L723

Flamingo 666.6 24 7 YTS43RT43RS 21.44 1.61 L724 5.90 2.66 L723

Starling 715.5 26 7 YTS451RT48RS 28.00 1.80 L725 9.00 4.19 L726

Cuckoo 795 24 7 YTS451RT449RS 28.00 1.80 L725 9.00 4.19 L726

Drake 795 26 7 YTS451RT48RS 28.00 1.80 L725 9.00 4.19 L726

Tern 795 45 7 YTS451RT48RS 28.00 1.80 L725 9.16 4.19 L726

Condor 795 54 7 YTS451RT449RS 28.00 1.80 L725 9.00 4.19 L726

Rail 954 45 7 YTS48RT481RS 28.00 1.97 L727 9.16 4.19 L726

Cardinal 954 54 7 YTS48RT48RS 28.00 1.97 L727 9.00 4.19 L726

Ortolan 1033.5 45 7 YTS49RT483RS 28.00 1.97 L727 9.16 4.19 L726

Curlew 1033.5 54 7 YTS49RT48RS 28.00 1.97 L727 9.00 4.19 L726

Bluejay 1113 45 7 YTS49RT483RS 28.00 1.97 L727 9.16 4.19 L726

Finch 1113 54 19 YTS52RT48RS 41.07 2.25 L728 9.00 4.19 L726

Bunting 1192.5 45 7 YTS52RT521RS 41.07 2.25 L728 9.00 4.19 L726

Bittern 1272 45 7 YTS52RT521RS 41.07 2.25 L728 9.00 4.19 L726

Pheasant 1272 54 19 YTS52RT59RS 41.07 2.25 L728 9.10 4.25 L726

Dipper 1351.5 45 7 YTS52RT521RS 41.07 2.25 L728 9.00 4.19 L726

Martin 1351.5 54 19 YTS52RT59RS 41.07 2.25 L728 9.10 4.25 L726

Nuthatch 1510.5 45 7 YTS549RT521RS 31.73 2.50 L729 9.00 4.19 L726

Parrot 1510.5 54 19 YTS549RT59RS 31.73 2.50 L729 9.10 4.25 L726

Lapwing 1590 45 7 YTS549RT549RS 31.73 2.50 L729 9.00 4.19 L726

Falcon 1590 54 19 YTS56RT59RS 31.73 2.50 L729 9.10 4.25 L726

Chukar 1780 84 19 YTS58RT48RS 34.20 2.50 L735 9.00 4.19 L726

Bluebird 2156 84 19 YTS59RT59RS 41.93 2.50 L735 9.10 4.25 L726

Kiwi 2167 72 7 YTS59RT521RS 41.93 2.50 L735 9.00 4.19 L726

Splice Kit: Includes aluminum sleeve and steel sleeve.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

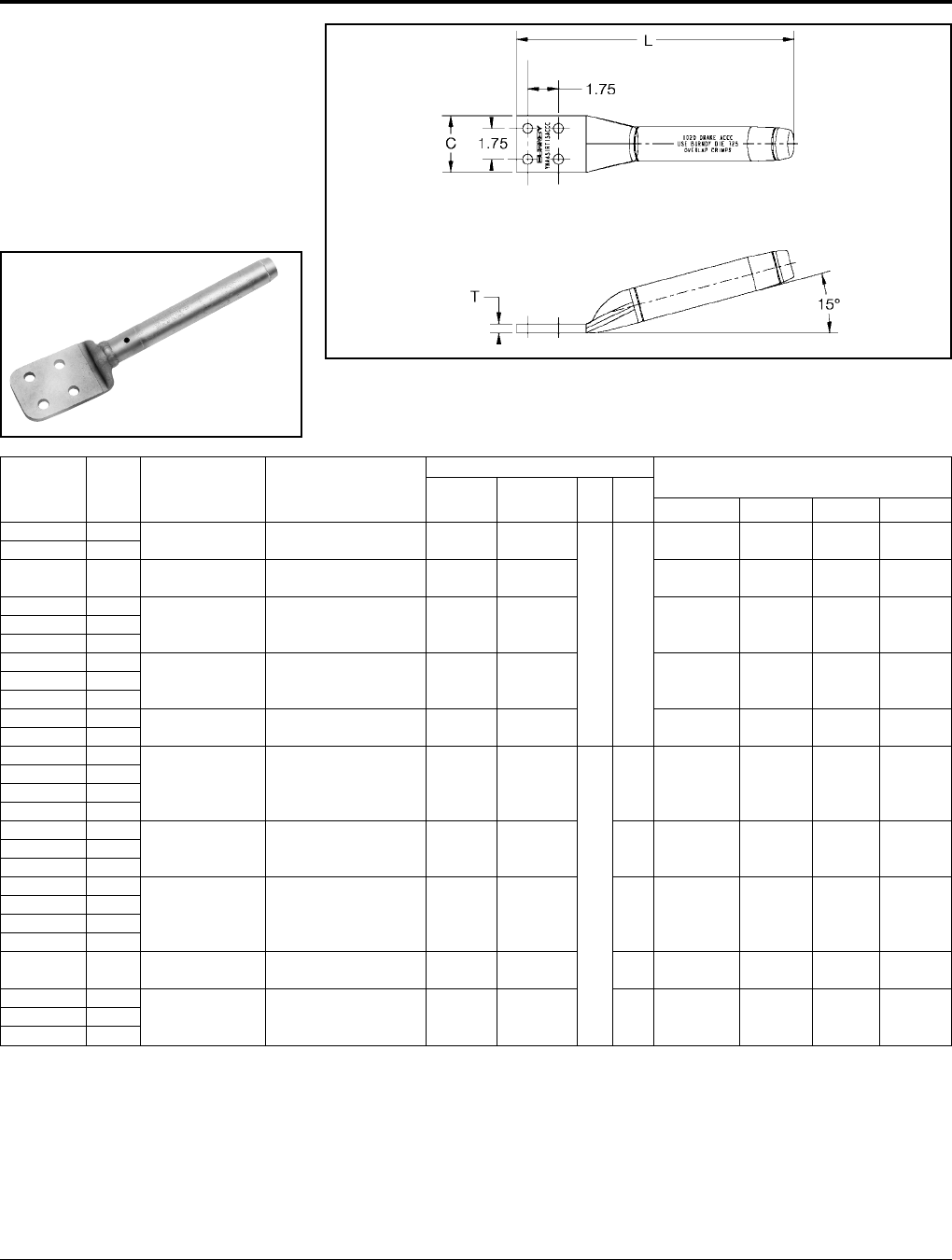

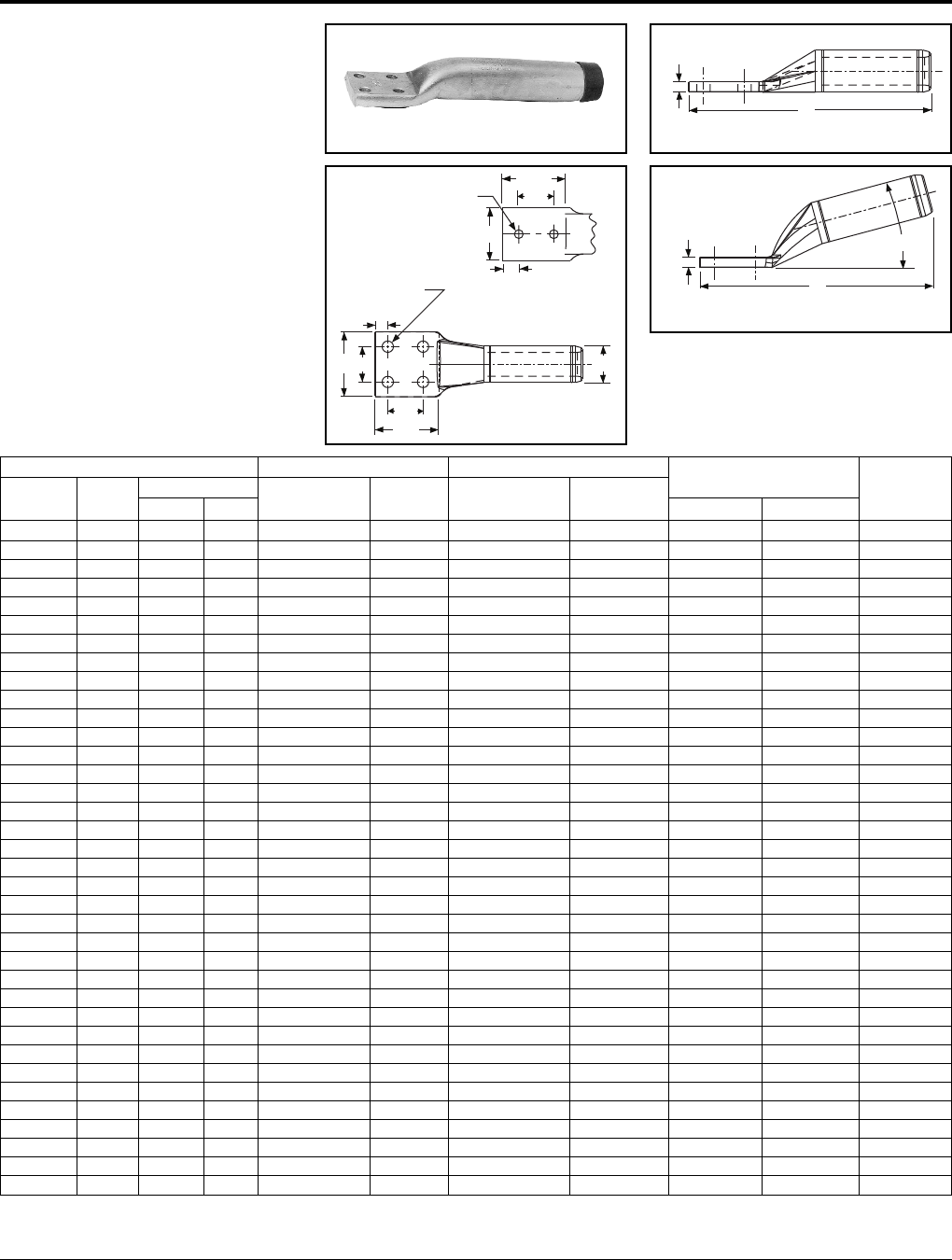

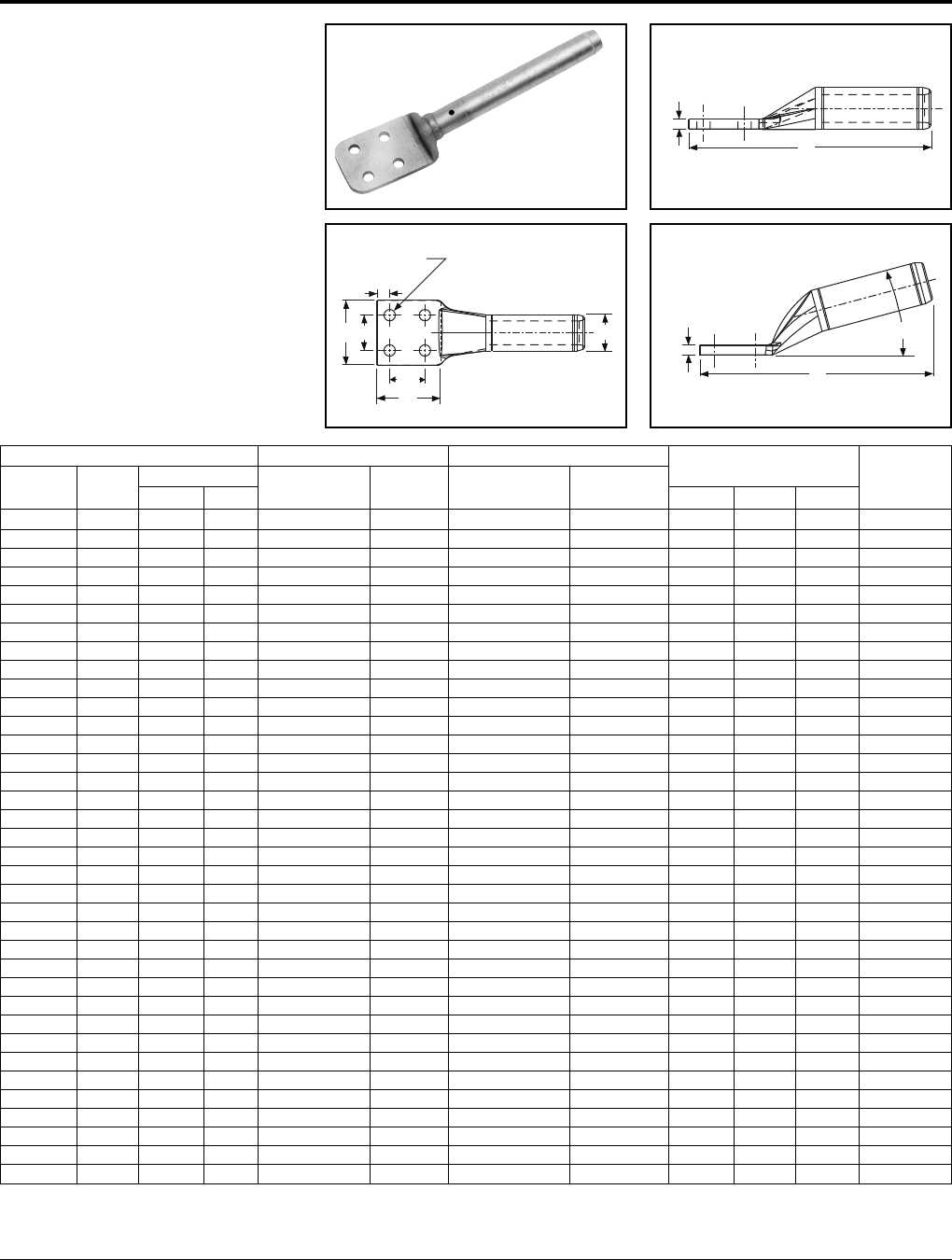

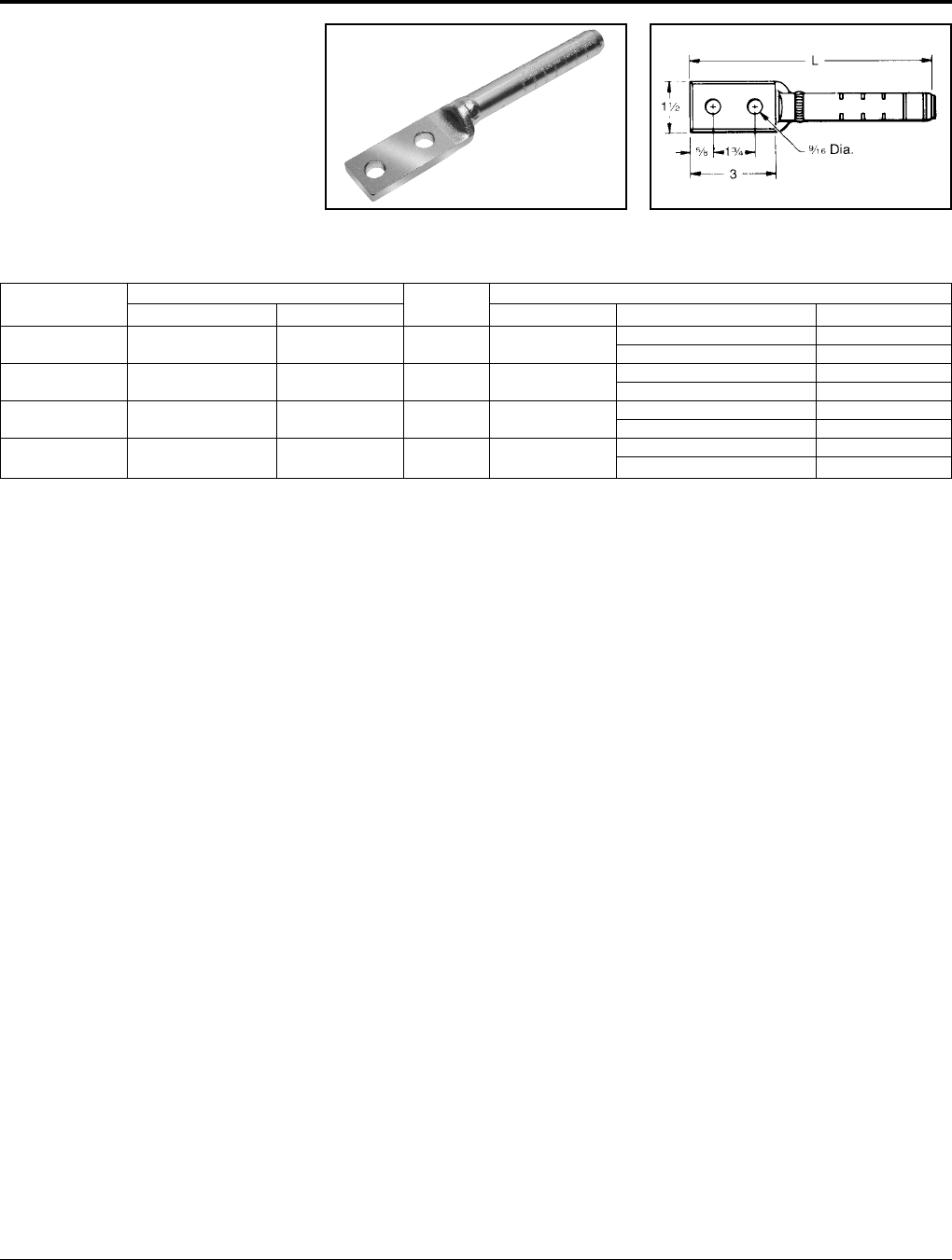

TYPES YNA-R15,

YNA-R

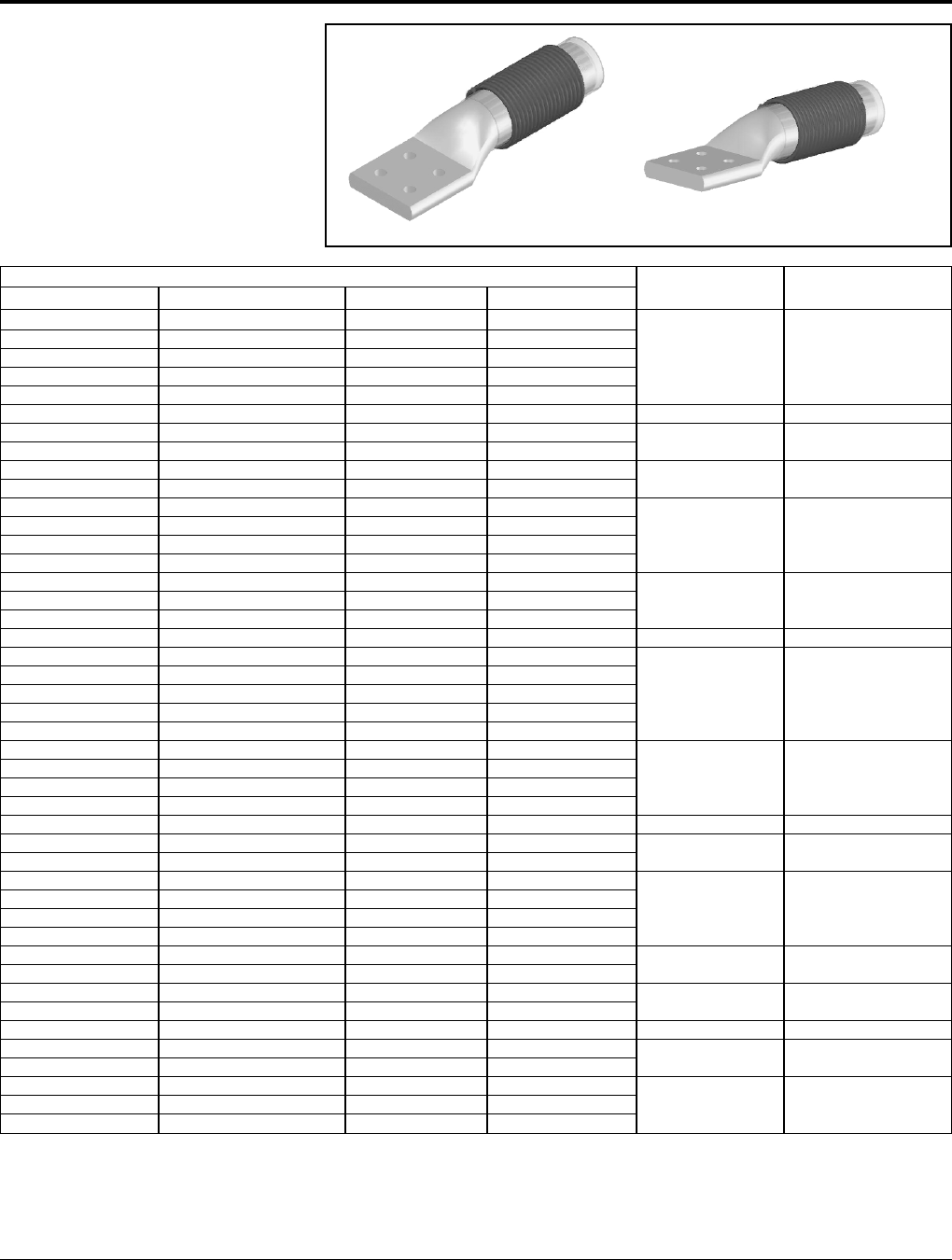

Compression Terminal

for ACSR Conductor

Compression terminal for ACSR transmission

lines up to and including 230 kV. Two hole

NEMA tongue through 556.5 kcmil and four

hole on larger sizes. Includes PENETROX™

joint compound in barrel and oxide retardant

on pad.

Ø.56

(Two Holes) NEMA

Ø.56

(Four Holes)

3.15

1.75

.62

1.75

3.15

O.D.

† Two hole NEMA pads standard for conductors up to 556.5

kcmil; Four hole NEMA pads on larger conductor sizes.

15°

YNA-R

YNA-R15

To specify hardware for bolting to corresponding deadends

add the suffix H to the catalog number (example: YNA52RH).

ACSR 15° Terminal Straight Terminal

Conductor Size Stranding Catalog Inches Catalog Inches Inches

Name kcmil Alum. Steel Number L Number L C †T Die*‡

Linnet 336.4 26 7 YNA32R15 9.16 YNA32R 8.96 1.68 0.39 L717

Oriole 336.4 30 7 YNA32R15 9.16 YNA32R 8.96 1.68 0.39 L717

Ibis 397.5 26 7 YNA34R15 9.31 YNA34R 9.08 1.78 0.46 L719

Flicker 477 24 7 YNA36R15 9.62 YNA36R 9.47 1.96 0.48 L720

Hawk 477 26 7 YNA36R15 9.62 YNA36R 9.47 1.96 0.48 L720

Parakeet 556.5 24 7 YNA39R15 10.09 YNA39R 9.84 2.08 0.53 L722

Dove 556.5 26 7 YNA39R15 10.09 YNA39R 9.84 2.08 0.53 L722

Peacock 605 24 7 YNA43R15 10.16 YNA43R 10.07 3.22 0.36 L724

Squab 605 26 7 YNA43R15 10.16 YNA43R 10.07 3.22 0.36 L724

Rook 636 24 7 YNA43R15 10.16 YNA43R 10.07 3.22 0.36 L724

Grosbeak 636 26 7 YNA43R15 10.16 YNA43R 10.07 3.22 0.36 L724

Flamingo 666.6 24 7 YNA43R15 10.16 YNA43R 10.07 3.22 0.36 L724

Starling 715.5 26 7 YNA451R15 10.21 YNA451R 10.28 3.22 0.45 L725

Cuckoo 795 24 7 YNA451R15 10.21 YNA451R 10.28 3.22 0.45 L725

Drake 795 26 7 YNA451R15 10.21 YNA451R 10.28 3.22 0.45 L725

Tern 795 45 7 YNA451R15 10.21 YNA451R 10.28 3.22 0.45 L725

Condor 795 54 7 YNA451R15 10.21 YNA451R 10.28 3.22 0.45 L725

Ruddy 900 45 7 YNA49R15 10.35 YNA49R 10.46 3.22 0.52 L727

Rail 954 45 7 YNA49R15 10.35 YNA49R 10.46 3.22 0.52 L727

Cardinal 954 54 7 YNA49R15 10.35 YNA49R 10.46 3.22 0.52 L727

Ortolan 1033.5 45 7 YNA49R15 10.35 YNA49R 10.46 3.22 0.52 L727

Curlew 1033.5 54 7 YNA49R15 10.35 YNA49R 10.46 3.22 0.52 L727

Bluejay 1113 45 7 YNA49R15 10.35 YNA49R 10.46 3.22 0.52 L727

Finch 1113 54 19 YNA52R15 12.09 YNA52R 12.24 3.22 0.71 L728

Bunting 1192.5 45 7 YNA52R15 12.09 YNA52R 12.24 3.22 0.71 L728

Bittern 1272 45 7 YNA52R15 12.09 YNA52R 12.24 3.22 0.71 L728

Pheasant 1272 54 19 YNA52R15 12.09 YNA52R 12.24 3.22 0.71 L728

Dipper 1351.5 45 7 YNA52R15 12.09 YNA52R 12.24 3.22 0.71 L728

Martin 1351.5 54 19 YNA52R15 12.09 YNA52R 12.24 3.22 0.71 L728

Nuthatch 1510.5 45 7 YNA56R15 12.50 YNA56R 12.74 3.44 0.86 L729

Parrot 1510.5 54 19 YNA56R15 12.50 YNA56R 12.74 3.44 0.86 L729

Lapwing 1590 45 7 YNA56R15 12.50 YNA56R 12.74 3.44 0.86 L729

Falcon 1590 54 19 YNA56R15 12.50 YNA56R 12.74 3.44 0.86 L729

Chukar 1780 84 19 YNA58R15 13.25 YNA58R 13.34 3.47 0.86 L735

Bluebird 2156 84 19 YNA59R15 13.12 YNA59R 13.25 3.57 0.64 L735

Kiwi 2167 72 7 YNA59R15 13.12 YNA59R 13.25 3.57 0.64 L735

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

BURNDY®Transmission Products ACSR Conductor Accessories

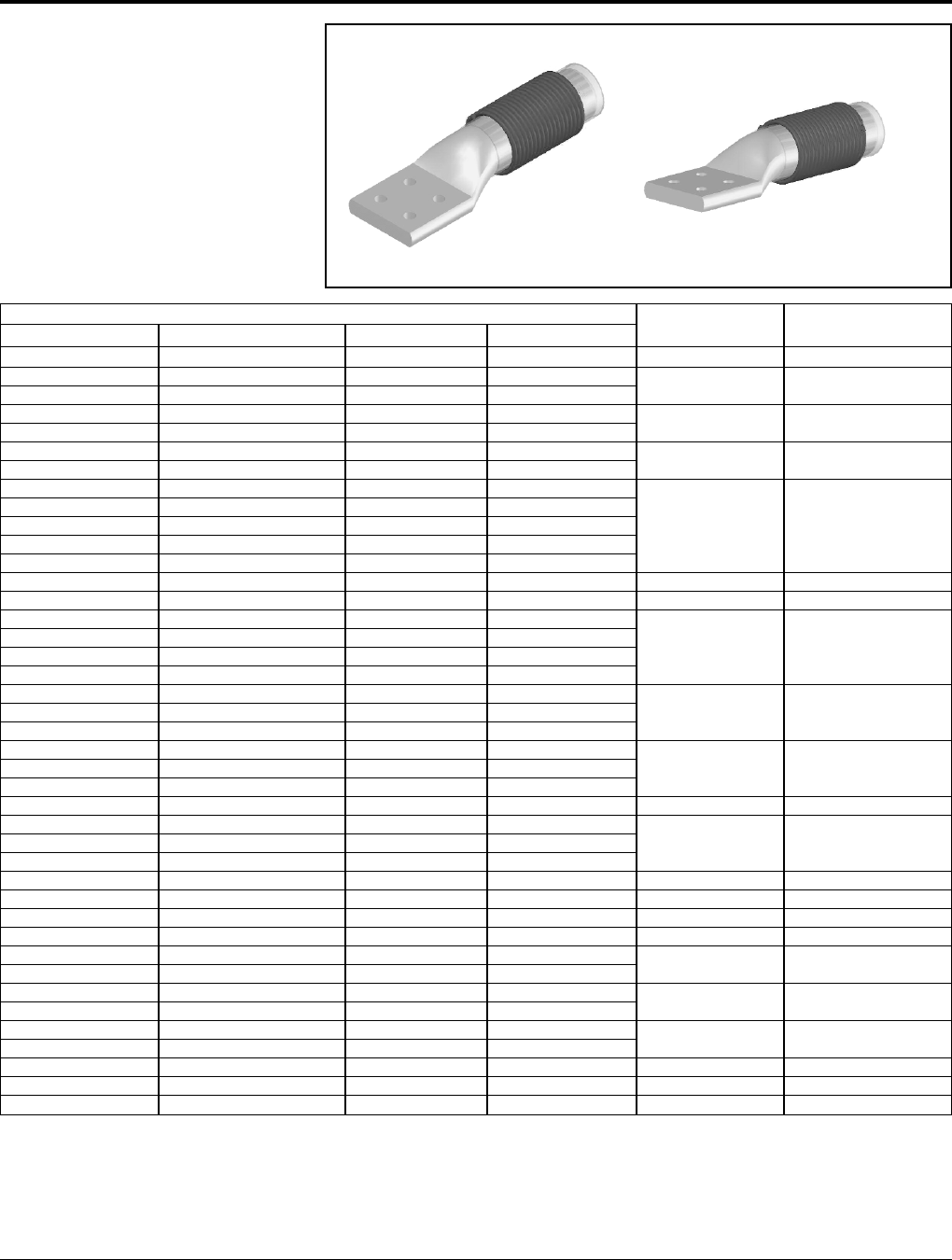

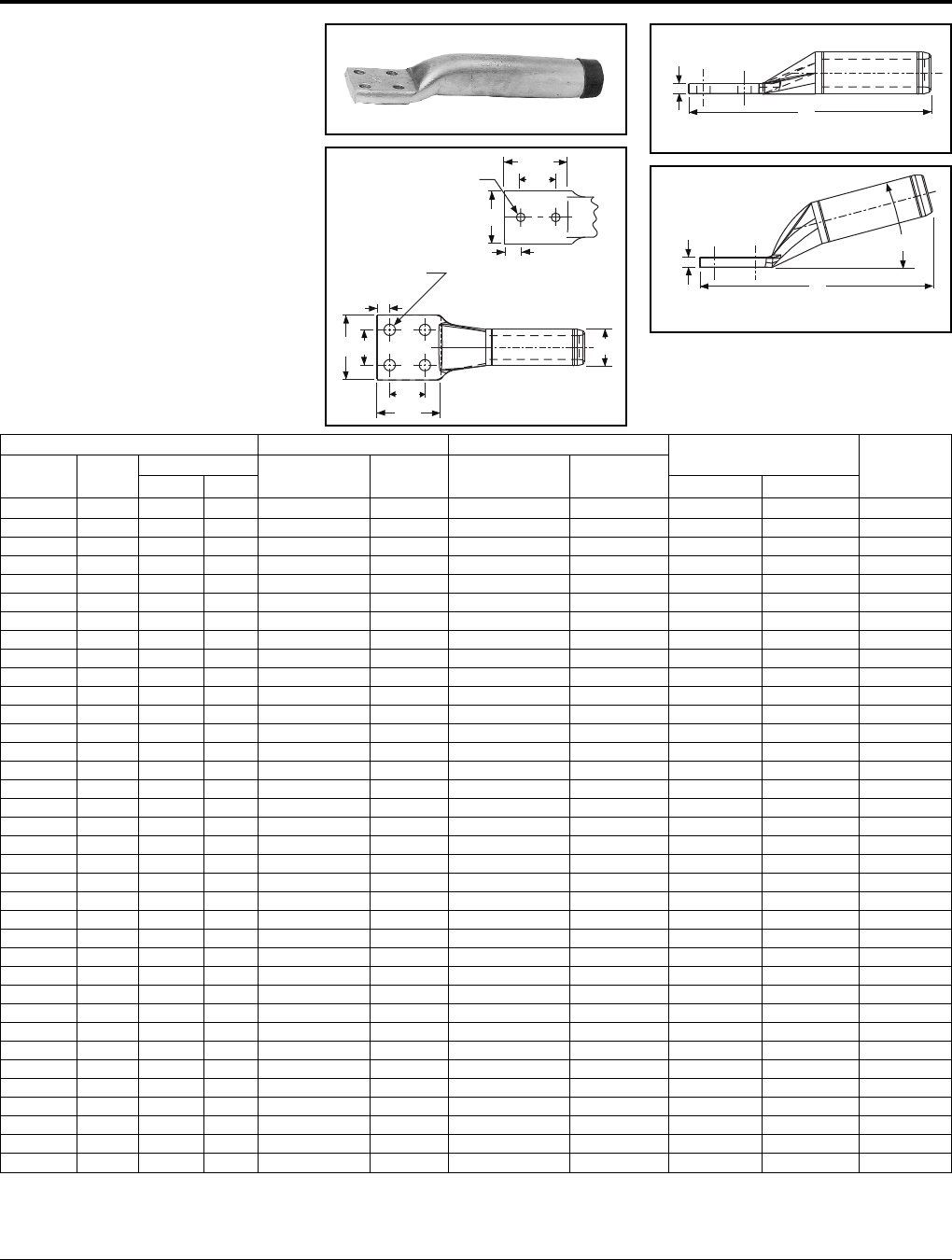

TYPES YNA-RT15,

YNA-RT EHV

Compression Terminal

for ACSR Conductor

Compression terminal for ACSR transmission

lines at 345 kV and over. Two hole NEMA

tongue supplied through 636 kcmil and four

hole on larger sizes. Includes PENETROX™

joint compound in barrel and oxide retardant

on pad.

† Two hole NEMA pads standard for conductors up to 556.5

kcmil; Four hole NEMA pads on larger conductor sizes.

Shielding cap STS43A-4N required for EHV applications (two

caps required).

To specify hardware for bolting to corresponding deadends

add the suffix H to catalog number (example: YNA52RTH).

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Ø.56

(Two Holes) NEMA

Ø.56

(Four Holes)

3.15

1.75

.62

1.75

3.15

O.D.

15°

YNA-RT

YNA-RT15

ACSR 15° Terminal Straight Terminal

Conductor Size Stranding Catalog Inches Catalog Inches Inches

Name kcmil Alum. Steel Number L Number L C †T Die*‡

Linnet 336.4 26 7 YNA32RT15 9.16 YNA32RT 8.96 1.68 0.39 L717

Oriole 336.4 30 7 YNA32RT15 9.16 YNA32RT 8.96 1.68 0.39 L717

Ibis 397.5 26 7 YNA34RT15 9.31 YNA34RT 9.08 1.78 0.46 L719

Flicker 477 24 7 YNA36RT15 9.62 YNA36RT 9.47 1.96 0.48 L720

Hawk 477 26 7 YNA36RT15 9.62 YNA36RT 9.47 1.96 0.48 L720

Parakeet 556.5 24 7 YNA39RT15 10.09 YNA39RT 9.84 2.08 0.53 L722

Dove 556.5 26 7 YNA39RT15 10.09 YNA39RT 9.84 2.08 0.53 L722

Peacock 605 24 7 YNA43RT15 10.16 YNA43RT 10.07 3.22 0.36 L724

Squab 605 26 7 YNA43RT15 10.16 YNA43RT 10.07 3.22 0.36 L724

Rook 636 24 7 YNA43RT15 10.16 YNA43RT 10.07 3.22 0.36 L724

Grosbeak 636 26 7 YNA43RT15 10.16 YNA43RT 10.07 3.22 0.36 L724

Flamingo 666.6 24 7 YNA43RT15 10.16 YNA43RT 10.07 3.22 0.36 L724

Starling 715.5 26 7 YNA451RT15 10.65 YNA451RT 10.57 3.22 0.45 L725

Cuckoo 795 24 7 YNA451RT15 10.65 YNA451RT 10.57 3.22 0.45 L725

Drake 795 26 7 YNA451RT15 10.65 YNA451RT 10.57 3.22 0.45 L725

Tern 795 45 7 YNA451RT15 10.65 YNA451RT 10.57 3.22 0.45 L725

Condor 795 54 7 YNA451RT15 10.65 YNA451RT 10.57 3.22 0.45 L725

Ruddy 900 45 7 YNA49RT15 10.94 YNA49RT 10.77 3.22 0.52 L727

Rail 954 45 7 YNA49RT15 10.94 YNA49RT 10.77 3.22 0.52 L727

Cardinal 954 54 7 YNA49RT15 10.94 YNA49RT 10.77 3.22 0.52 L727

Ortolan 1033.5 45 7 YNA49RT15 10.94 YNA49RT 10.77 3.22 0.52 L727

Curlew 1033.5 54 7 YNA49RT15 10.94 YNA49RT 10.77 3.22 0.52 L727

Bluejay 1113 45 7 YNA49RT15 10.94 YNA49RT 10.77 3.22 0.52 L727

Finch 1113 54 19 YNA52RT15 12.62 YNA52RT 13.82 3.22 0.71 L728

Bunting 1192.5 45 7 YNA52RT15 12.62 YNA52RT 13.82 3.22 0.71 L728

Bittern 1272 45 7 YNA52RT15 12.62 YNA52RT 13.82 3.22 0.71 L728

Pheasant 1272 54 19 YNA52RT15 12.62 YNA52RT 13.82 3.22 0.71 L728

Dipper 1351.5 45 7 YNA52RT15 12.62 YNA52RT 13.82 3.22 0.71 L728

Martin 1351.5 54 19 YNA52RT15 12.62 YNA52RT 13.82 3.22 0.71 L728

Nuthatch 1510.5 45 7 YNA56RT15 13.36 YNA56RT 13.76 3.44 0.86 L729

Parrot 1510.5 54 19 YNA56RT15 13.36 YNA56RT 13.76 3.44 0.86 L729

Lapwing 1590 45 7 YNA56RT15 13.36 YNA56RT 13.76 3.44 0.86 L729

Falcon 1590 54 19 YNA56RT15 13.36 YNA56RT 13.76 3.44 0.86 L729

Chukar 1780 84 19 YNA58RT15 13.81 YNA58RT 13.76 3.47 0.86 L735

Bluebird 2156 84 19 YNA59RT15 13.75 YNA59RT 14.06 3.57 0.64 L735

Kiwi 2167 72 7 YNA59RT15 13.75 YNA59RT 14.06 3.57 0.64 L735

ACSR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

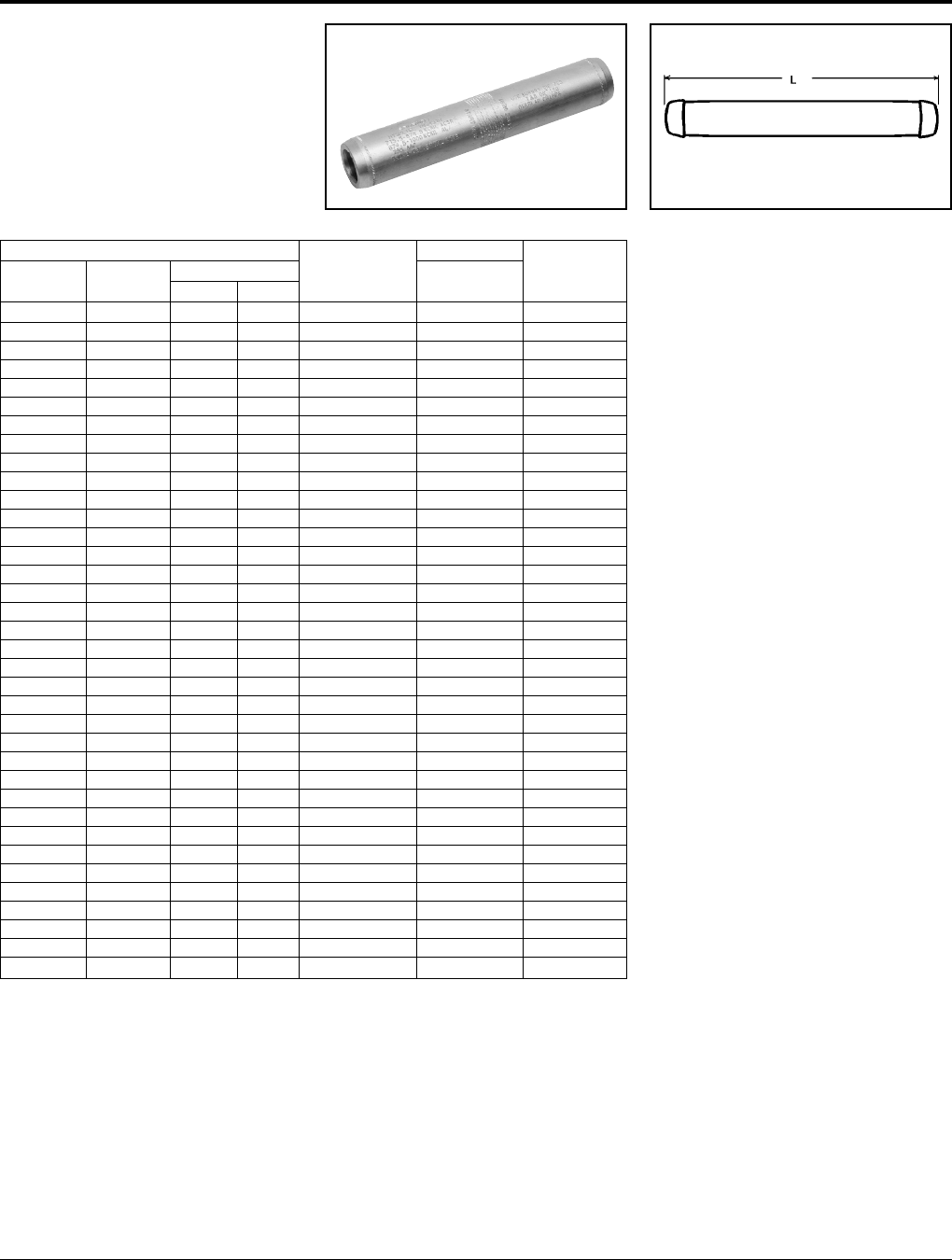

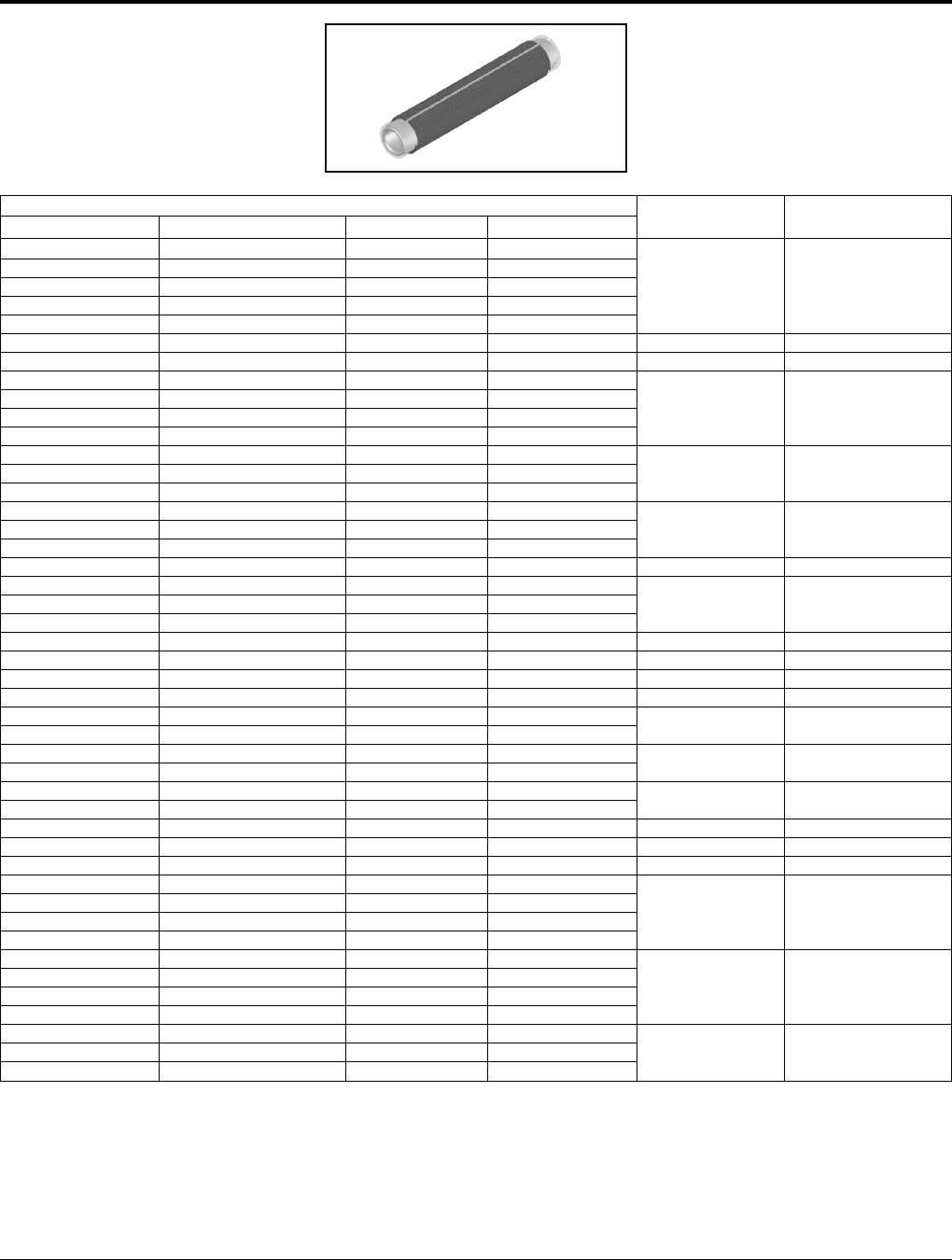

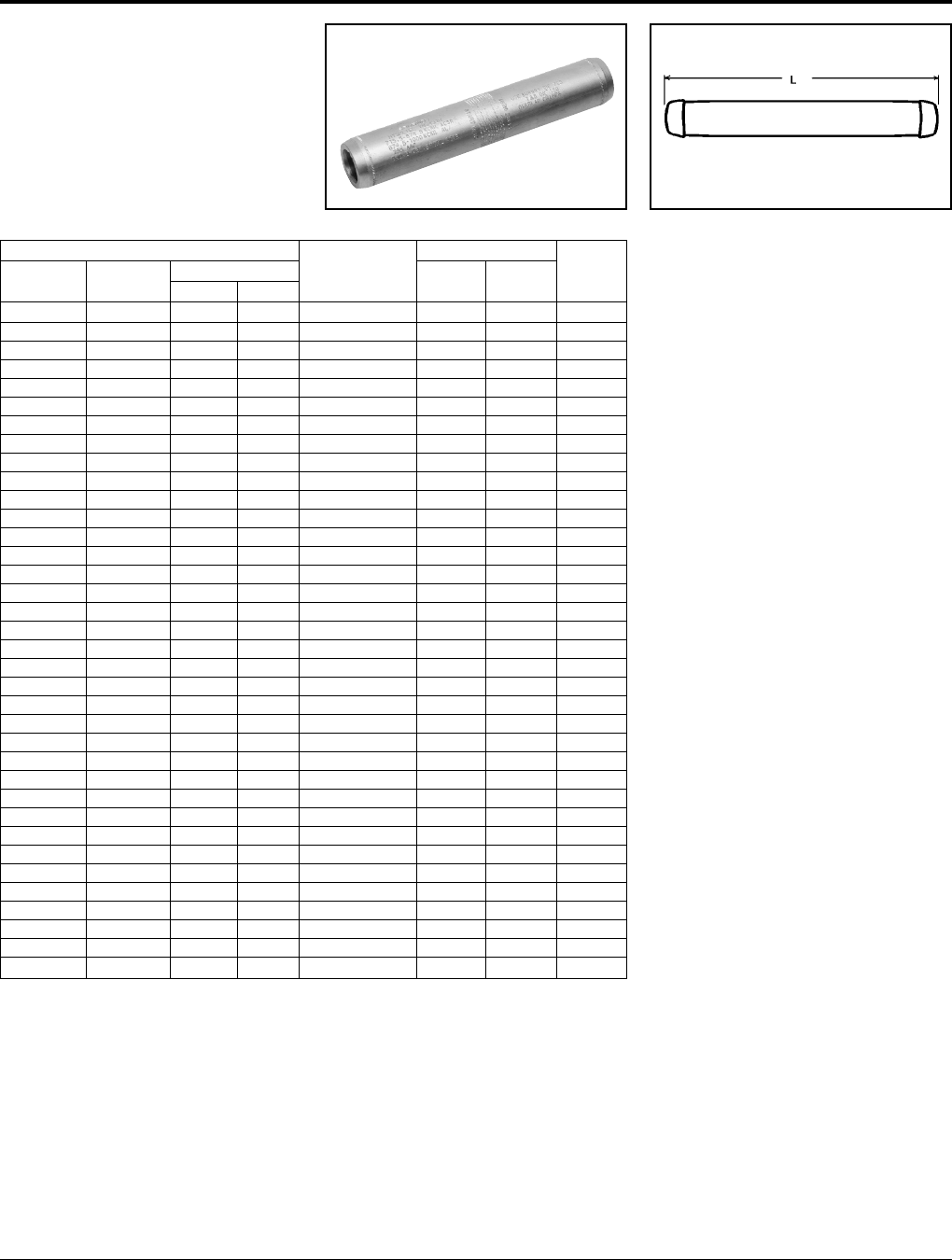

TYPE YNS-R

Jumper Loop Sleeve

for ACSR Conductor

Jumper sleeve for ACSR transmission lines

up to and including 230 kV. Sleeve is pre-filled

with PENETROX™ joint compound and

capped.

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSR Inches

Conductor Size Stranding Catalog

Name kcmil Alum. Steel Number L O.D. Die*‡

Linnet 336.4 26 7 YNS32R 8.60 1.19 L717

Oriole 336.4 30 7 YNS32R 8.60 1.19 L717

Ibis 397.5 26 7 YNS34R 8.68 1.30 L719

Flicker 477 24 7 YNS36R 9.20 1.41 L720

Hawk 477 26 7 YNS36R 9.20 1.41 L720

Parakeet 556.5 24 7 YNS39R 9.76 1.50 L722

Dove 556.5 26 7 YNS39R 9.76 1.50 L722

Peacock 605 24 7 YNS43R 9.98 1.61 L724

Squab 605 26 7 YNS43R 9.98 1.61 L724

Rook 636 24 7 YNS43R 9.98 1.61 L724

Grosbeak 636 26 7 YNS43R 9.98 1.61 L724

Flamingo 666.6 24 7 YNS43R 9.98 1.61 L724

Starling 715.5 26 7 YNS451R 10.00 1.80 L725

Cuckoo 795 24 7 YNS451R 10.00 1.80 L725

Drake 795 26 7 YNS451R 10.00 1.80 L725

Tern 795 45 7 YNS451R 10.00 1.80 L725

Condor 795 54 7 YNS451R 10.00 1.80 L725

Ruddy 900 45 7 YNS49R 10.00 1.97 L727

Rail 954 45 7 YNS49R 10.00 1.97 L727

Cardinal 954 54 7 YNS49R 10.00 1.97 L727

Ortolan 1033.5 45 7 YNS49R 10.00 1.97 L727

Curlew 1033.5 54 7 YNS49R 10.00 1.97 L727

Bluejay 1113 45 7 YNS49R 10.00 1.97 L727

Finch 1113 54 19 YNS52R 15.48 2.25 L728

Bunting 1192.5 45 7 YNS52R 15.48 2.25 L728

Bittern 1272 45 7 YNS52R 15.48 2.25 L728

Pheasant 1272 54 19 YNS52R 15.48 2.25 L728

Dipper 1351.5 45 7 YNS52R 15.48 2.25 L728

Martin 1351.5 54 19 YNS52R 15.48 2.25 L728

Nuthatch 1510.5 45 7 YNS56R 14.80 2.50 L729

Parrot 1510.5 54 19 YNS56R 14.80 2.50 L729

Lapwing 1590 45 7 YNS56R 14.80 2.50 L729

Falcon 1590 54 19 YNS56R 14.80 2.50 L729

Chukar 1780 84 19 YNS58R 14.74 2.50 L735

Bluebird 2156 84 19 YNS59R 14.56 2.50 L735

Kiwi 2167 72 7 YNS59R 14.56 2.50 L735

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

BURNDY®Transmission Products ACSR Conductor Accessories

TYPE YNS-RT EHV

Jumper Loop Sleeve

for ACSR Conductor

Jumper sleeve for ACSR transmission lines

over 230 kV. Sleeve is pre-filled with PENE -

TROX™ joint compound and capped.

ACSR Inches

Conductor Size Stranding

Name kcmil Alum. Steel Jumper Sleeve L O.D. Die*‡

Linnet 336.4 26 7 YNS32RT 8.96 1.19 L717

Oriole 336.4 30 7 YNS32RT 8.96 1.19 L717

Ibis 397.5 26 7 YNS34RT 9.10 1.30 L719

Flicker 477 24 7 YNS36RT 9.64 1.41 L720

Hawk 477 26 7 YNS36RT 9.64 1.41 L720

Parakeet 556.5 24 7 YNS39RT 10.26 1.50 L722

Dove 556.5 26 7 YNS39RT 10.26 1.50 L722

Peacock 605 24 7 YNS43RT 10.48 1.61 L724

Squab 605 26 7 YNS43RT 10.48 1.61 L724

Rook 636 24 7 YNS43RT 10.48 1.61 L724

Grosbeak 636 26 7 YNS43RT 10.48 1.61 L724

Flamingo 666.6 24 7 YNS43RT 10.48 1.61 L724

Starling 715.5 26 7 YNS451RT 10.60 1.80 L725

Cuckoo 795 24 7 YNS451RT 10.60 1.80 L725

Drake 795 26 7 YNS451RT 10.60 1.80 L725

Tern 795 45 7 YNS451RT 10.60 1.80 L725

Condor 795 54 7 YNS451RT 10.60 1.80 L725

Ruddy 900 45 7 YNS49RT 10.66 1.97 L727

Rail 954 45 7 YNS49RT 10.66 1.97 L727

Cardinal 954 54 7 YNS49RT 10.66 1.97 L727

Ortolan 1033.5 45 7 YNS49RT 10.66 1.97 L727

Curlew 1033.5 54 7 YNS49RT 10.66 1.97 L727

Bluejay 1113 45 7 YNS49RT 10.66 1.97 L727

Finch 1113 54 19 YNS52RT 16.20 2.25 L728

Bunting 1192.5 45 7 YNS52RT 16.20 2.25 L728

Bittern 1272 45 7 YNS52RT 16.20 2.25 L728

Pheasant 1272 54 19 YNS52RT 16.20 2.25 L728

Dipper 1351.5 45 7 YNS52RT 16.20 2.25 L728

Martin 1351.5 54 19 YNS52RT 16.20 2.25 L728

Nuthatch 1510.5 45 7 YNS56RT 15.58 2.50 L729

Parrot 1510.5 54 19 YNS56RT 15.58 2.50 L729

Lapwing 1590 45 7 YNS56RT 15.58 2.50 L729

Falcon 1590 54 19 YNS56RT 15.58 2.50 L729

Chukar 1780 84 19 YNS58RT 15.46 2.50 L735

Bluebird 2156 84 19 YNS59RT 15.14 2.50 L735

Kiwi 2167 72 7 YNS59RT 15.14 2.50 L735

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

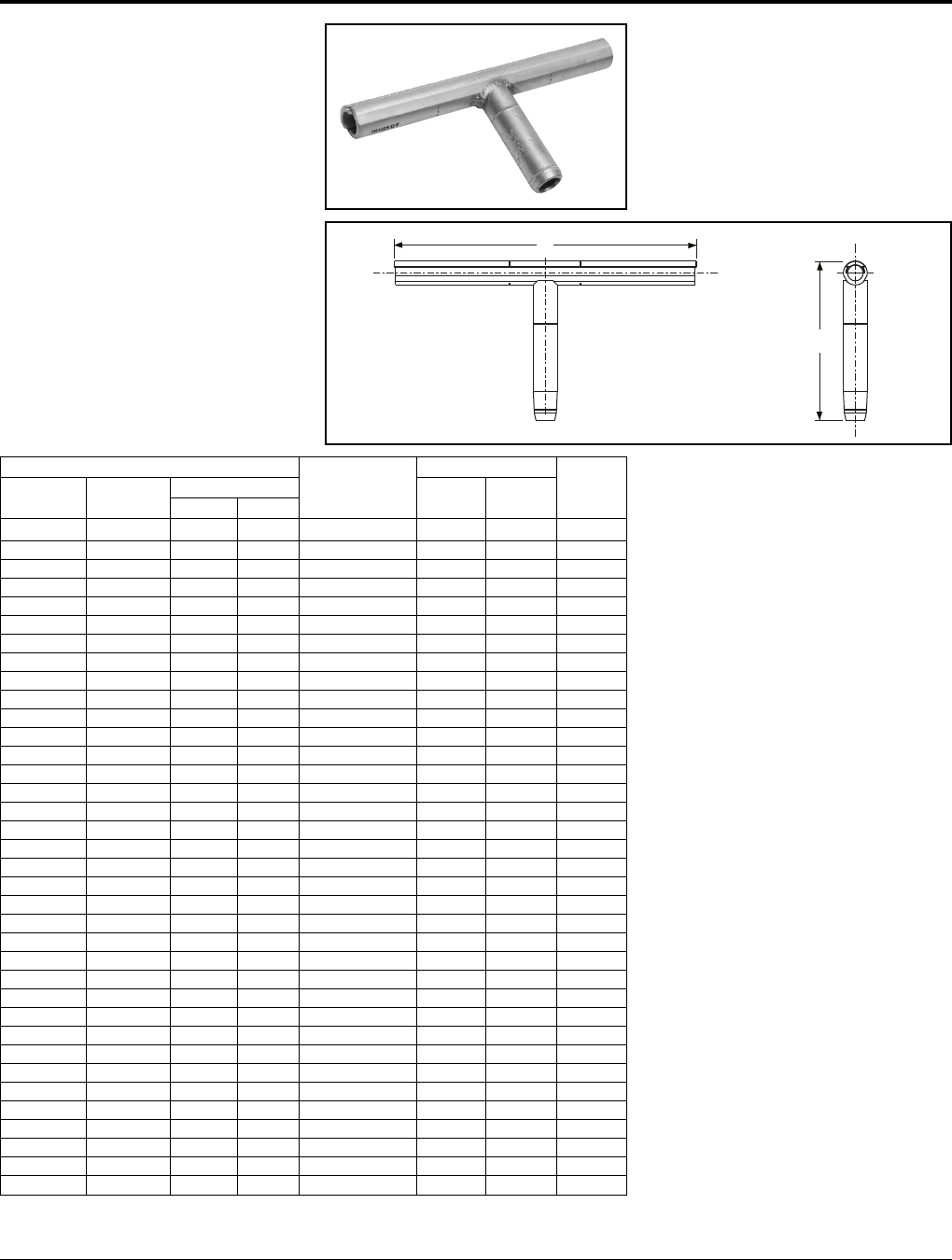

TYPE YNT-R-R

Compression T-Tap

for ACSR Conductor

Two piece compression T-Tap for ACSR

transmission lines that include up to 230 kV.

Tap element is pre-filled with PENETROX™

joint compound and sealed.

ACSR Inches

Conductor Size Stranding

Name kcmil Alum. Steel T-Tap* L H Die**‡

Linnet 336.4 26 7 YNT32R32R 15.46 6.39 L717

Oriole 336.4 30 7 YNT32R32R 15.46 6.39 L717

Ibis 397.5 26 7 YNT34R34R 15.60 6.53 L719

Flicker 477 24 7 YNT36R36R 16.29 6.85 L720

Hawk 477 26 7 YNT36R36R 16.29 6.85 L720

Parakeet 556.5 24 7 YNT39R39R 16.69 7.13 L722

Dove 556.5 26 7 YNT39R39R 16.69 7.13 L722

Peacock 605 24 7 YNT43R43R 17.48 7.20 L724

Squab 605 26 7 YNT43R43R 17.48 7.20 L724

Rook 636 24 7 YNT43R43R 17.48 7.20 L724

Grosbeak 636 26 7 YNT43R43R 17.48 7.20 L724

Flamingo 666.6 24 7 YNT43R43R 17.48 7.20 L724

Starling 715.5 26 7 YNT451R451R 17.60 7.70 L725

Cuckoo 795 24 7 YNT451R451R 17.60 7.70 L725

Drake 795 26 7 YNT451R451R 17.60 7.70 L725

Tern 795 45 7 YNT451R451R 17.60 7.70 L725

Condor 795 54 7 YNT451R451R 17.60 7.70 L725

Ruddy 900 45 7 YNT49R49R 17.66 7.90 L727

Rail 954 45 7 YNT49R49R 17.66 7.90 L727

Cardinal 954 54 7 YNT49R49R 17.66 7.90 L727

Ortolan 1033.5 45 7 YNT49R49R 17.66 7.90 L727

Curlew 1033.5 54 7 YNT49R49R 17.66 7.90 L727

Bluejay 1113 45 7 YNT49R49R 17.66 7.90 L727

Finch 1113 54 19 YNT52R52R 21.61 11.10 L728

Bunting 1192.5 45 7 YNT52R52R 21.61 11.10 L728

Bittern 1272 45 7 YNT52R52R 21.61 11.10 L728

Pheasant 1272 54 19 YNT52R52R 21.61 11.10 L728

Dipper 1351.5 45 7 YNT52R52R 21.61 11.10 L728

Martin 1351.5 54 19 YNT52R52R 21.61 11.10 L728

Nuthatch 1510.5 45 7 YNT56R56R 23.65 11.08 L729

Parrot 1510.5 54 19 YNT56R56R 23.65 11.08 L729

Lapwing 1590 45 7 YNT56R56R 23.65 11.08 L729

Falcon 1590 54 19 YNT56R56R 23.65 11.08 L729

Chukar 1780 84 19 YNT58R58R 23.53 11.02 L735

Bluebird 2156 84 19 YNT59R59R 23.21 10.86 L735

Kiwi 2167 72 7 YNT59R59R 23.21 10.86 L735

* For EHV applications add suffix “T” to catalog number

(example: YNT49R49RT).

** Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

BURNDY®Transmission Products ACSR Conductor Accessories

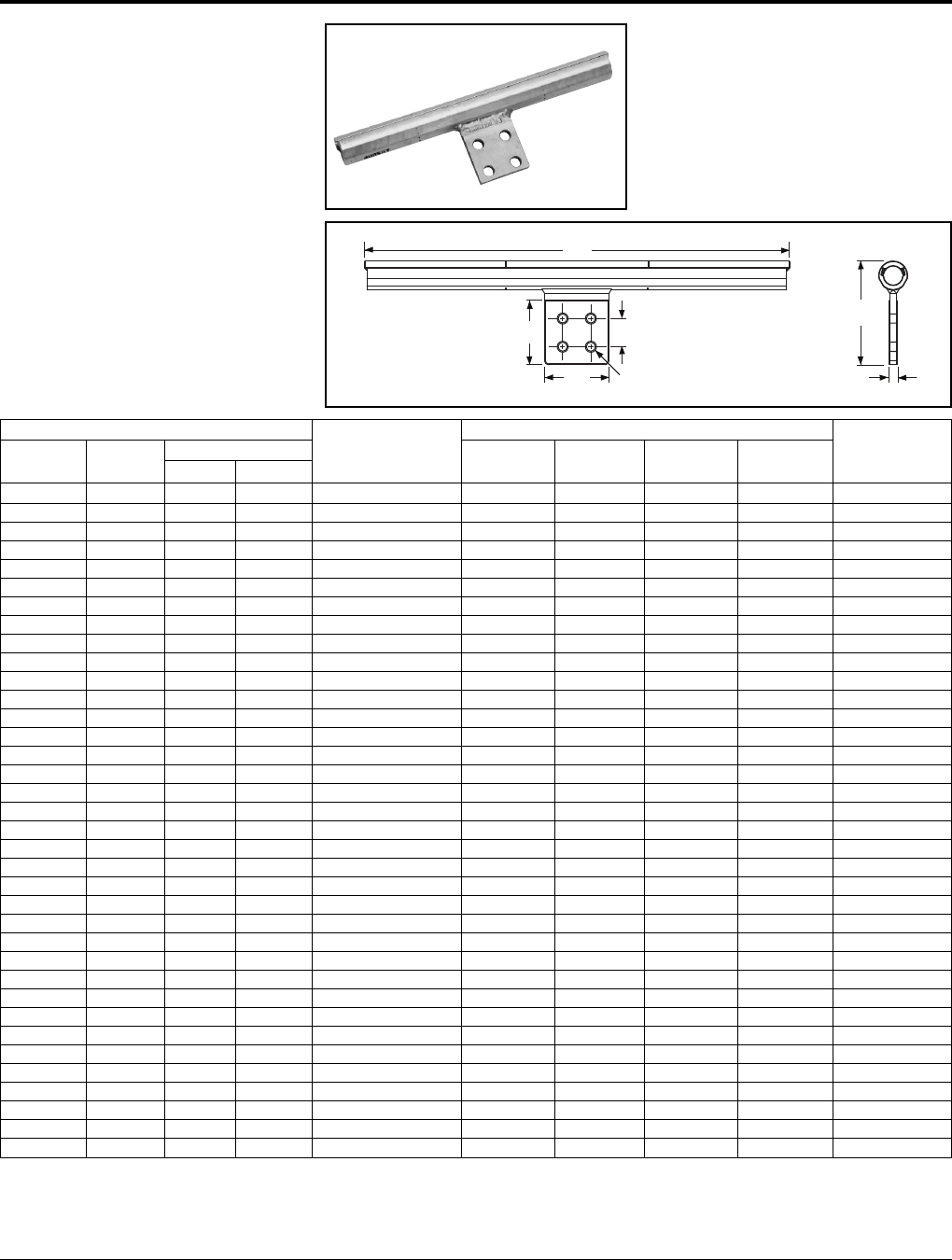

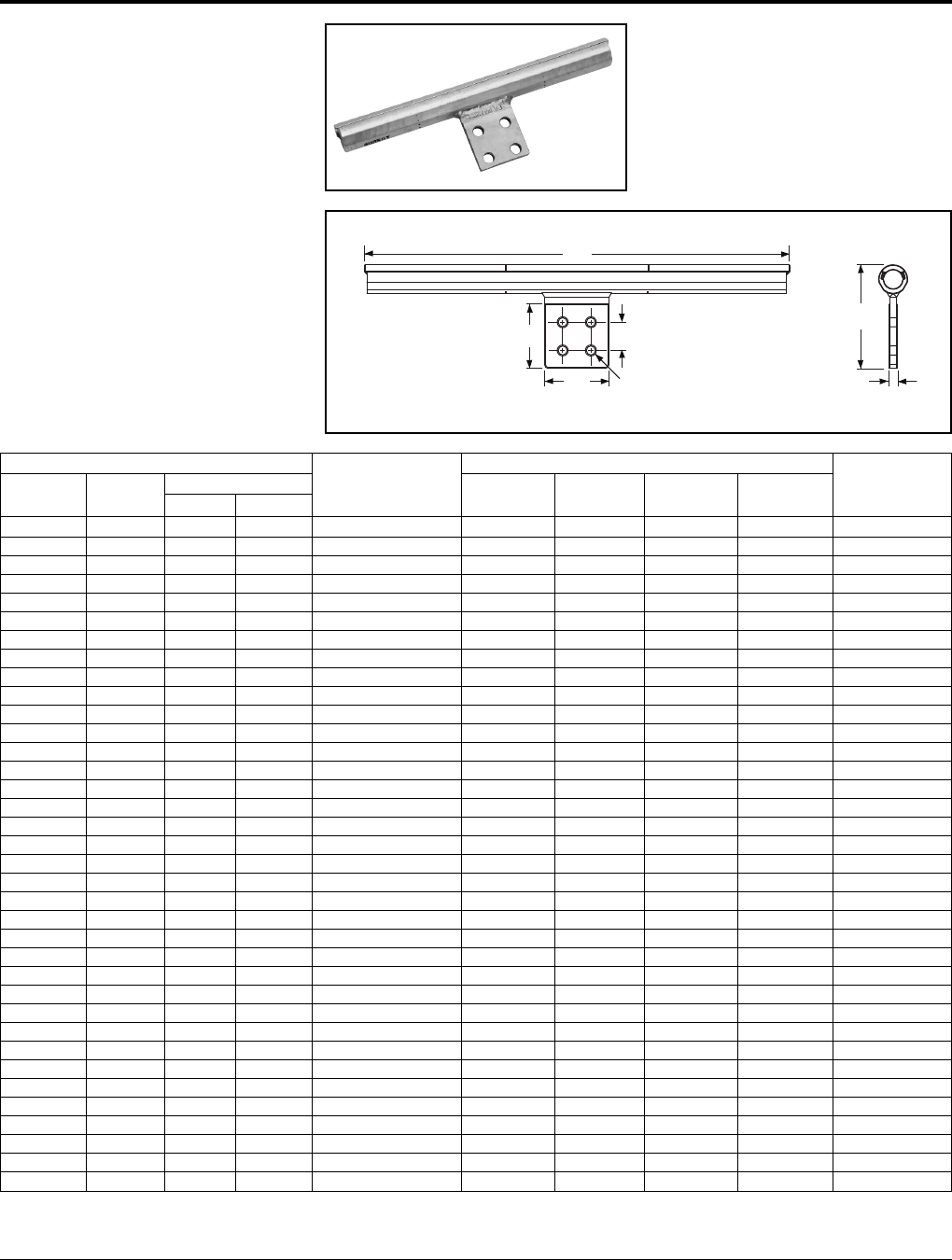

TYPE YNTA-R

T-Tap with Pad

for ACSR Conductor

Two piece compression T-Tap to a NEMA pad

for ACSR transmission lines. Up to and

including 230 kV.

31⁄813⁄4

5⁄16 Dia.

ACSR Inches

Conductor Size Stranding

Name kcmil Alum. Steel T-Tap with Pad L C H T Die*‡

Linnet 336.4 26 7 YNTA32R 15.46 2.00 4.94 0.50 L717

Oriole 336.4 30 7 YNTA32R 15.46 2.00 4.94 0.50 L717

Ibis 397.5 26 7 YNTA34R 15.60 2.00 5.05 0.50 L719

Flicker 477 24 7 YNTA36R 16.29 2.25 5.16 0.56 L720

Hawk 477 26 7 YNTA36R 16.29 2.25 5.16 0.56 L720

Parakeet 556.5 24 7 YNTA39R 16.69 2.25 5.25 0.56 L722

Dove 556.5 26 7 YNTA39R 16.69 2.25 5.25 0.56 L722

Peacock 605 24 7 YNTA43R 17.48 3.25 5.36 0.56 L724

Squab 605 26 7 YNTA43R 17.48 3.25 5.36 0.56 L724

Rook 636 24 7 YNTA43R 17.48 3.25 5.36 0.56 L724

Grosbeak 636 26 7 YNTA43R 17.48 3.25 5.36 0.56 L724

Flamingo 666.6 24 7 YNTA43R 17.48 3.25 5.36 0.56 L724

Starling 715.5 26 7 YNTA451R 17.60 3.25 5.55 0.56 L725

Cuckoo 795 24 7 YNTA451R 17.60 3.25 5.55 0.56 L725

Drake 795 26 7 YNTA451R 17.60 3.25 5.55 0.56 L725

Tern 795 45 7 YNTA451R 17.60 3.25 5.55 0.56 L725

Condor 795 54 7 YNTA451R 17.60 3.25 5.55 0.56 L725

Ruddy 900 45 7 YNTA49R 17.66 3.25 5.72 0.56 L727

Rail 954 45 7 YNTA49R 17.66 3.25 5.72 0.56 L727

Cardinal 954 54 7 YNTA49R 17.66 3.25 5.72 0.56 L727

Ortolan 1033.5 45 7 YNTA49R 17.66 3.25 5.72 0.56 L727

Curlew 1033.5 54 7 YNTA49R 17.66 3.25 5.72 0.56 L727

Bluejay 1113 45 7 YNTA49R 17.66 3.25 5.72 0.56 L727

Finch 1113 54 19 YNTA54R 21.61 3.25 6.00 0.69 L728

Bunting 1192.5 45 7 YNTA54R 21.61 3.25 6.00 0.69 L728

Bittern 1272 45 7 YNTA54R 21.61 3.25 6.00 0.69 L728

Pheasant 1272 54 19 YNTA54R 21.61 3.25 6.00 0.69 L728

Dipper 1351.5 45 7 YNTA54R 21.61 3.25 6.00 0.69 L728

Martin 1351.5 54 19 YNTA54R 21.61 3.25 6.00 0.69 L728

Nuthatch 1510.5 45 7 YNTA56R 23.65 3.59 6.25 0.69 L729

Parrot 1510.5 54 19 YNTA56R 23.65 3.59 6.25 0.69 L729

Lapwing 1590 45 7 YNTA56R 23.65 3.59 6.25 0.69 L729

Falcon 1590 54 19 YNTA56R 23.65 3.59 6.25 0.69 L729

Chukar 1780 84 19 YNTA58R 23.53 3.59 6.25 0.69 L735

Bluebird 2156 84 19 YNTA59R 23.21 3.59 6.25 0.69 L735

Kiwi 2167 72 7 YNTA59R 23.21 3.59 6.25 0.69 L735

Two hole NEMA pads standard for conductors up to 556.5

kcmil; Four hole NEMA pads on larger conductor sizes.

For EHV applications add suffix “T” to catalog number

(example: YNTA49RT).

For EHV applications order (2) two tap pad shielding caps

STS43A4N-catalog number indicates (1) cap.

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

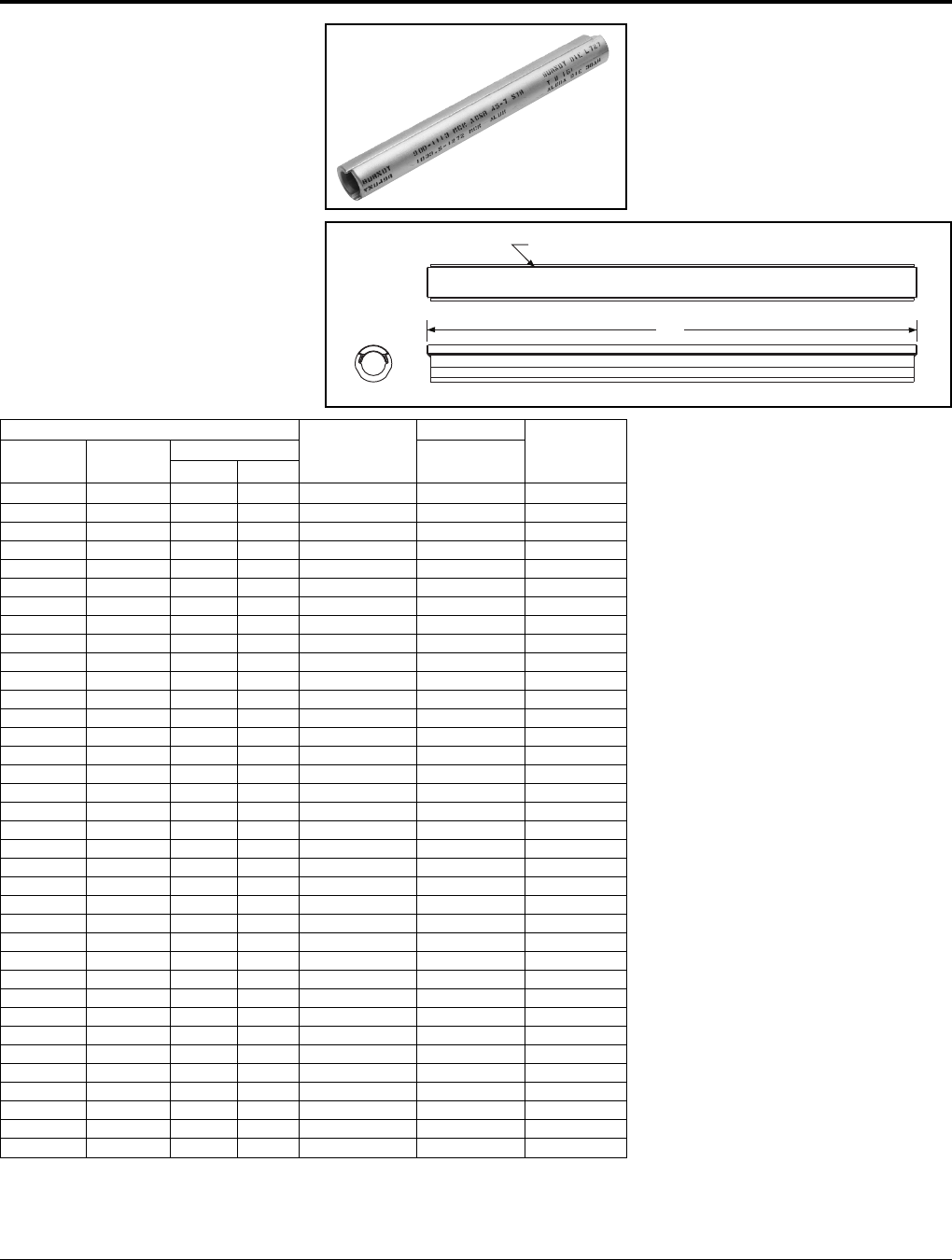

TYPE YNU-R

Repair Sleeve

for ACSR Conductor

For HV and EHV applications. Two-piece

repair sleeve for temporary restoration of

conductivity to damaged ACSR transmission

lines. Use of PENETROX™ joint compound

required.

Interlocking Key

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSR Inches

Conductor Size Stranding

Name kcmil Alum. Steel Repair Sleeve L Die*‡

Linnet 336.4 26 7 YNU32R 14.00 L717

Oriole 336.4 30 7 YNU32R 14.00 L717

Ibis 397.5 26 7 YNU34R 14.00 L719

Flicker 477 24 7 YNU36R 14.00 L720

Hawk 477 26 7 YNU36R 14.00 L720

Parakeet 556.5 24 7 YNU39R 16.00 L722

Dove 556.5 26 7 YNU39R 16.00 L722

Peacock 605 24 7 YNU43R 16.00 L724

Squab 605 26 7 YNU43R 16.00 L724

Rook 636 24 7 YNU43R 16.00 L724

Grosbeak 636 26 7 YNU43R 16.00 L724

Flamingo 666.6 24 7 YNU43R 16.00 L724

Starling 715.5 26 7 YNU451R 16.00 L725

Cuckoo 795 24 7 YNU451R 16.00 L725

Drake 795 26 7 YNU451R 16.00 L725

Tern 795 45 7 YNU451R 16.00 L725

Condor 795 54 7 YNU451R 16.00 L725

Ruddy 900 45 7 YNU49R 16.00 L727

Rail 954 45 7 YNU49R 16.00 L727

Cardinal 954 54 7 YNU49R 16.00 L727

Ortolan 1033.5 45 7 YNU49R 16.00 L727

Curlew 1033.5 54 7 YNU49R 16.00 L727

Bluejay 1113 45 7 YNU49R 16.00 L727

Finch 1113 54 19 YNU54R 16.00 L728

Bunting 1192.5 45 7 YNU54R 16.00 L728

Bittern 1272 45 7 YNU54R 16.00 L728

Pheasant 1272 54 19 YNU54R 16.00 L728

Dipper 1351.5 45 7 YNU54R 16.00 L728

Martin 1351.5 54 19 YNU54R 16.00 L728

Nuthatch 1510.5 45 7 YNU56R 19.00 L729

Parrot 1510.5 54 19 YNU56R 19.00 L729

Lapwing 1590 45 7 YNU56R 19.00 L729

Falcon 1590 54 19 YNU56R 19.00 L729

Chukar 1780 84 19 YNU58R 19.00 L735

Bluebird 2156 84 19 YNU59R 19.00 L735

Kiwi 2167 72 7 YNU59R 19.00 L735

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

BURNDY®Transmission Products ACSR Conductor Accessories

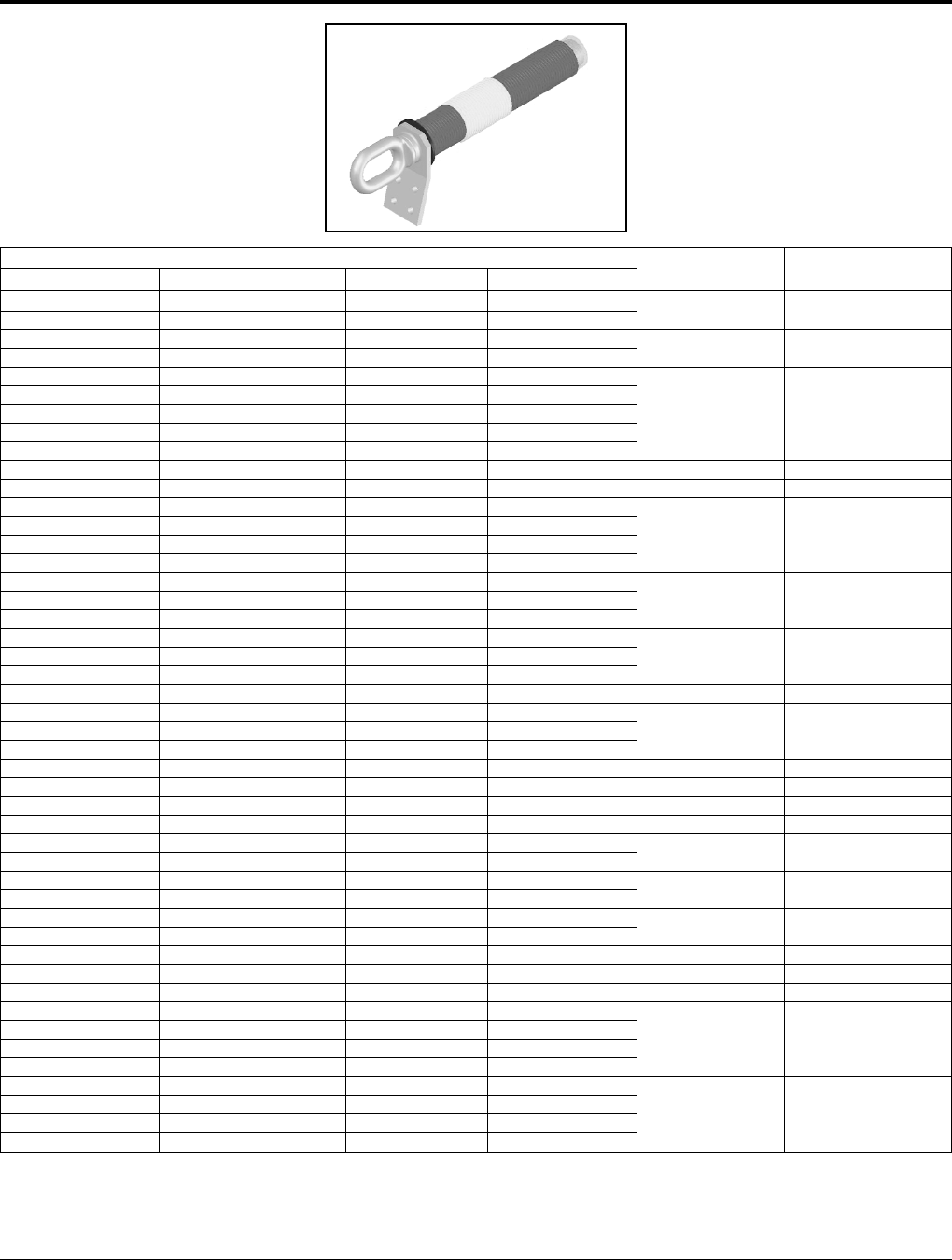

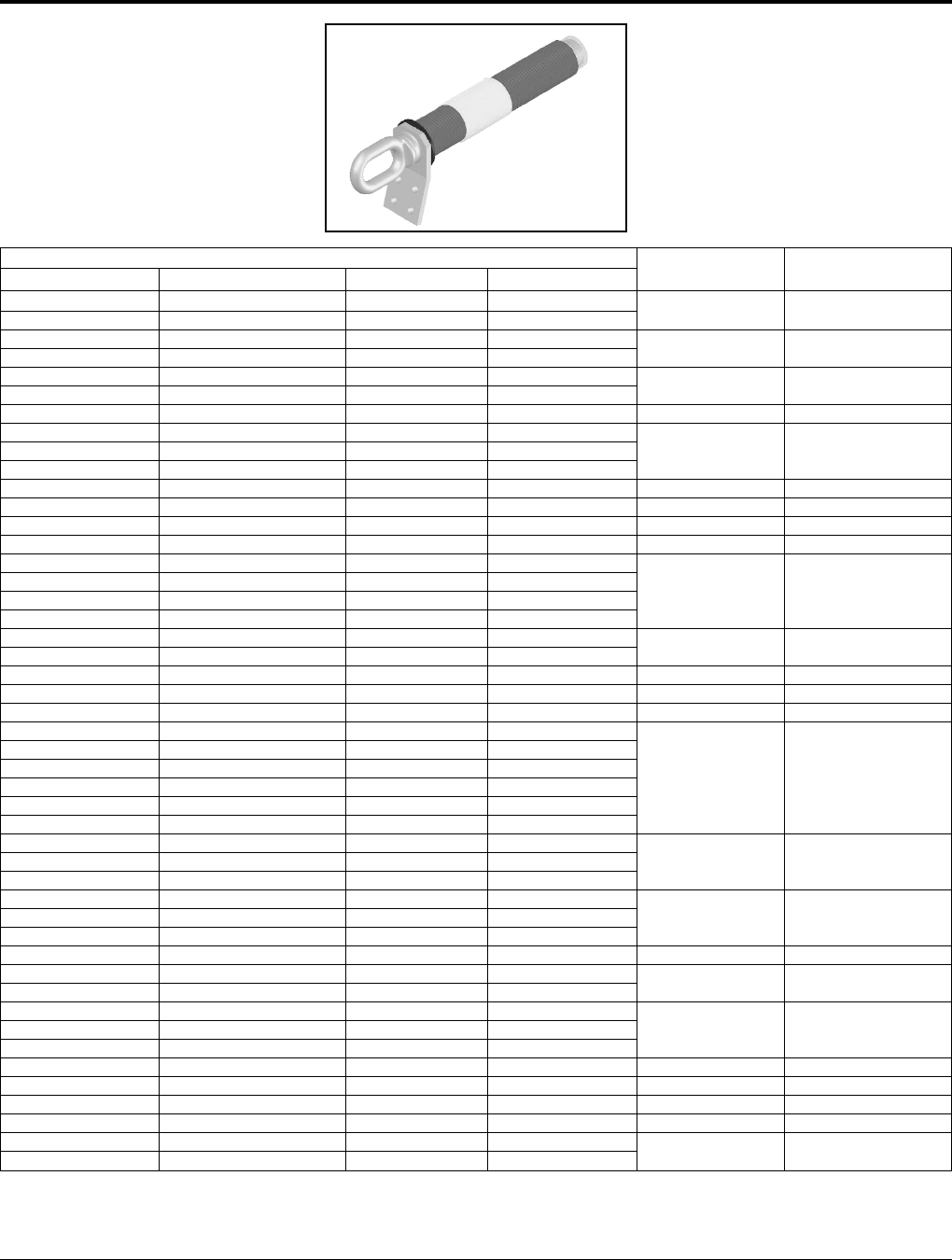

TYPES YTW-A-AEK,

YTW-A, YTW-AE,

YNA-RH

Single Pad Full Tension Deadend

for Stranded Aluminum Cable

Full tension compression deadend for SAC

transmission lines. One design for applications

up to and including 230 kV. Two hole NEMA

tap pad supplied through 636 kcmil. Larger

sizes have 4 hole NEMA pad. Standard 15° tap

pad when used with YNA-R15H terminal pro-

vides either 0° or 30° tap. Aluminum body is

pre-filled with PENE TROX™ joint compound

and capped.

CC KW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-A Body

YTW-AE Steel eye

YNA-R-H Terminal and hardware

Steel Eye

Aluminum Single Pad Tools Terminal*

Conductor Complete

Aluminum

Inches Steel Inches Die with Terminal

Name kcmil Str. Assembly Body C L T Eye B K W Index Y60BHU*‡Hardware Die*‡

336.4 19

Tulip 350 37 YTW301A331AEK YTW301A 717 L717 YNA32R15H L717

397.5 19 9.62

Canna 400 37 YTW311A331AEK YTW311A YTW331AE

450 37 719 L719 YNA34R15H L719

Cosmos 477 19 YTW331A331AE YTW331A 9.75 0.62

Syringa 477 37 2.25

Hyacinth 500 37 2.50

Dahlia 556.5 19 YTW351A351AEK YTW351A 11.62 YTW351AE 720 L720 YNA36R15H L720

Mistletoe 556.5 37 0.88

600 61 0.50

Orchid 636 37 YTW361A39AEK YTW361A 12.25 722 L722 YNA39R15H L722

Violet 715.5 37 YTW39AE 0.69

Nasturtium 715.5 61 YTW39A39AEK YTW39A 12.75

Cattail 750 61

Arbutus 795 37 724 L724 YNA43R15H L724

795 61 YTW391A431AEK YTW391A 14.38

Lilac 800 61

Anemone 874.5 37 3.25 YTW431AE 0.75

Crocus 874.5 61

Magnolia 954 37 YTW431A431AEK YTW431A 14.75 725 L725 YNA451R15H L725

Goldenrod 954 61

Bluebell 1033.5 37

Larkspur 1033.5 61

1113 37 YTW445A463AEK YTW445A 1.25

Marigold 1113 61 15.62 2.69 727 L727 YNA49R15H L727

Hawthorn 1192.6 61 YTW463AE 1.00

Nacrcissus 1272 61 YTW451A463AEK YTW451A

Columbine 1351.5 61

Carnation 1431 61 YTW457A463AEK YTW457A 16.50 YNA52R15H L728

Coreopsis 1590 61 YTW463A463AEK YTW463A 17.13 728 L728 YNA54R15H

Jessamine 1750 61 YTW47A47AEK YTW47A YTW47AE YNA56R15H L729

Cowslip 2000 91 YTW48A484AEK YTW48A 4.00 0.62 YNA58R15H

Sagebrush 2250 91 YTW484A484AEK YTW484A 16.38 YTW484AE 735 L735 L735

2300 61 YNA59R15H

Lupine 2500 91 YTW486A486AE YTW486A 18.50 YTW486AE 3.12 1.25 740 L740 YNA594R15H L740

* Overlap Crimp.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Complete Assembly: Includes Aluminum Body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to the end of the catalog

number. For complete assembly (example:

YTW391A431AEKSS) or to terminal (YNA43R15HSS) if ordered

separately.

For assembly without terminal and hardware add NT to the end

of the complete catalog number (example:

YTW391A431AEKNT).

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

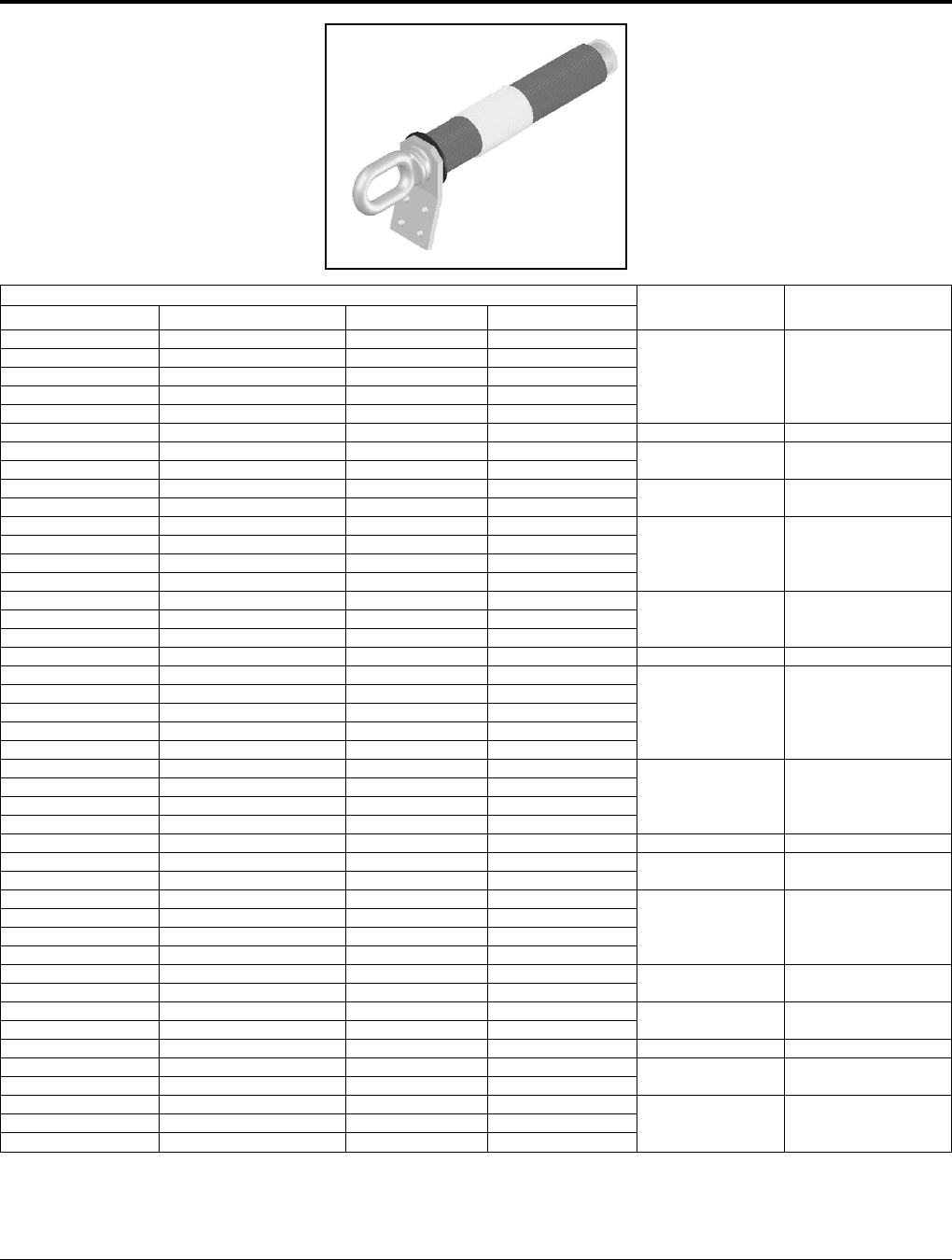

TYPES YTW-AT-AEK,

YTW-AT, YTW-AE,

YNA-RTH EHV

Single Pad, EHV Full Tension

Deadend for Stranded

Aluminum Cable

Full tension compression deadend for SAC

transmission lines at 345 kV and over. Two

hole NEMA tap pad supplied through 636

kcmil. Larger sizes have 4 hole NEMA pad.

Standard 15° tap pad when used with YNA-

R15H terminal provides either 0° or 30° tap.

Aluminum body is pre-filled with PENE -

TROX™ joint compound and capped.

Aluminum Single Pad Tools Terminal*

Conductor Complete

Aluminum

Inches Steel Inches Die with Terminal

Name kcmil Str. Assembly Body C L T Eye B K W Index Y60BHU*‡Hardware Die*‡

336.4 19

Tulip 350 37 YTW301AT331AEK YTW301AT 717 L717 YNA32RT15H L717

397.5 19 9.62

Canna 400 37 YTW311AT331AEK YTW311AT YTW331AE

450 37 719 L719 YNA34RT15H L719

Cosmos 477 19 YTW331AT331AE YTW331AT 9.75 0.62

Syringa 477 37 2.25

Hyacinth 500 37 2.50

Dahlia 556.5 19 YTW351T351AEK YTW351AT 11.62 YTW351AE 720 L720 YNA36RT15H L720

Mistletoe 556.5 37 0.88

600 61

Orchid 636 37 YTW361AT39AEK YTW361AT 12.25 722 L722 YNA39RT15H L722

Violet 715.5 37 YTW39AE 0.69

Nasturtium 715.5 61 YTW39AT39AEK YTW39AT 12.75

Cattail 750 61 0.50

Arbutus 795 37 724 L724 YNA43RT15H L724

795 61 YTW391AT431AEK YTW391AT 14.38

Lilac 800 61

Anemone 874.5 37 YTW431AE 0.75

Crocus 874.5 61 3.25

Magnolia 954 37 YTW431AT431AEK YTW431AT 14.75 725 L725

YNA451RT15H

L725

Goldenrod 954 61

Bluebell 1033.5 37

Larkspur 1033.5 61

1113 37 YTW445AT463AEK YTW445AT

Marigold 1113 61 15.62 2.69 727 L727 YNA49RT15H L727

Hawthorn 1192.6 61 YTW463AE 1.25

Nacrcissus 1272 61 YTW451AT463AEK YTW451AT

Columbine 1351.5 61 1.00

Carnation 1431 61 YTW457AT463AEK YTW457AT 16.50 YNA52RT15H L728

Coreopsis 1590 61 YTW463AT463AEK YTW463AT 17.13 728 L728 YNA54RT15H

Jessamine 1750 61 YTW47AT47AEK YTW47AT YTW47AE YNA56RT15H L729

Cowslip 2000 91 YTW48AT484AEK YTW48AT 4.00 0.62 YNA58RT15H

Sagebrush 2250 91 YTW484AT484AEK YTW484AT 16.38 YTW484AE 735 L735 L735

2300 61 YNA59RT15H

Lupine 2500 91 YTW486AT486AEK YTW486AT 18.50 YTW486AE 3.12 1.25 740 L740

YNA594RT15H

L740

* Overlap Crimp.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Complete Assembly: Includes Aluminum Body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to the end of the catalog

number. For complete assembly (example:

YTW391A431AEKSS) or to terminal (YNA43R15HSS) if ordered

separately.

For assembly without terminal and hardware add NT to the end

of the complete catalog number (example:

YTW391A431AEKNT).

CC KW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-A Body

YTW-AE Steel eye

YNA-R-H Terminal and hardware

Steel Eye

BURNDY®Transmission Products AAC/ACAR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPES YTW-AD-AEK,

YTW-AD, YTW-AE,

YNA-RH

Double Pad Full Tension

Deadend for Stranded

Aluminum Cable

Full tension compression deadend for SAC

transmission lines. One design for applica-

tions up to and including 230 kV. Two hole

NEMA tap pad supplied through 636 kcmil.

Larger sizes have 4 hole NEMA pad.

Standard 15° tap pad when used with YNA-

R15H terminal provides either 0° or 30° tap.

Aluminum body is pre-filled with PENE -

TROX™ joint compound and capped.

Aluminum Single Pad Tools Terminal*

Conductor Complete

Aluminum

Inches Steel Inches Die with Terminal

Name kcmil Str. Assembly Body C L T Eye B K W Index Y60BHU*‡Hardware Die*‡

336.4 19

Tulip 350 37 YTW301AD331AEK YTW301AD 717 L717 YNA32R15H L717

397.5 19 9.62

Canna 400 37 YTW311AD331AEK YTW311AD YTW331AE

450 37 719 L719 YNA34R15H L719

Cosmos 477 19 YTW331AD331AE YTW331AD 9.75 0.62

Syringa 477 37 2.25

Hyacinth 500 37 2.50

Dahlia 556.5 19 YTW351AD351AEK YTW351AD 11.62 YTW351AE 720 L720 YNA36R15H L720

Mistletoe 556.5 37 0.88

600 61

Orchid 636 37 YTW361AD39AEK YTW361AD 12.25 722 L722 YNA39R15H L722

Violet 715.5 37 YTW39AE 0.69

Nasturtium 715.5 61 YTW39AD39AEK YTW39AD 12.75

Cattail 750 61 0.50

Arbutus 795 37 724 L724 YNA43R15H L724

795 61 YTW391AD431AEK YTW391AD 14.38

Lilac 800 61

Anemone 874.5 37 YTW431AE 0.75

Crocus 874.5 61

Magnolia 954 37 YTW431AD431AEK YTW431AD 3.25 14.75 725 L725 YNA451R15H L725

Goldenrod 954 61

Bluebell 1033.5 37

Larkspur 1033.5 61

1113 37 YTW445AD463AEK YTW445AD

Marigold 1113 61 15.62 2.69 727 L727 YNA49R15H L727

Hawthorn 1192.6 61 YTW463AE 1.25

Nacrcissus 1272 61 YTW451AD463AEK YTW451AD

Columbine 1351.5 61 1.00

Carnation 1431 61 YTW457AD463AEK YTW457AD 16.5 YNA52R15H L728

Coreopsis 1590 61 YTW463AD463AEK YTW463AD 17.13 728 L728 YNA54R15H

Jessamine 1750 61 YTW47AD47AEK YTW47AD YTW47AE YNA56R15H L729

Cowslip 2000 91 YTW48AD484AEK YTW48AD 4.00 0.62 YNA58R15H

Sagebrush 2250 91 YTW484AD484AEK YTW484AD 16.38 YTW484AE 735 L735 L735

2300 61 YNA59R15H

Lupine 2500 91 YTW486AD486AE YTW486AD 18.50 YTW486AE 3.12 1.25 740 L740 YNA594R15H L740

* Overlap Crimp.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Complete Assembly: Includes Aluminum Body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to the end of the catalog

number. For complete assembly (example:

YTW391A431AEKSS) or to terminal (YNA43R15HSS) if ordered

separately.

For assembly without terminal and hardware add NT to the end

of the complete catalog number (example:

YTW391A431AEKNT).

CKW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-AD Body

YTW-AE Steel eye

YNA-R-H Terminal and hardware

Steel Eye (YTW-AE)

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPES YTW-ADT-AEK,

YTW-ADT, YTW-AE,

YNA-RTH EHV

Double Pad, EHV Full Tension

Deadend for Stranded

Aluminum Cable

Full tension compression deadend for SAC

transmission line at 345kV and over. Two hole

NEMA tap pad supplied through 636 kcmil.

Larger sizes have 4 hole NEMA pad.

Standard 15° tap pad when used with YNA-

R15H terminal provides either 0° or 30° tap.

Aluminum body is pre-filled with PENE -

TROX™ joint compound and capped.

Aluminum Single Pad Tools Terminal*

Conductor Complete

Aluminum

Inches Steel Inches Die with Terminal

Name kcmil Str. Assembly Body C L T Eye B K W Index Y60BHU*‡Hardware Die*‡

336.4 19

Tulip 350 37 YTW301ADT331AEK YTW301ADT 9.62 717 L717 YNA32R15H L717

397.5 19

Canna 400 37 YTW311ADT331AEK YTW311ADT YTW331AE

450 37 719 L719 YNA34R15H L719

Cosmos 477 19 YTW331ADT331AE YTW331ADT 2.25 9.75 0.62

Syringa 477 37

Hyacinth 500 37 2.50

Dahlia 556.5 19 YTW351ADT351AEK YTW351ADT 11.62 YTW351AE 0.88 720 L720 YNA36R15H L720

Mistletoe 556.5 37

600 61

Orchid 636 37 YTW361ADT39AEK YTW361ADT 12.25 722 L722 YNA39R15H L722

Violet 715.5 37 YTW39AE 0.69

Nasturtium 715.5 61 YTW39ADT39AEK YTW39ADT 12.75

Cattail 750 61 0.50

Arbutus 795 37 724 L724 YNA43R15H L724

795 61 YTW391ADT431AEK YTW391ADT 14.38

Lilac 800 61

Anemone 874.5 37 YTW431AE 0.75

Crocus 874.5 61 3.25 14.75

Magnolia 954 37 YTW431ADT431AEK YTW431ADT 725 L725 YNA451R15H L725

Goldenrod 954 61

Bluebell 1033.5 37

Larkspur 1033.5 61

1113 37 YTW445ADT463AEK YTW445ADT

Marigold 1113 61 15.62 2.69 727 L727 YNA49R15H L727

Hawthorn 1192.6 61 YTW463AE 1.25

Nacrcissus 1272 61 YTW451ADT463AEK YTW451ADT

Columbine 1351.5 61 1.00

Carnation 1431 61 YTW457ADT463AEK YTW457ADT 16.50 YNA52R15H L728

Coreopsis 1590 61 YTW463ADT463AEK YTW463ADT 17.13 728 L728 YNA54R15H

Jessamine 1750 61 YTW47ADT47AEK YTW47ADT YTW47AE YNA56R15H L729

Cowslip 2000 91 YTW48ADT484AEK YTW48ADT 4.00 0.62 YNA58R15H

Sagebrush 2250 91 YTW484ADT484AEK YTW484ADT 16.38 YTW484AE 735 L735 L735

2300 61 YNA59R15H

Lupine 2500 91 YTW486ADT486AE YTW486ADT 18.50 YTW486AE 3.12 1.25 740 L740 YNA594R15H L740

* Overlap Crimp.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Complete Assembly: Includes Aluminum Body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to the end of the catalog

number. For complete assembly (example:

YTW391A431AEKSS) or to terminal (YNA43R15HSS) if ordered

separately.

For assembly without terminal and hardware add NT to the end

of the complete catalog number (example:

YTW391A431AEKNT).

CKW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-AD Body

YTW-AE Steel eye

YNA-R-H Terminal and hardware

Steel Eye (YTW-AE)

BURNDY®Transmission Products AAC/ACAR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Conductor Tool, Die Sets

Conductor Aluminum Catalog Inches Die

Name kcmil Strands Number L Index Y45* Y46* Y60BHU* ‡

Tulip 336.4 19 YTS301A 9.13 717 S725 P725 L725

350 37 YTS301A 9.13 717 S725 P725 L725

Canna 397.5 19 YTS311A 9.29 719 S719 P719 L719

400 37 YTS311A 9.29 719 S719 P719 L719

450 37 YTS331A 9.27 719 S719 P719 L719

Cosmos 477 19 YTS331A 9.27 719 S719 P719 L719

Syringa 477 37 YTS331A 9.27 719 S719 P719 L719

Hyacinth 500 37 YTS351A 11.18 720 S720 P720 L720

Dahila 556.5 19 YTS351A 11.18 720 S720 P720 L720

Mistletoe 556.5 37 YTS351A 11.18 720 S720 P720 L720

600 61 YTS361A 12.14 722 S722 P722 L722

Orchid 636 37 YTS361A 12.14 722 S722 P722 L722

Violet 715.5 37 YTS39A 13.36 724 S724 P724 L724

Nasturtium 715.5 61 YTS39A 13.36 724 S724 P724 L724

Cattail 750 61 YTS39A 13.36 724 S724 P724 L724

Arbutus 795 37 YTS391A 15.81 724 S724 P724 L724

Lilac 795 61 YTS391A 15.81 724 S724 P724 L724

800 61 YTS391A 15.81 724 S724 P724 L724

Anemone 874.5 37 YTS431A 16.51 725 S725 P725 L725

Crocus 874.5 61 YTS431A 16.51 725 — — L725

Magnolia 954 37 YTS431A 16.51 725 — — L725

Goldenrod 954 61 YTS431A 16.51 725 — — L725

Bluebell 1033.5 37 YTS445A 18.51 727 — — L727

Larkspur 1033.5 61 YTS445A 18.51 727 — — L727

1113 37 YTS445A 18.51 727 — — L727

Marigold 1113 61 YTS445A 18.51 727 — — L727

Hawthorn 1192.6 61 YTS451A 18.40 727 — — L727

Nacrcissus 1272 61 YTS451A 18.40 727 — — L727

Columbine 1351.5 61 YTS457A 19.96 728 — — L728

Carnation 1431 61 YTS457A 19.96 728 — — L728

Coreopsis 1590 61 YTS463A 21.50 728 — — L728

2300 61 YTS484A 20.19 735 — — L735

2000 169 YTS48A 21.62 735 — — L735

Lupine 2500 91 YTS486A 24.28 740 — — L740

Jessamine 1750 61 YTS47A 19.96 725 S725 P725 L725

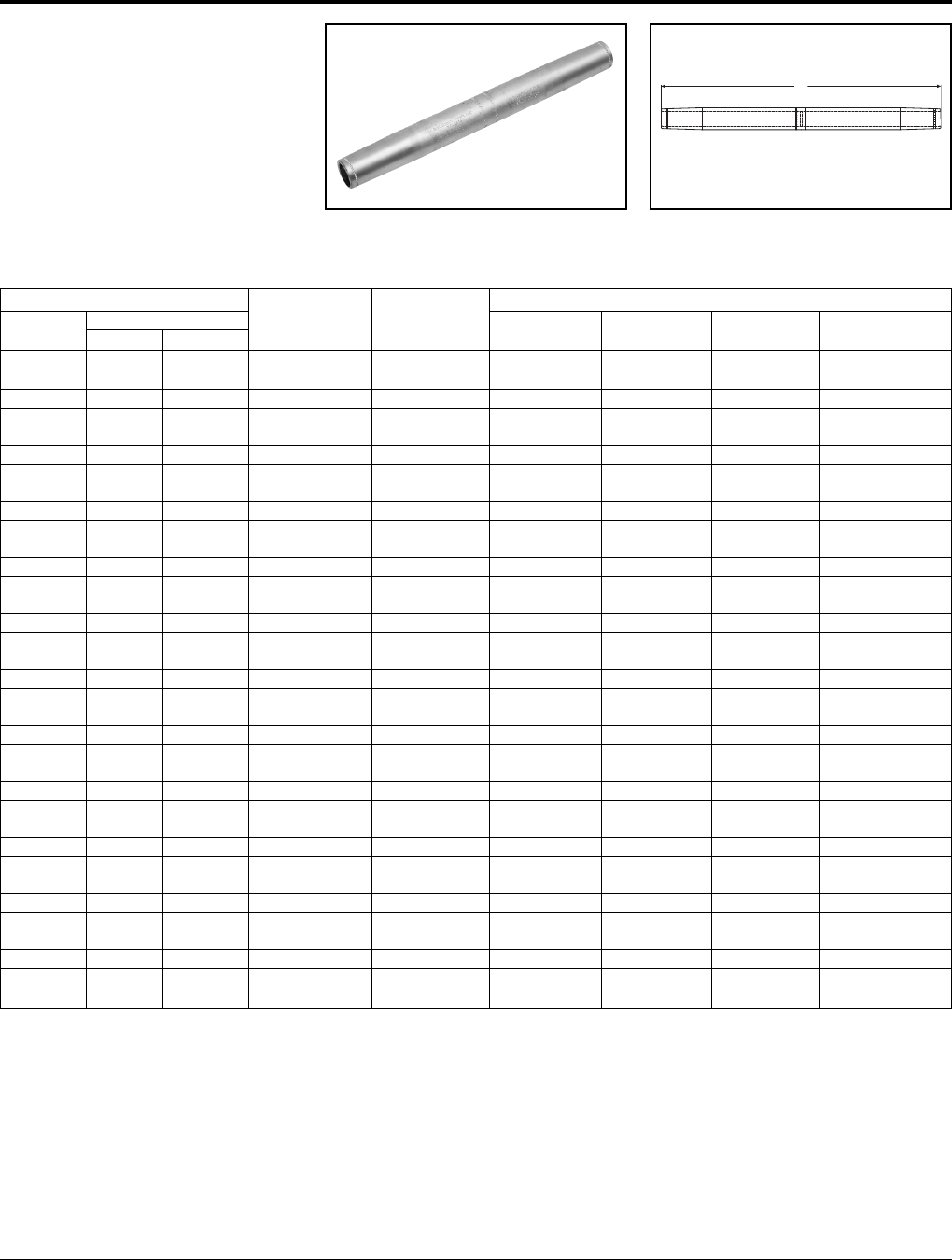

TYPE YTS-A

Full Tension Splice for

Stranded Aluminum

Transmission Line

Full tension splice for Stranded Aluminum

Transmission line up to and including 230 kV.

Manufactured of aluminum tube with staked-

in cable stop. Pre-filled with PENETROX™

joint compound and capped.

* Overlap Crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Conductor Tool, Die Sets

Conductor Aluminum Catalog Inches Die

Name kcmil Strands Number L Index Y45* Y46* Y60BHU* ‡

Tulip 336.4 19 YTS301AT 9.75 717 S725 P725 L725

350 37 YTS301AT 9.75 717 S725 P725 L725

Canna 397.5 19 YTS311AT 9.99 719 S719 P719 L719

400 37 YTS311AT 9.99 719 S719 P719 L719

450 37 YTS331AT 10.01 719 S719 P719 L719

Cosmos 477 19 YTS331AT 10.01 719 S719 P719 L719

Syringa 477 37 YTS331AT 10.01 719 S719 P719 L719

Hyacinth 500 37 YTS351AT 11.88 720 S720 P720 L720

Dahila 556.5 19 YTS351AT 11.88 720 S720 P720 L720

Mistletoe 556.5 37 YTS351AT 11.88 720 S720 P720 L720

600 61 YTS361AT 12.92 722 S722 P722 L722

Orchid 636 37 YTS361AT 12.92 722 S722 P722 L722

Violet 715.5 37 YTS39AT 14.36 724 S724 P724 L724

Nasturtium 715.5 61 YTS39AT 14.36 724 S724 P724 L724

Cattail 750 61 YTS39AT 14.36 724 S724 P724 L724

Arbutus 795 37 YTS391AT 16.56 724 S724 P724 L724

Lilac 795 61 YTS391AT 16.56 724 S724 P724 L724

800 61 YTS391AT 16.56 724 S724 P724 L724

Anemone 874.5 37 YTS431AT 17.92 725 S725 P725 L725

Crocus 874.5 61 YTS431AT 17.92 725 S725 P725 L725

Magnolia 954 37 YTS431AT 17.92 725 S725 P725 L725

Goldenrod 954 61 YTS431AT 17.92 725 S725 P725 L725

Bluebell 1033.5 37 YTS445AT 19.57 727 — — L727

Larkspur 1033.5 61 YTS445AT 19.57 727 — — L727

1113 37 YTS445AT 19.57 727 — — L727

Marigold 1113 61 YTS445AT 19.57 727 — — L727

Hawthorn 1192.6 61 YTS451AT 19.24 727 — — L727

Narcissus 1272 61 YTS451AT 19.24 727 — — L727

Columbine 1351.5 61 YTS457AT 21.08 728 — — L728

Carnation 1431 61 YTS457AT 21.08 728 — — L728

Coreopsis 1590 61 YTS463AT 22.56 728 — — L728

2300 61 YTS484AT 23.00 735 — — L735

2000 169 YTS48AT 23.02 735 — — L735

Lupine 2500 91 YTS486AT 25.40 740 — — L740

Jessamine 1750 61 YTS47AT 21.08 725 S725 P725 L725

TYPE YTS-AT EHV

Full Tension Splice for

Stranded Aluminum

Transmission Line

Full tension splice for Stranded Aluminum

Transmission line at 345 kV and over.

Manufactured of aluminum tube with staked-

in cable stop. Pre-filled with PENETROX™

joint compound and capped.

* Overlap Crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

BURNDY®Transmission Products AAC/ACAR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

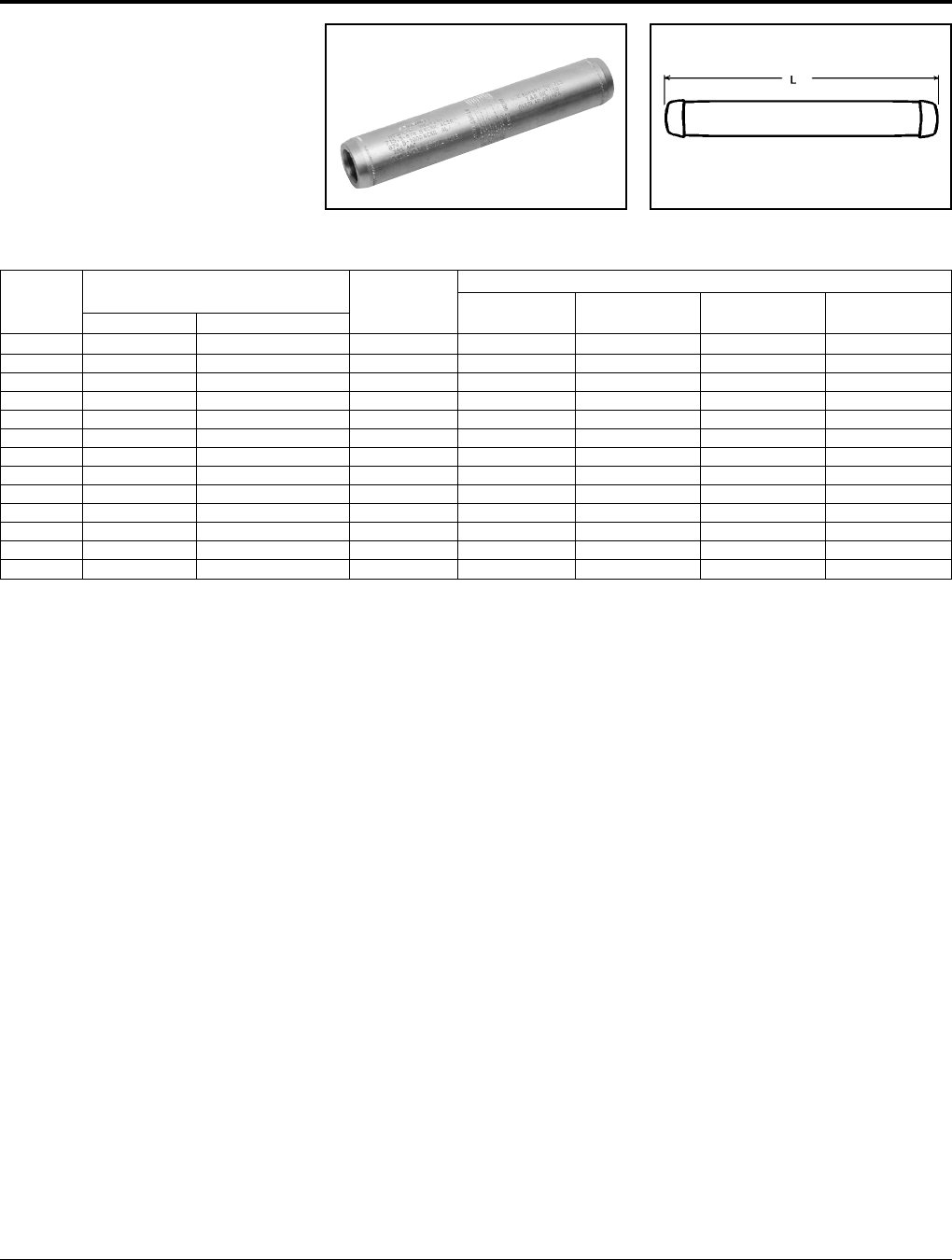

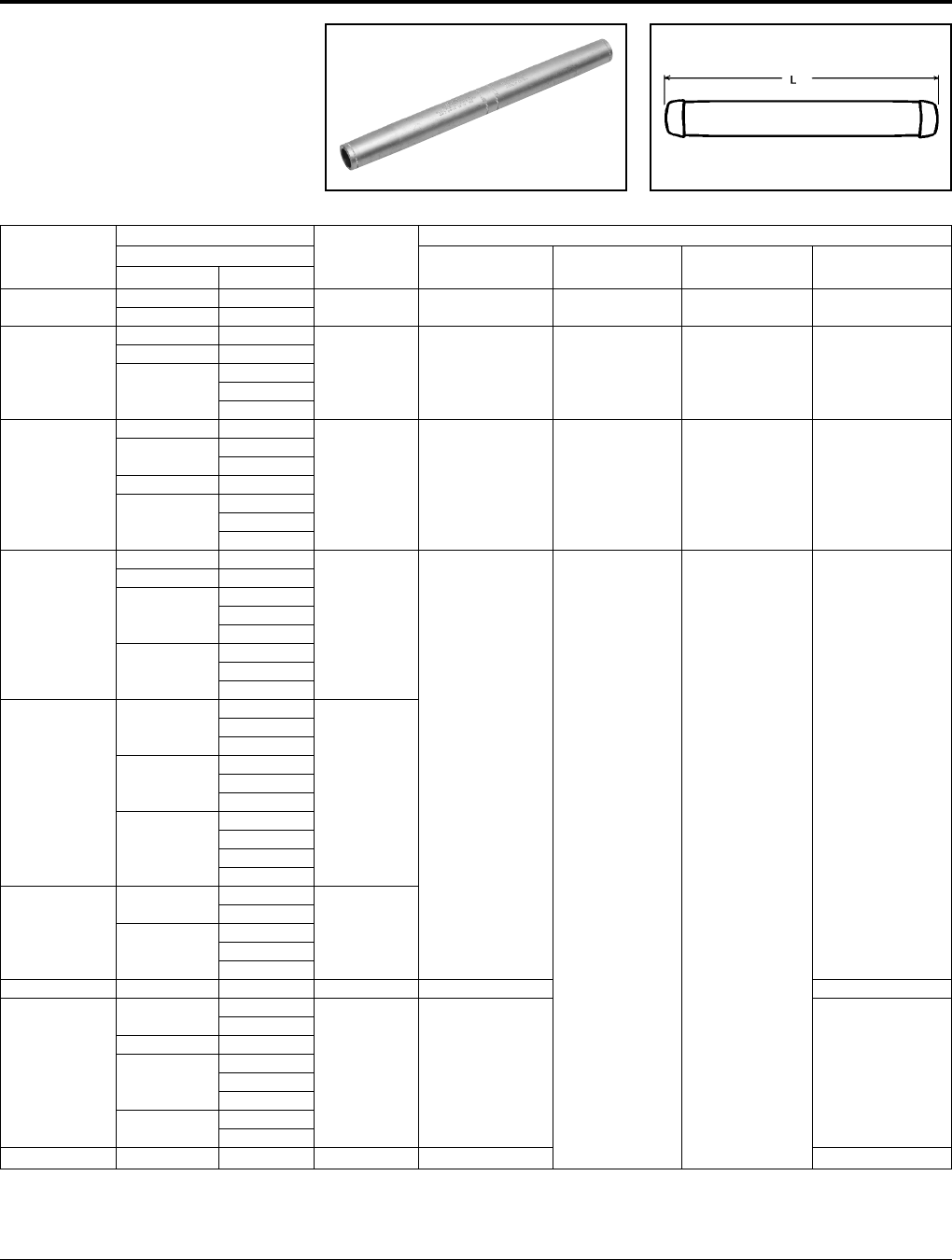

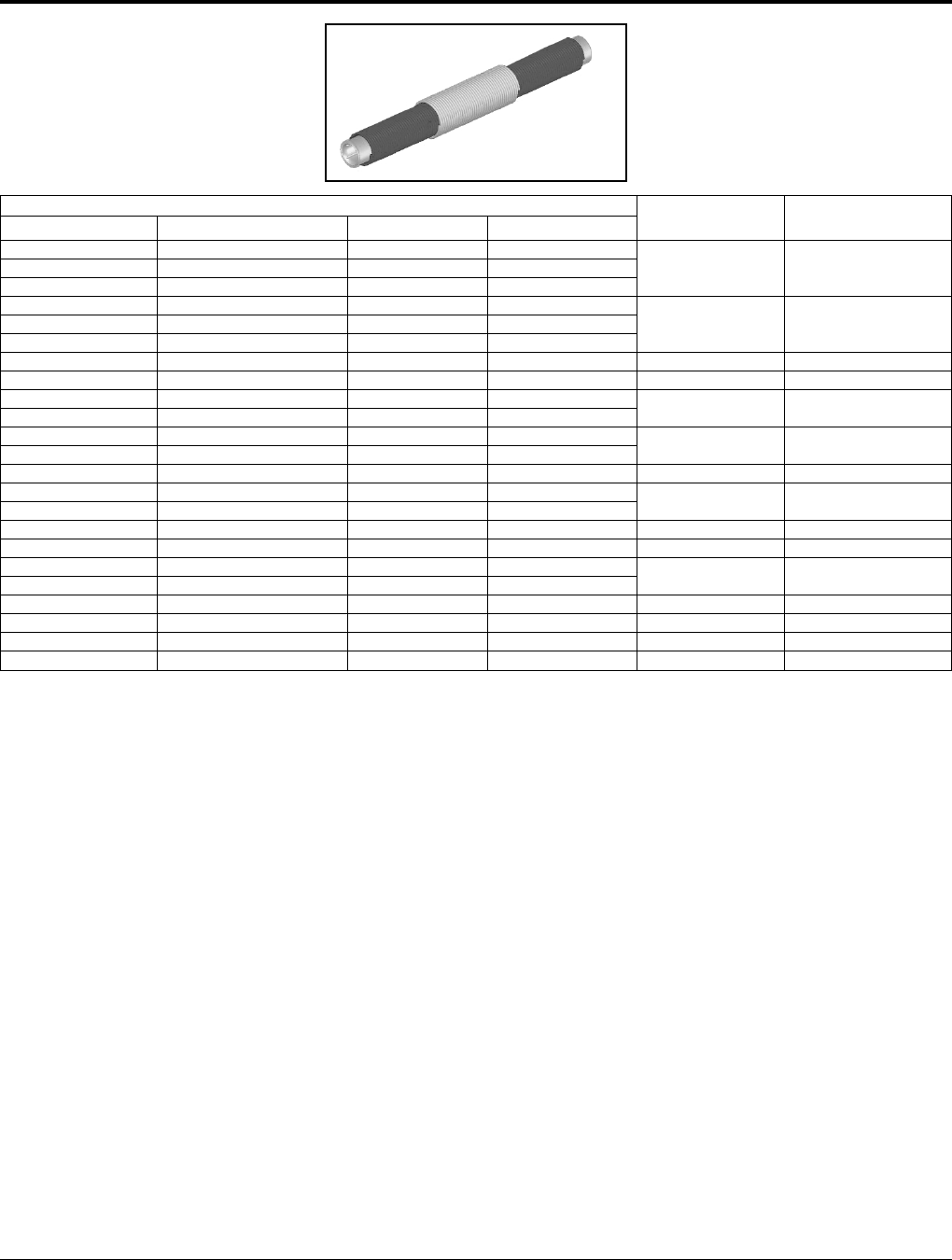

TYPE YTS-AR

Full Tension Splice for ACAR

Full tension splice for ACAR transmission

lines up to and including 230 kV.

Manufactured of aluminum tube with staked-

in cable stop. Pre-filled with PENETROX™

joint compound and capped.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

** Use die H814 in Alcoa Press H2H, die M814 in Alcoa

Press 150B and die MH814 in Alcoa Press 100A. These

dies are manufactured by BURNDY®.

Conductor Tool, Die Sets

Catalog ACAR Die

Number kcmil Str. L Index Y45* Y46* Y60BHU* ‡

395.1 12-7

YTS32AR 395.2 15-7 15.25717 S717 P717 L717

634.9 12-7

649.5 18-19

YTS39AR 15-4 16.38722 S722 P722 L722

653.1 12-7

18-19

840.2 24-13

30-7

853.7 24-13

YTS451AR 862.7 18-19 19.50725 S725 P725 L725

30-7

927.2 24-13

18-19

983.1 30-7

1012.2 24-13

30-7

1024.5 24-13

YTS48AR 18-19 21.38

30-7

1081 24-13

18-19

30-7

1109 24-13

18-19

30-7 727 L727

1172 24-13

YTS49AR 18-19 21.42

30-7

24-13

1198 18-19 — —

42-19

1277 54-7

YTS51AR 30-7 21.50

1280 24-13

18-19

YTS55AR 1534 42-19 25.38728 L728

54-7

2267 48-13

2277 42-19

54-7

YTS59AR 2338 48-13 23.50814 **

42-19

72-19

2335 30-61

YTS592AR 2493 54-37 28.38990 ***

***Use die H990 in Alcoa Press H2H, die M990 in Alcoa

Press 150B and die MH990 in Alcoa Press 100A. These

dies are manufactured by BURNDY®.

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE YTS-ART EHV

Full Tension Splice for ACAR

Full tension splice for ACAR transmission

lines at 345 kV and over. Manufactured of

aluminum tube with staked-in cable stop.

Pre-filled with PENETROX™ joint compound

and capped.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

** Use die H814 in Alcoa Press H2H, die M814 in Alcoa

Press 150B and die MH814 in Alcoa Press 100A. These

dies are manufactured by BURNDY®.

Conductor Tool, Die Sets

Catalog ACAR Inches Die

Number kcmil Str. L Index Y45* Y46* Y60BHU* ‡

395.1 12-7

YTS32ART 395.2 15-7 15.52 717 S717 P717 L717

634.9 12-7

649.5 18-19

YTS39ART 15-4 16.95 722 S722 P722 L722

653.1 12-7

18-19

840.2 24-13

30-7

853.7 24-13

YTS451ART 862.7 18-19 20.36 725 S725 P725 L725

30-7

927.2 24-13

18-19

983.1 30-7

1012.2 24-13

30-7

1024.5 24-13

YTS48ART 18-19 22.36

30-7

1081 24-13

18-19

30-7

1109 24-13

18-19

30-7 727 L727

1172 24-13

YTS49ART 18-19 22.38

30-7

24-13

1198 18-19 — —

42-19

1277 54-7

YTS51ART 30-7 22.46

1280 24-13

18-19

YTS55ART 1534 42-19 26.40 728 L728

54-7

2267 48-13

2277 42-19

54-7

YTS59ART 2338 48-13 24.75 814 **

42-19

72-19

2335 30-61

YTS592ART 2493 54-37 29.40 990 ***

***Use die H990 in Alcoa Press H2H, die M990 in Alcoa

Press 150B and die MH990 in Alcoa Press 100A. These

dies are manufactured by BURNDY®.

BURNDY®Transmission Products AAC/ACAR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

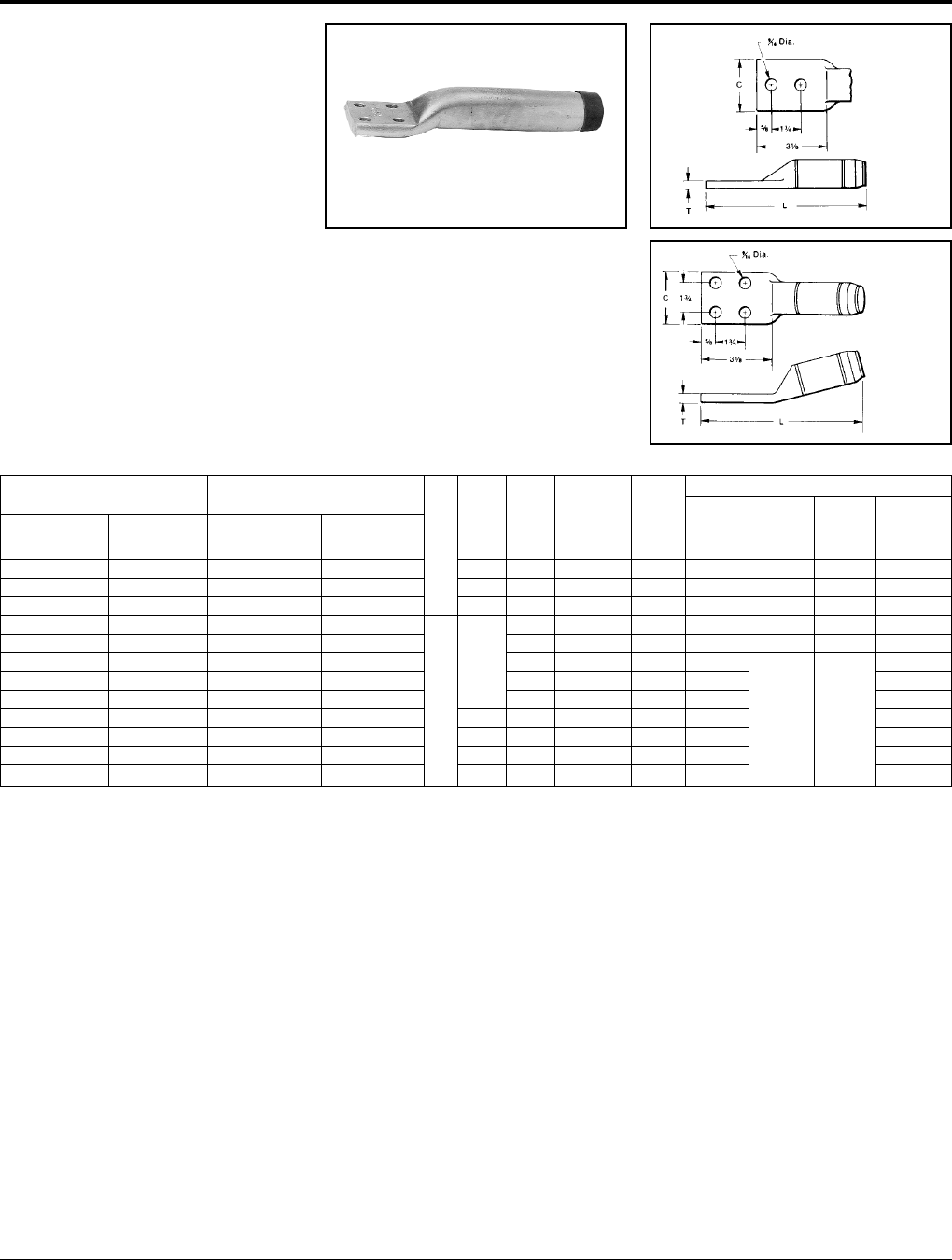

TYPES YNA-R15 &

YNA-R

Compression Terminal

for ACAR and Stranded

Aluminum Cable

Compression terminal ACAR and Stranded

Aluminum Cable. Two hole NEMA tongue

supplied through 650 kcmil Aluminum. For

transmission line up to and including 230 kV

supplied on tongue through 650 kcmil

Aluminum. Four hole NEMA supplied on larg-

er sizes. When used with YTW Deadends the

15° angle tongue provides either a 0° or 30°

tap. Uses same dies as equivalent full-ten-

sion sleeve or deadend. Barrel pre-filled with

PENETROX™ joint compound and capped.

Pad coated with oxide-retardant.

† To specify mounting hardware for bolting to corresponding

deadend pad, add suffix "H" to catalog number

(example: YNA54RTH).

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Fig. 1

Fig. 2

Catalog Tools, Die Sets

Number †Conductor Fig. L L Die

15° Straight ACAR Aluminum No. C 15° Straight T Index Y45* Y46* Y60BHU*‡

YNA32R15 YNA32R 395.1 - 395.2 336.4 - 350 1.689.168.960.39717 S717 P717 L717

YNA34R15 YNA34R — 397.5 - 477 1.789.319.080.46719 S719 P719 L719

YNA36R15 YNA36R — 500 -556.5 11.969.629.470.48720 S720 P720 L720

YNA39R15 YNA39R 634.9 - 653.1 600 - 650 2.0810.099.840.53722 S722 P722 L722

YNA43R15 YNA43R — 700 - 800 10.1610.070.36724 S724 P724 L724

YNA451R15 YNA451R 840.2 927.2 795 1000 10.2110.280.45725 S725 P725 L725

YNA49R15 YNA49R 983.1 - 1198 1033.5 - 1272 3.2210.3510.460.52727 L727

YNA52R15 YNA52R 1277 - 1280 1351.5 - 1510 12.0912.240.71728 L728

YNA54R15 YNA54R 1534 1590 - 1600 2 13.3013.460.71728 L728

YNA56R15 YNA56R — 1700 - 1800 3.4412.5012.740.81729 — — L729

YNA58R15 YNA58R — 2000 3.4713.2513.340.80735 L735

YNA59R15 YNA59R — 2250 - 2300 3.5713.1213.250.64735 L735

YNA594R15 YNA594R 2267 - 2500 2500 3.7012.8114.350.68740 L740

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPES YNA-RT15,

YNA-RT, EHV

Compression Terminal for

ACAR and Stranded

Aluminum Cable

Compression terminal ACAR and Stranded

Aluminum Cable. For transmission lines over

230 kV. Two hole NEMA supplied on tongue

through 650 kcmil Aluminum. Four hole

NEMA supplied on larger sizes. When used

with YTW Deadends the 15° angle tongue

provides either a 0° or 30° tap. Uses same

dies as equivalent full-tension sleeve or

deadend. Barrel pre-filled with PENETROX™

joint compound and capped. Pad coated

with oxide-retardant.

† To specify mounting hardware for bolting to corresponding

deadend pad, add suffix "H" to catalog number

(example: YNA54RTH).

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

‡‡If shielding caps are required for this item, use Catalog

Number STS43A-4N.

Fig. 1

Fig. 2

Catalog Tools, Die Sets

Number †Conductor Fig. L L Die

15° Straight ACAR Aluminum No. C 15° Straight T Index Y45* Y46* Y60BHU*‡

YNA32RT15 YNA32RT 395.1 - 395.2 336.4 - 350 1.689.049.140.39717 S717 P717 L717

YNA34RT15 YNA34RT — 397.5 - 477 1.789.219.300.46719 S719 P719 L719

YNA36RT15 YNA36RT — 500 -556.5 11.969.639.700.48720 S720 P720 L720

YNA39RT15 YNA39RT 634.9 - 653.1 600 - 650 2.0810.0210.090.53722 S722 P722 L722

YNA43RT15 YNA43RT — 700 - 800 10.2110.320.36724 S724 P724 L724

YNA451RT15 ‡‡ YNA451RT ‡‡ 840.2 927.2 795 1000 10.6510.570.45725 S725 P725 L725

YNA49RT15 ‡‡ YNA49RT ‡‡ 983.1 - 1198 1033.5 - 1272 3.2210.9410.710.52727 L727

YNA52RT15 ‡‡ YNA52RT ‡‡ 1277 - 1280 1351.5 - 1510 12.6213.820.71728 L728

YNA54RT15 ‡‡ YNA54RT ‡‡ 1534 1590 - 1600 2 14.0213.790.71728 L728

YNA56RT15 ‡‡ YNA56RT ‡‡ — 1700 - 1800 3.4413.3613.760.81729 — — L729

YNA58RT15 ‡‡ YNA58RT ‡‡ — 2000 3.4714.0813.700.80735 L735

YNA59RT15 ‡‡ YNA59RT ‡‡ — 2250 - 2300 3.5713.7513.540.64735 L735

YNA594RT15 ‡‡ YNA594RT ‡‡ 2267 - 2500 2500 3.7013.5014.060.68740 L740

BURNDY®Transmission Products AAC/ACAR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

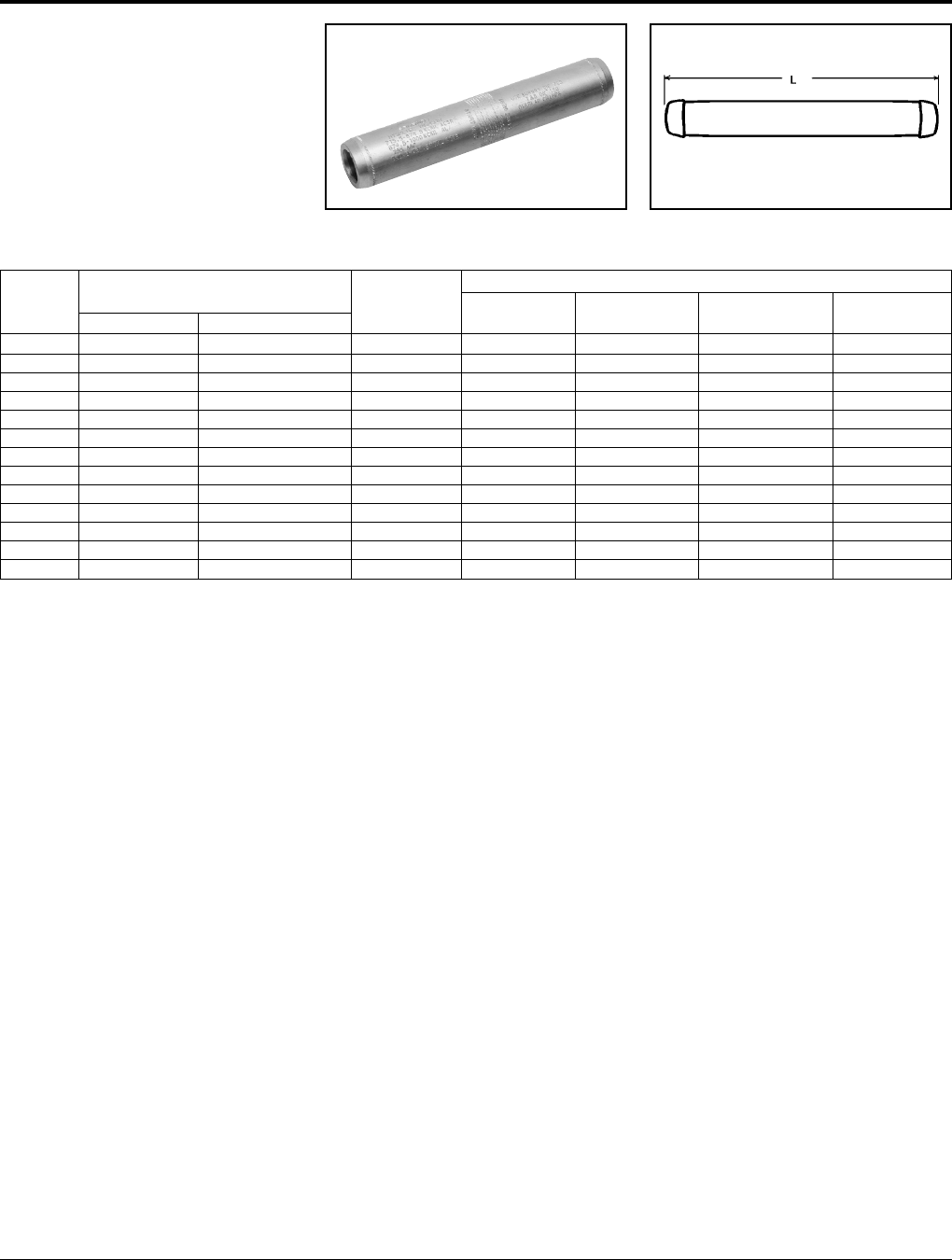

TYPE YNS-R

Jumper Loop Sleeve

for ACAR and Stranded

Aluminum Conductor

Jumper sleeve for ACAR and Stranded

Aluminum Cable up to and including 230 kV.

Sleeve prefilled with PENETROX™ joint com-

pound and capped.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Tools, Die Sets

Catalog Conductor Inches Die

Number ACAR Aluminum L Index Y45* Y46* Y60BHU*‡

YNS32R 395.1 - 395.2 336.4 - 350 8.60 717 S717 P717 L717

YNS34R — 397.5 - 477 8.68 719 S719 P719 L719

YNS36R — 500 - 556.5 9.20 720 S720 P720 L720

YNS39R 634.9 - 655.1 600 - 650 9.76 722 S722 P722 L722

YNS43R — 700 - 800 9.98 724 S724 P724 L724

YNS451R 840.2 - 927.2 795 - 1000 10.04 725 S725 P725 L725

YNS49R 983.1 - 1198 1033.5 - 1272 10.08 727 — — L727

YNS52R 1277 - 1280 1351.5 - 1510 15.48 728 — — L728

YNS54R 1534 1590 - 1600 15.48 728 — — L728

YNS56R — 1700 - 1800 14.80 729 — — L729

YNS58R — 2000 14.74 735 — — L735

YNS59R — 2250 14.56 735 — — L735

YNS594R 2267 - 2500 2500 14.04 740 — — L740

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE YNS-RT EHV

Jumper Loop Sleeve

for ACAR and Stranded

Aluminum Conductor

Jumper sleeve for ACAR and Stranded

Aluminum Cable over 230 kV. Sleeve prefilled

with PENETROX™ joint compound and

capped.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Tools, Die Sets

Catalog Conductor Inches Die

Number ACAR Aluminum L Index Y45* Y46* Y60BHU*‡

YNS32RT 395.1 - 395.2 336.4 - 350 8.86 717 S717 P717 L717

YNS34RT — 397.5 - 477 9.10 719 S719 P719 L719

YNS36RT — 500 - 556.5 9.64 720 S720 P720 L720

YNS39RT 634.9 - 655.1 600 - 650 10.26 722 S722 P722 L722

YNS43RT — 700 - 800 10.48 724 S724 P724 L724

YNS451RT 840.2 - 927.2 795 - 1000 10.60 725 S725 P725 L725

YNS49RT 983.1 - 1198 1033.5 - 1272 10.66 727 — — L727

YNS52RT 1277 - 1280 1351.5 - 1510 16.20 728 — — L728

YNS54RT 1534 1590 - 1600 16.11 728 — — L728

YNS56RT — 1700 - 1800 15.58 729 — — L729

YNS58RT — 2000 15.46 735 — — L735

YNS59RT — 2250 15.14 735 — — L735

YNS594RT 2267 - 2500 2500 16.53 740 — — L740

BURNDY®Transmission Products AAC/ACAR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

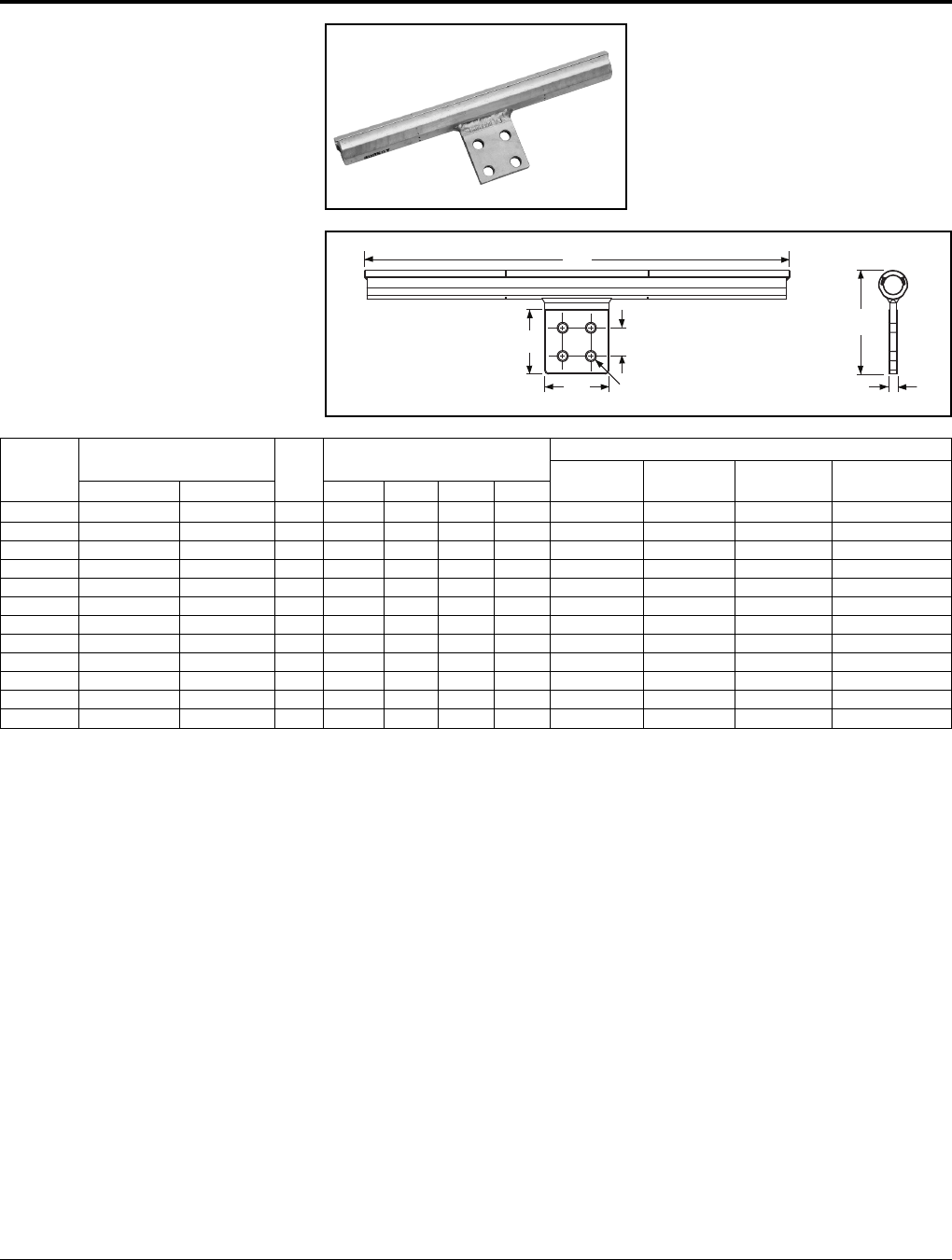

31⁄813⁄4

5⁄16 Dia.

TYPE YNTA-R

T-Tap With Pad

For ACAR and Stranded

Aluminum Cable

Two-piece compression T-Tap with pad for

ACAR and Stranded aluminum transmission

lines.

Two hole NEMA pads standard for conductors up to 650 kcmil.

Four hole NEMA pads on larger condcutor sizes.

* Overlap crimps.

** For Extra High Voltage (EHV) applications order two tap

pad shielding caps STS43A4N. Catalog number indicates

1 cap. Two caps required per assembly.

‡ Wide dies may be used add suffix “W” to the part number

(example: L725W).

Tools, Die Sets

Catalog Conductor Fig. Inches Die

Number ACAR Aluminum No. L C H T Index Y45* Y46* Y60BHU*‡

YNTA32R 395.1 - 395.2 336.4 - 350 1 15.46 2.00 4.94 0.50 717 S717 P717 L717

YNTA34R 397.5 - 477 1 15.60 2.00 5.05 0.50 719 S719 P719 L719

YNTA36R 500 - 556.5 1 16.29 2.25 5.16 0.56 720 S720 P720 L720

YNTA39R 634.9 - 653.1 600 - 650 1 16.69 2.25 5.25 0.56 722 S722 P722 L722

YNTA43R 700 - 800 2 17.48 3.25 5.36 0.56 724 S724 P724 L724

YNTA451R 840.2 - 927.2 795 - 1000 2 17.60 3.25 5.55 0.56 725 S725 P725 L725

YNTA49R 983.1 - 1198 1033.5 - 1272 2 17.66 3.25 5.72 0.56 727 — — L727

YNTA54R 1351.5 - 1600 2 21.61 3.25 6.00 0.69 728 — — L728

YNTA56R 1650 1700 - 1800 2 23.65 3.59 6.25 0.69 729 — — L729

YNTA58R 2000 2 23.53 3.59 6.25 0.69 735 — — L735

YNTA59R 2300 2 23.21 3.59 6.25 0.69 735 — — L735

YNTA594R 2267 - 2500 2500 2 24.3 3.59 6.35 0.69 740 — — L740

BURNDY®Transmission Products AAC/ACAR Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

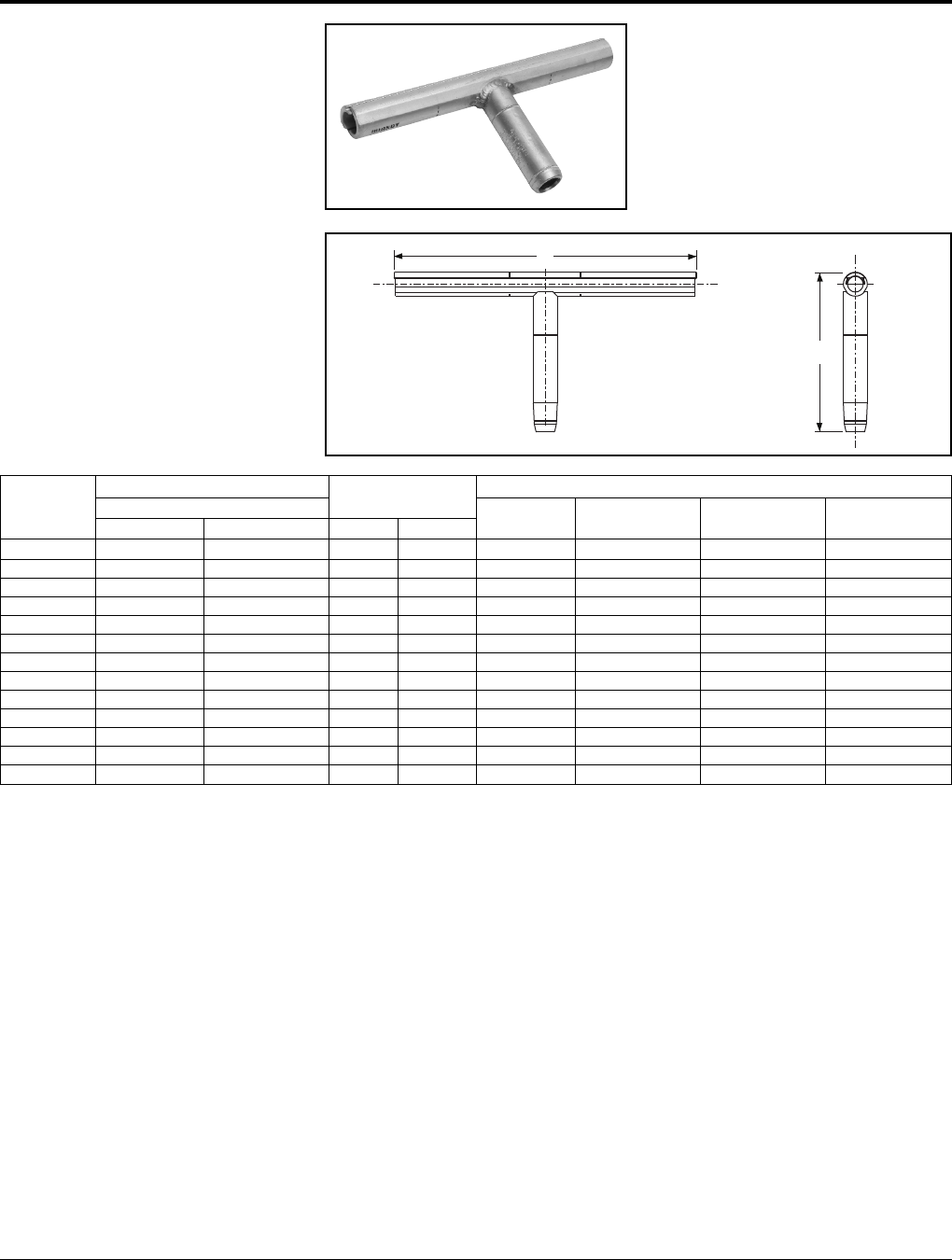

TYPE YNT-R-R

Compression T-Tap

Two-Piece Compression T-Tap

for ACAR and Stranded

Aluminum Transmission Lines

Installed with same dies as equivalent full ten-

sion splice. Tap element pre-filled with PENE -

TROX™ joint compound.

* Overlap Crimps.

** For Extra High Voltage (EHV) applications add suffix ”T” to

the catalog number (example: YBT49R49RT).

‡ Wide dies may be used add suffix “W” to the part number

(example: L725W).

Conductor Tools, Die Sets

Catalog Run and Tap Inches Die

Number ACAR Aluminum L H Index Y45* Y46* Y60BHU*‡

YNT32R32R 336.4 - 350 15.46 6.39 717 S717 P717 L717

YNT34R34R 397.5 - 477 15.60 6.53 719 S719 P719 L719

YNT36R36R 500 - 556.5 16.29 6.85 720 S720 P720 L720

YNT39R39R 600 - 650 16.69 7.13 722 S722 P722 L722

YNT43R43R 700 - 800 17.48 7.20 724 S724 P724 L724

YNT451R451R 840.2 - 927.2 795 - 1000 17.60 7.70 725 S725 P725 L725

YNT49R49R 1033.5 - 1272 17.66 7.90 727 — — L727

YNT52R52R 1510 21.61 11.10 728 — — L728

YNT54R54R 1590 - 1600 21.61 11.10 728 — — L728

YNT56R56R 1650 1700 - 1800 23.65 11.08 729 — — L729

YNT58R58R 2000 23.53 11.02 735 — — L735

YNT59R59R 2300 23.21 10.88 735 — — L735

YNT594R594R 2267 - 2500 2500 24.30 11.45 740 — — L740

AAC/ACAR Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

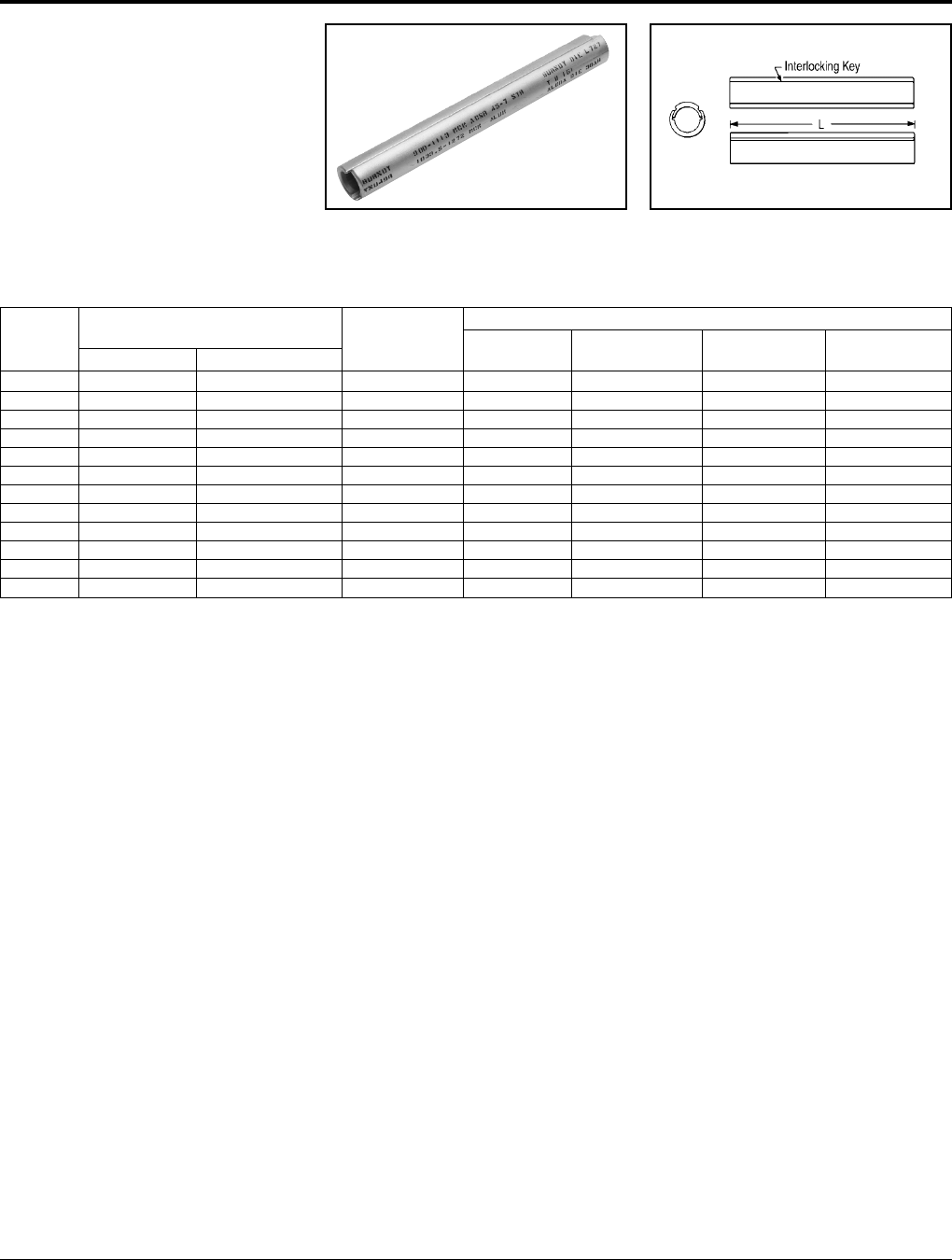

TYPE YNU-R

Repair Sleeve for ACAR and

Stranded Aluminum Cable

Two piece repair sleeves for restoring con-

ductivity to damaged ACAR or Stranded

Aluminum Cable transmission lines. Installed

with same dies as equivalent full tension

splice. Use of PENETROX™ joint compound

required. For High Voltage and Extra High

Voltage (EHV) Applications.

* Overlap Crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Tools, Die Sets

Catalog Conductor Inches Die

Number ACAR Aluminum L Index Y45* Y46* Y60BHU*‡

YNU32R — 336.4 - 350 14.00 717 S717 P717 L717

YNU34R — 397.5 - 477 14.00 719 S719 P719 L719

YNU36R — 500 - 556.5 14.00 720 S720 P720 L720

YNU39R — 600 - 650 16.00 722 S722 P722 L720

YNU43R — 700 - 800 16.00 724 S724 P724 L724

YNU451R 840.2 - 927.2 795 - 1000 16.00 725 S725 P725 L725

YNU49R — 1033.5 - 1272 16.00 727 — — L727

YNU54R — 1351.5 - 1600 16.00 728 — — L728

YNU56R — 1700 - 1800 19.00 729 — — L729

YNU59R — 2000 -2300 19.00 735 — — L735

YNU594R 2267 - 2500 2500 20.00 740 — — L740

YNU595R 2500 2500 24.60 791 — — L791

BURNDY®Transmission Products ACSS Conductor Accessories

High Temperature

TYPES YTW-R-REKHT,

YTW-RHT, YTW-REHT,

BYNA-R-HHT

Single Pad Full Tension

Deadend for ACSS Conductor

Full tension compression deadend for 250ºC

rated ACSS transmission lines up to and

including 230 kV. Standard 15º NEMA tap pad

provides either 0º or 30º tap when BYNA-R15

terminal is used.

ACSS Single Pad Inches Inches Terminal †

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye B K W Die* Hardware Die*‡

Linnet 336.4 26 7 YTW32R34REKHT YTW32RHT 21.53 3.25 0.50 L717 YTW34REHT 2.50 0.88 0.62 L718 BYNA32R15HHT L717

Oriole 336.4 30 7 YTW32R33REKHT YTW32RHT 21.53 3.25 0.50 L717 YTW33REHT 2.50 0.88 0.62 L718 BYNA32R15HHT L717

Ibis 397.5 26 7 YTW34R34REKHT YTW34RHT 21.60 3.25 0.50 L719 YTW34REHT 2.50 0.88 0.62 L718 BYNA34R15HHT L719

Flicker 477 24 7 YTW36R362REKHT YTW36RHT 23.41 3.25 0.50 L720 YTW362REHT 2.50 0.88 0.62 L721 BYNA36R15HHT L720

Hawk 477 26 7 YTW36R36REKHT YTW36RHT 23.41 3.25 0.50 L720 YTW36REHT 2.50 0.88 0.62 L721 BYNA36R15HHT L720

Parakeet 556.5 24 7 YTW39R43REKHT YTW39RHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39R15HHT L722

Dove 556.5 26 7 YTW39R43REKHT YTW39RHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39R15HHT L722

Peacock 605 24 7 YTW43R43REKHT YTW43RHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Squab 605 26 7 YTW43R43REKHT YTW43RHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Rook 636 24 7 YTW43R43REKHT YTW43RHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Grosbeak 636 26 7 YTW43R43REKHT YTW43RHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Flamingo 666.6 24 7 YTW43R43REKHT YTW43RHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Starling 715.5 26 7 YTW451R48REKHT YTW451RHT 29.41 3.25 0.50 L725 YTW48REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Cuckoo 795 24 7 YTW451R45REKHT YTW451RHT 29.41 3.25 0.50 L725 YTW45REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Drake 795 26 7 YTW451R48REKHT YTW451RHT 29.41 3.25 0.50 L725 YTW48REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Tern 795 45 7 YTW451R481REKHT YTW451RHT 29.41 3.25 0.50 L725 YTW481REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Condor 795 54 7 YTW451R45REKHT YTW451RHT 29.41 3.25 0.50 L725 YTW45REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Ruddy 900 45 7 YTW48R481REKHT YTW48RHT 29.50 3.25 0.50 L727 YTW481REHT 2.69 1.25 0.75 L726 BYNA49R15HHT L727

Rail 954 45 7 YTW48R481REKHT YTW48RHT 29.50 3.25 0.50 L727 YTW481REHT 2.69 1.25 0.75 L726 BYNA49R15HHT L727

Cardinal 954 54 7 YTW48R48REKHT YTW48RHT 29.50 3.25 0.50 L727 YTW48REHT 2.69 1.25 0.75 L726 BYNA49R15HHT L727

Ortolan 1033.5 45 7 YTW49R483REKHT YTW49RHT 31.35 3.25 0.50 L727 YTW483REHT 2.69 1.25 1.00 L726 BYNA49R15HHT L727

Curlew 1033.5 54 7 YTW49R50REKHT YTW49RHT 31.35 3.25 0.50 L727 YTW50REHT 2.69 1.25 1.00 L726 BYNA49R15HHT L727

Bluejay 1113 45 7 YTW49R483REKHT YTW49RHT 31.35 3.25 0.50 L727 YTW483REHT 2.69 1.25 1.00 L726 BYNA49R15HHT L727

Finch 1113 54 19 YTW52R50REKHT YTW52RHT 35.55 3.25 0.50 L728 YTW50REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Bunting 1192.5 45 7 YTW52R521REKHT YTW52RHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Bittern 1272 45 7 YTW52R521REKHT YTW52RHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Pheasant 1272 54 19 YTW52R56REKHT YTW52RHT 35.55 4.00 0.62 L728 YTW56REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Dipper 1351.5 45 7 YTW52R521REKHT YTW52RHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Martin 1351.5 54 19 YTW52R56REKHT YTW52RHT 35.55 4.00 0.62 L728 YTW56REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Nuthatch 1510.5 45 7 YTW549R521REKHT YTW549RHT 35.55 4.00 0.62 L729 YTW521REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Parrot 1510.5 54 19 YTW549R56REKHT YTW549RHT 35.55 4.00 0.62 L729 YTW56REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Lapwing 1590 45 7 YTW549R549REKHT YTW549RHT 35.55 4.00 0.62 L729 YTW549REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Falcon 1590 54 19 YTW56R590REKHT YTW56RHT 35.99 4.00 0.62 L729 YTW590REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Chukar 1780 84 19 YTW58R58REKHT YTW58RHT 36.99 4.00 0.62 L735 YTW58REHT 2.69 1.25 1.00 L726 BYNA58R15HHT L735

Bluebird 2156 84 19 YTW59R59REKHT YTW59RHT 37.34 4.00 0.62 L735 YTW59REHT 2.69 1.25 1.00 L726 BYNA59R15HHT L735

Kiwi 2167 72 7 YTW59R591REKHT YTW59RHT 37.34 4.00 0.62 L735 YTW591REHT 2.69 1.25 1.00 L726 BYNA59R15HHT L735

Complete Assembly: Includes Aluminum body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32R34REKHTSS) or to

terminal if ordered separately (BYNA32R15HTSSHHTSS).

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32R34REKHTNT).

† BYNA terminals must be crimped from cable end moving

toward pad end.

CKW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-RHT Body

YTW-RW Steel eye

BYNA-RHHT Terminal and hardware

Steel Eye

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPES YTW-RD-REKHT,

YTW-RDHT, YTW-REHT,

BYNA-R-HHT

Double Pad Full Tension

Deadend for ACSS Conductor

Full tension compression deadend for 250ºC

rated ACSS transmission lines up to and

including 230 kV. Standard 15º NEMA tap

pads provide either 0º or 30º tap when BYNA-

R15 terminal is used.

ACSS Double Pad Inches Inches Terminal †

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye B K W Die* Hardware Die*‡

Linnet 336.4 26 7 YTW32RD34REKHT YTW32RDHT 21.53 3.25 0.50 L717 YTW34REHT 2.50 0.88 0.62 L718 BYNA32R15HHT L717

Oriole 336.4 30 7 YTW32RD33REKHT YTW32RDHT 21.53 3.25 0.50 L717 YTW33REHT 2.50 0.88 0.62 L718 BYNA32R15HHT L717

Ibis 397.5 26 7 YTW34RD34REKHT YTW34RDHT 21.60 3.25 0.50 L719 YTW34REHT 2.50 0.88 0.62 L718 BYNA34R15HHT L719

Flicker 477 24 7 YTW36RD362REKHT YTW36RDHT 23.41 3.25 0.50 L720 YTW362REHT 2.50 0.88 0.62 L721 BYNA36R15HHT L720

Hawk 477 26 7 YTW36RD36REKHT YTW36RDHT 23.41 3.25 0.50 L720 YTW36REHT 2.50 0.88 0.62 L721 BYNA36R15HHT L720

Parakeet 556.5 24 7 YTW39RD43REKHT YTW39RDHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39R15HHT L722

Dove 556.5 26 7 YTW39RD43REKHT YTW39RDHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39R15HHT L722

Peacock 605 24 7 YTW43RD43REKHT YTW43RDHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Squab 605 26 7 YTW43RD43REKHT YTW43RDHT 20.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Rook 636 24 7 YTW43RD43REKHT YTW43RDHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HT L724

Grosbeak 636 26 7 YTW43RD43REKHT YTW43RDHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Flamingo 666.6 24 7 YTW43RD43REKHT YTW43RDHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43R15HHT L724

Starling 715.5 26 7 YTW451RD48REKHT YTW451RDHT 29.41 3.25 0.50 L725 YTW48REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Cuckoo 795 24 7 YTW451RD45REKHT YTW451RDHT 29.41 3.25 0.50 L725 YTW45REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Drake 795 26 7 YTW451RD48REKHT YTW451RDHT 29.41 3.25 0.50 L725 YTW48REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Tern 795 45 7 YTW451RD481REKHT YTW451RDHT 29.41 3.25 0.50 L725 YTW481REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Condor 795 54 7 YTW451RD45REKHT YTW451RDHT 29.41 3.25 0.50 L725 YTW45REHT 2.69 1.25 0.75 L726 BYNA451R15HHT L725

Ruddy 900 45 7 YTW48RD481REKHT YTW48RDHT 29.50 3.25 0.50 L727 YTW481REHT 2.69 1.25 0.75 L726 BYNA49R15HHT L727

Rail 954 45 7 YTW48RD481REKHT YTW48RDHT 29.50 3.25 0.50 L727 YTW481REHT 2.69 1.25 0.75 L726 BYNA49R15HHT L727

Cardinal 954 54 7 YTW48RD48REKHT YTW48RDHT 29.50 3.25 0.50 L727 YTW48REHT 2.69 1.25 0.75 L726 BYNA49R15HHT L727

Ortolan 1033.5 45 7 YTW49RD483REKHT YTW49RDHT 31.35 3.25 0.50 L727 YTW483REHT 2.69 1.25 1.00 L726 BYNA49R15HHT L727

Curlew 1033.5 54 7 YTW49RD50REKHT YTW49RDHT 31.35 3.25 0.50 L727 YTW50REHT 2.69 1.25 1.00 L726 BYNA49R15HHT L727

Bluejay 1113 45 7 YTW49RD483REKHT YTW49RDHT 31.35 3.25 0.50 L727 YTW483REHT 2.69 1.25 1.00 L726 BYNA49R15HHT L727

Finch 1113 54 19 YTW52RD50REKHT YTW52RDHT 35.55 3.25 0.50 L728 YTW50REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Bunting 1192.5 45 7 YTW52RD521REKHT YTW52RDHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Bittern 1272 45 7 YTW52RD521REKHT YTW52RDHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Pheasant 1272 54 19 YTW52RD56REKHT YTW52RDHT 35.55 4.00 0.62 L728 YTW56REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Dipper 1351.5 45 7 YTW52RD521REKHT YTW52RDHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Martin 1351.5 54 19 YTW52RD56REKHT YTW52RDHT 35.55 4.00 0.62 L728 YTW56REHT 2.69 1.25 1.00 L726 BYNA52R15HHT L728

Nuthatch 1510.5 45 7 YTW549RD521REKHT YTW549RDHT 35.55 4.00 0.62 L729 YTW521REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Parrot 1510.5 54 19 YTW549RD56REKHT YTW549RDHT 35.55 4.00 0.62 L729 YTW56REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Lapwing 1590 45 7 YTW549RD549REKHT YTW549RDHT 35.55 4.00 0.62 L729 YTW549REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Falcon 1590 54 19 YTW56RD590REKHT YTW56RDHT 35.99 4.00 0.62 L729 YTW590REHT 2.69 1.25 1.00 L726 BYNA56R15HHT L729

Chukar 1780 84 19 YTW58RD58REKHT YTW58RDHT 36.99 4.00 0.62 L735 YTW58REHT 2.69 1.25 1.00 L726 BYNA58R15HHT L735

Bluebird 2156 84 19 YTW59RD59REKHT YTW59RDHT 37.34 4.00 0.62 L735 YTW59REHT 2.69 1.25 1.00 L726 BYNA59R15HHT L735

Kiwi 2167 72 7 YTW59RD591REKHT YTW59RDHT 37.34 4.00 0.62 L735 YTW591REHT 2.69 1.25 1.00 L726 BYNA59R15HHT L735

Complete Assembly: Includes Aluminum body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32R34REKHTSS) or to

terminal if ordered separately (BYNA32R15HTSSHHTSS).

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32R34REKHTNT).

† BYNA terminals must be crimped from cable end moving

toward pad end.

CKW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-RDHT Body

YTW-REHT Steel eye

BYNA-R-HHT Terminal and hardware

Steel Eye

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS Conductor Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPES

YTW-RT-REKHT,

YTW-RTHT, YTW-REHT,

BYNA-RT-HHT EHV

Single Pad, EHV

Full Tension Deadend

for ACSS Conductor

Full tension compression deadend for 250ºC

rated ACSS transmission lines at 345 kV and

over. Standard 15º NEMA tap pad provides

either 0º or 30º tap when BYNA-RT15 termi-

nal is used.

CKW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-RHT Body

YTW-REHT Steel eye

BYNA-RT-HHT Terminal and hardware

Steel Eye

ACSS Single Pad Inches Inches Terminal †

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye B K W Die* Hardware Die*‡

Linnet 336.4 26 7 YTW32RT34REKHT YTW32RTHT 21.53 3.25 0.50 L717 YTW34REHT 2.50 0.88 0.62 L718 BYNA32RT15HHT L717

Oriole 336.4 30 7 YTW32RT33REKHT YTW32RTHT 21.53 3.25 0.50 L717 YTW33REHT 2.50 0.88 0.62 L718 BYNA32RT15HHT L717

Ibis 397.5 26 7 YTW34RT34REKHT YTW34RTHT 21.60 3.25 0.50 L719 YTW34REHT 2.50 0.88 0.62 L718 BYNA34RT15HHT L719

Flicker 477 24 7 YTW36RT362REKHT YTW36RTHT 23.41 3.25 0.50 L720 YTW362REHT 2.50 0.88 0.62 L721 BYNA36RT15HHT L720

Hawk 477 26 7 YTW36RT36REKHT YTW36RTHT 23.41 3.25 0.50 L720 YTW36REHT 2.50 0.88 0.62 L721 BYNA36RT15HHT L720

Parakeet 556.5 24 7 YTW39RT43REKHT YTW39RTHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39RT15HHT L722

Dove 556.5 26 7 YTW39RT43REKHT YTW39RTHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39RT15HHT L722

Peacock 605 24 7 YTW43RT43REKHT YTW43RTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Squab 605 26 7 YTW43RT43REKHT YTW43RTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Rook 636 24 7 YTW43RT43REKHT YTW43RTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Grosbeak 636 26 7 YTW43RT43REKHT YTW43RTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Flamingo 666.6 24 7 YTW43RT43REKHT YTW43RTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Starling 715.5 26 7 YTW451RT48REKHT YTW451RTHT 29.41 3.25 0.50 L725 YTW48REHT 2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Cuckoo 795 24 7 YTW451RT45REKHT YTW451RTHT 29.41 3.25 0.50 L725 YTW45REHT 2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Drake 795 26 7 YTW451RT48REKHT YTW451RTHT 29.41 3.25 0.50 L725 YTW48REHT 2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Tern 795 45 7 YTW451RT481REKHT YTW451RTHT 29.41 3.25 0.50 L725 YTW481REHT 2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Condor 795 54 7 YTW451RT45REKHT YTW451RTHT 29.41 3.25 0.50 L725 YTW45REHT 2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Ruddy 900 45 7 YTW48RT481REKHT YTW48RTHT 29.50 3.25 0.50 L727 YTW481REHT 2.69 1.25 0.75 L726 BYNA49RT15HHT L727

Rail 954 45 7 YTW48RT481REKHT YTW48RTHT 29.50 3.25 0.50 L727 YTW481REHT 2.69 1.25 0.75 L726 BYNA49RT15HHT L727

Cardinal 954 54 7 YTW48RT48REKHT YTW48RTHT 29.50 3.25 0.50 L727 YTW48REHT 2.69 1.25 0.75 L726 BYNA49RT15HHT L727

Ortolan 1033.5 45 7 YTW49RT483REKHT YTW49RTHT 31.35 3.25 0.50 L727 YTW483REHT 2.69 1.25 1.00 L726 BYNA49RT15HHT L727

Curlew 1033.5 54 7 YTW49RT50REKHT YTW49RTHT 31.35 3.25 0.50 L727 YTW50REHT 2.69 1.25 1.00 L726 BYNA49RT15HHT L727

Bluejay 1113 45 7 YTW49RT483REKHT YTW49RTHT 31.35 3.25 0.50 L727 YTW483REHT 2.69 1.25 1.00 L726 BYNA49RT15HHT L727

Finch 1113 54 19 YTW52RT50REKHT YTW52RHT 35.55 3.25 0.50 L728 YTW50REHT 2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Bunting 1192.5 45 7 YTW52RT521REKHT YTW52RTHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Bittern 1272 45 7 YTW52RT521REKHT YTW52RTHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Pheasant 1272 54 19 YTW52RT56REKHT YTW52RTHT 35.55 4.00 0.62 L728 YTW56REHT 2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Dipper 1351.5 45 7 YTW52RT521REKHT YTW52RTHT 35.55 4.00 0.62 L728 YTW521REHT 2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Martin 1351.5 54 19 YTW52RT56REKHT YTW52RTHT 35.55 4.00 0.62 L728 YTW56REHT 2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Nuthatch 1510.5 45 7 YTW549RT521REKHT YTW549RTHT 35.55 4.00 0.62 L729 YTW521REHT 2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Parrot 1510.5 54 19 YTW549RT56REKHT YTW549RTHT 35.55 4.00 0.62 L729 YTW56REHT 2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Lapwing 1590 45 7 YTW549RT549REKHT YTW549RTHT 35.55 4.00 0.62 L729 YTW549REHT 2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Falcon 1590 54 19 YTW56RT590REKHT YTW56RTHT 35.99 4.00 0.62 L729 YTW590REHT 2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Chukar 1780 84 19 YTW58RT58REKHT YTW58RTHT 36.99 4.00 0.62 L735 YTW58REHT 2.69 1.25 1.00 L726 BYNA58RT15HHT L735

Bluebird 2156 84 19 YTW59RT59REKHT YTW59RTHT 37.34 4.00 0.62 L735 YTW59REHT 2.69 1.25 1.00 L726 BYNA59RT15HHT L735

Kiwi 2167 72 7 YTW59RT591REKHT YTW59RTHT 37.34 4.00 0.62 L735 YTW591REHT 2.69 1.25 1.00 L726 BYNA59RT15HHT L735

Complete Assembly: Includes Aluminum body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32R34REKHTSS) or to

terminal if ordered separately (BYNA32R15HTSSHHTSS).

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32R34REKHTNT).

† BYNA terminals must be crimped from cable end moving

toward pad end.

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

BURNDY®Transmission Products ACSS Conductor Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPES

YTW-RDT-REKHT,

YTW-RDTHT,

BYNA-RT-HHT EHV

Double Pad, EHV

Full Tension Deadend

for ACSS Conductor

Full tension compression deadend for 250ºC

rated ACSS transmission lines at 345 kV and

over. Standard 15º NEMA tap pad provides

either 0º or 30º tap when BYNA-R15 terminal

is used.

ACSS Double Pad Inches Inches Terminal †

Conductor Size Stranding Complete Alum. Body Eye with Term

Name kcmil Alum Steel Assembly Body L C T Die*‡Steel Eye B K W Die* Hardware Die*‡

Linnet 336.4 26 7 YTW32RDT34REKHT YTW32RDTHT 21.53 3.25 0.50 L717 YTW34REHT 2.50 0.88 0.62 L718 BYNA32RT15HHT L717

Oriole 336.4 30 7 YTW32RDT33REKHT YTW32RDTHT 21.53 3.25 0.50 L717 YTW33REHT 2.50 0.88 0.62 L718 BYNA32RT15HHT L717

Ibis 397.5 26 7 YTW34RDT34REKHT YTW34RDTHT 21.60 3.25 0.50 L719 YTW34REHT 2.50 0.88 0.62 L718 BYNA34RT15HHT L719

Flicker 477 24 7 YTW36RDT362REKHT YTW36RDTHT 23.41 3.25 0.50 L720 YTW362REHT 2.50 0.88 0.62 L721 BYNA36RT15HHT L720

Hawk 477 26 7 YTW36RDT36REKHT YTW36RDTHT 23.41 3.25 0.50 L720 YTW36REHT 2.50 0.88 0.62 L721 BYNA36RT15HHT L720

Parakeet 556.5 24 7 YTW39RDT43REKHT YTW39RDTHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39RT15HHT L722

Dove 556.5 26 7 YTW39RDT43REKHT YTW39RDTHT 23.66 3.25 0.50 L722 YTW43REHT 2.50 0.88 0.69 L723 BYNA39RT15HHT L722

Peacock 605 24 7 YTW43RDT43REKHT YTW43RDTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Squab 605 26 7 YTW43RDT43REKHT YTW43RDTHT 20.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Rook 636 24 7 YTW43RDT43REKHT YTW43RDTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HT L724

Grosbeak 636 26 7 YTW43RDT43REKHT YTW43RDTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Flamingo 666.6 24 7 YTW43RDT43REKHT YTW43RDTHT 24.49 3.25 0.50 L724 YTW43REHT 2.50 0.88 0.69 L723 BYNA43RT15HHT L724

Starling 715.5 26 7 YTW451RDT48REKHT YTW451RDTHT 29.41 3.25 0.50 L725 YTW48RE

2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Cuckoo 795 24 7 YTW451RDT45REKHT YTW451RDTHT 29.41 3.25 0.50 L725 YTW45RE

2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Drake 795 26 7 YTW451RDT48REKHT YTW451RDTHT 29.41 3.25 0.50 L725 YTW48RE

2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Tern 795 45 7 YTW451RDT481REKHT YTW451RDTHT 29.41 3.25 0.50 L725 YTW481RE

2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Condor 795 54 7 YTW451RDT45REKHT YTW451RDTHT 29.41 3.25 0.50 L725 YTW45RE

2.69 1.25 0.75 L726 BYNA451RT15HHT L725

Ruddy 900 45 7 YTW48RDT481REKHT YTW48RDTHT 29.50 3.25 0.50 L727 YTW481RE

2.69 1.25 0.75 L726 BYNA49RT15HHT L727

Rail 954 45 7 YTW48RDT481REKHT YTW48RDTHT 29.50 3.25 0.50 L727 YTW481RE

2.69 1.25 0.75 L726 BYNA49RT15HHT L727

Cardinal 954 54 7 YTW48RDT48REKHT YTW48RDTHT 29.50 3.25 0.50 L727 YTW48RE

2.69 1.25 0.75 L726 BYNA49RT15HHT L727

Ortolan 1033.5 45 7 YTW49RDT483REKHT YTW49RDTHT 31.35 3.25 0.50 L727 YTW483RE

2.69 1.25 1.00 L726 BYNA49RT15HHT L727

Curlew 1033.5 54 7 YTW49RDT50REKHT YTW49RDTHT 31.35 3.25 0.50 L727 YTW50RE

2.69 1.25 1.00 L726 BYNA49RT15HHT L727

Bluejay 1113 45 7 YTW49RDT483REKHT YTW49RDTHT 31.35 3.25 0.50 L727 YTW483RE

2.69 1.25 1.00 L726 BYNA49RT15HHT L727

Finch 1113 54 19 YTW52RDT50REKHT YTW52RDTHT 35.55 3.25 0.50 L728 YTW50RE

2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Bunting 1192.5 45 7 YTW52RDT521REKHT YTW52RDTHT 35.55 4.00 0.62 L728 YTW521RE

2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Bittern 1272 45 7 YTW52RDT521REKHT YTW52RDTHT 35.55 4.00 0.62 L728 YTW521RE

2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Pheasant 1272 54 19 YTW52RDT56REKHT YTW52RDTHT 35.55 4.00 0.62 L728 YTW56RE

2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Dipper 1351.5 45 7 YTW52RDT521REKHT YTW52RDTHT 35.55 4.00 0.62 L728 YTW521RE

2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Martin 1351.5 54 19 YTW52RDT56REKHT YTW52RDTHT 35.55 4.00 0.62 L728 YTW56RE

2.69 1.25 1.00 L726 BYNA52RT15HHT L728

Nuthatch 1510.5 45 7 YTW549RDT521REKHT YTW549RDTHT 35.55 4.00 0.62 L729 YTW521RE

2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Parrot 1510.5 54 19 YTW549RDT56REKHT YTW549RDTHT 35.55 4.00 0.62 L729 YTW56RE

2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Lapwing 1590 45 7 YTW549RDT549REKHT YTW549RDTHT 35.55 4.00 0.62 L729 YTW549RE

2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Falcon 1590 54 19 YTW56RDT590REKHT YTW56RDTHT 35.99 4.00 0.62 L729 YTW590RE

2.69 1.25 1.00 L726 BYNA56RT15HHT L729

Chukar 1780 84 19 YTW58RDT58REKHT YTW58RDTHT 36.99 4.00 0.62 L735 YTW58RE

2.69 1.25 1.00 L726 BYNA58RT15HHT L735

Bluebird 2156 84 19 YTW59RDT59REKHT YTW59RDTHT 37.34 4.00 0.62 L735 YTW59RE

2.69 1.25 1.00 L726 BYNA59RT15HHT L735

Kiwi 2167 72 7 YTW59RDT591REKHT YTW59RDTHT 37.34 4.00 0.62 L735 YTW591RE

2.69 1.25 1.00 L726 BYNA59RT15HHT L735

Complete Assembly: Includes Aluminum body, Steel eye,

15 degree terminal and aluminum hardware.

For stainless steel hardware add SS to end of catalog number

for complete assembly (example: YTW32R34REKHTSS) or to

terminal if ordered separately (BYNA32R15HTSSHHTSS).

For assembly without terminal and hardware add NT to end of

complete assembly catalog number (example:

YTW32R34REKHTNT).

† BYNA terminals must be crimped from cable end moving

toward pad end.

CKW

Complete Assembly

(Body, Eye, Terminal and Hardware)

YTW-RDHT Body

YTW-REHT Steel eye

BYNA-RT-HHT Terminal and hardware

Steel Eye

* Overlap crimps

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS Conductor Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE YTS-R-RSHT

Full Tension Splice Kit

for ACSS Conductor

Full tension, two-piece, compression splice

for 250°C ACSS transmission lines up to and

including 230 kV. Outer aluminum sleeve has

filler hole and plug for PENETROX™ joint

compound. Kit includes the outer aluminum

and inner steel sleeve.

ACSS Aluminum Sleeve Steel Sleeve

Conductor Size Stranding Inches Inches

Name kcmil Alum. Steel Splice Kit L O.D. Die*‡LL B Die*

Linnet 336.4 26 7 YTS32R34RSHT 25.30 1.19 L717 5-1/42.64 L718

Ibis 397.5 26 7 YTS34R34RSHT 25.20 1.28 L719 5-1/42.64 L718

Flicker 477 24 7 YTS36R362RSHT 26.16 1.41 L720 5-7/82.66 L721

Hawk 477 26 7 YTS36R36RSHT 26.16 1.41 L720 5-7/82.66 L721

Parakeet 556.5 24 7 YTS39R43RSHT 27.88 1.50 L722 5-7/82.66 L723

Dove 556.5 26 7 YTS39R43RSHT 27.88 1.50 L722 5-7/82.66 L723

Peacock 605 24 7 YTS43R43RSHT 29.44 1.61 L724 5-7/82.66 L723

Squab 605 26 7 YTS43R43RSHT 29.44 1.61 L724 5-7/82.66 L723

Rook 636 24 7 YTS43R43RSHT 29.44 1.61 L724 5-7/82.66 L723

Grosbeak 636 26 7 YTS43R43RSHT 29.44 1.61 L724 5-7/82.66 L723

Flamingo 666.6 24 7 YTS43R43RSHT 29.44 1.61 L724 5-7/82.66 L723

Starling 715.5 26 7 YTS451R48RSHT 36.00 1.80 L725 94.19 L726

Cuckoo 795 24 7 YTS451R449RSHT 36.00 1.80 L725 94.19 L726

Drake 795 26 7 YTS451R48RSHT 36.00 1.80 L725 94.19 L726

Tern 795 45 7 YTS451R48RSHT 36.00 1.80 L725 9-1/84.19 L726

Condor 795 54 7 YTS451R449RSHT 36.00 1.80 L725 94.19 L726

Rail 954 45 7 YTS48R481RSHT 36.00 1.97 L727 9-1/84.19 L726

Cardinal 954 54 7 YTS48R48RSHT 36.00 1.97 L727 94.19 L726

Ortolan 1033.5 45 7 YTS49R483RSHT 36.00 1.97 L727 9-1/84.19 L726

Curlew 1033.5 54 7 YTS49R48RSHT 36.00 1.97 L727 94.19 L726

Bluejay 1113 45 7 YTS49R483RSHT 36.00 1.97 L727 9-1/84.19 L726

Finch 1113 54 19 YTS52R48RSHT 49.07 2.25 L728 94.19 L726

Bunting 1192.5 45 7 YTS52R521RSHT 49.07 2.25 L728 94.19 L726

Bittern 1272 45 7 YTS52R521RSHT 49.07 2.25 L728 94.19 L726

Pheasant 1272 54 19 YTS52R59RSHT 49.07 2.25 L728 9-1/84.25 L726

Dipper 1351.5 45 7 YTS52R521RSHT 49.07 2.25 L728 94.19 L726

Martin 1351.5 54 19 YTS52R59RSHT 49.07 2.25 L728 9-1/84.25 L726

Nuthatch 1510.5 45 7 YTS549R521RSHT 39.73 2.50 L729 94.19 L726

Parrot 1510.5 54 19 YTS54959RSHT 39.73 2.50 L729 9-1/84.25 L726

Lapwing 1590 45 7 YTS549R549RSHT 39.73 2.50 L729 94.19 L726

Falcon 1590 54 19 YTS56R59RSHT 39.73 2.50 L729 9-1/84.25 L726

Chukar 1780 84 19 YTS58R48RSHT 42.20 2.50 L735 4-1/44.19 L726

Bluebird 2156 84 19 YTS59R59RSHT 49.93 2.50 L735 4-1/44.25 L726

Kiwi 2167 72 7 YTS59R521RSHT 49.93 2.50 L735 4-1/44.19 L726

Splice Kit: Includes aluminum sleeve and steel sleeve.

* Overlap crimps,

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

BURNDY®Transmission Products ACSS Conductor Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE YTS-RT-RSHT

EHV

Full Tension Splice Kit

for ACSS Conductor

Full tension, two-piece, compression splice

for 250°C ACSS transmission lines at 345 kV

and over. Outer aluminum sleeve has filler

hole and plug for PENETROX™ joint com-

pound. Kit includes the outer aluminum and

inner steel sleeve.

ACSS Aluminum Sleeve Steel Sleeve

Conductor Size Stranding Inches Inches

Name kcmil Alum. Steel Splice Kit L O.D. Die*‡LL B Die*

Linnet 336.4 26 7 YTS32RT34RSHT 25.30 1.19 L717 5.75 2.64 L718

Oriole 336.4 30 7 YTS32RT33RSHT 25.30 1.19 L717 5.75 2.64 L718

Ibis 397.5 26 7 YTS34RT34RSHT 25.20 1.28 L719 5.75 2.64 L718

Flicker 477 24 7 YTS36RT362RSHT 26.16 1.41 L720 5.75 2.66 L721

Hawk 477 26 7 YTS36RT36RSHT 26.16 1.41 L720 5.75 2.66 L721

Parakeet 556.5 24 7 YTS39RT43RSHT 27.88 1.50 L722 5.90 2.66 L723

Dove 556.5 26 7 YTS39RT43RSHT 27.88 1.50 L722 5.90 2.66 L723

Peacock 605 24 7 YTS43RT43RSHT 29.44 1.61 L724 5.90 2.66 L723

Squab 605 26 7 YTS43RT43RSHT 29.44 1.61 L724 5.90 2.66 L723

Rook 636 24 7 YTS43RT43RSHT 29.44 1.61 L724 5.90 2.66 L723

Grosbeak 636 26 7 YTS43RT43RSHT 29.44 1.61 L724 5.90 2.66 L723

Flamingo 666.6 24 7 YTS43RT43RSHT 29.44 1.61 L724 5.90 2.66 L723

Starling 715.5 26 7 YTS451RT48RSHT 36.00 1.80 L725 9.00 4.19 L726

Cuckoo 795 24 7 YTS451RT449RSHT 36.00 1.80 L725 9.00 4.19 L726

Drake 795 26 7 YTS451RT48RSHT 36.00 1.80 L725 9.00 4.19 L726

Tern 795 45 7 YTS451RT48RSHT 36.00 1.80 L725 9.16 4.19 L726

Condor 795 54 7 YTS451RT449RSHT 36.00 1.80 L725 9.00 4.19 L726

Rail 954 45 7 YTS48RT481RSHT 36.00 1.97 L727 9.16 4.19 L726

Cardinal 954 54 7 YTS48RT48RSHT 36.00 1.97 L727 9.00 4.19 L726

Ortolan 1033.5 45 7 YTS49RT483RSHT 36.00 1.97 L727 9.16 4.19 L726

Curlew 1033.5 54 7 YTS49RT48RSHT 36.00 1.97 L727 9.00 4.19 L726

Bluejay 1113 45 7 YTS49RT483RSHT 36.00 1.97 L727 9.16 4.19 L726

Finch 1113 54 19 YTS52RT48RSHT 49.07 2.25 L728 9.00 4.19 L726

Bunting 1192.5 45 7 YTS52RT521RSHT 49.07 2.25 L728 9.00 4.19 L726

Bittern 1272 45 7 YTS52RT521RSHT 49.07 2.25 L728 9.00 4.19 L726

Pheasant 1272 54 19 YTS52RT59RSHT 49.07 2.25 L728 9.10 4.25 L726

Dipper 1351.5 45 7 YTS52RT521RSHT 49.07 2.25 L728 9.00 4.19 L726

Martin 1351.5 54 19 YTS52RT59RSHT 49.07 2.25 L728 9.10 4.25 L726

Nuthatch 1510.5 45 7 YTS549RT521RSHT 39.73 2.50 L729 9.00 4.19 L726

Parrot 1510.5 54 19 YTS549RT59RSHT 39.73 2.50 L729 9.10 4.25 L726

Lapwing 1590 45 7 YTS549RT549RSHT 39.73 2.50 L729 9.00 4.19 L726

Falcon 1590 54 19 YTS56RT59RSHT 39.73 2.50 L729 9.10 4.25 L726

Chukar 1780 84 19 YTS58RT48RSHT 42.20 2.50 L735 9.00 4.19 L726

Bluebird 2156 84 19 YTS59RT59RSHT 49.93 2.50 L735 9.10 4.25 L726

Kiwi 2167 72 7 YTS59RT521RSHT 49.93 2.50 L735 9.00 4.19 L726

Splice Kit: Includes aluminum sleeve and steel sleeve.

* Overlap crimps,

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS Conductor Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPES BYNA-R15HT,

BYNA-RHT

Compression Terminal

for ACSS Conductor

Compression terminal for ACSS transmission

lines up to and including 230 kV.

Ø.56

(Four Holes)

.62

1.75

O.D.

To specify hardware for bolting to corresponding deadends

add the suffix “H” to the catalog number (example:

BYNA52RHHT).

ACSS 15° Terminal Straight Terminal

Conductor Size Stranding Catalog Inches Catalog Inches Inches

Name kcmil Alum. Steel Number L Number L C D T Die*‡

Linnet 336.4 26 7 BYNA32R15HT 16.21 BYNA32RHT 16.56 3.25 4.50 0.39 L717

Oriole 336.4 30 7 BYNA32R15HT 16.21 BYNA32RHT 16.56 3.25 4.50 0.39 L717

Ibis 397.5 26 7 BYNA34R15HT 16.24 BYNA34RHT 16.60 3.25 4.50 0.46 L719

Flicker 477 24 7 BYNA36R15HT 16.51 BYNA36RHT 16.92 3.25 4.50 0.48 L720

Hawk 477 26 7 BYNA36R15HT 16.51 BYNA36RHT 16.92 3.25 4.50 0.48 L720

Parakeet 556.5 24 7 BYNA39R15HT 16.89 BYNA39RHT 17.30 3.25 4.50 0.53 L722

Dove 556.5 26 7 BYNA39R15HT 16.89 BYNA39RHT 17.30 3.25 4.50 0.53 L722

Peacock 605 24 7 BYNA43R15HT 14.41 BYNA43RHT 15.46 3.07 3.95 0.36 L724

Squab 605 26 7 BYNA43R15HT 14.41 BYNA43RHT 15.46 3.07 3.95 0.36 L724

Rook 636 24 7 BYNA43R15HT 14.41 BYNA43RHT 15.46 3.07 3.95 0.36 L724

Grosbeak 636 26 7 BYNA43R15HT 14.41 BYNA43RHT 15.46 3.07 3.95 0.36 L724

Flamingo 666.6 24 7 BYNA43R15HT 14.41 BYNA43RHT 15.46 3.07 3.95 0.36 L724

Starling 715.5 26 7 BYNA451R15HT 15.10 BYNA451RHT 15.46 3.22 3.95 0.45 L725

Cuckoo 795 24 7 BYNA451R15HT 15.10 BYNA451RHT 15.46 3.22 3.95 0.45 L725

Drake 795 26 7 BYNA451R15HT 15.10 BYNA451RHT 15.46 3.22 3.95 0.45 L725

Tern 795 45 7 BYNA451R15HT 15.10 BYNA451RHT 15.46 3.22 3.95 0.45 L725

Condor 795 54 7 BYNA451R15HT 15.10 BYNA451RHT 15.46 3.22 3.95 0.45 L725

Ruddy 900 45 7 BYNA49R15HT 15.14 BYNA49RHT 15.66 3.22 3.95 0.52 L727

Rail 954 45 7 BYNA49R15HT 15.14 BYNA49RHT 15.66 3.22 3.95 0.52 L727

Cardinal 954 54 7 BYNA49R15HT 15.14 BYNA49RHT 15.66 3.22 3.95 0.52 L727

Ortolan 1033.5 45 7 BYNA49R15HT 15.14 BYNA49RHT 15.66 3.22 3.95 0.52 L727

Curlew 1033.5 54 7 BYNA49R15HT 15.14 BYNA49RHT 15.66 3.22 3.95 0.52 L727

Bluejay 1113 45 7 BYNA49R15HT 15.14 BYNA49RHT 15.66 3.22 3.95 0.52 L727

Finch 1113 54 19 BYNA52R15HT 16.81 BYNA52RHT 18.71 3.22 3.95 0.71 L728

Bunting 1192.5 45 7 BYNA52R15HT 16.81 BYNA52RHT 18.71 3.22 3.95 0.71 L728

Bittern 1272 45 7 BYNA52R15HT 16.81 BYNA52RHT 18.71 3.22 3.95 0.71 L728

Pheasant 1272 54 19 BYNA52R15HT 16.81 BYNA52RHT 18.71 3.22 3.95 0.71 L728

Dipper 1351.5 45 7 BYNA52R15HT 16.81 BYNA52RHT 18.71 3.22 3.95 0.71 L728

Martin 1351.5 54 19 BYNA52R15HT 16.81 BYNA52RHT 18.71 3.22 3.95 0.71 L728

Nuthatch 1510.5 45 7 BYNA56R15HT 17.56 BYNA56RHT 18.65 3.44 3.95 0.86 L729

Parrot 1510.5 54 19 BYNA56R15HT 17.56 BYNA56RHT 18.65 3.44 3.95 0.86 L729

Lapwing 1590 45 7 BYNA56R15HT 17.56 BYNA56RHT 18.65 3.44 3.95 0.86 L729

Falcon 1590 54 19 BYNA56R15HT 17.56 BYNA56RHT 18.65 3.44 3.95 0.86 L729

Chukar 1780 84 19 BYNA58R15HT 18.28 BYNA58RHT 18.59 3.47 3.95 0.86 L735

Bluebird 2156 84 19 BYNA59R15HT 17.95 BYNA59RHT 18.43 3.57 3.95 0.64 L735

Kiwi 2167 72 7 BYNA59R15HT 17.95 BYNA59RHT 18.43 3.57 3.95 0.64 L735

15°

BYNA-RHT

BYNA-R15HT

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

BURNDY®Transmission Products ACSS Conductor Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPES BYNA-RT15HT,

BYNA-RTHT EHV

Compression Terminal

for ACSS Conductor

Compression terminal for 250°C ACSS trans-

mission lines at 345 kV and over.

Ø.56

(Four Holes)

.62

1.75

O.D.

To specify hardware for bolting to corresponding deadends

add the suffix “H” to the catalog number (example:

BYNA52RHHT).

15°

BYNA-RTHT

BYNA-RT15HT

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS 15° Terminal Straight Terminal

Conductor Size Stranding Catalog Inches Catalog Inches Inches

Name kcmil Alum. Steel Number L Number L C D T Die*‡

Linnet 336.4 26 7 BYNA32RT15HT 16.41 BYNA32RTHT 16.56 3.25 4.50 0.39 L717

Oriole 336.4 30 7 BYNA32RT15HT 16.41 BYNA32RTHT 16.56 3.25 4.50 0.39 L717

Ibis 397.5 26 7 BYNA34RT15HT 16.45 BYNA34RTHT 16.60 3.25 4.50 0.46 L719

Flicker 477 24 7 BYNA36RT15HT 16.76 BYNA36RTHT 16.92 3.25 4.50 0.48 L720

Hawk 477 26 7 BYNA36RT15HT 16.76 BYNA36RTHT 16.92 3.25 4.50 0.48 L720

Parakeet 556.5 24 7 BYNA39RT15HT 17.12 BYNA39RTHT 17.30 3.25 4.50 0.53 L722

Dove 556.5 26 7 BYNA39RT15HT 17.12 BYNA39RTHT 17.30 3.25 4.50 0.53 L722

Peacock 605 24 7 BYNA43RT15HT 14.41 BYNA43RTHT 15.46 3.07 3.95 0.36 L724

Squab 605 26 7 BYNA43RT15HT 14.41 BYNA43RTHT 15.46 3.07 3.95 0.36 L724

Rook 636 24 7 BYNA43RT15HT 14.41 BYNA43RTHT 15.46 3.07 3.95 0.36 L724

Grosbeak 636 26 7 BYNA43RT15HT 14.41 BYNA43RTHT 15.46 3.07 3.95 0.36 L724

Flamingo 666.6 24 7 BYNA43RT15HT 14.41 BYNA43RTHT 15.46 3.07 3.95 0.36 L724

Starling 715.5 26 7 BYNA451RT15HT 15.10 BYNA451RTHT 15.46 3.22 3.95 0.45 L725

Cuckoo 795 24 7 BYNA451RT15HT 15.10 BYNA451RTHT 15.46 3.22 3.95 0.45 L725

Drake 795 26 7 BYNA451RT15HT 15.10 BYNA451RTHT 15.46 3.22 3.95 0.45 L725

Tern 795 45 7 BYNA451RT15HT 15.10 BYNA451RTHT 15.46 3.22 3.95 0.45 L725

Condor 795 54 7 BYNA451RT15HT 15.10 BYNA451RTHT 15.46 3.22 3.95 0.45 L725

Ruddy 900 45 7 BYNA49RT15HT 15.14 BYNA49RTHT 15.66 3.22 3.95 0.52 L727

Rail 954 45 7 BYNA49RT15HT 15.14 BYNA49RTHT 15.66 3.22 3.95 0.52 L727

Cardinal 954 54 7 BYNA49RT15HT 15.14 BYNA49RTHT 15.66 3.22 3.95 0.52 L727

Ortolan 1033.5 45 7 BYNA49RT15HT 15.14 BYNA49RTHT 15.66 3.22 3.95 0.52 L727

Curlew 1033.5 54 7 BYNA49RT15HT 15.14 BYNA49RTHT 15.66 3.22 3.95 0.52 L727

Bluejay 1113 45 7 BYNA49RT15HT 15.14 BYNA49RTHT 15.66 3.22 3.95 0.52 L727

Finch 1113 54 19 BYNA52RT15HT 16.81 BYNA52RTHT 18.71 3.22 3.95 0.71 L728

Bunting 1192.5 45 7 BYNA52RT15HT 16.81 BYNA52RTHT 18.71 3.22 3.95 0.71 L728

Bittern 1272 45 7 BYNA52RT15HT 16.81 BYNA52RTHT 18.71 3.22 3.95 0.71 L728

Pheasant 1272 54 19 BYNA52RT15HT 16.81 BYNA52RTHT 18.71 3.22 3.95 0.71 L728

Dipper 1351.5 45 7 BYNA52RT15HT 16.81 BYNA52RTHT 18.71 3.22 3.95 0.71 L728

Martin 1351.5 54 19 BYNA52RT15HT 16.81 BYNA52RTHT 18.71 3.22 3.95 0.71 L728

Nuthatch 1510.5 45 7 BYNA56RT15HT 17.56 BYNA56RTHT 18.65 3.44 3.95 0.86 L729

Parrot 1510.5 54 19 BYNA56RT15HT 17.56 BYNA56RTHT 18.65 3.44 3.95 0.86 L729

Lapwing 1590 45 7 BYNA56RT15HT 17.56 BYNA56RTHT 18.65 3.44 3.95 0.86 L729

Falcon 1590 54 19 BYNA56RT15HT 17.56 BYNA56RTHT 18.65 3.44 3.95 0.86 L729

Chukar 1780 84 19 BYNA58RT15HT 18.28 BYNA58RTHT 18.59 3.47 3.95 0.86 L735

Bluebird 2156 84 19 BYNA59RT15HT 17.95 BYNA59RTHT 18.43 3.57 3.95 0.64 L735

Kiwi 2167 72 7 BYNA59RT15HT 17.95 BYNA59RTHT 18.43 3.57 3.95 0.64 L735

ACSS Conductor Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

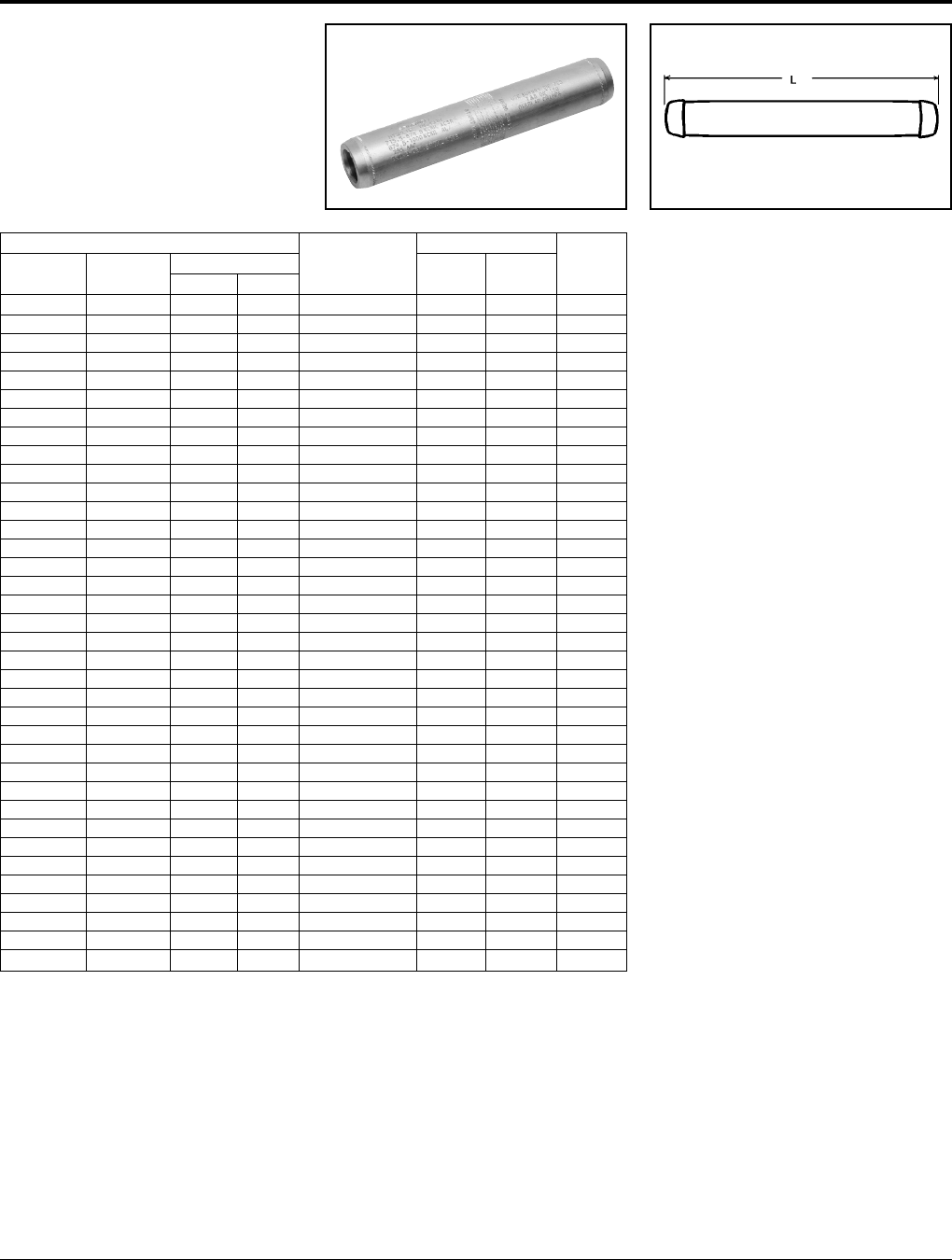

TYPE BYNS-RHT

Jumper Loop Sleeve

for ACSS Conductor

Jumper sleeve for 250°C ACSS transmission

lines up to and including 230 kV. Sleeve is

pre-filled with PENETROX™ joint compound

and capped.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS Inches

Conductor Size Stranding

Name kcmil Alum. Steel Jumper Sleeve L Die*‡

Linnet 336.4 26 7 BYNS32RHT 16.90 L717

Oriole 336.4 30 7 BYNS32RHT 16.90 L717

Ibis 397.5 26 7 BYNS34RHT 17.10 L719

Flicker 477 24 7 BYNS36RHT 17.60 L719

Hawk 477 26 7 BYNS36RHT 17.60 L719

Parakeet 556.5 24 7 BYNS39RHT 18.20 L720

Dove 556.5 26 7 BYNS39RHT 18.20 L720

Peacock 605 24 7 BYNS43RHT 18.50 L722

Squab 605 26 7 BYNS43RHT 18.50 L722

Rook 636 24 7 BYNS43RHT 18.50 L722

Grosbeak 636 26 7 BYNS43RHT 18.50 L722

Flamingo 666.6 24 7 BYNS43RHT 18.50 L722

Starling 715.5 26 7 BYNS451RHT 18.60 L725

Cuckoo 795 24 7 BYNS451RHT 18.60 L725

Drake 795 26 7 BYNS451RHT 18.60 L725

Tern 795 45 7 BYNS451RHT 18.60 L725

Condor 795 54 7 BYNS451RHT 18.60 L725

Ruddy 900 45 7 BYNS49RHT 18.70 L727

Rail 954 45 7 BYNS49RHT 18.70 L727

Cardinal 954 54 7 BYNS49RHT 18.70 L727

Ortolan 1033.5 45 7 BYNS49RHT 18.70 L727

Curlew 1033.5 54 7 BYNS49RHT 18.70 L727

Bluejay 1113 45 7 BYNS49RHT 18.70 L727

Finch 1113 54 19 BYNS52RHT 24.20 L728

Bunting 1192.5 45 7 BYNS52RHT 24.20 L728

Bittern 1272 45 7 BYNS52RHT 24.20 L728

Pheasant 1272 54 19 BYNS52RHT 24.20 L728

Dipper 1351.5 45 7 BYNS52RHT 24.20 L728

Martin 1351.5 54 19 BYNS52RHT 24.20 L728

Nuthatch 1510.5 45 7 BYNS56RHT 23.60 L729

Parrot 1510.5 54 19 BYNS56RHT 23.60 L729

Lapwing 1590 45 7 BYNS56RHT 23.60 L729

Falcon 1590 54 19 BYNS56RHT 23.60 L729

Chukar 1780 84 19 BYNS58RHT 23.40 L735

Bluebird 2156 84 19 BYNS59RHT 23.40 L735

Kiwi 2167 72 7 BYNS59RHT 23.20 L735

BURNDY®Transmission Products ACSS Conductor Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE BYNS-RTHT

EHV

Jumper Loop Sleeve

for ACSS Conductor

Jumper sleeve for 250°C ACSS transmission

lines at 345 kV and over. Sleeve is pre-filled

with PENETROX™ joint compound and

capped.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS Inches

Conductor Size Stranding

Name kcmil Alum. Steel Jumper Sleeve L Die*‡

Linnet 336.4 26 7 BYNS32RTHT 16.90 L717

Oriole 336.4 30 7 BYNS32RTHT 16.90 L717

Ibis 397.5 26 7 BYNS34RTHT 17.10 L719

Flicker 477 24 7 BYNS36RTHT 17.60 L719

Hawk 477 26 7 BYNS36RTHT 17.60 L719

Parakeet 556.5 24 7 BYNS39RTHT 18.20 L720

Dove 556.5 26 7 BYNS39RTHT 18.20 L720

Peacock 605 24 7 BYNS43RTHT 18.50 L722

Squab 605 26 7 BYNS43RTHT 18.50 L722

Rook 636 24 7 BYNS43RTHT 18.50 L722

Grosbeak 636 26 7 BYNS43RTHT 18.50 L722

Flamingo 666.6 24 7 BYNS43RTHT 18.50 L722

Starling 715.5 26 7 BYNS451RTHT 18.60 L725

Cuckoo 795 24 7 BYNS451RTHT 18.60 L725

Drake 795 26 7 BYNS451RTHT 18.60 L725

Tern 795 45 7 BYNS451RTHT 18.60 L725

Condor 795 54 7 BYNS451RTHT 18.60 L725

Ruddy 900 45 7 BYNS49RTHT 18.70 L727

Rail 954 45 7 BYNS49RTHT 18.70 L727

Cardinal 954 54 7 BYNS49RTHT 18.70 L727

Ortolan 1033.5 45 7 BYNS49RTHT 18.70 L727

Curlew 1033.5 54 7 BYNS49RTHT 18.70 L727

Bluejay 1113 45 7 BYNS49RTHT 18.70 L727

Finch 1113 54 19 BYNS52RTHT 24.20 L728

Bunting 1192.5 45 7 BYNS52RTHT 24.20 L728

Bittern 1272 45 7 BYNS52RTHT 24.20 L728

Pheasant 1272 54 19 BYNS52RTHT 24.20 L728

Dipper 1351.5 45 7 BYNS52RTHT 24.20 L728

Martin 1351.5 54 19 BYNS52RTHT 24.20 L728

Nuthatch 1510.5 45 7 BYNS56RTHT 23.60 L729

Parrot 1510.5 54 19 BYNS56RTHT 23.60 L729

Lapwing 1590 45 7 BYNS56RTHT 23.60 L729

Falcon 1590 54 19 BYNS56RTHT 23.60 L729

Chukar 1780 84 19 BYNS58RTHT 23.40 L735

Bluebird 2156 84 19 BYNS59RTHT 23.40 L735

Kiwi 2167 72 7 BYNS59RTHT 23.20 L735

ACSS Conductor Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE YNT-R-RHT

Compression T-Tap

for ACSS Conductor

Two piece compression T-Tap for ACSR

transmission lines that include up to 230 kV.

Tap element is pre-filled with PENETROX™

joint compound and sealed.

ACSS Inches

Conductor Size Stranding

Name kcmil Alum. Steel T-Tap* L H Die*‡

Linnet 336.4 26 7 YNT32R32RHT 23.46 10.39 L717

Oriole 336.4 30 7 YNT32R32RHT 23.46 10.39 L717

Ibis 397.5 26 7 YNT34R34RHT 23.60 10.53 L719

Flicker 477 24 7 YNT36R36RHT 24.29 10.85 L720

Hawk 477 26 7 YNT36R36RHT 24.29 10.85 L720

Parakeet 556.5 24 7 YNT39R39RHT 24.69 11.13 L722

Dove 556.5 26 7 YNT39R39RHT 24.69 11.13 L722

Peacock 605 24 7 YNT43R43RHT 25.48 11.20 L724

Squab 605 26 7 YNT43R43RHT 25.48 11.20 L724

Rook 636 24 7 YNT43R43RHT 25.48 11.20 L724

Grosbeak 636 26 7 YNT43R43RHT 25.48 11.20 L724

Flamingo 666.6 24 7 YNT43R43RHT 25.48 11.20 L724

Starling 715.5 26 7 YNT451R451RHT 25.60 11.70 L725

Cuckoo 795 24 7 YNT451R451RHT 25.60 11.70 L725

Drake 795 26 7 YNT451R451RHT 25.60 11.70 L725

Tern 795 45 7 YNT451R451RHT 25.60 11.70 L725

Condor 795 54 7 YNT451R451RHT 25.60 11.70 L725

Ruddy 900 45 7 YNT49R49RHT 25.66 11.90 L727

Rail 954 45 7 YNT49R49RHT 25.66 11.90 L727

Cardinal 954 54 7 YNT49R49RHT 25.66 11.90 L727

Ortolan 1033.5 45 7 YNT49R49RHT 25.66 11.90 L727

Curlew 1033.5 54 7 YNT49R49RHT 25.66 11.90 L727

Bluejay 1113 45 7 YNT49R49RHT 25.66 11.90 L727

Finch 1113 54 19 YNT52R52RHT 29.61 15.10 L728

Bunting 1192.5 45 7 YNT52R52RHT 29.61 15.10 L728

Bittern 1272 45 7 YNT52R52RHT 29.61 15.10 L728

Pheasant 1272 54 19 YNT52R52RHT 29.61 15.10 L728

Dipper 1351.5 45 7 YNT52R52RHT 29.61 15.10 L728

Martin 1351.5 54 19 YNT52R52RHT 29.61 15.10 L728

Nuthatch 1510.5 45 7 YNT56R56RHT 31.65 15.08 L729

Parrot 1510.5 54 19 YNT56R56RHT 31.65 15.08 L729

Lapwing 1590 45 7 YNT56R56RHT 31.65 15.08 L729

Falcon 1590 54 19 YNT56R56RHT 31.65 15.08 L729

Chukar 1780 84 19 YNT58R58RHT 31.53 15.02 L735

Bluebird 2156 84 19 YNT59R59RHT 31.21 14.86 L735

Kiwi 2167 72 7 YNT59R59RHT 31.21 14.86 L735

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

For EHV applications add “T” to the catalog number

(example: YNT49R49RTHT).

BURNDY®Transmission Products ACSS Conductor Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE YNTA-RHT

T-Tap with Pad

for ACSS Conductor

Two piece compression T-Tap to a NEMA pad

for ACSS transmission lines. Up to and

including 230 kV.

31⁄813⁄4

5⁄16 Dia.

ACSS Inches

Conductor Size Stranding

Name kcmil Alum. Steel T-Tap with Pad L C H T Die*‡

Linnet 336.4 26 7 YNTA32RHT 23.46 3.25 4.94 0.50 L717

Oriole 336.4 30 7 YNTA32RHT 23.46 3.25 4.94 0.50 L717

Ibis 397.5 26 7 YNTA34RHT 23.60 3.25 5.05 0.50 L719

Flicker 477 24 7 YNTA36RHT 24.29 3.25 5.16 0.56 L720

Hawk 477 26 7 YNTA36RHT 24.29 3.25 5.16 0.56 L720

Parakeet 556.5 24 7 YNTA39RHT 24.69 3.25 5.25 0.56 L722

Dove 556.5 26 7 YNTA39RHT 24.69 3.25 5.25 0.56 L722

Peacock 605 24 7 YNTA43RHT 25.48 3.25 5.36 0.56 L724

Squab 605 26 7 YNTA43RHT 25.48 3.25 5.36 0.56 L724

Rook 636 24 7 YNTA43RHT 25.48 3.25 5.36 0.56 L724

Grosbeak 636 26 7 YNTA43RHT 25.48 3.25 5.36 0.56 L724

Flamingo 666.6 24 7 YNTA43RHT 25.48 3.25 5.36 0.56 L724

Starling 715.5 26 7 YNTA451RHT 25.60 3.25 5.55 0.56 L725

Cuckoo 795 24 7 YNTA451RHT 25.60 3.25 5.55 0.56 L725

Drake 795 26 7 YNTA451RHT 25.60 3.25 5.55 0.56 L725

Tern 795 45 7 YNTA451RHT 25.60 3.25 5.55 0.56 L725

Condor 795 54 7 YNTA451RHT 25.60 3.25 5.55 0.56 L725

Ruddy 900 45 7 YNTA49RHT 25.66 3.25 5.72 0.56 L727

Rail 954 45 7 YNTA49RHT 25.66 3.25 5.72 0.56 L727

Cardinal 954 54 7 YNTA49RHT 25.66 3.25 5.72 0.56 L727

Ortolan 1033.5 45 7 YNTA49RHT 25.66 3.25 5.72 0.56 L727

Curlew 1033.5 54 7 YNTA49RHT 25.66 3.25 5.72 0.56 L727

Bluejay 1113 45 7 YNTA49RHT 25.66 3.25 5.72 0.56 L727

Finch 1113 54 19 YNTA54RHT 29.61 3.25 6.00 0.69 L728

Bunting 1192.5 45 7 YNTA54RHT 29.61 3.25 6.00 0.69 L728

Bittern 1272 45 7 YNTA54RHT 29.61 3.25 6.00 0.69 L728

Pheasant 1272 54 19 YNTA54RHT 29.61 3.25 6.00 0.69 L728

Dipper 1351.5 45 7 YNTA54RHT 29.61 3.25 6.00 0.69 L728

Martin 1351.5 54 19 YNTA54RHT 29.61 3.25 6.00 0.69 L728

Nuthatch 1510.5 45 7 YNTA56RHT 31.65 3.59 6.25 0.69 L729

Parrot 1510.5 54 19 YNTA56RHT 31.65 3.59 6.25 0.69 L729

Lapwing 1590 45 7 YNTA56RHT 31.65 3.59 6.25 0.69 L729

Falcon 1590 54 19 YNTA56RHT 31.65 3.59 6.25 0.69 L729

Chukar 1780 84 19 YNTA58RHT 31.53 3.59 6.25 0.69 L735

Bluebird 2156 84 19 YNTA59RHT 31.21 3.59 6.25 0.69 L735

Kiwi 2167 72 7 YNTA59RHT 31.21 3.59 6.25 0.69 L735

For EHV applications add “T” to the catalog number

(example: YNTA49RTHT). For EHV applications order (2) two tap pad shielding caps,

STS-A-NCG catalog number indicates (1) cap. * Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS Conductor Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE YNU-RHT

Repair Sleeve for ACSS

Conductor

For HV and EHV applications. Two-piece

repair sleeve for temporary restoration of

conductivity to damaged ACSS transmission

lines. Use of PENETROX™ joint compound

required.

Interlocking Key

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACSS Inches

Conductor Size Stranding

Name kcmil Alum. Steel Repair Sleeve L Die*‡

Linnet 336.4 26 7 YNU32RHT 22.00 L717

Oriole 336.4 30 7 YNU32RHT 22.00 L717

Ibis 397.5 26 7 YNU34RHT 22.00 L719

Flicker 477 24 7 YNU36RHT 22.00 L720

Hawk 477 26 7 YNU36RHT 22.00 L720

Parakeet 556.5 24 7 YNU39RHT 24.00 L722

Dove 556.5 26 7 YNU39RHT 24.00 L722

Peacock 605 24 7 YNU43RHT 24.00 L724

Squab 605 26 7 YNU43RHT 24.00 L724

Rook 636 24 7 YNU43RHT 24.00 L724

Grosbeak 636 26 7 YNU43RHT 24.00 L724

Flamingo 666.6 24 7 YNU43RHT 24.00 L724

Starling 715.5 26 7 YNU451RHT 24.00 L725

Cuckoo 795 24 7 YNU451RHT 24.00 L725

Drake 795 26 7 YNU451RHT 24.00 L725

Tern 795 45 7 YNU451RHT 24.00 L725

Condor 795 54 7 YNU451RHT 24.00 L725

Ruddy 900 45 7 YNU49RHT 24.00 L727

Rail 954 45 7 YNU49RHT 24.00 L727

Cardinal 954 54 7 YNU49RHT 24.00 L727

Ortolan 1033.5 45 7 YNU49RHT 24.00 L727

Curlew 1033.5 54 7 YNU49RHT 24.00 L727

Bluejay 1113 45 7 YNU49RHT 24.00 L727

Finch 1113 54 19 YNU54RHT 24.00 L728

Bunting 1192.5 45 7 YNU54RHT 24.00 L728

Bittern 1272 45 7 YNU54RHT 24.00 L728

Pheasant 1272 54 19 YNU54RHT 24.00 L728

Dipper 1351.5 45 7 YNU54RHT 24.00 L728

Martin 1351.5 54 19 YNU54RHT 24.00 L728

Nuthatch 1510.5 45 7 YNU56RHT 27.00 L729

Parrot 1510.5 54 19 YNU56RHT 27.00 L729

Lapwing 1590 45 7 YNU56RHT 27.00 L729

Falcon 1590 54 19 YNU56RHT 27.00 L729

Chukar 1780 84 19 YNU58RHT 27.00 L735

Bluebird 2156 84 19 YNU59RHT 27.00 L735

Kiwi 2167 72 7 YNU59RHT 27.00 L735

BURNDY®Transmission Products ACSS Conductor Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Catalog Conductor Tools, Die Sets, & (Number of Crimps)

Number Alumoweld EHS Steel L DIE Index Y35, Y750, Y45†, Y46‡‡ Y60BHU*

676 or U676 (4) —

YNA7M10T 7 #10, 3 #7 5/167 Str. 8-1/2 721 — L721

668 or U688 (7) —

YNA7M8T 7 #8, 3 #5 3/87 Str. 9-3/4 723 — L723

678 or U678 (10) —

YNA7M7T 7 #7 7/167 Str. 9-7/8 726 — L726

679 or U679 (11) —

YNA7M6T 7 #6 1/27 Str. 9-3/4 726 — L726

TYPE YNA-M-T

Compression Terminal for

Alumoweld and EHS Steel

Compression terminal for joining Alumoweld

and EHS steel to YTW-M-T or YTW-E dead-

end. Installed with same dies as equivalent

full tension splice and deadend. Barrel is

pre-filled with PENETROX™ joint compound

and capped.

* Overlap crimps.

† U Die with adapter PT-6515.

‡‡ U Die with adapter PUADP-1.

Steel Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

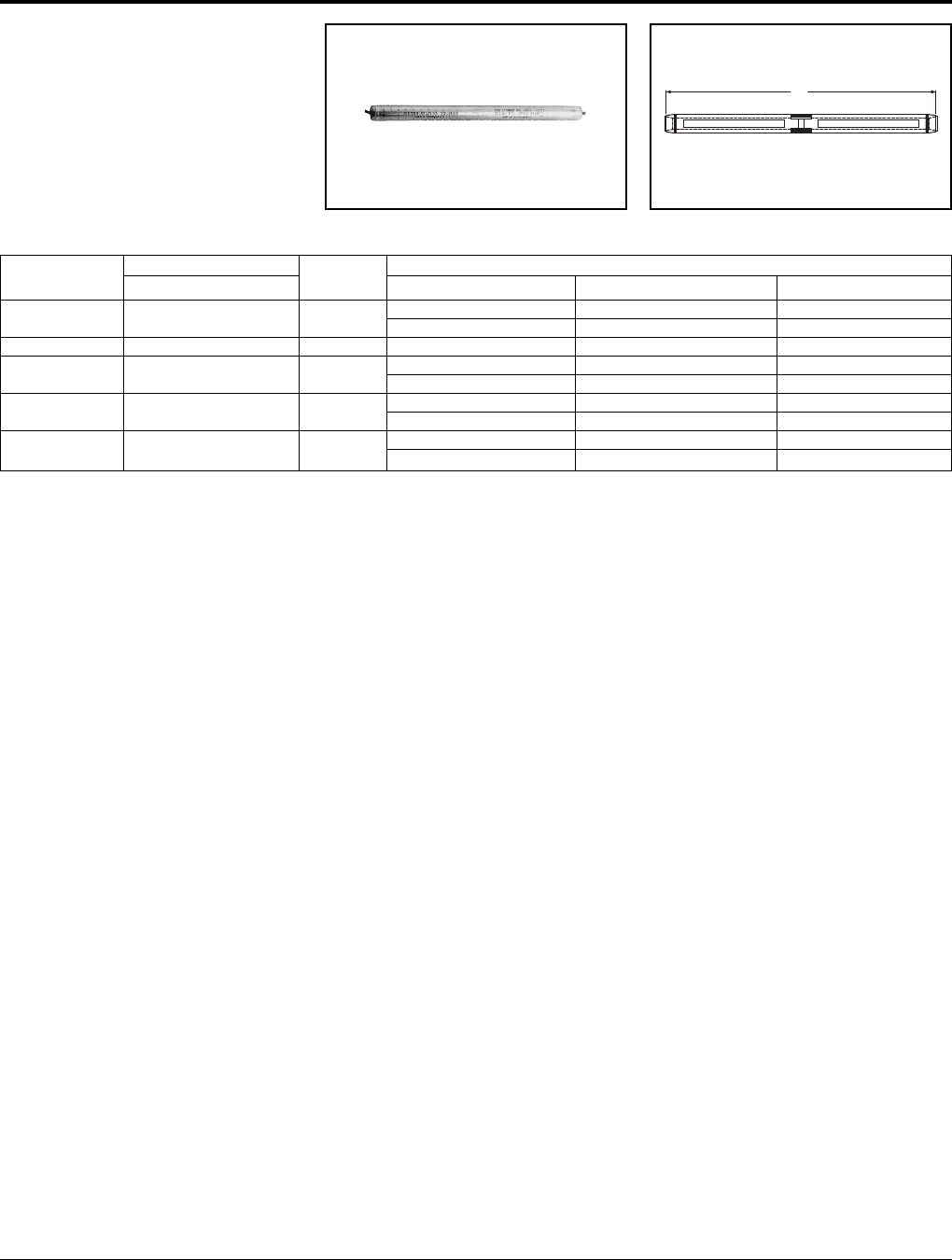

TYPE YDS-M-T

Full Tension Sleeve for

Alumoweld

Full-tension splice for Alumoweld transmis-

sion lines. Five connectors accommodate

eight conductor sizes. Sleeve is pre-filled with

PENETROX™ joint compound and capped.

* Overlap crimps.

† U Die with adapter PT-6515.

‡‡ U Die with adapter PUADP-1.

Catalog ††† Conductor Tools, Die Sets

Number Alumoweld L Die Index Y35, Y750, Y45†, Y46‡‡ Y60BHU*

676 or U676 (8) —

YDS7M10T 7 #10, 3 #7 10 721 — L721

YDS7M9T 7 #9, 3 #6 10-3/8 677 U677 (10) —

668 or U668 (13) —

YDS7M8T 7 #8, 3 #5 12-1/4 723 — L723

678 or U678 (19) —

YDS7M7T 7 #7 14-1/2 726 — L726

679 or U679 (2) —

YDS7M6T 7 #6 15-1/8 726 — L726

RUS Accepted

††† Sleeve is high strength aluminum alloy for optimum

corrosion resistance.

BURNDY®Transmission Products Steel Conductor Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

* Overlap crimps.

† Sleeve is high strength aluminum alloy for optimum

corrosion resistance.

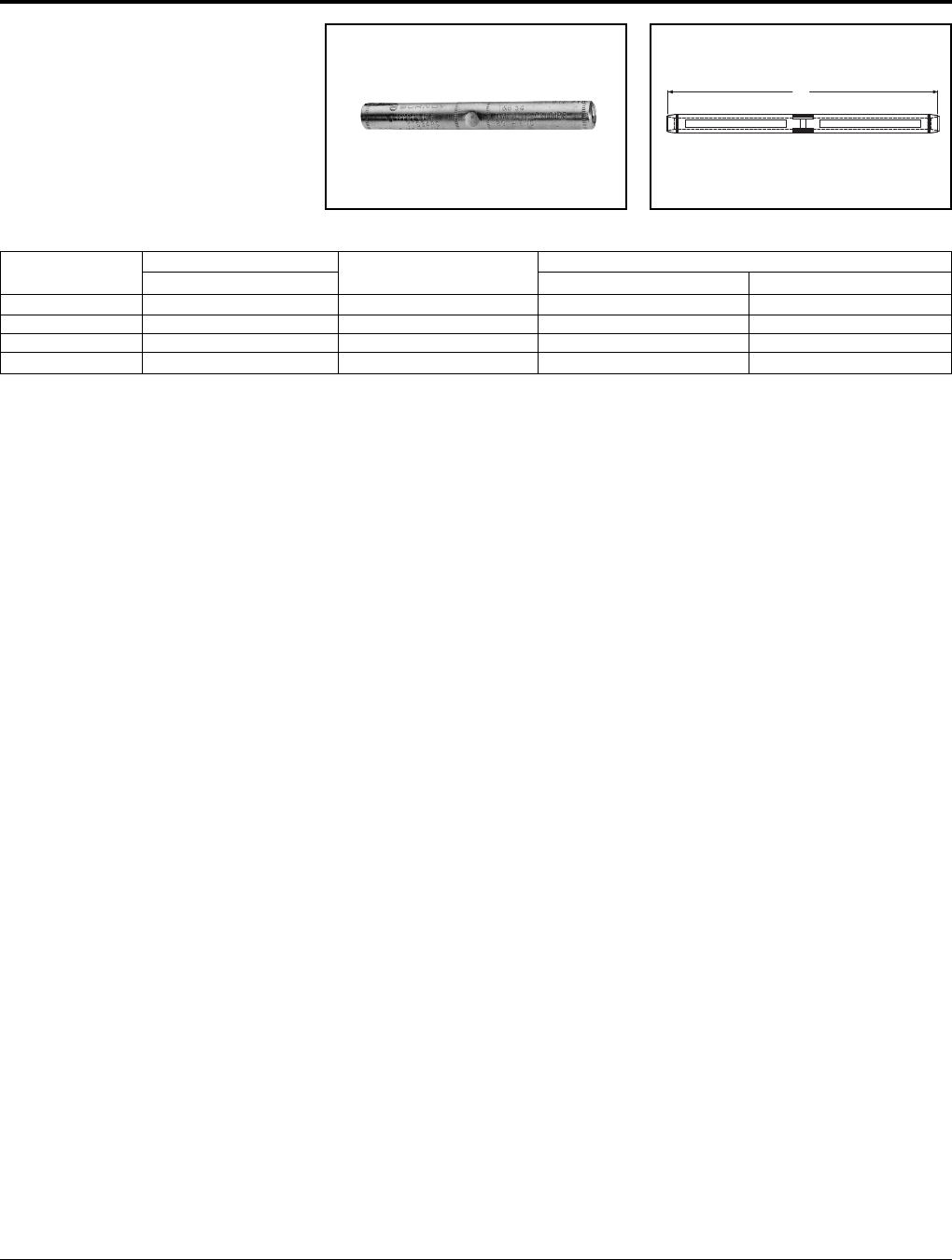

TYPE YTS-E

Full Tension Splice

for EHS Steel

Full tension splice for EHS steel guy,

messenger or "static" cable. Sleeve is pre-

filled with PENETROX™ joint compound and

capped.

Catalog Conductor †Tools, Die Sets

Number EHS Steel L DIe Index Y60BHU*

YTS312E 5/167 Str. 11.30721 L721

YTS375E 3/87 Str. 10.38723 L723

YTS438E 7/167 Str. 11.78726 L726

YTS500E ½7 Str. 16.63789 L789

Steel Conductor Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Full Tension Deadend

Kit

Compression Deadend for

ACCC®Conductor

Full tension deadends for ACCC®transmis-

sion lines up to and including 230 kV.

Standard 15° NEMA tap pad provides either

0° or 30° tap when BYNA-RT15HACCC

terminal is used.

Notes:

ACCC is a Registered Trade Mark of CTC Cable Corp.

1. Deadend Assembly consists of Aluminum Body, Steel Eye

and Terminal with mounting hardware.

2. Designed for corona free operation up to 230 kV,

contact factory for 345 kV and 500 kV operation.

3. For stainless steel hardware, contact factory.

4. Dimensions in brackets [ ] denotes metric units and are

rounded to nearest whole numbers.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

(Continued on next page)

Figure 1

Figure 2 Figure 2A

Dimensions - Dimensions - Installation Tooling

Catalog Deadend Body (Fig. 1) Steel Eye (Fig. 2A) Y60BHU

Conductor Size Number Fig. Kit Components Die*‡Die*‡Inspection

Name kcmil Kit Assembly No. L T C Y D B K W Terminal Deade

nd Terminal Pin Dia.

5600-1020 1

Linnet 431 5600-1020D 2

5600-1022 1BYNA32RT15HACCC L717W

Copenhagen 440 5600-1022D 20.748

5600-1044 1

Glasgow 473 5600-1044D 2BYNA245MRT15HACCC L719W

5600-1028 1

Casablanca 546 5600-1028D 2

5600-1030 1

Hawk 611 5600-1030D 2 31.25 4.5 2.5 1.12 0.62 BYNA36RT15HACCC L720W 0.892

5600-1032 1 [794] [114] [64] [28] [16] L727W

Lisbon 629 5600-1032D 2

5600-1040 1

Dove 713 5600-1040D 2

5600-1042 1 .62 4.00 5.60 BYNA39RT15HACCC L722W 0.962

Amsterdam 733 5600-1042D 2 [16] [102] [142]

5600-1050 1

Grosbeak 816 5600-1050D 2

5600-1052 1BYNA43RT15HACCC L724W 1.042

Brussels 839 5600-1052D 2

5600-1026 1

Oslo 627 5600-1026D 2BYNA39RT15HACCC L722W 0.962

5600-1054 1

Stockholm 913 5600-1054D 2

5600-1056 1 36.19 5.10 2.91 1.26 0.75

Warsaw 1016 5600-1056D 2 [919] [130] [74] [32] [19] L735W

5600-1060 1BYNA451RT15HACCC L725W 1.164

Drake 1020 5600-1060D 2

5600-1062 1

Dublin 1043 5600-1062D 2

BURNDY®Transmission Products ACCC®Composite Core Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Full Tension Deadend

Kit

(Continued)

Compression Deadend for

ACCC®Conductor

Notes:

ACCC is a Registered Trade Mark of CTC Cable Corp.

1. Deadend Assembly consists of Aluminum Body, Steel Eye

and Terminal with mounting hardware.

2. Designed for corona free operation up to 230 kV,

contact factory for 345 kV and 500 kV operation.

3. For stainless steel hardware, contact factory.

4. Dimensions in brackets [ ] denotes metric units and are

rounded to nearest whole numbers.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Figure 1

Figure 2 Figure 2A

Dimensions - Dimensions - Installation Tooling

Catalog Deadend Body (Fig. 1) Steel Eye (Fig. 2A) Y60BHU

Conductor Size Number Fig. Kit Components Die*‡Die*‡Inspection

Name kcmil Kit Assembly No. L T C Y D B K W Terminal Deade

nd Terminal Pin Dia.

5600-1058 1

Hamburg 1092 5600-1058D 2

5600-1064 1

Milan 1134 5600-1064D 2BYNA590MRT15HACCC L727W 1.24

5600-1066 1

Rome 1183 5600-1066D 2

5600-1070 1

Cardinal 1222 5600-1070D 2

5600-1072 1

Vienna 1255 5600-1072 2

5600-1074 1 36.19 0.62 4.00 5.60 5.10 2.91 1.26 0.75 BYNA49RT15HACCC L727W 1.313

Budapest 1332 5600-1074D 2 [919] [16] [102] [142] [130] [74] [32] [19] L735W

5600-1076

Prague 1377 5600-1076D

5600-1078 1

Munich 1461 5600-1078D 2BYNA760MRT15HACCC L728W 1.35

5600-1079 1

London 1512 5600-1079D 2

5600-1080 1

Bittern 1572 5600-1080D 2BYNA52RT15HACCC L728W 1.454

5600-1082 1

Paris 1620 5600-1082D 2

ACCC®Composite Core Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

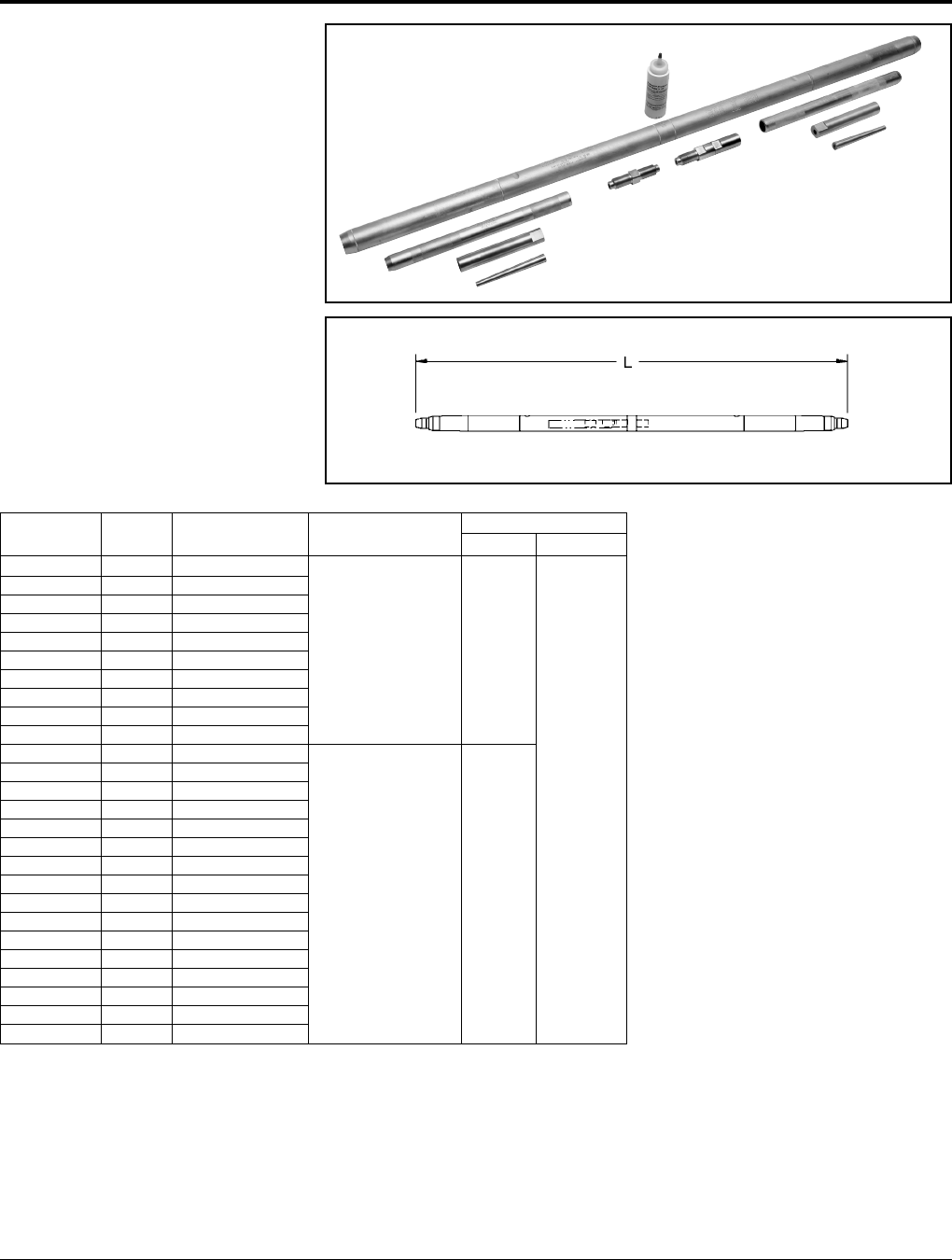

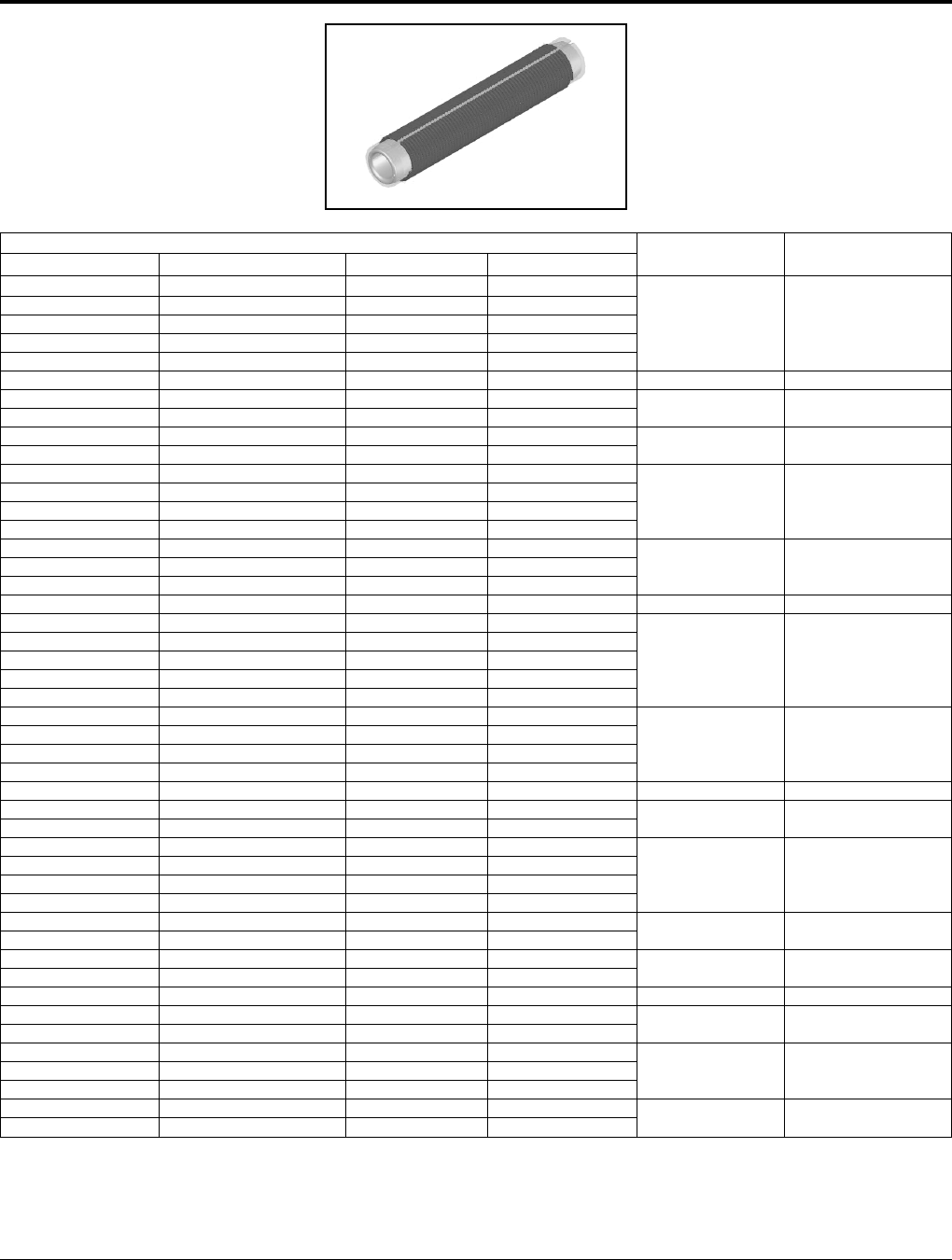

Full Tension Splice Kit

Compression Splice

for ACCC®Conductor

Full tension two piece splice for ACCC®

transmission lines up to and including 230 kV.

1. Designed for corona free operation up to 230 kV, contact

factory for 345 kV and 500 kV operation.

2. Dimensions in brackets [ ] denotes metric units and are

rounded to nearest whole number.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACCC is a Registered Trade Mark of CTC Cable Corp.

Conductor Size Dimensions (Inches) Installation Tool

Name kcmil Catalog Number L Die*‡Tool

Linnet 431 5600-2020

Copenhagen 440 5600-2022

Glasgow 473 5600-2044

Casablanca 546 5600-2028

Hawk 611 5600-2030 60.80

Lisbon 629 5600-2032 [1544] L727W

Dove 713 5600-2040

Amsterdam 733 5600-2042

Grosbeak 816 5600-2050

Brussels 839 5600-2052

Oslo 627 5600-2026

Stockholm 913 5600-2054

Warsaw 1016 5600-2056

Drake 1020 5600-2060 Y60BHU

Dublin 1043 5600-2062

Hamburg 1092 5600-2058

Milan 1134 5600-2064

Rome 1183 5600-2066 67.00

Cardinal 1222 5600-2070 [1702] L735W

Vienna 1255 5600-2072

Budapest 1332 5600-2074

Prague 1377 5600-2076

Munich 1461 5600-2078

London 1512 5600-2079

Bittern 1572 5600-2080

Paris 1620 5600-2082

BURNDY®Transmission Products ACCC®Composite Core Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

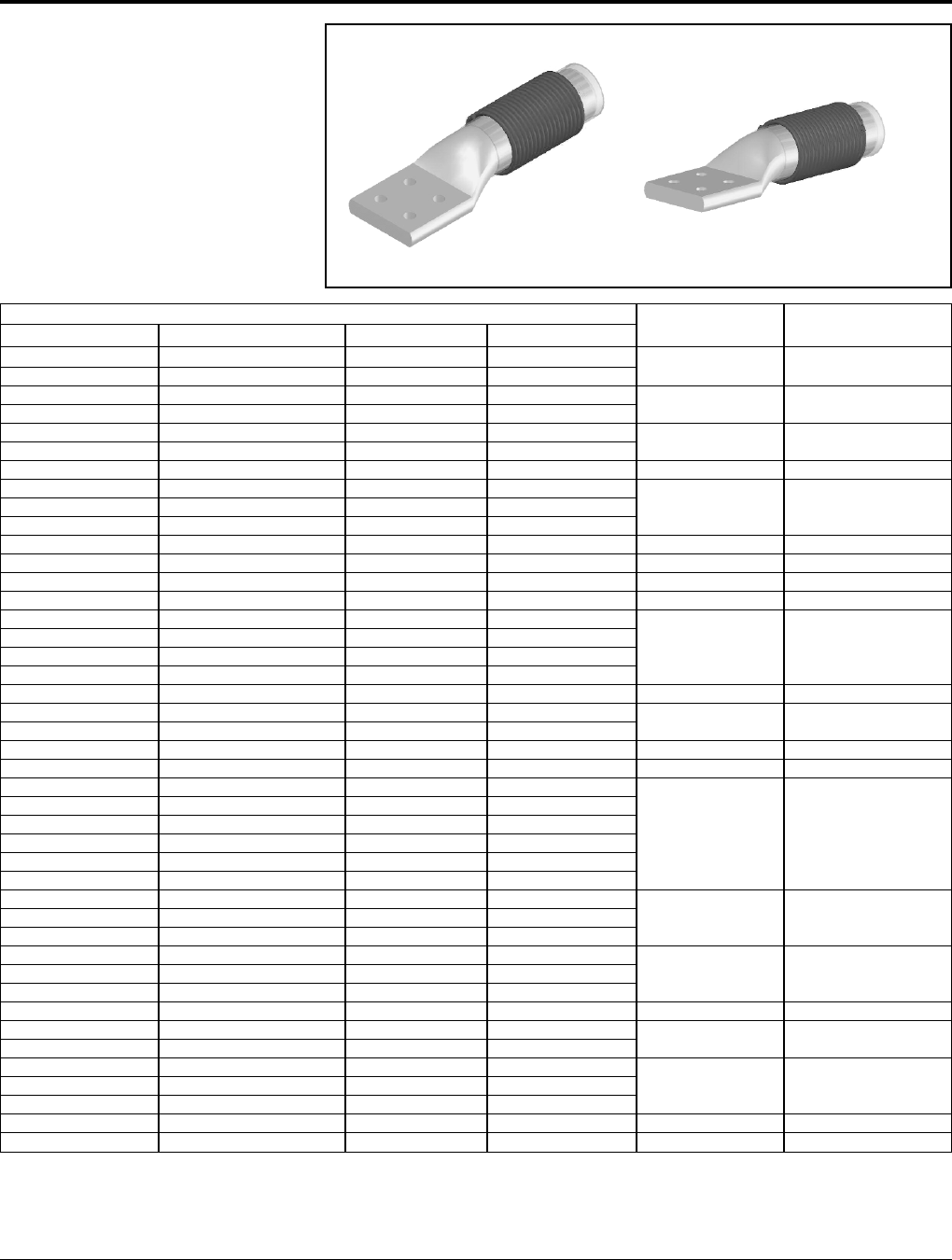

TYPES BYNA-RTACCC,

BYNA-RT15ACCC

Compression Terminals

Straight and 15 Degree

for ACCC®Conductor

Compression terminal for ACCC®transmis-

sion lines up to and including 230 kV.

Notes:

ACCC is a Registered Trade Mark of CTC Cable Corp.

1. To specifiy mounting hardware to correspondending

deadend or pad add H to the part number (example:

BYNA451RTHACCC).

2. To specify stainless steel hardware add suffix SS to the

catalog number (example: BYNA451RTACCCSS).

3. Designed for corona free operation up to 230 kV, contact

factory for 345 kV and 500 kV operation.

4. Dimensions in brackets [ ] denotes metric units and are

rounded to nearest whole numbers.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

Dimensions (Inches)

Conductor Size Straight 15 Degree Straight 15 Degree Installation Tooling

Name kcmil Catalog Number Catalog Number L L C T Die Index Y45* Y46* Y60BHU*‡

Linnet 431 15.5 15.5

Copenhagen 440 BYNA32RTACCC BYNA32RT15ACCC [393] [393] 717 S717 P717 L717W

15.8 15.8

Glasgow 473 BYNA245MRTACCC BYNA245MRT15ACCC [402] [402] 719 S719 P719 L719W

Casablanca 546

Hawk 611 BYNA36RTACCC BYNA36RT15ACCC 15.8 15.8 3.25 0.50 720 S720 P720 L720W

Lisbon 629 [402] [402] [83] [13]

Oslo 627

Dove 713 BYNA39RTACCC BYNA39RT15ACCC 16.2 16.2 722 S722 P722 L722W

Amsterdam 733 [411] [411]

Grosbeak 816 16.2 16.2

Brussels 839 BYNA43RTACCC BYNA43RT15ACCC [411] [411] 724 S724 P724 L724W

Stockholm 913

Warsaw 1016 15.3 15.0 0.45

Drake 1020 BYNA451RTACCC BYNA451RT15ACCC [389] [380] [11] 725 S725 P725 L725W

Dublin 1043

Hamburg 1092

Milan 1134 BYNA590MRTACCC BYNA590MRT15ACCC 15.6 15.7 0.52 727 — — L727W

Rome 1183 [397] [399] [13]

Cardinal 1222 3.22

Vienna 1255 15.6 15.7 [82] 0.52

Budapest 1332 BYNA49RTACCC BYNA49RT15ACCC [397] [399] [13] 727 — — L727W

Prague 1377

17.1 17.3 0.71

Munich 1461 BYNA760MRTACCC BYNA760MRT15ACCC [435] [438] [18] 728 — — L728W

London 1512

Bittern 1572 BYNA52RTACCC BYNA52RT15ACCC 17.1 17.3 0.71 728 — — L728W

Paris 1620 [435] [438] [18]

ACCC®Composite Core Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE YNTA-RTACCC

Compression T-Tap

for ACCC®Conductor

Two piece compression T-Tap to a NEMA pad

for ACCC®transmission lines up to and

including 230 kV.

ACCC is a Registered Trade Mark of CTC Cable Corp.

1. Designed for corona free operation up to 230 kV, contact

factory for 345 kV and 500 kV operation.

2. Dimensions in brackets [ ] denotes metric units and are

rounded to nearest whole number.

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

31⁄813⁄4

9⁄16 Dia.

Conductor Size Dimensions (Inches) Installation Tooling

Name kcmil Catalog Number L C H T Die Index Y45* Y46* Y60BHU*‡

Linnet 431 24.92 5.82

Copenhagen 440 YNTA32RTACCC [633] [148] 717 S717 P717 L717W

25.50 5.93

Glasgow 473 YNTA245MRTACCC [648] [150] 719 S719 P719 L719W

Casablanca 546

Hawk 611 YNTA36RTACCC 25.50 6.03 720 S720 P720 L720W

Lisbon 629 [648] [153]

Olso 627

Dove 713 YNTA39RTACCC 26.06 6.13 722 S722 P722 L722W

Amsterdam 733 [662] [156]

Grosbeak 816 26.28 6.24

Brussels 839 YNTA43RTACCC [667] [158] 0.56 724 S724 P724 L724W

Stockholm 913 [14]

Warsaw 1016 26.38 4.00 6.43

Drake 1020 YNTA451RTACCC [670] [102] [163] 725 S725 P725 L725W

Dublin 1043

Hamburg 1092

Milan 1134

Rome 1183

Cardinal 1222 YNTA49RTACCC 26.36 6.60 727 — — L727W

Vienna 1255 [669] [168]

Budapest 1332

Prague 1377

Munich 1461

London 1512 29.32 7.00 0.69

Bittern 1572 YNTA52RTACCC [745] [178] [17] 728 — — L728W

Paris 1620

BURNDY®Transmission Products ACCC®Composite Core Accessories

High Temperature

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

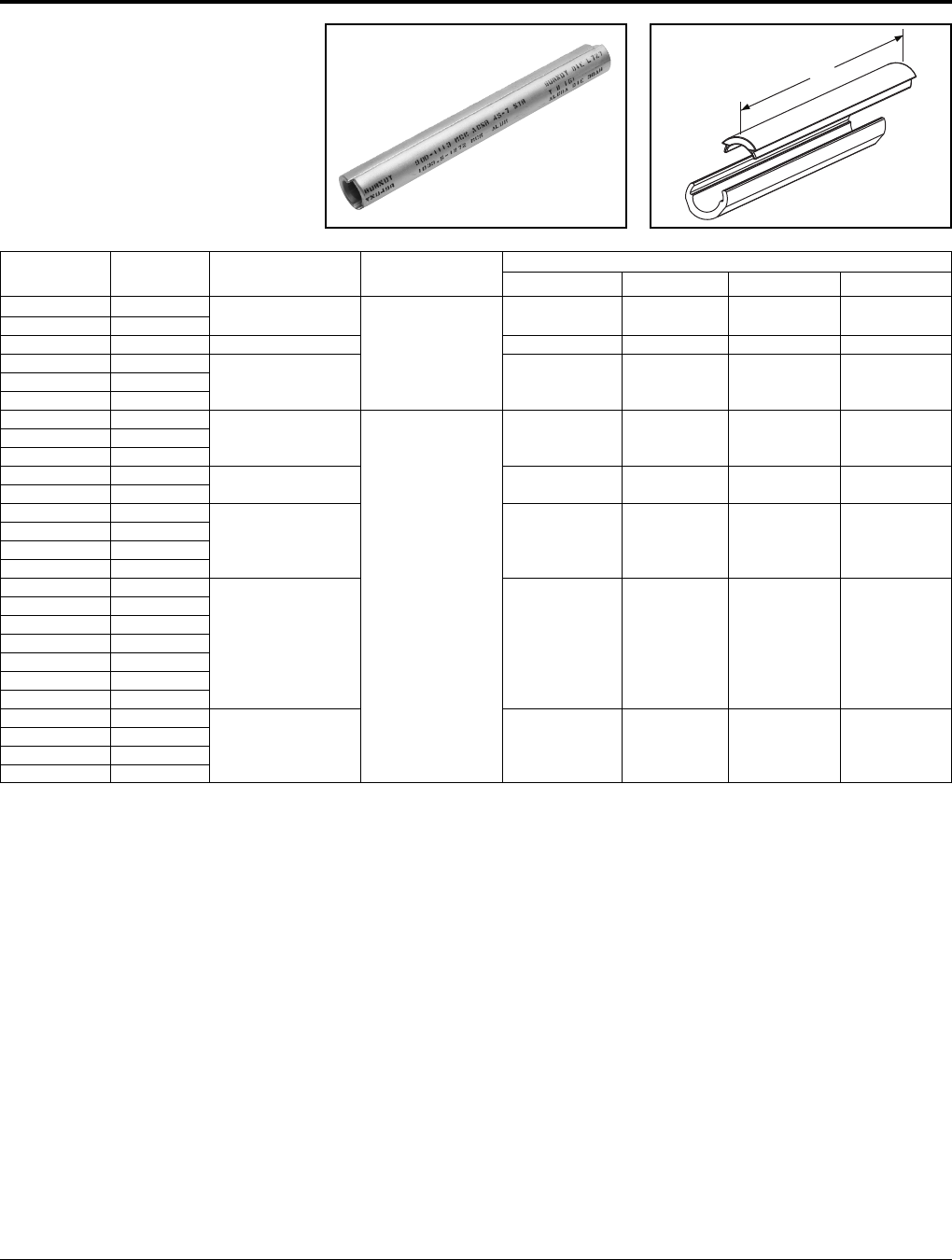

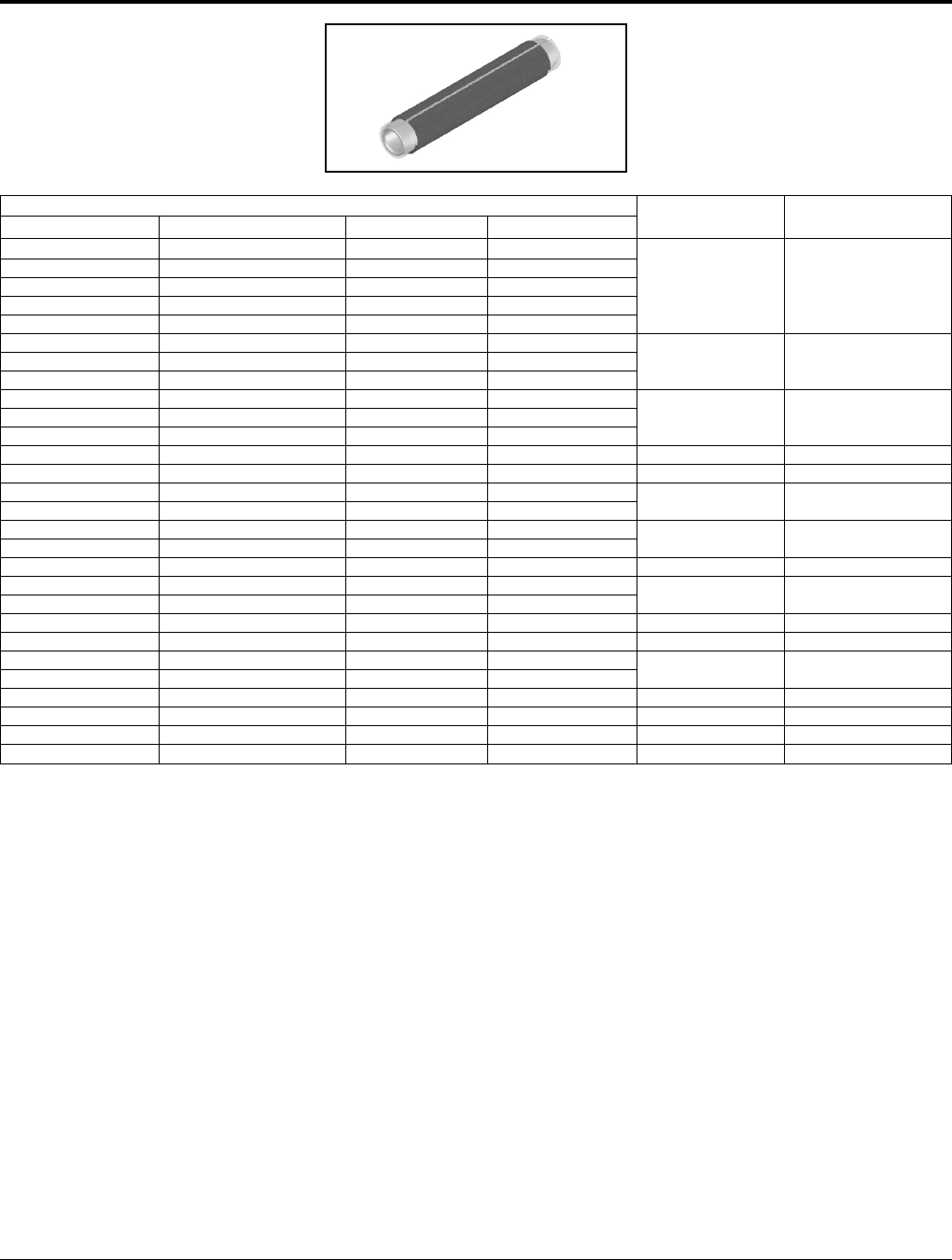

TYPE YNU-RACCC

Compression Repair Sleeve

for ACCC®Conductor

Two piece compression repair sleeve for tem-

porary restoration of conductivity to damaged

ACCC®transmission lines.

ACCC is a Registered Trade Mark of CTC Cable Corp.

Dimensions in brackets [ ] denotes metric units and are

rounded to nearest whole number.

Conductor Size Dimension (Inches) Installation Tooling

Name kcmil Catalog Number L Die Index Y45* Y46* Y60BHU*‡

Linnet 431

Copenhagen 440 YNU32RACCC 717 S717 P717 L717W

Glasgow 473 YNU245MRACCC 22.00 719 S719 P719 L719W

Casablanca 546 [559]

Hawk 611 YNU36RACCC 720 S720 P720 L720W

Lisbon 629

Oslo 627

Dove 713 YNU39RACCC 722 S722 P722 L722W

Amsterdam 733

Grosbeak 816

Brussels 839 YNU43RACCC 724 S724 P724 L724W

Stockholm 913

Warsaw 1016

Drake 1020 YNU451RACCC 725 S725 P725 L725W

Dublin 1043

Hamburg 1092 24.00

Milan 1134 [610]

Rome 1183

Cardinal 1222 YNU49RACCC 727 — — L727W

Vienna 1255

Budapest 1332

Prague 1377

Munich 1461

London 1512

Bittern 1572 YNU52RACCC 728 — — L728W

Paris 1620

* Overlap crimps.

‡ Wide dies may be used, add suffix “W” to part number

(example: L725W).

ACCC®Composite Core Accessories BURNDY®Transmission Products

High Temperature

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE IMPLO™

Dead End Joints

IMPLO™ Dead End Joints accommodate a

wide range of ACSR, ACSS, ACSS/TW, ASC,

and ASC/TW conductors; and provide a con-

sistent, smooth, high quality installation every

time . . . with no tools or dies. Various dead

end configurations, tap pad angles, and eye-

bolt versions available, 15 degree tap pad

standard.

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Linnet ACSR 26/7 336.4

Oriole ACSR 30/7 336.4

Chickadee ACSR 18/1 397.5 2050 12.99

Brant ACSR 24/7 397.5 [330]

Ibis ACSR 26/7 397.5

Oriole ACSS 30/7 336.4 2050 ACSS 12.99[330]

Lark ACSR 30/7 397.5 13.39

Hawk ACSR 26/7 477 2051 [340]

Dove ACSR 26/7 556.5 13.78

Customer Specific ACSR 26/7 585 2052 [350]

Rook ACSR 24/7 636

Flamingo ACSR 24/7 666.6 14.76

Stilt ACSR 24/7 715.5 2053 [375]

Crow ACSR 54/7 715.5

Gannet ACSR 26/7 666.6

Grosbeak ACSR 26/7 636 2054 14.76

Type 16 [Crowsnest] ACSR/SD — 636 [375]

Customer Specific ACSR 42/7 971.6 2055 15.55[395]

Starling ACSR 26/7 715.5

Cuckoo ACSR 24/7 795

Condor ACSR 54/7 795 2056 15.16

Crane ACSR 54/7 874.5 [385]

Type 13 ACSR/SD 20/7 795

Drake ACSR 26/7 795

Drake ACSS 26/7 795 15.16

Cardinal ACSS/TW 54/7 954 2057 [385]

Type 16 ACSR/SD 22/7 795

Mallard ACSR 30/19 795 2058 15.55 [395]

Ruddy ACSR 45/7 900 15.55

Rail ACSR 45/7 954 2059 [395]

Canary ACSR 54/7 900

Canary ACSS 54/7 900 15.55

Cardinal ACSR/SD T.13 954 2060 [395]

Cardinal ACSR 54/7 954

Curlew ACSR 54/7 1033.5 16.34

Moose ACSR 54/7 500 mm 2061 [415]

Ortolan ACSR 45/7 1033.5 16.34

Bluejay ACSR 54/7 1113 2062 [415]

Finch ACSR 54/19 1113 2063 17.13[435]

Grackle ACSR 54/19 1192.5 17.13

Customer Specific ACSR/TW 56/19 1443.7 2064 [435]

Bunting ACSR 45/7 1192.5

Bittern ACSR 45/7 1272 2065 17.13

Potomac/TW ACSR/TW 36/7 1557.4 [435]

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Pheasant ACSR 54/19 1272 17.52

Martin ACSR 54/19 1351.5 2066 [445]

Dipper ACSR 45/7 1351.5 17.52

Bobolink ACSR 45/7 1431 2067 [445]

Plover ACSR 54/19 1431 17.91

Parrot ACSR 54/19 1510.5 2070 [455]

Customer Specific AACSR 26/7 811.5 2071 15.55[395]

Nuthatch ACSR 45/7 1510.5

Lapwing ACSR 45/7 1590 2072 17.91

Type 7 (Keephill) ACSR/SD 41/7 1590 [455]

Falcon ACSR 54/19 1590 2073 18.31[465]

Chukar ACSR 84/19 1780 2074 19.88[505]

Bluebird ACSR 84/19 2156 2075 19.49[495]

Kiwi ACSR 72/7 2167 2076 19.49[495]

Nelson ACSR 72/7 1843.3

Customer Specific ACSR 72/7 2032.1 18.90

Mockingbird ACSR 72/7 2034.5 2077 [480]

Customer Specific ACSR 72/7 1843.2

Seahawk ACSR 68/7 1869 18.90

Toutle/TW ACSR/TW 17/7 795 2079 [480]

Customer Specific ACSR 48/7 623.8 2080 13.79[350]

Thrasher ACSR 76/19 2312 2083 20.88[510]

Skylark ACSR 36/1 1272 2084 17.13[435]

Meadowsweet ASC 37 600

Orchid ASC 37 636

Violet ASC 37 715.5 13.78

Nasturtium ASC 61 715.5 2085 [350]

Arbutus ASC/TW 17 795

Baker ASC/TW 34 795

Bluebell ASC 37 1033.5

Larkspur ASC 61 1033.5 2086 15.55

Marigold ASC 61 1113 [395]

Customer Specific ACSR 42/7 1277.5

Type 5 (Scissortail) SDC 34/7 1272 2089 17.13

Deschutes/TW ACSR/TW 35/7 1519 [435]

Mica - Mica ACSR 24/7 - 26/7E 666.9-648.2 2090 14.76[375]

Hawthorn ASC 61 1192.5 16.34

Narcissus ASC 61 1272 2093 [415]

Hornbill ACSR 48/7 1590

Athabasca/TW ACSR/TW 42/7 1780 2094 17.91

Chukar/TW ACSR/TW 52/19 1780 [455]

Tern ACSR 45/7 795 2095 15.16[385]

Type 6.4 SDC 17/7 477 2097 13.39[340]

Emu ACSR 108/37 3364 2100

Coot ACSR 36/1 795 2103 14.76[375]

Pelican ACSR 18/1 477 13.39

Osprey ACSR 18/1 556.5 2112 [340]

TYPE IMPLO™

Dead End Joints

(Continued)

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Flicker ACSR 24/7 477 13.39

Parakeet ACSR/TW 18/7 556.5 2113 [340]

Hen ACSR 30/7 477 13.78

Heron ACSR 30/7 500 2114 [350]

Peacock ACSR 24/7 605

Duck ACSR 54/7 605

Goose ACSR 54/7 636 2117 13.78

Customer Specific ACSR 54/7 605 [350]

Parakeet ACSR 18/7 556.5

Eagle ACSR 30/7 556.5 2118 13.78[350]

Squab ACSR 26/7 605 2120 14.76[375]

Wood Duck ACSR 30/7 605

Teal ACSR 30/19 605 14.76

Scoter ACSR 30/7 636 2121 [375]

Egret ACSR 30/19 636

Kingbird ACSR 18/1 636

Swift ACSR 36/1 636 2123 13.78

Customer Specific ACSR 18/1-18/7 583.2 [350]

Rogue/TW ACSR/TW 17/7 954

Type 7 SDC 21/7 954 2124 15.16

Kettle ACSR/TW 21/7 954 [385]

Redwing ACSR 30/19 715.5 2131 15.16[385]

Grand Rapids ACSR 22/7 685.4

Type 5 SDC 17/7 795 2133 14.76

Macaw ACSR 42/7 795 [375]

Catbird ACSR 36/1 954 2138 15.16[385]

Phoenix ACSR 42/7 954 2139 15.55[395]

Towhee ACSR 48/7 954 2140 15.16[385]

Snowbird ACSR 42/7 1033.5 2141 16.34[415]

4/O ACSR 6/1 211.6 12.20

Penguin ACSR 6/1 211.6 2142 [310]

Ostrich ACSR 26/7 300 12.60

Merlin AACSR 18/1 336.4 2143 [320]

Partridge ACSR 26/7 266.8 12.60

Owl ACSR 6/7 266.8 2144 [320]

Customer Specific ACSR 22/7 490 2145 13.39[340]

Road Runner ACSR 76/19 2057 2146 19.88[505]

Dotterel ACSR 12/7 177 mm 2147 12.20[310]

Canna ASC 19 397.5

Cosmos ASC 19 477 12.99

Neon AAC 19 210 mm sq. 2149 [330]

Syringa ASC 37 477

Zinnia ASC 19 500

Hyacinth ASC 37 500 13.39

Dahlia ASC 19 556.5 2150 [340]

Mistletoe ASC 37 556.5

TYPE IMPLO™

Dead End Joints

(Continued)

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Arbutus AAC 37 795

Phosphorus AAAC 37 807 2157 14.76

Lilac AAC 61 795 [375]

Anemone ASC 37 874.5

Crocus ASC 61 874.5

Magnolia ASC 37 954 2158 15.16

Golden Rod ASC 61 954 [385]

Greeley AAAC 37 927.2

Hood ASC/TW 34 1589

Sulphur AASC 61 647 mm sq. 2165 17.13

Columbine ASC 61 1351.5 [435]

Carnation AAAC 61 1431

Gladiolus ASC 61 1510.5 2166 17.52

Coreopsis ASC 61 1590 [445]

Moa ACSR 76/7 1590 2167 17.91[455]

Jessamine ASC 61 1750 2169 17.91[455]

Cowslip ASC 91 2000 19.88

Jefferson/TW AAC/TW 52 2406 2170 [505]

Sagebrush ASC 91 2250 19.49

Customer Specific ASC 91 2303 2171 [495]

Bitterroot ASC 91 2750 2173 20.88[510]

Tulip ASC 19 336.4 12.60

Daffodil ASC 19 350 2174 [320]

Laurel ASC 19 266.8 2179 12.20[310]

Customer Specific ASC 91 3000 2182 20.88[510]

3640 kcmil ASC 91 3640 21.85

3500 kcmil ASC 91 3500 2183 [555]

Sansum ACSR 72/37 1273.5 2190 17.91[455]

Customer Specific ACSR 26/7 932.7 2192 16.34[415]

Customer Specific ACSR 28/19 1307.4 2300 21.73[552]

Customer Specific ACSR 69/19 1924 2301 24.02[610]

TYPE IMPLO™

Dead End Joints

(Continued)

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE IMPLO™

Full Tension Joints

IMPLO™ Full Tension Joints accommodate a

wide range of ACSR, ACSS, ACSS/TW, ASC,

and ASC/TW conductors; and provide a con-

sistent, smooth, high quality installation every

time . . . with no tools or dies.

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Linnet ACSR 26/7 336.4

Oriole ACSR 30/7 336.4

Chickadee ACSR 18/1 397.5 1050 18.90

Brant ACSR 24/7 397.5 [480]

Ibis ACSR 26/7 397.5

Oriole ACSS 30/7 336.4 1050 ACSS 18.90[480]

Lark ACSR 30/7 397.5 19.30

Hawk ACSR 26/7 477 1051 [500]

Dove ACSR 26/7 556.5 20.47

Customer Specific ACSR 26/7 585 1052 [520]

Rook ACSR 24/7 636

Flamingo ACSR 24/7 666.6 21.26

Stilt ACSR 24/7 715.5 1053 [540]

Crow ACSR 54/7 715.5

Gannet ACSR 26/7 666.6

Grosbeak ACSR 26/7 636 1054 21.26

Type 16 (Crowsnest) ACSR/SD — 636 [540]

Customer Specific ACSR 42/7 971.6 1055 22.83[580]

Starling ACSR 26/7 715.5

Cuckoo ACSR 24/7 795

Condor ACSR 54/7 795 1056 22.83

Crane ACSR 54/7 874.5 [580]

Type 13 ACSR/SD 20/7 795

Drake ACSR 26/7 795

Drake ACSS 26/7 795 22.83

Cardinal ACSS/TW 54/7 954 1057 [580]

Type 16 ACSR/SD 22/7 795

Mallard ACSR 30/19 795 1058 22.83[580]

Ruddy ACSR 45/7 900 22.83

Rail ACSR 45/7 954 1059 [580]

Canary ACSR 54/7 900

Canary ACSS 54/7 900 22.83

Cardinal ACSR/SD T.13 954 1060 [580]

Cardinal ACSR 54/7 954

Curlew ACSR 54/7 1033.5 24.41

Moose ACSR 54/7 500 mm 1061 [620]

Ortolan ACSR 45/7 1033.5 24.41

Bluejay ACSR 54/7 1113 1062 [620]

Finch ACSR 54/19 1113 1063 25.98[660]

Grackle ACSR 54/19 1192.5 25.98

Customer Specific ACSR/TW 56/19 1443.7 1064 [660]

Bunting ACSR 45/7 1192.5

Bittern ACSR 45/7 1272 1065 25.98

Potomac/TW ACSR/TW 36/7 1557.4 [660]

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE IMPLO™

Full Tension Joints

(Continued)

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Pheasant ACSR 54/19 1272 26.77

Martin ACSR 54/19 1351.5 1066 [680]

Dipper ACSR 45/7 1351.5 26.77

Bobolink ACSR 45/7 1431 1067 [680]

Plover ACSR 54/19 1431 27.56

Parrot ACSR 54/19 1510.5 1070 [700]

Customer Specific AACSR 26/7 811.5 1071 22.83[580]

Nuthatch ACSR 45/7 1510.5

Lapwing ACSR 45/7 1590 1072 27.56

Type 7 (Keephill) ACSR/SD 41/7 1590 [700]

Falcon ACSR 54/19 1590 1073 28.35[720]

Chukar ACSR 84/19 1780 1074 31.50[800]

Bluebird ACSR 84/19 2156 1075 30.71[780]

Kiwi ACSR 72/7 2167 1076 30.71[780]

Nelson ACSR 72/7 1843.3

Customer Specific ACSR 72/7 2032.1 29.53

Mockingbird ACSR 72/7 2034.5 1077 [750]

Customer Specific ACSR 72/7 1843.2

Seahawk ACSR 68/7 1869 1079 29.53[750]

Toutle/TW ACSR/TW 17/7 795 20.47

Customer Specific ACSR 48/7 623.8 1080 [520]

Thrasher ACSR 76/19 2312 1083 31.89[810]

Skylark ACSR 36/1 1272 1084 25.98[660]

Meadowsweet ASC 37 600

Orchid ASC 37 636

Violet ASC 37 715.5 20.47

Nasturtium ASC 61 715.5 1085 [520]

Arbutus ASC/TW 17 795

Baker ASC/TW 34 795

Bluebell ASC 37 1033.5

Larkspur ASC 61 1033.5 1086 22.83

Marigold ASC 61 1113 [580]

Customer Specific ACSR 42/7 1277.5

Type 5 (Scissortail) SDC 34/7 1272 1089 25.98

Deschutes/TW ACSR/TW 35/7 1519 [660]

Mica - Mica ACSR 24/7 - 26/7E 666.9-648.2 1090 21.26[540]

Hawthorn ASC 61 1192.5 24.41

Narcissus ASC 61 1272 1093 [620]

Hornbill ACSR 48/7 1590

Athabasca/TW ACSR/TW 42/7 1780 1094 27.56

Chukar/TW ACSR/TW 52/19 1780 [700]

Tern ACSR 45/7 795 1095 22.83[580]

Type 6.4 SDC 17/7 477 1097 19.30[500]

Emu ACSR 108/37 3364 1100 51.26[1302]

Coot ACSR 36/1 795 1103 21.26[540]

Pelican ACSR 18/1 477 19.30

Osprey ACSR 18/1 556.5 1112 [500]

Flicker ACSR 24/7 477 19.30

Parakeet ACSR/TW 18/7 556.5 1113 [500]

Hen ACSR 30/7 477 20.47

Heron ACSR 30/7 500 1114 [520]

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE IMPLO™

Full Tension Joints

(Continued)

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Peacock ACSR 24/7 605

Duck ACSR 54/7 605

Goose ACSR 54/7 636 1117 20.47

Customer Specific ACSR 54/7 605 [520]

Parakeet ACSR 18/7 556.5

Eagle ACSR 30/7 556.5 1118 20.47[520]

Squab ACSR 26/7 605 1120 21.26[540]

Wood Duck ACSR 30/7 605

Teal ACSR 30/19 605 21.26

Scoter ACSR 30/7 636 1121 [540]

Egret ACSR 30/19 636

Kingbird ACSR 18/1 636

Swift ACSR 36/1 636 1123 20.47

Customer Specific ACSR 18/1-18/7 583.2 [520]

Rogue/TW ACSR/TW 17/7 954

Type 7 SDC 21/7 954 1124 22.83

Kettle ACSR/TW 21/7 954 [580]

Redwing ACSR 30/19 715.5 1131 22.83[580]

Grand Rapids ACSR 22/7 685.4

Type 5 SDC 17/7 795 1133 21.26

Macaw ACSR 42/7 795 [540]

Catbird ACSR 36/1 954 1138 22.83[580]

Phoenix ACSR 42/7 954 1139 22.83[580]

Towhee ACSR 48/7 954 1140 22.83[580]

Snowbird ACSR 42/7 1033.5 1141 24.41[620]

4/O ACSR 6/1 211.6 17.32

Penguin ACSR 6/1 211.6 1142 [440]

Ostrich ACSR 26/7 300 18.11

Merlin AACSR 18/1 336.4 1143 [460]

Partridge ACSR 26/7 266.8 18.11

Owl ACSR 6/7 266.8 1144 [460]

Customer Specific ACSR 22/7 495 1145 19.30[500]

Road Runner ACSR 76/19 2057 1146 31.50[800]

Dotterel ACSR 12/7 177 mm 1147 17.32[440]

Canna ASC 19 397.5

Cosmos ASC 19 477 18.90

Neon AAC 19 210 mm sq. 1149 [480]

Syringa ASC 37 477

Zinnia ASC 19 500

Hyacinth ASC 37 500 19.30

Dahlia ASC 19 556.5 1150 [500]

Mistletoe ASC 37 556.5

Arbutus AAC 37 795

Phosphorus AAAC 37 807 1157 21.26

Lilac AAC 61 795 [540]

Anemone ASC 37 874.5

Crocus ASC 61 874.5

Magnolia ASC 37 954 1158 22.83

Golden Rod ASC 61 954 [580]

Greeley AAAC 37 927.2

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Hood ASC/TW 34 1589

Sulphur AASC 61 647 mm sq. 1165 25.98

Columbine ASC 61 1351.5 [660]

Carnation AAAC 61 1431

Gladiolus ASC 61 1510.5 1166 26.77

Coreopsis ASC 61 1590 [680]

Moa ACSR 76/7 1590 1167 27.56[700]

Jessamine ASC 61 1750 1169 27.56[700]

Cowslip ASC 91 2000 31.50

Jefferson/TW AAC/TW 52 2406 1170 [800]

Sagebrush ASC 91 2250 30.71

Customer Specific ASC 91 2303 1171 [780]

Bitterroot ASC 91 2750 1173 31.89[810]

Tulip ASC 19 336.4 18.11

Daffodil ASC 19 350 1174 [460]

Laurel ASC 19 266.8 1179 17.32[440]

Customer Specific ASC 91 3000 1182 30.71[780]

Customer Specific ASC 91 3640 34.25

Customer Specific ASC 91 3500 1183 [870]

Sansum ACSR 72/37 1273.5 1190 27.56[700]

Customer Specific ACSR 26/7 932.7 1192 24.41[620]

Customer Specific ACSR 28/19 1307.4 1300 9.45[240]

Customer Specific ACSR 69/19 1924 1301 37.40[950]

TYPE IMPLO™

Full Tension Joints

(Continued)

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE IMPLO™

Jumper Terminals

IMPLO™ Jumper Terminals accommodate a

wide range of ACSR, ACSS, ACSS/TW, ASC,

and ASC/TW conductors; and provide a con-

sistent, smooth, high quality installation every

time . . . with no tools or dies, 15 degree tap

pad standard.

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Linnet ACSR 26/7 336.4

Oriole ACSR 30/7 336.4

Chickadee ACSR 18/1 397.5 3050 3.74

Brant ACSR 24/7 397.5 [95]

Ibis ACSR 26/7 397.5

Oriole ACSS 30/7 336.4 3050 ACSS 3.75[95]

Lark ACSR 30/7 397.5 3.75

Hawk ACSR 26/7 477 3051 [95]

Dove ACSR 26/7 556.5 4.72

Customer Specific ACSR 26/7 585 3052 [120]

Rook ACSR 24/7 636

Flamingo ACSR 24/7 666.6 5.31

Stilt ACSR 24/7 715.5 3053 [135]

Crow ACSR 54/7 715.5

Gannet ACSR 26/7 666.6

Grosbeak ACSR 26/7 636 3054 5.31

Type 16 (Crowsnest) ACSR/SD — 636 [135]

Customer Specific ACSR 42/7 971.6 3055 5.71[145]

Starling ACSR 26/7 715.5

Cuckoo ACSR 24/7 795

Condor ACSR 54/7 795 3056 5.31

Crane ACSR 54/7 874.5 [135]

Type 13 ACSR/SD 20/7 795

Drake ACSR 26/7 795

Drake ACSS 26/7 795 5.31

Cardinal ACSS/TW 54/7 954 3057 [135]

Type 16 ACSR/SD 22/7 795

Mallard ACSR 30/19 795 3058 5.71[145]

Ruddy ACSR 45/7 900 5.71

Rail ACSR 45/7 954 3059 [145]

Canary ACSR 54/7 900

Canary ACSS 54/7 900 5.71

Cardinal ACSR/SD T.13 954 3060 [145]

Cardinal ACSR 54/7 954

Curlew ACSR 54/7 1033.5 5.71

Moose ACSR 54/7 500 mm 3061 [145]

Ortolan ACSR 45/7 1033.5 5.71

Bluejay ACSR 54/7 1113 3062 [145]

Finch ACSR 54/19 1113 3063 6.10[155]

Grackle ACSR 54/19 1192.5 6.10

Customer Specific ACSR/TW 56/19 1443.7 3064 [155]

Bunting ACSR 45/7 1192.5

Bittern ACSR 45/7 1272 3065 6.10

Potomac/TW ACSR/TW 36/7 1557.4 [155]

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE IMPLO™

Jumper Terminals

(Continued)

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Pheasant ACSR 54/19 1272 6.50

Martin ACSR 54/19 1351.5 3066 [165]

Dipper ACSR 45/7 1351.5 6.50

Bobolink ACSR 45/7 1431 3067 [165]

Plover ACSR 54/19 1431 7.48

Parrot ACSR 54/19 1510.5 3070 [190]

Customer Specific AACSR 26/7 811.5 3071 5.71[145]

Nuthatch ACSR 45/7 1510.5

Lapwing ACSR 45/7 1590 3072 7.48

Type 7 (Keephill) ACSR/SD 41/7 1590 [190]

Falcon ACSR 54/19 1590 3073 7.87[200]

Chukar ACSR 84/19 1780 3074 7.68[195]

Bluebird ACSR 84/19 2156 3075 7.68[195]

Kiwi ACSR 72/7 2167 3076 7.68[195]

Nelson ACSR 72/7 1843.3

Customer Specific ACSR 72/7 2032.1 7.68

Mockingbird ACSR 72/7 2034.5 3077 [195]

Customer Specific ACSR 72/7 1843.2

Seahawk ACSR 68/7 1869 3079 7.68[195]

Toutle/TW ACSR/TW 17/7 795 4.72

Customer Specific ACSR 48/7 623.8 3080 [120]

Thrasher ACSR 76/19 2312 3083 9.45[240]

Skylark ACSR 36/1 1272 3084 6.10[155]

Meadowsweet ASC 37 600

Orchid ASC 37 636

Violet ASC 37 715.5 4.72

Nasturtium ASC 61 715.5 3085 [120]

Arbutus ASC/TW 17 795

Baker ASC/TW 34 795

Bluebell ASC 37 1033.5

Larkspur ASC 61 1033.5 3086 5.71

Marigold ASC 61 1113 [145]

Customer Specific ACSR 42/7 1277.5

Type 5 (Scissortail) SDC 34/7 1272 3089 6.10

Deschutes/TW ACSR/TW 35/7 1519 [155]

Mica - Mica ACSR 24/7 - 26/7E 666.9-648.2 3090 5.31[135]

Hawthorn ASC 61 1192.5 5.71

Narcissus ASC 61 1272 3093 [145]

Hornbill ACSR 48/7 1590

Athabasca/TW ACSR/TW 42/7 1780 3094 7.48

Chukar/TW ACSR/TW 52/19 1780 [190]

Tern ACSR 45/7 795 3095 5.31[135]

Type 6.4 SDC 17/7 477 3097 3.74[95]

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE IMPLO™

Jumper Terminals

(Continued)

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Coot ACSR 36/1 795 3103 5.31[135]

Pelican ACSR 18/1 477 3.74

Osprey ACSR 18/1 556.5 3112 [95]

Flicker ACSR 24/7 477 3.74

Parakeet ACSR/TW 18/7 556.5 3113 [95]

Hen ACSR 30/7 477 4.72

Heron ACSR 30/7 500 3114 [120]

Peacock ACSR 24/7 605

Duck ACSR 54/7 605

Goose ACSR 54/7 636 3117 4.72

Customer Specific ACSR 54/7 605 [120]

Parakeet ACSR 18/7 556.5

Eagle ACSR 30/7 556.5 3118 4.72[120]

Squab ACSR 26/7 605 3120 5.31[135]

Wood Duck ACSR 30/7 605

Teal ACSR 30/19 605 5.31

Scoter ACSR 30/7 636 3121 [135]

Egret ACSR 30/19 636

Kingbird ACSR 18/1 636

Swift ACSR 36/1 636 3123 4.72

Customer Specific ACSR 18/1-18/7 583.2 [120]

Rogue/TW ACSR/TW 17/7 954

Type 7 SDC 21/7 954 3124 5.31

Kettle ACSR/TW 21/7 954 [135]

Redwing ACSR 30/19 715.5 3131 5.39[137]

Grand Rapids ACSR 22/7 685.4

Type 5 SDC 17/7 795 3133 5.31

Macaw ACSR 42/7 795 [135]

Catbird ACSR 36/1 954 3138 5.31[135]

Phoenix ACSR 42/7 954 3139 5.71[145]

Towhee ACSR 48/7 954 3140 5.31[135]

Snowbird ACSR 42/7 1033.5 3141 5.71[145]

4/O ACSR 6/1 211.6 3.54

Penguin ACSR 6/1 211.6 3142 [90]

Ostrich ACSR 26/7 300 3.54

Merlin AACSR 18/1 336.4 3143 [90]

Partridge ACSR 26/7 266.8 3.54

Owl ACSR 6/7 266.8 3144 [90]

Customer Specific ACSR 22/7 490 3145 3.74[95]

Road Runner ACSR 76/19 2057 3146 7.68[195]

Dotterel ACSR 12/7 177 mm 3147 3.54[90]

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE IMPLO™

Jumper Terminals

(Continued)

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Canna ASC 19 397.5

Cosmos ASC 19 477 3.74

Neon AAC 19 210 mm sq. 3149 [95]

Syringa ASC 37 477

Zinnia ASC 19 500

Hyacinth ASC 37 500 3.74

Dahlia ASC 19 556.5 3150 [95]

Mistletoe ASC 37 556.5

Arbutus AAC 37 795

Phosphorus AAAC 37 807 3157 5.31

Lilac AAC 61 795 [135]

Anemone ASC 37 874.5

Crocus ASC 61 874.5

Magnolia ASC 37 954 3158 5.31

Golden Rod ASC 61 954 [135]

Greeley AAAC 37 927.2

Hood ASC/TW 34 1589

Sulphur AASC 61 647 mm sq. 3165 6.10

Columbine ASC 61 1351.5 [155]

Carnation AAAC 61 1431

Gladiolus ASC 61 1510.5 3166 6.50

Coreopsis ASC 61 1590 [165]

Moa ACSR 76/7 1590 3167 7.48[190]

Jessamine ASC 61 1750 3169 7.48[190]

Cowslip ASC 91 2000 7.68

Jefferson/TW AAC/TW 52 2406 3170 [195]

Sagebrush ASC 91 2250 7.68

Customer Specific ASC 91 2303 3171 [195]

Bitterroot ASC 91 2750 3173 9.45[240]

Tulip ASC 19 336.4 3.54

Daffodil ASC 19 350 3174 [90]

Laurel ASC 19 266.8 3179 3.54[90]

Customer Specific ASC 91 3000 3182 9.45[240]

Customer Specific ASC 91 3640 12.60

Customer Specific ASC 91 3500 3183 [320]

Sansum ACSR 72/37 1273.5 3190 7.48[190]

Customer Specific ACSR 26/7 932.7 3192 5.71[145]

Customer Specific ACSR 28/19 1307.4 3300

Customer Specific ACSR 69/19 1924 3301 7.68[195]

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE IMPLO™

Repair Sleeve

IMPLO™ Repair Sleeves accommodate a

wide range of ACSR, ACSS, ACSS/TW, ASC,

and ASC/TW conductors; and provide a con-

sistent, smooth, high quality installation every

time . . . with no tools or dies.

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Linnet ACSR 26/7 336.4

Oriole ACSR 30/7 336.4

Chickadee ACSR 18/1 397.5 9050 15.98

Brant ACSR 24/7 397.5 [406]

Ibis ACSR 26/7 397.5

Oriole ACSS 30/7 336.4 9050 ACSS 15.98[406]

Lark ACSR 30/7 397.5 15.98

Hawk ACSR 26/7 477 9051 [406]

Dove ACSR 26/7 556.5 15.98

Customer Specific ACSR 26/7 585 9052 [406]

Rook ACSR 24/7 636

Flamingo ACSR 24/7 666.6 15.98

Stilt ACSR 24/7 715.5 9053 [406]

Crow ACSR 54/7 715.5

Gannet ACSR 26/7 666.6

Grosbeak ACSR 26/7 636 9054 15.98

Type 16 (Crowsnest) ACSR/SD — 636 [406]

Customer Specific ACSR 42/7 971.6 9055 15.98[406]

Starling ACSR 26/7 715.5

Cuckoo ACSR 24/7 795

Condor ACSR 54/7 795 9056 15.98

Crane ACSR 54/7 874.5 [406]

Type 13 ACSR/SD 20/7 795

Drake ACSR 26/7 795

Drake ACSS 26/7 795 15.98

Cardinal ACSS/TW 54/7 954 9057 [406]

Type 16 ACSR/SD 22/7 795

Mallard ACSR 30/19 795 9058 15.98[406]

Ruddy ACSR 45/7 900 15.98

Rail ACSR 45/7 954 9059 [406]

Canary ACSR 54/7 900

Canary ACSS 54/7 900 51.98

Cardinal ACSR/SD T.13 954 9060 [406]

Cardinal ACSR 54/7 954

Curlew ACSR 54/7 1033.5 15.98

Moose ACSR 54/7 500 mm 9061 [406]

Ortolan ACSR 45/7 1033.5

Bluejay ACSR 54/7 1113 9062

Finch ACSR 54/19 1113 9063

Grackle ACSR 54/19 1192.5 15.98

Customer Specific ACSR/TW 56/19 1443.7 9064 [406]

Bunting ACSR 45/7 1192.5

Bittern ACSR 45/7 1272 9065 15.98

Potomac/TW ACSR/TW 36/7 1557.4 [406]

Pheasant ACSR 54/19 1272 15.98

Martin ACSR 54/19 1351.5 9066 [406]

Note: Repair Sleeves are generally supplied in one of

2 lengths: 406 mm and 460 mm, as appropriate. Repair Sleeves for T-Taps can be supplied for any conductor

requirement, as above. Dimensions may vary.

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Dipper ACSR 45/7 1351.5 18.11

Bobolink ACSR 45/7 1431 9067 [460]

Plover ACSR 54/19 1431 18.11

Parrot ACSR 54/19 1510.5 9070 [460]

Customer Specific AACSR 26/7 811.5 1071 15.98[406]

Nuthatch ACSR 45/7 1510.5

Lapwing ACSR 45/7 1590 9072 15.98

Type 7 (Keephill) ACSR/SD 41/7 1590 [406]

Falcon ACSR 54/19 1590 9073 15.98[406]

Chukar ACSR 84/19 1780 9074 15.98[406]

Bluebird ACSR 84/19 2156 9075 18.11[460]

Kiwi ACSR 72/7 2167 9076 18.11[460]

Nelson ACSR 72/7 1843.3 15.98[406]

Customer Specific ACSR 72/7 2032.1 18.11[460]

Mockingbird ACSR 72/7 2034.5 9077 18.11[460]

Customer Specific ACSR 72/7 1843.2 15.98[406]

Seahawk ACSR 68/7 1869 9079 15.98[406]

Toutle/TW ACSR/TW 17/7 795 15.98

Customer Specific ACSR 48/7 623.8 9080 [406]

Thrasher ACSR 76/19 2312 9083

Skylark ACSR 36/1 1272 9084 15.98[406]

Meadowsweet ASC 37 600

Orchid ASC 37 636

Violet ASC 37 715.5 15.98

Nasturtium ASC 61 715.5 9085 [406]

Arbutus ASC/TW 17 795

Baker ASC/TW 34 795

Bluebell ASC 37 1033.5

Larkspur ASC 61 1033.5 9086 15.98

Marigold ASC 61 1113 [406]

Customer Specific ACSR 42/7 1277.5

Type 5 (Scissortail) SDC 34/7 1272 9089 15.98

Deschutes/TW ACSR/TW 35/7 1519 [406]

Mica - Mica ACSR 24/7 - 26/7E 666.9-648.2 9090 15.98[406]

Hawthorn ASC 61 1192.5 15.98

Narcissus ASC 61 1272 9093 [406]

Hornbill ACSR 48/7 1590

Athabasca/TW ACSR/TW 42/7 1780 9094 15.98

Chukar/TW ACSR/TW 52/19 1780 [406]

Tern ACSR 45/7 795 9095 15.98[406]

Type 6.4 SDC 17/7 477 9097 15.98[406]

Emu ACSR 108/37 3364 9100 27.56[700]

Coot ACSR 36/1 795 9103 15.98[406]

Pelican ACSR 18/1 477 15.98

Osprey ACSR 18/1 556.5 9112 [406]

Flicker ACSR 24/7 477 15.98

Parakeet ACSR/TW 18/7 556.5 9113 [406]

Hen ACSR 30/7 477 15.98

Heron ACSR 30/7 500 9114 [406]

TYPE IMPLO™

Repair Sleeve

(Continued)

Note: Repair Sleeves are generally supplied in one of

2 lengths: 406 mm and 460 mm, as appropriate. Repair Sleeves for T-Taps can be supplied for any conductor

requirement, as above. Dimensions may vary.

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Peacock ACSR 24/7 605

Duck ACSR 54/7 605

Goose ACSR 54/7 636 9117 15.98

Customer Specific ACSR 54/7 605 [406]

Parakeet ACSR 18/7 556.5

Eagle ACSR 30/7 556.5 9118 15.98[406]

Squab ACSR 26/7 605 9120 15.98[406]

Wood Duck ACSR 30/7 605

Teal ACSR 30/19 605 15.98

Scoter ACSR 30/7 636 9121 [406]

Egret ACSR 30/19 636

Kingbird ACSR 18/1 636

Swift ACSR 36/1 636 9123 15.98

Customer Specific ACSR 18/1-18/7 583.2 [406]

Rogue/TW ACSR/TW 17/7 954

Type 7 SDC 21/7 954 9124 15.98

Kettle ACSR/TW 21/7 954 [406]

Redwing ACSR 30/19 715.5 9131 15.98[406]

Grand Rapids ACSR 22/7 685.4

Type 5 SDC 17/7 795 9133 15.98

Macaw ACSR 42/7 795 [406]

Catbird ACSR 36/1 954 9138 15.98[406]

Phoenix ACSR 42/7 954 9139 15.98[406]

Towhee ACSR 48/7 954 9140 15.98[406]

Snowbird ACSR 42/7 1033.5 9141 15.98[406]

4/O ACSR 6/1 211.6 15.98

Penguin ACSR 6/1 211.6 9142 [406]

Ostrich ACSR 26/7 300 15.98

Merlin AACSR 18/1 336.4 9143 [406]

Partridge ACSR 26/7 266.8 15.98

Owl ACSR 6/7 266.8 9144 [406]

Customer Specific ACSR 22/7 490 9145 15.98[406]

Road Runner ACSR 76/19 2057 9146 15.98[406]

Dotterel ACSR 12/7 177 mm 9147 15.98[406]

Canna ASC 19 397.5

Cosmos ASC 19 477 15.98

Neon AAC 19 210 mm sq. 9149 [406]

Syringa ASC 37 477

Zinnia ASC 19 500

Hyacinth ASC 37 500 15.98

Dahlia ASC 19 556.5 9150 [406]

Mistletoe ASC 37 556.5

Arbutus AAC 37 795

Phosphorus AAAC 37 807 9157 15.98

Lilac AAC 61 795 [406]

TYPE IMPLO™

Repair Sleeve

(Continued)

Note: Repair Sleeves are generally supplied in one of

2 lengths: 406 mm and 460 mm, as appropriate. Repair Sleeves for T-Taps can be supplied for any conductor

requirement, as above. Dimensions may vary.

BURNDY®Transmission Products IMPLO™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE IMPLO™

Repair Sleeve

(Continued)

Conductor Length (Inches)

Code Type Strand kcmil Catalog Number [mm]

Anemone ASC 37 874.5

Crocus ASC 61 874.5

Magnolia ASC 37 954 9158 15.98

Golden Rod ASC 61 954 [406]

Greeley AAAC 37 927.2

Hood ASC/TW 34 1589

Sulphur AASC 61 647 mm sq. 9165 18.11

Columbine ASC 61 1351.5 [460]

Carnation AAAC 61 1431

Gladiolus ASC 61 1510.5 9166 18.11

Coreopsis ASC 61 1590 [460]

Moa ACSR 76/7 1590 9167 15.98[406]

Jessamine ASC 61 1750 9169 15.98[406]

Cowslip ASC 91 2000 15.98

Jefferson/TW AAC/TW 52 2406 9170 [406]

Sagebrush ASC 91 2250 15.98

Customer Specific ASC 91 2303 9171 [406]

Bitterroot ASC 91 2750 9173 [460]

Tulip ASC 19 336.4 15.98

Daffodil ASC 19 350 9174 [406]

Laurel ASC 19 266.8 9179 15.98[406]

Customer Specific ASC 91 3000 9182

Customer Specific ASC 91 3640 18.11

Customer Specific ASC 91 3500 9183 [460]

Sansum ACSR 72/37 1273.5 9190 15.98[406]

Customer Specific ACSR 26/7 932.7 9192 15.98[406]

Customer Specific ACSR 28/19 1307.4 9300 15.98[406]

Customer Specific ACSR 69/19 1924 9301 15.98[406]

Note: Repair Sleeves are generally supplied in one of

2 lengths: 406 mm and 460 mm, as appropriate. Repair Sleeves for T-Taps can be supplied for any conductor

requirement, as above. Dimensions may vary.

IMPLO™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

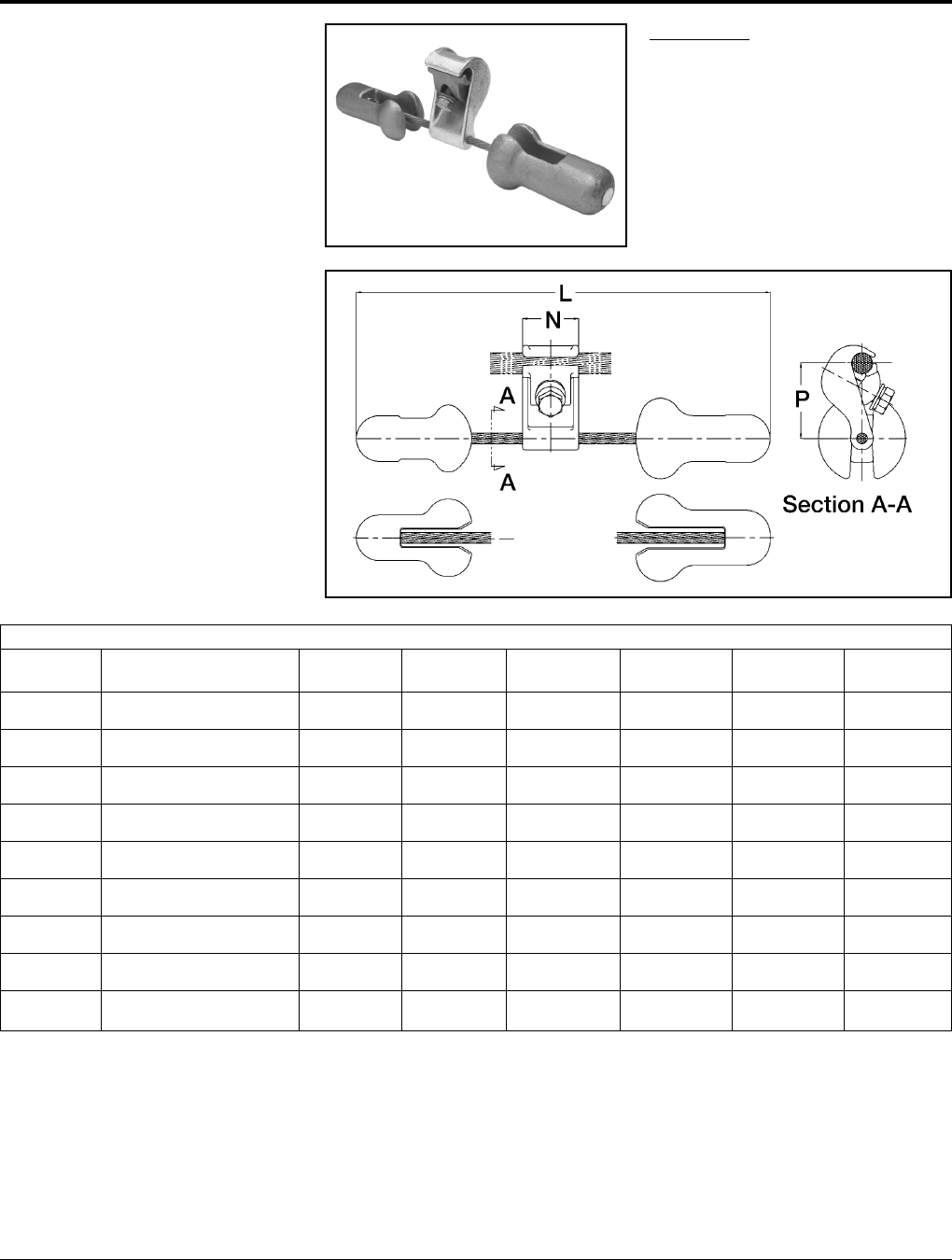

TYPE TDM-RG1

Stockbridge Damper

The Stockbridge Damper is designed to

enhance conductor life by lessening potential

vibration-induced fatigue.

Features and Benefits

• Clamps designed around common

conductor sizes

◊Ease of specification

• Single bolt design

◊Ease of installation

◊Single wrench installation

• Accurate components assembly

represents greater energy dissipation

◊Provides extended life for overhead lines

• Messenger cable and weights have a

corrosion resistant finish

◊Weight design eliminates water

entrapment

◊Smooth surfaces and rounded edges to

eliminate possible corona discharge

Standards

The Stockbridge Dampers meet the following

standards:

•IEC 61897 Overhead lines—Requirements

and Test for Stockbridge Aeolian Vibration

Dampers.

•IEEE Std 664-1993 IEEE Guide for

Laboratory Measurement of the Power

Dissipation Characteristics of Aeolian

Vibration Dampers for Single Conductors.

Conductors: ACSR, AAC, ACAR/Static Wires (Galvanized Steel, Alumoweld, Copperweld)

Catalog Tightening

Number Clamp Diameter Range N P L Wrench Size Torque Weight

Ø0.24– Ø0.611.702.2012.207/16265 in.-lb. 3.7 lb.

TDM99RG1 (6 mm – 15.5 mm) 43 mm 56 mm 310 mm 11.17 mm 3.0 daN.m (1.68 kg)

Ø0.59– Ø0.792.003.0014.401/2355 in.-lb. 6.2 lb.

TDM177RG1 (15 mm – 20 mm) 51 mm 76 mm 365 mm 12.70 mm 4.0 daN.m (2.81 kg)

Ø0.71– Ø1.182.003.6014.405/8530 in.-lb. 6.4 lb.

TDM177RG2 (18 mm – 30 mm) 51 mm 91 mm 365 mm 16 mm 6.0 daN.m (2.9 kg)

Ø0.79– Ø1.112.403.2019.705/8530 in.-lb. 9.5 lb.

TDM210RG1 (20 mm – 28.2 mm) 60 mm 81 mm 500 mm 16 mm 6.0 daN.m (4.30 kg)

Ø1.30– Ø1.502.403.7519.705/8530 in.-lb. 9.9 lb.

TDM210RG2 (33 mm – 38.1 mm) 60 mm 95 mm 500 mm 16 mm 6.0 daN.m (4.50 kg)

Ø0.71– Ø1.182.703.6021.005/8530 in.-lb. 13.2 lb.

TDM246RG1 (18 mm – 30 mm) 68 mm 91 mm 534 mm 16 mm 6.0 daN.m (5.99 kg)

Ø1.18– Ø1.262.703.6021.005/8530 in.-lb. 13.2 lb.

TDM330RG1 (30 mm – 32 mm) 68 mm 91 mm 535 mm 16 mm 6.0 daN.m (5.99 kg)

Ø1.26– Ø1.542.703.7521.005/8530 in.-lb. 13.5 lb.

TDM393RG1 (32 mm – 39 mm) 68 mm 95 mm 534 mm 16 mm 6.0 daN.m (6.12 kg)

Ø1.54– Ø1.852.704.0921.005/8530 in.-lb. 14.0 lb.

TDM430RG1 (39 mm – 47 mm) 68 mm 104 mm 534 mm 16 mm 6.0 daN.m (6.35 kg)

For installation point contact factory at numbers below.

BURNDY®Transmission Products Motion Control Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

TYPE S-D-R-SG

Spacer Damper

Since the 1960's BURNDY®Spacer Dampers

have been used on bundled conductor trans-

mission lines around the world. Over 850,000

units have been installed on over 40,000

phase miles of conductor. Projects have

included 2, 3, 4 and 6 bundle arrangements at

voltage levels from 230 kV to 800 kV AC and

up to +/-600 kV DC.

BURNDY®motion control products are engi-

neered per customer requirements and

industry standards. Our engineering team has

the experience and technology to provide the

proper motion control answers to your bun-

dled conductor transmission line projects.

Our history of design, testing and field instal-

lation experience enables us to provide

Spacer Damper products along with place-

ment recommendations for optimum per-

formance.

Conductors: ACSR, AAC, ACAR

Catalog Bundle Conductor Conductor Wrench Tightening

Number Size kcmil Diameter Spacing Size Torque

1.107185/855 ft.-lb.

S2D451R-SG1 2 795 28.1 mm 457 mm 16 mm 74.6 daN.m

1.107185/855 ft.-lb.

S3D451R-SG1 3 795 28.1 mm 457 mm 16 mm 74.6 daN.m

1.54185/855 ft.-lb.

S3D55R-SG1 3 1590 39 mm 457 mm 16 mm 74.6 daN.m

1.196185/855 ft.-lb.

S4D48R-SG1 4 954 30.4 mm 457 mm 16 mm 74.6 daN.m

1.0630Dia. 5/855 ft.-lb.

S6D441R-SG1 6 957 26.9 mm 762 mm 16 mm 74.6 daN.m

In most cases Spacer Dampers are custom designed for the

specific transmission line requirements. Contact the factory

for more information.

For installation points per span contact factory.

Motion Control Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Information for Damping Study

Customer Contact:

Customer Name

Telephone/Email

Project Name

Request Date

Project Start Date

Stockbridge Damper Spacer Damper

Conductor Information

Line Voltage

Number of Phases

Number of Conductors per Phase

Total Circuit Miles

Conductor Name/Size

(i.e., Drake 795 26/7)

Cable Name AAC AAAC ACSR ACAR ACCC ACSS Steel Other Trapezoidal

Armor Rod Length Diameter Type: AR ____________ AGS _____________

Wind

Laminar

With small turbulences

With turbulences

Prevailing wind direction relative to line

Wind (mph)

Environment

Flat country (deserts, lakes)

Valley with small vegetation

Trees & Mountains

Special conditions (river crossings, etc.)

Temperature (F): Average Minimum

Ice Condition — specify loading zone:

Ice (inches)

Span

Ruling Span (ft)

Maximum Span Length (ft)

Optional to list Spans: 600, 950, 450, etc.

Tension

Design Tension — lbs.

Additional Comments:

BURNDY®Transmission Products Motion Control Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

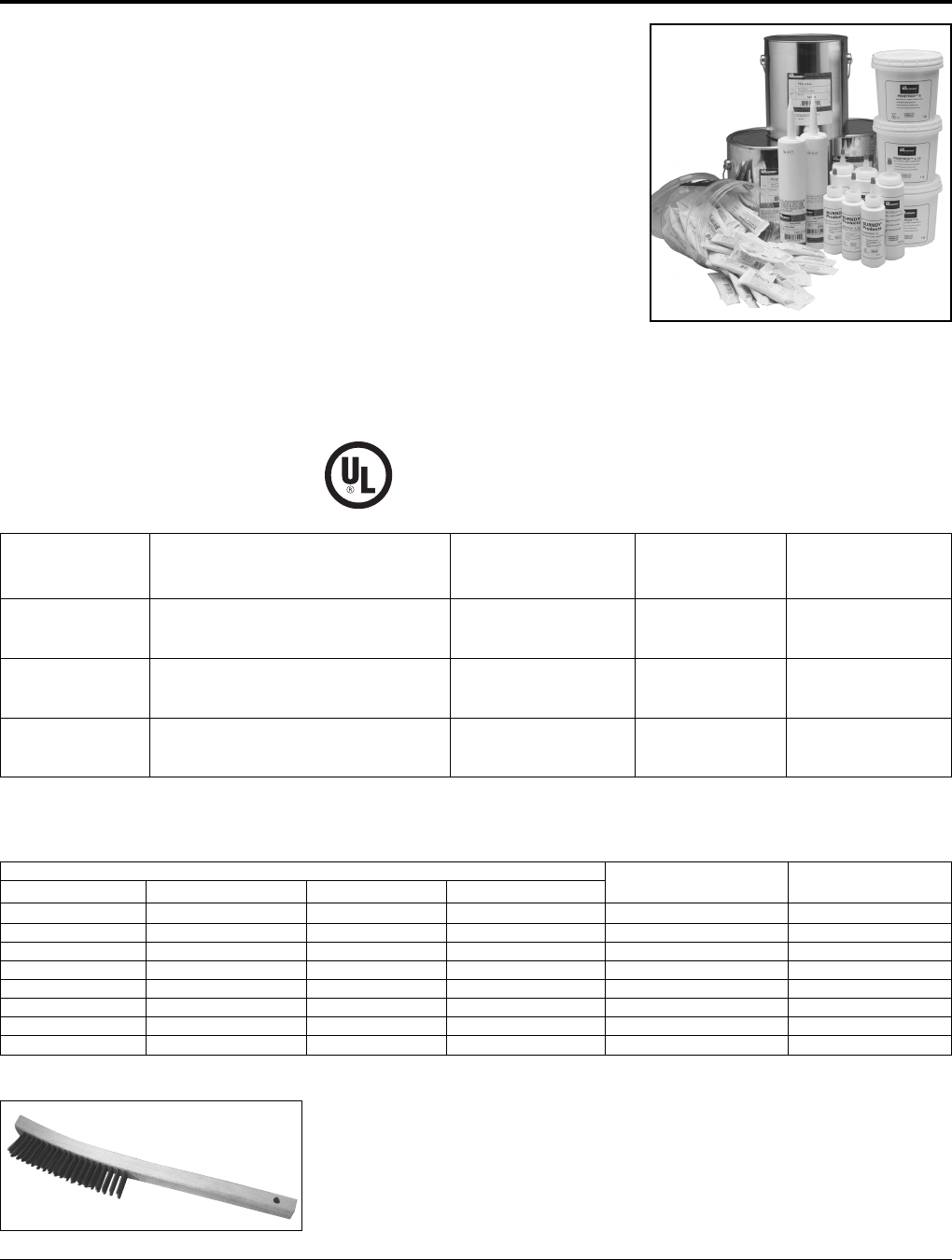

TYPES PENETROX™

A, A-13, E AND HT

Oxide-Inhibiting

Joint Compounds

PENETROX™ oxide-inhibiting compounds

produce low initial contact resistance, seal

out air and moisture, prevent oxidation or

corrosion, exhibit superior weathering char-

acteristics, are usable over wide temperature

ranges, and provide a high conductivity

"gas-tight" joint. All PENETROX™ com-

pounds contain homogeneously suspended

metal particles. The suspended metal parti-

cles assist in penetrating thin oxide films, act

as electrical "bridges" between conductor

strands, aid in gripping the conductor,

improve electrical conductivity and enhance

the integrity of the connection.

The specially formulated PENETROX™

compounds are for use with compression

and bolted connectors providing an

improved service life for both copper and

aluminum connections. Additionally, the non-

toxic compounds are an excellent lubricant

for threaded applications reducing galling

and seizing.

PENACARTRIDGE

PENACARTRIDGE is a 1 lb. cartridge filled

with PENETROX-A. It's designed to fit stan-

dard caulking guns for easy insertion into

transmission and distribution connectors.

Additionally, this packaging design provides

a convenient method for applying PENE -

TROX™ to many different applications.

PENETROX™ A

PENETROX A is a natural (petroleum) base

compound with evenly suspended zinc parti-

cles. It is recommended for aluminum to alu-

minum, aluminum to copper connections

and aluminum conduit threads. It is not rec-

ommended for use with rubber or polyethyl-

ene insulated conductors. UL Listed to 600 V.

PENETROX™ A-13

PENETROX™ A-13 is a synthetic base com-

pound with evenly suspended zinc particles.

It is recommended for aluminum to alu-

minum, aluminum to copper connection plus

aluminum conduit threads. It is compatible

with rubber, polyethylene and other insulat-

ing materials. UL Listed for all voltages.

PENETROX™ E

PENETROX™ E is a synthetic base compound

with evenly suspended copper particles. It is

recommended for copper to copper, copper

threads and all grounding applications.

UL Listed.

PENETROX™ HT

PENETROX™ HT is a synthetic silicone

based compound with evenly suspended zinc

particles and nickel-aluminum alloy particles.

It is recommended for aluminum to aluminum

connection. It is compatible with rubber.

Designed for use with High Temperature

ACSS and ACCC connectors. Not UL Listed.

PENETROX™ BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

PENETROX E

PENETROX E consists of a non-petroleum

base vehicle in which copper granules are

suspended. Recommended for copper to

copper applications, grounding and for use

on copper conduit threads. UL Listed.

PENETROX HT

PENETROX HT consists of a non-petroleum

base vehicle in which zinc and nickel-

aluminum particles are suspended.

Recommended for use with aluminum to alu-

minum High Temperature rated ACSS and

ACCC conductors. Not UL Listed.

Easy to apply:

1. Scratch brush the conductor surfaces until

bright and clean.

2. Immediately apply PENETROX™ to the

conductive surfaces.

3. For EHV applications, remove all excess

PENETROX™ after installation is complete.

Catalog Number Container Container

PENETROX™ A PENETROX™ A-13 PENETROX™ E PENETROX™ HT Type Size

PENA 1/2 — — — Tube 1/2 oz.

PEN A-4 PEN A13-4 PEN E-4 PENHT-4 Squeeze Bottle 4 oz.

P8A PEN A13-8 PEN E-8 PENHT-8 Squeeze Bottle 8 oz.

PENACARTRIDGE PENA13CARTRIDGE —PENHT-1LB Cartridge 1 lb.*

PEN A-QT PEN A13-QT PEN E-QT — Plastic Tub 1 Quart

PEN A-GAL PEN A13-GAL PEN E-GAL PENHT-GAL Can 1 Gallon

PEN A-5GAL PEN A13-5GAL PEN E-5GAL — Pail 5 Gallons

PEN A-55GAL PEN A13-55GAL PEN E-55GAL — Drum 55 Gallons

PENETROX A,

A-13, E AND HT

TECHNICAL INFORMATION

PENETROX A

PENETROX A consists of a natural (petro -

leum) base vehicle in which zinc particles are

suspended. For aluminum to aluminum,

aluminum to copper applications and

aluminum conduit threads. It is not recom-

mended for use with rubber and polyethylene

insulated conductors. UL Listed to 600 volts.

PENETROX A-13

PENETROX A-13 consists of a non-

petroleum base vehicle in which zinc parti-

cles are suspended. Recommended for

aluminum to aluminum, aluminum to copper

applications and aluminum conduit threads.

Compatible with insulating materials such as

rubber, or polyethylene. UL Listed and rec-

ommended for all voltages.

ORDERING INFORMATION

PROPERTIES OF PENETROX™

* MSDS sheets available through customer service.

* 1 lb. cartridge will fit standard caulking guns.

B38-0305-00 Wire Brush

Value

PENETROX™ PENETROX™ PENETROX™ PENETROX™

Property Definition HT E & A13 A

The value in accordance to ASTM D217

Penetration indicates the consistency of a grease. The 240 250 230

(Unworked) higher the number, the softer the grease.

The temperature at which the grease passes

Dropping from the semi-solid to a liquid state under >580° F 500° F 230° F

Point (Minimum) test conditions.

The lowest termperature at which the

Pour Point compound will flow. Pour point is the –58° F –10° F –15° F

(Maximum) lubricant’s ability to perform in cold conditions.

SHELF LIFE

When stored in its original container in cool

(under 100°F) dry environment, PENE TROX™

oxide inhibiting compound will remain work-

able and functional for (5) years from the date

marked on the container provided it is mixed

per instructions prior to use.

BURNDY®Transmission Products PENETROX™

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

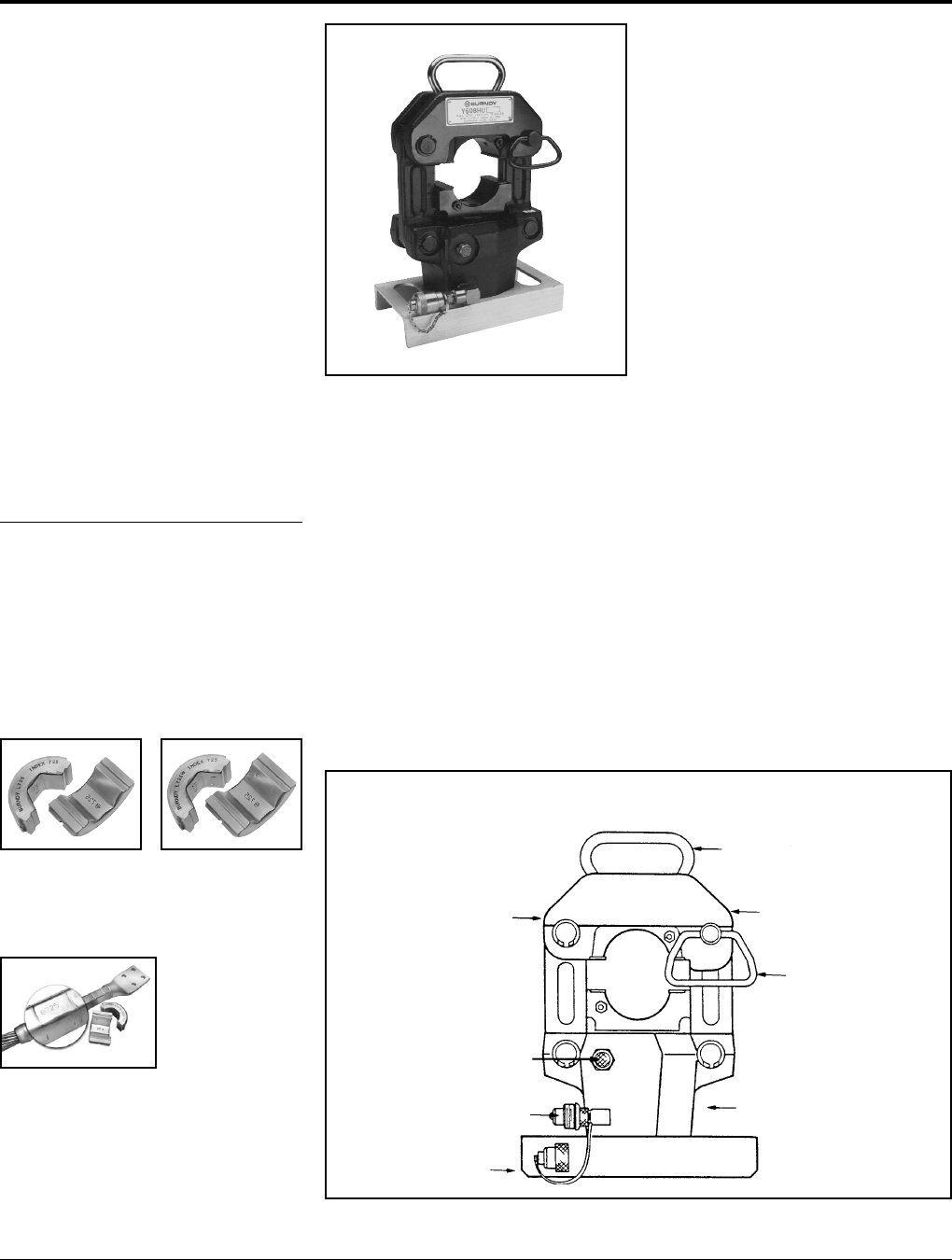

Y60BHU AND

Y60BHU-D

HYPRESS™

60 Ton Remote

Power Operated Hydraulic Tools

Single and Double Acting

Hydraulic Tool Designs

The Y60BHU HYPRESS™, single acting, and

Y60BHU-D HYPRESS™, double acting, are

both designed to provide fast, easy operation

plus a durable and substantially longer design

life expectancy. Both Y60BHU and Y60BHU-D

HYPRESS™ tools accommodate the same

“L” dies. The “L” dies are designed for copper

and aluminum code cables and aerial con-

ductor sizes through 2500 kcmil and will

accommodate ACSR through 2156 (84/19)

str. Five-year limited warranty.

BENEFITS

• Easy to carry with heavy duty handle.

• Easy to remove splices with nest that

pivots open.

• Safety and security is provided with

captive locking pin for nest die.

• Long life expectancy (50,000 cycles)

with heavy duty steel frame.

• Fast easy die changing and secure die

positioning with positive die release

locking pins.

• Faster retraction with double acting

hydraulic system (Y60BHUD).

• Protected male coupler with captive cap.

• Stability is provided with sturdy steel base.

• Easy, less costly repairs with fewer parts

that are easily accessible (example:

Bottom die holder).

• 5-year limited warranty.

HEAVY DUTY HANDLE

POSITIVE PUSH BUT-

TON DIE LOCKS AND

DIE RELEASE

CAPTIVE LOCKING

PIN AND HANDLE

FOR TOOL NEST

HEAVY DUTY

STEEL FRAME

10,000 PSI MALE

COUPLER AND COVER

STURDY STEEL BASE

PORT FOR DOUBLE

ACTING HYDRAULIC SYSTEM

NEST HINGE ALLOWS

FULLY OPEN POSI-

TIONING

FEATURES

SPECIFICATIONS

Force developed: 60 tons

Operating pressure: 10,000 psi

Hydraulic oil:

BURNDY®ALFLUID™

Life expectancy: 50,000 cycles min.

Height: 16.62

Weight (less case): 70 lbs.

Shipping weight: 97 lbs.

FOR USE ON

Copper

300 kcmil-2000 kcmil

Str. Code Cable

Terminals

YA, YA-2N, YAB-4N, YA-L, YA-2LN, YA-LB

Splices

YS, YST, YS-L, YS-T, YSP-T

Aluminum

250 kcmil-2000 kcmil

Str. Code Cable

Terminals

YA-A

Splices

YS-A, YS-AT

Transmission and Distribution Connectors

Tension Sleeves:

Copper: 1/0 str. - 1000 kcmil

Aluminum: 1/0 str. - 2300 kcmil

ACSR: 1/0 - 2156 (84/19 str.)

Aerial:

Copper: 4/0 str. - 2500 kcmil

Aluminum: 3/0 str. - 2500 kcmil

YTS, YTN, YNS, YNA, YNT, YNTA, YNU,

YDS, YDN, YCS, YCA, YCU

Installation Tooling and Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

TYPE “L” DIES

For Use With Y60BHU and

Y60BHUD

BURNDY®offers two types of “L” dies. Our

standard width L dies (example: L735).

Wider “L” dies with Indicia marks (example:

L735W). Indicia marks on the die provide the

installer with the start location for the next

overlap crimp con-

sistently on alu-

minum connector

surfaces. Reduces

the number of

crimps and installa-

tion time.

The following dies are available in this series:

L717W L719W

L720W L722W

L724W L725W

L727W L728W

L729W L735W

Standard L Die Wide L Die

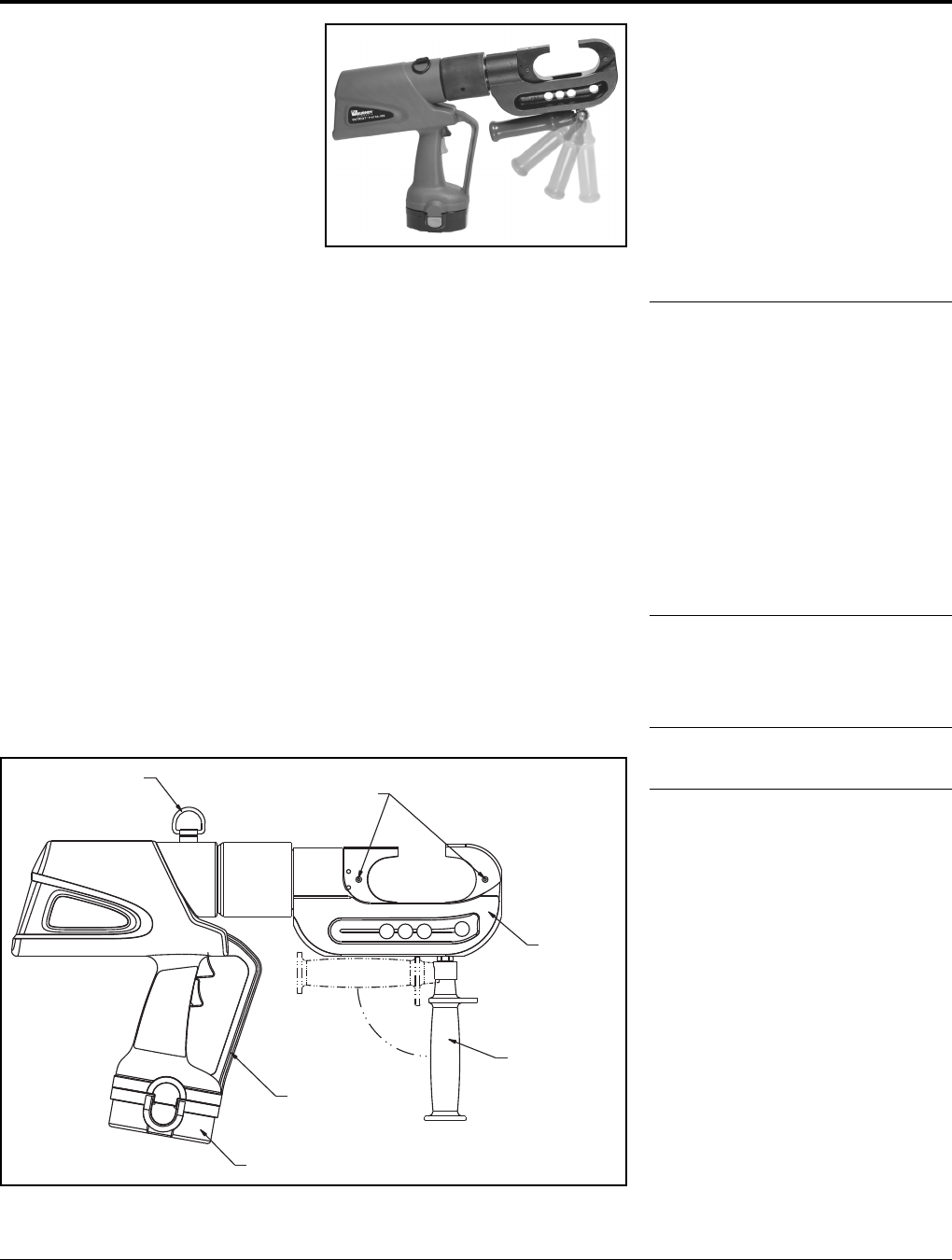

PATRIOT®PAT46-18V

Battery Actuated Tool

Hydraulic Self-Contained

15-Ton Crimping Tool

The BURNDY®PATRIOT®PAT46-18V incor-

porates the latest engineering technology

with a patented high speed hydraulic pump.

Our battery actuated hydraulic tool provides a

consistent, reliable connection every time.

The PAT46-18V features BURNDY’s Y46 tool

head, capable of using all “P” and “U” style

dies.

Each PATRIOT®uses standard BURNDY®

dies and off-the-shelf connectors available

worldwide. Supplied with a durable high

impact formed carrying case to hold the tool,

battery charger, two batteries, tool retention

lanyard, and die compartments to hold both

“P” and “U” die sets (dies sold separately). All

BURNDY®PATRIOT®PAT46 tools are provid-

ed with a 5-year limited warranty.

PAT46C-18V — with rubber covered head is

available.

SPECIFICATIONS

Output Force: 15 tons (13.6 metric

tons)

Weight: 26.2 lbs. (11.88 kg)

Length: 20.77(52.76 cm)

Height: 14.43(36.65 cm)

Width: 3.70(9.40 cm)

Operating Voltage: 18V-DC

Battery Recharge

Time: <45 minutes

FOR USE ON

Connector Conductor

Type Range

Copper, Terminals, grounding: to 500 kcmil

#8 AWG str. - YGA, YGHA, YGF

1500 kcmil Terminals, uninsulated: #8 to

Code Cable, 1500 kcmil: YA, YA-2N, YA-L,

Navy Cable, YA-LB, YA-TC, YA-2LN, YAB-4N

Flexible and YAV-L Box, YAV-L, YAV-RS Box,

Extra Flexible YAV-RS, YA-TC-FX

1/2- 1Terminals, insulated: #8 to 2/0

Ground Rods YAEV-L Box, YAEV-L, YAEV-H,

YAEV-RS, YAEV-RH

Splices: #8 to 1500 kcmil

YS, YS-T, YS-L, YS-LB, YST,

YSP-T, YGS, YGHS

Taps:

YH, YCHC #14 to 1000 kcmil,

YC-C to 4/0 AWG

Taps, grounding: to 500 kcmil

YGHC-C, YGHP-C, YGHR-C

Aluminum Terminals:

#8 AWG - YA-A, AYP, AYPO

1250 kcmil Splices:

Code Cables YS-A, YS-AT, YRB

Taps:

YFD, YFN, YFO, YFR

ACSR See BURNDY®Overhead

Transmission and

Distribution Catalog Module

ACCESSORIES

•

Cutter Die: Cat# P15K

Die max. 1.2dia.

•

“U” Die Adapter: Cat# PUADP-1

•

Battery: Cat# BAT18V

High Capacity Ni-MH

(2.6 AH)

•

Chargers:

120V-AC Cat# PATCHGR18V

12/24V-DC Cat#

BCT/PATDCCHGR

240/250V-AC Cat# PATCHGR250V

Features and Benefits

• BURNDY’s largest battery actuated crimp

tool, providing 15-tons of output force with

a 2jaw opening.

〫Allows users to install the largest variety

of splices, taps and terminals with one

tool. Also provides easy placement and

removal from continuous conductor

lengths.

• State of the art C-Head crimp design with

355° head rotation.

〫Versatile tool head positioning lets user

get into tight areas easier.

• Retractable assist handle under head of

tool for better handling of tool.

〫Allows for better balance of tool and

retractable for getting head into tight

areas.

• Durable high impact formed carrying case.

〫Provides superior protection and stores

all accessories.

• 18-volt Ni-MH battery eliminates voltage

depression (memory issues).

〫Less “down-time” due to high capacity,

high voltage 18-volt battery

• 5-year limited warranty on tool. 1-year

warranty on battery and charger.

Safety Lanyard

Connection Positive Push

Button Die Lock

Forged Steel

Head

Retractable Assist

Handle

Trigger Guard

18-Volt Ni-MH Battery

15 Ton Output Force

Large 2

Jaw Opening

BURNDY®Transmission Products Installation Tooling and Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

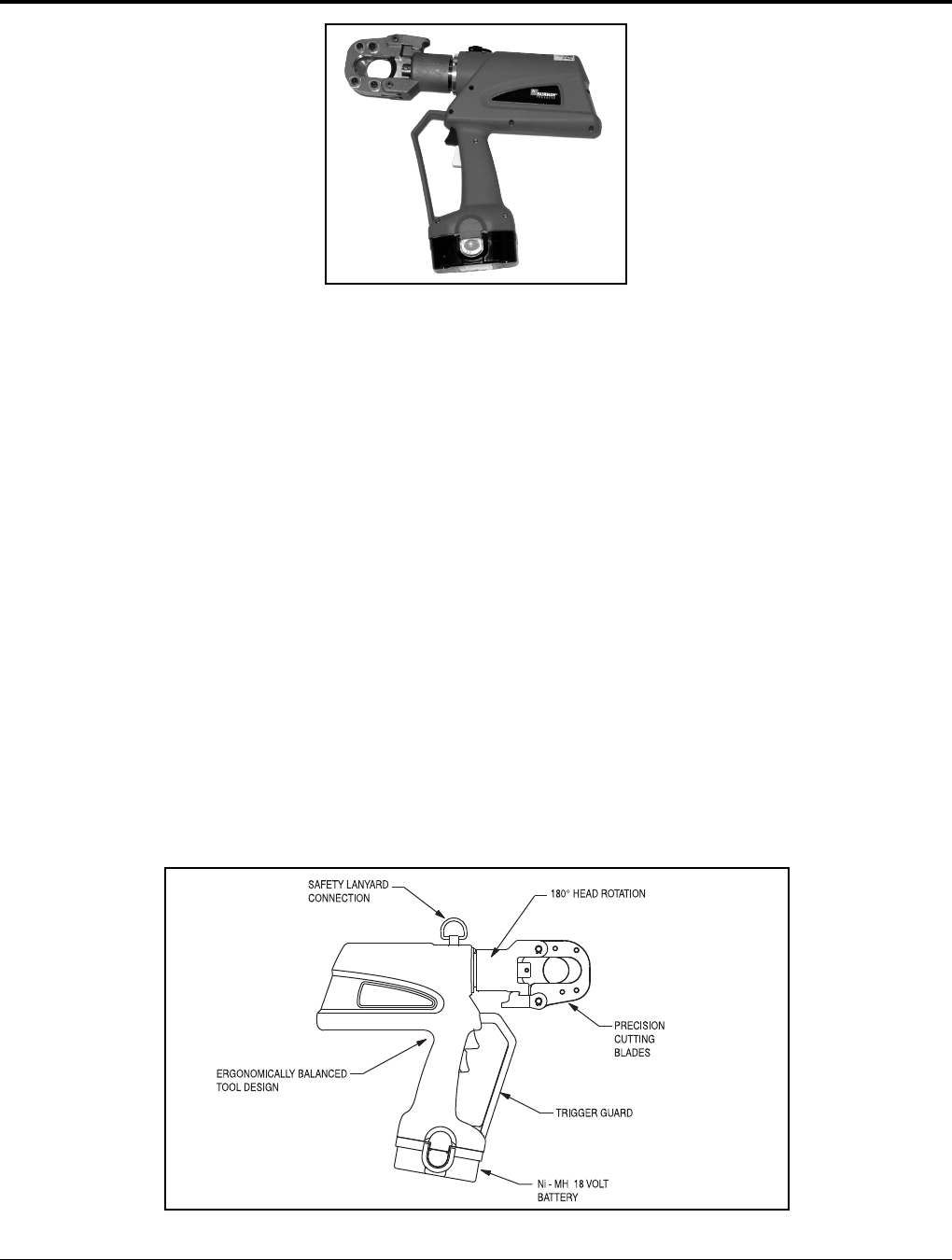

PATRIOT®

PATCUT129ACSR-18V

Battery Actuated Tool

Hydraulic Self-Contained Cutter

The BURNDY®PATCUT129ACSR-18V bat-

tery powered cutting tool is compact, fast,

easy to use and incorporates the latest in bat-

tery tool technology. The ergonomic design

allows one hand operation so that the other is

free to manipulate the conductor in the prop-

er cutting position. The PATCUT129ACSR-

18V incorporates a specialized latch style

cutting head that allows interference-free clo-

sure for mid-span cuts. The cutter head

rotates 180 degrees to allow users to get into

tight areas easier. The PATCUT129ACSR-18V

is capable of cutting up to 1.29diameter

copper and aluminum cable, 1113 ACSR,

5/8ground rod, 1/2 rebar, 5/8diameter soft

steel bolts, up to 1/2standard guy strand,

and up to 3/8EHS guy strand.

The PATCUT129ACSR-18V operates on

industry standard 18-volt Ni/MH batteries

that eliminate voltage depression or “memo-

ry” issues. The PATCUT129ACSR-18V

comes equipped with a high impact formed

carrying case to hold the tool, a tool retention

lanyard, a battery charger and two batteries.

The PATCUT129ACSR-18V is provided with

a 5-year limited warranty (excluding blades),

and 1-year on batteries and charger.

Features and Benefits

• Battery powered cutting technology.

〫Easy tool operation and portability.

• Advance design high-speed pump

completes tough cuts faster.

〫Longer life, efficiency, and reliability.

• Specialized latch head design.

〫Interference free closure for mid-span

cuts.

• Ergonomic design allows one hand

operation.

〫User has one hand free to manipulate

material to be cut.

• 180 degree head rotation.

〫Versatile head positioning allows user to

get into tight areas easier.

• Mechanical ram release.

〫Reliable ram release (no battery power

consumption).

• Operates on 18 volt Ni-MH batteries.

〫Eliminates voltage depression or

”memory” issues.

• Durable high impact formed carrying case.

〫Provides tool protection and stores all

accessories.

• 5-year limited warranty on tool (excluding

blades) and 1 year on batteries and

charger.

〫Customer satisfaction and support.

SPECIFICATIONS

Tool Weight: 11 lbs.

Length: 14.5

Width: 3.5

Height: 13.5

Operating Voltage: 18 V-DC

Recharge Time: < 45 mins.

FOR USE ON

• Copper Cable: up to 1.29

• Aluminum Cable: up to 1.29

• ACSR: up to 1113 ACSR

• Ground Rod: up to 5/8

• Rebar: up to 1/2

• Soft Steel Bolts: up to 5/8

• Standard Guy Strand: up to 1/2

• EHS Guy Strand: up to 3/8

ACCESSORIES

•Lanyard: Cat# PT208620

•Battery:

Hi-capacity Cat# BAT18V

(2.6 AH)

•Charger:

120V-AC Cat# PATCHGR18V

12/24V-DC Cat# BCT/PATDCCHGR

240/250V-AC Cat# PATCHGR250V

•Replacement Blades:

Cat# PT10037388

(Moving Blade)

Cat# PT10037384

(Fixed Blade)

Installation Tooling and Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

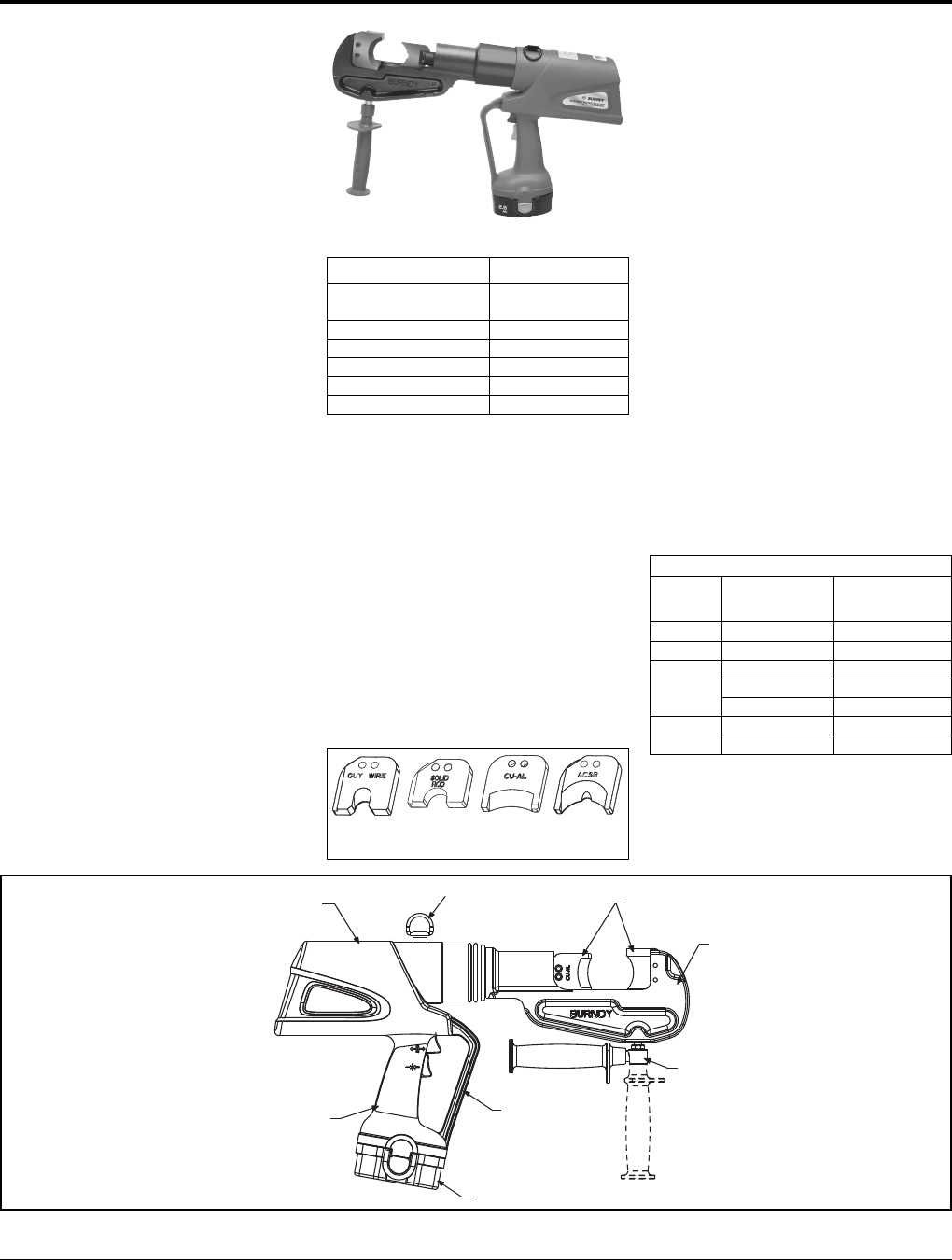

PATRIOT®

PATHCC10-18V SERIES

BATTERY ACTUATED TOOL

Hydraulic Self-Contained Cutter

The BURNDY®PATHCC10-18V series C-

head cutter is an innovative compact and

mobile cutting tool that allows users to inter-

change different cutting blades customized

for their application. With a “C”-shaped style

head and large opening, it’s easy to scoop

and cut without the need to open or close a

latch. The tool head swivels 355° and comes

with a retractable assist handle to help

maneuver the cutting head into position. The

PATHCC10-18V blade alignment technology

ensures a clean cut and maximum blade life.

The PATHCC10-18V series tool accommo-

dates four different interchangeable blade

types: HCCACSR, HCCSOL, HCCCUAL, and

HCCGUY. The PATHCC10-18V series tool

comes in a variety of options to include a

covered head version (PATHCC10C-18V),

and the ability to order the tool with specific

blades only. See the table for individual cata-

log numbers.

The PATHCC10-18V series cutters operate

on 18-volt Ni-MH batteries. Each tool comes

equipped with an impact resistant formed

carrying case along with a tool retention lan-

yard, battery charger and two batteries. The

carrying case also has pre-formed pockets

to house all four blade types. The

PATHCC10-18V series tools are provided

with a 5-year limited warranty (excluding

blades) and a lifetime power-train warranty

on the INFINITY DRIVE®. The batteries and

charger are provided with a 1-year limited

warranty.

Tool Catalog Number Blade Provided

HCCACSR, HCCGUY,

PATHCC10-18V HCCSOL, HCCCUAL

PATHCC10ACSR-18V HCCACSR

PATHCC10GUY-18V HCCGUY

PATHCC10SOL-18V HCCSOL

PATHCC10CUAL-18V HCCCUAL

PATHCC10*None

SPECIFICATIONS

Tool Weight: 20.4 lbs

Length: 21.4

Width: 3.7

Height: 12.8

Operating Voltage: 18V

Recharge Time: < 45 minutes

FOR USE ON

Reference Blade Table

• ACSR: up to 1590 (Falcon)

• EHS guy strand: up to 9/16

• Standard guy strand: up to 9/16

• Ground Rod: up to 3/4

• Rebar: up to 5/8

• Soft steel bolts: up to 5/8

• Copper: up to 1.50

• Aluminum: up to 1.50

ACCESSORIES

Battery: Cat# BAT18V

Hi-capacity 18V (2.6AH)

Chargers:

120V-AC Cat# PATCHGR18V

12/24V-DC Cat# BCT/PATDCCHGR

240/250V-AC Cat# PATCHGR250V

Refined Hydraulic System

for Ultra Performance,

Speed and Reliability

Safety Lanyard Connection Interchangeable Blades

Forged Steel

Head

Retractable Assist

Handle

Trigger Guard

18 Volt Ni-MH Battery

11 Ton Output Force

Field Proven Electronics

for Ultimate Reliability

in the Harshest Work

Environments

* The PATHCC10 is an economical solution for those cus-

tomers already set up with batteries and chargers. The

PATHCC10 is strictly the tool and carrying case; it does

not include blades, batteries or a charger. Order blades

separately.

Each BURNDY®HCC blade kit is designed

specifically for the material it is intended to

cut. Each blade is made from high strength

tool steel and then hardened to ensure a long

life. Each blade kit comes complete with

screws and wrench for installation. The

HCCGUY and HCCSOL blade kits are also

provided with a blade holder. This holder pro-

vides additional support when cutting. The

blade table points out the materials each

blade is designed to cut.

Blade Table

Catalog Cutting Max.

Number Material O.D.

HCCACSR ACSR 1590 kcmil

HCCCUAL Cu & Al 1.5(38 mm)

Ground Rod 3/4(19 mm)

HCCSOL Rebar 5/8(16 mm)

Soft Steel Bolts 5/8(16 mm)

Std. Guy Wire 9/16(14 mm)

HCCGUY EHS Guy Wire 9/16(14 mm)

The HCCSOL and HHCGUY blade kits

include a blade holder for the stationary

blade. To order replacement blades without

the blade holder order catalog number HCC-

SOLRPLBLDS or HCCGUYRPLBLDS.

Blade Profiles

BURNDY®Transmission Products Installation Tooling and Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

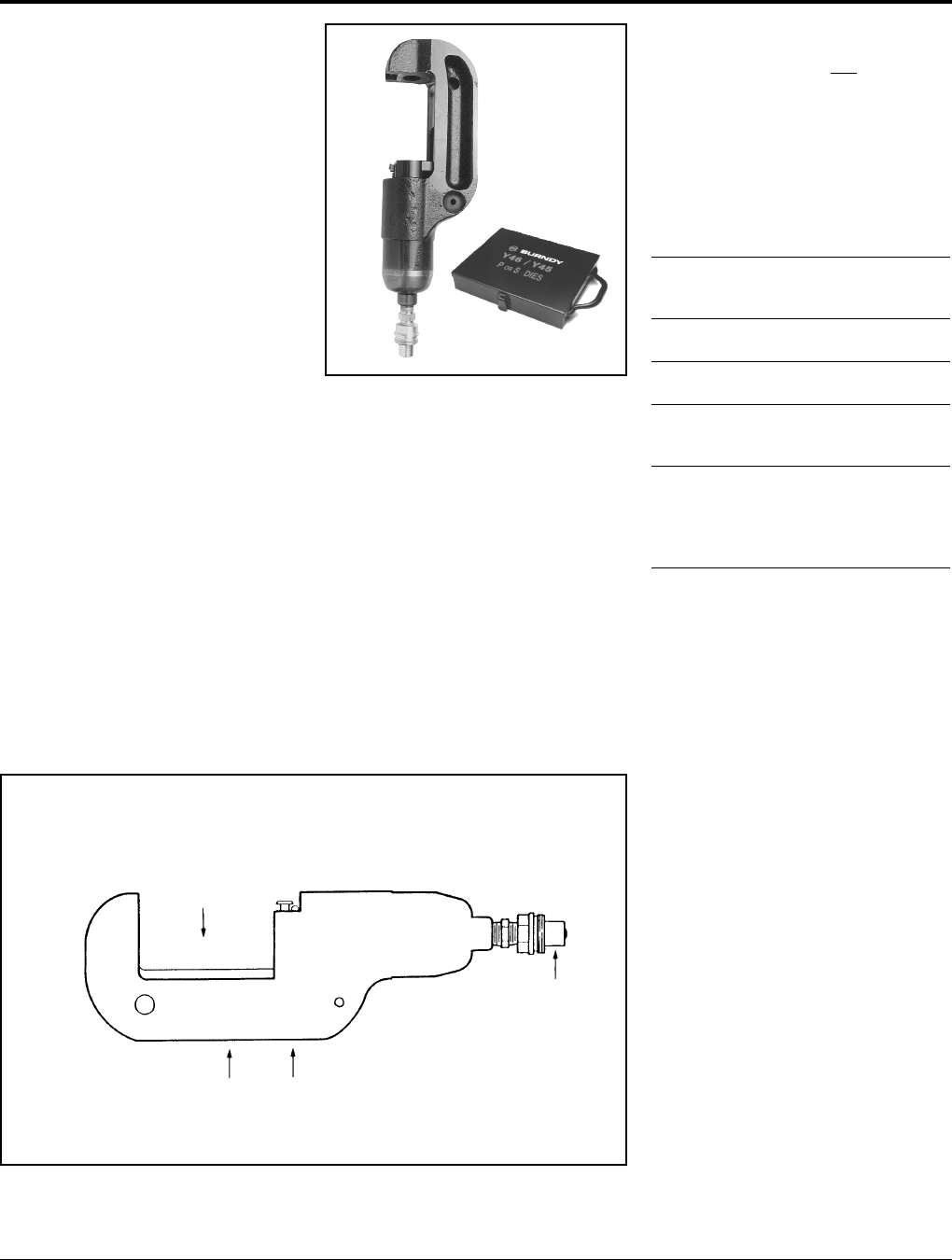

Y45

HYPRESS™

15 Ton Remote Power Operated

Hydraulic Tool—10,000 PSI

The Y45 Series is designed for remote

hydraulic operation. A C-shaped head

design provides easy installation of tap and

splice connectors. The hook style head with

extensive ram travel operates easily on large

distribution and transmission conductors.

Together with accessories, the Y45 Series

tooling may be used on overhead lines. The

small light-weight head design is very adapt-

able for work in underground trenches and

manholes. Uses standard BURNDY®“S”

Dies.

Cat. No. PT6515 is required to use “U-” type

dies in all Y45 variations. Order Head, Hose,

Pump, Dies, and accessories separately.

5-year limited warranty.

SPECIFICATIONS

Y45

Operating pressure:

10,000 psi

Force developed: 15 Tons

Weight (less case): 15-3/4 lbs.

Maximum Width: 7-1/4

Maximum Height: 14-1/4

FOR USE ON

AWG/kcmil Wire Connector

Size Range Type

Tension Sleeves Copper #8 sol.-500 kcmil

Aluminum #6 sol.-954 kcmil

ACSR #4 -795 (26/7)

Taps Aluminum

#14-954 (18/1) ACSR

ACSR #6-795 (54/7)

Aerial Cable Copper #6 str.-1500 kcmil

Connectors Aluminum #4 str.-1000 kcmil

HYGROUND®

Compression Copper #6-500 kcmil

Grounding 1/2 - 1ground rods

Code Cable

Terminals Copper #8-1500 kcmil

and Splices Aluminum #8-1000 kcmil

Taps Copper #14-1000 kcmil

Aluminum #14-900 kcmil

ACCESSORIES:

Cat. No. PT6515

Description:

Adapter for use with “U-”die sets.

Cat. No. PT6545

Description:

Die carrying case for “S” and “P” type dies.

Holds eight (8) die sets. (Dies sold

separately.)

BENEFITS

• Easy connector installation and tool

removal from line conductors with the

open C-shaped head.

• Easily lifted into working position using

lifting eye.

• Easy die changing plus secure die

alignment is provided with the positive

die lock buttons.

• Long life expectancy is provided with fully

protected ram and die buttons.

• Rapid assembly and disassembly is

provided with the quick disconnect

hydraulic coupler.

• Rugged design provides long life

expectancy.

• 5-year limited warranty.

HEAVY DUTY REINFORCED

FORGED STEEL BODY

QUICK DISCONNECT

HYDRAULIC FITTING

C-SHAPED HOOK

STYLE HEAD

LARGE JAW

OPENING

FEATURES

PT6545

Installation Tooling and Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

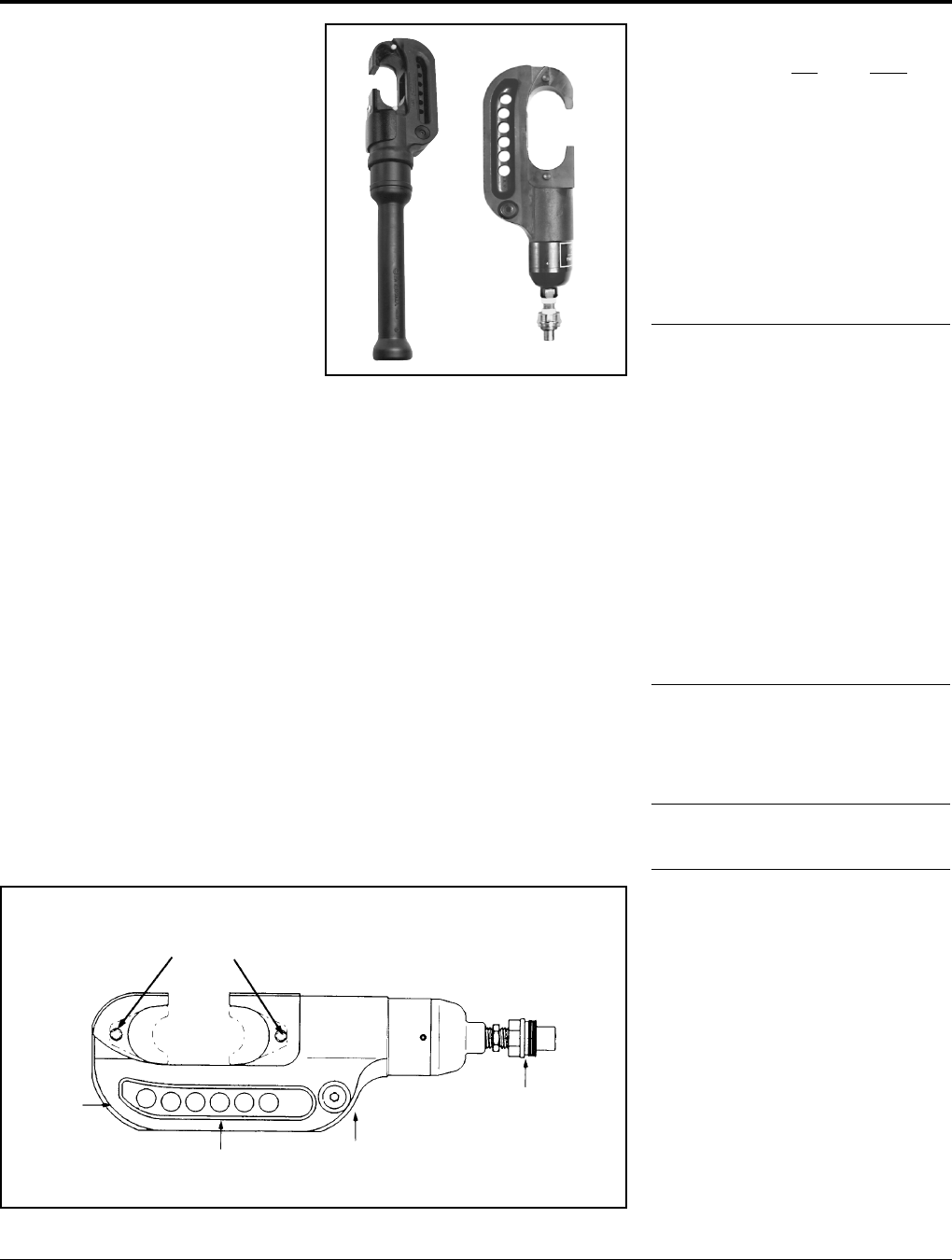

Y46 AND Y46C

HYPRESS™

15 Ton Force Remote Operated

Hydraulic Tool—10,000 PSI

The Y46 standard tool and Y46C rubber cov-

ered tools are lightweight, compact and

versatile with installation dies for both cir-

cumferential and nest-indentor types.

Accessories include “U-” die adapter, a cable

cutting die for 1.2diameter non-steel

conductors, plus a lifting eye and universal

hot-stick adapter for overhead line construc-

tion. 5-year limited warranty.

BENEFITS

• Compact “C” shaped head allows easy

placement and removal from continuous

conductor lengths.

• Versatile and economical-HYPRESS™

tools work on all commonly used copper

and aluminum products.

• Dies and adapters lock into or remove

from tool head easily with the positive

push button die locks.

• Safety, strength and high quality is provid-

ed with strong forged steel and precision

machined components.

• Excellent for HYGROUND®compression

grounding applications through 1ground

rods and up to 500 kcmil taps, terminals

and splices.

• Compression terminal, splice and tap con-

nectors are UL Listed and CSA Certified

when installed with the Y46 and Y46C

HYPRESS™ and recommended die set.

• Y46C has a permanently molded head

of 3/16rubber and includes a separate

molded rubber boot to cover the lower

HYPRESS™ body and hydraulic coupler

for impact protection.

MALE QUICK

DISCONNECT

10,000 PSI

HYDRAULIC FITTING

FORGED

STEEL

BODY

PRECISION

MACHINED STEEL

COMPONENTS

STRONG

REINFORCED

BACK

LARGE 2”

JAW

OPENING

POSITIVE

PUSH

BUTTON

DIE LOCK

FEATURES

SPECIFICATIONS

Y46 Y46C

Force developed: 15 Tons 15 Tons

Operating pressure:

10,000 psi 10,000 psi

Jaw opening: 22

Maximum width: 4-1/24-3/4

Overall length: 1521-3/4

(incl. boot)

Weight (less case): 16 lbs. 17-1/2 lbs.

Molded Covering: No Yes

FOR USE ON

Connector Conductor

Type Range

Copper Terminals-Grounding to 500 kcmil

#8 AWG str.- YGA, YGHA, YGF

1500 kcmil Terminals-Uninsulated #8 to

Code Cable 1500 kcmil YA, YA-2N, YA-L,

Navy Cables YA-LB, YA-TC, YA-2LN, YAB-4N,

Flexible and

Extra Flexible YAV-L Box, YAV-L, YAV-RS Box,

1/2”-1” Ground Rods YAV-RS, YA-TC-FX

Terminals-Insulated #8 to 2/0

YAEV-L Box, YAEV-L, YAEV-H,

YAEV-RS, YAEV-RH

Splices #8 to 1500 kcmil

YS, YS-T, YS-L, YS-LB, YST,

YSP-T, YGS, YGHS

Taps

YH, YCHC #14 to 1000 kcmil

YC-C to 4/0 AWG

Taps-Grounding to 500 kcmil

YGHC-C, YGHP-C, YGHR-C

Aluminum Terminals

#8 AWG- YA-A, AYP, AYPO

1250 kcmil Splices

Code Cables YS-A, YS-AT, YRB

Taps

YFD, YFN, YFO, YFR

ACSR See Burndy Overhead

Transmission and

Distribution Catalog Module

ACCESSORIES:

Cat. No.

P15K Cutter die max. 1.2dia.

PUADP-1 “U”-die adapter

PT10128 Universal hotstick adapter-Y46

Y46-2 Same as Y46 with Female

coupler

BURNDY®Transmission Products Installation Tooling and Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

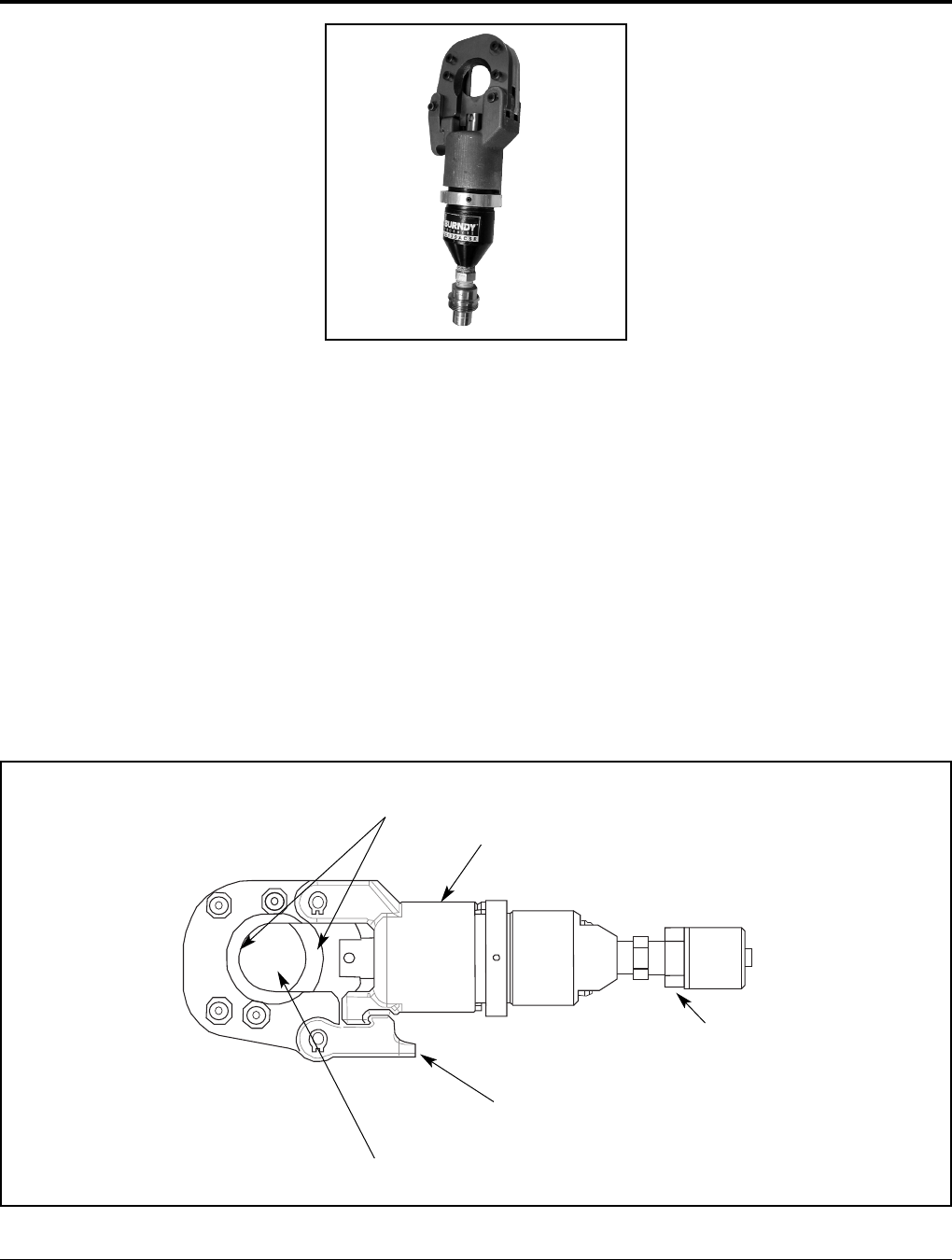

RHCC129ACSR

10,000 PSI Remote Cable

Cutter

Remote Power Operated

Hydraulic Cable Cutter

The BURNDY®RHCC129ACSR remote

hydraulic cable cutter incorporates a special-

ized latch style cutting head that allows inter-

ference-free closure for mid-span cuts. The

RHCC129ACSR with its precision cutting

blades is capable of cutting up to 1.29

diameter bare or insulated copper and alu-

minum cable, 1113 ACSR, 5/8ground rod,

1/2 rebar, 5/8diameter soft steel bolts, 1/2

standard guy strand, and up to 3/8EHS guy

strand.

The RHCC129ACSR is provided with a

5-year limited warranty (excluding blades).

Features and Benefits

• Specialized latch head design.

〫Interference free closure for mid-span

cuts.

• Precision cutting blades.

〫For clean cuts on Cu/Al, ACSR, ground

rods, rebar, guy strand, and soft steel

bolts.

• High strength steel cylinder.

〫For durability and long life.

• Lightweight ergonomic design allows one

hand operation.

〫User has one hand free to manipulate

material to be cut.

• Durable canvas carrying bag.

〫Provides tool protection and stores all

accessories.

• 5-year limited warranty on tool (excluding

blades).

〫Customer satisfaction and support.

SPECIFICATIONS

Operating Pressure: 10,000 psi (700 bar)

Tool Weight: 5.85 lbs. (2.65 kg)

Length: 11.25(286 mm)

Width: 3.7(94 mm)

FOR USE ON

• Copper Cable: up to 1.29

• Aluminum Cable: up to 1.29

• ACSR: up to 1113 ACSR

• Ground Rod: up to 5/8

• Rebar: up to 1/2

• Soft Steel Bolts: up to 5/8

• Standard Guy Strand: up to 1/2

• EHS Guy Strand: up to 3/8

ACCESSORIES

Canvas Bag: Cat# PT10043890

Replacement Blades: Cat# PT10037388

(Moving Blade)

Cat# PT10037384

(Fixed Blade)

Hot Stick Adapter: Cat# RHCCHSA

PRECISION CUTTING BLADES

HIGH STRENGTH

STEEL CYLINDER

QUICK DISCONNECT

HYDRAULIC FITTING

SPECIALIZED LATCH

HEAD DESIGN

1.29CUTTING

CAPACITY

Installation Tooling and Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

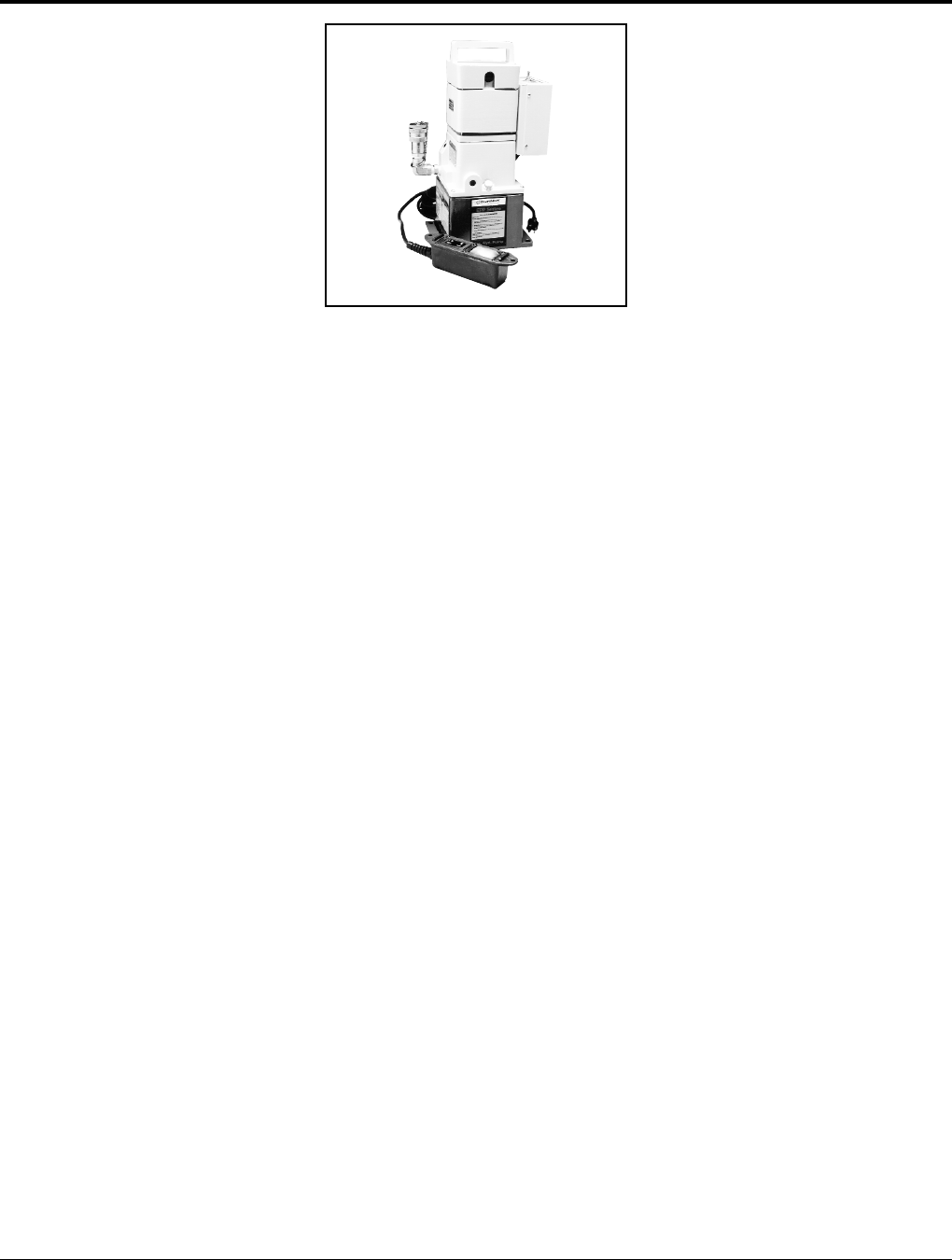

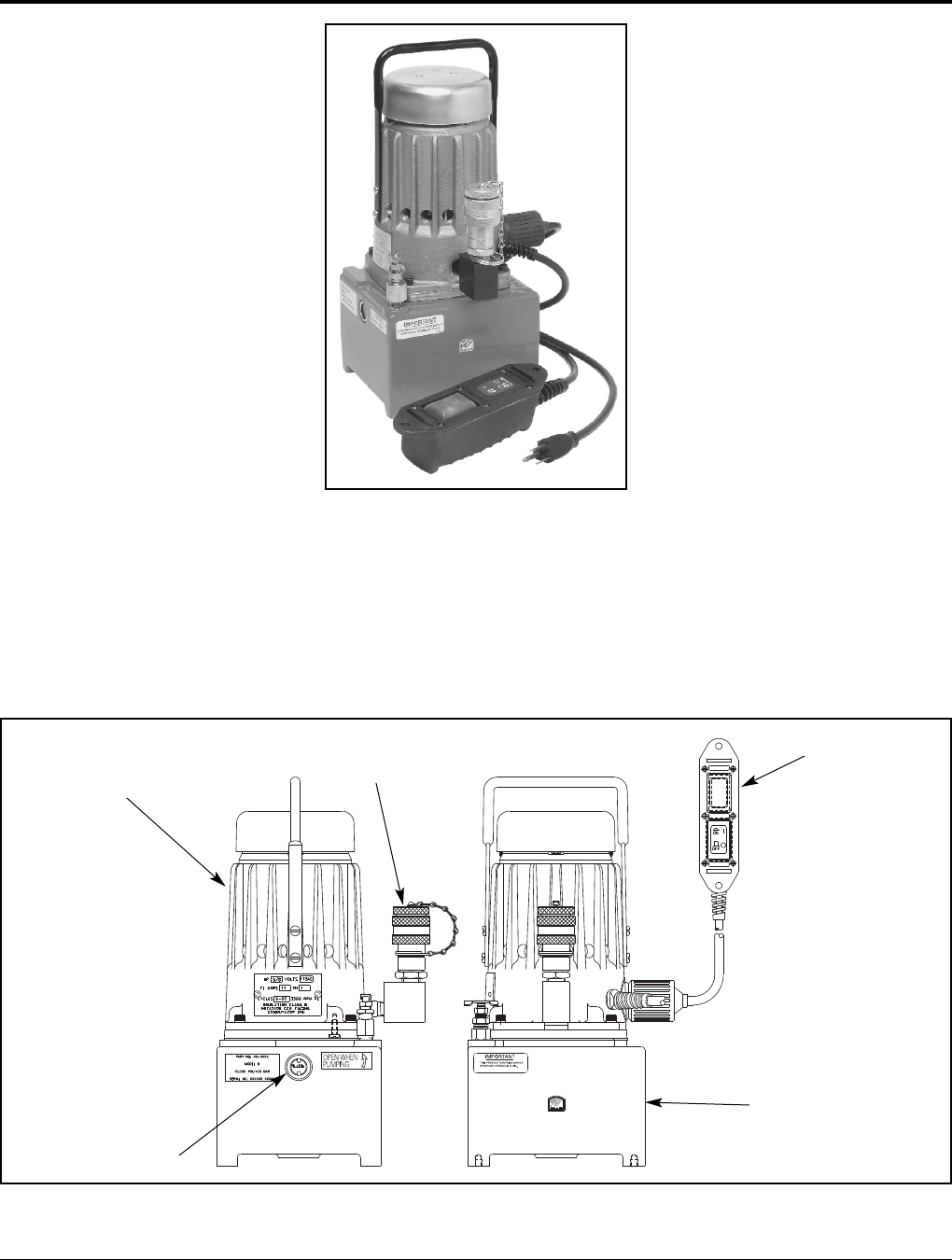

Y10AC9

Electric Hydraulic Pump

Hydraulic Output Pressure of

10,000 PSI

The Y10AC9 electric hydraulic pump is for

use with all HYPRESS™ heads and cutters

requiring 10,000 PSI operating pressure.The

Y10AC9 is equipped with a built-in, factory

set pressure relief valve. An audible “pop”

and recycling of the pump as well as relaxing

of the hose signal completion of the crimp-

ing/cutting cycle. Pump is supplied with a

durable hand-held electric pendant switch.

Features and Benefits

• Lightweight, small size.

〫Easy to lift, carry and transport tool

around job site with lightweight body

and handle.

• Factory set relief valve.

〫High quality crimps are achieved with

built-in, factory set pressure relief valve

and audible recycling of pump to signal

completion of crimp cycle.

• 100,000 (+) life cycles.

〫Long durable life expectancy with light-

weight cast aluminum reservoir body.

Specifications

Motor: 115V AC 50/60 Hz

5/8 HP, 10,000 rpm

11 amp current draw

Reservoir Volume: 1.61 quarts

Height: 14.38

Base: 6.58.25

Weight: 28 lbs. (with oil)

FOR USE ON

Y34BH, Y35BH, Y35BH4, Y39BH,

Y45, Y46, Y46C, Y750BHXT,

Y750CBHXT, Y644MBH,

Y4PC834MBH, Y81KFTMBH, Y60BHU,

RHCC129ACSR, RHCC245CUAL

ACCESSORIES

Catalog Number: YAC-CASE

Steel carrying case with

handle and locking

latch.

The BURNDY®Y10AC9OEM is an additional

electric hydraulic pump offering that comes

equipped with a foot switch and “jog-and-

hold” feature. Keep both hands on the

connection with the Y10AC9OEM pump kit.

For further details please contact customer

service.

5/8 HP Motor

Oil Level Window

Quick Disconnect

Hydraulic Coupler

Pendant Switch

with 10Cord

1.6 Quart Reservoir

• Convenient 115V AC electric powered

motor.

• Saves time with quick disconnect

hydraulic fitting.

• Sealed electric pendant switch.

〫Easy operation with durable remote

pendant switch with 10-foot cord.

• 5-year limited warranty.

BURNDY®Transmission Products Installation Tooling and Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

EPP10 AND EPP6

EPP Series

Electric/Hydraulic Pump

Hydraulic Output Pressures

of 10,000 PSI and 6,000 PSI

The lightweight and durable EPP10 elec-

tric/hydraulic pump is for use with all

BURNDY®HYPRESS™ remote heads and

cutters requiring 10,000 PSI operating pres-

sure. Both the EPP10 and the EPP6 are

equipped with a built-in, factory set pressure

relief valve. An audible “pop” and recycling of

the pump and relaxing of the hose, signals

completion of the crimping/cutting cycle.

Both pumps are supplied with a durable

hand-held electric pendant switch, for

remote operation of the unit, and have a

manual selection switch mounted for opera-

tion of the unit at the pump. The operator can

select which method is best suited for the

application.

An optional carry/shipping case can be

ordered. All EPP Series pumps have been life

cycle tested to over 100,000 cycles without

failure, and are warranted to be free of defects

in materials and workmanship for five (5) years

when properly maintained and operated.

SPECIFICATIONS

Motor: 115 V-AC/60 Hz

1/2 HP @ 3450 RPM

Maximum

current draw: 12.5 amperes

Reservoir volume: 2 qts.

Height: 16

Base: 68

Weight: 30 lbs.

FOR USE ON

EPP10 10,000 Y34BH, Y35BH, Y35BH-4,

Y39BH, Y45, Y46, Y46C,

Y60BHU, 750BH,

Y750BH-2, Y644MBH,

RHCC Series Cutters

EPP6 6,000 Y35L, Y28B

ACCESSORIES

Cat. No. EPPCASE-1

Steel carrying case with handle and locking

latch.

FEATURES

• Lightweight.

• Small size.

• Factory set relief valve.

• 100,000 (+) life cycles.

• Sealed electric pendant switch.

BENEFITS

• High quality crimps are achieved with

built in, factory set pressure release valve

and audible recycling of pump to signal

completion of crimp cycle.

• Easy to lift, carry and transport tool

around job site with lightweight body

and handle.

• Convenient 115 V-AC electric powered

motor.

• Durable remote pendent switch.

• Easy operation controlled with pendent

switch, or manual switch.

• Saves time with quick disconnect

hydraulic fitting.

• Long durable life expectancy with light-

weight cast aluminum reservoir body.

• 5-year limited warranty.

Installation Tooling and Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

FEATURES

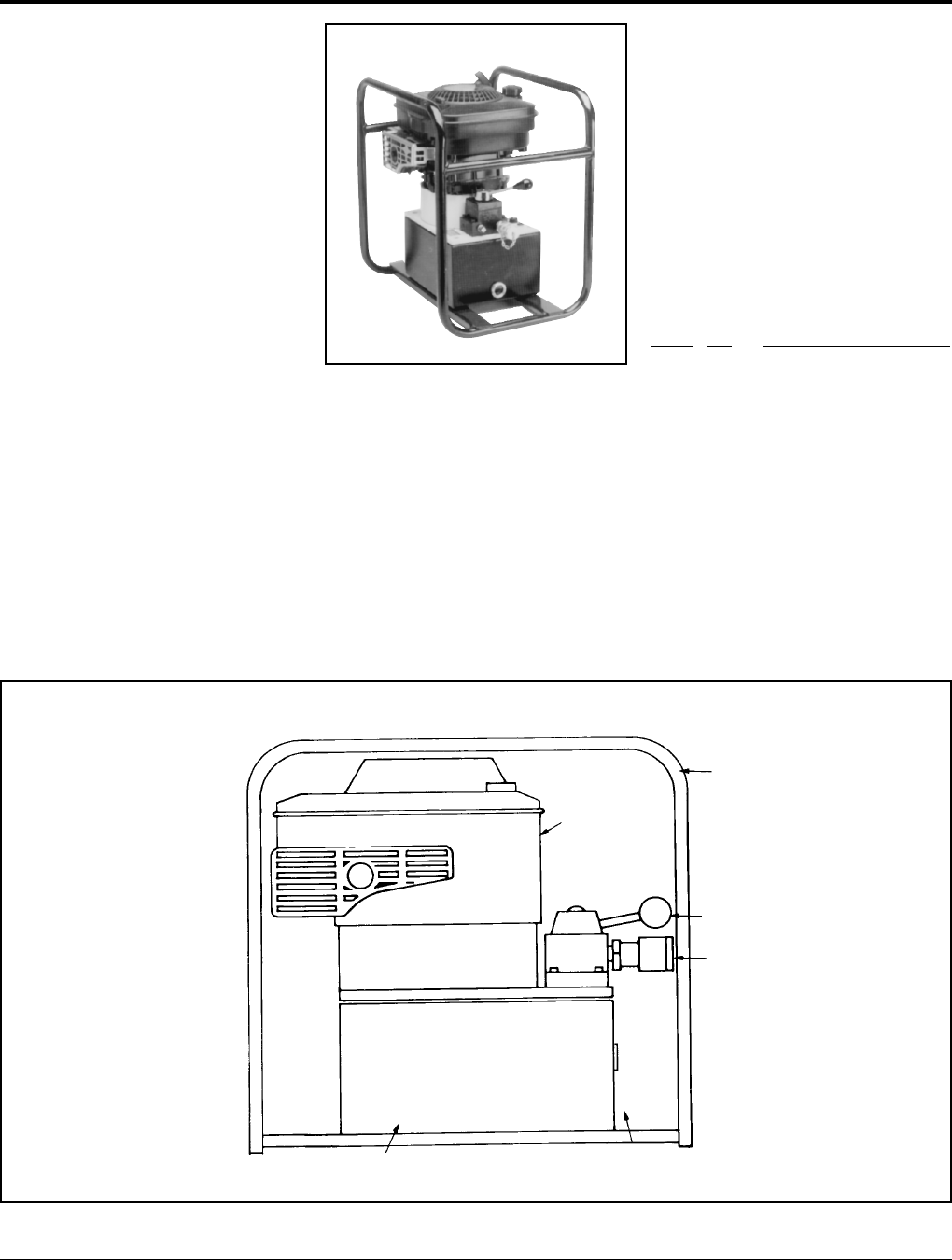

GP10

GP Series Gasoline Engine

Driven Hydraulic Pump

Hydraulic Output Pressures

of 10,000 PSI

The GP series gasoline engine driven

hydraulic pump is a heavy-duty design that is

rugged and portable. Supplied with a four (4)

H.P. engine, the pump operates all

BURNDY®remote compression heads and

cable cutters.

All GP style pumps have a built-in, factory

pre-set, automatic pressure release overload

valve with a definite pulsing and recycling to

signal the completion of a crimp. The manu-

al control valve allows user to “Jog and Hold”

due to the unique check valve design that

keeps pressure in the output line until

retracted.

Specifications

Engine: 4 H.P., 4 cycle

Reservoir volume: 2 gallons (8 qts.)

Pump height: 19-3/4

Pump width: 13

Pump length: 18

Overall height: 22-1/4

Overall width: 16

Overall length: 21

Pump and motor

dry weight: 64-1/4 lbs.

Overall dry weight: 77-3/4 lbs.

FOR USE ON

Pump PSI

Hydraulic Tools and Cutter

GP10 10,000 Y34BH, Y35BH, Y35BH-4,

Y39BH, Y45, Y46, Y46C,

Y60BHU, Y60BHU-D,

Y750BH, Y750BH-2, RHCC

Series Cutters

BENEFITS

• Portable pump with sturdy steel roll cage.

• Durable heavy-duty four (4) H.P. engine

for all HYPRESS™ applications and long

life expectancy.

• Manual control valve permits easy control

of crimping or cutting operations.

• Fast hose assembly with quick disconnect

pressure matched hydraulic couplers.

• Ample hydraulic capacity with (8) quart

reservoir.

• 5-year limited warranty.

STURDY STEEL ROLL

CAGE DESIGN

MANUAL CONTROL VALVE

QUICK DISCONNECT

HYDRAULIC COUPLER

OIL LEVEL

INSPECTION WINDOW

8 QUART

RESERVOIR

HEAVY-DUTY

GASOLINE

ENGINE

BURNDY®Transmission Products Installation Tooling and Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

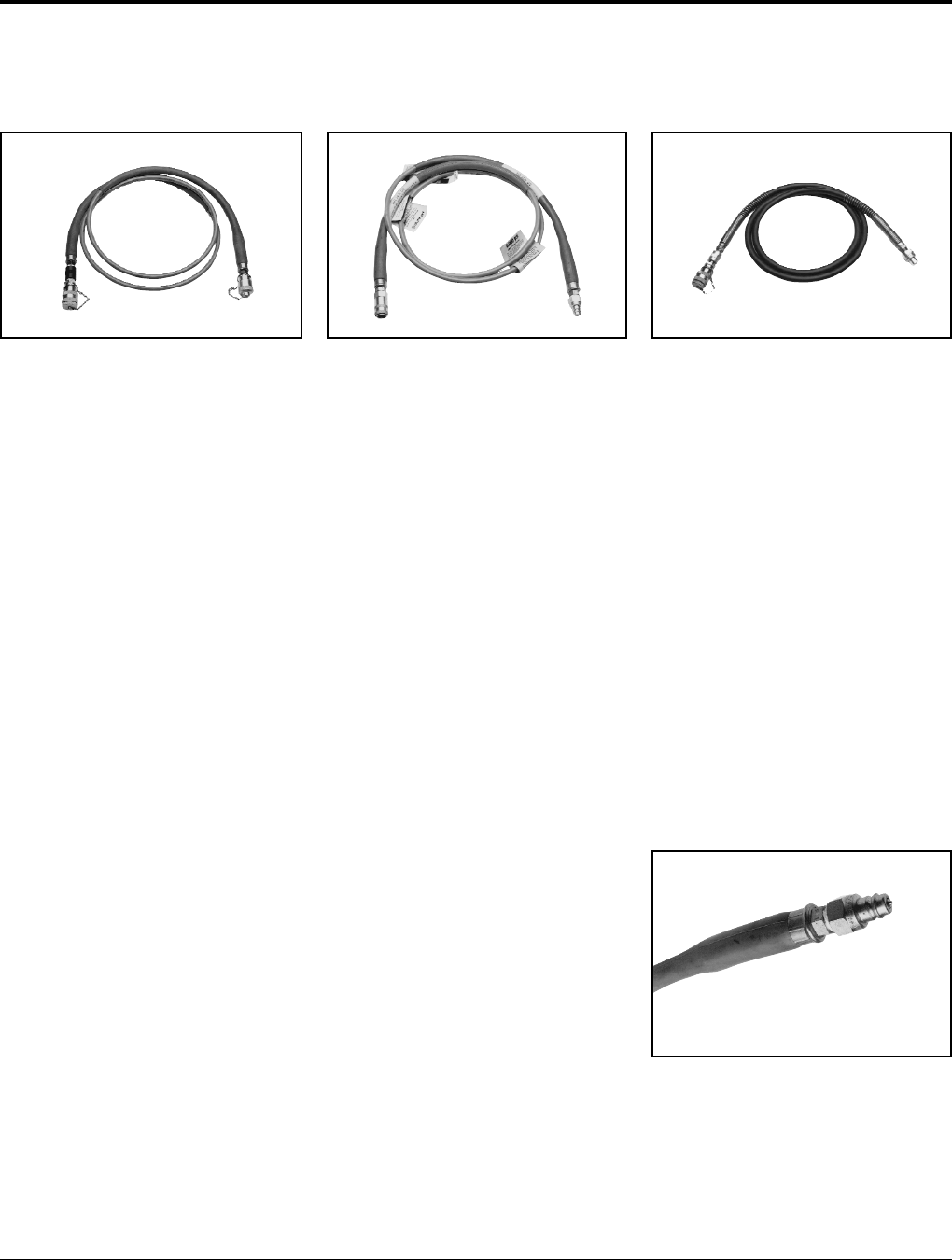

HYDRAULIC HOSES

NON CONDUCTIVE HOSES*

6,000 PSI 10,000 PSI

Cat. No. Description

PT 29900-10 10- 3/16diameter - non

conductive hose with stack-

able couplers (male/female) -

orange

PT 29900-15 15- 3/16diameter - non

conductive hose with stack-

able couplers (male/female) -

orange

PT 29900-25 25- 3/16diameter - non

conductive hose with stack-

able couplers (male/female) -

orange

PT 29901-10 10- 1/4diameter - non

conductive hose with stack-

able couplers (male/female) -

orange

PT 29901-15 15- 1/4diameter - non

conductive hose with stack-

able couplers (male/female) -

orange

PT 29901-25 25- 1/4diameter - non

conductive hose with stack-

able couplers (male/female) -

orange

Note: 1/4diameter hose provides higher

flow rate for faster ram movement.

* For proper care and maintenance of hydraulic

hoses, consult the “Hydraulic Hose Care”

manual, Form No. 7828

Cat. No. Description

PT 29902-10 10- non conductive hose

with stackable couplers

(male/female) - orange

PT 29902-15 15- non conductive hose

with stackable couplers

(male/female) - orange

PT 29902-25 25- non conductive hose

with stackable couplers

(male/female) - orange

PT 29074-1 Non conductive hose carrying

bag

* For proper care and maintenance of hydraulic

hoses, consult the “Hydraulic Hose Care”

manual, Form No. 7828

Cat. No. Description

PT 91 8- steel braided hose

with steel spring reinforced

ends. Stackable couplers

(male/female) - Black. No

electrical rating. DO NOT

use on energized conductor.

8,800 PSI

Cat No. Description

PT 76 8- steel braided hose

with steel spring reinforced

ends. Stackable couplers

(male/female) - Black. No

electrical rating. DO NOT

use on energized conductor.

For proper care and maintenance of hydraulic

hoses, consult the “Hydraulic Hose Care”

manual,

Form No. 7828.

CONDUCTIVE HOSES*

Do not attempt to repair or recouple the hose yourself!

10,000 PSI

NON CONDUCTIVE HOSES*

Installation Tooling and Accessories BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

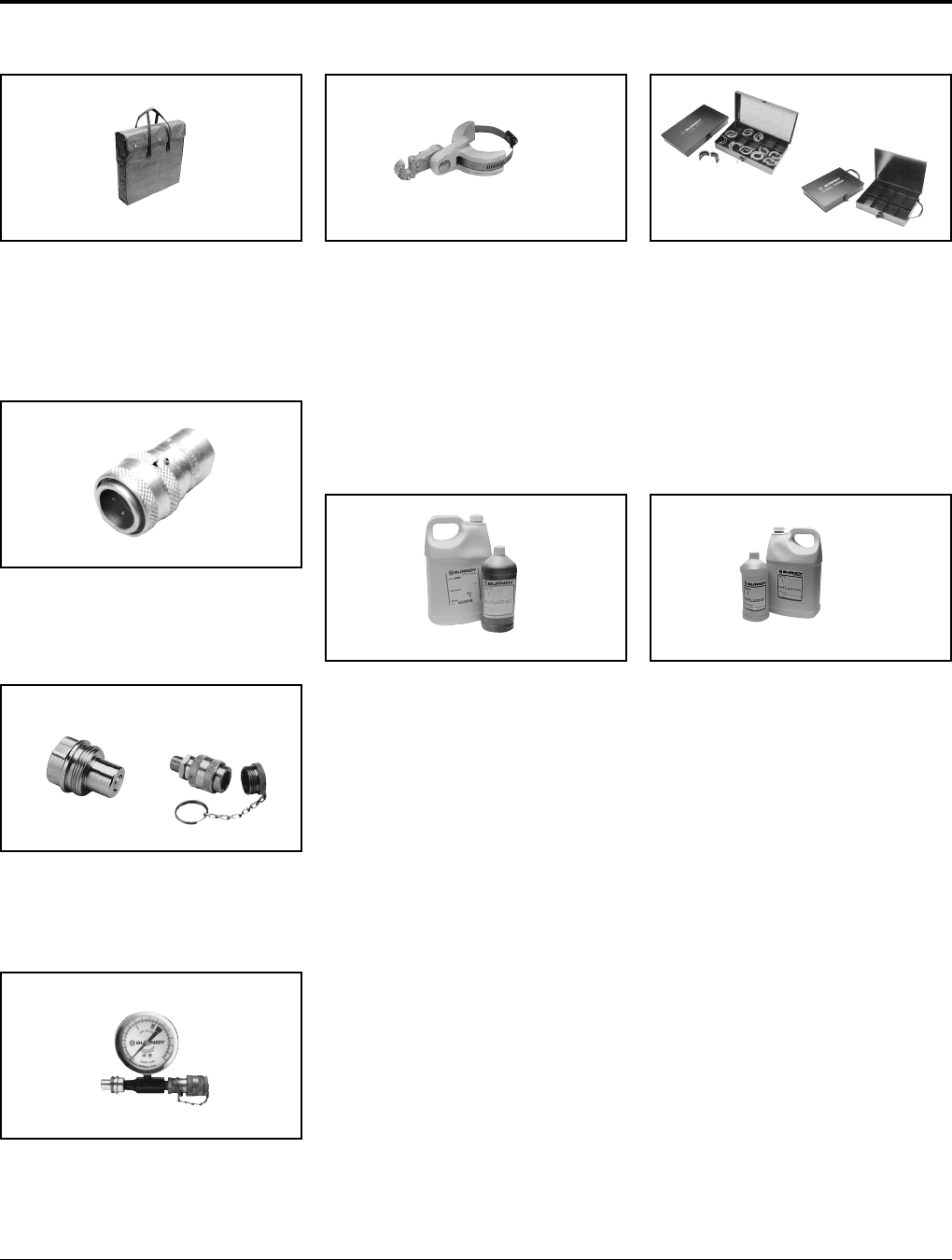

ACCESSORIES

PT 29074-1 Insulated hose carrying bag

Designed to provide protection and clean -

liness of non-conductive hoses. Accom -

modates 100 ft. of non-conductive coiled to

17-1/2O.D. and 3-3/4wide. Maximum car-

rying capacity: 10 lbs.

Replacement Coupler 6,000 PSI operating

pressure

PT 29091 (male)

PT 29214-1 (female)

Replacement Coupler 10,000 PSI operating

pressure

PT 94 (male)

PT 93 (female)

Adjustable Head Grip For joining

HYPRESS™ heads to universal hot sticks

PT 29075 (for Y35L)

PT 29402-1 (for Y35BH)

PT 10128 (for Y46)

DIE CASES

PT 29291

(Y750, Y35/Y39) die case for

“U” -type die sets

PT 6545

(Y45 and Y46) die case for

“S” and “P” -type die sets

ALFLUID™

ALFLUID™ QT.

ALFLUID™ GAL.

(available in quart and gallon size containers)

Use ALFLUID™ in hand operated tools dur-

ing extended use below 32 degrees.

All weather Hydraulic Fluid for BURNDY®

pumps:

HP hand pump

FP foot pump

GP gasoline pump

EPP. electric pump

AC-3H auto/man. elect. pump

DC-3H auto/man. elect. pump

HYFLUID™

HYFLUID™ QT.

HYFLUID™ GAL.

(available in quart and gallon size containers)

Hydraulic fluid for BURNDY®HYPRESS™

hand operated tools:

Y35 and Y35-2 HYPRESS™ tools

Y39 HYPRESS™ tool

Y750 REVOLVER HYPRESS™ tools

In-line Pressure Gauge 10,000 PSI operating

pressure for hydraulic pumps

PT 11018

BURNDY®Transmission Products Installation Tooling and Accessories

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO.

1050 57

1050 ACSS 57

1051 57

1052 57

1053 57

1054 57

1055 57

1056 57

1057 57

1058 57

1059 57

1060 57

1061 57

1062 57

1063 57

1064 57

1065 57

1066 58

1067 58

1070 58

1071 58, 66

1072 58

1073 58

1074 58

1075 58

1076 58

1077 58

1079 58

1080 58

1083 58

1084 58

1085 58

1086 58

1089 58

1090 58

1093 58

1094 58

1095 58

1097 58

1100 58

1103 58

1112 58

1113 58

1114 58

1117 59

1118 59

1120 59

1121 59

1123 59

1124 59

1131 59

1133 59

1138 59

1139 59

1140 59

1141 59

1142 59

1143 59

1144 59

1145 59

1146 59

1147 59

1149 59

1150 59

1157 59

1158 59

1165 60

1166 60

1167 60

1169 60

1170 60

1171 60

1173 60

1174 60

1179 60

1182 60

1183 60

1190 60

1192 60

1300 60

1301 60

2050 53

2050 ACSS 53

2051 53

2052 53

2053 53

2054 53

2055 53

2056 53

2057 53

2058 53

2059 53

2060 53

2061 53

2062 53

2063 53

2064 53

2065 53

2066 54

2067 54

2070 54

2071 54

2072 54

2073 54

2074 54

2075 54

2076 54

2077 54

2079 54

2080 54

2083 54

2084 54

2085 54

2086 54

2089 54

2090 54

2093 54

2094 54

2095 54

2097 54

2100 54

2103 54

2112 54

2113 55

2114 55

2117 55

2118 55

2120 55

2121 55

2123 55

2124 55

2131 55

2133 55

2138 55

2139 55

2140 55

2141 55

2142 55

2143 55

2144 55

2145 55

2146 55

2147 55

2149 55

2150 55

2157 56

2158 56

2165 56

2166 56

2167 56

2169 56

2170 56

2171 56

2173 56

2174 56

2179 56

2182 56

2183 56

2190 56

2192 56

2300 56

2301 56

3050 61

3050 ACSS 61

3051 61

3052 61

3053 61

3054 61

3055 61

3056 61

3057 61

3058 61

3059 61

3060 61

3061 61

3062 61

3063 61

3064 61

3065 61

3066 62

3067 62

3070 62

3071 62

3072 62

3073 62

3074 62

3075 62

3076 62

3077 62

3079 62

3080 62

3083 62

3084 62

3085 62

3086 62

3089 62

3090 62

3093 62

3094 62

3095 62

3097 62

3103 63

3112 63

3113 63

3114 63

3117 63

3118 63

3120 63

3121 63

3123 63

3124 63

3131 63

3133 63

3138 63

3139 63

3140 63

3141 63

3142 63

3143 63

3144 63

3145 63

3146 63

3147 63

3149 64

3150 64

3157 64

3158 64

3165 64

3166 64

3167 64

3169 64

3170 64

3171 64

3173 64

3174 64

3179 64

3182 64

3183 64

3190 64

3192 64

3300 64

3301 64

5600-1020 47

5600-1020D 47

5600-1022 47

5600-1022D 47

5600-1026 47

5600-1026D 47

5600-1028 47

5600-1028D 47

5600-1030 47

5600-1030D 47

5600-1032 47

5600-1032D 47

5600-1040 47

5600-1040D 47

5600-1042 47

5600-1042D 47

5600-1044 47

5600-1044D 47

5600-1050 47

5600-1050D 47

5600-1052 47

5600-1052D 47

5600-1054 47

5600-1054D 47

5600-1056 47

5600-1056D 47

5600-1058 48

5600-1058D 48

5600-1060 47

5600-1060D 47

5600-1062 47

5600-1062D 47

5600-1064 48

5600-1064D 48

5600-1066 48

5600-1066D 48

5600-1070 48

5600-1070D 48

5600-1072 48

5600-1074 48

5600-1074D 48

5600-1076 48

5600-1076D 48

5600-1078 48

5600-1078D 48

5600-1079 48

5600-1079D 48

5600-1080 48

5600-1080D 48

5600-1082 48

5600-1082D 48

5600-2020 49

5600-2022 49

5600-2026 49

5600-2028 49

5600-2030 49

5600-2032 49

5600-2040 49

5600-2042 49

5600-2044 49

5600-2050 49

5600-2052 49

5600-2054 49

5600-2056 49

5600-2058 49

5600-2060 49

5600-2062 49

5600-2064 49

5600-2066 49

5600-2070 49

5600-2072 49

5600-2074 49

5600-2076 49

5600-2078 49

5600-2079 49

5600-2080 49

5600-2082 49

9050 65

9050 ACSS 65

9051 65

9052 65

9053 65

9054 65

9055 65

9056 65

9057 65

9058 65

9059 65

9060 65

9061 65

9062 65

9063 65

9064 65

9065 65

9066 65

9067 66

9070 66

9072 66

9073 66

9074 66

9075 66

9076 66

9077 66

9079 66

9080 66

9083 66

9084 66

9085 66

9086 66

9089 66

9090 66

9093 66

9094 66

9095 66

9097 66

9100 66

9103 66

9112 66

9113 66

9114 66

9117 67

9118 67

9120 67

9121 67

9123 67

9124 67

9131 67

9133 67

9138 67

9139 67

9140 67

9141 67

9142 67

9143 67

9144 67

9145 67

9146 67

9147 67

9149 67

9150 67

9157 67

9158 68

9165 68

9166 68

9167 68

9169 68

9170 68

9171 68

9173 68

9174 68

9179 68

9182 68

9183 68

Index BURNDY®Transmission Products

Alpha-Numeric

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO.

9190 68

9192 68

9300 68

9301 68

ALFLUID™ GAL. 85

ALFLUID™ QT. 85

B38-0305-00 73

BAT18V 75-77

BCT/PATDCCHGR 75-77

BYNA245MRT15ACCC 50

BYNA245MRT15HACCC 47

BYNA245MRTACCC 50

BYNA32R15HHT 31, 32

BYNA32R15HT 37

BYNA32RHT 37

BYNA32RT15ACCC 50

BYNA32RT15HACCC 47

BYNA32RT15HHT 33, 34

BYNA32RT15HT 38

BYNA32RTACCC 50

BYNA32RTHT 38

BYNA34R15HHT 31, 32

BYNA34R15HT 37

BYNA34RHT 37

BYNA34RT15HHT 33, 34

BYNA34RT15HT 38

BYNA34RTHT 38

BYNA36R15HHT 31, 32

BYNA36R15HT 37

BYNA36RHT 37

BYNA36RT15ACCC 50

BYNA36RT15HACCC 47

BYNA36RT15HHT 33, 34

BYNA36RT15HT 38

BYNA36RTACCC 50

BYNA36RTHT 38

BYNA39R15HHT 31, 32

BYNA39R15HT 37

BYNA39RHT 37

BYNA39RT15ACCC 50

BYNA39RT15HACCC 47

BYNA39RT15HHT 33, 34

BYNA39RT15HT 38

BYNA39RTACCC 50

BYNA39RTHT 38

BYNA43R15HHT 31, 32

BYNA43R15HT 32, 37

BYNA43RHT 37

BYNA43RT15ACCC 50

BYNA43RT15H 38

BYNA43RT15HACCC 47

BYNA43RT15HHT 33, 34

BYNA43RT15HT 34, 38

BYNA43RTACCC 50

BYNA43RTHT 38

BYNA451R15HHT 31, 32

BYNA451R15HT 37

BYNA451RHT 37

BYNA451RT15ACCC 50

BYNA451RT15HACCC 47

BYNA451RT15HHT 33, 34

BYNA451RT15HT 38

BYNA451RTACCC 50

BYNA451RTHT 38

BYNA49R15HHT 31, 32

BYNA49R15HT 37

BYNA49RHT 37

BYNA49RT15ACCC 50

BYNA49RT15HACCC 48

BYNA49RT15HHT 33, 34

BYNA49RT15HT 38

BYNA49RTACCC 50

BYNA49RTHT 38

BYNA52R15HHT 31, 32

BYNA52R15HT 37

BYNA52RHT 37

BYNA52RT15ACCC 50

BYNA52RT15HACCC 48

BYNA52RT15HHT 33, 34

BYNA52RT15HT 38

BYNA52RTACCC 50

BYNA52RTHT 38

BYNA56R15HHT 31, 32

BYNA56R15HT 37

BYNA56RHT 37

BYNA56RT15HHT 33, 34

BYNA56RT15HT 38

BYNA56RTHT 38

BYNA58R15HHT 31, 32

BYNA58R15HT 37

BYNA58RHT 37

BYNA58RT15HHT 33, 34

BYNA58RT15HT 38

BYNA58RTHT 38

BYNA590MRT15ACCC 50

BYNA590MRT15HACCC 48

BYNA590MRTACCC 50

BYNA59R15HHT 31, 32

BYNA59R15HT 37

BYNA59RHT 37

BYNA59RT15HHT 33, 34

BYNA59RT15HT 38

BYNA59RTHT 38

BYNA760MRT15ACCC 50

BYNA760MRT15HACCC 48

BYNA760MRTACCC 50

BYNS32RHT 39

BYNS32RTHT 40

BYNS34RHT 39

BYNS34RTHT 40

BYNS36RHT 39

BYNS36RTHT 40

BYNS39RHT 39

BYNS39RTHT 40

BYNS43RHT 39

BYNS43RTHT 40

BYNS451RHT 39

BYNS451RTHT 40

BYNS49RHT 39

BYNS49RTHT 40

BYNS52RHT 39

BYNS52RTHT 40

BYNS56RHT 39

BYNS56RTHT 40

BYNS58RHT 39

BYNS58RTHT 40

BYNS59RHT 39

BYNS59RTHT 40

EPP10 82

EPP6 82

EPPCASE-1 82

GP10 83

HCCACSR 77

HCCCUAL 77

HCCGUY 77

HCCGUYRPLBLDS 77

HCCSOL 77

HCCSOLRPLBLDS 77

HYFLUID™ GAL. 85

HYFLUID™ QT. 85

L717W 74

L719W 74

L720W 74

L722W 74

L724W 74

L725W 74

L727W 74

L728W 74

L729W 74

L735W 74

P15K 75, 79

P8A 73

PAT46-18V 75

PATCHGR18V 75-77

PATCHGR250V 75-77

PATCUT129ACSR-18V 76

PATHCC10 77

PATHCC10-18V 77

PATHCC10ACSR-18V 77

PATHCC10CUAL-18V 77

PATHCC10GUY-18V 77

PATHCC10SOL-18V 77

PEN A-4 73

PEN A-55GAL 73

PEN A-5GAL 73

PEN A-GAL 73

PEN A-QT 73

PEN A13-4 73

PEN A13-55GAL 73

PEN A13-5GAL 73

PEN A13-8 73

PEN A13-GAL 73

PEN A13-QT 73

PEN E-4 73

PEN E-55GAL 73

PEN E-5GAL 73

PEN E-8 73

PEN E-GAL 73

PEN E-QT 73

PENA 1/2 73

PENA13CARTRIDGE 73

PENACARTRIDGE 72, 73

PENETROX™ A 72

PENETROX™ A-13 72

PENETROX™ E 72

PENETROX™ HT 72

PENHT-1LB 73

PENHT-4 73

PENHT-8 73

PENHT-GAL 73

PT 10128 85

PT 11018 85

PT 29074-1 84, 85

PT 29075 85

PT 29091 85

PT 29214-1 85

PT 29291 85

PT 29402-1 85

PT 29900-10 84

PT 29900-15 84

PT 29900-25 84

PT 29901-10 84

PT 29901-15 84

PT 29901-25 84

PT 29902-10 84

PT 29902-15 84

PT 29902-25 84

PT 6545 85

PT 76 84

PT 91 84

PT 93 85

PT 94 85

PT10037384 76, 80

PT10037388 76, 80

PT10043890 80

PT10128 79

PT208620 76

PT6515 78

PT6545 78

PUADP-1 75, 79

RHCC129ACSR 80

RHCCHSA 80

S2D451R-SG1 70

S3D451R-SG1 70

S3D55R-SG1 70

S4D48R-SG1 70

S6D441R-SG1 70

TDM177RG1 69

TDM177RG2 69

TDM210RG1 69

TDM210RG2 69

TDM246RG1 69

TDM330RG1 69

TDM393RG1 69

TDM430RG1 69

TDM99RG1 69

Y10AC9 81

Y10AC9OEM 81

Y45 78

Y46 79

Y46-2 79

Y46C 79

Y60BHU 74

Y60BHU-D 74

YAC-CASE 81

YDS7M10T 45

YDS7M6T 45

YDS7M7T 45

YDS7M8T 45

YDS7M9T 45

YNA32R 9, 24

YNA32R15 9, 24

YNA32R15H 3, 4, 16, 18, 19

YNA32RT 10, 25

YNA32RT15 10, 25

YNA32RT15H 5, 6, 17

YNA34R 9, 24

YNA34R15 9, 24

YNA34R15H 3, 4, 16, 18, 19

YNA34RT 10, 25

YNA34RT15 10, 25

YNA34RT15H 5, 6, 17

YNA36R 9, 24

YNA36R15 9, 24

YNA36R15H 3, 4, 16, 18, 19

YNA36RT 10, 25

YNA36RT15 10, 25

YNA36RT15H 5, 6, 17

YNA39R 9, 24

YNA39R15 9, 24

YNA39R15H 3, 4, 16, 18, 19

YNA39RT 10, 25

YNA39RT15 10, 25

YNA39RT15H 5, 6, 17

YNA43R 9, 24

YNA43R15 9, 24

YNA43R15H 3, 4, 16, 18, 19

YNA43RT 10, 25

YNA43RT15 10, 25

YNA43RT15H 5, 6, 17

YNA451R 9, 24

YNA451R15 9, 24

YNA451R15H 3, 4, 16, 18, 19

YNA451RT 10, 25

YNA451RT15 10, 25

YNA451RT15H 5, 6, 17

YNA49R 9, 24

YNA49R15 9, 24

YNA49R15H 3, 4, 16, 18, 19

YNA49RT 10, 25

YNA49RT15 10, 25

YNA49RT15H 5, 6, 17

YNA52R 9, 24

YNA52R15 9, 24

YNA52R15H 3, 4, 16, 18, 19

YNA52RT 10, 25

YNA52RT15 10, 25

YNA52RT15H 5, 6, 17

YNA54R 24

YNA54R15 24

YNA54R15H 16, 18, 19

YNA54RT 25

YNA54RT15 25

YNA54RT15H 17

YNA56R 9, 24

YNA56R15 9, 24

YNA56R15H 3, 4, 16, 18, 19

YNA56RT 10, 25

YNA56RT15 10, 25

YNA56RT15H 5, 6, 17

YNA58R 9, 24

YNA58R15 9, 24

YNA58R15H 3, 4, 16, 18, 19

YNA58RT 10, 25

YNA58RT15 10, 25

YNA58RT15H 5, 6, 17

YNA594R 24

YNA594R15 24

YNA594R15H 16, 18, 19

YNA594RT 25

YNA594RT15 25

YNA594RT15H 17

YNA59R 9, 24

YNA59R15 9, 24

YNA59R15H 3, 4, 16, 18, 19

YNA59RT 10, 25

YNA59RT15 10, 25

YNA59RT15H 5, 6, 17

YNA7M10T 44

YNA7M6T 44

YNA7M7T 44

YNA7M8T 44

YNS32R 11, 26

YNS32RT 12, 27

YNS34R 11, 26

YNS34RT 12, 27

YNS36R 11, 26

YNS36RT 12, 27

YNS39R 11, 26

YNS39RT 12, 27

YNS43R 11, 26

YNS43RT 12, 27

YNS451R 11, 26

YNS451RT 12, 27

YNS49R 11, 26

YNS49RT 12, 27

YNS52R 11, 26

YNS52RT 12, 27

YNS54R 26

YNS54RT 27

YNS56R 11, 26

YNS56RT 12, 27

YNS58R 11, 26

YNS58RT 12, 27

YNS594R 26

YNS594RT 27

YNS59R 11, 26

YNS59RT 12, 27

YNT32R32R 13, 29

YNT32R32RHT 41

YNT34R34R 13, 29

YNT34R34RHT 41

YNT36R36R 13, 29

YNT36R36RHT 41

YNT39R39R 13, 29

YNT39R39RHT 41

YNT43R43R 13, 29

YNT43R43RHT 41

YNT451R451R 13, 29

YNT451R451RHT 41

YNT49R49R 13, 29

YNT49R49RHT 41

YNT52R52R 13, 29

YNT52R52RHT 41

YNT54R54R 29

YNT56R56R 13, 29

YNT56R56RHT 41

YNT58R58R 13, 29

YNT58R58RHT 41

YNT594R594R 29

YNT59R59R 13, 29

YNT59R59RHT 41

YNTA245MRTACCC 51

YNTA32R 14, 28

YNTA32RHT 42

YNTA32RTACCC 51

YNTA34R 14, 28

YNTA34RHT 42

YNTA36R 14, 28

YNTA36RHT 42

YNTA36RTACCC 51

YNTA39R 14, 28

YNTA39RHT 42

YNTA39RTACCC 51

YNTA43R 14, 28

BURNDY®Transmission Products Index

Alpha-Numeric

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO.

YNTA43RHT 42

YNTA43RTACCC 51

YNTA451R 14, 28

YNTA451RHT 42

YNTA451RTACCC 51

YNTA49R 14, 28

YNTA49RHT 42

YNTA49RTACCC 51

YNTA52RTACCC 51

YNTA54R 14, 28

YNTA54RHT 42

YNTA56R 14, 28

YNTA56RHT 42

YNTA58R 14, 28

YNTA58RHT 42

YNTA594R 28

YNTA59R 14, 28

YNTA59RHT 42

YNU245MRACCC 52

YNU32R 15, 30

YNU32RACCC 52

YNU32RHT 43

YNU34R 15, 30

YNU34RHT 43

YNU36R 15, 30

YNU36RACCC 52

YNU36RHT 43

YNU39R 15, 30

YNU39RACCC 52

YNU39RHT 43

YNU43R 15, 30

YNU43RACCC 52

YNU43RHT 43

YNU451R 15, 30

YNU451RACCC 52

YNU451RHT 43

YNU49R 15, 30

YNU49RACCC 52

YNU49RHT 43

YNU52RACCC 52

YNU54R 15, 30

YNU54RHT 43

YNU56R 15, 30

YNU56RHT 43

YNU58R 15

YNU58RHT 43

YNU594R 30

YNU595R 30

YNU59R 15, 30

YNU59RHT 43

YTS301A 20

YTS301AT 21

YTS311A 20

YTS311AT 21

YTS312E 46

YTS32AR 22

YTS32ART 23

YTS32R33RS 7

YTS32R34RS 7

YTS32R34RSHT 35

YTS32RT33RS 8

YTS32RT33RSHT 36

YTS32RT34RS 8

YTS32RT34RSHT 36

YTS331A 20

YTS331AT 21

YTS34R34RS 7

YTS34R34RSHT 35

YTS34RT34RS 8

YTS34RT34RSHT 36

YTS351A 20

YTS351AT 21

YTS361A 20

YTS361AT 21

YTS36R362RS 7

YTS36R362RSHT 35

YTS36R36RS 7

YTS36R36RSHT 35

YTS36RT362RS 8

YTS36RT362RSHT 36

YTS36RT36RS 8

YTS36RT36RSHT 36

YTS375E 46

YTS391A 20

YTS391AT 21

YTS39A 20

YTS39AR 22

YTS39ART 23

YTS39AT 21

YTS39R43RS 7

YTS39R43RSHT 35

YTS39RT43RS 8

YTS39RT43RSHT 36

YTS431A 20

YTS431AT 21

YTS438E 46

YTS43R43RS 7

YTS43R43RSHT 35

YTS43RT43RS 8

YTS43RT43RSHT 36

YTS445A 20

YTS445AT 21

YTS451A 20

YTS451AR 22

YTS451ART 23

YTS451AT 21

YTS451R449RS 7

YTS451R449RSHT 35

YTS451R48RS 7

YTS451R48RSHT 35

YTS451RT449RS 8

YTS451RT449RSH 36

YTS451RT449RSHT 36

YTS451RT48RS 8

YTS451RT48RSHT 36

YTS457A 20

YTS457AT 21

YTS463A 20

YTS463AT 21

YTS47A 20

YTS47AT 21

YTS484A 20

YTS484AT 21

YTS486A 20

YTS486AT 21

YTS48A 20

YTS48AR 22

YTS48ART 23

YTS48AT 21

YTS48R481RS 7

YTS48R481RSHT 35

YTS48R48RS 7

YTS48R48RSHT 35

YTS48RT481RS 8

YTS48RT481RSHT 36

YTS48RT48RS 8

YTS48RT48RSHT 36

YTS49AR 22

YTS49ART 23

YTS49R483RS 7

YTS49R483RSHT 35

YTS49R48RS 7

YTS49R48RSHT 35

YTS49RT483RS 8

YTS49RT483RSHT 36

YTS49RT48RS 8

YTS49RT48RSHT 36

YTS500E 46

YTS51AR 22

YTS51ART 23

YTS52R48RS 7

YTS52R48RSHT 35

YTS52R521RS 7

YTS52R521RSHT 35

YTS52R59RS 7

YTS52R59RSHT 35

YTS52RT48RS 8

YTS52RT48RSHT 36

YTS52RT521RS 8

YTS52RT521RSHT 36

YTS52RT59RS 8

YTS52RT59RSHT 36

YTS54959RSHT 35

YTS549R521RS 7

YTS549R521RSHT 35

YTS549R549RS 7

YTS549R549RSHT 35

YTS549R59RS 7

YTS549RT521RS 8

YTS549RT521RSHT 36

YTS549RT549RS 8

YTS549RT549RSHT 36

YTS549RT59RS 8

YTS549RT59RSHT 36

YTS55AR 22

YTS55ART 23

YTS56R59RS 7

YTS56R59RSHT 35

YTS56RT59RS 8

YTS56RT59RSHT 36

YTS58R48RS 7

YTS58R48RSHT 35

YTS58RT48RS 8

YTS58RT48RSHT 36

YTS592AR 22

YTS592ART 23

YTS59AR 22

YTS59ART 23

YTS59R521RS 7

YTS59R521RSHT 35

YTS59R59RS 7

YTS59R59RSHT 35

YTS59RT521RS 8

YTS59RT521RSHT 36

YTS59RT59RS 8

YTS59RT59RSHT 36

YTW301A 16

YTW301A331AEK 16

YTW301AD 18

YTW301AD331AEK 18

YTW301ADT 19

YTW301ADT331AEK 19

YTW301AT 17

YTW301AT331AEK 17

YTW311A 16

YTW311A331AEK 16

YTW311AD 18

YTW311AD331AEK 18

YTW311ADT 19

YTW311ADT331AEK 19

YTW311AT 17

YTW311AT331AEK 17

YTW32R 3

YTW32R33REK 3

YTW32R33REKHT 31

YTW32R34REK 3

YTW32R34REKHT 31

YTW32RD 4

YTW32RD33REK 4

YTW32RD33REKHT 32

YTW32RD34REK 4

YTW32RD34REKHT 32

YTW32RDHT 32

YTW32RDT 6

YTW32RDT33REK 6

YTW32RDT33REKHT 34

YTW32RDT34REK 6

YTW32RDT34REKHT 34

YTW32RDTHT 34

YTW32RHT 31

YTW32RT 5

YTW32RT33REK 5

YTW32RT33REKHT 33

YTW32RT34REK 5

YTW32RT34REKHT 33

YTW32RTHT 33

YTW331A 16

YTW331A331AE 16

YTW331AD 18

YTW331AD331AE 18

YTW331ADT 19

YTW331ADT331AE 19

YTW331AE 16-19

YTW331AT 17

YTW331AT331AE 17

YTW33RE 3-6

YTW33REHT 31-34

YTW34R 3

YTW34R34REK 3

YTW34R34REKHT 31

YTW34RD 4

YTW34RD34REK 4

YTW34RD34REKHT 32

YTW34RDHT 32

YTW34RDT 6

YTW34RDT34REK 6

YTW34RDT34REKHT 34

YTW34RDTHT 34

YTW34RE 3-6

YTW34REHT 31-34

YTW34RHT 31

YTW34RT 5

YTW34RT34REK 5

YTW34RT34REKHT 33

YTW34RTHT 33

YTW351A 16

YTW351A351AEK 16

YTW351AD 18

YTW351AD351AEK 18

YTW351ADT 19

YTW351ADT351AEK 19

YTW351AE 16-19

YTW351AT 17

YTW351T351AEK 17

YTW361A 16

YTW361A39AEK 16

YTW361AD 18

YTW361AD39AEK 18

YTW361ADT 19

YTW361ADT39AEK 19

YTW361AT 17

YTW361AT39AEK 17

YTW362RE 3-6

YTW362REHT 31-34

YTW36R 3

YTW36R362REK 3

YTW36R362REKHT 31

YTW36R36REK 3

YTW36R36REKHT 31

YTW36RD 4

YTW36RD362REK 4

YTW36RD362REKHT 32

YTW36RD36REK 4

YTW36RD36REKHT 32

YTW36RDHT 32

YTW36RDT 6

YTW36RDT362REK 6

YTW36RDT362REKHT 34

YTW36RDT36REK 6

YTW36RDT36REKHT 34

YTW36RDTHT 34

YTW36RE 3-6

YTW36REHT 31-34

YTW36RHT 31

YTW36RT 5

YTW36RT362REK 5

YTW36RT362REKHT 33

YTW36RT36REK 5

YTW36RT36REKHT 33

YTW36RTHT 33

YTW391A 16

YTW391A431AEK 16

YTW391AD 18

YTW391AD431AEK 18

YTW391ADT 19

YTW391ADT431AEK 19

YTW391AT 17

YTW391AT431AEK 17

YTW39A 16

YTW39A39AEK 16

YTW39AD 18

YTW39AD39AEK 18

YTW39ADT 19

YTW39ADT39AEK 19

YTW39AE 16-19

YTW39AT 17

YTW39AT39AEK 17

YTW39R 3

YTW39R43REK 3

YTW39R43REKHT 31

YTW39RD 4

YTW39RD43REK 4

YTW39RD43REKHT 32

YTW39RDHT 32

YTW39RDT 6

YTW39RDT43REK 6

YTW39RDT43REKHT 34

YTW39RDTHT 34

YTW39RHT 31

YTW39RT 5

YTW39RT43REK 5

YTW39RT43REKHT 33

YTW39RTHT 33

YTW431A 16

YTW431A431AEK 16

YTW431AD 18

YTW431AD431AEK 18

YTW431ADT 19

YTW431ADT431AEK 19

YTW431AE 16-19

YTW431AT 17

YTW431AT431AEK 17

YTW43R 3

YTW43R43REK 3

YTW43R43REKHT 31

YTW43RD 4

YTW43RD43REK 4

YTW43RD43REKHT 32

YTW43RDHT 32

YTW43RDT 6

YTW43RDT43REK 6

YTW43RDT43REKHT 34

YTW43RDTHT 34

YTW43RE 3-6

YTW43REHT 31-34

YTW43RHT 31

YTW43RT 5

YTW43RT43REK 5

YTW43RT43REKHT 33

YTW43RTHT 33

YTW445A 16

YTW445A463AEK 16

YTW445AD 18

YTW445AD463AEK 18

YTW445ADT 19

YTW445ADT463AEK 19

YTW445AT 17

YTW445AT463AEK 17

YTW451 17

YTW451A 16

YTW451A463AEK 16

YTW451AD 18

YTW451AD463AEK 18

YTW451ADT 19

YTW451ADT463AEK 19

YTW451AT463AEK 17

YTW451R 3

YTW451R45REK 3

YTW451R45REKHT 31

YTW451R481REK 3

YTW451R481REKHT 31

YTW451R48REK 3

YTW451R48REKHT 31

YTW451RD 4

YTW451RD45REK 4

Index BURNDY®Transmission Products

Alpha-Numeric

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO. CATALOG NO. PAGE NO.

YTW451RD45REKHT 32

YTW451RD481REK 4

YTW451RD481REKHT 32

YTW451RD48REK 4

YTW451RD48REKHT 32

YTW451RDHT 32

YTW451RDT 6

YTW451RDT45REK 6

YTW451RDT45REKHT 34

YTW451RDT481REK 6

YTW451RDT481REKHT 34

YTW451RDT48REK 6

YTW451RDT48REKHT 34

YTW451RDTHT 34

YTW451RHT 31

YTW451RT 5

YTW451RT45REK 5

YTW451RT45REKHT 33

YTW451RT481REK 5

YTW451RT481REKHT 33

YTW451RT48REK 5

YTW451RT48REKHT 33

YTW451RTHT 33

YTW457A 16

YTW457A463AEK 16

YTW457AD 18

YTW457AD463AEK 18

YTW457ADT 19

YTW457ADT463AEK 19

YTW457AT 17

YTW457AT463AEK 17

YTW45RE 3-6

YTW45REHT 31-34

YTW463A 16

YTW463A463AEK 16

YTW463AD 18

YTW463AD463AEK 18

YTW463ADT 19

YTW463ADT463AEK 19

YTW463AE 16-19

YTW463AT 17

YTW463AT463AEK 17

YTW47A 16

YTW47A47AEK 16

YTW47AD 18

YTW47AD47AEK 18

YTW47ADT 19

YTW47ADT47AEK 19

YTW47AE 16-19

YTW47AT 17

YTW47AT47AEK 17

YTW481RE 3-6

YTW481REHT 31-34

YTW483RE 3-6

YTW483REHT 31-34

YTW484A 16

YTW484A484AEK 16

YTW484AD 18

YTW484AD484AEK 18

YTW484ADT 19

YTW484ADT484AEK 19

YTW484AE 16-19

YTW484AT 17

YTW484AT484AEK 17

YTW486A 16

YTW486A486AE 16

YTW486AD 18

YTW486AD486AE 18

YTW486ADT 19

YTW486ADT486AE 19

YTW486AE 16-19

YTW486AT 17

YTW486AT486AEK 17

YTW48A 16

YTW48A484AEK 16

YTW48AD 18

YTW48AD484AEK 18

YTW48ADT 19

YTW48ADT484AEK 19

YTW48AT 17

YTW48AT484AEK 17

YTW48R 3

YTW48R481REK 3

YTW48R481REKHT 31

YTW48R48REK 3

YTW48R48REKHT 31

YTW48RD 4

YTW48RD481REK 4

YTW48RD481REKHT 32

YTW48RD48REK 4

YTW48RD48REKHT 32

YTW48RDHT 32

YTW48RDT 6

YTW48RDT481RE 6

YTW48RDT481REK 6

YTW48RDT481REKHT 34

YTW48RDT48REK 6

YTW48RDT48REKHT 34

YTW48RDTHT 34

YTW48RE 3-6

YTW48REHT 31-34

YTW48RHT 31

YTW48RT 5

YTW48RT481REK 5

YTW48RT481REKHT 33

YTW48RT48REK 5

YTW48RT48REKHT 33

YTW48RTHT 33

YTW49R 3

YTW49R483REK 3

YTW49R483REKHT 31

YTW49R50REK 3

YTW49R50REKHT 31

YTW49RD 4

YTW49RD483REK 4

YTW49RD483REKHT 32

YTW49RD50REK 4

YTW49RD50REKHT 32

YTW49RDHT 32

YTW49RDT 6

YTW49RDT483REK 6

YTW49RDT483REKHT 34

YTW49RDT50REK 6

YTW49RDT50REKHT 34

YTW49RDTHT 34

YTW49RHT 31

YTW49RT 5

YTW49RT483REK 5

YTW49RT483REKHT 33

YTW49RT50REK 5

YTW49RT50REKHT 33

YTW49RTHT 33

YTW50RE 3-6

YTW50REHT 31-34

YTW521RE 3-6

YTW521REHT 31-34

YTW52R 3

YTW52R50REK 3

YTW52R50REKHT 31

YTW52R521REK 3

YTW52R521REKHT 31

YTW52R56REK 3

YTW52R56REKHT 31

YTW52RD 4

YTW52RD50REK 4

YTW52RD50REKHT 32

YTW52RD521REK 4

YTW52RD521REKHT 32

YTW52RD56REK 4

YTW52RD56REKHT 32

YTW52RDHT 32

YTW52RDT 6

YTW52RDT50REK 6

YTW52RDT50REKHT 34

YTW52RDT521REK 6

YTW52RDT521REKHT 34

YTW52RDT56REK 6

YTW52RDT56REKHT 34

YTW52RDTHT 34

YTW52RHT 31, 33

YTW52RT 5

YTW52RT50REK 5

YTW52RT50REKHT 33

YTW52RT521REK 5

YTW52RT521REKHT 33

YTW52RT56REK 5

YTW52RT56REKHT 33

YTW52RTHT 33

YTW549R 3

YTW549R521REK 3

YTW549R521REKHT 31

YTW549R549REK 3

YTW549R549REKHT 31

YTW549R56REK 3

YTW549R56REKHT 31

YTW549RD 4

YTW549RD521REK 4

YTW549RD521REKHT 32

YTW549RD549REK 4

YTW549RD549REKHT 32

YTW549RD56REK 4

YTW549RD56REKHT 32

YTW549RDHT 32

YTW549RDT 6

YTW549RDT521REK 6

YTW549RDT521REKHT 34

YTW549RDT549REK 6

YTW549RDT549REKHT 34

YTW549RDT56REK 6

YTW549RDT56REKHT 34

YTW549RDTHT 34

YTW549RE 3-6

YTW549REHT 31-34

YTW549RHT 31

YTW549RT 5

YTW549RT521REK 5

YTW549RT521REKHT 33

YTW549RT549REK 5

YTW549RT549REKHT 33

YTW549RT56REK 5

YTW549RT56REKHT 33

YTW549RTHT 33

YTW56R 3

YTW56R590REK 3

YTW56R590REKHT 31

YTW56RD 4

YTW56RD590REK 4

YTW56RD590REKHT 32

YTW56RDHT 32

YTW56RDT 6

YTW56RDT590REK 6

YTW56RDT590REKHT 34

YTW56RDTHT 34

YTW56RE 3-6

YTW56REHT 31-34

YTW56RHT 31

YTW56RT 5

YTW56RT590REK 5

YTW56RT590REKHT 33

YTW56RTHT 33

YTW58R 3

YTW58R58REK 3

YTW58R58REKHT 31

YTW58RD 4

YTW58RD58REK 4

YTW58RD58REKHT 32

YTW58RDHT 32

YTW58RDT 6

YTW58RDT58REK 6

YTW58RDT58REKHT 34

YTW58RDTHT 34

YTW58RE 3-6

YTW58REHT 31-34

YTW58RHT 31

YTW58RT 5

YTW58RT58REK 5

YTW58RT58REKHT 33

YTW58RTHT 33

YTW590RE 3-6

YTW590REHT 32-34

YTW591RE 3-6

YTW591REHT 31-34

YTW59R 3

YTW59R591REK 3

YTW59R591REKHT 31

YTW59R59REK 3

YTW59R59REKHT 31

YTW59RD 4

YTW59RD591REK 4

YTW59RD591REKHT 32

YTW59RD59REK 4

YTW59RD59REKHT 32

YTW59RDHT 32

YTW59RDT 6

YTW59RDT591REK 6

YTW59RDT591REKHT 34

YTW59RDT59REK 6

YTW59RDT59REKHT 34

YTW59RDTHT 34

YTW59RE 3-6

YTW59REHT 31-34

YTW59RHT 31

YTW59RT 5

YTW59RT591REK 5

YTW59RT591REKHT 33

YTW59RT59REK 5

YTW59RT59REKHT 33

YTW59RTHT 33

BURNDY®Transmission Products Index

Alpha-Numeric

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Notes BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

BURNDY®Transmission Products Notes

US: 1-800-346-4175 www.burndy.com Canada: 1-800-387-6487

Notes BURNDY®Transmission Products

Canada: 1-800-387-6487 www.burndy.com US: 1-800-346-4175

Experience.Technology. Answers.

www.burndy.com | 1-800-346-4175

Experience.Technology. Answers.

Customer Service Department

7 Aviation Park Drive

Londonderry, NH 03053

1-800-346-4175

1-603-647-5299 (International)

Canada

1-800-361-6975 (Quebec)

1-800-387-6487 (All other provinces)

Mexico

011-52-722-265-4400

Brazil

011-55-11-5515-7200

Tool Repair Center

Littleton Industrial Park

Littleton, NH 03561

1-800-426-8720

2010 Transmission Catalog 102591

Navigation menu

Versions of this User Manual:

Views

Navigation
